Instruction Manual
ICRRFTSMRN°I
25cc/1.5 cu.in. 2-Cycle
185 MPH/385 CFM
GASOLINE POWERED
BLOWERNAC
Model No.
358.797300
•Safety
•Assembly
•Operation
•Maintenance
•Parts List
•Espa_ol
A
9
WARNING:
Read and follow all Safety Rules and Operating
Instructions before first use of this product.
For answers to your questions about this product:
Call 7 am-7 pm, Mon.-Sat., or 10 am-7 pm, Sun.
1-800-235-5878 (Hours listed are Central Time)
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
530088072 10/1/01

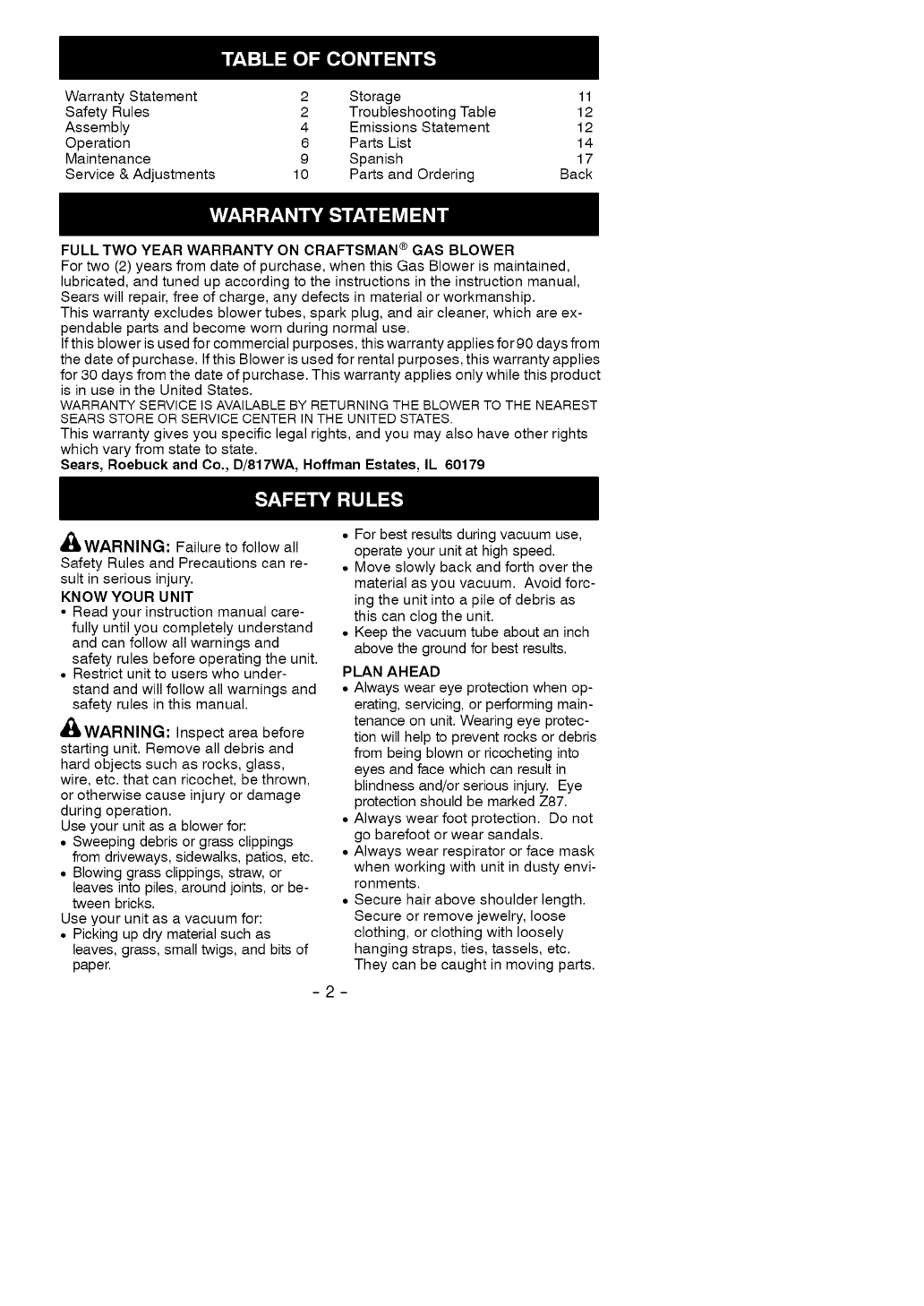

Warranty Statement 2 Storage 11
Safety Rules 2 Troubleshooting Table 12
Assembly 4 Emissions Statement 12
Operation 6 Parts List 14
Maintenance 9 Spanish 17
Service & Adjustments 10 Parts and Ordering Back
FULL TWO YEAR WARRANTY ON CRAFTSMAN ® GAS BLOWER
For two (2) years from date of purchase, when this Gas Blower is maintained,
lubricated, and tuned up according to the instructions in the instruction manual,
Sears will repair, free of charge, any defects in material or workmanship.
This warranty excludes blower tubes, spark plug, and air cleaner, which are ex-
pendable parts and become worn during normal use.
If this blower is used for commercial purposes, this warranty applies for 90 days from
the date of purchase. If this Blower is used for rental purposes, this warranty applies
for 30 days from the date of purchase. This warranty applies only while this product
is in use in the United States.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE BLOWER TO THE NEAREST
SEARS STORE OR SERVICE CENTER IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Sears, Roebuck and Co,, D/817WA, Hoffman Estates, IL 60179
_WARNING: Failure to follow all
Safety Rules and Precautions can re-
sult in serious injury.
KNOW YOUR UNIT
• Read your instruction manual care-
fully until you completely understand
and can follow all warnings and
safety rules before operating the unit.
• Restrict unit to users who under-
stand and will follow all warnings and
safety rules in this manual
_LWARNING: Inspect area before
starting unit. Remove all debris and
hard objects such as rocks, glass,
wire, etc. that can ricochet, be thrown,
or otherwise cause injury or damage
during operation.
Use your unit as a blower for:
• Sweeping debris or grass clippings
from driveways, sidewalks, patios, etc.
• Blowing grass clippings, straw, or
leaves into piles, around joints, or be-
tween bricks.
Use your unit as a vacuum for:
• Picking up dry material such as
leaves, grass, small twigs, and bits of
paper.
•For best results during vacuum use,
operate your unit at high speed.
• Move slowly back and forth over the
material as you vacuum. Avoid forc-
ing the unit into a pile of debris as
this can clog the unit.
• Keep the vacuum tube about an inch
above the ground for best results.
PLAN AHEAD
•Always wear eye protection when op-
erating, servicing, or performing main-
tenance on unit. Wearing eye protec-
tion will help to prevent rocks or debris
from being blown or ricocheting into
eyes and face which can result in
blindness and/or serious injury. Eye
protection should be marked Z87.
•Always wear foot protection. Do not
go barefoot or wear sandals.
•Always wear respirator or face mask
when working with unit in dusty envi-
ronments.
•Secure hair above shoulder length.
Secure or remove jewelry, loose
clothing, or clothing with loosely
hanging straps, ties, tassels, etc.
They can be caught in moving parts.

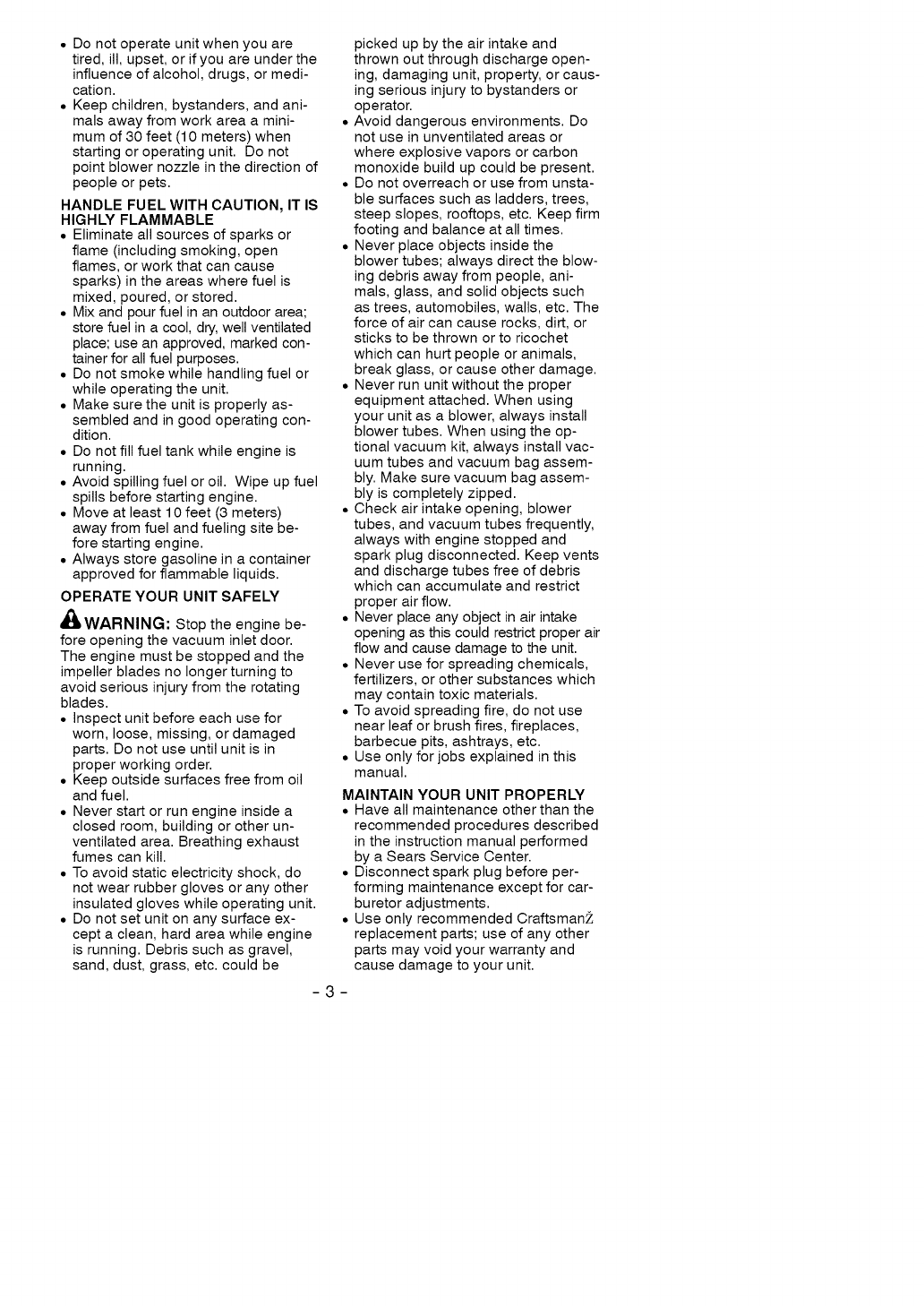

• Donotoperateunitwhenyouare
tired,ill,upset,orifyouareunderthe
influenceofalcohol,drugs,ormedi-
cation.
• Keepchildren,bystanders,andani-
malsawayfromworkareaamini-
mumof30feet(10meters)when
startingoroperatingunit.Donot
pointblowernozzleinthedirectionof
peopleorpets.
HANDLEFUELWITHCAUTION,ITIS
HIGHLYFLAMMABLE
• Eliminateallsourcesofsparksor
flame(includingsmoking,open
flames,orworkthatcancause
sparks)intheareaswherefuelis
mixed,poured,orstored.
• Mixandpourfuelinanoutdoorarea;
storefuelinacool,dry,wellventilated
place;useanapproved,markedcon-
tainerforallfuelpurposes.
• Donotsmokewhilehandlingfuelor
whileoperatingtheunit.
• Makesuretheunitisproperlyas-
sembledandingoodoperatingcon-
dition.
• Donotfillfueltankwhileengineis
running.
• Avoidspillingfueloroil.Wipeupfuel
spillsbeforestartingengine.
• Moveatleast10feet(3meters)
awayfromfuelandfuelingsitebe-
forestartingengine.
• Alwaysstoregasolineinacontainer
approvedforflammableliquids.
OPERATEYOURUNITSAFELY
_kWARNING:Stoptheenginebe-
foreopeningthevacuuminletdoor.
Theenginemustbestoppedandthe
impellerbladesnolongerturningto
avoidseriousinjuryfromtherotating
blades.
• Inspectunitbeforeeachusefor
worn,loose,missing,ordamaged
parts.Donotuseuntilunitisin
properworkingorder.
• Keepoutsidesurfacesfreefromoil
andfuel.
• Neverstartorrunengineinsidea
closedroom,buildingorotherun-
ventilatedarea.Breathingexhaust
fumescankill.
• Toavoidstaticelectricityshock,do
notwearrubberglovesoranyother
insulatedgloveswhileoperatingunit.
• Donotsetunitonanysurfaceex-
ceptaclean,hardareawhileengine
isrunning.Debrissuchasgravel,
sand,dust,grass,etc.couldbe
pickedupbytheairintakeand
thrownoutthroughdischargeopen-
ing,damagingunit,property,orcaus-
ingseriousinjurytobystandersor
operator.
•Avoiddangerousenvironments.Do
notuseinunventilatedareasor
whereexplosivevaporsorcarbon
monoxidebuildupcouldbepresent.
• Donotoverreachorusefromunsta-
blesurfacessuchasladders,trees,
steepslopes,rooftops,etc.Keepfirm
footingandbalanceatalltimes.
• Neverplaceobjectsinsidethe
blowertubes;alwaysdirecttheblow-
ingdebrisawayfrompeople,ani-
mals,glass,andsolidobjectssuch
astrees,automobiles,walls,etc.The
forceofaircancauserocks,dirt,or
stickstobethrownortoricochet
whichcanhurtpeopleoranimals,
breakglass,orcauseotherdamage.
• Neverrununitwithouttheproper
equipmentattached.Whenusing
yourunitasablower,alwaysinstall
blowertubes.Whenusingtheop-
tionalvacuumkit,alwaysinstallvac-
uumtubesandvacuumbagassem-
bly.Makesurevacuumbagassem-
blyiscompletelyzipped.
• Checkairintakeopening,blower
tubes,andvacuumtubesfrequently,
alwayswithenginestoppedand
sparkplugdisconnected.Keepvents
anddischargetubesfreeofdebris
whichcanaccumulateandrestrict
properairflow.
• Neverplaceanyobjectinairintake
openingasthiscouldrestrictproperair
flowandcausedamagetotheunit.
• Neveruseforspreadingchemicals,
fertilizers,orothersubstanceswhich
maycontaintoxicmaterials.
•Toavoidspreadingfire,donotuse
nearleaforbrushfires,fireplaces,
barbecuepits,ashtrays,etc.
• Useonlyforjobsexplainedinthis
manual.
MAINTAINYOURUNITPROPERLY
• Haveallmaintenanceotherthanthe
recommendedproceduresdescribed
intheinstructionmanualperformed
byaSearsServiceCenter.
• Disconnectsparkplugbeforeper-
formingmaintenanceexceptforcar-
buretoradjustments.
• UseonlyrecommendedCraftsmanZ
replacementparts;useofanyother
partsmayvoidyourwarrantyand
causedamagetoyourunit.

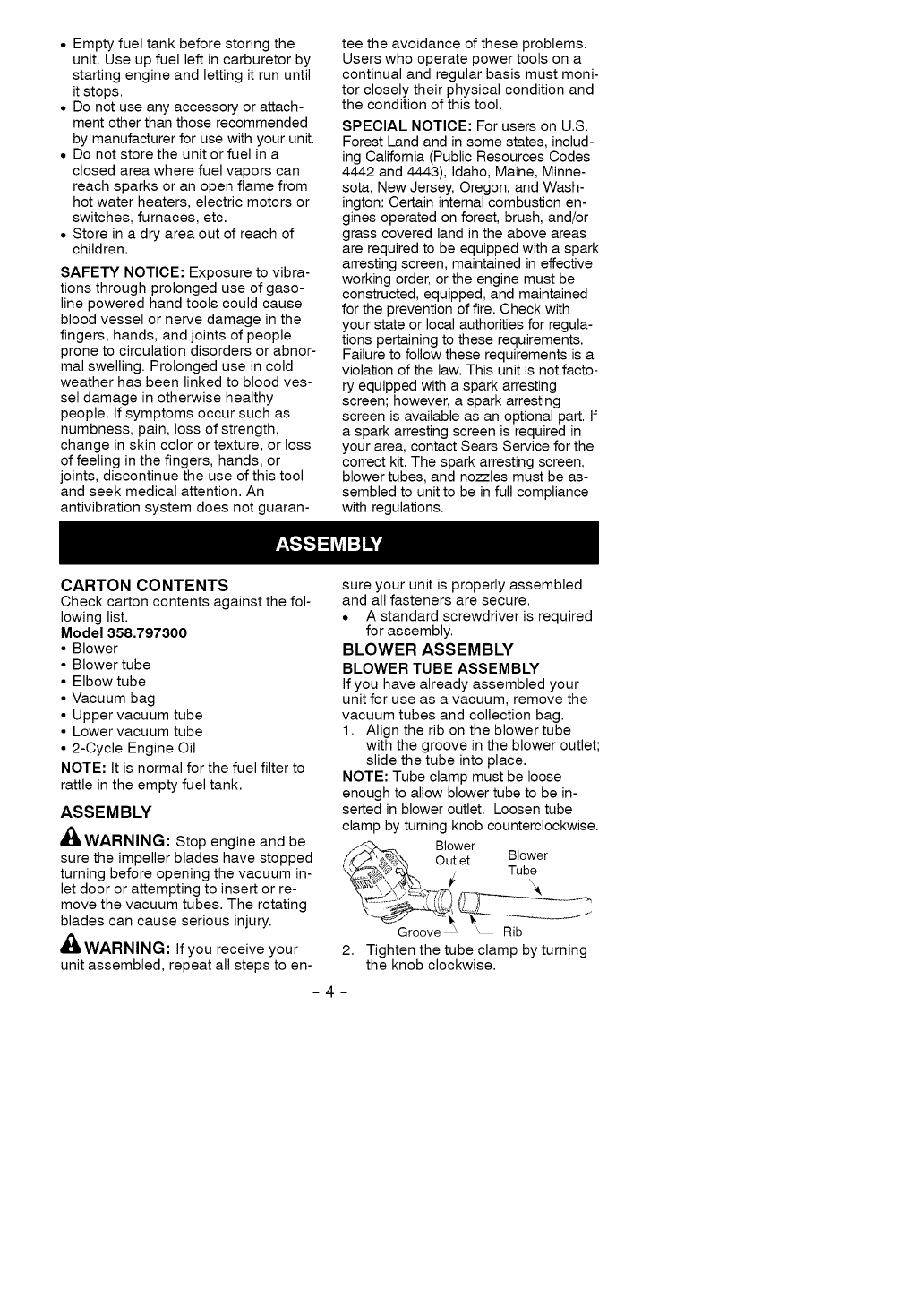

• Emptyfueltankbeforestoringthe
unit.Useupfuelleftincarburetorby
startingengineandlettingitrununtil
itstops.
• Donotuseanyaccessoryorattach-
mentotherthanthoserecommended
bymanufacturerforusewithyourunit.
• Donotstoretheunitorfuelina
closedareawherefuelvaporscan
reachsparksoranopenflamefrom
hotwaterheaters,electricmotorsor
switches,furnaces,etc.
• Storeinadryareaoutofreachof
children.
SAFETYNOTICE:Exposuretovibra-
tionsthroughprolongeduseofgaso-
linepoweredhandtoolscouldcause
bloodvesselornervedamageinthe
fingers,hands,andjointsofpeople
pronetocirculationdisordersorabnor-
malswelling.Prolongeduseincold
weatherhasbeenlinkedtobloodves-
seldamageinotherwisehealthy
people.Ifsymptomsoccursuchas
numbness,pain,lossofstrength,
changeinskincolorortexture,orloss
offeelinginthefingers,hands,or
joints,discontinuetheuseofthistool
andseekmedicalattention.An
antivibrationsystemdoesnotguaran-
teetheavoidanceoftheseproblems.
Userswhooperatepowertoolsona
continualandregularbasismustmoni-
torcloselytheirphysicalconditionand
theconditionofthistool.
SPECIALNOTICE:ForusersonU.S.
ForestLandandinsomestates,includ-
ingCalifornia(PublicResourcesCodes
4442and4443),Idaho,Maine,Minne-
sota,NewJersey,Oregon,andWash-
ington:Certaininternalcombustionen-
ginesoperatedonforest,brush,and/or
grasscoveredlandintheaboveareas
arerequiredtobeequippedwithaspark
arrestingscreen,maintainedineffective
workingorder,ortheenginemustbe
constructed,equipped,andmaintained
forthepreventionoffire.Checkwith
yourstateorlocalauthoritiesforregula-
tionspertainingtotheserequirements.
Failuretofollowtheserequirementsisa
violationofthelaw.Thisunitisnotfacto-
ryequippedwithasparkarresting
screen;however,asparkarresting
screenisavailableasanoptionalpart.If
asparkarrestingscreenisrequiredin
yourarea,contactSearsServiceforthe
correctkit.Thesparkarrestingscreen,
blowertubes,andnozzlesmustbeas-
sembledtounittobeinfullcompliance
withregulations.
CARTONCONTENTS
Checkcartoncontentsagainstthefol-
lowinglist.
Model 358.797300
• Blower
• Blower tube
• Elbow tube
• Vacuum bag
• Upper vacuum tube
• Lower vacuum tube
• 2-Cycle Engine Oil
NOTE: It is normal for the fuel filter to
rattle in the empty fuel tank.
ASSEMBLY
,_WARNING: Stop engine and be
sure the impeller blades have stopped
turning before opening the vacuum in-
let door or attempting to insert or re-
move the vacuum tubes. The rotating
blades can cause serious injury.
,_ WARNING: If you receive your
unit assembled, repeat all steps to en-
sure your unit is properly assembled
and all fasteners are secure.
• A standard screwdriver is required
for assembly.
BLOWER ASSEMBLY
BLOWER TUBE ASSEMBLY
If you have already assembled your
unit for use as a vacuum, remove the
vacuum tubes and collection bag.
1. Align the rib on the blower tube
with the groove in the blower outlet;
slide the tube into place.
NOTE: Tube clamp must be loose
enough to allow blower tube to be in-
serted in blower outlet. Loosen tube
clamp by turning knob counterclockwise.
/'_'_. Blower
_.,.€'_"_ Outlet Blower
_'_. _. Tube
Groove ', Rib
2. Tighten the tube clamp by turning
the knob clockwise.
3. Toremovethetube,turntheknob
toloosenclamp;removetube.
VACUUMASSEMBLY
VACUUMBAGASSEMBLY
1. Openthezipperonthevacuum
bagandinserttheelbowtube.
2. Pushthesmallendoftheelbow
tubethroughthesmallopeningin
thebag.
Elbow
Tube Small
/Opening
Zipper
Opening Rib
NOTE: Make sure edge of the small
opening is flush against the flared area
of the elbow tube, and the rib on the
elbow tube is on the bottom.
3. Close the zipper on the bag. Make
sure the zipper is closed completely.
4. Remove blower tube from engine.
_ Gro ve
5. Insert the elbow tube into the blower
outlet. Make sure elbow tube is
aligned with the blower outlet
groove.
6. Turn clamp knob clockwise to tight-
en.

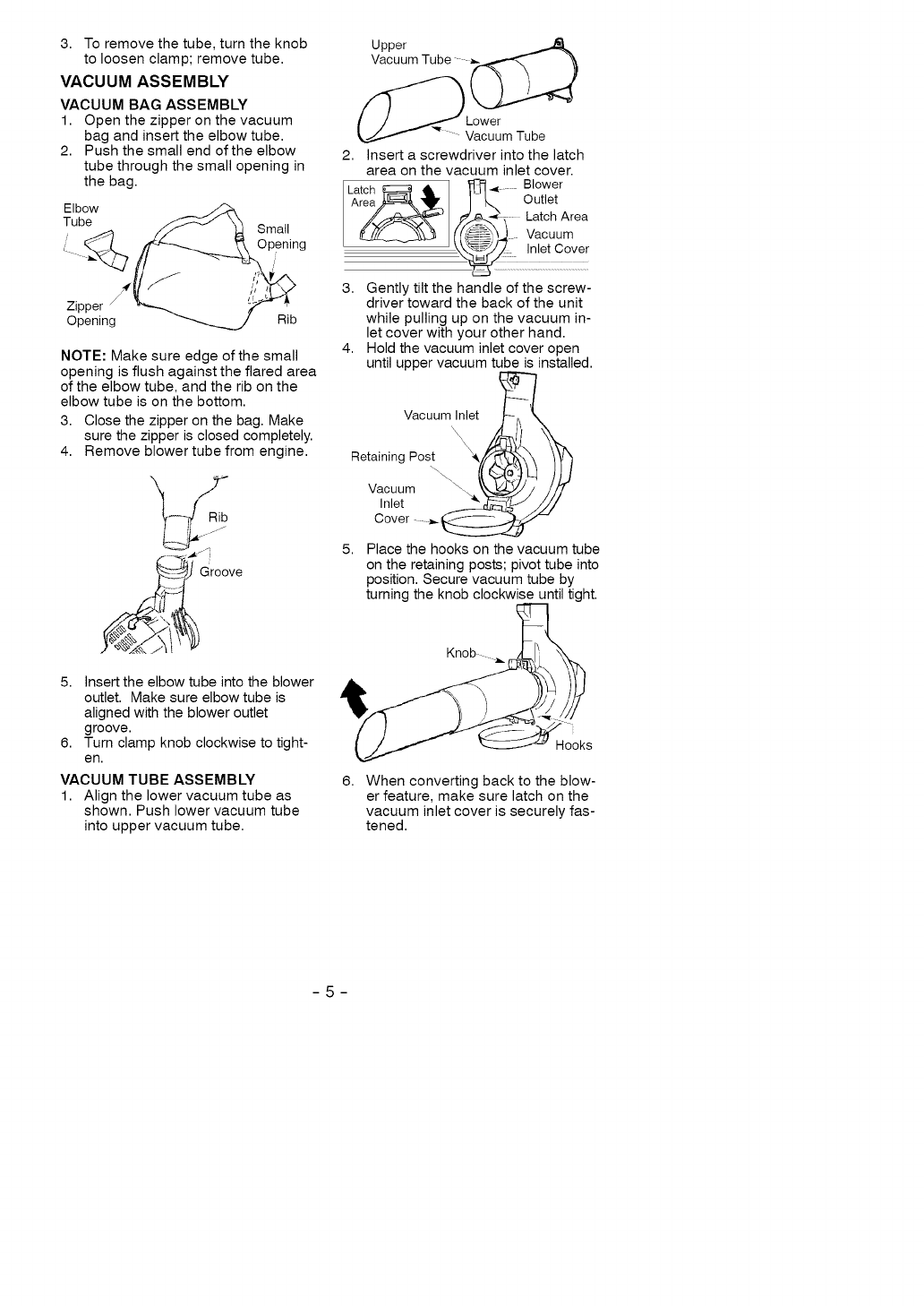

VACUUM TUBE ASSEMBLY
1. Align the lower vacuum tube as
shown. Push lower vacuum tube
into upper vacuum tube.
Upper
Vacuum Tube
Lower
Vacuum Tube
2. Insert a screwdriver into the latch
area on the vacuum inlet cover.
Latch _ _ _!_ ..... Blower
A_ ] _, Outlet
_" Latch Area
Vacuum
_._-_J7 - Inlet Cover
3. Gently tilt the handle of the screw-
driver toward the back of the unit
while pulling up on the vacuum in-
let cover with your other hand.
4. Hold the vacuum inlet cover open
until upper vacuum tube is installed.
Vacuum Inlet
RetainingPest
Vln°, tm
Cover
5. Place the hooks on the vacuum tube
on the retaining posts; pivot tube into
position. Secure vacuum tube by
turning the knob clockwise until tight.
-- _-- _oks
6, When converting back to the blow-
er feature, make sure latch on the
vacuum inlet cover is securely fas-
tened.

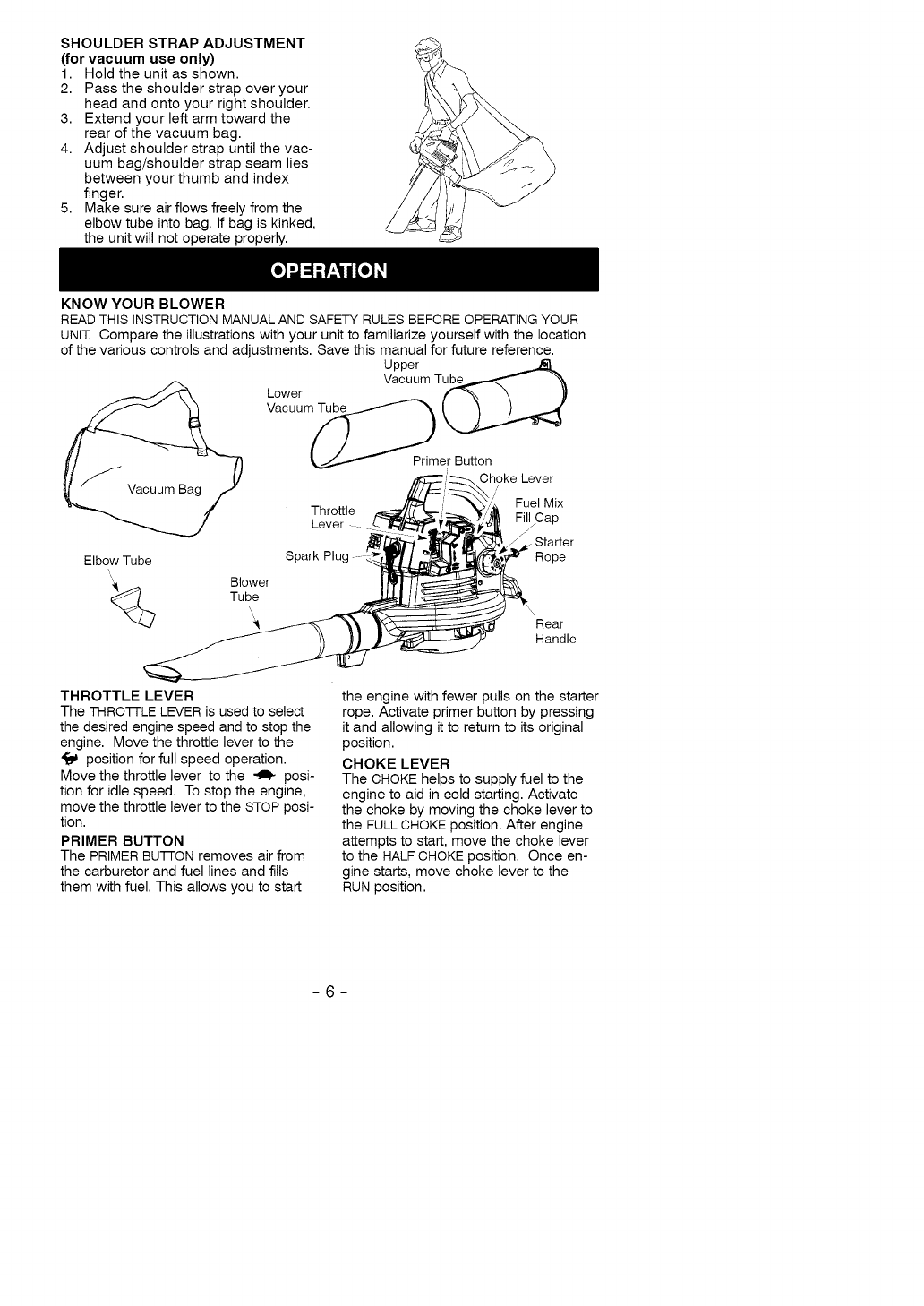

SHOULDERSTRAPADJUSTMENT
(for vacuum use only)
1. Hold the unit as shown.
2. Pass the shoulder strap over your
head and onto your right shoulder.
3. Extend your left arm toward the
rear of the vacuum bag.
4. Adjust shoulder strap until the vac-
uum bag/shoulder strap seam lies
between your thumb and index
finger.
5. Make sure air flows freely from the
elbow tube into bag. If bag is kinked,
the unit will not operate properly.
KNOW YOUR BLOWER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATINGYOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location
of the various controls and adjustments. Save this manual for future reference.
Upper _
Vacuum T
Lower
Vacuum Tube
Primer Button
THROTTLE LEVER
The THRO-i-rLE LEVER is used to select
the desired engine speed and to stop the
engine. Move the throttle lever to the
position for full speed operation.
Move the throttle lever to the _ posi-
tion for idle speed. To stop the engine,
move the throttle lever to the STOP posi-
tion.
PRIMER BUTTON
The PRIMER BU-i-ION removes air _om
the carburetor and fuel lines and fills
them with fuel. This allows you to start
the engine with fewer pulls on the starter
rope. Activate primer button by pressing
it and allowing it to return to its original
position.
CHOKE LEVER
The CHOKE helps to supply fuel to the
engine to aid in cold starting. Activate
the choke by moving the choke lever to
the FULL CHOKE position. After engine
attempts to start, move the choke lever
to the HALF CHOKE position. Once en-
gine starts, move choke lever to the
RUN position.
-6-

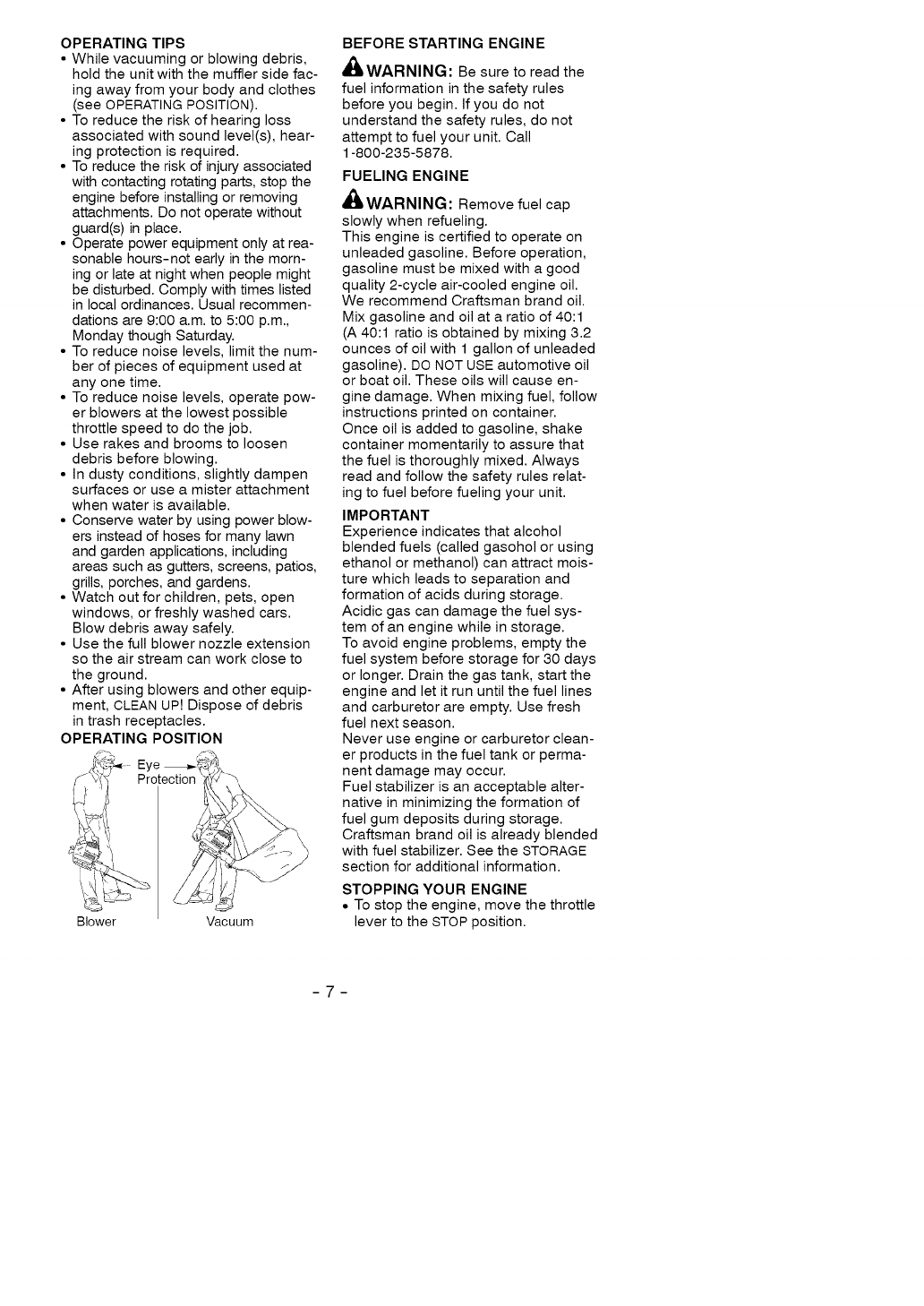

OPERATING TIPS
•While vacuuming or blowing debris,
hold the unit with the muffler side fac-
ing away from your body and clothes
(see OPERATING POSITION).
• To reduce the risk of hearing loss
associated with sound level(s), hear-
ing protection is required.
• To reduce the risk of injury associated
with contacting rotating parts, stop the
engine before installing or removing
attachments. Do not operate without
guard(s) in place.
• Operate power equipment only at rea-
sonable hours-not early in the morn-
ing or late at night when people might
be disturbed. Comply with times listed
in local ordinances. Usual recommen-
dations are 9:00 a.m. to 5:00 p.m.,
Monday though Saturday.
• To reduce noise levels, limit the num-
ber of pieces of equipment used at
any one time.
• To reduce noise levels, operate pow-
er blowers at the lowest possible
throttle speed to do the job.
• Use rakes and brooms to loosen
debris before blowing.
• In dusty conditions, slightly dampen
surfaces or use a mister attachment
when water is available.
• Conserve water by using power blow-
ers instead of hoses for many lawn
and garden applications, including
areas such as gutters, screens, patios,
grills, porches, and gardens.
• Watch out for children, pets, open
windows, or freshly washed cars.
Blow debris away safely.
• Use the full blower nozzle extension
so the air stream can work close to
the ground.
• After using blowers and other equip-
ment, CLEAN UP! Dispose of debris
in trash receptacles.
OPERATING POSITION
Protection
I
Blower Vacuum
BEFORE STARTING ENGINE
'_LWARNING: Be sure to read the
fuel information in the safety rules
before you begin. If you do not
understand the safety rules, do not
attempt to fuel your unit. Call
1-800-235-5878.
FUELING ENGINE
,_LWARNING: Remove fuel cap
slowly when refueling.
This engine is certified to operate on
unleaded gasoline. Before operation,
gasoline must be mixed with a good
quality 2-cycle air-cooled engine oil.
We recommend Craftsman brand oil.
Mix gasoline and oil at a ratio of 40:1
(A 40:1 ratio is obtained by mixing 3.2
ounces of oil with 1 gallon of unleaded
gasoline). DO NOT USE automotive oil
or boat oil. These oils will cause en-
gine damage. When mixing fuel, follow
instructions printed on container.
Once oil is added to gasoline, shake
container momentarily to assure that
the fuel is thoroughly mixed. Always
read and follow the safety rules relat-
ing to fuel before fueling your unit.
IMPORTANT
Experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract mois-
ture which leads to separation and
formation of acids during storage.
Acidic gas can damage the fuel sys-
tem of an engine while in storage.
To avoid engine problems, empty the
fuel system before storage for 30 days
or longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh
fuel next season.
Never use engine or carburetor clean-
er products in the fuel tank or perma-
nent damage may occur.
Fuel stabilizer is an acceptable alter-
native in minimizing the formation of
fuel gum deposits during storage.
Craftsman brand oil is already blended
with fuel stabilizer. See the STORAGE
section for additional information.
STOPPING YOUR ENGINE
• To stop the engine, move the throttle
lever to the STOP position.

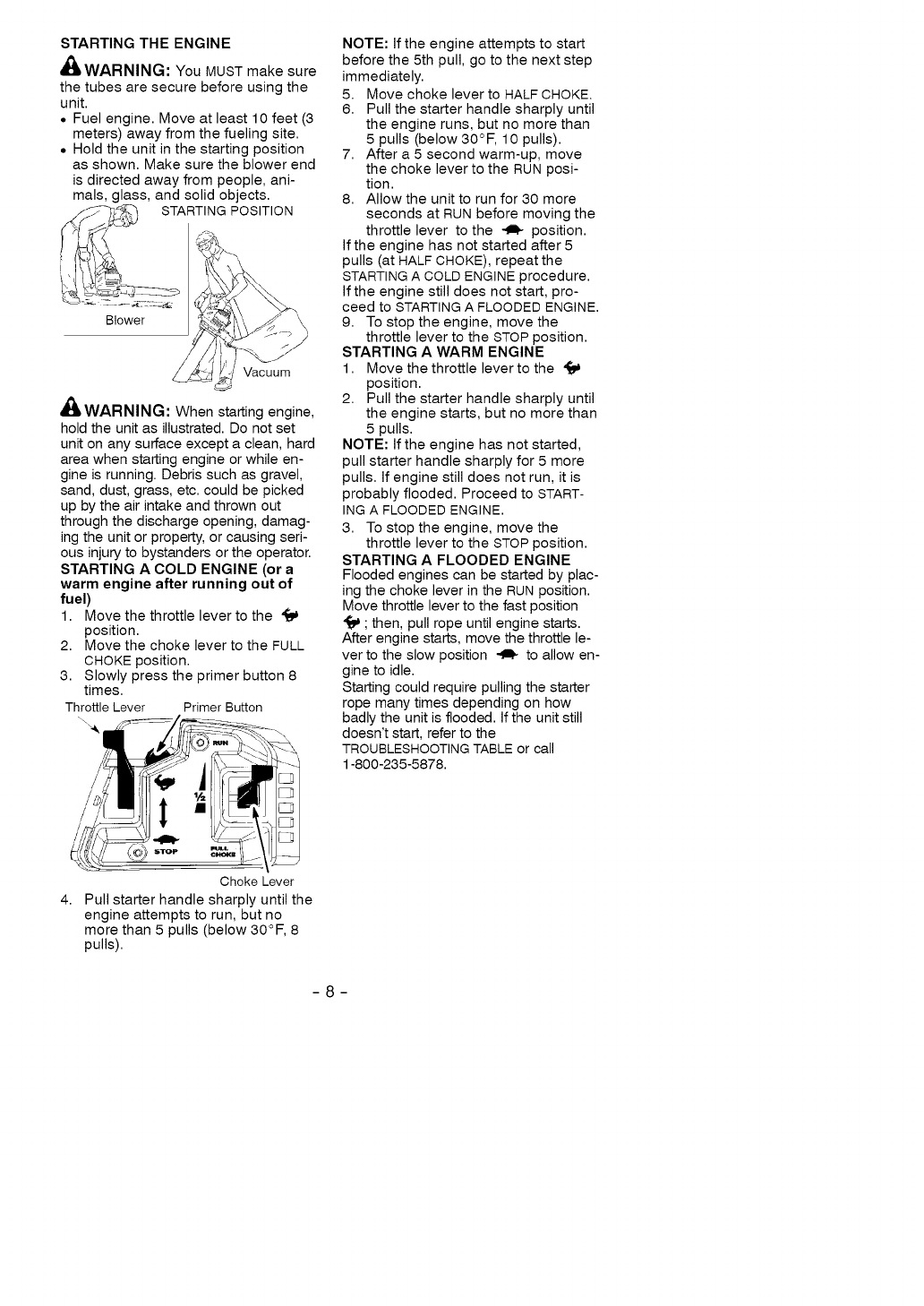

STARTINGTHEENGINE
_LWARNING: You MUST make sure
the tubes are secure before using the
unit.
•Fuel engine. Move at least 10 feet (3
meters) away from the fueling site.
• Hold the unit in the starting position
as shown. Make sure the blower end
is directed away from people, ani-
mals, glass, and solid objects.
.,_i@__p STARTING POSITION
Blower
Vacuum
,_ WARNING: When starting engine,
hold the unit as illustrated. Do not set
unit on any surface except a clean, hard
area when starting engine or while en-
gine is running. Debris such as gravel,
sand, dust, grass, etc. could be picked
up by the air intake and thrown out
through the discharge opening, damag-
ing the unit or property, or causing seri-
ous injury to bystanders or the operator.
STARTING A COLD ENGINE (or a
warm engine after running out of
fuel)
1. Move the throttle lever to the
position.
2. Move the choke lever to the FULL
CHOKE position.
3. Slowly press the primer button 8
times.
Throttle Lever Primer Button
\4
4,
Choke Lever
Pull starter handle sharply until the
engine attempts to run, but no
more than 5 pulls (below 30°F, 8
pulls).
NOTE: If the engine attempts to start
before the 5th pull, go to the next step
immediately.
5. Move choke lever to HALF CHOKE.
6. Pull the starter handle sharply until
the engine runs, but no more than
5 pulls (below 30°F, 10 pulls).
7. After a 5 second warm-up, move
the choke lever to the RUN posi-
tion.
8. Allow the unit to run for 30 more
seconds at RUN before moving the
throttle lever to the _ position.
If the engine has not started after 5
pulls (at HALF CHOKE), repeat the
STARTING A COLD ENGINE procedure.
If the engine still does not start, pro-
ceed to STARTING A FLOODED ENGINE.
9. To stop the engine, move the
throttle lever to the STOP position.
STARTING A WARM ENGINE
1. Move the throttle lever to the 4r_
position.
2. Pull the starter handle sharply until
the engine starts, but no more than
5 pulls.
NOTE: If the engine has not started,
pull starter handle sharply for 5 more
pulls. If engine still does not run, it is
probably flooded. Proceed to START-
ING A FLOODED ENGINE.
3. To stop the engine, move the
throttle lever to the STOP position.
STARTING A FLOODED ENGINE
Flooded engines can be started by plac-
ing the choke lever in the RUN position.
Move throttle lever to the fast position
4r_ ; then, pull rope until engine starts.
After engine starts, move the throttle le-
ver to the slow position -aF to allow en-
gine to idle.
Starting could require pulling the starter
rope many times depending on how
badly the unit is flooded. If the unit still
doesn't start, refer to the
TROUBLESHOOTING TABLE or call
1-800-235-5878.
-8-

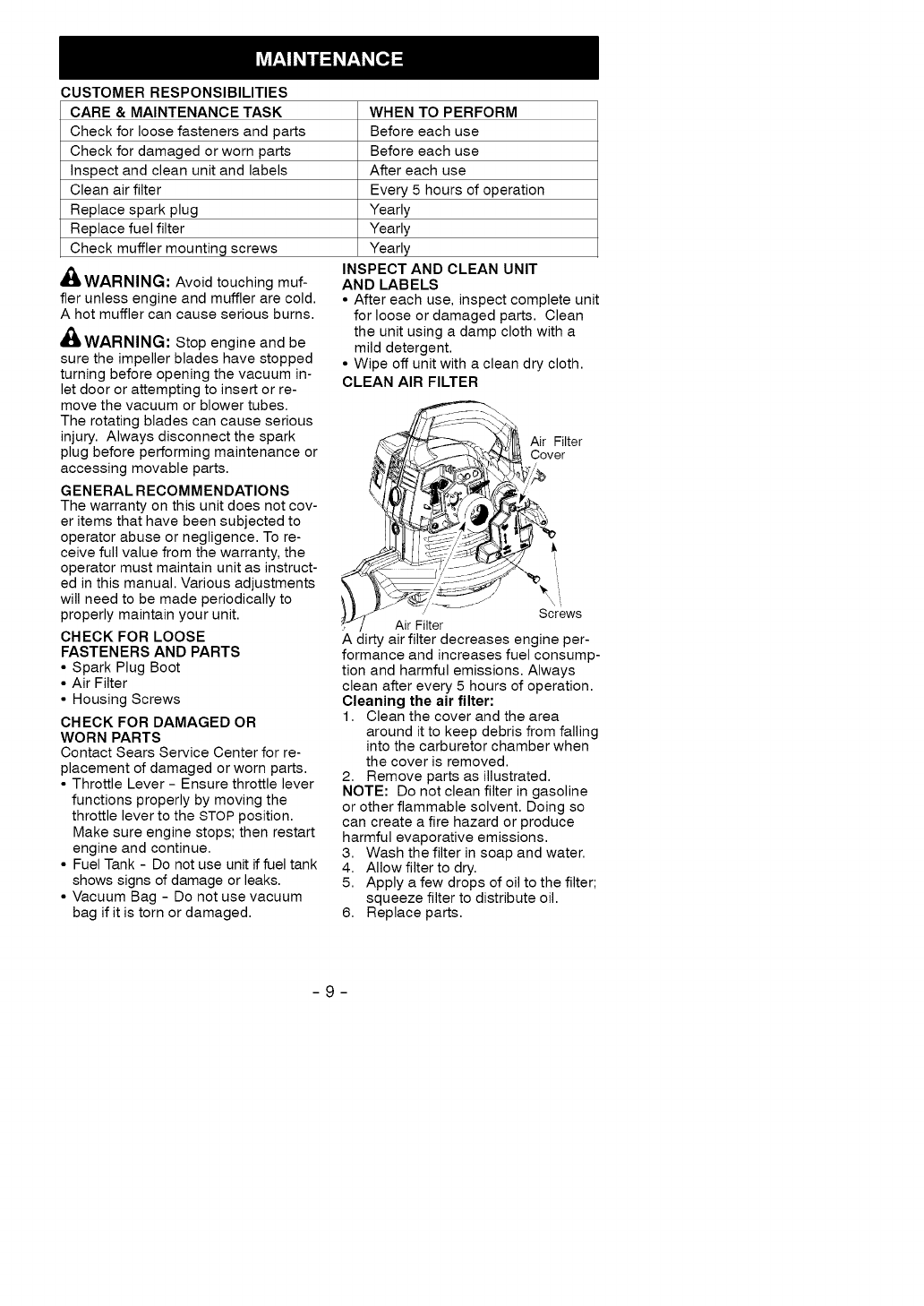

CUSTOMER RESPONSIBILITIES
CARE &MAINTENANCE TASK
Check for loose fasteners and parts
Check for damaged or worn parts
Inspect and clean unit and labels
Clean air filter
Replace spark plug
Replace fuel filter
Check muffler mounting screws
WARNING: Avoid touching muf-
fler unless engine and muffler are cold.
A hot muffler can cause serious burns.
,_,WARNING: Stop engine and be
sure the impeller blades have stopped
turning before opening the vacuum in-
let door or attempting to insert or re-
move the vacuum or blower tubes.
The rotating blades can cause serious
injury. Always disconnect the spark
plug before performing maintenance or
accessing movable parts.
GENERAL RECOMMENDATIONS
The warranty on this unit does not cov-
er items that have been subjected to
operator abuse or negligence. To re-
ceive full value from the warranty, the
operator must maintain unit as instruct-
ed in this manual. Various adjustments
will need to be made periodically to
properly maintain your unit.
CHECK FOR LOOSE
FASTENERS AND PARTS
•Spark Plug Boot
• Air Filter
• Housing Screws
CHECK FOR DAMAGED OR
WORN PARTS
Contact Sears Service Center for re-
placement of damaged or worn parts.
• Throttle Lever - Ensure throttle lever
functions properly by moving the
throttle lever to the STOP position.
Make sure engine stops; then restart
engine and continue.
• Fuel Tank - Do not use unit if fuel tank
shows signs of damage or leaks.
• Vacuum Bag - Do not use vacuum
bag if it is torn or damaged.
WHEN TO PERFORM
Before each use
Before each use
After each use
Every 5 hours of operation
Yearly
Yearly
Yearly
INSPECT AND CLEAN UNIT
AND LABELS
• After each use, inspect complete unit
for loose or damaged parts. Clean
the unit using a damp cloth with a
mild detergent.
• Wipe off unit with a clean dry cloth.
CLEAN AIR FILTER
__ Air Filter
cover
\
.JJ_F "_ J Screws
/Air Filter
A dirty air filter decreases engine per-
formance and increases fuel consump-
tion and harmful emissions. Always
clean after every 5 hours of operation.
Cleaning the air filter:
1. Clean the cover and the area
around it to keep debris from falling
into the carburetor chamber when
the cover is removed.
2. Remove parts as illustrated.
NOTE: Do not clean filter in gasoline
or other flammable solvent. Doing so
can create a fire hazard or produce
harmful evaporative emissions.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Apply a few drops of oil to the filter;
squeeze filter to distribute oil.
6. Replace parts.
-9-

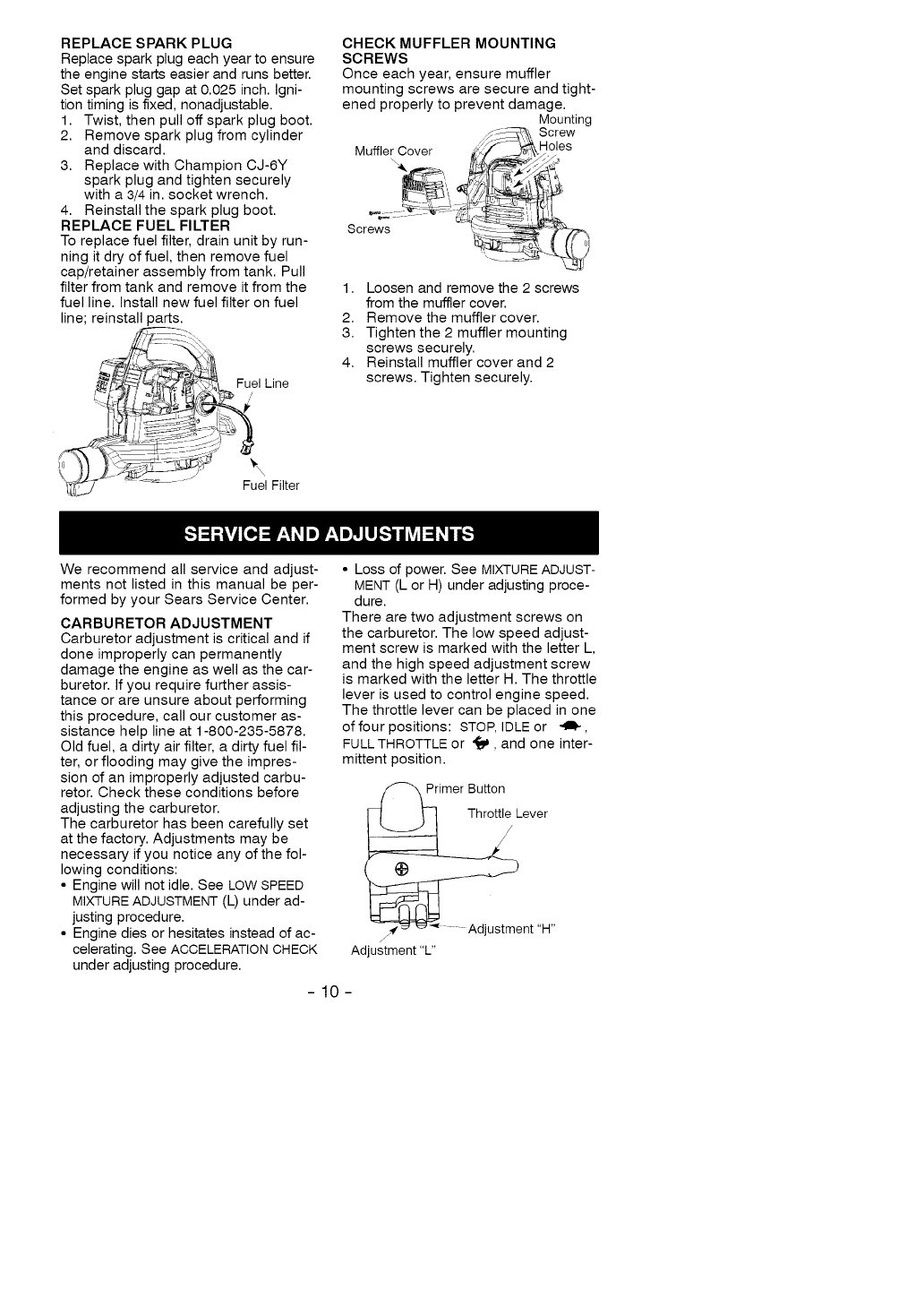

REPLACE SPARK PLUG
Replace spark plug each year to ensure
the engine starts easier and runs better.
Set spark plug gap at 0.025 inch. Igni-
tion timing is fixed, nonadjustable.
1. Twist, then pull off spark plug boot.
2. Remove spark plug from cylinder
and discard.
3. Replace with Champion CJ-6Y
spark plug and tighten securely
with a 3/4 in. socket wrench.
4. Reinstall the spark plug boot.
REPLACE FUEL FILTER
To replace fuel filter, drain unit by run-
ning it dry of fuel, then remove fuel
cap/retainer assembly from tank. Pull
filter from tank and remove it from the
fuel line. Install new fuel filter on fuel
line; reinstall parts.
Line
CHECK MUFFLER MOUNTING
SCREWS
Once each year, ensure muffler
mounting screws are secure and tight-
ened properly to prevent damage.
Mounting
_, Screw
Muffler Cover _'_/_u*_\ H°les
J'_ ' I
Screws ___
1. Loosen and remove the 2 screws
from the muffler cover.
2. Remove the muffler cover.
3. Tighten the 2 muffler mounting
screws securely.
4. Reinstall muffler cover and 2
screws. Tighten securely.
Fuel Filter
We recommend all service and adjust-
ments not listed in this manual be per-
formed by your Sears Service Center.
CARBURETOR ADJUSTMENT
Carburetor adjustment is critical and if
done improperly can permanently
damage the engine as well as the car-
buretor. If you require further assis-
tance or are unsure about performing
this procedure, call our customer as-
sistance help line at 1-800-235-5878.
Old fuel, a dirty air filter, a dirty fuel fil-
ter, or flooding may give the impres-
sion of an improperly adjusted carbu-
retor. Check these conditions before
adjusting the carburetor.
The carburetor has been carefully set
at the factory. Adjustments may be
necessary if you notice any of the fol-
lowing conditions:
• Engine will not idle. See LOW SPEED
MIXTURE ADJUSTMENT (L) under ad-
justing procedure.
• Engine dies or hesitates instead of ac-
celerating. See ACCELERATION CHECK
under adjusting procedure.
• Loss of power. See MIXTURE ADJUST-
MENT (L or H) under adjusting proce-
dure.
There are two adjustment screws on
the carburetor. The low speed adjust-
ment screw is marked with the letter L,
and the high speed adjustment screw
is marked with the letter H. The throttle
lever is used to control engine speed.
The throttle lever can be placed in one
offour positions: STOP, IDLE or -4111_
FULL THROTTLE or _, and one inter-
mittent position.
imer Button ever
nt "H"
Adjustment "L"
-10-

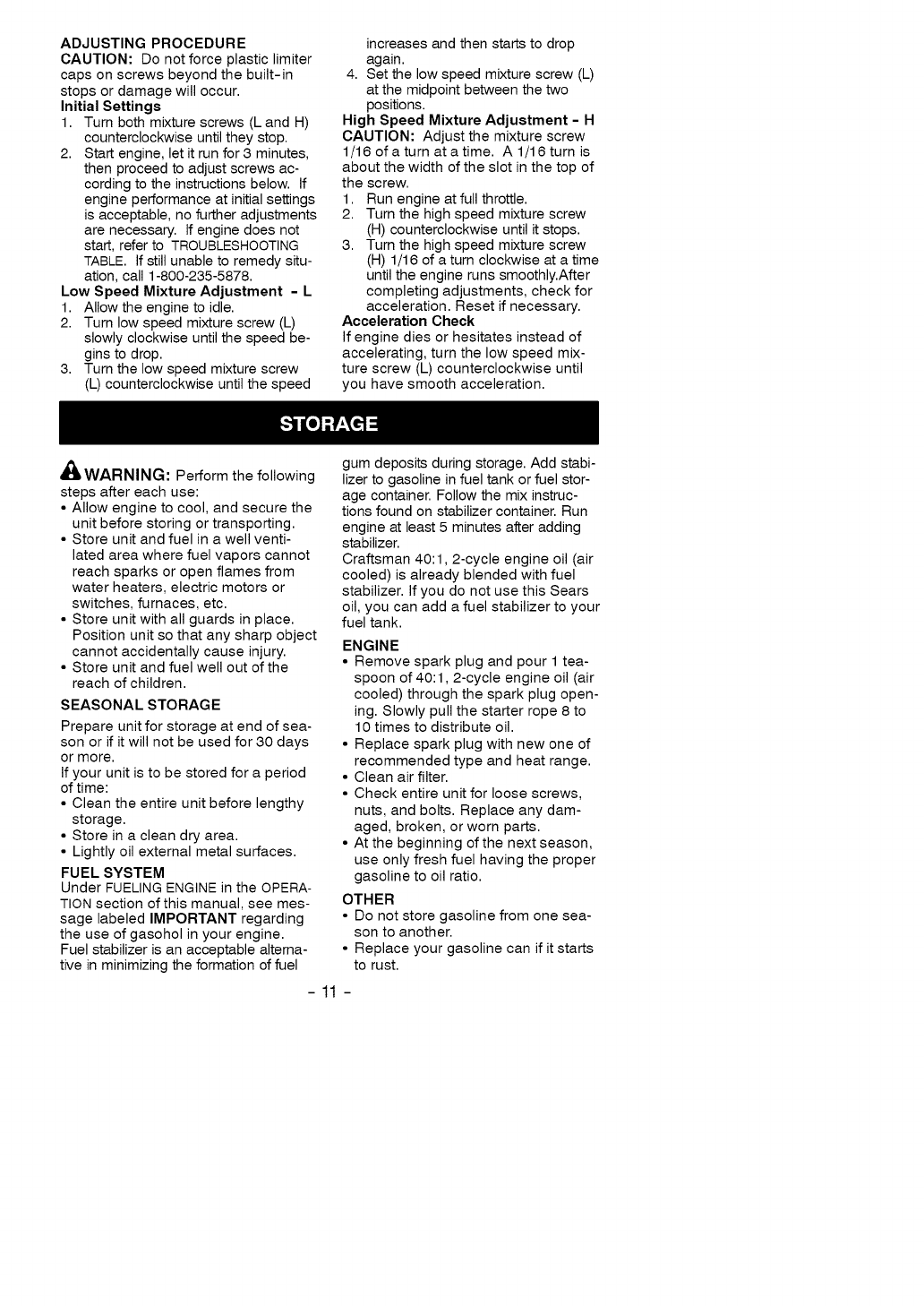

ADJUSTING PROCEDURE
CAUTION: Do not force plastic ]imiter
caps on screws beyond the built-in
stops or damage will occur.
Initial Settings
1. Turn both mixture screws (L and H)
counterclockwise until they stop.
2. Start engine, let it run for 3 minutes,
then proceed to adjust screws ac-
cording to the instructions below. If
engine performance at initial settings
is acceptable, no further adjustments
are necessary. If engine does not
start, refer to TROUBLESHOOTING
TABLE. If still unable to remedy situ-
ation, call 1-800-235-5878.
Low Speed Mixture Adjustment -L
1. Allow the engine to idle.
2. Turn low speed mixture screw (L)
slowly clockwise until the speed be-
gins to drop.
3. Turn the low speed mixture screw
(L) counterclockwise until the speed
increases and then starts to drop
again.
4. Set the low speed mixture screw (L)
at the midpoint between the two
positions.
High Speed Mixture Adjustment - H
CAUTION: Adjust the mixture screw
1/16 of a turn at a time. A 1/16 turn is
about the width of the slot in the top of
the screw.
1. Run engine at full throttle.
2. Turn the high speed mixture screw
(H) counterclockwise until it stops.
3. Turn the high speed mixture screw
(H) 1/16 of a turn clockwise at a time
until the engine runs smoothly.After
completing adjustments, check for
acceleration. Reset if necessary.
Acceleration Check
If engine dies or hesitates instead of
accelerating, turn the low speed mix-
ture screw (L) counterclockwise until
you have smooth acceleration.
,_ WARNING: Perform the following
steps after each use:
• Allow engine to cool, and secure the
unit before storing or transporting.
• Store unit and fuel in a well venti-
lated area where fuel vapors cannot
reach sparks or open flames from
water heaters, electric motors or
switches, furnaces, etc.
• Store unit with all guards in place.
Position unit so that any sharp object
cannot accidentally cause injury.
• Store unit and fuel well out of the
reach of children.
SEASONALSTORAGE
Prepare unit for storage at end of sea-
son or if it will not be used for 30 days
or more.
If your unit is to be stored for a period
of time:
• Clean the entire unit before lengthy
storage.
• Store in a clean dry area.
• Lightly oil external metal surfaces.
FUEL SYSTEM
Under FUELING ENGINE in the OPERA-
TION section of this manual, see mes-
sage labeled IMPORTANT regarding
the use of gasohol in your engine.
Fuel stabilizer is an acceptable alterna-
tive in minimizing the formation of fuel
gum deposits during storage. Add stabi-
lizer to gasoline in fuel tank or fuel stor-
age container. Follow the mix instruc-
tions found on stabilizer container. Run
engine at least 5 minutes after adding
stabilizer.
Craftsman 40:1,2-cycle engine oil (air
cooled) is already blended with fuel
stabilizer. If you do not use this Sears
oil, you can add a fuel stabilizer to your
fuel tank.
ENGINE
• Remove spark plug and pour 1 tea-
spoon of 40:1,2-cycle engine oil (air
cooled) through the spark plug open-
ing. Slowly pull the starter rope 8 to
10 times to distribute oil.
• Replace spark plug with new one of
recommended type and heat range.
• Clean air filter.
• Check entire unit for loose screws,
nuts, and bolts. Replace any dam-
aged, broken, or worn parts.
• At the beginning of the next season,
use only fresh fuel having the proper
gasoline to oil ratio.
OTHER
• Do not store gasoline from one sea-
son to another.
• Replace your gasoline can if it starts
to rust.
-11 -

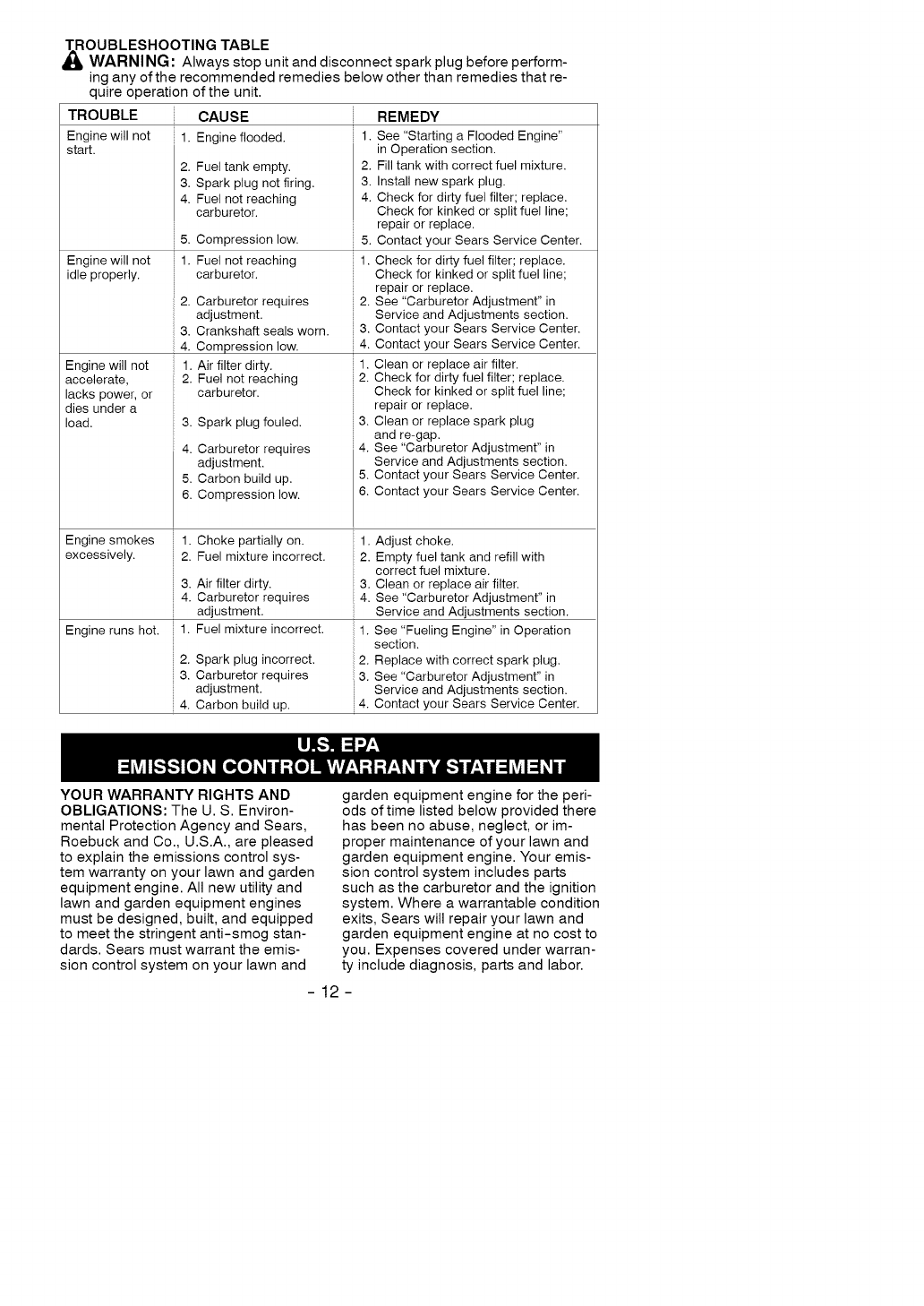

,_OUBLESHOOTING TABLE
WARNING: Always stop unit and disconnect spark plug before perform-
ing any of the recommended remedies below other than remedies that re-
TROUBLE
Engine will not
start.
quire operation of the unit.
CAUSE
1. Engine flooded.
Engine will not
idle properly.
Engine will not
accelerate,
lacks power, or
dies under a
load.
Engine smokes
excessively.
Engine runs hot.
2. Fuel tank empty.
3. Spark plug not firing.
4. Fuel not reaching
carburetor.
5. Compression low.
1. Fuel not reaching
carburetor.
2. Carburetor requires
adjustment.
3. Crankshaft seals worn.
4. Compression low.
1. Air filter dirty.
2. Fuel not reaching
carburetor.
3. Spark plug fouled.
4. Carburetor requires
adjustment.
5. Carbon build up.
6. Compression low.
1. Choke partially on.
2. Fuel mixture incorrect.
3. Air filter dirty.
4. Carburetor requires
adjustment.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build up.
REMEDY
1. See "Starting a Flooded Engine"
in Operation section.
2. Fill tank with correct fuel mixture.
3. Install new spark plug.
4. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
5. Contact your Sears Service Center.
1. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
2. See "Carburetor Adjustment" in
Service and Adjustments section.
3. Contact your Sears Service Center.
4. Contact your Sears Service Center.
1. Clean or replace air filter.
2. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
3. Clean or replace spark plug
and re-gap.
4. See "Carburetor Adjustment" in
Service and Adjustments section.
5. Contact your Sears Service Center.
6. Contact your Sears Service Center.
1. Adjust choke.
2. Empty fuel tank and refill with
correct fuel mixture.
3. Clean or replace air filter.
4. See "Carburetor Adjustment" in
Service and Adjustments section.
1. See "Fueling Engine" in Operation
section.
2. Replace with correct spark plug.
3. See "Carburetor Adjustment" in
Service and Adjustments section.
4. Contact your Sears Service Center.
YOUR WARRANTY RIGHTS AND
OBLIGATIONS: The U. S. Environ-
mental Protection Agency and Sears,
Roebuck and Co., U.S.A., are pleased
to explain the emissions control sys-
tem warranty on your lawn and garden
equipment engine. All new utility and
lawn and garden equipment engines
must be designed, built, and equipped
to meet the stringent anti-smog stan-
dards. Sears must warrant the emis-
sion control system on your lawn and
garden equipment engine for the peri-
ods of time listed below provided there
has been no abuse, neglect, or im-
proper maintenance of your lawn and
garden equipment engine. Your emis-
sion control system includes parts
such as the carburetor and the ignition
system. Where a warrantable condition
exits, Sears will repair your lawn and
garden equipment engine at no cost to
you. Expenses covered under warran-
ty include diagnosis, parts and labor.
-12-
MANUFACTURER'S WARRANTY
COVERAGE: If any emissions related
part on your engine (as listed under
Emissions Control Warranty Parts List)
is defective or a defect in the materials
or workmanship of the engine causes
the failure of such an emission related
part, the part will be repaired or re-
placed by Sears. OWNER'S WAR-
RANTY RESPONSIBILITIES: As the
lawn and garden equipment engine
owner, you are responsible for the per-
formance of the required maintenance
listed in your instruction manual. Sears
recommends that you retain all re-
ceipts covering maintenance on your
lawn and garden equipment engine,
but Sears cannot deny warranty solely
for the lack of receipts or for your fail-
ure to ensure the performance of all
scheduled maintenance. As the lawn
and garden equipment engine owner,
you should be aware that Sears may
deny you warranty coverage if your
lawn and garden equipment engine or
a part of it has failed due to abuse, ne-
glect, improper maintenance, unap-
proved modifications, or the use of
parts not made or approved by the
original equipment manufacturer. You
are responsible for presenting your
lawn and garden equipment engine to
a Sears authorized repair center as
soon as a problem exists. Warranty
repairs should be completed in a rea-

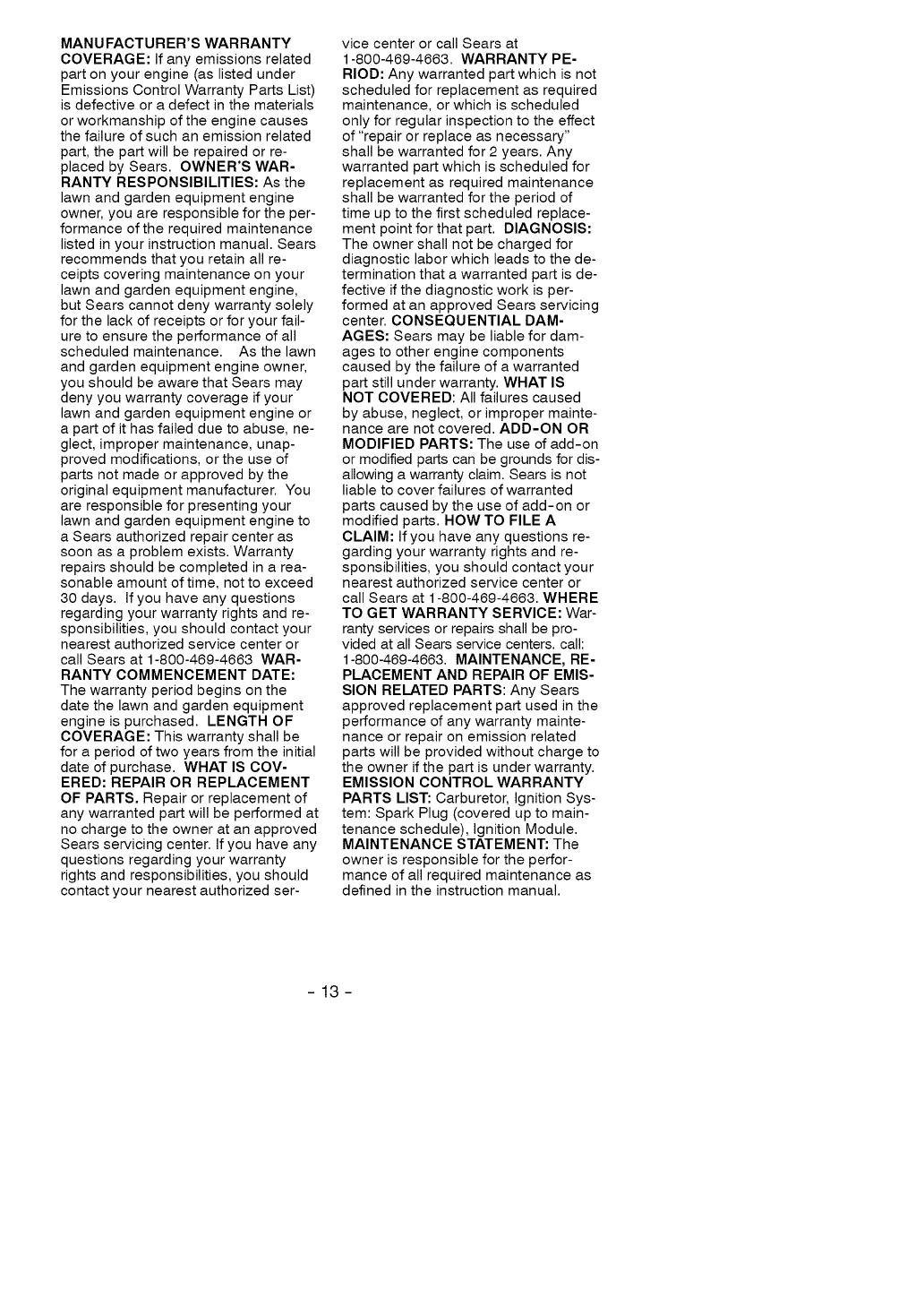

sonable amount of time, not to exceed
30 days. If you have any questions
regarding your warranty rights and re-
sponsibilities, you should contact your
nearest authorized service center or
call Sears at 1-800-469-4663 WAR-
RANTY COMMENCEMENT DATE:
The warranty period begins on the
date the lawn and garden equipment
engine is purchased. LENGTH OF
COVERAGE: This warranty shall be
for a period of two years from the initial
date of purchase. WHAT IS COV-
ERED: REPAIR OR REPLACEMENT
OF PARTS. Repair or replacement of
any warranted part will be performed at
no charge to the owner at an approved
Sears servicing center. If you have any
questions regarding your warranty
rights and responsibilities, you should
contact your nearest authorized ser-
vice center or call Sears at
1-800-469-4663. WARRANTY PE-
RIOD: Any warranted part which is not
scheduled for replacement as required
maintenance, or which is scheduled
only for regular inspection to the effect
of "repair or replace as necessary"
shall be warranted for 2 years. Any
warranted part which is scheduled for
replacement as required maintenance
shall be warranted for the period of
time up to the first scheduled replace-
ment point for that part. DIAGNOSIS:
The owner shall not be charged for
diagnostic labor which leads to the de-
termination that a warranted part is de-
fective if the diagnostic work is per-
formed at an approved Sears servicing
center. CONSEQUENTIAL DAM-
AGES: Sears may be liable for dam-
ages to other engine components
caused by the failure of a warranted
part still under warranty. WHAT IS
NOT COVERED: All failures caused
by abuse, neglect, or improper mainte-
nance are not covered. ADD-ON OR
MODIFIED PARTS: The use of add-on
or modified parts can be grounds for dis-
allowing a warranty claim. Sears is not
liable to cover failures of warranted
parts caused by the use of add-on or
modified parts. HOW TO FILE A
CLAIM: If you have any questions re-
garding your warranty rights and re-
sponsibilities, you should contact your
nearest authorized service center or
call Sears at 1-800-469-4663. WHERE
TO GET WARRANTY SERVICE: War-
ranty services or repairs shall be pro-
vided at all Sears service centers, call:
1-800-469-4663. MAINTENANCE, RE-
PLACEMENT AND REPAIR OF EMIS-
SION RELATED PARTS: Any Sears
approved replacement part used in the
performance of any warranty mainte-
nance or repair on emission related
parts will be provided without charge to
the owner if the part is under warranty.
EMISSION CONTROL WARRANTY
PARTS LIST: Carburetor, Ignition Sys-
tem: Spark Plug (covered up to main-
tenance schedule), Ignition Module.
MAINTENANCE STATEMENT: The
owner is responsible for the perfor-
mance of all required maintenance as
defined in the instruction manual.
-13-

Navigation menu
