IMPORTANT MANUAL Do Not Throw Away
SEA/R8
Operator's
Manual
Model No.
358.798010 (10")
358.798090 (13")
CUSTOMER
ASSISTANCE
1-800-235-5878
HOURS (CST) I
Mon.- Sat. 7 a.m. - 7 p.m.
Sun. 10 a.m. - 7 p.m.
I_ ARNING
READ THE OPERATOR'S
MANUAL AND FOLLOWALL
WARNINGS AND SAFETY
INSTRUCTIONS. FAILURE
TO DO SO CAN RESULT IN
SERIOUS INJURY.
Always Wear Eye Protection
®
RRFTSMRN
4.0 AMP MOTOR
i-Automatic Head
IC WEEDWACKEW
•Assembly
•Operation
•Customer Responsibilities
•Service and Adjustments
Sears_ Roebuck and Co., Hoffman Estates, IL 60179 USA
530-083295 02/06/95

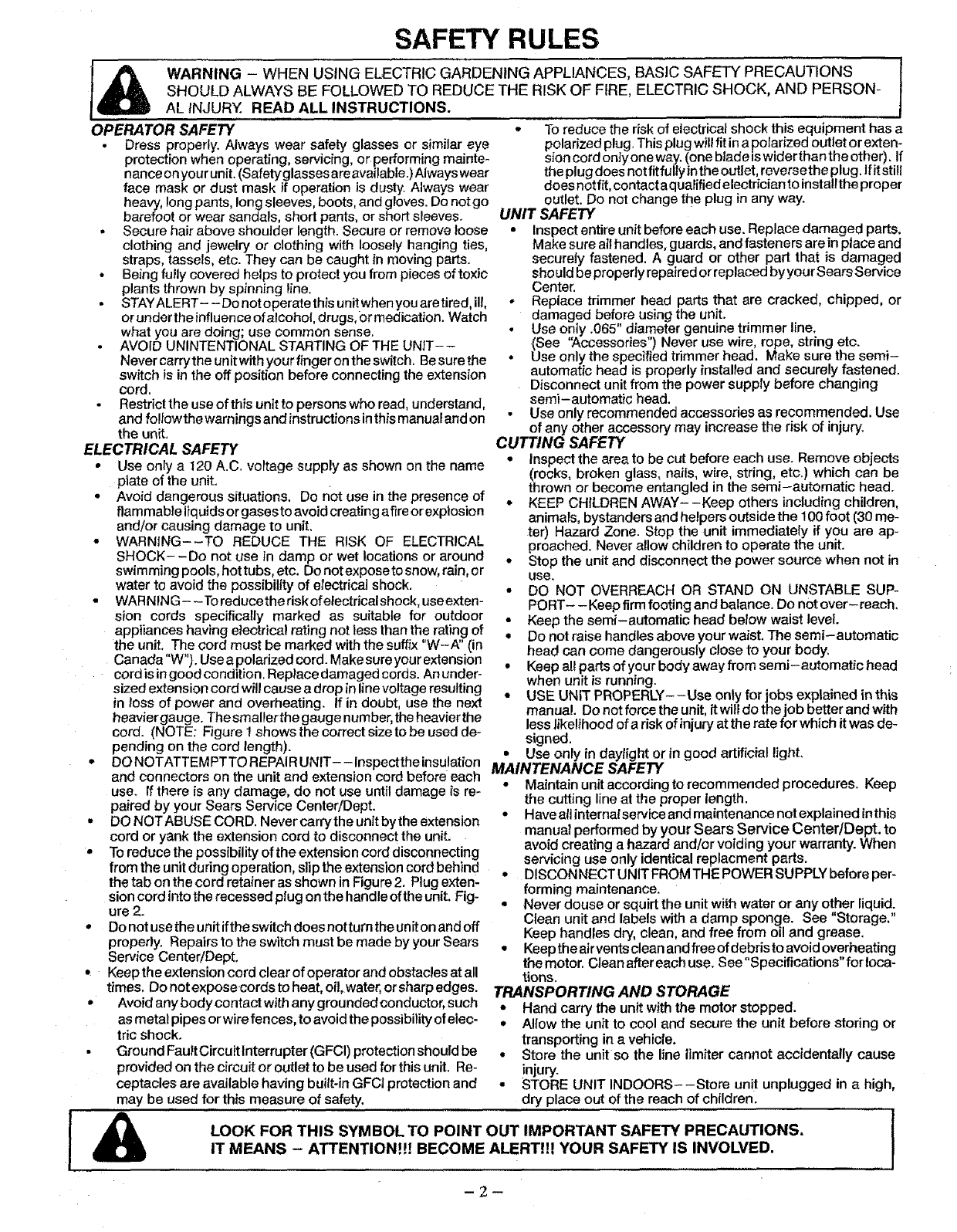

SAFE'rY RULES
I_ AL INJURY. READ ALL INSTRUCTIONS.
OPERATOR SAFETY
•Dress properly. Always wear safety glasses or similar eye
protection when operating, servicing, or performing mainte-
nance onyour unit. (Safetyglasses areavailable.) Always wear
face mask or dust mask if operation is dusty. Always wear
heavy, long pants, long sleeves, boots, and gloves. Do notgo
barefoot or wear sandals, short pants, or short sleeves.
•Secure hair above shoulder length. Secure or remove loose
clothing and jewelry or clothing with loosely hanging ties,
straps, tassels, etc. They can be caught in moving parts.
•Being fully covered helps to protect you from pieces of toxic
plants thrown by spinning line.
• STAYALERT- -Do not operate this unit when you are tired, ill,
or under the influence of alcohol, drugs, 0r medication. Watch
what you are doing; use common sense.
AVOID UNINTENTIONAL STARTING OF THE UNIT--
Never carry the unit with your finger on the switch. Besure the
switch is in the off position before connecting the extension
cord.
Restrict the use of this unit to persons who read, understand,
and fo!lowthe warnings and instructions in this manual and on
the unit.
ELECTRICAL SAFETY
• Use only a 120 A.C. voltage supply as shown on the name
plate of the unit.
• Avoid dangerous situations. Do not use in the presence of
flammable liquids or gasesto avoid creating afire or explosion
and/or causing damage to unit.
• WARNING--TO REDUCE THE RISK OF ELECTRICAL
SHOCK--Do not use in damp or wet locations or around
swimming pools, hottubs, etc. Do notexpose to snow, rain, or
water to avoid the possibility of electrical shock.
•WARNING--Toreducetheriskofelectricalshock, useexten-
sion cords specifically marked as suitable for outdoor
appliances having electrica! rating not less than the rating of
the unit. The cord must be marked with the suffix "W-A" (in
Canada "W"). Use apolarized cord. Make sure your extension
cord is ingood condition. Replace damaged cords. An under-
sized extension cord willcause adrop in line voltage resulting
in toss of power and overheating. If in doubt, use the next
heavier gauge. The smallerthe gauge number, the heavier the
cord. (NOTE: Figure 1 shows the correct size to be used de-
pending on the cord length).
•DO NOTATTEMPTTO REPAIR UNIT--Inspectthe insulation
and connectors on the unit and extension cord before each
use. If there is any damage, do not use until damage is re-
paired by your Sears Service Center/Dept.
• DO NOT ABUSE CORD. Never carry the unit by the extension
cord or yank the extension cord to disconnect the unit.
• To reduce the possibility of the extension cord disconnecting
from the unit dudng operation, slip the extension cord behind o
the tab on the cord retainer as shown in Figure 2. Plug exten-
sion cord into the recessed plug on the handle ofthe unit. Fig- .
ure 2.
• Do not use the unit ifthe switch does nottum the unit on and off
properly. Repairs to the switch must be made by your Sears
Service Center/Dept,
, Keep the extension cord clear of operator and obstacles at all
times, Do not expose .cords to heat, oi! ,.water, or sharp edges.
•Avoid any body contact with any grounded conductor, such
as metal pipes or wire fences, to avoid the possibility of elec-
tric shock.
•Ground Fault Circuit Interrupter (GFCI) protection should be
provided on the circuit or outlet to be used for this unit. Re-
ceptacles are available having built-in GFCI protection and
may be used for this measure of safety.
WARNING - WHEN USING ELECTRIC GARDENING APPLIANCES, BASIC SAFETY PRECAUTIONS 1
SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSON- I
• To reduce the risk of electrical shock this equipment has a
polarized plug. This plug will fit in apolarized outlet or exten-
sion cord only one way. (one blade iswider than the other). If
the plug does not fitfully in the outlet, reverse the p lug. If it sti!l
does not fit, contact aqualified electrician to insta!lthe proper
outlet. Do not change the plug in any way.
UNIT SAFETY
• Inspect entire unit before each use. Replace damaged parts.
Make sure all handles, guards, and fasteners are in place and
securely fastened. A guard or other part that is damaged
should be properly repaired or replaced by your Sears Service
Center.
•Replace trimmer head parts that are cracked, chipped, or
damaged before using the unit.
• Ii •" i '
Use only .065 diameter genuine tr mmer I=ne.
(See "Accessories") Never use wire, rope, string etc.
• Use only the specified trimmer head. Make sure the semi-
automatic head is properly installed and securely fastened.
Disconnect unit from the power supply before changing
semi-automatic head.
•Use only recommended accessories as recommended. Use
of any other accessory may increase the risk of injury.
CUTTING SAFETY
• Inspect the area to be cut before each use. Remove objects
(rooks, broken glass, nails, wire, string, etc.) which can be
thrown or become entangled in the semi-automatic head.
° KEEP CHILDREN AWAY- -Keep others including children,
animals, bystanders and helpers outside the 100 foot (30 me-
ter) Hazard Zone. Stop the unit immediately if you are ap-
proached. Never allow children to operate the unit.
•Stop the unit and disconnect the power source when not in
use.
• DO NOT OVERREACH OR STAND ON UNSTABLE SUP-
PC RT- - Keep firm footing and balance. Do not over- reach,
• Keep the semi-automatic head below waist level.
•Do not raise handles above your waist, The semi-automatic
head can come dangerously close to your body,
•Keep all parts of your body away from semi-automatic head
when unit is running.
• USE UNIT PROPERLY--Use only for jobs explained in this
manual. Do not force the unit, it will do the job better and with
less likelihood of arisk of injury at the rate for which itwas de-
signed.
• Use only in daylight or in good artificial light,
MAINTENANCE SAFETY
• Maintain unit according to recommended procedures. Keep
the cutting line at the proper length.
• Have all internalservice and maintenance not explained inthis
manual performed by your Sears Service CentedDept. to
avoid creating a hazard and/or voiding your warranty. When
servicing use only identical replacment parts.
DISCONNECT UNIT FROM THE POWER SUPPLY before per-
forming maintenance.
Never douse or squirt the unit with water or any other liquid.
Clean unit and labels with a damp sponge. See "Storage."
Keep handles dry, clean, and free from oil and grease.
• Keeptheairventscleanandfreeofdebristoavoidoverheating
the motor. Clean after each use. See "Specifications'' for loca-
tions.
TRANSPORTING AND STORAGE
• Hand carry the unit with the motor stopped,
• Allow the unit to cool and secure the unit before storing or
transporting in a vehicle.
• Store the unit so the line limiter cannot accidentally cause
injury.
• STORE UNIT INDOORS--Store unit unplugged in a high,
dry place out of the reach of children.
|
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. I
IT MEANS - ATTENTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED, I
-2-

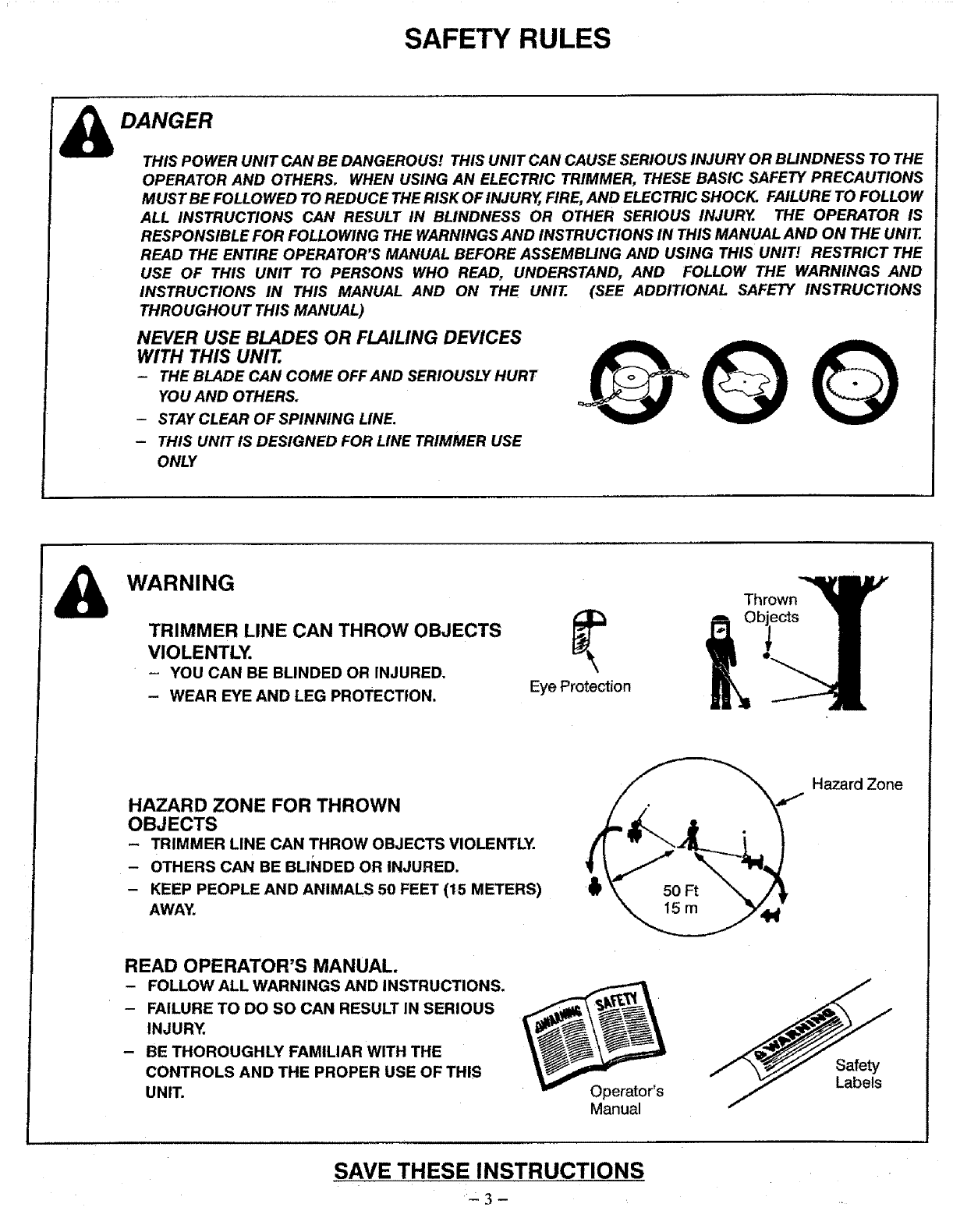

SAFETY RULES
_DANGER
THIS POWER UNIT CAN BE DANGEROUS! THIS UNIT CAN CAUSE SERIOUS INJURY OR BLINDNESS TO THE
OPERATOR AND OTHERS, WHEN USING AN ELECTRIC TRIMMER, THESE BASIC SAFETY PRECAUTIONS
MUST BE FOLLOWED TO REDUCE THE RISK OF INJURY, FIRE, AND ELECTRIC SHOCK. FAILURE TO FOLLOW
ALL INSTRUCTIONS CAN RESULT IN BLINDNESS OR OTHER SERIOUS INJURY. THE OPERATOR IS
RESPONSIBLE FOR FOLLOWING THE WARNINGS AND INSTRUCTIONS IN THIS MANUAL AND ON THE UNIT.
READ THE ENTIRE OPERATOR'S MANUAL BEFORE ASSEMBLING AND USING THIS UNIT! RESTRICT THE
USE OF THIS UNIT TO PERSONS WHO READ, UNDERSTAND, AND FOLLOW THE WARNINGS AND
INSTRUCTIONS IN THIS MANUAL AND ON THE UNIT. (SEE ADDITIONAL SAFETY INSTRUCTIONS
THROUGHOUT THIS MANUAL)
NEVER USE BLADES OR FLAILING DEVICES
WITH THIS UNIT.
-THE BLADE CAN COME OFF AND SERIOUSLY HURT
YOU AND OTHERS.
-STAY CLEAR OF SPINNING LINE.
-THIS UNIT IS DESIGNED FOR LINE TRIMMER USE
ONLY
QQQ
WARNING
TRIMMER LINE CAN THROW OBJECTS
VIOLENTLY.
- YOU CAN BE BLINDED OR INJURED.
- WEAR EYE AND LEG PROTECTION. Eye Protection
Thrown_ !
HAZARD ZONE FOR THROWN
OBJECTS
- TRIMMER LINE CAN THROW OBJECTS VIOLENTLY.
- OTHERS CAN BE BLINDED OR INJURED.
- KEEP PEOPLE AND ANIMALS 50 FEET (15 METERS)
AWAY.
Hazard Zone
READ OPERATOR'S MANUAL.
- FOLLOW ALL WARNINGS AND INSTRUCTIONS.
- FAILURE TO DO SO CAN RESULT IN SERIOUS
INJURY.
-BE THOROUGHLY FAMILIAR WITH THE
CONTROLS AND THE PROPER USE OF THIS
UNIT. Operator's
Manual
Safety
Labels
SAVE THESE INSTRUCTIONS
3
CONGRATULATIONSon your purchaseof a Sears
CraftsmanElectricWeedwacker.It hasbeendesigned,
engineeredand manufacturedto give you the best
possibledependabilityandperformance.
Shouldyouexperienceanyproblemsyoucannoteasily
remedy,pleasecontactyour nearestSearsService
Center/Department.Searshascompetent,welltrained
techniciansandthepropertoolstoserviceorrepairthis
unit.
Pleasereadandretainthismanual.Theinstructionswill
enableyouto assembleandmaintainyourunitproperly.
Alwaysobservethe"SAFETYRULES."
MODELNUMBER;
SERIALNUMBER:
358.798010
358.798090
DATE OF PURCHASE:
THE MODEL NUMBER WILL BE FOUND ON A DECAL
ATTACHED TO THE PRODUCT.
THE SERIAL NUMBER WILL BE FOUND ON THE
UPPER PART OF THE MOTOR HOUSING.
YOU SHOULD RECORD BOTH SERIAL NUMBER AND
DATE OF PURCHASE AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE.

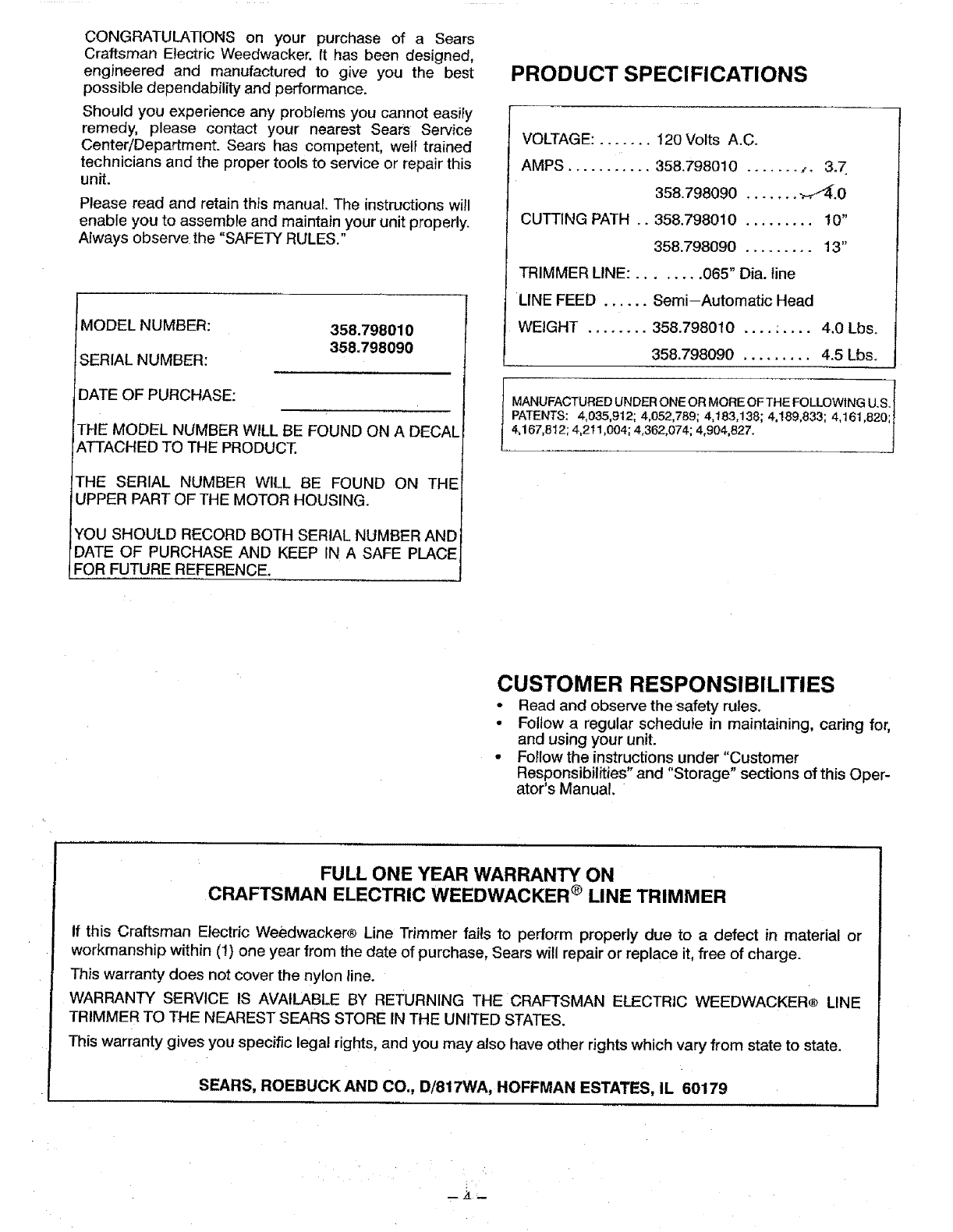

PRODUCT SPECIFICATIONS
VOLTAGE: ....... 120 Volts A.C.
AMPS ........... 358.798010 ....... _ 3.7
358.798090 ....... ",-','J4r.0
CUTTING PATH .. 358.798010 ......... t0"
358.798090 ......... 13"
TRIMMER LINE: ........ 065" Dia. line
LINE FEED ...... Semi-Automatic Head
WEIGHT ........ 358.798010 .... : .... 4,0 Lbs.
358.798090 ......... 4.5 Lbs.
t MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. t
PATENTS: 4,035,912; 4,052,789; 4,183,138; 4,189,833; 4,161,820; I
4,167,812; 4,211,004; 4.362,074; 4,904,827. |
J
i
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for,
and using your unit.
• Follow the instructions under "Customer
Responsibilities" and "Storage" sections of this Oper-
ator's Manual.
FULL ONE YEAR WARRANTY ON
CRAFTSMAN ELECTRIC WEEDWACKER ®LINE TRIMMER
If this Craftsman Electric Weedwacker® Line Trimmer fails to perform properly due to a defect in material or
workmanship within (!) one year from the date of purchase, Sears will repair or replace it, free of charge.
This warranty does not cover the nylon line.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN ELECTRIC WEEDWACKER® LINE
TRIMMER TO THE NEAREST SEARS STORE IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
SEARS, ROEBUCK AND CO., D!817WA, HOFFMAN ESTATES, IL 60179

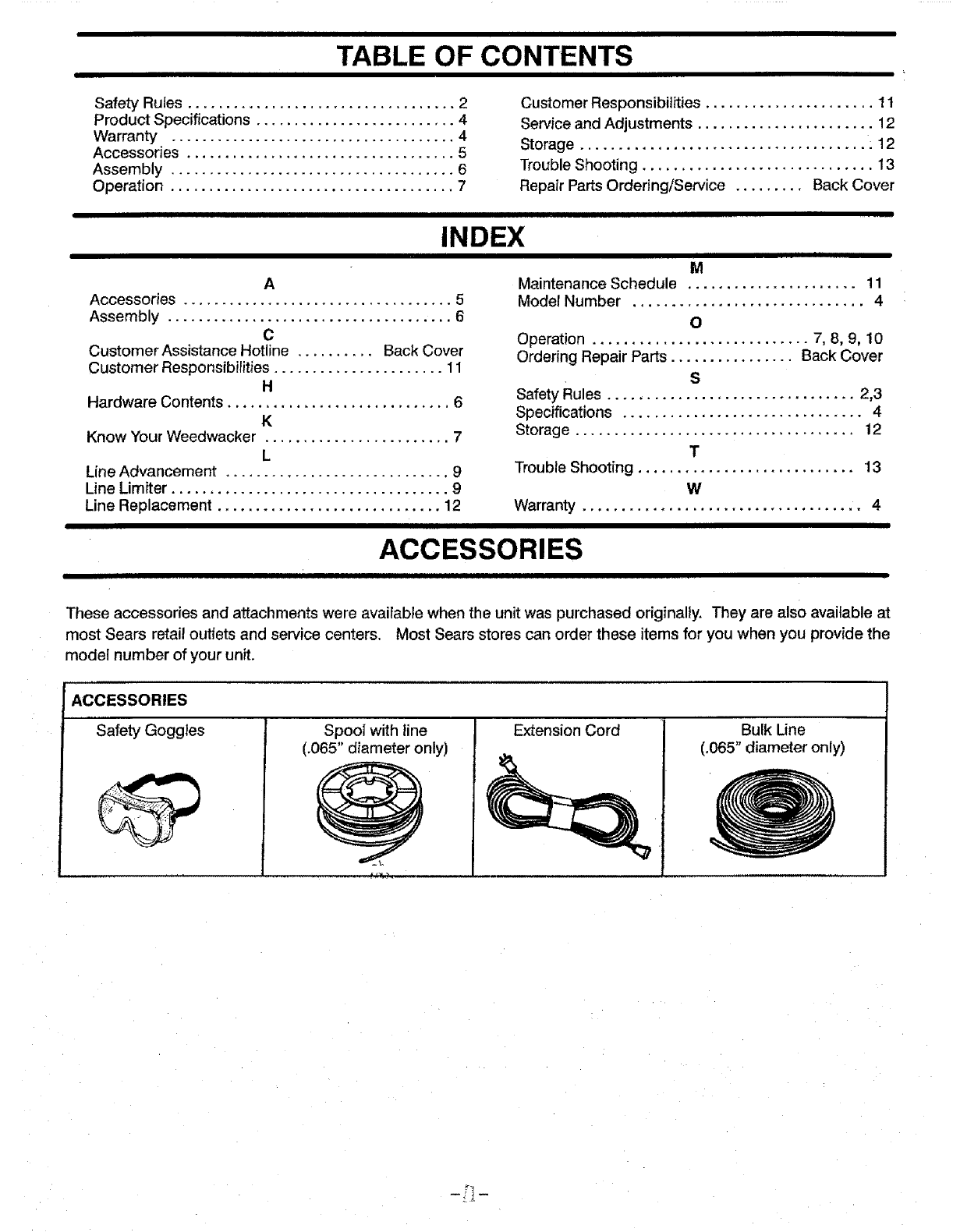

TABLE OF CONTENTS
Safety Rules ................................... 2
Product Specifications .......................... 4
Warranty ..................................... 4
Accessories ................................... 5
Assembly ..................................... 6
Operation ..................................... 7

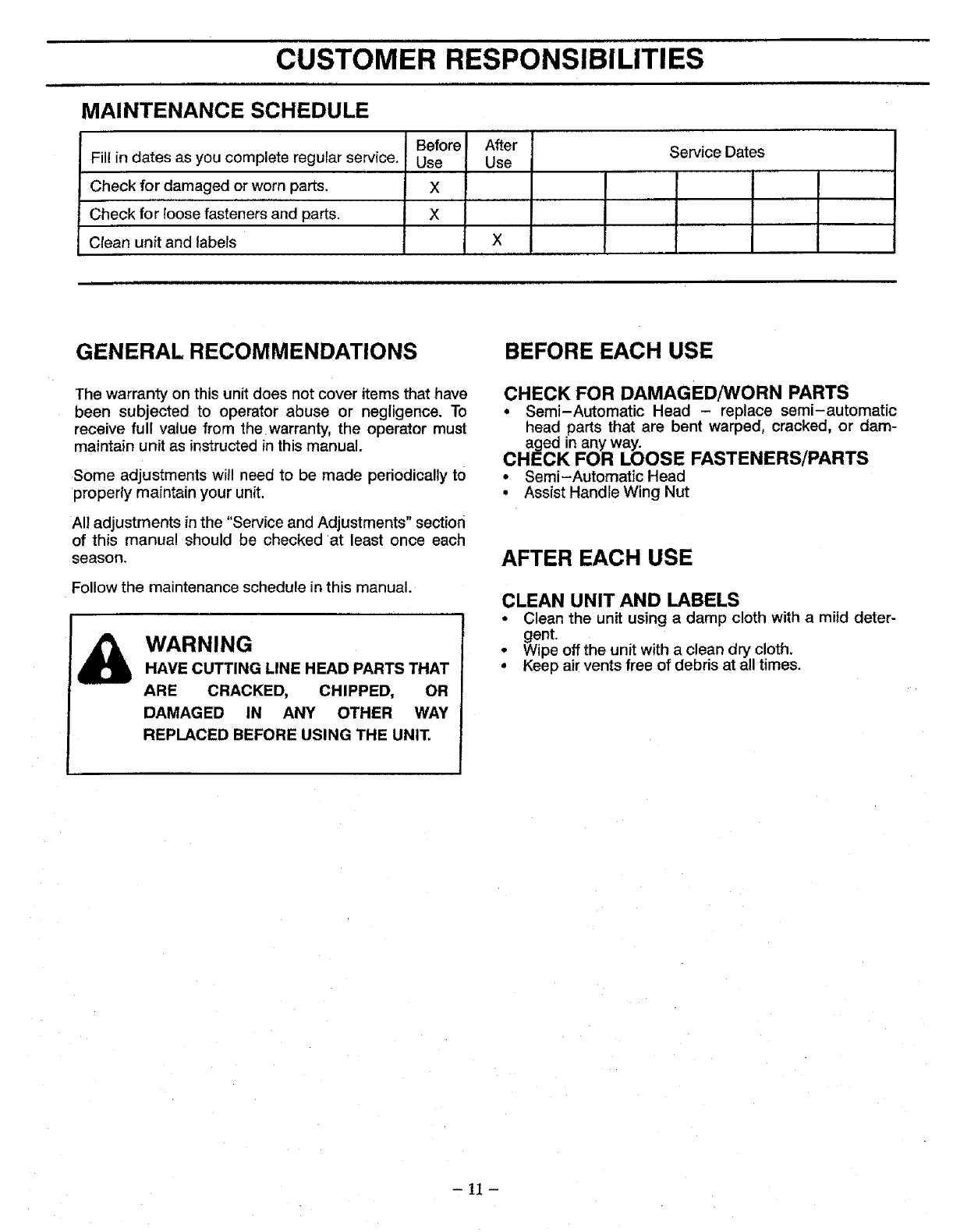

Customer Responsibilities ...................... 11
Service and Adjustments ....................... 12
Storage ..................................... : 12
Trouble Shooting .............................. 13
Repair Parts Ordering/Service ......... Back Cover
II I I
INDEX
A
Accessories ................................... 5
Assembly ..................................... 6
C
Customer Assistance Hotline .......... Back Cover
Customer Responsibirities ...................... 11
H
Hardware Contents ............................. 6
K
Know Your Weedwacker ........................ 7
L
Line Advancement ............................. 9
Line Limiter .................................... 9
Line Replacement ............................. 12
II II III III
M
Maintenance Schedule ...................... 11
Mode! Number .............................. 4
O
Operation ............................ 7, 8, 9, I0
Ordering Repair Parts ................ Back Cover
S
Safety Rules ................................ 2,3
Specifications ............................... 4
Storage .................................... 12
T
Trouble Shooting ............................ 13
W
Warranty .................................... 4
ACCESSORIES
II IIIIIIIIIIIIII I I IIIII I III I I II IIIIII IIIII IIIII
These accessories and attachments were avai!ab!e when the unit was purchased originally. They are als0 available at
most Sears retai! outlets and service centers. Most Sears stores can order these items for you when you provide the
model number of your unit.
ACCESSORIES
Safety Goggles Spool with line
(.065" diameter only)
Bulk Line
(.065" diameter only)
I

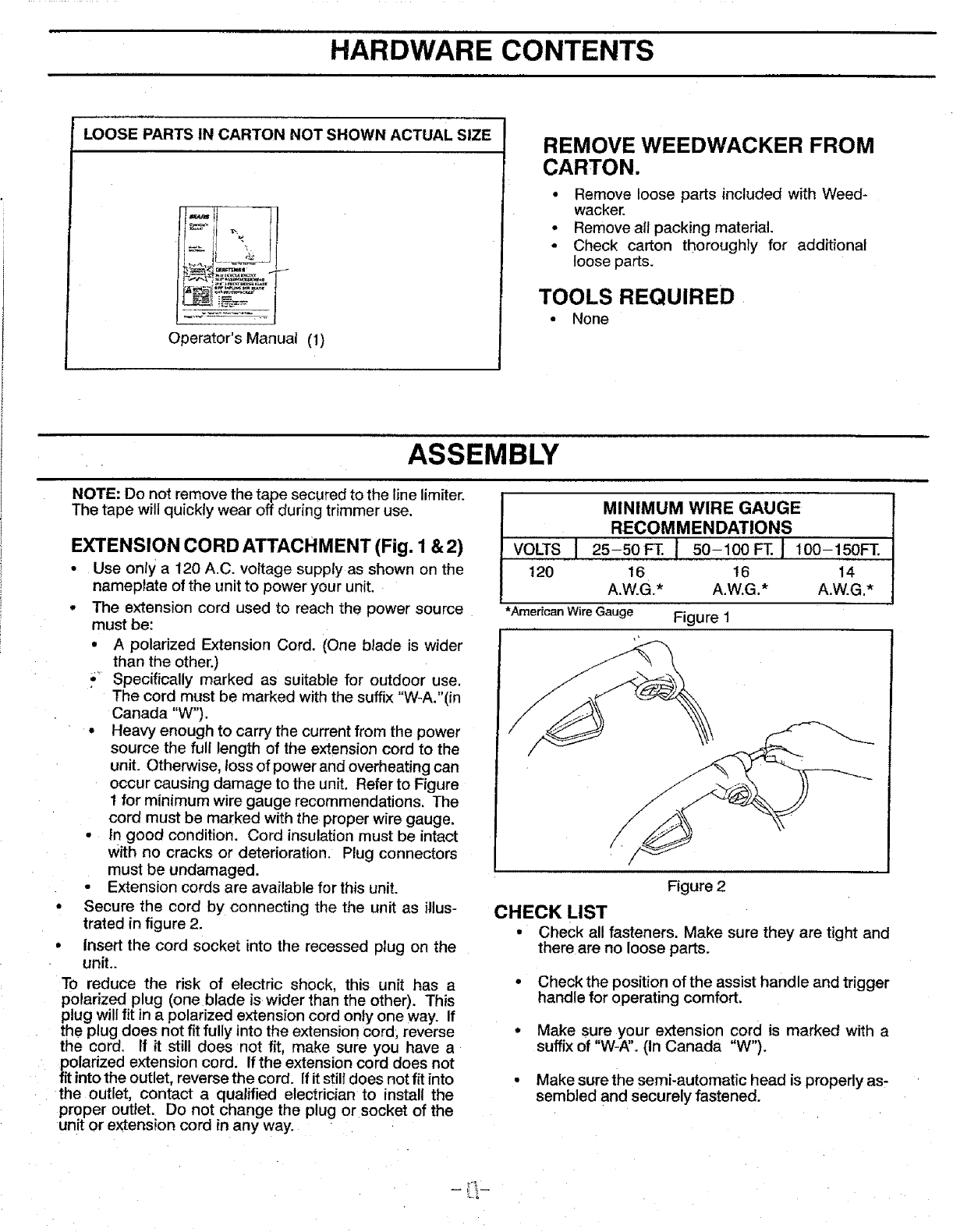

HARDWARE CONTENTS
LOOSE PARTS IN CARTON NOT SHOWN ACTUAL SiZE
O3erator's Manual (1)
REMOVE WEEDWACKER FROM
CARTON.
• Remove loose parts included with Weed-
wacker.
• Remove all packing material.
• Check carton thoroughly for additional
loose parts.
TOOLS REQUIRED
• None
ASSEMBLY
i
NOTE: Do not remove the tape secured to the line limiter.
The tape will quickly wear off during trimmer use.
EXTENSION CORD ATTACHMENT (Fig. 1& 2)
• Use only a 120 A.C. voltage supply as shown on the
nameplate of the unit to power your unit.
•The extension cord used to reach the power source
must be:
•A polarized Extension Cord. (One blade is wider
than the other.)
•' Specifically marked as suitable for outdoor use.
The cord must be marked with the suffix "W-A."(in
Canada "W").
• Heavy enough to carry the current from the power
source the full length of the extension cord to the
unit. Otherwise, loss of power and overheating can
occur causing damage to the unit. Refer to Figure
1 for minimum wire gauge recommendations, The
cord must be marked with the proper wire gauge.
° In good condition. Cord insulation must be intact
with no cracks or deterioration. Plug connectors
must be undamaged.
•Extension cords are available for this unit.
•Secure the cord by connecting the the unit as illus-
trated in figure 2.
•Insert the cord socket into the recessed plug on the
unit..
To reduce the risk of electric shock, this unit has a
polarized plug (one blade is wider than the other). This
plug will fit in a polarized extension cord on!y one way. If
the plug does not fit fully into the extension cord; reverse
the cord. If it still does not fit, make sure you have a
polarized extension cord. If the extension cord does not
fit into the outlet, reverse the cord. If it stiltdoes not fit into
the outlet, contact a qualified electrician to install the
proper outlet. Do not change the plug or socket of the
unit or extension cord in any way.
MINIMUM WIRE GAUGE
RECOMMENDATIONS
VOLTS J 25-50FT. t 50,100FT. J100-150FT.
120 16 16 14
A.W.G.* A.W.G.* A.W.G.*
*American Wire Gauge Figure 1
Figure 2
CHECK LIST
• Check all fasteners. Make sure they are tight and
there are no loose parts.
• Check the position of the assist handle and trigger
handle for operating comfort.
Make sure your extension cord is marked with a
suffix of "W-A". (In Canada "W").
Make sure the semi-automatic head is properly as-
sembled and securely fastened.
OPERATION

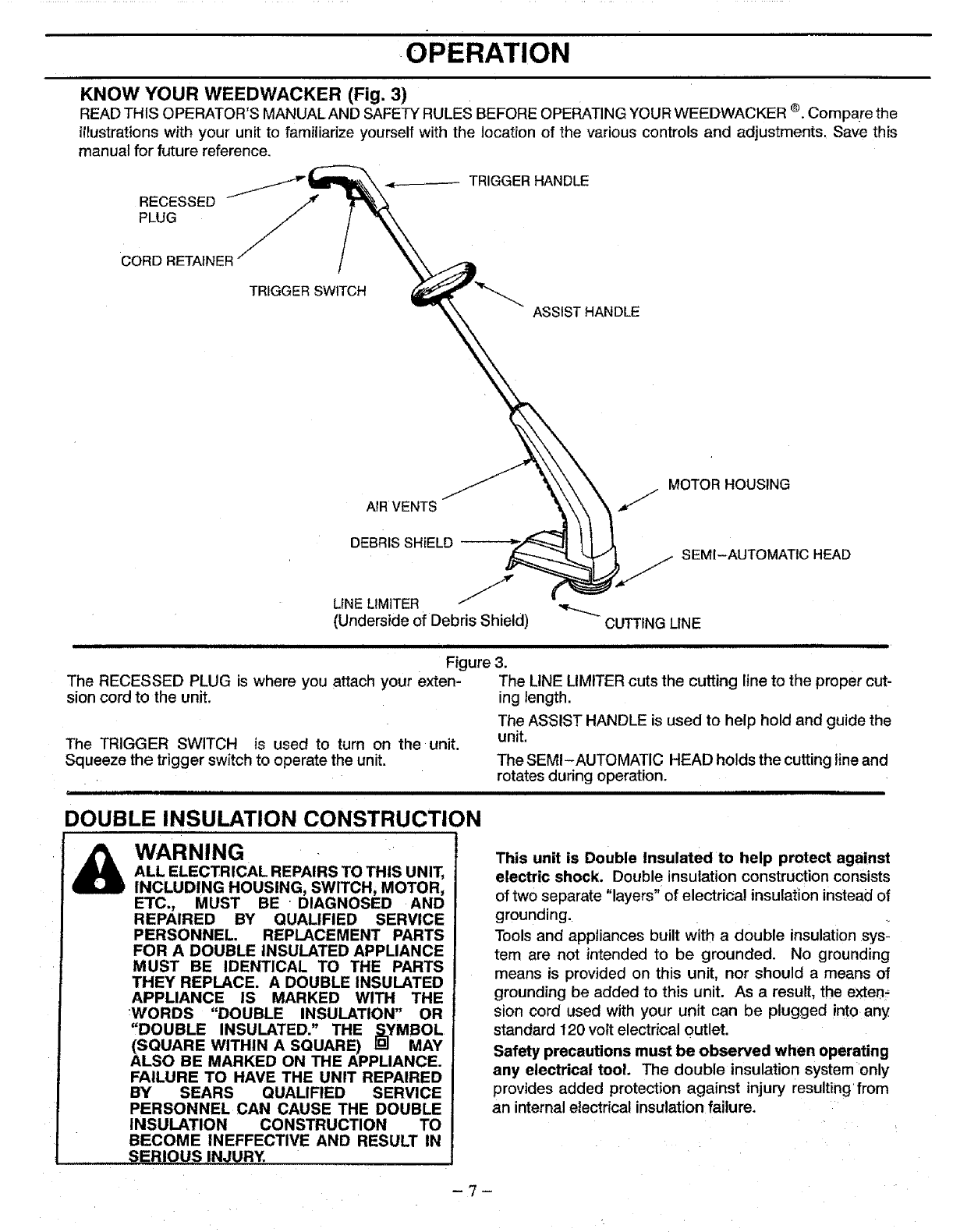

KNOW YOUR WEEDWACKER (Fig. 3)
READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR WEEDWACKER ®. Compare the
illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this
manual for future reference.
RECESSED j'_'_'_- _ _t.=_ _ TRIGGERHANDLE
oo.o.FA,NER"TR,GG ,ST.AND E
\ MOTORHOUS,NG
A,.VENTS \\ \
tl/1
SEMI-AUTOMATIC HEAD
(Underside of Debris Shield) "_"_-_"-CUTTING LINE
Figure 3.
The RECESSED PLUG is where you attach your exten-
sion cord to the unit.
The TRIGGER SWITCH is used to turn on the unit.
Squeeze the trigger switch to operate the unit.
The LINE LIMtTER cuts the cutting line to the proper cut-
ing length.
The ASSIST HANDLE is used to help hold and guide the
unit.
The SEMI-AUTOMATIC HEAD holds the cutting fineand
rotates during operation.
DOUBLE INSULATION CONSTRUCTION
WARNING
ALL ELECTRICAL REPAIRS TO THIS UNIT,
INCLUDING HOUSING, SWITCH, MOTOR,
ETC., MUST BE DIAGNOSED AND
REPAIRED BY QUALIFIED SERVICE
PERSONNEL. REPLACEMENT PARTS
FOR A DOUBLE INSULATED APPLIANCE
MUST BE IDENTICAL TO THE PARTS
THEY REPLACE. A DOUBLE INSULATED
APPLIANCE IS MARKED WITH THE
:WORDS "DOUBLE INSULATION, OR
',DOUBLE INSULATED." THE _YMBOL
(SQUARE WITHIN A SQUARE) 9MAY
ALSO BE MARKED ON THE APPLIANCE.
FAILURE TO HAVE THE UNIT REPAIRED
BY SEARS QUALIFIED SERVICE
PERSONNEL CAN CAUSE THE DOUBLE
INSULATION CONSTRUCTION TO
BECOME INEFFECTIVE AND RESULT IN
SERIQ_S INJURY.
This unit is Double Insulated to help protect against
electric shock. Double insulation construction consists
of two separate "layers" of electrica! insulation instead of
grounding.
Tools and appliances built with a double insulation sys-
tem are not intended to be grounded. No grounding
means is provided on this unit, nor should a means of
grounding be added to this unit. As a result, the extent
sion cord used with your unit can be plugged into any
standard 120 volt electrical outlet.
Safety precautions must be obsewed when operating
any electrical tool. The double insulation system only
provides added protection against injury resulting from
an internal electrical insulation failure.
?

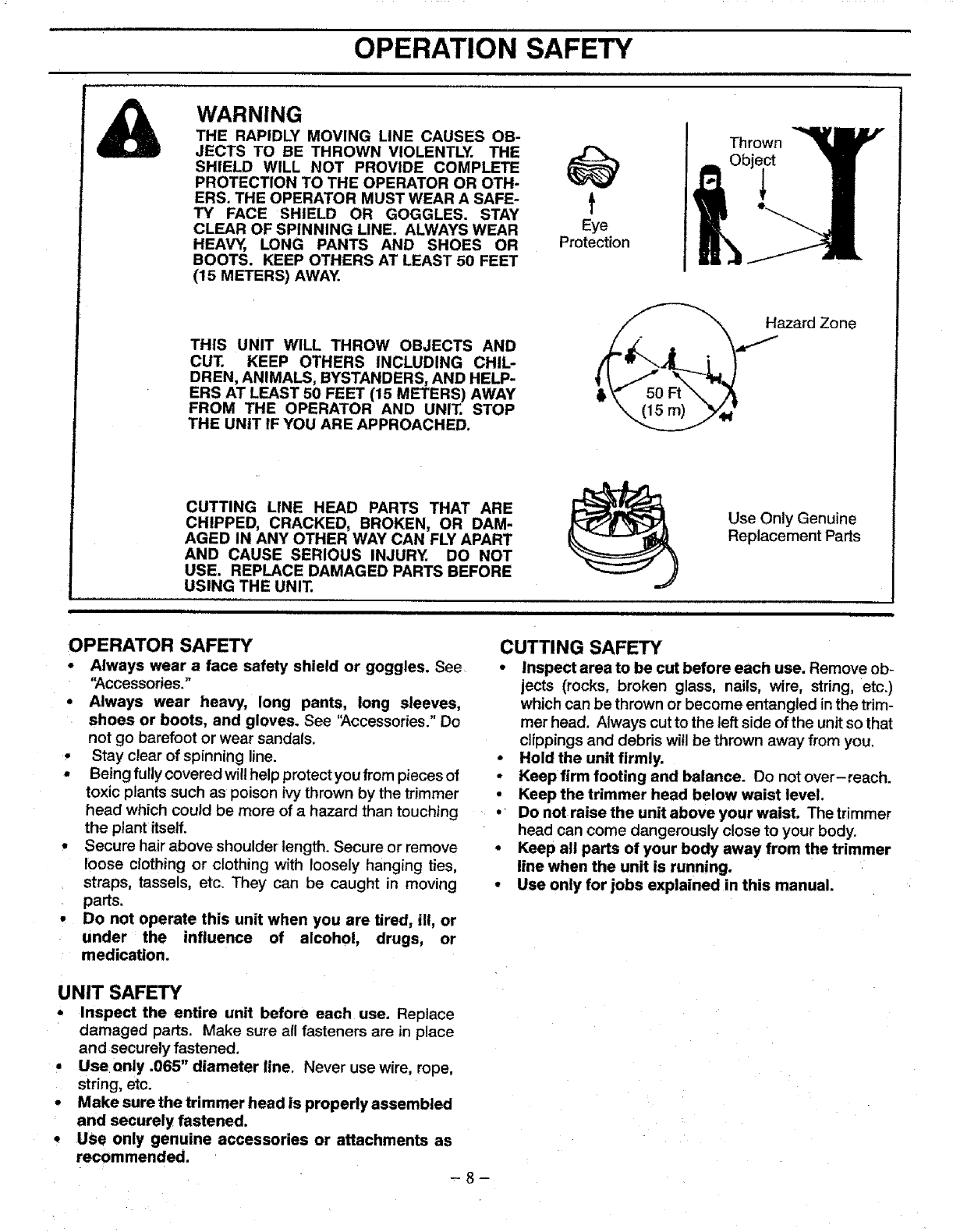

•,,=l i i L OPERATION SAFETY
&WARNING
THE RAPIDLY MOVING LINE CAUSES OB-
JECTS TO BE THROWN VIOLENTLY. THE
SHIELD WILL NOT PROVIDE COMPLETE
PROTECTION TO THE OPERATOR OR OTH-
ERS. THE OPERATOR MUST WEAR A SAFE-
TY FACE SHIELD OR GOGGLES. STAY
CLEAR OF SPINNING LINE. ALWAYS WEAR
HEAVY, LONG PANTS AND SHOES OR
BOOTS. KEEP OTHERS AT LEAST 50 FEET
(15 METERS) AWAY.
THIS UNIT WILL THROW OBJECTS AND
CUT. KEEP OTHERS INCLUDING CHIL-
DREN, ANIMALS, BYSTANDERS, AND HELP-
ERS AT LEAST 50 FEET (15 METERS) AWAY
FROM THE OPERATOR AND UNIT. STOP
THE UNIT IF YOU ARE APPROACHED.
t
Eye
Protection
IThrown
CUTTING LINE HEAD PARTS THAT ARE
CHIPPED, CRACKED, BROKEN, OR DAM-
AGED IN ANY OTHER WAY CAN FLY APART
AND CAUSE SERIOUS INJURY. DO NOT
USE. REPLACE DAMAGED PARTS BEFORE
USING THE UNIT.
OPERATOR SAFETY
• Always wear aface safety shield or goggles. See
'_ccessories."
•Always wear heavy, long pants, long sleeves,
shoes or boots, and gloves. See '_,ccessories." Do
not go barefoot or wear sandals.
Stay clear of spinning line.
•Being fully covered wi!lhelp protect you from pieces of
toxic plants such as poison ivy thrown by the trimmer
head which could be more of ahazard than touching
the plant itself.
• Secure hair above shoulder length. Secure or remove
loose clothing or clothing with loosely hanging ties,
straps, tassels, etc. They can be caught in moving
parts.
• Do not operate this unit when you are tired, ill, or
under the influence of alcohol, drugs, or
medication.
UNIT SAFETY
•Inspect the entire unit before each use. Replace
damaged parts. Make sure all fasteners are in place
and securely fastened.
•Use only .065" diameter line, Never use wire, rope,
string, etc.
•Make sure the trimmer head is properly assembled
and securely fastened.
•Use only genuine accessories or attachments as
recommended.
-- 8 -
Use Only Genuine
Replacement Parts
CUTTING SAFETY
•Inspect area to be cut before each use. Remove ob-
jects (rocks, broken glass, nails, wire, string, etc.)
which can be thrown or become entangled in the trim-
mer head. Always cut to the left side of the unit so thai
clippings and debris will be thrown away from you.
•Hold the unit firmly.
•Keep firm footing and balance. Do not over-reach.
•Keep the trimmer head below waist level.
•Do not raise the unit above your waist. The trimmer
head can come dangerously close to your body.
•Keep all parts of your body away from the trimmer
line when the unit is running.
•Use only for jobs explained in this manual.

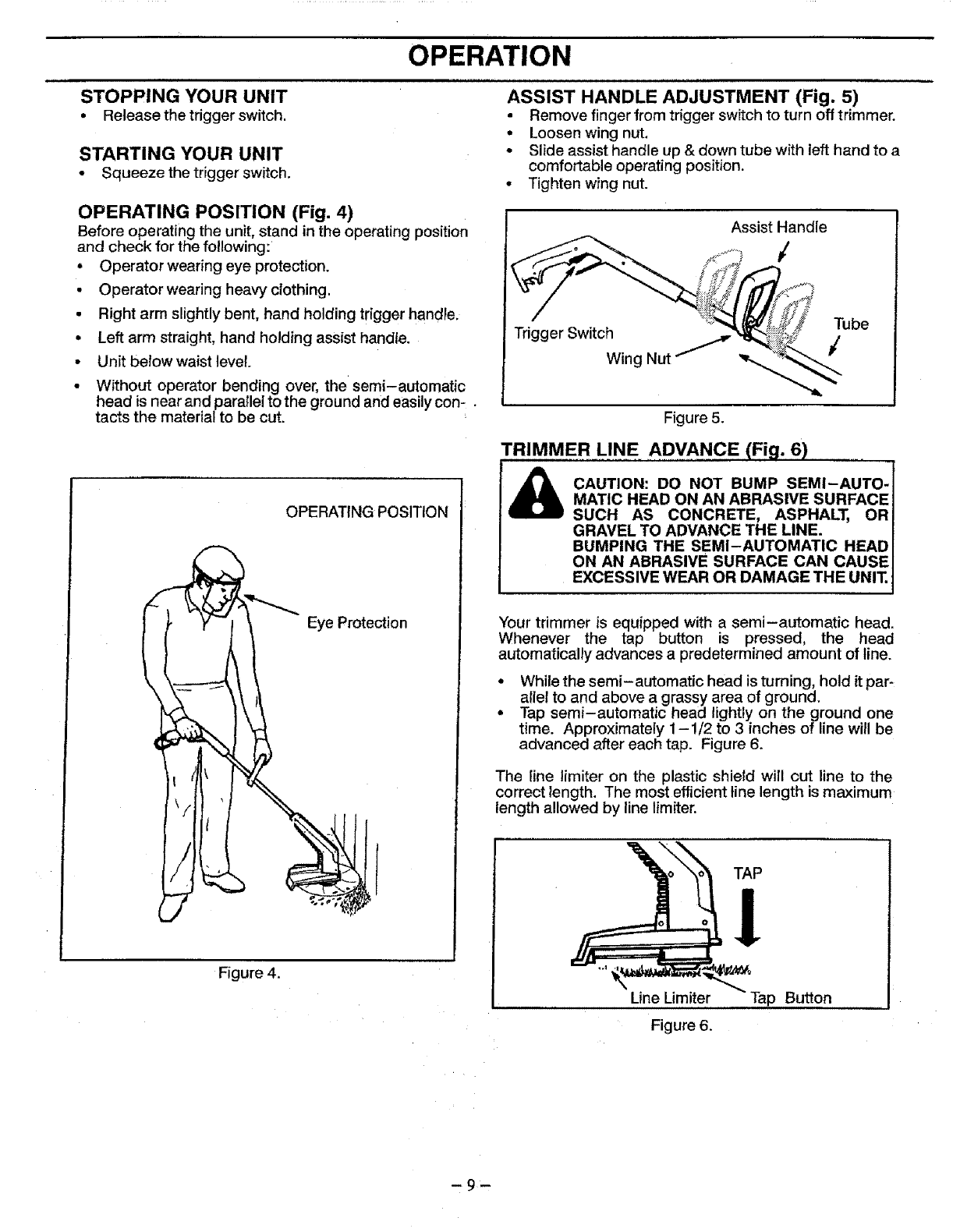

OPERATION
STOPPING YOUR UNIT
• Release the trigger switch.
STARTING YOUR UNIT
• Squeeze the trigger switch.
OPERATING POSITION (Fig. 4)
Before operating the unit, stand in the operating position
and check for the following:
•Operator wearing eye protection.
• Operator wearing heavy clothing.
•Right arm slightly bent, hand holding trigger handle.
•Left arm straight, hand holding assist handle.
• Unit below waist level
•Without operator bending over, the semi-automatic
head is near and parallel to the ground and easily con- .
tacts the material to be cut.
OPERATING POSITION
Figure 4.
ASSIST HANDLE ADJUSTMENT (Fig. 5)
•Remove finger from trigger switch to turn off trimmer.
•Loosen wing nut.
•Slide assist handle up &down tube with left hand to a
comfortable operating position.
•Tighten wing nut.
Trigger Switch Tube
Wing Nut _ P/
Figure 5.
TRIMMER LINE ADVANCE (Fig. 6)
_IL CAUTION: DO NOT BUMP SEMI-AUTO-
MATIC HEAD ON AN ABRASIVE SURFACE
SUCH AS CONCRETE, ASPHALT, OR
GRAVEL TO ADVANCE THE LINE.
BUMPING THE SEMI-AUTOMATIC HEAD
ON AN ABRASIVE SURFACE CAN CAUSE
EXCESSIVE WEAR OR DAMAGE THE UNIT,
Your trimmer is equipped with a semi-automatic head.
Whenever the tap button is pressed, the head
automatically advances a predetermined amount of line.
°While the semi-automatic head is turning, hold it par-
allel to and above a grassy area of ground.
Tap semi-automatic head lightly on the ground one
time. Approximately 1-1/2 to 3 inches of line will be
advanced after each tap. Figure 6.
The line limiter on the plastic shield will cut line to the
correct length. The most efficient line length is maximum
length allowed by line limiter.
Figure 6.
TAP
!
Tap Button
--9--
O
OPERATION

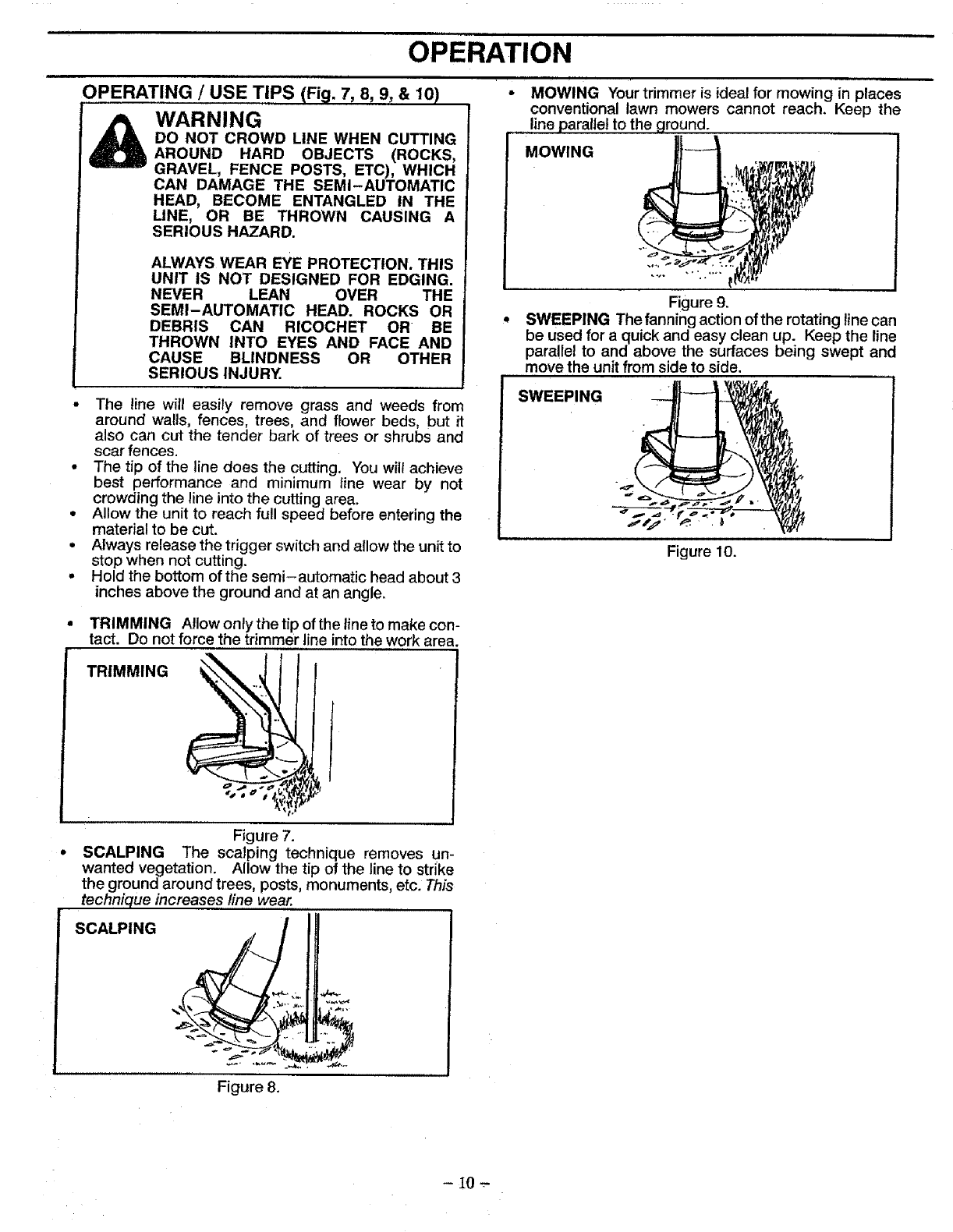

OPERATING /USE T!PS (Fi 9. 7, 8, 9, & 10)
WARNING
DO NOT CROWD LINE WHEN CUTTING
AROUND HARD OBJECTS (ROCKS,
GRAVEL, FENCE POSTS, ETC), WHICH
CAN DAMAGE THE SEMI-AUTOMATIC
HEAD, BECOME ENTANGLED IN THE
LINE, OR BE THROWN CAUSING A
SERIOUS HAZARD.
ALWAYS WEAR EYE PROTECTION. THIS
UNIT IS NOT DESIGNED FOR EDGING.
NEVER LEAN OVER THE
SEMI-AUTOMATIC HEAD. ROCKS OR
DEBRIS CAN RICOCHET OR BE
THROWN INTO EYES AND FACE AND
CAUSE BLINDNESS OR OTHER
SERIOUS INJURY.
The line will easily remove grass and weeds from
around walls, fences, trees, and flower beds, but it
also can cut the tender bark of trees or shrubs and
soar fences.
The tip of the line does the cutting. You will achieve
best performance and minimum line wear by not
crowding the line into the cutting area.
Allow the unit to reach full speed before entering the
material to be cut.
Always release the trigger switch and allow the unit to
stop when not cutting.
Hold the bottom of the semi-automatic head about 3
inches above the ground and at an angle,
TRIMMING Allow only the tip of the line to make con-
tact. Do not force the trimmer line into the work area
TRIMMING __,, ...
Go'_m O" _' V
• MOWING Your trimmer is ideal for mowing in places
conventional lawn mowers cannot reach. Keep the
........line parallel to the ground.
MOWING
Figure 9.
•SWEEPING The fanning action of the rotating line can
be used for a quick and easy clean up. Keep the line
parallel to and above the surfaces being swept and
move the unit from side to side.
SWEEPING
Figure10.
Figure 7.
SCALPING The scalping technique removes un-
wanted vegetation. Allow the tip of the line to strike
the ground around trees, posts, monuments, etc. This
technique increases line wear.
SCALPING
Figure 8.
CUSTOMER RESPONSIBILITIES
MAINTENANCE SCHEDULE
Before After
Fill in dates as you complete regular service. Use Use
Check for damaged or worn parts. X
Check for loose fasteners and parts. X
Clean unit and labets X
Service Dates
GENERAL RECOMMENDATIONS
The warranty on this unit does not cover items that have
been subjected to operator abuse or negligence. To
receive full value from thewarranty, the operator must
maintain unit as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your unit.
All adjustments in the "Service and Adjustments" section
of this manual should be checked at least once each
season.
Follow the maintenance schedule in this manual.
&WARNING
HAVE CUTTING LINE HEAD PARTS THAT
ARE CRACKED, CHIPPED, OR
DAMAGED IN ANY OTHER WAY
REPLACED BEFORE USING THE UNIT,
BEFORE EACH USE
CHECK FOR DAMAGED/WORN PARTS
• Semi-Automatic Head - replace semi-automatic
head parts that are bent warped, cracked, or dam-
aged in any way.
CHECK FOR LOOSE FASTENERS/PARTS
•Semi-Automatic Head
• Assist Handle Wing Nut
AFTER EACH USE
CLEAN UNIT AND LABELS
•Clean the unit using adamp cloth with a mitd deter-
gent.
• Wipe off the unit with a clean dry cloth.
•Keep air vents free of debris at all times.
- !1 -

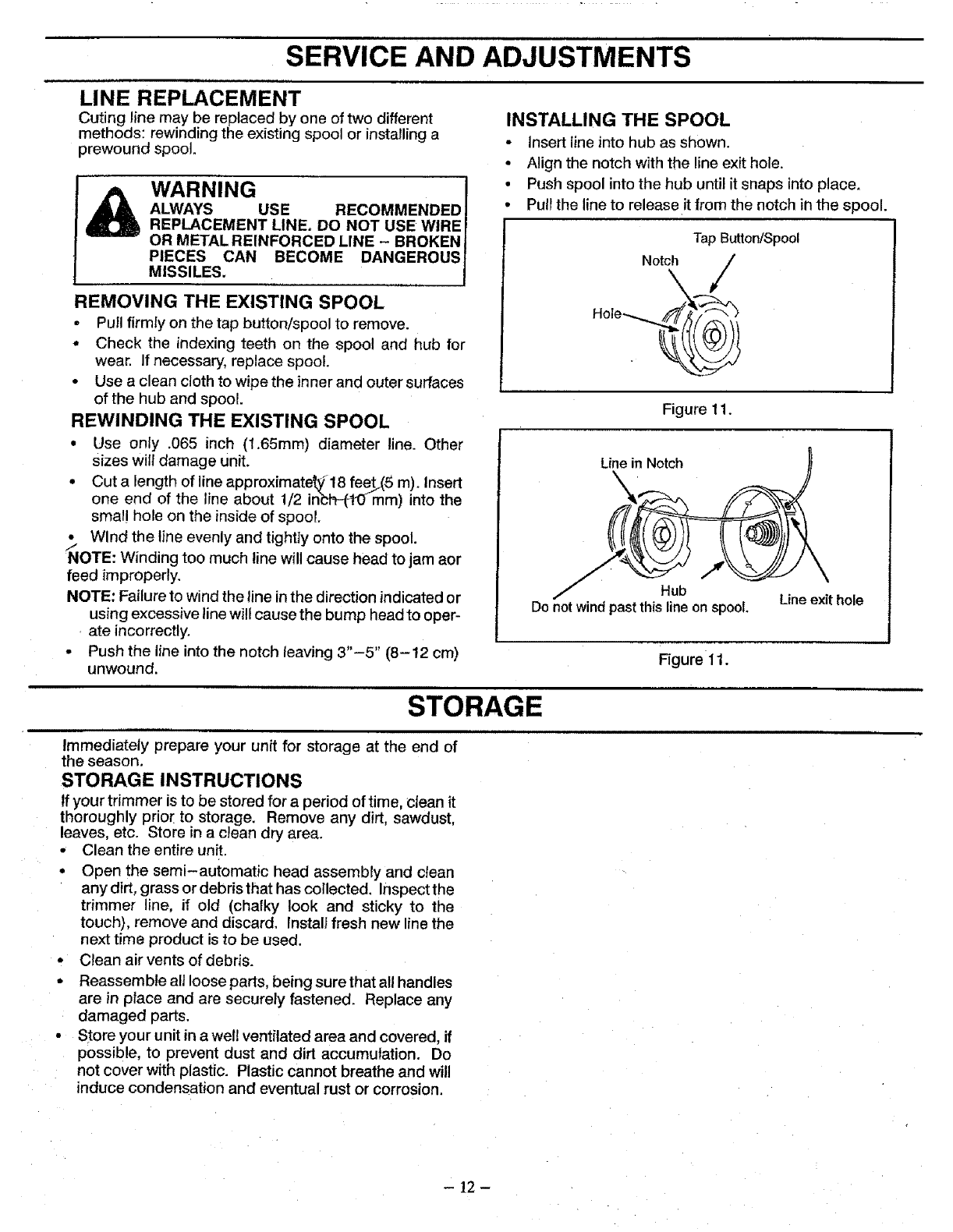

SERVICE AND ADJUSTMENTS
LINE REPLACEMENT
Cuting line may be replaced by one of two different
methods: rewinding the existing spool or installing a
prewound spool.
WARNING I
ALWAYS USE RECOMMENDED J
REPLACEMENT LINE. DO NOT USE WIRE_
OR METAL REINFORCED LINE - BROKEN
PIECES CAN BECOME DANGEROUSf
MISSILES.
REMOVING THE EXISTING SPOOL
•Pull firmly on the tap button/spool to remove.
•Check the indexing teeth on the spool and hub for
wear. If necessary, replace spool.
•Use aclean cloth to wipe the inner and outer surfaces
of the hub and spool.
REWINDING THE EXISTING SPOOL
•Use only .065 inch (1.65mm) diameter line. Other
sizes will damage unit.
•Cut a length of line approximatelY18 feet,(5 m). Insert
one end of the line about 1/2 inbh-_t0" mm) into the
small hole on the inside of spoof.
•Wind the line evenly and tightly onto the spool.
_iOTE: Winding too much line will cause head to jam aor
feed improperly.
NOTE: Failure to wind the line in the direction indicated or
using excessive line will cause the bump head to oper-
ate incorrectly.
• Push the line into the notch leaving 3"-5" (8-12 cm)
unwound.
INSTALLING THE SPOOL
• insert line into hub as shown.
•Align the notch with the line exit hole.
•Push spool into the hub until it snaps into place.
• Pull the line to release it from the notch in the spool.
Tap Button/Spool
Hole--._.___
Figure 11.
Line in Notch
\,,
Hub
Do not wind past this line on spool. Line exit hole
Figure 11.
STORAGE
Immediately prepare your unit for storage at the end of
the season.
STORAGE INSTRUCTIONS
If your trimmer is to be stored for a period of time, clean it
thoroughly prio_: to storage. Remove any dirt, sawdust,
leaves, etc. Store in a clean dry area.
•Clean the entire unit.
° Open the semi-automatic head assembly and clean
any dirt, grass or debris that has collected. Inspect the
trimmer line, if old (chalky look and sticky to the
touch), remove and discard. Instalf fresh new line the
next time product is to be used.
•Clean air vents of debris.
•Reassemble all loose parts, being sure that a!l handles
are in place and are securely fastened. Replace any
damaged parts.
• Store your unit in a well ventilated area and covered, if
possible, to prevent dust and dirt accumulation. Do
not cover with plastic. Plastic cannot breathe and will
induce condensation and eventual rust or corrosion.
-!2 -

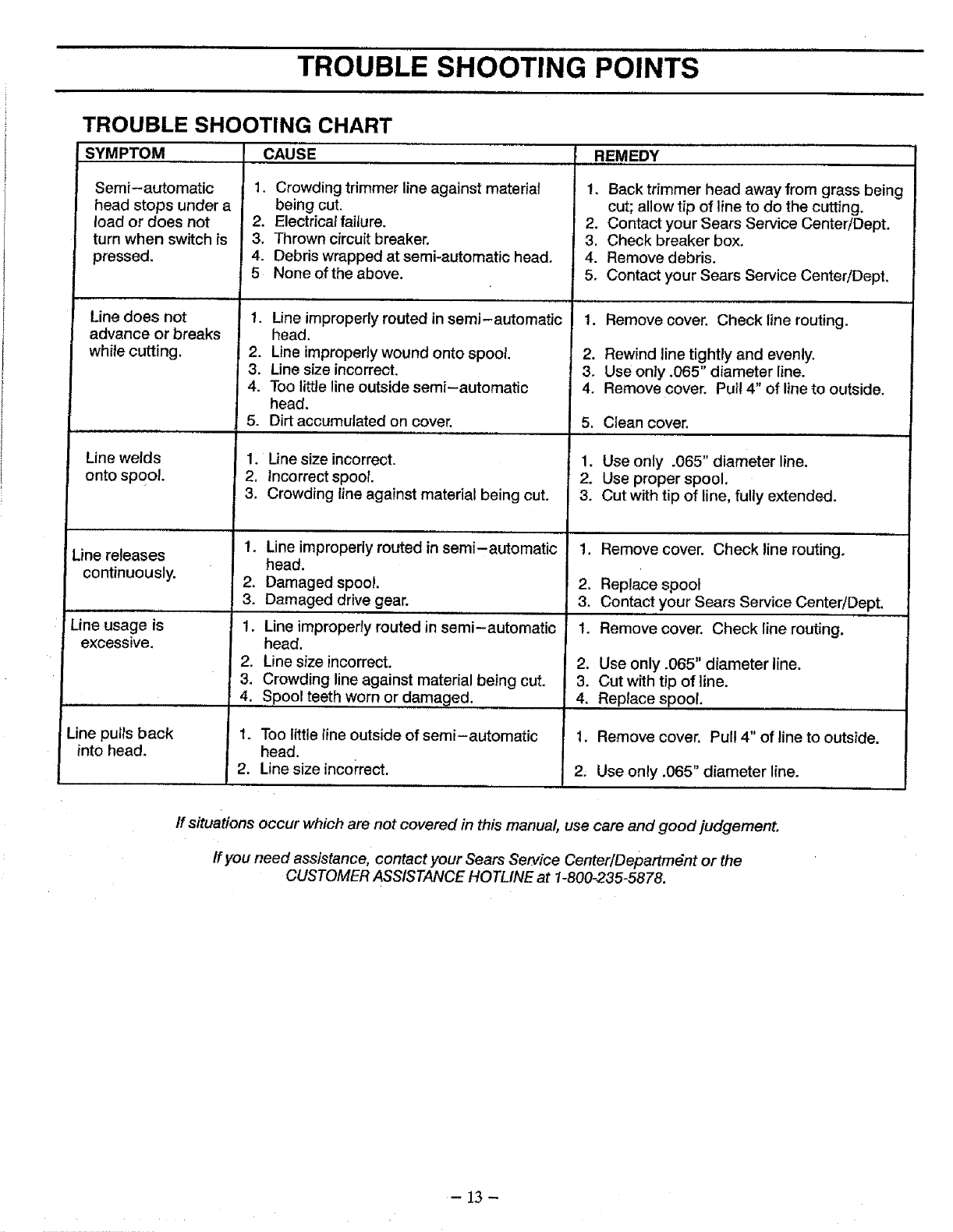

TROUBLE SHOOTING POINTS
TROUBLE SHOOTING CHART
SYMPTOM CAUSE
Semi-automatic
head stops under a
load or does not
turn when switch is
pressed.
Line does not 1.
advance or breaks
while cutting. 2.
3.
4.
.
Line welds 1.
onto spool. 2,
3.
Line releases
continuously.
1. Crowding trimmer line against material
being cut.
2. Electrical failure.
3. Thrown circuit breaker.
4. Debris wrapped at semi-automatic head.
5 None ofthe above.
,
2,
3.
Line usage is 1.
excessive.
Line pulls back
into head.
.
3.
4.
.
t.
2.
3,
4.
5.
, ,,,,,
Line improperly routed in semi-automatic 1.
head.
Line improperly wound onto spool. 2.
Line size incorrect. 3.
Too little line outside semi-automatic 4.
head.
Dirt accumulated on cover.
Line size incorrect.
incorrect spoof.
Crowding line against material being cut.
Line improperly routed in semi-automatic
head.
Damaged spool.
Damaged drive gear.
Line improperly routed in semi-automatic
head.
Line size incorrect. 2.
Crowding line against material being cut. 3.
Spool teeth worn or damaged. 4.
Too little line outside of semi-automatic
head.
Line size incorrect.
REMEDY
Back trimmer head away from grass being
cut; allow tip of line to do the cutting.
Contact your Sears Service Center/Dept.
Check breaker box.
Remove debris.
Contact your Sears Service Center/Dept.
Remove cover, Check line routing.
Rewind line tightly and evenly.
Use only .065" diameter line.
Remove cover. Pul! 4" of line to outside.
5. Clean cover.
1. Use only .065" diameter line.
2. Use proper spool.
3. Cut with tip of line, fully extended.
1. Remove cover. Check line routing.
2. Replace spool
3. Contact your Sears Service Center/Dept.
1. Remove cover. Check line routing.
Use only .065" diameter line.
Cut with tip of line.
Replace spool.
1. Remove cover. Pull 4" of line to outside.
2; Use only .065" diameter line.
If situations occur which are not covered in this manual, use care and good judgement.
ff you need assistance, contact your Sears Service Center/Departmdnt or the
CUSTOMER ASSISTANCE HOTLINE at 1-800-235-5878.
- 13 -
S_E S
Operator's
Manual
Model No.
358.798010 (10")
358.798090 (13")
IF YOU NEED RE-
PAIR
SERVICE OR PARTS:
REPAIR SERVICE
1-800-4-REPAIR
(1-800-473-7247)
ORDERING PARTS
1-800-FON-PART
1-800-366-7278
CUSTOMER
ASSISTANCE
1-800-235-5878
HOURS (CST)
Mort, - Sat, 7 a,m. - 7 p.m.
Sun, 10 a.rn, - 7 p.m.
CRRFTSMgNo
3.0/3.3 AMP MOTOR
10"/13" Semi-Automatic Head
ELECTRIC WEEDWACKER _
Each Electric Weedwacker ®has itsown model number, The model
number for your unit will be found on a decal attached to the unit.
All parts listed herein may be ordered through Sears, Roebuck and
Co. Service Centers and most Retail Stores.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOW-
ING INFORMATION
• PRODUCT -"ELECTRIC WEEDWACKER"
• MODEL NUMBER- 358.798010 /358.798090
• PART NUMBER
"PART DESCRIPTION
Your Sears merchandise has added value when you consider that
Sears has service units nationwide staffed with Sears trained techni-
cians.., professional technicians specifically trained on Sears prod-
ucts, having the parts, tools and the equipment to insure that we
meet our pledge to you, we service what we sell.
If you need assistance, contact your SEARS Service Center/Depart-
ment or the CUSTOMER ASSISTANCE HOTLINE t-800-235-5878
Sears, Roebuck and Co., Hoffman Estates, tL 60179 USA
PRINTED IN U.S.A,
