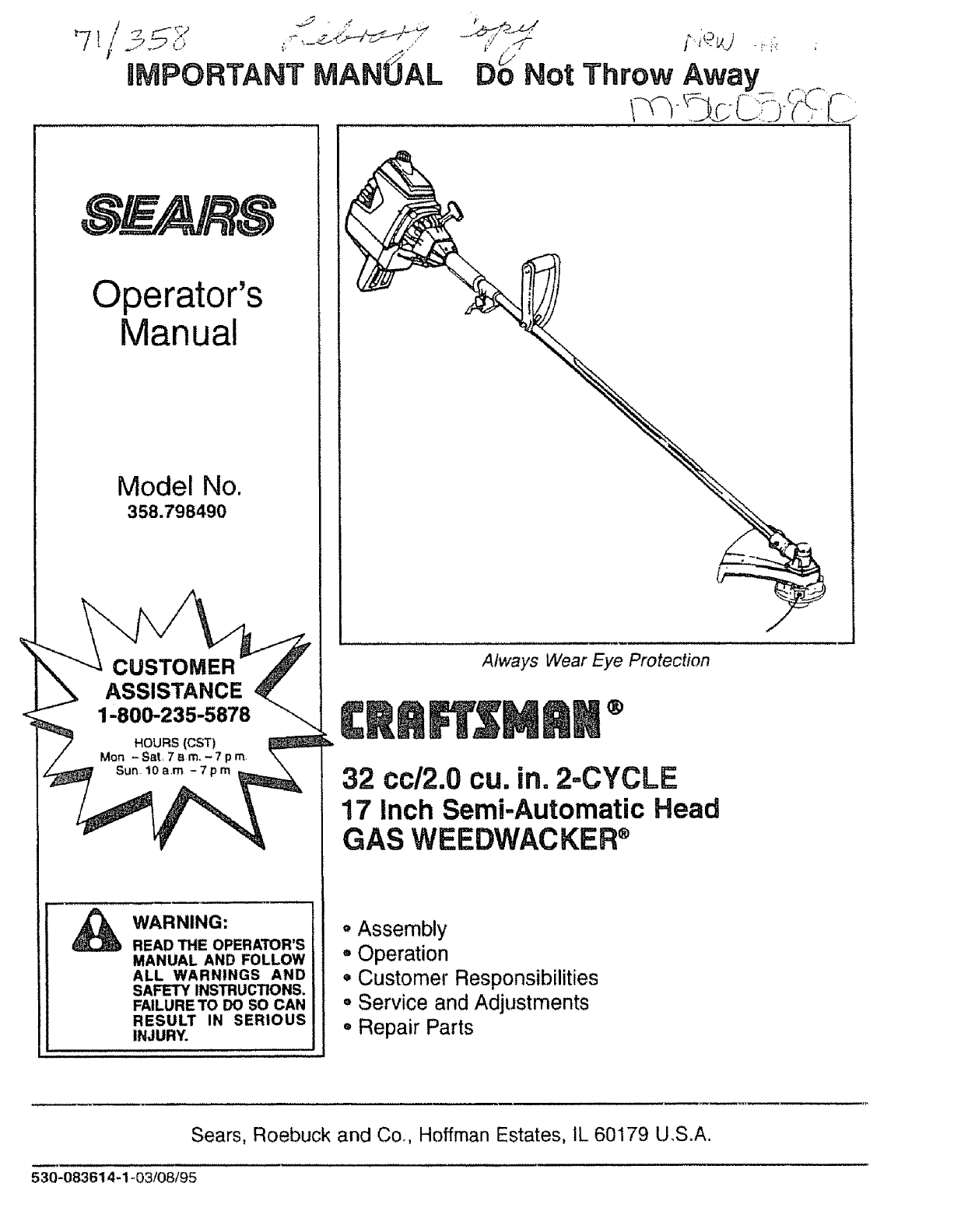

_) _ _-' _ _F_ "

IINPORTANT NANUAL

Operator's

Manual

Model No.

358.798490

HOURS (CST)

Men -Sat 7am.-7pm

Sun- 10 a,rn -7pm

WARNING:

READ THE OPERATOR'S

MANUAL AND FOLLOW

ALL WARNINGS AND

SAFETY INSTRUCTIONS.

FAILURE 3"0 DO SO CAN

RESULT IN SERIOUS

INJURY.

Db Not Throw Away

Always Wear Eye Protection

®

32 cc/2.0 cu. in. 2-CYCLE

17 Inch Semi-Automatic Head

GAS WEEDWACKER®

o Assembly

- Operation

- Customer Responsibilities

oService and Adjustments

° Repair Parts

Sears, Roebuck and Co., Hoffman Estates, 1L60179 U.S.A.

530-083614-1-03/08/95

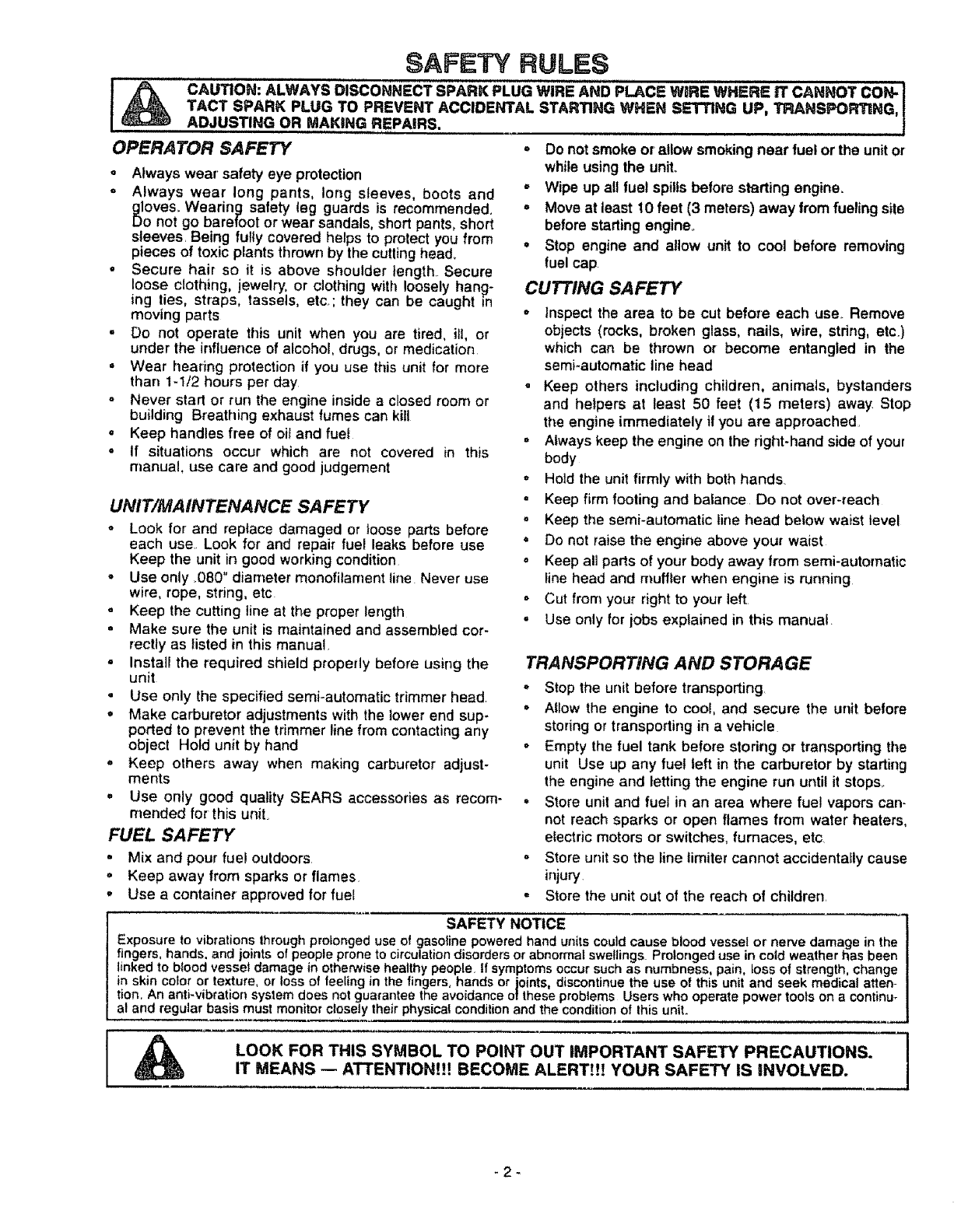

SAFETY RULES

cAu oN:ALWAYSD,SCONNECTSPA.KF'LUGWi. WiR WH RErrCANNOTCO.-I

TACTsPA.K.LUGToP.sv NTACCID ALSTA. .GWHeNSEI".. I

ADJUSTING OR MAKING REPAIRS. .....................j

OPERATOR SAFETY

oAlways wear'safety eye protection

o Always wear long pants, long sleeves, boots and

_loves_ Wearing safety leg guards is recommended.

o not go barefoot or wear sandals, short pants, short

sleeves, Being fully covered helps to protect you from

pieces of toxic plants thrown by the cutting head_

.Secure hair so it is above shoulder length Secure

loose clothing, jewelry, or clothing with loosely han_-

ing !ies, straps, tassels, etc.; they can be caught m

moving parts

.Do not operate this unit when you are tired, ill, or

under the influence of alcohol, drugs, or medication

•Wear hearing protection if you use this unit for more

than 1-1/2 hours per day

- Never start or run the engine inside a closed room or

building Breathing exhaust fumes can kin

.Keep handles free of oil and fuel

-!f situations occur which are not covered in this

manual, use care and good judgement

UNIT/MAINTENANCE SAFETY

o Look for and replace damaged or toose parts before

each use Look for and repair fuel leaks before use

Keep the unit in good working condition

* Use only ,080" diameter monofilarnent line Never use

wire, rope, string, etc

.Keep the cutting line at the proper length

.Make sure the unit is maintained and assembled cor-

rectly as listed in this manual

-Install the required shield properly before using the

unit

.Use only the specified semi-automatic trimmer head.

.Make carburetor adjustments with the lower end sup-

ported to prevent the trimmer line from contacting any

object Hold unit by hand

oKeep others away when making carburetor adjust-

ments

°Use only good quality SEARS accessories as recom-

mended for this unit.

FUEL SAFETY

°Mix and pour fuel outdoors

.Keep away from sparks or flames

°Use a container approved for fuel

oDo not smoke or allow smoking near fuel or the unit or

while using the uniL

-Wipe up all fuel spills before starting engine,

oMove at least 10 feet (3 meters) away from fueling sits

before starting engine.

°Stop engine and allow unit to cool before removing

fuel cap

CUTTING SAFETY

oInspect the area to be cut before each use. Remove

objects (rocks, broken glass, nails, wire, string, etc.)

which can be thrown or become entangled in the

semi-automatic line head

. Keep others including children, animate, bystanders

and helpers at least 50 feet (15 meters) away. Stop

the engine immediately il you are approached,

°Always keep the engine on the right-hand side of your

body

o Hold the unit firmly with both hands

°Keep firm footing and balance Do not over-reach

oKeep the semi-automatic line head below waist level

o Do not raise the engine above your waist

° Keep all parts of your body away from semi-automatic

Iine head and muffler when engine is running

° Cut from your right to your left

oUse only for jobs explained in this manual.

TRANSPORTING AND STORAGE

oStop the unit before transporting

•Allow the engine to cool, and secure the unit before

storing or transporting in a vehicle

°Empty the fuel tank before storing or transporting the

unit Use up any fuel left in the carburetor by starting

the engine and letting the engine run until it stops,,

• Store unit and fuel in an area where fuel vapors can-

not reach sparks or open flames from water heaters,

electric motors or switches, furnaces, etc

oStore unit so the line limiter cannot accidentaIly cause

injury

• Store the unitout of the reach of children

SAFETY NOTICE

Exposure to vibrations through prolonged use of gasotine powered hand units could cause blood vessel or nerve damage in the

fingers, hands, and joints of people prone to circulationdisorders or abnormal swellings Prolonged use in cold weather has been

linked to blood vesset damage in otherwise healthy people If symptoms occur such as numbness, pain, toss of strength, change

in skin color or texture, or toss of feeling in the fingers, hands or joints discontinue the use of this unit and seek medical atten-

tion An antiwibration system does not guarantee the avoidance o! these problems Users who operate power tools on acontinu-

al and regular basis must monitor closely their physica{conditionand the condition of this unit.

LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS.

IT MEANS -- A'I'rENTION!!! BECOME ALERT!!! YOUR SAFETY IS iNVOLVED.

-2-

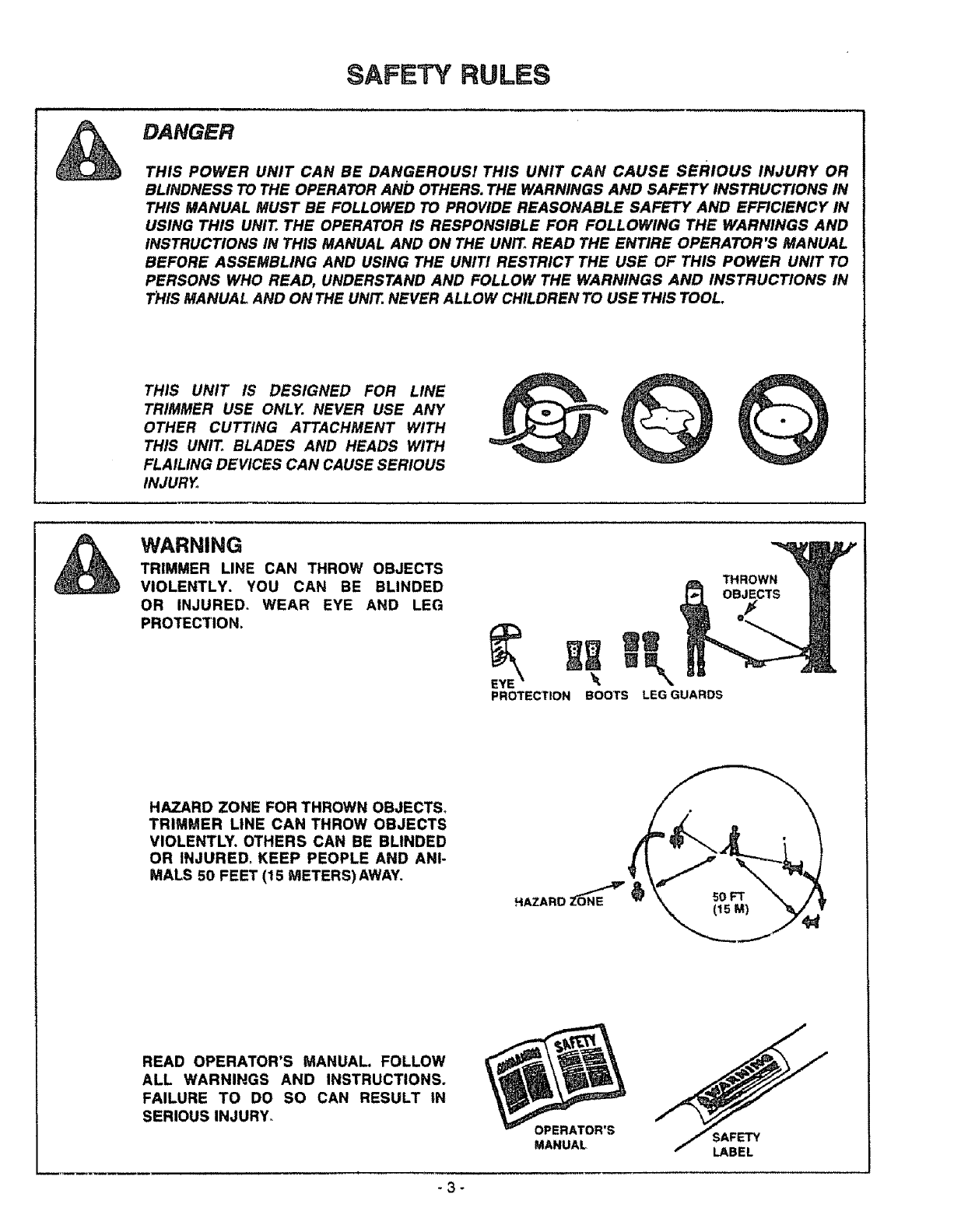

SAFETY RULES

DANGER

THIS POWER UNIT CAN BE DANGEROUS! THIS UNIT CAN CAUSE SERIOUS INJURY OR

BLINDNESS TO THE OPERATOR AND OTHERS. THE WARNINGS AND SAFETY INSTRUCTIONS IN

THIS MANUAL MUST BE FOLLOWED TO PROVIDE REASONABLE SAFETY AND EFFICIENCY IN

USING THIS UNIT THE OPERATOR IS RESPONSIBLE FOR FOLLOWING THE WARNINGS AND

INSTRUCTIONS IN THIS MANUAL AND ON THE UNIT_READ THE ENTIRE OPERATOR'S MANUAL

BEFORE ASSEMBLING AND USING THE UNIT/RESTRICT THE USE OF THIS POWER UNIT TO

PERSONS WHO READ, UNDERSTAND AND FOLLOW THE WARNINGS AND INSTRUCTIONS IN

THIS MANUAL AND ON THE UNFI_.NEVER ALLOW CHILDREN TO USE THIS TOOL.

THIS UNIT IS DESIGNED FOR LINE

TRIMMER USE ONLY. NEVER USE ANY

OTHER CUTTING ATTACHMENT WITH

THIS UNIT. BLADES AND HEADS WITH

FLAILING DEVICES CAN CAUSE SERIOUS

INJURY

WARNING

TRIMMER LINE CAN THROW OBJECTS

VIOLENTLY. YOU CAN BE BLINDED

OR INJURED. WEAR EYE AND LEG

PROTECTION.

PROTECTION

HAZARD ZONE FOR THROWN OBJECTS°

TRIMMER LINE CAN THROW OBJECTS

VIOLENTLY. OTHERS CAN BE BLINDED

OR INJURED_ KEEP PEOPLE AND ANI-

MALS 50 FEET (15 METERS) AWAY.

HAZARD ONZ_E

READ OPERATOR'S MANUAL. FOLLOW

ALL WARNINGS AND INSTRUCTIONS.

FAILURE TO DO SO CAN RESULT IN

SERIOUS INJURY_ OPERATOR'S

MANUAL

-3_

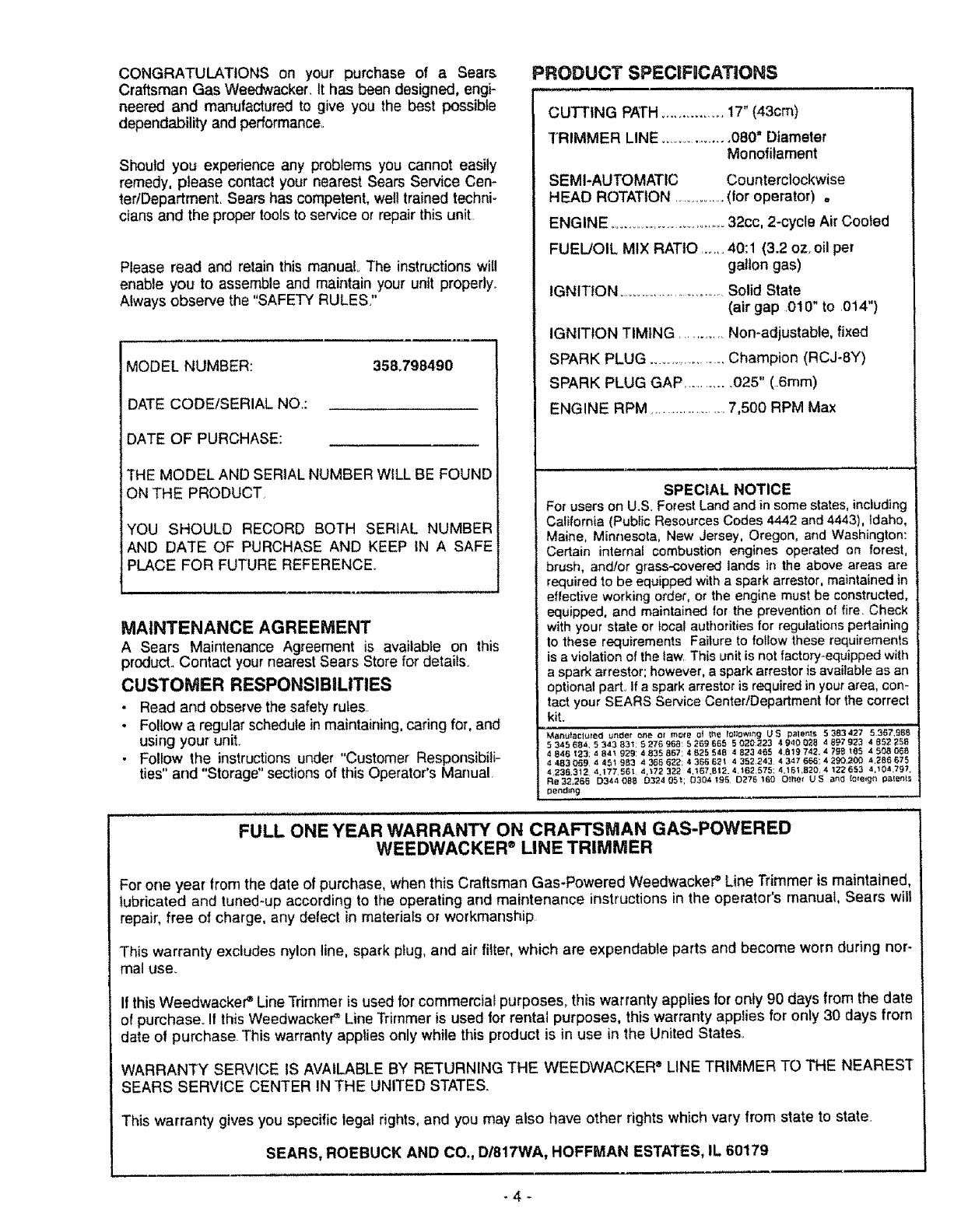

CONGRATULATIONS on your purchase of a Sears

Craftsman Gas Weedwacker, tt has been designed, engi-

neered and manufactured to give you the best possible

dependability and performance.

Should you experience any problems you cannot easily

remedy, please contact your nearest Sears Service Cen-

tedDepartment, Sears has competent, well trained techni-

cians and the proper tools to service or repair this unit

Please read and retain this manual The instructions will

enable you to assemble and maintain your unit properly.,

Always observe the "SAFETY RULES."

MODEL NUMBER: 358.798490

DATE CODE/SERIAL NO.:

DATE OF PURCHASE:

THE MODEL AND SERIAL NUMBER WILL BE FOUND

ON THE PRODUCT

YOU SHOULD RECORD BOTH SERIAL NUMBER

AND DATE OF PURCHASE AND KEEP IN A SAFE

PLACE FOR FUTURE REFERENCE.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this

product. Contact your nearest Sears Store for details.

CUSTOMER RESPONSIBILITIES

Read and observe the safety rules..

•Foliow a regular schedule in maintaining, caring for, and

using your uniL

• Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this Operator's Manual.

PRODUCT SPECtRCATIONS

CUTTING PATH .................17" (43cm)

TRIMMER LINE ....................080" Diameter

Monofilament

SEMI-AUTOMATIC Counterclockwise

HEAD ROTATION ................(for operator) .

ENGINE ............................. 32cc, 2-cycle Air Cooled

FUEL/OIL MIX RATIO ...... 40:1 (3.2 ozooil per

gallon gas)

IGNITION .................................Solid State

(air gap D10" to O14")

IGNITION TIMING ........... Non-adjustable, fixed

SPARK PLUG .....................Champion (RCJ-8Y)

SPARK PLUG GAP ............ 025" (.6ram)

ENGINE RPM ....................7,500 RPM Max

SPECIAL NOTICE

FoPuserson U.S. ForestLandandin somestates,including

California (Public ResourcesCodes 4442 and4443), Idaho,

Maine, Minnesota,New Jersey,Oregon, arid Washington:

Certain internal combustionengines operatedon forest

brush, andlor grass.-coveredlandsin the aboveareas are

requiredto be equippedwitha spark arrestor,maintainedin

effectiveworkingorder,or the enginemust be constructed

equipped, and maintained for the preventionof fire. Check

withyour state orlocal authoritiesforregulationspertaining

to these requirementsFailureto follow these requirements

is aviolationof thetaw. Thisunit is not factory-equippedwith

a spark arrestor; however,a sparkarrestoris availableas an

optional part, Ifa spark arrestorisrequired inyour area, con-

tact your SEARS ServiceCenter/Departmentfor thecorrect

kit.

_M_nu4ar.:l_red ut_det or,eor m_e of lt_e followittg US pale_tts 5 3_{3427 5.367,888

5348 68_, 5 343 83"_: 5276 958:5 269 665 5 02(_223 4 940 028 4 8_7 923 4 852 258

4 846 423:4 84_ 929: d 835 867; 4 825 548 4 823 465 4819 742, 479_ t85 4 808 068

4 483 059 4 45_ 983 4 ;365 6_2; 4 366 82_ 4 352243 4347 666:4 290,200 ,_286 675

4,236,312, 4.t77 56t 4,_72 322 4,167,8t2.4,_62.575: 4.461,820, 41Z2 653 4,104.797,

Re 32,265 D344 088 D324 054; 0304 495 D276 160 O4het U S _nd Igretgn 131_Ien_s

per_d_n8

FULL ONE YEAR WARRANTY ON CRAFTSMAN GAS-POWERED

WEEDWACKER ®LINE TRIMMER

For one year from the date of purchase, when this Craftsman Gas-Powered Weedwacker _Line Trimmer is maintained,

lubricated and tuned-up according to the operating and maintenance instructions in the operator's manual, Sears will

repair', free of charge, any defect in materials or workmanship

This warranty excludes nylon line, spark plug, and air filter,which are expendable parts and become worn during nor-

mal use_

if this Weedwacke_' LineTrimmer is used for commercial purposes, this warranty applies for only 90 days from the date

of purchase. If this Weedwacker _ Line Trimmer is used for rental purposes, this warranty applies for only 30 days from

date of purchase. This warranty applies only while this product is in use in the United States_

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE WEEDWACKER _ LINE TRIMMER TO THE NEAREST

SEARS SERVICE CENTER IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., DI817WA, HOFFMAN ESTATES, IL 60179

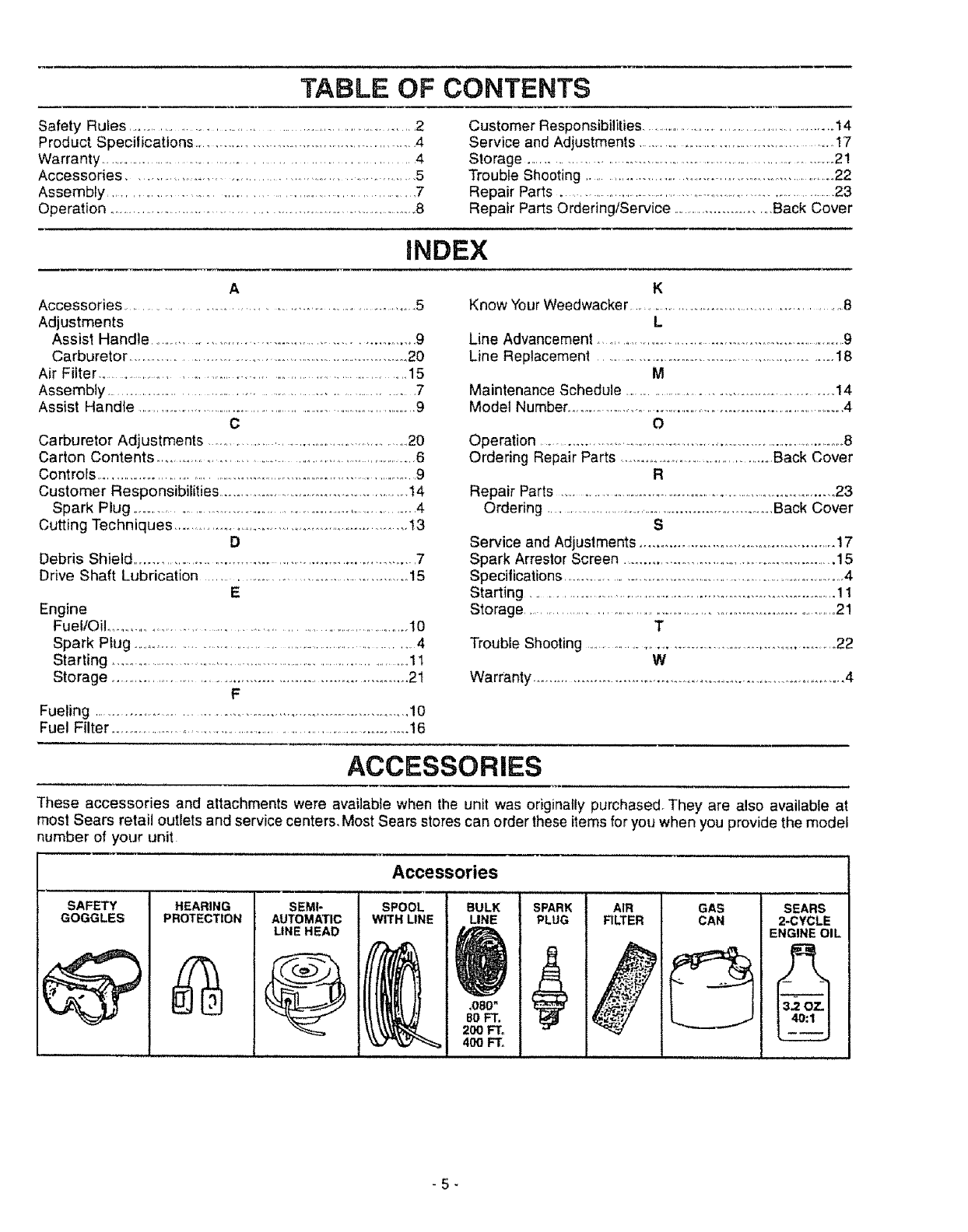

TABLE OF CONTENTS

Safety Rules .................................................................... 2

Product Specitications ................................................... 4

Warranty ....................................................................... 4

Accessories .................................................................. 5

Assembly ............................................................................ 7

Operation ............................................................................. 8

Customer Responsibilities .....................................................14

Service and Adjustments .................................................... I7

Storage ............................................................................ 21

Trouble Shooting ............................................................ 22

Repair Parts ............................................................................23

Repair Parts OrderinglService ..........................Back Cover

aNDEX

A

Accessories .................................................................. 5

Adjustments

Assist Handle ......................................................... 9

Carburetor ...................................................................... 20

Air Filter ................................................................................. 15

Assembly ................................................................. 7

Assist Handle .................................................................................. 9

C

Carburetor Adjustments ......................................................... 20

Carton Contents .......................................................................6

Controls .............................................................................................9

Customer Responsibilities................................................t4

Spark Plug .............................................................................. 4

Cutting Techniques ................................................................13

D

Debris Shield .................................................................... 7

Drive Shaft Lubrication .............................................. 15

E

Engine

FueflOil .......................................................................... t 0

Spark Plug ..................................................................... 4

Starting ..........................................................................................11

Storage ........................................................................... 21

F

Fueling .............................................................................. 10

Fuel Filter ..................................................................................16

K

Know Your Weedwacker ................................................... 8

L

Line Advancement.................................................................9

Line Replacement ................................................................18

M

Maintenance Schedule .................................................... 14

Model Number...............................................................................4

0

Operation ...................................................................................... 8

Ordering Repair Parts ...........................................Back Cover

R

Repair Parts .............................................................................23

Ordering .............................................................. Back Cover

S

Service and Adjustments ...................................................17

Spark Arrestor Screen ..................................................... 15

Specilications ...................................................................................4

Starting ..................................................................................11

Storage ........................................................................................21

T

Trouble Shooting .................................................................22

W

Warranty ...........................................................................................4

ACCESSORIES

These accessories and attachments were available when the unit was originally purchased They are also available at

most Sears retail outlets and service centers, Most Sears stores can order these items for you when you provide the model

number of your unit

Accessories

SAFETY HEARING SPOOL BULK GAS

GOGGLES PROTECTION WITH LINE LINE CAN

SEMI-

AUTOMATIC

LINE HEAD

,080"

80 FT.

200 FT,

400 FT,,

SPARK I AIR

PLUG FILTER

!

-=0

SEARS

2-CYCLE

ENGINE OIL

-5-

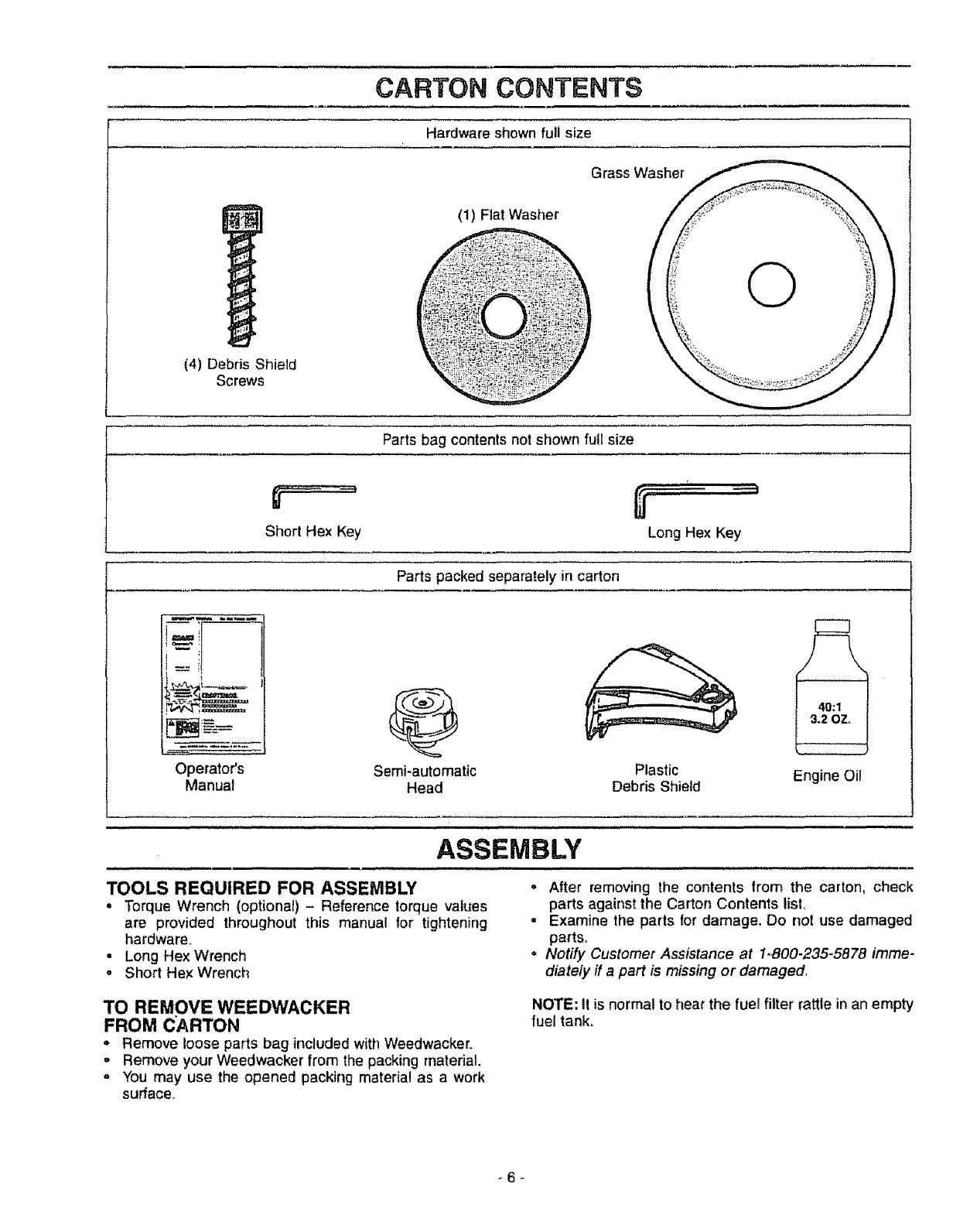

CARTON CONTENTS

Hardware shown full size

Grass Washer

(1) Fiat Washer

(4) Debris Shield

Screws

Parts bag contents not shown full size

Short Hex Key Long Hex Key

Parts packed separately in carton

--_--'.'r

Operator's Semi-automatic

Manual Head Plastic

Debris Shield Engine Oil

ASSEMBLY

,, _, L,Jl I,,,,1111 II II1,,

TOOLS REQUIRED FOR ASSEMBLY

•Torque Wrench (optional) - Reference torque values

are provided throughout this manua! for tightening

hardware_

•Long Hex Wrench

•Short HexWrench

• After removing the contents from the carton, check

parts against the Carton Contents list,

.Examine the parts for damage. Do not use damaged

parts,

oNotify Customer Assistance at 1-800-235-5878 imme-

diately ff a part is missing or' damaged

TO REMOVE WEEDWACKER

FROM CARTON

• Remove loose parts bag included witll Weedwacker.

- Remove your Weedwacker from the packing material.

- You may use the opened packing material as a work

surface.

NOTE: ii is normal to hear the fuel filter rattle in an empty

fuel tank.

°6-

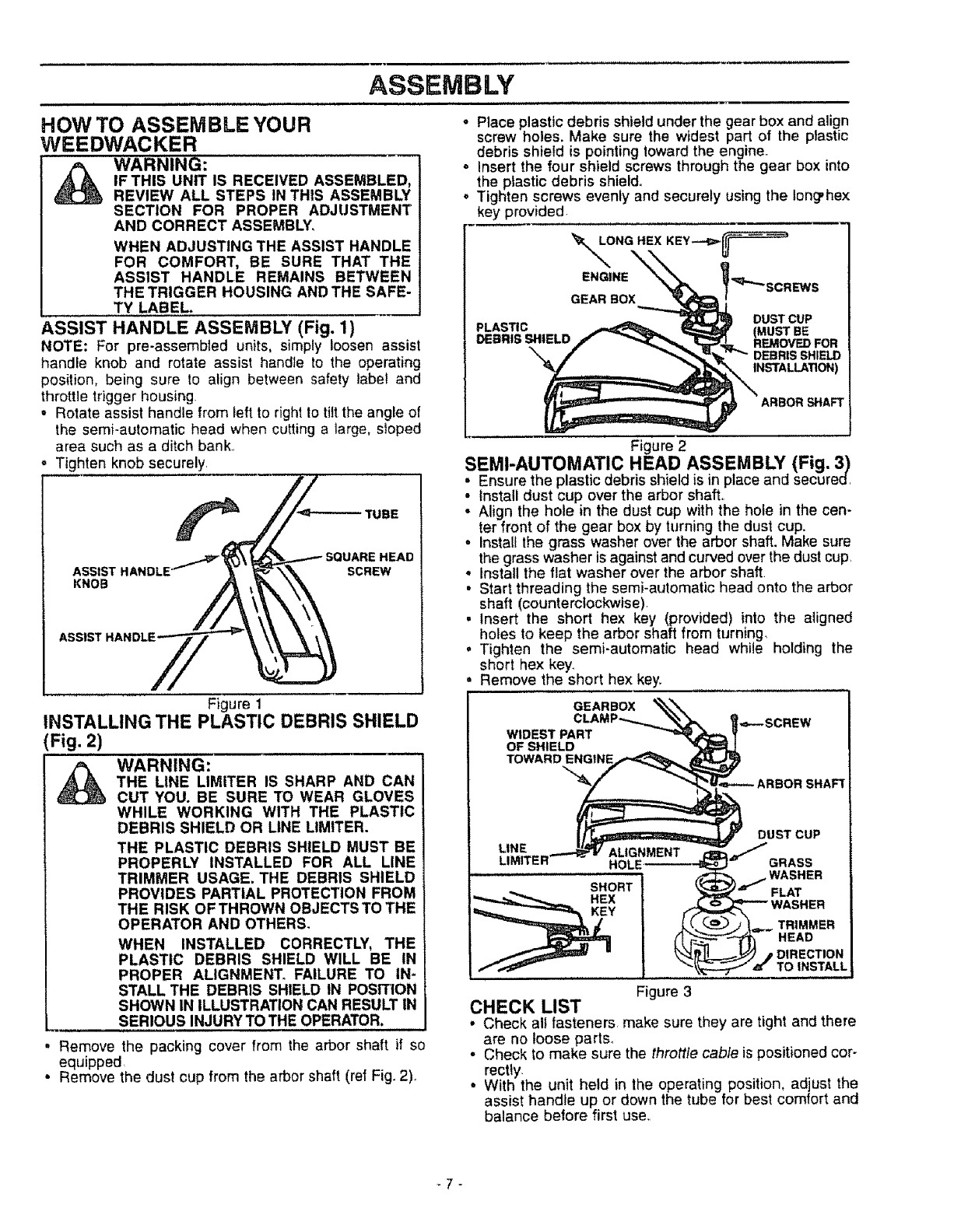

ASSEMBLY

HOW TO ASSEMBLE YOUR

WEEDWACKER

_ARNING:

IF THIS UNIT IS RECEIVED ASSEMBLED,

REVIEW ALL STEPS 1NTHIS ASSEMBLY

SECTION FOR PROPER ADJUSTMENT

AND CORRECT ASSEMBLY.

WHEN ADJUSTING THE ASSIST HANDLE

FOR COMFORT, BE SURE THAT THE

ASSIST HANDLE REMAINS BETWEEN

THE TRIGGER HOUSING ANDTHE SAFE-

TY LABEL.

ASSIST HANDLE ASSEMBLY (Fig, 1)

NOTE: For pre-assembled units, simply loosen assist

handle knob and rotate assist handte to the operating

position, being sure to align between safety label and

throttle trigger housing,

•Rotate assist handle from left to right to tilt the angle of

the semi-automatic head when cutting a large, sloped

area such as a ditch bank.,

Tighten knob securely,

TUBE

E HEAD

SCREW

KNOB

Figure 1

INSTALLING THE PLASTIC DEBRIS SHIELD

(Fig. 2)

t_ WARNING:

THE LINE LIMITER IS SHARP AND CAN

CUT YOU. BE SURE TO WEAR GLOVES

WHILE WORKING WITH THE PLASTIC

DEBRIS SHIELD OR LINE LIMITER.

THE PLASTIC DEBRIS SHIELD MUST BE

PROPERLY INSTALLED FOR ALL LINE

TRIMMER USAGE. THE DEBRIS SHIELD

PROVIDES PARTIAL PROTECTION FROM

THE RISK OF THROWN OBJECTS TO THE

OPERATOR AND OTHERS,

WHEN INSTALLED CORRECTLY, THE

PLASTIC DEBRIS SHIELD WILL BE IN

PROPER ALIGNMENT. FAILURE TO IN-

STALL THE DEBRIS SHIELD IN POSITION

SHOWN IN ILLUSTRATION CAN RESULT 1N

L_ SERIOUS INJURY TO THE OPERATOR,

•Remove the packing cover from the arbor shaft if so

equipped

•Remove the dust cup from the arbor shaft (ref Fig. 2).

-Place plastic debris shield under the gear box and align

screw holes. Make sure the widest part of the plastic

debris shield is pointing toward the engine.

oInsert the four shield screws through the gear box into

the plastic debris shield,,

•Tighten screws evenly and securely using the long, hex

key provided

ONG HEX KEY__

ENGINE

GEAR BOX

PLASTIC

DEBRIS SHIELD

DUST CUP

(MUST BE

REMOVED FOR

DEBRIS SHIELD

INSTALLATION)

ARBOR SHAFT

Figure 2

SEMI-AUTOMATIC HEAD ASSEMBLY (Fig. 3)

Ensure the plastic debris shield is in place and secured,

•Install dust cup over the arbor shaft,,

•Align the hole in the dust cup with the hofe in the cen-

ter front of the gear box by turning the dust cup.

= Install the grass washer over the arbor shaft. Make sure

the grass washer is against and curved over the dust cup,

.Install the flat washer over the arbor shaft.

• Start threading the semi-automatic head onto the arbor

shaft (counterclockwise),

Insert the short hex key (provided) into the aligned

holes to keep the arbor shaft from turning,

Tighten the semi-automatic head while holding the

short hex key_

Remove the short hex key_

GEARBOX _._

WIDEST pA_LAMP _ _ _,=_,-SCREW

OF SHIELD "%_ _LI

TOWARD ENGINE_""_,_ _J

Lirns I or1 HOLE _- WASHER

SHORT LY'3:FL_J F'AT

.Ix w ,S.ER

_/ _,_,__-_,_j _,,,.=_.TRIMMER

('_ _----"'_:"_- HEAD

_,_"-_ " _-__..._ /DIRECTION

,._- _v "'_'--.,..-_ _ TO INSTALL

Figure 3

CHECK LIST

o Check all fasteners, make sure they are tight and there

are no loose parts_

•Check to make sure the throttle cable is positioned cor-

rectly.

•With the unit held in the operating position, adjust the

assist handte up or down the tube for best comfort and

balance before first use,,

-7-

OPERATaON

KNOW YOUR WEEDWACKER (Fig. 4)

READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR WEEDWACKERo Compare

the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Sav_ this

manual for future reference.

CAP

ON/OFF SWITCH

HANDLE

HANDLE

FUEL CAP

FOAM

GRIP

SAFETY

LABEL

'TUBE

THROnLE /

TRIGGER

SEMI-AUTOMA_C

HEAD

CHOKE LEVER

PRIMER BULB

PLASTIC

DEBRIS SHIELD

LINE

L|MtTER

MUFFLER

AND GUARD

Figure 4

The ON/OFF SWITCH is used to stop the engine. The CHOKE LEVER is used for starting a cold engine

The STARTER ROPE HANDLE is used for starting the

engine

The PRIMER BULB circulates fuel to the carburetor°

The THROTTLE TRIGGER controls engine speed

'The SEMI-AUTOMATIC HEAD contains spool of line which

advances when the head is tapped on the ground:

The ASSIST HANDLE aids in the control of the uniL The LINE LtMITER cuts trimmer line automatically to the

correct length,

-8-

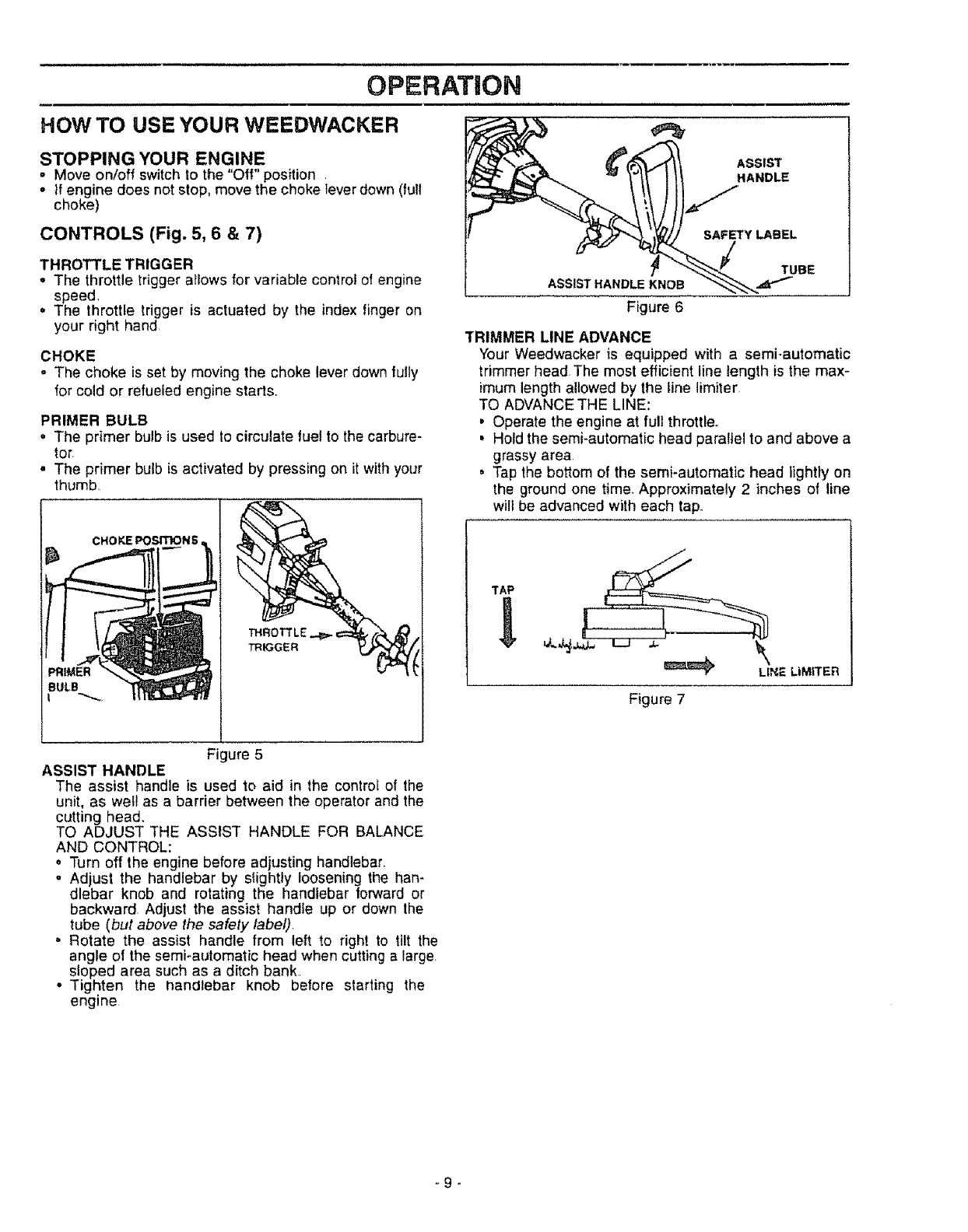

OPERATION

HOW TO USE YOUR WEEDWACKER

STOPPING YOUR ENGINE

°Move on/off switch to the "Off" position

oUengine does not stop, move the choke lever clown (ful_

choke)

CONTROLS (Fig. 5, 6 & 7)

THROTTLE TRIGGER

oThe throttle trigger a{lows for variable control of engine

speed.

= The throttle trigger is actuated by the index finger on

your right hand

CHOKE

= The choke is set by moving the choke lever down fully

for cold or refueled engine starts..

PRIMER BULB

,The primer bulb is used to circulate fuel to the carbure-

tor,

• The primer bulb is activated by pressing on it with your

thumb

BULB

CHOKE POSITIONS

THROTTLE _€

TRIGGER

ASSIST

HANDLE

SAFETY LABEL

TUBE

ASSISTHANDLE KNOB

Figure 6

TRIMMER LINE ADVANCE

Your Weedwacker is equipped with a semi-automatic

trimmer headThe most efficient line length is the max-

imum length allowed by the line limiter

TO ADVANCE THE LINE:

,Operate the engine at full throttle_

,Hold the semi-automatic head parallel to and above a

grassy area.

,Tap the bottom of the semi-automatic head lightly on

the ground one time. Approximately 2 inches of line

will be advanced with each tap_

TAP

!

I_ LI_E LiMITEF[

Figure 7

Figure 5

ASSIST HANDLE

The assist handle is used to aid in the control of the

unit, as well as a barrier between the operator and the

cutting head.

TO ADJUST THE ASSIST HANDLE FOR BALANCE

AND CONTROL:

° Turn off the engine before adjusting handlebar_

° Adjust the handlebar by sfightly loosening the han-

dlebar knob and rotating the handlebar forward or

backward Adjust the assist handle up or down the

tube (but above the safety label).

= Rotate the assist handle from left to right to tilt the

angle of the semi-automatic head when cutting a larger

sloped area such as a ditch bank..

•Tighten the handlebar knob before starting the

engine

-9_

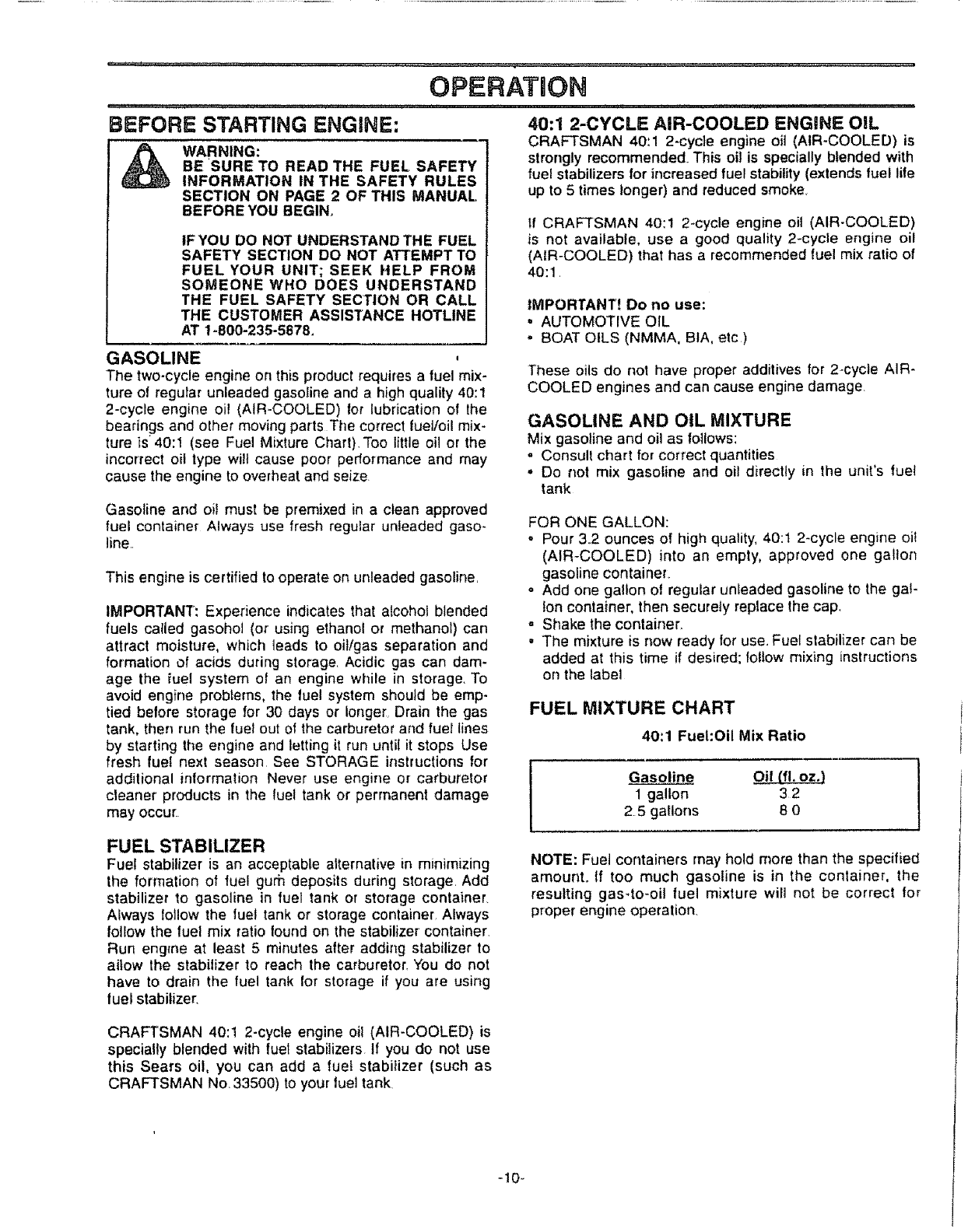

OPERATnON

BEFORE STARTING ENGINE:

WARNING:

BE 'SURE TO READ THE FUEL SAFETY

INFORMATION IN THE SAFETY RULES

SECTION ON PAGE 2 OF THIS MANUAL,

BEFORE YOU BEGIN,

IFYOU DO NOT UNDERSTAND THE FUEL

SAFETY SECTION DO NOT ATT'EMPT TO

FUEL YOUR UNIT; SEEK HELP FROM

SOMEONE WHO DOES UNDERSTAND

THE FUEL SAFETY SECTION OR CALL

THE CUSTOMER ASSISTANCE HOTLINE

AT 1-800-235-5878,

GASOLINE

The two-cycle engine on thisproduct requires a fuel mix-

ture of regular unleaded gasoline and a high quality 40:1

2-cycle engine oil (AIR-COOLED) for lubrication of the

bearings and other moving parts The correct fuel/oil mix-

ture is 40:1 (see Fuel Mixture Chart). Too little oil or the

incorrect oil type will cause poor performance and may

cause the engine to overheat and seize,

Gasoline and oil must be premixed in a clean approved

fuel container Always use fresh regular unleaded gaso-

line.,

This engine is certified to operate on unleaded gasoline,

IMPORTANT: Experience indicates that alcohol blended

fuels called gasohol (or using ethanol or methanol) can

attract moisture, which leads to oil/gas separation and

formation of acids during storage, Acidic gas can dam-

age the fuel system of an engine while in storage_ To

avoid engine probtems, the fuel system should be emp-

tied before storage for 30 days or longer Drain the gas

tank, then run the fuel out of the carburetor and fuel lines

by starting the engine and letting it run until it stops Use

fresh fuel next season See STORAGE instructions for

additional information Never use engine or carburetor

cleaner products in the luet tank or permanent damage

may occur

FUEL STABILIZER

Fuel stabilizer is an acceptable alternative in minimizing

the formation of fuel gurh deposits during storage, Add

stabilizer to gasoline in fuel tank or storage container,

Always follow the fuel tank or storage container,Always

follow the fuel mix ratio found on the stabilizer container,

Run engine at least 5minutes after adding stabilizer to

aitow the stabilizer to reach the carburetor, You do not

have to drain the fuel tank for storage if you are using

fuel stabilizer,

40:1 2-CYCLE AIR-COOLED ENGINE OIL

CRAFTSMAN 40:1 2-cycle engine oil (AtR-COOLED) is

strongly recommended This oil is specially blended with

fuel stabilizers for increased fuel stability (extends fue! life

up to 5 times longer) and reduced smoke,

tf CRAFTSMAN 40:1 2-cycle engine oil (AIR-COOLED)

is not available, use a good quality 2-cycle engine oil

(AIR-COOLED) that has a recommended fuel mix ratio of

40:1,

IMPORTANT! Do no use:

. AUTOMOTIVE OIL

,. BOAT OILS (NMMA, BIA, etc)

These oils do not have proper additives for 2-cycle AIR-

COOLED engines and can cause engine damage.

GASOLINE AND OIL MIXTURE

Mix gasoline and oil as follows:

.Consult chart for correct quantities

• Do not mix gasoline and oil directly in the unit's fuel

tank

FOR ONE GALLON:

. Pour 3.2 ounces of high quality, 40:1 2-cycle engine of!

(AIR-COOLED) into an empty, approved one gallon

gasoline container.

o Add one gallon of regular unfeaded gasoline to the gat-

Ion container, then securely replace the cap.

= Shake the container_

,, The mixture is now ready lot use. Fuel stabilizer can be

added at this time if desired; foflow mixing instructions

on the label

FUEL MIXTURE CHART

40:1 Fuet:Oil Mix Ratio

IGasoline

1 gallon 32

2 5 gallons 80

NOTE: Fuel containers may hold more than the specified

amounL If too much gasoline is in the container, the

resulting gas_to-oil fuel mixture will not be correct for

proper engine operation.

CRAFTSMAN 40:1 2-cycle engine oil (AIR-COOLED) is

specially blended with fuel stabilizers tf you do not use

this Sears oil, you can add a fuet stabitizer (such as

CRAFTSMAN No 33500) to your fuel tank.

-10-

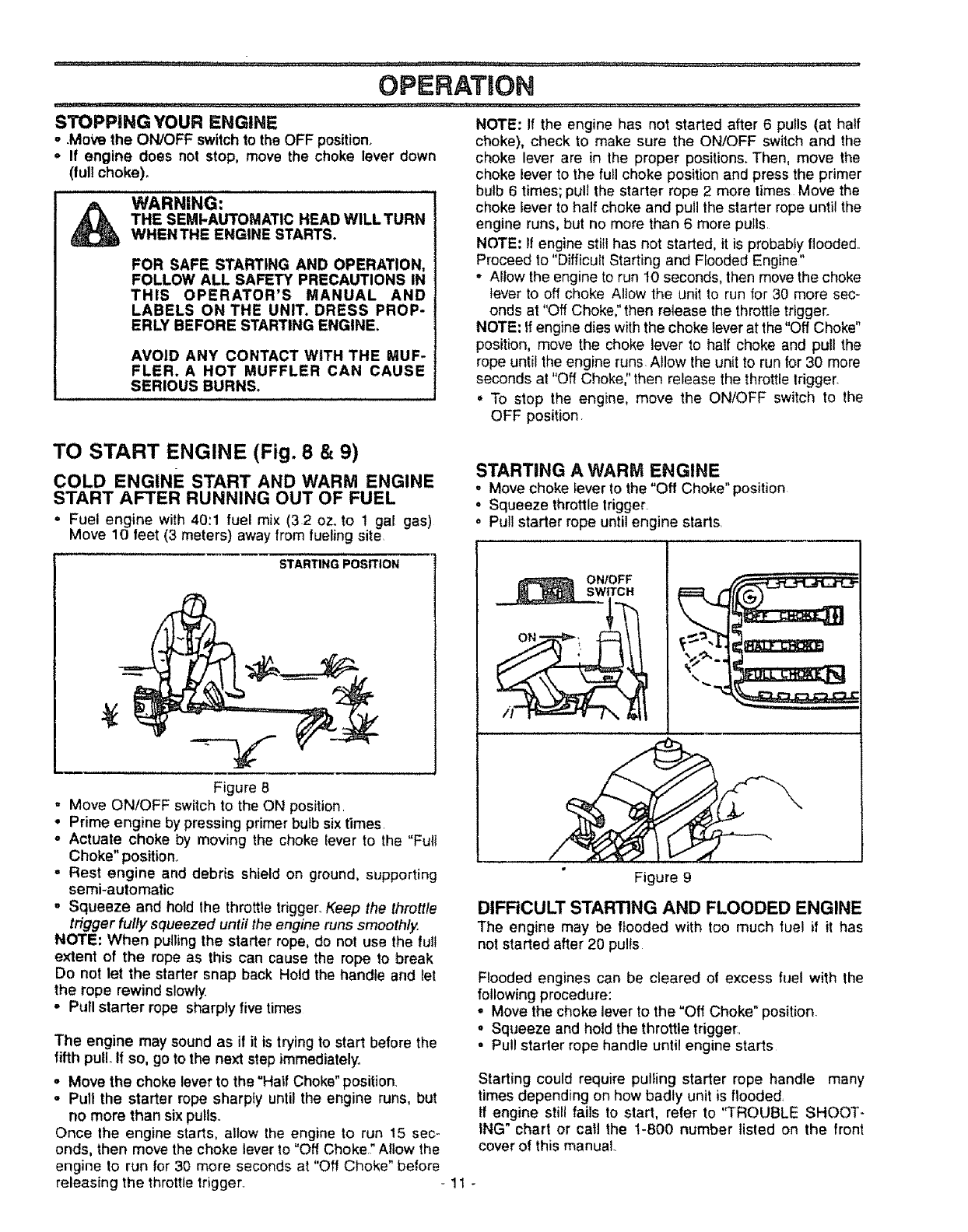

OPERATION

STOPPING YOUR ENGINE

,, ,Move the ON/OFF switch to the OFF position_

oIf engine does not stop, move the choke lever down

(ful! choke).

&WARNING:

THE SEMI-AUTOMATIC HEAD WILLTURN

WHEN THE ENGINE STARTS.

FOR SAFE STARTING AND OPERATION,

FOLLOW ALL SAFETY PRECAUTIONS tN

THIS OPERATOR'S MANUAL AND

LABELS ON THE UNIT. DRESS PROP-

ERLY BEFORE STARTING ENGINE.

AVOID ANY CONTACT WITH THE MUF-

FLER. A HOT MUFFLER CAN CAUSE

SERIOUS BURNS°

NOTE: If the engine has not started after 6 pulls (at half

choke), check to make sure the ON/OFF switch and the

choke lever are in lhe proper positions. Then, move the

choke lever to the full choke position and press the primer

bulb 6 times; pull the starter rope 2 more times Move the

choke lever to half choke and pull the starter rope until the

engine runs, but no more than 6 more pulls.

NOTE: If engine still has not started, it is probably flooded..

Proceed to "Difficult Starting and Flooded Engine"

-Allow the engine to run 10 seconds, then move the choke

lever to off choke Allow the unit to run for 30 more sec-

onds at "Off Choke:' then release the throttle trigger.

NOTE: If engine dies with the choke leverat the "Off Choke"

position, move the choke lever to half choke and pull the

rope until the engine runs. Allow the unit to run for30 more

seconds at "Off Choke:' then release the throttle trigger.

•To stop the engine, move the ON/OFF switch to fhe

OFF position

TO START ENGINE (Fig. 8&9)

COLD ENGINE START AND WARM ENGINE

START AFTER RUNNING OUT OF FUEL

•Fue! engine with 40:1 fuel mix (32 oz. to ! gal gas)

Move 10 feet (3 meters) away from fueling site,

STARTING A WARM ENGINE

oMove choke lever to the "Off Choke" position

•Squeeze throttle trigger

oPull starter rope untilengine starts,

STARTING POSITION

Figure 8

-Move ON/OFF switch to the ON position

° Prime engine by pressing primer bulb six times.

-Actuate choke by moving the choke lever to the "Full

Choke" position.

-Rest engine and debris shield on ground, supporting

semi-automatic

-Squeeze and hold lhe throttle trigger. Keep the throttle

tdgger fully squeezed until the engine runs smoothly.

NOTE: When pulling the starter rope, do not use the full

extent of the rope as this can cause the rope to break

Do not let the starter snap back Hold the handle and Iet

the rope rewind slowly

•Pull starter rope sharply five times

The engine may sound as if it is trying to start before the

fifth pull. If so, go to the next step immediately°

•Move the choke lever to the "Half Choke" position.

• Pull the starter rope sharply unlil the engine runs, but

no more than six pulis..

Once the engine starts, allow the engine to run 15 sec-

onds, then move the choke lever to "Off Choke: Allow the

engine to run for 30 more seconds at "Off Choke" before

releasing the throttte trigger. - 11

ONtOFF

SWITCH

_':'-JL:I

,,.:'.=, J

Figure 9

DIFFICULT STARTING AND FLOODED ENGINE

The engine may be flooded with too much fuel if it has

not started after 20 pulis

Flooded engines can be cleared of excess fuel with the

following procedure:

°Move the choke lever to the "Off Choke" position

,Squeeze and held the throttle trigger.

•Put! starter rope handle until engine starts

Starting could require pulling starter rope handle many

times depending on how badly unit is flooded,

tf engine still fails to start, refer to "TROUBLE SHOOT-

ING" chart or call the 1-800 number listed on the front

cover of this manual..

OPERATION SAFETY

LINE TRIMMER SAFETY

,i ,

WARNING:

THE RAPIDLY MOVING LINE CAUSES OBJECTS TO BE

THROWN VIOLENTLY. THE DEBRIS SHIELD WILL NOT

PROVIDE COMPLETE PROTECTIONTO THE OPERATOR FACE

OR OTHERS. THE OPERATOR MUST WEAR A SAFETY SHIELD

FACE SHIELD OR GOGGLES. ALWAYS WEAR HEAVY,

LONG PANTS AND BOOTS. KEEP OTHERS AT LEAST 50

FEET (15METERS) AWAY_

THIS UNIT WILL THROW OBJECTS AND CUT, KEEP OTHERS

INCLUDING CHILDREN, ANIMALS, BYSTANDERS AND

HELPERSAT LEAST50 FEET(15 METERS) AWAY FROM THE

OPERATOR AND UNIT. STOP THE ENGINE IF YOU ARE

APPROACHED.IN AREAS WHERE OTHER PEOPLE AND ANI-

MALS ARE PRESENT,SUCHAS NEAR SIDEWALKS, STREETS,

HOUSES, ETC., IT IS STRONGLY RECOMMENDED THAT THE

OPERATORUSE THE BUDDYSYSTEM;THAT IS, HAVE ANOTH-

ER PERSON SERVE AS A "LOOK-OUT," KEEPING HIMSELF

AND OTHERS AT LEASTSOFEET (15 METERS) AWAY FROM

THE OPERATOR.

THROWN

SEMI-AUTOMATIC HEAD

SEMI-AUTOMATIC HEAD PARTSTHA'r ARE CHIPPED, CRACKED

OR DAMAGED tN ANY OTHER WAY CAN FLY APART AND CAUSE

SERIOUS INJURY. DO NOT USE. REPLACE DAMAGED PARTS

BEFORE USING THE UNIT. USE ONLY GOOD QUALITY

REPLACEMENT PARTS

OPERATOR SAFETY

o Always wear eye protection when operating, servicing, or

performing maintenance on your unit Refer to

"Accessories"

" Do not operate this unit when you are tired, ill, or under

the in!luence of alcohol, drugs or medication

o Always wear heavy, long pants, longsleeves, boots, and

gloves..Do not go barefoot, wear sandals, or short pants

Loose clothing, jewelry or clothing with loosely hanging

straps, ties, tassels, etc. can be caught in moving parts

Secure hair so it is above shoulder length.Being fully cov-

ered will help protect you from piecesof toxicplants such

as poison ivy thrown by the semi-automatic head, which

could be more of a hazard than touchingthe plant itself.

,, Do not swing the unit with such force that you are in dan-

ger of Iosing your balance.

= Never start or run the engine inside a closed room or

building. Breathing exhaust fumes can kill

oKeep handles free of oil and fuel

CUTTING SAFETY

Inspectthe area to be cut before each use=Removeobjects

(rocks, broken glass, nails,wire, string, etc) which can be

thrownor become entangled in the semi-automatichead

°Always keep the engine on the rightside of yourbody

=Hold the unitfirmly withboth hands

•Keep firm footing and balance.Do not ovePreach

, Keep the semi-automatichead below waist level

•Do not raisethe engine above your waist.

°Keep all partsof your body away from the semi-automat-

ic head and muffler when engine is running.

°Use only forjobs explained in this manual.

oCut at full throttle,

° Cut from your rightto your left

UNIT SAFETY

°Inspect the entire unit before each use Replace dam-

aged parts. Check for fuel leaks and make sure all fas-

teners are in place and securely fastened.

•Use only ,080" diameter good quality monofilament line.

Never use wire, rope, or string, etc

o Be sure the plastic debris shield is properly attached

°Make sure semi-automatic head is properly installed and

securely fastened. Refer to "Assembly"

• Make carburetor adjustments with the drive shaft housing

supported to prevent the semi-automatic head from con-

tacting any object.

• Keep others away when making carburetor adjustments.

• Use only good quality SEARS accessories or attach-

ments

-12-

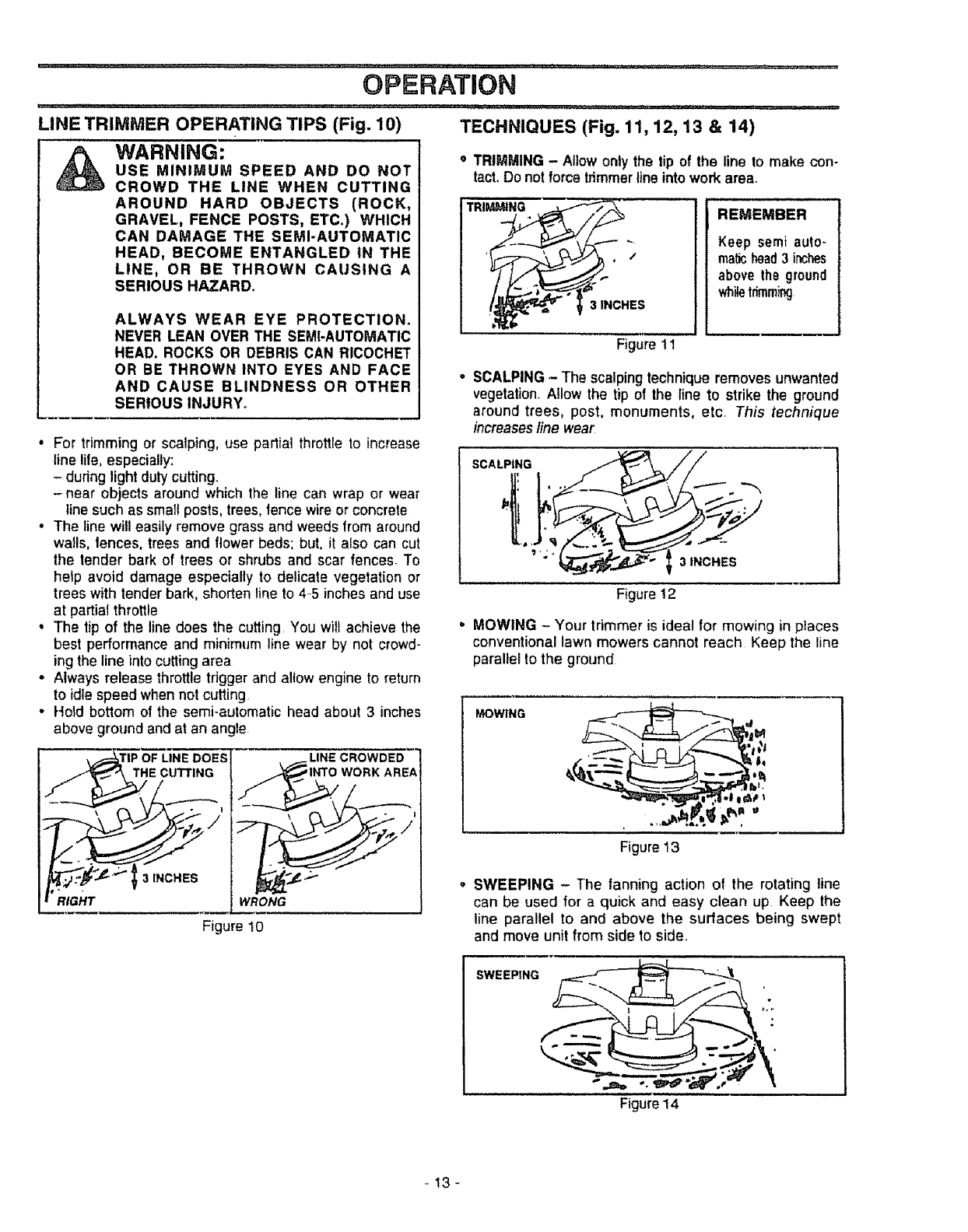

OPERATION

ILL t=Lt, T=L =I.............

TECHNIQUES (Fig. 11, 12, 13 & 14)

LINE TRIMMER OPERATING TIPS (Fig. 10)

WARNING:

USE MINIMUM SPEED AND DO NOT

CROWD THE LINE WHEN CUTTING

AROUND HARD OBJECTS (ROCK,

GRAVEL, FENCE POSTS, ETC.) WHICH

CAN DAMAGE THE SEMI-AUTOMATIC

HEAD, BECOME ENTANGLED tN THE

LINE, OR BE THROWN CAUSING A

SERIOUS HAZARD.

ALWAYS WEAR EYE PROTECTION,

NEVER LEAN OVER THE SEMI-AUTOMATIC

HEAD. ROCKS OR DEBRIS CAN RICOCHET

OR BE THROWN INTO EYES AND FACE

AND CAUSE BLINDNESS OR OTHER

SERIOUS INJURY°

• For trimming or scalping, use partial throttle to increase

line life, especially:

- during light duty cutting

-near objects around which the line can wrap or wear

Iine such as smalt posts, trees, fence wire or concrete

• The line will easily remove grass and weeds from around

wails, fences, trees and flower beds; but. it also can cut

the tender bark of trees or shrubs and scar fences. To

he_p avoid damage especially to delicate vegetation or

trees with tender bark, shorten line to 4-5 inches and use

at partial throttle

• The tip of the line does the cutting You will achieve the

best performance and minimum line wear by not crowd-

ing the line intocutting area

• Always release throttle trigger and allow engine to return

to idle speed when not cutting

•Hotd bottom of the semi-automatic head about 3 inches

above ground and at an angle.

,_,,,..,-,-j.,3jTIPOF LINE DOES

j....../_'j"_ THE C_,T]'TING

'kl Hr

=LINE CROWDED

WRONG

Figure 10

•TRIMMING - Allowonly the tip of the line to make con-

tact.Do not forcetrimmerline intowork area.

TRIW.Q _ ....

Figure 11

REMEMBER

Keep semi auto-

ma_ head3 inches

above the ground

whiletrimming

SCALPING - The scalpingtechnique removes unwanted

vegetation_ Allow the tip of the line to strike the ground

around trees, post, monuments, etc This technique

increases line wear

/f

3 INCHES

SCALPING ,

Figure t 2

• MOWING -Your trimmer is ideal for mowing in places

conventional lawn mowers cannot reach Keep the line

parallel to the ground

MOWING •,,",,

Figure 13

o SWEEPING -The fanning action of the rotating tine

can be used for a quick and easy clean up. Keep the

line parallel to and above the surfaces being swept

and move unit from side to side.

Figure 14

-13-

CUSTOMER RESPONSIBnLnTDES

MAINTENANCE SCHEDULE

Fill in dates as you complete regular service

Check for damaged or worn parts

Check for loose fasteners & parts .........

Clean unit &labeis

Clean air filter

Clean/Inspect Spark...Arrestor Screen (if installed)and Muffler

Drive Shaft Lubrication

Replace spark plug

Replace fuel filter

Check gearbox lubrication

Before Alter Every Every Yearly Service Dates

Use Use 5 Hrs. 25 Hrs.

12 V2

¢.

,/

F

J

GENERAL RECOMMENDATIONS

The warranty on this unit does not cover items that have

been subjected to operator abuse or negligence. To

receive full value from the warranty, the operator must

maintain unit as instructed in this manual

Some adjustments will need to be made periodically to

properly maintain your unit.

All adjustments in the "Service and Adjustments" section of

this manual should be checked at least once each season..

= Once a year, replace the spark plug, replace air filter

element and check semi-automatic head for wear. A

new spark plug and a clean or new air filter element

assures proper air-fuel mixture and helps your engine

run better and last ronger

- Follow the maintenance schedule in this manual.

_WARNING

DISCONNECT THE SPARK PLUG BEFORE

PERFORMING MAINTENANCE EXCEPT FOR

CARBURETOR ADJUSTMENTS.

REPLACE SEMI-AUTOMATIC HEAD PARTS

THAT ARE CRACKED, CHIPPED, OR DAM-

AGED IN ANY OTHER WAY BEFORE USING

THE UNIT,

INSPECl"THE ENTIRE UNIT. REPLACE DAM-

AGED PARTS. CHECK FOR FUEL LEAKS

AND MAKE SURE ALL FASTENERS ARE IN

PLACE AND SECURELY FASTENED.

_UBRICATION CHART

AR BOX

OGeneral purpose lithium base grease..

(_)General purpose lithium base grease -14-

BEFORE USE

CHECK FOR DAMAGED OR WORN PARTS

- Semi-automatic head - replace semi-automatic head

parts that are bent, warped, cracked, or damaged in

any way

= Fuet cap - replace broken or leaking fuel cap_

.Debris shields - replace debris shields that are bent,

warped, cracked, or damaged in any way.

= Line limiter - missing or damaged

CHECK FOR LOOSE FASTENERS AND PARTS

,, Semi-automatic head

°Assist handle

. Throttle handle

o Cyfinder and muffler cover

,Air filter cover

o Muffler

°Line Limiter

AFTER USE

CLEAN UNIT AND LABELS

° Clean the unit using a damp cloth with a rnild detergent

after use.

•Wipe off the unit with aclean dry cloth.

CUSTOMER

EVERY 5 HOURS

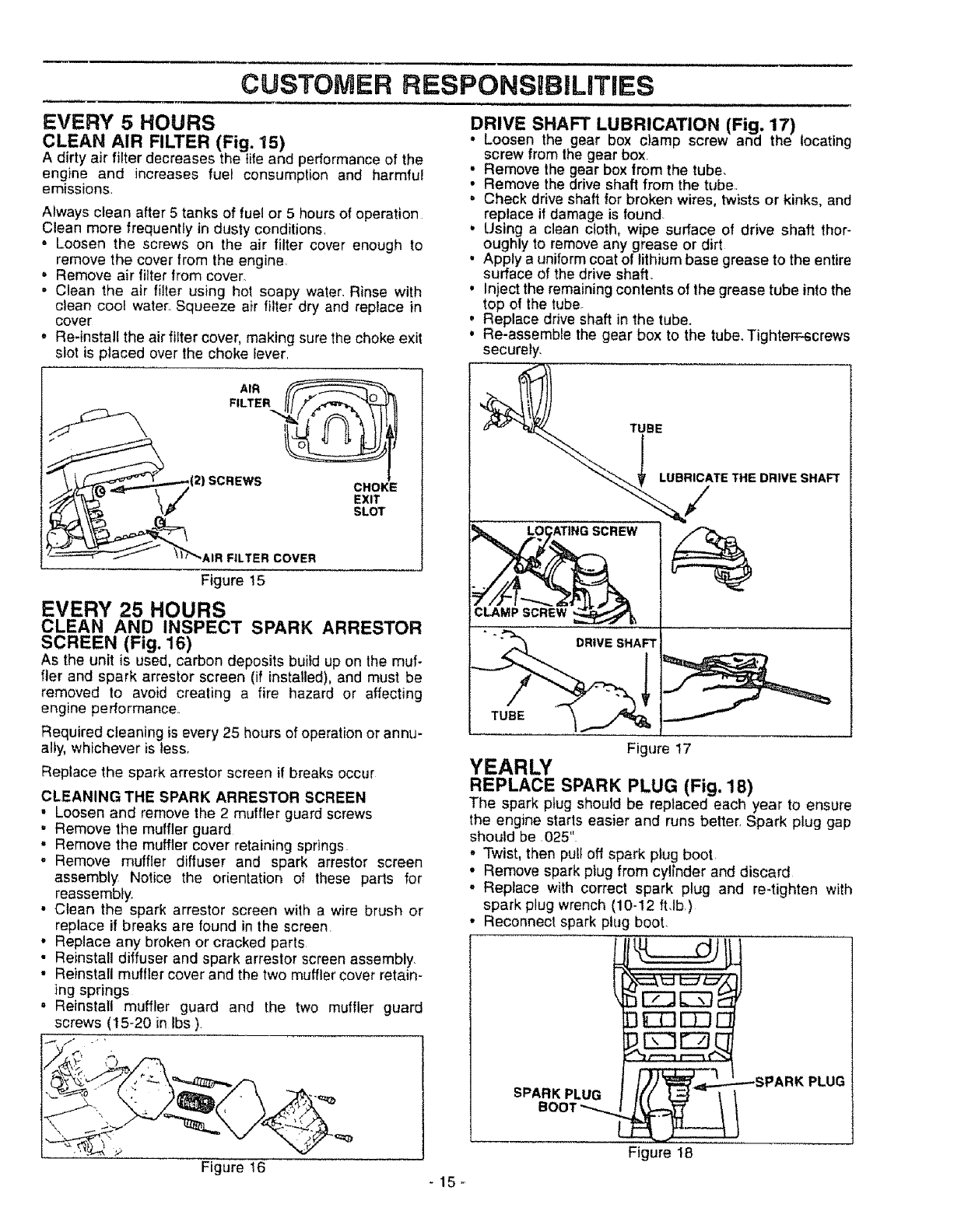

CLEAN AIR FILTER (Fig. 15)

A dirty air filter decreases the life and performance of the

engine and increases fuel consumption and harmful

emissions.

Always clean after 5 tanks of fuel or 5 hours of operation

Clean more frequently in dusty conditions,

" Loosen the screws on the air filter cover enough to

remove the cover from the engine

" Remove air filter from cover.

" Clean the air filter using hot soapy water, Rinse with

clean cool water. Squeeze air filter dry and replace in

cove r

,Re-install the air filter cover, making sure the choke exit

slot is placed over the choke lever

(_ _CHOKE

_m:_-_'J_'_ _-_'_'_AIR FILTER COVER

Figure 15

EVERY 25 HOURS

CLEAN AND INSPECT SPARK ARRESTOR

SCREEN (Fig. 16)

As the unit is used, carbon deposits buitd up on the muf-

fler and spark arrestor screen (if installed), and must be

removed to avoid creating a fire hazard or affecting

engine performance.

Required cleaning is every 25 hours of operation or annu-

ally, whichever is less,

Replace the spark arrestor screen if breaks occur

CLEANING THE SPARK ARRESTOR SCREEN

• Loosen and remove the 2 muffler guard screws

•Remove the muffler guard

"Remove the muffler cover retaining springs

°Remove muffler diffuser and spark arrestor screen

assembly Notice the orientation of these parts for

reassembly

• Cfean the spark arrestor screen with a wire brush or

replace if breaks are found in the screen

,, Replace any broken or cracked parts

•Reinstall diffuser and spark arrestor screen assembly.

• Reinstall muffler cover and the two muffler cover retain-

ing springs

•Reinstall muffler guard and the two muffler guard

screws (t5-20 in Ibs ).

Figure 16

RESPONSiBILiTIES

.,,.i ..................

DRIVE SHAFT LUBRICATION (Fig. 17)

•Loosen the gear box clamp screw and the locating

screw from the gear box.

:Remove the gear box from the tube,

Remove the drive shaft from the tube..

= Check drive shaft for broken wires, twists or kinks, and

replace if damage is found.

•Using a clean cloth, wipe surface of drive shaft thor-

oughly to remove any grease or dirt

• Apply auniformcoat of lithium base grease to the entire

surface of the drive shaft.

,Inject the remaining contents of the grease tube into the

top of the tube°

•Replace drive shaft in the tube.

oRe-assemble the gear box to the tube. Tightemscrews

securely.

'_,.T___./AUBE

TE THE DRIVE SHAFT

DRIVE SHAFT

TUBE "_

Figure 17

YEARLY

REPLACE SPARK PLUG (Fig. 18)

The spark plug should be replaced each year to ensure

the engine starts easier and runs better, Spark plug gap

should be .025"

,' Twist, then pull off spark plug boot.

•Remove spark plug from cy!lnder and discard

.Replace with correct spark plug and re-tighten with

spark plug wrench (10-12 ft,lb,)

•Reconnect spark plug boot,

rl r-r'l D

SPARKPLUG _,_..,.L---SPARK PLUG

BOOT

Figure 18

-15_

CUSTOMER RESPONSIBaLgT E$

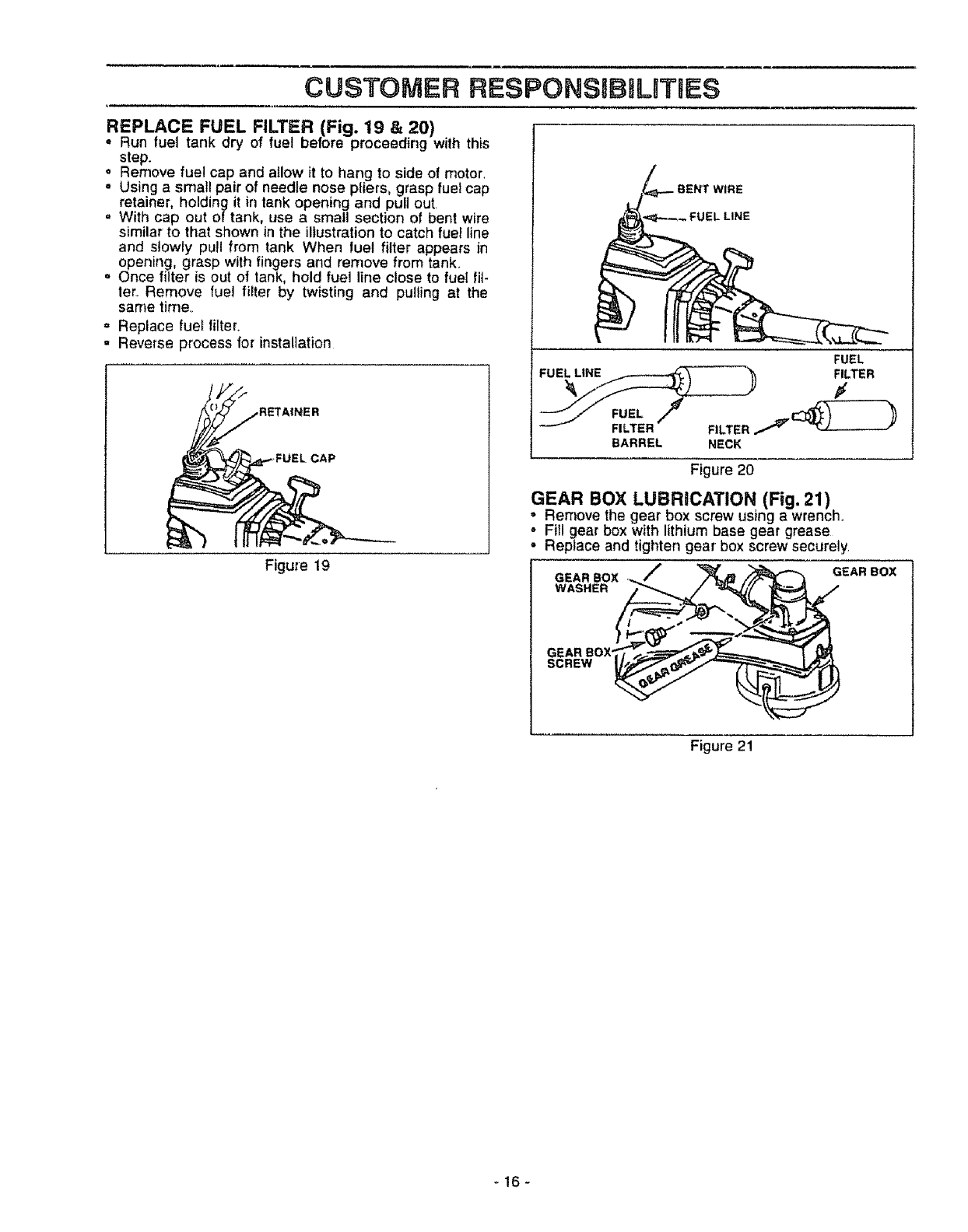

REPLACE FUEL FILTER (Fig. 19 & 20)

,, Run fuel tank dry of fuel before proceeding with this

step.

oRemove fuel cap and allow it to hang to side of motor.

i Using a small pair of needle nose pliers, grasp fuel cap

retainer, holding it in tank opening and pull out

With cap out of tank, use a small section of bent wire

similar to that shown in the illustration to catch fuel line

and slowly pull from tank When fuel filter appears in

opening, grasp with fingers and remove from tank.

= Once fitter is out of tank, hold fuel line close to fuel ill-

leE. Remove fuel filter by twisting and pulling at the

same time..

,, Replace fuel fitter.

. Reverse process for installation

Figure 19

•LINE

FUEL LINE FUEL

FILTER

FILTh. ER

BARREL NECK

Figure 20

GEAR BOX LUBRICATION (Fig. 21)

• Remove the gear box screw using awrench

=Fill gear box with lithium base gear grease

o Replace and tighten gear box screw securely.

GEAR BOX /GEAR BOX

WASHER

SCREW

Figure 2!

_16-

SERVICE AND ADJUSTMENTS

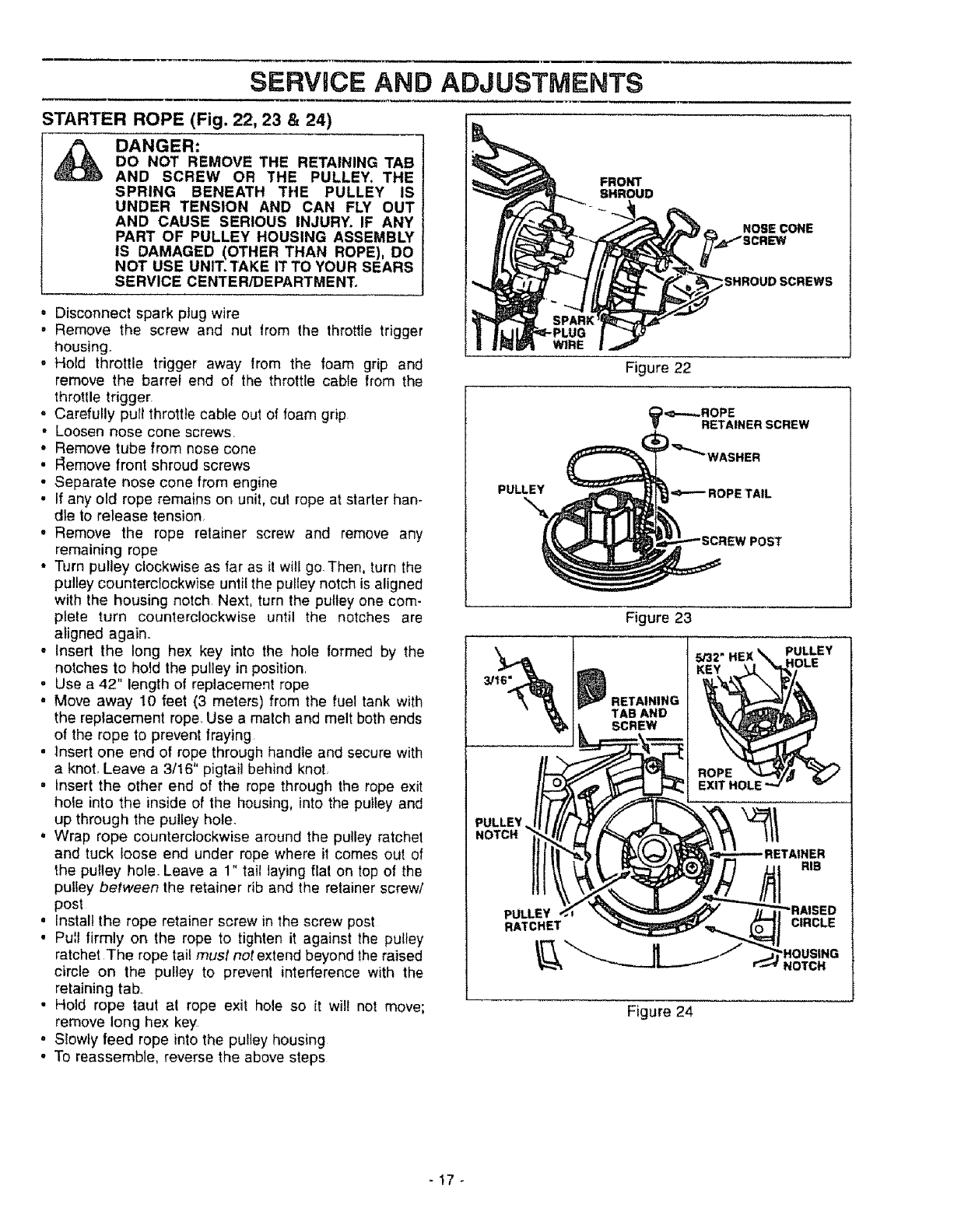

STARTER ROPE (Fig. 22, 23 & 24)

_DANGER:

DO NOT REMOVE THE RETAINING TAB

AND SCREW OR THE PULLEY. THE

SPRING BENEATH THE PULLEY IS

UNDER TENSION AND CAN FLY OUT

AND CAUSE SERIOUS INJURY. IF ANY

PART OF PULLEY HOUSING ASSEMBLY

IS DAMAGED (OTHER THAN ROPE), DO

NOT USE UNIT. TAKE IT TO YOUR SEARS

SERVICE CENTER/DEPARTMENTo

FRONT

SHROUD

NOSE CONE

SHROUD SCREWS

• Disconnect spark ptug wire

•Remove the screw and nut from the throttle trigger

housing.

.Hold throttle trigger away lrom the foam grip and

remove the barrel end of the throttle cable from the

throttle trigger.

.Carefully purl throttle cable out of foam grip

•LooseR nose cone screws.

•Remove tube from nose cone

•Remove front shroud screws

•Separate nose cone from engine

• If any old rope remains on unit, cut rope at starter han-

dle to release tension,

•Remove the rope relainer screw and remove any

remaining rope

• Turn pultey clockwise as far as i! wilt goThen, turn the

pulley counterclockwise until the puiley notch is aligned

with the housing notch Next, turn the pulley one com-

plete turn counterclockwise until the notches are

aligned again.

•Insert the long hex key into the hole formed by the

notches to hold the pulley in position.

•Use a 42" length of replacement rope

•Move away 10 feet (3 meters) from the fuel tank with

the replacement rope. Use amatch and melt both ends

of the rope to prevent fraying

= insert one end of rope through handle and secure with

a knot. Leave a 3/16" pigtail behind knot.

,, Insert the other end of the rope through the rope exit

hole into the inside of the housing, into the pulley and

up through the pulley hole.

, Wrap rope counterclockwise around the pulley ratchet

and tuck loose end under rope where it comes out of

the pulley hole. Leave a 1" tail laying flat on top of the

putfey between the retainer rib and the retainer screw/

post

= Install the rope retainer screw in the screw post

• Pull firmly on the rope to tighten it against the pulley

ratchet The rope tail must not extend beyond the raised

circle on the pulley to prevent interference with the

retaining tab..

• Hold rope taut at rope exit hole so it will not move;

remove long hex key

° Slowly feed rope intothe pulley housing

• To reassemble, reverse the above steps

W]RE

Figure 22

_ROPE RETAINER SCREW

PULLEY ROPE TAIL

POST

Figure 23

RETAINING

TAB AND

PULLEY,

NOTCH

RIB

PULLEY

RATCHET CIRCLE

NOTCH

Figure 24

-17-

SERVICE AND ADJUSTMENTS

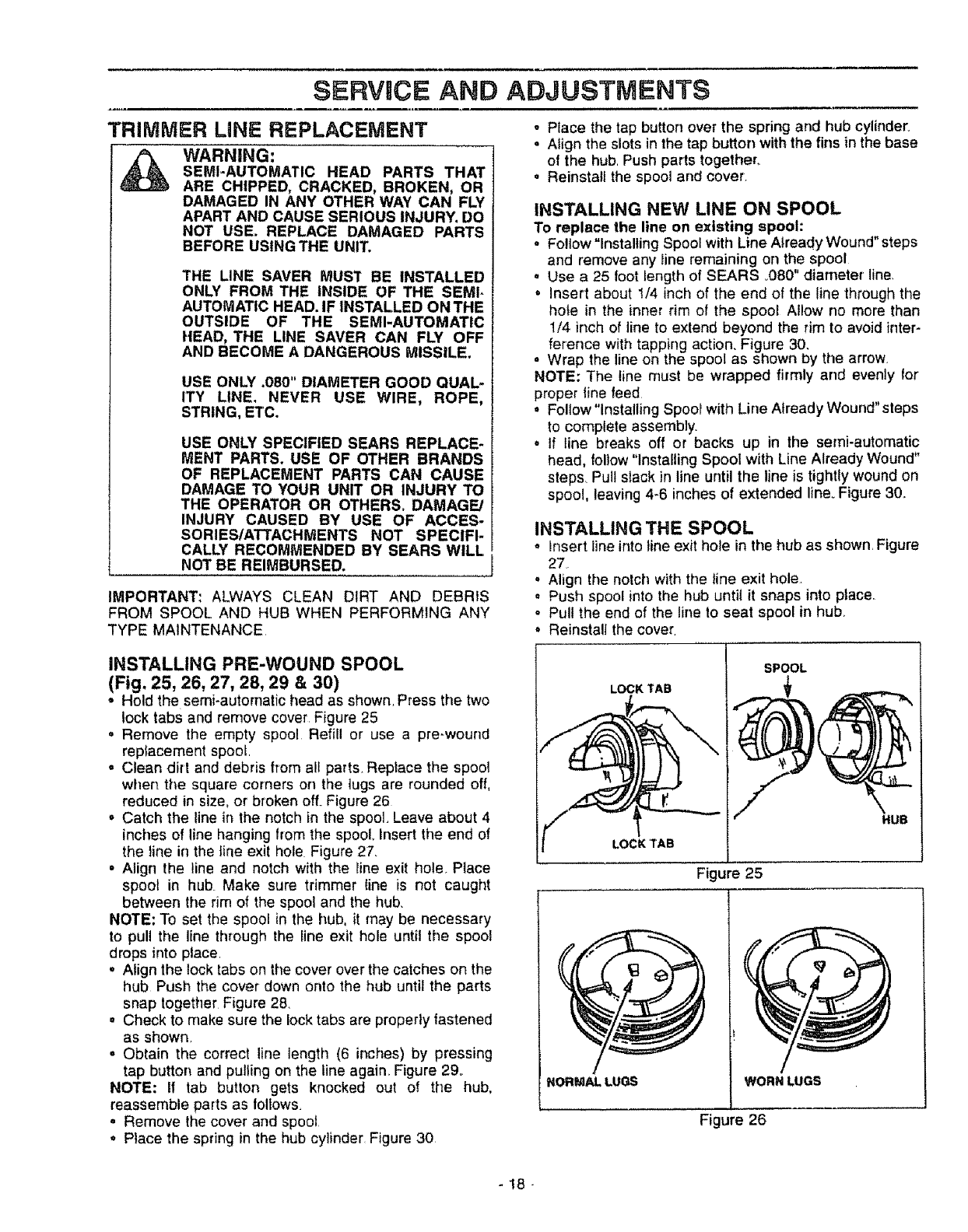

TRIMMER LiNE REPLACEMENT

WARNING:

SEMI-AUTOMATIC HEAD PARTS THAT

ARE CHIPPED, CRACKED, BROKEN, OR

DAMAGED IN ANY OTHER WAY CAN FLY

APART AND CAUSE SERIOUS INJURY. DO

NOT USE. REPLACE DAMAGED PARTS

BEFORE USING THE UNIT.

THE LINE SAVER MUST BE INSTALLED

ONLY FROM THE INSIDE OF THE SEMI-

AUTOMATIC HEAD. IF INSTALLED ON THE

OUTSIDE OF THE SEMI-AUTOMATIC

HEAD, THE LINE SAVER CAN FLY OFF

AND BECOME A DANGEROUS MISSILE.

USE ONLY .080" DIAMETER GOOD QUAL-

ITY LINE. NEVER USE WIRE, ROPE,

STRING, ETC.

USE ONLY SPECIFIED SEARS REPLACE-

MENT PARTS. USE OF OTHER BRANDS

OF REPLACEMENT PARTS CAN CAUSE

DAMAGE TO YOUR UNIT OR INJURY TO

THE OPERATOR OR OTHERS° DAMAGE/

INJURY CAUSED BY USE OF ACCES-

SORIEStA'I'f'ACHMENTS NOT SPECIFI-

CALLY RECOMMENDED BY SEARS WILL

NOT BE REIMBURSED. I

IMPORTANT: ALWAYS CLEAN DIRT AND DEBRIS

FROM SPOOL AND HUB WHEN PERFORMING ANY

TYPE MAINTENANCE

oPlace the tap button over the spring and hub cylinder.

oAlign the slots in the tap button with the fins in the base

of the hub, Push parts together,.

• Reinstall the spool and cover',

INSTALLING NEW LINE ON SPOOL

To replace the line on existing spool:

,Follow"installing Spool with Line Aiready Wound" steps

and remove any line remaining on the spool

•Use a 25 loot length of SEARS _080" diameter line.

•Insert about 1/4 inch of the end of the line through the

hole in the inner rim of the spool Allow no more than

1/4 inch of line to extend beyond the rim to avoid inter-

ference with tapping action. Figure 30.

° Wrap the line on the spool as shown by the arrow,

NOTE: The line must be wrapped firmly and evenly for

proper line feed

.Follow"Installing Spool with Line Already Wound"steps

to complete assembly.

° If line breaks off or backs up in the semi-automatic

head, follow"Installing Spool with Line Already Wound"

steps. Pull slack in line until the line is tightly wound on

spool, leaving 4-6 inches of extended lineoFigure 30,,

INSTALLING THE SPOOL

insert line into line exit hole in the hub as shown, Figure

27

.Align the notch with the line exit hole,

= Push spool into the hub until it snaps into place.

oPull the end of the line to seat spool in hub.

oReinstall the cover,

INSTALLING PRE-WOUND SPOOL

(Fig. 25, 26, 27, 28, 29 & 30)

• Hold the semi-automatic head as shown Press the two

tock tabs and remove cover Figure 25

oRemove the empty spool Refill or use a pre-wound

replacement spool

.Clean dirt and debris from alf parts Replace the spool

when the square corners on the lugs are rounded off,

reduced in size, or broken off.Figure 26

•Catch the line in the notch in the spool. Leave about 4

inches of line hanging from the spool Insert the end of

the line in the line exit hole Figure 27_

•Align the line and notch with the Une exit hole, Place

spool in hub Make sure trimmer line is not caught

between the rim of the spooland the hub.

NOTE: To set the spool in the hub, it may be necessary

to pull the line through the Iine exit hole until the spool

drops into place

.Align the locktabs on the cover over the catches on the

hub Push the cover down onto the hub until the parts

snap together Figure 28.

= Check to make sure the lock tabs are properly fastened

as shown,

• Obtain the correct line length (6 inches) by pressing

tap button and pulling on the line again_ Figure 29°

NOTE: If tab button gets knocked out of the hub,

reassemble parts as toltows.

• Remove the cover and spool,

• Place the spring in the hub cylinder Figure 30

LOCK TAB

K

LOCKTAB

SPOOL

Figure 25

HUB

NORMALLUGS WORN LUGS

Figure26

-18-

SERVICE AND ADJUSTMENTS

NOTCH

COVER RNGER OVER NOTCH

LINE EXIT HOLE

TAP BUTTON

Figure 27 Figure 29

LOCK TABS

CATCH

1N" OF INNER

UNE RIM

Figure 28 Figure 30

_19-

SERVICE AND ADJUSTMENTS

Carburetor adjustment is critical and tf done improp-

erly can permanently damage the engine as well as

the carburetor, Please read all instructions and con.

suit the Troubleshooting section of this manual

before beginning this process. If the engine does not

operate according to these instructions after repeat-

Ing the adjusting steps, do not use the unit. For fur-

ther assistance, please call our customer assistance

hotline at 1-800-235-5878,

WARNING:

MAKE CARBURETOR ADJUSTMENTS

WITH THE LOWER END SUPPORTED TO

PREVENT SEMI-AUTOMATIC HEAD FROM

CONTACTING ANY OBJECT. HOLD UNIT

WITH YOUR HAND.

THE SEMI-AUTOMATIC HEAD WILL BE

SPINNING DURING MOST OF THIS PRO-

CEDURE, WEAR YOUR PROTECTIVE

EQUIPMENT AND OBSERVE ALL SAFETY

PRECAUTIONS.

IN MIXTURE ADJUSTMENT, RECHECK

IDLE SPEED AFTER EACH ADJUSTMENT.

If engine does not start, it may be flooded If indoubt read

the section on flooded engine in the starting section of

this manual prior to beginning any adjustments.

The carburetor has been adjusted at the factory for sea

level conditions. Adjustments may become necessary if

the unit is used at significantly higher altitudes or if you

notice any of the following conditions:

.Engine will not idle. See "idle Speed Adjustment" and

'Mixture Speed Adjustment".

.Engine dies or hesitates when it should accelerate See

"Acceleration Check"

°Loss of cutting power which is not corrected by air fil-

ter cleaning. See "Mixture Speed Adjustment"

NOTE: There are two adjustments on the carburetor.

•The Idle Speed Adjustment.

, The Mixture AdjustmenL

CARBURETOR PRESETS (Fig. 31)

If your engine will not start due to suspected improper

carburetor adjustment, the following presets may be

required, If used, it is recommended that all steps within

the adjustment procedure be completed in order to

assure a properly set carburetor. If presets are not need-

ed, proceed to section "Idle Speed Adjustment",

Very _mall adjustments can affect engine performance. It

is important to make slight adjustments and test pedor-

mance before proceeding. Each adjustment should be no

more than 1/t6th of a turn

•Turn the mixture adjustment fully counterclockwise to

the limiter cap stops.,

;Turn idle speed adjustment clockwise one full turn,

If engine fails to start after pedorming carburetor pre-

sets, the unit may be flooded. Review the "Difficult

Starting" section of the manual If problems continue,

call the 1-800 number listed on the front cover of this

manual for further assistance°

° Starl the engine and operate for three (3) minutes to

warm up Go to "Adjusting Procedure".

AIR FILTER

IDLE SPEED SCREW COVER

Figure 31

ADJUSTING PROCEDURE

IDLE SPEED ADJUSTMENT

.Allow the warm engine to idle

= Adjust the Idle Speed until the engine continues to run

without stalling,

-Turn screw clockwise to increase engine speed if

engine stalls or dies,

-Turn screw counterclockwise to slow engine down

- Follow instructionsin "Acceleration Check".

•No further adjustments are necessary if performance

is satisfactory

MIXTURE ADJUSTMENT

, Support the lower end so the semi=automatic head is

off the ground and will not make contact with any

object, Be sure the trimmer line is extended to the max-

imum lengthallowed by the line limiter.

° Start the engine. Allow engine to idle, then squeeze

throttletrigger fully

NOTE: Perform steps below at full throttle

•Turn mixture screw counterclockwise to the limiter cap

stop.

= Run engine at full throttle for 30 seconds.

° I! engine is running rough, turn mixture screw clockwise

in 1/16th turn increments until engine just starts to run

smoothly.

• Do not attempt to adjust screw beyond stops as dam-

age will occur,

. After completing adjustments, check for acceleration.

° tf the unit accelerates and runs smoothly, no further

adjustments are necessary. 1! not, proceed to

"Acceleration Check"

ACCELERATION CHECK

°Allow engine to idle

•Squeeze trigger fully

- if performance is satisfactory (engine accelerates

smoothlY)r no further adjustments are necessary.

- If the engme does not accelerate smoothly, turn

the mixture screw counterclockwise asmall amount

(no mote than the width of the slot in the adjusting

screw).

• Repeat step above until smooth acceleration is

obtained. Do not attempt to adjust the screw beyond the

stop as damage will occur.

NOTE: It may be necessary to repeat "Idle speed

Adjustment"through "Acceleration Check,"_o obtain coro

rect adjustments

- 20 -

STORAGE

Immediately prepare your unit for storage at the end of

the season or if it will not be used for 30 days or more.

...._ WARNING:

ALLOW THE ENGINE TO COOL, AND

SECURE THE UNIT BEFORE STORING

OR TRANSPORTING IN A VEHICLE,

STORE UNIT AND FUEL IN AN AREA

WHERE FUEL VAPORS CANNOT REACH

SPARKS OR OPEN FLAMES FROM

WATER HEATERS, ELECTRIC MOTORS

OR SWITCHES, FURNACES, ETCo

STORE UNIT WITH ALL GUARDS tN

PLACE. POSITION SO THAT ANY SHARP

OBJECT CANNOT ACCIDENTALLY CAUSE

INJURY TO PASSERS BYo

STORETHE UNIT OUT OFTHE REACH OF

CHILDREN.

FUEL SYSTEM

Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur to fuel system

components. Follow these instructions:

= Drain the fuel from the unit into an approved fuel con-

tainer.

• Drain the fuel lines and carburetor by starting the

engine and letting it run until it stops

• Allow the engine to cool before storage

IMPORTANT: It is important to prevent gum deposits

from forming in essential fuel system parts such as the

carburetor, fuel filter, fuel hose or tank during storage

Also, experience indicates that alcohol blended fuels,

those that use ethano_ or methanol (called gasohol or

oxygenated fuel), can attract moisture and form acidic

gas which will damage your engine .To avoid engine prob-

lems, the fuel system should be emptied before storage

of 30 days or longer.

GAS TRIMMER STORAGE INSTRUCTIONS

If your trimmer is to be stored for a period of time, clean

it thoroughly prior to storage. Remove any dirt, _eaves,oil,

grease, etc. Store in a clean dry area.

°Clean the entire unit

° Clean air filter. Refer to "Customer Responsibilities."

°Open the semi-automatic head assembly and clean

any dirt, grass or debris that has collected.

•Inspect the cutting line_Old cutting line may be chalky

or sticky to the touch.Remove and discard old line and

install fresh new line.

,Lightly oil external metal surfaces to prevent rust from

forming

•Re-assemble all loose parts, being sure that all handles

and guards are in place and are securely fastened

Replace any damaged parts_

•The recommended storage position is either vertically

with the fuel cap on top, or horizontally with the fuel cap

up_Do not store unit with the cutting attachment up.

, Hang the unit by the brackets under the motor housing

to avoid fuel leaks..Make sure the unit is positioned so

that the line limiter cannot cause injury

1_ CAUTION: WEAR PROTECTIVE GLOVES

WHEN HANDLING LINE LIMITER. THE

BLADE IS SHARP AND CAN CUT YOU°

Fue! stabilizer is an acceptable alternative in minimizing

the formation of fuel gum deposits during storage. Add

stabilizer to the gasoline in the fuel tank or fuel storage

container Always followthe mix instructionsfound on sta-

bilizer containers Run engine at least 5 minutes after

adding stabilizer to allow the stabilizer to reach the car-

buretor

CRAFTSMAN 40:1 2-cycle engine oil (AIR-COOLED) is

specially blended with fuel stabilizer. If you do not use

this Sears oil, you can add a fuel stabilizer (such as

CRAFTSMAN Noo33500) to your fuei tank.

INTERNAL ENGINE

•Remove spark plug and pour t teaspoon of 40:1 2-

cycle engine oil (AIR*COOLED) through the spark plug

opening. Slowly pull the starter rope 8 to 10 times to

distributeoil to inner engine surfaces

-Replace spark plug with a new one of the recommended

type and heat range Refer to "Product Specifications."

•Clean air filter. Refer to "Customer Responsibilities."

,Re-install all covers and hardware removed for access;

tighten all screws and fasteners_

°Check entire unit for loose screws, nuts, and bolts

Replace any damaged, broken, or worn parts

•Lightly oil external metal surface to prevent rust from

forming.

•Use fresh fuel having the proper gasoline to oil ratio at

the beginning of the next season

OTHER

-Do not store gasoline from one season to another.

•Replace your gasoline can if your can starts to rust Rust

and/or dirt in your fuel system will cause problemso

° Store your unit in a well ventilated area and covered, if

possible, to prevent dust and dirt accumulation Do not

cover wilh plastic° Plastic cannot breathe and will

induce condensation and eventual rust or corrosion.

IMPORTANT: NEVER COVER UNIT WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM

- 21 -

TROUBLE SHOOTING POnNTS

TROUBLE SHOOTING CHART

SYMPTOM

Engine will not start or

will run only for a

few seconds after

starting,.

Engine will not

idle properly.

Engine will not

accelerate, lacks

power,or dies

under a load.,

Engine

smokes

excessively

Engine

runs hot

Semi-automatic head

slops under a load

or does not turn when

engine is accelerated.

Line does not

advance or breaks

while cutting.

Line welds onto

spool

CAUSE

1 Fuel tank empty_

2Engine flooded.

3_Spark plug nottiring.

4, Fuel not reaching carburetor.

5. Carburetor requires adjustment.

6, None of the above,

t Carburetor set too fast or too stow

2 Carburetor requires adjustment

3 None of the above

1 Air filter dirty

2Spark plug foutedv

3, Carburetor requires adjustment.

4, Muffler outlets plugged

5. None of the above.

1, Air filter dirty.

2. Fuel mixture incorrect.

3, Carburetor requires adjustment.

CORRECTION

I_ Fill tank with correct fuel mixture.

2. See "Starting Instructions",

3,.Install new plug!check ignition switch

4. Replace fuel filter; inspect fuei line,

5. See "Carburetor Adjustments°"

6, Contact your SEARS Service Center/DepL

1 See"Carburetor Adjustments."

2. See "Carburetor Adjustments."

3 Contact your SEARS Service Center/DepL

I Clean or replace air filter,,

2oClean or replace spark plug and re-gap,

3 See "Carburetor Adjustments."

4 Contact your SEARS Service CentedDepL

5 Contact your SEARS Service Center/Depto

1. Clean or replace air filter,

2 Refuef with correct fuel mixture,

3. See "Carburetor Adjustments:

1Fuel mixture incorrect, 1

2. Spark plug incorrect 2

3, Carburetor set too high (lean), 3

4, Wrong diameter cutting line.(too large) 4

5. None of the above, 5.

1, Drive shaft not engagedv

2, Drive shaft broken.

1 Line improperly routed in head.

2 Line improperly wound onto spool.

3 Line size incorrect.

4_Old cutting line.

5_Too little line outside head.

6 Dirt accumulated in cover,

7 Line wound in wrong direction,

1_Line size incorrecL

2,,Old cutting line,_

3, Incorrect spool.

4. Crowding line against materiai

being cut.

See "Fueling Your Unit."

Replace with correct plug.

See Carburetor Adjustments."

Use only .080" diameter cutting line.

Contact your SEARS Service Center/Dept.

1. See "Assembly," "Tube", insert fully,

2. Contact your SEARS Service CentedDepL

1 Remove cover. Check line routing.

2. Rewind line tightly and evenly.

3 Use only .080" diameter line.

4 Replace with new cutting lineo

5. Remove cover. Pull 4" of line to outside.

6, Clear] cover_

7_Rewind in correct direction.

1. Use only 080" diameter line,.

2 Replace with new cutting line.,

3 Use proper spool,

4 Cut with tipof line.

Line pulls back 1 Too little line outside of head, 1 Remove cover. Pull 4" of line to outside.

into head. 2. Old cutting tine_ 2, Replace with new cutting line.

If situations occur which are not covered in this manual, use care and good judgemenL

If you need assistance, contact your SEARS Service Center/Department or the

CUSTOMER ASSISTANCE HOTLINE AT 1-800.235_5878.

_22_
