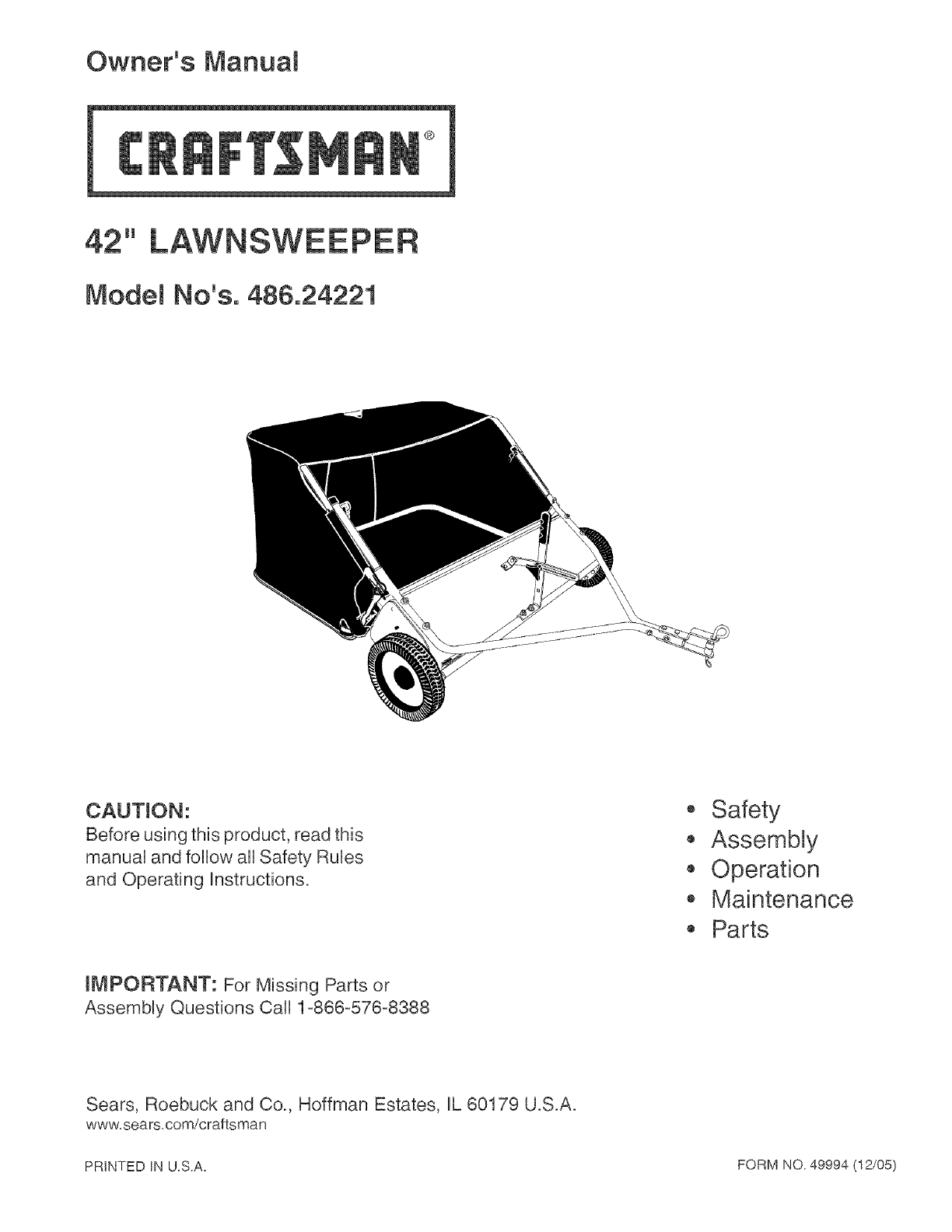

Owner's Manuat

LAWNSWEEPER

ModeJ No°s, 486.24221

CAUTION:

Before using this product, read this

manuaU and follow aH Safety RuUes

and Operating Instructions.

• Safety

• AssembLy

• Operation

• Maintenance

• Parts

mMPORTANT: For Missing Parts or

AssembUy Questions Call 1-866-576-8388

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www=sears=com/craftsman

PRINTED IN U.S.A. FORM NO. 49994 (12/05)

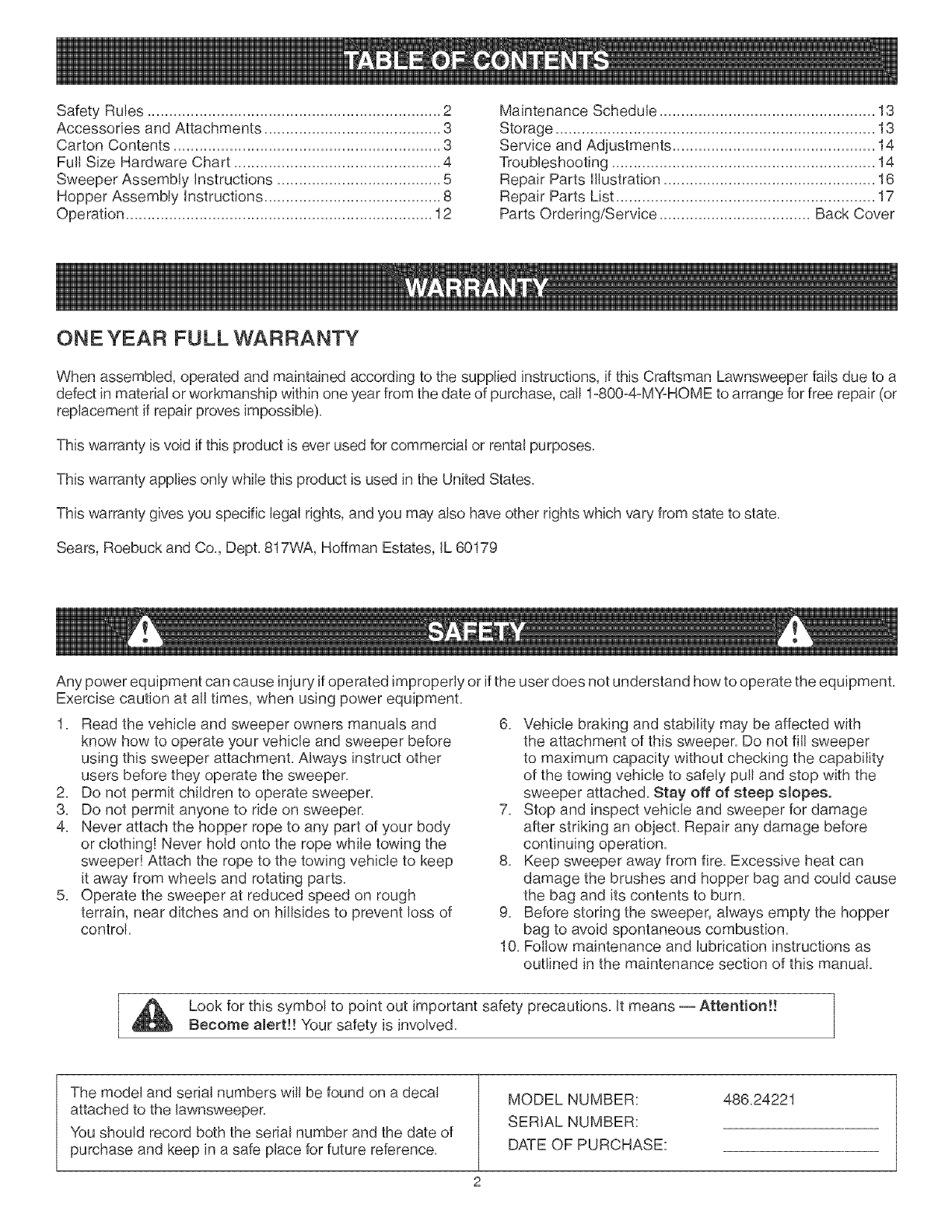

ONE YEAR FULL WARRANTY

When assembled, operated and maintained according to the supplied instructions, if this Craftsman Lawnsweeper fails due to a

defect in material or workmanship within one year from the date of purchase, cal! 1-800-4-MyoHOME to arrange for free repair (or

replacement if repair proves impossible).

This warranty is void if this product is ever used for commercial or rental purposes.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Any power equipment can cause inju ry if operated improperly or if the user does not understand how to operate the equipment.

Exercise caution at all times, when using power equipment.

1. Read the vehicle and sweeper owners manuals and

know how to operate your vehicle and sweeper before

using this sweeper attachment. Always instruct other

users before they operate the sweeper.

2. Do not permit children to operate sweeper.

3. Do not permit anyone to ride on sweeper.

4. Never attach the hopper rope to any part of your body

or clothing! Never hold onto the rope while towing the

sweeper! Attach the rope to the towing vehicle to keep

it away from wheels and rotating parts.

5. Operate the sweeper at reduced speed on rough

terrain, near ditches and on hillsides to prevent loss of

control.

6. Vehicle braking and stability may be affected with

the attachment of this sweeper. Do not fill sweeper

to maximum capacity without checking the capability

of the towing vehicle to safely pul! and stop with the

sweeper attached. Stay off of steep slopes.

7. Stop and inspect vehicle and sweeper for damage

after striking an object. Repair any damage before

continuing operation.

8. Keep sweeper away from fire. Excessive heat can

damage the brushes and hopper bag and could cause

the bag and its contents to burn.

9. Before storing the sweeper, always empty the hopper

bag to avoid spontaneous combustion.

10. Follow maintenance and lubrication instructions as

outlined in the maintenance section of this manual.

Look for this symbol to point out important safety precautions. It means -- Attention!!

Become alert!! Your safety is involved.

The mode! and serial numbers will be found on a decal

attached to the lawnsweeper.

You should record both the serial number and the date of

purchase and keep in a safe place for future reference.

MODEL NUMBER:

SERIAL NUMBER:

DATE OF PURCHASE:

486.24221

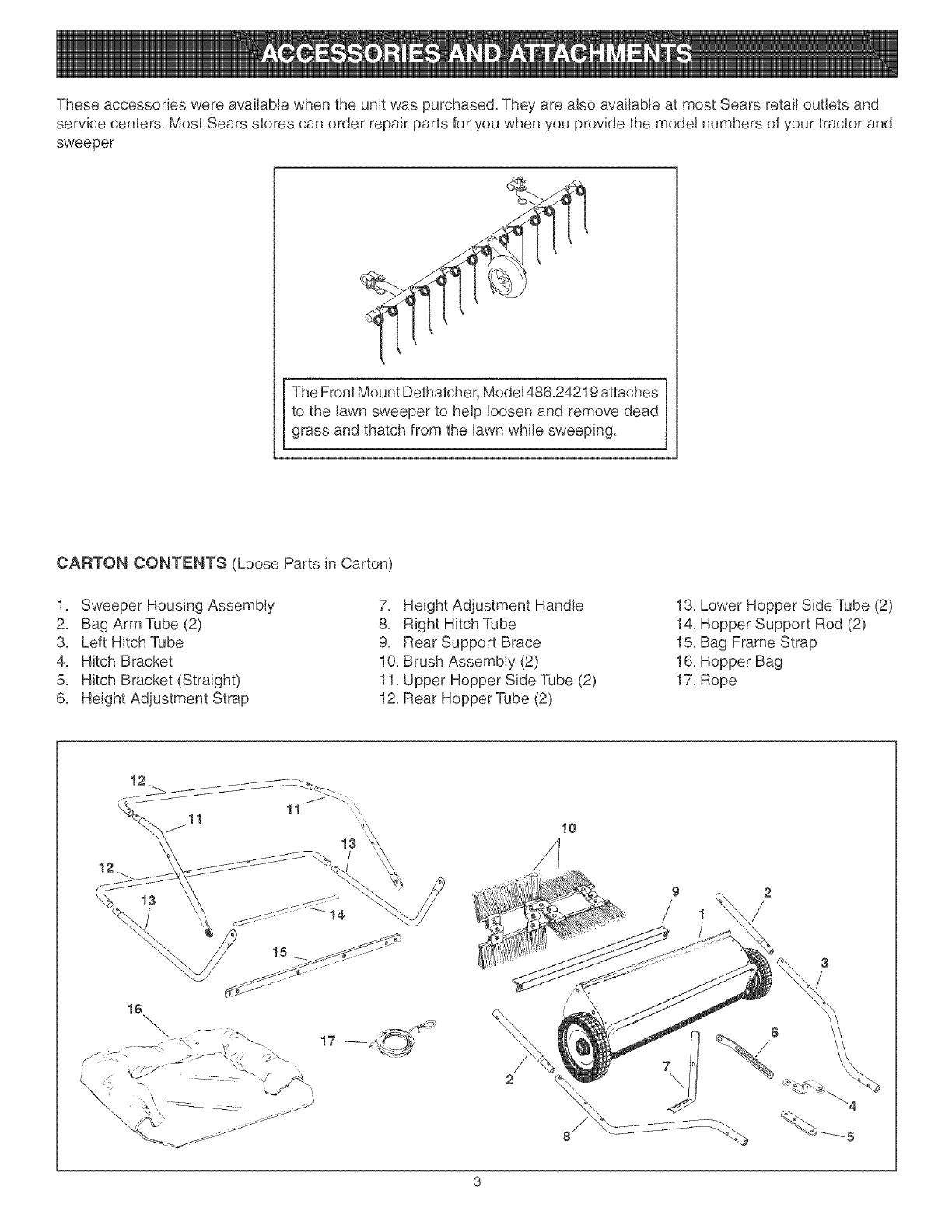

Theseaccessorieswereavailablewhentheunitwaspurchased,TheyarealsoavailableatmostSearsretailoutletsand

servicecenters,MostSearsstorescanorderrepairpartsforyouwhenyouprovidethemodelnumbersofyourtractorand

sweeper

TheFrontMountDethatcheDMode!486.24219attaches

tothelawnsweeperto helploosenandremovedead

grassandthatchfromthelawnwhilesweeping.

CARTONCONTENTS(LoosePartsinCarton)

1. SweeperHousingAssembly

2. BagArmTube(2)

3. LeftHitchTube

4. HitchBracket

5. HitchBracket(Straight)

6. HeightAdjustmentStrap

7. HeightAdjustmentHandle

8. RightHitchTube

9. RearSupportBrace

10,BrushAssembly(2)

11.UpperHopperSideTube(2)

12.RearHopperTube(2)

13,LowerHopperSideTube(2)

14,HopperSupportRod(2)

15.BagFrameStrap

16.HopperBag

17.Rope

13 10

16\

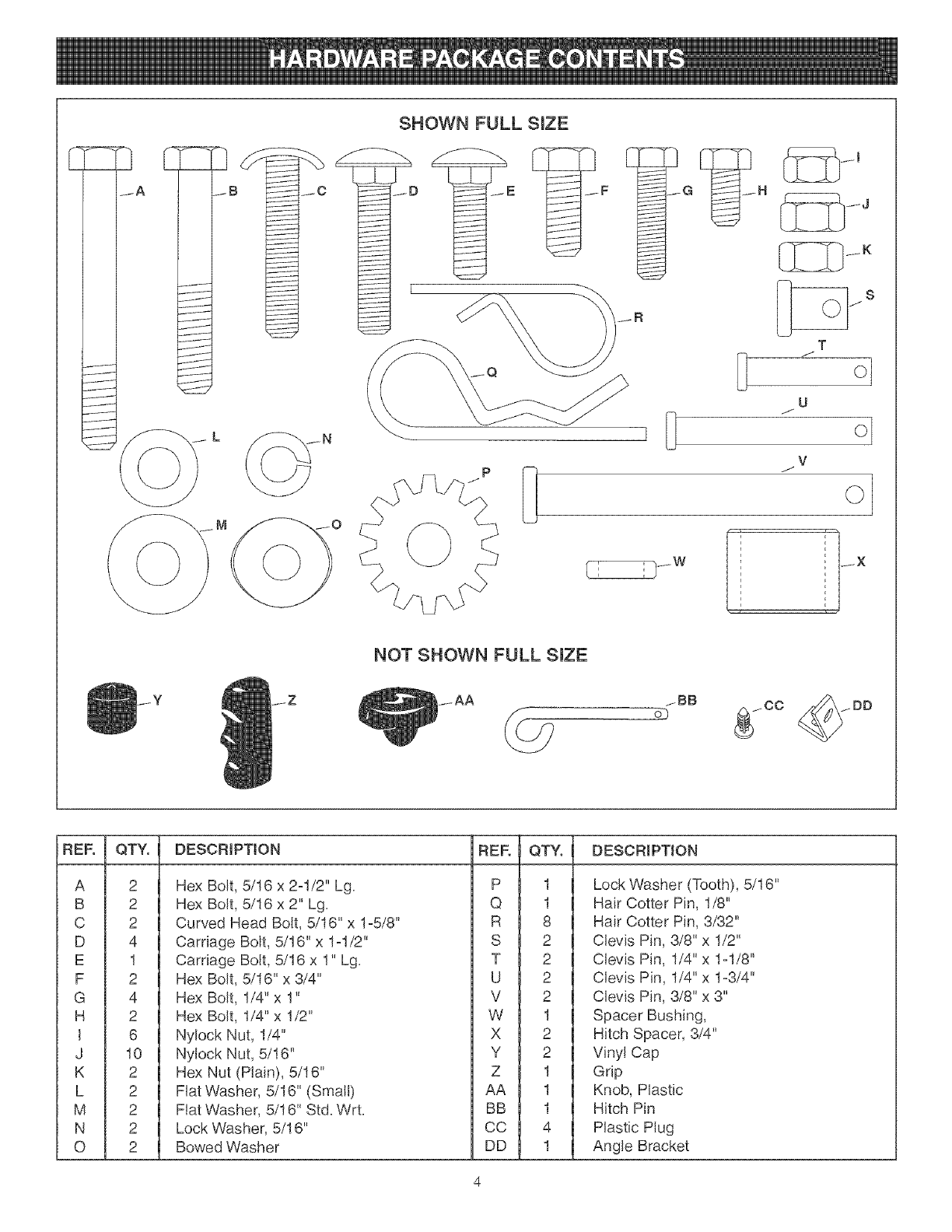

SHOWN FULL SIZE

J°1

NOT SHOWN FULL SIZE

7BB

REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION

A 2 Hex Bolt, 5/16 x 2ol/2" Lg. P 1 Lock Washer (Tooth), 5/16"

B 2 Hex Bolt, 5/16 x 2" Lg. Q 1 Hair Cotter Pin, 1/8"

C 2 Curved Head Bolt, 5/16" x 1o5/8" R 8 Hair Cotter Pin, 3/32"

D 4 Carriage Bolt, 5/16" x 1ol/2" S 2 Clevis Pin, 3/8" x 1/2"

E 1 Carriage Bolt, 5/16 x 1" Lg. T 2 Clevis Pin, 1/4" x 1ol/8"

F 2 Hex Bolt, 5/16" x 3/4" U 2 Clevis Pin, 1/4" x 1o3/4"

G 4 Hex Bolt, 1/4" x 1" V 2 Clevis Pin, 3/8" x 3"

H 2 Hex Bolt, 1/4" x 1/2" W 1 Spacer Bushing,

I 6 Ny!ock Nut, 1/4" X 2 Hitch Spacer, 3/4"

J 10 Nylock Nut, 5/16" Y 2 Vinyl Cap

K 2 Hex Nut (Plain), 5/16" Z 1 Grip

L 2 Flat Washer, 5/16" (Small) AA 1 Knob, Plastic

M 2 Flat Washer, 5/16" Std. Wrt. BB 1 Hitch Pin

N 2 Lock Washer, 5/16" CC 4 Plastic Plug

O 2 Bowed Washer DD 1 Angle Bracket

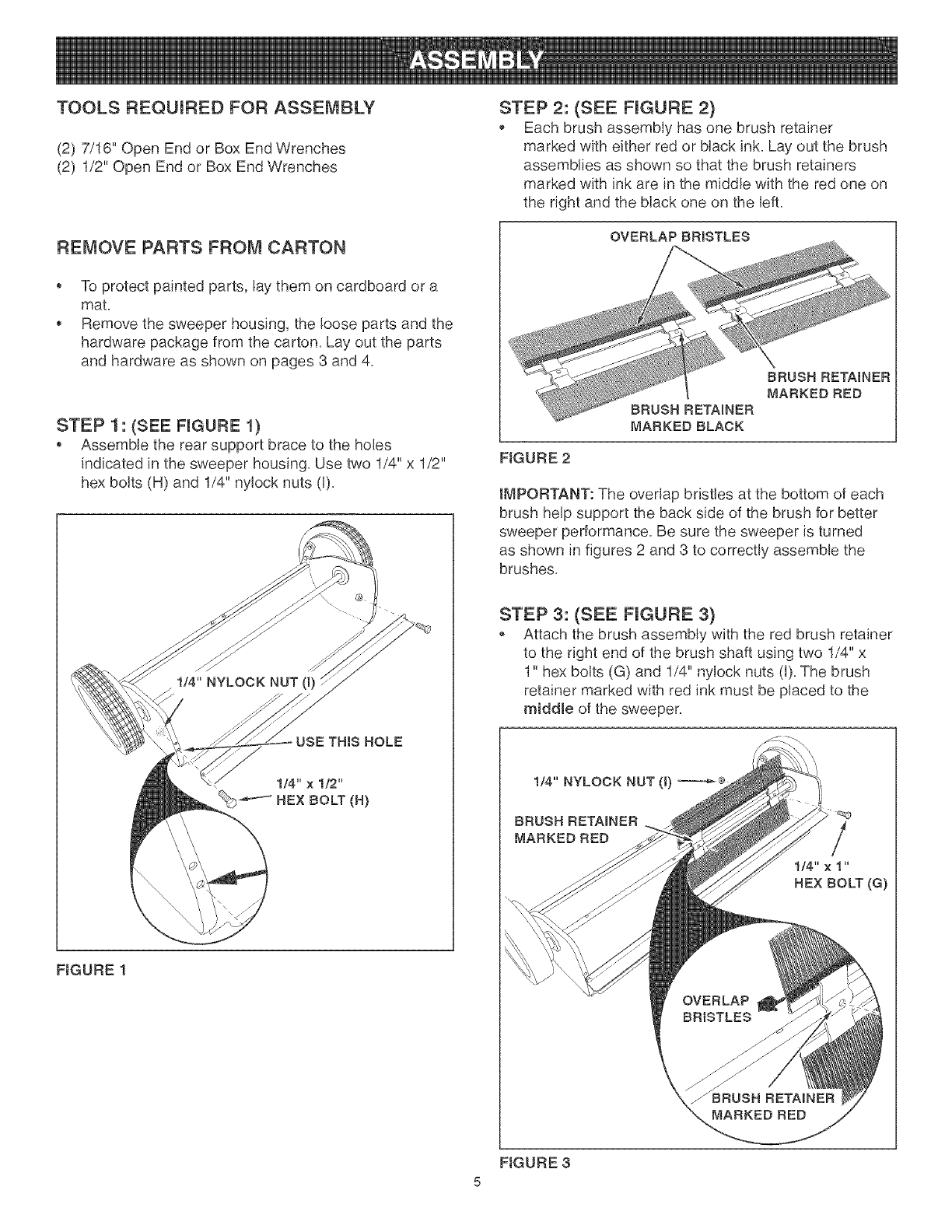

TOOLS REQUIRED FOR ASSEMBLY

(2) 7/16" Open End or Box End Wrenches

(2) 1/2" Open End or Box End Wrenches

REMOVE PARTS FROM CARTON

To protect painted parts, lay them on cardboard or a

mat,

Remove the sweeper housing, the loose parts and the

hardware package from the carton, Lay out the parts

and hardware as shown on pages 3 and 4,

STEP 1: (SEE FmGURE 1)

, Assemble the roar support brace to the holes

indicated in the sweeper housing, Use two 1/4" x 1/2"

hex bolts (H) and 1/4" nylock nuts (I),

STEP 2: (SEE FIGURE 2)

, Each brush assembly has one brush retainer

marked with either red or black ink, Lay out the brush

assemblies as shown so that the brush retainers

marked with ink are in the middle with the red one on

the right and the black one on the left,

OVERLAP BR{STLES

BRUSH RETAmNER

MARKED BLACK

BRUSH RETAmNER

MARKED RED

FIGURE 2

IMPORTANT: The overlap bristles at the bottom of each

brush help support the back side of the brush for better

sweeper performance, Be sure the sweeper is turned

as shown in figures 2 and 3 to correctly assemble the

brushes,

STEP 3: (SEE FIGURE 3)

, Attach the brush assembly with the red brush retainer

to the right end of the brush shaft using two 1/4" x

1" hex bolts (G) and 1/4" nylock nuts (I), The brush

retainer marked with red ink must be placed to the

middle of the sweeper,

I_"NYLOCK NUT(0 -'---_

BRUSH RETAmNER

MARKED RED

1/4" x 1"

HEX BOLT (G)

FIGURE 1

FIGURE 3

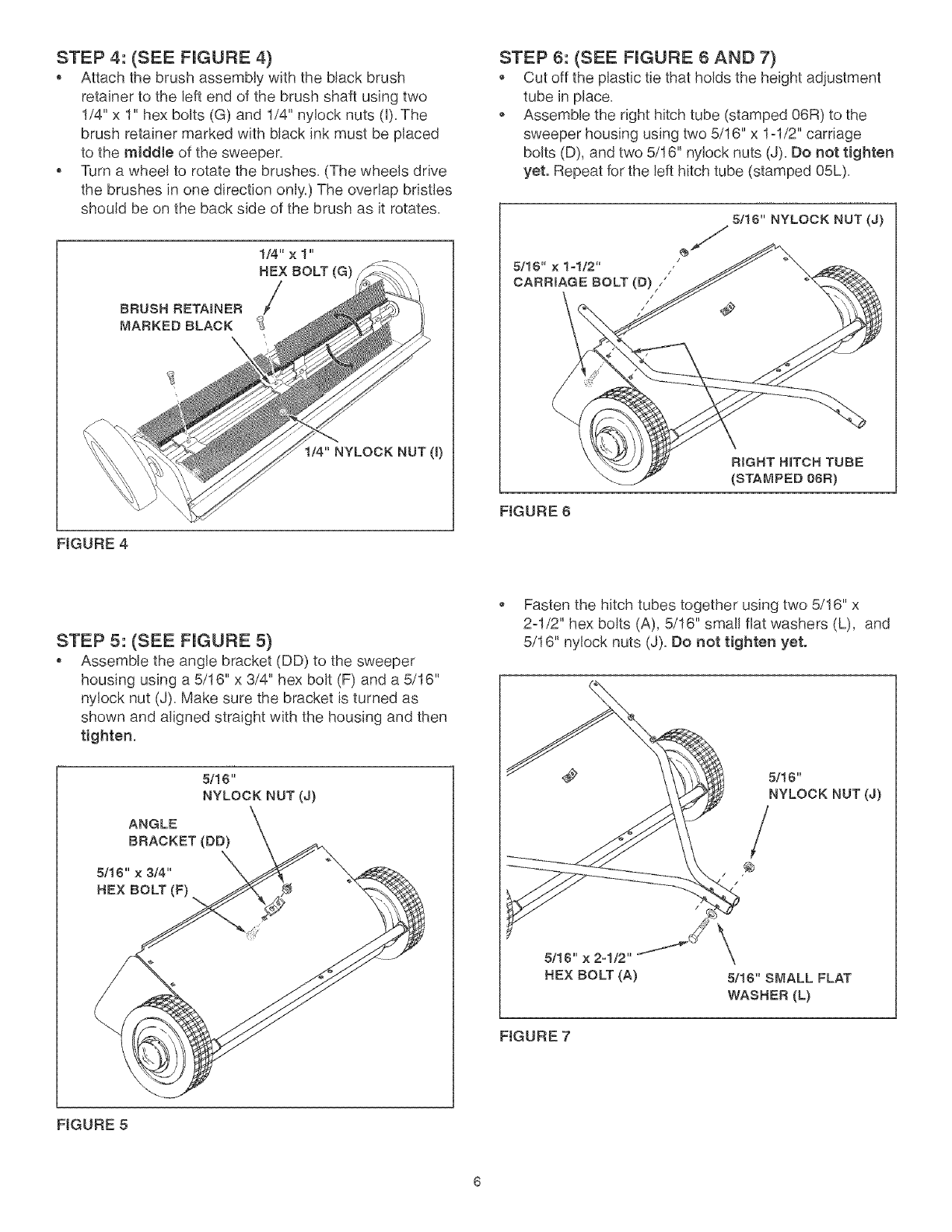

STEP 4: (SEE FIGURE 4}

, Attach the brush assembly with the black brush

retainer to the left end of the brush shaft using two

1/4" x 1" hex bolts (G) and 1/4" nylock nuts (I). The

brush retainer marked with black ink must be placed

to the middle of the sweeper.

Turn a wheel to rotate the brushes. (The wheels drive

the brushes in one direction only.) The overlap bristles

should be on the back side of the brush as it rotates.

BRUSH RETAUNER

MARKED BLACK

1/4" x 1"

HEX BOLT (G)

1/4" NYLOCK NUT (U)

FIGURE 4

STEP 6: (SEE FIGURE 6 AND 7)

, Cut off the plastic tie that holds the height adjustment

tube in place.

Assemble the right hitch tube (stamped 06R) to the

sweeper housing using two 5/16" x 1-1/2" carriage

bolts (D), and two 5/16" nylock nuts (J). Do not tighten

yet. Repeat for the left hitch tube (stamped 05L).

5/16" x 1ol/2" /

CARRIAGE BOLT (D)/'

5/16" NYLOCK NUT (J)

FIGURE 6

R{GHT HITCH TUBE

(STAMPED 0¢R)

STEP 5: (SEE FIGURE 5)

, Assemble the angle bracket (DD) to the sweeper

housing using a 5/16" x 3/4" hex bolt (F) and a 5/16"

nylock nut (J). Make sure the bracket is turned as

shown and aligned straight with the housing and then

tighten.

5/16"

NYLOCK NUT (J)

ANGLE

BRACKET (DB}

5116"' × 314"

HEX BOLT (F) -.

Fasten the hitch tubes together using two 5/16" x

2ol/2" hex bolts (A), 5/16" small flat washers (L), and

5/16" nyiock nuts (J). Do not tighten yet.

5/16"

NVLOCK NUT (J)

5/16" x2-1/2"

REX BOLT (A) 5116"SMALL FLAT

WASHER (L)

FIGURE 7

FIGURE 5

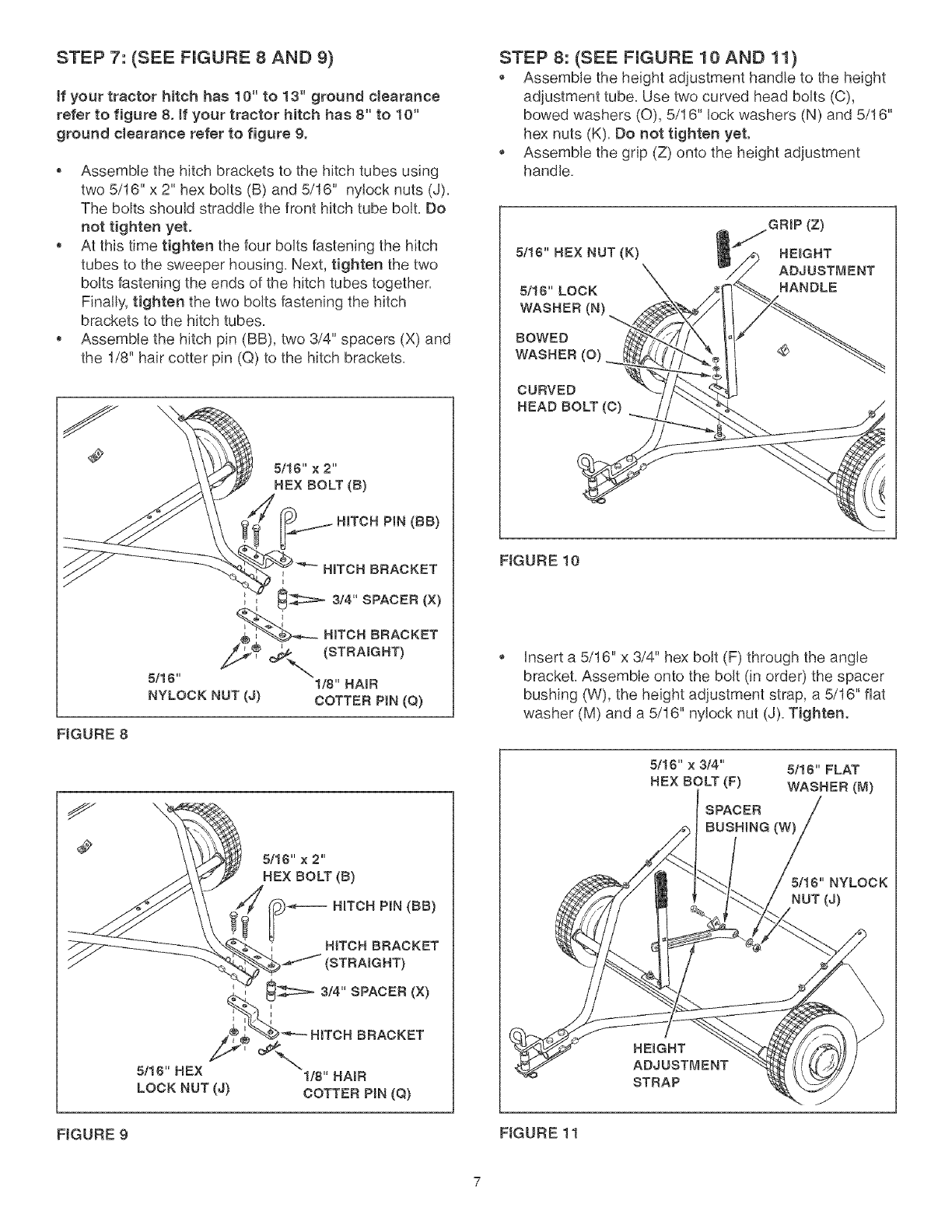

STEP 7: (SEE FIGURE 8 AND 9)

tf your tractor hitch has 10" to 13" ground clearance

refer to figure 8. if your tractor hitch has 8" to 10"

ground clearance refer to figure 9.

Assemble the hitch brackets to the hitch tubes using

two 5/16" x 2" hex bolts (B) and 5/16" nylock nuts (J).

The bolts should straddle the front hitch tube bolt. Do

not tighten yet.

At this time tighten the four bolts fastening the hitch

tubes to the sweeper housing. Next, tighten the two

bolts fastening the ends of the hitch tubes together.

Finally, tighten the two bolts fastening the hitch

brackets to the hitch tubes.

Assemble the hitch pin (BB), two 3/4" spacers (X) and

the 1/8" hair cotter pin (Q) to the hitch brackets.

FIGURE 8

5/16" × 2"

HEX BOLT (B)

5116"

NYLOCK NUT (J)

5/16" HEX

LOCK NUT (J)

5/16" x 2"

HEX BOLT (B)

HmTCH PIN (BE)

; HITCH BRACKET

_t:::=_ 3/4" SPACER (X)

BRACKET

1/8" HAmR

COTTER PiN (Q)

FIGURE 9

STEP 8: (SEE FIGURE 10 AND 11)

, Assemble the height adjustment handle to the height

adjustment tube. Use two curved head bolts (C),

bowed washers (O), 5/16" lock washers (N) and 5/16"

hex nuts (K). Do not tighten yet.

, Assemble the grip (Z) onto the height adjustment

handle.

5116" LOCK

WASHER (N)

BOWED

WASHER (O)

CURVED

HEAD BOLT (C)

jGRIP (Z)

HEIGHT

ADJUSTMENT

HANDLE

FIGURE 10

Insert a 5/16" x 3/4" hex bott (F) through the angle

bracket. Assemble onto the bolt (in order) the spacer

bushing (W), the height adjustment strap, a 5/16" flat

washer (M) and a 5/16" nylock nut (J). Tighten.

5/16" x 3/4" 5/16" FLAT

HEX BOLT (F) WASHER (M)

SPACER

BUSHING (W)

NYLOCK

NUT (J)

HEmGHT

ADJUSTMENT

STRAP

FIGURE 11

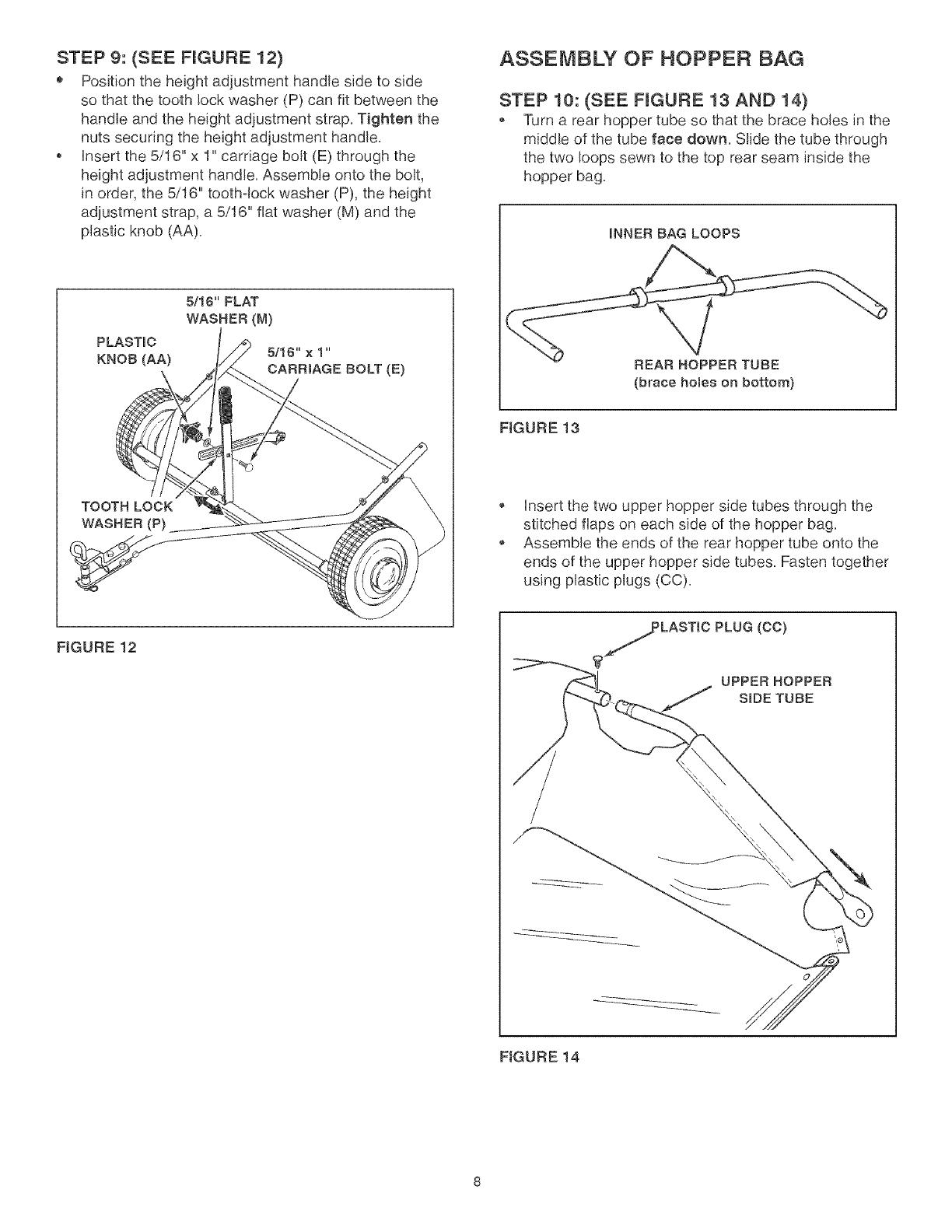

STEP 9: (SEE FIGURE 12)

® Position the height adjustment handle side to side

so that the tooth lock washer (P) can fit between the

handle and the height adjustment strap, Tighten the

nuts securing the height adjustment handle,

insert the 5/16" x 1" carriage bolt (E) through the

height adjustment handle, Assemble onto the bolt,

in order, the 5/16" tooth-lock washer (P), the height

adjustment strap, a 5/16" flat washer (M) and the

plastic knob (AA),

PLASTmC

KNOB (AA)

5116" FLAT

WASHER (M)

5/16" x 1"

CARRIAGE BOLT (E)

TOOTH LOCK

WASHER (P)

FIGURE 12

ASSEMBLY OF HOPPER BAG

STEP 10: (SEE FIGURE 13 AND 14)

Turn a rear hopper tube so that the brace holes in the

middle of the tube face down, Slide the tube through

the two loops sewn to the top rear seam inside the

hopper bag,

ruNNERBAG LOOPS

REAR HOPPER TUBE

(brace holes on bottom)

FIGURE 13

insert the two upper hopper side tubes through the

stitched flaps on each side of the hopper bag,

Assemble the ends of the rear hopper tube onto the

ends of the upper hopper side tubes, Fasten together

using plastic plugs (CC),

LASTmCPLUG (CO)

?- UPPERHOPPER

j SmDETUBE

FIGURE 14

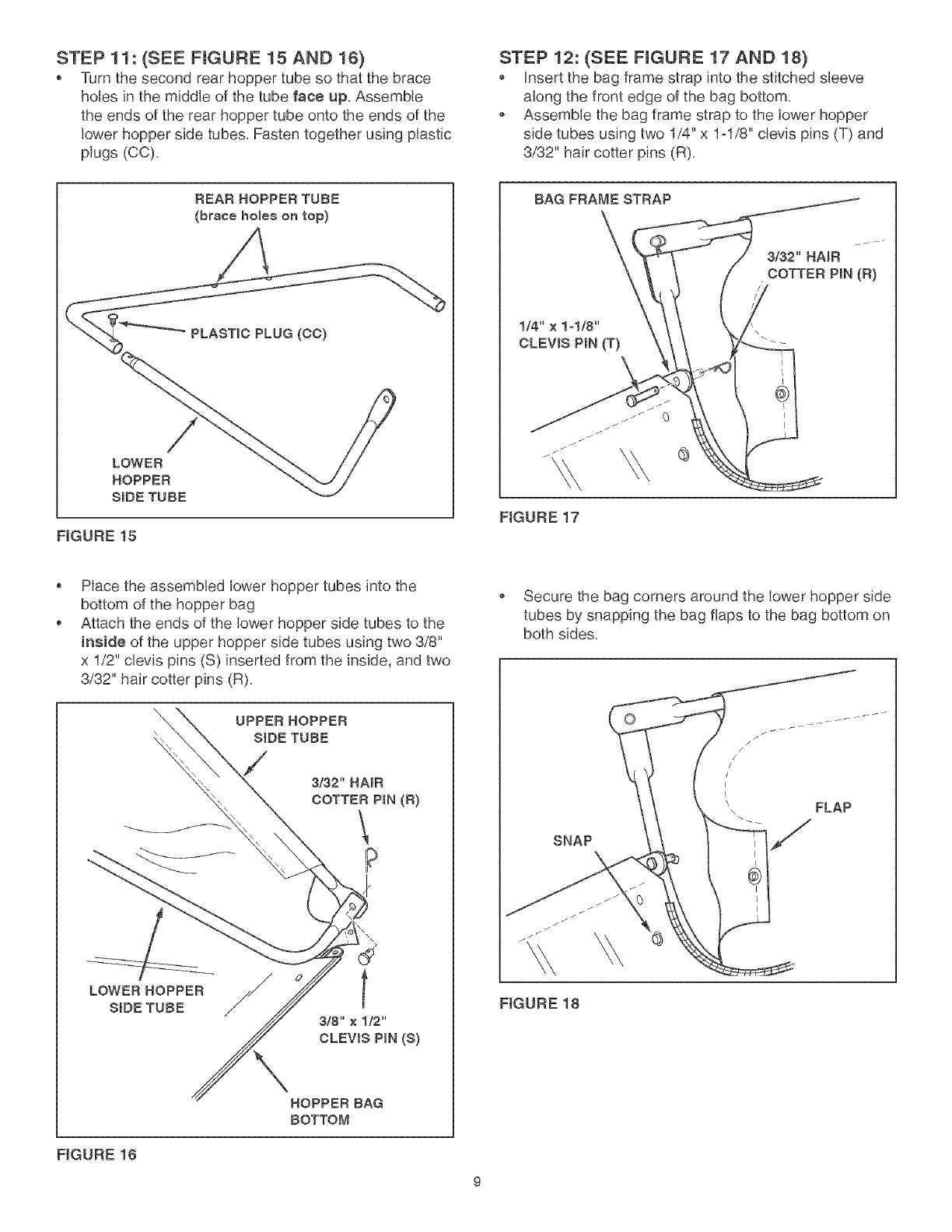

STEP 11: (SEE FmGURE 15 AND 16)

, Turn the second rear hopper tube so that the brace

holes in the middle of the tube face up. Assemble

the ends of the rear hopper tube onto the ends of the

lower hopper side tubes. Fasten together using plastic

plugs (CO).

STEP 12: (SEE FIGURE 17 AND 18)

, insert the bag frame strap into the stitched sleeve

along the front edge of the bag bottom.

Assemble the bag frame strap to the lower hopper

side tubes using two 1/4" x 1ol/8" clevis pins (T) and

3/32" hair cotter pins (R).

LOWER

HOPPER

StDE TUBE

FIGURE 15

REAR HOPPER TUBE

(brace holes on top}

PLASTmO PLUG (CO) 1/4" × 1ol/8"

CLEVmS PIN (T)

FIGURE 17

Place the assembled lower hopper tubes into the

bottom of the hopper bag

Attach the ends of the lower hopper side tubes to the

inside of the upper hopper side tubes using two 3/8"

x 1/2" clevis pins (S) inserted from the inside, and two

3/32" hair cotter pins (R).

UPPER HOPPER

SiDE TUBE

3/32" RAmP

COTTER PmN(R)

LOWER HOPPER

SiDE TUBE

3/8" x 1/2"

CLEVIS PmN(S)

FIGURE 16

HOPPER BAG

BOTTOM

Secure the bag corners around the lower hopper side

tubes by snapping the bag flaps to the bag bottom on

both sides.

SNAP

FIGURE 18

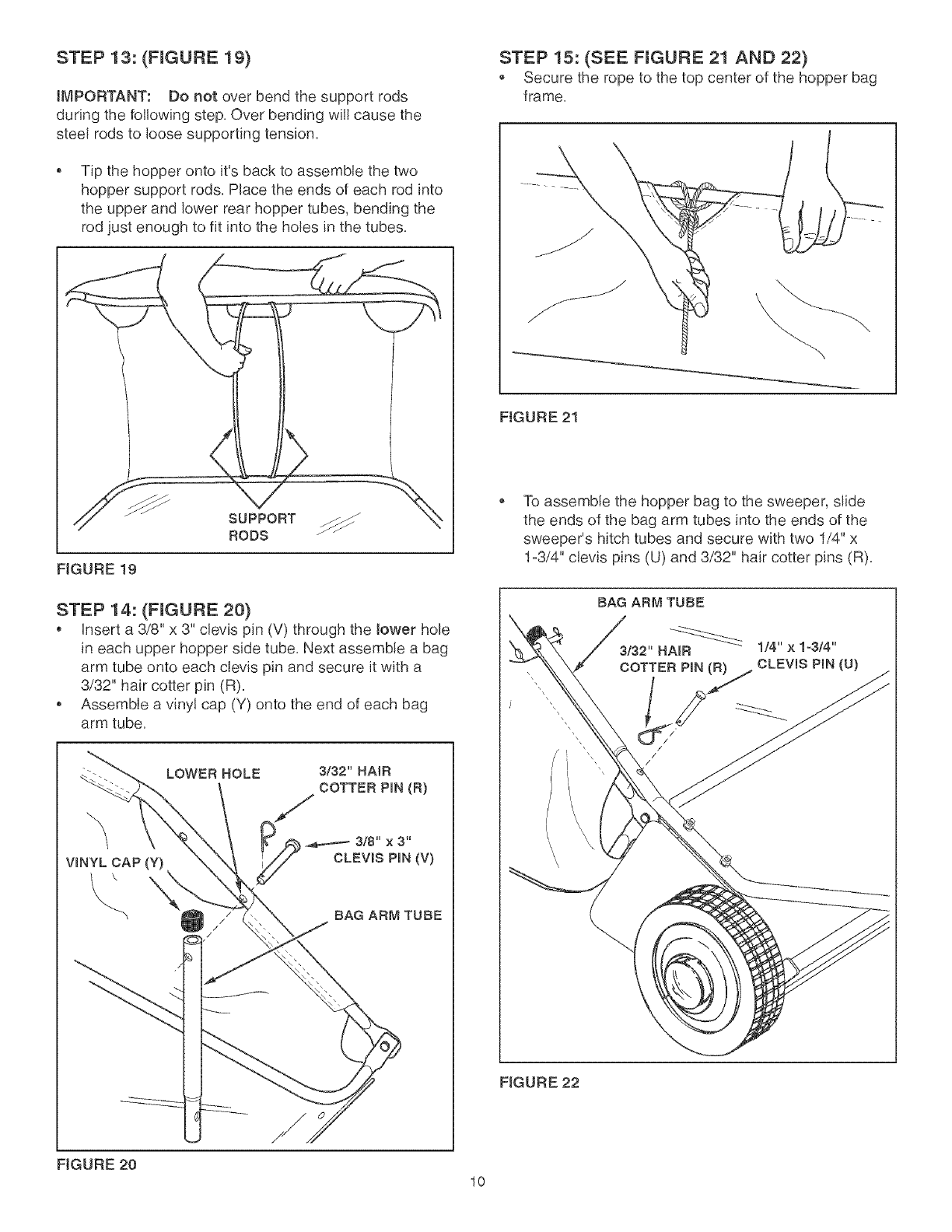

STEP 13: (FIGURE 19)

IMPORTANT: Do not over bend the support rods

during the following step. Over bending will cause the

steel rods to loose supporting tension.

Tip the hopper onto it's back to assemble the two

hopper support rods. Place the ends of each rod into

the upper and lower rear hopper tubes, bending the

rod just enough to fit into the holes in the tubes.

SUPPORT

RODS \

FIGURE 19

STEP 14: (FIGURE 20}

, insert a 3/8" x 3" clevis pin (V) through the lower hole

in each upper hopper side tube. Next assemble a bag

arm tube onto each clevis pin and secure it with a

3/32" hair cotter pin (R).

, Assemble a vinyl cap (Y) onto the end of each bag

arm tube.

VmNYLCAP (Y)

\ \

3/32" HAgR

COTTER PmN(R)

3/8 x3

CLEVIS PmN(V)

STEP 15: (SEE FIGURE 21 AND 22)

, Secure the rope to the top center of the hopper bag

frame.

FIGURE 21

To assemble the hopper bag to the sweeper, slide

the ends of the bag arm tubes into the ends of the

sweeper's hitch tubes and secure with two 1/4" x

1o3/4" clevis pins (U) and 3/32" hair cotter pins (R).

]

BAG ARM TUBE

3/32" HAiR 1/4" x 1-3/4"

COTTER PUN(R) j CLEVmSPRN(U)

FIGURE 22

FIGURE 20 10

STEP 16: (SEE FIGURE 23, 24 AND 25)

Place the tractor and sweeper on a fiat level surface.

Set the sweeper height adjustment handle to about

the middle of its adjustment range.

Attach the sweeper hitch brackets to the tractor hitch,

arranging the 3/4" spacers so that the bottom of the

sweeper bag is approximately level and 5" to 7" above

the ground. See figure 24 for tractor hitches that are

10" to 13" above the ground. See figure 25 for tractor

hitches that are 8" to 10" above the ground.

IMPORTANT: For best performance, the bottom of the

sweeper bag should be approximately level and 5" to 7"

off the ground as shown in figure 23,

FIGURE 23

Tractor hitches with 10" to 13" ground clearance.

TRACTOR HITCH

Tractor hitches with 8" to 10" ground clearance.

\\ \\

i \

TRACTOR HmTCH

FIGURE 24 FIGURE 25

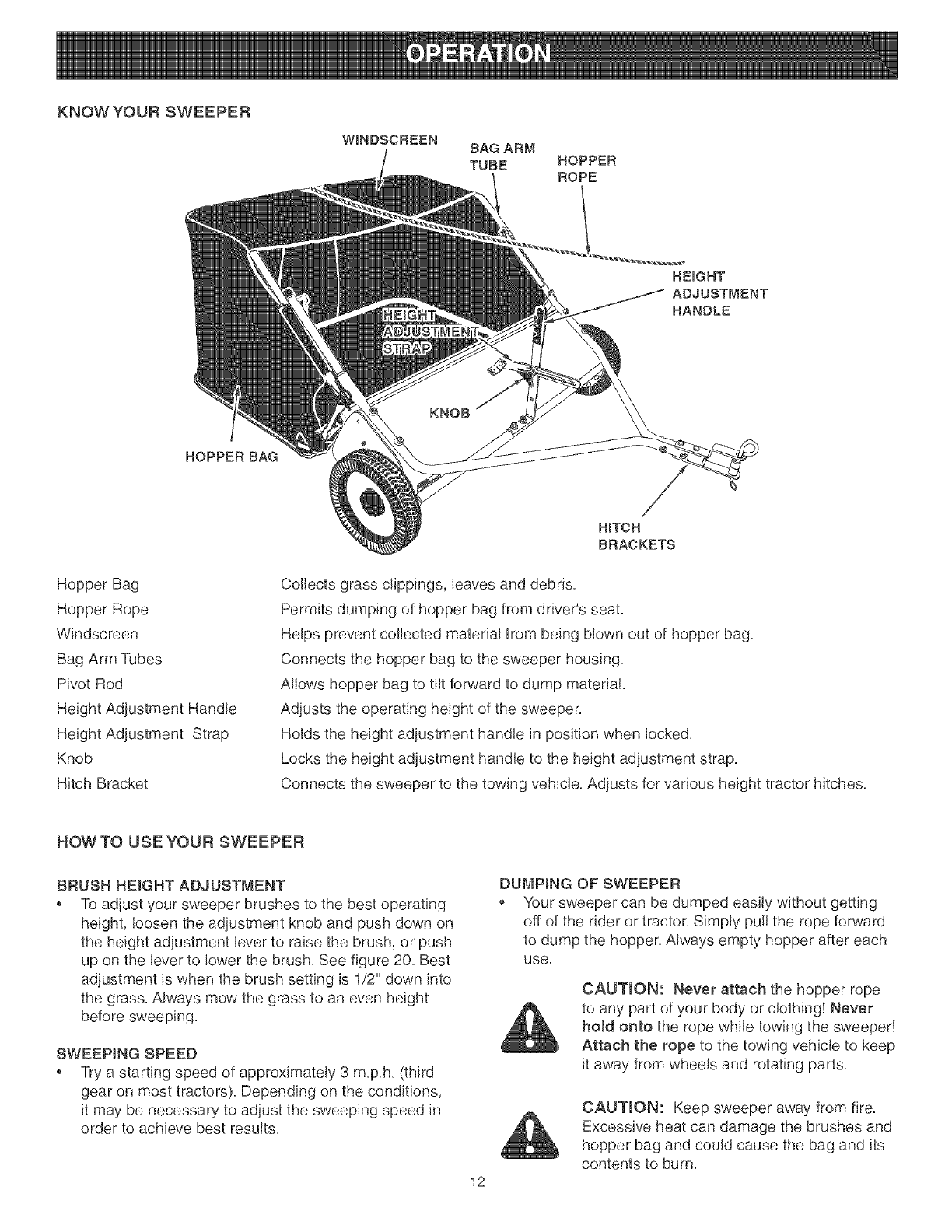

KNOW YOUR SWEEPER

WmNDSCREEN

HOPPER

ROPE

Hopper Bag

Hopper Rope

Windscreen

Bag Arm Tubes

Pivot Rod

Height Adjustment Handle

Height Adjustment Strap

Knob

Hitch Bracket

Collects grass clippings, leaves and debris,

Permits dumping of hopper bag from driver's seat,

Helps prevent collected material from being blown out of hopper bag,

Connects the hopper bag to the sweeper housing,

Allows hopper bag to tilt forward to dump material,

Adjusts the operating height of the sweeper,

Holds the height adjustment handle in position when locked,

Locks the height adjustment handle to the height adjustment strap,

Connects the sweeper to the towing vehicle, Adjusts for various height tractor hitches,

HOW TO USE YOUR SWEEPER

BRUSH HEIGHT ADJUSTMENT

To adjust your sweeper brushes to the best operating

height, loosen the adjustment knob and push down on

the height adjustment lever to raise the brush, or push

up on the lever to lower the brush, See figure 20, Best

adjustment is when the brush setting is 1/2" down into

the grass, Always mow the grass to an even height

before sweeping,

SWEEPING SPEED

, Try a starting speed of approximately 3 m,p,h, (third

gear on most tractors), Depending on the conditions,

it may be necessary to adjust the sweeping speed in

order to achieve best results,

DUMPING OF SWEEPER

Your sweeper can be dumped easily without getting

off of the rider or tractor, Simply pul! the rope forward

to dump the hopper, Always empty hopper after each

use=

CAUTION: Never attach the hopper rope

to any part of your body or clothing! Never

hoJd onto the rope while towing the sweeper!

Attach the rope to the towing vehicle to keep

it away from wheels and rotating parts,

CAUTmON: Keep sweeper away from fire,

Excessive heat can damage the brushes and

hopper bag and could cause the bag and its

contents to burn,

CUSTOMER RESPONSIBILmTmES

Read and follow the maintenance schedule and the

procedures listed in the maintenance section.

MAINTENANCE SCHEDULE __

Fi,, in dates as you _.7,1S

complete regular service. Service Dates

Check for loose fasteners X

Check for worn or damaged parts X X

Lubricate brush shaft bearings _ X ..................

Lubricate wheel bearings X

CteanSweeper -- _ -- -- _ --

Clean/Lubricate chain and sprockets X

SCHEDULED MAINTENANCE

Clean the sweeper after each use.

inspect for worn or damaged parts, such as brushes

and wheels.

Lubricate the brush shaft bearing twice a year with a

few drops of light weight oil. See figure 26.

HEIGHT ADJUSTMENT SLOT

FLAT WASHER

FIGURE 26

HEX BOLT

Every two years, remove the wheels and clean the

gears found inside the wheel housing. After cleaning,

lubricate the gears with an even coat of light grease.

To remove the wheel, pop off the hub cap and remove

the Iock nut and fiat washer. See figure 27.

HEX BOLT FLAT WASHER

FLAT WASHER

SPACER

HUB CAP

FIGURE 27

HEX LOCK NUT

CLEANING

Clean sweeper housing with a soft brush or cloth.

. Clean debris from hopper bag with a brush or broom.

Remove any material which has wrapped around

brushes or ends of brush shaft.

CAUTION: Before storing the sweeper,

always empty the hopper bag to avoid

spontaneous combustion.

Clean the sweeper and hopper bag thoroughly to help

prevent rust and mildew.

To collapse the hopper bag for storage, remove the two

hopper support rods from the rear of the hopper.

Store in a dry area.

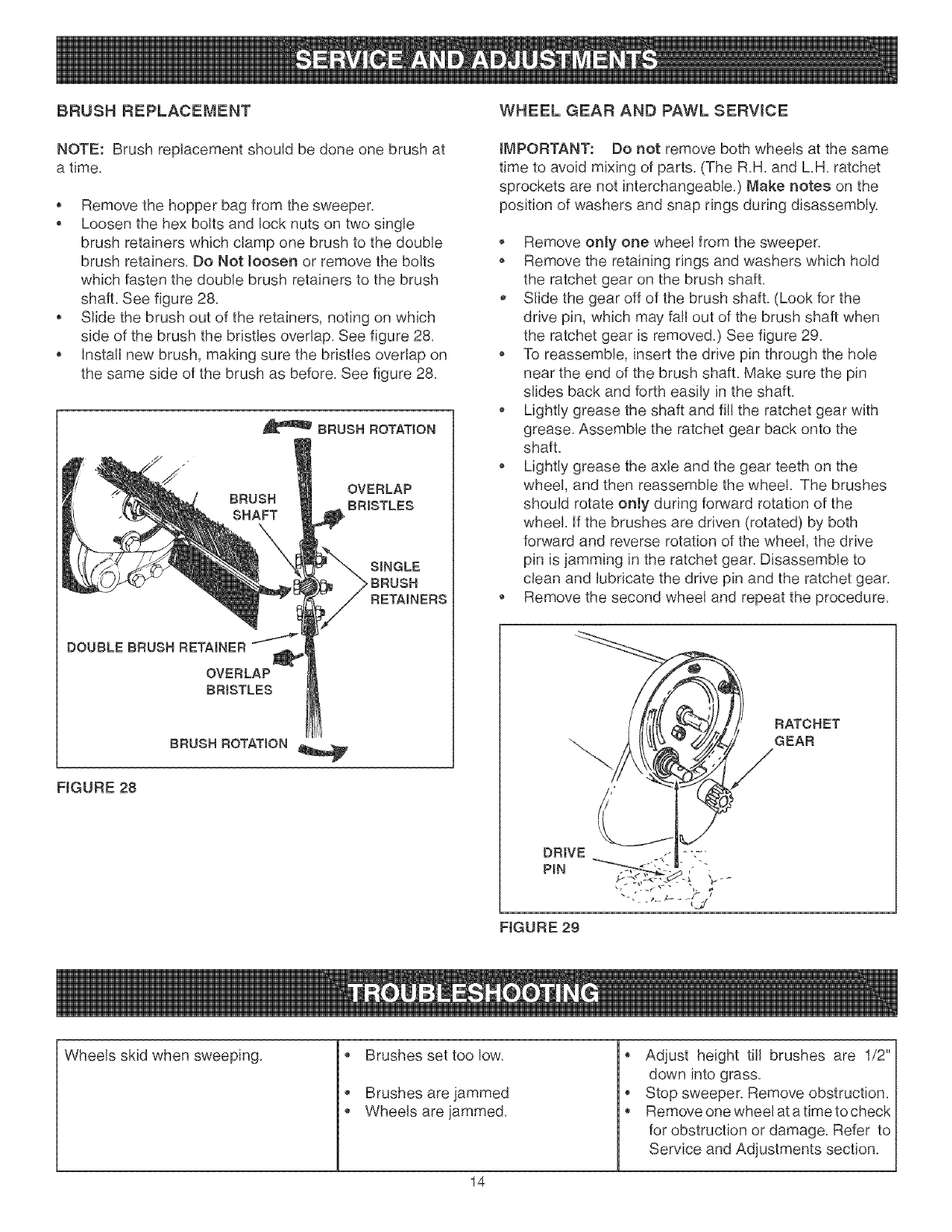

BRUSH REPLACEMENT WHEEL GEAR AND PAWL SERVICE

NOTE: Brush replacement should be done one brush at

a time=

Remove the hopper bag from the sweeper.

Loosen the hex bolts and lock nuts on two single

brush retainers which clamp one brush to the double

brush retainers. Do Not loosen or remove the bolts

which fasten the double brush retainers to the brush

shaft. See figure 28.

Slide the brush out of the retainers, noting on which

side of the brush the bristles overlap. See figure 28.

Install new brush, making sure the bristles overlap on

the same side of the brush as before. See figure 28.

BRUSH ROTATION

BRUSH

SHAFT

OVERLAP

BRmSTLES

SINGLE

,BRUSH

RETAINERS

FIGURE 28

BRUSH ROTATmON

IMPORTANT: Do not remove both wheels at the same

time to avoid mixing of parts. (The R.H. and LH. ratchet

sprockets are not interchangeable.) Make notes on the

position of washers and snap rings during disassembly.

Remove only one wheel from the sweeper.

Remove the retaining rings and washers which hold

the ratchet gear on the brush shaft.

,, Slide the gear off of the brush shaft. (Look for the

drive pin, which may fall out of the brush shaft when

the ratchet gear is removed.) See figure 29.

To reassemble, insert the drive pin through the hole

near the end of the brush shaft. Make sure the pin

slides back and forth easily in the shaft.

Lightly grease the shaft and fill the ratchet gear with

grease. Assemble the ratchet gear back onto the

shaft.

Lightly grease the axle and the gear teeth on the

wheel, and then reassemble the wheel. The brushes

should rotate only during forward rotation of the

wheel. If the brushes are driven (rotated) by both

forward and reverse rotation of the wheel, the drive

pin is jamming in the ratchet gear. Disassemble to

clean and lubricate the drive pin and the ratchet gear.

, Remove the second wheel and repeat the procedure.

RATCHET

GEAR

FIGURE 29

Wheels skid when sweeping. Brushes set too low.

, Brushes are jammed

Wheels are jammed.

, Adjust height till brushes are 1/2"

down into grass.

, Stop sweeper. Remove obstruction.

Remove one wheel at a time to check

for obstruction or damage. Refer to

Service and Adjustments section.

REPAUR PARTS FOR MODEL 486.24221 - 42" LAWNSWEEPER

59_

45 44

43 3

13\

'l 29

67 69

54 29

77 X46

_21

393O

/37

41 3133 60

REPAIR PARTS FOR MODEL 71-24221,42" LAWNSWEEPER

Ref, Part

No. No. Qty. Description Ref° Part Qty. Description

No. No.

1 48306

2 48305

3 24950

4 24951

5 24869

6 43175

7 C-9M5732

8 24185

9 43182

10 23826

11 23336

12 64540

13 44947

14 44695

15 43086

16 43083

17 R19212113

18 1629-56

19 44910

20 25850

21 48557

22 43012

23 47189

24 23580

25 23581

26 44008

27 47046

29 47810

30 44911

31 44006

32 46219

33 1650-21

34 40001

35 141

36 1038

37 2674-32

38 44961

39 23400

40 48652

41 48651

1 Hitch Tube, R.H. 42 43661

1 Hitch Tube, LH. 43 64559

1 End Plate, R.H. 44 48587

1 End Plate, LH= 45 48466

1 Wrapper 46 48726

2 Bolt, Hex 1/4-20 x 1/2" Lg. 47 48402

14 Rivet, Pop 48 48388

1 Brace, Rear Support 49 48366

6 Bolt, Hex 5/16-18 x 3/4" 50 24949

1 Bracket, Angle 51 43926

2 Washer, Special 52 43737

1 Height Adjustment Tube Assembly 53 44481

2 Bolt, Cvd. Hd. 5/16-18 x 1-5/8" Lg. 54 24979

2 Washer, Bowed 1" x .32" x .06" 55 23687

2 Lock Washer, 5/16" 56 24192

2 Nut, Hex 5/16-18 Thread 57 23850

2 Washer, 5/8" SAE 58 48323

2 Retainer, Dust Cover 59 43513

2 Bushing, Brush Shaft 60 44985

1 Brush Shaft 61 45088

4 Brush 62 44292

8 Bolt, Hex 1/4-20 x 3/4" Lg. 63 44180

14 Nut, Nylock 1/4-20 65 43681

4 Retainer, Brush (Double) 66 R19111116

8 Retainer, Brush (Single) 67 43720

2 Washer, Flat 1-1/8" x .78" x .025" 68 44326

2 Dowel Pin (Drive) 69 43081

14 Nut, Nylock 5/16-18 70 43943

2 Spacer, =39 I=D"=x 1-1/4" O=D=x =5" 71 44732

2 Washer, Flat .849" x .598" x .025" 72 23353

2 Spacer, =78 I=D"=x 1-1/4" O=D=x =5" 73 23368

2 Ring, Retaining =594" 74 43343

10 Washer, Shim 1-1/4" x .594" x .010" 75 43055

4 Washer, Flat 1-1/2" x .375" x .062" 76 46867

2 Nut, Nylock Jam 3/8-24 Thread 77 48365

2 Hub Cap 49994

2 Bolt, Hex 3/8-24 x 3-1/4" Lg=

3 Bushing, Spacer

1 Gear, Pinion R=H=(not shown)

1 Gear, Pinion LH=

4 Bolt, Hex 1/4-20 x 1" Lg.

2 Ass'y, Dust Cover

2 Tube, Hopper Frame (Rear)

2 Tube, Upper Hopper Frame (Front)

2 Tube, Lower Hopper Frame (Front)

4 Plastic Plug

1 Hopper Bag

2 Clevis Pin, 3/8" x 1/2"

1 Strap, Bag Frame

2 Rod, Hopper Support

1 Hopper Rope

2 Cap, Vinyl

1 Strap, Height Adjustment

1 Bracket, Hitch

1 Bracket, Hitch (Straight)

1 Handle, Height Adjustment

2 Tube, Bag Arm

2 Pin, Clevis 3/8" x 3"

2 Wheel & Tire Ass'y= (with bearings)

4 Whee_ Bearing

2 Bolt, Hex 5/16-18 x 2-1/2" Lg.

2 Bolt, Hex 5/16-18 x 2" Lg.

4 Bolt, Carriage 5/16-18 x 1-1/2"

2 Washer, Flat (5/16) 11/32" x 11/16"

1 Knob, Wing 5/16-18 Thread

1 Bolt, Carriage 5/16-18 x 1"

2 Washer, Flat 5/16" Std=Wrt=

1 Grip, Height Adjust

1 Washer, Tooth Lock 5/16"

1 Pin, Hitch

2 Tube, Hitch Spacer

1 Hairpin Cotter, 1/8" #4

8 Hairpin Cotter, 3/32" #3

2 Clevis Pin, 1/4" x 1-3/4" Lg=

2 Clevis Pin, 1/4" x 1-1/8"

1 Owners Manua!

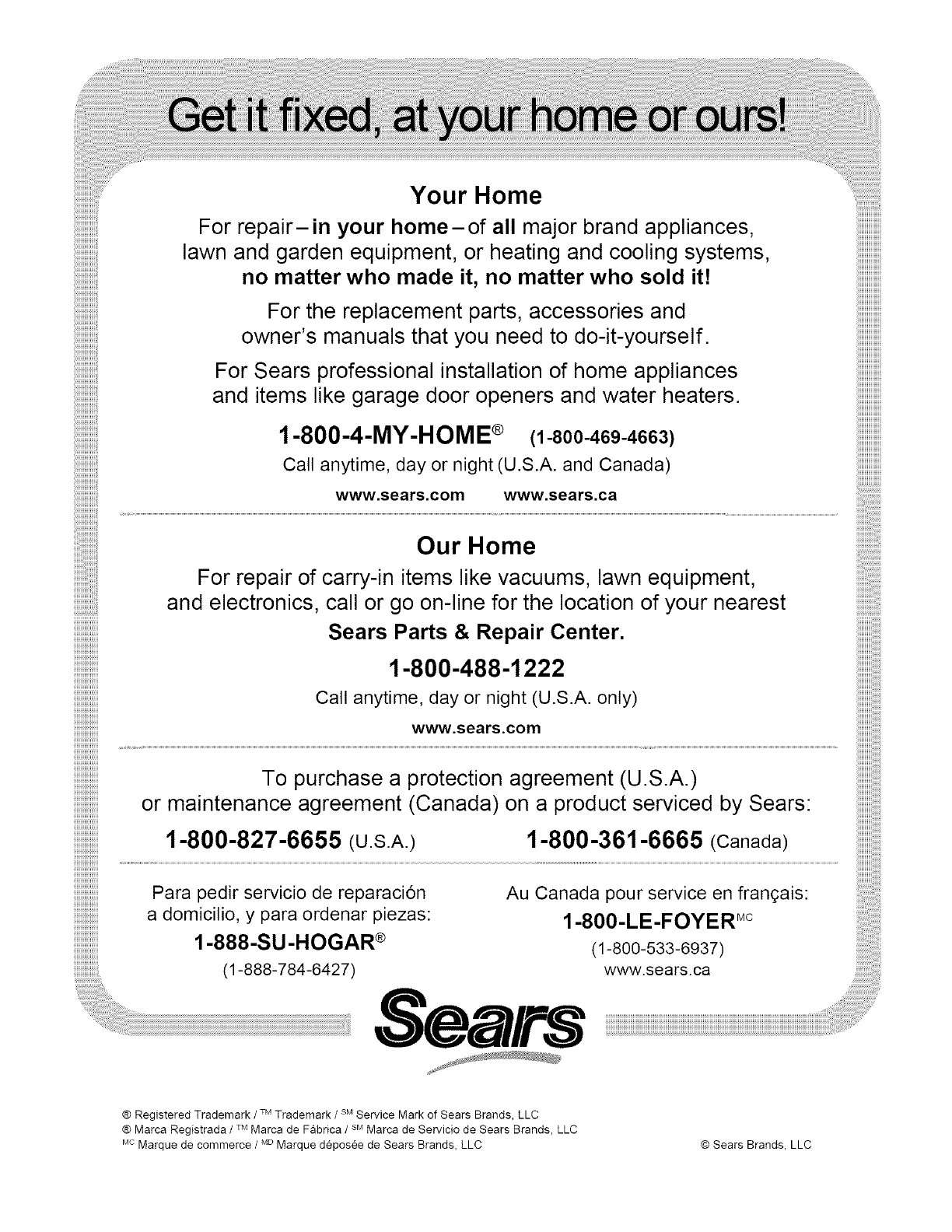

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

iiiiiiiiiiiiiiiiii For the replacement parts, accessories and

iiiiiiiiiiiiiiiiii owner's manuals that you need to do-it-yourself.

iiiiiiiiiiiiiiiiii

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

iiiiiiiiiiiiiiiiii 1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

iiiiiiiiiiiiiiiiii www.sears.comwww.sears.ca

iiiiiiiiiiiiiiiiii

® Registered Trademark /Trademark /SMService Mark of Sears Brands, LLC

® Marca Registrada /TM Marca de F_brica /SM Marca de Servicio de Sears Brands, LLC

MCMarque de commerce /MDMarque d_pos_e de Sears Brands, LLC ® Sears Brands, LLC

Craftsman 48624221 User Manual LAWN SWEEPER Manuals And Guides L0601205

CRAFTSMAN Lawn Sweeper Manual L0601205 CRAFTSMAN Lawn Sweeper Owner's Manual, CRAFTSMAN Lawn Sweeper installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
