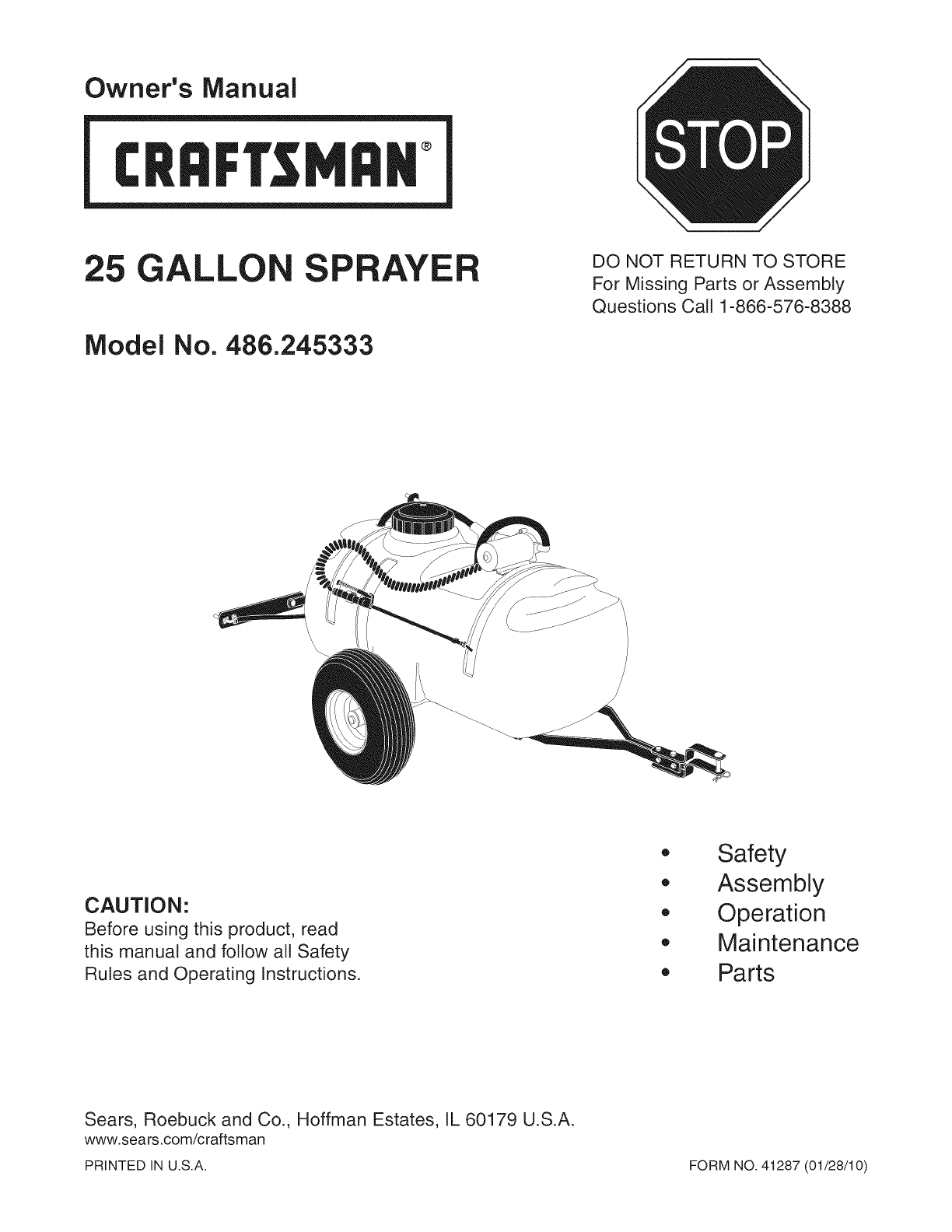

Owner's Manual

CR FrSMgH°

25 GALLO

Model No. 486.245333

AY DO NOT RETURN TO STORE

For Missing Parts or Assembly

Questions Call 1-866-576-8388

CAUTION:

Before using this product, read

this manual and follow all Safety

Rules and Operating Instructions.

Safety

Assembly

Operation

Maintenance

Parts

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com/craftsman

PRINTED IN U.S.A. FORM NO. 41287 (01/28/10)

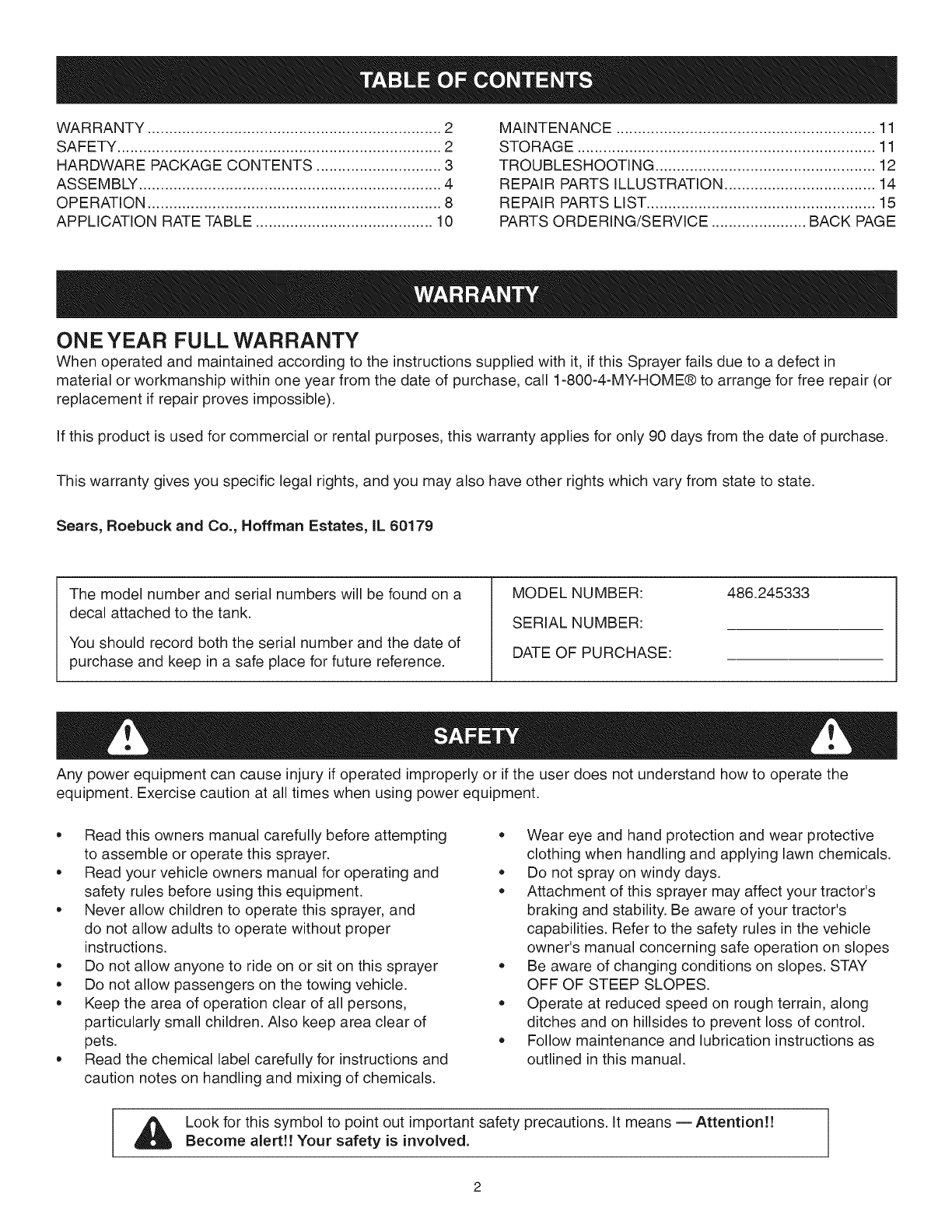

WARRANTY .................................................................... 2

SAFETY ........................................................................... 2

HARDWARE PACKAGE CONTENTS ............................. 3

ASSEMBLY ...................................................................... 4

OPERATION .................................................................... 8

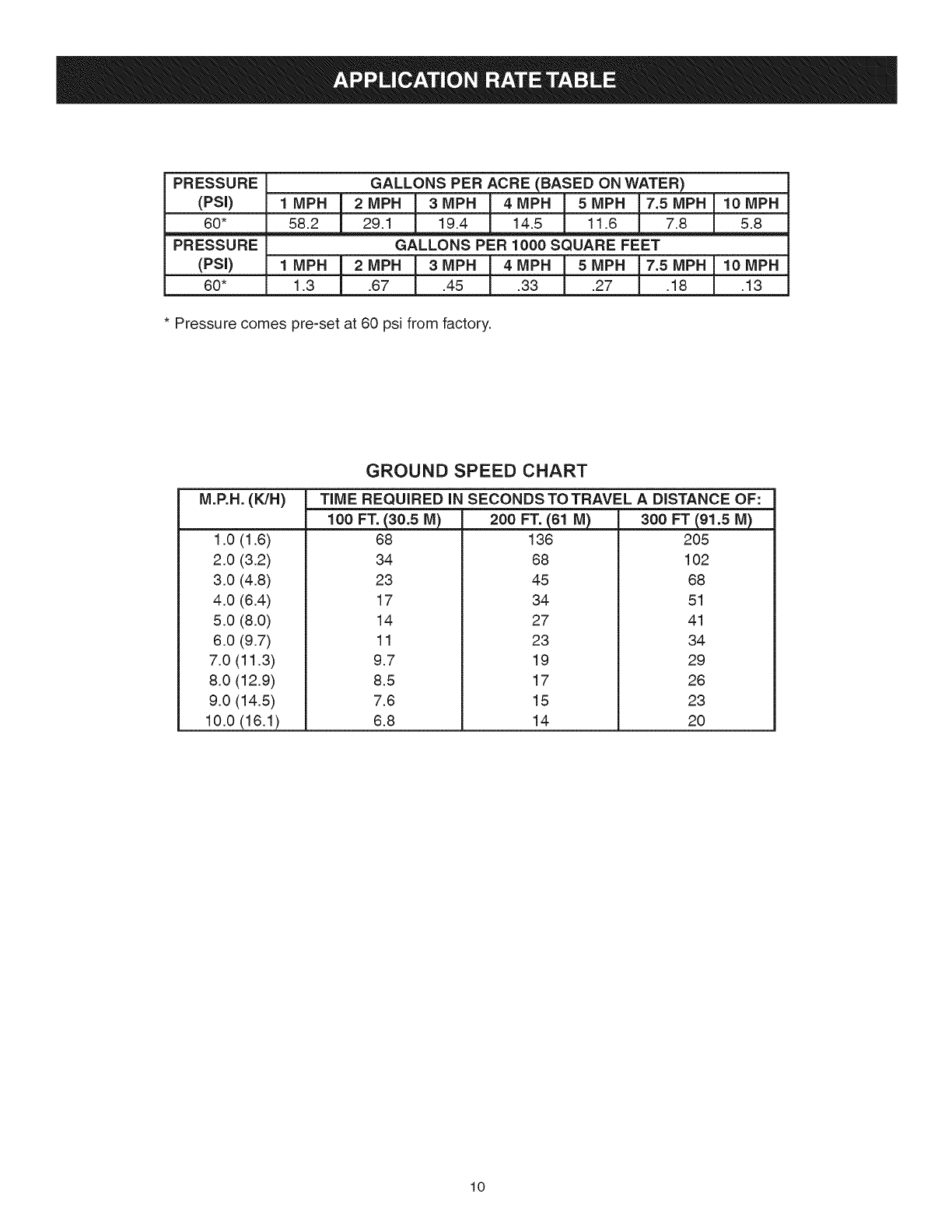

APPLICATION RATE TABLE ......................................... 10

MAINTENANCE ............................................................ 11

STORAGE ..................................................................... 11

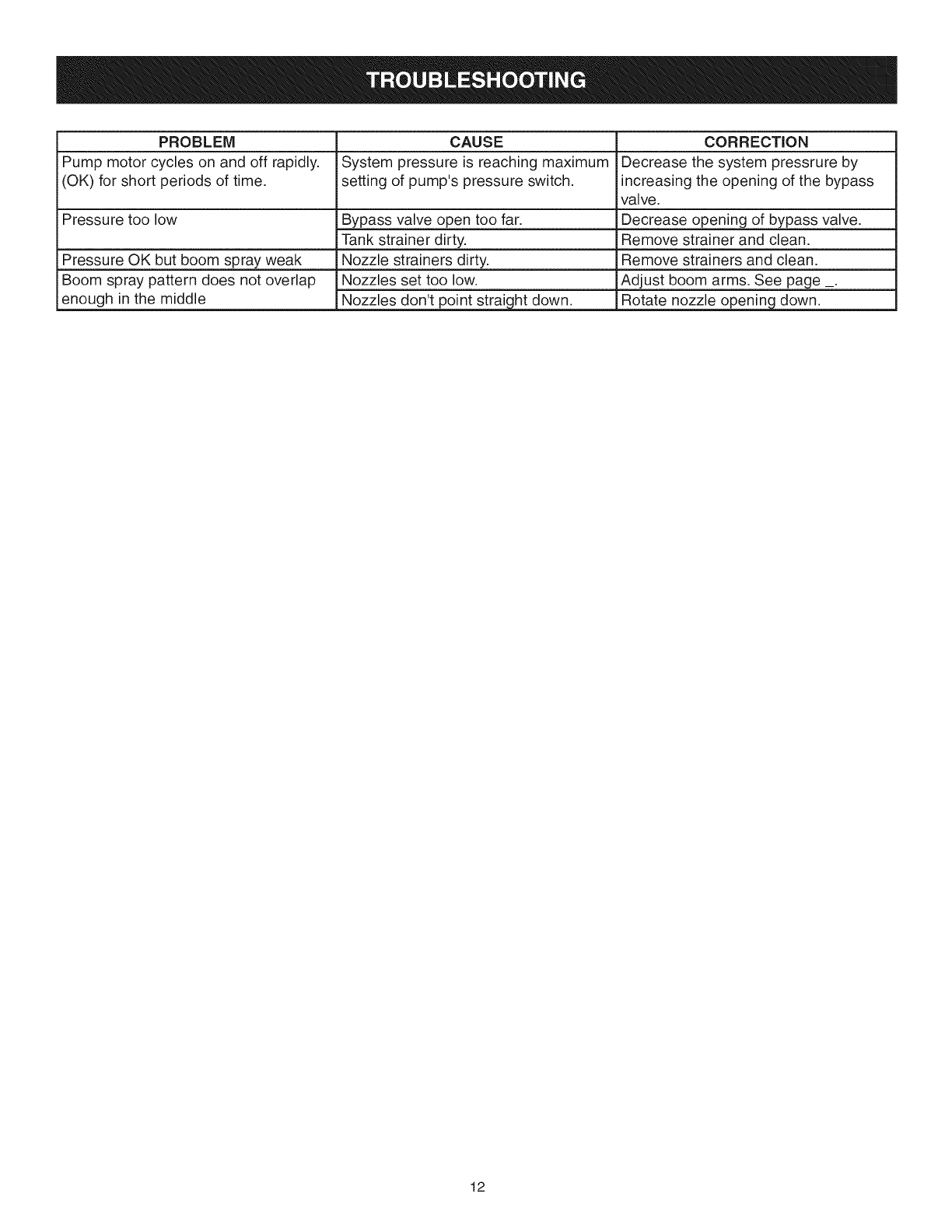

TROUBLESHOOTING ................................................... 12

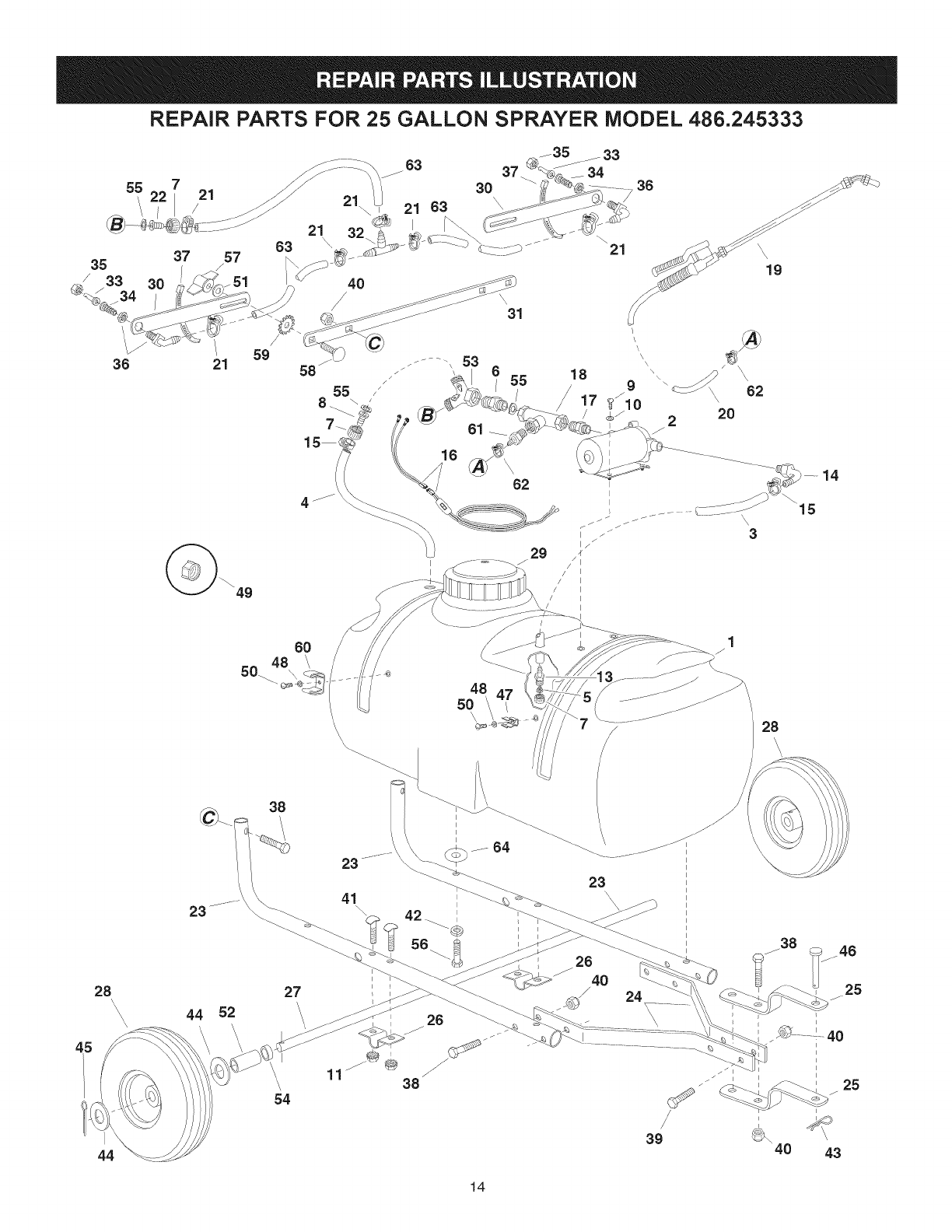

REPAI R PARTS ILLUSTRATION ................................... 14

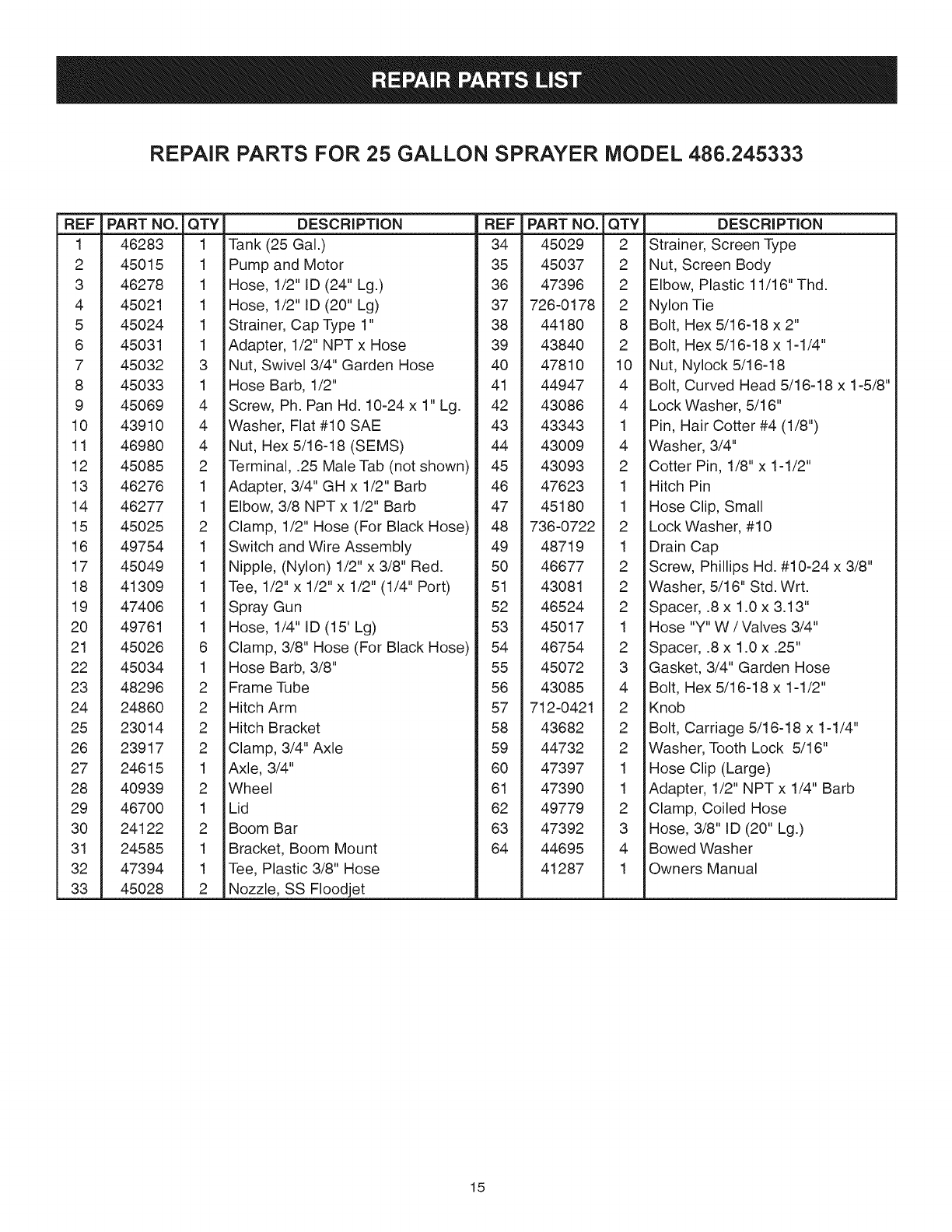

REPAIR PARTS LIST ..................................................... 15

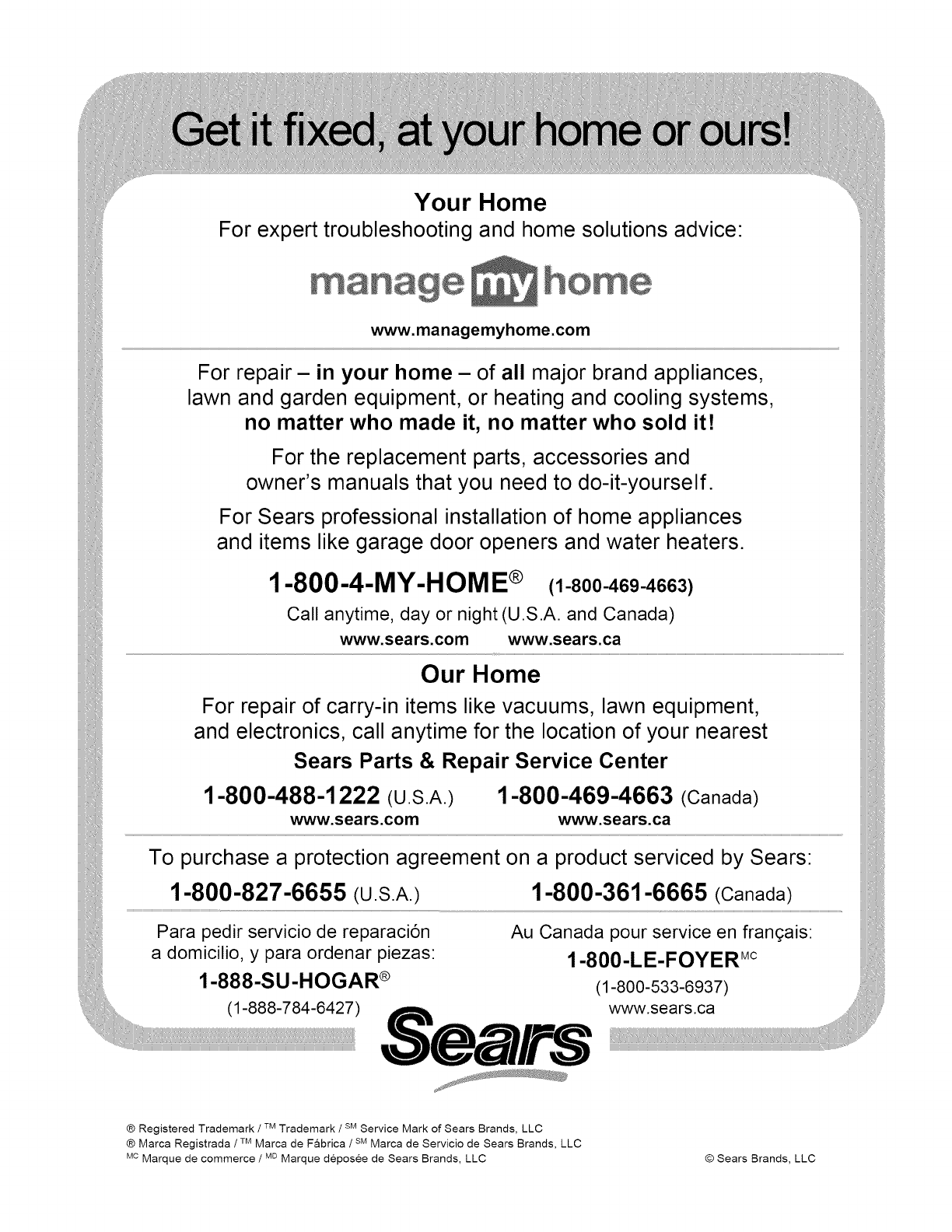

PARTS ORDERING/SERVICE ...................... BACK PAGE

ONE YEAR FULL WARRANTY

When operated and maintained according to the instructions supplied with it, if this Sprayer fails due to a defect in

material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair (or

replacement if repair proves impossible).

If this product is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

The model number and serial numbers will be found on a

decal attached to the tank.

You should record both the serial number and the date of

purchase and keep in a safe place for future reference.

MODEL NUMBER:

SERIAL NUMBER:

DATE OF PURCHASE:

486.245333

Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the

equipment. Exercise caution at all times when using power equipment.

• Read this owners manual carefully before attempting

to assemble or operate this sprayer.

Read your vehicle owners manual for operating and

safety rules before using this equipment.

Never allow children to operate this sprayer, and

do not allow adults to operate without proper

instructions.

Do not allow anyone to ride on or sit on this sprayer

Do not allow passengers on the towing vehicle.

Keep the area of operation clear of all persons,

particularly small children. Also keep area clear of

pets.

Read the chemical label carefully for instructions and

caution notes on handling and mixing of chemicals.

Wear eye and hand protection and wear protective

clothing when handling and applying lawn chemicals.

Do not spray on windy days.

Attachment of this sprayer may affect your tractor's

braking and stability. Be aware of your tractor's

capabilities. Refer to the safety rules in the vehicle

owner's manual concerning safe operation on slopes

Be aware of changing conditions on slopes. STAY

OFF OF STEEP SLOPES.

Operate at reduced speed on rough terrain, along

ditches and on hillsides to prevent loss of control.

Follow maintenance and lubrication instructions as

outlined in this manual.

Look for this symbol to point out important safety precautions. It means -- Attention!!

Become alert!! Your safety is involved.

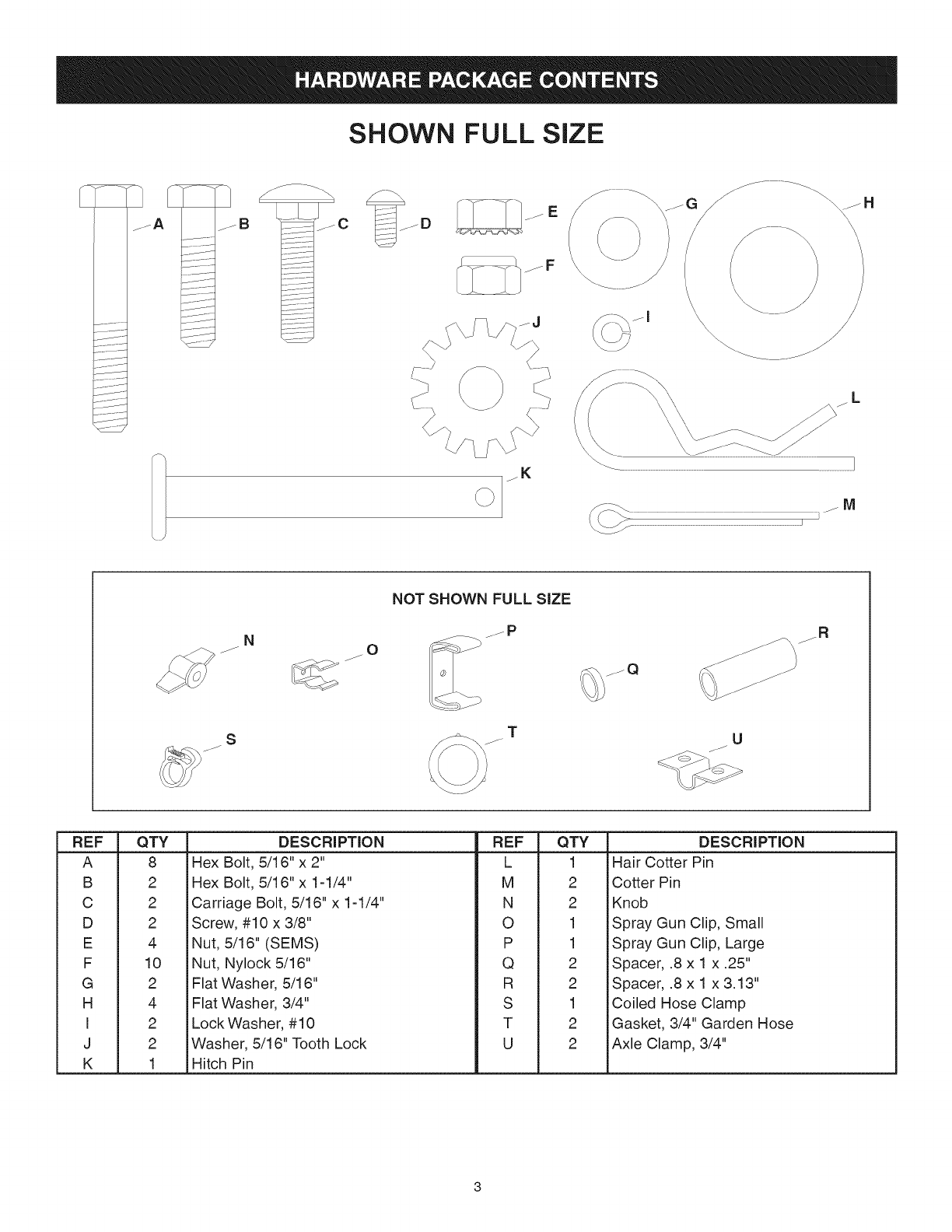

SHOWN FULL SiZE

jA B C

f_H

©fM

NOT SHOWN FULL SIZE

N jO _i_ _P

STU

REF

QTY

DESCRIPTION REF QTY

Hex Bolt, 5/16" x 2" L 1

He× Bolt, 5/16" x 1-1/4" M 2

Carriage Bolt, 5/16" x 1-1/4" N 2

Screw, #10 x 3/8" O 1

Nut, 5/16" (SEMS) P 1

Nut, Nylock 5/16" Q 2

Flat Washer, 5/16" R 2

Flat Washer, 3/4" S 1

Lock Washer, #10 T 2

Washer, 5/16" Tooth Lock U 2

Hitch Pin

DESCRIPTION

Hair Cotter Pin

Cotter Pin

Knob

Spray Gun Clip, Small

Spray Gun Clip, Large

Spacer, .8 x 1 x .25"

Spacer, .8 x 1 x 3.13"

Coiled Hose Clamp

Gasket, 3/4" Garden Hose

Axle Clamp, 3/4"

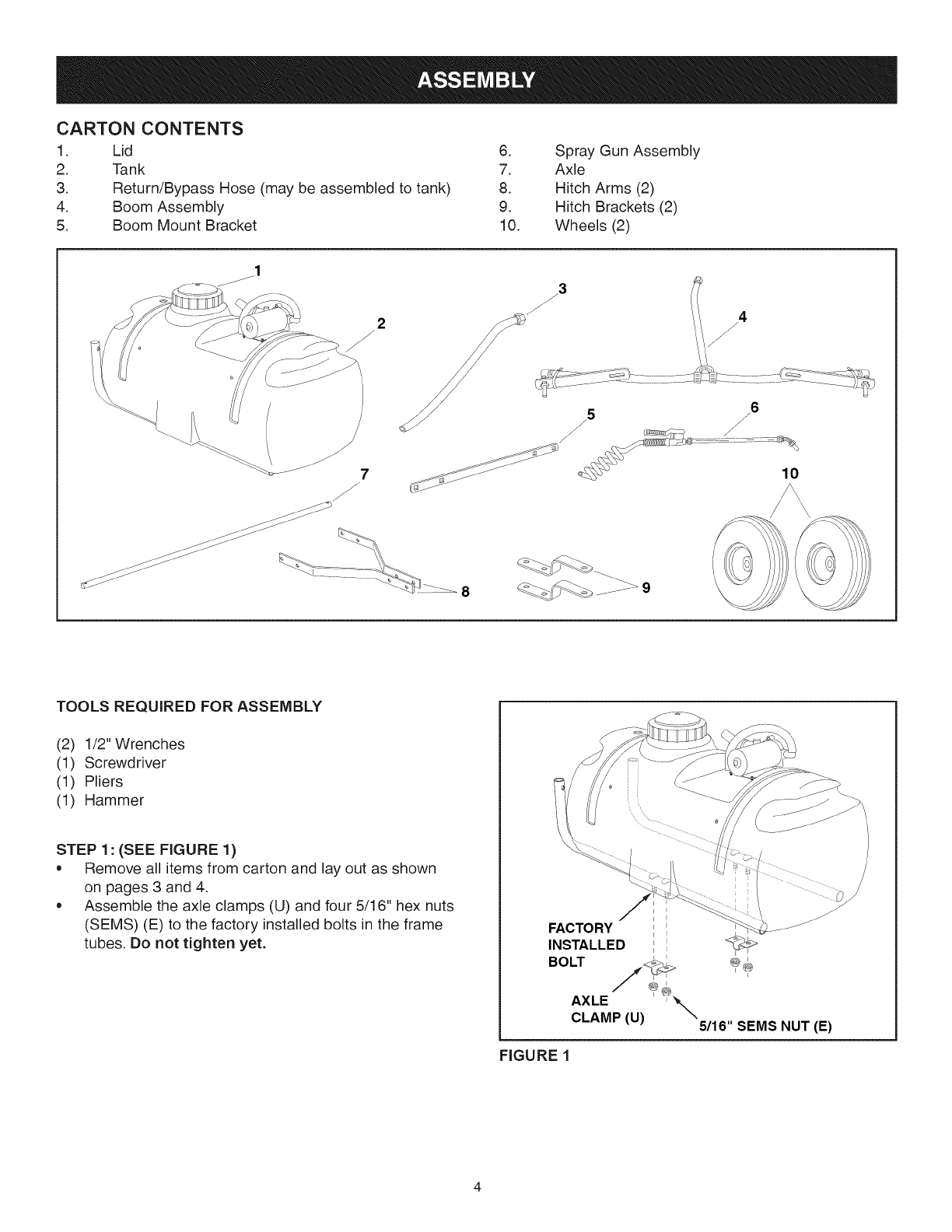

CARTON CONTENTS

1. Lid 6.

2. Tank 7.

3. Return/Bypass Hose (may be assembled to tank) 8.

4. Boom Assembly 9.

5. Boom Mount Bracket 10.

Spray Gun Assembly

Axle

Hitch Arms (2)

Hitch Brackets (2)

Wheels (2)

2 _--

TOOLS REQUIRED FOR ASSEMBLY

(2) 1/2" Wrenches

(1) Screwdriver

(1) Pliers

(1) Hammer

STEP 1: (SEE FIGURE 1)

*Remove all items from carton and lay out as shown

on pages 3 and 4.

*Assemble the axle clamps (U) and four 5/16" hex nuts

(SEMS) (E) to the factory installed bolts in the frame

tubes. Do not tighten yet. FACTORY

INSTALLED

FIGURE 1

5/16" SEMS NUT (E)

STEP 2: (SEE FIGURE 2 AND 1)

•Slide the axle through the two axle brackets.

• Assemble a spacer (R), a spacer (Q), a 3/4" washer

(H), a wheel (valve stem facing out) and another 3/4"

washer (H) onto the axle. Assemble a cotter pin (M)

through the end of the axle. Repeat on other end.

•Tighten the four nuts which fasten the axle clamps to

the frame tubes. Refer back to figure 1.

1/8" x 1-1/2"

COTTER PIN (M)

SPACER(R)

SPACER (Q)

FIGURE 2

3/4" WASHER (H)

STEP 4: (SEE FIGURE 4)

•Fasten the ends of the hitch arms together using two

5/16" x 1-1/4" hex bolts (B) and 5/16" nylock nuts (F).

Do not tighten yet.

• Assemble the hitch brackets to the hitch arms using

two 5/16" x 2" hex bolts (A) and 5/16" nylock nuts

(F). Position each bolt behind a cross bolt in the hitch

arms. Do not tighten yet.

•Tighten all nuts assembled in steps 3 and 4 at this

time.

5116" x 2"

REX BOLT (A)

5116"NYLOCK

NUT (F)

FIGURE 4

STEP 3: (SEE FIGURE 3)

•Assemble a hitch arm to the inside of a frame tube

underneath the tank. Use two 5/16" x 2" hex bolts

(A) and 5/16" nylock nuts (F). Do not tighten yet.

Repeat for other side.

FIGURE 3

NYLOCK

NUT (F)

5116" x 2"

REX BOLT(A) \

HITCH ARM

STEP 5: (SEE FIGURE 5)

•Assemble the boom mount bracket to the rear of the

frame tubes using two 5/16" x 2" hex bolts (A) and

5/16" nylock nuts (F).

FIGURE 5

5116" x 2"

HEX BOLT (A)

J5/16" NYLOCK NUT (F)

REAR ViEW

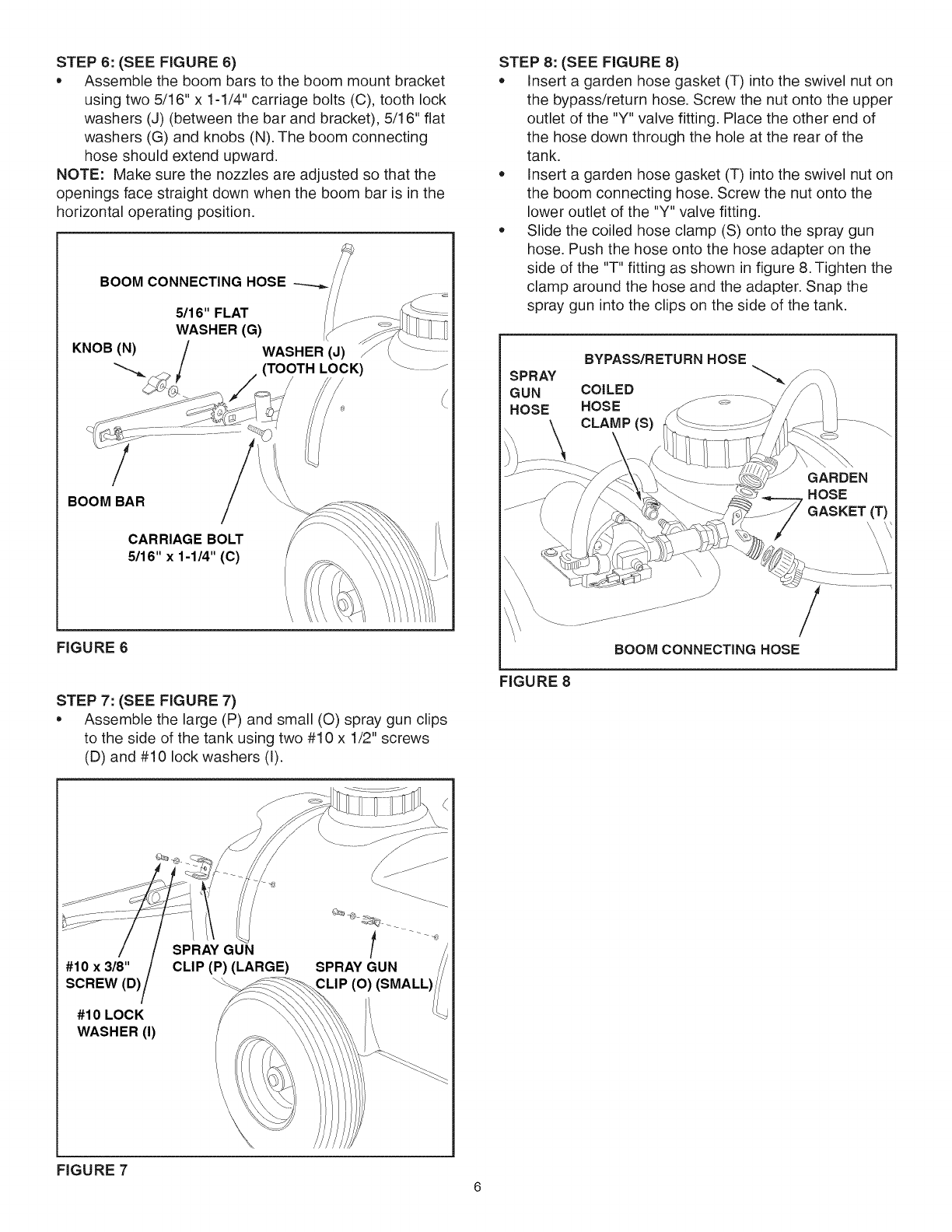

STEP6:(SEEFIGURE6)

•Assemble the boom bars to the boom mount bracket

using two 5/16" x 1-1/4" carriage bolts (C), tooth lock

washers (J) (between the bar and bracket), 5/16" fiat

washers (G) and knobs (N). The boom connecting

hose should extend upward.

NOTE: Make sure the nozzles are adjusted so that the

openings face straight down when the boom bar is in the

horizontal operating position.

BOOM CONNECTING HOSE --_..,,_//

5116" FLAT

WASHER (G)

KNOB (N) // WASHER (J) J

LOCK)

BOOM BAR

CARRIAGE BOLT

5/16" x1-1/4" (C)

FIGURE 6

STEP 7: (SEE FIGURE 7)

•Assemble the large (P) and small (O) spray' gun clips

to the side of the tank using two #10 x 1/2" screws

(D) and #10 lock washers (I).

STEP 8: (SEE FIGURE 8)

•insert a garden hose gasket (T) into the swivel nut on

the bypass/return hose. Screw the nut onto the upper

outlet of the "Y" valve fitting. Place the other end of

the hose down through the hole at the rear of the

tank.

•insert a garden hose gasket (T) into the swivel nut on

the boom connecting hose. Screw the nut onto the

lower outlet of the "Y" valve fitting.

•Slide the coiled hose clamp (S) onto the spray gun

hose. Push the hose onto the hose adapter on the

side of the "T" fitting as shown in figure 8. Tighten the

clamp around the hose and the adapter. Snap the

spray gun into the clips on the side of the tank.

BYPASS/RETURN HOSE

SPRAY

GUN COILED

HOSE HOSE

CLAMP (S)

BOOM CONNECTING HOSE

FIGURE 8

#10 x 318"

SCREW (O)

#10 LOCK

WASHER (I)

SPRAY GUN

CLIP (P) (LARGE) SPRAYGUN

FIGURE 7

\\\\

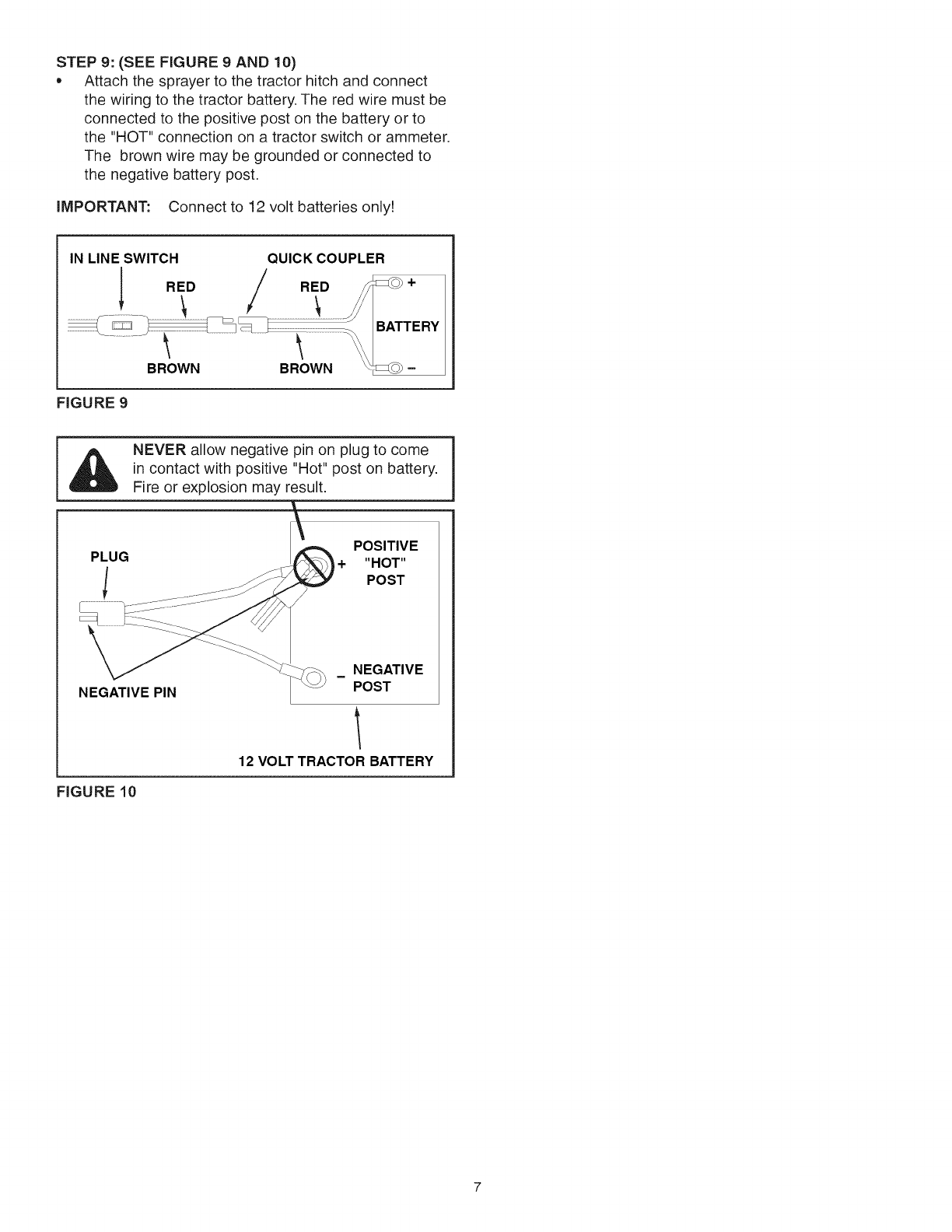

STEP 9: (SEE FIGURE 9 AND 10)

• Attach the sprayer to the tractor hitch and connect

the wiring to the tractor battery. The red wire must be

connected to the positive post on the battery or to

the "HOT" connection on a tractor switch or ammeter.

The brown wire may be grounded or connected to

the negative battery post.

IMPORTANT: Connect to 12 volt batteries only!

IN LINE SWITCH QUICK COUPLER

BROWN BROWN -

FIGURE 9

BATTERY

NEVER allow negative pin on plug to come

in contact with positive "Hot" post on battery.

Fire or explosion may result.

PLUG

NEGATIVE PIN

POSITIVE

+ "HOT"

POST

NEGATIVE

POST

12 VOLT TRACTOR BATTERY

FIGURE 10

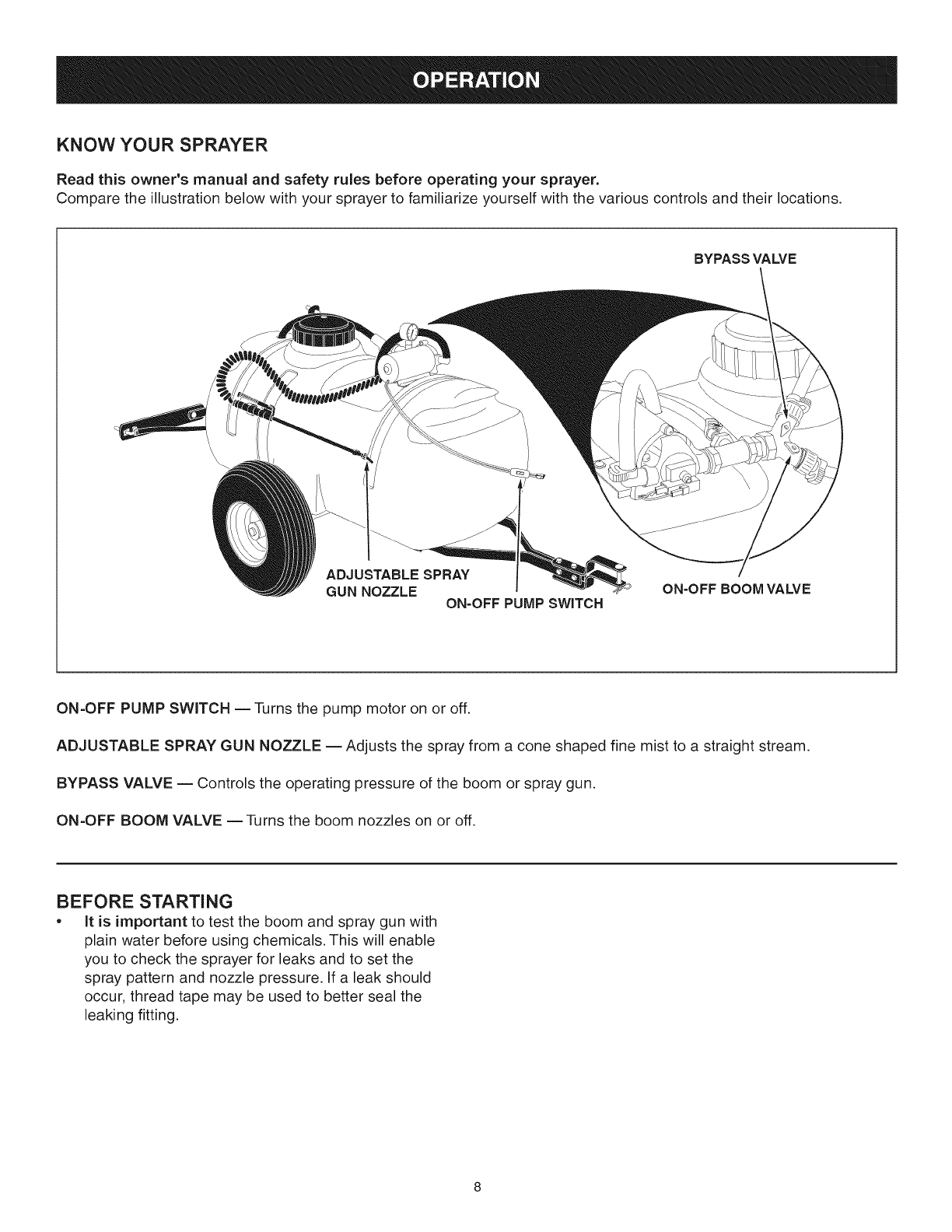

KNOW YOUR SPRAYER

Read this owner's manual and safety rules before operating your sprayer,

Compare the illustrationbelow with your sprayer to familiarize yourself with the various controls and their locations.

BYPASS VALVE

ADJUSTABLE SPRAY

GUN NOZZLE ON=OFF PUMP SWITCH ON=OFF BOOM VALVE

ON-OFF PUMP SWITCH -- Turns the pump motor on or off.

ADJUSTABLE SPRAY GUN NOZZLE -- Adjusts the spray from a cone shaped fine mist to a straight stream.

BYPASS VALVE -- Controls the operating pressure of the boom or spray gun.

ON-OFF BOOM VALVE --Turns the boom nozzles on or off.

BEFORE STARTING

, It is important to test the boom and spray gun with

plain water before using chemicals. This will enable

you to check the sprayer for leaks and to set the

spray pattern and nozzle pressure. If a leak should

occur, thread tape may be used to better seal the

leaking fitting.

HOW TO USE YOUR SPRAYER

BEFORE STARTING

it is important to test the boom and spray gun with plain

water before using chemicals. This will enable you to

check the sprayer for leaks and to set the spray pattern

and nozzle pressure, if a leak should occur, thread tape

may be used to better seal the fitting.

ON-OFF SWITCH

This switch is connected in line to the wiring assembly and

is used by the operator to turn the pump motor on or off.

PUMP PRESSURE SWITCH

The pump is equipped with a pressure switch. The

pressure switch senses outlet pressure of the pump

and will turn off the electrical power to the pump when

it exceeds a predetermined high pressure point. If the

flow demand is very low, the pump may reach this high

pressure point and the switch will cause "cycling" (the

pump cycles on and off rapidly). This is not a problem

unless the pump is subject to continuous cycling within

one second intervals for long periods of time.

ON-OFF ADJUSTMENT OF BOOM NOZZLES

The boom valve on the "Y" fitting controls flow to the

boom nozzles. It should be either completely open or

completely closed. The boom operating pressure can be

controlled using the bypass valve on the "Y" fitting.

ADJUSTING SPRAY GUN NOZZLE

Turn the nozzle on the spray gun to adjust the spray from

a cone shaped fine mist to a straight stream. Control

the spray gun operating pressure with the bypass valve

on the "Y" fitting. Maximum spray gun pressure can be

attained when the boom is shut off.

SETTING THE BOOM FOR SPRAYING

The correct positioning of the boom places the nozzles

approximately 40" apart and 14" above the ground. This

gives a spray width of approximately 80" with a slight

center overlap. See figure 11.

1. Slide the boom bars out to the ends of the slots.

2. Swivel the boom bars until the nozzles are

approximately 14" above the ground.

3. Make sure the nozzles are adjusted so that the

openings point straight down.

USING THE SPRAYER

1. Determine the application rate (gallons per 1,000

sq. feet or gallons per acre) based on the chemical

manufacturers recommendations. Use this rate

to help select the tractor speed in the following

instructions.

2. Determine the approximate square footage of the

area to be sprayed and estimate the number of

gallons required. This can help avoid unneeded

solution left in the tank.

3. Determine the appropriate speed at which to travel,

based on the recommended application rate. Use the

table on page 10.

4. To determine the throttle setting for attaining the

appropriate speed, mark off 100, 200 and 300 feet

intervals. The speed chart at the bottom of page

10 indicates the number of seconds it takes to

travel these distances. Set the throttle and, with a

running start, travel the distances in the number of

seconds indicated by the speed chart. Once you have

determined the throttle and gear settings needed,

mark the throttle location so that you can easily

resume the same speed after stopping.

5. Add the chemical solution to the tank, following the

product instructions.

6. Drive to the starting place for spraying. Set the boom

in position for spraying. Set the throttle at the position

determined in step 4. Flip the sprayer's in-line switch

to the "ON" position to start spraying.

7. Stay clear of flowers, shrubs and evergreen trees

when spraying weed control solutions to prevent

contact of the solution with these sensitive plants.

CAUTION: WEAR EYE PROTECTION,

GLOVES AND PROTECTWE CLOTHING

WHEN HANDLING AND WORKING WITH

LAWN CHEMICALS.

FIGURE 11

PRESSURE

(PSi) 1MPH 10 MPH

60* 58.2 29.1 19.4 14.5 11.6 7.8 5.8

PRESSURE GALLONS PER 1000 SQUARE FEET

2MPH 3MPH 4MPH 5MPH _7.5MPH _10MPH

.67 .45 .33 .27 .18 .13

(PSi) 1MPN

60* 1.3

GALLONS PER ACRE (BASED ON WATER)

2IVIPH 3 IVIPH 4IVIPH 5 IVIPH 7.5 IVIPH

* Pressure comes pre-set at 60 psi from factory.

GROUND SPEED CHART

M.P.H. (K/H) TIME REQUIRED IN SECONDS TOTRAVEL A DISTANCE OF:

100 FT. (30.5 M} 200 FT.J61 IVl) 300 FT (91.5 IVl)

1.0 (1.6)

2.0 (3.2)

3.0 (4.8)

4.0 (6.4)

5.0 (8.0)

6.0 (9.7)

7.0 (11.3)

8.0 (12.9)

9.0 (14.5)

10.0(16.1)

9.7

8.5

7.6

6.8

136

2O5

1O2

CUSTOMER RESPONSiBiLiTiES

Read and follow the maintenance schedule and the maintenance procedures listed in this section.

MAINTENANCE SCHEDULE _e_ _?" o£ #_

Fill in dates as you ___/,.7"

complete regular service. _°R:_____z,_" Service Dates

Check for loose fasteners X

Flush the tank X

Cleaning the strainers X

Lubrication X

CHECK FOR LOOSE FASTENERS CLEANING THE STRAINERS

• Before each use make a thorough visual check of

the sprayer for any bolts and nuts which may have

loosened. Retighten any loose bolts and nuts.

FLUSH THE TANK

Remove any solution left in tank. Fill the sprayer

part way with water, start the sprayer and allow

clear water to be pumped through the plumbing

system and out through the boom assembly and the

handgun. Use the handgun to thoroughly wash all

internal parts of the tank, the outside of the tank and

the boom.

Refill the tank about half full with plain water and

a chemical neutralizer and repeat the cleaning

instructions above. Flush the entire sprayer with

the neutralizing agent. Follow the chemical

manufacturers instructions for disposal of all wash or

rinsing water.

At least once a season, clean the strainer in the end

of the intake hose at the bottom of the tank. Remove

the nylon swivel nut from the hose, pull out the screen

and flush it with clear water.

At least once a season, clean the strainers in the

boom nozzles. Remove the nozzle, pull out the

screen and flush it with clear water.

LUBRICATION

Apply a few drops of oil to the wheel hubs at least

once a year.

STORAGE RECOMMENDATIONS

Drain all water out of the sprayer, paying special

attention to the pump and handgun. These items

are especially prone to damage from chemicals and

freezing weather.

iMPORTANT: Do not allow chemicals to sit in pump for

extended times of idleness. Some chemicals will damage

the pump valve if allowed to soak untreated for a length

of time. Always flush the pump with water after each use.

Follow the procedures in the Maintenance section for

flushing and disposal.

The sprayer should be winterized before storage

by pumping a 50-50 solution of water and R.V.

antifreeze through the entire plumbing. Proper care

and maintenance will prolong the life of the sprayer.

PROBLEM CAUSE

Pump motor cycles on and off rapidly. System pressure is reaching maximum

(OK) for short periods of time. setting of pump's pressure switch.

Pressure too low Bypass valve open too far.

Tank strainer dirty.

Nozzle strainers dirty.

Nozzles set too low.

Nozzles donlt po!nt straight down.

Pressure OK but boom spray weak

Boom spray pattern does not overlap

enough in the middle

CORRECTION

Decrease the system pressrure by

increasing the opening of the bypass

valve.

Decrease opening of bypass valve.

Remove strainer and clean.

Remove strainers and clean.

Adjust boom arms. See page _.

Rotate nozzle open!ng down.

NOTES

REPAIR PARTS FOR 25 GALLON SPRAYER MODEL 486.245333

/31

\21

18 9 _

7 _fl 0 \

2 2O

\\\\

50_

44 52

\\\

41 23

\\ '3

40 43

REPAIR PARTS FOR 25 GALLON SPRAYER MODEL 486.245333

REF PART NO. QTY

1 46283 1

2 45015 1

3 46278 1

4 45021 1

5 45024 1

6 45031 1

7 45032 3

8 45033 1

9 45069 4

10 43910 4

11 46980 4

12 45085 2

13 46276 1

14 46277 1

15 45025 2

16 49754 1

17 45049 1

18 41309 1

19 47406 1

20 49761 1

21 45026 6

22 45034 1

23 48296 2

24 24860 2

25 23014 2

26 23917 2

27 24615 1

28 40939 2

29 46700 1

30 24122 2

31 24585 1

32 47394 1

33 45028 2

DESCRIPTION REF PART NO. QTY

Tank (25 Gal.) 34 45029 2

Pump and Motor 35 45037 2

Hose, 1/2" ID (24" Lg.) 36 47396 2

Hose, 1/2" JD (20" Lg) 37 726-0178 2

Strainer, Cap Type 1" 38 44180 8

Adapter, 1/2" NPT x Hose 39 43840 2

Nut, Swivel 3/4" Garden Hose 40 47810 10

Hose Barb, 1/2" 41 44947 4

Screw, Ph. Pan Hd. 10-24 x 1" Lg. 42 43086 4

Washer, Flat #10 SAE 43 43343 1

Nut, Hex 5/16-18 (SEMS) 44 43009 4

Terminal, .25 MaleTab (not shown) 45 43093 2

Adapter, 3/4" GH x 1/2" Barb 46 47623 1

Elbow, 3/8 NPT x 1/2" Barb 47 45180 1

Clamp, 1/2" Hose (For Black Hose) 48 736-0722 2

Switch and Wire Assembly 49 48719 1

Nipple, (Nylon) 1/2" x 3/8" Red. 50 46677 2

Tee, 1/2" x 1/2" x 1/2" (1/4" Port) 51 43081 2

Spray Gun 52 46524 2

Hose, 1/4" ID (15' Lg) 53 45017 1

Clamp, 3/8" Hose (For Black Hose) 54 46754 2

Hose Barb, 3/8" 55 45072 3

Frame Tube 56 43085 4

Hitch Arm 57 712-0421 2

Hitch Bracket 58 43682 2

Clamp, 3/4" Axle 59 44732 2

Axle, 3/4" 60 47397 1

Wheel 61 47390 1

Lid 62 49779 2

Boom Bar 63 47392 3

Bracket, Boom Mount 64 44695 4

Tee, Plastic 3/8" Hose 41287 1

Nozzle, SS Floodjet

DESCRIPTION

Strainer, Screen Type

Nut, Screen Body

Elbow, Plastic 11/16" Thd.

Nylon Tie

Bolt, Hex 5/16-18 x 2"

Bolt, Hex 5/16-18 x 1-1/4"

Nut, Nylock 5/16-18

Bolt, Curved Head 5/16-18 x 1-5/8"

Lock Washer, 5/16"

Pin, Hair Cotter #4 (1/8")

Washer, 3/4"

Cotter Pin, 1/8" x 1-1/2"

Hitch Pin

Hose Clip, Small

Lock Washer, #10

Drain Cap

Screw, Phillips Hd. #10-24 x 3/8"

Washer, 5/16" Std. Wrt.

Spacer, .8 x 1.0 x 3.13"

Hose "Y" W /Valves 3/4"

Spacer, .8 x 1.0 x .25"

Gasket, 3/4" Garden Hose

Bolt, Hex 5/16-18 x 1-1/2"

Knob

Bolt, Carriage 5/16-18 x 1-1/4"

Washer, Tooth Lock 5/16"

Hose Clip (Large)

Adapter, 1/2" NPT x 1/4" Barb

Clamp, Coiled Hose

Hose, 3/8" ID (20" Lg.)

Bowed Washer

Owners Manual

Your Home

For expert troubleshooting and home solutions advice:

www.managemyhome.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.)

www.sears.com

1-800-469-4663 (Canada)

www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

Au Canada pour service en fran(_ais:

1-800-LE-FOYER M°

(1-800-533-6937)

www.sears.ca

® Registered Trademark /TM Trademark /Service Mark of Sears Brands, LLC

® Marca Registrada /TM Marca de F&brica /SM Marca de Servicio de Sears Brands, LLC

Craftsman 486245333 User Manual POWER SPRAYER Manuals And Guides L1002322

CRAFTSMAN Power sprayer Manual L1002322 CRAFTSMAN Power sprayer Owner's Manual, CRAFTSMAN Power sprayer installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
