Owner's Manual

ICRAFI",'SMAN+I

42"- 2 STAGE SNOW THROWER

TRACTO R ATTAC HMENT

Model No. 486.248392

CAUTION:

Before using this product, read

this manual and follow all

Safety Rules and

Operating Instructions.

•Safety

•Assembly

•Operation

•Maintenance

• Parts

IMPORTANT - READ THIS FIRST!!!

For Missing Parts or Assembly Questions

Please Call 217-728-8388

Mon.-Fri. 7 am - 5 pm CST.

FAX 217-728-2032 or e-mail info@agri-fab.com

Missing parts will be sent UPS in 24 hours directly to your home.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com/craftsman

PRINTED IN U.S.A. FORM NO. 48936 (6/03)

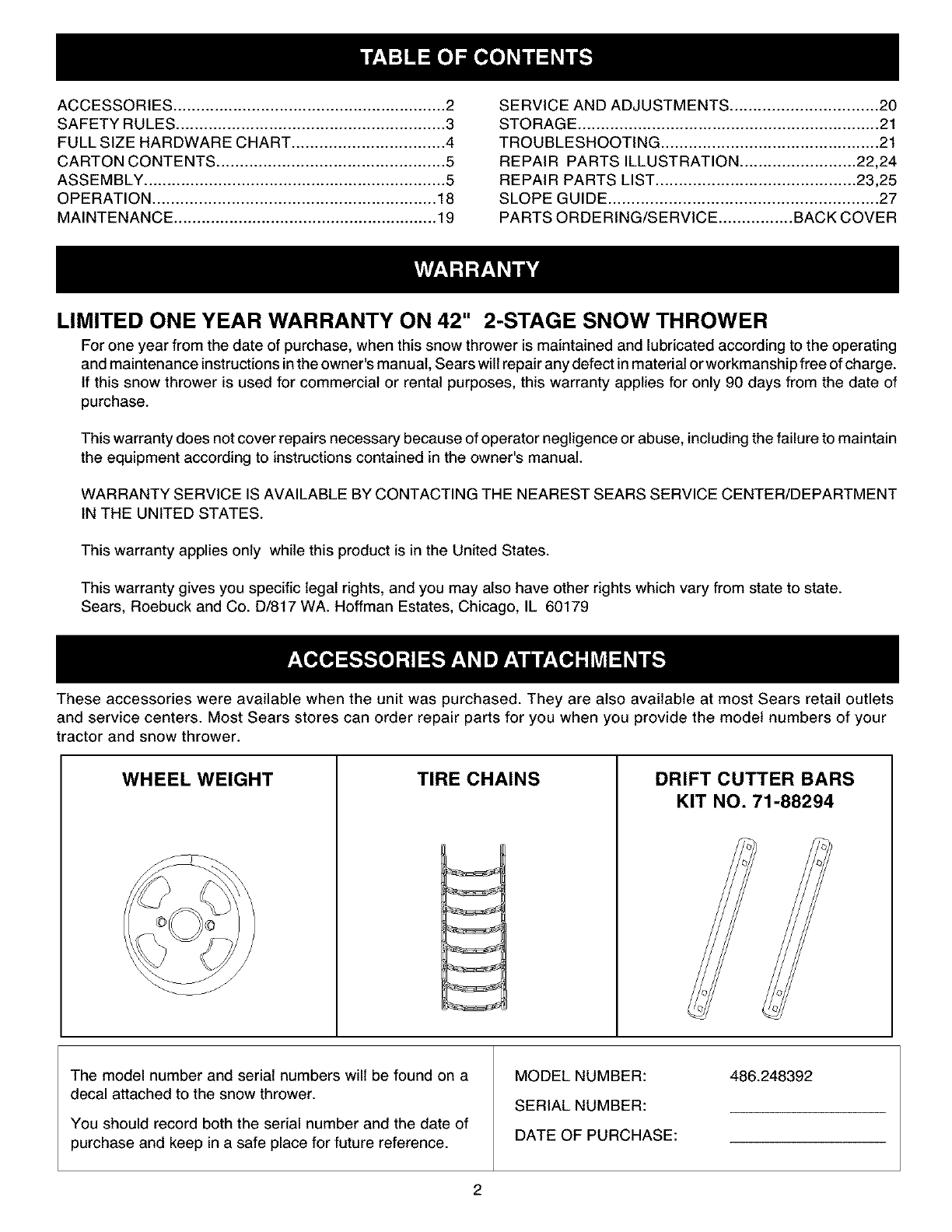

ACCESSORIES ........................................................... 2

SAFETY RULES .......................................................... 3

FULL SIZE HARDWARE CHART ................................. 4

CARTON CONTENTS ................................................. 5

ASSEMBLY ................................................................. 5

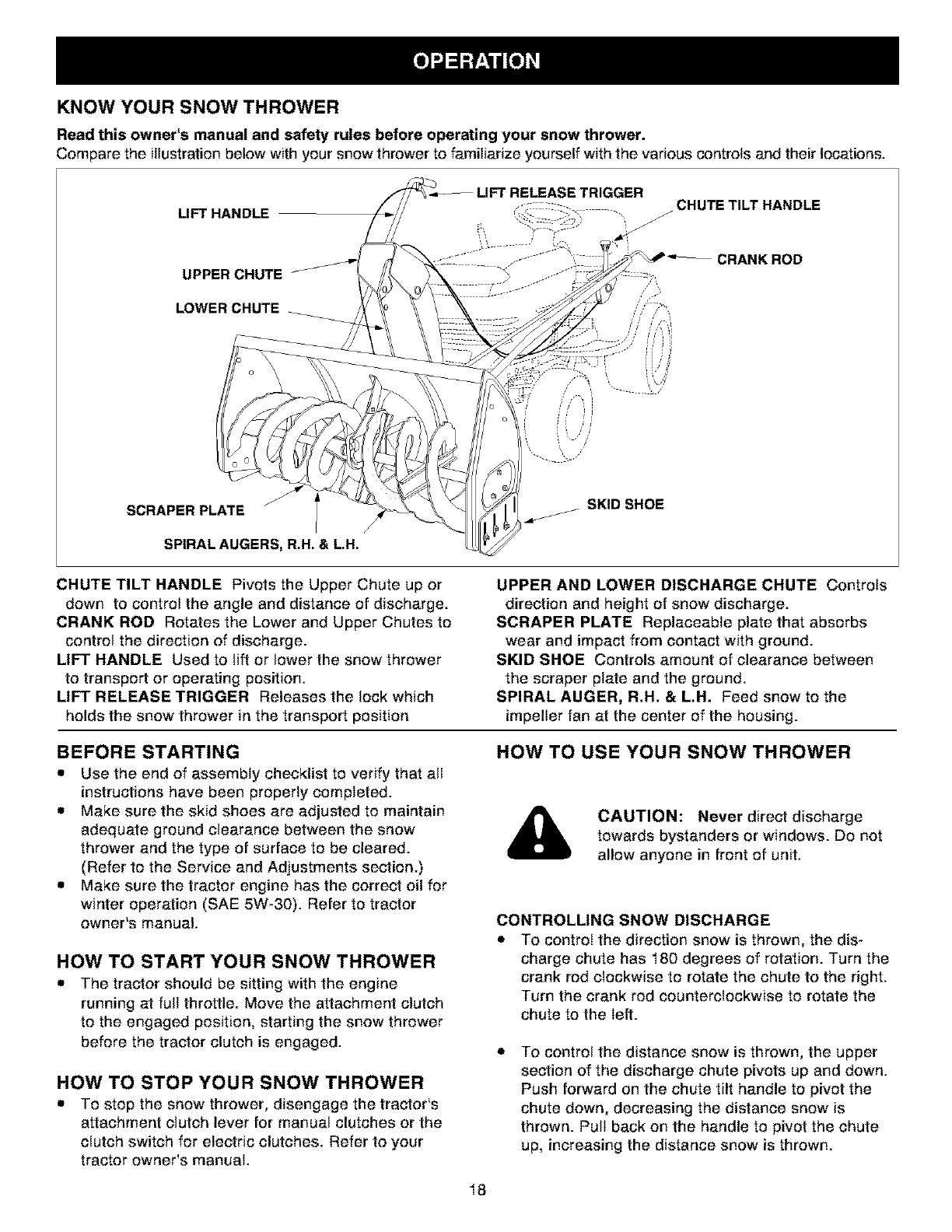

OPERATION ............................................................. 18

MAINTENANCE ......................................................... 19

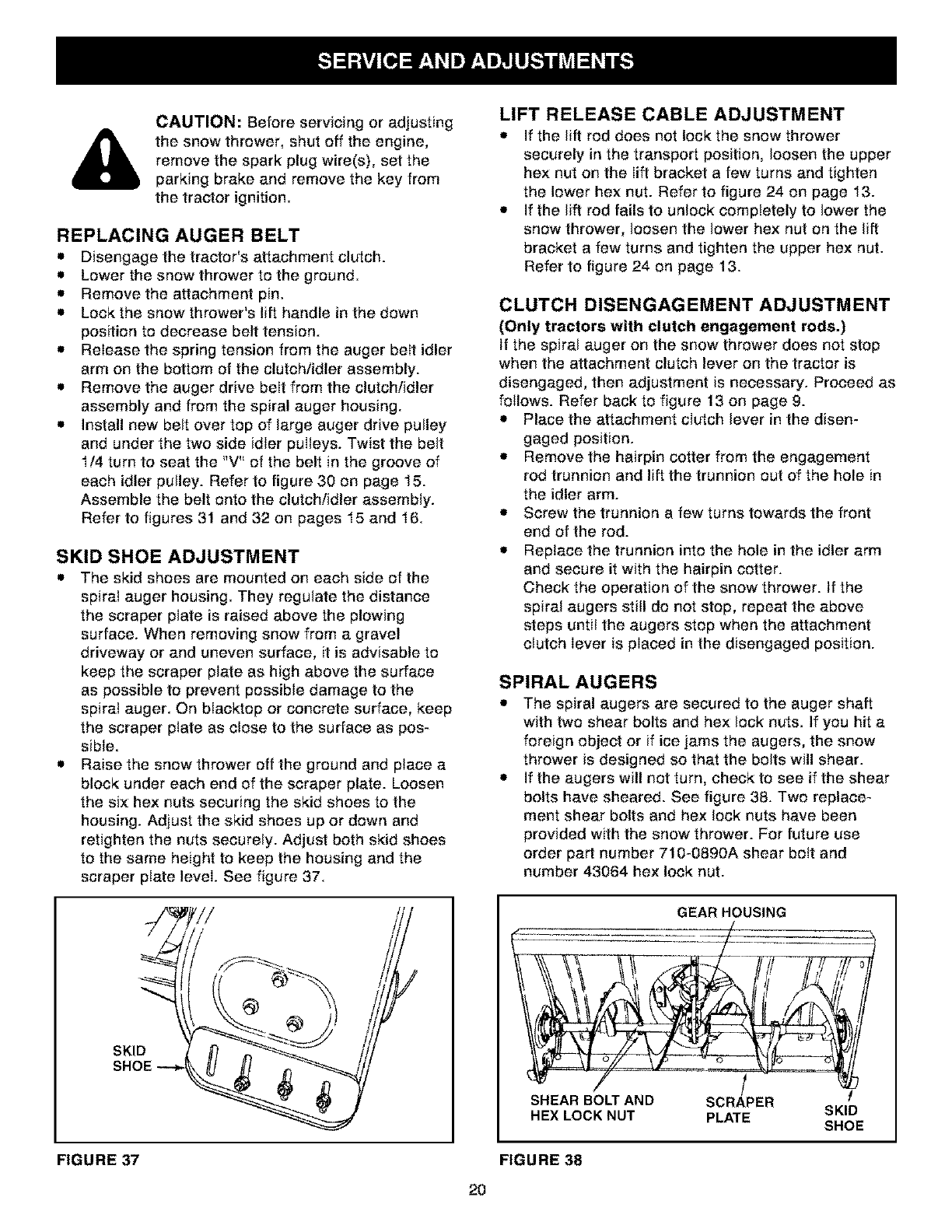

SERVICE AND ADJUSTMENTS ................................ 20

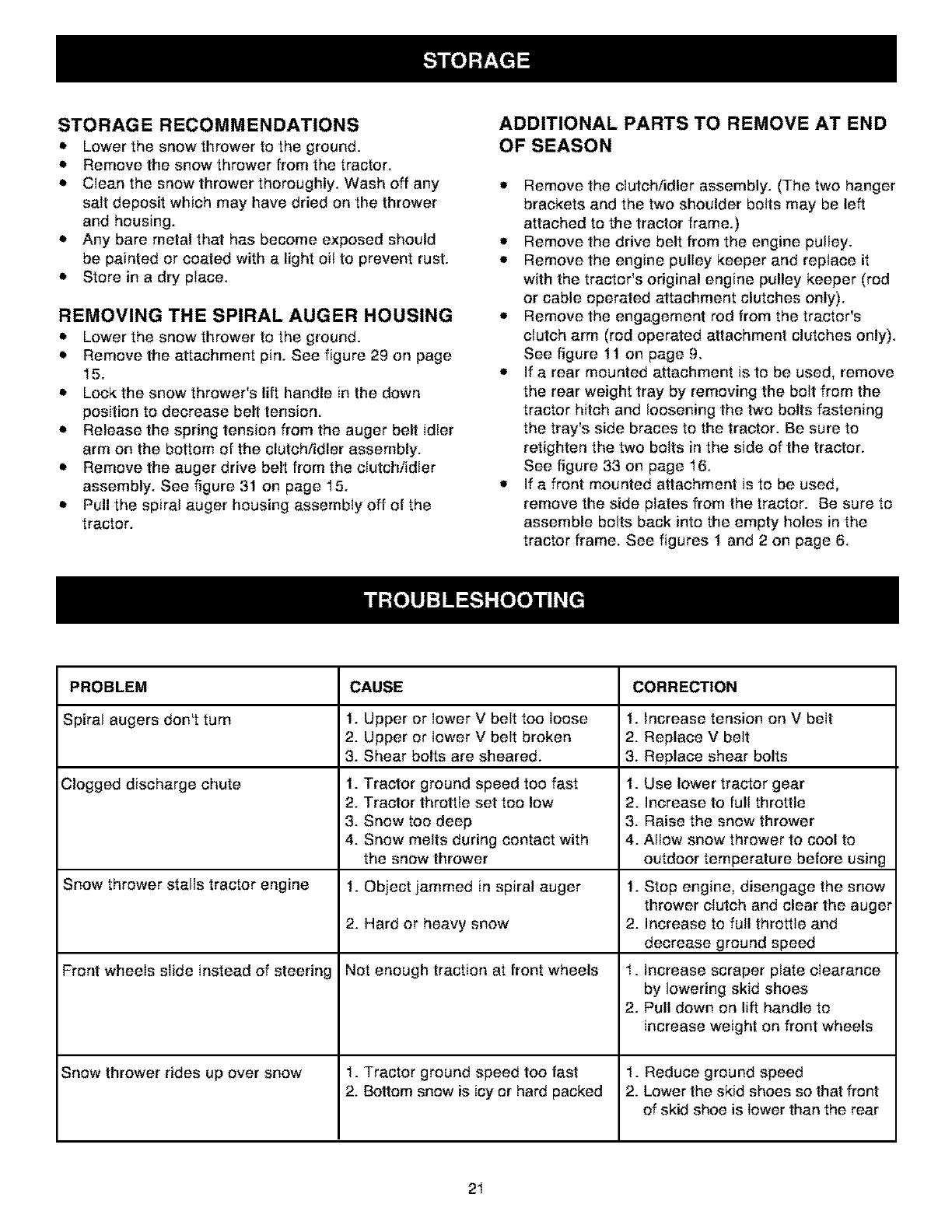

STORAGE ................................................................. 21

TROUBLESHOOTING ............................................... 21

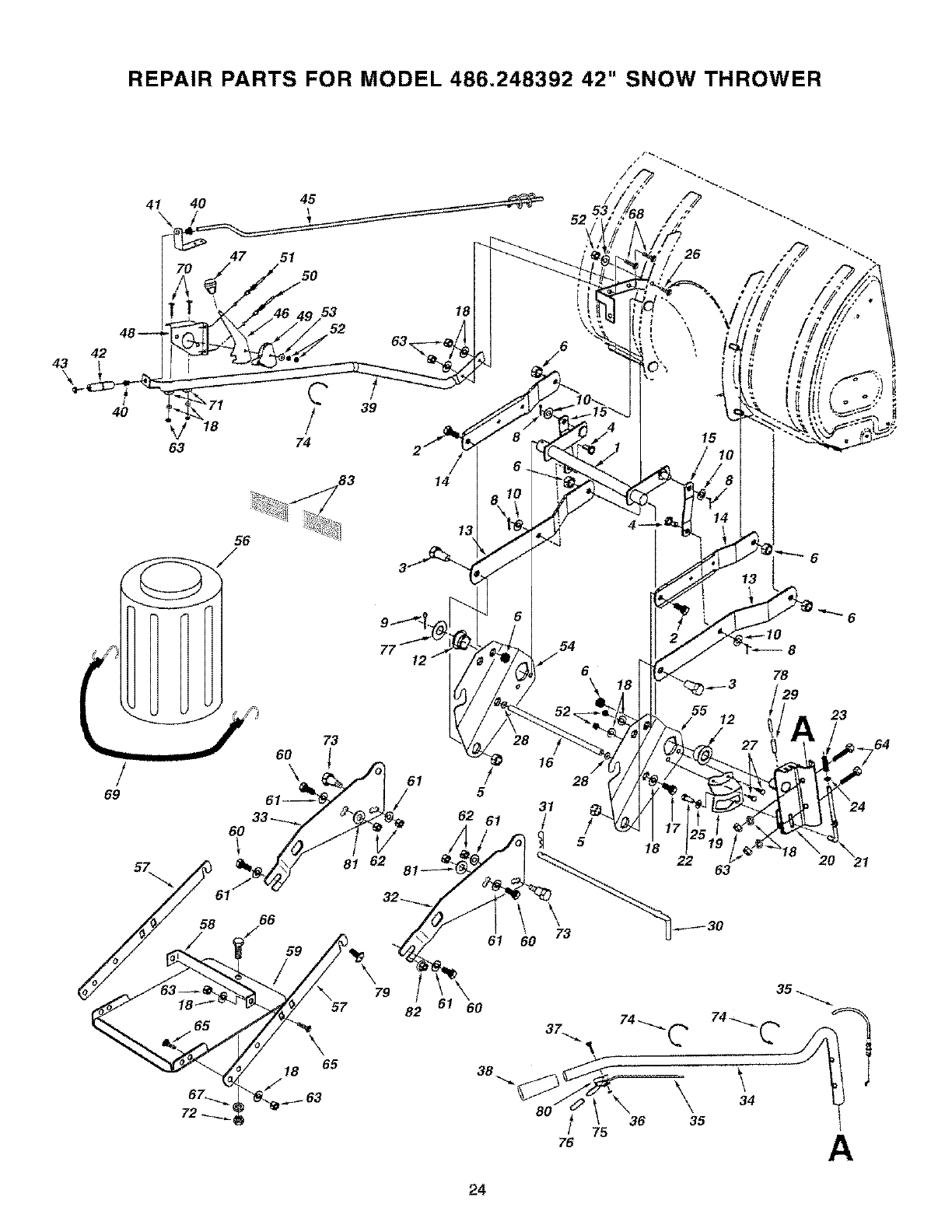

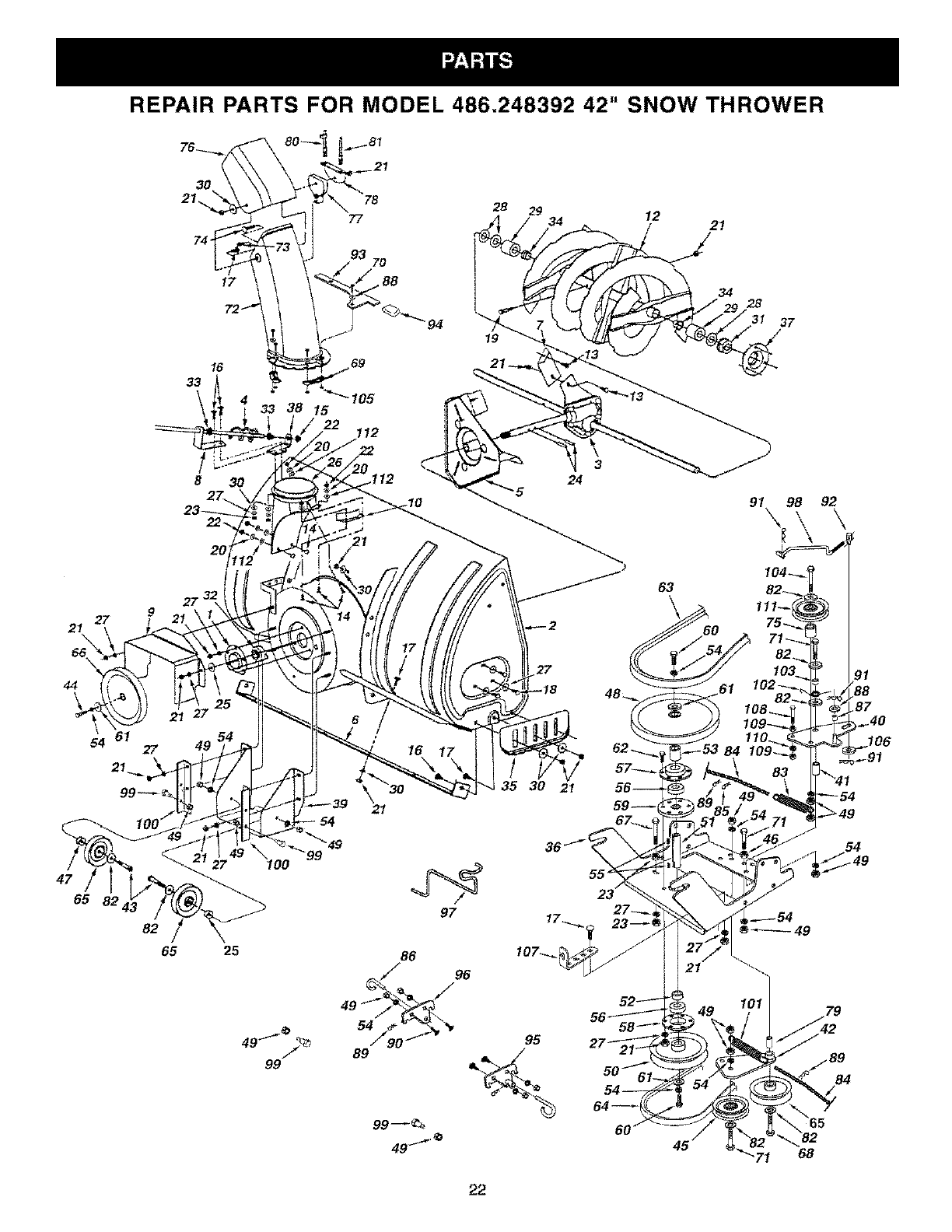

REPAIR PARTS ILLUSTRATION ......................... 22,24

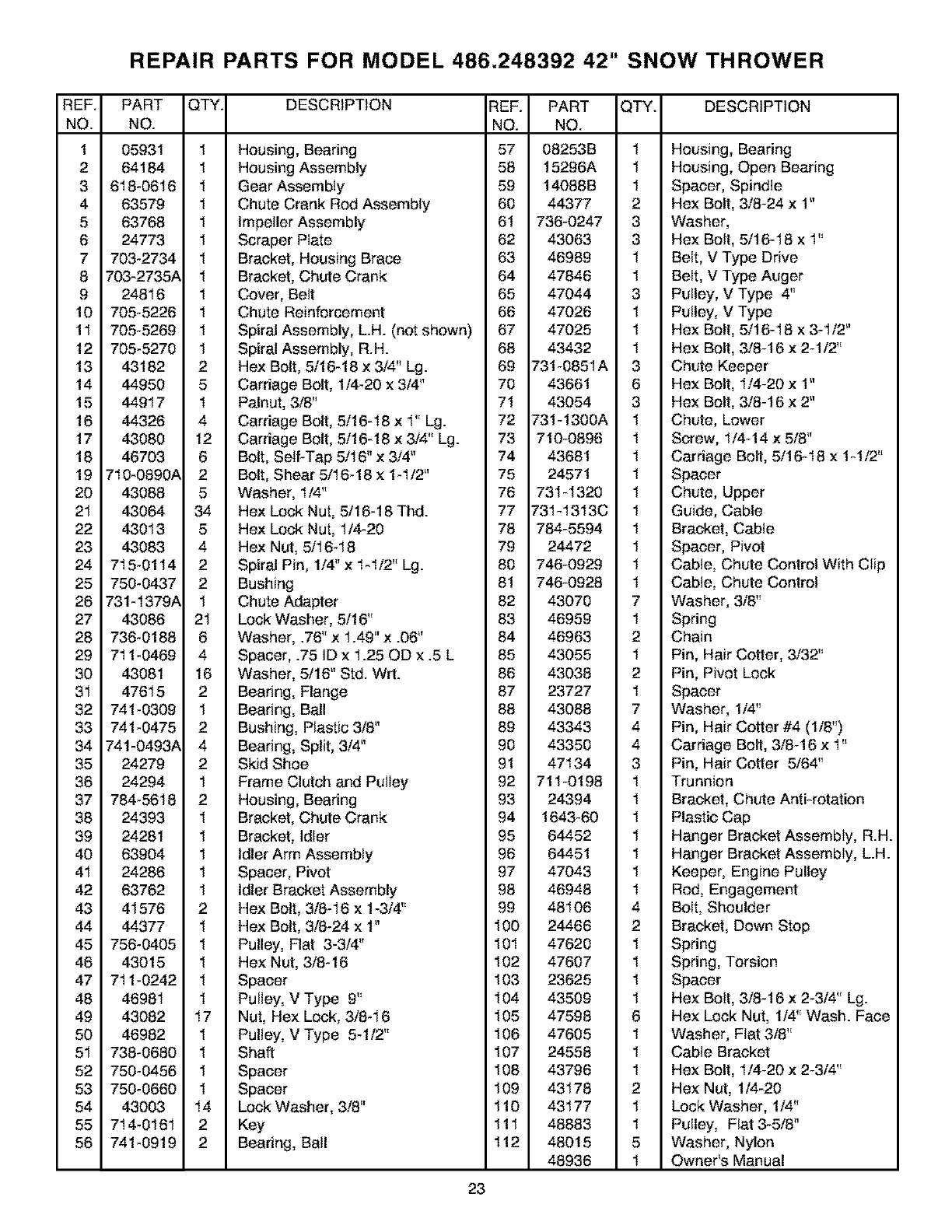

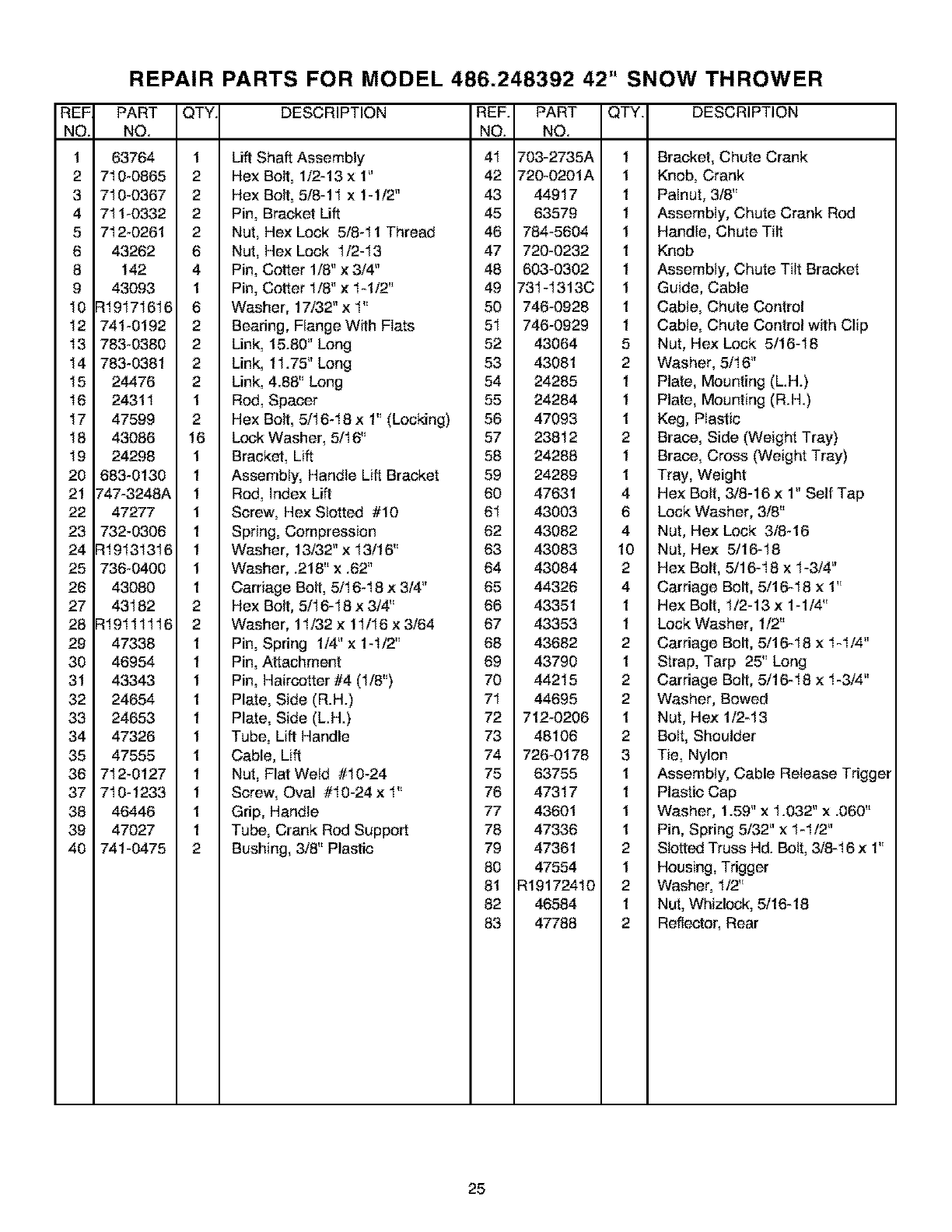

REPAIR PARTS LIST ........................................... 23,25

SLOPE GUIDE .......................................................... 27

PARTS ORDERING/SERVICE ................ BACK COVER

LIMITED ONE YEAR WARRANTY ON 42" 2-STAGE SNOW THROWER

For one year from the date of purchase, when this snow thrower is maintained and lubricated according to the operating

and maintenance instructionsinthe owner's manual, Sears willrepair any defect in material or workmanship free of charge.

If this snow thrower is used for commercial or rental purposes, this warranty applies for only 90 days from the date of

purchase.

This warranty does not cover repairs necessary because of operator negligence or abuse, including the failure to maintain

the equipment according to instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPARTMENT

IN THE UNITED STATES.

This warranty applies only while this product is in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co. D/817 WA. Hoffman Estates, Chicago, IL 60179

These accessories were available when the unit was purchased. They are also available at most Sears retail outlets

and service centers. Most Sears stores can order repair parts for you when you provide the model numbers of your

tractor and snow thrower.

WHEEL WEIGHT TIRE CHAINS DRIFT CUTTER BARS

KIT NO. 71-88294

The model number and serial numbers will be found on a

decal attached to the snow thrower.

You should record both the serial number and the date of

purchase and keep in a safe place for future reference.

MODEL NUMBER:

SERIAL NUMBER:

DATE OF PURCHASE:

486.248392

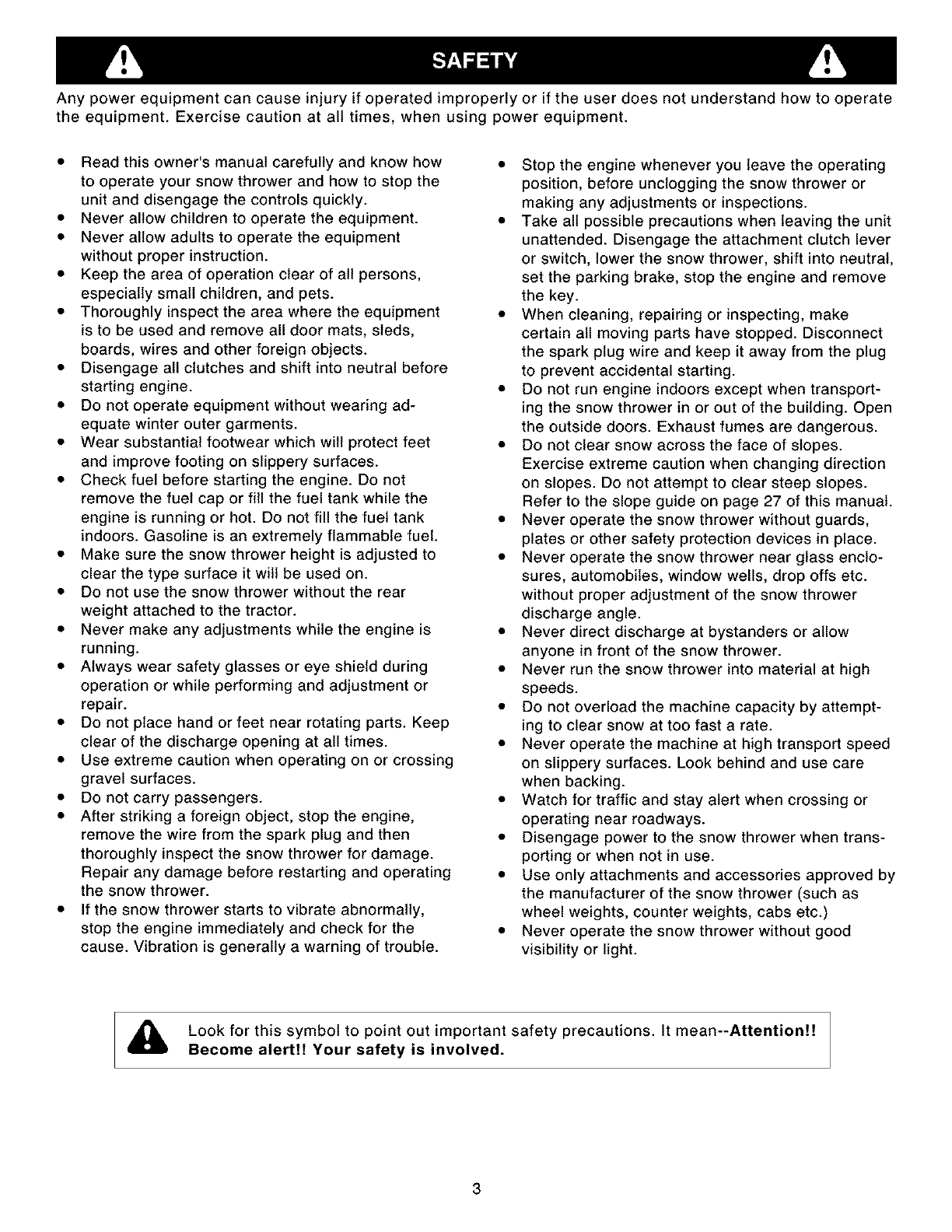

Anypowerequipmentcancauseinjuryif operatedimproperlyor if the userdoesnotunderstandhowto operate

the equipment.Exercisecautionat all times,whenusingpowerequipment.

• Readthisowner'smanualcarefullyandknowhow

to operateyoursnowthrowerandhowto stopthe

unitanddisengagethecontrolsquickly.

• Neverallowchildrento operatetheequipment.

• Neverallowadultsto operatetheequipment

withoutproperinstruction.

• Keeptheareaof operationclearof allpersons,

especiallysmallchildren,andpets.

• Thoroughlyinspecttheareawheretheequipment

isto beusedandremoveall doormats,sleds,

boards,wiresandotherforeignobjects.

• Disengageall clutchesandshiftintoneutralbefore

startingengine.

• Donotoperateequipmentwithoutwearingad-

equatewinteroutergarments.

• Wearsubstantialfootwearwhichwillprotectfeet

andimprovefootingonslipperysurfaces.

• Checkfuelbeforestartingtheengine.Donot

removethefuelcaporfill thefueltankwhilethe

engineis runningorhot.Donotfill thefueltank

indoors.Gasolineisanextremelyflammablefuel.

• Makesurethesnowthrowerheightisadjustedto

clearthetypesurfaceit willbeusedon.

• Donotusethesnowthrowerwithouttherear

weightattachedto thetractor.

• Nevermakeanyadjustmentswhiletheengineis

running.

• Alwayswearsafetyglassesor eyeshieldduring

operationorwhileperformingandadjustmentor

repair.

• Donotplacehandorfeetnearrotatingparts.Keep

clearof thedischargeopeningat all times.

• Useextremecautionwhenoperatingonorcrossing

gravelsurfaces.

• Donotcarrypassengers.

• Afterstrikinga foreignobject,stoptheengine,

removethewirefromthesparkplugandthen

thoroughlyinspectthesnowthrowerfordamage.

Repairanydamagebeforerestartingandoperating

thesnowthrower.

• Ifthesnowthrowerstartsto vibrateabnormally,

stoptheengineimmediatelyandcheckforthe

cause.Vibrationis generallya warningoftrouble.

• Stoptheenginewheneveryouleavetheoperating

position,beforeuncloggingthesnowthroweror

makinganyadjustmentsorinspections.

• Takeall possibleprecautionswhenleavingtheunit

unattended.Disengagetheattachmentclutchlever

orswitch,lowerthesnowthrower,shiftintoneutral,

settheparkingbrake,stoptheengineandremove

thekey.

• Whencleaning,repairingorinspecting,make

certainallmovingpartshavestopped.Disconnect

thesparkplugwireandkeepit awayfromtheplug

to preventaccidentalstarting.

• Donotrunengineindoorsexceptwhentransport-

ingthesnowthrowerin oroutof thebuilding.Open

theoutsidedoors.Exhaustfumesaredangerous.

• Donotclearsnowacrossthefaceof slopes.

Exerciseextremecautionwhenchangingdirection

onslopes.Donotattemptto clearsteepslopes.

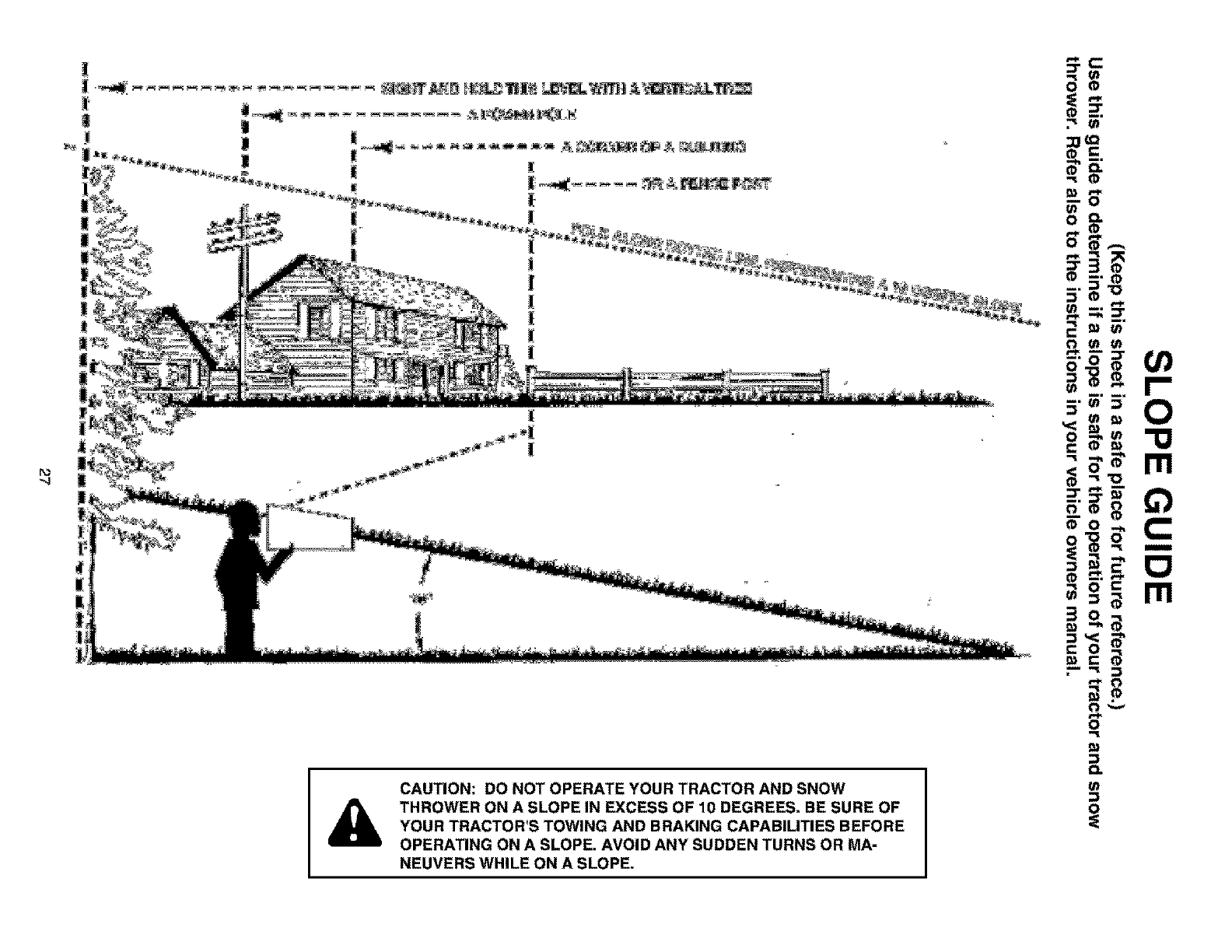

Referto theslopeguideonpage27ofthismanual.

• Neveroperatethesnowthrowerwithoutguards,

platesorothersafetyprotectiondevicesin place.

• Neveroperatethesnowthrowernearglassenclo-

sures,automobiles,windowwells,dropoffsetc.

withoutproperadjustmentofthesnowthrower

dischargeangle.

• Neverdirectdischargeat bystandersorallow

anyoneinfrontof thesnowthrower.

• Neverrunthesnowthrowerintomaterialat high

speeds.

• Donotoverloadthemachinecapacitybyattempt-

ingtoclearsnowattoofasta rate.

• Neveroperatethemachineat hightransportspeed

onslipperysurfaces.Lookbehindandusecare

whenbacking.

• Watchfor trafficandstayalertwhencrossingor

operatingnearroadways.

• Disengagepowerto thesnowthrowerwhentrans-

portingorwhennotinuse.

• Useonlyattachmentsandaccessoriesapprovedby

themanufacturerof thesnowthrower(suchas

wheelweights,counterweights,cabsetc.)

• Neveroperatethesnowthrowerwithoutgood

visibilityor light.

,_ Look for this symbol to point out important safety precautions. It mean--Attention!!

Become alert!! Your safety is involved.

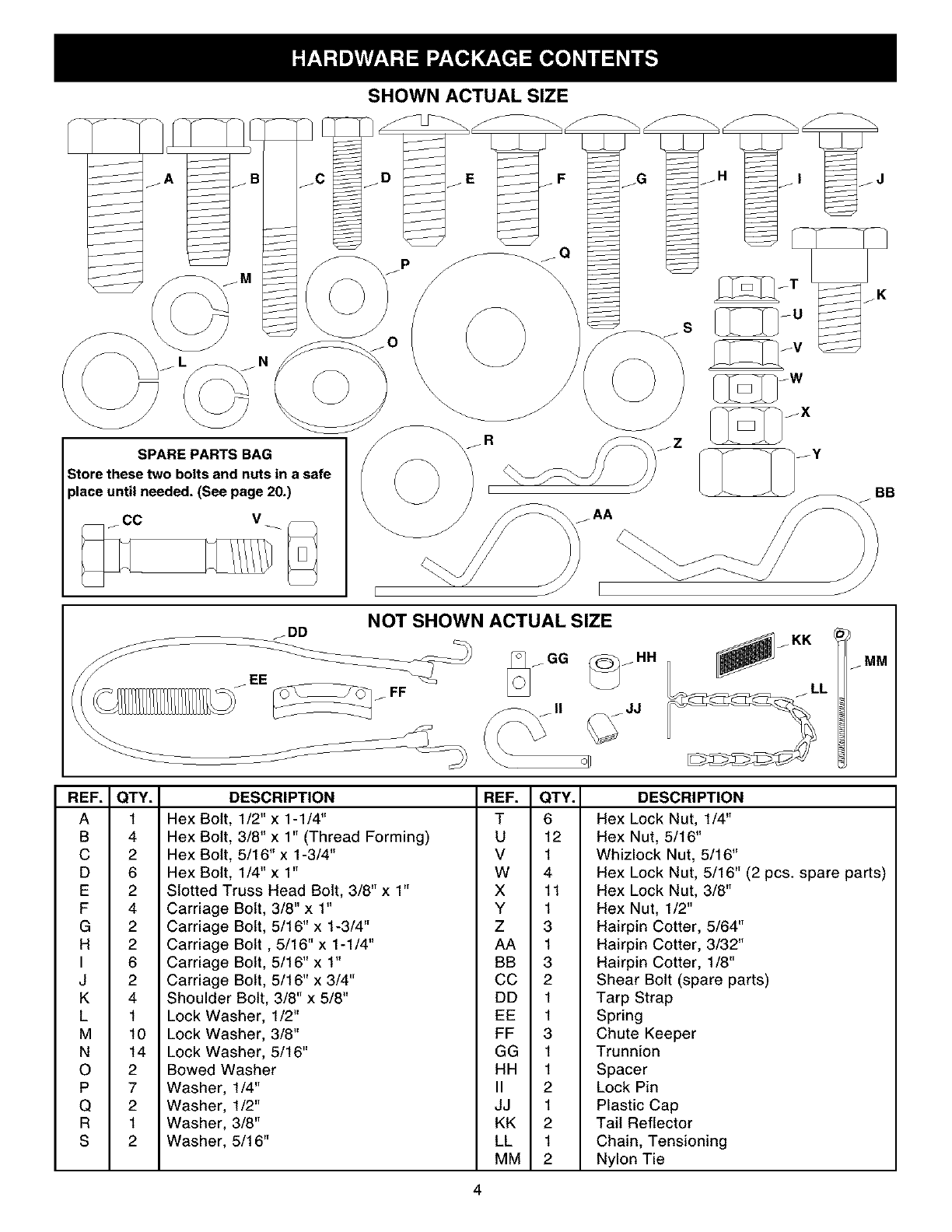

SHOWN ACTUAL SIZE

NOT SHOWN ACTUAL SIZE

fDD

/MM

REF.

QTY.

DESCRIPTION REF. QTY. DESCRIPTION

Hex Bolt, 1/2" x 1-1/4" T 6 Hex Lock Nut, 1/4"

Hex Bolt, 3/8" x 1" (Thread Forming) U 12 Hex Nut, 5/16"

Hex Bolt, 5/16" x 1-3/4" V1Whizlock Nut, 5/16"

Hex Bolt, 1/4" x1" W 4 Hex Lock Nut, 5/16" (2 pcs. spare parts)

Slotted Truss Head Bolt, 3/8" x 1" X11 Hex Lock Nut, 3/8"

Carriage Bolt, 3/8" x 1" Y1 Hex Nut, 1/2"

Carriage Bolt, 5/16" x 1-3/4" Z 3 Hairpin Cotter, 5/64"

Carriage Bolt, 5/16" x 1-1/4" AA 1 Hairpin Cotter, 3/32"

Carriage Bolt, 5/16" x 1" BB 3 Hairpin Cotter, 1/8"

Carriage Bolt, 5/16" x 3/4" CC 2 Shear Bolt (spare parts)

Shoulder Bolt, 3/8" x 5/8" DD 1 Tarp Strap

Lock Washer, 1/2" EE 1 Spring

Lock Washer, 3/8" FF 3 Chute Keeper

Lock Washer, 5/16" GG 1 Trunnion

Bowed Washer HH 1 Spacer

Washer, 1/4" II 2 Lock Pin

Washer, 1/2" JJ 1 Plastic Cap

Washer, 3/8" KK 2 Tail Reflector

Washer, 5/16" LL 1 Chain, Tensioning

MM 2 Nylon Tie

CARTON CONTENTS

1. Cross Brace (Weight Tray)

2. Side Brace (Weight Tray)

3. Right Hand Side Plate (Stamped "R")

4. Left Hand Side Plate (Stamped "L")

5. Anti-rotation Bracket

6. Engagement Rod (Not used on some models)

7. Engine Pulley Keeper (Not used on some models)

8. Chute Crank Rod Assembly

9. Support Tube, Crank Rod

10. Lift Handle Tube and Cable

11. Cable Bracket

12. Plastic Keg

13. Left Hand Hanger Bracket (Stamped "L")

14. Right Hand Hanger Bracket (Stamped "R")

15. Clutch Idler Assembly

16. V Belt, Drive

17. V Belt, Auger (Attached to Housing Assembly)

18. Chute and Control Cable Assembly

19. Housing Assembly

20. Weight Tray

Hardware Package (Stored inside Plastic Keg)

/ 13

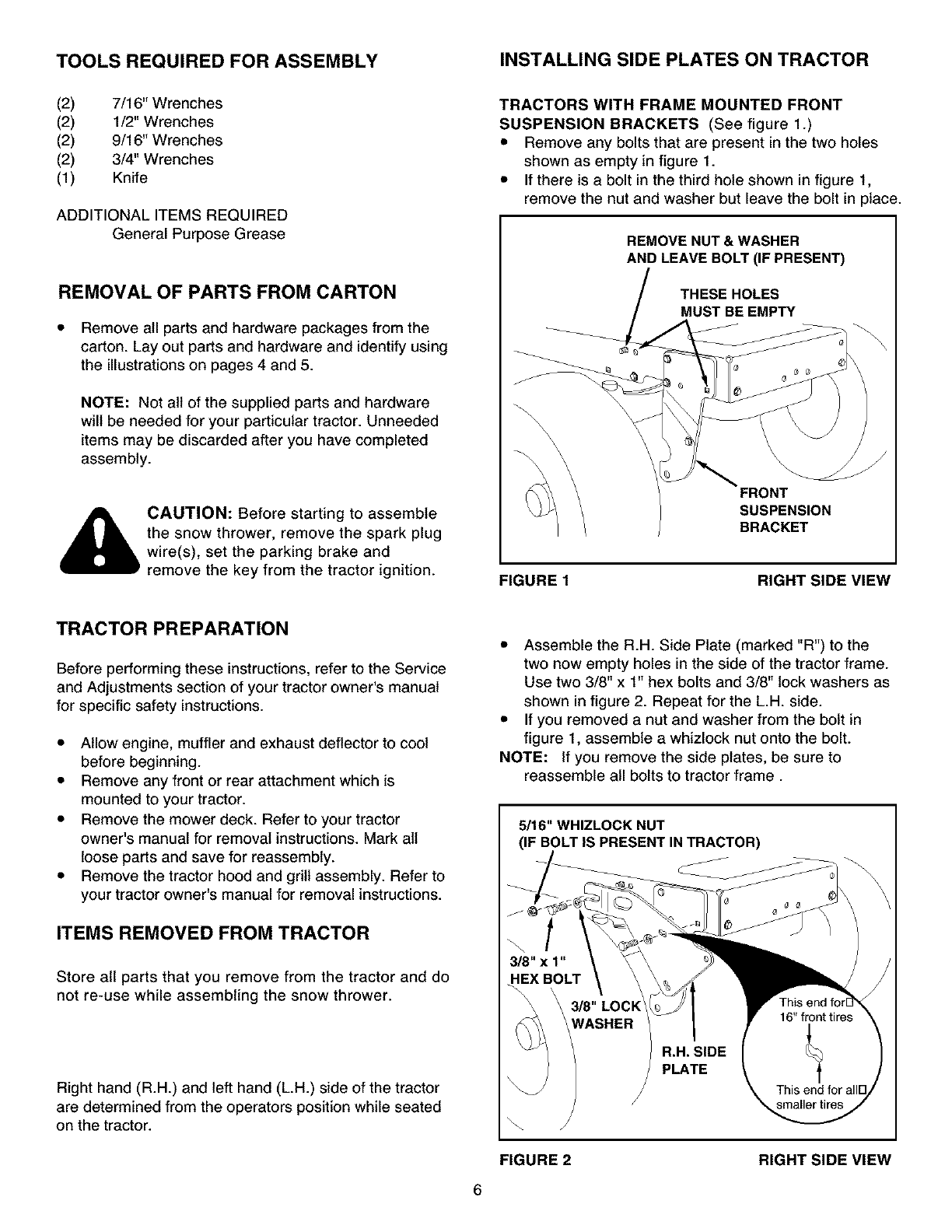

TOOLS REQUIRED FOR ASSEMBLY INSTALLING SIDE PLATES ON TRACTOR

(2) 7/16" Wrenches

(2) 1/2" Wrenches

(2) 9/16" Wrenches

(2) 3/4" Wrenches

(1) Knife

ADDITIONAL ITEMS REQUIRED

General Purpose Grease

REMOVAL OF PARTS FROM CARTON

• Remove all parts and hardware packages from the

carton. Lay out parts and hardware and identify using

the illustrations on pages 4 and 5.

NOTE: Not all of the supplied parts and hardware

will be needed for your particular tractor. Unneeded

items may be discarded after you have completed

assembly.

CAUTION: Before starting to assemble

the snow thrower, remove the spark plug

wire(s), set the parking brake and

remove the key from the tractor ignition.

TRACTORS WITH FRAME MOUNTED FRONT

SUSPENSION BRACKETS (See figure 1.)

• Remove any bolts that are present in the two holes

shown as empty in figure 1.

• If there is a bolt in the third hole shown in figure 1,

remove the nut and washer but leave the bolt in place.

REMOVE NUT & WASHER

AND LEAVE BOLT (IF PRESENT)

THESE HOLES

MUST BE EMPTY

FRONT

SUSPENSION

BRACKET

FIGURE 1RIGHT SIDE VIEW

TRACTOR PREPARATION

Before performing these instructions, refer to the Service

and Adjustments section of your tractor owner's manual

for specific safety instructions.

• Allow engine, muffler and exhaust deflector to cool

before beginning.

• Remove any front or rear attachment which is

mounted to your tractor.

• Remove the mower deck. Refer to your tractor

owner's manual for removal instructions. Mark all

loose parts and save for reassembly.

• Remove the tractor hood and grill assembly. Refer to

your tractor owner's manual for removal instructions.

ITEMS REMOVED FROM TRACTOR

Store all parts that you remove from the tractor and do

not re-use while assembling the snow thrower.

Right hand (R.H.) and left hand (L.H.) side of the tractor

are determined from the operators position while seated

on the tractor.

• Assemble the R.H. Side Plate (marked "R") to the

two now empty holes in the side of the tractor frame.

Use two 3/8" x 1" hex bolts and 3/8" lock washers as

shown in figure 2. Repeat for the L.H. side.

• If you removed a nut and washer from the bolt in

figure 1, assemble a whizlock nut onto the bolt.

NOTE: If you remove the side plates, be sure to

reassemble all bolts to tractor frame.

5/16" WHIZLOCK NUT

IF BOLT IS PRESENT IN TRACTOR)

3/8" x 1"

HEX BOLT

3/8" LOCK

WASHER

FIGURE 2

R.H. SIDE

PLATE

RIGHT SIDE VIEW

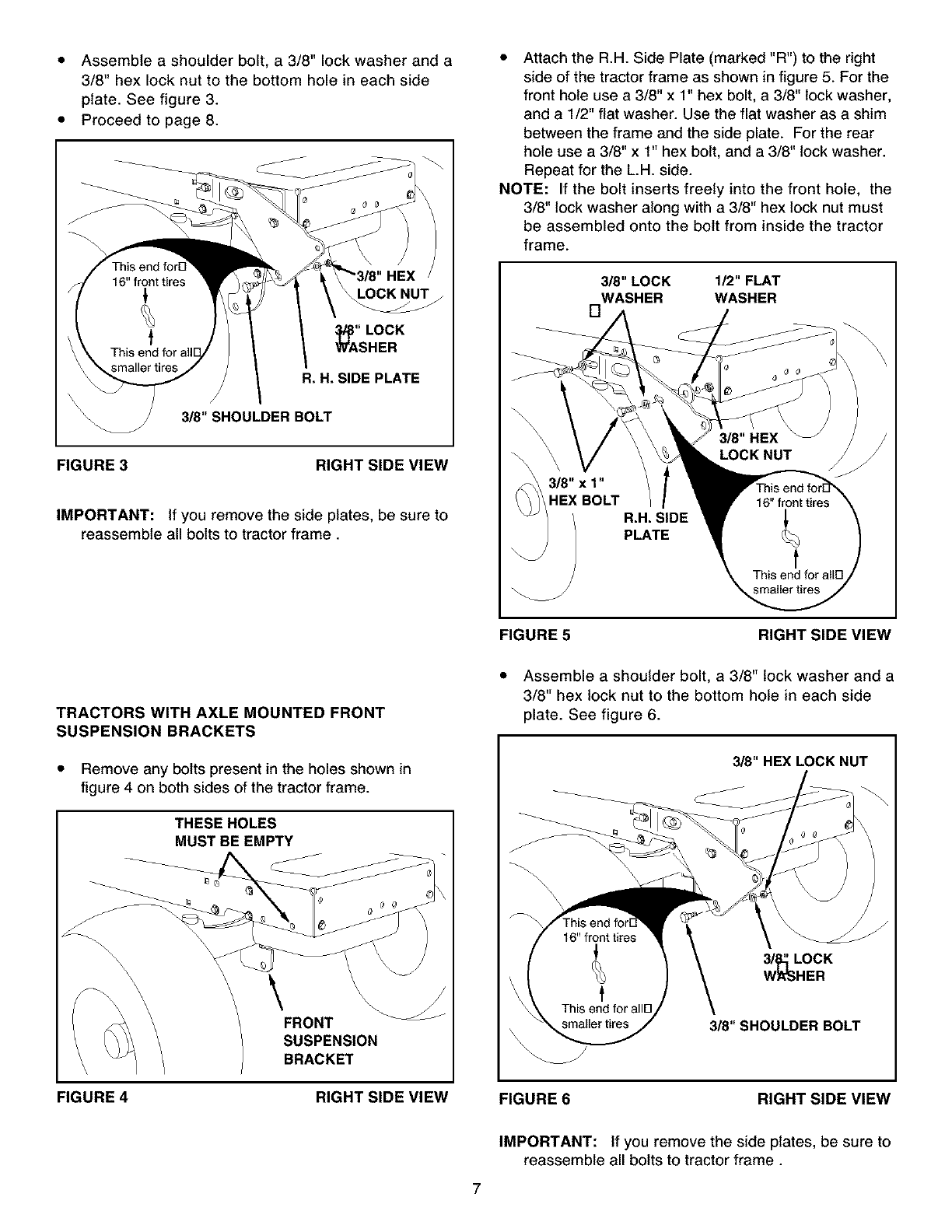

• Assemble a shoulder bolt, a 3/8" lock washer and a

3/8" hex lock nut to the bottom hole in each side

plate. See figure 3.

• Proceed to page 8.

FIGURE 3 RIGHT SIDE VIEW

IMPORTANT: If you remove the side plates, be sure to

reassemble all bolts to tractor frame.

• Attach the R.H. Side Plate (marked "R") to the right

side of the tractor frame as shown in figure 5. For the

front hole use a 3/8" x 1" hex bolt, a 3/8" lock washer,

and a 1/2" flat washer. Use the flat washer as a shim

between the frame and the side plate. For the rear

hole use a 3/8" x 1" hex bolt, and a 3/8" lock washer.

Repeat for the L.H. side.

NOTE: If the bolt inserts freely into the front hole, the

3/8" lock washer along with a 3/8" hex lock nut must

be assembled onto the bolt from inside the tractor

frame.

3/8" LOCK 1/2" FLAT

WASHER WASHER

[]

3/8" x 1"

HEX BOLT

R.H. SIDE

PLATE

FIGURE 5 RIGHT SIDE VIEW

TRACTORS WITH AXLE MOUNTED FRONT

SUSPENSION BRACKETS

Remove any bolts present in the holes shown in

figure 4 on both sides of the tractor frame.

THESE HOLES

MUST BE EMPTY

FIGURE 4

\\ \

\\ _ \\\_

FRONT

SUSPENSION

BRACKET

RIGHT SIDE VIEW

• Assemble a shoulder bolt, a 3/8" lock washer and a

3/8" hex lock nut to the bottom hole in each side

plate. See figure 6.

3/8" HEX LOCK NUT

3W/_/_SLOCK

3_"SHOULDER BOLT

FIGURE 6 RIGHT SIDE VIEW

IMPORTANT: If you remove the side plates, be sure to

reassemble all bolts to tractor frame.

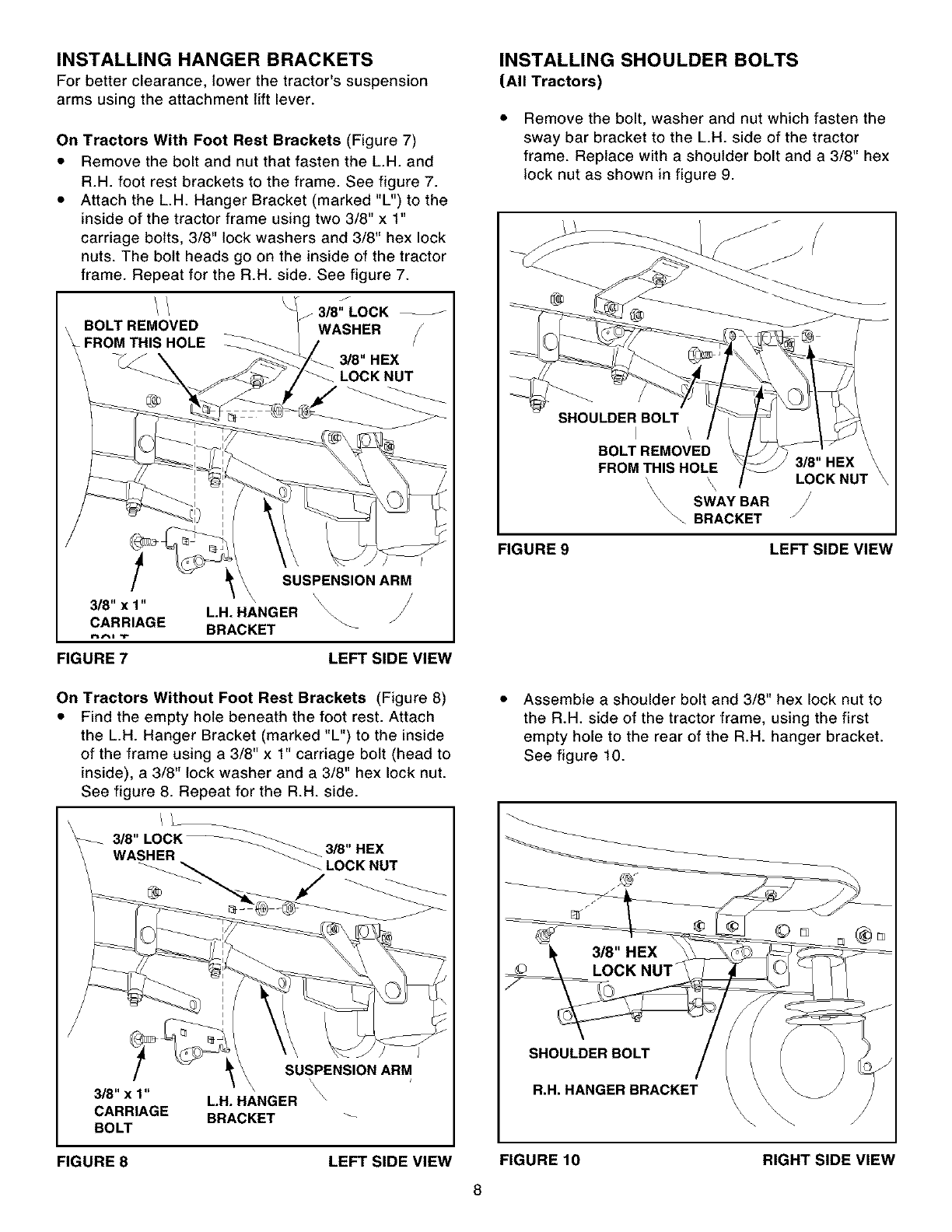

INSTALLING HANGER BRACKETS

For better clearance, lower the tractor's suspension

arms using the attachment lift lever.

On Tractors With Foot Rest Brackets (Figure 7)

• Remove the bolt and nut that fasten the L.H. and

R.H. foot rest brackets to the frame. See figure 7.

• Attach the L.H. Hanger Bracket (marked "L") to the

inside of the tractor frame using two 3/8" x 1"

carriage bolts, 3/8" lock washers and 3/8" hex lock

nuts. The bolt heads go on the inside of the tractor

frame. Repeat for the R.H. side. See figure 7.

BOLT REMOVED

_FROM THIS HOLE

3/8" LOCK -_

WASHER

3/8" HEX

LOCK NUT

SUSPENSION ARM

\ \\

L.H. HANGER

BRACKET

FIGURE 7 LEFT SIDE VIEW

INSTALLING SHOULDER BOLTS

(All Tractors)

Remove the bolt, washer and nut which fasten the

sway bar bracket to the L.H. side of the tractor

frame. Replace with a shoulder bolt and a 3/8" hex

lock nut as shown in figure 9.

FIGURE 9

I \

BOLT REMOVED

FROM THIS HOLE 3/8" HEX

\LOCK NUT

\\SWAY BAR

\\'-. BRACKET /

LEFT SIDE VIEW

On Tractors Without Foot Rest Brackets (Figure 8)

•Find the empty hole beneath the foot rest. Attach

the L.H. Hanger Bracket (marked "L") to the inside

of the frame using a3/8" x 1" carriage bolt (head to

inside), a 3/8" lock washer and a 3/8" hex lock nut.

See figure 8. Repeat for the R.H. side.

3_"LOCK__

WASHER 3_"HEX

_LOCKNUT

SUSPENSION ARM

3/8" x 1" LH. HANGER \

CARRIAGE BRACKET

BOLT

FIGURE 8 LEFT SIDE VIEW

Assemble a shoulder bolt and 3/8" hex lock nut to

the R.H. side of the tractor frame, using the first

empty hole to the rear of the R.H. hanger bracket.

See figure 10.

SHOULDER BOLT

R.H. HANGER BRACKET

FIGURE 10

RIGHT SIDE VIEW

INSTALLING CLUTCH/IDLER ASSEMBLY

Thissectioncoverstheinstallationof theClutch/Idler

assembly to tractors with attachment clutches that are

either rod operated (p. 9), cable operated (p. 10) or

electric (p. 12). Use the appropriate instructions for

your tractor.

MANUAL ROD OPERATED ATTACHMENT CLUTCH

• Move the attachment clutch lever on the dash

panel to the disengaged (down) position.

• Screw the trunnion onto the end of the snow

thrower engagement rod as shown in figure 11.

• Locate the clutch arm (where the mower clutch rod

was connected) underneath the right hand side the

tractor, just to the inside of the suspension arm. If

there is an extension attached to the clutch lever,

the extension, bolt and nut must be removed and

stored with the mower deck.

IMPORTANT: Re-attach the extension to the

clutch lever before reinstalling the mower deck.

• Position the engagement rod to the inside of the

clutch arm and insert the drilled end of the rod

through the arm. Secure with a 5/64" hairpin cotter.

See figure 11.

TRACTOR'S CLUTCH ARM

ENGAGEMENT ROD

SUSPENSION ARM

5/64" HAIRPIN

COTTER

REMOVE EXTENSION,

BOLT AND NUT

(IF PRESENT)

FIGURE 11 RIGHT SIDE VIEW

Be sure to lift up the front end of the engagement

rod (as shown in figure 12) when performing the

next operation. You can temporarily support the rod

using a rubber band tied to the engine pulley

keeper.

Attach the clutch/idler assembly to the tractor frame

as follows. Hook the assembly's notched arms onto

the two shoulder bolts you assembled to the inside

of the tractor frame. Lift the front of the assembly

and attach it to the R.H. and L.H. hanger brackets

using two pivot lock pins and 1/8" hairpin cotters.

See figure 12.

PIVOT LOCK PIN

(use second hole)

\1/8" HAIRPIN COTTER

'EMENT

FIGURE 12 RIGHT SIDE VIEW

• Make sure the attachment clutch lever on the dash

panel is in the disengaged (down) position.

• Pivot the upper idler arm so that it rests against the

stop bolt and is pointing toward the front as shown

in figure 13. Screw the trunnion along the threads

of the engagement rod until it is aligned at the front

end of the idler arm slot. Attach the trunnion to the

slot using the 3/8" flat washer and a 5/64" hairpin

cotter. See figure 13.

• Remove the engine pulley keeper from the side of

the tractor frame by removing the washer and nut

that secure the keeper. Attach the new pulley

keeper supplied with the snow thrower, reusing the

original bolt, washer and nut. See figure 13.

NOTE: Some tractors may already be equipped

with an identical pulley keeper.

NEW ENGINE PULLEY KEEPER WITH

ORIGINAL BOLT, NUT AND WASHER

_ION []

STOP BOLT

IDLER ARM

3/8" FLAT

WASHER

5/64" HAIRPIN

COTTER

FIGURE 13 RIGHT SIDE VIEW

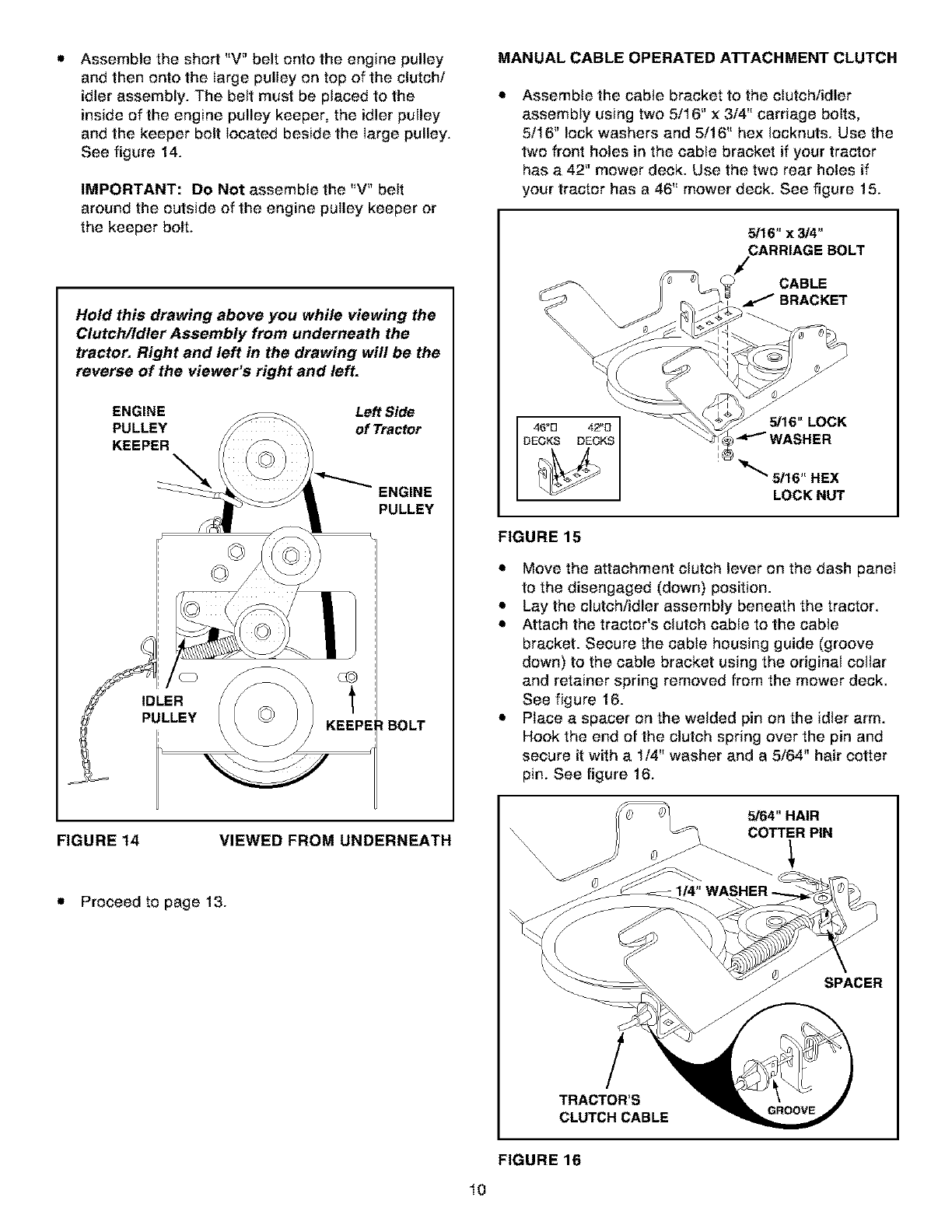

eAssemble the short "V" belt onto the engine pulley

and then onto the large pulley on top of the clutch/

idler assembly. The belt must be placed to the

inside of the engine pulley keeper, the idler pulley

and the keeper bolt located beside the large pulley.

See figure 14.

IMPORTANT: Do Not assemble the "V" belt

around the outside of the engine pulley keeper or

the keeper bolt.

Hold this drawing above you while viewing the

Clutch/Idler Assembly from underneath the

tractor. Right and left in the drawing will be the

reverse of the viewer's right and left.

ENGINE Left Side

PULLEY of Tractor

KEEPER

ENGINE

PULLEY

IDLER

PULLEY =tBOLT

FIGURE 14 VIEWED FROM UNDERNEATH

• Proceed to page 13.

MANUAL CABLE OPERATED ATTACHMENT CLUTCH

Assembte the cable bracket to the cIutchiidler

assembly using two 5/16" x 3/4" carriage boIts,

5/16" lock washers and 5/16" hex lecknuts. Use the

two front holes in the cabte bracket if your tractor

has a 42" mower deck. Use the two rear holes if

your tractor has a 46" mower deck. See figure 15.

_16"x 3/4"

CARRIAGE BOLT

CABLE

BRACKET

5/16" LOCK

WASHER

LOCKNUT

FIGURE 15

• Move the attachment clutch lever on the dash panel

to the disengaged (down) position.

• Lay the clutch/idler assembly beneath the tractor.

• Attach the tractor's clutch cable to the cable

bracket. Secure the cable housing guide (groove

down) to the cable bracket using the original collar

and retainer spring removed from the mower deck.

See figure 16.

•Place a spacer on the welded pin on the idler arm.

Hook the end of the clutch spring over the pin and

secure it with a 1/4" washer and a 5/64" hair cotter

pin. See figure 16.

5/64" HAIR

COTTER PIN

SPACER

TRACTOR'S

CLUTCH CABLE

FIGURE 16

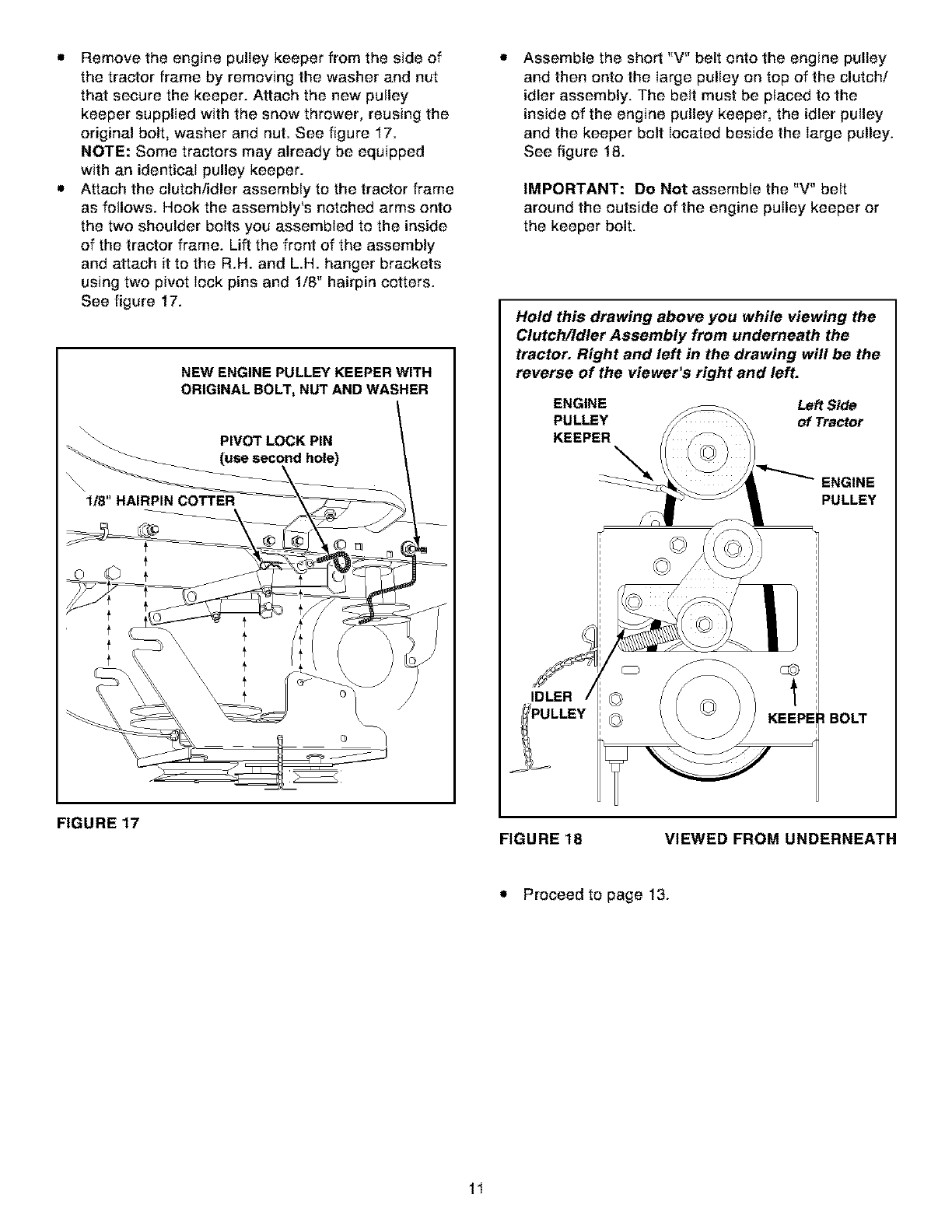

• Remove the engine pulley keeper from the side of

the tractor frame by removing the washer and nut

that secure the keeper. Attach the new pulley

keeper supplied with the snow thrower, reusing the

original bolt, washer and nut. See figure 17.

NOTE: Some tractors may already be equipped

with an identical pulley keeper.

• Attach the clutch/idler assembly to the tractor frame

as follows. Hook the assembly's notched arms onto

the two shoulder bolts you assembled to the inside

of the tractor frame. Lift the front of the assembly

and attach it to the R.H. and L.H. hanger brackets

using two pivot lock pins and 1/8" hairpin cotters.

See figure 17.

NEW ENGINE PULLEY KEEPER WITH

ORIGINAL BOLT, NUT AND WASHER

PIVOT LOCK PIN

(use second hole)

1/8" HAIRPIN COTTER

Assemble the short "V" belt onto the engine pulley

and then onto the large pulley on top of the clutch/

idler assembly. The belt must be placed to the

inside of the engine pulley keeper, the idler pulley

and the keeper bolt located beside the large pulley.

See figure 18.

IMPORTANT: Do Not assemble the "V" belt

around the outside of the engine pulley keeper or

the keeper bolt.

Hold this drawing above you while viewing the

Clutch/Idler Assembly from underneath the

tractor. Right and left in the drawing will be the

reverse of the viewer's right and left.

ENGINE Left Side

PULLEY of Tractor

KEEPER

ENGINE

PULLEY

IDLER

BOLT

FIGURE 17 FIGURE 18 VIEWED FROM UNDERNEATH

• Proceed te page 13.

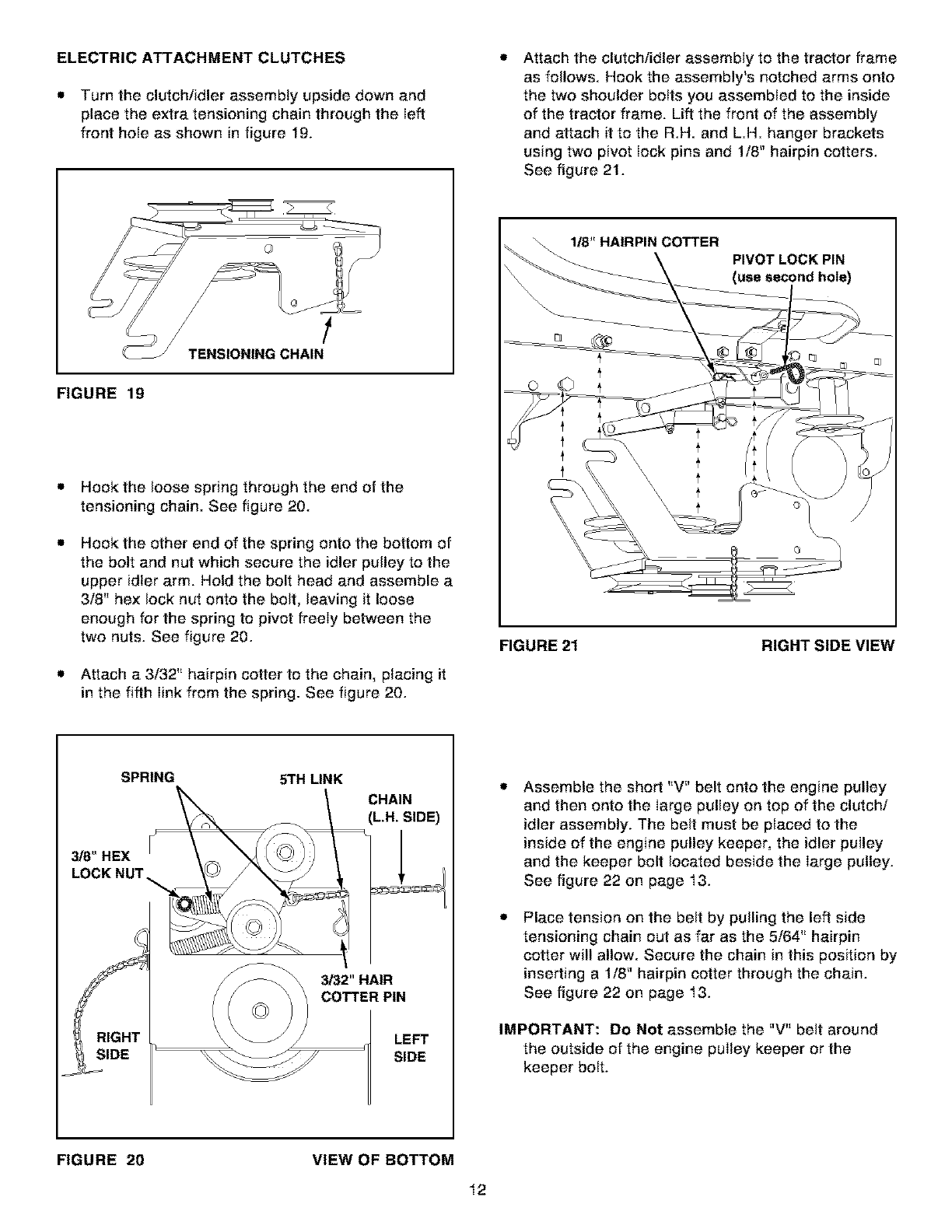

ELECTRIC ATTACHMENT CLUTCHES

• Turn the clutch/idler assembly upside down and

place the extra tensioning chain through the left

front hole as shown in figure 19.

Attach the clutch/idler assembly to the tractor frame

as fellows. Hook the assembly's notched arms onto

the two shoulder bolts you assembled to the inside

of the tractor frame. Lift the front of the assembly

and attach it to the R.H. and L.H. hanger brackets

using two pivot lock pins and 1/8" hairpin cotters.

See figure 21.

FIGURE 19

Hook the loose spring through the end of the

tensioning chain. See figure 20.

Hook the other end of the spring onto the bottom of

the bolt and nut which secure the idler pulley to the

upper idler arm. Hold the bolt head and assemble a

3/8" hex lock nut onto the bolt, leaving it loose

enough for the spring to pivot freely between the

two nuts. See figure 20.

Attach a 3/32" hairpin cotter to the chain, placing it

in the fifth link from the spring. See figure 20.

118"HAIRPIN COTTER

FIGURE 21

PIVOT LOCK PIN

(use second hole)

RIGHT SIDE VIEW

SPRING 5TH LINK

_8"HEX

LOCK NUT

RIGHT

SIDE

CHAIN

(L.H. SIDE)

3/32" HAIR

COTTER PIN

LEFT

SIDE

Assemble the short "V" belt onto the engine pulley

and then onto the large pulley on top of the clutch/

idler assembly. The belt must be placed to the

inside of the engine pulley keeper, the idler pulley

and the keeper bolt located beside the large pulley.

See figure 22 on page 13.

Place tension on the belt by pulling the left side

tensioning chain out as far as the 5/64" hairpin

cotter will allow. Secure the chain in this position by

inserting a 1/8" hairpin cotter through the chain.

See figure 22 on page 13.

IMPORTANT: Do Not assemble the "V" belt around

the outside ef the engine pulley keeper er the

keeper bolt.

FIGURE 20 VIEW OF BOTTOM

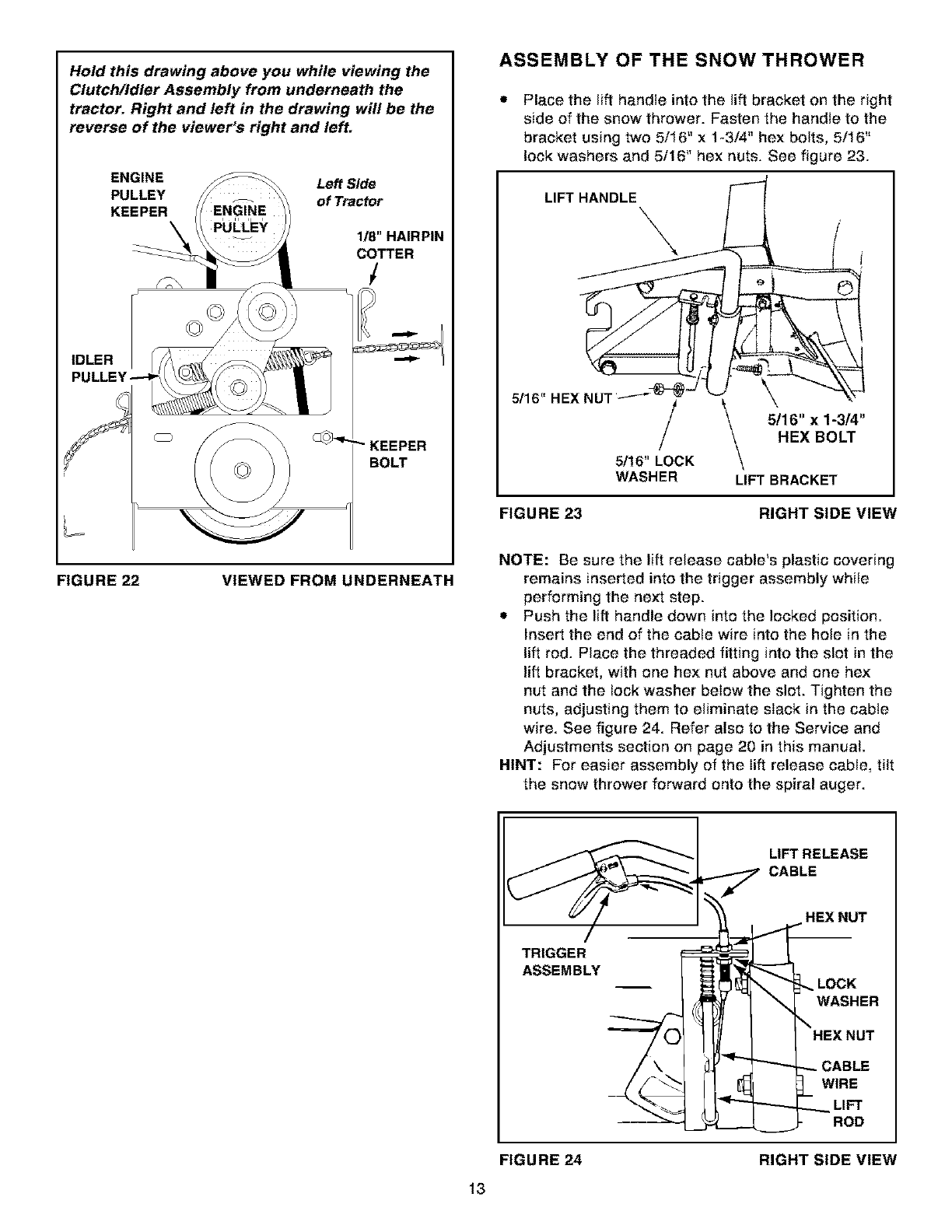

Hold this drawing above you while viewing the

Clutch/idler Assembly from underneath the

tractor. Right and left in the drawing will be the

reverse of the viewer's right and left.

ENGINE Le_de

PULLEY of T_c_r

KEEPER

I_"HAIRPIN

COTTER

IDLER

BOLT

FIGURE 22 VIEWED FROM UNDERNEATH

ASSEMBLY OF THE SNOW THROWER

Place the lift handle into the lift bracket on the right

side of the snow thrower. Fasten the handle to the

bracket using two 5/16" x 1-3/4" hex bolts, 5/16"

lock washers and 5/16" hex nuts. See figure 23.

LIFT HANDLE \

5116" HEX NU'i"

_ 5/16" x 1-3/4"

HEX BOLT

5/16" LOCK

WASHER LIFT BRACKET

FIGURE 23 RIGHT SIDE VIEW

NOTE: Be sure the lift release cable's plastic covering

remains inserted into the trigger assembly while

performing the next step.

•Push the lift handle down into the locked position.

Insert the end of the cable wire into the hole in the

lift rod. Place the threaded fitting into the slot in the

lift bracket, with one hex nut above and one hex

nut and the lock washer below the slot. Tighten the

nuts, adjusting them to eliminate slack in the cable

wire. See figure 24. Refer also to the Service and

Adjustments section on page 20 in this manual.

HINT: For easier assembly of the lift release cable, tilt

the snow thrower forward onto the spiral auger.

__ IFT RELEASE

CABLE

HEX NUT

ASSEMBLY LOCK

_1 WASHER

??/ .°,.,,

/" \ _ )"ql.---_ _ CABLE

h1_WIRE

_ "<"" "-----_ _LIFT

-ROB

FIGURE 24 RIGHT SIDE VIEW

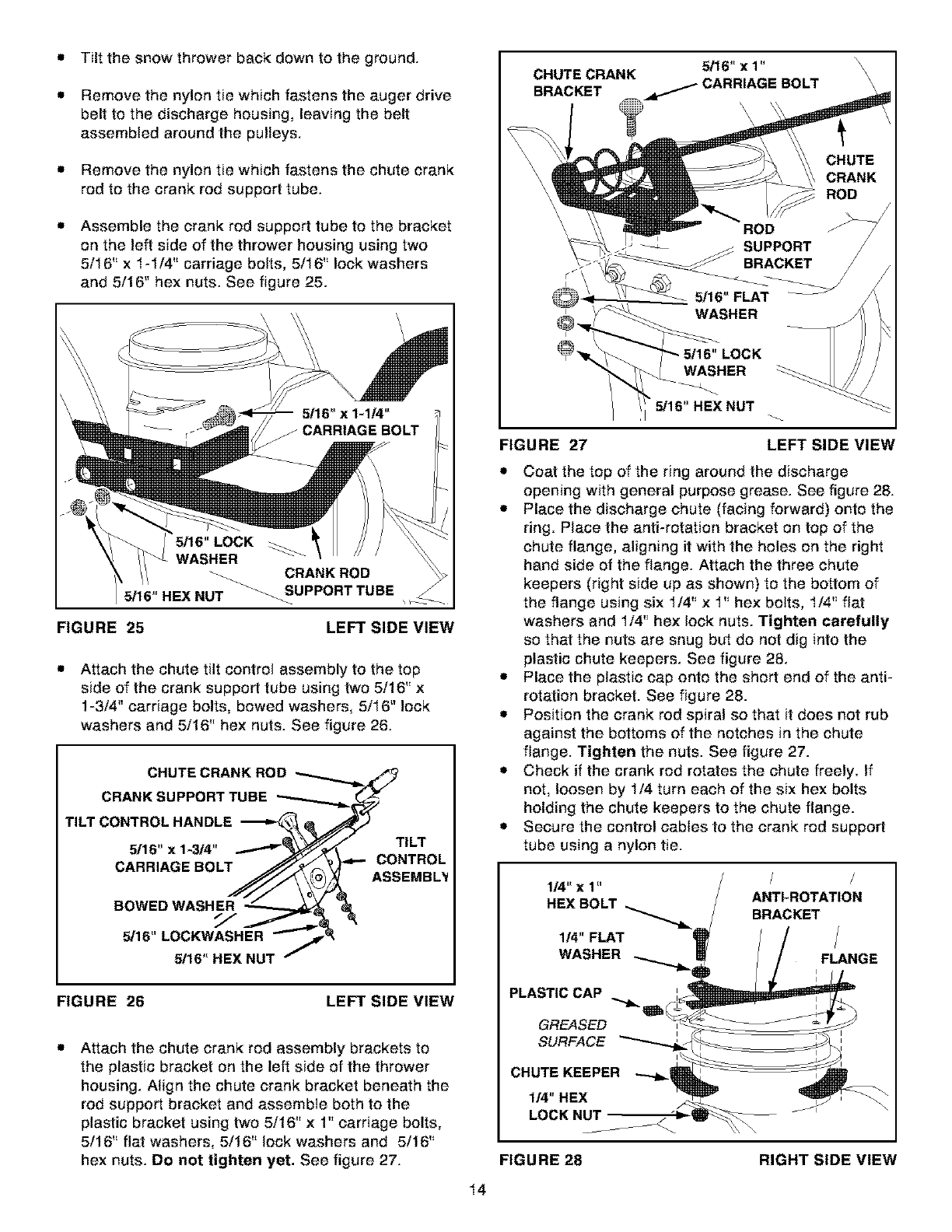

• Tilt the snow thrower back down to the ground.

• Remove the nylon tie which fastens the auger drive

belt to the discharge housing, leaving the belt

assembled around the pulleys.

• Remove the nylon tie which fastens the chute crank

rod to the crank rod support tube.

• Assemble the crank rod support tube to the bracket

on the left side of the thrower housing using two

5/16" x 1-1/4" carriage bolts, 5/16" lock washers

and 5/16" hex nuts. See figure 25.

\ \

WASHER

_ CRANK ROD

5/16"HEXNUT "-_UPPORTTUBE

FIGURE 25 LEFT SIDE VIEW

eAttach the chute tilt control assembly to the top

side of the crank support tube using two 5/16" x

1-3/4" carriage bolts, bowed washers, 5/16" lock

washers and 5/16" hex nuts. See figure 26.

CHUTE CRANK ROD

CRANK SUPPORT TUBE

TILT CONTROL HANDLE

5/16" x 1,.3/4"

CARRIAGE BOLT

BOWED WASHER

5/16" LOCKWASHER

5t16"HEX NUT

TILT

CONTROL

ASSEMBL_

FIGURE 26 LEFT SIDE VIEW

eAttach the chute crank rod assembly brackets to

the plastic bracket on the left side of the thrower

housing. Align the chute crank bracket beneath the

rod support bracket and assemble both to the

plastic bracket using two 5/16" x 1" carriage bolts,

5/16" flat washers, 5/16" lock washers and 5/16"

hex nuts. Do net tighten yet. See figure 27.

5/16" x 1" \

CHUTE CRANK _ CARRIAGE BOLT \

BRACKET

\\\

LOCK

WASHER

_16" HEX NUT

FIGURE 27 LEFT SIDE VIEW

• Coat the top of the ring around the discharge

opening with general purpose grease. See figure 28.

• Place the discharge chute (facing forward) onto the

ring. Place the anti-rotation bracket on top of the

chute flange, aligning it with the holes on the right

hand side of the flange. Attach the three chute

keepers (right side up as shown) to the bottom of

the flange using six 1/4" x 1" hex bolts, 1/4" flat

washers and 1/4" hex lock nuts. Tighten carefully

so that the nuts are snug but do not dig into the

plastic chute keepers. See figure 28.

• Place the plastic cap onto the short end of the anti-

rotation bracket. See figure 28.

• Position the crank rod spiral so that it does not rub

against the bottoms of the notches in the chute

flange. Tighten the nuts. See figure 27.

• Check if the crank rod rotates the chute freely. If

not, loosen by 1/4 turn each of the six hex bolts

holding the chute keepers to the chute flange.

• Secure the control cables to the crank rod support

tube using a nylon tie.

1/4" x 1" / /

HEX BOLT ANTI-ROTATION

BRACKET

1/4" FLAT

WASHER FLANGE

PLASTIC CAP

GREASED

SURFACE

CHUTE KEEPER

I_"HEX

LOCK NUT_

FIGURE 28 RIGHT SIDE VIEW

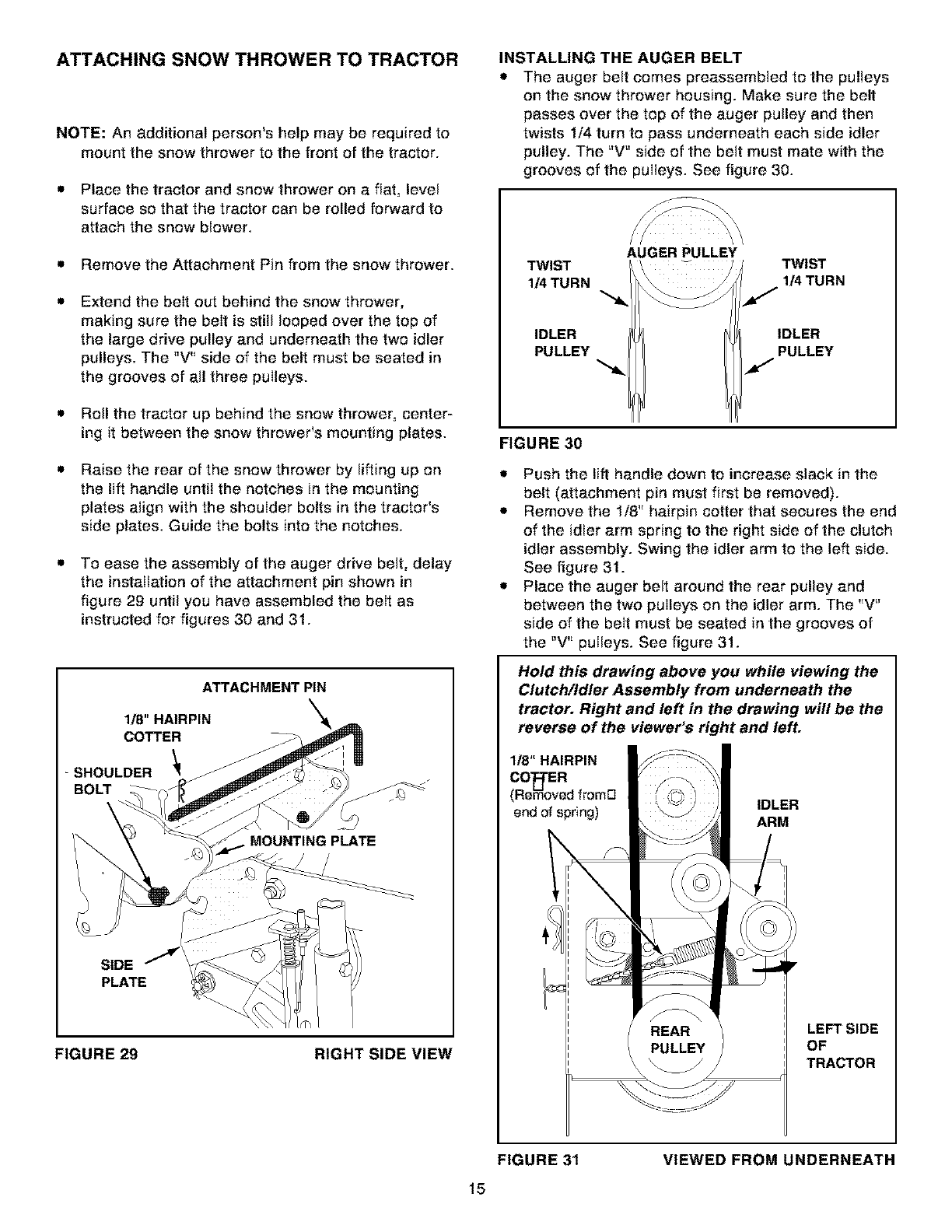

ATTACHING SNOW THROWER TO TRACTOR

NOTE: An additional person's help may be required to

mount the snow thrower to the front of the tractor.

• Place the tractor and snow thrower on a flat, level

surface so that the tractor can be rolled forward to

attach the snow blower.

• Remove the Attachment Pin from the snow thrower.

Ii Extend the belt out behind the snow thrower,

making sure the belt is still looped over the top of

the large drive pulley and underneath the two idler

pulleys. The "V" side of the belt must be seated in

the grooves of all three pulleys.

Roll the tractor up behind the snow thrower, center-

ing it between the snow thrower's mounting plates.

Raise the rear of the snow thrower by lifting up on

the lift handle until the notches in the mounting

plates align with the shoulder bolts in the tractor's

side plates. Guide the bolts into the notches.

Ii To ease the assembly of the auger drive belt, delay

the installation of the attachment pin shown in

figure 29 until you have assembled the belt as

instructed for figures 30 and 31.

ATTACHMENT PIN

118" HAIRPIN

COTTER

SHOULDER

BOLT

•MOUNTING PLATE

SIDE 7

PLATE

FIGURE 29 RIGHT SIDE VIEW

INSTALLING THE AUGER BELT

• The auger belt comes preassembled to the pulleys

on the snow thrower housing. Make sure the belt

passes over the top of the auger pulley and then

twists 1/4 turn to pass underneath each side idler

pulley. The "V" side of the belt must mate with the

grooves of the pulleys. See figure 30.

TWIST

1/4 TURN

IDLER

PULLEY

AUGER PULLEY TWIST

1_ TURN

IDLER

PULLEY

FIGURE 30

•Push the lift handle down to increase slack in the

belt (attachment pin must first be removed).

• Remove the 1/8" hairpin cotter that secures the end

of the idler arm spring to the right side of the clutch

idler assembly. Swing the idler arm to the left side.

See figure 31.

•Place the auger belt around the rear pulley and

between the two pulleys on the idler arm. The "V"

side of the belt must be seated in the grooves of

the "V" pulleys. See figure 31.

Hold this drawing above you while viewing the

Clutch/idler Assembly from underneath the

tractor. Right and left in the drawing will be the

reverse of the viewer's right and left.

118" HAIRPIN

CO"_I'ER

(Removed fromE]

end of spring) IDLER

ARM

LEFT SIDE

TRACTOR

FIGURE 31

VIEWED FROM UNDERNEATH

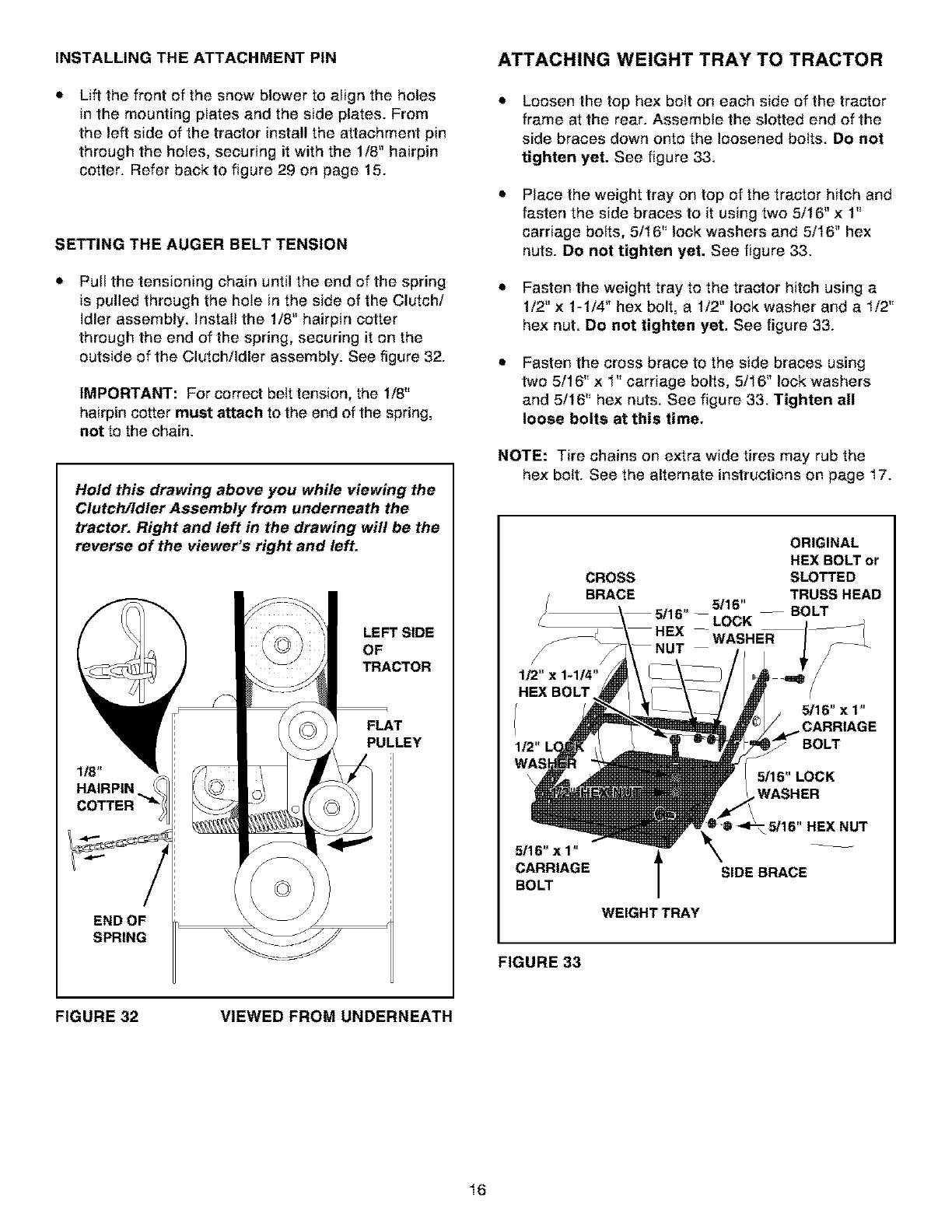

INSTALLINGTHEATTACHMENTPIN

Liftthefront of the snow blower to align the holes

in the mounting plates and the side plates. From

the left side of the tractor install the attachment pin

through the holes, securing it with the 1/8" hairpin

cotter. Refer back to figure 29 on page 15.

SETTING THE AUGER BELT TENSION

Pull the tensioning chain until the end of the spring

is pulled through the hole in the side of the Clutch/

Idler assembly. Install the 1/8" hairpin cotter

through the end of the spring, securing it on the

outside of the Clutch/Idler assembly. See figure 32.

IMPORTANT: For correct belt tension, the 1/8"

hairpin cotter must attach to the end of the spring,

not to the chain.

Hold this drawing above you while viewing the

Clutch/Idler Assembly from underneath the

tractor. Right and left in the drawing will be the

reverse of the viewer's right and left.

1_ _

HAIRPIN

COTTER

END OF

SPRING

LEFT SIDE

TRACTOR

FLAT

PULLEY

ATTACHING WEIGHT TRAY TO TRACTOR

Loosen the top hex bolt on each side of the tractor

frame at the rear. Assemble the slotted end of the

side braces down onto the loosened bolts. Do not

tighten yet. See figure 33.

Place the weight tray on top of the tractor hitch and

fasten the side braces to it using two 5/16" x 1"

carriage bolts, 5/16" lock washers and 5/16" hex

nuts. Do not tighten yet. See figure 33.

• Fasten the weight tray to the tractor hitch using a

1/2" x 1-1/4" hex bolt, a 1/2" lock washer and a 1/2"

hex nut. Do not tighten yet. See figure 33.

Fasten the cross brace to the side braces using

two 5/16" x 1" carriage bolts, 5/16" lock washers

and 5/16" hex nuts. See figure 33. Tighten all

loose bolts at this time.

NOTE: Tire chains on extra wide tires may rub the

hex bolt. See the alternate instructions on page 17.

CROSS

BRACE

/ /

HE]( BOLT

5/16"x1"

CARRIAGE

BOLT

WEIGHTTRAY

ORIGINAL

HEX BOLT or

SLOTTED

TRUSS HEAD

5/16" -- BOLT

LOCK

WASHER

5/16" x 1"

CARRIAGE

BOLT

5/16" LOCK

,WASHER

"5/16" HEX NUT

SIDE BRACE

FIGURE 33

FIGURE 32 VIEWED FROM UNDERNEATH

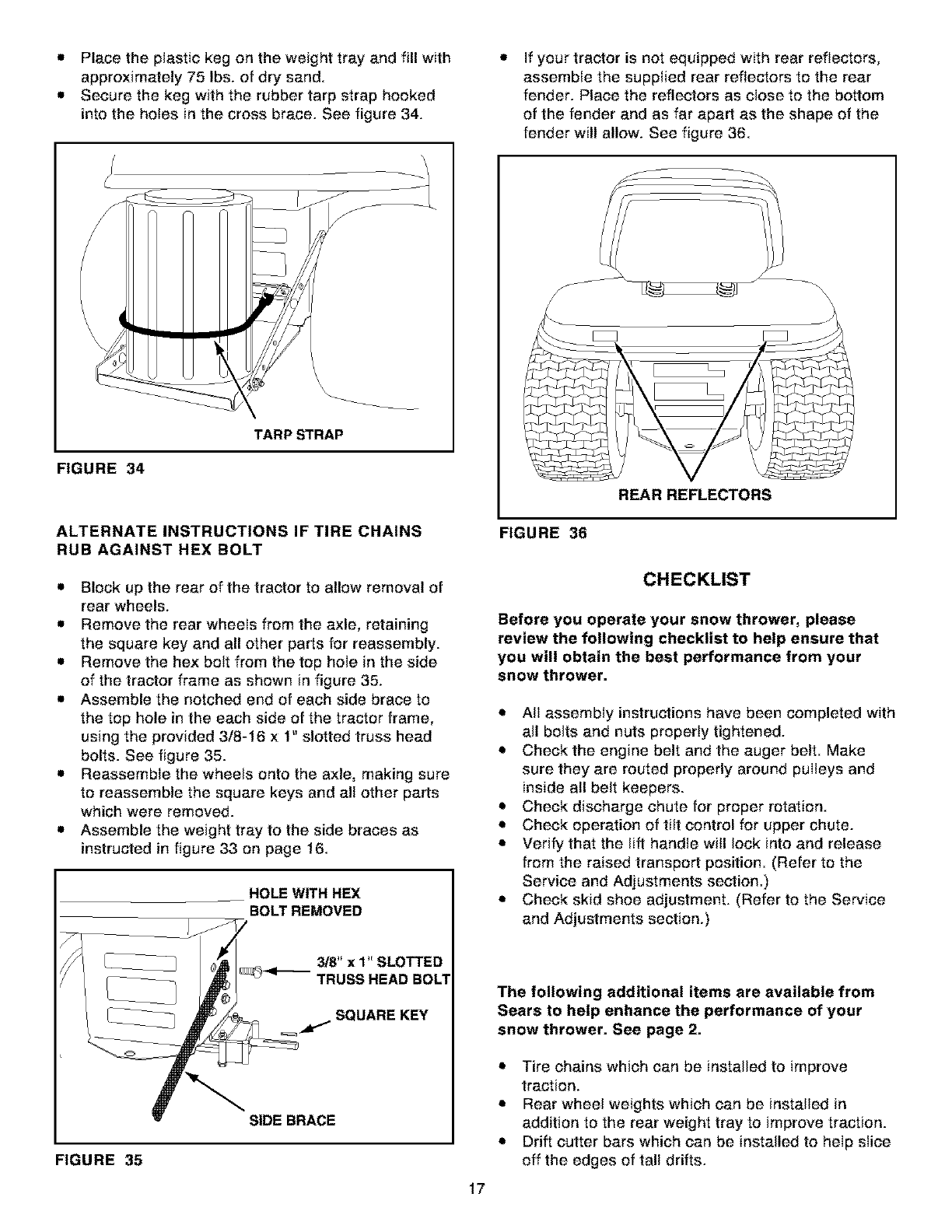

• Place the plastic keg on the weight tray and fill with

approximately 75 Ibs. of dry sand.

• Secure the keg with the rubber tarp strap hooked

into the holes in the cross brace. See figure 34.

FIGURE 34

TARPSTRAP

ALTERNATE INSTRUCTIONS IF TIRE CHAINS

RUB AGAINST HEX BOLT

• Block up the rear of the tractor to allow removal of

rear wheels.

• Remove the rear wheels from the axle, retaining

the square key and all other parts for reassembly.

• Remove the hex bolt from the top hole in the side

of the tractor frame as shown in figure 35.

• Assemble the notched end of each side brace to

the top hole in the each side of the tractor frame,

using the provided 3/8-16 x 1" slotted truss head

bolts. See figure 35.

• Reassemble the wheels onto the axle, making sure

to reassemble the square keys and all other parts

which were removed.

• Assemble the weight tray to the side braces as

instructed in figure 33 on page 16.

HOLE WITH HEX

BOLT REMOVED

_8"xl"SLOTTED

_<_TRUSS HEAD BOLT

SIDE BRACE

FIGURE 35

If your tractor is not equipped with rear reflectors,

assemble the supplied rear reflectors to the rear

fender. Place the reflectors as close to the bottom

of the fender and as far apart as the shape of the

fender will allow. See figure 36.

FIGURE 36

REAR REFLECTORS

CHECKLIST

Before you operate your snow thrower, please

review the following checklist to help ensure that

you will obtain the best performance from your

snow thrower.

• All assembly instructions have been completed with

all bolts and nuts properly tightened.

• Check the engine belt and the auger belt. Make

sure they are routed properly around pulleys and

inside all belt keepers.

• Check discharge chute for proper rotation.

• Check operation of tilt control for upper chute.

• Verify that the lift handle will lock into and release

from the raised transport position. (Refer to the

Service and Adjustments section.)

• Check skid shoe adjustment. (Refer to the Service

and Adjustments section.)

The following additional items are available from

Sears to help enhance the performance of your

snow thrower. See page 2.

• Tire chains which can be installed to improve

traction.

• Rear wheel weights which can be installed in

addition to the rear weight tray to improve traction.

• Drift cutter bars which can be installed to help slice

off the edges of tall drifts.

KNOW YOUR SNOW THROWER

Read this owner's manual and safety rules before operating your snow thrower.

Compare the illustrationbelow with your snow thrower to familiarize yourself with the various controls and their locations.

LIFT HANDLE

UPPER CHUTE

LOWER CHUTE

CHUTE TILT HANDLE

CRANK ROD

SCRAPER PLATE

SPIRAL AUGERS, R.H.& LH.

SKID SHOE

CHUTE TILT HANDLE Pivots the Upper Chute up or

down to control the angle and distance of discharge.

CRANK ROD Rotates the Lower and Upper Chutes to

control the direction of discharge.

LIFT HANDLE Used to lift or lower the snow thrower

to transport or operating position.

LIFT RELEASE TRIGGER Releases the lock which

holds the snow thrower in the transport position

BEFORE STARTING

J' Use the end of assembly checklist to verify that all

instructions have been properly completed.

• Make sure the skid shoes are adjusted to maintain

adequate ground clearance between the snow

thrower and the type of surface to be cleared.

(Refer to the Service and Adjustments section.)

• Make sure the tractor engine has the correct oil for

winter operation (SAE 5W-30). Refer to tractor

owner's manual.

UPPER AND LOWER DISCHARGE CHUTE Controls

direction and height of snow discharge.

SCRAPER PLATE Replaceable plate that absorbs

wear and impact from contact with ground.

SKID SHOE Controls amount of clearance between

the scraper plate and the ground.

SPIRAL AUGER, R.H. & L.H. Feed snow to the

impeller fan at the center of the housing.

HOW TO USE YOUR SNOW THROWER

CAUTION: Never direct discharge

towards bystanders or windows. De not

allow anyone in front of unit.

CONTROLLING SNOW DISCHARGE

HOW TO START YOUR SNOW THROWER

J, The tractor should be sitting with the engine

running at full throttle. Move the attachment clutch

to the engaged position, starting the snow thrower

before the tractor clutch is engaged.

HOW TO STOP YOUR SNOW THROWER

J, To stop the snow thrower, disengage the tractor's

attachment clutch lever for manual clutches or the

clutch switch for electric clutches. Refer to your

tractor owner's manual.

To control the direction snow is thrown, the dis-

charge chute has 180 degrees of rotation. Turn the

crank rod clockwise to rotate the chute to the right.

Turn the crank rod counterclockwise to rotate the

chute to the left.

To control the distance snow is thrown, the upper

section of the discharge chute pivots up and down.

Push forward on the chute tilt handle to pivot the

chute down, decreasing the distance snow is

thrown. Pull back on the handle to pivot the chute

up, increasing the distance snow is thrown.

RAISING AND LOWERING

• To raise, push down on the lift handle until the

snow thrower locks in the raised transport position.

• To lower, push down slightly on the lift handle and

pull the trigger. With the trigger pulled, slowly lower

the snow thrower until it reaches the ground.

CAUTION: De not operate the snow

thrower without the rear weight attached

to the tractor to provide extra traction

and stability.

REMOVING SNOW

Snow removal conditions vary greatly from light fluffy

snowfall to wet heavy snow. Operating instructions

must be flexible to fit the conditions encountered. The

operator must adapt the lawn tractor and snow thrower

to depth of snow, wind direction, temperature and

surface conditions.

• Before beginning operation, thoroughly inspect the

area of operation and remove all door mats, sleds,

boards, wires and other foreign objects.

• The spiral auger speed is directly related to engine

speed. For maximum snow removal and discharge,

maintain high engine r.p.m. (full throttle). It is

advisable to operate the lawn tractor at a slow

ground speed (1st gear) for safe and efficient snow

removal.

• In deep, drifted or banked snow it will be necessary

to use full throttle and a slow ground speed (1st

gear). Drive forward into the snow, depress the

tractor's clutch-brake pedal and allow the spiral

auger to clear the snow. Repeat this method until a

path is cleared. On the second pass, overlap the

first enough to allow the snow thrower to handle

the snow without repeated stopping and starting of

forward motion.

• In extremely deep snow, raise the snow thrower

from the ground to remove the top layer and drive

forward only until the tractors front tires reach the

uncleared bottom layer of snow. Depress the

tractor's clutch-brake pedal and allow the spiral

auger to clear the snow. Reverse the tractor and

lower the snow thrower to the ground. Drive the

tractor forward until the snow again becomes tee

deep. Repeating this process into and out of drifts

wilt eventually clear even the deepest of snow

piles.

• If the snow thrower becomes clogged with snow or

jammed with a foreign object, disengage the snow

thrower immediately and shut off the tractor engine.

Unclog the snow thrower before resuming opera-

tion.

DANGER: Shut off engine and

disengage snow thrower before

unclogging discharge chute. Unclog

using a wooden stick, not your hands.

OPERATING TIPS

• Discharge snow down wind whenever possible.

• To help prevent snow from sticking to the snow

thrower, allow the snow thrower to reach outdoor

temperature before using it. A light coat of wax may

also be applied to the inside surface of the snow

thrower housing and discharge chute.

• Use tire chains to improve traction.

• Use rear wheel weights to improve traction.

• Before the first snowfall, remove all stones, sticks

and other objects which could become hidden by

the snow. Permanent obstacles should be marked

for visibility.

• Overlap each pass slightly to assure complete

snow removal.

CUSTOMER RESPONSIBILITIES

• Read and follow the maintenance schedule and the maintenance procedures listed in this section.

MA,NTENANOESCHEDULE

eo pleteregularse ee. Ao y 7¢.7

Check for loose fasteners X

Check scraper and shoes for wear X X

Cleaning X

LubricationSection X

Service Dates

LUBRICATION

• Oil all pivot points on the snow thrower.

• Oil the pivot points of the two idler arms on the

clutch/idler assembly.

• Apply penetrating oil to the control cables of the

discharge chute.

• Apply a good grade of spray lubricant to the trigger

assembly and the chute tilt control assembly.

CHECK SCRAPER AND SHOES FOR WEAR

(Refer to figures 37 and 38 on page 20.)

• The scraper plate and skid shoes on the bottom of

the snow thrower are subject to wear. To prevent

damage to the spiral auger housing, replace plate

and shoes before wear is excessive.

&CAUTION: Before servicing or adjusting

the snow thrower, shut off the engine,

remove the spark plug wire(s), set the

parking brake and remove the key from

the tractor ignition.

REPLACING AUGER BELT

• Disengage the tractor's attachment clutch.

• Lower the snow thrower to the ground.

• Remove the attachment pin.

• Lock the snow thrower's lift handle in the down

positien te decrease belt tension.

• Release the spring tension from the auger belt idler

arm on the bottom ef the clutch/idler assembly.

• Remove the auger drive belt from the clutch/idler

assembly and from the spiral auger housing.

• Install new belt over top of large auger drive pulley

and under the two side idler pulleys. Twist the belt

1/4 turn to seat the "V" of the belt in the groove of

each idler pulley. Refer to figure 30 on page 15.

Assemble the belt onto the clutch/idler assembly.

Refer to figures 31 and 32 on pages 15 and 16.

SKID SHOE ADJUSTMENT

• The skid shoes are mounted on each side of the

spiral auger housing. They regulate the distance

the scraper plate is raised above the plewing

surface. When removing snow from a gravel

driveway or and uneven surface, it is advisable te

keep the scraper plate as high above the surface

as possible te prevent possible damage to the

spiral auger. On blacktop or concrete surface, keep

the scraper plate as close to the surface as pos-

sible.

• Raise the snow thrower eft the ground and place a

block under each end of the scraper plate. Loosen

the six hex nuts securing the skid shoes to the

housing. Adjust the skid shoes up or down and

retighten the nuts securely. Adjust both skid shoes

to the same height te keep the housing and the

scraper plate level. See figure 37.

LIFT RELEASE CABLE ADJUSTMENT

• If the lift red does not lock the snow thrower

securely in the transport positien, loosen the upper

hex nut on the lift bracket a few turns and tighten

the lower hex nut. Refer to figure 24 on page 13.

• If the lift rod fails to unlock completely to lower the

snow thrower, loosen the lower hex nut en the lift

bracket a few turns and tighten the upper hex nut.

Refer to figure 24 en page 13.

CLUTCH DISENGAGEMENT ADJUSTMENT

(Only tractors with clutch engagement rods.)

If the spiral auger on the snow thrower does not stop

when the attachment clutch lever on the tractor is

disengaged, then adjustment is necessary. Proceed as

follows. Refer back to figure 13 on page 9.

• Place the attachment clutch lever in the disen-

gaged position.

• Remove the hairpin cotter from the engagement

rod trunnion and lift the trunnion out of the hole in

the idler arm.

• Screw the trunnion a few turns towards the front

end of the rod.

• Replace the trunnion into the hole in the idler arm

and secure it with the hairpin cotter.

Check the operation of the snow thrower. If the

spiral augers still do not stop, repeat the above

steps until the augers stop when the attachment

clutch lever is placed in the disengaged position.

SPIRAL AUGERS

• The spiral augers are secured to the auger shaft

with two shear bolts and hex lock nuts. If you hit a

foreign object or if ice jams the augers, the snow

thrower is designed so that the bolts will shear.

• If the augers will net turn, check to see if the shear

bolts have sheared. See figure 38. Two replace-

ment shear bolts and hex lock nuts have been

provided with the snow thrower. For future use

order part number 710-0890A shear belt and

number 43064 hex lock nut.

SKID

SHOE

GEARHOUSING

l !

SHEAR BO_ AND SCRAPER

HEXLOCKNUT PLATE SKID

SHOE

FIGURE 37 FIGURE 38

STORAGE RECOMMENDATIONS

• Lower the snow thrower to the ground.

• Remove the snow thrower from the tractor.

• Clean the snow thrower thoroughly. Wash off any

salt deposit which may have dried on the thrower

and housing.

• Any bare metal that has become exposed should

be painted or coated with a light oil to prevent rust.

• Store in a dry place.

REMOVING THE SPIRAL AUGER HOUSING

• Lower the snow thrower to the ground.

• Remove the attachment pin. See figure 29 on page

15.

• Lock the snow thrower's lift handle in the down

position to decrease belt tension.

• Release the spring tension from the auger belt idler

arm on the bottom of the clutch/idler assembly.

• Remove the auger drive belt from the clutch/idler

assembly. See figure 31 on page 15.

• Pull the spiral auger housing assembly off of the

tractor.

ADDITIONAL PARTS TO REMOVE AT END

OF SEASON

• Remove the clutch/idler assembly. (The two hanger

brackets and the two shoulder bolts may be left

attached to the tractor frame.)

• Remove the drive belt from the engine pulley.

• Remove the engine pulley keeper and replace it

with the tractor's original engine pulley keeper (rod

or cable operated attachment clutches only).

• Remove the engagement rod from the tractor's

clutch arm (rod operated attachment clutches only).

See figure 11 on page 9.

• If a rear mounted attachment is to be used, remove

the rear weight tray by removing the bolt from the

tractor hitch and loosening the two bolts fastening

the tray's side braces to the tractor. Be sure to

retighten the two bolts in the side of the tractor.

See figure 33 on page 16.

• If a front mounted attachment is to be used,

remove the side plates from the tractor. Be sure to

assemble bolts back into the empty holes in the

tractor frame. See figures 1 and 2 on page 6.

PROBLEM

Spiral augers don't turn

Clogged discharge chute

Snow thrower stalls tractor engine

Front wheels slide instead of steering

Snow thrower rides up over snow

CAUSE

1. Upper or lower V belt too loose

2. Upper or lower V belt broken

3. Shear bolts are sheared.

1. Tractor ground speed too fast

2. Tractor throttle set too low

3. Snow too deep

4. Snow melts during contact with

the snow thrower

1. Object jammed in spiral auger

2. Hard or heavy snow

Not enough traction at front wheels

1. Tractor ground speed too fast

2. Bottom snow is icy or hard packed

CORRECTION

1. Increase tension on V belt

2. Replace V belt

3. Replace shear bolts

1. Use lower tractor gear

2. Increase to full throttle

3. Raise the snow thrower

4. Allow snow thrower to cool to

outdoor temperature before using

1. Stop engine, disengage the snow

thrower clutch and clear the auger

2. Increase to full throttle and

decrease ground speed

1. Increase scraper plate clearance

by lowering skid shoes

2. Pull down on lift handle to

increase weight on front wheels

1. Reduce ground speed

2. Lower the skid shoes so that front

of skid shoe is lower than the rear

21 27

REPAIR PARTS FOR MODEL 486.248392 42" SNOW THROWER

33 38 15

78 28 29

93 7O

105

112

12 21

30 24

91 98 92

21 _==_

54 61 27

65 82 4,

.87

106

REPAIR PARTS FOR MODEL 486.248392 42" SNOW THROWER

REF.

NO.

PART

NO.

05931

64184

618-0616

63579

63768

24773

703-2734

703-2735A

24816

705-5226

705-5269

705-5270

43182

44950

44917

44326

43080

46703

710-0890A

43088

43064

43013

43083

715-0114

750-0437

731-1379A

43086

736-0188

711-0469

43081

47615

741-0309

741-0475

741-0493A

24279

24294

784-5618

24393

24281

63904

24286

63762

41576

44377

756-0405

43015

711-0242

46981

43082

46982

738-0680

750-0456

750-0660

43003

714-0161

741-0919

QTY. DESCRIPTION REF. PART QTY. DESCRIPTION

NO. NO.

1 Housing, Bearing 57 08253B 1 Housing, Bearing

1 Housing Assembly 58 15296A 1 Housing, Open Bearing

1 Gear Assembly 59 14088B 1 Spacer, Spindle

1 Chute Crank Rod Assembly 60 44377 2 Hex Bolt, 3/8-24 x 1"

1 Impeller Assembly 61 736-0247 3 Washer,

1 Scraper Plate 62 43063 3 Hex Bolt, 5/16-18 x 1"

1 Bracket, Housing Brace 63 46989 1 Belt, V Type Drive

1 Bracket, Chute Crank 64 47846 1 Belt, V Type Auger

1 Cover, Belt 65 47044 3 Pulley, V Type 4"

1 Chute Reinforcement 66 47026 1 Pulley, V Type

1 Spiral Assembly, L.H. (not shown) 67 47025 1 Hex Bolt, 5/16-18 x 3-1/2"

1 Spiral Assembly, R.H. 68 43432 1 Hex Bolt, 3/8-16 x 2-1/2"

2 Hex Bolt, 5/16-18 x 3/4" Lg. 69 731-0851A 3 Chute Keeper

5 Carriage Bolt, 1/4-20 x 3/4" 70 43661 6 Hex Bolt, 1/4-20 x 1"

1 Palnut, 3/8" 71 43054 3 Hex Bolt, 3/8-16 x 2"

4 Carriage Bolt, 5/16-18 x 1" Lg. 72 731-1300A 1 Chute, Lower

12 Carriage Bolt, 5/16-18 x 3/4" Lg. 73 710-0896 1 Screw, 1/4-14 x 5/8"

6 Bolt, Self-Tap 5/16"x 3/4" 74 43681 1 Carriage Bolt, 5/16-18 x 1-1/2"

2 Bolt, Shear 5/16-18 x 1-1/2" 75 24571 1 Spacer

5 Washer, 1/4" 76 731-1320 1 Chute, Upper

34 Hex Lock Nut, 5/16-18 Thd. 77 /'31-1313C 1 Guide, Cable

5 Hex Lock Nut, 1/4-20 78 784-5594 1 Bracket, Cable

4 Hex Nut, 5/16-18 79 24472 1 Spacer, Pivot

2 Spiral Pin, 1/4" x 1-1/2" Lg. 80 746-0929 1 Cable, Chute Control With Clip

2 Bushing 81 746-0928 1 Cable, Chute Control

1 Chute Adapter 82 43070 7 Washer, 3/8"

21 Lock Washer, 5/16" 83 46959 1 Spring

6 Washer, .76" x 1.49" x .06" 84 46963 2 Chain

4 Spacer, .75 ID x 1.25 OD x .5 L 85 43055 1 Pin, Hair Cotter, 3/32"

16 Washer, 5/16" Std. Wrt. 86 43038 2 Pin, Pivot Lock

2 Bearing, Flange 87 23727 1 Spacer

1 Bearing, Ball 88 43088 7 Washer, 1/4"

2 Bushing, Plastic 3/8" 89 43343 4 Pin, Hair Cotter #4 (1/8")

4 Bearing, Split, 3/4" 90 43350 4 Carriage Bolt, 3/8-16 x 1"

2 Skid Shoe 91 47134 3 Pin, Hair Cotter 5/64"

1 Frame Clutch and Pulley 92 711-0198 1 Trunnion

2 Housing, Bearing 93 24394 1 Bracket, Chute Anti-rotation

1 Bracket, Chute Crank 94 1643-60 1 Plastic Cap

1 Bracket, Idler 95 64452 1 Hanger Bracket Assembly, R.H.

1 Idler Arm Assembly 96 64451 1 Hanger Bracket Assembly, L.H.

1 Spacer, Pivot 97 47043 1 Keeper, Engine Pulley

1 Idler Bracket Assembly 98 46948 1 Red, Engagement

2 Hex Bolt, 3/8-16 x 1-3/4" 99 48106 4 Bolt, Shoulder

1 Hex Bolt, 3/8-24 x 1" 100 24466 2 Bracket, Down Stop

1 Pulley, Flat 3-3/4" 101 47620 1 Spring

1 Hex Nut, 3/8-16 102 47607 1 Spring, Torsion

1 Spacer 103 23625 1 Spacer

1 Pulley, V Type 9" 104 43509 1 Hex Bolt, 3/8-16 x 2-3/4" Lg.

17 Nut, Hex Lock, 3/8-16 105 47598 6 Hex Lock Nut, 1/4" Wash. Face

1 Pulley, V Type 5-1/2" 106 47605 1 Washer, Fiat 3/8"

1 Shaft 107 24558 1 Cable Bracket

1 Spacer 108 43796 1 Hex Bolt, 1/4-20 x 2-3/4"

1 Spacer 109 43178 2 Hex Nut, 1/4-20

14 Lock Washer, 3/8" 110 43177 1 Lock Washer, 1/4"

2 Key 111 48883 1 Pulley, Fiat 3-5/8"

2 Bearing, Ball 112 48015 5 Washer, Nylon

48936 1 Owner's Manual

REPAIR PARTS FOR MODEL 486.248392 42" SNOW THROWER

47 51

_f / 50

63 74

18 65

\79

\\ 73

61 60

18 22

\36

REF

NO.

REPAIR PARTS FOR MODEL 486.248392 42" SNOW THROWER

PART QTY DESCRIPTION REF. PART QTY. DESCRIPTION

NO. NO. NO.

63764 1 Lift Shaft Assembly 41 703-2735A 1 Bracket, Chute Crank

710-0865 2 Hex Bolt, 1/2-13 x 1" 42 720-0201A 1 Knob, Crank

710-0367 2 Hex Bolt, 5/8-11 x 1-1/2" 43 44917 1 Palnut, 3/8"

711-0332 2 Pin, Bracket Lift 45 63579 1 AssembIy, Chute Crank Rod

712-0261 2 Nut, Hex Lock 5/8-11 Thread 46 784-5604 1 Handle, Chute Tilt

43262 6 Nut, Hex Lock 1/2-13 47 720-0232 1 Knob

142 4 Pin, Cotter 1/8" x 3/4" 48 603-0302 1 Assembly, Chute Tilt Bracket

43093 1 Pin, Cotter 1/8"x 1-1/2" 49 731-1313C 1 Guide, Cable

:{19171616 6 Washer, 17/32"x 1" 50 746-0928 1 Cable, Chute Control

741-0192 2 Bearing, Flange With Flats 51 746-0929 1 Cable, Chute Control with Clip

783-0380 2 Link, 15.80" Long 52 43064 5 Nut, Hex Lock 5/16-18

783-0381 2 Link, 11.75" Long 53 43081 2 Washer, 5/16"

24476 2 Link, 4.88" Long 54 24285 1 Plate, Mounting (L.H.)

2431 ! 1 Rod, Spacer 55 24284 1 Plate, Mounting (R.H.)

47599 2 Hex Bolt, 5/16-18 x 1" (Locking) 56 47093 1 Keg, Plastic

43086 16 Lock Washer, 5/16" 57 23812 2 Brace, Side (Weight Tray)

24298 1 Bracket, Lift 58 24288 1 Brace, Cross (Weight Tray)

683-0130 1 Assembly, Handle Lift Bracket 59 24289 1 Tray, Weight

z47-3248A 1 Rod, Index Lift 60 47631 4 Hex Bolt, 3/8-16 x 1" Self Tap

47277 1 Screw, Hex Slotted #10 61 43003 6 Lock Washer, 3/8"

732-0306 1 Spring, Compression 62 43082 4 Nut, Hex Lock 3/8-16

:{19131316 1 Washer, 13/32"x 13/16" 63 43083 10 Nut, Hex 5/16-18

736-0400 1 Washer, .218" x .62" 64 43084 2 Hex Bolt, 5/16-18 x 1-3/4"

43080 1 Carriage Bolt, 5/16-18 x 3/4" 65 44326 4 Carriage Bolt, 5/16-18 x 1"

43182 2 Hex Bolt, 5/16-18 x 3/4" 66 43351 1 Hex Bolt, 1/2-13 x 1-1/4"

:{19111116 2 Washer, 11/32x 11/16x3/64 67 43353 1 Lock Washer, 1/2"

47338 1 Pin, Spring 1/4" x 1-1/2" 68 43682 2 Carriage Bolt, 5/16-18 x 1-1/4"

46954 1 Pin, Attachment 69 43790 1 Strap, Tarp 25" Long

43343 1 Pin, Haircotter #4 (1/8") 70 44215 2 Carriage Bolt, 5/16-18 x 1-3/4"

24654 1 Plate, Side (R.H.) 71 44695 2 Washer, Bowed

24653 1 Plate, Side (L.H.) 72 712-0206 1 Nut, Hex 1/2-13

47326 1 Tube, Lift Handle 73 48106 2 Bolt, Shoulder

47555 1 Cable, Lift 74 726-0178 3 Tie, Nylon

712-0127 1 Nut, Flat Weld #10-24 75 63755 1 Assembly, Cable Retease Trigger

710-1233 1 Screw, Oval #10-24 x 1" 76 47317 1 Plastic Cap

46446 1 Grip, Handle 77 43601 1 Washer, 1.59" x 1.032" x .060"

47027 1 Tube, Crank Rod Support 78 47336 1 Pin, Spring 5/32" x 1-1/2"

741-0475 2 Bushing, 3/8" Plastic 79 47361 2 S!otted Truss Hd. Bolt, 3/8-16 x 1"

80 47554 1 Housing, Trigger

81 R19172410 2 Washer, 1/2"

82 46584 1 Nut, Whizlock, 5/16-18

83 47788 2 Reflector, Rear

NOTES

CAUTION: DO NOT OPERATE YOUR TRACTOR AND SNOW

THROWER ON A SLOPE IN EXCESS OF 10 DEGREES. BE SURE OF

YOUR TRACTOR'S TOWING AND BRAKING CAPABILITIES BEFORE

OPERATING ON A SLOPE. AVOID ANY SUDDEN TURNS OR MA-

NEUVERS WHILE ON A SLOPE.

_=-.

o_.

¢5.¢

:3 ¢

2mg"

5"==_

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-H OMEsMAnytime, dayor night

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums, lawn equipment and electronics

for repair, call for the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime. day or night

www.seats.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirect sM!

1-800-366-PART Ba.m.-11p.m.CST,

(1-800-366-7278) 7 days a week

www.sears.comlpartsdirect

To purchase or inquire about a Sears Service Agreement'

1-800-827-6655

7 a.m. -5 p,m, CST. Mon.- Sat,

Para pedir servicio de reparaci6n a domicilio,

y para ordenar plazas con entrega a domicilio:

1-888-SU-HOGAR s_

(1-888-784-6427)

Au Canada pour service en fran;a_s:

(1-877-533-6937)

C¢Registered Trademark t" lrademark of Sears, Roebuck and Co

Craftsman 486248392 User Manual SNOW THROWER ATTACHMENT Manuals And Guides L0307093

CRAFTSMAN Snow Thrower Attachment Manual L0307093 CRAFTSMAN Snow Thrower Attachment Owner's Manual, CRAFTSMAN Snow Thrower Attachment installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
