Owner's Manual
®
36" TOW-BEHIND
U IVERSAL TILLE
Model No. 486.252445
DO NOT RETURN TO STORE
For Missing Parts or Assembly
Questions Call 1-866-576-8388
CAUTION:
Before using this product, read
this manual and follow all Safety
Rules and Operating Instructions.
,, Safety
,, Assembly
,, Operation
,, Maintenance
,, Parts
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED IN U.S.A. FORM NO. 49424 (10/24/08)
WARRANTY .................................................................... 2
SAFETY RULES ............................................................. 3
ASSEMBLY ..................................................................... 4
OPERATION ................................................................ 5-7
MAINTENANCE ........................................................... 8-9
SERVICE AND ADJUSTMENT ................................ 10-11
STORAGE ..................................................................... 11

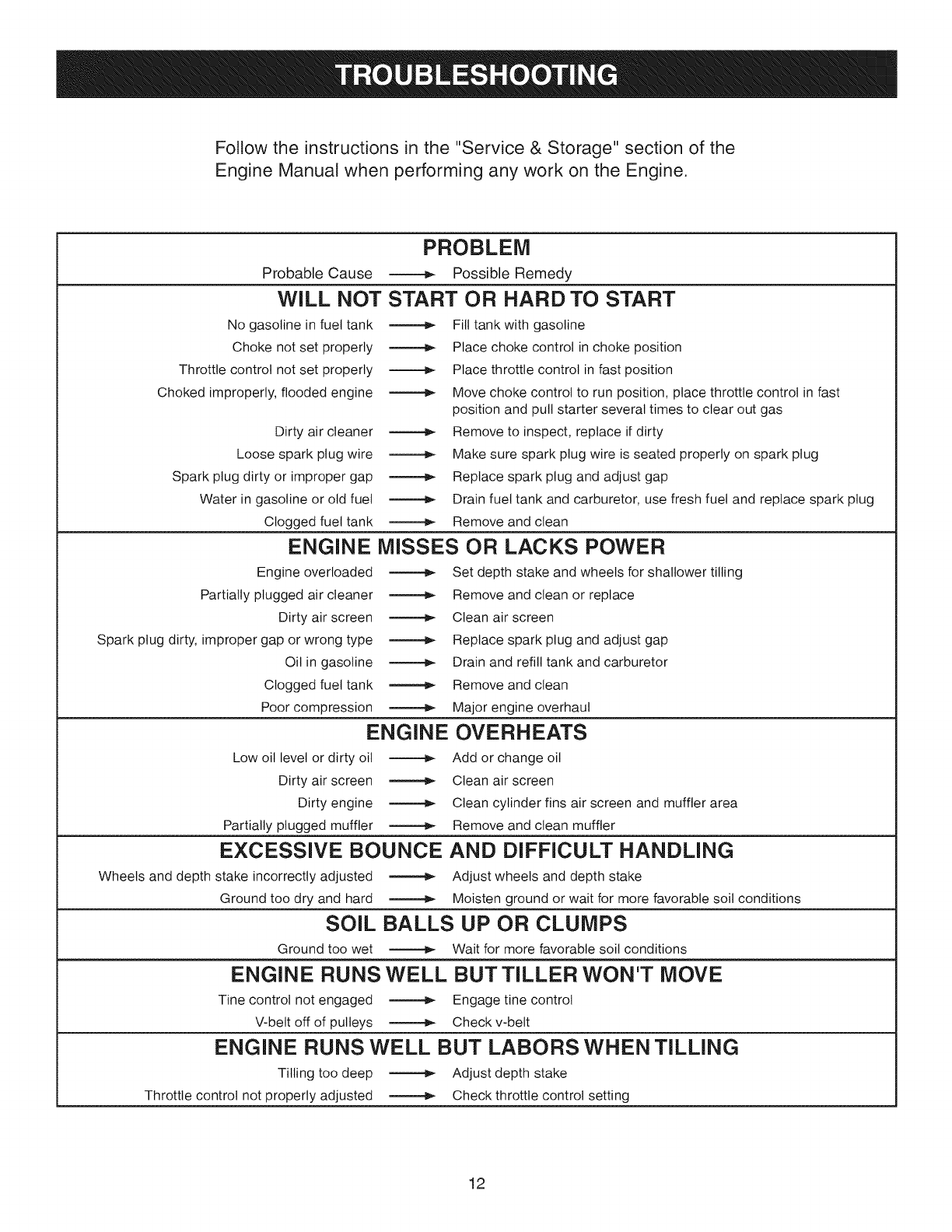

TROUBLESHOOTING .................................................. 12
REPAIR PARTS ........................................................ 13-15
PARTS ORDERING/SERVICE ........................ Rear Cover
LIMITED WARRANTY ON CRAFTSMAN POWEREDTRACTOR ATTACHMENTS
For one (1) year from the date of purchase, if this Craftsman Equipment is maintained, lubricated and tuned up
according to the instructions in the owner's manual, Sears will repair or replace free of charge any parts found to
be defective in material or workmanship. Warranty service is available free of charge by returning your Craftsman
equipment to your nearest Sears Service Center. In-home warranty service is available but a trip charge will apply.
This Warranty applies only while this product is in the United States.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as spark plugs, air cleaners, belts, and oil filters.
Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.
Repairs necessary because of operator abuse, including but not limited to, damage caused by impacting objects
that bend the frame or crankshaft, or over-speeding the engine.
Repairs necessary because of operator negligence, including but not limited to, electrical and mechanical damage
caused by improper storage, failure to use the proper grade and amount of engine oil, or failure to maintain the
equipment according to the instructions contained in the owner's manual.
•Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized (stale). In
general, fuel should be used within 30 days of its purchase date.
Equipment used for commercial or rental purposes.
LIMITED WARRANTY ON BATTERY
For ninety (90) days from date of purchase, if any battery included with the equipment proves defective in material
or workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no
charge. Warranty service is available free of charge by returning your Craftsman equipment to your nearest Sears
Service Center. In-home warranty service is available but a trip charge will apply. This Warranty applies only while this
product is in the United States.
TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE SERVICE,
SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
Record serial number and date of purchase in space
provided below.
MODEL NUMBER: 486.252445
SERIAL NUMBER:
DATE OF PURCHASE:
The model and serial number will be found on the
model plate attached to the right hand chassis.
You should record both serial number and date of
purchase and keep in a safe place for future reference.
PRODUCT SPECIFICATIONS
GASOLINE TYPE Re ular Unleaded
OIL (20 oz. Capacity): Above 32 F: SAE 20
SPARK PLUG
TILLING GROUND SPEED:
TILLING WIDTH:
TILLING TINE SPEED:
Below 32 F: SAE 5W30
Gap: .030"
Approx. 2 MPH
36 in.
230 RPM
WARNING:Thiscuttingmachineiscapableofamputatinghandsandfeetandthrowingobjects.Failureto
observethefollowingsafetyinstructionscouldresultinseriousinjuryordeath.
iMPORTANT
Warnings, Cautions, and Notes are a means of attracting
attention to important or critical information in this
manual.
Look for this symbol to point out important
safety precautions. It means -- Attention!
Become Alert! Your safety is involved.
TRAINING
•Read opening and service instructions carefully. Be
thoroughly familiar with the controls and the proper
use of the equipment.
•Never allow children to operate the machine. Do not
allow adults to operate the machine without proper
instruction.
•Keep the area of operation clear of all persons,
particularly small children and pets.
PREPARATION
•Check the fuel and lubrication before starting the
engine. Do not fill the gasoline tank indoors when
the engine is running or while the engine is still hot.
Wipe off any spilled gasoline before starting the
engine.
•Inspect the area to be tilled. Remove glass, wire,
metal objects, large sticks, and stones. Avoid
underground pipes and wiring.
•Have a complete working knowledge of your tractor
and know how to handle your tractor with a tiller or
other attachment attached.
OPERATION
•Give complete and undivided attention to the job at
hand. Operate the tiller in daylight or good artificial
light.
•Personal injury may result from contact with the
augers or debris thrown by this machine. Therefore,
always stay a safe distance away from the augers.
•Stop the tiller engine when leaving your tiller
unattended.
•Check before each use for loose fasteners or parts.
•Never store the equipment with gasoline in the tank
inside of a building where fumes may reach an open
flame or spark. Allow engine to cool before storing in
an enclosure.
•Stop engine and disconnect spark plug lead wire
before cleaning augers, removing obstacles, or
making adjustments, except for those which must
be done with the engine running.
•Never place hands or feet under or into rotating
parts or concealed areas. Keep hands and feet
clearly away from auger elements, belts, pulleys,
etc. while engine is running.
•Wear substantial shoes and eye protection while
using tiller.
•Never attempt to make a maintenance adjustment
while engine is running, except on the carburetor.
•Do not run the engine indoors; carbon monoxide
fumes are dangerous to inhale.
•Never operate machine without proper guards,
plates, or other safety protective devices in place.
•Disengage the Tine Clutch Lever, stop tiller and
tractor engines before getting off the tractor.
•Disengage the Tine Clutch Lever and stop the tiller
engine during transportation to and from the work
area.
MAINTENANCE AND STORAGE
•Follow maintenance instructions as outlined in this
manual and your Engine Owner's Manual supplied
with the unit.
•Disconnect spark plug wire before making
maintenance adjustment or repair.
•Store gasoline in an approved metal container in a
cool, dry place.
•Safety and performance levels can be assured only
by the use of specified replacement parts.
WARNING: This unit is equipped with an
internal combustion engine and should
not be used on or near any unimproved
forest-covered or grass-covered land
unless the engine's exhaust system is equipped with
a spark attester meeting applicable local or state
laws (if any). If a spark attester is used, it should be
maintained in effective working order by the operator.
In the state of California, the above law is required by
law (Section 4442 of the California Public Resources
Code). Other states may have similar laws. Federal
laws apply on Federal lands. A spark attester for the
muffler is available through your nearest Sears
Authorized Service Center.

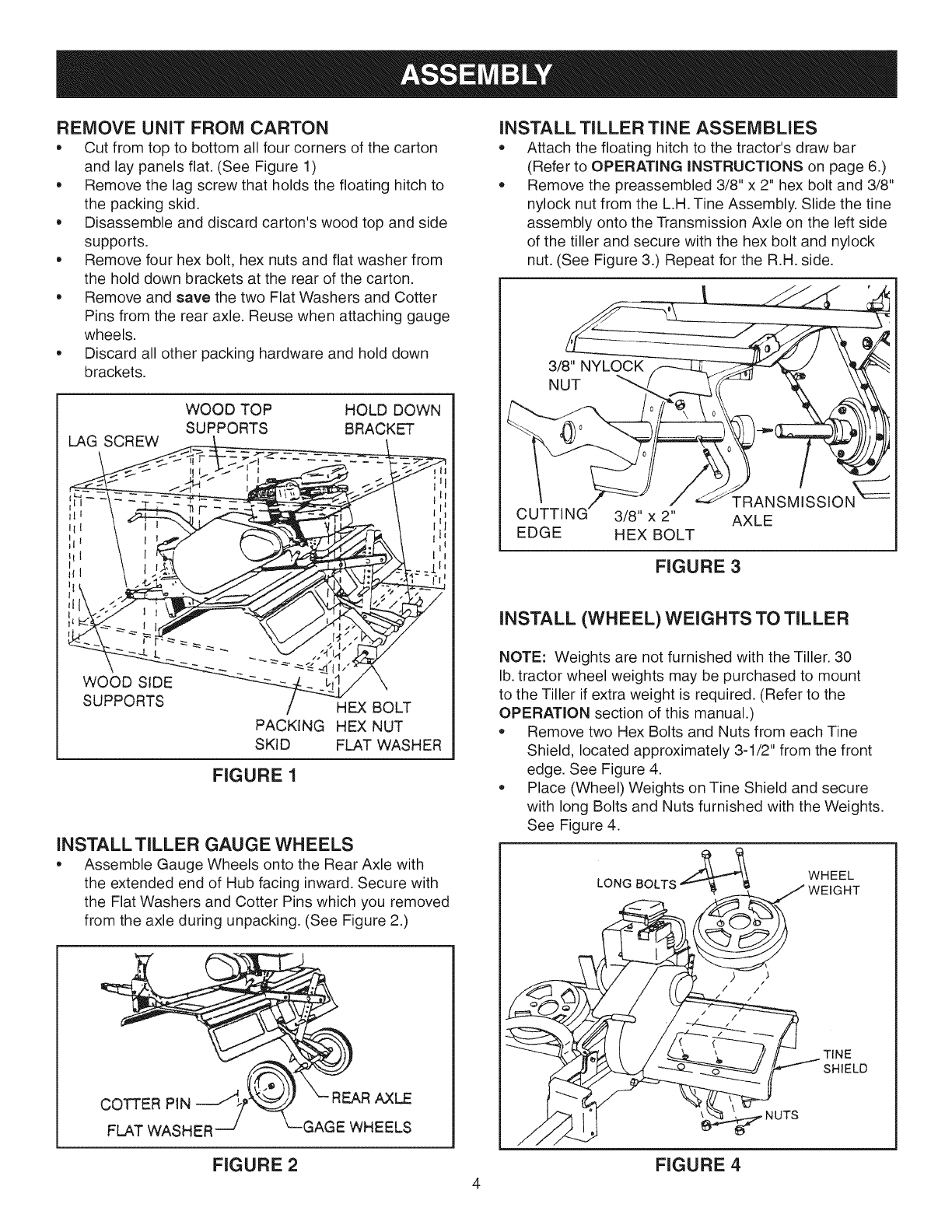

REMOVE UNiT FROM CARTON
• Cut from top to bottom all four corners of the carton
and lay panels flat. (See Figure 1)
Remove the lag screw that holds the floating hitch to
the packing skid.
Disassemble and discard carton's wood top and side
supports.
Remove four hex bolt, hex nuts and flat washer from
the hold down brackets at the rear of the carton.
Remove and save the two Flat Washers and Cotter
Pins from the rear axle. Reuse when attaching gauge
wheels.
Discard all other packing hardware and hold down
brackets.
LAG SCREW
WOOD TOP HOLD DOWN
SUPPORTS BRACKET
L
WOOD SIDE "_-_
SUPPORTS HEX BOLT
PACKING HEX NUT
SKID FLAT WASHER
FIGURE 1
INSTALL TILLER GAUGE WHEELS
Assemble Gauge Wheels onto the Rear Axle with
the extended end of Hub facing inward. Secure with
the Flat Washers and Cotter Pins which you removed
from the axle during unpacking. (See Figure 2.)
COTTER PiN
FLAT WASHER
REAR AXLE
GAGE WHEELS
FIGURE 2
iNSTALL TILLER TINE ASSEMBLIES
Attach the floating hitch to the tractor's draw bar
(Refer to OPERATING INSTRUCTIONS on page 6.)
Remove the preassembled 3/8" x 2" hex bolt and 3/8"
nylock nut from the L.H. Tine Assembly'. Slide the tine
assembly onto the Transmission Axle on the left side
of the tiller and secure with the hex bolt and nylock
nut. (See Figure 3.) Repeat for the R.H. side.
3/8" NYLOCK
NUT
3/8" x 2" AXLE
EDGE HEX BOLT
FIGURE 3
INSTALL (WHEEL) WEIGHTS TO TILLER
NOTE: Weights are not furnished with the Tiller. 30
lb. tractor wheel weights may be purchased to mount
to the Tiller if extra weight is required. (Refer to the
OPERATION section of this manual.)
Remove two Hex Bolts and Nuts from each Tine
Shield, located approximately 3-1/2" from the front
edge. See Figure 4.
Place (Wheel) Weights on Tine Shield and secure
with long Bolts and Nuts furnished with the Weights.
See Figure 4.
LONG_ WHEEL
__ WEIGHT
/ /
FIGURE 4
NUTS
TINE
SHIELD
RIGHT HAND (RH) AND LEFT HAND (LH) ARE WE RECOMMENDTHATYOU REMOVETHEMOWER
DETERMINED FROM THE DRIVERS POSiTiON DECK BEFORE USINGTHETILLER. REFERTOYOUR
WHILE SEATED ON THE TRACTOR. TRACTOR OWNER'S MANUAL.
KNOW YOU RTILLER
Compare the illustrationbelow with your tiller to familiarize yourself with the location of various controls and adjustments.
RECOIL STARTER HANDLE
THROTTLE CONTROL
SAFETY SWITCH FUEL SHUT OFF
LiFT HANDLE
RAISE
LOWER
ENGAGED
TINE CLUTCH LEVER,
DISENGAGED
FLOATING HITCH
CHOKE CONTROL
EXTRA TINE BOLTS
DEPTH STAKE
STAKE SUPPORT BRACKET
TINE SHIELD
"DEPTH ADJUSTMENT
TINES GAGE WHEELS
FIGURE 5
SAFETY SWITCH -prevents engine from starting while
tine clutch lever is engaged
LIFT HANDLE - selects tilling or transport position by
moving gage wheels
TINE CLUTCH LEVER -starts and stops tine rotation
FLOATING HITCH -telescoping hitch limits shock loads
to tractor
RECOIL START HANDLE -used to start the engine
THROTTLE CONTROL -controls engine speed
FUEL SHUT OFF -shuts of fuel to engine
CHOKE CONTROL -used when starting a cold engine
DEPTH STAKE -controls tilling/cultivating depth
The operation of any tiller can result in foreign objects thrown into the eyes, which can
result in severe eye damage. Always wear safety glasses or eye shields before starting
your tiller and while tilling. We recommend awide vision safety mask for over the
spectacles or standard safety glasses.
HOW TO USE YOUR TILLER
BEFORE STARTING YOUR TILLER
FILL THE ENGINE WITH OIL! Your tiller engine is
shipped without oil or gasoline. Add oil and gas as
instructed in the separate engine manual.
WARNING: Never fill fuel tank indoors, or
with the engine running, or while the engine
is hot. Do not smoke while filling tank.
STOPPING YOUR TILLER
TINES
• Raise tiller to transport position.
Pull forward on tine clutch lever.
ENGINE (Refer to separate engine manual.)
Move throttle control to "STOP" position.
Turn shut off to "OFF" position.
Never use choke to stop engine.
STARTING YOUR TILLER
(Refer to separate engine manual.)
CAUTION: The muffler and adjacent areas
are hot!
Check oil and gas in Tiller engine.
Attach spark plug wire to spark plug.
Pull forward on tine clutch lever to disengage tines.
A safety switch prevents engine from starting while
tines are engaged.
Turn shut off to "ON" position.
Move choke lever on engine to CHOKE position. (A
warm engine may not require choking.)
Move throttle control lever on engine to FAST
position.
Grasp starter handle and pull rope out slowly until
engine reaches start of compression cycle (rope will
pull slightly harder at this point). Let the rope rewind
slowly.
Pull rope with a rapid, continuous, full arm stroke.
Keep a firm grip on starter handle. Let rope rewind
slowly. Do not let starter handle snap back against
starter.
Repeat instructions in two preceding paragraphs until
engine fires. When engine starts, move choke control
gradually to RUN position.
Allow engine to warm up for a few minutes before
engaging tines.
ATTACHING TILLER TO TRACTOR
(See Figure 6)
Rear wheel weights and tire chains can be used on
tractor if additional traction is required for tilling.
Place Tiller on ground level and back up tractor to it.
Attach Hitch Bracket Extension to Floating Hitch of
tiller with a Hitch Pin and Hair Cotter Pin
Fasten Hitch Bracket Extension to Tractor Drawbar
with a 1/2-13 x 1-1/4" Hex Bolt and 1/2" Nylock Nut.
HITCH BRACKET EXTENSION CAN BE ATTACHED
AS SHOWN IN FIGURE 60RTURNED UPSIDE DOWN
FOR TRACTORS WITH SHORTER DRAWBARS.
HITCH
I III
HEX BOLT,
li2-13 X 1-114"
HITCH 1/2" NYLOCK
NUT _
/
HAIR COTTER PIN
FIGURE 6
BREAKING IN YOUR TILLER
Break=in your belts, pulleys and the control before you
actually begin tilling.
Start engine with tiller attached to tractor in transport
position. Engage Tine Clutch Lever to start tine
rotation. Allow tines to rotate for five minutes.
Check tine operation and adjust if necessary. See
TINE OPERATION CHECK in the SERVICE AND
ADJUSTMENTS section of this manual.
TRANSPORTING YOUR TILLER
AROUND THE YARD
• Pull forward on lift handle until it locks in the up,
transport position.
AROUND TOWN
Disconnect spark plug wire.
Drain fuel tank.
Transport in upright position to prevent oil leakage.
TO ADJUST DEPTH STAKE
• Depth stake has five position holes to select tilling
depth from 1 to 5 inches.
• The top stake hole selects the shallowest tilling
depth and the bottom stake hole selects the deepest
position.
• To change depth, remove the hair cotter pin from the
clevis pin which is connecting the depth stake to the
stake support bracket.
• Grasp the top of the depth stake, remove the clevis
pin and reposition the depth stake. Insert clevis pin
and hair cotter pin.
IMPORTANT: THE DEPTH STAKE SHOULD NEVER
BE REMOVED FROM THE TILLER. IT IS DESIGNED
TO PROTECT THE TRACTOR TRANSAXLE FROM
THRUSTING ACTION OF THE TILLER.

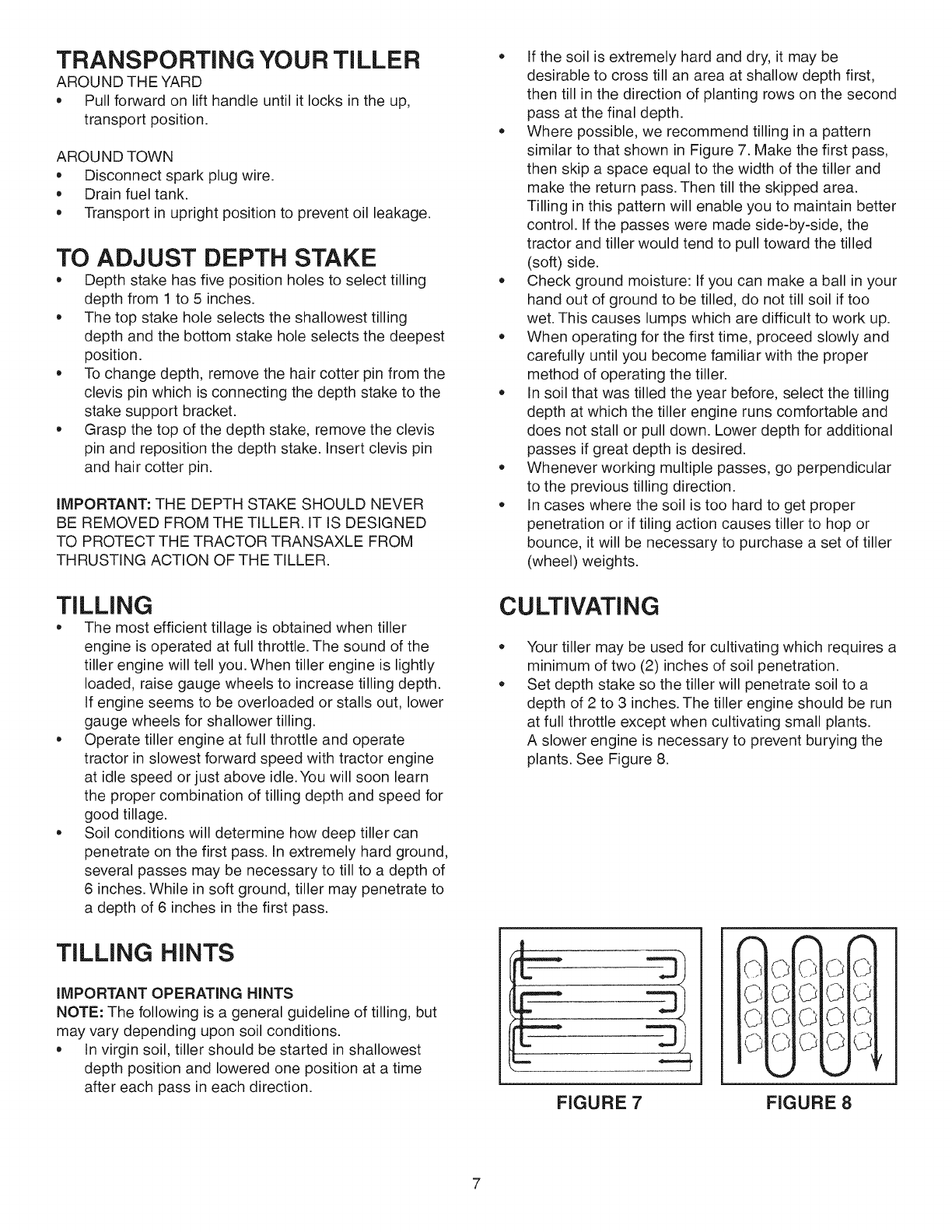

TiLLiNG
The most efficient tillage is obtained when tiller
engine is operated at full throttle. The sound of the
tiller engine will tell you. When tiller engine is lightly
loaded, raise gauge wheels to increase tilling depth.
If engine seems to be overloaded or stalls out, lower
gauge wheels for shallower tilling.
Operate tiller engine at full throttle and operate
tractor in slowest forward speed with tractor engine
at idle speed or just above idle.You will soon learn
the proper combination of tilling depth and speed for
good tillage.
Soil conditions will determine how deep tiller can
penetrate on the first pass. In extremely hard ground,
several passes may be necessary to till to a depth of
6 inches. While in soft ground, tiller may penetrate to
a depth of 6 inches in the first pass.
TiLLiNG HINTS
IMPORTANT OPERATING HINTS
NOTE: The following is a general guideline of tilling, but
may vary depending upon soil conditions.
In virgin soil, tiller should be started in shallowest
depth position and lowered one position at a time
after each pass in each direction.
If the soil is extremely hard and dry, it may be
desirable to cross till an area at shallow depth first,
then till in the direction of planting rows on the second
pass at the final depth.
Where possible, we recommend tilling in a pattern
similar to that shown in Figure 7. Make the first pass,
then skip a space equal to the width of the tiller and
make the return pass. Then till the skipped area.
Tilling in this pattern will enable you to maintain better
control. If the passes were made side-by-side, the
tractor and tiller would tend to pull toward the tilled
(soft) side.
Check ground moisture: If you can make a ball in your
hand out of ground to be tilled, do not till soil if too
wet. This causes lumps which are difficult to work up.
When operating for the first time, proceed slowly and
carefully until you become familiar with the proper
method of operating the tiller.
In soil that was tilled the year before, select the tilling
depth at which the tiller engine runs comfortable and
does not stall or pull down. Lower depth for additional
passes if great depth is desired.
Whenever working multiple passes, go perpendicular
to the previous tilling direction.
In cases where the soil is too hard to get proper
penetration or if tiling action causes tiller to hop or
bounce, it will be necessary to purchase a set of tiller
(wheel) weights.
CULTIVATING
o
o
Your tiller may be used for cultivating which requires a
minimum of two (2) inches of soil penetration.
Set depth stake so the tiller will penetrate soil to a
depth of 2 to 3 inches. The tiller engine should be run
at full throttle except when cultivating small plants.
A slower engine is necessary to prevent burying the
plants. See Figure 8.
i-
ra
-- -5
m
u
FIGURE 7
OCOOO
OCOOO
OCOO<P
OCOOO
FIGURE 8
GENERAL RECOMMENDATIONS
The warranty on this tiller does not cover items that
have been subjected to operator abuse or negligence.
To receive full value from the warranty, operator must
maintain unit as instructed in this manual.
Once a year you should replace the spark plug, clean
or replace air filter, and check tines and belts for wear.
A new spark plug and clean air filter assure proper
air-fuel mixture and help your engine run better and
last longer.
Some adjustments will need to be made periodically to
properly maintain your unit.
All adjustments in the SERVICES AND ADJUSTMENTS
section of this manual should be checked at least once
each season.
BEFORE EACH USE
• Check engine oil level.
Check tine operation.
Check for loose fasteners
LUBRICATION
Keep unit well lubricated. See LUBRICATION CHART.
Refer to the engine manual for instructions on engine maintenance.
MAINTENANCE SCHEDULE /_,./.
Fill in dates as you /_/_
complete regular service. /_£_.o-/_
Check Engine Oil Level X
Change Engine Oil X
Service air cleaner precleaner
Service air cleaner cartridge
Replace spark plug
Clean cooling system
Check valve clearance
I
'_9.9/,_ _/_'_
_vW,o-#,1,-_#
X -k
X**
X**
x
X**
x
Service Dates
Check for loose fasteners X
X
X
Lubricate Tiller
Lubricate Tiller Transmission
*Change oil every 25 hours when operating the engine under heavy load or in high temperatures.
**Clean more often under dusty conditions or when airborne debris is present. Replace air cleaner parts, if very dirty.
(_ REFER TO SEPARATE ENGINE OPERATING &
MAINTENANCE INSTRUCTIONS
(_ REFER TO MAINTENANCE, TILLER
LUBRICATION SECTION
(_ GENERAL PURPOSE GREASE
IMPORTANT: DO NOT OIL OR GREASE PIVOT POINTS.
VISCOUS LUBRICANTS WILL ATTRACT DUST AND
DIRT THAT CAN CAUSE WEAR ON PIVOT POINTS. IF
YOU FEEL THEY MUST BE LUBRICATED, USE ONLY A
DRY POWDERED GRAPHITE TYPE LUBRICANT.
®
®
TILLER _ !
TINE SHAFT
FIGURE 9
ENGINE (_
AXLESHAFT @
TILLER LUBRiCATiON CLEANING
Check transmission oil level after first 5 hours of
operation. Remove Oil Fill Plug (Figure 10). Oil Level
must be even with the Plug Hole (with Tiller level.) If
necessary, add Oil. Use SAE30 Non-Detergent Motor Oil.
Replace Oil Fill Plug.
Check transmission oil level after each 10 hours of
operation.
NOTE: It is not necessary to change the Oil in the Tiller
Transmission. If for any reason it must be changed, Oil
capacity is 22 oz.
OiL FiLL PLUG
OiL
TRANSMISSION
• Clean engine as instructed in the engine manual.
Clean wheels, finish, etc. of all foreign matter.
Keep finished surfaces and wheels free of all
gasoline, oil, etc.
Protect painted surfaces with automotive type wax.
We do not recommend using a garden hose to clean
your unit unless the muffler, air filter and carburetor are
covered to keep water out. Water in engine can result in a
shortened engine life.
MUFFLER
Do not operate tiller without muffler. Do not tamper with
exhaust system. Damaged mufflers or spark attesters
could create a fire hazard. Inspect periodically and
replace if necessary. If your engine is equipped with a
spark attester screen assembly, remove every 50 hours
for cleaning and inspection. Replace if damaged.
FIGURE 10
ENGINE MAINTENANCE
WARNING: Always stop engine and
disconnect spark plug wire before cleaning,
lubricating or before performing any repairs or
maintenance.
Check oil level before each use and every 8 hours.
Maintain engine oil as instructed in the separate
engine manual.
Service air cleaner every 25 hours under normal
conditions. Clean every few hours under extremely
dusty conditions. Poor engine performance and
flooding usually indicates that the air cleaner should
be serviced. To service the air cleaner, refer to the
separate engine manual.
Spark plug replacement is recommended every 100
hours or yearly. Check the engine manual for correct
plug type and gap specifications.
WARNING:Shutoff(disengage)theTine
ClutchLever,theTillerEngineandtheTractor
Enginebeforemakinganyrepairs.

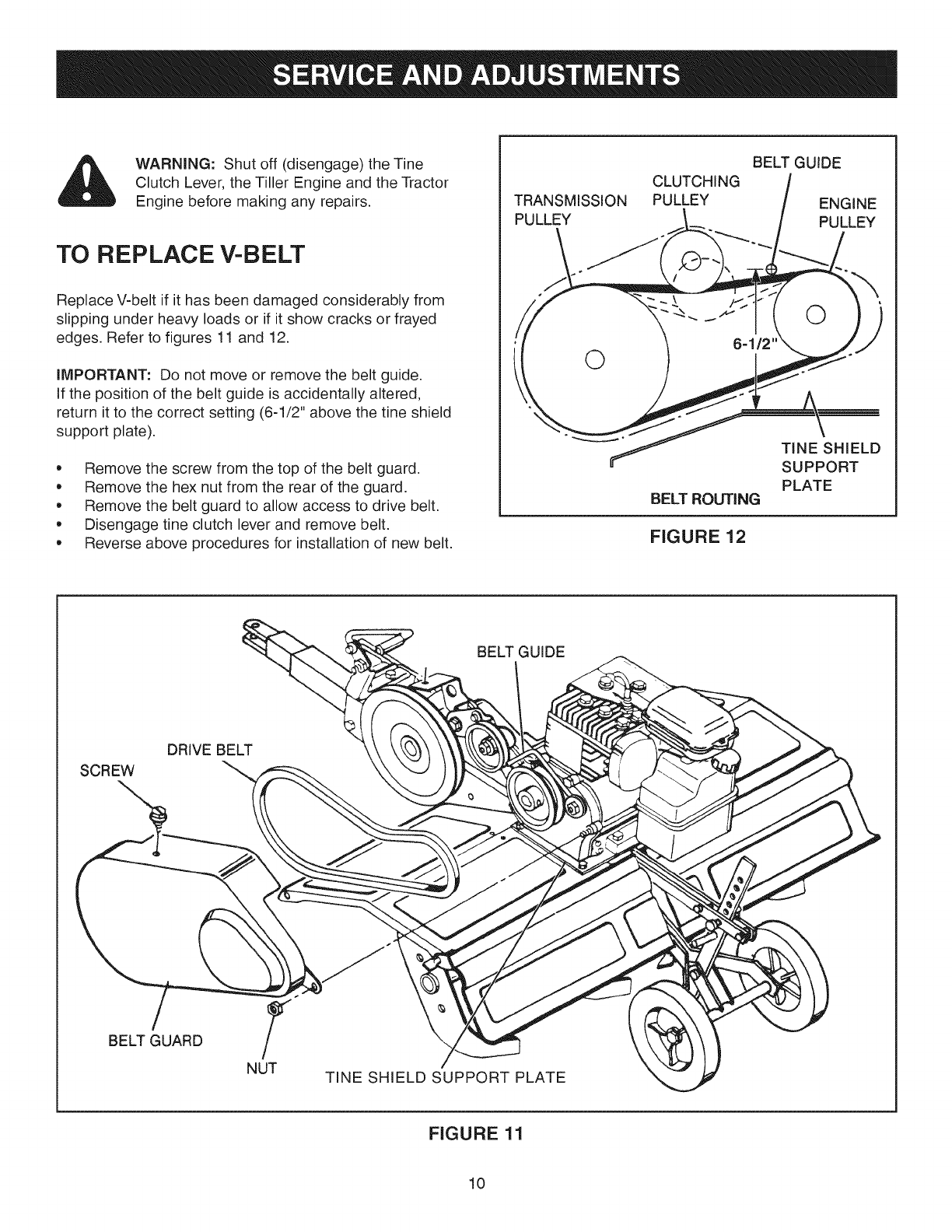

TO REPLACE V-BELT
Replace V-belt if it has been damaged considerably from
slipping under heavy loads or if it show cracks or frayed
edges. Refer to figures 11 and 12.
IMPORTANT: Do not move or remove the belt guide.
If the position of the belt guide is accidentally altered,
return it to the correct setting (6-1/2" above the tine shield
support plate).
*Remove the screw from the top of the belt guard.
*Remove the hex nut from the rear of the guard.
*Remove the belt guard to allow access to drive belt.
*Disengage tine clutch lever and remove belt.
*Reverse above procedures for installation of new belt.
BELT GUIDE
CLUTCHING
TRANSMiSSiON PULLEY ENGINE
PULLEY PULLEY
BELT ROUTING
TINE SHIELD
SUPPORT
PLATE
FIGURE 12
BELT GUIDE
DRIVE BELT
SCREW "_-_
BELT GUARD
TINE SHIELD SUPPORT PLATE
FIGURE 11
10
WARNING:Shutoff(disengage)theTine
ClutchLever,theTillerEngineandtheTractor
Enginebeforemakinganyrepairs.

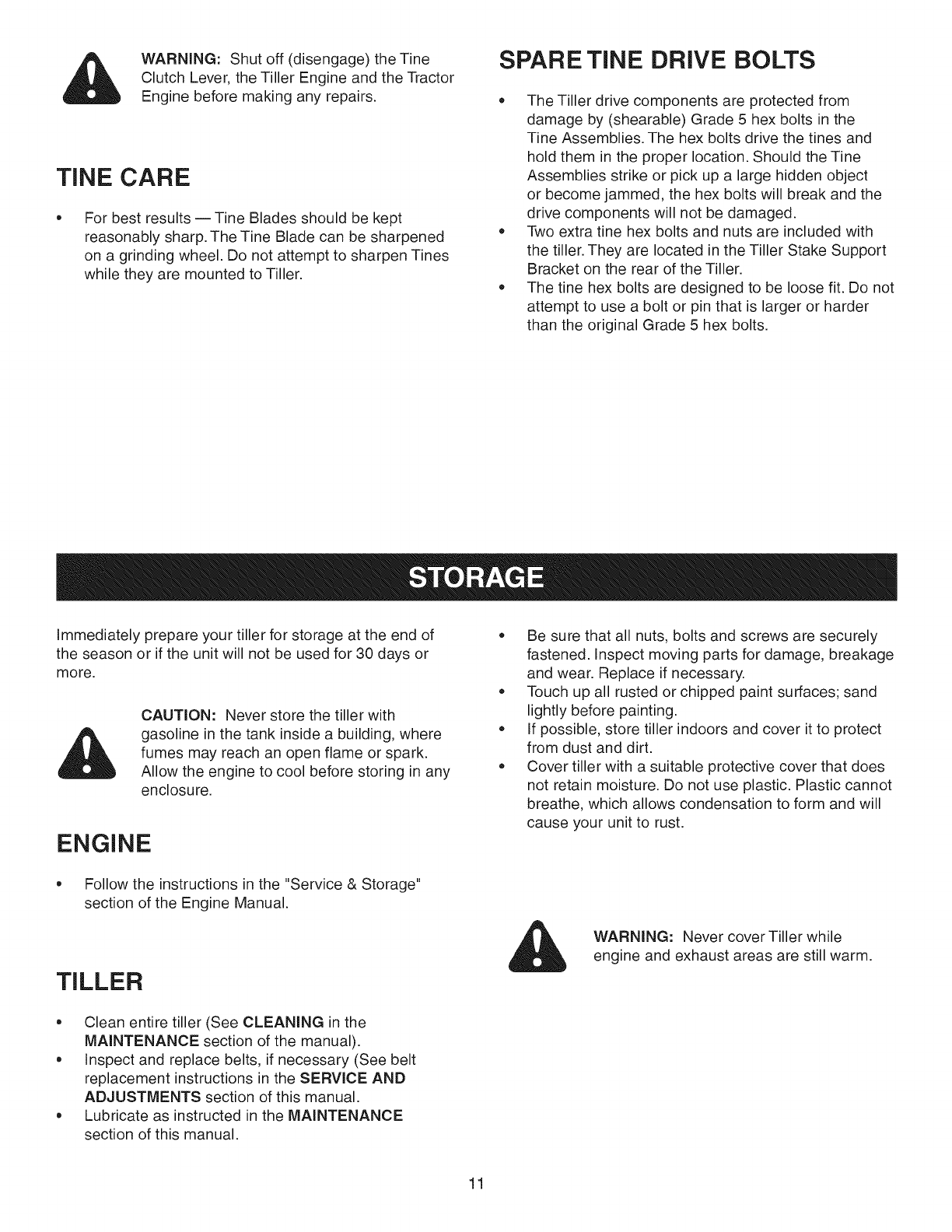

TINE CARE
For best results -- Tine Blades should be kept
reasonably sharp. The Tine Blade can be sharpened
on a grinding wheel. Do not attempt to sharpen Tines
while they are mounted to Tiller.
SPARE TINE DRIVE BOLTS
• The Tiller drive components are protected from
damage by (shearable) Grade 5 hex bolts in the
Tine Assemblies. The hex bolts drive the tines and
hold them in the proper location. Should the Tine
Assemblies strike or pick up a large hidden object
or become jammed, the hex bolts will break and the
drive components will not be damaged.
Two extra tine hex bolts and nuts are included with
the tiller. They are located in the Tiller Stake Support
Bracket on the rear of the Tiller.
The tine hex bolts are designed to be loose fit. Do not
attempt to use a bolt or pin that is larger or harder
than the original Grade 5 hex bolts.
Immediately prepare your tiller for storage at the end of
the season or if the unit will not be used for 30 days or
more.
CAUTION: Never store the tiller with
gasoline in the tank inside a building, where
fumes may reach an open flame or spark.
Allow the engine to cool before storing in any
enclosure.
ENGINE
Be sure that all nuts, bolts and screws are securely
fastened. Inspect moving parts for damage, breakage
and wear. Replace if necessary.
Touch up all rusted or chipped paint surfaces; sand
lightly before painting.
If possible, store tiller indoors and cover it to protect
from dust and dirt.
Cover tiller with a suitable protective cover that does
not retain moisture. Do not use plastic. Plastic cannot
breathe, which allows condensation to form and will
cause your unit to rust.
Follow the instructions in the "Service & Storage"
section of the Engine Manual.
TILLER
WARNING: Never cover Tiller while
engine and exhaust areas are still warm.
Clean entire tiller (See CLEANING in the
MAINTENANCE section of the manual).
Inspect and replace belts, if necessary (See belt
replacement instructions in the SERVICE AND
ADJUSTMENTS section of this manual.
Lubricate as instructed in the MAINTENANCE
section of this manual.
11
Follow the instructions in the "Service & Storage" section of the
Engine Manual when performing any work on the Engine.
PROBLEM
Probable Cause _ Possible Remedy
WILL NOT START OR HARD TO START
No gasoline in fuel tank
Choke not set properly
Throttle control not set properly
Choked improperly, flooded engine
Dirty air cleaner
Loose spark plug wire
Spark plug dirty or improper gap
Water in gasoline or old fuel
Clogged fuel tank
Fill tank with gasoline
Place choke control in choke position
Place throttle control in fast position
Move choke control to run position, place throttle control in fast
position and pull starter several times to clear out gas
Remove to inspect, replace if dirty
Make sure spark plug wire is seated properly on spark plug
Replace spark plug and adjust gap
Drain fuel tank and carburetor, use fresh fuel and replace spark plug
Remove and clean
ENGINE
Engine overloaded
Partially plugged air cleaner
Dirty air screen
Spark plug dirty, improper gap or wrong type
Oil in gasoline
Clogged fuel tank
Poor compression
ENGINE
Low oil level or dirty oil ========-_
Dirty air screen
Dirty engine
Partially plugged muffler
EXCESSIVE BOUNCE
Wheels and depth stake incorrectly adjusted
Ground too dry and hard
MISSES OR LACKS POWER
Set depth stake and wheels for shallower tilling
Remove and clean or replace
Clean air screen
Replace spark plug and adjust gap
Drain and refill tank and carburetor
Remove and clean
Major engine overhaul
OVERHEATS
Add or change oil
Clean air screen
Clean cylinder fins air screen and muffler area
Remove and clean muffler
AND DIFFICULT HANDLING
Adjust wheels and depth stake
Moisten ground or wait for more favorable soil conditions
SOIL BALLS UP OR CLUMPS
Ground too wet _ Wait for more favorable soil conditions
ENGINE RUNS WELL BUTTILLER WON'T MOVE
Tine control not engaged _ Engage tine control
V-belt off of pulleys _ Check v-belt
ENGINE RUNS WELL BUT LABORS WHEN TILLING
Tilling too deep _ Adjust depth stake
Throttle control not properly adjusted _ Check throttle control setting
12

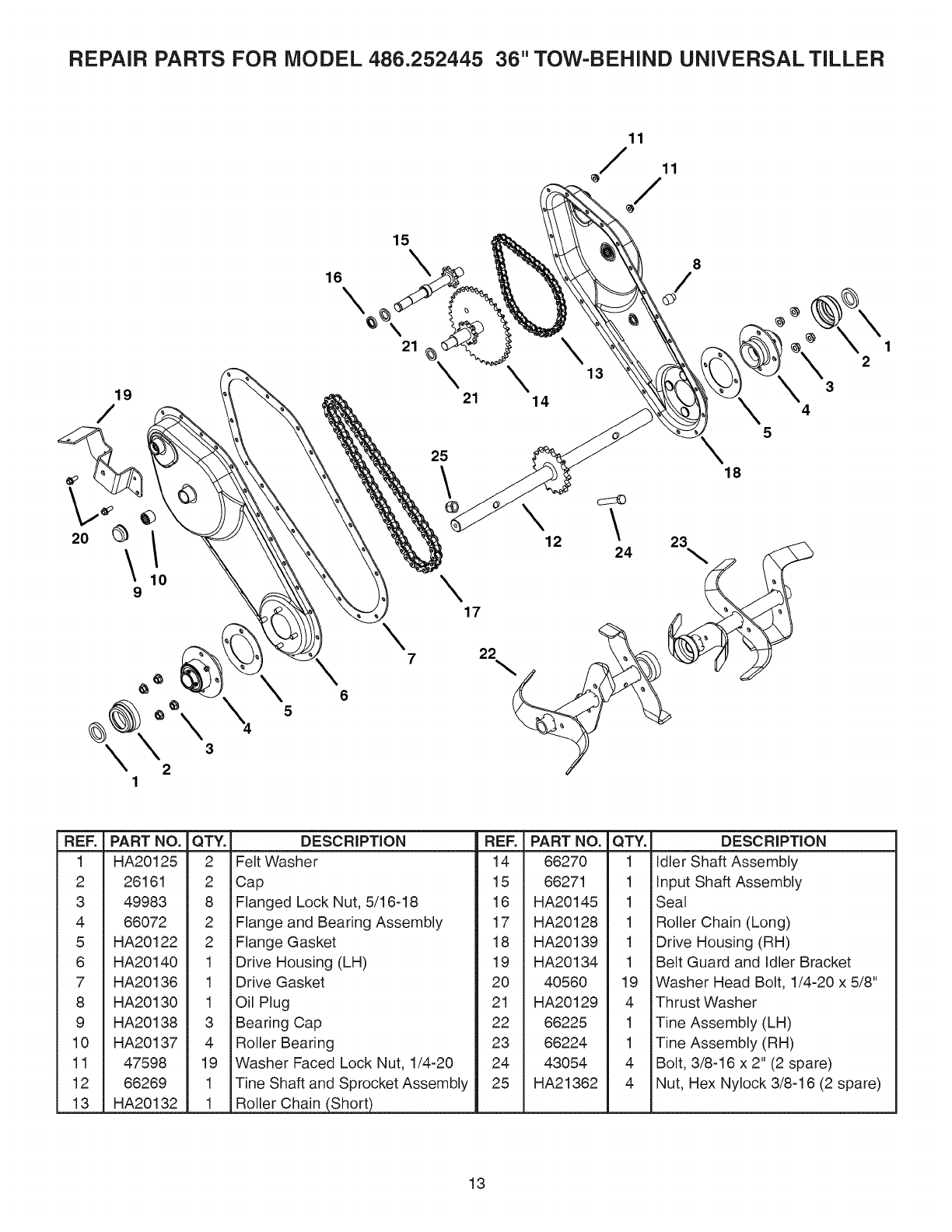

REPAIR PARTS FOR MODEL 486.252445 36" TOW=BEHIND UNIVERSAL TILLER
1
3
15
16\
21
25
21
\
\17
\
722
6
5
\14
\12
8
/
13
\24
3
5
\18
1
2
REF.
1
2
3
4
5
6
7
8
9
10
11
12
13
PART NO.
HA20125
26161
49983
66072
HA20122
HA20140
HA20136
HA20130
HA20138
HA20137
47598
66269
HA20132
QTY.
2
2
8
2
2
1
1
1
3
4
19
1
1
DESCRIPTION REF.
Felt Washer 14
Cap 15
Flanged Lock Nut, 5/16-18 16
Flange and Bearing Assembly 17
Flange Gasket 18
Drive Housing (LH) 19
Drive Gasket 20
Oil Plug 21
Bearing Cap 22
Roller Bearing 23
Washer Faced Lock Nut, 1/4-20 24
Tine Shaft and Sprocket Assembly 25
Roller Chain (Short)
PART NO.
66270
66271
HA20145
HA20128
HA20139
HA20134
40560
HA20129
66225
66224
43054
HA21362
QTY.
1
1
1
1
1
1
19
4
1
1
4
4
DESCRIPTION
Idler Shaft Assembly
iInput Shaft Assembly
Seal
Roller Chain (Long)
Drive Housing (RH)
Belt Guard and Idler Bracket
Washer Head Bolt, 1/4-20 x 5/8"
Thrust Washer
Tine Assembly (LH)
Tine Assembly (RH)
Bolt, 3/8-16 x 2" (2 spare)
Nut, Hex Nylock 3/8-16 (2 spare)
13
14
69
64
\
11
17
16
24
86
!
72
27
10
/
13
26
60
37
38
63
44
23
43
54
\\ 66\
54
65
/
47
62
28
23
49
2
73
Z
mO_
m
r-'
mrj)
r_ =
r-"
:o _E::o
r_
67
81
/ _23
5O
80

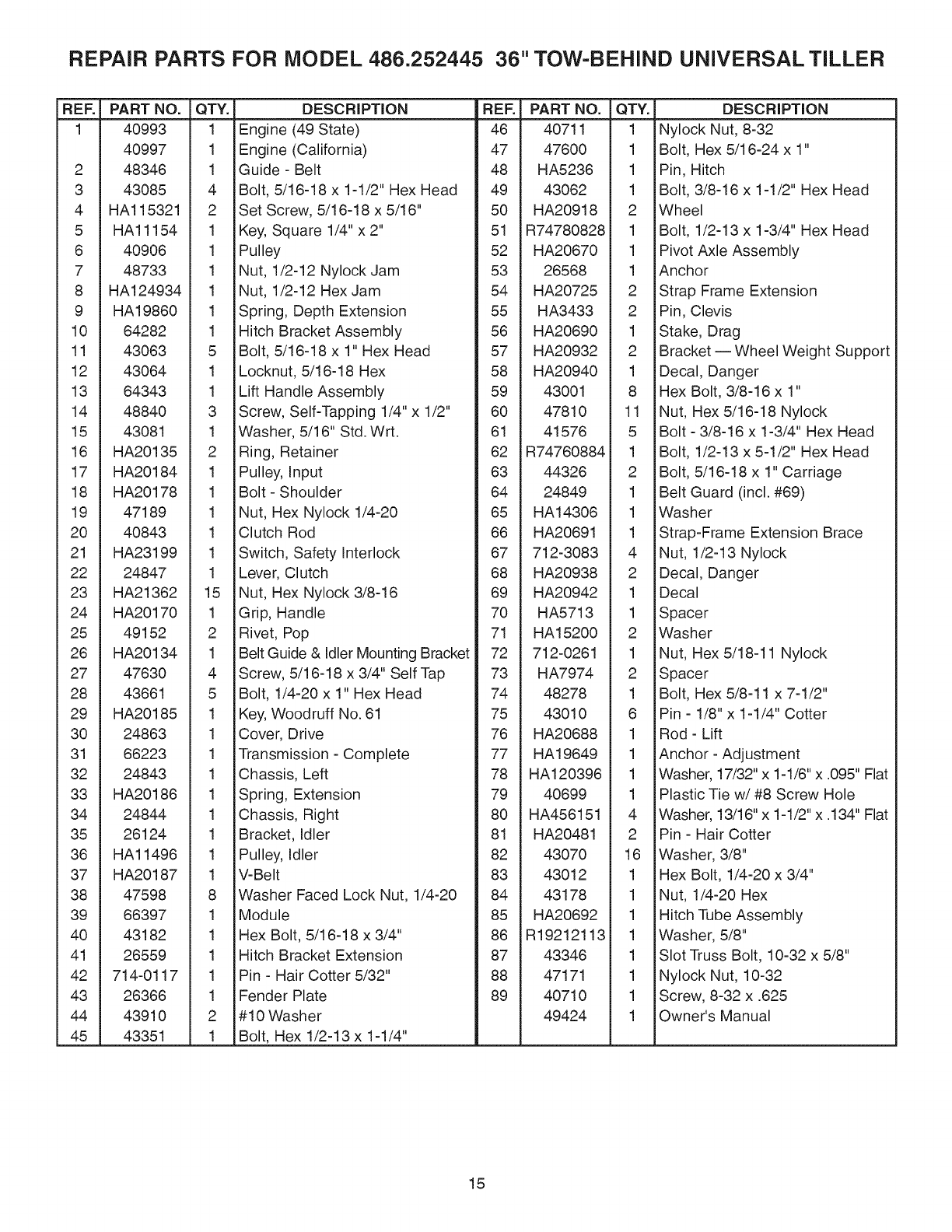

REPAIR PARTS FOR MODEL 486.252445 36" TOW=BEHIND UNIVERSAL TILLER
REF. PART NO. QTY. DESCRiPTiON REF. PART NO. QTY. DESCRiPTiON
1 40993 1 Engine (49 State) 46 40711 1 Nylock Nut, 8-32
40997 1 Engine (California) 47 47600 1 Bolt, Hex 5/16-24 x 1"
2 48346 1 Guide -Belt 48 HA5236 1 Pin, Hitch
3 43085 4 Bolt, 5/16-18 x 1-1/2" Hex Head 49 43062 1 Bolt, 3/8-16 x 1-1/2" Hex Head
4 HA115321 2 Set Screw, 5/16-18 x 5/16" 50 HA20918 2 Wheel
5 HA11154 1 Key, Square 1/4" x 2" 51 R74780828 1 Bolt, 1/2-13 x 1-3/4" Hex Head
6 40906 1 Pulley 52 HA20670 1 Pivot Axle Assembly
7 48733 1 Nut, 1/2-12 Nylock Jam 53 26568 1 Anchor
8 HA124934 1 Nut, 1/2-12 Hex Jam 54 HA20725 2 Strap Frame Extension
9 HA19860 1 Spring, Depth Extension 55 HA3433 2 Pin, Clevis
10 64282 1 Hitch Bracket Assembly 56 HA20690 1 Stake, Drag
11 43063 5 Bolt, 5/16-18 x 1" Hex Head 57 HA20932 2 Bracket -- Wheel Weight Support
12 43064 1 Locknut, 5/16-18 Hex 58 HA20940 1 Decal, Danger
13 64343 1 Lift Handle Assembly 59 43001 8 Hex Bolt, 3/8-16 x 1"
14 48840 3 Screw, Self-Tapping 1/4" x 1/2" 60 47810 11 Nut, Hex 5/16-18 Nylock
15 43081 1 Washer, 5/16" Std. Wrt. 61 41576 5 Bolt -3/8-16 x 1-3/4" Hex Head
16 HA20135 2 Ring, Retainer 62 R74760884 1 Bolt, 1/2-13 x 5-1/2" Hex Head
17 HA20184 1 Pulley, input 63 44326 2 Bolt, 5/16-18 x 1" Carriage
18 HA20178 1 Bolt -Shoulder 64 24849 1 Belt Guard (incl. #69)
19 47189 1 Nut, Hex Nylock 1/4-20 65 HA14306 1 Washer
20 40843 1 Clutch Rod 66 HA20691 1 Strap-Frame Extension Brace
21 HA23199 1 Switch, Safety interlock 67 712-3083 4 Nut, 1/2-13 Nylock
22 24847 1 Lever, Clutch 68 HA20938 2 Decal, Danger
23 HA21362 15 Nut, Hex Nylock 3/8-16 69 HA20942 1 Decal
24 HA20170 1 Grip, Handle 70 HA5713 1 Spacer
25 49152 2 Rivet, Pop 71 HA15200 2 Washer
26 HA20134 1 Belt Guide & Idler Mounting Bracket 72 712-0261 1 Nut, Hex 5/18-11 Nylock
27 47630 4 Screw, 5/16-18 x 3/4" Self Tap 73 HA7974 2 Spacer
28 43661 5 Bolt, 1/4-20 x 1" Hex Head 74 48278 1 Bolt, Hex 5/8-11 x 7-1/2"
29 HA20185 1 Key, Woodruff No. 61 75 43010 6 Pin - 1/8" x 1-1/4" Cotter
30 24863 1 Cover, Drive 76 HA20688 1 Rod - Lift
31 66223 1 Transmission - Complete 77 HA19649 1 Anchor - Adjustment
32 24843 1 Chassis, Left 78 HA120396 1 Washer, 17/32"x 1-1/6"x.095" Flat
33 HA20186 1 Spring, Extension 79 40699 1 Plastic Tie w/#8 Screw Hole
34 24844 1 Chassis, Right 80 HA456151 4 Washer, 13/16"x 1-1/2"x.134" Flat
35 26124 1 Bracket, Idler 81 HA20481 2 Pin - Hair Cotter
36 HAl1496 1 Pulley, Idler 82 43070 16 Washer, 3/8"
37 HA20187 1 V-Belt 83 43012 1 Hex Bolt, 1/4-20 x 3/4"
38 47598 8 Washer Faced Lock Nut, 1/4-20 84 43178 1 Nut, 1/4-20 Hex
39 66397 1 Module 85 HA20692 1 Hitch Tube Assembly
40 43182 1 Hex Bolt, 5/16-18 x 3/4" 86 R19212113 1 Washer, 5/8"
41 26559 1 Hitch Bracket Extension 87 43346 1 Slot Truss Bolt, 10-32 x 5/8"
42 714-0117 1 Pin - Hair Cotter 5/32" 88 47171 1 Nylock Nut, 10-32
43 26366 1 Fender Plate 89 40710 1 Screw, 8-32 x .625
44 43910 2 #10 Washer 49424 1 Owner's Manual
45 43351 1 Bolt, Hex 1/2-13 x 1-1/4"
15
Your Home
For expert troubleshooting and home solutions advice:
www.managemyhome.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ®(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.)
www.sears.com
1-800-469-4663 (Canada)
www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
Au Canada pour service en fran£ais:
1-800-LE-FOYER M°
(1-800-533-6937)
www.sears.ca
TM
® Registered Trademark /Trademark /SM Service Mark of Sears Brands, LLC
® Marca Registrada /TM Marca de Fabrica /SM Marca de Servicio de Sears Brands, LLC
MD
MCMarque de commerce /Marque depos6e de Sears Brands, LLC © Sears Brands, LLC
