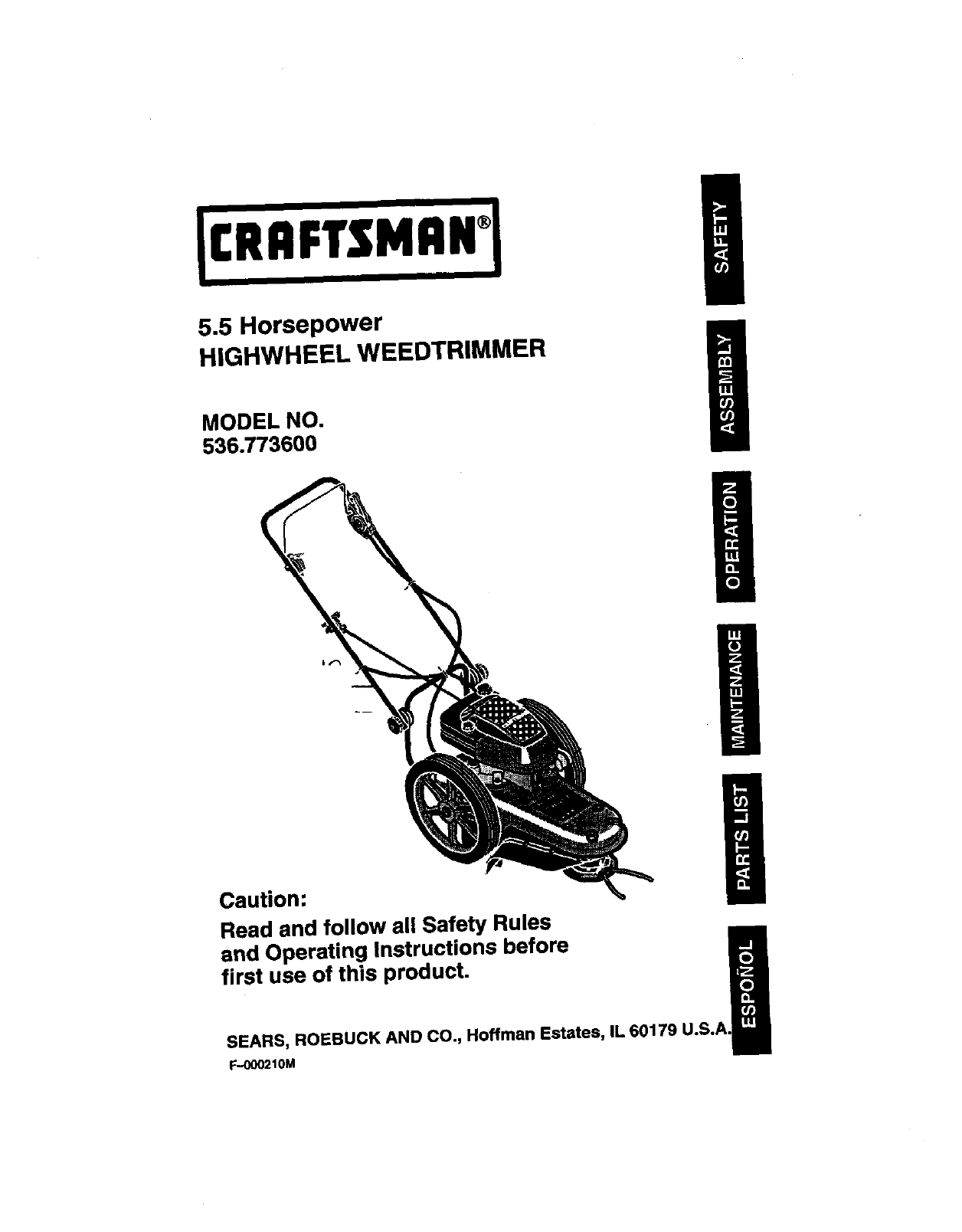

5.5 Horsepower

HIGHWHEEL WEEDTRIMMER

MODEL NO.

536.773600

/

Caution:

Read and follow all Safety Rules

and Operating Instructions before

first use of this product.

i

H

H

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.llm

F--000210M

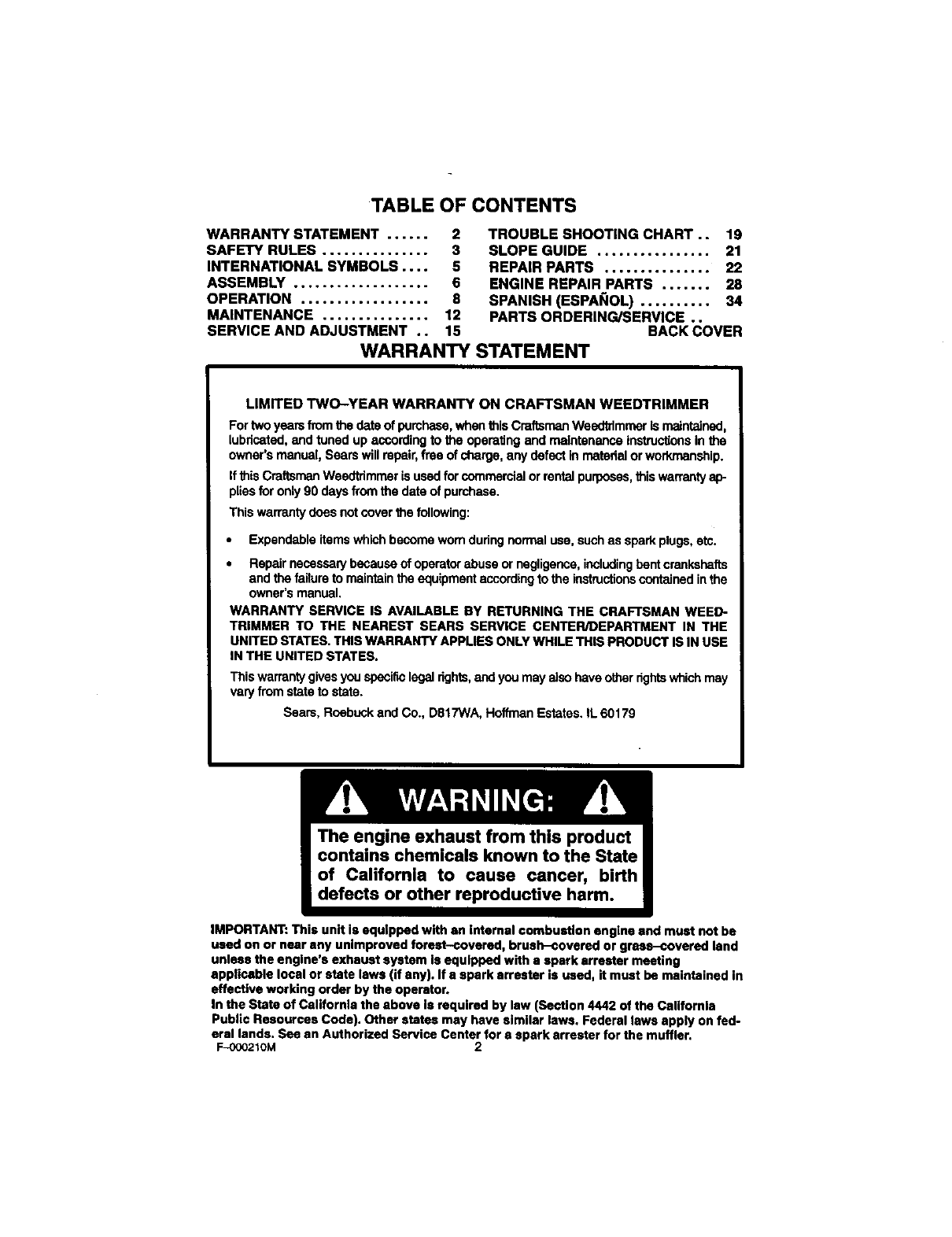

TABLE OF CONTENTS

WARRANTY STATEMENT ...... 2

SAFETY RULES ............... 3

INTERNATIONAL SYMBOLS .... 5

ASSEMBLY ................... 6

OPERATION .................. 8

MAINTENANCE ............... 12

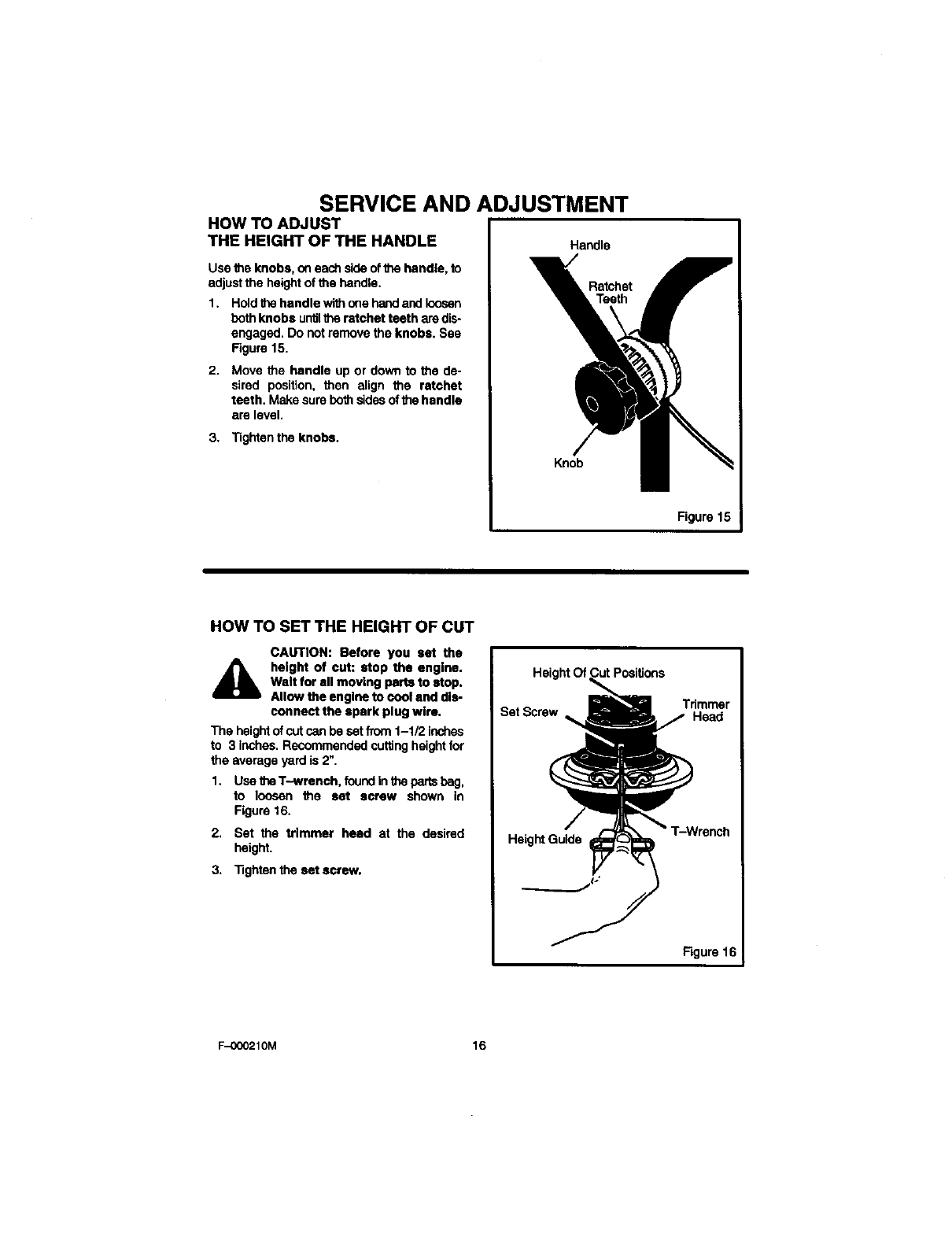

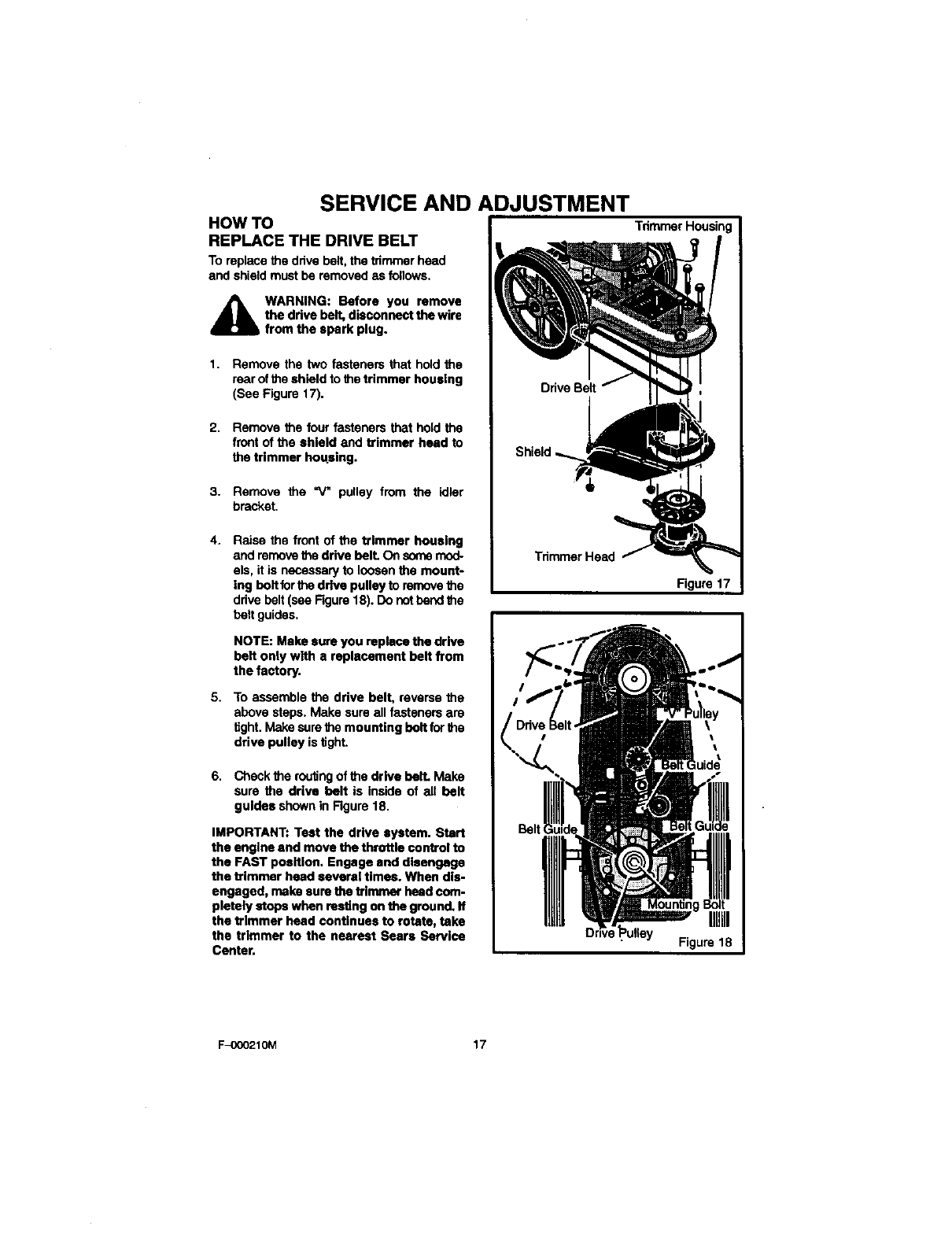

SERVICE AND ADJUSTMENT .. 15

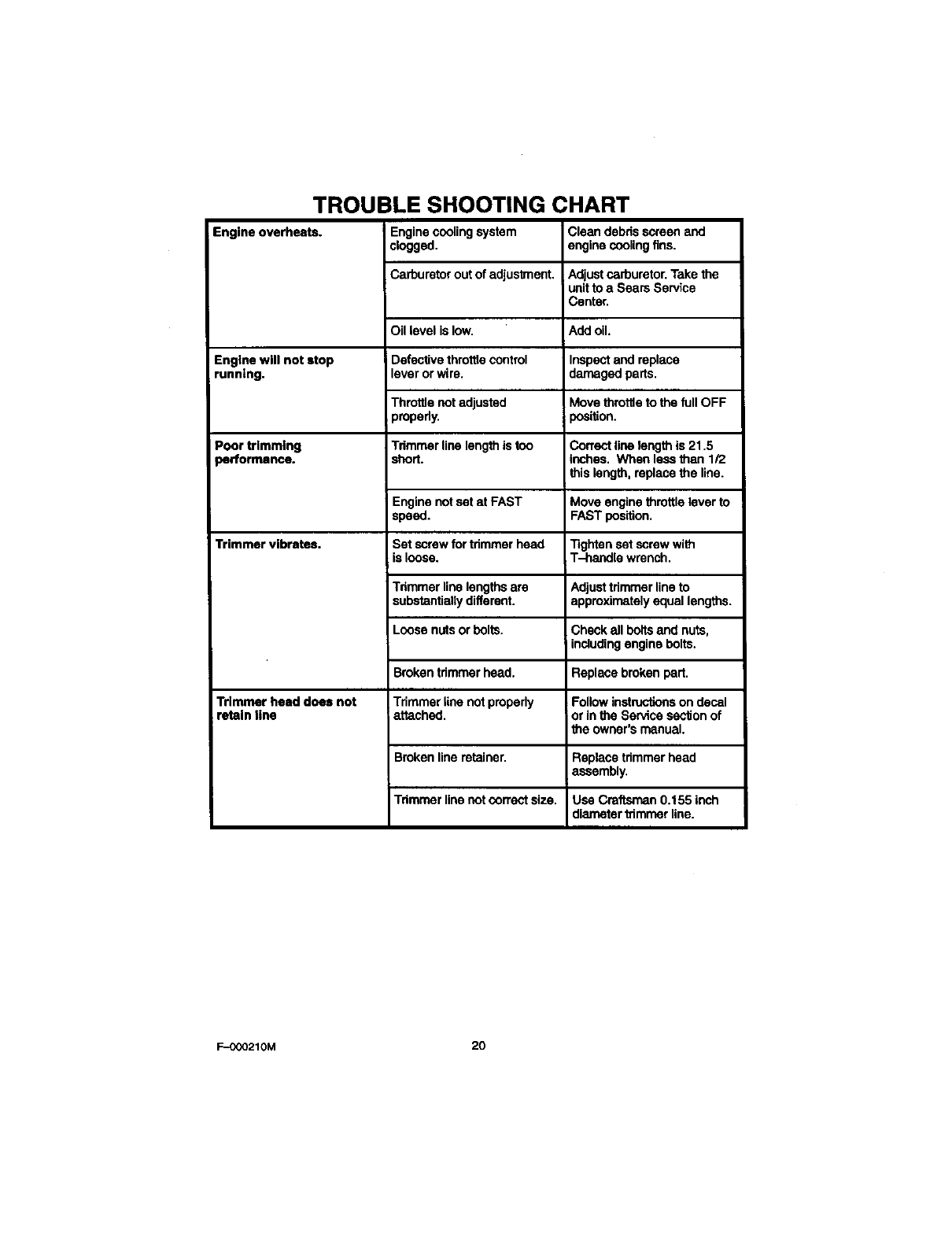

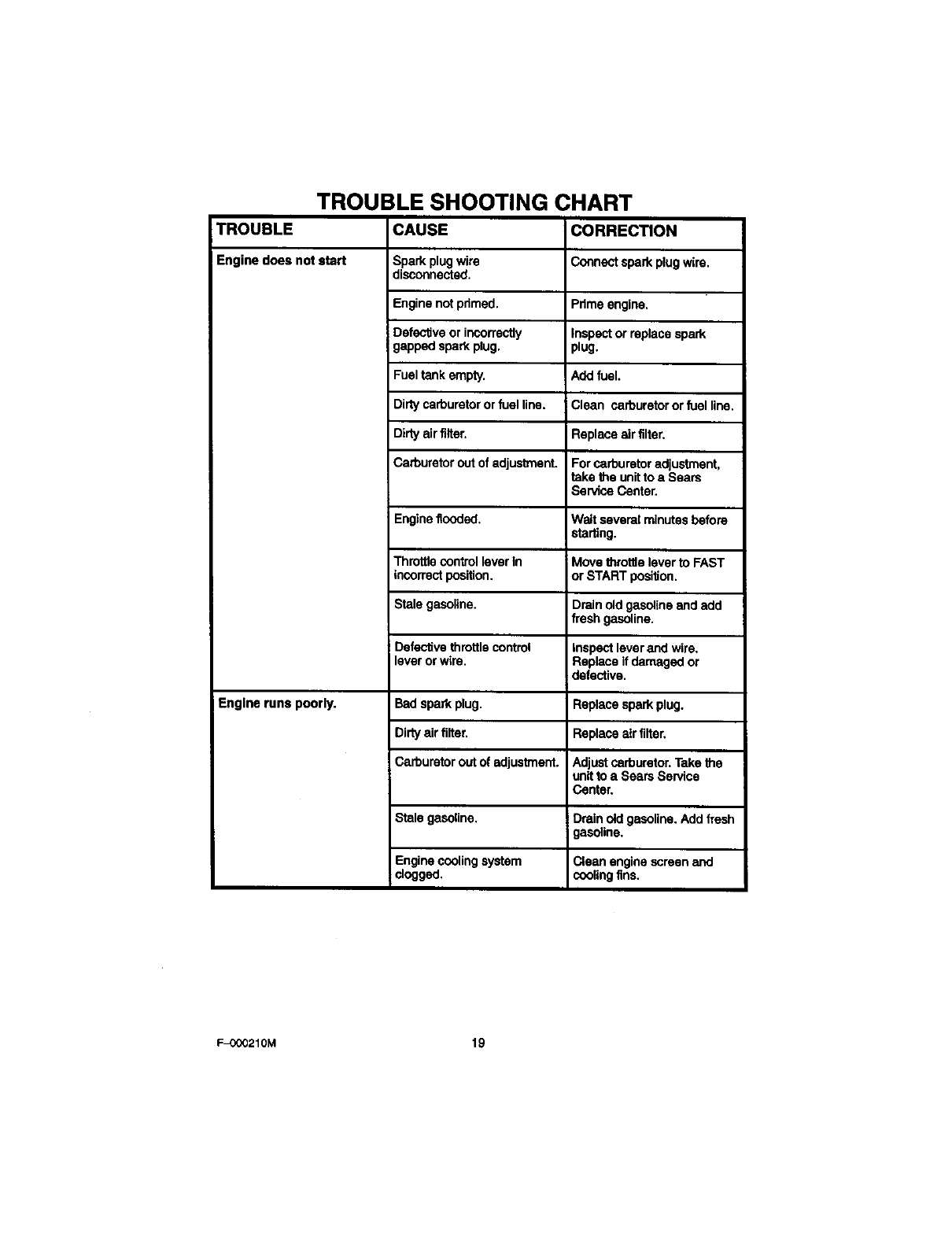

TROUBLE SHOOTING CHART .. 19

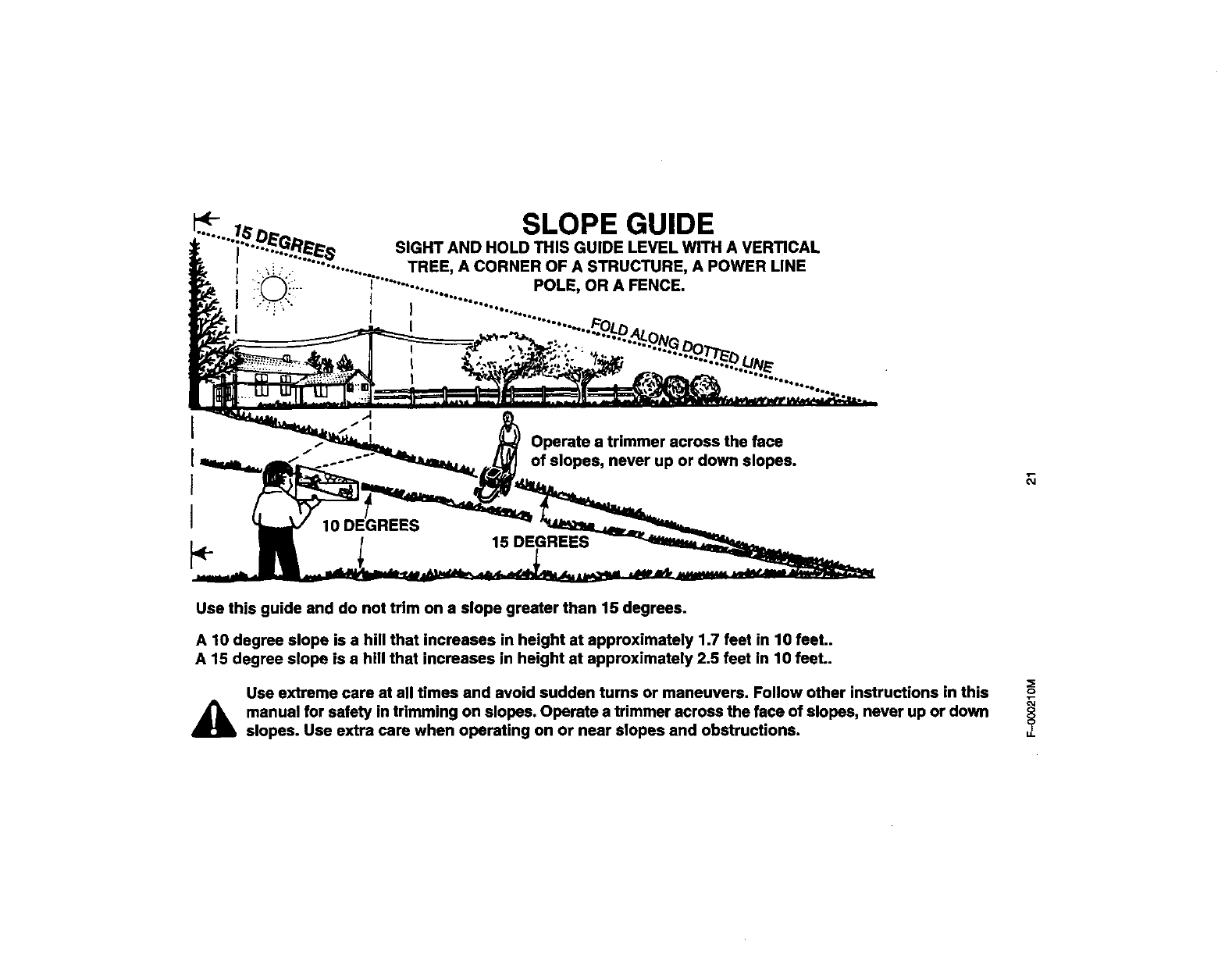

SLOPE GUIDE ................ 21

REPAIR PARTS ............... 22

ENGINE REPAIR PARTS ....... 28

SPANISH (ESPAI_IOL) .......... 34

PARTS ORDERING/SERVICE ..

BACK COVER

WARRANTY STATEMENT

LIMITED TWO-YEAR WARRANTY ON CRAFTSMAN WEEDTRIMMER

For twoyears fromthedateof pumhase,whenthisCraftsrnanWeedtflmmeris maintained,

lubficatab,andtuned up accordingto the opera_ngand maintenanceinstruc_ons in the

owner'smanual,Searswill repair,free of charge,any defect in materialorworkmanship.

Ifthis CraftsmanWsedtrimmeris usedfor commercialor rentalpurposes,this warrantyap-

pliesfor ooly90 daysfromthe dateof pumhase.

This warrantydoes not coverthe following:

•Expendableitemswhichbecomewornduringnormaluse,suchas sparkplugs,etc.

•Repairnecessarybecauseof operatorabuse ornegligence,includingbent crankshafts

andthe failureto maintainthe equipmentaccordingto the instructionscontainedinthe

owner'smanual.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN WEED-

TRIMMER TO THE NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE

UNITED STATES.THIS WARRANTY APPMES ONLYWHILE THIS PRODUCT IS IN USE

IN THE UNITED STATES.

Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrightswhich may

varyfrom stateto state.

Seam, Roebuckand Co., D817WA, HoffmanEstates.IL 60179

IMPORTANT: This unit is equipped with an internal combustion engine and must not be

used on or near any unimproved forest-covered, brush-covered or grass-covered land

unless the engine's exhaust system is equipped with a spark srrester masting

applicable local or state laws (if any). If espark nrrester is used, it must be maintained in

effective working order by the operator.

In the State of California the above Is required by law (Section 4442 of the California

Public Resources Code). Other states may have similar laws. Federal laws apply on fed-

eral lands. See an Authorized Service Center for sspark arrester for the muffler.

F-O00210M 2

A

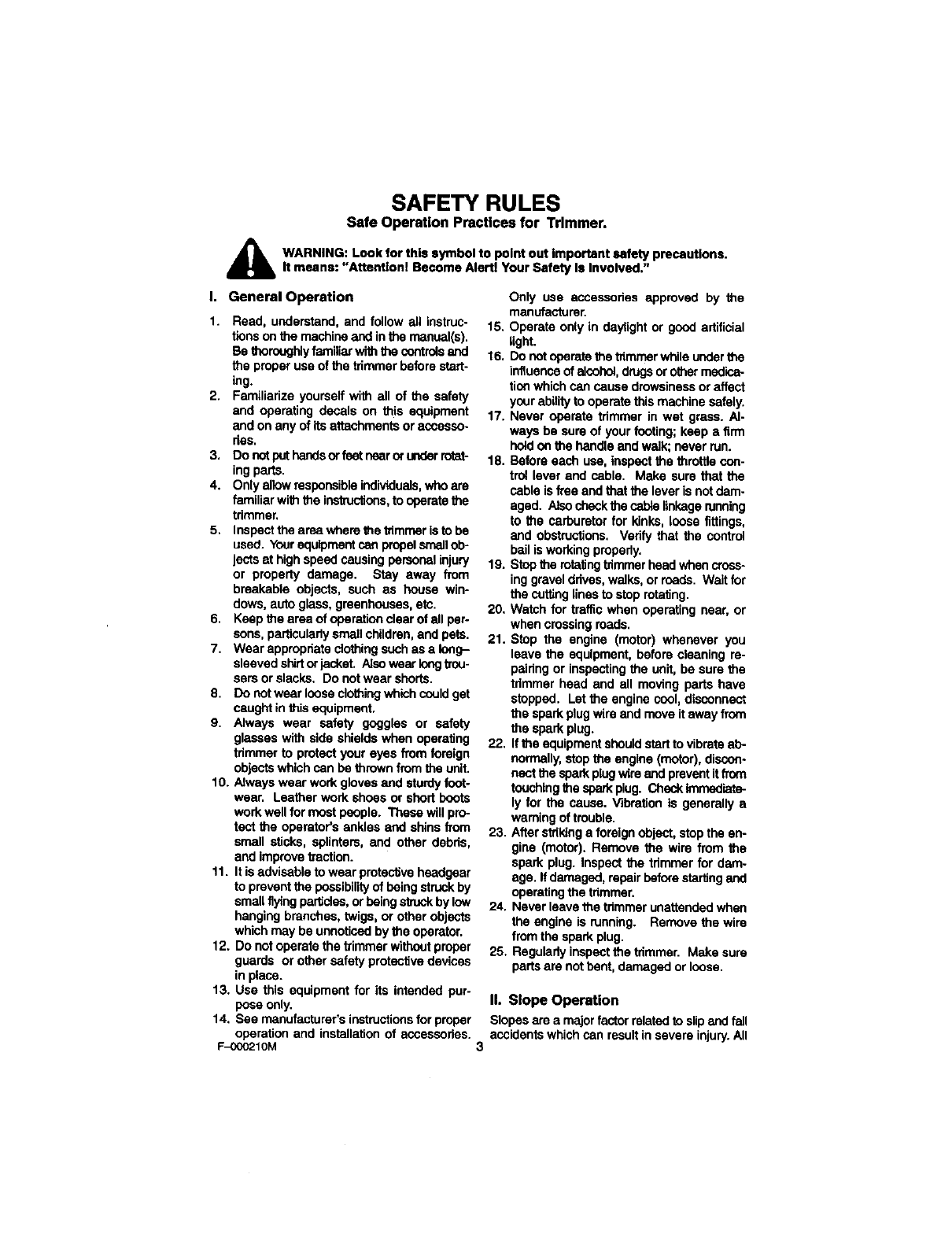

SAFETY RULES

Safe Operation Practices for Trimmer.

WARNING: Look for this symbol to point out important safety precautions.

It means: "AttenItonl Become Alertl Your Safety Is Involved."

I. General Operation

1. Read, understand,and follow all instruc-

tionsonthe machineand inthe manual(s).

Be thoroughlyfamiliarwiththe controlsand

the properuse of the trimmerbeforestart-

ing.

2. Familiarize yourselfwith all of the safety

and operating decals on this equipment

and onany of itsattachmentsor accesso-

ries.

3. Do eotputhandsorfastnearorundsrrotat-

ingparts.

4. Onlyallowresponsibleindividuals,whoare

familiarwiththe instructions,to operatethe

trimmer.

5. Inspectthe area wherethe trimmeris to be

used. Yourequipmentcanpropelsmallob-

jcotsat highspeedcausingpersonal injury

or property damage. Stay away from

breakable objects, such as house win-

dows, auto glass, greenhouses,etc.

6. Keep the area of operationclearof all per-

cons,particularlysmall children,and pets.

7. Wear appropriateclothingsuchas a long-

sleevedsNrtorjacket.AIcowear longtrou-

sereor slacks. Do notwear shorts.

8. Do notwear louseclothingwhich couldget

caughtin this equipment.

9. Always wear safety goggles or safety

glasseswith side shieldswhen operating

trimmerto protectyour eyes from foreign

objectswhichcanbe thrown from the unit.

10. Always wear work glovesand sturdyfont-

wear. Leather work shoes or short boots

workwellfor mostpeople. Thesewillpro-

tect the operator'sankles and shins from

small sticks, splinters,and other debds,

andimprovetraction.

11. It is advisable to wear protectiveheadgear

to preventthe possibilityof beingstruck by

smallflyingparticles,orbeing sf_K:kby low

hangingbranches,twigs, or other objects

whichmay be unnoticedbythe operator.

12. Do notoperatethe trimmerwithoutproper

guards or othersafety protectivedevices

in place.

13. Use this equipment for its intendedpur-

pose only.

14. See manufacturer's instructionsfor proper

operationand installationof accessories.

F_00210M

Only use accessories approved by the

manufacturer.

15. Operate only in daylightor good artificial

light.

16. Do notoperatethe trimmerwhileunderthe

influenceof alcohol,drugsorothermedica-

tionwhich can cause drowsinessor affect

yourabilityto operatethis machine safely.

17. Never operate trimmer in wet grass. Al-

ways be sure of yourfooting;keep a firm

holdon the handleand walk;neverrun.

18. Beforeeach use, inspectthe throtUecon-

trol lever and cable. Make sure that the

cableis free andthat the leveris notdam-

aged. Alsocheckthecablelinkagerunning

to the carburetor for kinks, louse fittings,

and obstructions. Vedfy that the control

bailisworkingproperly.

19. Stopthe rotatingtrimmerhead when cross-

inggraveldrives,walks,or roads. Waitfor

the cuttinglinesto stoprotating.

20, Watchfor trafficwhen operatingnear, or

whencrossingroads.

21. Stop the engine (motor) whenever you

leave the equlpmant,before cleaning re-

pairingor inspectingthe unit,be sure the

trimmerhead and all movingparts have

stopped. Letthe enginecool,disconnect

the sparkplugwireand moveit awayfrom

the sparkplug.

22. Ifthe equipment shouldstarttovibrateab-

normally,stopthe engine(motor),discon-

nect thesparkplugwire and preventitfrom

touchingthe sparkplug. Checkimmediate-

ly for the cause. Vibrationis generallya

wamingoftrouble.

23. After strikinga foreignobject,stopthe en-

gine (motor). Remove the wire from the

spark plug. Inspectthe trimmerfor dam-

age. Ifdamaged,repairbefore sta_ng and

operatingthe trimmer.

24. Neverleavethe trimmerunattendedwhen

the engineis running. Remove the wire

fromthe sparkplug.

25. Regularlyinspectthe trimmer. Makesure

partsare notbent, damagedor louse.

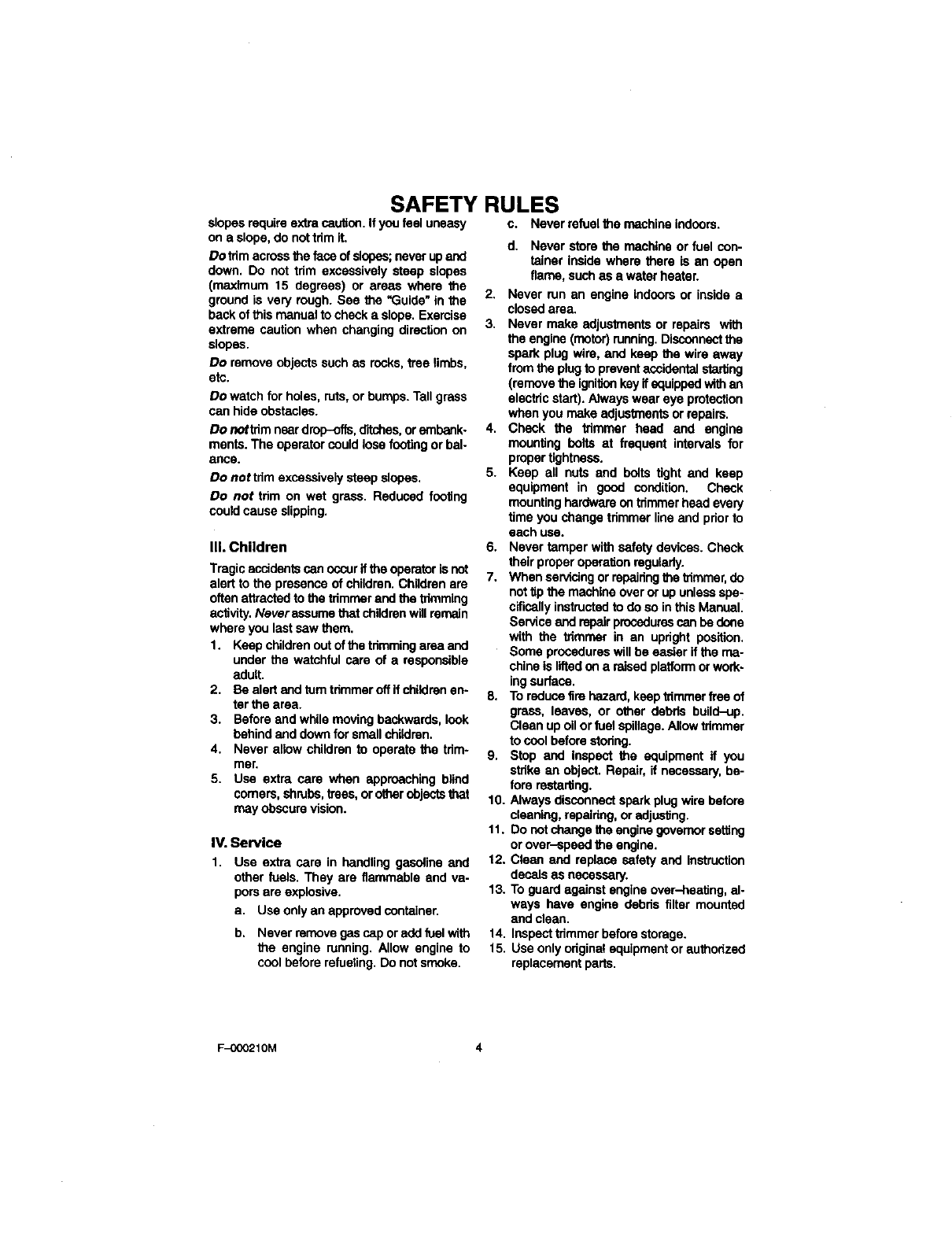

II. Slope Operation

Slopes are amajor factor related to slip and fall

accidents which can result in severe injury. All

SAFETY RULES

slopes require extra canttoe. If you feel uneasy

on a slope, do not trim it.

Dotrim ecmss _ face of slopes; never up and

down. Do not tdm excessively steep slopes

(maximum 15 degrees) or areas where the

ground is very rough. See the "Guide" in the

back of this manual to check aslope. Exemise

extreme caution when changing direction on

slopes.

Do remove objects such as rocks, tree limbs,

etc.

Do watch for holes, ruts, or bumps. Tall grass

can hide obstacles.

Do nottdm near drop-otis, ditches, or embank-

mants. The operator could lose footing or bal-

ance.

Do not tdm excessively steep slopes.

Do not trim on wet grass. Reduced footing

could cause slipping.

III. Children

Tragicaccidentscan occuriftheoperatorisnot

alertto the pmcance of children.Childrenam

oftenattractedto the tdmmerand the trimming

activity.Neverassumethat childrenwillremain

whereyou lastcaw them.

1. Koupchildrenout ofthe tdmmingaree and

under the watchfulcam of a responsible

adult.

2. Be alert and turntrimmeroffif children en-

ter the area.

3. Beforeand whilemovingbackwards,look

behindand downfor smallchildren.

4. Never allowchildrento operatethe trim-

mer.

5. Use extra cam when approachingblind

comers, shrubs,trees,or otherobjectsthat

mayobscurevision.

IV. Service

1. Use extra care in handlinggasolineand

other fuels. They are flammable and va-

porsareexplosive.

a. Use onlyan approvedcontainer.

b. Never removegascap oradd fuelwith

the engine running.Allow engine to

cool beforerefueling.Do not smoke.

c, Never refuel the machine indoors.

d. Never store the machineor fuel con-

tainer insidewhere there is an open

flame, suchasa waterheater.

2. Never run an engine Indeom or insidea

closedarea.

3. Never make adjustmentsor repairs with

the engine(motor)running.Disconnectthe

spark plugwire, and keep the wire away

fromthe plugto preventaccidentalstarting

(removethe ignifionkayifequippedwithan

electdcstart).Alwayswear eye protection

when you makeadjustmentsor repairs.

4. Check the trimmer head and engine

mounting bolts at frequent intervalsfor

propertightness.

5. Keep all nuts and boltstight and keep

equipment in good condition. Check

mountinghardwareontdrnmerheadevery

time you changetrimmerline and pdor to

each use.

6. Never tamper with safetydevices. Check

theirproperoperation regularly.

7. Whenservicingorrepairingthetrimmer,do

nottip the machineoverorup unlessspe-

cificallyinstructedto do so inthisManual.

Serviceandrepairprocedurescanbe done

with the _mmar in an updght position.

Some procedureswillbe easierifthe ma-

chine is liftedon a raisedplatformorwork-

ingsurface.

8. Toreducefire hazard,keeptrimmerfreeof

grass, leaves, or other debris build-up.

Cleanup oilorfuelspillage.Allowtrimmer

to coolbefore storing.

9. Stop and inspect the equipment if you

strikean object. Repair,if necessary,be-

torerestarting.

10. Alwaysdisconnectsparkplugwire before

cleaning,repairing,oradjusting.

11. Do out change theenginegovernorsetting

orover-speed the engine.

12. Clean and replacesafety and instruction

decalsas necessary.

13. Toguardagainst engineover-heating,ai-

ways have engine debris filter mounted

and clean.

14. Inspecttrimmerbeforestorage.

15. Use onlyodginstequipmentorauthorized

replacementparts.

F_X)0210M 4

SAFETY RULES

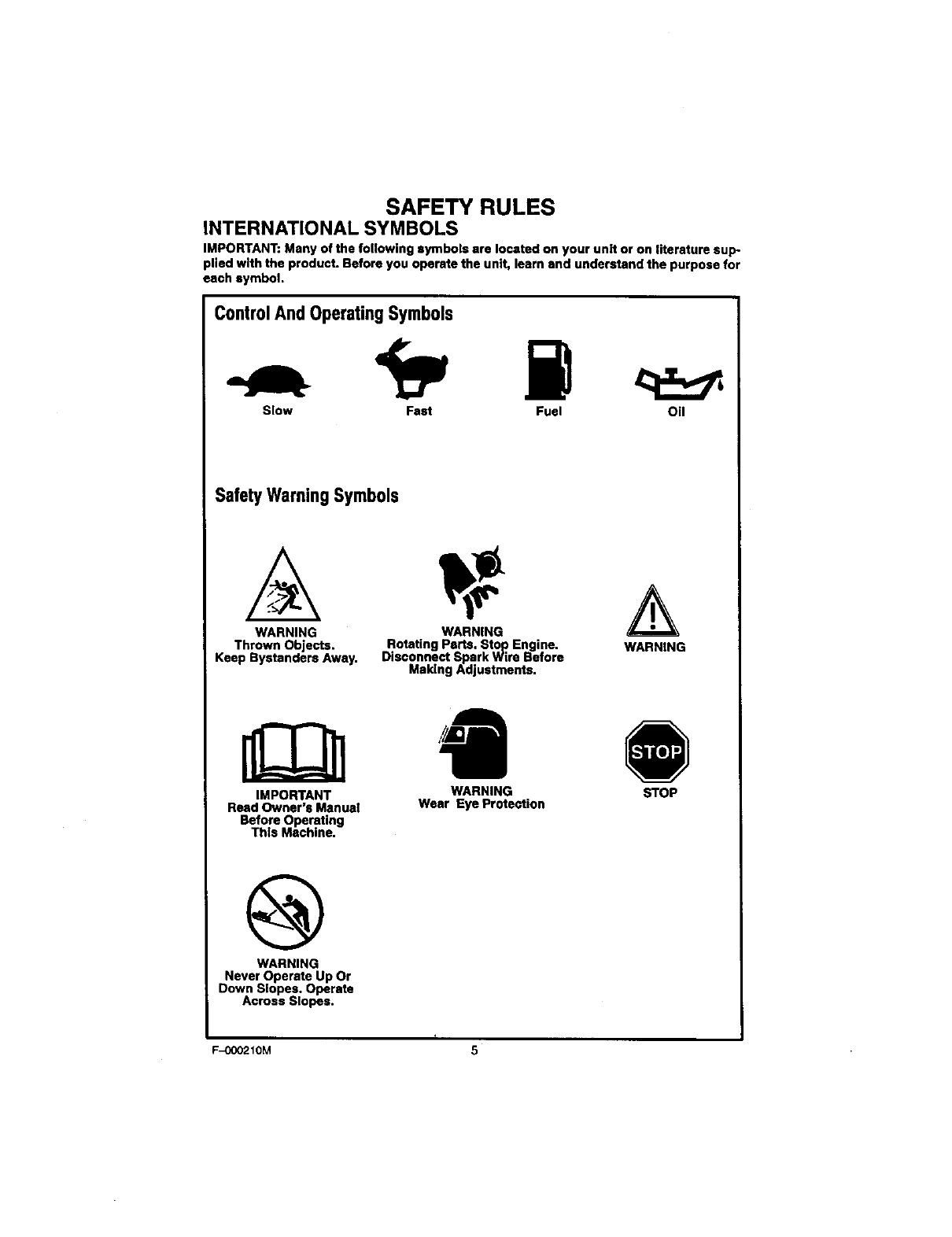

INTERNATIONAL SYMBOLS

IMPORTANT: Many of the following symbols are located on your unit or on literature sup-

plied with the product. Before you operate the unit, learn and understand the purpose for

each symbol.

ControlAndOperatingSymbols

Slow Fast Fuel Oil

SafetyWarningSymbols

WARNING WARNING

Thrown Objects. Rotating Parts. Stop Engine. WARNING

Keep Bystanders Away. Disconnect Spark Wire Before

Making Adjustments.

Q

IMPORTANT

Read Owner's Manual

Before Operating

This Machine.

WARNING STOP

Wear Eye Protection

@

WARNING

Never Operate Up Or

Down Slopes. Operate

Across Slopes.

t

F_O210M 5

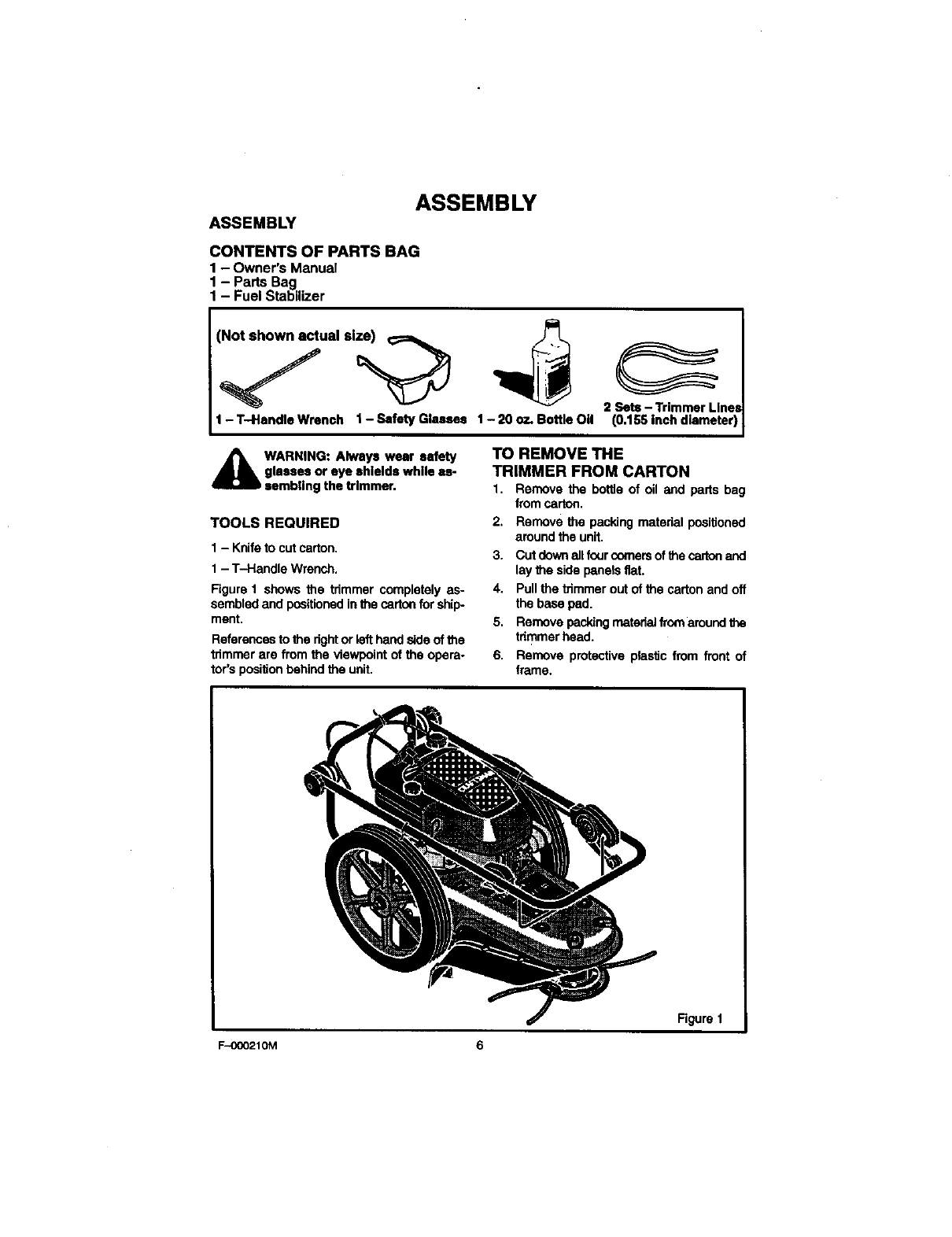

ASSEMBLY

ASSEMBLY

CONTENTS OF PARTS BAG

1 -Owner_ Manual

1 - ParLs Bag

1 - FuelS_bil_er

1- T-Handle Wrench 1 - Safety Glasses 1 - 20 oz. Bottle Oil 2 Sets - Trimmer Llnea

(0.155 inch diameter)

A WARNING: Always wear safety

glasses or eye shields while as-

sembting the trimmer.

TOOLS REQUIRED

1 - Knifeto cutcarton,

1 - T-Handle Wrench,

Figure1 shows the trimmer completelyas-

sembledand positionedinthe carto_forship-

ment.

References to the right or left hand side of the

trimmer are from the viewpoint of the opera-

tor's position behind the unit,

TO REMOVE THE

TRIMMER FROM CARTON

1, Remove the bottleof oil and parts bag

fromcarton,

2. Remove the packingmaterial posilJoned

aroundthe unit,

3. Cut downall fourcomersof thecationand

laythe sidepanels fiat.

4. Pull the trimmerout of the cartonand off

the basepad,

5. Remove packingmatedalfromaroundthe

tdmmerhead.

6, Remove protectiveplasticfrom frontof

frame.

Figure1

F-000210M 6

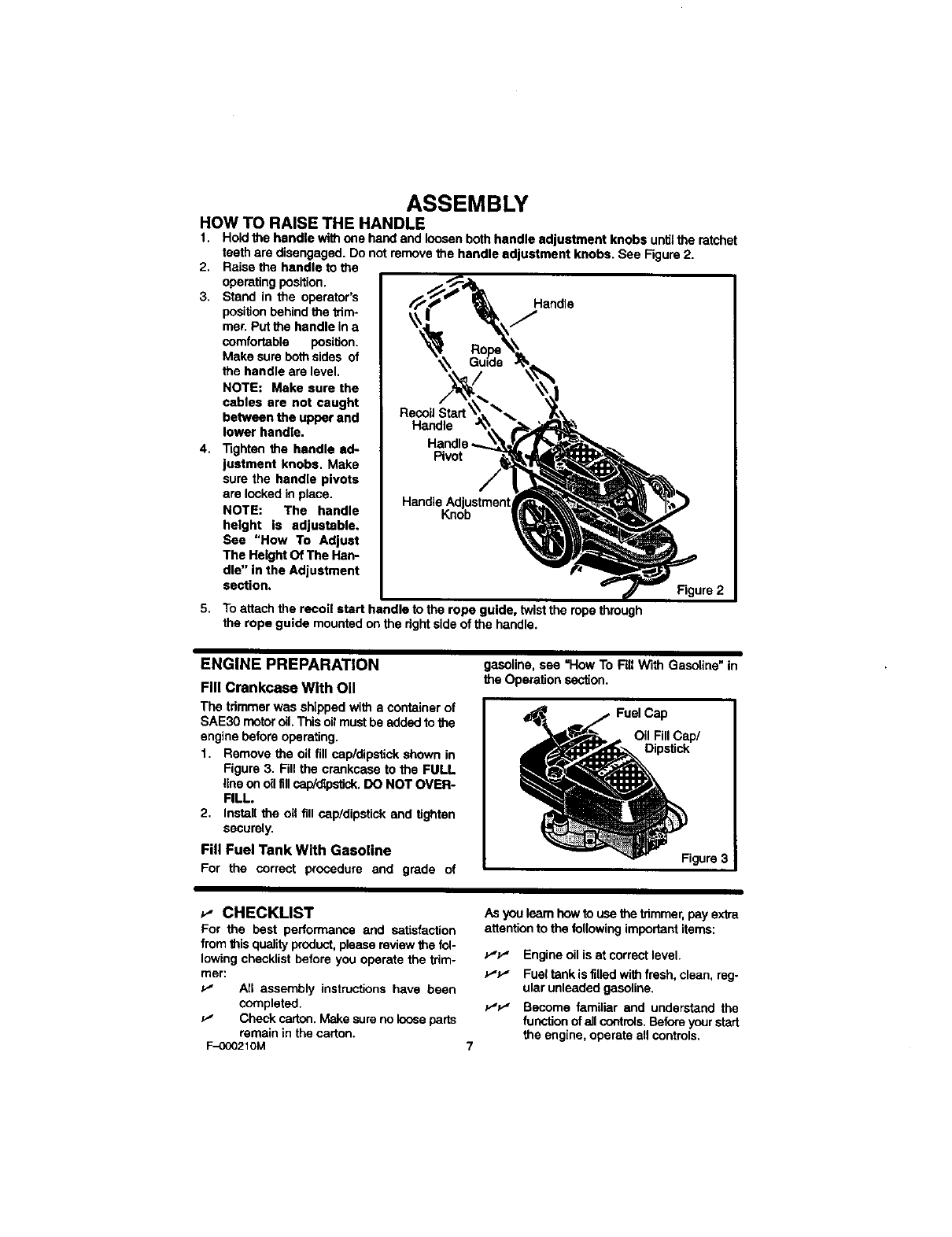

ASSEMBLY

HOW TO RAISE THE HANDLE

f. Hold the handle with one hand and loosen both handle adjustment knobs unUlthe ratchet

teeth are disengaged. Do not remove the handle adjustment knobs. See Figure 2.

2. Raise the handle to the

operating position.

3. Stand in the operator's Handle

position behind the trim-

mer. Put the handle in a

comfortable position.

Make sure both sides of

the handle are level.

NOTE: Make sure the

cables ere not caught

between the upper and

lower handle.

4. Tighten the handle ad-

justment knobs. Make

sure the handle pivots

are locked in place.

NOTE: The handle

height is adjustable.

See "How To Adjust

The Height Of The Han-

dle" in the Adjustment

section.

5. To attach the recoil start handle to the rope guide, twist the rope through

the rope guide mounted on the right side of the handle.

ENGINE PREPARATION

Fill Crankcase With OII

The trimmerwas shippedwith a containerof

SAE30 motor oil.Thisoilmustbe added tothe

enginebeforeoperating.

1. Removethe oil fillcap/dipstickshown in

Figure3. Fill the crankcaseto the FULL

lineon oil fillcap/dipsUck.DO NOTOVER-

FILL.

2. Installthe oil fill cap/dipstickand tighten

securely.

Fill Fuel Tank With Gasoline

For the correct procedure and grade of

gasoline,see =How To Fill With Gasoline"in

the Operationsection.

Figure

_" CHECKLIST

For the best performance and satisfaction

from this quality product, please review the fol-

lowing checklist before you operate the trim-

mer:

_" All assembly instructions have been

completed.

Check carton. Make sure no loose parts

remain in the carton.

F-OO0210M 7

As you learn how to use the tdmmer, pay extra

attention to the following important items:

v'P" Engine oil is at correct level.

v'P" Fuel tank is filled with fresh, clean, reg-

ular unleaded gasoline.

P"P_ Become familiar and understand the

function of all controls. Before your start

the engine, operate all controls.

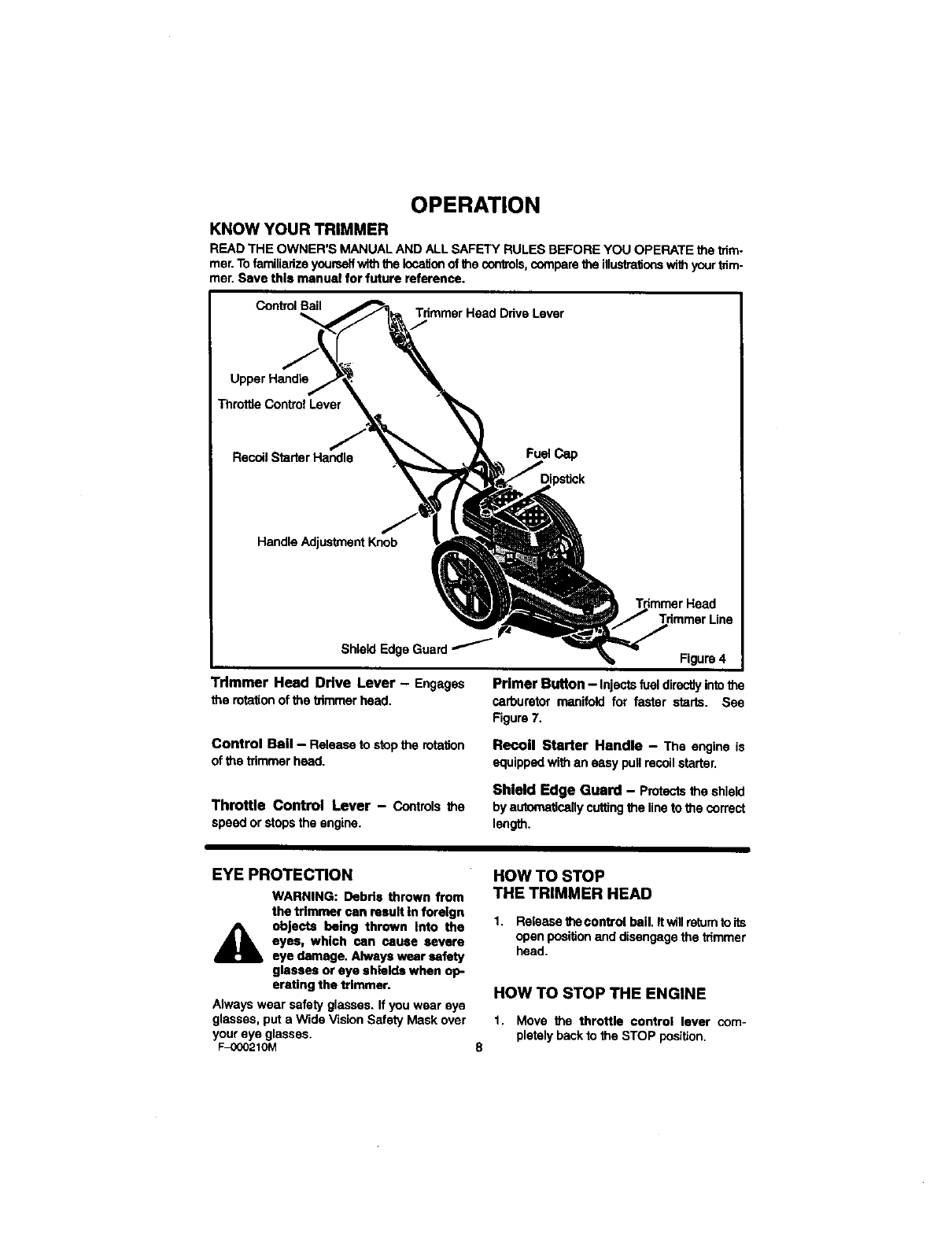

OPERATION

KNOW YOUR TRIMMER

READ THE OWNER'S MANUAL AND ALL SAFETY RULES BEFORE YOU OPERATE the tdm-

mer. To famiUadze yourself with the location of the controls,compare the illustrations with your trim-

mer. Save this manual for future reference.

Control Bail Tdmmer Head Ddve Lever

Upper Handle

Throltle Control Lever

RecoilStarterHandle Fuel Cap

Handle Adjustment Knob

ShieldEdge Guard

Trimmer Head Drive Lever - Engages

the rotationof the tdmmerhead,

Control Bell - Release to stopthe rotation

of the trimmerhead.

Throttle Control Lever - Controlsthe

speedor stopsthe engine.

Figure4

Palmer Button - Injectsfueldirectlyintothe

carburetormanifold for faster starts. See

Figure7.

Recoil Starter Handle - The engine is

equippedwithan easy pullrecoilstarter.

Shield Edge Guard - Protectsthe shield

byautomaticallycuttingthe line tothe correct

leng_.

EYE PROTECTION

WARNING: Debris thrown from

the trimmer can result In foreign

A objects being thrown Into the

eyes, which can cause severe

eye damage. Always wear safety

glasses or eye shields when op-

eretlng the trimmer.

Always wear safety glasses. If you wear eye

glasses, put a Wide Vision Safety Mask over

your eye glasses.

F-000210M

HOW TO STOP

THE TRIMMER HEAD

1. Release the control bail. It willreturn to its

open position and disengage the thmmer

head.

8

HOW TO STOP THE ENGINE

1. Move the throttle control lever com-

pletely back to the STOP position.

OPERATION

HOW TO USE THE

TRIMMER HEAD DRIVE LEVER

1. Toengagethetdrnmerhead,holdthecon-

trol bail againstthe handle. Move the

trimmer head drive lever forwardto en-

gage thetrimmerhead. Sea Figure5. The

fasterthe engineruns,the fasterthe tdm-

mer headwillrotate,

2. Once the tdmmerhead is rotating,push

the tdmmerforwardto tdm.

HOW TO USE THE

THROTTLE CONTROL

1. Duringnormal use, set the throttle con-

trol lever inthe FAST positionto run the

engineat fullspeed.

2. Pullthethrottle control lever backto de-

crease engine speed. Push the throttle

control lever forwardto increaseengine

speed.

3. To stop the engine, pull the throttle con-

trol lever completely back to the STOP

position.

ThrottleControl

Lever

Figure6

HOW TO USE

THE PRIMER BUTTON

1. Push the primer button five times. See

Figure7 for location.Wait approximately

twosecondsbetweeneachpush.

NOTE: DO not use the primer button to re-

start awarm engine after a short shutdown.

F-OOO210M 9

OPERATION

BEFORE STARTING THE ENGINE

Oil Recommendation

Only use highqualitydetergentoil rated with

API serviceclassificationSG, Selectthe oil's

SAE viscositygrade according to your ex-

pectedoperatingtemperature:

32°F I

Colder _,-_ m.--, Dmm_ Warmer

<<........... ->>

I I

NOTE: Although multi-vlscastty oils

(5W30, lOW30, etc.) Improve starting In

cold weather, these multi-viscosity oils

will result in Increased oil consumption

when used above 32°F. To avoid possible

engine damage from running low on oil,

frequently check your engine oil level.

Check The Engine Oil

Before each use, check the engine oil as

follows:

1. Putthe trimmerona levelsurface.

2. Remove the oil fill cap/dipstickshownin

Figure8.

3. Make surethe oilreachesthe FULL mark

onthe oiltillcap/dipstick.

4. If necessary,add oil untilthe FULL mark

on the oilfill cap/dipstick is reached. DO

NOT OVERFILL. See "Oi!Recommenda-

tion"for the gradeandtype of oilto use.

How To Fill With Gasoline

NOTICE: ENGINES WHICH ARE CERTI-

FIED TO COMPLY WITH CALIFORNIA AND

US EPA EMISSION REGULATIONS FOR

ULGE ENGINES: Are certified to operate on

regular unleaded gasoline. Include the follow-

ing emission control system(s): EM, TWC (if

so equipped). Include any user adjustable

features-therefore no other adjustments are

needed.

WARNING: Never fig the gas tank

whlle the engine Is running or

hot. Allow the engine to cool

before adding gasoline. Immedl-

atsty wipe off any spilled gaso-

line before you start the engine.

WARNING: Gasoline Is flam-

mable. Use caution when han-

dling or storing gasoline. Keep

away from an open flame or an

electrical spark. Do not smoke

while filling the fuel tank. Store

gasoline In a clean, approved

container In a cool well ventilated

place; never In the house.

Fillthefuel tank witha fresh,clean, unleaded

regular,unleaded premium,or reformulated

automotive gasoline only. DO NOT use

leaded gasoline. Be sure that the gasoline

containeris clean and free from dustor other

foreign particles.Never use gasolinethat is

stalefrom long periodsof storage, Reinstall

fuelcap.

CAUTION: Alcohol blended fuels (called

gasohol or using methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an en-

glna while In storage. To avoid engine

problems, empty the fuel system before

storage of 30 days or longer. Drain the fuel

tank. Start the engine and let It run until the

fuel lines end carburetor are empty. Never

use engine or carburetor cleaner products

In the fuel tank or permanent damage may

occur. See "Storage Instructions" for addi-

tional Information.

F-000210M 10

OPERATION

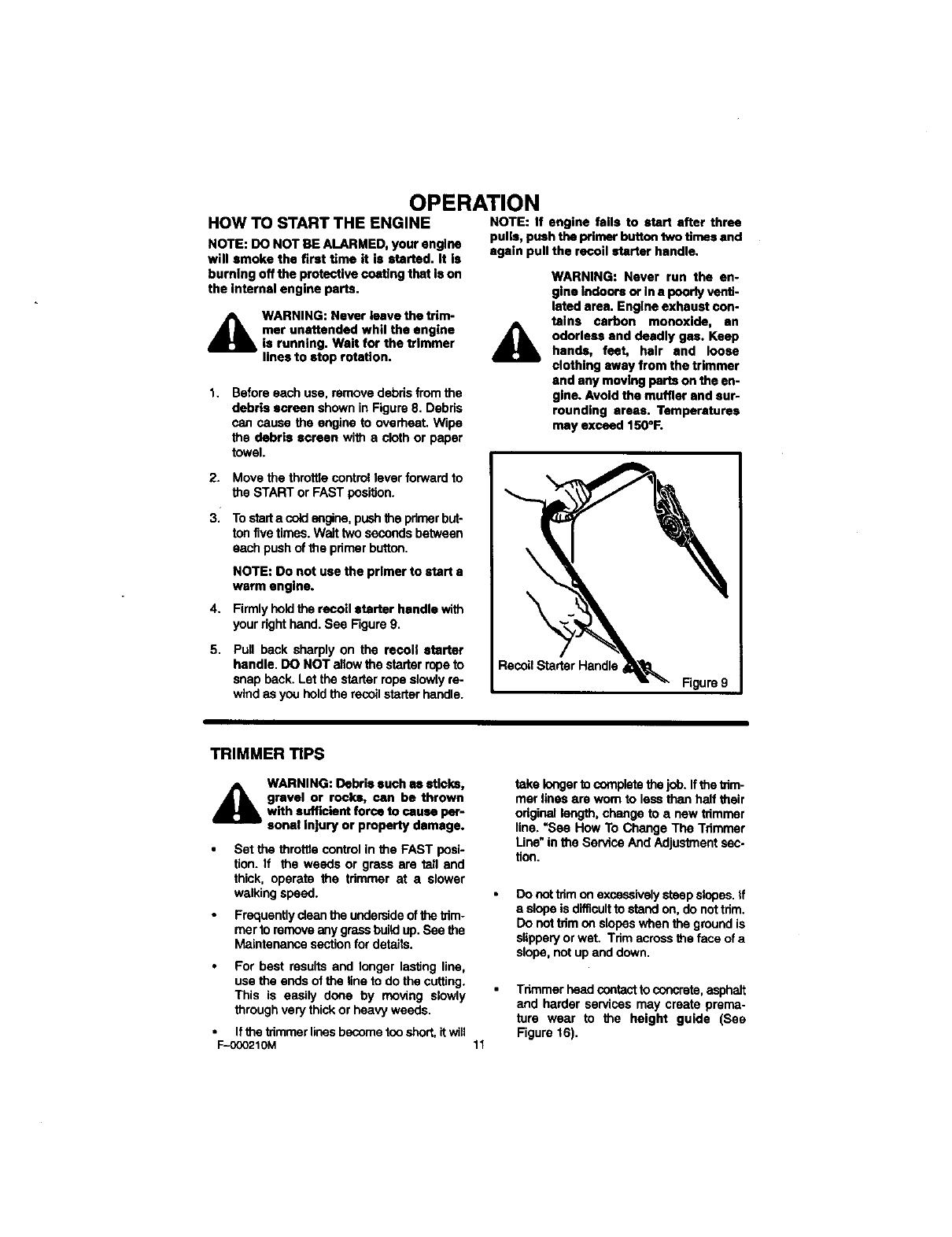

HOW TO START THE ENGINE NOTE: If engine fails to start after three

NOTE: DO NOT BE ALARMED,your engine

will smoke the first time it is started. It is

burning off the protectivecoatingthat Is on

the internal engine parts.

pulls, push the primer button two times and

again pull the recoil starter handle.

_lb WARNING: Never leave the trim-

mer unattended whil the engine

is running. Wait for the trimmer

Ithee to step rotation.

t. Before each use, remove debris from the

debris screen shown in Figure 8. Debris

can cause the engine to overheat. Wipe

the debris screen with a cloth or paper

towel.

WARNING: Never run the en-

gine Indoors or in a poorty verdi-

latad area. Engine exhaust con-

talns carbon menexide, an

odorless and deadly gas. Keep

hands, feet, hair and loose

clothing away from the trimmer

and any moving parts on the an-

gins. Avoid the muffler and sur-

rounding areas. Temperatures

may exceed 150o1:.

2. Move the throttlecontndlever forwardto

theSTART orFASTposition.

3, Tostarta coldengine,pushthe primerbut-

tonfivetimes.Waittwosecondsbetween

each pushofthe primerbutton.

NOTE: Do not usethe primer to start •

warm engine.

4. Firmlyholdthe recoil starter handle with

yourrighthand. See Figure9.

5. Pull back sharply on the recoil starter

handle. DO NOT allowthe starterropeto

snap back.Let the starterropeslowlyre-

wind asyouholdthe recoilstarterhandle.

Recoil Starter Handle

Figure9

TRIMMER TIPS

d_llb WARNING: Debris such as sticks,

gravel or rocks, can be thrown

with sufficient force to cause per-

sonal Injury or property damage.

Set the throitte controlin the FAST posi-

tion. If the weeds er grass are tall and

thick, operate the tdmmer at a slower

walkingspeed.

Frequentlydean the undersideofthetrim-

merto removeany grassbuildup.See the

Maintenancesectionfordetails.

For best results and longer lasUng line,

use the ends of the line to do the cutting.

This is easily done by moving slowly

through very thick or heavy weeds.

• If the trimmer li.es become ton short, it will

F-O(_210M

take longerto completethe job.If thetrim-

mer linesare wom to lass than half their

originallength,changeto a new trimmer

line. "See How To Change The Trimmer

Line"in the ServiceAnd Adjustmentsec-

tion.

Do not trim on excessively steep slopes. If

a slope is difficultto stand on, do not trim.

Do not trim on slopes when the ground is

slippery or wet. Trim across the face of a

slope, not up and down.

11

Tdmmer headcontacttoconcrete,asphalt

and harder servicesmay create prema-

ture wear to the height guide (See

Figure16).

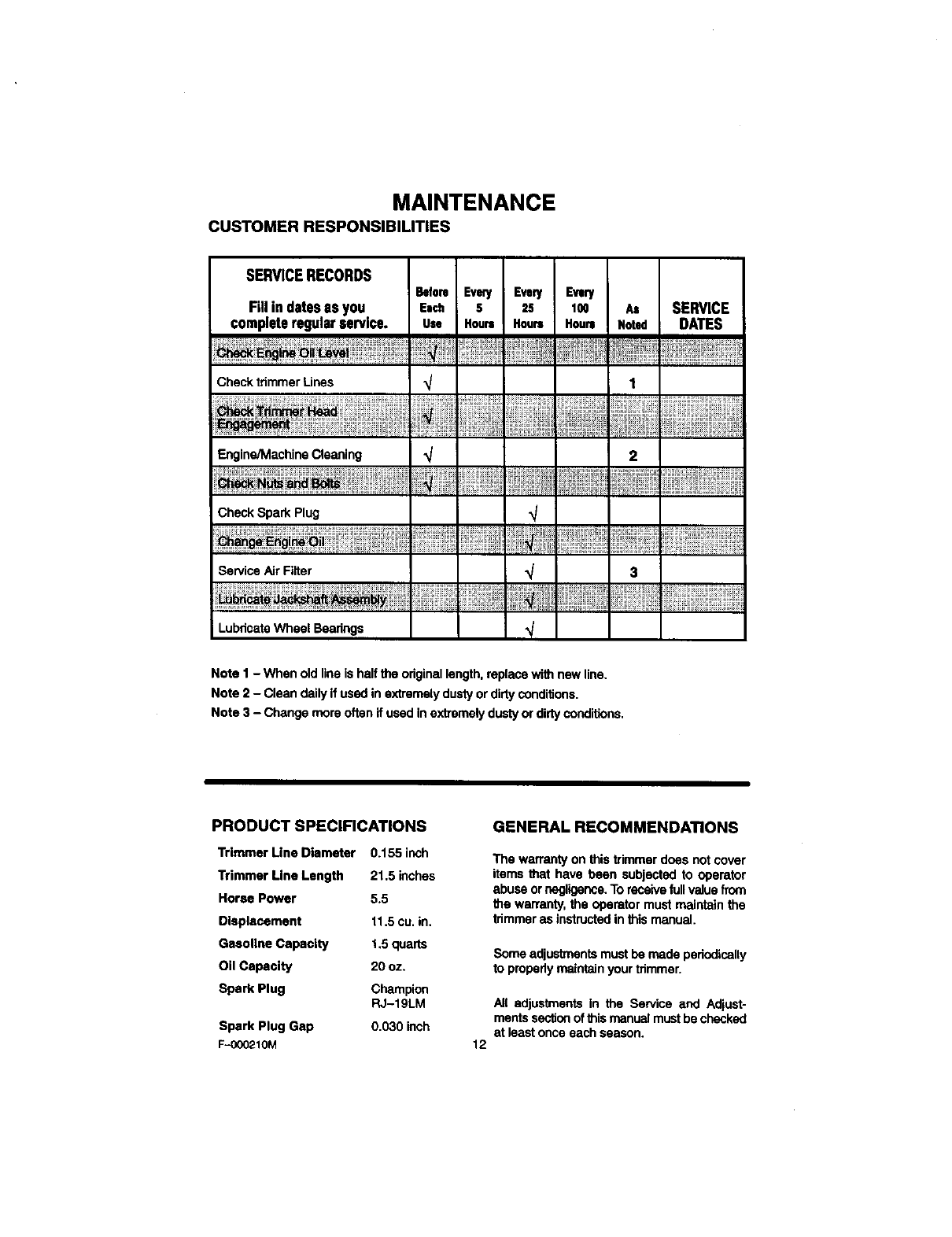

MAINTENANCE

CUSTOMER RESPONSIBILITIES

SERVICERECORDS

Before Every Every

Fill in dates as you Each 5 2s

complete regular service, use Hours Hours

ChecktrimmerLines

Engine/MachineCleaning

Every

lOO As SERVICE

Hours Noted DATES

1

2

CheckSpark Plug

ServiceAir Filter

LubdcateWheel Beadngs

3

Note I - Whenold lineis halfthe originallength,replacewithnewline.

Note 2 - Clean dailyif usedin extremelydustyordirtyconditions.

Note 3 - Change mereoften ifusedin extremelydustyordirtyconditions.

PRODUCT SPECIFICATIONS

TrimmerLineDiameter 0.155inch

Trimmer Line Length 21,5 inches

Horse Power 5.5

Displacement 11.5 cu. in.

Gasoline Capacity 1,5 quarts

Oil Capacity 20 oz.

Spark Plug Champion

RJ-19LM

Spark Plug Gap 0.030 inch

F-000210M

GENERAL RECOMMENDATIONS

The warrantyon this trimmerdoes not cover

itemsthat have been subjected to opera_)r

abuseornegligence.Toreceivefullvaluefrom

the warranty,the operatormust maintainthe

trimmeras instructedinthis manual.

Some adjustments must be made periodically

to properly maintain your trimmer.

All adjustmentsin the Service and Adjust-

mentssec_onofthis manualmustbechecked

at leastonce eachseason.

12

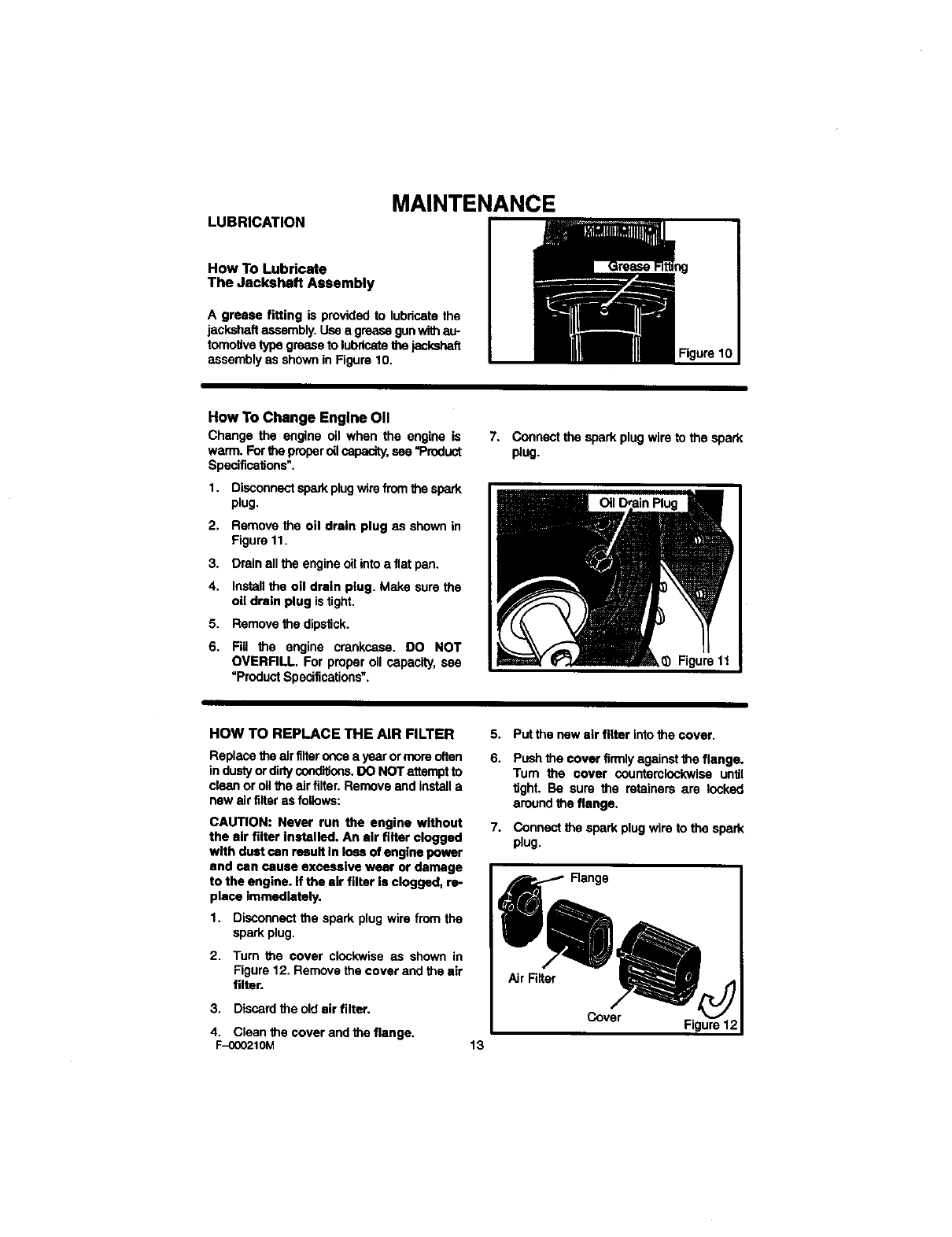

LUBRICATION MAINTENANCE

How To Lubricate

The Jackshaft Assembly

A grease fitting is provided to lubricate the

jeckshafl assembly, Use e grease gun with au-

tomotive type grease to lubricate the jaskshaft

assembly as shown in Figure 10.

How To Change Engine OII

Change the engine oil when the engine is

warm.Fortheproperoilcapacity,see "Product

Specifications".

1. Disconnectsparkplugwirefromthe spark

plug.

2. Removethe oil drain plug as shownin

Figure11.

3, Drain all the engine oil into a fiat pan.

4. Install the oll drain plug. Make sure the

oil drain plug is tight.

5. Remove the dipstick.

6. Fill the engine crankcase. DO NOT

OVERFILL. For properoil capacity,see

=ProductSpecifications".

7. Connectthe sparkplugwiretothespark

plug.

HOW TO REPLACE THE AIR FILTER

Replacethe airfilteroncea yearormore often

in dustyordirtyco_rlJcos.DO NOT attemptto

clean or oilthe air filter.Removeand installa

new air filteras follows:

CAUTION: Never run the engine without

the air filter Installed. An air filter clogged

with dust can result In loss of engine power

and can cause excessive wear or damage

to the engine. If the air filter Is clogged, re-

place Immediately.

1. Disconnectthe spark plugwire from the

sparkplug.

2. Turn the cover clockwise as shown in

Figure 12, Remove the cover and the air

filter.

3. Discard the old air filter.

5. Put the new air filter into the cover.

6. Pushthe cover firmlyagainst the flange.

Turn the cover counterclockwiseuntil

tight. Be sure the retainers are locked

aroundthe flange.

7. Connect the sparkplugwireto the spark

plug.

Air Filter

4. Clean the cover and the flange.

F_210M 13

MAINTENANCE

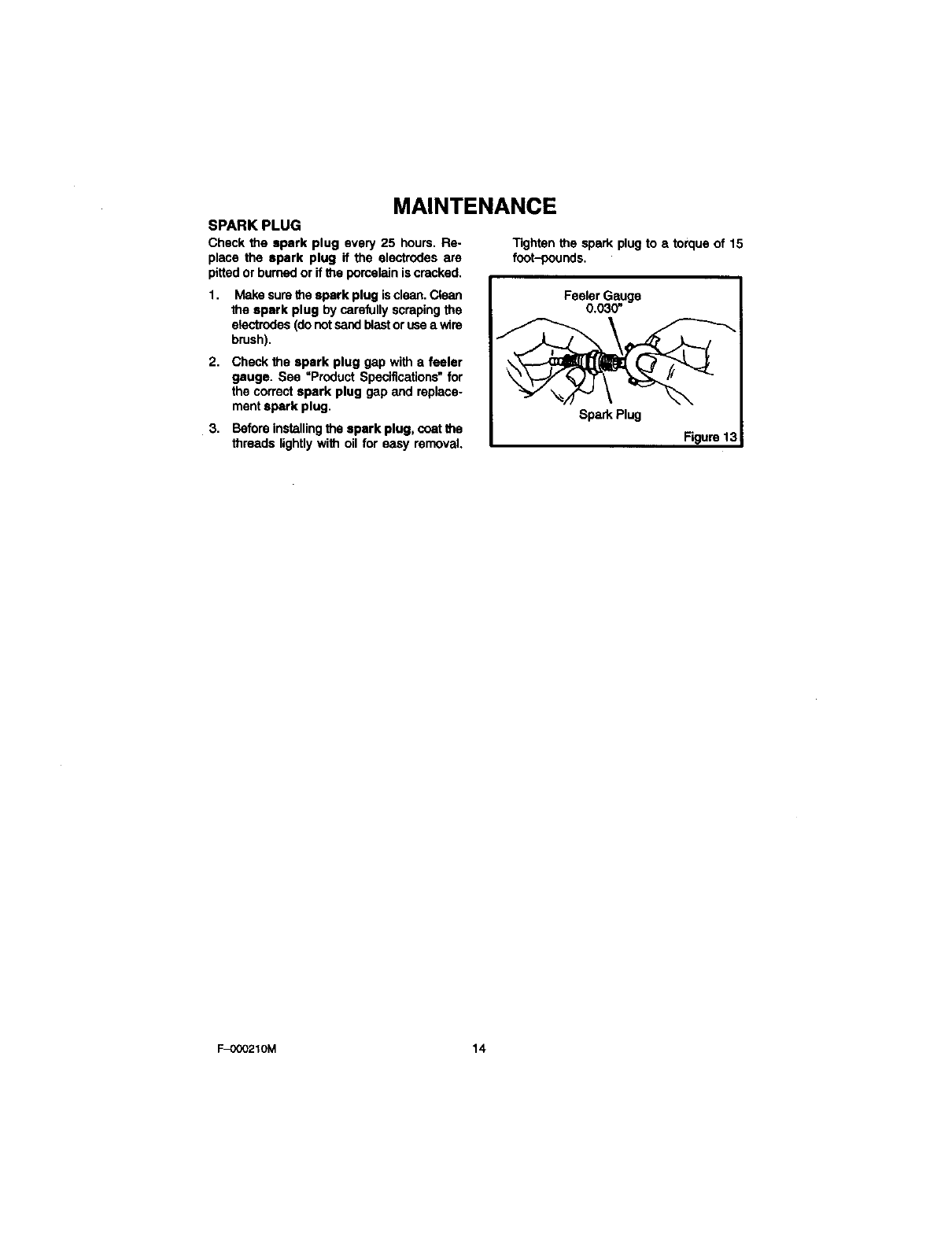

SPARK PLUG

Check the spark plug every 25 hours. Re- Tighten the spark plug to etorque of 15

place the spark plug if the electrodes are foof-pounds.

pitted or burned or if the porcelain is cracked,

1. Make sure the spark plug is clean. Clean

the spark plug by carefully scraping the

electrodes (do not sand blast or use a wire

brush).

2. Check the spark plug gap with a feeler

gauge. See "Product Specifications" for

the correct spark plug gap and replace-

ment spark plug.

3. Beforeinstallingthe spark plug, coatthe

threads lightlywithoil for easy removal.

Feeler Gauge

0.030"

Spark Plug

F_um 1

F_)00210M 14

SERVICE AND ADJUSTMENT

SERVICE AND ADJUSTMENT

_lb WARNING: Before you inspect, clean or service the trimmer, stop the engine.

Make sure that ell moving parts have stopped. Disconnect the wire from the

spark plug.

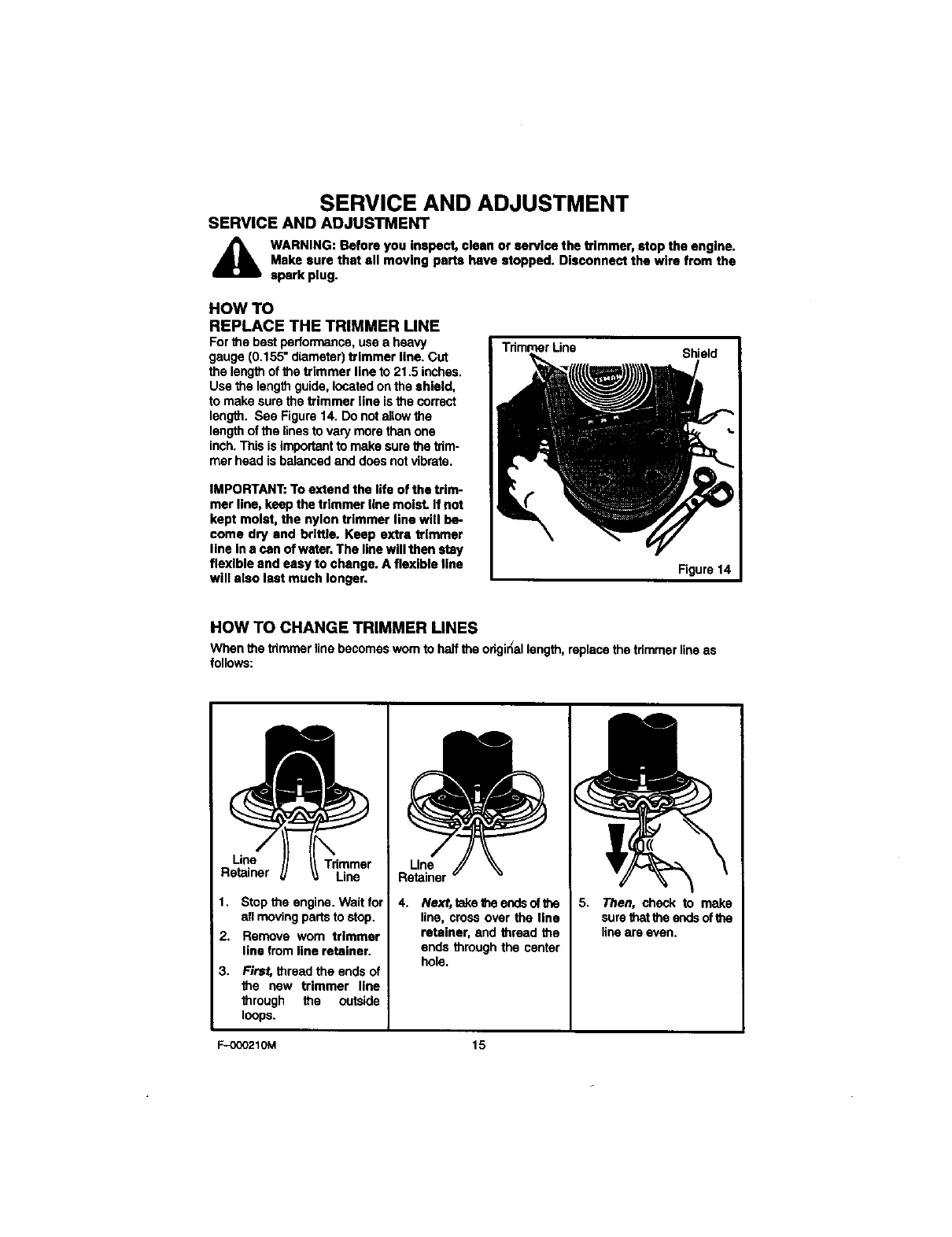

HOW TO

REPLACE THE TRIMMER LINE

Forthe best performance,use a heavy

gauge (0.155" diameter)trimmer line. Cut

the lengthof the trimmer line to 21.5 inches.

Use the lengthguide,locatedon the shield,

to makesurethe trimmer line is the correct

length. See Figure14. Do notallowthe

lengthofthe linesto vary morethan one

inch.Thisis importantto make sure the trim-

mer head is balancedanddoes not vibrate.

IMPORTANT:To extend the life of the trim-

mer line, keep thetrimmer line moist. Ifnot

kept moist, the nylon trimmer line will be-

come dry end brittle. Keep extra trimmer

line in a can of water.The line willthen stay

flexible and easyto change. A flexible line

will also lest much longer.

TrimmerUne Shield

HOW TO CHANGE TRIMMER LINES

Whenthe trimmerlinebecomes wornto half the odgir_allength,replacethetrimmerlineas

follows:

Line Trimmer

Retainer Line

1. Stopthe engine.Wait for

all movingpartsto stop.

2. Remove worn trlmmor

linefrom line retainer.

3. First thread the ends of

the new trimmer line

through the outside

loops.

Retainer

4. Naxt, ta_etheendsofthe

line, cross over the line

retainer, and thread the

ends through the center

hole.

5. Then, check to make

sum that the ends of the

line are even.

F-O00210M 15

SERVICE AND ADJUSTMENT

HOW TO ADJUST

THE HEIGHT OF THE HANDLE

Use the knobs, on each side of the handle, to

adjust the height of the handle.

1. Hold the handle with one hand and loosen

both knobs untilthe ratchet teeth are dis-

engaged. Do not remove the knobs. See

Figure 15.

2. Move the handle up or downto the de-

sired position, then align the ratchet

teeth. Makesureboth sidesofthe handle

are level.

3. _ghtentheknobs.

HOW TO SET THE HEIGHT OF CUT

CAUTION: Before you sst the

height of cut: stop the engine.

Walt for all moving parts to stop.

Allow the engine to cool and dis-

connect the spark plug wire.

The height of cut can be set from 1-1/2 inches

to 3 inches. Recommended cutting height for

the average yard is 2".

1. Use the T--wrench, found in the parts hag,

to loosen the set screw shown in

Figure 16.

2. Set the trimmer heed at the desired

height.

3. _ghten the set screw.

Height Of

Trimmer

Set Screw Head

T-Wrench

Height Guide

Figure 16

F-0(X)210M 16

SERVICE AND ADJUSTMENT

HOW TO

REPLACE THE DRIVE BELT

To replace the ddve belt, the trimmer head

and shield must be removed as follows.

A WARNING: Before you remove

the drive belt, disconnect the wire

from the spark plug.

1. Remove the two fasteners that hold the

rear of the shield to the trimmer housing

(See Figure 17).

2. Remove the four fasteners that hold the

front of the shield and trimmer head to

the trimmer housing.

3. Remove the %P pulley from the idler

bracket.

4. Raise the front of the trimmer housing

and remove the drive belt. On some mod-

els, it is necessary to loosen the mount-

ing belt for the drive pulley to remove the

drive belt (see Figure 18). Do not bend the

belt guides,

NOTE: Makesure you replacethe drive

belt only with a replacement belt from

the factory.

5. To assemble the drive belt, reverse the

above steps. Make sure all fasteners are

tight. Make sure the mounting belt for the

drive pulley is light.

6. Check the routing of the drive bell Make

sure the drive belt is inside of all belt

gulden shown in Rgure 18.

IMPORTANT: Test the drive system. Start

the engine and move the throttle control to

the FAST position. Engage and disengage

the trimmer head several times. When dis-

engaged, make sure the trimmer head com-

pletely stops when rseUng on the ground. If

the trimmer head continues to rotate, take

the trimmer to the nearest Sears Service

Center.

F-000210M 17

SERVICE AND ADJUSTMENT

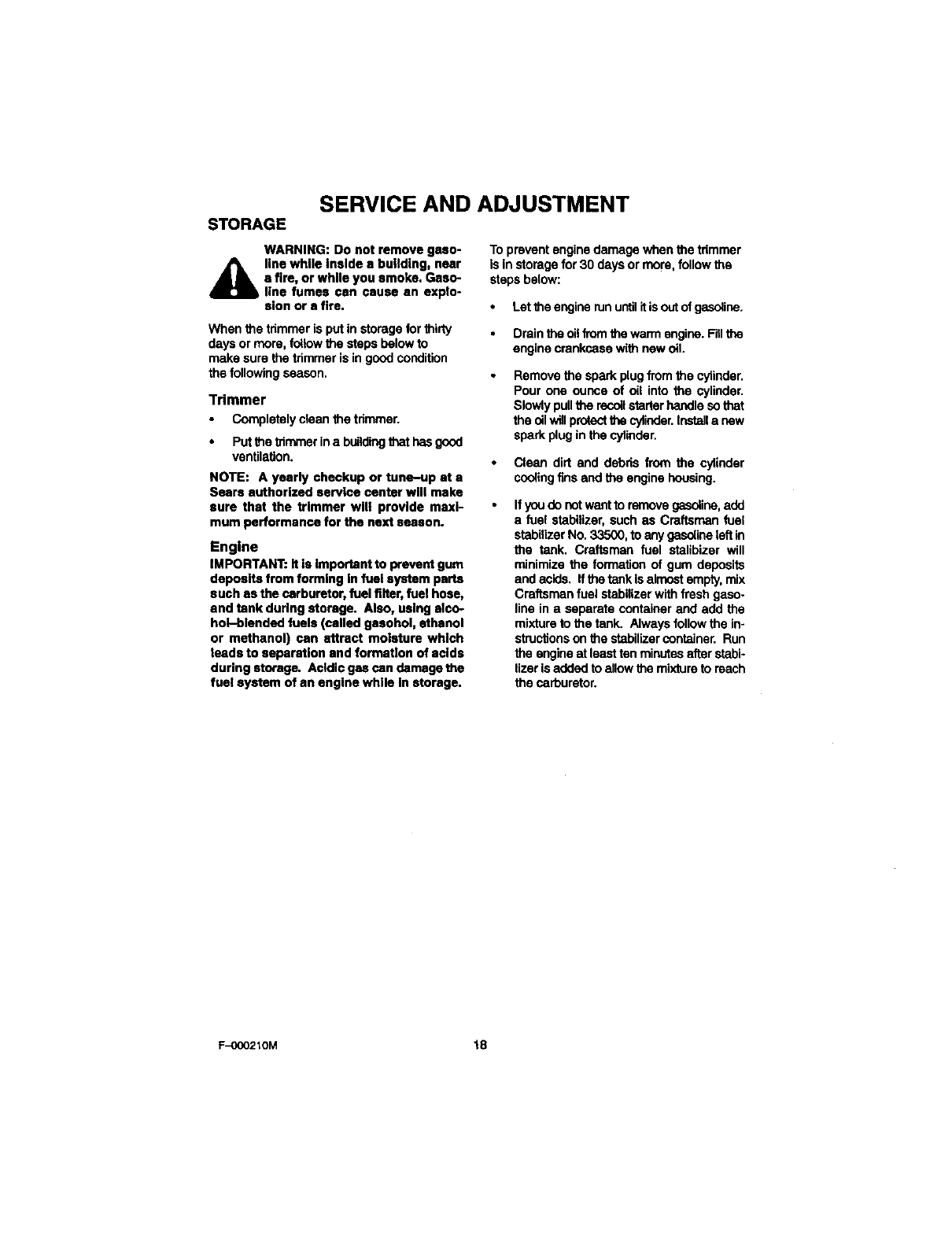

STORAGE

WARNING: Do not remove gaso-

line while inside a building, near

afire, or while you smoke. Gaso-

line fumes can cause an explo-

sion or a fire.

When the tdmmer is put in storage for thirty

days or more, follow the steps below to

make sure the trimmer is in good condition

the following season.

Trimmer

Completelyclean the tdmmer.

Put thetrimmerina buildingthat hasgood

ventilation.

NOTE: A yearly checkup or tune-up at a

Sears authorized earvlce center will make

sure that the trimmer will provide maxi-

mum performance for the next season.

Engine

IMPORTANT: It is important to prevent gum

deposits from forming In fuel system parts

such as the carburetor, fuel filter, fuel hose,

and tank during storage. Also, using alco-

hol-blended fuels (called gasohol, ethanol

or methanol) can attract moisture which

leads to separation and formation of acids

during storage. Acidic gas can damage the

fuel system of an engine while In storage.

Toprevent enginedamage whenthetdmmer

is instoragefor 30 daysor more,followthe

stepsbelow:

Let the engine run until it is out of gasoline.

Drain the oilfrom the warm engine. Fitl the

engine crankcase with new oil.

Removethe sparkplugfrom the cylinder.

Pour one ounce of oil into the cylinder.

Slowlypullthe recoilstarterhandlesothat

theoilwillprotectthecylinder.Installa new

sparkplugin the cylinder.

Clean dirt and debds from the cylinder

cooling fins and the engine housing.

If youdonet wantto removegasoline,add

a fuel stabilizer,such as Craftsmanfuel

stabilizerNo. 33500, to anygasolineleftin

the tank. Craftsman fuel stalibizer will

minimizethe formation of gum deposits

and acids. Ifthe tank isalmostempty,mix

Craftsmanfuel stabilizerwithfreshgaso-

linein aseparate containerand add the

mixtureto the tank. Alwaysfollowthe in-

structionsonthe stabilizercontainer.Run

the engineatleasttenminutes afterstabi-

lizeris addedto allowthe mixtureto reach

thecarburetor.

F-OC_210M 18

TROUBLE SHOOTING CHART

TROUBLE CORRECTION

Engine does not start Connectsparkplugwire.

Engine rune poorly.

CAUSE

Sparkplugwire

disconnected.

Enginenotprimed.

Defas_veorincorrectly

gappedsparkplug.

Fueltank empty.

Dirtycarburetororfuelline.

Dirtyairfilter.

Carburetoroutof adjustment.

Engineflooded.

ThrottlecontrolleverIn

incorrectposition.

Stalegasoline.

Defectivethrottlecontrol

lever or wire.

Bad sparkplug.

Dirtyair filter.

Carburetoroutof adjustment.

Stale gasoline.

Engine cooling system

clogged.

Primeengine.

Inspector replacespark

plug.

Add fuel.

Clean carburetororfuel line.

Replaceairtilter.

Forcarburetor adjustment,

take theunitto a Sears

Service Center.

Waitseveralminutesbefore

starting.

iMovethrottle leverto FAST

or START position.

Drain old gasoline and add

fresh gasoline.

Inspect lever and wire,

Replace if damaged or

defective.

Replacesparkplug.

Replace air tilter.

Adjustcarburetor.Takethe

unitto a Sears Service

Center.

Drain old gasoline. Add fresh

gasoline.

Clean enginescreenand

coolingtins.

F_XX)210M 19

TROUBLE SHOOTING CHART

Engine overheats.

Engine will not step

running.

Poor trimming

3edorrrisnea.

Trimmer vibrates.

Trimmer head does not

retain gne

Enginecoolingsystem Clean debdsscreen and

clogged, enginecoolingfins.

Carburetoroutof adjustment, Adjustcarburetor.Take the

unitto a Sears Service

Center.

Oil level is low. Addoil.

Defective throffie control

lever or wire.

Throttle net adjusted

properly.

Tdmmerline lengthis too

short.

Enginenotset at FAST

speed.

Set screwfor tdmmerhead

is loose.

Inspectand replace

damagedparts.

Move throttle to the full OFF

_osition.

Correctline lengthis 21.5

inches. When lessthan 1/2

this length,replacethe line.

Move enginethrottle leverto

FASTposition,

Tightenset screwwith

T-handle wrench.

Tdmmerline lengthsare Adjusttrimmerline to

substantiallydifferent, approximatelyequallengths.

Loosenutsorbolts. Checkall boltsand nuts,

includingengine bolts.

Replacebrokenpart.

Brokentdmmerhead.

Tdmmerline notpropedy

attached.

Broken line retainer.

Tdmmerline notcorrect size.

Follow instnJctions on decal

;or In the Service sec_on of

the owner's manual.

Replacetrimmerhead

assembly.

Use Craftsman0.155 inch

diametertrimmerline.

F-000210M 20

SLOPE GUIDE

SIGHT AND HOLD THIS GUIDE LEVEL WITH A VERTICAL

TREE, A CORNER OF A STRUCTURE, A POWER LINE

POLE, OR A FENCE.

Operate a trimmer across the face

of slopes, never up or down slopes.

Use this guide and do not trim on e slope greater than 15 degrees.

A 10 degree slope is a hill that increases in height at approximately 1.7 feet in 10 feet..

A 15 degree slope is a hill that increases in height at approximately 2.5 feet In 10 feet..

Use extreme care at all times and avoid sudden turns or maneuvers. Follow other instructions in this

,_ manual for safety in trimming on slopes. Operate a trimmer across the face of slopes, never up or down

slopes. Use extra care when operating on or near slopes and obstructions.
