MODEL NO.

536.797561

Caution:

Read and Follow

All Safety Rules

and Instructions

Before Operating

This Equipment

.................................. i............. _'L'Ul'lLl== _ --

9iNCH =3.0 HORSEPOWER

EDGER/TRIMMER

=Assembly

=Operation

•Customer Responsibilities

° Service and Adjustments

•Repair Parts

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.

i lliH lllllllllli,i,llll,lll _ ,,,,,,, ,,, ,, ,,,,,, i i ,,,llmll

Part No 324779

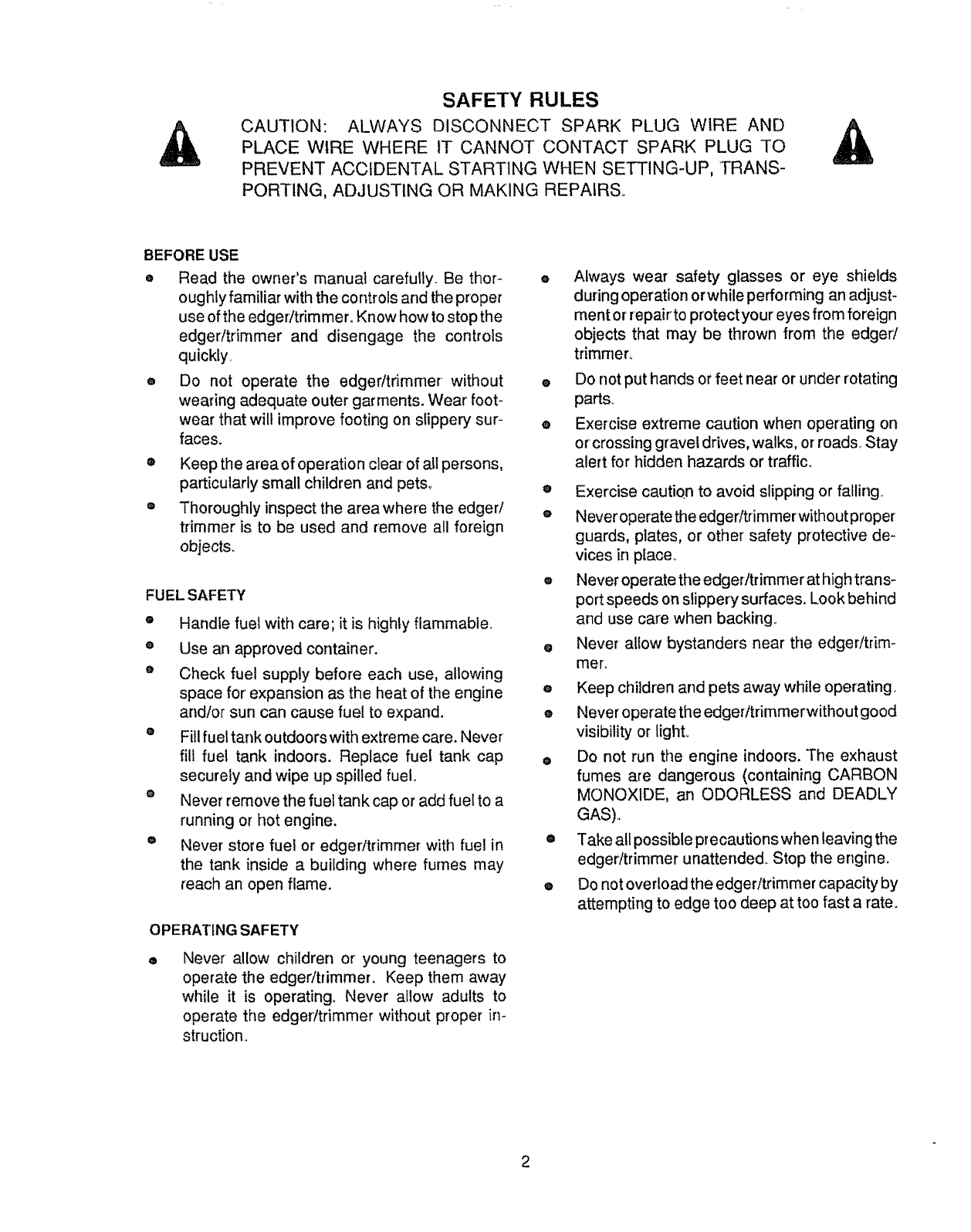

SAFETY RULES

CAUTION: ALWAYS DISCONNECT SPARK PLUG WIRE AND

PLACE WIRE WHERE IT CANNOT CONTACT SPARK PLUG TO

PREVENT ACCIDENTAL STARTING WHEN SETTING-UP, 'TRANS-

PORTING, ADJUSTING OR MAKING REPAIRS,.

BEFORE USE

e Read the owner's manual carefully Be thor-

oughly familiar with the controls and the proper

use of the edgedtrimmer. Know how to stop the

edger/trimmer and disengage the controls

quickly.

e Do not operate the edger!trimmer without

wearing adequate outer garments. Wear foot-

wear that wilt improve footing on slippery sur-

faces.

®Keep the area of operation clear of all persons,

particularly small children and pets_

= Thoroughly inspect the area where the edger/

trimmer is to be used and remove all foreign

objects.

FUEL SAFETY

e Handle fuel with care; it is highly flammable,.

® Use an approved container.

e Check fuel supply before each use, allowing

space for expansion as the heat of the engine

and/or sun can cause fuel to expand.

e Fill fuel tank outdoors with extreme care. Never

fill fuel tank indoors. Replace fuel tank cap

securely and wipe up spilled fuel,

® Never remove the fuel tank cap or add fuel to a

running or hot engine.

®Never store fuel or edger/trimmer with fuel in

the tank inside a building where fumes may

reach an open flame.

OPERATING SAFETY

Never allow children or young teenagers to

operate the edger/trimmer, Keep them away

while it is operating. Never allow adults to

operate the edger/trimmer without proper ir_-

struction.

oAlways wear safety glasses or eye shields

during operation orwhile performing an adjust-

ment or repairto protectyour eyes from foreign

objects that may be thrown from the edger/

trimrner_

®Do not put hands or feet near or under rotating

parts.

® Exercise extreme caution when operating on

or crossing gravel drives, walks, or roads.. Stay

alert for hidden hazards or traffic.

• Exercise cautiQn to avoid slipping or falling

® Never operate the edgefltrimmer without proper

guards, plates, or other safety protective de-

vices in place.,

• Never operate the edger/trimmer at high trans-

port speeds on sfippery surfaces. Look behind

and use care when backing.

eNever allow bystanders near the edger!trim-

mer,

®Keep children and pets away while operating.

®Never operate the edgerttnmmerwithout good

visibility or light°

e Do not run the engine indoors. The exhaust

fumes are dangerous (containing CARBON

MONOXIDE, an ODORLESS and DEADLY

GAS),.

® Take all possible precautionswhen leaving the

edgerttrimmer unattended. Stop the engine.

e Do not overload the edgerttrimmer capacity by

attempting to edge too deep at too fast a rate.

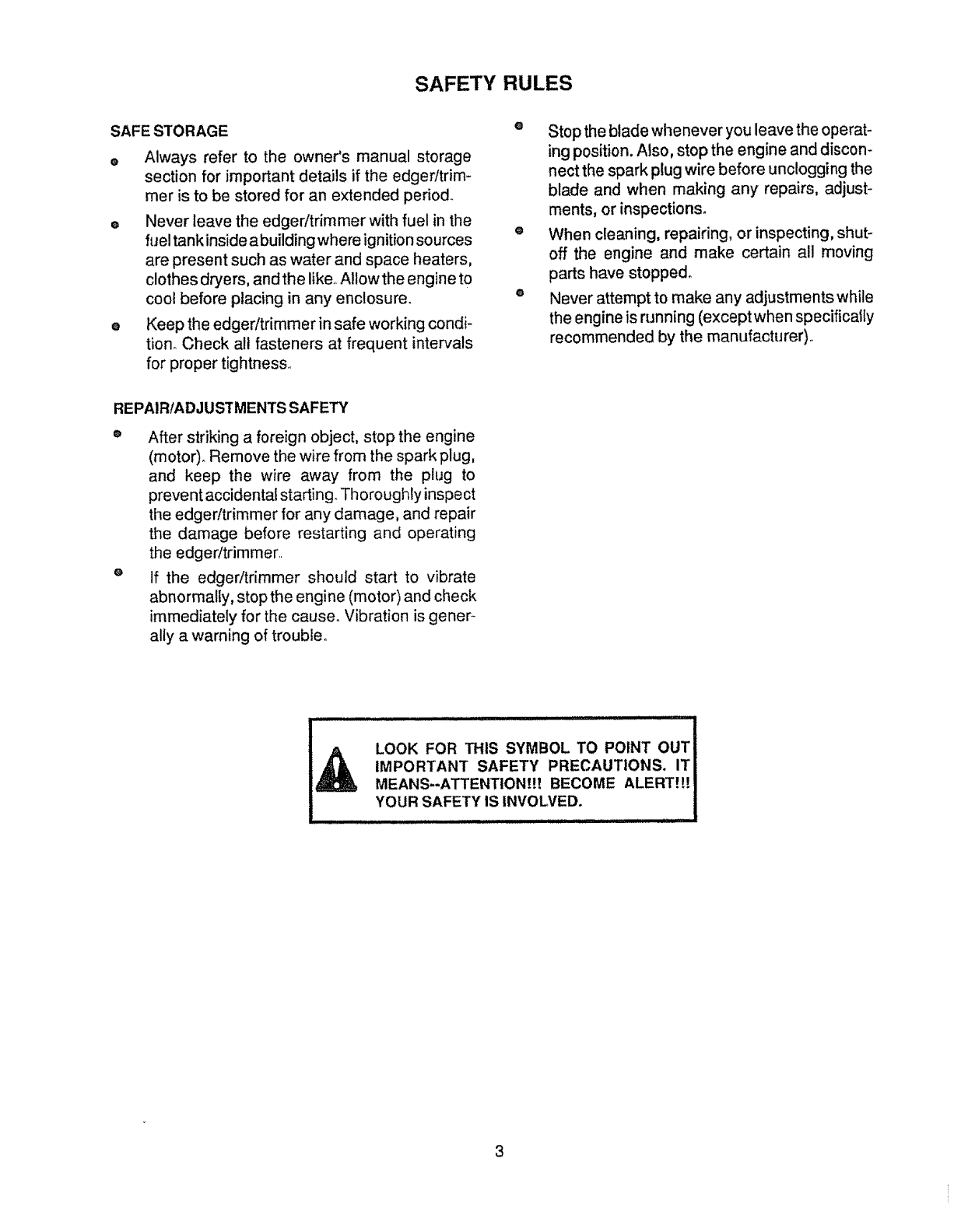

SAFETY RULES

SAFE STORAGE

o Always refer to the owner's manual storage

section for important details if the edger/trim-

mer is to be stored for an extended period.

• Never leave the edger/trimmer with fuel in the

fuel tank inside abuilding where ignition sources

are present such as water and space heaters,

clothes dryers, andthe like+.Allow the engine to

cool before placing in any enclosure_

® Keep the edger/trimmer in safe working condi-

tion+ Check all fasteners at frequent intervals

for proper tightness,.

® Stop the blade whenever you leave the operat-

ing position. Also, stop the engine and discon-

nect the spark plug wire before unclogging the

blade and when making any repairs, adjust-

ments, or inspections.

eWhen cleaning, repairing, or inspecting, shut-

off the engine and make certain all moving

parts have stopped+

a Never attempt to make any adjustments while

the engine is running (except when specifically

recommended by the manufacturer)..

REPAIRIADJUSTMENTS SAFETY

® After striking a foreign object, stop the engine

(motor). Remove the wire from the spark plug,

and keep the wire away from the plug to

prevent accidental starting. Thoroughly inspect

the edger/trimmer for any damage, and repair

the damage before restarting and operating

the edgedtrimmer..

® If the edger/trimmer should start to vibrate

abnormally, stop the engine (motor) and check

immediately for the cause+ Vibration is gener-

ally a warning of troubieo

i iii ii i i iiil.+ i i iiii iii iii i ii,lml,,ll,ulli

A LOOK FOR THIS SYMBOL TO POINT OUT

,_j_ IMPORTANT SAFETY PRECAUTIONS. IT I

MEANS--ATTENTION!!! BECOME ALERT!!!_i

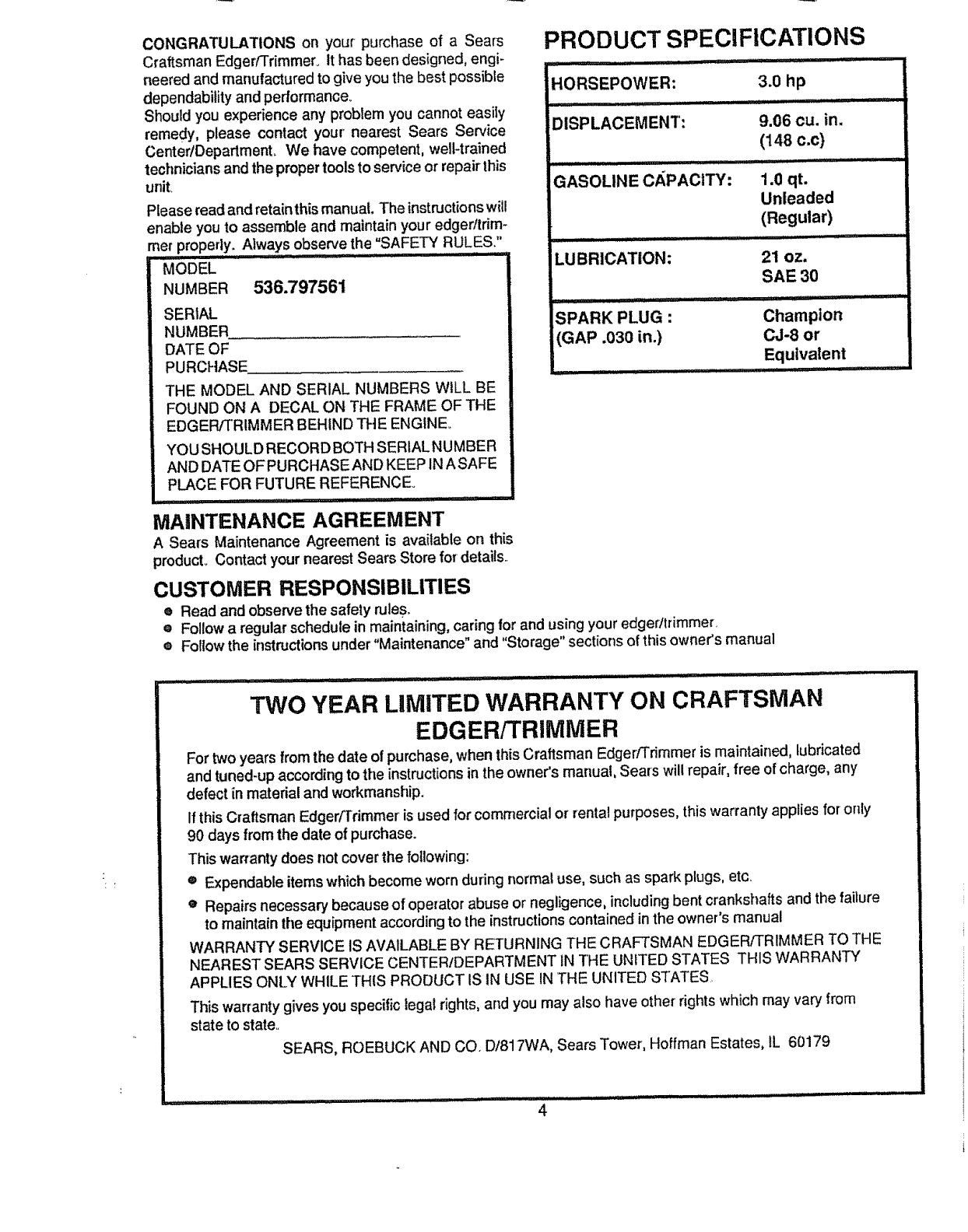

CONGRATULATIONS on your purchase of a Sears

Craftsman Edger/Trimmer. It has been designed, engi-

neered and manufactured to give you the best possible

dependability and performance.

Should you experience any problem you cannot easity

remedy, please contact your' nearest Sears Service

CentedDepartment. We have competent, well-trained

technicians and the proper tools to service or repairthis

unit.

Please read and reta{nthis manual. The instructions will

enable you to assemble and maintain your edger/trim-

mer properly. Always observe the.,SAFETY RUL.ES."

MODEL

NUMBER 536.797561

SERIAL

NUMBER

DATE OF

PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE

FOUND ON A DECAL ON THE FRAME OF THE

EDGER/TRIMMER BEHIND THE ENGtNE_

YOU SHOULD RECORD BOTH SERIAL NUMBER

AND DATE OF PURCHASE AND KEEP IN A SAFE

PLACE FOR FUTURE REFERENCE°

PRODUCT SPECIFICATIONS

.... i / i1' I filL" ......... ".............

HORSEPOWER: 3.0 hp

DISPLACEMENT: 9.06 cu. in.

(148 c.c)

GASOLINE CAPACITY: 1.0 qt.

Unleaded

(Regular)

LUBRICATION: 21 oz.

SAE 30

SPARK PLUG :............. ....... Champion ""

(GAP .030 in.) CJ-8 or

,Equivalent

MAINTENANCE AGREEMENT

ASears Maintenance Agreement is available on this

product,,Contact your nearest Sears Store for=details.

CUSTOMER RESPONSIBILITIES

e Read and observe the safety njleso

e Follow a regular schedule in maintaining, caring for and usingyour edger/trimmer,

eFollow the instructions under"Maintenance" and "Storage" sections of thisowner's manual

_:: I/I ,,, iiI It .................... iiiiiiiiiii/ / ......... 11111

TWO YEAR LIMITED WARRANTY ON CRAFTSMAN

EDGER/TRIMMER

For two years from the date of purchase, when thisCraftsman Edger/Trimmer is maintained, lubricated

and tuned-up accordingto the instructionsin the owner's manual, Sears willrepair, free of charge, any

defect in material and workmanship.

Ifthis Craftsman Edger/[rimmer is used forcommercial or rental purposes,this warranty applies for only

90 days fromthe date of purchase.

This warranty does not coverthe following:

®Expendable items which become worn duringnormal use, suchas spark plugs, etc=

e Repairs necessary because of operator abuse or negligence, including bent crankshafts and the faifure

to maintain the equipment according to the instructionscontained inthe owner's manual

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN EDGER/TRIMMER TO THE

NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES THIS WARRANTY

APPLIES ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights which may vary from

state to state..

SEARS, ROEBUCK AND CO. D/817WA, Sears Tower, Hoffman Estates, tL 60179

,_,_,,,,,,,,,_,,_,_,,_, ,i j i ,i , i,u U,lU ................... i ii ,, .................lUlUU

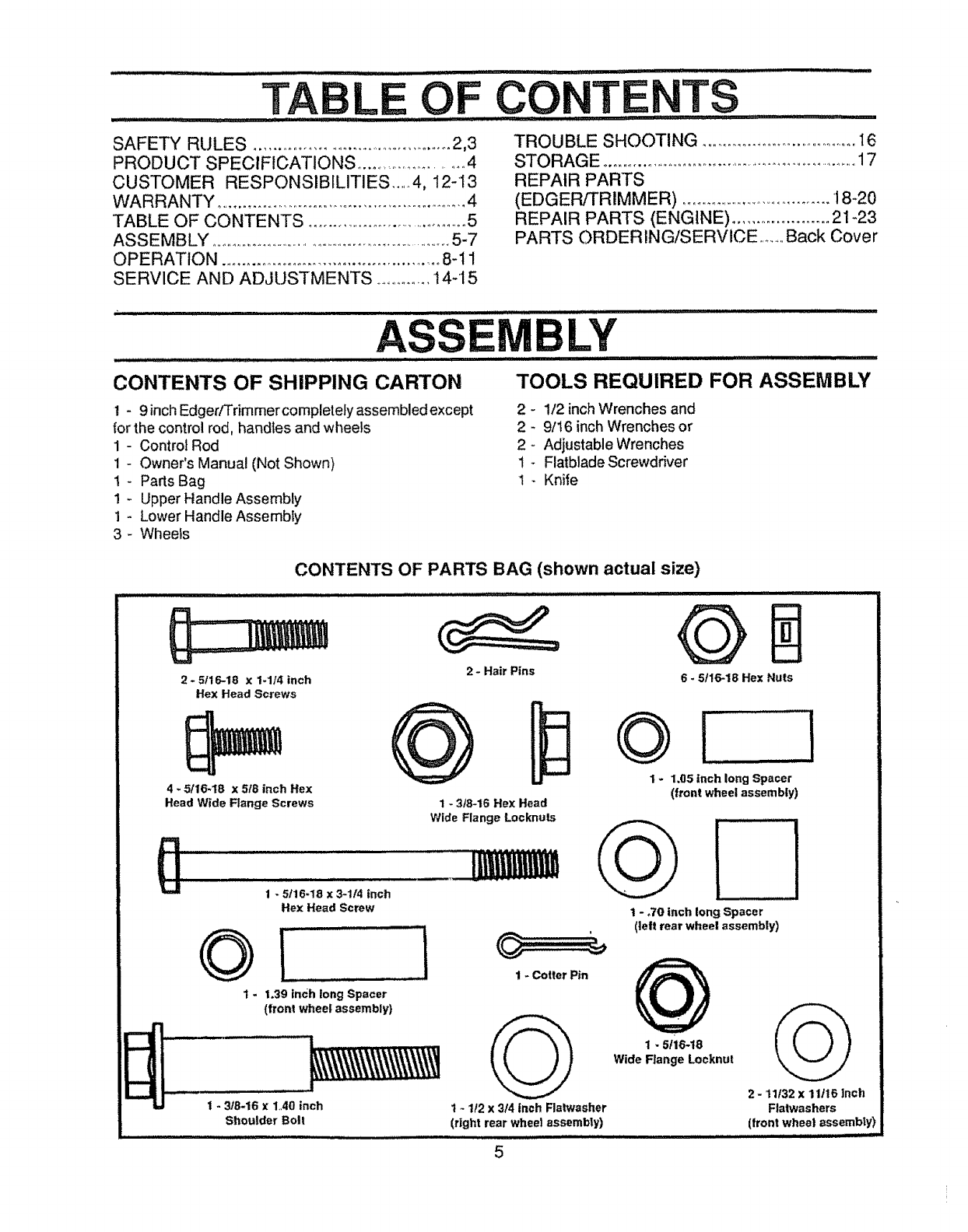

TABLE OCONTE TS....

,_=,,=,,L_,=_,=

SAFETY a_gCES ............................................ 2_3

PRODUCT SPECIFICATIONS ..............................4

CUSTOMER RESPONSIBILITIES ......4, 12-13

WARRANTY .............................................................4

TABLE OF CONTENTS ...................................... 5

ASSEMBLY ...................................................................5-7

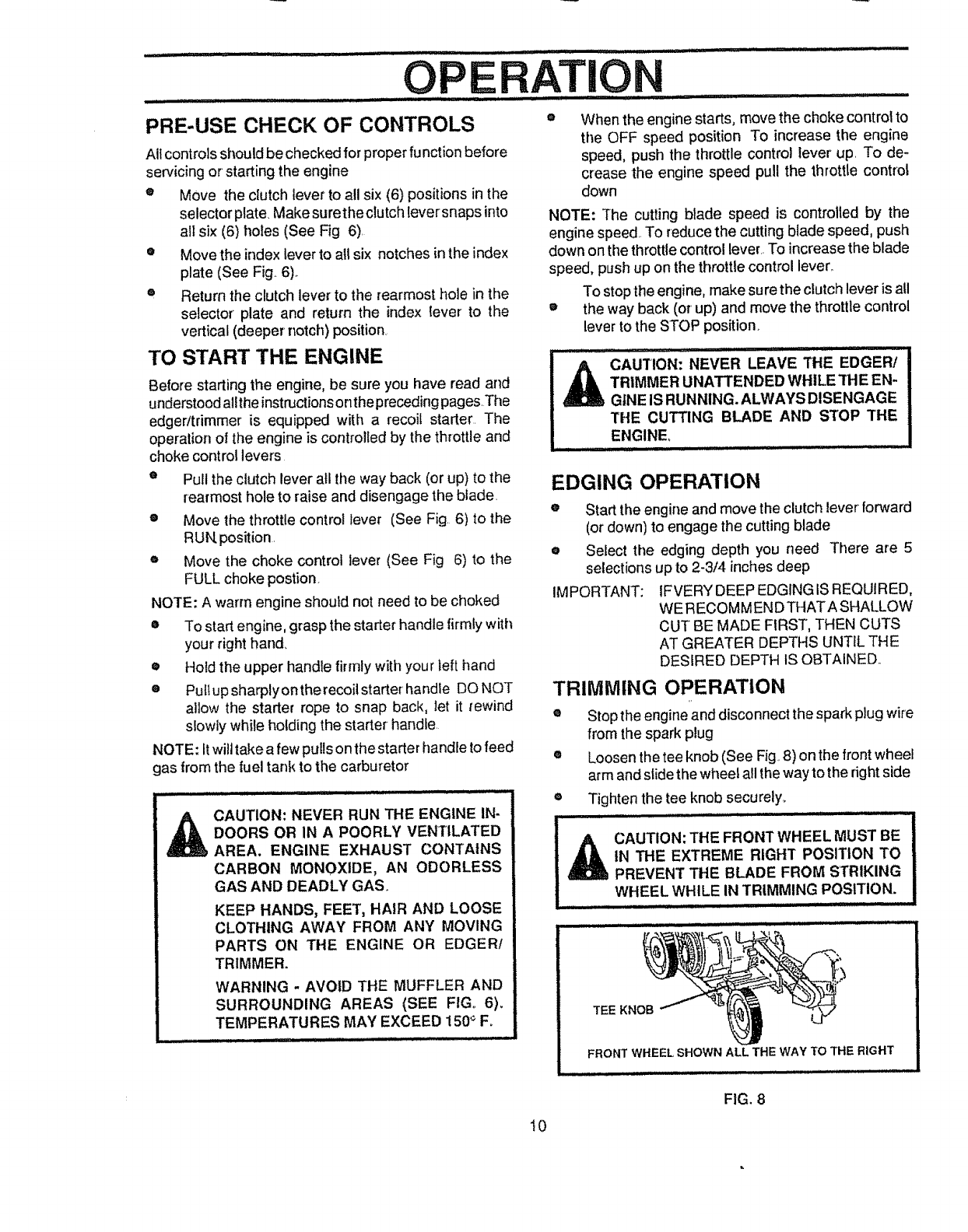

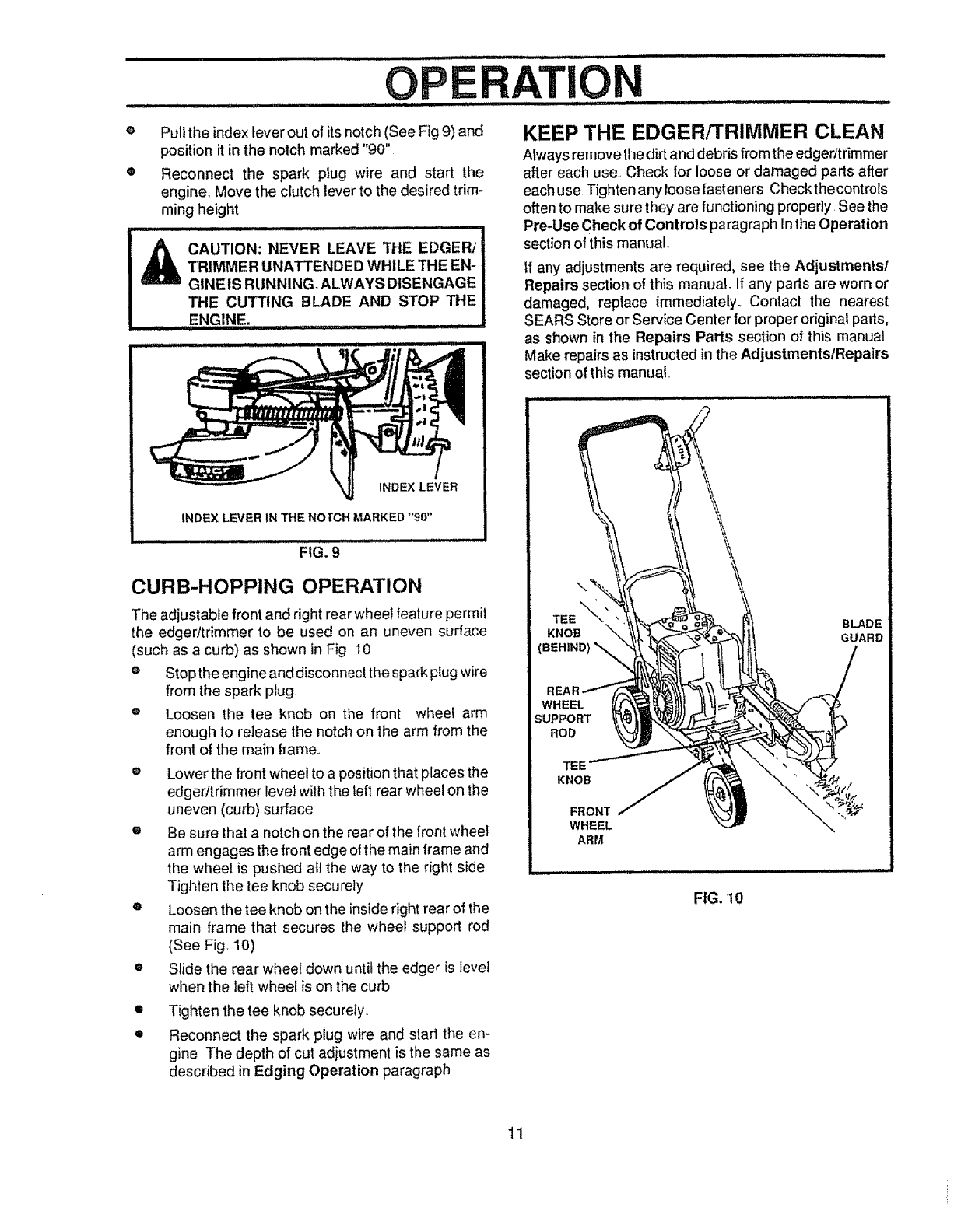

OPERATION ................................................. 8-11

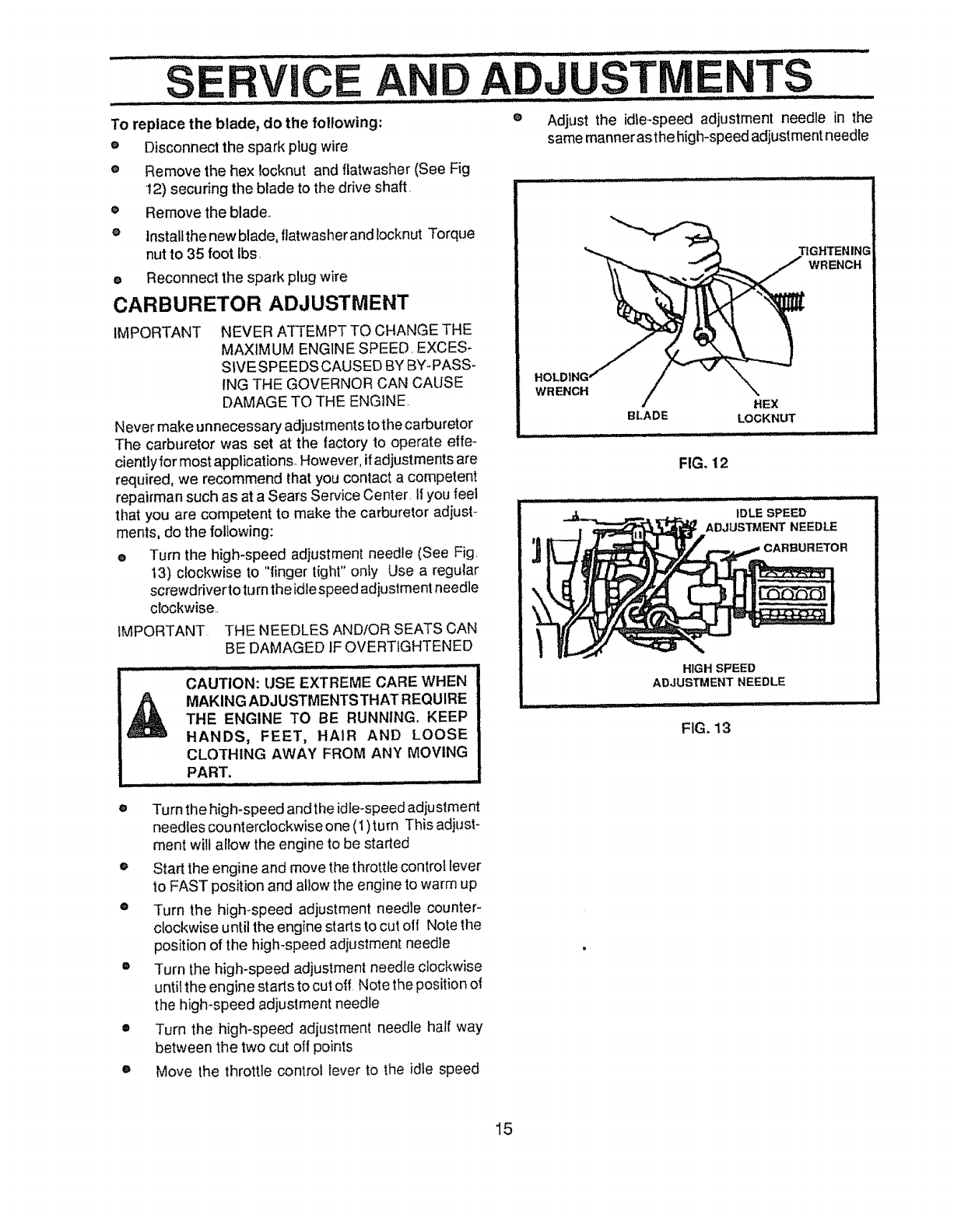

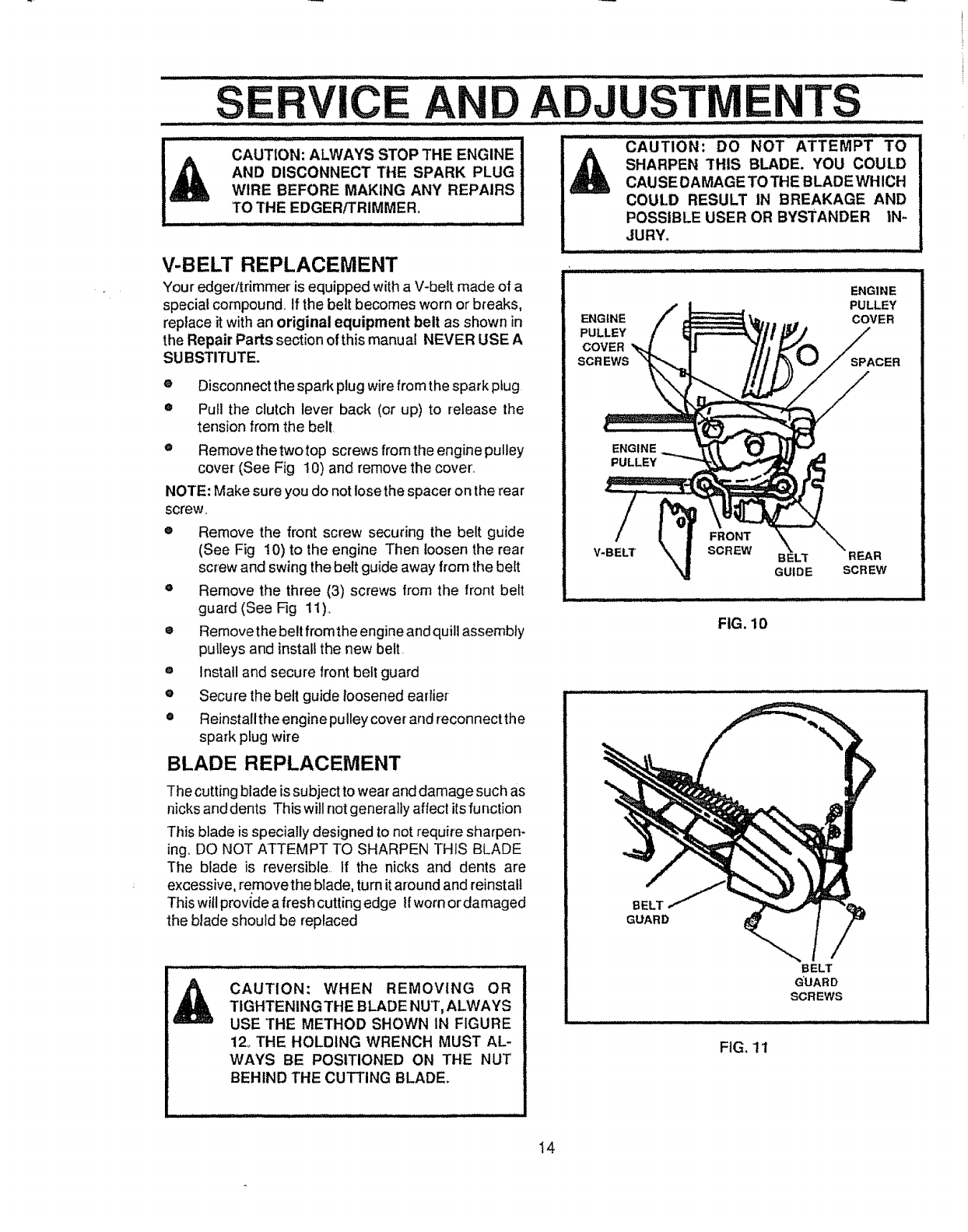

SERVICE AND ADJUSTMENTS ...............14-'t 5

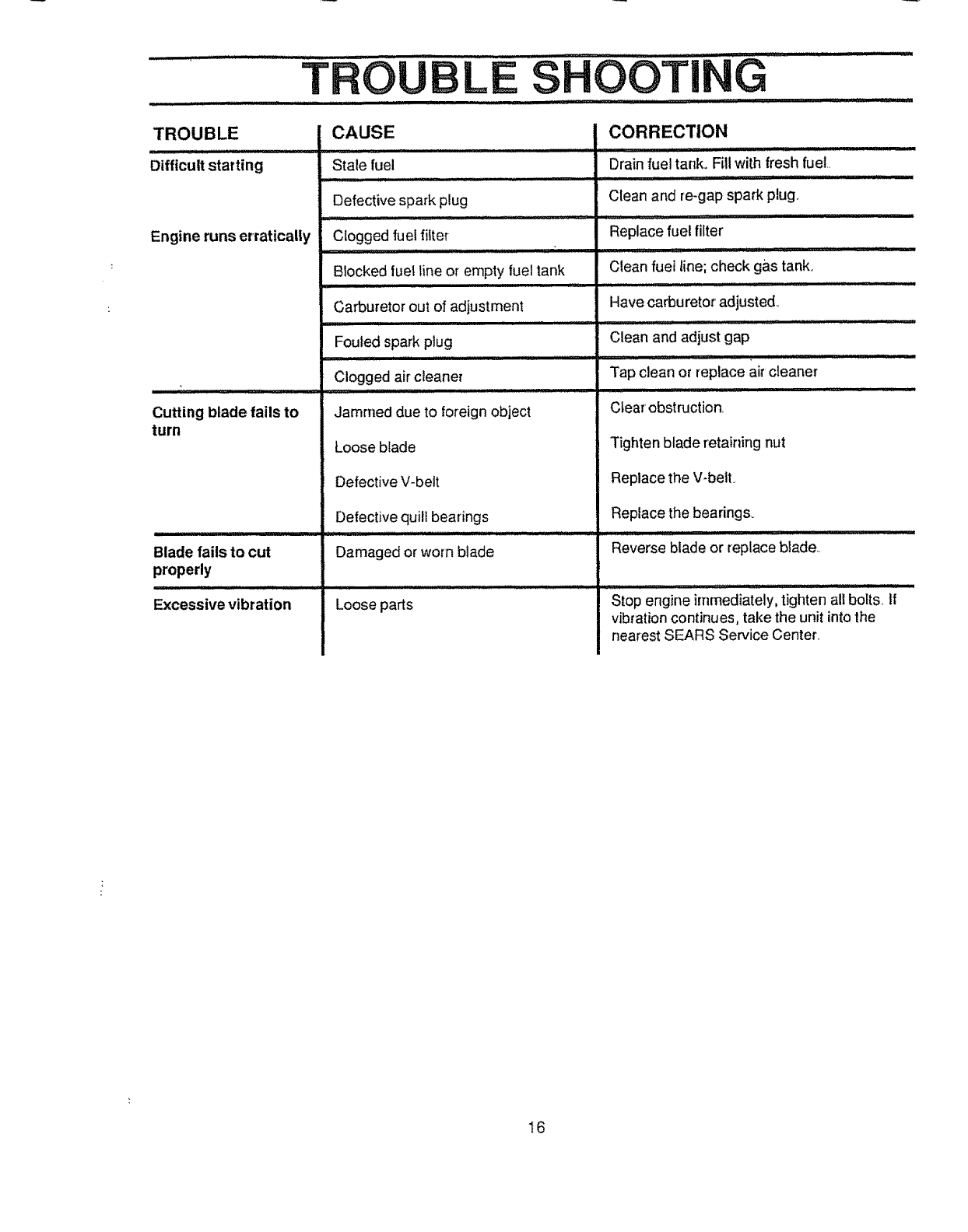

TROUBLE SHOOTING ..................................... 16

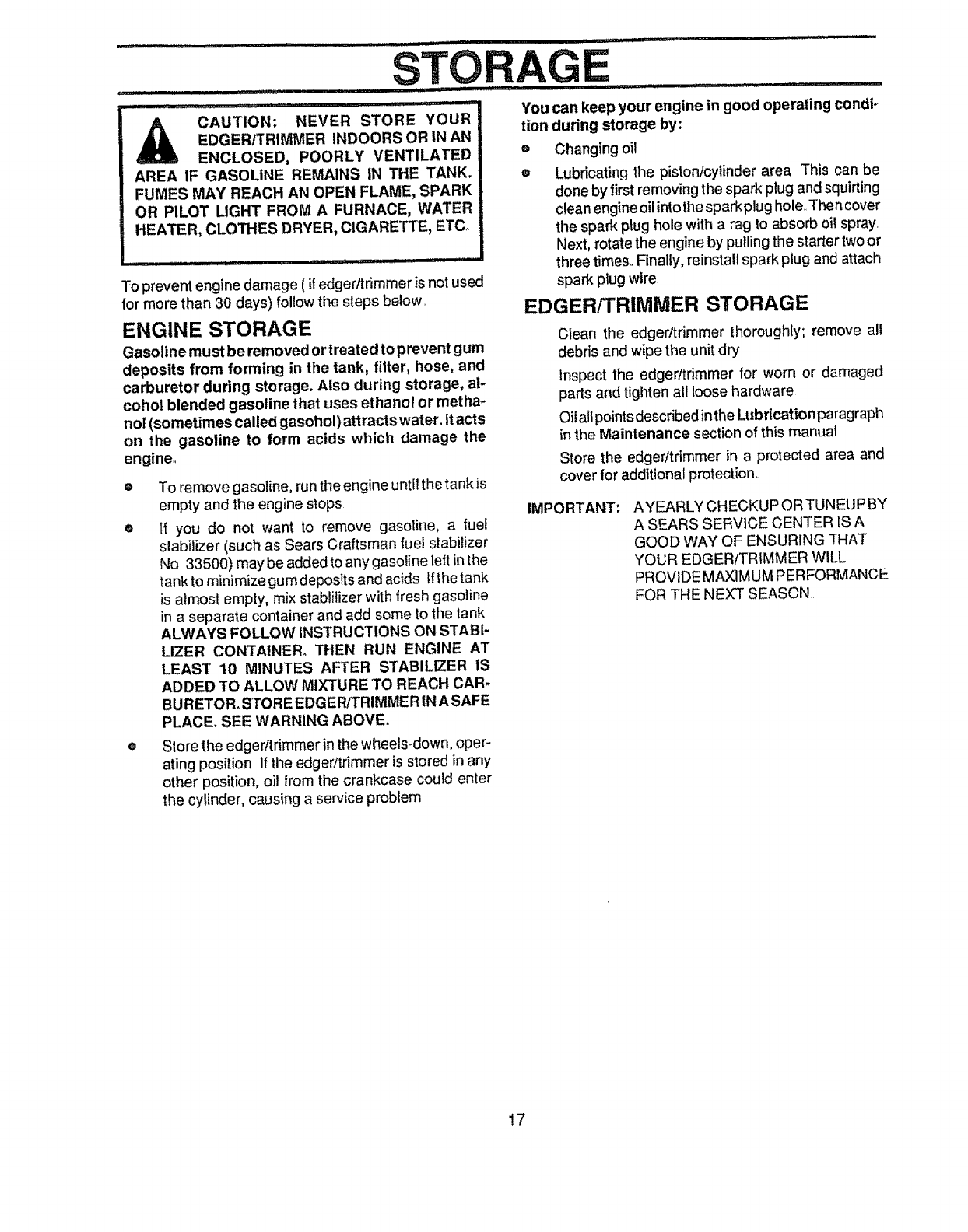

STORAGE ................................................................ 17

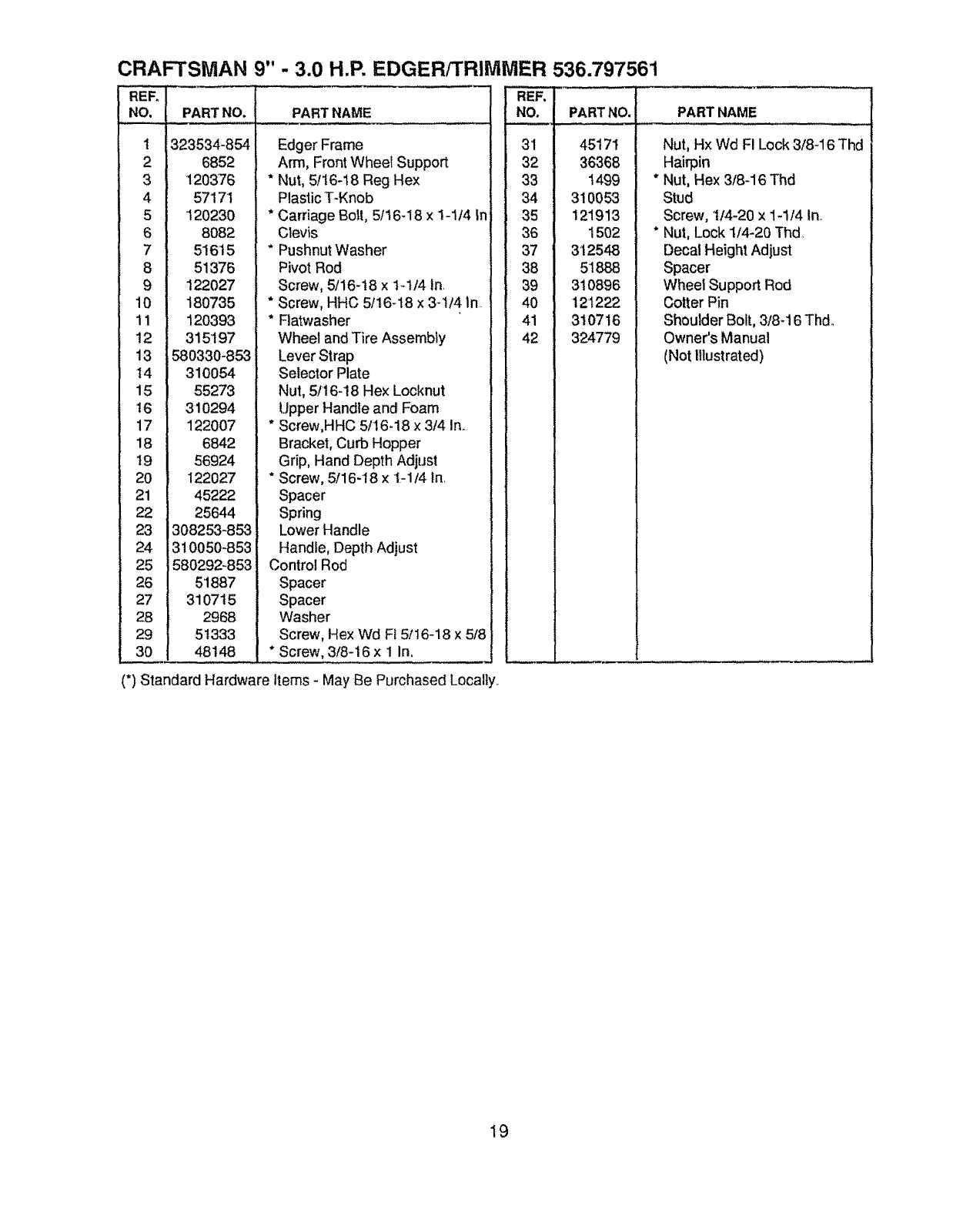

REPAIR PARTS

(EDGER/TRIMMER) ........................................18-20

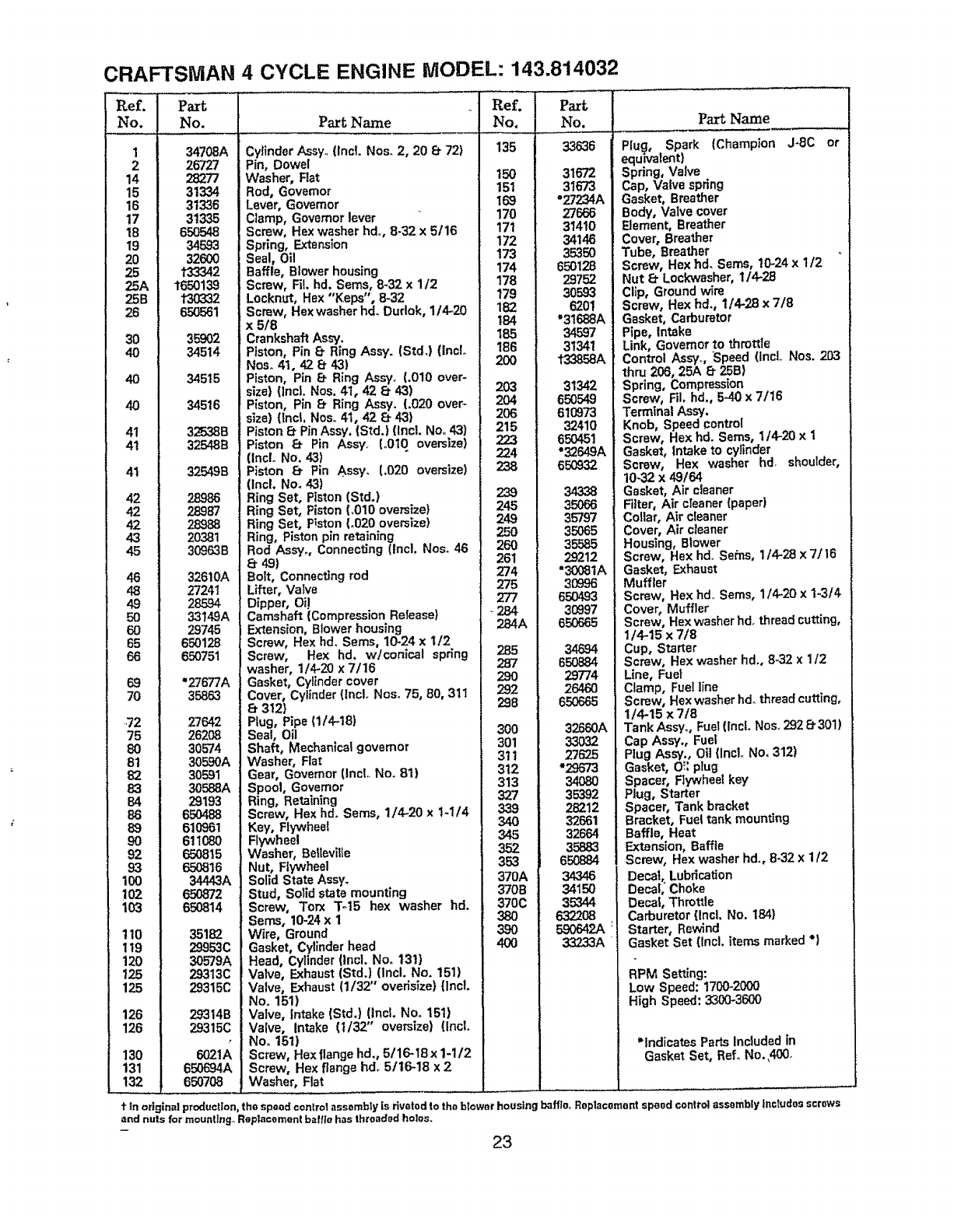

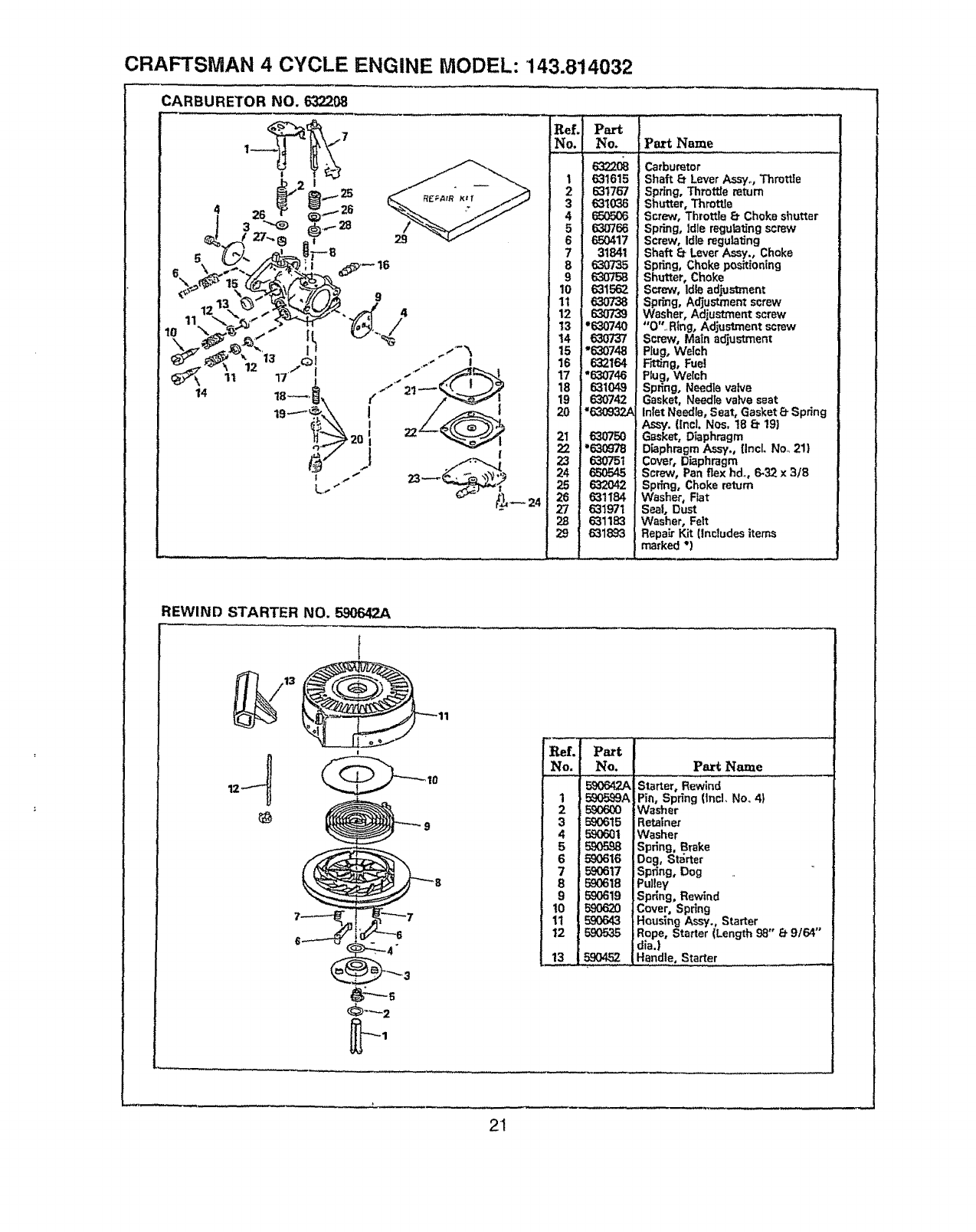

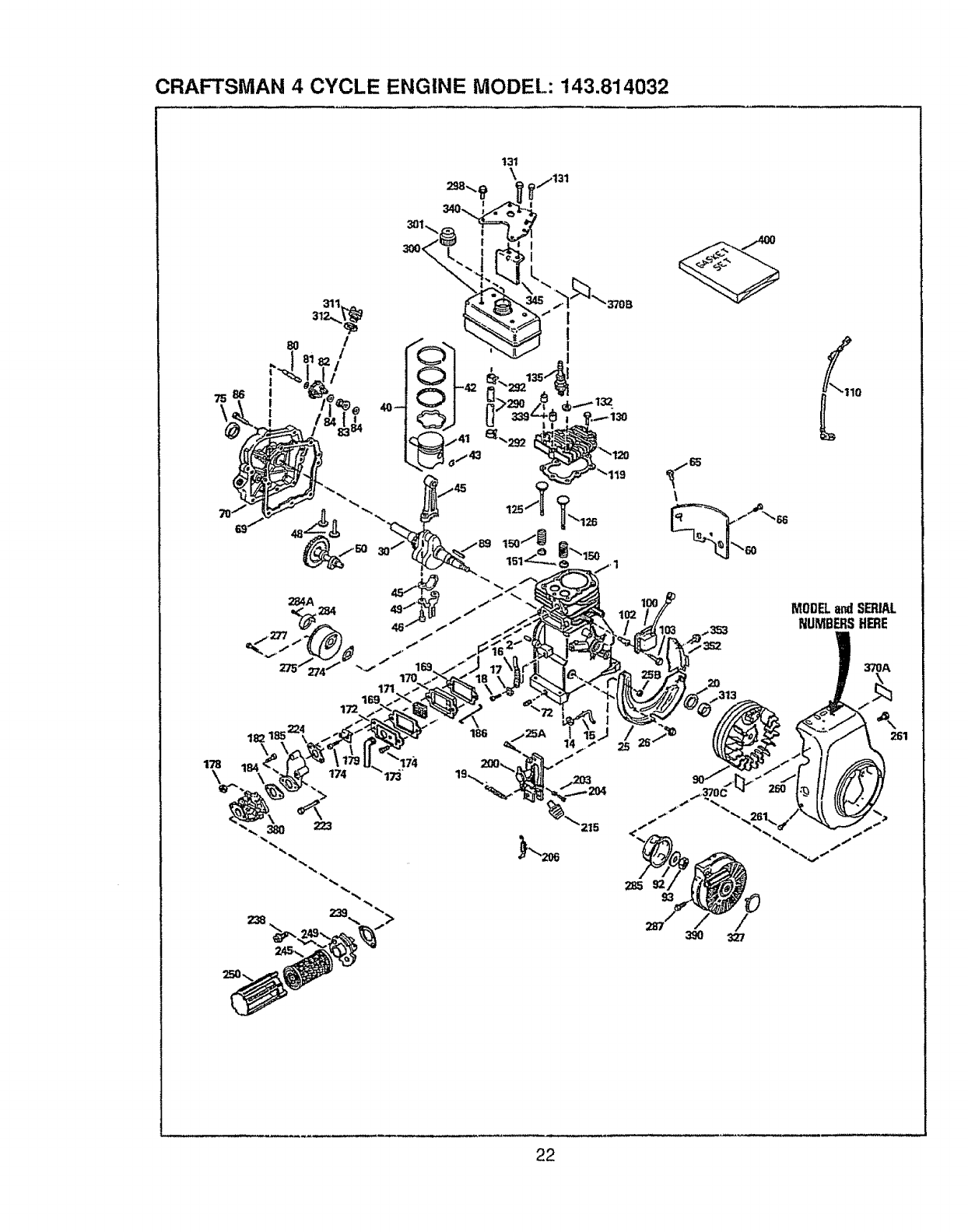

REPAIR PARTS (ENGINE) ...................... 21-23

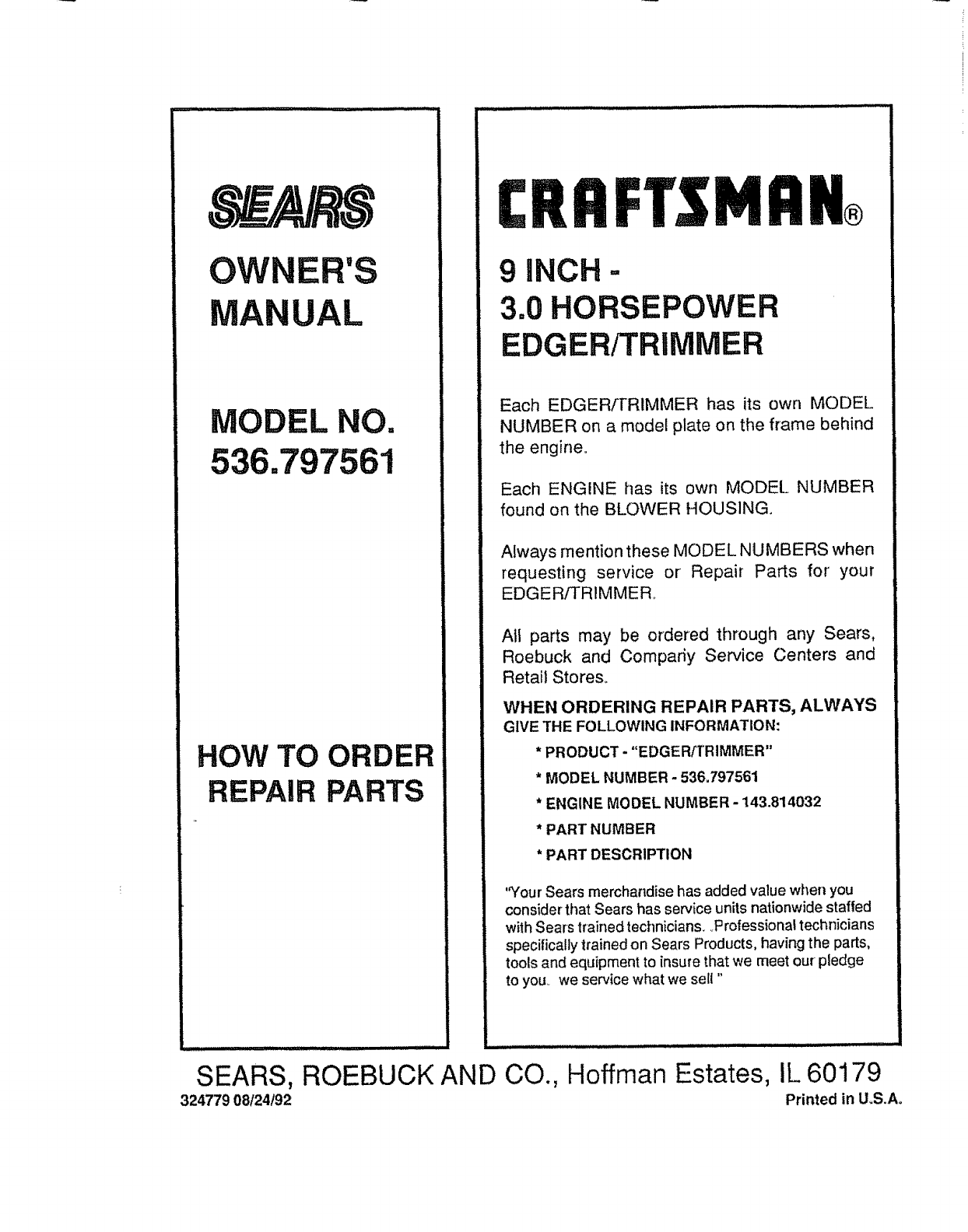

PARTS ORDERING/SERVICE .........Back Cover

............ ...................... i ii lU lUll

BLY

.............................. ii u ,u,l,l,lu ii ....................

CONTENTS OF SHIPPING CARTON TOOLS REQUIRED FOR ASSEMBLY

1- 9inchEdgerfrrimmercompletefyassembledexcept

forthe control rod, handles and wheels

1-Control Rod

1 - Owner's Manual (Not Shown)

1 - Parts Bag

1 - Upper Handle Assembly

i - Lower Handle Assembly

3- Wheels

2 - 1/2 inch Wrenches and

2 - 9/t6 inch Wrenches or

2-Adjustable Wrenches

1 - Flatblade Screwdriver

1- Knife

CONTENTS OF PARTS BAG (shown actual size)

2 - 5116-18 x1-114 inch

Hex Head Screws

4 - 5/16-18 x 5f8 inch Hex

Head Wide Flange Screws

t'1

1-5t16-18 x 3-114 inch

Hex Head Screw

@ 11 -I

1 - 1.39 tnch long Spacer

(front wheel assembly)

I - 3/8-16 x 1,,40 inch

Shoulder Boll

2-Hair Pins

1 - 3t8-16 Hex Head

Wide Flange Locknuls

6 - 5/16-18 Hex Nuts

1- 1.05 inch long Spacer

(front wheel assembly)

1-,70 inch long Spacer

(left rear wheel assembly)

1- Cotter Pin

I - 1/2 x 3/4 inch Flatwasher

(right rear wheel assembly)

Wide Range Locknut _.,..,JJ

2 - 11/32 x 11/16 Inch

Flatwashers

(front wheet assembly)

u, uu i ul ii .................

1.5/16-18

:: HIIIIIIIIIIII III II II I'll I I _I . I: ............................ '1 ' ---. "Irl"/' ..... .......... : IIII I LI

ASS LY

1' I III L IIILIIIlll I ":........... : III IIIIIIIIIII IIII " .......................

III ' III II I'I" ::: .......................... :Q

CAUTION: ALWAYS WEAR SAFETY

GLASSES OR EYE SHIELDS WHILE

ASSEMBLING EDGER!TRIMMER.

:: ........... ........... :: :

Figure I shows the edger/trimmer completely

assembled

Reference to the right and left hand side of the edger/

trimmer is from the operator's positionbehind the unit..

TO REMOVE EDGER/TRIMMER FROM

CARTON

® Remove the lower'handle fromthe carton.

e Remove the control rod from the carton

® Remove upper handle and packing material from

the carton.

Remove wheels, parts bag and packing material

fromtile carton

Cut down all fourcorners of the carton_

IJLIIIII I I I IIIII ...........................

CLUTCH LEVER

UPPER

HANDLE '_......, CONTROL ROD

STARTER

HANDLE

LOWER

HANDLE

BLADE

GUARD

BLADE

FIG. 1

TO ASSEMBLE THE EDGER/

TRIMMER

NOTE: Lower handle should be attached first as it is

difficult to attach lower handle with the wheels on

®Place the lower handle inside the edger/trimmer

frame (See Fig_3A) and secure inplace with four(4)

5/16-!8 x 5/8 inch hex head wide flange screws and

four (4) 5/16-18 hex head iocknuts (found in parts

bag)..

Attach the right rear wheelto the wheel support rod

of the edger/trimmer (See Fig 2A) with a 1/2 x 3/4

inch flatwasher and cotter pin (found in parts bag)..

Attach the left rear wheel to the edger/trimmer

(See Fig, 2B) witha 3/8-16 x 1A0 inch shoulder

bolt, spacer (_70inch long)and 3/8-16 wide flange

Iocknut (found in parts bag).

(_) (VIEW FROM RIGHT SIDE)

FLATWASHER

COTTER

WHEEL

(_) (VIEW FROM

WHEEL _

SHOULDER

_ (VIEW FROM

SPACER

(1,39 INCH LONG)

WHEEL SUPPC)RT ROD

WIDE FLANGE

SPACER LOCi(NUT

Io7OINCHLONG)

5f16-18 HEX WIDE FLANGI

LOCKNUT

SCREWWHEEL" ACER

FLATWASHER (!,,05 !NCH LONG

FIG. 2

Attach the front wheel to the edger/trimmer (See

Fig.,2C) with a5/16-18 x 3-1/2 inch hex head screw,

two (2) 11/32 X 11/16 inch flatwashers, one (t)

spacer (1.05 inch long), one (t) spacer (139 inch

long) and a 5/16-18 hex locknut (found in parts

bag): ......................................

LOWER HANDLE

5116-18 5f16-18

HEX HEAD HF-.XHEAD

LOCKNUTS LOCKNUTS

5/16-18 X 5f8 INCH

HEX HEAD WIDE

FLANGE SCREWS

IIII I iii I,

FIG, 3A

........... T_ Illlllll II'11' II1!] ! ffll'lJ I I '1 I '1'11' I I ,,,i

ASSI I li LY

ePlace the upper handle on the lower handle as

shown in Fig. 3B. A1ignhotes inthe upper handle

with the top set of holes in the lower handle and

secure in place with two (2) 5/16-18 x t-1/2 inch

hex head screws and two (2) 5/16-18 hex head

Iocknuts(found in parts bag)

NOTE: Clutch lever is on the left hand side of the upper

handle when properly instatted_

LEVER

FIG, 3B

• Insert one end of the control rod from left to right

through the hole inthe clutch fever(See Fig 4)and

attach with a hair pin (found in the parts bag)

oPlace the clutch lever inthe first depth selection

(See Fig. 4) and insertthe other end oi the con-

trol rod through the hole in the quill support arm

(See Fig. 4) Attach with hairpin (found inparts bag)

•Move the clutch lever to the rearmost (NEUTRAL)

position and latch in See note below

NOTE: if it is difficult to get the clutch lever into

NEUTRAL, it may be necessary to loosen the four screws

and nuts holding the lower handle to the frame (See Fig

5)..Pry up (forward) on the handle only enough to allow

the clutch lever to freely enter the NEUTRAL position..

Retighten nuts and screws. When the clutch lever is in

NEUTRAL the Quill Support Arm should be within 1/4

inch of the spacer and screw behind it (See Fig 4 inset)

HAIR PIN

CLUTCH

LEVER

FIRST DEPTH

SELECTION

CONTROL

ROD

HAIR PIN

QUILL

SUPPORT

ARM

SPACER

Fig. 4 inset

FIG. 4

QUILL SUPPORT

ARM

LOWER HANDLE

MOUNTING BOLTS

VIEW FROM RIGHT SIDE OF UNIT

FIG, 5

KNOW YOUR EDGER/TRIMMER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR EDGER/

TRIMMER, Compare the iUustrationswith your edgerttrimmerto familiarizeyourselfwitt_the locationof various

controlsand adjustments,. Save this manual for future reference

CLUTCH LEVER

ROD

FUEL FILL

CAP

MUFFLER

INDEX LEVER

BLADE

STARTER

REAR WHE!

THROTTLE CONTR(

REAR VIEW OF ENGINE

OIL FILL

CAP

ADJUSTABLE

FRONT WHEEL

FIG, 6

BLADE

GUARD

THROTTLE CONTROL - Used to control the engine

speed,

CHOKE CONTROL - Used to start the engine

STARTER HANDLE - The engine on this edger/trimmer

is equipped with an easy pull recoi1starter

CLUTCH LEVER - Used to start and stop the blade and

control the depth of cut.

INDEX LEVER - Permits adjustment from the edging

(vertical) positionto trimming (horizontal) position To

change position, pull the index lever and rotatethe quill

assembly to the desired angle or position

BLADE GUARD - Used to prevent stones or other mate-

rial from being thrownat the operator.

ADJUSTABLE FRONT WHEEL - Front wheel is adjust-

able from side-to-side for balance.. Also, can be adjusted

down for curb-hopping (to level edgedtrimmer when

edging along a curb),.

ADJUSTABLE REAR WHEEL - Right rear wheel is

adjustable for curb-hopping (to leveledger/trimmer when

edging along a curb)..

.......................... . i iiiiii i iiii i , i 1,171 .........

OPE 0

..........................i .......".':'T". "' ,.,,, _,,_L

The operation o! this edger/trimmer Canresult in foreignobjects being thrown into the

eyes, which can result in severe eye damager Always wear safety glasses or eye

shields while operating the edger/trimmer,

We recommend standard safety glasses or Wide Vision Safety Mask for over your

glasses

CAUTION: KEEP AWAY FROM THE RO-

TATING BLADE. THE BLADE CAN CAUSE

INJURY.

FILL/ADD OIL:

The engine on this edger/trimmer was shipped with little

or no oil. Add oil before you start the engine. Place the

edger/trimmer on a level surface. Remove the oil fill cap

(See Fig 8). Fill the engine crankcase to point of over-

flowing using about 21 ounces (1-1/4 pts) of Sears SAE

10W-30 motor oil or equivalent Reinstall the oil fill cap..

FILL GAS:

CAUTION: GASOLINE IS FLAMMABLE

AND CAUTION MUST BE USED WHEN

HANDLING OR STORING IT. DO NOT

FILL FUEL "I'ANK WHILE EDGER/TRIMMER IS

RUNN1NG_HOT, OR WHEN EDGER/TRIMMER IS

tN AN ENCLOSED AREA. KEEP AWAY FROM

OPEN FLAME, ELECTRICAL SPARK, AND DO

NOT SMOKE WHILE FILLING THE FUEL TANK.

NEVER FILL FUEL TANK COMPLETELY; BUT

FILL THE TANK TO WITHIN 1/4 -1/2 INCH FROM

THETOPTO PROVIDE SPACE FOR EXPANSION

OF FUEL°ALWAYS FILL FUELTANK OUTDOORS

AND USE A FUNNEL OR SPOUT TO PREVENT

SPtLLING_ MAKE SURE TO WIPE UP ANY

SPILLED FUEL BEFORE STARTING THE EN-

GINE.

STORE GASOLINE IN A CLEAN, APPROVED

CONTAINER_ AND KEEP THE CAP IN PLACE ON

THE CONTAINER. KEEP GASOLINE IN A COOL,

WELL VENTILATED PLACE; NEVER IN THE

HOUSE. NEVER BUY MORE THAN A 30 DAY

SUPPLY OF GASOLINE 70 ASSURE VOLATIL-

ITY°GASOLINE IS INTENDED TO BE USED AS A

FUEL FOR INTERNAL COMBUSTION ENGINES;

THEREFORE, DO NOT USE GASOLINE FOR ANY

OTHER PURPOSE. SINCE MANY CHILDREN LIKE

THE SMELL OF GASOLINE, KEEP IT OUT OF

THEIR REACH BECAUSE THE FUMES ARE

DANGEROUS TO INHALE, AS WELL AS BEING

EXPLOSIVE.

........................................ i ,,

Fill the fuel tank (See Fig_7) with clean, fresh, unleaded

grade automotive gasoline. Be sure that the container

you pour the gasoline fromis clean and free from dust or

other foreign particles Never use gasoline that may be

stale from long pedods of storage in the container

Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur You may use

a gasoline stabilizer for extended storage (see the En-

gine Storage paragraph in the Storage section of this

manual).

JUI J L

FUEL FILL CAP

OIL FILL CAP

FIG. 7

CAUTION: NEVER FILL THE GAS TANK I

WHILE'THE ENGINE IS RUNNING OR HOT. I

IMMEDIATELY WIPE OFF ANY SPILLED I

GASOLINE BEFORE ATTEMPTING TO

START THE ENGINE_ I

Ill I L'_I _ / II I IIIIIIIlU"I I I I I II IIII Ill' H _lln' i,iiiii "".

O RAT

........................ i illll,,,,,meul .......................

PRE-USE CHECK OF CONTROLS o When the engine starts, move the choke control to

the OFF speed position To increase the engine

All controls should be checked for proper function before

servicing or starting the engine

eMove the clutch lever to all six (6) positions inthe

selector plate, Make surethe clutch leversnaps into

all six (6) holes (See Fig 6).

e Move the index lever to afi six notches in the index

plate (See Fig..6)..

•Return the clutch lever to the rearmost hole in the

selector plate and return the index lever' to the

vertical (deeper notch) position

speed, push the throttle control lever' up. To de-

crease the engine speed pull the throttle control

down

NOTE: The cutting blade speed is controlled by the

engine speed.. To reducethe cutting blade speed, push

down on the throttle control lever.. To increase the blade

speed, push up on the throttle control lever..

To stop the engine, make sure the clutch lever is all

•the way back (or'up) and move the throttle control

lever to the STOP position.

TO START THE ENGINE

Before starting the engine, be sure you have read and

understood allthe instructionsonthepreceding pages The

edger/trimmer is equipped with a recoil starter. The

operation of the engine is controlled by the throttle and

choke control levels

oPull the clutch lever all the way back (or up) to the

rearmost hole to raise and disengage the blade.

oMove the throttle control lever (See Fig. 6) to the

RUN position..

oMove the choke control lever (See Fig 6) to the

FULL choke postion.

NOTE: A warm engine should not need to be choked

•To start engine, grasp the starter handle firmlywith

your right hand.

eHold the upper handle firmly with your left hand

e PulIup sharply onthe recoilstarter handie DONOT

allow the starter rope to snap back, let it rewind

slowly while holding the starter handle.

NOTE: Itwill take a few pulls on the starter handle to feed

gas from the fueltank to the carburetor

CAUTION: NEVER RUN THE ENGINE IN-

DOORS OR IN A POORLY VENTILATED

AREA. ENGINE EXHAUST CONTAINS

CARBON MONOXIDE, AN ODORLESS

GAS AND DEADLY GAS.

KEEP HANDS, FEET, HAIR AND LOOSE

CLOTHING AWAY FROM ANY MOVING

PARTS ON THE ENGINE OR EDGER!

TRIMMER.

WARNING - AVOID THE MUFFLER AND

SURROUNDING AREAS (SEE FIGo 6),

TEMPERATURES MAY EXCEED 150° F.

i• _1 ll,ll=,ll= m

CAUTION: NEVER LEAVE THE EDGER/

TRIMMER UNATTENDED WHILE _,HE EN-

GINE IS RUNNING. ALWAYS DISENGAGE

THE CUTTING BLADE AND STOP THE

ENGINE,

..... : :I I II IIII IIII u ii II

EDGING OPERATION

eStart the engine and move the clutch lever forward

(or down) to engage the cutting blade

eSelect the edging depth you need There are 5

selections up to 2-3/4 inches deep

IMPORTANT: IFVERY DEEP EDGINGIS REQUIRED,

WE RECOMMEND THATA SHALLOW

CUT BE MADE FIRST, THEN CUTS

AT GREATER DEPTHS UNTIL THE

DESIRED DEPTH IS OBTAINED..

TRIMMING OPERATION

Stop the engine and disconnect the spark plug wire

from the spark plug

Loosen the teeknob (See Fig, 8) on the front wheel

arm and slide the wheel all the way to the rightside

eTighten the tee knob securely.,

CAUTION: THE FRONT WHEEL MUST BE

IN TIlE EXTREME RIGHT POSITION TO

PREVENT THE BLADE FROM STRIKING

WHEEL WHILE IN TRIMMING POSITION.

TEE KNOB

FRONT WHEEL SHOWN ALL THE WAY TO THE RIGHT

FIG. 8

OPERATION

Li J ill ii i ii,l,ll IlL .... ....... _ Ill II"""l,lll_J' '_.................

®Pulithe index lever out of its notch (See Fig 9) and KEEP THE EDGER/TRIMMER CLEAN

positionit in the notchmarked "90" Always removethedirt anddebrisfrom the edger!trimmer

Reconnect the spark plug wire and start the after each use,,Check for loose or damaged parts after

engine, Move the clutch leverto the desired trim- eachuse Tightenanyloosefasteners Checkthecontrols

ming height often to make sure they are functioningproperly See the

Pre-Use Check of Controls paragraph In the Operation

ACAUTION: NEVER LEAVE THE EDGER/! section of this manual.

_, TRIMMER UNATTENDED WHILE THE EN- i

u_== GINEIS RLINNING.ALWAYSDISENGAGE !

THE CUTTING BLADE AND STOP THE !

ENGINE ........... I

INDEX LEVER

INDEX LEVER IN THE NOI'CH MARKED "90"

FIG. 9

CURB-HOPPING OPERATION

The adjustable front and right rear wheel feature permit

the edger/trimmer to be used on an uneven surface

(such as a curb) as shown in Fig 10

® Stop the engine and disconnect the spark plug wire

from the spark plug

oLoosen the tee knob on the front wheel arm

enough to release the notch on the arm from the

front of the main frame..

®Lower the front wheel to a position that places the

edger!trimmer level with the left rear wheel on the

uneven (curb) surface

g Be sure that a notch on the rear of the front wheel

arm engages the front edge of the main frame and

the wheel is pushed all the way to the right side

Tighten the tee knob securely

® Loosen the tee knob on the inside right rear of the

main frame that secures the wheel support rod

(See Fig. 10)

eSlide the rear wheel down until the edger is level

when the left wheel is on the curb

Tighten the tee knob securely.

Reconnect the spark plug wire and start the en-

gine The depth of cut adiustment is the same as

described in Edging Operation paragraph

If any adjustments are required, see the Adjustments/

Repairs section of this manual_ If any parts are worn or

damaged, replace immediately_ Contact the nearest

SEARS Store or Service Center for proper original parts,

as shown in the Repairs Parts section of this manual

Make repairs as instructed in the AdjustmentstRepatrs

section of this manual

TEE BLADE

KNOB GUARD

WHEEL

SUPPORT

ROD

TEE

KNOB

FRONT

WHEEL

ARM \

FIG. 10

..........CUSTOMER RESPONSIBILITIES

.............. : .................. JL,, llll, i, iu llllll ,,,,ui ii ,,,,,,,,,,,ill i ......

The warranty onthis edger/trimmer does not cover items

that have been subjected to operator abuse or negli-

gence. To receive full value from the warranty, the

operator must maintain the edger/trimmer as instructed

inthismanual, The followingMaintenance Check List is

supplied to assist the operator properly maintain the

edgerttrimmer

MAINTENANCE

CHECK LIST

BEFORE STORAGE

BEGINNING EACH SEASON

:_-VERY25 HOU RS OF-USE

i EVERY 10 HOURS OF USE

EVERY 5 HOURS OF USE

FREQUENTLY

BEFORE EACH USE

AFTER FIRST 2 HOURS OF USE

Check Engine Oil Level

Change Engine Oil

Tighten All Screws and Nuts

Check Blade Wear/Damage

Replace Air Cleaner Filter

Check Spark Plug

Lubricate all Pivot Points

l_uSricat_:Wh_l _les

_!® ............

....... Q

,,,,,,,, ,,,, ,, ....

LUBRICATION

® Apply light machine oil after each 25 hours of use to

all moving parts, particularly the wheels.

eThe oilin the crankcase must be changed after the

first 2 hoursof operation and after each 25 hoursof

use thereafter.

NOTE: If the edger/trimmer is being used in sandy or

dusty areas, change the oil more frequently to pre-

vent premature engine wear,

To change the crankcase oil:

eDisconnect the spark plugwirefromthe spark plug

® Remove the oil drain plug (See Fig. 11) and drain

the oil into a flat pan After drafffing all the oil,

reinstall the oil drain securely.

NOTE: The oil will drain more freely when the engine is

warm.

Remove the oil fill cap (See Fig. 6), and fil! the

crankcase to the point of overflowing, using about

1-1/4 pints of Sears SAE 10-W30 motor oil or

,,,,_

.....

i ®

i i®

SERVICE RECORD

FILLIN DATES

ASYOU COMPLETE

REGULARSERVICE

, ,,,,

equivalent Sears SAE 30 motor oil or equivalent

may be used as an acceptable substitute Reinstall

the oil _l cap and tighten securety.

NOTE: The quill assembly bearings are factory sealed

and will require no lubrication.

oReconnect the spark plug wire on the spark plug.

VIEW FROM REAR

CUSTOM ESPON LiT!

a::: ii ii ,11, ,111 i i iii1,11111111 ii i i LI

AIR CLEANER MAINTENANCE ....."...................................... .....

Replace the filter once a year; more often under dusty or

dirty cond_ionso DO NOT attempt to clean or oil the air

filter.

To install a new air filter, do the following:

eDisconnect the spark plugwire fromthe spark plug,

Turn the cover (See Fig,,9) tothe left (counterclock-

wise) and remove the cover and the airfilter from the

flange.

Discard the air litter,

Clean the cover and the flange thoroughly.

Insert the new air filter into the cover.

Push the cover firmly against the flange and turn it

to the right (clockwise) as far as it will go (See Fig.,

12)., Be sure the retainers are locked around the

flange,

Reconnect the spark plug wire,,

CAUTION: NEVER RUN THE ENGINE

WITHOUT THE AIR CLEANER ELEMENT

INSTALLED. A DEFECTIVE AIR CLEANER

CAN RESULT IN LOSS OF ENGINE POWER

AND CAN CAUSE EXCESSIVE WEAR OR

DAMAGE TO THE ENGINE COMPONENTS

IF DIRT OR DUST IS PERMITTED TO EN-

TER THE ENGINE THROUGH THE CAR-

BURETOR. A DAMAGED AIR CLEANER,

OR ONE THAT IS CLOGGED WITH DUST

OR DIRT SHOULD BE REPLACED IMME-

DIATELY,

::::_...... iii ill ii ii ............ ii i i mill .

SPARK PLUG MAINTENANCE

Clean the spark plug and reset the gap periodically,,

Clean the area around the spark plug base, before

removal, to prevent dirt from entering into the engine.

Replace the spad_ plug if the electrodes are pitted or

burned or if the porcelain is cracked_ Clean the spark plug

by carefully scraping the electrodes (do not sand blast or

use a wirebrush). Be sure the spark plug is clean and lree

ot foreign material. Check the electrodes gap witha wire

feeler gauge and reset to ,035i1 necessary,, Ifa newspark

plug is needed, refer to the Engine Operation and

Maintenance manual for the properreplacement spark

plugo

Before reinstallingthe spark plug,coatthe threads lightly

with graphite or light oil to insure easy instatlation and

removal. Tighten the spark plugfirmly intothe engine. If

a torquewrench is available, torquethe spark plugto 15

foot-pounds,

TURN COVER

TO THE LEFT

(COUNTER-

CLOCKWISE)

TO REMOVE

SLOT

FLANGE

FILTER

TAB

RETAINER

COVER

FIG. 12

TURN COVER

TO THE RIGHT

(CLOCKWIS_

TO INSTALL

..... _ i iiiiill

SE CE

CAUTION: ALWAYS STOP THE ENGINE

AND DISCONNECT THE SPARK PLUG

WIRE BEFORE MAKING ANY REPAIRS

TO THE EDGER/TRIMMERo

ADJUST TS

CAUTi0N:i_c) NOT ATTEMPT TO

SHARPEN THIS BLADE. YOU COULD

CAUSE DAMAGE TO THE BLADE WH ICH

COULD RESULT IN BREAKAGE AND

POSSIBLE USER OR BYSTANDER IN-

JURY,

V-BELT REPLACEMENT

Your edger/trimmer is equippedwitha V-belt made of a

special compound. If the belt becomes worn or breaks,

replace it with an original equipment belt as shown in

the Repair Parts section of this manual NEVER USE A

SUBSTITUTE.

®Disconnect the spark plug wirefrom the spark plug

e Pull the clutch lever back (or up) to release the

tension from the belt

e Remove the two top screws from the engine pulley

cover (See Fig !0) and remove the cover.

NOTE: Make sure you do notlose the spacer on the rear

screw,

eRemove the front screw securing the belt guide

(See Fig t0) to the engine Then loosen the rear

screw and swing the belt guide away from the belt

eRemove the three (3) screws from the front belt

guard (See Fig 11)..

eRemove the belt from the engine and quill assembly

pulleys and installthe new belt,

®lnstal! and secure front belt guard

e Secure the belt guide loosened earlier-

eReinst allthe engine puIleycover and reconnectthe

spark plug wire

BLADE REPLACEMENT

The cutting blade is subject to wear anddamage such as

nicks anddents This willnot generally affect itsfunction

This blade is specially designed to not require sharpen-

ing,,DO NOT ATTEMPT TO SHARPEN THiS BLADE

The blade is reversible. If the nicks and dents are

excessive, remove the blade, turn itaround and reinstall

This will provide afresh cutting edge Ifwomordamaged

the blade should be replaced

CAUTION: WHEN REMOVING OR

TIGHTENING THE BLADE NUT, ALWAYS

USE THE METHOD SHOWN IN FIGURE

12oTHE HOLDING WRENCH MUST AL-

WAYS BE POSITIONED ON THE NUT

BEHIND THE CUTTING BLADE_

ENGINE

PULLEY

COVER

SCREWS

ENGINE

PULLEY

COVER

SPACER

ENGINE

PULLEY

V-BELT

FRONT

SCREW BELT

GUIDE

REAR

SCREW

FIG. 10

BELT J

GUARD

BELT

GUARD

SCREWS

FIG. 11

SERVICE AN .....ADJUST .....E TS

................... ,_ : . ii iin III iiii ii i iii .... iiiii i : : ,. "..... _ iiiiiii

eAdjust the idte_speed adjustment needle in the

same manner asthe high-speed adjustment needle

To replace the blade, do the following:

eDisconnect the spark plug wire

eRemove the hex Iocknut and flatwasher (See Fig

12) securing the blade to the drive shaft.

eRemove the blade,,

®lnstallthe new blade, flatwasher and locknut Torque

nut to 35 foot ibs

eReconnect the spark piing wire

CARBURETOR ADJUSTMENT

IMPORTANT NEVER ATTEMPT TO CHANGE THE

MAXIMUM ENGINE SPEED, EXCES-

SIVE SPEEDS CAUSED BY BY-PASS-

ING THE GOVERNOR CAN CAUSE

DAMAGE TO THE ENGINE.

Never make unnecessary adjustments to the carburetor

The carburetor was set at the tactory to operate eife-

ciently for most applications° However, if adjustments are

required, we recommend that you contact a competent

repairman such as at a Sears Service Center, if you feel

that you are competent to make the carburetor adjust-

ments, do the following:

eTurn the high-speed adjustment needle (See Fig,

13) clockwise to "finger tight" only Use a regular

screwdriver to turn the idle speed adjustment needie

clockwise,,

IMPORTANT. THE NEEDLES AND/OR SEATS CAN

BE DAMAGED IF OVERTtGHTENED

CAUTION: USE EXTREME CARE WHEN

MAKING ADJUSTMENTS THAT REQUIRE

THE ENGINE TO BE RUNNING. KEEP

HANDS, FEET, HAIR AND LOOSE

CLOTHING AWAY FROM ANY MOVING

PART,

TIGHTENING

WRENCH

HEX

BLADE LOCKNUT

FIG, 12

i|1

IDLE SPEED

ADJUSTMENT NEEDLE

CARBURETOR

HIGH SPEED

ADJUSTMENT NEEDLE

± i i , ,_,., ,. i i,i1,,,,, ,i, ,i

FIG. 13

Turn the high-speed and the idie_speedadjustment

needles counterclockwise one (1)turn This adjust-

ment will allow the engine to be started

Start the engine and move the throttle controt lever

to FAST position and allow the engine to warm up

Turn the high-speed adjustment needle counter-

clockwise until the engine starts to cut oil Note the

position of the high-speed adjustment needle

Turn the high-speed adjustment needle clockwise

untiithe engine starts to cut o{f Note the position of

the high-speed adjustment needle

Turn the high-speed adjustment needle half way

between the two cut off points

oMove the throttle control lever to the idle speed

..... I TROU LESHOOTI ........G........................

ili, i,w/iu,J, _ ...................................................................

TROUBLE

Difficult starting

Engine runs erratically

Cutting blade fails to

turn

Blade fails to cut

properly

Excessive vibration

CAUSE

Stale fuel

ii i i i i N,iilli_liliiilliiii,i ii i iiiiii i,

Defective spark plug

Clogged fuel filter

Blocked fuel line or empty fuel tank

, ,,, ,,, ,,,,,1,1,1, ,u

Carburetor out of adjustment

Fouled spark plug

j,, :: ......................... ,i

Clogged air cleaner

Jammed due to foreign object

Loose blade

Defective V-bett

Defective quitt bearings

Damaged or worn blade

Loose parts

CORRECTION

Drain fuel tank. Filt with fresh fuel,,

ii ii i]Hi u "

Clean and re-gap spark plug,,

Replace fuel filter

......... II I I_I HI_IIIII ......... L LII IIIIILILILIIJ

Clean fuel line; check gas tank_

Have carburetor' adjusted_

iii/,_,l,,, i

Clean and adjust gap

Tap clean or replace air cleaner

CLearobstruction,

Tighten blade retaining nut

Replace the V-bett.

Replace the bearings.

Reverse blade or replace blade,.

Stop engine immediately, tighten all bolts If

vibrationcontinues, take the unitintothe

nearest SEARS Service Center_

;:; 7,,t,,tt,,,j it tt , _tj iit ,,,i !,

CAUTION: NEVER STORE YOUR

EDGER/TRIMMER INDOORS OR IN AN

ENCLOSED, POORLY VENTILATED

AREA IF GASOLINE REMAINS IN THE TANK,

FUMES MAY REACH AN OPEN FLAME, SPARK

OR PILOT LIGHT FROM A FURNACE, WATER

HEATER, CLOTHES DRYER, CIGARETTE, ETC°

To prevent engine damage ( if edger/trimmer is not used

for more than 30 days) follow the steps below.

ENGINE STORAGE

Gasoline must be removed ortreated to prevent gum

deposits from forming in the tank, filter, hose, and

carburetor during storage, Also during storage, al-

cohol blended gasoline that uses ethanol or metha-

nol (sometimes called gasohol)attracts water, it acts

on the gasoline to form acids which damage the

engine=

To remove gasoline, run the engine until the tank is

empty and the engine stops

If you do not want to remove gasoline, a fuel

stabilizer (such as Sears Craftsman fuet stabilizer

No 33500) may be added to any gasoline left in the

tank to minimize gum deposits and acids tfthe tank

is aimost empty, mix stablilizer with fresh gasoline

in a separate container and add some to the tank

ALWAYS FOLLOW INSTRUCTIONS ON STABI-

LIZER CONTAINER. THEN RUN ENGINE AT

LEAST 10 MINUTES AFTER STABILIZER IS

ADDED TO ALLOW MIXTURE TO REACH CAR-

BURETOR. STORE EDGER/TRIMMER tN A SAFE

PLACE. SEE WARNING ABOVE,

You can keep your engine in good operating condi-

tion during storage by:

•Changing oil

®Lubricating the piston/cylinder area This can be

done by first removing the spark plug and squirting

clean engine oil intothe spark plug hole..Then cover

the spark plug hole with a rag to absorb oil spray..

Next, rotate the engine by pulling the starter twoor

three times,. Finafly, reinstall spark plug and attach

spark plug wire.

EDGER/TRIMMER STORAGE

Clean the edger!trimmer thoroughly; remove all

debris and wipe the unit dry

Inspect the edger/trimmer for worn or damaged

parts and tighten all loose hardware.

Oitallpoints described inthe Ltibrication paragraph

in the Maintenance section of this manual

Store the edger/trimmer in aprotected area and

cover for additional protection,.

IMPORTANT: AYEARLY CHECKUP OR TUNEUP BY

A SEARS SERVICE CENTER tS A

GOOD WAY OF ENSURING THAT

YOUR EDGER/TRIMMER WILL

PROVIDE MAXIMUM PERFORMANCE

FOR THE NEXT SEASON..

OStore the edgerltrimmer inthe wheels-down, oper-

ating position If the edger/trimmer is stored in any

other position, oil from the crankcase could enter

the cylinder, causing a service problem

CRAFTSMAN 9"- 3.0 H.P. EDGER/TRIMMER 536.797561

NOTE: ALWAYS USE ORIGINAL

EQUIPMENT PARTS Use of service/

replacement parts other than original

parts may void your warranty

Raf. Item 32

On Page 21

ALL UNNUMBERED

ITEMS ARE INTERCHANGEAB_

WITH OPPOSITE SIDE

CRAFTSMAN 9" -3.0 H.P. EDGER/TRIMMER 536.797561

REFo

NO.

PART NO.

323534-854

6852

120376

5717t

120230

8082

51615

51376

122027

180735

120393

315197

580330-853

310054

55273

310294

122007

6842

56924

122027

45222

25644

308253-853

310050-853

580292-853

5'1887

310715

2968

51333

48148

PART NAME

Edger Frame

Arm, Front Wheet Support

* Nut, 5/t6-18 Reg Hex

Plastic T-Knob

*Carriage Bolt, 5/16-18 x 1-1/4 in

Ctevis

* Pushnut Washer

Pivot Rod

Screw, 5/16-t8 x 1_1/4 In

* Screw, HHC 5/16-18 x 3_1t4 In.

*Ratwasher

Wheel and Tire Assembly

Lever Strap

Selector Plate

Nut, 5/'16-18 Hex Locknut

Upper Handle and Foam

*Screw,HHC 5/16-18 x 3/4 inn

Bracket, Curb Hopper

Grip, Hand Depth Adjust

* Screw, 5116-18 x 1.-1/4 In.

Spacer

Spring

Lower Handle

Handle, Depth Adjust

Control Rod

Spacer

Washer

Screw, Hex Wd Ft 5/16-18 x 5/8

*Screw, 3/8=16 x 1 In, w_

(*) Standard Hardware Items - May Be Purchased Locally.

REF.

NO.

PART NO.

45171

36368

t499

310053

121913

1502

312548

51888

310896

121222

31O716

324779

PART NAME

Nut, Hx Wd FI Lock 3/8-16 Thd

Hairpin

Nut, Hex 3t8-16 Thd

Stud

Screw, 1/4-20 x 1-1/4 In_

Nut, Lock 1t4-20 Thd,

Decal Height Adjust

Spacer

Wheel Support Rod

Cotter Pin

Shoulder Bolt, 3/8-16 Thdo

Owner's Manual

(Not Illustrated)

CRAFTSMAN 9"- 3.0 H.P. EDGER/TRIMMER 536.797561

37 t0

11 40 2

"t9 t8

REF,

NO. PARTNO.

131478t

2 181608

3 313011

4 320353

5 314794

308155

308237

53407

173030

309300

181624

308254

308262

274654

305634

41t666

32668

43846

48697

120371

4935

2968

PART NAME __

Pulley, Half

Screw, 5/16-24 x 1.0 HHC

Screw and Washer Assembly

Retainer

Engine, Craftsman 4 Cycle

Model 143814032

TorsionSpring

Spacer

Screw, HHC, 5/16-18 x 3-314 In..

Engine Pulley Cover

Screw, HHC, 5/t6-24 x 3 In

ShoulderBoil, 3/8-16 Thd

Belt Guard

Locknut, Reg Hex 1/2-20 Thd

Pulley,Half

Screw, Tap, #10-16 x 112In

V-Belt

Ball Bearing

Drive Shaft

Nut, 1/2-20 Thd

Shield Washer

Flatwasher

REF. I

NO,

23 I

24 I

25 I

26 i

27 I

28 i

29 I

3O I

31 l

32 1

33 I

34 I

35 !

36 ;

37 :

i44

PARTNO,

323500

1498

324860

315233

320222

1499

126211

88716

46023

308501

120396

308243

308154-854

35075

315095

308466

312561

45602

1501

324476

324475

120393

PART NAME

Quill Arm Assembly

Nut, 5/16_18 Reg Hex

Decal, Blade Rotation, Edger

Compression Spring

Blade Guard

Nut, 5/16-18 Thd,

Carriage Bolt,5/16-18 x 5/8 In

Blade

Nut, Wide Flange, 1/2-20 "l-hd_

Quill Support Assembly

Ftatwasher, _531x1.06x 095

Deflector

Strap

Hi-Pro Key

Spacer

Index Lever

Decal ,Angle Indicator

Flatwasher

Flatwasher, _203x .56 x _040

Decal, Warning Edger Blade

Decal, Danger Blade, Edger

Flatwasher, 344x 69x 065

CRAFTSMAN 4CYCLE ENGINE MODEL: 143.814032

iNo.

iZ%.

6322O8

l631615

I631767

631O36

_650506

j 63O766

650417

31841

63O735

631562

63O738

63O739

°630740

63O737

"630748

632164

"630746

631049

630742

"630932_

21 630750

22 *630978

23 63O751

24 65O545

25 632042

26 631184

27 631971

28 631183

29 631893

P_Name

Carburetor

Shaft Et Lever Assy+, Throttle

Spring, Throttle return

Shutter, ThrotlJe

Screw, Thmttte _Choke shutter

Spring, idle regulating screw

Screw, idle regulating

Shaft _ Lever Assy.o Choke

Spring, Choke poshioning

Shutter, Choke

Screw, Idle edjusm_ent

Sprig, Adjustment screw

Washer, Adjustment screw

"0".. Ring, Adjustment screw

Screw, Main adjustment

Plug, Welch

FKting, Fuel

Plug, Welch

Spring, Needle valve

Gasket, Needle valve seat

Inlet Needle, Seat, Gasket _ Spring

GASSy,(lncL Nos, 18 r= 191

asker, Diaphragm

Diaphragm Assy,, [IncL No,,21}

Cover, IOiaphragm

Screw, Pan flex hd,, 6-32 x 3/8

Spring, Choke return

Washer, Flat

Seal, Dust

Washer, Felt

Repair Kit {includes items

marked *)

REWIND STARTER NO. 590642A

ReL Part

_o. No. Part Name

_90642A

5905_A

5OO6O0

590615

5906O1

59O598

590616

590617

590618

590619

S90620

59O643

590535

59O452

Starter, Rewind

Pin, Sp=ing (lncL No_ 4)

Washer

Retainer

Washer

Spring, Brake

Dog, Stz_rter

Spring, Dog

Pulley

Spr_ng, Rewind

Cover, Spring

Housing Assy., Starter

Rope, Starter (Length 98" _9/64"

dia.)

Handle, Starter

CRAFTSMAN 4 CYCLE ENGINE MODEL: 143.814032

178

131

172

39O

327

MODELandSERIAL

NUMBERSHERE

370A

CRAFTSMAN 4 CYCLE ENGINE MODEL: 143.814032

[l_ef.

!No.

' 14

25A

25B

4.9

.72

100

!02

103

110

119

120

125

126

130

131

!32

Part

No.

34708A

26727

28277

31334

31336

31335

650548

34593

32600

t33342

1650139

t30332

650561

35902

34514

34515

34516

325388

32548B

32549B

28986

28987

28988

20381

30963B

32610A

27241

28594

33149A

29745

650128

650751

"27677A

35863

27642

26208

30574

305.90A

30591

30588A

29193

65O488

610961

611080

650815

650816

34443A

65O872

65O814

35182

29953C

30579A

29313C

29315C

29314B

29315C

6021A

650694A

650708

Part Na'ne

CylinderAssy..(Incl. Nos. 2, 20 e 72)

Pin, Dowel

Washer, Rat

Rod, Governor

Lever, Governor

Clamp, Governor lever

Screw, Hex washer hdo, 8-32 x 5116

Spring, Extension

Seal, Oil

Baffle, Blower housing

Screw, Fil, hd. Sems, 8-32 x 1/2

Locknut, Hex "Keps", 8-32

Screw, Hex washer hd. Durlok, 1/4-20

x 5/8

CrankshaftAssy.

Piston, Pin 8, Ring Assy. (Std.) (tncL

Nos,.41.42 Et 43)

Piston, Pin _Ring Assy. (,010 over-

size) (incl. Nos, 41, 42 6" 43)

Piston, Pin _Ring Ass'y. (.020 over_

size) {tnc!.Nos. 41, 42 8`48)

Piston _ Pin Assy. (StdJ (Incl. No. 43)

Piston 8- Pin Assy_ (oo10oversize)

(tncL No. 431

Piston 8` Pin Assy. (.020 oversize)

(Incl, No. 43)

Ring Set, Piston (Std.)

Ring Sat, Piston(,010 oversize)

Ring Set, P;ston(,020 oversize)

Ring, Pistonpin retaining

Rod Assy., Connecting(incl. Nos. 46

e 49)

Bolt, Connectingrod

Lifter, Valve

Dipper, Oi!

Camshaft (CompressionRelease)

Extension, Blowerhousing

Screw, Hex hd. Seres, 10-24 x 1/2

Screw, Hex hd. w/conical sprlng

washer, 1/4-20 x 7/16

Gasket, Cylindercover

Cover, Cylinder{Incl. Nos_75, 80. 311

312)

Plug, Pipe (1/4-18)

Seal, Oil

Shaft, Mechanicalgovernor

Washer, Flat

Gear, Governor(lncL No. 8t)

Spool, Governor

Ring, Retaining

Screw, Hex hd. Seres, 1/4-20 x 1_1/4

Key, Flywheel

Flywheel

Washer, Betleville

Nut, Flywheel

Solid State Assy°

Stud, Solid state mounting

Screw, Torx To15 hex washer hd.

Seres, 10-24x 1

Wire, Ground

Gasket, Cylinderhead

Head, Cylinder(Incl. No. 131)

Valve, Exhaust(Std.) (Incl. No. 151)

Valve, Exhaust (1/32" overJsize)(Incl.

NoD151)

Valve, Intake {Std.) |Incl. NoD151)

Valve, Intake (t/32" oversize) (IncL

No. 151)

Screw, Hexflange hd., 5/16-18 x 1-i/2

Screw, Hex flange halo5/16-18 x2

Washer, Flat

.,IRef.

rNo,

I13S

150

151

169

170

171

172

173

174

178

179

182

t84

185

2OO

2O3

2O4

2O6

215

223

224

238

239

245

249

25O

260

261

274

275

2T/

284A

285

287

29O

292

298

300

301

31t

312

313

327

339

340

345

352

353 i

370AI

370B l

370C1

380

390

400

Pazt

No.

33636

31672

31673

"27234A

27666

314t0

34146

35350

650128

29752

30593

6201

"31688A

34597

31341

133858A

31342

B505€9

610973

32410

65O451

*32649A

65O932

34338

35O66

35797

35065

35585

29212

"3008tA

3O996

650493

30997

65O665

34694

650884

29774

26460

6_665

32660A

33O32

27625

*29673

34080

35392

28212

32661

32664

35883

650884

34346

34150

35344

632208

590642A

33233A

Part Name

PIug, Spark (Champion J-eC or

equivalent)

Spdng, Valve

Cap, Valve spring

Gasket, Breather

Body, Valve cover

Element, Breather

Cover, Breather

Tube, Breather

Screw, Hex hd. Seres, 10-24 xt/2

Nut 8` Lockwasher,1/4-28

Clip, Groundwire

Screw, Hex hd, 1/4.28 x 7/8

Gasket, Carburetor

Pipe, Intake

Link, Governorto thmttte

Control Assy., Speed (IncL Nos. 203

thpJ206, 25A Et25B)

Spring, Compression

Screw, FiLhd., 5-40x 7/16

Terminal Assy.

Knob, Speedcontrol

Screw, Hex hd. Seres, 1/4-20 x t

Gasket, Intake to cylinder

Screw, Hex washer hd shoulder,

10-32 x 49/64

Gasket, Air cleaner

Fitter, Air cleaner{paped

Collar, Air cleaner

Cover, Air cleaner

Housing, Blower

Screw, Hex hd. Beans,1/4-28 x 7/16

Gasket, Exhaust

Muffler

Screw, Hex hd..Same, 1/4`20 x 1-3/4

Cover, Muffler

Screw, Hexwasher hd_thread cutting,

1/4-15 x 7/8

Cup, Starter

Screw, Hex washer hd., 8-32 x 1/2

Line, Fuel

Clamp, Fuel line

Screw, Hex washerhdothreadcutting,

1/4-15 x 718

Tank Assy, Fuel{lncL Nos. 292 Et301)

Cap Assy., Fuel

Plug Assy., Oil {IncL No, 312)

Gasket, O!: plug

Spacer, Flywheel key'

Plug, Starter

Spacer, Tank bracket

Bracket, Fuel tank mounting

Baffle, Heat

Exten-_sion,Baffle

Screw, Hex washer hd.., 8-32 x 1/2

Decal, Lubrication

Decal/Choke

Decal, Throttle

Carburetor (Incl, No. 184)

Starter, Rewind

Gasket Set (Incl. itemsmarked °)

RPM Setting:

Low Speed: t700-2000

High Speed: 3300-3600

*indicates Parts Includedin

Gaskst Set, RefoNo.,400.

f in original production, the speed centre! assembly is riveted to the blower housing baffled Replacement speed control assembly _nctudos screws

and nuls for mounting,, Replacement baffle has threaded holes.

OWNER'S

MANUAL

MODEL NO.

536,797561

HOW TO ORDER

REPAIR PARTS

CRRFrSMRN®

9INCH-

3.0 HORSEPOWER

EDGER/3"RIMMER

Each EDGER/fRtMMER has its own MODEL

NUMBER on a model plate on the frame behind

the engine.

Each ENGINE has its own MODEL NUMBER

found on the BLOWER HOUSING.

Always mention these MODEL NUMBERS when

requesting service or Repair Parts for your

EDGER/TRIMMER_

All parts may be ordered through any Sears,

Roebuck and Compady Service Centers and

Retail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS

GIVE THE FOLLOWING INFORMATION:

* PRODUCT- "EDGERff'RIMMER"

*MODEL NUMBER - 536,797561

*ENGINE MODEL NUMBER - 143.814032

* PART NUMBER

* PART DESCRIPTION

"Your Sears merchandise has added value when you

consider that Sears has service units nationwide staffed

with Sears trained technicians. °Professional technicians

specifically trainedon Sears Products, having the parts,

tools and equipment to insure that we meet our pledge

to you_ we service what we sell"

, Hoffman Estates,

............ llll j ill i L ll/llll

SEARS, ROEBUCK AND CO.

324779 08f24/92

IL 60179

Printed in U_S.Ao

Craftsman 536797561 User Manual 3.0 H. P. EDGER/TRIMMER Manuals And Guides L0912211

CRAFTSMAN Edger Manual L0912211 CRAFTSMAN Edger Owner's Manual, CRAFTSMAN Edger installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
