Craftsman 536884790 User Manual 5 HP SNOW THROWER Manuals And Guides L9060259

CRAFTSMAN Snowthrower, Gas Manual L9060259 CRAFTSMAN Snowthrower, Gas Owner's Manual, CRAFTSMAN Snowthrower, Gas installation guides

User Manual: Craftsman 536884790 536884790 CRAFTSMAN 5 HP SNOW THROWER - Manuals and Guides View the owners manual for your CRAFTSMAN 5 HP SNOW THROWER #536884790. Home:Lawn & Garden Parts:Craftsman Parts:Craftsman 5 HP SNOW THROWER Manual

Open the PDF directly: View PDF .
Page Count: 32

CRAFTSMAN +

5 Horsepower

22 Inch Dual Stage

120V. Electric Start

SNOWTHROWER

MODEL NO.

536.884790

Caution:

Read and follow all Safety

Rules and Operating

Instructions before first use

of this product.

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.

760985 09/16/97

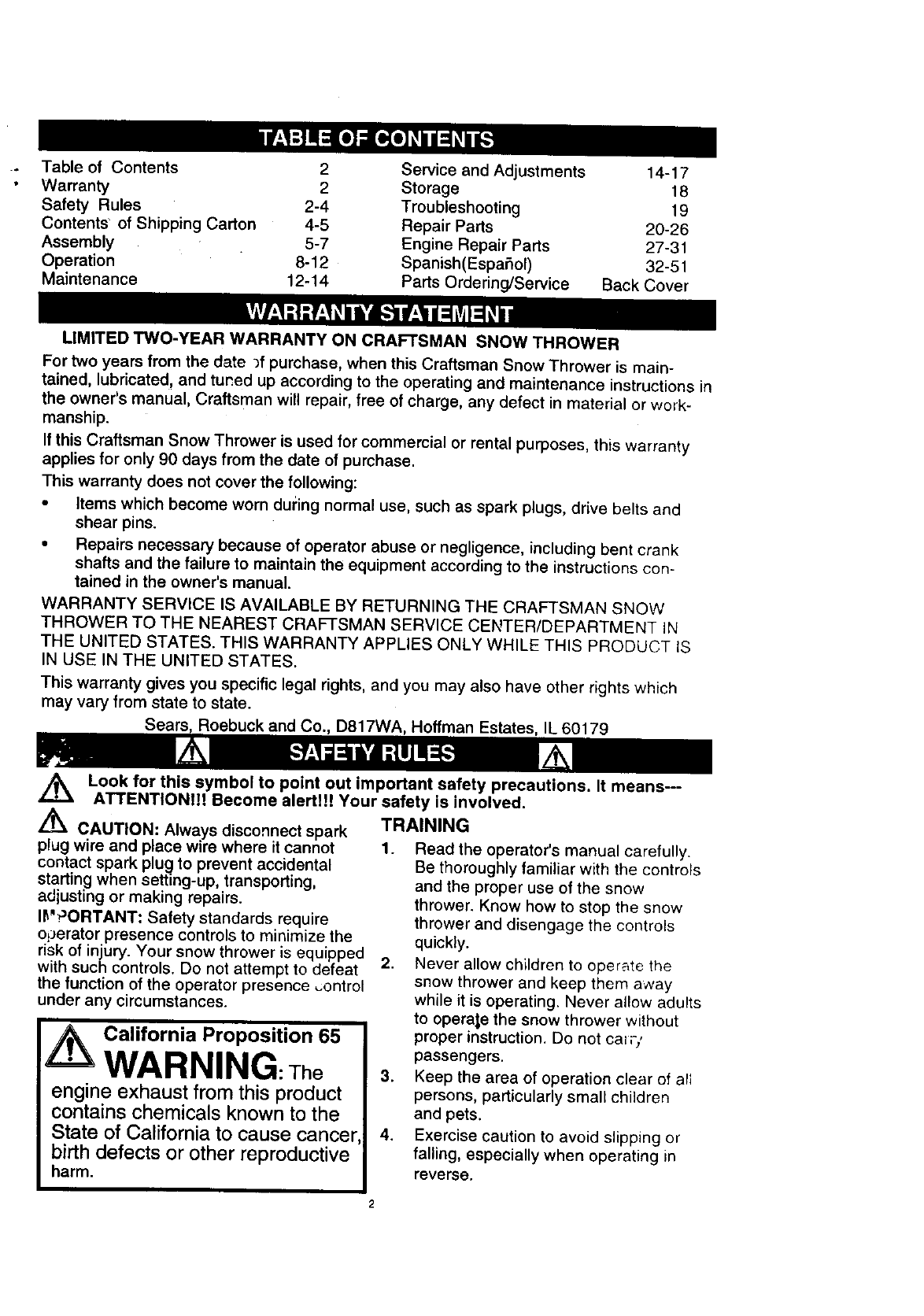

Table of Contents 2 Service and Adjustments 14-17

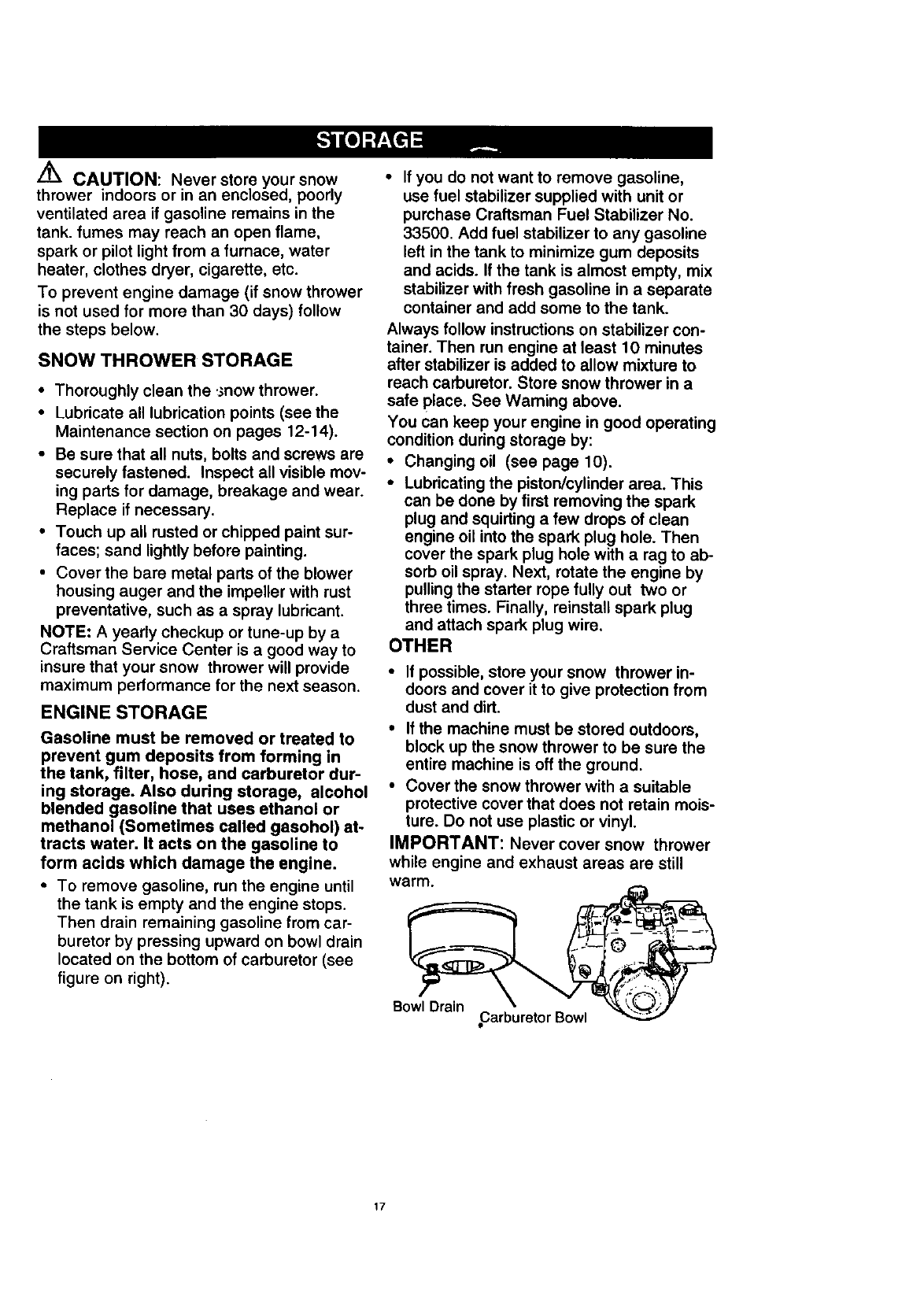

Warranty 2 Storage 18

Safety Rules 2-4 Troubleshooting 19

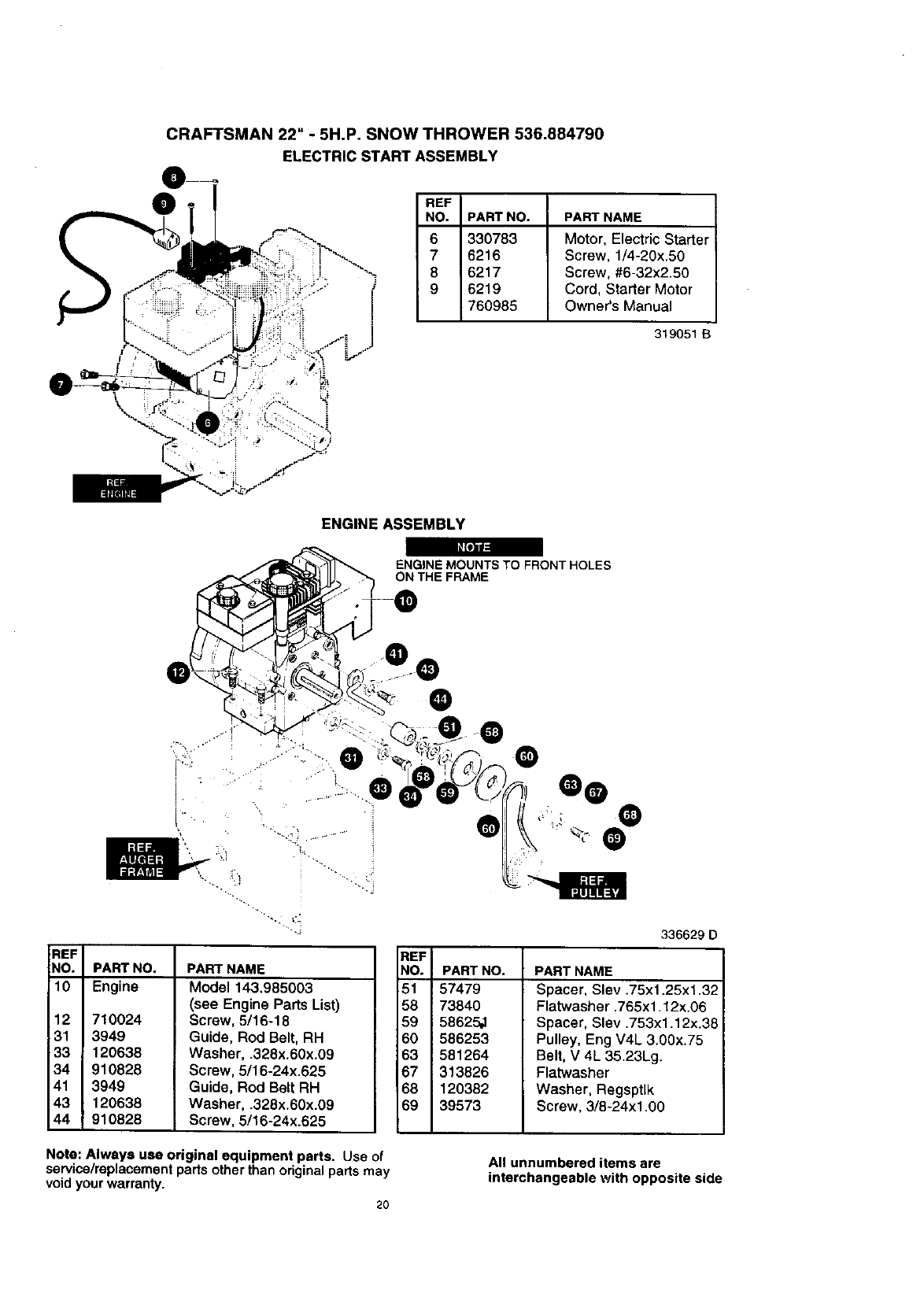

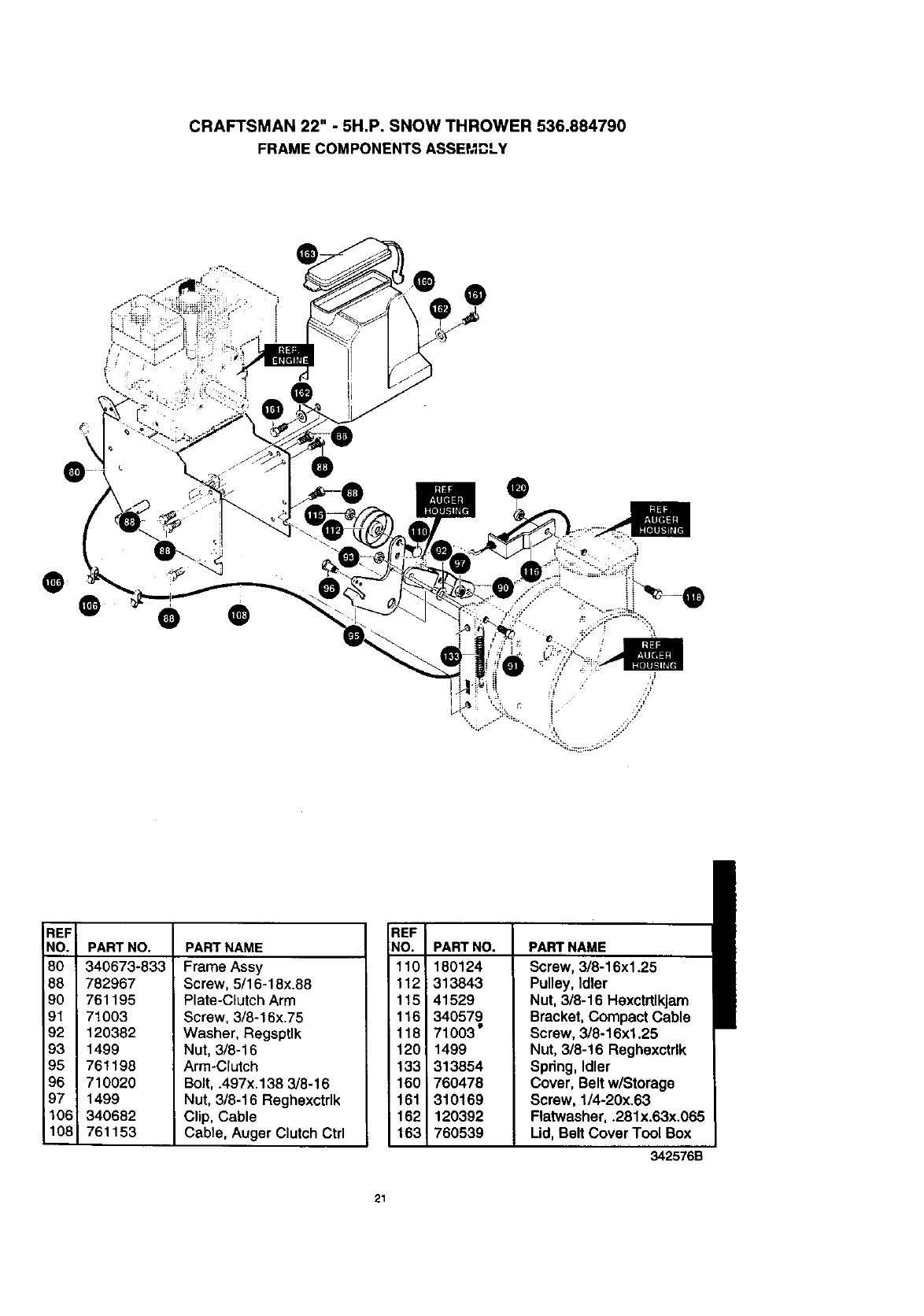

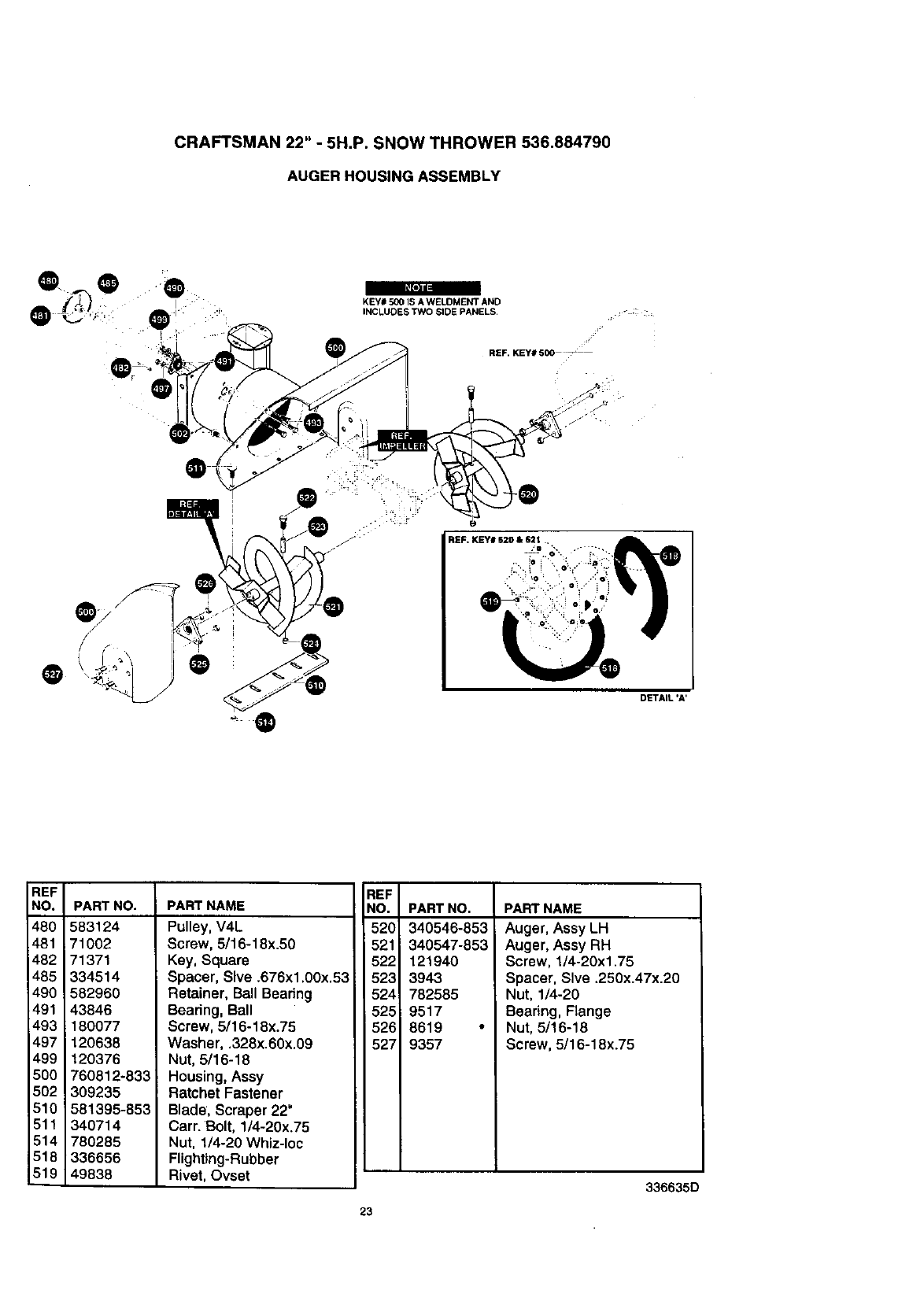

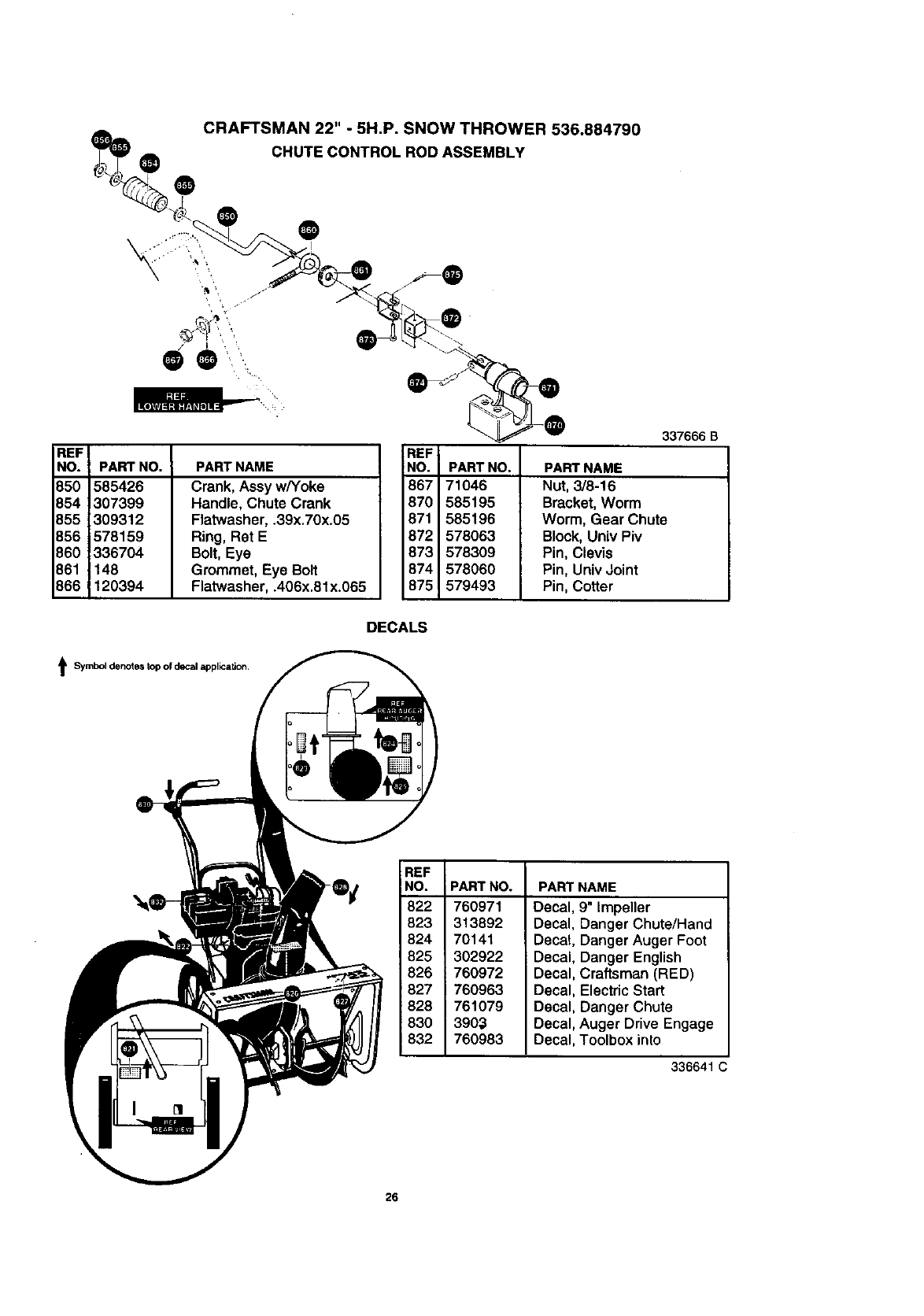

Contents of Shipping Carton 4-5 Repair Parts 20-26

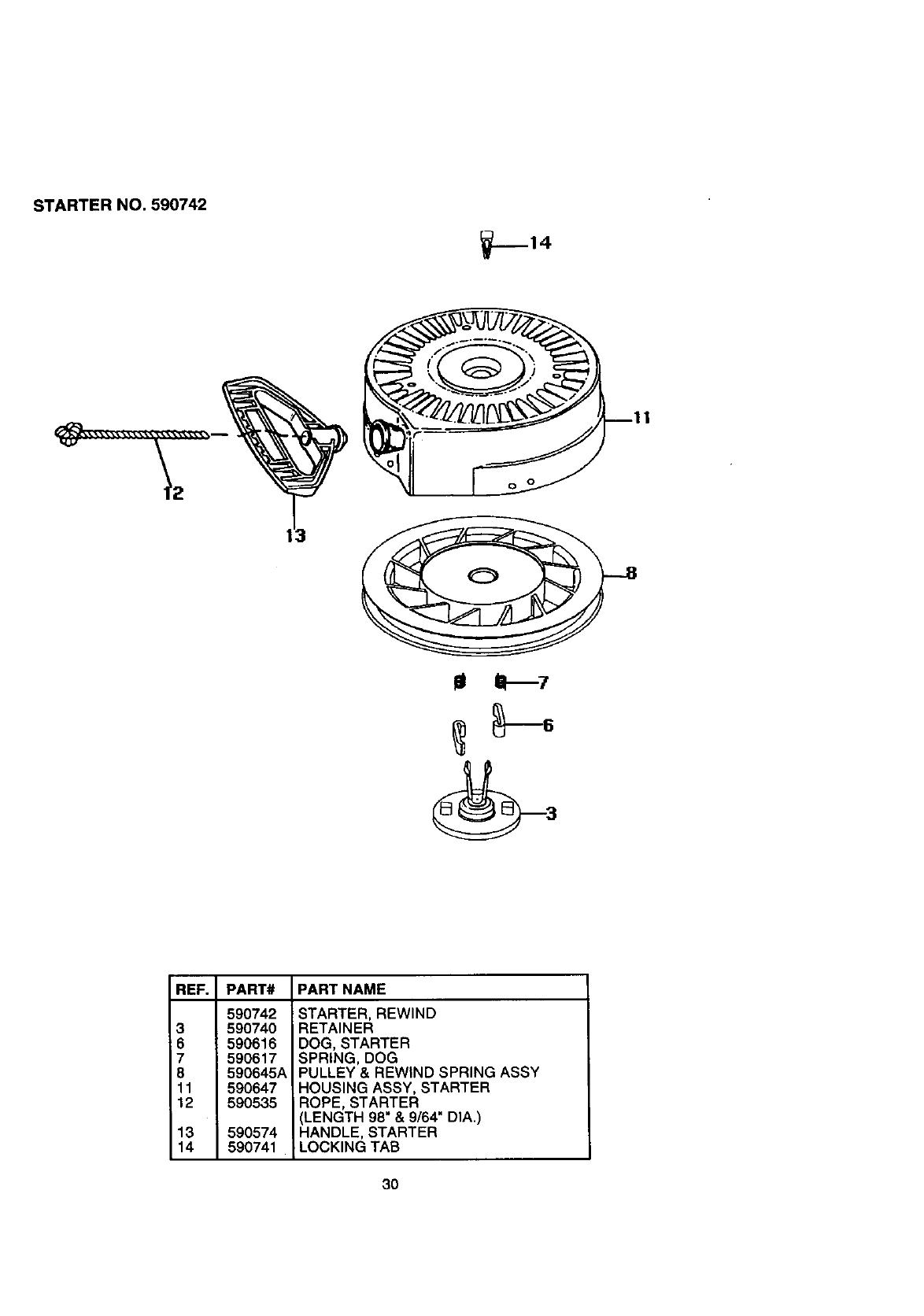

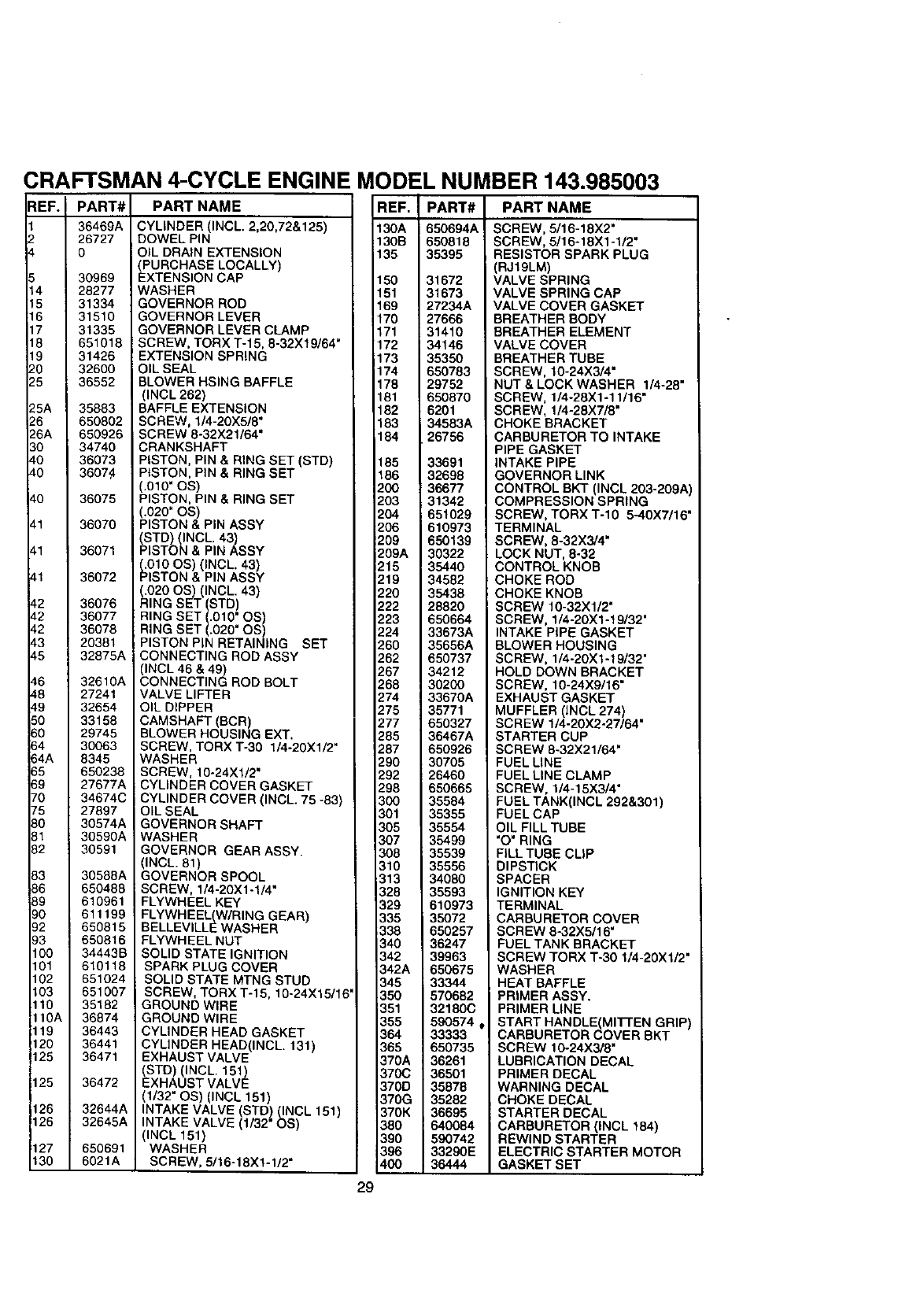

Assembly 5-7 Engine Repair Parts 27-31

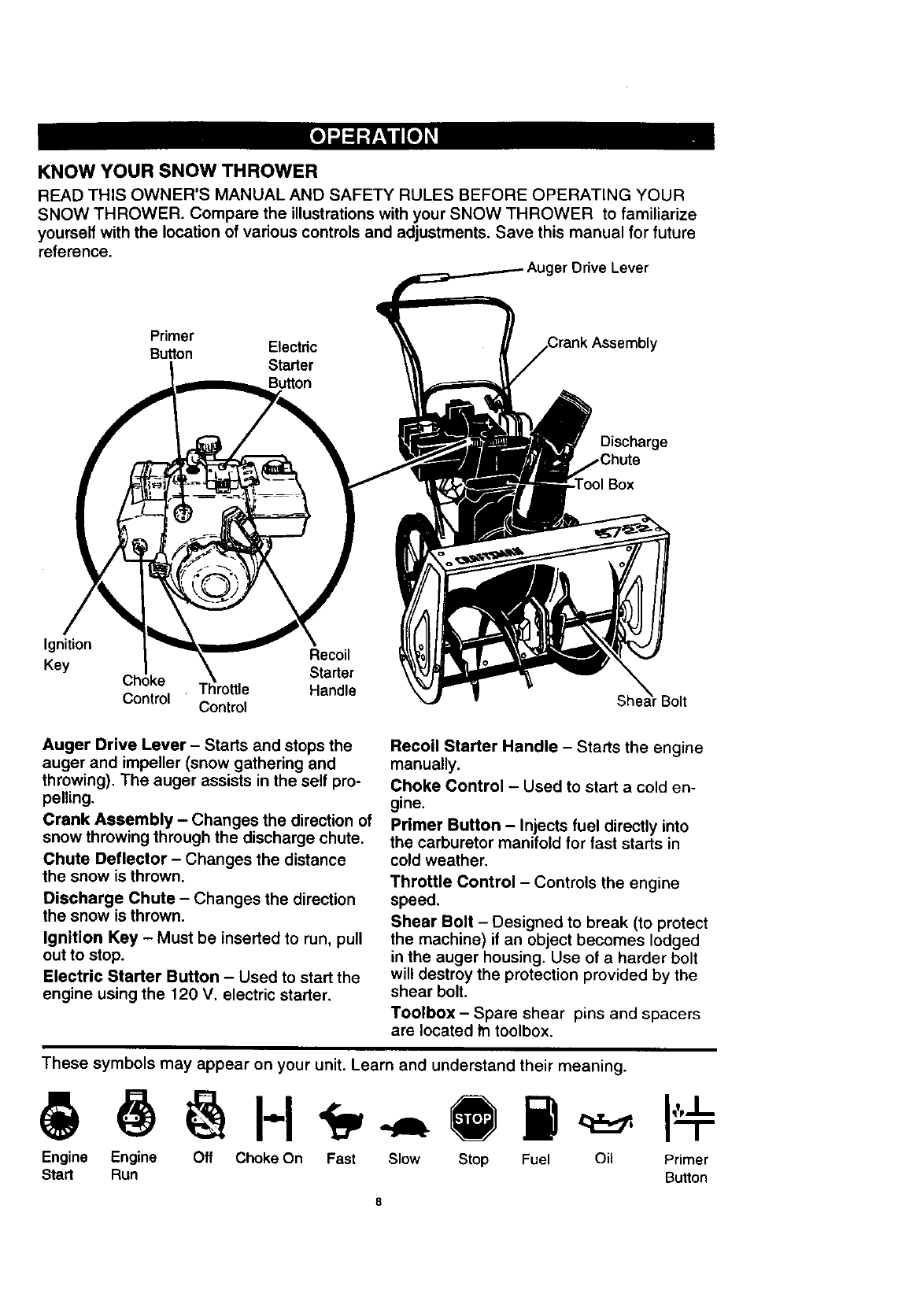

Operation 8-12 Spanish(Espafiol) 32-51

Maintenance 12-14 Parts Ordering/Service Back Cover

LIMITED TWO-YEAR WARRANTY ON CRAFTSMAN SNOW THROWER

For two years from the date _f purchase, when this Craftsman Snow Thrower is main-

tained, lubricated_ and tuned up according to the operating and maintenance instructions in

the owner's manual, Craftsman will repair, free of charge, any defect in material or work-

manship.

If this Craftsman Snow Thrower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This warranty does not cover the following:

•Items which become worn duping normal use, such as spark plugs, drive belts and

shear pins.

•Repairs necessary because of operator abuse or negligence, including bent crank

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN SNOW

THROWER TO THE NEAREST CRAFTSMAN SERVICE CENTER/DEPARTMENT IN

THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS

IN USE IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

D817WA Hoffman Estates, IL 60179

Z_t, CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug to prevent accidental

starting when setting-up, transporting,

adiusting or making repairs.

II_"_ORTANT: Safety standards require

oiJerator presence controls to minimize the

risk of injury. Your snow thrower is equipped

with such controls. Do not attempt to defeat

the function of the operator presence _.ontrol

under any circumstances.

Look for this symbol to point out important safety precautions. It means---

ATTENTION!l! Become alertl!! Your safety is involved.

TRAINING

_k California Proposition 65

WARNING: The

engine exhaust from this product

contains chemicals known to the

State of California to cause cancer

birth defects or other reproductive

I harm.

1. Read the operator's manual carefully.

Be thoroughly familiar with the controls

and the proper use of the snow

thrower. Know how to stop the snow

thrower and disengage the controls

quickly.

2. Never allow children to operate the

snow thrower and keep them away

while it is operating. Never allow adults

to operate the snow thrower without

proper instruction. Do not ca_r i

passengers.

3. Keep the area of operation clear of all

persons, particularly small children

and pets.

4. Exercise caution to avoid slipping or

falling, especially when operating in

reverse.

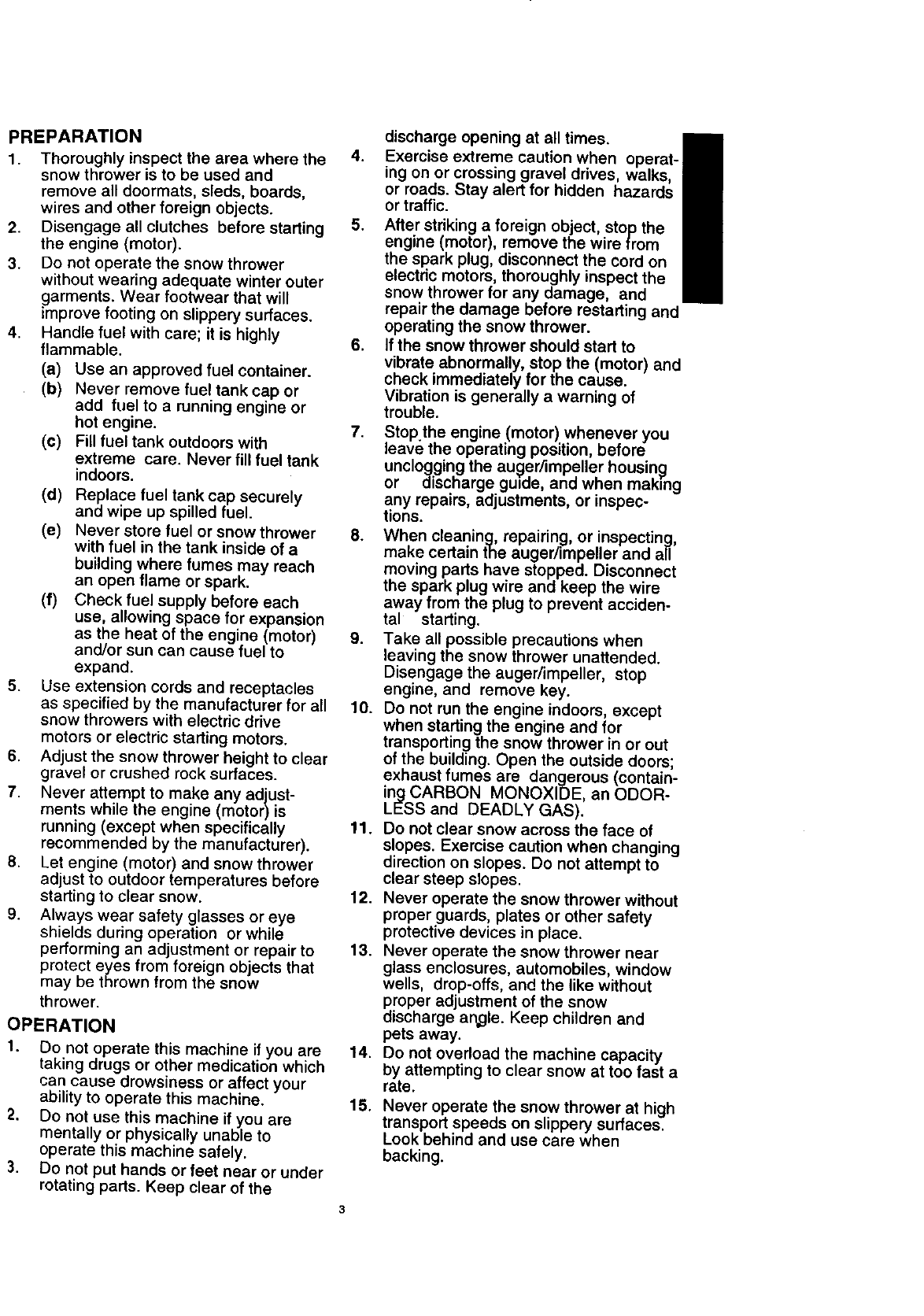

PREPARATION

1. Thoroughly inspect the area where the 4.

snow thrower is to be used and

remove all doormats, sleds, boards,

wires and other foreign objects.

2. Disengage all clutches before starting 5.

the engine (motor).

3. Do not operate the snow thrower

without wearing adequate winter outer

garments. Wear footwear that will

improve footing on slippery surfaces.

4. Handle fuel with care; it is highly

flammable. 6.

(a) Use an approved fuel container.

(b) Never remove fuel tank cap or

add fuel to a running engine or

hot engine. 7.

extreme care. Never til_fuel tank

indoors.

(d) Replace fuel tank cap securely

and wipe up spilled fuel.

(e) Never store fuel or snow thrower 8.

with fuel in the tank inside of a

building where fumes may reach

an open flame or spark.

(f) Check fuel supply before each

use, allowing space for expansion

as the heat of the engine (motor) 9.

and/or sun can cause fuel to

expand.

5. Use extension cords and receptacles

as specified by the manufacturer for all 10.

snow throwers with electric drive

motors or electric starting motors.

6. Adjust the snow thrower height to clear

gravel or crushed rock surfaces.

7. Never attempt to make any adjust-

ments while the engine (motor) is

running (except when specifically 11.

recommended by the manufacturer).

8. Let engine (motor) and snow thrower

adjust to outdoor temperatures before

starting to clear snow. 12.

9. Always wear safety glasses or eye

shields during operation or while

performing an adjustment or repair to 13.

protect eyes from foreign objects that

may be thrown from the snow

thrower.

OPERATION

1. Do not operate this machine if you are

taking drugs or other medication which

can cause drowsiness or affect your

ability to operate this machine.

2. Do not use this machine if you are

mentally or physically unable to

operate this machine safely.

3. Do not put hands or feet near or under

rotating parts. Keep clear of the

14.

15.

discharge opening at all times.

Exercise extreme caution when operat-

ing on or crossing gravel drives, walks,

or roads. Stay alert for hidden hazards

or traffic.

After striking a foreign object, stop the

engine (motor), remove the wire from

the spark plug, disconnect the cord on

electric motors, thoroughly inspect the

snow thrower for any damage, and

repair the damage before restarting and

operating the snow thrower.

If the snow thrower should start to

vibrate abnormally, stop the (motor) and

check immediately for the cause.

Vibration is generally a warning of

trouble.

Stop the engine (motor) whenever you

leave the operating position, before

unclogging the auger/impeller housing

or discharge guide, andwhen making

any repairs, adjustments, or inspec-

tions.

When cleaning, repairing, or inspecting,

make certain the auger/impeller and all

moving parts have stopped. Disconnect

the spark plug wire and keep the wire

away from the plug to prevent acciden-

tal starting.

Take all possible precautions when

leaving the snow thrower unattended.

Disengage the auger/impeller, stop

engine, and remove key.

Do not run the engine indoors, except

when starting the engine and for

transporting the snow thrower in or out

of the building. Open the outside doors;

exhaust fumes are dangerous (contain-

ing CARBON MONOXIDE, an ODOR-

LESS and DEADLY GAS).

Do not clear snow across the face of

slopes. Exercise caution when changing

direction on slopes. Do not attempt to

clear steep slopes.

Never operate the snow thrower without

proper guards, plates or other safety

protective devices in place.

Never operate the snow thrower near

glass enclosures, automobiles, window

wells, drop-offs, and the like without

proper adjustment of the snow

discharge angle. Keep children and

pets away.

Do not overload the machine capacity

by attempting to clear snow at too fast a

rate.

Never operate the snow thrower at high

transport speeds on slippery surfaces.

Look behind and use care when

backing.

16. Never direct discharge at bystanders or

allow anyone in front of the snow

thrower.

17. Disengage power to the auger/impeller

when snow thrower is transportedor

not in use.

18. Use only attachments and accessories

approved by the manufacturer of the

snow thrower (such as tire chains,

electric start kits, etc).

19. Never operate the snow thrower

without good visibility or light. Always

be sure of your footing, and keep a firm

hold on the handles. Walk; never run.

MAINTENANCE AND STORAGE

1. Check shear bolts and other bolts

frequently for proper tightness to be

sure the snow thrower is in safe

working condition.

2. Never store the snow thrower with fuel

in the fuel tank inside a building where

ignition sources are present such as

hot water and space heaters, clothes

dryers, and the like. Allow the engine

to cool before storing in any enclosure

3. Always refer to operator's manual

instructions for important details if the

snow thrower is to be stored for an

extended period.

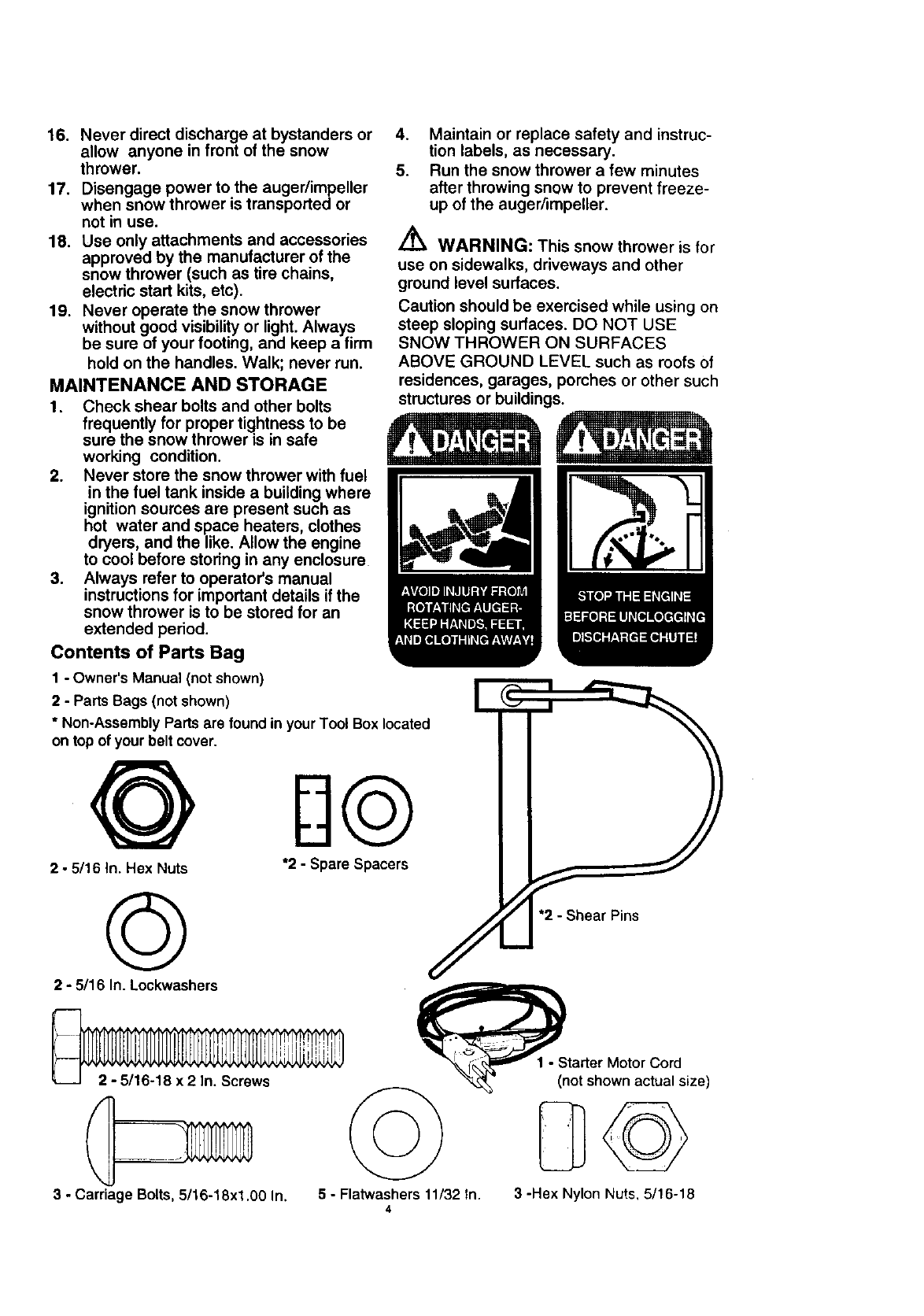

Contents of Parts Bag

4. Maintain or replace safety and instruc-

tion labels, as necessary.

5. Run the snow thrower a few minutes

after throwing snow to prevent freeze-

up of the auger/impeller.

WARNING: This snow thrower is for

use on sidewalks, driveways and other

ground level surfaces.

Caution should be exercised while using on

steep sloping surfaces. DO NOT USE

SNOW THROWER ON SURFACES

ABOVE GROUND LEVEL such as roofs of

residences, garages, porches or other such

structures or buildings.

1 - Owner's Manual (not shown)

2- Parts Bags (not shown) _ ""--_"-_-_

* Non-Assembly Parts are found in your Tool Box located | | _

on top of your belt cover. DoII)

2 - 5/16 In. Hex Nuts *2 -Spare Spacers I I J-- _-/

(_ _f'Shear Pins_--_

2- 5/16 In. Lockwashers

3- Carriage Bolts, 5/16-18xl .00 In. 5 - Flatwashers 11/32 In.

_-_- (toatrtehoMw°t°_rcCu°a_dsize)

3 -Hex Nylon Nuts, 5/16-18

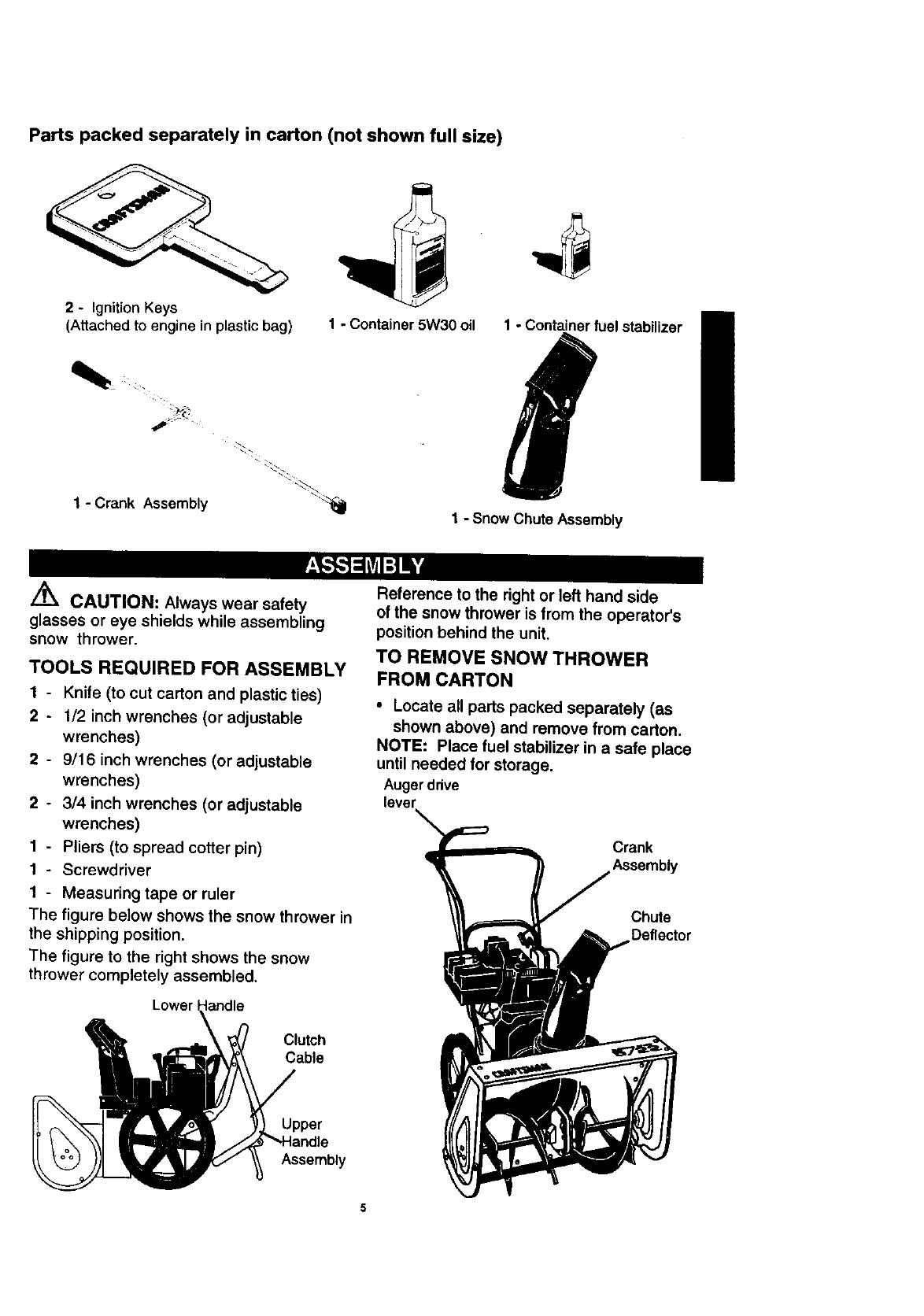

Parts packed separately in carton (not shown full size)

2- Ignition Keys

(Attached to engine in plastic bag) I- Container 5W30 oil 1oContainer fuel stabilizer

1-Crank Assembly 1-Snow Chute Assembly

ZJ_ CAUTION: Always wear safety

glasses or eye shields while assembling

snow thrower.

TOOLS REQUIRED FOR ASSEMBLY

1- Knife (to cut carton and plastic ties)

2-1/2 inch wrenches (or adjustable

wrenches)

2-9/16 inch wrenches (or adjustable

wrenches)

2-3/4 inch wrenches (or adjustable

wrenches)

1-Pliers (to spread cotter pin)

1- Screwdriver

1-Measuring tape or ruler

The figure below shows the snow thrower in

the shipping position.

The figure to the right shows the snow

thrower completely assembled.

Lower

Clutch

Cable

Reference to the right or left hand side

ofthe snowthrower is from the operator's

positionbehind the unit.

TO REMOVE SNOW THROWER

FROM CARTON

•Locate all parts packed separately (as

shown above) and remove from carton.

NOTE: Place fuel stabilizer in a safe place

until needed for storage.

Augerdrive

lever

Crank

Assembly

Chute

Deflector

Upper

Assembly

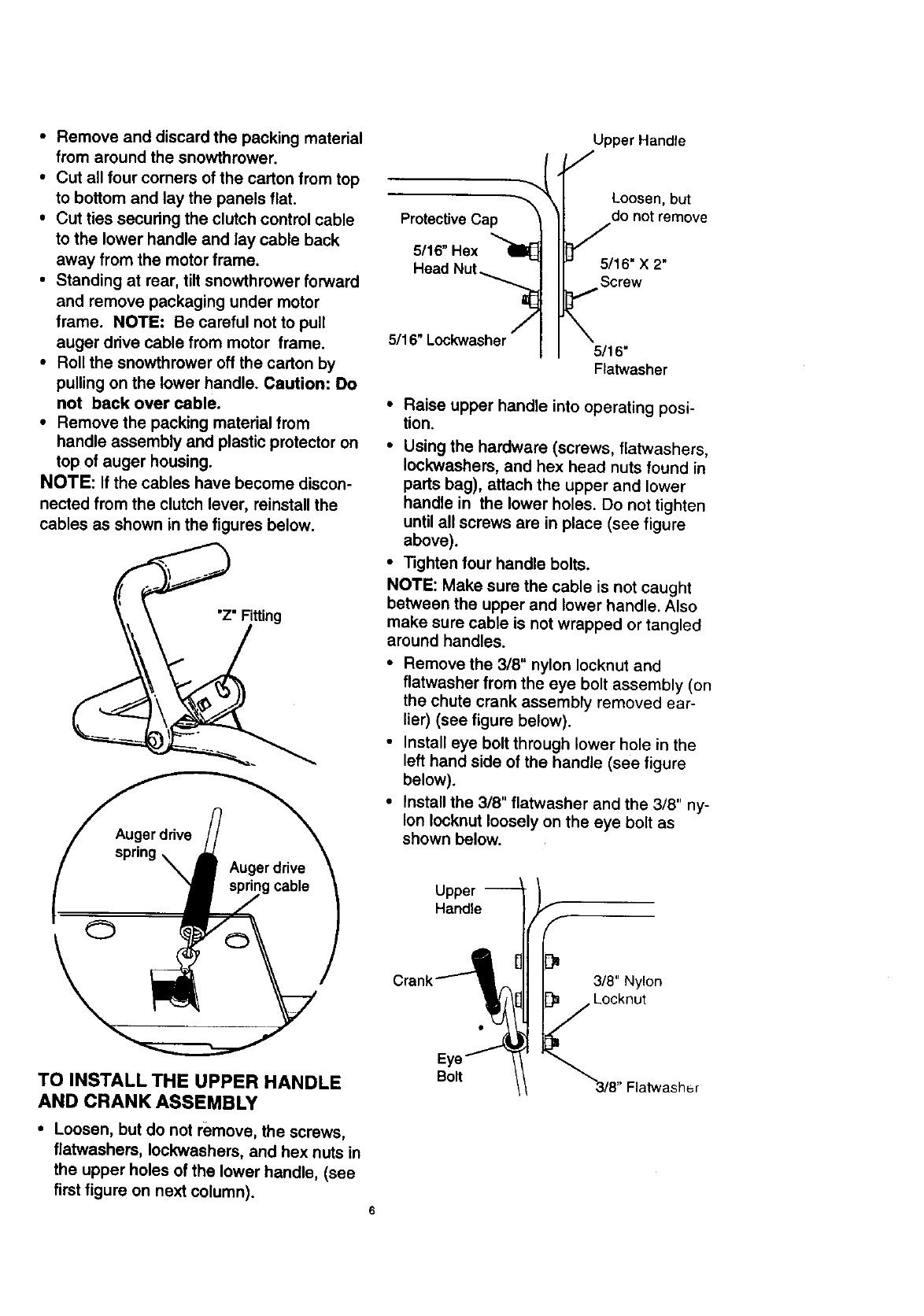

• Remove and discard the packing material

from around the snowthrower.

•Cut all tour corners of the carton from top

to bottom and lay the panels flat.

•Cut ties securing the clutch control cable

to the lower handle and lay cable back

away from the motor frame.

•Standing at rear, tilt snowthrower forward

and remove packaging under motor

frame. NOTE: Be careful not to pull

auger drive cable from motor frame.

•Roll the snowthrower off the carton by

pulling on the lower handle. Caution: Do

not back over cable.

•Remove the packing material from

handle assembly and plastic protector on

top of auger housing.

NOTE: If the cables have become discon-

nected from the clutch lever, reinstall the

cables as shown in the figures below.

"Z" Fitting

ProtectiveCap

5/16" Hex "_

Head Nut_

5/16" Lockwasher

Upper Handle

Loosen, but

do not remove

_5/16" X2"

Screw

5/16"

Flatwasher

• Raise upper handte into operating posi-

tion.

• Using the hardware (screws, flatwashers,

Iockwashers, and hex head nuts found in

parts bag), attach the upper and lower

handle in the lower holes. Do not tighten

until all screws are in place (see figure

above).

• Tighten four handle bolts.

NOTE: Make sure the cable is not caught

between the upper and lower handle. Also

make sure cable is not wrapped or tangled

around handles.

•Remove the 3/8" nylon Iocknut and

flatwasher from the eye bolt assembly (on

the chute crank assembly removed ear-

lier) (see figure below).

•Install eye bolt through lower hole in the

left hand side of the handle (see figure

below).

• Install the 3/8" flatwasher and the 3/8" ny-

lon Iocknut loosely on the eye bolt as

shown below.

Upper

Handle

3/8" Nylon

Locknut

TO INSTALL THE UPPER HANDLE

AND CRANK ASSEMBLY

•Loosen, but do not remove, the screws,

flatwashers, Iockwashers,and hex nuts in

the upper holes of the lower handle, (see

firstfigure on nextcolumn).

Bolt

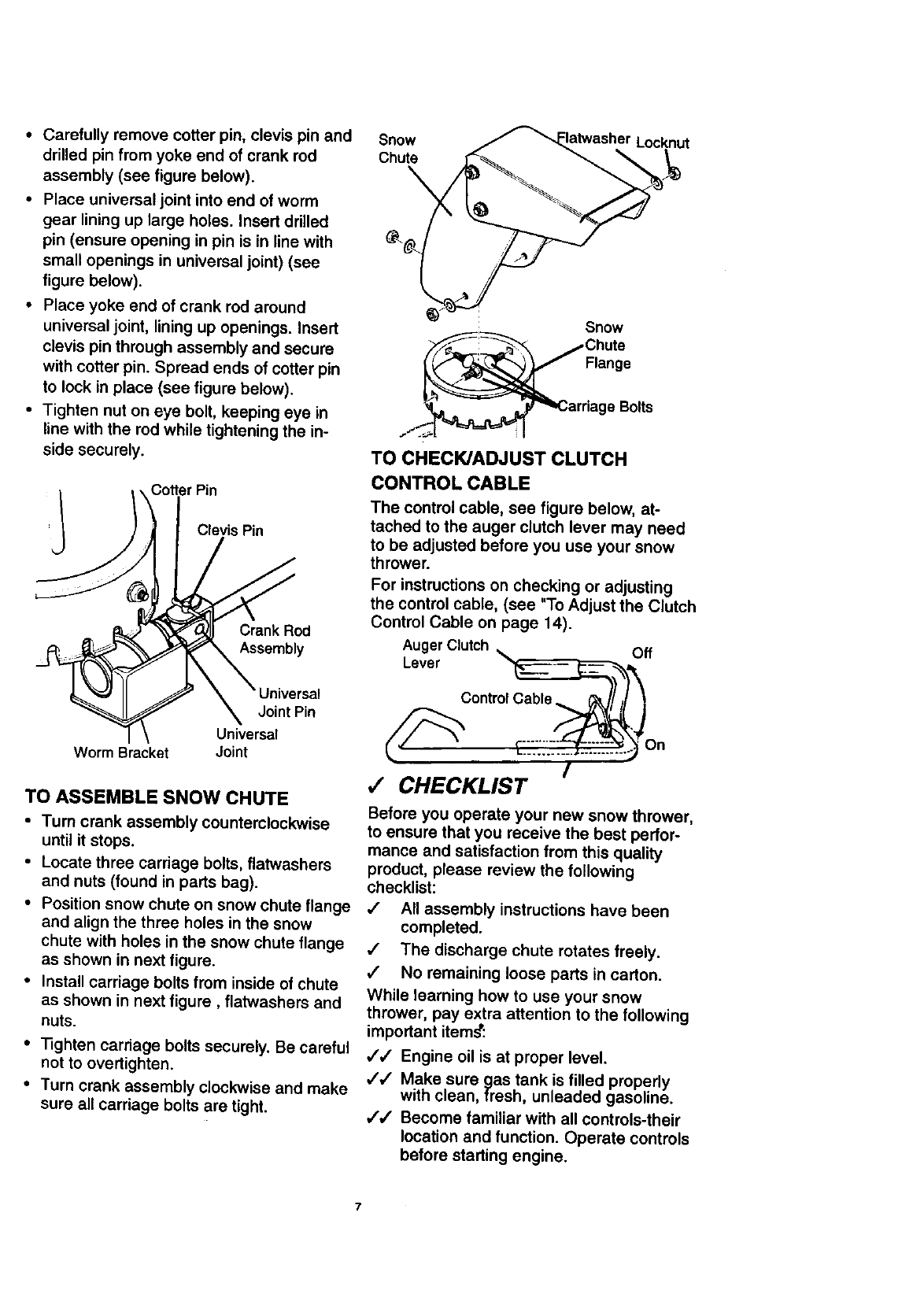

•Carefully remove cotter pin, clevis pin and

drilled pin from yoke end of crank rod

assembly (see figure below).

•Place universal joint into end of worm

gear lining up large holes. Insert drilled

pin (ensure opening in pin is in line with

small openings in universal joint) (see

figure below).

• Place yoke end of crank rod around

universal joint, lining up openings. Insert

clevis pin through assembly and secure

with cotter pin. Spread ends of cotter pin

to lock in place (see figure below).

• Tighten nut on eye bolt, keeping eye in

line with the rod while tightening the in-

side securely.

Cotter Pin

Clevis Pin

Crank Rod

Assembly

Worm Bracket

Joint Pin

Universal

Joint

TO ASSEMBLE SNOW CHUTE

• Turn crank assembly ¢ountemlockwise

until it stops.

• Locate three carriage bolts, flatwashers

and nuts (found in parts bag).

• Position snow chute on snow chute flange

and align the three holes in the snow

chute with holes in the snow chute flange

as shown in next figure.

•Install carriage bolts from inside of chute

as shown in next figure, flatwashers and

nuts.

•Tighten carriage bolts securely. Be careful

not to overtighten.

•Turn crank assembly clockwise and make

sure all carriage bolts are tight.

Snow

Chute

Snow

Flange

e Bolts

TO CHECK/ADJUST CLUTCH

CONTROL CABLE

The control cable, see figure below, at-

tached to the auger clutch lever may need

to be adjusted before you use your snow

thrower.

For instructions on checking or adjusting

the control cable, (see "To Adjust the Clutch

Control Cable on page 14).

LAugeerr Clutch ,,_,,_.__.__ _- _ff

_C°ntr°l _.a.b]_on

,/ CHECKLIST

Before you operate your new snow thrower,

to ensure that you receive the best perfor-

mance and satisfaction from this quality

product, please review the following

checklist:

,/ All assembly instructions have been

completed.

,,I The discharge chute rotates freely.

,/ No remaining loose parts in carton.

While learning how to use your snow

thrower, pay extra attention to the following

important items':

,/4 Engine oil is at proper level.

,/,/ Make sure gas tank is filled properly

with clean, fresh, unleaded gasoline.

,/,/ Become familiar with all controls-their

location and function. Operate controls

before starting engine.

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

SNOW THROWER. Compare the illustrations with your SNOW THROWER to familiarize

yourself with the location of various controls and adjustments. Save this manual for future

reference. Lever

Primer

Bu_on Electdc

Starter

Bu_on

Discharge

Box

Ignition Recoil

Key Starter

Choke

Control ' Handle

Control Bolt

Auger Drive Lever - Starts and stops the

auger and impeller (snow gathering and

throwing), The auger assists in the self pro-

pelling.

Crank Assembly - Changes the direction of

snow throwing through the discharge chute.

Chute Deflector - Changes the distance

the snow is thrown.

Discharge Chute - Changes the direction

the snow is thrown.

Ignition Key -Must be inserted to run, pull

out to stop.

Electric Starter Button - Used to start the

engine using the 120 V. electric starter.

Recoil Starter Handle - Starts the engine

manually.

Choke Control - Used to start a cold en-

gine.

Primer Button - Injects fuel directly into

the carburetor manifold for fast starts in

cold weather,

Throttle Control - Controls the engine

speed.

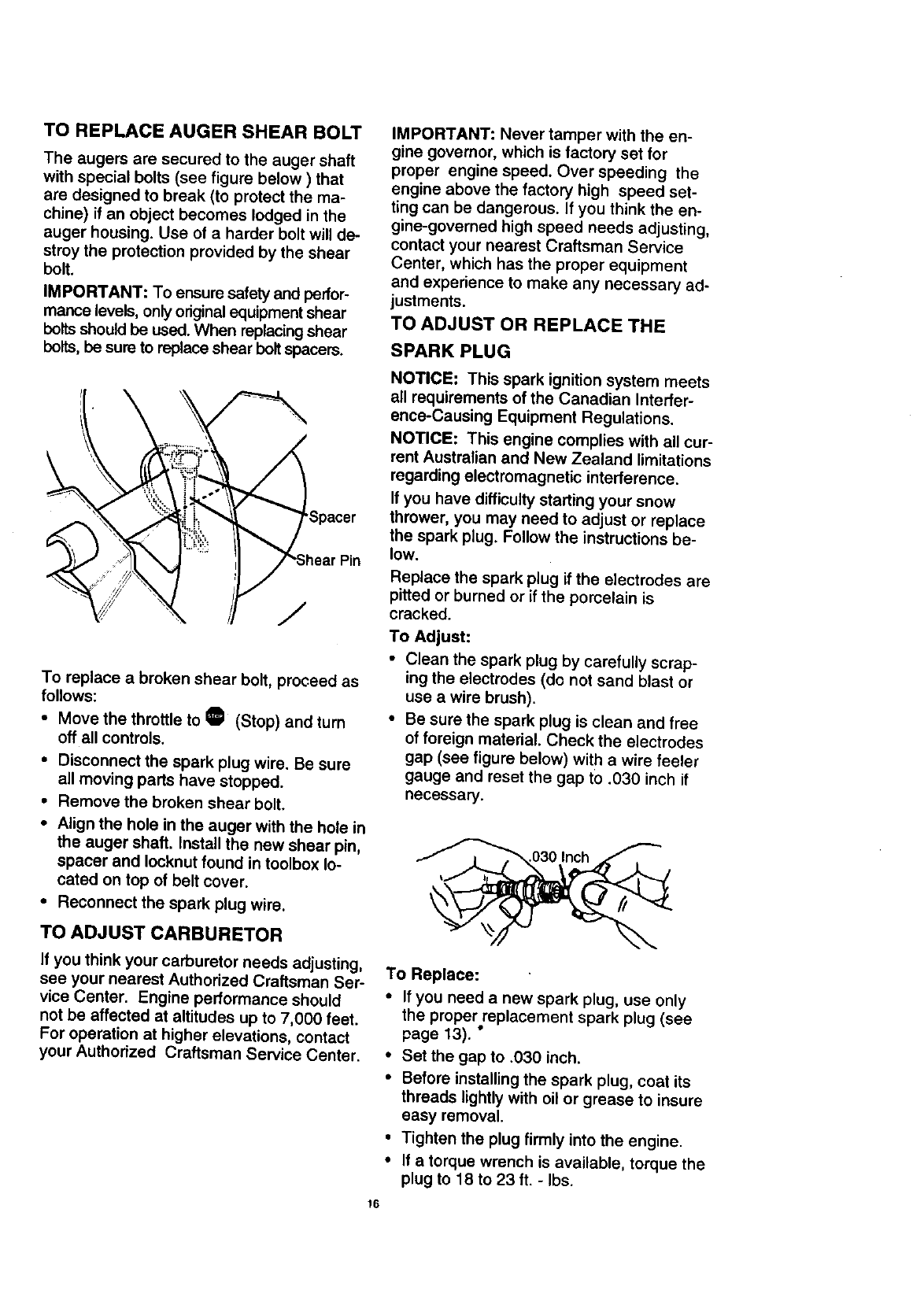

Shear Bolt - Designed to break (to protect

the machine) if an object becomes lodged

in the auger housing. Use of a harder bolt

will destroy the protection provided by the

shear bolt.

Toolbox - Spare shear pins and spacers

are located tn toolbox.

These symbols may appear on your unit. Learn and understand their meaning.

• I-I @

Engine Engine Off Choke On Fast Slow Stop Fuel Oil Primer

Start Run Button

Auger Drive

Clutch

Ignition Key

insert to run

pull out to stop

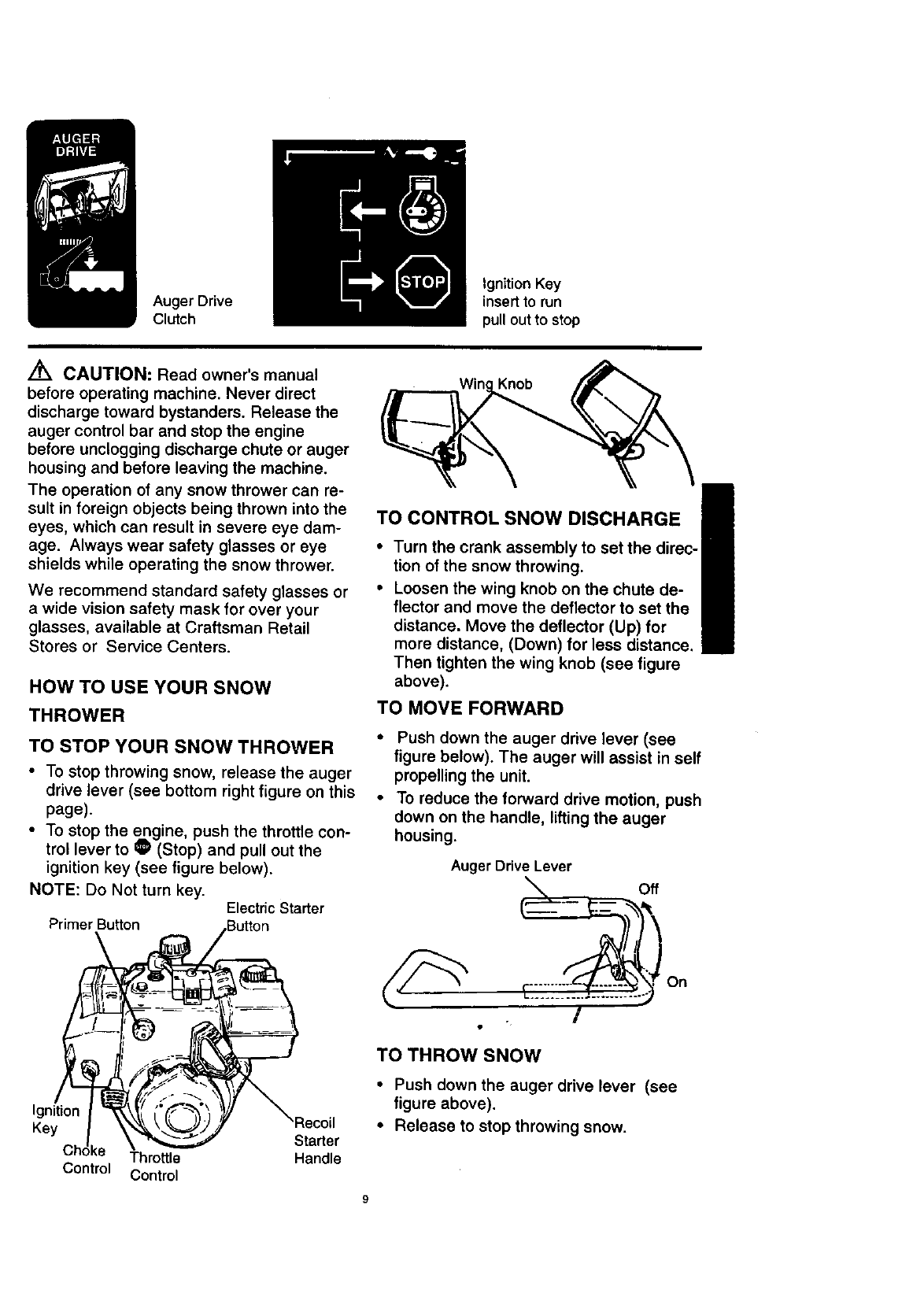

/_ CAUTION: Read owner's manual

before operating machine. Never direct

discharge toward bystanders. Release the

auger control bar and stop the engine

before unclogging discharge chute or auger

housing and before leaving the machine.

The operation of any snow thrower can re-

sult in foreign objects being thrown into the

eyes, which can result in severe eye dam-

age. Always wear safety glasses or eye

shields while operating the snow thrower.

We recommend standard safety glasses or

a wide vision safety mask for over your

glasses, available at Craftsman Retail

Stores or Service Centers.

HOW TO USE YOUR SNOW

THROWER

TO STOP YOUR SNOW THROWER

• To stop throwing snow, release the auger

drive lever (see bottom right figure on this

page).

• To stop the engine, push the throttle con-

trol lever to W (Stop) and pull out the

ignition key (see figure below).

NOTE: Do Not turn key. Electric Starter

Primer Button

Ignition

Key

Control

Starter

Handle

Knob

TO CONTROL SNOW DISCHARGE

Turn the crank assembly to set the direc-

tion of the snow throwing.

Loosen the wing knob on the chute de-

flector and move the deflector to set the

distance. Move the deflector (Up) for

more distance, (Down) for less distance.

Then tighten the wing knob (see figure

above).

TO MOVE FORWARD

• Push down the auger drive lever (see

figure below). The auger will assist in self

propelling the unit.

• To reduce the forward drive motion, push

down on the handle, lifting the auger

housing.

Auger Drive Lever

TO THROW SNOW

•Push down the auger drive lever (see

figure above).

•Release to stop throwing snow.

Throttle

Control

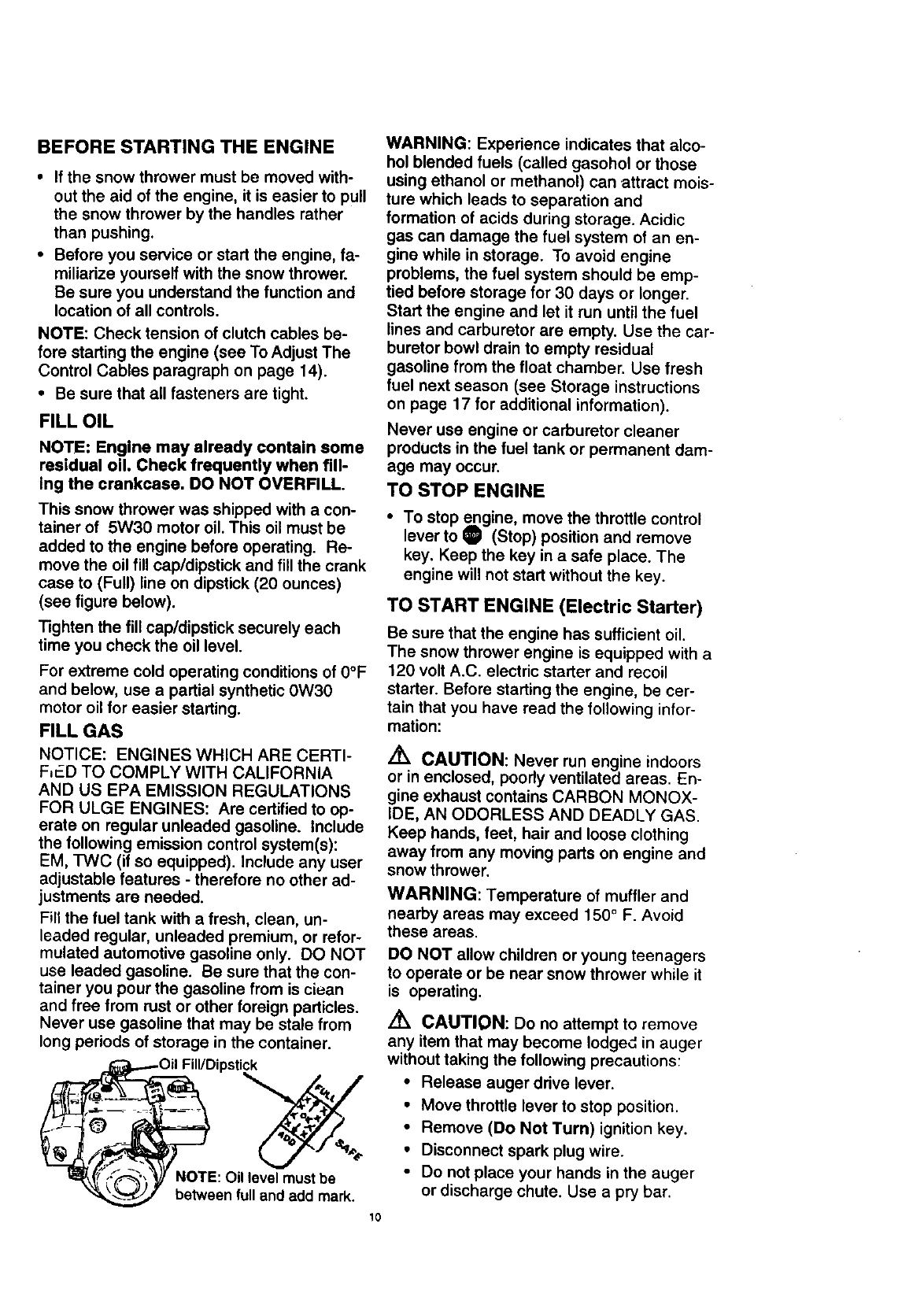

BEFORE STARTING THE ENGINE

•If the snow thrower must be moved with-

out the aid of the engine, it is easier to pull

the snow thrower by the handles rather

than pushing.

• Before you service or start the engine, fa-

miliarize yourself with the snow thrower.

Be sure you understand the function and

location of all controls.

NOTE: Check tension of clutch cables be-

fore starting the engine (see To Adjust The

Control Cables paragraph on page 14).

•Be sure that all fasteners are tight.

FILL OIL

NOTE: Engine may already contain some

residual oil. Check frequently when fill-

Ing the crankcase, DO NOT OVERFILL.

This snow thrower was shipped with a con-

tainer of 5W30 motor oil. This oil must be

added to the engine before operating. Re-

move the oil fill cap/dipstick and fill the crank

case to (Full) line on dipstick (20 ounces)

(see figure below).

Tighten the fill cap/dipstick securely each

time you check the oil level.

For extreme cold operating conditions of 0°F

and below, use a partial synthetic 0W30

motor oil for easier starting.

FILL GAS

NOTICE: ENGINES WHICH ARE CERTI-

F,_.D TO COMPLY WITH CALIFORNIA

AND US EPA EMISSION REGULATIONS

FOR ULGE ENGINES: Are certified to op-

erate on regular unleaded gasoline. Include

the following emission control system(s):

EM, TWC (if so equipped). Include any user

adjustable features - therefore no other ad-

justments are needed.

Fill the fuel tank with afresh, clean, un-

Ioadod regular, unleaded premium, or refor-

mulated automotive gasolino only. DO NOT

use leaded gasoline. Be sure that the con-

tainer you pour the gasoline from is cioan

and free from rust or other foreign particles.

Never use gasoline that may be stale from

long periods of storage in the container.

bNe_eE:eOilull/ve/m_ t berk"

WARNING: Experience indicates that alco-

hol blended fuels (called gasohol or those

using ethanol or methanol) can attract mois-

ture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an en-

gine while in storage. To avoid engine

problems, the fuel system should be emp-

tied before storage for 30 days or longer.

Start the engine and let it run until the fuel

lines and carburetor are empty. Use the car-

buretor bowl drain to empty residual

gasoline from the float chamber. Use fresh

fuel next season (see Storage instructions

on page 17 for additional information).

Never use engine or carburetor cleaner

products in the fuel tank or permanent dam-

age may occur.

TO STOP ENGINE

•To stop engine, move the throttle control

lever to _1 (Stop) position and remove

key. Keep the key in a safe place. The

engine will not start without the key.

TO START ENGINE (Electric Starter)

Be sure that the engine has sufficient oil.

The snow thrower engine is equipped with a

120 volt A.C. electric starter and recoil

starter. Before starting the engine, be cer-

tain that you have read the following infor-

mation:

Z_ CAUTION: Never run engine indoors

or in enclosed, poorly ventilated areas. En-

gine exhaust contains CARBON MONOX-

IDE, AN ODORLESS AND DEADLY GAS.

Keep hands, feet, hair and loose clothing

away from any moving parts on engine and

snow thrower.

WARNING: Temperature of muffler and

nearby areas may exceed 150 °F. Avoid

these areas.

DO NOT allow children or young teenagers

to operate or be near snow thrower while it

is operating.

Z_ CAUTION: Do no attempt to remove

any item that may become Iodge_, in auger

without taking the following precautions:

•Release auger drive lever.

•Move throttle lever to stop position.

•Remove (Do Not Turn) ignition key.

•Disconnect spark plug wire.

•Do not place your hands in the auger

or discharge chute. Use a pry bar.

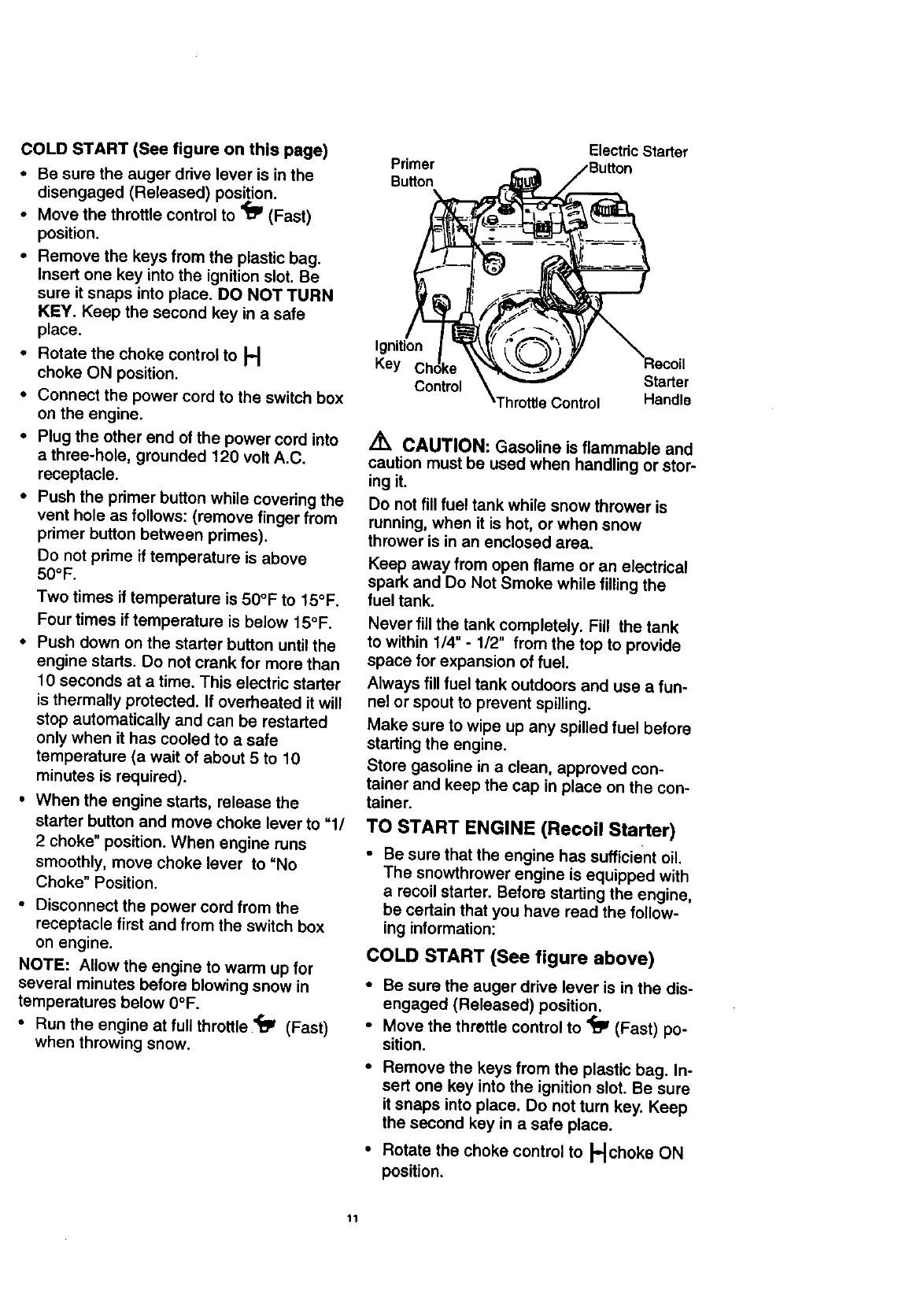

COLD START (See figure on this page) Primer

• Be sure the auger drive lever is in the Button

disengaged (Released) positjon.

•Move the throttle control to _(Fast)

position.

• Remove the keys from the plastic bag.

Insert one key into the ignition slot. Be

sure it snaps into place. DO NOT TURN

KEY. Keep the second key in a safe

place. Ignition

• Rotate the choke control to HKey

choke ON position. Control

• Connect the power cord to the switch box

on the engine.

•Plug the other end of the power cord into

a three-hole, grounded 120 volt A.C.

receptacle.

•Push the primer button while covering the

vent hole as follows: (remove finger from

primer button between primes).

Do not prime if temperature is above

50oF.

Two times if temperature is 50°F to 15°F.

Four times if temperature is below 15°F.

•Push down on the starter button until the

engine starts. Do not crank for more than

10 seconds at a time. This electric starter

is thermally protected. If overheated it will

stop automatically and can be restarted

only when it has cooled to asafe

temperature (a wait of about 5 to 10

minutes is required).

•When the engine starts, release the

starter button and move choke lever to "1/

2 choke" position. When engine runs

smoothly, move choke lever to "No

Choke" Position.

•Disconnect the power cord from the

receptacle first and from the switch box

on engine.

NOTE: Allow the engine to warm up for

several minutes before blowing snow in

temperatures below 0°F.

•Run the engine at full throttle '_ (Fast)

when throwing snow.

Electdc Starter

erie Control

Starter

Handle

Z_ CAUTION: Gasoline is flammable and

caution must be used when handling or stor-

ing it.

Do not fill fuel tank while snow thrower is

running, when it is hot, or when snow

thrower is in an enclosed area.

Keep away from open flame or an electrical

spark and Do Not Smoke while filling the

fuel tank.

Never fill the tank completely. Fill the tank

to within 1/4" -1/2" from the top to provide

space for expansion of fuel.

Always fill fuel tank outdoors and use afun-

nel or spout to prevent spilling.

Make sure to wipe up any spilled fuel before

starting the engine.

Store gasoline in a clean, approved con-

tainer and keep the cap in place on the con-

tainer.

TO START ENGINE (Recoil Starter)

•Be sure that the engine has sufficient oil,

The snowthrower engine is equipped with

a recoil starter. Before starting the engine,

be certain that you have read the follow-

ing information:

COLD START (See figure above)

Be sure the auger drive lever is in the dis-

engaged (Released) position,

Move the throttle control to _(Fast) po-

sition.

Remove the keys from the plastic bag. In-

sert one key into the ignition slot. Be sure

it snaps into place. Do not turn key. Keep

the second key in a safe place.

Rotate the choke control to Hchoke ON

position.

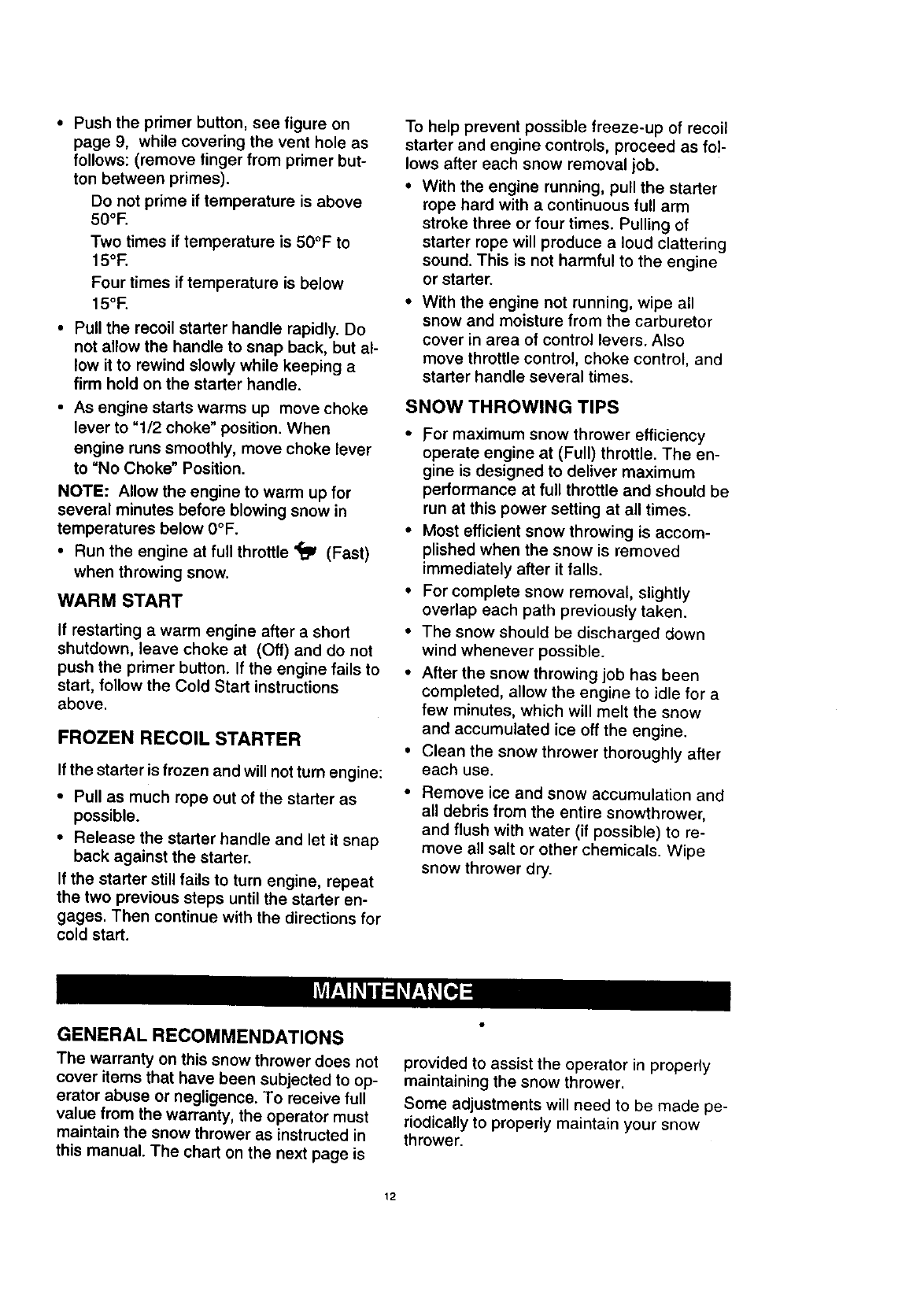

• Push the primer button, see figure on

page 9, while covering the vent hole as

follows: (remove finger from primer but-

ton between primes).

Do not prime if temperature is above

50°F.

Two times if temperature is 50°F to

15°F.

Four times if temperature is below

15o1=.

•Pull the recoil starter handle rapidly. Do

not allow the handle to snap back, but aF

low it to rewind slowly while keeping a

firm hold on the starter handle.

•As engine starts warms up move choke

lever to "1/2 choke" position. When

engine runs smoothly, move choke lever

to "No Choke" Position.

NOTE: Allow the engine to warm up for

several minutes before blowing snow in

temperatures below 0°F.

• Run the engine at full throttle _ (Fast)

when throwing snow.

WARM START

If restarting a warm engine after a short

shutdown, leave choke at (Oft) and do not

push the primer button. If the engine fails to

start, follow the Cold Start instructions

above.

FROZEN RECOIL STARTER

If the starter is frozen and will not turn engine:

• Pull as much rope out of the starter as

possible.

•Release the starter handle and let it snap

back against the starter.

If the starter still fails to turn engine, repeat

the two previous steps until the starter en-

gages. Then continue with the directions for

cold start.

To help prevent possible freeze-up of recoil

starter and engine controls, proceed as fol-

lows after each snow removal job.

• With the engine running, pull the starter

rope hard with a continuous full arm

stroke three or four times. Pulling of

starter rope will produce a loud clattering

sound. This is not harmful to the engine

or starter.

•With the engine not running, wipe all

snow and moisture from the carburetor

cover in area of control levers. Also

move throttle control, choke control, and

starter handle several times.

SNOW THROWING TIPS

•For maximum snow thrower efficiency

operate engine at (Full) throttle. The en-

gine is designed to deliver maximum

performance at full throttle and should be

run at this power setting at all times.

• Most efficient snow throwing is accom-

plished when the snow is removed

immediately after it falls.

• For complete snow removal, slightly

overlap each path previously taken.

• The snow should be discharged down

wind whenever possible.

• After the snow throwing job has been

completed, allow the engine to idle for a

few minutes, which will melt the snow

and accumulated ice off the engine.

• Clean the snow thrower thoroughly after

each use.

• Remove ice and snow accumulation and

all debris from the entire snowthrower,

and flush with water (if possible) to re-

move all salt or other chemicals. Wipe

snow thrower dry.

GENERALRECOMMENDATIONS

The warranty on this snow thrower does not

cover items that have been subjected to op-

erator abuse or negligence. To receive full

value from the warranty, the operator must

maintain the snow thrower as instructed in

this manual. The chart on the next page is

provided to assist the operator in properly

maintaining the snow thrower.

Some adjustments will need to be made pe-

riodically to properly maintain your snow

thrower.

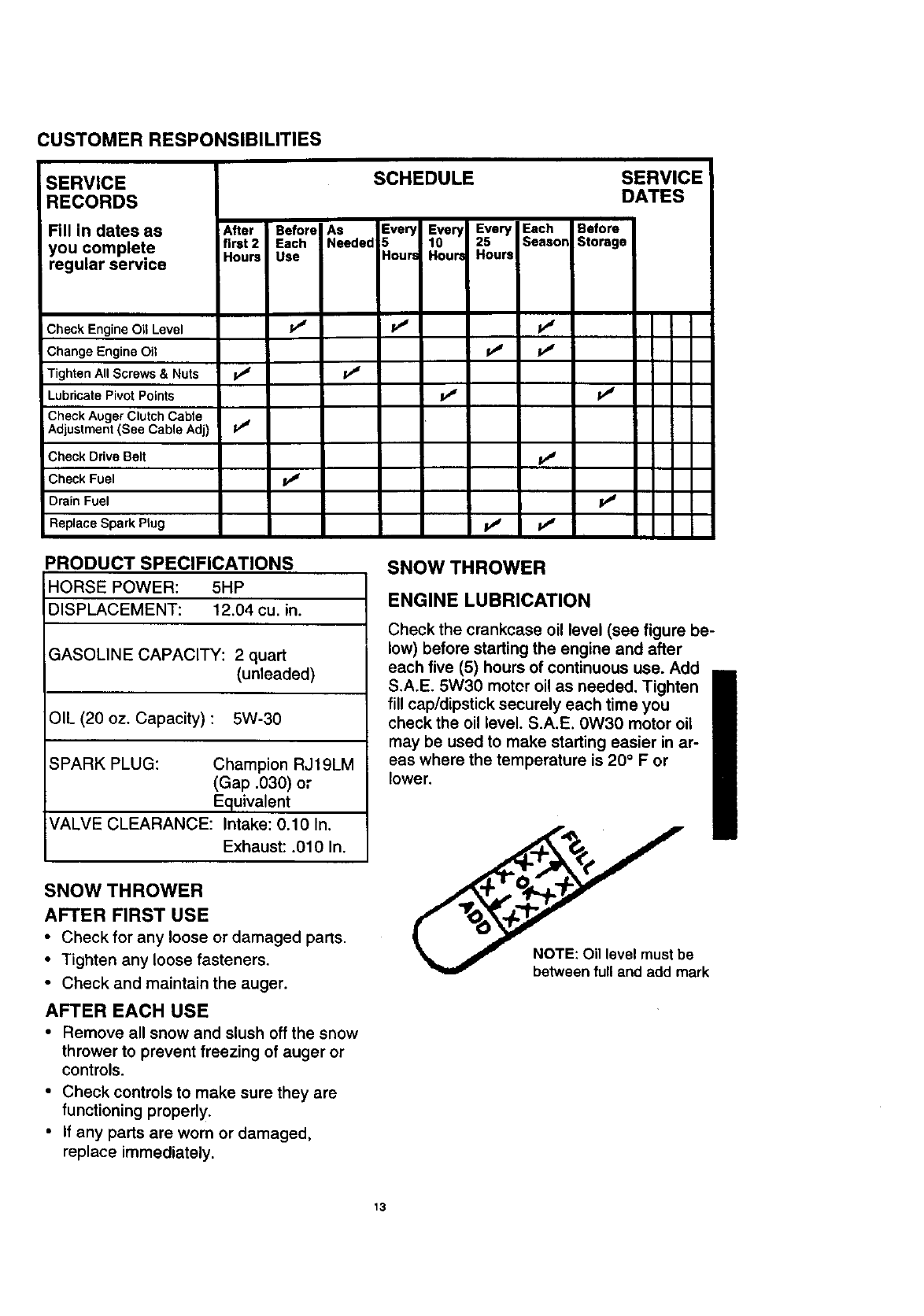

CUSTOMER RESPONSIBILITIES

SERVICE

RECORDS

SCHEDULE

Fill in dates as After Before As Every Ever Every Each Before

you complete first 2 Each Needed 5 10 25 Seasor Storage

Hours Use Hours Hour= Hours

regular service

SERVICE

DATES

Check Engine OLILevel _ _ tf

Change Engine Oil IvjP_

Tighten All Screws& Nuts i,J

LubricatePivot Points _tJ

Check Auger Clutch Cabte

Adjustment (See Cable Adj) '

Check Drive Belt /f

Check Fuel /,J

Drain Fuel iv#

Replace Spark Ptug iv_ p,t I

PRODUCT SPECIFICATIONS

HORSE POWER: 5HP

DISPLACEMENT: 12.04 cu. in.

GASOLINE CAPACITY: 2 quart

(unleaded)

OIL (20 oz. Capacity) : 5W-30

SPARK PLUG: Champion RJ19LM

(Gap .030) or

Equivalent

VALVE CLEARANCE: Intake: 0.10 In,

Exhaust: .010 In.

SNOW THROWER

AFTER FIRST USE

•Check for any loose or damaged parts.

• Tighten any loose fasteners.

• Check and maintain the auger.

AFTER EACH USE

•Remove all snow and slush off the snow

thrower to prevent freezing of auger or

controls.

•Check controls to make sure they are

functioning properly.

•If any parts are wom or damaged,

replace immediately.

SNOW THROWER

ENGINE LUBRICATION

Check the crankcase oil level (see figure be-

low) before starting the engine and after

each five (5) hours of continuous use. Add

S,A.E. 5W30 motor oil as needed. Tighten

fill cap/dipstick securely each time you

check the oil level. S.A.E. 0W30 motor oil

may be used to make starting easier in ar-

eas where the temperature is 20 ° F or

lower.

ark

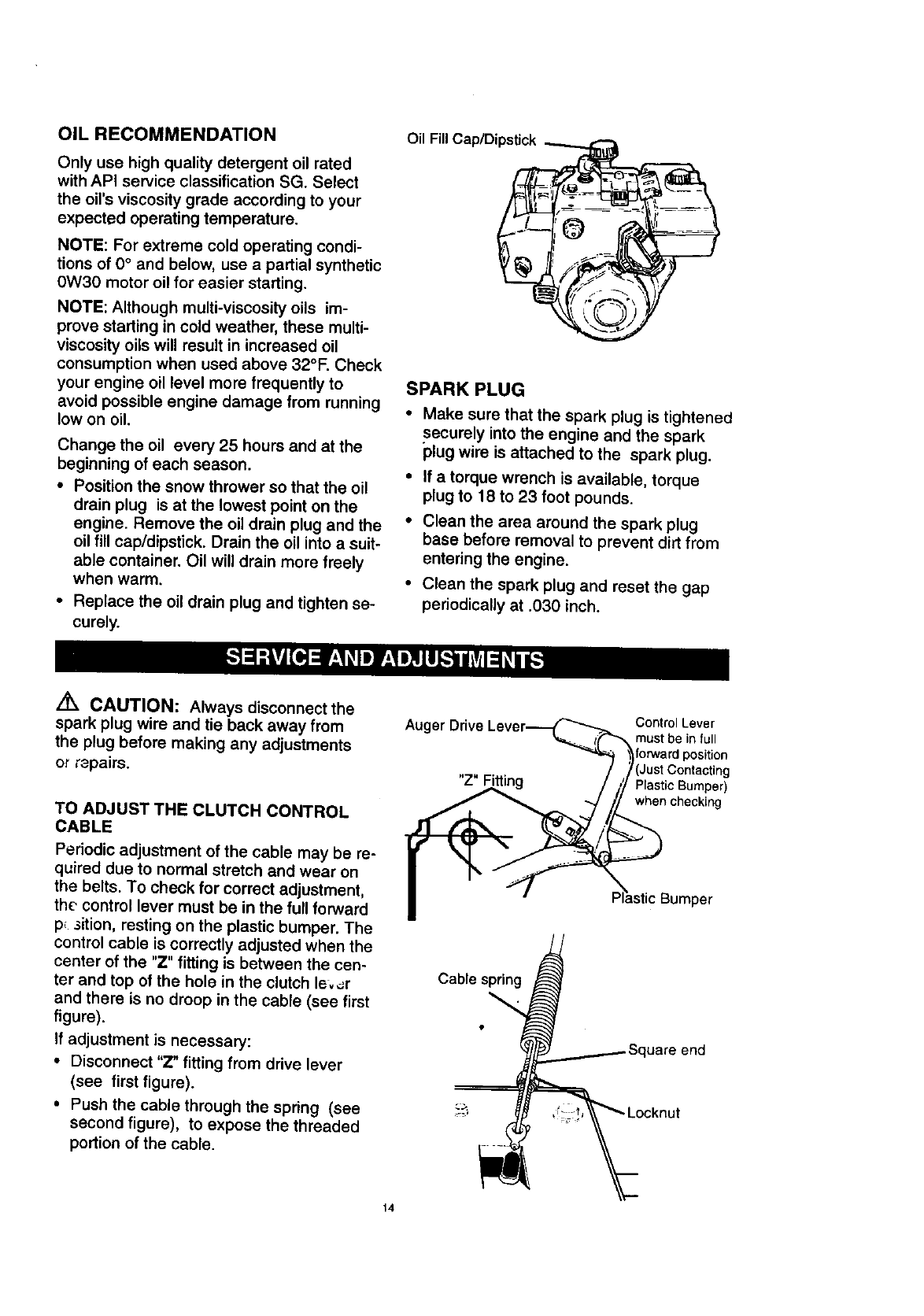

OIL RECOMMENDATION

Only use high quality detergent oil rated

with APt service classification SG. Select

the oil's viscosity grade according to your

expected operating temperature.

NOTE: For extreme cold operating condi-

tions of 0°and below, use a partial synthetic

0W30 motor oil for easier starting.

NOTE: Although multi-viscosity oils im-

prove starting in cold weather, these multi-

viscosity oils will result in increased oil

consumption when used above 32°F. Check

your engine oil level more frequently to

avoid possible engine damage from running

low on oil.

Change the oil every 25 hours and at the

beginning of each season.

•Position the snow thrower so that the oil

drain plug is at the lowest point on the

engine. Remove the oil drain plug and the

oil fill cap/dipstick. Drain the oil into asuit-

able container. Oil will drain more freely

when warm.

• Replace the oil drain plug and tighten se-

cutely.

Oil FillCap/Dipstick

SPARK PLUG

• Make sure that the spark plug is tightened

.securely into the engine and the spark

plug wire is attached to the spark plug.

• If a torque wrench is available, torque

plug to 18 to 23 foot pounds.

• Clean the area around the spark plug

base before removal to prevent dirt from

entering the engine.

• Clean the spark plug and reset the gap

periodically at .030 inch.

Z_ CAUTION: Always disconnect the

spark plug wire and tie back away from

the plug before making any adjustments

or r3paire.

TO ADJUST THE CLUTCH CONTROL

CABLE

Periodic adjustment of the cable may be re-

quired due to normal stretch and wear on

the belts. To check for correct adjustment,

the control lever must be in the full forward

p_ 3ition, resting on the plastic bumper. The

control cable is correctly adjusted when the

center of the "Z" fitting is between the cen-

ter and top of the hole in the clutch le, ,_r

and there is no droop in the cable (see first

figure).

If adjustment is necessary:

• Disconnect "Z" fitting from drive lever

(see first figure).

•Push the cable through the spring (see

second figure), to expose the threaded

portion of the cable.

Auger Drive

Cable spring

Control Lever

must be in full

JustContacting

when checking

P_'asticBumper

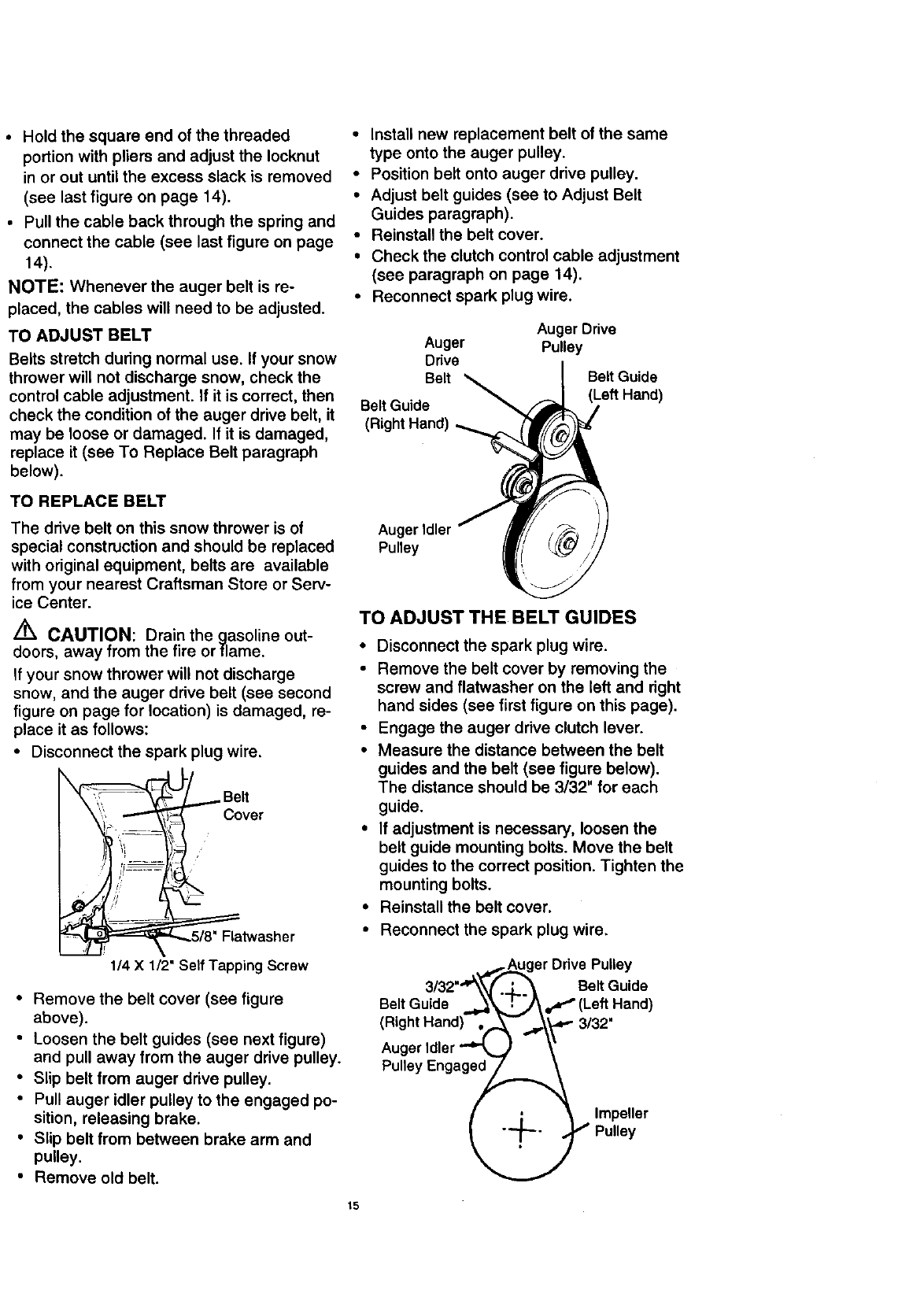

•Hold the square end of the threaded

portion with pliers and adjust the Iocknut

in or out until the excess slack is removed

(see last figure on page 14).

•Pull the cable back through the spring and

connect the cable (see last figure on page

14).

NOTE: Whenever the auger belt is re-

placed, the cables will need to be adjusted.

TO ADJUST BELT

Belts stretch during normal use. If your snow

thrower will not discharge snow, check the

control cable adjustment. If it is correct, then

check the condition of the auger drive belt, it

may be loose or damaged. If it is damaged,

replace it (see To Replace Belt paragraph

below).

TO REPLACE BELT

The drive belt on this snow thrower is of

special construction and should be replaced

with original equipment, belts are available

from your nearest Craftsman Store or Serv-

ice Center.

Ak CAUTION: Drain the gasoline out-

doors, away from the fire orfiame.

If your snow thrower will not discharge

snow, and the auger drive belt (see second

figure on page for location) is damaged, re-

place it as follows:

• Disconnect the spark plug wire.

Belt

Cover

•-_.5/8" Flatwasher

1/4 X 1/2" Self Tapping Screw

• Remove the belt cover (see figure

above).

• Loosen the belt guides (see next figure)

and pull away from the auger drive pulley.

• Slip belt from auger drive pulley.

• Pull auger idler pulley to the engaged po-

sition, releasing brake.

• Slip belt from between brake arm and

pulley.

• Remove old belt.

•Install new replacement belt of the same

type onto the auger pulley.

• Position belt onto auger drive pulley.

• Adjust belt guides (see to Adjust Belt

Guides paragraph).

• Reinstall the belt cover.

• Check the clutch control cable adjustment

(see paragraph on page 14).

• Reconnect spark plug wire.

Auger

Drive

Belt

Belt Guide

(Right Hand)

Auger Drive

Pulley

Belt Guide

(Left Hand)

Auger Idler

Pulley

TO ADJUST THE BELT GUIDES

• Disconnect the spark plug wire.

•Remove the belt cover by removing the

screw and flatwasher on the left and right

hand sides (see first figure on this page).

•Engage the auger drive clutch lever.

•Measure the distance between the belt

guides and the belt (see figure below).

The distance should be 3/32" for each

guide.

•If adjustment is necessary, loosen the

belt guide mounting bolts. Move the belt

guides to the correct position. Tighten the

mounting bolts.

•Reinstall the belt cover.

•Reconnect the spark plug wire.

... \uger Drive Pulley

3/32"'_, _Belt Guide

Belt Guide ._ r'-_)_,_ (Left Hand)

(R,gh,Hsnd)

Auger Idler _

Pulley Engage_

[;_.Impeller

_Pulley

TO REPLACE AUGER SHEAR BOLT

The augers are secured to the auger shaft

with special bolts (see figure below ) that

are designed to break (to protect the ma-

chine) if an object becomes lodged in the

auger housing. Use of a harder bolt will de-

stroy the protection provided by the shear

bolt.

IMPORTANT: To ensure safety and perlor-

mance levels, only original equipment shear

belts should be used. When replacing shear

belts, be sure to replace shear belt spacers.

"_,_ ;i!.,ii Spacer

__J!ii;i__Shear Pin

V "\ il I

To replace a broken shear bolt, proceed as

follows:

•Move the throttle to O(Stop) and turn

off all controls.

• Disconnect the spark plug wire. Be sure

all moving parts have stopped.

•Remove the broken shear bolt.

•Align the hole in the auger with the hole in

the auger shaft. Install the new shear pin,

spacer and Iocknut found in toolbox lo-

cated on top of belt cover.

•Reconnect the spark plug wire.

TO ADJUST CARBURETOR

If you think your carburetor needs adjusting,

see your nearest Authorized Craftsman Ser-

vice Center. Engine performance should

not be affected at altitudes up to 7,000 feet.

For operation at higher elevations, contact

your Authorized Craftsman Service Center.

IMPORTANT: Never tamper with the en-

gine govemor, which is factory set for

proper engine speed. Over speeding the

engine above the factory high speed set-

ting can be dangerous. If you think the en-

gine-governed high speed needs adjusting,

contact your nearest Craftsman Service

Center, which has the proper equipment

and experience to make any necessary ad-

justments.

TO ADJUST OR REPLACE THE

SPARK PLUG

NOTICE: This spark ignition system meets

all requirements of the Canadian Interfer-

ence-Causing Equipment Regulations.

NOTICE: This engine complies with all cur-

rent Australian and New Zealand limitations

regarding electromagnetic interference.

If you have difficulty starting your snow

thrower, you may need to adjust or replace

the spark plug. Follow the instructions be-

low.

Replace the spark plug if the electrodes are

pitted or burned or if the porcelain is

cracked.

To Adjust:

• Clean the spark plug by carefully scrap-

ing the electrodes (do not sand blast or

use a wire brush).

•Be sure the spark plug is clean and free

of foreign material. Check the electrodes

gap (see figure below) with awire feeler

gauge and reset the gap to .030 inch if

necessary.

To Replace:

•If you need a new spark plug, use only

the proper replacement spark plug (see

page 13). "

•Set the gap to .030 inch.

•Before installing the spark plug, coat its

threads lightly with oil or grease to insure

easy removal.

•Tighten the plug firmly into the engine.

• If atorque wrench is available, torque the

plug to 18 to 23 ft. - Ibs.

/_ CAUTION" Never store your snow

thrower indoors'or in an enclosed, poorly

ventilated area if gasoline remains in the

tank. fumes may reach an open flame,

spark or pilot light from a furnace, water

heater, clothes dryer, cigarette, etc.

To prevent engine damage (if snow thrower

is not used for more than 30 days) follow

the steps below.

SNOW THROWER STORAGE

• Thoroughly clean the _now thrower.

•Lubricate all lubrication points (see the

Maintenance section on pages 12-14).

•Be sure that all nuts, bolts and screws are

securely fastened. Inspect all visible mov-

ing parts for damage, breakage and wear.

Replace if necessary.

• Touch up all rusted or chipped paint sur-

faces; sand lightly before painting.

• Cover the bare metal parts of the blower

housing auger and the impeller with rust

preventative, such as a spray lubricant.

NOTE: A yearly checkup or tune-up by a

Craftsman Service Center is a good way to

insure that your snow thrower will provide

maximum performance for the next season.

ENGINE STORAGE

Gasoline must be removed or treated to

prevent gum deposits from forming in

the tank, filter, hose, and carburetor dur-

ing storage. Also during storage, alcohol

blended gasoline that uses ethanol or

methanol (Sometimes called gasohol) at-

tracts water. It acts on the gasoline to

form acids which damage the engine.

• To remove gasoline, run the engine until

the tank is empty and the engine stops.

Then drain remaining gasoline from car-

buretor by pressing upward on bowl drain

located on the bottom of carburetor (see

figure on right).

• If you do not want to remove gasoline,

use fuel stabilizer supplied with unit or

purchase Craftsman Fuel Stabilizer No.

33500. Add fuel stabilizer to any gasoline

left in the tank to minimize gum deposits

and acids. If the tank is almost empty, mix

stabilizer with fresh gasoline in a separate

container and add some to the tank.

Always follow instructions on stabilizer con-

tainer. Then run engine at least 10 minutes

after stabilizer is added to allow mixture to

reach carburetor. Store snow thrower in a

safe place. See Waming above.

You can keep your engine in good operating

condition during storage by:

•Changing oil (see page 10).

•Lubricating the piston/cylinder area. This

can be done by first removing the spark

plug and squirting a few drops of clean

engine oil into the spark plug hole. Then

cover the spark plug hole with a rag to ab-

sorb oil spray. Next, rotate the engine by

pulling the starter rope fully out two or

three times. Finally, reinstall spark plug

and attach spark plug wire.

OTHER

•If possible, store your snow thrower in-

doors and cover it to give protection from

dust and dirt.

•If the machine must be stored outdoors,

block up the snow thrower to be sure the

entire machine is off the ground.

•Cover the snow thrower with a suitable

protective cover that does not retain mois-

ture. Do not use plastic or vinyl.

IMPORTANT: Never cover snow thrower

while engine and exhaust areas are still

warm.

Bowl Drain Carburetor Bowl

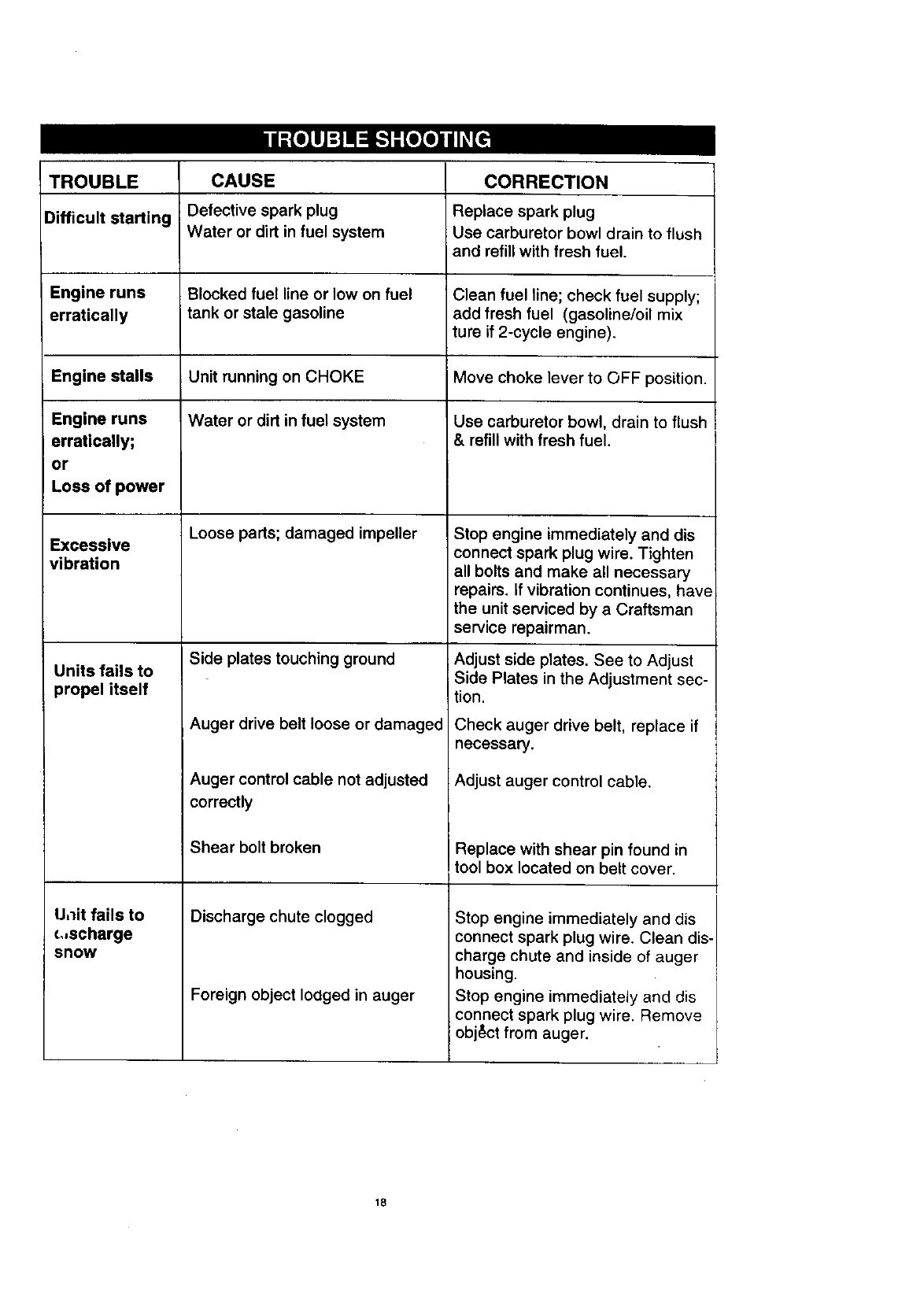

TROUBLE CAUSE CORRECTION

Difficult starting Defective spark plug Replace spark plug

Water or dirt in fuel system Use carburetor bowl drain to flush

and refill with fresh fuel.

Engine runs Blocked fuel line or low on fuel Clean fuel line; check fuel supply;

erratically tank or stale gasoline add fresh fuel (gasoline/oil mix

ture if 2-cycle engine).

Engine stalls Unit running on CHOKE Move choke lever to OFF position.

Engine runs Water or dirt in fuel system Use carburetor bowl, drain to flush

erratically; & refill with fresh fuel.

Loss of power

Excessive Loose parts; damaged impeller

vibration

Units fails to

propel itself

U,_it fails to

(,,scharge

snow

Side plates touching ground

Auger drive belt loose or damaged

Auger control cable not adjusted

correctly

Shear bolt broken

Discharge chute clogged

Foreign object lodged in auger

Stop engine immediately and dis

connect spark plug wire. Tighten

all bolts and make all necessary

repairs, if vibration continues, have

the unit serviced by a Craftsman

service repairman.

Adjust side plates. See to Adjust

Side Plates in the Adjustment sec-

tion.

Check auger drive belt, replace if

necessary.

Adjust auger control cable.

Replace with shear pin found in

tool box located on belt cover. I

Stop engine immediately and dis

connect spark plug wire. Clean dis-

charge chute and inside of auger

housing.

Stop engine immediately and dis

connect spark plug wire. Remove

objt_ct from auger.

CRAFTSMAN 22" - 5H.P. SNOW THROWER 536.884790

ELECTRIC START ASSEMBLY

REF

NO. PARTNO.

6 330783

7 6216

6 6217

9 6219

760986

PART NAME

Motor, Electric Starter

Screw, 1/4-20x.50

Screw, #6-32x2.50

Cord, Starter Motor

Owner's Manual

319051

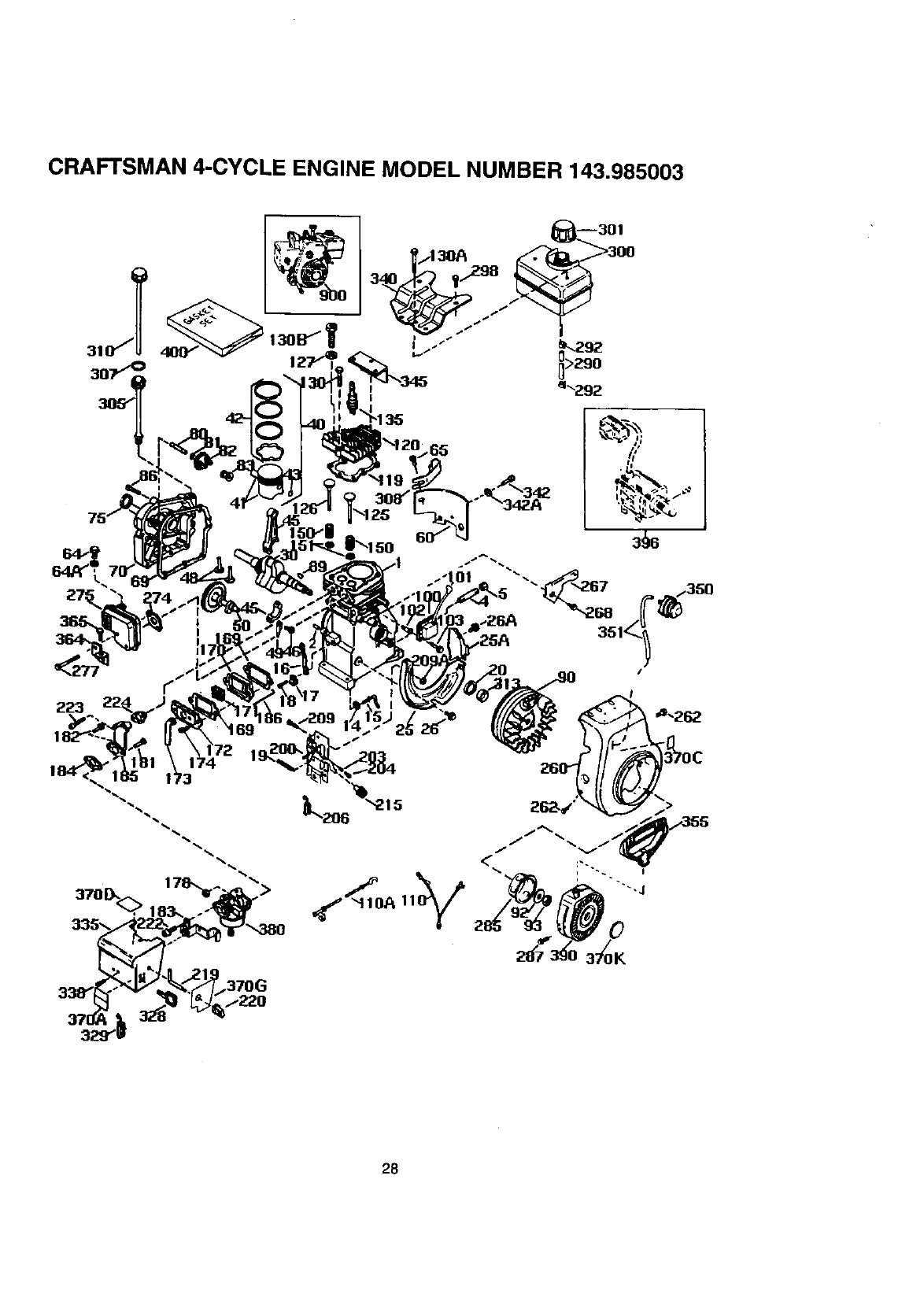

ENGINE ASSEMBLY

_e] J_l

ENGINE MOUNTS TO FRONT HOLES

ON THE FRAME

REF

NO. PART NO.

10 Engine

12 710024

31 3949

33 120638

34 910828

41 3949

43 120638

44 910828

336629 D

PARTNAME

Model 143.985003

(see Engine Parts List)

Screw, 5/16-18

Guide, Rod Belt, RH

Washer, .328x.60x.09

Screw, 5/16-24x.625

Guide, Rod Belt RH

Washer, .328x.60x.09

Screw, 5/16-24x.625

REF

NO.

PART NO.

57479

73840

58625,1

586253

581264

313826

120382

39573

PART NAME

Spacer, Slev.75x1.25xl.32

Flatwasher.765x1.12x.06

Spacer, Slev .753x1.12x.38

Pulley, Eng V4L 3.00x.75

Belt, V 4L 35.23Lg.

Flatwasher

Washer, Regsptlk

Screw, 3/8-24xl .00

All unnumbered items are

interchangeable with opposite side

Note: Always use original equipment parts. Use of

service/replacement parts other than original parts may

void your warranty.

CRAFTSMAN 22" -5H.P. SNOW THROWER 536.884790

FRAME COMPONENTS ASSEMCLY

o @

@®•®

REF

NO.

106

108

PART NO.

340673-833'

782967

761195

71003

120382

1499

761198

710020

1499

340682

761153

PARTNAME

Frame Assy

Screw, 5/16-18x.88

Plate-Clutch Arm

Screw, 3/8-16x.75

Washer, Regsptlk

Nut, 3/8-16

Arm-Clutch

Bolt,.497x.138 3/8-16

Nut, 3/8-16 Reghexctrlk

Clip, Cable

Cabte, Auger ClutchCtrl

REF

NO.

110

112

115

116

118

120

133

160

161

162

163!

PARTNO.

180124

313843

41529

340579

71003"

1499

313854

760478

310169

120392

760539

PART NAME

Screw, 3/8-16xl .25

Pulley, Idler

Nut, 3/8-16 Hexctrtlkjam

Bracket, Compact Cable

Screw, 3/8-16xl .25

Nut, 3/8-16 Reghexctdk

Spring, Idler

Cover, Belt w/Storage

Screw, 1/4-20x.63

Flatwasher, .281x.63x.065

Lid, Belt Cover Tool Box

342576B

CRAFTSMAN 22" -5H.P. SNOW THROWER 536.884790

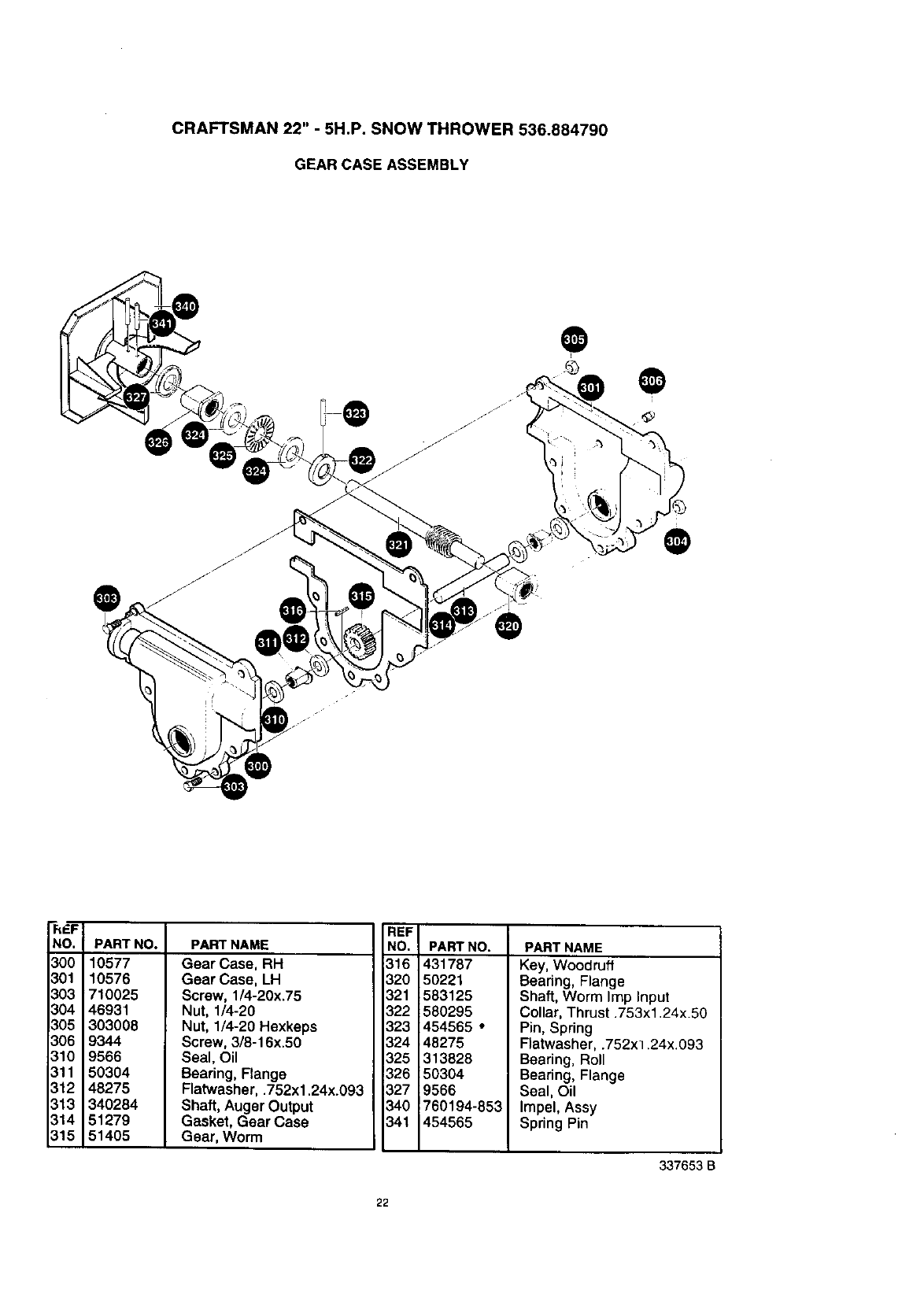

GEAR CASE ASSEMBLY

R_F

NO,

300

301

303

304

305

306

310

311

312

313

314

315

PART NO.

10577

10576

710025

46931

303008

9344

9566

50304

48275

340284

51279

51405

PARTNAME

Gear Case, RH

Gear Case, LH

Screw, 1/4-20x.75

Nut, 1/4-20

Nut, 1/4-20 Hexkeps

Screw, 3/8-16x.50

Seal, Oil

Bearing, Flange

Flatwasher, .752xl .24x.093

Shaft, Auger Output

Gasket, Gear Case

Gear, Worm

REF

NO. PARTNO.

316 431787

320 50221

321 583125

322 580295

323 454565 •

324 48275

325 313828

326 50304

327 9566

340 760194-853

341 454565

PART NAME

Key, Woodruff

Bearing, Flange

Shaft, Worm Imp Input

Collar, Thrust .753xl .24x.50

Pin, Spring

Flatwasher, .752Xl .24x.093

Bearing, Roll

Bearing, Flange

Seal, Oil

Impel, Assy

Spring Pin

337653

CRAFTSMAN 22" -5H.P. SNOW THROWER 536.884790

AUGER HOUSING ASSEMBLY

KEY# 500 IS A WELDMENT AND

INCLUDES TWO SIDE PANELS.

;_ (_ .EF.KEY#S® --±--

REF

NO. PART NO.

480 583124

481 71002

482 71371

485 334514

490!582960

491 43846

493 180077

497 120638

499 120376

500 760812-833

502 309235

510 581395-853

511 340714

514 780285

518 336656

519 49838

PART NAME

Pulley, V4L

Screw, 8/16-18x.50

Key, Square

Spacer, Slve .676xl .00x.53

Retainer, Ball Bearing

Bearing, Ball

Screw, 5/16-18x.75

Washer, .328x.60x.09

Nut, 5/16-18

Housing, Assy

Ratchet Fastener

Blade, Scraper 22"

Carr. Bolt, 1/4-20x.75

Nut, 1/4-20 Whiz-loc

Flighting-Rubber

Rivet, Ovset

REF

NO. PART NO.

520 340546-853

521 340547-853

522 121940

523 3943

PART NAME

5241 782585

525 9517

526 8619 •

527 9357

Auger, Assy LH

Auger, Assy RH

Screw, 1/4-20x1.75

Spacer, Slve .250x.47x.20

Nut, 1/4-20

Bearing, Flange

Nut, 5/16-18

Screw, 5/16-18x.75

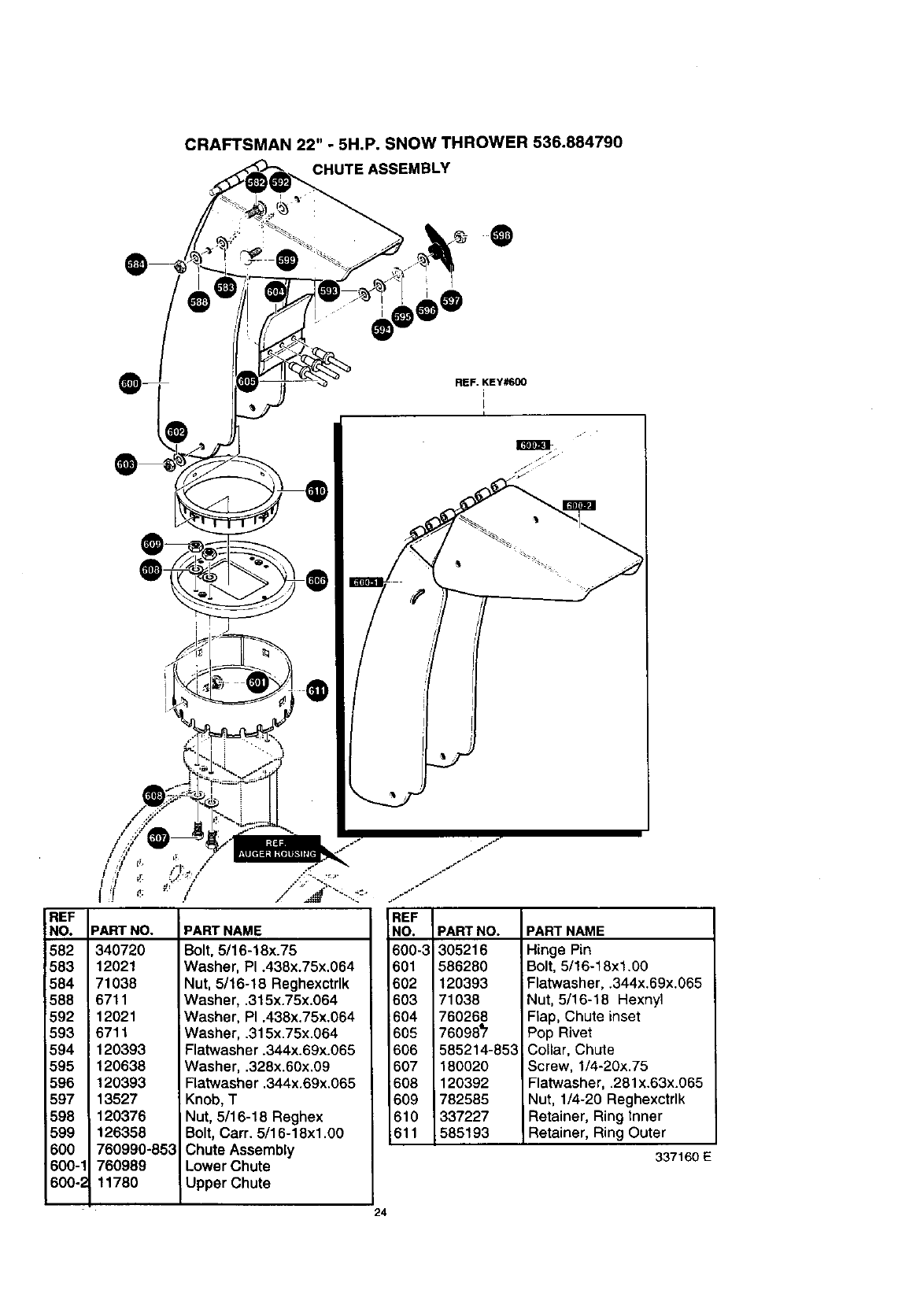

CRAFTSMAN 22" -5H.P. SNOW THROWER 536.884790

CHUTE ASSEMBLY

REF. KEY#600

REF

NO.

582

583

584

588

592

593

594

595

596

597

598

599

600

600-1

600-2

PARTNO.

340720

12021

71038

6711

12021

6711

120393

120638

120393

13527

120376

126358

760990-853

760989

11780

PART NAME

Bolt,5/16-18x.75

Washer, PI.438x.75x.064

Nut, 5/16-18 Reghex_rlk

Washer,.315x.75x.064

Washer, PI.438x.75x.064

Washer,.315x.75x.064

Flatwasher.344x.69x.065

Washer,.328x.60x.09

Flatwasher.344x.69x.065

Knob, T

Nut, 5/16-18 Reghex

Bolt,Carr. 5/16-18xl .00

Chute Assembly

Lower Chute

Upper Chute

REF

NO. PART NO.

600-3 305216

601 586280

602 120393

603 71038

604 760268

605 76098_

606 585214-853

607 180020

608 120392

609 782585

610 337227

611 585193

PART NAME

Hinge Pin

Bolt, 5/16-18xl.00

Flatwasher, .344x.69x.065

Nut, 5/16-18 Hexnyl

Flap, Chute inset

Pop Rivet

Collar, Chute

Screw, 1/4-20x.75

Flatwasher, .281x.63x.065

Nut, 1/4-20 Reghexctrlk

Retainer, Ring inner

Retainer, Ring Outer

337160 E

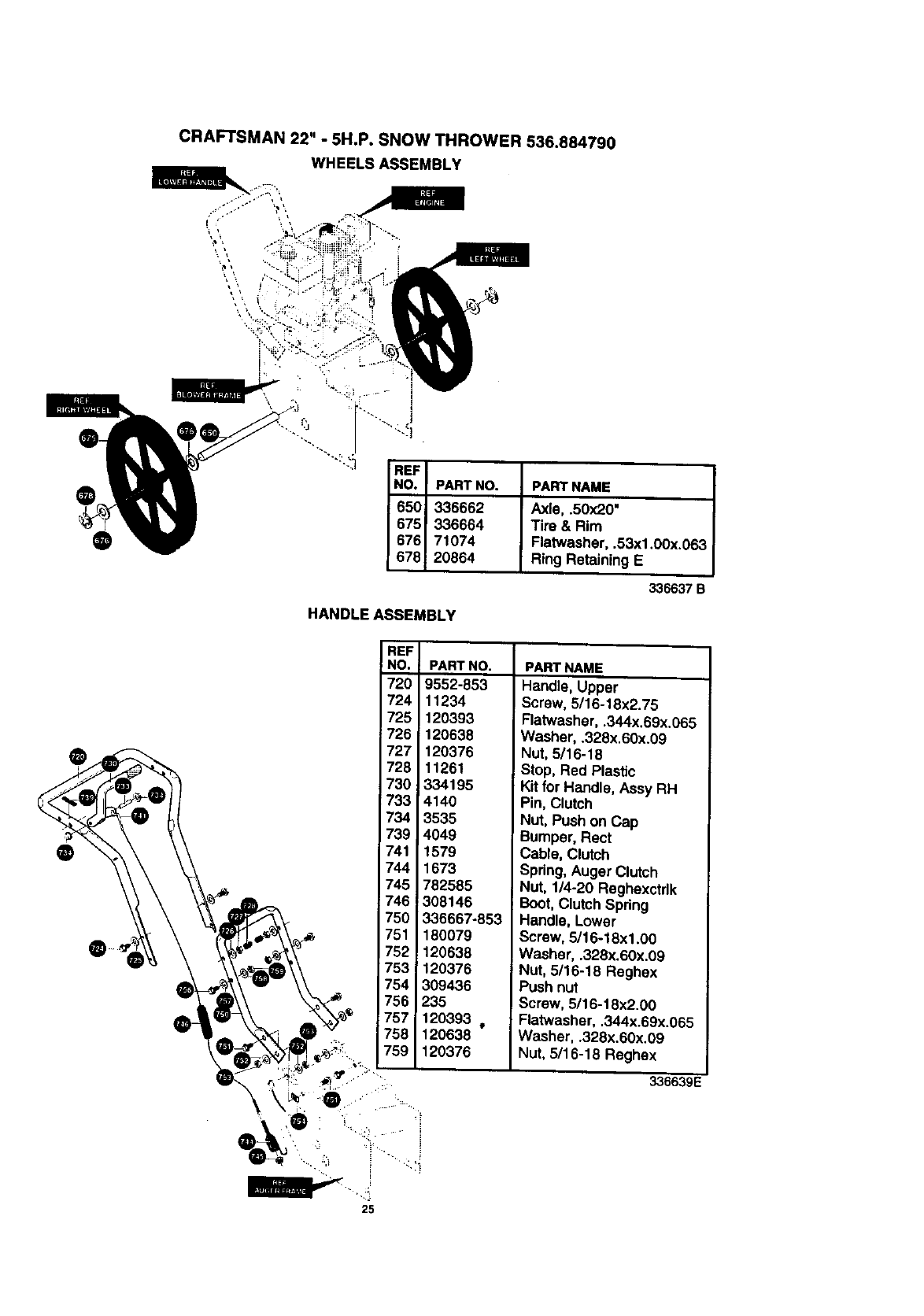

CRAFTSMAN 22" - 5H.P. SNOW THROWER 536.884790

WHEELS ASSEMBLY

REF

NO. PART NO. PART NAME

650 335662 Axle, .50x20"

675 336664 Tire & Rim

676 71074 Flatwasher, .53x1.00x.063

678 20864 Ring Retaining E

336637 B

HANDLE ASSEMBLY

REF

NO.

720

724

725

726

727

728

730

733

734

739

741

744

745

746

750

751

752

753

754

756

757

758

759

PARTNO.

9552-653

11234

120393

120638

120376

11261

334195

4140

3535

4049

1579

1673

782585

308146

336667-853

180079

120638

120376

309436

235

120393 •

120638

120376

PARTNAME

Handle,Upper

Screw, 5/16-18x2.75

Flatwasher, .344x.69x.065

Washer, .328x.60x.09

Nut, 5/16-18

Stop, Red Plastic

Kitfor Handle, Assy RH

Pin, Clutch

Nut, Push on Cap

Bumper, Rect

Cable, Clutch

Spdng, Auger Clutch

Nut, 1/4-20 Reghexctrlk

Boot,Clutch Spring

Handle, Lower

Screw, 5/16-18xl .00

Washer, .328x.60x.09

Nut, 5/16-18 Reghex

Push nut

Screw, 5/16-18x2.00

Flatwasher, .344x.69x.065

Washer, .328x.60x.09

Nut, 5/16-18 Reghex

336639E

®C,,F,

REF

NO. PARTNO. PARTNAME

850 585426 Crank, Assy w/Yoke

854 307399 Handle, Chute Crank

855 309312 Flatwasher, .39x.70x.05

856 578159 Ring, Rat E

860 336704 Bolt,Eye

861 148 Grommet, Eye Bolt

866 120394 Flatwasher, .406x.81x.065

337666B

REF

NO. PARTNO. PARTNAME

867 71046 Nut, 3/8-16

870 585195 Bracket,Worm

871 585196 Worm, Gear Chute

872 578063 Block,Univ Piv

873 578309 Pin, Clevis

874 578060 Pin, Univ Joint

875 579493 Pin, Cotter

Symbol denotes top of decal application.

DECALS

REF

NO. PART NO.

822 760971

823 313892

924 70141

825 302922

826 760972

827 760963

828 761079

830 390_

832 760983

PART NAME

Decal, 9" Impeller

Decal, Danger Chute/Hand

Decal, Danger Auger Foot

Decal, Danger English

Decal, Craftsman (RED)

Decal, Electric Start

Decal, Danger Chute

Decal, Auger Drive Engage

Decal, Toolbox into

336641 C

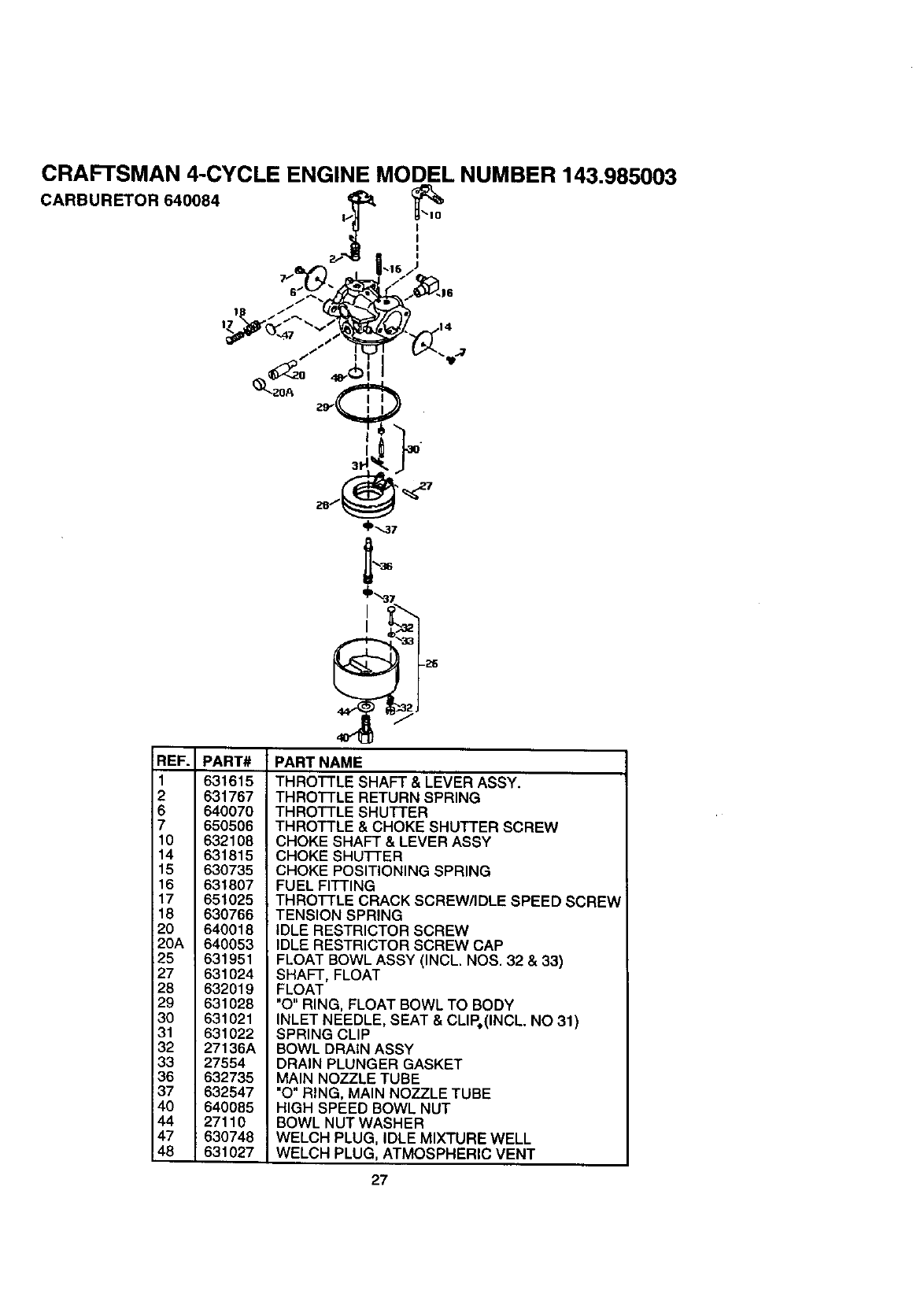

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.985003

CARBURETOR 640084 _._

REF.

20A

PART#

631615

631767

640070

650506

632108

631815

630735

631807

651025

630766

640018

640053

631951

631024

632019

631028

631021

631022

27136A

27554

632735

632547

640085

27110

630748

631027

PART NAME

THROTTLE SHAFT & LEVER ASSY.

THROTTLE RETURN SPRING

THROTTLE SHUTTER

THROTTLE & CHOKE SHUTTER SCREW

CHOKE SHAFT & LEVER ASSY

CHOKE SHUTTER

CHOKE POSITIONING SPRING

FUEL FITTING

THROTTLE CRACK SCREW/IDLE SPEED SCREW

TENSION SPRING

iDLE RESTRICTOR SCREW

IDLE RESTRICTOR SCREW CAP

FLOAT BOWL ASSY (INCL. NOS. 32 & 33)

SHAFT, FLOAT

FLOAT

"O"RING, FLOAT BOWL TO BODY

INLET NEEDLE, SEAT & CLIP,(INCL. NO 31)

SPRING CLIP

BOWL DRAIN ASSY

DRAIN PLUNGER GASKET

MAIN NOZZLE TUBE

"O"RING, MAIN NOZZLE TUBE

HIGH SPEED BOWL NUT

BOWL NUT WASHER

WELCH PLUG, IDLE MIXTURE WELL

WELCH PLUG, ATMOSPHERIC VENT

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.985003

3oYo

223

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.985003

REF. PART#

1 36469A

2 26727

4 0

5 30969

14 28277

15 31334

:16 31510

17 31335

18 651018

19 31426

_0 32600

_5 36552

_5A 35883

t6 650802

_GA 650926

30 34740

10 36073

t0 3607_

64A

100

101

102

103

110

110A

119

120

125

126

127

130

36075

36070

36071

36072

36076

36077

36078

20381

32875A

32610A

27241

32654

33158

29745

30063

8345

650238

27677A

34674C

27897

30574A

30590A

30591

30588A

650488

610961

611199

650815

650816

34443B

610118

651024

651007

35182

36874

36443

36441

36471

36472

32644A

32645A

650691

6021A

PART NAME

CYLINDER (INCL. 2,20,72&125)

DOWEL PIN

OIL DRAIN EXTENSION

__PxURCHASELOCALLY)

TENSION CAP

WASHER

GOVERNOR ROD

GOVERNOR LEVER

GOVERNOR LEVER CLAMP

SCREW, TORX T-15, 8-32X19/64"

EXTENSION SPRING

OIL SEAL

BLOWER HSING BAFFLE

(INCL 262)

BAFFLE EXTENSION

SCREW, 1/4-20X5/8"

SCREW 8-32X21/64"

CRANKSHAFT

PISTON, PIN & RING SET (STD)

PISTON, PIN & RING SET

(.010" OS)

PISTON, PIN & RING SET

(.020" OS)

PISTON & PIN ASSY

(STD) (INCL. 43)

PISTON & PIN ASSY

(.010 OS) (INCL. 43)

PISTON & PIN ASSY

(.020 OS) (INCL. 43)

RING SET (STD!

RING SET .010 OS

R NG SET .020 OS

PISTON PIN RETAINING SET

CONNECTING ROD ASSY

(INCL 46 & 49)

CONNECTING ROD BOLT

VALVE LIFTER

OIL DIPPER

CAMSHAFT (BCR)

BLOWER HOUSING EXT.

SCREW, TORX T-30 1/4-20X1/2"

WASHER

SCREW, 10-24X1/2"

CYLINDER COVER GASKET

CYLINDER COVER (INCL. 75 -83)

OIL SEAL

GOVERNOR SHAFT

WASHER

GOVERNOR GEAR ASSY.

(INCL. 81)

GOVERNOR SPOOL

SCREW, 1/4-20X1-1/4=

FLYWHEEL KEY

FLYWHEEL(W/RING GEAR)

BELLEVlLLE WASHER

FLYWHEEL NUT

SOLID STATE IGNITION

SPARK PLUG COVER

SOLID STATE MTNG STUD

SCREW, TORX T-15, 10-24X15/16

GROUND WIRE

CYLINDER HEAD GASKET

CYLINDER HEAD(INCL 131)

EXHAUST VALVE

(STD) (INCL. 151)

EXHAUST VALVE

(1/32" OS) (INCL 151)

INTAKE VALVE STD) (INCL 151)

INTAKE VALVE 1/32" OS)

(INCL 151)

WASHER

SCREW, 5/16-18X1-1/2"

REF. PART# PART NAME

130A

130B

135

150

151

169

170

171

172

173

174

178

181

182

183

184

185

186

200

203

204

206

209

209A

215

219

220

222

223

224

260

262

267

268

274

275

277

285

287

290

292

298

300

301

305

307

308

310

=313

328

329

335

338

340

342

342A

345

35O

351

355

364

365

370A

3700

370D

370G

370K

38O

390

396

400

650694A

650818

35395

31672

31673

27234A

27666

31410

34146

35350

650783

29752

650870

6201

34583A

26756

33691

32698

36677

31342

651029

610973

650139

30322

35440

34582

35438

28820

650664

33673A

35656A

650737

34212

30200

33670A

35771

650327

36467A

650926

30705

26460

650665

35584

35355

35554

35499

35539

35556

34080

35593

610973

35072

650257

36247

39963

650675

33344

570682

32180C

590574 •

33333

650735

36261

36501

35878

35282

36695

640084

590742

33290E

36444

SCREW, 5/16-18X2"

SCREW, 5/16-18X1-1/2"

RESISTOR SPARK PLUG

(RJ19LM)

VALVE SPRING

VALVE SPRING CAP

VALVE COVER GASKET

BREATHER BODY

BREATHER ELEMENT

VALVE COVER

BREATHER TUBE

SCREW, 10-24X3/4"

NUT & LOCK WASHER 1/4-28"

SCREW, 1/4-28X1-11/16"

SCREW, 1/4-28X7/8"

CHOKE BRACKET

CARBURETOR TO INTAKE

PIPE GASKET

INTAKE PIPE

GOVERNOR LINK

CONTROL BKT INCL 203-209A

COMPRESS ON SPRING

SCREW, TORX T-10 5_0X7/16"

TERMINAL

SCREW, 8-32X3/4"

LOCK NUT, 8-32

CONTROL KNOB

CHOKE ROD

CHOKE KNOB

SCREW 10-32X1/2"

SCREW, 1/4-20X1-19/32"

INTAKE PIPE GASKET

BLOWER HOUSING

SCREW, 1/4-20X1-19/32"

HOLD DOWN BRACKET

SCREW, 10-24X9/16"

EXHAUST GASKET

MUFFLER 0NCL 274)

SCREW 1/4-20X2-27/64"

STARTER CUP

SCREW 8-32X21/64"

FUEL LINE

FUEL LINE CLAMP

SCREW, 1/4-15X3/4"

FUEL TANK(INCL 292&301)

FUEL CAP

OIL FILL TUBE

"O" RING

FILL TUBE CLIP

DIPSTICK

SPACER

IGNITION KEY

TERMINAL

CARBURETOR COVER

SCREW 8-32X5/16"

FUEL TANK BRACKET

SCREW TORX T-30 1/4-20X1/2"

WASHER

HEAT BAFFLE

PRIMER ASSY.

PRIMER LINE

START HANDLE(MITtEN GRIP)

CARBURETOR COVER BKT

SCREW 10-24X3/8"

LUBRICATION DECAL

PRIMER DECAL

WARNING DECAL

CHOKE DECAL

STARTER DECAL

CARBURETOR (INCL 184)

REWIND STARTER

ELECTRIC STARTER MOTOR

GASKET SET

STARTER NO. 590742

REF. PART# PART NAME

590742

3 590740

6 590616

7 590617

8 590645A

11 590647

12 590535

13 590574

14 590741

STARTER, REWIND

RETAINER

DOG, STARTER

SPRING, DOG

PULLEY & REWIND SPRING ASSY

HOUSING ASSY, STARTER

ROPE, STARTER

(LENGTH 98=& 9_4"DIA.)

HANDLE, STARTER

LOCKING TAB

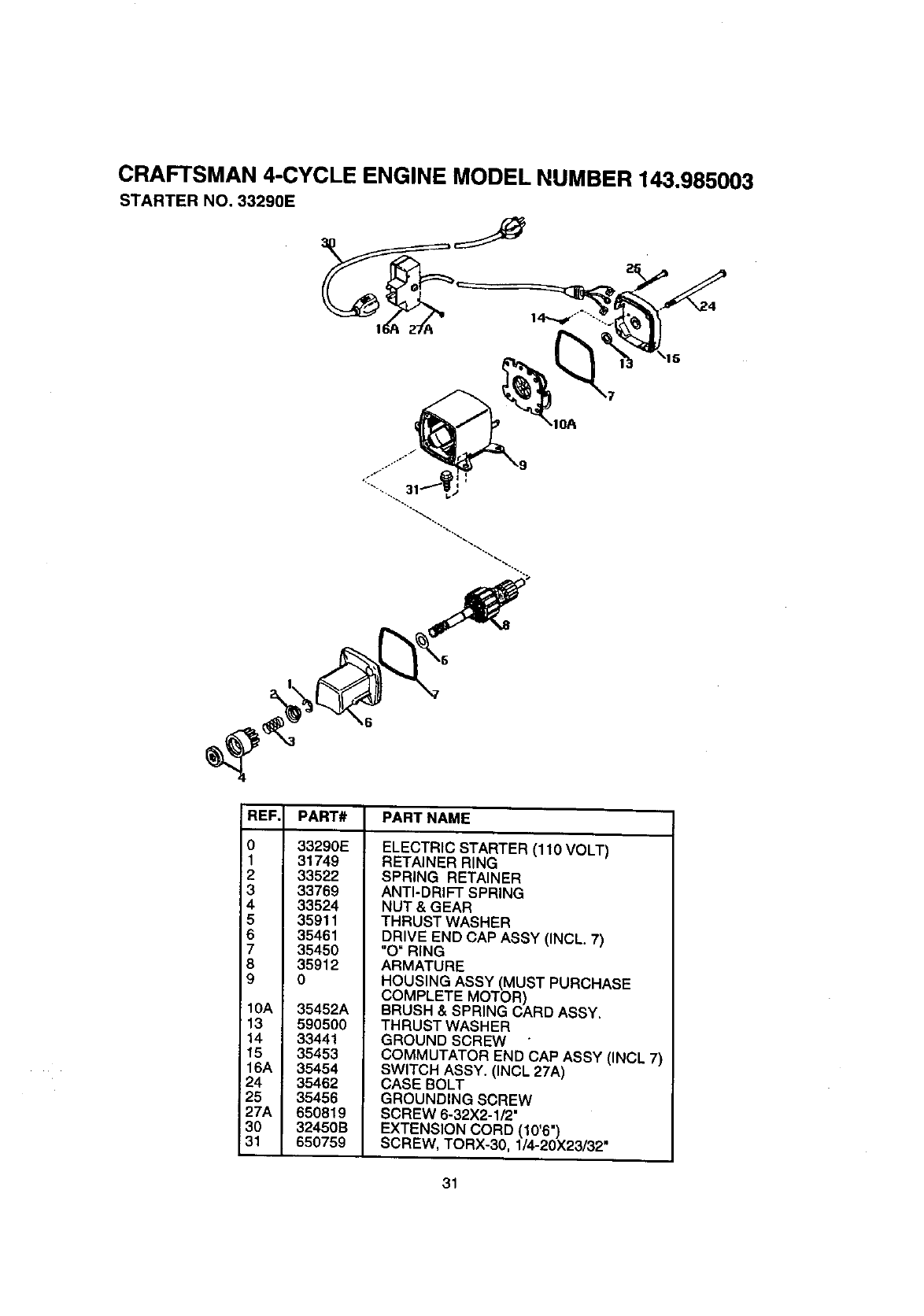

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.985003

STARTER NO. 33290E

J;,

REF PART# PART NAME

10A

16A

27A

33290E

31749

33522

33769

33524

35911

35461

35450

35912

35452A

590500

33441

35453

35454

35462

35456

650819

32450B

650759

ELECTRIC STARTER (110 VOLT)

RETAINER RING

SPRING RETAINER

ANTI-DRIFT SPRING

NUT & GEAR

THRUST WASHER

DRIVE END CAP ASSY (INCL. 7)

"O"RING

ARMATURE

HOUSING ASSY (MUST PURCHASE

COMPLETE MOTOR)

BRUSH &SPRING CARD ASSY.

THRUST WASHER

GROUND SCREW

COMMUTATOR END CAP ASSY (INCL 7)

SWITCH ASSY. (INCL 27A)

CASE BOLT

GROUNDING SCREW

SCREW 6-32X2-1/2"

EXTENSION CORD (10'6")

SCREW, TORX-30, 1/4-20X23/32"

America'sRepairSpecialists Printed in U.S.A.

Craftsman 536884790 User Manual 5 HP SNOW THROWER Manuals And Guides L9060259

CRAFTSMAN Snowthrower, Gas Manual L9060259 CRAFTSMAN Snowthrower, Gas Owner's Manual, CRAFTSMAN Snowthrower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
