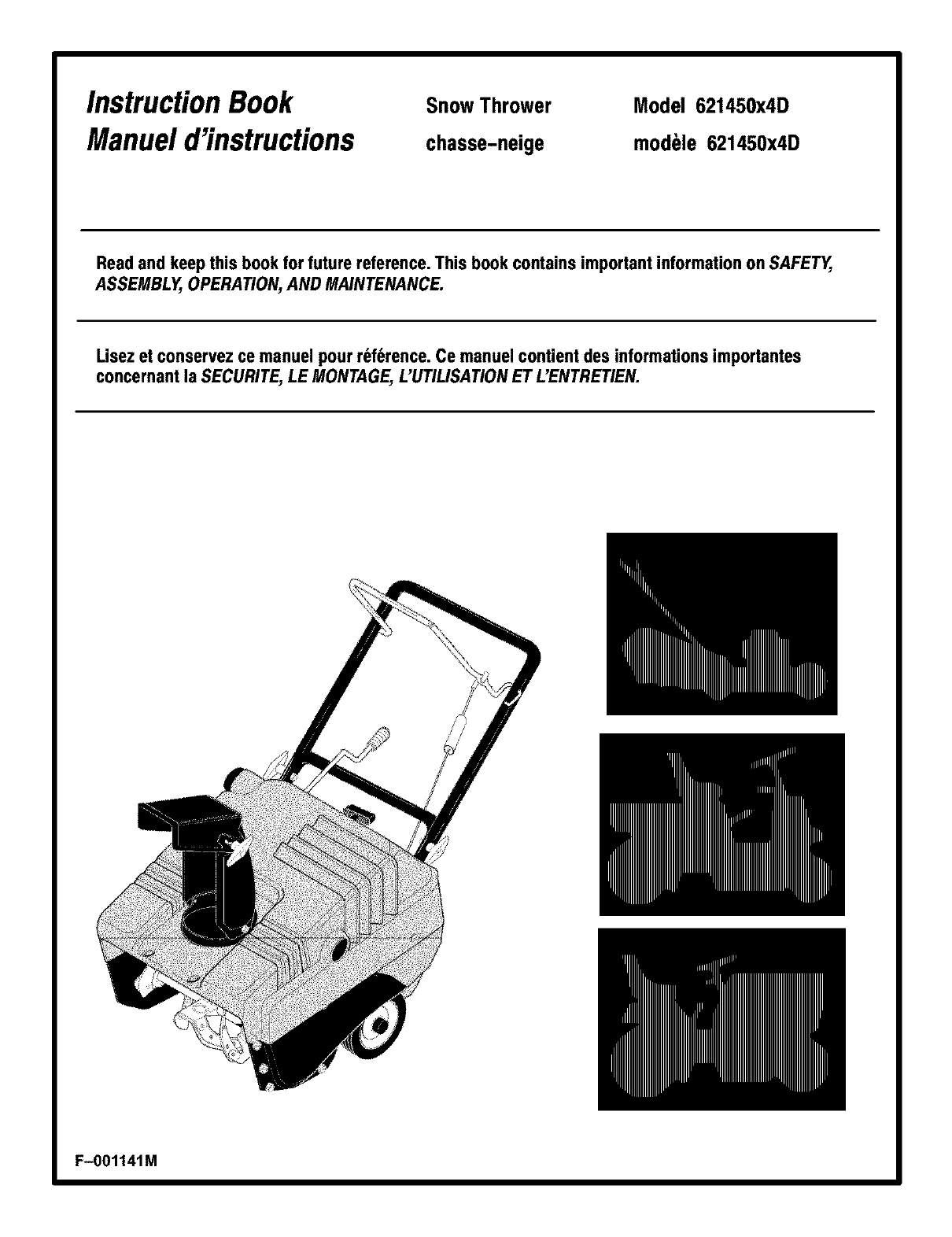

InstructionBook

Manueld'instructions

Snow Thrower

chasse-neige

Model 621450x4D

module 621450x4D

Readand keep this book for future reference. This book contains important information on SAFETY,

ASSEMBLY,OPERATION,AND MAINTENANCE.

Usez et conservez ce manuel pour r_f_rence. Ce manuel conUentdes informaUonsimportantes

concernant la SECURITE, LE MONTAGE,L'UTILISATIONET L'ENTRETIEN.

F-OO1141M

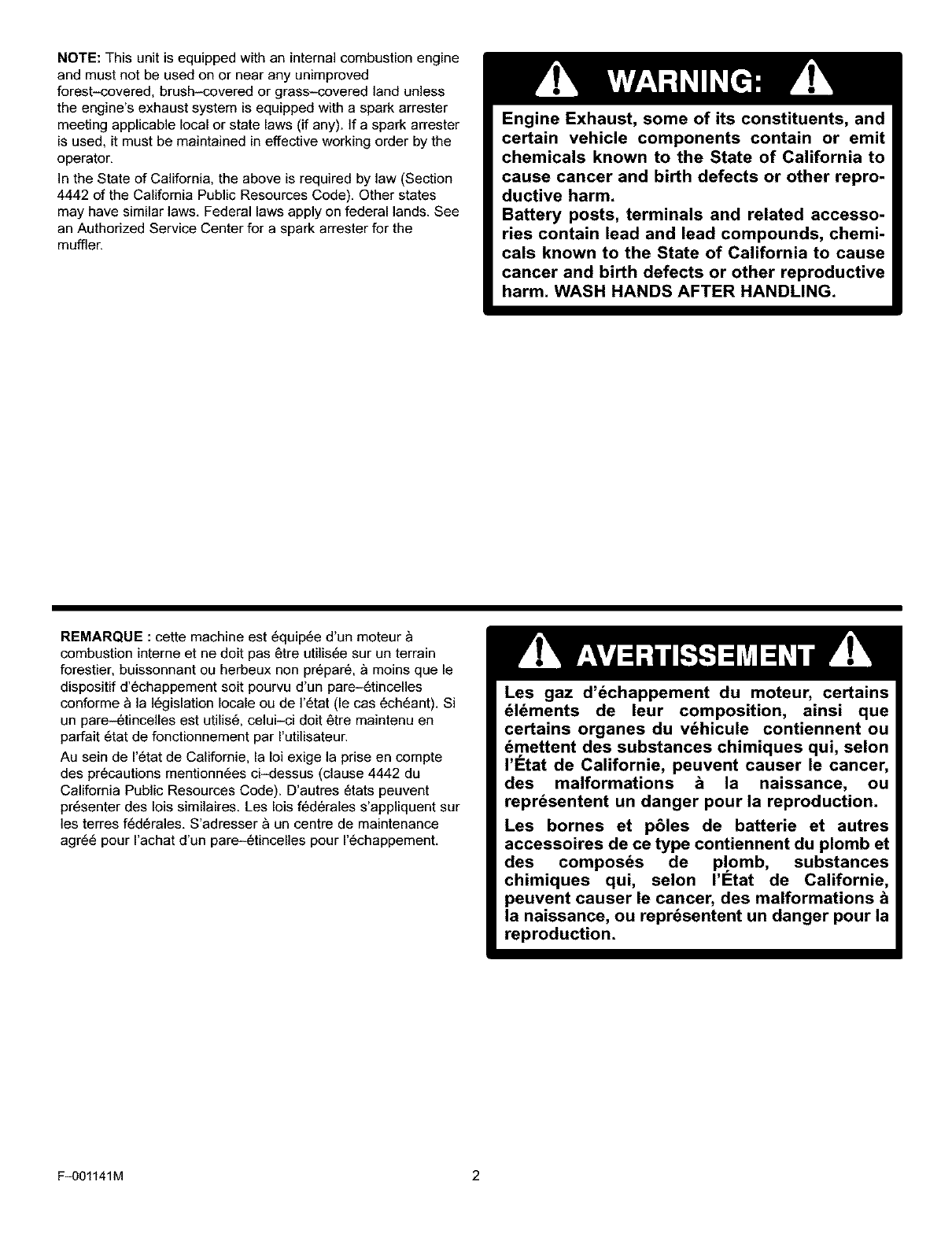

NOTE: This unit is equipped with an internal combustion engine

and must not be used on or near any unimproved

forest-covered, brush-covered or grass-covered land unless

the engine's exhaust system is equipped with a spark arrester

meeting applicable local or state laws (if any). If a spark arrester

is used, it must be maintained in effective working order by the

operator.

In the State of California, the above is required by law (Section

4442 of the California Public Resources Code). Other states

may have similar laws. Federal laws apply on federal lands. See

an Authorized Service Center for a spark arrester for the

muffler.

Engine Exhaust, some of its constituents, and

certain vehicle components contain or emit

chemicals known to the State of California to

cause cancer and birth defects or other repro-

ductive harm.

Battery posts, terminals and related accesso-

ries contain lead and lead compounds, chemi-

cals known to the State of California to cause

cancer and birth defects or other reproductive

harm. WASH HANDS AFTER HANDLING.

REMARQUE : cette machine est 6quip6e d'un moteur

combustion interne et ne dolt pas 6tre utilis6e sur un terrain

forestier, buissonnant ou herbeux non pr6par6, _ moins que le

dispositif d'6chappement soit pourvu d'un pare-6tincelles

conforme _ la 16gislation locale ou de 1'6tat (le cas 6ch6ant). Si

un pare-6tincelles est utilis6, celui-ci dolt etre maintenu en

parfait 6tat de fonctionnement par rutilisateur.

Au sein de r6tat de Californie, la Ioi exige la prise en compte

des pr6cautions mentionn6es ci-dessus (clause 4442 du

California Public Resources Code). D'autres 6tats peuvent

pr6senter des lois similaires. Les lois f6d6rales s'appliquent sur

les terres f6d6rales. S'adresser _ un centre de maintenance

agr66 pour rachat d'un pare-6tincelles pour r6chappement.

Les gaz d'_chappement du moteur, certains

_l_ments de leur composition, ainsi que

certains organes du v_hicule contiennent ou

_mettent des substances chimiques qui, selon

I'l_tat de Californie, peuvent causer le cancer,

des malformations &la naissance, ou

repr_sentent un danger pour la reproduction.

Les bornes et p61es de batterie et autres

accessoires de ce type contiennent du plomb et

des compos_s de pl.omb, substances

chimiques qui, selon I'Etat de Californie,

peuvent causer le cancer, des malformations

la naissance, ou reprdsentent un danger pour la

reproduction.

Fq)01141M 2

_1 2

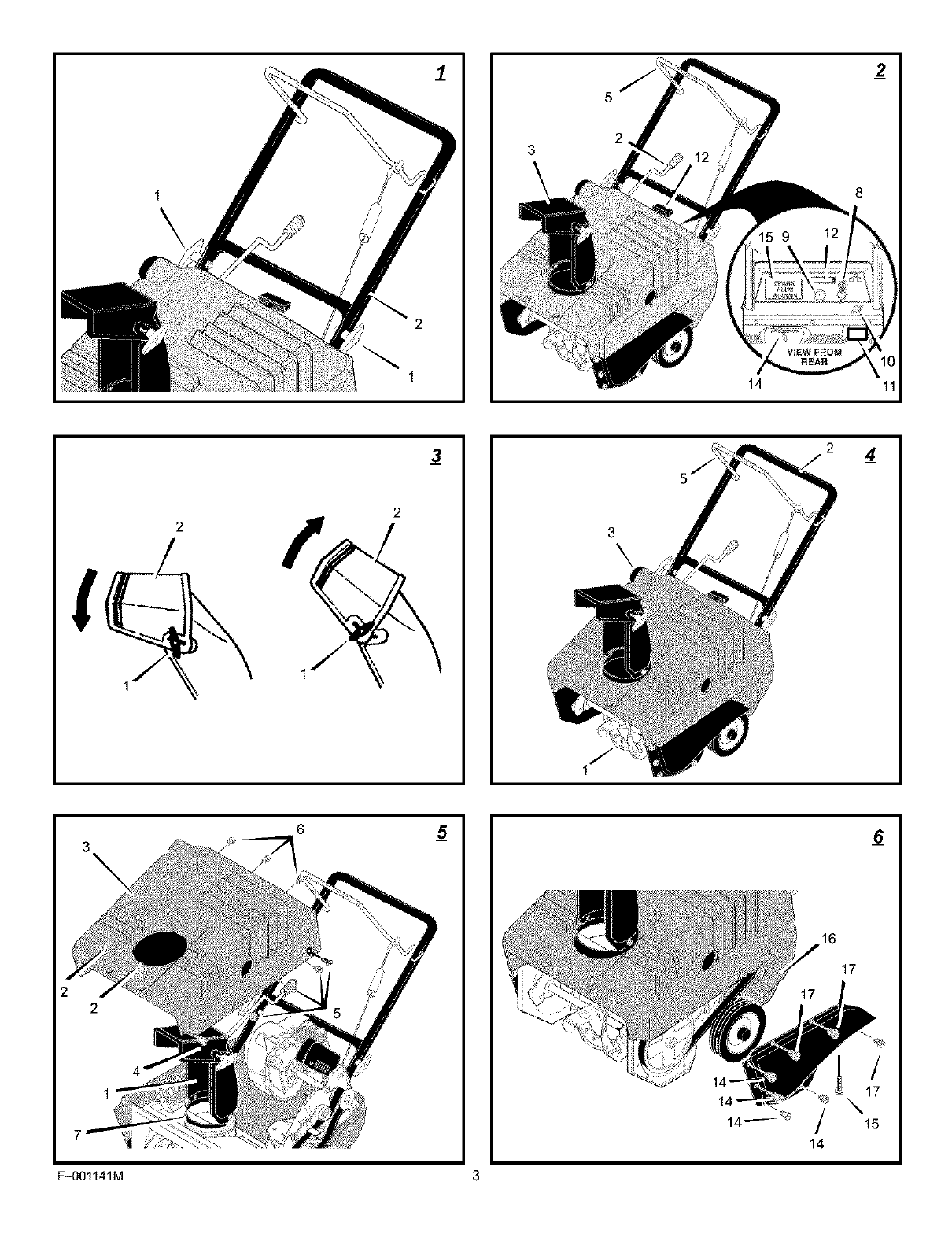

14 11

F_O1141M 3

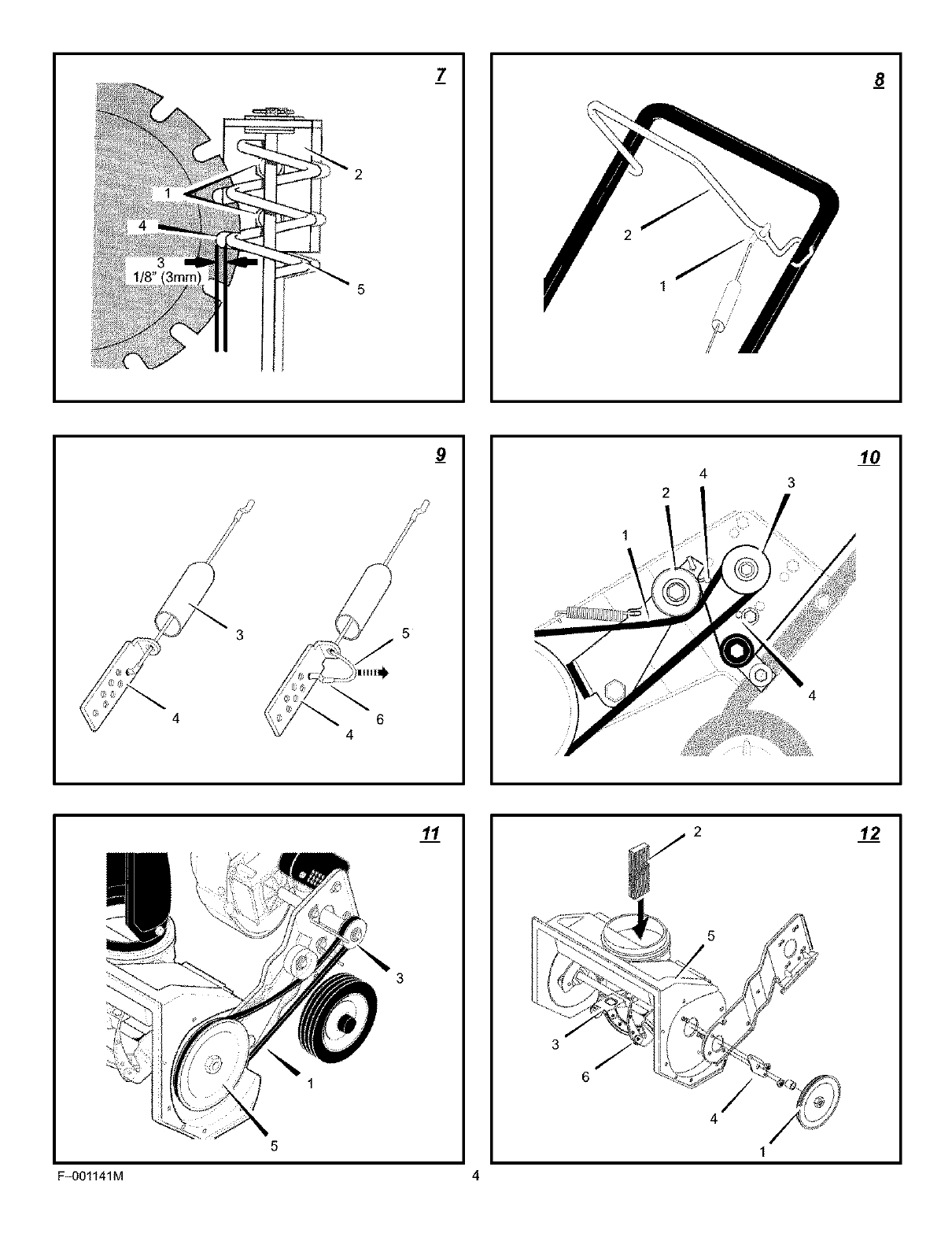

_7 _8

Fq)O1141M 4

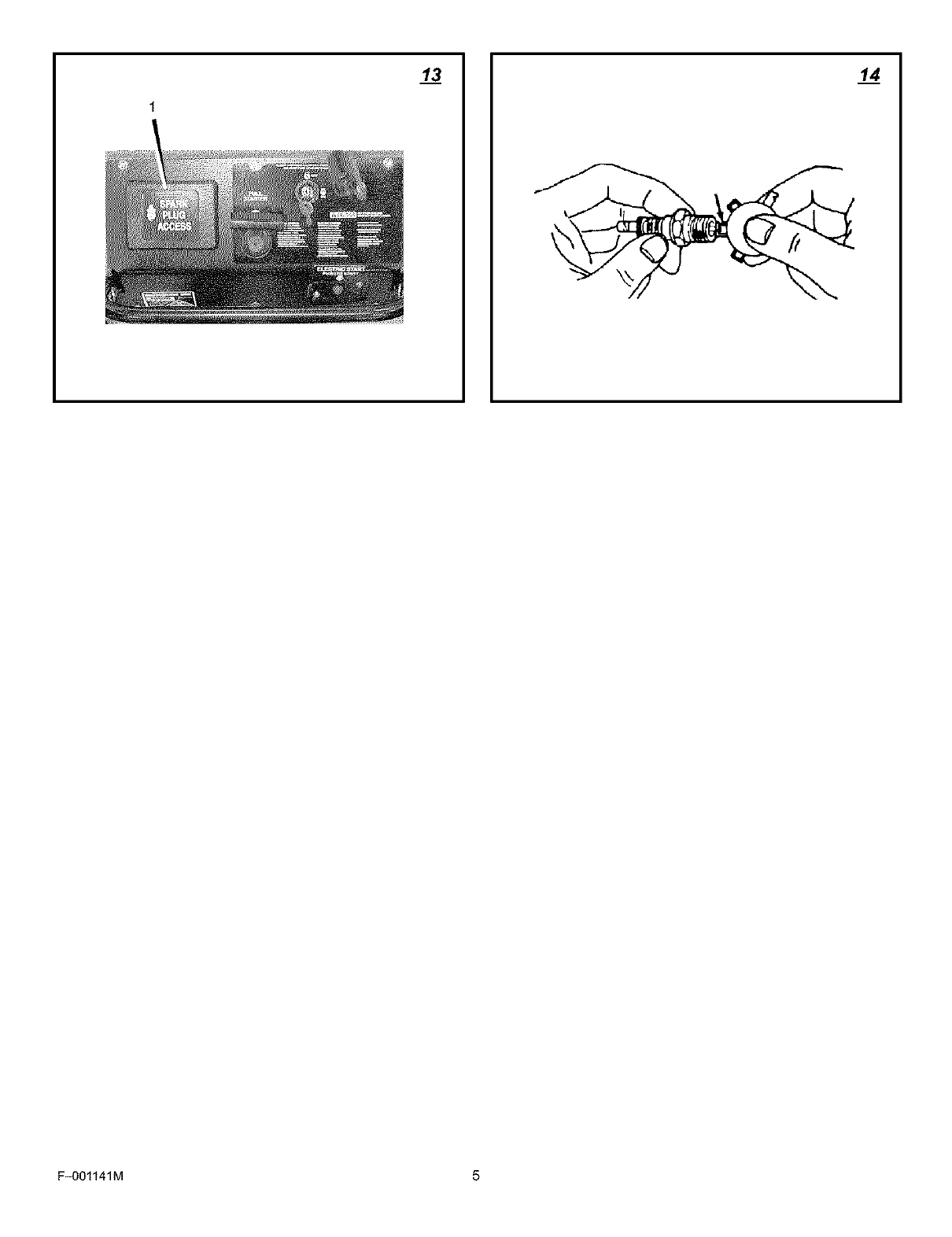

1._33 14

F_O1141M 5

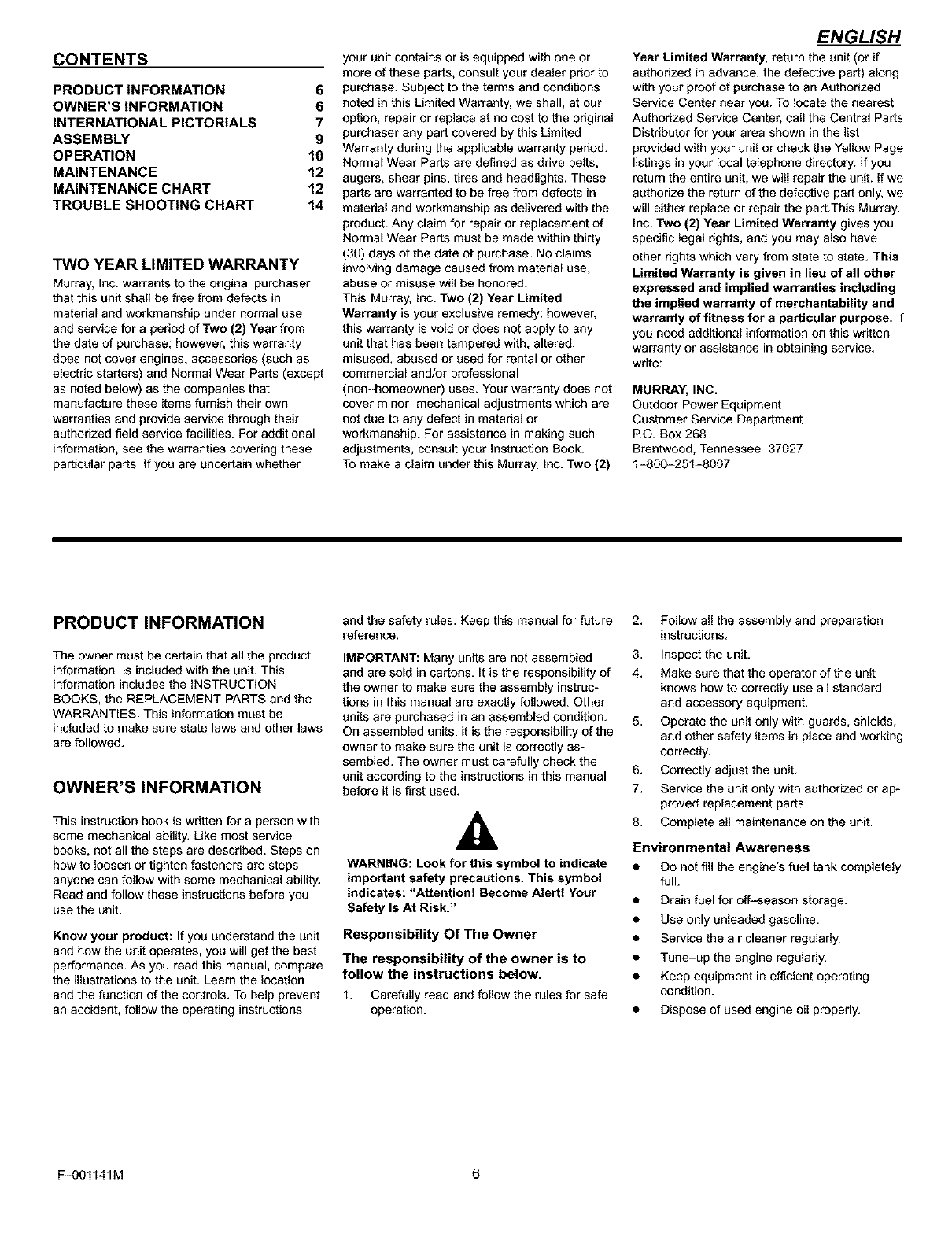

CONTENTS

PRODUCT INFORMATION 6

OWNER'S INFORMATION 6

INTERNATIONAL PICTORIALS 7

ASSEMBLY 9

OPERATION 10

MAINTENANCE 12

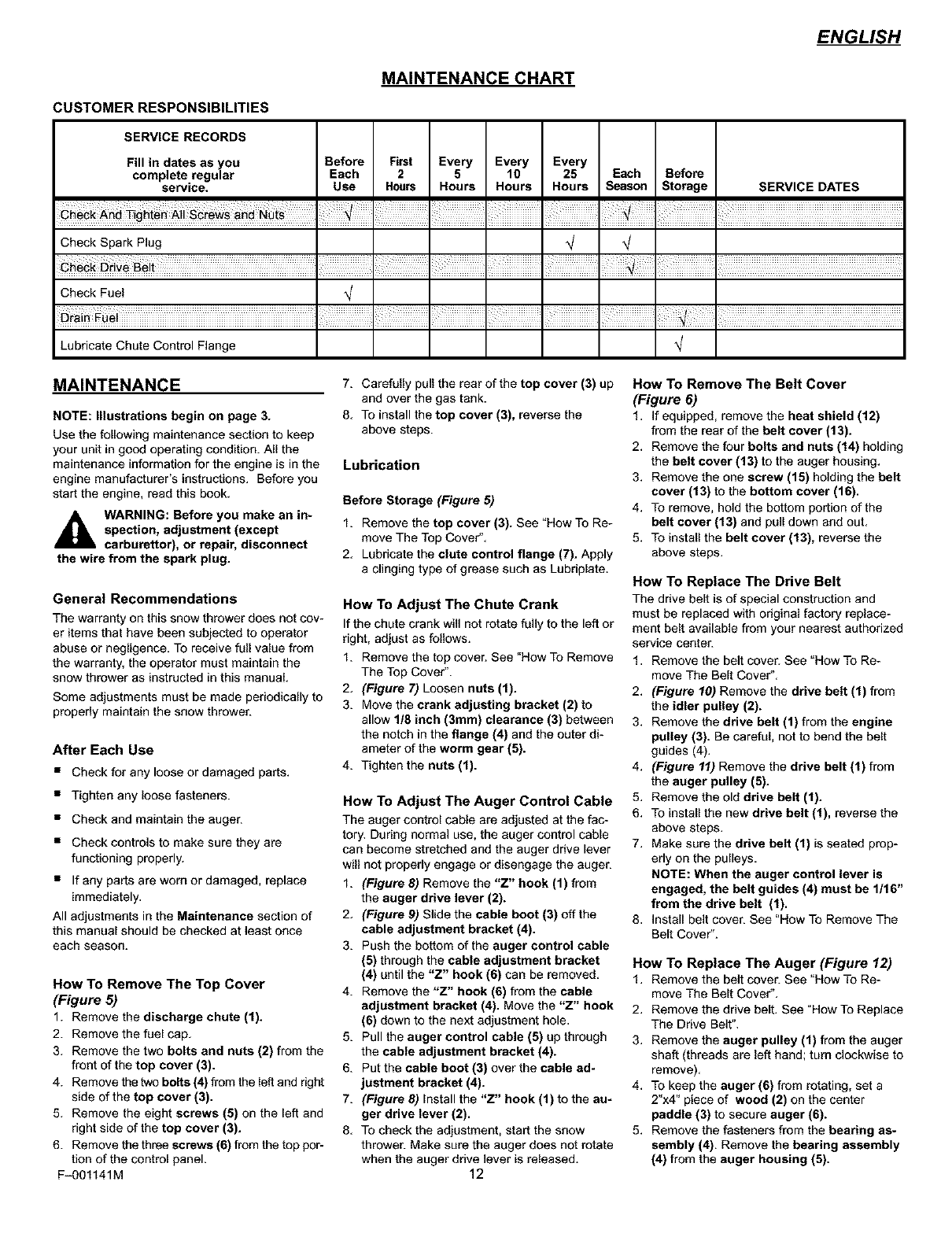

MAINTENANCE CHART 12

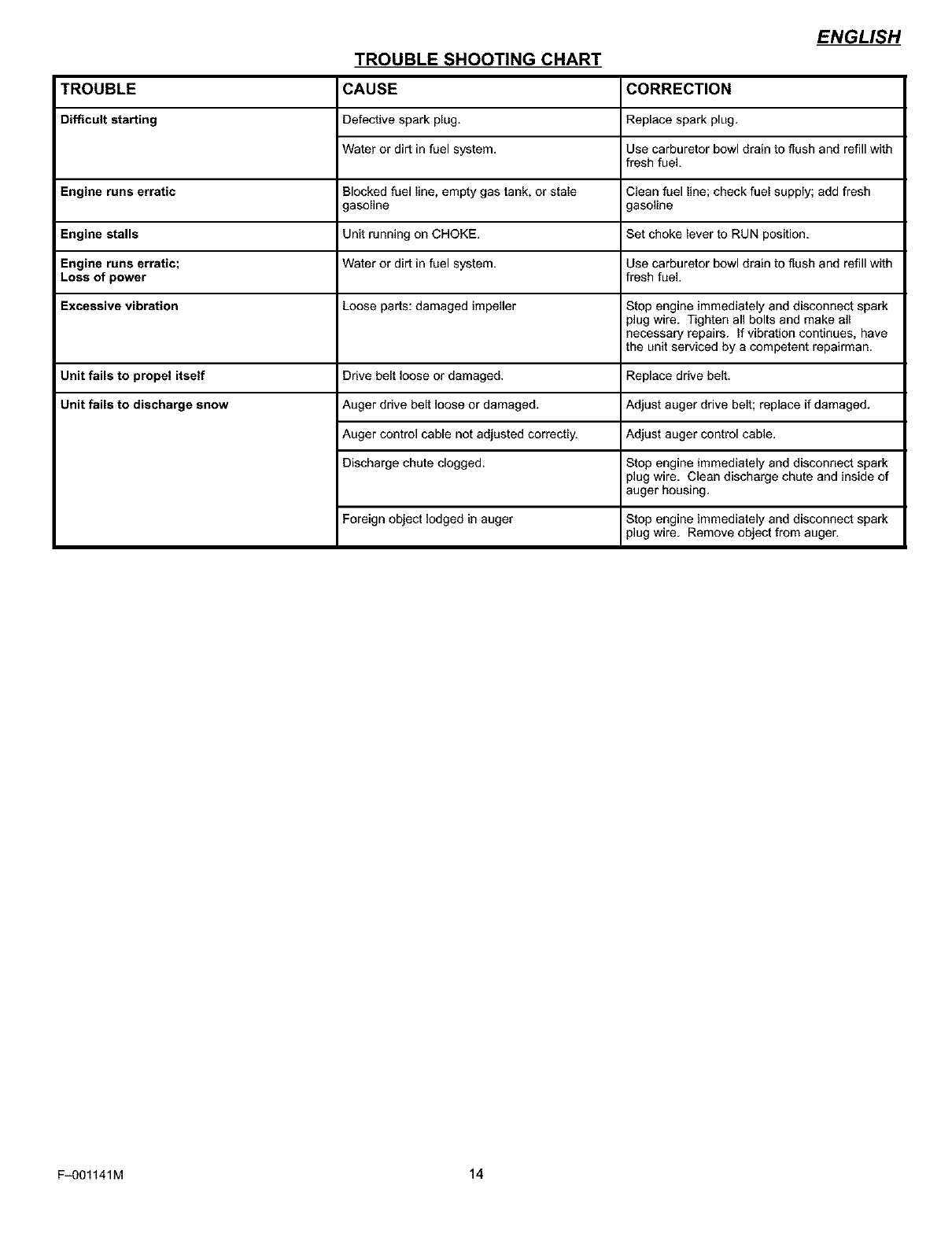

TROUBLE SHOOTING CHART 14

TWO YEAR LIMITED WARRANTY

Murray, Inc. warrants to the original purchaser

that this unit shall be free from defects in

material and workmanship under normal use

and service for a period of Two (2) Year from

the date of purchase; however, this warranty

does not cover engines, accessories (such as

electric starters) and Normal Wear Parts (except

as noted below) as the companies that

manufacture these items furnish their own

warranties and provide service through their

authorized field service facilities. For additional

information, see the warranties covering these

particular parts, if you are uncertain whether

your unit contains or is equipped with one or

more of these parts, consult your dealer prior to

purchase. Subject to the terms and conditions

noted in this Limited Warranty, we shall, at our

option, repair or replace at no cost to the original

purchaser any part covered by this Limited

Warranty during the applicable warranty period.

Normal Wear Parts are defined as drive belts,

augers, shear pins, tires and headlights. These

parts are warranted to be free from defects in

material and workmanship as delivered with the

product. Any claim for repair or replacement of

Normal Wear Parts must be made within thirty

(30) days of the date of purchase. No claims

involving damage caused from material use,

abuse or misuse will be honored.

This Murray, Inc. Two (2) Year Limited

Warranty is your exclusive remedy; however,

this warranty is void or does not apply to any

unit that has been tampered with, altered,

misused, abused or used for rental or other

commercial and/or professional

(non-homeowner) uses. Your warranty does not

cover minor mechanical adjustments which are

not due to any defect in material or

workmanship. For assistance in making such

adjustments, consult your Instruction Book.

To make a claim under this Murray, Inc. Two (2)

ENGLISH

Year Limited Warranty, return the unit (or if

authorized in advance, the defective part) along

with your proof of purchase to an Authorized

Service Center near you. To locate the nearest

Authorized Service Center, call the Central Parts

Distributor for your area shown in the list

provided with your unit or check the Yellow Page

listings in your local telephone directory. If you

return the entire unit, we will repair the unit. If we

authorize the return of the defective part only, we

will either replace or repair the part.This Murray,

Inc. Two (2) Year Limited Warranty gives you

specific legal rights, and you may also have

other rights which vary from state to state. This

Limited Warranty is given in lieu of all other

expressed and implied warranties including

the implied warranty of merchantability and

warranty of fitness for a particular purpose. If

you need additional information on this written

warranty or assistance in obtaining service,

write:

MURRAY, INC.

Outdoor Power Equipment

Customer Service Department

P.O. Box 268

Brentwood, Tennessee 37027

1-800-251-8007

PRODUCT INFORMATION

The owner must be certain that all the product

information is included with the unit. This

information includes the INSTRUCTION

BOOKS, the REPLACEMENT PARTS and the

WARRANTIES. This information must be

included to make sure state laws and other laws

are followed.

OWNER'S INFORMATION

This instruction book is written for a person with

some mechanical ability. Like most service

books, not all the steps are described. Steps on

how to loosen or tighten fasteners are steps

anyone can follow with some mechanical ability.

Read and follow these instructions before you

use the unit.

Know your product: If you understand the unit

and how the unit operates, you will get the best

performance. As you read this manual, compare

the illustrations to the unit. Learn the location

and the function of the controls. To help prevent

an accident, follow the operating instructions

and the safety rules. Keep this manual for future

reference.

IMPORTANT: Many units are not assembled

and are sold in cartons, it is the responsibility of

the owner to make sure the assembly instruc-

tions in this manual are exactly followed. Other

units are purchased in an assembled condition.

On assembled units, it is the responsibility of the

owner to make sure the unit is correctly as-

sembled. The owner must carefully check the

unit according to the instructions in this manual

before it is first used.,&

WARNING: Look for this symbol to indicate

important safety precautions. This symbol

indicates: "Attention! Become Alert! Your

Safety Is At Risk."

Responsibility Of The Owner

The responsibility of the owner is to

follow the instructions below.

1. Carefully read and follow the rules for safe

operation.

2. Follow all the assembly and preparation

instructions.

3. Inspect the unit.

4. Make sure that the operator of the unit

knows how to correctly use all standard

and accessory equipment.

5. Operate the unit only with guards, shields,

and other safety items in place and working

correctly.

6. Correctly adjust the unit.

7. Service the unit only with authorized or ap-

proved replacement parts.

8. Complete all maintenance on the unit.

Environmental Awareness

•Do not fill the engine's fuel tank completely

full.

• Drain fuel for off-season storage.

• Use only unleaded gasoline.

• Service the air cleaner regularly.

• Tune-up the engine regularly.

• Keep equipment in efficient operating

condition.

• Dispose of used engine oil properly.

F_01141M 6

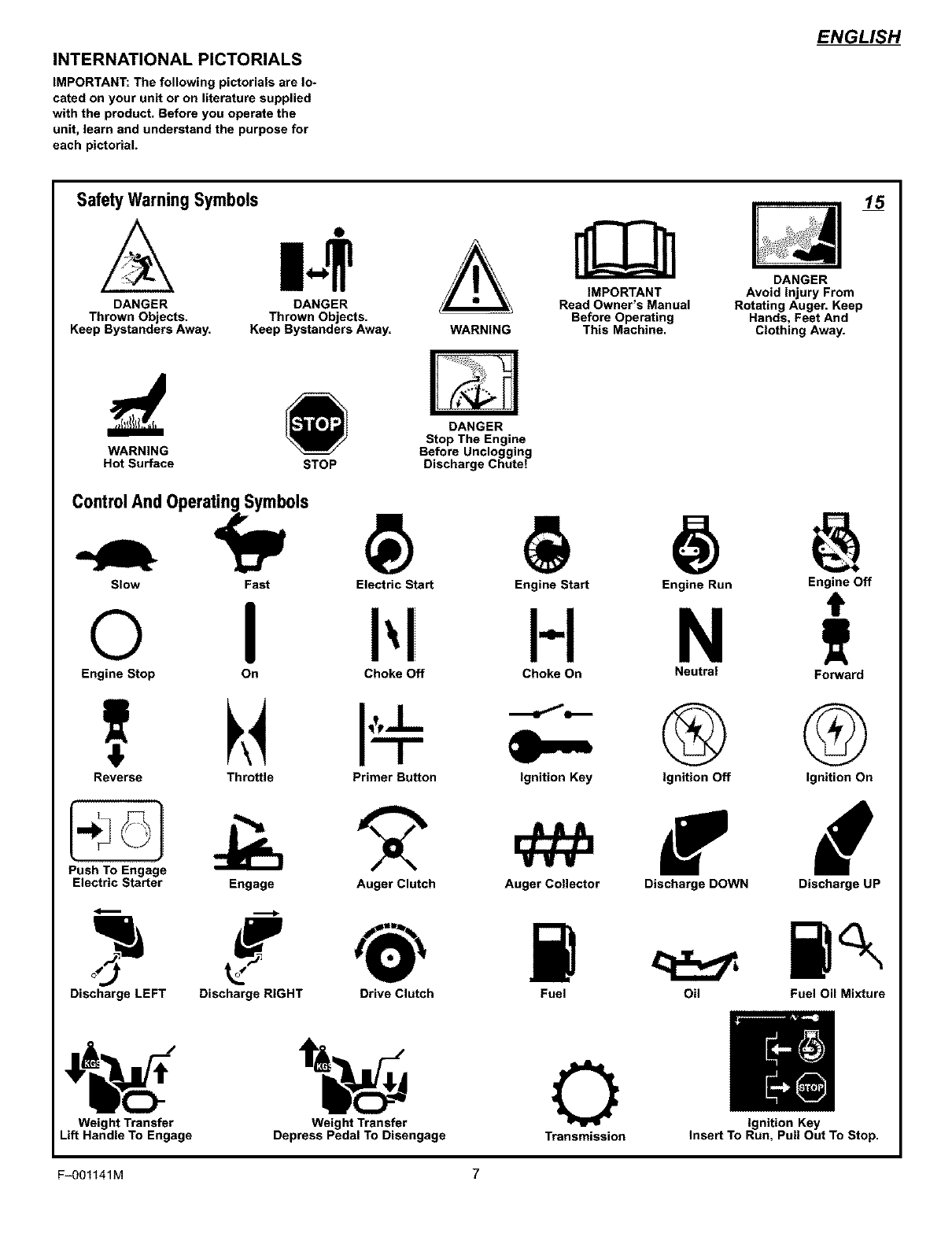

INTERNATIONAL PICTORIALS

IMPORTANT: The following pictorials are lo-

cated on your unit or on literature supplied

with the product. Before you operate the

unit, learn and understand the purpose for

each pictorial.

ENGLISH

Safety Warning Symbols

DANGER

Thrown Objects.

Keep Bystanders Away.

DANGER

Thrown Objects.

Keep Bystanders Away.

WARNING

Hot Surface STOP

WARNING

DANGER

Stop The Engine

Before Unclogging

Discharge Chute!

IMPORTANT

Read Owner's Manual

Before Operating

This Machine.

DANGER

Avoid Injury From

Rotating Auger. Keep

Hands, Feet And

Clothing Away.

C0ntr0, And Operat_0ls ) _) "_

Slow Fast Electric Start Engine Start Engine Run Engine Off

©I I,I HN

Engine Stop On Choke Off Choke On Neutral Forward

Reverse Throttle Primer Button Ignition Key Ignition Off Ignition On

Electric Starter Engage Auger Clutch Auger Collector Discharge DOWN Discharge UP

Discharge LEFT Discharge RIGHT Drive Clutch Fuel Oil Fuel Oil Mixture

Weight Transfer

Lift Handle To Engage Weight Transfer

Depress Pedal To Disengage 0

Transmission Ignition Key

Insert To Run, Pull Out To Stop.

F_O1141M 7

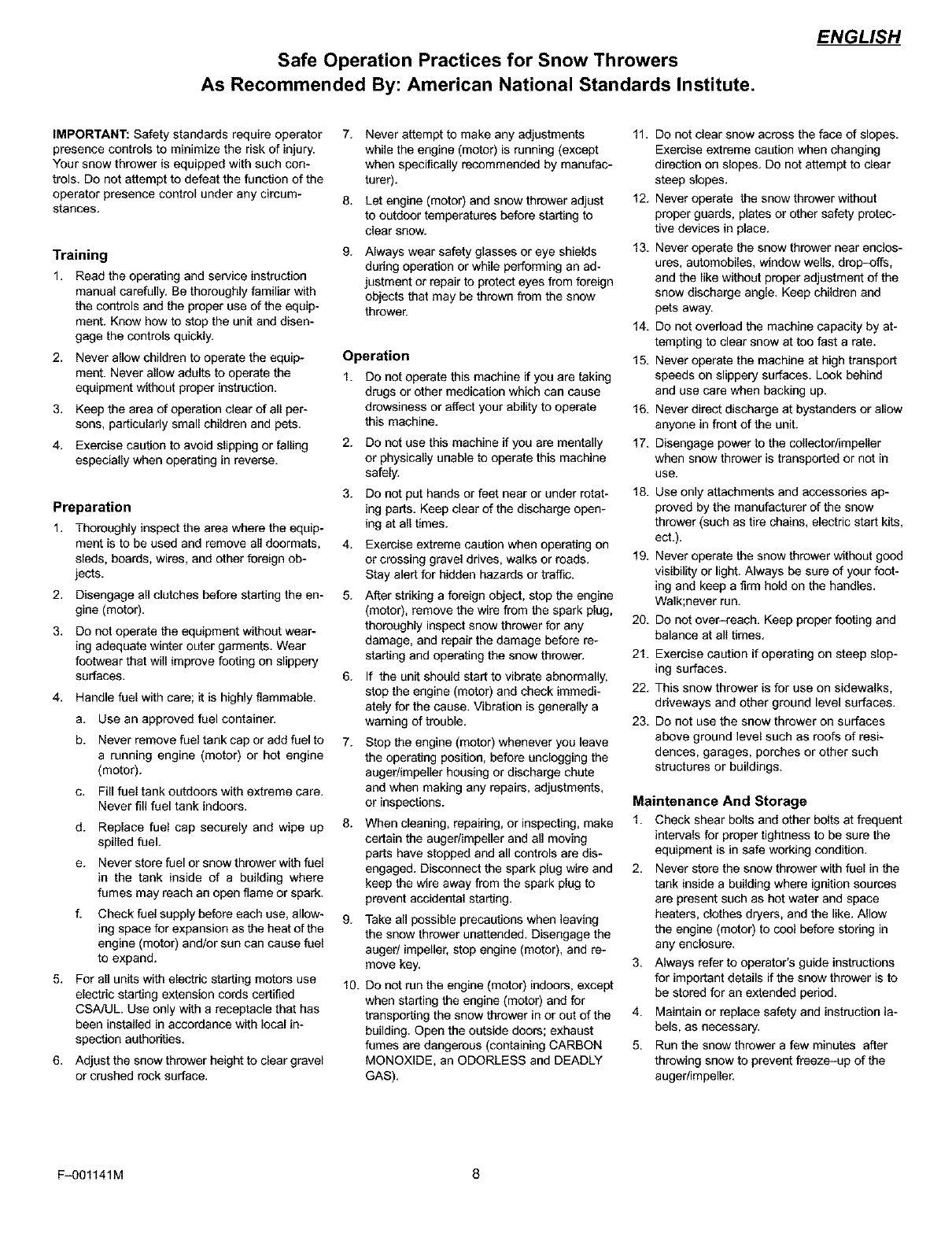

Safe Operation Practices for Snow Throwers

As Recommended By: American National Standards Institute.

ENGLISH

IMPORTANT: Safety standards require operator

presence controls to minimize the risk of injury.

Your snow thrower is equipped with such con-

trols. Do not attempt to defeat the function of the

operator presence control under any circum-

stances.

Training

1. Read the operating and service instruction

manual carefully. Be thoroughly familiar with

the controls and the proper use of the equip-

ment. Know how to stop the unit and disen-

gage the controls quickly.

2. Never allow children to operate the equip*

ment. Never allow adults to operate the

equipment without proper instruction.

3. Keep the area of operation clear of all per-

sons, particularly small children and pets.

4. Exercise caution to avoid slipping or falling

especially when operating in reverse.

Preparation

1. Thoroughly inspect the area where the equip-

ment is to be used and remove all doormats,

sleds, boards, wires, and other foreign ob-

jects.

2. Disengage all clutches before starting the en-

gine (motor).

3. Do not operate the equipment without wear-

ing adequate winter outer garments. Wear

footwear that will improve footing on slippery

surfaces.

4. Handle fuel with care; it is highly flammable.

a. Use an approved fuel container.

b. Never remove fuel tank cap or add fuel to

a running engine (motor) or hot engine

(motor).

c. Fill fuel tank outdoors with extreme care.

Never fill fuel tank indoors.

d. Replace fuel cap securely and wipe up

spilled fuel.

e. Never store fuel or snow thrower with fuel

in the tank inside of a building where

fumes may reach an open flame or spark.

Check fuel supply before each use, allow-

ing space for expansion as the heat of the

engine (motor) and/or sun can cause fuel

to expand.

5. For all units with electric starting motors use

electric starting extension cords certified

CSA!UL Use only with a receptacle that has

been installed in accordance with local in-

spection authorities.

6. Adjust the snow thrower height to clear gravel

or crushed reck surface.

Never attempt to make any adjustments

while the engine (motor) is running (except

when specifically recommended by manufac-

turer).

Let engine (motor) and snow thrower adjust

to outdoor temperatures before starting to

clear snow.

Always wear safety glasses or eye shields

during operation or while performing an ad-

justment or repair to protect eyes from foreign

objects that may be thrown from the snow

thrower.

Operation

1. Do not operate this machine if you are taking

drugs or other medication which can cause

drowsiness or affect your ability to operate

this machine.

2. Do not use this machine if you are mentally

or physically unable to operate this machine

safely.

3. Do not put hands or feet near or under rotat-

ing parts. Keep clear of the discharge open-

ing at all times.

4. Exercise extreme caution when operating on

or crossing gravel drives, walks or roads.

Stay alert for hidden hazards or traffic.

5. After striking a foreign object, stop the engine

(motor), remove the wire from the spark plug,

thoroughly inspect snow thrower for any

damage, and repair the damage before re-

starting and operating the snow thrower.

6. If the unit should start to vibrate abnormally,

stop the engine (motor) and check immedi-

ately for the cause. Vibration is generally a

warning of trouble.

7. Stop the engine (motor) whenever you leave

the operating position, before unclogging the

augedimpeller housing or discharge chute

and when making any repairs, adjustments,

or inspections.

8. When cleaning, repairing, or inspecting, make

certain the augedimpeller and all moving

parts have stopped and all controls are dis-

engaged. Disconnect the spark plug wire and

keep the wire away from the spark plug to

prevent accidental starting.

g. Take all possible precautions when leaving

the snow thrower unattended. Disengage the

auger/impeller, stop engine (motor), and re-

move key.

10. Do not run the engine (motor) indoors, except

when starting the engine (motor) and for

transporting the snow thrower in or out of the

building. Open the outside doors; exhaust

fumes are dangerous (containing CARBON

MONOXIDE, an ODORLESS and DEADLY

GAS).

11. Do not clear snow across the face of slopes.

Exercise extreme caution when changing

direction on slopes. Do not attempt to clear

steep slopes.

12. Never operate the snow thrower without

proper guards, plates or other safety protec-

tive devices in place.

13. Never operate the snow thrower near enclos-

ures, automobiles, window wells, drop-offs,

and the like without proper adjustment of the

snow discharge angle. Keep children and

pets away.

14. Do not overload the machine capacity by at-

tempting to clear snow at too fast a rate.

15. Never operate the machine at high transport

speeds on slippery surfaces. Look behind

and use care when backing up.

16. Never direct discharge at bystanders or allow

anyone in front of the unit.

17. Disengage power to the collector/impeller

when snow thrower is transported or not in

use.

18.

19.

20.

21.

22.

23.

Use only attachments and accessories ap-

proved by the manufacturer of the snow

thrower (such as tire chains, electric start kits,

ect.).

Never operate the snow thrower without good

visibility or light. Always be sure of your foot-

ing and keep a firm hold on the handles.

Walk;never run.

Do not over-reach. Keep proper footing and

balance at all times.

Exercise caution if operating on steep slop-

ing surfaces.

This snow thrower is for use on sidewalks,

driveways and other ground level surfaces.

Do not use the snow thrower on surfaces

above ground level such as roofs of resi-

dences, garages, porches or other such

structures or buildings.

Maintenance And Storage

1. Check shear bolts and other bolts at frequent

intervals for proper tightness to be sure the

equipment is in safe working condition.

2. Never store the snow thrower with fuel in the

tank inside a building where ignition sources

are present such as hot water and space

heaters, clothes dryers, and the like. Allow

the engine (motor) to cool before storing in

any enclosure.

3. Always refer to operator's guide instructions

for important details if the snow thrower is to

be stored for an extended period.

4. Maintain or replace safety and instruction la-

bels, as necessary.

5. Run the snow thrower a few minutes after

throwing snow to prevent freeze--up of the

auger/impeller.

Fq)O1141M 8

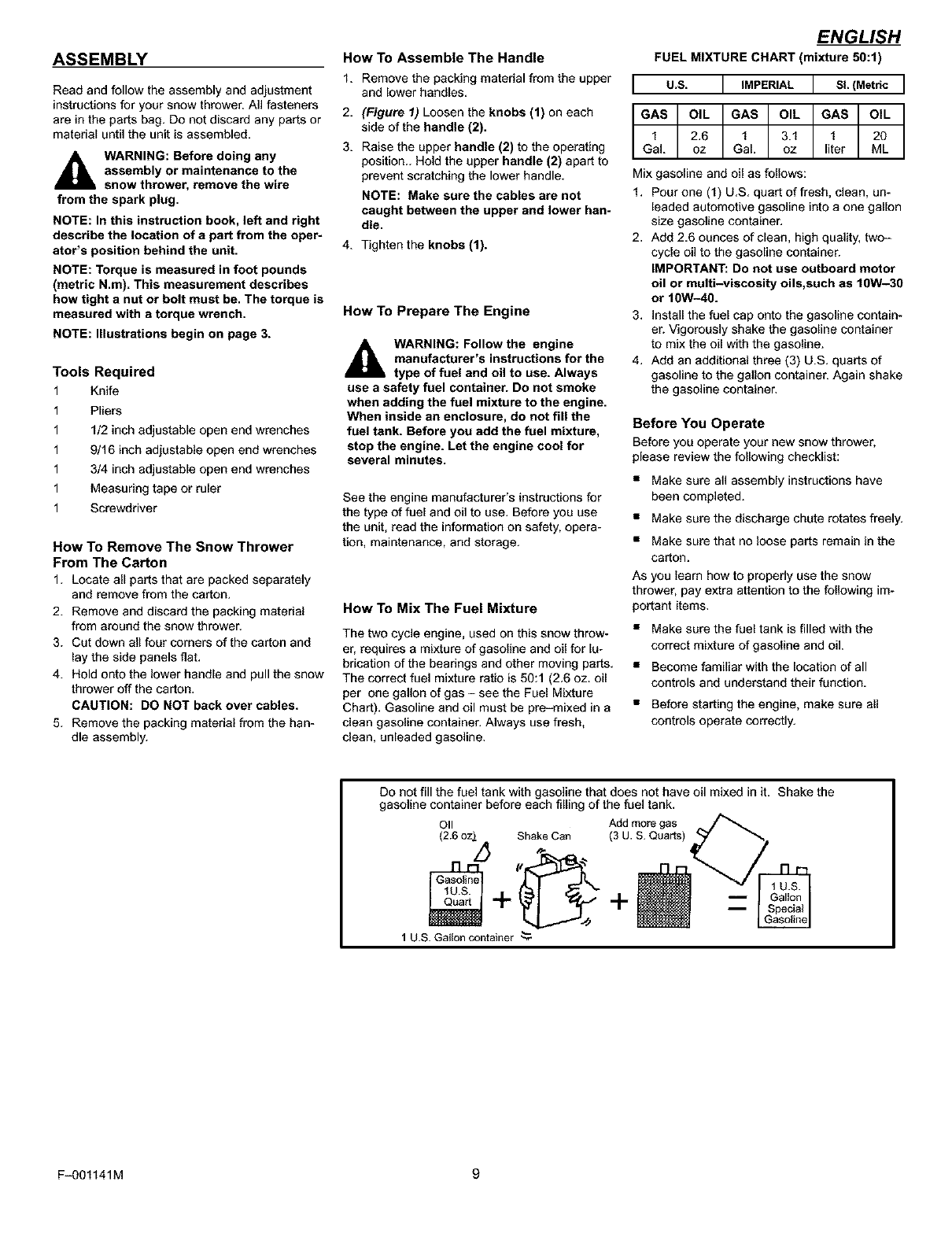

ASSEMBLY

Read and follow the assembly and adjustment

instructions for your snow thrower. All fasteners

are in the parts bag. Do not discard any parts or

material until the unit is assembled.

_k WARNING: Before doing any

assembly or maintenance to the

snow thrower, remove the wire

from the spark plug.

NOTE: In this instruction book, left and right

describe the location of apart from the oper-

ator's position behind the unit.

NOTE: Torque is measured in foot pounds

(metric N.m). This measurement describes

how tight a nut or bolt must be. The torque is

measured with a torque wrench.

NOTE: Illustrations begin on page 3.

Tools Required

1Knife

1 Pliers

11/2 inch adjustable open end wrenches

1 9/16 inch adjustable open end wrenches

1 3/4 inch adjustable open end wrenches

1 Measuring tape or ruler

1 Screwdriver

How To Remove The Snow Thrower

From The Carton

1. Locate all parts that are packed separately

and remove from the carton.

2. Remove and discard the packing material

from around the snow thrower.

3. Cut down all four corners of the carton and

lay the side panels flat.

4. Hold onto the lower handle and pull the snow

thrower off the carton.

CAUTION: DO NOT back over cables.

5. Remove the packing material from the han-

dle assembly.

How To Assemble The Handle

ENGLISH

FUEL MIXTURE CHART (mixture 50:1)

1. Remove the packing material from the upper II U.S. II IMPERIAL II SI. (Metric I

and lower handles, I

(Figure 1) Loosen the knobs (1) on each

side of the handle (2).

Raise the upper handle (2) to the operating

position.. Hold the upper handle (2) apart to

prevent scratching the lower handle.

NOTE: Make sure the cables are not

caught between the upper and lower han-

dle.

4. Tighten the knobs (1).

How To Prepare The Engine

_lk ARNING: Follow the engine

manufacturer's instructions for the

type of fuel and oil to use. Always

use a safety fuel container. Do not smoke

when adding the fuel mixture to the engine.

When inside an enclosure, do not fill the

fuel tank. Before you add the fuel mixture,

stop the engine. Let the engine cool for

several minutes.

See the engine manufacturer's instructions for

the type of fuel and oil to use. Before you use

the unit, read the information on safety, opera-

tion, maintenance, and storage.

How To Mix The Fuel Mixture

The two cycle engine, used on this snow throw-

er, requires a mixture of gasoline and oil for lu-

brication of the bearings and other moving parts.

The correct fuel mixture ratio is 50:1 (2.6 oz. oil

per one gallon of gas - see the Fuel Mixture

Chart). Gasoline and oil must be pre-mixed in a

dean gasoline container. Always use fresh,

dean, unleaded gasoline.

Mix gasoline and oil as follows:

1. Pour one (1) U.S. quart of fresh, clean, un-

leaded automotive gasoline into a one gallon

size gasoline container.

2. Add 2.6 ounces of clean, high quality, two-

cycle oil to the gasoline container.

IMPORTANT: Do net use outboard motor

oil or multi-viscosity oils,such as 10W-30

or 10W-40.

3, install the fuel cap onto the gasoline contain-

er. Vigorously shake the gasoline container

to mix the oil with the gasoline.

4. Add an additional three (3) U.S. quarts of

gasoline to the gallon container. Again shake

the gasoline container.

Before You Operate

Before you operate your new snow thrower,

please review the following checklist:

• Make sure all assembly instructions have

been completed.

• Make sure the discharge chute rotates freely.

• Make sure that no loose parts remain in the

carton.

As you learn how to propedy use the snow

thrower, pay extra attention to the following im-

portant items.

• Make sure the fuel tank is filled with the

correct mixture of gasoline and oil.

• Become familiar with the location of all

controls and understand their function.

• Before starting the engine, make sure all

controls operate correctly.

Do not fill the fuel tank with gasoline that does not have oil mixed in it. Shake the

gasoline container before each filling of the fuel tank.

OII Add moregas

(2.6ozj Shake Can (3 U.S. Quarts)

1 U.S. Gallon container _.

F_01141M 9

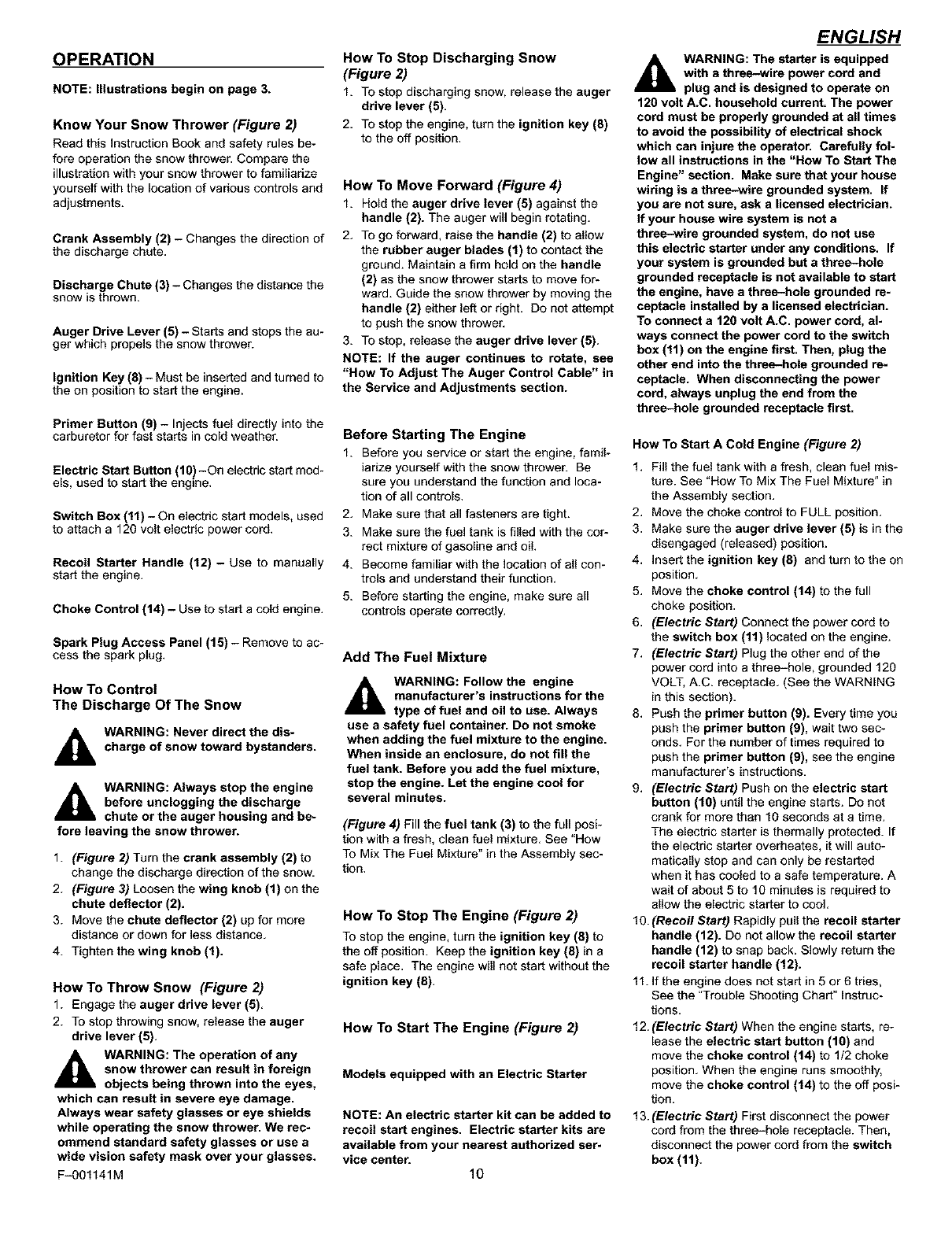

OPERATION

NOTE: Illustrations begin on page 3.

Know Your Snow Thrower (Figure 2)

Read this instruction Book and safety rules be-

fore operation the snow thrower. Compare the

illustration with your snow thrower to familiarize

yourself with the location of various controls and

adjustments.

Crank Assembly (2) - Changes the direction of

the discharge chute.

Discharge Chute (3) -Changes the distance the

snow is thrown.

Auger Drive Lever (5) -Starts and stops the au-

ger which propels the snow thrower.

Ignition Key (8) - Must be inserted and turned to

the on position to start the engine.

Primer Button (9) - Injects fuel directly into the

carburetor for fast starts in cold weather.

Electric Start Button (1O)-On electric start mod-

els, used to start the engine.

Switch Box (11) - On electric start models, used

to attach a 120 volt electric power cord.

Recoil Starter Handle (12) - Use to manually

start the engine.

Choke Control (14) - Use to start a cold engine.

Spark Plug Access Panel (15) - Remove to ac-

cess the spark plug.

How To Control

The Discharge Of The Snow

_k WARNING: Never direct the dis-

charge of snow toward bystanders.

_k ARNING: Always stop the engine

before unclogging the discharge

chute or the auger housing and be-

fore leaving the snow thrower.

1. (Figure 2) Turn the crank assembly (2) to

change the discharge direction of the snow.

2. (Figure 3) Loosen the wing knob (1) on the

chute deflector (2).

3. Move the chute deflector (2) up for more

distance or down for less distance.

4. Tighten the wing knob (1).

How TO Throw Snow (Figure 2)

1. Engage the auger drive lever (5).

2. To stop throwing snow, release the auger

drive lever (5).

_k ARNING: The operation of any

snow thrower can result in foreign

objects being thrown into the eyes,

which can result in severe eye damage.

Always wear safety glasses or eye shields

while operating the snow thrower. We rec=

ommend standard safety glasses or use a

wide vision safety mask over your glasses.

F_O1141M

How TO Stop Discharging Snow

(Figure 2)

1. To stop discharging snow, release the auger

drive lever (5).

2. To stop the engine, turn the ignition key (8)

to the off position.

How TO Move Forward (Figure 4)

1. Hold the auger drive lever (5) against the

handle (2). The auger will begin rotating.

2. To go forward, raise the handle (2) to allow

the rubber auger blades (1) to contact the

ground. Maintain a firm hold on the handle

(2) as the snow thrower starts to move for-

ward. Guide the snow thrower by moving the

handle (2) either left or right. Do not attempt

to push the snow thrower.

3. To stop, release the auger drive lever (5).

NOTE: If the auger continues to rotate, see

"How To Adjust The Auger Control Cable" in

the Service and Adjustments section.

Before Starting The Engine

1. Before you service or start the engine, famil-

iarize yourself with the snow thrower. Be

sure you understand the function and loca-

tion of all controls.

2. Make sure that all fasteners are tight.

3. Make sure the fuel tank is filled with the cor-

rect mixture of gasoline and oil.

4. Become familiar with the location of all con-

trois and understand their function.

5. Before starting the engine, make sure all

controls operate correctly.

Add The Fuel Mixture

_k ARNING: Follow the engine

manufacturer's instructions for the

type of fuel and oil to use. Always

use a safety fuel container. Do not smoke

when adding the fuel mixture to the engine.

When inside an enclosure, do not fill the

fuel tank. Before you add the fuel mixture,

stop the engine. Let the engine cool for

several minutes.

(Figure 4) Fill the fuel tank (3) to the full posi-

tion with a fresh, clean fuel mixture. See "How

To Mix The Fuel Mixture" in the Assembly sec-

tion.

How TO Stop The Engine (Figure 2)

To stop the engine, turn the ignition key (8) to

the off position. Keep the ignition key (8) in a

safe place. The engine will not start without the

ignition key (8).

How To Start The Engine (Figure 2)

Models equipped with an Electric Starter

NOTE: An electric starter kit can be added to

recoil start engines. Electric starter kits are

available from your nearest authorized ser-

vice center.

ENGLISH

_k ARNING: The starter is equipped

with a thre_-wire power cord and

plug and is designed to operate on

120 volt A.C. household current. The power

cord must be properly grounded at all times

to avoid the possibility of electrical shock

which can injure the operstor. Carefully fol-

low all instructions in the "Now To Start The

Engine" section. Make sure that your house

wiring is a three-wire grounded system. If

you are not sure, ask a licensed electrician.

If your house wire system is not a

three-wire grounded system, do not use

this electric starter under any conditions. If

your system is grounded but a three-hole

grounded receptacle is not available to start

the engine, have a three-hole grounded re-

ceptacle installed by alicensed electrician.

To connect a120 volt A.C. power cord, al-

ways connect the power cord to the switch

box (11) on the engine first. Then, plug the

other end into the three-hole grounded re.

ceptacle. When disconnecting the power

cord, always unplug the end from the

three-hole grounded receptacle first.

How To Start A Cold Engine (Figure 2)

1. Fill the fuel tank with a fresh, clean fuel mis-

ture. See "How To Mix The Fuel Mixture" in

the Assembly section.

2. Move the choke control to FULL position.

3. Make sure the auger drive lever (5) is in the

disengaged (released) position.

4. insert the ignition key (8) and turn to the on

position.

5. Move the choke control (14) to the full

choke position.

6. (Electric Start) Connect the power cord to

the switch box (11) located on the engine.

7. (Electric Start) Plug the other end of the

power cord into a three-hole, grounded 120

VOLT, A.C. receptacle. (See the WARNING

in this section).

8. Push the primer button (9). Every time you

push the primer button (9), wait two sec-

onds. For the number o1 times required to

push the primer button (9), see the engine

manufacturer's instructions.

9. (Electric Start) Push on the electric start

button (10) until the engine starts. Do not

crank for more than 10 seconds at a time.

The electric starter is thermally protected. If

the electric starter overheates, it will auto-

matically stop and can only be restarted

when it has cooled to a safe temperature. A

wait of about 5 to 10 minutes is required to

allow the electric starter to cool.

lO.(Recoil Start) Rapidly pull the recoil starter

handle (12). Do not allow the recoil starter

handle (12) to snap back. Slowly return the

recoil starter handle (12).

11. if the engine does not start in 5 or 6 tries,

See the "Trouble Shooting Chart" Instruc-

tions.

12. (Electric Start) When the engine starts, re-

lease the electric start button (10) and

move the choke control (14) to 1/2 choke

position. When the engine runs smoothly,

move the choke control (14) to the off posi-

tion.

13. (Electric Start) First disconnect the power

cord from the three-hole receptacle. Then,

disconnect the power cord from the switch

box (11),

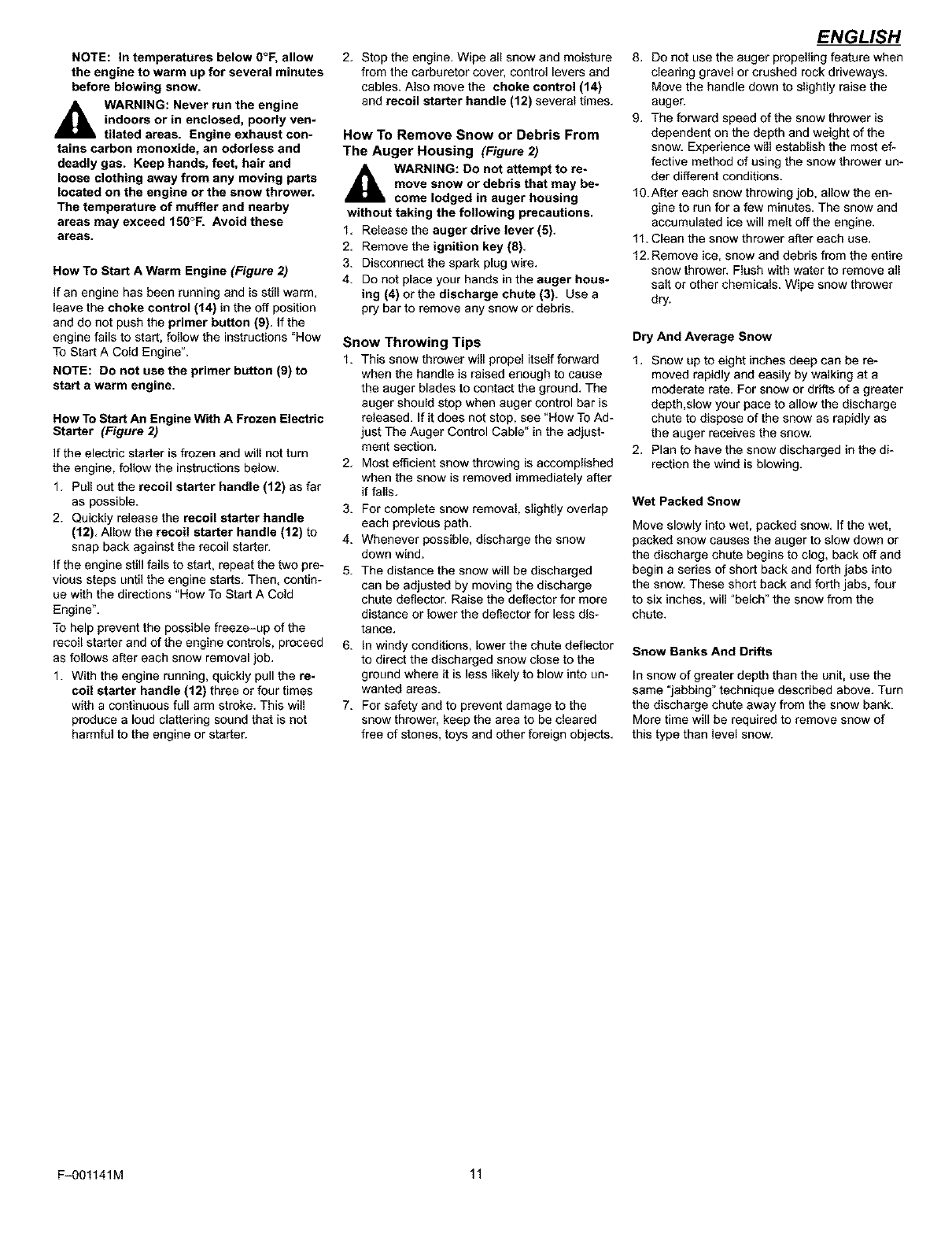

NOTE: In temperatures below 0°F, allow

the engine to warm up for several minutes

before blowing snow.

_lk ARNING: Never run the engine

indoors or in enclosed, poorly ven-

tilated areas. Engine exhaust con-

tains carbon monoxide, an odorless and

deadly gas. Keep hands, feet, hair and

loose clothing away from any moving parts

located on the engine or the snow thrower.

The temperature of muffler and nearby

areas may exceed 150°F. Avoid these

areas.

How To Start A Warm Engine (Figure 2)

If an engine has been running and is still warm,

leave the choke control (14) in the off position

and do not push the primer button (9). If the

engine fails to start, follow the instructions "How

To Start A Cold Engine".

NOTE: Do not use the primer button (9) to

start awarm engine.

How To Start An Engine With A Frozen Electric

Starter (Figure 2)

If the electric starter is frozen and will not turn

the engine, follow the instructions below.

1. Pull out the recoil starter handle (12) as far

as possible.

2. Quickly release the recoil starter handle

(12). Allow the recoil starter handle (12) to

snap back against the recoil starter.

if the engine still fails to start, repeat the two pre-

vious steps until the engine starts. Then, contin-

ue with the directions "How To Start A Cold

Engine".

To help prevent the possible freeze-up of the

recoil starter and of the engine controls, proceed

as follows after each snow removal job.

1. With the engine running, quickly pull the re-

coil starter handle (12) three or four times

with a continuous full arm stroke. This will

produce a loud clattering sound that is not

harmful to the engine or starter.

2. Stop the engine. Wipe all snow and moisture

from the carburetor cover, control levers and

cables. Also move the choke control (14)

and recoil starter handle (12} several times.

How To Remove Snow or Debris From

The Auger Housing (Figure 2)

_k ARNING: Do not attempt to re-

move snow or debris that may be-

come lodged in auger housing

without taking the following precautions.

1, Release the auger drive lever (5).

2, Remove the ignition key (8).

3. Disconnect the spark plug wire.

4. Do not place your hands in the auger hous-

ing (4) or the discharge chute (3). Use a

pry bar to remove any snow or debris.

Snow Throwing Tips

1. This snow thrower will propel itself forward

when the handle is raised enough to cause

the auger blades to contact the ground. The

auger should stop when auger control bar is

released. If it does not stop, see "How To Ad-

just The Auger Control Cable" in the adjust-

ment section.

2. Most efficient snow throwing is accomplished

when the snow is removed immediately after

if falls.

3. For complete snow removal, slightly overlap

each previous path.

4. Whenever possible, discharge the snow

down wind.

5. The distance the snow will be discharged

can be adjusted by moving the discharge

chute deflector. Raise the deflector for more

distance or lower the deflector for less dis-

tance,

6. In windy conditions, lower the chute deflector

to direct the discharged snow close to the

ground where it is less likely to blow into un-

wanted areas.

7. For safety and to prevent damage to the

snow thrower, keep the area to be cleared

free of stones, toys and other foreign objects.

ENGLISH

8. Do not use the auger propelling feature when

clearing gravel or crushed rock driveways.

Move the handle down to slightly raise the

auger.

9. The forward speed of the snow thrower is

dependent on the depth and weight of the

snow. Experience will establish the most ef-

fective method of using the snow thrower un-

der different conditions.

10.After each snow throwing job, allow the en-

gine to run for a few minutes. The snow and

accumulated ice will melt off the engine.

11. Clean the snow thrower after each use.

12.Remove ice, snow and debris from the entire

snow thrower. Flush with water to remove all

salt or other chemicals. Wipe snow thrower

dry.

Dry And Average Snow

1. Snow up to eight inches deep can be re-

moved rapidly and easily by walking at a

moderate rate. For snow or drifts of a greater

depth,slow your pace to allow the discharge

chute to dispose of the snow as rapidly as

the auger receives the snow.

2. Plan to have the snow discharged in the di-

rection the wind is blowing.

Wet Packed Snow

Move slowly into wet, packed snow. If the wet,

packed snow causes the auger to slow down or

the discharge chute begins to clog, back off and

begin a series of short back and forth jabs into

the snow. These short back and forth jabs, four

to six inches, will "belch" the snow from the

chute.

Snow Banks And Drifts

In snow of greater depth than the unit, use the

same "jabbing" technique described above. Turn

the discharge chute away from the snow bank.

More time will be required to remove snow of

this type than level snow.

Fq)O1141M 11

ENGLISH

CUSTOMER RESPONSIBILITIES

MAINTENANCE CHART

SERVICE RECORDS

Fill in dates as you Before First Every Every Every

complete regular Each 2 5 10 25 Each Before

service. Use Hours Hours Hours Hours Season Storage SERVICE DATES

Check Spark Plug

Check Fuel

Lubricate Chute Control Flange

MAINTENANCE

NOTE: Illustrations begin on page 3.

Use the following maintenance section to keep

your unit in good operating condition. All the

maintenance information for the engine is in the

engine manufacturer's instructions. Before you

start the engine, read this book.

_k ARNING: Before you make an in-

spection, adjustment (except

carburettor), or repair, disconnect

the wire from the spark plug.

General Recommendations

The warranty on this snow thrower does not cov-

er items that have been subjected to operator

abuse or negligence. To receive full value from

the warranty, the operator must maintain the

snow thrower as instructed in this manual

Some adjustments must be made periodically to

properly maintain the snow thrower.

After Each Use

• Check for any loose or damaged parts,

• Tighten any loose fasteners.

• Check and maintain the auger.

• Check controls to make sure they are

functioning properly.

• If any parts are worn or damaged, replace

immediately,

All adjustments in the Maintenance section of

this manual should be checked at least once

each season.

How To Remove The Top Cover

(Figure 5)

1. Remove the discharge chute (1).

2. Remove the fuel cap,

3. Remove the two bolts and nuts (2) from the

front of the top cover (3).

4. Remove the two belts (4) from the left and right

side of the top cover (3).

5. Remove the eight screws (5) on the left and

right side of the top cover (3).

6. Remove the three screws (6) from the top por-

tion of the control panel.

F_01141M

7. Carefully pull the rear of the top cover (3) up

and over the gas tank.

8, To install the top cover (3), reverse the

above steps.

Lubrication

Before Storage (Figure 5)

1. Remove the top cover (3). See "How To Re-

move The Top Cover",

2, Lubricate the clute control flange (7). Apply

a clinging type of grease such as Lubrip[ate.

How To Adjust The Chute Crank

If the chute crank will not rotate fully to the left or

right, adjust as foUows.

1. Remove the top cover. See "How To Remove

The Top Cover".

2, (Figure 7) Loosen nuts (1).

3. Move the crank adjusting bracket (2) to

allow 1/8 inch (3mm) clearance (3) between

the notch in the flange (4) and the outer di-

ameter of the worm gear (5).

4. Tighten the nuts (1).

How To Adjust The Auger Control Cable

The auger control cable are adjusted at the fac-

tory. During normal use. the auger control cable

can become stretched and the auger drive lever

will not properly engage or disengage the auger.

1. (Figure 8) Remove the "Z" hook (1) from

the auger drive lever (2).

2, (Figure 9) Slide the cable boot (3) off the

cable adjustment bracket (4).

3. Push the bottom of the auger control cable

(5) through the cable adjustment bracket

(4) until the "Z" hook (6) can be removed,

4. Remove the "Z" hook (6) from the cable

adjustment bracket (4). Move the "Z" hook

(6) down to the next adjustment hole.

5. Pull the auger control cable (5) up through

the cable adjustment bracket (4).

6. Put the cable boot (3) over the cable ad-

justment bracket (4).

7. (Figure 8) Install the "Z" hook (1) to the au-

ger drive lever (2).

8, To check the adjustment, start the snow

thrower. Make sure the auger does not rotate

when the auger drive lever is released.

How To Remove The Belt Cover

(Figure 6)

1, If equipped, remove the heat shield (12)

from the rear of the belt cover (13).

2, Remove the four bolts and nuts (14) holding

the belt cover (13) to the auger housing,

3, Remove the one screw (15) holding the belt

cover (13) to the bottom cover (16).

4, To remove, hold the bottom portion of the

belt cover (13) and pull down and out,

5, To install the belt cover (13), reverse the

above steps.

How To Replace The Drive Belt

The drive belt is of special construction and

must be replaced with original factory replace-

ment belt available from your nearest authorized

service center.

1, Remove the belt cover. See "How To Re-

move The Belt Cover",

2, (Figure 10) Remove the drive belt (1) from

the idler pulley (2).

3, Remove the drive belt (1) from the engine

pulley (3). Be careful, not to bend the belt

guides (4),

4, (Figure 11) Remove the drive belt (1) from

the auger pulley (5).

5, Remove the old drive belt (1).

6, To install the new drive belt (1). reverse the

above steps.

7, Make sure the drive belt (1) is seated prop-

erly on the pulleys,

NOTE: When the auger control lever is

engaged, the belt guides (4) must be 1/16"

from the drive belt (1).

8, Install belt cover. See "How To Remove The

Belt Cover".

How To Replace The Auger (Figure 12)

1, Remove the belt cover. See "How To Re-

move The Belt Cover",

2, Remove the drive belt, See "How To Replace

The Drive Belt",

3, Remove the auger pulley (1) from the auger

shaft (threads are left hand; turn clockwise to

remove).

4. To keep the auger (6) from rotating, set a

2"x4" piece of wood (2) on the center

paddle (3) to secure auger (6).

5. Remove the fasteners from the bearing as-

sembly (4). Remove the bearing assembly

(4) from the auger housing (5).

6. Slide the auger (6) out of the bearing assem-

bly on the right side of the snow thrower.

7. Tip the auger (6) enough to allow the auger

(6) to slide out of the auger housing (5).

8. To install auger (6), reverse the above steps.

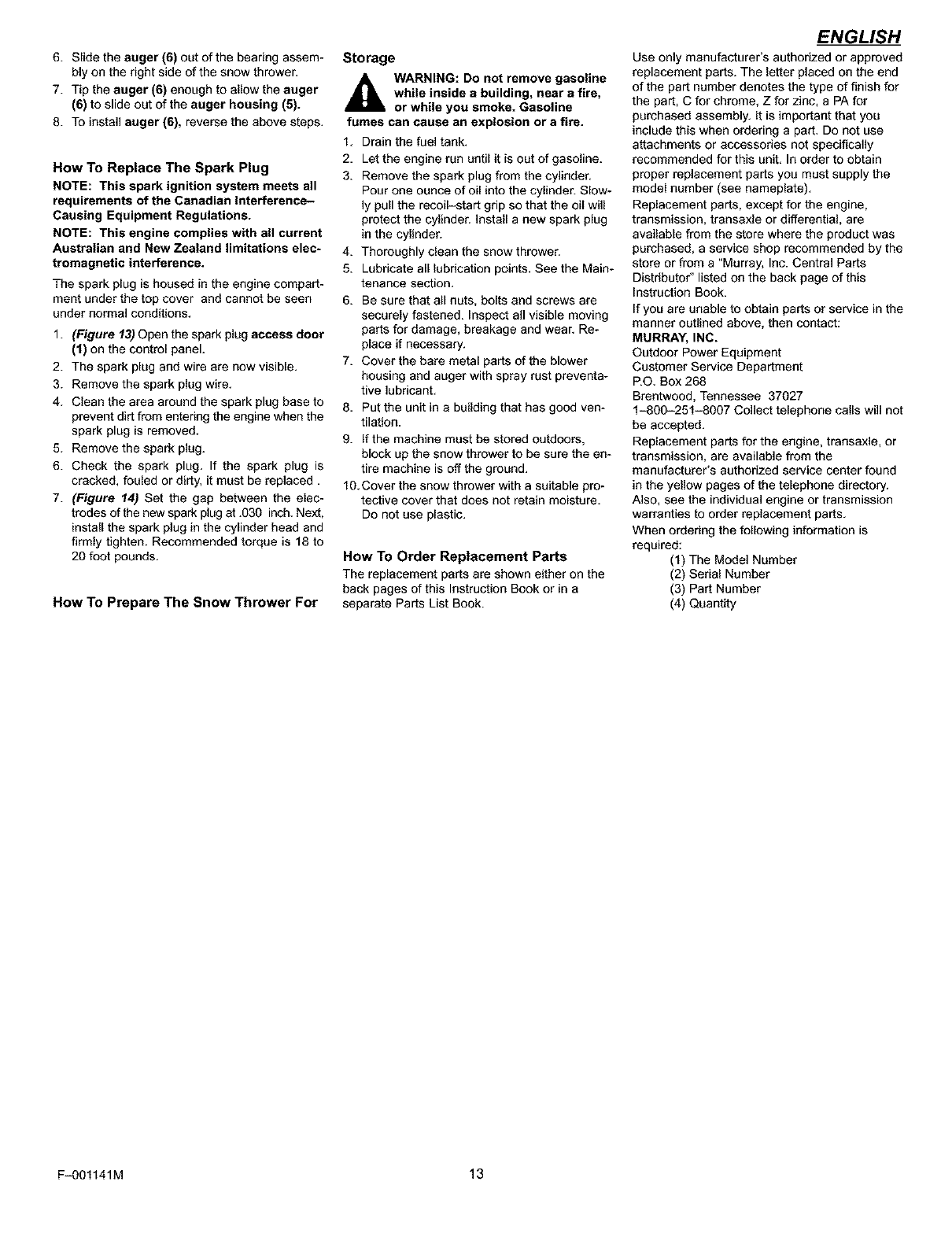

How To Replace The Spark Plug

NOTE: This spark ignition system meets all

requirements of the Canadian Interference-

Causing Equipment Regulations.

NOTE: This engine complies with all current

Australian and New Zealand limitations elec-

tromagnetic interference.

The spark plug is housed in the engine compart-

ment under the top cover and cannot be seen

under normal conditions.

1. (Figure 13) Open the spark plug access door

(1) on the control panel.

2. The spark plug and wire are now visible.

3. Remove the spark plug wire.

4. Clean the area around the spark plug base to

prevent dirt from entering the engine when the

spark plug is removed.

5. Remove the spark plug.

6. Check the spark plug. If the spark plug is

cracked, fouled or dirty, it must be replaced.

7. (Figure 14) Set the gap between the elec-

trodes of the new spark plug at .030 inch. Next,

install the spark plug in the cylinder head and

firmly tighten. Recommended torque is 18 to

20 foot pounds.

How To Prepare The Snow Thrower For

Storage

_k ARNING: Do not remove gasoline

while inside a building, near a fire,

or while you smoke. Gasoline

fumes can cause an explosion or a fire.

1. Drain the fuel tank.

2. Let the engine run until it is out of gasoline.

3. Remove the spark plug from the cylinder.

Pour one ounce of oil into the cylinder. Slow-

ly pull the recoil-stad grip so that the oil will

protect the cylinder, install a new spark plug

in the cylinder.

4. Thoroughly clean the snow thrower.

5. Lubricate all lubrication points. See the Main-

tenance section.

6. Be sure that all nuts, bolts and screws are

securely fastened. Inspect all visible moving

parts for damage, breakage and wear. Re-

place if necessary.

7. Cover the bare metal parts of the blower

housing and auger with spray rust preventa-

tive lubricant.

8. Put the unit in a building that has good ven-

tilation.

9. If the machine must be stored outdoors,

block up the snow thrower to be sure the en-

tire machine is off the ground.

10. Cover the snow thrower with a suitable pro-

tective cover that does not retain moisture.

Do not use plastic.

How To Order Replacement Parts

The replacement parts are shown either on the

back pages of this Instruction Book or in a

separate Parts List Book.

ENGLISH

Use only manufacturer's authorized or approved

replacement pads. The letter placed on the end

of the part number denotes the type of finish for

the part, C for chrome, Z for zinc, a PA for

purchased assembly. It is important that you

include this when ordering a part. Do not use

attachments or accessories not specifically

recommended for this unit. In order to obtain

proper replacement parts you must supply the

model number (see nameplate).

Replacement pads, except for the engine,

transmission, transaxle or differential, are

available from the store where the product was

purchased, a service shop recommended by the

store or from a "Murray, Inc. Central Parts

Distributor" listed on the back page of this

Instruction Book.

If you are unable to obtain parts or service in the

manner outlined above, then contact:

MURRAY, INC.

Outdoor Power Equipment

Customer Service Department

P.O. Box 268

Brentwood, Tennessee 37027

1-800-251-8007 Collect telephone calls will not

be accepted.

Replacement parts for the engine, transaxle, or

transmission, are available from the

manufacturer's authorized service center found

in the yellow pages of the telephone directory.

Also, see the individual engine or transmission

warranties to order replacement pads.

When ordering the following information is

required:

(1) The Model Number

(2) Serial Number

(3) Part Number

(4) Quantity

F_01141M 13

ENGLISH

TROUBLE SHOOTING CHART

TROUBLE

Difficult starting

CAUSE

Defective spark plug.

Water or dirt in fuel system.

CORRECTION

Replace spark plug.

Use carburetor bowl drain to flush and refill with

fresh fuel.

Engine runs erratic Blocked fuel line, empty gas tank, or stale Clean fuel line; check fuel supply; add fresh

gasoline gasoline

Engine stalls Unit running on CHOKE. Set choke lever to RUN position.

Engine runs erratic; Water or dirt in fuel system. Use carburetor bowl drain to flush and refill with

Loss of power fresh fuel.

Excessive vibration Loose parts: damaged impeller Stop engine immediately and disconnect spark

plug wire. Tighten all bolts and make all

necessary repairs. If vibration continues, have

the unit serviced by a competent repairman.

Unit fails to propel itself Replace drive belt.

Unit fails to discharge snow Adjust auger drive belt; replace if damaged.

Drive belt loose or damaged.

Auger drive belt loose or damaged.

Auger control cable not adjusted correctly.

Discharge chute clogged.

Adjust auger control cable.

Stop engine immediately and disconnect spark

plug wire. Clean discharge chute and inside of

auger housing.

Foreign object lodged in auger Stop engine immediately and disconnect spark

plug wire. Remove object from auger.

Fq)01141M 14

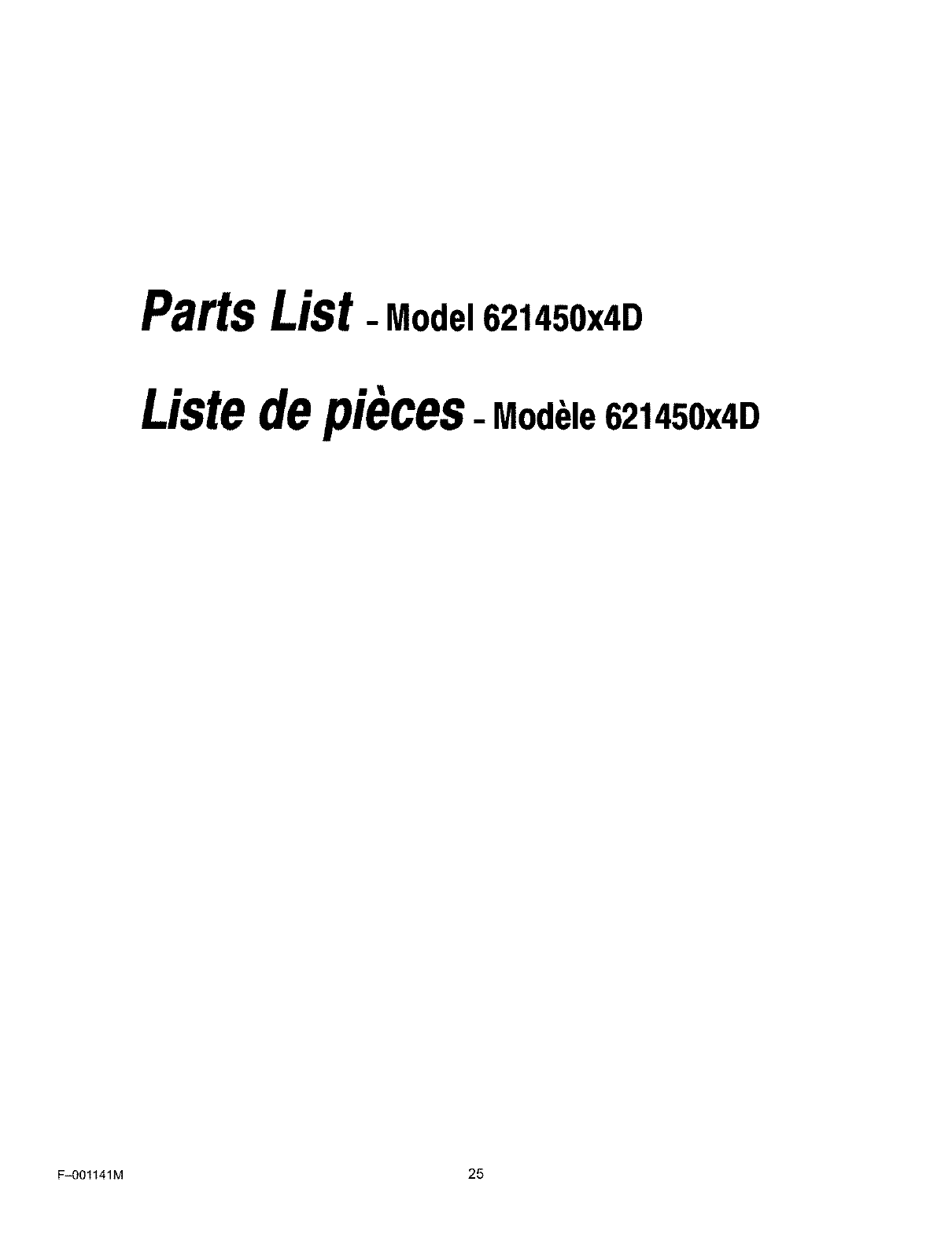

PartsList-Model 621450x4D

Listedepi_ces-ModUle621450x4D

F_O1141M 25

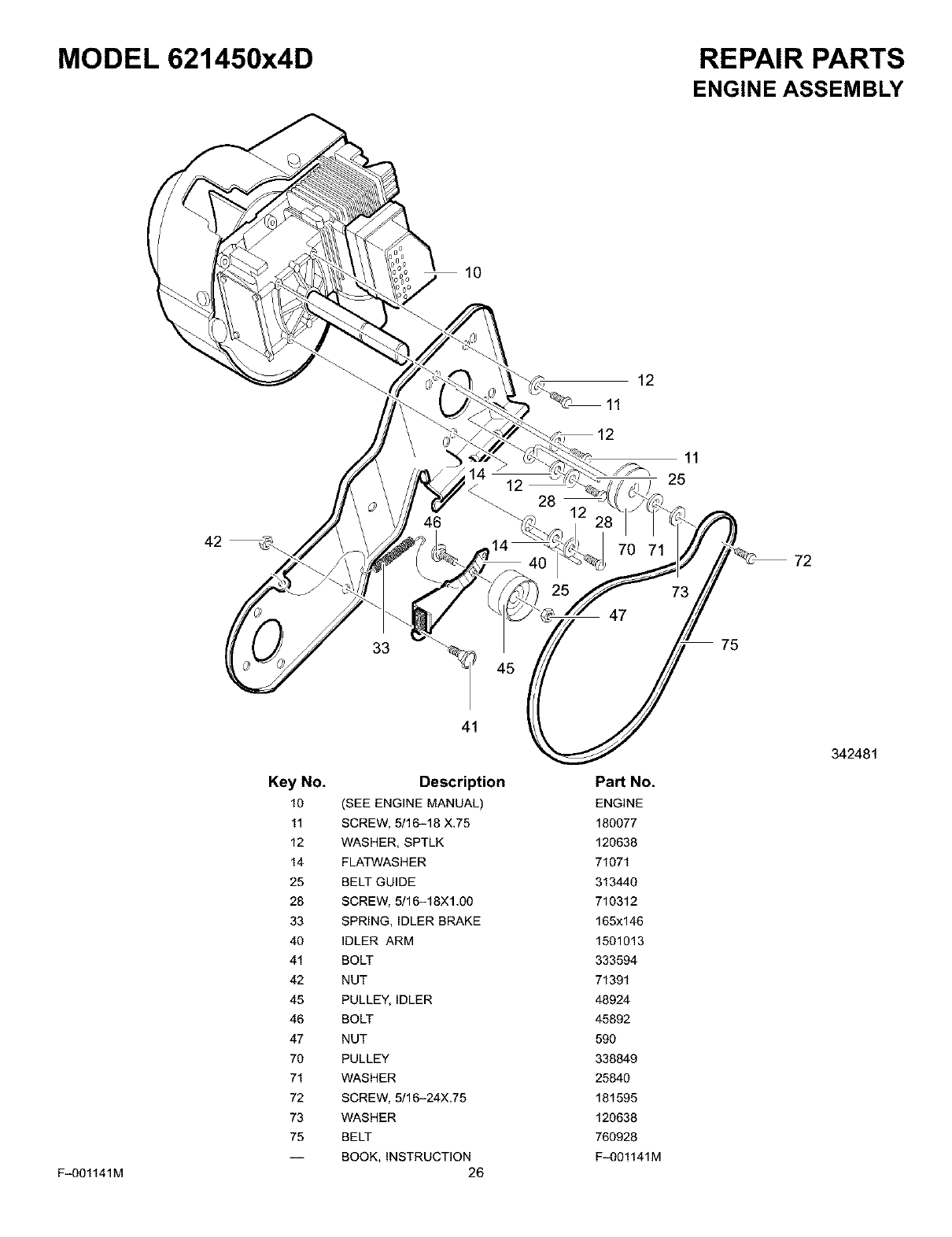

MODEL 621450x4D REPAIR PARTS

ENGINE ASSEMBLY

F_O1141M

Key No.

Description

(SEE ENGINE MANUAL)

SCREW, 5/16-18 X+75

WASHER, SPTLK

FLATWASHER

BELT GUIDE

SCREW, 5/16-18X1+96

SPRING, IDLER BRAKE

iDLER ARM

BOLT

NUT

PULLEY, iDLER

BOLT

NUT

PULLEY

WASHER

SCREW, 5/16-24X+75

WASHER

BELT

BOOK, INSTRUCTION

12 28

70 71

Part No.

ENGINE

180077

120638

71071

313440

710312

165x146

1501013

333594

71391

48924

45892

590

338849

25840

181595

120638

760928

F_01141M

342481

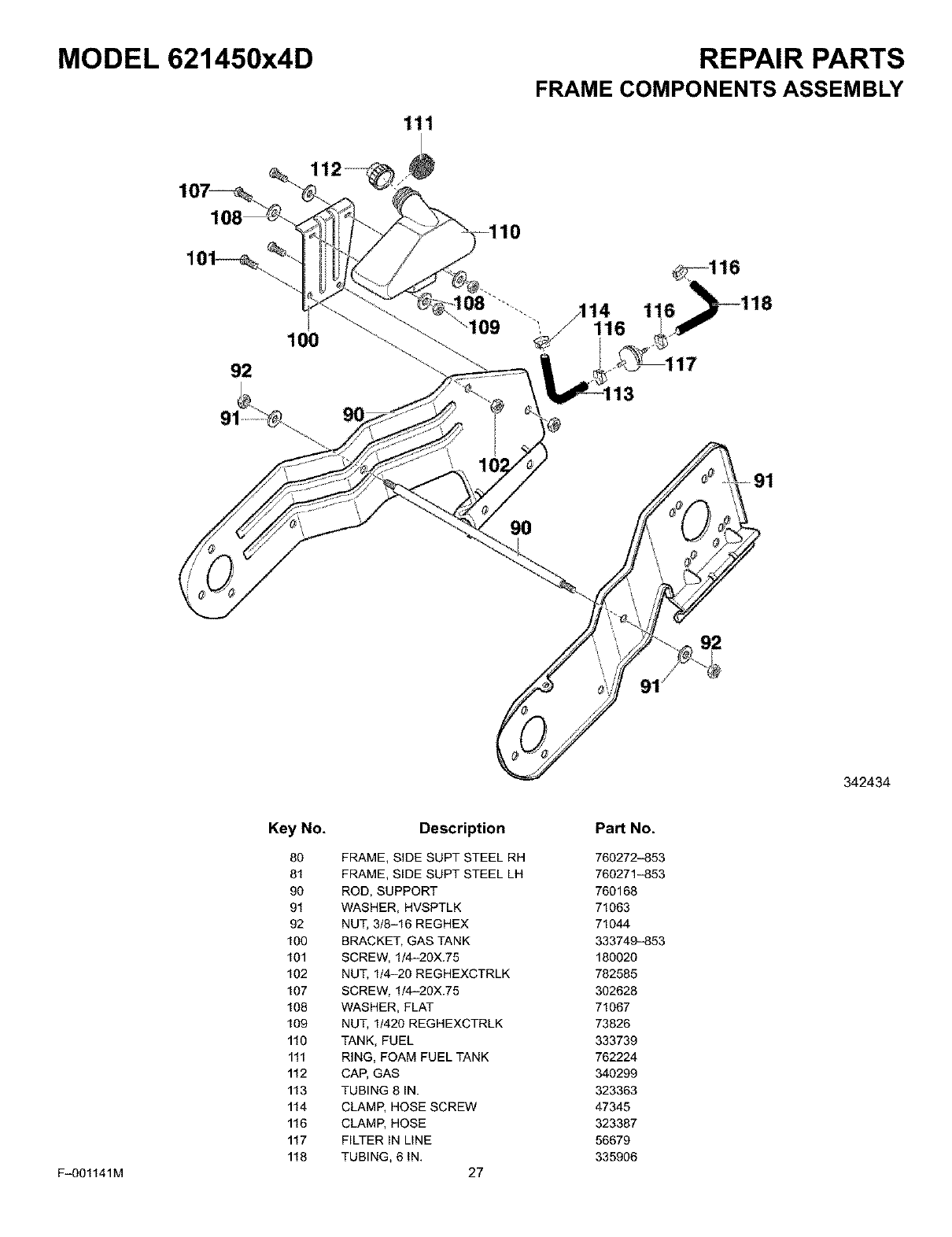

MODEL 621450x4D

111

REPAIR PARTS

FRAME COMPONENTS ASSEMBLY

101_

10o

@:-116

116> 118

_11! _ _117

342434

Fq)O1141M

Key No.

100

101

102

107

108

109

110

111

112

113

114

116

117

118

Description

FRAME, SIDE SUPT STEEL RH

FRAME, SIDE SUPT STEEL LH

ROD, SUPPORT

WASHER, HVSPTLK

NUT, 3/8-16 REGHEX

BRACKET, GAS TANK

SCREW, 1/4-20X.75

NUT, 1/4-20 REGHEXCTRLK

SCREW, 1/4-20X.75

WASHER, FLAT

NUT, 1/420 REGHEXCTRLK

TANK, FUEL

RING, FOAM FUEL TANK

CAP, GAS

TUBING 8 IN.

CLAMP, HOSE SCREW

CLAMP, HOSE

FILTER IN LINE

TUBING, 6 IN.

Pa_ No.

760272-853

760271-853

760168

71063

71044

333749-853

180020

782585

302628

71067

73826

333739

762224

340299

323363

47345

323387

56679

335906

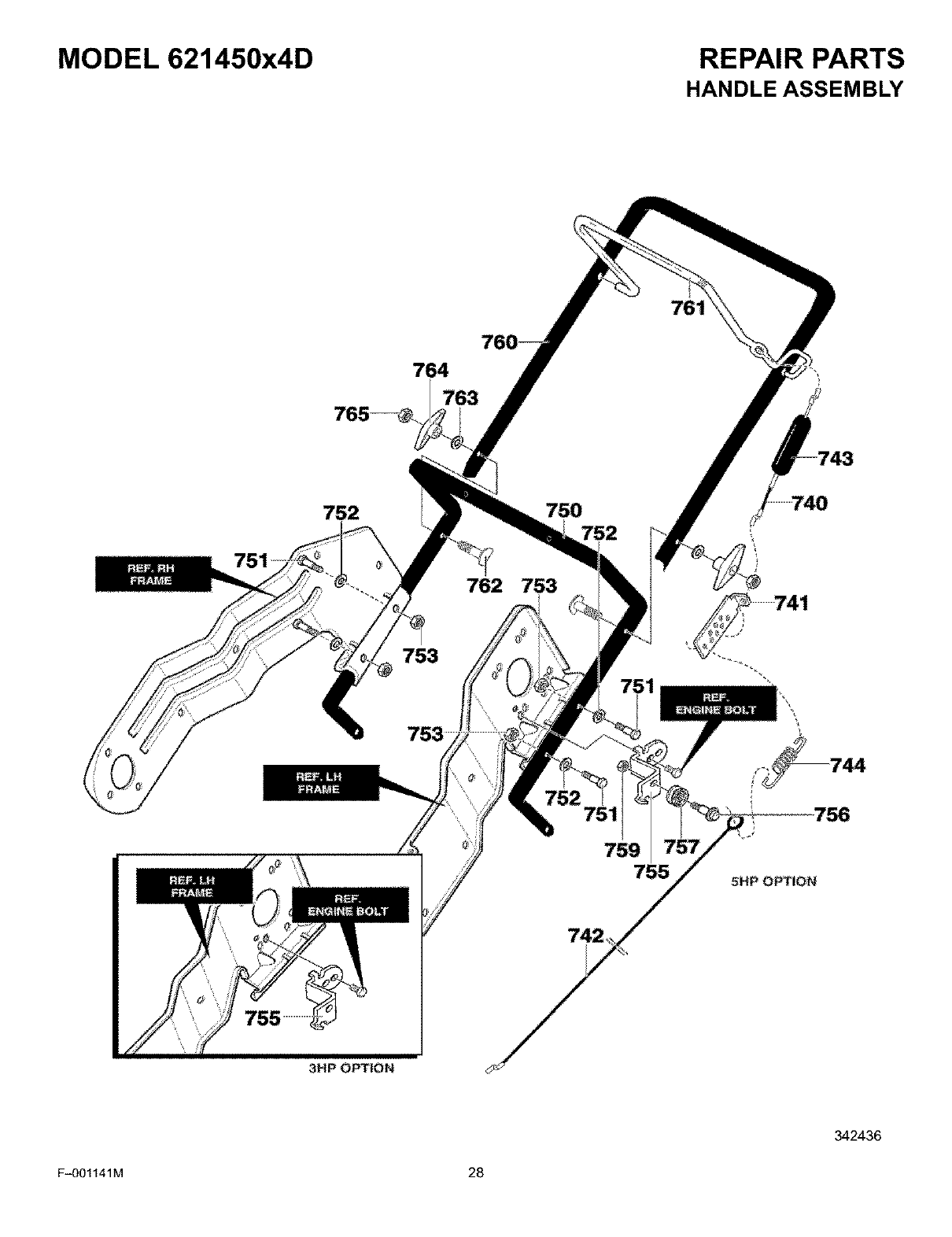

MODEL 621450x4D REPAIR PARTS

HANDLE ASSEMBLY

764

763

752 750

762 753

753

3HP OPTION

342436

F_01141M 28

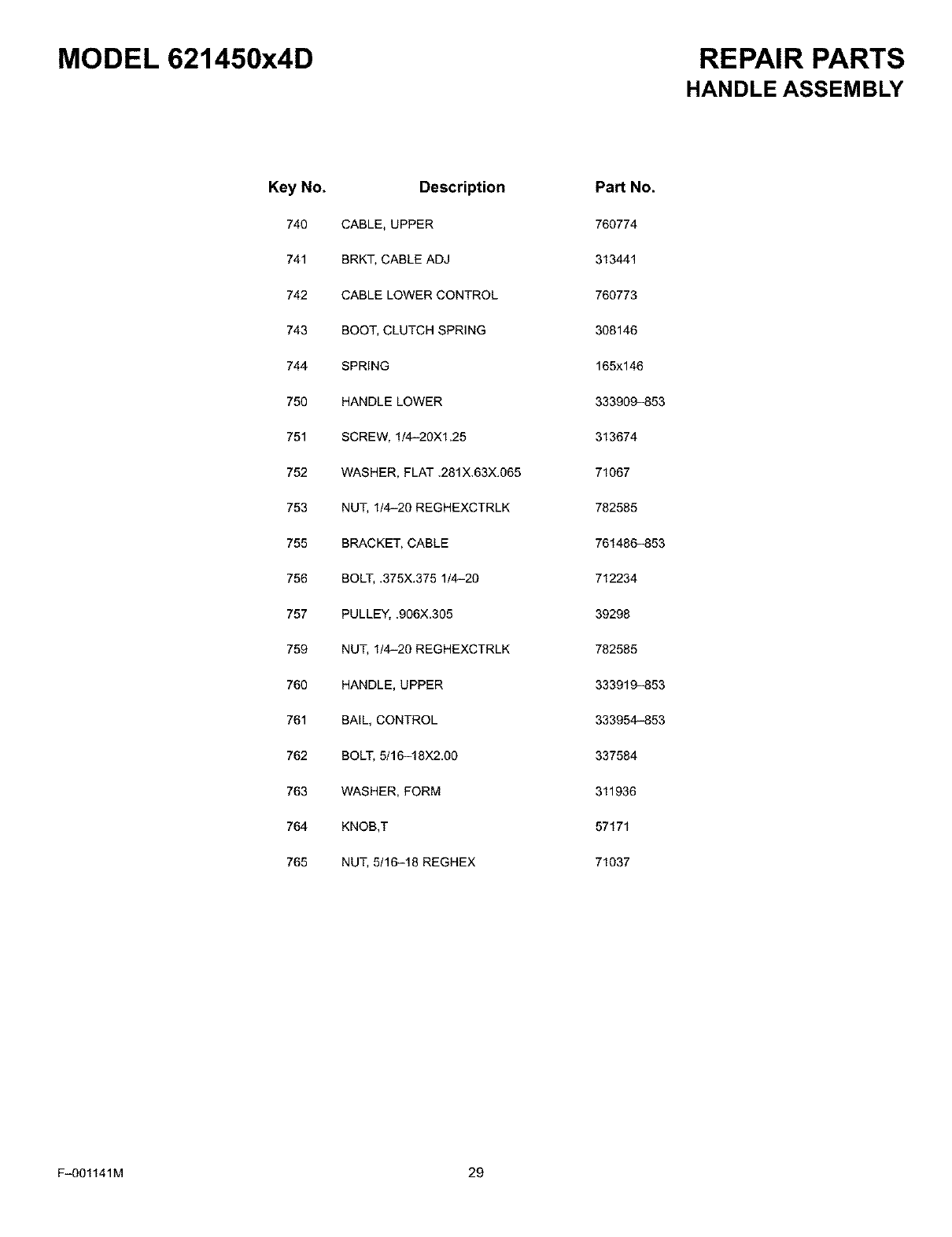

MODEL 621450x4D REPAIR PARTS

HANDLE ASSEMBLY

Key No.

740

741

742

743

744

750

751

752

753

755

756

757

759

760

761

762

763

764

765

Description

CABLE, UPPER

BRKT, CABLE ADJ

CABLE LOWER CONTROL

BOOT, CLUTCH SPRING

SPRING

HANDLE LOWER

SCREW, 1/4-20X1.25

WASHER, FLAT .281X.63X.065

NUT, 1/4-20 REGHEXCTRLK

BRACKET, CABLE

BOLT, .375X.375 1/4-20

PULLEY, .906X.305

NUT, 1/4-20 REGHEXCTRLK

HANDLE, UPPER

BAIL, CONTROL

BOLT, 5/16-18X2.00

WASHER, FORM

KNOB,T

NUT, 5/16-18 REGHEX

Part No.

760774

313441

760773

308146

165x146

333909-853

313674

71067

782585

761486-853

712234

39298

782585

333919-853

333954-853

337584

311936

57171

71037

F_01141M 29

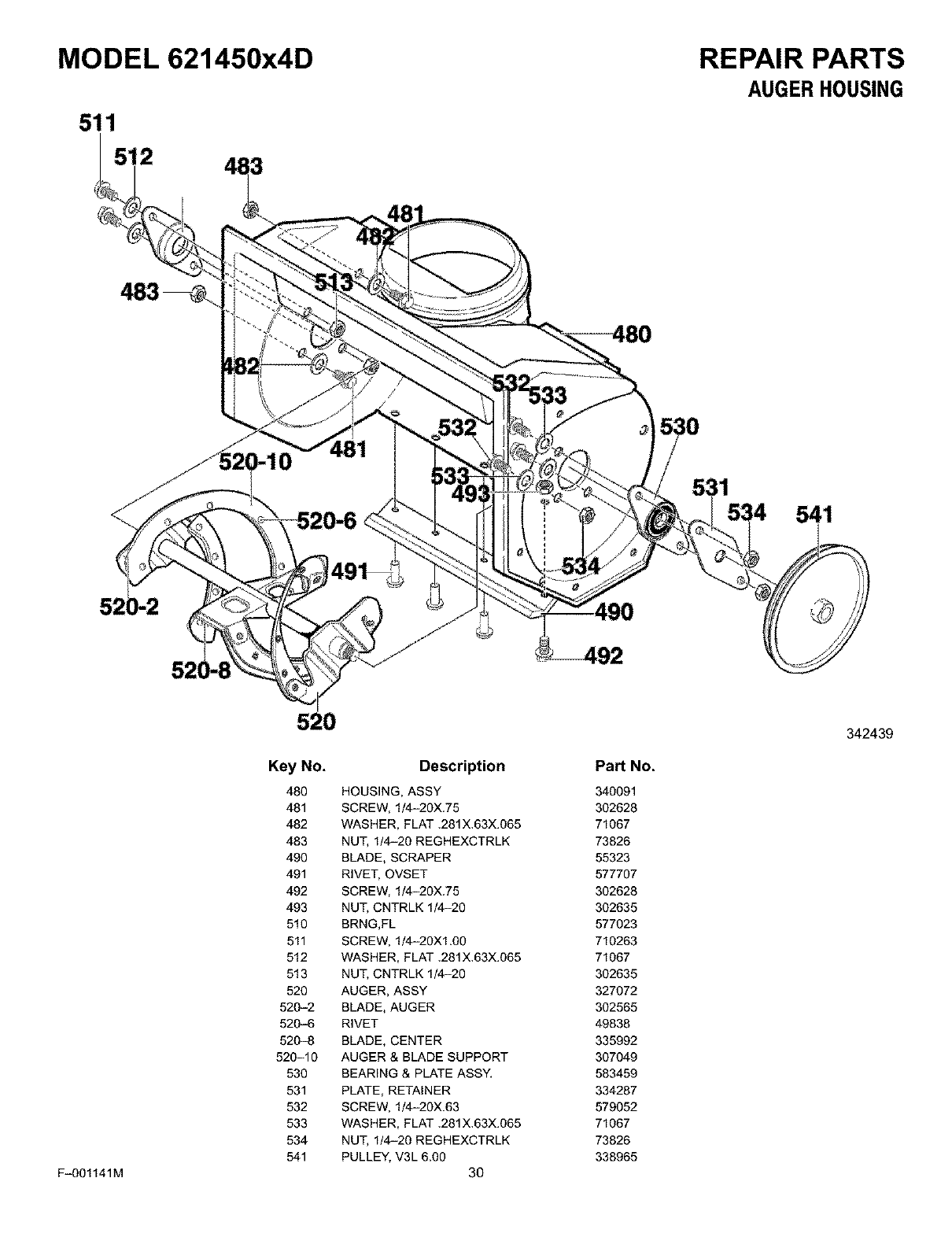

MODEL 621450x4D

511

512

REPAIR PARTS

AUGERHOUSING

541

F_O1141M

Key No.

480

481

482

483

490

491

492

493

510

511

512

513

520

520-2

520-6

520-8

520-10

53O

531

532

533

534

541

Description

HOUSING, ASSY

SCREW, 1/4-20X.75

WASHER, FLAT .281X.63X.065

NUT, 1/4-20 REGHEXCTRLK

BLADE, SCRAPER

RIVET, OVSET

SCREW, 1/4-20X.75

NUT, CNTRLK 1/4-20

BRNG,FL

SCREW, 1/4-20Xl.00

WASHER, FLAT .281X.63X.065

NUT, CNTRLK 1/4-20

AUGER, ASSY

BLADE, AUGER

RIVET

BLADE, CENTER

AUGER & BLADE SUPPORT

BEARING & PLATE ASSY.

PLATE, RETAINER

SCREW, 1/4-20X.63

WASHER, FLAT .281X.63X.065

NUT, 1/4-20 REGHEXCTRLK

PULLEY, V3L 6.00 30

Part No.

340091

302628

71067

73826

55323

577707

302628

302635

577023

710263

71067

302635

327072

302565

49838

335992

307049

583459

334287

579052

71067

73826

338965

342439

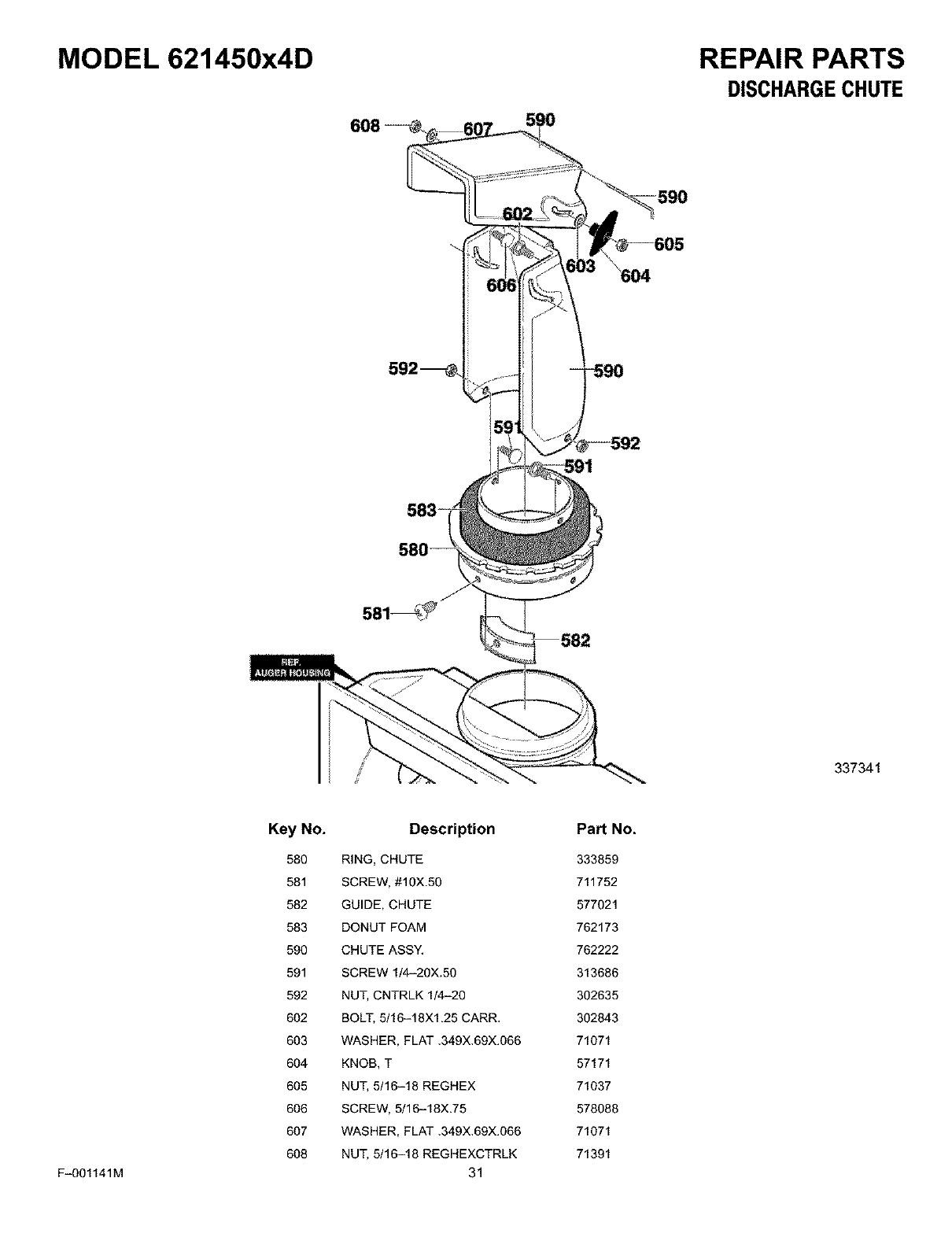

MODEL 621450x4D REPAIR PARTS

DISCHARGECHUTE

-590

337341

F_01141M

Key No.

580

581

582

583

590

591

592

602

603

604

605

606

607

608

Description

RING, CHUTE

SCREW, #10X.50

GUIDE, CHUTE

DONUT FOAM

CHUTE ASSY.

SCREW 1/4-20X.50

NUT, CNTRLK 1/4-20

BOLT, 5/16-18X1.25 CARR.

WASHER, FLAT .349X.69X.066

KNOB, T

NUT, 5/16-18 REGHEX

SCREW, 5/16-18X.75

WASHER, FLAT .349X.69X.066

NUT, 5/16-18 REGHEXCTRLK

Part No.

333859

711752

577021

762173

762222

313686

302635

302843

71071

57171

71037

578088

71071

71391

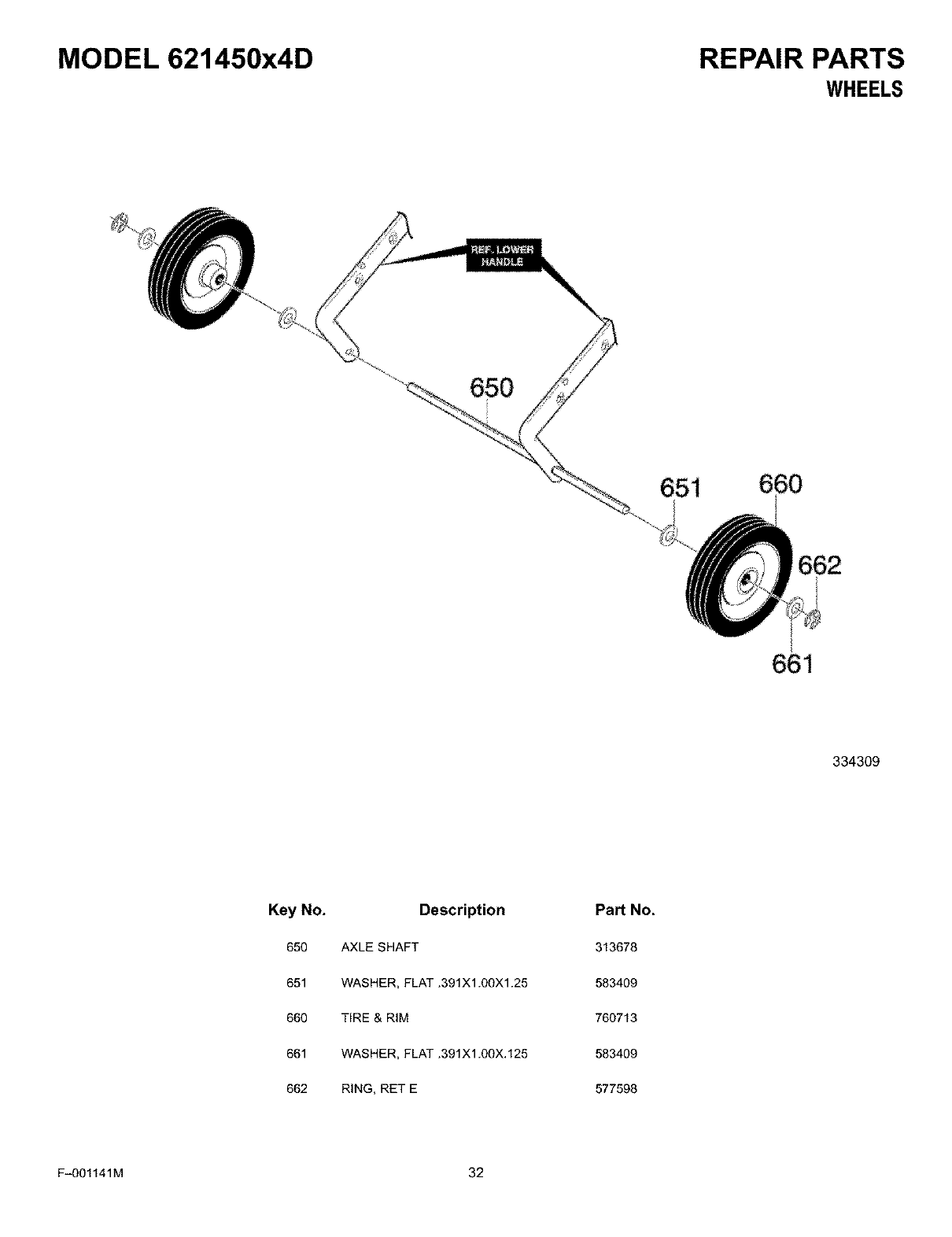

MODEL 621450x4D REPAIR PARTS

WHEELS

650

651 660

661

334309

Key No.

650

651

660

661

662

Description

AXLE SHAFT

WASHER, FLAT .391X1 .O0X1.25

TIRE & RIM

WASHER, FLAT .391X1.00X.125

RING, RET E

Pa_ No.

313678

583409

760713

583409

577598

F_01141M 32

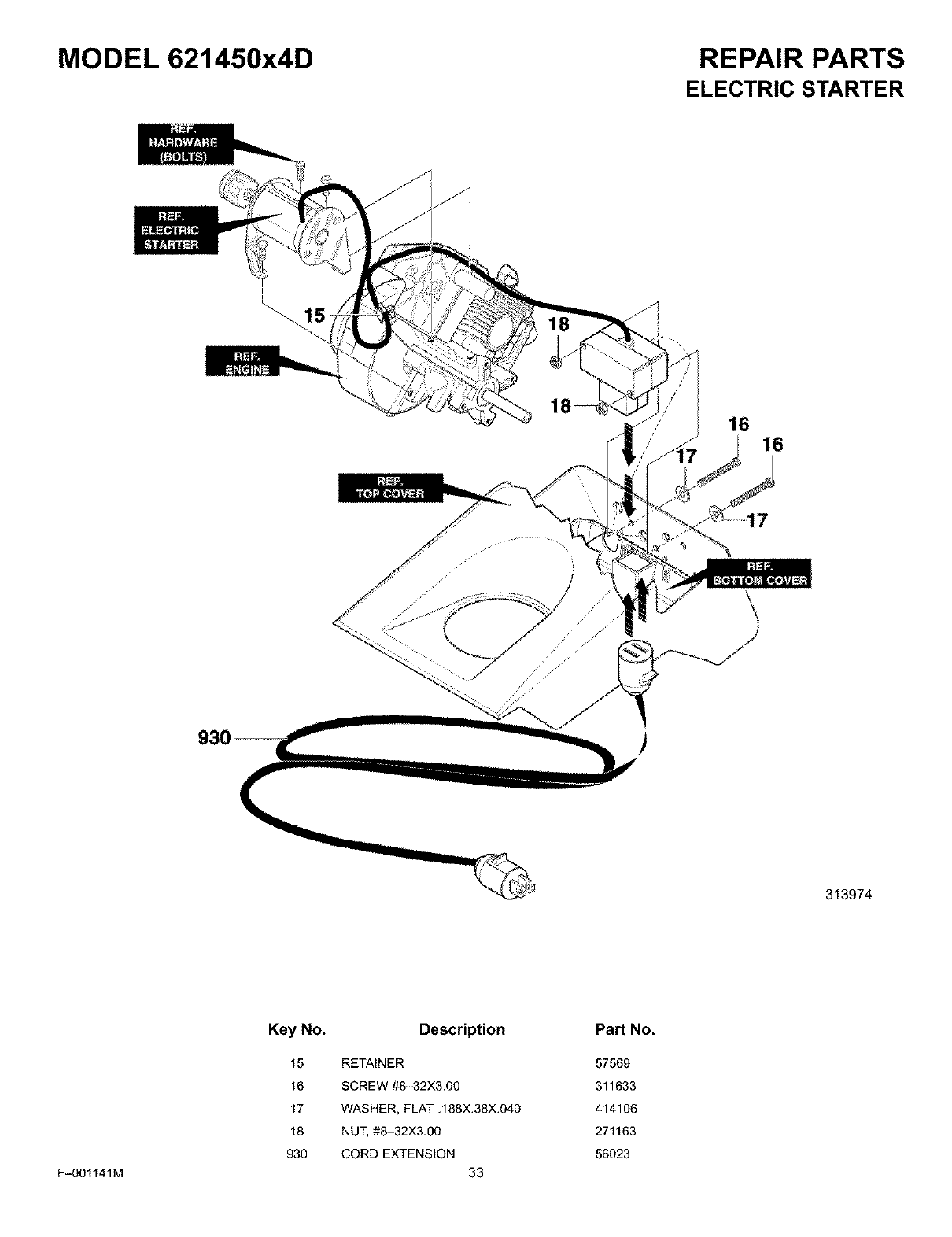

MODEL 621450x4D REPAIR PARTS

ELECTRIC STARTER

16 16

)

313974

F_01141M

Key No.

930

Description

RETAINER

SCREW #8-32X3.00

WASHER, FLAT .188X.38X.040

NUT, #8-32X3.00

CORD EXTENSION

Pa_ No.

57569

311633

414106

271163

56023

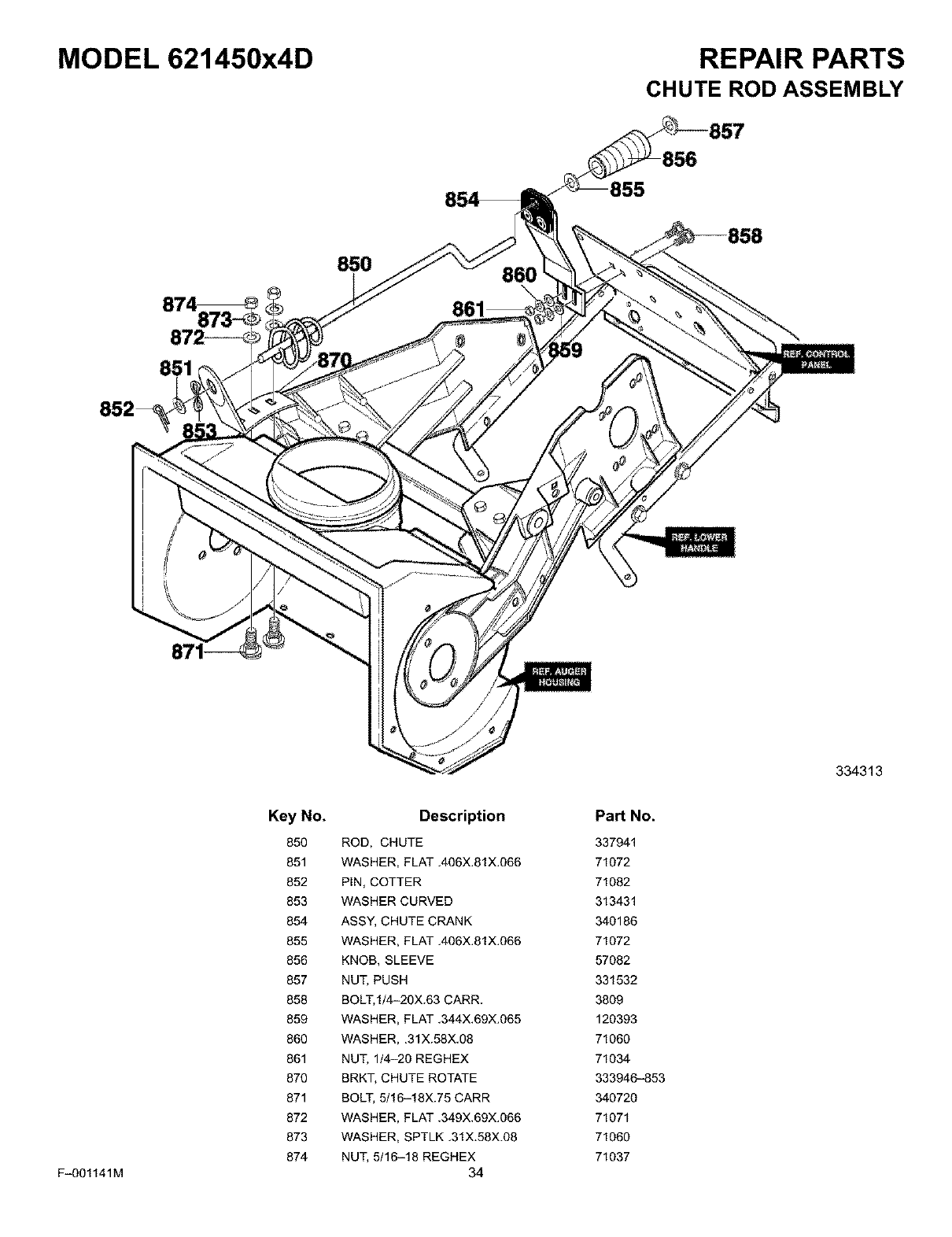

MODEL 621450x4D REPAIR PARTS

CHUTE ROD ASSEMBLY

855

850

851

F_01141M

Key No.

85o

851

852

853

854

855

856

857

858

859

86o

861

870

871

872

873

874

Description

ROD, CHUTE

WASHER, FLAT .406X.81X.066

PiN, COTTER

WASHER CURVED

ASSY, CHUTE CRANK

WASHER, FLAT .406X.81X.066

KNOB, SLEEVE

NUT, PUSH

BOLT,1/4-20X.63 CARR.

WASHER, FLAT .344X.69X.065

WASHER, .31X.58X.08

NUT, 1/4-20 REGHEX

BRKT, CHUTE ROTATE

BOLT, 5/16-18X.75 CARR

WASHER, FLAT .349X.69X.066

WASHER, SPTLK .31X.58X.08

NUT, 5/16-18 REGHEX

Part No.

337941

71072

71082

313431

340186

71072

57082

331532

3809

120393

71060

71034

333946-853

340720

71071

71060

71037

334313

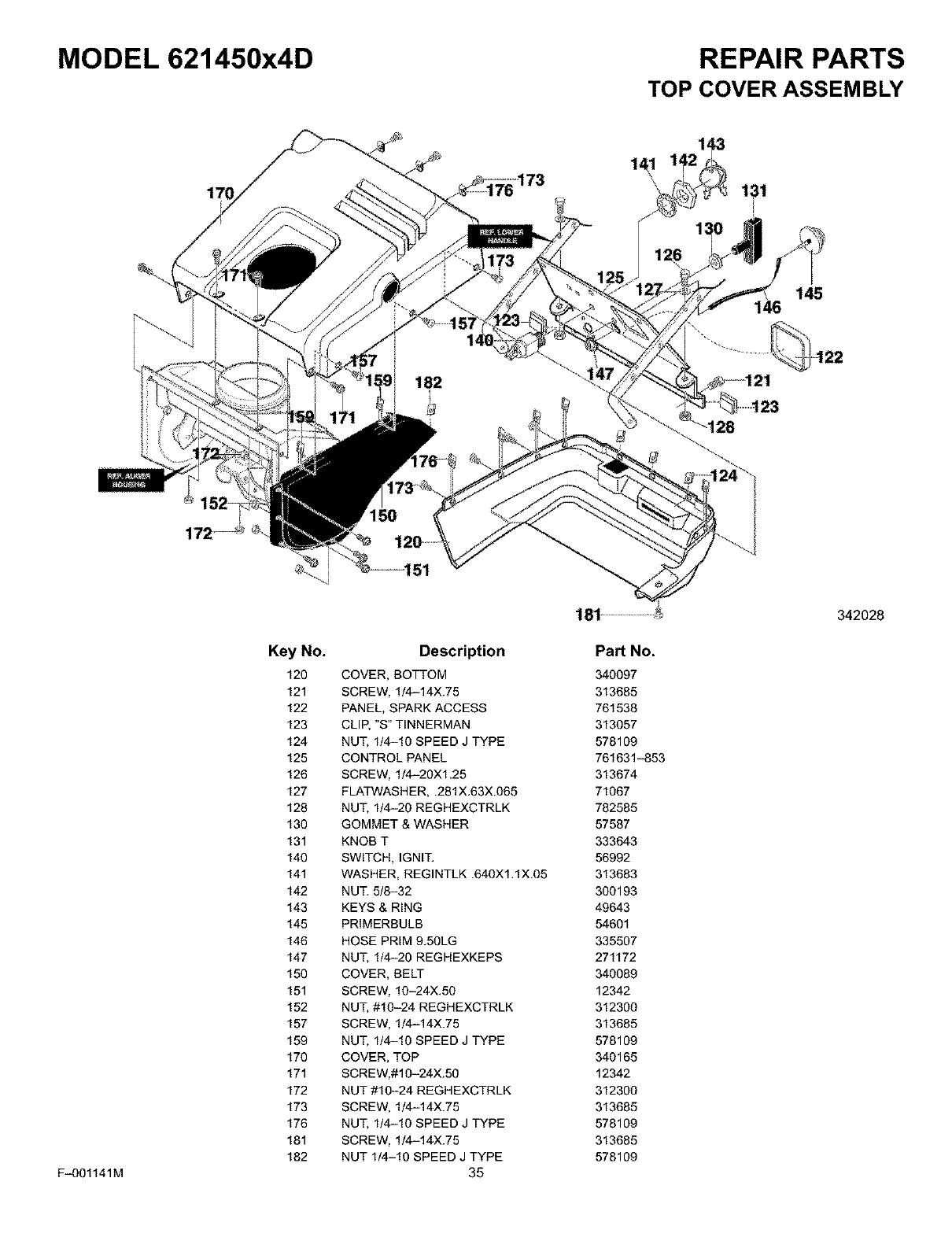

MODEL 621450x4D REPAIR PARTS

TOP COVER ASSEMBLY

F_]01141M

Key No.

120

121

122

123

124

125

126

127

128

130

131

140

141

142

143

145

146

147

150

151

152

157

159

170

171

172

173

176

181

182

Description

COVER, BOTTOM

SCREW, 1/4-14X.75

PANEL, SPARK ACCESS

CLIP, "S" TINNERMAN

NUT, 1/4-10 SPEED J TYPE

CONTROL PANEL

SCREW, 1/4-20X1+25

FLATWASHER, .281X.63X.065

NUT, 1/4-20 REGHEXCTRLK

GOMMET & WASHER

KNOB T

SWITCH, ]GNIT.

WASHER, REGINTLK .640X1+1X.05

NUT. 5/8-32

KEYS & RING

PRIMERBULB

HOSE PRIM 9.50LG

NUT, 1/4-20 REGHEXKEPS

COVER, BELT

SCREW, 10-24X+50

NUT, #10-24 REGHEXCTRLK

SCREW, 1/4-14X.75

NUT, 1/4-10 SPEED J TYPE

COVER, TOP

SCREW,#10-24X+50

NUT #10-24 REGHEXCTRLK

SCREW, 1/4-14X.75

NUT, 1/4-10 SPEED J TYPE

SCREW, 1/4-14X.75

NUT 1/4-10 SPEED J TYPE

Part No.

340097

313685

761538

313057

578109

761631-853

313674

71067

782585

57587

333643

56992

313683

300193

49643

54601

335507

271172

340089

12342

312300

313685

578109

340165

12342

312300

313685

578109

313685

578109

342028

MURRAY,INC.CENTRALPARTSDISTRIBUTORS

DISTRIBUTEURSREGIONAUXDE PIECESMURRAY,INC.

BEBCO, INC.

22212nd.Ave.South

Birmingham,AL 35233

(205)251-4600 1-800-828-8094

Alabama,Florida,Georgia,PuertoRico

BILLIOU'S, INC.

1343SouthMainSt.

Portervitle,CA. 93257

(559)784-4102 1-877-245-5468

FAX 1-800-226-7337

Arizona,California, Hawaii,Nevada

BROWN & WISER, INC.

9991S.W.AveryStreet

P.O.Box 1109

Tualatin,OR. 97062

(503)692-0330 1-800-882-4782

Alaska, Idaho (countiesAda,Adams,

Benewah,Boise,Bonnet,Boundry,Canyon,

Clearwater,Elmore,Gem,Idaho,Kooten,

Latah,Lewis,NezPerce,Owyee,Payette,

Ravalli,Shoshone,Valley,Washington),

Montana(countiesFlathead,Lake,Uncoln,

Mineral,Missoulo,Ravalli,Sanders),Oregon,

Washington

CPT CANADA POWER

TECHNOLOGY LIMITED

161WatlineAvenue

Mississauga,Ontario

L4Z-1P2

(905)890-6900 1-800-861-9559

101-10411-178Street

Edmonton,Alberta

T5S 1R5

(780)453-5791 1-800-861-9559

234MigneronStreet

VilleSt-Laurent,Quebec

H4T1Y7

(514)731-3559 1-800-861-9559

Canada

CHILTON AIR COOLED ENGINE

3194th.Ave.South

P.O.Box 150806

Nashville,TN. 37215

(6t5) 254-1637 1-800-621-6934

www.chiltoncompanies.com

Arkansas(countiesClay,Craighead,

Crittendan,Cross,Greene,Jackson,

Lawrence,Lee,Mississippi,Monroe,Phillips,

Poinsett,Randolph,St.Francis,Woodruff),

Mississippi(countiesDesota,Panola,

Quitman,Tate,Tunica),Missouri(counties

Dunkin,NewMadrid,Pemiscot),Tennessee,

Virginia (countiesBland,Buchanan,

Dickenson,Lee, Russell,Scott,Smyth,

Tazewett,Washington,Wise)

ENGINESSOUTHWEST

1255NorthHearne

Shreveport,LA. 71107

POBox67

Shreveport,LA. 71161

(3t8) 222-3871 1-800-388-6995

www.enginessw.com

Arkansas (exceptthesecounties:Clay,

Craighead,Crittendan,Cross,Greene,

Hempstead,Howard,Jackson,Lafayette,

Lawrence,Lee,UttleRiver,Miller,Mississippi,

Monroe,Nevada,Phillips,Pike,Poinsett,

Randolph,Sevier,St. Francis,Woodruff)

Louisiana,Mississippi(exceptthese

counties:Desota,Panola,QuitmanTate,

Tunic&)

FRANK EDWARDS CO.

3626ParkwayBlvd.

WestValley,UT 84120

(801)736-8060 1-800-318-0201FAX

1-800-570-049t

Colorado,Idaho (countiesBannockBearlake,

Bingham,Blaine,Booneville,Butte,Camas,

Caribou,Cassia,Custer,Franklin,Fremont,

Gooding,Jefferson,Jerome,Lemhi,Uncoln,

Madison,Minidoka,Oneida,Power,Teton,

TwinFalls)Montana(allcountiesexcept

Flathead,Lake,Uncoln,Mineral,Missoulo,

Ravalli,andSanders),Utah,Wyoming

GARDNER, INC.

1150ChesapeakeAve.

Columbus,OH. 43212

(614)488-7951 1-800-848-8946

Indiana,Kentucky,Michigan(exceptupper

Peninsula),Ohio,WesternPennsylvania

withzipcodesupto andincluding16999,

WestVirginia

GULF COAST ENGINE, INC.

4202RussellDr.

P.O.Box9724

CorpusChristi,TX. 78408

(316)888-6999 1-800-825-6999

Arkansas(countiesHempstead,Howard,

Lafayette,UttleRiver,Miller,Nevada,Pike,

Sevier)NewMexico,Oklahoma,Texas,

Mexico

OSCAR WILSON ENGINE & PARTS

826 LoneStarDr.

O'Fallon,MO. 63366

(314)978-1313 1-800-873-6722

Illinois(S.ofHwy.80),Iowa,Kansas,

Missouri(allcountiesexceptDunkin,

NewMadrid,Pemiscot)Nebraska

R.B.I.CORPORATION

P.O.Box93t8

Richmond,VA. 23227

(804)550-2210 1-800-888-7149

FAX1-800-947-1335

Connecticut,Delaware,Districtof

Columbia,Maine,Maryland,Massachusetts,

NewHampshire,NewJersey,New York,N.

& S. Carolina,Pennsylvaniazips17000&up,

RhodeIsland,Vermont,Virginia(allcounties

exceptBland,Buchanan,Dickenson,Lee,

Russell,Scott,Smyth,Tazewell,Washington,

Wise)

WISCONSIN MAGNETO

4727N.TeutoniaAve.

P.O.Box9218

Milwaukee,WI. 53209

(414)445-2800 1-800-733-7388

Illinois (N.of Hwy.80),Michigan(upper

Peninsula),Wisconsin

800McKinleySt.

Anoka,MN. 55303

(612)323-7477 1-800-248-4016

Minnesota,North& SouthDakota

F-001141M 36

Craftsman 536885190 User Manual SNOWTHROWER Manuals And Guides L0101059

MURRAY Snowthrower, Gas Manual L0101059 MURRAY Snowthrower, Gas Owner's Manual, MURRAY Snowthrower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
