CRAFTSMAN®

8 HORSEPOWER

26" DUAL STAGE

TRAC-PLUS

120V. ELECTRIC START

SNOW THROWER

• Assembly

Operatzon

Maintenance

• Service and Adjustments

- RePair Parts

SEARS,. ROEBUCK AND CO., Chicago, IL 60684 ,U.S.A.

f. i r •ni| mini li : i i • i

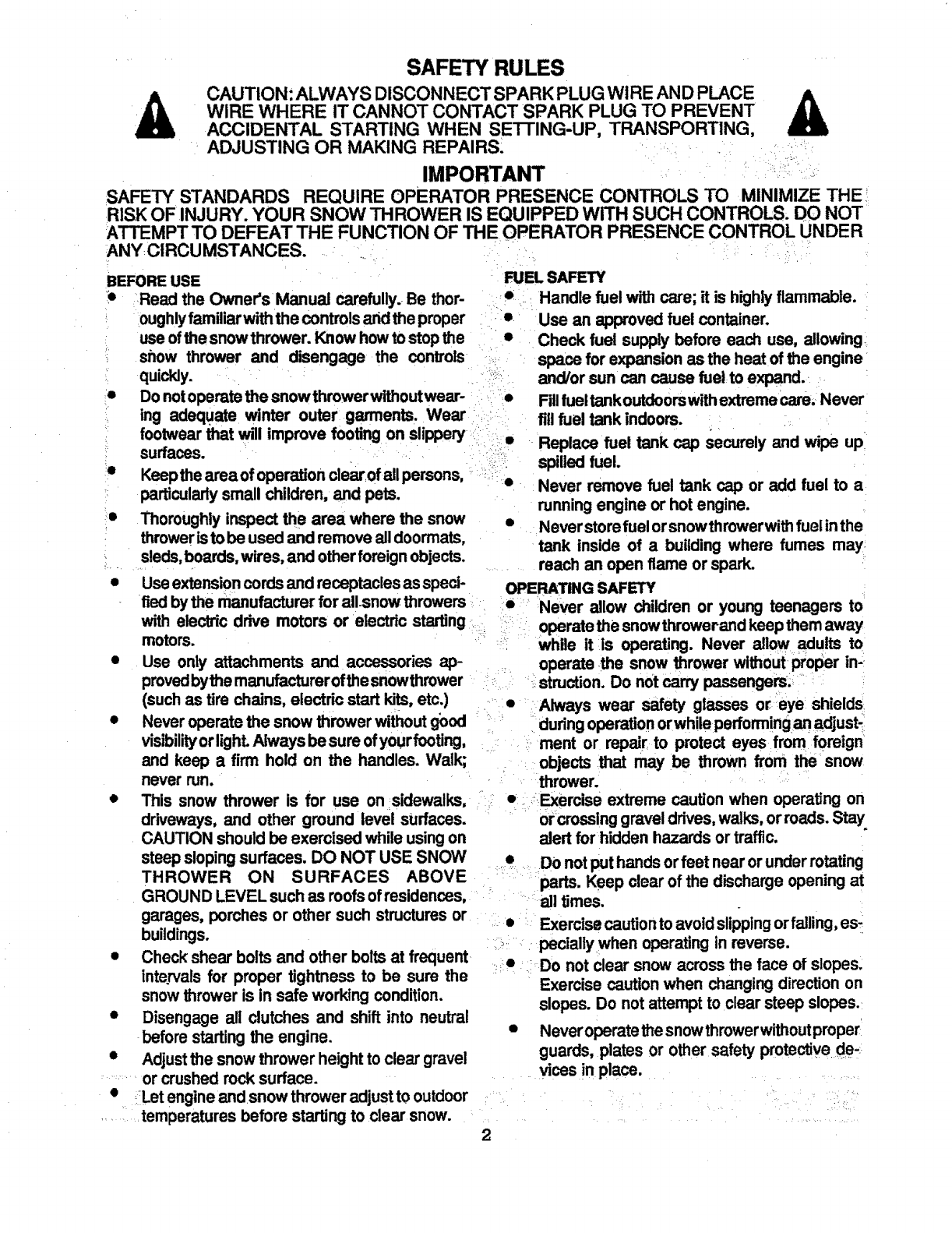

SAFETY RULES

CAUTION: ALWAYS DISCONNECT SPARK PLUG WIRE AND PLACE A

WiRE WHERE IT CANNOT CONTACT SPARK PLUG TO PREVENT

ACCIDENTAL STARTING WHEN SE'I-I'ING-UP, TRANSPORTING,

ADJUSTING OR MAKING REPAIRS:

IMPORTANT

SAFETY STANDARDS REQUIRE OPERATOR PRESENCE CONTROLS TO MINIMIZE THE

RISK OF INJURY. YOUR SNOW THROWER IS EQUIPPED WITH SUCH CONTROLS. DO NOT

ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROL UNDER

ANY CIRCU MSTANCES.

BEFORE USE

•Read the Owner's Manual carefully. Be thor-

oughly familiar with the controls arid the proper

use of the snow thrower. Know how to stop the

show thrower and disengage the controls

quickly.

:o Do notoperatethesnowthrowerwithoutwear-

ing adequate winter outer garments. Wear

footwear that will improve footing on slippery

surfaces.

oKeepthe area of operation clearof all persons,

particularly small children, and pets.

• Thoroughly inspect the area where the snow

thrower isto be used and remove all doormats,

sleds, boards, wires, and other foreign objects.

• Use extension cords and receptacles as speci-

fied by the manufacturer for all .snow throwers

with electric drive motors or electdc starting

motors.

• Use only attachments and accessories ap-

provedbythe manufacturerofthesnowthrower

(such as tire chains, electdc start kits, etc.)

•Never operate the snow thrower without good

visibilityor light. Always be sure of yourfooting,

and keep a firm hold on the handles. Walk;

never run.

• This snow thrower is for use on sidewalks,

driveways, and other ground level surfaces.

CAUTION should be exercised while using on

steep sloping surfaces. DO NOT USE SNOW

THROWER ON SURFACES ABOVE

GROUND LEVEL such as roofs of residences,

garages, porches or other such structures or

buildings,

•Check shear bolts and other bolts at frequent

intervals for proper tightness to be sure the

snow thrower is in safe working condition.

•Disengage all clutches and shift into neutral

before starting the engine.

• Adjust the snow thrower height to clear gravel

.... or crushed rock surface.

• _Let engine andsnow thrower adjust to outdoor

..... temperatures before starting to clear snow.

," '0

D

FUEL SAFETY

• Handle fuel with care; it is highly flammable.

•Use an approved fuel container.

• Check fuel supply before each use, allowing

space for expansion as the heat of the engine

and/or sun can cause fuei_to expand.

Fill fueltankoutdoorswith extreme care. Never

fill fuel tank indoors.

Replace fuel tank cap Securely and wipe up

spilled fuel.

•Never remove fuel tank cap or add fuel to a

running engine or hot engine.

=Never store fuel orsnowthrcwer with fuel inthe

tank inside of a building where fumes may

reach an open flame or spark.

OPERATING SAFETY

•_Never allow children or young teenagers to

operate the snow throwerand keep them away

while it :is operating. Never allow adults to

operate ,the snow thrower without proper in-_

struction. Do not carry passengem.:

Always wear safety glasses or eye shields

•during operation orwhile performing an adjust,

ment or repair to protect eyes from foreign

objects that may be thrown from the snow

thrower.

•Exercise extreme caution when operating on

or crossing g ravel ddves, walks, or roads. Stay

alert for hidden hazards or traffic.

•Do not put hands or feet near or under rotating

parts. Keep clear of the discharge opening at

all times.

Exercise caution to avoid slipping or falling, es-

pecially when operating in reverse.

Do not clear snow across the face of slopes.

Exercise caution when changing direction on

slopes. Do not attempt to clear steep slopes.

•Never operate the snow thrower without proper

guards, plates or other safety protective de-

vices in place ......

°

I

2

/i

•r:' SAFETY RULES

• Never operate the snow thrower near glass

enclosures, automobiles, window wells, drop-

offs, and the like without proper adjustment of

' the snow discharge angle. Keep children and

pets away.

•.... Never operate the snow thrower at high trans-

port speeds on slippery surfaces. Look behind

and use care when backing.

•.Never directdischarge at bystanders or allow

- anyone in front of the snow thrower.

• Do not run the engine indoors, except when

starting the engine and for transporting the

snow thrower inor out of the building. Open the

= ,

outside doors; exhaust fumes are dangerous

.(containing CARBON MONOXIDE, an ODOR-

LESS and DEADLY GAS).

•Take all possible precautions when leaving the

........snow thrower unattended. Disengage the au-

:" ger/impeller, shift to neutral, stop erigine, and

•.: remove key .... ....

•-_ Do not overload the machine capacity by at-

tempting to clear snow at too fast a rate.

SAFE STORAGE

• Always refer to Owner's Manual instructions for

important details if the snow thrower is to be

stored for an extended period.

• Disengage power to the auger/impeller when

snow thrower is transported or not in use.

• Never store the snow thrower with fuel in the

REPAIRIADJUSTMENTS SAFETY

•After striking aforeign object, stop the engine

(motor), remove the wire from the spark plug,

disconnect the Cord on electric motors, thor-

=

oughly !nsPect the snow thrower for any dam-

age, _and.repair the damage before restarting

and Operating th_ snow thrower.

..e If the snow thrower should start to vibrate

abnormally, stop the engine (motor) and check

immediately for the cause. Vibration is gener-

"ally a warning of trouble.

• Stop the engine (motor) whenever you leave

the operating position before unclogging the

auger/impeller housing or discharge guide,

and when making any repairs, adjustments, or

inspections.

•When cle'aning, repairing, or inspecting, make

certain the auger/impeller and all moving parts

have stopped. Disconnectthe spark plug wire

and keep the wire away from the plug to pre-

-;vent accidental Starting. " : -

•Never attempt to make any adjustmentswhile

the engine is running (except when specifically

recommended by.manufacturer,).

•Maintain or replace safety and instruction la-

bels, as necessary.

•Run the snow thrower a few minutes after

throwing snow to prevent freeze-up of the

auger/impeller- . •

fuel t_.nkinsideabuilding whereignition sources ........... '

are present such. as hot water and space ....:

•heaters, clothes dryers, and the like. Allow the .....

engine to cool before storing in any enc!osure .......

UNCLOGGING DIS-

i¸&LOOK FOR THIS SYMBOL TOPOINT OUT

IMPORTANT SAFETY PRECAUTIONS. IT

MEANS--ATTE NTION!!! BECOME •A LERT!!!

YOUR SAFETY IS INVOLVED.

.... , ,•

CONGRATULATIONS on your purchase of aSears

Craftsman Snow Thrower. tt has been designed;engi-

neered and manufacturedto give youthe best possible

dependabilityand performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Service

CenterlDepartrnent. We have competent, we,-trained

techniciansandthe proper toolstoservice orrepair this

unit.

PId_zseread andretainthis manual. The instructionswill

enable youtorassembleand maintain your snowthrower

pr0pedy. .AIways observe the "SAFETY RULES."

MODEL

NUMBER 536.885910

SERIAL

NUMBER

DATE OF

PURCHASE.

THE MODELAND SERIAL NUMBERS WILL BE

FOUND ON A DECAL ATTACHED TOTHE REAR

OF THE SNOW THROWER HOUSING.

YOU SHOULD RECORD BOTH SERIAL NUMBER

AND DATE OF PURCHASE AND KEEP INA SAFE

PLACE FOR FUTURE REFERENCE.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this

product. Contact your nearest Sears Store for details.

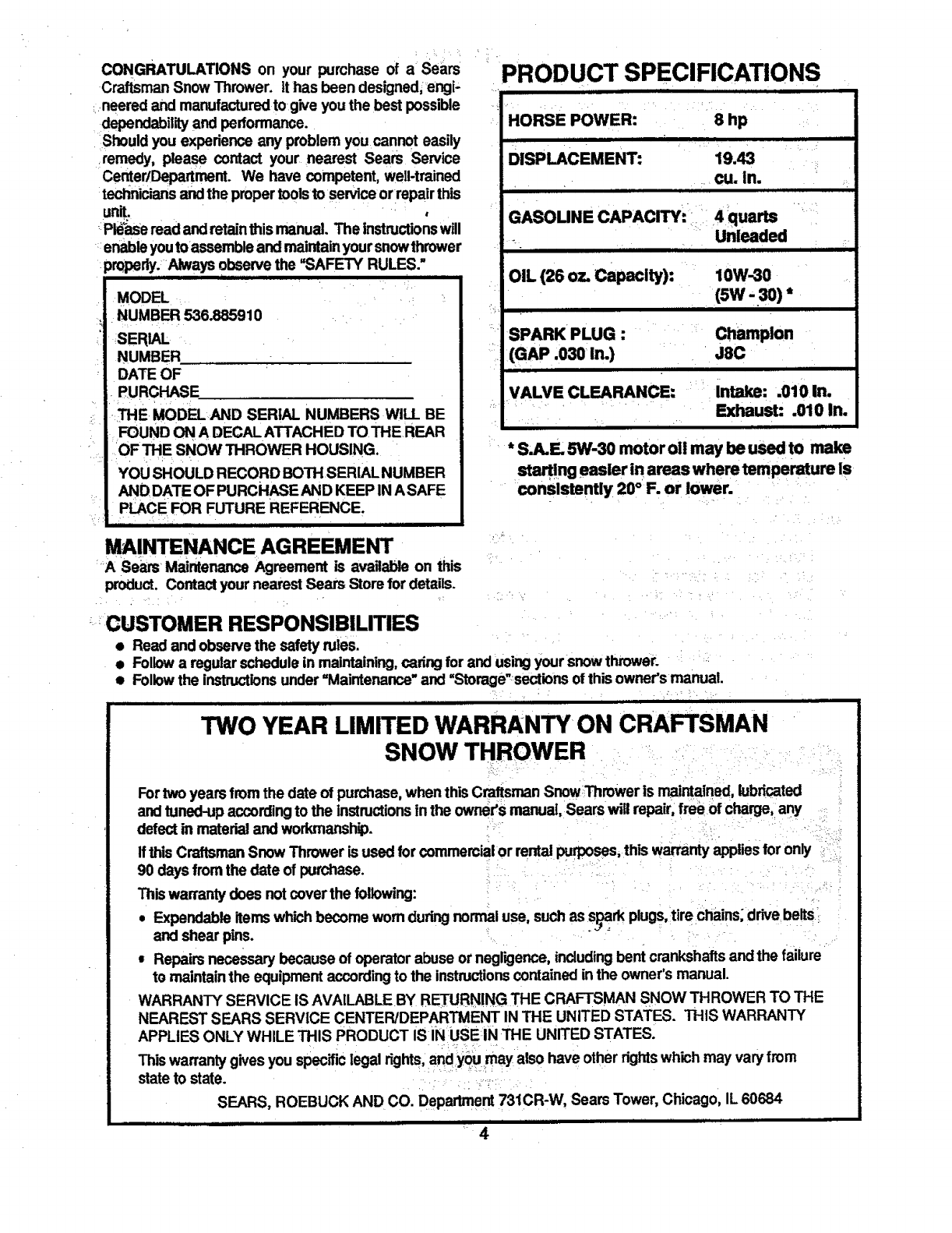

PRODUCT SPECIFICATIONS

HORSE POWER: 8 hp

DISPLACEMENT: 19.43

cu. in.

i JJ ,,

GASOUNE CAPACITY: =4 quarts

_ Unleaded

III Ill i i iii

OIL (26 oz. Capacity): 10W-3O

(sw - 3o)*

iii iiii

SPARK PLUG : Champion

(GAP .030 in.) J8C

H i

VALVE CLEARANCE: Intake: .010 In.

Exhaust: .010 In.

*S,A.E 5W-3O motor oi! may be used to make

start!ng easier in areas where temperature is

consistently 20° F. or lower.

-'=CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

•Followa regular schedulein maintaining,cadng for and usingyour snow thrower.

•Followthe instructionsunder=Maintenance" and "Storage'sections of thisowner's manual.

i i ]i illilili 1ii

TWO YEAR LIMITED WARRANTY ON CRAFTSMAN

SNOW THROWER

For two years fromthe date of purchase,when thisCraftsman SnowThrower is maintained,lubricated

andtuned-up according to the instructionsinthe owner's manual, Sears will repair, free of charge, any

defect in material and workmanship.

If this Craftsman Snow Thrower is used forcommercial or rental purposes, this warranty appliesfor only _

90 days fromthe date of purchase.

This warranty does not coverthe following:

•Expendable items which become worn duringnormal use, such as s__rk plugs,tire chains; drive belts

and shear pins.

=Repairs necessary because of operator abuse or negligence, includingbent crankshaftsand the failure

to maintainthe equipment accordingto the instructionscontained inthe owner's manual.

WARRANTY SERVICE IS AVA1LABLEBY RETURNING THE CRAFTSMAN SNOW THROWER TO THE

NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY

APPLIES ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES.

This warranty gives you specificlegal rights, and you may also have other rightswhich may vary from

state to state. •.:

SEARS, ROEBUCK AND CO. Department731CR-W, Sears Tower, Chicago, IL 60684

,,,,,, ,, ,, iii i iiiiii ii iii

4

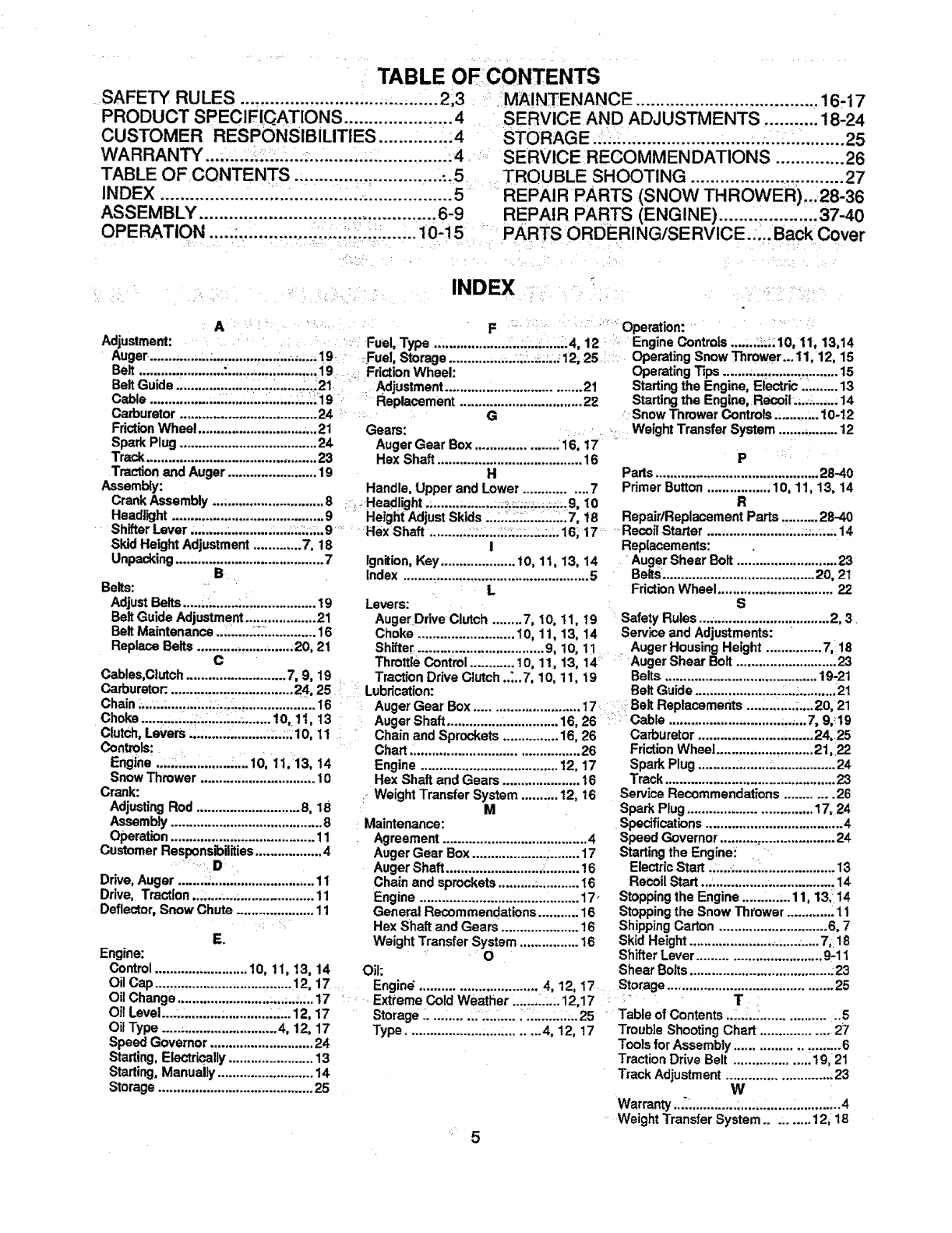

TABLE OFCONTENTS

SAFETY RULES ........................................ 2,3

PRODUCT SPECIFICATIONS ...................... 4

CUSTOMER RESPONSIBILITIES ............ ._4

WARRANTY.... ............................................. .4

TABLE OF CONTENTS .............................. -.5

INDEX ......................................... .................. 5

ASSEMBLY ................................................ 6-9

OPERATION .......................................... 10-15

MAINTENANCE ........................ 16-17

SERVICE AND ADJUSTMENTS ........... 18-24

STORAGE ................................................... 25

SERVICE RECOMMENDATIONS .............. 26

TROUBLE SHOOTING ............................... 27

REPA! R PARTS (SNOW TH ROWER)...28-36

REPAIR PARTS (ENGINE} .................... 37-40

PARTS ORDERING/SERVICE..... Back Cover

INDEX

A

Adjustment:

Auger ................ :................. ;.......... 19 •

Belt ...................... .:....................... 19 o

Belt Guide ......................... :21

Cable .................... ;........................ 19 :

Carburetor ..................................... 24

Fdctbn Wheel ................................ 2t

Spark Plug ..................................... 24

Track.............................................. 23

Traction and Auger ........................ lg

Assembly:

FOperation:

Fuel, Type .................... ,......;.......4, 12 Engine Controls....... ;L'.;10, 11, 13,14

Fuel, Storage ............... ...:;:..;,;..: 12, 25 _ Operating Snow Thrower...11, 12, 15

FrictionWheel: Operating Tips ............................... 15

Adjustment.................................... 21 Starting the Engine, Electric .:........ 13

Replacement ................................. 22 Starting the Engine, Reoofl....L ...... 14

G : Snow Thrower Controls ......... ;..10-12

Geam: Weight Transfer System ................ 12

AugerGear Box ...................... 16, 17

Hex Shaft ....................................... 16

H

Handle, Upper and Lower ................ 7

Crank Assembly ... ........................... 8 :::;.Headlight.; ....... ;....... ;;;;;_.:.;_;:.;.;;;;.9. I0

Headlight ......................................... 9 " Height Adjust Skids ::::::::::::::::::::::: t8

ShifterLever ,.; ......;.......... ;;..;.:;.:;;;.9 ....... Hex Shaft. ......... :::;:.:.:.:::::::..:.:,.16, 17.....

Skid HeightAdjustment ............. 7, 18 I

Unpacking........................................ 7

e,

Belts:

Adjust Belts.....;:_.......;.:,................. 19

BeltGuide Adjustment................... 21

Belt Maintenance..: .......::::............. 16

Replace Belts .......................... ;20, 21

C

Cables,Clutch ........................... 7, 9, lg

Carburetor:.................................. 24,25 :: :

Ignition, Key.................... 10, 11, 13, 14

index ........_......................................... 5

L

Levers:

AugerDrive clutch ........7, 10, 11, 19

Choke ,. .............. ......... 10, 11, 13, 14

Sh_e_ ................................. 9, 10, 11

Throttle Control ...:........ 10, 11, 13, 14

Traction Drive Clutch..:..7, 10, 11, 19

Lubrication:

P

Parts............................................ 28-40

Primer Button................. 10, 11, 13, 14

R

Repair/Replacement Parts .......... 28-40

Recoil Starter ...................... ;...:;....... 14

Replacements:

Auger Shear Bolt ....i ...................... 23

Belts......................................... 20, 21

FrictionWheel ............................... 22

S

Safety Rules.:.. ............................... 2, 3.

Service and Adjustments:

Auger Housing Height ............... 7, 18

•Auger Shear Bolt ........................... 23

Belts ......................................... 19-21

Belt Guide ....................... L..;......... .21

Chain _....:.:........... ;:,:::..:..: 16 •

Choke ........;::::::::;:::::::;:::::....... I0,. 1I, 13

Clutch, Levers .......... :.......... ;;;.;;.10, 11

Controls:

Engine .:.:L._............ LI" 10, 11,13, I4

Snow Thrower ............................... IO

Crank:

AdjustingRod ............................ 8, 18

Assembly......................................... 8

Operation....................................... 11

Customer Responsibilities.................. 4

Drive, Auger ....... ._............................ 11

Drive, Traction .;:,...... .................... 11

Deflector,Snow Chute ..................... 11

E.

Engine:

Control......................... 10, 11, 13, 14

Oil Cap ..................................... 12, 17

Oil Change ............................. ..,.. 17

Oil Level.....: .......... ;............ :.:... 12, 17

Oil Type ............................... 4, 12, 17

Speed Governor ............................ 24

Starting,Electrically....................... 13

Starting,Manually .......................... 14

Storage.......................................... 25

Auger Gear Box............................ 17: :::i:Belt Replacements .......... ...;....20, 21

Auger Shaft ............... ;.............. 16, 26 Cable .............................. ...,.. 7, 9,_19

Chain and Sprockets ............... 16, 26 Carburetor ............................... 24,25

Chart. ............................................ 26 FrictionWheel .......................... 21, 22

Engine ..................................... 12, 17 Spark Plug .......... :;......................... 24

Hax Shaft and Gears ..................... 16 Track .............................................. 23

: Weight Transfer System .......... 12, t6 Service Recommendations ............ 26

M : Spark Plug................................. 17,24

Maintenance: Specifications ..................................... 4

Agreement ....................................... 4 Speed Governor ........ ._,.................... 24

Auger Gear Box ................... .......... 17 Startingthe Engine:

Auger Shaft ......................... , ......... 16 Electric Start .._........._.................... 13

Chain and sprockets.......... _........... 16 ReCoilStart ...;................................ 14

Engine .................................. .........17- Stoppingthe Engine .......... ;..11, 13,14

General Recommendations ........... 16 Stopping the Snow Thlower ............ .11

Hex Shaftand Gears ..................... 16 Shipping Carton ............................. 6, 7

Weight Transfer System ................ 16 Skid Height......................... ;..........7, 18

•O Shifter Lever................................. 9-11

Oil: Shear Bolts...................................... :23

Engine ................................ 4, 12, 17 Storage............................................ 25

Extreme Cold Weather ......._...:.12,17 _T

Storage :..... ..... .i.L._ .... _.........,..25 Table of Contents ..:..;.._................. ..5

Type .................................. 4, 12, 17 Trouble Shooting Chart .................... 27

Tools for Assembly....................... ._6

Traction Drive Belt .................... 19,21

Track Adjustment............................ 23

w

Warranty..;.. ......:.....;.............. :.........:_4

Weight Transfer System .......... 12,_18

,, ,,, LI ii

MBLY

i ii i Hi, ,,, , •

THIS SNOW THROWER ISEQUIPPED WITH "TRAC-PLUS" AND ONLY

MOVES EFFECTIVELY WHEN ENGINE IS RUNNING

i

ffyoursnowthrower must be moved withoutthe aid of theengine, it willbe easier to pullthe snowthrower back-

wardby the handles, ratherthan pushing.

On startUp,the track drive system may be tight and wniloosenup as the _ow thrower is used. Alter firstuse,

checkthe track for tension and adjust if necessary. See the Track Adjustmentparagraph in the Service and Adjust-

mentssectionof this manual. Check trackadjustmentand fasteners regularly.

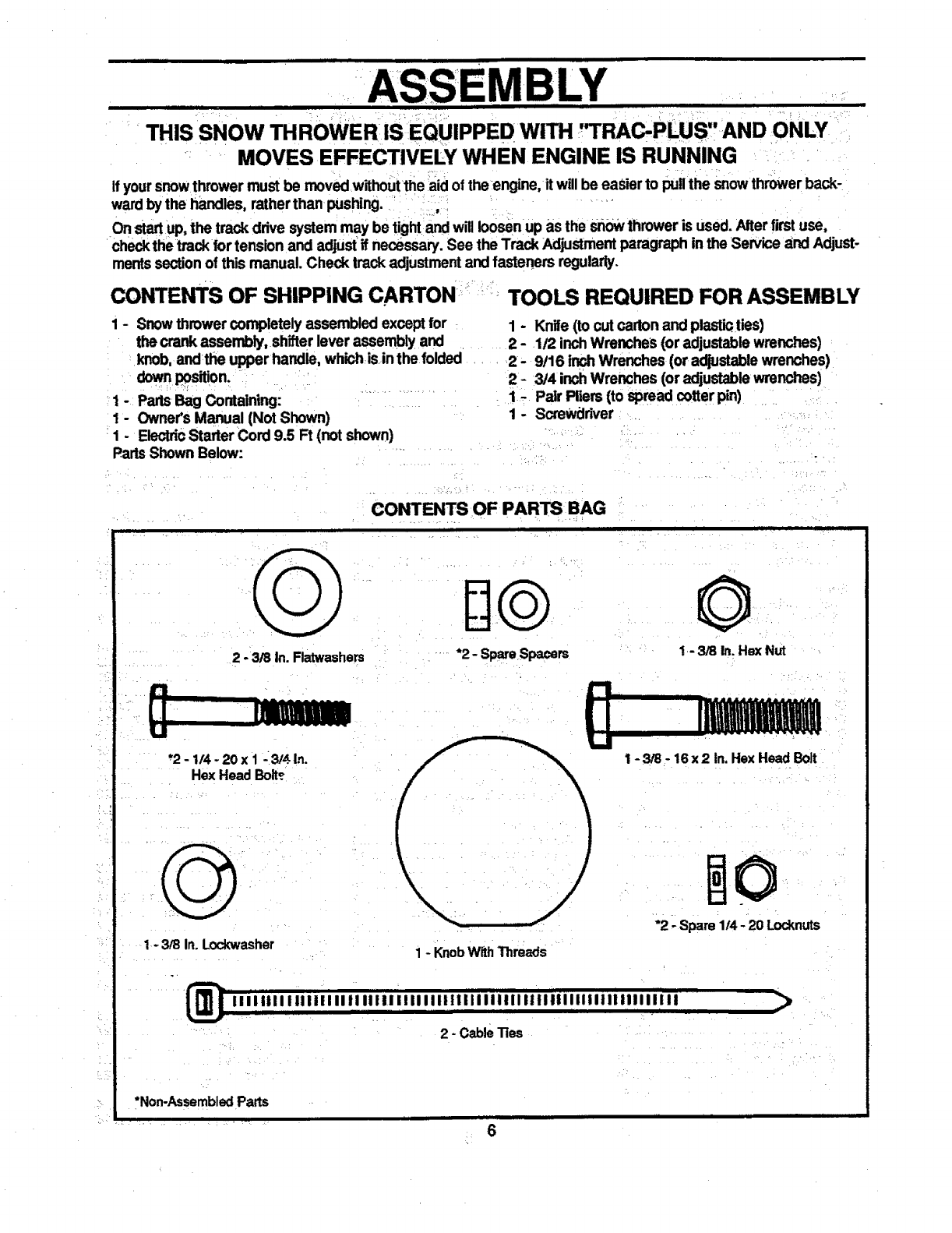

CONTE_S OF SHIPPING CARTON r,' TOOLS REQUIRED FOR ASSEMBLY

1-

PartsShown Below:

1 - Snow throwercompletely assembled except for

the crank assembly, shifter lever assembly and

knob, andrtheupper handle, whichis inthe folded

down position.

Parts Bag Containing:

Owner'sManual (Not Shown)

ElectdcStarter Cord 9.5 Ft (not shown)

1-Knife (to cut cartonand plastiaties)

2 - 1/2 inchWrenches (or adjustablewrenches)

2- 9!16 inch Wrenches (or adjustablewrenches)

2- 3/4 inchWrenches (or adjustablewrenches)

1. Pair Pliers (to spread cotter pin)

1- ScreWdriver

2-3/8 in. Flatwashers

"2- 1t4-20x 1 _3!,$ In.

Hex Head Boit_

1-3/8 In. Lockwasher

CONTENTS OF PARTSBAG

ii , i |

*2 -Spare Spacers

II

1- KnobWithThreads

©

1-3/8 In. Hex Nut

1-3/8 -16x2 In. Hex Head Bolt

*2 - Spare 1/4 -20 Locknuts

2 - Cablelies

>

*Non-Assembled Parts

6

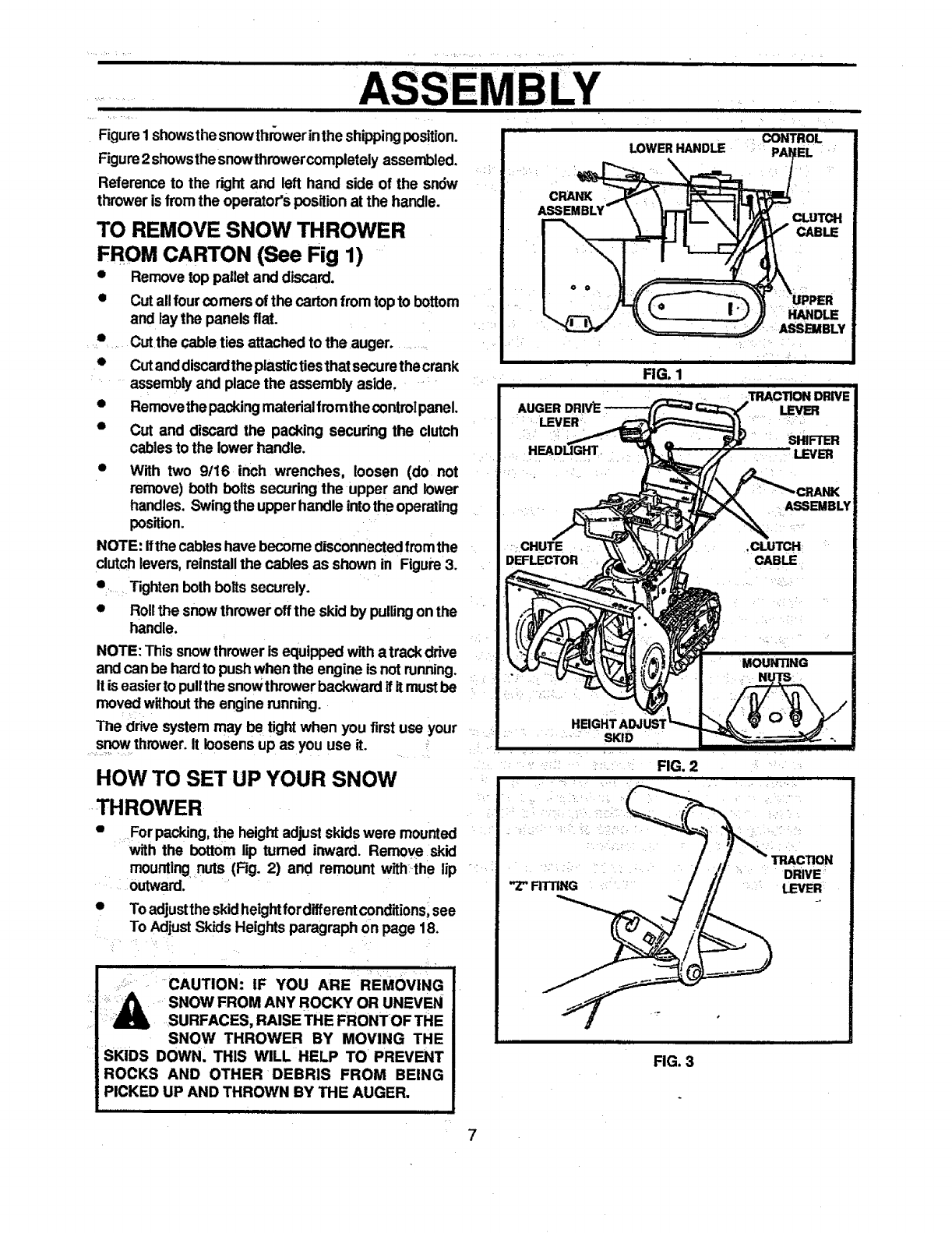

FigureI showsthesnowthrowerinthe shippingposition.

Figure2 showsthesnowthrowercompletely assembled.

Reference to the right and left hand side of the sndw

thrower isfrom the operator'spositionat the handle.

TO REMOVE SNOW THROWER

FROM CARTON (See Fig 1)

• Removetop pallet and discard.

•Cut allfour comers of the carton from topto bottom

and lay the panels fiat.

• Cut the cable ties attached to the auger.

• Cutanddiscardthe plasticties that securethecrank

assemblyand place the assemblyaside.

• Removethe packingmaterialfromthe controlpanel.

• Cut and discard the packing securing the clutch

cablesto the lower handle.

With two 9t16 inch wrenches, loosen (do not

remove) both bolts securing the upper and lower

handles. Swingthe upperhandle intothe operating

position.

NOTE: ifthe cables havebecome disconnectedfromthe

clutch levers, reinstallthe cables as shown in Figure3.

• Tighten bothbolts securely.

Rollthe snowthroweroff the skid by pullingonthe

handle.

NOTE: This snowthroweris equipped with a track drive

and can be hardto pushwhen the engine is notrunning.

It iseasierto pullthe snowthrower backward ifit mustbe

moved withoutthe engine running.

The drive system may be tight when you firstuse your

snowthrower. It loosensup as you use it.

HOW TO SET UP YOUR SNOW

THROWER

•For packing,the heightadjustskidswere mounted

with the bottom lip tumed inward. Remove skid

mounting nuts (Fig. 2) and remount withthe lip

outward.

To adjustthe skidheightfordifferent conditions,see

To AdjustSkidsHeights paragraph on page 18.

CAUTION: IF YOU ARE REMOVING

A SNOW FROM ANY ROCKY OR UNEVEN

SURFACES, RAISE THE FRONT OF THE

SNOW THROWER BY MOVING THE

SKIDS DOWN. THIS WILL HELP TO PREVENT

ROCKS AND OTHER DEBRIS FROM BEING

PICKED UP AND THROWN BY THE AUGER.

LOWER HANDLE

CRANK

CLUTCH

CABLE

FIG. 1

UPPER

HANDLE

.ASSEMBLY

FIG. 2

im i

DRIVE

LEVER

FIG. 3

7

BLY

I]Ii il IIIII mR ii

TO INSTALL THE UPPER HANDLE AND

CRANK ASSEMBL

On the rightsideof the handle, installand securethe

following parts (found in parts bag) in the lower

handle hole as shown in Fig. 4A:

1 - 3/8"x 2, bolt

2 - 3/8" flatwashers & 1 -3/8" iockwasher

1-3/8" nut

• Removethe 3/8" nylonlocknut and flatwasher from

the eyebolt assembly(onthe chute crankassembly).

the tightnessofthe two 3/8" jam nuts.Thejam

nu_sshouldbe 3 inches from the end of the eye

bolt (RD, 4B inset).

• Installeye bolt throughlower hole on the left hand

sideof the handle (See Rg. 4B).

• Installthe 3/8" flatwasherand the 3/8" nylon Iocknut

looselyon the eye bolt as shown in Fig. 4B.

• _Rernovethe plasticcap,the cotterpin andthewasher

fromthe wormed endof the crank assembly andset

aside (See Fig. 5).

o_: Rotate the notched section of the discharge chute

toward the crank-adjustingrod.

• InStallthe wommd end of the-crank through-the-hole

inthe adjustingrod and secure theend with the fiat

washer and cotterpin, as shownin Fig. 5.

• Bendthe ends of the cotter pin around the rod and

reinstallthe plasticcap.

•Tightenthe eye boltinstalled earlier, keeping eye in

linewiththe rod while tighteningthe insidencure]y.

• On the eyebolt, tightentheoutside 3/8" jam nutup

agalnst_theother 3/8" jam nut and retum the boot

over the adapter (See Fig. 4B).

• Rotate the chute crank fully clockwise and fully

counter, clockwise. The discharge chute should

rotatefully to the outer diameter of the worm and

should clear approximately1/8" (see Fig. 5). If the

chute crank needs to be adjusted, go to the

ServiceandAdjustmentssectionon page 18. Screws

securingchuteclips at the base of the chute should

be slightlyloosefor easy rotation.

NOTE: Be surethe crankdoes nottouchthe sideofthe

engineorthe coverwill be scratched.

i

_- RLAIWASHB_

I_OHT HANOLE

/

H

FIG. 4A

AO.IUSl"NUTSTO M(W_

gi OROUT

EYEBOLT

I ENOOF

Bile BOLT

FIG. 4B Inset

ii ii iii

FIG. 4B

RG. 5

8

, ,,ll j m Jl_q .||.n i i i i i n n, ,...........................

MBLY

III II IIIItl III lilt lilt III t t //ii i

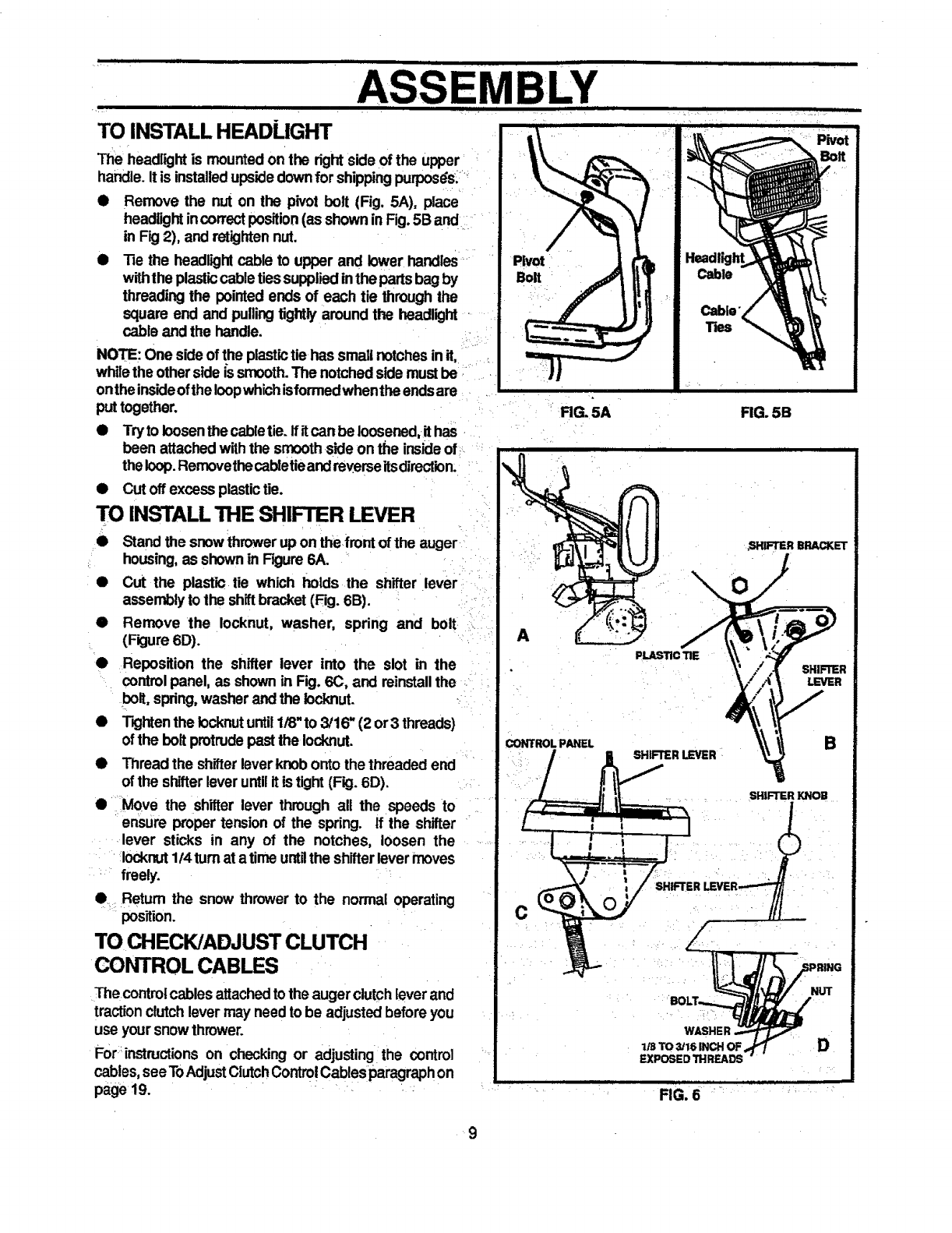

TO INSTALL HEADLIGHT

The headlightis mountedon the right side of the upper '

handle. It is installedupsidedownfor shippingpurposdst'_

•Remove the nut on the pivot bolt (Fig, 5A), place

headlightincorrectposition(as shown inFig.5B and

in Fig 2), and retightennut.

• Tie the headlightcable to upper and lower handles

withthe plasticcabletiessuppliedinthe partsbagby

threading the pointed ends of each tie throughthe

square end and pullingtightlyaround the headlight -

cable and the handle.

NOTE: One sideof the plastictie has small notchesin it,

whilethe otherside is smooth.The notchedsidemustbe

ontheinsideofthe Ioopwhichisformedwhentha endsare

put together,

• Tryto loosenthe cabletie. ffitcan be loosened,it has

been attachedwiththe smooth sideon the insideof_:

the loop.Removethecabletieandreverseitsdirection.

• Cut off excess plastictie.

TO INSTALL THE SHIFTER LEVER

Stand the snowthrower up on the,frontof the auger

_housing,as shownin Figure 6A.

•Cut the plastic tie which holds the shifter lever

assemblyto the shiftbracket(Fig. 6B).

• Remove the Iocknut, washer, spring and bolt

(Fkjure6D).

• ReposiUon the shifterleverintothe slotinthe

controlpanel,as shown inFig.6(3,and reinstallthe

bolt,spring,washerand thelocknut.

• TightenthelocknutuntilI/8"to3/16"(2or3 threads)

oftheboltprotrudepastthelocknut.

• Thread the shifterleverknob onto the threaded end

of the shifterleveruntilitis tight (Fig. 6D).

•Move the shitter lever through all the speeds to

ensure proper tension of the spring, tf the shifter

lever sticks in any of the notches, loosen the

Iocknut1t4turn atatime untgthe shifterlevermoves

freely.

e: Return the snow thrower to the normal operating

position.

TO CHECK/ADJUST CLUTCH

CONTROL CABLES

The contro!cables attachedto the auger clutchleverand

tractionclutchlever may needto be adjustedbeforeyou

use yoursnow thrower.

Fort:instructionson checking or adjusting=the control

cables,see ToAdjustClutchControlCables paragraphon

page 19.

RG. 5A FIG. 5B

r

A

PLASTICTIE

CONTROL PANEL

C

WASHER

1/S TO 3/16 INCH OF

EXPOSED THREADS

FIG. 6

SHmTER

LEVER

B

SHIFTER KNOB

D

9

•ii1•11 i i •i

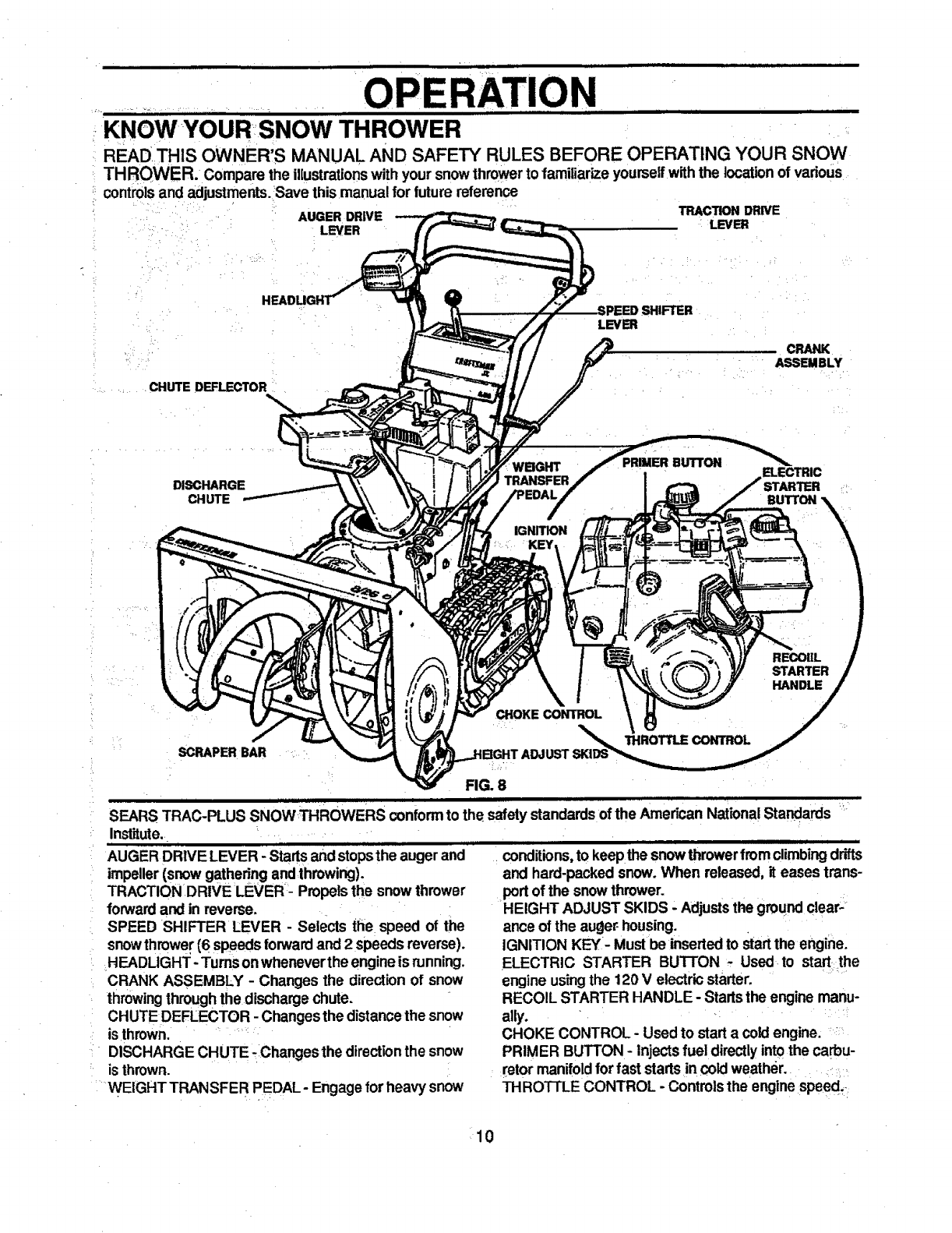

........,................,OPERATION

THROWER .......

KNOWYOUR:SNOW

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR SNOW

TH ROWER. Compare the illustrationswith your snowthrowertofamiliarize yourselfwith the location of vadous

controls and adjustments. 'Save this manual for future r_emn_

AUGER DRIVE TRACTION DRIVE

.... i LEVER LEVER

LEVER

...... . CHUTE DEFLECTOR :

DISCHARGE

CHUTE

WBGHT

TRANSFER

IGNITION

KEY

PRIMER BUTTON

BUTTON

REOOIIL

STARTER

HANDLE

CHOKE CONTROL

SCRAPER BAR THROTTLE CONTROL

FIG. 8

I IIJIItUI I • I I 111111111 I

SEARS TRAC-PLUS SNOWTHROWERS conformto the safety standardsof the American National Standards

Institute. L_ .......ii LIL

AUGER DRIVE LEVER -Starts andstopsthe auger and

impeller(snowgathering andthrowing).

TRACTION DRIVE LEVER - Propelsthe snow thrower

forwardand in reverse.

SPEED SHIFTER LEVER - Selects the speed of the

snowthrower(6 speeds forwardand 2 speeds reverse).

HEADLIGHT -Turns onwheneverthe engineis running.

CRANK ASSEMBLY - Changes the directionof snow

throwingthroughthe discharge chute.

CHUTE DEFLECTOR - Changesthe distancethe snow

is thrown. :

• DISCHARGE CHUTE :Changes the direction the snow

is thrown.

" WEIGHTTRANSFER PEDAL- Engage for heavy snow

i i iron fi

conditions, to keep the snowthrowerfromclimbing drifts

and hard-packed snow. When released, it eases trans-

port of the snowthrower.

HEIGHT ADJUST SKIDS - Adjuststhe groundclear-

ance of the auger housing.

IGNITION KEY- Mustbe insertedto start the engine.

ELECTRIC STARTER BUTTON -Used to start;the

engine usingthe 120 V electricstarter.

RECOIL STARTER HANDLE - Starts the engine manu-

ally. *

CHOKE CONTROL -Used to start acold engine.

PRIMER BUTTON - Injectsfuel directlyintothe carbu-

retor manifoldfor fast starts in cold weather.

THRO'I-rLE CONTROL -Controlsthe enginespeed,

10

H

i |11 i ui , i1| iii iii i

•OPERATION

lUL III1"I........

The operationof any snowthrowercan resultinforeign objectsbeingthrown intothe

eyes, which can result insevere eye damage. Alwayswear safety glasses or eye

shieldswhile operatingthe :snow thrower.

We recommend standardsafety glasses or wide visionsafety mask for over your

glasses available at SEARS Retail or Catalog Stores.

HOW TO USE YOUR SNOW

THROWER

TO CONTROL SNOW DISCHARGE

Tum the crank assembly to setthe direction of the

snowthrowing.

eLoosenthe wing knob on the chute deflectorand

.... move the deflectorto set the distance. Move the

deflector UP for more distance, DOWN for less

distance. Then tightenthe wing knob (Fig. 9).

TO STOP YOUR SNOW THROWER

• To stop throwing snow, release the auger drive

lever (See Fig. 11).

• To stopthe track, release the traction drive lever.

• To stopthe engine, pushthe throttlecontrol leverto

:off and pullout the ignitionkey (See Fig. 10).

TO MOVE FORWARD AND BACKWARD

• To shift, release the traction drive lever and move

the speed shifter lever to the speed you desire.

Ground speed is determined by snow conditions;

=Select the speed you desire by movingthe speed

shifterleverintothe appropriatecoloredarea onthe

...........control panel. =

,-°, ,=,

'.... Red - Wet, Heavy; Slushy, Extra Deep

Amber - Moderate

White - Very Light

=Green -Transport only

.Engage the tractionddve lever (See Fig 11, left

•hand).Asthe snowthrowerstartstomove,maintain

a firm hold on the handles, and guide the snow

,: thrower alongthe clearing path. Do not attemptto

push the snowthrower;

i

• . To move the snow thrower backward, move the

speed shifter leverintofirstor second reverse and

engage the tractiondrive lever (left hand).

IMPORTANT: DO NOTMOVETHESPEED SHIFTER

. . LEVER WHILE THE TRACTION

LEVER IS DOWN.

TO THROW SNOW

•Pushdown the auger drive lever (See Fig. 11,

: . right hand).

°

•Release to stopthrowingsnow.

[

WING KNOB

FIG, 10

iJLWULI = I I 1_

TRACTION DRIVE AUGER DRIVE

LEVER LEVER OFF

ON ON

.LEFT _ RIGHT

HAND HAND

iii r • ii

FIG. 11

CAUTION: READ OWNER'S MANUAL

BEFORE OPERATING MACHINE.

NEVER DIRECT DISCHARGE TOWARD

BYSTANDERS. STOP THE ENGINE BE-

FORE UNCLOGGING DISCHARGE

CHUTE OR AUGER HOUSING AND

BEFORE LEAVING THE MACHINE,

11

! • • , ,, ,-,, , i,ii i , , , , ,

OPERATION

. i1.11 Hi| i = i

°.

i

HANDLE

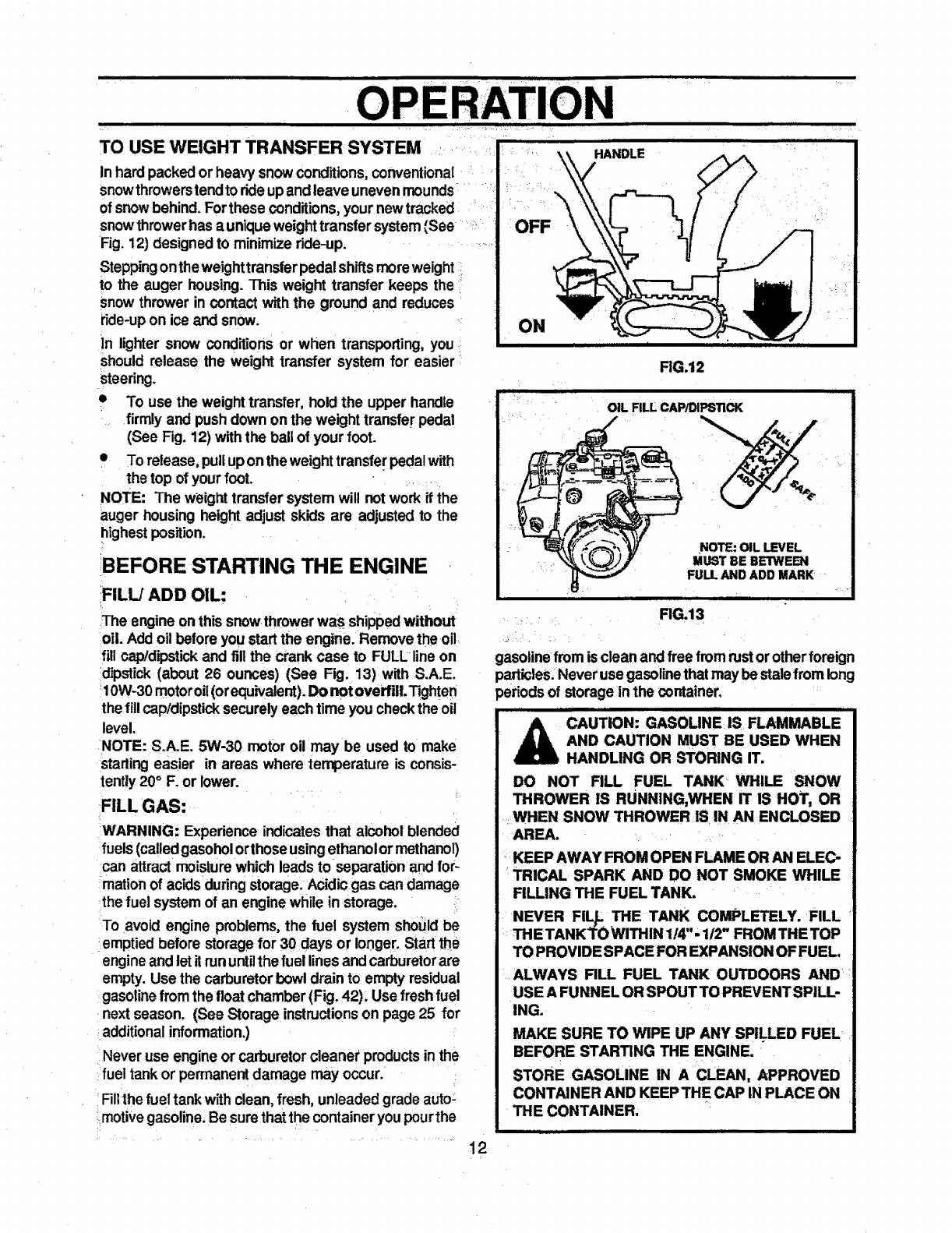

TO USE WEIGHT TRANSFER SYSTEM

In hard packedor heavy snow conditions,conventional

snowthrowerstendto rideupandleave uneven mounds

of snowbehind. Forthese conditions, your new tracked

snowthrowerhas auniqueweighttransfer system(See '_

Fig. 12) designedto minimize ride-up.

Steppingonthe weighttransferpedal shiftsmoreweight

to the auger housing. This weight transfer keeps the

snow thrower in contact with the ground and reduces

ride-upon ice and snow.

in lighter snow conditions or when transporting, you

Should release the weight transfer system for easier

steering.

• To use theweighttransfer,holdthe upperhandle

firmlyand pushdown on theweighttransferpedal

(See Fig.12)withtheballofyourfoot.

•To release,pullupon theweighttransferpedalwith

thetopofyourfoot.

NOTE: The weighttransfersystemwillnotwork ifthe

augerhousingheightadjustskidsareadjustedtothe

highestposition.

!BEFORE STARTING THE ENGINE

FILL/ADD OIL:

The engineon thissnow throwerwas shippedwithout

oil. Add oil before you start the engine. Remove the oil

fill cap/dipstickand fill the crank case to FULL line on

dipstick (about 26 ounces) (See Fig. 13) with S.A.E.

_10W-30motoroil(orequivalent).Do notoverfULTighten

the fillcap/dipsticksecurely each time you checkthe oil

level.

NOTE: S.A.E. 5W-30 motor oil may be used to make

starling easier in areas where temperature is consis-

tently20° F. or lower.

FILL GAS:

WARNING: Experience indicatesthat alcohol blended

fuels(calledgasoholorthose usingethanolor methanol)

can attract moisturewhich leadsto separation and for-

marion of acids during storage. Acidicgas can damage

the fuel system of an enginewhile in storage.

To avoid engine problems,the fuel system should be

emptied before storage for 30 days or longer. Start the

engineand letit rununtilthe fuel linesand carburetorare

empty. Use the carburetorbowldrain to empty residual

gasoline from the floatchamber (Fig. 42), Use fresh fuel

next season. (See Storage instructionson page 25 for

additionalinformation.)

Never use engineor carburetorcleane_'productsinthe

fuel tank or permanent damage may occur. !

Filtthe fuel tank withclean, fresh, unleaded grade auto:

:motive gasoline.Be surethat the container you pourthe

t2

OFF

ON

i

FIG.12

OIL FILL CAWDIF_STICK

NOTE: OIL LEVEL

MUST BE BETWEEN

FULL AND ADD MARK

|i

RG.13

gasolinefrom is clean andfree fromrustor otherforeign

)articles.Neveruse gasolinethat may be stale from long

)eriodsof storage in the container,

iiiH

A CAUTION: GASOLINE IS FLAMMABLE

AND CAUTION MUST BE USED WHEN

HANDLING OR STORING IT.

DO NOT RLL FUEL TANK WHILE SNOW

THROWER IS RUNNING,WHEN IT IS HOT, OR

WHEN SNOW THROWER IS IN AN ENCLOSED

AREA.

KEEP AWAY FROM OPEN FLAME OR AN ELEC-

TRICAL SPARK AND DO NOT SMOKE WHILE

RLLING THE FUEL TANK.

NEVER FILL THE TANK COMPLETELY. FILL

THE TANKTOWITHIN 1/4 '- 112"FROMTHE TOP

TO PROVIDE SPACE FOR EXPANSION OF FUEL.

iALWAYS FILL FUEL TANK OUTDOORS AND

USE A FUNNEL OR SPOUT TO PREVENT SPILL-

ING.

MAKE SURE TO WIPE UP ANY SPILLED FUEL

BEFORE STARTING THE ENGINE.

STORE GASOLINE IN A CLEAN, APPROVED

CONTAINER AND KEEP THE CAP IN PLACE ON

THE CONTAINER.

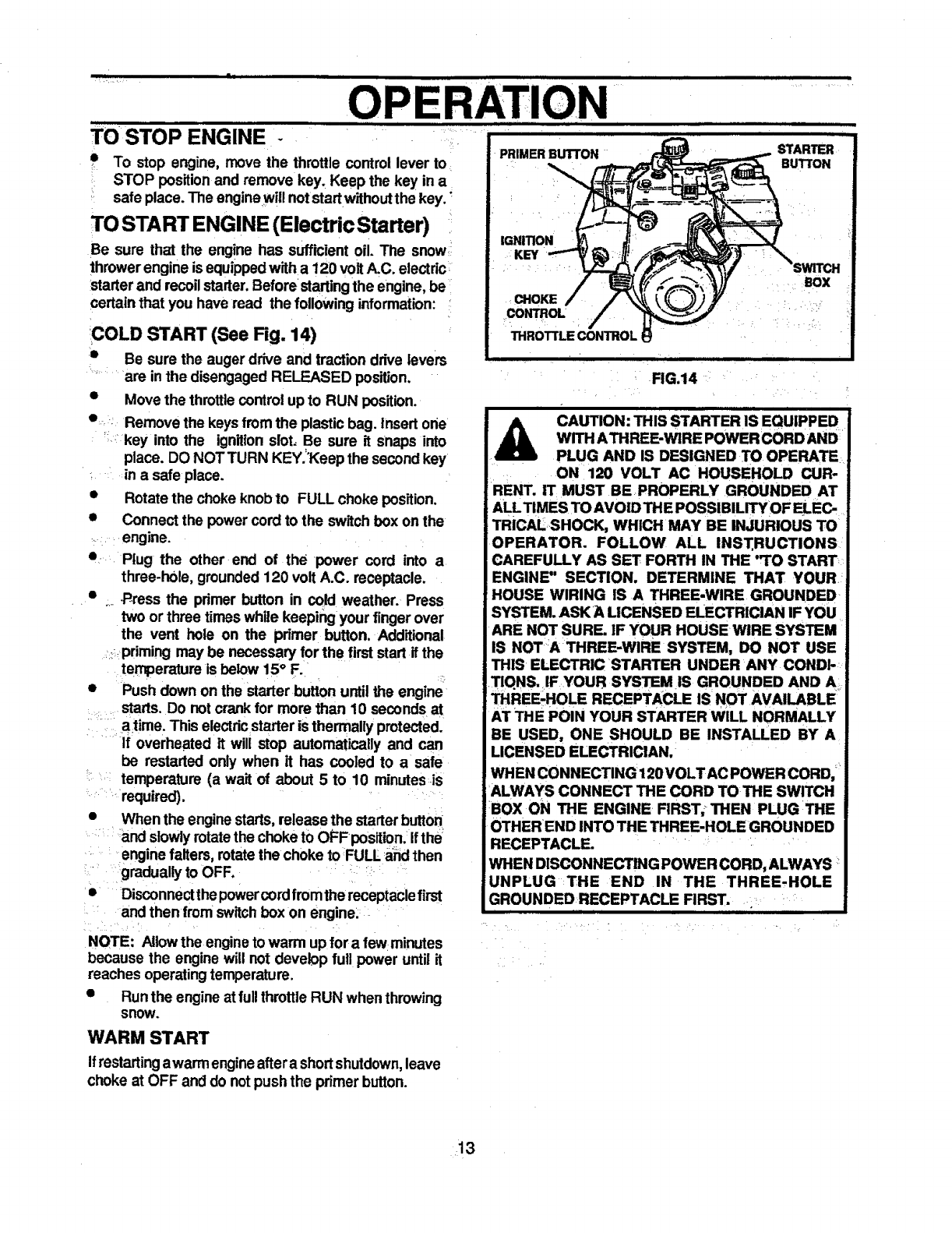

TO STOP ENGINE uw]_wl i i

PRIMER BUTTON

• To stop engine, move the throttle control lever to

STOP positionand remove key, Keep the key in a

safe place. The enginewill notstartwithoutthe key."

TO START ENGINE (Electric Starter)

Be sure that the engine has sufficient oil. The snow,

thrower engine is equippedwith a 120 voltA.C. electdc =

starter and recoilstarter. Before startingthe engine, be

certain that you have read the following information:

COLD START (See Fig. 14)

sBe sure the auger drive and traction drive levers

are in the disengaged RELEASED position.

• Move the throttlecontrol up to RUN position.

• Remove the keys fromthe plastic bag. Insert one

key into the ignitionslot=Be sure it Snaps into

place. DO NOT TURN KEY.='Keepthe second key

in a safe place.

•Rotate the choke knobtO FULL choke position.

• Connect the power cord to the switchbox onthe

engine.

•Plug the other end of the power cord into a

three.h01e, grounded 120 volt A.C. receptacle.

• ._ .P_ressthe primer button in cold weather. Press

two or three times while keeping your fingerover

the vent hole on the primer button. Additional

priming may be necessary for the firststart if the

temperature is below 15° F.

•Push down on the starterbutton until the engine

starts. Do notcrank for more than 10 seconds at

atime. This electricstarter is thermallyprotected.

If overheated it will stop automatically and can

be restarted only when it has cooled to a safe

temperature (a wait of about 5 to 10 minutes=is

required).

• When the enginestarts,release the starter button

and slowlyrotatethe choketo OFFpositlon. if the

enginefalters, rotatethe choke to FULL and then

graduallyto OFF. •

•Disconnectthe powercordfrom the receptaclefirst

and then fromswitchbox on engine:

IGNITION

KEY

CHOKE

CONTROL

THROTTLE CONTROL

nnnunnn|ul

FIG.14

mnn

nu,__

STARTER

BUTTON

BOX

,,,,,, ,,, • i

CAUTION: THIS STARTER IS EQUIPPED

WITH ATHREE-WIRE POWER CORD AND

PLUG AND IS DESIGNED TO OPERATE

ON 120 VOLT AC HOUSEHOLD CUR-

RENT. IT MUST BEPROPERLY GROUNDED AT

ALL TIMES TO AVOID THE POSSIBILITY OF ELEC=

TRICALSHOCK, WHICH MAY BE INJURIOUS TO

OPERATOR. FOLLOW ALL INST.RUCTIONS

CAREFULLY AS SET FORTH IN THE "TO START

ENGINE" SECTION. DETERMINE THAT YOUR

HOUSE WIRING IS A THREE-WIRE GROUNDED _

SYSTEM. ASK ALICENSED ELECTRICIAN IF YOU

ARE NOT SURE. IF YOUR HOUSE WIRE SYSTEM

IS NOTA THREE-WIRE SYSTEM, DO NOT USE

THIS ELECTRIC STARTER UNDER ANY CONDI-

TIQNS. IF YOUR SYSTEM IS GROUNDED AND A

THREE-HOLE RECEPTACLE IS NOT AVAILABLE

AT THE POIN YOUR STARTER WILL NORMALLY

BE USED, ONE SHOULD BE INSTALLED BY A

LICENSED ELECTRICIAN,

WHEN CONNECTING 120VOLTAC POWER CORD,

ALWAYS CONNECT THE CORD TO THE SWITCH

BOX ON THE ENGINE FIRST, THEN PLUG THE

OTHEREND INTO THE THREE-HOLE GROUNDED

RECEPTACLF--

WHEN DISCONNECTING POWER CORD, ALWAYS

UNPLUG THE END IN THE THREE-HOLE

GROUNDED RECEPTACLE FIRST.

i i

NOTE: Allowthe engineto warm up for a few minutes

because the engine will not develop full power until it

reaches operatingtemperature.

•Runthe engineat full throttleRUN whenthrowing

snow.

WARM START

If restartingawarm engineaftera shortshutdown,leave

choke at OFF and do notpush the primer button.

13

CAUTION: NEVER RUN ENGINE IN-

A DOORS ORIN ENCLOSED, POORLY

VENTILATED AREAS. ENGINE EX-

HAUST CONTAINS CARBON MON-

OXIDE, AN ODORLESS AND DEADLY GAS.

KEEP HANDS, FEET, HAIR AND LOOSE

CLOTHING AWAY FROM ANY MOVING PARTS

ON ENGINE AND SNOW THROWER.

WARNING: TEMPERATURE OF MUFFLER AND

NEARBY AREAS MAY EXCEED 150° F. AVOID

THESE AREAS.

DO NOT ALLOW CHILDREN OR YOUNG TEEN-

AGERS TO OPERATE OR BE NEAR SNOW

THROWER WHILE IT IS OPERATING.

I I I I

RATION

,i,

CHOKE

CONTROL

rT(

• To stop engine; move the throttle control lever to

STOP positionand removekey. Keep the key in a

Safe place. The enginewill not start withoutthe key.

TO START ENGINE (Recoil Starter)

Be surethat the enginehas sufficientoil. Beforestarting

-the engine, be certain that you have read the following

information:

COLD START (See Fig. 15)

• Be surethe augerdrive andthe tractionddve levers

are in the disengagedRELEASED position.

Move the throttlecontrolup to RUN position.

Push the key intothe ignitionslot. Be sure it snaps

intoplace. Donotturnkey. Removethe plasticbag

and extra key.

Rotate choke controlto FULL choke position.

Press the primer button in cold weather. Press

two or three times, while keeping your finger over

the vent hole on the primer button. Additional

pdrning may be .necessary for the firststart if the

temperature is below 15° F.

Pull the starter handle rapidly, Do not allow the

....handle to snap back, but allow it to rewind slowly

while keeping afirm holdonthe starter handle:

As the engine warms up and begins to operate

evenly, rotate the choke knob slowly to OFF

position.Ifthe enginefalters, returnto FULL choke,

then slowly move to OFF choke position.

iilll

KEY

THROTTLE

FIG.15

RECOIL

STARTER

NOTE: Allowthe engine to warm upfor a few minutes

because the engine will not develop full power until it

reachesoperatingtemperature.

• Run the engine at or near the top speed when

throwing snow.

WARM START

Ifrestartingawarm engineafter ashortshutdown,rotate

choketoOFF insteadofFULL anddonotpushthe primer

button.

FROZEN RECOIL STARTER

if the starter is frozen and will notturn engine:

• Pull as muchrope out of the Starteras possible.

•Release the starter handle and let it snap back

•against the starter.

If the engine still fails to start, repeat. If continued

attempts do not free starter, foliQw the electric

starterproceduresto start.

To help prevent possiblefreeze-up of recoilstarter and

engine controls, proceed as follows after each snow

removal job.

•_Withthe engine running, pullthe starterropehard

withacontinuouslull armstrokethreeorfourtimes.

Pullingof starterrope will producealoudclattering

sound. This is not harmfulto the engineor starter.

• With the engine not running, wipe all snow and

moisture_rom the carburetorcoverinarea ofcontrol

levers; Also move throttle control, choke control,

and starterhandle several times.

ill LJ i Illll I

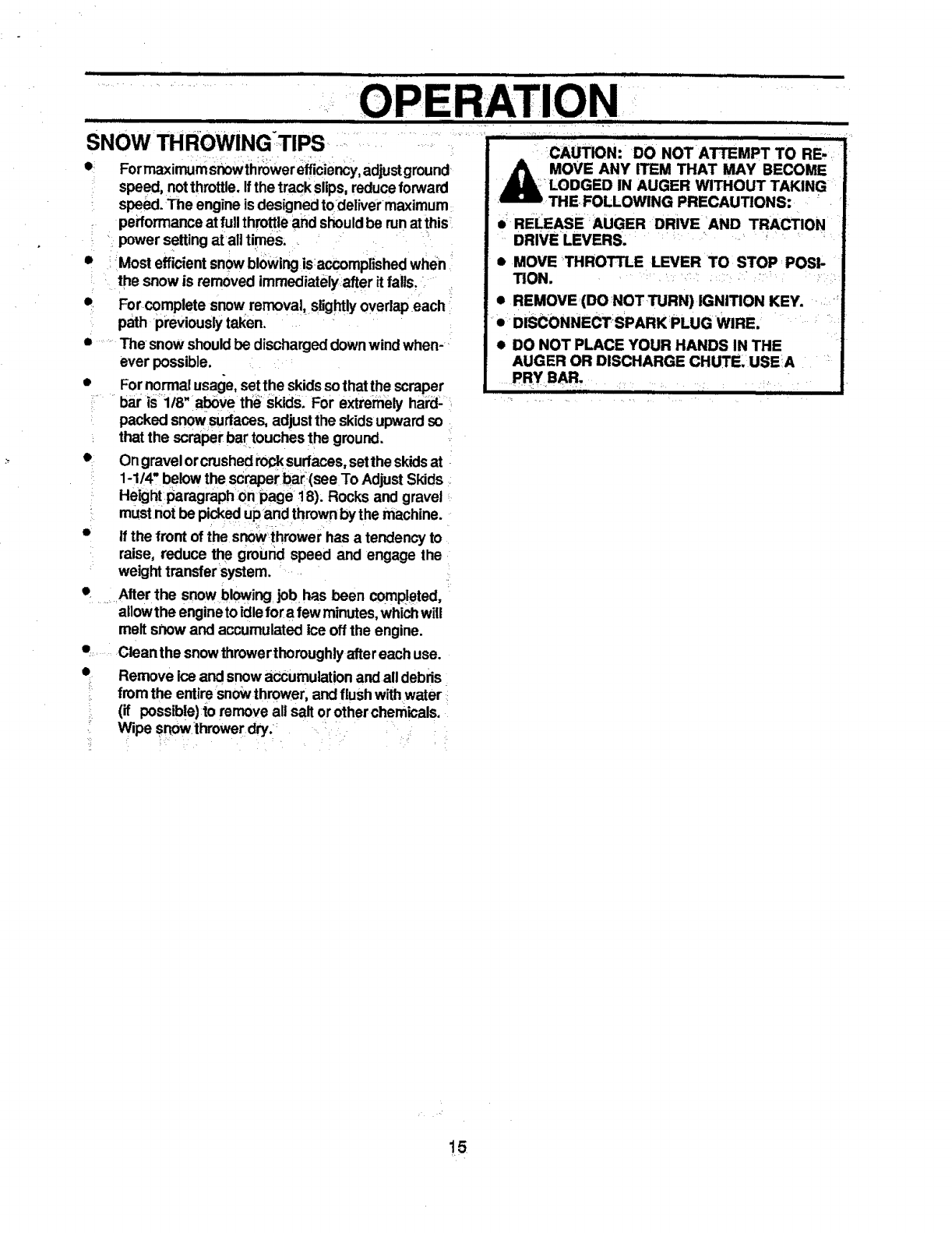

SNOW THROWING:TIPS

e= Formaximum Snowthrowerefficiency,adjustground

speed, notthrottle. Ifthe track slips,reduceforward

speed. The engineis designed todelivermaximum

performanceat fullthrottleand shouldbe run atthis

power setting at all times;

•Most efficientsnowblowingisaccomplished when

the snow is removed immediatelyafter it falls.

•Forcomplete snow removal, slightlyoverlapeach

path previouslytaken.

The-snow shouldbe dischargeddown wind when-

ever possible.

•F°r n°rmal usage, setthe skidssothat the scraper

bar is 118"above the skids. For extremely hard-

packed snow sudaces, adjustthe skidsupwardso

that the scraper bartouches the ground.

•On gravel orcrushedrocksurfaces,setthe skidsat

1-1/4" below the scraper bar(see To Adjust Skids

Height paragraph Onpage18). Rocks and gravel

must notbe pickedupand thrownbythe machine.

•if the front of the snowthrower has a tendency to

raise, reduce the ground speed and engage the

weight transfer system.

• Alter the snow blowing job has been completed,

allowthe engineto idleforafew minutes, whichwill

melt snow and accumulated ice off the engine.

•.... Clean the snowthrowerthoroughlyaftereach use.

•Remove ice and snowaccumulationandall debris

fromthe entire snowthrower, and flushwithwater

(if possible)to remove all salt or otherchemicals.

Wipe snowthrowerdry:

ii i •,........

N•

i Jl

kllr

,= _CAUTION: DO NOT ATTEMPT TO RE-,

MOVE ANY ITEM THAT MAY BECOME

_LODGED IN AUGER WITHOUT TAKING

_THE, FOLLOWING PRECAUTIONS: "

•RELEASE rAUGER DRIVE AND TRACTION

DRIVE LEVERS. .... _ ' _

•MOVE THROTTLE LEVER TO STOP POSI-

"nON. : "_•

• REMOVE (DO NOT TURN) IGNITION KEY. _

• DISCONNECTSPARK PLUG WIRE. _

• DO NOT PLACE YOUR HANDS IN THE

AUGER OR DISCHARGE CHUTE USEA

15

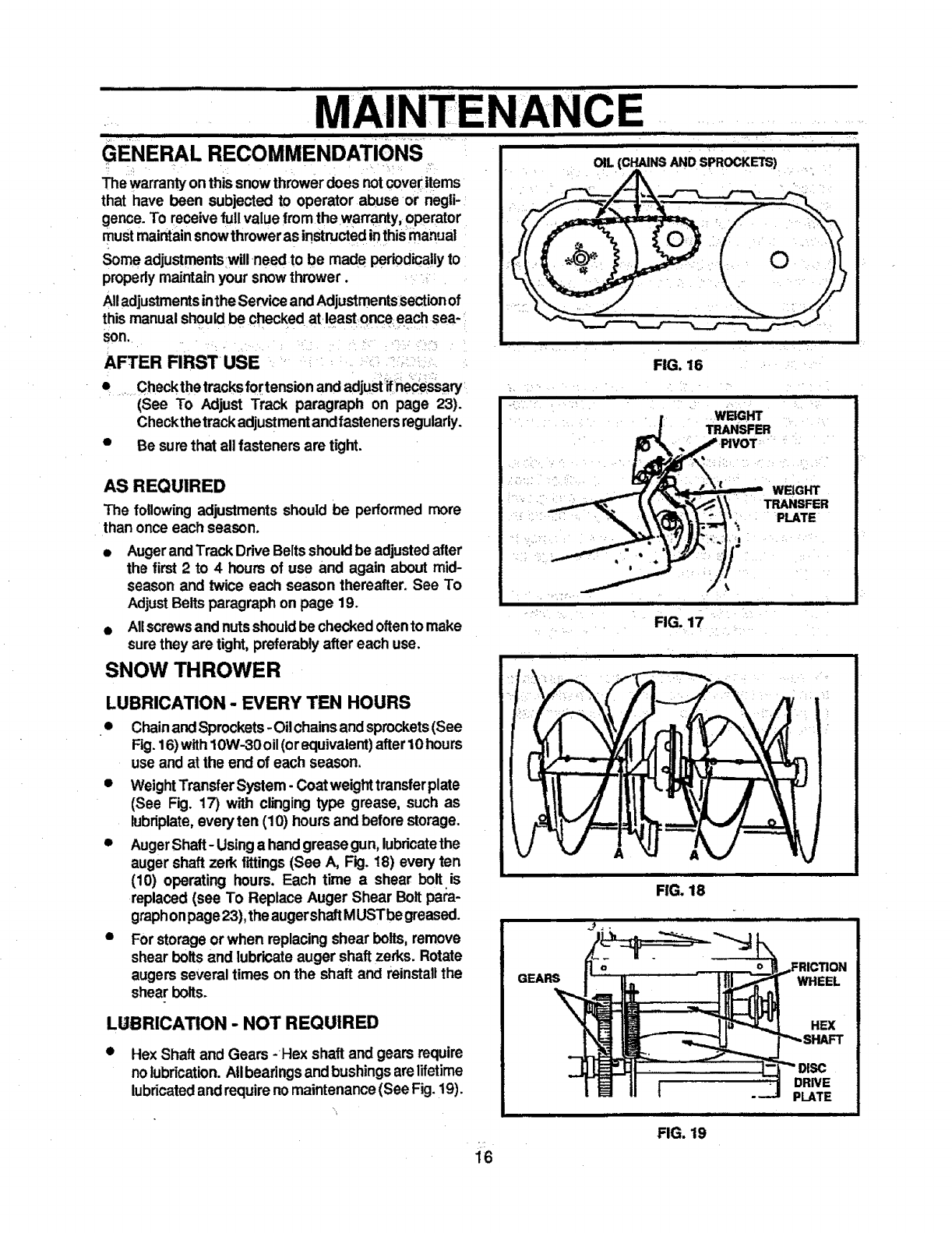

MAI E

GENE .....

RAL RECOMMENDATIONS

The warrantyonthis snowthrowerdoes notcoveritems

that have been subjected to operator abuse or negli-

gence. To receivefull value fromthe warranty, operator

mustmaintain snowthroweras instructedinthismanual

Some adjustmentswin need to be made periodicallyto

properlymaintain your snowthrower.

Alladjustmentsinthe Serviceand Adjustmentssectionof

this manual shouldbe checked atleast once each sea-

son.

AFTER FIRST USE : :- -

• Checkthe tracksfortension andadjust_if_tieCessary

(See To Adjust Track paragraph on page 23).

Checkthetrack adjustment andfastenersregularly.

eBe surethat allfasteners are tight.

AS REQUIRED

The following adjustments should be performed more

than once each season.

OIL (CHAINS AND SPROCKETS)

• • !

ii

e AugerandTrack Drive Beltsshouldbe adjustedafter

the first 2 to 4 hours of use and again about mid-

season and twice each season thereafter. See To

AdjustBelts paragraphon page 19.

• Allscrewsand nutsshouldbe checkedoftento make

surethey are tight, preferably after each use.

SNOW THROWER

LUBRICATION - EVERY TEN HOURS

•Chainand Sprockets-Oilchainsandsprockets(See

Fig.16) with10W-30 oil (or equivalent)after 10 hours

use and at the end of each season.

•WeightTransferSystem- Coatweighttransferplate

(See Fig. 17) with clinging type grease, such as

lubriplate,every ten (10) hoursand before storage.

•AugerShaft- Usingahandgreasegun, lubdcatethe

auger shaft zerk fittings(See A, Fig. 18) every ten

(10) operating hours. Each time a shear bolt is

replaced (see To Replace Auger Shear Bolt pare-

graphonpage23), theaugershaftMUST be greased.

•For storage or when replacingshear bolts, remove

shear bolts and lubricate auger shaft zerks. Rotate

augers several times on the shaft and reinstallthe

shear bolts.

LUBRICATION -NOT REQUIRED

• Hex Shaft and Gears -Hex shaft and gears require

nolubrication.All bearingsandbushingsare lifetime

lubricatedand requirenomaintenance(See Fig.19).

16

FIG. 16

WBGHT

TRANSFER

WBGHT

TRANSFER

PLATE

i

iUl i

FIG. 17

GEARS WHEEL

HEX

DRNE

t PLATE

FIG. 19

MAINTENANCE

j ili ii iJ,i ii LI Illlll

NOTE: Anygreasing or oiling'ofthe above components

can cause contaminationof the friction wheel. If the disc

drive plateor friction wheel come in contactwith grease

or oil, damage to the friction wheel will result.

Should grease or oil come in contactwith the discdrive

plate or frictior_wheeJ, be sure-to clean the plate and

wheel thoroughly,

NOTE: For storage,the hex shaft and gears should be

wiped with10W-30 motoroil to prevent rusting(See Fig.

19).

Auger Gear Box -The auger gear box has been

factorylubricatedforlife, lfforsome reasonlubricant

shouldleak out, have augergear case checkedby a

competent repairhran.

ENGINE

LUBRICATION

Check the crankcase oil level (See Fig. 20) before

startingthe engine and after each five (5) hoursof con-

tinuoususe. AddS.A.E. 10W-30 motoroil or equivalent.

"Fightenfil!cap/dipsticksecurelyeach timeyou checkthe

oil level. S.A.E. 5W-30. motor oil may be used to make

stading easier in areas where temperature is consis-

tently 20°F. or lower.

Changethe oilafterfirsttwo hoursofoperationandevery

25 hours thereafter or at least once a year if the snow

thrower is not used for 25 hours (See Fig. 21).

• Positionsnowthrower so that the oil drain plug is

lowestpointon the engine. Remove oil drain plug

and oil fill capldipstick. Drain 0il into a suitable

container.Oilwill drain morefreely when warm.

• Replace oil drain plug andtighten securely. Refill

crankcasewithS.A.E. 10W-30 motoroil (orequiva-

.......lent).S.A.E. 5W-30 motor oil may be usedto make

startingeasier inareas where temperature iscon-

sistently20° F. or lower. • •

SPARK PLUG

•Make surethat the spark plugistightened securely

intothe engineand the sparkplugwire is attached

to the sparkplug.

•If a torquewrench is available, torqueplugto 18 to

23 footpounds.

_Clean the area around the spark plugbase before

removalto prevent dirt fromentering the engine.

•Cleanthe sparkpiugand resetthe gap periodically.

FIG. 20

OIL FILL CAP/

DIPSTICK

i

FIG.21

DRAIN PLUG

17

....SERVICE AND ADJUSTMEN

CAUTION: ALWAYS DISCONNECT THE

SPARK PLUG WIRE AND TIE BACK

AWAY FROM THE PLUG BEFORE MAK-

ING ANY ADJUSTMENTS OR REPNRS.

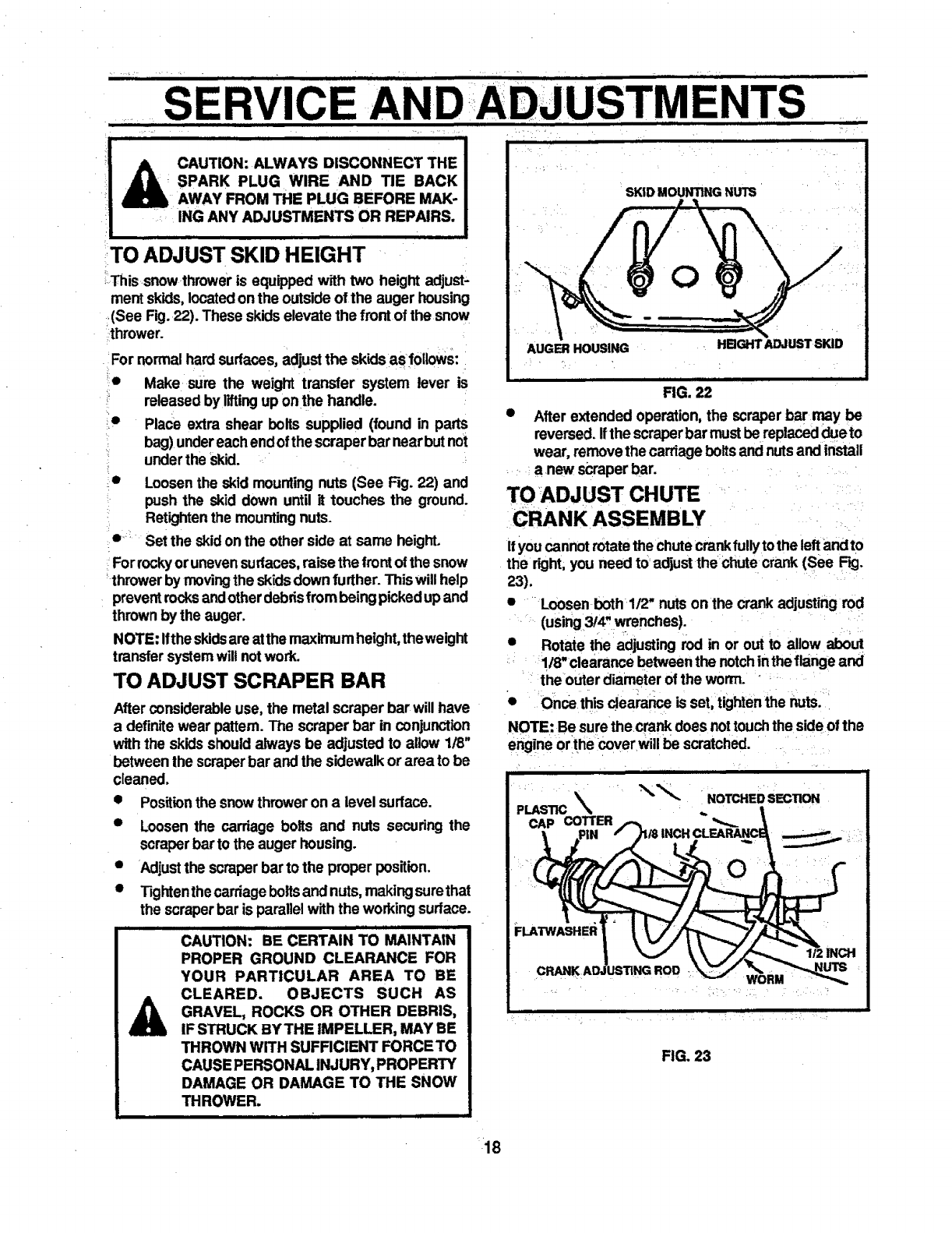

TO ADJUST SKID HEIGHT

_Thissnow thrower is equipped with two height adjust-

ment skids,locatedon the outside of the auger housing

(See Fig.22). These skids elevate the frontof the snow

thrower.

For normalhard sudaces, adjust the skidsas follows:

_e Make sure the weight transfer system lever is

ireleased byliftingup on the handle.

Place extra shear bolts supplied (found in parts

bag) undereach endofthe scraper bar nearbutnot

•underthe skid.

• Loosenthe skid mountingnuts (See Fig. 22) and

push the skid down until it touches the ground.

_Retightenthe mountingnuts.

i e: Set the skid onthe other side at same height.

For rockyor unevensurfaces,raisethe frontof the snow

-thrower by movingthe skidsdown further. This will help

preventrocksand otherdebrisfrombeingpicked upand

thrownby the auger.

NOTE: Ifthe skidsare atthe maximum height,theweight

transfer systemwill notwork.

TO ADJUST SCRAPER BAR

After considerableuse, the metal scraper bar will have

a definite wear pattern. The scraper bar in conjunction

with the skids shouldalways be adjusted to allow 1/8"

between the scraperbar and the sidewalk or area to be

cleaned.

• Positionthe snowthroweron alevel sudace.

Loosen the carriage bolts and nuts secudng the

scraperbar to the auger housing.

Adjustthe scraperbar to the proper position.

Tightenthe carriageboltsand nuts, makingsurethat

the scraperbar is parallel withthe working surface.

i i .H. i II Ill

CAUTION: BE CERTAIN TO MAINTAIN

PROPER GROUND CLEARANCE FOR

YOUR PARTICULAR AREA TO BE

CLEARED. OBJECTS SUCH AS

GRAVEL, ROCKS OR OTHER DEBRIS,

IF STRUCK BY THE IMPELLER, MAY BE

THROWN WiTH SUFFICIENT FORCE TO

CAUSE PERSONAL INJURY, PROPERTY

DAMAGE OR DAMAGE TO THE SNOW

THROWER.

i|11 i L

SKID MOUNTING NUTS

AUGER HOUSING HBGHT ADJUST SKID

FIG. 22

• After extended operation, the scraper bar may be

reversed. Ifthe scraperbar must be replaceddueto

wear, remove the carriagebelts and nutsand install

a new scraper bar.

TO ADJUST CHUTE

CRANK ASSEMBLY

if youcannot rotatethe chutecrankfullyto the left andto

the right,you need tO adjustthe chute crank (See Fig.

23).

•Loosen both 1/2" nuts onthe crankadjusting rod

(using3'4" wrenches).

•Rotate the adjusting rod in or out to allow about

1/8" clearance betweenthe notchinthe flange and

the outer diameter of the worm.

•Once thisclearar_e is set, tightenthe nuts.

NOTE: Be surethe crankdoes nottouchthe side of the

engine orthe cover will be scratched.

PLASTIC

CAP COTTER

i ii

"_'_- NOTCHED SECTION

INCH

:LATWASHER ira,iNCH

FIG. 23

_18

i ill i ]

TO ADJUST THE CLUTCH CONTROL

CABLES

Periodicadjustmentof the cables maybe requireddueto

normalstretchandwearon the belts.To checkforcorrect

adjustment, the control lever must be in the lull forward

position,restingonthe plasticbumper.Thecontrolcables

are correctly adjusted when the centerof the "Z"Fittingis

in the centerof the hole andthere is nodroop inthe cable

(See Fig. 24).

ff adjustment is necessary:

e_Disconnec_the _Z"Fittingfrom drive lever.

_ _Push the cable throughthe spring (See Fig. 25) to

•expose the threaded portionof the cable.

Hold the square end of the threaded portion with

......pliersand adjust the Iocknutinorout untilthe excess

• slack is removed.

0

i ii . =m

SE AND ADJUSTM

i |

ii i

TRACTION DRIVE

LEVER

,Z" FffTING

Pull the cable back throughthe spring and connect

the cable.

Do the same for the other lever cable.

NOTE: Whenever the traction drive or auger beltsare

adjustedorreplaced, the cableswill needto be adjusted.

"•0

TO ADJUST BELTS

Belts stretch duringnormal use. If you need to adjust

the beltsdue to wear or stretch, proceed as follows:

TRACK DRIVE BELT (SeeFig. 27)

The track drive belt has constant spring pressure and

does not require adjustment. Check the clutch control

cable adjustmentbefore replacingthe belt.

Replace the track drive belt if it is still slipping (see To

Replace Beltsparagraph on page 20).

AUGER DRIVE BELT (SeeFig. 27)

if your snowthrower will not dischargesnow, checkthe

controlcable adjustment. If it is correct,then check the

condition of the auger drive belt. It may be loose or

damaged, if it is damaged, replace it. See To Replace

Belts paragraph on page 20. if the auger drive belt is

loose,adjust as follows:

Disconnectthe sparkplug wire.

Remove the belt cover.

Loosenthe nut onthe idlerpulley(See Fig.26) and

movethe pulley toward the belt about 1/8".

Tighten the nut.

Presstheaugerddve lever. Checkthetension onthe

belt (opposite idler pulley). The belt should deflect

about 1/2"with moderate pressure (See Fig. 26).

NOTE: You mayhave to movethe idlerpulleymorethan

once to obtainthe correct tension.

19

•Replace the belt cover.

i i IL

ii,,

CONTROL LEVER

MUSTBE IN FULL

FORWARD POSI-

TION (Just Contact.

lng Plastic Bumper)

WHEN CHECKING

PLASTIC BUMPER

AUGER

DRIVE

fSPRING

FIG. 25

= H

Q_ DRIVE PULLEY

I), 1/2 INCH

IDLER PULLEY-.-._ ) .__,_L.,qw,-DEFLECTION

• ENGAGED _

' F IMPELLER

_PULL_

AUGER DRIVE

PULLEY

FIG. 26

=l= i i =l i

TRACK DRIVE BELT

TRACK DRIVE

PULLEY

BELT GUIDE

AUGER DRWE

PULLEY

TRACK DRIVE

IDLER PULLEY

lit

FIG. 27

Check the clutchcontrol cable adjustment.

Reconnectthe spark plug wire.

AND ADJUSTMEN I'S

ii m ii . L

TO REPLACE BELTS

The drive beltson thissnowthrower are ol specialcon-

structionand shouldbe replacedwithoriginalequipment

beltsavailablefrom your nearest SEARS Store orServ-

ice Center.

You will need the assistanceof a second person while

replacingthe belts.

Drainthe gasolinefrom thefueltank by removingthe fuel

line. Drainthe gas and reinstallfuel line.

r, • •

AUGER DRIVE BELT

If your snow throwerwill not discharge snow, andthe

auger drive belt isdamaged, replace it as follows:

•Disconnectthe spark plugwire.

• Remove the belt cover (See Fig. 28)

• Loosenthe belt guides (See Fig.30) and pull

away from the drive pulley.

• Loosen the auger idlerpulley(See Fig. 30) and

slipthe beltout.

• Engage the auger drive lever. This will pullthe

brake assembly (See Fig. 29) away fromthe

pulleyand allow the beltto be slippedouL

• Removethe belt fromthe auger drive engine

pulley.

•Installthe originalequipment replacementbelt in

reverseorder of removal.

eRelease the auger drive lever.

•Place the drive belt ontothe auger drive pulley.

• Adjustthe drive belt (see To AdjustAuger Drive

Belt paragraphon page 19).

•Adjustthe belt guides (see To AdjustThe Belt

Guides paragraphon page 21).

•Reinstallthe belt cover.

•Check clutch control cable adjustment(see page

19).

•Reconnectthe sparkplug wire.

BELTCOVER

, =, , J J

" FIG. 28

IMPELLER

DRIVE

BELT _

PULLEY

114X 112INCH SELF

TAPPINGSCREW

TRACTION DRIVE BELT

TRACK DRIVE

PULLEY

GUIDE

(Le_tHend)

AUGER DRIVE

PULLEY

TRACK DRIVE

IDLER PULLEY

BELT

PULLEY ENGAGED

i =f ii FIG. 29

I

FIG. 30

..,.JMPELLER

PULLEY

L20

• • i i [ •

..........SERVICE AN

III i I

TRACK DRIVE BELT "•,

if your snowthrower willnc)t move forward, check the

track drive belt for wean If the track drive belt needs to.

be replaced, proceed as fo!!ows:

• Disconnectthe spark plugwire.

•Remove the belt cover.+,

•Loosenthe lefthandbeltguide(See F_, 29) mount-

ing screw and move the belt guide away fromthe

belt. +!+," .,

• Pullthetrackdriveidlerpulley(See Fig.29)back

and slip the belt past .the idlerpulley........

•Remove the belt from the engine pulley.

•Remove the beli between the two large pulleys.

•Installthe new originalequipment replacementbelt

in reverse order of removal.

D

e

o

Adjust the left hand belt guide and tighten the

mountingscrew (see To Adjust The Belt Guides

paragraphbelow).

Reinstallthe belt coven

Reconnectthe spark plugwire.

. + :

TO ADJUST THE BELT GUIDES

There aretwo belt guides0n yoursnowthrower,a leftand

right.Afteryou replace a track or auger drive belt, you

needto adjustone or bothof the beltguides. Proceedas

follows foreach belt:

• Disconnectthe spark plugwire.

•Remove the belt cover (See Fig. 28)

•Engage the auger drive clutchlever.

•Measure the distance between the belt guides and

the belt (See Fig.30). The distance shouldbe 3/32"

for each guide.

• if adjustment is necessary, loosen the.belt guide

mountingbolts. Move the beltguidesto the correct

position,Tighten the mounting bolts

•Reinstallthe beltcover.

•Reconnectthe spark plug wire.

iiiii l i i

I ! I

REMOVE BOLT iiiiiiii+

LOOSEN BOLT.

TRACK CONNECTING ROD

ii i

FIG. 31

21

.......................USTMENTS

IIIIIIII I I II IIII IIIII I I I ill I I I II i

TO ADJUST THE FRICTION WHEEL

if the snow thrower will not move forward, you need to

check the track drive belt, the tractiondrive cable or the

.:fdctio nwheel. Ifthe frictionwheel isdamaged, itwillneed

to be replaced. See the To Replace FrictionWheetpara-

graph on page 22. If the frictionwheel isnot worn,_heck

the adjustment, as follows: .......................

• Disconnectthe spark plugwire.

• Drain the gasoline from the gas tank.

•Stand snow thrower on the auger housingend.

• Remove the bottompanel (See Fig.31). + :

• Positionthe shifter lever in first (1) gear.

• Note the position of the friction wheel on the disc

driveplate. The rightsideof the friction wheelshould

be3-3/8"fromthe leftoutersideofthediscdrive plate

(See Fig.32). •

If adjustmentis necessary:

•Loosenthe jam nut"A"onthe speed select rod. Re-

.........move the balljointfromthe shifterbracket. Lengthen

orshortenthe rodby fumingthe adaptortoobtainthe

correctfrictionwheel position(See Fig. 33)

• Reinstallthe ball jointand tighten the jam nut.

• Reinstallthe bottom panel. ..

I

........... FIG. 32

iiiiii ii i

SPEED SELECT ROD

i i i

•JAM NUT

BRACKET

P

U I_L I

FIG. 33

SERVICE AND AD

i

TO REPLACE FRICTION WHEEL

Ifthe snowthrowerwill not moveforward, andthe fdcUon

wheel is worn or damaged, you need to replace it, as

follows:(First allow the engine to cool).

_EMOVE

LOOSENBOLT,

n n ii

• Drainthe gasoline from the fuel tank by removing

thefuelline. Drainthe fueland reinstailthefuel line.

• Disconnect the spark plugwire.

•Stand the snow thrower up on the auger housing

end (See Fig.36).

•=_Removethe bottom panel (See Fig. 34).

•:Disconnectthe right sidetrack connectingrod.

• Rotatethe rightside track until it is parallelto the

ground(See Fig 36).

• Removethe three (3)fasteners securingthefriction

=wheelto the hub (See Fig. 35).

BOTTOM PANEL

TRACKCONHEC'flNGROD

FIG. 34 •

Movethe shifter lever intofirst (1)gear.

Loosen the four No. 10 keps nuts securirngthe

.beadngplate (See Fig.36). Donotrernovethe nUts.

NOTE: Reassemblywillbe easier ifyouplace a pieceof

tape overeach ofthe carriage10oifheads onthe insideof

the motormount before you remove the nuts. _;_ :

• Movethe speed select lever into sixth (6) gear.

•"Removethe four No.10 keps nuts,

* Rerr_ve the beadng plate.

• Slidethe hex shafttothe rightuntilthefrictionwheel

ca" removed.

•!nstallthe new frictionwheel looselyon the hex

shall ,

• Reinstallthe removed parts in reverse order of re-

moval

LOCKWASHER'

FIG. 35

m l

HEX SHAFT

FRICTION WHEEL

HUB

BOLT

ii

WHEEL

ING

PLATE

AUGER

ii i i iiii ii ii Hill II1-1

................... 22

j i ii • tl iii iii i i

S AN

i t t, , it

I I I III I II

TO REPLACE AUGER SHEAR BOLT

r

The augers are secured to the auger shaft with special

bolts(See F_.37)that are designed to break (to protect

the machine) if an object becomes lodged in _auger

housing. Use of a harder boltwill destroythe protection

providedby the shear bolt.

IMPORTANT: TO INSURE SAFETY AND

PERFORMANCE LEVELS, ONLY

ORIGINAL EQUIPMENT SHEAR

BOLTS SHOULD BE USED. WHEN

REPLACING SHEAR BOLTS,BE SURE

TO REPLACE SHEAR BOLT

SPACERS.

To replace a broken shear bolt, proceed as follows:

•=Move the throttleto STOP and rumoff all controls.

• D'_nnect the sparkplugwire. Be sureall moving

parts have stopped.

• Lubricatethe auger shaftzerk fitting(see the Main-

tenance section, pages 16-17).

•Alignthe hole inthe augerwith the hole inthe auger

shaft. Installthe new shear bolt and shear bolt

spacer provided.

• Reconnectthe spark plugwire.

TO ADJUST TRACK

ifthe snowthrowerdoes notmoveforwardevenlyandthe

trackslipss6gh_y_,youneedto checkthe trackas foliows:

• Measumthe dislance between the top of the side

plate and the inside of the track. The d'Blance

should not be morn than two (2) inches.

tithe distance Isgreater, you need to adjustthe track as

follows: _.

•• ......Lcosenthebolts (A)(See F_I. 38) onbomsidesof

thetrackassernU_-

• Turn the cam washers equally on both sides.

*_justthetracktoreduces_c_.somam_e¢mnce

the track is notgreater than two (2) inches. Be sure

the cam washers are adjusted evenly or the track

=: ,,.. wmbe :_ (See RO. 3S).:Uthe Uackbecomes

_nL .............

SHEARBOLT--_

"

:l

_UT .

i i

TRACK

E, -,:•

RG. 37.

k

DISTANCE SHOULD NOT BE

GREATBFi THAN 2 INCHES

SIDE PLATE

O

i

(A) _:_CAM

_WASHER

RG. 38

LJ'T'F.,q-'T-q'-I_

tt,,tttttt,,, i II I

:;i

TO ADJUST CARBURETOR ....

The carburetor(See Fig.40 and Rg. 42) hasbeen pre-set

_t the factoryandreadjustmentshould notbe necessary.

_lowever, if the carburetor does need to be adjusted,

proceed as follows:

• Close the high speed adjustingscrew by hand.

• Do notovertighten. ._

q, Then open it 1-114to 1-1t2 turns.

• Close the idle adjusting screw by hand. Do not

!overtighten.

qThen open it 1-1!4 to 1-1/2 turns.

_' .Start:theengineandletitwarmup. •

• Set the throttle=control to RUN. Adjust the high

speed=adjustingscrew in untilthe engine speed or

_i ' sound alters. Adjustthe screw out untilthe engine

speed sound alters. Note the difference between

•_the two limitsand setthe screw inthe middleof the

_::. range.

e .Setthe_thmttle control to SLOW. Adjust the idle

adjusting .screw in untilthe .engine speed drops,

. , :.then adjust the screw out until the engine speed

:drops, Note the difference between the two limits

_-! andset the screw inthe middleof the range,

L•'

e- If the,enginetendsto stall under load or not accel-

"erate from lowspeedto highspeed properly,adjust

the highspeedscrewoutin118turnincrementsuntil

:. :the problem is resolved.

€Let-the engine run undisturbed for 30 seconds

between each settingto allow the engineto react to

the previousadjustments.

IDIPORTANT: NEVER TAMPER WITH THE ENGINE

'::"GOVERNOR, WHICH IS FACTORY

SET FOR PROPER ENGINE SPEED.

OVERSP.EEDING THE ENGINE

?L ABOVE THE FACTORY HIGH SPEED

"_ .L SETTING CAN BE DANGEROUS.

IF=YOU THINK THE ENGINE - "

GOVERNED HIGH SPEED NEEDS

ADJUSTING, CONTACT YOUR

NEAREST SEARS SERVICE CENTER,

L WHICH HAS THE PROPER

....EQUIPMENT AND EXPERIENCE TO

L.. MAKE ANY NECESSARY

ADJUSTMENTS.

TO ADJUST OR REPLACE

THE SPARK PLUG

Ifyouhave difficultystartingyoursnowthrower,you may

need to adjust or replace the spark plug. Follow the

instructionsbelow.

Replace the spark plugifelectrodesare pittedor burned

or it the porcelainis cracked,

RG. 40

TO ADJUST: .......

• Clean :the spark plug by carefully scraping elec-

..... trodes (do not sand blastor use awi m brush).

• Be sure the sparkplug is clean and free of foreign

material.Check electrodesgap (See Fig.41) witha

wire feeler gauge and resetthe gap tO .030 inch if

necessary.

,11,,,, ii

FIG. 41

i

TO REPLACE:

If youneed a new spark p!ug, Useonly the proper

replacementspark plug (See page 4.), .

• Set the gap to .030. :-:::_

• ' Beforein_taliing the spark plus, coat.its threads

lightlyw_h graphitegreaseto insureeasy removal.

o =.

• Tighten the plugfirmly into the engine.

•If atorque wrench is available,torquethe plugto 18

to 23 ft - Ibs.

[ii , i,,,,,ii ,,,,, ii i i Hll l m IIll I Iill I : _; IIIIIIIIIIIIIILI

iiiiii i iji

CAUTION: NEVER STORE YOUR SNOW

THROWER INDOORS OR IN AN EN-

CLOSED, POORLY VENTILATED AREA

IF GASOLINE REMAINS IN THE TANK. FUMES

MAY REACH AN OPEN FLAME, SPARK OR PI-

LOT LIGHT FROM A FURNACE, WATER HEATER,

CLOTHES DRYER, ClGARETi'E, Ei'C.

To prevent engine damage (if snowthroweris notused

for more than 30 days) followthe steps below.

ENGINE STORAGE

Gasollnemust be removed or treated to prevent gum

deposits from forming in the tank, filter, hose, and

carburetor during storage. Also during storage, al-

cohol blended gasoline that uses ethanol or metha-

nol (sometimes called gasohol) attracts water. It acts

on the gasoline to form acids which damage the

engine.

•To remove gasoline,runthe engineuntilthe tank is

empty and the engine stops.Then drainremaining

gasoline from carburetor by pressing upward on

bowldrain locatedon the bottomofcarburetor(See

Figure 42).

•If you do not want to remove gasoline, a fuel

stabilizer (such as Craftsman Fuel Stabilizer No.

33500) maybe added to anygasolineleft inthe tank

to minimizegum depositsand ackls. If the tank is

almost empty, mix stablilizer withfresh gasoline in

a separate container and add some to the tank.

ALWAYS FOLLOW INSTRUCTIONS ON STABI-

LIZER CONTAINER. THEN RUN ENGINE AT

LEAST 10 MINUTES AFTER STABILIZER IS

ADDED TO ALLOW MIXTURE TO REACH CAR-

BURETOR, STORE SNOW'i'HROWER IN A SAFE

PLACE. SEE WARNING ABOVE,

You can keep your engine in good operaUng condi-

tion during storage by:

• Changing oil.

•Lubricatingthe piston/cylinder area. This can be

done by firstremovingthe sparkplugand squirting

cleanengineoilintothe sparkplughole.Then cover ....

the spark plug hole with a rag to absorb oil spray. •

Next, rotatethe engine by pullingthe startertwo or

three times. Finally,reinstallspark plugand attach

spark plugwire. =

DRAIN BOWL

RG. 42

SNOW THROWER STORAGE

• Thoroughlyclean the snowthrower.

•Lubricate all lubrication points (see the Mainte-

nance section on pages 16-17).

• Be surethat all nuts, belts and screws are securely

fastened. Inspectall visible moving parts fordam-

age, breakage and wear; Replace if necessary.

• Touch upallrusted or chippedpaint surfaces;sand

lightly before painting.

• Cover the bare metal pads of the blower housing

auger and the impellerwith rust preventative, such

as sprayable lubricant.

NOTE: A yearlycheckup ortuneup by a SEARS Service

Center isagoodwayto insurethat yoursnow throwerwill

provide=_imum performancefor tha next season.

O'I_IER

•if possible, store your snow thrower indoors and

cover it to give protectionfrom dust and dirt.

•Ifthe machinemustbe storedoutdoors,blockupthe

snowthrowerto be surethe entire machineisoffthe

ground.

• Cover the snow thrower with asuitable protective

cover that does not retain moisture. Do not use

plastic.

IMPORTANT: NEVER COVER SNOW THROWER

WHILE ENGINE AND EXHAUST "

AREAS ARE STILL WARM.

25

SERVICE RECOMMENDATIONS

,,,, ,i

SERVICE RECORDS .....:_ : SCHEDULE '

Fill in dates as you com. _=:SERVICE

CheckEngne0_1Level

Change Engine Oil

Tighte aAll Screws and Nuts ....... _.,

] i i

:r After Before Often Every Every

_':-First 2 Each " :i 10 : .25 Each Before ...... _ , L

hourslUse...... Hours Hours Season Storage ....

•,. L"| , ., •

GheckTract_n Clutch Gable

Adjustment (See Cable Adjustment)

A_u=Dr_veBeBts:"V" ' __ "'" "11-

Replacement):., ,. . . ,: ,i,

Lubricate Sprockets and Chains. •' . . .,v' ti _,

Drain Fuel ','

...... '•11 ,=

Check Auger Clutch Cable •: l .... • , ;....

Adjustment'(See Cable Adjustment) ,' '_:- :•: , ,:.... I

LUBRICATION CHART:

011chains and

sprockets with

10W-30 oll

Lubricate auger shaft.

Coat with a clinging type

grease such as Lubriplate.

26

TROUBI, E SHOOTING POINTS

,iiii i i i i ii mill I

TROUBLE

Diffieuit starting

Engine runs erratic..

Engine stalls

CAUSE

I II IIII IIIII

Defectivespark0ug

Water or _rt in fuel system

ill i_ ii i

Blocked fuel Sneer low on fuel

Unitrunningon CHOKE

Engine runs el'ratio;

Loss of power

,,,, • ,,i ,

Excessive vibration

Unit fails to propel

Itself

Unit falls to

discharge snow

Headlight does not work

Unit rides up

Water or dirt in fuel system

Cmbumtor out of adjustmont

Loose parts; damaged impeller

Ddve belt loose or damaged

inoormctadjustment of It-action

drive cable

Worn or damaged frk:tlonwheel

] Ir I I|lll

Auger drive belt loose or damaged

Auger control cable notadjusted

corre_

Shear bolt broken

Discharge chute dogged

Foreignobjestlodgedinauger

Loose wire o_nnec_on

Bulbburned out

HHI I

Weight transfer disengaged

CORRECTION

iii

Replace defective plug.

Use carburetor bowl drain to flush and refillwith fresh

fuel.

HlIJ_ IJ I

Clean fuelline; check fuel supply;add flesh

fuet;(gaseline/oil mixture if 2 cycleengine) ....

UNpesi£;;

Set choke lever to

Use carburetor bow]drain to flush and refill with fresh

fuel.

Adjust cerbumtor.

i

Stop eng!,neimmed'_ly and diso=nnect spark plug wire.

Tighten all bolts and make ell necesse_ mpairs:ff vibration

con_nues, have the unitserviced byacompetent repairman

Replace c_ivebelt

Adjust Iraction ddve cable.

Replace friction wheel.

HIe HI m rl

Adjustaugerdrivebe_;replaseifdamaged.

Adjust auger oontrol cable

Replace shear bolt..

Stop engine immediately and disconnect spark plug wire.

.... Clean dischatgechute and inside of auger housing.

Stop engine immediately and disconnect spark ldug wire

Removeobject from auger.

Tighten connection.

Replace headlightbulb.

Engage weight transfer pedal.

•%27

CRA_SMAN 26" TRAC-PLUS SNOW THROWER 536.885910

Assembly RepaW PartS i :_:::!, i :: :: :::: =_I_:,:_ 39

....71

:_= "1

61 77

7

.66

...... 731 ¸

k

"i¸ ': L • •

...., 16, _:

,17

t8

22

_ _,_: _ 1,, ,

m

17

H _:_i_

18

37

17

72 : 38

17 _-

24 26 16 ............. 43

72

49

....... 17_

51

45

48 50

47 46

4647

28

CRAFTSMAN 26', TRAC-PLUS SNOW THROWER 536.885910

RE[=. PART NO.

NO.

1 3535

2 309344

3 3538

4 4049 ::.

5 308012

6 70990

8

.

10

11

12

'13

14'

15

16

17

18

19

20

21

22

23

24

25

26

7_308793

•308037

53681

71059

71034.

306523

i- 310421

308901

310391

71042

71060

50782

6352

50786

71072

71038

1668

1449

73801

73812 .......!/21n. Ratwasher .

27 1579 :Clutch Cable

28: I7288 i_3/8:,16x 3 In__Bolt

_29

30

31 _

32

33

34

35

36

37

38

39

40

PART NAME ,:i

5/16" Cap Nut : _.

Adapter, Bootto Haadle- •

Pivot Pin ".

Bumper ' ,/:

Upper Handle .:::i

5/i6-18 x 1-3/4 In. Bolt

ControlPanel Decal, .........

,Sh tLever::.................

ShiftContml K_b "

114"Lockwasher

1/4-20 Hex Nut ....

ControlPanel

Support ControlPanelAss'y

"Taptite Screw, 10-24 x 5t8 In.

1/4-20 x 2 In. Carriage Bolt

5/16-24 Hex Nut

5/16" LodoNasher

Ball Joint

Adapter, Speed Control Rod

Spring

13/32 In. Flatwasher

5/16-18 Locknut :"'

Speed Control Rod • : .....

Lever, Speed Control '•

5/32-7/8 Roll Pin

:ii:71062 ;: 3/8 irl.Lockwasher

:71044 :3/8-16 Hex Nut

7289 Plastic Stop

71046 :3!8-16 NylonLocknut_•

71'497 EyeBolt ::i:i

70984 5/16-18 x 3/4 In;Screw, .

308011 _Lower Handle ....:

1672 _Drive ClutchSpring ........ ..:i:,.

1673 i _Augei_ClutchSpdng

71035 1/4-20 Locknut ...... :.:

304872 Retainer Ring .... .::;

307399 Chute Crank Handle. :, ....... :_'

RER PART NO.

NO.

41 85192

42 148

43 71082

44 .:104::i

45 . 7055

46 7058

_":i:."7059

48 70993

49 7052

50 1162

51 71037

52 580527

53 : • 71007

54 •: 6300"

55 .... 3902

56 ' .....390_ .....

57 307395

58 309792

59 580530

60 307781

'61 307767

I?

162 580532

63 : ..... 4160".

64 309789.

65 309791.,

66. 710_

67 6636

:.68 235

.69 305025

70, I 71071

71 309793

72 308148

73: ... 308145 _

74: 307918

-"75 307920

76 71061 :'!

77 :57444

":78:" 309312: _

•79 307145 _":;

i

"PART: NAME _:::_: :

k

Chute Crank

Eye Bolt Grommet

3t32 x 1 In. Cotter Pin

Plastic Cap

Chute Control Rod

1/2-20 Jam Nut

1/2 In. Lockwasher

5/16-18 x 3/4" Carriage Bolt

L.H. Chute Rotate.Bracket

R.H. Chute RotateBracket

5/16-18 Hex Nut

i5/16 In. Saddle Washer

3/8-16 x 2 In Screw

Gear selector Decal

Traction Drive ControlDecal

,:AugerDdveContml Decal :

Upper Headl!ghtHousing ';

Metaiized Back ..... ::!:

,.LowerHeadlight,Housing

#8x 1-3/4'_Screw '..

Widng Hamess_Headlight Assem-

bly •_,

Headlight Mounting Bracket

5/i6,18 x 1-3/4" Carriage Bolt

Headlight, Lens

Headlight; Bulb

3/8" Jam Nut

Split PlasticConduit

ScrewHex Head 5/16-18 x 2 In.

Head LightAssembly

Flatwasher, 11/32 In.

Socket

ClutchSpring Boot

Eyebolt Boot

Auger Drive Lever, R.H.

Traction Ddve Lever,L.H.

Extemal:Lockwasher

Cable'lie

Flatwasl_er,3/8 In.

Owners Manual

•29

CRAFTSMAN 26" TRAC-PLUS SNOWTHROWER536.885910

Motor Mount Assembly ,Repair Parts 9

49

53

51

\

18

23

6O 57 3755 70

6e -"/ 6e

4

67 23

6

11

=. 13

30"

7

92

829 /31

33

5O

39

4142

61

85

72 87 74

\84

81

83

7 73

31

80

15

44

26 /

45

47

46

48 33

25

88

87

71

14 89 88

3O

CRAFTSMAN 26"

REF.

NO. PART NO.

1 308646

2 308932

3 308010

4 70988

571060

6 85494

7 71074

873801 •

9 53703

10 85492

11 ' .710671

12 70978

13 70982

14 6215

15 308009

16 50795

17 7287

18 6106

19 70985

.20 73795

21 53793

22 53794

23 71391

24 5-3704 :

25 ..... 590

26 71010

'27. 71072

28 i......73787

29 3948

30 3949

31 71071

•32 71393

33 577399

34 55025 ':

35 20579

36, 30289

37 6103

38 3947

39 153715

40 .... 50677

41 71063 :I

42 71015

43 50793

44 :: _i.....145i ,"

45 • .443

46 301545.

TRAC'PLUS'SNOW T ROwER 536:885910

PART NAME

Motor Mount Frame

Belt Cover

Craftsman Engine, Model No.

5!16-18 x1-114" Bolt

5/16" Lockwasher

Clutch Cable Lever ,

ti2"Flatwasiier ........

5t32 x 7/8" Roll Pin _ .

Flanged Bearing

Clutch Auger Lever Assembly

1/4" Flatwasher

114-20x 1/2, Self Tapping Screw

5116-18x 1/2" Self Tapping Screw

48 Tooth Gear

Bottom Cover

3/4" Hypro Key .! :_i: .i

Roller Beadng '......

Flatwasher

5/16-18 x 3/4" Bolt _ i._

5/16 x 1-3/8 x 14 GA Flatwasher ..

Idler Traction Lever

Spacer ' ....

5/16-18 Locknut

IdlerTraction Drive Spring •

3/8-16 Hex jam Nut

3/8-16 x 1-1/2" Bolt ....

3/8" Flatwasher

Belt RetainerWasher

LH. BeltGuide

R.H: Belt Guide

i5t16"Flatwasher

5116-24 x 1" Bolt

5116,!8 x 112"Set Screw '

Engine Pulley

!Key, WDRF # 5

Wave Washer

Outer Beadng Retainer

Engine Pulley Spacer..... .

Auger Drive Pulley

Fiatwasher ._'

3t8" Lockwasher

3/8-24 x 1, Bolt

1-7i8:' idler Puiley ,

Shaft & LeversAssembly

Auger Brake spring,

5, impeller Pulley

REF.

NO.

47

48

49

50

51

52

53

54

55

56

58

,.59

-60

61

62

PARTNO. PARTNAME

'"" ,,,i,, ............. "

5938

3887 Special Auger Drive Belt

85495 Shift ControlShaft

73812 1/2" Flatwasher

71111 3/8-16 Locknut

71461 #10-24 Keps Nut

85504 Bearing Assembly

6105 Inner Beadng Retainer

6107. Ball Bearing ._

.72531 10,24x 3/8" Cardagel Bolt

'538331 j8 Tooth PinionGear "

53832.1I Hex DiscFdction Wheel Shaft

71086::i1/8x 3!4"Rot!Pin " : :

_. 73811..:. 1/4" Snap Ring.i : _

85501 :' .Trunion Bead_

Friction Wheel Hub

i: I '

:,63 i" 53830

:i _11871

65 .=71059

66 71034

67 308005

:68 71360

:69 71035

70 "51438 '

71 73839

72 85499

73 53816

74 71079

75 73817

76 53807

77. 7091

78 7286

79 -53818

80 53820

81 53821

Friction:Wheel. :

1t4-20 x5!8" Bolt

1/4" Lockwasher

114-20Hex Nut

Pivot Bracket

1/4-20 x 1-3/4" Bolt

114-20Locknut

5/16" Spacer

1/4-20 x 2-1/4" Bolt

Traction Shaft Assembly

1/2" Spacer

1/8 x 1" Cotter Pin

1/2" Push-on Nut

Friction Wheel Disc

Traction Hex Shaft

Thrust Bearing

Return Spring

Clutch Spring

Clutch Rod

82 53819,- Traction Spring Bracket

83 .'_73823 :, .1t8 x 1-3/8" Spring Pin

84 73822 1/8 x112" Spring Pin

85- 71081 _3132 x3/4" Cotter Pin

86 _.70970

87 i73826

_88 53836

i89:: 302025

90 53829

_91 85503

92 73840

1/4-20 x1-1/4" Bolt

114-20 Locknut

Shaft Hex Beating

Track Axle Shaft

Flange Bearing

Flange Bearing Plate

Ftatwasher, 3/4"

31

CRAFTSMAN 26" TRAC-PLUS SNOW THROWER 536.885910

Track Assembly Repair Parts

21, 32

25

19

15 ./

17

15

42 29

18 19: '

15

16 15

14

2619

14 1

/

2 6

37

33

27

2O 31

23 21

36 37

46

32

CRAFTSMAN 26,' TRAC, PLUS SNOW THRO_

REI=..................................

NO. PART NO. PART NAME ' i

1 308050

i •

i_ 2_.308038

3308039_

-.: 4. i! _, 6025

6 60Ol

=

Foot Pedal

LH. Bracket

R.H. Bracket

=Tension Spring

1t2" PalNut

7/16" Shoulder Bolt

7 70978

8 71060

9 71037

10 71005

11 71062

12 71045.

13 70985

14 71391

15 301818

16 5930

17 5917

18 5947

19 71067

20 6108

21 71348

22 5951

23 5950

1/4-20 x 1/2" Self Tapping Screw

5/16" Lockwasher

5/16-18" Hex Nut

3/8-16 x 1" Screw

3/8" Lo_washer

3t8-16 Jam Nut

5/16-18 x 314"Bolt

5/16-18 Locknut

Track Drive Wheel....

Sprocket

Chain

1/4-28 x3-3/4" GR5 Screw

1/4" Flatwasher _. _.. .....-

:::114-28Locknut:::: .....

5116--18rx112"Bolt . "

5/16" BellevilleWasher

1/2" Flatwasher

VER 536.885910 .,:• ........

.,_NO. . PART---NO.. PARTNAME ..

24 :- 9724

25 ::::, 302024

26 _i_ 7074

.....27 301817

8

29 308883

30 308882 :.

31 .308034 1

32 ::308036

33 301816

34

4-3/4" Track

Track Wheel Shaft

t/2, Hardened Ratwasher

Track IdlerWheel

3/4" Flatwasher

Inner L.H. Track Plate

Inner R.H. Track Plate

Outer L.H. Track Plate

Outer R.H. Track Plate

InnerTrack Beadr_ Hub

35

36

37

38

39

40

30!8!9 _!Outer Track Beadng Hub

71035 .... 1t4-20 Locknut

.70969 .1/4-20 x 1" Bolt

::......6403 __:Cam Washer

3041331: Sprocketand Hub Assembly

_:73840 3/4"Flatwasher .....

Shear Bolt

1/4-2ob:)cknm

Track TieRod: '

1/8" HairPin

1/4-20 x 2-114"Screw

48 Tooth Gear

Trac Plus Decal

7285

41 ,:::7_26

42 -. :302026:

43 i: 20465:'

:73839/

821,.-s"

46 308787 :

33 .....

CRAFTSMAN 26" TRAC-PLUS SNOW THROWER 536.885910

Auger Housing Assembly Repair Parts

26

45

25 27 29

17

18

3 15 16 33

33

35

36

38

4O

43

42

•1

31

32

153

41

34

CRAFTSMAN 26, TRAC-PLUS SNOW THROWER 536.885910

RER

NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17/ 308059

ts 308119

19 _302922

•,,.

+20 20556

21 71032

::302275

+,

• •...... • ............. +•• .........

PARTNO. PARTNAME

308768 StripedDanger Decal....

307665 UpperChut eDeflector

71037 5/16-18HeX :Nut . : ,

57171 Wing Knob = ......... _ 14 % "r r _ _

302680 5/16" Flatwasher L+

71391 5/16--18 LOcknut

302843 5/16-18 X 1-1/4" Carriage Bolt

302634 5t16-18x 3/4" Pan Head Slotted

Bolt

308931 Chute Hinge Wire

307693 Lower Chute

302678 114-20x 1/2" Pan Head Slotted

+BOR

302635 "1/4-20 Wide Flange Locknut

577400 5/16-18 x 3/4."Bolt _

53.759 _6.5" Auger Pulley .++

71060 5/16" Lockwasher •

•171071 _=5/16"Fl_asher +=+i

Bearing Retainer + +++

R.H; Side Plate

Danger Decal, Read From =Side

3/16" Key _" + '"

8-32 X 1/2" BOlt ....

++

Chute Rotating Ring " .+

' • ,,

NO. PART NO. "PART NAME .

+, •,

23 302172

24 71058

25 70142

,26 :308851

27: 7376

28 308766

29 70141

30 1160 •

i, 31 308792

I32= 308! 18

Lower Chute Ring Clip

#8-32" L.ocknut

Chute Danger Decal

Low Chute Ring

Impeller Decal

,Craftsman Decal

Auger Danger Decal

Auger Housing

Size Decal

LH. Side Plate

"33 70993

"34 ' 70984

•35 307912+

,36 70983

1153

38 9524

39 3943

Aft

53757

73755

42 73826

43 308008

44 308007

45 310860

5/16-18 x 3/4" Carriage Bolt

5/16-18 x 3/4" Self Tapping Screw

,Height Adjust Skid

5/16-18 x 5/8" Bolt

Scraper Bar

1/4-20 x 1-3/4" Bolt

1t/4" Spacer

1" Auger Shaft Bearing

Auger Washer

114-20 L-ocknut

R.H. Auger

LH. Auger

Bracket, Chute Stop

35

CRAFTSMAN 26" TRAC-PLUSSNOW TH ROWER 536.885910

GEAR BOX REPAIR PARTS 11 12 13 1, 15 16

7 8

6 17 19

18 20 21 2O

2

REF.

NO.

1

2

3

4

5

6

7

8

9

10

11

12

PART NO. PART NAME

71393

308006

73905

301561

71100

1065

53737

10905

53735

53734

53733

50795

5/16-24 X 1" Bolt

ImpellerShaft Assembly

WoodruffKey #91

AugerShaft, 26 In.

5/16-24 Flange Locknut

Oil Seal

Quad Ring

Flange Bearing

i7/8" Flatwasher

7t8" Roller Bearing

7/8" Flatwasher

i314"Key

REF.

NO. PARTNO. PARTNAME

13

14

15

16

17

18

19

20

21

22

23

24

36

53732

50683

50688

53731

53749

53743

53748

53730

897

896

912

1-3/4" Worm Gear

3/4" Flatwasher

RetainingRing

Sleeve Bearing.

LH. Gear Box Housing

1/4 x 18 Pipe Plug

Auger Gearbox Bearing

1" Flatwasher

Worm Gear

Gear Box Gasket

R.H. Gear Box Housing

5/16-24 x 1-1/2" Bolt

CARBURETOR NO. 632334A

• _r'_ _i+' _'_+r_ ;_'i'_ ....

4

28

+

1

I

I !

I

12

l

NO,

5

6

"'8 9

:10

11

12

'r13

+14-

15

_+16

' '17

:+2123

24 '

I_25

/g

Part

NO.

631776A

63197O

631778

650606

63O766

63O738

650417 +

632112

63O735

632174

*630748

"631027

"631021

_1022

632019

*_I_4

_I_1

_136A

27554

_132239

_110

,6307_

632281.

*_1028

6321_

63O7'39

632347

Part Name

Carburetor .....

Shaft £t Lever Assy., Throttle

Spring. Throttlereturn

Shutter, Throttle

Screw, Throttle _Choke shutter

Spring, Regulatingscrew

Spdng, Main adjustment screw

Screw, Idleregulating,--_,

Shaft 8- Lever Assy,; Choke

Spring, Choke positioning

Shutter, Choke

Plug, Welch

Plug, Welch

Inlet Needle, Seat 8. Clip Aasy,

(ind. No. 13)

Clip, Inlet needle

Roat, Carburetor ,

Shaft, Float , +

Bowl, Float [Incl. Nos: 178-18)

PlungerAssy, Drain (Incl. No, 18)

Gasket. Drainplunger

Adjustment Screw Assy., Main

|incl. Nos. 5A, 21, 23 8. 27)

..G_€,et,Bowl-to_oody+ '

"'O Ring, Adj.u_rne_ntscrew

Screw, Idleadjustment....

Gasket, Bowl-lx_-body

F_lJng,Fuel inlet '

Washer + : ,: +,

RepairKit (Ind. itemsmarked *)

REWIND STARTER NO. 590630

.12

:10

i

ReL. Part '..,_....

No, No. ,Part Name

ss0_0 +Starte_,Rewi_

I 590599A Pin, Spring (IncL No. 7)

2 580600 Washer +

3 590651 Spring Assy,, Brake 8. Dog

4 580627 Retainer

5 5_641 WDoga_tarter

590628 Pulley

9 5g0451A Rope, Starter

10 590629 Spring 8- KeeperAssy.

1211_59083590574withHandle'starter)MittenGrip (Not included

Housing Assy_,iStarter

mt ;

k

CILAFTSMAN.4-CYCLEENGINE MODELNUMBER:143_

I I IIIII I H III I ILIIIL IIII

B1

66

25

24

118

117

19A.

114

!

!

|

I

139

I

I

78

i

216

MODELu4 SI_IAL

NUMBERSHERE

t46

210C

¥

162

160

194

213 /

196

199

38

(RAFTSMAN4"CYCLEENGINE MODELNUMBER:143.806082

No. No.

1 35385

2 650_Z0

3A 34171

3B 30869

•4:35319

5 27652

6 35326

7 650561

835442B

9 34_2

9 3_3 ¸_¸

9 34554

9A 34329A

9A 'r:r' 34330A'

9A :: ::_34331A:

10

11

11

11

17

18

19

19,6,

20

21

22

23

34

35

38

43

49

5O

51

52

53

54

65

56

57

l_'f,

Part Name , No.

Cylinder(incl. Nos. 3; 4 8- 5)::: 66

Screw, Hex hd. shoulder, I14-20 x 112

Nipple, Pipe, 5-112..... ..... 67

Cap, Oil drain 67

Seal, Oil

Pin, Dowel .... 68

Baffle, Blower housing

Sinew, Hex washer hd. Dudok, 1/4.20

x 5/R

Crankshaft

-Piston, Pin 8. Ring Am/. (IncL Nos.

9A, 10 8. 11) (Std,) :::

.F_ton, Pin 8. Ring As=y. (Ind. Nos.

9A, 10 8. 11) (.010 oversize) :_

:Piston, Pin 8. Ring Assy. (Ind, Nos.

9A, 10 8. 11) L020 ovmsize)

,Piston 8. Pin A=_. (incl. No. 10) (Std.)

"Piston 8" Pin Assy. (Ind. No. 10) (.010

oversize] ......

_.piston8. Pin Assy. (incl. No. 10) (.020

Paxt Name:

•Part •

No_

:, 27880A Valve, Exfraust(ind, No. 70):(1132"

oversize) •

34035 Valve; intake {incl. No. 70) (Std,)

34036 _Valve, Intake (Incl. No. 70) (1132"

' oversize)

. 27882 Cap, Uppervalvespdng

68A 34689 Seal Assy., Intake valva

•69 ,27881 : Spring, Valve

7O 32581 Cap, Lower valvespring

32_9 :

,Kw,Rywhe¢ •

,77_-, 29443 Clip, :Spring : : ,

Rywheel(w/ring gearj

,=, Wader, Lock

80 650881 Nut, !:lywhecl • . . '

81 650872 Stud, Solid.statemounting

82 35135 :Solid State Assy. ,

82A 610118 Cover, Spa_piug hd "

83 650814 r__S_ , TOn( HeX washer . crams,

10-24x I

650873 ' :screw, Hexhd. Semso1/4-20x314

Coil Assy., Altemator (18 Watt}

rWire,/Ground •

Gasket, Cylinderhead L

Head,Cylinder •

Screw, Hex flange hal.5116-18 x 1-1/2

Spark plug (Champion :J._C or

Washer, Rat .....

Screw, Special he)( hd, tapped,

5116-18 X 1-3/4 L

85

58

59

60

62

68

27888

34334

35374

680808

65O882

ove_) •86 611J11: i

Ring, Piston pin retaining : ....... 95 .... _ .....

Ring Set, Piston (Std.} .... 86 "34041A

Ring Set, Piston (.010 oversize) _97 3A03O

RingSet, Piston (.020 ovmsizs} - 98 .; 6021A _

RodAuy., Connecting(incl. Nos.18, 89 ....... 33636 1

198" 19A) : r _.__ [ _, _ L : _

Dipper, Oil luu _,

BOlt,Connectingmd ,101 850727

Bolt, Connecting rod

34034

35273A

65o128

*35262

35446

35377

35319

28_8

30_9C

3O7OO

66O494

29642

31845

30688A

35479

28193

35378

33369

65O836

29916

28826

29216

33454

29918

65O548

3O322

65O832

65O833

35555

35489

-35654

35540

27978A.

Lifter, Valve

Camshaft (Mechanical Compression

Release)

sxtansion,Blowerhou=in

Screw, Hex hd. Seres, x 112

Gasket, Cylindercover

Cover Ass'/,, Cylinder (Ind. Nos. 26,

27,288.37)

Bushing, Cylindercover

Seal, Oil

Seat, Oil (Camshaft)

RodAssy., Governor(Incl. Nos. 34 B-

35)

Yoke, Governor

Screw, RI. hd. Seres,6-40 x 5t16

Ring, Retaining

Shaft, Governor

Spool, Governor

Washer, Rat

Ring, Retaining

Gear, Governor(incl. No. 39)

Bracket, Govemor gear

Screw, Hex washer hd. thread form-

ing, 10-24 x 1/2

Clamp, Govemor lever

Screw, Hex washer hd., 10-32x 314

Locknut, Hex "Keps", 10-32

Lever, Governor

Washer, E.T. Lock

Screw, Hex washer hd., 8-32 x 5/16

Locknut, Hex "Keps'; 8-32

Screw, Hex washer hd. Pow;sdok,

1/4-20 x 1-11/16

Screw, Hex washer hd. Powedok,

1/4-20 x 1-3116

Dipstick,Oil

"O" Ring

Tube, Oil fig

Clip, RII tube

Valve, Exhaust (Incl. No. 70) (Std.)

103 .... 650684A

104 "27896A

105 28423

106 28424

107 28425

108 3535O

168 65O128

114 29752

115 "33283

117 33877

118 30068A

!19 650378

120 "279!5A

121 34687

122 28820

123 33377

124 650767

130 35447

131 570682

132 32180C

133 34677

134 31342

135 650549

135 610973

137 650821

Washi_., Rat

Screw :: •

Gasket, Breather

Body, Breather

Bement, Breather

Cover, Breather

Tube, Breather

Screw, Hex hd. Sems, 10-24 x 112

Nut 8- L0ckwasher,114.28

Casket, Carburetor

Pipe, Intake

Screw, RI. hd. Serns, 114-28x 1

Scrm_, Toix RI. hd. Serns, 5116-18 x

1-t/8

Gasket, Intake

Bracket, Chokepipe

Screw; RI. hd. Seres, 10-32 x 112

Bracket, :Carburetorcover mounting

Screw; Hex washer hd. Seres,taptlte,

8-36 x 518

Housing, Blower

PrimerAssy.

Une, Primer

BracketAssy., Control (Ind. Nos. 134,

135, 135 8 135)

Spdng, Compression

Screw, RI. hd., 5-40 x 7/16

Termfi'nalAs=y,

Screw, Hex washer hd.thread cutting,

10-32 x 112

*indicates Partsinduded in

Gasket Set, Ref. No. 215.

Q AFTSMAN4"CYCLEENGINE

!,

139r

140

144

145

146

147

152

153

154

155

156

157

It

160

161

162 _

168

169

170

....:171

172

173

174

MODEL NUMBER: !43.806082

No.

29747B:

33013

:650"_0

3544O

3412S

_57A

650765

r_

34154_;:_:

650713 :

34155

65O581

:650665

Pa_ Name No. ]

Spdng, Speed contro| .... 176 1

unk,Qo mo, ,I

Unk, Governor-to-throttle. _ _ ;

Screw, He]( hd, Sl_lock thread form- 187 i

ing, 5/16-.18 x 3/4

Screw, Hexhd. Sems,5/16-24 x 21/32 188 I

Cover,Starter hole 18S

Screw, Pan hd. taptite, 8-32 x 3/8 194

Knob, Control 195

BrackBt,Grommet mounting 196

Grommet, Plastic. "197

Screw, Pan hd. taptite, 8-32 x318 198:.

C0wr, Cafouretor

_, Hexwasher hd. Seres, t0--_ x 199

...... 210

318 ....

Screw, Hex washer hd, seif-ddlUng,. 210B

•210C

10-32 xl/2 212 .:

Rod,Choke .

Knob, Choke • _ : 213

•215

Ignition, Key 216

Wire, Ground ..... ._- .

Terrn'malA_y.

_, r_head •

Sctew,iHexwasherhd.taptite,I/4-20

x618 . :,: :,, ......

Plate; Fueltank mounting 18

Screw, Hex hd:;.5/16-18 x 5 :. .

Bracket, Fuel tank

Screw, Hex washer hd, Dudok, 1/€20

x 5/8 : '

Screw, Hex washer hd. thread cutting,

:11_15 x 718 ......

Part

34156A

35355

307O5

26460

35058

31588

792O93

35287

35446

29752

590574

550168

35382

35878

35077

54144

632334A

590630

33279G

Part Na_ze

Tank, Fuel (incl. Nos. 176 8173)

Cap, Fuel tank

Line,-Fuel :

Clamp, Fuel line

Muffler

Pla__,Lock

Scr_v, Ranged hex hd., 5/16-18 x

4-3/16

Hub, Starter

Screen, Starter .

Nut I_:Lockwasher,t/4-28

StarterHandle;Mitten grip

Washer, Rat

Plug, Starter:

Decal, Instruction

Decal, Choke

Decal, Primer

Carburetor(IncLNo. 115)

Starter, Rewind

Gasket-Set(Incl. items marked*)

Bectric StarterKit No. 143;88924(Op-

t_rml) Order as Accassow.

RPMSeffings:

LowSpeed:1700

*indicates Parts Included in

Gasket Set, Ref. No. 215.

40

NOTES .........................................

m, j i m ,j .... H

41

.......NOTES

NOTES

43

,,,,,,,,,,,,,, ,,,,,,,,,,,,,,,,,,,,,,,,,,

OWNER'S

MANUAL

MODEL NO.

536.885910

HOW TO ORDER

REPAIR PARTS

£RRFTSMAN

8 HORSEPOWER

26" DUAL STAGE

TRAC-PLUS

120V. ELECTRIC START

=

SNOW THROWER

Each SNOW THROWER has its own MODEL

NUMBER found on the motor mount frame.

Each ENGINE has its own MODEL NUMBER

found on the BLOWER HOUSING.

Always mentionthese MODEL NUMBERS when

requesting service or Repair Parts foryourSNOW

THROWER.

All parts listed herein may be ordered through

any Sears Service CenterlDepartme nt and most

Sears Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS

GIVE THE FOLLOWING INFORMATION:

* PRODUCT- "SNOW THROWER"

MODEL NUMBER -536.885910

* ENGINE MODEL NUMBER 143.806082

*PART NUMBER

* PART DESCRIPTION

"YourSears merchandisehas added valuewhen you

considerthat Sears has service unitsnationwidestaffed

withSears trainedtechn'_-ians...Professionaltechnicians

specificallytrained on Sears Products,havingthe parts,

tools and equipmentto insurethat we meet our pledge

to you...we servicewh_{tWe sell."

SEARS, ROEBUCK AND CO.

307145 09/26/90

, Chicago, IL 60684

Printed in U,S.A.
