Owner's Manual

COMPANION I

5000 "Watt

AC Generator Start

Model No. 580.327152

HOURS: Mon.- Fri. 8 aom. to 5 p.m. (CT)

CAUTION:

Before using this product, read this

manual and follow all Safety Rules

and Operating Instructions.

Sears, Roebuck and Co., Hoffman Estates,

Visit our Craftsman website: www.sears.com

Part No, B2473 Draft 2 (6/18/1999) Printed in the U,S.A.

IL 60179

• Safety

•Assembly

•Operation

•Maintenance

°Parts

WARRANTY ............................... 2

SAFETY INSTRUCTIONS .................... 3

ASSEMBLY ............................... 4

OPERATION ............................. 5-9

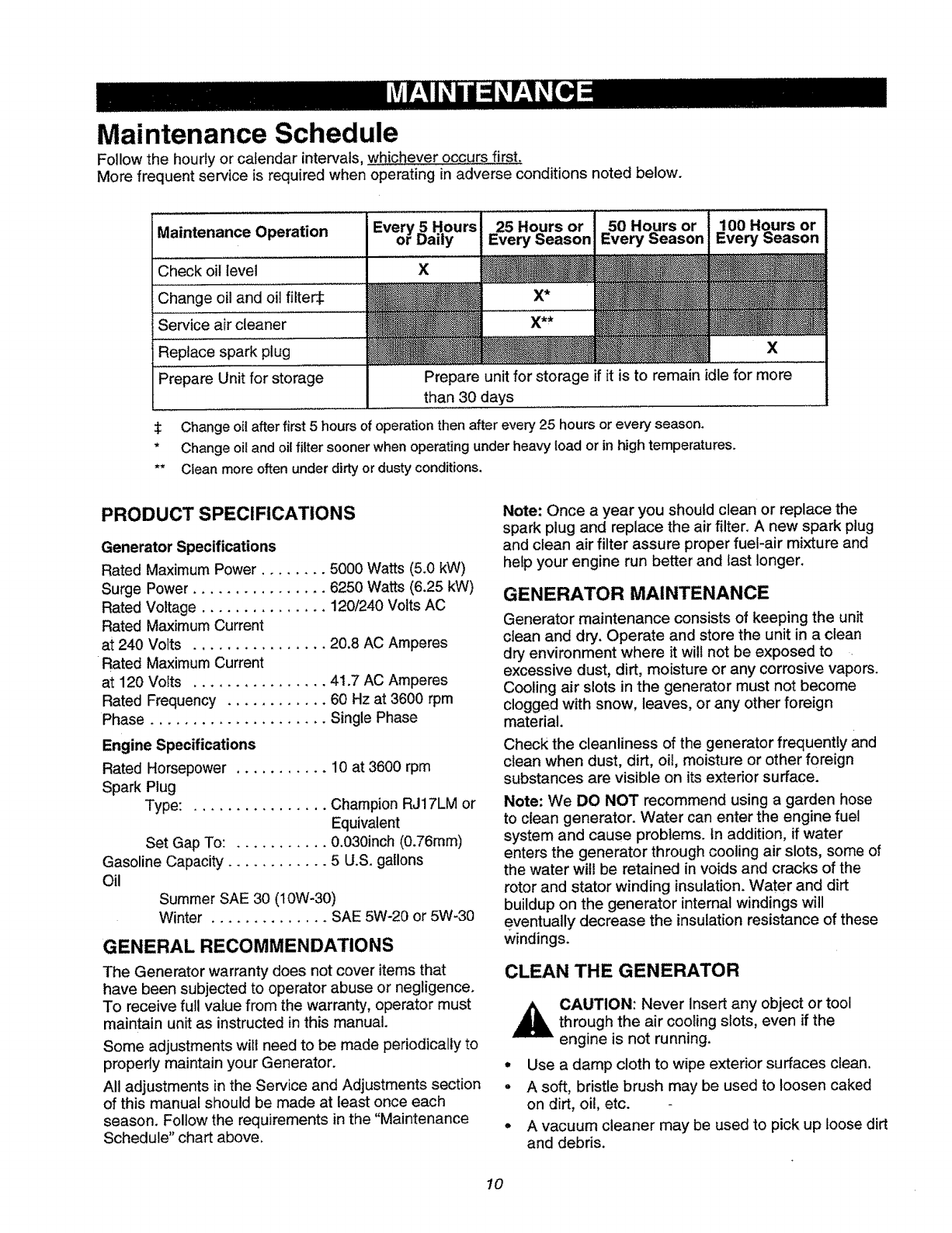

PRODUCT SPECIFICATIONS ................ 10

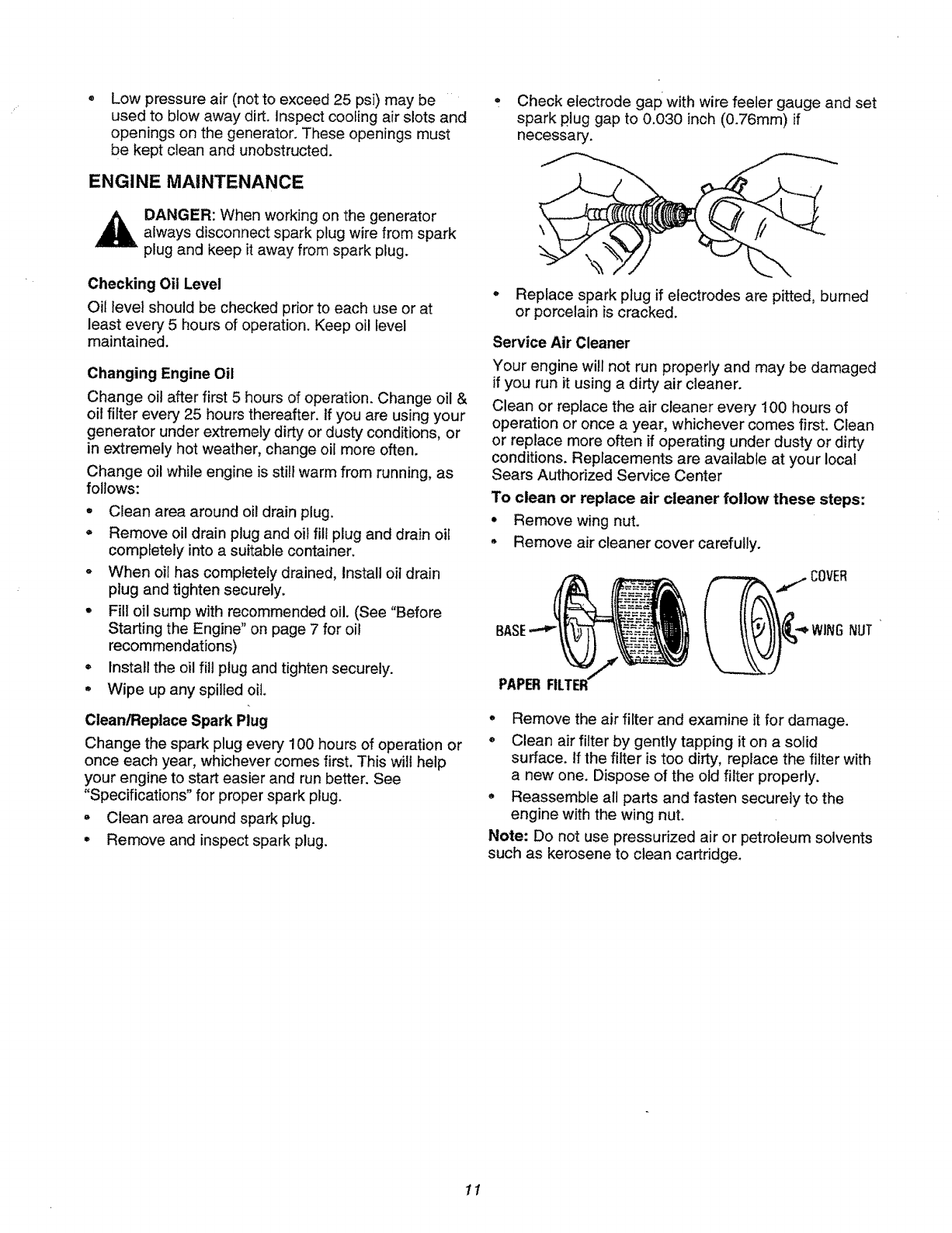

MAINTENANCE ........................ t0-11

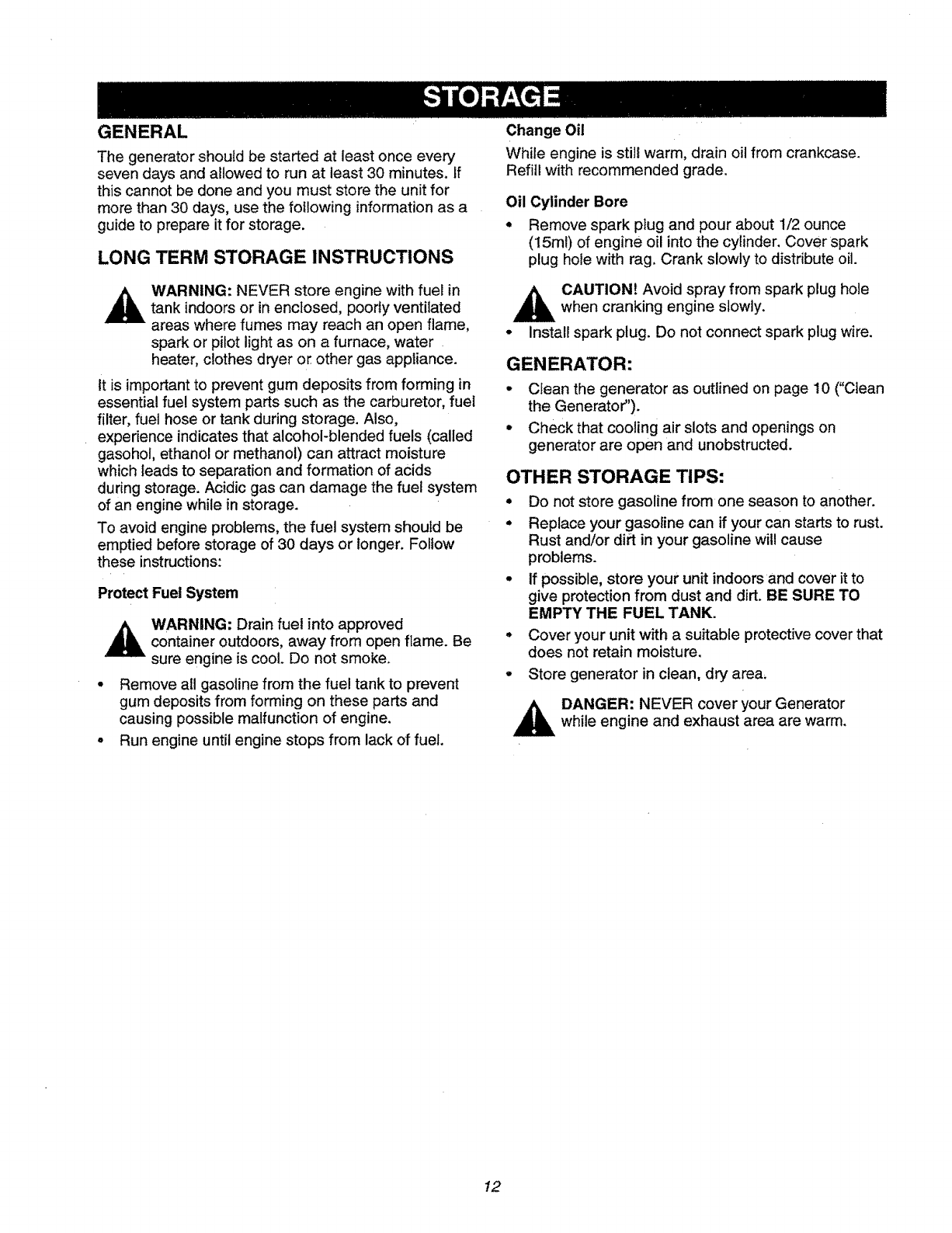

STO RAG E ............................... 12

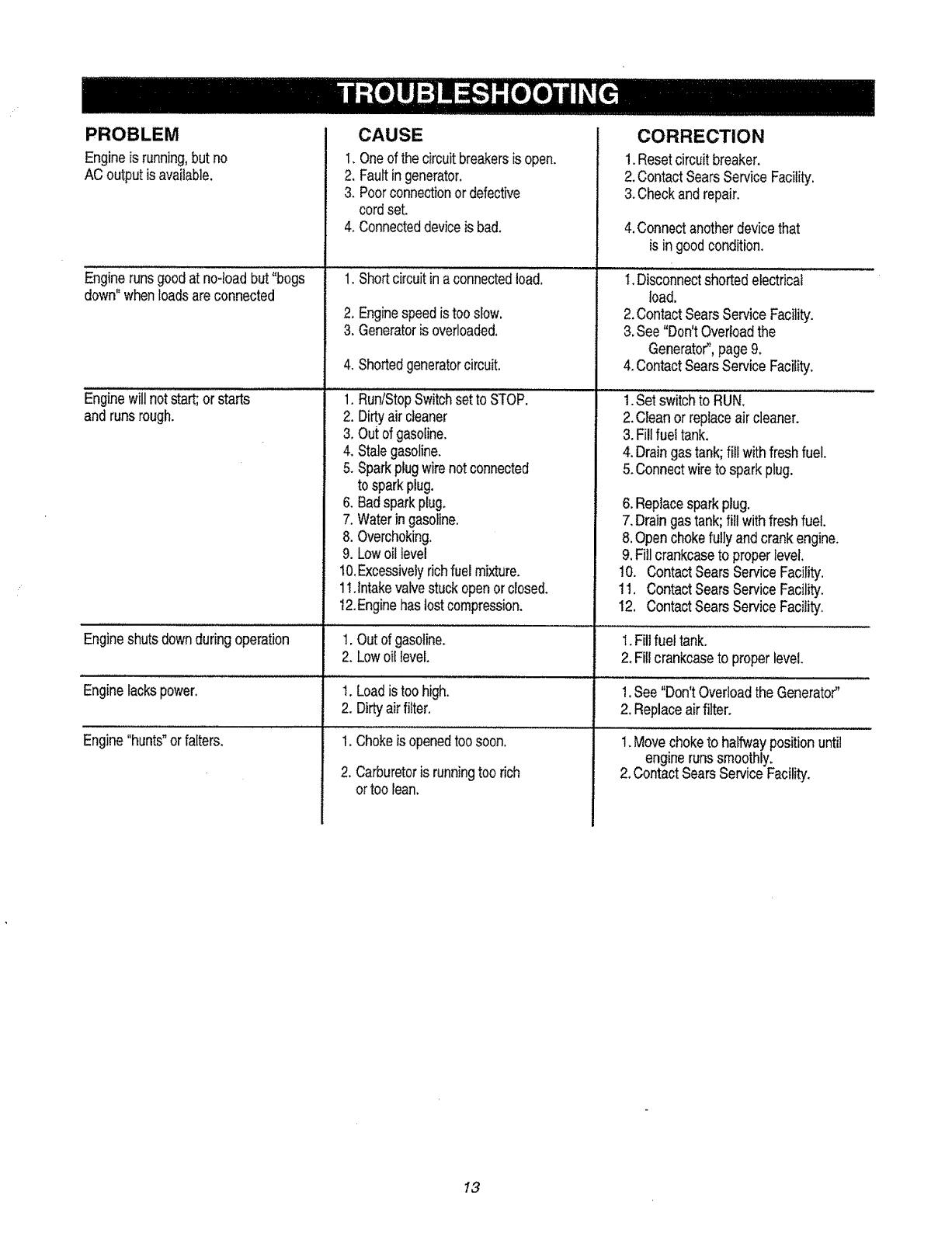

TROUBLESHOOTING ...................... 13

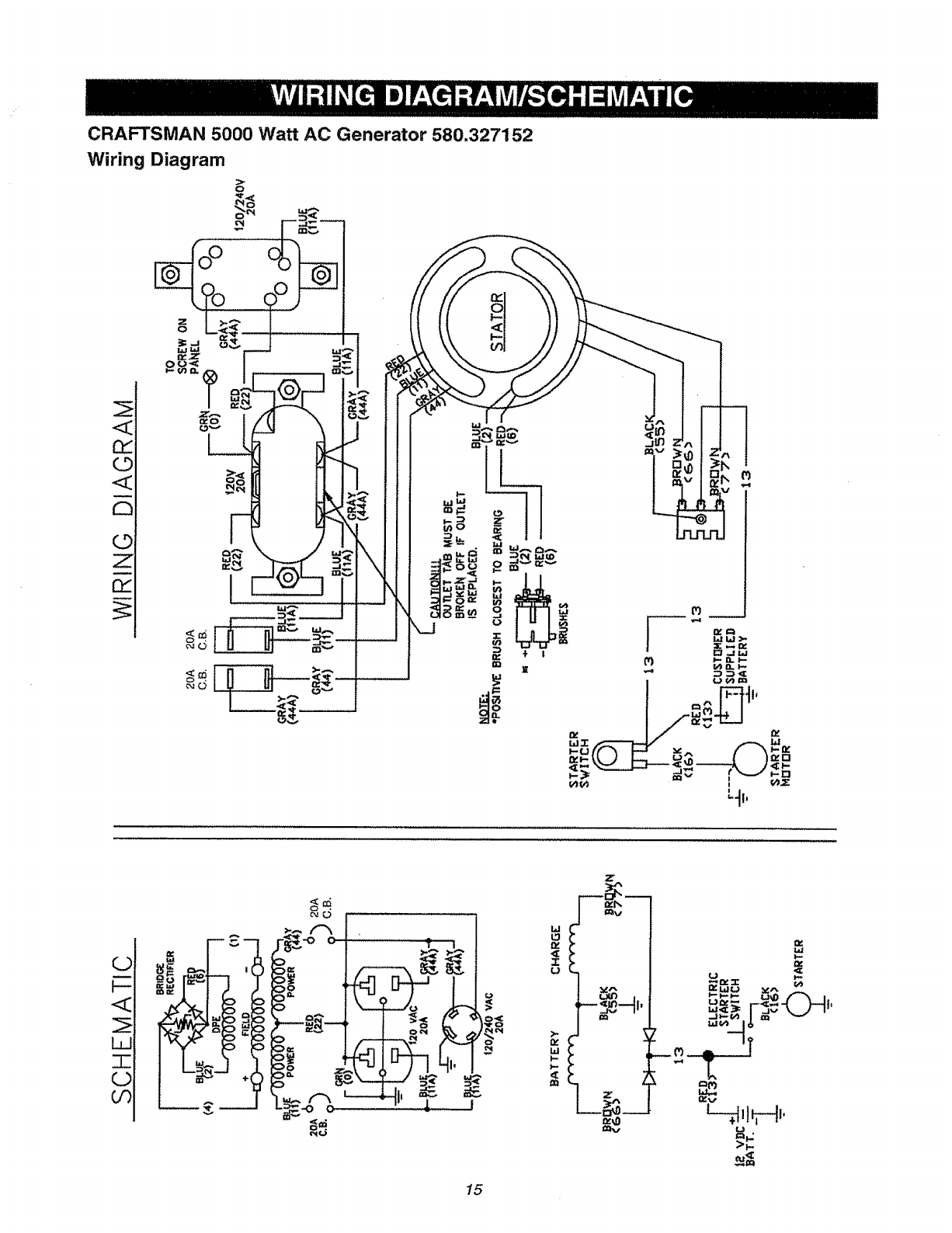

WIRING DIAGRAM ......................... !5

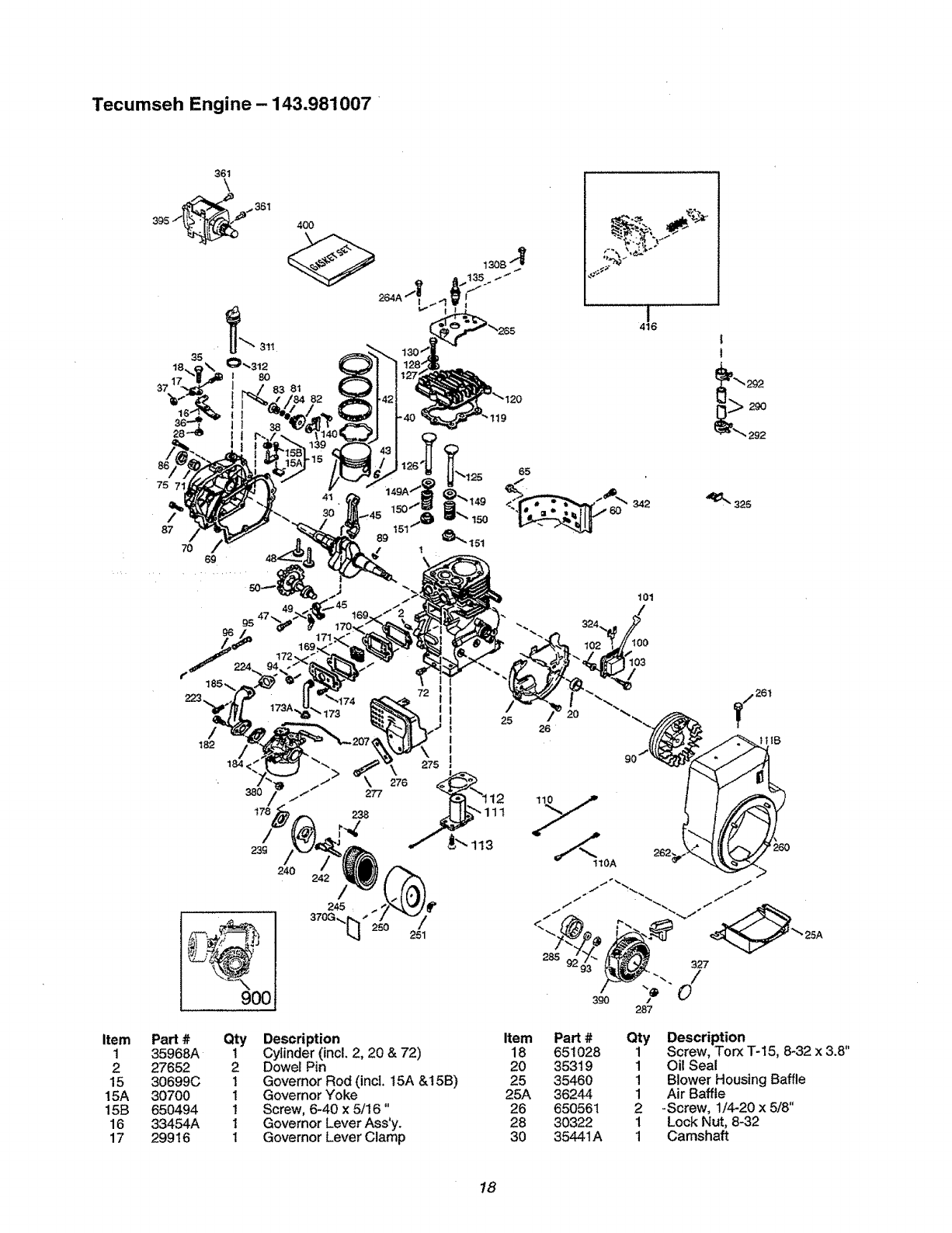

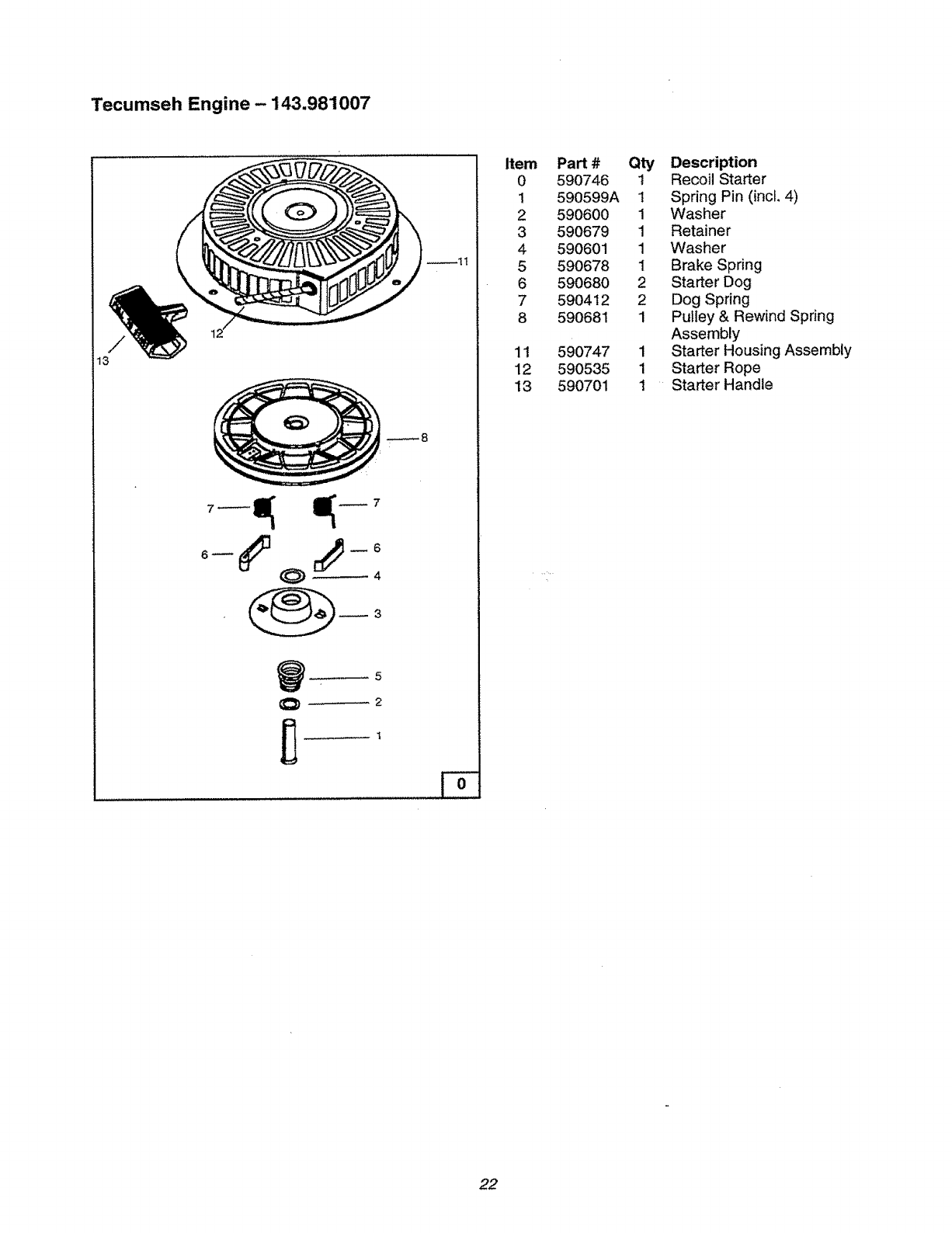

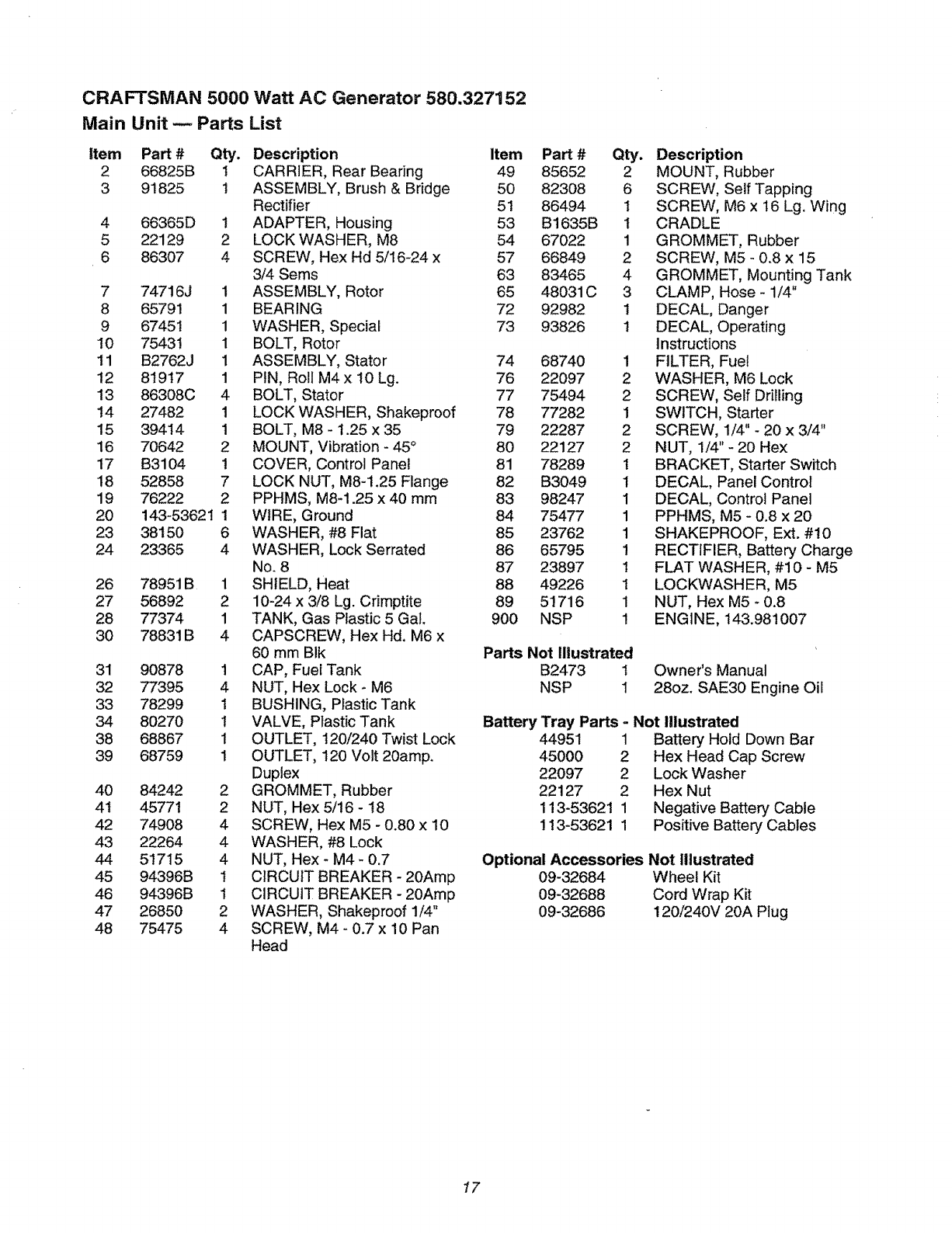

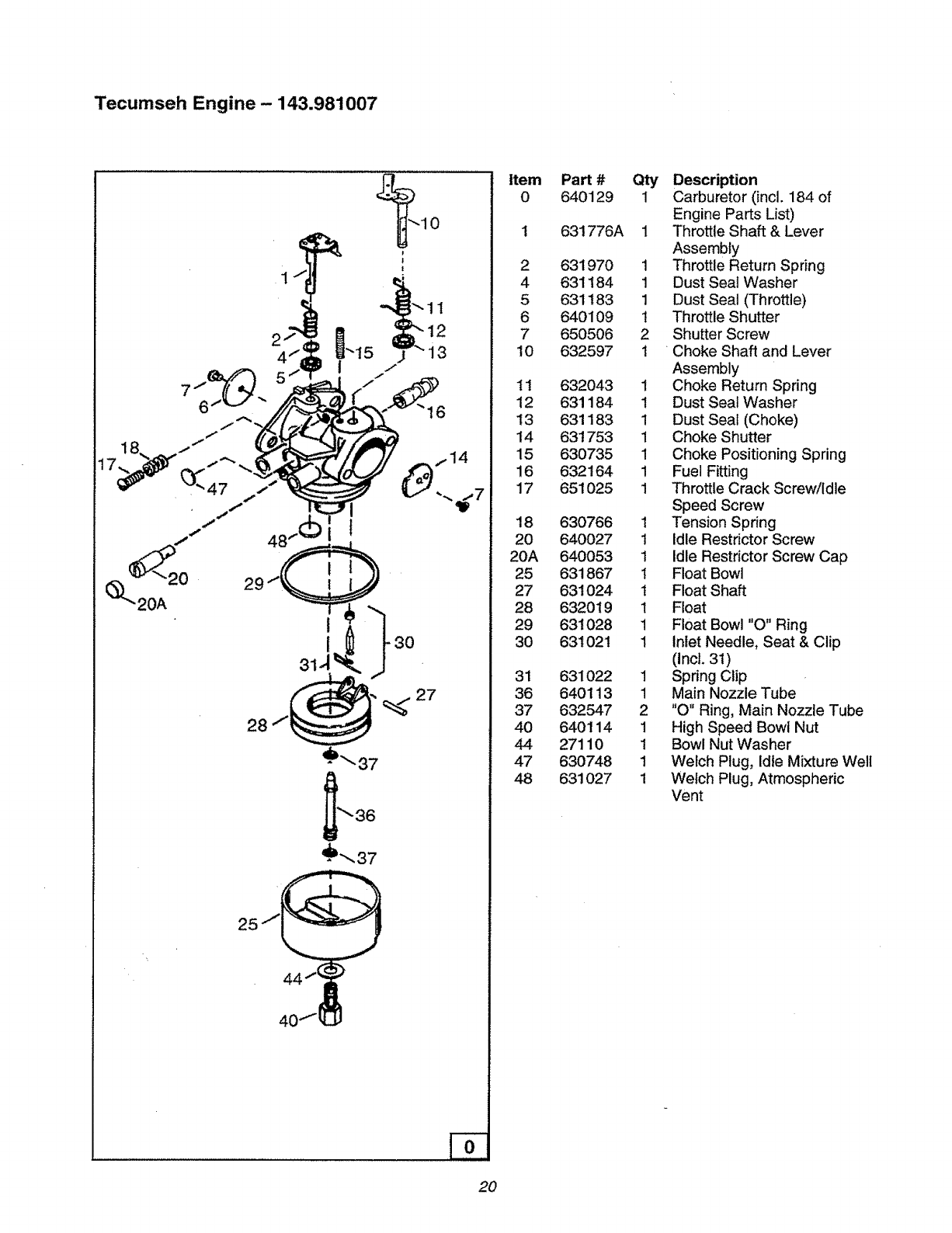

REPLACEMENT PARTS .................. 16-22

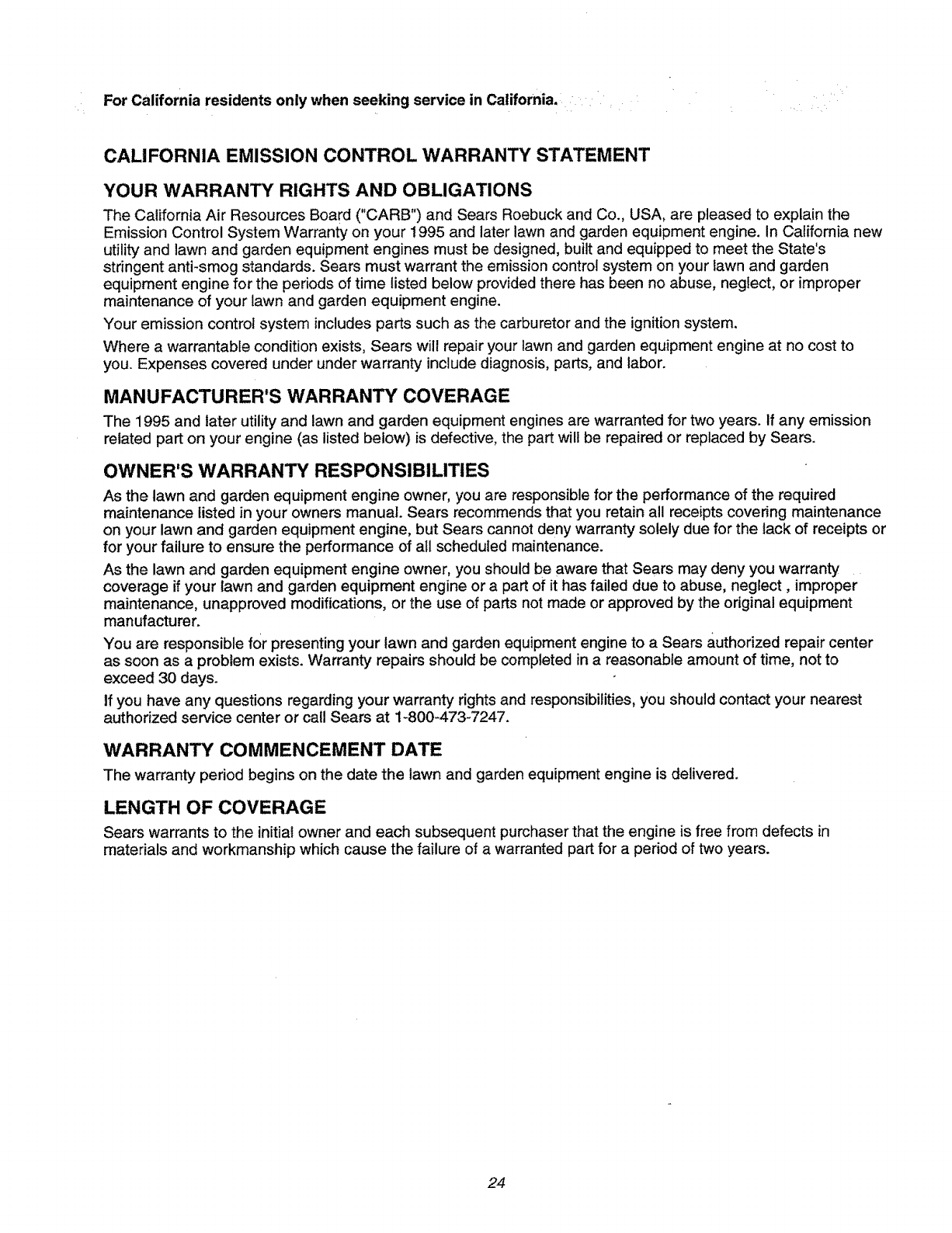

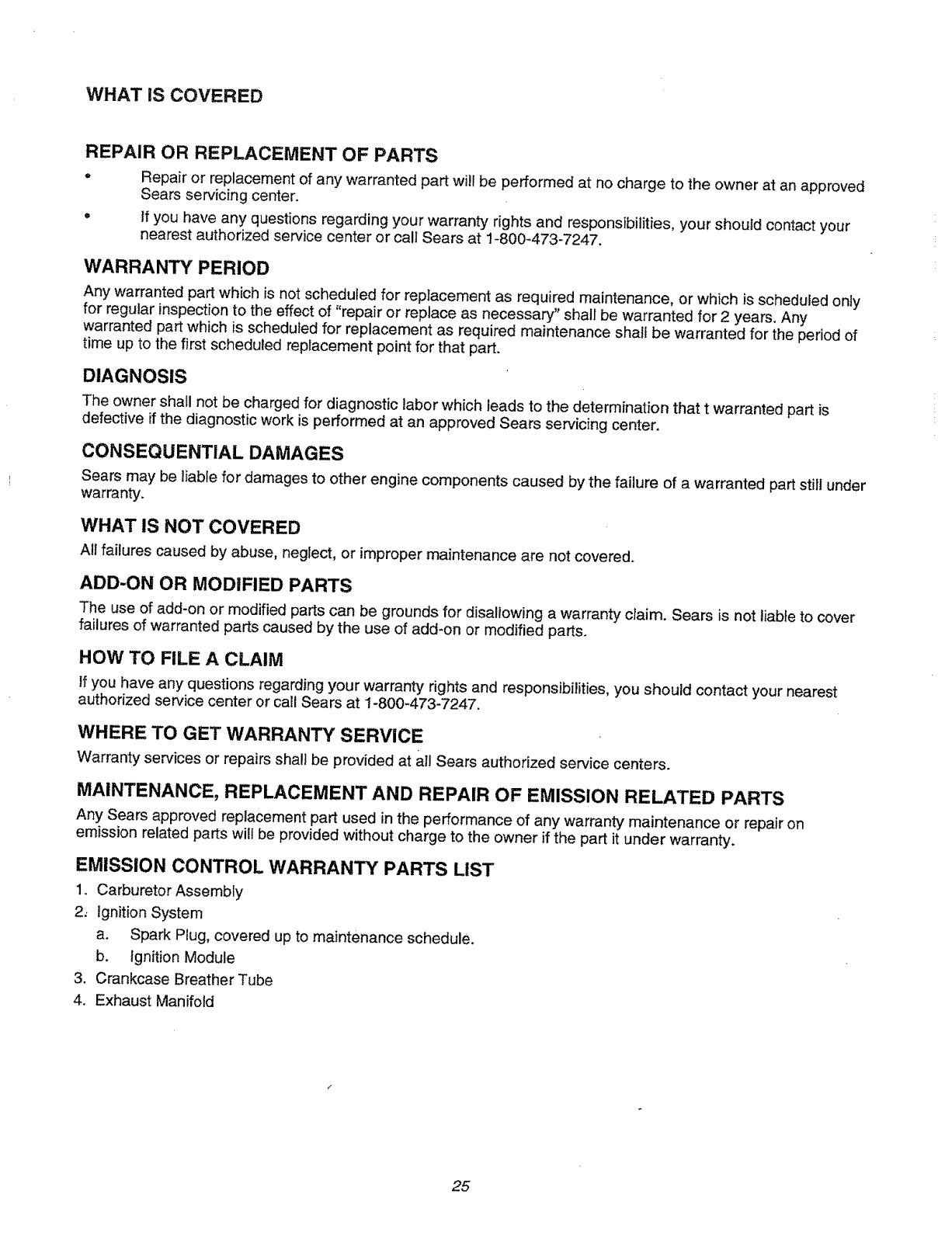

EMISSIONS WARRANTY ................. 24-25

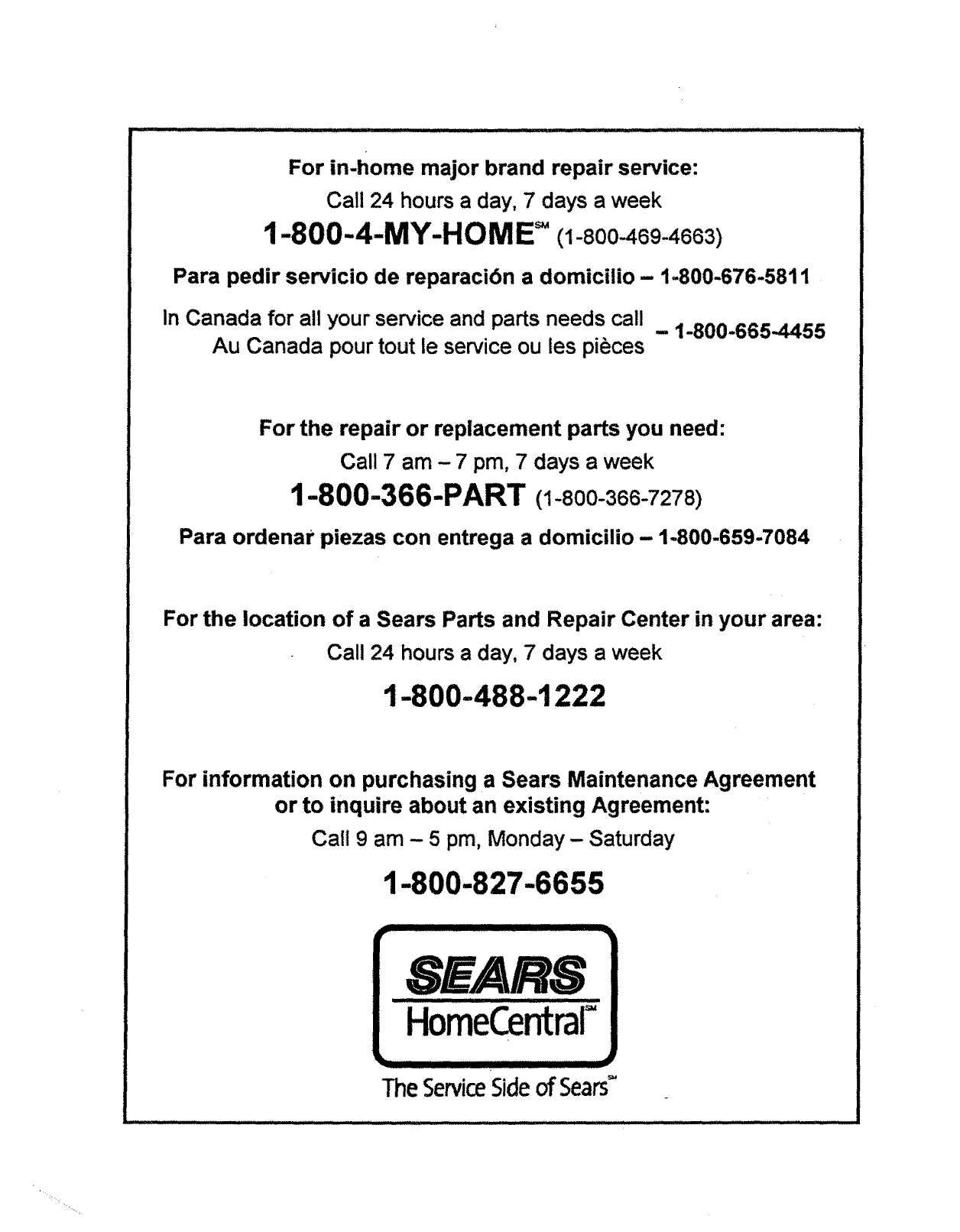

HOW TO ORDER PARTS/SERVICE . .BACK PAGE

LIMITED ONE YEAR WARRANTY FOR COMPANION GENERATORS

SEARS warrants to the original purchaser that the alternator and engine for its portable generator wilt be free

from defects in materials or workmanship for the items and period set forth below from the date of original

purchase. This warranty is not transferable.

CONSUMER* COMMERCIAL*

Alternator 1 year 90 Days

Engine 1 year 90 Days

* NOTE: For the purpose of this warranty "Consumer Use" means personal residential household and emergency

use by original purchaser, not to be Used as a primary source of power. "Commercial Use" means all other uses,

including rental, construction, commercial, and income producing purposes. Once a generator has experienced

commercial use, it shall thereafter be considered a commercial use generator for the purpose of this warranty.

During Said warranty period, SEARS witll at its optioni repair or replace any part which, upon examination by

: i SEARS, is found to be defective under norrnal use and service**. Starting batteries are not warranted by

SEARS. All transportation costs under warranty, including return to the factory if necessary, are to be borne by

the purchaser and prepaid by him. This warranty does not cover normal maintenance and service and does not

apply to a generator set, alternator or engine, or parts which have been subjected to improper or unauthorized

installation or alteration, misuse, negligence, accident, overloading, over-speeding, improper maintenance, repair

or storage so as, in SEARS's judgment, to adversely affect its performance and reliability.

** NORMAL WEAR: As with all mechanical devices, engines need periodic parts service and replacement to

perform well. This warranty wit! not cover repair when normal use has exhausted the life of a part or engine.

THERE IS NO OTHER EXPRESS WARRANTY. SEARS HEREBY DISCLAIMS ANY AND ALL IMPLIED

WARRANTIES, INCLUDING BUT NOT LIMITED TO THOSE OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE TO THE EXTENT PERMITTED BY LAW. THE DURATION OF ANY

IMPLIED WARRANTIES WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PERIOD AS

SPECIFIED IN THE EXPRESS WARRANTY. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR

SPECIAL DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED.

Some provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of

incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty

gives you specific legal rights and you may also have other rights, which vary from state to state.

For service, see your nearest SEARS authorized warranty service facility. Warranty service can be performed

only by a SEARS authorized service facility. This warranty will not apply to service at any other facility. At the

time of requesting warranty service, evidence of original purchase date must be presented.

SEARS, ROEBUCK and CO., D/817WA, Hoffman Estates, IL 60179 U.S.A.

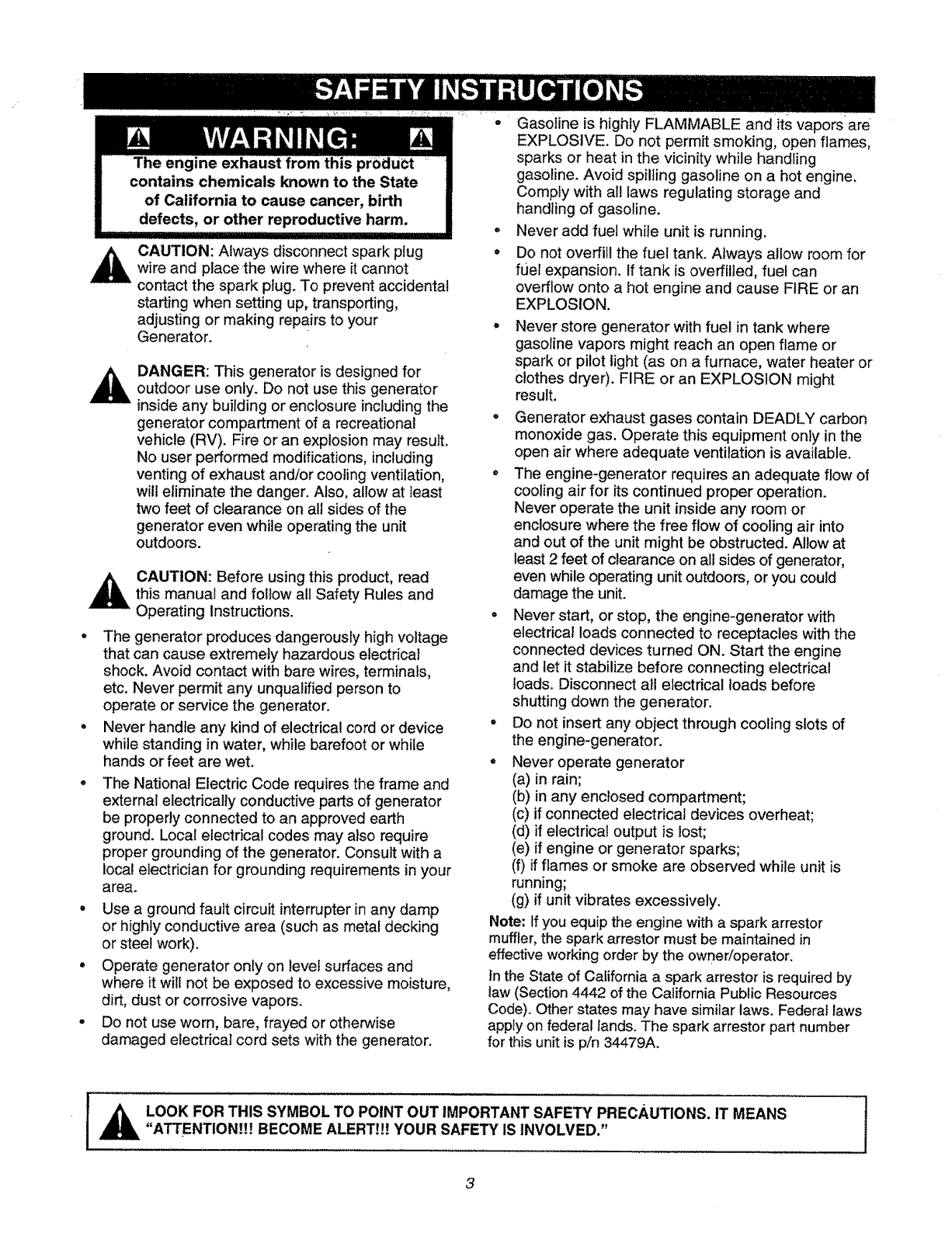

IThe engine exhaust fromthis pr0duCt :

contains chemicals known to the State

of California to cause cancer, birth

defects, or other reproductive harm_.............................

CAUTION: Always disconnect spark plug

wire and place-the wire where it cannot

contact the spark plug. To prevent accidental

starting when setting up, transporting,

adjusting or making rePairs to your

Generator.

DANGER: This generator is designed for

outdoor use only. Do not use this generator

inside any building or enclosure including the

generator compartment of a recreational

vehicle (RV). Fire or an explosion may result.

No user performed modifications, including

venting of exhaust and!or cooling ventilation,

will eliminate the danger. Also, allow at least

two feet of clearance on all sides of the

generator even while operating the unit

outdoors.

CAUTION: Before using this product, read

this manual and follow all Safety Rules and

Operating Instructions.

• The generator produces dangerously high voltage

that can cause extremely hazardous electrical

shock. Avoid contact with bare wires, terminals,

etc. Never permit any unqualified person to

operate or service the generator.

•Never handle any kind of electrical cord or device

while standing in water, while barefoot or while

hands or feet are wet.

The National Electric Code requires the frame and

external electrically conductive parts of generator

be properly connected to an approved earth

ground. Local electrical codes may also require

proper grounding of the generator. Consult with a

local electrician for grounding requirements in your

area.

•Use a ground fault circuit interrupter in any damp

or highly conductive area (such as metal decking

or stee! work).

•Operate generator only on level surfaces and

where it will not be exposed to excessive moisture,

dirt, dust or corrosive vapors.

•Do not use worn, bare, frayed or otherwise

damaged electrical cord sets with the generator.

Gasoline is highly FLAMMABLE and its vapors are

EXPLOSIVE. Do not permit smoking, open flames,

sparks or heat in the vicinity while handling

gasoline. Avoid spilling gasoline on a hot engine.

Comply with all laws regulating storage and

handling of gasoline.

Never add fuel while unit is running.

Do not overfill the fuel tank. Always allow room for

fLiel expansion. If tank is overfilled, fuel can

overflow onto a hot engine and cause FIRE or an

EXPLOSION.

Never store generator with fuel in tank where

gasoline vapors might reach an open flame or

spark or pilot light (as on a furnace, water heater or

Clothes dryer). FIRE or an EXPLOSION might

result.

-Generator exhaust gases contain DEADLY carbon

monoxide gas. Operate this equipment only in the

open air where adequate ventilation is available.

° The engine-generator requires an adequate flow of

cooling air for its continued proper operation.

Never operate the unit inside any room or

enclosure where the free flow of cooling air into

and out of the unit might be obstructed. Allow at

least 2 feet of clearance on all sides of generator,

even while operating unit outdoors, or you could

damage the unit.

= Never start, or stop, the engine-generator with

electrical loads connected to receptacles with the

connected devices turned ON. Start the engine

and let it stabilize before connecting electrical

loads. Disconnect all electrical loads before

shutting down the generator.

°Do not insert any object through cooling slots of

the engine-generator.

=Never operate generator

(a) in rain;

(b) in any enclosed compartment;

(d) if electrica! output is lost;

(e) if engine or generator sparks;

(f) if flames or smoke are observed while unit is

running;

(g) if unit vibrates excessively.

Note; If you equip the engine with a spark arrestor

muffler, the spark arrestor must be maintained in

effective working order by the owner/operator.

In the State of California aspark arrestor is required by

law (Section 4442 of the California Public Resources

Code). Other states may have similar laws. Federal laws

apply on federal lands. The spark arrestor part number

for this unit is p/n 34479A.

iLOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. IT MEANS

"ATTENTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED." J

Your generator requires some assembly and is ready •

for use after it has been properly serviced with the ::

recommended oil and fuel. o

If you have any problems with the assembly of

your generator, please call the generator helpline

at 1-800-222-3136

important: Any attempt to run the engine before it has

been serviced with the recommended oil will result in

an engine failure.

REMOVE GENERATOR FROM CARTON

•Set the carton on a rigid flat surface with 'q-HIS

SIDE UP" arrows pointing upward.

• Carefully open the top flaps of the shipping carton.

•Cut down corners at one end of carton from top to

bottom and lay that side of carton down flat.

,Remove all packing material, carton fillers, etc.

oRemove the generator from the shipping carton.

CARTON CONTENTS

Check all contents, if any parts are missing or

damaged, call the Generator Helpline at

1-800-222-3136.

oThe main unit

° Electric start battery cables

" Owner's manual

•Engine oil

o Battery mounting brackets

INSTALLING BATTERY

You must purchase and instalfa !2 Volt DC battery,

Series U1 Lawn & Garden Tractor battery (Sears

p/n 96135). The battery should be properly serviced

with electrolyte fluid and fully charged pnor to

installation.

Install the battery as follows:

°Set the battery on the generator's battery tray.

Secure battery as shown with bracket, (2) bolts, (2)

flat washers, (2) lock washers and (2) hex nuts.

Connect the black battery cable from the engine

mount bolt to the negative (-) battery post. Tighten

securely.

Red ¢abte

connected to

engl

switch here

8lack cabie

connected to

engine mount here

_CAUTION: Be sure the black cable isconnected to the engine mount and not the

frame. You could damage the ground wire.

• Connect the red battery cable from the engine

starter switch to the positive (+) battery post.

KNOW YOUR GENERATOR

Read the owner's manual and safety rules before operating your generator.

Compare the illustration shown below with your generator to familiarize yourself with the locations of various

controls and adjustments. Save this owner's manual for future reference.

FuelTank

1201240 Volt AC, 20 Amp /

Locking Receptacle /

120 Volt AC, 20 Amp /

Duplex Receptacle Grounding Wing Nut

Muffler

Air Cleaner

Choke Lever

Oil Fill

Dipstick

Oil Drain Plug

Battery Tray

Circuit Breakers

120 Volt AC, 20 Amp, Duplex Receptacles -- May

be used to supply electrical power for the operation of

120 Volt AC, 20 Amp, single phase, 60 Hz electrical

lighting, appliance, tool and motor loads.

120/240 Volt AC, 20 Amp Locking Receptacle

May be used to supply electrical power for the

operation of 120 and/or 240 Volt AC, 20 Amp, single

phase, 60 Hz electrical lighting, appliance, tool and

motor loads.

Air Cleaner -- Filters intake air as it is drawn into the

engine.

Battery Tray -- Insta!l battery here.

Choke Lever- Used when starting a cold engine.

Circuit Breakers (AC) m Each receptacle is provided

with a circuit breaker to protect the generator against

electrical overload. Breakers are "push to reset" type.

Fuel Tank m Tank holds 5 U.S. gallons of unleaded

gasoline.

Grounding Wing Nut - Provides earth grounding point

for generator

Muffler -- Muffler lowers engine noise.

Oil Drain Plug -- Drain engine oil here.

Oil Fill Dipstick -- Fill engine with oil here.

CORD SETS AND CONNECTOR PLUGS ....

120 Volt Duplex Receptacle

Use only high quality, well-insulated, extension cords

with the generator's t20 Volt duplex electrical

receptacles.

Each receptacle is protected against overload by a

push-to-reset circuit breaker. Use each receptacle to

operate 120 Volt AC, single phase, 60 Hz electrical

loads requiring up to 2400 watts (2.4 kW) at 20 Amps

of current.

CAUTION! Although each receptacle is rated

for 120 Volts at 20 Amps (2400 watts or

2.4 kW), the generator is rated for a total of

5000 watts. Powering loads that exceed the

wattage capacity of the generator can damage

it or cause serious injuries. The total of loads

with 120 Volts powered through these

receptacles should not exceed 20 Amps.

Check the ratings of all extension cords before you use

them. Extension cord sets used should be rated for

t25 Volts AC at 20 Amps or greater for most electrical

devices. Some devices, however, may not require this

type of extension cord. Check the owner's manuals of

those devices for manufacturer's recommendations.

Keep extension cords as short as possible, preferably

tess than 15 feet long, to prevent voltage drop and

possible overheating of wires.

120t240 Volt, 20 Amp Receptacle

This receptacle is a NEMA L14-20R and is protected

by a push-to-reset circuit breaker. A NEMA L14-20P

mating connector plug is required to use this

receptacle. Connect a suitable 4-wire cord set to the

plug and to the desired load. The cord set should be

rated for 250 Volts at 30 Amps (or greater).

4-Wire Cord Set

i_ 240V

_--120V--> <-- 120V-->

W (Neutral)

X (Hot)

Y (Hot)

NEMA L14-20 Ground

(Green)

AAUTION! Although this receptacle is rated

for 240 Volts at 20 Amps (4800 watts or 4.8

kW), the generator is rated for a total of 5000

watts (5.0 kW). Powering loads that exceed

the wattage capacity of the generator can

damage it or cause serious injuries. Loads

with 240 Volts powered through this

receptacle should not exceed 20 Amps.

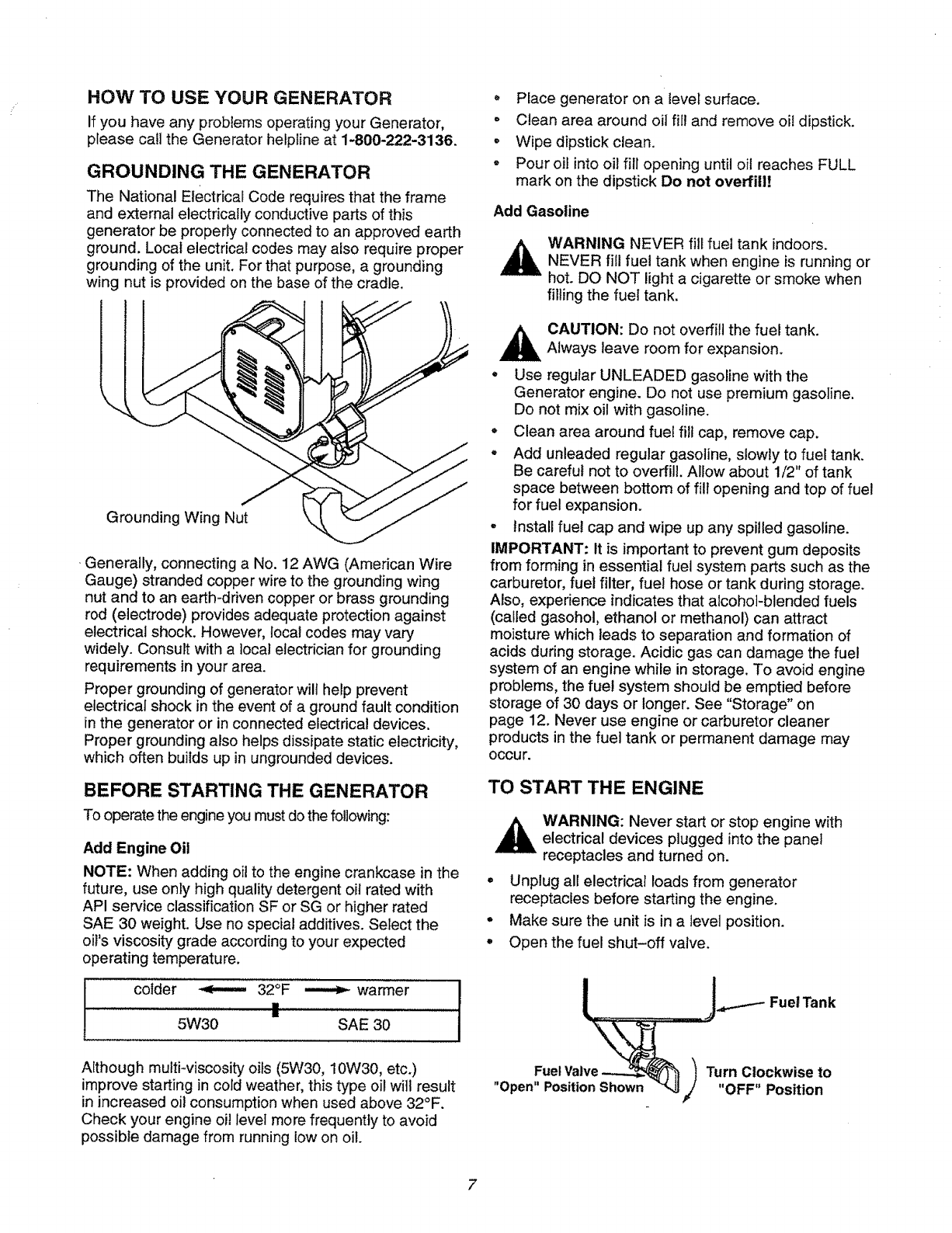

HOW TO USE YOUR GENERATOR

If you have any problems operating your Generator,

please call the Generator hetpline at 1-800-222-3136.

GROUNDING THE GENERATOR

The National Electrical Code requires that the frame

and external electrically conductive parts of this

generator be properly connected to an approved earth

ground. Local electrical codes may also require proper

grounding of the unit. For that purpose, a grounding

wing nut is provided on the base of the cradle.

Grounding Wing Nut

.Generally, connecting a No. 12 AWG (American Wire

Gauge) stranded copper wire to the grounding wing

nut and to an earth-driven copper or brass grounding

rod (electrode) provides adequate protection against

electrical shock. However, local codes may vary

widely. Consult with a local electrician for grounding

requirements in your area.

Proper grounding of generator wilt help prevent

electrical shock in the event of a ground fault condition

in the generator or in connected electrical devices.

Proper grounding also helps dissipate static electricity,

which often builds up in ungrounded devices.

BEFORE STARTING THE GENERATOR

To operate the engine you must do the following:

Add Engine Oil

NOTE: When adding oil to the engine crankcase in the

future, use onIy high quality detergent oil rated with

API service classification SF or SG or higher rated

SAE 30 weight. Use no special additives. Select the

oil's viscosity grade according to your expected

operating temperature.

colder _ 32°F,, _ warmer 1

5W30 • SAE 30 i

Although multi-viscosity oils (5W30, 10W30, etc.)

improve starting in cold weather, this type oil will result

in increased oil consumption when used above 32°F.

Check your engine oil level more frequently to avoid

possible damage from running low on oil

Place generator on a level surface.

=Clean area around oil fill and remove oil dipstick.

o Wipe dipstick clean.

°Pour oil into oil fill opening until oil reaches FULL

mark on the dipstick Do not overfil!!

Add Gasoline

WARNING NEVER fill fuel tank indoors.

NEVER fill fuel tank when engine is running or

hot. DO NOT light a cigarette or smoke when

filling the fuel tank.

CAUTION: Do not overfi!l the fuel tank.

Always leave room for expansion.

regular UNLEADED gasoline with the

Generator engine. Do not use premium gasoline.

Do not mix oil with gasoline.

=Clean area around fuel fill cap, remove cap.

•Add unleaded regular gasoline, slowly to fuel tank.

Be careful not to overfill. Allow about 1/2" of tank

space between bottom of fill opening and top of fuel

for fuel expansion.

- Install fuel cap and wipe up any spilled gasoline.

IMPORTANT: tt is important to prevent gum deposits

from forming in essential fuel system parts such as the

carburetor, fuel filter, fue! hose or tank during storage.

Also, experience indicates that alcohol-blended fuels

(called gasohol, ethanol or methanol) can attract

moisture which leads to separation and formation of

acids during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fue! system should be emptied before

storage of 30 days or longer. See "Storage" on

page 12. Never use engine or carburetor cleaner

products in the fuel tank or permanent damage may

occur.

TO START THE ENGINE

A WARNING: Never start or stop engine withelectrical devices plugged into the panel

receptacles and turned on.

• Unplug all electrical loads from generator

receptacles before starting the engine.

° Make sure the unit is in a level position.

° Open the fuel shut-off valve.

......-._ Fuel Tank

FuelValve--.._ tTurn Clockwise to

"Open" PositionShown _/ "OFF" Position

•Move the choke lever to the "Full Choke

Position,"

FULLCHOKEPOSITION LEVER

CHOKEPOSITION

• Set the engine control switch to the On (-)

Position.

Engine

Control

Switch

•Manual Start: Grasp starter grip and pull s!owiy

until you feel some resistance. Then pull cord out

with rapid full arm stroke. Let rope return slowly. Do

not let rope "snap back" against starter.

•Electric Start: Hold the engine starter switch on

the cradle down until the engine starts.

NOTE: Use short starting cYCleS(15 seconds per

minute) to avoid overheating starter.

•When engine starts, move choke lever to "1/2

Choke Position" untilthe engine runs smoothly

and then to "No Choke Position." if engine falters,

move choke lever to "1/2 Choke Position" until the

engine runs smoothly and then to "No Choke

Position."

Note: If engine fails to start after 3 pulls, move the

choke lever to "No Choke Position" and pull starter

rope again.

Note: If the engine fails to start after three (3) pulls,

check for proper oil level in crankcase. Unit is

equipped with alow oil shutdown system.

Note: If engine fires, but does not continue to run,

move choke lever to "Full Choke" and repeat starting

instructions.

CAUTION! Never run engine indoors or in

enclosed poorly ventilated areas. Engine

exhaust contains carbon monoxide, an

odorless and deadly gas.

WARNING! temperature of muffler and nearby

areas may exceed 150°F (65°C). Avoid these

areas.

STOPPING THE ENGINE

• Unplug all electrical loads from generator panel

receptacles. Never start or stop engine with

electrical devices plugged in and turned on.

• Let engine run at no-load for several minutes to

stabilize the internal temperatures of engine and

generator.

• Move engine control switch to Off (o) Position.

• Close the fuel shut-off valve

CONNECTING ELECTRICAL LOADS

- Let engine stabilize and warm up for a few minutes

after starting.

,Plug in and turn on the desired 120 and/or 240 Volt

AC, single phase, 60 Hz electrical loads.

°Do not connect 240 Volt loads to the 120 Volt

duplex receptacles

•Do not connect 3-phase loads to the receptacles.

° Do not connect 50 Hz loads to the receptacles.

•DO NOT OVERLOAD THE GENERATOR. Add up

the rated watts (or Amps) of all loads to be

connected at one time. This total should not be

greater than the rated wattage/amperage capacity

of the generator. See "Don't Overload the

Generator" on Page 9.

LOW OIL LEVEL SHUTDOWN SYSTEM

Sensing Low Oil Level

tf the system senses a low oil level during operation,

the engine shuts down. If the engine shuts down by

itself and it has enough gasoline in the fuel tank, check

oil level.

Restarting

If you attempt to restart the engine after such a

shutdown and have not corrected the engine oil level,

the engine will not start. Check the oil and refill

according to the instructions on page 7.

DON'T OVERLOAD THE GENERATOR

Overloading a generator in excess of its rated wattage

capacity can result in damage to the generator and to

connected electrical devices. Observe the following, to

prevent overloading the unit:

*Add up the total wattage of ali electrical devices to

be connected at one time. This total should NOT be

greater than the generator's wattage capacity.

°The rated wattage of lights can be taken from light

bulbs. The rated wattage of tools, appliances and

motors can usually be found on a data plate or

decal affixed to the device.

*If the appliance, tool or motor does not give

wattage, multiply volts times ampere rating to

determine watts (volts x amps = watts).

-Some electric motors, such as induction types,

require about two and a half times more watts of

power for starting than for running. This surge of

power lasts only a few seconds when starting such

motors. Make sure you allow for this high starting

wattage when selecting electrical devices to

connect to your generator. First, figure the watts

needed to star_ the largest motor. Add to that figure

the running watts of all other connected loads.

The Wattage Reference Guide below is provided to

assist you in determining how many items your

generator can operate at one time.

WATTAGE REFERENCE GUIDE

Electrical Device .......... Running Watts

*Air Conditioner (t2,000 Btu) 1700

Battery Charger (20 Amp) 500

Belt Sander (3") ~1000

Chain Saw ~1200

Circular Saw (6-1/2") ~800 to 1000

Coffee Maker ~1000

*Compressor (t HP) 2000

*Compressor (3/4 HP) ~1800

*Compressor (1/2 HP) -1400

Curling Iron 700

*Freezer 500

Disc Sander (9") ~1200

Edge Trimmer 500

Electric Nail Gun -t200

Electric Range (one element) -1500

Electric Skillet -1250

*Furnace Fan (1/3 HP) -1200

Hair Dryer -t 200

Hand Drill (1") -1100

Hand Drill (1/2") 750 to 1000

Hand Drill (3/8") 500

Hand Drill (t/4") 250

Hedge Trimmer ~450

Impact Wrench 500

Electrical Device

*Jet Pump

Lawn Mower

Light Bulb

Microwave Oven

*Milk Cooler

Oil Burner on Furnace

Oil Fired Space Heater (140,000 Btu)

Oit Fired Space Heater (85,000 Btu)

Oil Fired Space Heater (30,000 Btu)

*Paint Sprayer, Airless (1/3 HP)

Paint Sprayer, Airless (handheld)

Radio

*Refrigerator

Slow Cooker

*Submersible Pump (1-1/2 HP)

*Submersible Pump (1 HP)

*Submersible Pump (1/2 HP)

Sump Pump

*Table Saw (10")

Television

Weed Trimmer

Running Wa_s

-800

~1200

-100

700

-1100

300

~400

225

-150

600

~150

50to 200

-600

200

2800

2000,

-1500

600

~1750to 2000

200to 500

5OO

* Allow 3timesthelisted wattsforstadingthese

devices.

Maintenance Schedule

Follow the hourly or calendar intervals, whichever occurs first.

More frequent service is required when operating in adverse conditions noted below.

Maintenance Operation

Check oil level

Change oil and oil filter_

Service air cleaner

Replace spark plug

Prepare Unit for storage

Every 5 Hours

or uaily 25 Hours or 50 Hours or 100 Hours or

Every Season Every Season Every Season

WNNN x* '

Prepare unit for storage if it is to remain idle for more

than 30 days

_: Change oil after first 5 hours of operation then after every 25 hours or every season.

* Change oit and oil filter sooner when operating under heavy load or in high temperatures.

** Clean more often under dirty or dusty conditions.

PRODUCT SPECIFICATIONS

Generator Specifications

Rated Maximum Power ........ 5000 Watts (5.0 kW)

Surge Power ................ 6250 Watts (6.25 kW)

Rated Voltage ............... 120/240 Volts AC

Rated Maximum Current

at 240 Volts ................ 20.8 AC Amperes

Rated Maximum Current

at 120 Volts ................ 41.7 AC Amperes

Rated Frequency ............ 60 Hz at 3600 rpm

Phase ..................... Single Phase

Engine Specifications

Rated Horsepower ........... 10 at 3600 rpm

Spark Plug

Type: ................ Champion RJ17LM or

Equivalent

Set Gap To: ........... 0.030inch (0.76mm)

Gasoline Capacity ............ 5 U.S. gallons

Oil

Summer SAE 30 (t0W-30)

Winter .............. SAE 5W-20 or 5W-30

GENERAL RECOMMENDATIONS

The Generator warranty does not cover items that

have been subjected to operator abuse or negligence.

To receive full value from the warranty, operator must

maintain unit as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your Generator.

All adjustments in the Service and Adjustments section

of this manual should be made at least once each

season. Follow the requirements in the "Maintenance

Schedule" chart above.

Note: Once a year you should clean or replace the

spark plug and replace the air filter. A new spark plug

and clean air filter assure proper fueFair mixture and

help your engine run better and last longer.

GENERATOR MAINTENANCE

Generator maintenance consists of keeping the unit

clean and dry. Operate and store the unit in a clean

dry environment where it will not be exposed to

excessive dust, dirt, moisture or any corrosive vapors.

Cooling air slots in the generator must not become

clogged with snow, leaves, or any other foreign

material.

Check the cleanliness of the generator frequently and

clean when dust, dirt, oil, moisture or other foreign

substances are visible on its exterior surface.

Note: We DO NOT recommend using a garden hose

to clean generator. Water can enter the engine fuel

system and cause problems, tn addition, if water

enters the generator through cooling air slots, some of

the water will be retained in voids and cracks of the

rotor and stator winding insulation. Water and dirt

buildup on the generator internal windings will

eventually decrease the insulation resistance of these

windings.

CLEAN THE GENERATOR

_AUTION: Never Insert any object or tool

through the air cooling slots, even if the

engine is not running.

-Use a damp cloth to wipe exterior surfaces clean.

,, A soft, bristle brush may be used to loosen caked

on dirt, oil, etc.

o A vacuum cleaner may be used to pick up Ioose dirt

and debris.

Low pressure air (not to exceed 25 psi) may be

used to blow away dirt. Inspect cooling air slots and

openings on the generator. These openings must

be kept clean and unobstructed.

ENGINE MAINTENANCE

_ANGER: When working on the generator

always disconnect spark plug wire from spark

plug and keep it away from spark plug.

Checking Oil Level

Oil level should be checked prior to each use or at

least every 5 hours of operation. Keep oil level

maintained.

Changing Engine Oil

Change oil after first 5 hours of operation. Change oil &

oil filter every 25 hours thereafter, tf you are using your

generator under extremely dirty or dusty conditions, or

in extremely hot weather, change oil more often.

Change oil while engine is still warm from running, as

follows:

• Clean area around oi! drain plug.

•Remove oil drain plug and oil fill plug and drain oil

completely into a suitable container.

o When oil has completely drained, Install oil drain

plug and tighten securely.

• Fill oil sump with recommended oil. (See "Before

Starting the Engine" on page 7 for oil

recommendations)

° Install the oil fill plug and tighten securely.

• Wipe up any spilled oil.

Clean/Replace Spark Plug

Change the spark plug every 100 hours of operation or

once each year, whichever comes first. This will help

your engine to start easier and run better. See

"Specifications" for proper spark plug.

oClean area around spark plug.

° Remove and inspect spark plug.

,Check electrode gap with wire feeler gauge and set

spark plug gap to 0.030 inch (0.76mm) if

necessary.

oReplace spark plug if electrodes are pitted, burned

or porcelain is cracked.

Service Air Cleaner

Your engine will not run properly and may be damaged

if you run it using a dirty air cleaner.

Clean or replace the air cleaner every 100 hours of

operation or once a year, whichever comes first. Clean

or replace more often if operating under dusty or dirty

conditions. Replacements are available at your local

Sears Authorized Service Center

To clean or replace air cleaner follow these steps:

°Remove wing nut.

• Remove air cleaner cover carefully.

BASE_NUT

PAPER

* Remove the air filter and examine it for damage.

o Clean air filter by gently tapping it on asolid

surface. If the filter is too dirty, replace the filter with

a new one. Dispose of the old filter properly.

o Reassemble all parts and fasten securely to the

engine with the wing nut.

Note: Do not use pressurized air or petroleum solvents

such as kerosene to clean cartridge.

GENERAL

The generator should be started at least once every

seven days and allowed to run at least 30 minutes, if

this cannot be done and you must store the unit for

more than 30 days, use the following information as a

guide to prepare it for storage.

LONG TERM STORAGE INSTRUCTIONS

_ARNING: NEVER store engine with fuel in

tank indoors or in enclosed, poorly ventilated

areas where fumes may reach an open flame,

spark or pilot light as on a furnace, water

heater, clothes dryer or other gas appliance.

It is important to prevent gum deposits from forming in

essential fuel system parts such as the carburetor, fuel

filter, fuel hose or tank during storage. Also,

experience indicates that alcohol-blended fuels (called

gasohol, ethanol or methanol) can attract moisture

which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system

of an engine while in storage.

To avoid engine problems, the fuel system should be

emptied before storage of 30 days or longer. Follow

these instructions:

Protect Fuel System

WARNING: Drain fuel into approved

container outdoors, away from open flame. Be

sure engine is cool. Do not smoke.

•Remove all gasoline from the fuel tank to prevent

gum deposits from forming on these parts and

causing possible malfunction of engine.

oRun engine until engine stops from lack of fuel.

Change Oil

While engine is still warm, drain oil from crankcase.

Refill with recommended grade.

Oil Cylinder Bore

• Remove spark plug and pour about 1/2 ounce

(15ml) of engine oil into the cylinder. Cover spark

plug hole with rag, Crank slowly to distribute oil.

,_ CAUTION! Avoid spray from spark plug hole

when cranking engine slowly.

-Install spark plug. Do not connect spark plug wire.

GENERATOR:

•Clean the generator as outlined on page 10 ("Clean

the Generator").

° Check that cooling air slots and openings on

generator are open and unobstructed.

OTHER STORAGE TIPS:

° Do not store gasoline from one season to another.

° Replace your gasoline can if your can starts to rust.

Rust and/or di_ in your gasoline will cause

problems.

- If possible, store your unit indoors and cover it to

give protection from dust and dirt. BE SURE TO

EMPTY THE FUEL TANK.

Cover your unit with a suitable protective cover that

does not retain moisture.

Store generator in clean, dry area,

,_ DANGER: NEVER cover your Generator

while engine and exhaust area are warm.

PROBLEM

Engineis running,but no

AC outputis available,

Enginerunsgoodat no-toadbut "bogs

down"when loadsareconnected

CAUSE

t, Oneof the circuitbreakersisopen.

2, Faultingenerator.

3, Poorconnectionor defective

cordset.

4, Connecteddeviceis bad.

1, Shortcircuitin aconnectedload.

2, Enginespeedis tooslow,

3. Generatoris overloaded.

4, Shortedgeneratorcircuit.

Enginewill not start;or starts 1,

andruns rough. 2.

Engineshutsdownduringoperation

Enginelackspower,

Engine"hunts"or falters.

Run/StopSwitchsetto STOP,

Dirtyair cleaner

Out of gaso!ine.

Stalegasoline,

Sparkplugwirenot connected

to sparkplug.

6, Badsparkplug.

7. Waterin gasoline,

8. Overchoking,

9. Lowoit level

10,Excessivelyrichfuel mixture,

11.Intakevalvestuckopenor closed.

t 2,Enginehas lostcompression,

1,Out of gasoline,

2. Lowoit level.

1. Loadis toohigh,

2. Dirtyairfilter.

1, Chokeis openedtoo soon,

2, Carburetoris runningtoo rich

ortoo lean.

CORRECTION

1. Resetcircuitbreaker.

2.ContactSearsServiceFacility,

3.Checkandrepair.

4.Connectanotherdevicethat

is in goodcondition.

I. Disconnectshortedelectrical

load.

2.ContactSearsServiceFacility,

3.See "Don'tOverloadthe

Generator'>, page9.

4.ContactSearsServiceFacility.

1.Set switchto RUN.

2.Clean orreplaceair cleaner.

3.Fill fuel tank.

4.Drain gastank; fill withfreshfuel.

5.Connectwire to sparkplug.

6.Replacesparkplug.

7. Draingas tank;fill withfreshfuel.

8. Openchokefullyandcrankengine.

9. Fillcrankcaseto properlevel.

!0. ContactSears ServiceFacility.

11. ContactSears ServiceFacility.

12. ContactSearsServiceFacility,

1.Fill fuel tank,

2. Fill crankcaseto properlevel.

1.See"Don'tOverloadthe Generator"

2. Replaceairfilter.

1.Movechoketo halfwaypositionuntil

enginerunssmoothly.

2.ContactSearsServiceFacility.

CRAFTSMAN 5000 Watt AC Generator 580.327152

Wiring Diagram

F-

(F. rw_

i== ='-"

.or.

_x" _J -'t...l*

w,_= l_v-_. ..,F-_I_

CRAFTSMAN 5000 Watt AC Generator 580.327152

Main Unit- Exploded View

48 \

48 23

\. 12

,79 76 80

78 STARTER DETAIL

900

47 47

'A'

CRAFTSMAN 5000 Watt AC Generator 580.327152

Main Unit- Parts List

item Part #Qty.

2 66825B t

3 91825 1

4 66365D

5 22129

6 86307

7 74716J

8 65791

9 67451

10 75431

tl B2762J

12 81917

t3 86308C

14 27482

15 39414

16 70642

17 B3104

18 52858

19 76222

20 143-53621

23 38150

24 23365

26 78951B

27 56892

28 77374

30 78831B

31 90878

32 77395

33 78299

34 80270

38 68867

39 68759

84242

45771

74908

22264

51715

94396B

26850

75475

Description Item Part #

CARRIER, Rear Bearing 49 85652

ASSEMBLY, Brush & Bridge 50 82308

Rectifier 51 86494

1 ADAPTER, Housing 53 B1635B

2 LOCK WASHER, M8 54 67022

4 SCREW, Hex Hd 5/16-24 x 57 66849

3/4 Seres 63 83465

1 ASSEMBLY, Rotor 65 48031C

1 BEARING 72 92982

1 WASHER, Special 73 93826

1 BOLT, Rotor

1 ASSEMBLY, Stator 74 68740

1 PIN, Roll M4 x 10 Lg. 76 22097

4 BOLT, Stator 77 75494

1 LOCK WASHER, Shakeproof 78 77282

1 BOLT, M8 - 1.25 x 35 79 22287

2 MOUNT, Vibration - 45 ° 80 22127

1 COVER, Control Panel 81 78289

7 LOCK NUT, M8-1.25 Flange 82 B3049

2 PPHMS, M8-1.25 x 40 mm 83 98247

1 WIRE, Ground 84 75477

6 WASHER, #8 Flat 85 23762

4 WASHER, Lock Serrated 86 65795

No. 8 87 23897

1 SHIELD, Heat 88 49226

2 10-24 x 3/8 Lg. Cfimptite 89 51716

1 TANK, Gas Plastic 5 Gal. 900 NSP

4 CAPSCREW, Hex Hd. M6 x

60 mm BIk

1 CAP, Fuel Tank

4 NUT, Hex Lock _ M6

1 BUSHING, Plastic Tank

! VALVE, Plastic Tank Battery Tray Parts -

1 OUTLET, 120/240 Twist Lock 44951 1

1 OUTLET, 120 Volt 20amp. 45000 2

Duplex 22097 2

2 GROMMET, Rubber 22127 2

2 NUT, Hex 5/16 - 18 113-53621 1

4 SCREW, Hex M5 - 0.80 x 10 ! 13-53621 1

4 WASHER, #8 Lock

4 NUT, Hex - M4 -0.7

1 CIRCUIT BREAKER - 20Amp

2 WASHER, Shakeproof 1/4"

4 SCREW, M4 - 0.7 x 10 Pan

Head

Qty.

Description

MOUNT, Rubber

SCREW, Self Tapping

SCREW, M6 x 16 Lg. Wing

CRADLE

GROMMET, Rubber

SCREW, M5 - 0.8 x 15

GROMMET, Mounting Tank

CLAMP, Hose - 1/4"

DECAL, Danger

DECAL, Operating

Instructions

1 FILTER, Fue!

2 WASHER, M6 Lock

2 SCREW, Self Drilling

1 SWITCH, Starter

2 SCREW, 1/4" - 20 x 3/4"

2 NUT, 1/4" - 20 Hex

t BRACKET, Starter Switch

1 DECAL, Panel Control

1 DECAL, Control Panel

1 PPHMS, M5 - 0.8 x 20

1 SHAKEPROOF, Ext. #10

1 RECTIFIER, Battery Charge

1 FLAT WASHER, #10 - M5

1 LOCKWASHER, M5

1 NUT, Hex M5 _0.8

1 ENGINE, 143.981007

Parts Not Illustrated

B2473 t Owner's Manual

NSP 1 28oz. SAE30 Engine Oil

Not Illustrated

Battery Hold Down Bar

Hex Head Cap Screw

Lock Washer

Hex Nut

Negative Battery Cable

Positive Battery Cables

Optional Accessories Not lllustrated

09-32684 WheeIKit

09-32688 Co_W_p Kit

09-32686 120/240V 20A Plug

Tecumseh Engine - 143.981007 +

Item

15A

15B

36t

_€_ ,, 36t

40O

75 7'

70 69

182

184 <_

380

178

23g

240

!_.__,_ _ I

• 9001

277

238

276

251

Part #

35968A

27652

30699C

30700

650494

33454A

29916

Qty Description

t Cylinder (incl. 2, 20 & 72)

2Dowel Pin

1Governor Rod (incL 15A &lSB)

1Governor Yoke

1Screw, 6-40 x5/16"

1Governor Lever Ass'y.

1Governor Lever Clamp

285

Item Part #

18 651028

20 35319

25 35460

25A 36244

26 650561

28 30322

30 35441A

416 I

[

101

110A

3gO

327

287

Qty Description

1 Screw, Torx T-15, 8+32 x3.8"

1 Oil Seal

1 Blower Housing Baffle

1 Air Baffle

2-Screw, 1/4-20 x 5/8"

1 Lock Nut, 8-32

1 Camshaft

Tecumseh Engine - 143.981007

Item Part #Qty Description Item Part #

35 29826 1 Screw, 10-32 x 3/4" 130 650694A

36 29918 t Lock Washer 130B 65103t

37 29216 1 Lock Nut, 10-32 135 33636

38 29642 I Retaining Pin 139 33369

40 35776A 1 Piston, Pin & Ring Set (Std.!, 140 650836

40 35777A t Piston, Pin & Ring Set (.010 OS) 149 27882

40 35778A 1 Piston, Pin & Ring Set (.020 OS) 149A 35862

41 35773A t Piston & Pin Ass'y (Std.) (Incl. 43) 150 27881

41 35774A 1 Piston & Pin Ass'y (.010" OS) 151 32581

(incl. 43) 169 27896A

4I 35775A t Piston & Pin Ass'y (.020") (Incl. 170 28423

43) 171 28424

42 35779 1 Ring Set (Std.) 172 28425

42 35780 1 Ring Set (.010" OS) 173 36675A

42 35781 1 Ring Set (.020" OS) 173A 32446

43 35772 2 Piston Pin Retaining Ring 174 650128

45 36898 1 Connecting Rod Ass'y. (Incl. 47 & 178 29752

49) 182 30088A

47 65!033 2 Connecting Rod Bolt 184 33263

48 34034 2 Valve Lifter 185 33877

49 36896 1 Oil Dipper 207 33878

50 35375 1 Camshaft (MCR) 223 650378

60 33273A 1 Blower Housing Extension

65 650128 1 Screw, 10-24 x 1/2" 224 27915A

69 35262A 1 Cylinder Cover Gasket 238 28820

70 35376 1 Cylinder Cover (incl. 71, 75 & 80) 239 27272A

71 35377 1 Crankshaft Bushing 240 37104

72 27642 2 Oil Pipe Plug 242 33267

75 35319 1 Oil Seal 245 33268

80 31845 1 Governor Shaft 250 33269A

81 30590A 1 Washer 251 650513

82 35378 1 Governor Gear Ass'y. (Incl. 81) 260 36243A

83 30588A 1 Governor Spool 261 650788

84 29193 1 Retaining Ring 262 29747B

86 650833 7 Screw, 1/4-20 x 1-3/16"

87 650832 1 Screw, 1/4-20 x 1-11/16" 264A 650802

89 32589 1 Flywheel Key 265 33272B

90 611091 1 Flywheel 275 34t85B

92 650880 1 Lock Washer 276 31588

93 650881 1 Flywheel Nut 277 650729

94 651016 1Lock Nut, 10-32 285 35985B

95 30886A 1 Extension Spring 287 29752

96 30845A 1 R.P.M. Adjusting Bolt 290 30705

100 35135 1 Solid State Ignition 292 26460

101 610118 1 Spark Plug Cover 311 35941

102 65t024 2 Solid State Mounting Stud 312 29673

103 651007 2 Screw, Torx T-15, 10-24 x 15/16" 324 33177

t 10 65589 1 Ground Wire 325 29443

110A 36993 1 Ground Wire 327 35392

111 61 t206 1 Low Oil Shut-Down Switch 342 30063

(incl. 112) 361 650990

111B 611224 1 Rocker On/Off Switch 370G 35274

112 35967 1 Low Oil Shutdown Gasket 380 640129

113 650950 4 Screw, Torx T-25, 10-24 x 5/8" 390 590746

1t9 36451 1 Cylinder Head Gasket 395 36680

120 36449 1 Cylinder Head 400 36454

125 27878A 1 Exhaust Valve (Std.!, (Incl. 151)

t25 27880A t Exhaust Valve (t/32 OS)

(Incl. t51)

I26 34035 1 lntake Valve (Std,) (fncL 151)

126 34036 1 intake Valve (1/32" OS) (IncL 151) 416 34479A

t27 650691 9 Washer 900 NSP

128 650690 9 Belleviile Washer

Oty Description

9 Screw, 5/16-18 x 2"

1 Screw, 1/4-20 x 9/16"

1 Resistor Spark Plug (RJ17LM)

1 Governor Gear Bracket

2 Screw, 10-24 x 1/2"

1 Valve Spring Cap

2 Valve Spring

2 Valve Spring Keeper

2 Valve Cover Gasket

1 Breather Body

1 Breather Element

1 Valve Cover

1 Breather Tube

2 Breather Tube Grommet

2 Screw, 10-24 x 1/2"

2 Nut &:' Lock Washer, 1/4-28

2 Screw, 1/4-28 x 1"

1 Carburetor to Intake Pipe Gasket

1 Intake Pipe

1 Throttle Link

2 Screw, Torx T-30, 5/16-18 x

t-t/8"

1 Intake Pipe Gasket

2 Screw, 10-32 x 1/2"

1 Air Cleaner Gasket

1 Air Cleaner Bracket

1 Air Cleaner Filter

t Air Cleaner Cover

t Wing Nut, 1/4-20

1 Blower Housing

2 Screw, 5/16-18 x 3/4"

2 Screw, Torx "1"-40,5/16-24 x

21/32"

1 Screw, 1/4-20 x 518"

1 Cylinder Head Cover

1 Muffler

1 Locking Plate

2 Screw, 5.16-18 x 3-3/16

1 Starter Cup

4 Nut & Lock Washer, 1/4-28

1 Fuel Line

2 Fuel Line Clamp

1 Dipstick (incl. 312)

1 "O" Ring

I Terminal

1 Wire Clip

1 Starter Plug

1 Screw, Torx T-30, I/4-20 x 1/2"

4 Screw, Torx T-30, 1/4-20 x 15/32"

1 Oil Instruction Decal

1 Carburetor (incl. 184)

1 Rewind Starter

1 Electric Starter Motor (12 Volt)

1 Gasket Set (Inc!. part #'s 27272A

(1), 27896A (2), 27915A (I),

29673 (1), 33263 (1), 33629 (1),

34698A (1), 35262 (1), 35317 (1),

36451 (t)

I Spark Arrestor Kit (Optional)

1 Rep. Short Block 756282B, Order

from 71-999

Tecumseh Engine - 143.981007

Item

20A

Part #

640129

631776A

631970

631184

631183

64O109

650506

632597

632043

631184

631183

631753

630735

632164

651025

630766

640027

640053

631867

631024

632019

631028

63t 021

631022

640113

632547

640114

27110

630748

631027

Qty Description

1 Carburetor (incl. 184 of

Engine Parts List)

1 Throttle Shaft & Lever

Assembly

1 Throttle Return Spring

1 Dust Seal Washer

1 Dust Seal (Throttle)

1 Throttle Shutter

2 Shutter Screw

1 Choke Shaft and Lever

Assembly

1 Choke Return Spring

1 Dust Seal Washer

1 Dust Seal (Choke)

1 Choke Shutter

1 Choke Positioning Spring

1 Fuel Fitting

1 Throttle Crack Screw/Idle

Speed Screw

1 Tension Spring

1 idle Restrictor Screw

1 Idle Restrictor Screw Cap

1 Float Bowl

1 Float Shaft

1 Float

1 Float Bowl "0" Ring

1 Inlet Needle, Seat & Clip

(Incl. 3t)

1 Spring Clip

1 Main Nozzle Tube

2 "O" Ring, Main Nozzle Tube

1 High Speed Bowl Nut

1 Bowl Nut Washer

1 Welch Plug, Idle Mixture Well

1 Welch Plug, Atmospheric

Vent

Tecumseh Engine - 143.981007

Item

Pad #

36680

33451

33842

33430

33854

33432

35893

33450

35894

35895

36699

35896

35897

35898

35899

650168

65O864

650990

Qty Description

1 Electric Starter

1 Dust Cover

1 Retainer Ring

1 Spring Retainer

1 Anti-Drift Spring

t Gear

1 Nut and Retainer Ring (incl. 2)

2 Lock Nut

I Drive End Cap Ass'y

t Armature

t Housing Ass'y

1 Brush and Spring Kit

1 Thrust Washer

2 Bolt, 10-32 x 4-11/64"

1 End Cap & Brush Card Ass'y. (incl. 12, 14, t7, 18)

1 Washer

2 Nut

4 Screw, Torx T-30, 1/4-20 x 15/32"

Tecumseh Engine - 143.981007

Item

PaN #

590746

590599A

590600

590679

590601

590678

590680

590412

590681

590747

590535

590701

Qty

Description

Recoil Starter

Spring Pin (incf, 4)

Washer

Retainer

Washer

Brake Spring

Starter Dog

Dog Spring

Pulley & Rewind Spring

Assembly

Starter Housing Assembly

Starter Rope

Starter Handle

For California residents only when seeking service in California.

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board ("CARB") and Sears Roebuck and Co., USA, are pleased to explain the

Emission Control System Warranty on your 1995 and later lawn and garden equipment engine. In California new

utility and lawn and garden equipment engines must be designed, built and equipped to meet the State's

stringent anti-smog standards. Sears must warrant the emission control system on your lawn and garden

equipment engine for the periods of time listed below provided there has been no abuse, neglect, or improper

maintenance of your lawn and garden equipment engine.

Your emission control system includes parts such as the carburetor and the ignition system.

Where a warrantable condition exists, Sears will repair your lawn and garden equipment engine at no cost to

you. Expenses covered under under warranty include diagnosis, parts, and labor.

MANUFACTURER'S WARRANTY COVERAGE

The 1995 and later utility and lawn and garden equipment engines are warranted for two years. If any emission

related part on your engine (as listed below) is defective, the part wilt be repaired or replaced by Sears.

OWNER'S WARRANTY RESPONSIBILITIES

As the lawn and garden equipment engine owner, you are responsible for the performance of the required

maintenance listed in your owners manual. Sears recommends that you retain all receipts covering maintenance

on your lawn and garden equipment engine, but Sears cannot deny warranty solely due for the lack of receipts or

for your failure to ensure the performance of all scheduled maintenance.

As the lawn and garden equipment engine owner, you should be aware that Sears may deny you warranty

coverage if your lawn and garden equipment engine or a part of it has failed due to abuse, neglect, improper

maintenance, unapproved modifications, or the use of parts not made or approved by the original equipment

manufacturer.

You are responsible for presenting your lawn and garden equipment engine to a Sears authorized repair center

as soon as a problem exists. Warranty repairs should be completed in a reasonable amount of time, not to

exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest

authorized service center or call Sears at 1-800-473-7247.

WARRANTY COMMENCEMENT DATE

The warranty period begins on the date the lawn and garden equipment engine is delivered.

LENGTH OF COVERAGE

Sears warrants to the initial owner and each subsequent purchaser that the engine is free from defects in

materials and workmanship which cause the failure of a warranted part for a period of two years.

WHAT IS COVERED

REPAIR OR REPLACEMENT OF PARTS

Repair or replacement of any warranted part will be performed at no charge to the owner at an approved

Sears servicing center.

tf you have any questions regarding your warranty rights and responsibilities, your shoutd contact your

nearest authorized service center or call Sears at 1-800-473-7247.

WARRANTY PERIOD

Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only

for regular inspection to the effect of "repair or replace as necessary" shall be warranted for 2 years. Any

warranted part which is scheduled for replacement as required maintenance shall be warranted for the period of

time up to the first scheduled replacement point for that part.

DIAGNOSIS

The owner shall not be charged for diagnostic labor which leads to the determination that t warranted part is

defective if the diagnostic work is performed at an approved Sears servicing center.

CONSEQUENTIAL DAMAGES

Sears may be liable for damages to other engine components caused by the failure of a warranted part still under

warranty.

WHAT IS NOT COVERED

All failures causedby abuse,neglect, or impropermaintenanceare notcovered.

ADD-ON OR MODIFIED PARTS

The use of add-on or modified parts can be grounds for disallowlng a warranty claim. Sears is not liable to cover

failures of warranted parts caused by the use of add*on or modified parts.

HOW TO FILE A CLAIM

If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest

authorized service center or call Sears at 1-800-473-7247.

WHERE TO GET WARRANT'{ SERVICE

Warranty services or repairs shall be provided at at! Sears authorized service centers.

MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION RELATED PARTS

Any Sears approved replacement part used in the performance of any warranty maintenance or repair on

emission related parts will be provided without charge to the owner if the part it under warranty.

EMISSION CONTROL WARRANTY PARTS LIST

1. Carburetor Assembly

2, Ignition System

a. Spark Plug, covered up to maintenance schedule.

b. ignition Module

3. Crankcase Breather Tube

4. Exhaust Manifold

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME (1-800-469-4663)

Para pedir servicio de reparacibn a domicilio - t-800-676-5811

in Canada for all your service and parts needs call - 1-800-665-4455

Au Canada pour tout le service ou les pi_ces

For the repair or replacement parts you need:

Call 7 am - 7 pro, 7 days a week

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega adomicilio - 1-800-659.7084

For the location of a Sears Parts and Repair Center in your area:

Call 24 hours a day, 7 clays a week

1-800-488-1222

For information on purchasinga Sears Maintenance Agreement

or to inquire about an existing Agreement:

Call 9 am - 5 pm, Monday- Saturday

1-800-827-6655

1/11 l[ IHIHIU ...... ......

TheServiceSideof Sears_

Craftsman 580327150 User Manual 2400 WATT PORTABLE AC GENERATOR Manuals And Guides L0912330

CRAFTSMAN Generator Manual L0912330 CRAFTSMAN Generator Owner's Manual, CRAFTSMAN Generator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
