Operators Manual

2 GPM

HIGH PRESSURE WASHER

Model No, 580.768110

HOURS: Mon. -Fri. 8 a.m. to 5 p.m. (CT)

CAUTION:

Before using this product, read this

manual and follow all its Safety Rules

and Operating Instructions.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.€om/craftsman

•Safety

•Assembly

•Operation

•Maintenance

•Parts

Part No. B3774 Draft 1 (4/19/1999) printed in f_e U.S.A.

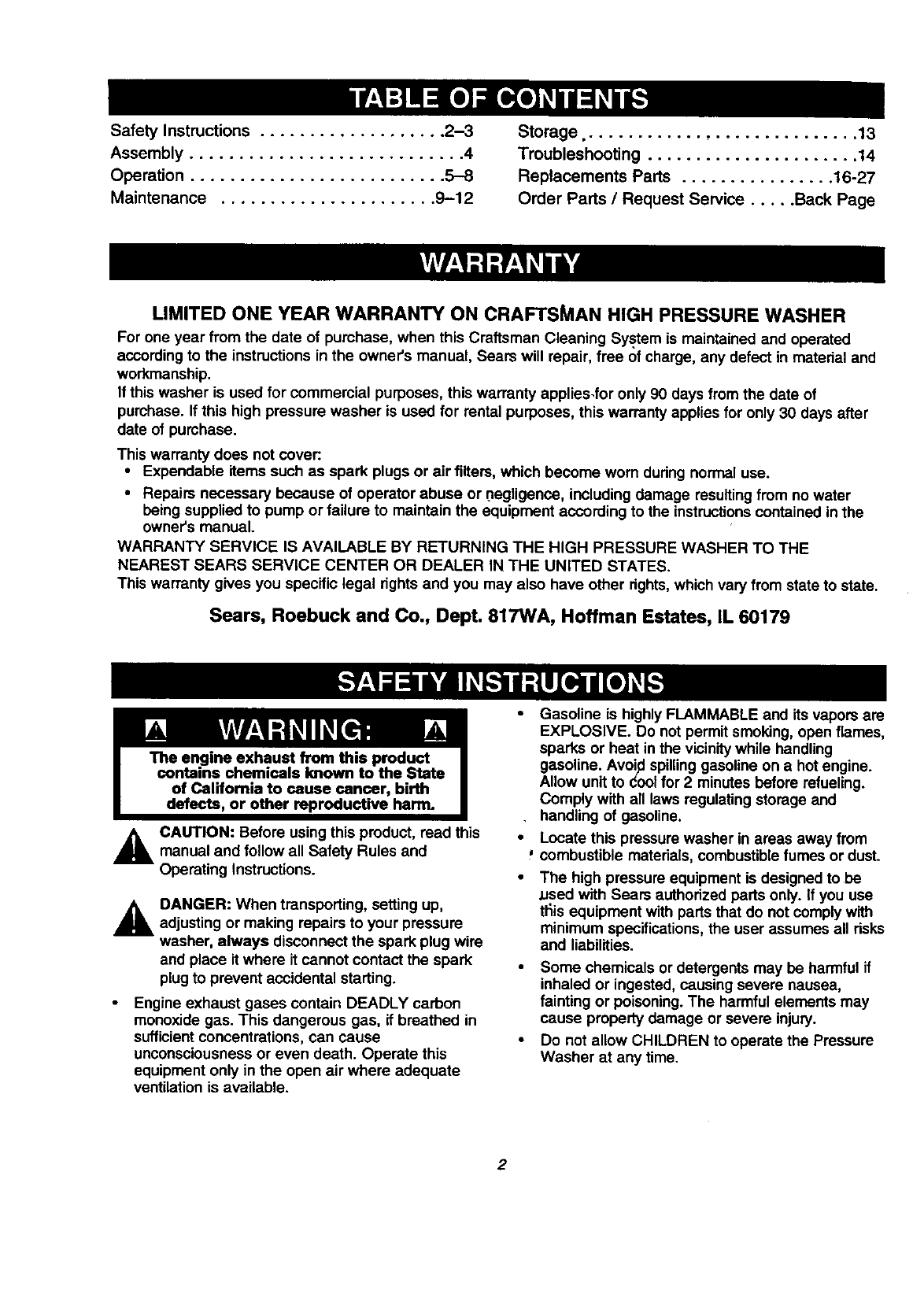

Safety Instructions ................... 2-3

Assembly ............................ 4

Operation .......................... 5-8

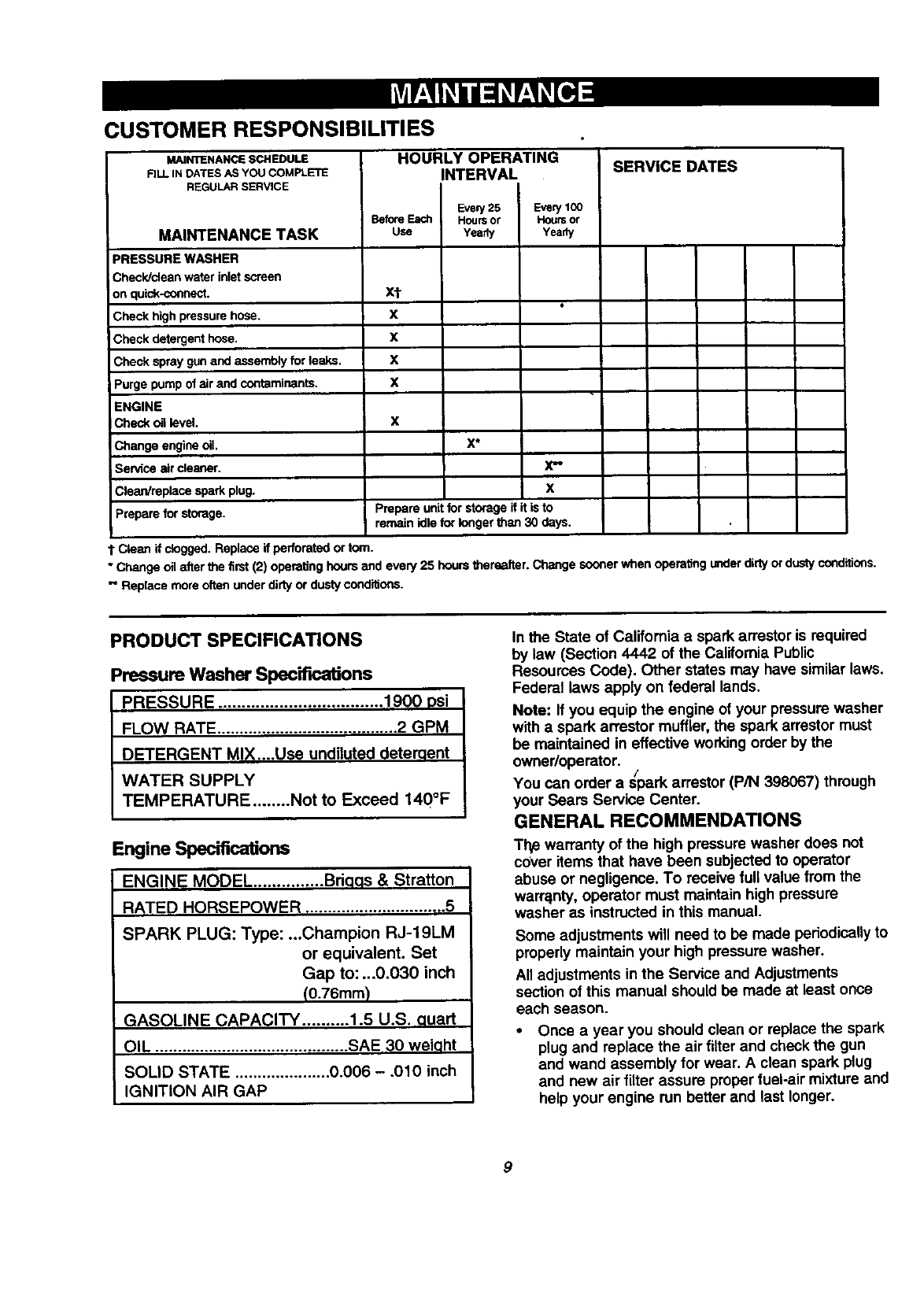

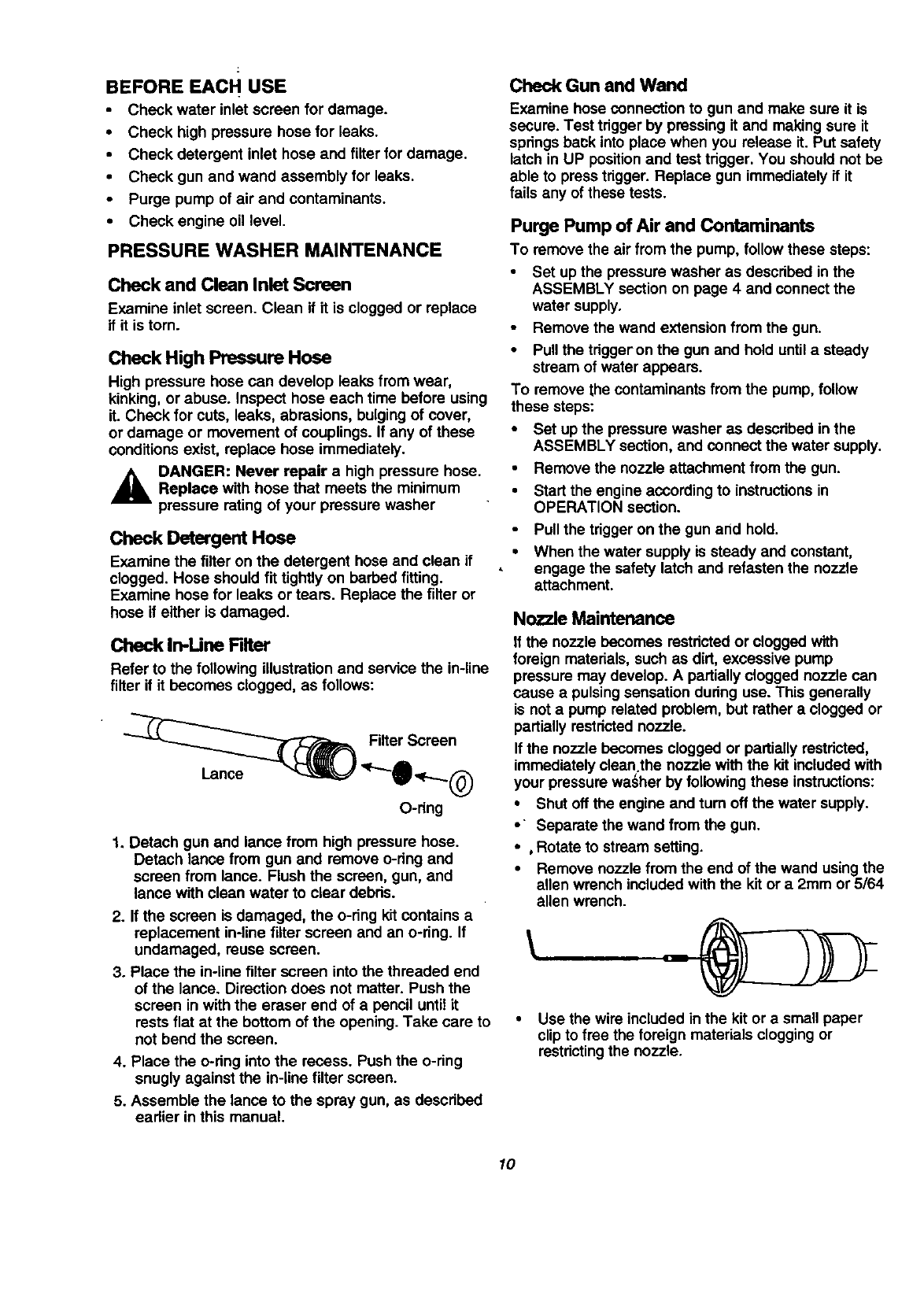

Maintenance ...................... 9-12

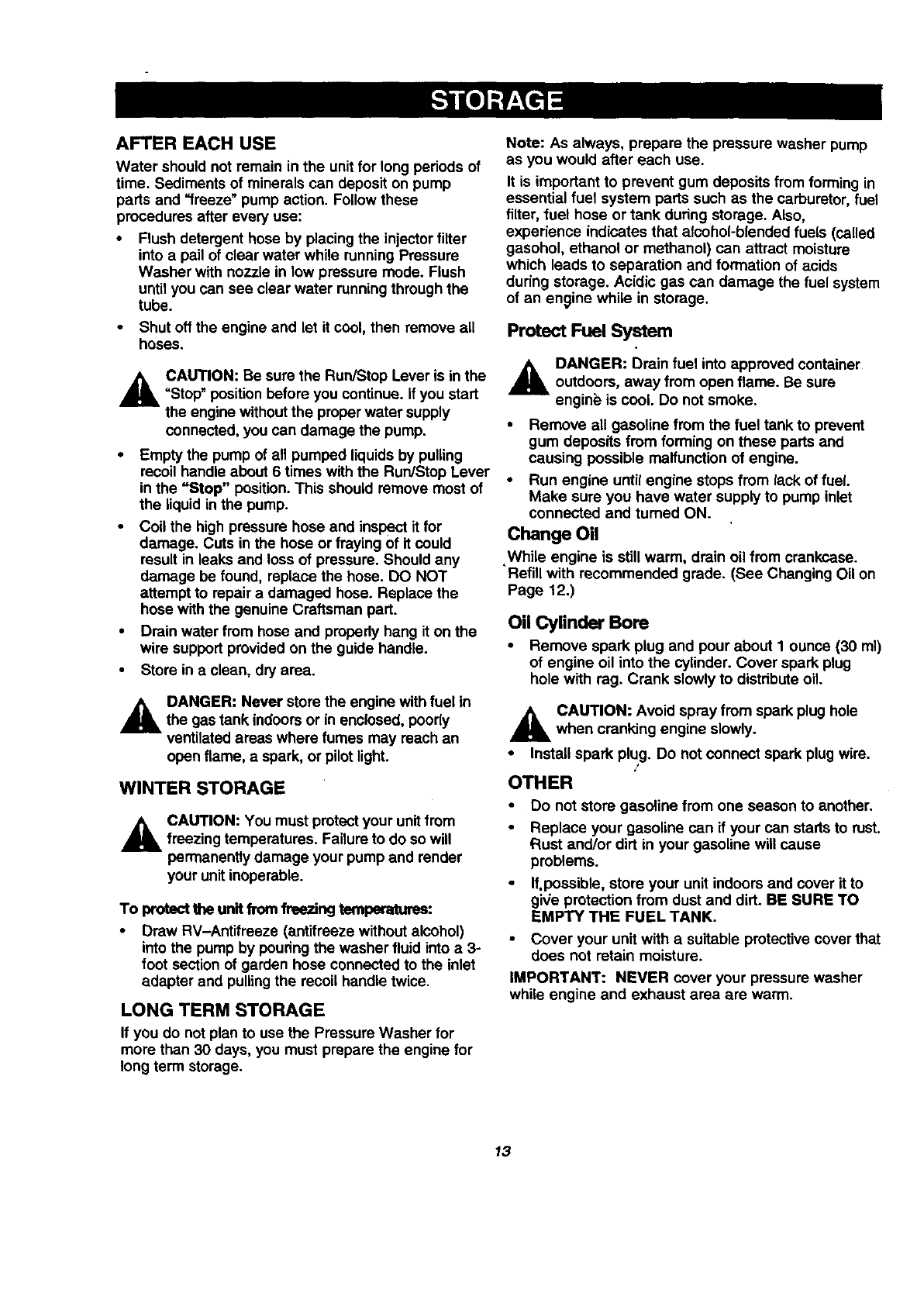

Storage. ........................... 13

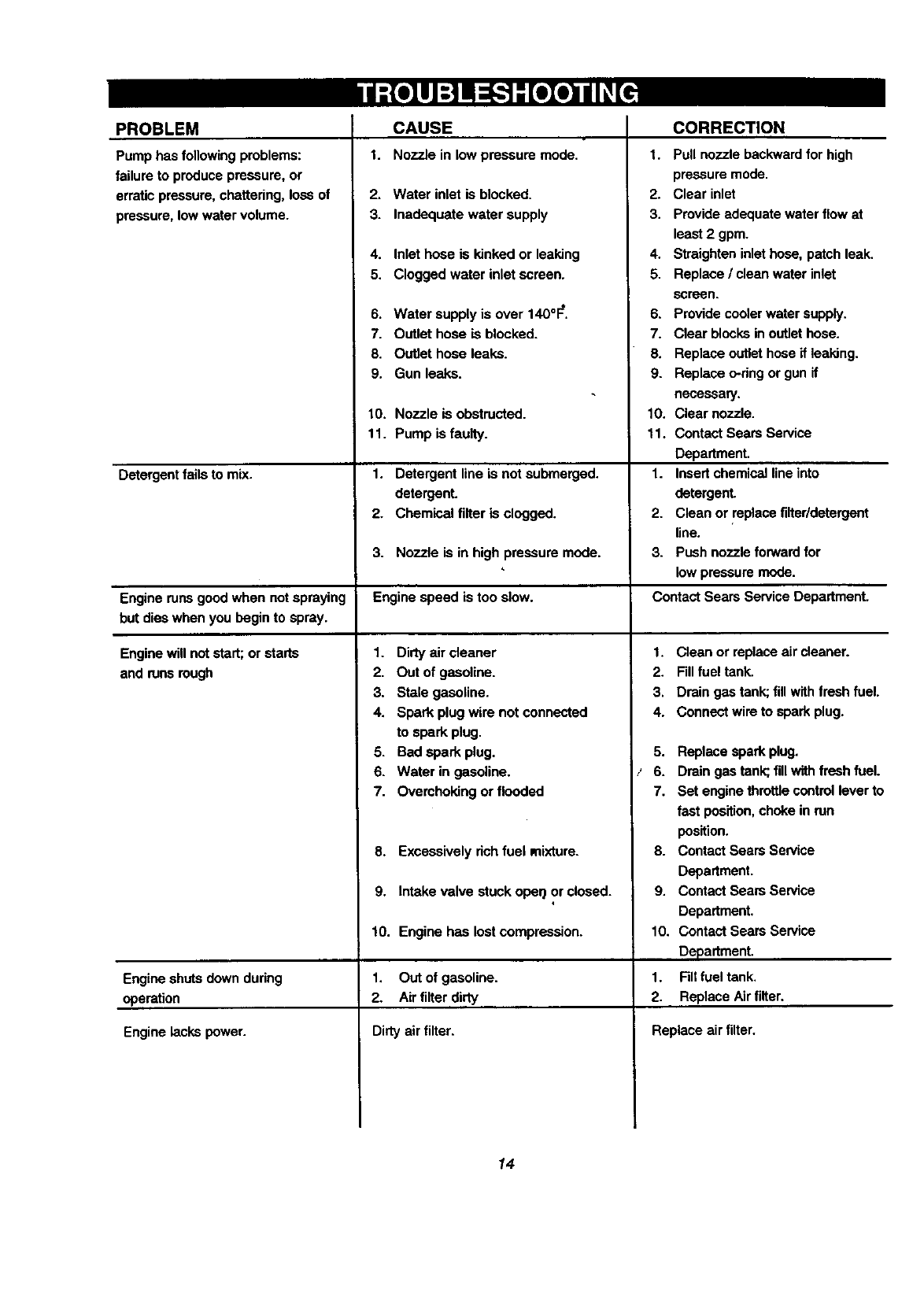

Troubleshooting ...................... 14

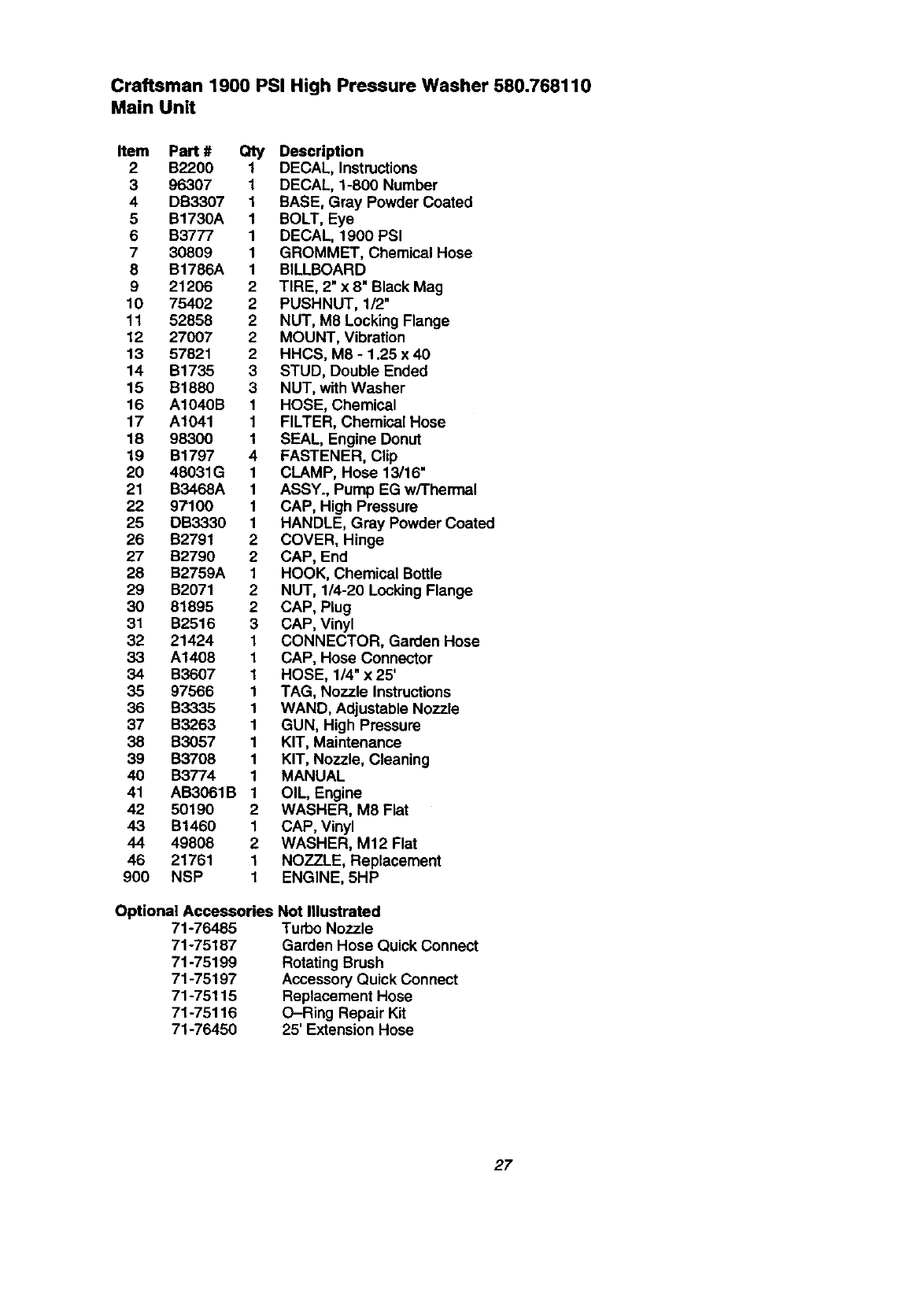

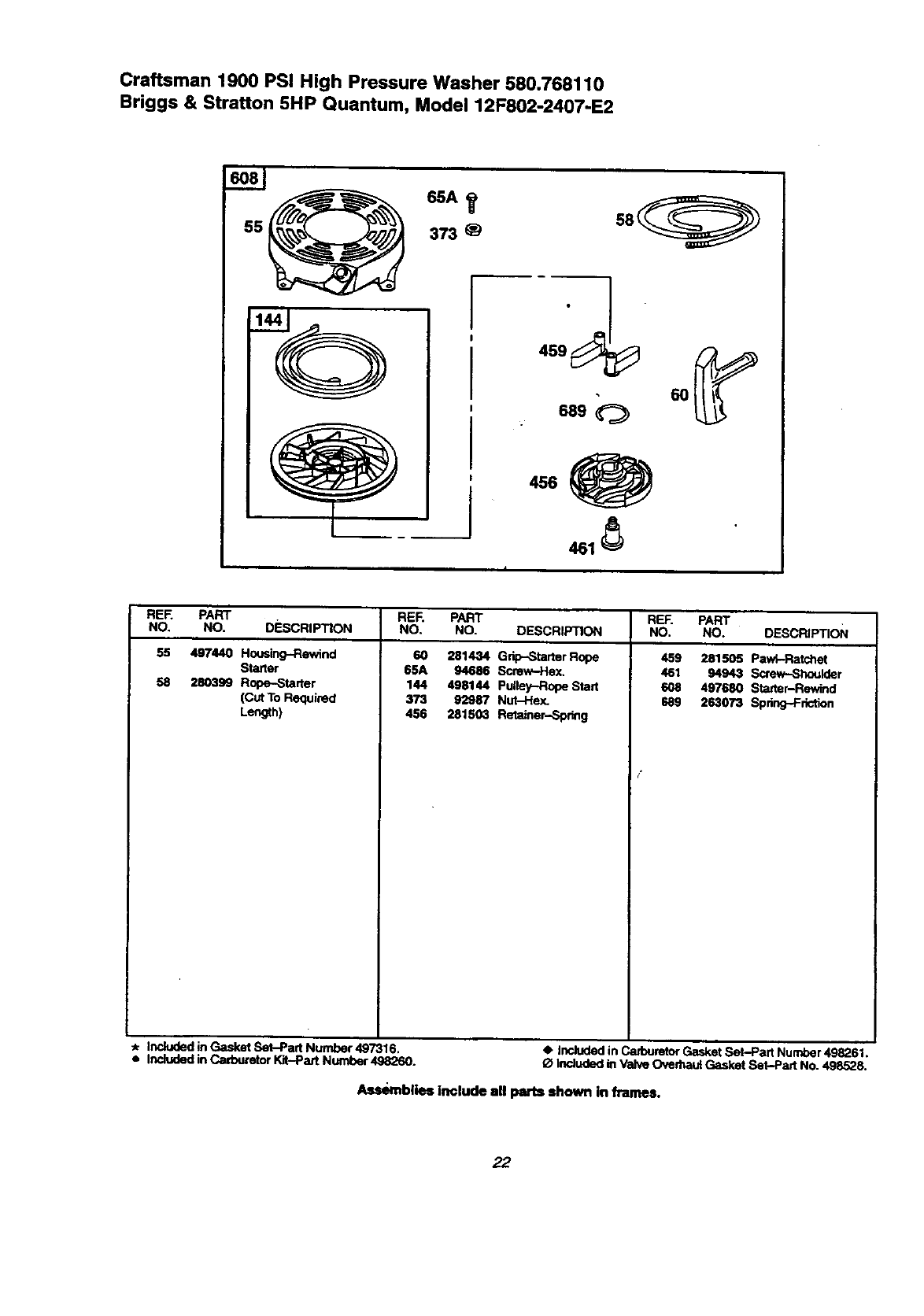

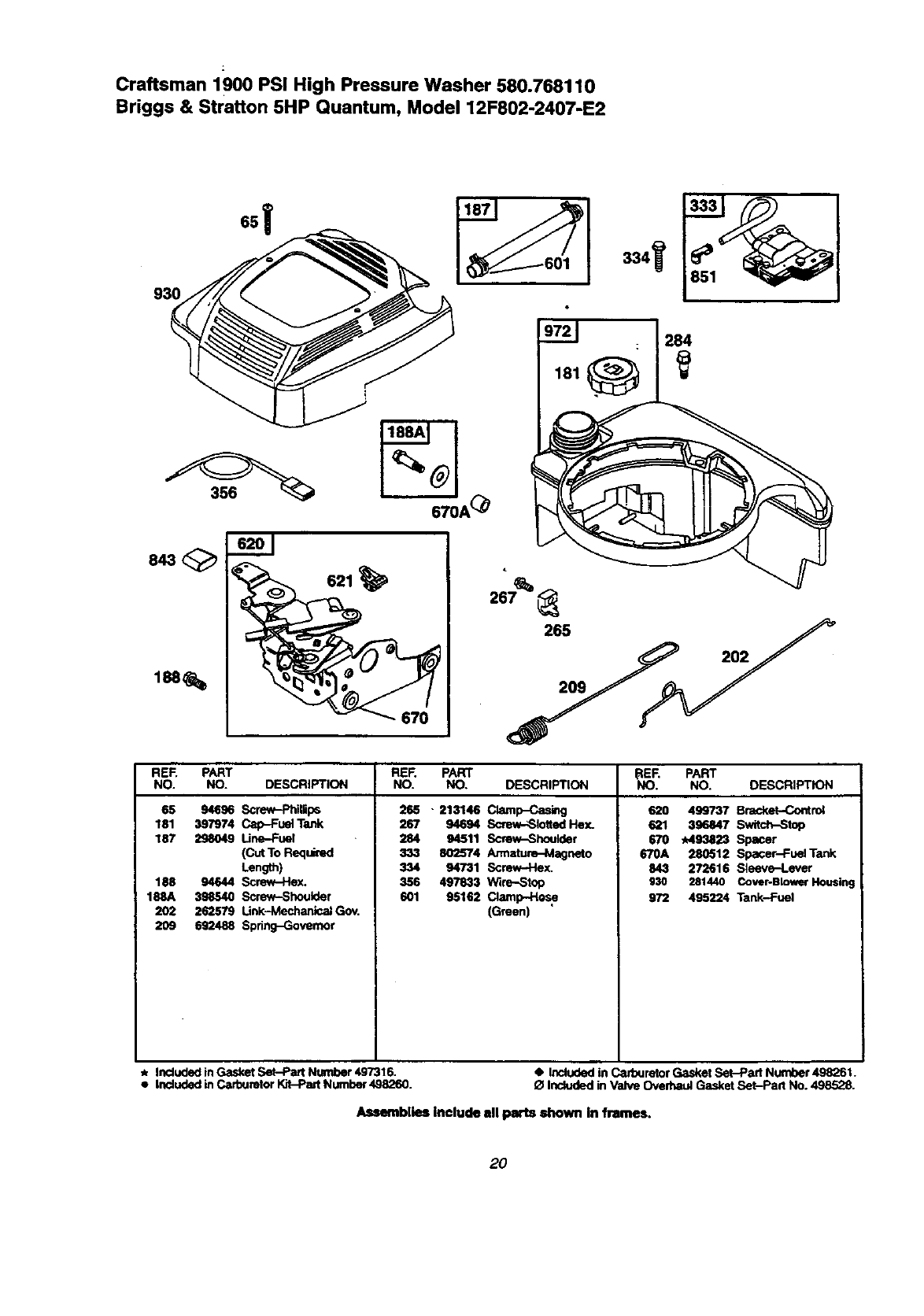

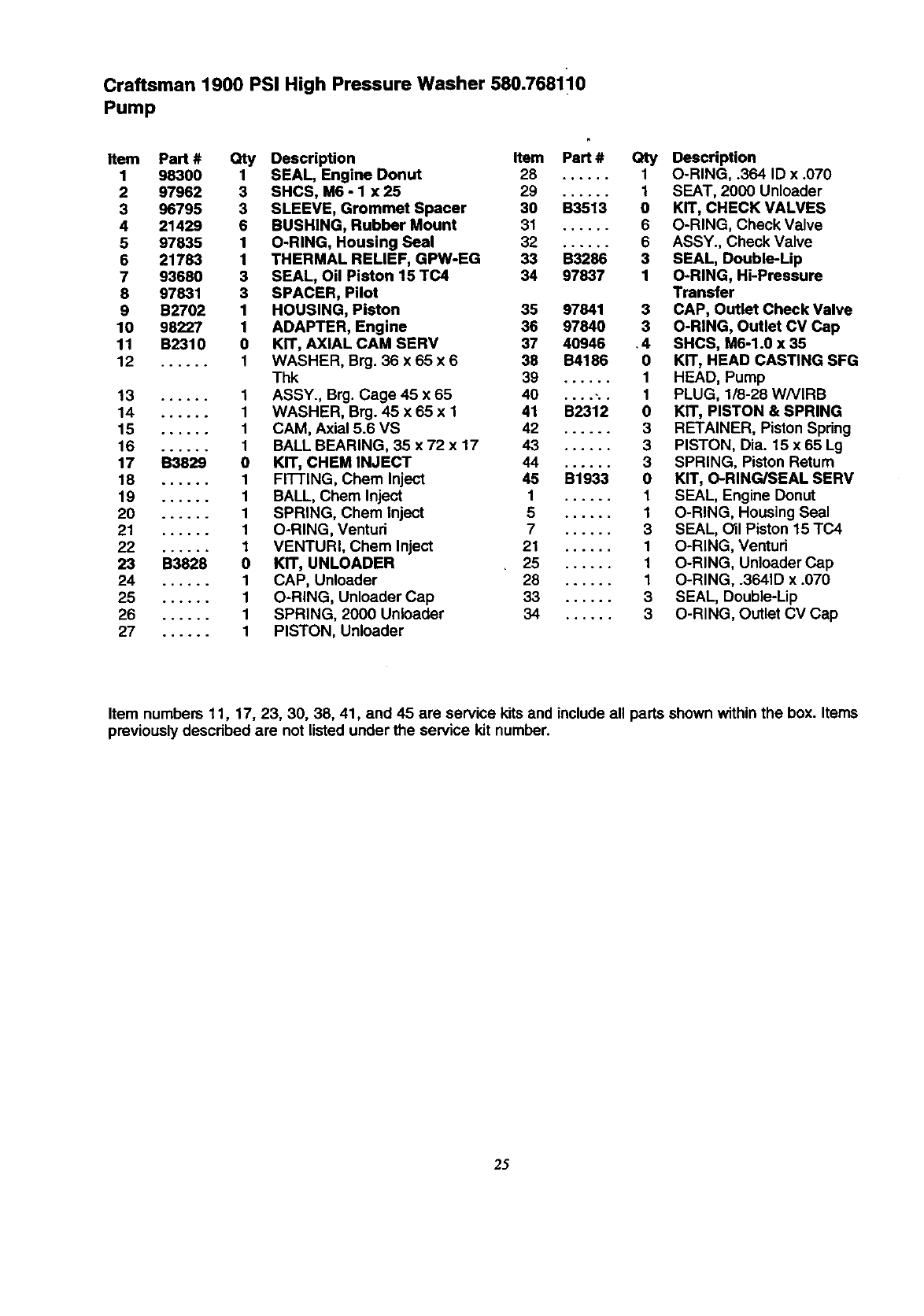

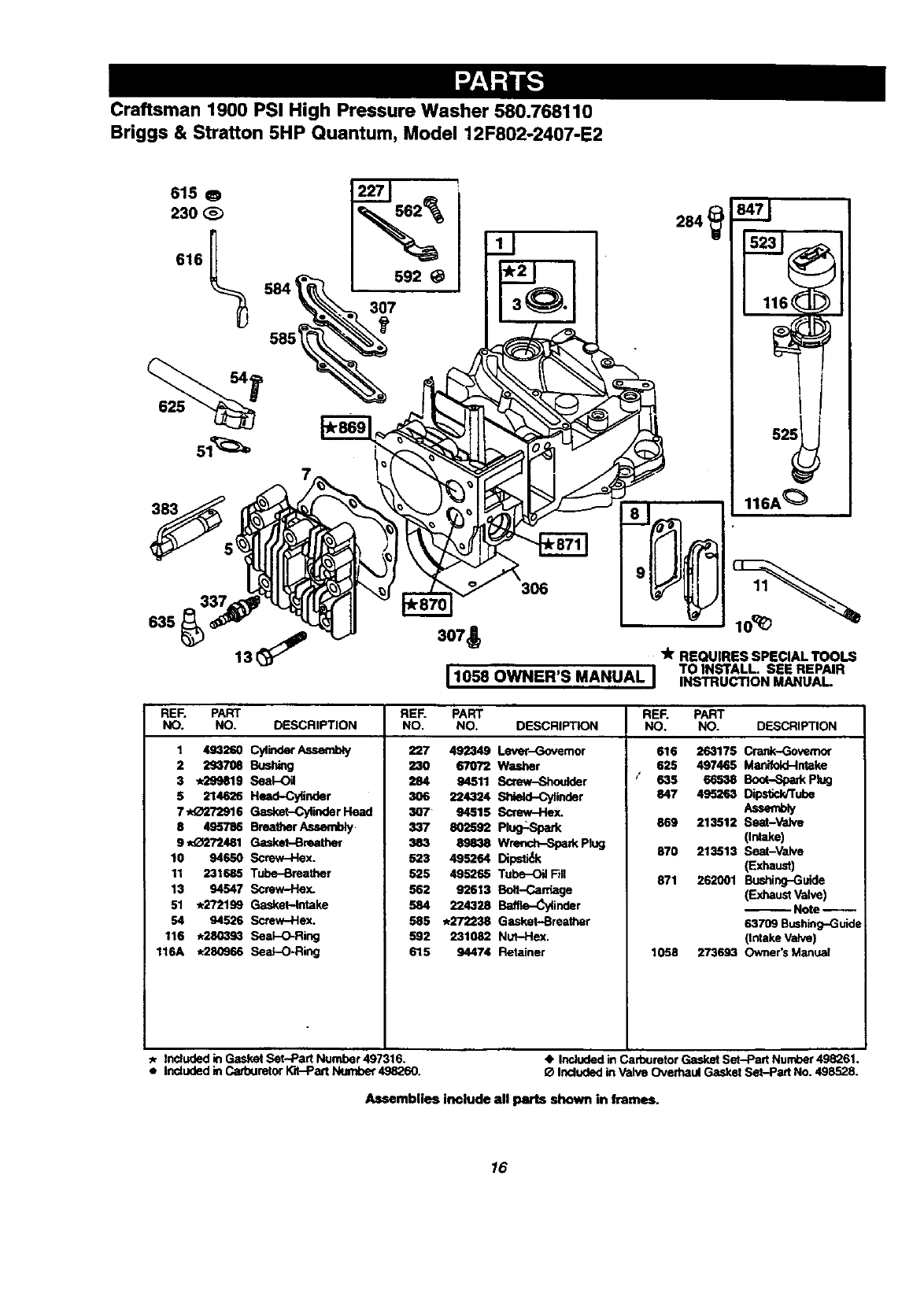

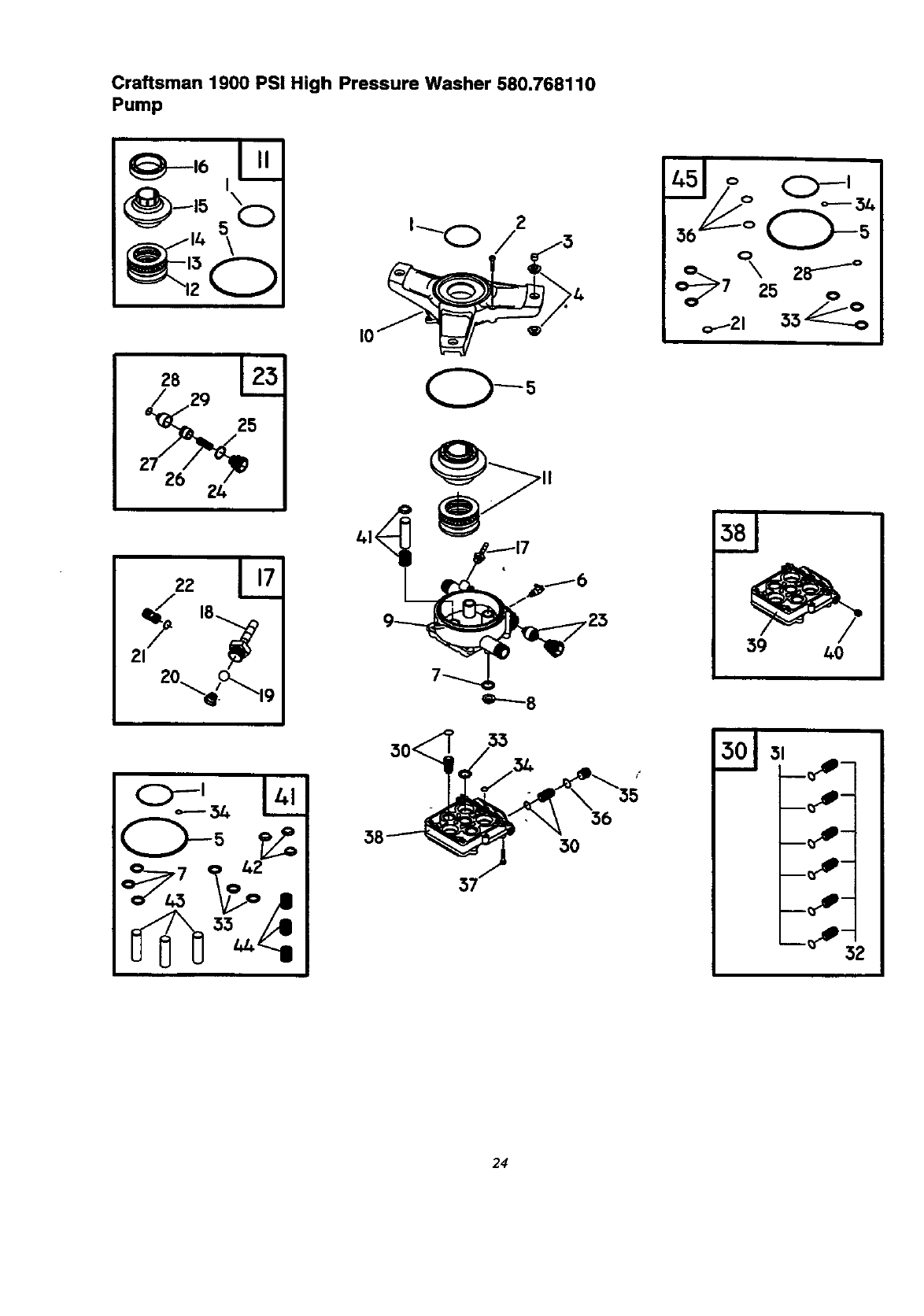

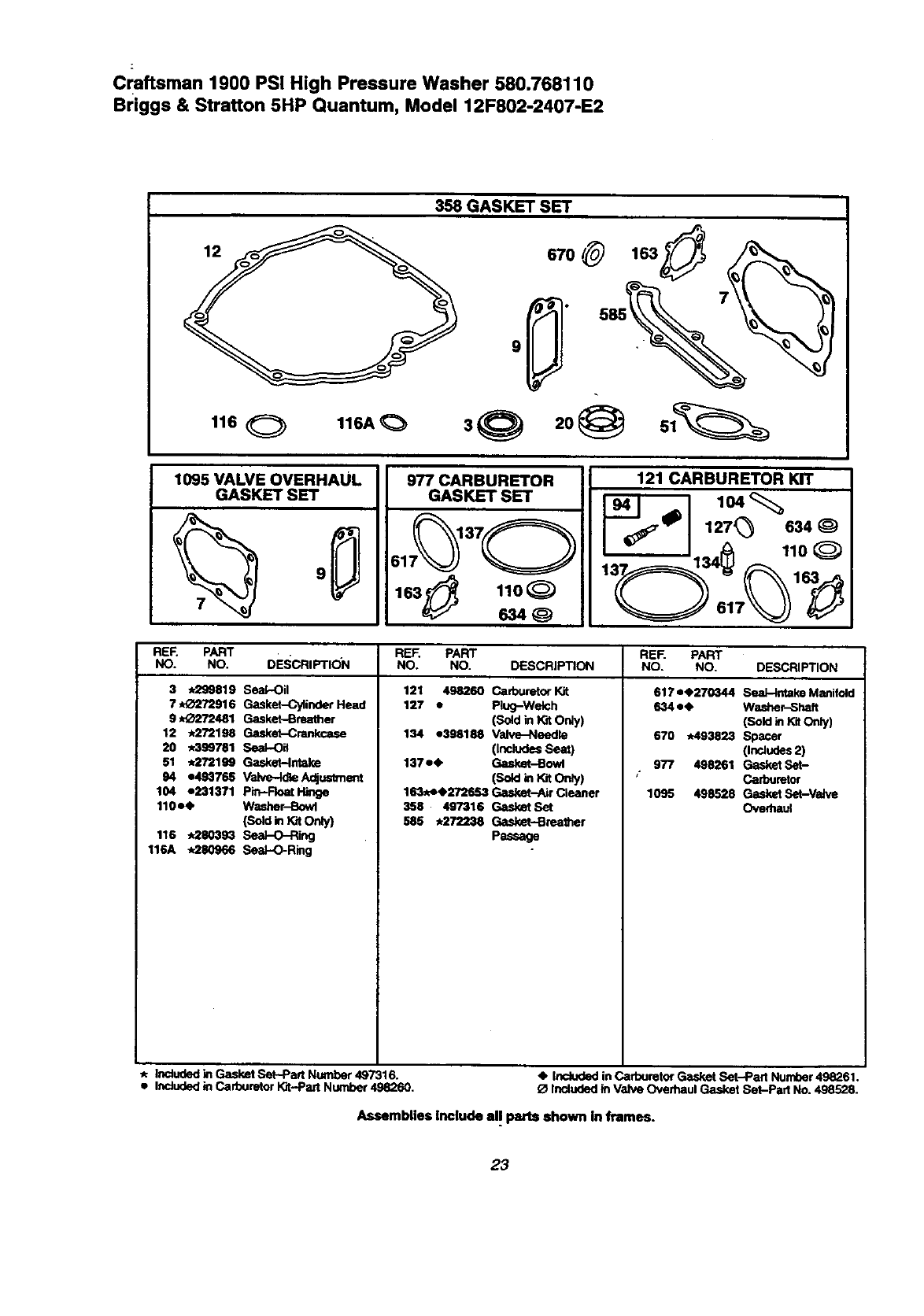

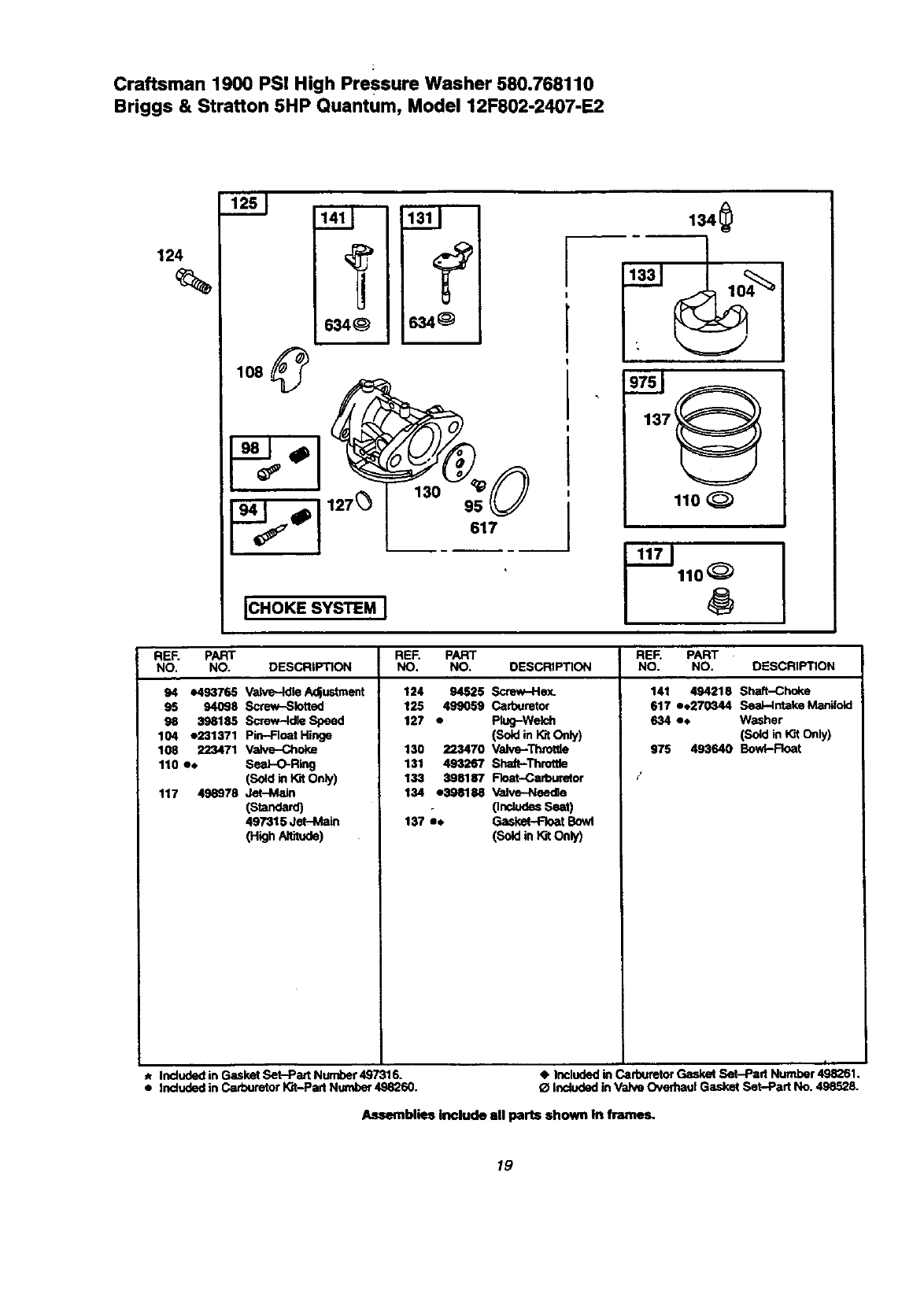

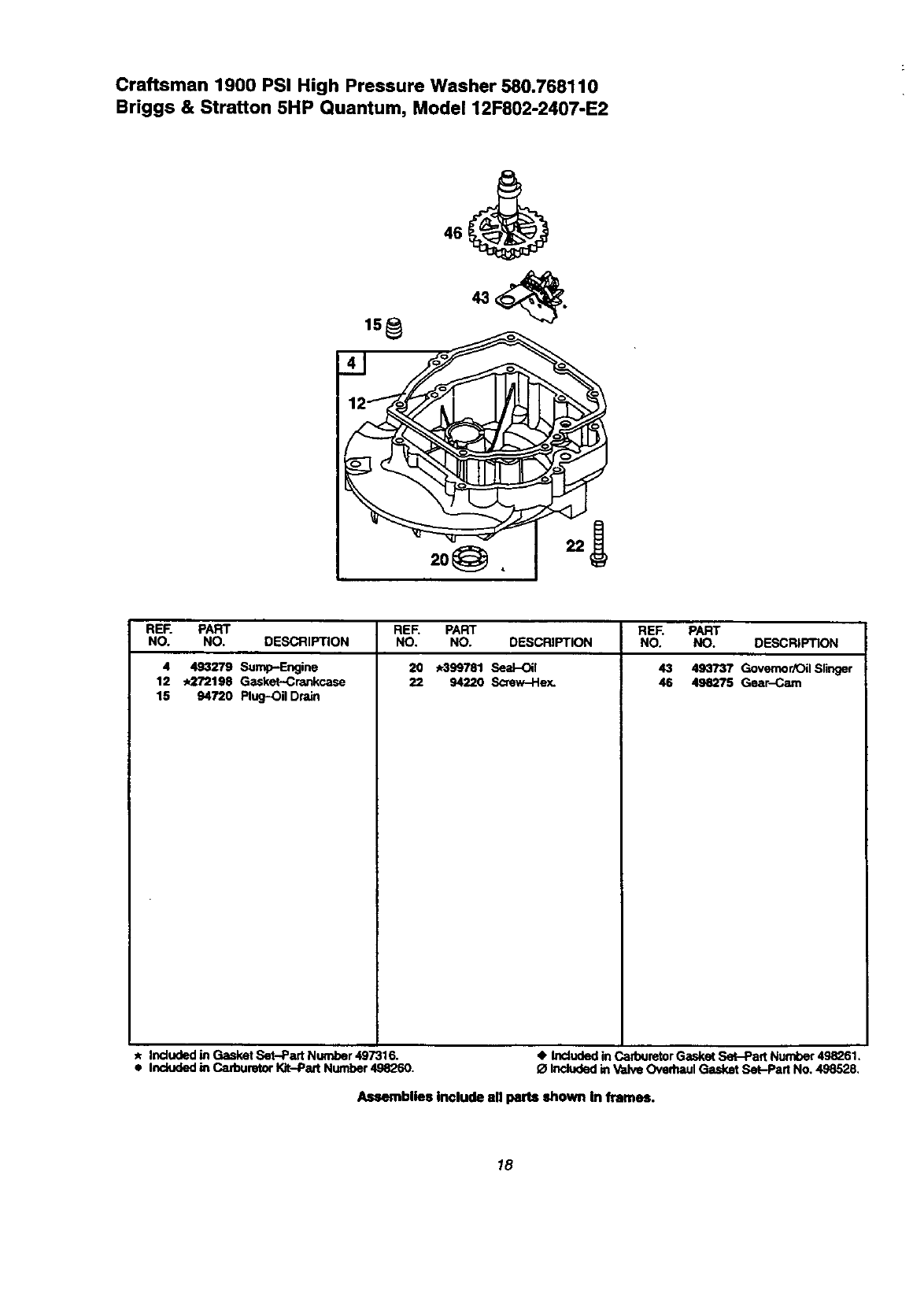

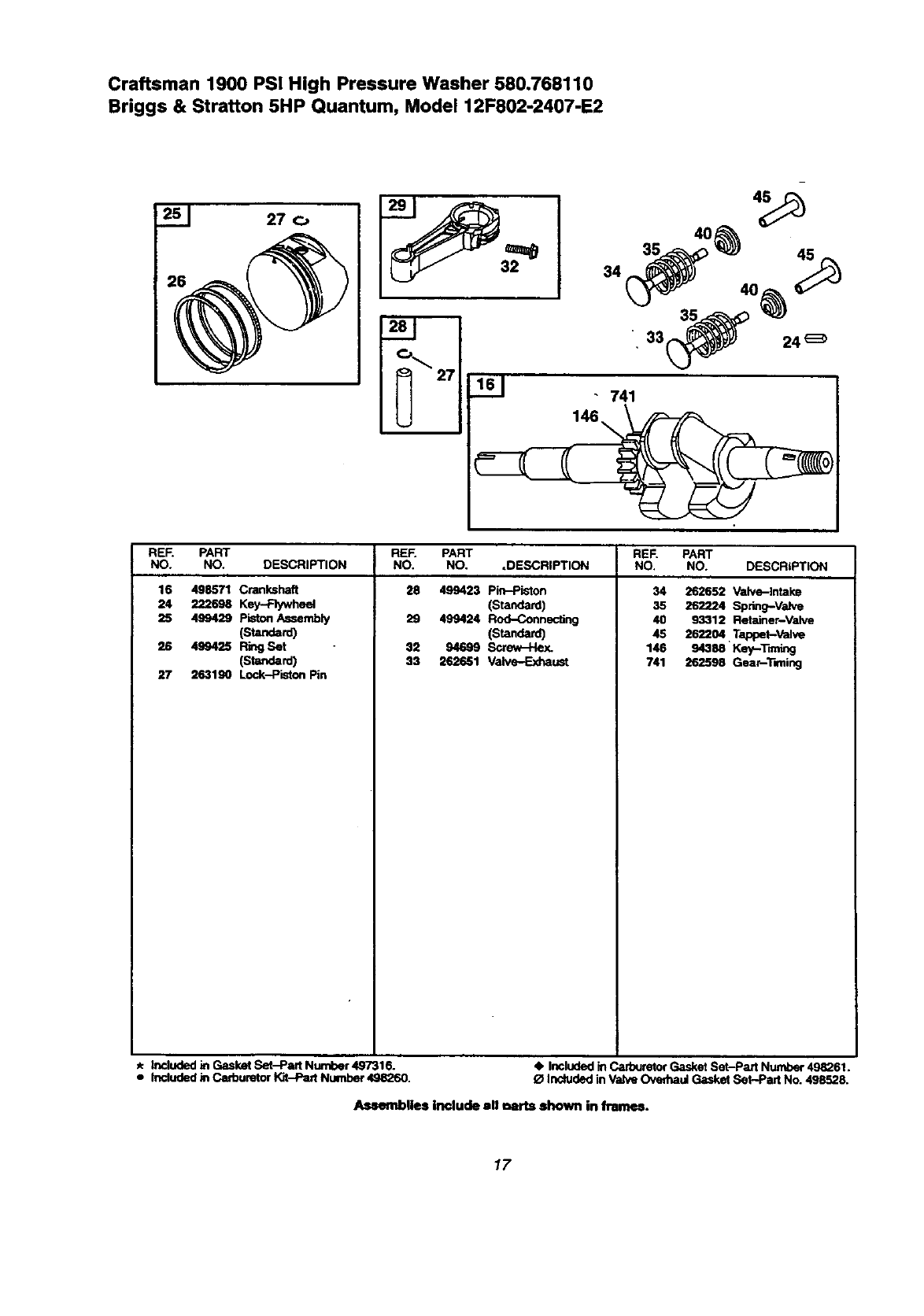

Replacements Parts ................ 16-27

Order Parts /Request Service ..... Back Page

LIMITED ONE YEAR WARRANTY ON CRAFTSMAN HIGH PRESSURE WASHER

For one year from the date of purchase, when this Craftsman Cleaning System is maintained and operated

according to the instructions in the owner's manual, Sears will repair, free of charge, any defect in material and

workmanship.

If this washer is used for commercial purposes, this warranty applies.for only 90 days from the date of

purchase. If this high pressure washer is used for rental purposes, this warranty applies for only 30 days after

date of purchase.

This warranty does not cover:.

•Expendable items such as spark plugs or air filters, which become worn dudng normal use.

•Repairs necessary because of operator abuse or negligence, includingdamage resultingfrom no water

being supplied to pump or failure to maintain the equipment according to the instructionscontained inthe

owner's manual.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE HIGH PRESSURE WASHER TO THE

NEAREST SEARS SERVICE CENTER OR DEALER IN THE UNITED STATES.

This warranty gives you specific legal rights and you may also have other dghts,which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

,_ CAUTION: Before using this product, read this

manual and follow all Safety Rules and

Operating Instructions.

ADANGER: When transporting, setting up,

adjusting or making repairs to your pressure

washer, always disconnect the spark plug wire

and place it where it cannot contact the spark

plug to prevent accidental starting.

Engine exhaust gases contain DEADLY carbon

monoxide gas. This dangerous gas, if breathed in

sufficient concentrations, can cause

unconsciousness or even death. Operate this

equipment only in the open air where adequate

ventilation is available.

•Gasoline is highly FLAMMABLE and its vapors are

EXPLOSIVE. Do not permit smoking, open flames,

sparks or heat in the vicinitywhile handling

gasoline. Avoi_ spilling gasoline on ahot engine.

Allow unit to dool for 2 minutes before refueling.

Comply with all laws regulating storage and

handling of gasoline.

•Locate this pressure washer in areas away from

combustible materials, combustiblefumes or dust.

•The high pressure equipment is designed to be

used with Sears authorized parts only. If you usa

tliis equipment with parts that do not comply with

minimum specifications, the user assumes all dsks

and liabilities.

•Some chemicals or detergents may be harmful if

inhaled or ingested, causing severe nausea,

fainting or poisoning. The harmful elements may

cause property damage or severe injury.

•Do not allow CHILDREN to operate the Pressure

Washer at any time.

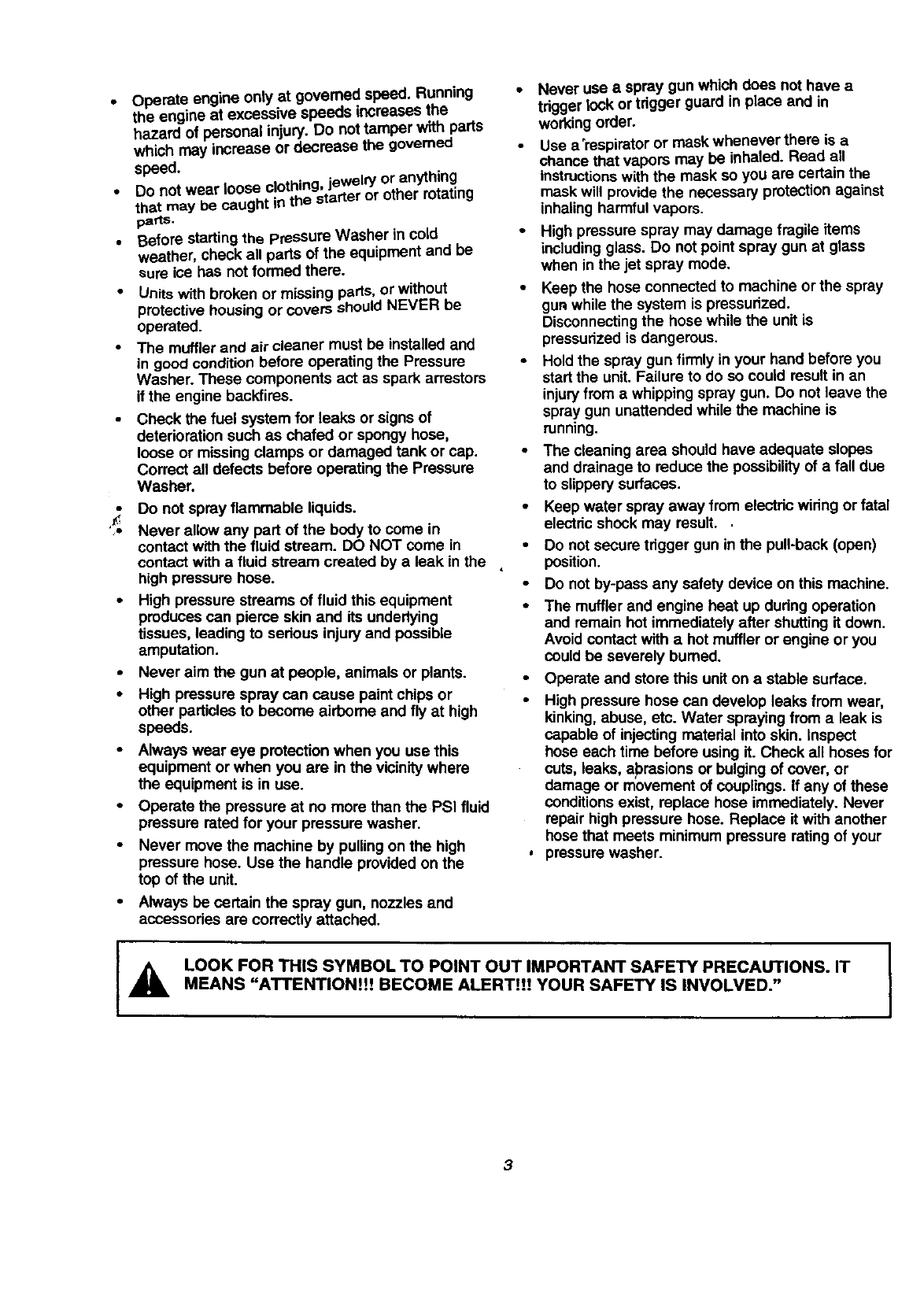

• Operate engine only at govemecl speed. Running •

the engine at excessive speeds increases the

hazard of personal injury. Do not tamper with parts

which may increase or decrease the governed

speed.

•Do not wear loose clothing, jewelry or anything

that may be caught in the starter or other rotating

parts.

•Before startingthe pressure Washer in cold •

weather, check all pads of the equipment and be

sure ice has not formed there.

•Units with broken or missing pads, or without •

protective housing or covers should NEVER be

operated.

The muffler and air cleaner must be installed and

in good condition before operating the Pressure •

Washer. These components act as spark arrestors

if the engine backfires.

Check the fuel system for leaks or signs of

deterioration such as chafed or spongy hose,

loose or missing clamps or damaged tank or cap. •

Correct all defects before operating the Pressure

Washer.

/-_ Do not spray flammable liquids.

• Never allow any part of the body to come in

contact with the fluid stream. DO NOT come in

contact with afluid stream created by a leak in the

high pressure hose.

•High pressure streams of fluid this equipment

produces can pierce skin and its underlying

tissues, leading to serious injury and possible

amputation.

Never aim the gun at people, animals or plants.

•High pressure spray can cause paint chips or

other particles to become airborne and fly at high

speeds.

•Always wear eye protection when you use this

equipment or when you are in the vicinitywhere

the equipment is in use.

• Operate the pressure at no more than the PSI fluid

pressure rated for your pressure washer.

•Never move the machine by pulling on the high

pressure hose. Use the handle provided on the

top of the unit.

•Always be certain the spray gun, nozzles and

accessories are correctly attached.

Never use a spray gun which does not have a

trigger lock or trigger guard in place and in

working order.

Use a'respirator or mask whenever there is a

chance that vapors may be inhaled. Read all

instructionswith the mask so you are certain the

mask will provide the necessary protection against

inhaling harmful vapors.

High pressure spray may damage fragile items

includingglass. Do not point spray gun at glass

when in the jet spray mode.

Keep the hose connected to machine or the spray

gun while the system is pressurized.

Disconnectingthe hose while the unit is

pressurized is dangerous.

Hold the spray gun firmly in your hand before you

start the unit. Failure to do so could resuR in an

injuryfrom a whipping spray gun. Do not leave the

spray gun unattended while the machine is

running.

The cleaning area should have adequate slopes

and drainage to reduce the possibilityof a fall due

to slippery surfaces.

Keep water spray away from electdc wiring or fatal

electric shock may result..

Do not secure trigger gun in the pull-bask (open)

position.

Do not by-pass any safety device on this machine.

The muffler and engine heat up dudng operation

and remain hot immediately after shutting Rdown.

Avoid contact with ahot muffler or engine or you

could be severely burned.

Operate and store this unit on a stable surface.

High pressure hose can develop leaks from wear,

kinking,abuse, etc. Water spraying from a leak is

capable of injecting material into skin. Inspect

hose each time before using R.Check all hoses for

cuts, leaks, abrasions or bulging of cover, or

damage or movement of couplings. If any of these

conditions exist, replace hose immediately. Never

repair high pressure hose. Replace Rwith another

hose that meets minimum pressure rating of your

pressure washer.

I A LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. IT

MEANS "ATTENTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED."

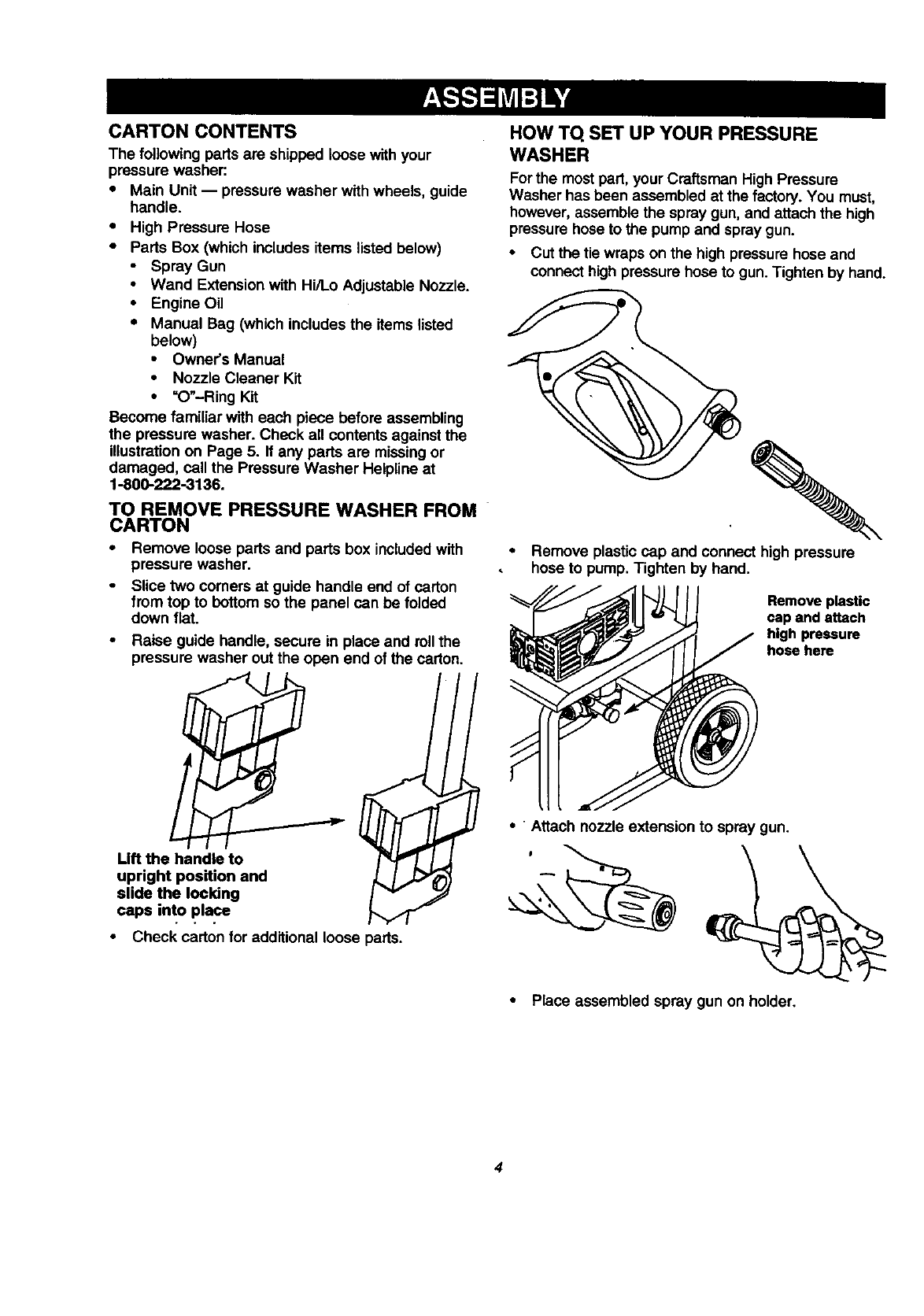

CARTON CONTENTS

The following parts are shipped loose with your

pressure washer:.

•Main Unit -- pressure washer with wheels, guide

handle.

•High Pressure Hose

•Parts Box (which includes items listed below)

Spray Gun

•Wand Extension with Hi/Lo Adjustable Nozzle.

•Engine Oil

•Manual Bag (which includes the Items listed

below)

•Owner's Manual

•Nozzle Cleaner Kit

• =O'-Ring Kit

Become familiar with each piece before assembling

the pressure washer. Check all contents against the

illustrationon Page 5. If any parts are missingor

damaged, call the Pressure Washer Helpline at

1-800-222-3136.

TO REMOVE PRESSURE WASHER FROM

CARTON

•Remove loose parts and parts box included with

pressure washer.

• Slice two comers at guide handle end of carton

from top to bottom so the panel can be folded

down flat.

•Raise guide handle, secure in place and rollthe

pressure washer out the open end of the carton.

HOW TQ SET UP YOUR PRESSURE

WASHER

For the most part, your Craftsman High Pressure

Washer has been assembled at the factory. You must,

however, assemble the spray gun, and attach the high

pressure hose to the pump and spray gun.

•Cut the tie wraps on the high pressure hose and

connect high pressure hose to gun. Tighten by hand.

•Remove plastic cap and connect high pressure

hose to pump. Tighten by hand.

Remove plastic

cap and attach

high pressure

hose here

Uft the handle to

upright position and

slide the locking

caps into place

•Check carton for additional loose pads.

• " Attach nozzle extension to spray gun.

•Place assembled spray gun on holder.

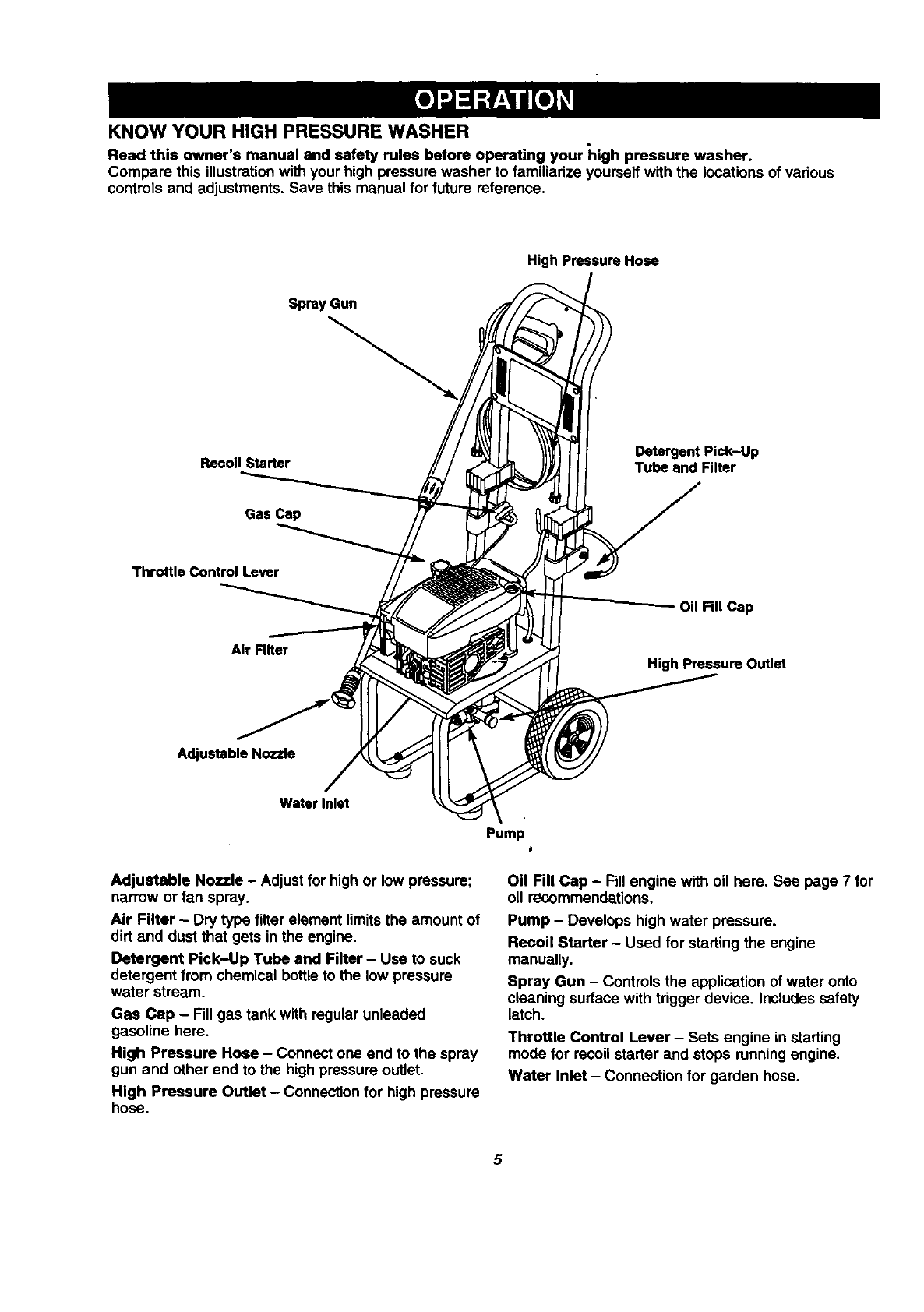

KNOW YOUR HIGH PRESSURE WASHER

Read this owner's manual and safety rules before operating your h|gh pressure washer.

Compare this illustrationwith your high pressure washer to familiarize yourseff with the locations of various

controls and adjustments. Save this manual for future reference.

High Pressure Hose

Spray Gun

Recoil Starter Detergent Pick_Up

Tube and Filter

Gas Cap

Throttle Control Lever

Oil Fill Cap

Air Filter High Pressure Outlet

Adjustable Nozzle

Water Inlet

Adjustable Nozzle - Adjust for highor low pressure;

narrow or fan spray.

Air Filter - Dry type filter element limits the amount of

dirt and dust that gets in the engine.

Detergent Pick-Up Tube and Filter - Use to suck

detergent from chemical bottle to the low pressure

water stream.

Gas Cap - Fill gas tank with regular unleaded

gasoline here.

High Pressure Hose - Connect one end to the spray

gun and other end to the high pressure outlet.

High Pressure Outlet - Connection for high pressure

hose.

Pump

Oil Fill Cap - Fill engine with oil here. See page 7 for

oil recommendations,

Pump - Develops high water pressure.

Recoil Starter - Used for starting the engine

manually.

Spray Gun - Controls the application of water onto

cleaning surface with trigger device. Includes safety

latch.

Throttle Control Lever - Sets engine in starting

mode for recoil starter and stops running engine.

Water Inlet - Connection for garden hose.

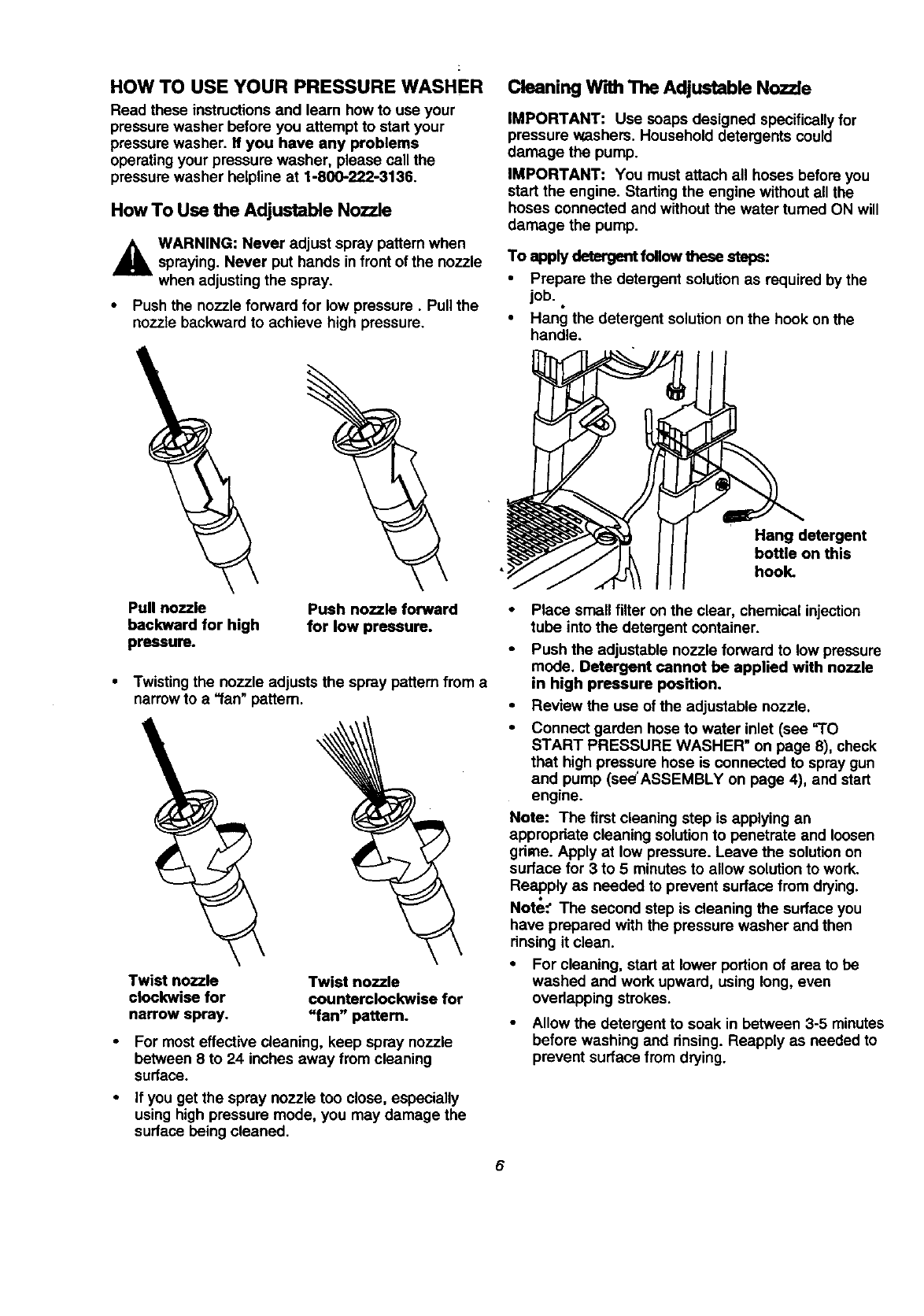

HOW TO USE YOUR PRESSURE WASHER

Read these instructionsand leam how to use your

pressure washer before you attempt to start your

pressure washer. If you have any problems

operating your pressure washer, please call the

pressure washer helpline at 1-800-222-3136.

How To Use the Adjustable Nozzle

,_ WARNING: Never adjust spray pattern whenspraying. Never put hands infront of the nozzle

when adjusting the spray.

• Push the nozzle forward for low pressure. Pull the

nozzle backward to achieve high pressure.

Pull nozzle Push nozzle forward

backward for high for low pressure.

pressure.

•Twisting the nozzle adjusts the spray pattern from a

narrowto a "fan" pattern.

Twist nozzle

clockwise for

narrow spray.

Twist nozzle

counterclockwise for

"fan" pattern.

•For most effective cleaning, keep spray nozzle

between 8 to 24 inches away from cleaning

surface.

•If you get the spray nozzle too close, especially

usinghigh pressure mode, you may damage the

surface being cleaned.

Cleaning W'dh The Adjustable Nozzle

IMPORTANT: Use soaps designed specificallyfor

pressure washers. Household detergents could

damage the pump.

IMPORTANT: You must attach all hoses before you

start the engine. Starting the engine without all the

hoses connected and without the water turned ON will

damage the pump.

To apply detergent follow these steps:

•Prepare the detergent solution as required by the

job.

•Hang the detergent solution on the hook on the

handle.

Hang detergent

bottle on this

hook.

•Place small filter on the clear, chemical injection

tube into the detergent container.

•Push the adjustable nozzle forward to low pressure

mode. Detergent cannot be applied with nozzle

in high pressure position.

•Review the use of the adjustable nozzle.

•Connect garden hose to water inlet (see =TO

START PRESSURE WASHER" on page 8), check

that high pressure hose is connected to spray gun

and pump (see"ASSEMBLY on page 4), and start

engine.

Note: The first cleaning step is applying an

appropriate cleaning solutionto penetrate and loosen

gdme. Apply at low pressure. Leave the solutionon

surface for 3 to 5 minutes to allow solution to work.

Reapply as needed to prevent surface from drying.

Note." The second step is cleaning the surface you

have prepared with the pressure washer and then

dnsing it clean.

•For cleaning, start at lower portion of area to be

washed and work upward, using long, even

overlapping strokes.

Allow the detergent to soak in between 3-5 minutes

before washing and rinsing. Reapply as needed to

prevent surface from drying.

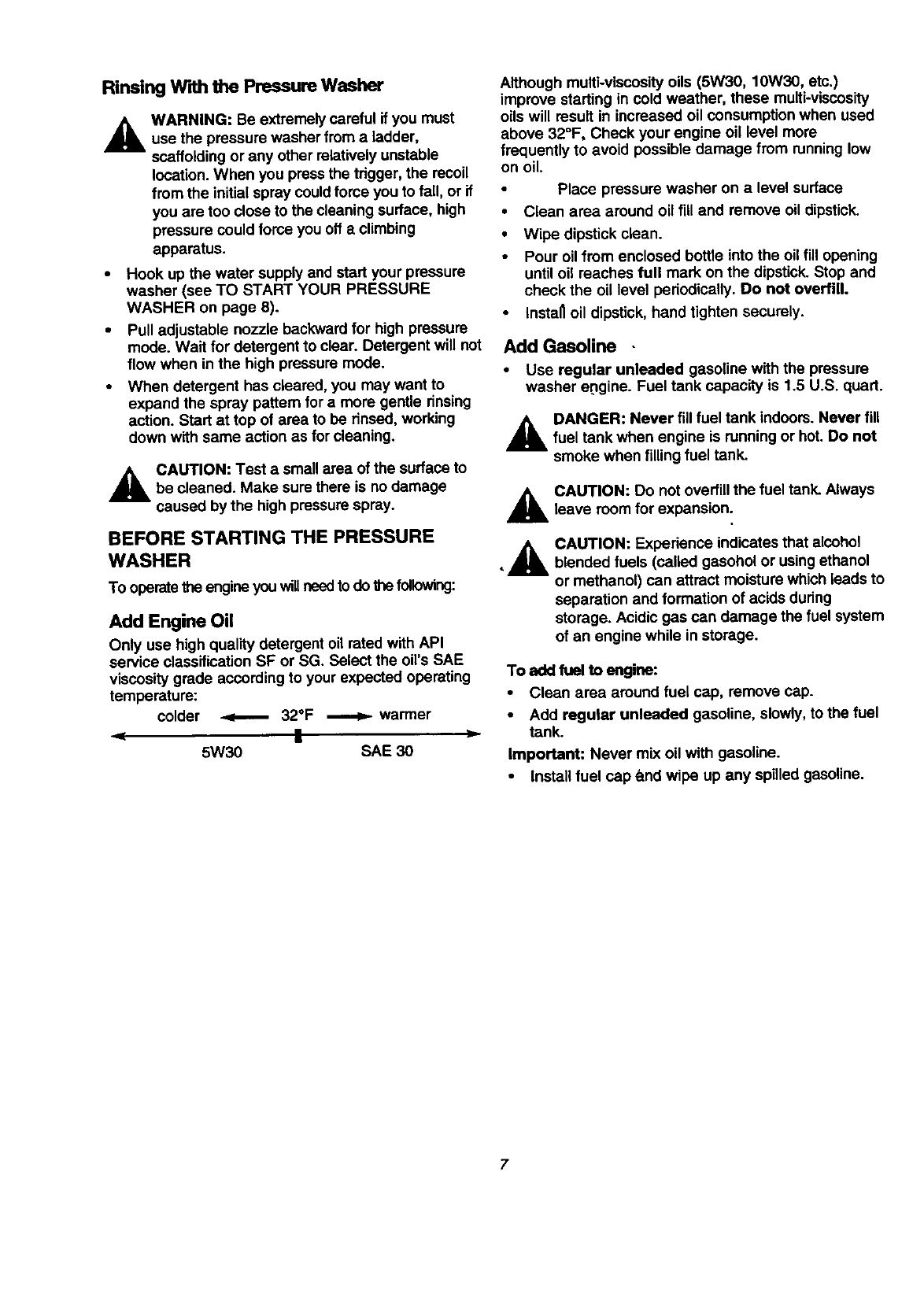

Rinsing W'dh the Pressure Washer

&WARNING: Be extremely careful if you mustuse the pressure washer from a ladder,

scaffolding or any other relatively unstable

location. When you pressthe trigger, the recoil

from the initial spray couldforce you to fall, or if

you are too close to the cleaning surface, high

pressure could force you off aclimbing

appamtus.

•Hook up the water supply and start your pressure

washer (see TO START YOUR PRESSURE

WASHER on page 8).

•Pull adjustable nozzle backward for high pressure

mode. Wait for detergent to clear. Detergent will not

flow when in the high pressure mode.

•When detergent has cleared, you may want to

expand the spray pattern for a more gentle rinsing

action. Start at top of area to be rinsed, working

down with same action as for cleaning.

,_ CAUTION: Test a small area of the surface tobe cleaned. Make sure there is no damage

caused by the high pressure spray.

BEFORE STARTING THE PRESSURE

WASHER

_obe_etbe_giceyou_llneed_the_lowi_:

Add Engine Oil

Only use high quality detergent oil rated with API

service classification SF or SG. Select the oil's SAE

viscosity grade according to your expected operating

temperature:

colder _32°F _warmer

5W30 SAE 30

Although multi-viscosityoils (5W30, 10W30, etc.)

improve starting in cold weather, these muifi-viscosity

oils will result in increased oil consumption when used

above 32°F, Check your engine oil level more

frequently to avoid possible damage from runninglow

on oil.

Place pressure washer on a level surface

•Clean area around oil fill and remove oil dipstick.

Wipe dipstick clean.

Pour oil from enclosed bottle into the oil fill opening

until oil reaches full mark on the dipstick. Stop and

check the oil level periodically. Do not overfill.

Install oil dipstick, hand tighten securely.

Add Gasoline

•Use regular unleaded gasoline with the pressure

washer e.ngine. Fuel tank capacity is 1.5 U.S. quart.

,_ DANGER: Never fillfuel tank indoors. Never fillfuel tank when engine is running or hot. Do not

smoke when fillingfuel tank.

,i_ CAUTION: Do not overfill the fuel tank. Alwaysleave room for expansion.

,_ CAUTION: Experience indicates that alcohol

• blended fuels (called gasohol or usingethanol

or methanol) can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel system

of an engine while in storage.

To add fuel to engine:

•Clean area around fuel cap, remove cap.

•Add regular unleaded gasoline, slowly, to the fuel

tank.

Important: Never mix oil with gasoline.

•Install fuel cap e.nd wipe up any spilled gasoline.

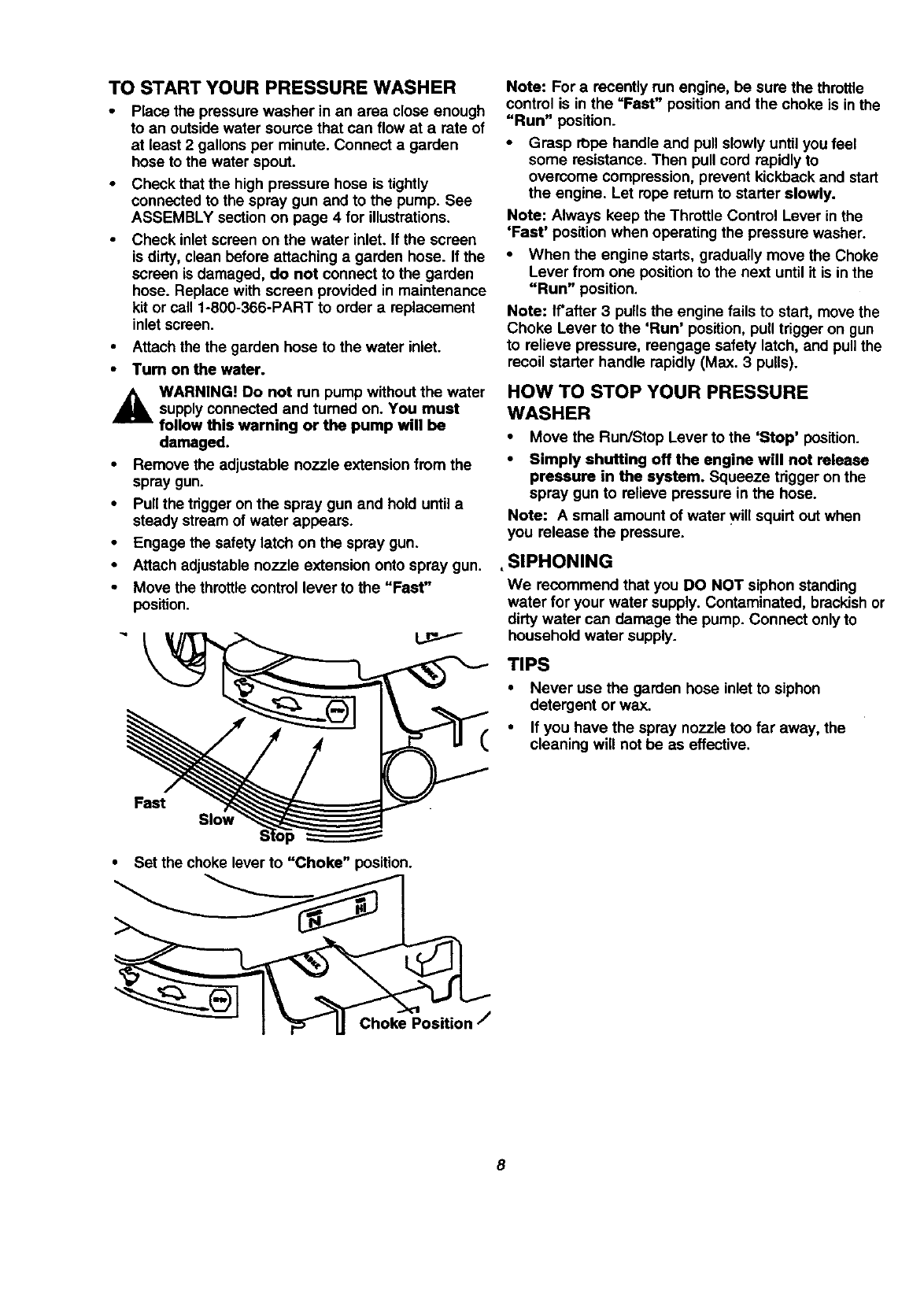

TO START YOUR PRESSURE WASHER

•Place the pressure washer in an area close enough

to an outsidewater source that can flow at a rate of

at least 2 gallons per minute. Connect a garden

hose to the water spout.

•Check that the high pressure hose is tightly

connected to the spray gun and to the pump. See

ASSEMBLY section on page 4 for illustrations.

•Check inlet screen on the water inlet. If the screen

is dirty, clean before attaching a garden hose. If the

screen is damaged, do not connect to the garden

hose. Replace with screen provided in maintenance

kit or call 1-800-366-PART to order a replacement

inlet screen.

•Attach the the garden hose to the water inlet.

•Turn on the water.

A ARNING! Do not run pump without the watersupplyconnected and turned on. You must

follow this warning or the pump will be

damaged.

•Remove the adjustable nozzle extension from the

spray gun.

•Pull the trigger on the spray gun and hold until a

steady stream of water appears.

•Engage the safety latch on the spray gun.

•Attach adjustable nozzle extension onto spray gun.

•Move the throttlecontrol lever to the "Fast"

position.

Fast Slow

Note: For a recently run engine, be sure the throttle

control is in the =Fast" positionand the choke is in the

=Run" position.

•Grasp rope handle and pull slowly until you feel

some resistance. Then pull cord rapidly to

overcome compression, prevent kickback and start

the engine. Let rope return to starter slowly,

Note: Always keep the Throttle Control Lever in the

'Fast' position when operating the pressure washer.

•When the engine starts, gradually move the Choke

Lever from one position to the next until it is in the

"Run" position.

Note: If'after 3 pulls the engine fails to start, move the

Choke Lever to the 'Run' position, pull trigger on gun

to relieve pressure, reengage safety latch, and pull the

recoil starter handle rapidly (Max. 3 pulls).

HOW TO STOP YOUR PRESSURE

WASHER

•Move the Run/Stop Lever to the 'Stop' position.

•Simply shutting off the engine will not release

pressure in the system. Squeeze tdgger on the

spray gun to relieve pressure in the hose.

Note: A small amount of water will squid out when

you release the pressure.

•SIPHONING

We recommend that you DO NOT siphon standing

water for your water supply. Contaminated, brackish or

dirty water can damage the pump. Connect only to

household water supply.

TIPS

•Never use the garden hose inlet to siphon

detergent or wax.

•If you have the spray nozzle tee far away, the

cleaning will not be as effective.

•Set the choke lever to "Choke" position.

Choke Position /

CUSTOMER RESPONSIBILITIES

MAINTENANCE SCHEDULE

RLL IN DATES AS YOU COMPLETE

REGULAR SERVICE

HOURLY OPERATING

INTERVAL

Eveiy 25 Every 100

Before Each Hours or Hours or

MAINTENANCE TASK Use Yearly Yearly

PRESSURE WASHER

Check/clean water inlet screen

on quick-connect. Xt

Check high pressure hose, X

Check detergent hose. X

Check spray gun and assembly for leaks. X

Purge pump of air and contaminants. X

ENGINE

Check oil level. X

Change engine oil. X*

Service air cleaner. X_

Clean/replace spark plug. X

Prepare for storage. Prepare unit for storage if it is to

remain idle for longer than 30 days.

SERVICE DATES

Clean if clogged. Replace if perforated or tom.

• Change oil after the first (2) operating hours and every 25 hours thereafter. Change sooner when operating under dirty or dusty conditions.

_' Replace more often under dirty or dusty conditions.

PRODUCT SPECIFICATIONS

Pressure Washer Specifications

PRESSURE ................................... 1900 psi

FLOW RATE ........................................ 2 GPM

DETERGENT MIX....Use undiluted detement

WATER SUPPLY

TEMPERATURE ........ Not to Exceed 140°F

Engine Specifications

ENGINE MODEL ............... Briqqs & Stratton

RATED HORSEPOWER ............................... 5

SPARK PLUG: Type: ...Champion RJ-19LM

or equivalent. Set

Gap to: _.0.030 inch

(0.76mm)

GASOLINE CAPACITY .......... 1.5 U.S. quart

OIL ........................................... SAE 30 weiqht

SOLID STATE ..................... 0.006 - .010 inch

IGNITION AIR GAP

In the State of California a spark arrestor is required

by law (Section 4442 of the California Public

Resources Code). Other states may have similar laws.

Federal laws apply on federal lands.

Note: If you equip the engine of your pressure washer

with a spark arrestor muffler, the spark arrestor must

be maintained in effective working order by the

owner/operator.

You can order a spark arrestor (PIN 398067) through

your Sears Service Center.

GENERAL RECOMMENDATIONS

Thp warranty of the high pressure washer does not

cover items that have been subjected to operator

abuse or negligence. To receive full value from the

warr_lnty, operator must maintain high pressure

washer as instructed in this manual.

Some adjustments will need to be made periodicallyto

properly maintain your high pressure washer.

All adjustments in the Service and Adjustments

section of this manual should be made at least once

each season.

•Once a year you should clean or replace the spark

plug and replace the air filter and check the gun

and wand assembly for wear. A clean spark plug

and new air filter assure proper fuel-air mixture and

help your engine run better and last longer.

BEFORE EAcH USE

Check water inlet screen for damage.

•Check high pressure hose for leaks.

•Check detergent inlet hose and filter for damage.

•Check gun and wand assembly for leaks.

Purge pump of air and contaminants.

•Check engine oil level.

PRESSURE WASHER MAINTENANCE

Check and Clean Inlet Screen

Examine inlet screen. Clean if it is clogged or replace

if it is torn.

Check High Pressure Hose

High pressure hose can develop leaks from wear,

kinking, or abuse. Inspect hose each time before using

it. Check for cuts, leaks, abrasions, bulging of cover,

or damage or movement of couplings. If any of these

conditions exist, replace hose immediately.

A ANGER: Never repair a high pressure hose.

Replace with hose that meets the minimum

pressure rating of your pressure washer

Check Detergent Hose

Examine the filter on the detergent hose and clean if

clogged. Hose should fit tightly on barbed fitting.

Examine hose for leaks or tears. Replace the filter or

hose if either is damaged.

Check In-Une Rlter

Refer to the following illustrationand service the in-line

filter if it becomes clogged, as follows:

Filter Screen

O-ring

1. Detach gun end lance from high pressure hose.

Detach lance from gun and remove o-ring and

screen from lance. Flush the screen, gun, end

lance with clean water to clear debris.

2. If the screen is damaged, the o-ring kit contains a

replacement in-line filter screen and an o-ring. If

undamaged, reuse screen.

3. Place the in-line filter screen into the threaded end

of the lance. Direction does not matter. Push the

screen in with the eraser end of a pencil until it

rests flat at the bottom of the opening. Take care to

not bend the screen.

4. Place the o-ring into the recess. Push the o-ring

snugly against the in-line filter screen.

5. Assemble the lance to the spray gun, as described

earlier in this manual.

Check Gun and Wand

Examine hose connection to gun and make sure it is

secure. Test trigger by pressing it and making sure it

springs back into place when you release it. Put safety

latch in UP positionand test trigger. You shouldnot be

able to press trigger. Replace gun immediately if it

fails any of these tests.

Purge Pump of Air and Contaminants

To remove the air from the pump, followthese steps:

•Set up the pressure washer as described in the

ASSEMBLY section on page 4 and connect the

water supply.

Remove the wand extension from the gun.

•Pull the trigger on the gun and hold untila steady

stream of water appears.

To remove the contaminants from the pump, follow

these steps:

•Set up the pressure washer as described inthe

ASSEMBLY section, and connect the water supply.

•Remove the nozzle attachment from the gun.

•Start the engine according to instructionsin

OPERATION section.

Pull the trigger on the gun and hold.

•When the water supply is steady and constant,

engage the safety latch and refasten the nozzle

attachment.

Nozzle Maintenance

If the nozzle becomes restrictedor clogged with

foreign materials, such as dirt, excessive pump

pressure may develop. A partially clogged nozzle can

cause a pulsingsensation during use. This generally

is not a pump related problem, but rather a clogged or

partially restrictednozzle.

If the nozzle becomes clogged or partially restricted,

immediately clean.the nozzle with the kit included with

your pressure washer by following these instructions:

•Shut off the engine and turn off the water supply.

•" Separate the wand from the gun.

•, Rotate to stream setting.

•Remove nozzle from the end of the wand using the

allen wrench included with the kit or a 2ram or 5/64

allen wrench.

• Use the wire included in the kit or a small paper

clip to free the foreign materials clogging or

restrictingthe nozzle.

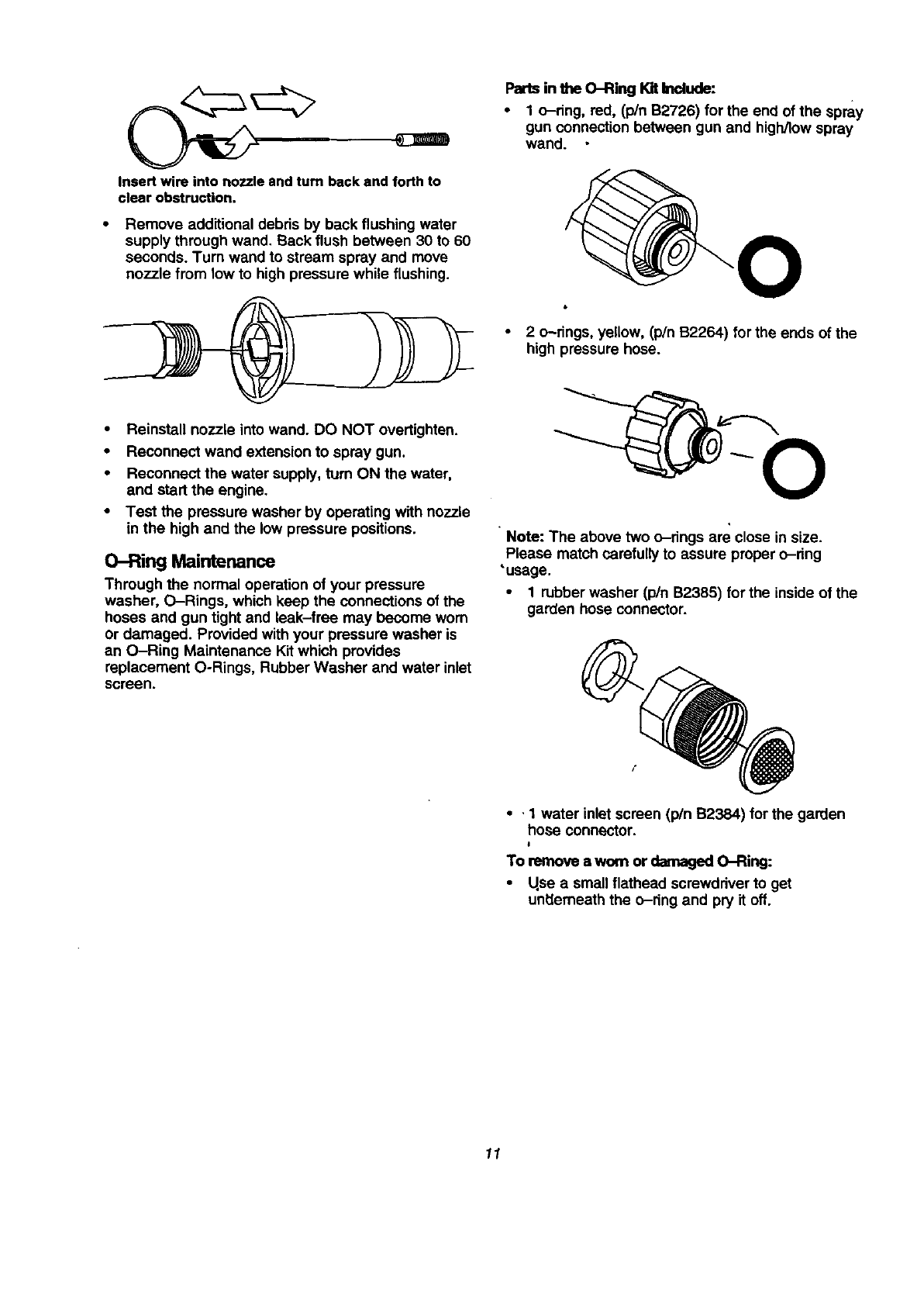

Insert wire into nozzle and turn back end forth to

clear obstruction,

Remove additional debris by back flushing water

supply through wand. Back flush between 30 to 60

seconds. Turn wand to stream spray and move

nozzle from low to high pressure while flushing.

• Reinstall nozzle into wand. DO NOT overtighten.

•Reconnect wand extension to spray gun.

•Reconnect the water supply, turn ON the water,

and start the engine.

•Test the pressure washer by operating with nozzle

in the high and the low pressure positions.

O-Ring Maintenance

Through the normal operation of your pressure

washer, O-Rings, which keep the connections of the

hoses and gun tight and leak-free may become worn

or damaged. Provided with your pressure washer is

an O-Ring Maintenance Kitwhich provides

replacement O-Rings, Rubber Washer and water inlet

screen.

Parts in the O-Ring Kit Include:

• 1 o-ring, red, (pin B2726) for the end of the spray

gun connection between gun and high/low spray

wand.

• 2 o-rings, yellow, (pin 132264)for the ends of the

high pressure hose.

Note: The above two o-rings are close in size.

Please match carefully to assure proper o-ring

"usage.

•1 rubber washer (pin B2385) for the inside of the

garden hose connector.

•. 1 water inlet screen (p/n B2384) for the garden

hose connector.

To remove a worn or damaged O-Ring:

•U,sea small flathead screwdriver to get

un_lemeath the o-ring and pry it off.

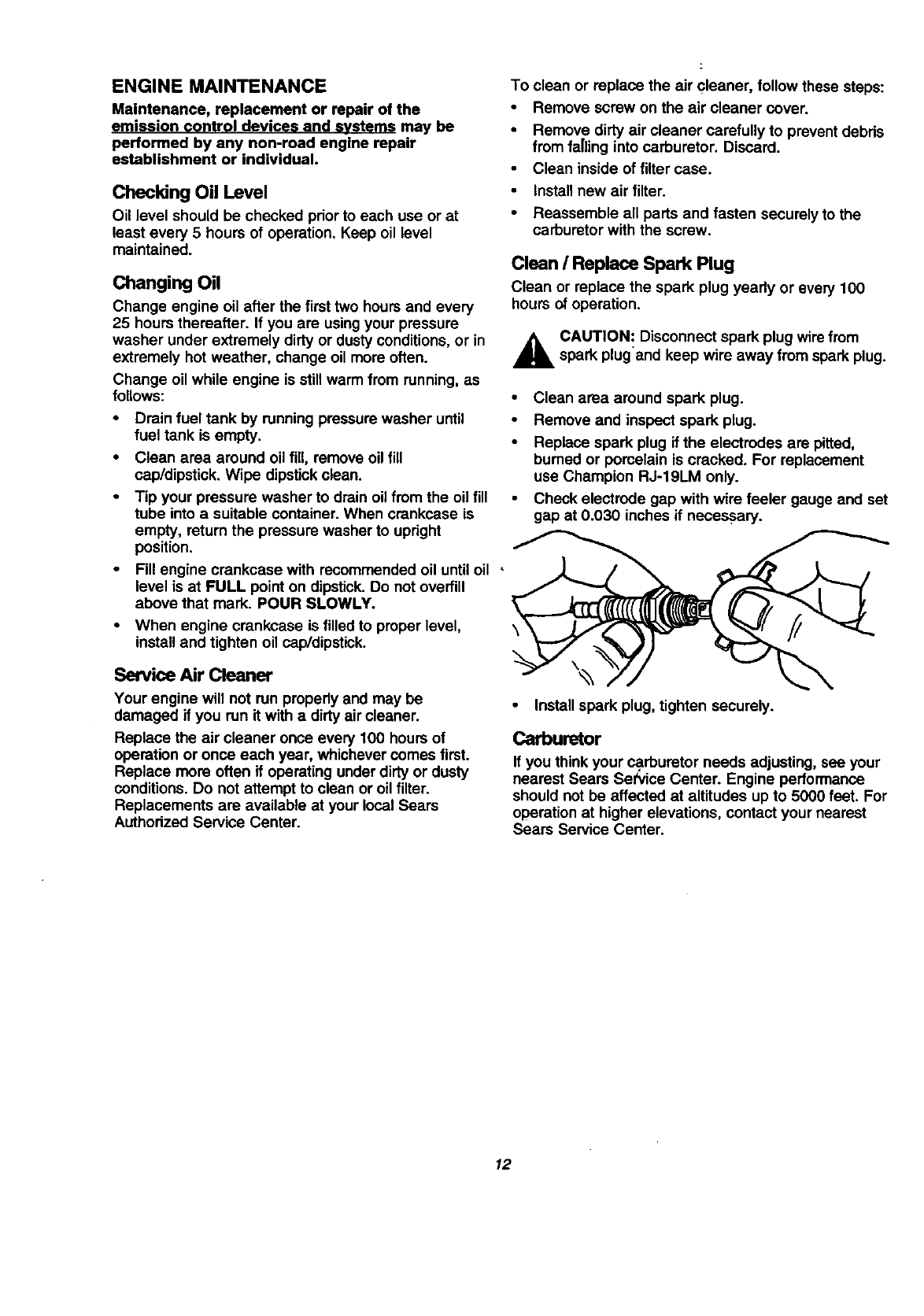

ENGINE MAINTENANCE

Maintenance, replacement or repair of the

emission control devices and systems may be

performed by any non-road engine repair

establishment or individual.

Checking Oil Level

Oil level should be checked prior to each use or at

least every 5 hours of operation. Keep oil level

maintained.

Changing Oil

Change engine oil after the firsttwo hoursand every

25 hours thereafter. If you are usingyour pressure

washer under extremely dirty or dusty conditions, or in

extremely hot weather, change oil more often.

Change oil while engine is still warm from running, as

follows:

• Drain fuel tank by running pressure washer until

fuel tank is empty.

•Clean area around oil fill, remove oil fill

cap/dipstick. Wipe dipstick clean.

•Tip your pressure washer to drain oil from the oil fill

tube into a suitable container. When crankcase is

empty, return the pressure washer to upright

position.

•Fill engine crankcase with recommended oil until oil •

level is at FULL point on dipstick. Do not overfill

above that mark. POUR SLOWLY.

•When engine crankcase is filled to proper level,

install and tighten oil cap/dipstick.

To clean or replace the air cleaner, follow these steps:

•Remove screw on the air cleaner cover.

•Remove dirty air cleaner carefully to prevent debds

from failing into carburetor. Discard.

Clean inside of filter case.

Install new air filter.

•Reassemble all parts and fasten securely to the

carburetor with the screw.

Clean /Replace Spark Plug

Clean or replace the spark plug yearly or every 100

hours o_operation.

A CAUTION! Disconnect spark plug wire from

spark plug and keep wire away from spark plug.

• Clean area around spark plug.

•Remove and inspect spark plug.

•Replace spark plug if the electrodes are pitted,

burned or porcelain is cracked. For replacement

use Champion RJ-19LM only.

•Check electrode gap with wire feeler gauge and set

gap at 0.030 inches if necessary.

Service Air Cleaner

Your engine will not run prepedy and may be

damaged if you run it with a dirty air cleaner.

Replace the air cleaner once every 100 hours of

operation or once each year, whichever comes first.

Replace more often if operating under dirty or dusty

conditions. Do not attempt to clean or oil filter.

Replacements are available at your local Sears

Authodzed Service Center.

• Installspark plug, tighten securely.

Carburetor

If you think your carburetor needs adjusting, sea your

nearest Sears Service Center. Engine performance

should not be affected at altitudes up to 5000 feet. For

operation at higher elevations, contact your nearest

Sears Service Center.

AFTER EACH USE

Water should not remain in the unit for long periods of

time. Sediments of minerals can deposit on pump

parts and =freeze"pump action. Follow these

procedures after every use:

•Flush detergent hose by placing the injectorfilter

into a pail of clear water while running Pressure

Washer with nozzle in low pressure mode. Flush

until you can see clear water running through the

tube.

•Shut off the engine and let it cool, then remove all

hoses.

,_ CAUTION: Be sure the Run/Stop Lever is in the

"Stop" positionbefore you continue. If you start

the engine withoutthe proper water supply

connected, you can damage the pump.

• Empty the pump of all pumped liquids by pulling

recoil handle about 6 times with the Run/Stop Lever

in the "Stop" position. This should remove most of

the liquid in the pump.

•Coil the high pressure hose and inspect it for

damage. Cuts in the hose or fraying of it could

result in leaks and loss of pressure. Should any

damage be found, replace the hose. DO NOT

attempt to repair a damaged hose. Replace the

hose with the genuine Craftsman part.

•Drain water from hose and propedy hang it on the

wire support provided on the guide handle.

•Store in a clean, dry area.

_k ANGER: Never store the engine with fuel in

the gas tank indoorsor in enclosed, peody

ventilated areas where fumes may reach an

open flame, a spark, or pilot light.

WINTER STORAGE

_k AUTION: You must protect your unit from

freezing temperatures. Failure to do so will

permanently damage your pump and render

your unit inoperable.

To protect the unit from freezing temperatures:

•Draw RV-Antifreeze (antifreeze without alcohol)

into the pump by pouring the washer fluid into a3-

foot section of garden hose connected to the inlet

adapter and pulling the recoil handle twice.

LONG TERM STORAGE

If you do not plan to use the Pressure Washer for

more than 30 days, you must prepare the engine for

long term storage.

Note: As always, prepare the pressure washer pump

as you would after each use.

It is important to prevent gum deposits from forming in

essential fuel system parts such as the carburetor, fuel

filter, fuel hose or tank during storage. Also,

experience indicates that alcohol-blended fuels (called

gasohol, ethanol or methanol) can attract moisture

which leads to separation and formation of acids

dudng storage. Acidic gas can damage the fuel system

of an en_]ine while in storage.

Protect Fuel System

,_ DANGER: Drain fuel into approved containeroutdoors, away from open flame. Be sure

engin_ is cool. Do not smoke.

• Remove all gasoline from the fuel tank to prevent

gum deposits from forming on these parts and

causing possible malfunction of engine.

•Run engine until engine stops from lack of fuel.

Make sure you have water supply to pump inlet

connected and turned ON.

Change Oil

While engine is still warm, drain oil from crankcase.

Refill with recommended grade. (See Changing Oil on

Page 12.)

Oil Cylinder Bore

•Remove spark plug and pour about 1 ounce (30 ml)

of engine oil into the cylinder. Cover spark plug

hole with rag. Crank slowly to distribute oil.

_AUTION: Avoid spray from spark plug hole

when cranking engine slowly.

•Install spark plug. Do not connect spark plug wire.

OTHER

•Do not store gasoline from one season to another.

•Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause

problems.

•If.possible, store your unit indoors and cover it to

give protection from dust and dirt. BE SURE TO

EMPTY THE FUEL TANK.

Cover your unit with a suitable protective cover that

does not retain moisture.

IMPORTANT: NEVER cover your pressure washer

while engine and exhaust area are warm.

PROBLEM

Pump has following problems:

failure to produce pressure, or

erratic pressure, chattering, loss of

pressure, low water volume.

Detergent fails to mix.

CAUSE

1. Nozzle in low pressure mode.

2. Water inlet is blocked.

3. Inadequate water supply

4. Inlet hose is kinked or leaking

5. Clogged water inlet screen.

6. Water supply is over 140°_.

7. Outlet hose is blocked.

8. Outlet hose leaks.

9. Gun leaks.

10. Nozzle is obstructed.

11. Pump is faulty.

1. Detergent line is not submerged.

detergent.

2. Chemical filter is clogged.

3. Nozzle is in high pressure mode.

Engine runs good when not spraying Engine speed is too slow.

but dies when you begin to spray.

Engine will not start; or starts 1. Dirty air cleaner

and runs rough 2. Out of gasoline.

3. Stale gasoline.

4. Spark plug wire not connected

to spark plug.

5. Bad spark plug.

6. Water in gasoline.

7. Overchoking or flooded

8. Excessively rich fuel mixture.

9. Intake valve stuck operj or closed.

CORRECTION

1. Pull nozzle backward for high

pressure mode.

2. Clear inlet

3. Provide adequate water flow at

least 2 gpm.

4. Straighten inlet hose, patch leak.

5. Replace /clean water inlet

screen.

6. Provide cooler water supply.

7. Clear blocks in outlet hose.

8. Replace outlet hose if leaking.

9. Replace o-dng or gun if

necessary.

10. Clear nozzle.

11. Contact Sears Service

Department.

1. Insert chemical line into

detergenL

2. Clean or replace filter/detergent

line.

3. Push nozzle forward for

low pressure mode.

Contact Sears Service Departrnent.

1. Clean or replace air cleaner.

2. Fill fuel tank.

3. Drain gas tank; fill with fresh fuel.

4. Connect wire to spark plug.

5. Replace spark plug.

6. Drain gas tank; till with fresh fuel.

7. Set engine throttle control lever to

fast position, choke in run

position.

8. Contact Seers Service

Department.

9. Contact Sears Service

Department.

Engine shuts down dudng

operation

Engine lacks power.

10. Engine has lost compresalon.

1. Out of gasoline.

2. Air filter dirty

Dirty air filter.

10. Contact Sears Service

Department.

1. Fill fuel tank.

2. Replace Air filter.

Replace air filter.

Craftsman 1900 PSI High Pressure Washer 580.768110

Briggs & Stratton 5HP Quantum, Model 12F802-2407-E2

615 O

230

585 d

383

307

337 306

"k REQUIRES SPECIAL TOOLS

TO INSTALL SEE REPAIR

INSTRUCTION MANUAL.

REF. PART REF. PART PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. DESCRIPTION

I49s2r,o Cy1_derAssemb_

2 293706 Bushing

3.'x299819 Seal-Oil

5 214626 Hasd-Cytinder

7 *_272916 Gaaket-Cylinder Head

8 495786 Breather Asse_

9-_272481 Gasket-Breather

10 94650 Screw-Hex.

11 231685 Tube-Breather

13 94547 Screw-Hex.

51 *272199 Gasket-Intake

54 94526 Screw-Flex.

116 *280393 Seal-O-Ring

116A *280966 SeaJ-O-Ring

227 492349 Levef-Govemor

230 67072 Washer

284 94511 Screw-Shoulder

306 224324 Shield-Cylinder

307 94515 Screw-Hex.

337 802592 Pluoj_Spark

383 89838 Wre_ plug

523 495264 DiW, k_

525 495265 Tube-Oil Fill

562 92613 Bolt-Carriage

584 224328 Baffie-_inder

585 ,272238 Gasket-Breather

592 231082 Nu1-Hex.

615 94474 Retainer

REF.

NO.

616 263175 Crank-Govem_r

825 497465 Manifold-intake

/63S 66538 Boo_ Plug

847 495263 Di_ube

869 213512 Seat-VaJve

(ir_ake)

870 213513 Seat-Valve

(Exhaust)

871 262001 Bushing-Guide

(Exhaust Valve)

-- Note --

63709 Bushing-Guide

(Intake Valve)

1058 273693 Owner's Manual

* Included in Gasket Set-Part Number 497316.

• Inctuded in Cad_mtor W,d-PartNumber 498260. • Included in Carburetor Gasket Set-Part Number 498261.

Included in Valve Overhaul Ga_xet Set-Part NO. 498528.

Assemblies include all parts shown in frames.

Craftsman 1900 PSI High Pressure Washer 580.768110

Briggs & Stratton 5HP Quantum, Model 12F802-2407-E2

35._Ao _45

161 "741

REF. PART PART REF. PART

NO. NO. DESCRIPTION NO. ,DESCRIPTION NO. NO. DESCRIPTION

16 498571 Crankshaft

24 222698 Key,-Flywheel

25 49_429 piston Assembly

(Standard)

26 499425 Ring Set

27 263190 Lock-Piston Pin

REF.

NO.

28 499423 Pin-Piston

(Standard)

29 499424 Rod-Connecting

(Standard)

32 94699 Screw-Hex.

33 262651 Valve-Exhatn;t

34 262652 Valve-]ntaks

35 262224 Spring-Valve

40 93312 Retainer-Valve

45 262204 +Tappet-Valve

146 94388 Key-Timing

741 262598 Gear-Tl-ning

Included in Gasket Set-Part Number 497316.

Included in Carburetor Kit-Pair Number 498260. 4k Included in Carburetor Gasket Set-Part Number 498261.

OIr_uded in Valve Overhaul Gasket Set-Part No. 498528.

Asscsmblles include all Darts shown in frames.

Craftsman 1900 PSI High Pressure Washer 580.768110

Brigg$ & Stratton 5HP Quantum, Model 12F802-2407-E2

15_ _

o o

20 _, 22

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

4493279 Sump-Engine

12 *272198 Gasket-Crankcase

15 94720 Plug-Oil Drain

20 *399781 Seal-Oil

22 94220 Screw-Hex. 43 493737 Governor/Oil Slinger

46 498275 Gear-Cam

*induded in Gasket Set-Part Number 497316.

• Included in Carburetor WJt-Part Number 49e260. •IncludedinCarburetorGasketSet-Pad Number498261,

OIncludedin ValveOverhaulGasketSet-Pan No.498528.

Assemblies include all parts shown in frames.

Craftsman 1900 PSI High Pressure Washer 580.768110

Briggs & Stratton 5HP Quantum, Model 12F802-2407-E2

124

6_@ 634_

lO8

ICHOKE SYSTEM I

134

9751

137_

11o

REF. PART RER PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

94 e493765 Valve--Idle Adjustment

95 94098 Sorew-SIotted

98 396185 Screw-Idle Speed

104 e231371 Pin--FloatHinge

108 223471 Valve-Choke

110 e,_ Seal-O-Ring

(Sold in Kit Only)

117 498978 Jet-Main

(Standard)

497315 Jet-Main

(High Altitude)

124 94525 Screw-Hex.

125 499059 Carburetor

127 • Plug-Welch

(Sold in K_ Only)

130 22347oVaNo-Thro_e

131 493267 ShaJt-Throttle

133 398187 Float-Carburetor

134 e398188 Valve-Needle

.(Includes Seat)

137 e• Gasket-Float Bowl

(Sold in Kit Only)

141 494218 Shaft-Choke

617 e,270344 Seal,-IntakeManifold

634 e, Washer

(Soldin_ Only)

975 493640 Bowl-Float

* Included in Gasket Set-Part Number 497316.

•Jnduded in Carburetor W.d-Part Number 498260. •Included in Carburetor Gasket Set-Pad Number 498261.

2) Inc4udedin Valve Overhaul Gasket Set-Part No. 498528.

Assemblies include all parts shown In frames.

Craftsman 1900 PSI High Pressure Washer 580.768110

Briggs & stratton 5HP Quantum, Model 12F802-2407-E2

930 I Fj601 I334_

®284

- 670

2O9

202

RER PART REF. PART I_IER PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

65 94696 Scr_ilRp6

181 397974 P-_Uel Tank

187 2ge049 Line-Fuel

(Cut To Required

Length)

188 94644 Screw-Hex.

188A 398540 Screw-Shoulder

202 262579 Unk-Mechanical Gov.

209 692488 Spring-Governor

:m_ 21514S Ctamp-Cas_g

267 94694 Sctew--,_lotted Hex.

284 94511 Screw-Shoulder

333 802574 Armature-Magneto

334 94731 Screw-He_

356 497833 Wire-Stop

601 95162 Clamp--Ho,_

(Green)

620 499737 Bracket-Control

621 396847 Switch-Stop

670 *493823 Spacer

670A 280512 Spacer-Fuel Tank

843 272616 Sleeve-Lever

930 281440 Cover-Blower Housing

972 495224 Tank-Fuel

Included in Gasket Set-Part Number 497316.

Induded in Carburetor W.xt-PaartNumber 498260. •Included in Carburetor Gasket Set-Part Number 498261.

OIncluded in Valve Overhaul Gasket Set-Part No. 498528.

Assemblies Include all parts shown in frames.

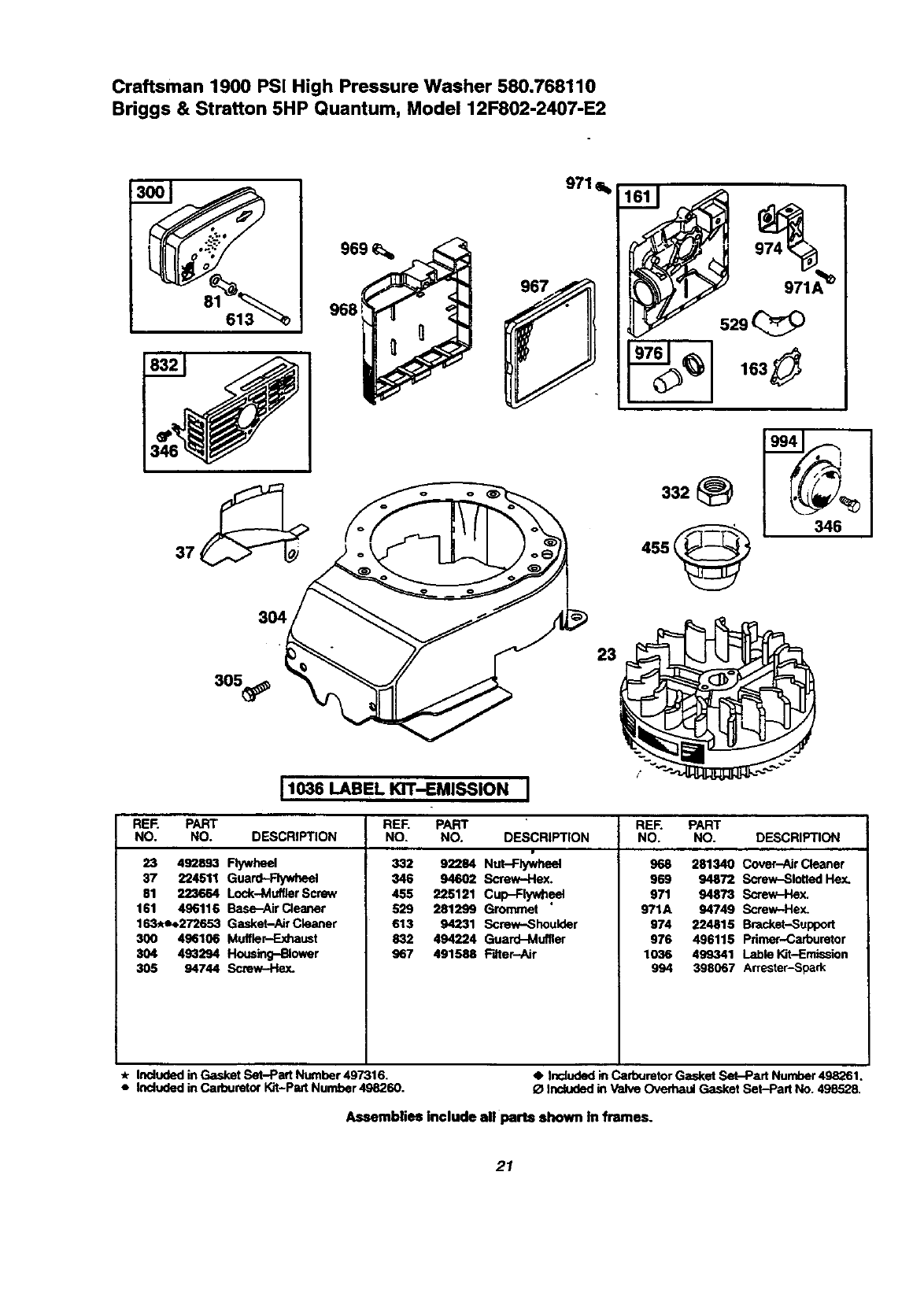

Craftsman 1900 PSI High Pressure Washer 580.768110

Briggs & Stratton 5HP Quantum, Model 12F802-2407-E2

967

971

163_

11o36LABELKn'-EMISSlONI

REF. PART REF. REF. PART

NO. NO. DESCRIPTION NO. NO. NO. DESCRIPTION

23 492893 Rywbed

37 224611 Guard-Flywheel

61 223664 Lock-Muffler Screw

161 496116 Base-Air Cleaner

163.ee272653 Gasket-Air Cleaner

300 496106 Muffler--Ext_ust

304 493294 Housing-Blower

305 94744 Scmw-Hex.

PART

NO. DESCRIPTION

332 92284 Nut-Flywheel

346 94602 Screw-Hex.

455 235121 Cup-Flywheel

$29 281299 Grommet '

613 94231 Screw-Shoulder

832 494224 Guard-Muffler

967 491588 F'dter-Air

968 281340 Cover-Air Cleaner

969 94872 Screw-Slobed Hex.

971 94873 ScR_x.

971A 94749 Screw-Hex.

974 224815 Bracket-Support

976 496115 palmer-Carburetor

1036 499341 Lable Kit-Emission

994 398067 An'ester-Spark

* IncludedinGasketSet-Part Number497316.

•induded inCarburetorKit-Pad Number498260. •Included in Carburetor Gasket Set-Part Number 498261.

Included in Valve Overhaul Gasket Set-Part No. 498528.

Assemblies include all parts shown in frames.

Craftsman 1900 PSI High Pressure Washer 580.768110

Briggs & Stratton 5HP Quantum, Model 12F802-2407-E2

65A

373

459

RER PART

NO. NO. DESCRIPTION

55 497440 HOL6ing--Rewind

Starter

58 280399 Rope-Starter

(Cut To Required

Length)

REF. PART

NO. NO. DESCRIPTION

60 281434 Grip-Startar Rope

65A 94686 Screw-Hex.

144 498144 Pulley-Rope Start

373 92967 Nut-Hex.

456 281503 Retainer--Spring

REF. PART

NO. NO. DESCRIPTION

459 281505 PawS-Ratchet

461 94943 Screw-Shoulder

608 497680 Starter-Rewind

_9 2_ spm,.g--erict_

. trickled in Gasket Set-Part Number 497316.

• Included in Carburetor W.It-Part Number _. @|l_J_f_led in Cad_mtor _Set-Part Number 498261.

included in Valve Overha_ Gasket Set-Part NO. 498528.

Assemblies include all parts shown in frames.

Craftsman 1900 PSI High Pressure Washer 580.768110

Briggs & Stratton 5HP Quantum, Model 12F802-2407-E2

358 GASKET SET

116 O116A_

670 0163_

1095 VALVE OVERHAUL

GASKET SET 977 CARBURETOR

GASKET SET

617 _'_

163_ 110(_)

634_

121 CARBURETOR KIT

127_ 634 _)

._._ 110

13" ]_4_ "-_ 163

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

3_3e819 Seal-Oil

7 *_272916 Gasket-Cylinder Head

9 *_272481 Gasket-Breather

12 *272198 Gasket-Crankcase

20 *385781 Seal-Oil

51 .27219_1 Gasket-intake

94 e48576S Valve--I_e A_ustment

104 e231371 Pin-FinatHinge

11000 Washer-Bowl

(Sold in _Only)

116 *280393 Seal-O-Ring

116A *280966 Seal-O-Ring

121 498260 Carburetor Kit

127 • Plug-Welch

(S_d inK_Only)

134 0398188 Valve-Needle

(I_ Seat)

13704k Gasket-Bowl

(So0dinm O_y)

163.oO272653 Gasket-Air Cleaner

358 497316 Gashet Set

585 *272238 _reather

Passage

617 eO270344 Seal-intake Manifold

634 e@ Wastler-Shett

(Sold in KitOnly)

670 *493823 Spacer

(includes 2)

977 498261 Gasket Set-

"Carburetor

1095 498528 Gasket Set-VaJve

Overhaul

* Included in Gasket Set-Part Number 497316.

•IncJudedin Carburetor I_t-Part Number 498260. 4k Included in Carburetor Gasket Set-Part Number 498261.

OIncluded in Valve Overhaul Gasket Set-Part No. 4.98528.

Assemblies Include al! pads shown in frames.

Craftsman 1900 PSI High Pressure Washer 580.768110

Pump

15 \o o__5/_

I0 I °'_21 55

1'7

21_/_ 18.._

20\Qp"_.19 q_'-8

_7 _ /,2

°131

Craftsman 1900 PSI High Pressure Washer 580.7681_10

Pump

Item Part # Qty Description Item Part #

1 98300 1 SEAL, Engine Donut 28 ......

2 97962 3 SHCS, M6 -1 x 25 29 ......

3 96795 3 SLEEVE, Grommet Spacer 30 B3513

4 21429 6 BUSHING, Rubber Mount 31 ......

5 97835 1 O-RING, Housing Seal 32 ......

6 21783 1 THERMAL RELIEF, GPW-EG 33 B3286

7 93680 3 SEAL, Oil Piston 15 TC4 34 97837

8 97831 3 SPACER, Pilot

9 B2702 1 HOUSING, Piston 35 97841

10 98227 1 ADAPTER, Engine 36 97840

11 B2310 0 KIT, AXIAL CAM SERV 37 40946

12 ...... 1 WASHER, Brg. 36 x 65 x 6 38 B4186

Thk 39 ......

13 ...... 1 ASSY., Brg. Cage 45 x 65 40 .... -..

14 ...... 1 WASHER, Brg. 45 x 65 x 1 41 B2312

15 ...... 1 CAM, Axial 5.6 VS 42 ......

16 ...... 1 BALL BEARING, 35 x 72 x 17 43 ......

17 B3829 0 KIT, CHEM INJECT 44 ......

18 ...... 1 FI'I-]'ING, Chem Inject 45 B1933

19 ...... 1 BALL, Chem Inject 1 ....

20 ...... 1 SPRING, Chem Inject 5....

21 ...... 1O-RING, Ventud 7 ....

22 ...... 1 VENTURI, Chem Inject 21 ....

23 B3828 0 KIT, UNLOADER 25 ....

24 ...... 1 CAP, Unloader 28 ....

25 ...... 1 O-RING, Unloader Cap 33 ....

26 ...... 1 SPRING, 2000 Unloader 34 ....

27 ...... 1 PISTON, Unloader

Qty Description

1 O-RING, .364 ID x .070

1 SEAT, 2000 Unloader

0 KIT, CHECK VALVES

6 O-RING, Check Valve

6 ASSY., Check Valve

3 SEAL, Double-Lip

1 O-RING, Hi-Pressure

Transfer

3 CAP, Outlet Check Valve

3 O-RING, Outlet CV Cap

•4 SHCS, M6-1.0 x 35

O KIT, HEAD CASTING SFG

1 HEAD, Pump

1 PLUG, 1/8-28 WNIRB

0 KIT, PISTON & SPRING

3 RETAINER, Piston Spring

3 PISTON, Dia. 15 x 65 Lg

3 SPRING, Piston Return

0 KIT, O-RING/SEAL SERV

1 SEAL, Engine Donut

1 O-RING, Housing Seal

3 SEAL, OII Piston 15 TC4

1 O-RING, Venturi

1 O-RING, Unloader Cap

1 O-RING, .3641D x .070

3 SEAL, Double-Lip

3 O-RING, Outlet CV Cap

Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits and include all parts shown withinthe box. Items

previously described are not listed under the service kit number.

Craftsman 1900 PSI High Pressure Washer 580.768110

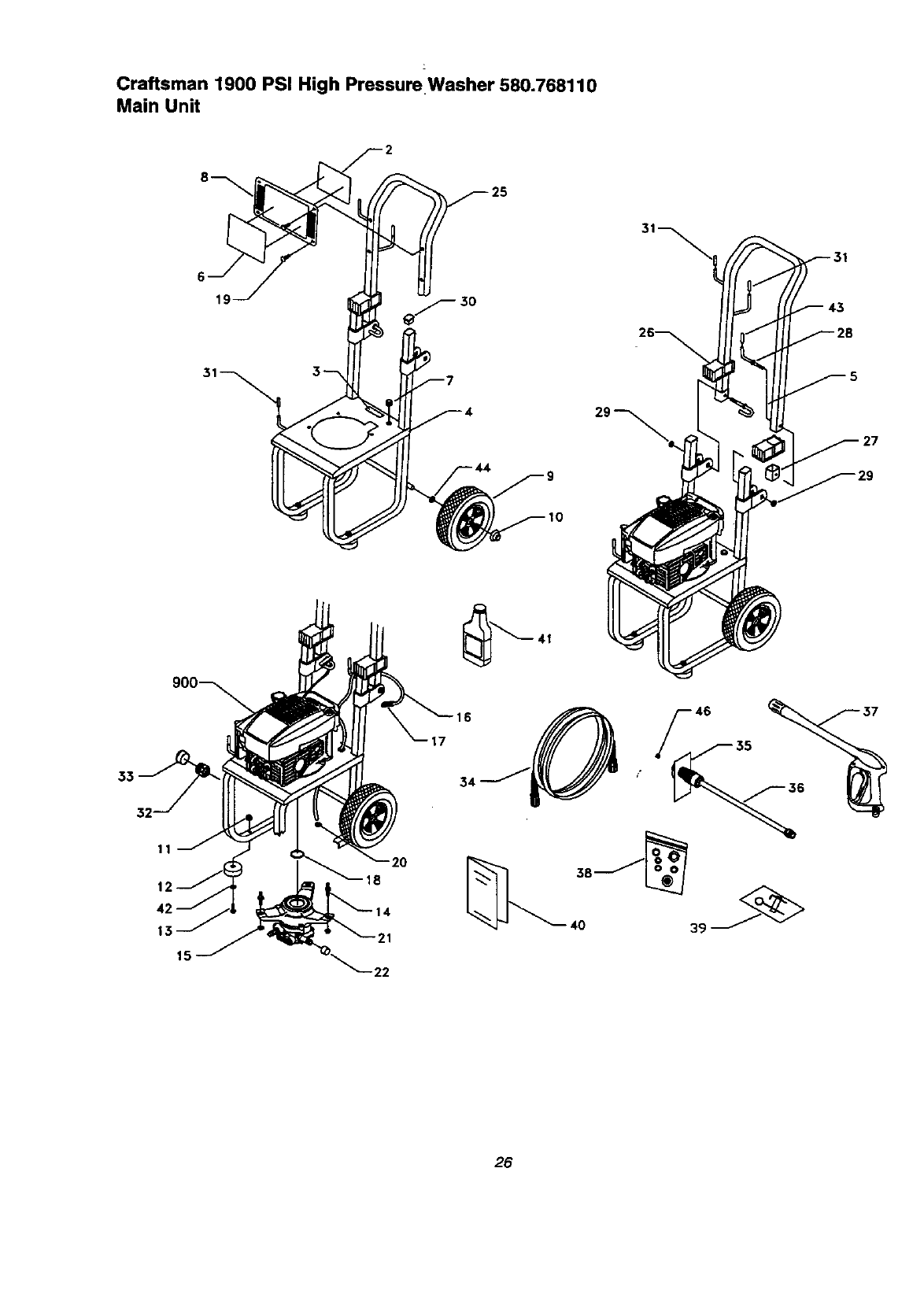

Main Unit

Craftsman 1900 PSI High Pressure Washer 580.768110

Main Unit

Item Part #Qty Description

2 B2200 1 DECAL, Instructions

3 96307 1 DECAL, 1-800 Number

4 DB3307 1 BASE, Gray Powder Coated

5 B1730A 1 BOLT, Eye

6 B3777 1 DECAL, 1900 PSI

7 30809 1 GROMMET, Chemical Hose

8 B1786A 1 BILLBOARD

9 21206 2 TIRE, 2" x 8" Black Mag

10 75402 2 PUSHNUT, 1/2"

11 52858 2 NUT, M8 Locking Flange

12 27007 2 MOUNT, Vibration

13 57821 2 HHCS, M8 -1.25 x 40

14 B1735 3 STUD, Double Ended

15 B1880 3 NUT, with Washer

16 A1040B 1 HOSE, Chemical

17 A1041 1 FILTER, Chemical Hose

18 98300 1 SEAL, Engine Donut

19 B1797 4 FASTENER, Clip

20 48031G 1 CLAMP, Hose 13/16"

21 B3468A 1 ASSY., Pump EG w/Thermal

22 97100 1 CAP, High Pressure

25 DB3330 1 HANDLE, Gray Powder Coated

26 B2791 2 COVER, Hinge

27 B2790 2 CAP, End

28 B2759A 1 HOOK, Chemical Bottle

29 B2071 2 NUT, 1/4-20 Locking Flange

30 81895 2 CAP, Plug

31 B2516 3 CAP, Vinyl

32 21424 1 CONNECTOR, Garden Hose

33 A1408 1 CAP, Hose Connector

34 B3607 1HOSE, 1/4" x 25'

35 97566 1 TAG, Nozzle Instructions

36 B3335 1 WAND, Adjustable Nozzle

37 B3263 1 GUN, High Pressure

38 B3057 1 KIT, Maintenance

39 B3708 1 KIT, Nozzle, Cleaning

40 B3774 1 MANUAL

41 AB3061B 1 OIL, Engine

42 50190 2 WASHER, M8 Flat

43 B1460 1 CAP, Vinyl

44 49808 2 WASHER, M12 Flat

46 21761 1 NOZZLE, Replacement

900 NSP 1 ENGINE, 5HP

Optional Accessories Not Illustrated

71-76485

71-75187

71-75199

71-75197

71-75115

71-75116

71-76450

Turbo Nozzle

Garden Hose Quick Connect

Rotating Brush

Accessory Quick Connect

Replacement Hose

O-Ring Repair Kit

25' Extension Hose

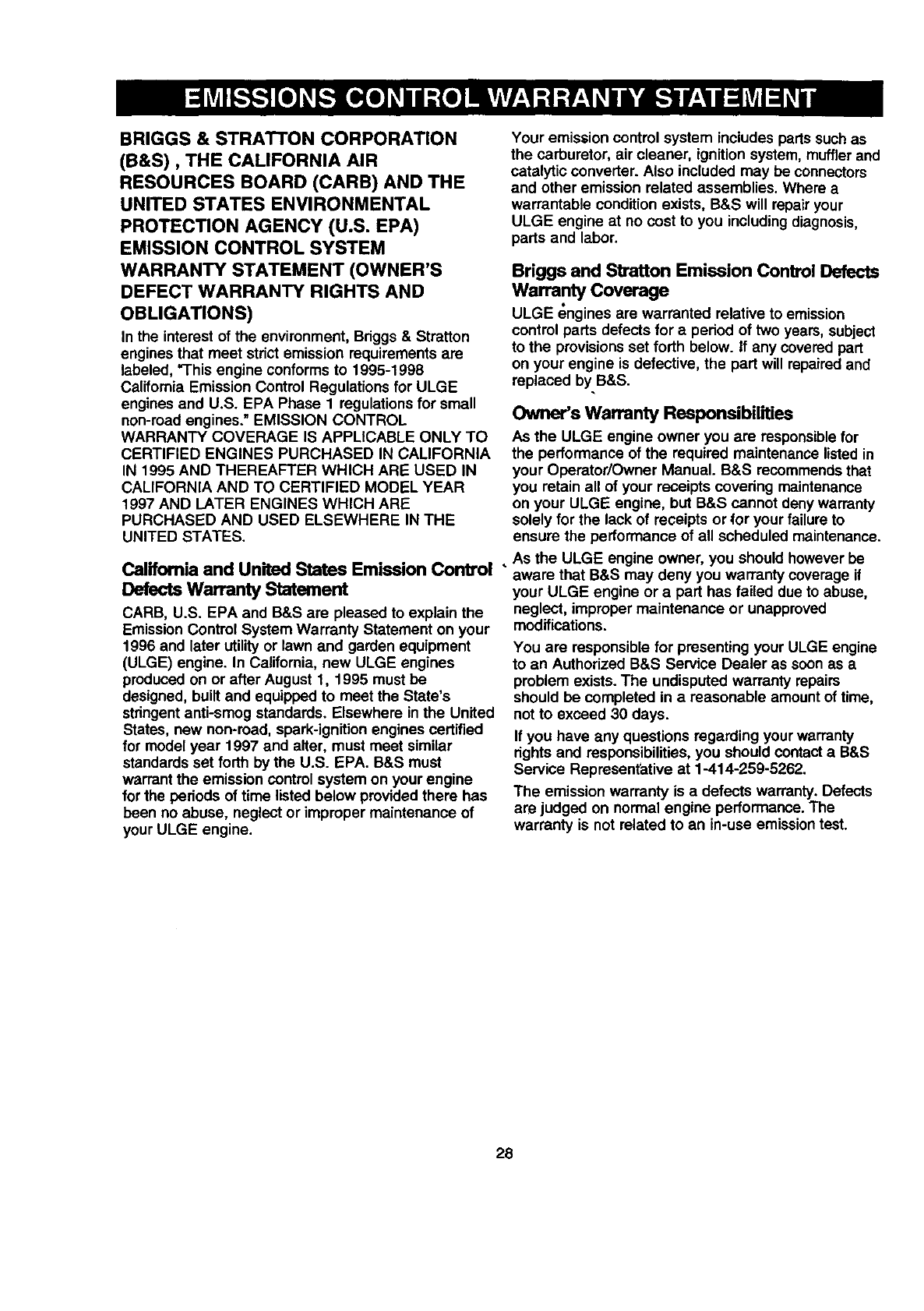

BRIGGS & STRATTON CORPORATION

(B&S) , THE CALIFORNIA AIR

RESOURCES BOARD (CARB) AND THE

UNITED STATES ENVIRONMENTAL

PROTECTION AGENCY (U.S. EPA)

EMISSION CONTROL SYSTEM

WARRANTY STATEMENT (OWNER'S

DEFECT WARRANTY RIGHTS AND

OBLIGATIONS)

In the interest of the environment, Briggs & Stretton

engines that meet strict emission requirements are

labeled, "Thisengine conforms to t 995-1998

California Emission Control Regulations for ULGE

engines and U.S. EPA Phase 1 regulations for small

non-road engines." EMISSION CONTROL

WARRANTY COVERAGE IS APPLICABLE ONLY TO

CERTIFIED ENGINES PURCHASED IN CALIFORNIA

IN 1995 AND THEREAFTER WHICH ARE USED IN

CALIFORNIA AND TO CERTIFIED MODEL YEAR

1997 AND LATER ENGINES WHICH ARE

PURCHASED AND USED ELSEWHERE IN THE

UNITED STATES.

California and United States Emission ConVol "

DefectsWarranty Statement

CARB, U.S. EPA and B&S are pleased to explain the

Emission Control System Warranty Statement on your

1996 and later utilityor lawn and garden equipment

(ULGE) engine. In California, new ULGE engines

produced on or after August 1, 1995 must be

designed, built and equipped to meet the State's

stringent anti-smog standards. Elsewhere in the United

States, new non-road, spark-ignition engines certified

for model year 1997 and alter, must meet similar

standards set forth by the U.S. EPA. B&S must

warrant the emission control system on your engine

for the periods of time listed below provided there has

been no abuse, neglect or improper maintenance of

your ULGE engine.

Your emission control system includes parts such as

the carburetor, air cleaner, ignition system, muffler and

catalytic converter. Also included may be connectors

and other emission related assemblies. Where a

warrantable condition exists, B&S will repair your

ULGE engine at no cost to you includingdiagnosis,

parts and labor.

Briggs and Stratton Emission Control Defects

Warranty Coverage

ULGE _ngines are warranted relative to emission

control parts defects for a period of two years, subject

to the provisions set forth below. If any covered part

on your engine is defective, the part will repaired and

replaced by B&S.

Owner's Warranty Responsibilities

As the ULGE engine owner you are responsiblefor

the performance of the required maintenance listed in

your Operetor/Owner Manual. B&S recommendsthat

you retain all of your receipts covedng maintenance

on your ULGE engine, but B&S cannot deny warranty

solely for the lack of receipts or for your failureto

ensure the performance of all scheduled maintenance.

As the ULGE engine owner, you should however be

aware that B&S may deny you warranty coverage if

your ULGE engine or a part has failed due to abuse,

neglect, improper maintenance or unapproved

modifications.

You are responsible for presenting your ULGE engine

to an Authorized B&S Service Dealer as soon as a

problem exists. The undisputed warranty repairs

should be completed in a reasonable amount of time,

not to exceed 30 days.

If you have any questions regarding your warranty

rights and responsibilities, you should contactaB&S

Service Represen'(ative at 1-414-259-5262.

The emission warranty is a defects warranty. Defects

are judged on normal engine performance. The

warranty is not related to an in-use emission test.

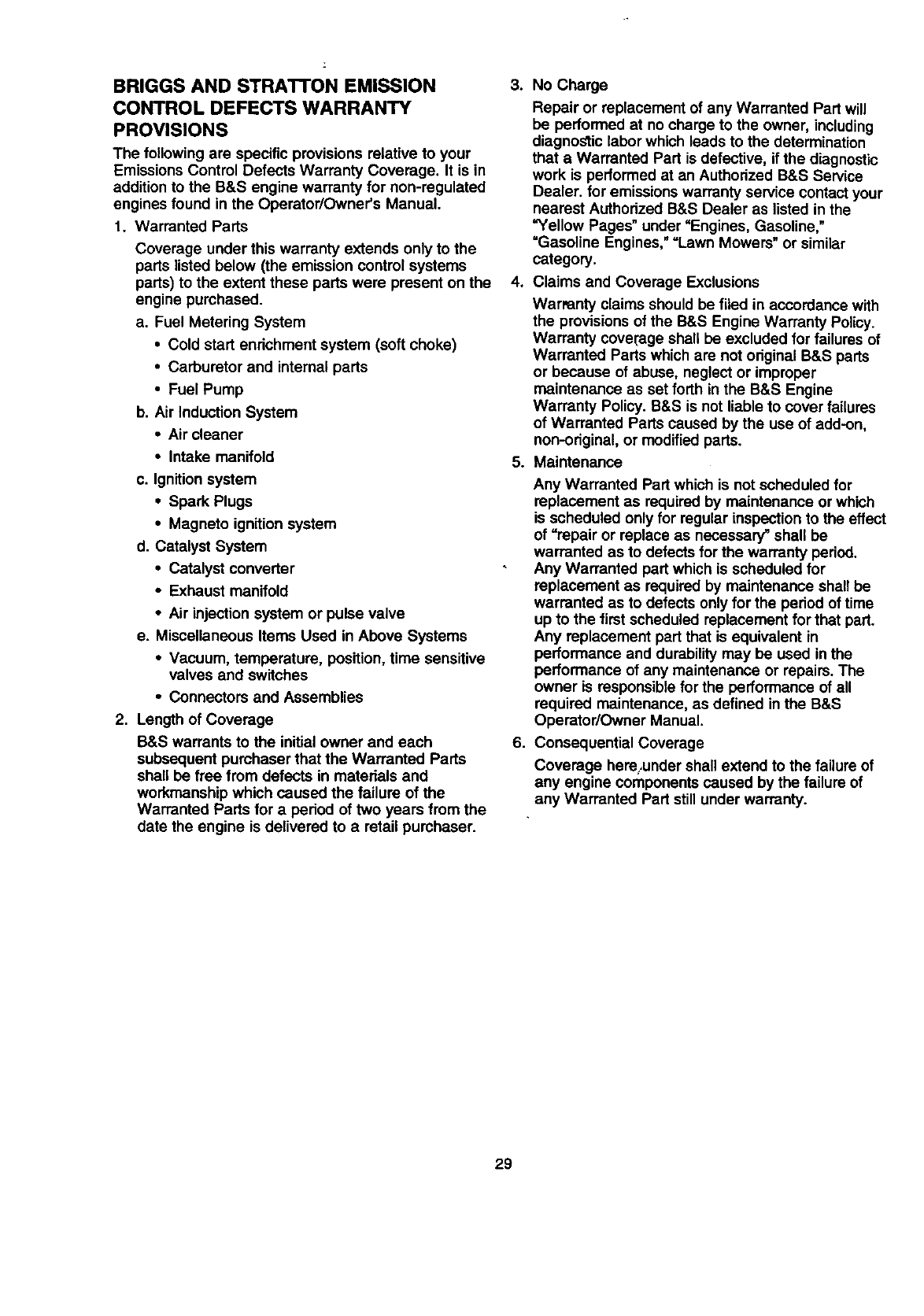

BRIGGS AND STRATTON EMISSION

CONTROL DEFECTS WARRANTY

PROVISIONS

The foUowingare specific provisions relative to your

Emissions Control Defects Warranty Coverage. It is in

additionto the B&S engine warranty for non-regulated

engines found in the Operator/Owner's Manual.

1. Warranted Parts

Coverage under this warranty extends only to the

parts listed below (the emission control systems

parts) to the extent these parts were present on the

engine purchased.

a. Fuel Metering System

•Cold start endchmant system (soft choke)

•Carburetor and internal parts

•Fuel Pump

b, Air Induction System

•Air cleaner

•Intake manifold

c. Ignition system

•Spark Plugs

•Magneto ignition system

d. Catalyst System

•Catalyst converter

•Exhaust manifold

•Air injection system or pulse valve

e. Miscellaneous Items Used in Above Systems

•Vacuum, temperature, position, time sensitive

valves and switches

•Connectors and Assemblies

2. Length of Coverage

B&S warrants to the initial owner and each

subsequent purchaser that the Warranted Parts

shall be free from defects in materials and

workmanship which caused the failure of the

Warranted Parts for a period of two years from the

date the engine is delivered to aretail purchaser.

3. No Charge

Repair or replacement of any Warranted Part will

be performed at no charge to the owner, including

diagnostic labor which leads to the determination

that a Warranted Part is defective, if the diagnostic

work is performed at an Authorized B&S Service

Dealer. for emissions warranty service contact your

nearest Authorized B&S Dealer as listed in the

=Yellow Pages" under "Engines, Gasoline,"

"Gasoline Engines,"=Lawn Mowers" or similar

category.

4. Claims and Coverage Exclusions

Warranty claims should be filed in accordance with

the provisions of the B&S Engine Warranty Policy.

Warranty coverage shall be excluded for failures of

Warranted Parts which are not original B&S parts

or because of abuse, neglect or improper

maintenance as set forth in the B&S Engine

Warranty Policy. B&S is not liable to cover failures

of Warranted Parts caused by the use of add-on,

non-original, or modified parts.

5. Maintenance

Any Warranted Part which is not scheduled for

replacement as required by maintenance or which

is scheduled only for regular Lnspectionto the effect

of "repair or replace as necessary" shall be

warranted as to defects for the warranty period.

Any Warranted part which is scheduled for

replacement as required by maintenance shall be

warranted as to defects only for the period of time

up to the first scheduled replacement for that part.

Any replacement part that is equivalent in

performance and durability may be used in the

performance of any maintenance or repairs. The

owner is responsible for the performance of all

required maintenance, as defined in the B&S

Operator/Owner Manual.

Consequential Coverage

Coverage here.under shall extend to the failure of

any engine components caused by the failure of

any Warranted Part still under warranty.

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME" (1-800-469 663)

Para pedir servicio de reparaci6n a domicilio - 1-800-876-5811

In Canada for all your service and parts needs call - 1-800-665-4455

Au Canada pour tout le service ou I_s pi_ces

For the repair or replacement parts you need:

Call 7 am - 7 pm, 7 days a week

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio - 1-800-659-7084

For the location of a Sears Parts and Repair Center in your area:

Call 24 hoursa day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance Agreement

or to inquire about an ex=stmg Agreement:

Call 9 am - 5 pm, Monday - Saturday

1-800-827-6655

SEARS

HomeCentrar

il •

TheServiceSideof Sears"

Craftsman 580768110 User Manual HIGH PRESSURE WASHER Manuals And Guides L9050342

CRAFTSMAN Power Washer, Gas Manual L9050342 CRAFTSMAN Power Washer, Gas Owner's Manual, CRAFTSMAN Power Washer, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
