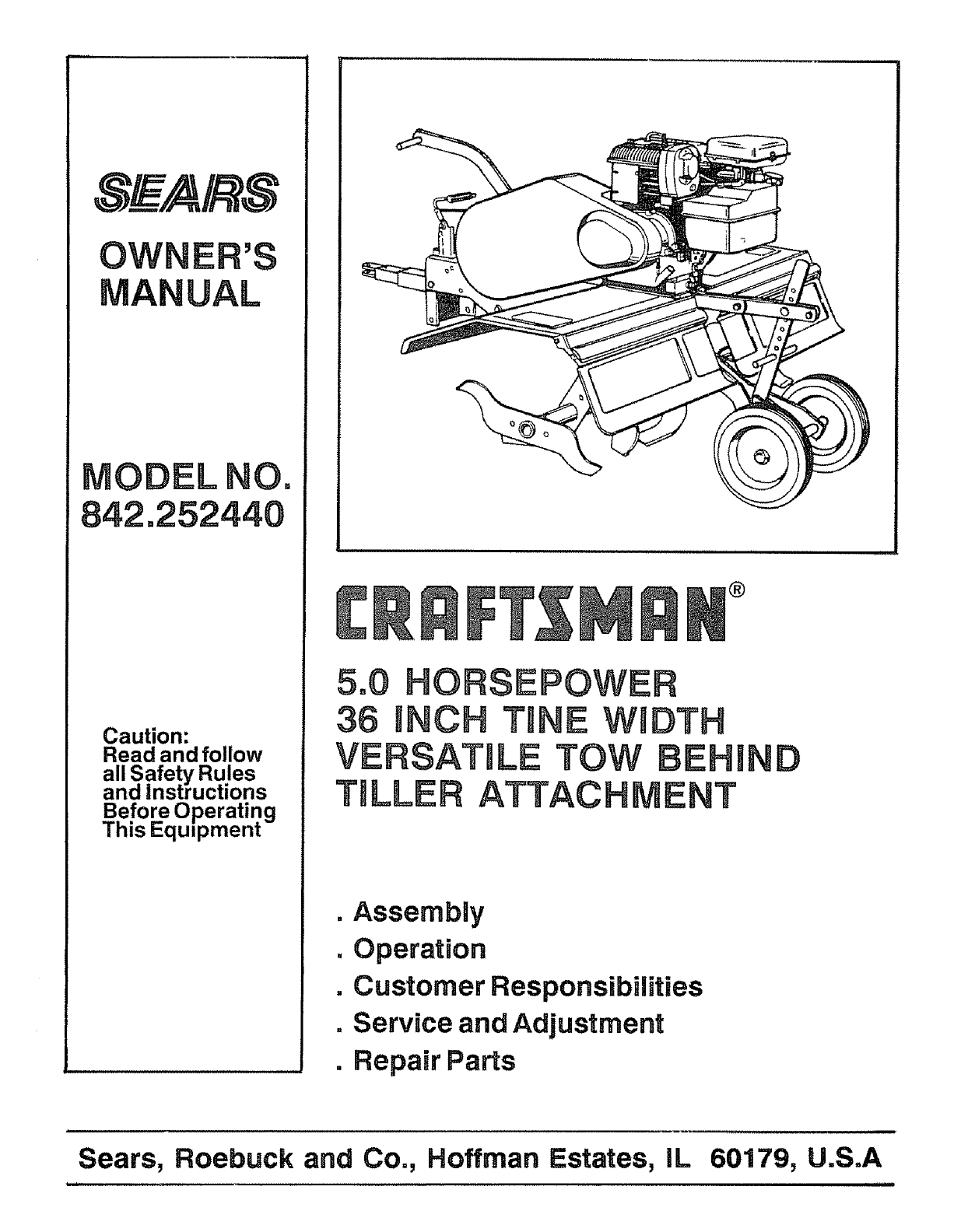

SE/A-Jf S

OW_ 'S

UAL

ODEL NO.

_42.252440

Caution:

Read and follow

all Safety Rules

and Instructions

Before Operating

This Equipment

WIDTH

TOW

ATTACH NT

.Assembly

.Operation

.Customer Responsibilities

.Service and Adjustment

.Repair Parts

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A

i i ii!l!lll

SAFETY RULES

Safe Operation Practices for the Tow-Behind Tiller Attachment

TRAiNiNG

Read opening and Service instructions

carefully. Be thoroughly familiar with the

controls and the proper' use of the

equipment,

° Never' allow children to operate the machine

Do not allow adults to operate the machine

without proper instruction.

o Keep the area of operation ctear of all

persons, particularly small children and pets.

PREPARATION

Check the fuel and lubrication before

starting the engine Do not fill the gasoline

tank indoors when the engine is running or

while the engine is still hot Wipe off any

spilled gasoline before starting the engine,

o Inspect the area to be filled_ Remove glass,

wire, metal objects, large sticks and stones,

Avoid underground pipes and wiring°

e Have a complete working knowledge of your

tractor and know how to handle your tractor

with a tiller or'other attachment attached.,

OPERATION

o Give complete and undivided attention to the

job at hand, Operate the tiller in daylight

or good artificial light,

Personal injury may result from contact with

the tines or debris thrown by this machine,

Therefore, always stay a safe distance away

from tines.

= Stop the tiller' engine when leaving your

tUler unattended_

o Check before each use for loose fasteners or

parts,

Never store the equipment with gasoline in

the tank inside of a building where fumes

may reach an open flame or spark Allow

the engine to cool before storing in an

enclosure.

Stop engine and disconnect spark plug lead

wire before cleaning tines, removing

obstacles or making adjustments except for

any instructions which must be done while

the engine is running_

Never place hands or feet under or into

rotating parts or concealed areas. Keep

hands and feet clearly away from tine

elements, belts, pulleys, etc, while engine is

running.

Wear substantial shues and eye protection

while using tiller.

Never' attempt to make a maintenance

adjustment except on the carburetor, while

engine is running.

Do not run the engine indoors; carbon

monoxide fumes are dangerous to inhale.

Never operate machine without proper

guards, plates or other safety protective

devices in place.

• Disengage the Ttne Drive Clutch, stop tiller

and tractor engines before getting off the

tractor,,

• Disengage the Tine Drive Clutch and stop

the tillerengine during transportation to

and from the work area.

MAINTENANCE AND STORAGE

Follow maintenance instructions as outlined

in this manual and your Engine Owners

Manual supplied with the unit.

o Disconnect spark plug wire before making

any maintenance adjustment or repair,.

iMPORTANT

Warnings, Cautions, and Notes are a means of

attracting attention to important or critical

information in this manual.

LOOK FOR THIS SYMBOL TO POINT OUT

IMPORTANT SAFETY PRECAUTIONS. IT

MEANS-A]TENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED. 2

Store gasoline in an approved metal

container in a cool, dry place,,

Keep all nuts, bolts and screws tight. Keep

machine ingood operating condition and keep

safety devices in place.

Safety and performance levels can be assured

only by the use of specified replacement

parts,,

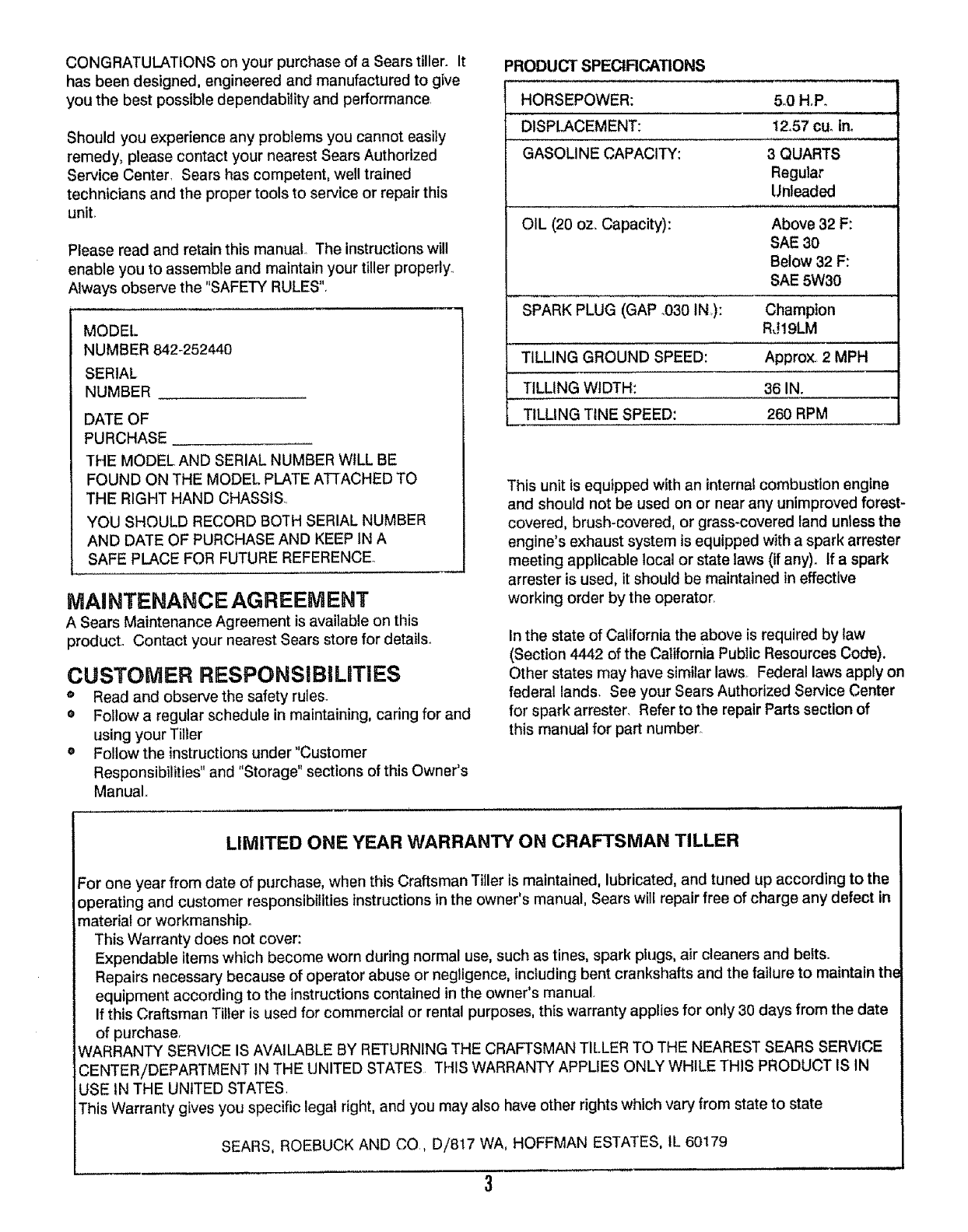

CONGRATULATIONSonyourpurchaseofaSearstiller.It

hasbeendesigned,engineeredandmanufacturedto give

youthebestpossibledependabilityandperformance.

Shouldyouexperienceanyproblemsyoucannoteasily

remedy,pleasecontactyournearestSearsAuthorized

ServiceCenter.Searshascompetent,welltrained

techniciansandthepropertoolsto serviceorrepairthis

uniL

Pleasereadandretainthismanual.Theinstructionswill

enableyoutoassembleandmaintainyourtillerproperly_

Alwaysobservethe"SAFETYRULES"_

MODEL

NUMBER842-252440

SERIAL

NUMBER

DATEOF

PURCHASE

THEMODELANDSERIALNUMBERWILLBE

FOUNDONTHEMODELPLATEATTACHEDTO

THERIGHTHANDCHASSIS.

YOUSHOULDRECORDBOTHSERIALNUMBER

ANDDATEOFPURCHASEANDKEEPINA

SAFEPLACEFORFUTUREREFERENCE.

MAINTENANCEAGREEMENT

A Sears Maintenance Agreement is available on this

product_ Contact your nearest Sears store for details.

CUSTOMER RIESPONSIBILITIES

= Read and observe the safety rule&

• Follow a regular schedule in maintaining, caring for and

using your Tiller

• Follow the instructions under"Customer

Responsibilities" and "Storage" sections of this Owner's

Manual

PRODUCT SPECtRCATIONS

HORSEPOWER: 5,,0HoP.

DISPLACEMENT: t2.57 cu. ino

J H

GASOLINE CAPACITY: 3 QUARTS

Regular

Unleaded

OIL (20 oz. Capacity): Above 32 F:

SAE 30

Below 32 F:

SAE 5W30

SPARK PLUG (GAP ..030IN.): Champion

RJ19LM

TILLING GROUND SPEED: Approx 2 MPH

TILLING WIDTH: 36 IN.

TILLING TtNE SPEED: 260 RPM

This unit is equipped with an internal combustion engine

and should not be used on or near any unimproved forest-

covered, brush-covered, or grass-covered land unless the

engine's exhaust system is equipped with a spark arrester

meeting applicable local or state laws (if any)° If a spark

arrester is used, it should be maintained in effective

working order by the operator.

In the state of California the above is required by law

(Section 4442 of the California Public Resources Cod_),

Other states may have similar laws. Federal laws apply on

federal lands. See your Sears Authorized Service Center

for spark arrester. Refer to the repair Parts section of

this manual for part number.

LIMITED ONE YEAR WARRANTY ON CRAFTSMAN TILLER

For one year from date of purchase, when this Craftsman Tiller is maintained, lubricated, and tuned up according to the

operating and customer responsibilities instructions in the owner's manual, Sears will repair free of charge any defect in

material or workmanship°

This Warranty does not cover:

Expendable items which become worn during normal use, such as tines, spark plugs, air cleaners and belts.

Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain th_

equipment according to the instructions contained in the owner's manual.

If this Craftsman Tiller is used for commercial or rental purposes, this warranty applies for only 30 days from the date

of purchase.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN TILLER TO THE NEAREST SEARS SERVICE

CENTER/DEPARTMENT iN THE UNITED STATES THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS IN

USE IN THE UNITED STATES

This Warranty gives you specific legal right, and you may also have other rights which vary from state to state

SEARS, ROEBUCK AND CO, D/817 WA, HOFFMAN ESTATES, tL 60179

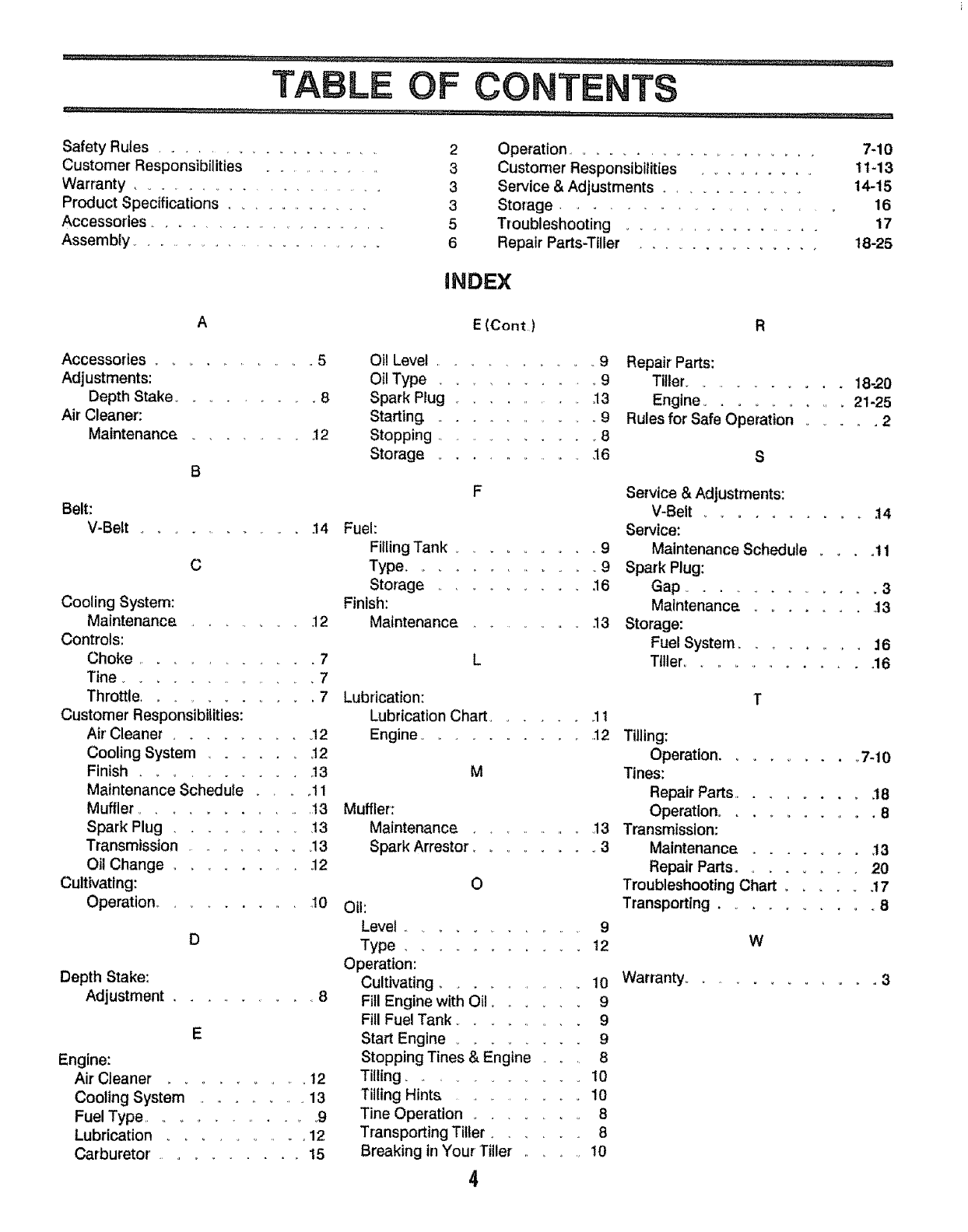

TABLE OF CONTENTS

Safety Rules ................... 2

Customer Responsibilities ............... 3

Warranty ...................... 3

Product Specifications ............... 3

Accessories .................... 5

Assembly ........................ 6

Operation ........................ 7-10

Customer Responsibilities .......... 11-13

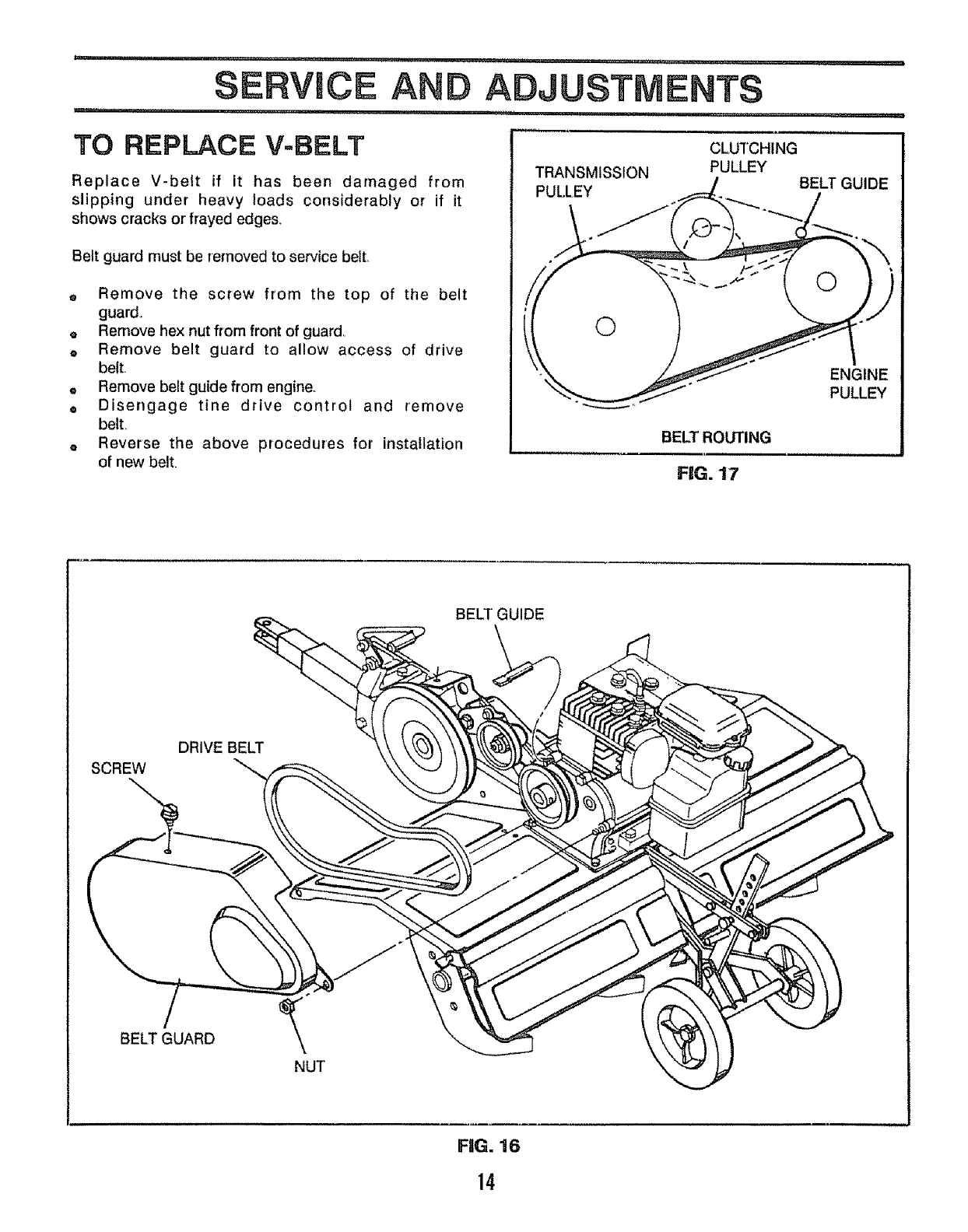

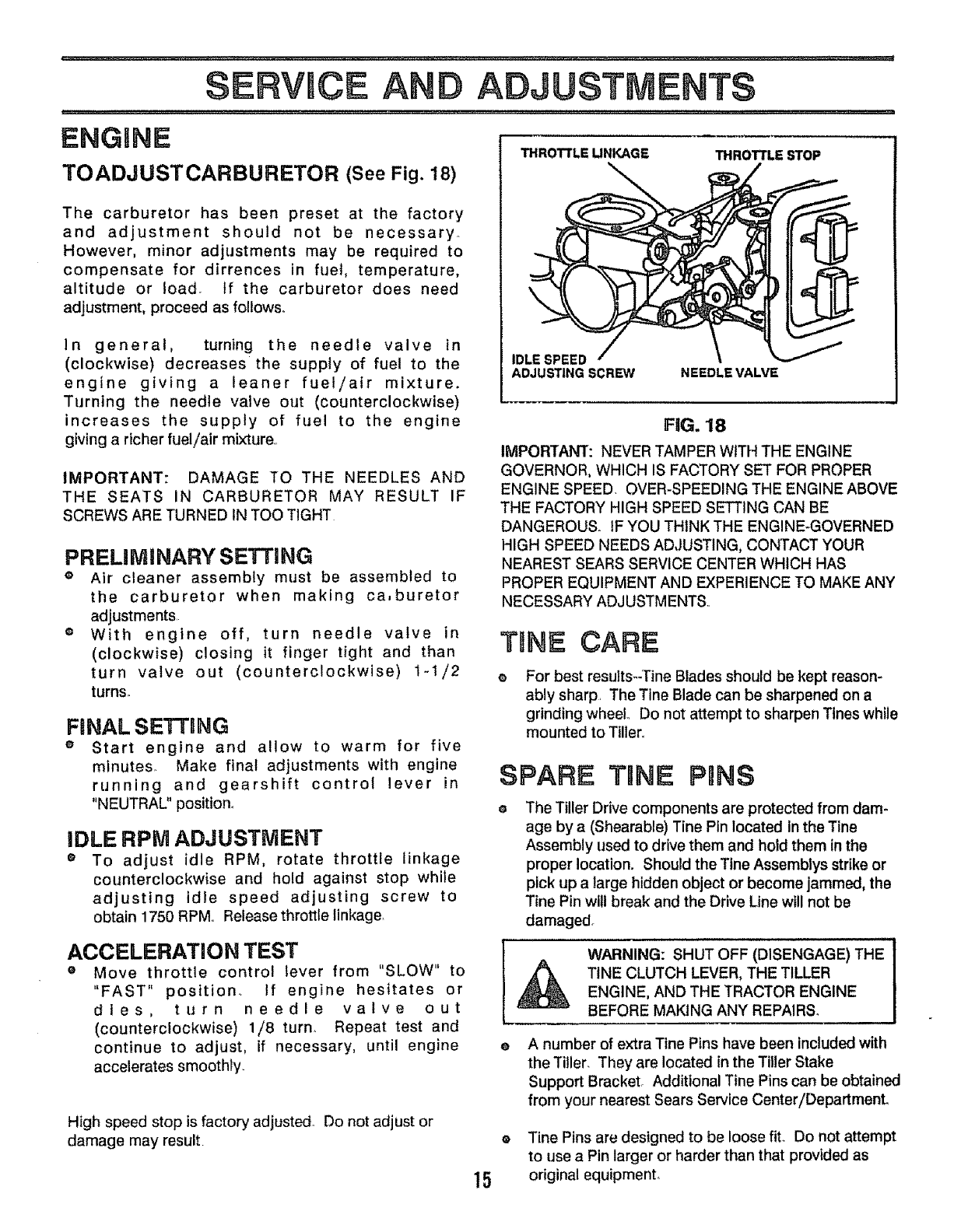

Service & Adjustments .............. 14-15

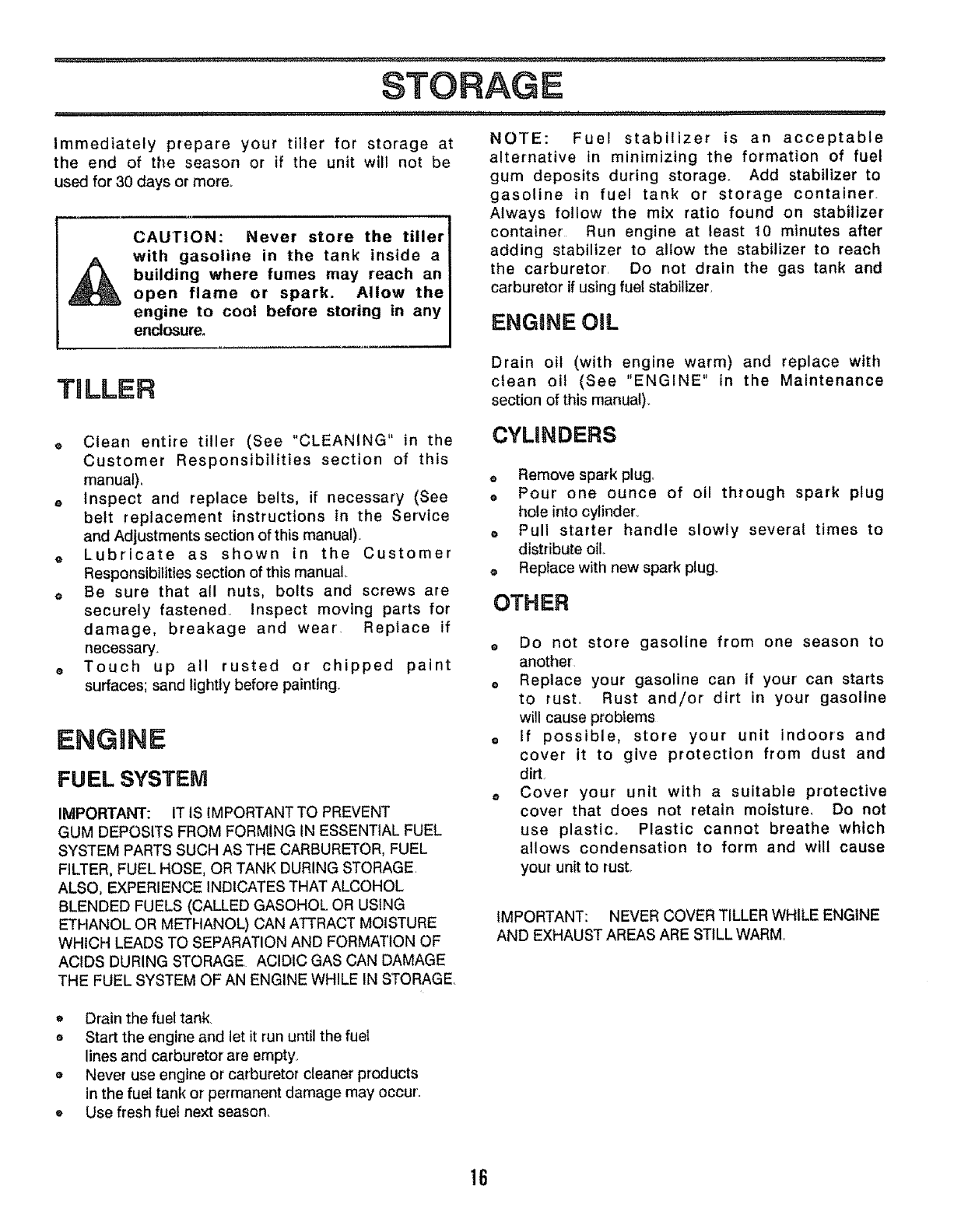

Storage ................. 16

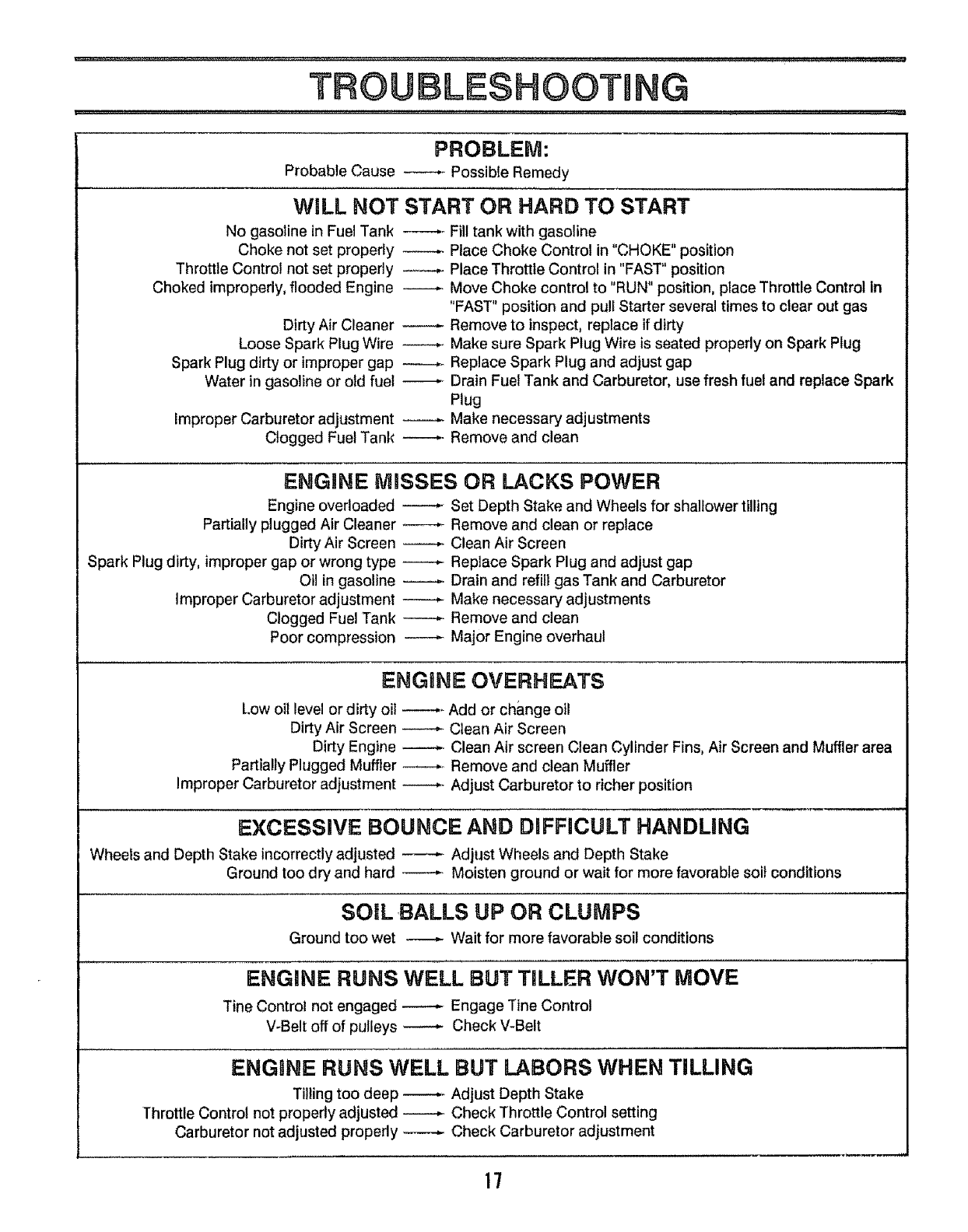

Troubleshooting .................. 17

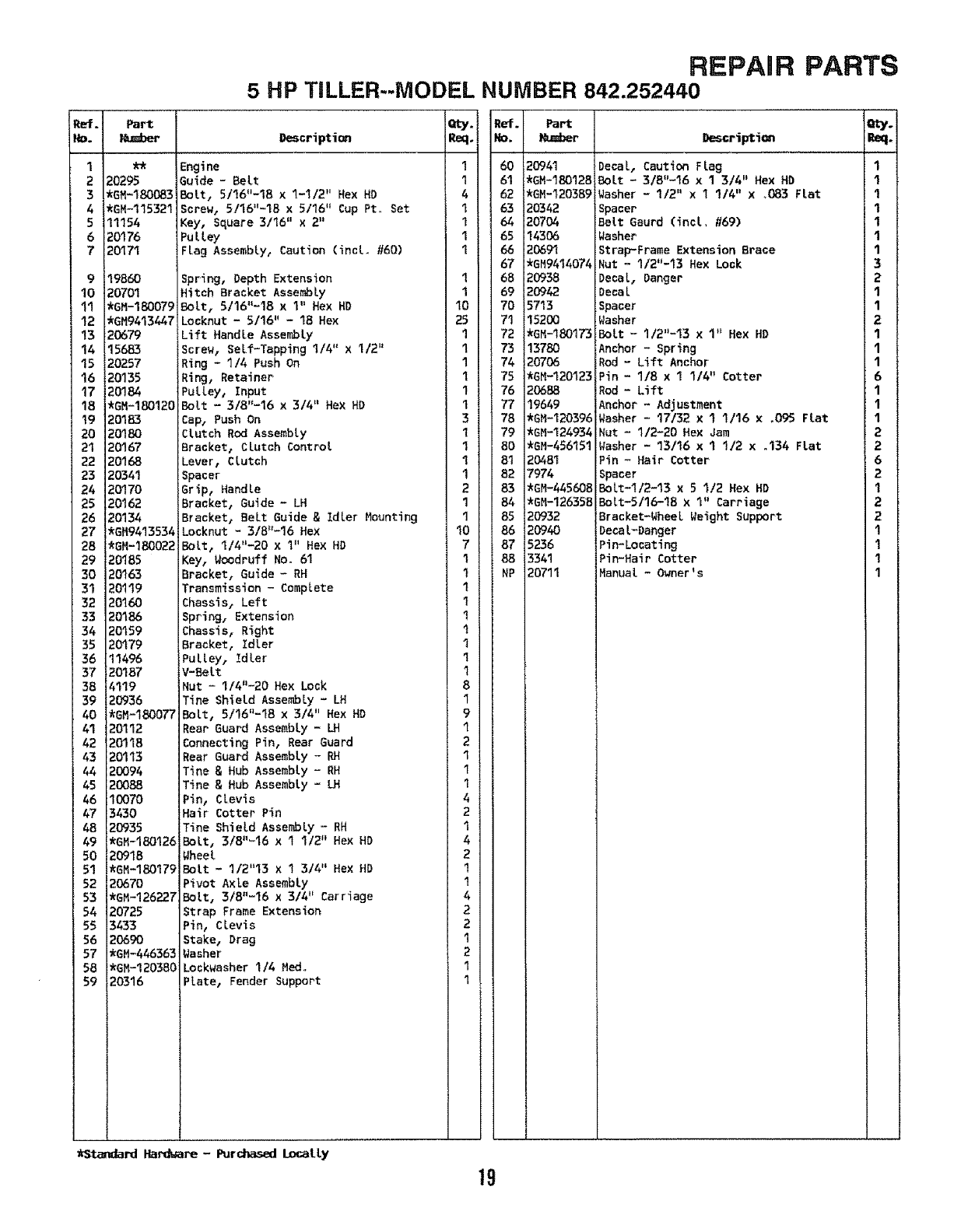

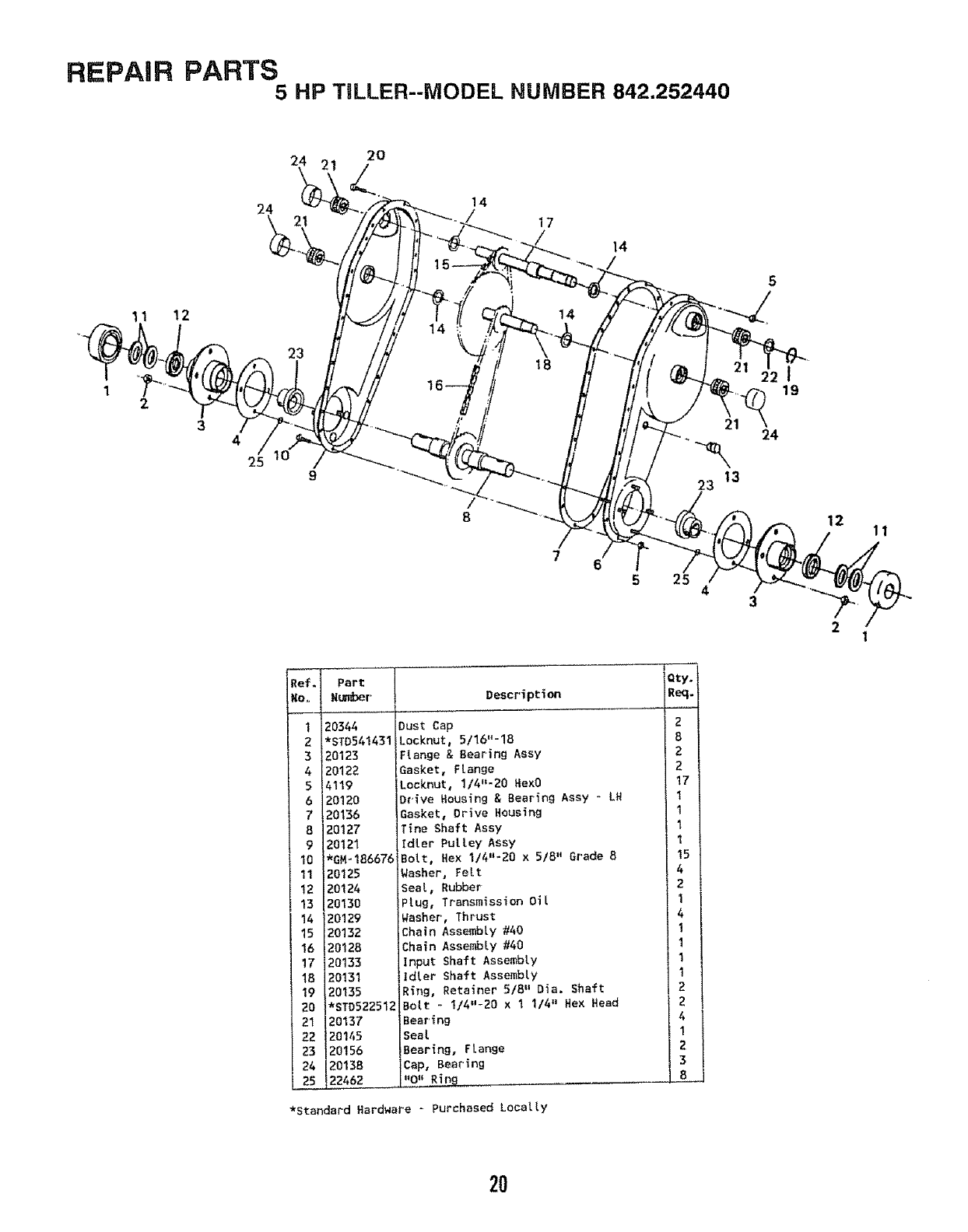

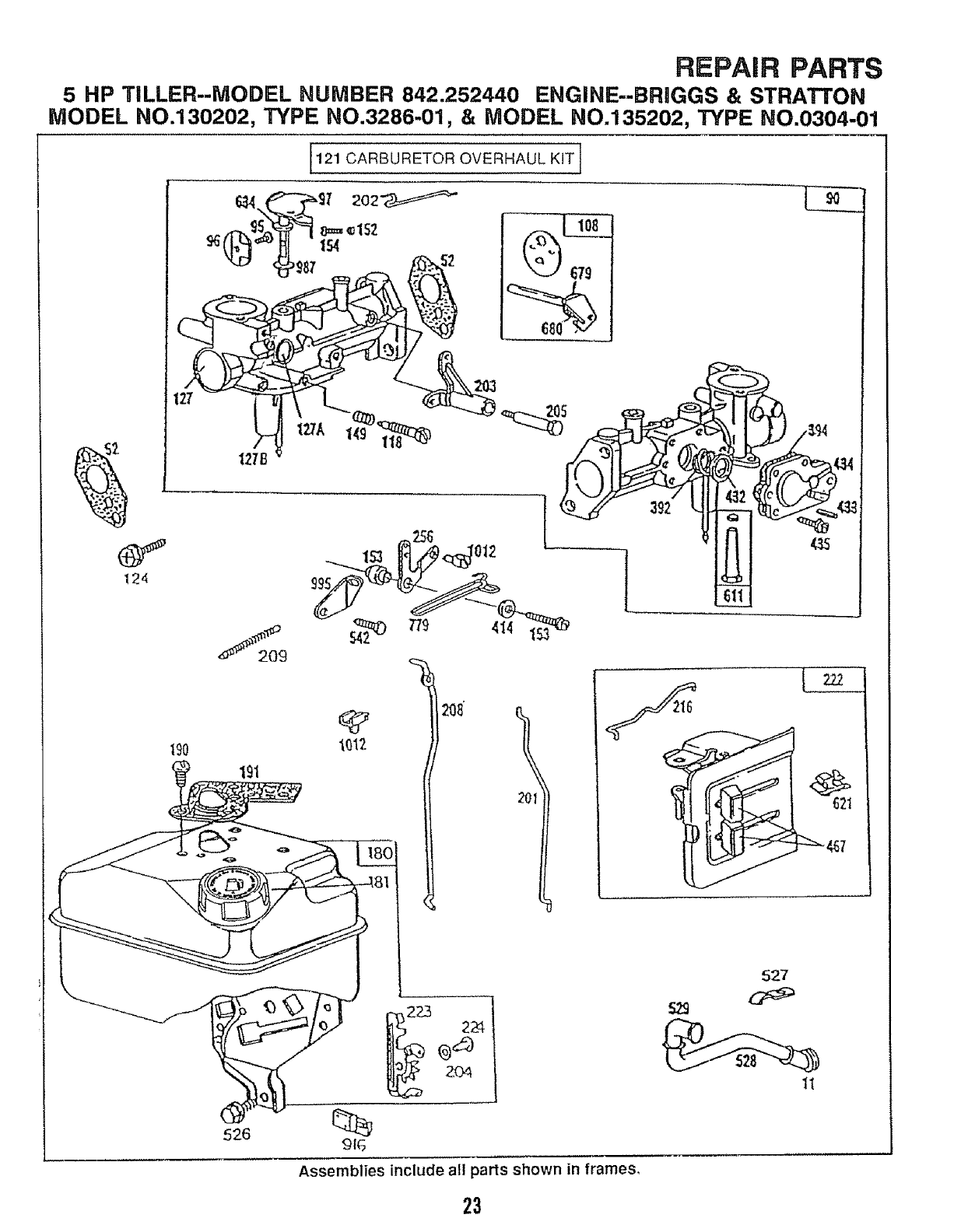

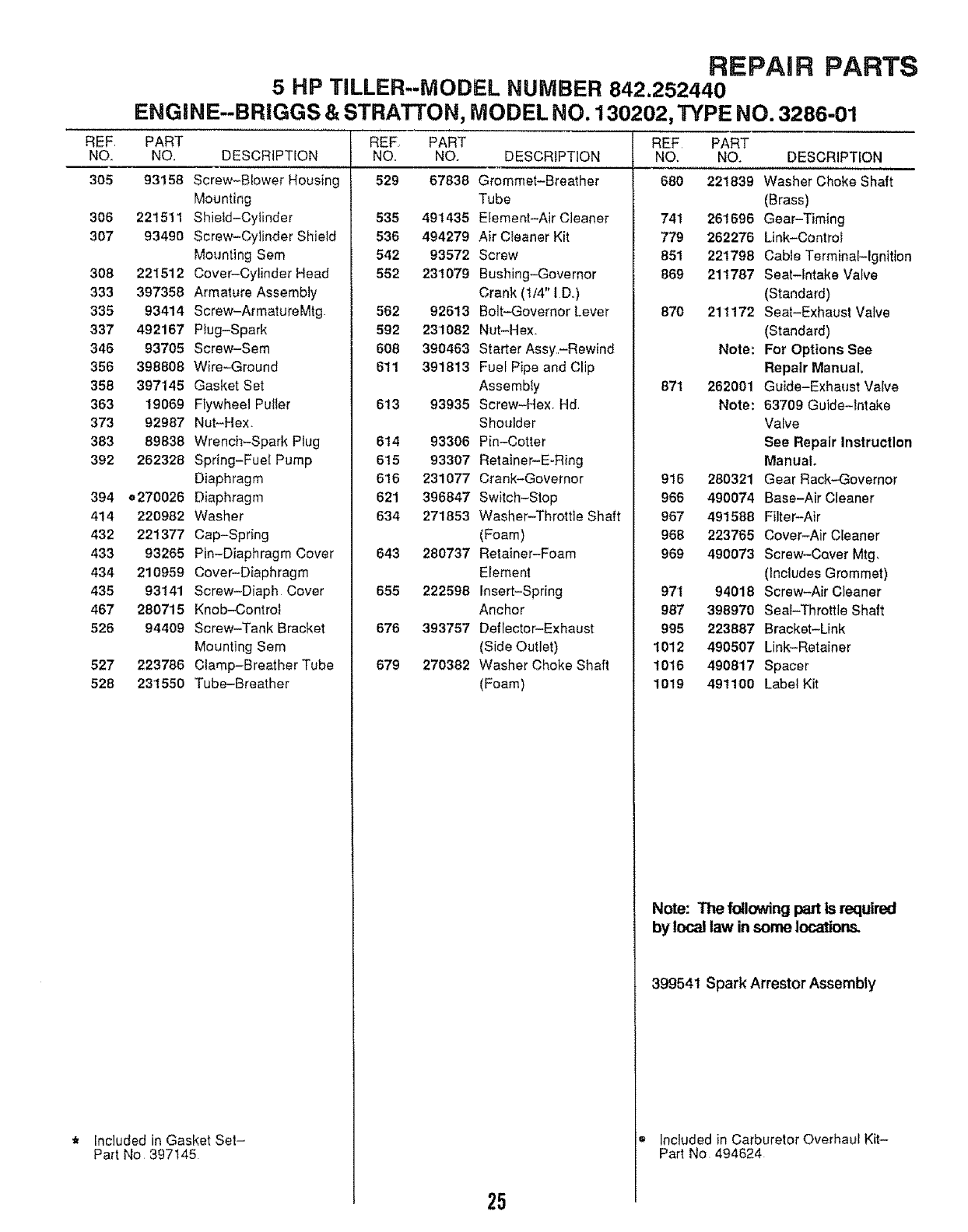

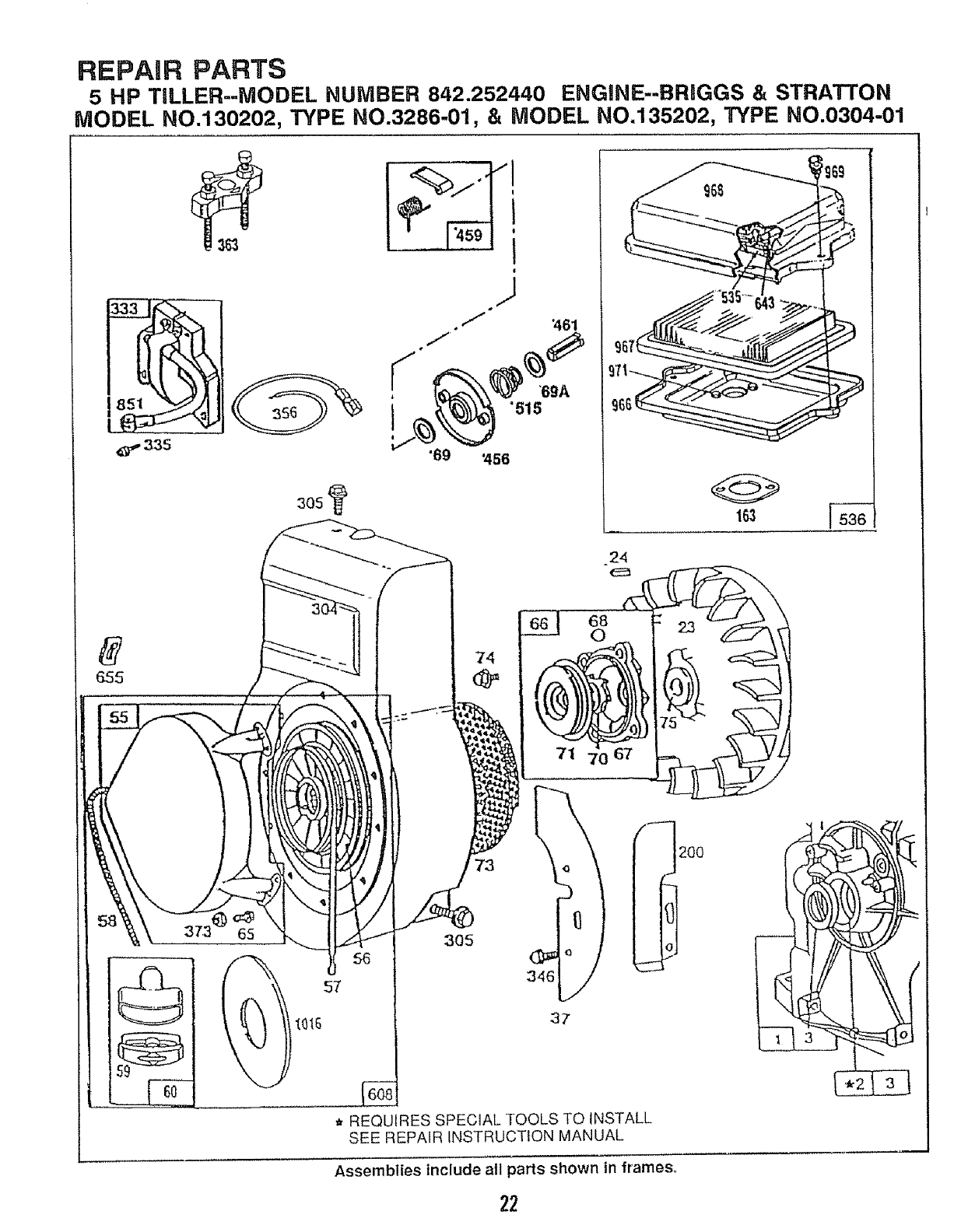

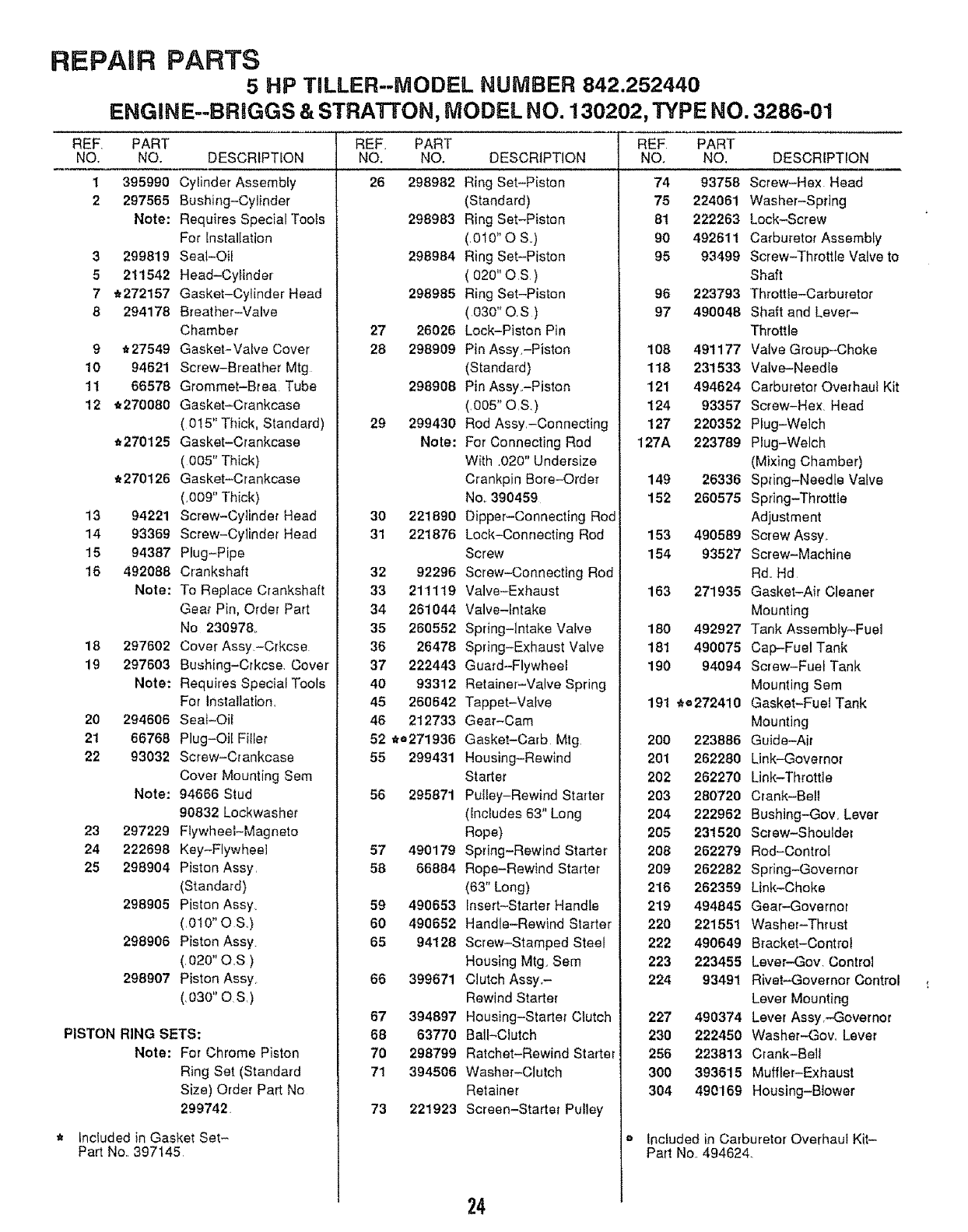

Repair Parts-Tiller .................. 18-25

aNDEX

E (Cont)

Accessories ............. 5

Adjustments:

Depth Stake ........ 8

Air Cleaner:

Maintenance ......... .12

Oil Level .............. 9 Repair Parts:

Oil Type ......... 9 Tiller ........... 18-20

Spark Plug .......... ,13 Engine .......... 21-25

Starting, .............. 9 Rules for Safe Operation ..... 2

Stopping ............ 8

Storage .......... o16 S

Belt:

V-Belt ............. .14 Fuel:

Fitling Tank ....... 9

Service & Adjustments:

V-Belt ............ ,t4

Service:

Maintenance Schedule .... 11

Cooling System:

Maintenance ......... 12

Controls:

Choke ............. 7

Tine ................ 7

Type ............... 9 Spark Plug:

Storage .......... `16 Gap .............. 3

Finish: Maintenance ......... ,13

Maintenance ....... `13 Storage:

Fuel System .......... J6

LTiller ............. 16

Throttle ........... 7 Lubrication: T

Customer Responsibilities: Lubrication Chart ....... ,1t

Air' Cleaner ......... 12 Engine ............ .12 Tilling:

Cooling System ....... _12 Operation ......... 7-10

Finish ............ ,13 M Tines:

Maintenance Schedule .... 11 Repair Parts ......... 38

Muffler .............. 13 Muffler: Operation .......... 8

Spark Plug ........... ,13

Transmission ........... 13

Oil Change ......... _12

Cultivating:

Operation ............. 10 OI1:

Depth Stake:

Adjustment .......... 8

Engine:

Air Cleaner ............ 12

Cooling System .......... 1 3

Fuel Type ................. 9

Lubrication .......... 12

Carburetor'. ........... 15

Maintenance .......... ,13 Transmission:

Spark Arrestor ......... 3 Maintenance ....... ,'13

Level ................ 9

Type .............. 12

Repair Parts ......... 20

Troubleshooting Chart ..... .17

Transporting ........... 8

Operation:

Cultivating ........... 10 Warranty ............. 3

Fill Engine with Oil ...... 9

Fill Fuel Tank ........... 9

Start Engine .......... 9

Stopping Tines & Engine .... 8

Tilling ............ 10

Tilling Hints ............ 10

Tine Operation ...... 8

Transporting Tiller ...... 8

Breaking in Your' Tiller ..... 10

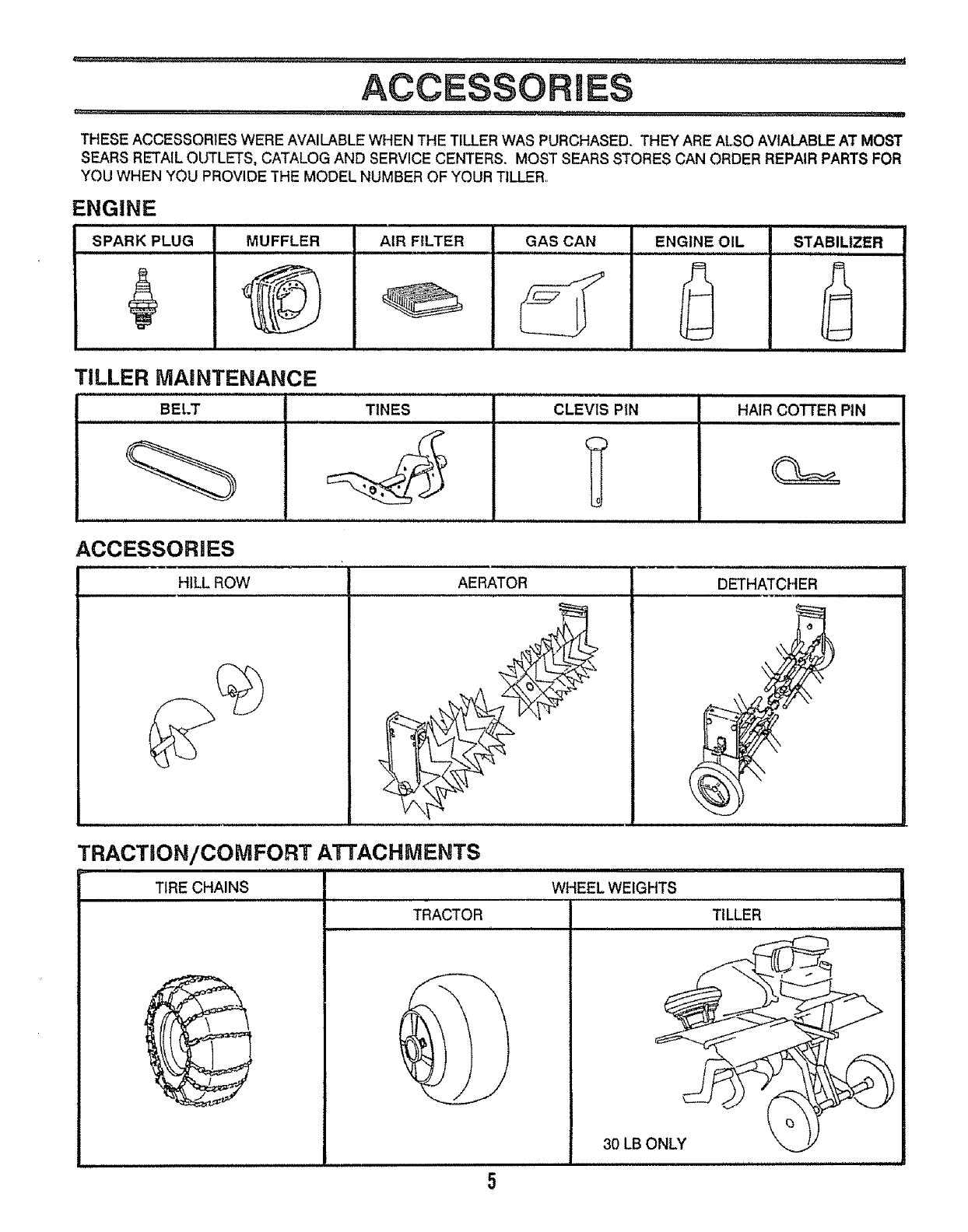

ACC

THESE ACCESSORIES WERE AVAILABLE WHEN THE TILLER WAS PURCHASED. THEY ARE ALSO AVIALABLEAT MOST

SEARS RETAIL OUTLETS, CATALOG AND SERVICE CENTERS. MOST SEARS STORES CAN ORDER REPAIR PARTS FOR

YOU WHEN YOU PROVIDE THE MODEL NUMBER OF YOUR TILLER

ENGINE

SPARK PLUG MUFFLER

@AIR FILTER GAS CAN ENGINE OIL

......... ,i, ,,

STABILIZER

................ ii

TILLER MAINTENANCE

BELT TINES CLEVIS PIN

HAIR COTFER PiN

ACCESSORIES

HILL ROW AERATOR DETHATCHER

i i

TRACTION/COMFORT ATTACHMENTS

............................................................. i i ,, i

TIRE CHAINS WHEEL WEIGHTS

TRACTOR

TILLER

i i lul ii i iii u ii IIIIHII ,,,,,,,,,,,,

30 LB O_y__ _

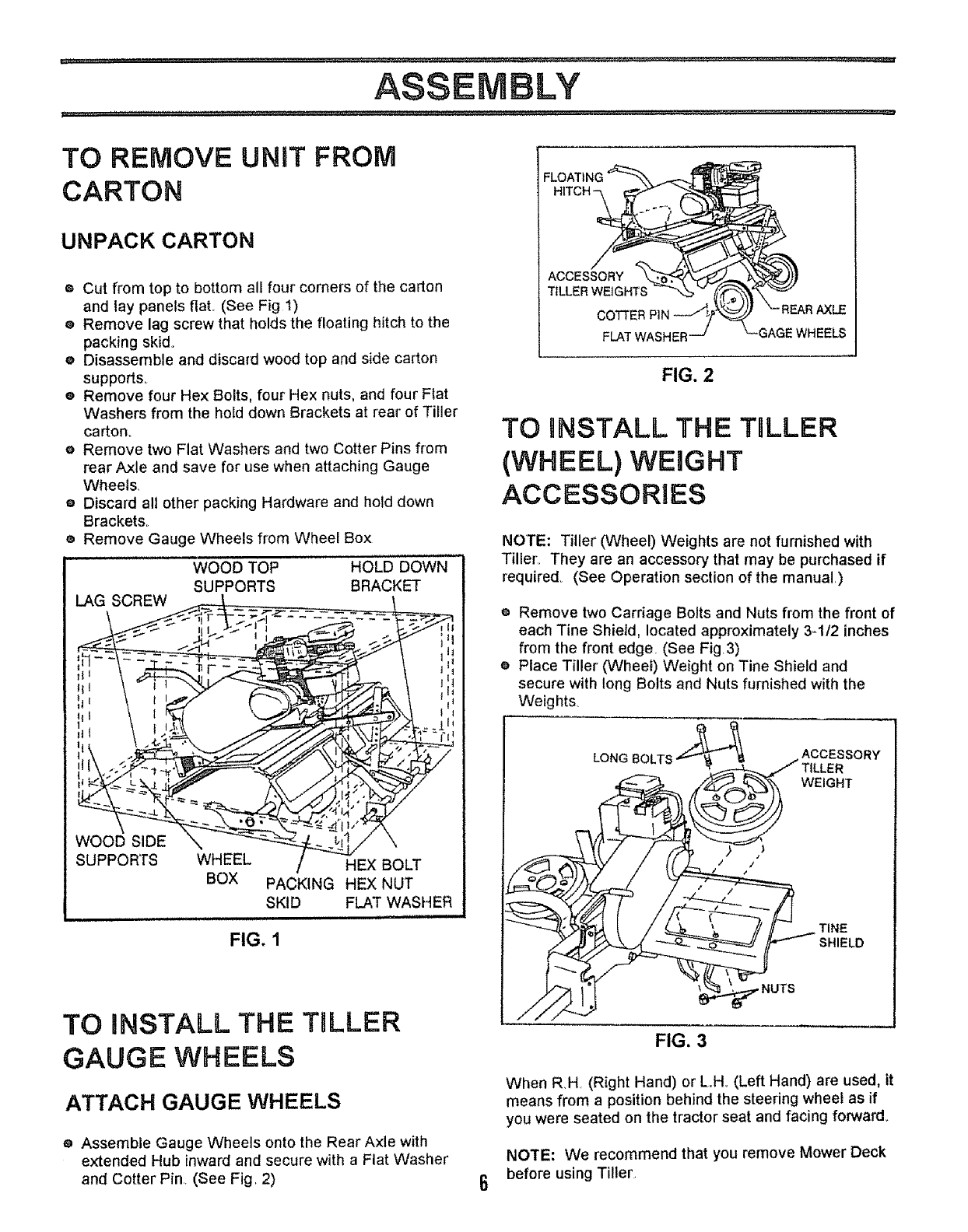

......... , ,, , ,,,, ASSEMBLY

J,rrT,,,, .................................................................. ::: ;:::................................................... -'_

TO REMOVE UNIT FROM

CARTON

UNPACKCARTON

®Cut from top to bottom all four corners of the carton

and lay panels flat.. (See Fig1)

eRemove lag screw that holds the floating hitch to the

packing skid..

eDisassemble and discard wood top and side carton

supports.

e Remove four Hex Bolts, four Hex nuts, and four Flat

Washers from the hold down Brackets at rear of Tiller

carton.

eRemove two Flat Washers and two Cotter Pins from

rear Axle and save for use when attaching Gauge

Wheels.

eDiscard all other packing Hardware and hold down

Brackets_

eRemove Gauge Wheels from Wheel Box

WOOD TOP HO'LD DOWN

SUPPORTS BRACKET

LAG SCREW

WOOD SIDE

SUPPORTS WHEEL

BOX HEX BOLT

PACKING HEX NUT

SKID FLAT WASHER

FIG. 1

FLOATING

ACCESSORY

TILLER WEIGHTS

COTTER

FLAT WASHER

FIG. 2

TO HNSTALL THE TnLLER

(WHEEL) WEHGHT

ACCESSORIES

NOTE: Tiller (Wheel) Weights are not furnished with

Tiller'.. They are an accessory that may be purchased if

required (See Operation section of the manual.)

eRemove two Carriage Bolts and Nuts from the front of

each Tine Shield, located approximately 3-1/2 inches

from the front edger (See Fig3)

ePlace Tiller (Wheel) Weight on Tine Shield and

secure with long Bolts and Nuts furnished with the

Weights.

LONG ACCESSORY

WEIGHT

TINE

SHIELD

TO HNSTALL THE T6LLER

GAUGE WHEELS

ATTACH GAUGE WHEELS

® Assemble Gauge Wheels onto the Rear Axle with

extended Hub inward and secure with a Flat Washer

and Cotter Pin. (See Fig. 2)

FIG. 3

When R.H (Right Hand) or L.Ho (Left Hand) are used, it

means from a position behind the steering wheel as if

you were seated on the tractor seat and facing forward_

NOTE: We recommend that you remove Mower Deck

before using Tiller

='_-- ........................ ,_,,, ,J, , ................................................. ,._L,,LU,, ,J L J__ J ............ :

OPERATmO

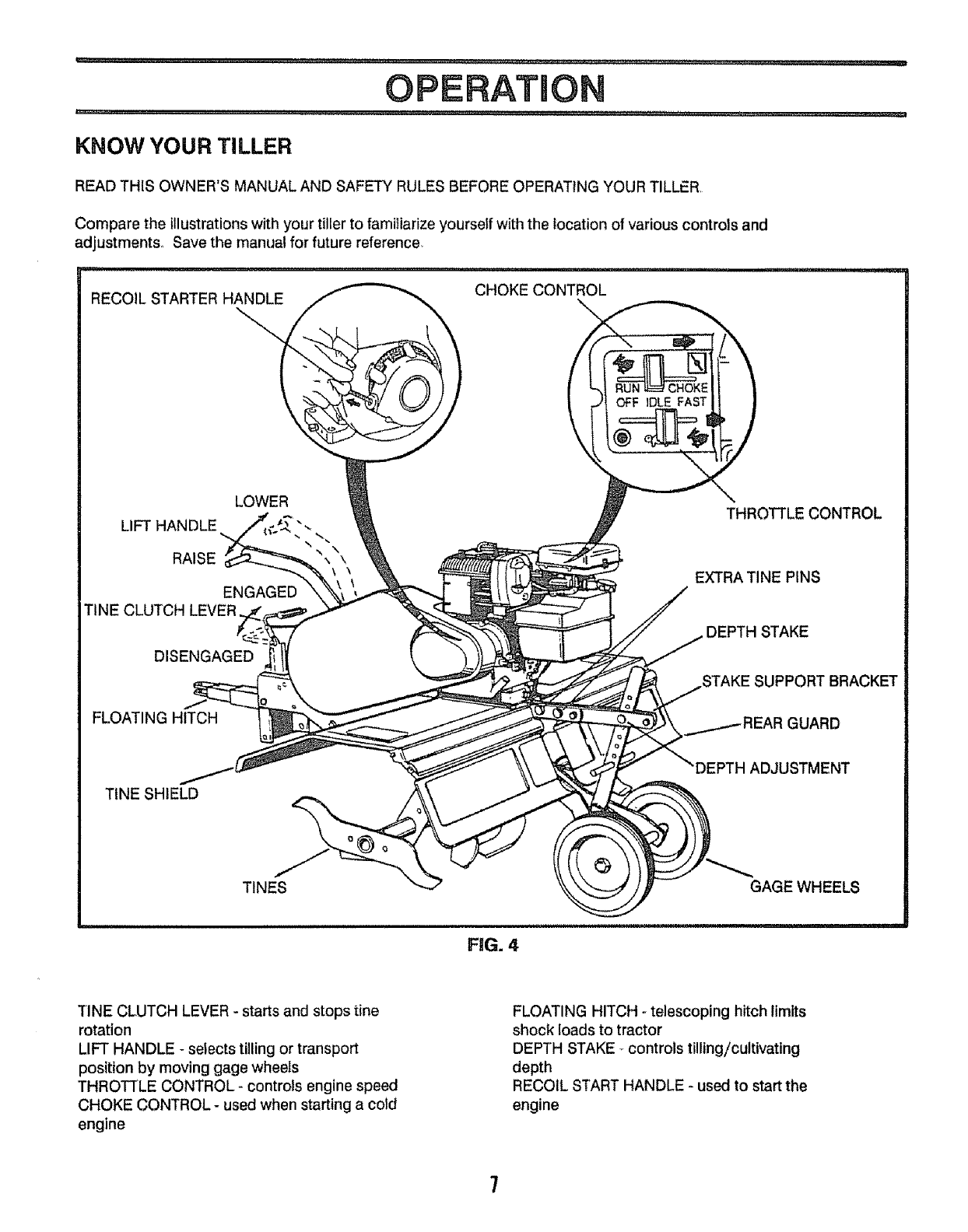

KNOW YOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLFR

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and

adjustments Save the manual for future reference

............ i,iiii, ,11,,,,,i, ,,11 ......................................................................

RECOIL STARTER HANDLE CHOKE CONTROL

OFF iDLE FAST

LOWER

LIFT HANDLE . ,.

RAISE _\\

ENGAGED

TINE CLUTCH LEVER

DISENGAGED

FLOATING HITCH

THROTTLE CONTROL

EXTRA TINE PINS

DEPTH STAKE

SUPPORT BRACKET

GUARD

TINE SHIELD

'DEPTH ADJUSTMENT

TINES GAGE WHEELS

FIG. 4

TINE CLUTCH LEVER - starts and stops tine

rotation

LIFT HANDLE - selects tilling or transport

position by moving gage wheels

THROTTLE CONTROL- controls engine speed

CHOKE CONTROL - used when starting a cold

engine

FLOATING HITCH - telescoping hitch limits

shock loads to tractor

DEPTH STAKE - controls tilling/cultivating

depth

RECOIL START HANDLE - used to start the

engine

Theoperationofanytillercanresultinforeignobjectsthrownintotheeyes,whichcan

resultinsevereeyedamage.Alwayswearsafetyglassesoreyeshieldsbeforestarting

your tiller and while tilling We recommend wide vision safety mask for over the

spectacles or standard safety glasses°

HOW TO USE YOUR TnLLER

STOPPING (See Fig. 4)

TINES

o Raise Tiller to transport position.

o Pull forward on tine clutch lever.

ENGINE

• Move throttle control to "STOP" position.

o Never use choke to stop engine

ATTACHING TILLER TO TRACTOR

(See Fig. 5)

o Rear wheel weights and tire chains can be used if

additional traction is required for tilling.

o Place Tiller' on ground level and back up tractor to it

for assembly

• Slide Floating Hitch of Tiller over the tractor drawbar

so that the hitch pin holes line up

• Insert hitch pin until it extends from the bottom of the

Floating hitch_ Insert hair cotter pin into hitch pin.

HITCH PII_

TRACTOR

DRAWBAR

HAIR COTTER PIN

TRANSPORTSNG YOUR TILLER

AROUND THE YARD

o Pull forward on lift handle until it locks in the up

transport posttton.

AROUND TOWN

_' Disconnect spark plug wire,

a Drain fuel tank,

o Transport in the upright position to prevent oil leakage.

CAUTION: Before lifting or trans- |

porting, allow tiller engine and 1

muffler to cool. Disconnect spark

plug wire. Drain gasoline from fuel

tank.,

STARTING TO TiLL

o Raise Tiller to transport position,_

• Start Tiller engine and move throttle control to full

speed.

o Push rearward on tine clutch lever to start tine

rotation_

o Move Tiller lift handle to lower Tiller.

o Setect lowest tractor ground speed at tractor engine

idle.

TO ADJUST DEPTH STAKE

oDepth stake has five position holes to select tilling

depth from 1 to 5 tnches_

• The top stake hole selects the sallowest tilling depth

and the bottom stake hole selects the deepest position.

aTo change depth remove the hair cotter pin from the

clevis pin which is connecting the depth stake to the

stake support bracket..

oGrasp the top of the depth stake, remove the clevis pin

and reposition the drag stake_ Insert clevis pin and

hair cotter pin_

IMPORTANT: THE DRAG STAKE SHOULD NEVER BE

REMOVED FROM THE TILLER IT IS DESIGNED TO

PROTECT THE TRACTOR TRANSAXLE FROM THRUSTING

ACTION OF THE TILLER°

RG. 58

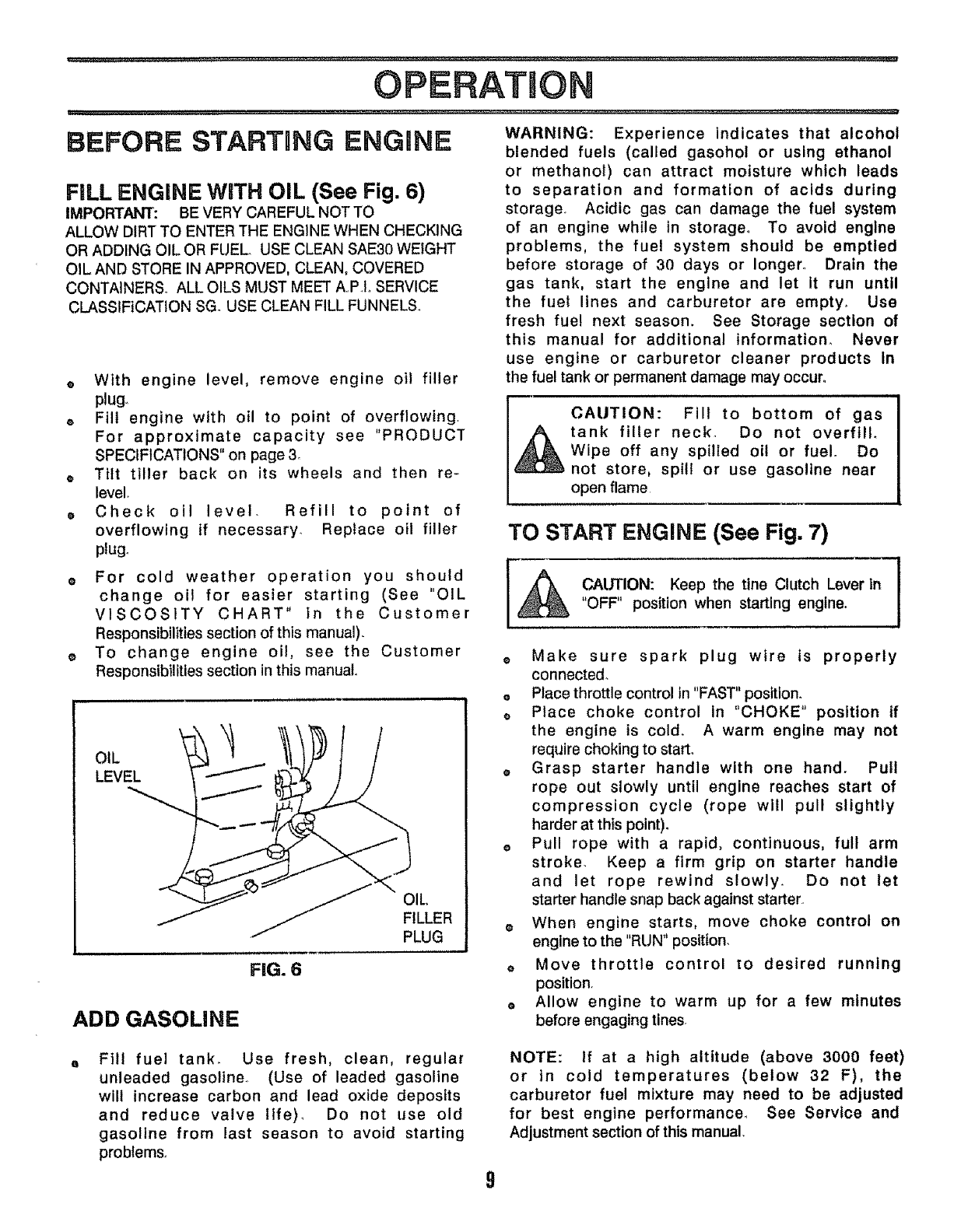

BEFORE STARTRNG ENGNNE

FiLL ENGINE WiTH OIL (See Fig. 6)

IMPORTANT: BE VERY CAREFUL NOT TO

ALLOW DIRT TO ENTER THE ENGINE WHEN CHECKING

OR ADDING OIL OR FUEL. USE CLEAN SAE30 WEIGHT

OIL AND STORE IN APPROVED, CLEAN, COVERED

CONTAINERS,. ALL OILS MUST MEET AP,!.. SERVICE

CLASSIFICATION SG. USE CLEAN FILL FUNNELS..

•With engine level, remove engine oil filler

plugo

o Fill engine with oil to point of overflowing.

For approximate capacity see "PRODUCT

SPECIFICATIONS" on page 3

• Tilt tiller back on its wheels and then re-

level

o Check oil level, Refill to point of

overflowing if necessary. Replace oil filler

plug.

WARNING: Experience Indicates that alcohol

blended fuels (called gasohol or using ethanol

or methanol) can attract moisture which leads

to separation and formation of acids during

storage. Acidic gas can damage the fuel system

of an engine while in storage° To avoid engine

problems, the fuel system should be emptied

before storage of 30 days or longer. Drain the

gas tank, start the engine and let it run until

the fuel lines and carburetor are empty° Use

fresh fuel next season. See Storage section of

this manual for additional informatiom Never

use engine or carburetor cleaner products In

the fuel tank or permanent damage may occur°

CAUTION: Fill to bottom of gas

tank filler neck_ Do not overfill

Wipe off any spilled oil or fuel. Do

not store, spill or use gasoline near

open flame

TO START ENGINE (See Fig. 7)

CAUTION: Keep the tine Clutch Lever in

"OFF" position when starting engine.

•For cold weather operation you should

change oi! for easier starting (See "OIL

VISCOSITY CHART" tn the Customer

Responsibilities section of this manual).

oTo change engine oil, see the Customer

Responsibilities section in this manual

OIL

LEVEL

FIG. 6

OIL

FILLER

PLUG

ADD GASOLINE

o Make sure spark plug wire is properly

connected.

= Place throttle control in "FAST" position,

Place choke control in "CHOKE" position if

the engine is cold_ A warm engine may not

require choking to start.

o Grasp starter handle with one hand. Pull

rope out slowly until engine reaches start of

compression cycle (rope will pull slightly

harder at this point)°

Pull rope with a rapid, continuous, full arm

stroke. Keep a firm grip on starter handle

and let rope rewind slowly. Do not let

starter handle snap back against starter..

eWhen engine starts, move choke control on

engine to the "RUN" position.

= Move throttle control to desired running

position

o Allow engine to warm up for a few minutes

before engaging tines,

Fill fuel tank. Use fresh, clean, regular

unleaded gasoline_ (Use of leaded gasoline

wilt increase carbon and lead oxide deposits

and reduce valve life), Do not use old

gasoline from last season to avoid starting

probtems.

NOTE: If at a high altitude (above 3000 feet)

or in cold temperatures (below 32 F), the

carburetor fuel mixture may need to be adjusted

for best engine performance° See Service and

Adjustment section of this manual

OPERATJO

CHOKE

SPARK

PLUG

THROTTLE

CONTROL

RECOIL STARTER

HANDLE

FUG. 7

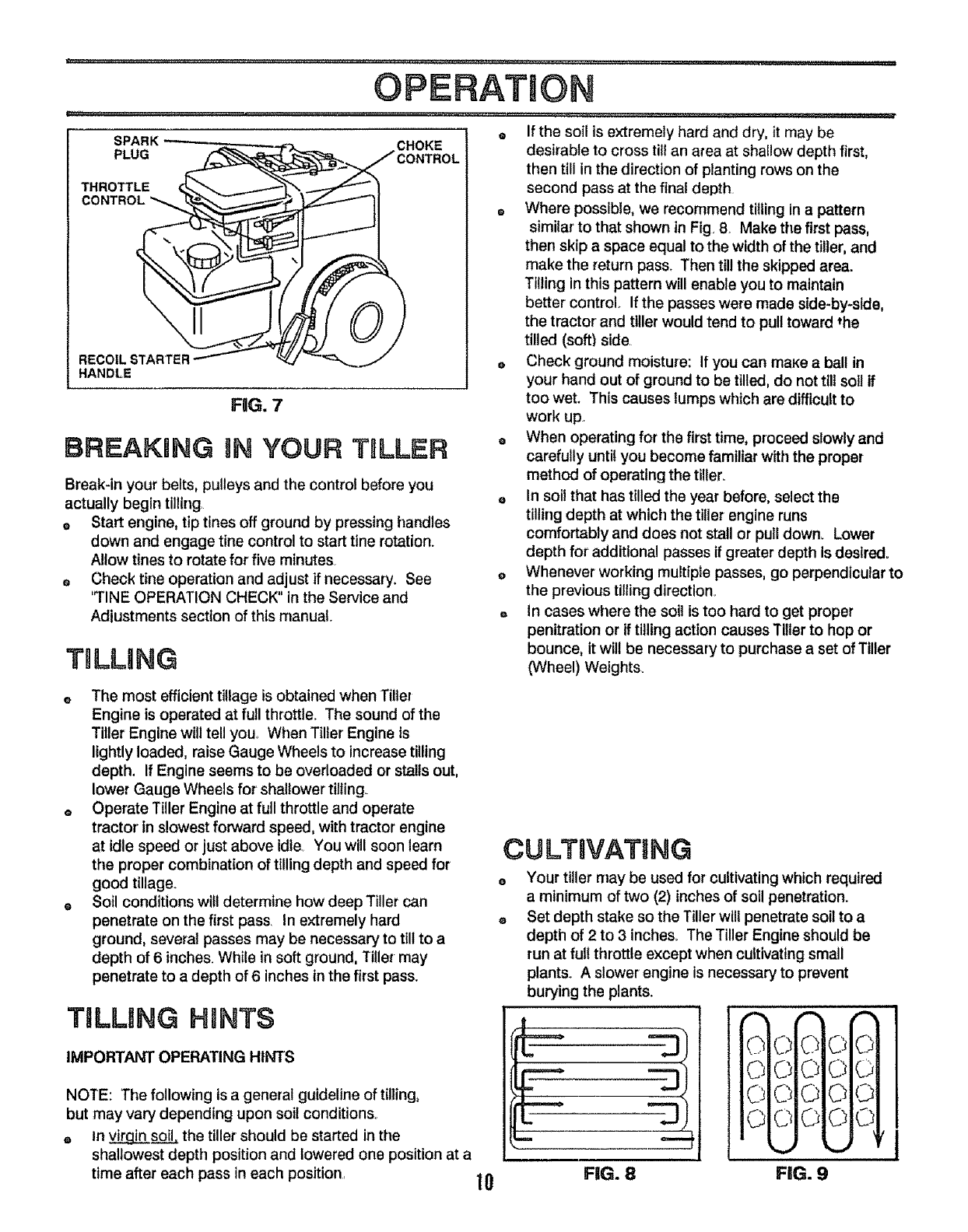

BREAKUNG YOUR TILLER

Break-in your belts, pulleys and the control before you

actually begin tilling

eStart engine, tip tines off ground by pressing handles

down and engage fine control to start tine rotation.

Allow tines to rotate for' five minutes

o Check line operation and adjust if necessary. See

'_TINEOPERATION CHECK" in the Service and

Adiustments section of this manual.

TnLLING

if the soil is extremely hard and dry, it may be

desirable to cross till an area at shallow depth first,

then till in the direction of planting rows on the

second pass at the final depth

• Where possible, we recommend tilling In a pattern

similar to that shown in Fig. 8. Make tile first pass,

then skip a space equal to the width of the tiller, and

make the return pass. Then till the skipped area.

Tilling inthis pattern will enable you to maintain

better control° If the passes were made side-by-side,

the tractor and tiller would tend to pull toward the

tilled (soft) side.

o Check ground moisture: If you can make a ball in

your hand out of ground to be tilled, do not till sotl if

too wet. This causes lumps which are difficult to

work up.

o When operating for the first time, proceed slowly and

carefully until you become familiar with the proper

method of operating the tiller°

= In soil that has ttlled the year before, select the

tilling depth at which the tiller engine runs

comfortably and does not stall or pull down. Lower

depth for additional passes If greater depth is desired°

o Whenever working multiple passes, go perpendicular to

the previous tilling direction.

,, in cases where the soil is too hard to get proper

penitration or if tilling action causes Tiller to hop or

bounce, it wilt be necessary to purchase a set of Tiller

(Wheel) Weights.

o The most efficient tillage is obtained when Tiller

Engine ts operated at full throttle. The sound of the

Tiller Engine will tell you. When Tiller' Engine is

lightly loaded, raise Gauge Wheels to increase tilling

depth. If Engine seems to be overloaded or stalls out,

lower Gauge Wheels for shallower' tilling..

o Operate Tiller Engine at full throttle and operate

tractor in slowest forward speed, with tractor engine

at idle speed or just above idle. You will soon learn

the proper combination of tilling depth and speed for

good tillage.

= Soil conditions will determine how deep Tiller can

penetrate on the first pass In extremely hard

ground, severa! passes may be necessary to till to a

depth of 6 inches. While in soft ground, Tiller may

penetrate to a depth of 6 inches inthe first pass.

TILLING HINTS

IMPORTANT OPERATING HINTS

NOTE: The following is a general guideline of tilling,

but may vary depending upon soil conditions.

= in _soil, the tiller should be started in the

shallowest depth position and lowered one position at a

time after each pass in each positiOnr | 0

CULTIVATING

Your tiller may be used for cultivating which required

a minimum of two (2) inches of soll penetration.

Set depth stake so the Tiller will penetrate soil to a

depth of 2 to 3 inches. The Tiller Engine should be

run at full throttle except when cultivating small

plants. A slower engine is necessary to prevent

burying the plants.

-- -3

FIG. 8

0 010 0 O

0 Ol© © ©

00lO O 0

CIC 0 L

FiG. 9

i,i i, i i1,,i,i, ,i i

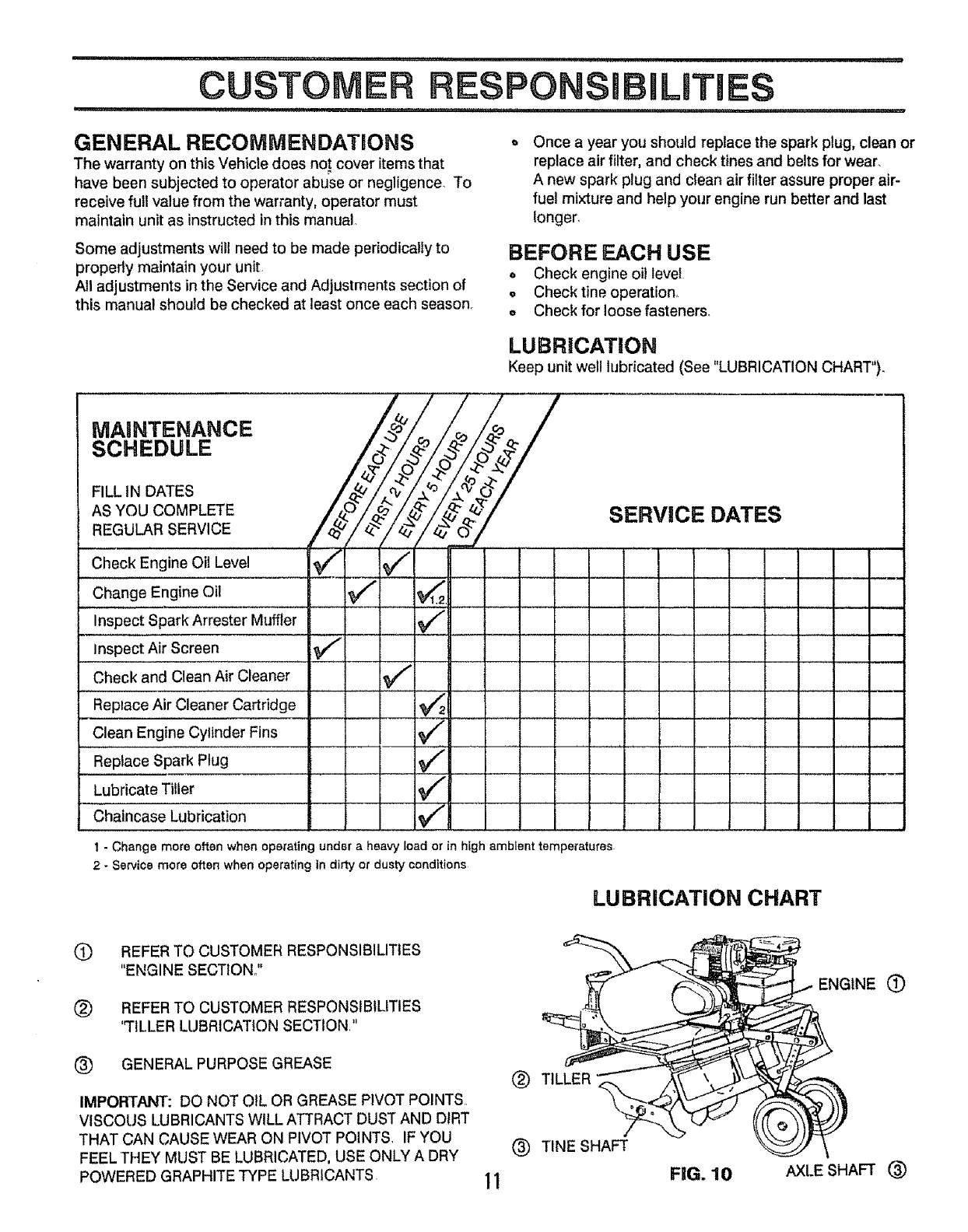

CUSTOM PO ILITIES

i.........................................

GENERAL RECOMMENDATIONS • Once a year you should replace the spark plug, clean or

The warranty on this Vehicle does no! cover items that replace air filter, and check tines and belts for wear,

have been subjected to operator abuse or negligence, To A new spark plug and clean air filter assure proper air-

receive full value from the warranty, operator must fuel mixture and help your engine run better and last

maintain unit as instructed in this manual_ longer,

Some adjustments will need to be made periodicalIy to

properly maintain your unit

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season,

BEFORE EACH USE

° Check engine oil level

• Check tine operation,

,, Check for loose fasteners,

LUBRICATION

Keep unit well lubricated (See "LUBRICATION CHART")_

MAINTENANCE

SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check Engine Oil Level

Change Engine Oil

Inspect Spark Arrester Muffler

Inspect Air Screen

Check and Clean Air Cleaner

Replace Air Cleaner Cartridge

Clean Engine Cylinder Fins

Replace Spark Plug

Lubricate Tiller

Chaincase Lubrication

SERVICE DATES

1 - Change more often when operating under a heavy load or in high ambient temperatures

2- Service more often when operating in dirty or dusty conditions

LUBRICATION CHART

(_ REFER TO CUSTOMER RESPONSIBILITIES

"ENGINE SECTION,"

(_) REFER TO CUSTOMER RESPONSIBILITIES

'q'ILLER LUBRICATION SECTION,"

(_ GENERAL PURPOSE GREASE

IMPORTANT: DO NOT OIL OR GREASE PIVOT POINTS

VISCOUS LUBRICANTS WILL ATTRACT DUST AND DIRT

THAT CAN CAUSE WEAR ON PIVOT POINTS, IF YOU

FEEL 'THEY MUST BE LUBRICATED, USE ONLY A DRY

POWERED GRAPHITE TYPE LUBRICANTS, 11

(_) TINE SHAFT

FiG. 10 AXLE SHAFT (_)

,,,i ii,,i i i,=,1,1,,i

CUSTOM IBmLITI

=ill Ill

Disconnect spark plug wire before performing any maintenance (except carburetor adjustment)

to prevent accidental starting of engine.

Prevent fires! Keep the engine free of grass, leaves, spilled oli, or fuel. Remove fuel from tank

before tipping unit for maintenance. Clean muffler area of all grass, dirt and debris.

Do not touch hot muffler or cylinder fins as contact may cause burns°

ENGINE

LUBRiCATiON

Change the oil after the first two hours of

operation and every 25 hours thereafter or at

least once a year if the tiller is not used for

25 hours in one year_

Ct_eck the crankcase oil level before starting

the engine and after each fine (5) hours of

continuous use. Add SAE30 motor oil or

equivalent Tighten oil filler plug securely each

time you check the oil level. SAE 5W-30 motor

oil may be used to make starting easier in areas

where temperature is consistently 30 F or

lower

TO CHANGE ENGINE OIL (See Ftgs 1! and 12)

Only use high quality oil rated with API

OIL

DRAIN

PLUG

OIL FILLER

PLUG DIL LEVEL

FiG. 12

CHECKANDCLEANAIR FILTER

(See Fig.13)

service classification SG Select the oil's SAE

viscosity grade according to your' expected

operating temperature.

o Be sure tiller is on level surface.

o Oil will drain more freely when warm

= Catch oil in a suitable container_

• Remove drain plug.

= Tip tiller forward to drain oil.

• After oil has drained completely, replace oil

drain plug and tighten securely.

•Remove oil filler plug,. Be careful not to

alJow dirt to enter the engine

o Refill engine with oil, See "FILL ENGINE

WITH OIL' in Operation section of this

manual

SAE VISCOSITY GRADES

"_ ._o" ,o" -_ _o_.__ 40. ec,"

;€"i_':, ,,............ , , 0o' too"

.z0' ,to" o" . _o.. _, ,pp_ 4_,

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHA_,G, _

FUG. 11

NOTE: Although multi-viscosity oils (5W30,

10W30 etc) improve starting in cold weather,

these multi-viscosity oils will result in

increased oil consumptioon when used above e

32°F. Check your engine oil level more

frequently to avoid possible engine damage •

from running low on oil 12

a Loosen two screws and remove cover.

eCarefully remove pre-cleaner and wash in

liquid detergent and water_

o Squeeze dry in a clean cloth

o Saturate in engine oll Squeeze in clean

absorbent cloth to remove att excess oil.

,b Carefully remove cartridge°

= Clean by tapping gently on flat surface.

o If very dirty, replace or wash in nonsudsing

detergent and warm water solution. Rinse

thoroughly with water flowing from mesh

side until water is clear. Allow cartridge to

stand and air dry thoroughly before using.

• Reinstall cartridge and pre-cleaner.

o Reinstall air cleaner cover and tighten two

screw=

REPLACE AiR CLEANER (See Fig. 13)

Replace air cleaner cartridge and pre-cleaner

every twenty five hours, more often if engine

is used in very dusty conditions°

Loosen two screws and remove cover,.

Carefully remove air cleaner cartridge and

pre-cleaner Be carefult Do not allow dirt

or debris to fall into carburetor.

install new air cieaner cartridge and pre-

cleaner.

Clean and replace cover, tighten two screw.

SCREW

CUSTOME UES

.................................................... ,i

CLEANnNG

Clean engine, wheels, finish, etc. of all

foreign matter°

o Keep finished surfaces and wheels free of

all gasoline, oil, etc.

o Protect painted surfaces with automotive

type wax.

We do not recommend using a garden hose to

clean your unit unless the muffler, air filter

and carburetor are covered to keep water out,

Water in engine can result in a shortened

engine life.

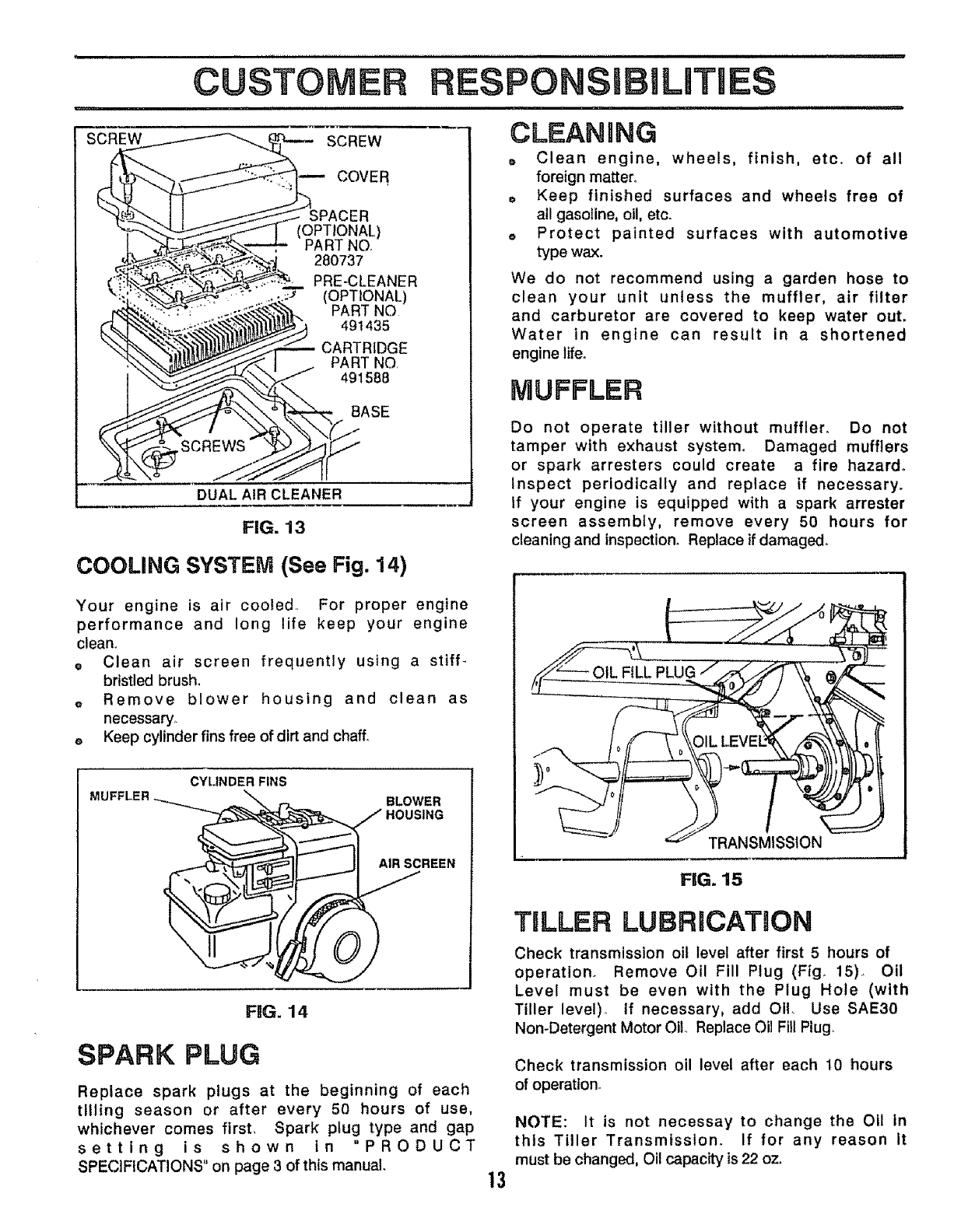

DUAL AtR CLEANER

FIG. 13

MUFFLER

Do not operate tiller without muffler, Do not

tamper with exhaust system, Damaged mufflers

or spark arresters could create a fire hazard,

Inspect periodically and replace if necessary.

If your engine is equipped with a spark arrester

screen assembly, remove every 50 hours for

cleaning and inspection° Replace if damaged°

COOLING SYSTEM (See Fig. 14)

Your engine is air cooled.. For proper engine

performance and long life keep your engine

clean,

e Clean air screen frequently using a stiff-

bristled brush,

o Remove blower housing and clean as

necessary_

® Keep cylinder fins free of dirt and chaff..

CYLINDER FINS

BLOWER

AIR SCREEN

RG. 14

SPARK PLUG

Replace spark plugs at the beginning of each

tilling season or after every 50 hours of use,

whichever comes first, Spark plug type and gap

setting is shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual. 13

TRANSMISSION

FiG. 15

TILLER LUBRiCATiON

Check transmission oil level after first 5 hours of

operation. Remove Oil Fill Plug (Fig, 15).. Oil

Level must be even with the Plug Hole (with

Tiller level). If necessary, add Oit, Use SAE30

Non-Detergent Motor OiL Replace Oil Fill Plug,

Check transmission oil level after each 10 hours

of operation°

NOTE: It is not necessay to change the Oil tn

this Tiller Transmission. If for any reason it

must be changed, Oil capacity is 22 oz.

ii 1,1,, i1,1,,, ,i , ,111 ,,,i,,,,,,i, iiii1,,,,,i, i

C ADJUSTMENTS

..... i, I , i,,11,1,, i .... i,ii I i i , i,,111,1,,i, ,

TO REPLACE V-BELT

Replace V-belt if it has been damaged from

slipping under heavy loads considerably or if it

shows cracks or'frayed edges.

Belt guard must be removed to service belt,,

o Remove the screw from the top of the belt

guard.

o Remove hex nut from front of guard°

o Remove belt guard to allow access of drive

belt.

• Remove belt guide from engine,,

• Disengage tine drive control and remove

bell

o Reverse the above procedures for installation

of new belt,

TRANSMISSION

PULLEY

CLUTCHING

PULLEY BELT GUIDE

BELT ROUTING

FnG. 17

ENGINE

PULLEY

BELT GUIDE

DRIVE BELT

SCREW

BELT GUARD

NUT

F!IG. 16

ADJUSTMENTS

J u,,,, ,....

ENGINE

TOADJUSTCARBURETOR (See Fig. 18)

The carburetor has been preset at the factory

and adjustment should not be necessary°

However, minor adjustments may be required to

compensate for dirrences in fuel, temperature,

altitude or load. if the carburetor does need

adjustment, proceed as follows.

In general, turning the needle valve in

(clockwise) decreases the supply of fuel to the

engine giving a leaner fuel/air mixture.

Turning the needle valve out (counterclockwise)

increases the supply of fuel to the engine

giving a richer fuel/air mixture.

IMPORTANT: DAMAGE TO THE NEEDLES AND

THE SEATS IN CARBURETOR MAY RESULT IF

SCREWS ARE TURNED IN TOO TIGHT

PRELiMiNARY SETTING

®Air cleaner assembly must be assembled to

the carburetor when making ca, buretor

adjustments

e With engine off, turn needle valve in

(clockwise) closing it finger tight and than

turn valve out (counterclockwise) t-1/2

turns°

FINAL SETTING

®Start engine and allow to warm for five

minutes. Make final adjustments with engine

running and gearshift control lever in

"NEUTRAL" position.

iDLE RPIVI ADJUSTMENT

e To adjust idle RPM, rotate throttle linkage

counterclockwise and hold against stop while

adjusting idle speed adjusting screw to

obtain 1750 RPMo Release throttle linkage.

THROTTLE UNKAGE 11.IROTTLESTOP

IDLE SPEED /

ADJUSTING SCREW NEEDLEVALVE

RG. 18

IMPORTANT: NEVER TAMPER WiTH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED OVER-SPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. tF YOU TH1NK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST SEARS SERVICE CENTER WHICH HAS

PROPER EQUIPMENT AND EXPERIENCE TO MAKE ANY

NECESSARY ADJ USTM ENTS

TBNE CARE

oFor best results--Tine Blades should be kept reason-

ably sharp. The Tine Blade can be sharpened on a

grinding wheel Do net attempt to sharpen Tines while

mounted to Tiller_

SPARE TBNE PnNS

The Tiller Drive components are protected from dam-

age by a (Shearable) Tine Pin located inthe Tine

Assembly used to drive them and hold them in the

proper location. Should the Tine Assemblys strike or

pick up a large hidden object or become jammed, the

Tine Pin will break and the Drive Line will not be

damaged.

ACCELERATION TEST

e Move throttle control lever from "SLOW" to

"FAST" position. If engine hesitates or

dies, turn needle valve out

(counterclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until engine

accelerates smoothly.

High speed stop is factory adjusted. Do not adjust or

damage may result

WARNING: SHUT OFF (DISENGAGE) THE

TINE CLUTCH LEVER, THE TILLER

ENGINE, AND THE TRACTOR ENGINE

BEFORE MAKING ANY REPAIRS.

A number of extra Tine Pins have been included with

the Tiller_ They are located in the Tiller Stake

Support Bracket. Additional Tine Pins can be obtained

from your nearest Sears Service Center/Departmento

Tine Pins are designed to be loose fit. Do not attempt

to use a Pin larger or harder than that provided as

original equipmenL

STORAGE

Immediately prepare your til+er for storage at

the end of the season or if the unit will not be

used for 30 days or more+

CAUTION: Never store the tiller

with gasoline in the tank inside a

building where fumes may reach an

open flame or spark. Allow the

engine to cool before storing in any

enclosure+

NOTE: Fuel stabilizer' is an acceptable

alternative in minimizing the formation of fuel

gum deposits during storage+ Add stabilizer to

gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer

container Run engine at least 10 minutes after

adding stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

ENGINE OiL

TBLLER Drain oil (with engine warm) and replace with

clean oil (See "ENGINE" in the Maintenance

section of this manual)+

Q Clean entire tiller' (See "CLEANING" in the

Customer Responsibilities section of this

manual)_

a Inspect and replace belts, if necessary (See

belt replacement instructions in the Service

and Adjustments section of this manual).

o Lubricate as shown in the Customer

Responsibilities section of this manual+

o Be sure that all nuts, bolts and screws are

securely fastened+ Inspect moving parts for

damage, breakage and wear. Replace if

necessary.

o Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

ENGINE

FUEL SYSTEM

IMPORTANT: IT iS IMPORTANT TO PREVENT

GUM DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS THE CARBURETOR, FUEL

FILTER, FUEL HOSE, OR TANK DURING STORAGE.

ALSO, EXPERIENCE INDICATES THAT ALCOHOL

BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOISTURE

WHICH LEADS TO SEPARATION AND FORMATION OF

ACIDS DURING STORAGE ACIDIC GAS CAN DAMAGE

THE FUEL SYSTEM OF AN ENGINE WHILE IN STORAGE.

CYLINDERS

o Remove spark plug+

oPour' one ounce of oil through spark plug

hole into cylinder+

oPull starter handle slowly several times to

distribute oil

=Replace with new spark plug+

OTHER

• Do not store gasoline from one season to

another:

oReplace your gasoline can if your can starts

to rust Rust and!or dirt in your gasoline

will cause probiems

= If possible, store your unit indoors and

cover it to give protection from dust and

dirt+

o Cover your unit with asuitable protective

cover that does not retain moisture+ Do not

use plastic. Plastic cannot breathe which

allows condensation to form and will cause

your unit to rust+

IMPORTANT: NEVER COVER TILLER WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM+

= Drain the fuel tank+

o Start the engine and let it run until the fuel

lines and carburetor are emptyo

• Never use engine or carburetor cleaner products

in the fuel tank or permanent damage may occur..

eUse fresh fuel next season..

TROUBLESHOOTI

PROBLEM:

Probable Cause ---_- Possibte Remedy

WiLL NOT START OR HARD TO START

No gasoline in Fuel Tank ----_ Fill tank with gasoline

Choke not set propedy

Throttle Control not set properly

Choked improperly, flooded Engine

Dirty Air Cleaner

Loose Spark Plug Wire ----_.

Spark Plug dirty or improper gap -----_-

Water in gasoline or otd fuel

improper Carburetor adjustment --

Clogged Fuel Tank -------_-

Place Choke Control in "CHOKE" position

Place Throttle Control in "FAST" position

Move Choke control to "RUN" position, place Throttle Control In

"FAST" position and pull Starter several times to clear out gas

Remove to inspect, replace if dirty

Make sure Spark Plug Wire is seated properly on Spark Plug

Replace Spark Plug and adjust gap

Drain Fuel Tank and Carburetor, use fresh fuel and replace Spark

Plug

Make necessary adjustments

Remove and clean

ENGINE MISSES OR LACKS POWER

Engine overloaded --------*-Set Depth Stake and Wheels for shallower tilling

Partially plugged Air Cleaner --

Dirty Air Screen

Spark Plug dirty, improper gap or wrong type

Ofl in gasoline ----_.

Improper Carburetor adjustment

Clogged Fuel Tank -----_.

Poor compression

Remove and clean or replace

Clean Air Screen

Replace Spark Plug and adjust gap

Drain and refill gas Tank and Carburetor

Make necessary adjustments

Remove and clean

Major Engine overhaul

ENGRNE OVERHEATS

Low oil level or dirty oil -----_- Add or change oil

Dirty Air Screen -----_. Clean Air Screen

Dirty Engine _, Clean Air screen Clean Cylinder Fins, Air Screen and Muffler area

Partially Plugged Muffler ---_ Remove and clean Muffler

Improper Carburetor adjustment ----_ Adjust Carburetor to richer position

EXCESSIVE BOUNCE AND DIFFICULT HANDLING

Wheels and Depth Stake incorrectly adjusted _ Adjust Wheels and Depth Stake

Ground too dry and hard --. Moisten ground or wait for more favorable soil conditions

SO_L BALLS UP OR CLUMPS

Ground too wet _ Wait for more favorable soil conditions

ENGINE RUNS WELL BUT TILLER WON'T MOVE

Tine Control not engaged _ Engage Tine Control

V-Belt off of pulleys _ Check V_Belt

ENGINE RUNS WELL BUT LABORS WHEN TILLING

Tilling too deep ----*. Adjust Depth Stake

Throttle Control not properly adjusted _ Check Throttle Control setting

Carburetor not adjusted properly _ Check Carburetor adjustment

86"

€_O

_B7 88 11

12/-_ _.-";.<

&3 67 _ -'"%'. 1

62 7'_/'''-.

18 x"_ _..1"5 19

14 17,

69 O/

-16

64 38"

_Ts 6°-.41 jq

75C jZ,

"84

/47

65,

%,I

50 67

[

46_

12 68

_--40

"'43

Css

-1-

-t

Ill

Ref.

No.

Part

Ku_ber

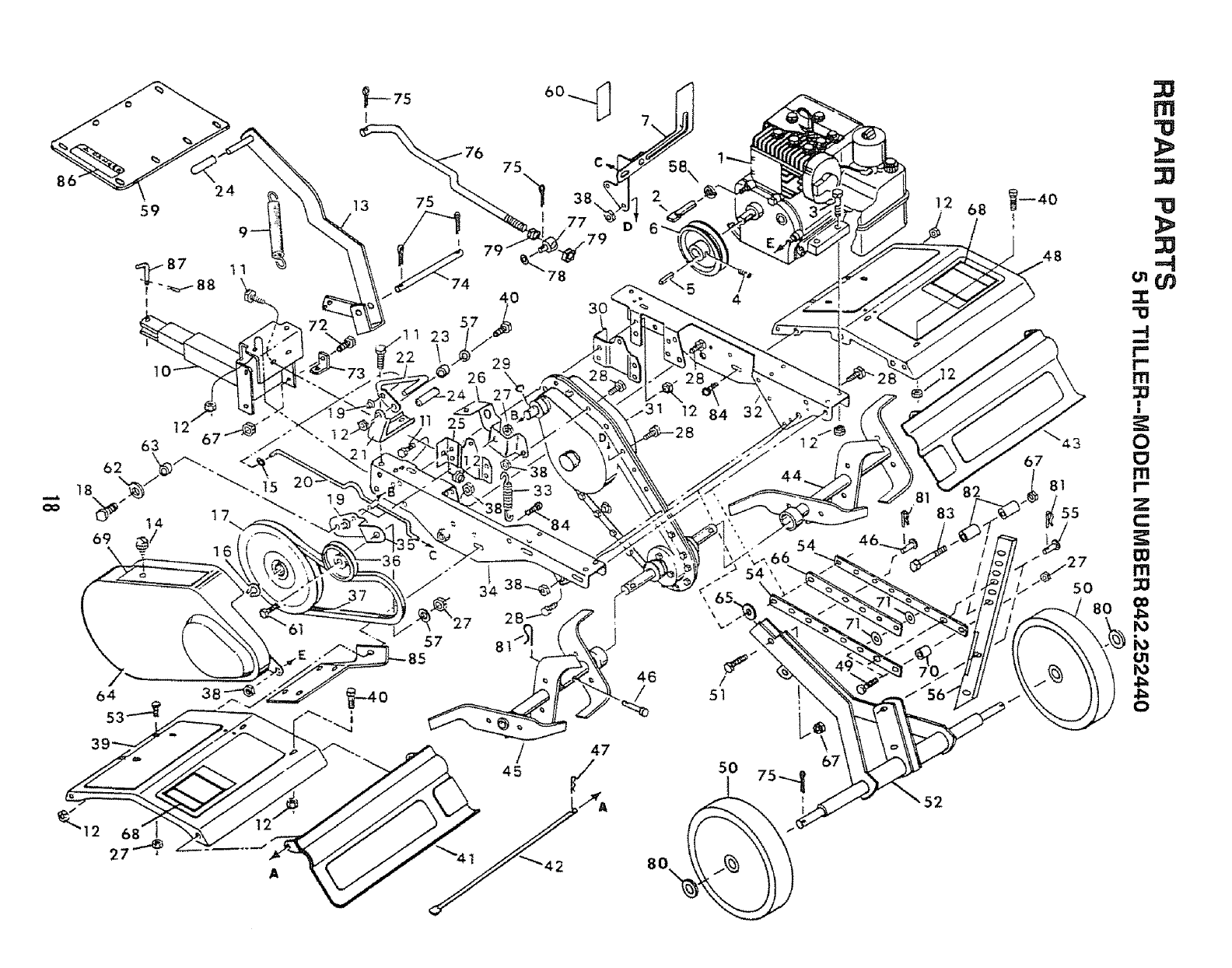

REPAIR PARTS

5 HP TDLLER--MODEL NUMBER 842.252440

20295

*GM-180083!

kGM-115321

i11154

20176

20171

9 i19860

10 20701

11 *GM-180079

12 _GM9413447

13 20679

14 15683

15 20257

16 20135

17 20184

18 *GM-180120

19 20183

20 20180

21 20167

22 203{>B

23 20341

24 20170

25 20162

26 20134

27 *GM9413534

28 _GM-180022

29 20185

30 ._0163

31 20119

32 20160

33 20186

34 20159

35 20179

36 11496

37 2O187

38 4119

39 20936

40 _GM-180077

41 20112

42 20118

43 20113

44 20094

45 20088

46 10070

47 3430

48 20935

49 *GM-180126

50 20918

51 _GM-180179

52 2067O

53 *GM-126PP7

54 20725

55 3433

56 20690

57 _GM-41_5363

58 *GM-120380

59 20316

Description R_.

Engine I

Guide -Belt I

Bolt, 5/16"-18 x I-I/2" Hex HD 4

Screw, 5/16"-18 x 5/16" Cup Pt..Set I

Key, Square 3/16" x 2" I

Pulley I

Flag Assembly, Caution (incl. #60) I

Spring, Depth Extension 1

Hitch Bracket Assembly 1

Bolt, 5/16"-18 x I" Hex HD 10

Locknut -5/16" -18 Hex 25

Lift Handle Assembly I

Screw, Self-Tapping 1/4" xI/2" 1

Ring -I/4 Push On I

Ring, Retainer I

Pulley, Input I

BOlt -3/8"-16 x 3/4" Hex HD I

Cap, Push On 3

Clutch Rc_IAssembly I

Bracket, Clutch Control 1

Lever, clutch I

Spacer I

Grip, Handle 2

Bracket, Guide -LH I

Bracket, Belt Guide & Idler Mounting 1

Lmcknut -3/8"-16 Hex 10

Bolt, I/4"-20 x I" He)(HD 7

Key, Woodruff Ha. 61 I

Bracket, Guide - RH I

Transmission -Complete I

Chassis, Left 1

Spring, Extension I

Chassis, Right I

Bracket, Idler 1

Pulley, Zdler 1

V-Belt I

Nut -I/4"-20 Hex Lock 8

Tine Shield Assembly -LH 1

BOlt, 5/16"-18 x 3/4" Hex HD 9

Rear Guard Assembly -LH 1

Connectimj Pin, Rear Guard 2

Rear Guard Assembly - RH I

Tine & Hub Assembly -RH I

Tine & Hub Assembly - LH 1

Pin, Clevis 4

iHair Cotter Pin 2

iTine Shield Assembly -RH I

iBolt, 3/8"-16 x 1 I/2" Hex HD 4

Wheel 2

iBolt -I/2"13 X 1 3/4" Hex HD 1

.Pivot Axle Assembly I

Bolt, 3/8"-16 x3/4" Carriage 4

Strap Frame Extensioa 2

Pin, clevis 2

Stake, Drag I

Jasher 2

Lockwasher I/4 Medo 1

Plate, Fender Support I

Ref. Part Qty.

No, HL{_ber l)escriptim R_ I.

60 20941

61 *GM-18012B

62 *GM-120389

63 20342

64 20704

65 14306

66 20691

67 *GM9414074

68 20938

69 20942

70 5713

71 15200

7732*GM-180173

13780

74 20706

75 *GM-120123

76 206B8

73' 19649

78 *GM-120396

79 *GH-124934

80 *GH-456151

81 20481

B2 7974

83 *GM-44560B

84 *GM-12635B

85 20932

86 20940

87 5236

3341

NP 20711

Decal, Caution Flag 1

Bolt - 3/B"-16 x 1 3/4" Hex HD 1

Washer -1/2" x1 1/4" X ,083 Flat !

Spacer I

Belt Gaurd (incl. #69) I

Washer 1

Strap-Frame Extension Brace 1

Nut -I/2='-13Hex Lock 3

Decal, Danger 2

Decal 1

Spacer 1

Washer 2

Bolt - 1/2"-13 X1" Hex HD 1

Anchor - Spring 1

iRod - Lift Anchor I

Pin -1/8 x 1 I/4" Cotter 6

iRod - Lift 1

iAnchor - Adjustment 1

iWasher -17/32 x 1 1/16 x .095 Flat 1

iNut -I/2-20 Hex Jam 2

iWesher -13/16 x 1 I/2 x.134 Flat I 2

iPin -Hair Cotter I 6

Spacer 2

BoLt-I/2-13 x 5 I/2 Hex HD 1

iBolt-5/16-18 XI" Carriage 2

Bracket-Wheel Weight Support 2

Decal-Danger I

Pin-Locating I

PirrHair Cotter 1

Manual -Owner's 1

_ndard itardware- PurchasedLocatly

REPAIR PARTS 5 HP TiLLER--MODEL NUMBER 842.252440

24 20

24 2t

11 12 14

25 9

765

Ref.

Part

N_m_aer' Description

20344

*STD541431

20123

20122

4119

20120

20136

20127

20121

*GM-186676

20125

20124

[20130

20129

20132

20128

20133

20131

20135

*STD522512

20137

20145

20156

i20138

t22462

Dust Cap

Locknut, 5/16"-18

Flange & Bearing Assy

Gasket, Flange

Locknut, I/4"-20 HexO

Drive Housing &Bearing Assy - LH

Gasket, Drive Housing

Tine Shaft Assy

Idler Pulley Assy

Bolt, Hex I/4"-20 x 5/8" Grade 8

Washer, Felt

Seal, Rubber'

Plug, Transmission OIL

Washer', Thrust

Chain Assembly #40

Chafn Assembly #40

Input Shaft Assembly

Idler Shaft Assembly

Rh_, Retainer 5/8. Dia. shaft

Bolt -1/4"-20 x 1 1/4" Hex Head

Bearing

Seal

Bearing, Flange

Cap, Bearing

"O_'Ring

*Standard Hardware =Purchased Locally

12 11

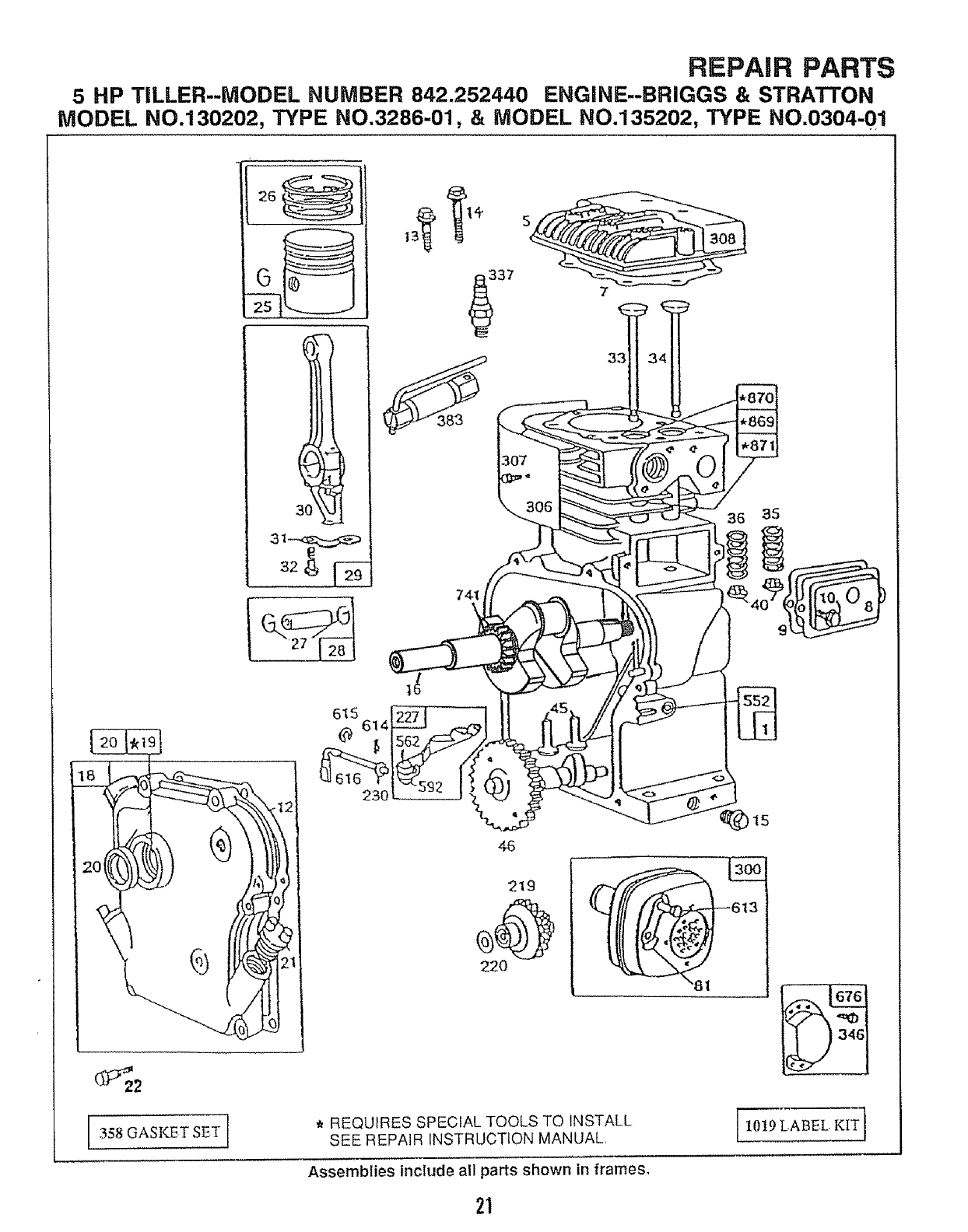

REPAIR PARTS

5 HP TILLER--MODEL NUMBER 842.252440 ENGINE--BRIGGS & STRATTON

MODEL NO.130202, TYPE NO.3286-01, & MODEL NO.135202, TYPE NO.0304-01

7. 33

230

(_22

2t9

220

358 GASKET SET l *REQUIRES SPECIAL TOOLS TO INSTALL

SEE REPAIR INSTRUCTION MANUAL, 1019 LABEL KIT]

Assemblies include all parts shown in frames.

REPAIR PARTS

5 HP TILLER--MODEL NUMBER 842.252440 ENGINE--BRIGGS & STRATTON

MODEL NO.130202, TYPE NO.3286-01, & MODEL NO.135202, TYPE NO.0304-01

655 74

37.3

©!

65 :3O5

"(Q16 37

,I, REQUIRES SPECIAL TOOLS TO INSTALL

SEE REPAIR INSTRUCTION MANUAL

t200

Assemblies include all parts shown in frames,,

REPAIR PARTS

5 HP TILLER--MODEL NUMBER 842.252440 ENGINE--BROGGS & STRATTON

MODEL NO.130202, TYPE NO.3286-01, & MODEL NO.135202, TYPE NO.0304-01

121 CARBURETOR OVERHAUL KiT l

124

191

2O8

527

526

204

916

Assemblies include al! parts shown in frames,

REPAIR PARTS

5 HP TILLER--MODEL NUMBER 842.252440

ENG|NE--BRIGGS & STRATTON, MODEL NO. 130202, TYPE NO. 3286-01

REF. REE

NO. NO.

261

PART

NO.

395990

297565

Note:

3 299819

5 211542

7_272157

8294178

9 _27549

10 94621

11 66578

12 _270080

_270125

_270126

13 94221

14 93369

15 94387

16 492088

Note:

18 297602

19 297603

Note:

20 294606

21 66768

22 93032

Note:

23 297229

24 222698

25 298904

298905

298906

298907

DESCRIPTION

Cyiinder Assembly

Bushing-Cylinder

Requires Special Tools

For Installation

Seal-Oil

Head-Cylinder

Gasket-Cylinder Head

Breather-Valve

Chamber

Gasket-Valve Cover

Screw-Breather Mtg

Grommet-Brea Tube

Gasket-Crankcase

( 015" Thick, Standard)

Gasket-Crankcase

( 005" Thick)

Gasket-Crankcase

(,009" Thick)

Screw-Cylinder Head

Plug-Pipe

Crankshaft

To Replace Crankshaft

Gear Pin, Order Part

No 23097&

Cover Assy.-Crkcse

Bushing-Crkcse, Cover

Requires Special Tools

For Installation,

Seai-Oi_

Plug-Oil Filler

Screw-Crankcase

Cover Mounting Sere

94666 Stud

90832 Lockwasher

Fiywheet-Magneto

Key-Flywheel

Piston Assy,

(Standard)

Piston Assy

(O10"O S,)

Piston Assy.

(,020" OS )

Piston Assy

(.030" OS)

PISTON RING SETS:

Note: For Chrome Piston

Ring Set (Standard

Size) Order Part No

299742

PART

NO. DESCRiPTiON

298982 Ring Set-Piston

(Standard)

298983 Ring Set-Piston

(.010" O S,)

298984 Ring Set-Piston

( 020" O S )

298985 Ring Set-Piston

(030" O.S)

26026 Lock-Piston Pin

298909 Pin Assy,-Piston

(Standard)

298908 Pin Assy,.-Piston

(,005" O,S,)

299430 Rod Assy,-Connecting

Note: For Connecting Rod

With ,020" Undersize

Crankpin Bore-Order

No,_390459

221890 Dipper-Connecting Rod

221876 Lock-Connecting Rod

Screw

92296 Screw-Connecting Rod

211119 Valve-Exhaust

261044 Valve-Intake

260552 Spring-Intake Valve

26478 Spring-Exhaust Valve

222443 Guard-Flywheel

93312 Retainer-Valve Spring

260642 Tappet-Valve

212733 Gear-Cam

_=271936 Gasket-Carb Mtg,

299431 Housing-Rewind

Starter

295871 Pulley-Rewind Starter

(Includes 63" Long

Rope)

490179 Spring-Rewind Starter

66884 Rope-Rewind Starter

(63" Long)

490653 Insert-Starter Handle

490652 Handle-Rewind Starter

94128 Screw-Stamped Steel

Housing Mtg. Sere

399671 Clutch Assy,,-

Rewind Starter

394897 Housing-Starter Clutch

63770 Bali-Clutch

298799 Ratchet-Rewind Starter

394506 Washer-Clutch

Retainer

221923 Screen-Starter Pulley

REF PART

NO. NO.

74 93758

75 224061

81 222263

90 492611

95 93499

96 223793

97 490048

108 491177

118 231533

121 494624

124 93357

127 220352

127A 223789

149 26336

152 260575

153 490589

154 93527

163 271935

180 492927

181 490075

190 94094

191 _e272410

200 223886

201 262280

202 262270

203 280720

204 222962

205 231520

208 262279

209 262282

216 262359

219 494845

220 221551

222 490649

223 223455

224 93491

227 490374

230 222450

256 223813

300 393615

304 490169

Included in Gasket Set-

Part N0,397145

DESCRIPTION

Screw-Hex Head

Washer-Spring

Lock-Screw

Carburetor Assembly

Screw-Throttle Valve to

Shaft

Throttle-Carburetor

Shaft and Lever-

Throttle

Valve Group-Choke

Valve-Needle

Carburetor Overhaul Kit

Screw-Hex Head

Plug-Welch

(Mixing Chamber)

Spring-Needle Valve

Sprlng-Throttie

Adjustment

Screw Assy,.

Screw-Machine

R& Hd

Gasket-Air Cleaner

Mounting

Tank Assembly-Fuel

Cap-Fuel Tank

Screw-Fuel Tank

Mounting Sem

Gasket-Fuel Tank

Mounting

Gulde-Ait

Link-Governor

Link-Throttle

Crank-Bell

Bushing-Gov, Lever

Screw-Shoulder

Rod-Control

Spring-Governor

Link-Choke

Gear-Governor

Washer-Thrust

Bracket-Control

Lever-Gov. Control

Rivet-Governor Control

Lever Mounting

Lever Assy,-Governor

Washer-Gov Lever

Crank-Bell

Muffler-Exhaust

Housing-Blower

tnctuded in Carburetor Overhaul Kit-

Part No,. 494624

REPAnR PARTS

5 HP TiLLER--MODEL NUMBER 842.252440

ENGINE--BRiGGS & STRATTON, MODEL NO. 130202, TYPE NO. 3286-01

REF PART REF PART REF PART

NO, NO, NO. NO.

305 93158 529 67838

DESCRIPTION

Screw-Blower Housing

Mounting

306 221511 Shield-Cylinder

307 93490 Screw-Cylinder Shield

Mounting Sam

308 221512 Cover-Cylinder Head

333 397358 Armature Assembly

335 93414 Screw-ArmatureMtg.

337 492167 Plug-Spark

346 93705 Screw-Sere

356 398808 Wire-Ground

358 397'145 Gasket Set

363 19069 Flywheel Puller

373 92987 Nut-Hex.

383 89838 Wrench-Spark Plug

392 262328 Spring-Fuel Pump

Diaphragm

394 =270026 Diaphragm

414 220982 Washer

432 221377 Cap-Spring

433 93265 Pin-Diaphragm Cover

434 210959 Cover-Diaphragm

436 93141 Screw-Diaph Cover

467 280715 Knob-Control

526 94409 Screw-Tank Bracket

Mounting Sere

527 223786 Clamp-Breather Tube

528 231550 Tube-Breather

Included in Gasket Set-

Part No 397145

DESCRIPTION

Grommet-Breather

Tube

535 491435 Efement-Air Cleaner

536 494279 Air Cleaner Kit

542 93572 Screw

552 231079 Bushing-Governor

Crank (t/4" ID,,)

562 92613 Bolt-Governor Lever

592 231082 Nut-Hex.

608 390463 Starter Assy,,-Rewind

611 391813 Fuel Pipe and Clip

Assembty

613 93935 Screw-Hex, Hd,

Shoulder

614 93306 Pin-Cotter

6'!5 93307 Retainer-E-Ring

616 231077 Crank-Governor

621 396847 Switch-Stop

634 271853 Washer-Throttle Shaft

(Foam)

643 280737 Retainer-Foam

Element

665 222598 Insert-Spring

Anchor

676 393757 Deflector-Exhaust

(Side Outlet)

679 270382 Washer Choke Shaft

(Foam)

NO. NO.

680 221839

741 261696

779 262276

851 221798

869 211787

870 211172

Note:

871 262001

Note:

916 280321

956 490074

967 491588

968 223765

969 490O73

971 94018

987 398970

995 223887

1012 490507

1016 490817

1019 491100

DESCRIPTfON

Washer Choke Shaft

(Brass)

Gear-Timing

Link-Control

Cable Terminal-Ignition

Seat-Intake Vaive

(Standard)

Seat-Exhaust Valve

(Standard)

For Opttons See

Repair Manual,

Guide-Exhaust Valve

63709 Guide-intake

Valve

See Repair Instruction

Manual°

Gear Rack-Governor

Base-Air Cleaner

Filter-Air

Cover-Air Cleaner

Screw-Cover Mtg,

(Includes Grommet)

Screw-Air Cleaner

Seal-Throttle Shaft

Bracket-Link

Link-Retainer

Spacer

Label Kit

Note: The following part is required

by local law in some locations.

399541 Spark Arrestor Assembly

Included in Carburetor Overhaul Kit-

Part No 494624

REPAIR PARTS

5 HP TILLER--MODEL NUMBER 842.252440

ENGiNE--BRIGGS & STRATTON, MODEL NO.135202, TYPE NO. 0304-01

REF, PART

NO. NO DESCRIPTION

1 385990 Cyltnder Assembly

2 297565 Bushing-Cylinder

Note: Requires Special Tools

For installation

3299819 Seal-Oil

5 214040 Head-Cylinder

7"272157 Gasket-Cylinder Head

8 294178 Breather-Valve Chamber

9*27549 Gasket-Valve Cover

10 94621 Screw-Breather Mtg.

11 66578 Grommet-Breather Tube

12 *270080 Gasket-Crankcase

(,015" Thick Standard)

*270125 Gasket-Crankcase

(.005" Thick)

"*270126 Gasket-Crankcase

(.009" Thick)

13 94221 Screw-Cylinder Head

14 94679 Screw.Cylinder Head

15 94387 Plug-Pipe

16 492088 Crankshaft

Note: To Replace Crankshaft

Gear Pin, Order Part

No 230978

18 494044 Cover Assy,-Crankcase

19 495660 Bushing-Crkcse Cover

Note: Requires Special Tools

For Installation

20 294606 Seal-Oil

21 66768 ptug-Oil Filler

22 94682 Screw-Crankcase

Cover Mounting Sam

Note; 94666 Stud

297229 Flywheel-Magneto

222698 Key-Flywheel

298904 Piston Assembly

(Standard)

298905 Piston Assembly

(.010" O,&)

298906 Piston Assembly

(,020'_O.S.)

298907 Piston Assembly

(_030"O S)

PISTON RING SETS."

Note: For Chrome Piston

Ring Set (Standard

Stze) Order part No

299742

*Included in Gasket Set-

Part No, 4956O3,.

REF, PART REF,,PART

NO. NO DESCRIPTION NO. NO, DESCRIPTION

26 298982 Ring Set-Piston

(Standard)

298983 Ring Set-Piston

(,010"os.)

298984 Ring Set-Piston

(020" O,S.)

298985 Rtng Set-Piston

(_o3o"os)

27 26026 Lock-Piston Pin

28 298909 Pin Assembly-Piston

(Standard)

298908 Pin Assembly-Piston

(.005" OS.)

29 299430 Rod Assy.-Connecting

Note: For Connecting Rod

With 020" Undersize

Crankptn Bore-Order

No 390459

30 221890 DtppeFConnecttng Rod

32 94745 Screw-Connecting Rod

33 211119 Valve-Exhau st

34 261044 Valve4ntake

35 260552 Spring-intake Valve

36 26478 Spring-Exhaust Valve

37 222443 Guard-Rywheei

40 93312 Retainer-Valve Spring

45 260642 Tappet-Valve

46 212733 Gear-Cam

52 "i_71936 Gasket-Carburetor Mtg

55 494846 Housing-Rewind

Starter

56 493824 Pulley-Rewind Starter

(Includes 63" Long

Rope)

57 262594 Spring-Rewind Starter

58 280406 Rope-Rewind Starter

(63" Long)

59 396892 Insert-Starter Handle

60 393152 Handle-Rewind Starter

65 94686 Screw-Stamped Steel

Housing Mtg Sam

69 280973 Washer

69A 224322 Washer

73 221923 Screen-Starter Pulley

8t 222263 Look-Screw

90 495426 Carburetor Assembly

95 93499 Screw.Throttle Valve to

Shaft

96 223793 Throttle.Carburetor

97 490048 Shaft and Lever-Throttle

108 491177 Valve Group-Choke

118 231533 Valve-Need]e

121 495606 Carburetor Overhaul Kit

124 94616 Screw-Hex Head

127 220352 Plug-Welch

t27A 223789 Plug-Welch

(Mixing Chamber)

149 26336 Spring-Needle Valve

152 260575 Spring-Throttle

Adjustment

153 490589 So_'ew Assembly

154 93527 Screw-Machine

Round Head

163 271935 Gasket-Air Cleaner

Mounting

180 495405 Tank Assembly-Fuel

181 490075 Cap-Fuel Tank

187 231068 Pipe-Fuel

190 94712 Screw-Fuel Tank

Mounting Sam

190A 94677 Screw

191 *t=272489 Gasket-Fuel Tank

Mounting

200 223886 Guide-Air

201 262280 Unk-Govemor

202 262270 Unk-Throffie

203 280720 Crank-BelJ

204 222962 Bushtng-Gov. Laver

205 231520 Screw-Shoulder

208 262279 Rod-Control

209 262282 Spring-Governor

216 262359 Unk-Choke

219 494845 Gear_Governor

220 221551 Washer-Thrust

222 490649 Bracket,Centre}

223 223455 Lever-Gov, Control

224 93491 Rivet-Governor Control

Lever Mounting

227 490374 Lever Assy.-Govemor

230 222450 Washer*Gov, Lever

256 223813 Crank-Bell

300 393615 Muffler-Exhaust

304 495759 Housing-Blower

eincludedin Cad_uretorOverhaul 1_3t-

Part Nee495606

REPAIR PARTS

5HP TeLLER--MODEL NUMBER 842.252440

ENGINE--BRIGGS & STRA'I-I'ON, MODEL NO. 135202, TYPE NO. 0304-01

REF, PART REF,.PART REFoPART

NO,, NO,, DESCRIPTION NO, NO DESCRIPTION NO, NO. DESCRIPTION

305 94619 67838 680 221839

306 221511

307 93490

308 224738

332 92284

333 397358

335 93414

337 492167

346 94680

346A 93705

356 398808

358 495603

363 19069

373 92987

383 89838

392 262328

394 _?.72538

414 220982

432 221377

433 93265

434 214021

435 93141

455 224250

456 224321

459 492833

46l 262626

515 262625

526 94409

527 223786

528 231550

Screw-Blower Housing

Mounting

Shield-Cylinder

Screw-Cylinder Shield

Mounting Sem

Cover-Cylinder Head

Nut-Rywheel

Armature Assembly

Screw-Armature Mtg

Plug-Spark

Screw-Sam

Screw-Sere

Wire-Ground

Gasket Set

Ffywheel Pulter

Nut-Hex

Wrench-Spark Plug

Spring-Fuel Pump

Diaphragm

Washer

Cap-Spring

Pin-Diaphragm Cover

Cover.Diaphragm

Screw-Diaph Cover

Cup.Starter

Retainer

Pawl-Starter

Pin-Spring

Spring

Screw-Tank Bracket

Mounting Sam

Clamp-Breather Tube

Tube-Breather

*Included in GasketSet-

Pad No_495603.,

535 491435

536 494279

542 93572

552 231079

562 92613

592 231082

608 495766

611 391813

613 93935

614 93305

!615 93307

616 231077

621 396847

634 271853

676 393757

679 270382

Grommet-Breather

Tube

Element-Air Cleaner

Air Cleaner Kit

Screw

Bushing.Governor

Crank (1/4" I,D,)

Bolt-Governor Lever

Nut-Hex

Starter Assy-Rewind

Fuel Pipe and Clip

Assembly

Screw-He× Head

Shoulder

Pin.Cotter

Retainer-E-Ring

Crank-Governor

Switch-Stop

Washer-Throttle Shaft

(Foam)

Deflector-Exhaust

(Side Outlet)

Washer Choke Shaft

(Foam)

741 261696

i779 262570

851 221798

869 211787

870 211436

Note:

871 262001

Note:

916 280321

966 492797

967 491588

968 495357

969 490073

971 94018

987 398970

995 223887

1012 490507

1016 224278

1019 491102

Washer Choke Shaft

(Brass)

Gear-Timing

Unk-Control

Cabie Terminal-ignition

Seat-Intake Valve

(Standard)

Seat-Exhaust Valve

(Standard)

For Options See

Repair Manua!

Guide-Exhaust Valve

63709 Gufdeqntake

Valve

See Repair Instruction

Manua!

Gear Reck-Governor

Base-Air Cleaner

Filter-Air

Cover-Air Cleaner

Screw*Cover Mounting

(Includes Grommet)

Screw-Air CLeaner

Seal-Throttle Shaft

Bracket-Link

Unk-Retatner

Spacer

I_abe] Kit

Note: The following pad is required

by local law in some locations.

399541 Spark A_restor Assembly

•Includedin CarburetorOverhault_t-

Pa_tNo,495606.

SERVICE OTES

........ ; .....:: _::. ................................... :_ ...........................

SERVmC NOTES

OWNER'S

MANUAL

HOW TO ORDER

REPAIR PARTS

,111,,111111,1,1,11111,,1111,,i,i i iiiiii iiii

Each tiller has itsown model number. Each

engine has its own model number.

The model number for your'tiller will be found

on the fight hand chassis

The model number for your engine wilebe found

on the blower housing of the engine adjacent to

the spark plug

All parts listed herein may be ordered from any

Sears, Roebuck and Co. Service Center and

most Retail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS

GIVE THE FOLLOWING INFORMATION:

ePRODUCT-TOW BEHIND TILLER

eMODEL NUMBER - 842-252440

eENGlNE MODEL NUMBER- 135202

TYPE 0304-01

• PART NUMBER

ePART DESCRIPTION

Your Sears merchandise has added value when you consider Sears has

service units nationwide staffed with Sears trained technicians .........

professional technicians specifically trained to insure that we meet our

pledge to you, we service what we sell.

Seats, Roebuck and Co., Hoffman Estates, hL 60179 U.S.A.

20711 (1,7,92) PRINTED IN Ur,S,A.

Craftsman 842252440 User Manual TILLER ATTACHMENT Manuals And Guides L0803574

CRAFTSMAN Tractor Attachments Manual L0803574 CRAFTSMAN Tractor Attachments Owner's Manual, CRAFTSMAN Tractor Attachments installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
