OWNERS

MANUAL

MODEL NO.

900.271221

CAUTION

Read Rules for

Safe Operation

and Instructions

Carefully

CRAFTSH N

DUAL SPEED

RECIPROCAT NG

DOUBLE iNSULATED

Introduction

Operation

Maintenance

Repair Parts

®

sold by SEARS, ROEBUCK AND CO, Chicago, IL 60684 U S A

Form No 446901-07 (JUL91-CD-1) PRINTED IN U SA

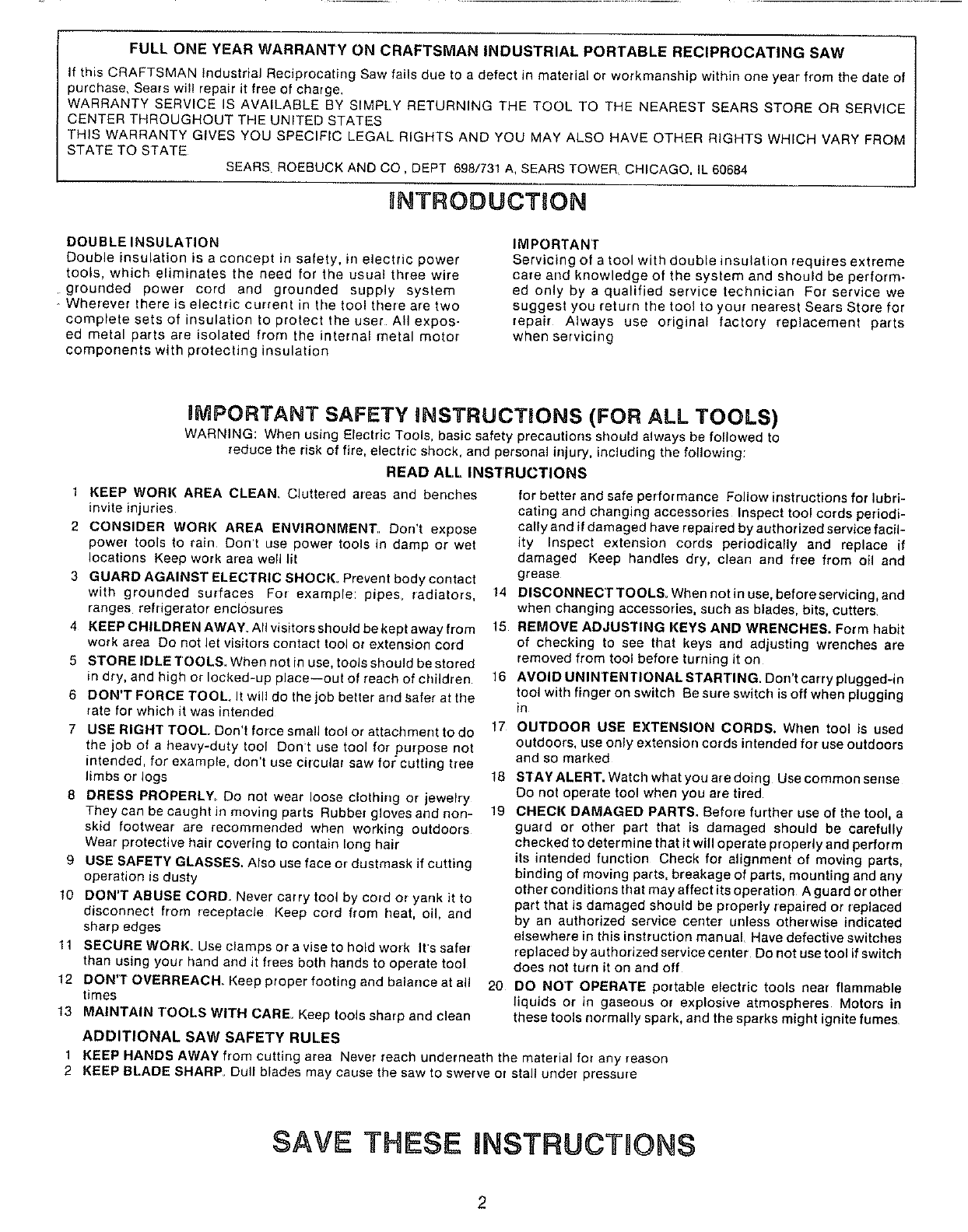

FULL ONE YEAR WARRANTY ON CRAFTSMAN INDUSTRIAL PORTABLE RECIPROCATING SAW

If this CRAFTSMAN Industrial Reciprocating Saw fails due to a defect in material or workmanship within one year from the date of

purchase, Sears wilt repair it free of charge,

WARRANTY SERVICE IS AVAILABLE BY SIMPLY RETURNING THE TOOL TO THE NEAREST SEARS STORE OR SERVICE

CENTER THROUGHOUT THE UNITED STATES

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM

STATE TO STATE

SEARS ROEBUCK AND CO, DEPT 698/731 A, SEARS TOWER CHICAGO, IL 60684

INTRODUCTION

DOUBLE INSULATION

Double insulation is a concept in safety, in electric power

tools, which eliminates the need for the usual three wire

. grounded power cord and grounded supply system

- Wherever there is electric current in the tool there are two

complete sets of insulation to protect the user All expos-

ed metal parts are isolated from the internal metal motor

components with protecting insulation

IMPORTANT

Servicing of atool with double insulation requires extreme

care and knowledge of the system and should be perform-

ed only by aqualified service technician For service we

suggest you return the tool to your nearest Sears Store for

repair Always use original factory replacement parts

when servicing

iMPORTANT SAFETY INSTRUCTIONS (FOR ALL TOOLS)

WARNING: When using Electric Tools, basic safety precautions should always be followed to

reduce the risk of fire, electric shock, and personal irrjury, including the following:

READ ALL INSTRUCTIONS

1KEEP WORK AREA CLEAN. Cluttered areas and benches

invite injuries

2CONSIDER WORK AREA ENVIRONMENT. Don't expose

power tools to rain Dont use power tools in damp or wet

locations Keep work area well lit

3 GUARD AGAINST ELECTRIC SHOCK,, Prevent body contact

with grounded surfaces For example: pipes, radiators,

ranges, refrigerator enclosures

4KEEP CHILDREN AWAY. All visitors should be kept away from

work area Do not let visitors contact tool or extension cord

5 STORE IDLE TOOLS. When not in use, tools should be stored

in dry, and high or locked-up place--out of reach of children

6 DON'T FORCE TOOL. It wil! do the job better and _afer at the

rate for which it was intended

7 USE RIGHT TOOL. Don't force small tool or attachment to do

the job of a heavy-duty tool Don't use tool for purpose not

intended, for example, don't use circular saw for cutting tree

limbs or logs

8DRESS PROPERLY,, Do not wear loose clothing or jewelry

They can be caught in moving parts Rubber gloves and non-

skid footwear are recommended when working outdoors

Wear protective hair covering to contain long hair

9 USE SAFETY GLASSES. Also use face or dustmask if cutting

operation is dusty

10 DON'T ABUSE CORD. Never carry tool by cord or yank it to

disconnect from receptacle Keep cord from heat, oil, and

sharp edges

11 SECURE WORK. Useclampsoravisetoholdwork Itssafer

than using your hand and it frees both hands to operate tool

12 DON'T OVERREACH. Keep proper footing and balance at all

times

13 MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean

ADDITIONAL SAW SAFETY RULES

14

15

16

for better and safe performance Follow irrstructions for lubri-

caring and changing accessories Inspect tool cords periodi-

cally and if damaged have repaired by authorized service facil-

ity Inspect extension cords periodically and replace if

damaged Keep handles dry, clean and free from oil and

grease

DISCONNECT TOOLS, When not in use, before servicing, and

when changing accessories, such as blades, bits, cutters

REMOVE ADJUSTING KEYS AND WRENCHES. Form habit

of checking to see that keys and adjusting wrenches are

removed from tool before turning it on

AVOID UNINTENTIONAL STARTING. Don't carry plugged-in

tool with finger on switch Be sure switch is off when plugging

in

17 OUTDOOR USE EKTENSION CORDS. When tool is used

outdoors, use only extension cords intended for use outdoors

and so marked

18 STAYALERT. Watchwhatyouaredoing Use common sense

Do not operate tool when you are tired

19 CHECK DAMAGED PARTS. Before further use of the tool, a

guard or other part that is damaged should be carefully

checked to determine that it will operate properly and perform

its intended function Check for alignment of moving parts,

binding of moving parts, breakage of parts, mounting and any

other conditions that may affect its operation A guard or other

part that is damaged should be properly repaired or replaced

by an authorized service center unless otherwise indicated

elsewhere in this instruction manual Have defective switches

replaced by authorized service center Do not use tool if switch

does not turn it on and off

20 DO NOT OPERATE portable electric tools near flammable

liquids or in gaseous or explosive atmospheres Motors in

these tools normally spark, and the sparks might ignite fumes

1 KEEP HANDS AWAY from cutting area Never reach underneath the material for any reason

2KEEP BLADE SHARP. Dull blades may cause the saw to swerve or stall under pressure

SAVE THESE INSTRUCTIONS

2

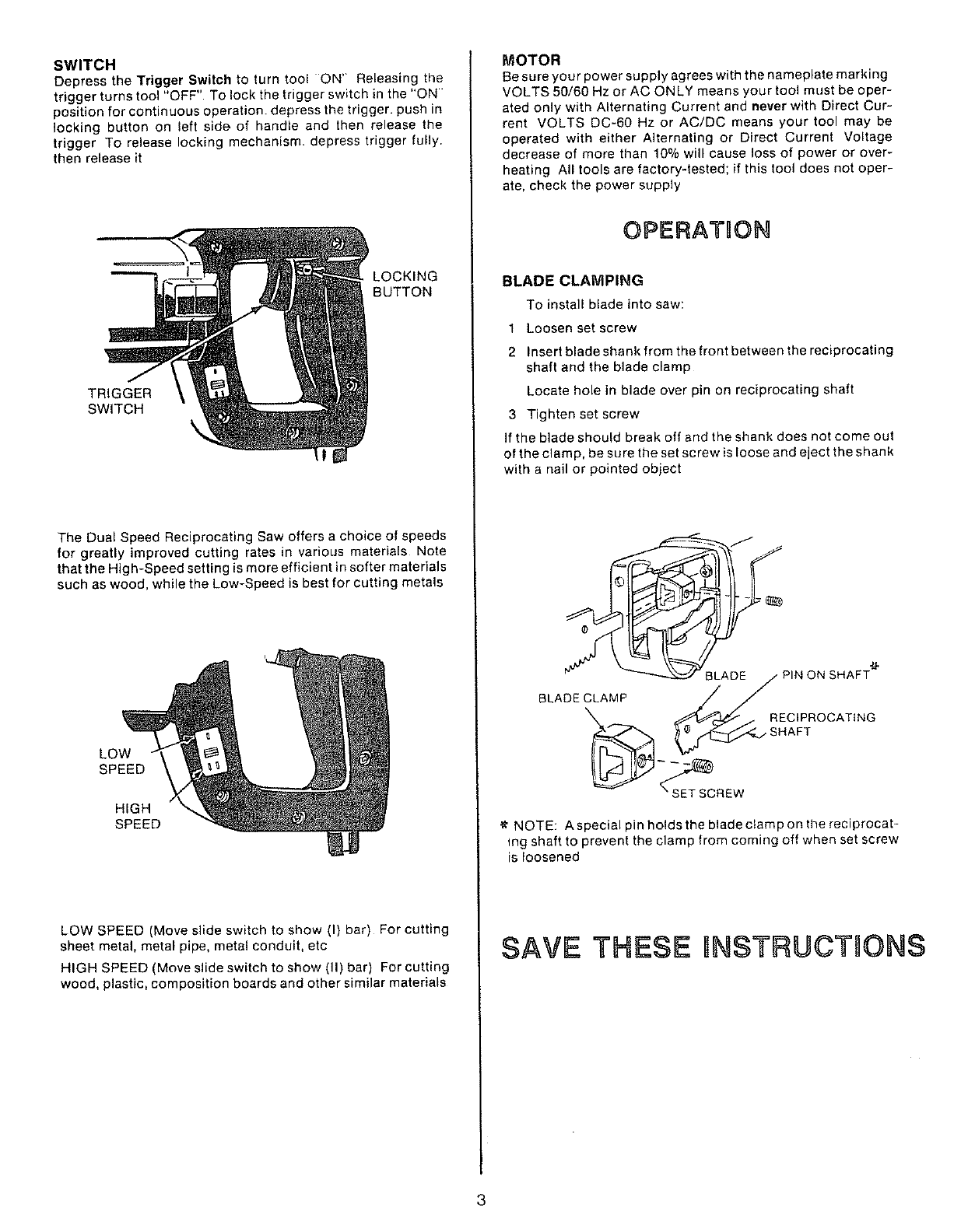

SWITCH

Depress the Trigger Switch to turn tool ON" Releasing the

trigger turns tool "OFF" To lock the trigger switch in the "ON

position for continuous operation, depress the trigger, push in

locking button on left side of handle and then release the

trigger To release locking mechanism, depress trigger fully.

then release it

LOCKING

BUTTON

TRIGGER

SWITCH

The Dual Speed Reciprocating Saw offers a choice of speeds

for greatly improved cutting rates in various materials Note

that the High-Speed setting is more efficient in softer materials

such as wood, while the Low-Speed is best for cutting metals

LOW

SPEED

HIGH

SPEED

LOW SPEED (Move slide switch to show (I) bar) For cutting

sheet metal, metal pipe, metal conduit, etc

HIGH SPEED (Move slide switch to show (ll) bar) For cutting

wood, plastic, composition boards and other similar materials

MOTOR

Be sure your power supply agrees with the nameplate marking

VOLTS 50/60 Hz or AC ONLY means your tool must be oper-

ated only with Alternating Current and never with Direct Cur-

rent VOLTS DC-60 Hz or AC/DC means your tool may be

operated with either Alternating or Direct Current Voltage

decrease of more than 10% will cause loss of power or over-

heating All tools are factory-tested; if this tool does not oper-

ate, check the power supply

OPERATUON

BLADE CLAMPING

To install blade into saw:

1Loosen set screw

2 Insert blade shank from the front between the reciprocating

shaft and the blade clamp

Locate hole in blade over pin on reciprocating shaft

3 Tighten set screw

If the blade should break off and the shank does not come out

of the clamp, be sure the set screw is loose and eject the shank

with a nail or pointed object

__ SHAFT

_: NOTE: A special pin holds the blade clamp on the reciprocat-

ing shaft to prevent the clamp from coming off when set screw

is loosened

SAVE THESE UNSTRUCTaONS

3

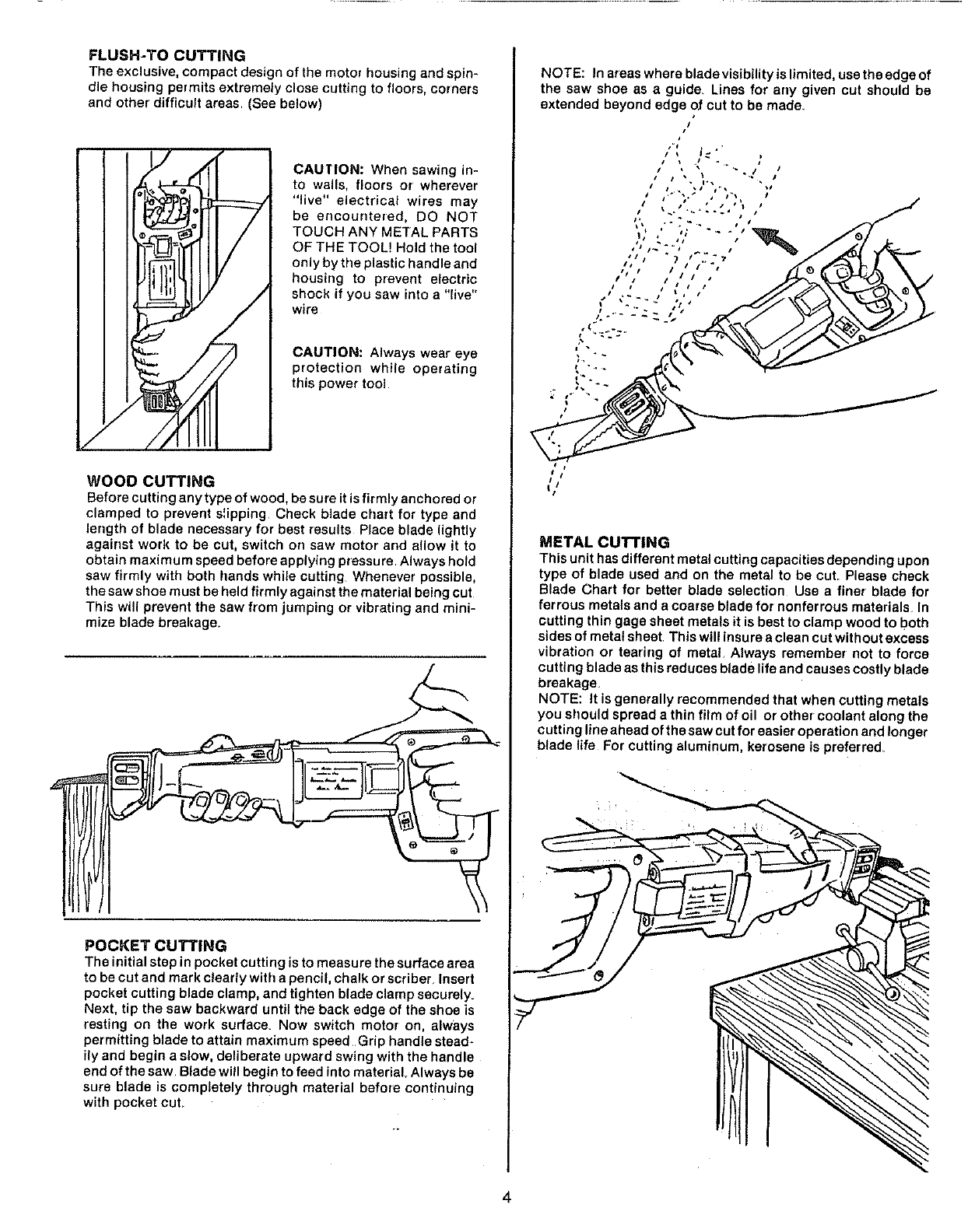

FLUSH-TO CUTTING

The exclusive, compact design of the motor housing and spin_

die housing permits extremely close cutting to floors, corners

and other difficult areas (See below)

Ii I° CAUTION: When sawing in-

to walls, floors or wherever

"live" electrical wires may

be encountered, DO NOT

TOUCH ANY METAL PARTS

OF THE TOOL! Hold the tool

only by the plastic handle and

housing to prevent electric

shock if you saw into a "live"

wire

CAUTION: Always wear eye

protection while operating

this power tool

WOOD CUTTING

Before cutting any type of wood, be sure it is firmly anchored or

clamped to prevent s{ipping Check blade chart for type and

length of blade necessary for best results Place blade lightly

against work to be cut, switch on saw motor and allow it to

obtain maximum speed before applying pressure Always hold

saw firmly with both hands while cutting Whenever possible,

the saw shoe must be held firmly against the material being cut

This will prevent the saw from jumping or vibrating and mini-

mize blade breakage.

1

POCKET CUTTING

The initial step in pocket cutting is to measure the surface area

to be cut and mark clearly with a pencil, chalk or scriber. Insert

pocket cutting blade clamp, and tighten blade clamp securely.

Next, tip the saw backward until the back edge of the shoe is

resting on the work surface_ Now switch motor on, always

permitting blade to attain maximum speed Grip handle stead-

ily and begin a slow, deliberate upward swing with the handle

end of the saw Blade will begin to feed into materiel Always be

sure blade is completely through material before continuing

with pocket cuL

NOTE: In areas where blade visibility is limited, use the edge of

the saw shoe as a guide. Lines for any given cut should be

extended beyond edge o.fcut to be made

METAL CUTTING

This unit hasdifferent metal cutting capacities depending upon

type of blade used and on the metal to be cut. Please check

Blade Chart for better blade selection Usa a finer blade for

ferrous metals and a coarse blade for nonferrous materlals_ In

cutting thin gage sheet metals it is best to clamp wood to both

sides of metal sheet This wilt insure a clean cut without excess

vibration or tearing of metal. Always remember not to force

cutting blade as this reduces blade life and causes costly blade

breakage_

NOTE: It is generally recommended that when cutting metals

you should spread a thin film of oil or other coolant along the

cutting line ahead of the saw cut for easier operation and longer

blade life For cutting aluminum, kerosene is preferred=

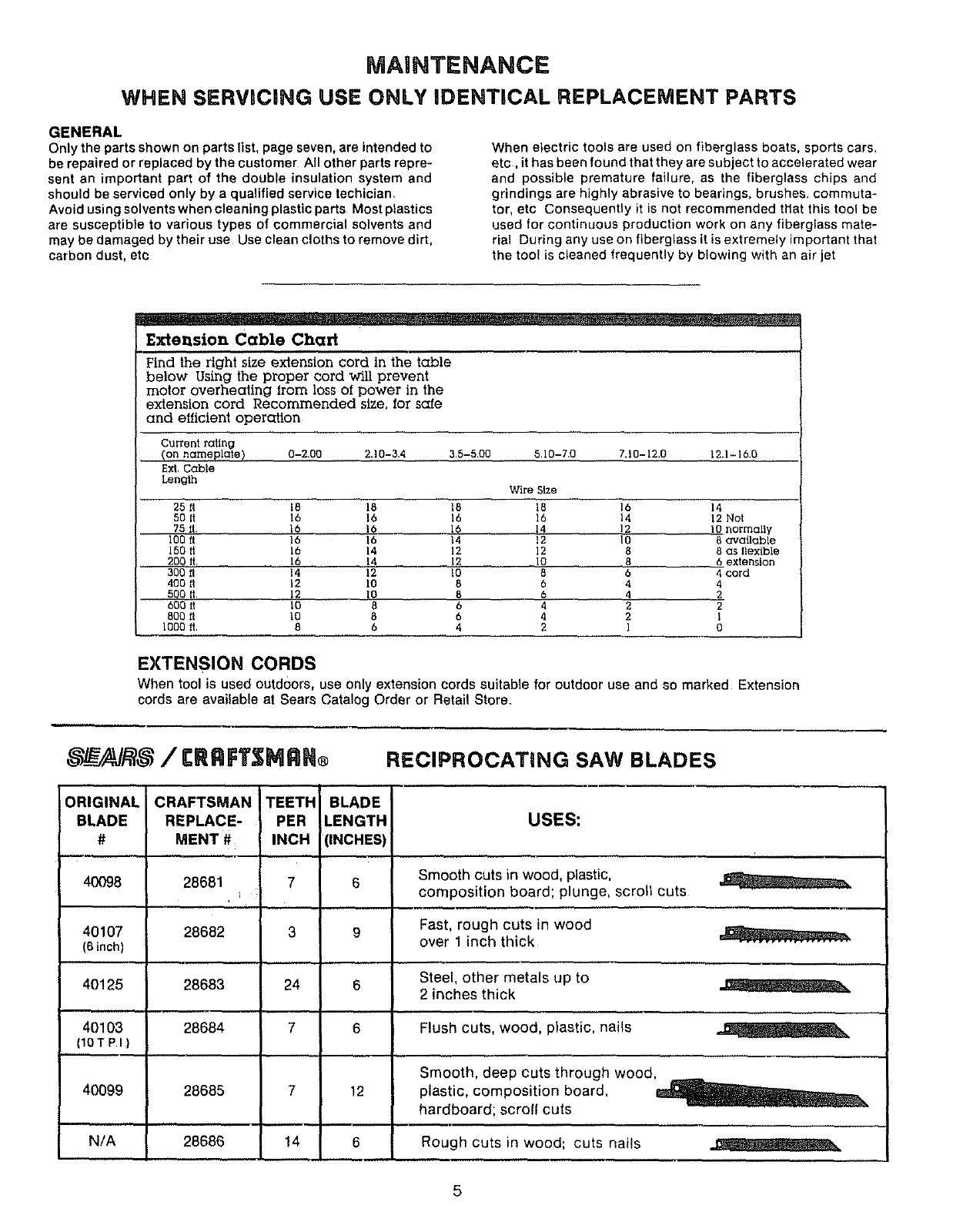

MAINTENANCE

WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS

GENERAL

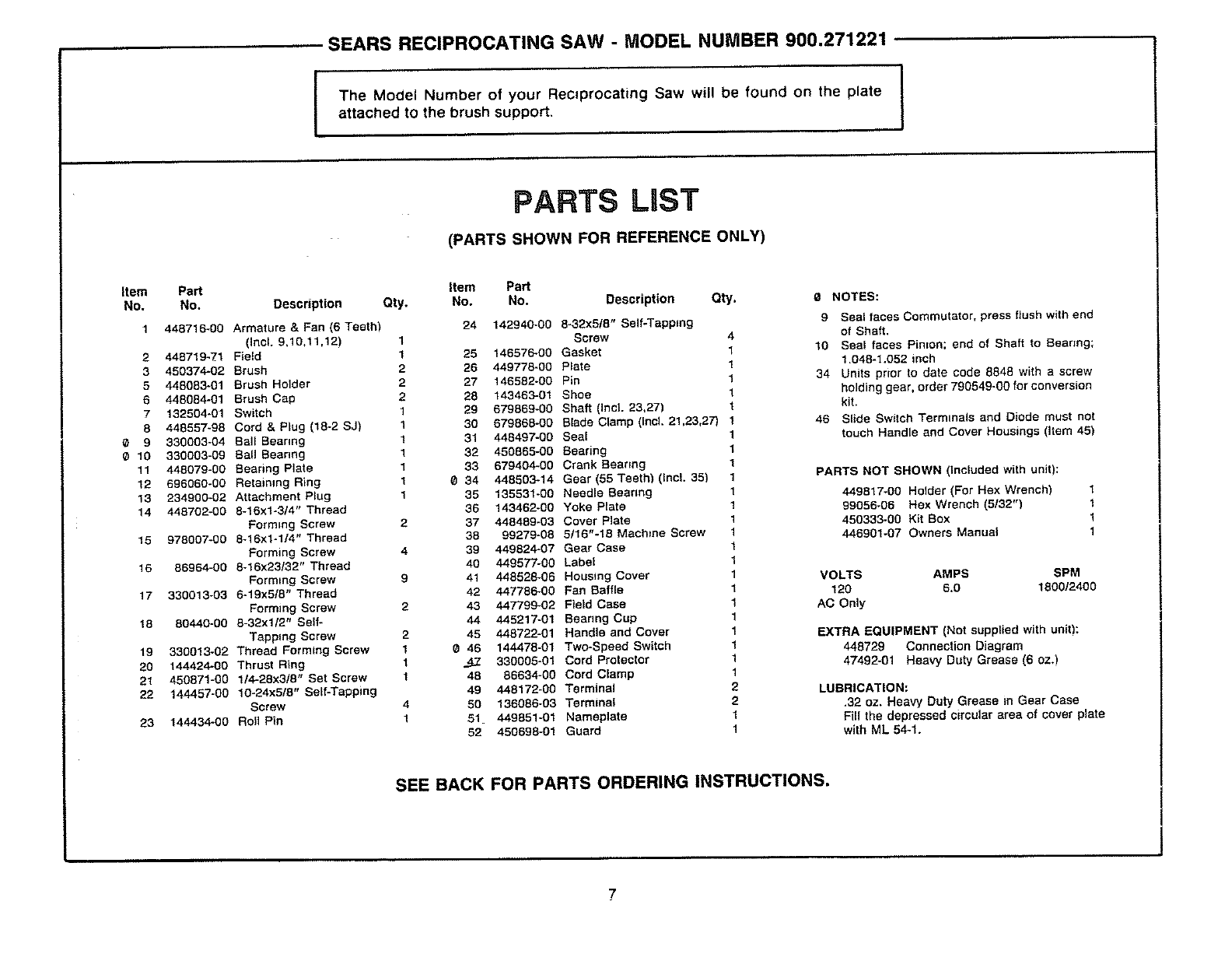

Only the parts shown on parts list, page seven, are intended to

be repaired or replaced by the customer All other parts repre-

sent an important part of the double insulation system and

should be serviced only by a qualified service techician,

Avoid using solvents when cleaning plastic parts Most plastics

are susceptible to various types of commercial solvents and

may be damaged by their use Use clean cloths to remove dirt,

carbon dust, etc

When electric tools are used on fiberglass boats, sports cars

etc, it has been found that they are subject to accelerated wear

and possible premature failure, as the fiberglass chips and

grindings are highly abrasive to bearings, brushes commuta-

tor, etc Consequently it is not recommended that this tool be

used for continuous production work on any fiberglass mate-

rial During any use on fiberglass it is extremely important that

the tool is cleaned frequently by blowing with an air jet

ExtensionCable Churl

Find the right size extension cord in the table

below Using the proper cord will prevent

motor overheating from loss of power in the

extension cord Recommended size, for safe

and etficient operation

Curcentrating

(on _lameplate } 0-2.00 210-3.4 35-500 510- 70 7 lO- 120 121 - 1b O

ExLcable

_ngth Wire Size

25 fl 18 18 18 18 16 14

50 it 16 16 16 16 14 t2 Not

75 t{ 16 16 16 14 12 lO normany

I00 l{ 16 Ib 14 {2 IS 8 _ailable

150 fl 16 14 12 12 8 8as Sex,hie

200 l}. 16 14 12 le 86extension

300 It 14 12 |0 8 6 4 cord

400 012 lO 8b44

500 It 12 IS 8b42

600 It IO 8642 2

800 fl I0 8642i

1000 fl 864210

EXTENSION CORDS

When tool is used outdoors, use only extension cords suitable for outdoor use and so marked Extension

cords are available at Sears Catalog Order or Retail Store

o.¢ _./ j /CRRFTSMRN® RECIPROCATING SAW BLADES

ORIGINAL i CRAFTSMAN TEETH BLADE

BLADE REPLACE- PER LENGTH USES:

#MENT #INCH (INCHES)

40098 76

40107

(6 inch)

40125

40103

(10 T PI)

40099

N/A

28681

28682

28683 24

28684

28685

28686 14

9

6

6

12

6

Smooth cuts in wood, plastic,

composition board; plunge, scroll cuts

Fast, rough cuts in wood

over 1 inch thick

Steel, other metals up to

2 inches thick

Flush cuts, wood, plastic, nails

Smooth, deep cuts through wood,

plastic, composition board,

hardboard; scroll cuts

Rough cuts in wood; cuts nai}s

SEARS RECIPROCATING SAW -MODEL NUMBER 900.271221

12 10 _11 1 42 2 6-_-- 14

PARTS SHOWN FOR REFERENCE ONLY

IMPORTANTf--To assure product SAFETY and RELIABILITY,

repatrs, maintenance and adjustment should be performed by

Sears Service Centers or other qualified service orgamzat_ons,

always using Sears replacement parts,

4O

47

8

13

45

L

FOR PARTS LIST SEEPAGE 7

SEARS RECIPROCATING SAW -MODEL NUMBER 900.271221

The Model Number of your Reciprocating Saw will be found on the plate

attached to the brush support,

PARTS LiST

(PARTS SHOWN FOR REFERENCE ONLY)

Item Part

No. No. Description

Item Part

Qty. No. No. Description Qty. 0NOTES:

24 142940*00 6-32x5/8" Ssft-Tappmg

Screw 4

25 146576-00 Gasket 1

26 449776-00 Plate 1

27 146582-00 Pin 1

28 143463-01 Shoe 1

29 679869-00 Shaft (Incl. 23,27) 1

30 879880*00 Blade Clamp (Incl. 21,23,27) 1

31 448497-00 Seal 1

32 450865-00 Scaring 1

33 679404-00 Crank Bearing 1

0 34 448503-14 Gear (55 Teeth) (Incl. 35) 1

35 135531-00 Needle Scaring 1

36 143462-00 Yoke Plate 1

37 448489-03 Covet" Plate 1

38 99279-06 5/16"-18 Machine Screw 1

39 449824-07 Gear Case 1

40 449577-00 Label 1

41 448525-06 Housing Cover 1 VOLTS

42 447786-00 Fan Baffle 1 120

43 447799-02 Field Case 1AC Only

44 445217-01 Searing Cup I

45 448722-01 Handle and Cover 1

0 46 144478-01 Two-Speed Switch 1

330005-01 Cord Protector 1

48 86634-00 Cord Clamp 1

49 448172-00 Terminal 2

50 136086-03 Termina{ 2

51 449851-01 Nameplate 1

52 450698-01 Guard 1

1 448716-00 Armature & Fan (6 Teeth)

(Incl. 9,10.11,12) 1

2 448719-7.1 Field 1

3 459374-02 Brush 2

5448083-01 Brush Holder 2

6 448084-01 Brush Cap 2

7132504-01 Switch 1

8 448557-98 Cord &Plug (18-2 SJ) 1

0 9 330003-04 Ball Bearing 1

0 10 330003-09 Ball Bearmg 1

11 448079-00 Bearing Plate 1

12 696060-00 Retaining Ring 1

13 234900-02 Attachment Plug 1

14 448702-00 0.16x1-3/4" Thread

Forming Screw 2

15 978007-00 6-16x1-1/4" Thread

Forming Screw 4

16 86964-00 6-16x23/32" Thread

Forming Screw 9

17 330013-03 6-19x518" Thread

Forming Screw 2

18 80440*00 8-32x1(8" Se{f-

Tapping Screw 2

19 330013-02 Thread Forming Screw 1

20 144424-06 Thrust Ring 1

21 450871-00 114-28x318" Set Screw 1

22 144457-00 10-24x5/8" Seft-Tappmg

Screw 4

23 144434-00 Roll Pin 1

9Seal faces Commutator. press flush with end

of Shaft.

10 Seal faces Pin=on; end of Shaft to Searing;

1.040*%052 inch

34 Units pr_or to date code 8848 with ascrew

holding gear, order 790549-00 for conversion

kit.

46 Slide SwJlch Terminals and Diode must not

touch Handle and Cover Housings (Item 45)

PARTS NOT SHOWN (Included with unit):

449817-00 Holder (For Hex Wrench) 1

99056-06 Hex Wrench (5/32"f 1

450333-00 Kit Box 1

446901-07 Owners Manual 1

AMPS SPM

6.0 180012400

EXTRA EQUIPMENT (Not supplied with unit):

448729 Connection Diagram

47492-01 Heavy Duty Grease (6 oz.!

LUBRICATION:

.32 oz. Heavy Duty Grease in Gear Case

Fill the depressed circular area of cover plate

with ML 54-1.

SEE BACK FOR PARTS ORDERING INSTRUCTIONS.

7

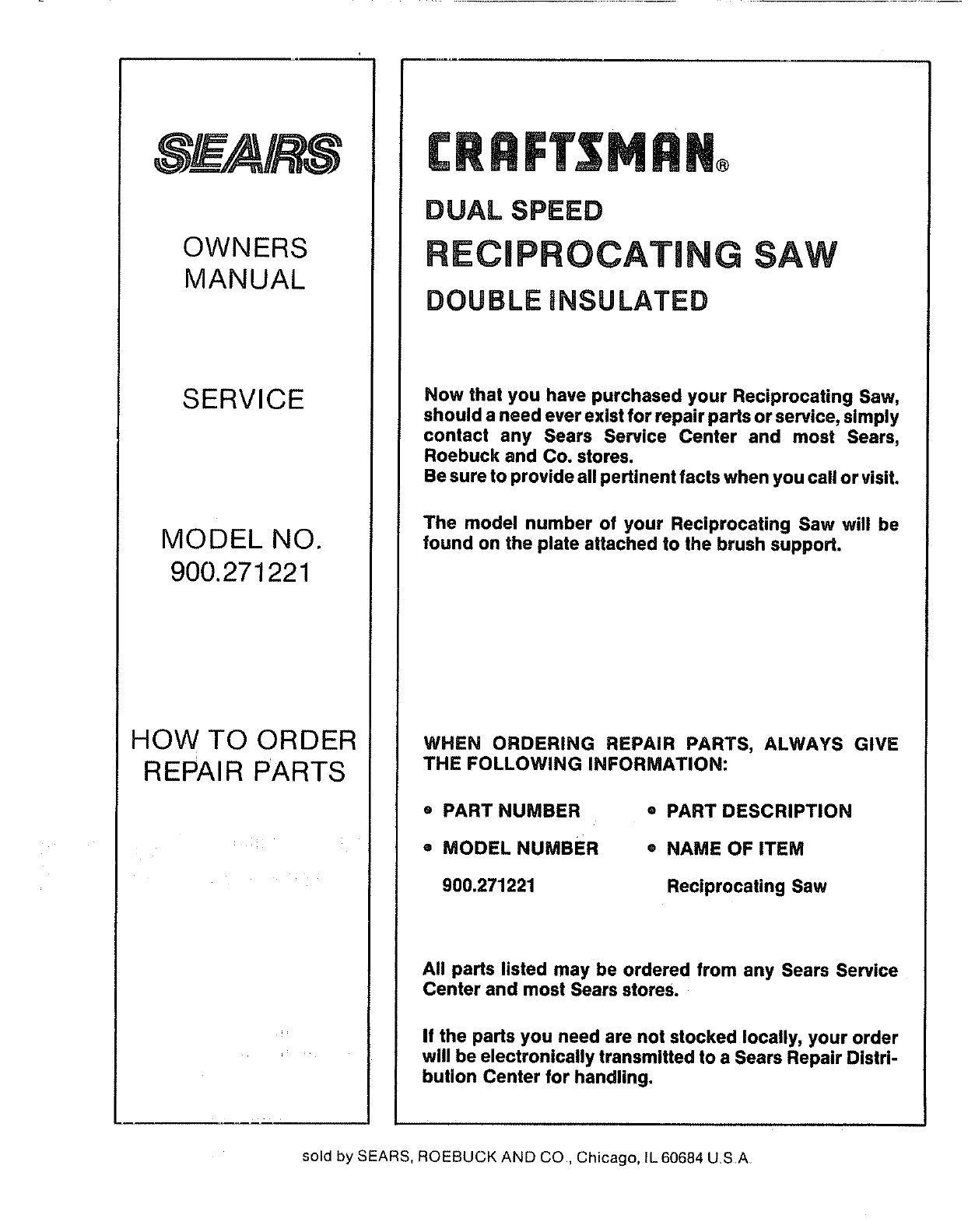

OWNERS

MANUAL

SERVICE

MODEL NO.

900.271221

HOW TO ORDER

REPAIR PARTS

DUAL SPEED

RECIPROCATi

DOUBLE iNSULATED

;AW

Now that you have purchased your Reciprocating Saw,

should a need ever exist for repair parts or service, simply

contact any Sears Service Center and most Sears,

Roebuck and Co. stores.

Be sure to provide all pertinent facts when you call or visit.

The model number of your Reciprocating Saw will be

found on the plate attached to the brush support.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE

THE FOLLOWING INFORMATION:

oPART NUMBER

eMODEL NUMBER

900.271221

®PART DESCRIPTION

oNAME OF ITEM

Reciprocating Saw

All parts listed may be ordered from any Sears Service

Center and most Sears stores.

If the parts you need are not stocked locally, your order

will be electronically transmitted to a Sears Repair Distri-

bution Center for handling.

sold by SEARS, ROEBUCK AND CO, Chicago, IL 60684 USA
