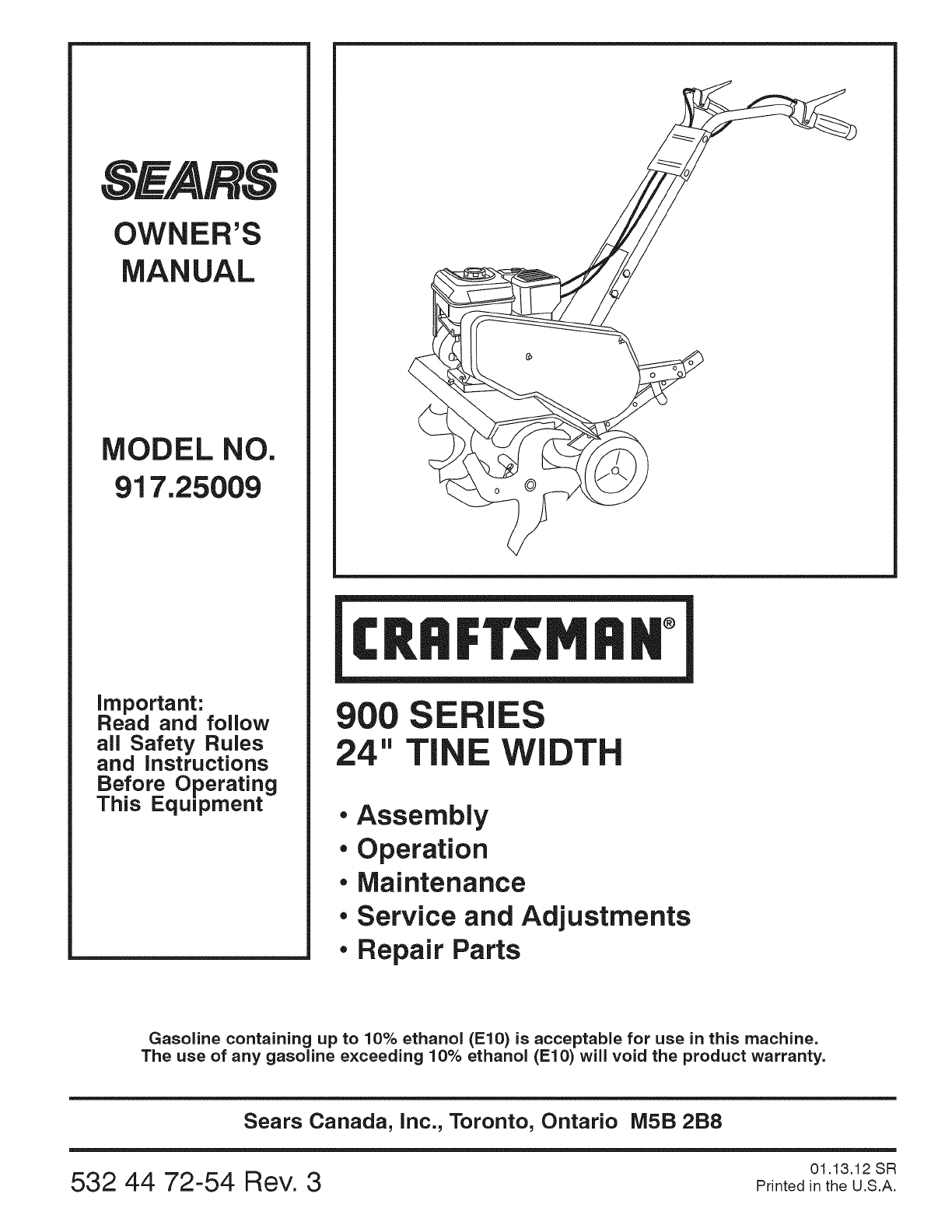

OWNER'S

MANUAL

MODEL NO.

917.25009

important:

Read and follow

all Safety Rules

and instructions

Before Operating

This Equipment

CRRFTSMRN°

IES

•Assembly

• Operation

•Maintenance

•Service and Adjustments

• Repair Parts

Gasoline containing up to 10% ethanol (El0) is acceptable for use in this machine.

The use of any gasoline exceeding 10% ethanol (El0) will void the product warranty.

Sears Canada, inc., Toronto, Ontario M5B 2B8

01.13.12 SR

532 44 72-54 Rev. 3 PrintedintheU.S.A.

SAFETY RULES

SAFE OPERATION PRACTICES FOR WALK=BEHIND POWERED ROTARY TILLERS

TRAiNiNG

• Read the Owner's Manual carefully. Be thoroughly

familiar with the controls and the proper use of the

equipment. Know how to stop the unit and disengage

the controls quickly.

• Never allow children to operate the equipment. Never

allow adults to operate the equipment without proper

instruction.

•Keep the area of operation clear of all persons, par-

ticularly small children, and pets.

PREPARATION

• Thoroughly inspect the area where the equipment is

to be used and remove all foreign objects.

• Disengage all clutches and shift into neutral before

starting the engine (motor).

• Do not operatethe equipmentwithout wearing adequate

outer garments. Wear footwear that will improvefooting

on slippery surfaces.

• Handle fuel with care; it is highly flammable.

• Use an approved fuel container.

• Never add fuel to a running engine or hot engine.

• Fill fuel tank outdoors with extreme care. Never fill fuel

tank indoors.

• Replace gasoline cap securely and clean up spilled

fuel before restarting.

• Use extension cords and receptacles as specified by

the manufacturer for all units with electric drive motors

or electric starting motors.

• Never attempt to make any adjustments while the

engine (motor) is running (except where specifically

recommended by manufacturer).

OPERATION

•Do not put hands or feet near or under rotating parts.

•Exercise extreme caution when operating on or cross-

ing gravel drives, walks, or roads. Stay alert for hidden

hazards or traffic. Do not carry passengers.

•After striking a foreign object, stop the engine (motor),

remove the wire from the spark plug, thoroughly inspect

the tiller for any damage, and repair the damage before

restarting and operating the tiller.

•Exercise caution to avoid slipping or falling.

•if the unit should start to vibrate abnormally, stop the

engine (motor) and check immediately for the cause.

Vibration is generally a warning of trouble.

•Stop the engine (motor) when leaving the operating

position.

•Take all possible precautions when leaving the machine

unattended. Disengage the tines, shift into neutral, and

stop the engine.

•Before cleaning, repairing, or inspecting, shut off the

engine and make certain all moving parts have stopped.

Disconnect the spark plug wire, and keep the wire away

from the plug to prevent accidental starting. Disconnect

the cord on electric motors.

•Do not run the engine indoors; exhaust fumes are

dangerous.

• Never operate the tiller without proper guards, plates,

or other safety protective devices in place.

• Keep children and pets away.

• Do not overload the machine capacity by attempting

to till too deep at too fast a rate.

• Never operate the machine at high speeds on slippery

surfaces. Look behind and use care when backing.

• Never allow bystanders near the unit.

• Use only attachments and accessories approved by

the manufacturer of the tiller.

• Never operate the tiller without good visibility or light.

• Be careful when tilling in hard ground. The tines may

catch in the ground and propel the tiller forward. If this

occurs, let go of the handlebars and do not restrain the

machine.

MAINTENANCE AND STORAGE

• Keep machine, attachments, and accessories in safe

working condition.

• Check shear pins, engine mounting bolts, and other

bolts at frequent intervals for proper tightness to be

sure the equipment is in safe working condition.

• Never store the machine with fuel in the fuel tank inside

a building where ignition sources are present, such

as hot water and space heaters, clothes dryers, and

the like. Allow the engine to cool before storing in any

enclosure.

• Always refer to the operator's guide instructions for

important details if the tiller is to be stored for an ex-

tended period.

=IMPORTANT =

CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS OF

ATTRACTING ATTENTION TO IMPORTANT OR CRITICAL

INFORMATION IN THIS MANUAL.

iMPORTANT: USED TO ALERT YOU THAT THERE IS A

POSSIBILITY OF DAMAGING THIS EQUIPMENT.

NOTE: Gives essential information that will aid you to

better understand, incorporate, or execute a particular set

of instructions.

Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS iNVOLVED.

CAUTION: Always disconnect spark

plug wire and place wire where it can=

not contact spark plug in order to pre=

vent accidental starting when setting

up, transporting, adjusting or making

repairs.

WARNING

The engine exhaust from this product contains

chemicals known to the State of California to

cause cancer, birth defects, or other reproduc=

tive harm.

PRODUCT SPECIFICATIONS

Gasoline Capacity: 2.9 Quarts (2.7L)

Unleaded Regular

Oil (API:SG-SL): SAE 30 (Above 32°F/0°0)

(Capacity: 20 oz./0.6L) SAE 5W30 (Below 32°F/0°0)

Spark Plug : Champion RC12YC

(Gap: .030"/0.76mm)

CONGRATULATIONS on your purchase of a new tiller. It

has been designed, engineered and manufactured to give

you the best possible dependability and performance.

Should you experience any problems you cannot easily

remedy, please contact your nearest authorized service

center. We have competent, well-trained technicians and

the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tiller properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for

and using your tiller.

• Follow instructions under "Maintenance" and "Storage"

sections of this Manual.

iMPORTANT: THIS UNIT IS EQUIPPED WITH AN INTERNAL

COMBUSTION ENGINE AND SHOULD NOT BE USED ON

OR NEAR ANY UNIMPROVED FOREST-COVERED, BRUSH-

COVERED OR GRASS COVERED LAND UNLESS THE

ENGINE'S EXHAUST SYSTEM IS EQUIPPED WITH A SPARK

ARRESTER MEETING APPLICABLE LOCAL LAWS (IF ANY).

IFA SPARKARRESTER IS USED, ITSHOULD BE MAINTAINED

IN EFFECTIVE WORKING ORDER BY THE OPERATOR.

IN THE STATE OF CALIFORNIA, A SPARK ARRESTER IS

REQUIRED BY LAW (SECTION 4442 OF THE CALIFORNIA

PUBLIC RESOURCES CODE). OTHER STATES MAY HAVE

SIMILAR LAWS. FEDERAL LAWSAPPLYON FEDERAL LANDS.

SEE YOUR AUTHORIZED SERVICE CENTER/DEPARTMENT

FOR SPARK ARRESTER.

TABLE OF CONTENTS

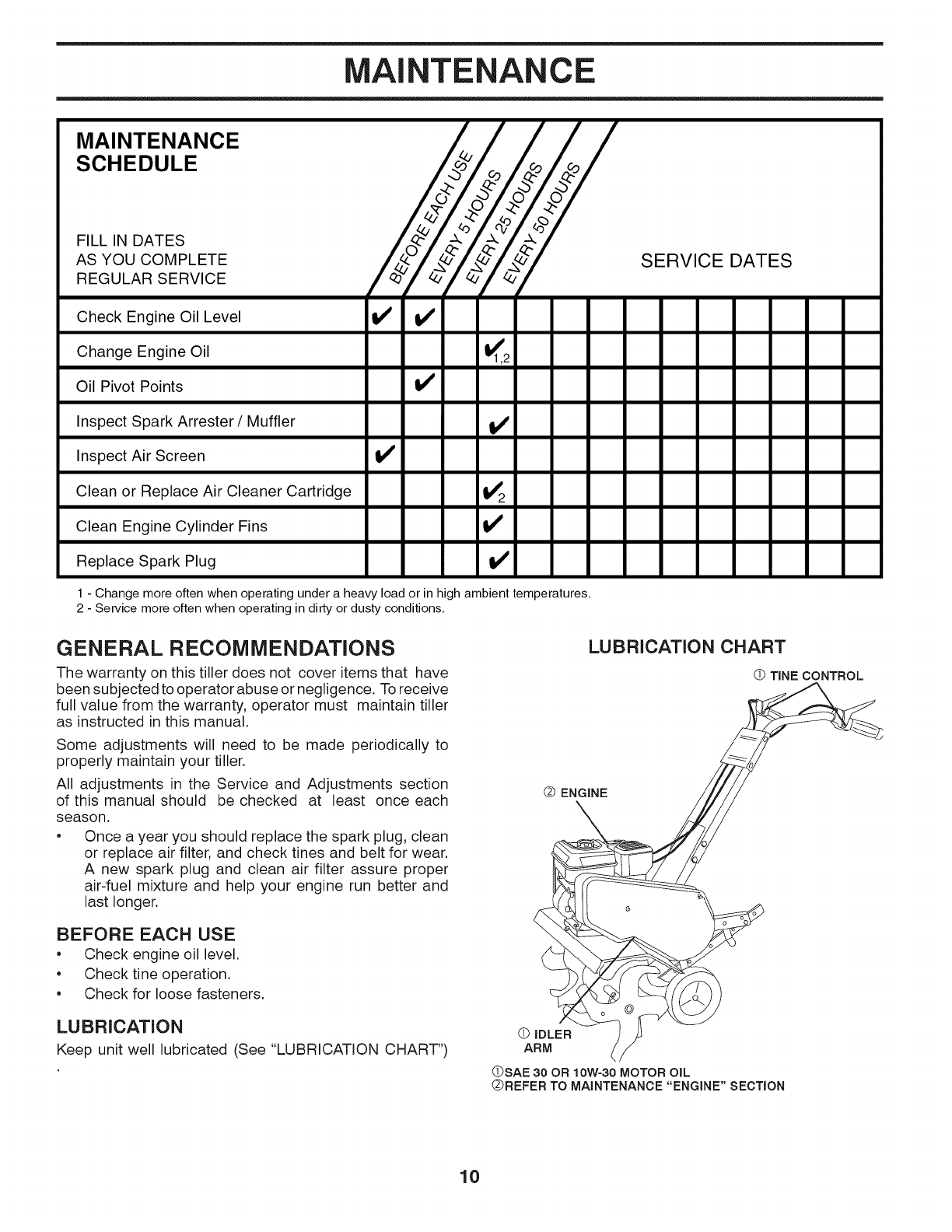

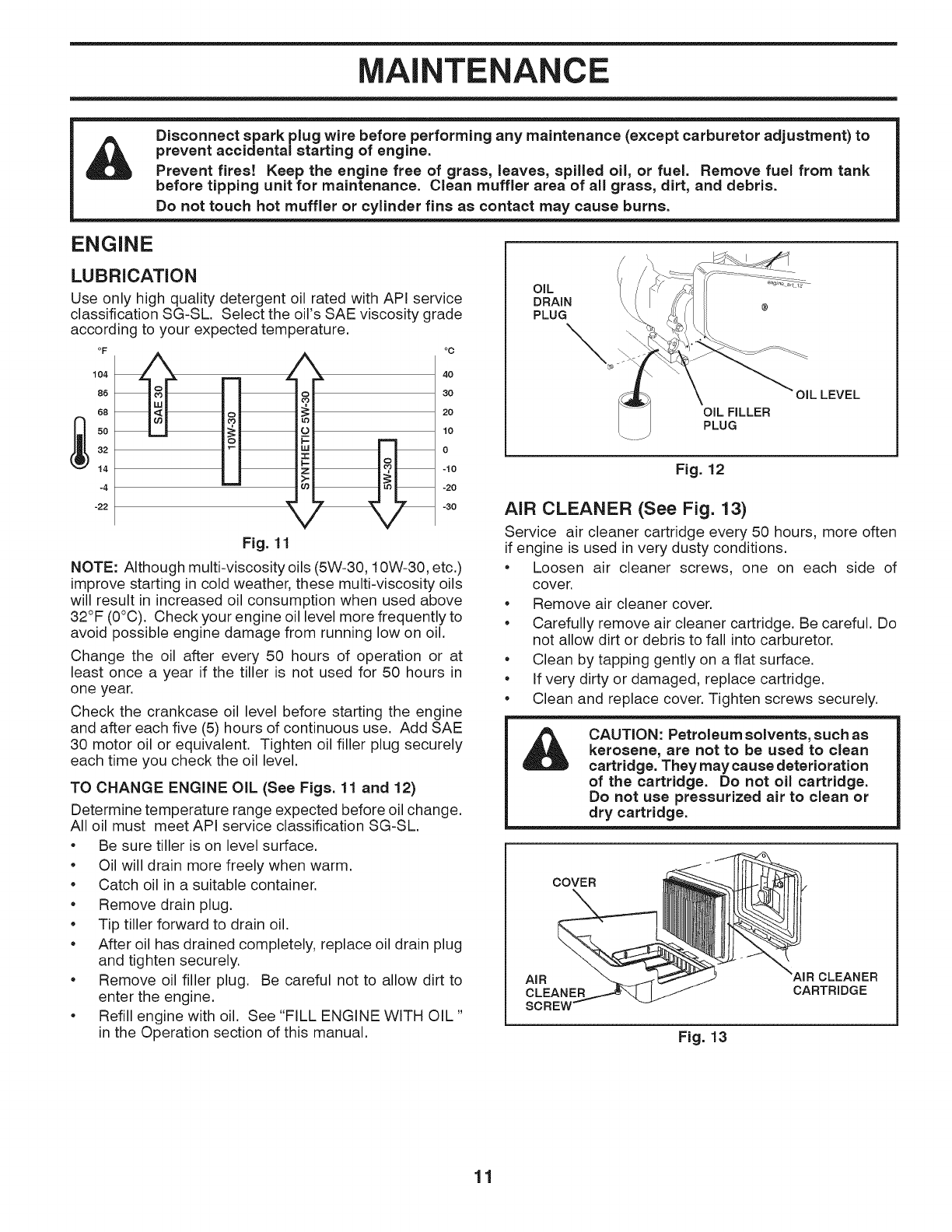

MAINTENANCE ...................................................... 10=12

SERVICE &ADJUSTMENTS ................................. 13=15

STO RAG E.................................................................... 16

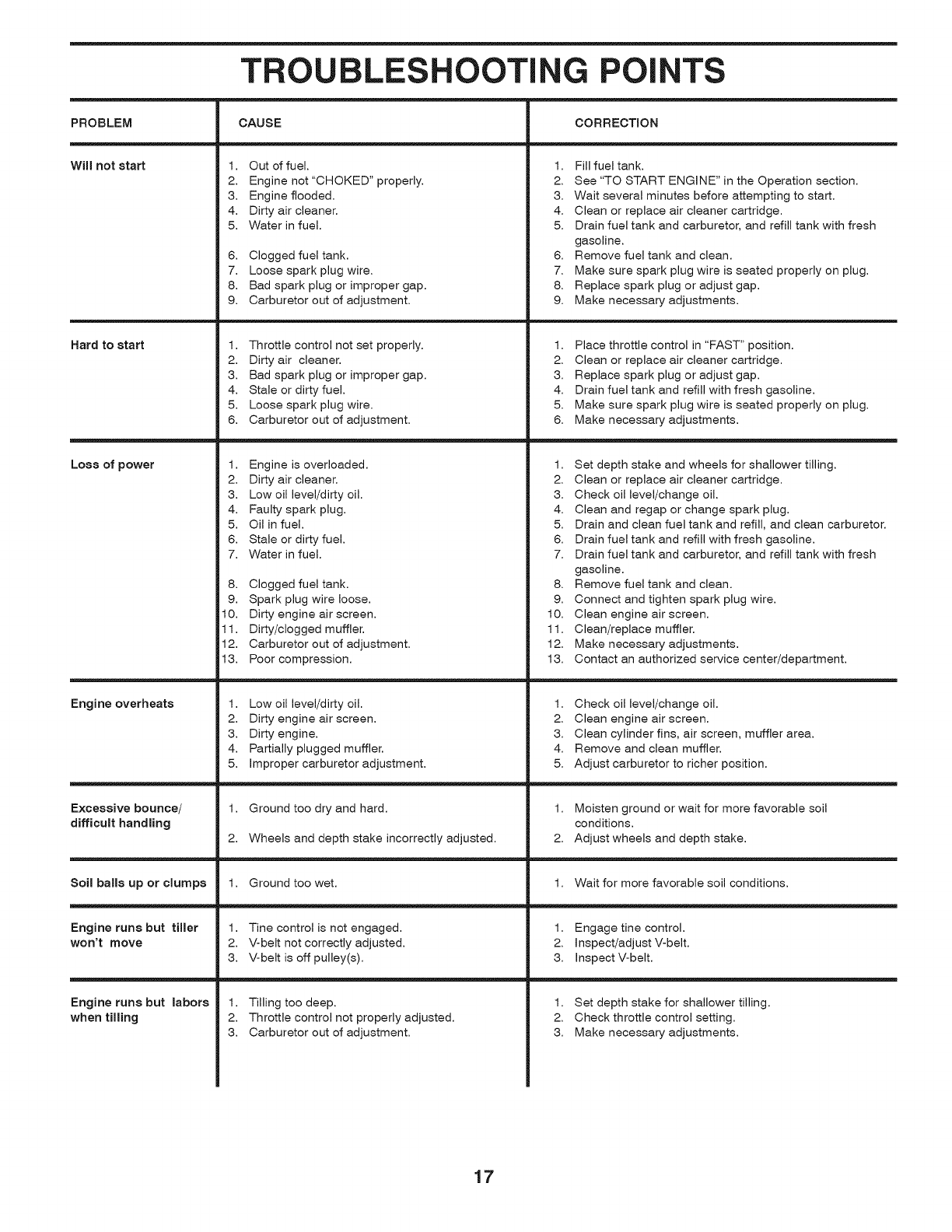

TROUBLESHOOTING ................................................. 17

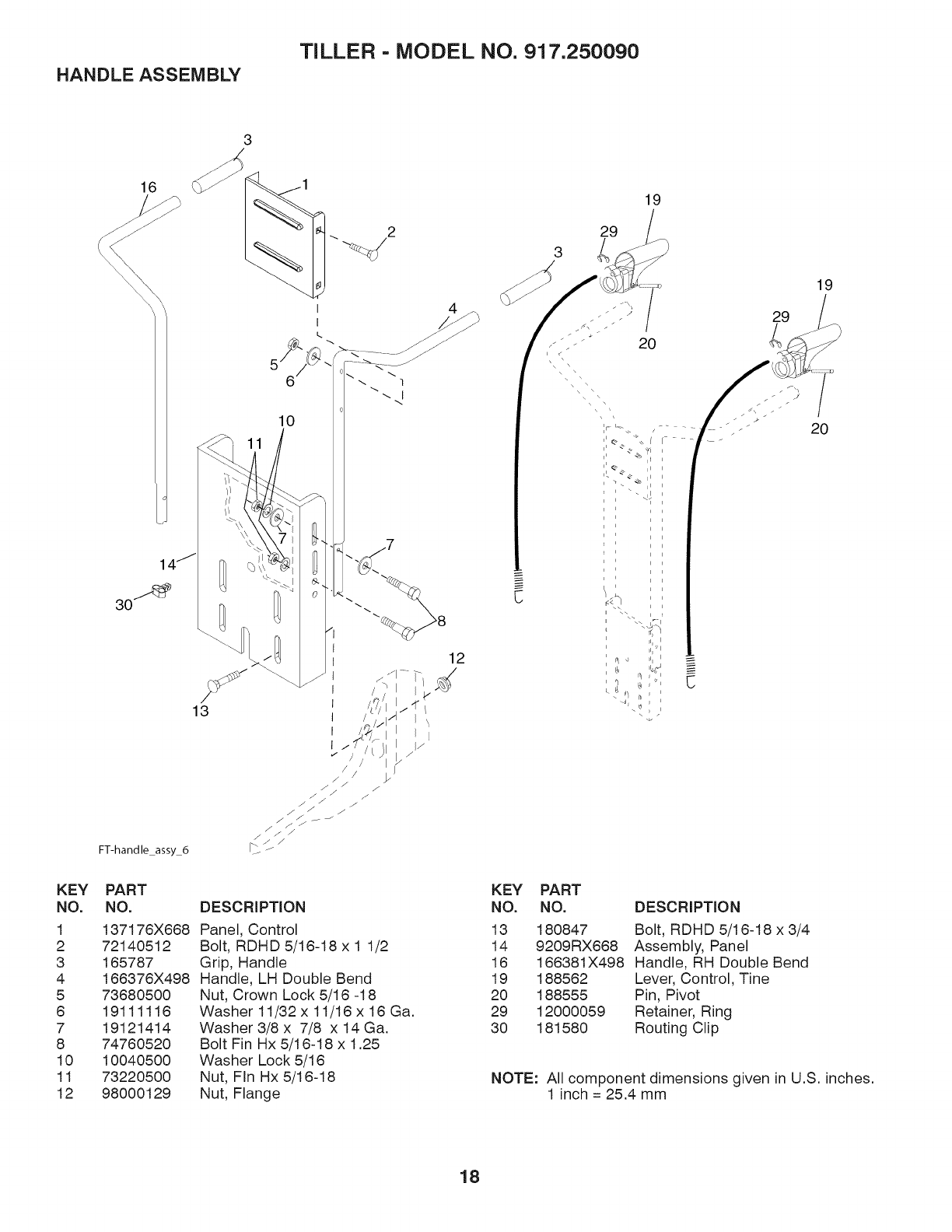

REPAIR PARTS ...................................................... 18=23

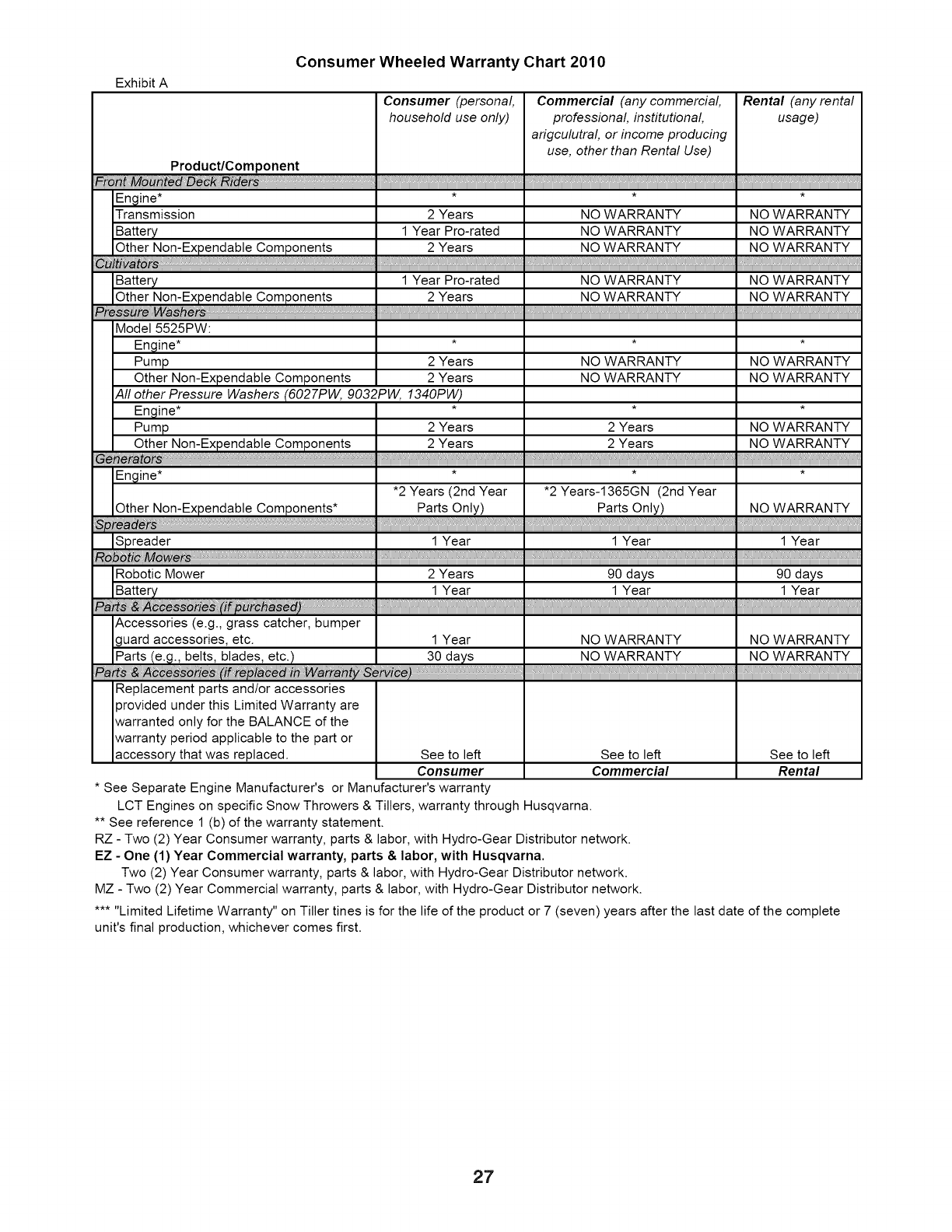

WARRANTY ............................................................ 24=27

ASSEMBLY

Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) Utility knife

(1) Screwdriver

(1) Pair of pliers

(2) 1/2" wrenches

OPERATOR'S POSITION (See Fig. 1)

When right or left hand is mentioned in this manual, it

means when you are in the operating position (standing

behind tiller handles).

FRONT

LEFT RIGHT

OPERATOR'S POSITION

Fig. 1

CONTENTS OF HARDWARE PACK

(1) Manual (2) Carriage Bolts 5/16-18 UNC x 2-1/2

(2) Flange Locknuts

5/16-18 UNC

(2) Hex Bolts 5/16-18 x 1-1/4

//' k h

(1) Bottle Engine Oil

(2) Hex Nuts 5/16-18

(2) Lock Washers 5/16

ASSEMBLY

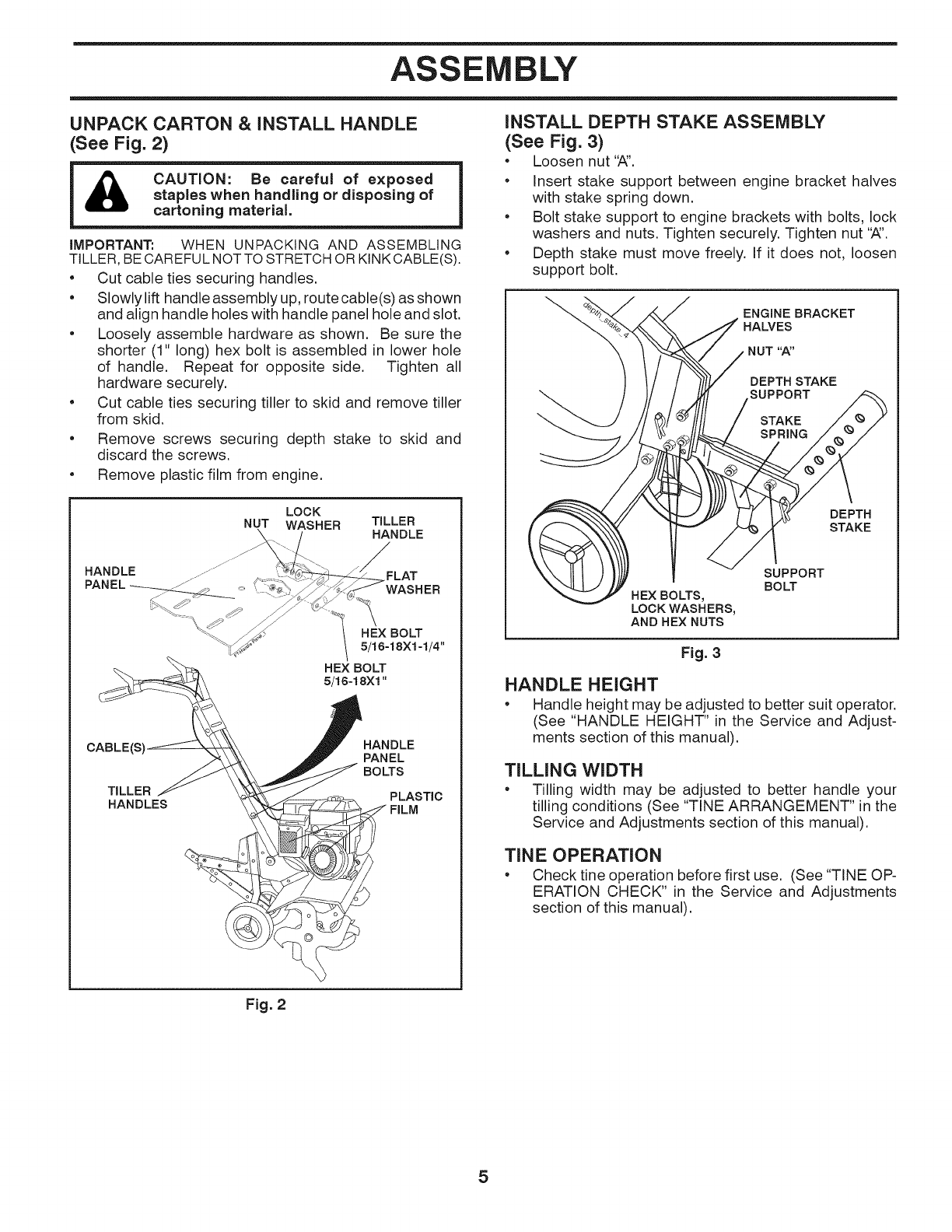

UNPACK CARTON &INSTALL HANDLE

(See Fig. 2)

&CAUTION: Be careful of exposed

staples when handling or disposing of

cartoning material.

iMPORTANT: WHEN UNPACKING AND ASSEMBLING

TILLER, BECAREFUL NOTTO STRETCH OR KINKCABLE(S).

•Cut cable ties securing handles.

• Slowly lift handle assembly up, route cable(s) as shown

and align handle holes with handle panel hole and slot.

• Loosely assemble hardware as shown. Be sure the

shorter (1" long) hex bolt is assembled in lower hole

of handle. Repeat for opposite side. Tighten all

hardware securely.

• Cut cable ties securing tiller to skid and remove tiller

from skid.

•Remove screws securing depth stake to skid and

discard the screws.

• Remove plastic film from engine.

LOCK

NUT WASHER TILLER

HANDLE

FLAT

WASHER

HEX BOLT

5/16-18X1-1/4"

HEX BOLT

5/16-18Xl"

CABLE(S]

TILLER

HANDLES

HANDLE

PANEL

BOLTS

PLASTIC

INSTALL DEPTH STAKE ASSEMBLY

(See Fig. 3)

•Loosen nut '_'.

•Insert stake support between engine bracket halves

with stake spring down.

•Bolt stake support to engine brackets with bolts, lock

washers and nuts. Tighten securely. Tighten nut '_'.

•Depth stake must move freely. If it does not, loosen

support bolt.

ENGINE BRACKET

HALVES

NUT "A"

DEPTH STAKE

SUPPORT

STAKE

SPRING

DEPTH

STAKE

HEX BOLTS,

LOCK WASHERS,

AND HEX NUTS

SUPPORT

BOLT

Fig. 3

HANDLE HEIGHT

• Handle height may be adjusted to better suit operator.

(See "HANDLE HEIGHT" in the Service and Adjust-

ments section of this manual).

TILLING WIDTH

• Tilling width may be adjusted to better handle your

tilling conditions (See "TINE ARRANGEMENT" in the

Service and Adjustments section of this manual).

TIN E OPERATION

•Check tine operation before first use. (See "TINE OP-

ERATION CHECK" in the Service and Adjustments

section of this manual).

Fig. 2

OPERATION

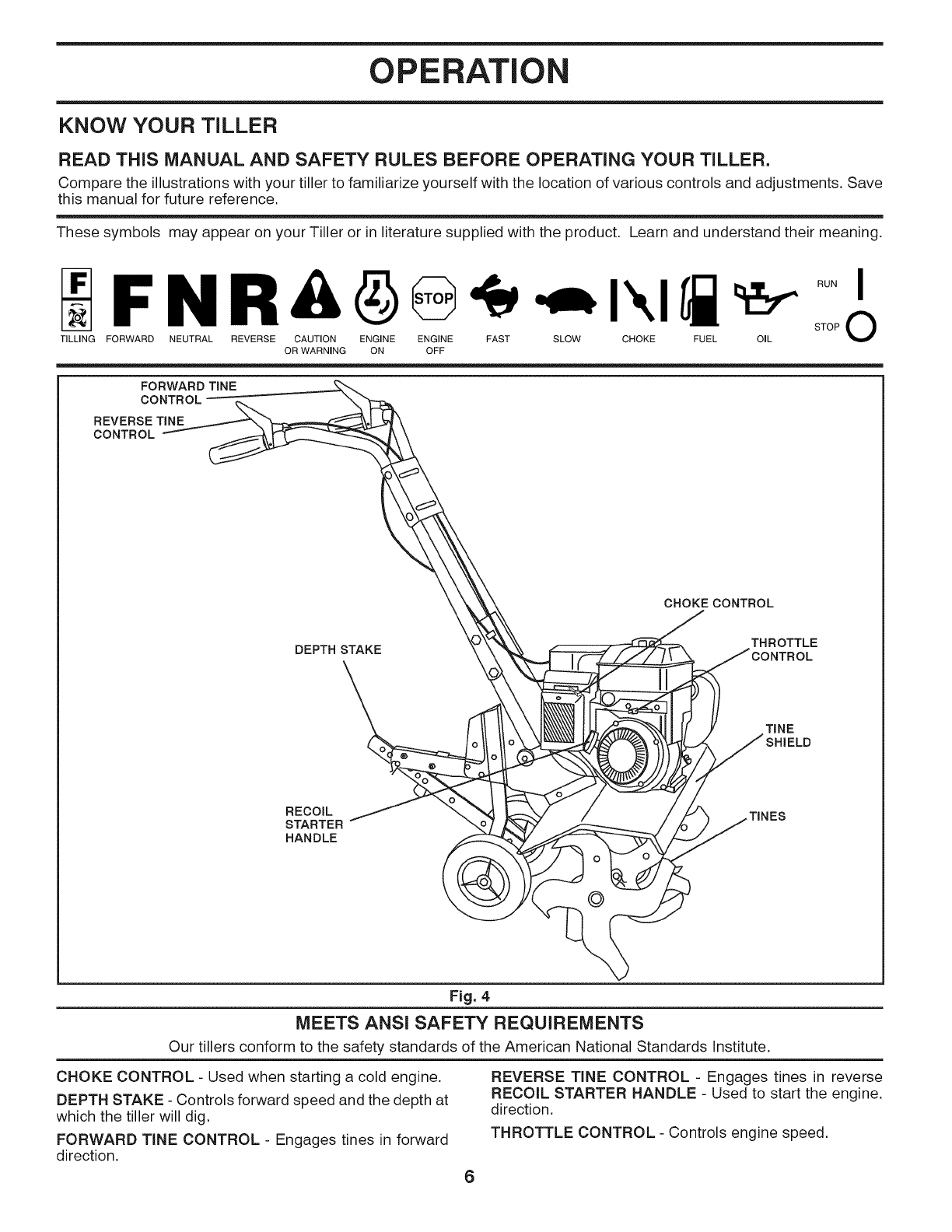

KNOW YOUR TILLER

READ THIS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save

this manual for future reference.

These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their meaning.

TILLING FORWARD N R & 6 _ IXI _--_ _ STopRUN _

NEUTRAL REVERSE CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL

OR WARNING ON OFF

FORWARD TINE

CONTROL

REVERSE TINE

CONTROL

DEPTH STAKE

\ \

CHOKE CONTROL

THROTTLE

TINE

RECOIL

STARTER

HANDLE

Fig. 4

MEETS ANS! SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute.

CHOKE CONTROL - Used when starting a cold engine.

DEPTH STAKE - Controls forward speed and the depth at

which the tiller will dig.

FORWARD TINE CONTROL - Engages tines in forward

direction.

REVERSE TINE CONTROL - Engages tines in reverse

RECOIL STARTER HANDLE - Used to start the engine.

direction.

THROTTLE CONTROL - Controls engine speed.

OPERATION

SAFETYGLAS$E$

The operation of any tiller can result in foreign objects thrown into the eyes, which can result

in severe eye damage. Always wear safety glasses or eye shields before starting your til=

let and while tilling. We recommend a wide vision safety mask over spectacles or standard

safety glasses.

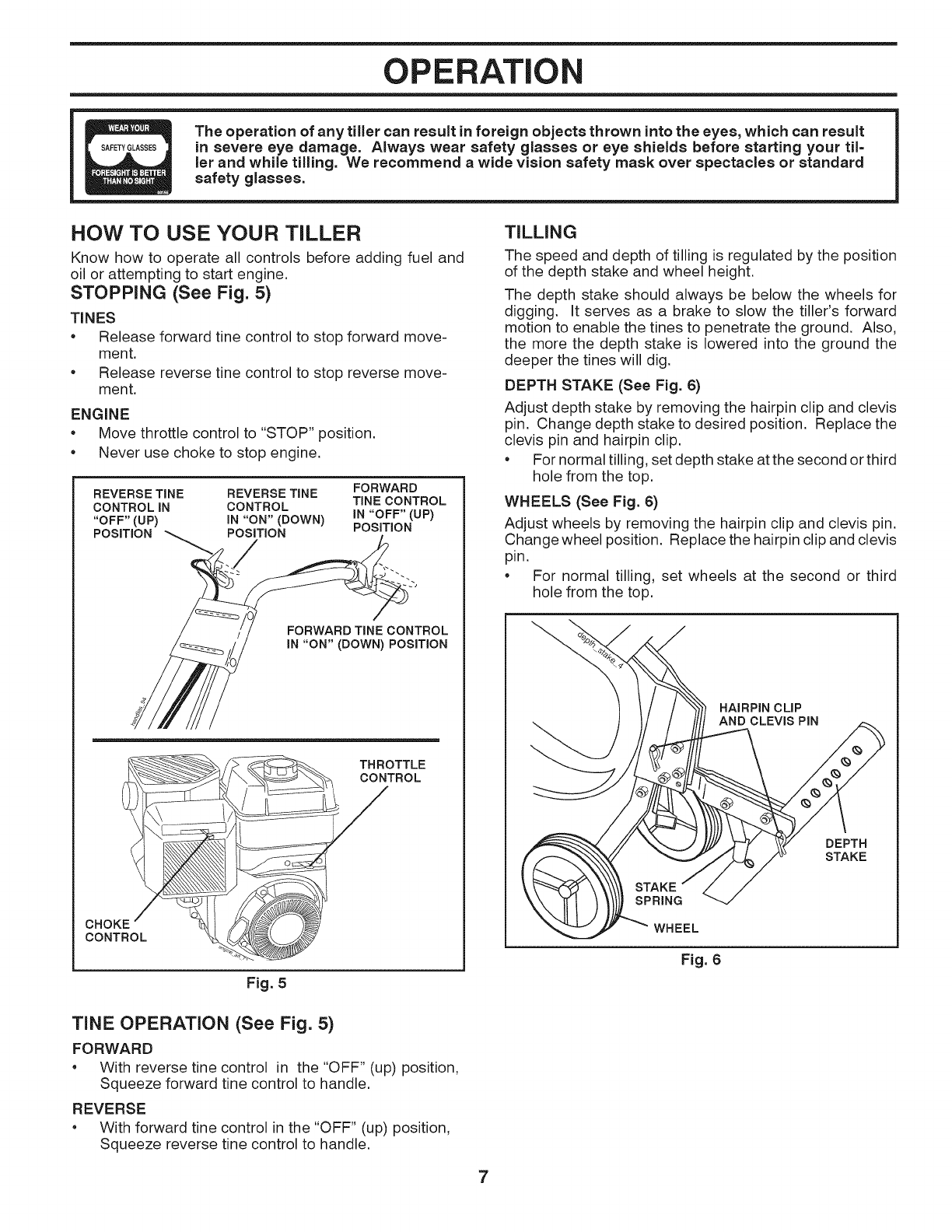

HOW TO USE YOUR TILLER

Know how to operate all controls before adding fuel and

oil or attempting to start engine.

STOPPING (See Fig. 5)

TINES

•Release forward tine control to stop forward move-

ment.

Release reverse tine control to stop reverse move-

ment.

ENGINE

•Move throttle control to "STOP" position.

Never use choke to stop engine.

REVERSE TINE REVERSE TINE FORWARD

CONTROL iN CONTROL TINE CONTROL

iN "OFF" (UP)

"OFF" (UP) iN "ON" (DOWN) POSITION

POSITION _ POSiTiON

CHOKE__

CONTROL

THROTTLE

CONTROL

Fig. 5

TINE OPERATION (See Fig. 5)

FORWARD

•With reverse tine control in the "OFF" (up) position,

Squeeze forward tine control to handle.

REVERSE

• With forward tine control in the "OFF" (up) position,

Squeeze reverse tine control to handle.

TILLING

The speed and depth of tilling is regulated by the position

of the depth stake and wheel height.

The depth stake should always be below the wheels for

digging. It serves as a brake to slow the tiller's forward

motion to enable the tines to penetrate the ground. Also,

the more the depth stake is lowered into the ground the

deeper the tines will dig.

DEPTH STAKE (See Fig. 6)

Adjust depth stake by removing the hairpin clip and clevis

pin. Change depth stake to desired position. Replace the

clevis pin and hairpin clip.

• For normal tilling, set depth stake at the second or third

hole from the top.

WHEELS (See Fig. 6)

Adjust wheels by removing the hairpin clip and clevis pin.

Change wheel position. Replace the hairpin clip and clevis

pin.

• For normal tilling, set wheels at the second or third

hole from the top.

HAIRPIN CLiP

AND CLEVIS PiN

DEPTH

STAKE

WHEEL

Fig. 6

OPERATION

TO TRANSPORT

CAUTION: Before lifting or transporting,

aJiow tiller engine and muffler to cool.

Disconnect spark plug wire. Drain

gasoline from fuel tank.

AROUND THE YARD

• Tip depth stake forward until it is held by the stake

spring.

Push tiller handles down, raising tines off the ground.

Push or pull tiller to desired location.

AROUND TOWN

Disconnect spark plug wire.

Drain fuel tank.

• Transport in upright position to prevent oil leakage.

BEFORE STARTING ENGINE

IMPORTANT: BE VERY CAREFUL NOT TO ALLOW DIRT

TO ENTER THE ENGINE WHEN CHECKING OR ADDING

OIL OR FUEL. USE CLEAN OIL AND FUEL AND STORE IN

APPROVED, CLEAN, COVERED CONTAINERS. USE CLEAN

FILL FUNNELS.

FiLL ENGINE WiTH OiL (See Fig. 7)

• With engine level, remove engine oil filler plug.

• Fill engine with oil to point of overflowing. For approx-

imate capacity see "PRODUCT SPECIFICATIONS" on

page 3 of this manual.

• Tilt tiller back on its wheels and then re-level.

• With engine level, refill to point of overflowing if nec-

essary. Replace oil filler plug.

• For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Maintenance section of this manual).

• To change engine oil, see the Maintenance section of

this manual.

OIL

LEVEL

OIL

FILLER

PLUG

Fig. 7

ADD GASOLINE

Fill to within 1/2 inch of top of fuel tank to prevent

spills and to allow for fuel expansion. Do not overfill.

Use fresh, clean, regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits and reduce

valve life). Do not mix oil with gasoline. Purchase fuel

in quantities that can be used within 30 days to assure

fuel freshness. 8

CAUTION: Fill to within 1/2" of top of

fuel tank to prevent spills and to allow

for fuel expansion. If gasoline is ac=

cidentally spilled, move machine away

from area of spill. Avoid creating any

source of ignition until gasoline vapors

have disappeared.

Wipe off any spilled oil or fuel. Do not

store, spill or use gasoline near an

open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES BELOW

32°F(0°C), USE FRESH, CLEAN WINTER GRADE GASOLINE

TO HELP INSURE GOOD COLD WEATHER STARTING.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can at=

tract moisture which leads to separation and

formation of acids during storage. Acidic gas

can damage the fuel system of an engine while

in storage. To avoid engine problems, the fuel

system should be emptied before storage of

30 days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel next

season. See Storage Instructions for additional

information. Never use engine or carburetor

cleaner products in the fuel tank or permanent

damage may occur.

TO START ENGINE (See Fig. 8)

= =

i CAUTION: Keep tine control in "OFF"

position when starting engine.

When starting engine for the first time or if engine has run

out of fuel, it will take extra pulls of the recoil starter to

move fuel from the tank to the engine.

• Make sure spark plug wire is properly connected.

• Place throttle control in "FAST" position.

• Move choke control to full "CHOKE" position. Grasp

recoil starter handle with one hand and grasp tiller

handle with other hand. Pull rope out slowly until en-

gine reaches start of compression cycle (rope will pull

slightly harder at this point).

• Pull recoil starter handle quickly. Do not let starter

handle snap back against starter. Repeat if necessary.

• If engine fires but does not start, move choke control

to half choke position. Pull recoil starter handle until

engine starts.

• When engine starts, slowly move choke control to

"RUN" position as engine warms up.

NOTE: A warm engine requires less choking to start.

• Move throttle control to desired running position.

• Allow engine to warm up for a few minutes before

engaging tines.

NOTE: If at a high altitude (3000 feet) or in cold tempera-

tures (below 32°F/0°C), the carburetor fuel mixturemay

need to be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the Service and

Adjustments section of this manual.

NOTE: Ifengine does not start, see troubleshooting points.

OPERATION

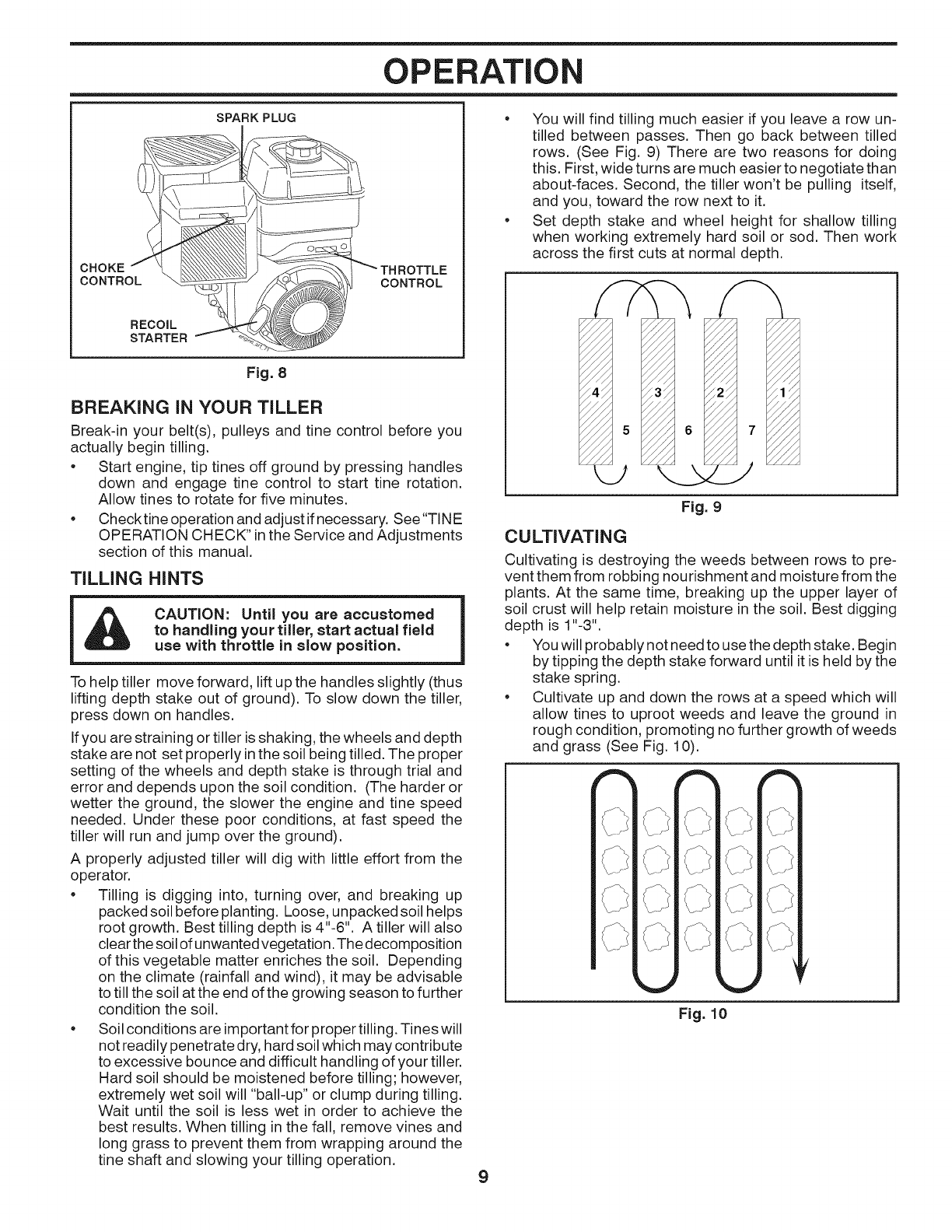

Fig. 8

BREAKING iN YOUR TILLER

Break-in your belt(s), pulleys and tine control before you

actually begin tilling.

• Start engine, tip tines off ground by pressing handles

down and engage tine control to start tine rotation.

Allow tines to rotate for five minutes.

• Checktine operation and adjust if necessary. See"TINE

OPERATION CHECK" inthe Service and Adjustments

section of this manual.

TILLING HINTS

CAUTION: Until you are accustomed

to handling your tiller, start actual field

use with throttle in slow position.

To help tiller move forward, lift up the handles slightly (thus

lifting depth stake out of ground). To slow down the tiller,

press down on handles.

Ifyou are straining or tiller is shaking, the wheels and depth

stake are not set properly in the soil being tilled. The proper

setting of the wheels and depth stake is through trial and

error and depends upon the soil condition. (The harder or

wetter the ground, the slower the engine and tine speed

needed. Under these poor conditions, at fast speed the

tiller will run and jump over the ground).

A properly adjusted tiller will dig with little effort from the

operator.

• Tilling is digging into, turning over, and breaking up

packed soil before planting. Loose, unpacked soil helps

root growth. Best tilling depth is 4"-6". A tiller will also

clear the soil of unwanted vegetation. The decomposition

of this vegetable matter enriches the soil. Depending

on the climate (rainfall and wind), it may be advisable

to till the soil at the end of the growing season to further

condition the soil.

• Soil conditions are importantfor proper tilling. Tines will

not readily penetrate dry, hard soil which may contribute

to excessive bounce and difficult handling of your tiller.

Hard soil should be moistened before tilling; however,

extremely wet soil will "ball-up" or clump during tilling.

Wait until the soil is less wet in order to achieve the

best results. When tilling in the fall, remove vines and

long grass to prevent them from wrapping around the

tine shaft and slowing your tilling operation.

• You will find tilling much easier if you leave a row un-

tilled between passes. Then go back between tilled

rows. (See Fig. 9) There are two reasons for doing

this. First, wide turns are much easier to negotiate than

about-faces. Second, the tiller won't be pulling itself,

and you, toward the row next to it.

• Set depth stake and wheel height for shallow tilling

when working extremely hard soil or sod. Then work

across the first cuts at normal depth.

Fig. 9

CULTIVATING

Cultivating is destroying the weeds between rows to pre-

vent them from robbing nourishment and moisture from the

plants. At the same time, breaking up the upper layer of

soil crust will help retain moisture in the soil. Best digging

depth is 1"-3".

• You will probably not need to use the depth stake. Begin

by tipping the depth stake forward until it is held by the

stake spring.

• Cultivate up and down the rows at a speed which will

allow tines to uproot weeds and leave the ground in

rough condition, promoting no further growth of weeds

and grass (See Fig. 10).

Fig. 10

MAINTENANCE

SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check Engine Oil Level v' v'

SERVICE DATES

Change Engine Oil _1,2

Oil Pivot Points Vt

Inspect Spark Arrester/Muffler V_

Inspect Air Screen V'

Clean or Replace Air Cleaner Cartridge !_2

Clean Engine Cylinder Fins V'

Replace Spark Plug !_

1 - Change more often when operating under a heavy load or in high ambient temperatures,

2 - Service more often when operating in dirty or dusty conditions,

GENERAL RECOMMENDATIONS

The warranty on this tiller does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must maintain tiller

as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tiller.

All adjustments in the Service and Adjustments section

of this manual should be checked at least once each

season.

• Once a year you should replace the spark plug, clean

or replace air filter, and check tines and belt for wear.

A new spark plug and clean air filter assure proper

air-fuel mixture and help your engine run better and

last longer.

BEFORE EACH USE

•Check engine oil level.

•Check tine operation.

•Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICATION CHART")

LUBRICATION CHART

(_ ENGINE

(_) IDLER

ARM

TINE CONTROL

(DSAE 30 OR 10W-30 MOTOR OIL

QREFER TO MAINTENANCE "ENGINE" SECTION

MAINTENANCE

Disconnect spark plug wire before performing any maintenance (except carburetor adjustment) to

prevent accidental starting of engine.

Prevent fires! Keep the engine free of grass, leaves, spilled oil, or fuel. Remove fuel from tank

before tipping unit for maintenance. Clean muffler area of all grass, dirt, and debris.

Do not touch hot muffler or cylinder fins as contact may cause burns.

ENGINE

LUBRiCATiON

Use only high quality detergent oil rated with API service

classification SG-SL. Select the oil's SAE viscosity grade

according to your expected temperature.

104

-4

-22

l_ __ m

Fig. 11

°O

-10

-20

-30

NOTE: Although multi-viscosity oils (5W-30, 10W-30, etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F (0°C). Check your engine oil level more frequently to

avoid possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at

least once a year if the tiller is not used for 50 hours in

one year.

Check the crankcase oil level before starting the engine

and after each five (5) hours of continuous use. Add SAE

30 motor oil or equivalent. Tighten oil filler plug securely

each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 11 and 12)

Determine temperature range expected before oil change.

All oil must meet API service classification SG-SL.

•Be sure tiller is on level surface.

•Oil will drain more freely when warm.

•Catch oil in a suitable container.

•Remove drain plug.

•Tip tiller forward to drain oil.

•After oil has drained completely, replace oil drain plug

and tighten securely.

•Remove oil filler plug. Be careful not to allow dirt to

enter the engine.

•Refill engine with oil. See "FILL ENGINE WITH OIL"

in the Operation section of this manual.

OiL

DRAIN

PLUG \

OIL FILLER

PLUG

OIL LEVEL

Fig. 12

AiR CLEANER (See Fig. 13)

Service air cleaner cartridge every 50 hours, more often

if engine is used in very dusty conditions.

•Loosen air cleaner screws, one on each side of

cover.

•Remove air cleaner cover.

•Carefully remove air cleaner cartridge. Be careful. Do

not allow dirt or debris to fall into carburetor.

•Clean by tapping gently on a flat surface.

•If very dirty or damaged, replace cartridge.

•Clean and replace cover. Tighten screws securely.

&CAUTION: Petroleum solvents, such as

kerosene, are not to be used to clean

cartridge. They may cause deterioration

of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or

dry cartridge.

COVER_

AIR R CLEANER

00% 7 CARTR,0GE

Fig. 13

MAINTENANCE

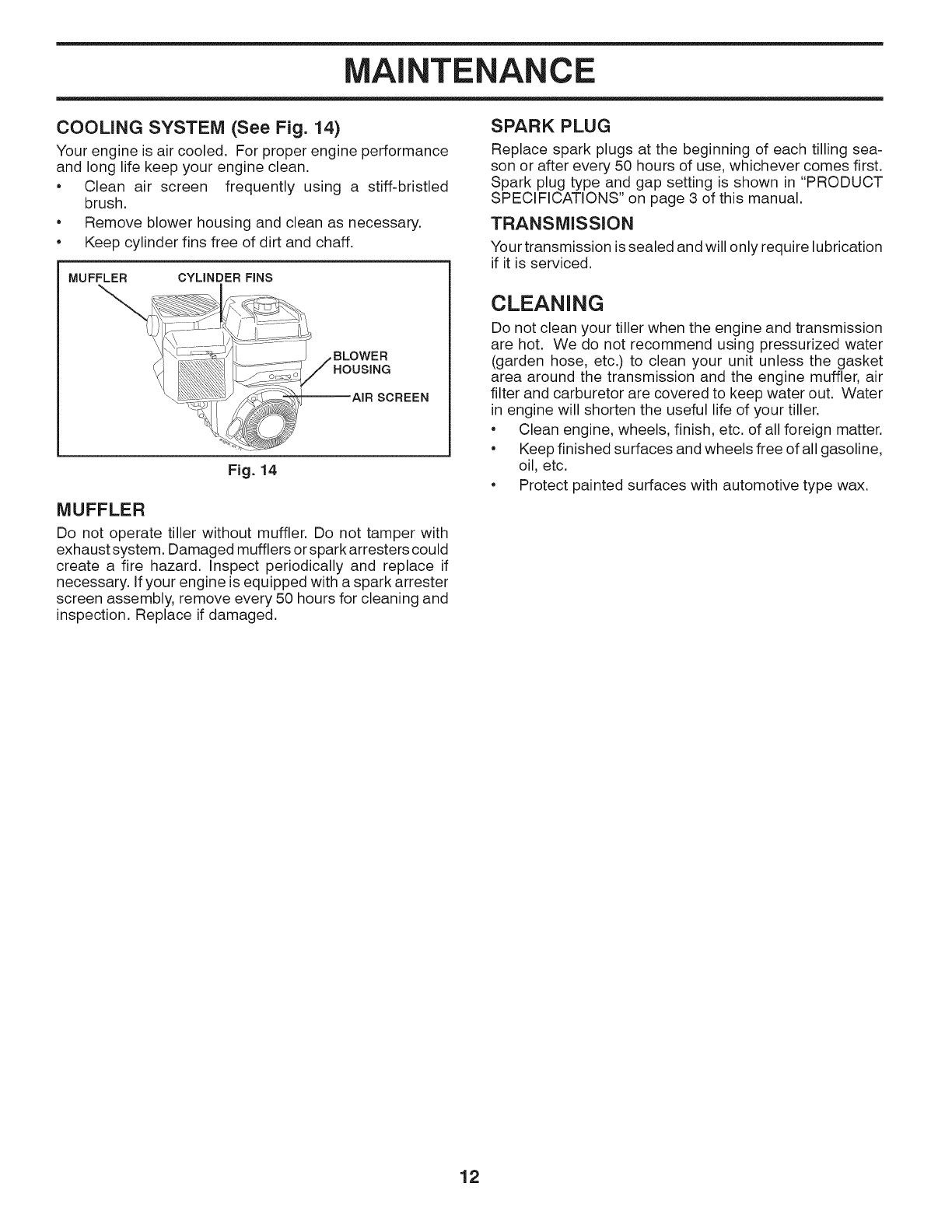

COOLING SYSTEM (See Fig. 14)

Your engine is air cooled. For proper engine performance

and long life keep your engine clean.

• Clean air screen frequently using a stiff-bristled

brush.

• Remove blower housing and clean as necessary.

• Keep cylinder fins free of dirt and chaff.

MUFFLER CYLINDER FINS

MUFFLER

Do not operate tiller without muffler. Do not tamper with

exhaust system. Damaged mufflers or spark arresters could

create a fire hazard. Inspect periodically and replace if

necessary. If your engine is equipped with a spark arrester

screen assembly, remove every 50 hours for cleaning and

inspection. Replace if damaged.

SPARK PLUG

Replace spark plugs at the beginning of each tilling sea-

son or after every 50 hours of use, whichever comes first.

Spark plug type and gap setting is shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual.

TRANSMISSION

Your transmission is sealed and will only require lubrication

if it is serviced.

CLEANING

Do not clean your tiller when the engine and transmission

are hot. We do not recommend using pressurized water

(garden hose, etc.) to clean your unit unless the gasket

area around the transmission and the engine muffler, air

filter and carburetor are covered to keep water out. Water

in engine will shorten the useful life of your tiller.

• Clean engine, wheels, finish, etc. of all foreign matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

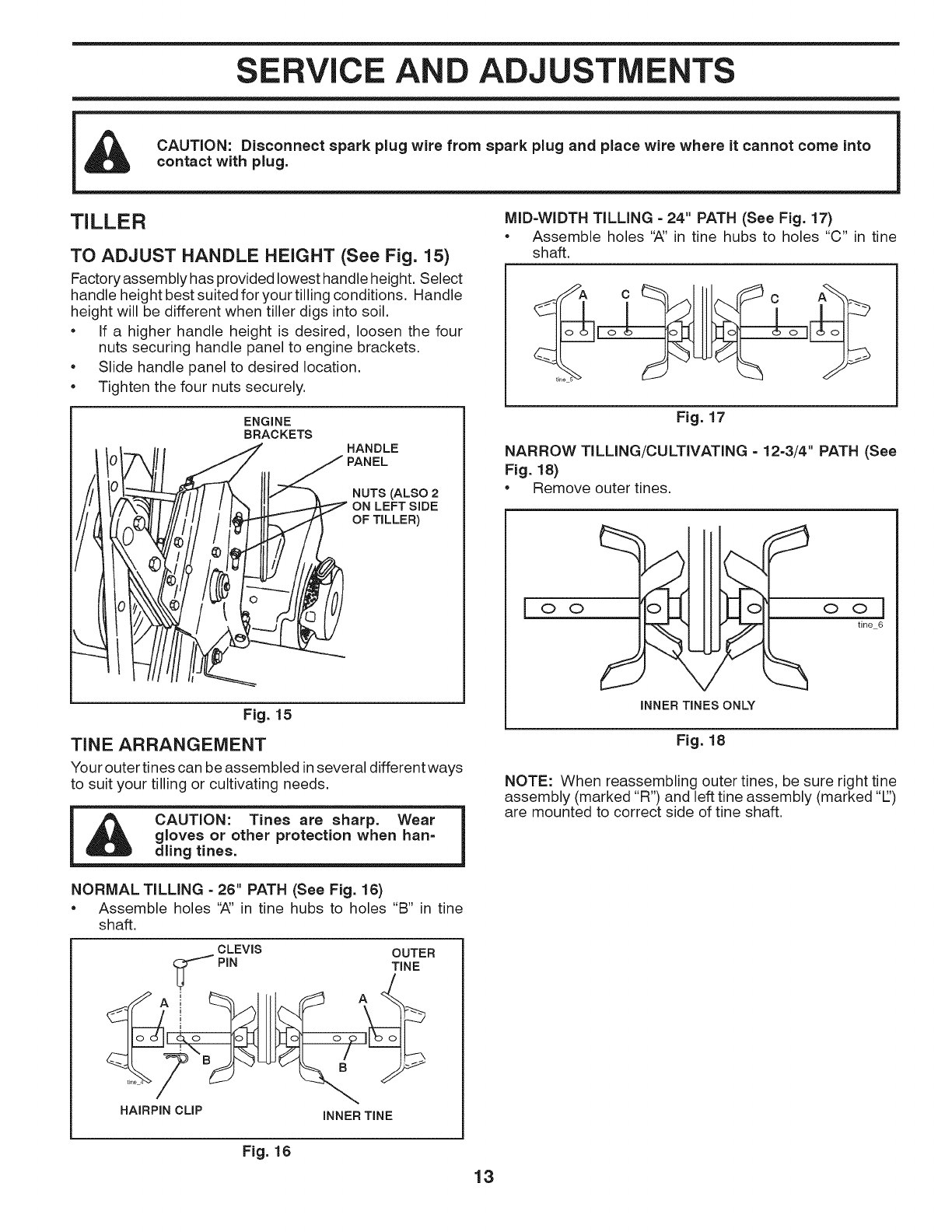

SERVICE AND ADJUSTMENTS

CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into

contact with plug.

TILLER

TO ADJUST HANDLE HEIGHT (See Fig. 15)

Factory assembly has provided lowest handle height. Select

handle height best suited for your tilling conditions. Handle

height will be different when tiller digs into soil.

• If a higher handle height is desired, loosen the four

nuts securing handle panel to engine brackets.

• Slide handle panel to desired location.

• Tighten the four nuts securely.

ENGINE

BRACKETS

HANDLE

NUTS (ALSO 2

ON LEFT SIDE

OF TILLER)

Fig. 15

TINE ARRANGEMENT

Your outer tines can be assembled in several different ways

to suit your tilling or cultivating needs.

j CAUTION: Tines are sharp. Wear j

gloves or other protection when ban= |

dling tines.

NORMAL TILLING = 26" PATH (See Fig. 16)

•Assemble holes '_:' in tine hubs to holes "B" in tine

shaft.

CLEVIS OUTER

fPIN TINE

%N lll .

i o ofl

HAIRPIN CLIP INNER TINE

Fig. 16

MID=WIDTH TILLING =24" PATH (See Fig. 17)

•Assemble holes '_' in tine hubs to holes "C" in tine

shaft.

A C C A

[o_ 6o]

Fig. 17

NARROW TILLING/CULTIVATING - 12-3/4" PATH (See

Fig. 18)

• Remove outer tines.

OII IIO

INNER TINES ONLY

ooltine 6

Fig. 18

NOTE: When reassembling outer tines, be sure right tine

assembly (marked "R") and left tine assembly (marked "LL')

are mounted to correct side of tine shaft.

SERVICE AND ADJUSTMENTS

TO REMOVE BELT GUARD (See Fig. 19)

•Remove two (2) cap nuts and washers from side of

belt guard.

•Loosen (do not remove) tine shield nut on underside

of tine shield.

Pull belt guard out and away from unit.

Replace belt guard by reversing above procedure. Be

sure slot in bottom of belt guard is under head of tine

shield bolt and all nuts are tightened securely.

.CAP NUTS

AND WASHERS

BEN

GUARD

TINE

SHIELD

NUT

Fig. 19

TINE OPERATION CHECK (See Fig. 20)

WARNING: Disconnect spark plug wire

from spark plug to prevent starting while

checking tine operation.

For proper tine operation, forward tine control lever must be

against control body and all slack removed from innerwire of

control cable when control is in the "OFF" (up) position.

Iflever and cable are loose, loosen cable clip at lower end of

cable. Pull up on cable to remove slack, without extending

spring on end of cable, and retighten cable clip.

FINAL CHECK "OFF" POSITION

•With tine control "OFF" (up), push down on handle to

raise tines off the ground.

•Slowly pull recoil starter handle while observing tines.

Tines should not rotate.

•If tines rotate, inner wire of control cable is too tight

which is extending lower spring and engaging tines.

Loosen cable clip and push down on cable only enough

to relieve spring tension. Tighten cable clip.

•Recheck in "OFF" position and adjust if necessary.

FINAL CHECK "ON" POSITION

•With tine control "ON" (held down to handle) push down

on handle to raise tines off the ground.

•Slowly pull recoil starter handle while observing tines.

Tines should rotate forward.

•If tines do not rotate, inner wire of control cable is too

loose. Loosen cable clip and pull cable up to remove

slack and retighten clip.

•Recheck in "ON" position and adjust if necessary.

NOTE: If"ON" position check required adjustment, recheck

"OFF" position adjustment to insuretines do not rotate when

control is "OFF" (up).

FORWARD TINE

CONTROL IN "OFF"

.... (UP) POSITION

BODY

TINECONTROL

"ON'POSITION

CABLE

CLiP TINE

CONTROL

CABLE

Fig. 20

TO REPLACE V=BELTS (See Figs. 21 and 22)

Replace V-belts if they have stretched considerably or if

they show cracks or frayed edges. There are two (2) V-belts

-forward (inside) and reverse (outside).

Belt guard must be removed to service belts. See "TO

REMOVE BELT GUARD" in this section of manual.

NOTE: Observe carefully routing of both belts and location

of all belt guides before removing belts.

BELT REMOVAL

•Remove reverse idler pulley from idler arm.

•Remove reverse (outside) V-belt.

•Remove forward (inside) V-belt from transmission pulley

first and then from engine pulley.

BELT REPLACEMENT

•Install new forward (inside) V-belt to engine pulley first

then to transmission pulley. Be sure belt is positioned

on inside groove of both pulleys, inside all belt guides

and rests on idler pulley.

•Before installing reverse (outside) V-belt, turn belt"inside

out". Twist so wide, flat surface of belt is to inside.

•Wrap V-belt around reverse idlerpulley and reassemble

idler to idler arm. Tighten securely. Be sure belt is

between reverse idler pulley and idler arm pin.

•Install belt to outside groove of transmission pulley. Be

sure belt is inside all belt guides and rests on outside

groove of engine pulley.

SERVICE AND ADJUSTMENTS

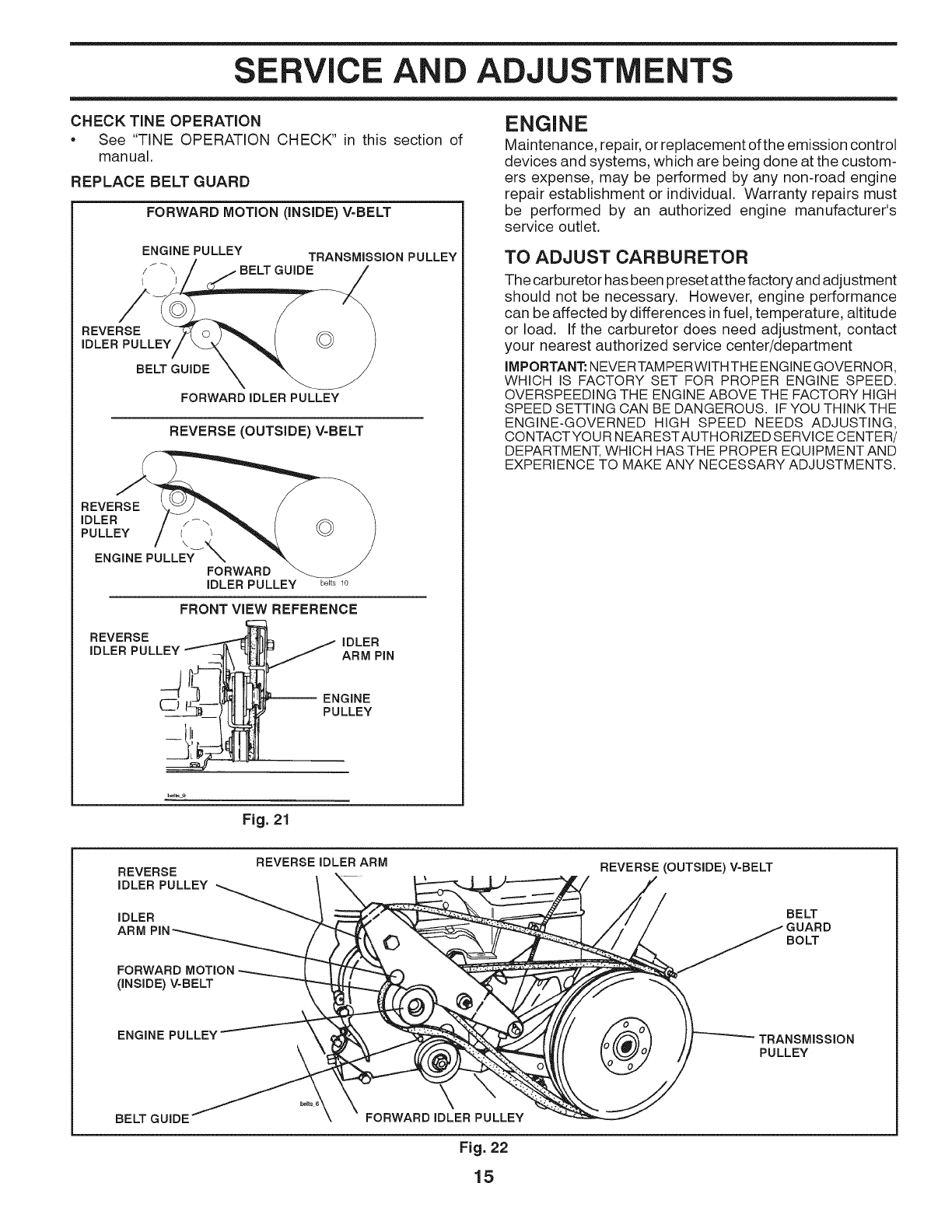

CHECK TINE OPERATION

• See "TINE OPERATION CHECK" in this section of

manual.

REPLACE BELT GUARD

FORWARD MOTION (iNSiDE) V-BELT

ENGINE PULLEY TRANSMISSION PULLEY

/I _ \ BELT GUIDE

REVERSE

IDLER PULLEY

BELT GUIDE

FORWARD IDLER PULLEY

REVERSE (OUTSIDE) V-BELT

REVERSE

IDLER

PULLEY I /

ENGINE PULLEYX

FORWARD

iDLER PULLEY belts 10

FRONT VIEW REFERENCE

REVERSE _ iDLER

ENGINE

Maintenance, repair, or replacement of the emission control

devices and systems, which are being done at the custom-

ers expense, may be performed by any non-road engine

repair establishment or individual. Warranty repairs must

be performed by an authorized engine manufacturer's

service outlet.

TO ADJUST CARBURETOR

The carburetor has been preset atthe factory and adjustment

should not be necessary. However, engine performance

can be affected by differences in fuel, temperature, altitude

or load. If the carburetor does need adjustment, contact

your nearest authorized service center/department

iMPORTANT: NEVERTAMPERWITHTHE ENGINE GOVERNOR,

WHICH IS FACTORY SET FOR PROPER ENGINE SPEED.

OVERSPEEDING THE ENGINE ABOVE THE FACTORY HIGH

SPEED SETTING CAN BE DANGEROUS. IFYOU THINKTHE

ENGINE-GOVERNED HIGH SPEED NEEDS ADJUSTING,

CONTACTYOUR NEARESTAUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS THE PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY ADJUSTMENTS.

Fig. 21

REVERSE

IDLER PULLEY

IDLER

ARM

FORWARD

(iNSIDE) V=BELT

REVERSEIDLER ARM REVERSE (OUTSIDE) V-BELT

BELT

GUARD

BOLT

ENGINE PULLEY TRANSMISSION

PULLEY

BELT GUIDE FORWARD IDLER PULLEY

Fig. 22

STORAGE

Immediately prepare your tiller for storage at the end of the

season or if the unit will not be used for 30 days or more.

WARNING: Never store the tiller with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. AIIowthe engine to cool before

storing in any enclosure.

TILLER

• Clean entire tiller (See "CLEANING" in the Maintenance

section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions inthe Service and Adjustments

section of this manual).

• Lubricate as shown in the Maintenance section of this

manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

ENGINE

FUEL SYSTEM

iMPORTANT: IT IS IMPORTANTTO PREVENT GUM DEPOSITS

FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTS SUCH

AS THE CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOISTURE WHICH

LEADS TO SEPARATION AND FORMATION OFACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run until the fuel lines and

carburetor are empty.

• Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

NOTE: Fuel stablizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during

storage. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stablizer

container. Run engine at least 10 minutes after adding

stablizer to allow the stabilizer to reach the carburetor.

Do not drain the gas tank and carburetor if using fuel

stabilizer.

ENGINE OiL

Drain oil (with enginewarm) and replacewith clean oil. (See

"ENGINE" in the Maintenance section of this manual).

CYLINDER(S)

• Remove spark plug.

• Pour 1 ounce (29 ml) of oil through spark plug hole

into cylinder.

• Pull starter handle slowly several times to distribute

oil.

• Replace with new spark plug.

OTHER

•Do not store gasoline from one season to another.

•Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

•If possible, store your unit indoors and cover it to give

protection from dust and dirt.

•Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your unit to rust.

IMPORTANT: NEVER COVER TILLER WHILE ENGINE AND

EXHAUST AREAS ARE STILL WARM.

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Will not start

Herd to start

Loss of power

Engine overheats

Excessive bounce/

difficult handling

Soil bells up or clumps

Engine rune but tiller

won't move

Engine rune but labors

when tilling

1. Out of fuel.

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Dirty air cleaner.

5. Water in fuel.

6. Clogged fuel tank.

7. Loose spark plug wire.

8. Bad spark plug or improper gap.

9. Carburetor out of adjustment.

1. Throttle control not set properly.

2. Dirty air cleaner.

3. Bad spark plug or improper gap.

4. Stale or dirty fuel.

5. Loose spark plug wire.

6. Carburetor out of adjustment.

1. Engine is overloaded.

2. Dirty air cleaner.

3. Low oil level/dirty oil.

4. Faulty spark plug.

5. Oil in fuel.

6. Stale or dirty fuel.

7. Water in fuel.

8. Clogged fuel tank.

9. Spark plug wire loose.

10. Dirty engine air screen.

11. Dirty/clogged muffler.

12. Carburetor out of adjustment.

13. Poor compression.

1. Low oil level/dirty oil.

2. Dirty engine air screen.

3. Dirty engine.

4. Partially plugged muffler.

5. Improper carburetor adjustment.

1. Ground too dry and hard.

2. Wheels and depth stake incorrectly adjusted.

1. Ground too wet.

1. Tine control is not engaged.

2. V-belt not correctly adjusted.

3. V-belt is off pulley(s).

1. Tilling too deep.

2. Throttle control not properly adjusted.

3. Carburetor out of adjustment.

1. Fill fuel tank.

2. See "TO START ENGINE" in the Operation section.

3. Wait several minutes before attempting to start.

4. Clean or replace air cleaner cartridge.

5. Drain fuel tank and carburetor, and refill tank with fresh

gasoline.

6. Remove fuel tank and clean.

7. Make sure spark plug wire is seated properly on plug.

8. Replace spark plug or adjust gap.

9. Make necessary adjustments.

1. Place throttle control in "FAST" position.

2. Clean or replace air cleaner cartridge.

3. Replace spark plug or adjust gap.

4. Drain fuel tank and refill with fresh gasoline.

5. Make sure spark plug wire is seated properly on plug.

6. Make necessary adjustments.

1. Set depth stake and wheels for shallower tilling.

2. Clean or replace air cleaner cartridge.

3. Check oil level/change oil.

4. Clean and regap or change spark plug.

5. Drain and clean fuel tank and refill, and clean carburetor.

6. Drain fuel tank and refill with fresh gasoline.

7. Drain fuel tank and carburetor, and refill tank with fresh

gasoline.

8. Remove fuel tank and clean.

9. Connect and tighten spark plug wire.

10. Clean engine airscreen.

11. Clean/replace muffler.

12. Make necessary adjustments.

13. Contact an authorized service center/department.

1. Check oil level/change oil.

2. Clean engine air screen.

3. Clean cylinder fins, air screen, muffler area.

4. Remove and clean muffler.

5. Adjust carburetor to richer position.

1. Moisten ground or wait for more favorable soil

conditions.

2. Adjust wheels and depth stake.

1. Wait for more favorable soil conditions.

1. Engage tine control.

2. Inspect/adjust V-belt.

3. Inspect V-belt.

1. Set depth stake for shallower tilling.

2. Check throttle control setting.

3. Make necessary adjustments.

HANDLE ASSEMBLY

TILLER - MODEL NO. 917.250090

F-handle assy 6

KEY PART

NO. NO.

1 137176X668

2 72140512

3 165787

4 166376X498

5 73680500

6 19111116

7 19121414

8 74760520

10 10040500

11 73220500

12 98000129

DESCRIPTION

Panel, Control

Bolt, RDHD 5/16-18 x 1 1/2

Grip, Handle

Handle, LH Double Bend

Nut, Crown Lock 5/16 -18

Washer 11/32 x 11/16 x 16 Ga.

Washer 3/8 x 7/8 x 14 Ga.

Bolt Fin Hx 5/16-18 x 1.25

Washer Lock 5/16

Nut, Fin Hx 5/16-18

Nut, Flange

KEY

NO.

PART

NO. DESCRIPTION

180847 Bolt, RDHD 5/16-18 x 3/4

9209RX668 Assembly, Panel

166381X498 Handle, RH Double Bend

188562 Lever, Control, Tine

188555 Pin, Pivot

12000059 Retainer, Ring

181580 Routing Clip

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

TILLER - MODEL NO. 917.250090

BELT GUARD AND PULLEY ASSEMBLY

KEY

NO.

i! 41

PART

NO.

439162X479

9484R

086777

74610812

73680600

19131316

2009J

159238X479

74780632

194630X668

19091016

104213X

72140406

133035

2614J

12000028

2649M

151236

188502

12000036

23 /

22 21

belt guard 14

DESCRIPTION

Assembly, Bracket, Belt Guard

Clip, Cable

Screw #10-24 x 1/2

Bolt, Hex Head 1/2-20 x 3/4

Nut, Lock 3/8-16

Washer 13/32 x 13/16 x 16 Ga.

Pulley, Idler, Reverse

Assembly, Arm, Reverse Idler

Cap screw, Hex Head 3/8-16 x 2.00

Guard, Belt

Washer 9/32 x 5/8 x 16 Ga.

Nut, Cap 1/4- 20

Bolt, Carriage 1/4-20 x 3/4

V-Belt (Forward Motion)

V-Belt (Reverse)

Ring, Retainer

Key, Square

Sheave, Transmission "Flat"

Bolt, Belt Guard

Ring, Klip

112

KEY

NO.

PART

NO. DESCRIPTION

73350600 Nut, Hex, Jam 3/8-16

161806 Pulley, Idler

175377X479 Arm, Idler

74760620

106968

73350500

73220400

10040400

109227X

23200404

101189L

151223

180307

138909

Bolt 3/8-16 x 1-1/4

Shaft, Idler Arm

Nut, Hex, Jam 5/16-18

Nut, Hex 1/4-20

Washer, Lock 1/4

Pad, Idler

Screw, Set, Socket, Headless

C.R 1/4-20 x 1/4

Sheave, Engine

Sheave, Transmisison

Spring Extension

Spacer

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

TILLER - MODEL NO. 917.250090

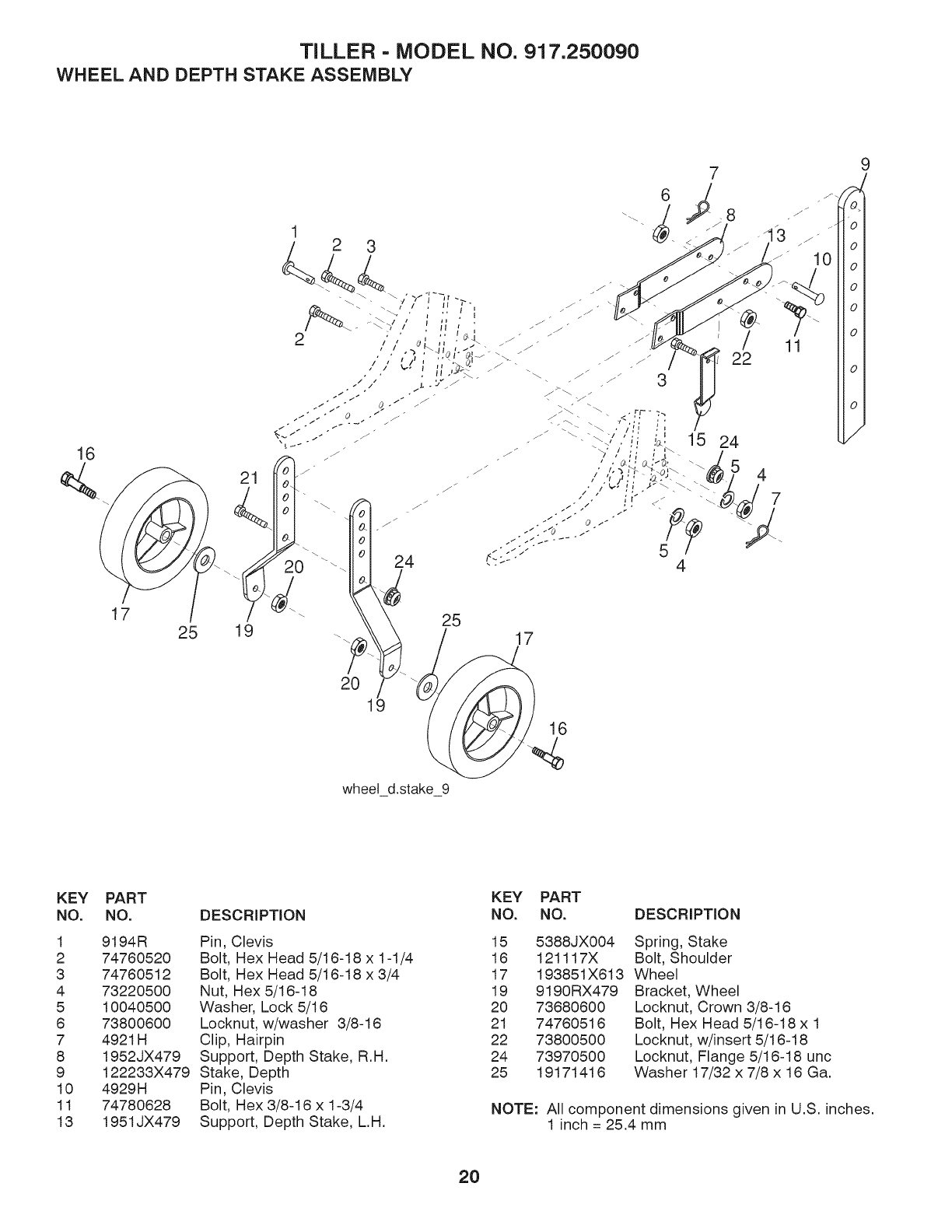

WHEEL AND DEPTH STAKE ASSEMBLY

KEY PART

NO. NO.

1 9194R

2 74760520

3 74760512

4 73220500

5 10040500

6 73800600

7 4921H

8 1952JX479

9 122233X479

10 4929H

11 74780628

13 1951JX479

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Pin, Clevis

Bolt, Hex Head 5/16-18 x 1-1/4

Bolt, Hex Head 5/16-18 x 3/4

Nut, Hex 5/16-18

Washer, Lock 5/16

Locknut, w/washer 3/8-16

Clip, Hairpin

Support, Depth Stake, R.H.

Stake, Depth

Pin, Clevis

Bolt, Hex 3/8-16 x 1-3/4

Support, Depth Stake, L.H.

5388JX004 Spring, Stake

121117X Bolt, Shoulder

193851X613 Wheel

9190RX479 Bracket, Wheel

73680600 Locknut, Crown 3/8-16

74760516 Bolt, Hex Head 5/16-18 x 1

73800500 Locknut, w/insert 5/16-18

73970500 Locknut, Flange 5/16-18 unc

19171416 Washer 17/32 x 7/8 x 16 Ga.

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

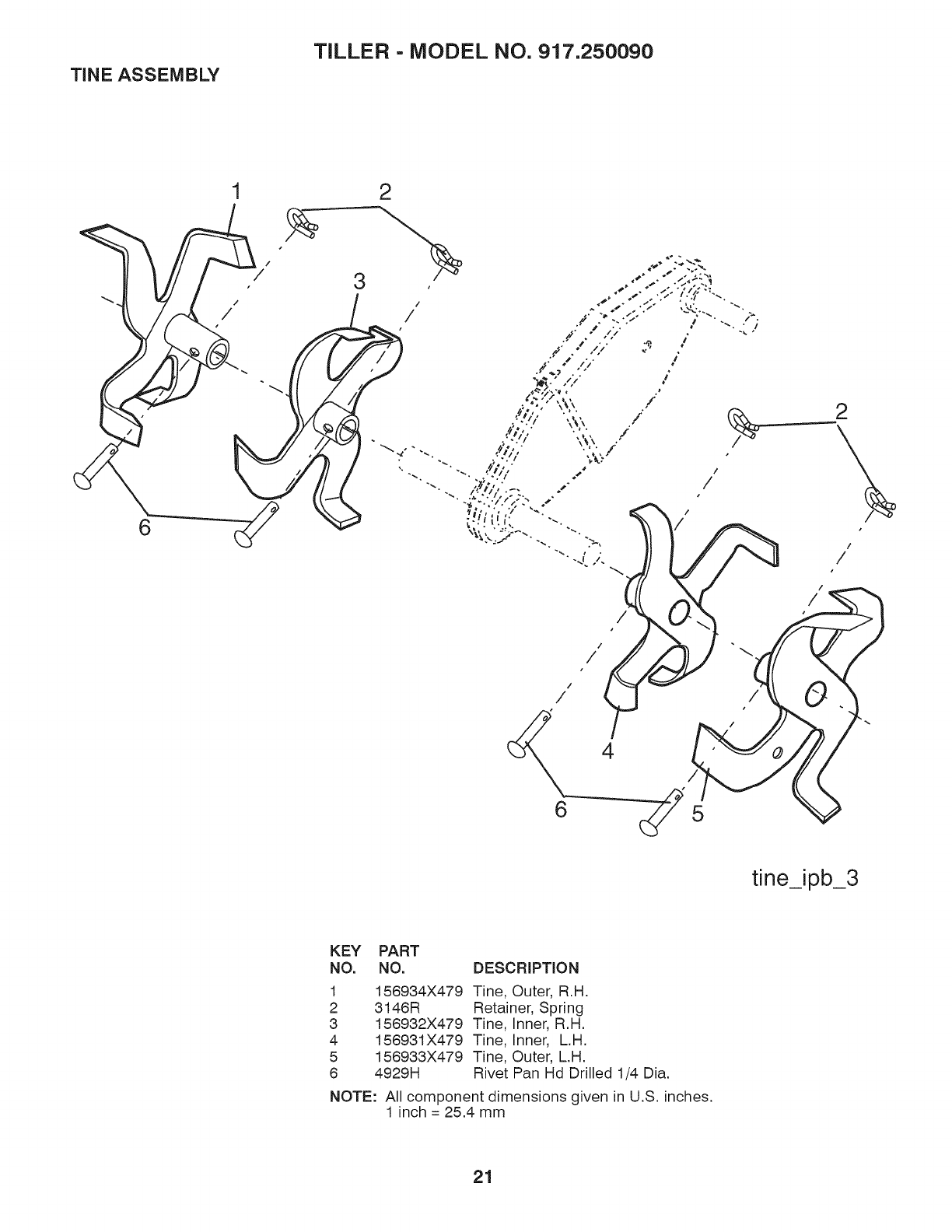

TINE ASSEMBLY

TILLER - MODEL NO. 917.250090

tine_ipb_3

KEY PART

NO, NO, DESCRIPTION

156934X479

3146R

156932X479

156931X479

156933X479

4929H

Tine, Outer, R.H.

Retainer, Spring

Tine, Inner, R.H.

Tine, Inner, L.H.

Tine, Outer, L.H.

Rivet Pan Hd Drilled 1/4 Dia.

NOTE: All component dimensions given in U.S. inches•

1 inch = 25.4 mm

TRANSMiSSiON

TILLER - MODEL NO. 917.250090

20iL_

118

12 21

transmission 27

KEY PART

NO. NO.

1 74760524

2 74780652

3 19131311

5 73900600

6 9057RX668

7 188195X479

8 165834X479

10 970500

11 187912

12 151222

14 446548

DESCRIPTION

Bolt, Hex 5/16-18 x 1-1/2 Gr. 2

Bolt, Hex 3/8-16 x 3-1/4

Washer 13/32 x 13/16 x 11

Locknut 3/8-16

Shield, Tine

Bracket, Engine, R.H.

Bracket, Engine, L.H.

Nut, Hex 5/16-18

Bolt, Hex Head 5/16-18 x 2.5

Transmission

Spacer, Split

KEY PART

NO. NO.

16 19091412

17 19092016

18 10040400

19 74610412

21 751153

DESCRIPTION

Washer 9/32 x 7/8 x 12 Ga.

Washer 9/32 x 1-1/4 x 16 Ga.

Washer, Lock 1/4

Bolt, Hex 1/4-28 x 3/4 Gr. 5

Engine Briggs Model 12T402-

1613-F8 (446085) (Order parts from

engine manufacturer.

Nut 5/16-18

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

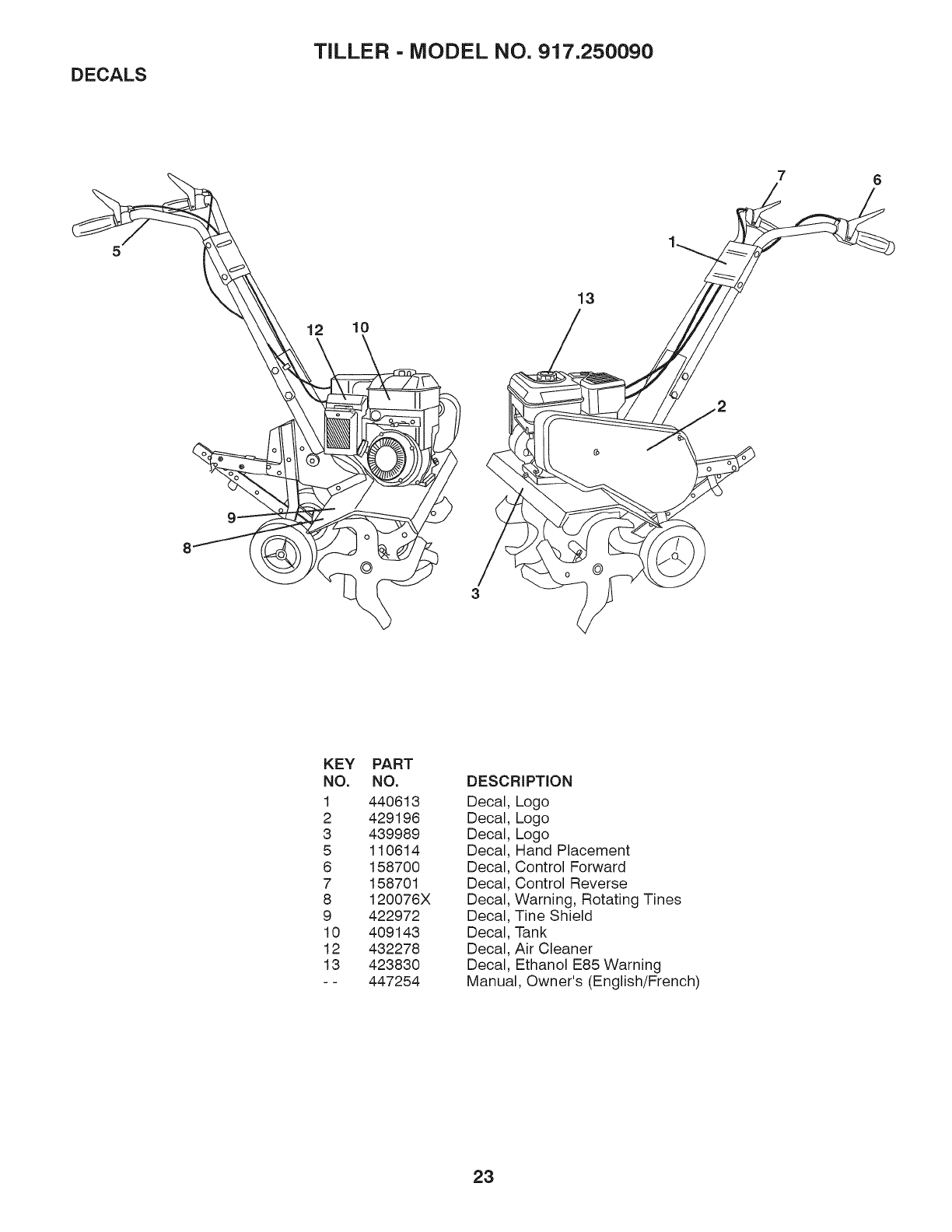

DECALS TILLER - MODEL NO. 917.250090

7 6

12 10

KEY

NO.

PART

NO.

440613

429196

439989

110614

158700

158701

120076X

422972

409143

432278

423830

447254

DESCRIPTION

Decal, Logo

Decal, Hand Placement

Decal, Control Forward

Decal, Control Reverse

Decal, Warning, Rotating Tines

Decal, Tine Shield

Decal, Tank

Decal, Air Cleaner

Decal, Ethanol E85 Warning

Manual, Owner's (English/French)

Husqvarna

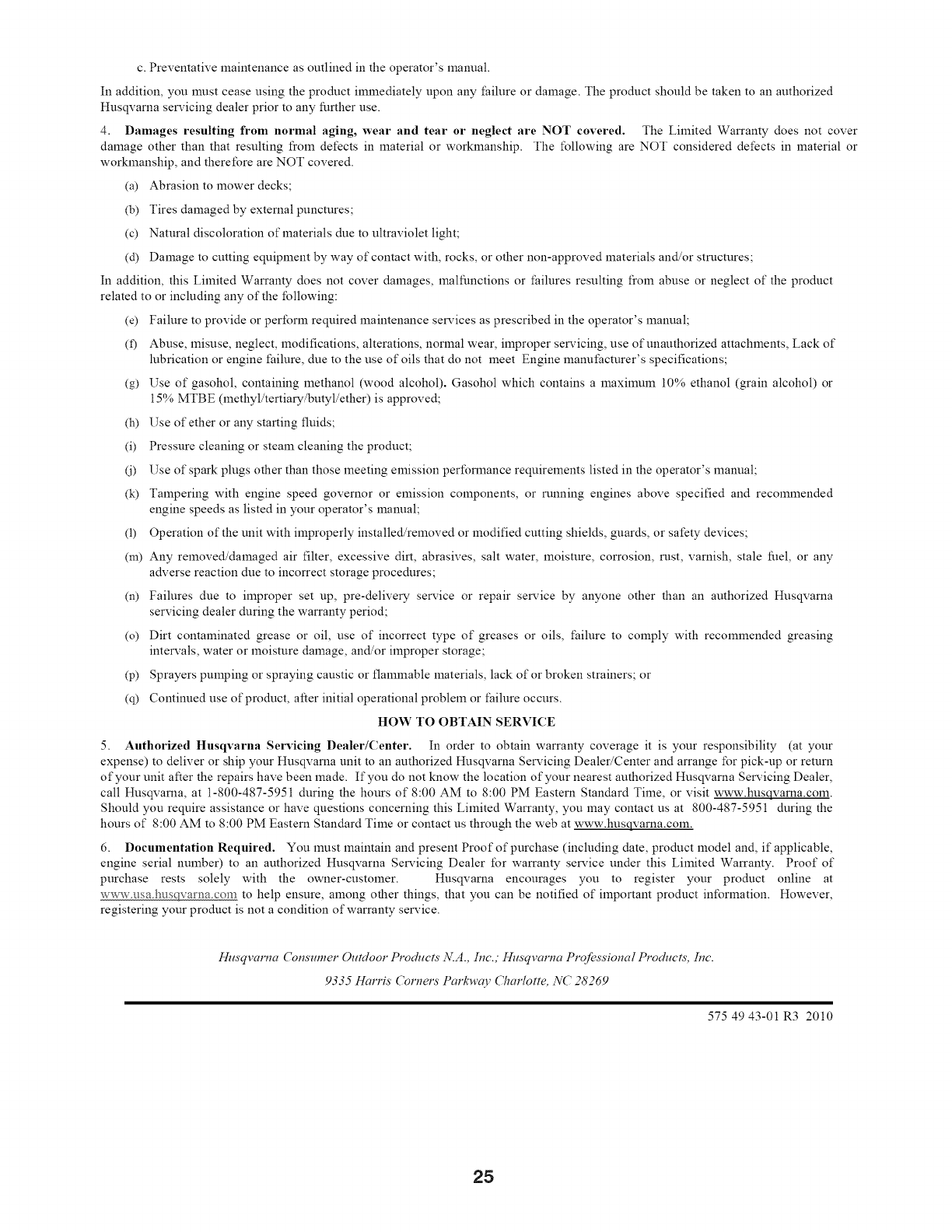

Consumer Wheeled Products - Limited Warran D

Husqvarna warrants to the original retail purchaser that this Husqvarna® product is free from defects in material or workmanship

under normal use and maintenance from the date of retail purchase for the applicable Warranty Period shown on Exhibit A. Certain

components (e.g., engines and transmissions) are excluded from coverage, and other limitations apply, as described in this document.

Husqvarna will repair or replace at its discretion, any defective product or part covered by the Limited Warranty, fiee of charge at any

authorized Husqvarna Servicing Dealer/Center using original OEM Husqvarna replacement parts, subject to the limitations and

exclusions described below. Husqvarna does not offer an over-the-counter exchange program.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY PROVIDED BY HUSQVARNA. ANY WARRANTY

THAT MAY BE IMPLIED BY LAW (INCLUDING ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR

PURPOSE OR USE AND IMPLIED WARRANTY OF MERCHANTABILITY) IS LIMITED TO THE DURATION OF THE

APPLICABLE WARRANTY PERIOD UNDER THIS LIMITED WARRANTY. THIS LIMITED WARRANTY MAY BE

MODIFIED ONLY BY HUSQVARNA. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES

YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

THIS WARRANTY IS GIVEN ONLY BY HUSQVARNA. THE ABOVE REMEDIES ARE THE EXCLUSIVE REMEDIES FOR

ANY BREACH OF THIS LIMITED WARRANTY. HUSQVARNA AND ITS AFFILIATED COMPANIES SHALL NOT BE

LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGE, INCLUDING LOST PROFITS RESULTING

FROM ANY SUCH BREACH, AND ALL SUCH DAMAGES ARE HEREBY DISCLAIMED. SOME STATES DO NOT ALLOW

THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS

MAY NOT APPLY TO YOU.

LIMITATIONS AND EXCLUSIONS

1. Engines, Transmissions and certain other components are NOT covered. This Limited Warranty does not cover any of the

following:

(a) Engines and Attachments. Except where othmwise indicated on Exhibit A, all Engines and Attachments are not covered by

this warranty. In most cases, these items are NOT manufactured by Husqvarna in which case they may be covered separately by

their respective manufacturer's warranties if one is provided and included with the product at the time of purchase. All such

claims must be submitted and sent to the appropriate manufacturer or as othmwise directed in those separate warranties.

Husqvarna is not authorized to handle warranty adjustments or repairs on engines manufactured by Briggs & Stratton, Honda,

Kawasaki, or Kohler (exception models equipped with LCT engines). Husqvarna does not assume any warranty obligation of

the other manufacturer's engines.

(b) TransmLs'sions. Except where othmwise indicated on Exhibit A, Transmission /Transaxle (including Drive Systems) are not

covered by this warranty. In most cases, these items are NOT manufactured by Husqvarna in which case they may be covered

separately by their respective manufacturer's warranties if one is provided and included with the product at the time of purchase.

The following transmission /transaxle manufacturers, Dana, Hydro-Gear, Tuff-Torq provide a warranty for the transmission /

transaxle to the ultimate purchaser or to Husqvarna. Husqvarna will assign the transmission /transaxle manufacturer's warranty

or any rights thereof to the original purchaser of the unit. To obtain transmission /transaxle warranty service, first contact the

retailer who you purchased the unit from. Should you require assistance or have any questions concerning transmission /transaxle

warranty coverage, contact Husqvarna directly at out website www.husqvarna.com or call 800-487-5951 for an authorized

Husqvarna service provider. All such claims must be submitted and sent to the appropriate manufacturer or as othmwise directed

in those separate warranties. Husqvarna is not authorized to handle warranty adjustments or repairs on transmissions or transaxles.

Husqvarna does not assume any warranty obligation of the above listed manufacturers (for exceptions see Exhibit A).

including without limitation spark plugs, bulbs, filters, lubricants, starter cords, belts, blades, and blade adapters.

(d) Emissions (_ntrol (_mponents. This Limited Warranty does not cover Emissions control equipment and components to the

extent regulated by the U.S. Environmental Protection Agency or similar state agencies. Such equipment and components are

covered by a separate emission control warranty statement supplied with your new product. Please consult this separate warranty

statement for details.

2. Any COMMERCIAL, INSIT[TIONAL, AGRICULT[t_kL, IND[STRIAL, INCOME PRODICING, or RENTAL use will result in either No

'Warranty or a Shortened VVarranty Period Depending on the product; there is either NO WARRANTY or a reduced warranty if the product is used lbr commercial,

institutional, agricultural, industrial, income producing, or rental purposes. Please refer to Exhibit A.

3. Owner's (Your) Responsibilities. To preserve your rights under this Limited Warranty, you must demonstrate reasonable care

and use of the product, including, following the preventative maintenance, storage, fuel and oil usages as prescribed in the enclosed

operator's manual. For example, the following items are the Owner's responsibility and are no___!covered by this Limited Warranty:

a. Set-up and pre-delivery service, and engine tune-ups.

b. Adjustments after the first (30) thirty days of purchase and beyond, such as throttle cable, belt gnides adjustments.

c. Preventative lnaintenance as outlined in the operator's manual.

In addition, you lnUSt cease using the product ilmnediately upon any t:ailure or damage. The product should be taken to an authorized

Husqvarna servicing dealer prior to any further use.

4. Damages resulting from normal aging, wear and tear or neglect are NOT covered. The Limited Warranty does not cover

damage other than that resulting from detects in material or worklnanship. The following are NOT considered detects in material or

worklnanship, and therefore are NOT covered.

(a) Abrasion to mower decks;

(b) Tires damaged by external punctures;

(d) Damage to cutting equipment by way of contact with, rocks, or other non-approved materials and/or structures;

In addition, this Limited Warranty does not cover damages, lnalfunctions or t:ailures resulting from abuse or neglect of the product

related to or including any of the following:

(e) Failure to provide or perforln required lnaintenance services as prescribed in the operator's manual;

(f) Abuse, misuse, neglect, modifications, alterations, normal wear, improper servicing, use of unauthorized attachments, Lack of

lubrication or engine t:ailure, due to the use of oils that do not meet Engine lnanu_:acturer's specifications;

(g) Use of gasohol, containing methanol (wood alcohol). Gasohol which contains a lnaxilnum 10% ethanol (grain alcohol) or

15% MTBE (lnethyl/tertiary/butyl/ether) is approved;

(h) Use of ether or any starting fluids;

(i) Pressure cleaning or steam cleaning the product;

(j) Use of spark plugs other than those meeting emission perforlnance requirements listed in the operator's manual;

(k) Tampering with engine speed governor or emission components, or running engines above specified and recolmnended

engine speeds as listed in your operator's manual;

(1) Operation of the unit with improperly installed/removed or modified cutting shields, guards, or safety devices;

(m) Any removed/damaged air filter, excessive dirt, abrasives, salt water, lnoismre, corrosion, rust, varnish, stale fuel, or any

adverse reaction due to incorrect storage procedures;

(n) Failures due to improper set up, pre-delivery service or repair service by anyone other than an authorized Husqvarna

servicing dealer during the warranty period;

(o) Dirt comaminated grease or oil, use of incorrect type of greases or oils, t:ailure to comply with recolmnended greasing

intervals, water or moisture damage, and/or improper storage;

(p) Sprayers pumping or spraying caustic or flalmnable materials, lack of or broken strainers; or

(q) Continued use of product, after initial operational problem or t:ailure occurs.

HOW TO OBTAIN SERVICE

5. Authorized Husqvarna Servicing Dealer/Center. In order to obtain warranty coverage it is your responsibility (at your

expense) to deliver or ship your Husqvarna unit to an authorized Husqvarna Servicing Dealer/Center and arrange for pick-up or return

of your unit after the repairs have been made. If you do not know the location of your nearest authorized Husqvarna Servicing Dealer,

call Husqvarna, at 1-800-487-5951 during the hours of 8:00 AM to 8:00 PM Eastern Standard Time, or visit www.husqvarna.coln.

Should you require assistance or have questions concerning this Limited Warranty, you may contact us at 800-487-5951 during the

hours of 8:00 AM to 8:00 PM Eastern Standard Time or contact us through the web at www.husqvarna.coln.

6. Documentation Required. You lnUSt maimain and present Proof of purchase (including date, product model and, if applicable,

engine serial number) to an authorized Husqvarna Servicing Dealer for warranty service under this Limited Warranty. Proof of

purchase rests solely with the owner-customer. Husqvarna encourages you to register your product online at

www.asa.h_iscua_na.com to help ensure, among other things, that you can be notified of ilnportant product inforlnation. However,

registering your product is not a condition of warranty service.

Hnsqvarna Consumer Outdoor Products N.A., Inc.; Hnsqvarna Pr@ssional Products, Inc.

9335 Harris' Cornels' Parkway (7_arlotte, NC 28269

575 49 43-01 R3 2010

Exhibit A

Consumer Wheeled Warranty Chart 2010

Consumer (personal, Commercial (any commercial,

household use only) professional, institutional,

arigculutral, or income producing

use, other than Rental Use)

Product/Component

Frame, Chassis, Front Axle 5 Years NO WARRANTY

Engine* * *

Transmission (if made by

Husqvarna/Peerless) 3 Years NO WARRANTY

Transmission (if third party) ......

Battery 1 Year Pro-rated NO WARRANTY

Other Non-Expendable Components 3 Years NO WARRANTY

Engine* * * *

Transmission .... NO WARRANTY NO WARRANTY

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 3 Years NO WARRANTY NO WARRANTY

Engine* *

Transmission ** **

Battery 1 Year Pro-rated

2 Years

Engine*

Other Non-Expendable Components

1 Year Pro-rated

1 Year

90 days

Rental (any rental

usage)

NO WARRANTY

90 days

Engine* * * *

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

_Thro_rs:, ....

Engine* * * *

Other Non-Expendable Components 2 Years 90 days 90 days

rs ,, ....

Engine* * * *

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

Tiller Tines *** NO WARRANTY NO WARRANTY

Engine* * * *

Other Non-Expendab e Components 2 Years 1 Year 90 days

Consumer Commercial Rental

• See Separate Engine Manufacturer's or Manufacturer's warranty

LCT Engines on specific Snow Throwers & Tillers, warranty through Husqvarna.

•* See reference 1 (b) of the warranty statement.

RZ - Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

EZ - One (1) Year Commercial warranty, parts & labor, with Husqvarna.

Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

MZ - Two (2) Year Commercial warranty, parts & labor, with Hydro-Gear Distributor network.

..... Limited Lifetime Warranty" on Tiller tines is for the life of the product or 7 (seven) years after the last date of the complete

unit's final production, whichever comes first.

Exhibit A

Consumer Wheeled Warranty Chart 2010

Consumer (personal, Commercial (any commercial, Rental (any rental

household use only) professional, institutional, usage)

arigculutral, or income producing

use, other than Rental Use)

Product/Component

_ntMo ck Ride rs, ',

Engine* * * *

Transmission 2 Years NO WARRANTY NO WARRANTY

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

rs ,.,,

Battery 1 Year Pro-rated NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

sure ,,Wa ,,,

Model 5525PW:

Engine* * * *

Pump 2 Years NO WARRANTY NO WARRANTY

Other Non-Expendable Components 2 Years NO WARRANTY NO WARRANTY

All other Pressure Washers (6027PW, gO32PW, 1340PW)

Engine* * * *

Pump 2 Years 2 Years NO WARRANTY

rs yyyyyyyyyyyyyyyyyyyyyyyyyyyy, yyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyy, yyyyyyyyyyyyyyyyyyyyyyy

Engine* * * *

• 2 Years (2nd Year *2 Years-1365GN (2nd Year

Other Non-Expendable Components* Parts Only) Parts Only) NO WARRANTY

ISpreader 1 Year 1 Year 1 Year

Ro_tic

Robotic Mower 2 Years 90 days 90 days

Battery 1 Year 1 Year 1 Year

Accessories (e.g., grass catcher, bumper

guard accessories, etc. 1 Year NO WARRANTY NO WARRANTY

Replacement parts and/or accessories

provided under this Limited Warranty are

warranted only for the BALANCE of the

warranty period applicable to the part or

accessory that was replaced. See to left See to left See to left

Consumer Commercial Rental

• See Separate Engine Manufacturer's or Manufacturer's warranty

LCT Engines on specific Snow Throwers & Tillers, warranty through Husqvarna.

• * See reference 1 (b) of the warranty statement.

RZ - Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

EZ - One (1) Year Commercial warranty, parts & labor, with Husqvarna.

Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

MZ - Two (2) Year Commercial warranty, parts & labor, with Hydro-Gear Distributor network.

..... Limited Lifetime Warranty" on Tiller tines is for the life of the product or 7 (seven) years after the last date of the complete

unit's final production, whichever comes first.

iiiiiiiiiiiiiiiiiiiiiil'¸

iiiiiiiiiiiiiiiiiiiiii

Just Call:

1-800-4-1VlY-HOlVlE®

(1-800-469-4663)

24 hours a day, 7 days a week

For the repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

For your nearest Sears Parts and Service location,

to bring in products like vacuums, lawn equipment and electronics.

For Sears Parts & Service, to order the replacement parts,

accessories and owner's manuals that you need to do-it-yourself.

www.sears.c8

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i

To purchase or inquire about a Sears Maintenance Agreement, call:

9 a.m.- 11p.m. Mon.- Fri., EST, 9 a.m.- 4 p.m. Sat.

Pour service en frangais:

1-800-LE-FOYER Me

(1-800-533-6937)

www.sears.ca

®/'rM Trademarks of Sears, Roebuck and Co. used under license by Sears Canada

MDMarque d_pos6e /MCMarque de commerce de Sears, Roebuck and Co. utilis_e en vertu d'une licence de Sears Canada

Craftsman 91725009 User Manual FRONT TILLER Manuals And Guides 1201331L

Navigation menu

Versions of this User Manual:

Views

Navigation
