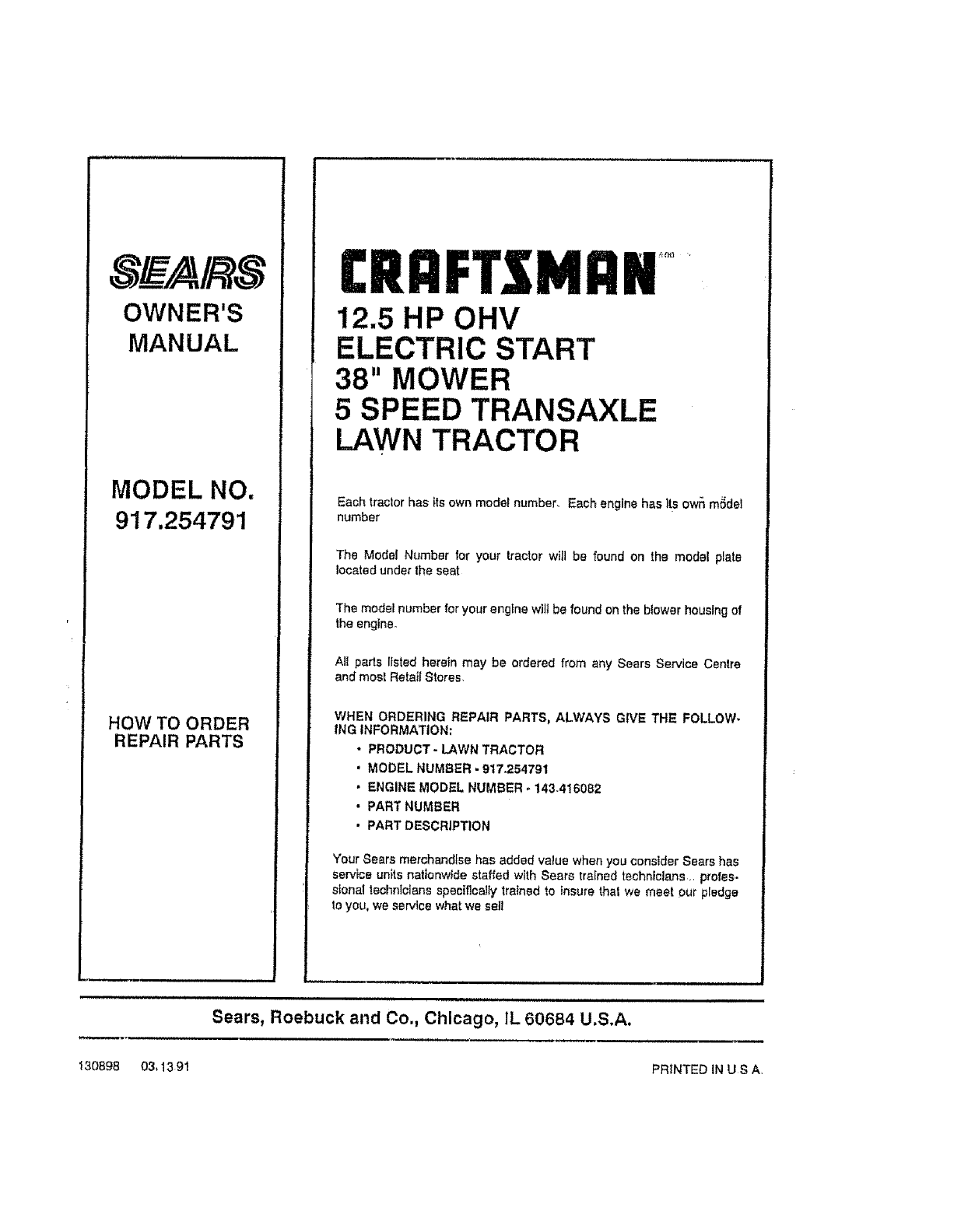

OWNER'S
MANUAL
MODEL NO.
917.254791
Caution;
Read and follow
all Safety Rules
and Instructions
Before Operating
This Equipment
CRRFTSMRN
12.5 HP OHV
ELECTRIC START
38" MOWER
5 SPEED TRANSAXLE
LAWN TRACTOR
Assembly
Operation
• Maintenance
Service and Adjustment
l_.epair Parts
Sears, Roebuck and Co., Chicago, IL 60684 U.S.A.
SAFETY RULES
CAUTION:ALWAYSDISCONNECTSPARKPLUGWIREAND PLAOEWIREWHEREITCANNOTCONTACTSPARK A
PLUGTO PREVENTACCIDENTALSTARTINGWHENSETTING_UP,TRANSPORTING,ADJUSTINGOR MAKING
REPAIRS_ IMPORTANT
SAFETYSTANDARDSREQUIREOPERATORPRF..SENCECeNTRe LSTO MINIMIZETHERISKOFINJURY YOURUNil"ISEQUIPPEDWITHSUCH
CONTROLS. DONOT ATTEMPTTO DEFEATTHE FUNCTIONOF TRE OPERATORPRE,SENCECONTROLSUNDERANY CIRCUMSTANCES_
TRAINING:
Know the controlsand howto stop quickly. Readthisowner's
manual and instructionsfurnishedwithattachments:
Do not allow childrento Operate the machine, Do net e_low
edWlsto operate itWitheutpropertnslr00tion.,
De not:carry passengers, Do nat mow when cht!dren and
others al:e b:mund., :,:: ',. '
Do noi;_ttem_t to ope[aie your vehicle or nlowsrwhennot In
the driver's seat. _ :; ' "i';: :! ";.'- _ "." !
Always"gat or_OrOffybur:V_htCe f_'omthb Ope_ai6/'stafthand _
sldeo : ;,"_,," ,:;! '::' _:" ';_, _' '.
The vehlble Bnd aetBchments s_oii],_l:b_ stopped and In;
spooled for damage after strfklng _.foielgn objecl, end the '
carnage shouldbe repaired beloreiieslarting and operat ng
the equipment. <_ ;_'i",
PREPARATION: "_ :_!,__"
* Always wear substantial footwear. Do not wear loose fitting
clo_hJngthat could get caught in moving parts,
Clear the work area of objects (wire, rocks, etc ) which might
be pickedup and thrown_
Disengage all attachment clutchesbefore attempting to start
the engine.
Handle gasolinewith car_-'ll Is highly flammable.
Use approved gasolin_containers.,
Never removethefu_el:eapof tF_e'fdelta_nkoredd gasoline
to a running or hot b_igidedr an efigi_e that has not been
allowed to coolfoi _:eveta "i_tetJtesafter running,Never
flit tank Indoors Alway_ clead up spilledgasoline.-
Open doors If lhe engine Is run In the garage - exhaust
fumes ere dangerous, De not run the engine Indoors
Do notoperate the mower without the entire grass catehei',
on mowers so equipped or the deflectorshield_nplace:
0P ERATION;
Keep your eyes and mind on your vehicle mower and the
area being cut. De not let other tntsres_ distraCtyou.
Disengage power to ettachrae_s aniJs_o'pthe engine before
leaving the operator's position_ ....i ',,
Disengage power to mower,stop the engine,and d_sconnect
spa_kplug wite(s)from spark plug(s)before cleaning, making -
an adjustment,or repair, Be careful to avoidtouchinghot
muffler or engine compononts_
Disengage powerto attachments when transporting or not In
USe_
, Take all poestble precautions whenleaving the vehicle unat-
tended D{sangage the power take-off,lower the attach_
manta, shift inlo neulret, set the parking brake, stop the
engine, and removethe key.
Do not stop or staff suddenly when golng uphill or downhill,
Mow up end down the faceof slopes (net greater than "_5"},
never across the face.
Reduce speedon slopes and maket0ms gradually top_event
tipping or loss of control. Exercise extreme caution when
changing direction on slopes.
While goingup ordown slopes piece gearshift control lever
in I st gear positionto negotiate the slope withoutstopping. ',
I
, Never mow inwet or stippery grass,when tractionis unsure,
orat a speed which could cause a skid.
Stay alert for holes in the terrain and other hidden h_Lzerdso
Keep away fromdrop.offs.
De not ddve toodose to creeks, ditches, and public high.
ways.
Exercisespecteicarewhen mowingaround fixedobjectsin
orderto preventthe blades from strikingmere. Never delib-
erately runvehtde ormower Intoor over any foreign objects.
Never shift gears un'_lvehicle comes to a stop
Never place hands or feet under the mower, in discharge
chute or near any moving partswhile vehtcie or mower is
runnng Always keep clear of discharge chute
Use cam when pulling loads or using heavy equ_pmenL
Use only approved drewbar hitch points.
Umll feeds te those you can safely control
Do not turn sharptyoUse care when backing
Use counterweight or wheel weights when suggestedin
owner's manual_
'Watch outfor trafficwhen crossing or near roadways
When using any attachments, never direct discharge of
material towardbystanders nor allow anyone near the ve-
hicle whilelh operation,
Exceptforadjustments,de not operate engine if air cleaner
d.r,cover directlyover carburetor air intake is remeved_
Removalof suchpartcould create a fire hazard.
Do nbt change the engine governor settings or overspeed
the engine;severe damage or injury may result.,
When using the vehicle wilh mower, proceed as follows:
s_ow oniy in daylight or Ingood artftictal light.
_ut _e engine off when unelogglng chule.
Check the blade mounting bolls for proper tightnessat
frequenttntewats.
*" Disengage power to mower before backing up, Do not mow
In reverse unless absolutelynecessary and then onlyafter
careful observation of the enUrearea behindthe' mower
MAINTENANCE AND STORAGE
, Keep the vehicle end attachmentstn good operating condi-
tion, and keep safety devicestn pface and working.
,Keep all nuts, bolL%and screws tightto be sure the equip-
ment is in sate workingcondition.
Never storethe equipment with gasot{nein the tank _nsidea
bulldtng where fumes may reach an open flame or spark
Allow the engine to cool before stodng In any enclosure
, Toreduce fire hazard keep the englne free of grassjeaves,
or excessve grease, Do notclean product whileengine is
running,
De not operate without a muftier, or tamper with exhaust
system Damaged mufflers or spark anestare could create a
firehazard inspect periodicallyand replace if necessary.
Under normal usage the grass catcher bag mated_J ts
subject to deterioration and wear, tt should be checked
frequenttyfor bag replacement Replacement bags should
be checked to ensdre compliance with the orfgfnal
manufacturer's recommendationsor spec_calJens.
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT sAFETY PRECAUTIONS,
tT MEANS-ATTENTIONH BECOME ALERTII! YOURSAFETY IS INVOLVED.

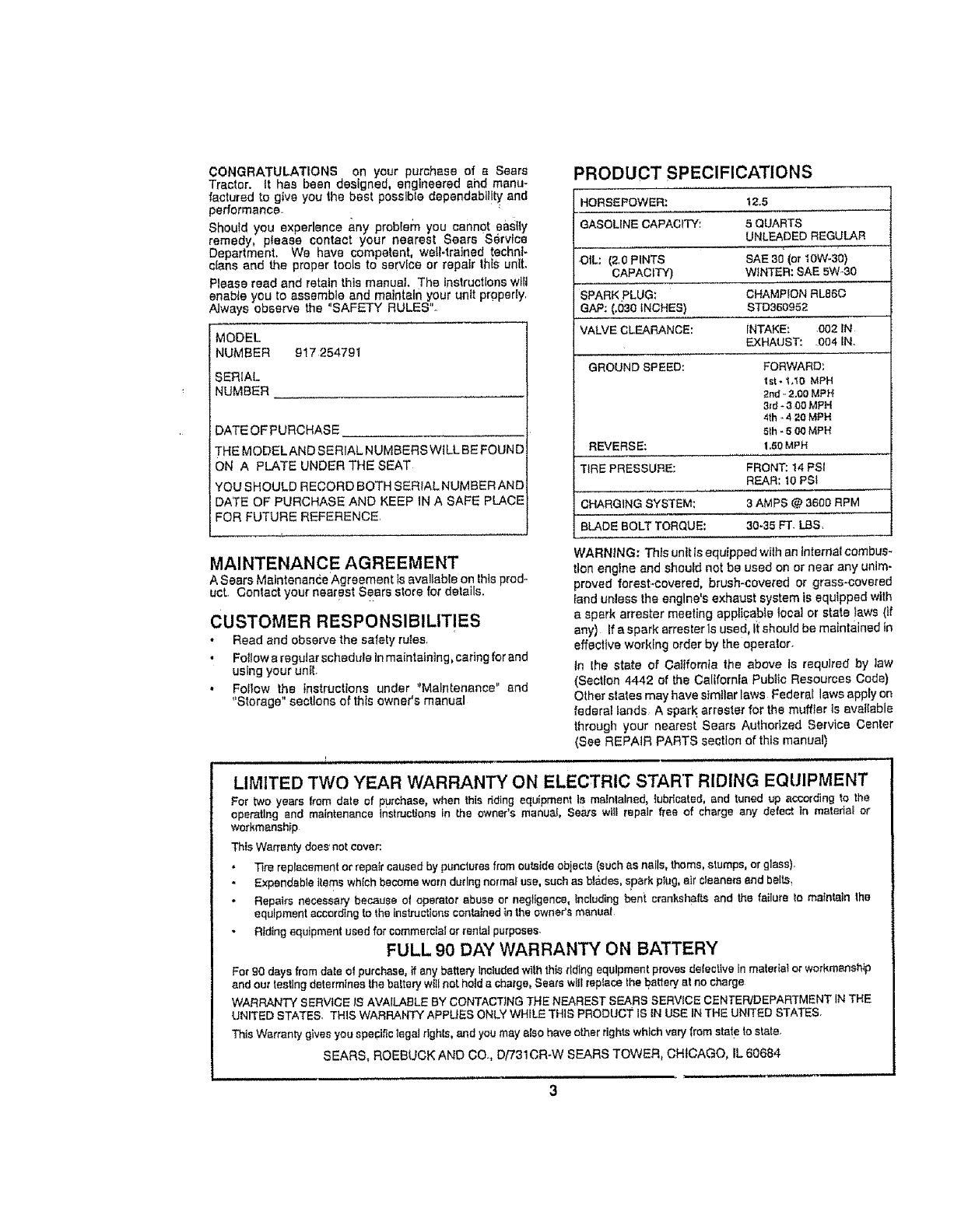

CONGRATULATIONSon your purchase of a Sears
Tractor. tt has been designed, engineered ahd manu-
factured to give you the best possible dependabll!ty and
performance.
Shoutd you experience any problem you cannot easily
remedy, please contact your nearest Sears Service
Department. We have competent welt-trained techni-
cians and the proper tools to service or repair this un t,
Please read and retain this manual. The instructions will
enabte you to assemble and maintain your unit properly.
Always observe the "SAFETY RULES"..
MODEL
NUMBER 917254791
SERIAL
NUMBER
DATEOFPURCHASE
THE MODEL AN DSERIAL N UMBERS WILL BE FOUN D
ON A PLATE UNDER THE SEAT
YOU SHOULD RECORD BOTH SERIAL NUMBER AND
DATE OF PURCHASE AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE.
PRODUCT SPECIFICATIONS
HORSEPOWER;
.__
GASOLINE CAPACITY:
t2,5
5QUARTS
UNLEADED REGULAR
, ,, , ,,
OIL: (2,0 PINTS SAE 30 (or t0W-30)
CAPACITY) WINTER: SAE 5W.30
"-SPAR_ CHAMPION RL860
GAP: (,030 INCHES) STD360952
VALVE CLEARANCE: [NTAKE: .002 IN
EXHAUST: 004 IN.
GROUND SPEED: FORWARD'.
tst- t,10 MPH
2nd..2.00MPH
3_d-3 O0MPH
4th *4_oMPH
5Ih -5 CoMPH
t,50 MPH
FRONT: 14 PSI
REAR: t0 PSI
3 AMPS @ 3600 RPM
30-35 FT_L.BS.
REVERSE:
TIRE PRESSURE:
CHARGING SYSTEM;
BLADE BOLT TORQUE;
MAINTENANCE AGREEMENT
A Sears Malntenan(_e Agreement Isavailable on this prod_
uct. Conlact your nearest Sears store for details,
CUSTOMER RESPONSIBILITIES
Read and observe the safety rules.
Follow a regutar schedule in maintaining, caring for and
using your unit.
Fotlow the instructions under "Malntenance" end
"Storage" sections of this owner's manual
WARNtNG: This unit is equipped wilh an Internal combus_
tlon engine and should not be used on or near any unim-
proved forest-covered, brush-coveted or grass-covered
Iand unless the engine's exhaust system is equipped with
a spark arrester meeting applicable local or state laws (if
any) If aspark arrestor Is used, It should be maintained tn
effecltve working order by the operator.
in Ihe state of California the above is required by law
(Section 4442 of the California Public Resources Code)
Other states may have sire!tar laws Federal laws apply on
federal lands Aspark arrestor for the muffler Is available
through your nearest Sears Authorized Service Center
(See REPAIR PARTS section of this manual)
1, ,,,u ,H , 11 , ,. ,,
LIMITED TWO YEAR WARRANTY ON ELECTRIC START RIDING EQUIPMENT
For two years from date of purchase, when this ffding equipment is maintained, lubricated, and tuned up according to the
operating and maintenance instructionsin the owner's manual, Sears wfl! repair free of charge any defect in material or
workmanship
This Warranty does not cover;
Tire replacement or repair caused by puncturesfrom outside objects (sUchas nails, theme, stumps, or glass).
Expendable items which become worn dudng ne_rna}use, such as blades, spark plug, e}r cleanersand balls,
Repairs necessary because el operator abuse or negligence, includingbent crankshaftsand the failure le matntaln the
equipment according to the instrucllons cenlainedIn the owner's manual
Riding equipment used for commercial or rentaJpurposes,
FULL 90 DAY WARRANTY ON BATTERY
For g0 days fromdate ofpurchase, if any battery Inoludedwith this riding equipmentproves delective in material orworkmanship
and our testing determines the battery willnot held a charge, Sears willreptace the bai,lery at ne charge
WARRANT'( SERVICE iS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPARTMENT INTHE
UNITED STATES. THIS WARRANTY APPUES ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES.
This Warranty gives you specificlegal rights, and you may also haveother rightswhich v_ry from stats to slate.
SEARS, ROEBUCK AND CO., D/731CR-W SEARS TOWER, CHICAGO, IL 60684

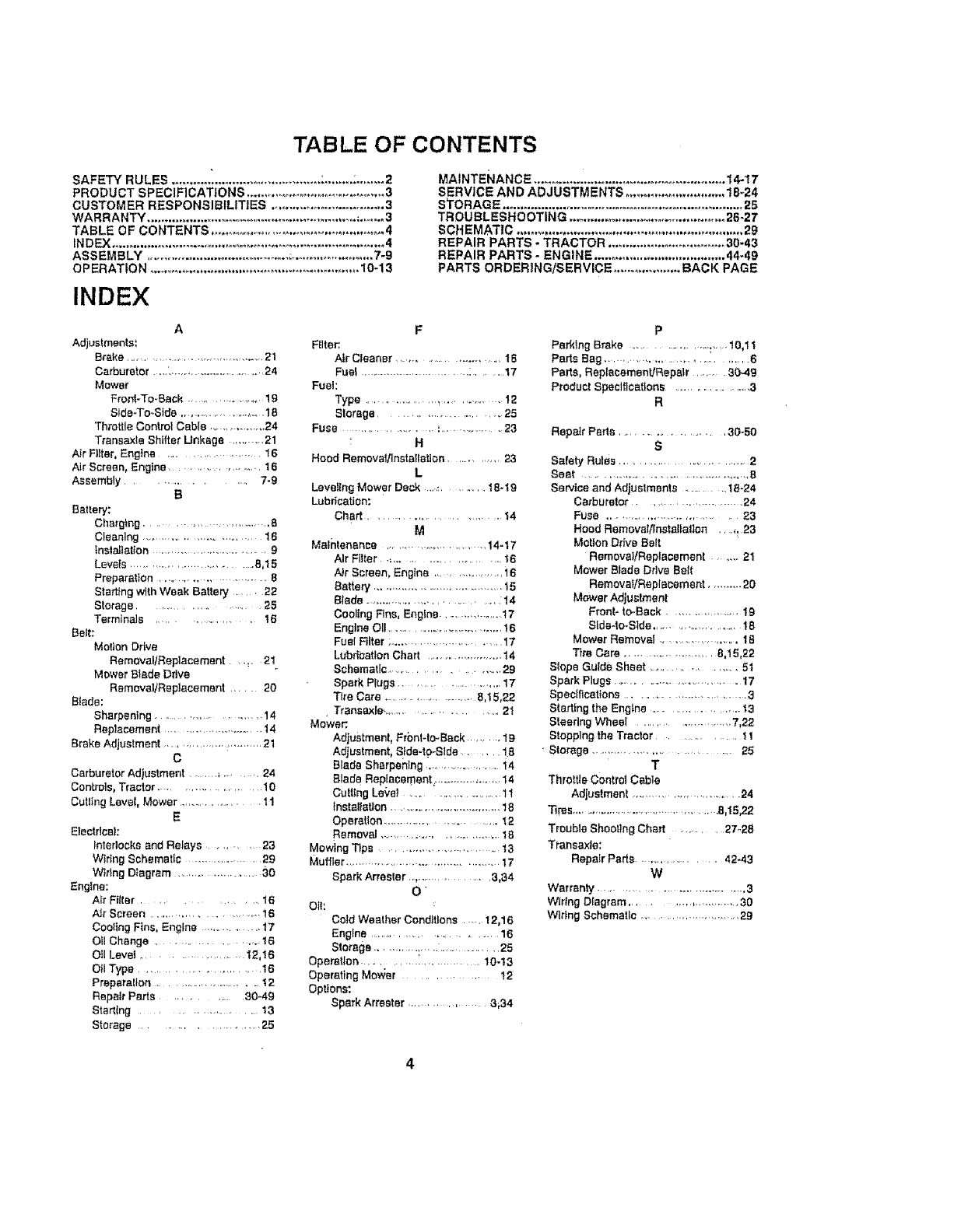

TABLE OF CONTENTS
SAFETY RULES ........... ............................... ;........ ;........ 2
PRODUCT SPECIFICATIONS ........................................ 3
CUSTOMER RESPONSIBILITIES ................................. 3
WARRANTY ............................................................... _........3
TABLE OF CONTENTS .................................................. 4
INDEX .............................................................................. 4
ASSEMBLY ........................................ ;....................... 7-9
OPERATION ............................................................ 10-13
INDEX
MAINTENANCE ........................................................ 14-17
SERVICE AND ADJUSTMENTS ............................ 18-24
STORAGE .................................................................... 25
TROUBLESHOOTING ............................................ 26-27

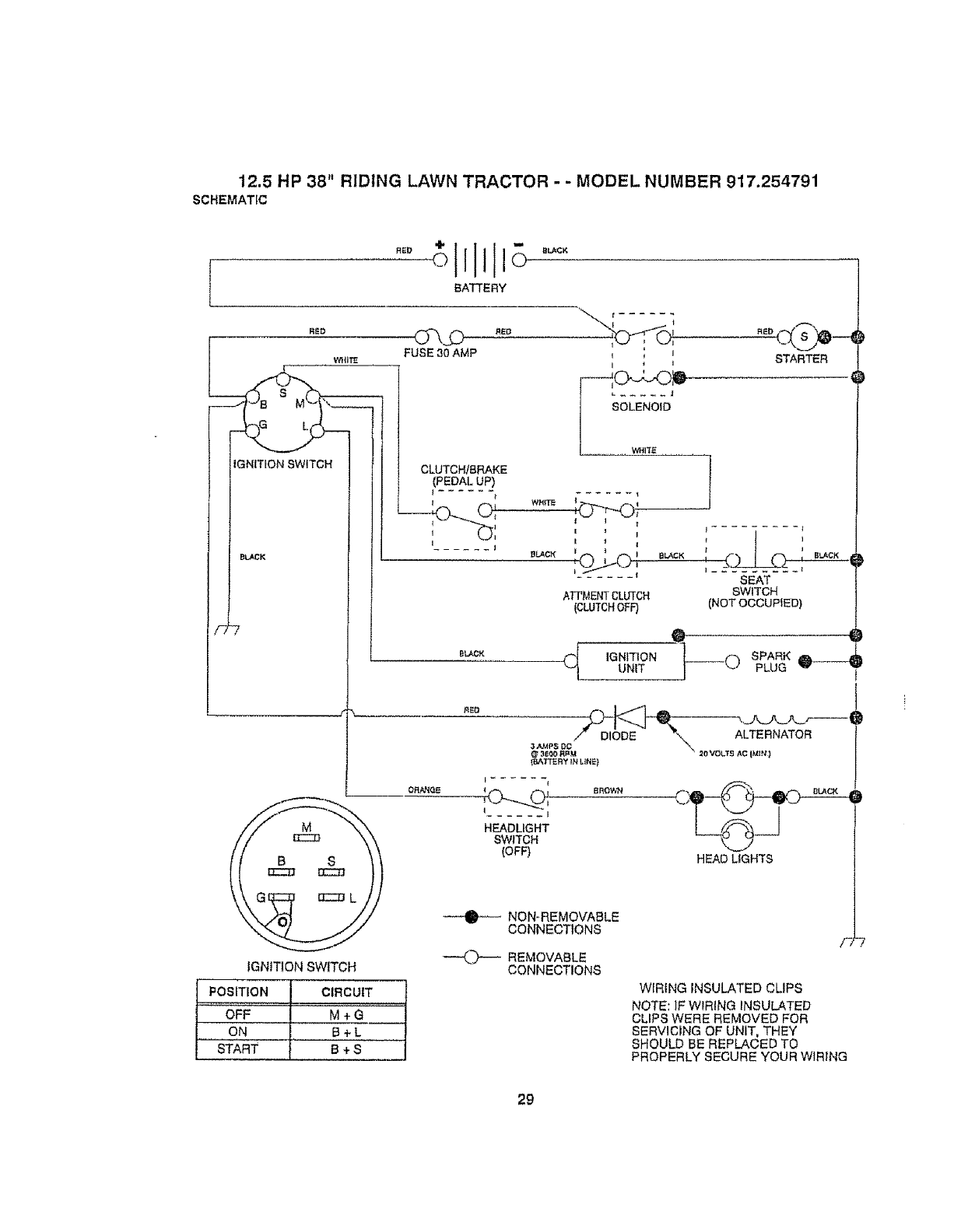

SCHEMATIC ................................................................ 29
REPAIR PARTS -TRACTOR ................................. 30-43
REPAIR PARTS- ENGINE ..................................... 44-49
PARTS ORDERING/SERVICE ................... BACK PAGE
A
Adjustments,*
Brake ....................................... 21
Carburetor...L ............................. 24
Mower
Frot_-To-rBack -o ............. 19
Side-To..Side ......................... 1B
ThrottleControlCable ............... 24
Ttansaxle Shifter Unkage ........ 21
Air Fliter,Engine ....................... 16
Air Screen, Engine.................I6
Assembly ........................ 7-9
B
Battery:
Chmgtng........................8
Cleaning ............................. 16
tnslaltation ...............................g
Levels ............................... B,15
Preparation ............ ., ............. 8
Starting withWeak Battery ...... 22
Storage .................. 25
Terminals ....................16
Belt:
Molton Drive
Removal/Replacement ,,,21
Mower Blade Ddve
Removal/Replacement .....20
Btade:
Sharpening ......... ............... 14
Replacement ..................... 14
Brake Adjustment ............................. 21
C
Carburetor Adjustment ......._....... 24
Controls, Tractor.................. 10
Cutllng Level, Mower .................... 11
E
Electrlcah
_nterlocks and Relays ..... ,23
Wlring Schematic ........... ;29
Wiring Diagram ..................... ;_0
Engine:
AIr Filter ............... 16
Air Screen ........................ 16
Cool]ng Fins,Engine .............. 17
OII Change .................. I8
O11Level .............. I2,t6
OilType ........................... 16
Praparaiton ............................. 12

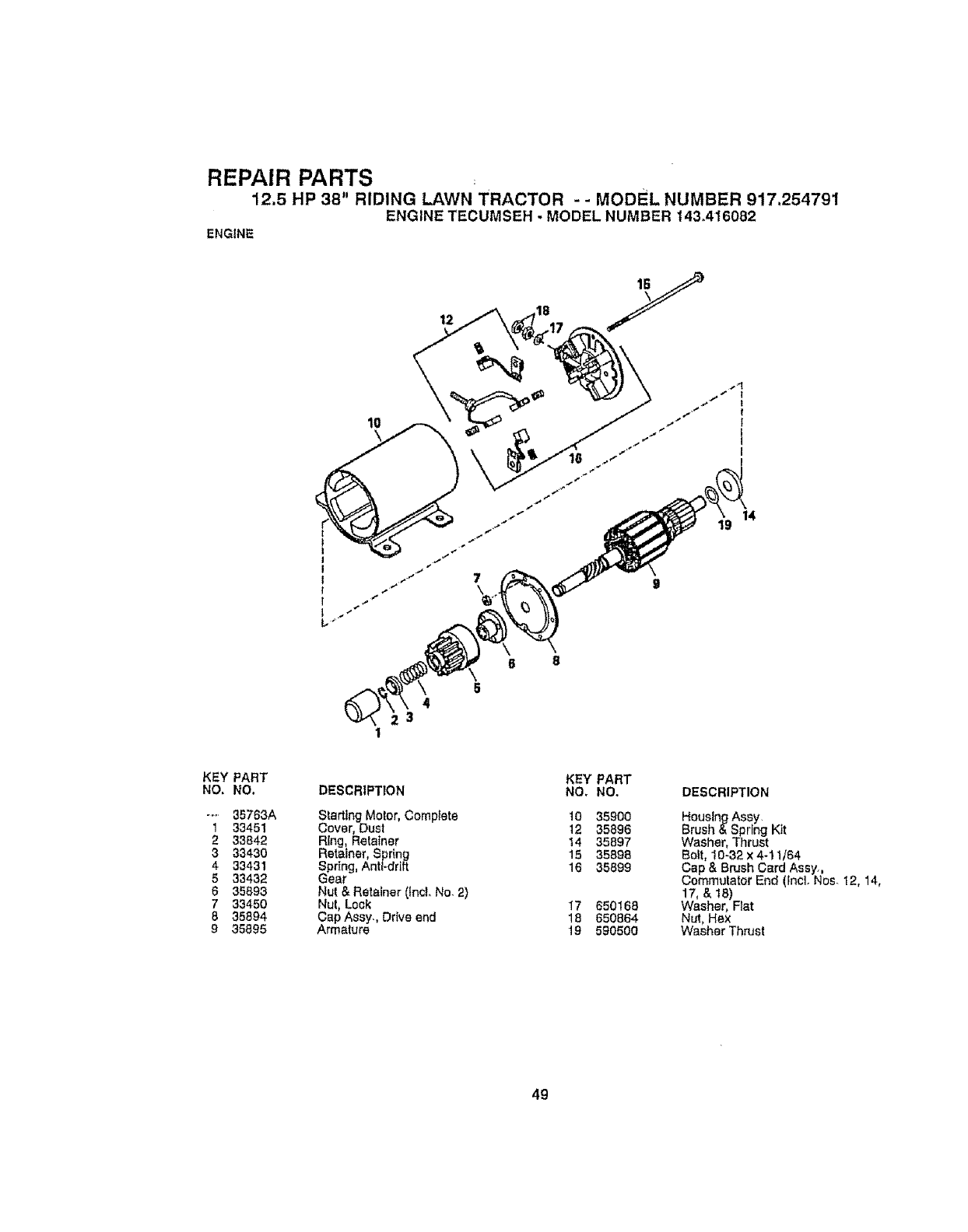

Repair Parts ................ 30.49
Starting .................... 13
Storage ....................... 25
F
Filter;
Air CIeaner, ,., ................ 16
Fuel .................. ;....... 17
Fuel:
Type ................... _................ 12
Storage ...................... 25
Fuse ................ _.............. 23
: H
Hood RemovafllnstallaUon ............. 23
L
LevelingMower Deck ..: .......... 18-19
Lubrication:
Chart .......................14
M

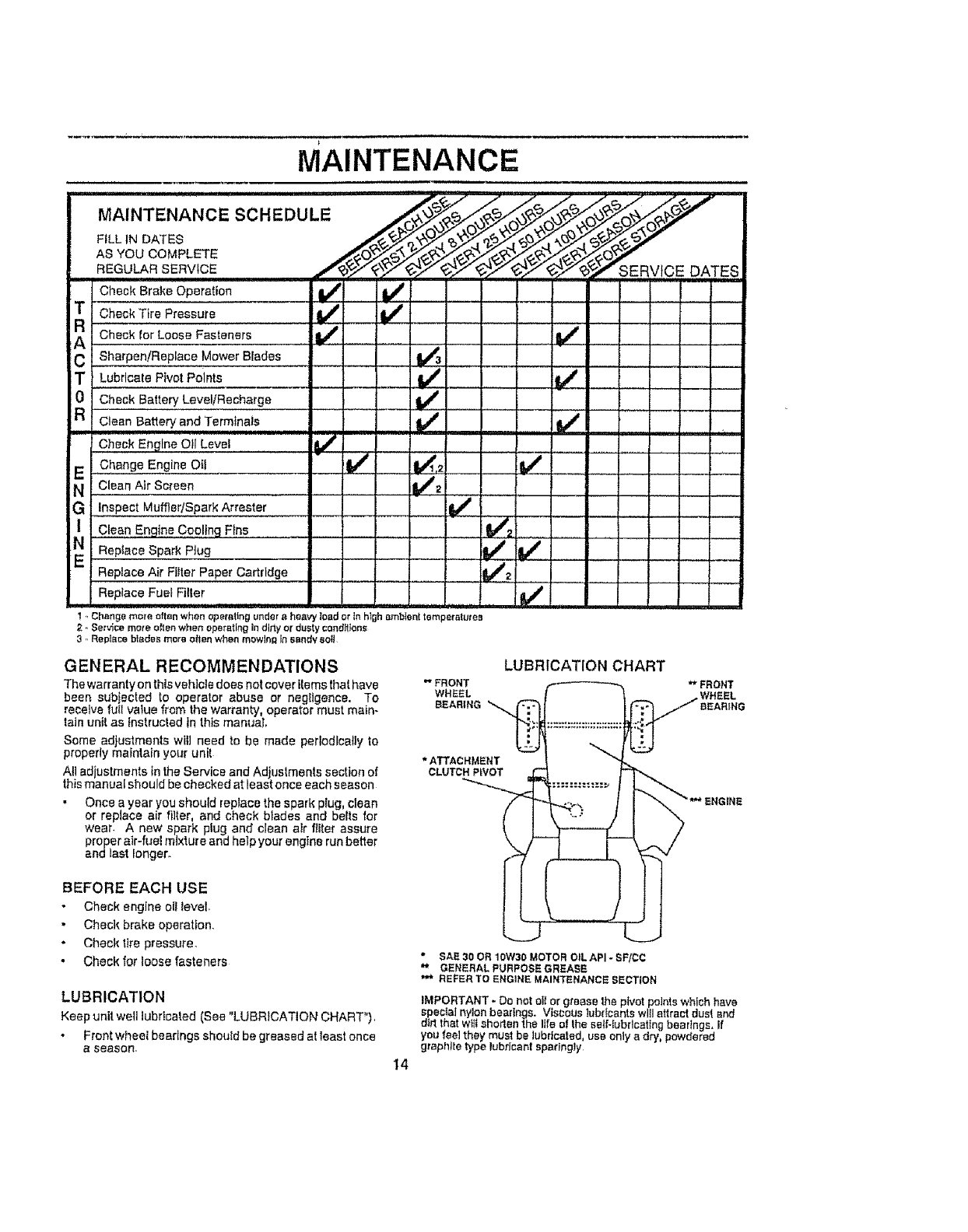

Malhtenance ...................... 14.17
Air Filter, ....................... 16
A_rScreen,Engine ................... 16
Battery ....................................15
Blade .................................... 14
Cooling Fins, Engine ...............17
Engine 011..................................... 16
Fuel Filter ;........................... 17
LubribatlonChart ........................ 14
Schematic ......................... 2g
Spark Plugs ......................17
Tire Care .................... BJ5,22
Tranaaxle_.........................21
Mower:.
Adjustment, Frbnt-tmBack .... 19
Adjustment, Stde-to-S!de...... 18
Blade Sharpening....................... {4
Blade Replacement. .................... 14
Cuttlng Level ....................... 11
Installation ...................................18
Operation.............................12
Removal ..........................1B
Mowing Tips ..............................t3
Muffler ....................... ...................... 17
Spark Arreslar ..,.............. 3,34
O"
Oil:
ColdWeather Conditions ...... 12,16
Engine............................ 16
Storage .......... :.................. 25
Operation ....................... 10-13
Operating Mov_er .................... 12
Options:
Spark Arrestor ................... 3_34
P
Parking Brake .................. _', 3 " 10,1 t
Parts Bag ................................. 6
Parts, ReplacemenL/Repalr...... 80.49
ProductSpecifications .............. 3
R
Repair Paris ....................... 30-50
S
Safety Rules ........................... 2
Seat .......................................... ..8
Service and Adjustments .......... 18-24
Carburetor ................. 24
Fuse ........................................ 23
Hood Removaltlnstallalton .... ff23
Motion Drive Belt
Removal/Replacement ....... 21
Mower Blade Drive Belt
Removal/Replacement .......... 20
Mower Adjuelment
Front-to-Back .................. 19
Side-to*Side ......................... 18
Mower Removal ..................... 18
Tire Care ........................ 8,15,22
SlopeGuide Sheet .................... 51
Spark Plugs...............................17
Specifications....................... 3
Startingthe Engine ........................ 13
Steering Wheel ....................... 7,22
Stopping the Tractor ............... 1t
, Storage ................................ 25
T
Throttle ControlCable
Adjustment ............................. 24
33ms..............................................8,15,22

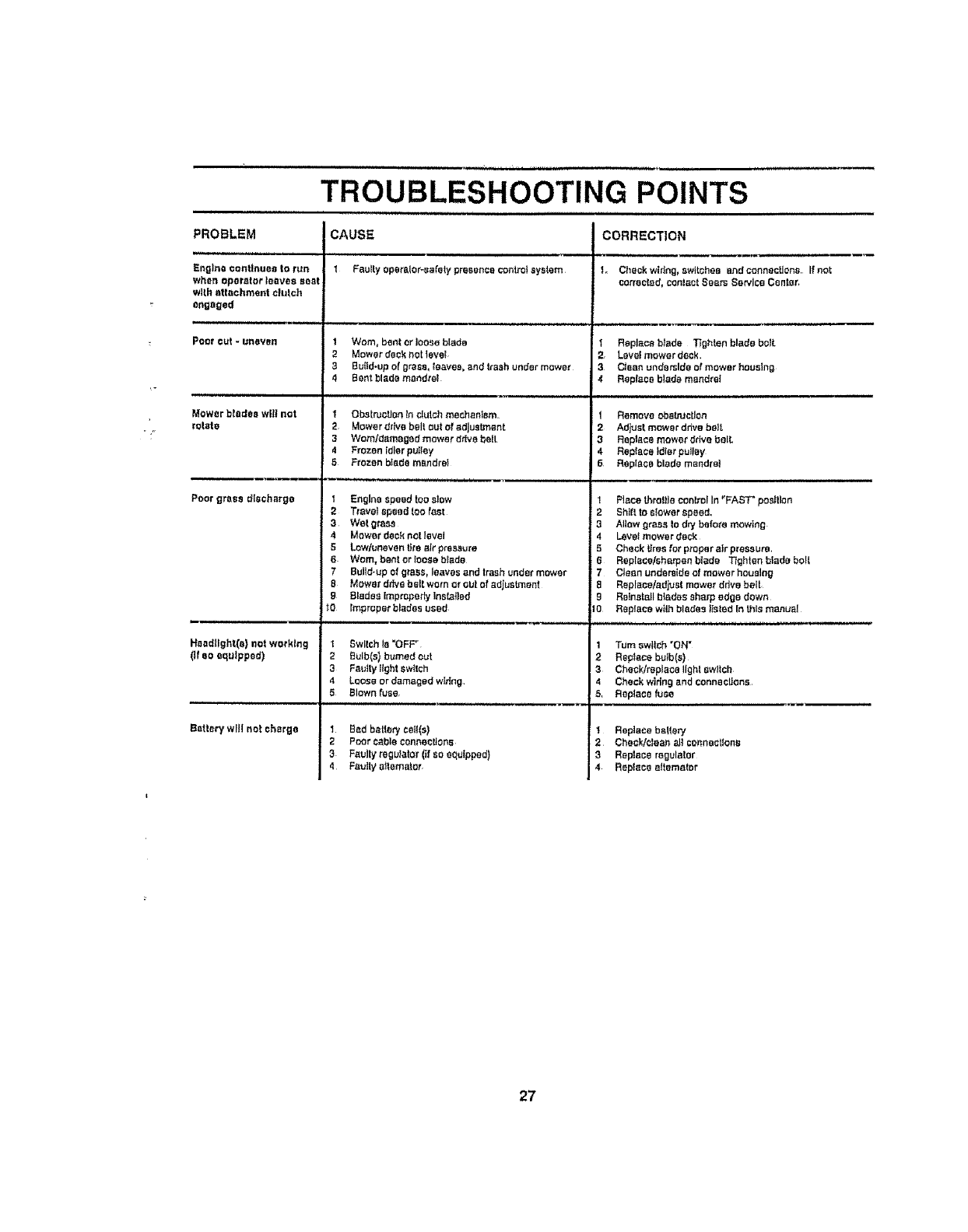

Trouble ShootingChart ........27-28
Transaxle:
Repair Parts.. ............. 42.43
W
Warranty..............................3
Wiring Diagram ........................ 30
Wiring Schematic .......................... 29

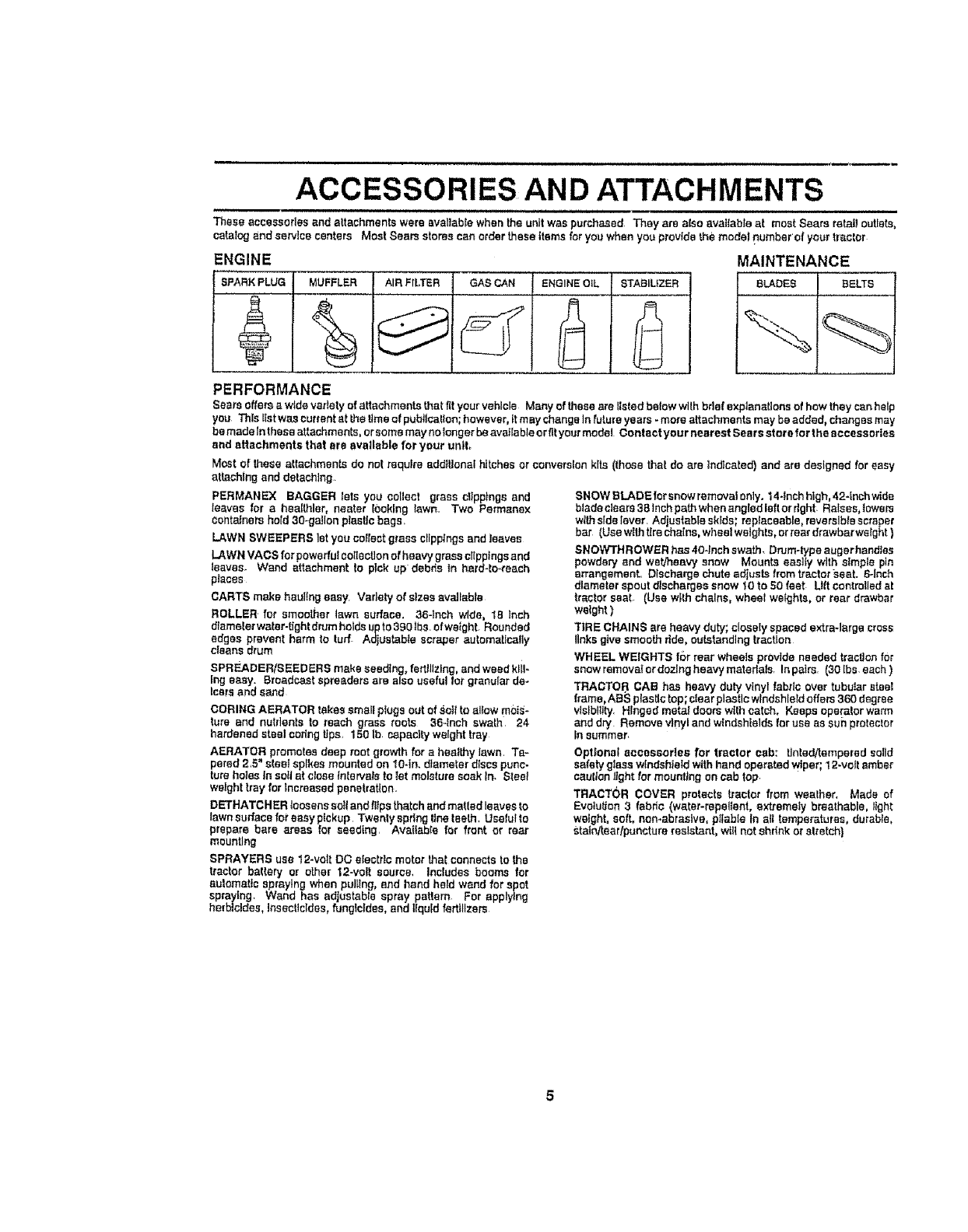

ACCESSORIES AND ATTACHMENTS
,,, i, ,, ,, ,,i,H ,, ....................
These accessoriesand attachments were available when the unit was purchased They are also available at most Sears ral_li outlets,
catalogand service centsrs M_stSearsst_rascan_rder_heseitemsf_ry_uwh_ny_upt_vld_themodeinumb____yo_rtract_r
ENGINE
SPARKPLUG MUFFLER
PERFORMANCE
AIR FTLTER GASCAN [ENGINEOIL STABILIZER
MAINTENANCE
BLADES BELTS
Sears offemaw_devarlety of attachments that ftt yourvehicle Many of theseare listedbelowwith bdef explanations of how they canhelp
you This iist wascurrentat the timeof publication; however,It may changeIn future years - mars attachments maybe added, changesmay
be made In these attachments, orsome may notongarbe eva|tableorfityour mode! Contsctyour nearest Sears store for the accessories
and attachments that ere available for your unlL
Most of these attachments do not require additional hitches ar conversionkits (those that do are thdIcated) and are designed for easy
at_ch[ng and de|achthg.
PERMANEX BAGGER lets you collect grass c_tpptngsand
leaves for a healthier, nearer {0eking lawn. Two Permanex
containersherd30-go!IonpiasUcbags,
LAWN SWEEPERS let you coltsotgrass cflppthgsand ]eaves
LAWN VACS for powerfulcollection of heavy grass clippings and
tsavas. Wand attachment to pick up debds in hard-to-reach
places
CARTS make hauling easy Variety of sizes available
ROLLER for smoother lawn surface. 36-thch wide, 18 Inch
diameterwater-tight drum holds up to3B01be.of weight. Rounded
edges prevent harm to turf Adjustabte scraper automaUcally
cleans drum
SPREADER/SEEDERS make seeding, fertl!lzthg, end weed klil-
fng easy. Broadcastspreaders are also asafui tot granularde-
icersand sand
CORING AERATOR takes email plugs outof _oll to allow robin-
lure and nutrients |o reach grass roots 36-thch swath 24
hardened steel codngtips. 150 Ib cepasItyweight tray
AERATOR promotes deep root growth for a heaithy lawn. To-
pared 2,5" sisal spikes mounted on '_O-th.diameter d{scs punc-
ture holesin soilat close inferrersto tst moisture soak In. Steel
weight tray for Increased penetration.
DE'THATCHERtoosansso_{and flipsthatchand matted leaves to
lawn surface fat easy pickup Twentyspringline teeth. Usefulto
prepare bare areas for seeding. Available for front or rear
mounting
SPRAYERS use 12-volt DO electric motet that connects to the
traclor battery or other 12-vett source. Incfudes booms for
automatic spraying when pulling, end hand held wand for spot
spraying, Wand has adjustable spray pattern. For applying
herbicides, Insecticides,fungicides, and liquid fertilizers
SNOW BLADE for snowremoval only. 14-inchhigh,42-Inch wide
blade clears38 tnchpath when angled leftor right Ratsas, lower_
with sidelever. Adjusfable skids; replaceable,reversiblescraper
bat (Use with Urechatha,wheel weights,or rear drawbar weight)
SNOW'rHROWER has 404nchswath. Drum-type augerhandtes
powdery and weVheavy snow Mounts easIty with simple ptn
arrangement., Discharge chuteadiusts from tractorseat. 6-thch
dlametetspoutdtschargessnow lOtoSOfeet Uft controlled at
tractor seat. (Use with chains, wheel weights,or rear drawbar
weight)
TIRE CHAINS are heavy duty;closely spaced extraqarge cross
links givesmoothride, outstanding traction
WHEEL WEIGHTS for rear wheels provideneeded tractionfor
snowremovalor dozing heavy materials. Inpatm. (30 [bs.each )
TRACTOR CAB has heavy duty vthyl fabric over tubular stset
frame,ABS plastictop; steerplasticw_ndshleldoffers360 degree
Vtstbltl_ Hinged metaldoors withcatch, Keeps operatorwarm
and dry Remove vinyland windshieldsfor use as sun protector
In summer.
Optional accessories for traolor cab: lintsdi'Iamperod solid
safetyglass windshieldwithhand operated Wiper;12-vol! amber
caugonlight tar mounting on cab top.
TRACTOR COVER protects tractor from weather. Made of
Evolution3 fabric (water-repellent, extremely breathable, ltght
walght,soft, non-abrasive, pIfab{ein all temperatures, durable,
stathltsar[puncttJre resistant,wilt not shdnk or stretch)

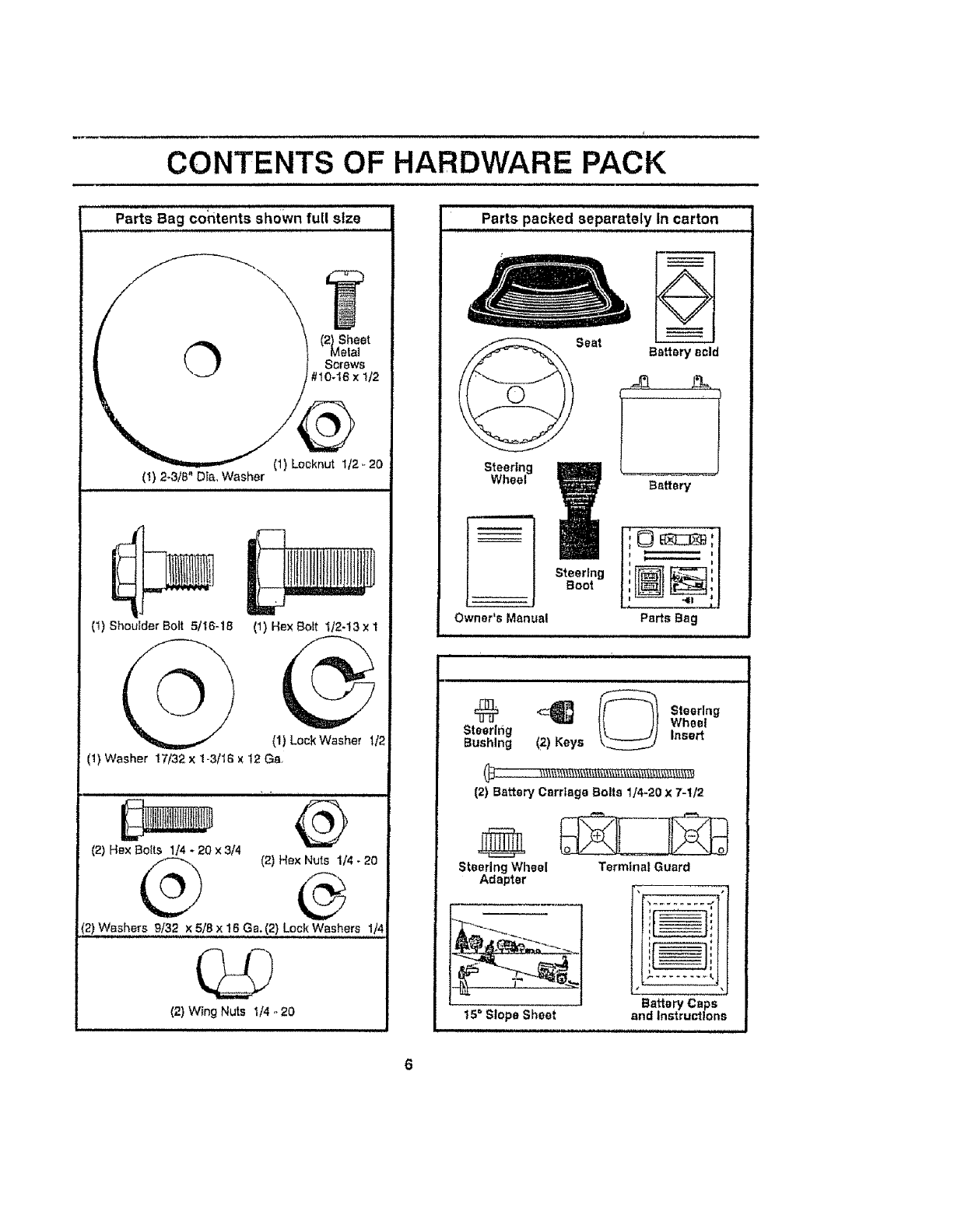

CONTENTS OF HARDWARE PACK
, L = J, ii i
Parts Bag contents shown full size
©(2) Sheet
Metal
Screws
#10-16 x 1/2
(I) Shoulder Bolt 5/16-18 (1) Hex Bolt I/2-13 x I
(1) Washer 17/32 x 1-3/16 x 12 Ga,
(2) Hex Baits 1/4 - 20 x 3/4
(2) Hex Nuts 1/4 - 20
®
12)Washers 9/32 x 5/8 x 16 Ga. (2) Lock Washers 1,!4,
121Wing Nuts I/4 ° 20
Parts packed separately In carton
,,=u,,i = =, i
Seat
Steering
Wheel
Steering
Boot
Owner's Manual
Battery acid
I
Parts Bag
% _ _ Steer,og
Wh0al
Steering
Bushing (2) Keys Insert
(2) Battery Carriage Bolts 1/4-20 X 7-I/2
Steering Wheel Terminal Guard
Adapter
1
I i
i i
, 1
Battery Caps
15= Slope Sheet and Instructions
ASSEMBLY
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set wi[f make assembly easier, Standard
wrench sizes are listed°
(I) 5/16" wrench (I) 3f4" wrench
(2) 7/16" wrenches Tire pressure gaugD
(1) t/2" wrench Screwdriver
(I) 9/16 =wrench Utility knife
When right or left hand Is mentioned in this manual, it
means when you are in the operating position (seated
behind the steering wheei).
TO REMOVE UNIT FROM CARTON
UNPACK CARTON
Remove all accessible loose parts and parts cartons
from carton (See page 6)
, Cut along dotted lines on the carton, from top to
bottom, alt four comers of carton and lay panels fiat.
Check for any additional loose parts or cations and
remove

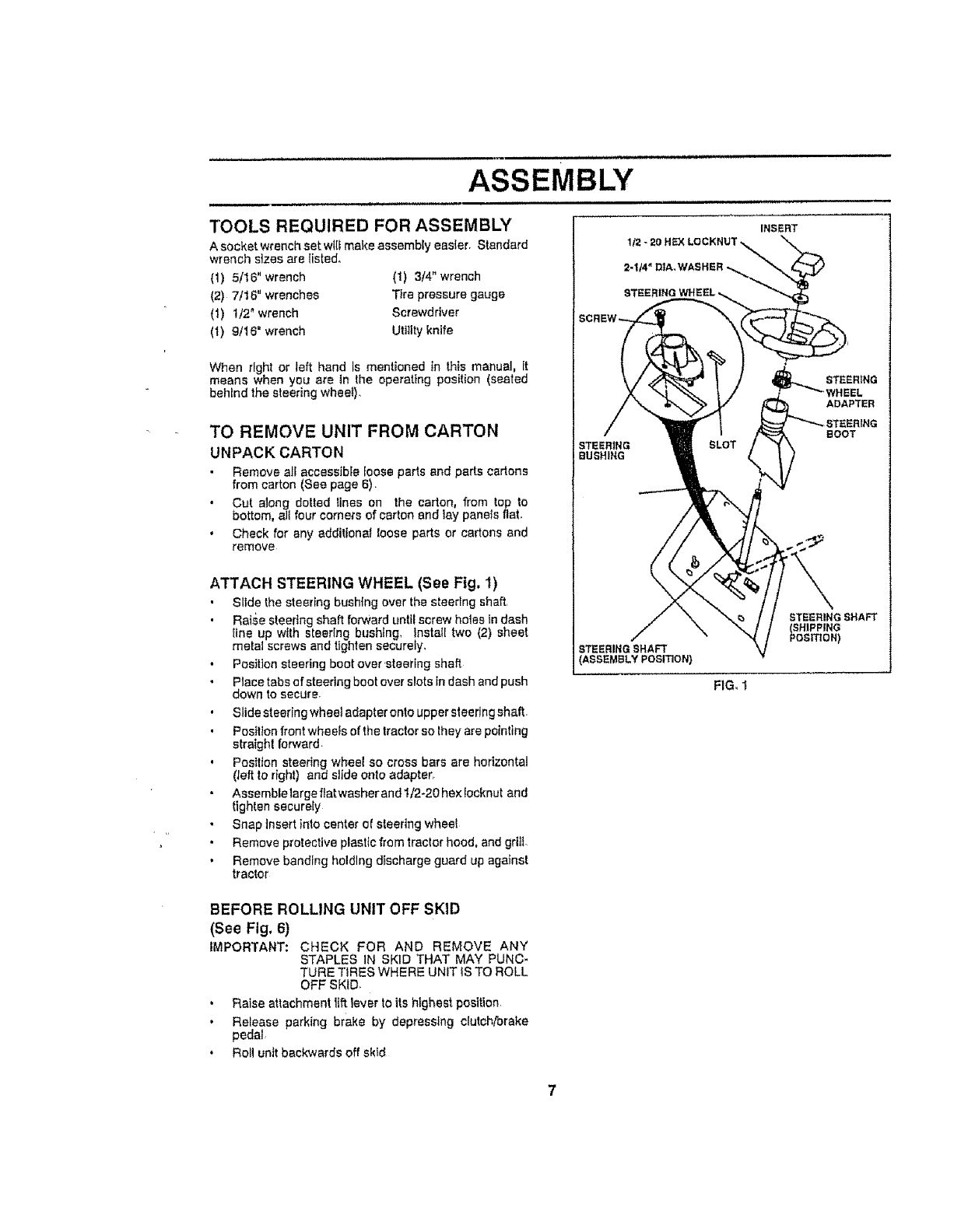

ATTACH STEERING WHEEL (See Fig, 1)
Slide the sleeting bush{ng over the steering shaft.
Raise steering shaft forward until screw holes in dash
tine up with steering bushtng, install two (2) sheet
metal screws and tighten securely,
Posii]on steering boot over steertng shaft
Ptace tabs af steering boot over slots in dash and push
down to secure.
Slide steering wheel adapter onto upper steering shaft.
Position frontwheels of the tractor so lhey are pointing
straight forward.
, Position steering wheel so cross bars are horizontal
(left to right) and slide onto adapter,
Assemble large flatwasher and 1/2-20 hex [ocknut and
tighten securely
Snap insert into center of steering wheel
Remove protective plastic from tractor hoed, and grill
Remove banding holding discharge guard up against
tractor
INSERT
STEERING SHAFT
(ASSEMBLY POSITION)
FIG_1
STEERING SHAFT
=SHIPPING
OSITION)
BEFORE ROLLING UNIT OFF SKID
(See Fig. 6)
IMPORTANT: CHECK FOR AND REMOVE ANY
STAPLES IN SKID THAT MAY PUNC.
TURE TIRES WHERE UNiT iS TO ROLL
OFF SKID.
,Raise attachment Itft lever to its hlghBsl position,
Release parking brake by depressing clutch/brake
pedal
Roll unit backwards off skid
ASSEMBLY
HOW TO SET UP YOUR TRACTOR

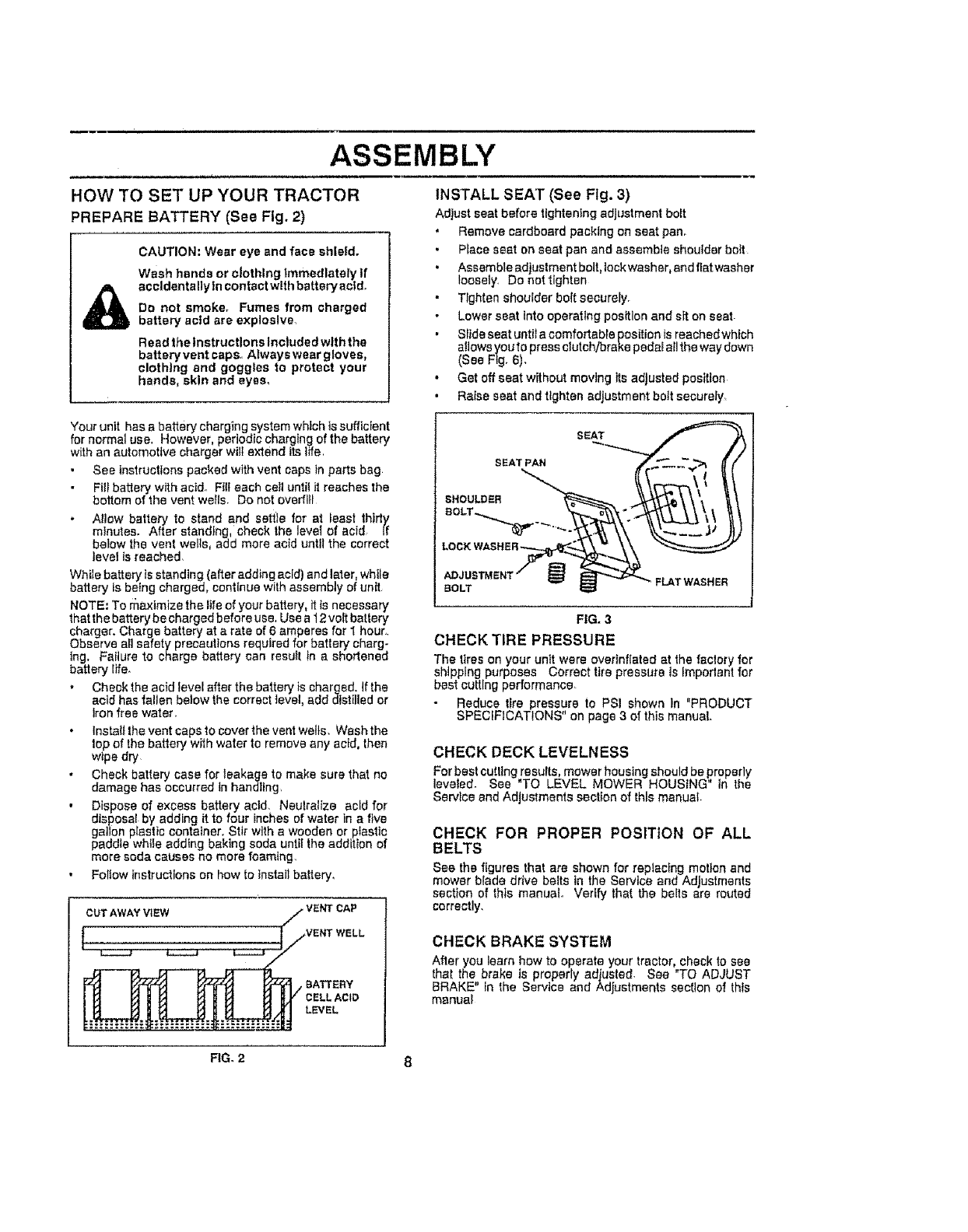

PREPARE BATTERY (See Fig. 2)
CAUTION: Wear eye and face shield.
wash hands or clothing immedlatefy If
_i_l accidentally In contact with battery actd'
Do not smoke. Fumes from charged
battery acid are explosive
Read theInstructions Includedwith the
batteryvent caps. Atwayswear gloves,
clothing and goggles to protect your
hands, skin and eyes,
INSTALL SEAT (See Fig. 3)
Adjust seat before tightening adjustment bolt
. Remove cardboard packing on seat pan.
Place seat on seat pan and assemble shoulder bolt
Assembte adjustment bolt, lock washer, and flstwasher
loosely, Do not tighten
Tighten shoulder bolt securely.
Lower seat into operating position and sit on seat.
Slide seat uoti_acomfortable position is reachedwhlch
allows you to press dutch/brake pedal all the way down
(See Fig. 6).
Get off seat without moving its adjusted position
,Raise seat end ttghten adjustment boil securely,
Your unit has a battery charging system which is sufficient
for normal use. However, periodic charging of the battery
with an automotive charger wilI extend its I_fe
See instructions packed with vent caps in parts bag
Flit battery with acid. Fill each cell until it reaches the
bottom of the vent wells. Do not overfill
Allow battery to stand and settle for at _east thldy
minutes. After standing, check the leve| of acid ff
below the vent wells, add more acid until the correct
level _sreached.
While battery is standing (after adding acid) and later, while
battery is being charged, continue with assembly of unit
NOTE" To n_axlmize the ltfe of your battery, it is necessary
that the battery be charged before use, Use a 12 volt battery
charger. Charge battery at a rate of 6 amperes for 1 hour.
Observe all safety precautions required for battery charg-
ing. Faiture to charge battery can result in a shortened
battery life.
* Check the acid level after the battery is charged, tf the
acid has fallen below the correct level, add distilled or
iron free water,
Instal{ lhe vent caps to cover the vent wells, Wash the
top of the battery with water to remove any acid, then
wtpe dry
Check battery case for leakage to make sure that no
damage has occurred tn handling,
Dispose of excess battery acid. Neutralize acid for
disposal by adding it to four inches of water in a five
gallon plastic container. Stir with a wooden or plastic
paddle while adding baking soda until the addition of
more soda causes no more foaming.
Follow instructions on how to install bsltery.
CUTAWAYVIEW /VENTCAP
I J/VENT WELL
_/eAI-fERY
9 _ II B _1I__ _1 B,f" CELLAClO
SEAT
SEATPAN
SHOULDER
BOLT
BOLT
FIG. 3
CHECK TIRE PRESSURE
The tires on your unit were over_nfIaled at the taclory for
shipping purposes Correct tire pressure is important for
best cutting performance_
Reduce ttre pressure to PSI shown tn "PRODUCT
SPECIFICATIONS" on page 3of this manual.
CHECK DECK LEVELNESS
Forbest cuttingresults,mowerhousing should be properly
leveled- See "TO LEVEL MOWER HOUSING" tn the
Service and Adjustments section of this manual,
CHECK FOR PROPER POSITION OF ALL
BELTS
See thefigures that are shownfor replacing motion and
mower blade drive belts in the Service and Adjustments
section of this manual. Verify that the belts are routed
correctly.
CHECK BRAKE SYSTEM
After you learn how to operate your tractor, check to see
that the brake is properly adiueted See TO ADJUST
BRAKE" In the Service and Adjuslments section of this
manual
FIG. 2 8
ASSEMBLY

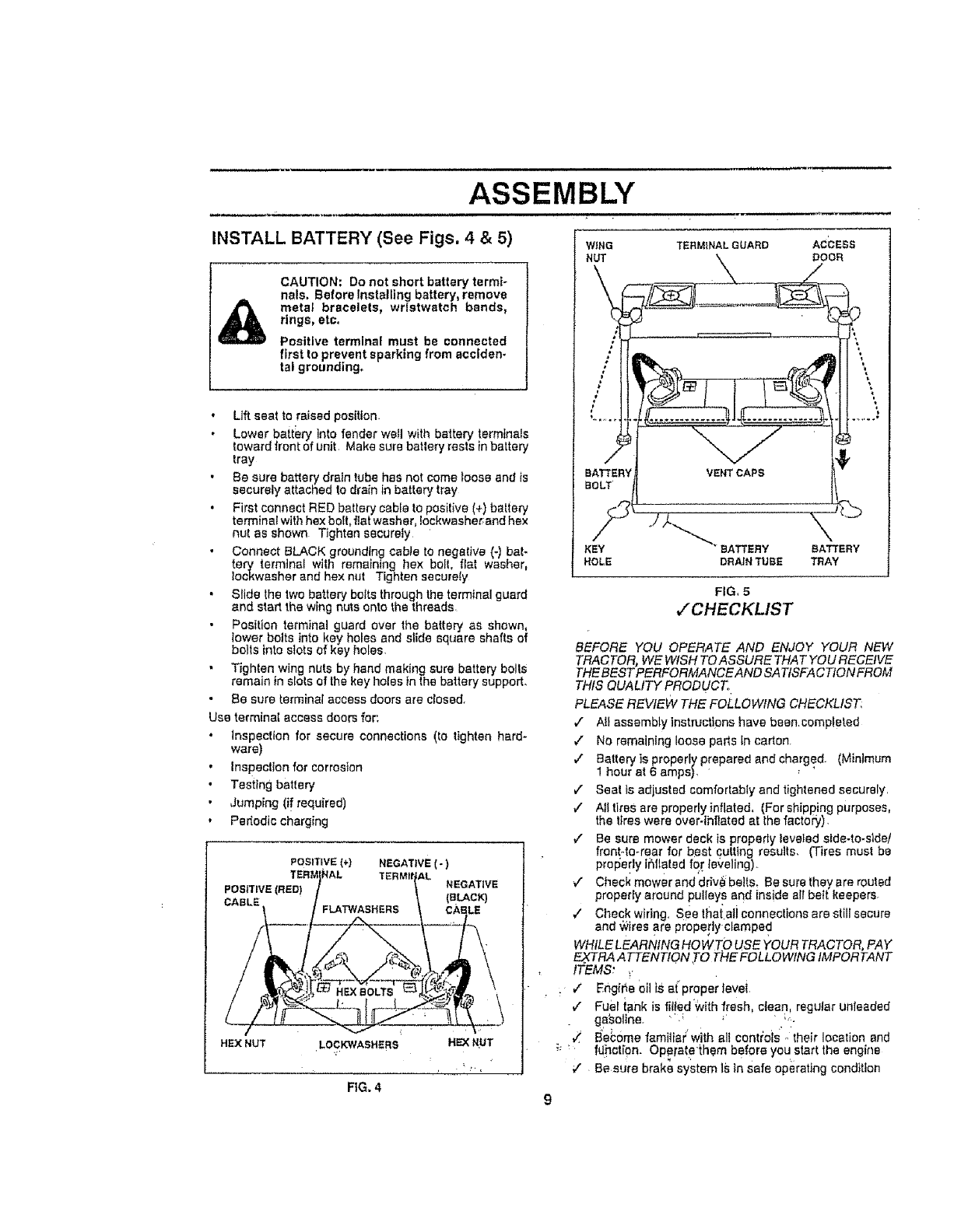

INSTALL BATTERY (See Figs, 4 & 5)
CAUTION: Do not short battery termi-
nals. Before Installing battery, remove
metal bracelets, wristwatoh bends_
rings, etc0
Positive terminal must be connected
firstto prevent sparking from acciden-
tal grounding.
, Lift seat to raised position.
Lower battery into fender wslI with battery terminals
toward front of unit Make sure battery rests inbattery
tray
Be sure battery drain tube has not come loose and is
securely attached to drain in battery tray
First connect RED battery cable to posilive (+) flaltery
terminal with hex boIt, flat washer, lockwasherand hex
nut as shown Tighten securely '
Connect BLACK grounding eabte to negative (-) bat-
tery terminal with remaining hex boil, fiat washer,
Iockwasher and hex nut Tighten secure{y
, Slide the two battery bolts through the terminal guard
and start the wing nuts onto the threads
Position terminal guard over the battery as shown,
lower bolts into key holes and slide square shafts of
bolts into slots of key holes.
Tighten wing nuts by hand making sure battery bolls
remain in slots of the key holes in the battery support.
Be sure terminal access doors are ctosed.
Use termina{ access doors for:
inspection for secure connections (Io tighten hard-
ware)
,Inspection for corrosion
, Testing battery
Jumping (if required)
, Periodic charging
POSITivE t*) NEGATIVE( -)
"fERMttIAL
POSITIVE(RED) NEGATIVE
(BLACK)
HEX NUT LOCKWASHERS HEXNUT
FIG. 4
WING TERMINAL GUARD ACCESS
NUT DOOR
KEY BATTERY BATTERY
HOLE DRAIN TUBE TRAY
FIG, 5
,."CHECKLIST
BEFORE YOU OPERATE AND ENJOY YOUR NEW
TRAGTOR, WE WfSH TO ASSURE THAT YOU RE CEfVE
THE BEST PERFORMANCE AND SA TISFA CTION FROM
THIS QUALITY PRODUCT,
PLEASE REVIEW THE FOLLOWING CHECKLIST,
,/ Alf assembly instructi_:,nshave been. completed
v" No remainEng loose parts in carton.
,/ Battery is properly prepared and charged. (Minimum
1 hour at 6 stops). _ '
,/ Seat is adjusted comfortab{y and tightened securely.
,/ All tkes are properly inflated. (For shipping purposes,
the tires were over-inflated at the factor).
,,/ Be sure mower deck is proper_y leveled side-to-side/
front-to-rear fo_' best cutting results. (Tires must be
prol::;eriy ir_tlalsd for tee'sling).
v" Check mower and drive'belts, Be sure they are routed
properly around pulleys and inside air bert keepers.
V' Check wiring. See that all connections are still secure
and *ires are propedy clamped
WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY
_RA A TTENTION.T ° THE FOLLO WING IMPORTANT
fTEMS_ _.
: ,/ Engir_e ell is a{ proper levet
,/" Fuel iank is fi{ted'with fresh, clean, regular un(eaded
BeCome familia(with eli contiois .their location and
;_ fdhot[on. Opec'atethem before YoU start the engine
v" Besure brake system ls tn safe operating cond_tlon
OPERATION
LIGHT SW_CH
CLUTCHiBRAKE PEDAL ATTACHM ENT HEIGHT
ADJUSTMENT POSITIONS
PARKING BRAKE LEVER IGNITION SW_TCH
FIG. 6
Sears Iractors conform to the safety standards of the American National Standards institute,,
ATTACHMENT CLUTCH LEVER - Used to engage the '
mower blades,
ATTACHMENT LIFT LEVER -Used to raise, lower, and
adjust the mower deck or other attachments mounted to
your tractor.
LIFT LEVER PLUNGER - Used to release attachment lift
tever when changing Its position
CLUTCH/BRAKE PEDAL _ Used for declutchlng and
braking the tractor and starling the engine.
tGNI'rION SWITCH - Used for starting and stopping the
engine
GEAR SHIFT LEVER -Setects the speed and direction of
the traeto_
LIGHT SWITCH - Turns the headlights on and off
PARKING BRAKE LEVER - Locks clutch!brake pedal into
the brake position
THROTTLE/CHOKE CONTROL o Used for starting and
contre}llng engine speed.
10
OPERATION
The operat on of any ractor can result inforeign objects thrown into the Byes which can resull
in severe eye damage_ Afways wear safety glasses or eye shields while operating your tractor
or performing any ad ustments or repairs We recommend Wide Vision Safety Mask for over
the spectacles or standard safety g asses, available at Sears Retail or Catalog Stores.
HOW TO USE YOUR TRACTOR
TO SET PARKING BRAKE (See Fig. 7)
Your unit Is equipped with an operator presence sensing
switch. When engine ts running, any attempt by the
operator to leave the seat without first setting the parking
brake will shut off the engine
*Depress clutch/brake pedal Into fuI["BRAKE" position
end hold.
Place park!ng brake lever In "ENGAGED" position and
retease pressure from dutch/brake pedal Pedat should
remain In BRAKE position Make sure parking brake
will hold vehicle secure
STOPPING (See Ftg, 7)
MOWER BLADES
Move aftachment clutch lever to "DISENGAGED" po-
sition
GROUND DRIVE -
Depress dutch/brake pedal into futl "BRAKE" position
Move gearshift lever to "NEUTRAL" position
ENGINE -
Move throtlIe controJ to "SLOW" posit}on
Turn ignition key to "OFF" posilion and remove key.
Always remove key when leaving vehicle to prevent
unauthorized use.
Never use choke to stop engine,
TO USE THROTTLE CONTROL (See Fig. 7)
Always operate engine at full throttled
Operating engine at less than full throttlereduces the
battery charging rate and the enginecooling air flow
Full throttle offers the best bagging and mower per-
formance
TO MOVE FORWARD AND BACKWARD (See
Fig, 6)
The direction and speed of movement Iscontrolled by the
gearshift lever,
Start tractor with clutch/brake pedal depressed and
gear shift lever in "NEUTRAL" position,
Move gear shift lever to desired posiUen
SIowly release clutch/brake pedal to start movement,
IMPORTANT: BRING TRACTOR TO A COMPLETE
STOP BEFORE SHIFTING OR CHANG-
ING GEARS, FAILURE TO DO SO WILL
SHORTEN THE USFUL LIFE OF YOUR
TRANSAXLE.
ATTACHMENT CLUTCH
LEVER "ENGAGED _ "DISENGAGED"
POSITION POSITION
GEAR SHIFT
LEVER
PARK}NG BRAKE
'ENGAGED"
"DISENGAGED"
POSITION
CLUTCH/BRAK E
PEDAL "DRIVE"
POSITION
FIG. 7
TO ADJUST MOWER CUTTING HEIGHT (See
Fig. 6)
The position of the attachment lift lever determines the
cutting height,
Grasp lift lever
Press plunger with thumb and move lever to desired
position-
The cutting height range is approximately 1ol/4" to 3-3/4".
The heights are measured from the ground to the blade tip
with the engine not running, These heights are approxi-
ma{e and may vary depending upon soil condltlons, height
of grass and types of grass being mowed
The average _awn should be cut approximately 2-!/2
Inches during the cool season and over 3 inches during
hot months For healthier and better looking lawns,
mow often and after moderate growth.
For best cutting performance, grass over 6 Inches In
height should be mowed twice Make the first cut
relatively high; the second to desired height.
11
OPERATION
TO OPERATE MOWER (See Fig 8)
Your unit is equipped with an operator presence sensing
switch Any attempt by the operator to leave the seat w_th
the engine running and the attachment clutch engaged will
shut off the englne.
Setect desired height of cut
Engage mower by moving attachment clutch lever up
to ENGAGED posttion
, TO STOP MOWER - Move attachment clutch laver to
*'DISENGAGED" position:
I/_, CAUTION; Do not operate the mower
without either the entire grass catcher,
on mowers so equipped, Dr the dis-
charge guard in place,
ATTACHMENTCLUTCH
LEVER "DISENGAGED"
POSITION
"x, ATTACHMENT
LIFT LEVER
HtGH POSITION
RUNNER
DISCHARGE
GUARD
FIG 8
TO OPERATE ON HILLS
I Z% CAUTION, Do not drive up or downdlt hills with slopes greater than 15 _ and
do not drive across any sloper
'Choose the slowest speed before starting up or down
htlls,
Avoid stopping or changing speed on hi{is
If slowing is necessary, move throttle control Fever Io
stower position_
if stopping iS absolutely necessary, push dutch/brake
pedal qutckly to brake position and engage parking
brake,
Move gearshift lever to ist gear and be sure you have
allowed room for tractor to rotl slightly as you restarf
movemenL
TO restart movement, slowly release parking brake and
clutch/brake pedal
Make all turns stowly.
TO TRANSPORT
Raise attachment lift control to highest position
When pushing or towing your unit, be sure gearshift
lever is In "NEUTRAL" position
Do not push or tow unit at more than five (5) MPH

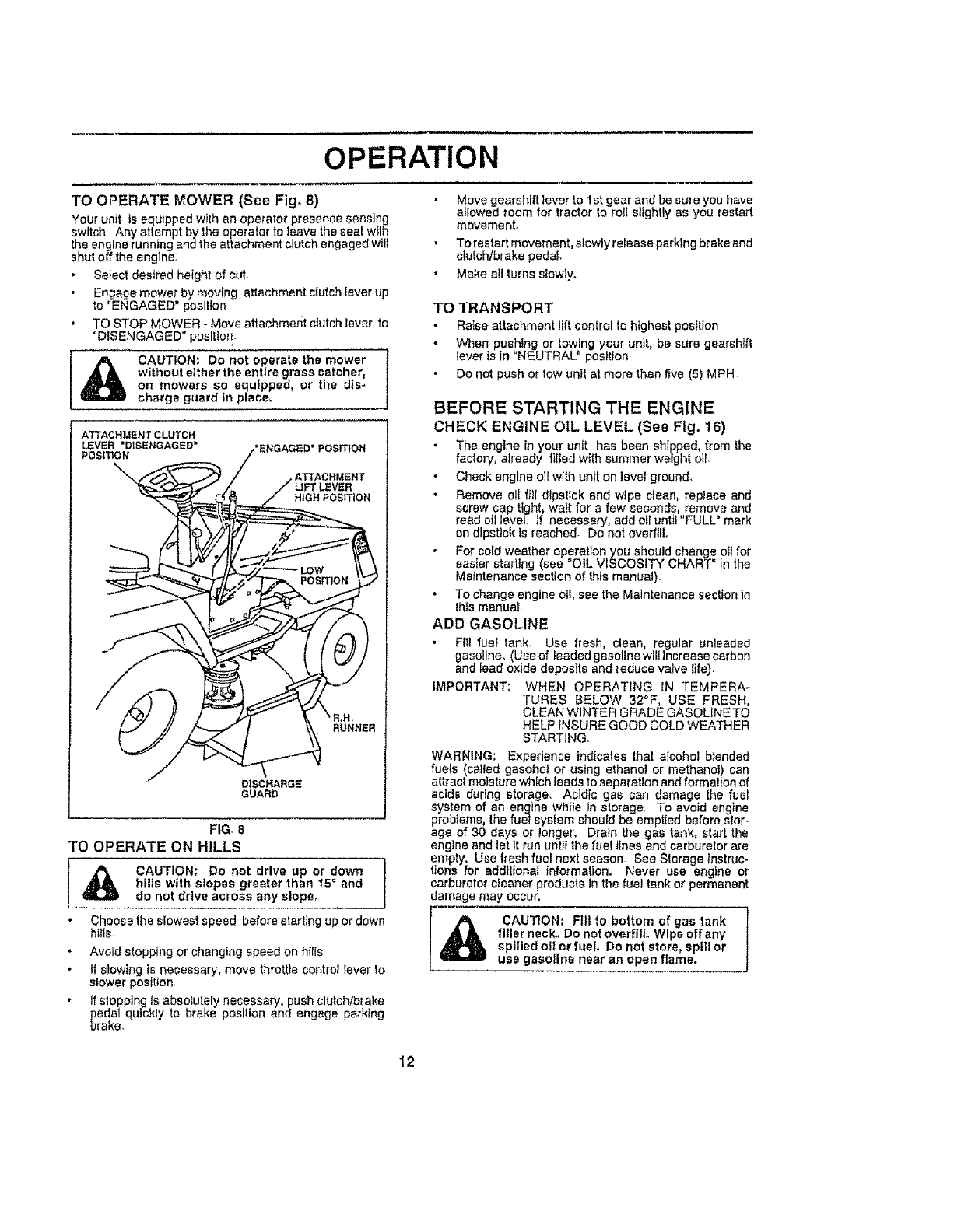

BEFORE STARTING THE ENGINE
CHECK ENGINE OIL LEVEL (See Fig. 16)
The engine [n your unit has been shipped, from the
factory, already tilted with summer weight e_l
Check engine o11with unit on level ground,
Remove oil fill dipstick and wipe dean, replace and
screw cap tight, wait for a few seconds, remove and
read oil level. If necessary, add oil unlit "FULL" mark
an dipstick Is reached Do not overfill.
For cold weather operation you should change oil for
easier starting (see "OIL VISCOSITY CHART" In the
Maintenance section of this manual).
To change engine oli, see the Maintenance section in
lhts manual,
ADD GASOLINE
Ftlt fuel tank Use fresh clean regular unleaded
gasoline. (Use of leaded gasoline will increase carbon
and lead oxide deposits and reduce valve life).
IMPORTANT; WHEN OPERATING IN TEMPERA-
TURES BELOW 32°F, USE FRESH,
CLEAN WINTER GRADE GASOLINETO
HELP iNSURE GOOD COLD WEATHER
STARTING.
WARNING; Experience indicales {hal alcohol blended
fuels (called gasollol or using ethane! or methanol ! csn
attract moisture which leads to separation and forma!ion el
acids during storage. Acidic gas can damage the fuel
system of an engine while in storage To avoid engine
problems, the fuel system should be emptied before stor-
age of 30 days or longer, Dra_n the gas tank, start the
engine and let it run untII the fuel lines and carburetor are
empty, Use fresh rue! next season See Storage Instruc-
tions for addllional information. Never use engine or
carburetor cleaner products In the fuel tank or permanent
damage may occur.
I& CAUTION; FIllto bottom of gas tank
filler neck. Do not overfill Wipe off any
spilled oil or fuel. Do not store spill or
use gasoline near an open fame.
12
OPERATION

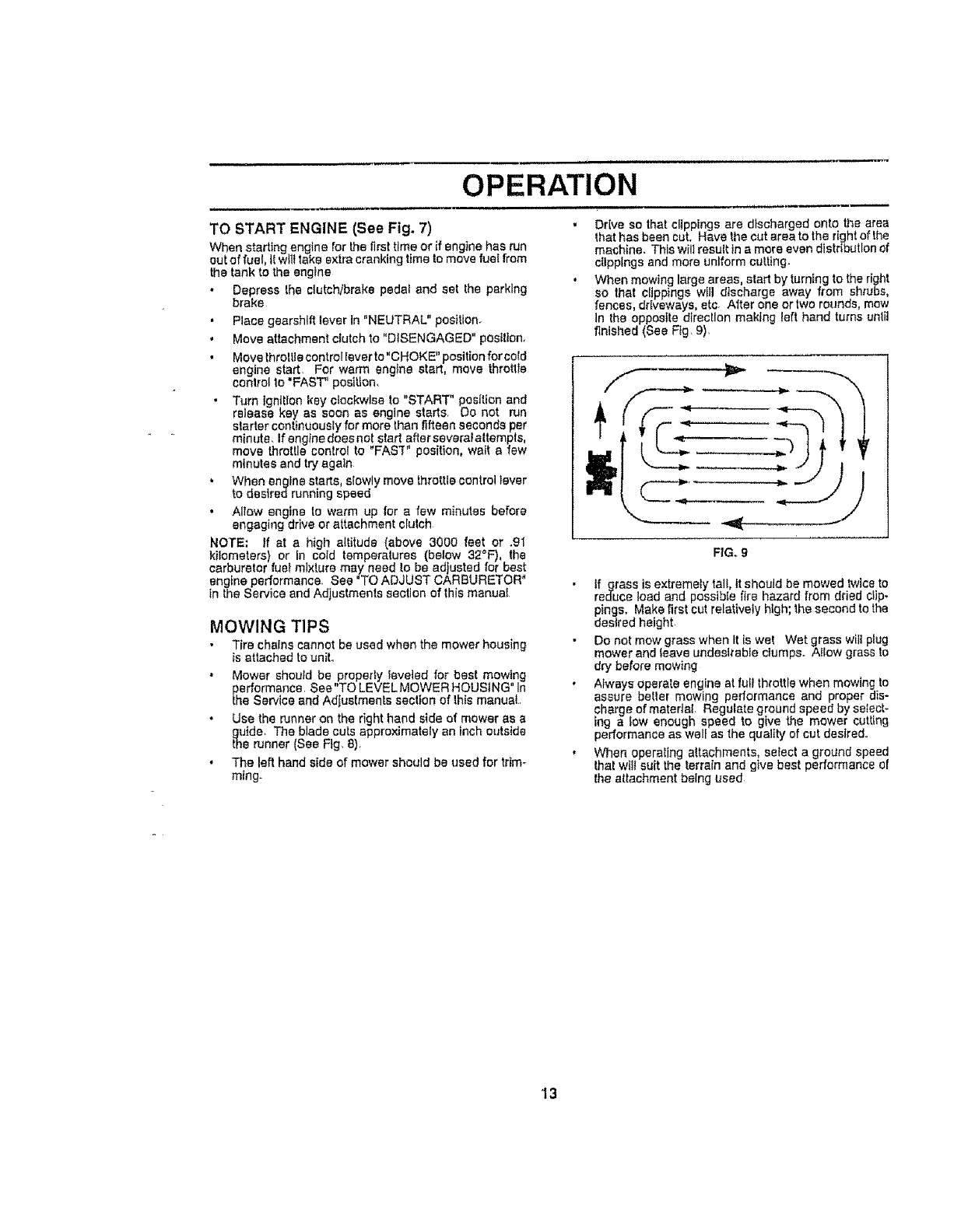

TO START ENGINE (See Fig. 7)
When starting engine for the first time or if engine has run
out of fuel_ tt wilt lake extra cranking time to move fuel from
the tank to the engine
Depress the clutch/brake pedat and set the parking
brake
Place gearshift lever In "NEUTRAL" position.
Move attachment clutch to "DISENGAGED" position,
Move throltta control lever to"CHOKE" position for cold
engine start, For warm engine start, move throttle
control to =FAST" position,
Turn Ignition key clockwise to "START" position and
release key as soon as engine starts, Do not run
starter continuously for more than fifteen seconds per
minute. If engine does not start after severalaltempls,
move throttle control to "FAST' position, wait afew
minutes and try agath
. When engine starts, slowly move throttle control iever
to desired running speed
Allow engine to warm up for a few minutes before
engaging drive or attachment ciulch
NOTE: If at a high altitude (above 3000 feet or .9I
kilometers) or In cotd temperatures (below 32"F), the
carburetor fuel mixture may need to be adjusted for best
engine performance See 'TO ADJUST CARBURETOR"
in the Service and Adlustments section of this manuat
MOWING TIPS
Tire chains cannot be used when the mower housing
is attached to unit,,
Mower should be properly leveled for best mow!,ng
performance, See "TO LEVEL MOWER HOUSING In
the Service and Adtustments section of this manual,,
Use the runner on the right hand side of mower as a
tghuide, The blade cuts approximately an Inch outside
srunner (See Fig. 8) r
The left hand side of mower should be used for trim-
mlng
Drive so that clippings are discharged onto the area
that has been cut. Have the cut area to the right of the
machine. This will result in a more even distribution of
clippings and more uniform cutting.
When mowing large areas, start by turning to the right
so that clippings will discharge away from shrubs,
fences, driveways, etc. After one or two rounds, mow
In the opposite direction maklng left hand turns until
finished (See Fig, 9),
FtG. g
tf grass is e×tremety tall it shouJd be mowed twice to
reduce load and possible fire hazard from dr ed c p.
pings. Make first cut relatively high; the second to the
desired height
Do not mow grass when It Is wet Wet grass will plug
mower and leave undes#abta dumps. Atlow grass to
dry before mowing
A_ways operate engine at ful! throttle when mowing to
assure better mowing performance and proper dis-
charge of material, Regulate ground speed by select-
ing a low enough speed to give the mower cutting
performance as well as the quality of cut deslred.
When operating attachments, select a ground speed
that will suit the terrain and give best performance of
the attachment being used
'I3
MAINTENANCE
F,LL,=OAT=S °
O=eckBrakeOpe=t,ooiJ !"' 'V,'
TC=.ckT_rePrese=rer_ !I/
I Check for Loose Fasteners li_
C SharpenlReplace Mower Blades _ =
TLubrlca,e Pivot Points if _ l
0Check Battery Level/Recharge Ve
a Clean Battery and Terminals V#......... V f
Check Engine OII Level
E Cha.0eE_gineO, V" -._.2 V'
Clean Air Screen V#2i
N
G Inspect MUffler/Spark Attester V_'
I C!ean F-ri!!no Co01tng Fins _ . .
I Replace Spark Plug
Replace Air Filter Paper Cartridge
Replace Fuel Filter
I"r Changemore oftenwhen operatingunder,aheavyloadat in highambienttemperatuteB
2. Serv;cemeteoJtenwhenoperatingindirtyor dustycondt_ens
3,,Repl_ceblades moree/tenwhenmowing[nsandysot
iv' V,
GENERAL RECOMMENDATIONS
The warranty on this vehicle does not cover ilems that have
been subjected to operator abuse or neglgence, To
receive full value from the warranty, operator must main-
tain unit as instructed in this manual
Some adjustments will need to be made pertodlcaly to
properly maintain your unl
All ad ustments In the Service and Adjuslments section of
this manua[ shou d be checked at least once each season
Once a year you should replace the spark plug, clean
or replace air filter, and check blades and belts for
wear. A new spark ptug and clean air filer assure
proper air-fue! mixture and help your engine run better
andlast longer.
BEFORE EACH USE
Check engine el level,
Check brake operation,
Check tire pressure,
Check for loose fasteners
LUBRICATION
Keep unit wei lubricated (See "LUBRICATION CHART"),
Front wheel bearings should be greased at feast once
a season. 14
LUBRICATION CHART
FRONT _ *"FRONT
WHEEL ; -WHEEL
.............. C_
*ATTACHMENT
CLUTCHPIVOT
"SAE 30 OR 10W30 MOTOR OiL API - SF/CC
** GENERAL PURPOSEGREASE
REFER TO ENGINE MAINTENANCE SECTION
IMPORTANT. Do not ot or grease Ihe pivot points which have
special nylon bearings. Viscous lubricants wil attract dust and
d_rtthat wit shorten the life of Ihe set-lubrlcatlng bearings, if
you feel they must be lubricated, use onlya dry, powdered
graphite type lubricant sparingl)'
MAINTENANCE
TRACTO R
Always observe safety ru_es when performing any maim
tenance,
TIRES
Maintain proper err pressure in atl tires (See "PROD-
UCT SPECIFICATfONS on page 3 of thts manual).
Keep tires free of gasol.rne, oi!, or Jnsect control chemi-
cals which can harm rubber-
Avoid stumps, stones, deep ruts, sharp oblects and
other hazards that may cause tire damage,

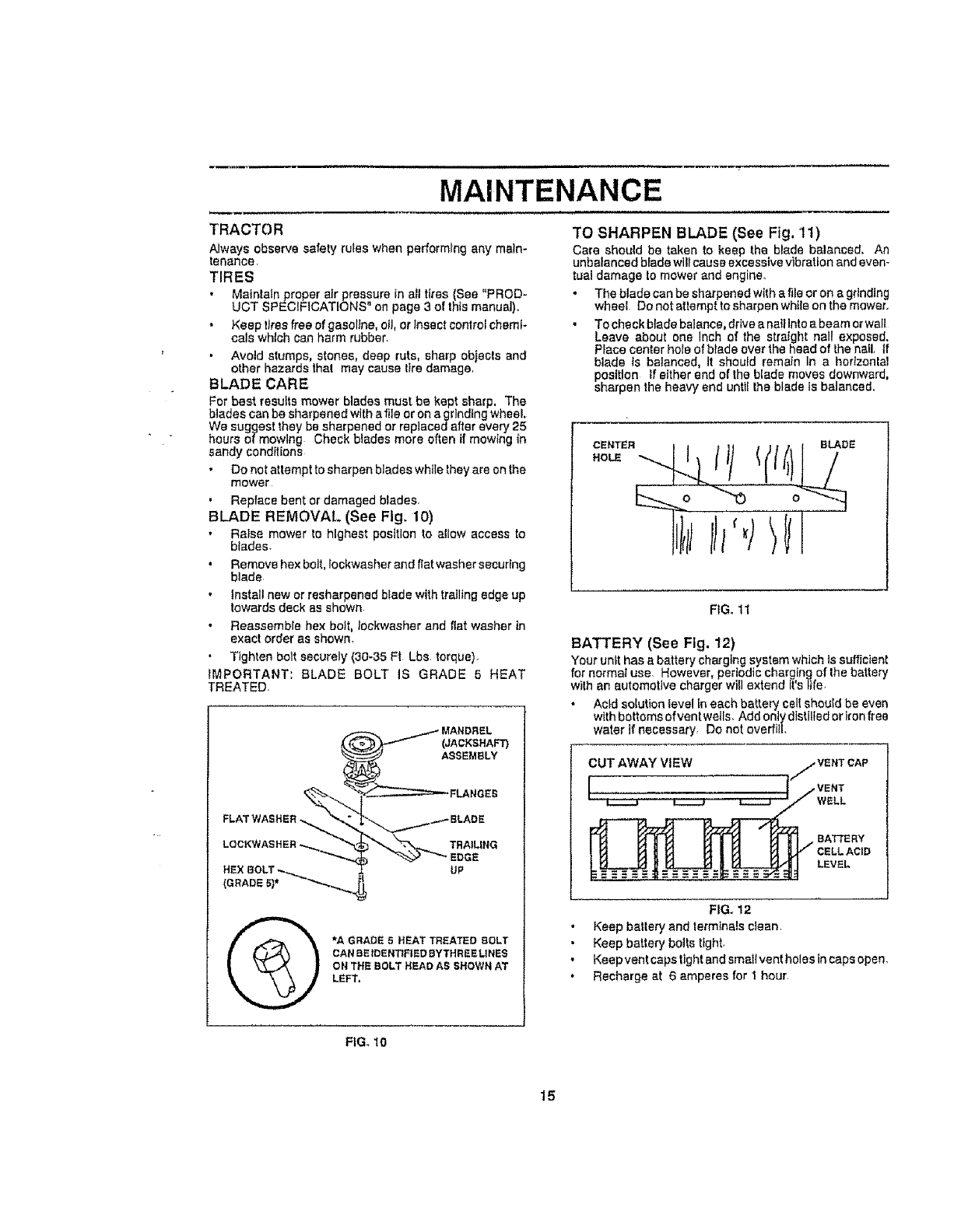

BLADE CARE
For best results mower blades must be kept sharp. The
blades can be sharpened with a file or on a gdnd_ng wheel.
We suggest they be sharpened or replaced after every 25
hours of mowing Check blades more often if mowing in
sandy conditions
Do not attempt to sharpen blades while they are on the
mower
Replace bent or damaged blades.
BLADE REMOVAL (See Fig, 10)
Ralse mower to highest position to allow access to
blades.
Remove hex bolt, lockwasher and flat washer securing
blade
install new or resharpened b_ade with trail}ngedge up
towards deck as shown
Reassemble hex bolt, $ockwasher and flat washer in
exact order as shown.
Tighten belt securely (30-35 Ft Lbs, torque),
iMPORTANT: BLADE BOLT IS GRADE 5 HEAT
TREATED.
FLANGES
TRAILING
UP
*A GRADE 5HEAT TREATED BOLT
CAN BE tOENTtFIED BYTHREELtNES
ON THE BOLT HEAD AS SHOWN AT
LEFT,
TO SHARPEN BLADE (See Fig. 11)
Care should be taken to keep the blade balanced, An
unbalanced b_ade will cause excessive vibration and even-
tual damage io mower and engine_
.The blade can be sharpened with a file or on a grinding
wheel Do not attempt to sharpen whtle on the mowaro
TO check blade balance, drive a naillnto a beam or wall
Leave about one inch of the straight nail exposed.
Place center hole of blade over the head of the nail. tf
blade is balanced, it should remain In ahorizontal
position If either end of the blade moves downward,
sharpen the heavy end untie the blade _s balanced.
CENTER
HOLE
FIG. 11
BATTERY (See Fig. 12)
Your unit has a battery charging system which Is sufficient
for normal use However, periodic charging of the battery
wi{h an automotive charger will extend it's _ife
Acid solution level in each ba_,tery col{ sheuEd be even
w{th bottoms of ventwetls_ Add only distilled or iron free
water if necessary. Do not overfit!.
CUT AWAY VIEW
BATTERY
LEVEL
FIG. 12
Keep battery and term}rials clean
Keep battery botts tight,
Keep vent caps tight and smaflvent holes in caps open.
Recharge st 6 amperes for 1 hour.
FtG_10
15
MAINTENANCE
i,, J ,Ll
TO CLEAN BATTERY AND TERMINALS -
Corrosion and dirt on the battery and terminals can cause
the battery to "leak" power
Remove term{hal guard
Disconnect BLACK battery cable first then RED bat-
lery cable and remove battery from tractor.
Wash battery with solulfon of four tablespoons of
baking soda to one gallon ofwater Be carefulnot teget
the soda solution Into the celiso
Rinse the battery with plain water and dry.
Clean terminals and battery cable ends with wire brush
until bright
Coat terminals with grease or petroleum jeIly,
, Reinslall battery (See "INSTALL BATTERY" tn as,,
sembty section of 1his manual).
After oil has drained completely, replace olt drain plug
and tighten securely.
Refill engine wlth oil through oil ftll dipstick tube. Pour
slowly. D=onot overfill. For approximate capacity see
Proauct Speciacatlons on page 3of this manual.
Use gauge on ofi lilt dtpstiok for checking leveL Be sure
dipstick cap Is ttgh!ened securely for accurate reading.
Keep ofl at "FULL line on dipstick,
RECOMMENDED SAE VISCOSITY GRADES
o20_ 0'= 32° 60'_ 80Q 100"
FIG. 13
ENGINE
LUBRICATION
Change the oil after the first two hours of operation and
every 25 hours thereafter or at least once a year if the
traclor Is not used for 25 hours tn one year
Check the crankcase ott level before starting the Engine
and after each eight (8) hours of continuous use. Add SAE
30W motor oil or equivalent, Tighten ott lilt cap/dipstick
securely each ttme you check the oil level SAE 5W-30
motor oi! may be used to make starting easier in areas
where temperature ts consislenfty 32" F or lower
TO CHANGE ENGINE OIL (See Figs 13 & 14)
Determine temperature range expected before oil change.
All oil must meet API service classification SD, SE or SF.
Be sure vehicle is on level surface
Oit wt{l drain more |reely when warm
Catch oil in a su[tab!e conlalner
Remove oil f{]] dipstick Be careful not to ar!ow dlrt to
enter the engine when changing o1_
Remove drain plug
AIR FILTER (See Fig, 14)
Your engine wltl not run properly and may be damaged by
using a dirty air fftter. Replace paper cartridge once a year
or after every 100 hours of operation, more often If used In
very dusty, dirty condltLons.
Remove knobs and cover
.Replace cartridge
Reassemble and tighten securely
NOTE: Do not attempt to clean or oi! the paper cartridge.
AIR SCREEN (See Fig. 14)
The engine air screen must be kept #ee of dirt and chaffto
prevent engine damage from overheating. Clean with a
wire brush or compressed air to remove dirt and stubborn
dried gum fibers,
ENGINE O1L FILLER
CAP AND DIPSTICK
AIR
COVER
AIR
BODY
"OIL DRAINPLUG
FIG. 14
16
MAINTENANCE
i m,nH, i
ENGINE COOLING FINS (See Fig. 15)
Remove any dust, dirt or oll from engine cooling flns Io
prevent engine damage from overheating Hood and
engine blower housing must be removed to ctean engine
coo_ing fins
Remove hood (see "TO REMOVE HOOD" in the Ser-
vice and Adjustments section of this manual).
Remove screws securing air cleaner body and re-
move (Cover carburetor opening to prevent entry of
dirt)
,Remove ell fill dipstick and cover opening to prevent
entry of dirt
Remove screws from blower housing and llft housing
off engine
Use compressed air or stiff bristle brush to thoroughly
c_ean engine cooling fins.
To reassemble, reverse above procedure.
Be certain carburetor tube, breather tube and gaskets
are in place
COOLING FINS \\
CYLINDER \
GASKETS
TUBE
SPARK
PLUG
CARBURETOR
TUBE
JFFLER
FIG. 15
MUFFLER
Inspectand replace corroded muffler end spark arrestor(if
equipped) astt couldcreate a f_rehazardand/or damage
SPARK PLUGS
Repface spark plugs at the beginning of each mowing
season or after every f00 hours of use, whichever comes
first. Spark p_ug type and gap setting ts shown in "PROD-
UCT SPECIFfCAT}ONS" on page 3 of this manual
1N-LINE FUEL FILTER (See Fig, 16)
Fuel flltershould be replaced once each season If fuelfilter
becomes clogged, obstrucling fuel flow to carburetor, re-
placement is required
Wlth engine cool, remove filter and plug fuel line
sections
Place new fuel filter in position in fuel line
Be sure there are no fuel line Ieaks and clamps ere
properly positioned
Immediately wipe up any spilled gasoline,
FUEL FILTER
FIG, t6
CLEANING
Clean engine, battery, seat, finish, etc of oil foreign
matler.
.Keep finis bed surfaces and wheels free of all gasoline,
oil, etc
Protect painted sudaces wtfh automotive type wax,
We do not recommend using a garden hose to clean your
unit unless the electrical system, muffler, air fliter and
carburetor are covered to keep water out Water in engine
can result in a shortened engine _ife
17
SERVICE AND ADJUSTMENTS
&CAUTION; BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS;
Depress clutch/brake pedal fully and set parking braker
Place gearshift lever in "NEUTRAL" position.
Place attachment clutch in "DISENGAGED" position,
Turn ignition key "OFF" and remove key,
Make sure the blades and all moving parts have completely stopped.
, Disconnect spark plug wire from spark plug and place wire where it cannot coma in contact with
plug.
TRACTOR
TO REMOVE MOWER (See Fig, 17)
Mower will be easier to remove from the right side of unit.
Remove mower blade drive belt from engine pulley
only !,See "TO REPLACE MOWER BLADE DRIVE
BELT throughstepremevingbettfromengine puiley}.
Remove retainer spring from clutch rod; pull clutch rod
out of clutch lever
Pult retainer springs out of rear suspension trunniens.
Remove rear suspension trunnlens from lift brackets,
Pu_t retainer spdngs from front hinge p{ns
Remove hinge pins attaching parallel link to mower
and front axle.
Raise lift _ever to raise suspension arms Slide mower
out from under tracloh
IMPORTANT: fFAN ATTACHMENT OTHER THAN THE
MOWER IS TO BE MOUNTED TO THE
TRACTOR, THE R.H. AND L,H, SUS-
PENSION ARMS MUST BE REMOVED
FROM TRACTOR
CLUTCH
ROD
CLUTCH
LEVER*-_._ RETAINER
CLUTCH ROD EPRfNG
RETAINEF
SPRING
PARALLEL
BRACKET RETAINER ENGINE
SPRING PULLEY
HING PINS
TO INSTALL MOWER (See Fig, 17)
Raise attachment lift lever to its highest positlon,
Slid e mower under tractor with discharge guard to right
side of tractor.
lnstatlparallel link to front axle and mower with hinge
pinE. Secure hinge pins with retainer springs.
tnatallclutch rod inclutch lever and secure with relainer
spring.
Lower attachment lift lever to lower suspension arms°
S_ide trunnlons through lift bracket holes and secure
with retainer springs
Roll belt over engine pulley, Make sure belt tsInside all
pultey grooves and Inside belt guides
Raise attachment {ift lever to raise mower.
TO LEVEL MOWER HOUSING
Adjust the mower while traclor is parked on level ground or
driveway. Make sure tires are properly inflated (See
"PRODUCT SPECIFICATIONS" on page 3)° If lires are
over or under inflated, you will not properly adjust your
mower.
SIDE-TOoSiDE ADJUSTMENT (See Figs 18 and 19)
Raise attachement lilt lever to its highest position.
Measure height from bottom of deck curl to ground
level at front corners of mower. Distance "A" should be
the same.
If distance "A" needs to be changed, snap out access
hofe cover on left side of tractor above footrest.
To raise left side of mower, loosen nut "B" and tighten
nut "C"o
TO lower left side of mower, loosen nut "C" and tighten
nut "B",
When distance "A" is equal securely tighten nuts "B"
and "C"
RepEace access hole cover
FIG,r t7
'18
SERVICE AND ADJUSTMENTS
LiFT LEVER
(RAISED
POSITION)
EOTTO]_,_
OF CURL
2BOTTOM
OF CU RL
-- ii i ---
\
GROUNDLINE
FIG, 18
SIDETOSIDE
ADJUSTMENT
TRUNNION
FIG,, 19
FRONT-TO-BACK ADJUSTMENT(See Figs 20 and 21) -
To obtain the best cutting results, the mower housing
should be ad usted so the rear Is approximately 3/4 to 7/8"
higher than the front when the mower s tn its highest
positton_
Check ad ustment on right side of tractor- Measure dis-
tance °D' at front and rear flanges of mower housing as
shown
To raise rear of mower, loosen nut "E" on both raar
suspension arms Screw both nuts "F" on both rear
suspension arms an equal number of turns.
When distance "D" is 3/4" to 7/8" higher at rear than
front, retlghten nuts _E"r
Recheck stde-to-sfde adjustment,
REAR SUSPENSION ARM
BOTTOM
OF CURL
REARSUSPENSIONTRUNNION LINE
FIG, 20
REAR
SUSPENSION
ARM
LIFT BRACKET
FtGo 21
IMPORTANT: WHEN ADJUSTING REAR SUSPEN-
SION TRUNNtONS, ALWAYS ADJUST
BOTH EQUALLY SO MOWER WILL
STAY LEVEL SfDE-TO-StDE,
19
SERVICE AND ADJUSTMENTS
TO ADJUST MOWER BLADE DRIVE BELT
(See Fig. 22)
Your tractor has been manufactured with the abi_tly to
readjust the mower blade drive beif to provide you with
longer belt ttfe
With engine off and the lift lever tn the highest position,
move attachment ctutch lever sTowly forward. If the lever
moves significantly forward in the slot before resistance
is felt, adfustmant is necessary
Lower the mower deck for easier access
Remove the bolt, nut and Doshaped washers from
rock shaft assembiy
Move extension spring from lower to upper end of
slot _n rock shaft assembly and install bolt, nut and
the D-shaped washers (fiat side of washers down)
Tighten boil and nut to secure the D-shaped wash-
ers (llal side down as shown)
NOTE: When Installing a new belt, be sure spring Is in
lower end of sloL
TO REPLACE MOWER BLADE DRIVE BELT
(See Figs. 22 and 23)
The mower blade drive belt may be replaced wtthout
tools Park ihe tractor on level surface. Engage parking
brake. For assistance, there ts a beif Installation guide
decal on the mower housing.
BELT REMOVAL -
Place attachment clutch in "DISENGAGED" position
, Move attachment lift lever forward to lower mower to
its lowest position.
Ro_ beif off engine pulley
Pult belt off both mandrel pulleys
Spring bett guide away from idler putfey and pull belt
off idler puIley
Slide belt from under extension spdng
BELT INSTALLATION -
Slide belt under extension spring
PJace belt around back side and in groove of both
mandrel pulleys
Spring idler belt guide down and place belt around
rear side of Idler pulley
, Ro{l belt over engine pultey.
Make sure belt is in al_pulley grooves and inside ell
bett guides
,,.,_.
tDLER BELT BELT ENGtNE PULLEY
GUIDE
LH.
MANDREL
EXTENSION
"SP RiNG
.R,H,
ROCKSHAFT
BRAKE
ROD
NUT
FIG. 22
BELT ENGINE
GUIDES PULLEY
FIG. 23
2O
SERVICE AND ADJUSTMENTS
TO ADJUST BRAKE (See Fig. 24)
Your unit is equipped wltll an adjustable brake system
whtch Is mounted on the right side of the transaxie
If unlt requires more than six (6) feet stoppingdlstance at
high speed In highest gear, then brake mustbe ad}usted.
Depress clutch/brake pedal and engage parking brake,
Measure dlsLance between brake operating arm and
nut "A" on brake rod
if distance is other than 1-1/2", disengage parking
brake loosen jam nut and turn nut "A" until distance
becomes 1-I/2", Retighten jam nut against nut'A",
Engage parking brake and recheck distance
,Road test unit for proper stopping distance as stated
above Readjust If necessary, If stopping distance ts
still greater than six (6) feet In highest gear, furlher
maIntenancelsneceesary Contactyournearest Sears
Service Center
WITH PARKING BRAKE _ENGAGED'
FIG, 24
ARM
TRANSAXLE SHIFTER LINKAGE AND AD-
JUSTMENT (See Figs, 26 & 27)
The transax[e should be in neutral when the gear shirt lever
ts _n the neutral (lock gate) position, The ad ustmsnt is
preset at the factory; however, if adjustment s needed,
proceed as re!tows,
*Make sure transa×te is tn neautral Loosen two lock.
nuts on tie rod
Turn center rod until gear shift lever falls into neutral
lock gate on fender console,
Tighten locknuts securefy,
FIG. 26
TO REPLACE MOTION DRIVE BELT (See
Fig, 25)
Park the tractor on love] sudace Engage parking brake
For assistance, there Is s beft installation guide decal on
bottom side of _eft footres[
Remove mower (See "TO REMOVE MOWER" in this
section of this manual}
Remove belt from stationary idler and clutching idler
Remove belt from engine pulley
Ro11bait over top of [ransmiss[on pulley
Install new belt by reversing above procedure,
IMPORTANT: REPLACE ONLYWITH BELTL[STEDtN
THIS MANUAL
FRAME
CLUTCHING
TRANSAXLE
PULLEY
STATIONARY
IDLER
ENGINE
TIE F
LOCKNUTS
ROD
TRANSAXLE
FIG, 27
FIG, 25 21
SERVICE AND ADJUSTMENTS
TO ADJUST STEERING WHEEL ALIGNMENT
if steering wheef crossbars are not horizontal (left to right)
when wheels are positioned straight forward, remove
steerlng wheel and reassemble per instructions in the
Assembty Section el this manual.
FRONT WHEEL TOE-IN/CAMBER
The front wheel toe4n and camber are _ot adjuslable on
your unit If damage has occured to affect the front wheel
toe4n or camber, contact your nearest Sears Service
Center,
TO REMOVE WHEEL FOR REPAIRS (See
Fig° 28)
Biock upaxle securely.
Remove hub cap, retaining ring and washers lo aJlow
wheel removal (rearwheel contains a square key- Do
not lose).
Repatrtire and reassemble.
' On rear wheels only: align grooves in rear wheei hub
and axle. insert square key,
Replace washers and snap retaining ring securely In
axle groove,
. Replace hub cap,
HUB CAP SQUAREKEY
(REARWHEEL ONLY)
FIG. 28
TO START ENGINE WITH A WEAK BATTERY
(See Figs. 29 & 30)
CAUTION; Lead,acid batteries gener_
ateexplosive gases, Keepsparks,flame
and smoking materials away from bat-
teries. Always wear eye protection
when around batteries.
if your battery is too weak to start the engine, It should be
recharged If "jumper cables" are used for emergency
starting, follow this procedure:
IMPORTANT: YOUR UNIT JS EQUIPPED WITH A 12
VO LT NEGATIVE GROUND ED SYSTEM.
THE OTHER VEHICLE MUST ALSO BE
A 12 VOLT NEGATIVE GROUNDED
SYSTEM. DO NOT USE YOUR TRAC-
TOR BATTERY TO START OTHER VE-
HICLES
TO ATTACH JUMPER CABLES -
' Connect each end of lha RED cable to the POSITWE
(+) terminal of each battery, taking care not to short
against chassis.
Connect one end of the BLACK cable to the NEGA-
TIVE (*) terminal of tully charged baltery.
Connect the other end of the BLACK cable to a panel
belt on the _eft side of the chassis, away from fuel tank
and battery.
TO REMOVE CABLES, REVERSE ORDER -
BLACK cable first from teft side of chassis and fully
charged battery
RED cable last from both batteries
q
(,)
"NEGATIVE'
(9
FIG. 29
PANEL _ _//
aOLT__€_)_-.
FIG. 30
22
SERVICE AND ADJUSTMENTS
=
TO REPLACE FUSE (See Fig° 31)
Replace with 30 amp automotive-type p_ug_.tnfuse. The
fuse holder is located in the engine compartment, dtrectty
in front of the heat shleld,
FfG, 31
TO REPLACE HEADLIGHT BULB
Raise hood_
Puil butb holder out of the hole In the backside of the
grill,
Replace butb In holder and push bulb holder securely
back tnto the hole in the backside of the grill
=Close hood,
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting,
Check wiring See efectrical wiring diagram tn Repair
parts section of this manuel
TO REMOVE HOOD AND GRILL ASSEMBLY
(See Figs_ 32 and 33)
.Raise hood.
Unsnap headlight w_reoonnector.
Carefulty remove springsfrom hinge brackels.
Stand at sideof tractor. Grasp hood, rift forward and
Hitoff hinge brackets.
To reinstall, slide hood pivot rod into slot in hinge
brackets, andcarefully reinsfall hoodspdngs
HOOD ,HEADLIGHT
HOOD SPRING
HINGEBRACKET
FIGs 32
HOOD PWOT ROD
HINGE BRACKET
FIG. 33
23
SERVICE AND ADJUSTMENTS
ENGINE
TO ADJUST THROTTLE CONTROL CABLE
(See Fig. 34)
The throttle controJ has been preset at the factory and
adjustment should not be necessary. Check adjuslment as
described below before loosening cable tf adjustment is
necessary, proceed as follows:
With engine no!, running, move throttle oontroE lever
from SLOW to CHOKE position Slow[ymavelever
from "CHOKE" to "FAST" position
, Check that hole inthrottle lever and hole In plate line up.
If holes "A" are not a_lgned, loosen clamp screw and
move throtlte cable until holes are aligned, Tighten
clamp screw securely
TO ADJUST CARBURETOR (See F|g. 34)
The carburetor has been preset at the factory and adjust.,
ment should not be necessary,, However, minor adjust*
ment may be req uired to compensate for differences In fuel,
temperature, altitude or load, If the carburetor does need
adjustment, proceed as felfows:
in general, turning the mixture screws In (clockwise) de-
creases the supply of fuel to the engine giving a leaner lust/
air mixture, Turning the mixture screws out (counter-
clockwise) increases the supply of fuel to the engine giving
aricher lust/air mixture
IMPORTANT; DAMAGE TO THE NEEDLES AND THE
SEATS IN CARBU RETOR MAY RESULT
IF SCREWS ARE TURNED iN TOO
TIGHT
PRELIMINARY SETTING -
Be sure you have a clean air filter and the throttle
control cable is adjusted propedy (see above)
With engine off turn high speed mixture screw in
(clockwise) c_oslng it finger tight and then turn out
(counterclockwise) f -112 turns,
Turn idle mixture screw in (clockwise) closing finger
tight and then turn out (counterclockwise) 1 turn.
FINAL SETTING -
Start engine and allow to warm for five minutes. Make
final adjustments with engine running and shift/motion
control lever in "NEUTRAL" position_
With throttle control tever in "FAST" position, turn high
speed mixture screw In (clockwise) unti! engine begins
to die then turn out (counterclockwise) untll engine runs
rough. Turn screw to a point midway between those
two positions,
With throttle control lever in "SLOW" position, turn idle
mixture screw in (clockwise) unfit engine begins to die
and then turn out (counterclockwise) until engine runs
rough. Turn screw to a point midway between those
two positions
With throttte control lever in "SLOW" position, engine
shouldidle at 2100 RPM If engtne idles too slow, move
throttle control lever above Idle end turn Idle speed
screwfn (clockwise) oneturn. Setthrotttecontrollever
at "SLOW", Repeat until satisfactory idle is altained_
If engine idles too fast in "SLOW" position move throttle
control lever above idle and turn idle speed screw out
(counterclockwise) one turn, Set throttle control lever
at "SLOW" Repeat untO!satisfactory idle is attained.
ACCELERATION TEST -
Move throttle control lever from "SLOW" to "FAST"
position. If engine hesitates or dies, turn high speed
mixture screw out (counIarclockwtse) 1/8 turn. Repeat
lest and continue to adjust, if necessary, unlit engine
accelerates smoothly,
High speed stop is factory adjusted. Do not adjust -
damage may result
IMPORTANT: NEVER TAMPER WITH THE ENGINE
GOVERNOR, WHICH IS FACTORY SET
FOR PROPER ENGINE SPEED, OVER-
SPEEDING THE ENGINE ABOVE THE
FACTORY HIGH SPEED SETTING CAN
BE DANGEROUS, iF YOU THINK THE
ENGINE-GOVERNED HiGH SPEED
NEEDS ADJUSTING, CONTACT YOUR
NEAREST AUTHORIZED SERVICE
CENTER, WHICH HAS PROPER
EQUIPMENT AND EXPERIENCE TO
MAKE ANY NECESSARY ADJUST.,
MENTS.
THROTTLE CABLE CLAMP SCREW
LEVER
24
iDLE
MIXTURE
SCRE3N
HIGH SPEED
MIXTURE
SCREW
FIG_ 34
STORAGE
CAUTION: Never store the tractor with
TRACTOR
mower is to beRemove m°WerstoredfmmIrrC?pef_rdwol?t_resler_gaen_ i_thoe_
°UghulYn'drer_Ve_t_od_'iggeaa_eo'ol_%Vea_'o_t_r?aisve or rustbiadea
preventative, Store in a clean, dry area_
Cleane en_olnra_t_h_(Sre_n'_)_N,NG" in tha Ma,nta-
Inspect and replace bs!la, ff necessary (See belt re-
placement instructions In the Service and Adjustment_
section of this manual),
, Lubricate as shown tn the Maintenance section of this
manual.
. Be sure that all nuts, bolts and screws ere securely
_r,S_owne_ '_sePp__t m __ ;g ePsa_taSr_° r damage' breakage
FUEL SYSTEM
IMPORTANT,' IT IS IMPORTANT TO PREVENT GUM
DEPOSETS FROM FORMING IN ESSEN-
TIAL FUEL SYSTEM PARTS SUCH AS
L.
ALSO, EXPERI ENCE INDICATES THAT
FORMATION OF ACIDS DURING
STORAGE ACIDIC GAS CAN DAMAGE
THE FUEL SYSTEM OF AN ENGINE
WHILE IN STORAGE
Drain the fuel tank.
Start the engine and lel it run until the fuel lines and
carburetor are empty
Never use engine or carburetor cteaner producls in the
fuel tank or permanent damage may occur
Use fresh fuel next season
gas tank and carburetor ff using fuel stabilizer
BATTERY
Fully charge the battery for storage,
After a period o! time In storage, battery may requira
recharging
nance section of this manual)
After cleaning, leave cabfes disconnected and place
cables where they cannot come in contact with battery
terminals.
Be sure battery drain tube la securety attach ed to drain
in battery tray,
ENGINE OIL
manuat)
CYLINDERS
* Remove spark plug(s)
,, Pour one ounce of oil through spark plug ho_e(s) into
cylinder(s)
' Tou_i_stg_tui_enokelY "START" P°Siti°n for a few sec°nds
Replace with new spark plug(s)
OTHER
Do not store gasoline from one season to another
will cause your unit to rust
IMPORTANT= NEVER COVER TRACTOR WHILE EN-
GINE AND EXHAUSTAREAS ARE STi LL
WARM
25
TROUBLESHOOTING POINTS
CAUSE CORRECTIONPROBLEM
wet netstart
Hard to start
Engine wit! not turn over
Engine clicks but wtg net
start
Loss of power
Excessive vibration
1 Out of fuel
2Engine not "CHOKED" preper;y
3 Engfne flooded
4Badspark plug
&Dirly aft fit{or
8 Dirty fuel f_Itar
7, Waler In fuel
8 Loose or damaged w]dng,
gCarburetor oul af adjustment
tO, Engine valves out of adjusLmenl,
1Dirty air f_ter,
2Bad spark plug
3 Weak or dead battery
4 Dirty fuel filter
5Stale or didy fuel,
8Loose or damaged wldng
7Carbu rater oul of adjustment,
8 Englne valves out of adjustment
1Clutchrorake podaf net dapresaod
2Attachment cMch is engaged
3Spa_k plug wire Is disconnected
4 Weak or dead batlery
5, Blown fuse
6 Corroded battery terminate
7Loose or damaged wiring
8Faulty _gntOoeswitch
g Faully so}enid or starter
tO Foully operator presence ewtlah(ea)
tWeak or dead battery
2 Corroded battery terrain!!B.
3 Loose or damaged wldng
4 Foully _otanafd or atader
1Culling too mec:_grass/too fast
2 Throttle tn "CHOKE" poelIIoo.
3Bulid.,up of grass,leaves end trash under mower
4 Ditty air filter,
5Low ell tavafldirty oli
6 Faufty spark plug
7 Didyfuel filler
B Stale or dirty fuel
gWatarlnfuel
10. Spark ptug wire loose
11, Dirty aegina air sareentflns
12. Dlrty/elagged muffler,
t3, Loose or damaged wiring
!4 Carburetor out of adjustment
15, Engine valves out of adIustreent
1Worn, bent or loose blade
2, Sent blade maedret,
3, Looee/demaged part(s)
tFlfl feet tank,
2See TO START ENGINE In operation eecDon
& Watt severalminutes before attempting to start
4Replace spark plug.
& Clean#eplace air filler.
6. Replace feet filer.
7. Dr_n feet task and carburetor, refill tank wlLhfresh
gaaaiina and replace fuelfiller
8 Check aft widng.
g- Contact Sears Service Center,
10 Contast Se are Service Center,
1, Claan#aplace air frier.
2Reptace spark ptug
3,, Recharge or replace batter/
4 Replace fuel f}fter
5. Drain fuel tankend refillwl_ fresh gasollna
6 Check a}Iwldng,
7. Contact Seam Service Center
8Contact Sears Service Center
1DepressCIulch/bmkepedat,
2Disengage attachment clutch
3Connect wire to spark ptug
4Recharge or repiece batteq/,
GReplace fuse
6Clean batter./I_rminala
7Check alt wiring
8Chsckheplace Ignition swkch
9 Check/replace sofenoldorstader
t0 Contact Sears Servtce Center
1Recharge or replace baltory
2, Clean baltary terminals
3Check ellwidng,
4, Cheddreplace aolanoldor starter
ISet In "Higher Cut" positlon#educe speed
2Adjuatthrotge control
3 Clean underside of mower housing
4Cleanlrepleaa air fl11_r
5 Check olIlevel/c,hange ell
O Clean and regap or change spark plug
7 Replace fuel lIltar
B Drafn fuel t_k and refillwith fresh gasoline,
gDrain fuel lank end carburetor, relill lankw}th #esh
gasoline and replace fue! filler
10 Connect and _ghtee spark plug wife
I t, Clean engine alrecrean/flns
t2r CleanHepleoe muffler,
13 Check all wiring,
14 Contact Seat's Service Canter
15 Contact Seats Service C_nter
1Replace blade, Tighten blade boll.
2 Replace blade mandret,
3 Tighten loose part(a), Replace damaged parts
26
_r,
' 'L ' •
TROUBLESHOOTING POINTS
,I.I,,L ,ll,ll,,llll ,i
PROBLEM
Engine oongnuoe to run
when operator ]seres seat,
with attachment ctutch
engaged
POOr cut - uneveil
Mower blades will not
rotate
Poor grass discharge
Headlight(e} not worktng
(if eo equipped)
Batterf wll! not charge
CAUSE
1 Faultyopereior-eafetypresencec_ntmteys_m
1 Worn, bent or loose blade
2Mower deck not tevet,
3 Build.up of grass, teavee, and trash under mower
4Bent blads mandrel
"F Obsb_oUon In clutch mechanism
2Mower drive belt out of adjustment
3Worn/damaged mower drive bolt
4Frozen Idler put{ay
5Frozen blade mendral
IEngine speed tea slow
2 Travel speed too test
3 Wet grass
4 Mowerdeeknotlevei
5Low/unevon tire air pressure
6Worn, bent or loose blade
7Build.up of grass, leaves and trash under mower
8Mower drivebolt worn or out of adjustrr_et
g Blades fmpmpe#_tlns_al}ed
tO improperbiades used
Swllch is "OFF"
2Bulb(e) burned out
3 Faulty light swtlch
4Loose or damaged wlffng
5Blown fuse.
1Bad battery celt(s)
2 Poor C_bte conneelJone
3 Faulty regulator (if so equipped)
4 Faulty a_tematot
CORRECTION
L Checkwtdng, swltehee endconnectione If not
corrected, con_estSears Service Center.
Replace blade 13ghten blade boil
2, Levet mower deck.
3Oean underside of mower housing
4 Replese blade mandrel
2Remove obstrucUoo
Adjust mower ddve bait.
3 Replese mower drive bell
4Reptess idler pulley
6 Replace blade mandrat
tFlace thmltle conb'olIn"FAST" pesltlon
2 Shift to _fower speed,
3 Allow grass to dry before mowing
4Level mower deck
5 ChecktJres for proper atrpressure,
6 Repleseleharpon blede T_ghtenblade boil
7Cleon underaideofmower housing
BReplace/adjustmower drivebelt
9 Relnstaffbladessharp edge down
!0Replace w_ blades listed In thla manual
Turnswitch "ON"
2Replace bulb(s)
3 Check/replace light ewttoh
4Check wiring and connections
5, Replace fu_e
Replace baffery
2 Cheek/clean_lconnesl$ons
3 Replace regulator
4 Replesa eltemaler
27
SERVICE NOTES
28
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917.254791
SCHEMATIC
BATTERY
iGNITiON SWITCH
BLACK
"°° O' Z}
_USE30 AMP
Wt_II"E
IGNITION SWITCH
POSITION CIRCUIT
OFF M + G
ON B+L
START B + S
CLUTCHtBRAKE
(PEDAL UP)
I
I...... I
: : : STARTE_
OLENOID
_l"r_ .....
BLACK I _ I
f
8L,_CK
ATPMENTCLUTCH
(CLUTCHOFF)
J
!BLACK ,
I_
SEAT
SWITCH
{NOT OCCUPIED)
B_CK IGNITION _'_-) SPARK
UNIT PLUG Q--
_._,4psoc,f DIODE &.\. ALTERNATOR
_TTERY _N L_NE}
HEADLIGHT
SWITCH
(OFF)
BROWN
HEAD UGHTS
-"'4[_NON-REMOVABLE
CONNECTIONS
--_.)_-_REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING
29
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917.254791
ELECTRICAL
28
19
121
I
41
3O
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917'.254791
ELECTRICAL
KEY PART KEY PART
NO, NO, DESCRIPTION NO. NO, DESCRIPTION
17662J Bulb, Light 26 123198X Nut, Wing 1/4-20
2 127441X Harness, Light Socket 27 STD551125 *Washer, Lock, Heavy He!Ical Spring
3129794 Harness, Wiring 28 72240460 Bo_t, Carriage t/4-20x 7-1/2
4 109310X Key, Molded 29 109081X Solenoid
5 110712X Switch, Light 30 123620X Cover, Ignition
6 104445X Switch, Interlock 31 124211X Nut, Ignition
7 7603J 32 7192J Cable, TieTray, Bailer/
8 109596X Clamp, Hose 33 105687X Tube, Plastic
9 STD365402 *Switch, Ignition 34 121305X Switch, Plunger
10 108824X Fuse 35 STD601005 * Screw, Tap Hex Hd. #10 x24 UNC
1I 8TD551125 "Washer, Lock 1/4 36 74641008 Screw, Slotted Pan Head
12 73350400 Nut, Hex, Jam I/4.20 #10,.32 x 1/2
13 74780408 Bolt, Hex t/4-20 x 1/2 Grade 5 37 73951000 Nut,Keps #10-32 x l/2
t4 STD541425 *Nul, Keps I/4-20 38 4171R Ctip, Insulated
15 t08423X Cable Assembly 39 121264X Batter/Caps Set
16 11050400 Washer, Lock, ExtematTooth 1/4 40 !"{150400 Washer, Lock, InternalToolh 1/4
17 719J Cover, Term!hal 41 123620X Cover, Ignition Switch+
18 5114J Cable, Batter! -- 101539X Sheet, Instruction, Tractor, t5 _
19 109553X Switch, Inlerlock Slope
20 4207J Cable, Batter/ - - 130898 Owner's Manual
21 74760412 Bolt, Hex 1/4-20x3/4
22 STD551025 *Washer 9/32 x 5/8 x t6 Gauge
23 STD541025 * Nut, Hex 1/4-20 * STANDARD HARDWARE -- PURCHASE LOCALLY
24 12t265X Battery
25 t02476X Guard, Terminat NOTE: All component dimensions given in U.S inches
1 _nch = 25.4 mm
A B C D
12 13 36 35
_14 _37
31
T"
rc
UJ
m
Z
.J
ll(
0
0
0
O:
I-
Z
_z
or)
Wffl
,.r
u
\
32
"it-.
O_
t-.
in
%.-
C_
n"
U.I
m
:D
Z
-J
ill
0
0
!
!
R
ro
,<
I-
Z
Z
Q
rr
;o
n
-I-
ra
n-
if}
W <
_X _XXXXXXXXXXX_ _oooXXXXXXX
33
e4
,_ _n
o
=®=,@
K
o @_@@
<@_
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917,254791
DRIVE
16
73 34
64
88
/
OPT)ONAL EQUIPMENT 1
Sp_,r k Arresler
34
REPAIR PARTS
12,5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917.254791
DRIVE
KEY PART KEY PART
NO. NO_ DESCRIPTION NO. NO. DESCRIPTION
1 129795 Engine, 12.5 HP, Tecumseh 5I
Model Number 143.416082 52
2 t05731X Pulley, Engine 53
4 STD551!43 *Washer, Lock, Heavy Helical Spring 54
5 71130720 Bolt, Hex 7/16-20 x 1-1t4 55
6125907X V-Beft, Drive 56
7 122983X Muffler 57
8 125593X Gasket 58
9 101326L Defiecfor, Muffler 59
10 t23528X Screw, Cap, Hex 5/16-18 x 5/8 60
11 STD551131 *Washer, Lock 5/16 61
t2 129921 Keeper, BeEt, Engine 62
14 17490620 Screw, HexWasher Hd., Thd. Roll. 63
3/8-16 x 1-I/4 64
t5 STD551125 *Washer, Lock, Heavy Helical Spring 65
16 127050X Transaxle, Tecumseh, 5 Speed, 66
930 Peerless 67 t20183X
17 STD523727 *Bolt, Hex 3/8-16x2-314 68 STD580025
18 STD541437 * Nut, Crownlock 3/8-16 69 127222X
19 12000003 E-Ring 70 89192
20 123666X Pulley, Transaxle 71 65139
21 12000026 Ring Retainer 72 123969X
22 109167X Bracket, Transax e 73 106108X
23 STD623710 *Bolt, Hex 3/8-16 x 1 74 109502X
24 17490512 Screw, Hex Washer Hd, Thd Roll. 76 12000001
5t16-18 x 3t4 77 121520X
26 127275X Keeper, Belt, LH. 78 12669tX
27 73530400 Nut, Nylok t14-28 79 110422X
28 ._2-,"-9_X Shaft, Shifter Assembly 60 105706X
30 129797 Spring, Compression 81 123205X
31 123793X Rod, Tie 82 17030808
32 127274X . Keeper, Belt, RH.
33 STD523707 Bolt, Hex 3/8.16 x 3f4 83 123782X
34 121748X Washer 25132 x 1-5/8x 16 Gauge 84 130849
35 106933X Knob, Shift 85 19091210
36 127270 Rod, Shift 86 11050600
37 71040412 Bolt, Hex 1/4-28x3/4 87 7152J
38 106362X Washer, Shift Plate 88 12185tX
39 STD561210 *Pin, Cotter 1/8x 1 91 104757X
40 19171216 Washer 17/32 x 3/4 x16 Gauge 95 11150400
41 104777X Retainer, Belt 96 74760540
42 17490612 Screw, Hex Washer Hd.,Thd. Roll 97 19111 tt6
3/8-16x 3/4 96 73680500
43 19131312 Washer 13/32 xI3t16x 12 Gauge 99 127285X
44 129796 Fan, Pump, Oil 100 2228M
45 109070X Retainer, Belt 101 19211816
46 4470J Spacer -- 129783
47 123674X idler, Flat =- 10863tX
48 127783 Idler, Groove, Plastic
49 123789X BellcrankAssemb_y
50 STD523715 *Boil, Hex 3/8-16x 1-1/2
105709X Spring, Return, Clutch
1108!2X Washer, Hardened
12000039 Ring, Ktlp
105710X Link, CIutch
8TD56!210 *Pin, Cotter 118 x3/4
127272X Bushing, Pivot
110437X Rod, Brake
106888X Spdng, Rod, Brake
73350600 Nut, Jam 3/8-16
19131316 Washer 13/32 x 13/16 x 16 Gauge
125638X Rod, Brake, Parking
124236X Cap, Plunger
122424X Shaft, Foot Peda{
8883R Cover, Pedal
121749X Washer 25/32 x 1-114x 16 Gauge
STD571810 *Pin, Rol! 3116 x 1
Bearing, Nylon
Key, Square 2.5 x 1845/!865
Pipe, Ot! Drain
Cap, Valve
Stem, Valve
Tire, Rear
Rim Assembly, Rear
spacer
E-Ring
Strap, Torque, Transaxle
Washer 53 x 1.25 x .059
Spring, Brake
Bearing
Retainer, Belt
Screw, Spider Lock
#8-18 x 1/2 AABTPS
Spring, Torston
Arm, Shift
Washer 9/32 x 3/4 x 10 Gauge
Washer, Lack, External Tooth 3/8
Tube, Tire
Spark Arrestor
Cap, Axle
Washer, Lock, Internal Too h 1/4
Bo_f, He× Fin. 5/16-18 UNC x 2-1/2
Washer 11i32x11116x16Ga
Nut, Crownlock 5/16-18
Strap, Torque, L.H.
Key, Woodruff #9
Washer 21/32 x 1 x 16 Ga
Decal, Logo, Engine
Decal, II
*STANDARD HARDWARE o - PURCHASE LOCALLY
NOTE; Att component dimensions given in U..S inches
1inch = 25.4 mm
A
_97
98
BD E
'24
_18
F G H KL M
(5_43 ._43 _11 @86
@t8
35
REPAIR PARTS
'12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917.254791
STEERING AND FRONT AXLE
I J
36
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917,254791
STEERING AND FRONT AXLE
KEY PART KEY PART
NO. NOo DESCRIPTION NOo NOo DESCRIPTION
24
25 Bracket, Steering
26 Screw, He× Washer Hd ,Thd. Roll
3/8-16 × 3/4 Type TT
27 6266H Bearing, Thrust
28 124034X Gear, Sector -
29 124035X Shaft, Support
30 12000029 R{ng, Klip
31 57079 Washer, Hardened
32 124038X Shaft, Steering, Lower
34 104757X Cap, Axle
35 5479J Plug, Button
35 124033X Shaft, Pitmen
38 49212010 Washer 21/32 x !-1/4 x 10 Gauge
39 74761060 Bott, Hex 5/8-11 x3-3/4
40 I05669X Axle, Front
1 126604X010 Dash 41 110438X
2 74180512 Screw, ]"russ Head 5/16-18x 3/4 42 73601000
3 73510500 Nut, Keps 5/46-18 44 124037X
4 109816X Nyllner, Snap-In 46 3366R
5 424434X Control, Throttle 46 105715X
6 STD522510 *Screw, Hex, Thd. Cut, 1/4-20x 5/8 47 t20754X
7!26684X Washer l/4xS/Sx16Gauge 48 19131416
8 124417X Boot, Steering Shaft 49 76020412
9 126595X010 Saddle 50
10 17490608 Screw, HexWasher Hd., Thd Rot! 51
3/8_t 6 x 1/2 52
1t 126471X Cllp, Insulated 53
13 100710L insert, Steering Whee 54
t4 STD541350 *Locknut, Hex, Jam 1/2-20 56
!5 100712K Washer 2-1/4 56
I6 100713N Wheal, Steering 57
17 !00711L Adapter, Steering Wheel 58
18 STD551125 *Washer, Lock 1/4 59
19 71070410 Screw, Socket Hex 1/4-20x 5/8 60
20 t26938X Bumper, Heed 61
22 STD611005 *Screw, Hex, Self-Tapping 63
#10-16 x 1/2 Type ABTPS 65
124373X Bushing, Steenng 67
124036X 69
174906t2 - -
Spacer, Bearing, Front Axle
Locknut, Flange 5/8-11
Gear, Pin{on
Bearing
Rod, Tie
Bushing
Washer t3/32 x7/8 x 16 Gauge
Pin, Cotter t/8 x 3/4
8TD551t37 *Washer, Lock 3/8
73610600 Nut,Fin Hex 3/8 x 24UNF
128122 Link, Drag
I05656X Spindler L H.
I05654X Spfndie, R.H
278H Fitting, Grease
9040H Bearing, Flange
106732X Rim, Front (Incl. 2 each Key No 56
59192 Cap, Valve
65139 Stem, Valve
124157X Ttre, Front
19272016 Washer 27/32 x i-!/4 x 16 Gauge
59904 Tube, Front
STD554231 *Washer, Lock, Internal Tooth 5/16
!2t748X Washer 25/32 x 1-5/8 x16Gauge
121232X Cap, Spindle
425879X Decal, Steertng Wheel Cap
108456X Decat, Instruction, Operating
* STANDARD HARDWARE - - PURCHASE LOCALLY
NOTE; AI{ component dimensions given In U S Inches
1inch = 25.4 mm
A
_3
BDF H
26 <_2
@ 65
_3
37
REPAIR PARTS
12_5 HP 38" RIDING LAWN TRACTOR - -MODEL NUMBER 917.254791
LIFT ADJUSTMENT
16
C
F 9
13_'__11 10
/
13
45
44._,
40
43
45
j B
!.. i 31
i
47
38
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - -MODEL NUMBER 917.25479t
LIFT ADJUSTMENT
KEY PART KEY PART
NO. NOo DESCRIPTION NO, NO. DESCRIPTION
I
2
3
4
5
6
7
8
9
10
1t
12
13
14
124429X Lever, Clutch, Mower
106932X Knob
106451X Bolt, Shoulder
73680600 Nut, Crowntock 3/8_t6
106452X Bracket, Switch, Interlock
19171516 Washer !7/32 x 15/16 x16 Gauge
17021008 Screw, He×,Tapping #10-24
106447X Support, Lever, Clutch
123549X Cap, Fuel
109202X Tank, Fuel
101335K Une, FtJel
124028X Grommet
123487X Clamp, Hose
17490612 Screw, Hex Washer Hd., Thd Rott
3/6_16 x 3/4
15 19(}91416 Washer 9/32 x 7/8 x 16 Gauge
16 122795X Panel, Dash, LH
17 !21794X Cover, Access
18 124031X0t2 Panel, Dash, R.H.
19 19211416 Washer 21/32 x 7/8 x t6 Gauge
20 STD581062 *E_Rlng
21 122365X Bulton, Plunger
22 122512X Spring, Compression
23 17490412 Screw, Hex Washer Hd, Thd. Roll.
1/4.20×3/4
24 105736X Shield, Heat
25 5320R Clip, Insulated
26 120183X Bearing, Nylon
27 105839X Receptacle, ti4Tum
28 105838X Retainer, 1/4 Turn
29 STD551025 *Washer 9/32 x5/8 x 16 Ga.
80 122507X Shaft, Lift
31 123650>( Stud, 1/4Turn
32 122364X Plunger
33 125631X Grip, Handle
34 4939M Retainer, Spring
35 I10029X Link, Lift
36 110447X Trunnion, Lift
37 110448X Link, Lift, Adjustable
38 121596X Arm, Suspension, RH
39 105848X Bolt, Shoulder 3/8.16
40 121599X Arm, Suspension, L.H
41 I06308X Trunnion, Uft, Lower
42
43
44
45
47
46
49
60
51
52
63
54
65
57
59
60
61
62
STD541050 *Nut_ Hex 1/2-!3
9t35R Retainer, Spring
19171516 Washer t7/32 x 15/16 x 16 Gauge
4921H Retatnero Spring
106444X Bracket, Bellcrank
STD523707 * Bolt, Hex 3/8-t 6 x 3/4
109726X Bellcrank Assembly
STD561210 *Pin, Cotter 1/6 x 3 4
t24444X
19131410
1225t4X
105767X
124446X
108236X
110739X
73980600
73360700
73710700
122581X
Rod, Clutch, Primary
Washer 13/32 × 7/6 x 10 Gauge
Rod, Assembly, Lever
Pin, Groove
Spring, E×tention
Bracket, Switch
Washer, Spring
Nut, Ftange_c_k 3/6 x16
N[._t,Hex, Jam 7/16-20
Nut, Orownlock 7/16-20
Couple, Lift, Lever
Y' STANDARD HARDWARE *- PURCHASE LOCALLY
NOTE: All component dimensions given In U-S inches
1inch = 25.4 mm
B C D E
'_59 _4
60
F
39
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917.254791
38" MOWER
54
/
46
CC
55 67
44
A
44
K
48
67
JI
DG
40 41
4O
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 9'17.25479'1
38" MOWER
KEY PART KEY PART
NO. NO. DESCRIPT|ON NO. NO, DESCRIPTION
1 106085X V-Bait 41 STD623715 *Bolt, Hax 3/8-24 x 1-I/2 Grade 5
2 121259X Housing 42 108250X Spring, Extension
38417J Runner, RH 43 108235X Red, Clutch, Mower
4 73680600 Nut, Crownlock 3/8-16 44 4921H Spring, Retainer
519111216 Washer 11/32x3i4x16Gauge 45 6404J Spacer
6 72140505 Bolt, Carriage 5/t6..18 x 5/8 46 t24066X Rock Shaft Assembly
7t05896X Bracket, Deflector 48 108247X Rod, Brake, Primary
8 110452X Nut, Push 49 72140606 Bott, Carriage 3/8-16x 3/4
9 I06734X Spring, Deflector 60 106243X Bracket, Pivot, R.H.
10 106735X Rod, Hinge 51 !08241X Bracket, Pivot, L H
fl 106736X Shield, Deflector 52 105857X Bracket, Suspension, Rear, R.H
13 105304X Cap, Spr{ng 53 108673X Bracket, Suspension, Rear, LH
14 105662X Link, Parailel 54 106576X Brake Assembly
15 105744X Pin, Hinge, Front 55 106483X Rod, Brake, Secondary, LH
16 105872X Stop, Link 56 108249X Rod, Brake, Secondary, RH
17 109835X Pin, Htnge, Rear 57 106456X Bracket, Brake, Pivot
18 STD523707 *Bott 3/8-16 x 3/4 58 100672K Spacer, Brake
19 73680500 Nut, Crewnleck 5/t6-18 59 100673L Bracket, Support
20 109698X Bracket, Lift, RH 60 19131814 Washer I3/32 x 1 x 14 Gauge
21 109597X Bracket, Lilt, LH. 61 74760686 Bolt 3/8-16 x 5
22 STD533107 *Bolt, Carriage 5/t6-18 ×3/4 62 7631J Runner, L,H.
24 I09503X Support, Arm 63 1911t016 Washer 11/32 x 5/8 x 16 Gauge
25 109604X Stop, Deck, Front 64 72140610 Bolt 3/8q6 x 1-1/4
27 126756X Guide, Belt 66 122314X Spacer
28 74760632 Bolt 3/8-16 x 2 67 STD580907 *Pin,Cotter 3/32 x 1/2
29 127163X Arm, ldlar 68 72110506 Bolt,Carriage 5/16-!8x3/4
30 106902X Spacer, Retainer 69 74760412 Bolt, Hex 1/4-20x 3/4
31 123688X Pulley, Idler 70 109893X Washer, Special
32 106613X Washer, Wear 1/16 71 73680400 Nut, Crownloek 1/4-20
33 102669X Keeper, Bett 72 110445X P_ate, Support, Mandrel, L.H.
34 t21687X MandrelAssembly 73 STD551037 *Washer 13/32 x 13/16x 16 Gauge
35 100668L Plate, Support, Mandrel -- 122215X Mower Assembly, Complete
36 17490614 Screw, Hex Washer Head - - 105814X Decal, V-Belt, Mower Drive
3/8q6 x 7/8 - _ 3713J Decal, instruction, Caution
37 17490620 Screw, Hex Washer Head - -121343X Decal, Warning
3/8-16X 1-t/4 ....... Decal, Safety Standard (Not
38 121263X Blade Serviced)
39 19132012 Washer 13/32 x 1-1/4 x 12 Gauge
40 STD551137 *Washer,Lock 3/8 *STANDARD HARDWARE-- PURCHASE LOCALLY
NOTE; Atl component dimensions given in US. inches
1inch = 25.4 mm
A B C 13 E F G H J K L M
_5 _19 _4 _19 _19 _4 _4 _)_)7070
@19 @ 71
41
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR -- MODEL NUMBER 917,254791
PEERLESS TRANSAXLE - MODEL NUMBER 143,930-009
TRANSAXLE
7
9
/-
4
74
42
/
REPAIR PARTS
12,5 HP 38" RIDING LAWN TRACTOR - -MODEL NUMBER 917.254791
PEER LESS TRANSAXLE - MODEL NUMBER 143.930-009
TRANSAXLE
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
I 772108 Cover, Transaxle 41 790047
2 780086 Bearing, Need{e 42 792073
3 770102 Case, Transaxle
4776260 Shaft, Counter 43 792075
5 776219 Shaft & PinfonAssembfy, Output 44 790025
6 778139 Gear, Output 45 776315A
7778138 Gear, Spur, 15Teeth 46 776135
8 792136 Key 47 774690
9 784352 Coltar, Shifter 48 774691
10 784355 Rod &Fork Assembly, Shift 49 778191
11 778229 Gear, Bevel, 42 Teeth 50 778124A
12 778113A Bevel Pinion, Input 51 778123A
13 778221 Gear, Bava{ 52 778122A
14 778068 Gear, Bare{ Pinion 53 778209
15 778260 Gear, Ring 54 778230
17 786139 Pin, Drive 55 778126A
!8 786102 Spacer, Neutral 56 778127A
20 792077 Bail, Steel, 5/16 diameter 57 778128A
21 792078 Screw, Set 3/8-16x3/8 58 778163
22 792079 Spring 60 786081
23 788061 Ring, Felt 61 786082
25 792073 Screw, Flanged Hex Head, Thread 62 786123
Forming 1/4-20 x t-1/4 64 792074
26 792125 Ring, Retainer (4 req., pkg. of 2) 65 780139
27 792035 R}ng, Retainer 66 786067
28 788040 Ring, Retainer 67 792085
29 780072 Washer, Thrust
30 780108 Washer, Thrust 68 786086
31 780001 Washer 69 780051
32 792001 "O" Ring 70 786118
33 788051 Seal, Square Cut 71 788069
34 780105A Bushing, Flanged 72 7861t6
35 780118A Bushing, Flanged 74 786071
36 790003 Disk, Brake 75 786072
37 790007 Plate, Brake Pad 76 780090
38 790006 Pad, Brake 77 788075
39 786026 Pin, Dowel
40 792076 Washer, Flat
40A 792128 Washer, Fiat
Lever, Brake
Screw, FIanged Hex Head, Thread
Forming 1/4-20 x1-t/4
Locknut 5/18-24
Holder, Brake Pad
Shaft, Brake, 4-keyed
Shaft, Input
Axle, 11-151t6
Axle, 16.1t2
Gear, Spur, 37 Teeth
Gear, Spur, 80 Teeth
Gear, Spur, 25 Teeth
Gear, Spur, 22 Teeth
Gear, Spur, 19 Teeth
Gear, Spur, 12 Teeth
Gear, Spur, 20 Teeth
Gear, Spur, 25 Teeth
Gear, Spur, 28 Teeth
Gear, Spur, 31 Teeth
Chain, Rolter (#41 chain, 24 links)
Sprocket, 9 Teeth
Sprocket, 18 Teeth
Plug, Hex Head, Threaded 9/16-18
Washer, Thrust
Spacer
Screw, Flanged Hex Head, Thread
Forming 1/4-20 x 2-1/4
Bracket, Brake Lever
Washer, Thrust
Spacer
Seal, Square Cut
Disk
Spacer
Spacer
Washer, Thrust
Ring, Retaining
NOTE; AII component dimensions given in U S inches
l Inch = 254 mm
,t3
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917.254791
ENGINE TECUMSEH - MODEL NUMBER143.416082
ENGINE
44
REPAIR PARTS
12,5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917.254791
ENGINE TECUMSEH - MODEL NUMBER 143A16082
ENGINE
KEY PART KEY PART
NO. NO- DESCRIPTION NO. NO, DESCRIPTION
! 35323A Cylinder Assy (lncf Nee 2 & 20) 81 35479 Washer, Ftat
227652 Pin, Dowel 82 35321 GearAssy., Governor
14 28277 Washer, Flat 83 35322 Spool, Governor
15 35324 Rod, Governor 84 29193 Ring, Retaining
16 35520 Lever, Governor 86 650833 Screw, Hex washer hd Powerlok,
17 29916 Clamp, Throttle lever 1/4.20 x 1-3/16
18 650548 Screw, Hex washer hd., 8-32 x5/!6 68 31767A Spacer, Governor gear
19 35521 Spring, Control 89 32589 Key, Fiywheel
20 35319 Seal, 011 90 6! 1093 Ftywheel
25 35326 Baffle, Blower housing 91 35935 Fan, Crankshaft
25B 30322 Nut & Lockwasher 8-32 92 650880 Washer, Lock
26 650561 Screw, Hex washer hd Dudok, 93 65088t Nut, Flywheel
1/4-20 x 5/8 100 35135 Solid State Assy.
30 35336A CrankshaftAssy (Counterbalance) 102 650872 Stud, Solldstateassy
31 35327 Gear, Counterbalance 103 650814 Screw, Terx hex washer hd Sems,
35 29826 Screw, Hex washer hal., t0-32 x 3/4 10-24 x 1
36 29918 Washer, ET, Lock 119 35854 *Gasket, Cytlnder head
37 29216 Nut, Lock I0-32 120 35307 HeadAssy, C_linder
38 29642 Ring, Retaining 121 730218 Valve Guide Kit (Inct, 2 of No, 122)
40 35776 Piston, Pin & Ring Assy (Std) (lncl. 122 792035 Ring, Retaining
Non. 41, 42 & 43) t23 35288 Brace, Inlake pipe
40 35777 Piston Pin & Ring Assy. (.010 over- 124 650738 Screw, Hexwasher splnlock hd.
size) (Incl Nee. 4!, 42 &43) thread forming, 1/4-20 x 5/8
40 35_'78 Piston, Pin & Ring Assy, (.020 over- t25 35308 Valve, Exhaust (Std.)
size) (lncl. No& 41,42 & 43) 125 35433 Valve, Exhaust (1/32" oversize)
41 35773 Piston & Pin Assy. (Std} (inct No. 126 35309 Valve, Intake (Std.)
43) 126 35432 Valve, Intake (1t32" overslze)
4t 35774 Piston & Pin Assy. (010 oversize) 127 650691 Washer, Fiat
(Ind. No. 43) .. 128 650690 Washer, BelleviIIe
4t 35775 Piston & Pin Assy. (020 overslze_ 129 650746 Screw Hex hd. 8/16-18 x 318
(Incl, No 43) 130 650692 Screw Hex hd. 5/16-18 x 1_3/4
42 35779 Ring Set Piston (Sld,) 135 34046 Resistor Spark plug (Champion RL-
42 35780 Ring Set, Piston (.010 oversize) 86C or equivalent)
42 35781 Ring Set, Piston (°020 oversize) 141 33481 1"*"O" Ring
43 35772 Ring, Piston ptn retaining 142 35475 Tube, Push rod
45 35330A RodAssy, Connecting (Inct Nee. 143 35310 Housing, Rocker arm
46 & 47) 144 33484 t*"O" Ring
46 650908 Bolt, Connecting red 145 650168 Washer, Flat
47 650882 Bolt, Connecting rod 146 32610A Screw, Flanged hex hd., 1/4-20 x
48 35313 Lifter, Valve 29/32
50 35314A Camshaft (Mechanica_ 147 33509 t*"O" Ring (intake)
Compression Release) (Inc! No. 148 34410 t*"O" Ring (Exhaust)
48) 149 33510 Cap, Valve spring
51 35315 WelghtAssy_, Counterbalance 150 33507 Spring, Valve
52 31356 PumpAssy. Oil 151 33505 Cap, Valve spring keeper
60 35316 Extension, Btowerhous_ng 152 35295 t*"O" Ring
61 35317 *Gasket, Mounting flange 153 35296 Guide, Push rod
64 30063 Screw, Hex washer hd. Seres, 154 850878 Stud, Rocker arm
1/4-20 x1/2 155 35297 Arm Rocker
65 650128 Screw, Hex hdo Sems 10-24 x I/2 156 35298 Beadng, Rocker arm
70 35711A Flange, Mounting (Incl Nos_ 72, 75, 157 28264 1" NutAsay., Lock (lncl. No 162)
80) 158 35468 Rod, Push
72 31927 PIug, eli drain 159 35299B f*"O" Ring Assy, (IncL No. 161)
75 35319 Seat, OIl 160 35300 Cover, Rocker arm housfng
80 35712 Shalt, Governor 16t 650879 f* Screw, Truss hd. w/sealing
{ockwasher, 8-32 x 1/2
45
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR -- MODEL NUMBER 917.254791
ENGINE TECUMSEH - MODEL NUMBER143.416082
ENGINE
\
r
46
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917,254791
ENGINE TECUMSEH - MODEL NUMBER 143.416082
ENGINE
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO,
162 650903 t*Nut, HexJam 262 297478
t69 27896A * Gasket, Valve cover
170 28423 Body, Brealher 255 35290
171 28424 Element, Breather 286 38792
172 28425 Cover, Valve spring box 287 650936
173 35350 Tube, Breather
174 650128 Screw, Hex hd. Same, 10-24 × I/2 290 30705
180 35301 Extension, Blower housing 292 26460
181 650128 Screw, Hex hd. Seres, 10-24 x 1/2 292A35864
182 650517 Screw, Hex hd Seres, 296 342798
1/4-20x 13/16 305 35574
184 33263 *Gasket, Carburetor to intake pipe 307 35499
185 35656 Pipe, Intake 308 33997
!86 35934 Link, Governor 308A35437
t86A35523 Link, Choke 310 35576
200 35624 BracketAssy,,Overrtdecontroi 314 650873
(IncL Nas. 202, 205) 316 511113
202 33502 Spring Compression
205 65077 Screw Fit, hd., 6-32 x 2t/32 321 610935
207 35525 Link, Control bracket 322 610921
209A650902 Screw, Hex washer hd., Some, 323 610922
t0-32 x 7/16 325 27275
210 27_793 Clip, Conduit 342 650273
211 28942 Screw, Hexwasher hd Seme,
10-32 x 3/8 361 30063
223 792028 Screw, Hex hd- Sems=
5./16-18 x 7/8 363 34148
224 33515A *Gasket, intake pipe 370 34346
237 35286 Adapter, Air cleaner 380 632490
239 33629 *Gasket, Air cleaner elbow 395 35763A
240 35402B Body Assy, Air cleaner (IncL No. 400 35865
239) 401 35332
243 650875 Screw, FiL hd. Some, 10.,32 x 6-1/4 420 730225
245 35403 Etement, Air eteaner (lnct. No
25tA) (paper)
246A 35_404 Filter Poty pro-cleaner
250 35405 Cove;, Air cleaner
251 650886 Nut, Wing1/4.20
251A650825 Nut E.TLockwasher, t/4..20
(SeaIing)
252 650887 Screw,Hex washer hd self-drill,
se_f-tap, 1/4-20 x 1
260 35793 Housing, Blower
261 30063 Screw,Hex hd Seres, 1/4-20 x 1/2
DESCRIPTION
Screw, Hex hd, Sems,
5/16-24 x 21/32
Cover, Cylinder head ,'"
Screen Debris '
Screw, Hex washer hd. shoulder
10-32 x 13/32
Line, Fuel
Clamp Fuel line
Clamp Fuel fiiter to fuel line
Filter, Fuel (tncl Nos 292 & 292A)
Tube, Oil Jill
"O" Ring
Clip, Ott ftll tube
Clip, Ott fill tube
Dipstick, Oil
Screw, Hex hd Sems, I/4-20 x3/4
Cell Assy., Alternator (3 Amp D.C )
(Incl, Nos 321,322 & 323)
Diode
Connector,Body
Terminal, Fema{e
Cftp, Wire
Screw, Hex hd Seres,
5116-18 x 5/8
Screw, Hex washer hd. Sems,
1/4-20 x 1/2
Spring, Coil
Decal, Instruction
Carburetor (IncL No. 184]
Starter Motor (12 Volt)
Gasket Set (lncL Items marked *)
"0" Ring Kit (Incl. items marked 1)
SAE30 4-Cycle Engine OU (quart)
RPM Settings:
High Speed: 3350 - 3650
LowSpeed: 1950 - 2250
* indicates Par_s Included in Gasket
Set, Ref No 400.
1"Indicates Parts included in "O" Ring
Kit, Ref No 401
47
REPAIR PARTS
12.5 HP 38" RIDING LAWN TRACTOR "- MODEL NUMBER 917.254791
ENGINE TECUMSEH ,. MODEL NUMBER143.416082
ENGINE
KEY PART
NO. NO.
632490
I 632471
2 632244
3 632517
4650506
5 630766
5A 630738
6 650417
7 632472
8 6324'73
9 632429A
i0 630746
tl 631027
12 631021
13 631022
14 632019
KEY PART
DESCRIPTION NO. NO.
Carburetor 15 631024
Shaft & Lever Assy, Throttle 16 631867
Spring, Throttle return 21 27110
Shutter, Throttle 22 632239
Screw, Rd, hal, 4-40 x 3/16
Spring, Idle regulating screw
Spring, Main adjustment screw 23 630740
Screw, Idle regulating 24 632281
Shaft & Lever Assy, Choke 25 631028
Spring, Return 27 631184
Shutter, Choke 29 631971
*Plug, Welch 29A 631183
*Plug, Welch 30 630739
*Inlet Needle, Seat & Clip Assy. 31 631775
ntc{ No 13) 32 632347
p, Inter needle
Float, Carburetor
DESCRIPTION
*Shaft, Float
*Bowl, Float
Gasket, Bowl-to-body
*Adjustment Screw Assy,, Main
adjustment screw ( InclNo's 5A,
21,23, & 30)
"O" Ring
*Screw, Idle adjustment
*Gasket, Bowl-to-body
Washer
Seal, Dust
Seal, Dust
Washer, Flat
Filling, Fuel
Repair Kit(Incl items marked *)
48
REPAIR PARTS
12,5 HP 38" RIDING LAWN TRACTOR - - MODEL NUMBER 917,254791
ENGINE TECUMSEH -MODEL NUMBER t43,416082
ENGINE
10
18
12
16
7
6
6
14
9
,KEY PART
NO, NO,
.... 35763A
133451
233842
3 33430
433431
833432
6 35693
7 33450
835894
9 35895
DESCRIPTION
Starting Motor, Complete
Cover, Dust
Ring, Relatner
Retainer, Spring
Spring, Anti-drift
Gear
Nut & Retainer (tncL No, 2)
Nut, Lock
Cap Assy,, Drive end
Armature
KEY
NO,
t0
12
14
15
16
17
18
19
PART
NO.
35900
35896
35897
35898
35899
650168
650864
590500
DESCRIPTION
Housing Assy
Brush 8, Spring Kit
Washer, Thrust
Bolt, 16-32 x 4-11/64
Cap & Brush Card Assy,,
Commutator End (IncL Nos- 12, 14,
17, & 18)
Washer, Flat
Nut, Hex
Washer Thrust
49
SERVICE NOTES
i ill
5O
SLOPE SHEET
0_l_ ¸
tD
SEAl, S
OWNER'S
MANUAL
MODEL NO.
917.254791
HOW TO ORDER
REPAIR PARTS
CRAFTSMAN+
12.5 HP OHV
ELECTRIC START
38" MOWER
5SPEED TRANSAXLE
LAWN TRACTOR
Each tractor has Its own model number_ Each engine has Itsowe1mSdel
number
The Model Number for your tractor will be found on the model plats
located under the seat
The modet number for your engine wll+ be found on the blower housing of
the engine.
All pads Itsted herein may be ordered from any Sears Service Centre
and most Retaii Stores,
WHEN ORDERING REPAIR PARTS_ ALWAYS GIVE THE FOLLOW+
ING INFORMATION:
PRODUCT - LAWN TRACTOR
. MODEL NUMBER - 917+254791
+ ENGINE MODEL NUMBER -143AI6082
PART NUMBER
PART DESCRIPTION
Your Seers merchandise has added value when you constder Sears has
service units nationwide staffed with Sears trained techniclafls ,r profes..
stone! technicians specifically trained to insure that we meet _ur ptedge
to you, we service whet we sell
Sears, Roebuck and Co., Chicago, 1L60684 U,S,A.
130898 03+ 1391 PRtNTED IN US A.

Navigation menu
