MODEL NO.

917.257480

Caution:

Read and follow

all Safety Rules

and Instructions

Before Operating

This Equipment

18.0 HP TWIN CYLIN

ELECTRIC START

" OWER DECK

5SPEE TRANS_LE

LAWN TRACTOR

• Assembly

• Operation

, Maintenance

• Service and Adjustment

• Repair Parts

Sears, Roebuck and Co., Chicago, IL 60684 U.S.A.

,i= ,i, , i, i,i i i,H,,llll

SAFETY RULES

CAUTION; ALWAYS DISCONNECTSPARKPLUGWIREAND PLACEWIREWHEREITCANNOTCONTACT SPARK

PLUG TO PREVENTACCIDENTAL STARTING WHEN SETTING-UP, TRANSPORTING, ADJUSTING OR MAKING

REPAIRS_ IMPORTANT

SAFETY STANDARDS REQUIRE OPERATOR PRESENCECONTROLSTO MINIMIZETHE RISKOF INJURY. YOUR UNIT IS EQUIPPED WITH SUCH

CONTROLS, DO NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROLS UNDER ANY CIRCUMSTANCES.

TRAINING:

• Know the controls and how to stop quickly. Read this owner's

manual and instructions furnished with attachments.

•Do not altew children to operate the machine Do not allow

adults to operate it without proper instruction.

• Do not carry passengers Do not mow when children and

others are around.

Do not attempt to operate your vehicle or mower when not in

the driver's seat.

Always get on or off your vehicle from the operator's left hand

side.

• The vehicle and attachments should be stopped and in-

spected for damage after striking aforeign object, and the

damage should be repaired before restarting and operating

the equipment

PREPARATION:

• Always wear substantial footwear_ Do not wear loose fitting

cloth|ng that could get caught in moving parts

•Clear the work area of objects (wire, rocks, etc ) which might

be picked up and thrown.

Disengage all attachment clutches before attempting to start

the engine

. Handle gasoline with care -it is highly flammable

Use approved gasoline containers°

Never removethe fuel cap ofthe fuel tank or add gasoline

to a running or hot engine or an engine that has not been

allowed to cool for several minutes after running_ Never

fill tank indoors Always clean up spilled gasoline°

Open doors if the engine is run in the garage oexhaust

fumes are dangerous Do not run the engine indoors,

•Do not operate the mower without the entire grass catcher,

on mowers so equipped, or the deflector shield in place.

OPERATION:

• Keep your eyes and mind on your vehicle, mower, and the

area being cut. Do not let other interests distract you

• Disengage power to attachments and stop the engine before

leaving the operator's position,

• Disengage power to mower, stop the engine, and disconnect

spark plug wire(s) from spark plug(s) before cleaning, making

an adjustment, or repair. Be careful to avo_id touching hot

muffler or engine components.

• Disengage power to attachments when transporting or not in

use.

•Take all possible precautions when leaving the vehicle unat-

tended. Disengage the power take-off, lower the attach-

ments, shift into neutral, set the parking brake, stop the

engine, and remove the key.

Do not stop or start suddenly when going uphill or downhill

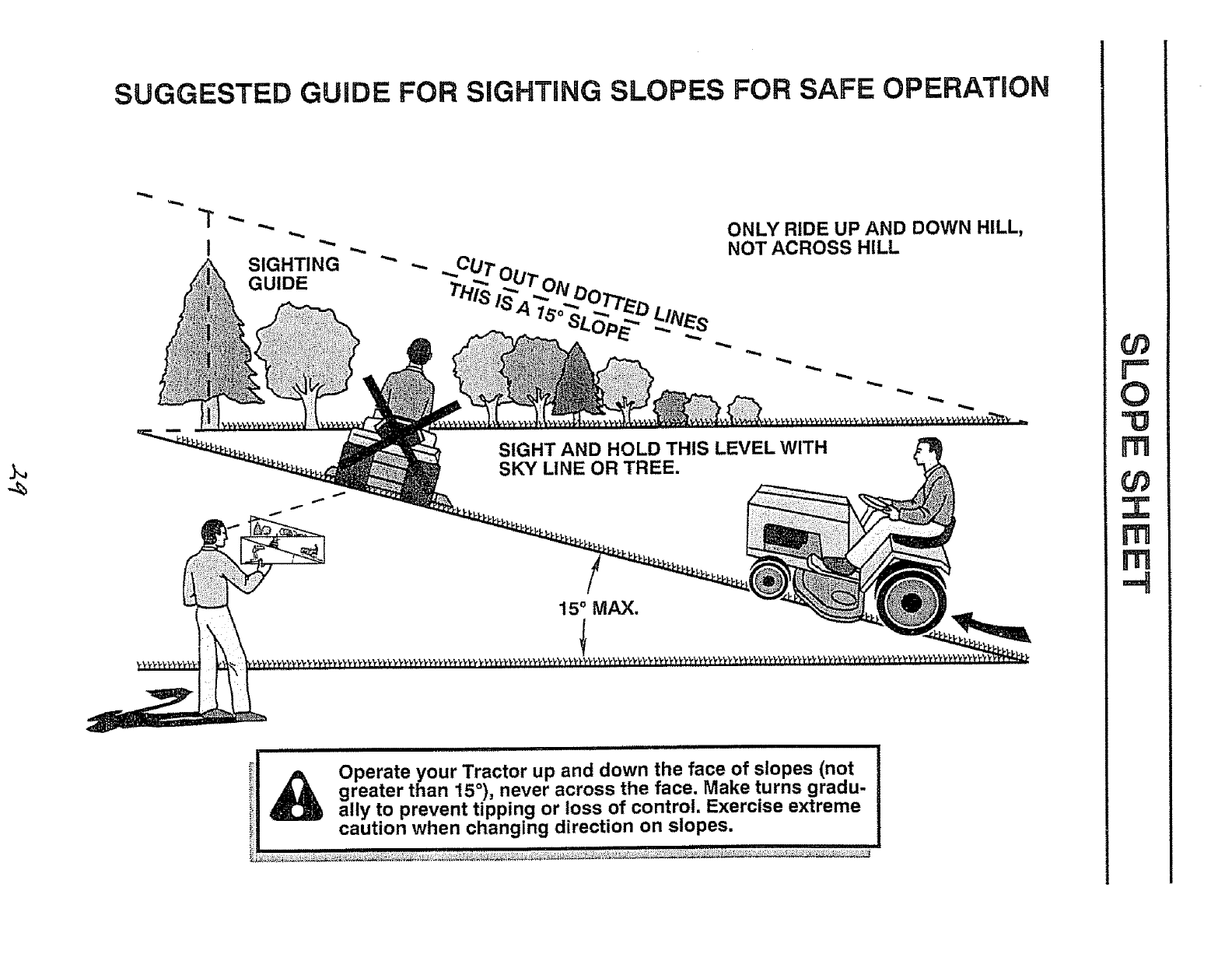

Mow up and down the face of slopes (not greater than 15°),

never across the face.

.Reduce speed on slopes and make turns gradually to pr event

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

. While going up or down slopes, place gearshift control lever

in 1st gear position to negotiate the slope without stopping

•Never mow in wet or slippery grass, when traction is unsure,

or at a speed which could cause a skid.

Stay alert for holes in the terrain and other hidden hazards.

Keep away from drop-offs

•Do not drive too close to creeks, ditches, and public high-

ways,

•Exercise special care when mowing around fixed objects in

order to prevent the blades from striking them. Never delib-

erately run vehicle or mower into or over any foreign objects_

•Never shift gears until vehicle comes to a stop

• Never place hands or feet under the mower, in discharge

chute, Or near any moving parts while vehicle or mower ts

running, Always keep clear of discharge chute.

•Use care when pulling loads or using heavy equipment°

Use only approved drawbar hitch points

Limit loads to those you can safely control

Do not turn sharply. Use care when backing.

Use counterweight or wheel weights when suggested in

owner's manual

•Watch out for traffic when crossing or near roadways

• When using any attachments, never direct discharge of

material toward bystanders nor allow anyone near the ve-

hicle while in operation

•Except for ad ustments, do not operate engine if air cleaner

or cover drecty over carburetor a r intake is removed

Removal of such part could create a fire hazard

• Do not change the engine governor settings or overspeed

the engine; severe damage or injury may result.

•When using the vehicle with mower, proceed as follows:

Mow only in daylight or in good artificial Iight.

Shut the engine off when unclogging chute.

Check the blade mounting bolts for proper tightness at

frequent intervals_

• Disengage power to mower before backing up. Do not mow

in reverse unless absolutely necessary and then only after

careful observation of the entire area behind the mower.

MAINTENANCE AND STORAGE

° Keep the vehicle and attachments in good operating condi-

tion, and keep safety devices in place and working

Keep all nuts, botts, and screws tight to be sure the equip-

ment is in safe working condition

• Never store the equipment with gasoline in the tank inside a

building where fumes may reach an open flame or spark

Allow the engine to cool before storing in any enclosure,

• To reduce fire hazard, keep the engine free of grass, leaves,

or excessive grease. Do not clean product while engine is

running.

•Do not operate without a muffler, or tamper with exhaust

system Damaged mufflers or spark arresters could create a

fire hazard_ Inspect periodically and replace if necessary_

° Under normal usage the grass catcher bag material is

subject to deterioration and wear. It should be checked

frequently for bag replacemenL Replacement bags should

be checked to ensure compliance with the original

manufacturer's recommendations or specifications°

i _h,_ LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. !

IT' MEANS - ATTENTIONI!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED, I

i llll

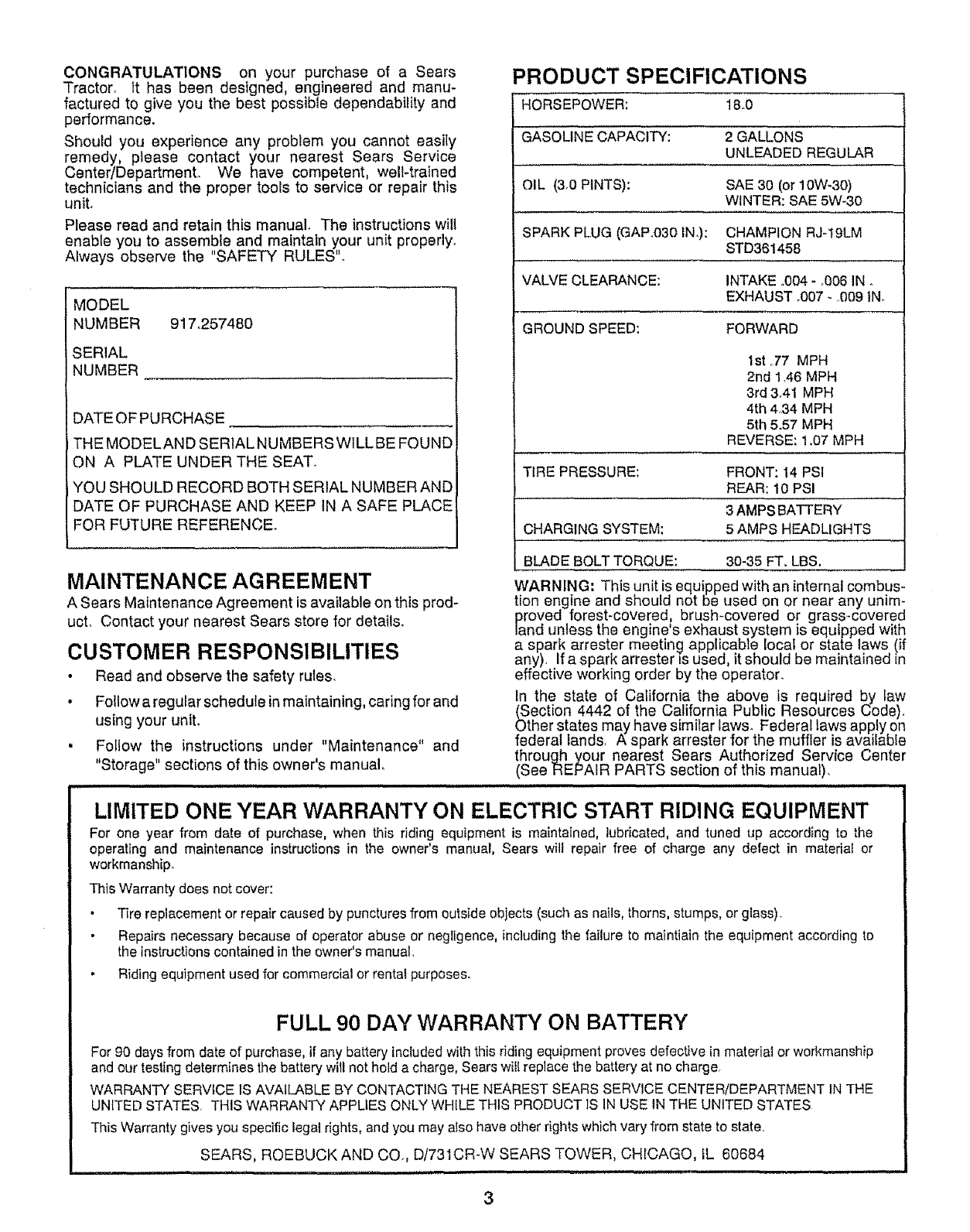

CONGRATULATIONS on your purchase of a Sears

Tractor_ tt has been designed, engineered and manu.

factured to give you the best possible dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Service

Center/Departmento We have competent, well-trained

technicians and the proper tools to service or repair this

unit.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your unit properly.

Always observe the "SAFETY RULES o

MODEL

NUMBER

SERIAL

_,IUMBER

917_257480

DATE OF PURCHASE

THE MODELAND SERIAL NUMBERS WILL BE FOUND

ON A PLATE UNDER THE SEAT.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

uct. Contact your nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and

using your unit.

• Fellow the instructions under "Maintenance" and

"Storage" sections of this owner's manual.

i lU i nnl,n,,lu nlu illl,l,,

PRODUCT SPECIFICATIONS

HORSEPOWER: 18.0

GASOLINE CAPACITY: 2 GALLONS

UNLEADED REGULAR

OIL (3.0 PINTS): SAE 30 (or 10W-30)

WINTER: SAE 5W-30

SPARK PLUG (GAP.O3OIN.): CHAMPION RJ-19LM

STD361458

VALVE CLEARANCE: INTAKE _004- _006IN.

EXHAUST .007 - ,009 IN.

GROUND SPEED: FORWARD

Ist .77 MPH

2nd 1A6 MPH

3rd 3,41 MPH

4th 4,34 MPH

5th 5.57 MPH

REVERSE: 1.07 MPH

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

3 AMPS BATTERY

CHARGING SYSTEM: 5 AMPS HEADLIGHTS

BLADE BOLT TORQUE: 30-35 FT, LBS,

WARNING: This unit is equipped w!th an internal combus-

tion engine and should not be usea on or near any unim.

proved forest-covered, brush-covered or grass-covered

land unless the engine's exhaust system is equipped with

a spark arrestor meeting applicable local or state laws (if

any), If a spark arrester =sused, it should be maintained in

effective working order by the operator.

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have simitar laws. Federal laws apply on

federal lands, A spark arrestor for the muffler is available

through your nearest Sears Authorized Service Center

(See REPAIR PARTS section of this manual),

i,ll ,i llllllUllUH Hi ii ,llJ,,,

LIMITED ONE YEAR WARRANTY ON ELECTRIC START RIDING EQUIPMENT

For one year from date of purchase, when this tiding equipment is maintained, lubricated, and tuned up according to the

operating and maintenance instructions in the owner's manual, Sears wiU repair free of charge any defect in material or

workmanship.

This Warranty does not cover:

• 3]re replacement or repair caused by punctures from outside objects (such as nails, thorns, stumps, or glass)

Repairs necessary because of operator abuse or negligence, including the failure to maintiain the equipment according to

the instructionscontained in the owner's manual,

. Riding equipment used for commerclal or rental purposes.

FULL 90 DAY WARRANTY ON BATTERY

For 90 daysfrom date of purchase, if any battery included with this tiding equipment proves defective in material or workmanship

and our testingdetermines the battery will not hold a charge, Sears witl replace the battery at no charge.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPARTMENT INTHE

UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT iS IN USE iN 3"HEUNITED STATES

This Warranty gives you specific _egalrights, and you may also have other rightswhich vary fromstate to state.

SEARS, ROEBUCK AND CO. D/731CR-W SEARS TOWER, CHICAGO, IL 60684

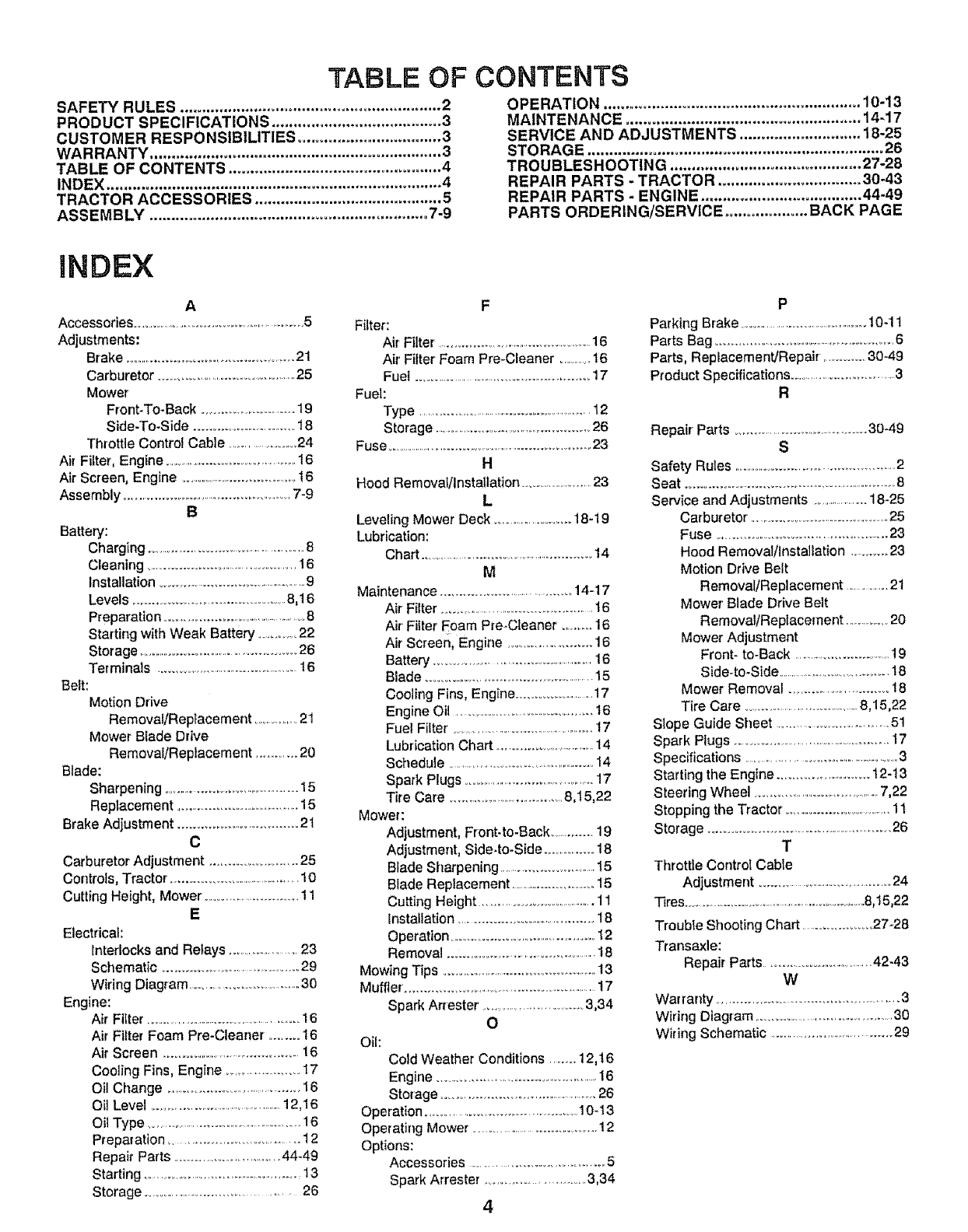

TABLE OF CONTENTS

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ....................................... 3

CUSTOMER RESPONSIBILITIES ................................. 3

WARRANTY ................................................................... 3

TABLE OF CONTENTS ................................................. 4

INDEX ............................................................................. 4

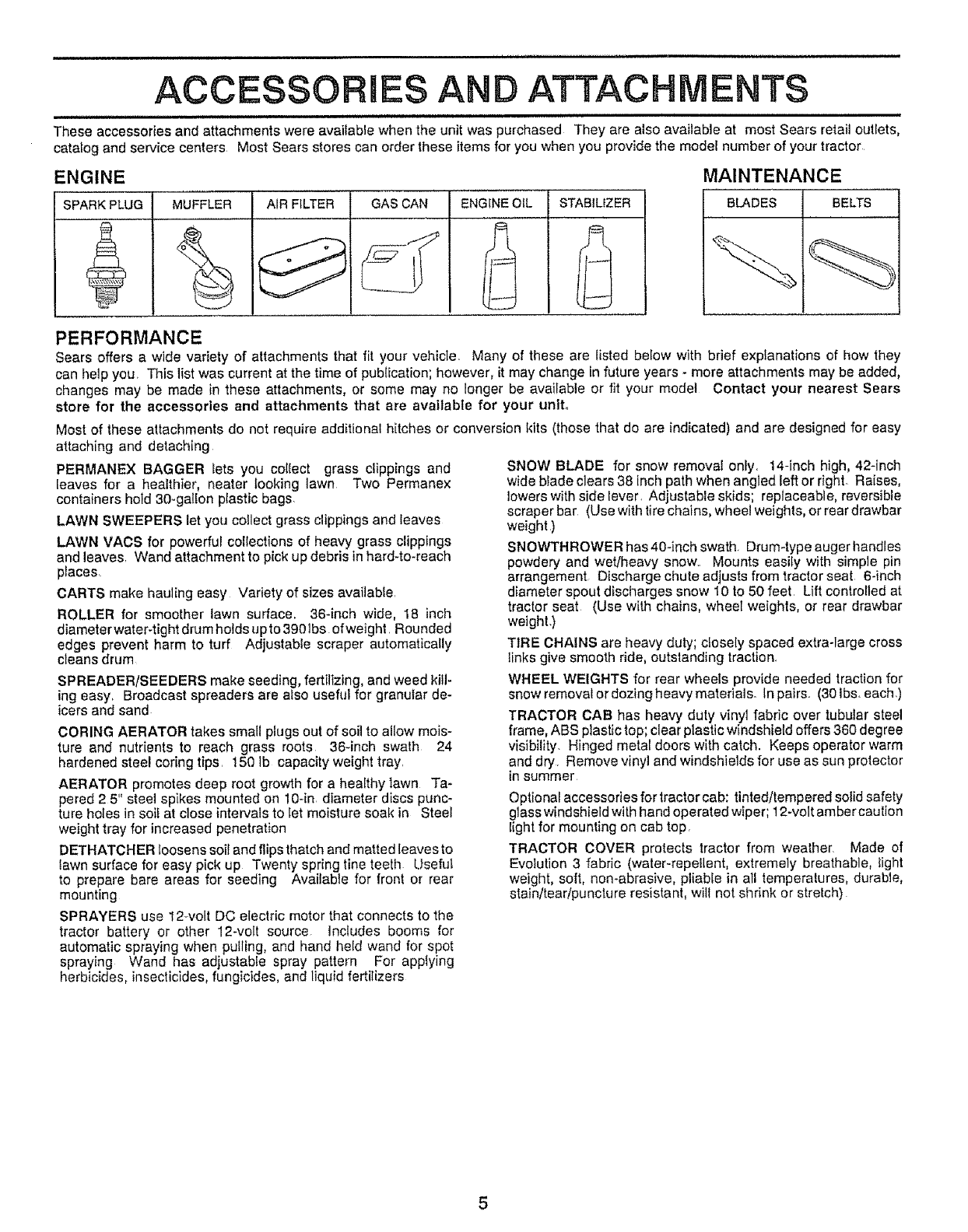

TRACTOR ACCESSORIES ........................................... 5

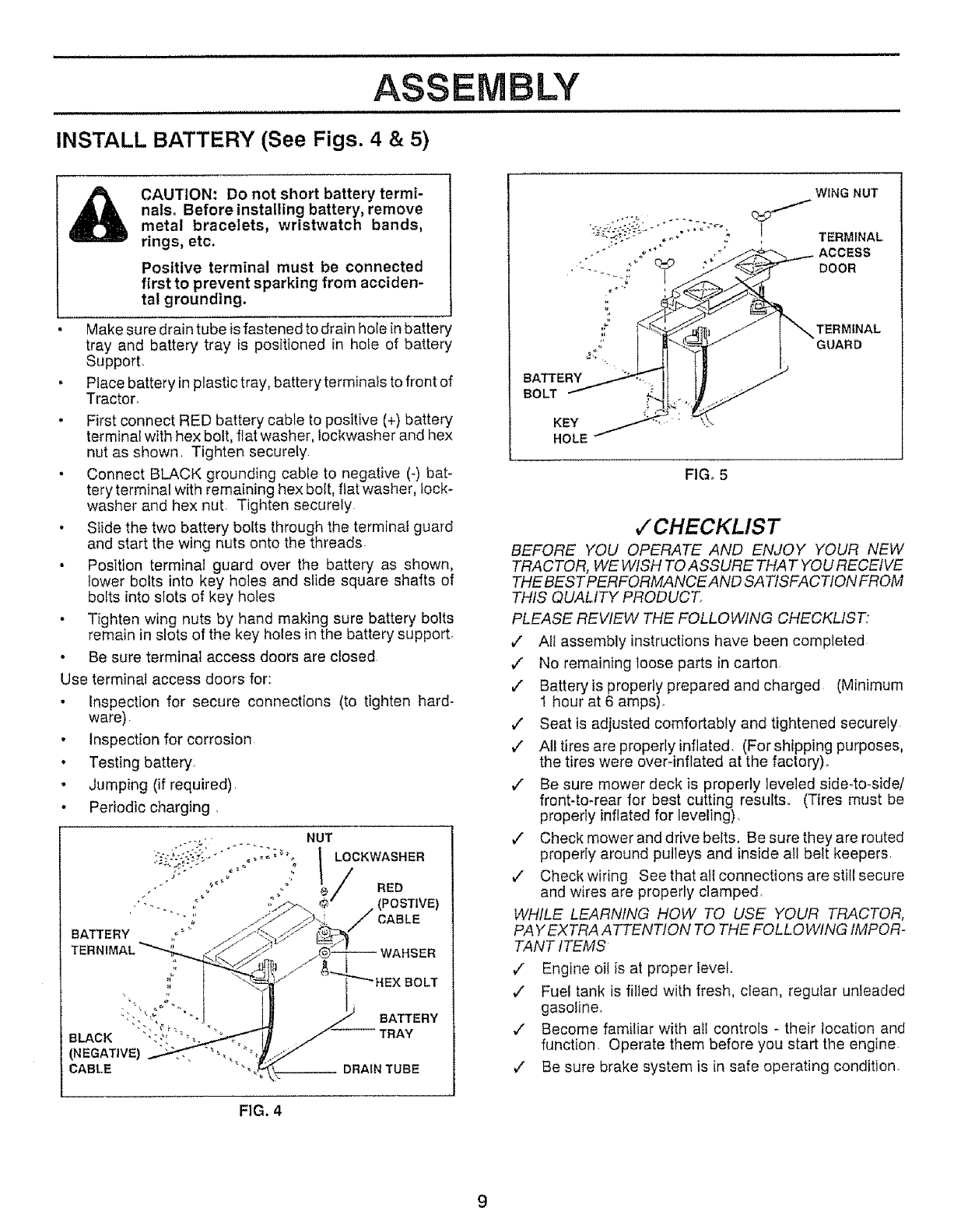

ASSEMBLY ................................................................ 7-9

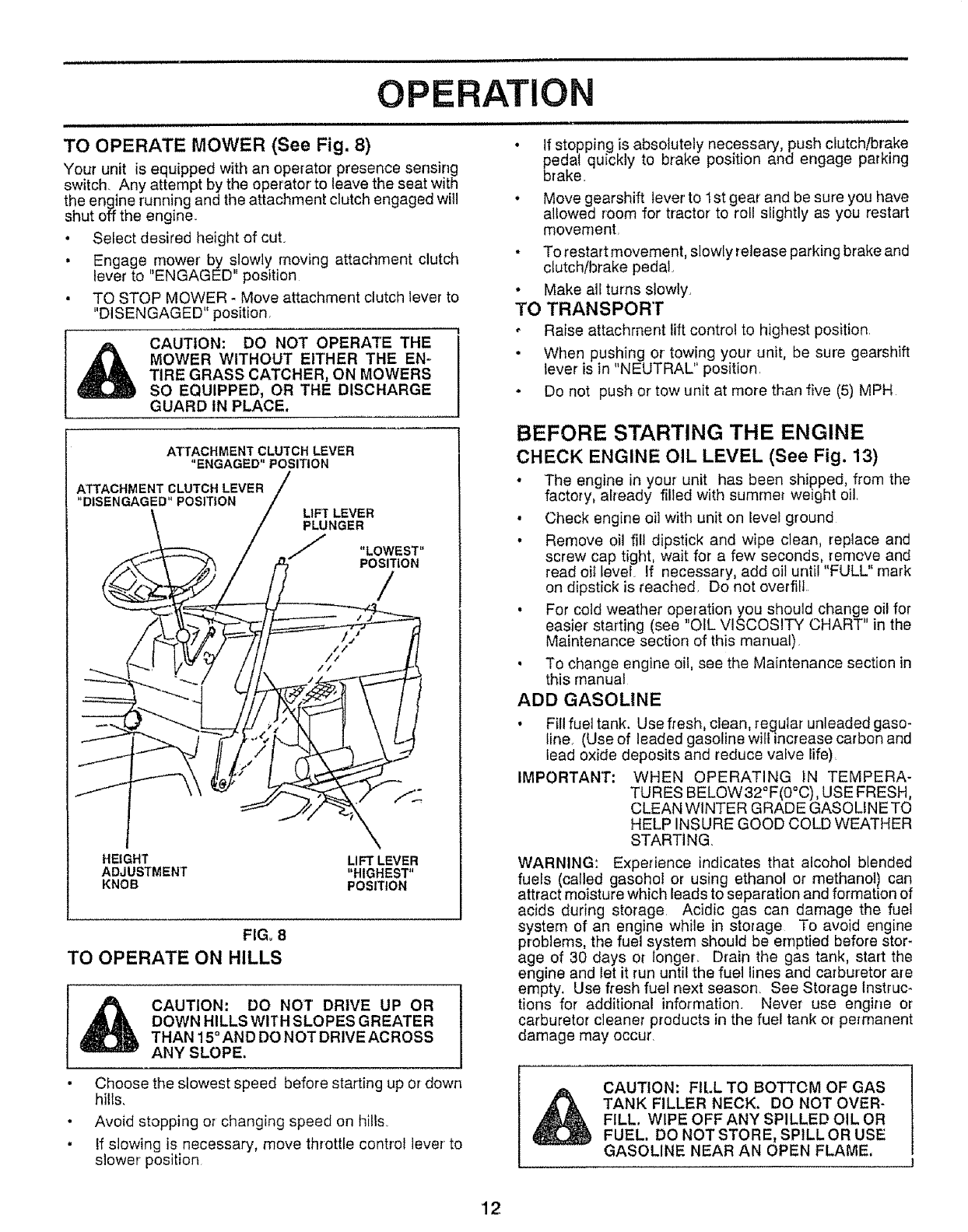

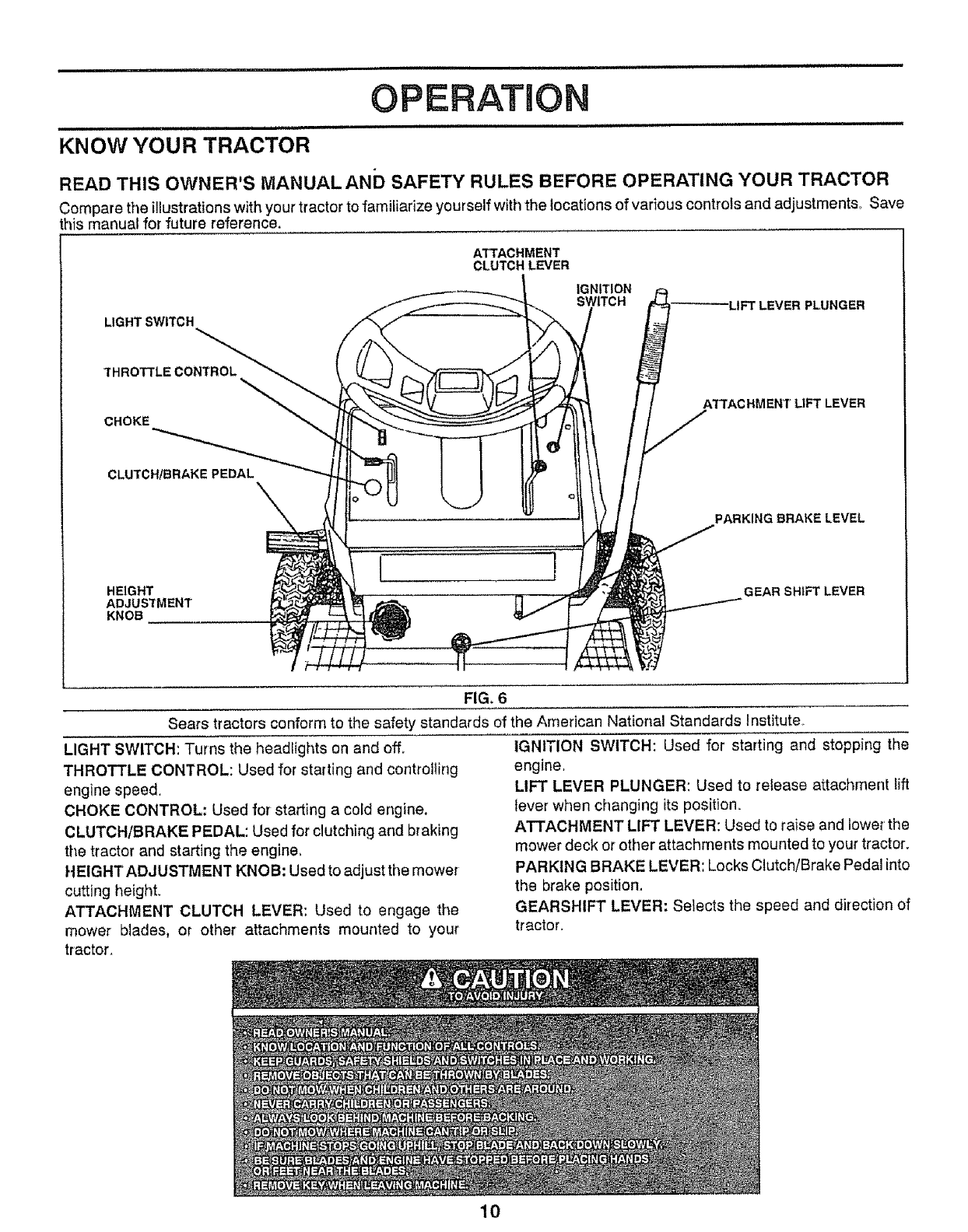

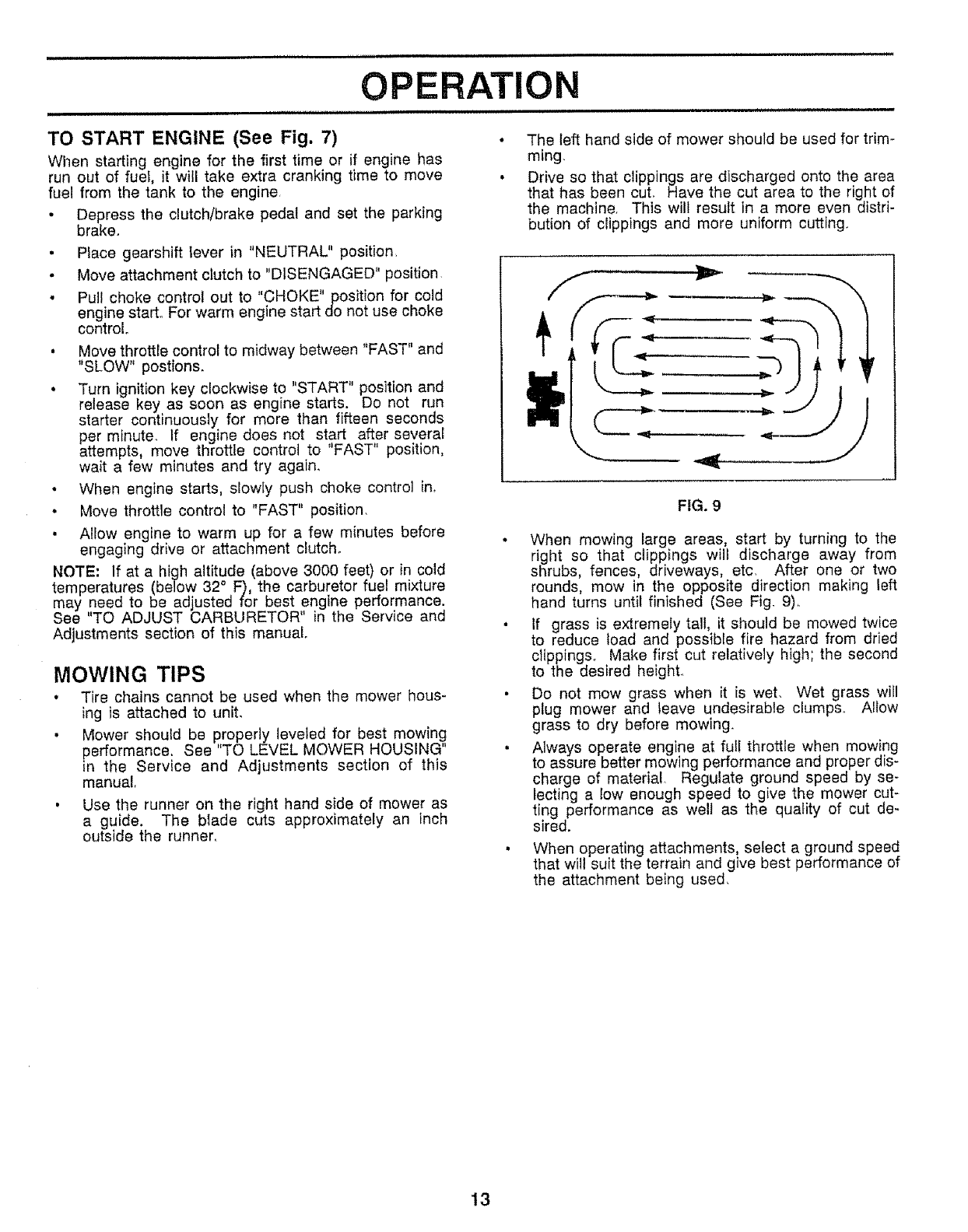

OPERATION ........................................................... 10-13

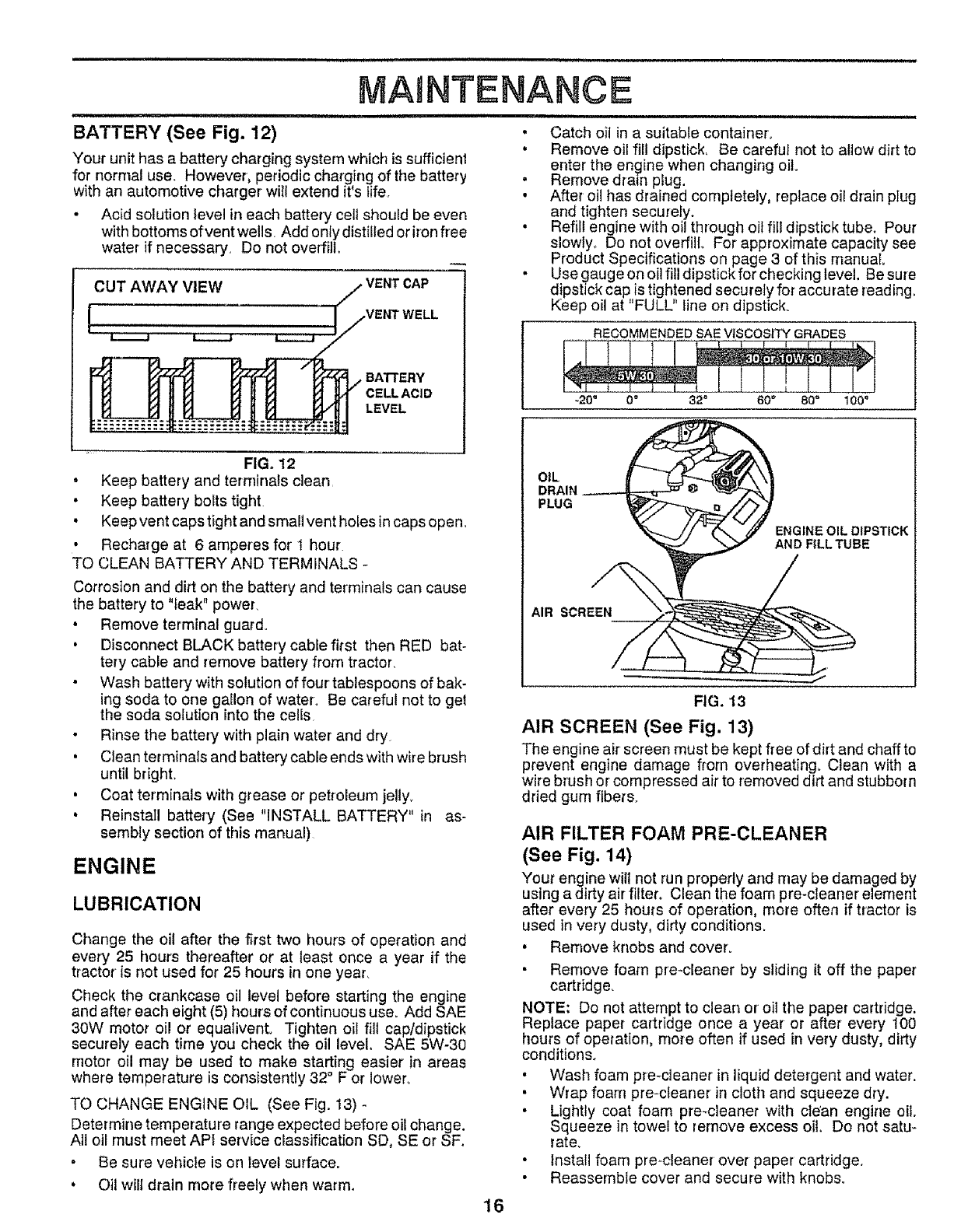

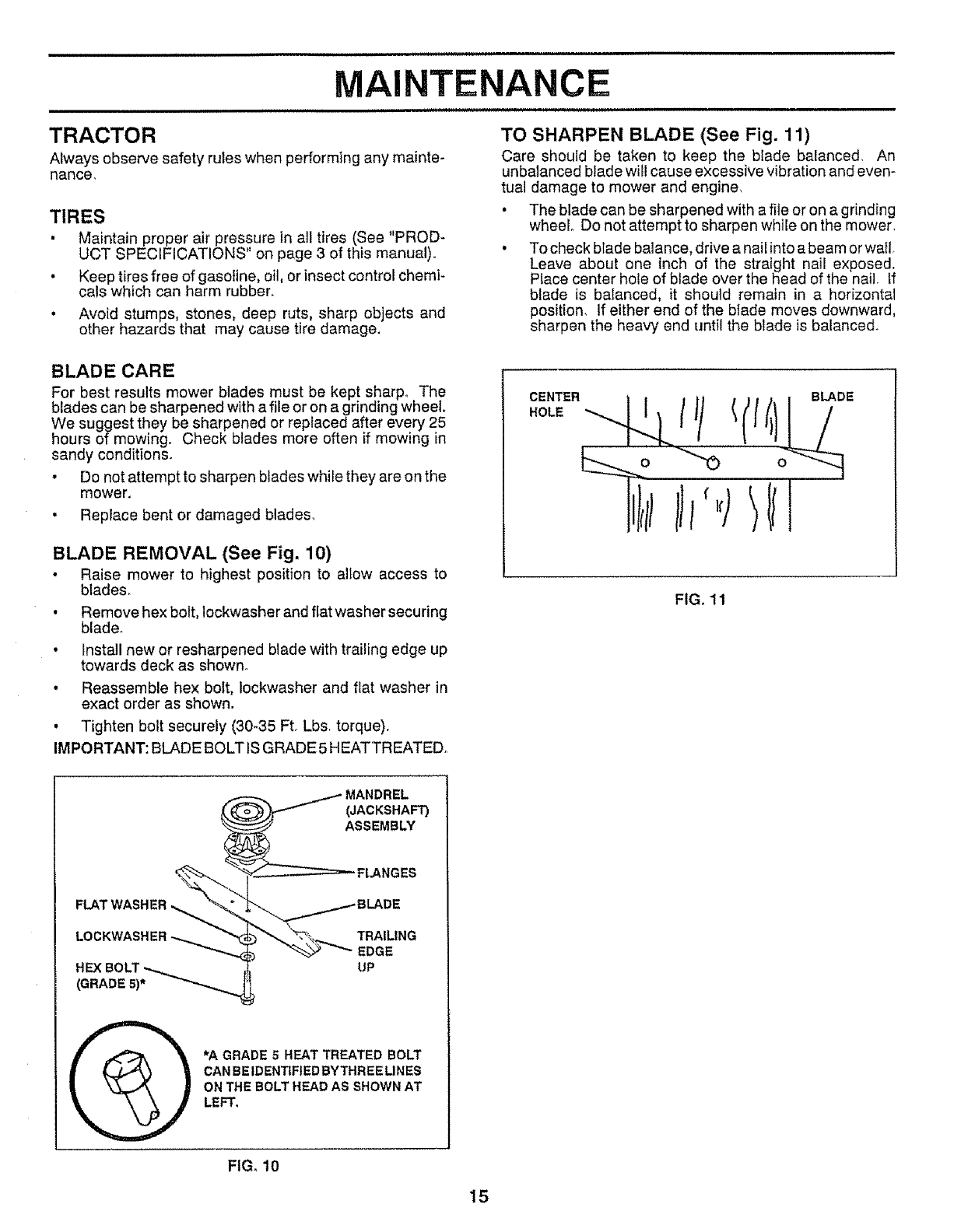

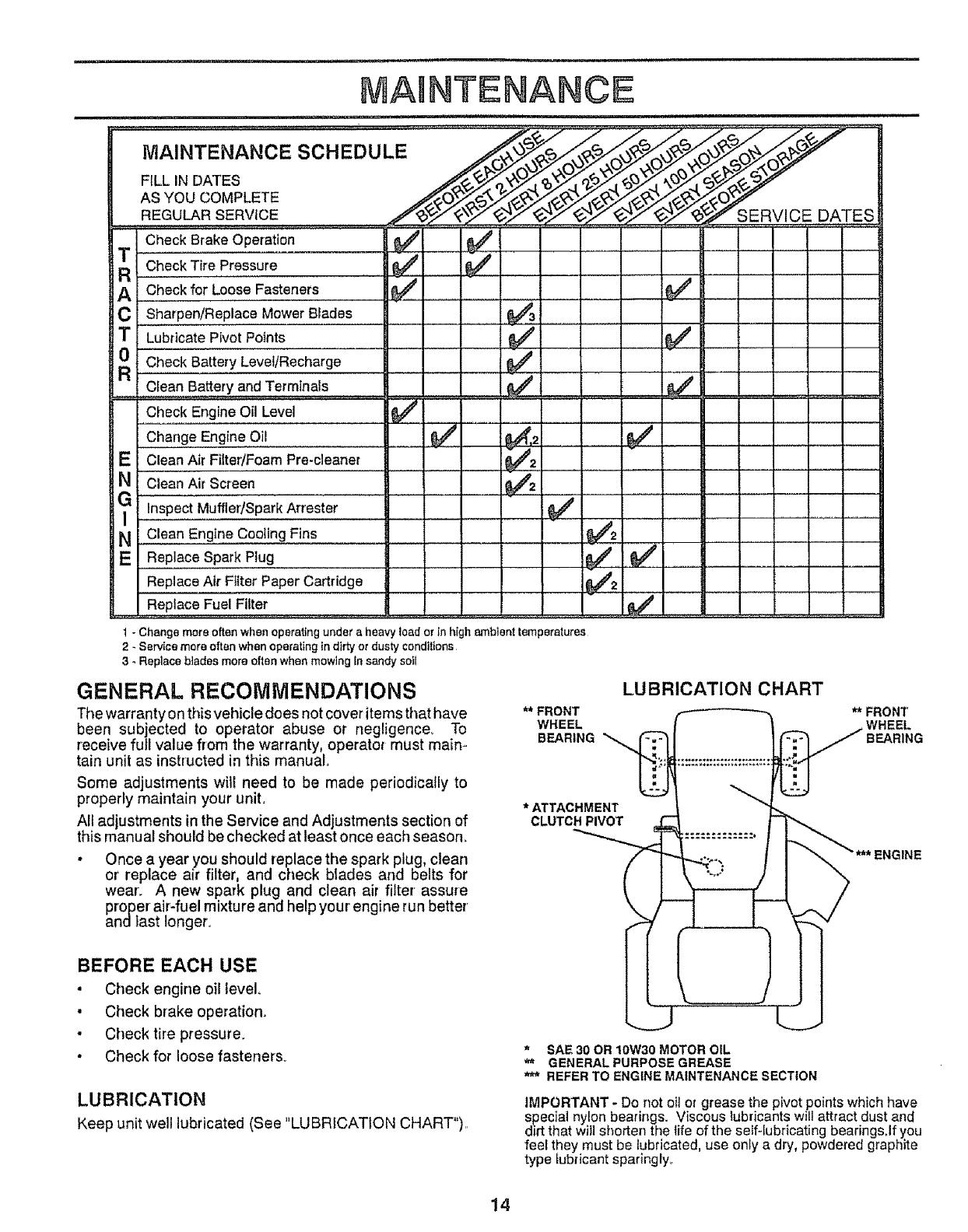

MAINTENANCE ...................................................... 14-17

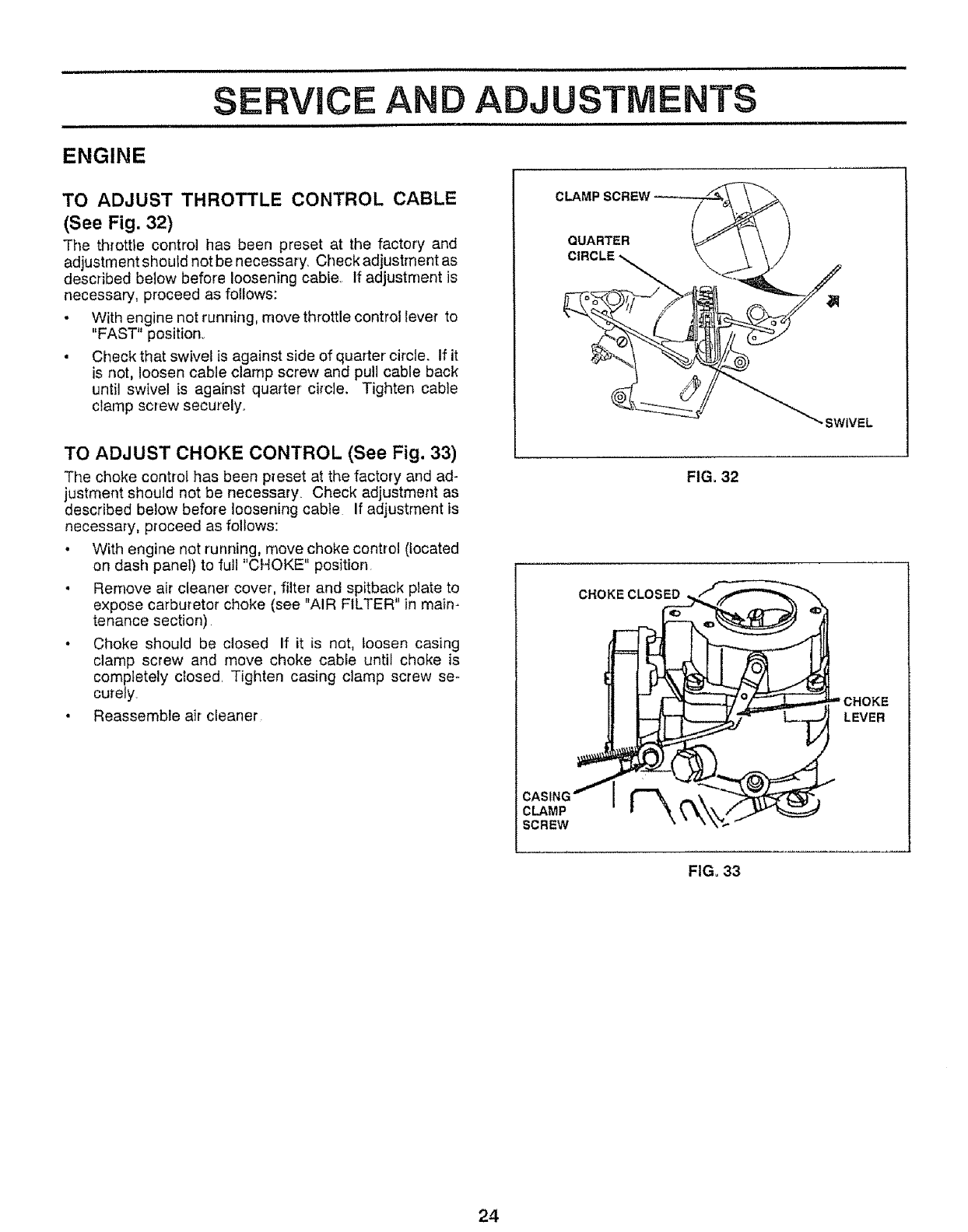

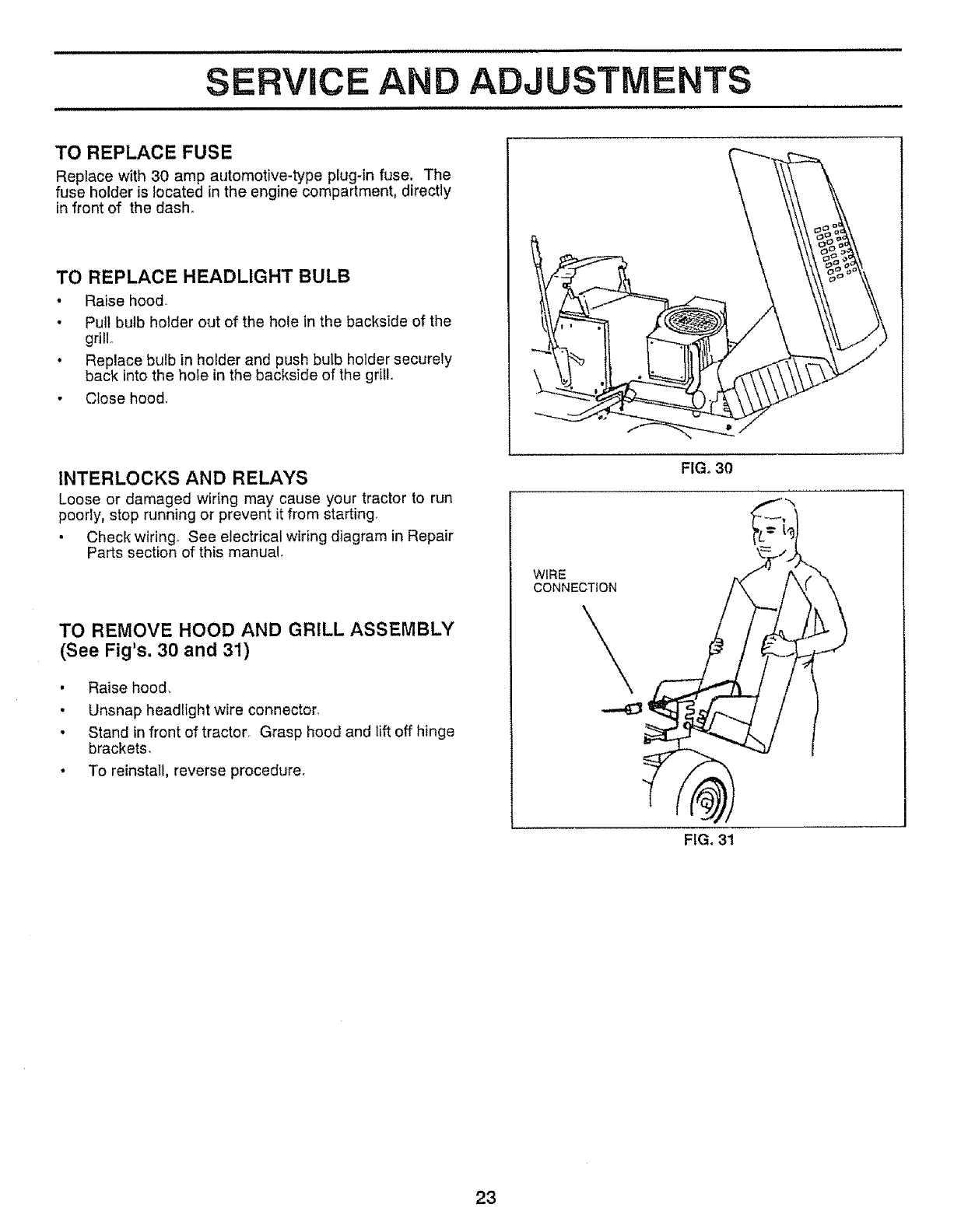

SERVICE AND ADJUSTMENTS ............................ 18-25

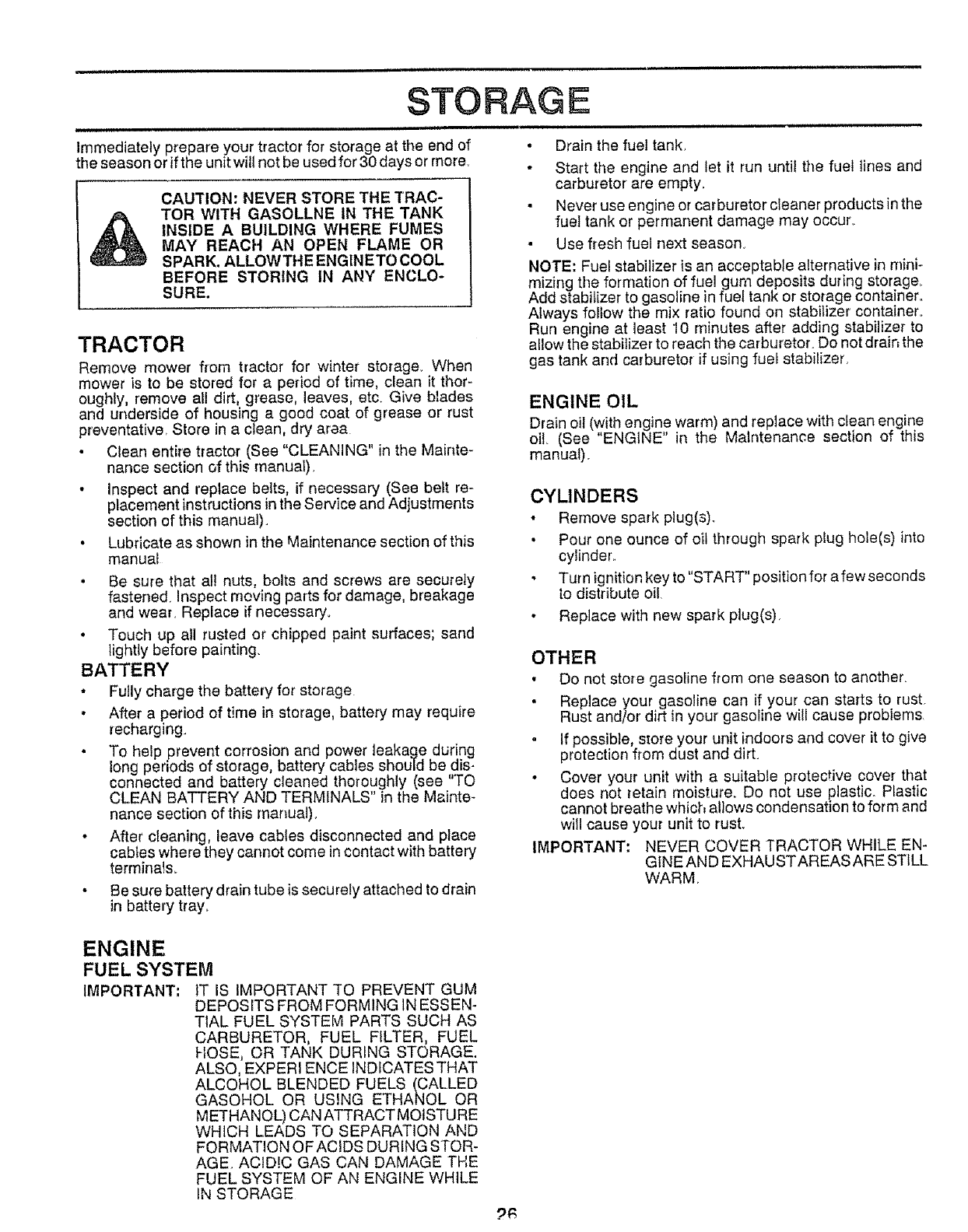

STORAGE .................................................................... 26

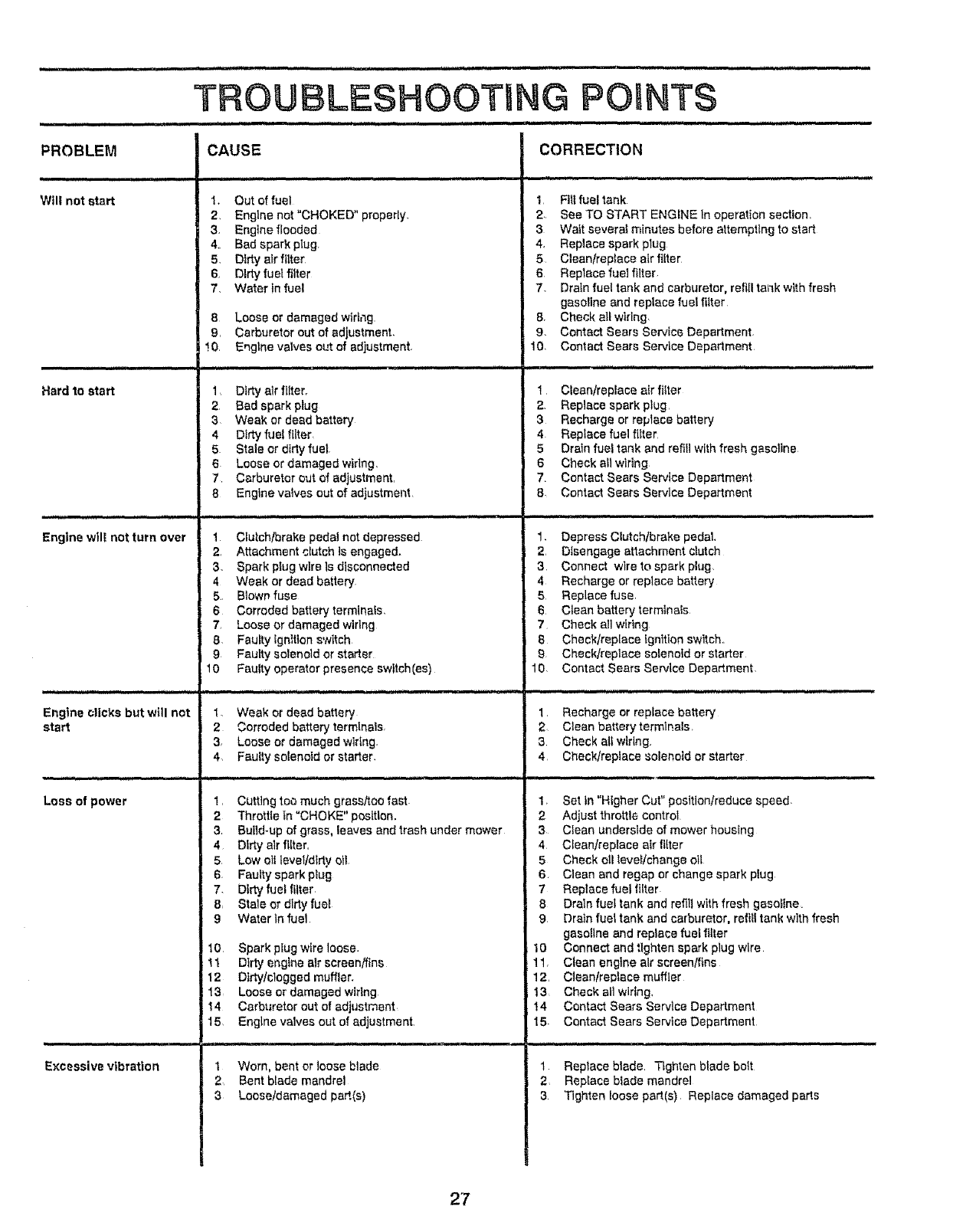

TROUBLESHOOTING ............................................ 27-28

REPAIR PARTS -TRACTOR ................................. 30-43

REPAIR PARTS -ENGINE ..................................... 44-49

PARTS ORDERING/SERVICE ................... BACK PAGE

INDEX

Accessories ...................................................5

Adjustments;

Brake ...................................................21

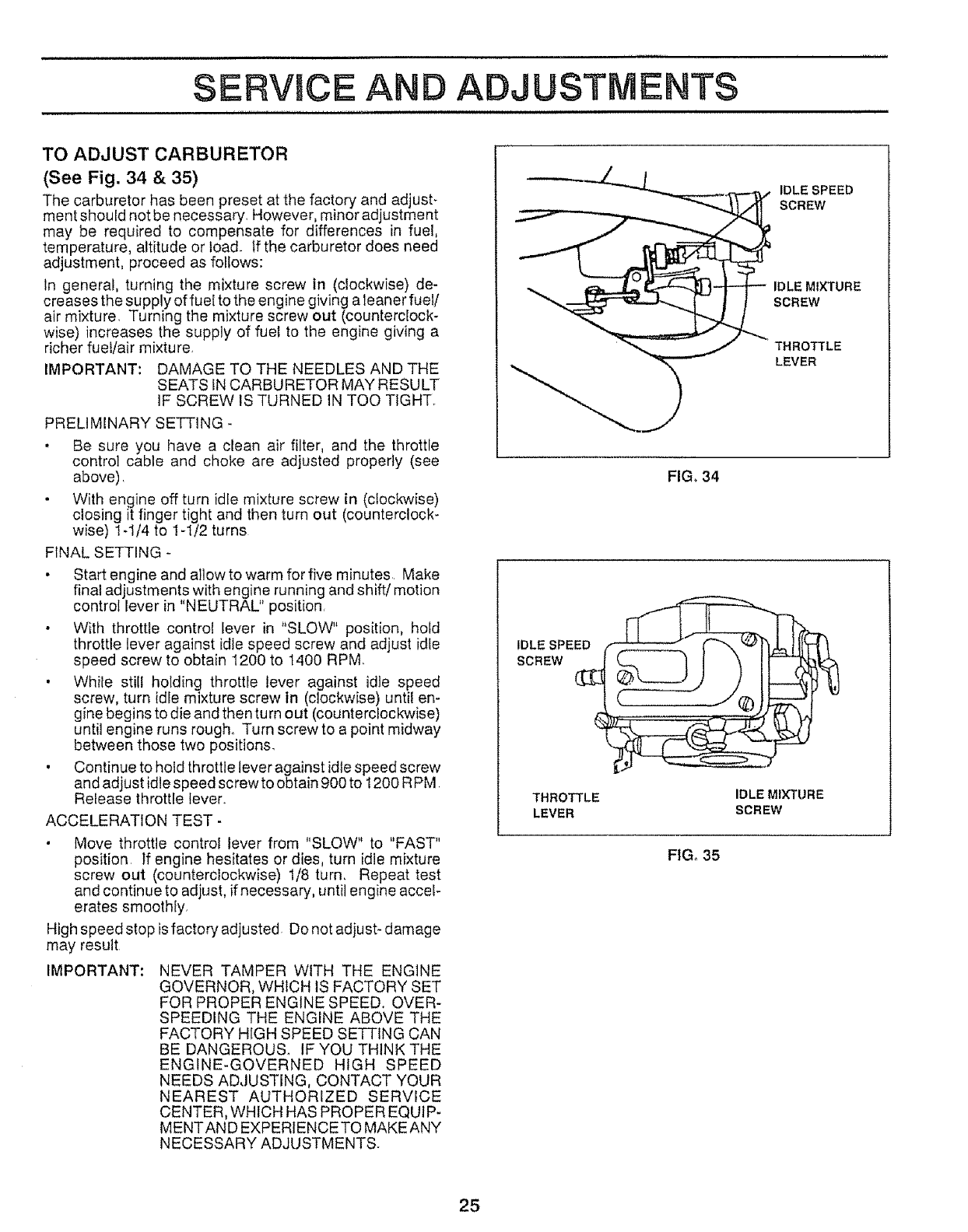

Carburetor ...........................................25

Mower

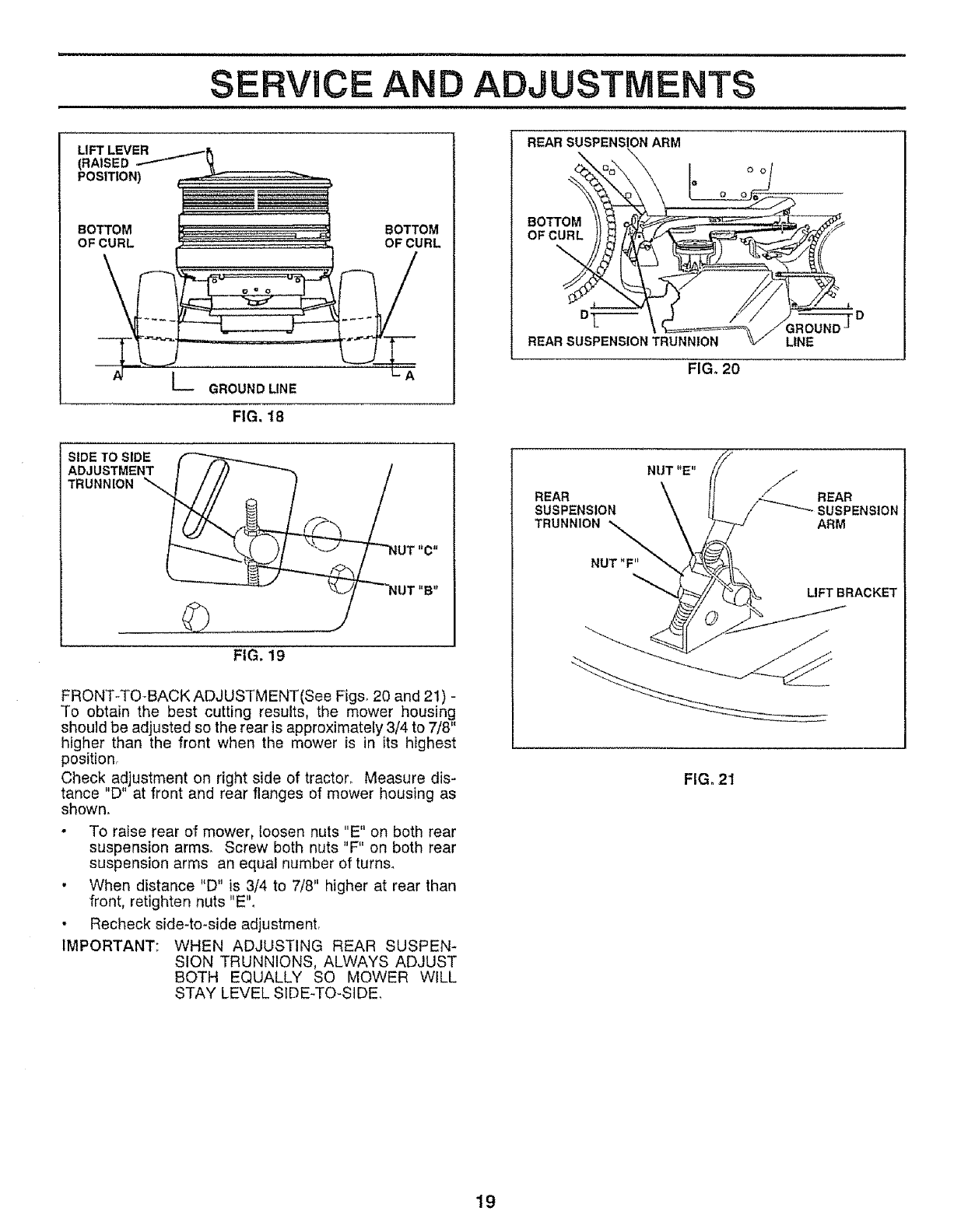

Front+To*Back ....................................19

Side-To-Side .................................18

Throttle Control Cable ......................24

Air Filter, Engine ...............................................16

Air Screen, Engine ......................................16

Assembly .......................................................7-9

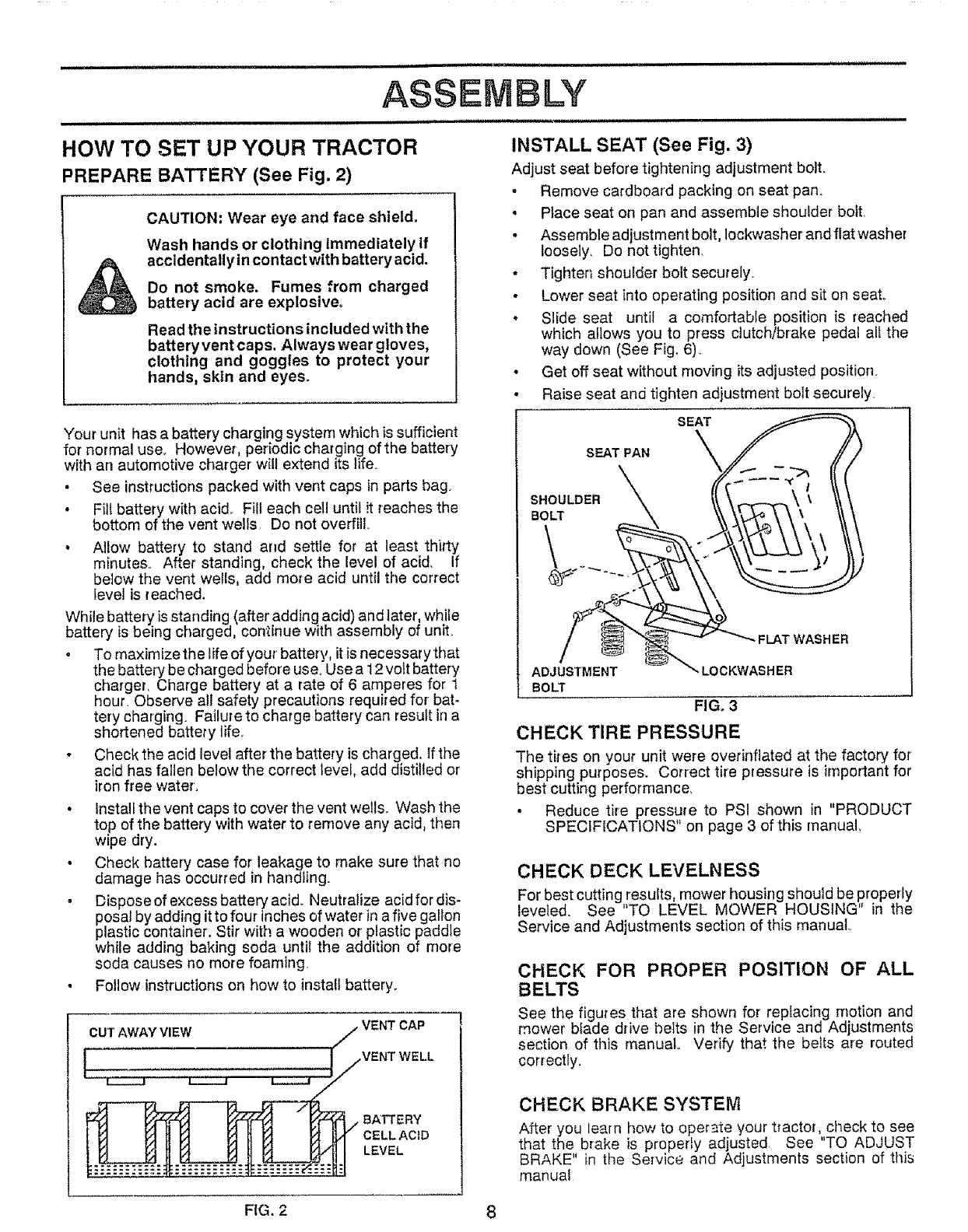

Battery:

Charging ..................................................8

Cleaning .............................................! 6

Installation ..................................................9

Levels ................................................8,16

Preparation .................................................8

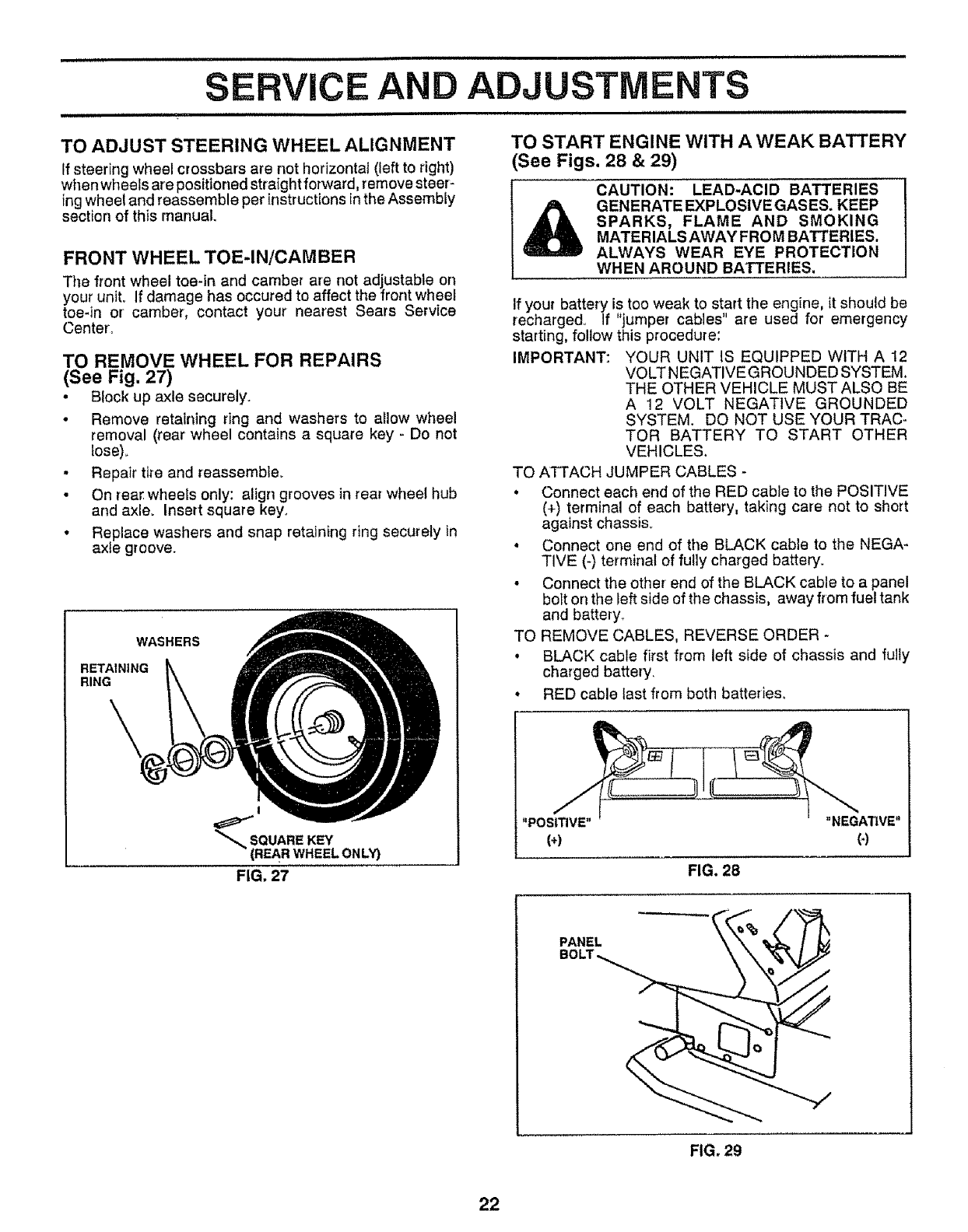

Starting with Weak Battery ............22

Storage .....................................................26

Terminals ................................................t6

Beit:

Motion Drive

Removal/Replacement ................21

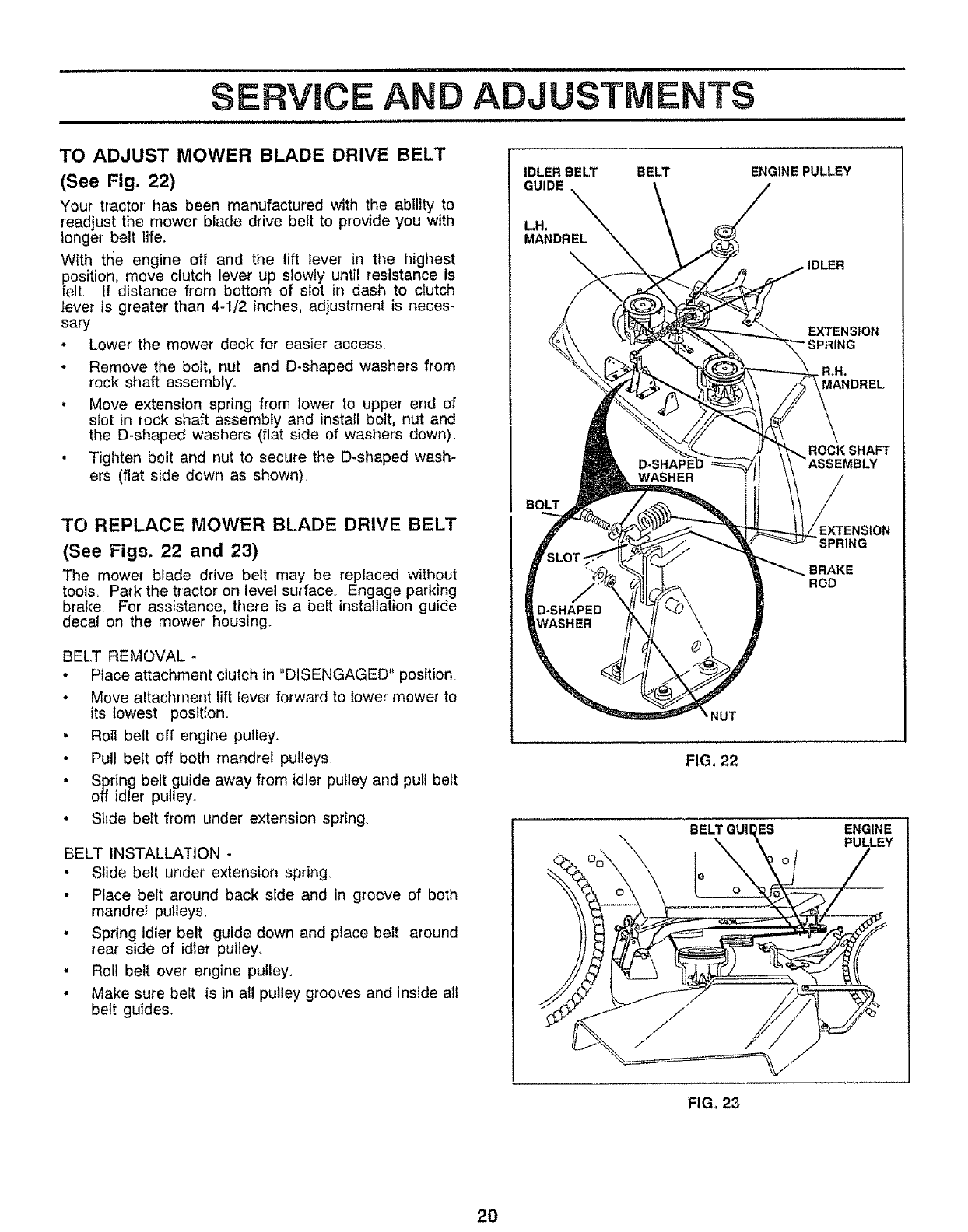

Mower Blade Drive

Removal/Replacement .................20

Blade:

Sharpening ...............................................15

Replacement ......................................15

Brake Adjustment ......................................21

Carburetor Adjustment ......................... 25

Controls, Tractor. .........................................10

Cutting Height, Mower .............................11

Electrical:

Interlocks and Relays ........................23

Schematic ...........................................29

Wiring Diagram ......................................30

Engine:

Air Fitter ....................................................16

Air Fitter Foam Pre-Cleaner, .........16

Air Screen .............................................. 16

Cooling Fins, Engine ......................17

Oil Change ...................................... 16

Oil Level ........................... ..................... 12,16

Oil Type ......................................................16

Preparation ........................................12

Repair Parts .................................... 44-49

Starting ...................................................13

Storage .......................................... 26

Filter:

Air Filter ..................................................16

Air' Filter Foam Pre-Cleaner ............16

Fuel .........................................................17

Fuel:

Type ........................................................12

Storage .................................................... 26

Fuse ......................................................................23

Hood Removal/Installation .......................23

Leveling Mower Deck ..................... 18-19

Lubrication:

Chart ...........................................................14

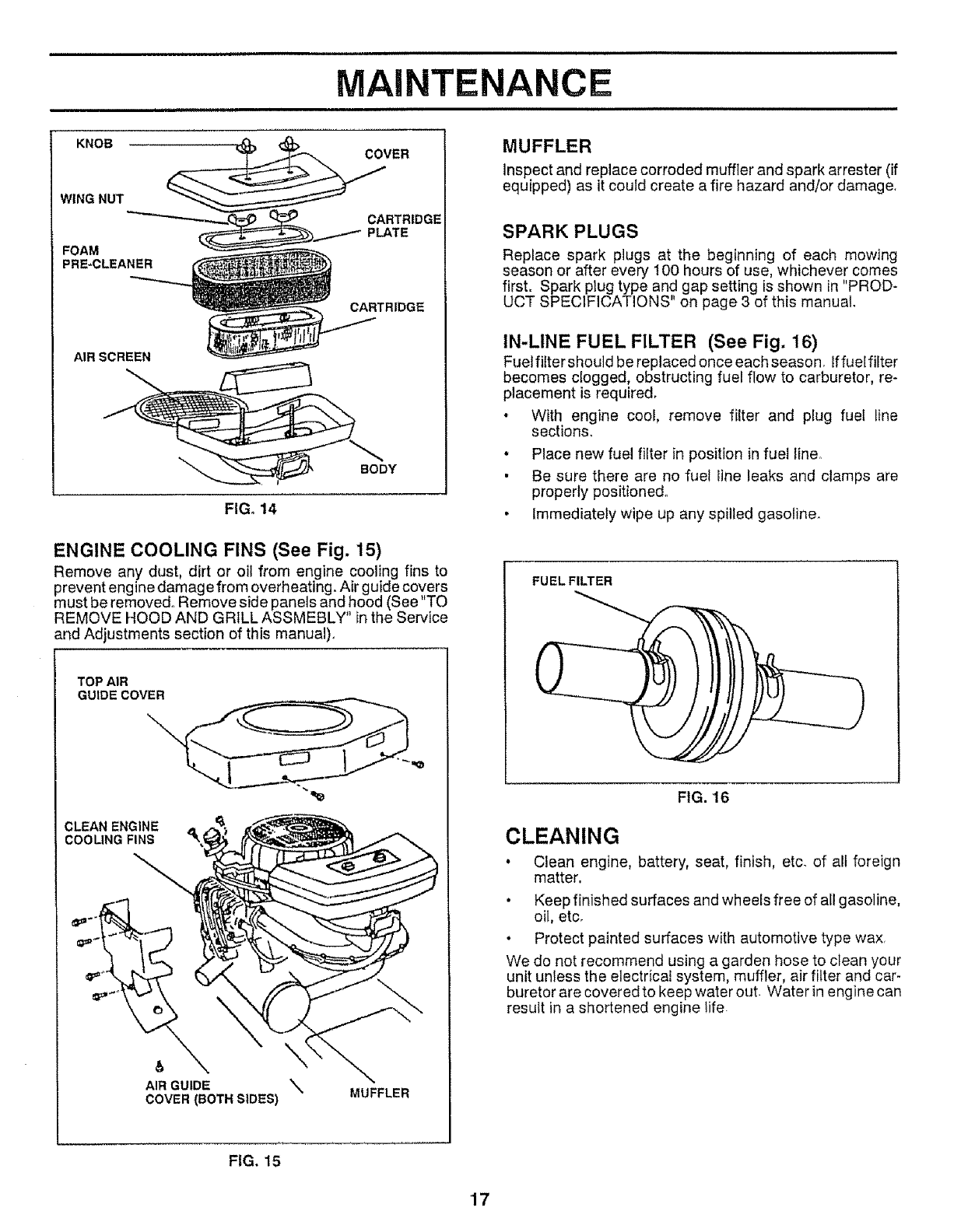

Maintenance ........................................14-17

Air Filter .......................................... 16

Air FUter Foam Pre+Cleaner ..............16

Air Screen, Engine ...........................16

Battery ......................................................16

Blade .........................................................15

Cooling Fins, Engine ..........................17

Engine Oil ...........................................16

Fuel Filter ....................................................17

Lubrication Chart .................................14

Schedule ............................................14

Spark Plugs ..............................................17

Tire Care ......................................8,15,22

Mower:

Adjustment, Front-to-Back ...............19

Adjustment, Side4o-Side ...............15

Blade Sharpening ..............................15

Blade Replacement ..........................15

Cutting Height ........................................11

lnstaUation ............................................18

Operation .............................................12

Removal .................................................18

Mowing Tips .................................................... 13

Muffler r,....................................................... t7

Spark Arrester +.............................3,34

Oil:

Cold Weather Conditions ........12,16

Engine .......................................................16

Storage .....................................................26

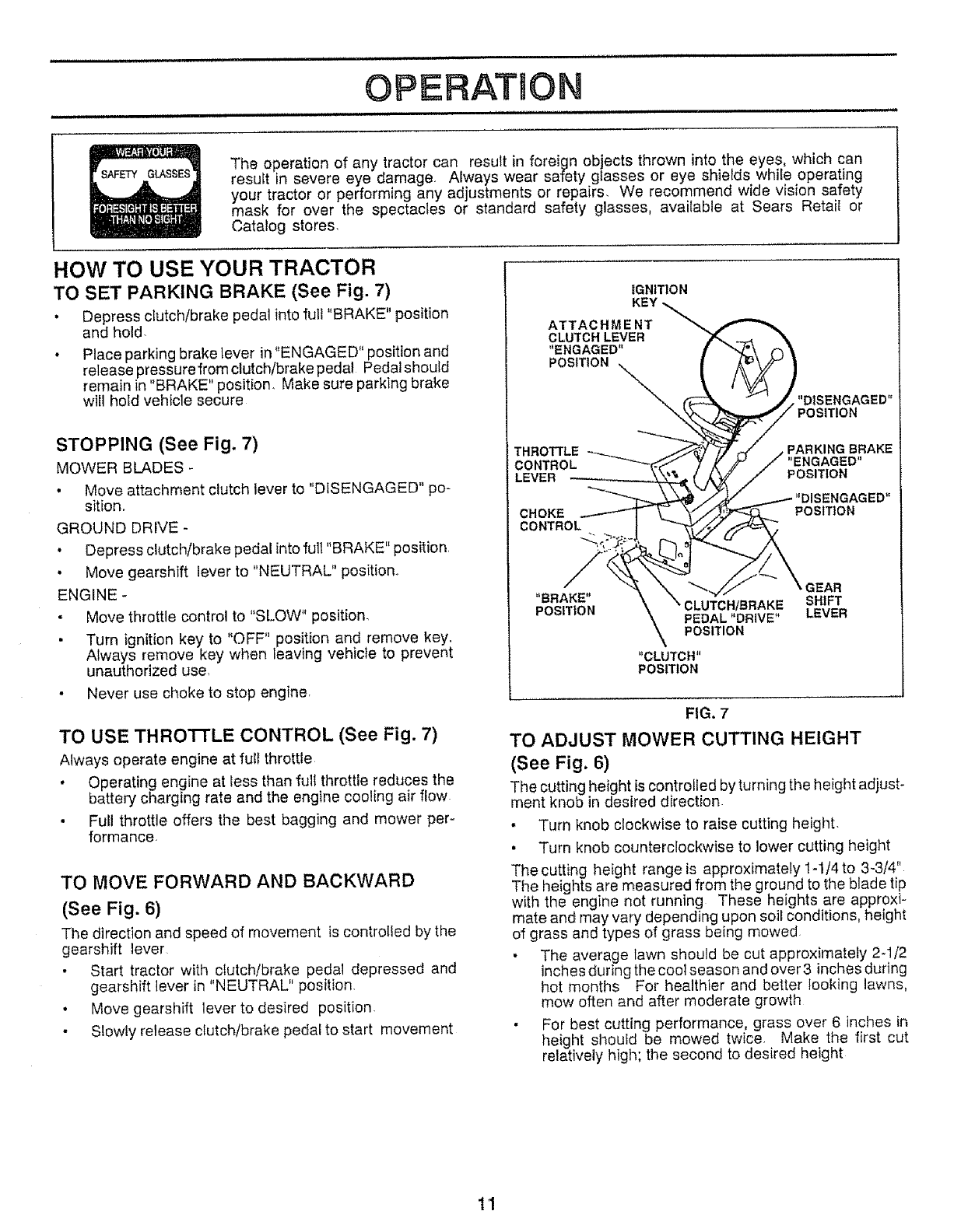

Operation .................................................. 10-13

Oper atlng Mower ......................................12

Options:

Acces sories ...................................... 5

Spark Arrester ...................................3,34

ParkingBrake ..............................................10-11

Parts Bag .....................................................6

Parts, RepiacementJRepalr,.............30-49

ProductSpecifications...................................3

Repair Parts .........................................30-49

Safety Rules ................................................2

Seat ............................. ........................................... 8

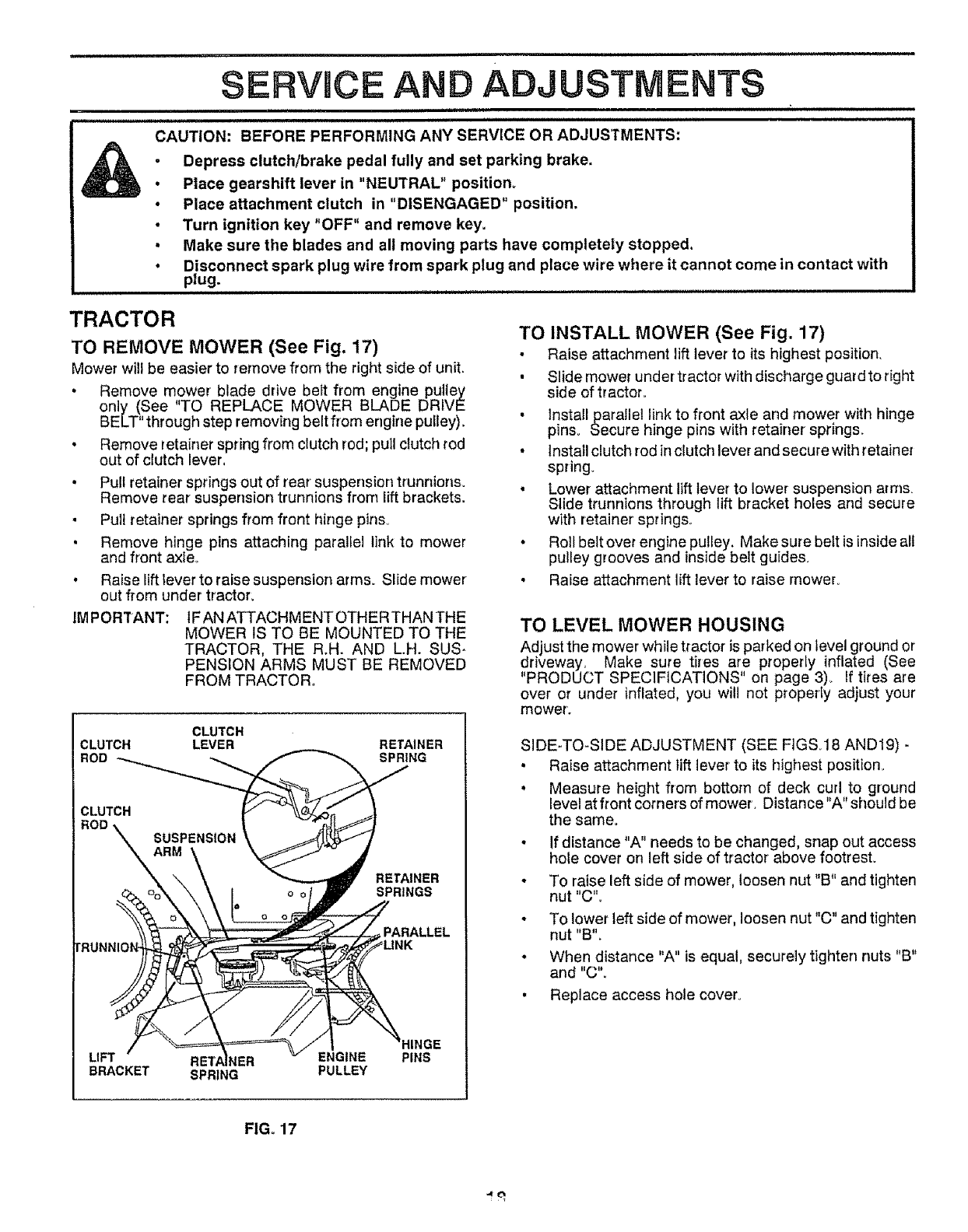

Service and Adjustments .....................18-25

Carburetor. ..............................................25

Fuse ........................................................23

Hood Removal/installation .......... 23

Motion Drive Belt

Removal/Replacement ............2t

Mower Blade Drlve Belt

RemovaltReplacement ..............20

Mower Adjustment

Front- to+Back .................... ............. 19

Side*to-Side .....................................18

Mower Removal ..............................18

Tire Care ........................................8,15,22

Slope Guide Sheet ............................ 51

Spark Plugs ..................................................17

Specifications ...............................................3

Starting the Engine .......................... 12-13

Steering Wheel ........................................7,22

Stopping the Tractor ....................................11

Storage .................................................... 26

Throttle Control Cable

Adjustment ..................................... 24

Tires........................................................8,15,22

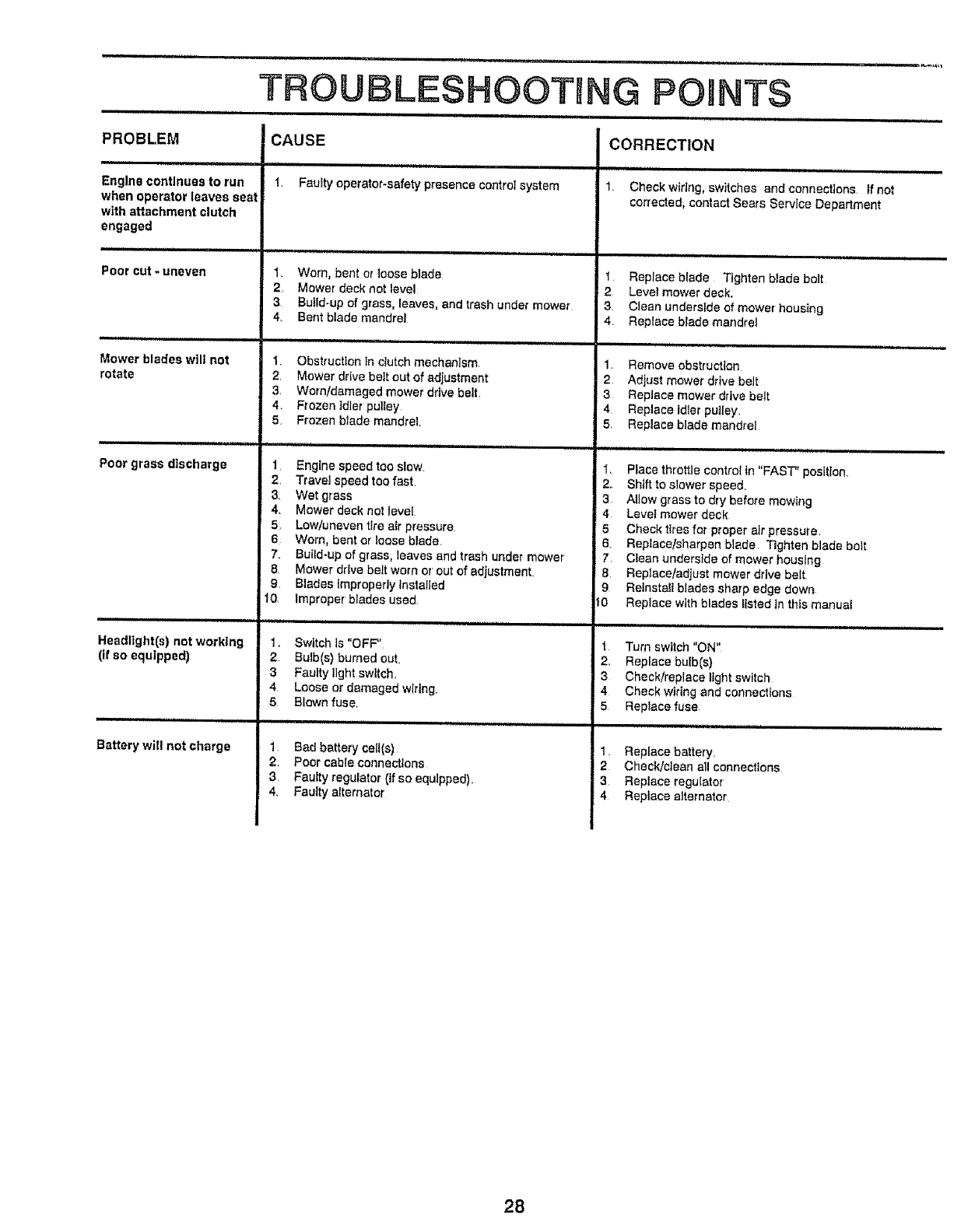

Trouble Shooting Chart ....................27+28

Transaxle:

Repair Parts.............................. 42-43

Warranty ......................................................... 3

Wiring Diagram .......................................... 30

Wiring Schematic ..................................... 29

ACCESSORIES ANDATTACH ENT$

................................... = ill

These accessories and attachments were available when the unit was purchased They are also available at most Sears retail outlets,

catalog and service centers Most Sears stores can order these items for you when you provide the model number of your tractor

ENGINE

SPARK PLUG MUFFLER AIR FILTER GAS CAN ENGINE OIL STABIL_ZER

MAINTENANCE

BLADES BELTS

PERFORMANCE

Sears offers a wide variety of attachments that fit your vehicle. Many of these are listed below with brief explanations of how they

can help you. This list was current at the time of publication; however, it may change in future years - more attachments may be added,

changes may be made in these attachments, or some may no longer be available or fit your model Contact your nearest Sears

store for the accessories and attachments that are available for your unit.

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching

PERMANEX BAGGER Iets you col(ect grass clippings and

leaves for a healthier, heater tooking lawn Two Permanex

containers hold 30-gallon plastic bags

LAWN SWEEPERS let you collect grass clippings and leaves

LAWN VAOS for powerful collections of heavy grass clippings

and leaves Wand attachment to pick up debris in hard-to-reach

praces

CARTS make hauling easy Variety of sizes available.

ROLLER for smoother lawn surface. 36-inch wide, 18 inch

diameterwater-tightdrumholdsupto3901bs of weight. Rounded

edges prevent harm to turf Adjustable scraper automatically

cleans drum

SPREADER/SEEDERS make seeding, fertilizing, and weed kill-

ing easy, Broadcast spreaders are also useful for granular de-

icers and sand

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots 36-inch swath 24

hardened steel coring tips. 150 lb capacity weight trayr

AERATOR promotes deep root growth for a healthy tawn Ta-

pered 2 5" steel spikes mounted on 10-in diameter discs punc-

ture holes in se{t at dose intervals to Iet moisture soak in Steel

weight tray for increased penetration

DETHATCHER loosens soil and flips thatch and matted leaves to

lawn surface for easy pick up Twenty spring tine teeth Useful

to prepare bare areas for seeding Available for front or rear

mounting

SPRAYERS use 12-volt DC electric motor that connects to the

tractor battery or other 12-volt source includes booms for

automatic spraying when puIling, and hand held wand for spot

spraying Wand has adjustable spray pattern For appIying

herbicides, insecticides, fungicides, and liquid fertilizers

SNOW BLADE for snow removal only. 14-inch high, 42-inch

wide blade clears 38 inch path when angled left or right_ Raises,

lowers with side lever. Adjustable skids; replaceable, reversible

scraper bar (Use with tire chains, wheel weights, or rear drawbar

weight .)

SNOWTHROWER has 40-inch swath. Drum-type auger handles

powdery and wet/heavy snow.. Mounts easily with simple pin

arrangement Discharge chute adjusts from tractor seat 6-inch

d_ameter spout discharges snow 10 to 50 feet. Lift controlled at

tractor seat (Use with chains, wheel weights, or rear drawbar

weight)

TIRE CHAINS are heavy duty; closely spaced extra-large cross

finks give smooth ride, outstanding traction.

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials. In pairs.. (30 Ibs. each_)

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility. Hinged metal doors with catch. Keeps operator warm

and dry. Remove vinyl and windshields for use as sun protector

in summer

Optional accessories for tractor cab: tinted/tempered solid safety

glass windshield with hand operated wiper; 12-volt amber caution

light for mounting on cab tep r

TRACTOR COVER protects tractor from weather Made of

Evolution 3 fabric (water-repellent, extremely breathable, iight

weight, soft, non-abrasive, pliable in all temperatures, durable,

stain/tear/puncture resistant, wilt not shrink or stretch)

1iris=

CONTENTS OF HARDWARE PACK

= ===ll Hrn,

Parts Bag contents shown full size

,i iiirt

(1) Shoulder' Bolt 5/16-18 (1) Hex Bolt 1/2-13 x 1

(1) Lockwasher t/2

(1) Washer 17/32 x 1-3/16 x 12 Ga,

inn, nn ....................

(2) Hex BoLts 1/4- 20 x3/4

(2) Hex Nuts 1/4- 20

(2) Washers 9/32 x 5/8 x 16 Ga,

(2) Lockwashers 1/4

= = uun H HIH,,

(2) Wing Nuts 1t4 - 20

--,11 , ==1 nu =,,,,_

Parts packed separately in carton

H=i,===,, = = ,ram ,,, n

Seat

Steering Wheel

Battery acid

Battery

Parts Bag Owner's Manual

Parts bag contents not shown full size

(2) Keys Steering

Wheel

Insert

(2) Battery Carriage Bolts 1/4-20 x 7-1/2

Terminal Guard

• t

Battery Caps

150 Slope Sheet and Instructions

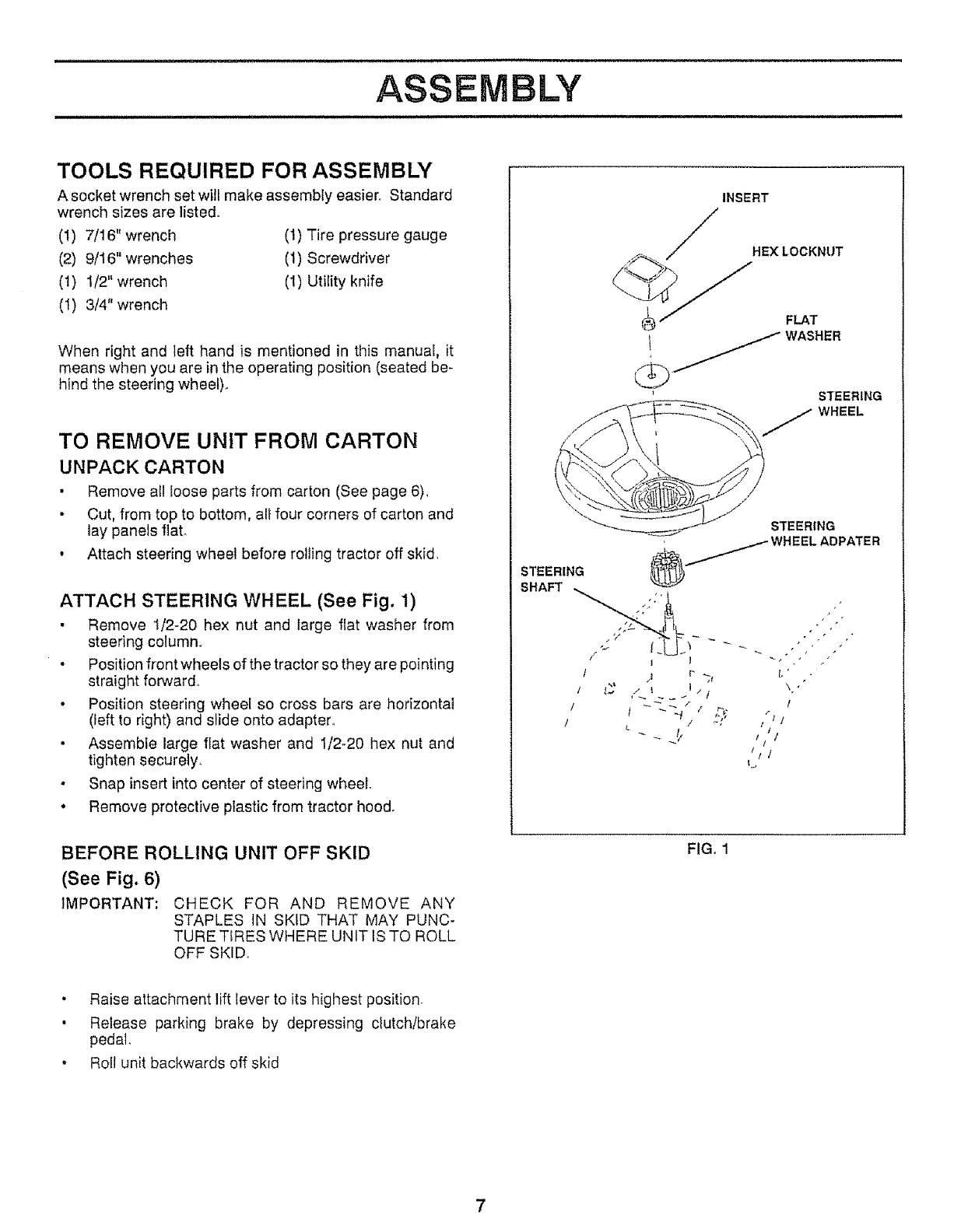

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier+ Standard

wrench sizes are listed°

(1) 7/16" wrench

(2) 9/16" wrenches

(1) 1/2" wrench

(1) 3/4" wrench

(1) Tire pressure gauge

(1) Screwdriver

(1) Utility knife

When right and left hand is mentioned in this manual, it

means when you are in the operating position (seated be-

hind the steering wheel)+

TO REMOVE UNIT FROM CARTON

UNPACK CARTON

• Remove all loose parts from carton (See page 6),

• Cut, from top to bottom, all four corners of carton and

lay panels flat+

• Attach steering wheel before rolling tractor off skid,

ATTACH STEERING WHEEL (See Fig. 1)

• Remove t/2-20 hex nut and large flat washer from

steering column°

• Position front wheels of the tractor so they are pointing

straight forward

• Position steering wheel so cross bars are horizontal

(left to right) and slide onto adapter°

• Assemble large flat washer and 1/2+20 hex nut and

tighten securely,

• Snap insert into center of steering wheel,

• Remove protective plastic from tractor hood+

BEFORE ROLLING UNIT OFF SKID

(See Fig. 6)

IMPORTANT: CHECK FOR AND REMOVE ANY

STAPLES IN SKiD THAT MAY PUNC+

TURE TIRES WHERE UNIT IS TO ROLL

OFF SKID+

INSERT

HEX LOCKNUT

STEERING

jWHEEL

STEERING

; _ WHEEL ADPATER

STEERING __-

Iti r _ t," ,

t_+ /_ I/t \"

I _t /,]

zt/

II/

FIG. 1

• Raise attachment lift lever to its higlnest position,

• Release parking brake by depressing clutch/brake

pedal_

• Roll unit backwards off skid

ii ,i iii, iiii ,i,,

HOW TO SET UP YOUR TRACTOR

PREPARE BATTERY (See Fig, 2)

CAUTION: Wear eye and face shield=

Wash hands or clothing Immediately if

accldentallyin contactwith battery acid.

Do not smoke. Fumes from charged

battery acid are explosive°

Read the instructions included with the

battery vent caps. Always wear gloves,

clothing and goggles to protect your

hands, skin and eyes.

Your unit has a battery charging system which is sufficient

for normal use. However, periodic charging of the battery

with an automotive charger will extend its life

•See instructions packed with vent caps in parts bag.

• Fill battery with acid Fill each cell until it reaches the

bottom of the vent wells, Do not overfill

• Allow battery to stand and settle for at least thirty

minutes. After standing, check the level of acid_ If

below the vent wells, add more acid until the correct

fevel is reached.

While battery isstanding (after adding acid) and later, while

battery is being charged, cominue with assembly of unit.

•To maximize the life of your battery, it is necessary that

the battery be charged before use, Use a 12 volt battery

charger, Charge battery at a rate of 6 amperes for 1

hour. Observe all safety precautions required for bat-

tery charging, Failureto charge battery can result in a

shortened battery tife_

.Check the acid level after the battery is charged, if the

acid has fallen below the correct level, add distilled or

ironfree water.

• install the vent caps to cover the vent welts_ Wash the

top of the battery with water to remove any acid, then

wipe dry.

• Check battery case for leakage to make sure that no

damage has occurred in handling.

• Dispose of excess battery acid. Neutralize acid for dis-

posal by adding it to four inches of water in afive gallon

plastic container. Stir with a wooden or plastic paddle

while adding baking soda until the addition of more

soda causes no more foaming,

• Follow instructions on how to install battery.

CUT AWAY VIEW

BATTERY

CELLACID

LEVEL

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment bolt.

• Remove cardboard packing on seat pan.

° Ptace seat on pan and assemble shoulder bolt

• Assemble adjustment bolt, Iockwasher and flat washer

loosely, Do not tighten,

• Tighten shoulder bolt securely.

• Lower seat into operating position and sit on seal

•Slide seat until a comfortable position is reached

which allows you to press clutch/brake pedal all the

way down (See Fig. 6).

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment bolt securely.

SEAT

SEAT PAN

SHOULDER

BOLT

. FLAT WASHER

ADJUSTMENT • LOCKWASHER

BOEr

FIG. 3

CHECK TIRE PRESSURE

The ti_es on your unit were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance,

• Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual,

CHECK DECK LEVELNESS

For best cutting resuits, mower housing should be properly

leveled, See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you lealn how to oper-ute your tractor, check to see

that the brake is properly adjusted See "TO ADJUST

BRAKE" in the Service and Adjustments section of this

manuat

FIG. 28

, ,, i,,,,,,,, i, i i i, i i ,i ,,,,,,.,i,,

ASS

, , ,,,m, ,,,,, ,,,,, ,,,,,,,,,,,,, ,i I'lU'"'llll'll"l'H

INSTALL BATTERY (See Figs. 4 & 5)

CAUTION: Do not short battery termi-

nals. Before installing battery, remove

metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

Make sure drain tube is fastened to drain hole in batter'

tray and battery tray is positioned in hole of batter

Support.

• Place battery in plastic tray, battery terminals to front of

Tractor.

.First connect RED battery cable to positive (+) battery

terminal with hex bolt, fiat washer, Iockwasher and hex

nut as shown, Tighten securely

Connect BLACK grounding cable to negative (-) bat-

tery terminal with remaining hex bolt, fiat washer, lock-

washer and hex nut. Tighten securely,

• Slide the two battery bolts through the terminal guard

and start the wing nuts onto the threads

• Position terminal guard over the battery as shown,

lower bolts into key holes and slide square shafts of

bolts into slots of key holes

• Tighten wing nuts by hand making sure battery bolts

remain in slots of the key holes in the battery support.

•Be sure terminal access doors are closed

Use terminal access doors for:

• Inspection for secure connections (to tighten hard-

ware)

• Inspection for corrosion

• Testing battery

• Jumping (if required).

• Periodic charging.

NUT

..... _ LOCKWASHER

..:\ :" o, TIVE)

CABLE

BATTERY °_"

BLACK "" _

(NEGATIVE)

CABLE

WAHSER

BATTERY

TRAY

DRAIN TUBE

KEY

HOLE

WING NUT

_/ TERMINAL

ACCESS

DOOR

TERMINAL

GUARD

FIG. 5

,/'CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THE BEST PERFORMANCE AND SATISFACTION FROM

THIS QUALITY PRODUCT_.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

V" All assembly instructions have been completed

./ No remaining loose parts in carton,

JBatteryis properly prepared and charged (Minimum

1 hour at 6 amps),

¢" Seat is adjusted comfortably and tightened securely.

JAll tires are properly inflated, (Forshipping purposes,

the tires were overqnflated at the factory).

V" Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results° (Tires must be

properly inflated for leveling),

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers,

JCheck wiring See that all connections are still secure

and wires are properly clamped,

WHILE LEARNING HOW TO USE YOUR TRACTOR,

PAY EXTRA ATTENTION TO THE FOLLOWING IMPOR-

TANT ITEMS'

/Engine oil is at proper level.

/ Fuel tank is filled with fresh, clean, regular unteaded

gasoline.

JBecome familiar with all controls - their location and

function Operate them before you start the engine

V" Be sure brake system is in safe operating condition.

FIG. 4

==l HIIHIHH = = = =Ill,,=

KNOW YOUR TRACTOR

OPERATION

11l= iHlil

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself withthe locations of various controls and adjustments. Save

this manual for future reference.

ATTACHMENT

CLUTCH LEVER

IGNITION

SWITCH IF'i'LEVER PLUNGER

LIGHT SWITCH

THROTTLE CONTROL

CHOKE

ATTACHMENT LIFT LEVER

CLUTCH/BRAKE PEDAL

PARKING BRAKE LEVEL

HEIGHT

ADJUSTMENT

KNOB

GEAR SHIFT LEVER

FIG. 6

Sears tractors conform to the safety standards of the American National Standards Institute,_

LIGHT SWITCH: Turns the headlights on and off.

THROTTLE CONTROL: Used for starting and controlling

engine speed,

CHOKE CONTROL: Used for starting a cold engine,

CLUTCH/BRAKE PEDAL: Used for clutching and braking

the tractor and starting the engine,

HEIGHT ADJUSTMENT KNOB: Used to adjust the mower

cutting height.

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other attachments mounted to your

tractor

IGNITION SWITCH: Used for starting and stopping the

engine,

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor.

PARKING BRAKE LEVER: Locks Clutch/Brake Pedal into

the brake position.

GEARSHIFT LEVER: Selects the speed and direction of

tractor.

__ xJ_ =mmiNu

= H nHlll H

OPERATION

your tractor or performing any adjustments or repairs, We recommend wide vision safety

mask for over the spectacles or standard safety glasses, available at Sears Retail or

Catalog stores,

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 7)

• Depress clutch/brake pedal into full "BRAKE" position

and hold.

• Place parking brake lever in "ENGAGED" position and

release pressure from clutch/brake pedal Pedalshould

remain in "BRAKE" position, Make sure parking brake

wilt hold vehicle secure

STOPPING (See Fig. 7)

MOWER BLADES -

• Move attachment clutch lever to "DISENGAGED" po-

sition,

GROUND DRIVE -

• Depress clutch/brake pedal into full "BRAKE" position,

• Move gearshift lever to "NEUTRAL." position.

ENGINE -

• Move throttle control to "SLOW" position,

unauthorized use,

• Never use choke to stop engine,

TO USE THRO'FI'LE CONTROL (See Fig. 7)

Always operate engine at full throttle

• Operating engine at less than full throttle reduces the

battery charging rate and the engine cooling air flow

• Full throttle offers the best bagging and mower per-

formance

TO MOVE FORWARD AND BACKWARD

(See Fig. 6)

The direction and speed of movement is controlled by the

gearshift lever

Start tractor with clutch/brake pedal depressed and

gearshift lever in "NEUTRAL" position

• Move gearshift lever to desired position.

Slowly release clutch/brake pedal to start movement

IGNITION

ATTACHMENT

CLUTCH LEVER

"ENGAGED"

POSITION

THROTTLE

CONTROL "ENGAGED"

LEVER POSITION

POSmON

3EAR

"BRAKE" /BRAKE SHIFT

POSITION PEDAL "DRIVE" LEVER

POSITION

"CLUTCH"

POSITION

FIG, 7

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 6)

The cutting height is controlled by turning the height adjust-

ment knob in desired direction

• Turn knob clockwise to raise cutting height,

• Turn knob counterclockwise to lower cutting height

Thecutting height range is approximately 1-1/4to 3-3/4"

The heights are measured from the ground to the blade tip

with the engine not running These heights are approxi-

mate and may vary depending upon soil conditions, height

of grass and types of grass being mowed,

• The average lawn should be cut approximately 2-1/2

inches during the cool season and over 3 inches during

hot months For healthier and better looking lawns,

mow often and after moderate growth

For best cutting performance, grass over 6 inches in

height should be mowed twice, Make the first cut

relatively high; the second to desired height

OPERATIO

Jl_ I_LI,IILll0

TO OPERATE MOWER (See Fig, 8)

Your unit is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the eng!ne running and the attachment clutch engaged will

shut off the engine.

•Select desired height of cut.

•Engage,mower by slowly moving attachment clutch

lever to ENGAGED position

TO STOP MOWER - Move attachment clutch lever to

"DISENGAGED" position,

CAUTION: DO NOT OPERATE THE

MOWER WITHOUT EITHER THE EN-

TIRE GRASS CATCHER, ON MOWERS

SO EQUIPPED, OR THE DISCHARGE

GUARD IN PLACE,

ATTACHMENT CLUTCH LEVER

"ENGAGED" POSITION

ATTACHMENT CLUTCH LEVER

"DISENGAGED" POSITION LIFT LEVER

PLUNGER

"LOWEST"

POSITION

HEIGHT

ADJUSTMENT

KNOB

LIFT LEVER

"HIGHEST"

POSITION

FIG. 8

TO OPERATE ON HILLS

CAUTION; DO NOT DRIVE UP OR

DOWN HILLS WITH SLOPES GREATER

THAN 15° AND DO NOT DRIVE ACROSS

ANY SLOPE.

iiiii iil,,i,ii,,

•if stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake,

•Move gearshift lever to 1st gear and be sure you have

allowed room for tractor to toil slightly as you restart

movement

•To restart movement, slowly release parking brake and

clutch/brake pedal

•Make all turns slowly.

TO TRANSPORT

°Raise attachment lift control to highest position

•When pushing or towing your unit, be sure gearshift

lever is in "NEUTRAL" position,

• Do not push or'tow unit at more than five (5) MPH

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 13)

• The engine in your unit has been shipped, from the

factory, already filled with summer weight oil,

• Check engine oil with unit on level ground

• Remove oil fill dipstick and wipe clean, replace and

screw cap tight, wait for a few seconds, remove and

read oil level. If necessary, add oil until "FULL" mark

on dipstick is reached Do not overfill

• For cold weather operation you shouldchange oil for

easier starting (see "OIL VISCOSITY CHART" in the

Maintenance section of this manual),

• To change engine oil, see the Maintenance section in

this manual

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular unleaded gaso-

line (Use of leaded gasoline will increase carbon and

lead oxide deposits and reduce valve Iife)_

IMPORTANT: WHEN OPERATING IN TEMPERA-

TURES BELOW32°F(0°C), USE FRESH,

CLEAN WINTER GRADE GASOLINE TO

HELP INSURE GOOD COLD WEATHER

STARTING

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage Acidic gas can damage the fuel

system of an engine while in storage To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer, Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season. See Storage lnstruc_

tions for additional information. Never use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur.

•Choose the slowest speed before starting up or down

hills,

• Avoid stopping or changing speed on hills

• If slowing is necessary, move throttle control lever' to

slower position

CAUTION: FILL TO BOTTOM OF GAS

TANK FILLER NECK, DO NOT OVER-

FILL. WIPE OFF ANY SPILLED OIL OR

FUEL. DO NOT STORE, SPILL OR USE

GASOLINE NEAR AN OPEN FLAME.

,,, ,H, , m,,,,,,,, ,==,,,,,,,,, ,,,,,,,,,,, ,, m,=

OPERATIO

,re,iN,,,, ,,,,1,,1 ,m,,,,,,,,,,,,,,, 1,1 1, ,m,,,,,,,,,,,,,,,,,,,,,,,,,,,, --

TO START ENGINE (See Fig. 7)

When starting engine for the first time or if engine has

run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

• Depress the clutch/brake pedal and set the parking

brake.

• Place gearshift lever in "NEUTRAL" position

•Move attachment clutch to "DISENGAGED" position.

• Pull choke control out to "CHOKE"position for cold

engine start_ For warm engine start do not use choke

control

,Move throttle control to midway between "FAST" and

"SLOW" postions.

• Turn ignition key clockwise to "START" position and

release key as soon as engine starts. Do not run

starter continuously for more than fifteen seconds

per minute. If engine does not start after several

attempts, move throttle control to "FAST" position,

wait a few minutes and try again.

• When engine starts, slowly push choke control in_

• Move throttle control to "FAST" position.

• Allow engine to warm up for a few minutes before

engaging drive or attachment clutch.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32° F), the carburetor fuel mixture

may need to be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the Service and

Adjustments section of this manual.

MOWING TIPS

•Tire chains cannot be used when the mower hous-

ing is attached to unit.

• Mower should be properly leveled for best mowing

performance. See TO LEVEL MOWER HOUS NG

in the Service and Adjustments section of this

manual,

, Use the runner on the right hand side of mower as

a guide. The blade cuts approximately an inch

outside the runner.

The left hand side of mower should be used for trim-

ming.

Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of

the machine, This will result in a more even distri-

bution of clippings and more uniform cutting.

FIG. 9

When mowing large areas, start by turning to the

right so that clippings will discharge away from

shrubs, fences, driveways, etc. After one or two

rounds, mow in the opposite direction making left

hand turns until finished (See Fig. 9).

If grass is extremely tall, it should be mowed twice

to reduce load and possible fire hazard from dried

clippingso Make first cut relatively high; the second

to the desired height.

Do not mow grass when it is wet, Wet grass will

plug mower and leave undesirable clumps,, Allow

grass to dry before mowing.

Always operate engine at full throttle when mowing

to assure better mowing performance and proper dis-

charge of material, Regulate ground speed by se-

lecting a low enough speed to give the mower cut-

ting performance as well as the quality of cut de-

sired.

When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used,

MAUNTENANCE

T"i Check Brake Operation

R ! Check Tire Pressure

A Check for Loo,seFasteners

C Sharpen/Replace Mower Blades

Lubricate Pivot Points

Check Battery Level/Recharge

Clean Battery and Terminals

Check Engine Oil Level

OA,°TE°A.OESO.EO0"E

FILL IN DATES

Chaje Engine Oil

EClean Air Fiiter?'FoamPro-cleaner

''........i .......J ..............

...... _2

Clean Air Screen . _ _##_'2

Inspect Muffler/Spark Arrester I

Clean Eng!ne Coottng Fins

Replace Spark Plug

Replace Air FtIter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operatingunder a heavy load or in high ambient temperatures

2- Service more often when operating in dirty or dusty conditions

3 - Replace blades more oftenwhen mowing _nsandy soil

GENERAL RECOMMENDATIONS

The warranty on this vehicle does not cover items that have

been subjected to operator abuse or negligence° To

receive fui! value from the warranty, operator must main _

tain unit as instructed in this manual,

Some adjustments will need to be made periodically to

properly maintain your unit,

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season,

•Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear_ A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better'

andtast longer,

BEFORE EACH USE

• Check engine oil level

• Check brake operation.

• Check tire pressure°

• Check for loose fasteners_

LUBRICATION CHART

** FRONT _** FRONT

WHEEL ,_._ _ WHEEL

BEARING BEARING

::::::::::::::::::::::::.

* ATTACHMENT

CLUTCHPIVOT

-2

* SAE 30 OR 10W30 MOTOR OIL

GENERAL PURPOSE GREASE

REFER TO ENGINE MAINTENANCE SECTION

LUBRICATION

Keep unit well lubricated (See "LUBRICATfON CHART"),,

IMPORTANT - Do not oil or grease the pivot points which have

special nylon beatings. Viscous lubricants will attract dust and

d_rtthat will shorten the life of the serf-lubricating bearings,If you

feel they must be lubricated, use only a dry, powdered graphite

type iubticant spaHngly_

AINTENANCE

i, ,,, ,,, in, u ,., ii,uu,,l,uuuu, ll,,,,,,,J,J..u,., Jl,ltl

TRACTOR

Always observe safety rules when performing any mainte-

nance.

TIRES

. Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage,

TO SHARPEN BLADE (See Fig. 11)

Care should be taken to keep the blade balanced, An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine,

• The blade can be sharpened with a file or on a grinding

wheel Do not attempt to sharpen while on the mower,

• To check blade balance, drive a nail into abeam or wail,

Leave about one inch of the straight nail exposed.

Place center hole of blade over the head of the nail. If

blade is batanced, it should remain in a horizontal

position, ff either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

BLADE CARE

For best results mower blades must be kept sharp° The

blades can be sharpened with a file or on a grinding wheel.

We suggest they be sharpened or replaced after every 25

hours of mowing. Check blades more often if mowing in

sandy conditions.

• Do not attempt to sharpen blades while they are on the

mower.

• Replace bent or damaged blades_

BLADE REMOVAL (See Fig. 10)

• Raise mower to highest position to altow access to

blades.

• Remove hex bolt, lockwasher and fiat washer securing

blade.

• Install new or resharpened blade with trailing edge up

towards deck as shown°

• Reassemble hex bolt, lockwasher and flat washer in

exact order as shown.

• Tighten bolt securely (30-35 Ft,,Lbs, torque).

IMPORTANT: BLADE BOLT IS GRADE 5 H EATTREATED.

CENTER

HOLE

FIG. 11

(JACKSHAFT)

ASSEMBLY

FLANGES

HEX BOLT

(GRADE 5)*

TRAILING

*A GRADE 5HEAT TREATED BOLT

CAN BE IDENTIFIEDBYTHREELINES

ON THE BOLT HEAD AS SHOWN AT

LEFT,

FIG, 10

NTENANCE

BATTERY (See Fig. 12)

Your unit has a battery charging system which is sufficient

for normal use. However, periodic charging of the battery

with an automotive charger will extend it's tile.

•Acid solution level in each battery celt should be even

withbottoms ofvent wells Add only distilledor ironfree

water if necessary. Do not overfill.

CUT AWAY VIEW j VENTCAP

............. VENT WELL

N _ _ _Z BA'I-fERY

r_ _ H r_ _ H r_ [_ j_ CELLACID

FIG, 12

• Keep battery and terrninals clean

• Keep battery bolts tight

• Keep vent caps tight and small vent holes in caps open.

• Recharge at 6 amperes for 1 hour

TO CLEAN BATTERY AND TERMINALS -

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

• Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Wash battery with solution of fourtablespoons of bak-

ing soda to one gallon of water. Be careful not to get

the soda solution into the cells

• Rinse the battery with plain water and dry.

, Clean terminals and battery cable ends with wire brush

until bright.

, Coat terminals with grease or petroleum jelly,

• Reinstall battery (See "INSTALL BATTERY" in as-

sembly section of this manual)

ENGINE

LUBRICATION

Change the oil after the first two hours of operation and

every 25 hours thereafter or at least once a year if the

tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (5) hours of continuous use. Add SAE

30W motor oil or equalivent. Tighten oil fill cap/dipstick

securely each time you check the oil level, SAE 5W-30

rnotor oil may be used to make start=ing easier in areas

where temperature is consistently 32 F or Iower_

TO CHANGE ENGINE OIL (See Fig. 13) -

Determine temperature range expected before oil change,

All oil must meet API service classification SD, SE or SF.

• Be sure vehicle is on level surface°

•Oil will drain more freely when warm.

:u,,iJ,=_w....................

Catch oil in a suitable container'.

Remove oil fill dipstick, Be careful not to allow dirt to

enter the engine when changing oil.

Remove drain plug.

After oil has drained completely, replace oil drain plug

and tighten securely.

Refill engine with oil through oil fill dipstick tube. Pour

slowly, Do not overfill For approximate capacity see

Product Specifications on page 3 of this manual

Use gauge on oi! fill dipstick for checking level. Besure

dipstick cap is tightened securely for accurate reading.

Keep oil at "FULL" line on dipstick_

RECOMMENDED SAE VISCOSITY GRADES

! I I ! t 1__12j

-20° 0° 32 °60 °80 ° 100°

OIL

DRAIN

PLUG

ENGINE OIL DIPSTICK

AND FILL TUBE

AIR SCREEN

FIG. 13

AIR SCREEN (See Fig. 13)

The engine air screen must be kept free of dirt and chaff to

prevent engine damage from overheating_ Clean with a

wire brush or compressed air to removed dirt and stubborn

dried gum fibers_

AIR FILTER FOAM PRE-CLEANER

(See Fig. 14)

Your engine wiil not run properly and may be damaged by

using a dirty air filter° Clean the foam pre-cleaner element

after every 25 hours of operation, more often if tractor is

used in very dusty, dirty conditions=

•Remove knobs and cover°

•Remove foam pre-cleaner by sliding it off the paper

cartridge.

NOTE: Do not attempt to clean or oil the paper cartridge.

Replace paper cartridge once a year or after every 100

hours of operation, more often if used in very dusty, dirty

conditions,

•Wash foam pre-cleaner in liquid detergent and water.

• Wrap foam pre-cleaner in cloth and squeeze dry.

•Lightly coat foam pre-cleaner with de'an engine oil.

Squeeze in towel to remove excess oil, Do not satu-

rate_

• Install foam pre-cleaner over paper cartridge.

•Reassemble cover and secure with knobs.

== , i=====

MAINTENANCE

= H,H.

KNOB

WING NUT

FOAM

PRE-CLEANER

CARTRIDGE

PLATE

CARTRIDGE

AIR SCREEN

"_ BODY

FIGo 14

ENGINE COOLING FINS (See Fig. 15)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating. Air guide covers

must be removed° Remove side panels and hood (See "TO

REMOVE HOOD AND GRILL ASSMEBLY" in the Service

and Adjustments section of this manual)°

TOP AIR

GUIDE COVER

CLEAN ENGINE

COOLING FINS

AIR GUIDE

COVER{BOTHSIDES)

\MUFFLER

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage,

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of use, whichever comes

first. Spark plug type and gap setting is shown in "PROD-

UCT SPECIFICATIONS" on page 3 of this manual.

IN-LINE FUEL FILTER (See Fig. 16)

Fuelfilter should be replaced once each season_ Iffuelfilter

becomes clogged, obstructing fuel flow to carburetor, re-

placement is required.

•With engine cool, remove _ter and plug fuel line

sections.

•Place new fuel filter in position in fuel iineo

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

FU EL FILTER

FIG. '16

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

unit unless the electrical system, muffler, air filter and car-

buretor are covered to keep water out. Water in engine can

result in a shortened engine tife.

FIG. 15

_L,== SERVICE AN ADJUSTMENTS

11 =!= 11 llili= =H

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSl"MENTS:

o Depress clutch!brake pedal fully and set parking brake.

• Place gearshift lever in "NEUTRAL" position.

•Place attachment clutch in "DISENGAGED" position.

• Turn ignition key "OFF" and remove key=

. Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

plug. 11111 ill I,HlIH,I = I ==,Hi,,,,,i,,,N,,,,,iU,,UU,,,,

TRACTOR

TO REMOVE MOWER (See Fig, 17)

Mower will be easier to remove from the right side of unit.

.Remove mower blade drive belt from engine pulley

only !See "TO REPLACE MOWER BLADE DRIVE

BELT through step removing belt from engine pulley).

• Remove retainer spring from clutch rod; pull clutch rod

out of clutch lever,

• Pull retainer springs out of rear suspension trunnions.

Remove rear suspension trunnions from lift brackets.

• Pull retainer springs from front hinge pins°

, Remove hinge pins attaching paraltel link to mower

and front axteo

o Raise lift lever to raise suspension arms. Slide mower

out from under tractor,

IMPORTANT: IF AN ATTACHMENTOTHERTHAN THE

MOWER IS TO BE MOUNTED TO THE

TRACTOR, THE R.H. AND L.H. SUS-

PENSION ARMS MUST BE REMOVED

FROM TRACTOR.

I CLUTCH

CLUTCH LEVER RETAINER

ROD SPRING

ROD

RETAINER

SPRINGS

PARALLEL

LIFT t= ENGINE PINS

BRACKET SPRING PULLEY

TO INSTALL MOWER (See Fig. 17)

• Raise attachment lift lever to its highest position.

• Slide mower under tractor with discharge guard to right

side of tractor_

•tnstallparaflet link to front axte and mower with hinge

pins° Secure hinge pins with retainer springs.

•install clutch rod in clutch lever and secure with retainer

spring_

•Lower attachment lift lever to lower suspension arms.

Slide trunnions through lift bracket holes and secure

with retainer springs,,

• Roll belt over engine pulley. Make sure belt is inside alt

pulley grooves and inside belt guides.

• Raise attachment lift lever to raise mower°

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway, Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" on page 3)_ If tires are

over or under inflated, you will not property adjust your

mower.

SIDE-TO-SIDE ADJUSTMENT (SEE FIGS_18 AND19) -

• Raise attachment lift lever to its highest position.

• Measure height from bottom of deck curl to ground

level at front corners of mower. Distance A should be

the same=

• If distance "A" needs to be changed, snap out access

hole cover on left side of tractor above footrest.

• To raise left side of mower, loosen nut"B" and tighten

nut "C".

• To lower left side of mower, loosen nut "C" and tighten

nut "B".

• When distance "A" is equal, securely tighten nuts "B"

and "C".

• Replace access hole cover.

FIGo 17

,4L-"t

SE CE AND ADJUSTMENTS

i,iLuiu,illU ,i,1,, i i ,

GROUNDLINE

FIG. 18

BOTTOM

OF CURL

REAR SUSPENSION ARM

BOTTOM

OFCURL

GROUND

REARSUSPENSIONTRUNNION LINE

FIG. 20

SIDE TO SIDE

ADJUSTMENT

TRUNNION '_._

_L_UT "C"

..... .........................j NUT "B"

FIG. 19

FRONT-TO-BACK ADJUSTMENT(See Figs. 20 and 21) -

To obtain the best cutting results, the mower housing

should be adjusted so the rear is approximately 3/4 to 7/8"

higher than the front when the mower is in its highest

position,

Check adjustment on right side of tractor_ Measure dis-

tance "D" at front and rear flanges of mower housing as

shown.

•To raise rear of mower, loosen nuts "E" on both rear

suspension arms. Screw both nuts "F" on both rear

suspension arms an equal number of turns.

• When distance "D" is 3/4 to 7/8" higher at rear than

front, retighten nuts "E".

• Recheck side-to-side adjustment

IMPORTANT: WHEN ADJUSTING REAR SUSPEN-

SION TRUNNIONS, ALWAYS ADJUST

BOTH EQUALLY SO MOWER WILL

STAY LEVEL SIDE-TO-SIDE.

NUT"E"

REAR _REAR

SUSPENSION SUSPENSION

TRUNNION ARM

LIFT BRACKET

FIGo21

TO ADJUST MOWER BLADE DRIVE BELT

(See Fig. 22)

Your tractor has been manufactured with the ability to

readjust the mower blade drive belt to provide you with

longer belt life.

With tt_e engine off and the lift lever in the highest

fposition, move clutch lever' up slowly until resistance is

ell If distance from bottom of slot in dash to cIutch

lever is greater than 4-1/2 inches, adjustment is neces-

sary.

°Lower the mower deck for easier access,

•Remove the bolt, nut and D-shaped washers from

reck shaft assembly.

• Move extension spring from lower to upper' end of

slot in rock shaft assembly and install bolt, nut and

the D-shaped washers (flat side of washers down).

• Tighten bolt and nut to secure the D-shaped wash-

ers (flat side down as shown).

TO REPLACE MOWER BLADE DRIVE BELT

(See Figs. 22 and 23)

The mower blade drive belt may be replaced without

tools, Park the tractor on level surface, Engage parking

brake For assistance, there is a belt installation guide

decal on the mower housing,

BELT REMOVAL -

•Place attachment clutch in "DISENGAGED" position.

• Move attachment lift [ever forward to lower mower to

its Iowest posit!on_

•Rotl belt off engine pulley.

• Pull belt off both mandrel put!eys

• Spring belt guide away from idler pulley and pull belt

off idler pulley.

• SIide belt from under extension spring,

BELT INSTALLATION -

• Slide belt under extension spring.

• Place belt around back side and in groove of both

mandrel pulleys.

• Spring idler belt guide down and place belt around

rear side of idler putley,

• Roll belt over engine pulley.

• Make sure belt is in atl pulley grooves and inside atl

belt guides.

IDLER BELT BELT

GUIDE

LH.

MANDREL

ENGINE PULLEY

IDLER

EXTENSION

_ING

. R,H.

MANDREL

ROCKSHAFT

EXTENSION

SPRING

BRAKE

ROD

NUT

FIG. 22

ES ENGINE

FIG. 23

SERVICE AN

TO ADJUST BRAKE (See Fig. 24)

Your unit is equipped with an adjustabte brake system

which is mounted on the right side of the transaxte,

If unit requires more than six (6) feet stopping distance at

high speed in highest gear, then brake must be adjusted.

• Depress dutch/brake pedal and engage parking brake°

• Measure distance between brake operating arm and

nut "A" on brake rod.

• If distance is other than 1-1/2", disengage parking

brake loosen jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut against nut 'A',

•Engage parking brake and recheck distance_

• Road test unit for proper stopping distance as stated

abover Readjust if necessary, If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary Contact your nearest

Sears Service Center,

WITH PARKING BRAKE "ENGAGED"

NUT "A"

JAM NUT

OPERATING

ARM

FIG. 24

ADJUSTMENTS

==HH

TO REPLACE MOTION DRIVE BELT (See

Figs. 25 and 26)

The tractor drive belt may be replaced without tools

Park the tractor on level area Engage parking brake,

For assistance, there is a belt installation guide decaf on

bottom side of left footrest,

• Remove mower (See "TO REMOVE MOWER" in this

section of this manual)_

• Remove two retainer springs from belt guide bracket

(below transaxle pulley) Remove bracket_

•Swing belt guides away from belt

• Roll belt over top of transaxle pulley.

. Roll belt over engine pulley and off idler

•Release parking brake° Pull belt as far as possible

over top of clutch pulley.

• Reset parking brake. Pull belt over top of clutch

pulley,

• Pull belt out up through gearshift lever gate opening

to remove from tractor.

• install new belt by reversing above procedure,

IMPORTANT: REPLACE ONLY WITH BELT LISTED

IN THIS MANUAL.

• TRANSAXLE PULLEY ZBELT GUIDE

_ ..... ..... ,,,,,,,,

RETAINER SPRINGS

FIG, 25

CLUTCH

PULLEY---_..._.

IDLER

ENGINE

PULLEY

/BELT

VIEWED FROM BOTTOM OF TRACTOR

FIG. 26

CE AND ADJUSTMENTS

............................................................. = n nmm :::::::::::::::::::::::::::

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straightforward, remove steer-

ingwhee! and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN!CAMBER

The front wheel toe-in and camber are not adjustable on

your unit. If damage has occured to affect the front wheel

toeqn or camber, contact your nearest Sears Service

Center.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 27)

• Block up axle securely.

• Remove retaining ring and washers to allow wheel

removal (rear wheel contains a square key - Do not

lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

WASHERS

RETAINING

RING

SQUARE KEY

(REARWHEELONLY)

FIG. 27

TO START ENGINE WITH A WEAK BATTERY

(See Figs. 28 & 29)

CAUTION: LEAD-ACID BATTERIES

GENERATE EXPLOSIVE GASES. KEEP

SPARKS, FLAME AND SMOKING

MATERIALS AWAY FROM BATTERIES.

ALWAYS WEAR EYE PROTECTION

WHEN AROUND BATTERIES.

If your battery '=stoo weak to start,,the engine, it should be

recharged° If "jumper cables are used for emergency

starting, follow this procedure;

IMPORTANT: YOUR UNIT IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM.

THE OTHER VEHICLE MUST ALSO BE

A 12 VOLT NEGATIVE GROUNDED

SYSTEM. DO NOT USE YOUR TRAC-

TOR BATTERY TO START OTHER

VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

•Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery.

•Connect the other end of the BLACK cable to a panel

bolt on the left side of the chassis, away from fuel tank

and battery_

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from left side of chassis and fully

charged battery.

• RED cable last from both batteries.

"POSITIVE.... NEGATIVE"

(*) (9

FIG. 28

FIG. 29

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is Iocated in the engine compartment, directly

in front of the dash,

TO REPLACE HEADLIGHT BULB

•Raise hood,_

•Pull bulb holder out of the hole in the backside of the

gdH1

•Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running or prevent it from starting.

•Check wiring See electrical wiring diagram in Repair

Parts section of this manual

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig's. 30 and 31)

Raise hood,

Unsnap headlight wire connector,

Stand in front of tractor, Grasp hood and lift off hinge

brackets,

To reinstall, reverse procedure°

FIG. 30

WIRE

CONNECTION

FIG. 31

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 32)

The throttle control has been preset at the factory and

adjustment should not be necessary, Checkadjustment as

described below before loosening cable If adjustment is

necessary, proceed as follows:

. With engine not running, move throttle control lever to

"FAST" position°

. Check that swivel is against side of quarter circle. If it

is not, loosen cable clamp screw and pull cable back

until sw{vel is against quarter circle. Tighten cable

clamp screw securely°

TO ADJUST CHOKE CONTROL (See Fig. 33)

The choke control has been preset at the factory and ad-

justment should not be necessary. Check adjustment as

described below before loosening cable If adjustment is

necessary, proceed as follows:

• With engine not running, move choke control (located

on dash panel) to full "CHOKE" position

• Remove air' cleaner' cover, filter and spitback plate to

expose carburetor choke (see "AIR FILTER" in main-

tenance section)

•Choke should be closed If it is not, loosen casing

clamp screw and move choke cable until choke is

completely dosed Tighten casing clamp screw se-

curely.

•Reassemble air cleaner

CLAMP SCREW ---__\I

FIG. 32

CHOKECLOSED

€

CASING _'_

icLAMP

iSCREW

LEVER

FIG. 33

SERVUCE AND ADJUSTMENTS

TO ADJUST CARBURETOR

(See Fig. 34 & 35)

The carburetor has been preset at the factory and adjust-

ment should not be necessary. However, minor adjustment

may be required to compensate for differences in fuel,

temperature, altitude or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the mixture screw in (clockwise) de-

creases the supply of fuel to the engine giving a leaner fuel/

air mixture Turning the mixture screw out (counterclock-

wise) increases the supply of fuel to the engine giving a

richer fuel/air mixture.

IMPORTANT: DAMAGE TO THE NEEDLES AND THE

SEATS IN CARBURETOR MAY RESULT

IF SCREW 1STURNED IN TOO TIGHT.

PRELIMINARY SETTING -

• Be sure you have a clean air filter, and the throttle

control cable and choke are adjusted properly (see

above),

With engine off turn idle mixture screw in (clockwise)

closing it finger tight and then turn out (counterclock-

wise) !-1/4 to 1-1/2 turns

FINAL SETTING -

• Start engine and allow to warm for five minutes Make

final adjustments with engine running and shift/motion

control lever in "NEUTRAL" position,

•With throttle control lever in "SLOW" position, hold

throttle lever against idle speed screw and adjust idle

speed screw to obtain 1200 to 1400 RPM

• While still homing throttle lever against idle speed

screw, turn idle mixture screw in (clockwise) until en-

gine begins to die and then turn out (counterclockwise)

until engine runs rough. Turn screw to a point midway

between those two positions.

• Continue to hold throttle lever against idle speed screw

and adjust idle speed screw to obtain 900 to 1200 RPM

Release throttle lever.

ACCELERATION TEST-

Move throttle control lever from "SLOW" to "FAST"

position tf engine hesitates or dies, turn idle mixture

screw out (counterclockwise) 1/8 turn. Repeat test

and continue to adjust, if necessary, until engine accel-

erates smoothfy_

High speed stop is factory adjusted Do not adjust- damage

may result

IMPORTANT: NEVER TAMPER WITH THE ENGlNE

GOVERNOR, WHICH IS FACTORY SET

FOR PROPER ENGINE SPEED. OVER-

SPEEDING THE ENGINE ABOVE THE

FACTORY HIGH SPEED SETTING CAN

BE DANGEROUS° IF YOU THINK THE

ENGINE-GOVERNED HIGH SPEED

NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE

CENTER, WHICH HAS PROPER EQUIP-

MENTAND EXPERIENCE TO MAKE ANY

NECESSARY ADJUSTMENTS.

FIG. 34

IDLE SPEED (__

so== )

THROTTLE

LEVER

-7

IDLE MIXTURE

SCREW

FIG. 35

LH'J=N

STORAGE

lU,ULULU,J

Immediately prepare your tractor for storage at the end of

the season or if the unit will not be used for 30 days or more.

CAUTION: NEVER STORE THE TRAC-

TOR WITH GASOLLNE IN THE TANK

INSIDE A BUILDING WHERE FUMES

MAY REACH AN OPEN FLAME OR

SPARK. ALLOWTHE ENGINETO COOL

BEFORE STORING IN ANY ENCLO-

SURE.

TRACTOR

Remove mower from tractor' for winter storage_ When

mower is to be stored for a period of time, clean it thor-

oughly, remove ail dirt, grease, leaves, etc. Give blades

and underside of housing a good coat of grease or rust

preventative, Store in a clean, dry area

•Clean entire tractor (See "CLEANING" in the Mainte-

nance section of this manual),

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Maintenance section of this

manual

•Be sure that at! nuts, bolts and screws are securely

fastened, Inspect moving parts for damage, breakage

and wear. Replace if necessary.

•Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage

•After a period of time in storage, battery may require

recharging.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be dis-

connected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Mainte-

nance section of this manual)°

•After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals,

• Be sure battery drain tube is securely attached to drain

in battery tray_

. Drain the fuet tank,

*Start the engine and let it run until the fuel lines and

carburetor are empty,

. Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur°

• Use fresh fuel next season_

NOTE: Fuel stabilizer is an acceptable alternative in mini-

mizing the formation of fuel gum deposits during storage_

Add stabilizer to gasoline in fuel tank or storage container.,

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not drain the

gas tank ancJcarburetor if using fuet stabilizer,

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oit. (See "ENGINE in the Maintenance section of this

manual).

CYLINDERS

•Remove spark plug(s)_

• Pour one ounce of oil through spark plug hole(s) into

cylinder,,

.Turn ignitionkey to "START" position for afew seconds

to distribute oil

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems

. If possible, store your unit indoors and cover it to give

protection from dust and dirL

° Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic Plastic

cannot breathe which allows condensation to form and

will cause your unit to rusL

IMPORTANT: NEVER COVER TRACTOR WHILE EN-

GINE AND EXHAUSTAREAS ARE STILL

WARM.

ENGINE

FUEL SYSTEM

IMPORTANT; IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSEN-

TIAL FUEL SYSTEM PARTS SUCH AS

CARBURETOR, FUEL FILTER, FUEL

HOSE, OR TANK DURING STORAGE.

ALSO, EXPERI ENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED

GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTU RE

WHICH LEADS TO SEPARATION AND

FORMATION OFACIDS DURING STOR-

AGE ACID!C GAS CAN DAMAGE THE

FUEL SYSTEM OF AN ENGINE WHILE

tN STORAGE

TROUBLESHOOTfNG POINTS

CAUSE CORRECTIONPROBLEM

Wilt not start

Hard to start

,, ,,,,,,,I,L, ,,,,

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

1. Out of fuel

2. Engine not "CHOKED" properly.

3. Engine flooded

4.. Bad spark plug.

5. Dirty air fitter

6. Dirty fuel fitter

7. Watertn fuel

8 Loose or damaged wiring.

9. Carburetor out of adjustment.

_0. Engine valves out of adjustment.

1 Dirty alr filter.

2Bad sparkptug

3Weak or dead battery

4Dirty fuel filter.

5 Stale or dirty fuel

6 Loose or damaged wiring.

7Carburetor mJt of adjustment.

8 Engine valves out of adjustmenL

1 Clutch/brake pedal not depressed

2Attachment crutch Is engaged.

3. Spark plug wire ls disconnected

4 Weak or dead battery

5. Blown fuse

6 Corroded batterytermlnals.

7. Loose or damaged wiring

8. FauLty ignition switch

9 Faulty solenold or starter

1oFaulty operator presence switch (es)

1. Weak or dead battery

2_orroded battery terminals.

3, Loose or damagedwlrtng.

4. Faulty solenoid or starter.

1, Cutting too much grass/too fast

2Throtfie in "CHOKE" position.

3. Build-up of grass, leaves and trash under mower

4 Dirty air filter.

5Low olt tevettdtrty etl.

6Faulty spark plug

7. Dirty fuel filter

8, Stale or dirty fuel

9 Water tn fuel

10 Spark plug wire loose.

11 Dirty engine air screen/fins

12 Dirty/clogged muffler.

13 Loose or damaged wirlng

t4 Carburetor out of adjustment

15. Engine valves out of adjustment

1 Worn, bent or loose blade

2Bent blade mandrel

3 Looseldamaged part(s)

1FIllfuel tank

2See TO START ENGINE In operation section.

3 Walt several minutes before attempting to start

4. Replace spark plug

5 Clean/replace air ftiter

6 Replace fuel filter

7. Drain fuel tank and carburetor, refill tatlk with fresh

gasoline and replace fuel filter

8, Check ati wiring,

9. Contact Sears Service Department.

10. Contact Sears Service Department

1 Cleanlrepiace air filter

2. Replace spark plug

3 Recharge or replace battery

4 Replace fuel filter

5 Drain fuel tank and refill with fresh gasoline

6 Check nit wiring

7 Contact Sears Service Department

8. Contact Sears Service Department

1. DepressClutch/brake pedal.

2Disengage attachment clutch

3. Connect wireto spark plug.

4 Recharge or rep!ace battery

5 Replace fuse

6 Clean battery terminals

7 Check all wiring

8 Check/replace lgnttion switch.

9 Check/replace solenoid or starter

10. Contact Sears Service Department.

1. Recharge or replace battery

2Clean battery terminals.

3Check nit wiring.

4 Check/replace solenoid or starter

1. Set in "Higher Cut" position#educe speed.

2 Adjust throttle control

3 CIean underside of mower housing

4 Clean/replace air fitter

5 Check ol_levee/change ell

6 Clean and regap or change spark plug

7Replace fuel filter

8 Draln fuel tank and refill with fresh gasoline.

9 Drain fuet tank and carburetor, refill tank with fresh

gasoline and replace fuel filter

10 Connect and tlghten spark plug wlre

11. Clean engine air screenlfins

12. Cleanirepiace muffler

13 Check allwirtng.

14 Contact Sears Service Department

15 Contact Sears Service Department

t. Replace blade Tighten blade bott

2. Replace blade mandrel

3 Tighten loose part(s) Replace damaged parts

TBO LESHOOTNNG PORNTS

±,,H, 11,1 ,,,,, ], N=,, ,,,1 ,, L, ,11,, _1, 111,1 J,,,Juuu,

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

POOr cUt - uneven

Mower blades wilt not

rotate

Poor grass discharge

,'"""H"H=' ''"=

Headlight(s) not working

(it so equipped)

Battery will not charge

CAUSE

1. Fauity operator-safetypresencecontrolsystem

1. Worn, bent or toose blade

2, Mower deck not level

3Build-up of grass, leaves, and trash under mower

4_ Bent blade mandrel

1 Obstruction In clutch mechanism,

2. Mower drlve belt out of adjustment

3, Worn/damaged mower drive belt,

4. Frozen idler pulley

5. Frozen biade mandrel.

1 Engine speed too slow.

2, Travel speed too fast.

3 Wet grass

4. Mower deck not level.

5, Low/uneven tire air pressure

6Worn, bent or loose blade.

7 Build-up of grass, leaves and trash under mower

8. Mower drive belt worn or out of sdlustment.

9Blades improperly Installed

"_O Improper blades used,

1. Switch is "OFF"

2Bulb(s) burned out,

3 Faulty light switch,

4Loose or damaged wiring.

5Blown fuse.

1, Bad battery cell(s)

2, Poor cable connections

3Faulty regulator (if so equipped),

4, Faulty alternator

CORRECTION

1_ Check wiring, switches and connections tf not

corrected, contact Sears Service Department

1Repiace biade Tighten blade bolt

2 Level mower deck.

3. Clean underside of mower housing

4, Replace blade mandrel

1, Remove obstruction

2, Adjust mower drive belt

3Replace mower drive belt

4 Replace Idler pulley,

5 Replace blade mandrel

I. Place throttle control tn "FAST' position.

2. Shift to slower speed,

3 Allow grass to dry before mowing

4Level mower deck

5 Check tires for proper air pressure,

B. Replace/sharpen ble.de Tighten blade bolt.

7, Clean underside of mower housing

8 Replace/adjust mower drive belt

9 Reinstall blades sharp edge down

l0 Replace with blades itsted in this manual

1 Turn switch "ON"

2. Replace bulb(s)

3Check/replace light switch

4 Check wiring and connections

5 Replace fuse

1, Replace battery.

2Check/c_ean all connections

3. Replace regulator

4 Replace alternator

SUGGESTED GUIDE FOR SiGHTiNG SLOPES FOR SAFE OPERATION

,,.,w.

.,..,..

SIGHTING ""

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15° MAX.

iii i ii ii i,iiiiii i i i i

Operate your Tractor up and down the face of slopes (not

greater than 15°), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes,

,-r

OWNER'S

MANUAL

MODEL NO.

917.257480

HOW TO ORDER

REPAIR PARTS

,, IH

128283X t1,1690

18.0 HP TWiN CYLI

ELECTRIC START

38" OWER DECK

5SPEED TRANSAXLE

LAWN TRACTOR

Each tractor has its own model number. Each engine has its own model

number.

The model number for your tractor will be found on the model plate

located under the seat

The model number for your engine will be found on the blower housing,

All parts listed herein may be ordered from any Sears, Roebuck and Co.

Service Centers and most Retail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOW-

ING INFORMATION:

• PRODUCT -LAWN TRACTOR

• MODEL NUMBER - 917,257480

• ENGINE MODEL NUMBER -422707, TYPE NUMBER 1511-01

° PART NUMBER

• PART DESCRIPTION

Your Sears merchandise has added value when you consider Sears has

service units nationwide staffed with Sears trained technicians_, profes-

sional technicians specifically trained to insure that we meet our pledge

to you, we service what we sell

....................... i i i i i,i i ii l!l,lllllllll,,llllll

ii i,iH i i H,I,,,H,I,,,I_HI

Sears, Roebuck and Co., Chicago, IL 60684 U.S.A.

i , iiiiH

PRINTED IN USA.

Craftsman 917257480 User Manual 18 HP 38 RIDING GARDEN TRACTOR Manuals And Guides L0806321

CRAFTSMAN Lawn, Tractor Manual L0806321 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
