Owner's Manual

(RItFTSMIIll +

14.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXI'E e

LAWN TRACTOR

Model No.

917.270531

• Safety

• Assembly

•Operation

• Maintenance

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Seam, Roebuck and Co., Hoffman Estates, II 60179

Visit our Crattsman website:www.sears.com/craftsman

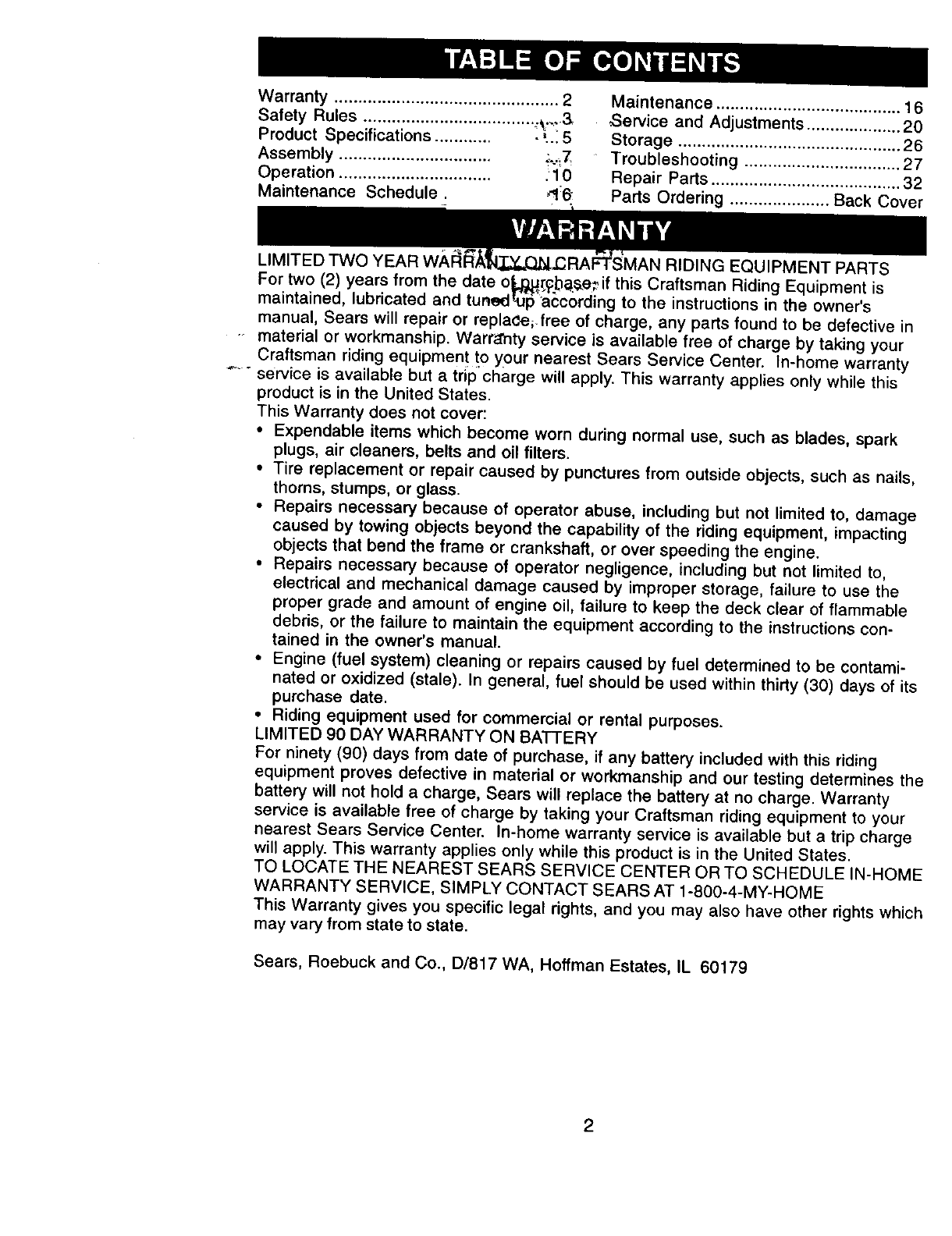

Warranty ............................................... 2

Safety Rules ....... 3

:.T ..o........................... .t_ .

Product Specifications ............ - _...5

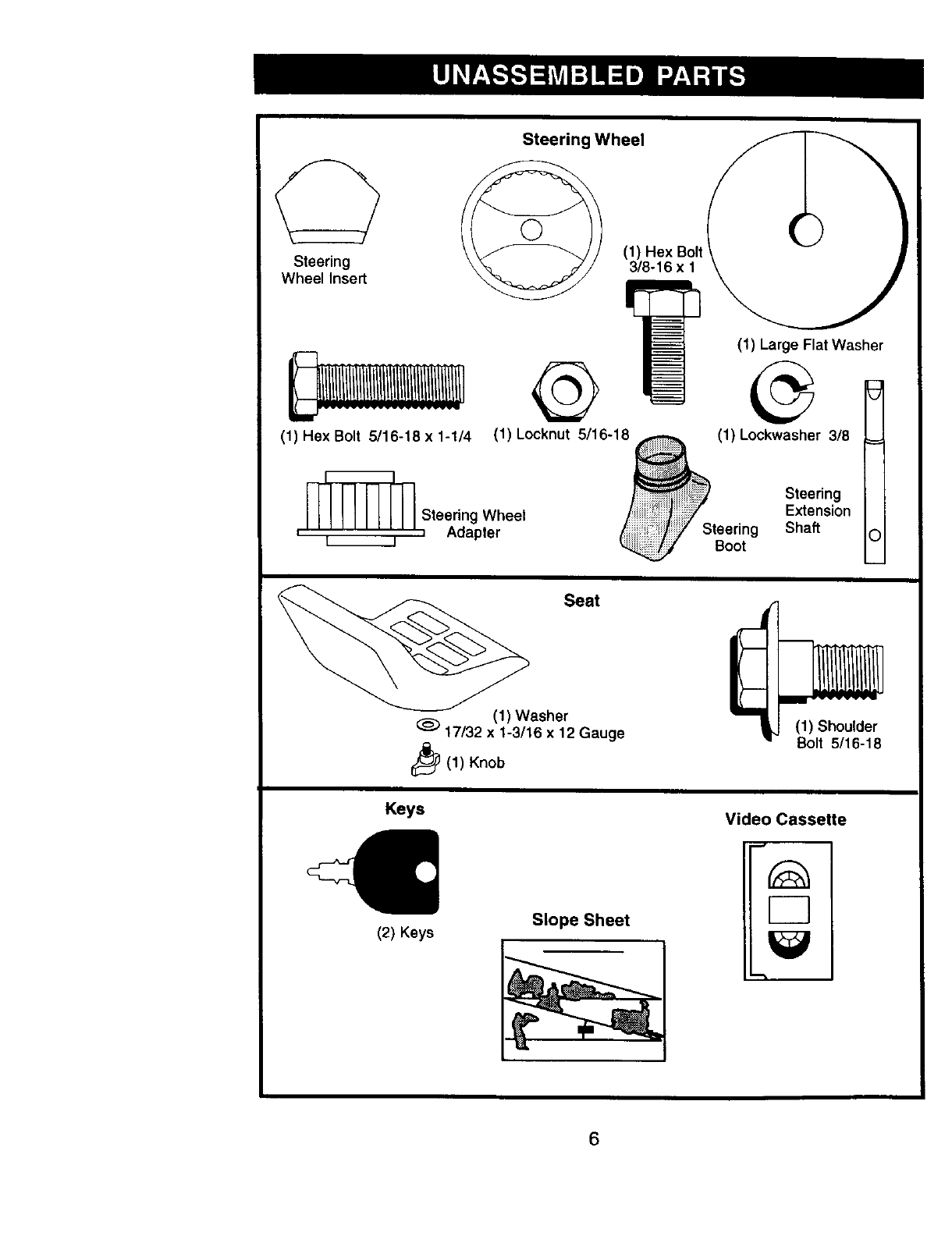

Assembly ................................ _._7_

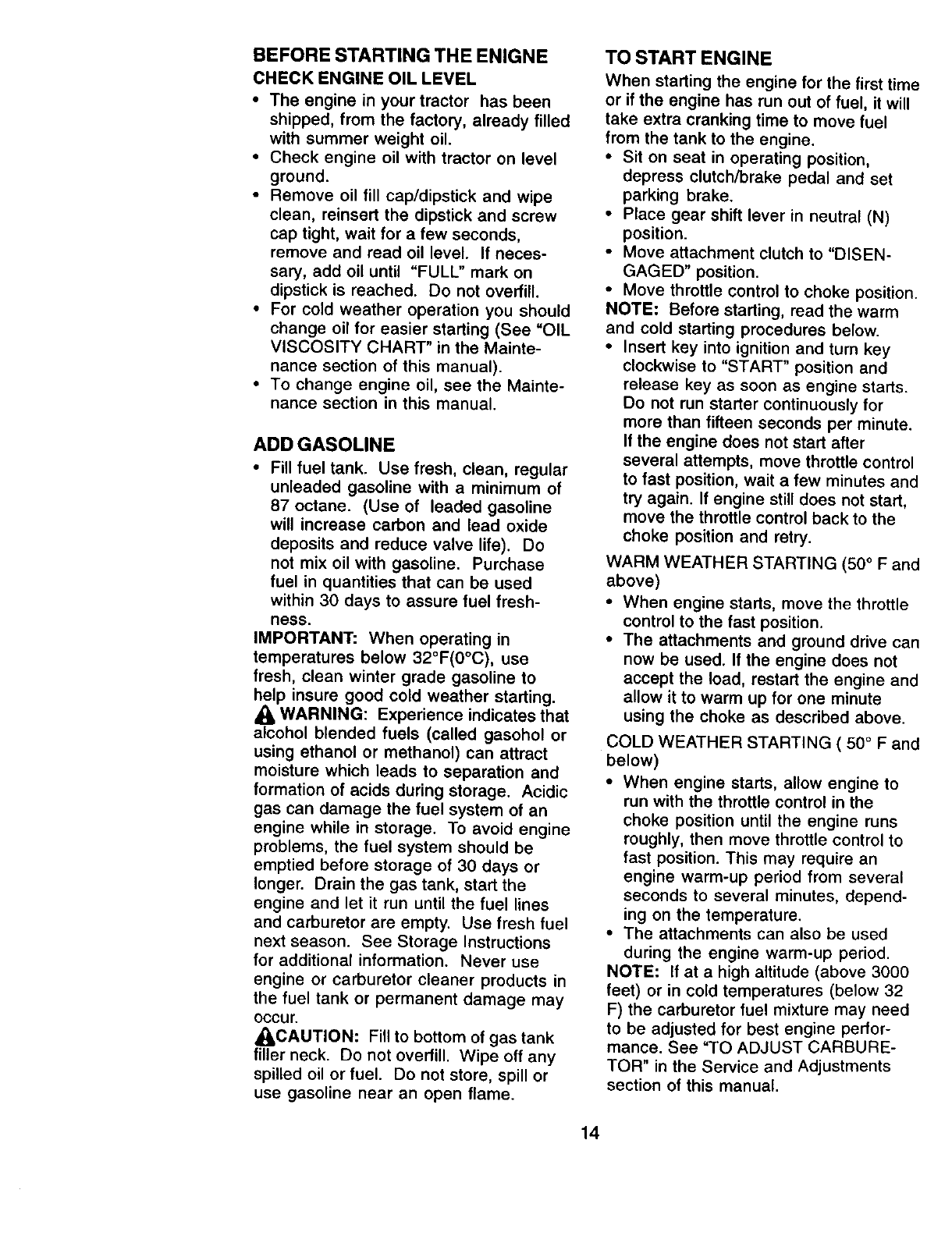

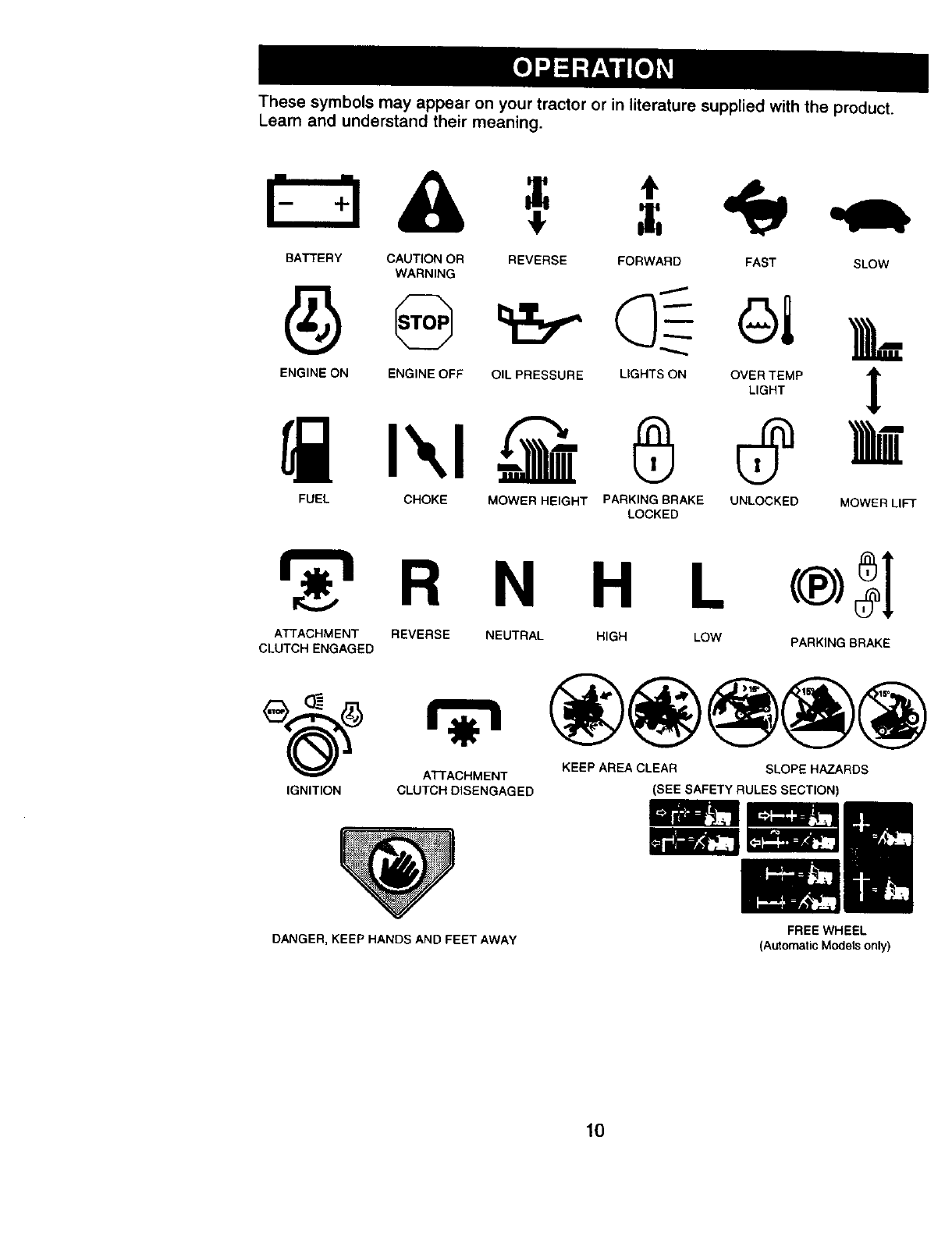

Operation ................................ .10

Maintenance Schedule. _16

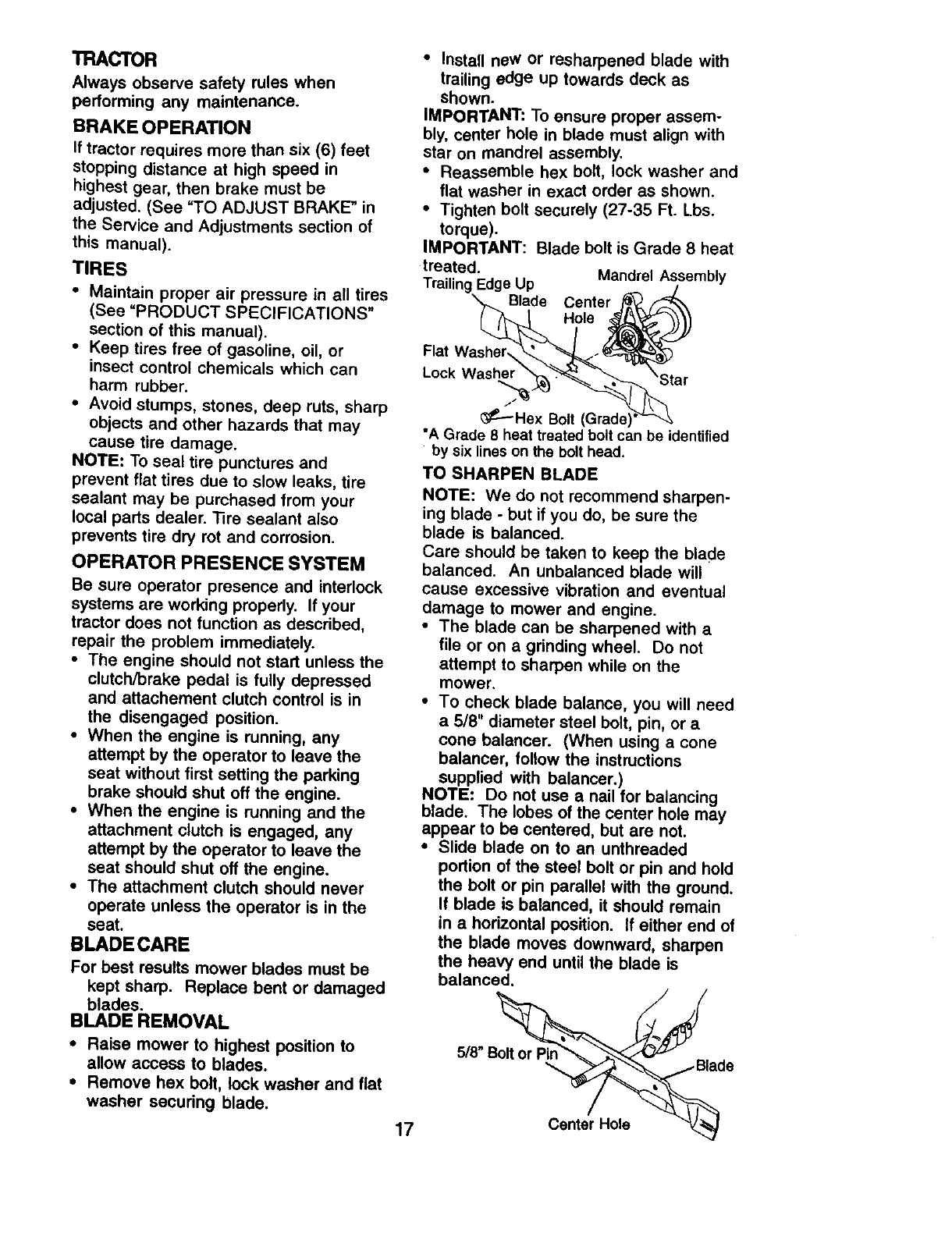

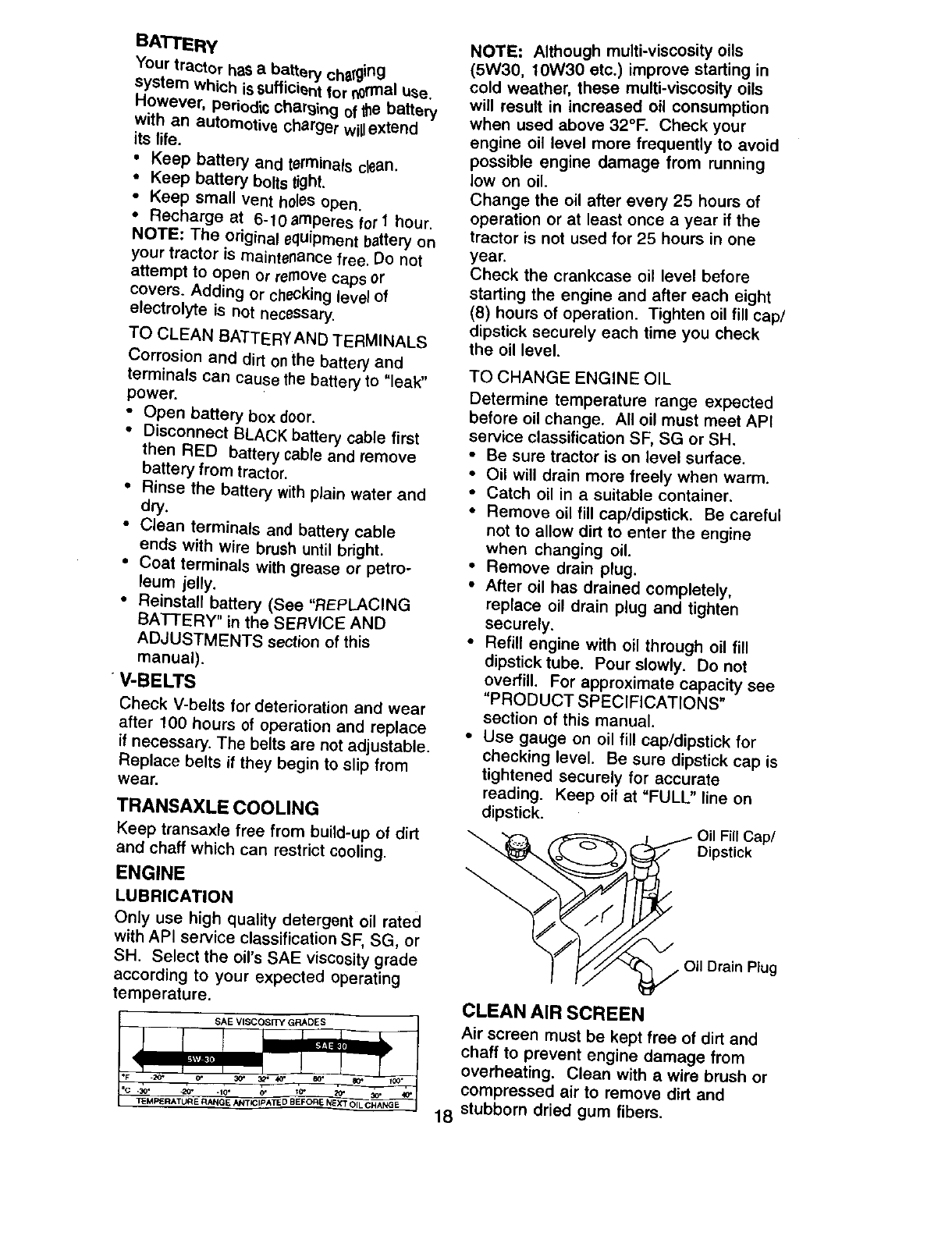

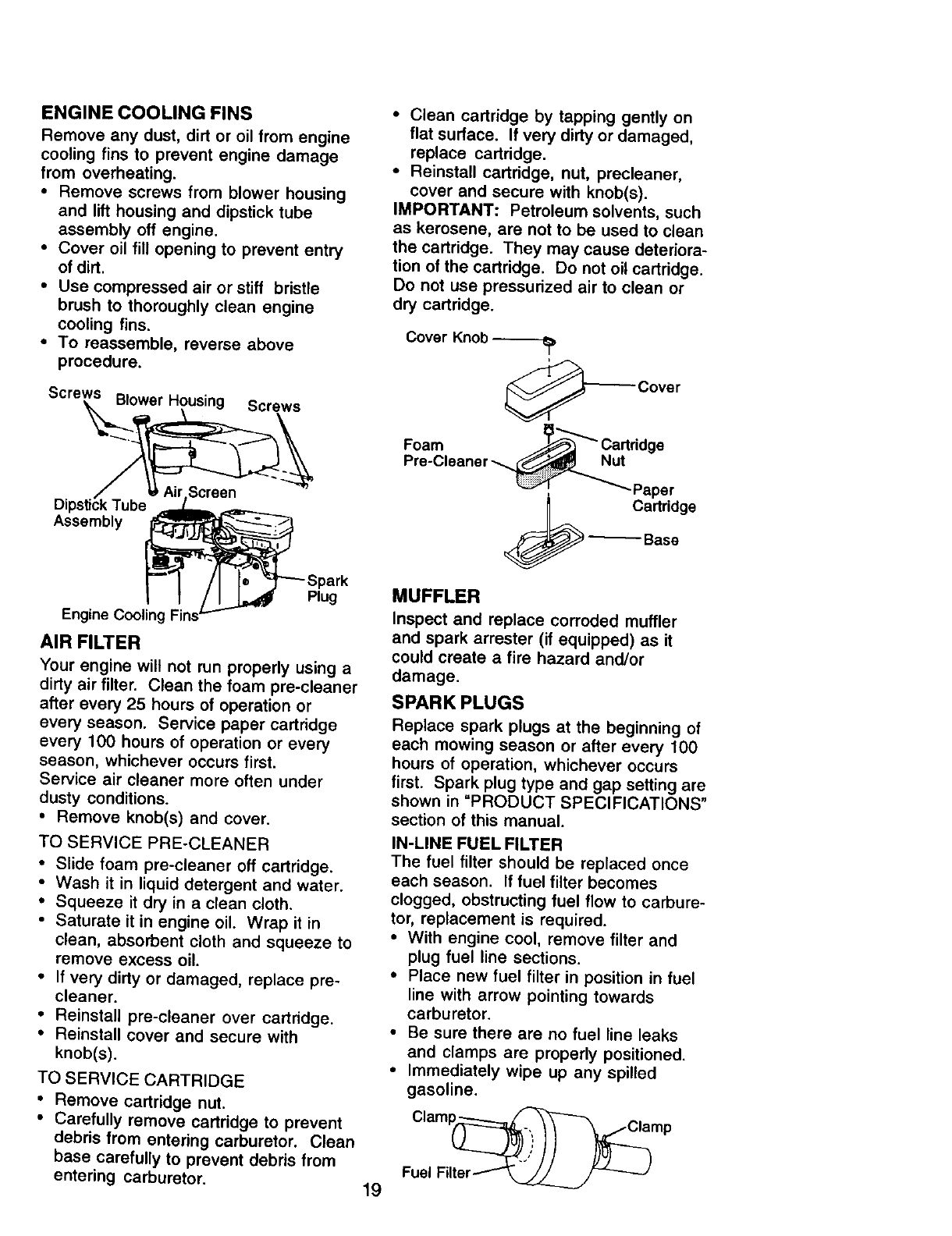

Maintenance ....................................... 16

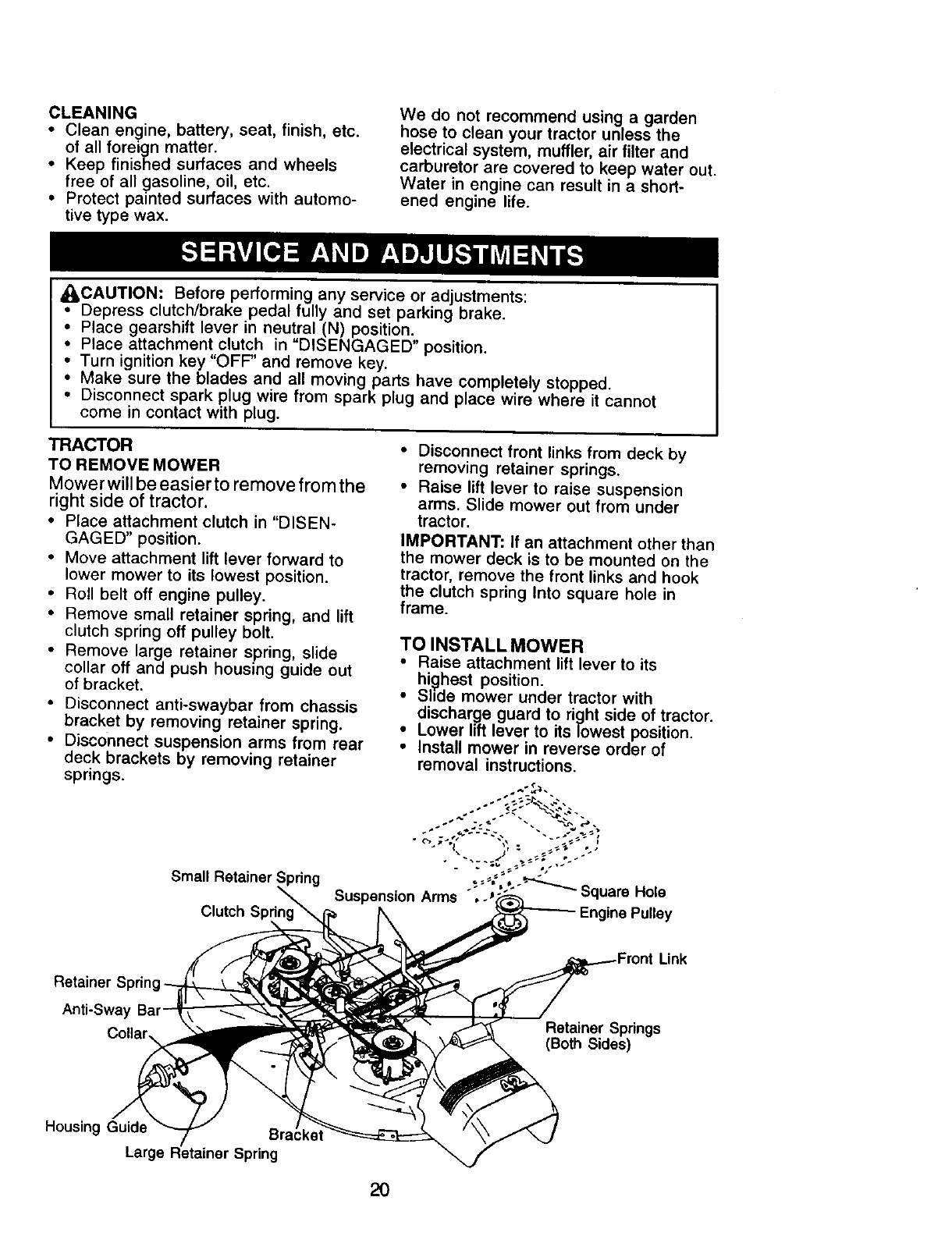

_ervice and Adjustments .................... 20

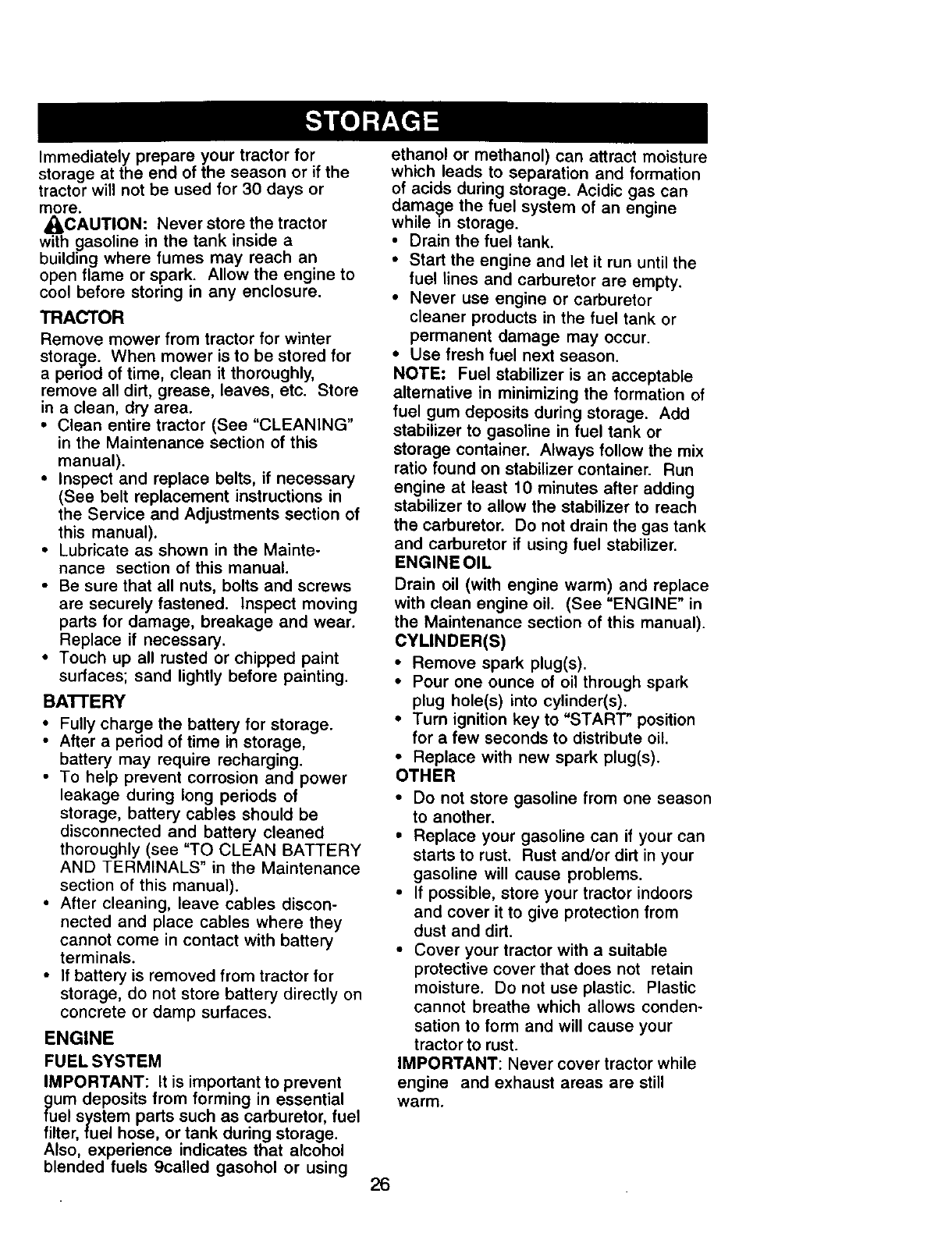

Storage ............................................... 26

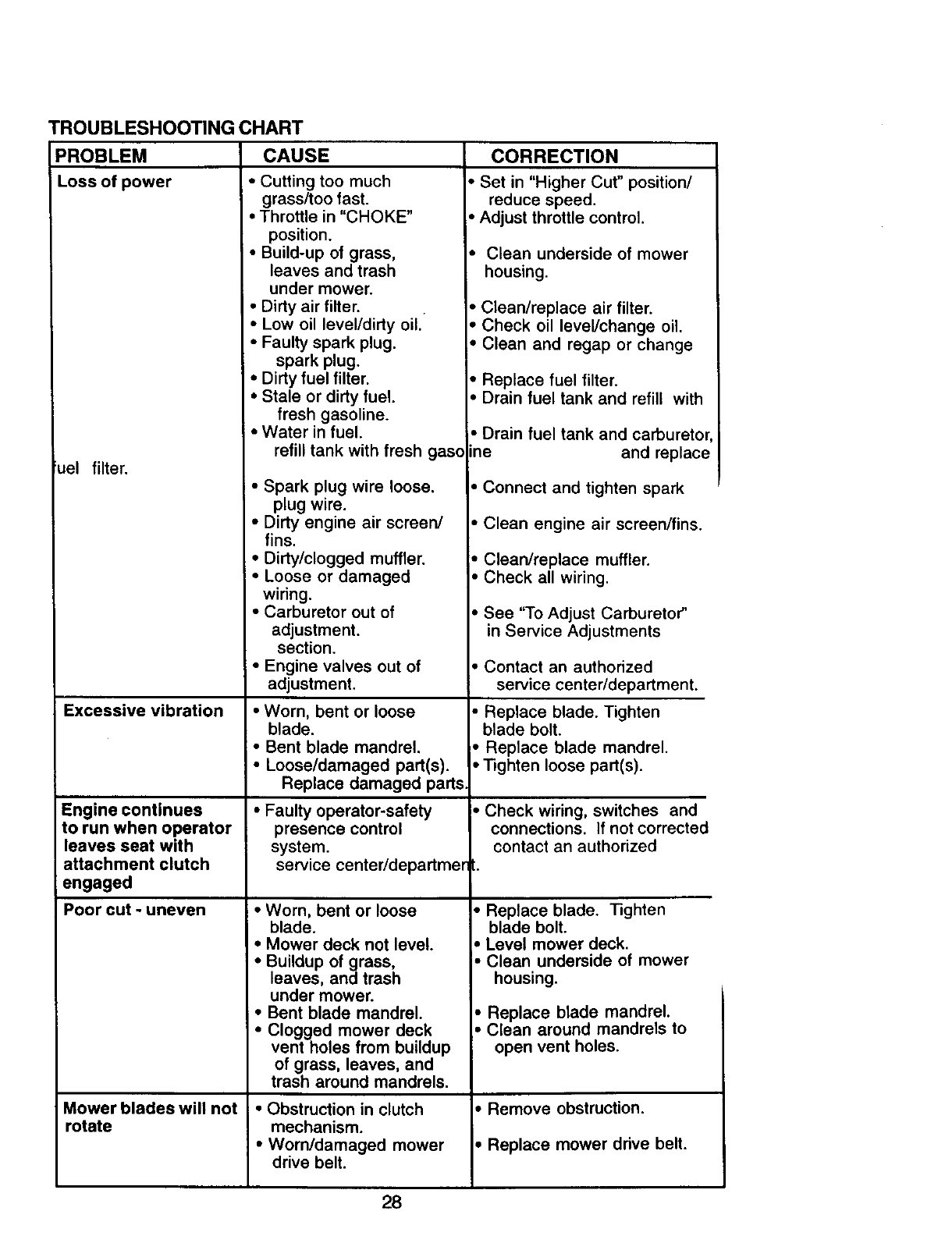

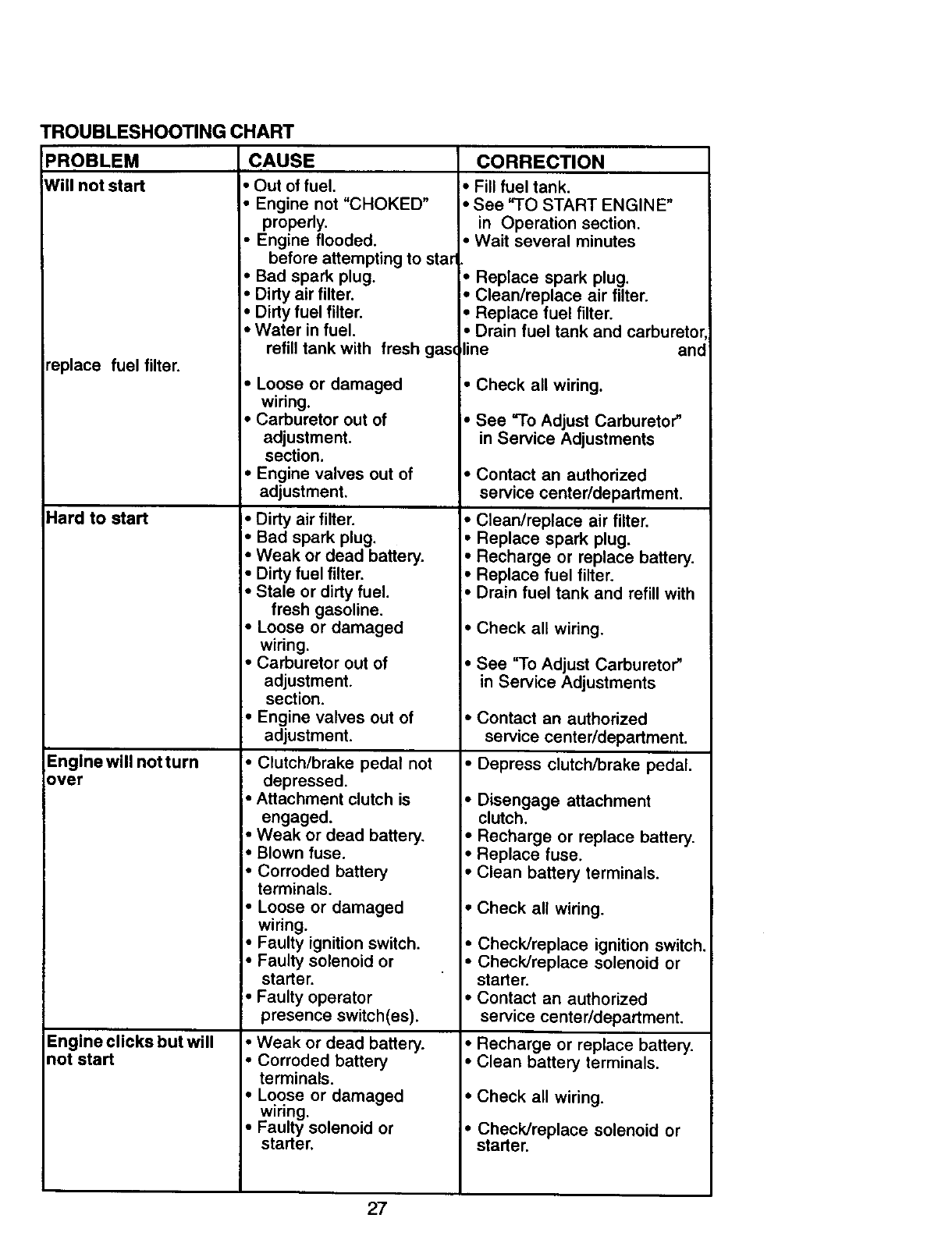

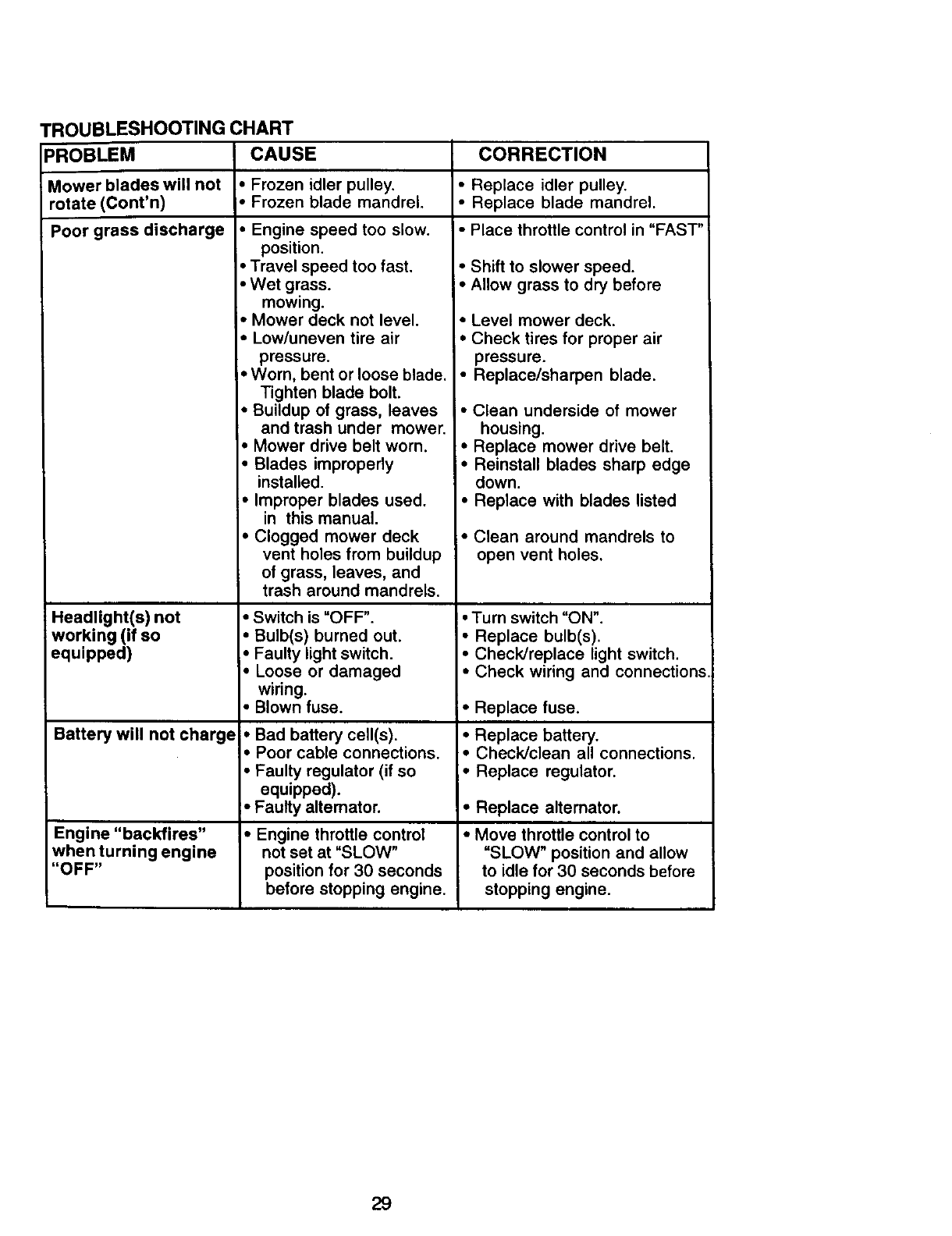

Troubleshooting ................................. 27

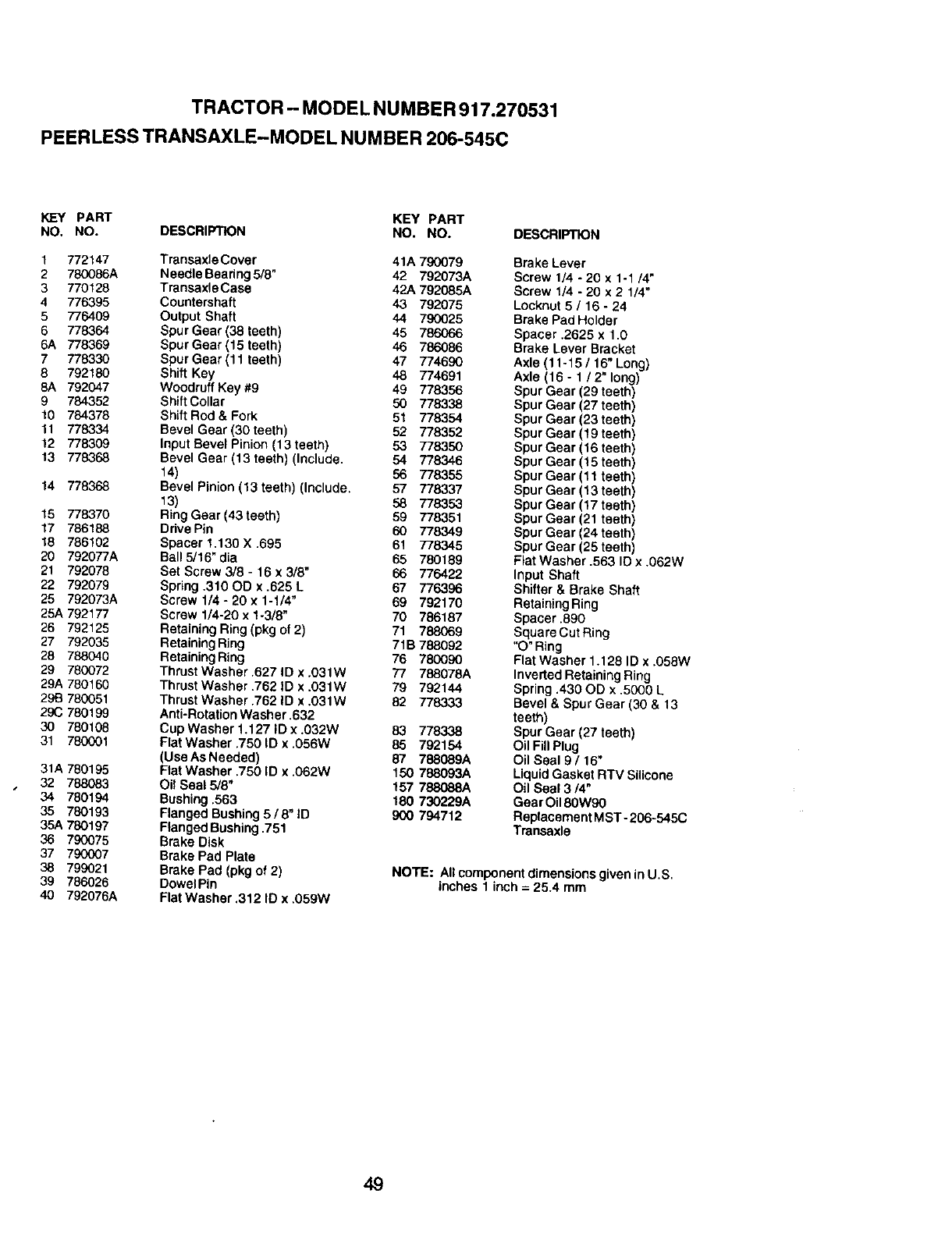

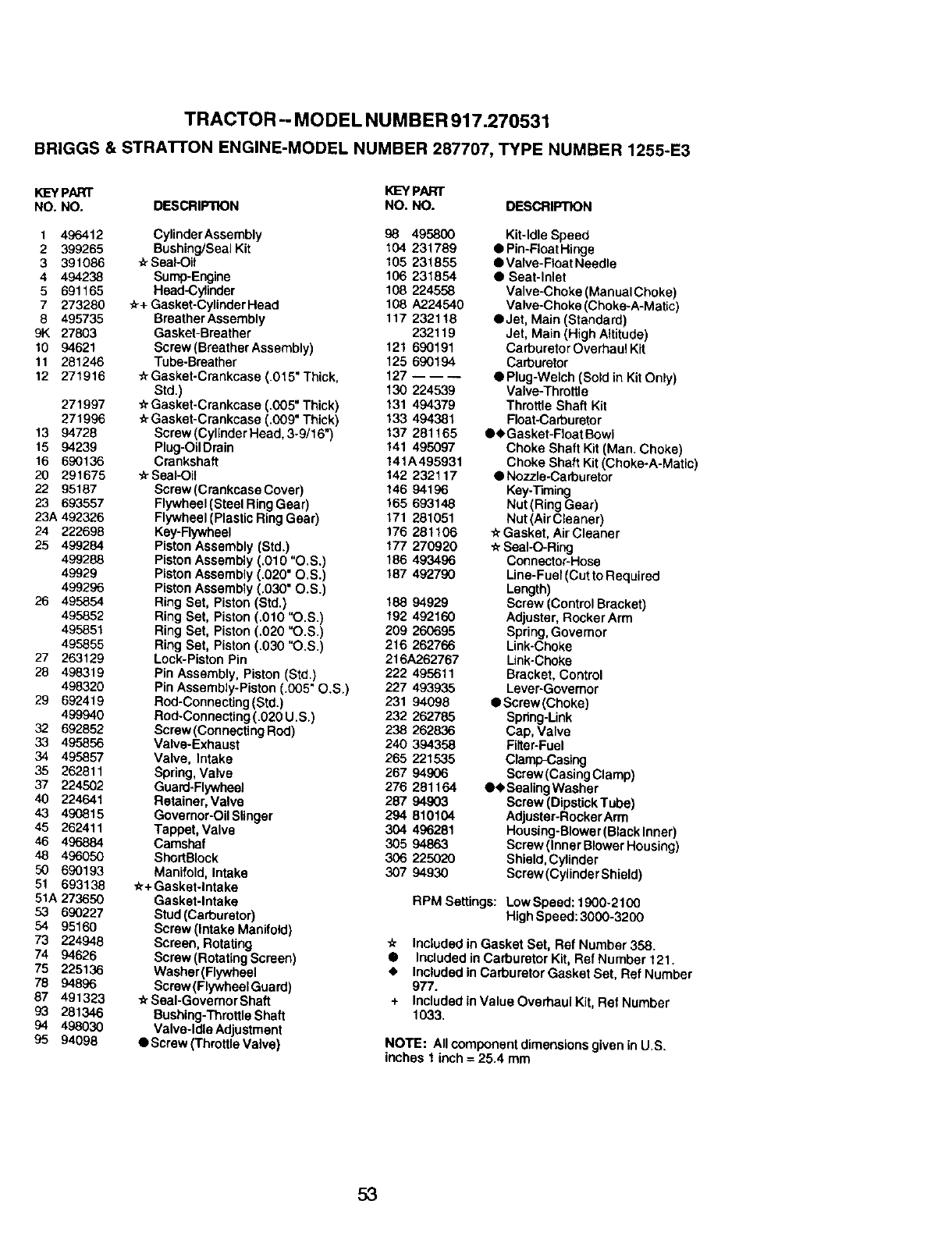

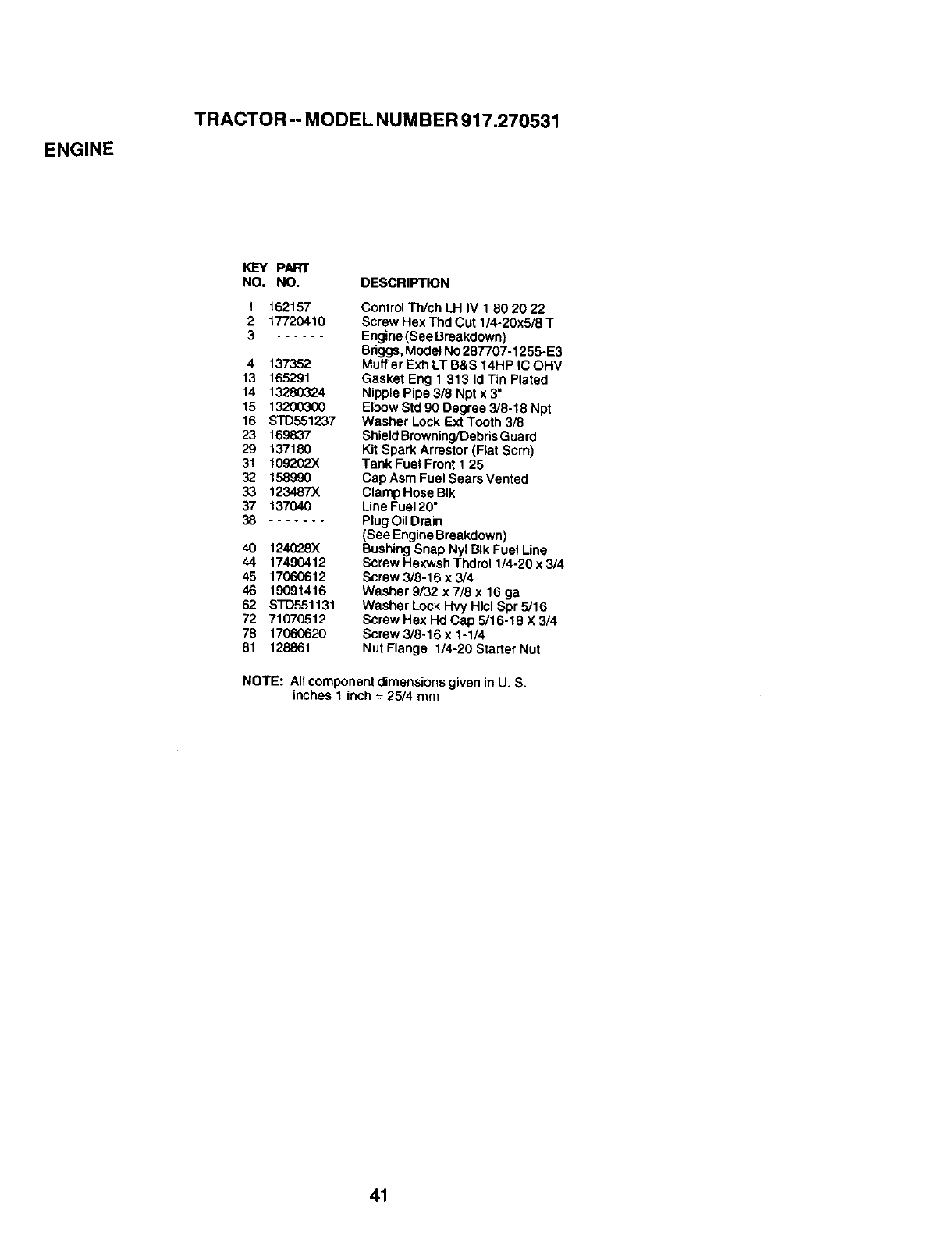

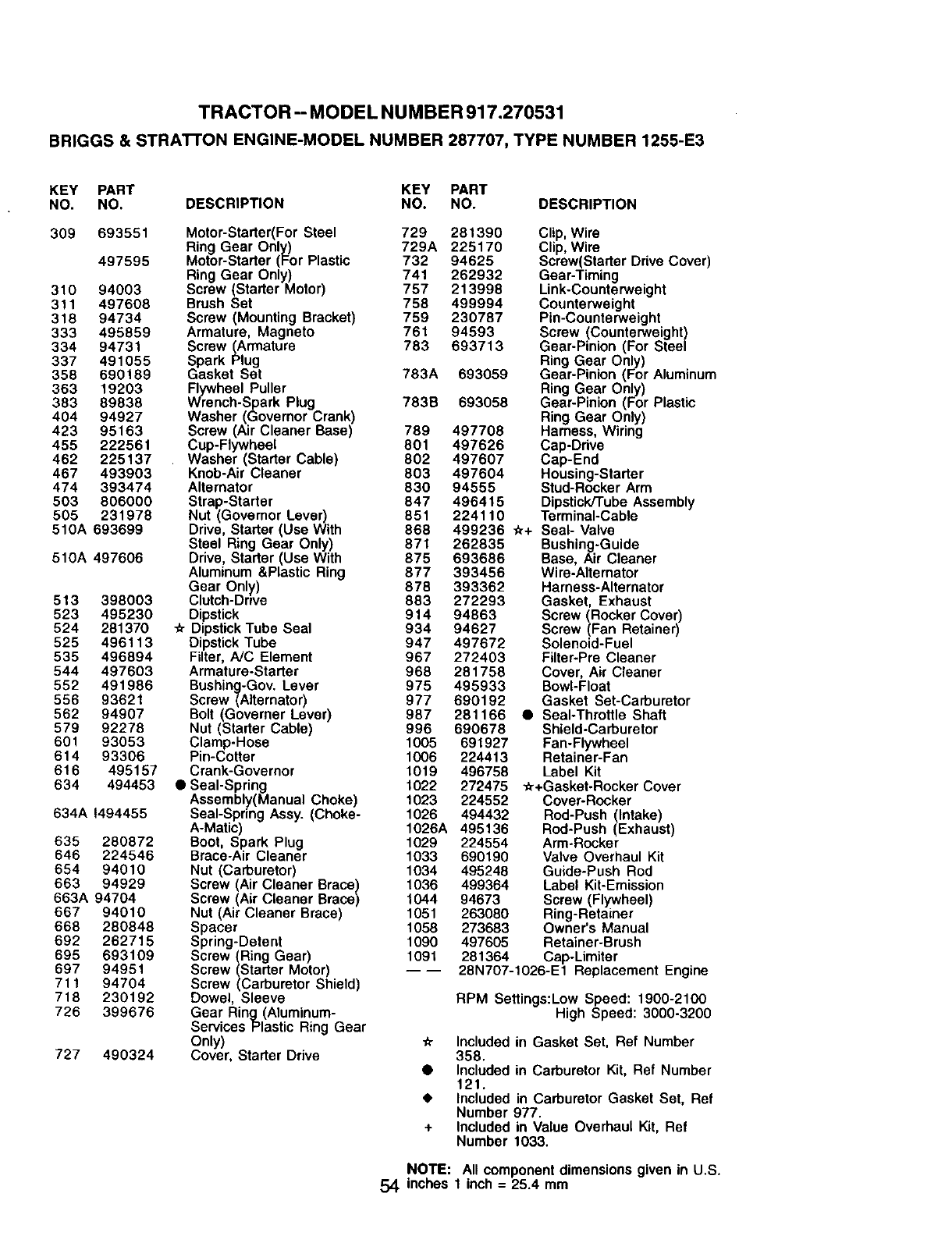

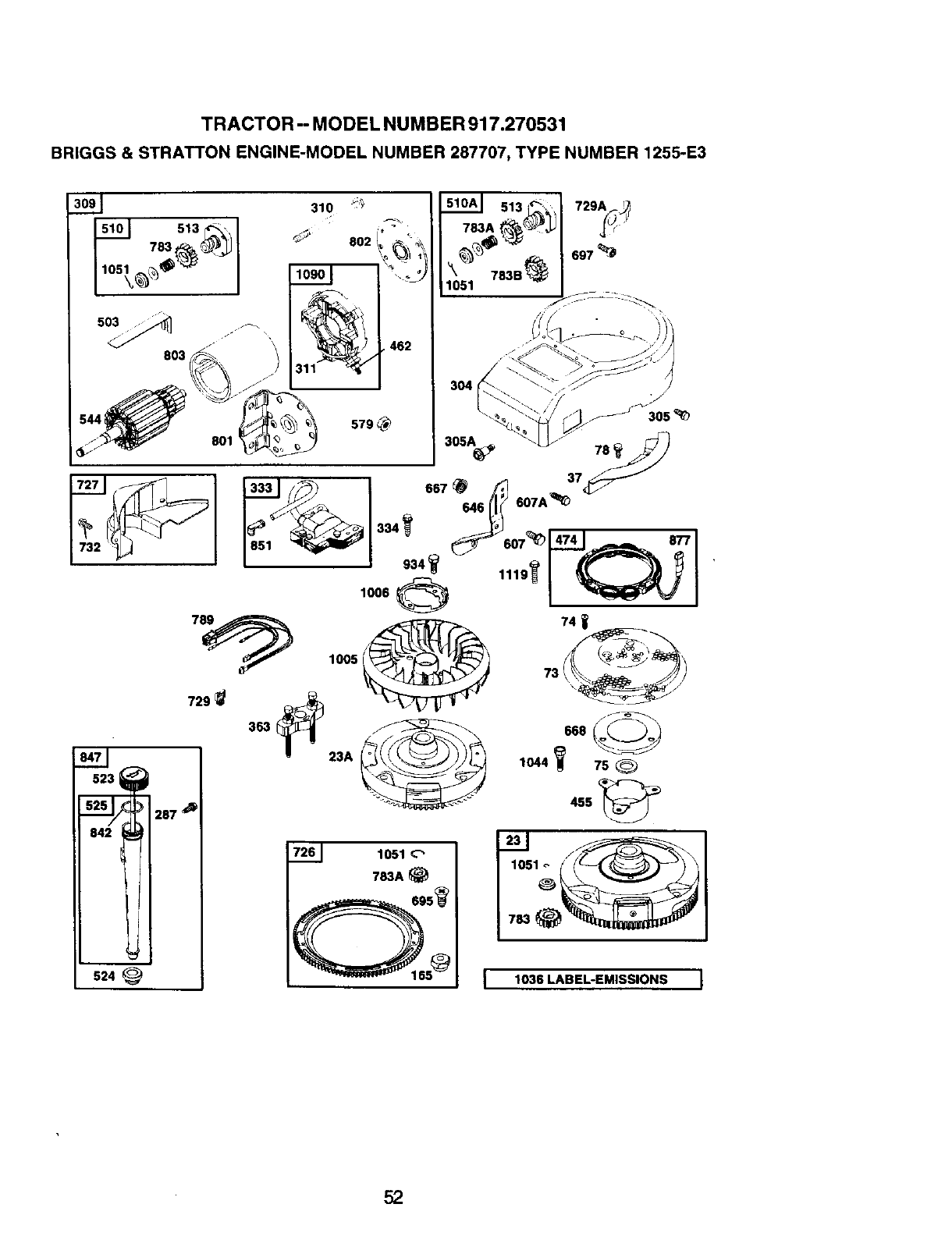

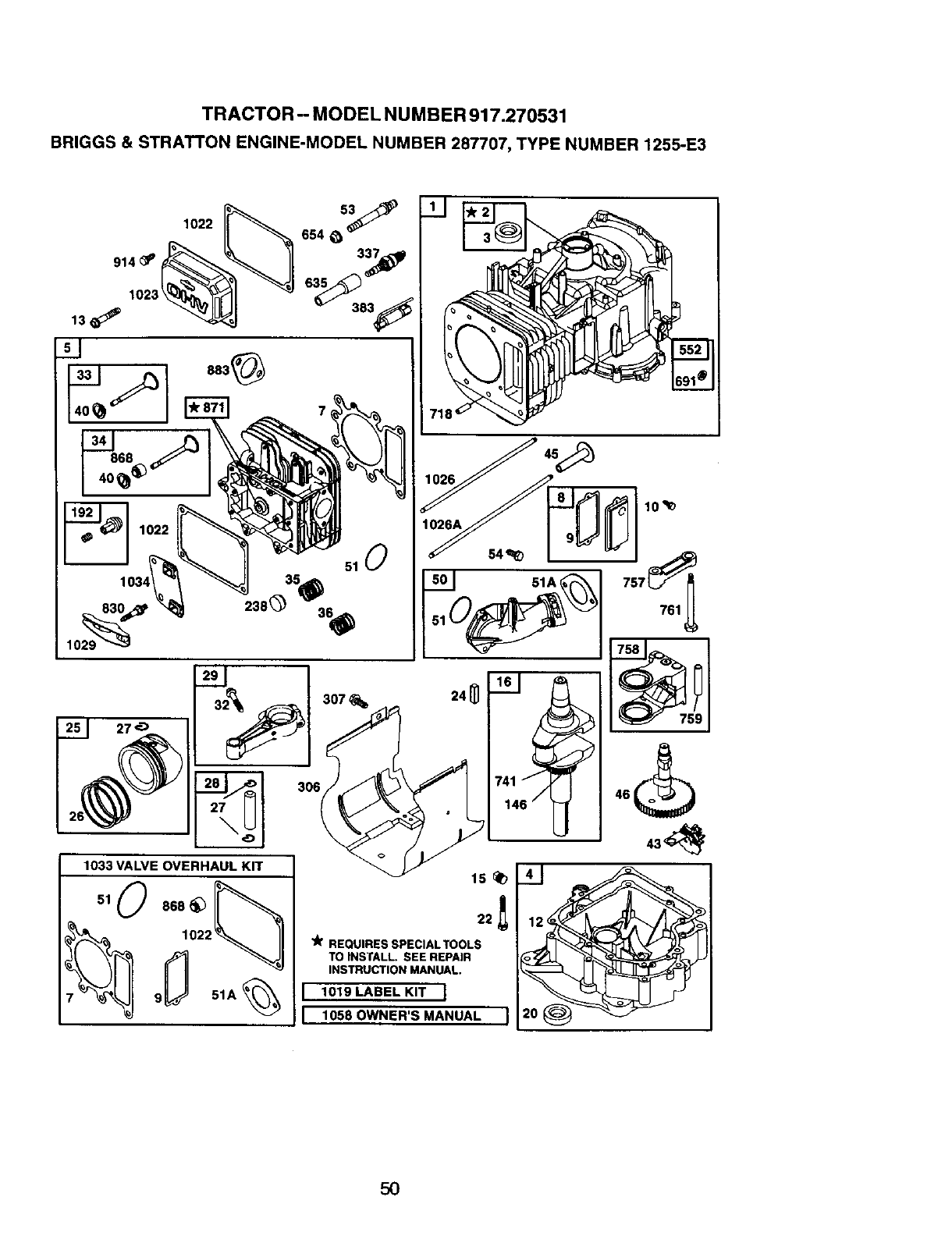

Repair Parts ........................................ 32

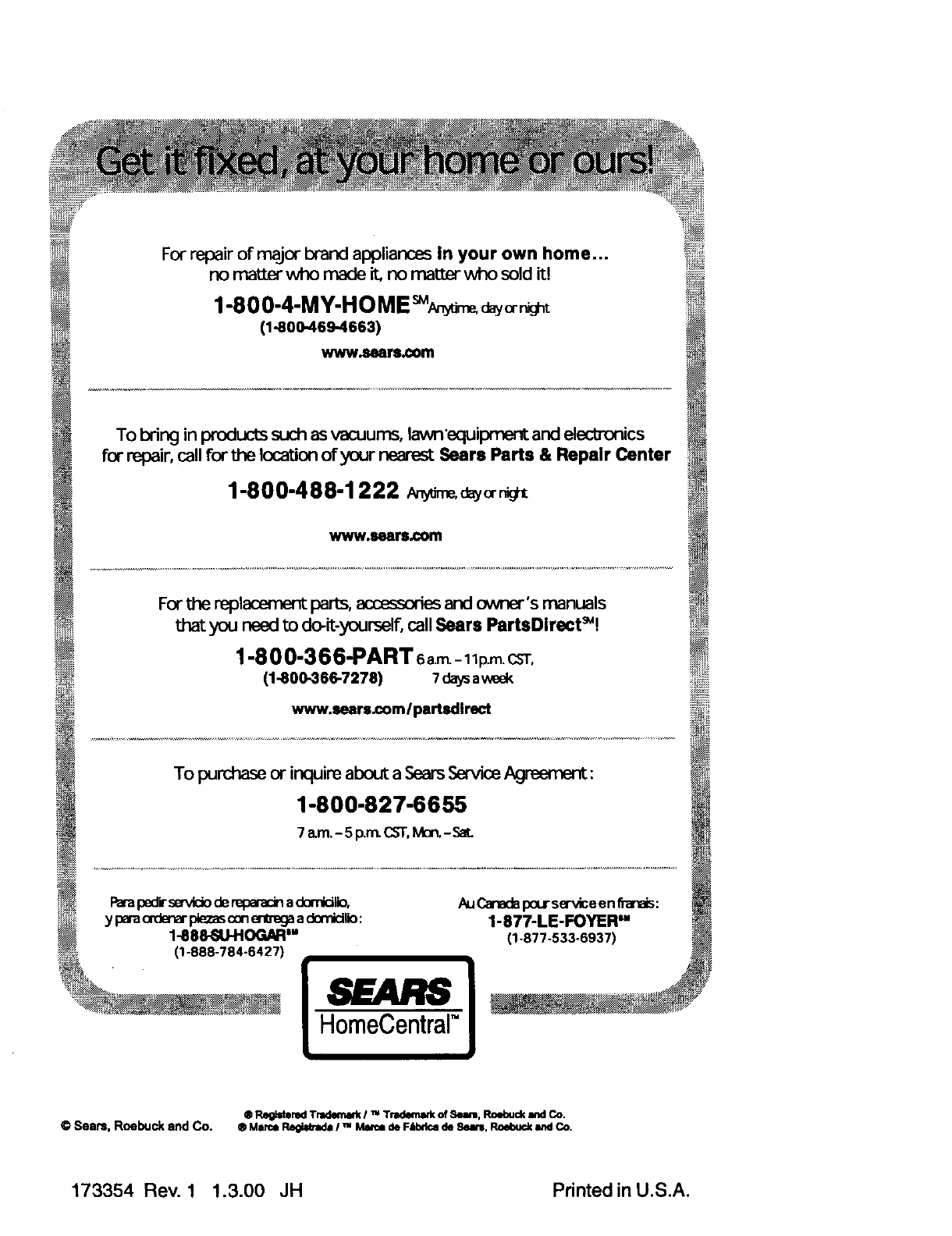

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR wA_{ RIDING EQUIPMENT PARTS

For two (2) years from the date o_r._b_e_ if this Craftsman Riding Equipment is

maintained, lubricated and tun_ltul 5a_cording to the instructions in the owner's

manual, Sears will repair or replade;Jree of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by taking your

Craftsman riding equipment to YOUr nearest Sears Service Center. In-home warranty

_* "service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

•Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines th_

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by taking your Craftsman riding equipment to your

nearest Sears Service Center. In-home warranty service is available but a trip charge

will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

2

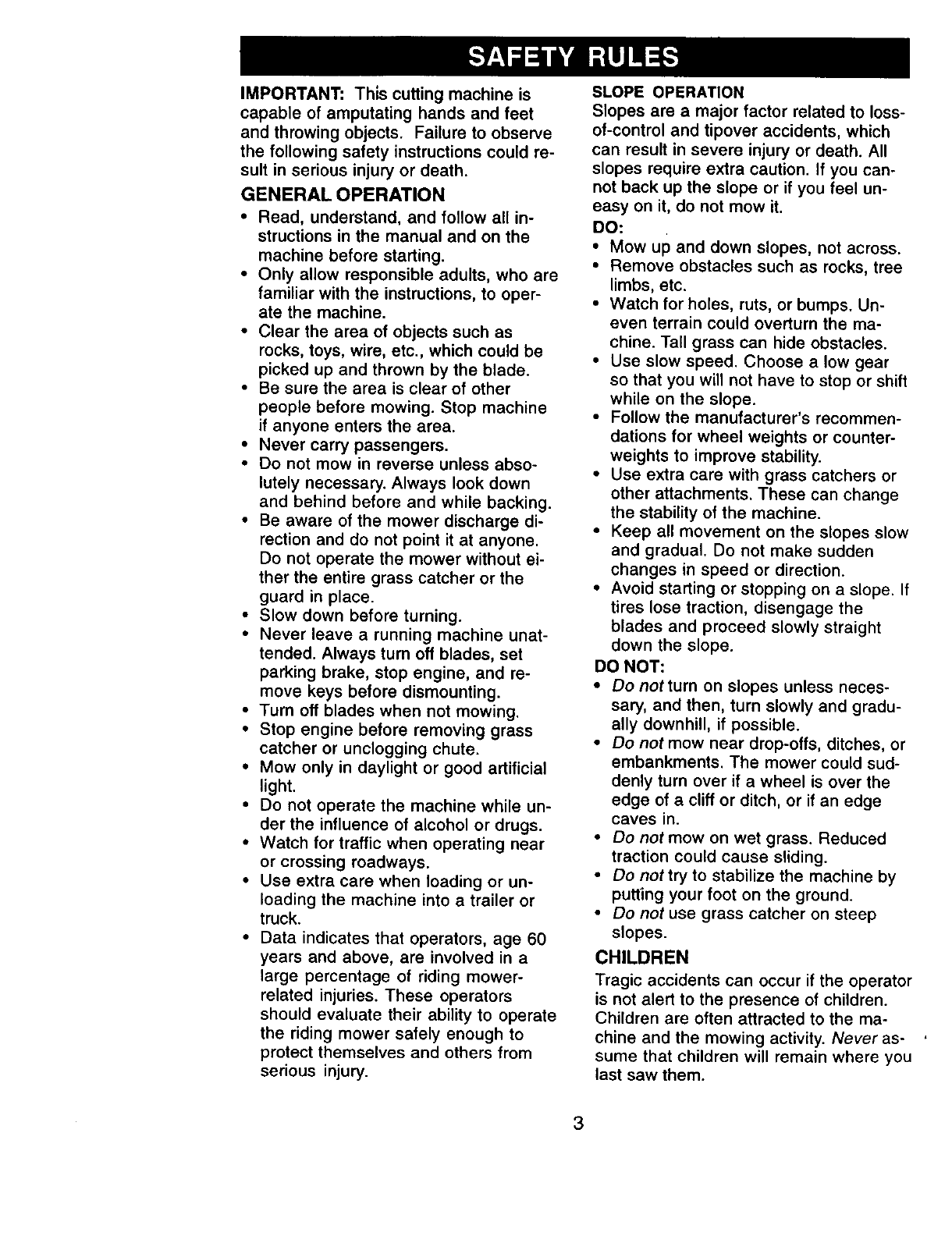

IMPORTANT: This cutting machine is

capable of amputating hands and feet

and throwing objects. Failure to observe

the following safety instructions could re-

sult in serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all in-

structions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to oper-

ate the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade.

• Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

•Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Be aware of the mower discharge di-

rection and do not point it at anyone.

Do not operate the mower without ei-

ther the entire grass catcher or the

guard in place.

•Slow down before turning.

•Never leave arunning machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and re-

move keys before dismounting.

•Turn off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while un-

der the influence of alcohol or drugs.

•Watch for traffic when operating near

or crossing roadways.

•Use extra care when loading or un-

loading the machine into a trailer or

truck.

•Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you can-

not back up the slope or if you feel un-

easy on it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Un-

even terrain could overturn the ma-

chine. Tall grass can hide obstacles.

•Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could sud-

denly turn over if a wheel is over the

edge of acliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do nottry to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

3

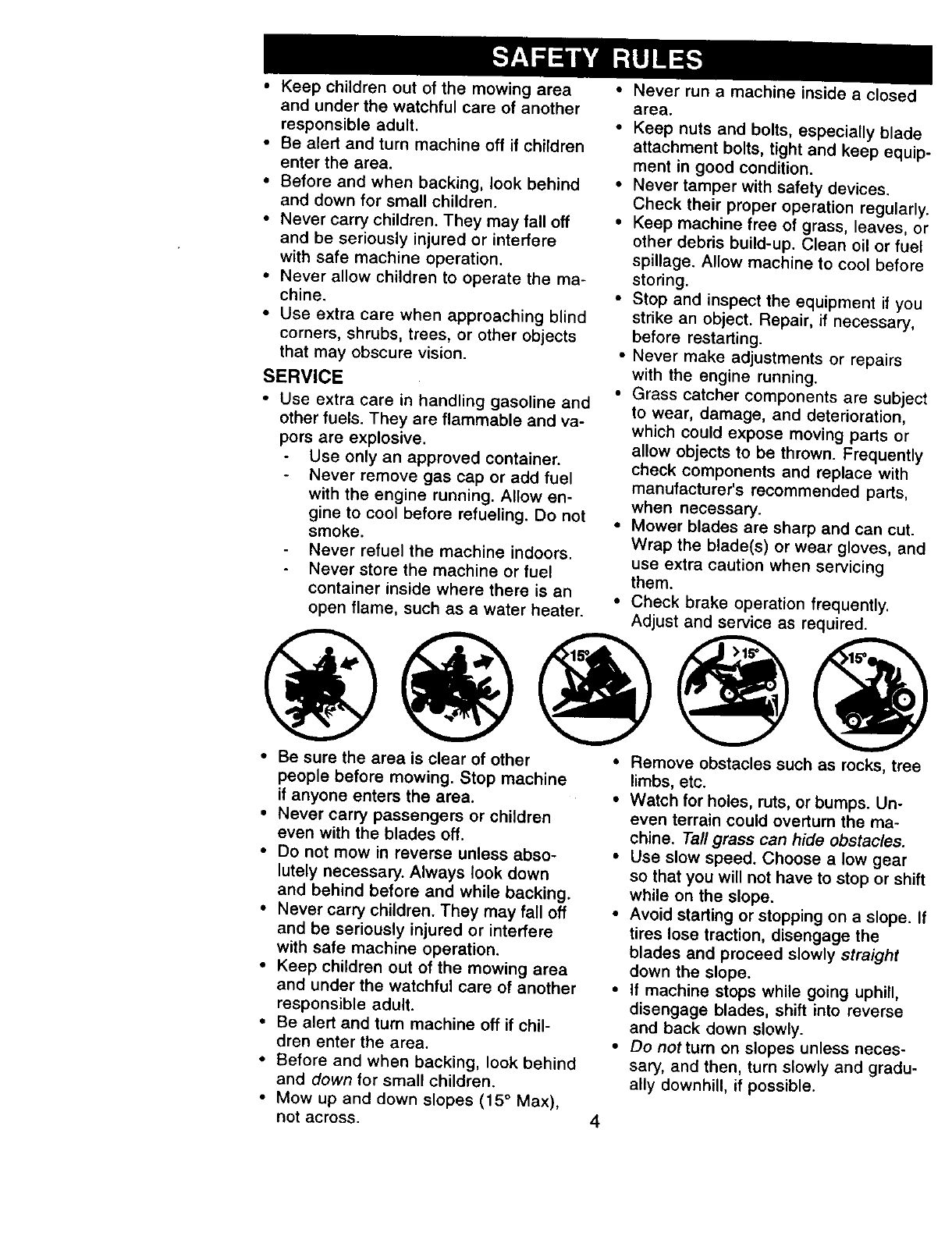

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall oft

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the ma-

chine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and va-

pors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs

with the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the biade(s) or wear gloves, and

use extra caution when servicing

them.

Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

• Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if chil-

dren enter the area.

•Before and when backing, look behind

and down for small children.

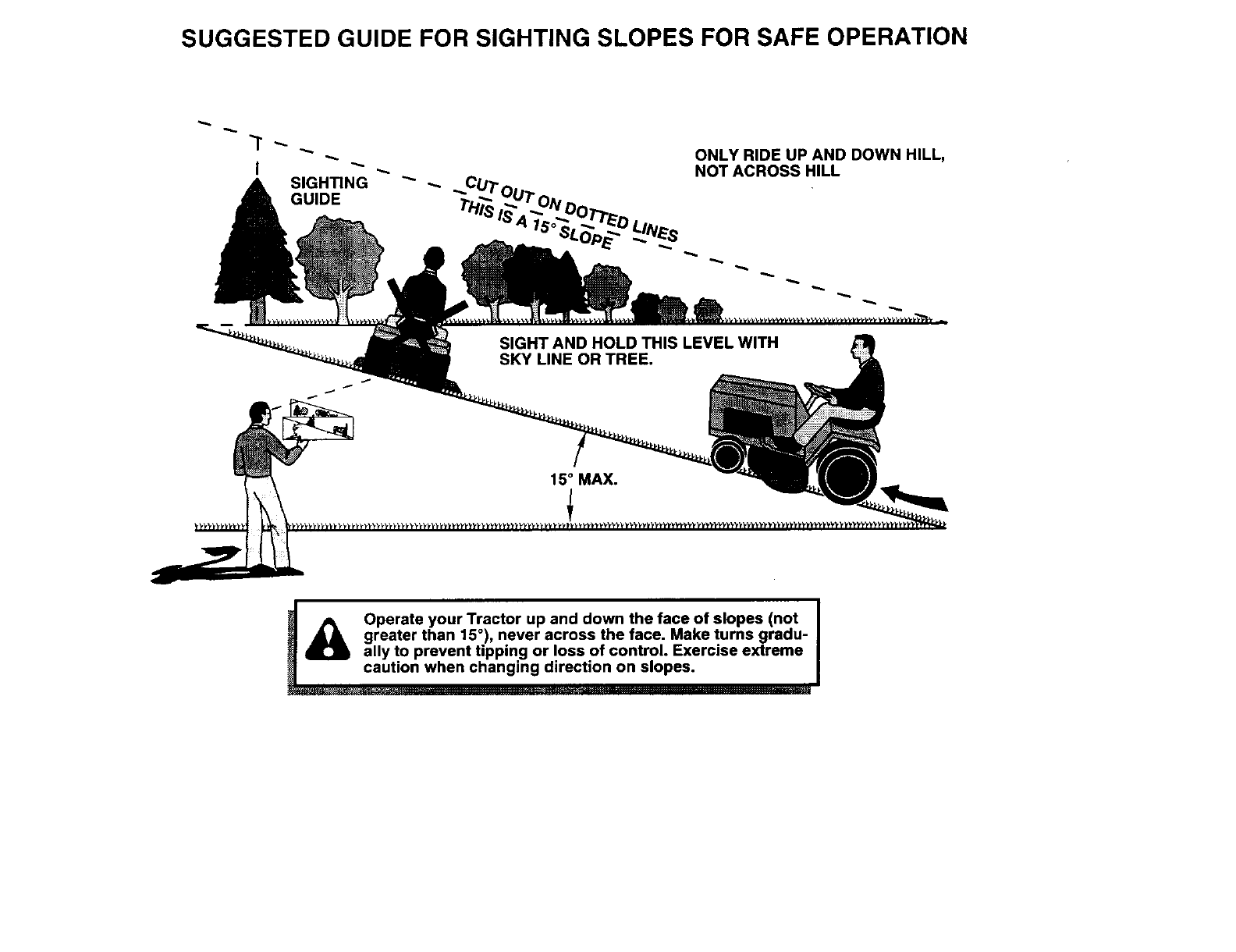

•Mow up and down slopes (15 °Max),

not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Un-

even terrain could overturn the ma-

chine. Tall grass can hide obstacles.

•Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do notturn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

4

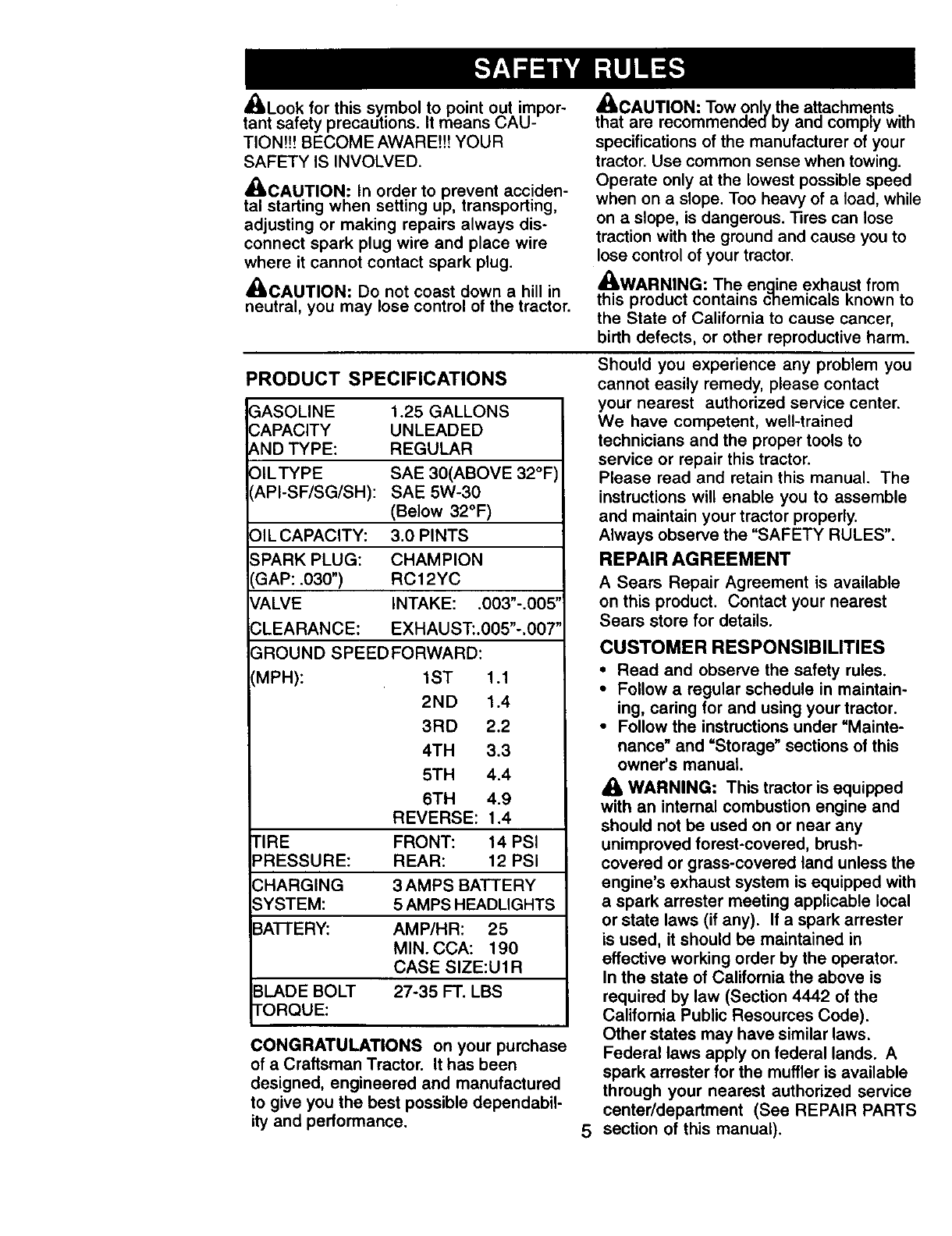

_Loo.k for this symbol to point ou.ut!mpor-

tant sarety precautions. It means L,AU-

TION!!! BECOME AWARE!!! YOUR

SAFETY IS INVOLVED.

_k, CAUTION,: In order to prevent acciden-

tal starting wnen setting up, transporting,

adjusting or making repairs always dis-

connect spark plug wire and place wire

where it cannot contact spark plug.

,d_CAUTION: Do not coast down a hill in

neutral, you may lose control of the tractor.

,ACAUTION: Tow onlv the attachments

that are recommendedby and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on aslope. Too heavy of aload, while

on aslope, is dangerous. Tires can lose

traction with the ground and cause you to

lose control of your tractor.

_IILWARNING: The enqine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

PRODUCT SPECIFICATIONS

3ASOLINE

3APACITY

_,ND TYPE:

DILTYPE

API-SF/SG/SH):

DIL CAPACITY:

;PARK PLUG:

GAP: .030")

VALVE

CLEARANCE:

1.25 GALLONS

UNLEADED

REGULAR

SAE 30(ABOVE 32°F)

SAE 5W-30

(Below 32°F)

3.0 PINTS

CHAMPION

RC 12YC

INTAKE: .003"-.005"

EXHAUST:.005"-.007"

GROUND SPEEDFORWARD:

MPH): 1ST 1.1

2ND 1.4

3RD 2.2

4TH 3.3

5TH 4.4

6TH 4.9

REVERSE: 1.4

TIRE FRONT: 14 PSI

PRESSURE: REAR: 12 PSI

CHARGING 3 AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

BAI-I'E RY: AMP/HR: 25

MIN. CCA: 190

CASE SIZE:U1R

3LADE BOLT 27°35 FT. LBS

FORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependabil-

ity and performance. 5

Should you experience any problem you

cannot easily remedy, please contact

your nearest authorized service center.

We have competent, well-trained

technicians and the proper tools to

service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Sears Repair Agreement is available

on this product. Contact your nearest

Sears store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and =Storage" sections of this

owner's manual.

_, WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester

is used, it should be maintained in

effective working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest authorized service

center/department (See REPAIR PARTS

section of this manual).

SteeringWheel

0

Steering

Wheel Insert

(1) Hex Bolt 5/16-18 x1-1/4 @

(1) Locknut 5/16-18

[T_L_ Steedng Wheel

,--_' '; Adapter

(1) Hex Bolt

3/8-16 x 1

(1) Large Flat Washer

(1) Lockwasher 318 _.

teering

Boot

Steering

Extension

Shaft O

Seat

(1) Washer

_) 17/32 x1-3/16 x12 Gauge

i_(1) Knob

Keys

(1) Shoulder

Bolt 5/16-18

Video Cassette

(2) Keys Slope Sheet r-1

6

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVETRACTOR FROM

CARTON

•Remove all accessible loose parts

and parts cartons from carton.

•Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

•Check for any additional loose parts

or cartons and remove.

• Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

• Snap steering wheel insert into center

of steering wheel.

• Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

F_ _ Steering Wheel

Insert

.._f_ 3/8-24 Locknut

_Large Flat Washer

3/8 Lock J_T_._

Wash_

Steering Wheel Tabs

Steering

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

• Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

• Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so

they are pointing straight forward.

• Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

• Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

Lift seat pan to raised position and

open battery box door.

If this battery is put into service after

month and year indicated on label

(label located between terminals)

charge battery for minimum of one

hour at 6-10 amps. (See "BATTERY" in

Maintenance section of this manual for

charging instructions).

7

Battery Box Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

•Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

• Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

•Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

•Get off seat without moving its adjusted

position.

• Raise seat and tighten adjustment

knob securely.

S,oo,dorSeatPao ---- -

Bolt \_

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor from

the skid,

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

•Press lift lever plunger and raise

attachment lift lever to its highest

position.

•Release parking brake by depressing

clutch/brake pedal.

•Place gearshift lever in neutral (N)

position.

•Roll tractor forward off skid.

•Remove banding holding discharge

guard up against tractor.

TO DRIVE TRACTOR OFFSKID

(See Operation section for location

and function of controls)

WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and objects.

• Be sure all the above assembly steps

have been completed.

• Check engine oil level and fill fuel

tank with gasoline.

• Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

• Place gear shift lever in neutral (N)

position.

• Press lift lever plunger and raise

attachment lift lever to its highest

position.

•Start the engine. After engine has

started, move throttle control to idle

position.

• Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

• Slowly release clutch/brake pedal and

slowly drive tractor off skid.

• Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that

follow.

8

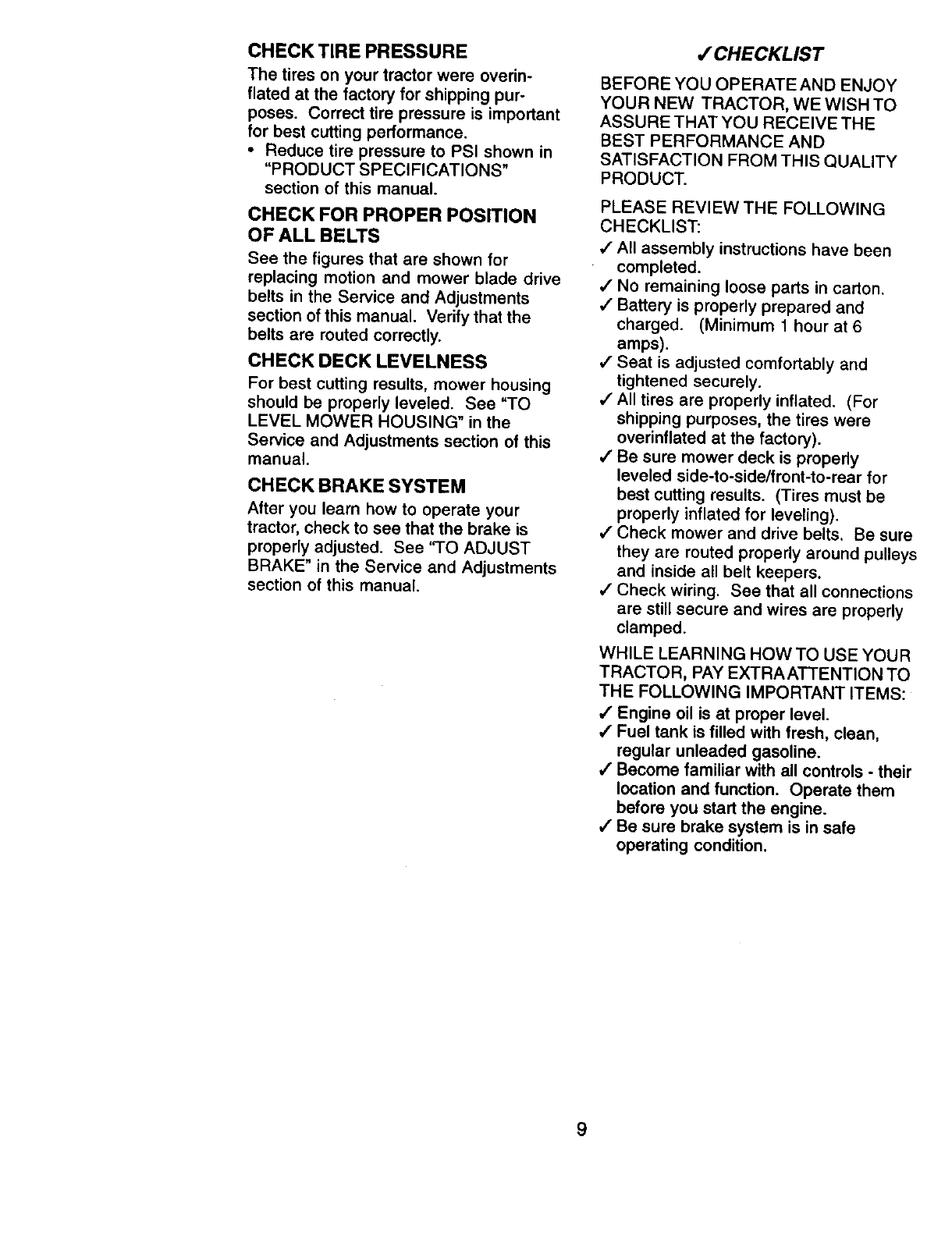

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping pur-

poses. Correct tire pressure is important

for best cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS"

section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK DECKLEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See 'q-O ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

/CHECKLIST

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND

SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

J Battery is properly prepared and

charged. (Minimum 1 hour at 6

amps).

#" Seat is adjusted comfortably and

tightened securely.

,I All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

/ Be sure mower deck is properly

leveled side-to-side/front-to-rear for

best cutting results. (Tires must be

properly inflated for level(ng).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys,

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

WHILE LEARNING HOWTO USE YOUR

TRACTOR, PAY EXTRAATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

4Become familiar with all controls - their

location and function. Operate them

before you start the engine.

•/Be sure brake system is in safe

operating condition.

9

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVERLIGHTTEMP I

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED

DANGER, KEEP HANDS AND FEET AWAY

(SEE SAFETY RULES SECTION)

FREE WHEEL

(Automatic Models only)

10

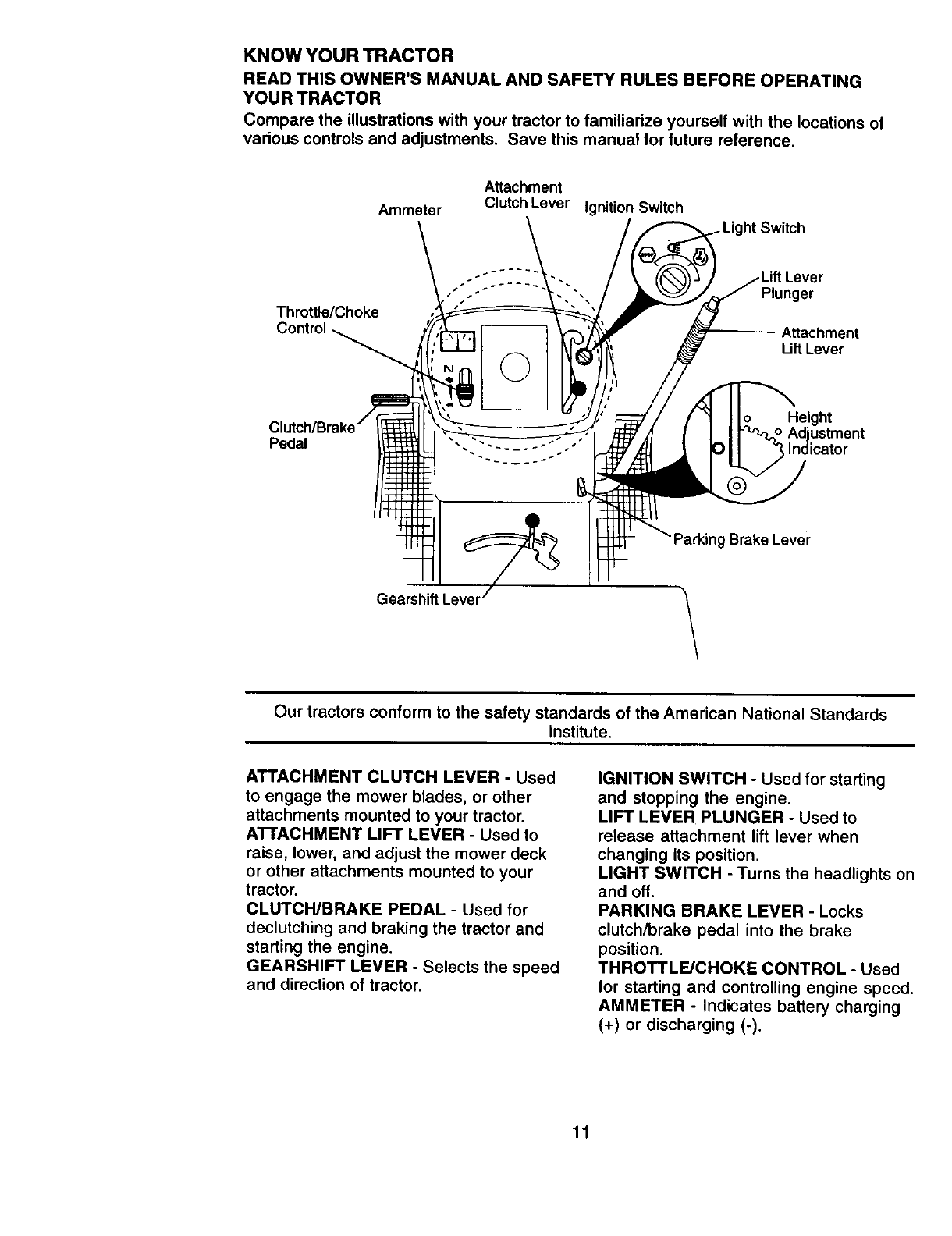

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manuat for future reference.

Attachment

Ammeter Clutch Lever Ignition Switch

Throttle/Choke Plunger

Attachment

LiftLever

Height

Adjustment

Indicator

Gearshift Lever/

Brake Lever

Our tractors conform to the safety standards of the American National Standards

Institute.

ATTACHMENT CLUTCH LEVER -Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATrACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting

and stopping the engine.

LIFT LEVER PLUNGER - Used to

release attachment lift lever when

changing its position.

LIGHT SWITCH - Turns the headlights on

and off.

PARKING BRAKE LEVER - Locks

clutch/brake pedal into the brake

position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

AMMETER - Indicates battery charging

(+) or discharging (-).

11

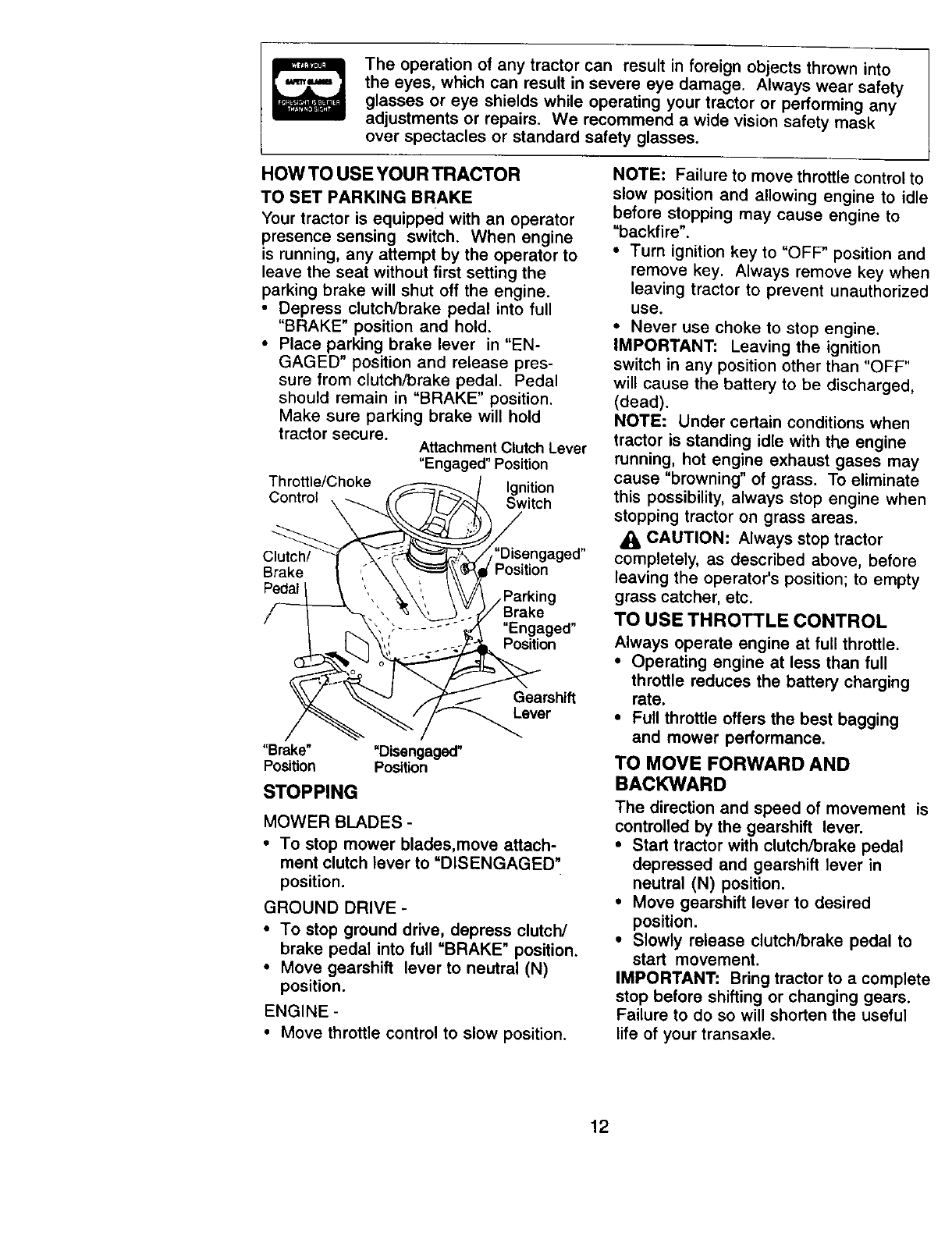

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask

over spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

•Depress clutch/brake pedal into full

"BRAKE" position and hold.

• Place parking brake lever in "EN-

GAGED" position and release pres-

sure from clutch/brake pedal. Pedal

should remain in "BRAKE" position.

Make sure parking brake will hold

tractor secure. Attachment Clutch Lever

"Engaged" Position

Throttle/Choke Ignition

Control _ Switch

/

Clutch/ "Disengaged"

Brake Position

Pedal

Brake

"Engaged"

jGearshift

Lever

"Bmke" "Disengaged"

Pos_on Po_on

STOPPING

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

•Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control t_

slow position and allowing engine to idl

before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF" position an

remove key. Always remove key whe

leaving tractor to prevent unauthorize_

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition

switch in any position other than "OFF"

will cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine whel

stopping tractor on grass areas.

CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

•Operating engine at less than full

throttle reduces the battery charging

rate.

•Full throttle offers the best bagging

and mower performance.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement i:

controlled by the gearshift lever.

•Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

• Move gearshift lever to desired

position.

• Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complet

stop before shifting or changing gears.

Failure to do so will shorten the useful

life of your transaxle.

12

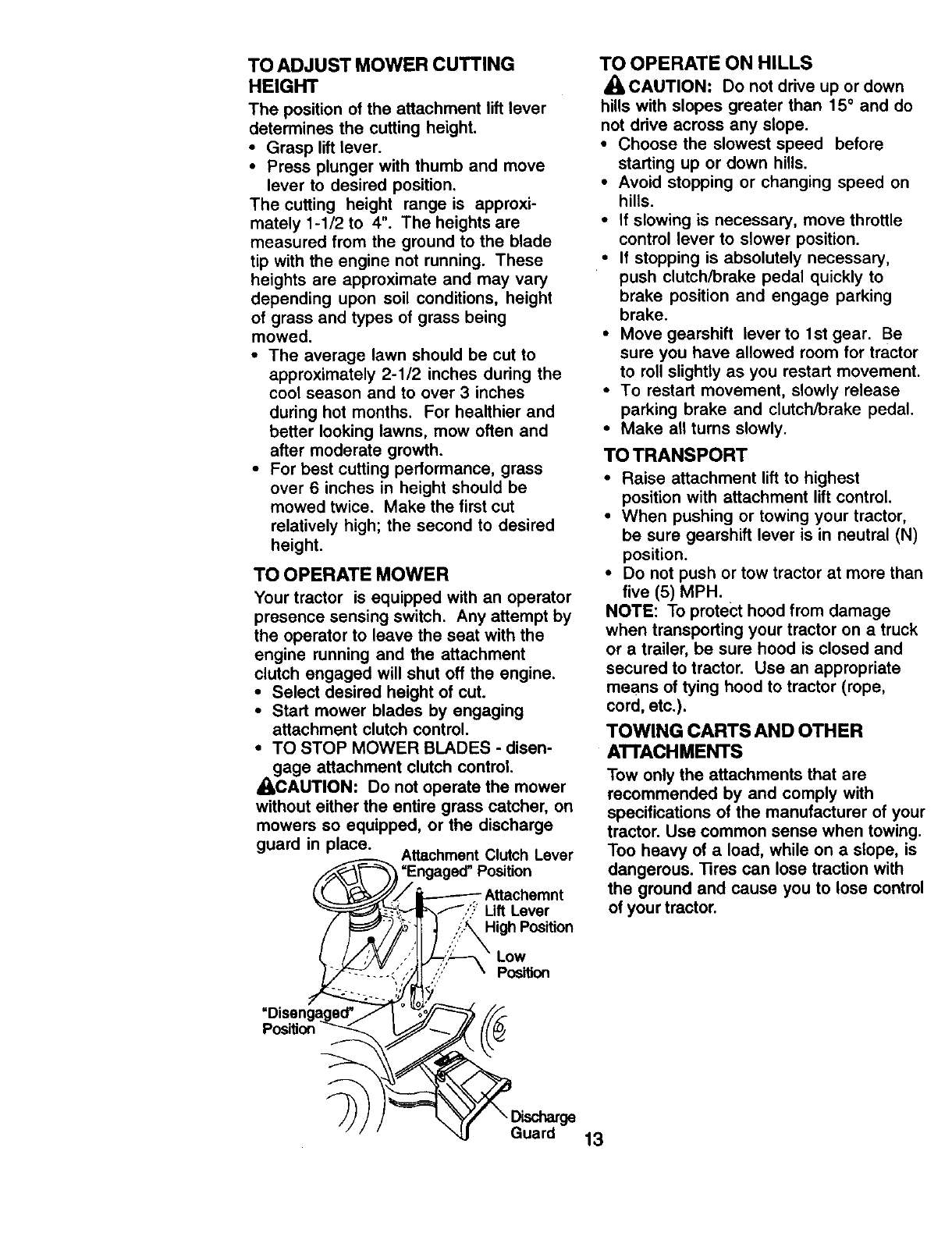

TO ADJUST MOWER CUTTING

HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

•Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height

of grass and types of grass being

mowed.

•The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment

clutch engaged will shut off the engine.

• Select desired height of cut.

• Start mower blades by engaging

attachment clutch control.

• TO STOP MOWER BLADES - disen-

gage attachment clutch control.

ACAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the discharge

guard in place.

__ Attachment Clutch Lever

_-'_"_ "Engaged" Position

(_ _'j./'x/'/ ---------Attachemnt

_- _,,_ _=_._,'i-:' Lift Lever

/_)_').,:'.%xkHig h P°siti°n

(,._/,"/V/,"" J'_,"_'_'LOW

]/ --_-----:-€_.,j, ,,_?' "_ Position

ulsengage i I "iF

TO OPERATE ON HILLS

,A CAUTION: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope.

•Choose the slowest speed before

starting up or down hills.

•Avoid stopping or changing speed on

hills.

•If slowing is necessary, move throttle

control lever to slower position.

•If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

•Move gearshift leverto 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

•Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest

position with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope,

cord, etc.).

TOWING CARTS AND OTHER

ATTACHMENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. 13res can lose traction with

the ground and cause you to lose control

of your tractor.

13

BEFORE STARTING THE ENIGNE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

•Check engine oil with tractor on level

ground.

• Remove oil fillcap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

•To change engine oil, see the Mainte-

nance section in this manual.

ADDGASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do

not mix oil with gasoline. Purchase

fuel in quantities that can be used

within 30 days to assure fuel fresh-

Bess.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use

fresh, clean winter grade gasoline to

help insure good cold weather starting.

WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions

for additional information. Never use

engine or carburetor cleaner products in

the fuel tank or permanent damage may

Occur.

_CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel

from the tank to the engine.

• Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

• Place gear shift lever in neutral (N)

position.

• Move attachment clutch to "DISEN-

GAGED" position.

• Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

• Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, move throttle control

to fast position, wait a few minutes and

try again. If engine still does not start,

move the threttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

• When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

• When engine starts, allow engine to

run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control to

fast position. This may require an

engine warm-up period from several

seconds to several minutes, depend-

ing on the temperature.

•The attachments can also be used

during the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32

F) the carburetor fuel mixture may need

to be adjusted for best engine pedor-

mance. See "TO ADJUST CARBURE-

TOR" in the Service and Adjustments

section of this manual.

14

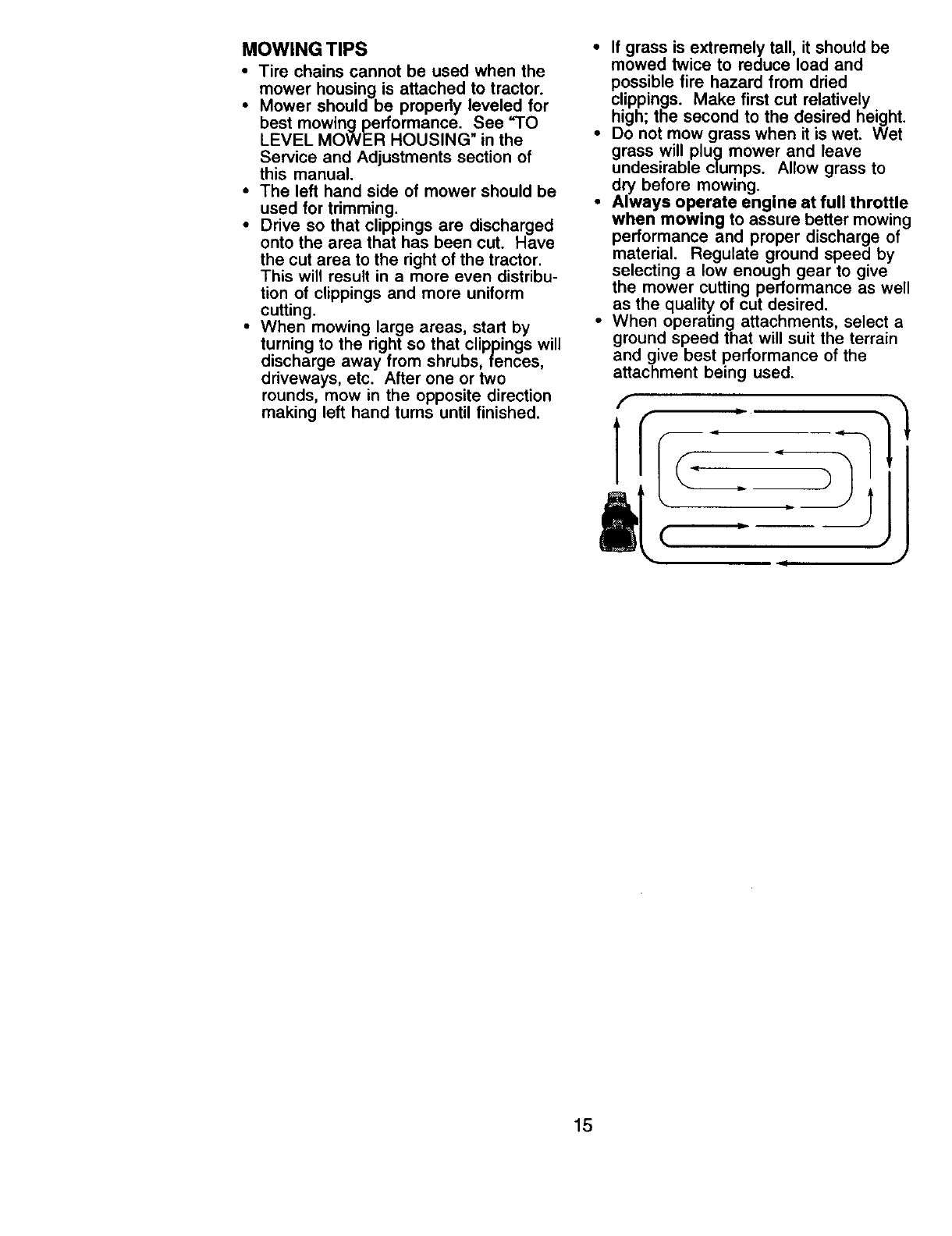

MOWING TIPS

•Tire chains cannot be used when the

mower housing is attached to tractor.

•Mower should be propedy leveled for

best mowing performance. See '3-0

LEVEL MOWER HOUSING" in the

Service and Adjustments section of

this manual.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

•When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

•If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried

clippings. Make first cut relatively

high; the second to the desired height.

•Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to

dry before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give

the mower cutting performance as well

as the quality of cut desired.

•When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

J

15

FiLL IN DATES

DATES

Check Brake Operation _V*

Check Tire PTeSSUTe

Check Operator Presence and

TInterlock Systems

R Check for Loose FaSteners ll_ ¥17 I_/

CA Sharpen/Replace Mower Blades i4

TLubrication Chad Ii_

0Check Battery Level

RClean Battery and Terminals

Check Transaxle Cooling II_

Adjust Blade Bait(s) Tension II_s

Adjust Motion Drive Belt(s) Tension II1_ I

Check Engine Oil Level V'

Change Engine Oil 1_1_2.: I1_

EClean Air Filter _/,:

NcleanAirScreen

GInspect MuffierlSpal_ Arrester

Replace Oil Filter (ff equipped) 11_1,2

E Clean Engine Cooling Fins I_2

Replace Spark Plug _2 V!

Replace Air Filter Paper Cadndge

Replace Fuel Fiker I_

1 - Chang• more omenwhen o@_'atinguttd_h"• heavy load or kl high art]blent lem_ralurU 5 * If aquipl:md wiffl adjuslable system.

2 - Serviz:e morn o(tt*n when operatir_g in dirty or dusty cor_ditions. 6 - Not requirmd il equipped wdh mai_tenaf_e_ree b,_ttery

3-tt equ_opedwith o_ I_er. ch,nge o_ _'ery 50 hours_ 7 - Tighten tK*nt Ix_e pivot bo_ to 35 tt 4_ya.maximum¸

4-Replace blades mo_e often when moving In sandy Joil. Do not overtightgn

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To

receive full value from the warranty,

operator must maintain tractor as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and

help your engine run better and last

longer.

BEFORE EACH USE

•Check engine oil level.

• Check brake operation.

•Check tire pressure.

•Check operator presence and

interlock systems for proper operation.

• Check for loose fasteners.

LUBRICATION CHART

_SZerk Zerk

OFront Wheel eel

Bearing Bearing Zerk

Zerk

_SAE OR 10W30 MOTOR OIL

_)REFER TO MAINTENANCE "ENGINE"

SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricatin_ bearings, If you feel

they must be lubncated, use only a dry,

powdered graphite type lubricant

16 sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be

adjusted. (See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or

insect control chemicals which can

harm rubber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

•The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in

the disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

•When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

•The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp, Replace bent or damaged

blades.

BLADE REMOVAL

•Raise mower to highest position to

allow access to blades.

•Remove hex bolt, lock washer and flat

washer securing blade.

• Install neW or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assem-

bly, center hole in blade must align with

star on mandrel assembly.

•Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

•Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated. Mandrel Assembly

Trailing Edge Up

Blade Center

Hole

Flat Washer,

Lock Washer

_-.--Hex Bolt (Grade)

"A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

•The blade can be sharpened with a

file or on agrinding wheel. Do not

attempt to sharpen while on the

mower.

•To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a

cone balancer. (When using a cone

balancer, follow the instructions

supplied with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

•Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain

in ahorizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

]lade

17 Center Hole

BATTERY

Your tractor has a battery charging

system which is suffiCisnt for nodal Use.

However, periodic charging of '_e battery

with an automotive charger will extend

its life.

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes Open.

•Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remOVe caps or

covers. Adding or checking level of

electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to =leak"

power.

•Open battery box door.

•Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

•Rinse the battery with plain water and

dry.

• Clean terminals and battery cable

ends with wire brush until bright.

•Coat terminals with grease or petro-

leum jelly.

• Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrictcooling,

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG, or

SH. Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSR_f GRADES

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check

the oil level.

18

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG or SH.

•Be sure tractor is on level surface.

•Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

• Remove drain plug.

•After oil has drained completely,

replace oil drain plug and tighten

securely.

•Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

•Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

_S_Oil Drain Plug

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating.

•Remove screws from blower housing

and lift housing and dipstick tube

assembly off engine.

• Cover oil fill opening to prevent entry

of dirt.

• Use compressed air or stiff bristle

brush to thoroughly clean engine

cooling fins.

•To reassemble, reverse above

procedure.

Scre_=Bloqwer Housing Screws

Assembly

• Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

• Reinstall cartridge, nut, precleaner,

cover and secure with knob(s).

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or

dry cartridge.

Cover Knob

Cover

Foam _ Cartddge

Pre-Cleaner _ut

"-J! _-Paper

Cartridge

-- Base

Plug

Engine Cooling Fins

AIR FILTER

Your engine will not run properly using a

dirty air filter. C_ean the foam pre-cleaner

after every 25 hours of operation or

every season. Service paper cartridge

every 100 hours of operation or every

season, whichever occurs first.

Service air cleaner more often under

dusty conditions.

• Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

•Stide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

•Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

• If very dirty or damaged, replace pre-

cleaner.

• Reinstall pre-cleaner over cartridge.

• Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

•Remove cartridge nut.

•Carefully remove cartridge to prevent

debris from entering carburetor. Clean

base carefully to prevent debris from

entering carburetor.

MUFFLER

Inspect and replace corroded muffler

and spark arrester (if equipped) as it

could create a fire hazard and/or

damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

19

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

•With engine cool, remove filter and

plug fuel line sections.

•Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

• Be sure there are no fuel line leaks

and clamps are properly positioned.

•Immediately wipe up any spilled

gasoline.

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a short-

ened engine life.

_,CAUTION: Before performing any service or adjustments:

• Depress clutch/brake pedal fulty and set parking brake.

•Place gearshift lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

•Turn ignition key "OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

• Place attachment clutch in "DISEN-

GAGED" position.

• Move attachment lift lever forward to

lower mower to its lowest position.

• Roll belt off engine pulley.

• Remove small retainer spring, and lift

clutch spring off pulley bolt.

• Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

• Disconnect anti-swaybar from chassis

bracket by removing retainer spring.

• Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

Small Retainer Spring

Clutch

• Disconnect front links from deck by

removing retainer springs.

• Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: if an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

•Raise attachment lift lever to its

highest position.

•Slide mower under tractor with

discharge guard to right side of tractor.

• Lower lift lever to its lowest position.

• Install mower in reverse order of

removal instructions.

Retainer S

Anti-Sway

Collar

Link

Retainer Springs

(Both Sides)

Housing Guide Bn

Large Retainer Spring

2O

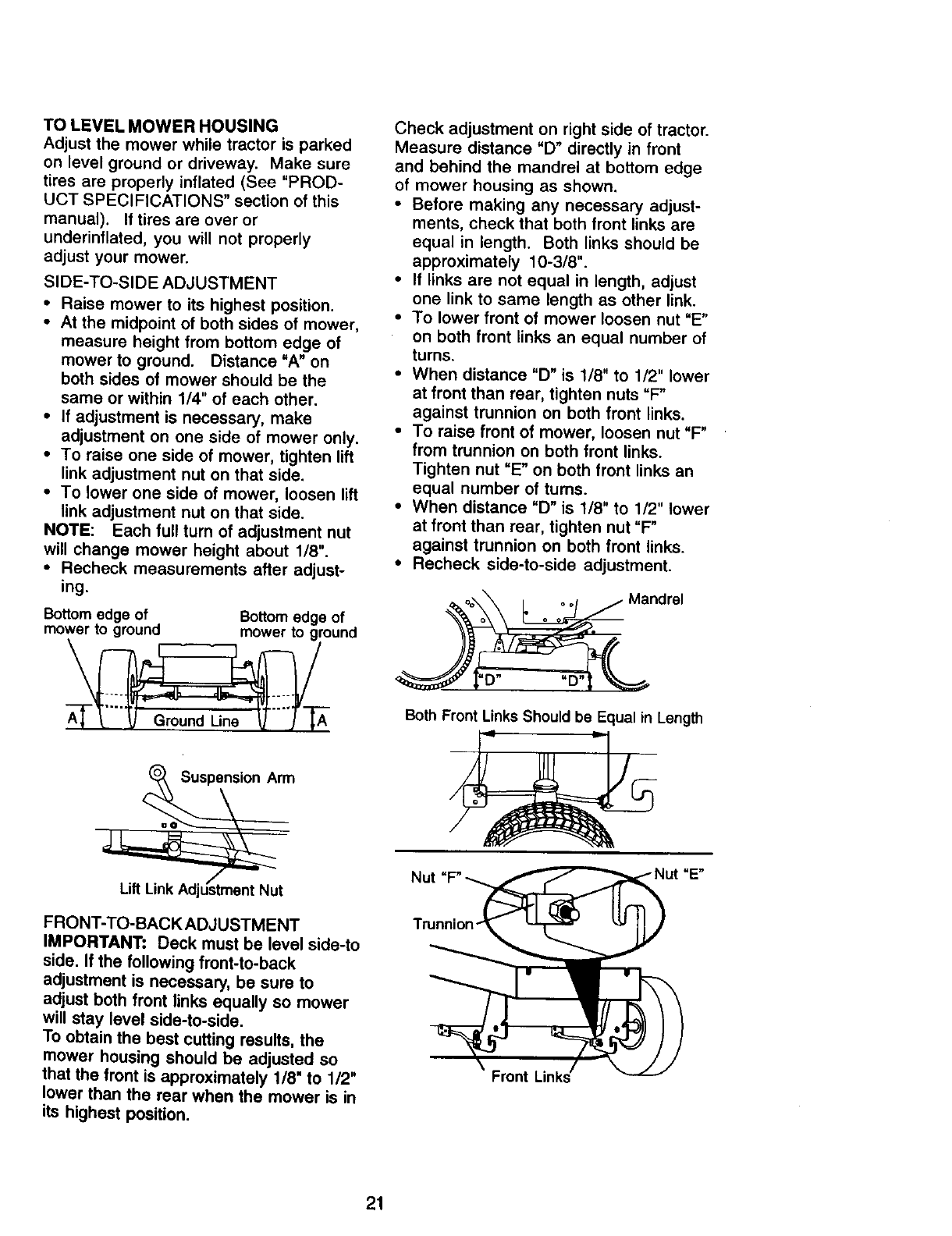

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

•Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

_ink adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 118".

• Recheck measurements after adjust-

ing.

Bottom edge of Bottom edge of

mower to ground mower to ground

Check adjustment on right side of tractor.

Measure distance "D" directly in front

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length. Both links should be

approximately 10-3/8".

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of tums.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F"

against trunnion on both front links.

• Recheck side-to-side adjustment.

Mandrel

Both Front Links Should be Equal in Length

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back

adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 112"

lower than the rear when the mower is in

its highest position.

r

Trunnion"

Front Links'

21

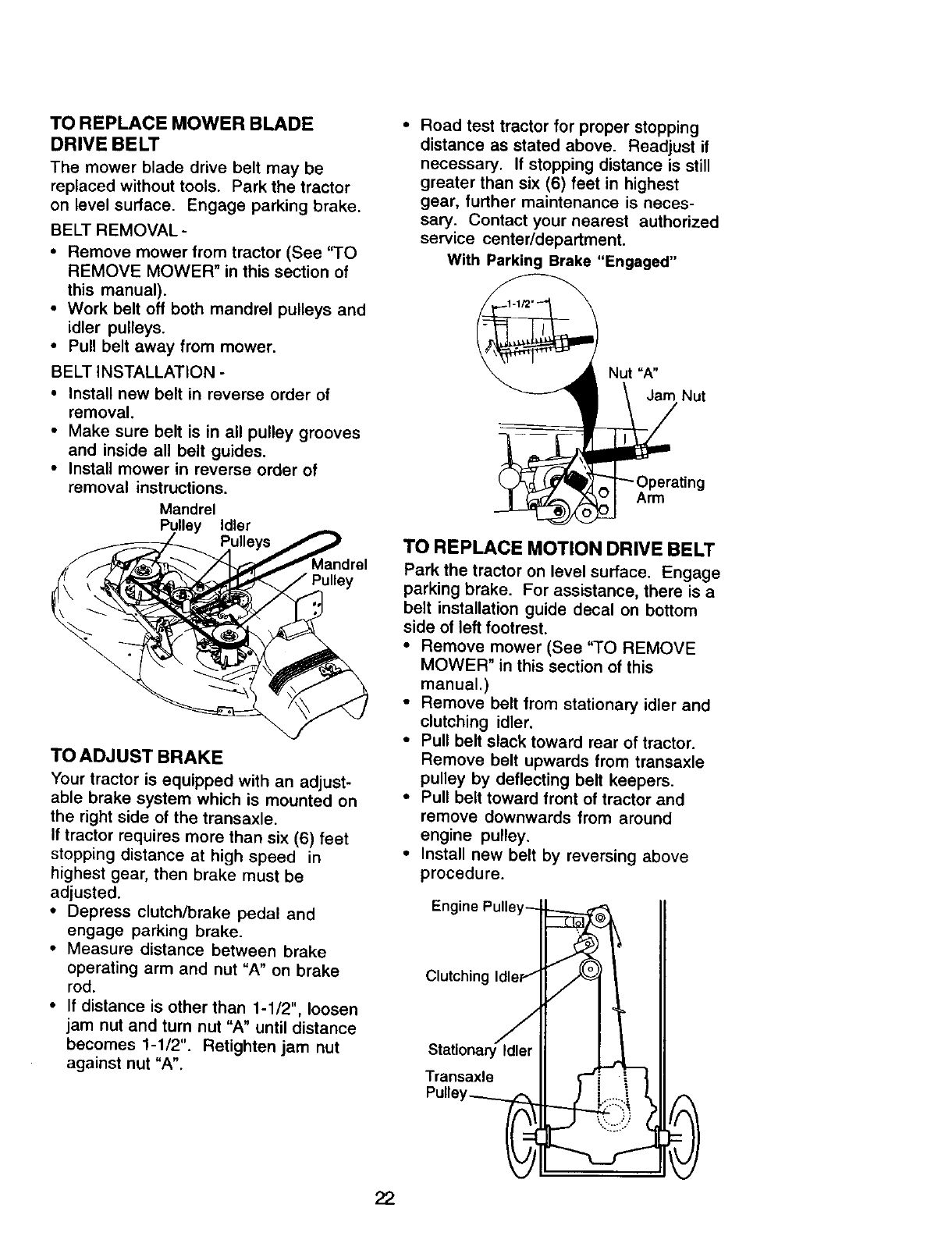

TO REPLACE MOWER BLADE

DRIVE BELT

The mower blade drive belt may be

replaced without tools. Park the tractor

on level sudace. Engage parking brake.

BELT REMOVAL-

•Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

this manual).

•Work belt off both mandrel pulleys and

idler pulleys.

•Pull belt away from mower.

BELT INSTALLATION -

•Install new belt in reverse order of

removal.

• Make sure belt is in all pulley grooves

and inside all belt guides.

• Install mower in reverse order of

removal instructions.

Mandrel

Pulley Idler

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be

adjusted.

• Depress clutch/brake pedal and

engage parking brake.

• Measure distance between brake

operating arm and nut "A" on brake

rod.

• It distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

• Road test tractor for proper stopping

distance as stated above. Readjust if

necessary, If stopping distance is stilt

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact your nearest authorized

service center/department.

With Parking Brake "Engaged"

m Nut "A'

_ating

_Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

•Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

•Remove belt from stationary idler and

clutching idler.

• Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

•Pull belt toward front of tractor and

remove downwards from around

engine pulley.

• Install new belt by reversing above

procedure.

Engine Pulley_

Clutching Idler/

Stationary Id_ler

Transaxle

Pulley_

22

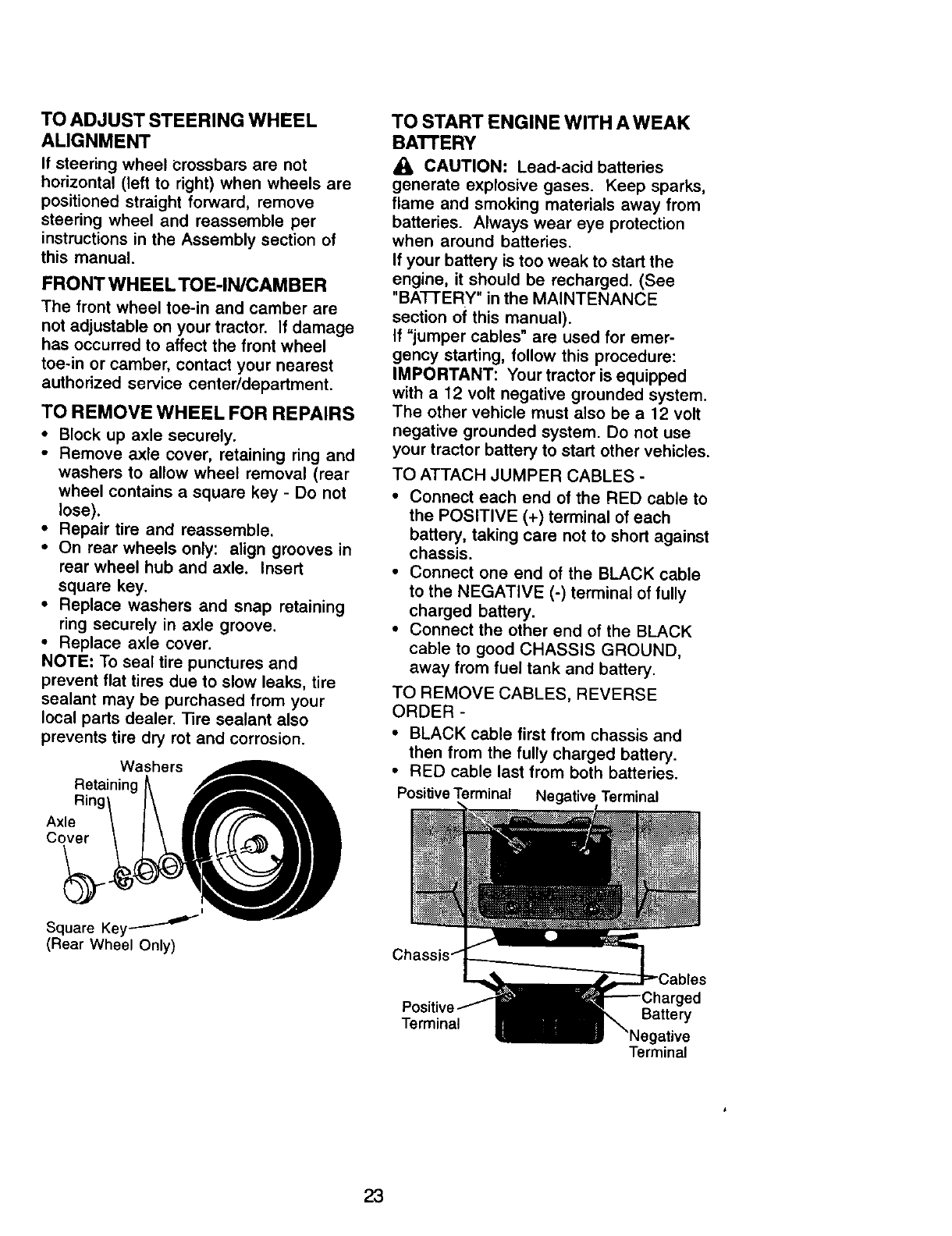

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel

toe-in or camber, contact your nearest

authorized service center/department.

TO REMOVE WHEEL FOR REPAIRS

•Block up axle securely.

• Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in

rear wheel hub and axle. Insert

square key.

• Replace washers and snap retaining

ring securely in axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

TO START ENGINE WITH A WEAK

BATTERY

CAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BA']-I'ERY" in the MAINTENANCE

section of this manual).

If "jumper cables" are used for emer-

gency starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt negative grounded system.

The other vehicle must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short against

chassis.

• Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

• Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

• BLACK cable first from chassis and

then from the fully charged battery.

• RED cable last from both batteries.

PositiveTerminal Negative Terminal

I

Square Key ---_

(Rear Wheel Only) Chass

Terminal Battery

Terminal

23

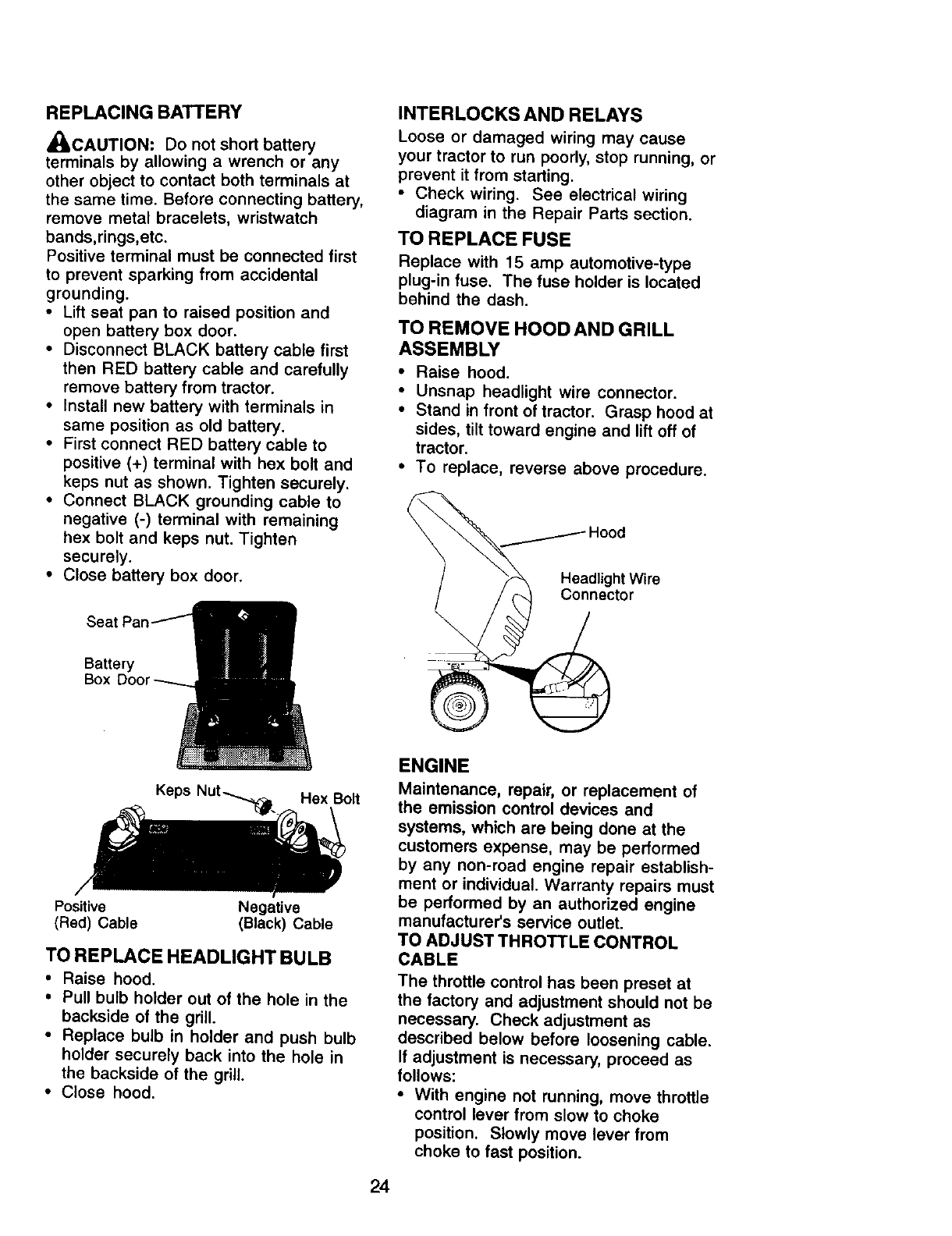

REPLACING BATTERY

_.CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

•Lift seat pan to raised position and

open battery box door.

•Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

• Install new battery with terminals in

same position as old battery.

• First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

• Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten

securely.

• Close battery box door.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACEFUSE

Replace with 15 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOODAND GRILL

ASSEMBLY

• Raise hood.

• Unsnap headlight wire connector.

•Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

•To replace, reverse above procedure.

Headlight Wire

Connector

Battery

Box

Hex Bolt

Positive Negative

(Red) Cable (Black) Cable

TO REPLACE HEADLIGHT BULB

• Raise hood.

•Pull bulb holder out of the hole in the

backside of the grill.

•Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

• Close hood.

ENGINE

Maintenance, repa;,r, or replacement of

the emission control devices and

systems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at

the factory and adjustment should not be

necessary. Check adjustment as

described below before loosening cable.

If adjustment is necessary, proceed as

follows:

•With engine not running, move throttle

control lever from slow to choke

position. Slowly move lever from

choke to fast position.

24

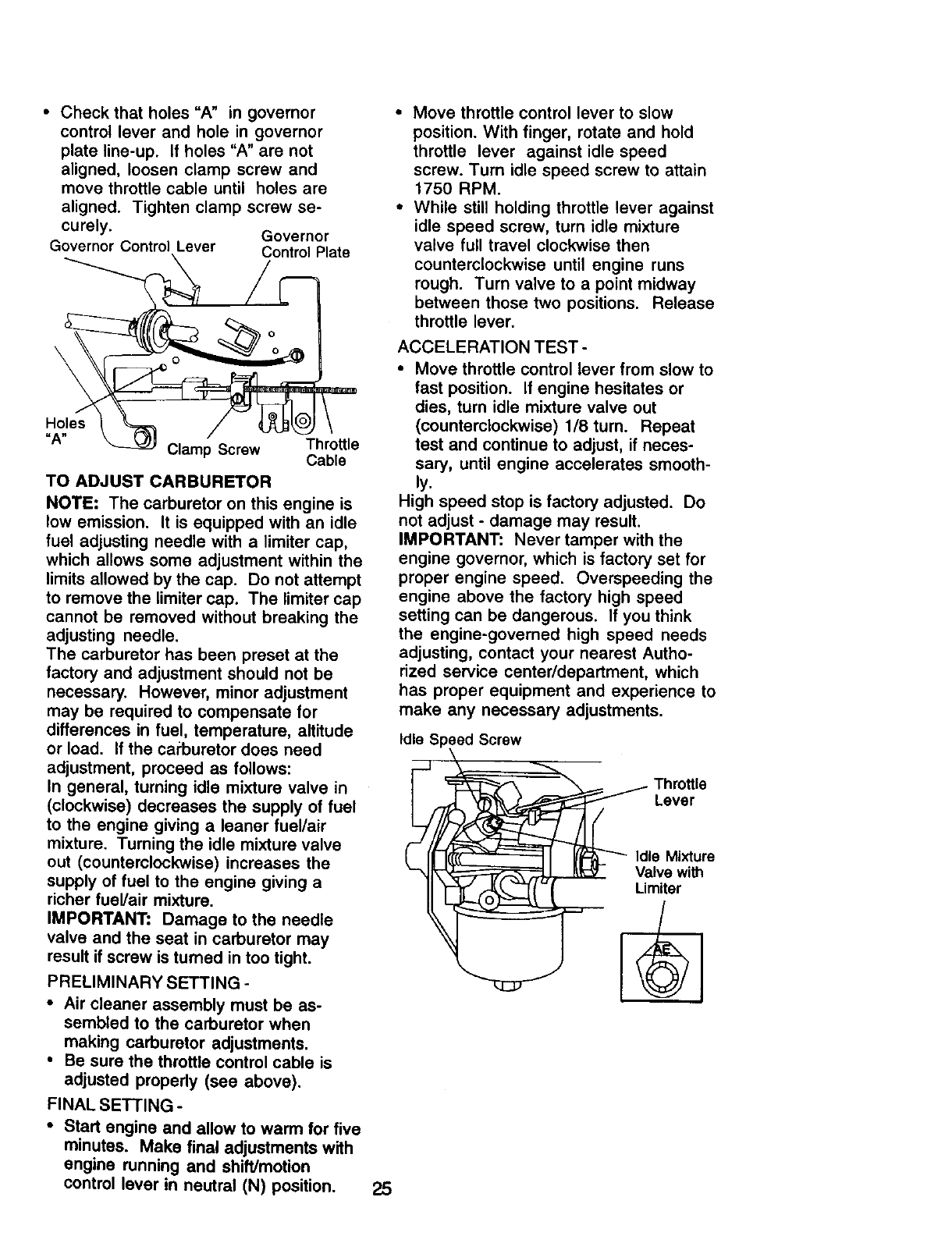

•Check that holes "A" in governor

control lever and hole in governor

plate line-up. If holes "A" are not

aligned, loosen clamp screw and

move throttle cable until holes are

aligned. Tighten clamp screw se-

curely. Governor

Governor Control Lever Control Plate

\

Clamp Screw Throttle

Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel

to the engine giving a leaner fuel/air

mixture. Turning the idle mixture valve

out (counterclockwise) increases the

supply of fuel to the engine giving a

richer fuel/air mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may

result if screw is turned in too tight.

PRELIMINARY SETTING -

•Air cleaner assembly must be as-

sembled to the carburetor when

making carburetor adjustments.

•Be sure the throttle control cable is

adjusted propedy (see above).

FINAL SETTING -

•Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

Move throttle control lever to slow

position. With finger, rotate and hold

throttle lever against idle speed

screw. Turn idle speed screw to attain

1750 RPM.

While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then

countemlockwise until engine runs

rough. Turn valve to a point midway

between those two positions. Release

throttle lever.

ACCELERATION TEST-

•Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle mixture valve out

(countemlockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates smooth-

ly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think

the engine-governed high speed needs

adjusting, contact your nearest Autho-

rized service center/department, which

has proper equipment and experience to

make any necessary adjustments.

Idle Speed Screw

Throttle

_ Lever

t[13 1 VRL -" IdleMixture

"_ F_ Valve with

25

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_IbCAUTION: Never store the tractor

with gasoline in the tank inside a

building where fumes may reach an

open flame or spark. Allow the engine to

cool before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

•Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

• Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

• Lubricate as shown in the Mainte-

nance section of this manual.

• Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BA'rrERY

•Fully charge the battery for storage.

•After a period of time in storage,

battery may require recharging.

•To help prevent corrosion and power

leakage during long periods of

storage, battery cables should be

disconnected and battery cleaned

thoroughly (see "TO CLEAN BATTERY

AND TERMINALS" in the Maintenance

section of this manual).

• After cleaning, leave cables discon-

nected and place cabtes where they

cannot come in contact with battery

terminals.

•It battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

_luUmdeposits from forming in essential

el system parts such as carburetor, fuel

filter fuel hose, or tank during storage.

Also, experience indicates that alcoho

blended fuels 9called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor

cleaner products in the fuel tank or

permanent damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

•Remove spark plug(s).

•Pour one ounce of oil through spark

plug hole(s) into cySnder(s).

•Turn ignition key to "START" position

for a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover it to give protection from

dust and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still

warm.

26

TROUBLESHOOTINGCHART

PROBLEM

Willnotstart

replace fuel filter.

Hard to start

Engine will not turn

over

Engine clicks but will

not start

CAUSE

•Out of fuel.

• Engine not "CHOKED"

properly.

•Engine flooded.

before attempting to star

•Bad spark plug.

• Dirty air filter.

• Dirty fuel filter.

• Water in fuel.

refill tank with fresh gas,

•Loose or damaged

wiring.

• Carburetor out of

adjustment.

section.

• Engine valves out of

adjustment.

• Dirty air filter.

• Bad spark plug.

• Weak or dead battery.

• Dirty fuel filter.

• Stale or dirty fuel.

fresh gasoline.

• Loose or damaged

wiring.

• Carburetor out of

adjustment.

section.

• Engine valves out of

adjustment.

• Clutch/brake pedal not

depressed.

•Attachment clutch is

engaged.

•Weak or dead battery.

•Blown fuse.

•Corroded battery

terminals.

•Loose or damaged

wiring.

•Faulty ignition switch.

•Faulty solenoid or

starter.

•Faulty operator

presence switch(es).

• Weak or dead battery.

•Corroded battery

terminals.

•Loose or damaged

wiring.

•Faulty solenoid or

starter.

CORRECTION

•Fill fuel tank.

•See "TO START ENGINE"

in Operation section.

•Wait several minutes

• Replace spark plug.

• Clean/replace air filter.

•Replace fuel filter.

•Drain fuel tank and carburetol

line and

•Check all wiring.

•See "To Adjust Carburetor"

in Service Adjustments

• Contact an authorized

service center/department.

• Clean/replace air filter.

•Replace spark plug.

•Recharge or replace battery.

•Replace fuel filter.

•Drain fuel tank and refill with

• Check all wiring.

• See "To Adjust Carburetor"

in Service Adjustments

• Contact an authorized

service center/department.

• Depress clutch/brake pedal,

•Disengage attachment

clutch.

• Recharge or replace battery.

•Replace fuse.

•Clean battery terminals.

• Check all wiring.

• Check/replace ignition switch.

• Check/replace solenoid or

starter.

•Contact an authorized

service center/department.

• Recharge or replace battery.

• Clean battery terminals.

• Check all wiring.

• Check/replace solenoid or

starter.

27

TROUBLESHOOTING CHART

PROBLEM

Lossofpower

Fuel filter.

Excessive vibration

Engine continues

to run when operator

leaves seat with

attachment clutch

engaged

Poor cut - uneven

Mower blades will not

rotate

CAUSE

•Cutting too much

grass/too fast.

•Throttle in "CHOKE"

position.

•Build-up of grass,

leaves and trash

under mower.

• Dirty air filter.

• Low oil level/dirty oil.

• Faulty spark plug.

spark plug.

•Dirty fuel filter.

•Stale or dirty fuel.

fresh gasoline.

• Water in fuel.

refill tank with fresh gasc

•Spark plug wire loose.

plug wire.

• Dirty engine air screen/

fins.

•Dirty/clogged muffler.

•Loose or damaged

wiring.

•Carburetor out of

adjustment.

section,

• Engine valves out of

adjustment.

• Worn, bent or loose

blade.

• Bent blade mandrel.

•Loose/damaged part(s).

Replace damaged parts.

• Faulty operator-safety

presence control

system.

service center/departmer

• Worn, bent or loose

blade.

•Mower deck not level.

•Buildup of grass,

leaves, and trash

under mower.

•Bent blade mandrel.

•Clogged mower deck

vent holes from buildup

of grass, leaves, and

trash around mandrels.

• Obstruction in clutch

mechanism.

•Worn/damaged mower

drive belt.

CORRECTION

• Set in "Higher Cut" position/

reduce speed.

•Adjust throttle control.

• Clean underside of mower

housing.

• Clean/replace air filter.

• Check oil level/change oil.

• Clean and regap or change

•Replace fuel filter.

• Drain fuel tank and refill with

Drain fuel tank and carburetor,

ne and replace

Connect and tighten spark

• Clean engine air screen/fins.

• Clean/replace muffler.

• Check all wiring.

• See "To Adjust Carburetor"

in Service Adjustments

• Contact an authorized

service center/department.

•Replace blade. Tighten

blade bolt.

•Replace blade mandrel.

•Tighten loose part(s).

• Check wiring, switches and

connections. If not corrected

contact an authorized

L

•Replace blade. Tighten

blade bolt.

•Level mower deck.

• Clean underside of mower

housing.

• Replace blade mandrel.

•Clean around mandrels to

open vent holes.

Remove obstruction.

•Replace mower drive belt.

28

TROUBLESHOOTING CHART

CAUSE

PROBLEM

Mower blades will not

rotate (Cont'n)

Poor grass discharge

Headlight(s) not

working (if so

equipped)

Battery will not charge

Engine "backfires"

when turning engine

"OFF"

• Frozen idler pulley.

• Frozen blade mandrel.

•Engine speed too slow,

position.

•Travel speed too fast.

•Wet grass.

mowing.

•Mower deck not level.

•Low/uneven tire air

pressure.

•Worn, bent or loose blade.

Tighten blade bolt.

•Buildup of grass, leaves

and trash under mower.

•Mower drive belt worn.

•Blades improperly

installed

•Improper blades used.

in this manual.

•Clogged mower deck

vent holes from buildup

of grass, leaves, and

trash around mandrels.

• Switch is "OFF".

• Bulb(s) burned out.

• Faulty light switch.

•Loose or damaged

wiring.

•Blown fuse.

• Bad battery cell(s).

•Poor cable connections.

•Faulty regulator (if so

equipped).

•Faulty altemator.

• Engine throttle control

not set at "SLOW"

position for 30 seconds

before stopping engine.

CORRECTION

•Replace idler pulley.

•Replace blade mandrel.

•Place throttle control in "FAST"

• Shift to slower speed.

,• Allow grass to dry before

•Level mower deck.

• Check tires for proper air

pressure.

•Replace/sharpen blade.

• Clean underside of mower

housing.

•Replace mower drive belt.

•Reinstall blades sharp edge

down.

•Replace with blades listed

• Clean around mandrels to

open vent holes.

• Turn switch "ON".

• Replace bulb(s).

• Check/replace light switch.

• Check wiring and connections

•Replace fuse.

•Replace battery.

•Check/clean all connections.

•Replace regulator.

•Replace alternator.

•Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

29

NOTES

30

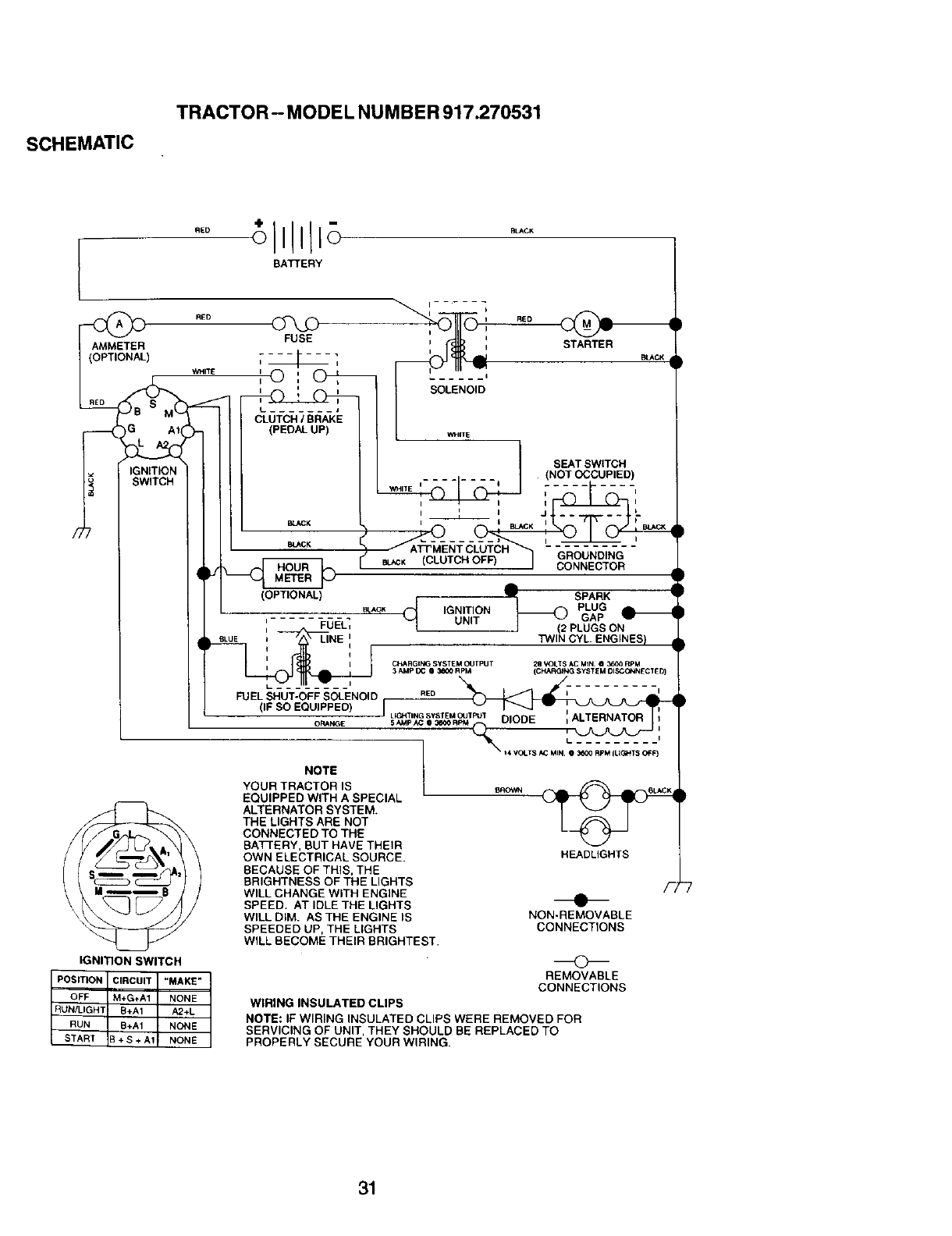

SCHEMATIC

TRACTOR- MODEL NUMBER 917.270531

RED

BATTERY

BLACK

_)Ak_M_ER

IGNITION

SWITCH

i..... /

STARTER

_!! BL_CK

...... I

SOLENC_D

SEAT SWITCH

(NOT OCCUPIED)

WHITE I ........ i

t

GROUNDING

___:x (CLUTCH OFF) CONNECTOR

A

(OPTIONAL) If SPARK

PLu°

BLACK IGNITION _-

iFUEL, UNIT GAP

J_PLUGS ON

iTWI CYL. ENGINES) d

I

L_ .I

FUEL SRUT-OFF SOLENC4D

(IF SO EQUIPPED)

ORANGE

CP_ARGtNG SYSTEM OUTPUT 28 VOLTS AC MIN Q _ RPM

3 AMp DC O 3800 RPM (CHARGING SYSTEM DISCONNEC 1E D)

LGN|T_ON SWITCH

POSITION CIRCUIT "MAKE*

OFF M+G+A1 NONE

RUN/UGH] B+A1 A2+L

RUN B+A1 NONE

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BAKERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE iS

SPEEDED UP, THE LtGHTS

WILL BECOME THEIR BRIGHTEST,

BROWN

HEADLIGHTS

F,

NON-REMOVABLE

CONNECTIONS

©

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR W_R_NG.

31

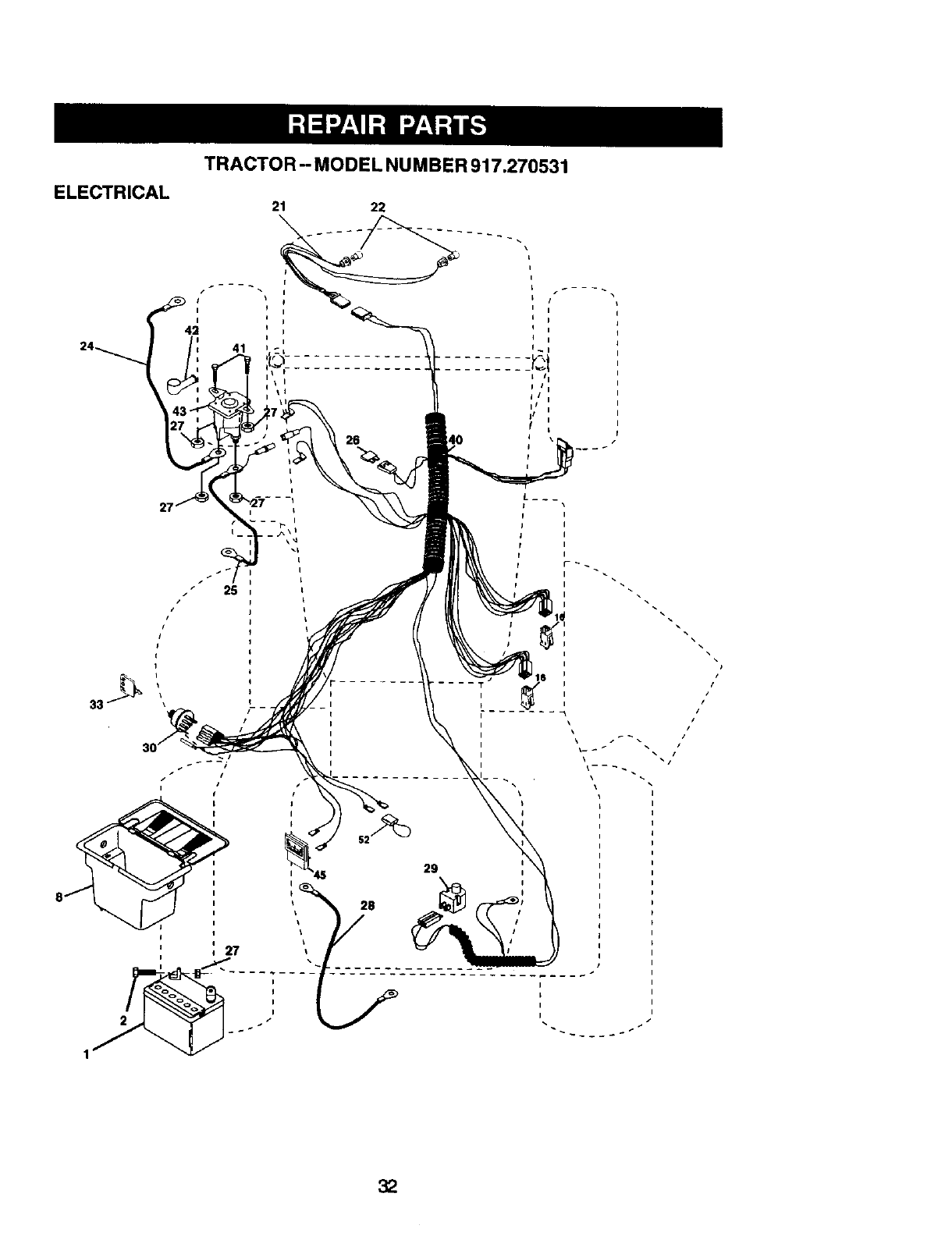

ELECTRICAL

TRACTOR - MODEL NUMBER 917.270531

21 22

41

29

I i

I/ i

I

J! i

IL

I

I

I

I

I

I

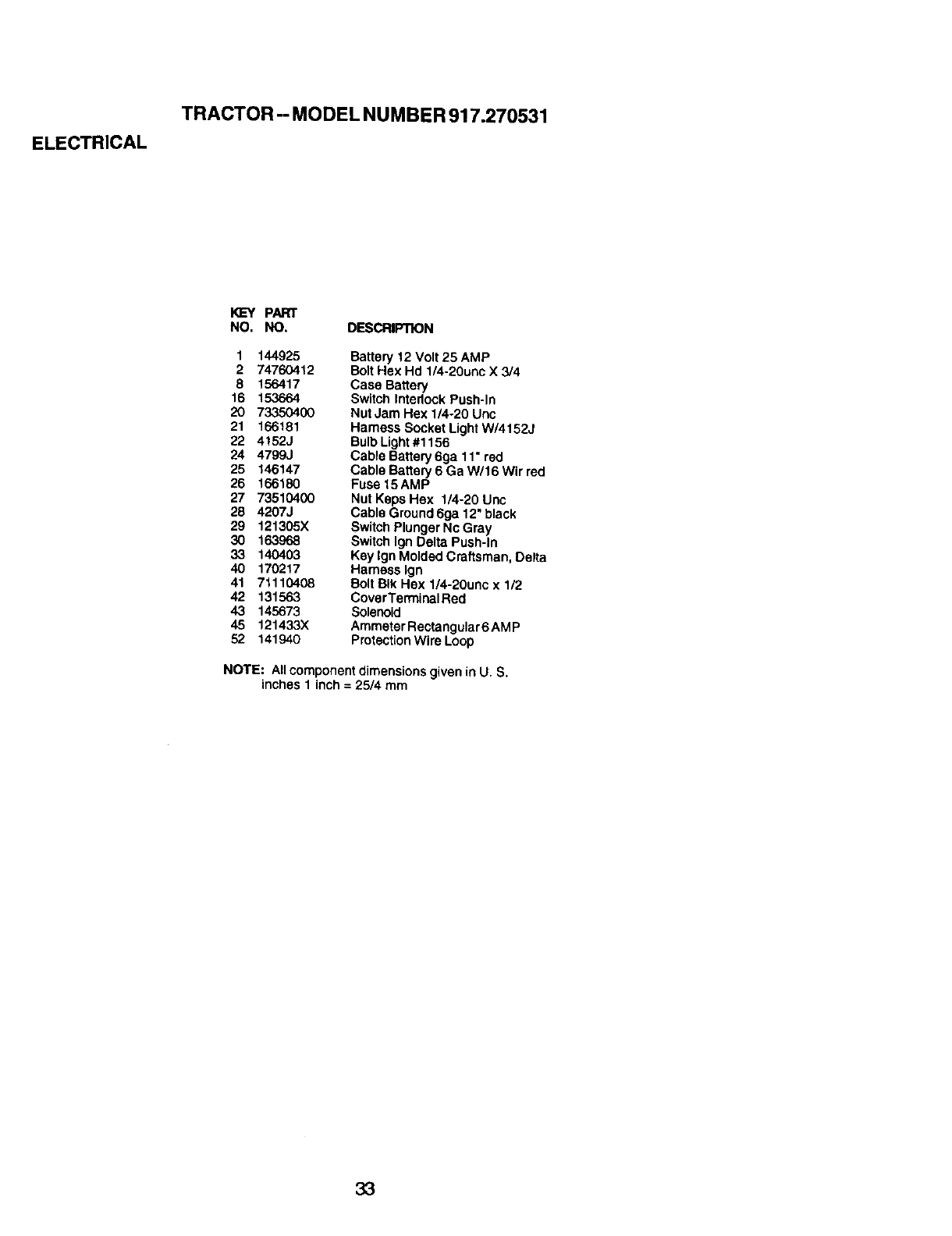

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.270531

KL=Y PAFrr

NO, NO. DESCRIPTION

1 144925

2 74760412

8156417

16 153664

20 73350400

21 166181

22 4152J

24 4799J

25 146147

26 166180

27 73510400

28 4207J

29 121305X

30 163968

33 140403

40 170217

41 71110408

42 131563

43 145673

45 121433X

52 141940

Battery 12 Volt 25 AMP

BoltHex Hd 1/4-20uno X 3/4

Case Battery

Switch Interlock Push-In

Nut Jam Hex 1/4-20 Uno

Harness Socket Light W/4152J

Bulb Light #1156

Cable Battery 6ga 11•red

Cable Battery 6 Ga W/16 Wir red

Fuse 15AMP

Nut Keps Hex 1/4-20 Unc

Cable Ground6ga 12" black

SwitchPlunger Nc Gray

SwitchIgn Delta Push-In

Key Ign Molded Craftsman, Delta

Harness Ign

Bolt BIk Hex 1/4-20uno x 1/2

CoverTerminalRed

Solenoid

AraraeterRectangular6 AM P

ProtectionWire Loop

NOTE: All component dimensions given in U. S.

inches 1 inch = 25/4 rata

33

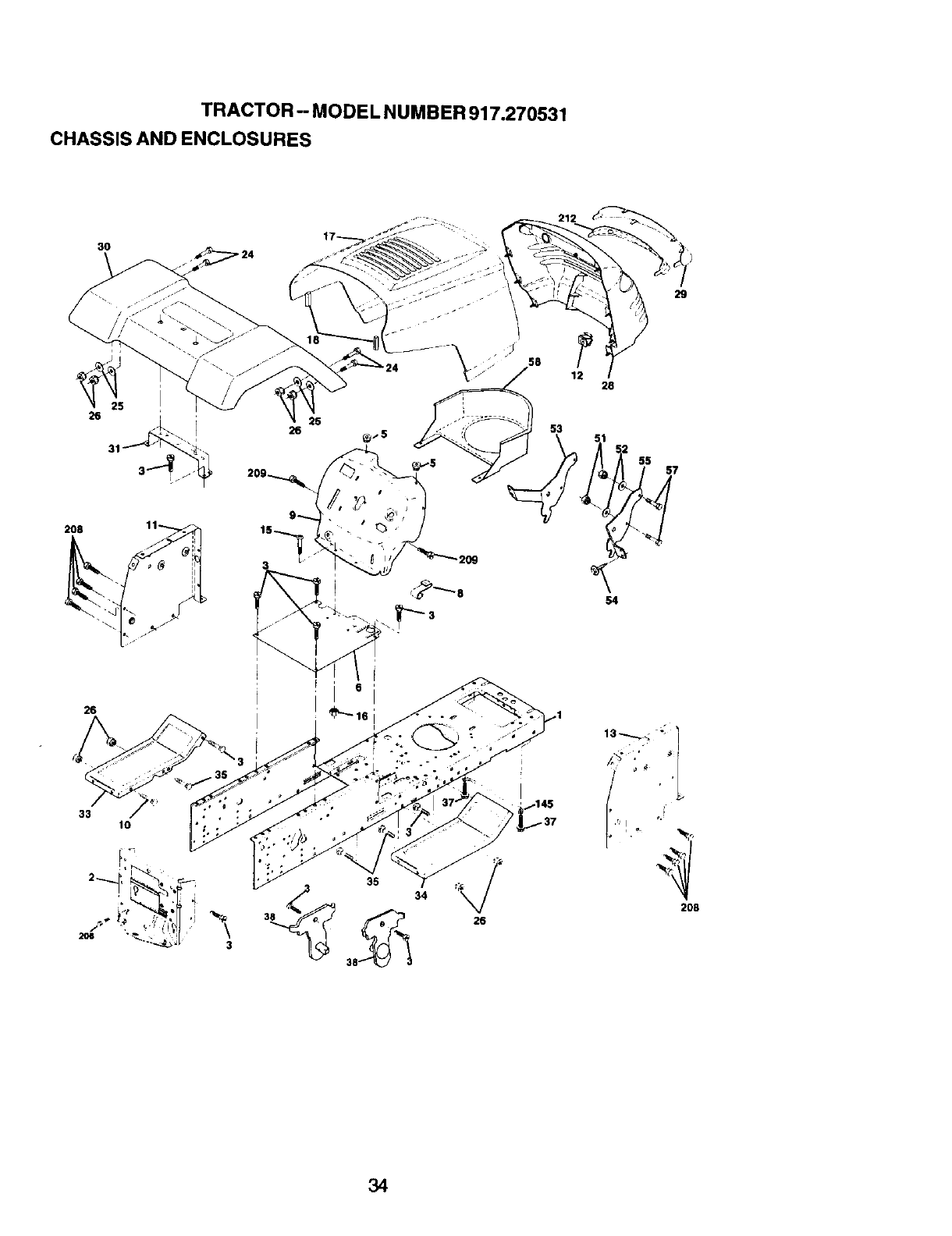

TRACTOR -- MODEL NUMBER 917.270531

CHASSIS AND ENCLOSURES

3O

212

29

2O8

26

33 10

2 I 35

38

26

P

12 26

53

54

34

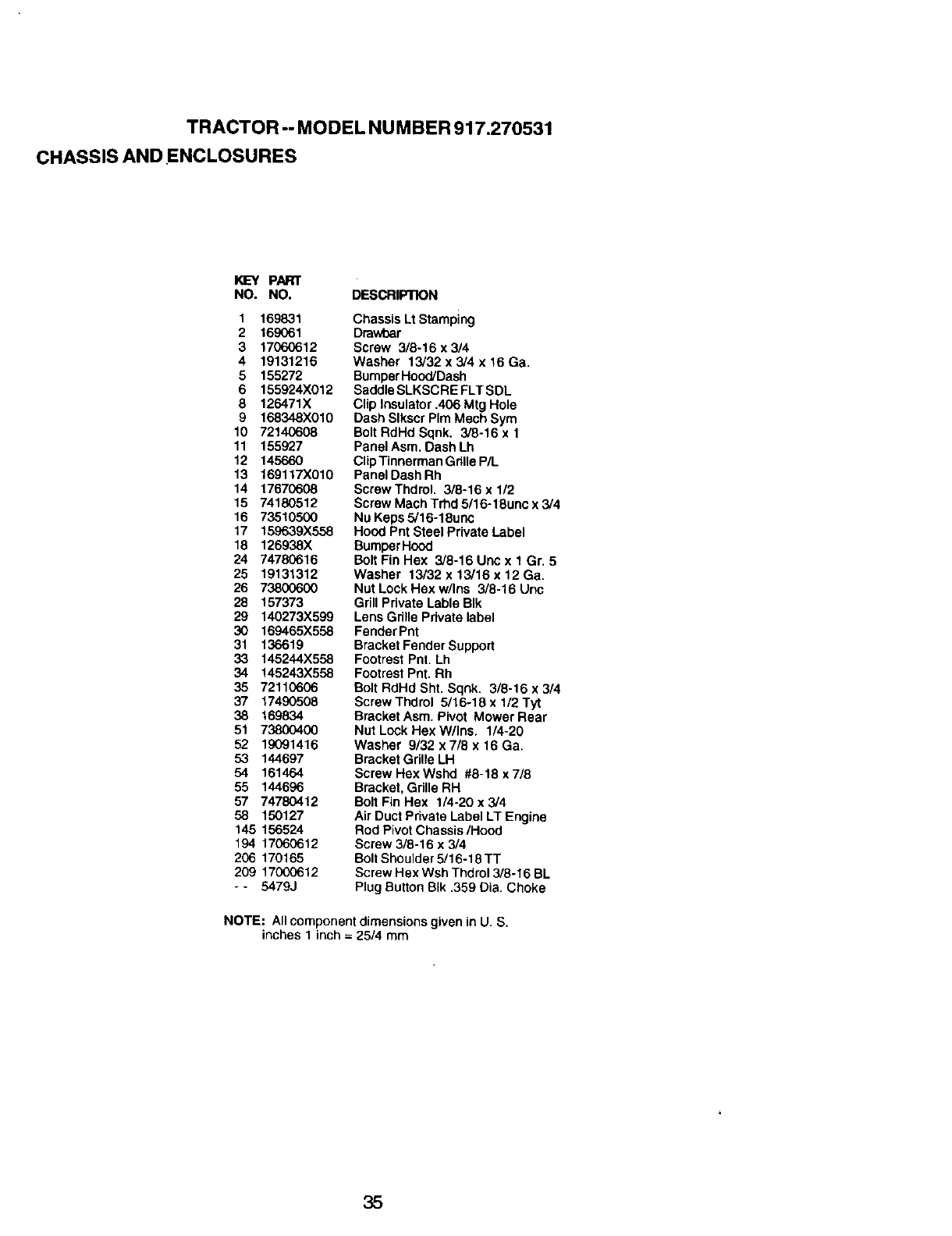

TRACTOR -- MODEL NUMBER 917.270531

CHASSIS AND ENCLOSURES

I<]EY PART

NO. NO. DESCRIPTION

1 169831

2 169061

3 17060612

419131216

5155272

6 155924X012

8 126471X

9 168348X010

10 72140608

11 155927

12 145660

13 169117X010

14 17670608

15 74180512

16 73510500

17 159639X558

18 126938X

24 74780616

25 19131312

26 73800600

28 157373

29 140273X599

30 169465X558

31 136619

33 145244X558

34 145243X558

35 72110606

37 17490508

38 169834

51 73800400

52 1_O91416

53 144697

54 161464

55 144696

57 74780412

58 150127

145 156524

194 17060612

206 170165

209 17000612

--5479J

Chassis Lt Stamping

Drawbar

Screw 3/8-16 x 3/4

Washer 13/32 x 3/4 x 16 Ga.

BumperHood/Dash

Saddle SLKSCRE FLT SDL

Clip Insulator .406 Mtg Hole

Dash Slkscr PIm Mech Sym

Bolt RdHd Sqnk. 3/8-16 x 1

Panel Asm. Dash Lh

ClipTinnerman Gdlle P/L

Panel Dash Rh

ScrewThdrol. 3/8-16 x 1/2

Screw Mach Trhd 5/16-18unc x 3/4

Nu Keps 5/16-18uoc

Hood Pnt Steel Private Label

BumperHood

Bolt Fin Hex 3/8-16 Uric x 1 Gr. 5

Washer 13/32 x 13/16 x 12 Ga.

Nut Lock Hex w/Ins 3/8-16 Uric

GrillPrivate Lable BIk

Lens Gdlle Private label

Fender Pnt

Bracket Fender Support

Footrest Pnt. Lh

Footrest Pnt. Rh

Bolt RdHd Sht. Sqnk. 3/8-16 x 3/4

Screw Thdrol 5/16-18 x 1/2 Tyt

Bracket Asm. Pivot Mower Rear

Nut Lock Hex W/Ins. 1/4-20

Washer 9/32 x7/8 x 16 Ga.

Bracket Grille LH

Screw Hex Wshd #8-18 x 7/8

Bracket, Grille RH

Bolt Fin Hex 1/4-20 x 3/4

Air Duct Private Label LT Engine

Rod Pivot Chassis/Hood

Screw 3/8-16 x 3/4

Bolt Shoulder 5/16-18 TT

Screw Hex Wsh Thdrol 3/8-16 BL

Plug Button BIk .359 Dia. Choke

NOTE: Allcomponent dimensions given in U. S.

inches 1inch =25/4 mm

35

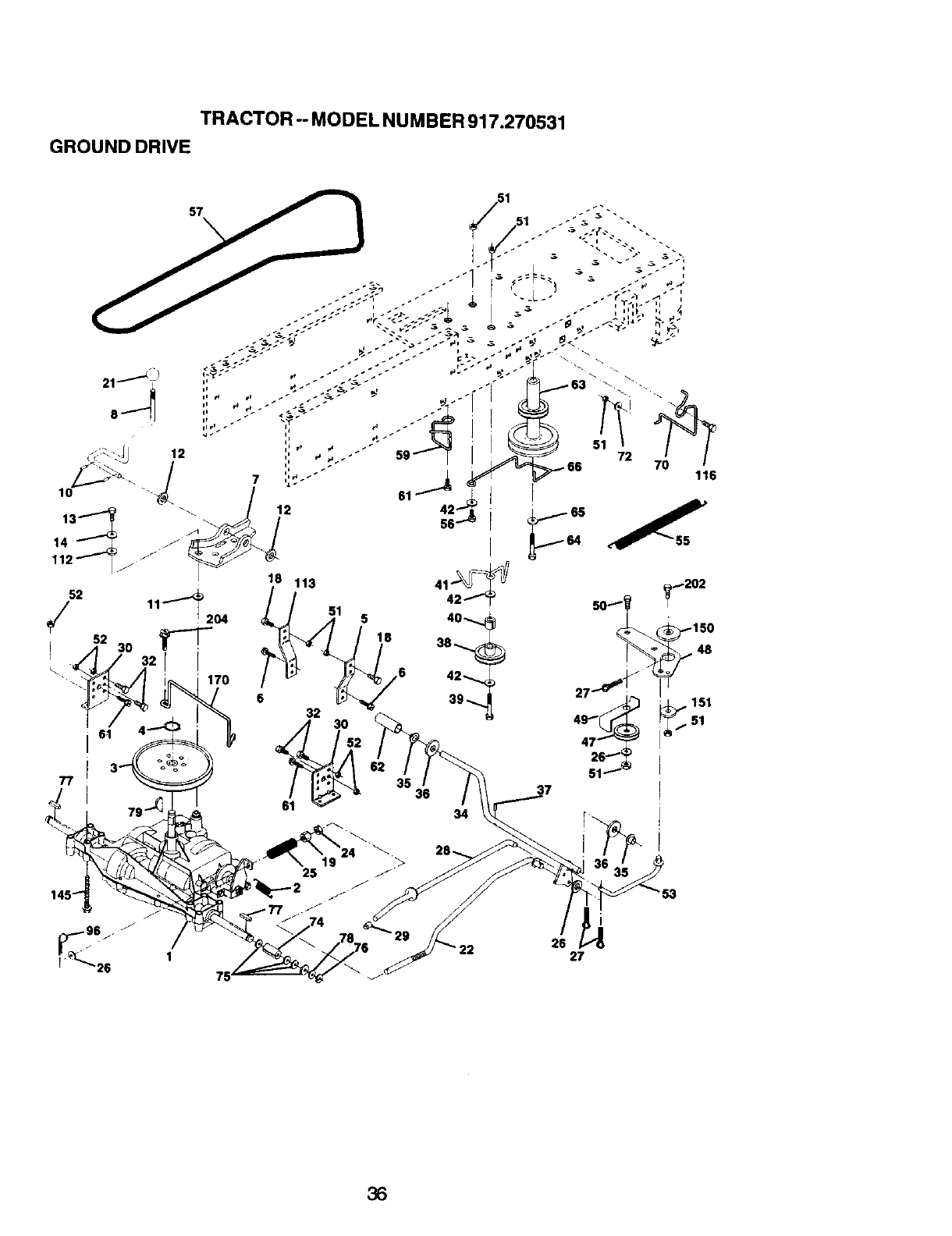

TRACTOR -- MODEL NUMBER 917.270531

GROUND DRIVE

18

,6

6

61 v

25

36 37

34

26 27

36

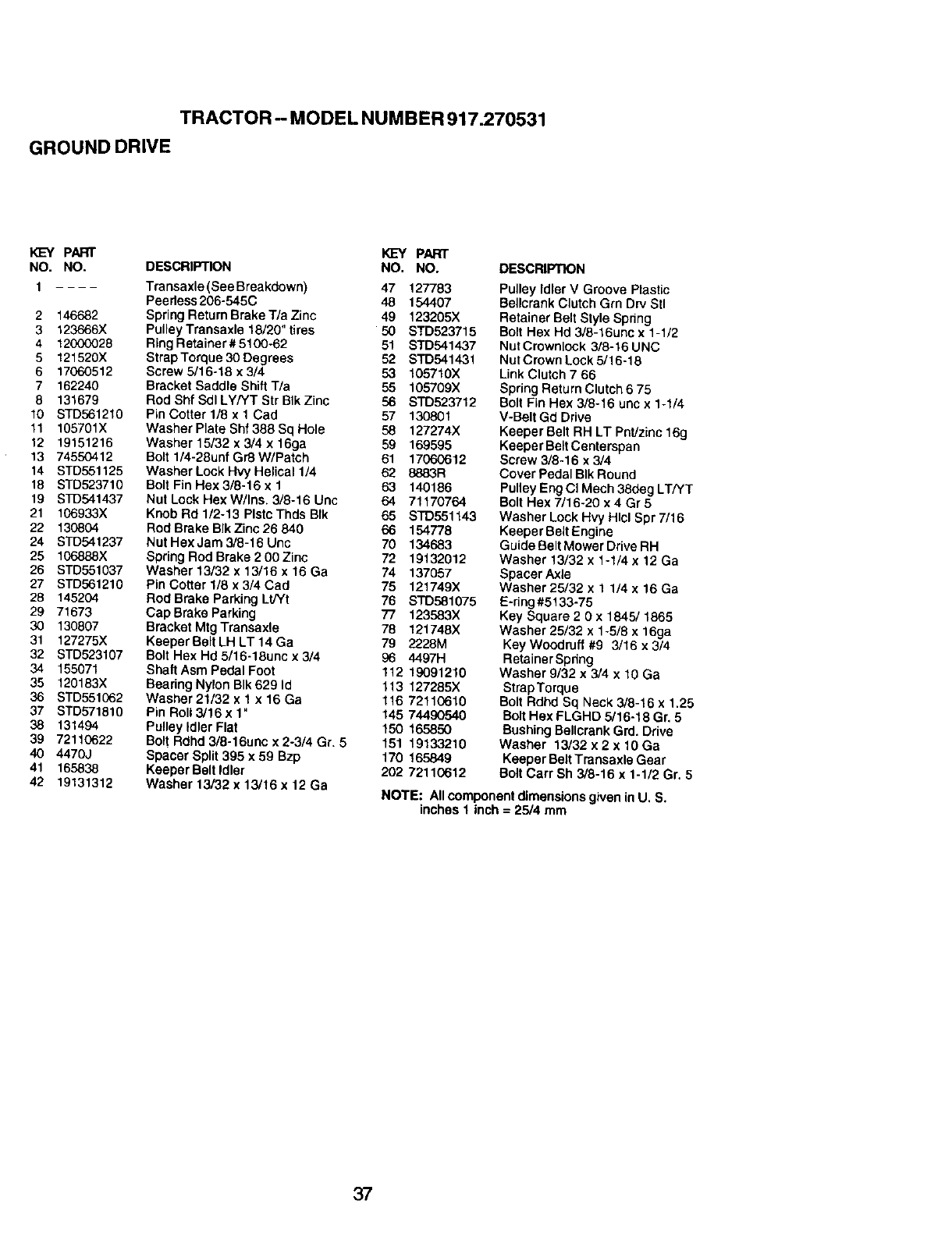

TRACTOR -- MODEL NUMBER 917.270531

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1Transaxle (See Breakdown) 47 127783

Peerless206-545C 48 154407

Spring Return Brake T/a Zinc 49 123205X

PulleyTransaxle 18/20" tires 50 STD523715

Ring Retainer # 5100-62 51 STD541437

StrapTorque 30 Degrees 52 STD541431

Screw 5/16-18 x 3/4 53 105710X

Bracket Saddle Shift T/a 55 105709X

Rod Shf Sdl LY/YT Str BIk Zinc 56 STD523712

Pin Cotter 1/8 x 1 Cad 57 130801

Washer Plate Shf 388 Sq Hole 58 127274X

Washer 15/32 x 3/4 x 16ga 59 169595

Bolt 1/4-28unf Gr8W/Patch 61 17060612

Washer Lock Hvy Helical 1/4 62 8883R

Bolt Fin Hex 3/8-16 x 1 63 140186

Nut Lock Hex W/Ins. 3/8-16 Uric 64 71170764

Knob Rd 1/2-13 Plstc Thds BIk 65 STD551143

Rod Brake BIk Zinc 26 840 66 154778

Nut Hex Jam 3/8-16 Unc 70 134683

Spring Rod Brake 2 00 Zinc 72 19132012

Washer 13/32 x 13/16 x 16 Ga 74 137057

Pin Cotter 1/8 x 3/4 Cad 75 121749X

Rod Brake Parking Lt/Yt 76 S'rD581075

Cap Brake Parking 77 123583X

Bracket Mtg Transaxle 78 121748X

Keeper Belt LH LT 14 Ga 79 2228M

Bolt Hex Hd 5/16-18unc x 3/4 96 4497H

Shaft Asm Pedal Foot 112 19091210

Beadng Nylon BIk 629 Id 113 127285X

Washer 21/32 x 1 x 16 Ga 116 72110610

Pin Roll 3/16 x 1" 145 74490540

Pulley idler Flat 150 165850

Bolt Rdhd 3/8-16unc x 2-3/4 Gr. 5 151 19133210

Spacer Split 395 x 59 Bzp 170 165849

Keeper Belt idler 202 72110612

Washer 13/32 x 13/16 x 12 Ga

2 146682

3123666X

4 12000028

5 121520X

617060512

7 162240

8 131679

10 STD561210

11 105701X

12 19151216

13 74550412

14 STD551125

18 STD523710

19 STD541437

21 106933X

22 130804

24 STD541237

25 106888X

26 STD551037

27 STD561210

28 145204

29 71673

3O 130807

31 127275X

32 STD523107

34 155071

35 120183X

36 STD551062

37 STD571810

38 131494

39 72110622

40 4470J

41 165838

42 19131312

Pulley Idler V Groove Plastic

BellcrankClutch Gm Dry Stl

Retainer Belt Style Spdng

Bolt Hex Hd 3/8-16unc x 1-1/2

Nut Crownlock 3/8-16 UNC

Nut Crown Lock 5/16-18

Link Clutch 7 66

Spring Return Clutch 6 75

Bolt Fin Hex 3/8-16 unc x 1-1/4

V-Belt Gd Drive

Keeper Belt RH LT Pnt/zinc 16g

Keeper Belt Centerapan

Screw 3/8-16 x 3/4

Cover Pedal BIk Round

Pulley Eng C] Mech 38deg LT/YT

Bolt Hex 7/16-20 x 4 Gr 5

Washer Lock Hvy Hlcl Spr 7/16

Keeper Belt Engine

Guide Belt Mower Drive RH

Washer 13/32 x 1-1/4 x 12 Ga

Spacer Axle

Washer 25/32 x 1 1/4 x 16 Ga

E-dng #5133-75

Key Square 2 0 x 1845/1865

Washer 25/32 x 1-5/8 x 16ga

Key Woodruff #9 3/16 x 3/4

Retainer Spring

Washer 9/32 x 3/4 x 10 Ga

StrapTorque

Bolt Rdhd Sq Neck 3/8-16 x 1.25

Bolt Hex FLGHD 5/16-18 Gr, 5

Bushing Bellcrank Grd. Drive

Washer 13/32 x 2x 10 Ga

Keeper Belt Transaxle Gear

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5

NOTE: Allcomponent dimensions given inU. S.

inches 1 inch = 25/4 mm

37

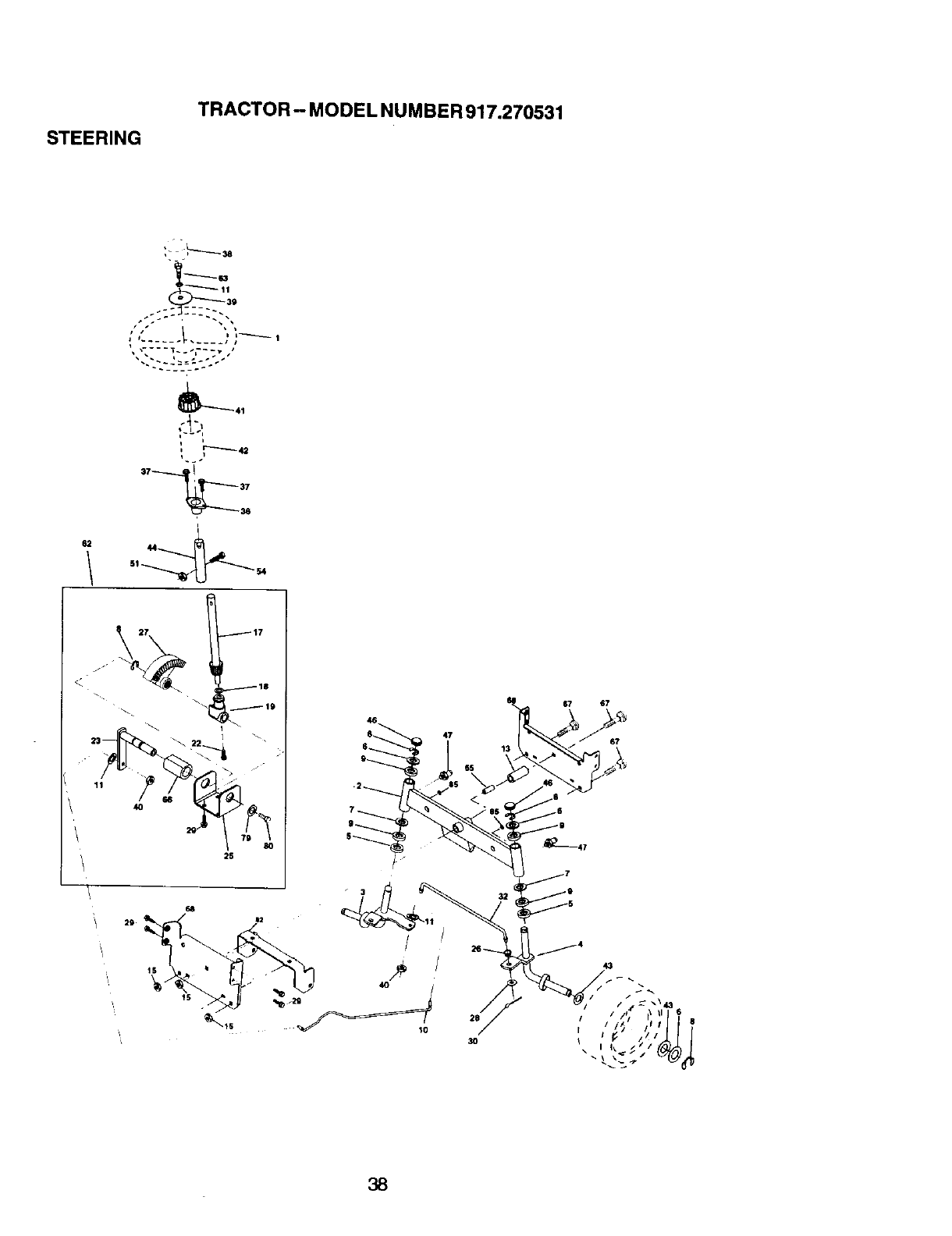

STEERING

TRACTOR - MODEL NUMBER 917.270531

1

_.. I r'_'l_

i

Sl 54

2S

46

IS

t5

10

47

3O

67 67

67

L47

:38

STEERING

TRACTOR -MODEL NUMBER 917.270531

K_'Y PAR'r

NO. NO. DESCRIPTION

1 139768

2 154427

3169840

4 169839

56266H

6 121748X

7 19272016

8 12000029

9 3366R

10 169832

11 10040600

13 136518

15 145212

17 156546

18 57079

19 160395

22 165857

23 165851

25 154406

26 126847X

27 136874

28 19131416

29 17060612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133812

40 78101-1

41 100711L

42 145054X428

43 121749X

44 153720

46 121232X

47 6855M

51 73800500

54 74780520

62 167902

63 74780616

65 160367

66 1544O4

67 72110618

68 169827

79 19132012

80 74950612

82 169835

85 133835

Wheel Steedng Opp Sears BIk

Axle Asm Front Lt

Spindle Asm Lh

SpindleAsm Rh

Washer Thrust ,75 x 1.230

Washer 25/32 x 1-5/8 x 16 Ga.

Washer 27/32 x 1-1/4 x 16 Ga.

RingKlip#T5304-75

Beadng Col Strg BIk

Draglink

Washer Lock Hvy Hlcl Spr 3/8

Spacer Brg Axle Front

Nut Hexflange Lock

Shaft Asm Strg

Washer Thrust .515 x .750 x.033

Support Shaft

Screw Hex Wsh Hd Torx

Shaft Asm Pitman

Bracket Steering

BushingLink Drag BIk LR

Gear Sector 22 Teeth

Washer 13/32 x 7/8 x 16 Ga.

Screw 3/8-16 x 3/4

Pin Cotter 1/8 x 3/4 Cad

Rod Tie Wire Form 19,75 Mech

Bushing Strg. 5/8 ID Dash

Screw

Cap Wheel Steer Opp Sears USA

Washer 13/32 x 2-3/8 x 12 Ga.

Nut LockCenter 3/8-24

AdaptorWheel Strg.

Boot Steering Dash P/L MTL BIk

Washer 25/32 x 1-1/4 x 16 Ga.

Extension Steering Non-adjust

Cap Spindle FrTop BIk

Fitting Grease

Nut Lock Hx W/Ins 5/16-18unc

Bolt Fin Hex 5/16-18unc

Steering Assembly

Bolt Fin Hex 3/8-16unc x 1 Gr, 5

Spacer Axle

Bearing Arm Pittman

Bolt Rdhd Sqnk 3/8-16 x 2-1/4

Brace Axle

Washer 13/32 x 1-1/4 x 12 Ga

Bolt Hex NyIQn 3/8-16 x 3/4

Bracket Susp Chasis Front

FastnerChristmasTree

NOTE: All component dimensions given in U, S.

inches 1inch = 25/4 mm

39

ENGINE

TRACTOR - MODE L NUMBER 917.270531

33

33

29

OPTIONAL EQUIPMENT [

Spark Arrester

81

38 78

4

4O

ENGINE

TRACTOR-- MODEL NUMBER 917.270531

KEY PART

NO. NO. DESCRIPTION

1 162157

2"_7720410

3 .......

4 137352

13 165291

14 13280324

15 13200300

16 STD551237

23 169837

29 137180

31 109202X

32 158990

33 123487X

37 137040

38 .......

40 124028X

44 17490412

45 17060612

46 19091416

62 STD551131

72 71070512

78 17060620

81 128861

Control Th/ch LH IV 1 80 20 22

Screw Hex Thd Cut 1/4-20x5/8 3"

Engine(See Breakdown)

Briggs,ModelNo 287707-1255-E3

Muffler Exh LTB&S t4HP IC OHV

Gasket Eng 1 313 Id Tin Plated

Nipple Pips 3/8 Npt x 3"

Elbow Std 90 Degree 3/8-18 Npt

Washer Lock Ext Tooth 3/8

ShieldBrowning/DebrisGuard

Kit Spark Arrestor(F_at Scm)

Tank Fuel Front 125

Cap Asm Fuel Sears Vented

Clamp Hose BIk

Line Fuel 20"

Plug Oil Drain

(See Engine Breakdown)

BushingSnap Nyl BIk Fuel Line

Screw Hexwsh Thdrol 1/4-20 x 3/4

Screw 3/8-16 x 3/4

Washer 9i32 x 7/8 x 16 ga

Washer Lock Hvy Hlcl Spr 5/16

Screw Hex Hd Cap 5/16-18 X 3/4

Screw 3/8-16 x1-1/4

Nut Flange 1/4-20 Starter Nut

NOTE; Allcomponentdimensions given in U. S.

inches 1 inch = 25/4 mm

41

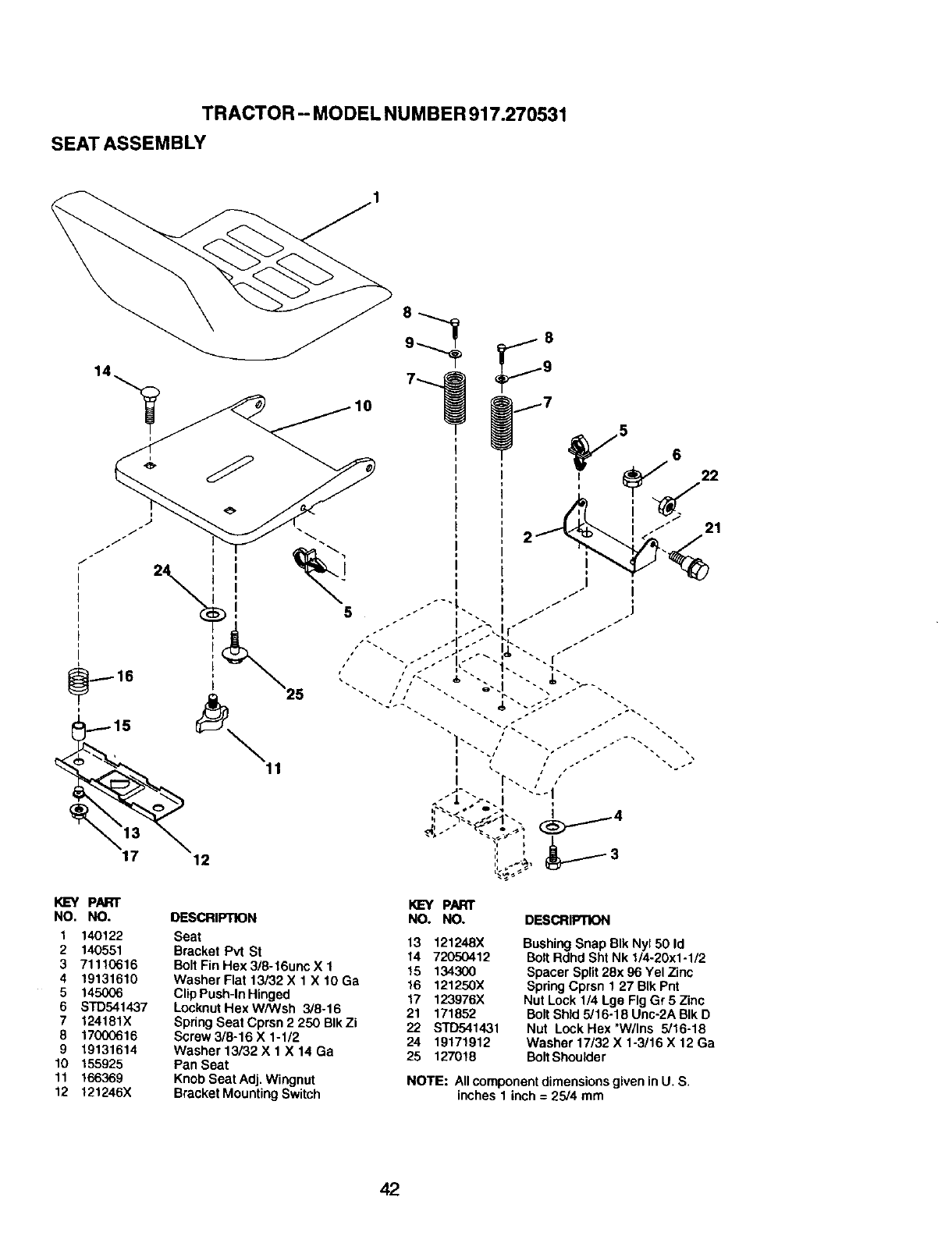

TRACTOR - MODEL NUMBER 917.270531

SEAT ASSEMBLY

17 12

KL=Y pART

NO. NO. DESCRIPTION

1 140122 Seat

2 140551 Bracket Pvt St

3 711t0616 Bolt Fin Hex 3/8-16unc X 1

4 19131610 Washer Flat 13/32 X 1 X 10 Ga

5 145006 ClipPush-In Hinged

6STD541437 Locknut Hex W/Wsh 3/8-16

7 124181X Spring Seat Cprsn 2 250 BIk Zi

8 17000616 Screw 3/8-16 X 1-1/2

919131614 Washer 13/32 X 1X 14 Ga

10 155925 Pan Seat

11 166369 Knob Seat Adj. Wingnut

12 121246X Bracket Mounting Switch

KL=YPART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

25 127016

BushingSnap BIk Ny150 Id

Bolt Rdhd Sht Nk 1/4-20x1-1/2

Spacer Split28x 96 Yel Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shld 5/16-18 Unc-2A BIk D

Nut Lock Hex "W/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12 Ga

BoltShoulder

NOTE: Allcomponent dimensionsgiven in U. S.

inches 1 inch = 25/4 mm

42

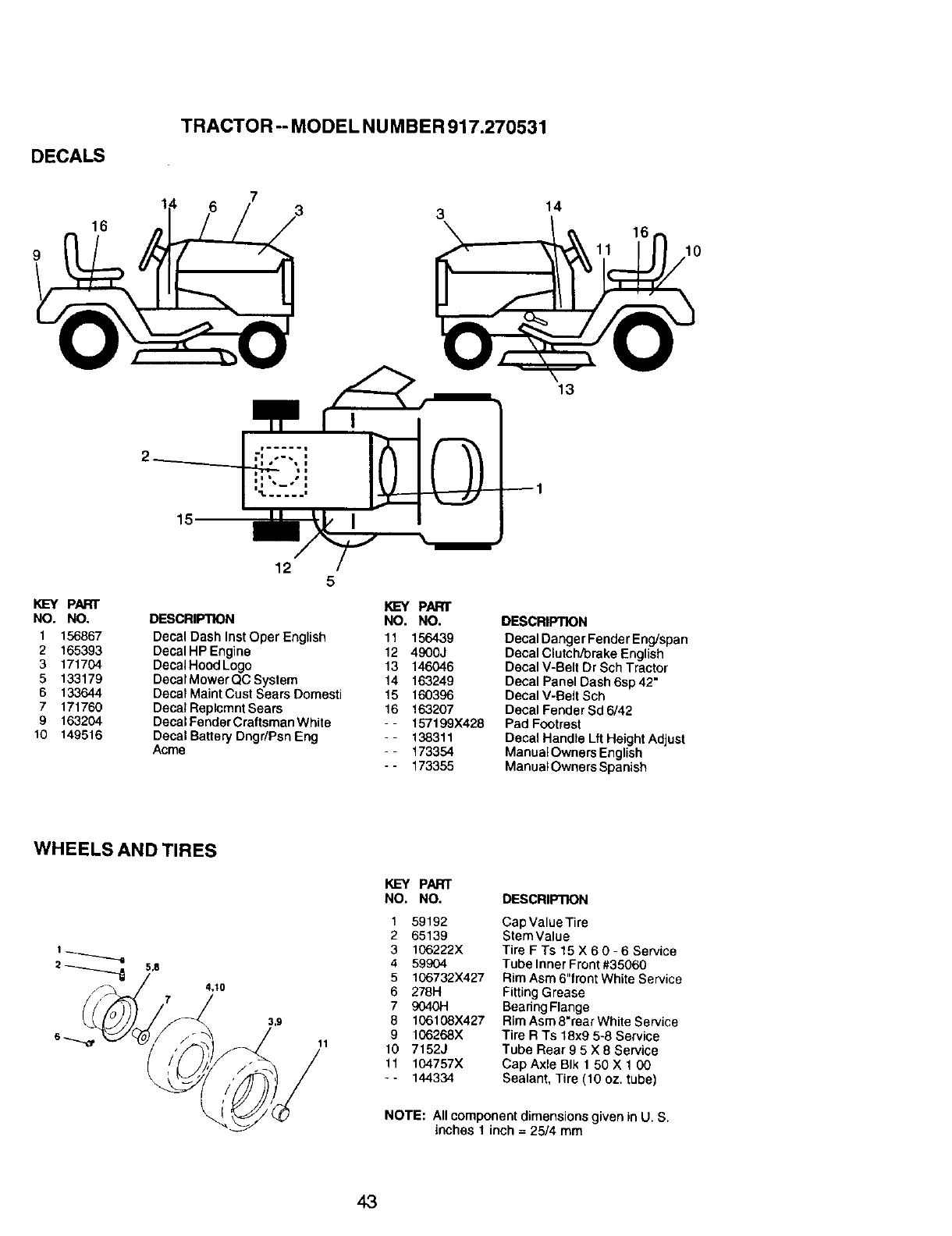

DECALS

TRACTOR-- MODEL NU MBER 917,270531

9

16

6714

16

10

13

15

I_-Y PAR'r

NO. NO.

1156867

2 165393

3 171704

5 133179

6 133644

7 171760

9 163204

10 149516

12 5

DESCRIPTION

Decal Dash InstOper English

Decal HP Engine

Decal Hood Logo

Decal Mower QC System

Decal Maint Cust Sears Domesti

Decal Replcmnt Sears

Decal Fender Craftsman White

Decal Battery Dngr/Psn Eng

Acme

f_'Y PAR'r

NO. NO.

11 156439

12 4900J

13 146046

14 163249

15 160396

16 163207

--157199X428

- - 138311

- - 173354

- - 173355

DESCRIPTION

Decal Danger Fender Eng/span

Decal Clutch/brake English

Decal V-Belt Dr Sch Tractor

Decal Panel Dash 6sp 42"

Decal V-Belt Sch

Decal Fender Sd6/42

Pad Footrest

Decal Handle Lft Height Adjust

Manual Owners English

Manual Owners Spanish

WHEELS AND TIRES

5,0

4,10

7

11

KEY PART

NO. tO.

1 59192

2 65139

3106222X

459904

5106732X427

6 278H

79040H

8 106108X427

9106268X

10 7152J

11 104757X

- - 144334

DESCRIPTION

Cap Value Tire

StemValue

Tire F Ts 15 X 6 0 - 6 Service

Tube Inner Front #35060

Rim Asm 6"front White Service

Fitting Grease

Bearing Flange

Rim Asm8"raar White Service

Tire R Ts 18x9 5-8 Service

Tube Rear 9 5 X 8 Service

Cap Axle BIk 1 50 X 1 00

Sealant, Tire (10 oz. tube)

NOTE: All component dimensionsgiven in U. S.

inches 1 inch = 25/4 mm

43

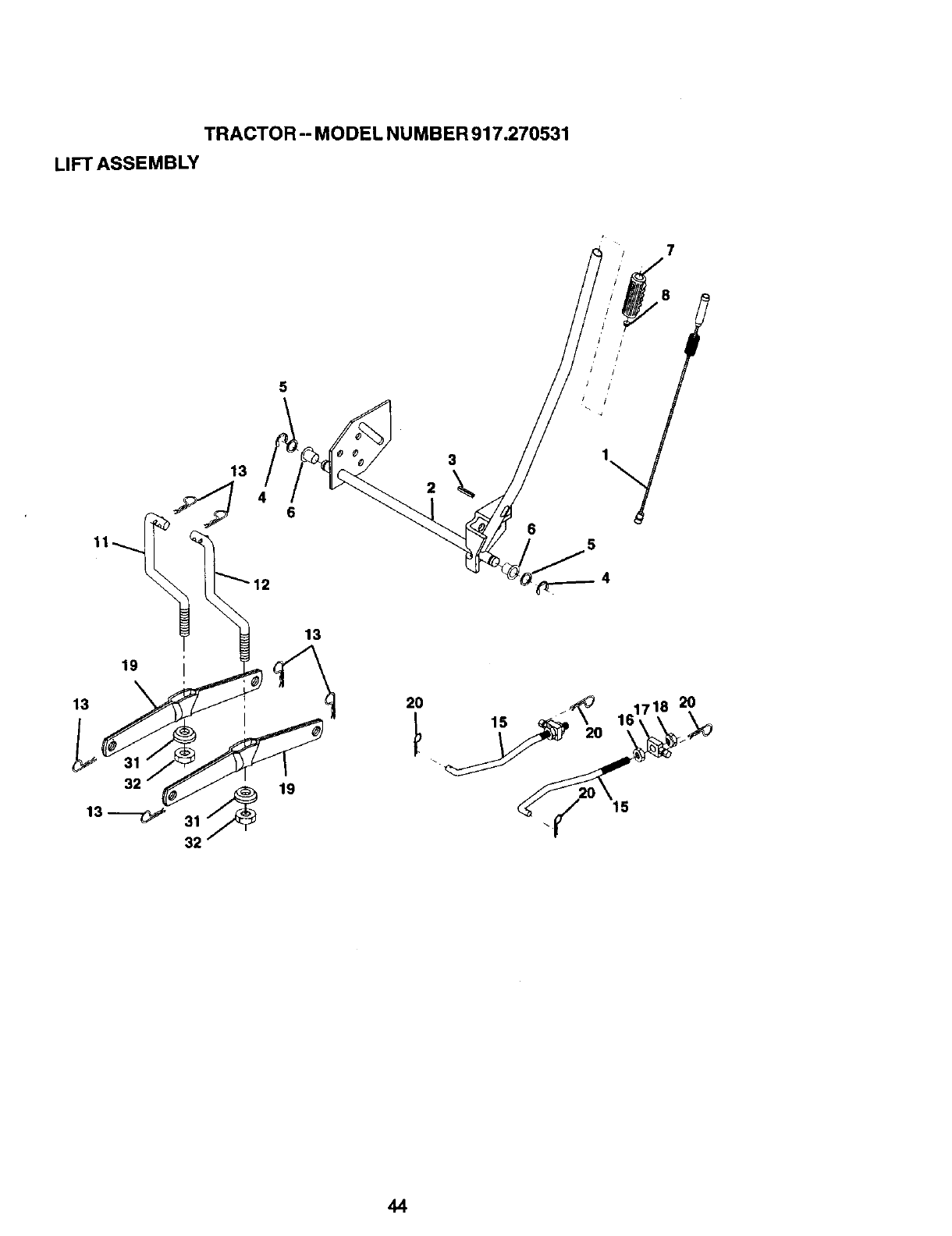

TRACTOR -- MODEL NUMBER 917.270531

LIFT ASSEMBLY

11

13

6

3

65

19

13

31

32

13

19

2O

15

20

44

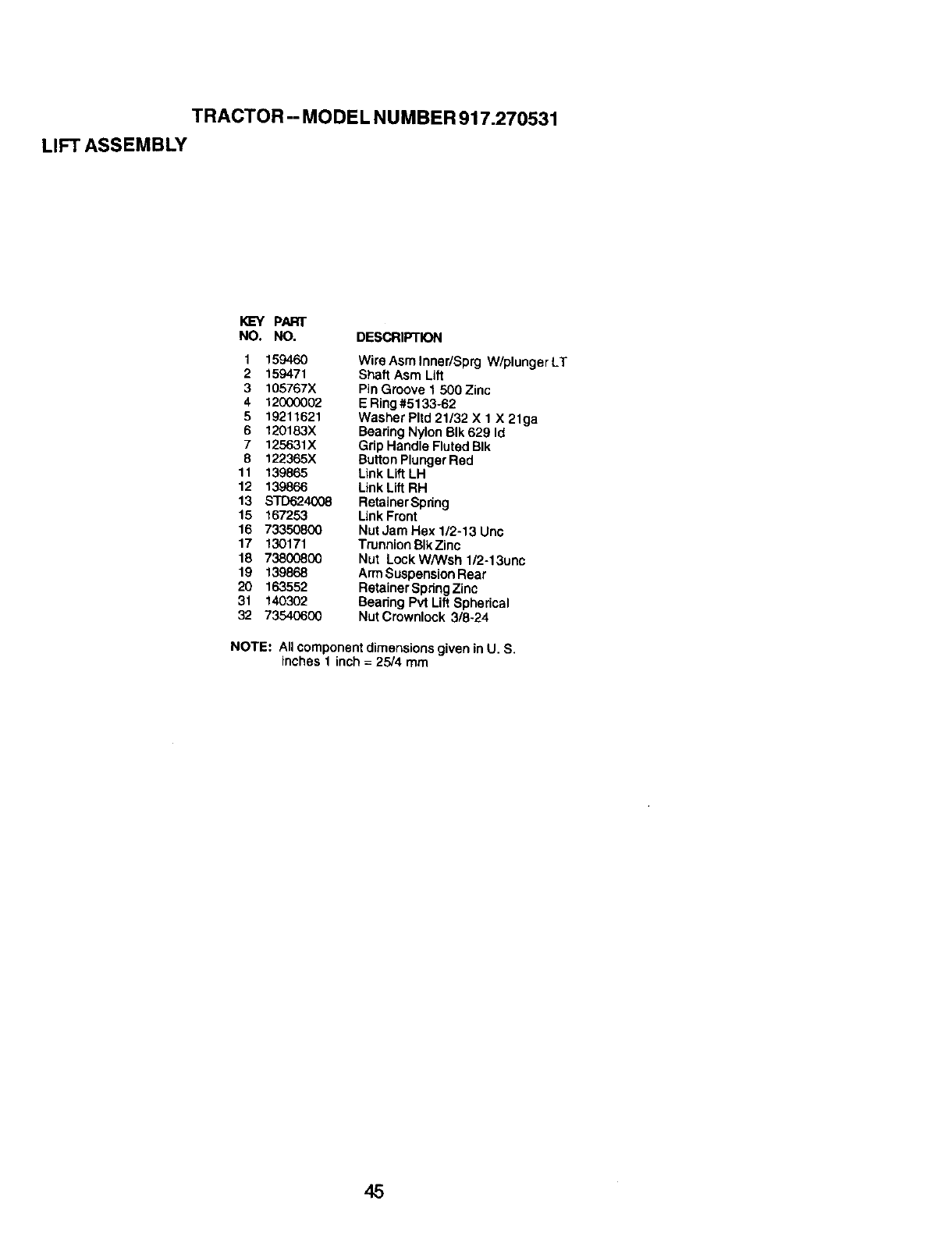

TRACTOR -- MODEL NUMBER 917.270531

LIFT ASSEMBLY

KEY PART

NO. NO, DESCRIPTION

1159460 WireAsmlnner/Sprg W/plunger LT

2 159471 Shaft Asm Lift

3 105767X Pin Groove "t500 Zinc

4 12000002 E Ring #5133-62

5 19211621 Washer Pltd 21132 X 1 X 21ga

6 120183X Bearing Nylon BIk 629 Id

7 125631X Grip Handle Fluted BIk

8 122365X ButtonPlunger Red

11 139865 Link Lift LH

12 139866 Link Lift RH

13 STD624008 RetainerSpdng

15 167253 Link Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 130171 Trunnion BIk Zinc

18 73800800 Nut LockW/Wsh 1/2-13unc

19 139868 ArmSuspensionRear

20 163552 Retainer SpdngZinc

31 140302 Beadng Pvt Lift Spherical

32 73540600 Nut Crownlock 3/8-24

NOTE: All componentdimensions given in U. S.

inches 1 inch = 25/4 mm

45

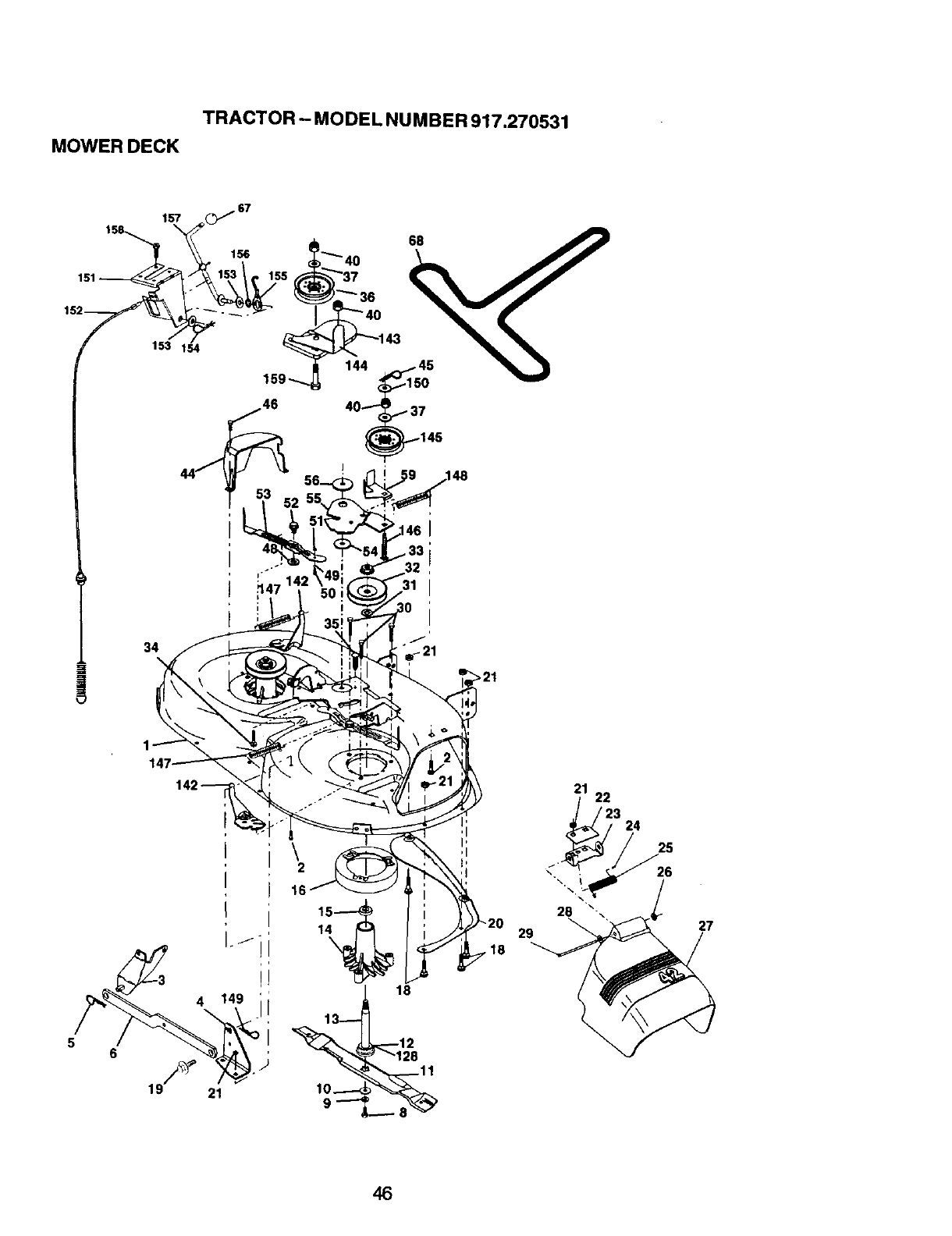

TRACTOR- MODEL NUMBER 917.270531

MOWER DECK

157 C_ "67

158

151 • %153_t. 155_37

_' _::_143

159--_ 144

68

_1471

34

\2

16

1

18

13_

10_ _

9_

18 29 27

46

TRACTOR -- MODEL NU MBER 917.270531

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Deck Assembly,42" 46 137729

2 STD533107 Bolt 48 133944

3 138017 Bracket Assembly,Sway Bar, 49 155066

Front 50 131340

4 165460 Bracket Sway Bar 38/42" Deck 51 STD541410

5 STD624008 RetainerSpdng 52 139888

6 130832 Arm, Suspension, Rear 53 131845

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 54 133943

9 STD551137 Washer, Lock 55 155046

10 140296 Washer, Hardened 56 165723

11 134149 Blade, Mulching 59 141043

12 129895 Bearing, Ball 67 149846

13 137645 Sha{t Assembly, Mandrel, Vented 68 144959

(Includes Key 128 153390

Number12) 142 165890

14 126774 Housing, Mandrel,Vented 143 157109

15 110485X Bearing, Bali,Mandrel 144 158634

16 140329 Stdpper, VentedMowerDeck 145 165888

16 72140505 Bolt,Carriage 5/16-16 x 5/6 146 165891

19 132827 Bolt, Shoulder 147 131335

20 159770 Baffle, Vortex 148 169022

21 S'T'D541431 NutCrownlock5/16-18UNC 149 165896

22 134753 Stiffener Bracket 150 19091216

23 131267 Bracket, Deflector 151 169670

24 105304X Cap, Sleeve 152 169676

25 123713X Spring, Torsion, Deflector 153 169674

26 110452X Nut, Push 154 169675

27 130968X428 Shield, Deflector 155 169671

28 19111016 Washer 11/32x5/Sx16Ga. 156 169672

29 131491 Rod, Hinge 157 169669

30 157722 ScrewThdrolWasherHead 158 17720410

31 129963 Washer, Spacer 159 72140614

32 153535 Pulley,Mandrel -. 130794

33 137266 Nut, Toplock, Flanged

34 STD533717 Bolt - - 169583

35 133835 Fastner, Christmas Tree

36 131494 Pulley, Idler, Flat

37 STD551037 Washer 13/32 x 13/16 x 16

Gauge

40 STD541437 Nut Crownlock 3/8-16 UNC

44 140088 Guard, MandreI, L.H.

45 STD624003 Retainer

Screw, Thd. Roll 1/4-20 x 5/8

Washer, Hardened

Roller Assembly, Cam Follower

Bolt, Shoulder #10-24 Grade 5

Locknut

Bolt,Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Oval

V-Belt

Washer Felt

Ann SpringBrake Mower

Bracket Arm Idler 42"

Keeper Belt42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer SpringYellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch42 In

Washer Flat 3/8" Type B

Spring Retainer

Spring RetentionLever

Spacer

RodClutch

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn 3/8-16unc x 1-3/4

Mandrel Assembly (Includes Key

Numbers 8-10, 12-15, 31 and 32)

Mower Deck,Complete (Standard

Deck, Order Separately Mulcher

Plate and Gauge Wheel

Components, Key Nos. 101-106

and111o121)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25/4 mm

47

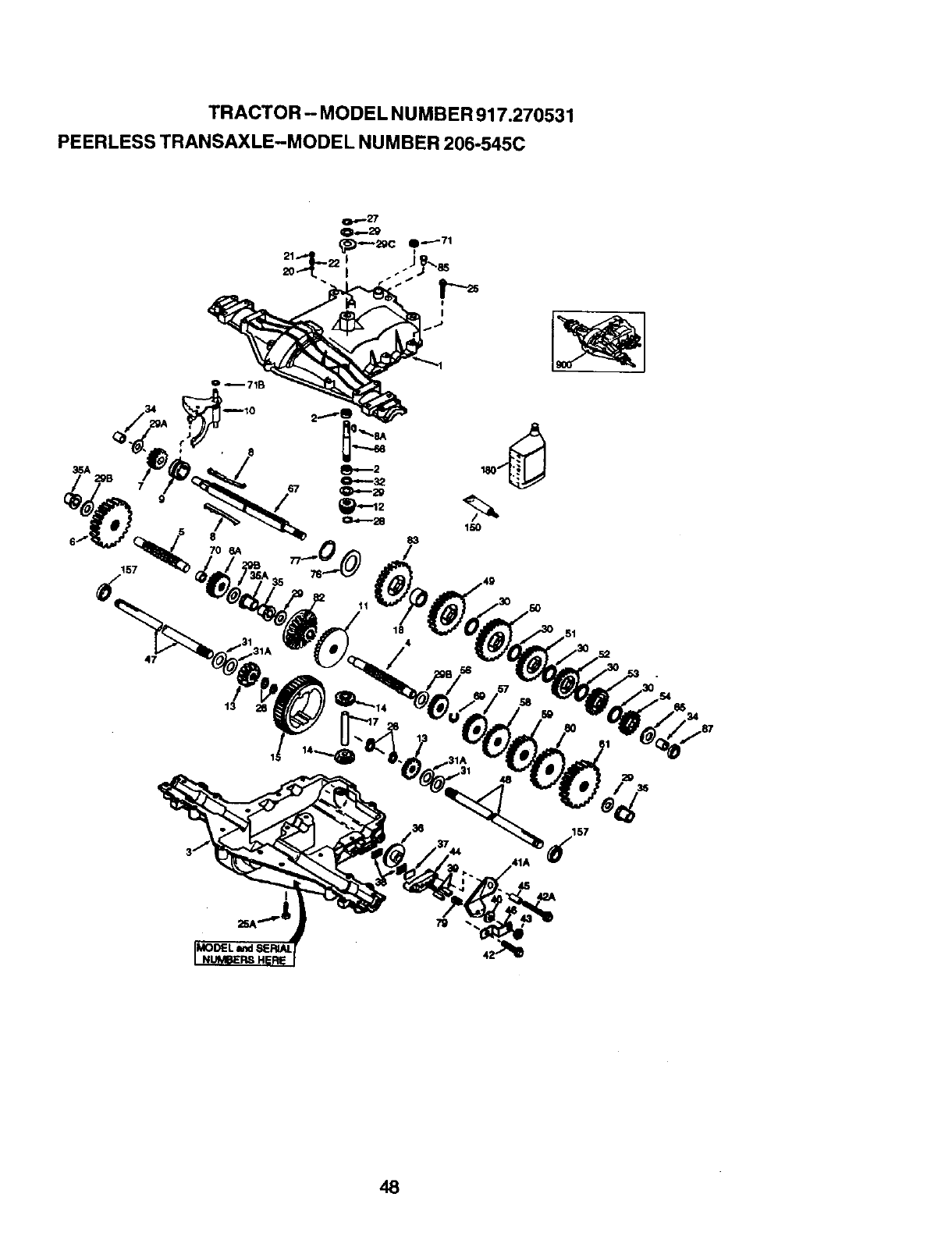

TRACTOR - MODEL NUMBER 917.270531

PEERLESS TRANSAXLE-MODEL NUMBER 206-545C

I

150

47

13 34

_157

48

TRACTOR - MODEL NUMBER 917.270531

PEERLESS TRANSAXLE-MODEL NUMBER 206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1772147 Transaxle Cover 41A 790079

2 780086A Needle Bearing 5/8" 42 792073A

3 770128 Transaxle Case 42A 792085A

4776395 Countershaft 43 792075

5 776409 Output Shaft 44 790025

6 778364 Spur Gear (38 teeth) 45 786066

6A 778369 Spur Gear (15 teeth) 46 786086

7 778330 Spur Gear (11 teeth) 47 774690

8 792180 Shift Key 48 774691

8A 792047 Woodruff Key #9 49 778356

9 784352 Shift Collar 50 778338

10 784378 Shift Rod & Fork 51 778354

11 778334 Bevel Gear (30 teeth) 52 778352

12 778309 Input Beve_ Pinion (13 teeth) 53 778350

13 778368 Bevel Gear (13 teeth) (Include. 54 778346

14} 56 778355

14 778368 Bevel Pinion (13 teeth) (Include. 57 778337

13) 58 778353

15 778370 R}ng Gear (43 teeth) 59 778351

17 786188 DrivePin 60 778349

18 786102 Spacer 1.130 X.695 61 776345

20 792077A Bal15/16"dia 65 780189

21 792078 Set Screw 3/8 - 16 x 3/8" 66 776422

22 792079 Spring .310 OD x .625 L 67 776396

25 792073A Screw 1/4- 20 x 1-1/4" 69 792170

25A 792177 Screw 114-20x1-3/5" 70 766187

26 792125 Retaining Ring (pkg of 2) 71 788069

27 792035 Retaining Ring 71B 788092

28 788040 RetainingRing 76 780090

29 780072 ThrustWasher.6271Dx.031W 77 788078A

29A 780160 Thrust Washer .762 ID x .031W 79 792144

29{3780051 Thrust Washer .762 ID x .031W 82 778333

29(3780199 Anli-Rotatior_Washer .632

30 780108 Cup Washer 1.127 ID x .032W

31 780001 Fiat Washer .750 ID x .056W

(Use As Needed)

31A 780195 Flat Washer ,750 ID x .062W

32 788083 Oit Seal 5/8"

34 780194 Bushing.563

35 780193 Flanged Bushing 5 /8" tD

35A 780197 Flanged Bushing .751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 799021 Brake Pad (pkg of 2)

39 786026 OoweIPin

40 792076A Flat Washer .312 ID x .059W

Brake Lever

Screw 1/4 - 20 x 1-1/4"

Screw 1/4 - 20 x 2 1/4"

Lockout 5 /16 - 24

Brake Pad Holder

Spacer .2625 x 1.0

Brake Lever Bracket

Axle (11-15 /16" Long)

Axle (16 - 1 /2" long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth)

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

Flat Washer .563 ID x .062W

Input Shaft

Shifter &Brake Shaft

RetainingRing

Spacer .890

SquareCut Ring

"O" Ring

Flat Washer 1.125 ID x .058W

Inverted Retaining Ring

Spring .430 OD x .5000 L

Bevel & Spur Gear (30 & 13

teeth)

83 778338 Spur Gear (27 teeth)

85 792154 Oil Fill Plug

87 788089A Oil Seal 9/16"

150 788093A LiquidGasket RTV Silicone

157 7880_BA Oil Seat 314"

180 730229A Gear Oil80W90

900 794712 Replacement MST - 206-545C

Transaxle

NOTE: Allcomponent dimensionsgiven in U.S.

inches 1 ir_ch= 25.4 mm

49

TRACTOR -- MODEL NUMBER 917.270531

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1255-E3

51

1033 VALVE OVERHAUL KIT

307

22_

1_ REQUIRESSPECIALTOOLS

TOINSTALL,SEEREPAIR

INSTRUCTIONMANUAL.

I 1°19 LABEL KIT I

I 1058 OWNER'S MANUAL I

41

10_

757 761_

50

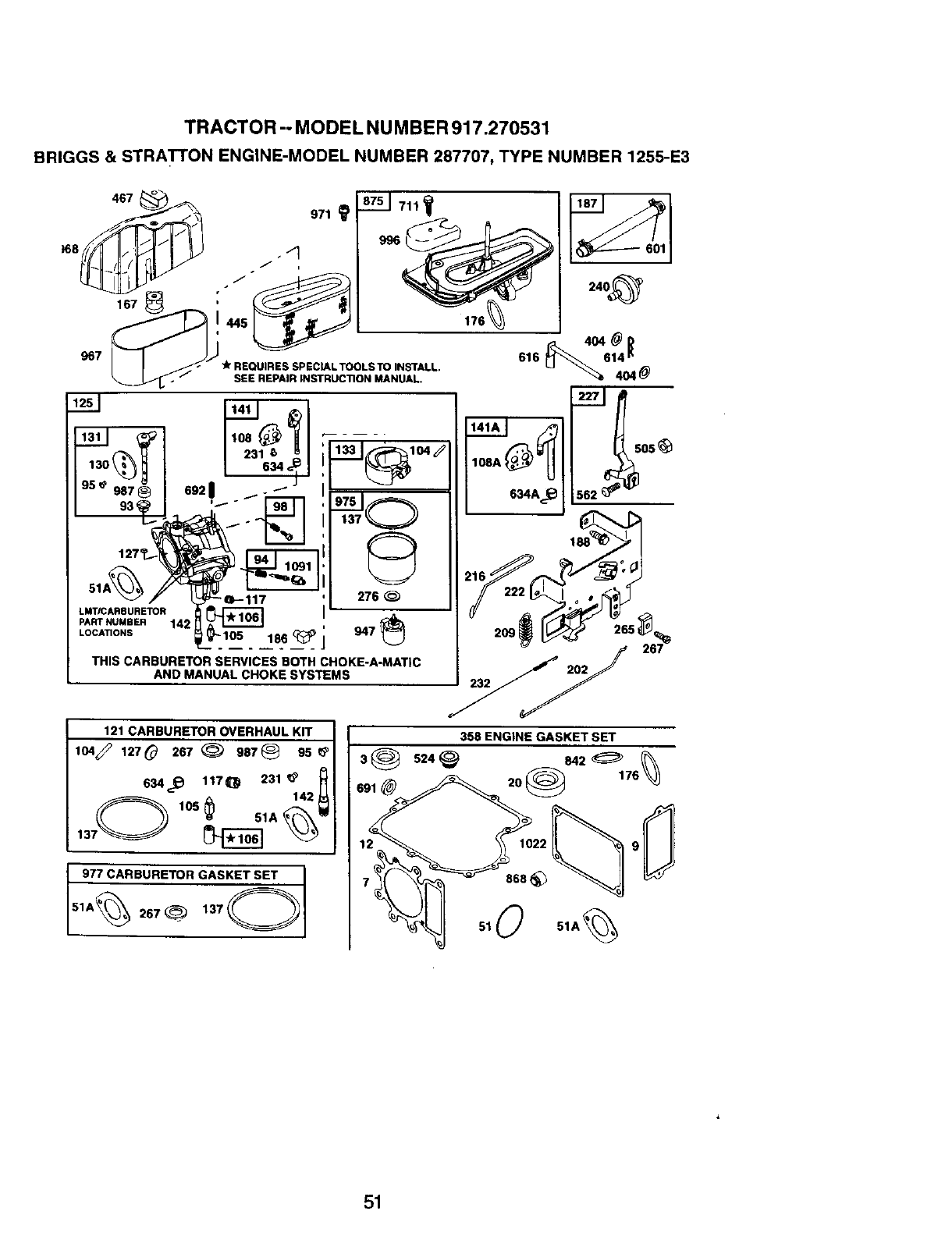

TRACTOR -- MODEL NU MBER 917.270531

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1255-E3

692 |

176

1274

51_ , 276 _

LMTiCARBURETOR I

PARTNUMBER 142

LOCATIONS .-- .186 _ j 947

THIS CARBURETOR SERVICES BOTH CHOKE-A-MATIC

AND MANUAL CHOKE SYSTEMS

121 CARBURETOR OVERHAUL KIT

104_; 127_ 267 _987_ 95

634._ 1170 231 _142 _

977 CARBURETOR GASKET SET ]

51A_ 267_ 13701

358 ENGINE GASKET SET

691@ 20@ 76

51

TRACTOR -- MODEL NUMBER 917.270531

BRIGGS & STRATTON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1255oE3

803

579

513 729A

667

763B_

304

305

801

523

842

287 _

524

78_ 1005

729 _363 _23A __

1051 C

783A

I1036 LABEL-EMISSIONS I

52

TRACTOR -- MODEL NUMBER 917.270531

BR|GGS & STRA'rI'ON ENGINE-MODEL NUMBER 287707, "PIPE NUMBER 1255-E3

KEYpAR'I" K_-YPAR'r

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1496412

2 399265

3 391086

4494238

5 691185

7 273280

8 495735

9K 27803

10 94621

11 281246

12 271916

271997

271996

13 94726

15 94239

16 690136

20 291675

22 95187

23 693557

23A 492326

24 222698

25 499284

499288

49929

499296

26 495854

495852

495851

495855

27 263129

28 49B3t 9

498320

29 692419

499940

32 692852

33 495856

34 495857

35 262811

37 224502

40 224641

43 490815

45 262411

46 496884

48 496050

50 696193

51 693138

51A 273650

53 690227

54 95160

73 224948

74 94626

75 225136

78 94896

87 491323

93 281346

94 498030

95 94098

Cylinder Assembly 98 495800

Bushing/Seal Kit 104 231789

Seal-Oil 105 231855

Sump-Engine 106 231854

Head-C_nder 108 224558

_+ Gasket-CylinderHead 108 A224540

BreatherAssembly 117 232118

Gasket-Breather 232119

Screw (BroatherAssembly) 121 690191

Tube-Breather 125 690194

Gasket-Crankcase (.015" Thick, 127 -- -- --

Std.) 130 224539

YrGasket-Crankcase (.005" Thick) 131 494379

_Gasket-Crankcase (.009" Thick) 133 494381

Screw(Cylleder Heed, 3-9/16") 137 281165

Plug-Oil Drain 141 495097

Crankshaft 141A495931

-trSeal-Oil 142 232117

Screw (Crenkcase Cover) 146 94196

Flywheel (Steel Ring Gear) 165 693148

Flywheel (PlasticRing Gear) 171 281051

Key-FtywTneet 176 281106

PistonAssembly (Std.) 177 270920

PistonAssembly (,010 "O.S,) 186 493496

PistonAssembly (.020" O.S.) 187 492790

Piston Assembly(.030" O.S.)

Ring Sat, Piston (Std.) 188 94929

Ring Set, Piston (.010 "O.S.) 192 492160

Ring Set, Piston (.020 "O.S.) 209 260695

Ring Set, Piston (.030 "O.S.) 216 262766

Lock-Piston Pin 216A262767

Pin Assembly, Piston (Std.) 222 495611

Pin Assembly-Piston (.005" O.S.) 227 493935

Red-Connecting (Std.) 231 94098

Rod-Connecting (.020 U.S.) 232 262785

Screw(Connecting Rod) 238 262836

Valve-Exhaust 240 394358

Valve, Intake 265 221535

Spring, Valve 267 94906

Guard-Flywheel 276 281164

Retainer, Valve 287 94903

Governor-OtiStinger 294 810104

Tappet, Valve 304 496281

Camshaf 305 94863

ShortBIock 306 225020

Manifold, Intake 307 94930

-tr+Gasket-Intake

Gasket-Intake

Stud(Carburetor)

Screw (Intake Manifold)

Screen, Rotating

Screw (Rotating Screen)

Washer(Flywheel

Screw (Flywheel Guard)

Seal-Governor Shaft

Bushing-Throttle Shaft

Valve-Idle Adjustment

• Screw (Throttle Valve)

Kit-Idle Speed

•Pin-FloatPtinge

•Valve-Float Needle

• Seat-Inlet

Valve-Choke (ManualChoke)

Valve-Choke (Choke-A-Matic)

• Jet, Main (Standard)

Jet, Main (High Altitude)

Carburetor Overhaul Kit

Carburetor

• Plug-Welch (Sold in Kit Only)

VaNe-Throttle

Throttle Shaft Kit

Float-Carburetor

• •Gasket-Float Bowl

Choke Shaft Kit (Man. Choke)

Choke Shaft Kit (Choke-A-Matic)

•Nozzle-Carburetor

Key-Timing

Nut (Ring Gear)

Nut (Air Cleaner)

"_"Gasket, AirCleaner

.trSeal-O-Ring

Connector-Hose

Line-Fuel (Cutto Required

Length)

Screw (ControlBracket)

Adjuster, Rocker Arm

Spring,Governor

Link-Choke

Link-Choke

Bracket, Control

Lever-Governor

• Screw (Choke)

Spnng-Link

Cap, Valve

Filter-Fuel

ClarnlPCasing

Screw(CasingClamp)

•,SealingWasher

Screw (Dipstick Tube)

Adjuster-RockerArm

Housing-Blower(BlackInner)

Screw (Inner BlowerHousing)

Shield,Cylinder

Screw (Cylinde r Shield)

RPM Settings: Low Speed: 1900-2100

High Speed: 3000-3200

Includedin Gasket Set, Raf Number 358.

• Included inCarburetor Kit, Ref Number 121.

• Included in Carburetor Gasket Set, Ref Number

977.

+ Included in Value Overhaul Kit, Ref Number

1033.

NOTE: Allcomponent dimensions given in U.S.

inches 1 inch =25.4 mm

53

TRACTOR -- MODEL NUMBER 917.270531

BRIGGS & STRA'I-rON ENGINE-MODEL NUMBER 287707, TYPE NUMBER 1255-E3

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

309 693551 Motor-Starter(For Steel 729 281390 Clip, Wire

Ring Gear Only) 729A 225170 Clip, Wire

497595 Motor-Starter (For Plastic 732 94625 Screw(Starter Drive Cover)

Ring Gear Only) 741 262932 Gear-Timing

310 94003 Screw (Starter Motor) 757 213998 Link-Counterweight

311 497608 Brush Set 758 499994 Counterweight

318 94734 Screw (Mounting Bracket) 759 230787 Pin-Counterweight

333 495859 Armature, Magneto 761 94593 Screw (Counterweight)

334 94731 Screw (Armature 783 693713 Gear-Pinion (For Steel

337 491055 Spark Plug Ring Gear Only)

358 690189 Gasket Set 783A 693059 Gear-Pinion (For Aluminum

363 19203 Flywheel Puller Ring Gear Only)

383 89838 Wrench-Spark Plug 783B 693058 Gear-Pinion (For Plastic

404 94927 Washer (Governor Crank) Ring Gear Only)

423 95163 Screw (Air Cleaner Base) 789 497708 Harness, Wiring

455 222561 Cup-Flywheel 801 497626 Cap-Drive

462 225137 Washer (Starter Cable) 802 497607 Cap-End

467 493903 Knob-Air Cleaner 803 497604 Housing-Starter

474 393474 Alternator 830 94555 Stud-Rocker Arm

503 806000 Strap-Starter 847 496415 Dipstick/Tube Assembly

505 231978 Nut (Governor Lever) 851 224110 Terminal-Cable

510A 693699 Drive, Starter (Use With 868 499236 -A-+ Seal- Valve

Steel Ring Gear Only) 871 262835 Bushing-Guide

510A 497606 Drive, Starter (Use With 875 693686 Base, Air Cleaner

Aluminum &Plastic Ring 877 393456 Wire-Alternator

Gear Onlly)) 878 393362 Harness-Alternator

513 398003 Clutch-Drive 883 272293 Gasket, Exhaust

523 495230 Dipstick 914 94863 Screw (Rocker Cover)

524 281370 "_-Dipstick Tube Seal 934 94627 Screw (Fan Retainer)

525 496113 Dipstick Tube 947 497672 Solenoid-Fuel

535 496894 Filter, NC Element 967 272403 Filter-Pre Cleaner

544 497603 Armature-Starter 968 281758 Cover, Air Cleaner

552 491986 Bushing-Gov. Lever 975 495933 Bowl-Float

556 93621 Screw (Alternator) 977 690192 Gasket Set-Carburetor

562 94907 Bolt (Governer Lever) 987 281166 • Seal-Throttle Shaft

579 92278 Nut (Starter Cable) 996 690678 Shield-Carburetor

601 93053 Clamp-Hose 1005 691927 Fan-Flywheel

614 93306 Pin-Cotter 1006 224413 Retainer-Fan

616 495157 Crank-Governor 1019 496758 Label Kit

634 494453 •Seal-Spring 1022 272475 _+Gasket-Rocker Cover

Assembly(Manual Choke) 1023 224552 Cover-Rocker

634A !494455 Seal-Spring Assy. (Choke- 1026 494432 Rod-Push (Intake)

A-Matic) 1026A 495136 Rod-Push (Exhaust)

635 280872 Boot, Spark Plug 1029 224554 Arm.Rocker

646 224546 Brace-Air Cleaner 1033 690190 Valve Overhaul Kit

654 94010 Nut (Carburetor) 1034 495248 Guide-Push Rod

663 94929 Screw (Air Cleaner Brace) 1036 499364 Label Kit-Emission

663A 94704 Screw (Air Cleaner Brace) 1044 94673 Screw (Flywheel)

667 94010 Nut (Air Cleaner Brace) 1051 263080 Ring-Retainer

668 280848 Spacer 1058 273683 Owner's Manual

692 262715 Spring-Detent 1090 497605 Retainer-Brush

695 693109 Screw (Ring Gear) 1091 281364 Cap-Limiter

697 94951 Screw (Starter Motor) 28N707-1026-E1 Replacement Engine

711 94704 Screw (Carburetor Shield)

718 230192 Dowel, Sleeve RPM Settings:Low Speed: 1900-2100

726 399676 Gear Ring(Aluminum- High Speed: 3000-3200

Services Plastic Ring Gear

Only) _ Included in Gasket Set, Ref Number

727 490324 Cover, Starter Drive 358.

•Included in Carburetor Kit, Ref Number

121.

• Included in Carburetor Gasket Set, Ref

Number 977.

+ Included in Value Overhaul Kit, Ref

Number 1033.

NOTE: All component dimensions given in U.S.

54 inches 1inch =25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

/_ Operate your Tractor up and down the face of slopes (not I

I

greater than 15°), never across the face. Make turns gradu- I

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

For repairof major brand appliances in your own home...

no _who made _no matter who sold it!

1-800-4-MY-HO ME sM_ _orn_

(1-80O469-4663)

www.s_irs.oom

To bring in products such asvacuums, I_vn'equipment and electronics

for repair, callfor the location ofyour nearest Sears Parts & Repair Center

1-800-488-1222 _j_

www.sears.com

Forthe replacement parts, accesscx_ and owner's manuals

that you need to do-it-yourself,call Sears PartsDirectS"!

1-8 0 0-3 66-PART 6am.-llp.m.CST.

(1-800-366-7278) 7 daysaweek

www.sears.com /partsdlrect

To purchase or inquire al::x:x_a Sears Se_ice Agreement:

1-800-827-6655

7 a.m.- 5p.m.CST,Mon.- S,_..

Pa'apedl"_ni_ioderq:a'ac_adom_lk_,

y pareordenarpiezasconenln_a adomidlio:

1-888-6U'HOGAR"

(1"888"784"6427)

AuCanadapourserviceenfiranais:

1-877-LE-FOYER"

(1-877-533.6937)

SEARS

HomeCentrar

®RegbderndTrltdern,lb_/ '.'=Trademarkof Seanl,RoMoud(wld CO.

OSeam, Roebuck and Co. ®MarceRegllt'lda ImMe_a de FJbdc=de Searl, Roebuckand Co.

173354 Rev. 1 1.3.00 JH Printedin U.S.A.
