Owner's Manual

£RRFTSMnNo

15.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTO

Model No.

917.270612

, Safety

° Assembly

•Operation

• Maintenance

,, Repair Parts

CAUTION: ,,_

Read and follow all

Safety Rules and Instructions

before operating this equipment.

For answers to your questions

about this product, Call:

1..800-659-5917

Sears Craftsman Help Line

5am-5 pro, Mort- Sat

Sears, Roebuck and C;o., Hoffman Estates, IL 60179

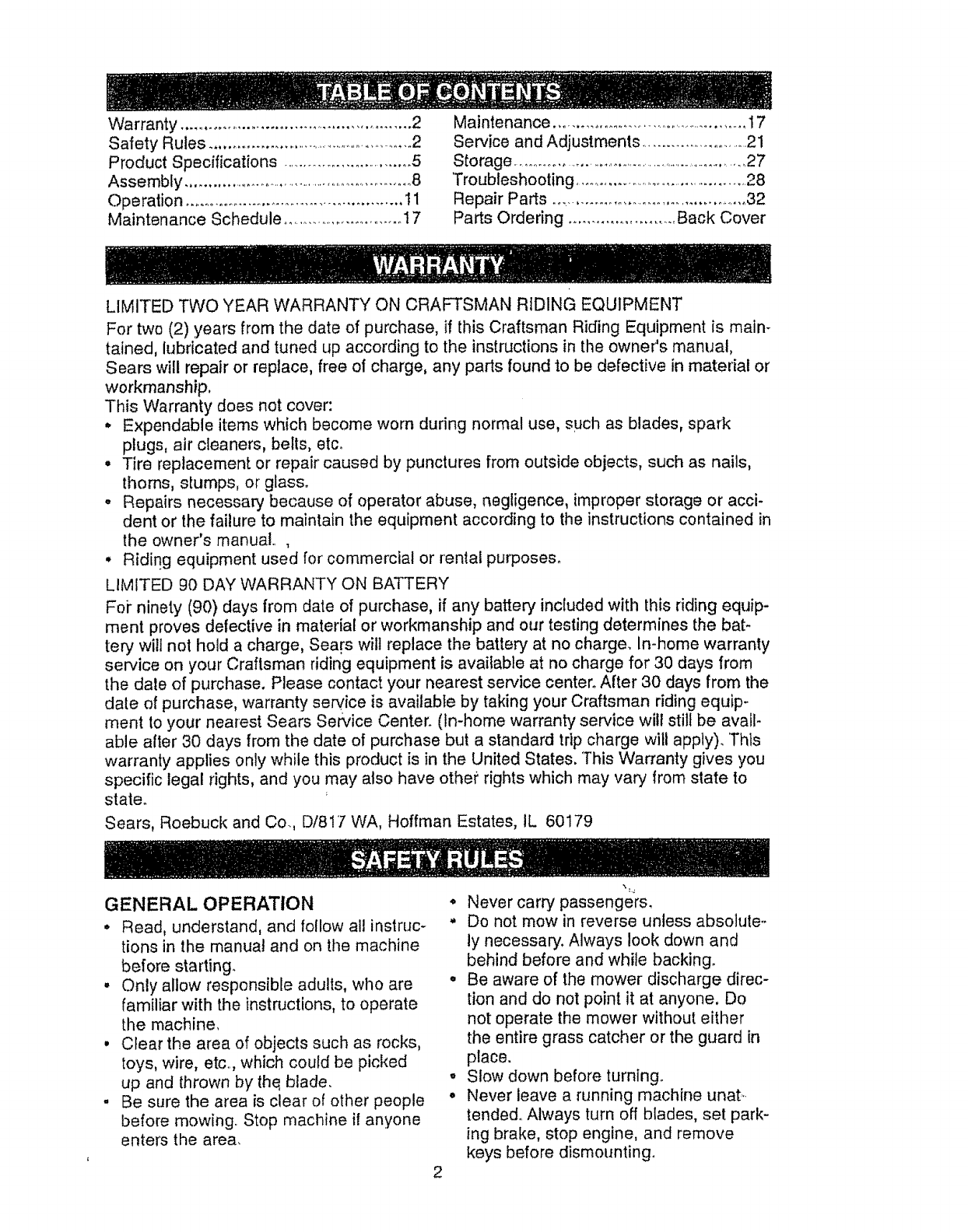

Warranty ................................................... 2

Safety Rules ......................................................2

Product Specifications ............................... 5

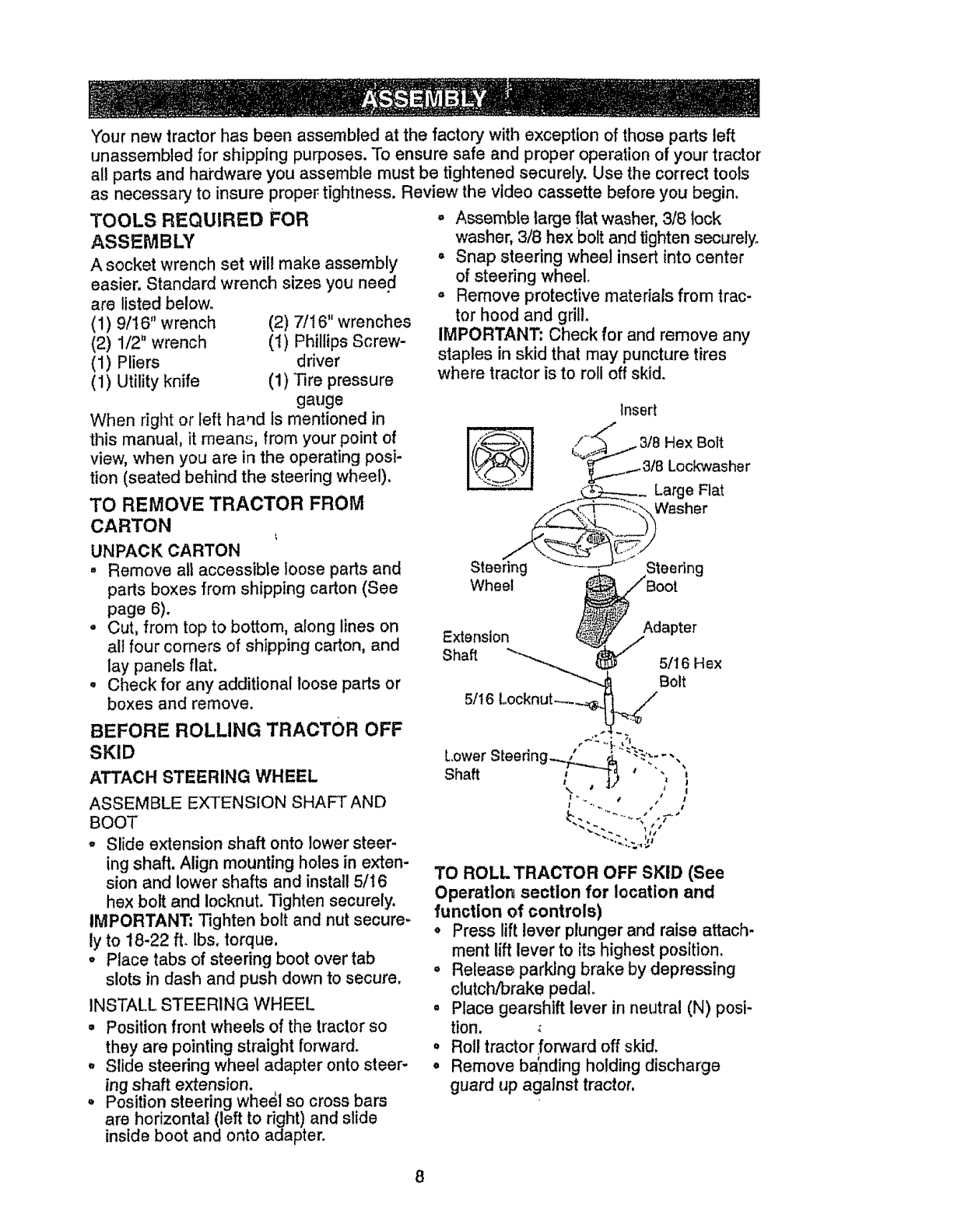

Assembly ......................................................... 8

Operation ................................................ 11

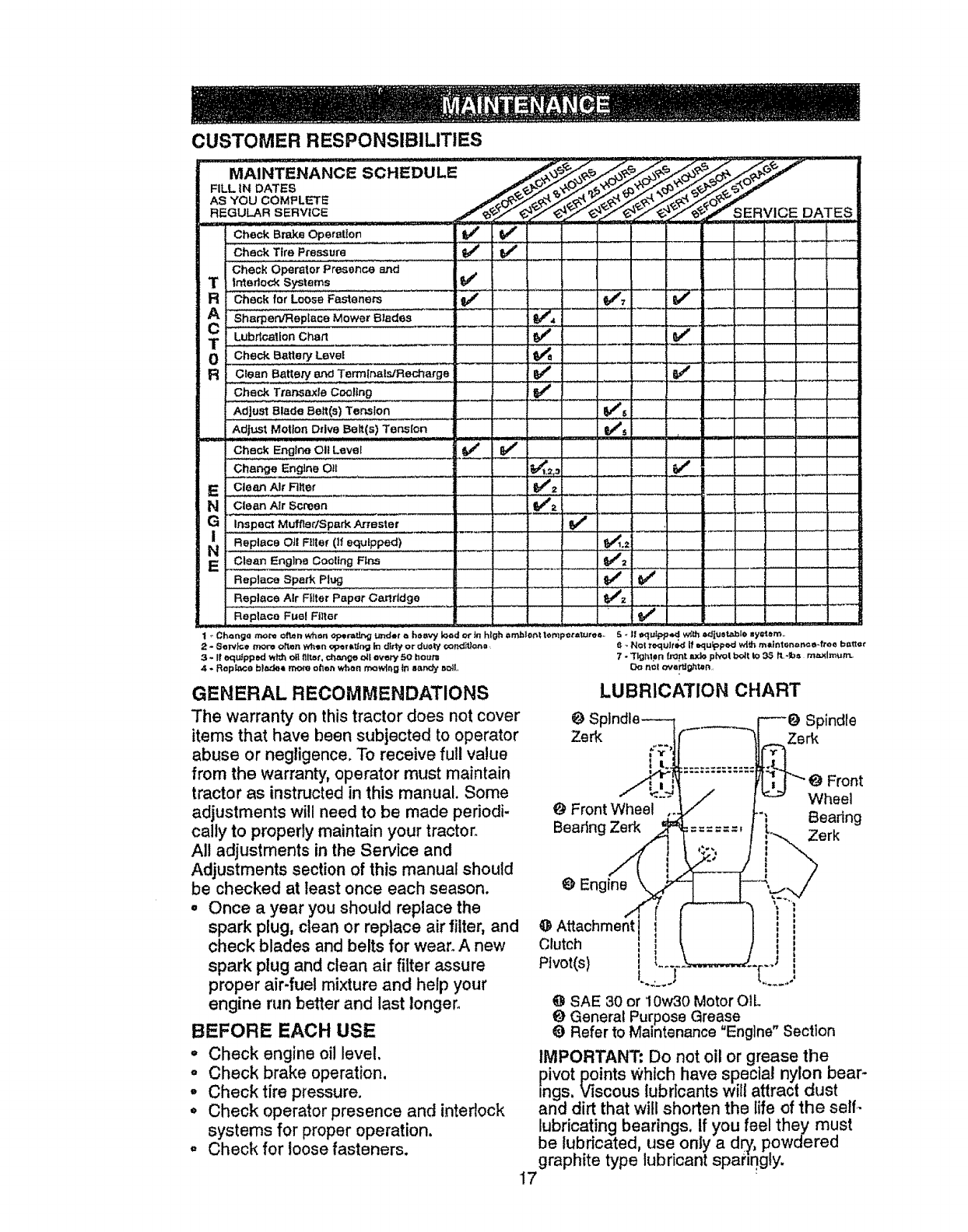

Maintenance Schedule ............................ ! 7

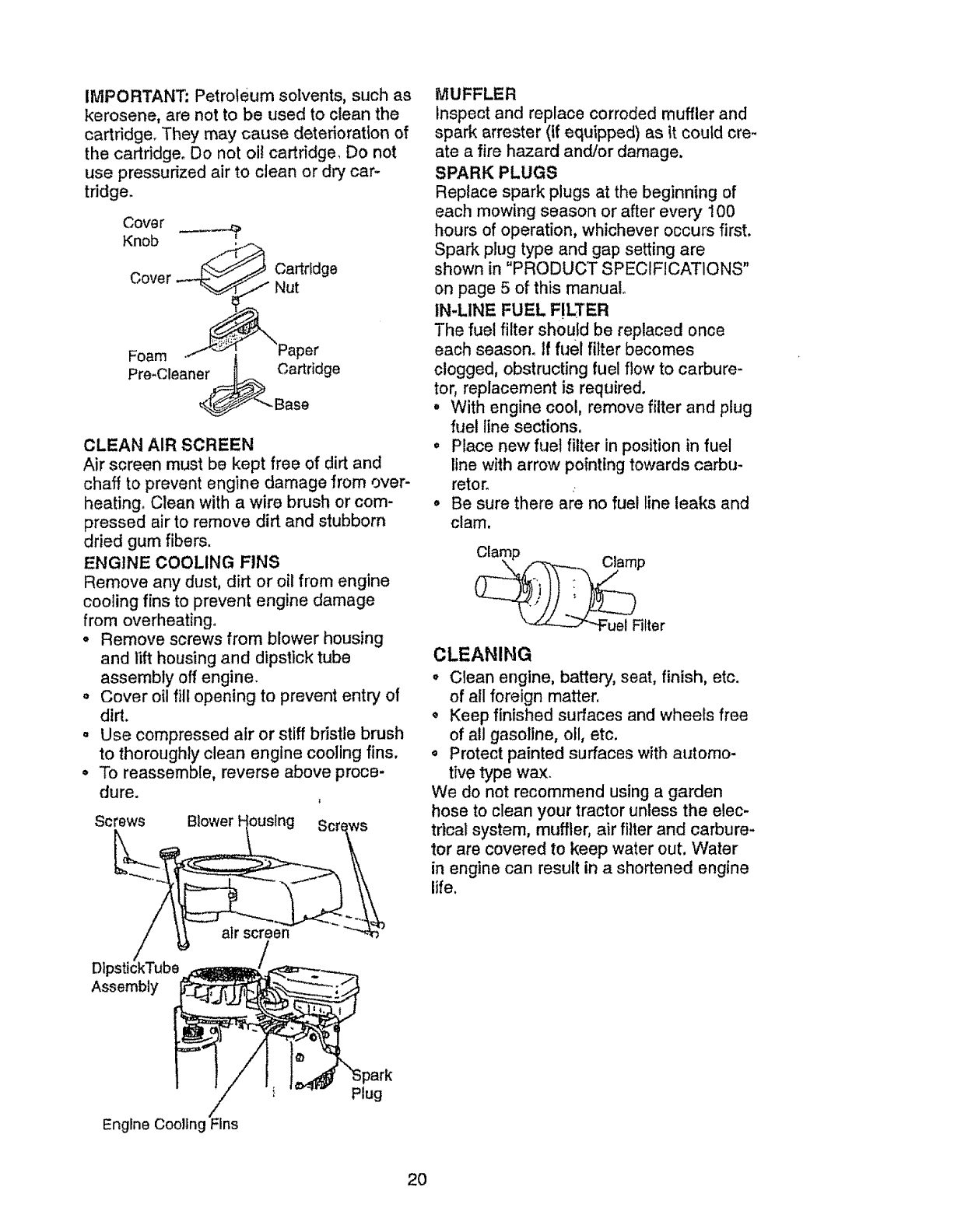

Maintenance ...................................................17

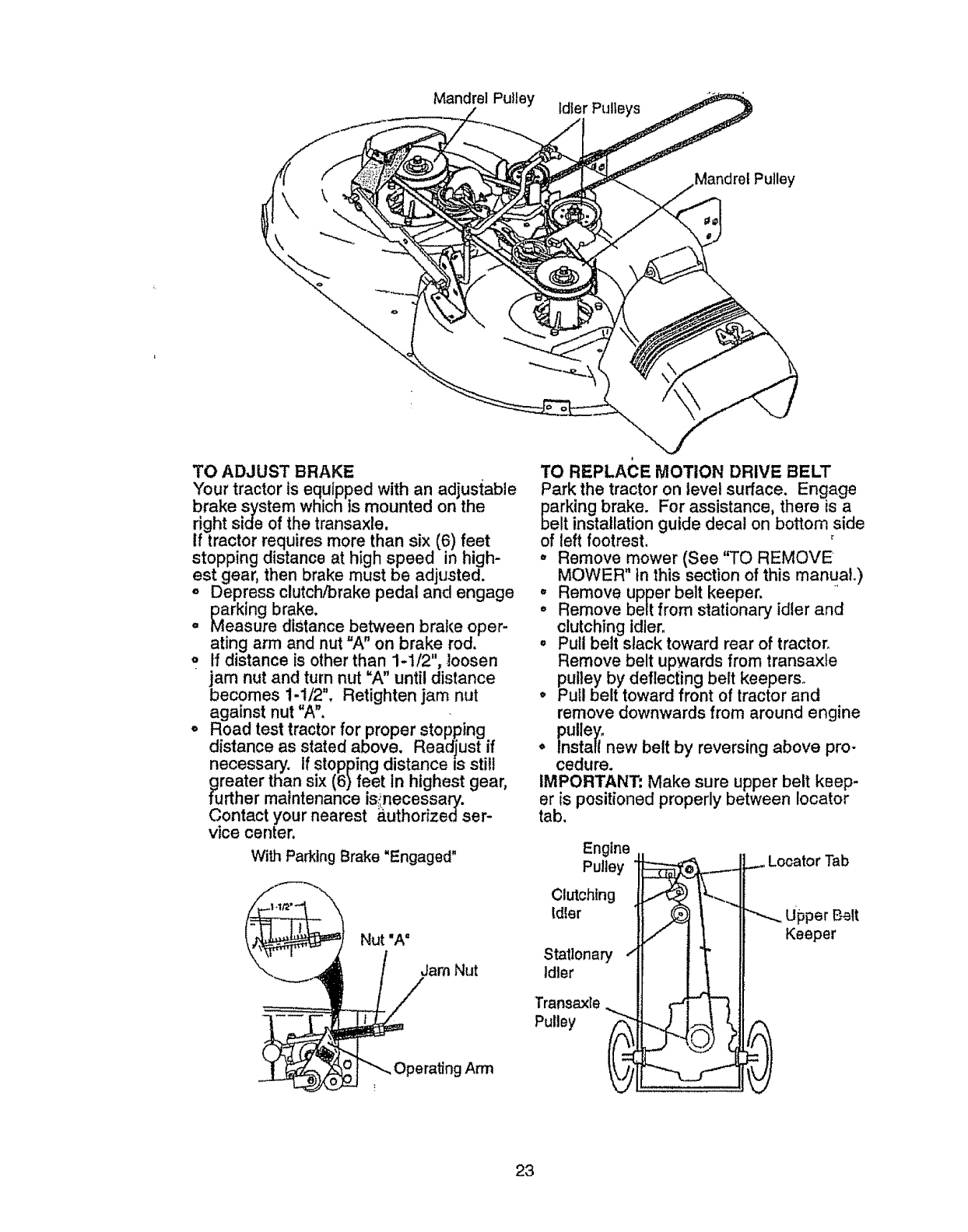

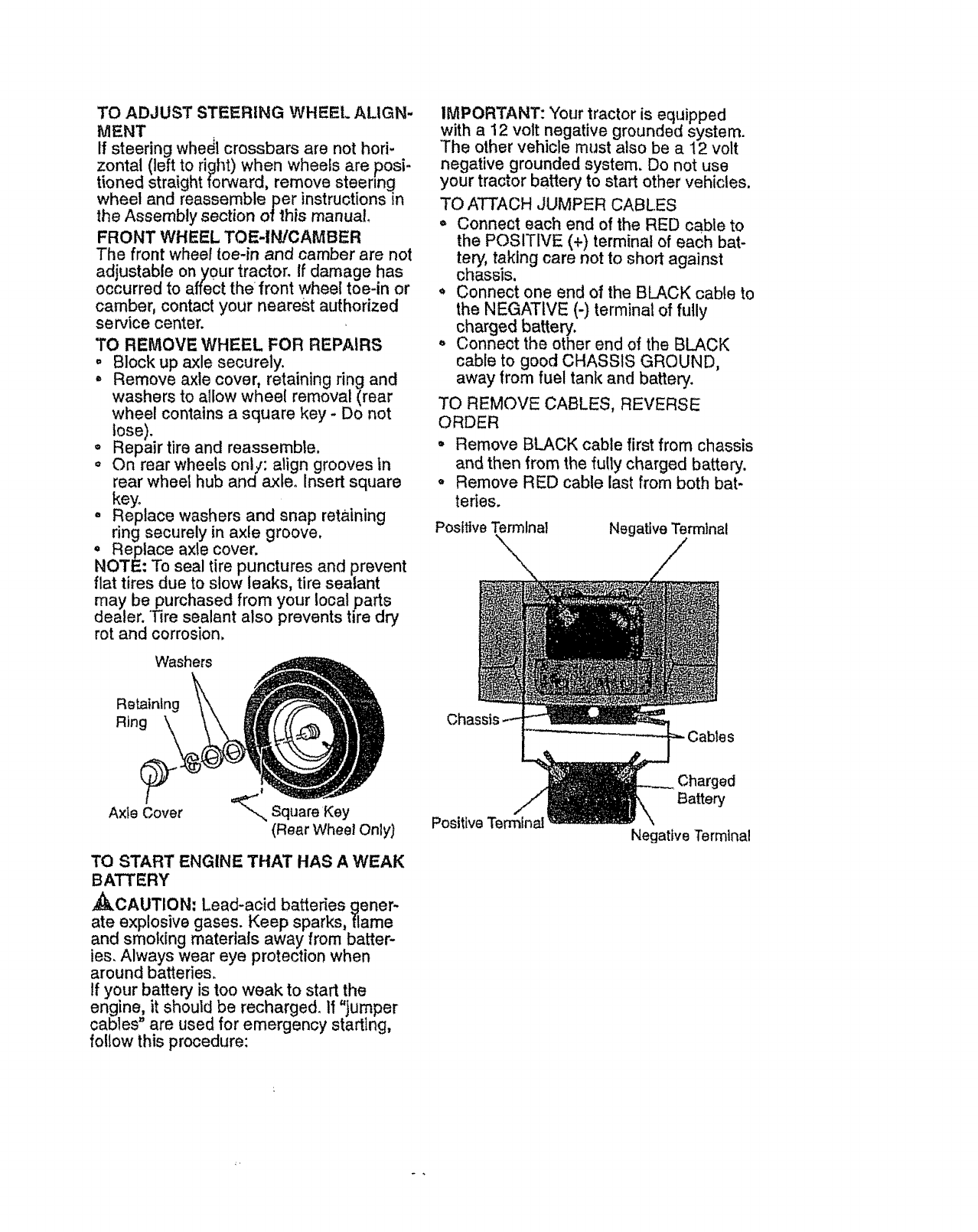

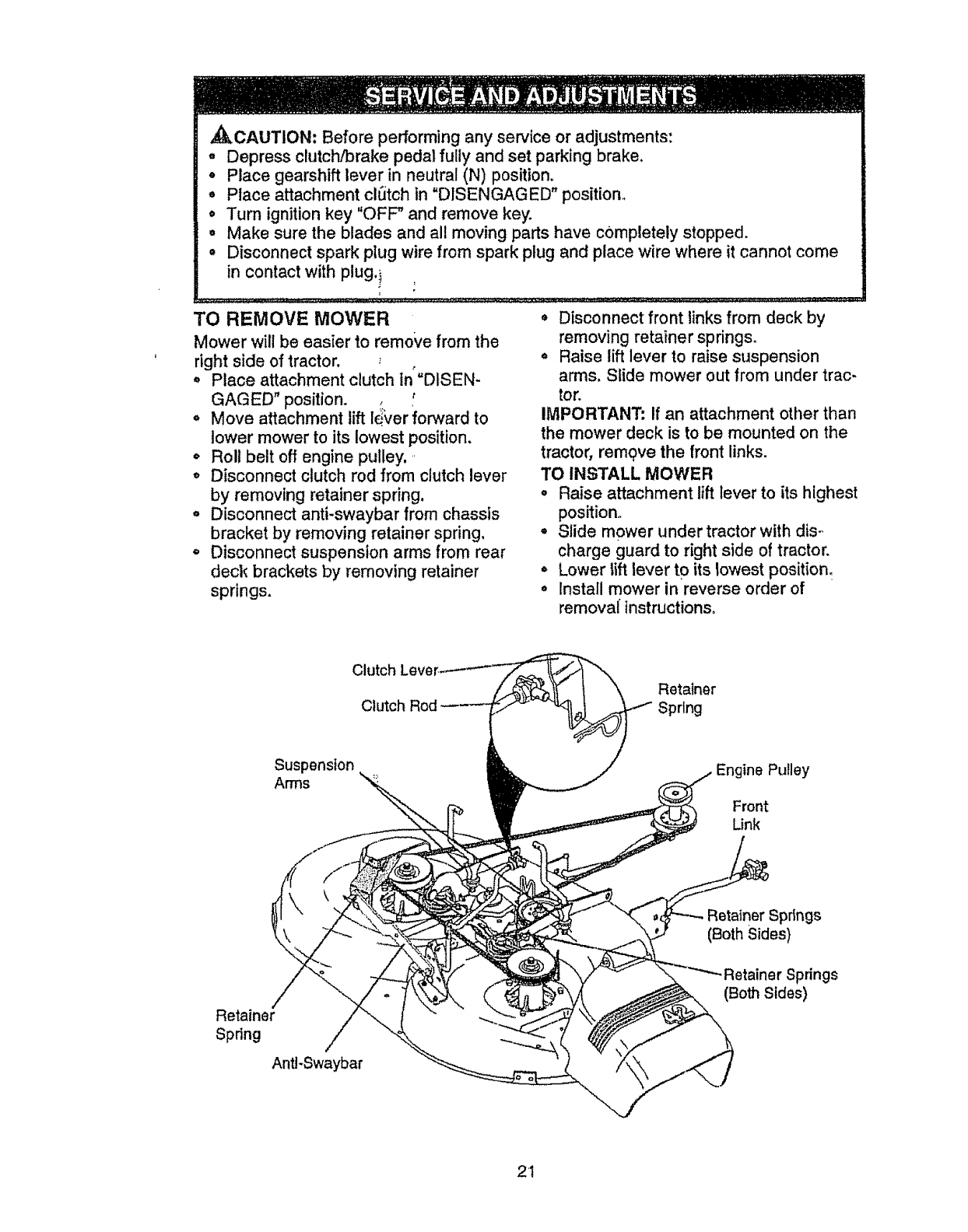

Service and Adjustments .......................... 21

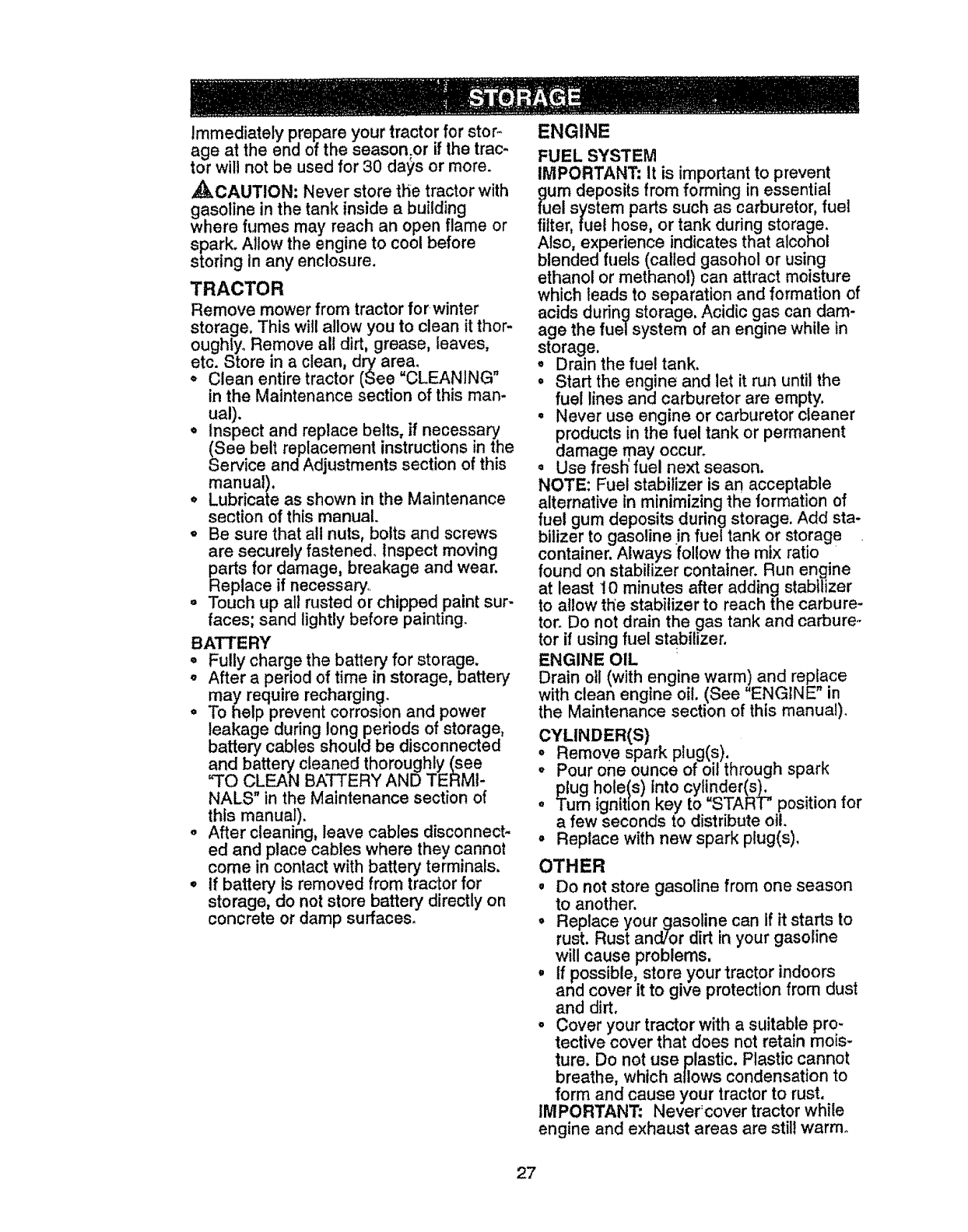

Storage ....................................................................27

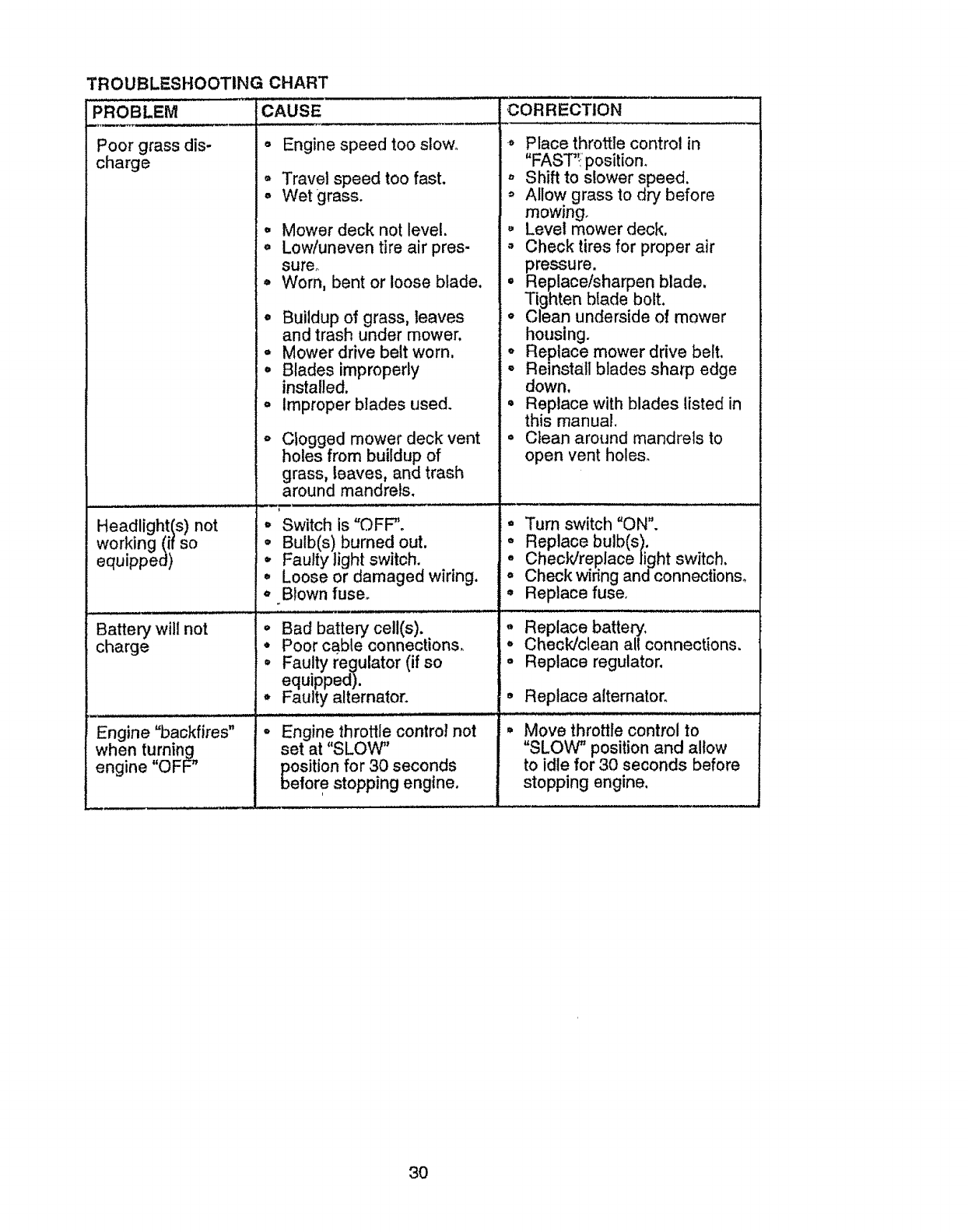

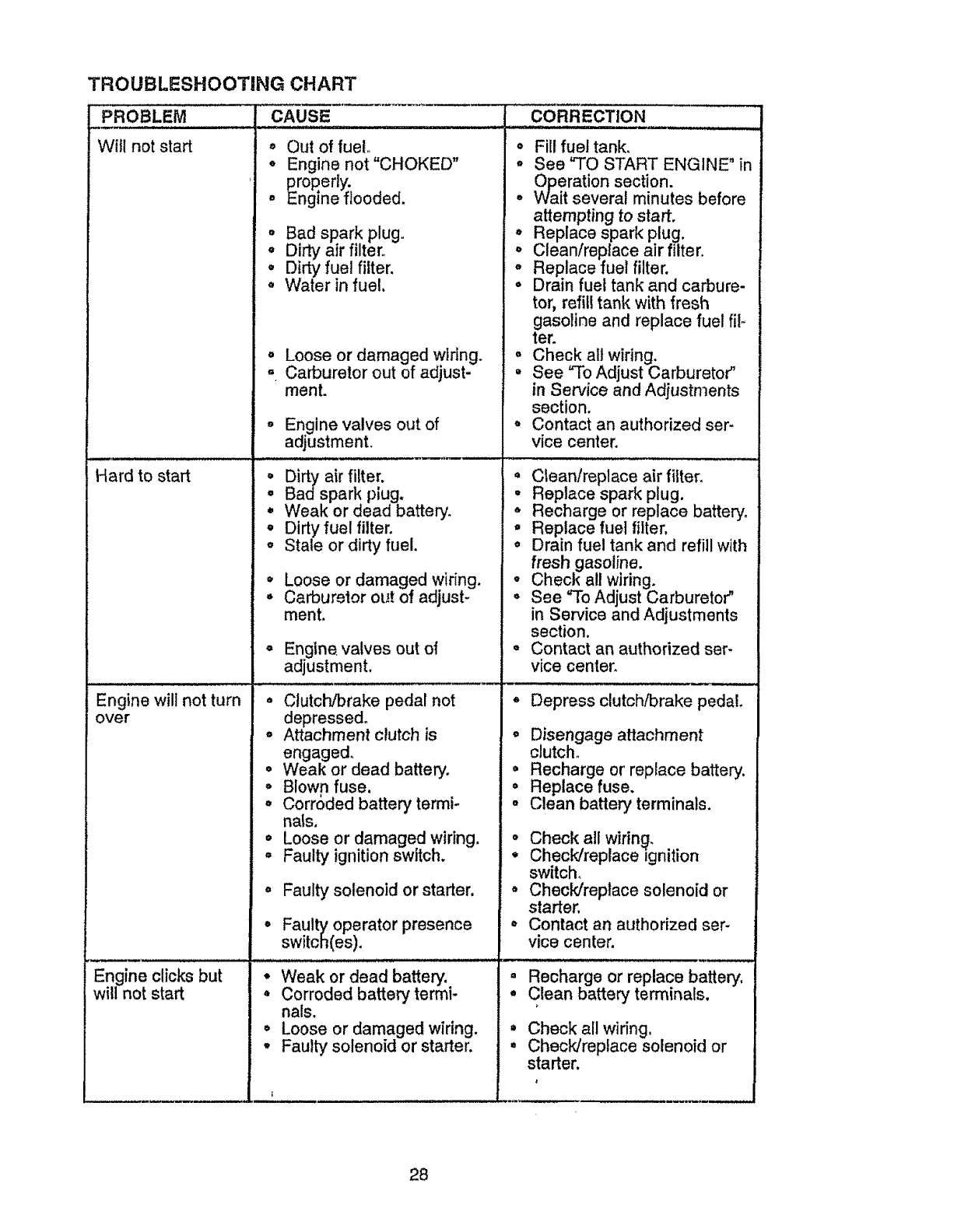

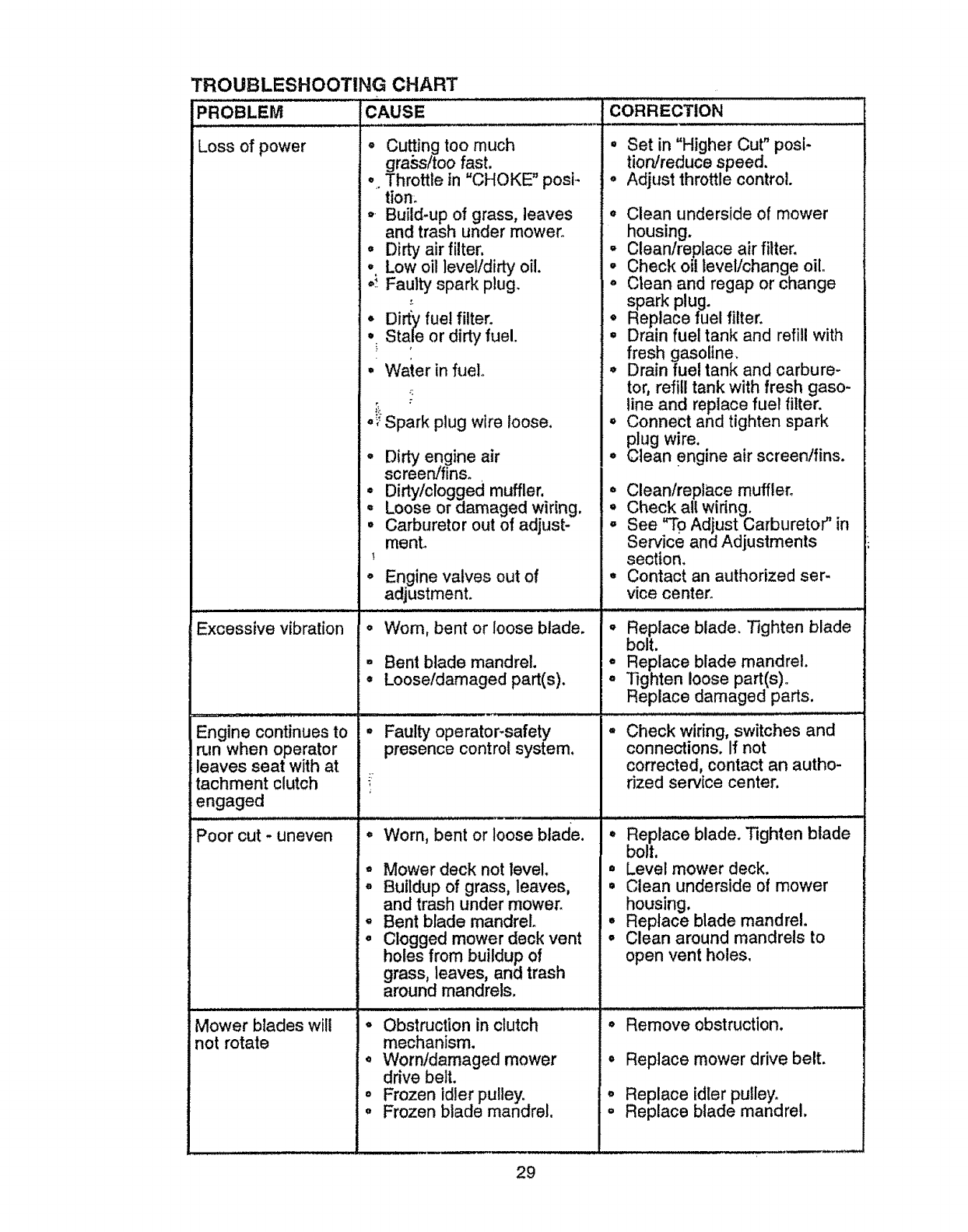

Troubleshooting .............................................28

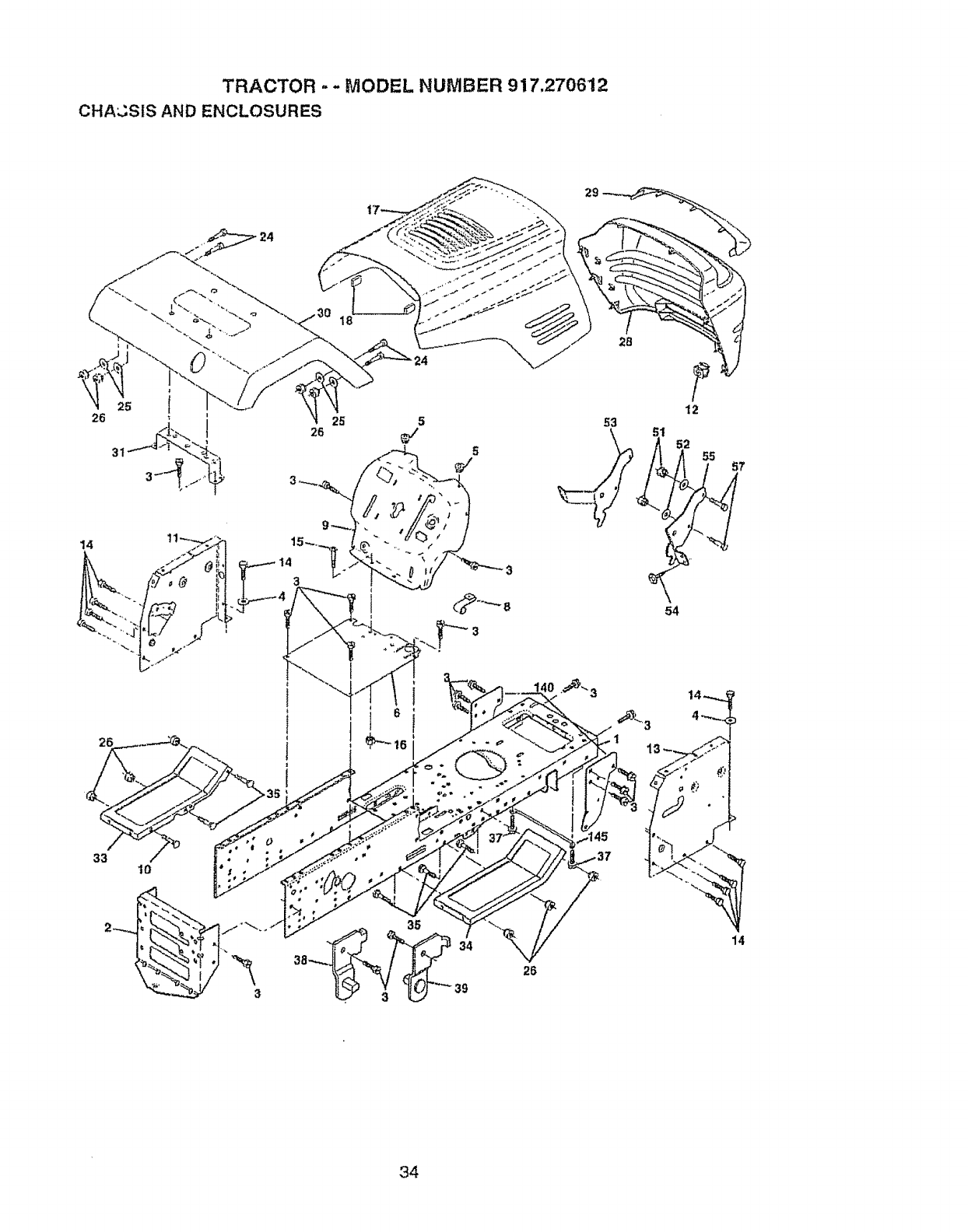

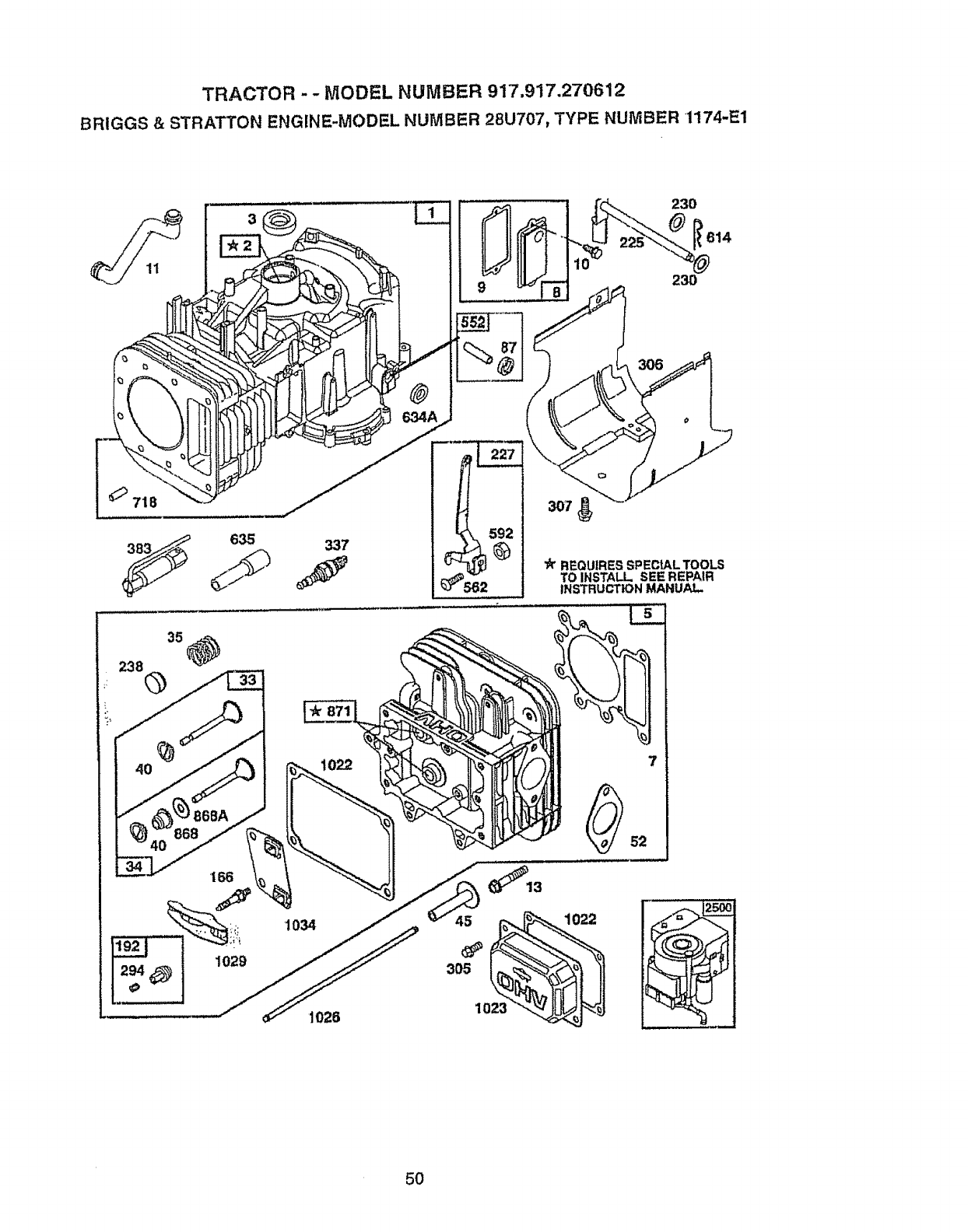

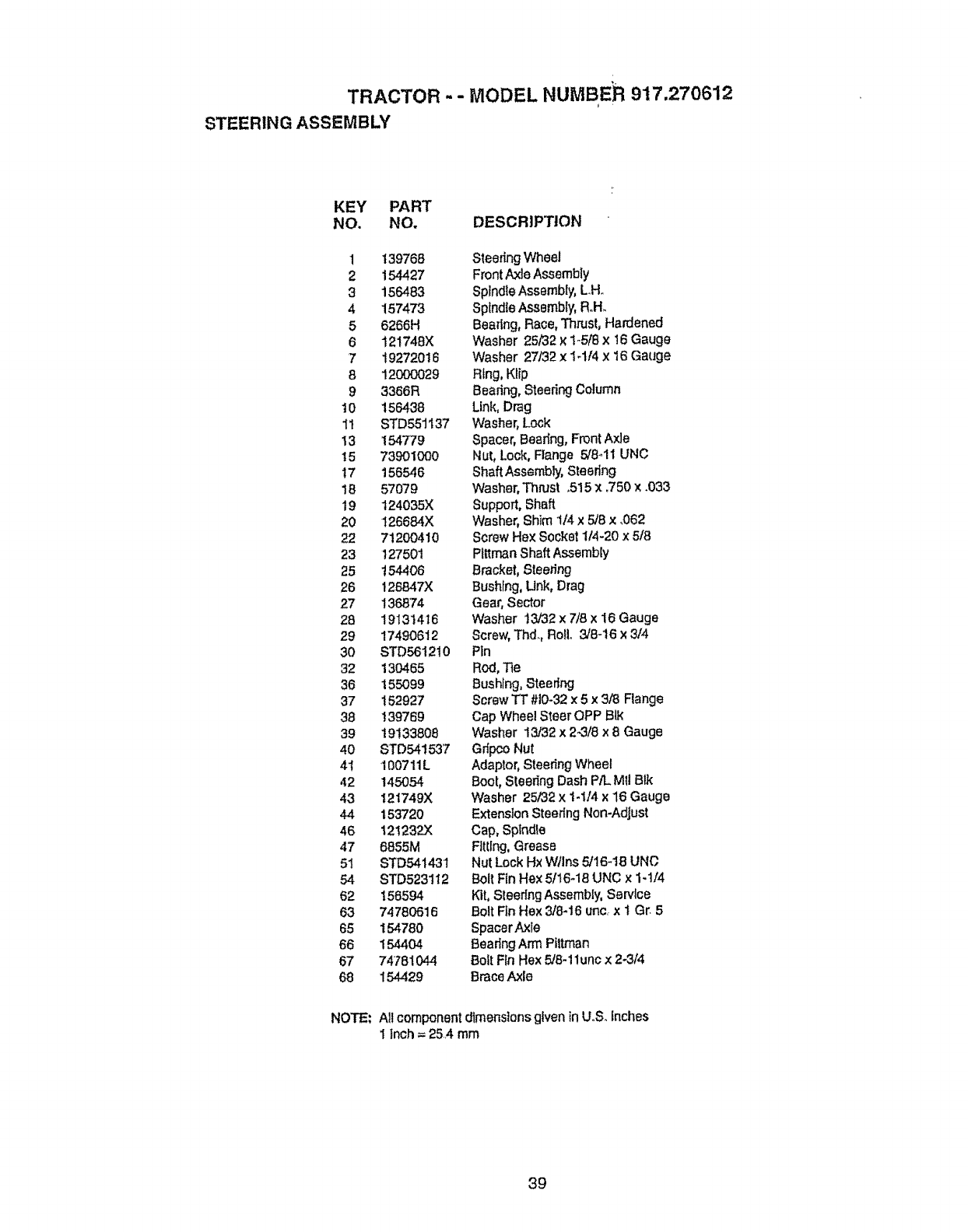

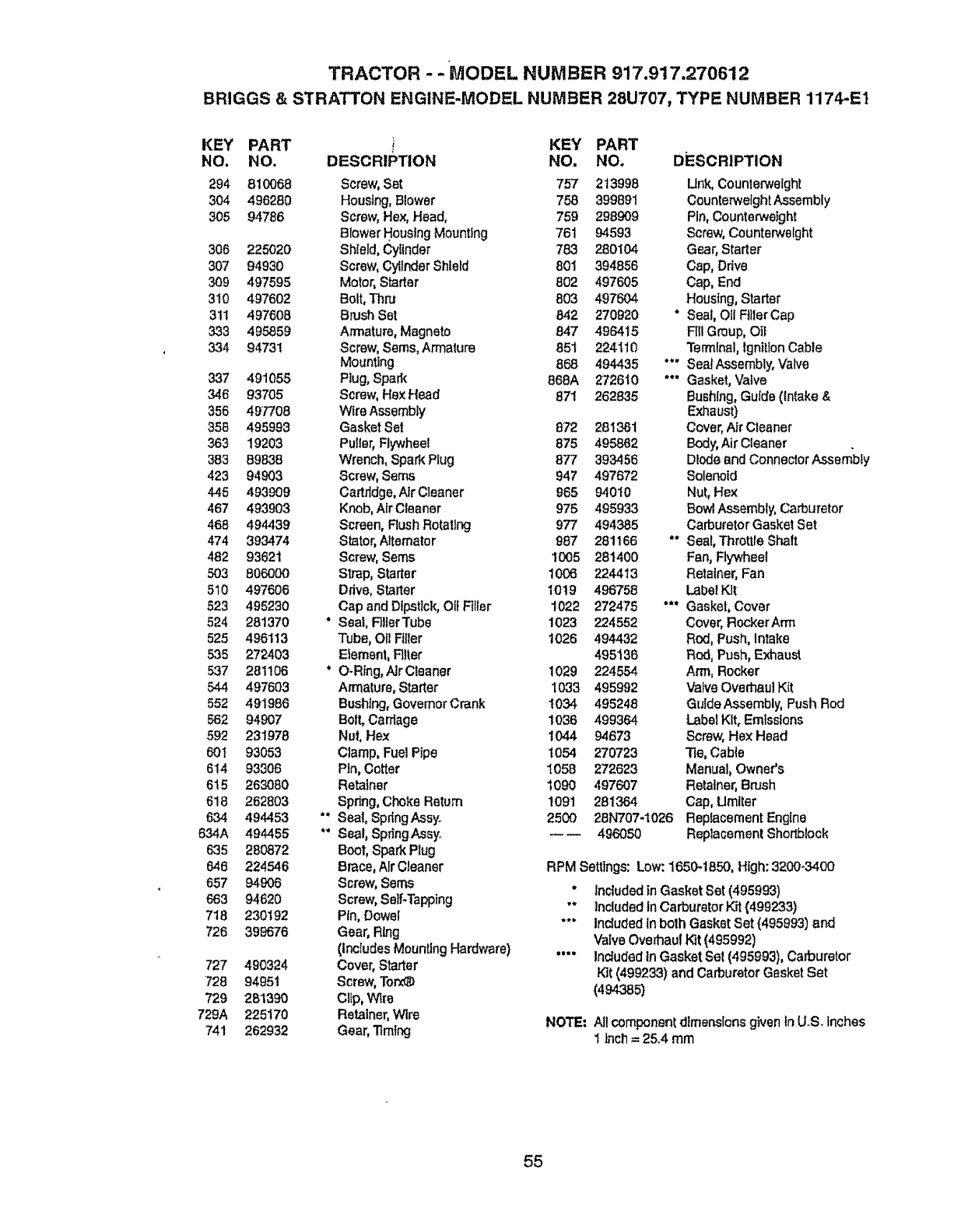

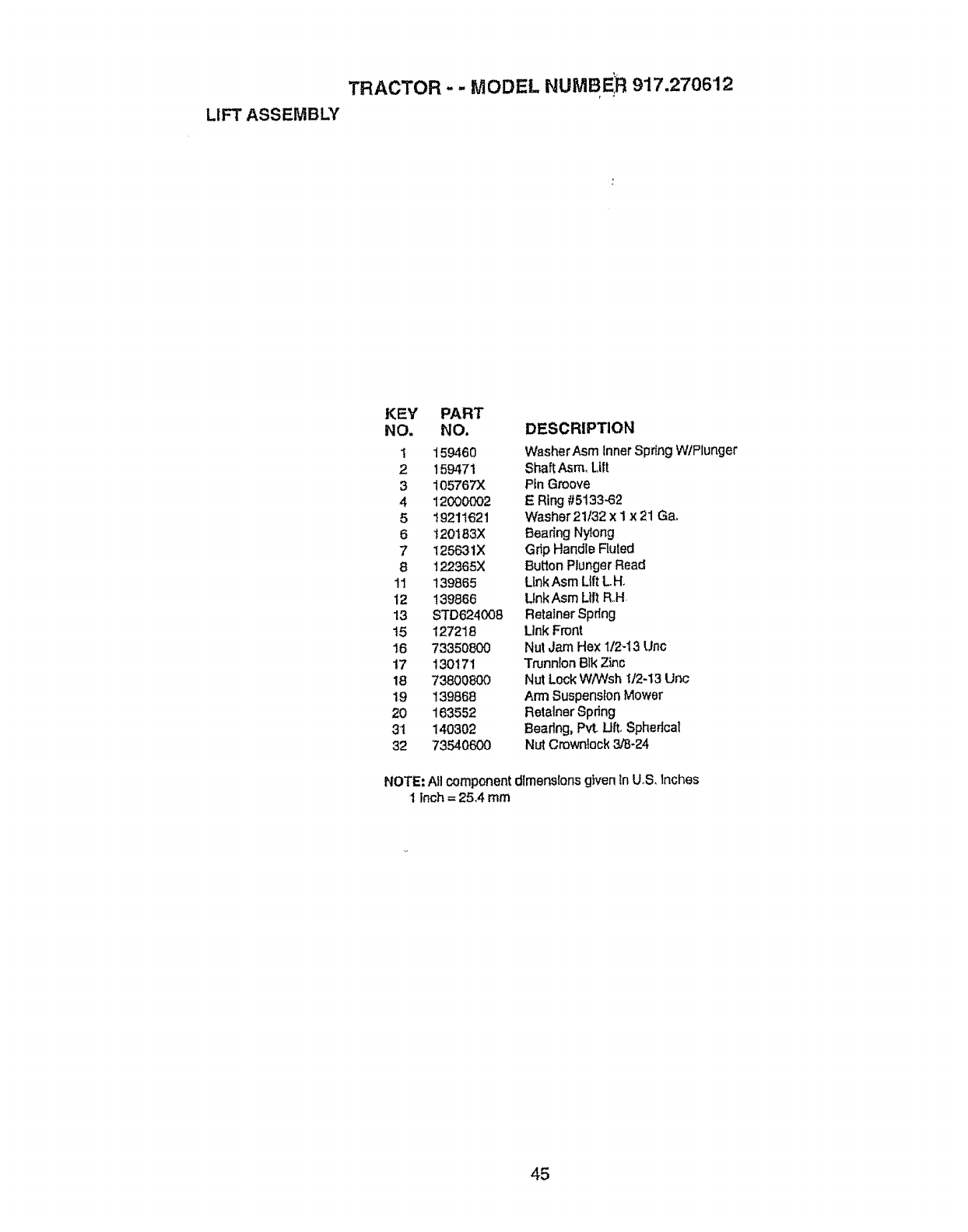

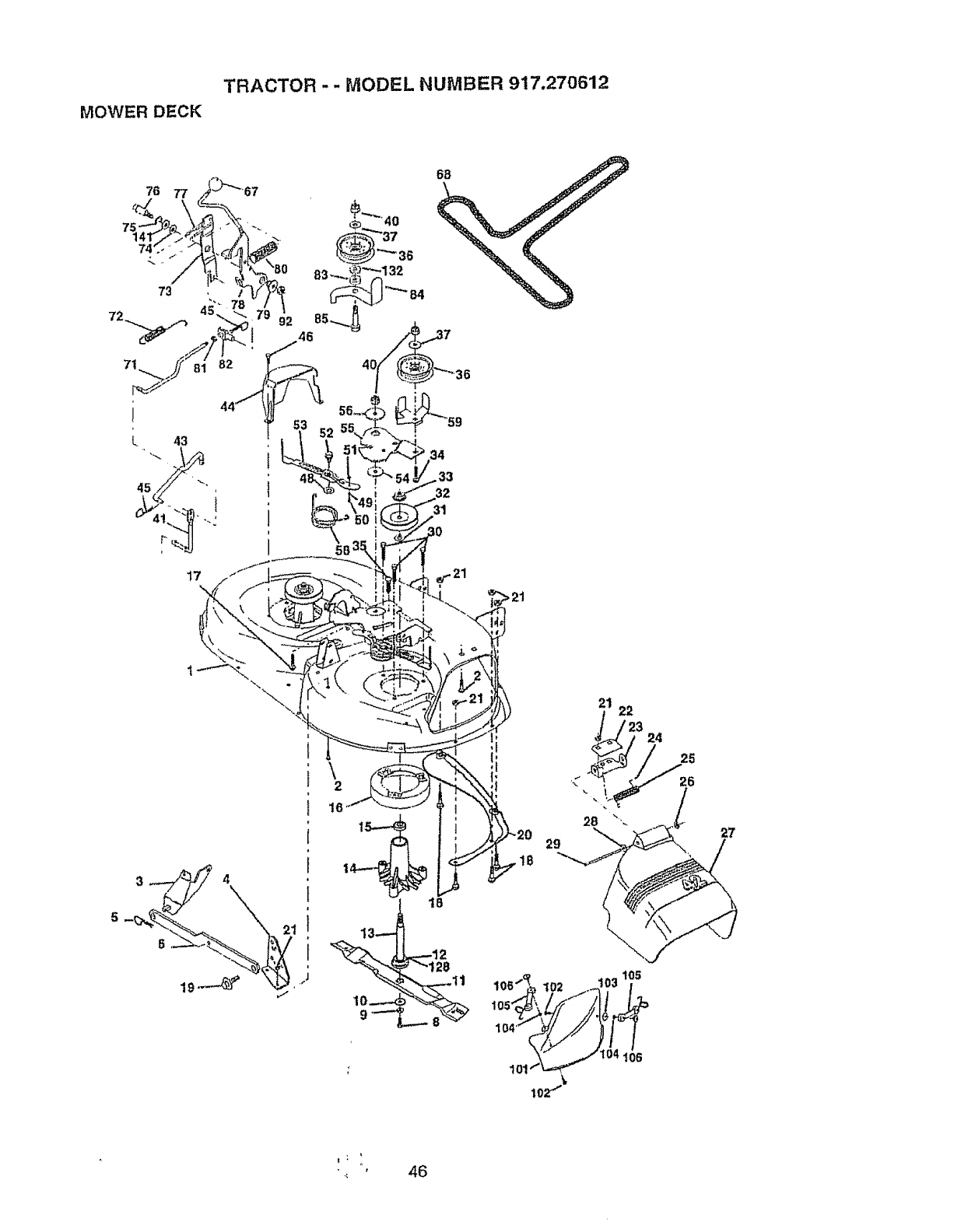

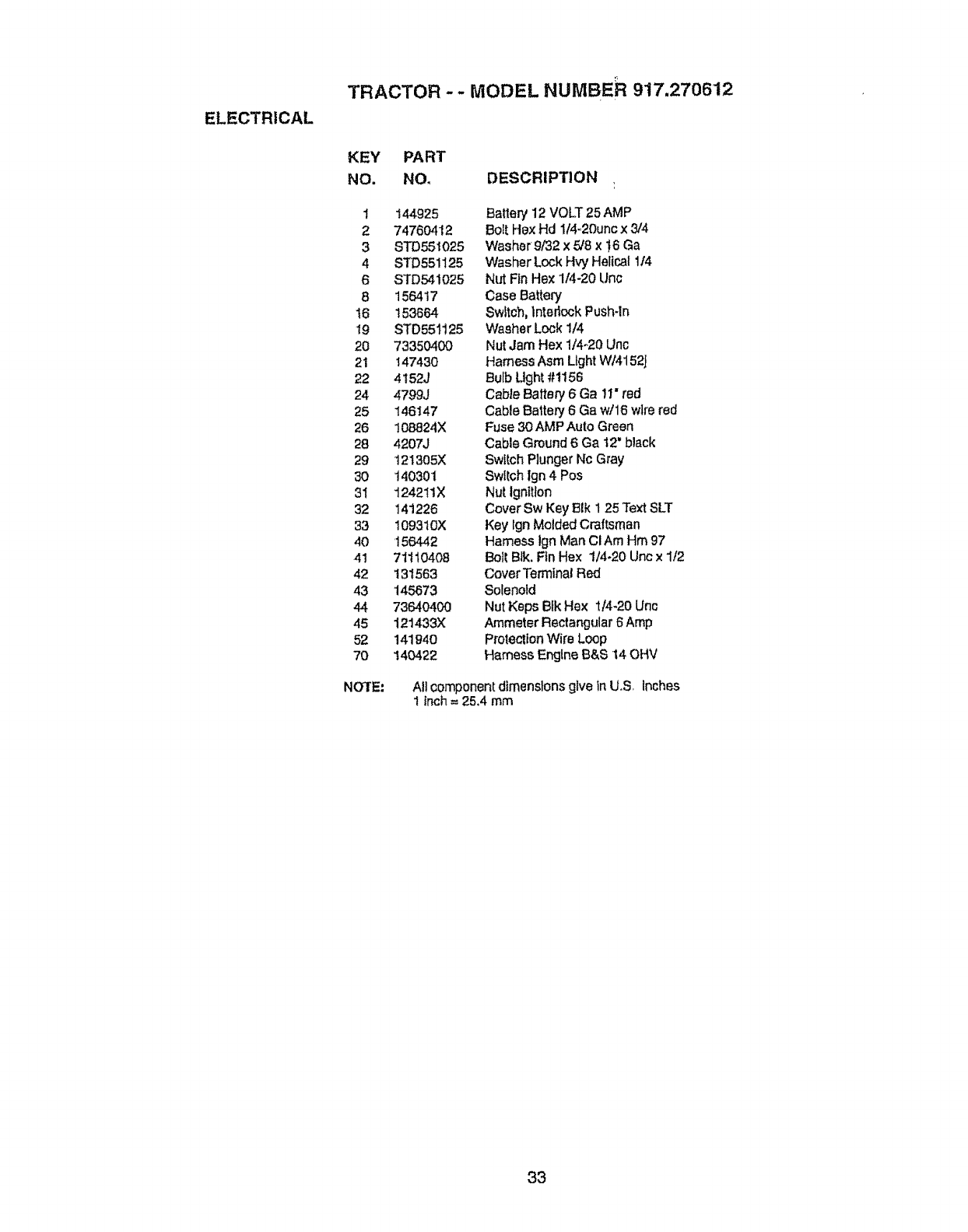

Repair Parts .............................................. 32

Parts Ordering ....................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is main-

tained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace, free of charge, any parts found to be defective in material or

workmanship,

This Warranty does not cover:

,, Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

,, Repairs necessary because of operator abuse, negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructions contained in

the owner's manual.. ,

° Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

Foi ninety (90) days from date of purchase, if any battery inctuded with this riding equip-

ment proves defective in material or workmanship and our testing determines the bat-

tery will not hold a charge, Sears will replace the battery at no charge, in-home warranty

service on your Craftsman riding equipment is available at no charge for 30 days from

the dale of purchase. Please contact your nearest service center. After 30 days from the

date of purchase, warranty service is available by taking your Craftsman riding equip-

ment to your nearest Sears Service Center. (In-home warranty service will still be avail-

able alter 30 days from the date of purchase but a standard trip charge will apply). Thls

warranty applies only while this product is in the United States. This Warranty gives you

specific legal rights, and you may also have other' rights which may vary from state to

state.

Sears, Roebuck and Co., D/817 VVA, Hoffman Estates, IL 60179

GENERAL OPERATION

°Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting_

° Only allow responsible adults, who are

familiar with the instructions, to operate

the machine,

, Clear the area of objects such as rocks,

toys, wire, etc.., which could be picked

up and thrown by th_ blade.

. Be sure the area is clear of other people

before mowing. Stop machine il anyone

enters the area.

2

°Never carry passengers.

.Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

°Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

° Slow down before turning.

° Never leave a running machine unat _.,

tended,. Always turn off blades, set park-

ing brake, stop engine, and remove

keys before dismounting.

°']'urn off blades when not mowing,

o Stop engine before removing grass

catcher or unclogging chute.

° Mow only in daylight or good artificial

light.

, Do not operate the machine while under

the influence of alcohol or drugs,

° Watch for traffic when operating near or

crossing roadways_ ,

o Use extra care when loading or unload-

ing the machine into a trailer or truck.

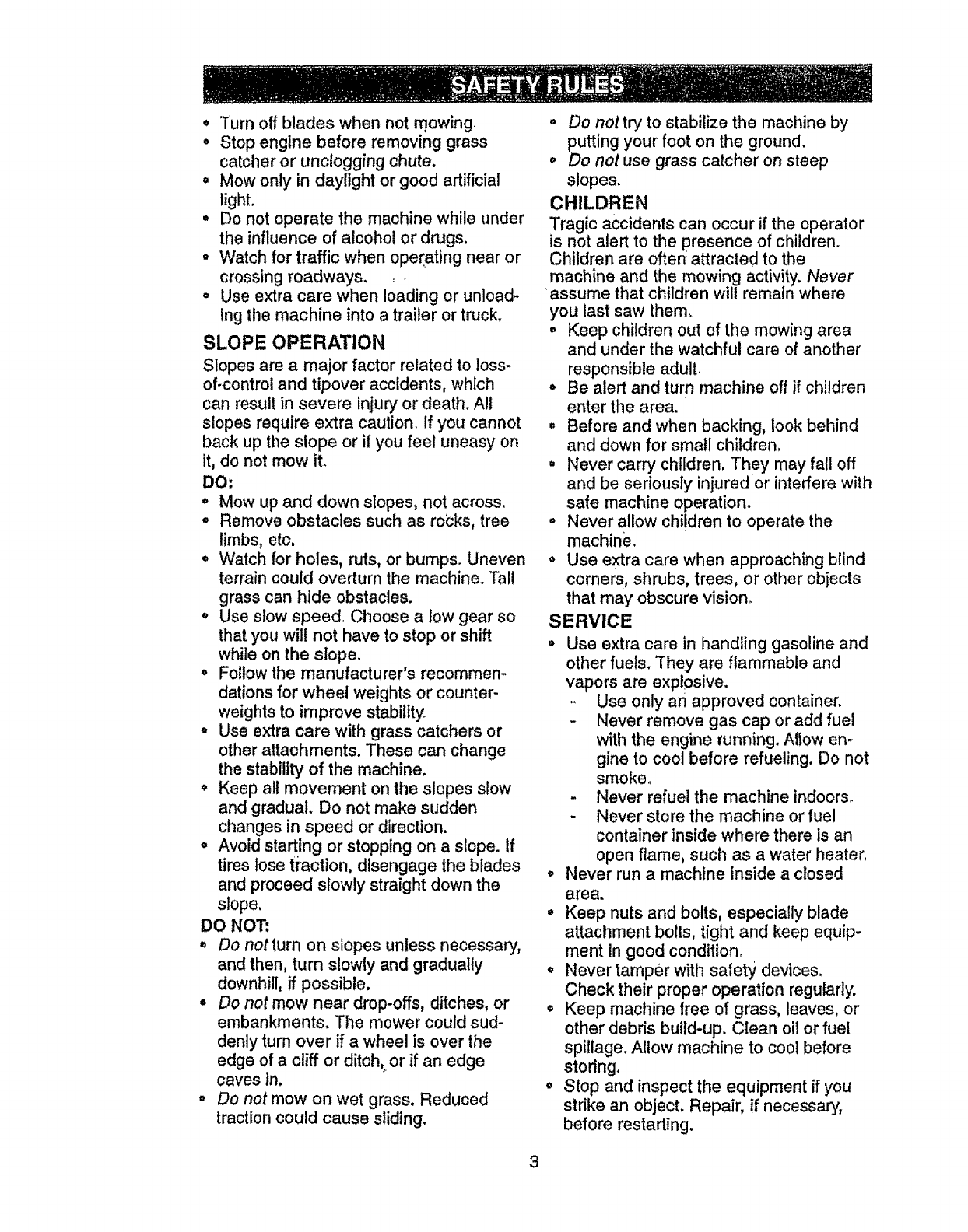

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you cannot

back up the slope or if you feel uneasy on

it, do not mow iL

DO:

° Mow up and down slopes, not across.

° Remove obstacles such as rocks, tree

limbs, etc.

° Watch for holes, rats, or bumps. Uneven

terrain could overturn the machine. Tal!

grass can hide obstacles.

o Use stow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

o Follow the manufacturer's recommem

dations for wheel weights or counter-

weights to improve stability°

° Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

o Avoid starting or stopping on a slope. If

tires lose ti'action, disengage the blades

and proceed slowly straight down the

slope,

DO NOT:

°Do notturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible,

°Do not mow near drop-offs, ditches, or

embankments. Tl_e mower could sud-

denly turn over if a wheel is over the

edge of a cliff or ditch_ or if an edge

caves in.

°Do not mow on wet grass. Reduced

traction could cause sliding.

°Do not try to stabilize the machine by

putting your foot on the ground.

,Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

° Keep children out of the mowing area

and under the watchful care of another

responsible adult,

o Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small children,

, Never carry' children, They may fall off

and be seriously injured or interfere with

safe machine operation,

° Never allow children to operate the

machine.

o Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

SERVICE

o Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do not

smoke.

- Never refuel the machine indoors°

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

oNever run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

,, Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up, Clean oil or fue!

spillage. Allow machine to coot before

stodng.

° Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

o

o

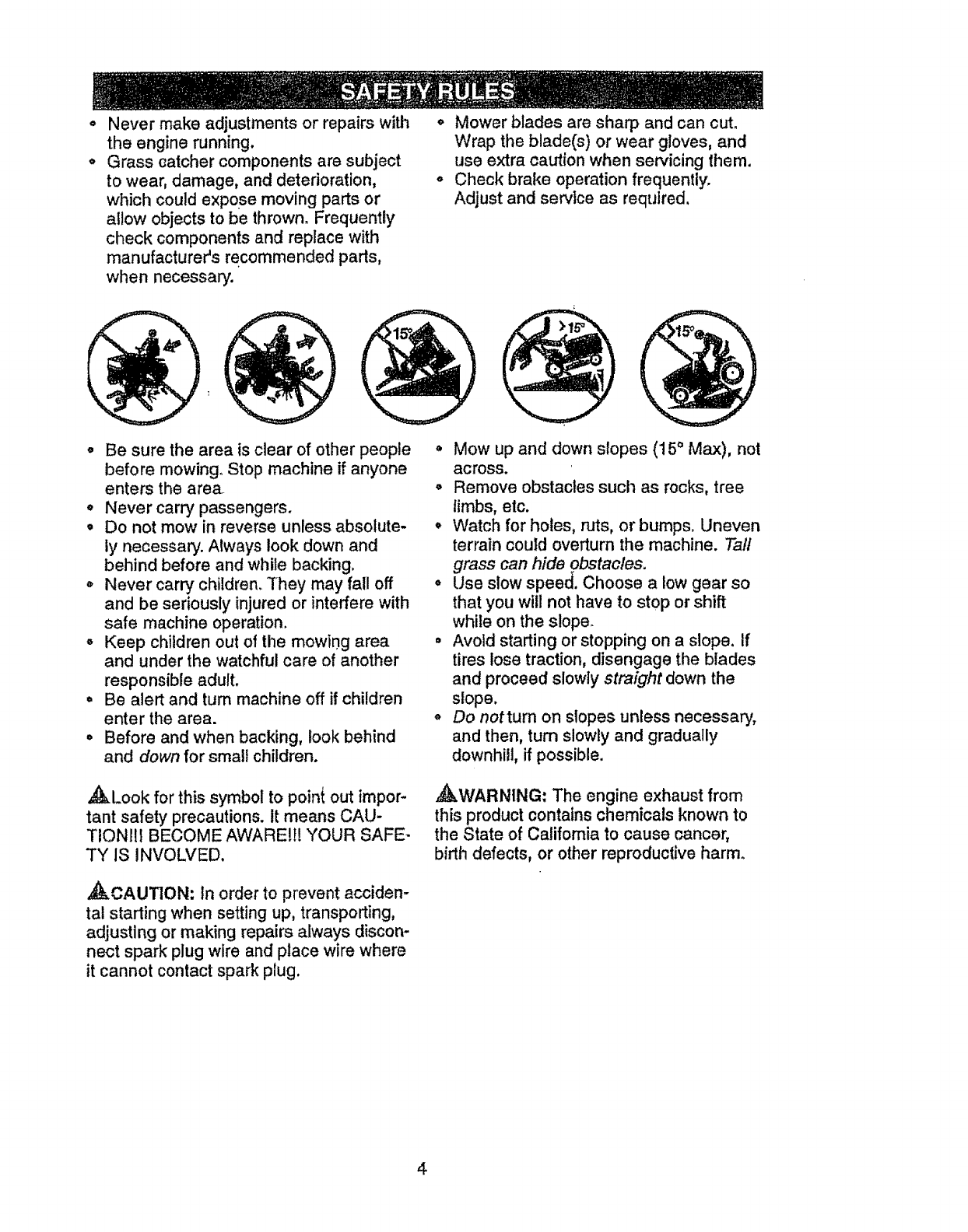

Never make adjustments or repairs with

the engine running.

Grass eatcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended pads,

when necessary.

o Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

oCheck brake operation frequently.

Adjust and service as required.

o Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

°Never carry passengers.

• Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing,

,, Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

o Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small children.

._Look for this symbol to poin_ out impor-

tant safety precautions, it means CAU-

TIONIII BECOME AWARE!_! YOUR SAFE-

TY IS INVOLVED.

._CAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

,_ Mow up and down slopes (15 o Max), not

across,

° Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, rats, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

o Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

°Do notturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

_WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

4

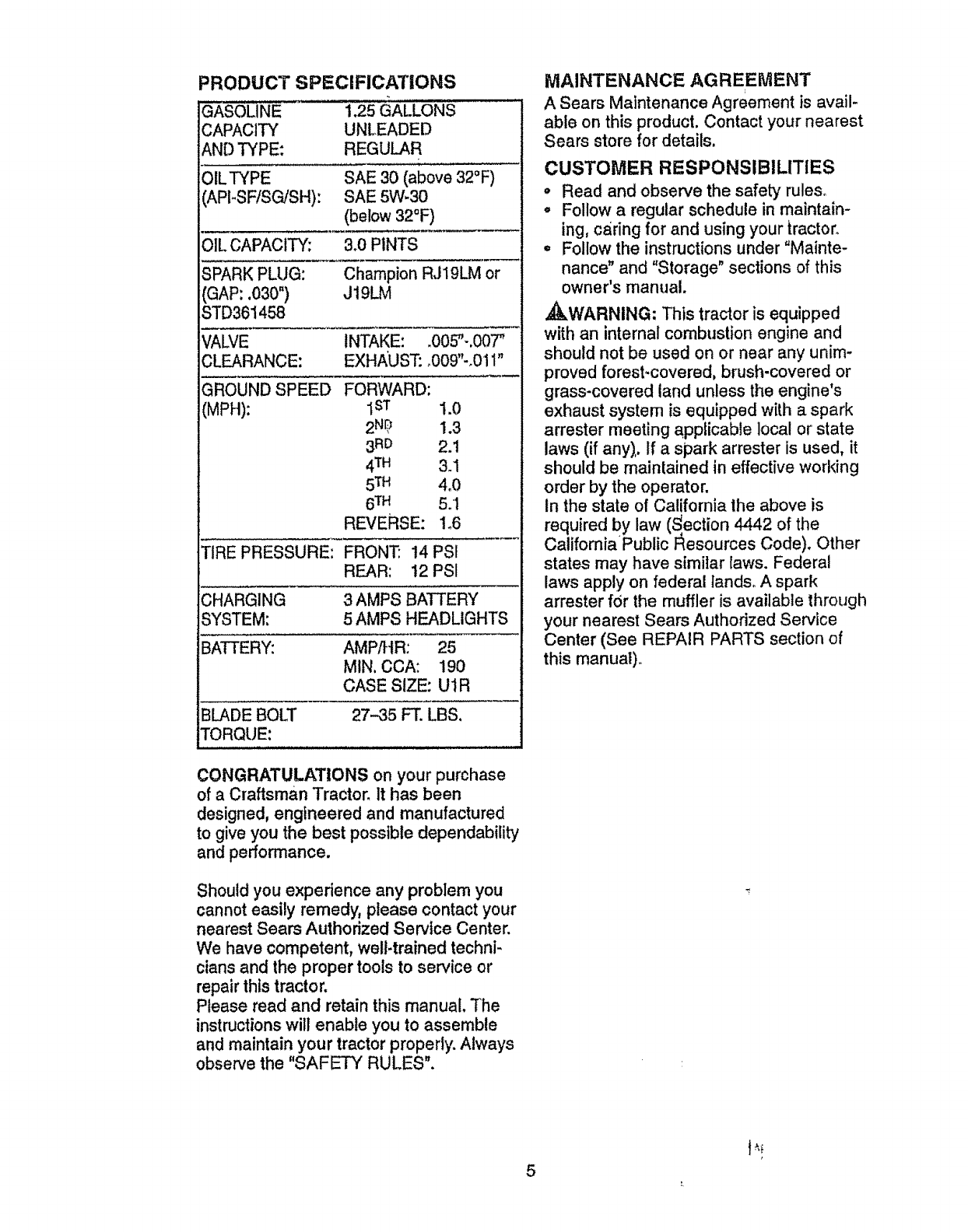

PRODUCT SPECIFICATIONS

GASOL---'_NE 1.25 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 30 (above 32°F)

SAE 5W-30

(below 32°F)

OIL CAPACITY: 3.0 PINTS

SPARK PLUG: Champion RJ19LM or

(GAP: ,030") J19LM

STD361458

VALVE INTAKE: .005"-,00"Y'

CLEARANCE: EXHAUST: o009"-.011"

GROUND SPEED

(MPH):

FORWARD:

1sT 1.0

2N(_ 1.3

3RD 2.1

4TH 3.1

5TH 4.0

6TH 5.1

REVERSE: 1o6

TIRE PRESSURE: FRONT: 14 PSI

REAR: 12 PSI

CHARGING 3 AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 25

MIN, CCA: 190

CASE SIZE: U1R

BLADE BOLT 27-35 FT. LBS,

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependability

and performance.

Should you experience any problem you

cannot easily remedy, please contact your

nearest Sears Authorized Service Center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

MAINTENANCE AGREEMENT

=

A Sears Maintenance Agreement is avail-

able on this product. Contact your nearest

Sears store for details.

CUSTOMER RESPONSIBILITIES

o Read and observe the safety rules_

•Follow a regular schedule in maintain-

ing, c_iring for and using your tractor.

oFollow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any),. If a spark arrester is used, it

should be maintained in effective working

order by the operator,

In the state of California the above is

required by law (_ection 4442 of the

California Public Resources Code), Other

states may have similar laws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available through

your nearest Sears Authorized Service

Center (See REPAIR PARTS section of

this manual).

5

t,

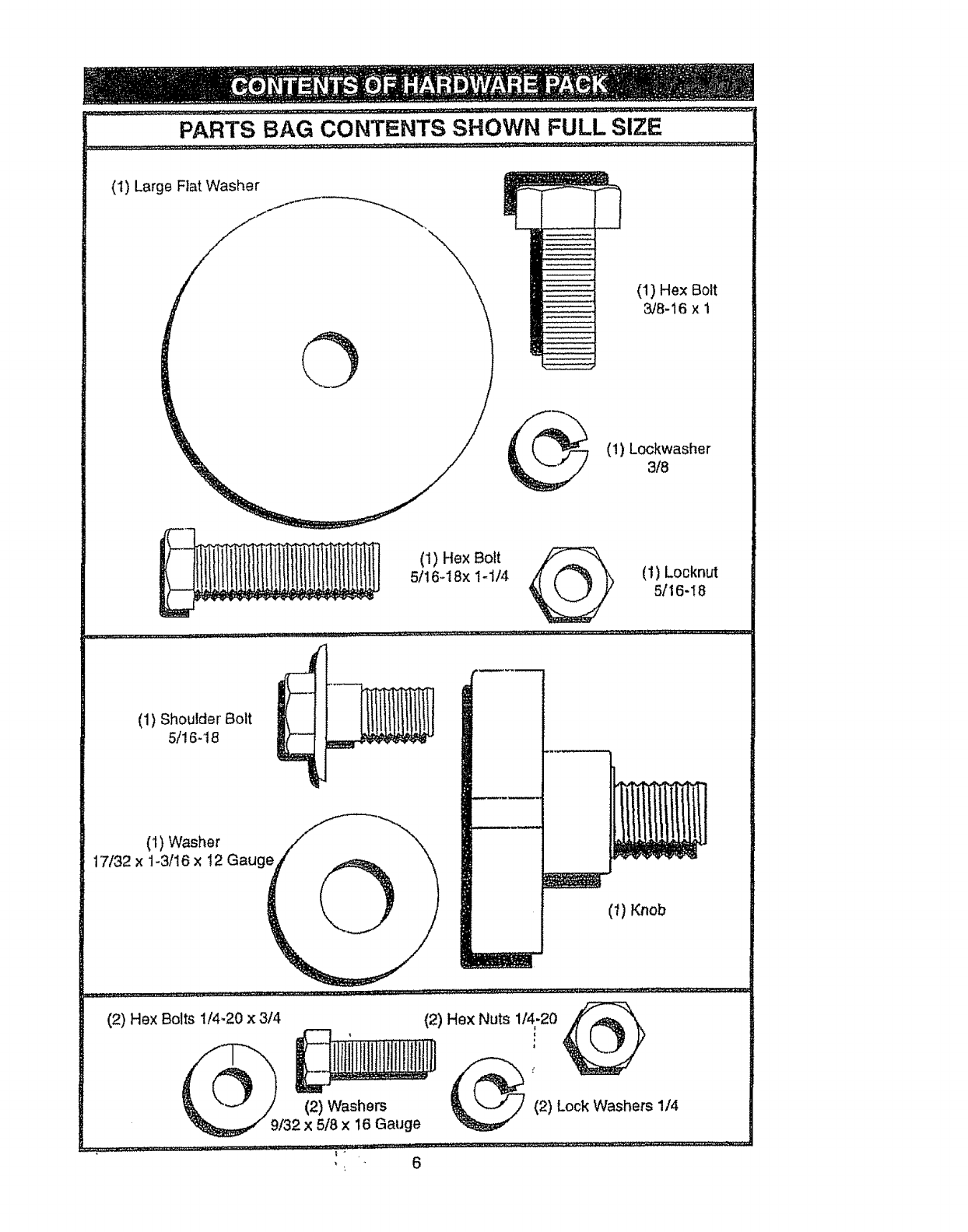

PARTS BAG CONTENTS SHOWN FULL SIZE

(t) Large Flat Washer

(1) Hex Bolt

&/8-16 x1

(1) Lockwasher

318

(1) Hex Bolt

5/16_18x I-1/4 (1) Locknut

5/_6-t8

(1) Shoulder Bolt

5/16-18

(I) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

(2) Hex Bolts I/4-20 x 3/4 (2) Hex Nuts 1/4-20 Ft,_"_k

(2) Washers (2) Lock Washers 1/4

9/32 x 5/8 x 16 Gauge

': 6

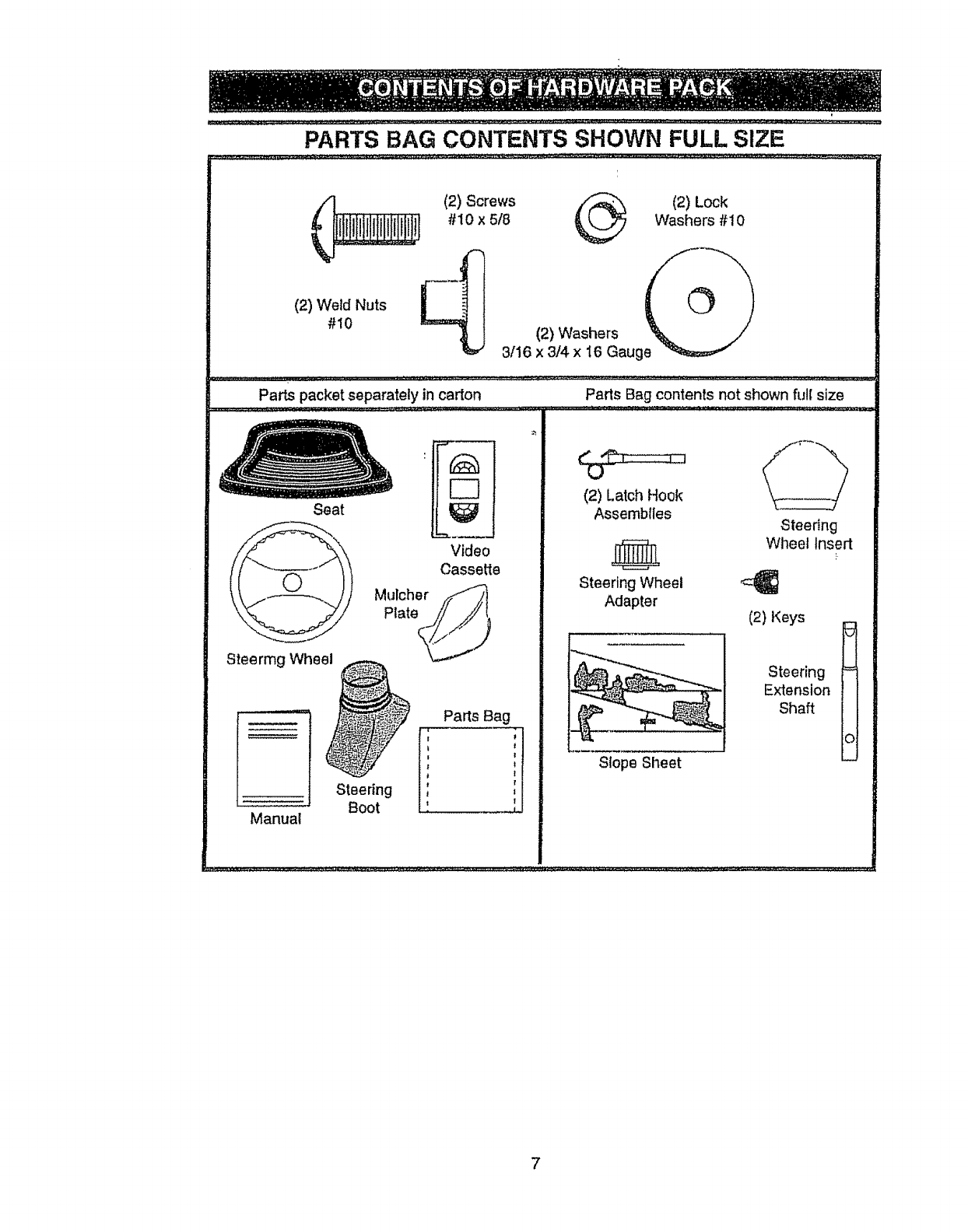

PARTS BAG CONTENTS SHOWN FULL SIZE

(2) Wet_ Nuts

#_0

(2) Screws _'_'-\ (2) Lock

#10 x 5/8 _ Washers #10

(2) Washers

3/'16 x 3/4 x I6 Gauge

Parrs packet separately in carton

Seat

Steering Wheel

Video

Cassette

Mulcher

Plate__

Manual

Steering

Boot

Parts Bag

! 1

Parts Bag contents not shown full size

(2) Latch Hook

Assemblies

Steering Wheel

Adapter

Slope Sheet

Steering

Wheel Insert

!

(2) Keys

Steering =

Extension

Shaft

7

Yournewtractorhasbeen assembledatthe factorywithexceptionofthosepartsleft

unassembledfor shippingpurposes.Toensuresafe andproperoperationof yourtractor

a!lpartsandhai-dwareyou assemblemustbetightenedsecurely.Usethe correcttools

as necessaryto insurepropertightness.Reviewthe videocassettebeforeyou begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set wi!l make assembly

easier. Standard wrench sizes you need

are listed below°

(1) 9116" wrench

(2) 1/2" wrench

(1) Pliers

(1) Utility knife

(2) 7/i 6" wrenches

(1) Phillips Screw-

driver

(!)'Fire pressure

gauge

When right or left hand Is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

, Remove atl accessible loose parts and

parts boxes from shipping carton (See

page 6).

oCut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

°Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFTAND

BOOT

,, Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in exten-

sion and lower shafts and install 5/16

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut secure-

ly to 18-22 ft. Ibs, torque.

•Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

° Position front wheels of the tractor so

they are pointing straight forward.

.Slide steering wheel adapter onto steer-

ing shaft extension.

oPositionsteering whe_l so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

-Assemble large flat washer, 3/8 tock

washer, 3/8 hex bolt and tighten securely°

= Snap steering wheel insert into center

of steering wheel.

= Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Insert

Wheel

Extension Adapter

Shaft5/l6 L__,_/5f16Bolt Hex

Lower $teenna....., _ -_ .... ,

Shaft ',. , J) ,' t

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

oPress lift lever plunger and raise attach-

ment lift lever to its highest position.

° Release parking brake by depressing

clutch/brake pedal.

• Place gearshift lever in neutral (N) posi-

tion.

•Rotltractor forward off skid.

•Remove ba_nding holding discharge

guard up against tractor.

8

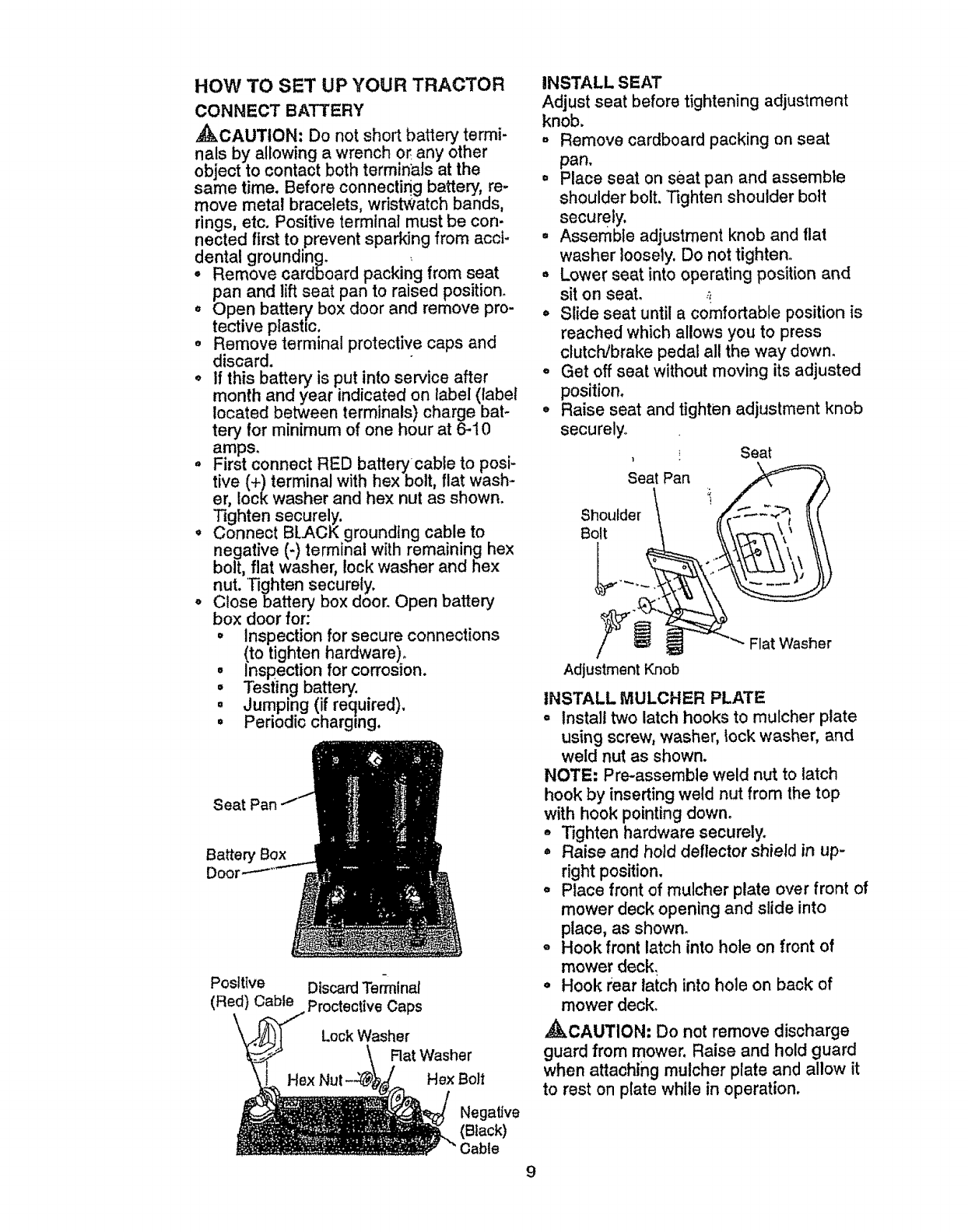

HOW TO SET UP YOUR TRACTOR

CONNECT BATTERY

_kCAUTION: Do not short battery termi-

nals by allowing a wrench or any other

object to contact both term=nalsat the

same time. Before connecting battery, re-

move metal bracelets, wristwatch bands,

rings, etc. Positive terminal must be con-

nected first to prevent sparking from acci-

dental grounding.

° Remove cardboard packing from seat

pan and liftseat pan to raised position.

oOpen battery box door and remove pro-

tective plastic,

o Remove terminal protective caps and

discard.

o If this battery is put into service after

month and year indicated on label (label

located between terminals) charge bat-

tery for minimum of one hour at 6-10

amps.

= First connect RED batterycable to posi-

tive (+)terminal with hex bolt, flat wash-

er, lock washer and hex nut as shown.

Tighten securely,

° Connect BLACK grounding cable to

negative (-) terminal with remaining hex

bolt, flat washer, lock washer and hex

nut. Tighten securely.

o Close battery box door. Open battery

box door for:

o inspection for secure connections

(to tighten hardware).

°Inspection for corrosion.

° Testing battery.

= Jumping (if required).

• Periodic charging.

Battery Box

Door

Positive

(Red) Cable

,\

Discard Terminal

Proctective Caps

Lock Washer

Rat Washer

Hex Bolt

Negative

(Black)

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

= Remove cardboard packing on seat

pan.

= Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

= Assemble adjustment knob and flat

washer loosely. Do not tighten.

, Lower seat into operating position and

sit on seat.

o Slide seat until a comfortable position is

reached which allows you to press

clutch/brake pedal all the way down.

o Get off seat without moving its adjusted

position.

oRaise seat and tighten adjustment knob

securely.

Seat

Seat Pan

Shoulder

Bolt

Flat Washer

Adjustment Knob

INSTALL MULCHER PLATE

° Install two latch hooks to mulcher plate

using screw, washer, _ock washer, and

weld nut as shown.

NOTE; Pre-assemble weld nut to latch

hook by inserting weld nut from the top

with hook pointing down.

•Tighten hardware securely.

° Raise and hold deflector shield in up-

right position.

• Place front of mulcher plate over front of

mower deck opening and slide into

place, as shown.

oHook front latch into hole on front of

mower deck,

oHook rear latch into hole on back of

mower deck_

,_CAUTION: Do not remove discharge

guard from mower. Raise and hold guard

when attaching mulcher plate and allow it

to rest on plate while in operation.

9

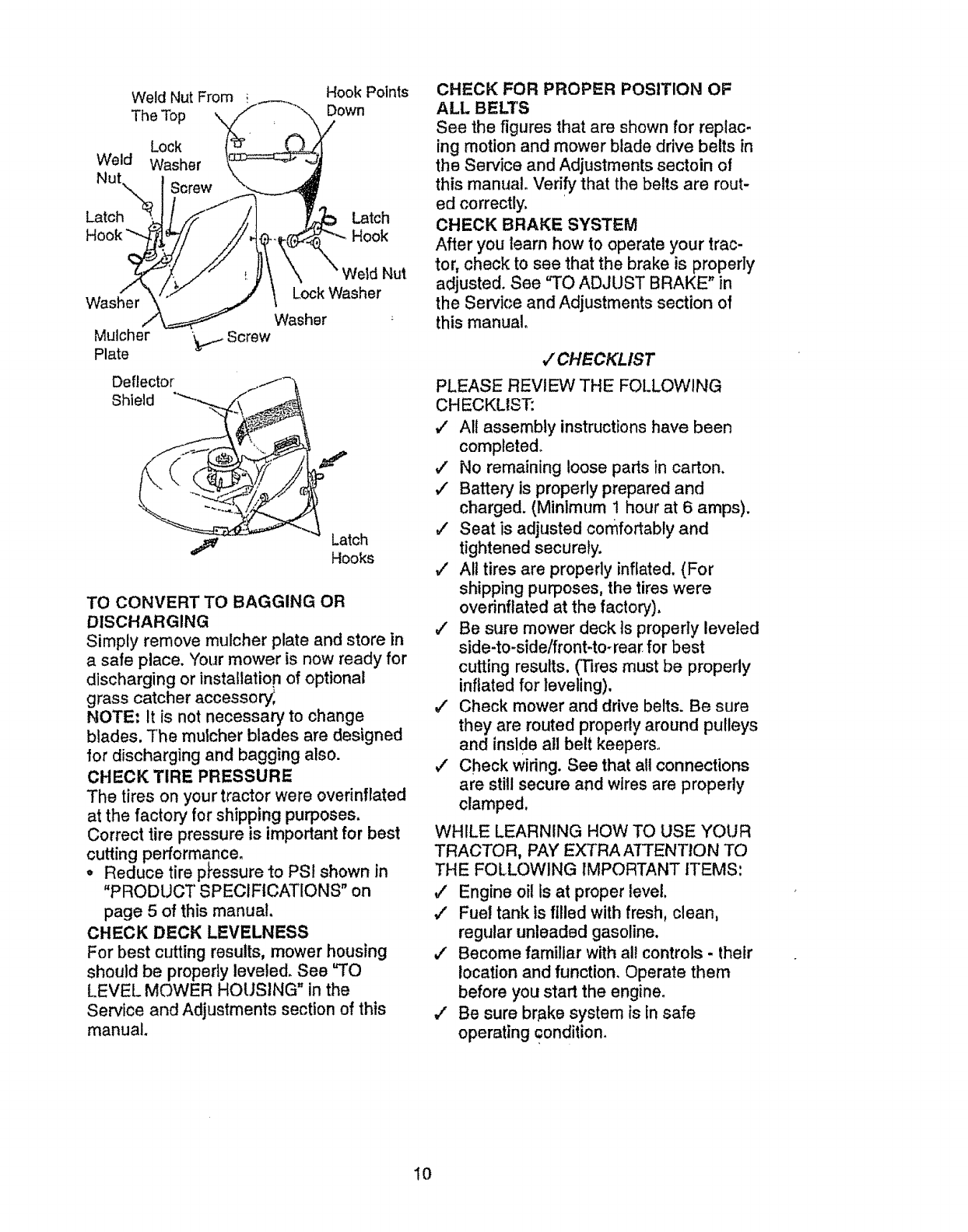

Weld Nut From _ Hook Points

The Top Down

Lock

Weld Washer

Nul

Latch Latch

Hook Hook

Nut

Lock Washer

Washer Washer

Mulcher '_._ Screw

Plate

Deflector

Shield

f Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. "(our mower is now ready for

discharging or installation of optional

grass catcher accesso_

NOTE; It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were everinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance_

• Reduce tire p_'essure to PSi shown in

"PRODUCT SPECIFICATIONS" on

page 5 of this manual.

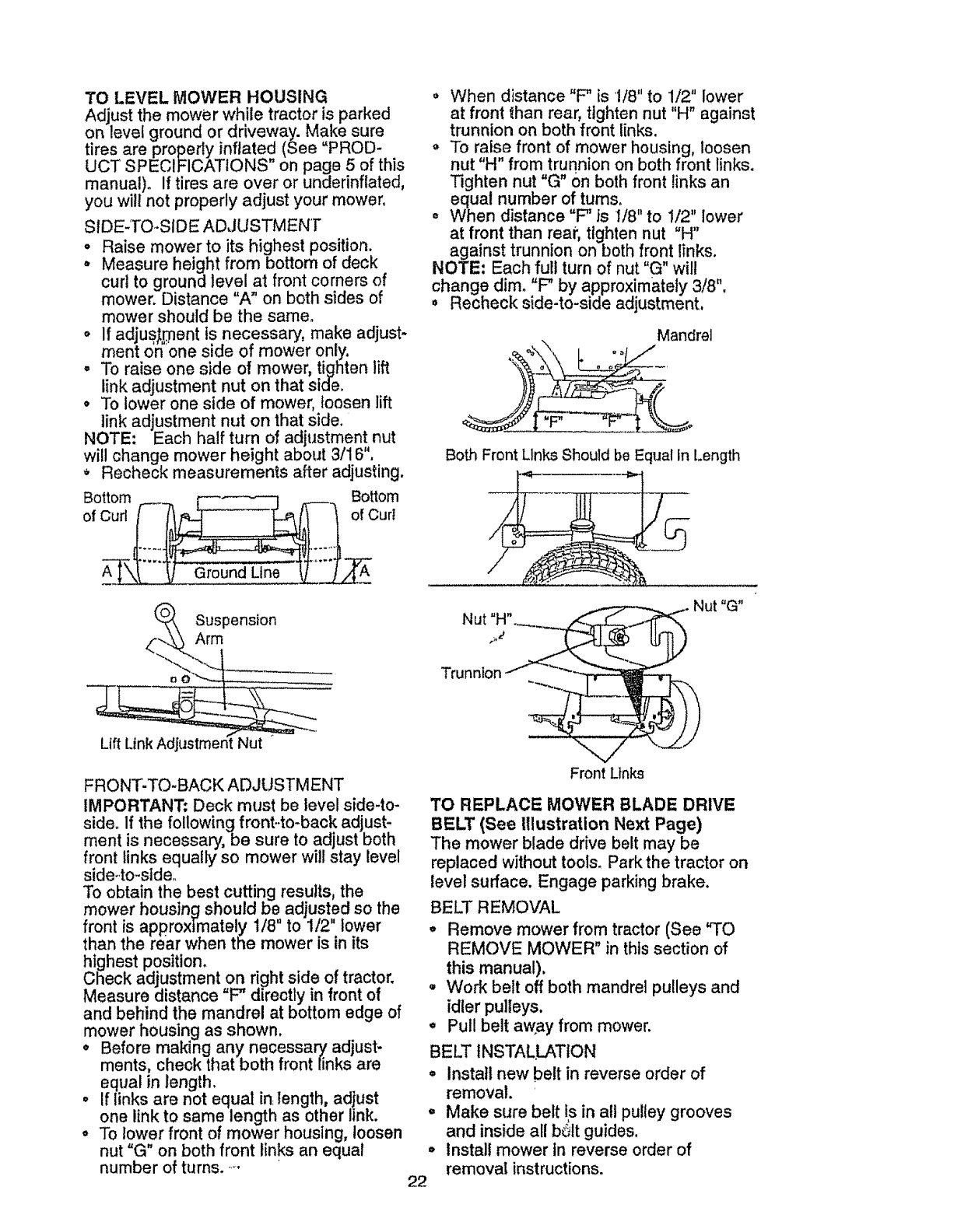

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF=

ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts in

the Service and Adjustments sectoin of

this manual. Verify that the belts are rout-

ed correctly,

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/'CHECKLIST

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

#" All assembly instructions have been

completed.

¢" No remaining loose parts in carton.

,/ Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/ Seat is adjusted comfortably and

tightened securely.

,/ All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/ Be sure mower deck ts properly leveled

side-to-side/front-to-rear for best

cutting results. (Tires must be properly

inflated for leveling),

,/ Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/ Check wiring. See that all connections

are still secure and wires are properly

clamped,

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRA A"fTENTION TO

THE FOLLOWING IMPORTANT iTEMS:

,/' Engine oil Is at proper level.

#" Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/ Become familiar with all controls - their

location and function. Operate them

before you start the engine.

# Be sure brake system is In safe

operating condition.

10

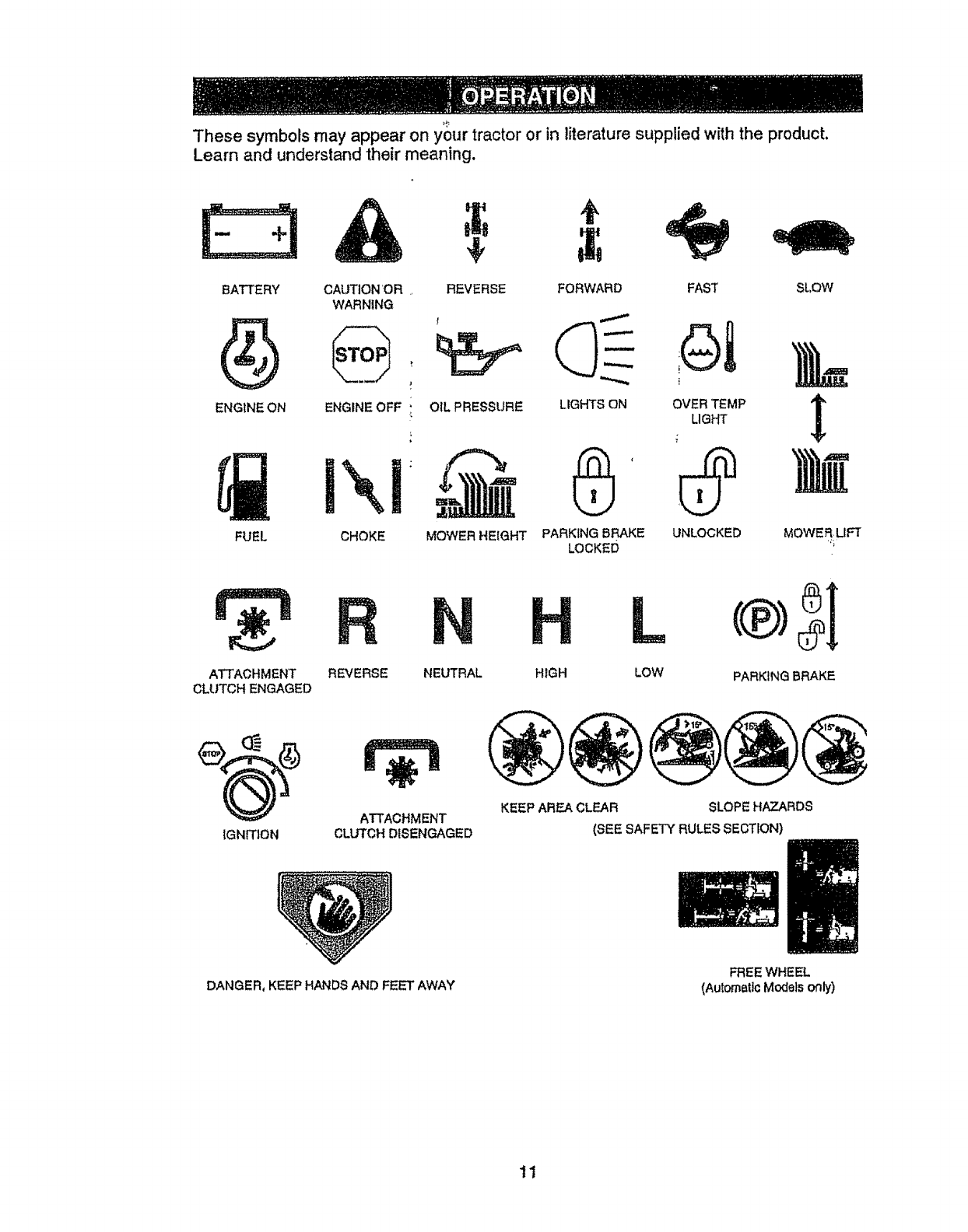

Thesesymbolsmayappearonyour tractoror in literaturesuppliedwiththe product.

Learnand understandtheir meaning.

BATTERY CAUTION !OR

WARNING

ENGINE ON ENGINE OFF •

FUEL

ATTACHMENT

CLUTCH ENGAGED

IGNITION

REVERSE FORWARD FAST SLOW

OIL PRESSURE LIGHTS ON

CHOKE MOWER HEIGHT

REVERSE NEUTRAL

PARKING BRAKE

LOCKED

HIGH

ATTACHMENT

CLUTCH DISENGAGED

OVER TEMP

LIGHT

UNLOCKED

L

LOW

MOWER LIFT

PARKING BRAKE

KEEP AREA CLEAR SLOPEHAZARDS

(SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY FREE WHEEL

(Automatic Modeis only)

11

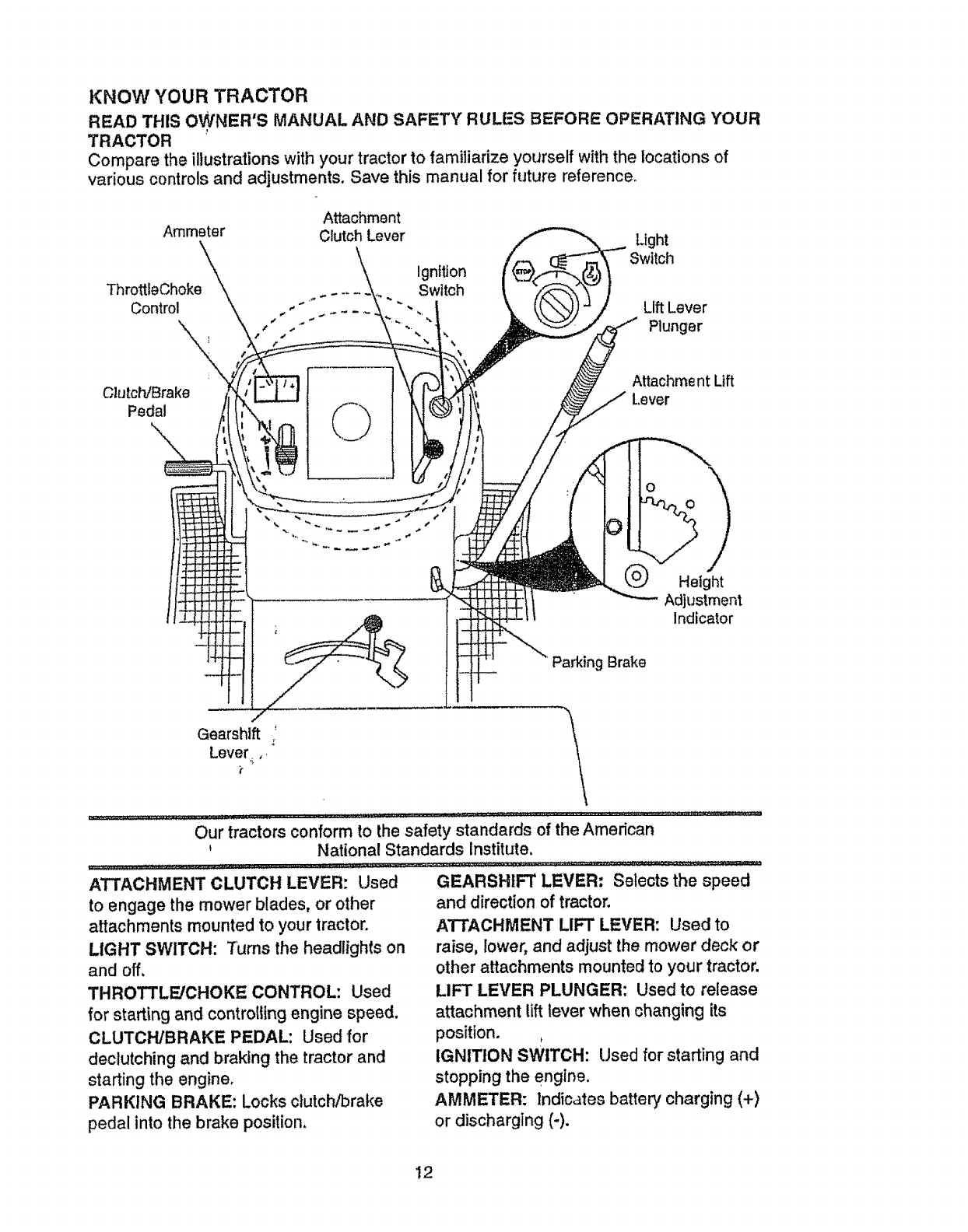

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference_

Ammeter

ThrottleChoke

Control ,,-"

Attachment

Clutch Lever Light

\ ignition Switch

Switch Lift Lever

Plunger

Clutch/Brake

Pedal

Attachment Lift

Lever

Gearshift;

Lever,

?

Parking Brake

O1

Height

Ad]ustment

Indicator

ATTACHMENT CLUTCH LEVER: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH: Turns the headlights on

and off,

THROTTLE/CHOKE CONTROL: Used

for starting and controlling engine speed,

CLUTCH/BRAKE PEDAL: Used for

dectutching and braking the tractor and

starting the engine,

PARKING BRAKE: Locks clutch/brake

pedal into the brake position,

National Standards Institute.

GEARSHIFT LEVER: Selects the speed

and direction of tractor.

ATTACHMENT LIFT LEVER: Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position, ,

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: Indicates battery charging (+)

or discharging (-).

12

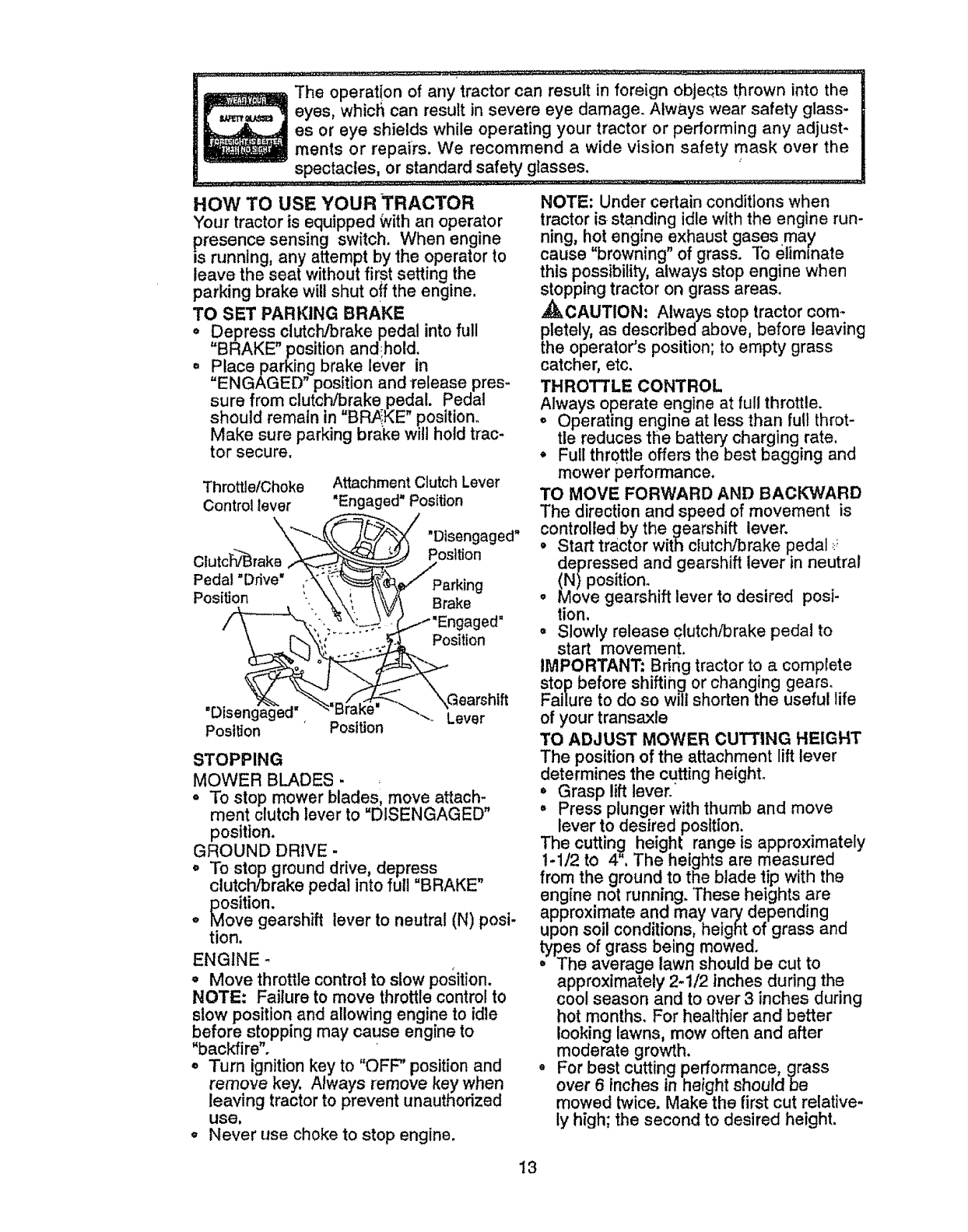

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glass-

es or eye shields while operating your tractor or performing any adjust-

ments or repai_rs. We recommend a wide vision safety mask over the

spectacles, or standard safety glasses.

HOW TO USE YOUR TRACTOR

'(our tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first settingthe

parking brake wilt shut off the engine.

TO SET PARKING BRAKE

° Depress clutch/brake pedal into full

"BRAKE" position and:hold.

= Place parking brake lever in

ENGAGED" position and-release pres-

sure from clutc_dbrake pedal. Pedal

should remain in BROOKE" position.

Make sure parking brake wilt hold trac-

tor secure.

Throttle/Choke Attachment Clutch Lever

Control lever "Engaged" Position

"',_.'-__"" Disen gaged"

Position . " \_", \_/_ Brake

Position Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE-

o To stop ground drive, depress

clutch/brake pedal into full "BRAKE"

position.

• Move gearshift lever to neutral (N) posi-

tion.

ENGINE -

o Move throttle control to slow po_,ition.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

= Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use,

o Never use choke to stop engine.

NOTE: Under certain conditions when

tractor is standing idle with the engine run-

ning, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

,ACAUTION.- Always stop tractor com-

pletely, as described above, before leaving

the operator's position; to empty grass

catcher, etc,

THROTTLE CONTROL

Always operate engine at full throttle.

o Operating engine at less than full throt-

tle reduces the battery charging rate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

°Start tractor with cfutch_rake pedal ;_;

depressed and gearshift lever in neutral

(N)position.

°Move gearshift lever to desired posi-

tion.

o Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

°Grasp lift lever.

° Press plunger with thumb and move

lever to desired position.

The cutting height range is approximately

!-1]2 to 4". The heights are measured

from the ground to the blade tip with the

engine not running. These heights are

approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

• For best cutting performance, grass

over 6inches in height should be

mowed twice. Make the first cut relative-

ly high; the second to desired height.

13

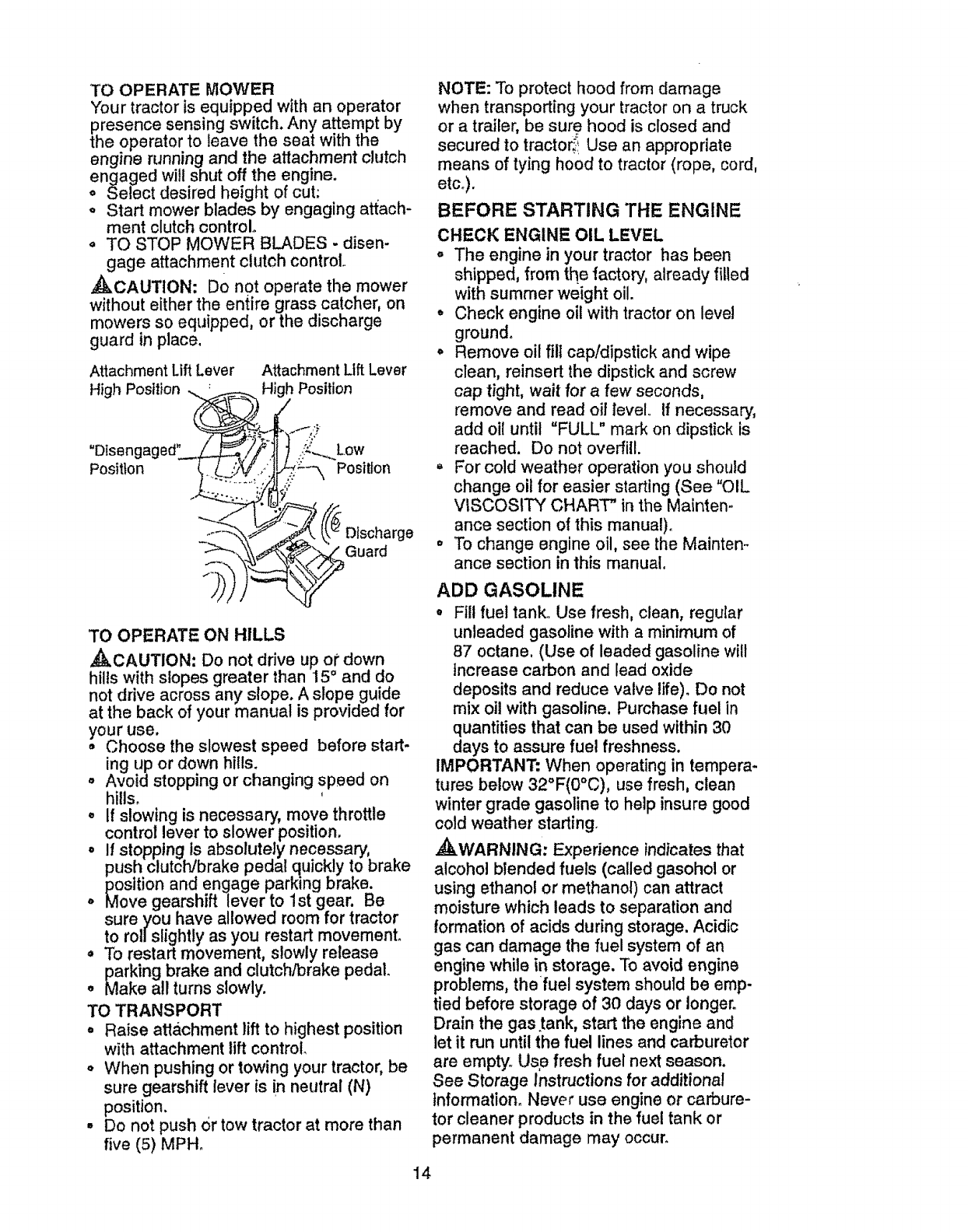

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged wilt shut off the engine.

o Select desired height of cut'.

o Start mower blades by engaging attach-

ment clutch control.

o TO STOP MOWER BLADES - disen-

gage attachment clutch control.

J_kCAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the discharge

guard in place.

Attachment Lift Lever Attachment Lift Lever

High Position .._High_ Position

"Disengaged" __.__'_'_.. Low

TO OPERATE ON HILLS

,_CAUTION: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. A slope guide

at the back of your manual is provided for

your use,

• Choose the slowest speed before start-

ing up or down hills.

.Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

•If stopping ls absolutely necessary,

push clutch!brake pedal quickly to brake

position and engage parking brake.

° Move gearshift lever to 1st gear. Be

sure you have atlowed room for tractor

to rol/slightly as you restart movement.

= To restart movement, slowly release

parking brake and clutch/brake pedal.

. Make all turns slowly.

TO TRANSPORT

o Raise attachment lift to highest position

with attachment lift control.

o When pushing or towing your tractor, be

sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPHo

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor_ Use an appropriate

means of tying hood to tractor (rope, cord,

etco).

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

° The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

° Check engine oil with tractor on level

ground.

° Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level if necessary,

add oil until "FULL" mark on dipstick is

reached. Do not overfill.

For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainten-

ance section of this manual).

.To change engine oil, see the Mainten-

ance section in this manual,

ADD GASOLINE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

B7 octane, (Use of leaded gasoline wilt

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline, Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

,_.WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, thefuel system should be emp-

tied before storage of 30 days or longer.

Drain the gas tank, start the engine and

let it run until the fuel lines and carburetor

are empty. Use fresh fuel next season.

See Storage Instructions for additional

information. Never use engine or carbure-

tor cleaner products in the fuel tank or

permanent damage may occur.

14

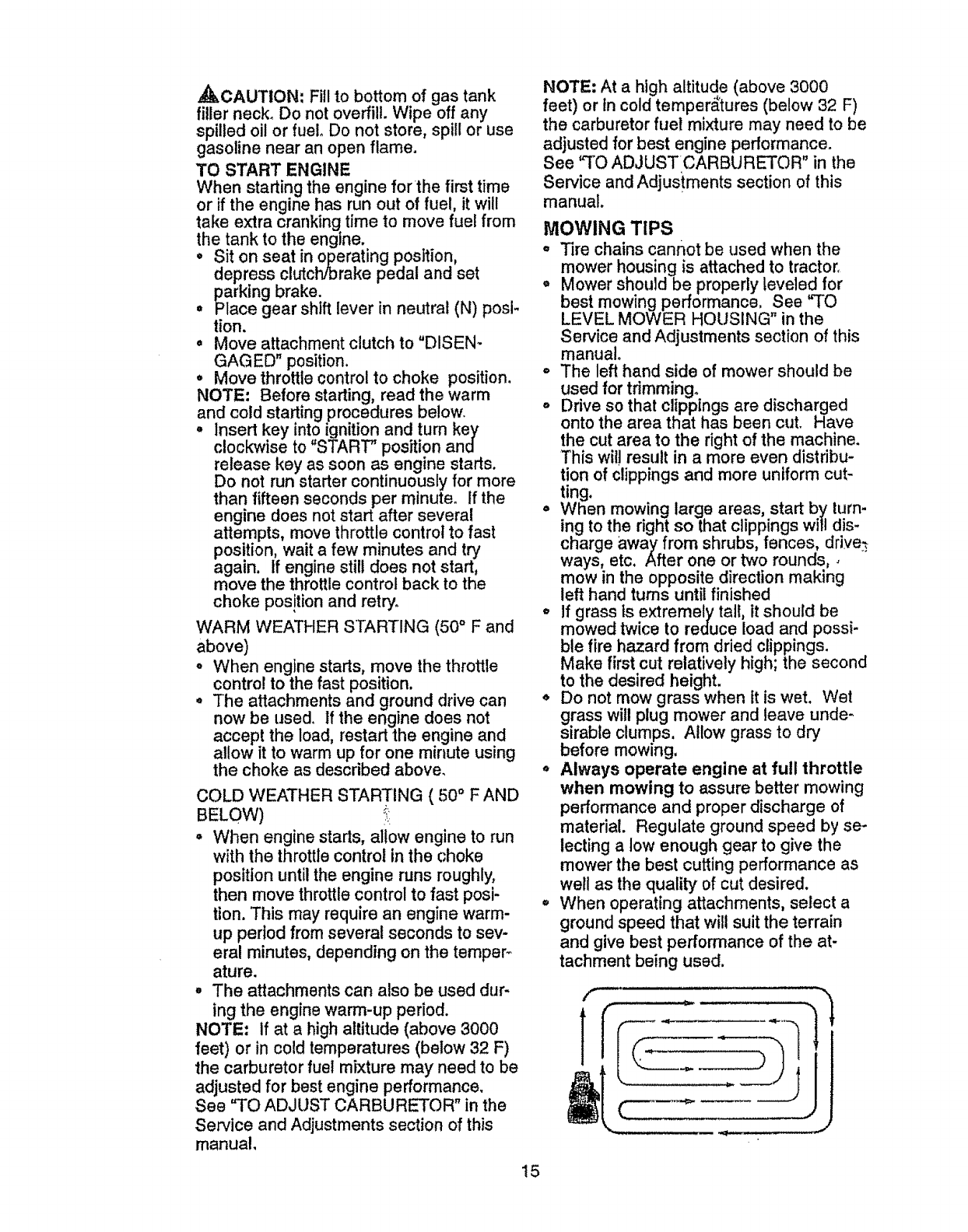

,_CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

• Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

o Place gear shift lever in neutral (N) posi-

tion,

• Move attachment clutch to "DISEN-

GAGED" position.

• Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

• Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for more

than fifteen seconds per minute_ if the

engine does not start after several

attempts, move throttle control to fast

pos!tion, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke pos!tion and retry.

WARM WEATHER STARTING (50 ° F and

above)

• When engine starts, move the throttle

control to the fast position.

oThe attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F AND

BELOW) !;

° When engine starts, allow engine to run

with the throttle control in the choke

position until the engine runs roughly,

then move throttle control to fast posi-

tion. This may require an engine warm-

up period from several seconds to sev-

eral minutes, depending on the temper _

ature.

oThe attachments can also be used dur-

ing the engine warm-up period.

NOTE: if at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to be

adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

NOTE; At a high altitude (above 3000

feet) or In cold temper_.tures (below 32 F)

the carburetor fuel mixture may need to be

adjusted for best engine performance.

See %0 ADJUSTCARBURETOR" in the

Service and Adjus!ments section of this

manual.

MOWING TIPS

o Tire chains cannot be used when the

mower housing is attached to tractor,

,, Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

o The left hand side of mower should be

used for tdmmingo

° Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the machine.

This wil! result in a more even distribu-

tion of clippings and more uniform cut-

ting.

° When mowing large areas, start by turn-

ing to the right so that clippings will dis-

charge away from shrubs, fences, drive_

ways, etc. After one or two rounds,, "

mow in the opposi!e direction making

left hand turns untd finished

o If grass is extremely tatt, it should be

mowed twice to reduce load and possi-

ble fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

_, Do not mow grass when It is wet. Wet

grass will plug mower and leave unde-

sirable clumps. Allow grass to dry

before mowing.

oAlways operate engine at ful! throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by se-

lecting a tow enough gear to give the

mower the best cutting performance as

well as the quality of cut desired.

oWhen operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

15

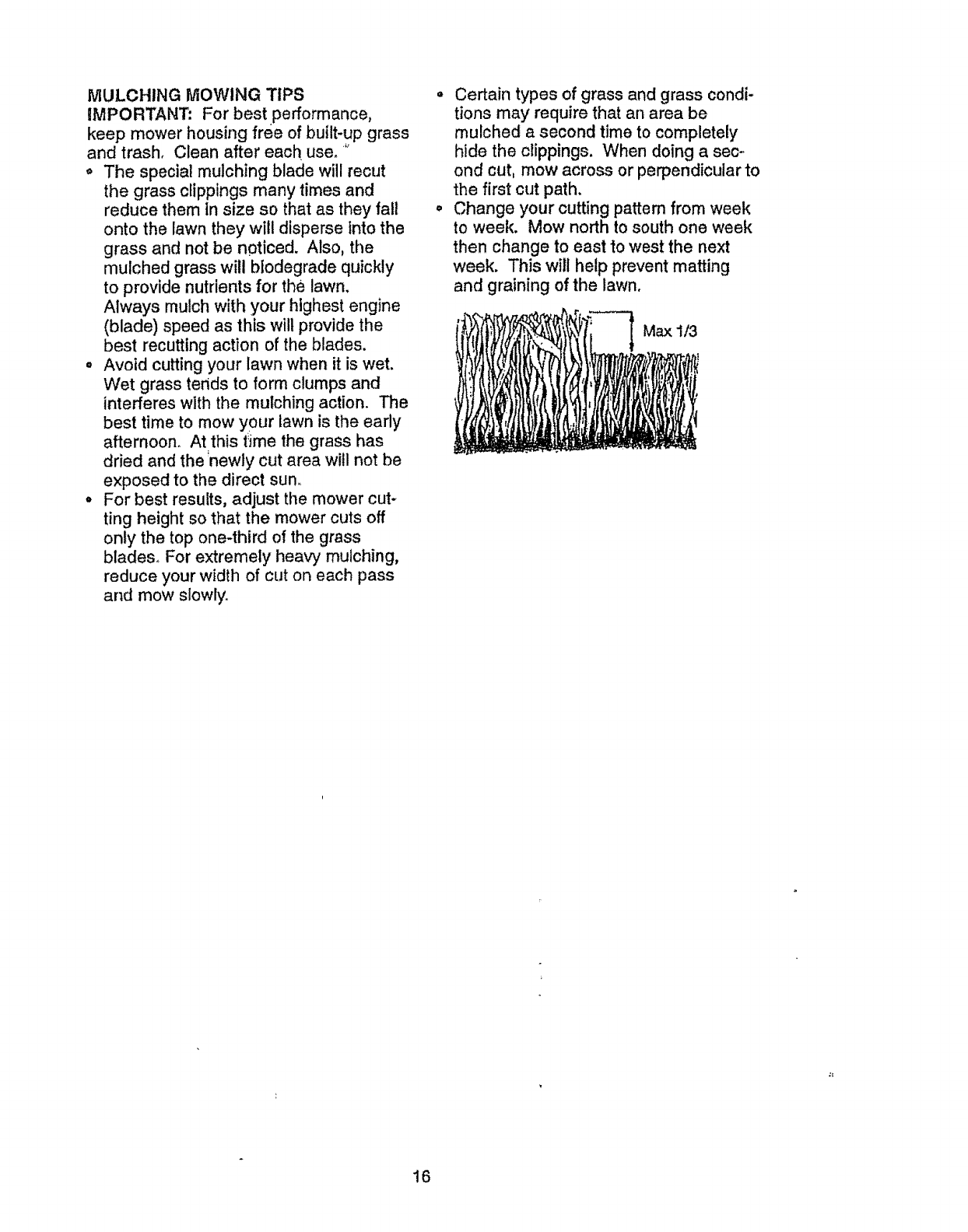

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up grass

and trash, Clean after each use_ "

The special mulching blade will recur

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they wilt disperse into the

grass and not be noticed. Also, the

mulched grass will btodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this wilt provide the

best recutting action of the blades.

o Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon° At this t_Jmethe grass has

dried and the _newly cut area will not be

exposed to the direct sun,

o For best results, adjust the mower cut-

ting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

• Certain types of grass and grass condi-

tions may require that an area be

mulched asecond time to completely

hide the clippings. When doing a sec-

ond cut, mow across or perpendicular to

the first cut path.

= Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn,

Max 1/3

16

CUSTOMER RESPONSIBILITIES

AsYoucoMP, r.

C ckB. .opera.o. V'

Check Tke Pressure _ , _ .....................................

Check Operator Presence and

Tinterlock Systems

R Check for Loose Fasteners

SharperVReplace Mower Blades

Lubrication Chart

0Check Battery Level

R(;lean Battery end Terminal#Recharge

Check Trar-,,sa_xleCooling

v" V'-3 .......

Clean Air Scroen

Inspect MuffierlSpark Ar_estet

Replace Oil Ftllef (tf equipped)

Clean Engine Cooling FJr_

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fue! Filter

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual. Some

adjustments will need to be made periodi-

cally to properly maintain your tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

oOnce a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear_A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

-Check engine oi! level.

°Check brake operation.

•Check tire pressure.

°Check operator presence and interlock

systems for proper operation.

o Check for loose fasteners.

@Spl Spindle

Zerk Zerk

31"

Front

Wheel

Front Wheel qBeadng

Bearing Zerk

Engine

@Attachment I i

Clutch i i

Pivot(s) l i

L. J

@SAE 30 or 10w30 Motor OIL

@General Purpose Grease

_) Refer to Maintenance"Engine" Section

IMPORTANT; Do not oil or grease the

pivot points Which have special nylon bear-

Ings, Viscous lubricants will attract dust

and dirt that will shorten the life of the self.-

lubricating bearings, if you feel they must

be lubricated, use only a d_, powdered

graphite type lubricant sparingly.

17

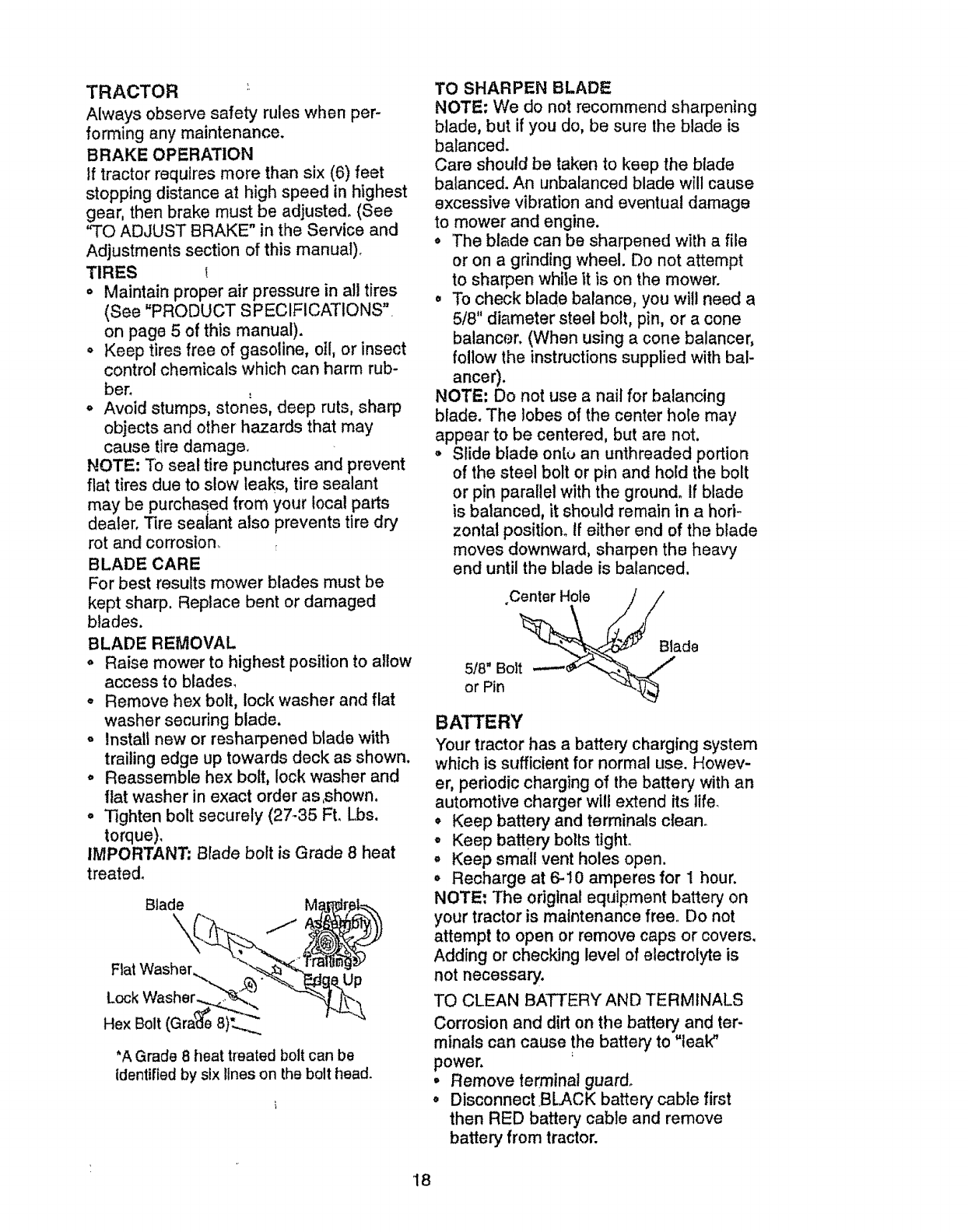

TRACTOR _

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual)_

TIRES !

° Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

on page 5 of this manual).

o Keep tires free of gasoline, oi!, or insect

control chemicals which can harm rub-

ber.

o Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer, Tire sealant also prevents tire dry

rot and corrosion,

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

o Raise mower to highest position to allow

access to blades_

• Remove hex bolt, lock washer and flat

washer securing blade.

o Install new or resharpened blade with

trailing edge up towards deck as shown.

,, Reassemble hex bolt, lock washer and

flat washer in exact order as ,shown.

° Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated.

Blade

\

Flat Washer,...

Lock Washer__" Up

He×Bo.(a aN Z

*A Grade 8 heat treated bolt can be

identified by six Fineson the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade, but if you do, be sure the blade is

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while it is on the mower.

o To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

batancer. (When using a cone balancer,

follow the instructions supplied with bal-

anGer).

NOTE" Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not,

,, Slide blade on[u an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a hori-

zontal position° tf either end of the blade

moves downward, sharpen the heavy

end until the blade is balanced.

Center Hole

5/8" Bolt

or Pin

Blade

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. Howev-

er, periodic charging of the battery with an

automotive charger will extend its tife_

• Keep battery and terminals clean.

°Keep battery botts tight.

, Keep small vent holes open.

,Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the batter/and ter-

minals can cause the battery to "leak"

power,

°Remove terminal guard_

° Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

18

o Rinsethebatter'./withplainwaterand 1

dry.

o Clean terminals and battery cable ends

with wire brush until bright;

°Coat terminals with grease or petroleum

jelly,

o Reinstall battery (See "CONNECT BAT-

TERY" in the Assembly section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING..

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG or

SH_ Select the oil's SAE viscosity grade

according to your expected operating tem-

perature.

NOTE; Although multi-viscosity 0its

(5W30, 10W30 etc.)improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°F. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oilafter every 25 hours of

operation or at least once ayear if the

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oit fill cap/dip-

stick securely each time you check the oll

level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG or SH.

o Be sure tractor is on level surface.

o Oil will drain more freely when warm.

,, Catch oil in a suitable cqntainer.

o Remove oil fill capid{'pstick. Be careful

not to allow dirt to enter the engine

when changing oil,

° Remove drain plugo

o After oil has drained completely, replace

oil drain phJg and tighten securely_

°Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" on page 5 of

this manual_

•Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate reading,

Keep oil at "FULL" line on dipstick.

AIR FILTER

Oil Fill

'-"Cap!Dlpsttck

\/ Oil Drain

_,,,," Plug

Your engine will not mn properly using, a

dirty air filter. Clean the foam pre-clearier

after every 25 hours of operation or every

season. Service paper cartridge every 100

hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

• Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

•Slide loam pre-cleaner off cartridge.

,, Wash it in liquid detergent and water.

,, Squeeze it dry in a clean cloth.

°Saturate it in engine oil Wrap it in clean,

absorbent cloth and squeeze to remove

excess oil.

o if very dirty or damaged, replace pre-

cleaner.

° Reinstall pre-cleaner over cartridge.

° Reinstall cover and secure with knob(s),

TO SERVICE CARTRIDGE

o Remove cartridge nut.

•Carefully remove cartridge to prevent

debris from entering carburetor. Clean

base carefully to prevent debris from

entedng carburetor.

o Clean cartridge by tapping gently on flat

surface, If very dirty or damaged,

replace cartridge. ;

o Reinstall cartridge, nut, precleaner,

cover and Secure with knob(s ).

19

IMPORTANT: Petroleum solvents, such as

kerosene, are not to be used to clean the

cartridge. They may cause deterioration of

the cartridge. Do not oil cartridge, Do not

use pressurized air to clean or dry car-

tridge.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from over-

heating. Clean with a wire brush or com-

pressed air to remove dirt and stubborn

dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating.

o Remove screws from blower housing

and lift housing and dipstick tube

assembly off engine.

o Cover oil fill opening to prevent entry of

dirt.

o Use compressed air or stiff bristle brash

to thoroughly clean engine cooling fins,

° To reassemble, reverse above proce-

dure.

Screws Blower

air screen

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

on page 5 of this manual

IN-LINE FUEL FILTER

The fuel filter shoutd be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

• With engine cool, remove filter and plug

fuel line sections,

o Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor_

•Be sure there are no fuel line leaks and

clam.

__u_el F1Clamp

Iter

CLEANING

oClean engine, battery, seat, finish, etc.

of all foreign matter.

o Keep finished surfaces and wheels free

of all gasoline, otl, etc,

o Protect painted surfaces with automo-

tive type wax.

We do not recommend using agarden

hose to clean your tractor unless the elec-

trical system, muffler, air filter and carbure-

tor are covered to keep water out. Water

in engine can result in a shortened engine

life.

Assembly

Englne Coollng

Plug

2O

,_CAUTION: Before performing any service or adjustments:

o Depress clutch/brake pedal fully and set parking brake.

°Place gearshift lever in neutral (N) position,

o Place attachment clutch in "DISENGAGED" position..

o Turn ignition key "OFF" and remove key.

° Make sure the blades and all moving parts have completely stopped.

°Disconnect spark plug wire from spark plug and place wire where it cannot come

in contact with plug, i

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor,

o Place attachment clutch tn°"DISEN -

GAGED" position. ,'

,Move attachment lift l_,er forward to

lower mower to its lowest position,

o Roll belt off engine pulley.

° Disconnect clutch rod from clutch lever

by removing retainer spring.

°Disconnect anti-swaybar from chassis

bracket by removing retainer spring,

° Disconnect suspension arms from rear

deck brackets by removing retainer

springs,

• Disconnect front links from deck by

removing retainer springs.

• Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remQve the front links.

TO INSTALL MOWER

oRaise attachment lift lever to its highest

position.

•Slide mower under tractor with dis-

charge guard to right side of tractor,

°Lower lift lever to its towest position:

• Install mower in reverse order of

removal instructions.

Clutch

Clutch Retainer

Spring

Suspension

Arms Engine Pulley

Front

Link

Retainer

Spring

Antl-Swaybar

Springs

(Both Sides)

ler Springs

(Both Sides)

21

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See =PROD-

UCT SPECIFICATIONS on page 5 of this

manual). If tires are over or underinflated,

you wilt not properly adjust your mower,

SIDE-TO.SIDE ADJUSTMENT

oRaise mower to its highest position.

° Measure height from bottom of deck

curl to ground level at front corners of

mower. Distance "A" on both sides of

mower should be the same.

o If adjus,t_ent is necessary, make adjust-

ment on one side of mower only.

°To raise one side of mower, tighten lift

link adjustment nut on that side.

° To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE= Each half turn of adjustment nut

wil! change mower height about 3/16.

*Recheck measurements after adjusting.

Suspension

Arm

Lift Link Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT; Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side.to-side.

To obtain the best cutting results, the

mower housJng should be adjusted so the

front is approximately 1/8" to 1/2" lower

than the rear when the mower is in its

highest position.

Check adjustment on right side of tractor.

Measure distance =F" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown,

°Before making any necessary adjust-

ments, check that both front links are

equal in length.

° If links are not equal in length, adjust

one link to same length as other link,

oTo lower front of mower housing, loosen

nut =G" on both front links an equal

number of turns...

° When distance "F" is 1/8" to 1/2" lower

at front than rear, tighten nut "H" against

trunnion on both front links.

o To raise front of mower housing, loosen

nut "H from trunnion on both front links,

Tighten nut "G" On both front links an

equal number of turns.

°When distance "F' .is i/8" to 112" lower

at front than reai', tighten nut "H"

against trunnion on both front links,

NOTE: Each full turn of nut "G" will

change dim. "F" by approximately 3/8",

, Recheck side-to-side adjustment,

Mandrel

Both Front Links Should be Equal in Length

Front

__. Nut "G"

N,,Ltnks

TO REPLACE MOWER BLADE DRIVE

BELT (See Illustration Next Page)

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL

oRemove mower from tractor (See "TO

REMOVE MOWER" in this section of

this manual).

° Work belt off both mandrel pulleys and

idler pulleys.

° Pull belt away from mower.

BELT INSTALLATION

= Install new belt in reverse order of

removal.

• Make sure belt Is in all pulley grooves

and inside al! b_lt guides.

Install mower in reverse order of

removal instructions.

o

22

Mandrel Pulley Idler Pulleys

Mandrel Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in high-

est gear, then brake must be adjusted.

Depress clutch/brake pedal and engage

parking brake.

=Measure distance between brake oper-

ating arm and nut "A" on brake rod.

o if distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

,, Road test tractor for proper stopping

distance as stated above. Readjust if

necessan], if stopping distance ts still

greater than six (6)feet in highest gear,

further maintenance is_inecessary.

Contact your nearest a.uthorizedser-

vice center.

With Parking Brake "Engaged"

Nut "A"

TO REPLA(:E MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there Esa

belt installation guide decal on bottom side

of left footrest,

•Remove mower (See "TO REMOVE

MOWER In this section of this manua!.)

° Remove upper belt keeper, '

° Remove belt from stationary idler and

clutching idler.

• Pull belt slack toward rear of tractor.

Remove belt upwards from transaxte

pulley by deflecting belt keepers.

•Pull belt toward front of tractor and

remove downwards from around engine

pulley,

o lnstatt new belt by reversing above pro-

cedure.

IMPORTANT: Make sure upper belt keep-

er is positioned properly between Iocator

tab,

Engine

Pulley

Clutching

Id{er

Stationary /

idler

Transaxte _

Pulley _;

_t_"" Locator Tab

121r

23

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering whe_l crossbars are not hori-

zontal (left toright) when wheels are posi-

tioned straight forward, remove steenng

wheel and reassemble per instructions in

the Assembly section of this manual.

FRONT WHEEL TOE-lift/CAMBER

The front wheel toe-in and camber are not

adjustable ony0ur tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact your nearest authorized

service center.

TO REMOVE WHEEL FOR REPAIRS

= Block up axle securely.

• Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

oRepair tire and reassemble,

On rear wheels only: align grooves in

rear wheel hub and axle. Insert square

• key°

Replace washers and snap retaining

ring securely in axle groove.

° Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion,

Washers

IMPORTANT: Your tractor is equipped

with a 12 volt negative grounded system.

The other vehicle must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES

oConnect each end of the RED cable to

the POSITIVE (+) terminal of each bat-

ten/, taking care not to shor_ against

chassis.

*Connect one end of the BLACK cable to

the NEGATIVE (-) terminal of fully

charged battery.

oConnect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER

,, Remove BLACK cable first from chassis

and then from the fu!ly charged battery.

oRemove RED cable last from both bat-

teries.

Positive Terminal Negative Termlnal

Retaining

Ring Ch_

Cables

Axle Cover

TO START ENGINE THAT HAS A WEAK

BATTERY

,_kCAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame

and smoking materials away from batter-

ies. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharge& It "jumper

cables" are used for emergency starting,

follow this procedure:

Positive Terminal

Charged

Battery

Negative Terminal

TO REPLACE HEADLIGHT BULB

oRaise hood.

°Pull bulb holder out of the hole in the

backside of the griU. !

o Replace bulb in holder and push bulb

holder securely back Into the hole in the

backside of the grill.

= Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly,stop running, or pre-

vent it from starting.

o Check wiring. See electrical wiring dia-

gram tn the Repair Parts section of this

manual.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

• Raise hood_

o Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

o To replace, reverse above procedures.

Hood

Headlight

Wire

Connector

ENGINE .,,

Maintenance, repair, or replacement of the

emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishement or indi-

vidual, Warranty repairs must be per-

formed by an authorized engine manufac-

turer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE !

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

• With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

•Check that holes %" in governor control

lever and hole in governor plate line-up.

If holes "A" are not aligned, loosen

clamp screw and move throttle cable

until holes are aligned. Tighten clamp

screw securely.

Governor Governor

Control Lever Control Plate

\

Holes "A'

Clamp

Screw Throttle

Cable

25

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle° __"

The carburetor has been preset at the fac-

tory and adjustment should not be neces-

saryo However, minor:adjustment may be

required to compensate for differences in

fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mixture.

Turning the idle mixture valve out

(counterclockwise) increases the supply of

fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle valve

and the seat in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING

* Air cleaner assembly must be assem-

bled to the carburetor when making car-

buretor adjustments.

o Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING

° Start engine and allow to warm for five

minutes. Make final adjustments with

engine nJnning and shift/motion control

lever in neutral (N) position.

o Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn idle

speed screw to attain 1750 RPM_

While still holding throttle lever against

idle speed screw, turn idle mixture valve

full travel cloclwvise then counterclock-

wise until engine runs rough° Turn valve

to a point midway between those two

positions. Release throttle lever.

ACCELERATION TEST

o Move throttle control lever from slow to

fast position. If engine hesitates or dies,

turn idle mixture valve out (counter-

clockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust--damage may resuit.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed, overspeeding the

engine above the factory high speed set-

ting can be dange:ou& if you think the

engine-governed high speed needs

adjusting, contact your nearest authorized

service center, which has proper equip-

ment to make any necessary adjustments.

Idle Speed

Screw\

Idle Mlxlure

Valve With l-

Limlter i.

CHASSIS AI

26

Immediatelyprepareyour tractorfor stor-

age at theend ofthe season.orif thetrac-

tor will notbe usedfor 30 daysor more.

_IkCAUTION:Neverstorethetractorwith

gasolineinthetankinsidea building

wherefumesmayreachanopenflameor

spark.Allowthe engineto coolbefore

storinginanyenclosure,

TRACTOR

Remove mower from tractor forwinter

storage, This will allow you to clean it thor-

oughly. Remove all dirt, grease, leaves,

etc. Store m a clean, dry area.

o Clean entire tractor (See "CLEANING"

in the Maintenance section of this man-

ual).

• inspect and replace belts, if necessary

(See belt replacement instructions in the

Service and Adjustments section of this

manual).

° Lubricate as shown in the Maintenance

section of this manual.

o Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

= Touch up all rusted or chipped paint sur-

faces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

o After a period of time in storage, battery

may require recharging.

, To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and batter,.#cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

o After cleaning, leave cables disconnect-

ed and place cables where they cannot

come in contact with battery terminals.

°If batter:/is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: it is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuet system of an engine while in

storage.

o Drain the fuel tank.

•Start the engine and let it run untilthe

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

°Use fresh' fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add sta-

bilizer to gasoline in fuet tank or storage

container, Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the carbure-

tor. Do not drain the gas tank and carbure.-

tor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and reptace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

Remo'_e spark plug(s).

° Pour one ounce of oil through spark

plug hole(s) Into cylinder(s).

olure ignition key to =START" position for

a few seconds to distribute oil.

° Replace with new spark plug(s).

OTHER

°Do not store gasoline from one season

to another.

•Replace your gasoline can If it starts to

rust. Rust andlor dirt in your gasoline

will cause problems.

°If possible, store your tractor indoors

and cover it to give protection from dust

and dirt,

° Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe, which allows condensation to

form and cause your tractor to rust,

IMPORTANT: Never'cover tractor while

engine and exhaust areas are still warm.

27

TROUBLESHOOTING CHART

PROBLEM CAUSE

Will not start o Out of fuel

oEngine not "CHOKED"

proRerly.

oEngine flooded.

o Bad spark plug.

=Di_ air filter.

• Di_t fuel filter.

oWa{=.,r in fuel,

o Loose or damaged wiring.

=Carburetor out of adjust-

ment.

°Engine valves out of

adjustment.

Hard to start ° Dirty air filter.

°Badspark plug.

°Weak or dead battery.

°Dirty fuel filter.

• Stale or dirty fuel.

o

o

Loose or damaged widng.

Carburetor out of adjust-

ment.

Engine wilt not turn

over

Engine clicks but

will not start

O

°

°

O

o

o

°

O

Engine valves out of

adjustment.

Clutch/brake pedal not

depressed.

Attachment clutch is

engaged,

Weak or dead battery.

Blown fuse,

CorrOded battery termi-

nals,

Loose or damaged wiring.

Faulty ignition switch.

Faulty solenoid or starter.

CORRECTION

• Fill fuel tank,

•See "TO START ENGINE" in

Operation section.

•Wait several minutes before

attempting to start.

,Replace spark plug.

o Clean/replace air filter.

° Replace fuel filter.

-Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel fil-

ter.

• Check all wiring.

°See "To Adjust Carburetor"

in Service and Adjustments

section.

° Contact an authorized ser-

vice center.

•Clean/replace air filter.

=Replace spark plug.

°Recharge or replace battery,

° Replace fuel filter,

• Drain fuel tank and refill with

fresh gasoline.

•Check all wiring.

•See "To Adjust Carburetor"

in Service and Adjustments

section.

° Contact an authorized ser-

vice center.

,Depress clutch/brake pedal,

° Disengage attachment

clutch.

= Recharge or replace battery.

° Replace fuse,

° Clean battery terminals.

o Check all wiring.

o Check/replace ignition

switch,

° Check/replace solenoid or

starter.

Faulty operator presence oContact an authorized ser.

switch(°s), vice center.

•Weak or dead battery.

o Corroded battery termi-

nals.

°Loose or damaged wiring.

-Faulty solenoid or starter.

i

= Recharge or replace battery,

•Clean battery terminals.

•Check all widng,

° Check/replace solenoid or

starter,

28

TROUBLESHOOTING CHART

...................................... :: :::: ,: .........

PROBLEM CAUSE

Loss of power -

Excessive vibration

Engine continues to

nan when operator

leaves seat with at

tachment clutch

Cutting too much

grass/too fast.

oThrottle in "CHOKE" posi-

tion_

o. Build-up of grass, leaves

and trash under mower°

o Dirty air filter,

. Low oil levelldirty oil.

o! Faulty spark plug.

-Dirty fuel filter.

• Stale or dirty fuel.

' Water in fuel

,.

o;: Spark plug wire loose.

° Dirty engine air

screen/fins.

°Dirty/clogged muffler,

-Loose or damaged wiring.

=Carburetor out of adjust-

ment.

° Engine valves out of

adjustment.

° Worn, bent or loose blade.

. Bent blade mandrel.

• Loose/damaged part(s).

° Faulty operator-safety

presence control system.

engaged

Poor cut - uneven ° Worn,bent or loose blade.

Mower blades will

not rotate

° Mower deck not level,

o Buildup of grass, leaves,

and trash under mower.

°Bent blade mandrel.

° Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels,

• i,I. ,. i _lj

- Obstruction in clutch

mechanism.

Worn/damaged mower

drive belt.

= Frozen idler pulley.

o Frozen blade mandrel.

CORRECTION

=Set in "Higher Cut" posi-

tion/reduce speed.

° Adjust throttle control.

oClean underside of mower

housing.

o Clean/replace air filter.

°Check oil level/change oil

oClean and regap or change

spark plug.

• Replace fuel filter.

° Drain fuel tank and refill with

fresh gasoline,

• Drain fuel tank and carbure-

tor, refill tank with fresh gaso-

line and replace fuel filter.

o Connect and tighten spark

plug wire.

°Clean engine air screen/fins.

° Clean/replace muffler_

° Check all wiring.

° See "To Adjust Carburetor" in

Service and Adjustments

section.

°Contact an authorized ser-

vice center_

o Replace blade. Tighten blade

bolt.

° Replace blade mandrel.

o Tighten loose part(s).

Replace damaged parts.

° Check wiring, switches and

connections. If not

corrected, contact an autho-

rized service center.

.Replace blade. Tighten blade

bolt.

° Level mower deck.

• Clean underside of mower

housing.

°Replace blade mandrel

° Clean around mandrels to

open vent holes,

Remove obstruction.

o

• Replace mower drive belt.

oReplace idler pulley,

° Replace blade mandrel,

i: ....

29

TROUBLESHOOTING CHART

PROBLEM CAUSE

Poor grass dis-

charge

Headlight(s) not

working (if so

equipped)

Batten] will not

charge

Engine "backfires"

when turning

engine "OFF"

o Engine speed too slow..

,, Travel speed too fast.

- Wet grass.

o Mower deck not level.

o Low/uneven tire air pres-

sure°

o Worn, bent or loose blade.

° Buildup of grass, leaves

and trash under mower.

- Mower drive belt worn,

, Blades improperly

installed.

° Improper blades used.

oClogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

oSwitch is "OFF".

• Bulb(s) burned out.

° Faulty light switch.

• Loose or damaged wiring.

°Blown fuse.

° Bad battery cell(s).

°Poor cable connections.

• Faulty regulator (if so

equipped).

°Faulty alternator.

oEngine throttle control not

set at "SLOW"

osJtlon for 30 seconds

efore stopping engine.

CORRECTION

• Place throttle control in

"FAST':!position.

-Shift to slower speed.

Allow grass to dry before

mowJngo

, Level mower deck.

, Check tires for proper air

pressure.

• Replace/sharpen blade.

Tighten blade bolt,

o Clean underside o! mower

housing.

o Replace mower drive belt,

° Reinstall blades sharp edge

down,

°Replace with blades listed in

this manual.

, Clean around mandrels to

open vent holes.

°Turn switch "ON".

•Replace bulb(s).

o Check/replace light switch.

• Check widng and connections,

- Replace fuse.

oReplace battery.

°Check/clean all connections.

- Replace regulator.

° Replace alternator.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine,

3O

SCHEMATIC

TRACTOR -- MODEL NUMBER 917.270612

"II1

o111o

BATTERY

,7

AMMETER

{OPTIONAL)

W_TE

IGNITION

SWITCH

!

FUSE30 AMP.

L__' J_

--€-D_ " _

CLUTCHtBRAKE

(PEDALUP)

IGNITION SWITCH

,posmo. CtRCU_."MAKE:'

OFF ....(3 ÷M+ L NONE

*.R_iGHT B _-L A+Y,.T.._

RUN ,_B+L....NONE•

START B+ L + S .. NONEE

Bt,,ACK

f

_L_K:[ HOUR

METER

(OPTIONAL)

BLACK

I ii_,____.-FUELj

_/Ax LINE J

!|

[R_9 -----------H

It_ : STARTER

ISOLENOID

LWHITE

(NOTOCCUPIED)

I

............. , ,I I '-,..._,_.._L._. t _ ,

.... ' t

........ ! ____7-_, ---

__...t AT'PMENTCLUTCH "_ ..........

{CLUTCHOFF) _GROUNDING

CONNECTOR

_[ IGNITIONUNIT

CItARI_I1;NQ SY_ITE)_I OIl"PUT

3AMP f_,C O 0000 RPf,,I

WILL DIM, AS THE ENGINE tS NON-REMOVABLE

SPEEDED UP, THE LIGHTS CONNECTIONS

WILL BECOME THEIR BRIGHTEST.

20 VOLT5 AC Mill. (I 3_0o P,PM

_CHARGING S'fSI_M DI_CONNECTe_)_

FUEL SHUToOFF ,

SOL_-NOJD J _ I -"-J "_" , "_'_.._.__':_ "1";

- UG_'n_<iSYSl_OUT_Lrr _mr_= _ALTERNATOR I;

YOUR TRACTOR tS |

EQUIPPED WITH A SPECIAL ]

ALTERNATOR SYSTEM- L _RCW. _

THE LIGHTSARENOT _T "-,J T_ "

CONNECTED TO THE [ _ I

BATTERY, BUT HAVE THEIR L__ b)__J

OWN ELECTRICAL SOURCE, \j

BECAUSE OF THIS, THE HEADLIGHTS

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED, AT iDLE THE LIGHTS _ 0

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

31

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.270612

÷

24 41

19

32

t

t

t

!

32

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.270612

KEY PART

NO. NO, DESCRIPTION

1 144925

2 74760412

3STD551025

4 STD551125

6 STD541025

8156417

16 153664

19 STD551125

20 73350400

21 147430

22 4152J

24 4799J

25 146147

26 108824X

28 4207J

29 t21305X

30 140301

3I 124211X

32 141226

33 109310X

40 156442

41 7111O4O8

42 131563

43 145673

44 73640400

45 121433X

52 14194O

70 140422

NOTE:

Battery 12 VOLT25AMP

Bolt Hex lid 1/4+20unc x 3/4

Washer 9/32 x 5/8 x 16 Ga

Washer Lock Hvy Helical 1/4

Nut Fin Hex 114-20 Uric

Case Battery

Switch,Interlock Push-in

Washer Lock 1/4

Nut Jam Hex 1/4+20 Unc

Harness Asm Ltght WI4152J

Bulb Light #1156

Cable Battery6 Ga 1I" red

Cable Batten] 6 Ga w/16 wire red

Fuse 30 AMP Auto Green

Cable Ground 6 Ga I2" black

SwitchPlunger Nc Gray

Swftch Ign 4 Pos

Nut Ignition

Cover Sw Key BIk 1 25 Text SLT

Key lgn Molded Craftsman

Harness Ign Man ClAm Hm 97

Bolt Blk, Fin Hex 1/4.20 Unc x 1/2

Cover Terrnina+Red

Sotenold

Nut Keps Bfk Hex 1/4.20 Unc

Ammeter Rectangular 6 Amp

Protection Wire Loop

Harness Engine B&S 14 OHV

All component dimensions give tn U,S Inches

1 inch =25.4 mm

33

TRACTOR +- MODEL NUMBER 917,270612

CHA_,SIS AND ENCLOSURES

29

26

28

54

55 S7

33 10

3

14

34

TRACTOR -- MODEL NUMBE_ 917,270612

CHASSIS AND ENCLOSURES

KEY PART

NO. NO, DESCRIPTION

1 160393 Chassis Assembly

2140356 Drawbar

317490612 Screw, Thd_Rotl. 3/8-t6 x3/4

4 STD551025 Washer 13/32 X3/4 x 16 Gauge

5 155272 Bumper Hood/Dash

6 155924X015 Saddle

8 155138 Cllp Retainer Slide-On

9 16!938)(013 Dash

10 STD5337"t0 Bolt, Can'_age 3/8-16 x 3/4

11 155927 Panel, Dash, LH,

12 'f45660 C_tpTlnnerman GrltleP!L

13 155934X010 Panel, Asm. SLKSCR Dash R,H.

14 17490608 Screw Thdml 3/8-16 x 1/2

15 74180512 Screw, Mach{ne, Truss Head

5/16-18 UNC x3/4

16 STD54143t Nut

17 144983X558 Hood Assembiy

18 126938X Bumper Hood

24 STD523710 Bolt

25 19131312 Washer t3/32 x13/16 x 12 Gauge

26 STD541437 Nut

28 145198)(558 Grtf{ew/ClipsMS-558

29 155217 Lens, Grille

30 157584X558 Fender

31 136619 Bracket, Fender SUpport

33 145244X558 Footrest, LH,

34 145243X558 Footrest, R.H.

35 STD533707 Bolt

37 17490508 ScrewThdrol 5/16-18 x 1/2 TYT

38 139886 Pivot Bracket Assembly,LH.

39 139887 Pivot Bracket A_sembly, R.H..

51 73800400 Nut Lock w/Insert 1/4-20 UNC

52 19091416 Washer 9/32 ×7/8 x 16 Ga,

53 145201 Bracket Gdlie Pickclf LH

54 161464 Screw Hex WSHD 8-I8 x 7/8

55 145202 Bracket Gdile Ptckoff RH

57 STD522507 Bolt, Fin Hex 1/4-20 UNC x °75

140 158448 Bracket Front Suspension

145 156524 Rod Pivot Chassis/Hood

.. 5479J Plug, Button

NOTE: All component dimensions give in U,S. Inches

1 fnch = 254 mm

35

.T_IkG.I.OI_.".l,llu_''

TRACTOR - - MODEL NUMBER 917.270612

GROUND DRIVE

KEY PART

NO. NO.

2146682

3 123666X

4 120O0028

5 121520X

6 17490512

7 162240

8 131679

10 STD561210

!1 105701×

12 19151216

13 74550412

I4 STD551125

15 74490544

18 STD523710

19 STD541437

21 106933X

22 130604

24 STD541237

25 106888X

26 STD551037

27 STD56t210

28 +145204

29 124236X

30 130807

31 127275X

32 STD523t07

34 155071

35 120183X

36 STD55t062

37 STD5718t0

38 123674X

39 8TD523727

40 4470J

41 154777

KEY PART

DESCRIPTION NO, NO,

Transaxte(See Breakdown) 42

Dana Model 4360+128 47

SpdngReturn Brake T/a Zinc 48

PulieyTransaxle 18/20' tires 49

Ring Retainer # 5100+62 50

Strap Torque 30 Degrees 51

Screw Thdrol 5/16-18 x 3/4 TYT 52

Bracket Saddle Shift T/a 53

Rod Shf Sd} LYP,(TSir Btk Zinc 55

Pin Cotter 1/8 x I Cad 56

Washer PlateShf 388 Sq Hote 57

Washer 15/32 x 3/4 x 16ga 58

Bolt 114-28unf Gr8 W/Patch 59

Washer Lock Hvy Helical 1/4 61

Bolt Hex FLGHD _J'16+_18Gr+5 62

Bolt Ftn Hex 63

Nut Lock HexW/tns 3/8-16

Unc 64

Knob Rd !]2+t3 Rstc 'ThdsBlk 65

Rod BrakeBlk Zinc 26 840 66

Nut Hex Jam 3/8+16 Unc 70

Spdng Rod Brake 2 00 Zinc 72

"Washer13/32 x13/16 x 16 Ga 74

Pin Cotter t/8 x 3/4 Cad 75

Rod Broke Parking L,t/Yt 76

Cap Brake Parking Red 77

Bracket Mtg Transaxle 78

Keeper Belt LH LT 14 Ga 112

Bolt Hex Hd 5/16-18unc x 3/4 116

Shaft Asm Pedal Foot

Beadng Nylon Blk 629 Id t46

WashBr 21/32 x1x 16 GB 149

Pin Roll 3/16 x 1" 15-0

Pulley idlerRat 151

Bolt FinHe× 3/8-16unc x2-3/4 NOTE:

Spacer Split 395 x 59 Bzp

Keeper Beft Idler

DESCRIPTION

1913t312

127783

1544O7

123205X

STD523715

STD54!437

STD541431

105710X

105709X

STD523712

160855

127274X

140312

17490612

6683R

14.'3186

71170764

STD551143

154778

134683

191320I 2

109502X

12t749X

STD561075

'i23583X

t2t748X

19091210

72110610

159103

t22052X

150935

1913321O

Washer t3/32 x 13/16 x 12 Ga

Pulley td{erV Groove Plasttc

Bellcrank ClutchGm Dry Stl

Retainer Belt Style Spring

Bolt Hex Hd 3/8+16unc x 1-1/2

Nut Crownlock 3,/8+t6UNC

Nut Crown Lock 5!16-18

Link Clutch 766

Spring Return Clutch 6 75

Bolt Rn H_x 3/8.16 unc x 1+1f4

V-Belt Gd Ddve

Keeper Belt RH LT Phi/zinc 16g

Keeper BeltCenterspan

Screw _'ldrol 3/8+t6 x 3/4 Ty+tt

Cover Pedal Bik Round

Pulley Eng CI Mech 38deg

LT/YT

Bolt Hex 7/t6-20 x4 Gr 5

Washer Lock Hvy HIcI Spr 7116

Keeper Belt E_ngine

Guide Belt Mower Ddve RH

Washer 13/32 x 1-1/4 x 12 Ga

SpacerAxie

Washer 25/32 x 1 1/4 xt6 Ga

E-dng #5133-75

Key Square 2 0 x 1845/1865

Washer 25/32 x 1*5/B x 16ga

Washer 9/32 x 3/4 x 10 Ga

Bolt Rdhd Sq Neck 3/8+16 x

125

Spacer

Spacer Retainer PM Mower

Bushing Nylon Coltered

Washer 13/32 x 2 x 10 Ga

All component dimensionsgive In U S.

_nches 1 Inch = 25,4 mm

37

TRACTOR- - MODEL NUMBER 917.270612

STEERING ASSEMBLY

C+ '

+"_++"+"'+_ 6 3

• -,+, + ++' ,+-, + +

•,,._++.-+-.+++,/-:+++

!++t:,+

62

'\ ,,+!

/

!

Io

38

TRACTOR., - MODEL NUMBER 917.270612

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 154427

3156483

4 157473

5 6266H

6 12174BX

719272016

8 12000029

9 3368R

10 156438

11 STD551137

13 154779

t5 73901000

t7 156546

1B 57079

19 124035)(

20 126684X

22 71200410

23 127501

25 t 54406

26 t26847X

27 136874

28 19131416

29 17490612

3O STD561210

32 130465

36 t55099

37 t52927

38 139769

39 19133808

40 STD641537

4I 100711L

42 145054

43 I21749X

44 153720

46 121232X

47 F:_955M

51 STD541431

54 STD523112

62 158594

63 74780616

65 154780

66 154404

67 74'781044

68 154429

NOTE:

Steering Wheel

Front A_e Assembly

Spindle Assembly, LH.

Spindle Assembly, Roll.

Bearing, Race, Thrust, Hardened

Washer 26/32 x 1-5/'8 x 16 Gauge

Washer 27/32 x 1-114x 16 Garage

Ring, Kilo

Beating, SteeringColumn

Link, Drag

Washer,Lock

Spacer, Beadng, Front Axle

Nut, Lock, Flange 5/8-1I UNC

Shaft AssEmbly, Steering

Washer, Thrust .515 x ,750 x .033

Support, Shaft

Washer, Shim 1/4 x 5,/8x ,062

Screw Hex Socket1/4-20 x 5/8

Plttrnan Shaft Assembly

Bracket, Steedng

Bushing,Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

E;crew,Thd_,Roll. _8_t6 x 3/4

Pln

Rod, He

Bushing, Steering

Screw'IT #10-32 x 5 x 3/8 Flange

Cap Wheel Steer OPP BIk

Washer 13/32 x 2_8 x 8 Gauge

Gdpco Nut

Adaptor, Steering Wheel

Boot, Steering Dash Pi1.Mtl Bik

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Steedng Non-Adjust

Cap, Splndle

Flttlrtg,Grease

Nut Lock Hx W/Ins 5/16-1B UNO

Bolt Fin Hex 5116-18UNC ×1-1/4

Kit, Sleedng Assembly, SBrvtce

Bolt Fin Hex 3/8.16 unc..x t Gr. 5

SpacerAxte

Beadng Arm Pittman

Bolt Fin Hex 5/8-11uncx2-3/4

Brace Axle

All componentdimensionsgivenin Uo$_Inches

1tnch=254 mm

39

ENGINE

TRACTOR -- MODEL NUMBER 917.270612

J

3

72

38 78

33

13 4

29

OPTIONAL EQUIPMENT

Spark Arrester

23

4O

ENGINE

TRACTOR - - MODEl. NUMBER 917.270612

KEY PART

NO. NO. DESCRIPTION

1 162157

217720410

4 137352

13 272293

14 13280324

15 13200300

t6 STD551237

23 159880

29 137180

31 109202X

32 158990

33 !23487X

35 !7490512

37 137040

38 ......

40 124028X

44 17490412

46 19O91416

62 STD551131

72 71070512

78 17490620

8t 128861

Control "rhrot tGh Lh

Screw Hex Thd Cut 1/4-20x5/8 T

Engine (See Breakdown) B&S Model 28U707-1174-EI

Mulfler Exhaust B&S Lt

Gasket 1 313 tdTin Plated

Nlppte Pipe 3/8 Npt X3'

Elbow Std 90 Degree 3/8-18 Npt

Washer Lock ExtToOth 3/8

Shield Brown_ngtDebds Guard

Arrestor Spark

Tank Fuel t 25 Fr

Cap Asrn Fuel Sears Vented

Clamp Hose Btk

Screw, Thdrol 5/16-18 x 3/4 Tyt

Une Fuel 20"

Plug OII Drain (Order From Engfne Manutacturer)

Bushing Snap Nyl Blk Fue! Line

Screw Hexwsh Thdrol 1/4,,20x3/4

Washer 9/32 X 7/8 X 16ga

Washer Lock Hvy Hlci Spr 5/16

Screw Hexhd Cap 5/!6-18x'3/4

ScrewThdrol 3t8-16x1-1/4 Tytt

Nut Flange t14.20 Starter Nut

NOTE: A!] component dimensto_ given In UoS. Inches

Iinch = 25.4 mm

4!

TRACTOR - - MODEL NUMBER 917.270612

SEAT ASSEMBLY

KEY

NO.

1

2

3

4

5

6

7

8

9

10

1t

PART

NO,

14Ol22

140551

STD523710

19131610

145006

STD541437

124181X

17490616

19131614

155925

t20068X

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Seat 3350 Bllo'b]kCraftsman 12

Bracket Pn! Pivot Seat (blk) 13

Bolt Fin Hex 3/8-16unc X 1 14

Washer 13/32 X 3/4 X 10 Ga 15

Clip Push tn Hinged 16

Nut Hex Lockw/Ins 3/8-16 Uno 17

Spring Seat Cprsn 2 250 Blk 23 21

Screw Thdrol 3,,'8q6 X 1 Ty4t 22

Washer 13232X 1 X 14 Ga 24

Pan PntSeat (blk) 25

Knob Seat i/2-13 Unc.Blk

12t246X

121248X

72050412

13430O

121250X

123976X

'153236

STD541431

19171912

127018X

Bracket PntMounting Switch

BushingSnap Blk Ny150 Id

Bolt Rdhd Sht Nk 1/4-20xI4/2

Spacer Split 26 X 96 Zinc

Spring Cprsn t 27 Blk Pnt

Nut Lock !I4 Lge Rg Gr 5 71nc

Boll Shoulder5/16-18 Unc-2A

Nul He× Lock w/Ins 5/16-18

Washer 17/32 X 1-3/!6 X 12 Ga,

Bolt Shoulder 5/16-18 X 62

NOTE: All component dimensions given In U,S. inch.

esl inch = 2&4 mm

:'42

DECALS

TRACTOR-- MODEL NUMBER 917.270612

:4

7

16 11

_-10

18

13

KEY

NO.

2

3

4

6

PART

NO,

273303

163200

163202

133644

7163250

5163209

9 163204

10 149516

11 156439

KEY PART

DESCRIPTION NO. NO,

Decal, Engine Hp t2 4900J

Decal, Hood Rh Craftsman 13 146046

Decal, Hood Lh Crallsman 15 160396

Decal, Malnt Customer Sears 16 156867

Dom t8 163203

Decal, Panel Side

Decal, Fender Sd Wht 6/42" _- 138311

Decal, Fender Craftsman Wht - - 157199

Decal, Btry Dngr/Psn Eng - - 164847

Deca!, Fender Dan, Sears EiS .... 164848

DESCRIPTION

Decal, Clutch/brake Eng

Decal, V.bet! Dr Sch T_actor

Decal, Mower Drive Schematic

Decal, Oper Sdl P/LGear Dr

Decal, Mower EZ3 Mulching

Sears

Decal, Lift Handle

Pad, Footrest Rbr Sq Gen. 97

Manual, Owner's (English)

Manual, Owner's (Spanish)

WHEELS &TIRES KEY PART

NO. NO.

1 59192

265139

3 106222X

4 599O4

5106732)(427

6278H

7 9040H

1_ 8 106108X427

9I06268X

10 7152J

11 104757X

-- 1443..34

NOTE:

DESCRIPTION

Cap Value "Tire

Stem Value

Tire F Ts15 X 6 0-6 Service

Tube Inner Fro_! #35060

Rim Asm 6"front White Service

Fitting Grease

Bearing Flange

Rim Asm 8"rear White Service

Tire R Ts 18x9 5-8 Service

Tube Rear 9 5 X 8 Service

CapAxle Bik 1 50X 1 00

Sealant, Tire (10 oz, tube)

All componentdimensionsglven in U.S Inches

1 Inch = 25.4 mm

43

TRACTOR - .. MODEL NUMBER 917.270612

LIFT ASSEMBLY

!1

13

46

12

I3

2

20

3

6

15 20

20

44

TRACTOR., -MODEL NUIVIBEIR 917.2706'12

r •

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1159460 WasherAsm fnner Spring W/Runger

2159471 ShaftAsm, Lift

3 105767X Pin Groove

412000002 E Ring #5133-62

539211621 Washer21/32 x 1 x 21 Ga,

6 t20183X Bearing Nytong

7 125631X Gdp Handle Fl_Jled

8 122365X But'ton Plunger Read

11 139865 Unk Asm Ltft LH_

12 139866 Unk Aem Lift RH

13 STD624008 Retainer Spring

15 t27218 Link Front

16 73350600 Nut Jam Hex t12-13 Unc

17 130171 Trunnion Blk Zinc

18 73800800 Nut Lock WfWsh 1/2-13 Unc

19 139868 Arm Suspenston Mower

20 163552 Retainer Spring

31 140302 Beadng, P'_, Uft, Spher_cat

32 73540600 Nut Crowniock3/8-24

NOTE."AIIcomponentdimensionsgivenInUoS,Inct_es

t lnch= 25A mm

45

TRACTOR --MODEL NUMBER 917.270612

MOWER DECK

76

73 /

45.

68

i

45

43

17

i

34

33

32

31

w..21

27

'_° 46

TRACTOR -- MODEL NUMBER 917.270612

MOWER DECK

KEY PART

NO. NO.

1144393

2STD533t07

3 138O17

4 138440

5 STD624008

6130832

8 850857

9 STO551137

t0 140296

11 134149

12 129895

t3 137645

14 128774

15 t 10485X

16 140329

17 72110610

18 STD533106

t9 132827

20 159770

21 STD541431

22 134753

23 131267

24 t05304X

25 123713X

26 110452X

27 130968

28 19111016

29 131491

30 ! 57722

31 129963

32 153535

33 137266

34 STD533717

35 133835

36 131494

37 STD551037

40 STD541437

41 133551

43 140083

44 140088

45 ST0624003

46 137729

48 133944

49 155066

50 131340

KEY PART

DESCRIPTION NO. NOD

Mower Housing 5I STD541410

Belt 52 139888

Bracket Assembly,Sway Bar, 53 131845

Front 54 133943

Bracket Assembly, Sway Bar 55 155046

Retainer Spring 56 122052X

Arm, Susper_.sion,Rear 58 140086

Bolt, Hex 3/8-24 × 1.25 Gr. 859 141043

Washer, Lock 67 t621t3

Washer, Hardened 68 144200

Blade, Mulcht.ng 71 142427

Bearing, Ball 72 131870

Shaft Assembly, Mandrel, 73 127647

Vented (lncL Key Number 6) 74 121748X

Housing, Mandrel, Vented 75 12000029

Bearing, Ball, Mandrel 76 128903

Stripper, Ven_.edMower Deck

Bolt, Carriage 3/8-16 x 2.4/4 77 127845

Boll, Cardage 5/! 6-18 x 5/,9 78 !00570

Bolt, Shoutder 79 127498

Baffle, Vortex 80 t53701

Nut, Crnwnlock 5/16,18 UNO ,91 STD54t237

Stiffener Bracket 82 142028

Bracket, Deflector 83 120958X

Cap, Sleeve 84 156084

Spring, Torsion, Deflector ,95 72140620

Nut, Push 92 STD541437

Shfeld, Deflect,or

Washer 11/32x 5/8 x 16 Ca. 101 136420

Rod, Hinge 102 71161010

Screw Thdrol Rolling Wsh Hd

Washer,Spacer 103 19061216

Pulley, Mandrel 104 10071000

Nut, Toptock, Flanged 105 160793

Bolt t06 2029J

Fastner, Christmas Tree 128 153390

Putley,Idler,Flat 132 19132203

Washer t3/32 x 13/16 x16 Ca. !41 6266H

Nut, Crownlock 3/8-16 UNC _- 130794

Rod, Pfvot,v,4thNfbs

Rod, Clutch,Secondary,wlNtbs

Guard, Mandrel, LH. "" 145411

Retainer

Screw, Thdo Rol! 1/4-20 x 5/8

Washer, Hardened

Roller Assembly, Cam Follower

Bolt, Shoulder #10-24 Grade 5

DESCRIPTION

Locknut

Bolt', Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Spring, Torsion Brakes 42"

Guard, Tuv Idler(94)

Knob Custom Oval

V-Belt

Rod, Clutch, Pdmary, with Nlbs

Spdng, Return

Arm, Clutch, Secondary

Washe_25,/32 x 1-5/8 x 16 Ca.

Ring, Kllp

Bolt, Shoulder 3/8.16 UNC x

t _44

Keeper, Spdng

Ann, Clutch, Primary'

Bushing, Large, Brass

SprJng, Mower Clutch

Nut, He×Jam 3/8-16 UNC

Trunnion Adj. 94

Washer SFntered

Keeper Belt IdEer

BoltCarriage 3/8-16 x 2-1/2

Locknut, Hex W/Wsh 3/8-16

UNC

Cover Mulchtng 42' Black

Screw Truss Head Phil 10.24 x

5/8

Washer #10

Washer Lock #10

LatchAsrn Bagger

Nut Weld

Washer Felt

Washer 13/32 x 1-3/8 x 3 Ca.

Washer Thrust .75 x t.230

Mandrel Assembly (includes

Key Numbers 8-10, 12-15, 3t

ar_ 32)

Mower Deck, Complete (Std

deck - order separalely mutcher

piate components key nos. 101-

106)

NOTE; All componentdimensionsgivenJnU,,S_fnches

1Inch= 25_4rnrn

47

TRACTOR - - MODEL NUMBER 917.270612

DANA TRANSAXLE - - MODEL NUMBER 4360-128

20 21

52

36

53

24

31

8

25

1

I

t

47

59

49

62

61

.... 67

7O

48

TRACTOR -- MODEL NUMB_I_ 917.270612

DANA TRANSAXLE - -MODEL NUMBER 4360-t28

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO, DESCRIPTION

t 160955 Housing, Upper 38 160944 Assy, Gear, Comb., 12T &

2 2274J Screw, "rapping, '1/4-20 X 307

.734 39 124839;( Shaft, Idler

3 134400 Bell, Detent 40 120472X Spacer_,633 X.87 X .75_

4 105904X Spring, Detent 41 105928X Sprocket, 9T

5 160940 Screw, Tapping, No. 10-24 X 42 161565 Gear, Bevel, 36T

.482 43 134394 Asay, _Jtr Shfm, .750 Shaft

6 138235 Assy, Kit, Shifter 44 120473X Shaft, Drive

7 106727X V-Ring 45 142678 Gear, Spur, 127

8 148266 Bearlng, Flange 46 143697 Gear, Spur, lb'T

9 148269 Seal, OII 47 124841X Gear, Spur, 20T

10 2225J Ring, Retaining 48 106569X Geart Spur, 257

11 134793 Assy, Kit, Shim, .625 Shaft 49 120408X Gear, Spur, 281"

12 148268 Bearing, Flange E0 105937X Gear, Spur, 317

!3 120415X Washer, Plain, .632 X 1.38 X 51 2226J Washer, Plains ,632 X1,00 X

°045 .060

14 142674 Key, Woodruff, No. 9 52 134401 Washer, Neoprene

15 161563 Assy, Kit, Input Shaft 53 2264J Washer, Plain, ,758 X1.25 X

16 161864 Pinion, Bevel, 12T .031

17 105909X Ring, Retaining 54 160946 Axle, LH

18 105910X Chain, 24 Pitches 55 160947 Gear, Miter, 121",Spltned

19 160942 Cover, Detent 56 158948 Ring, Retalnlng

20 160943 Gear_Spur, 123" 57 110071X Gear, Spur, 327

21 148267 Collar_Clutch 68 120962X Shaft, Cross

22 138236 Assy, YJt, Clutch Keys 59 160949 Gear, Miter, 127, Idler

23 73810500 Nut_Lock, 5/16-24 60 160950 Axle, RH

24 142676 Shaft, Intermediate 81 160951 Housing, Lower

25 2244J Key, Woodruff, No. 61 62 120961X Puck, Fdctlon

26 105916X Ring, Retalnlng 63 7294J Disc, Brake

27 t20470X Sprocket, 18T 64 106989X Spacer, Brake Puck

28 110670X Spacer, 1.131 X 1.45 X.494 65 160952 Jaw, Brake

29 142677 Gear, Spur, 373" 66 120954X Pin, Dowel

30 142681 Gear, Spur, 353" 67 160953 Screw, Tapping, 5/16.18 X

31 124644X Gear, Spur, 307 2.35

32 108980X Gear, Spur, 257 68 138244 Lever, Actuating

33 120406X Gear, Spur, 22T 69 108996X Washer, Plain, ,321 X L00 X

34 134796 Gear, Spur, 191" .055

35 105925X Washer, Plain, .640 X 1.37 X 70 160g54 Bracket, Antl-Rotat|on

.061 71 120951X Puck, Friction

36 2228,/ Washer, Plain, .632 X 1o00X 72 120416X Grease

.046

37 2231J Washer, Plain, .632 X1.00 XNOTE: All component dimensions given in U.S.

.031 _nches 1 inch =25.4 m

49

TRACTOR -- MODEL NUMBER 917.917,270612

BRIGGS &STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

718

635 337

230

_614

23O

•fr REQUIRES SPECtALTOOLS

TO INSTALL SEE REPAIR

INSTRUCTION MANUAL

7

50

TRACTOR - - MODEL NUMBEIR 917.270612

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

01271381(_98795117 _ _._A_ _ _ _

51 142

137

121 CARBURETOR OVERHAUL KIT

27C._

52

i23

REQUIRES $PECLALTOOLS

TO |NS'TA_ SEE REPAIR

INSTRUCTION MANUAL

g87@

111_ _3_ 95 634_

=137_

51

TRACTOR -- MODEL NUMBER 917,917.270612

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

523 423

_524

3 20 634A 842 524 868 868A

358 GASKET SET

467

171 _535

445

304

3o5 4G8

1006

224

334

52

TRACTOR -- MODEL NUMBER 1917.917.270612

BRIGGS &STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

__ _€__222 216 232 '

_r_ ___-_ _ooo..... _....

[_ _L_'/-_ '_ 657"_ !I036 LABEL KIT- EMmsSXONSI

728

783

615

201

482

801

803

601

802

53

TRACTOR-- MODEL NUMBER 917.917.270612

BRIGGS & STRA3"TON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 496412 Cylinder Assembly 93 281346 Bushing, Throttle Shaft

2 399265 Beadng, Cylinder 94 498030 Valve, Needle

3 391086 *Seal, Oil 95 94098 "" Screw, Throttle

4 494238 Base, Engine 98 495800 Screw, Idle Speed

5 495858 Head, Cylinder 104 231789 "* Pin, Roat Hinge

7273280 **" Gasket, Cylinder Head 105 231855 "* Valve Float

8 495735 Breather Assembly 108 231854 " Seat, Inlet Valve

927803 • Gasket,Valve Cover 108 224558 Valve, Choke (Lint 153)

10 94621 Screw. Seres 10BA 224540 Valve, Choke (Lint 154)

11 281246 Tube, Breather 111 262715 Spring Choke (Lint 155)

12 2'71916 •Gasket: Crankcase Cover, .015" 117 232118 "" Jet, Needle Valve (St&)

271997 *Gasket, Crankcase Cover, .005" 232119 Jet, Needle Valve (HFA&)

271996 • Gasket, Crankcase Cover, o009= 121 499233 Carburetor Overhaul K_t

13 94728 Screw, Cyltnder Head 123 94913 Screw, Elbow Mounting

15 94239 Plug, Oil Drain 125 499153 _:CarburetorAssembty

16 498971 Crankshaft 127 .... -_ Plug, Welch (Sold in Ktl Only)

94196 TimingGear Key 130 224539 Valve, Throttle

20 291675 *Seal, O11 131 494379 Shaft and Lever, Throttle

22 94624 Screw, Seres, Base Mounting t33 494381 Float, Carburetor

23 492326 Flyvineeland Ring Gear 137 281165 '"" Gasket, Float Bowl

Assembly, Magneto t38 281164 .... Washer, Bowl

24 222698 Kay, Flywheel 14t 495097 Choke, Shaft Kit (Choke-A-

25 495860 PtsfonAssembly, Standard Size Marie)

495977 PtstonAssemb[y, _010" 14tA 495931 Choke, Shaft Kit (Choke.A-

Oversize Marie)

495978 PtstonAssembty,.020" 142 232117 ** Nozzle, Carburelor

Oversize 146 94196 Key, Timing Gear

495979 P{stonAssembty,.030' 164 214047 Elbow,Carburetor

Oversize 166 94555 Stud, RockerArm

26 495854 RingSet, Piston, Standard Size 171 281051 :Nut. Air Cleaner Mounting

495852 RingSet, Piston, _010"Oversize 186 493496 Connector,Hose

495851 Ring Set, Piston, .020' Overslze 187 298099 Line, Fue; (Cut to Suit)

495855 RingSet, Piston, o030=Oversize 188 94627 Screw,Sems

27 263129 Lock,PlstonPin I92 492160 Screw Assembly, RockerArm

28 498319 PtnAssy., Piston,Standard Size 201 262767 Unk, Governor

498320 Pin Assy..,Piston, ..005" 209 260895 Spring, Governor

Oversize 216 262766 Link, Choke

29 494504 Rod Assembly, Connecting 219 490815 Gear, Governor

495490 Rod Assembly, Connecting, 222 4956tl Plate, Govemor Control

,020' Undersize Crankp{n Bore 224 94905 Screw,Seres,AirCleaner

32 94695 Screw,Hex Washer Head, 225 495t57 Crank, Governor

1.57164 227 493935 LeverAssembty, Governor

32A 94648 Screw, He× Washer Head, 1- 230 94742 Washer, Governor Crank

5/8 232 262785 Spring, GovernorUnk

33 495856 Valve, Exhaust

34 495857 'Valve, Intake 238 262836 Cap, Valve

35 262811 Spring, Valve 240 394358 Filter, Fuel (InFuel Line)

265 221535 Clamp, Casing

37 224502 Guard, Rywheet

40 224641 Retainer, Valve Spring 284 94704 Screw, He>;Head

45 262411 Tappet, Valve " Included In Gasket Set (495993)

46 496864 Gear, Cam "" Included In Carburetor Kit (499233)

51 272465 .... Gasket, Carburetor "'* Included In both Gasket Set (495993) and

(Carburetor to Elbow} Valve Overhaul Kit (495992)

52 272569 **' Gasket, Carburetor .... Included in Gasket Set H95993), Carburetor

(FJbowto Cylinder) Kit (499233) and Carburetor Gasket Set

53 94637 Stud, Carburetor Mounting (494385)

75 225136 Washer, Spring

78 94832 Screw, Pan Head NOTE: Al! component dimensions given In U.S. inches

87 491323 " Seal, Governor Shaft 1 inch =25A mm

54

TRACTOR -- MODEL NUMBER 917.917.270612

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

KEY PART iKEY PART

NO. NO+ DESCRIPTION NO, NO. D_SCRIPTION

294 810068 Screw, Set 757 213998 Unk, Counterweight

304 496280 Housing, Blower 758 399891 CounterweightAssembly

305 94786 Screw, Hex, Head, 759 298909 Pin, Counterweight

Blower H+ousingMounting 761 94593 Screw,Counterweight

306 225020 Shteld, Cylinder 783 280104 Gear, Starter

307 94930 Screw, CylinderShield 801 394856 Cap, Drive

309 497595 Motor, Starter 802 497605 Cap, End

310 497602 Bolt, Thru 803 497604 Housing, Starter

31! 497608 Blush Set 842 270920 * Seat, Oil FillerCap

333 495859 Armature, Magneto 847 496415 Hll Group, Oil

334 94731 Screw, Seres, Armature 85t 224110 Terminal, tgnitlonCable

Mountlng 868 494435 **" Seat Assembly, Valve

337 491055 Plug, Spark 868A 272610 "*" Gasket, Valve

346 93705 Screw, He× Head 871 262835 Bushing, Gutde ({ntake &

356 497708 Wire Assembly Exhaust)

358 495993 Gasket Set 872 281381 Cover, Air Cleaner

363 19203 Puller, Flywhee! 875 495862 Body, Air Cleaner

383 89838 Wrench, Spark Plug 877 393456 Diode and Connector AssembIy

423 94903 Screw, Seres 947 497672 Solenoid

445 493909 Cartridge,Air Cleaner 965 94010 Nut, Hex

467 493903 Knob, Air Cleaner 975 495933 Bowl Assembly, Carburetor

468 494439 Screen, Rush Rotating 977 494385 Carburetor Gasket Set

474 393474 Stator, Alternator 987 281166 °" Seal, Throttle Shall

482 93621 Screw, Sems 1005 281400 Fen, Flywheel

503 806000 Strap, Starter 1006 224413 Retainer, Fan

510 497606 Drive, Starter 1019 496758 Label Kit

523 495230 Cap and Dipstick,Oil Filler 1022 272475 °'* Gasket, Cover

524 281370 "Seal, IF]llerTube 1023 224552 Cover,RockerArm

525 496113 Tube, Oil Filler 1026 494432 Rod, Push, Intake

535 272403 Efement, Rlter 495138 Rod, Push, Exhaust

537 281106 * O+Rfng,A]rCleaner 1029 2245.54 Arm, Rocker

544 497603 Armature, Starter 1033 495992 Valve Overhaul Kit

552 491986 Bushing,GovemorCrank 1034 495248 Gu[deAssembly, Push Rod

562 94907 Bolt, Carriage 1038 499364 Label Kit, Emissions

592 231978 Nut, He× !044 94673 Screw, Hex Head

60t 93053 Clamp, Fuel Pipe t054 270723 Tie, Cable

614 93306 Pin, Cotter 1058 272623 Manual, Owner's

6!5 263080 Retainer t090 497607 Retainer, Brush

618 262803 Spring,Choke Return 1091 281364 Cap, Umlter

634 494453 *' Seat, SpflngAssyo 2500 28N707.1026 Replacement Engine

634A 494455 *" Seal, SpfingAssy. _-- 496050 Replacement Shortblock

635 280872 Boot, SparkPlug

648 224546 Brace, AlrCleaner RPM Settings: Low: 1650-1850, High: 3200°3400

657 94906 Screw, Sems " Included in Gasket Set (495993)

663 94620 Screw, Self-Tapping "" Included inCarburetorl,_ {499233)

718 230192 Pin, Dowel °'" included in both Gasket Set (495993) and

726 399676 Gear, Ring Valve Overhaul Kit (495992)

(Includes Mounting Hardware) .... Included in Gasket Set (495993), Carburetor

727 490324 Cover, Starter _t (499233) and Carburetor Gasket Set

728 94951 ScreW, Torx_

729 261390 Cltp, Y_re (494385)

729A 225170 Retainer, Wire NOTE= All component dimensionsgiven tn U.S+inches

741 262932 Gear, T+mtng I inch = 25_4 mm

55

' 56

i

0

m

CC

LLI

0

LU

0

W

0

0

W

_D

Q

W

€_

_J

W

t

/

/

1

I

1

/

/

/

!

/

/

g,

!

57

!

' . 58

59

For the repair or replacement parts you need

delivered directly to your home

Cal! 7 am - 7 pro, 7 days a week

1-800-366-PART

(1-800-366-7278)

Para ordenar piezas con entrega a

domicilio- 1-800-659-7084

For in-house major brand repair service

Call 24 hours a day, 7 days a week

1-800-4-REPAIR

(1-800_473-7274)

Para pedir servicio de reparaci6n a

domicilio- 1-800-676-5811

For the location of a Sears Parts and

Repair Center in your area

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

Call 9 am - 5 pro, Monday-Saturday

1-800-827-6655

When requesting service or ordering

parts, always provide the following

information:

, Product Type • Part Number

° Mode_ Number , Pa_t Description

164847 3.13_98 TR Printed in U,S.A.
