Owner's Manual

JCRIIFTSMIIN"J

19.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.270912

•Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

[1_ This product has a low emission engine which operates differently

from previously built engines. Before you start the engine, read

and understandthls Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pro, Mon -Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

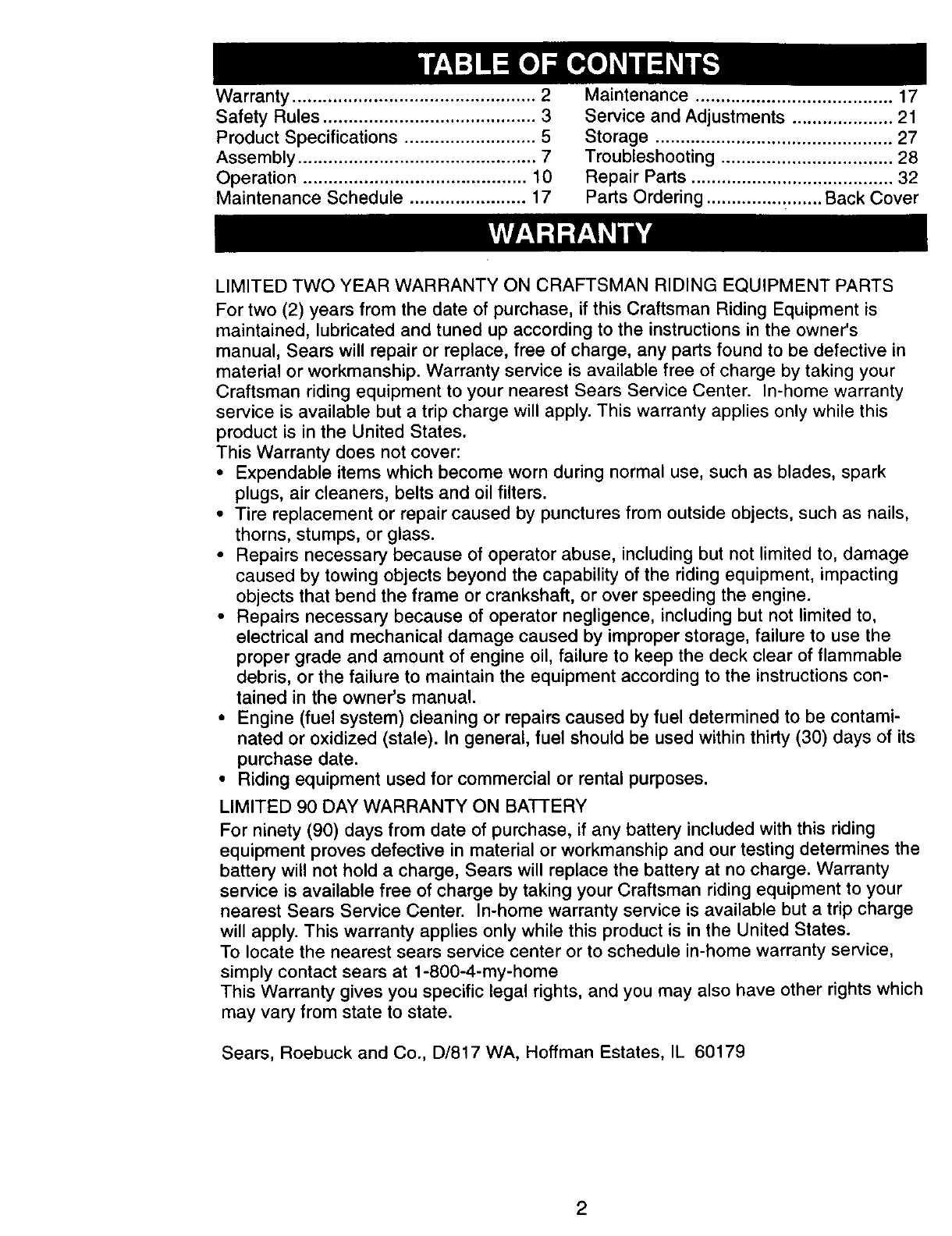

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications .......................... 5

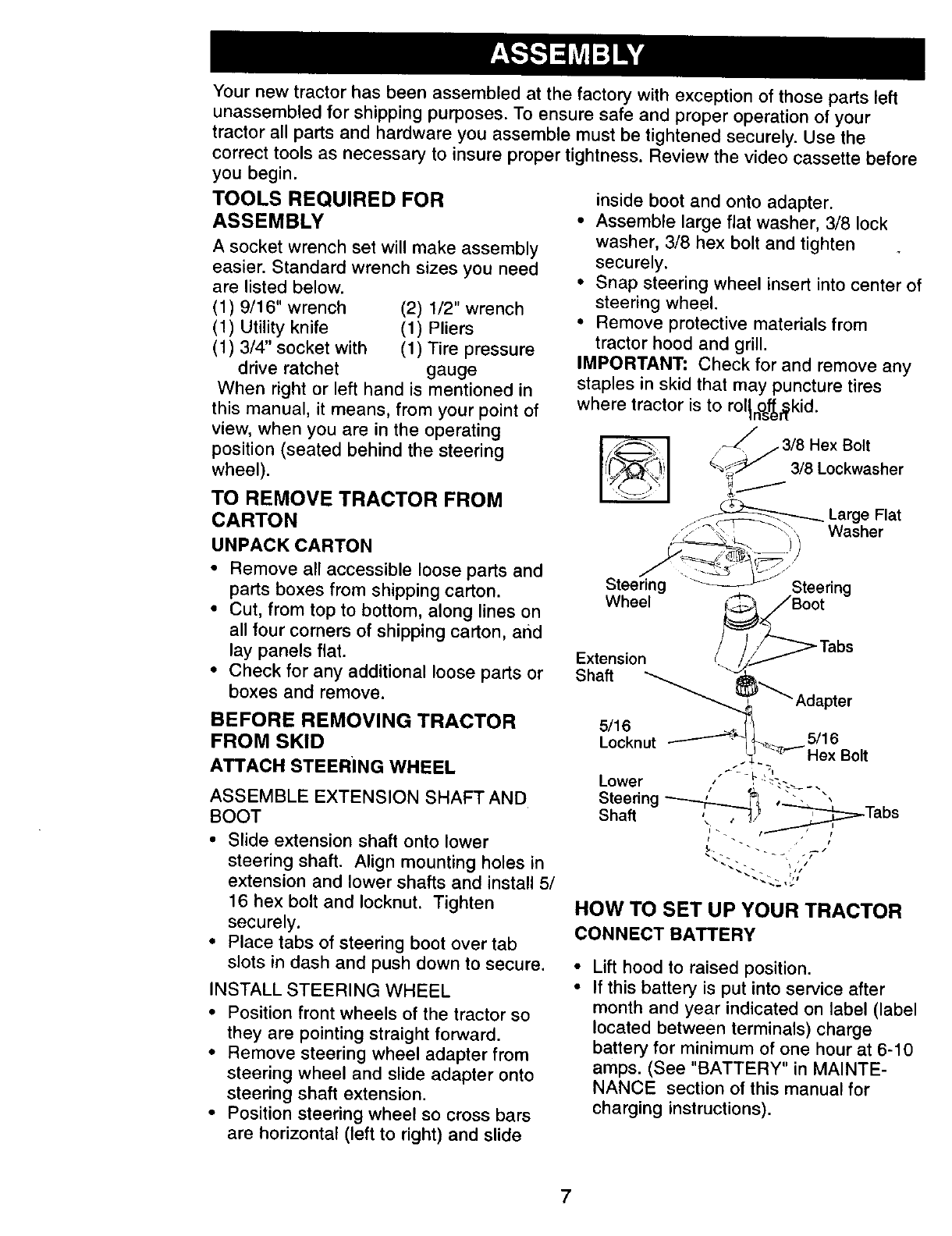

Assembly ............................................... 7

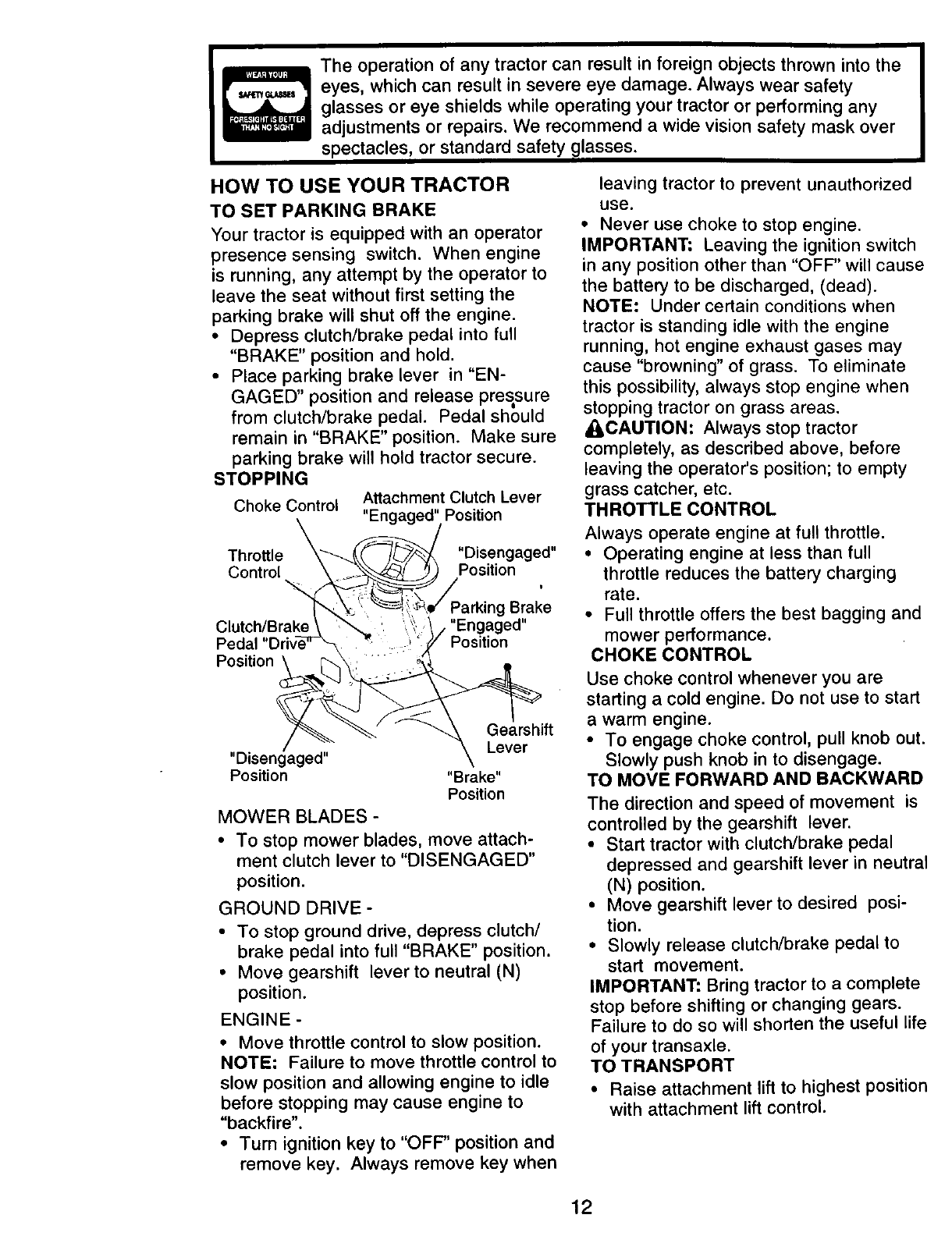

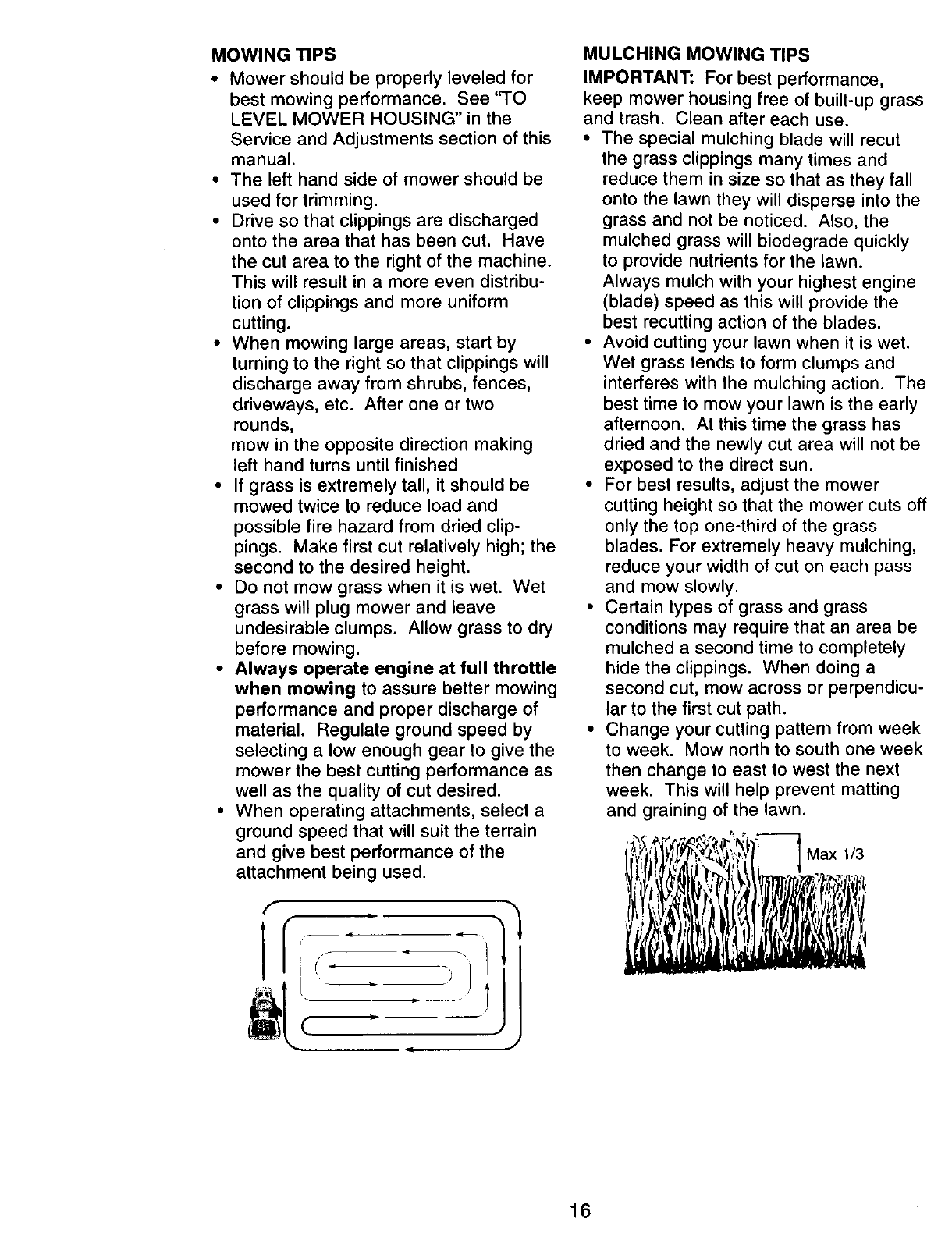

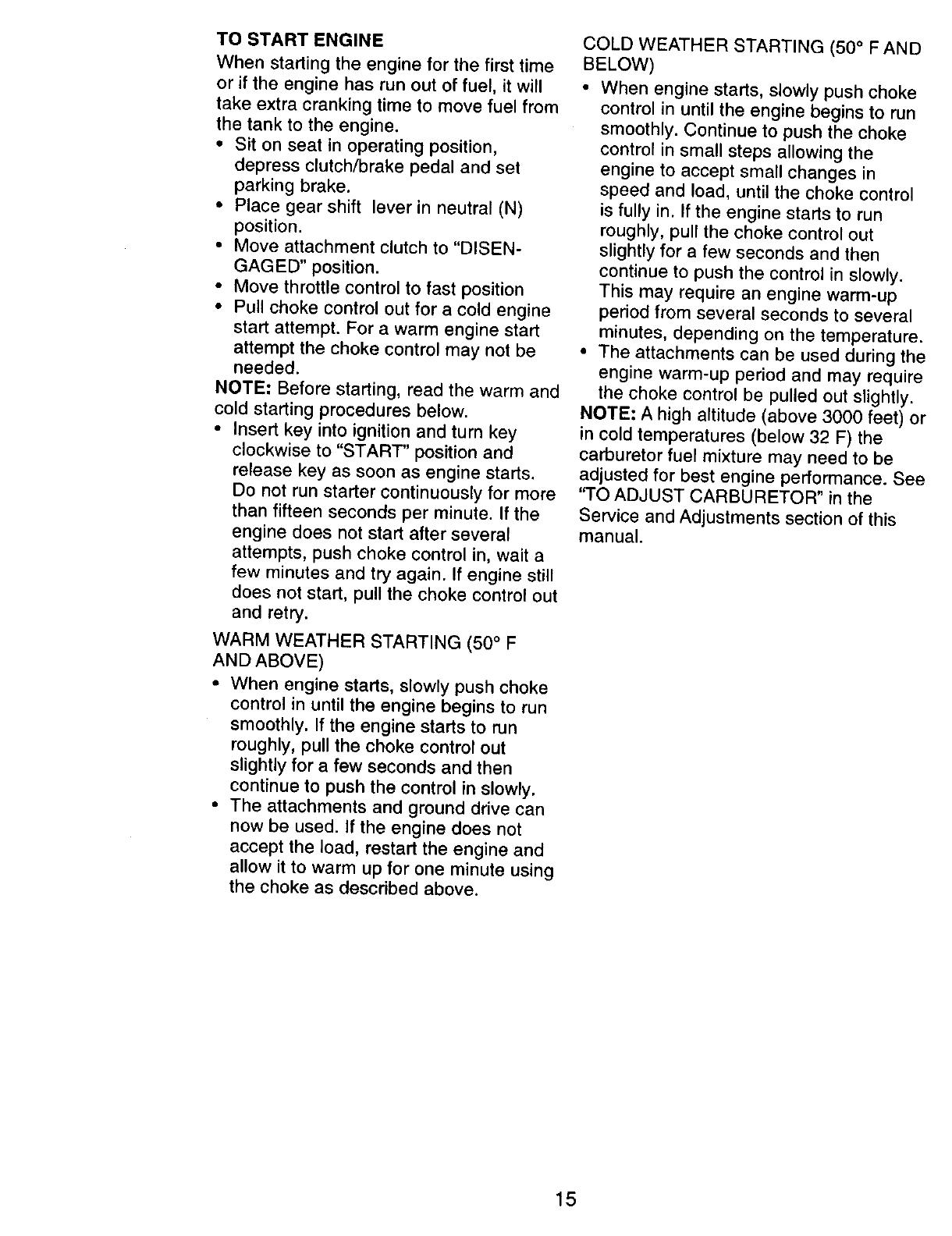

Operation ............................................ 10

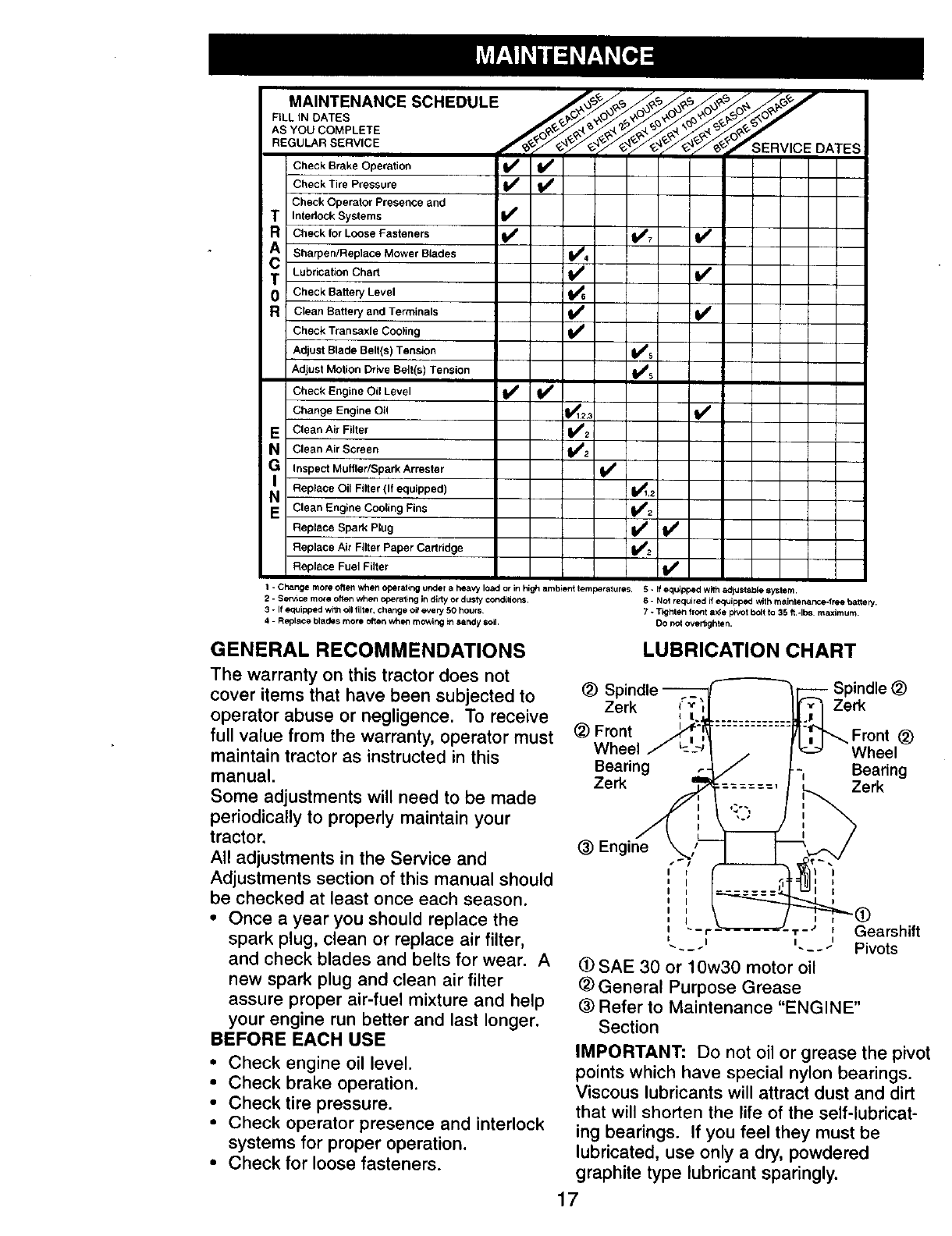

Maintenance Schedule ....................... 17

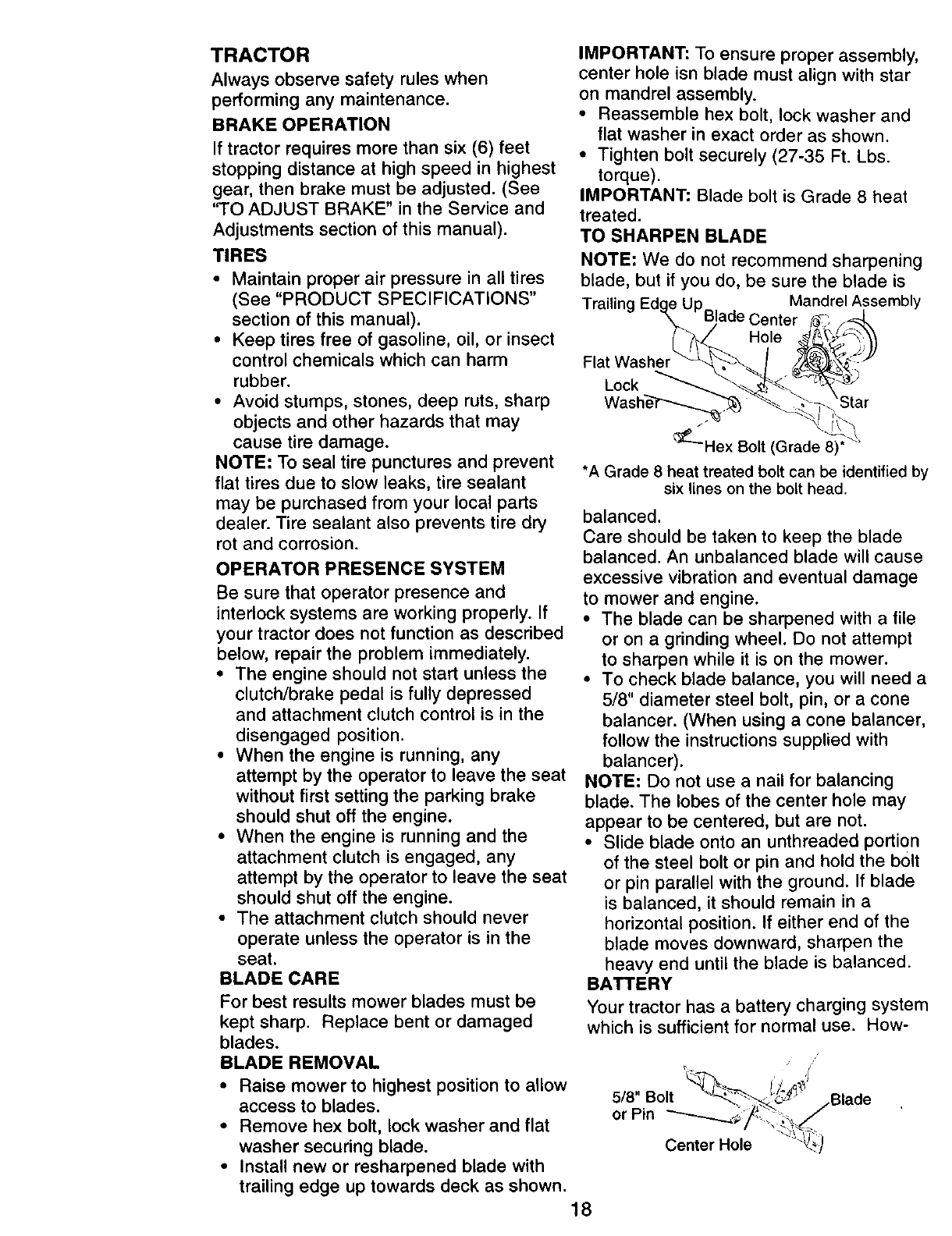

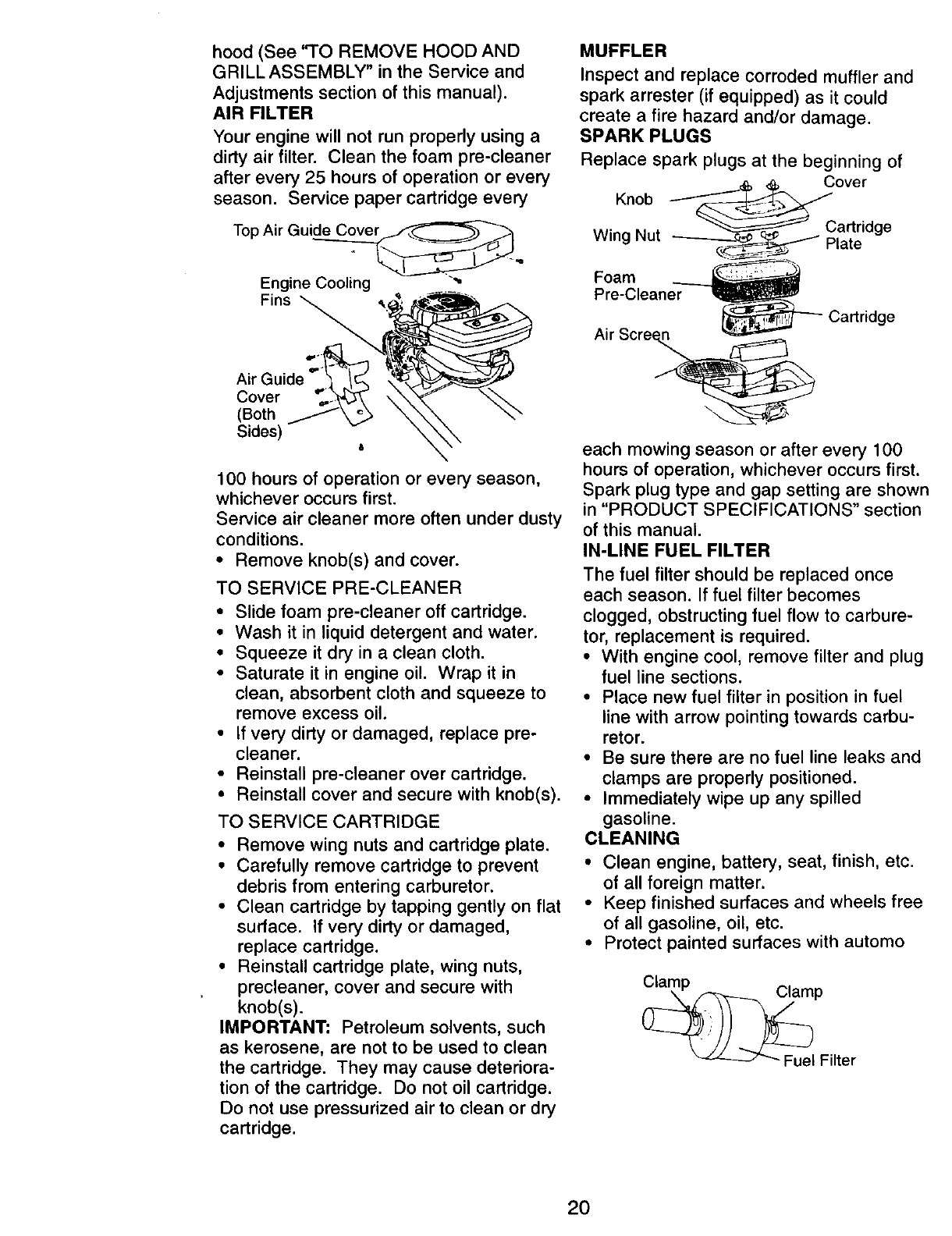

Maintenance ....................................... 17

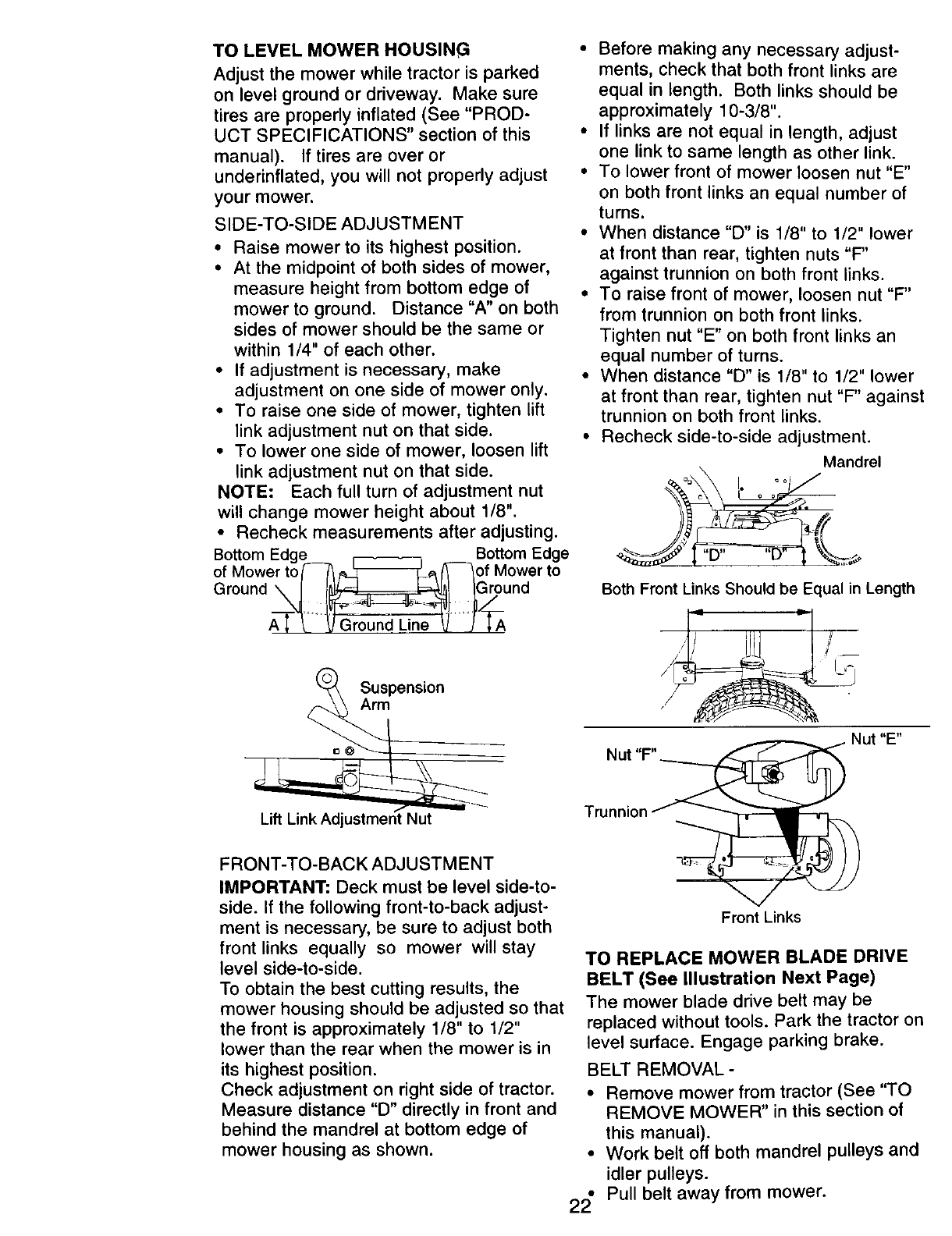

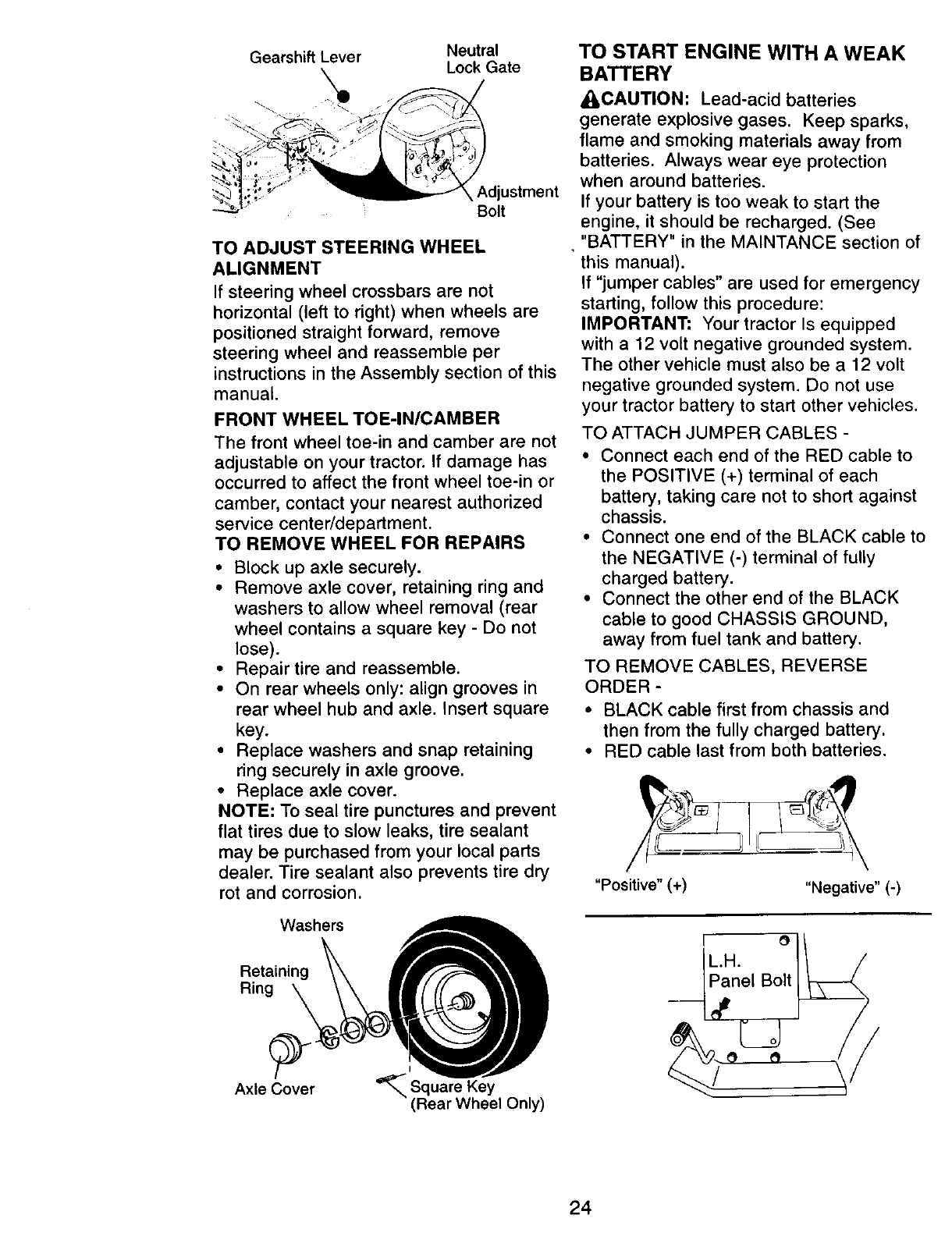

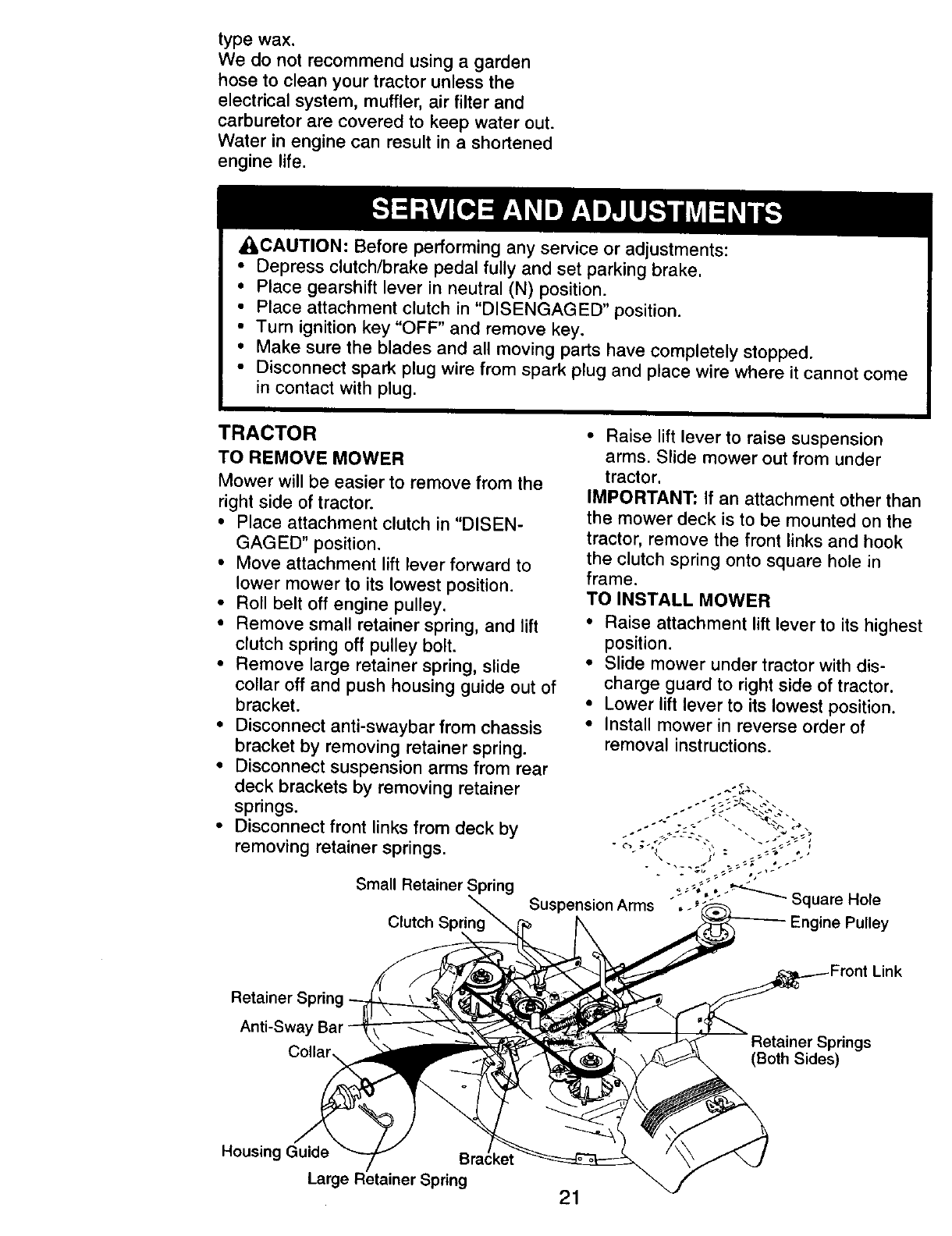

Service and Adjustments .................... 21

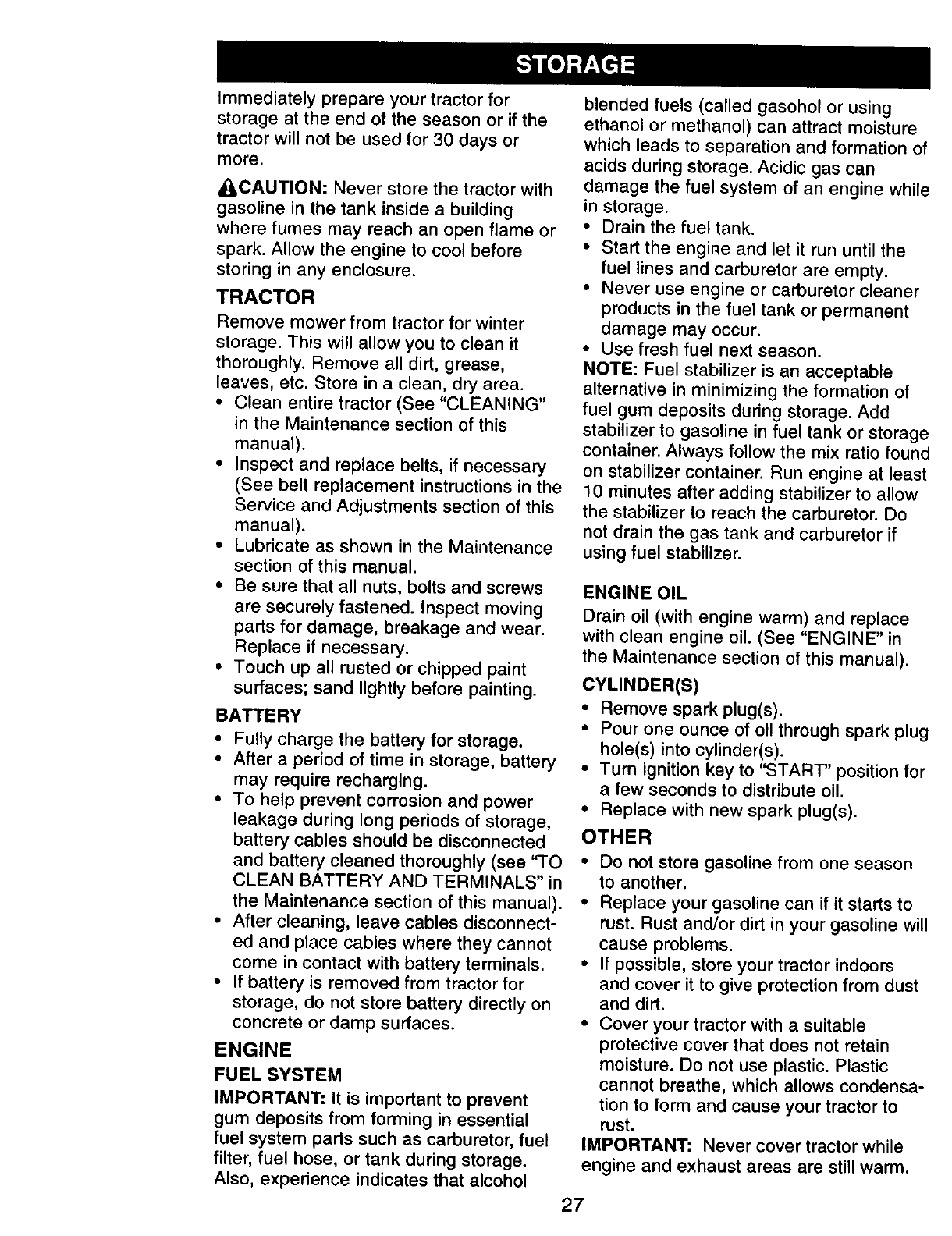

Storage ............................................... 27

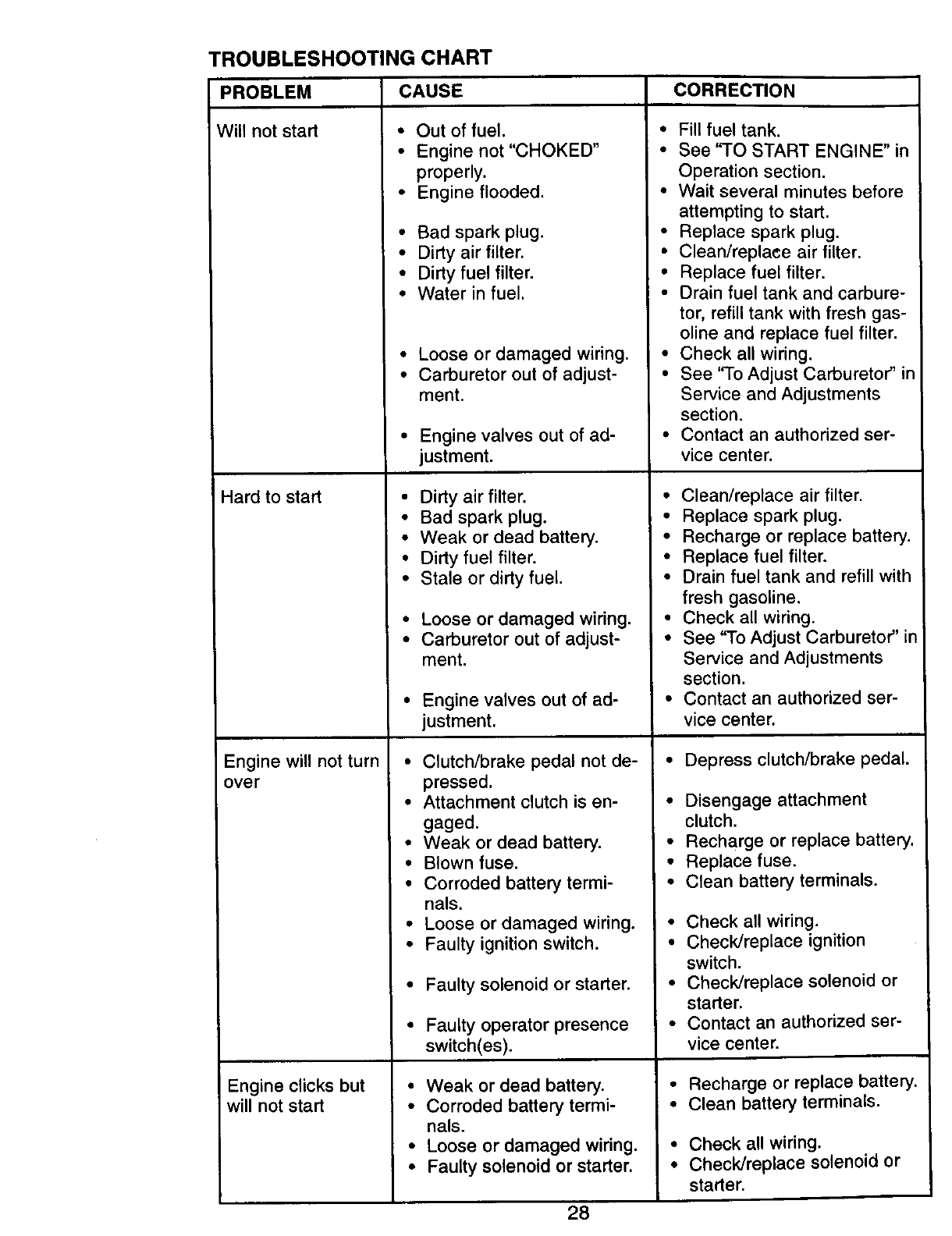

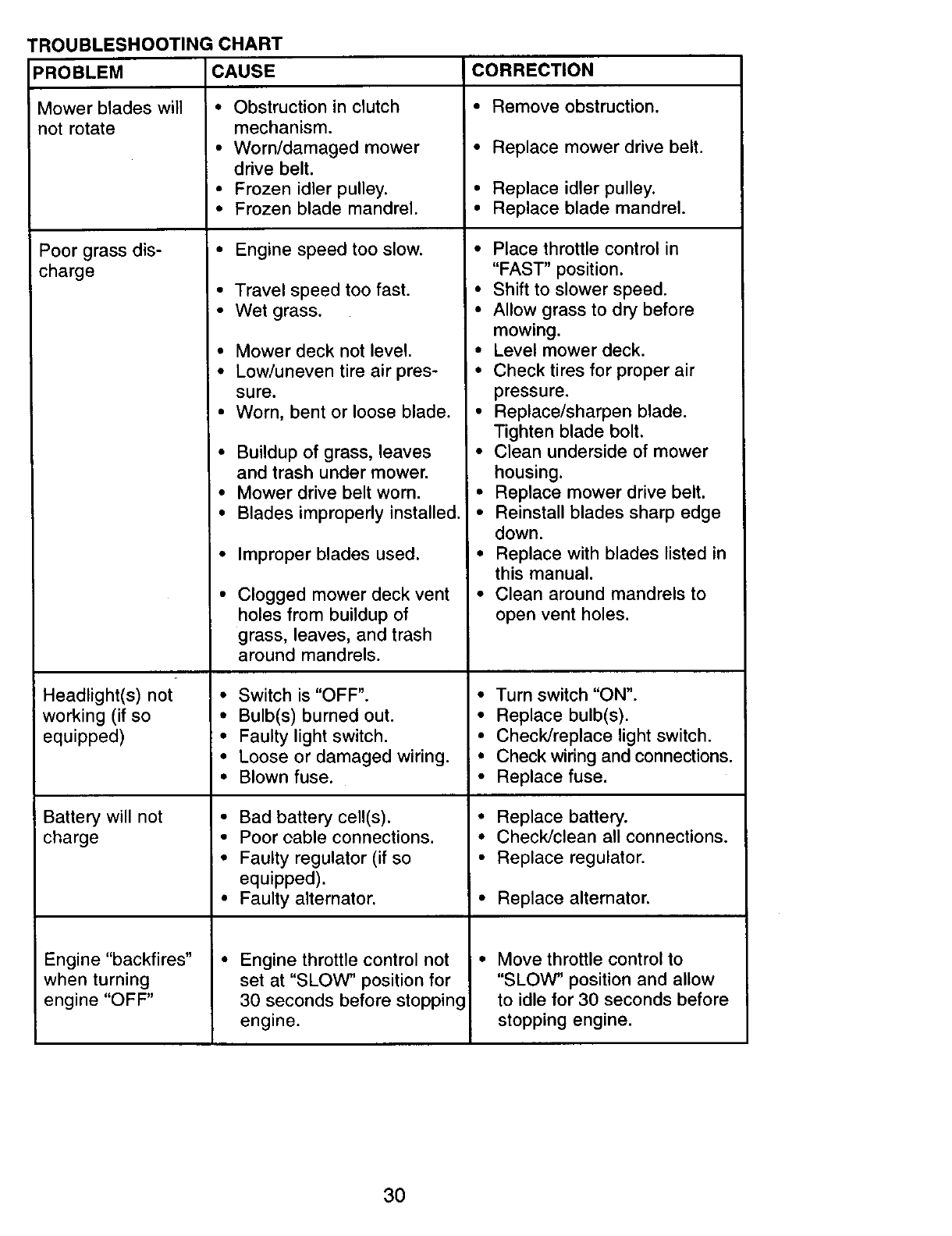

Troubleshooting .................................. 28

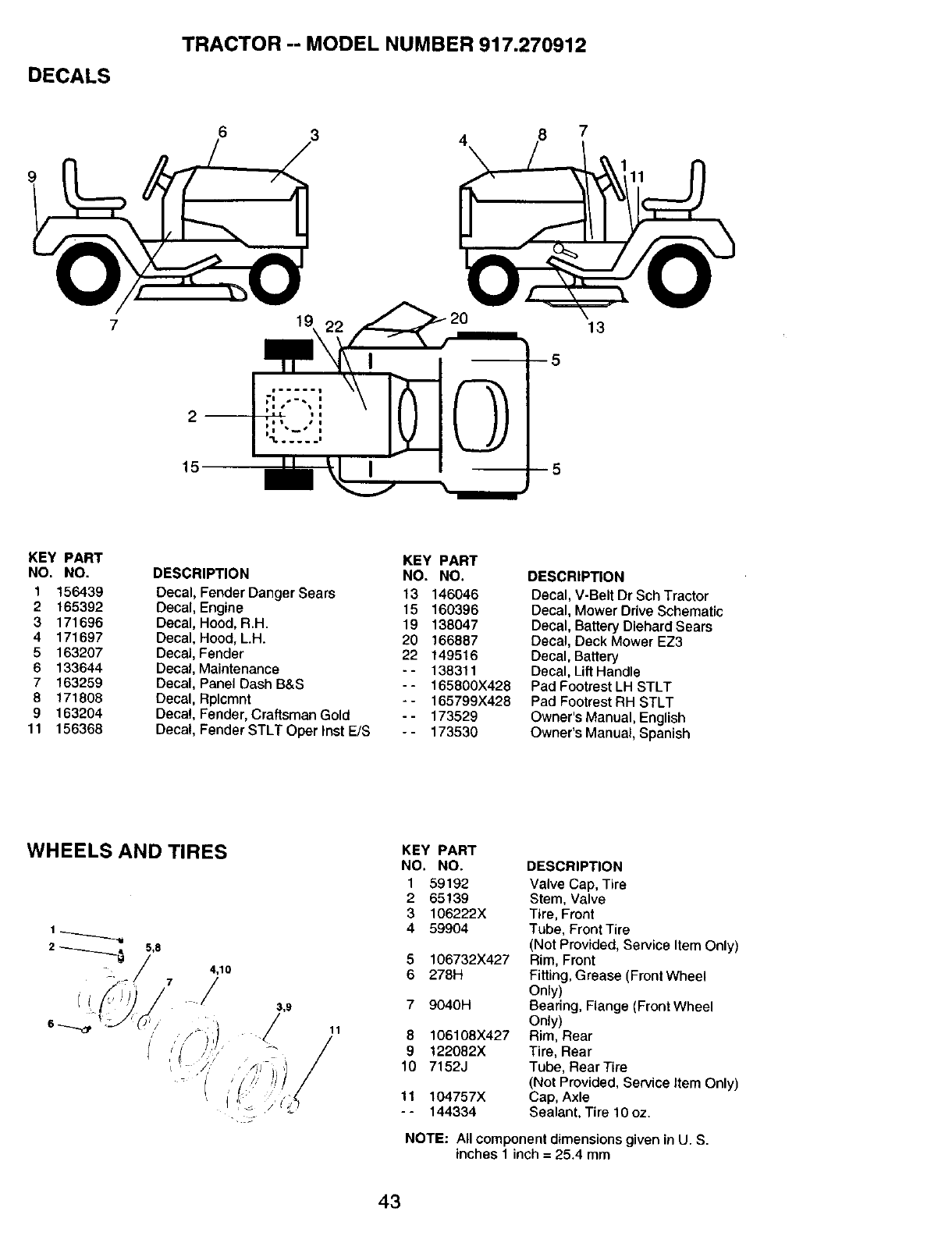

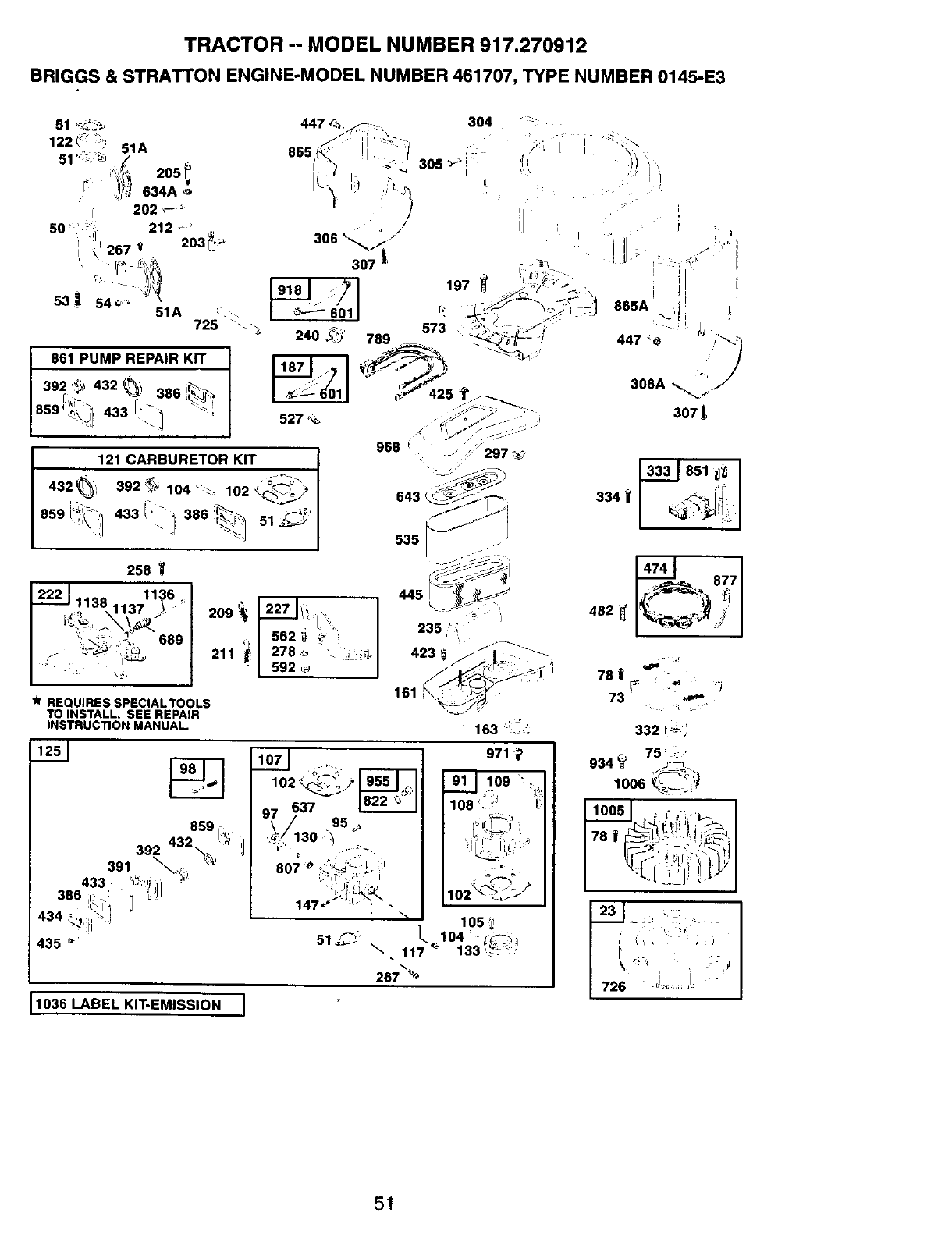

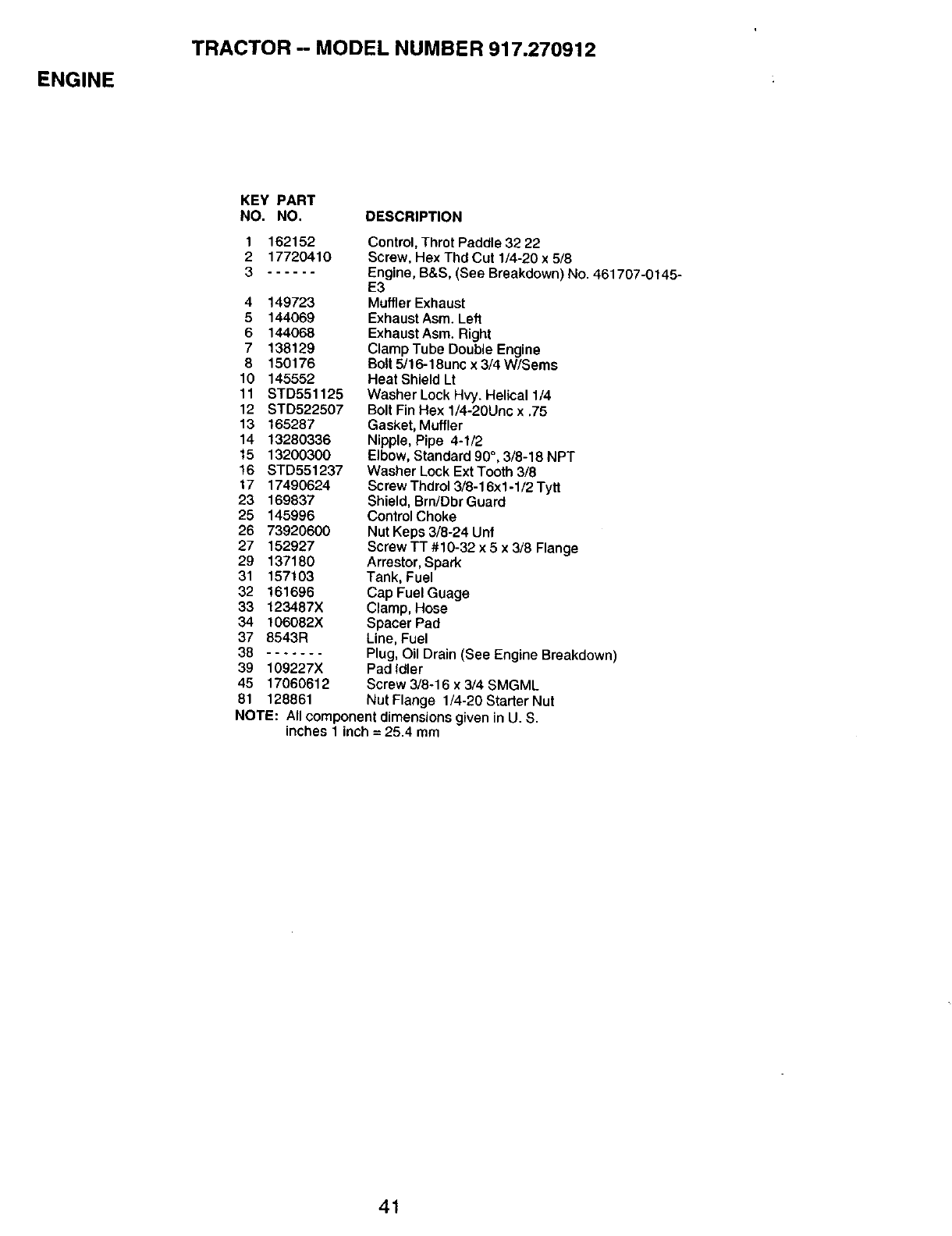

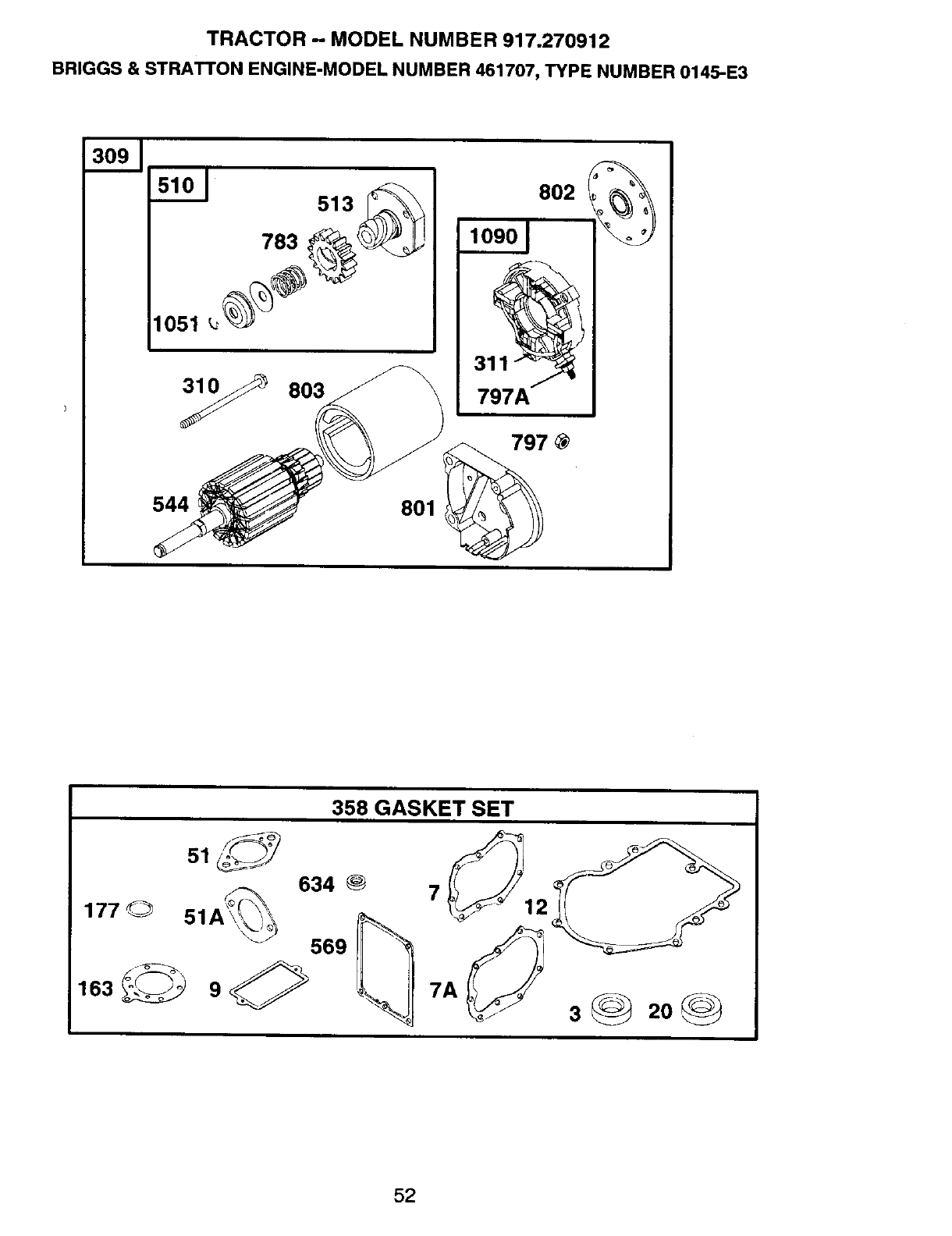

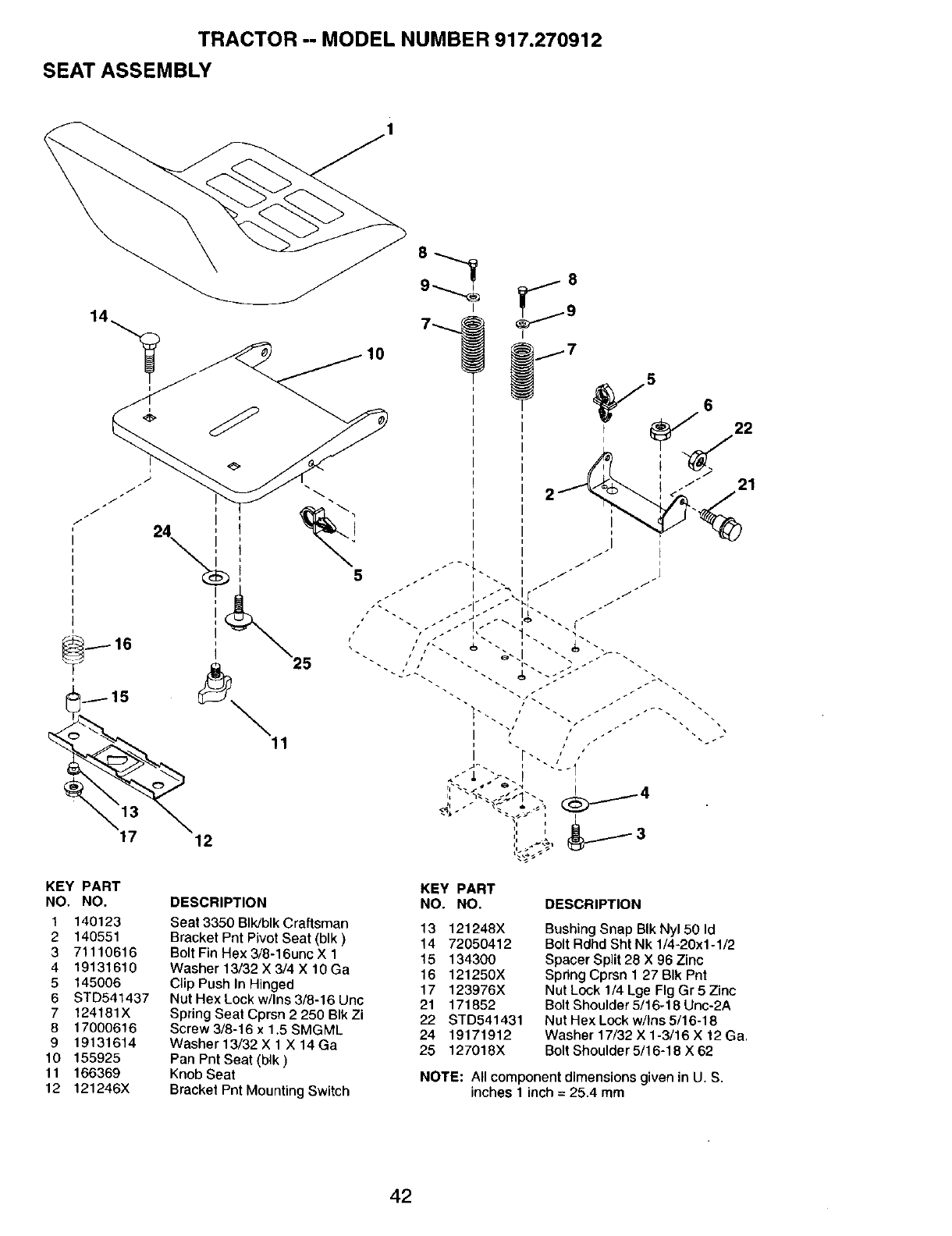

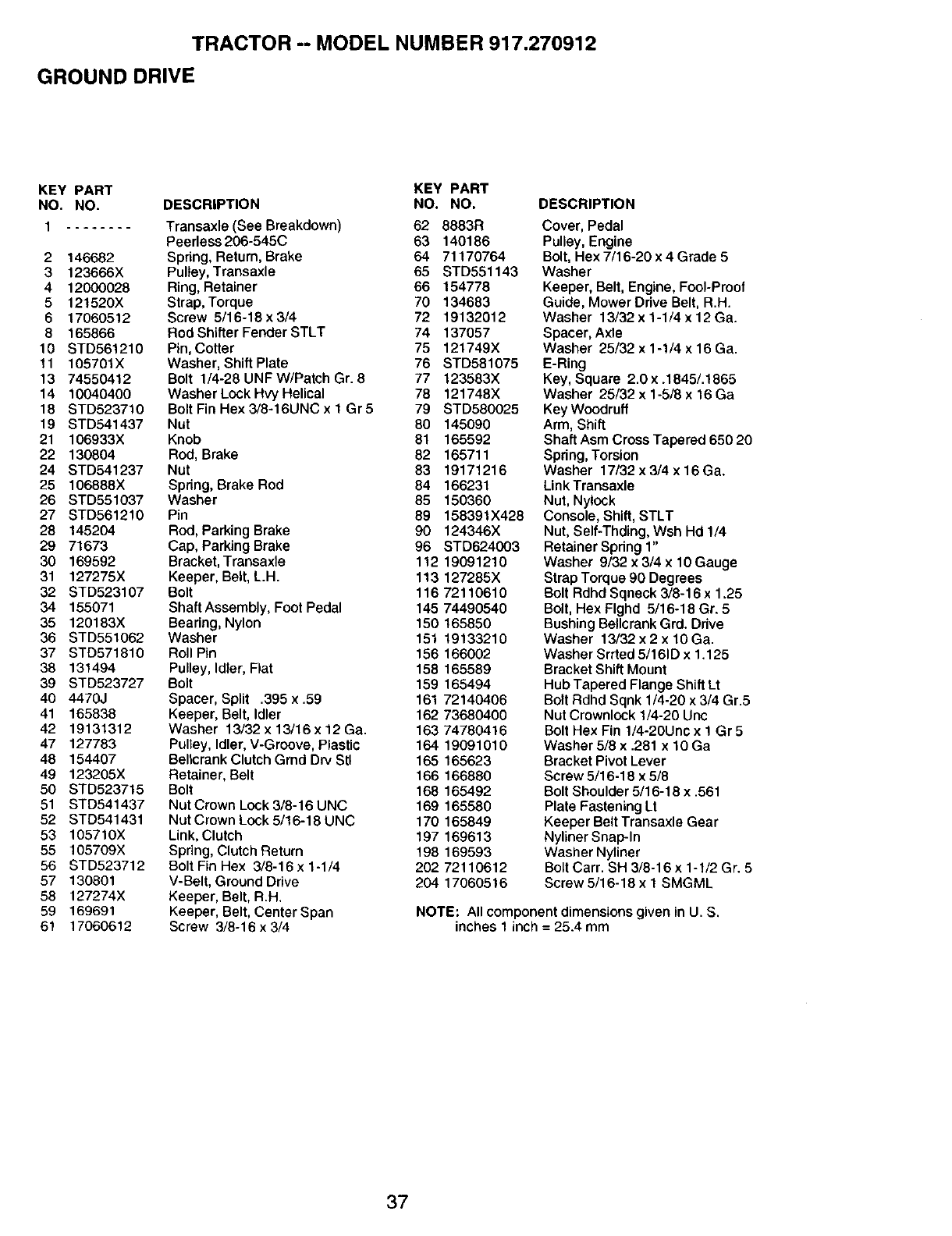

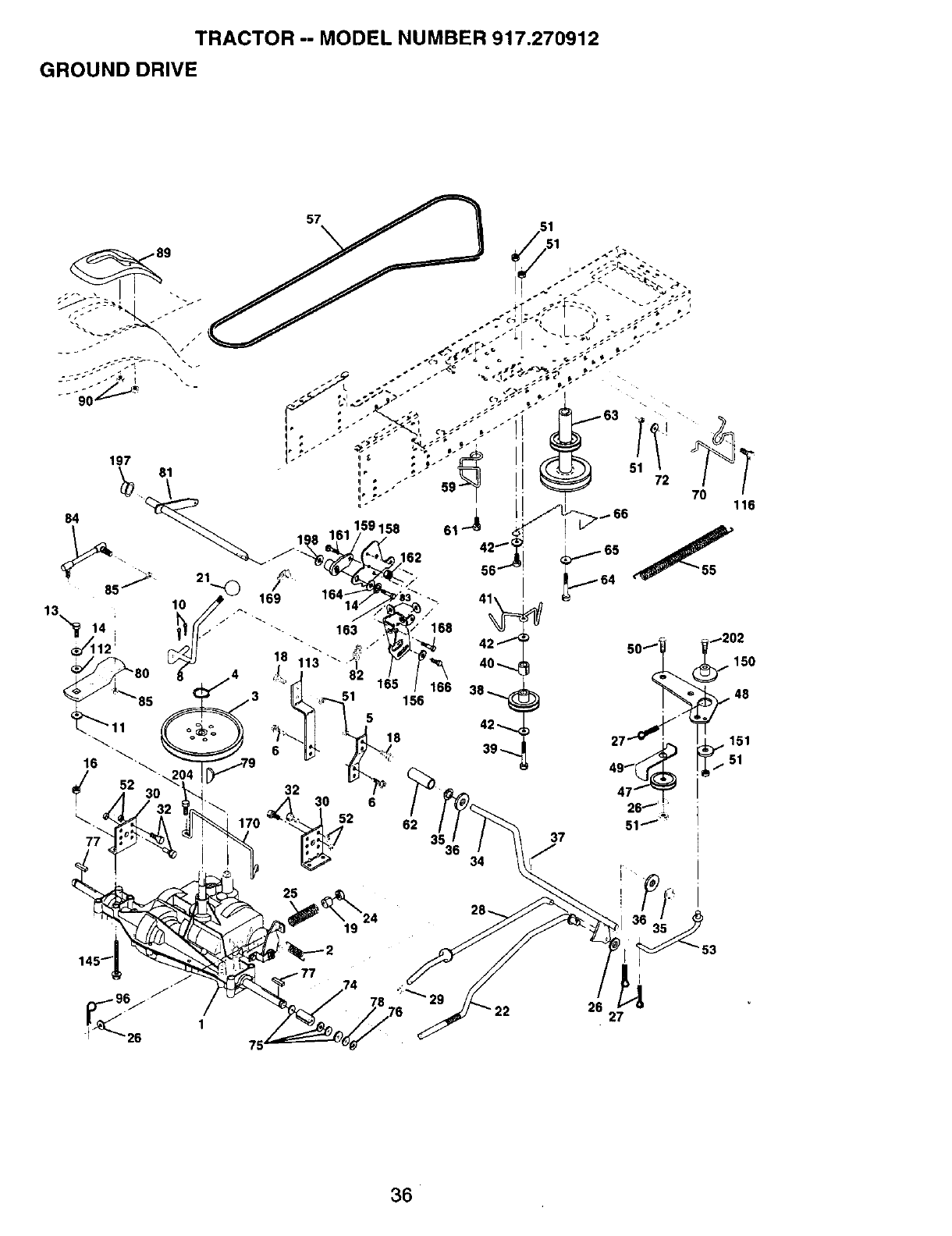

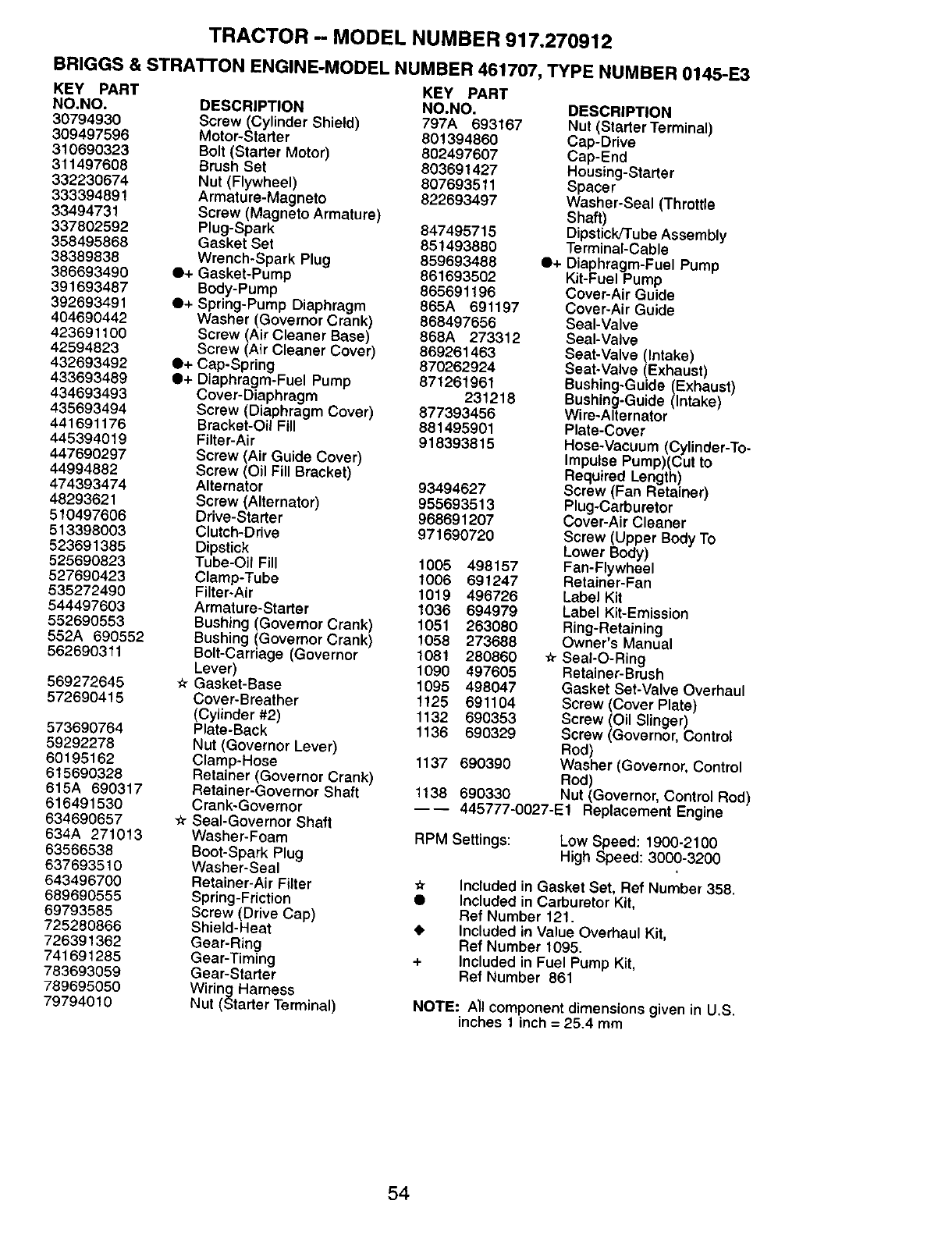

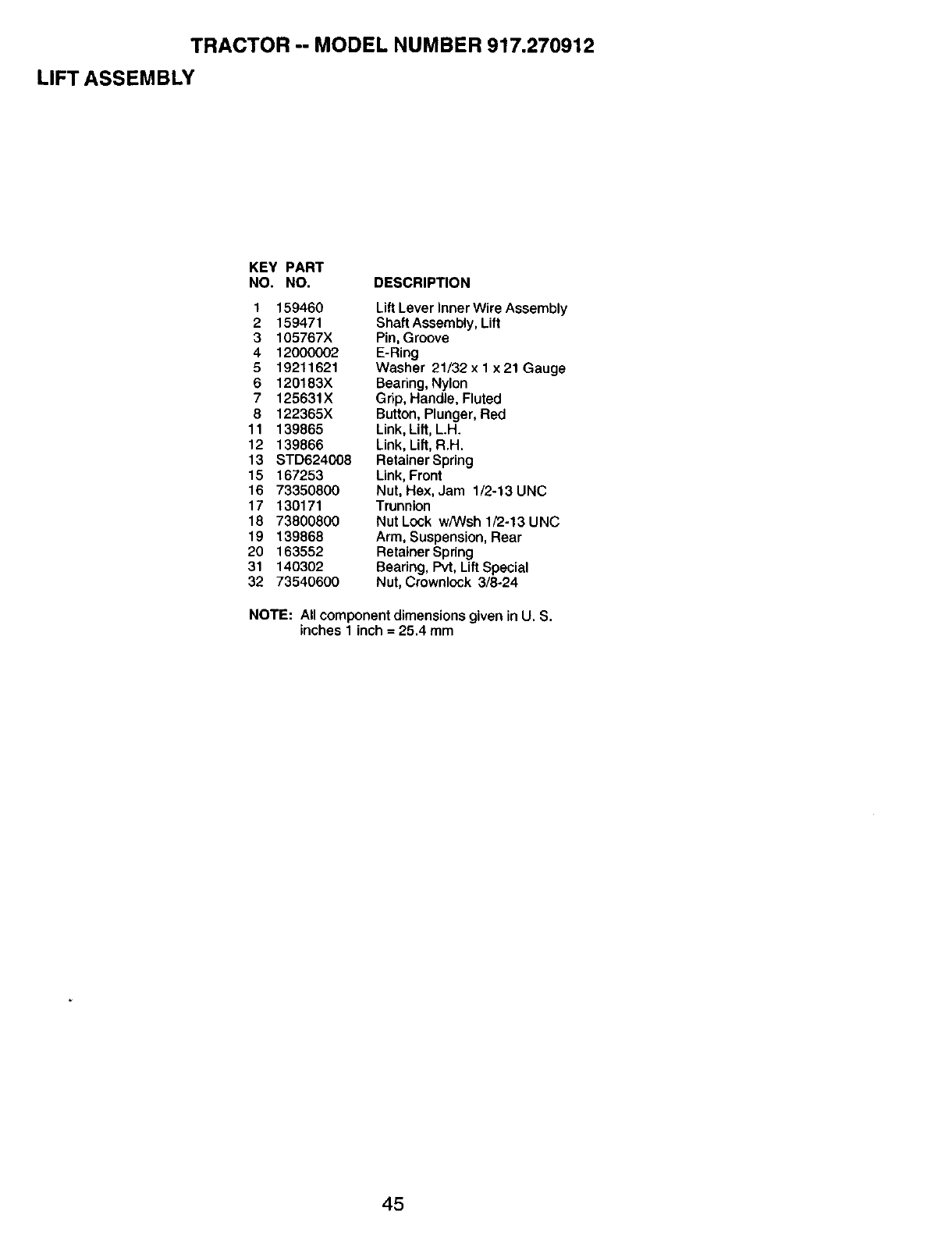

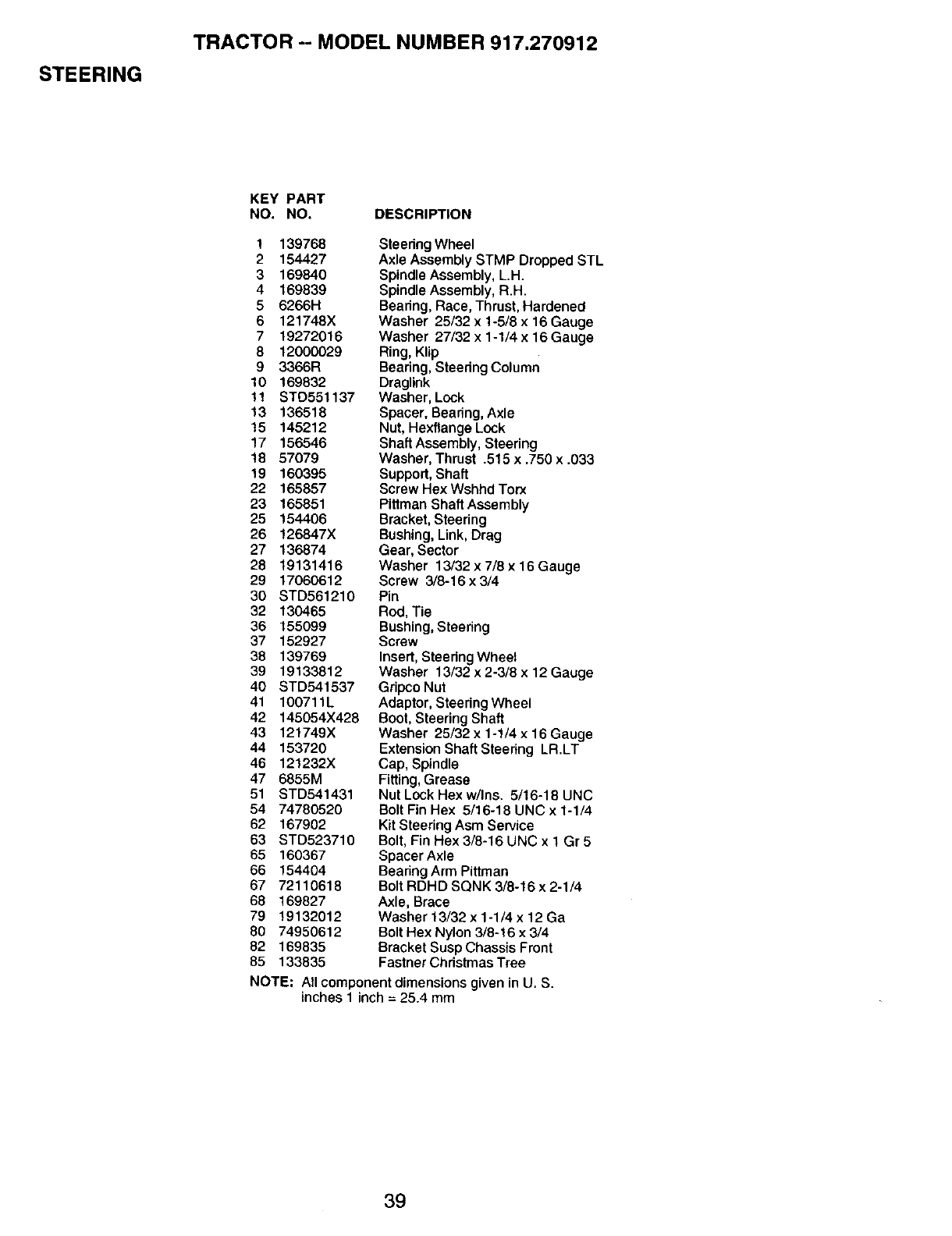

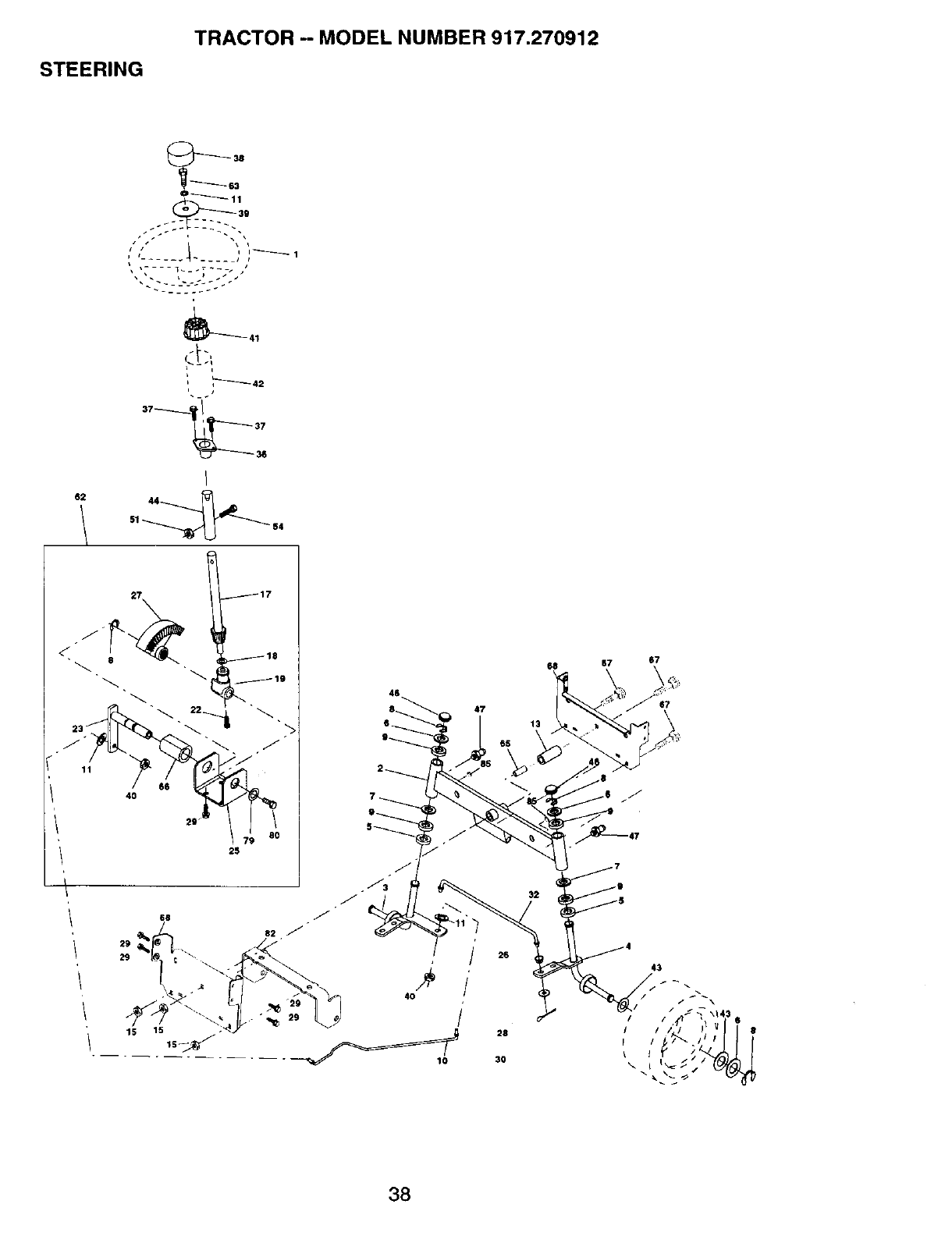

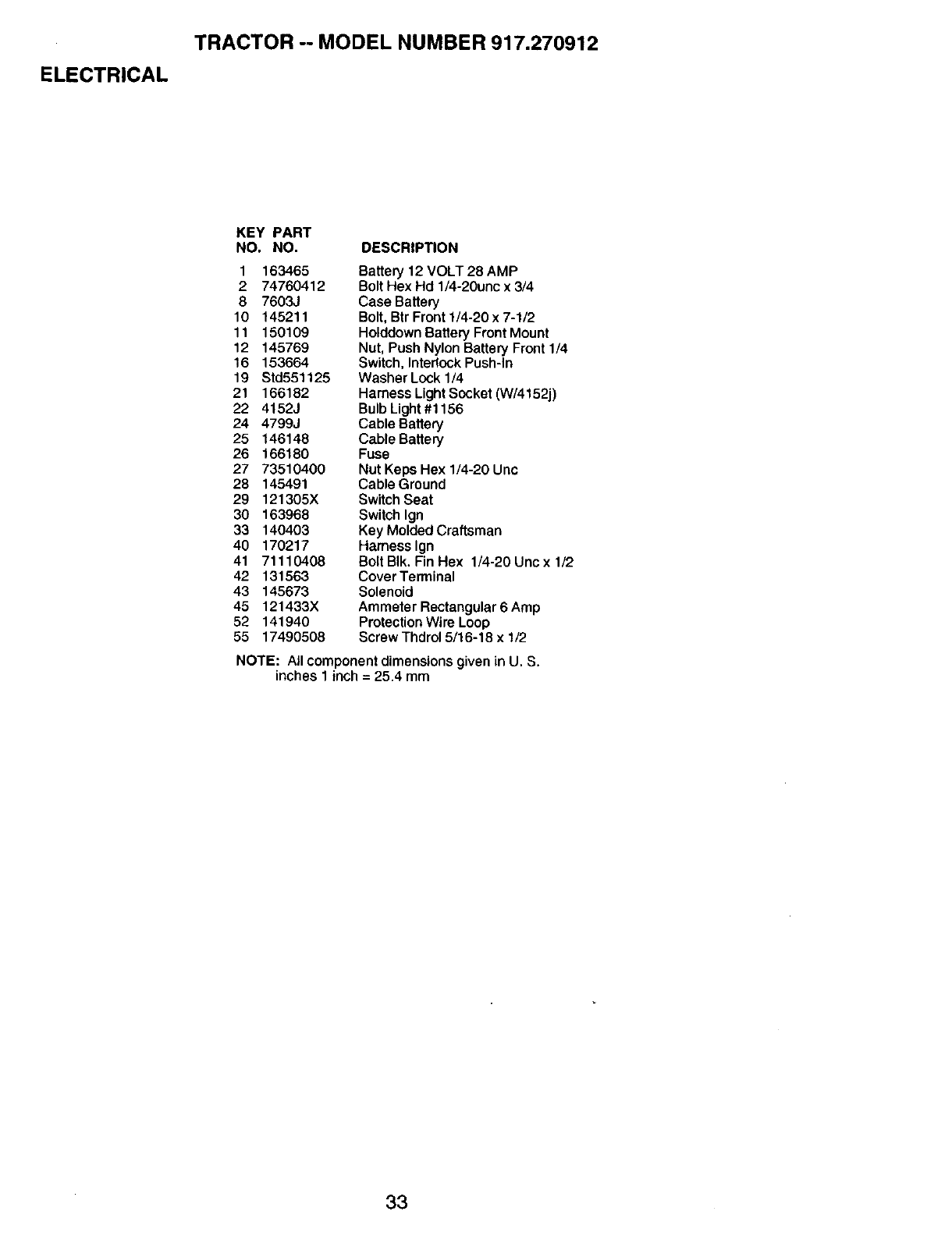

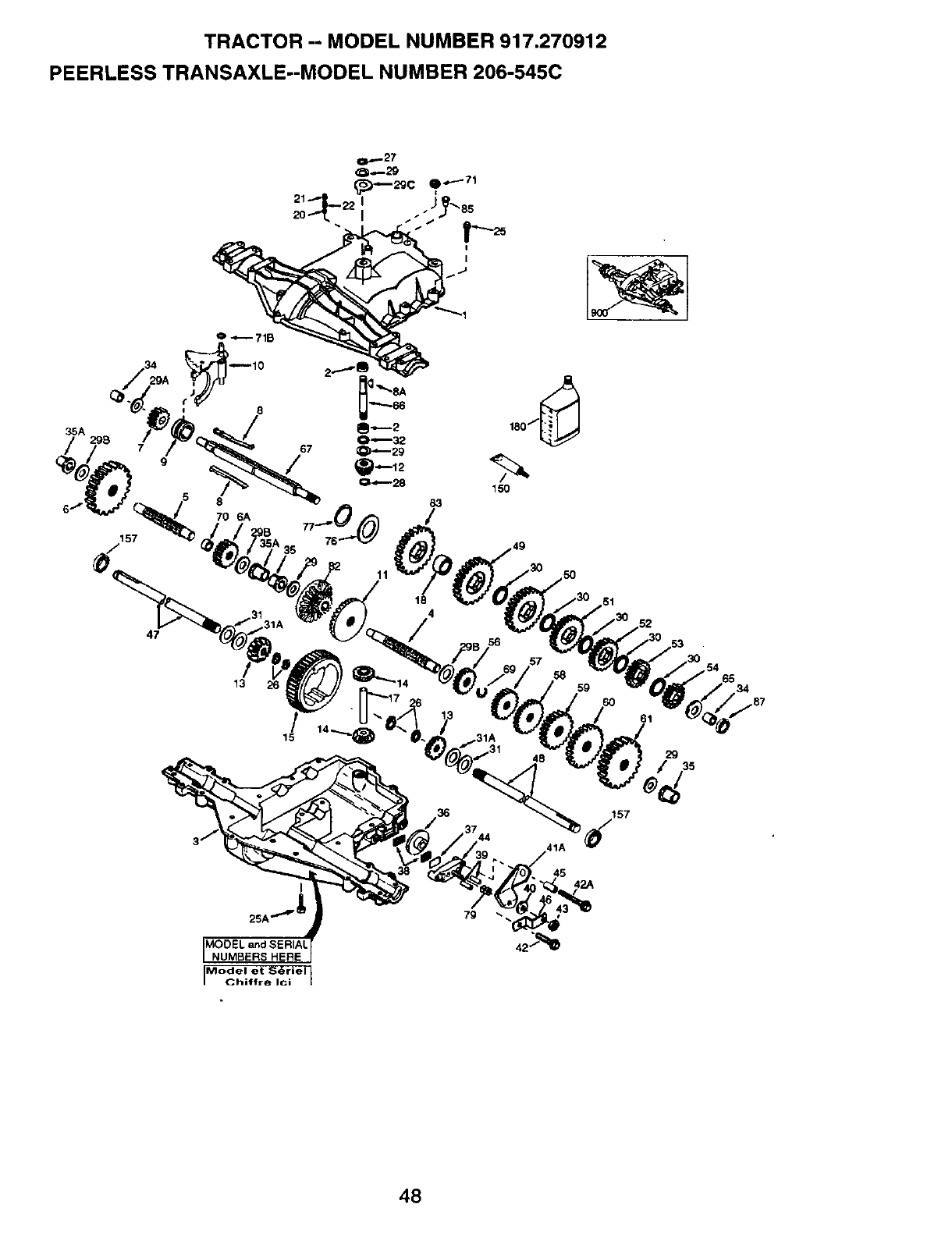

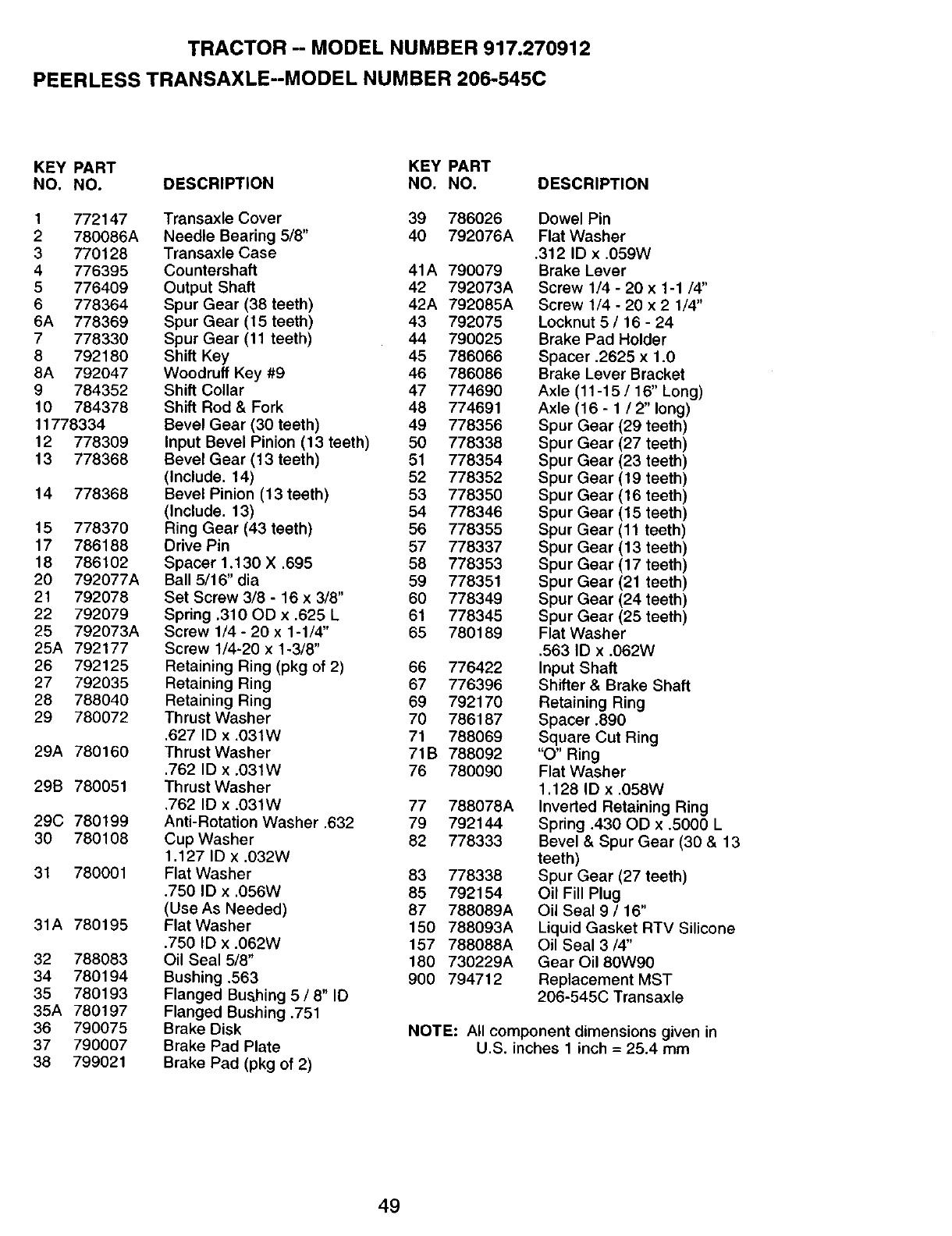

Repair Parts ........................................ 32

Parts Ordering ............... _....... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by taking your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by taking your Craftsman riding equipment to your

nearest Sears Service Center. In-home warranty service is available but a trip charge

will apply. This warranty applies only while this product is in the United States.

To locate the nearest sears service center or to schedule in-home warranty service,

simply contact sears at 1-800-4-my-home

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

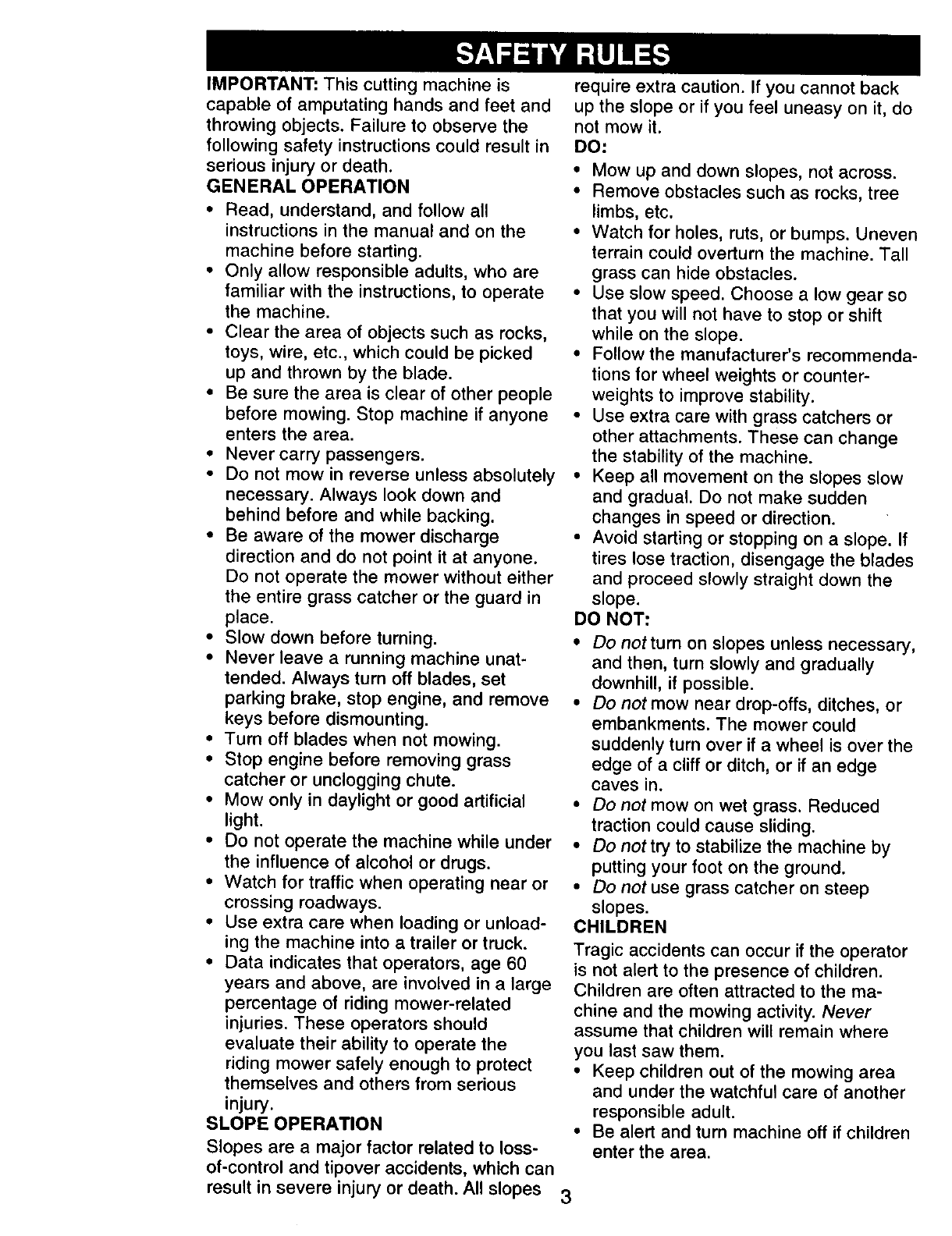

IMPORTANT: This cutting machine is

capable of amputating hands and feet and

throwing objects. Failure to observe the

following safety instructions could result in

serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the

riding mower safely enough to protect

themselves and others from serious

injury.

SLOPE OPERATION •

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes 3

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

"Do notturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do nottry to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs,trees, or other objects

that may obscurevision.

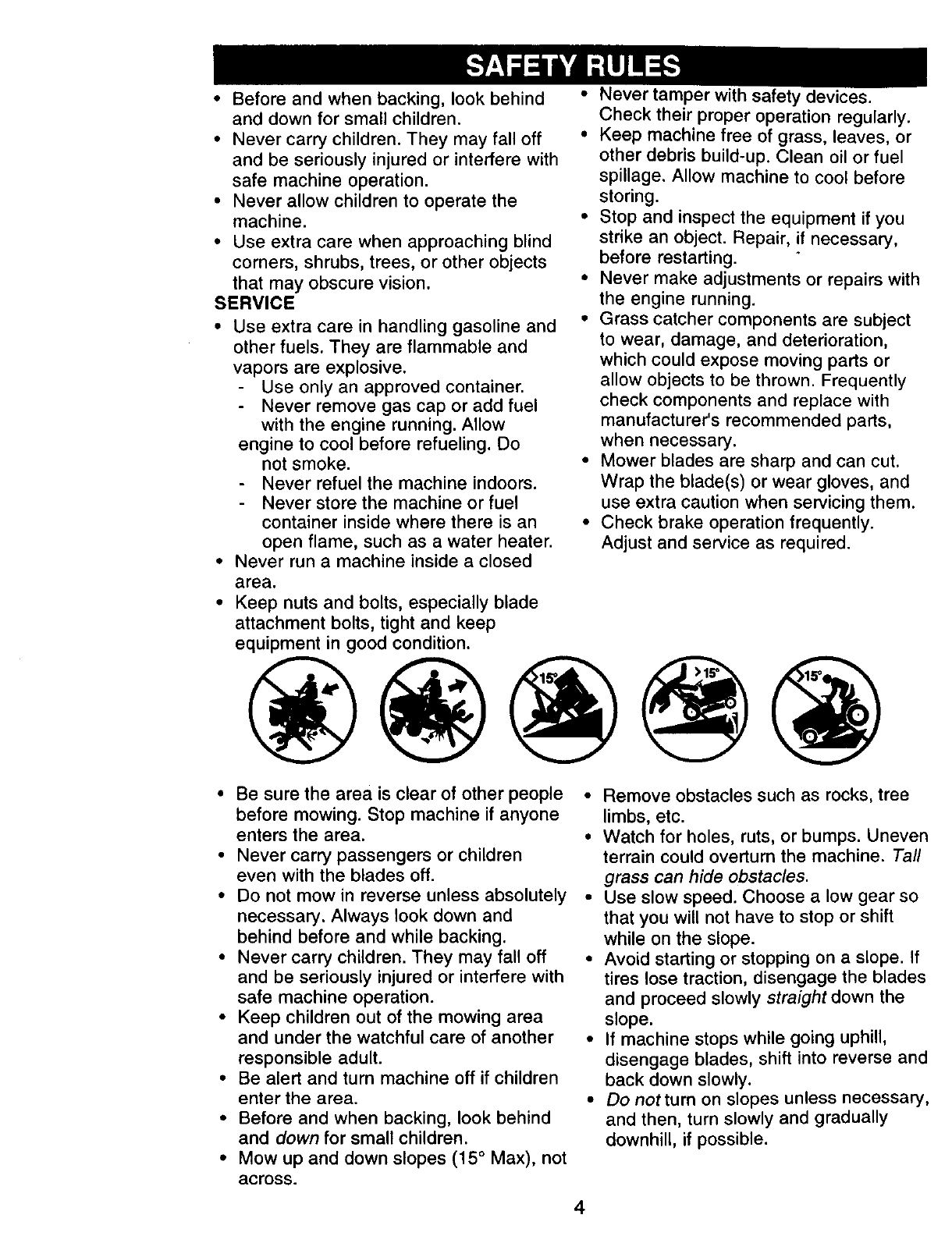

SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

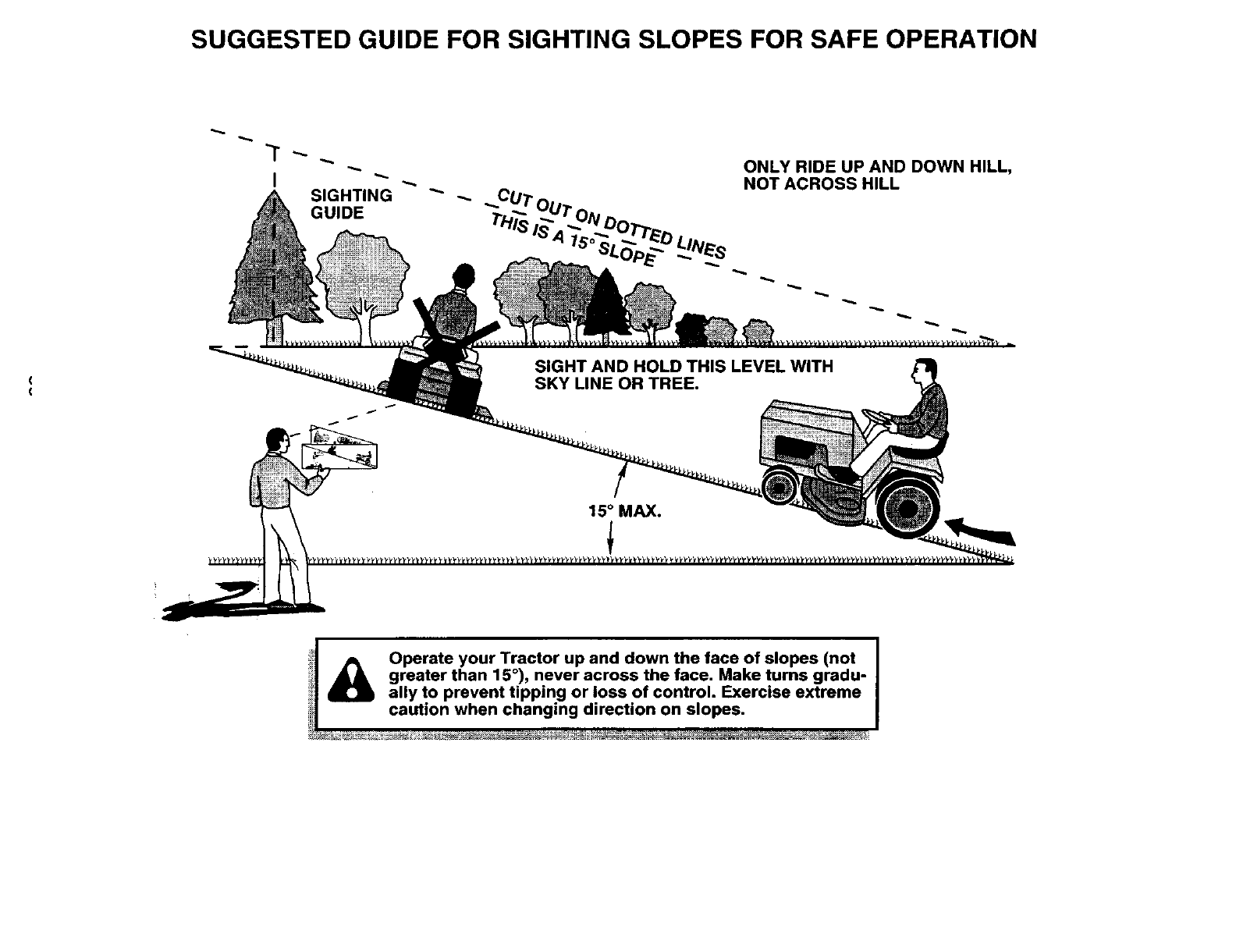

• Mow up and down slopes (15 °Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

•Do notturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

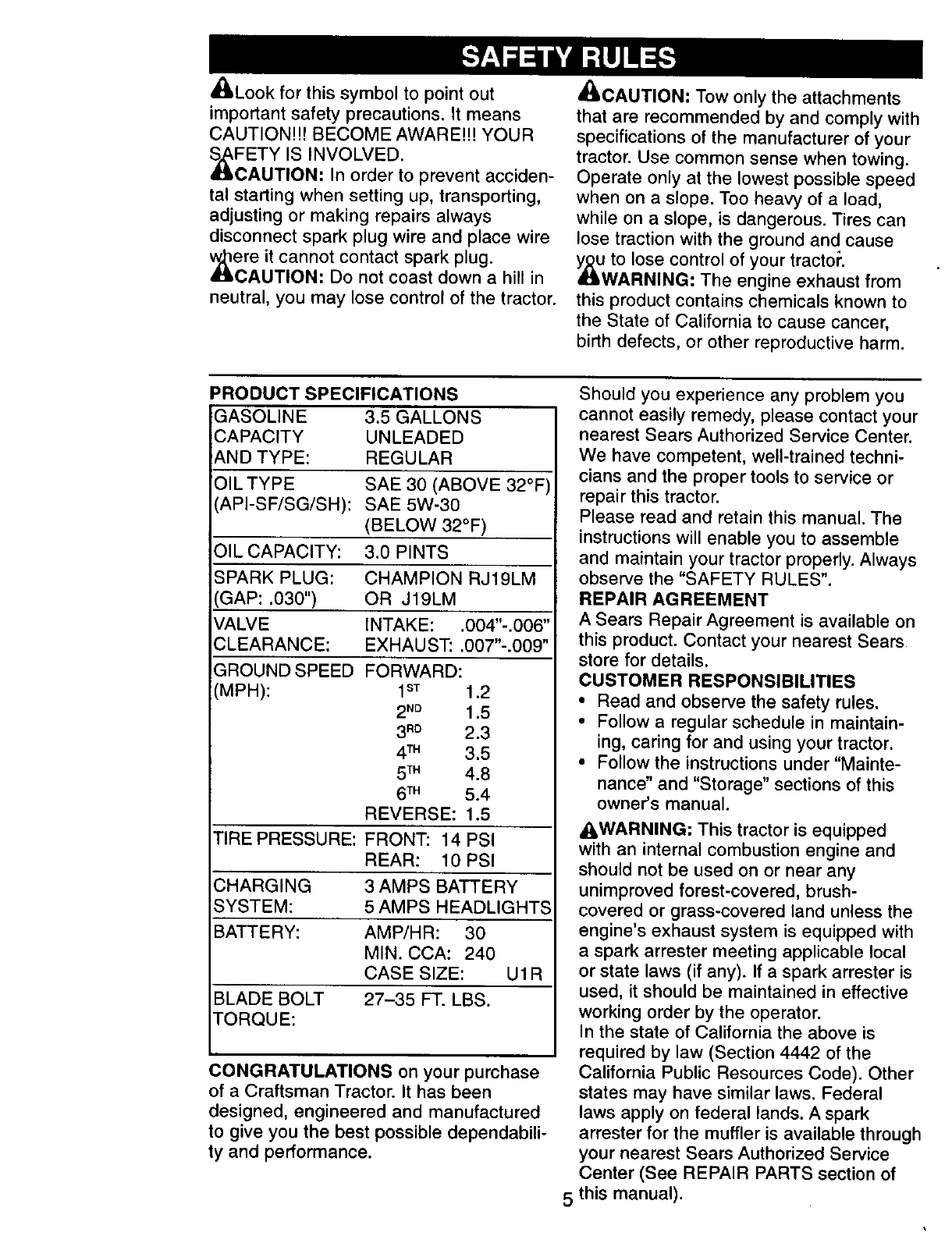

_L,Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOME AWARE!!! YOUR

_FETY IS INVOLVED.

CAUTION" In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always

disconnect spark plug wire and place wire

_kere it cannot contact spark plug.

CAUTION: Do not coast down a hill in

neutral, you may lose control of the tractor.

,_CAUTION" Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

_llUwAtolose control of your tractoi'.

RNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPAC TY UNLEADED

AND TYPE: REGULAR

;OIL TYPE SAE 30 (ABOVE 32°F)

API-SF/SG/SH): SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: 3.0 PINTS

SPARK PLUG: CHAMPION RJ19LM

GAP: .030") OR J19LM

VALVE INTAKE: .004"-.006"

CLEARANCE: EXHAUST: .007"-.009"

GROUND SPEED FORWARD:

(MPH): 1ST 1.2

2"° 1.5

3RD 2.3

4TM 3.5

5TM 4.8

6TM 5.4

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING 3 AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1R

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependabili-

ty and performance.

Should you experience any problem you

cannot easily remedy, please contact your

nearest Sears Authorized Service Center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

REPAIR AGREEMENT

A Sears Repair Agreement is available on

this product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

AWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available through

your nearest Sears Authorized Service

Center (See REPAIR PARTS section of

5 this manual).

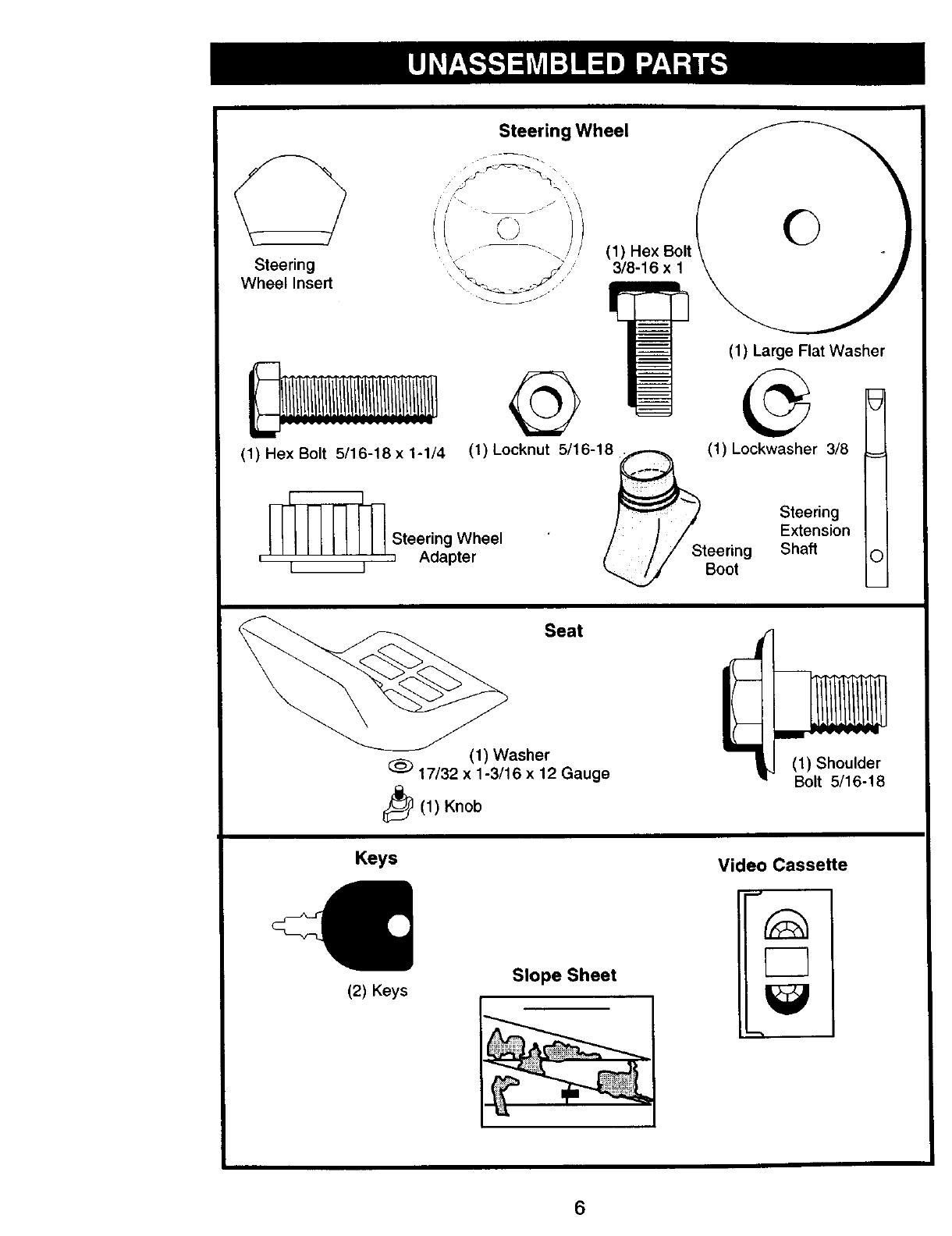

Steering

Wheel Insert

(1) Hex Bolt 5/16-18 x 1-1/4

Steering Wheel

/• f_F _Y'_-_'_ _

(1) Locknut 5/16-18

(1)

3/8-16 x 1

(1) Large Flat Washer

(1) Lockwasher 3/8

1__ Steering Wheel

, , Adapter

l J Steering

Boot

Steering

Extension

Shaft ¢

Seat

(1) Washer

(_ 17/32 x 1-3/16 x 12 Gauge

_(1) Knob

(1) Shoulder

Bolt 5/16-18

Keys

(2) Keys Slope Sheet

Video Cassette

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier• Standard wrench sizes you need

are listed below.

(1) 9/16" wrench

(1) Utility knife

(1) 3/4" socket with

drive ratchet

(2) 1/2" wrench

(1) Pliers

(1) Tire pressure

gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel)•

TO REMOVE TRACTOR FROM

CARTON

UNPACKCARTON

inside boot and onto adapter.

•Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

• Snap steering wheel insert into center of

steering wheel.

•Remove protective materials from

tractor hood and grill•

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to rollnOsffe_kid.

/_ -3/8 HexBolt/3/8 Lockwasher

.=Flat

Washer

• Remove all accessible loose parts and

parts boxes from shipping carton.

•Cut, from top to bottom, along lines on

all four comers of shipping carton, and

lay panels flat.

•Check for any additional loose parts or

boxes and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

• Slide extension shaft onto lower

steering shaft. Align mounting holes in

extension and lower shafts and install 5/

16 hex bolt and Iocknut. Tighten

securely.

• Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so

they are pointing straight forward.

• Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension•

• Position steering wheel so cross bars

are horizontal (left to right) and slide

HOW TO SET UP YOUR TRACTOR

CONNECT BATTERY

Lift hood to raised position•

If this battery is put into service after

month and year indicated on label (label

located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in MAINTE-

NANCE section of this manual for

charging instructions)•

• t_

"• Label

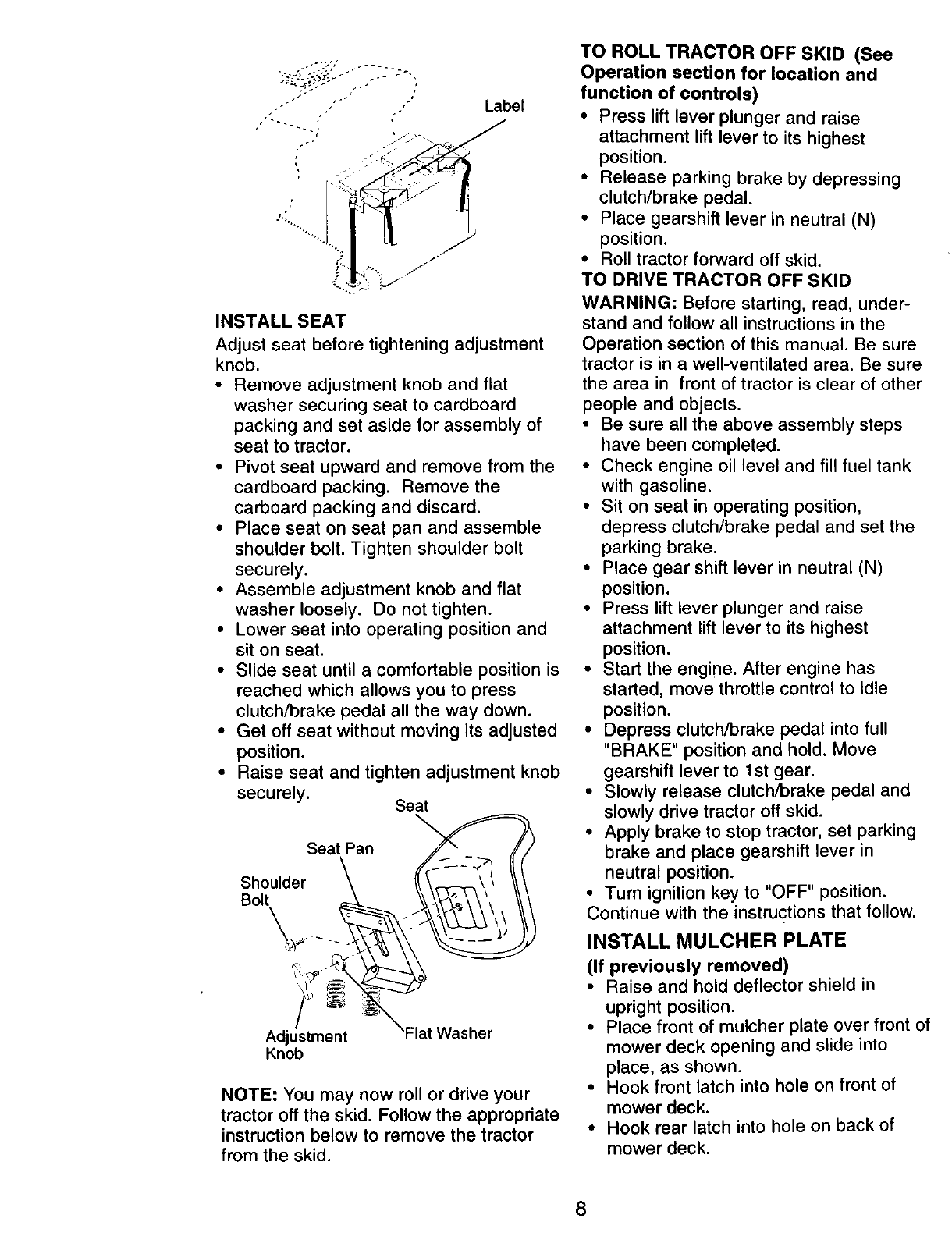

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

• Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

• Pivot seat upward and remove from the

cardboard packing. Remove the

carboard packing and discard.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

• Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position is

reached which allows you to press

clutch/brake pedal all the way down.

• Get off seat without moving its adjusted

position.

• Raise seat and tighten adjustment knob

securely. Seat

Seat Pan

Shoulder

Bolt

Adjustment Washer

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

• Press lift lever plunger and raise

attachment lift lever to its highest

position.

• Release parking brake by depressing

clutch/brake pedal.

• Place gearshift lever in neutral (N)

position.

• Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID

WARNING: Before starting, read, under-

stand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

•Be sure all the above assembly steps

have been completed.

•Check engine oil level and fill fuel tank

with gasoline.

• Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

•Place gear shift lever in neutral (N)

position.

•Press lift lever plunger and raise

attachment lift lever to its highest

position.

•Start the engine. After engine has

started, move throttle control to idle

position.

•Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

•Slowly release clutch/brake pedal and

slowly drive tractor off skid.

•Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

•Turn ignition key to "OFF" position.

Continue with the instructions that follow.

INSTALL MULCHER PLATE

(If previously removed)

• Raise and hold deflector shield in

upright position.

•Place front of mulcher plate over front of

mower deck opening and slide into

place, as shown.

•Hook front latch into hole on front of

mower deck.

•Hook rear latch into hole on back of

mower deck.

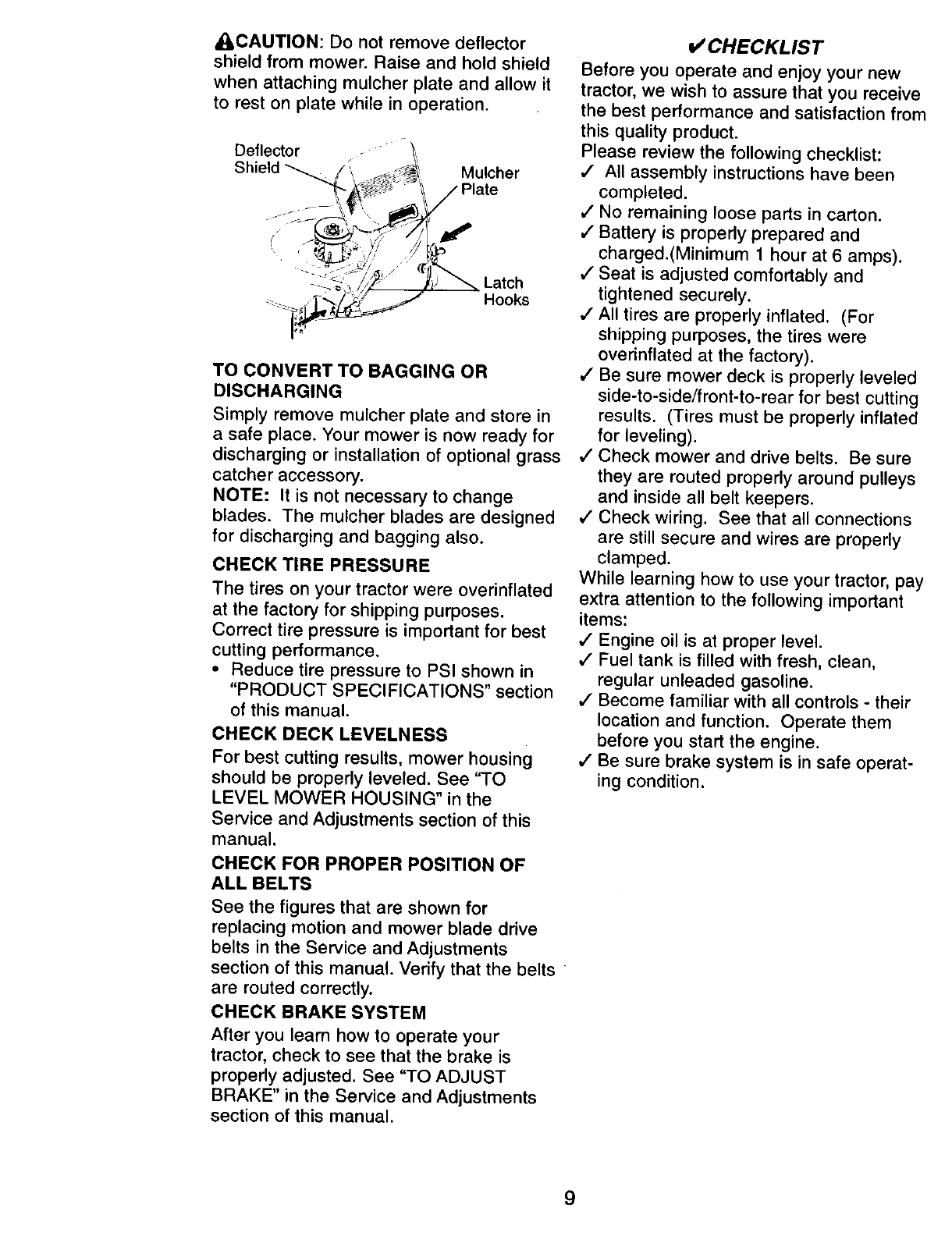

_CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

Deflector

Shield _ Mulcher

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See 'q-O

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

I/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction frorr

this quality product.

Please review the following checklist:

,I All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged.(Minimum 1 hour at 6 amps).

,I Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the belts

are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

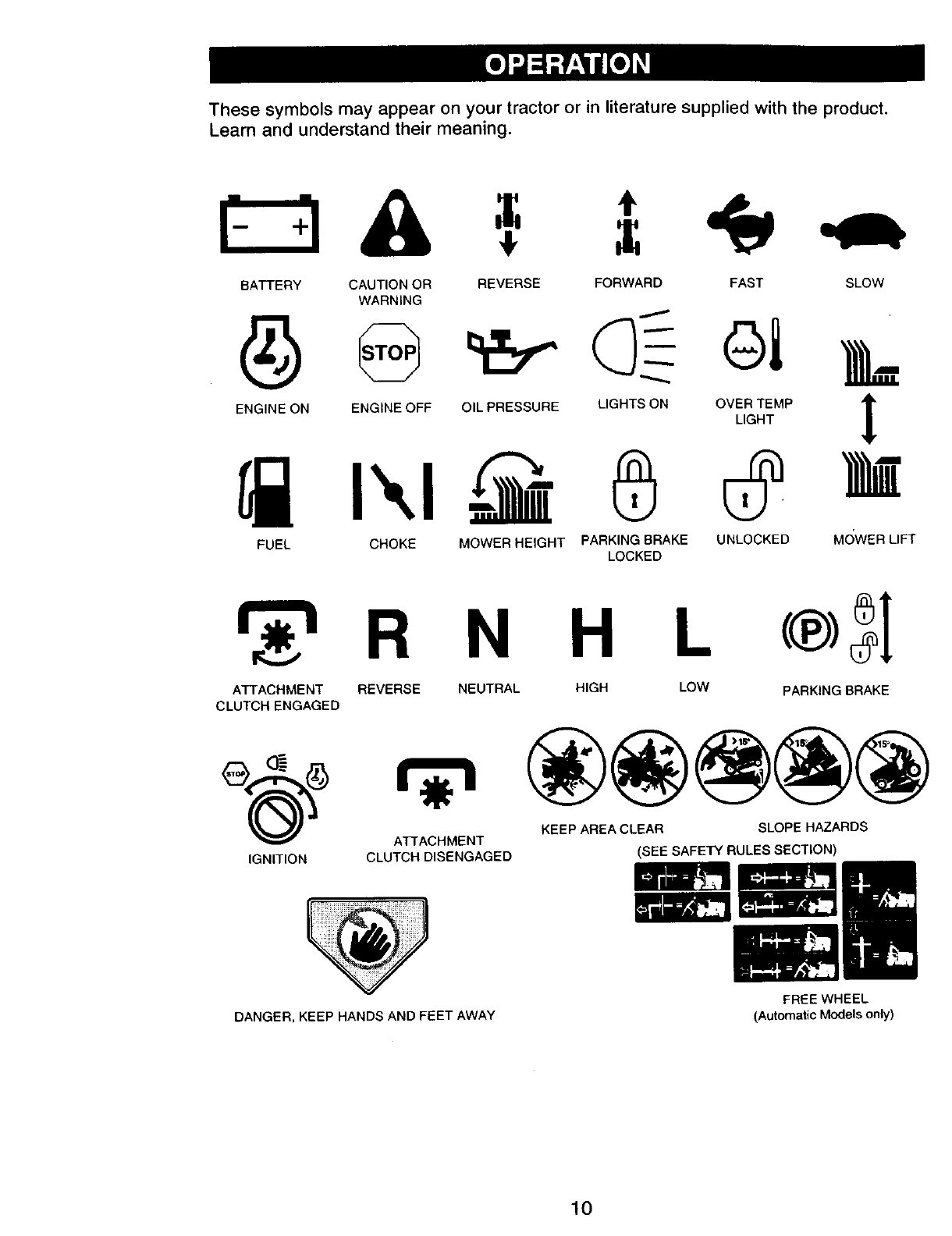

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

I- _:1

BATTERY CAUTION OR

WARNING

ENGINE ON ENGINE OFF

REVERSE FORWARD FAST SLOW

OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT

PARKING BRAKE UNLOCKED

LOCKED

MOWER LIFT

R N H L

ATTACHMENT REVERSE

CLUTCH ENGAGED

NEUTRAL HIGH LOW PARKING BRAKE

KEEP AREA CLEAR SLOPE HAZARDS

IGNITION

ATTACHMENT

CLUTCH DISENGAGED

DANGER, KEEP HANDS AND FEET AWAY

(SEE SAFETY RULES SECTION)

FREE WHEEL

(Automatic Models only)

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE

OPERATING YOUR TRACTOR

Compare the illustrationswith your tractor to familiarize yourself withthe locationsof

various controlsand adjustments, Save this manual for future reference.

Attachment Light

Clutch Lever Ignition Switch

Ammeter Switch

Choke Control Lift Lever

Plunger

Throttle

Control

Crutch/

Brake

Pedal

Attachment

Lift Lever

Height

Adjustment

Indicator

Parking Brake

Gearshift

Lever

Our tractors conform to the safety standards of the American

National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH: Turns the headlights on

and off.

THROTTLE CONTROL: Used for starting

and controlling engine speed.

CHOKE CONTROL: Used when starting

acold engine.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

PARKING BRAKE: Locks clutch/brake

pedal into the brake position.

GEARSHIFT LEVER: Selects the speed

and direction of tractor.

ATTACHMENT LIFT LEVER: Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your

tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: Indicates battery charging

(+) or discharging (-).

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles, or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

•Depress clutch/brake pedal into full

"BRAKE" position and hold.

•Place parking brake lever in "EN-

GAGED" position and release pressure

from clutch/brake pedal. Pedal should

remain in "BRAKE" position. Make sure

parking brake will hold tractor secure.

STOPPING

Choke Control Attachment Clutch Lever

Position

Throttle "Disengaged"

Control Position

Clutch/Brake

Position

Parking Brake

Position

"Disengaged"

Position

Gearshift

Lever

"Brake"

Position

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE-

•To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

•Tum ignition key to "OFF' position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" will cause

the battery to be discharged, (dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_:_,CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

• Start tractor with clutch/brake pedal

depressed and gearshift lever in neutral

(N) position.

• Move gearshift lever to desired posi-

tion.

• Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

TO ADJUST MOWER CUTTING

HEIGHT

The position of the attachment lift lever

determines the cutting height.

•Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade tip

with the engine not running. These

heights are approximate and may vary

depending upon soi_ conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

• Adjust gauge wheels with tractor on a

flat level surface.

• Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in the Operation section of this

manual).

• With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in appropri-

ate hole with shoulder bolt, 3/8 washer,

and 3/8-16 Iocknut and tighten securely.

• Repeat for opposite side instal{ing

gauge wheel in same adjustment hole.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

Gauge Wheel _-

Bracket

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

• Select desired height of cut.

•Start mower blades by engaging

attachment clutch control.

• TO STOP MOWER BLADES - disen-

gage attachment clutch control.

_I,CAU.TION: Do not operate the mower

withou[ either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

TO OPERATE ON HILLS

,ACAUTION: Do not drive up or down

hills with slopes greater than 15 °and do

Attachment Clutch Attachment Lift Lever

Lever "Engaged" ._ High Position

Position_ J/

"g sen"a.qed". _'_//_ Low

Position _ _/ ._-_, Position

/--':_ _" _ _ Deflector

Shield

not drive across any slope. A slope guide

at the back of your manual is provided for

your use.

• Choose the slowest speed before

starting up or down hills.

•Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

°If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake

position and engage parking brake.

• Move gearshift leverto 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

3/8-16 Locknut

3/8 Washer

Gauge Wheel

Shoulder

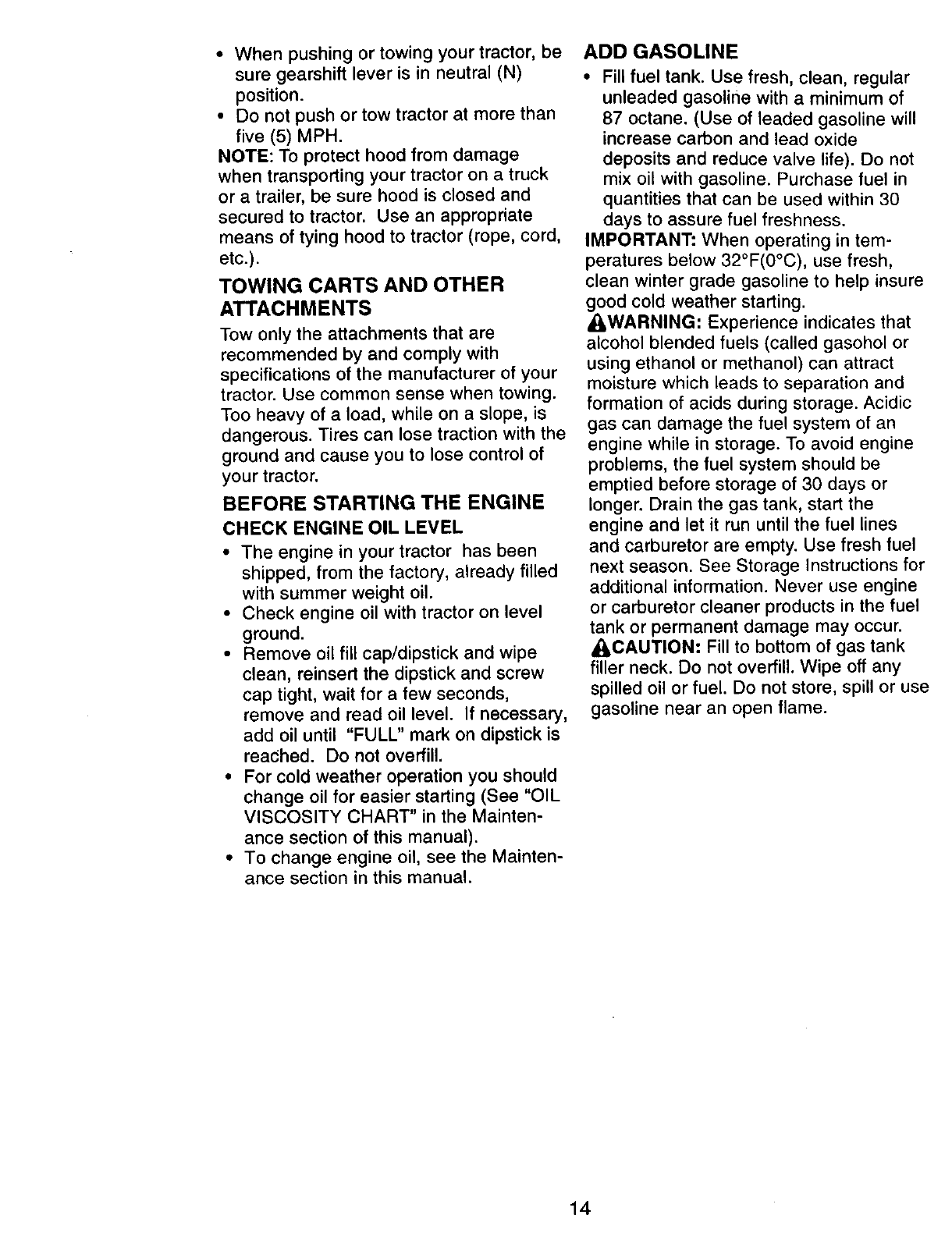

•When pushing or towing your tractor, be

sure gearshift lever is in neutral (N)

position.

•Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER

ATTACHMENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with the

ground and cause you to lose control of

your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

• Check engine oil with tractor on level

ground.

• Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If necessary,

add oil until "FULL" mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainten-

ance section of this manual).

• To change engine oil, see the Mainten-

ance section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help insure

good cold weather starting.

AOAWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

•Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

•Place gear shift lever in neutral (N)

position.

• Move attachment clutch to "DISEN-

GAGED" position.

• Move throttle control to fast position

• Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

• Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait a

few minutes and try again. If engine still

does not start, pull the choke control out

and retry.

WARM WEATHER STARTING (50 ° F

AND ABOVE)

• When engine starts, slowly push choke

control in until the engine begins to run

smoothly. If the engine starts to run

roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° F AND

BELOW)

• When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the

engine to accept small changes in

speed and load, until the choke control

is fully in. If the engine starts to run

roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

This may require an engine warm-up

period from several seconds to several

minutes, depending on the temperature.

• The attachments can be used during the

engine warm-up period and may require

the choke control be pulled out s_ightly.

NOTE: A high altitude (above 3000 feet) or

in cold temperatures (below 32 F) the

carburetor fuel mixture may need to be

adjusted for best engine performance. See

"TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See 'qO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the machine.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds,

mow in the opposite direction making

left hand turns until finished

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower the best cutting performance as

well as the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

f,,,11.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up grass

and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

•Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched asecond time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

bMax 1/3

FILL IN DATES

ASYOUCOMPLETE

DATES

/i/

Check Brake Operation

Check Tire Pressure _#

Check Operator Presence and

T Interlock Systems Vp

RCheck for Loose Fasteners if _7

cASh° en,.ep,aoeMowerB,.deo

TLubrication Chart If

0Check Battery Level

RClean Batteryand Terminals _

Check Transaxle Cooling

Adjust Blade Belt(s) Tension _5

Adjust Motion Drive Belt(s) Tension V_s

Check Engine Oil Level I_ if

Change Engine Oi_ _23

EClean Air Filter V,_:

NCleanAir Screen

Inspect Muffler/SparkArrester V_

NReplace Oil Filter (If equipped) _2

EClean Engine Cooling Fins qk_12

Replace Spark Plug _#'2 V'

Replace Air Filter Paper Cartridge

Replace Fuel Filter V'

1 - Change more often when operating ur_der a heavy Io_d or in high ambient temperatures. 5 - If equipped with adjustable system.

2-Serwce mo_e often when opera*ang in dirty or dusty conditions 6 - Not required if equipped with mainter_nce_ree T0attery.

3- If equipped with oil filter, change oi_eve_ 50 hours¸ 7 -T_ghten front axle pivot bclt to 35 ft,-Ibs maximum.

4 - Replace blades more often when mowing in sandy Soil¸ DO not overt_hten.

GENERAL RECOMMENDATIONS LUBRICATION CHART

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and interlock

systems for proper operation.

• Check for loose fasteners.

)indle

Zerk t Ze_

_) Front (_)

Wheel

Bearing -_ Bearing

Zerk Zerk

(_ Engine

, (_

"r- _ Gearshift

"-- J _---" Pivots

(_SAE 30 or 10w30 motor oil

(_ General Purpose Grease

@ Refer to Maintenance "ENGINE"

Section

IMPORTANT; Do not oil or grease the pivot

points which have special nylon bearings.

Viscous lubricants will attract dust and dirt

that will shorten the life of the self-lubricat-

ing bearings. If you feel they must be

lubricated, use only a dry, powdered

graphite type lubricant sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

interlock systems are working properly. If

your tractor does not function as described

below, repair the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachment clutch control is in the

disengaged position.

•When the engine is running, any

attempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

•When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the seat

should shut off the engine.

•The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

• Raise mower to highest position to allow

access to blades.

•Remove hex bolt, lock washer and flat

washer securing blade.

•Install new or resharpened blade with

trailing edge up towards deck as shown.

IMPORTANT: To ensure proper assembly,

center hole isn blade must align with star

on mandrel assembly.

•Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

• Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade, but if you do, be sure the blade is

Trailin( _Up Mandrel Assembly

Blade Center

Hole

*A Grade 8 heat treated bolt can be identified by

six lines on the bolt head.

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while it is on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer).

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade onto an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

BATTERY

Your tractor has abattery charging system

which is sufficient for normal use. How-

Center Hole

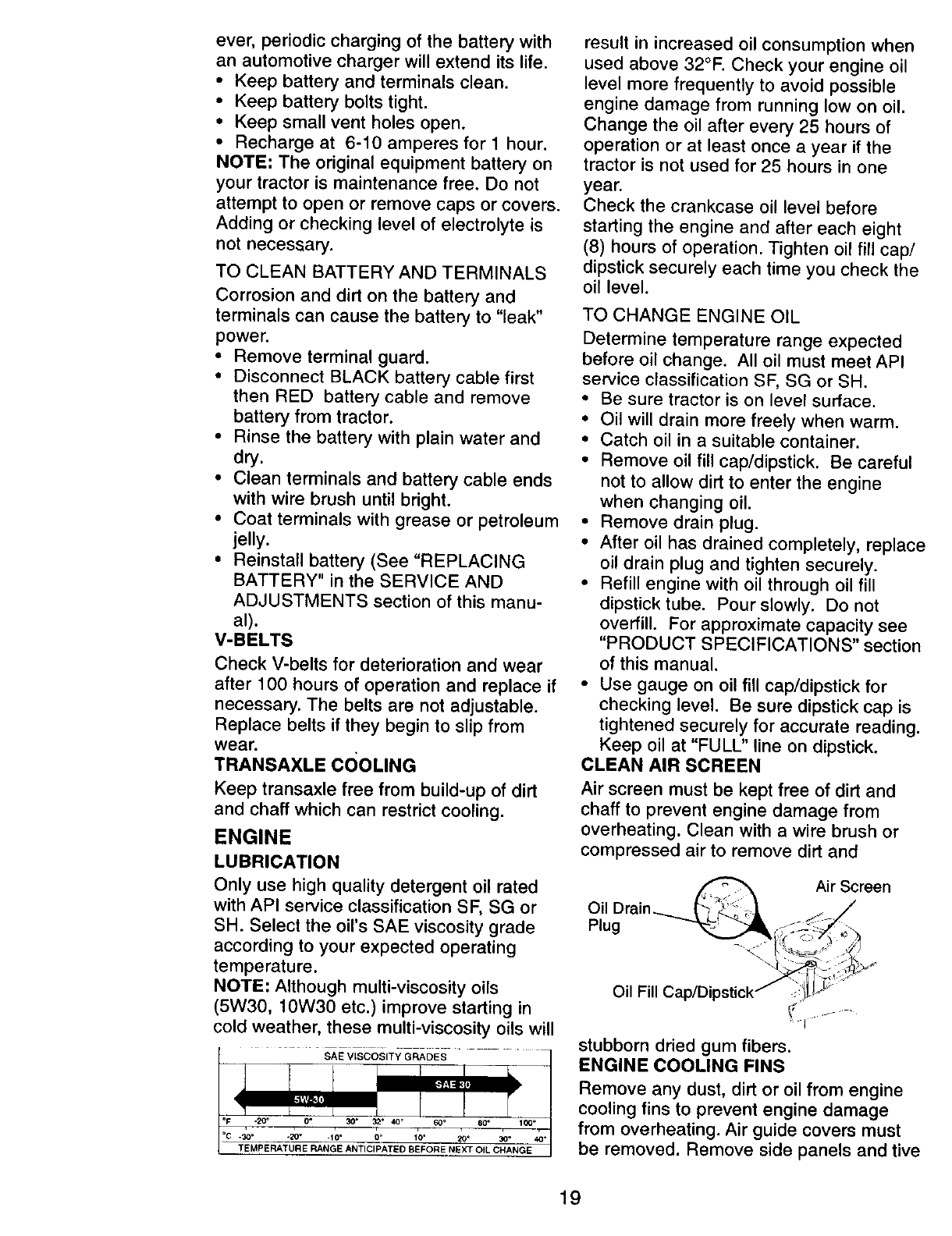

ever, periodic charging of the battery with

an automotive charger will extend its life.

•Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

• Remove terminal guard.

• Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

• Rinse the battery with plain water and

dry.

• Clean terminals and battery cable ends

with wire brush until bright.

• Coat terminals with grease or petroleum

jelly.

• Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this manu-

al).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG or

SH. Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

SAE VISCOSITY GRADES

-20" O" 30" 32* 60"

°C .30' -_0°-10" 0 _10" 20' 30"

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

result in increased oil consumption when

used above 32°F. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG or SH.

•Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

•Remove drain plug.

• After oil has drained completely, replace

oil drain plug and tighten securely.

• Reffil engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section

of this manual.

• Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate reading.

Keep oil at "FULL" line on dipstick.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

Air Screen

Oil Drain _ _'_: _ ./

Plug

OilFIllCaplDipstick/_:_[L_I_

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating. Air guide covers must

be removed. Remove side panels and tive

hood (See "TO REMOVE HOOD AND

GRILL ASSEMBLY" in the Service and

Adjustments section of this manual).

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

Top Air Gui_,,

Engine Cooling ""

Fins '_

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

_ Cover

Knob

....... _ Cartridge

wing NU[ __ Plate

Foam

Pre-Cleaner

_ Cartridge

Air

Cover

(Both

Sides) 6

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

•Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

•If very dirty or damaged, replace pre-

cleaner.

• Reinstall pre-cleaner over cartridge.

• Reinstall cover and secure with knob(s).

TO SERVICE CARTRIDGE

•Remove wing nuts and cartridge plate.

• Carefully remove cartridge to prevent

debris from entering carburetor.

• Clean cartridge by tapping gently on flat

surface. If very dirty or damaged,

replace cartridge.

• Reinstall cartridge plate, wing nuts,

precleaner, cover and secure with

knob(s).

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are shown

in "PRODUCT SPECIFICATIONS" section

of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

• With engine cool, remove filter and plug

fuel line sections.

• Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

• Be sure there are no fuel line leaks and

clamps are properly positioned.

•Immediately wipe up any spilled

gasoline.

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo

type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

_I, CAUTION: Before performing any service or adjustments:

• Depress clutch/brake pedal fully and set parking brake.

• Place gearshift lever in neutral (N) position.

• Place attachment clutch in "DISENGAGED" position.

• Turn ignition key "OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come

in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

• Place attachment clutch in "DISEN-

GAGED" position.

• Move attachment lift lever forward to

lower mower to its lowest position.

• Roll belt off engine pulley.

• Remove small re_.ainer spring, and lift

clutch spring off pulley bolt.

• Remove large retainer spring, slide

collar off and push housing guide out of

bracket.

• Disconnect anti-swaybar from chassis

bracket by removing retainer spring.

• Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

• Disconnect front links from deck by

removing retainer springs.

Small Retainer Spring

Clutch

• Raise lift lever to raise suspension

arms. Slide mower out from under

tractor,

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring onto square hole in

frame.

TO INSTALL MOWER

• Raise attachment lift lever to its highest

position.

• Slide mower under tractor with dis-

charge guard to right side of tractor.

• Lower lift lever to its lowest position.

• Install mower in reverse order of

removal instructions.

it Link

Anti-Swa' prings

(Both Sides)

Housing Guide

Large Retainer Spring 21

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

•If adjustment is necessary, make

adjustment on one side of mower only.

•To raise one side of mower, tighten lift

link adjustment nut on that side.

•To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

•Recheck measurements after adjusting.

Bottom Edge _ Bottom Edge

of Mower to _ _ (_of Mower to

Ground \ I I_l#,_J=======_l IGround

Suspension

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so that

the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length. Both links should be

approximately 10-3/8".

•If links are not equal in length, adjust

one link to same length as other link.

•To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

•When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F'

against trunnion on both front links.

•To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

•When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

•Recheck side-to-side adjustment.

Mandrel

Both Front Links Should be Equal in Length

Nut "E"

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT (See Illustration Next Page)

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL-

• Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

this manual).

• Work belt off both mandrel pulleys and

idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION-

• Install new belt in reverse order of

removal.

• Make sure belt is in all pulley grooves

and inside all belt guides.

• Installmower in reverse order of

removal instructions.

Mandrel IdlerPulleys

Pulley_ .,_

,_/_i _-_/_ Mandrel

Pu,ey

. - __,_-_ ,i:_J_

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted.

• Depress clutch/brake pedal and engage

parking brake.

• Measure distance between brake

operating arm and nut "A" on brake rod.

• If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

• Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest gear,

further maintenance is necessary.

Contact your nearest authorized service

center/department.

TO REPLACE MOTION DRIVE BELT

t-1/2"

With Parking Brake

"Engaged"

Nut "A"

oJ_OpeJarn Nut

rating Arm

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

• Remove mower (See "TO REMOVE

MOWER" in this section of this manual.)

• Remove belt from stationary idler and

clutching idler.

• Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

• Pull belt toward front of tractor and

remove downwards from around engine

pulley.

• Install new belt by reversing above

procedure.

TRANSAXLE GEAR SHIFT LEVER

Engine

Pulley

Clutching

Idler /

Stationary /

Idler

Transaxle

Pulley _._

ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset at

the factory; however, if adjustment is

needed, proceed as follows:

• Make sure transaxle is in neutral (N),

NOTE: When the tractor rear wheels

move freely, the transaxle is in neutral.

• Loosen adjustment bolt in front of the

right rear wheel.

• Position the gear shift lever in the

neutral (N) position.

•Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift Lever Neutral

Lock Gate

Adjustment

Bolt

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of this

manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact your nearest authorized

service center/department.

TO REMOVE WHEEL FOR REPAIRS

•Block up axle securely.

• Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key -Do not

lose).

•Repair tire and reassemble.

• On rear wheels only: align grooves in

rear wheel hub and axle. Insert square

key.

•Replace washers and snap retaining

ring securely in axle groove.

•Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining

Ring

Axle Cover

Square Key

_ (Rear Wheel Only)

TO START ENGINE WITH A WEAK

BATTERY

_CAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BATTERY" in the MAINTANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor Is equipped

with a 12 volt negative grounded system.

The other vehicle must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short against

chassis.

• Connect one end of the BLACK cable to

the NEGATIVE (-) terminal of fully

charged battery.

• Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

• BLACK cable first from chassis and

then from the fully charged battery.

• RED cable last from both batteries.

"Positive" (+) "Negative" (-)

L.H.

__lTe,Bo,t

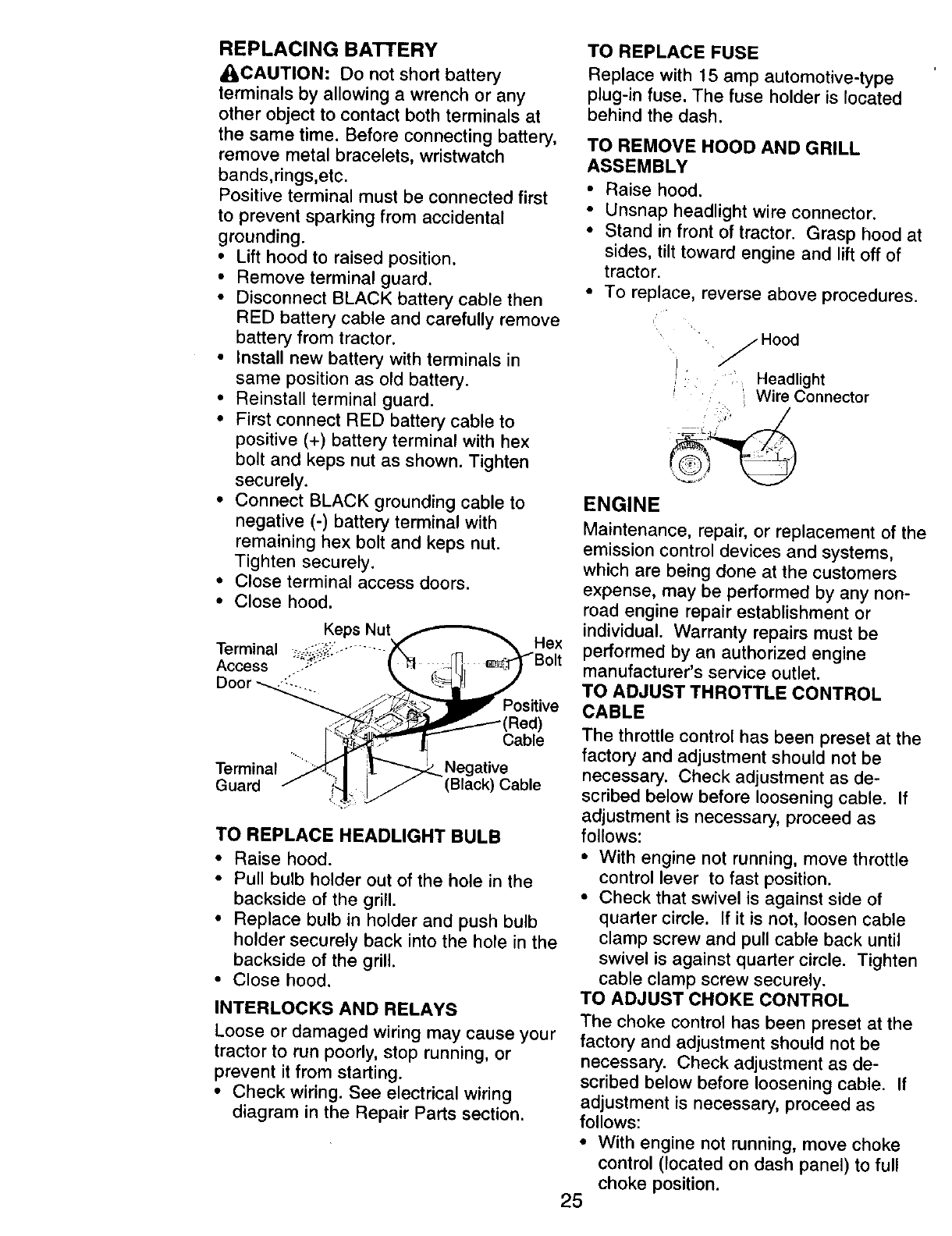

REPLACING BA'rrERY

_I_CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

•Lift hood to raised position.

•Remove terminal guard.

• Disconnect BLACK battery cable then

RED battery cable and carefully remove

battery from tractor.

• Install new battery with terminals in

same position as old battery.

• Reinstall terminal guard.

• First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

• Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely.

• Close terminal access doors•

• Close hood.

Hex

Positive

Cable

Terminal . Negative

Guard (Black) Cable

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the

backside of the grill.

• Replace bulb in holder and push bulb

holder securely back into the hole in the

backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 15 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

• Raise hood.

• Unsnap headlight wire connector.

•Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor•

• To replace, reverse above procedures.

-, /Hood

I " /Headlight

i'i Wire Connector

. i

._:tL j

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishment or

individual. Warranty repairs must be

performed by an authorized engine

manufacturer's service outlet•

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

• With engine not running, move throttle

control lever to fast position.

• Check that swivel is against side of

quarter circle. If it is not, loosen cable

clamp screw and pull cable back until

swivel is against quarter circle. Tighten

cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable• If

adjustment is necessary, proceed as

follows:

• With engine not running, move choke

control (located on dash panel) to full

choke position.

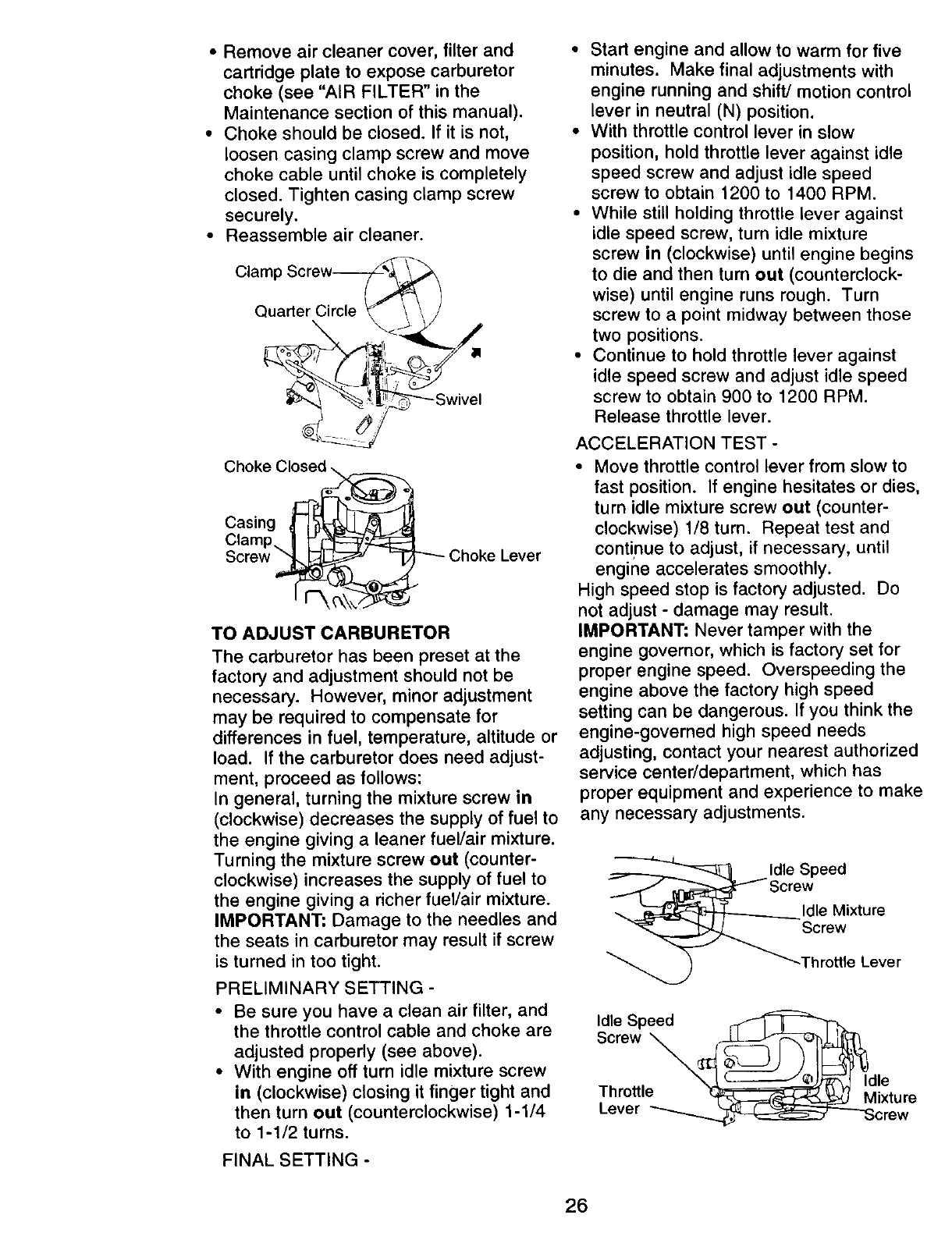

• Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (see "AIR FILTER" in the

Maintenance section of this manual).

•Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

• Reassemble air cleaner.

Claml:

Quarter Circle

Casing

Clamp

Screw \ Choke Lever

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude or

load. If the carburetor does need adjust-

ment, proceed as follows:

In general, turning the mixture screw in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mixture.

Turning the mixture screw out (counter-

clockwise) increases the supply of fuel to

the engine giving a richer fuel/air mixture.

IMPORTANT: Damage to the needles and

the seats in carburetor may result if screw

is turned in too tight.

PRELIMINARY SETTING -

• Be sure you have a clean air filter, and

the throttle control cable and choke are

adjusted properly (see above).

• With engine off turn idle mixture screw

in (clockwise) closing it finger tight and

then turn out (counterclockwise) 1-1/4

to 1-1/2 turns.

FINAL SETTING -

• Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift] motion control

lever in neutral (N) position.

• With throttle control lever in slow

position, hold throttle lever against idle

speed screw and adjust idle speed

screw to obtain 1200 to 1400 RPM.

• While still holding throttle lever against

idle speed screw, turn idle mixture

screw in (clockwise) until engine begins

to die and then turn out (counterclock-

wise) until engine runs rough. Turn

screw to a point midway between those

two positions.

• Continue to hold throttle lever against

idle speed screw and adjust idle speed

screw to obtain 900 to 1200 RPM.

Release throttle lever.

ACCELERATION TEST -

• Move throttle control lever from slow to

fast position. If engine hesitates or dies,

turn idle mixture screw out (counter-

clockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest authorized

service center/department, which has

proper equipment and experience to make

any necessary adjustments.

ldle Speed

Screw

Idle Mixture

Screw

Throttle Lever

Idle Speed

Screw

Throttle Mixture

Lever

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. This will allow you to clean it

thoroughly. Remove all dirt, grease,

leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

•_nspect and replace belts, if necessary

(See belt replacement instructions in the

Service and Adjustments section of this

manual).

• Lubricate as shown in the Maintenance

section of this manual.

•Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary,

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see 'qO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables disconnect-

ed and place cables where they cannot

come in contact with battery terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation ol

acids during storage. Acidic gas can

damage the fuel system of an engine while

in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or storagq

container. Always follow the mix ratio foun

on stabilizer container. Run engine at least

10 minutes after adding stabilizer to allow

the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if

using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

• Remove spark plug(s).

•Pour one ounce of oil through spark plu(.

hole(s) into cylinder(s).

•Turn ignition key to "START" position for

afew seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if it starts to

rust. Rust and/or dirt in your gasoline wiL

cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe, which allows condensa-

tion to form and cause your tractor to

rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

PROBLEM

Will not start

CAUSE

Hard to start

Engine will not turn

over

Engine clicks but

will not start

• Out of fuel.

• Engine not"CHOKED"

properly.

• Engine flooded.

• Bad spark plug.

• Dirty air filter.

• Dirty fuel filter.

• Water in fuel.

• Loose or damaged wiring.

• Carburetor out of adjust-

ment.

• Engine valves out of ad-

justment.

•Dirty air filter.

• Bad spark plug.

• Weak or dead battery.

• Dirty fuel filter.

• Stale or dirty fuel.

•Loose or damaged wiring.

• Carburetor out of adjust-

ment.

• Engine valves out of ad-

justment.

• Clutch/brake pedal not de-

pressed.

• Attachment clutch is en-

gaged.

• Weak or dead battery.

•Blown fuse.

•Corroded battery termi-

nals.

•Loose or damaged wiring.

• Faulty ignition switch.

• Faulty solenoid or starter.

• Faulty operator presence

switch(es).

• Weak or dead battery.

• Corroded battery termi-

nals.

• Loose or damaged wiring.

• Faulty solenoid or starter.

CORRECTION

• Fill fuel tank.

• See "TO START ENGINE" in

Operation section.

• Wait several minutes before

attempting to start.

• Replace spark plug.

• Clean/replace air filter.

• Replace fuel filter.

• Drain fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

• Check all wiring.

• See "To Adjust Carburetor" in

Service and Adjustments

section.

• Contact an authorized ser-

vice center.

• Clean/replace air filter.

• Replace spark plug.

• Recharge or replace battery.

• Replace fuel filter.

• Drain fuel tank and refill with

fresh gasoline.

• Check all wiring.

• See "To Adjust Carburetor" in

Service and Adjustments

section.

• Contact an authorized ser-

vice center.

• Depress clutch/brake pedal.

• Disengage attachment

clutch.

• Recharge or replace battery.

• Replace fuse.

• Clean battery terminals.

• Check all wiring.

• Check]replace ignition

switch.

•Check]replace solenoid or

starter.

•Contact an authorized ser-

vice center.

• Recharge or replace battery.

• Clean battery terminals.

• Check all wiring.

• Check]replace solenoid or

starter.

TROUBLESHOOTING CHART

CAUSE CORRECTION

PROBLEM

Lossofpower

Excessive vibration

Engine continues

to run when opera-

tor leaves seat with

attachment clutch

engaged

Poor cut - uneven

•Cutting too much grass/too

fast.

•Throttle in "CHOKE" posi-

tion.

•Build-up of grass, leaves •

and trash under mower.

• Dirty air filter. •

• Low oil level/dirty oil. •

• Faulty spark plug. •

• Dirty fuel filter. •

• Stale or dirty fuel. •

•Water in fuel. •

• Spark plug wire loose. •

• Dirty engine air screen/fins. •

• Dirty/clogged muffler. •

• Loose or damaged wiring. •

• Carburetor out of adjust- •

ment.

• Engine valves out of ad- •

justment.

• Worn, bent or loose blade. •

• Bent blade mandrel. •

•Loose/damaged part(s). •

•Faulty operator-safety pres- •

ence control system.

• Worn, bent or loose blade. •

• Mower deck not level. •

• Buildup of grass, leaves, •

and trash under mower.

•Bent blade mandrel.

• Clogged mower deck vent °

holes from buildup of

grass, leaves, and trash

around mandrels.

• Set in "Higher Cut" position/

reduce speed.

• Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Drain fuel tank and carbure-

tor, refill tank with fresh gaso-

line and replace fuel filter.

Connect and tighten spark

plug wire.

Clean engine air screen/fins.

Clean/replace muffler.

Check all wiring.

See "To Adjust Carburetor" in

Service and Adjustments

section.

Contact an authorized service

center.

Replace blade. Tighten blade

bolt.

Replace blade mandrel.

Tighten loose part(s). Re-

place damaged parts.

Check wiring, switches and

connections. If not

corrected, contact an autho-

rized service center.

Replace blade. Tighten blade

bolt.

Level mower deck.

Clean underside of mower

housing.

Replace blade mandrel.

Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Mower blades will

not rotate

Poor grass dis-

charge

Headlight(s) not •

working (if so •

equipped) •

Battery will not •

charge •

Engine "backfires"

when turning

engine "OFF"

• Obstruction in clutch

mechanism.

• Worn/damaged mower

drive belt.

• Frozen idler pulley.

• Frozen blade mandrel.

• Engine speed too slow.

• Travel speed too fast.

• Wet grass.

• Mower deck not level.

• Low/uneven tire air pres-

sure.

• Worn, bent or loose blade.

• Buildup of grass, leaves

and trash under mower.

Mower drive belt worn.

Blades improperly installed.

Improper blades used.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Switch is "OFF".

Bulb(s) burned out.

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor oable connections.

Faulty regulator (if so

equipped).

Faulty alternator.

Engine throttle control not

set at "SLOW" position for

30 seconds before stopping

engine.

CORRECTION

• Remove obstruction.

• Replace mower drive belt.

• Replace idler pulley.

• Replace blade mandrel.

• Place throttle control in

"FAST" position.

• Shift to slower speed.

• Allow grass to dry before

mowing.

• Level mower deck.

• Check tires for proper air

pressure.

• Replace/sharpen blade.

Tighten blade bolt.

• Clean underside of mower

housing.

• Replace mower drive belt.

• Reinstall blades sharp edge

down.

• Replace with blades listed in

this manual.

• Clean around mandrels to

open vent holes.

• Turn switch "ON".

• Replace bulb(s).

• Check/replace light switch.

• Check wiring and connections.

• Replace fuse.

•Replace battery.

• Check/clean all connections.

• Replace regulator.

• Replace alternator.

• Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

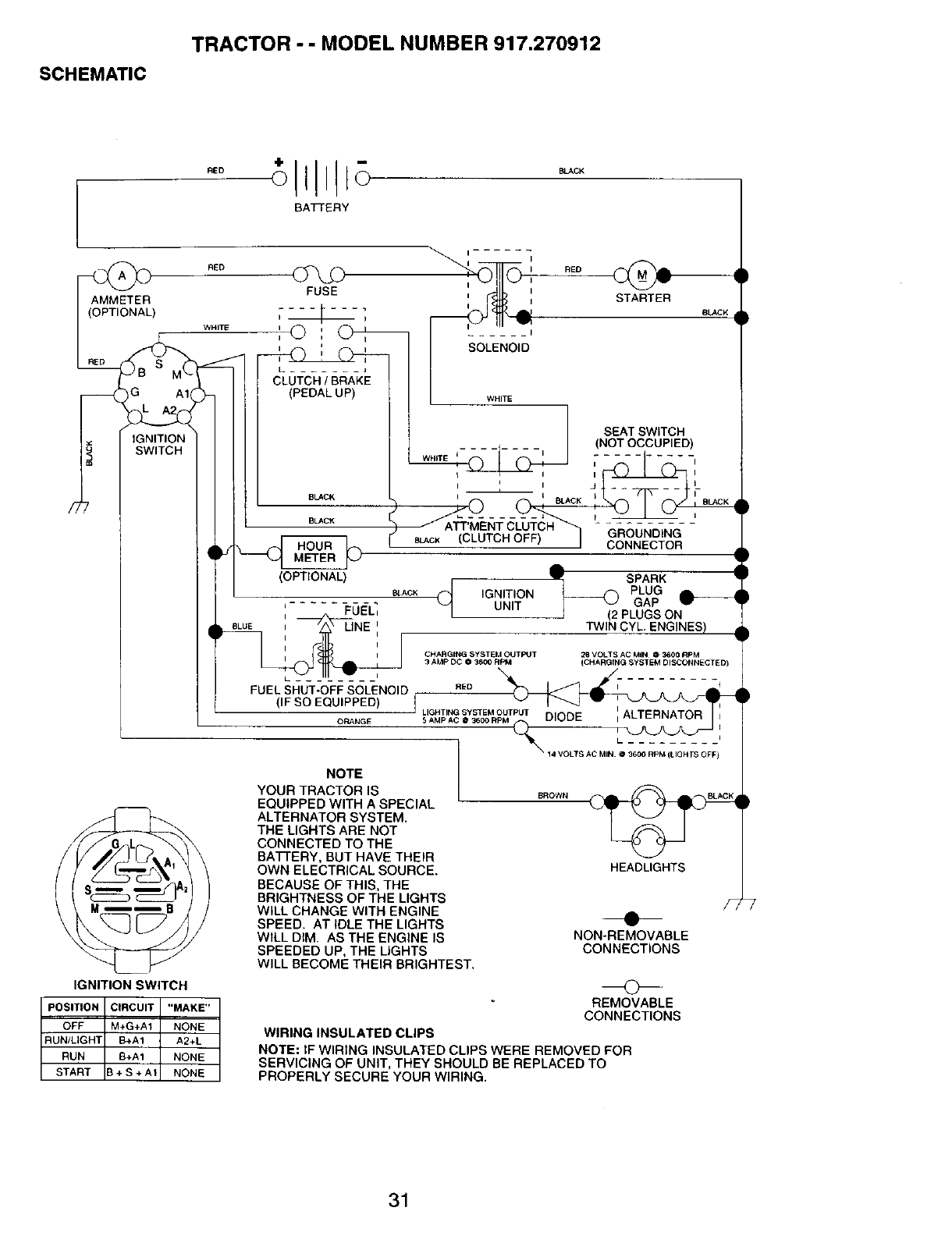

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.270912

,I,

Dill& =,oK

BATFERY

__ RED

AMMETER

(OPTIONAL)

WHITE

)G A1

IGNITION

SWITCH

FUSE

, I -;

10 : ,G-:_

I i I

_LUTCHIBRA*_

(PEDALUP)

BLACK

BI_CI<

SOLENOID

STARTER

8LACK

WHITE

........ (NOT OCCUPIED)

SEAT SWITCH

_i_IWH)TE I I / ......... i

, ,' , J L

II BIj_CK I I

BLACK (CLUTCH OFF) I_G_'_£_'_'6'_

L_ HOUR

METER

(OPTIONAL) _lr SPARK

SL_CK _1 IGNITION _PLUG L

i--_ L_ UNIT [ _) GAP

, FUEL, l (2 PLUGS ON

BLUE I LINE iTWIN CYL, ENGINES)

i I

CHAR G_i SYSTEM _T_I_ IT28 VOLTS AC MIN O _011 RpM

3 AMP OC Q 3600 RPM _CHARGING SYSTEM DISCONNECTED)

PUEL;HUT-OEESOLENO,D.Eo _,__-- ._

(IFSOEQUIPPED) l LJ r""--J W_L-JLJL_--

-- LIGHTINGS¥STEMODIUITP_UT DIODE ; ALTERNATOR I

c 00, i

NOTE j _x ,, VOLTSp,cM,NL 3-6_RPM(UG-_TSOFF-)

YOUR TRACTOR IS iBROWN _/_ _-ACK,,

EQUIPPED WITH A SPECIAL ' L_I_ U

ALTERNATOR SYSTEM. I _ I

THE LIGHTS ARE NOT If_ I

CONNECTED TO THE _J L_

BA'n'ERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE. HEADLIGHTS

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS /_

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS NON-REMOVABLE

SPEEDED UP, THE LIGHTS CONNECTIONS

WILL BECOME THEIR BRIGHTEST.

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN S+A1 NONE

START 3 + S + A 1 NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.270912

I/i

i/i

IIi

I I i

55 ......

TRACTOR -- MODEL NUMBER 917.270912

ELECTRICAL

KEY PART

NO. NO, DESCRIPTION

1163465 Battery 12 VOLT 28 AMP

2 74760412 Bolt Hex Hd 1/4-20unc x3/4

8 7603J Case Battery

10 145211 Bolt, Btr Front 1/4-20 x 7-1/2

11 150109 Holddown Battery Front Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 153664 Switch. Interlock Push-In

19 Std551125 Washer Lock 1/4

21 166182 Harness Light Socket (W/4152j)

22 4152J Bulb Light #1156

24 4799J Cable Battery

25 146148 Cable Battery

26 166180 Fuse

27 73510400 Nut Keps Hex 1/4-20 Uric

28 145491 Cable Ground

29 121305X Switch Seat

30 163968 Switch Ign

33 140403 Key Molded Craftsman

40 170217 Harness Ign

41 71110408 Bolt BIk. Fin Hex 1/4-20 Unc x 1/2

42 131563 Cover Terminal

43 145673 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop

55 17490508 Screw Thdrol 5/16-18 x 1/2

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

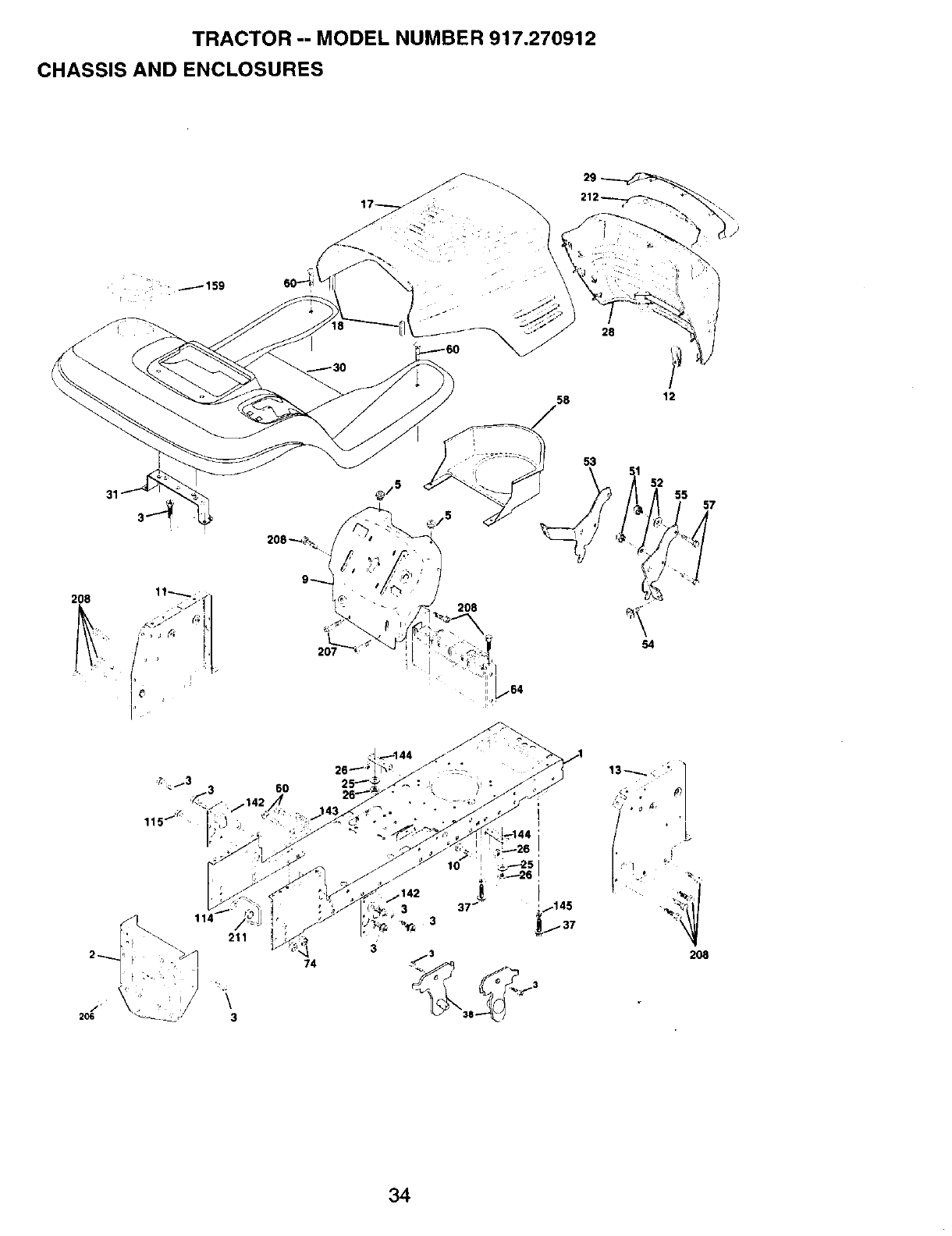

TRACTOR -- MODEL NUMBER 917.270912

CHASSIS AND ENCLOSURES

208

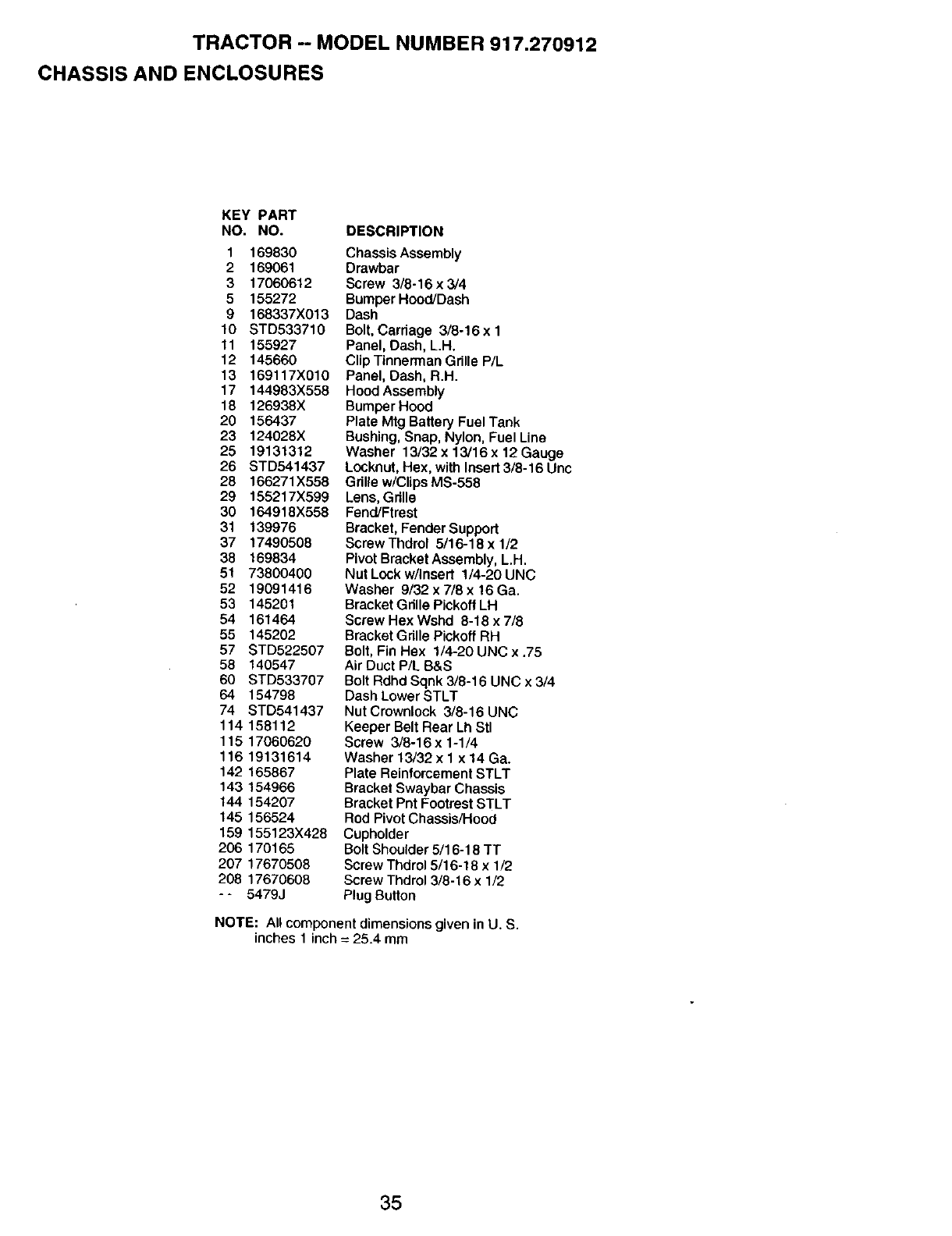

TRACTOR -- MODEL NUMBER 917.270912

CHASSIS AND ENCLOSURES

KEY PART

NO. NO.

1 169830

2 169061

317060612

5155272

9 168337X013

10 STD533710

11 155927

12 145660

13 169117X010

17 144983X558

18 126938X

20 156437

23 124028X

25 19131312

26 STD541437

28 166271X558

29 155217X599

30 164918X558

31 139976

37 17490508

38 169834

51 73800400

52 19091416

53 145201

54 161464

55 145202

57 STD522507

58 140547

60 STD533707

64 154798

74 STD541437

114 158112

115 17060620

116 19131614

142 165867

143 154966

144 154207

145 156524

159 155123X428

206170165

207 17670508

208 17670608

-- 5479J

DESCRIPTION

Chassis Assembly

Drawbar

Screw 3/8-16 x 3/4

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel, Dash, L.H.

Clip Ttnnerman Grille P/L

Panel, Dash, R.H.

Hood Assembly

Bumper Hood

Plate Mtg Battery Fuel Tank

Bushing, Snap, Nylon, Fuel Line

Washer 13/32 x 13/16 x 12 Gauge

Locknut, Hex, with Insert 3/8-16 Unc

Gdlle w/Clips MS-558

Lens, Grille

FendiFtmst

Bracket, Fender Support

Screw Thdrol 5/16-18 x 1/2

Pivot Bracket Assembly, L.H.

Nut Lock w/Insert 1/4-20 UNC

Washer 9/32 x 7/8 x 16 Ga.

Bracket Grille Pickoff LH

Screw Hex Wshd 8-18 x 7/8

Bracket Grille Pickoff RH

Bolt, Fin Hex 1/4-20 UNC x .75

Air Duct P/L B&S

Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 UNC

Keeper Belt Rear Lh Stl

Screw 3/8-16 x 1-1/4

Washer 13/32 x 1 x 14 Ga.

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Rod Pivot Chassis/Hood

Cupholder

Bolt Shoulder 5/16-18 TT

Screw Thdrol 5/16-18 x 1/2

Screw Thdral 3/8-16 x 1/2

Plug Button

NOTE: Al! component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.270912

GROUND DRIVE

19 24

35 36 34

_53

151

TRACTOR -- MODEL NUMBER 917.270912

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1........ Transaxle(See Breakdown) 82 8883R

Peerless 206-545C 63 140186

2 146682 Spring, Return, Brake 64 71170764

3 123666X Pultey, Transaxle 65 STD551143

4 12000028 Ring, Retainer 66 154778

5 121520X Strap, Torque 70 134683

6 17060512 Screw 5/16-18x3/4 72 19132012

8 165866 Rod Shifter Fender STLT 74 137057

10 STD561210 Pin, Cotter 75 121749X

11 105701X Washer, Shift Plate 76 STD581075

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 77 123583X

14 10040400 Washer Lock Hvy Helical 78 121748X

18 STD523710 Bolt Fin Hex 3/8-16UNC x 1 Gr 5 79 STD580025

19 STD541437 Nut 80 145090

21 106933X Knob 81 165592

22 130804 Rod, Brake 82 165711

24 STD541237 Nut 83 19171216

25 106888X Spring, Brake Rod 84 166231

26 STD551037 Washer 85 150360

27 STD561210 Pin 89 158391X428

28 145204 Rod, Parking Brake 90 124346X

29 71673 Cap, Parking Brake 96 STD624003

30 169592 Bracket, Transaxle 112 19091210

31 127275X Keeper, Belt, L.H. 113 127285X

32 STD523107 Bolt 116 72110610

34 155071 Shaft Assembly, Foot Pedal 14574490540

35 120183X Bearing, Nylon 150 165850

36 STD551062 Washer 151 19133210

37 STD571810 Roll Pin 156 166002

38 131494 Pulley, Idler, Flat 158 165589

39 STD523727 Bolt 159 165494

40 4470J Spacer, Split .395 x.59 161 72140406

41 165838 Keeper, Belt, Idler 162 73680400

42 19131312 Washer 13/32x13/16x12Ga. 16374780416

47 127783 Pulley, Idler, V-Groove, Plastic 16419091010

48 154407 Bellcrank Clutch Grad Dry Stl 165165623

49 123205X Retainer, Belt 166 166880

50 STD523715 Bolt 168 165492

51 STD541437 Nut Crown Lock 3/8-16 UNC 169 165580

52 STD541431 Nut Crown Lock 5/16-18 UNC 170 165849

53 105710X Link, Clutch 197 169613

55 105709X Spring, Clutch Return 198 169593

56 STD523712 Bolt Fin Hex 3/8-16 x 1-1/4 202 72110612

57 130801 V-Belt, Ground Drive 204 17060516

58 127274X Keeper, Belt, R.H.

59 169691 Keeper, Belt, Center Span

61 17060612 Screw 3/8-16 x 3/4

DESCRIPTION

Cover, Pedal

Pulley, Engine

Bolt, Hex 7/16-20 x 4 Grade 5

Washer

Keeper, Belt, Engine, Fool-Proof

Guide, Mower Drive Belt, R.H.

Washer 13/32 x 1-1/4 x 12 Ga.

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square 2.0 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Ga

Key Woodruff

Arm, Shift

Shaft Aem Cross Tapered 650 20

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Nut, Nylock

Console, Shift, STLT

Nut, Self-Thding, Wsh Hd 1/4

Retainer Spring 1"

Washer 9/32 x 3/4 x 10 Gauge

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 1.25

Bolt, Hex Flghd 5/16-18 Gr. 5

Bushing Bellcrank Grd. Drive

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/161D x 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock 1/4-20 Unc

Bolt Hex Fin 1/4-20Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt Transaxle Gear

Nyliner Snap-In

Washer Nyliner

Bolt Carr. SH 3/8-16 x 1-1/2 Gr. 5

Screw 5/16-18 x 1 SMGML

NOTE: All component dimensions given in U. S.

inches 1inch =25.4 mm

STEERING

TRACTOR -- MODEL NUMBER 917.270912

_41

i j

62 44

51_S 4

27 _--_ 17

/,/

+-,% 29

15 15

68 S7 67

/ /

STEERING

TRACTOR -- MODEL NUMBER 917.270912

KEY PART

NO. NO. DESCRIPTION

1 139768

2 154427

3 169840

4169839

56266H

6121748X

7 19272016

8 12000029

9 3366R

10 169832

1! STD551137

13 136518

15 145212

17 156546

18 57079

19 160395

22 165857

23 165851

25 154406

26 126847X

27 136874

28 19131416

29 17060612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133812

40 STD541537

41 100711L

42 145054X428

43 121749X

44 153720

46 121232X

47 6855M

51 STD541431

54 74780520

62 167902

63 STD523710

65 160367

66 154404

67 72110618

68 169827

79 19132012

80 74950612

82 169835

85 133835

Steering Wheel

Axle Assembly STMP Dropped STL

Spindle Assembly, L.H.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steedng Column

Draglink

Washer, Lock

Spacer, Beanng, Axle

Nut, Hexflange Lock

Shaft Assembly, Steering

Washer, Thrust .515 x .750 x .033

Support, Shaft

Screw Hex Wshhd Torx

Pittman Shaft Assembly

Bracket, Steedng

Bushing, Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw 3/8-16 x 3/4

Rod, Tie

Bushing, Steering

Screw

Insert, Steedng Wheel

Washer 13/32 x 2-3/8 x 12 Gauge

Gripco Nut

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Shaft Steering LR.LT

Cap, Spindle

Fitting, Grease

Nut Lock Hex w/Ins. 5/16-18 UNC

Bolt Fin Hex 5/16-18 UNC x 1-1/4

Kit Steering Asm Service

Bolt, Fin Hex 3/8-16 UNC x I Gr 5

Spacer Axle

Bearing Arm Pittman

Bolt RDHD SQNK 3/8-16 x 2-1/4

Axle, Brace

Washer 13/32 x 1-1/4 x 12 Ga

Bolt Hex Nylon 3/8-!6 x 3/4

Bracket Susp Chassis Front

Fastner Chdstmas Tree

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

ENGINE

TRACTOR -- MODEL NUMBER 917.270912

115

25 81

OPTIONAL EQUIPMENT I

Spark Arrester

ENGINE

TRACTOR -- MODEL NUMBER 917.270912

KEY PART

NO. NO. DESCRIPTION

1162152

217720410

3 ......

4 149723

5144069

6144068

7 138129

8150176

10 145552

11 STD551125

12 STD522507

13 165287

14 13280336

15 13200300

16 STD551237

17 17490624

23 169837

25 145996

26 73920600

27 152927

29 137180

31 157103

32 161696

33 123487X

34 106082X

37 8543R

38 .......

39 109227X

45 17060612

81 128861

Control, Throt Paddle 32 22

Screw, Hex Thd Cut 1/4-20 x 5/8

Engine, B&S, (See Breakdown) No. 461707-0145-

Muffler Exhaust

Exhaust Asm. Left

Exhaust Asm. Right

Clamp Tube Double Engine

Bolt 5/16-18unc x 3/4 W/Seres

Heat Shield Lt

Washer Lock Hvy. Helical 1/4

Bolt Fin Hex 1/4-20Unc x .75

Gasket, Muffler

Nipple, Pipe 4-1/2

Elbow, Standard 90°, 3/8-18 NPT

Washer Lock Ext Tooth 3/8

Screw Thdrol 3/8-16xl -1/2 Tytt

Shield, Brn/Dbr Guard

Control Choke

Nut Keps 3/8-24 Unf

Screw TT #10-32 x 5 x 3/8 Flange

Arrestor, Spark

Tank, Fuel

Cap Fuel Guage

Clamp, Hose

Spacer Pad

Line, Fuel

Plug, Oil Drain (See Engine Breakdown)

Pad Idler

Screw 3/8-16 x 3/4 SMGML

Nut Flange 1/4-20 Starter Nut

NOTE: All component dimensions given in U. S.

inches 1inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.270912

SEAT ASSEMBLY

t15

KEY PART

NO, NO.

1140123

2 140551

3 7111O616

419131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 155925

11 166369

12 121246X

DESCRIPTION

Seat 3350 BIkJblk Craftsman

Bracket Pnt Pivot Seat (blk)

Bolt Fin Hex 3/8-16unc X 1

Washer 13/32 X 3/4 X 10 Ga

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 Unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 x 1.5 SMGML

Washer 13/32 X 1 X 14 Ga

Pan Pnt Seat (blk)

Knob Seat

Bracket Pnt Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

25 127018X

Bushing Snap BIk Ny150 Id

Bolt Rdhd Sht Nk 1/4-20x1-1/2

Spacer Split 28 X 96 Zinc

Spnng Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12 Ga,

Bolt Shoulder 5/16-18 X 62

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

DECALS

TRACTOR -- MODEL NUMBER 917.270912

KEY PART

NO. NO.

1156439

2 165392

3171696

4 171697

5 163207

6 133644

7163259

8 171808

9 163204

11 156368

KEY PART

DESCRIPTION NO. NO.

Decal, Fender Danger Sears 13 146046

Decal, Engine 15 160396

Decal, Hood, R.H. 19 138047

Decal, Hood, L.H. 20 166887

Decal, Fender 22 149516

Decal, Maintenance - - 138311

Decal, Panel Dash B&S - - 165800X428

Decal, Rplcmnt -- 165799X428

Decal, Fender, Craftsman Gold - - 173529

Decal, Fender STLT Oper Inst E/S - - 173530

DESCRIPTION

Decal, V-Belt Dr Sch Tractor

Decal, Mower Drive Schematic

Decal, Battery Diehard Sears

Decal, Deck Mower EZ3

Decal, Battery

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS AND TIRES KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3106222X Tire, Front

4 59904 Tube, Front Tire

(Not Provided, Service Item Only)

5 106732X427 Rim, Front

6 278H Fitting, Grease (Front Wheel

Only)

7 9040H Bearing, Flange (Front Wheel

Only)

8 106108X427 Rim, Rear

9 122082X Tire, Rear

10 7152J Tube, RearTire

(Not Provided, Service Item Only)

11 104757X Cap, Axle

- - 144334 Sealant, Tire 10 oz,

NOTE: All component dimensions given in U. S.

inches 1inch = 25.4 mm

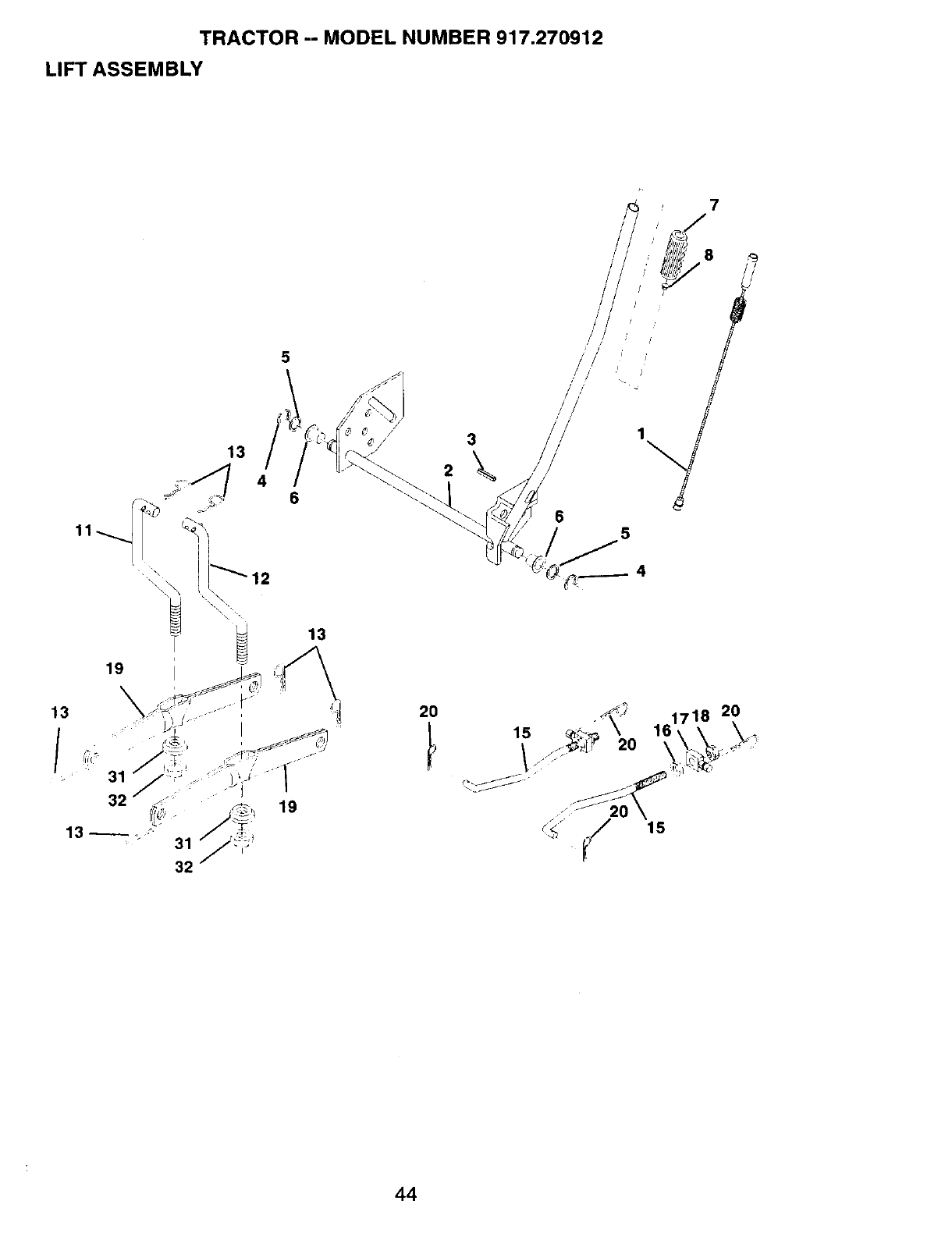

TRACTOR -- MODEL NUMBER 917.270912

LIFT ASSEMBLY

1718 20

TRACTOR -- MODEL NUMBER 917.270912

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever Inner Wire Assembly

2159471 ShaftAssembly, Lift

3 105767X Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32x 1 x21 Gauge

6 129183X Bearing, Nylon

7 125631X Grip, Handle, Fluted

8 122365X Button, Plunger, Red

11 139865 Link, Lift, L.H.

12 139866 Link, Lift, R.H.

13 STD624008 Retainer Spring

15 167253 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 UNC

17 130171 Trunnion

18 73800800 Nut Lock w/Wsh 1/2-13 UNC

19 139868 Arm, Suspension, Rear

20 163552 Retainer Spring

31 140302 Bearing, Pvt, Lift Special

32 73540600 Nut, Crownlock 3/8-24

NOTE: All component dimensions given inU. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.270912

MOWER DECK

_=_---

___-=

153 1_

156

.Y_153

i147 142

144 68__

__ 105

106/_ 102 lu;J /

104 /

103-/I

101' \

102/"

119

19F21

\i,

_121

114 _ _

_112

'23 24

.117

%j116

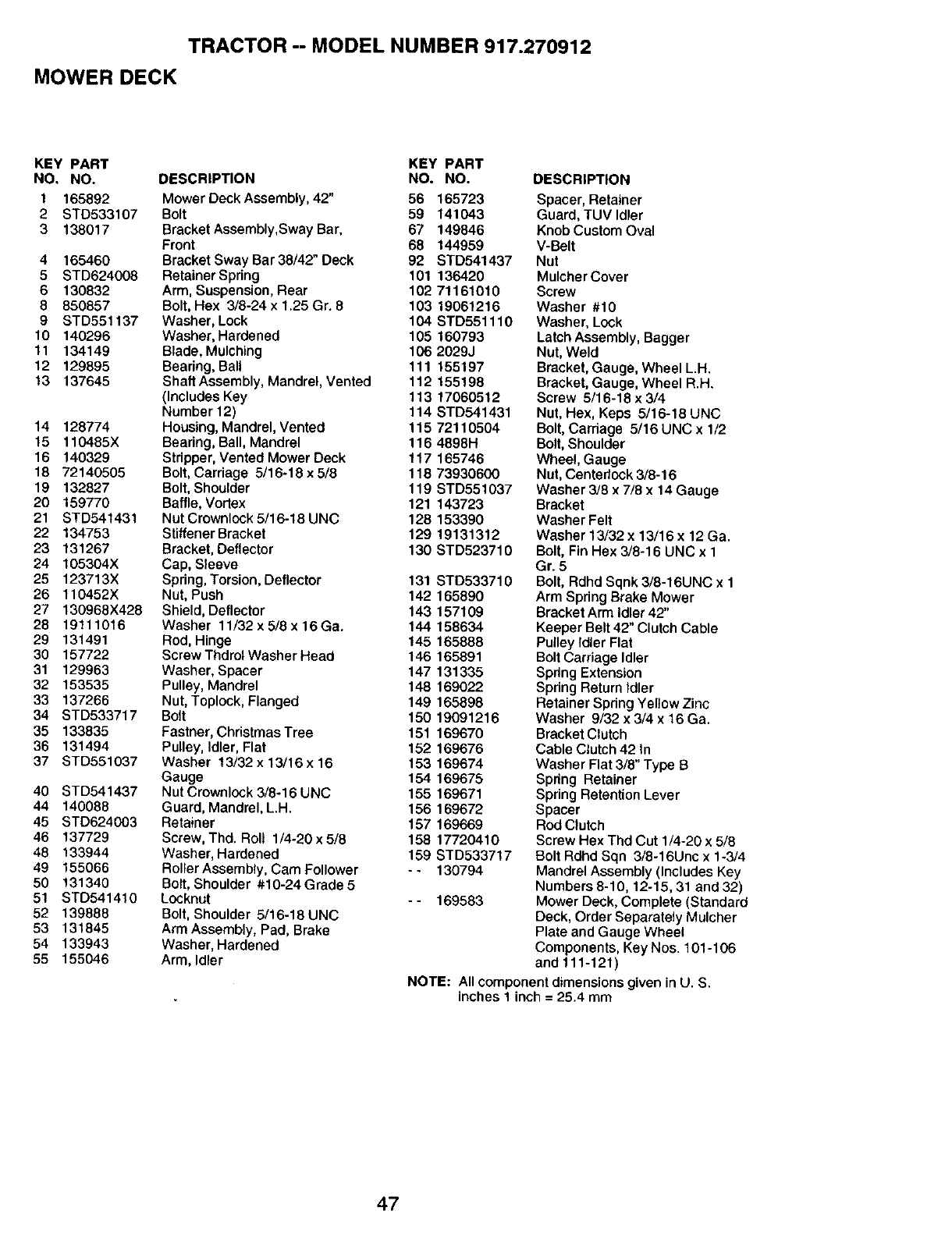

TRACTOR -- MODEL NUMBER 917.270912

MOWER DECK

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Deck Assembly, 42" 56 165723

2 STD533107 Bolt 59 141043

3 138017 Bracket Assembly,Sway Bar, 67 149846

Front 68 144959

4 165460 Bracket Sway Bar 38/42" Deck 92 STD541437

5 STD624008 RetainerSpring 101 136420

6 130832 Arm, Suspension, Rear 102 71161010

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 103 19061216

9 STD551137 Washer, Lock 104 STD551110

10 140296 Washer, Hardened 105 160793

11 134149 Blade, Mulching 106 2029J

12 129895 Bearing, Ball 111 155197

13 137645 ShaffAssembly, Mandrel, Vented 112 155198

(Includes Key 113 17060512

Number 12) 114 STD541431

14 128774 Housing, Mandrel, Vented 11572110504

15 110485X Bearing, Bali, Mandrel 116 4898H

16 140329 Stripper, Vented Mower Deck 117 165746

18 72140505 Bolt, Cardage 5/16-18 x 5/8 118 73930600

19 132827 Bolt, Shoulder 119 STD551037

20 159770 Baffle, Vodex 121 143723

21 STD54t431 NutCrownlock5/16-18UNC 128 153390

22 134753 StiffenerBracket 129 19131312

23 131267 Bracket, Deflector 130 STD523710

24 105304X Cap, Sleeve

25 123713X Spring, Torsion, Deflector 131 STD533710

26 110452X Nut, Push 142 165890

27 130968X428 Shield, Deflector 143 157109

28 19111016 Washer 11/32xS/8x16Ga. 144 158634

29 131491 Rod, Hinge 145 165888

30 157722 Screw Thdrol Washer Head 146 165891

31 129963 Washer, Spacer 147 131335

32 153535 Pulley, Mandrel 148 169022

33 137266 Nut, Toplock, Flanged 149165898

34 STD533717 Bolt 150 19091216

35 133835 Fastner, Christmas Tree 151 169670

36 131494 Pulley, Idler, Flat 152 169676

37 STD551037 Washer 13/32 x13/16 x16 153 169674

Gauge 154 169675

40 STD541437 NutCrownlock3/8-16UNC 155 169671

44 140088 Guard, MandreI, L.H. 156 169672

45 STD624003 Retainer 157 169669

46 137729 Screw, Thd. Roll 1/4-20 x 5/8 158 17720410

48 133944 Washer, Hardened 159 STD533717

49 155066 RollerAssembly, Cam Follower -- 130794

50 131340 Bolt, Shoulder #10-24 Grade 5

51 STD541410 Locknut -- 169583

52 139888 Bolt, Shoulder 5/16-18 UNC

53 131845 Arm Assembly, Pad, Brake

54 133943 Washer, Hardened

55 155046 Arm, Idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Oval

V-Belt

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel L.H.

Bracket, Gauge, Wheel R.H.

Screw 5/16-18 x 3/4

Nut, Hex, Keps 5/16-18 UNC

Bolt, Cardage 5/16 UNC x 1/2

Bolt, Shoulder

Wheel, Gauge

Nut, Centedock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Bracket

Washer Felt

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 UNC x 1

Gr. 5

Bolt, Rdhd Sqnk 3/8-16UNC x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spdng Extension

Spdng Return Idler

Retainer Spdng Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 42 tn

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn 3/8-16Unc x 1-3/4

Mandrel Assembly (Includes Key

Numbers 8-10, 12-15, 31 and 32)

Mower Deck, Complete (Standard

Deck, Order Separately Mulcher

Plate and Gauge Wheel

Components, Key Nos. 101-106

and 111-121)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.270912

PEERLESS TRANSAXLE--MODEL NUMBER 206-545C

35A

150

2g 35

157

_ODEL and SERIAL

NUMBERS HERE

Model et Sdriel

J Chiffre Ici I

42A

TRACTOR -- MODEL NUMBER 917.270912

PEERLESS TRANSAXLE--MODEL NUMBER 206-545C

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

1772147 Transaxle Cover 39 786026

2 780086A Needle Bearing 5/8" 40 792076A

3 770128 Transaxle Case

4 776395 Countershaft 41A 790079

5776409 Output Shaft 42 792073A

6 778364 Spur Gear (38 teeth) 42A 792085A

6A 778369 Spur Gear (15 teeth) 43 792075

7 778330 Spur Gear (11 teeth) 44 790025

8 792180 Shift Key 45 786066

8A 792047 Woodruff Key #9 46 786086

9 784352 Shift Collar 47 774690

10 784378 Shift Rod &Fork 48 774691

11778334 Bevel Gear (30 teeth) 49 778356

12 778309 Input Bevel Pinion (13 teeth) 50 778338

13 778368 Bevel Gear (13 teeth) 51 778354

(Include. 14) 52 778352

14 778368 Bevel Pinion (13 teeth) 53 778350

(Include. 13) 54 778346

15 778370 Ring Gear (43 teeth) 56 778355

17 786188 Drive Pin 57 778337

18 786102 Spacer 1.130 X .695 58 778353

20 792077A Ball 5/16" dia 59 778351

21 792078 Set Screw 3/8 - 16 x 3/8" 60 778349

22 792079 Spring .310 OD x .625 L61 778345

25 792073A Screw 1/4- 20 x 1-1/4" 65 780189

25A 792177 Screw 1/4-20 x 1-3/8"

26 792125 Retaining Ring (pkg of 2) 66 776422

27 792035 Retaining Ring 67 776396

28 788040 Retaining Ring 69 792170

29 780072 Thrust Washer 70 786187

.627 ID x .031W 71 788069

29A 780160 Thrust Washer 71B 788092

.762 ID x .031W 76 780090

29B 780051 Thrust Washer

,762 ID x .031W 77 788078A

29C 780199 Anti-Rotation Washer .632 79 792144

30 780108 Cup Washer 82 778333

1.127 ID x ,032W

31 780001 Flat Washer 83 778338

,750 ID x .056W 85 792154

(UseAs Needed) 87 788089A

31A 780195 FlatWasher 150 788093A

.750 ID x .062W 157 788088A

32 788083 Oil Seal 5/8" 180 730229A

34 780194 Bushing.563 900 794712

35 780193 Flanged Bushing 5 /8" ID

35A 780197 Flanged Bushing .751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 799021 Brake Pad (pkg of 2)

Dowel Pin

Flat Washer

.312 ID x .059W

Brake Lever

Screw 1/4 -20 x 1-1/4"

Screw 1/4 - 20 x 2 1/4"

Locknut 5 /16 - 24

Brake Pad Holder

Spacer .2625 x 1.0

Brake Lever Bracket

Axle (11-15/16" Long)

Axle (16 - 1/2" long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth)

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

Flat Washer

.563 ID x .062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cut Ring

"O" Ring

Flat Washer

1.128 ID x .058W

Inverted Retaining Ring

Spring ,430 OD x .5000 L

Bevel & Spur Gear (30 & 13

teeth)

Spur Gear (27 teeth)

Oil Fill Plug

Oil Seal 9 /16"

Liquid Gasket RTV Silicone

Oil Seal 3/4"

Gear Oil 80W90

Replacement MST

206-545C Transaxle

NOTE: All component dimensions given in

U.S. inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.270912

BRIGGS & STRATTON ENGINE-MODEL NUMBER 461707, TYPE NUMBER 0145-E3

449 ,,_:

1081 o

215

10A ,_

572

10 _'_

1095 VALVE OVERHAUL

GASKET SET

onii

51A +.'5+ ,. d

383,

288_1101,',BELK,TI

110"OW"ER'SmA"UA"I

"k REQUIRESSPECIALTOOLS

15 '_i?' TO INSTALL, SEE REPAIR

INSTRUCTIONMANUAL,

TRACTOR -- MODEL NUMBER 917.270912

BRIGGS& STRATTON ENGINE-MODELNUMBER461707,TYPE NUMBER0145-E3

240 _

,_ 601

527

197

53_ 54,:,.... 51A

725 _

861 PUMP REPAIR KIT I

I859 _'LI 433 I._ _]

121 CARBURETOR KIT I

432_' I392 _' 104 "_, 102 _._';_'_,

445 /_ _

258 '_

I-_. 1138 11:_6

., _.1137 j _ ,,09_

211 _

2271/;i

562 !' _ "1 I235 r_

278 ___,_i I423 _ JJ_,_'" "_

161 ,,__f

_r REQUIRES SPECIALTOOLS

TO INSTALL, SEE REPAIR

INSTRUCTION MANUAL.

859 I_',-

392 432 _' '1

391 _,_ __' '

433 _'_ _'_

386 i_- _ _;_

.ili J

434 ::_,

435 _'_

._,_.. 877

ill

78 |'_'"

163'- 332I:_

1036 LABEL KIT-EMISSION /

75 _ ili,

934 '_ _r_

1oo5

1005 I - _.

23 _ _ ]

L¸ _

i;¸_

726 -L".........

TRACTOR -- MODEL NUMBER 917.270912

BRIGGS & STRATTON ENGINE-MODEL NUMBER 461707, TYPE NUMBER 0145-E3

3o91

10 I

783

1051 _:

513

544

802

lo,ol

y803 797A

797

801

358 GASKET SET

177 ©

51 _(_

634 @7 12

569

9O7A 3@

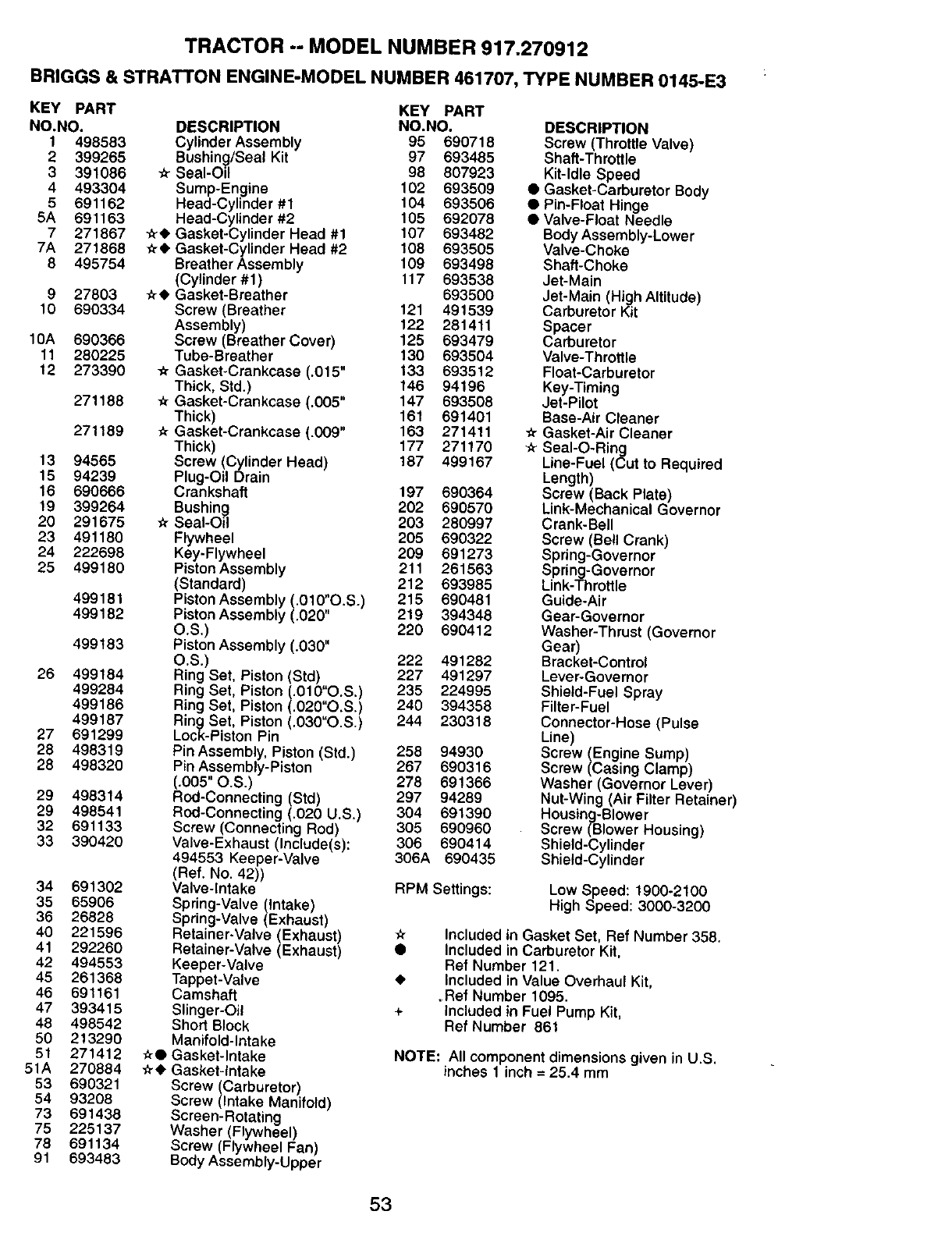

TRACTOR -- MODEL NUMBER 917.270912

BRIGGS & STRATTON ENGINE-MODEL NUMBER 461707, TYPE NUMBER 0145-E3

KEY PART

NO.NO. DESCRIPTION

1 498583 Cylinder Assembly

2 399265 Bushing/Seal Kit

3 391086 _Seal-Oil

4 493304 Sump-Engine

5 691162 Head-Cylinder #1

5A 691163 Head-Cylinder #2

7 271867 -_ Gasket-Cylinder Head #1

7A 271868 Yr_ Gasket-Cylinder Head #2

8 495754 Breather Assembly

(Cylinder #1)

9 27803 _ Gasket-Breather

10 690334 Screw (Breather

Assembly)

10A 690366 Screw (Breather Cover)

11 280225 Tube-Breather

12 273390 _r Gasket-Crankcase (.015"

Thick, Std.)

271188 -A-Gasket-Crankcase (.005"

Thick)

271189 _ Gasket-Crankcase (.009"

Thick)

13 94565 Screw (Cylinder Head)

15 94239 Plug-Oil Drain

16 690666 Crankshaft

19 399264 Bushing

20 291675 _r Seal-Oil

23 491180 Flywheel

24 222698 Key-Flywheel

25 499180 Piston Assembly

(Standard)

499181 Piston Assembly (.010"O.S.)

499182 Piston Assembly (.020"

o.s.)

499183 Piston Assembly (.030"

O.S.)

26 499184 Ring Set, Piston (Std)

499284 Ring Set, Piston (.010"O.S.

499186 Ring Set, Piston (.020"O.S.

499187 Ring Set, Piston (.030"O.S.

27 691299 Lock-Piston Pin

28 498319 Pin Assembly, Piston (Std.)

28 498320 Pin Assembly-Piston

(.005" O.S.)

29 498314 Rod-Connecting (Std)

29 498541 Rod-Connecting (.020 U.S.)

32 691133 Screw (Connecting Rod)

33 390420 Valve-Exhaust (Include(s):

494553 Keeper-Valve

(Ref. No. 42))

34 691302 Valve-Intake

35 65906 Spring-Valve (intake)

36 26828 Spring-Valve (Exhaust)

40 221596 Retainer-Valve (Exhaust)

41 292260 Retainer-Valve (Exhaust)

42 494553 Keeper-Valve

45 261368 Tappet-Valve

46 691161 Camshaft

47 393415 Slinger-Oil

48 498542 Short Block

50 213290 Manifold-Intake

51 271412 _rO Gasket-Intake

51A 270884 -_ Gasket-intake

53 690321 Screw (Carburetor)

54 93208 Screw (Intake Manifold)

73 691438 Screen-Rotating

75 225137 Washer (Flywheel)

78 691134 Screw (Flywheel Fan)

91 693483 Body Assembly-Upper

KEY PART

NO.NO. DESCRIPTION

95 690718 Screw (Throttle Valve)

97 693485 Shaft-Throttle

98 807923 Kit-Idle Speed

102 693509 • Gasket-Carburetor Body

104 693506 •Pin-Float Hinge

105 692078 • Valve-Float Needle

107 693482 BodyAssembly-Lower

108 693505 Valve-Choke

109 693498 Shaft-Choke

117 693538 Jet-Main

693500 Jet-Main (High Altitude)

121 491539 Carburetor Kit

122 281411 Spacer

125 693479 Carburetor

130 693504 Valve-Throttle

133 693512 Float-Carburetor

146 94196 Key-Timing

147 693508 Jet-PUot

161 691401 Base-Air Cleaner

163 271411 _Gasket-Air Cleaner

177 271170 _Seal-O-Ring

187 499167 Line-Fuel (Cut to Required

Length)

197 690364 Screw (Back Plata)

202 690570 Link-Mechanical Governor

203 280997 Crank-Bell

205 690322 Screw (Bell Crank)

209 691273 Spring-Governor

211 261563 Spring-Governor

212 693985 Link-Throttle

215 690481 Guide-Air

219 394348 Gear-Governor

220 690412 Washer-Thrust (Governor

Gear)

222 491282 Bracket-Control

227 491297 Lever-Governor

235 224995 Shield-Fuel Spray

240 394358 Filter-Fuel

244 230318 Connector-Hose (Pulse

Line)

258 94930 Screw (Engine Sump)

267 690316 Screw (Casing Clamp)

278 691366 Washer (Governor Lever)

297 94289 Nut-Wing (Air Filter Retainer)

304 691390 Housing-Blower

305 690960 Screw (Blower Housing)

306 690414 Shield-Cylinder

306A 690435 Shield-Cylinder

RPM Settings: Low Speed: 1900-2100

High Speed: 3000-3200

,,k

Included in Gasket Set, Ref Number 358.

Included in Carburetor Kit,

Ref Number 121.

_ncluded in Value Overhaul Kit,

,Ref Number 1095.

included in Fuel Pump Kit,

Ref Number 861

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR - MODEL NUMBER 917.270912

BRIGGS & STRATTON ENGINE-MODEL NUMBER 461707, TYPE NUMBER 0145-E3

KEY PART KEY PART

NO,NO. DESCRIPTtON NO .NO.

30794930 Screw (Cylinder Shield) 797A 693167

309497596 Motor-Starter 801394860

310690323 Bolt (Starter Motor) 802497607

311497608 Brush Set 803691427

332230674 Nut (Flywheel) 8076935 t1

33339489 t Armature-Magneto 822693497

33494731 Screw (Magneto Armature)

337802592 Plug-Spark 847495715

358495868 Gasket Set 851493880

38389838 Wrench-Spark Plug 859693488

386693490 I+ Gasket-Pump 861693502

391693487 Body-Pump 865691196

392693491 I+ Spring-Pump Diaphragm 865A 691197

404690442 Washer (Governor Crank) 868497656

423691100 Screw (Air Cleaner Base) 868A 273312

42594823 Screw (Air Cleaner Cover) 869261463

432693492 t+ Cap-Spring 870262924

433693489 0+ Diaphragm-Fuel Pump 871261961

434693493 Cover-Diaphragm 231218

435693494 Screw (Diaphragm Cover) 877393456

441691176 Bracket-Oil Fill 881495901

445394019 Filter-Air 918393815

447690297 Screw (Air Guide Cover)

44994882 Screw (Oil Fill Bracket)

474393474 Alternator 93494627

48293621 Screw (Alternator) 955693513

510497606 Drive-Starter 968691207

513398003 Clutch-Drive 971690720

523691385 Dipstick

525690823 Tube-Oil Fill 1005 498157

527690423 Clamp-Tube 1006 69 t 247

535272490 Filter-Air 1019 496726

544497603 Armature-Starter 1036 694979

552690553 Bushing (Governor Crank) 1051 263080

552A 690552 Bushing (Governor Crank) 1058 273688

562690311 Bolt-Carriage (Governor 1081 280860

Lever) 1090 497605

569272645 -k Gasket-Base 1095 498047

572690415 Cover-Breather 1125 691104

(Cylinder #2) 1132 690353

573690764 Plate-Back 1136 690329

59292278 Nut (Governor Lever)

60195162 Clamp-Hose 1137 690390

615690;328 Retainer (Governor Crank)

615A 690317 Retainer-Governor Shaft

616491530 Crank-Governor

634690657 -h-Seal-Governor Shaft

634A 271013 Washer-Foam

63566538 Soot-Spark Plug

637693510 Washer-Seal

643496700 Retainer-Air Filter

689690555 Spring-Friction •

69793585 Screw (Drive Cap)

725280866 Shield-Heat •

726391362 Gear-Ring

741691285 Gear-Timing +

783693059 Gear-Starter

789695050 Wiring Harness

79794010 Nut (Starter Terminal)

DESCRIPTION

Nut (Starter Terminal)

Cap-Drive

Cap-End

Housing-Starter

Spacer

Washer-Seal (Throttle

Shaft)

Dipstick/Tube Assembly

TerminaFCabte

• + Diaphragm-Fuel Pump

Kit-Fuel Pump

Cover-Air Guide

Seal-Valve

Seat-Valve (Intake)

Seat-Valve (Exhaust)

Bushing-Guide (Exhaust)

Bushing-Guide (Intake)

Wire-Alternator

Plate-Cover

Hose-Vacuum (Cylinder-To-

Impulse Pump)(Cut to

Required Length)

Screw (Fan Retainer)

Plug-Carburetor

Cover-Air Cleaner

Screw (Upper Body To

Lower Body)

Fan-Flywheel

Retainer-Fan

Label Kit

Label Kit-Emission

Ring-Retaining

Owner's Manual

Seal-O-Ring

Retainer-Brush

Gasket Set-Valve Overhaul

Screw (Cover Plate)

Screw (Oil Slinger)

Screw (Governor, Control

Rod)

Washer (Governor, Control

Rod)

1138 690330 Nut (Governor, Control Rod)

--_ 445777-0027-E1 Replacement Engine

RPM Settings: Low Speed: 1900-2100

High Speed: 3000-3200

Included in Gasket Set, Ref Number 358.

Included in Carburetor Kit,

Ref Number 121.

Included in Value Overhaul Kit,

Ref Number 1095.

Included in Fuel Pump Kit,

Ref Number 861

NOTE: All component dimensions given in U.S.

inches 1inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

Operate your Tractor up and down the face of slopes (not I

greater than 15°), never across the face. Make turns gradu- I

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME sM Anytime, day or n,ght

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts &Repair Center.

1-800-488-1222 Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectSM!

1-800-366-PART 6am- 11pmCST,

(1-800-366-7278) 7 days a week

www.sears.com/partsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m. - 5 p.m. CST, Mon. - Sat.

Para ped_rserwcro de reparac_bn adomicdlo,

y para ordenar Dezas con entrega a dom=cflio

1-888-SU-HOGAR su

(1-888-784-6427)

Au Canada pour serv=ceen fran(;ais

1-877-LE-FOYER _

(1-877-533-6937)

SEARS 1

-- pauu_:)t

(* '_ "_"_ _"@ R_ali_l;l_rk_P_,_Tr_emark of Sears, Roebuck and Co

.... S(]d_JN _"'

pa]a_u_-

.... pD °',• i

173529 Rev2 4.13.00 MH Printed in U.S.A.

Craftsman 917270912 User Manual 19.5HP 42 LAWN TRACTOR Manuals And Guides L0060084

CRAFTSMAN Lawn, Tractor Manual L0060084 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
