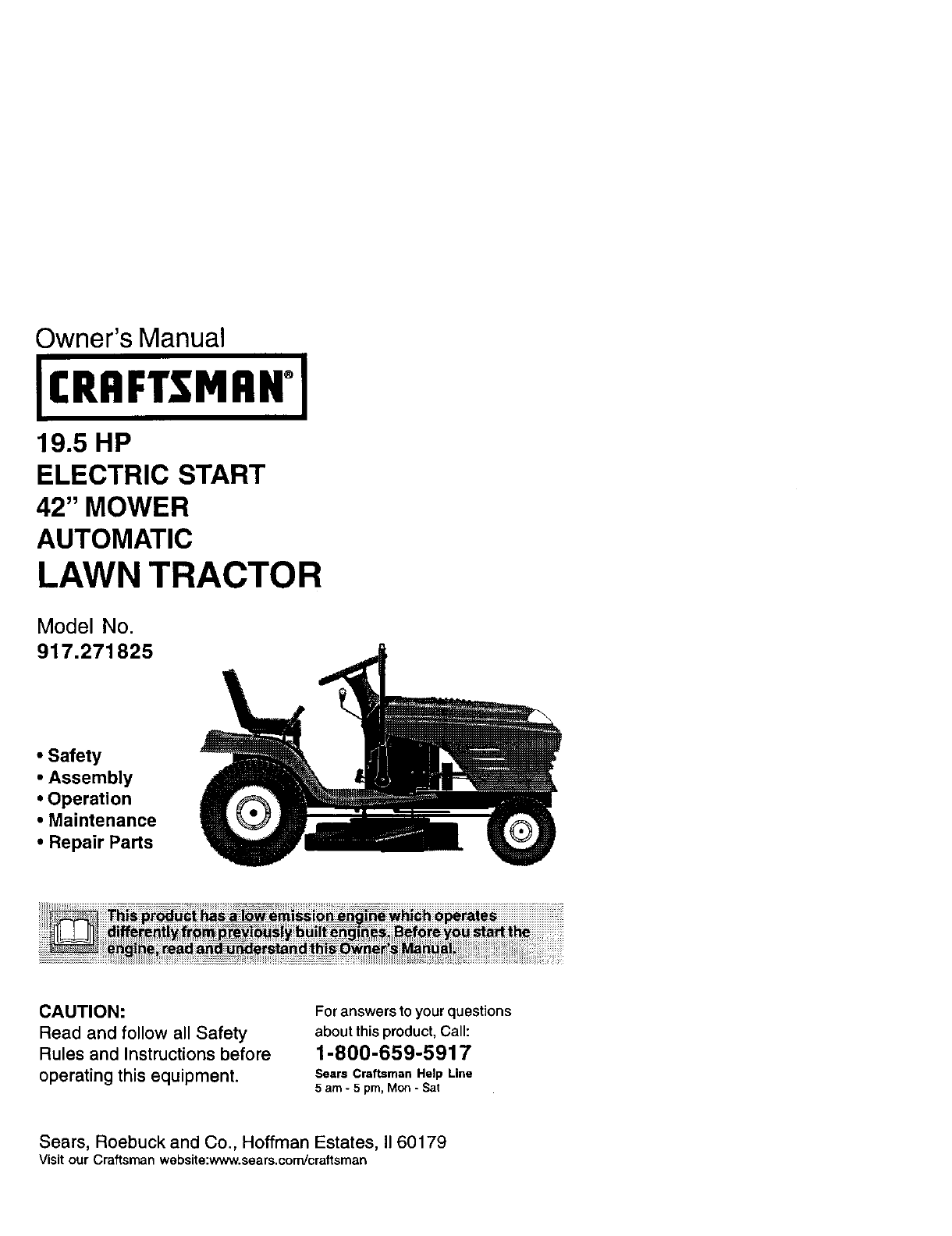

Owner's Manual

ELECTRIC START

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.271825

• Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to yourquestions

about thisproduct,Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pro, Mort - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.corn/craftsman

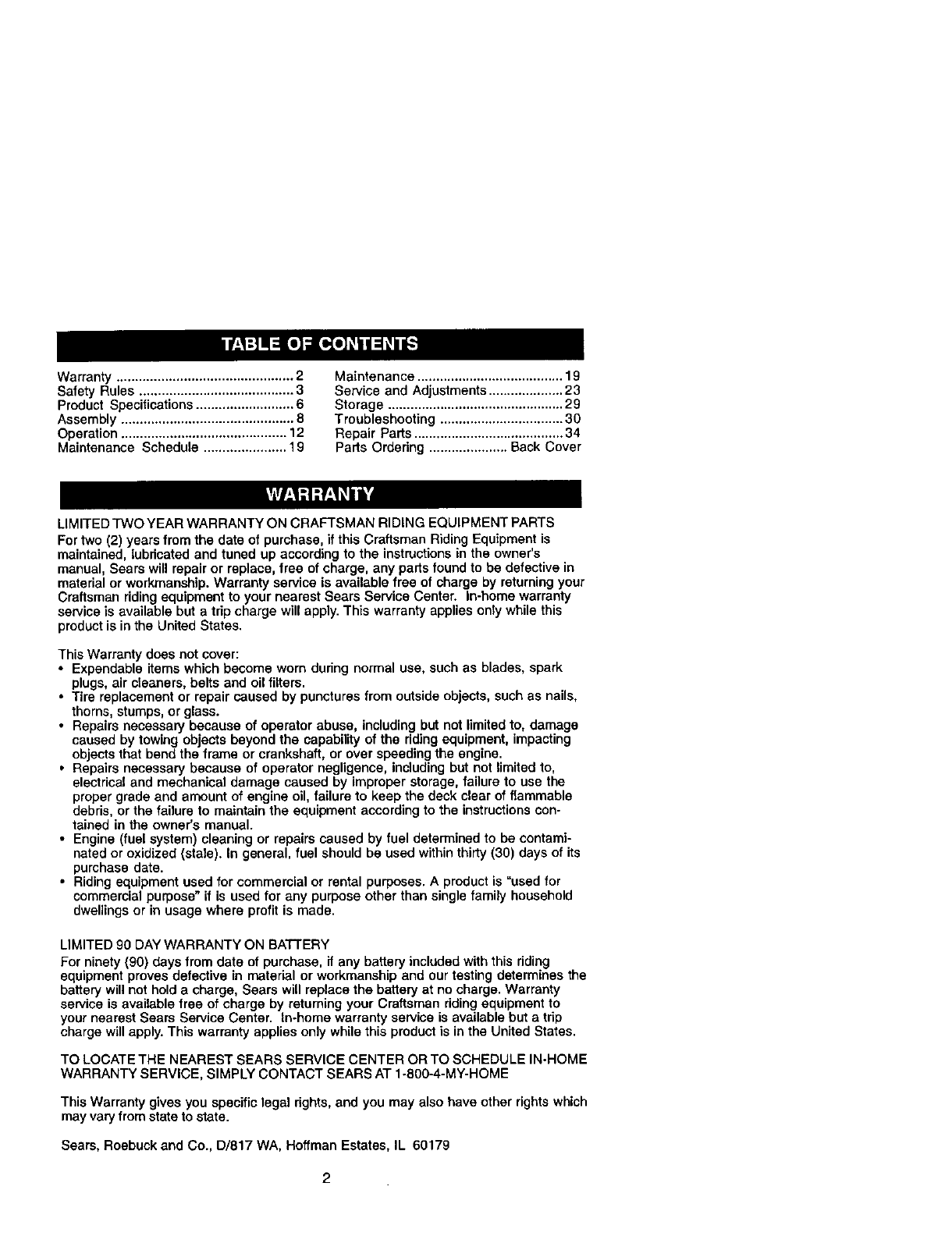

Warranty...............................................2

SafetyRules.........................................3

ProductSpecifications..........................6

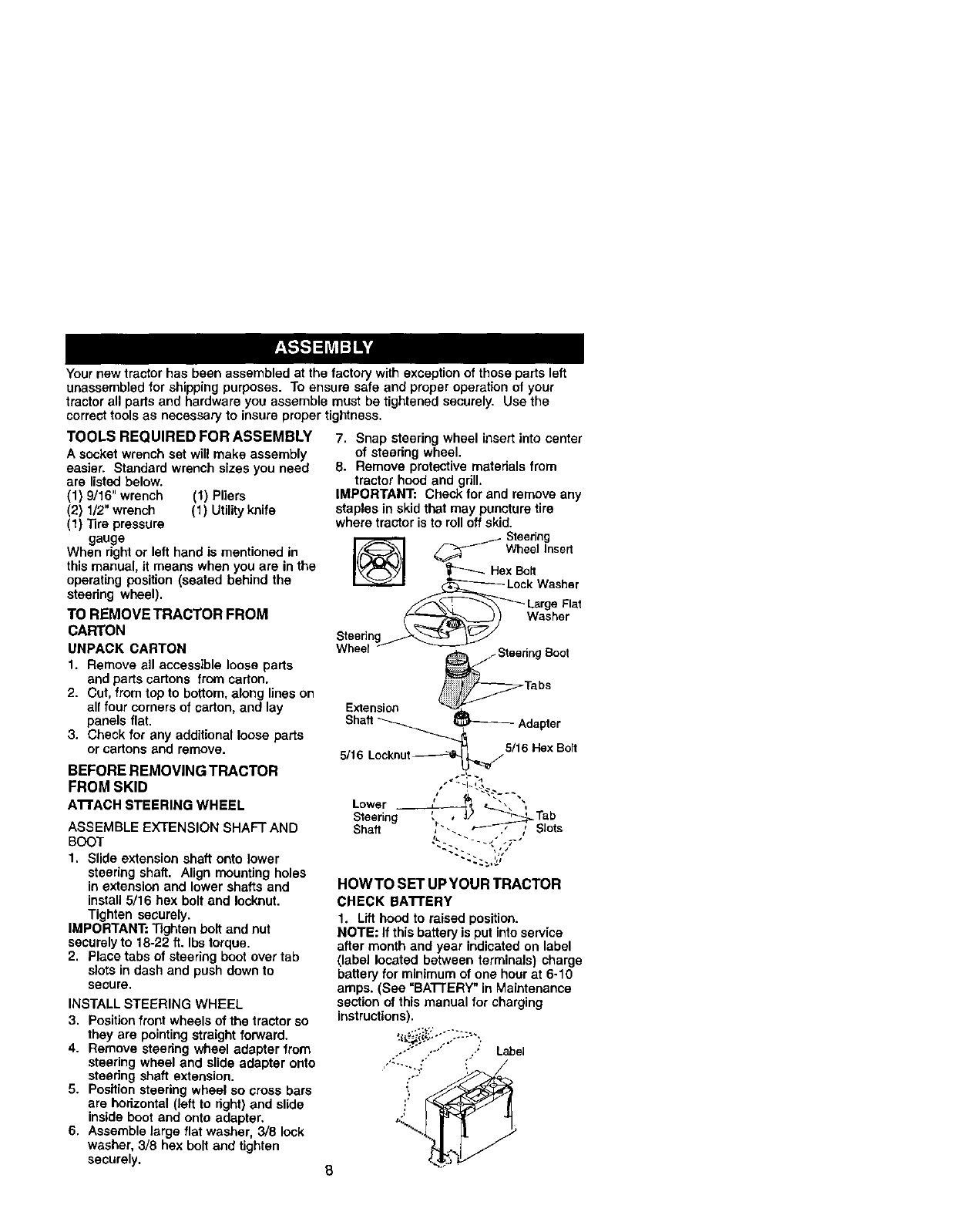

Assembly..............................................8

Operation............................................12

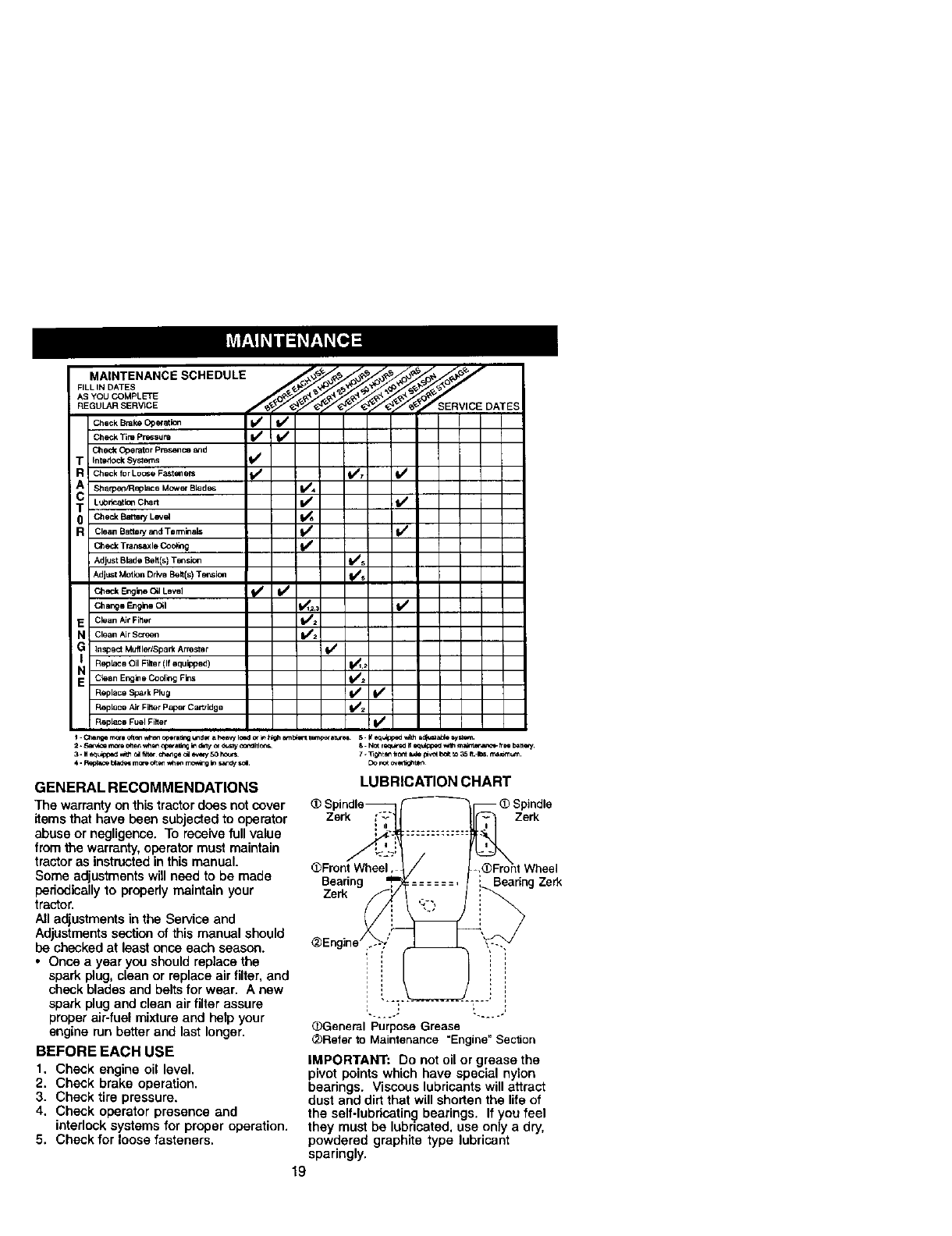

MaintenanceSchedule......................19

Maintenance.......................................19

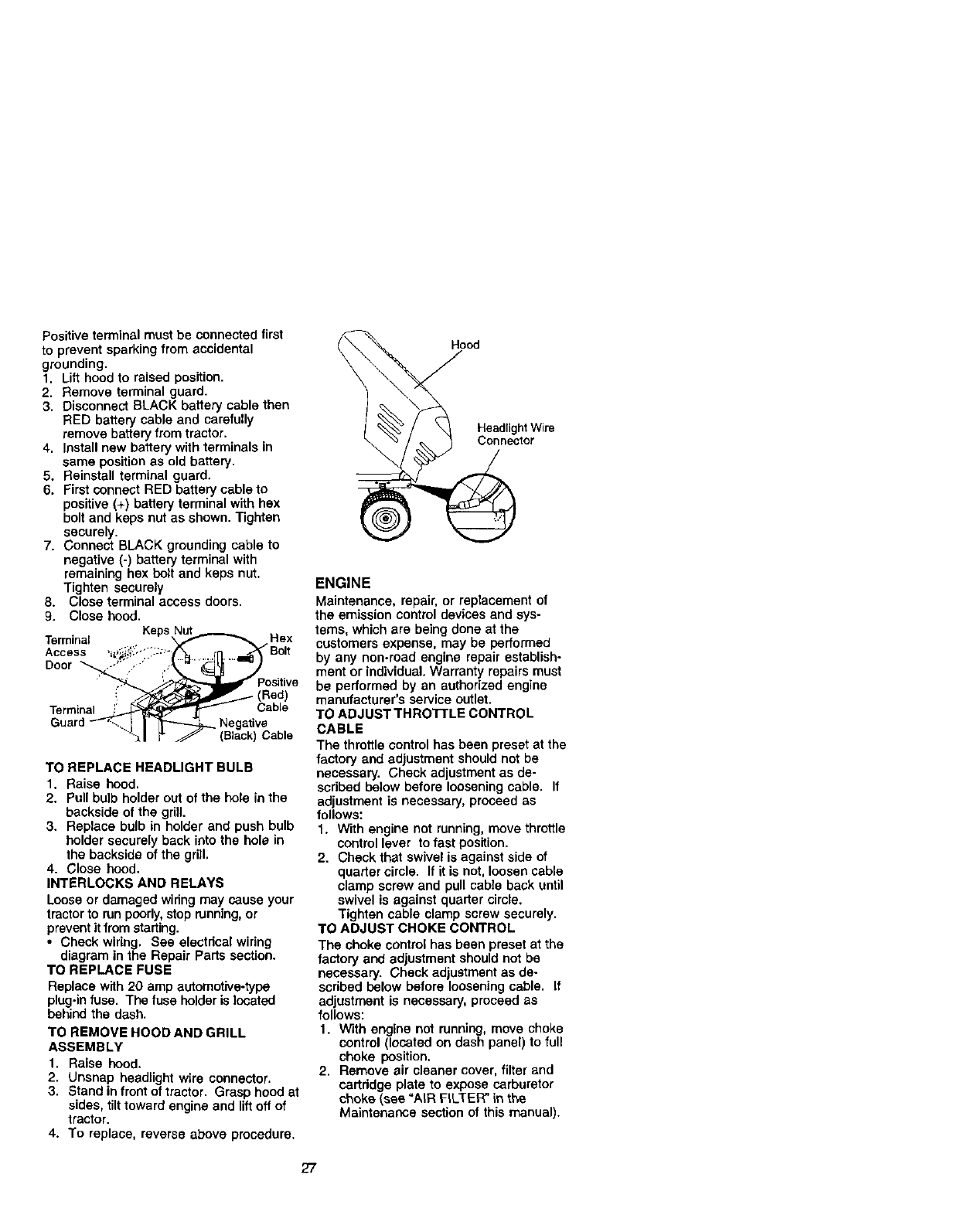

ServiceandAdjustments....................23

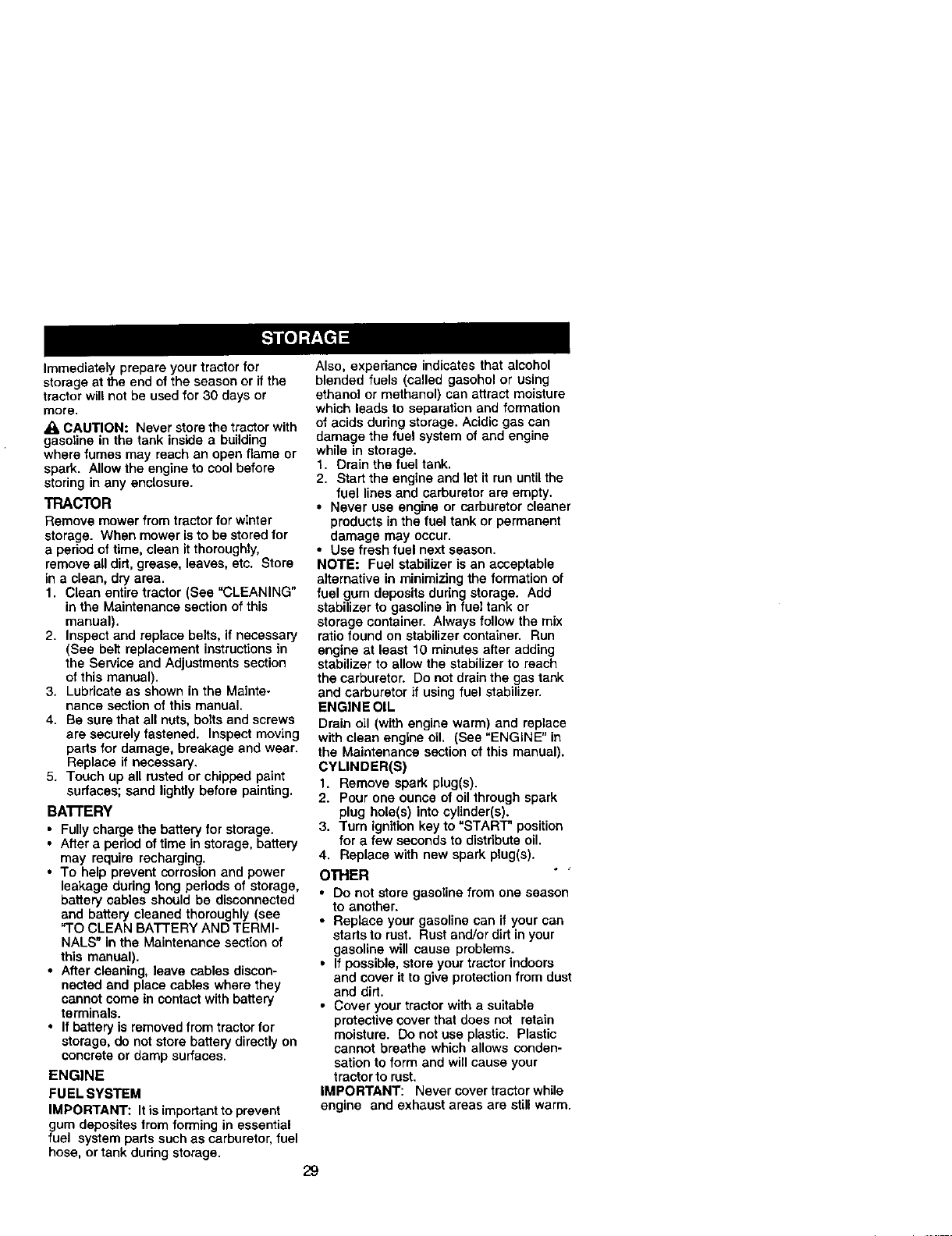

Storage...............................................29

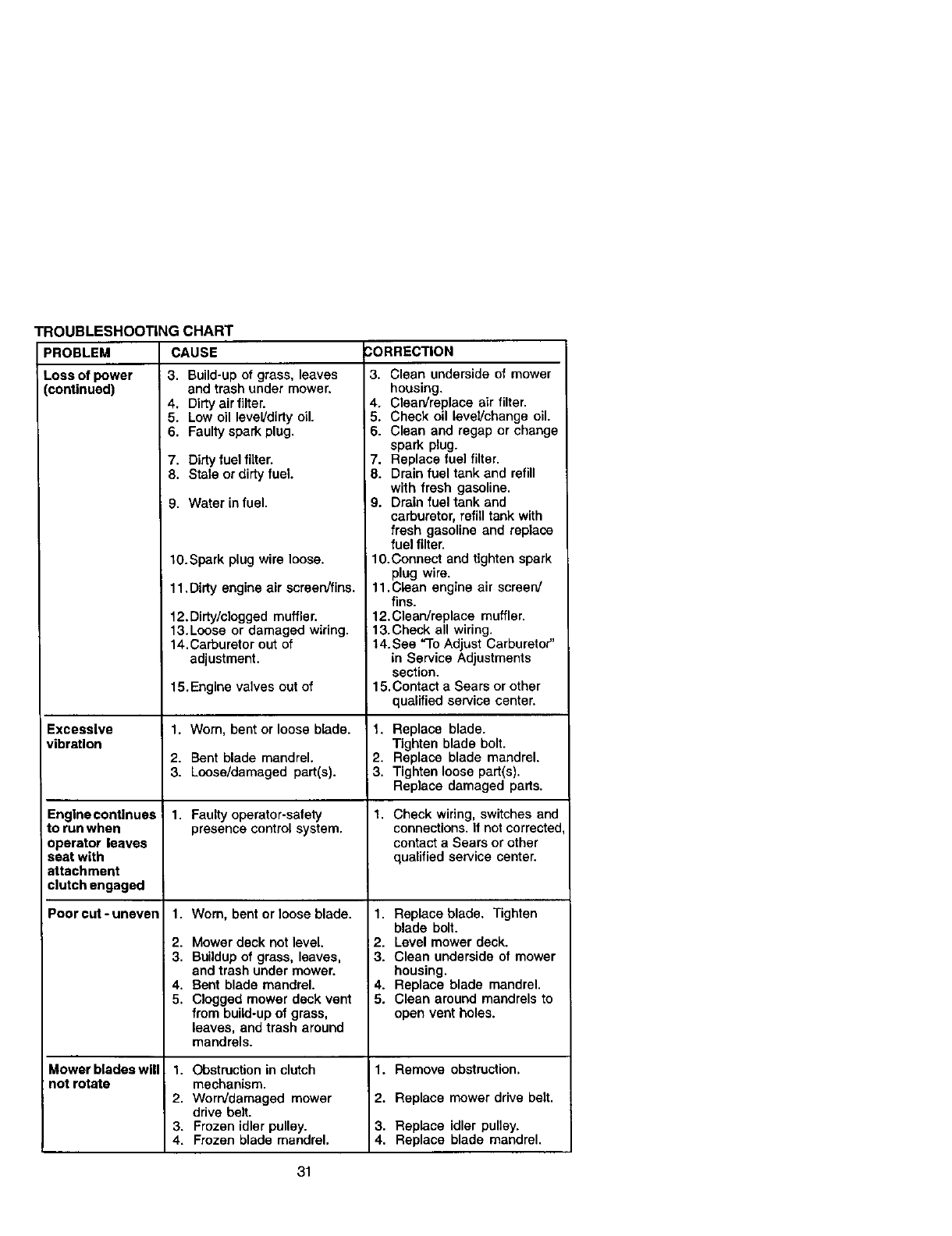

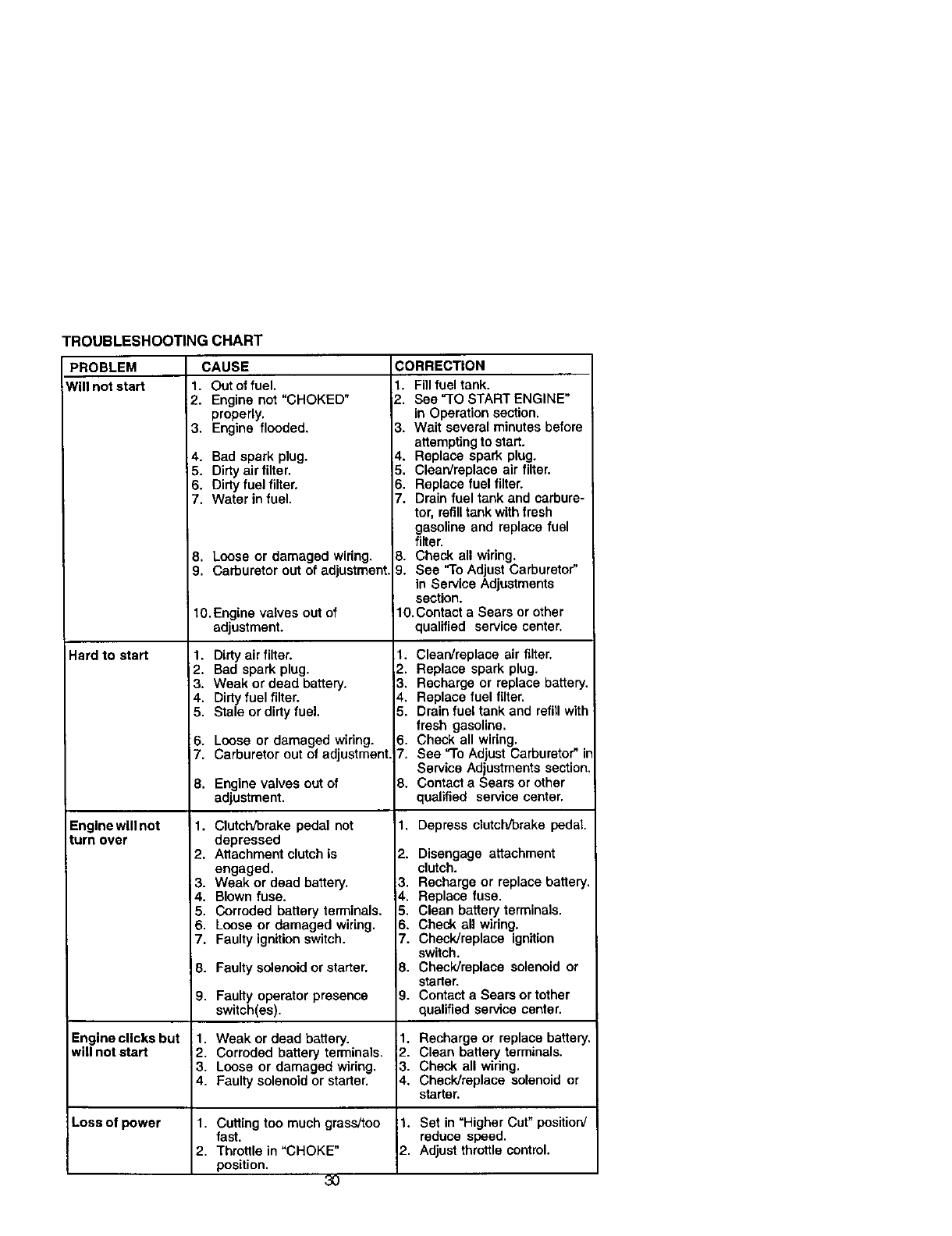

Troubleshooting.................................30

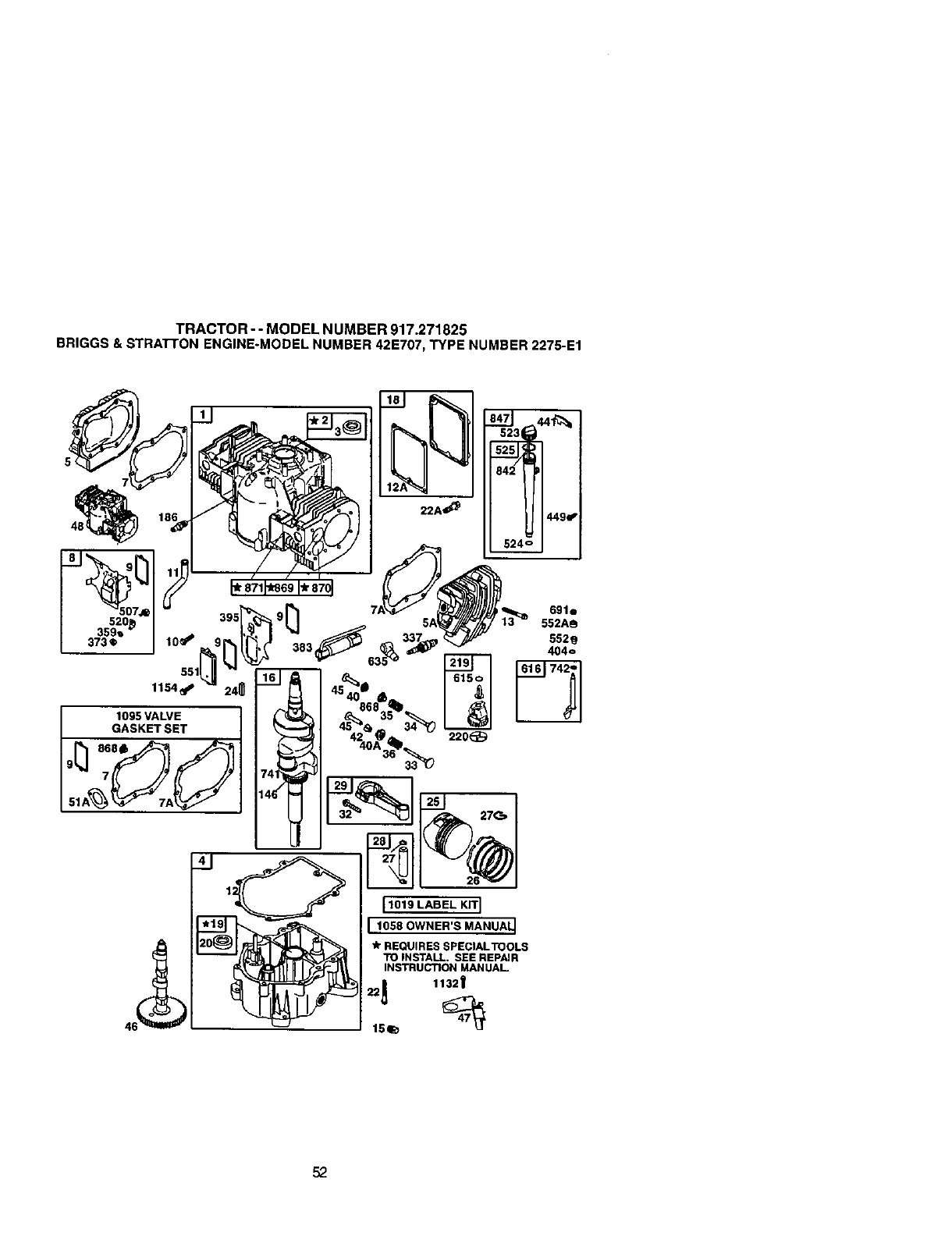

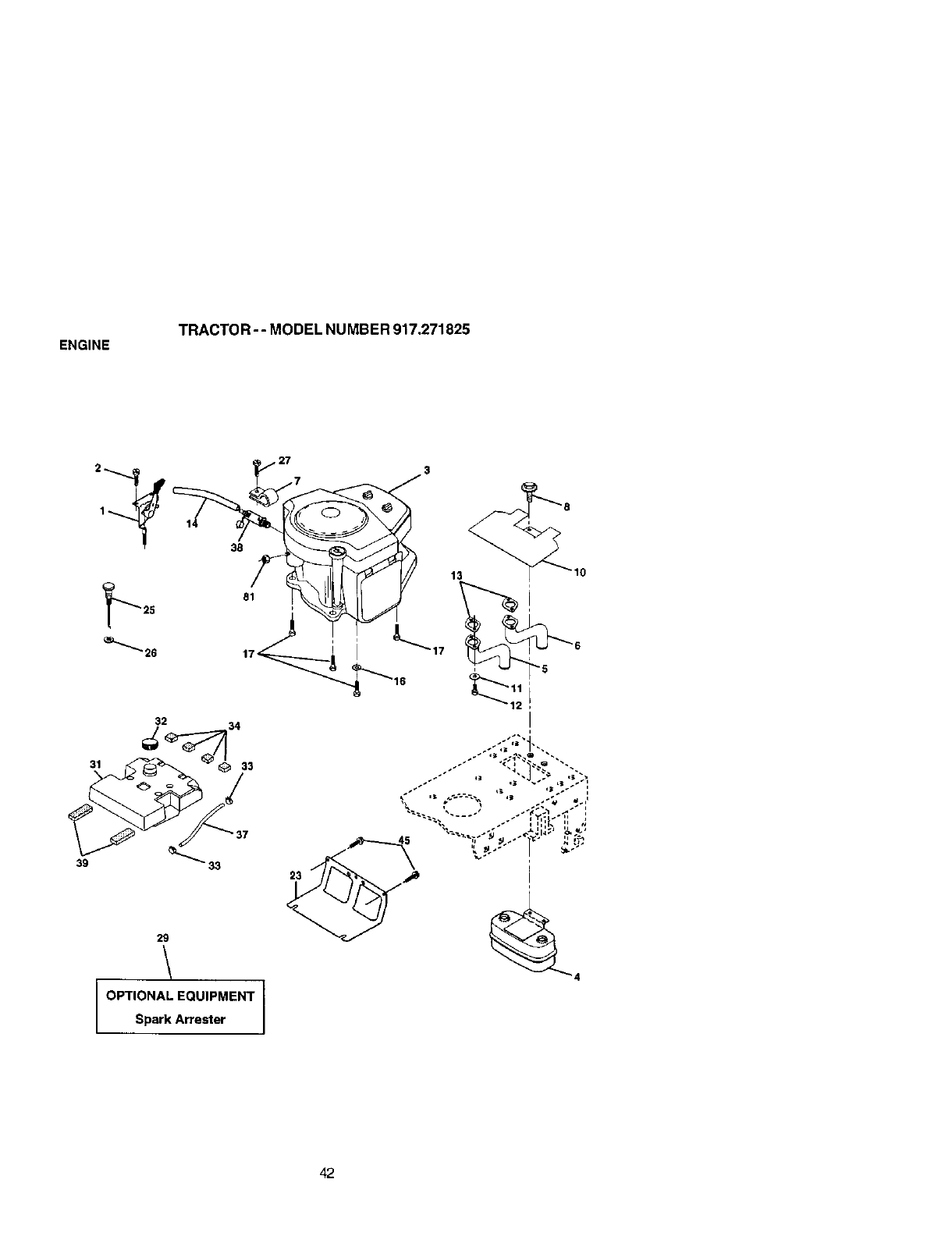

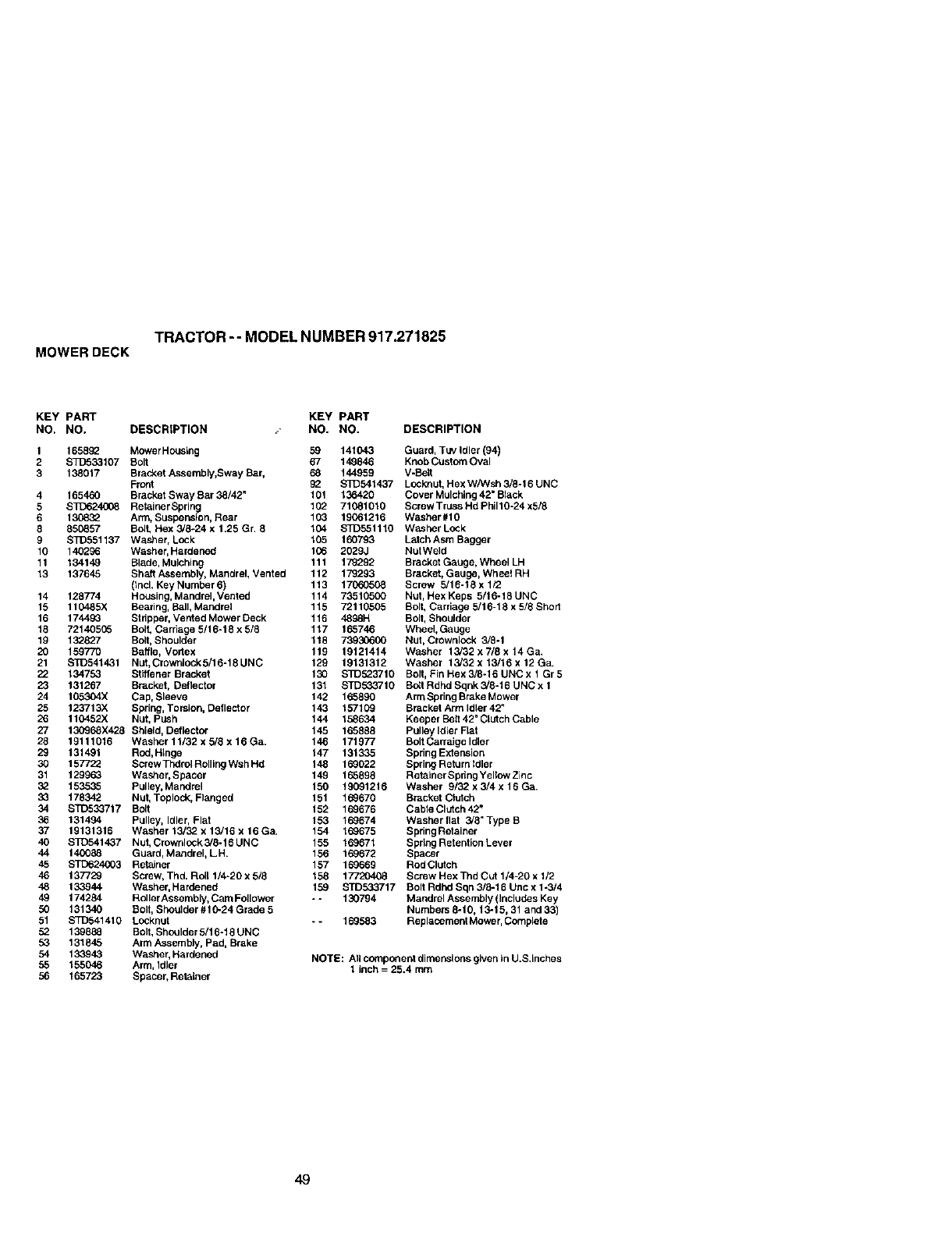

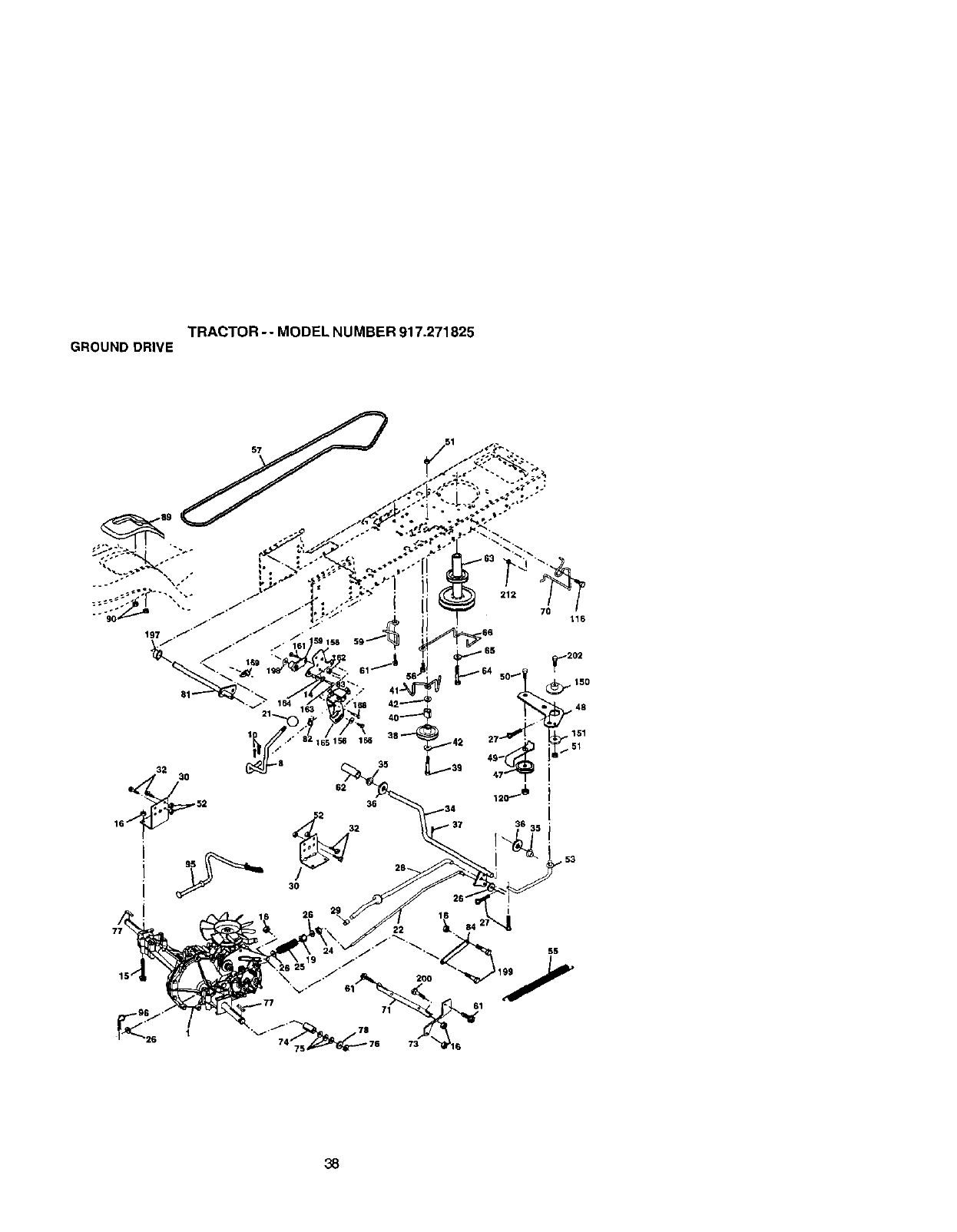

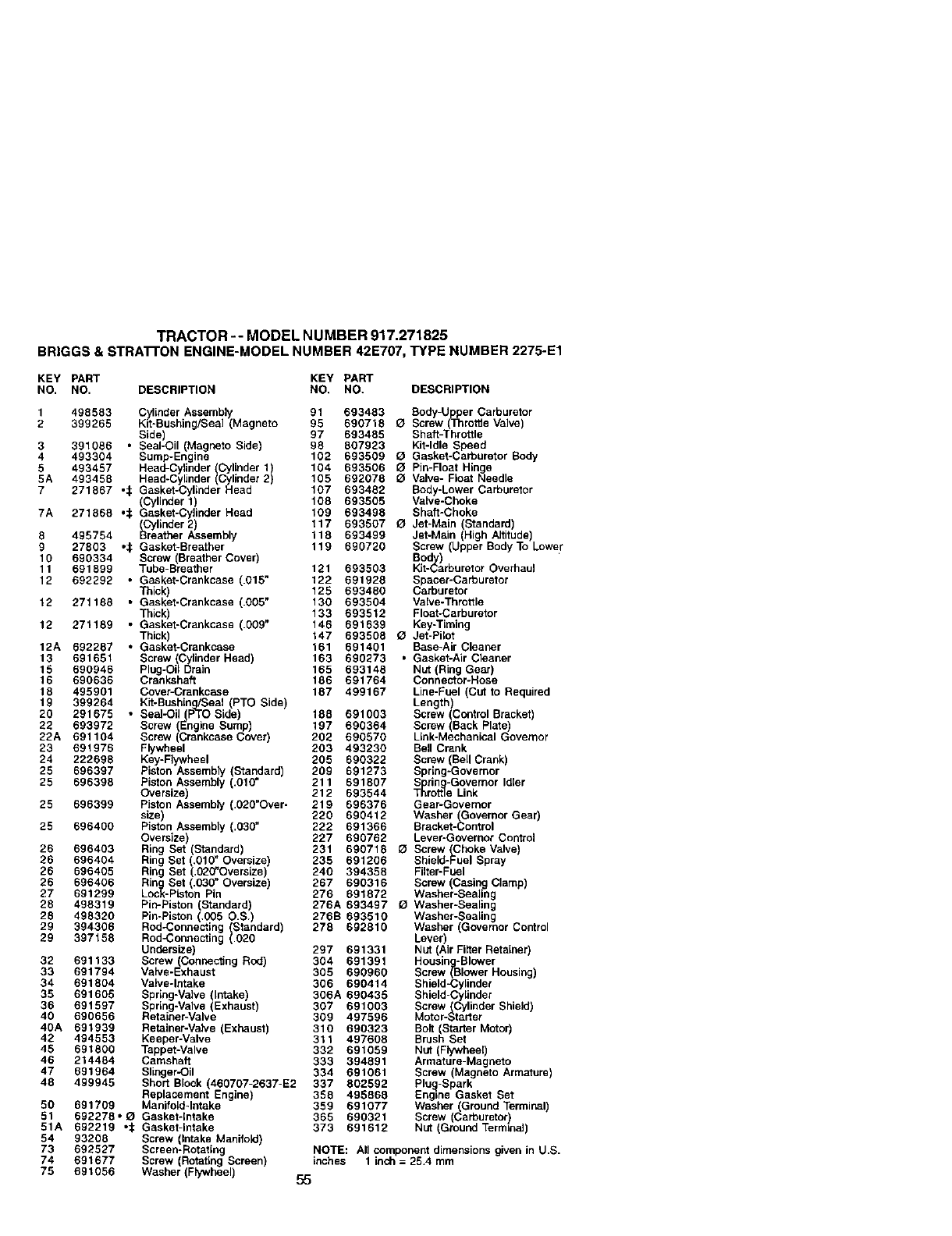

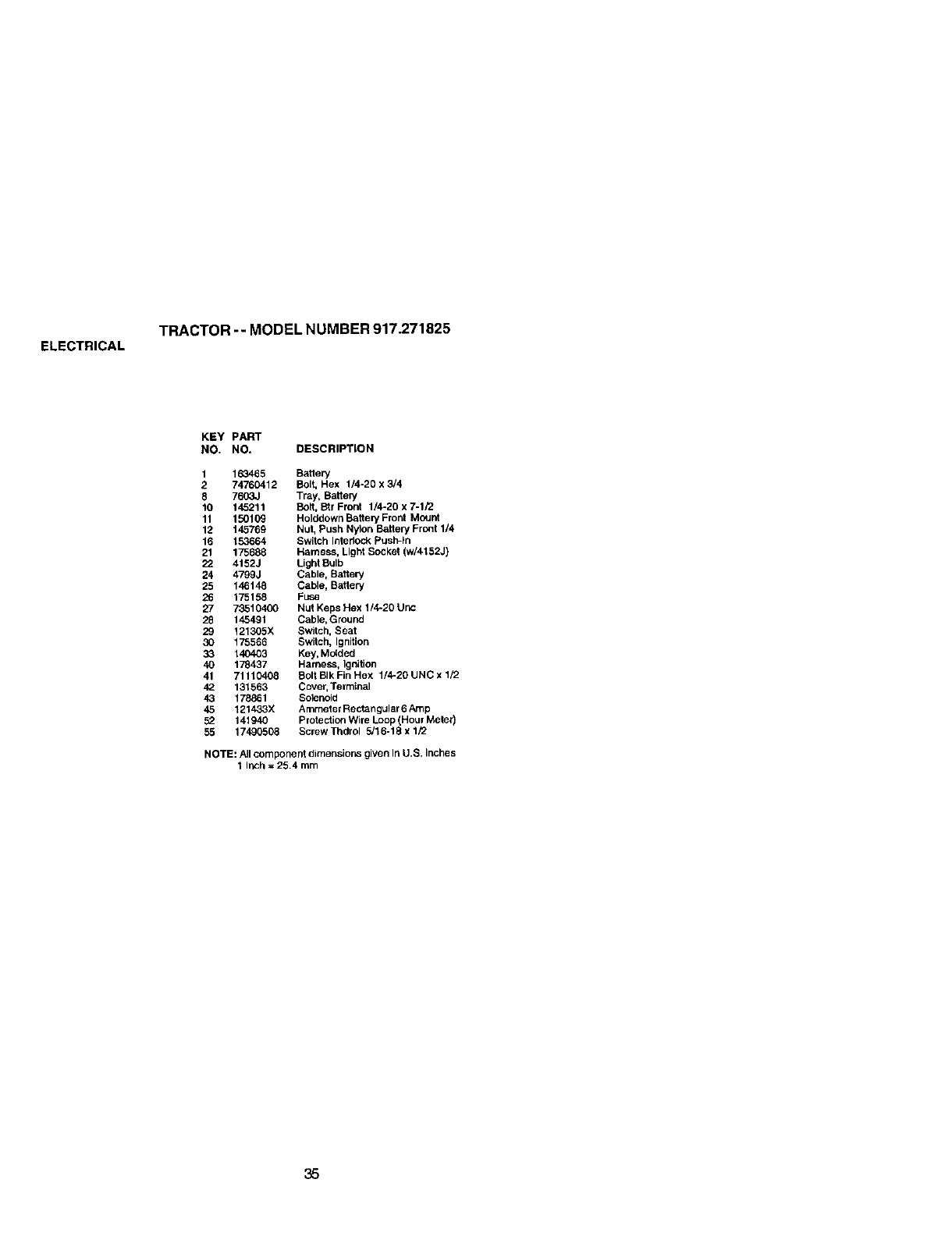

RepairParts........................................ 34

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purpeses. A product is "used for

commercial purpose" if is used for any purpose other than single tamily household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by returning your Craftsman riding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

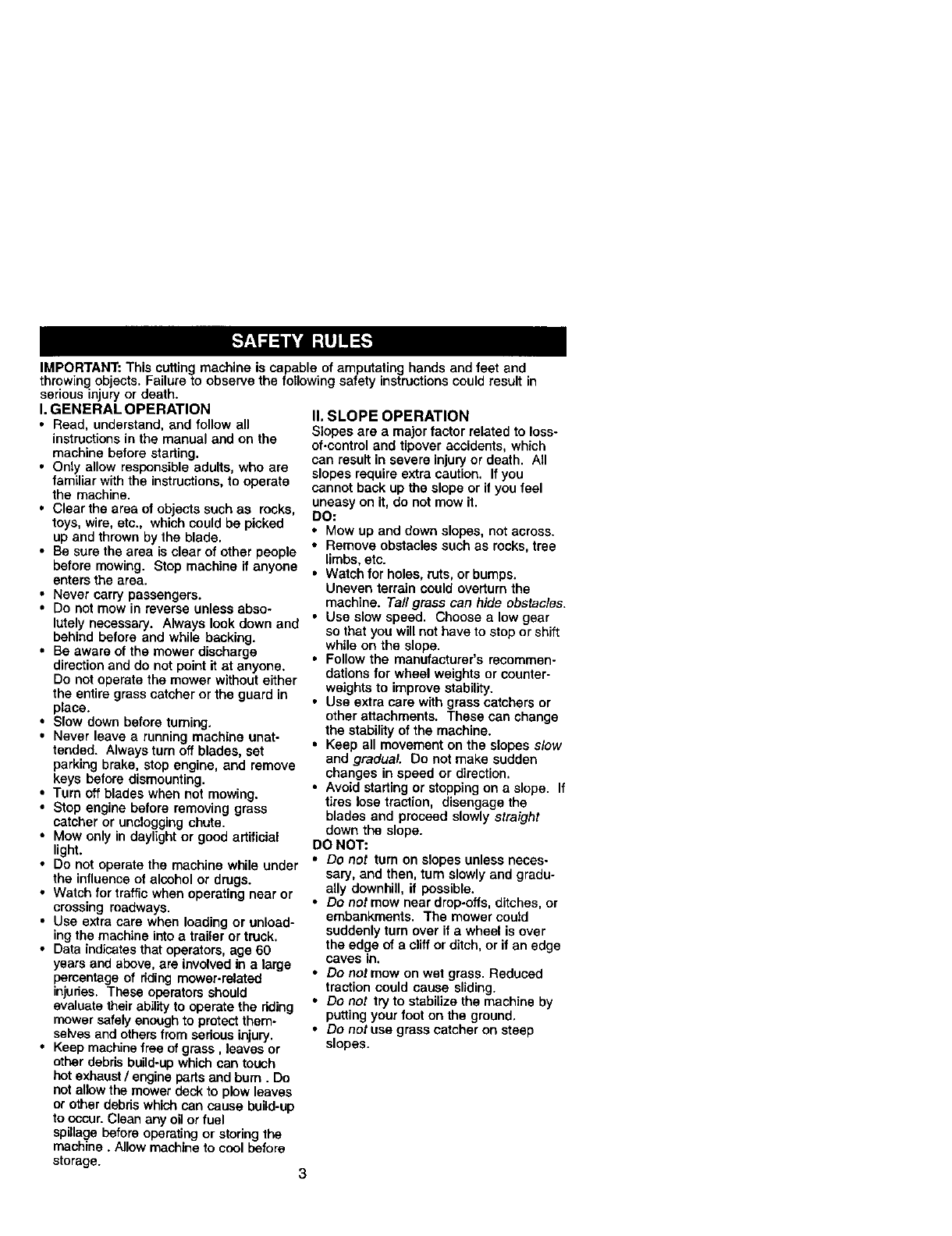

IMPORTANT: Th s cutting math ne s capable of amputating hands and feet and

throwingobjects. Failure to observe the following safety instructone coudresult in

serious injury or death.

I. GENERAL OPERATION

•Read, understand, and follow all

instructionsin the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions,to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade,

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or unload-

ing the machine into a trailer or truck.

•Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and othersfrom sedous injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and b_m. Do

not allow the mower deck to plow leaves

or other debris which can cause build-up

to occur. Clean any oil or fuel

spUlagebefore operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a ma)or factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you

cannot back up the slope or if you feel

uneasy on it, do net mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

Usa slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the mantdacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual. Do not make sudden

changes inspeed or direction.

Avoid starting or stoppingon a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then. tam slowly and gradu-

ally downI_it,tipossible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over It a wheel is over

the edge of a cliff or ditch, or if an edge

caves In.

•Do not mow on wet grass, Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

puttingyour foot on the ground.

•Do not use grass catcher on steep

slopes.

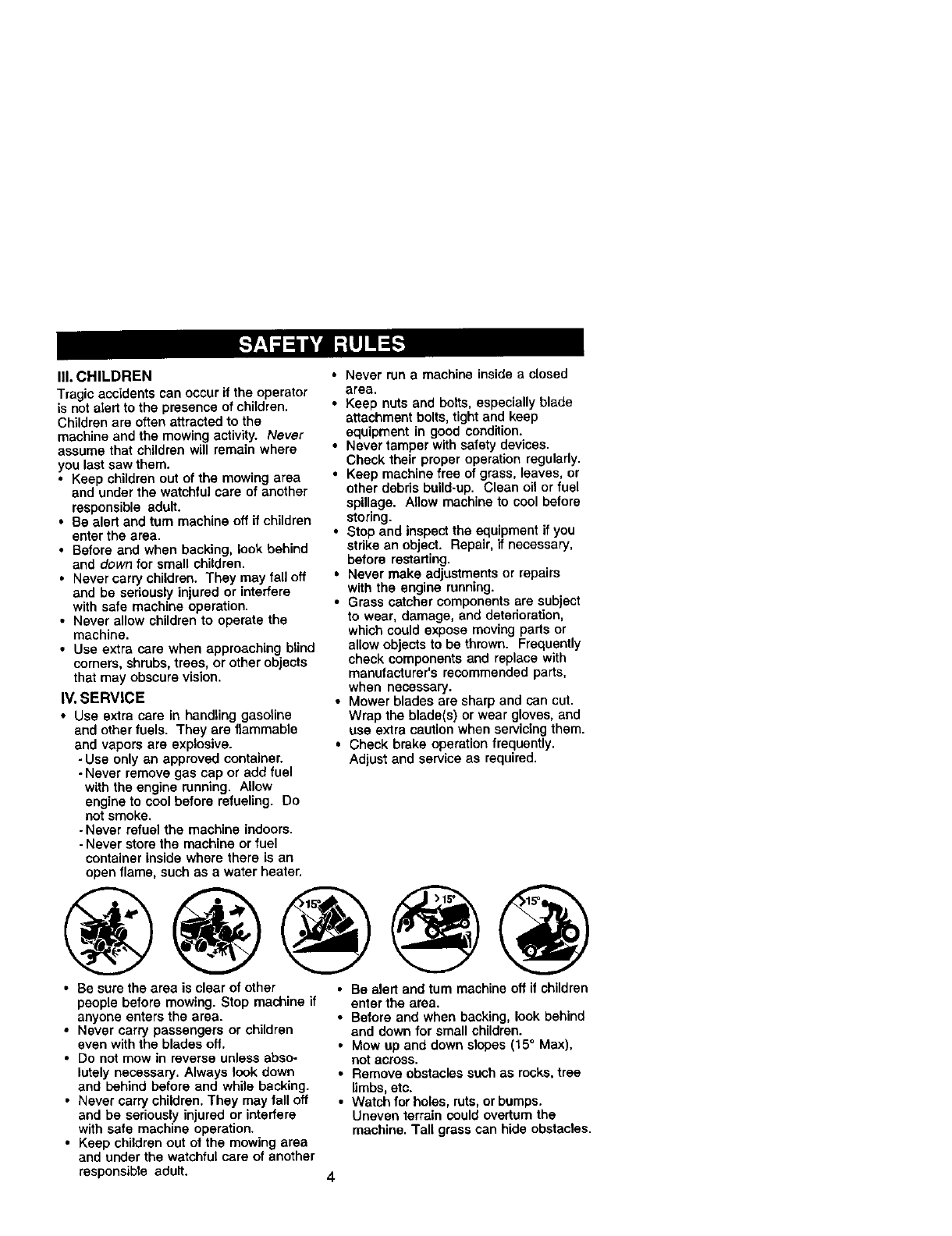

Ill.CHILDREN

Tragicaccidentscanoccuriftheoperator

isnotalert to the presenoe of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off ifchildren

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs,trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspectthe equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

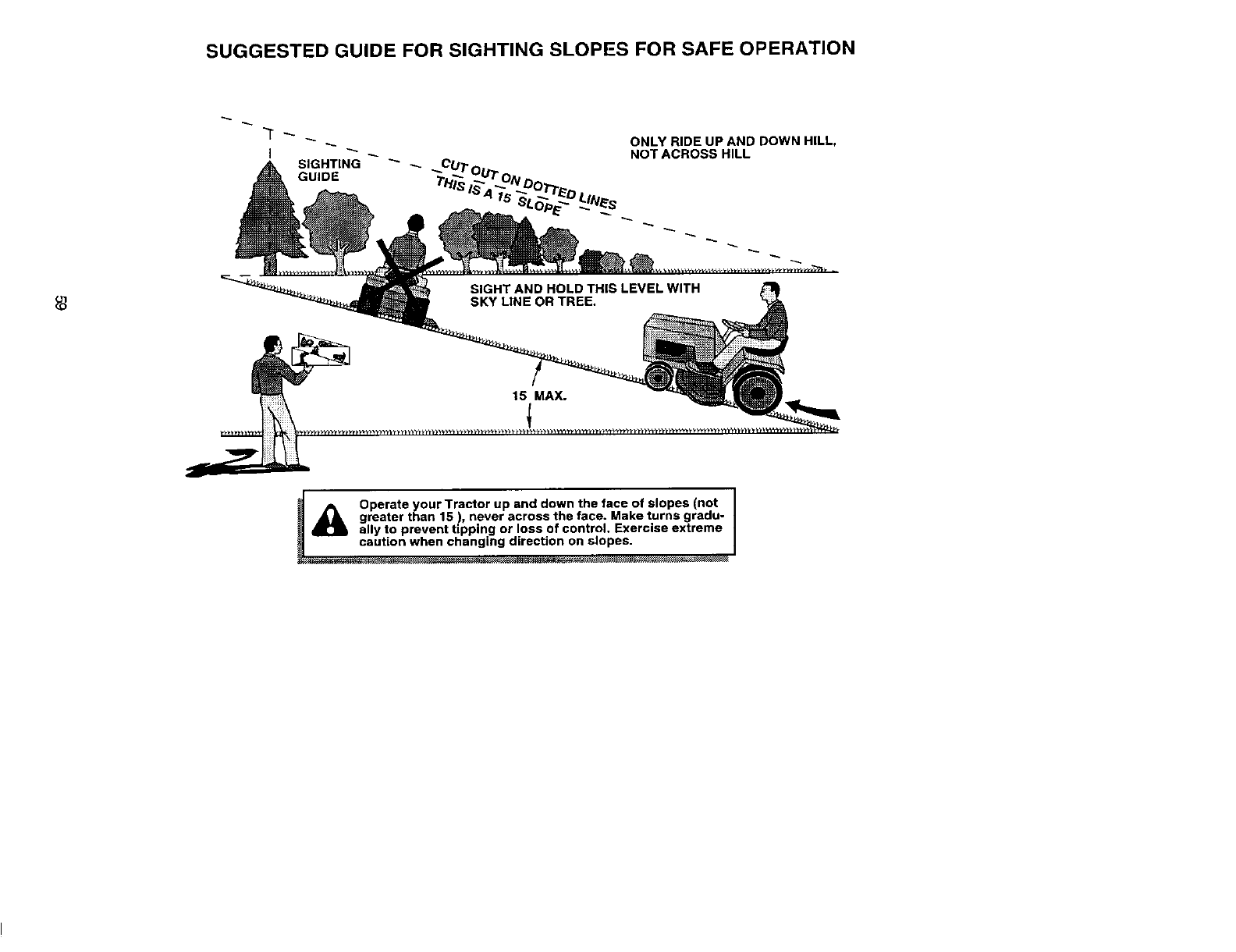

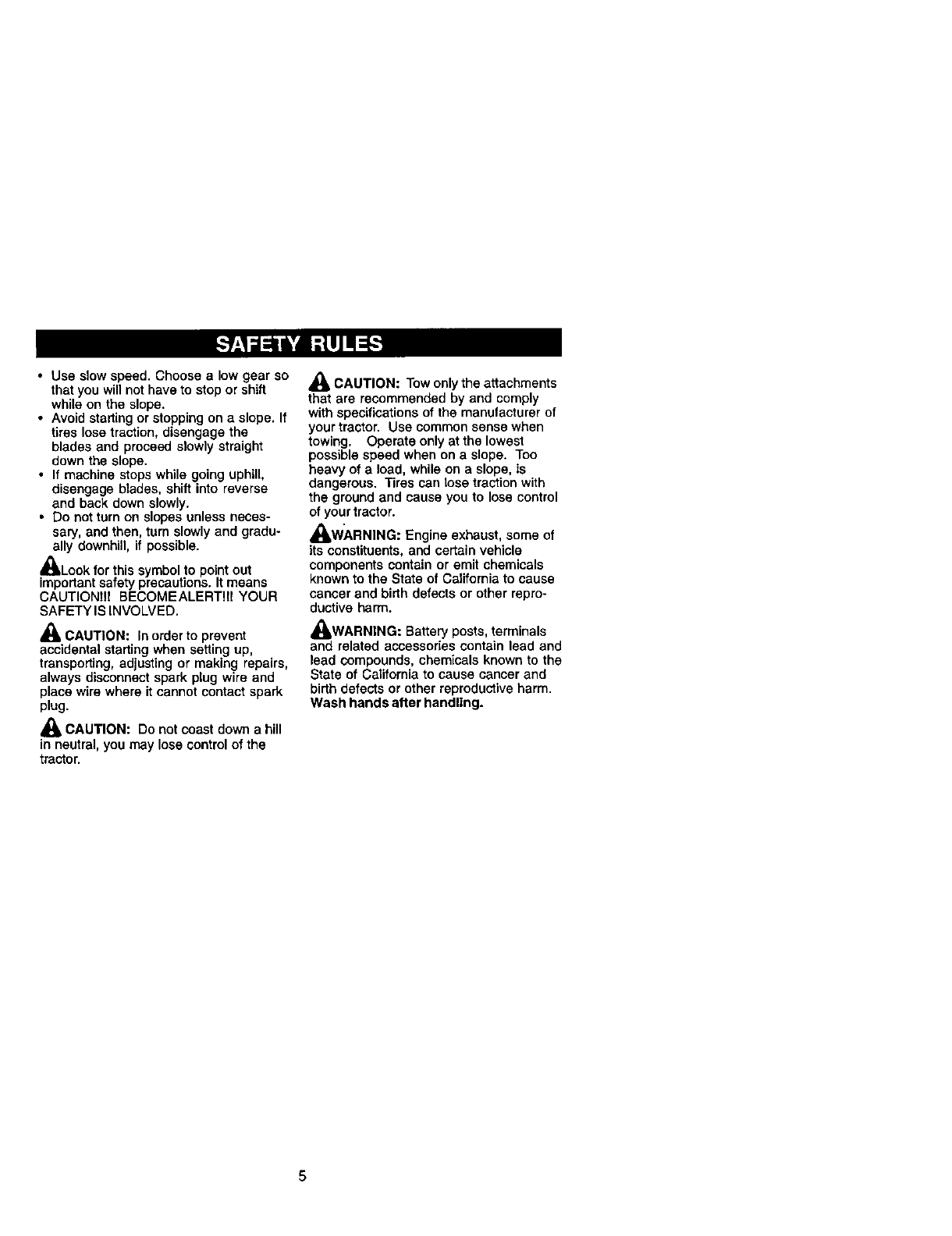

• Mow up and down slopes (15° Max),

not across.

•Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

•Use slowspeed. Choose a low gear so

that you willnot have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

_Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

_CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

_1, CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

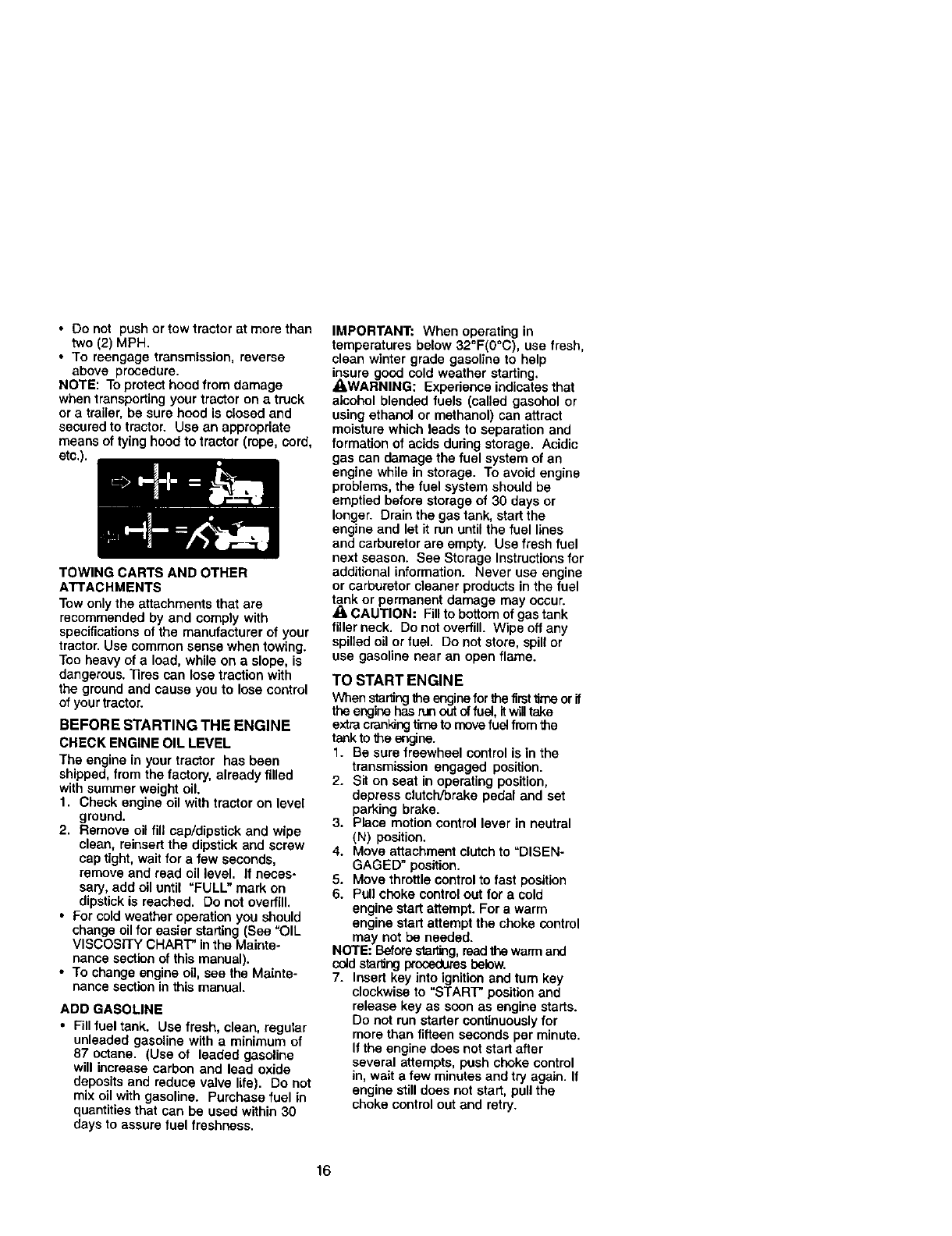

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_.WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_I_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

OILTYPE SAE 30

API-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: 3.0PINTS

SPARK PLUG: CHAMPION

GAP: .030") RJ19LM OR J19LM

GROUND FORWARD: 5.5

SPEED (MPH): REVERSE: 2.4

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 3AMPSBA'I-I'ERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE:U1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of anew tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual, The

instructions will enable you to assemble

and maintain your tractor propedy.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_I,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

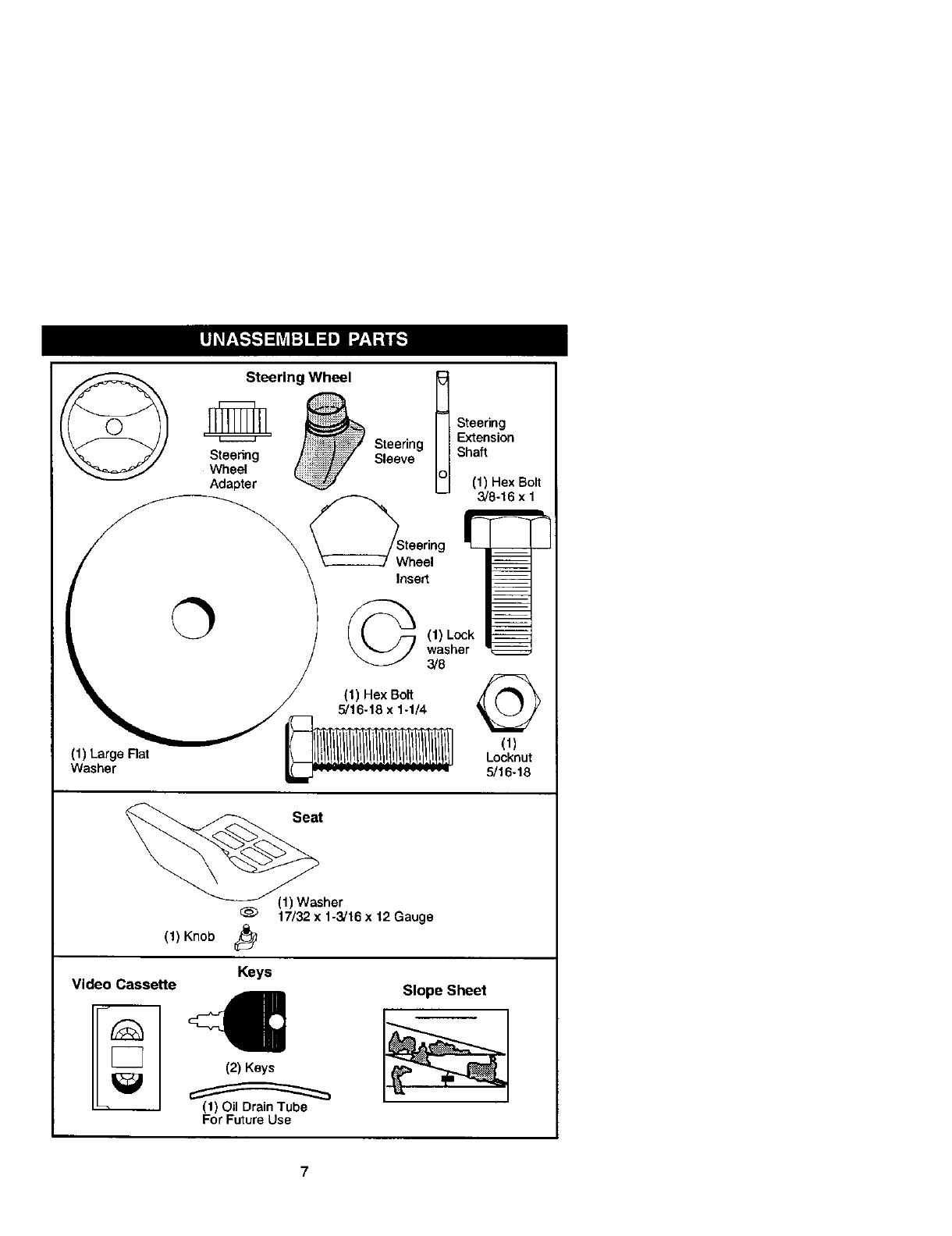

Steering Wheel

Steering

Wheel

Adapter

Steering

Sleeve

Steering

Extension

Shaft

(1) Hex Bolt

3/8-16 x1

(1) Large Rat

Washer

Wheel

Insert

(1) Hex Bolt

5/16-18 x 1-1/4

(1) Lock

washer

3/8

(1)

Loeknut

5/16-18

Seat

(1) Washer

(_> 17/32 x 1-3/16 x 12 Gauge

(1) Knob

Keys

Video Cassette

(1) Oil Drain Tube

For Future Use

Slope Sheet

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wrench (1) Utilityknife

(1) "ere pressure

gauge

When dght or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steedng wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

A'n'ACH STEERINGWHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure,

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forv,'ard.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steedng wheel insert into center

of steedng wheel.

8. Remove protective materials from

tractor hood and gdll.

IMPORTANT: Check for and remove any

staples in skid that may puncture tire

where tractor is to roll off skid.

i-_ _ Steering

_ Wheel Insert

Hex Bolt

________ Lock Washer

f_'_! _ _ LargeFlat

_'___9/) Washer

Wheel

_ SteedngBoot

Tabs

Extension

Shaft _.._ Adapter

5/16 Locknut_'_,_ 5/16 Hex Bolt

Lower ",_ _,

Steerin "_"_' Tab

Shaft ,_'-. ,'--_F_.' ,; Slots

HOWTO SET UPYOUR TRACTOR

CHECK BAI"FERY

1. Lift hood to raised position.

NOTE: Ifthis battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (Sea =BATTERY" in Maintenance

section of this manual for charging

instructions).

_"'" "'" ' Label

+.*" /-/ j/

fiiJ

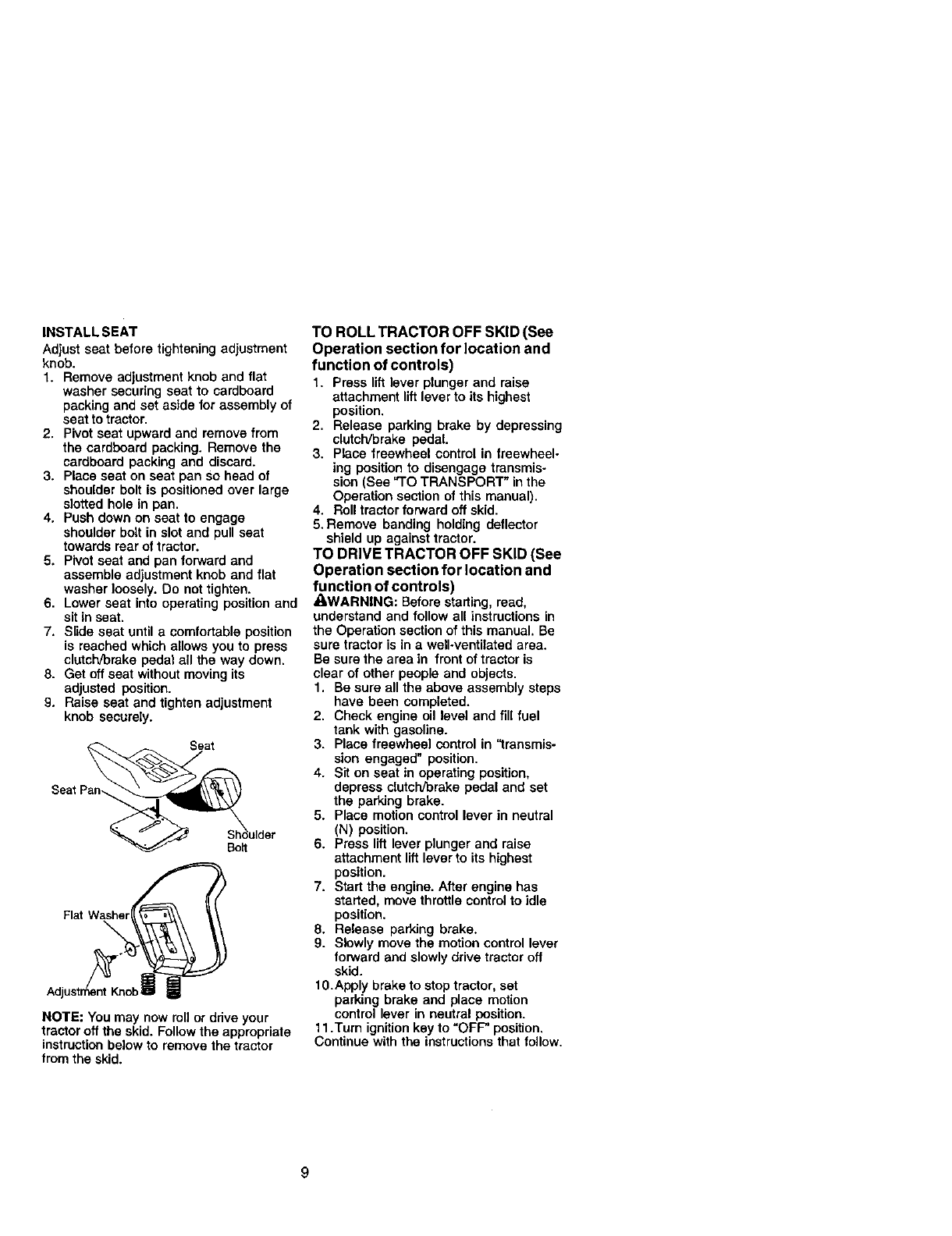

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan So head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Flat Washer

NOTE: You may now roll or drive your

tractor off the skid. Followthe appropriate

instructionbelow to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2, Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in freewheel-

ing position to disengage transmis-

sion (See "TO TRANSPORT" in the

Operation section of this manual),

4. Roll tractor forward off skid,

5, Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

,_WARNING: Before starting, read.

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position.

4. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stoptractor, set

parking brake and place motion

control lever in neutral position.

11.Turn ignition key to "OFF" position.

Continue with the instructions that follow.

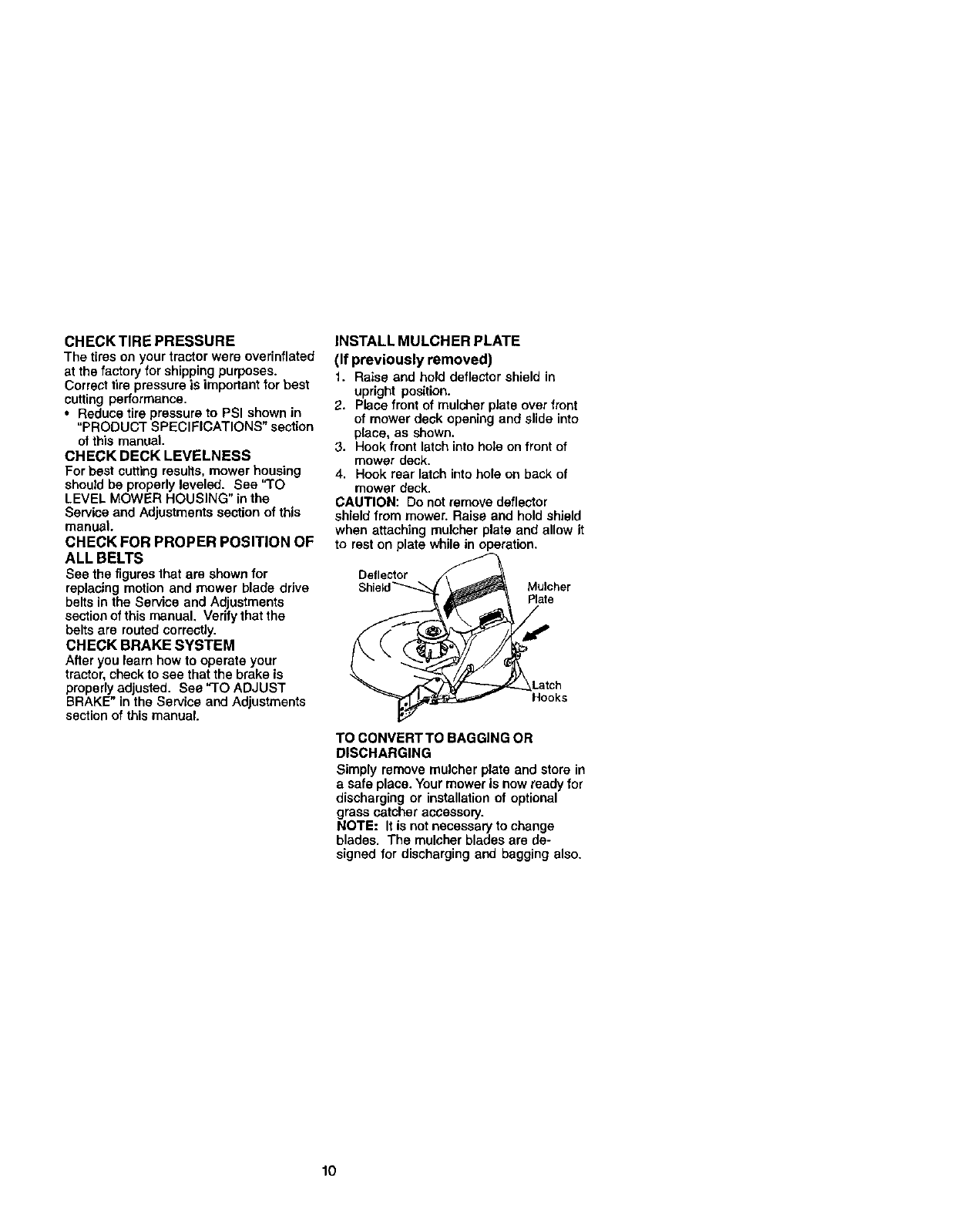

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important tor best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

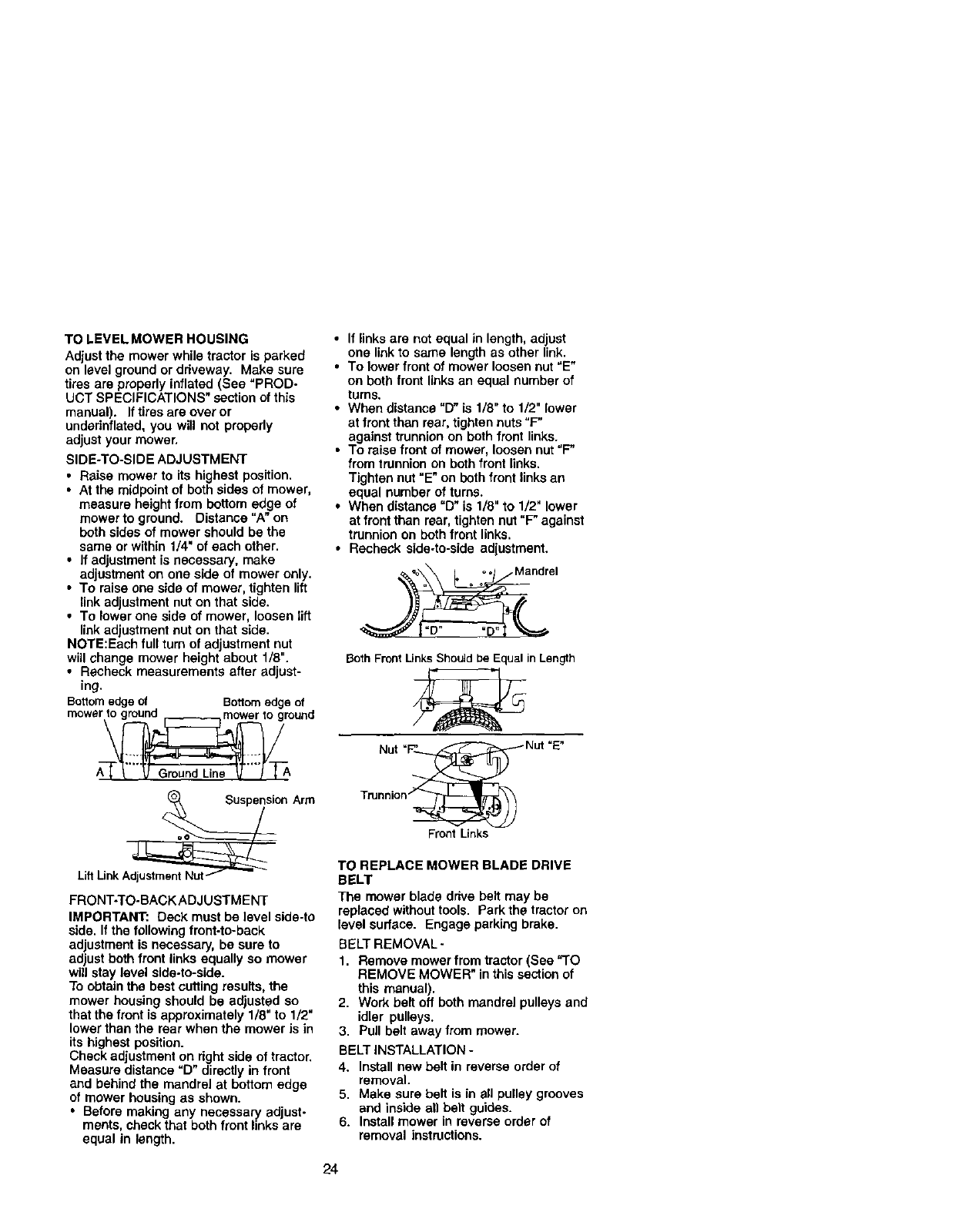

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual, Verify that the

belts ere routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor,check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual,

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2, Place front of mulsher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

CAUTION: Do net remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

Deflector Mulcher

Plate

Latch

Hooks

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

asafe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades, The mulcher blades are de-

signed for discharging and bagging also.

_CHECKLIST

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE BEST

PERFORMANCE AND SATISFACTION

FROM THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

,/ All assembly instructionshave been

completed.

#' No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,I Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

ovednflated at the factory).

J" Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be property inflated

for leveling).

•/ Check mower and ddve belts. Be sure

they are routed propedy around pulleys

and inside all belt keepers.

,/Check widng. See that all connections

are still secure and wires are propedy

clamped.

J" Before driving tractor, be sure free-

wheel control is in drive position.

WHILE LEARNING HOWTO USE YOUR

TRACTOR, PAY EXTRAATFENTION TO

THE FOLLOWING IMPORTANT ITEMS:

,I Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

4' Become familiar with all controls - their

location and function. Operate them

before you start the engine.

•/Be sure brake system is in safe

operating condition.

4' It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

s_mion of this manual).

These symbols may appear on your tractor or in literature supplied withthe product.

Learn and understand their meaning.

RA'n'ERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT !

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED

LOCKED MOWERLI_

NHL

ATTACHMENT REVERSE NEUTRAL HIGH LOW

CLUTCH ENGAGED PARKING BRAKE

ATTACHMENT

IGNITION CLUTCH DISENGAGED

®@@@@

DANGER, KEEP HANDS ANC FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

FREE WHEEL

{Automalic Models only)

KNOWYOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrationswith your tractor to familiarize yourself with the locations of

various contrals and adjustments. Save this manual for future reference.

Attachment Ignition

Clutch Lever Switch

_t Switch

Ammeter

Lever

Choke ControlXPlunger

Throttle

Clutch/

Brake Pedal

Lift Lever

Height

Adjustment

Indicator

FreeWheel

Control Brake Lever

M_ion

Contml

Lever

Our tractorsconformto the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

A'I-rACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mountedto your tractor.

A3"-rACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CHOKE CONTROL - Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL -Disengages

transmission for pushing or slowly

towing the tractor with the engine off.

IGNITION SWITCH - Used for starting

and stopping the engine.

LIFT LEVER PLUNGER - Used to

release attachment lift lever when

changing its position,

LIGHT SWITCH - Turns the headlightson

and off.

PARKING BRAKE LEVER - Locks

clutch/brake pedal into the brake

position.

THRO'FrLE CONTROL- Usedtocontrol

engine speed.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOWTO USEYOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch, When engine

is running, any attempt by the operator to

leave the seat withoutfirst setting the

parking brake will shut off the engine,

1. Depress clutch/brake pedal into full

"BRAKE" position and hold.

2, Place parking brake lever in "EN-

GAGED" position and release

pressure from clutch/brake pedal.

Pedal should remain in "BRAKE"

position, Make sure parking brake

will hold tractor secure,

Choke Attachment Clutch Lever

Control_ _ "Engaged"Position

Throttle_ l,J IgnitionKey

Cont,o,

Clutch/ _. "".._\ \V

PedaJBrake__ i I_ LeverMotionControl

_"_--_ _ _ arkingBrake

"Disengaged" =Brake" =Engaged"

Position Position Position

STOPPING

MOWER BLADES -

•To stop mower blades,move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

•To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

•Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

•Move throttle control to slow position.

NOTE: Failure to move throttle controlto

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

•Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignitionswitch

in any positionother than "OFF" will

cause the battery to be discharged,

(dead).

NOTE: Under certain conditionswhen

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stoppingtractor on grass areas.

_kCAUTION: Always stoptractor

completely, as described above, before

leaving the operator'sposition; to empty

grass catcher, etc.

TO USE THRO'rrLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, putl knob

out. Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion controllever in

neutral (N) position.

2. Release parking brake and clutch/

brake pedal.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running.

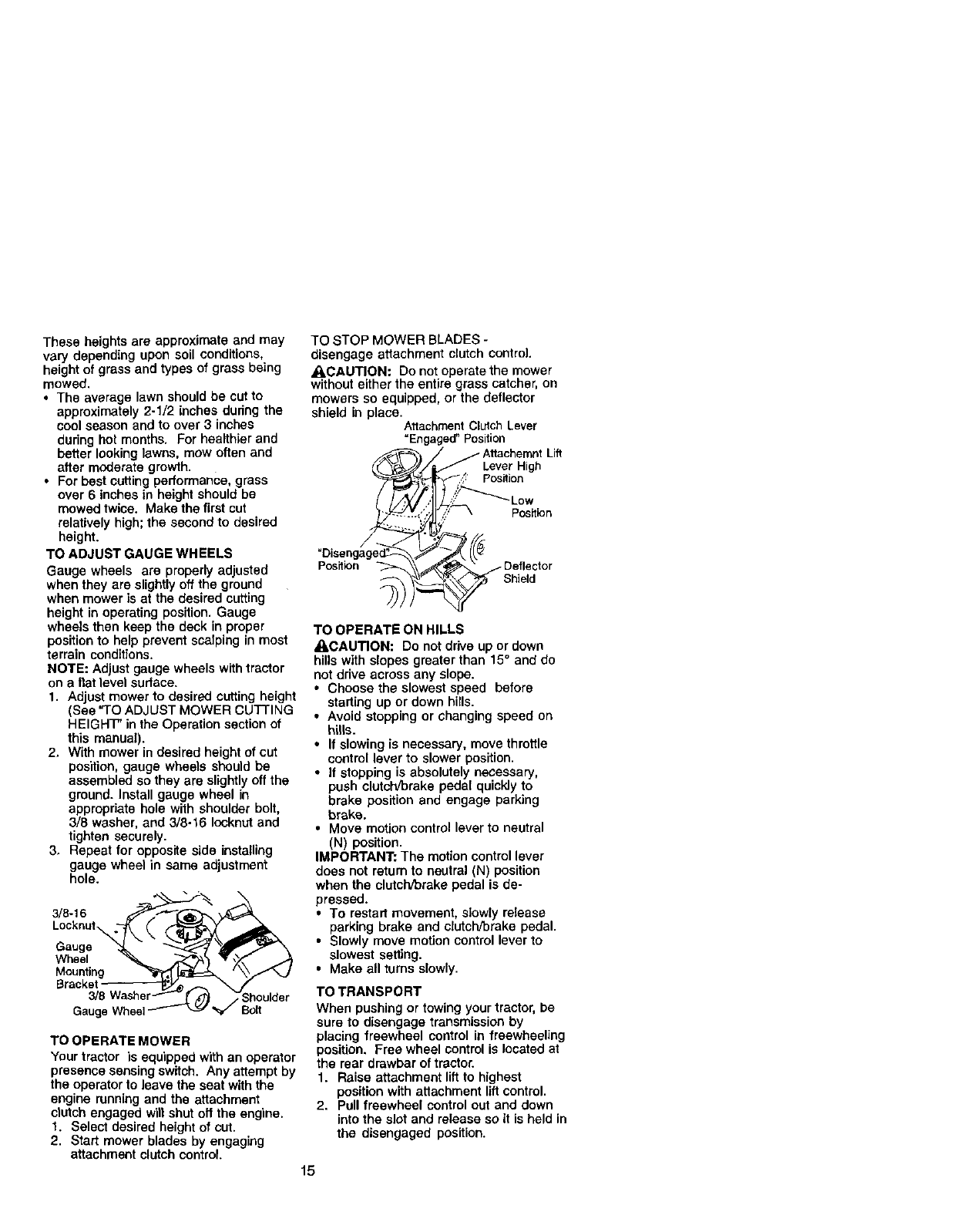

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

dudng hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a ltat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in the Operation section of

this manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropdate hole with shoulder bolt,

3/8 washer, and 3/8-16 Iccknut and

tighten securely.

3, Repeat for opposite side installing

gauge wheel in same adjustment

hole.

Lookout\. (

G uge

Wheel "%_ _--_'_% _r _,x_ ,._

Mounting _ _ '_.,_

13racket_...._ _

3/8 Washer_ "_ _Shoulder

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine runningand the attachment

clutch engaged wilt shut off the engine.

t. Select desired height of cut,

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

ACAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place. Attachment Clutch Lever

=Engaged"Position

AttachernutLift

LeverHigh

_- .,_' Position

"DiosS_nga_e__ _ Deflector

__ Shield

TO OPERATE ON HILLS

J_,CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope,

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

•If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quicldy to

brake position and engage parking

brake.

• Move motion control lever to neutral

(N) position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

•To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

•Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Free wheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To reengage transmission, reverse

above procedure.

NOTE: To protect hoodfrom damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER

ATTACHMENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor.Use common sense when towing.

Too heavy of a load, while on aslope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

ofyour tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstickis reached. Do not overfill.

•For cold weather operation you should

change oil for easier starting(See "OIL

VISCOSITY CHART" In the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT; When operating in

temperatures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

,I_WARNING: Experience indicates that

alcohol blended fuels (called gasohoi or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids duringstorage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

• 1,CAUTION: Fill to bottom of gas tank

fillerneck. Do not overfill. Wipeoffany

spitted oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When staring theenginefor the firsttimeorif

the enginehas runoutof fuel, itwilltake

extracranl_ingtimeto move fuel from the

tankto the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to =DISEN-

GAGED" position.

5. Move throttle control to fast position

6. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Beforestarting,readthewarm and

coldstarting procedaresbelow.

7. Insert key into ignitionand turn key

clockwise to "START" positionand

release key as seen as engine starts.

Do not run starter continuouslyfor

more than fifteen seconds per minute.

Ifthe engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

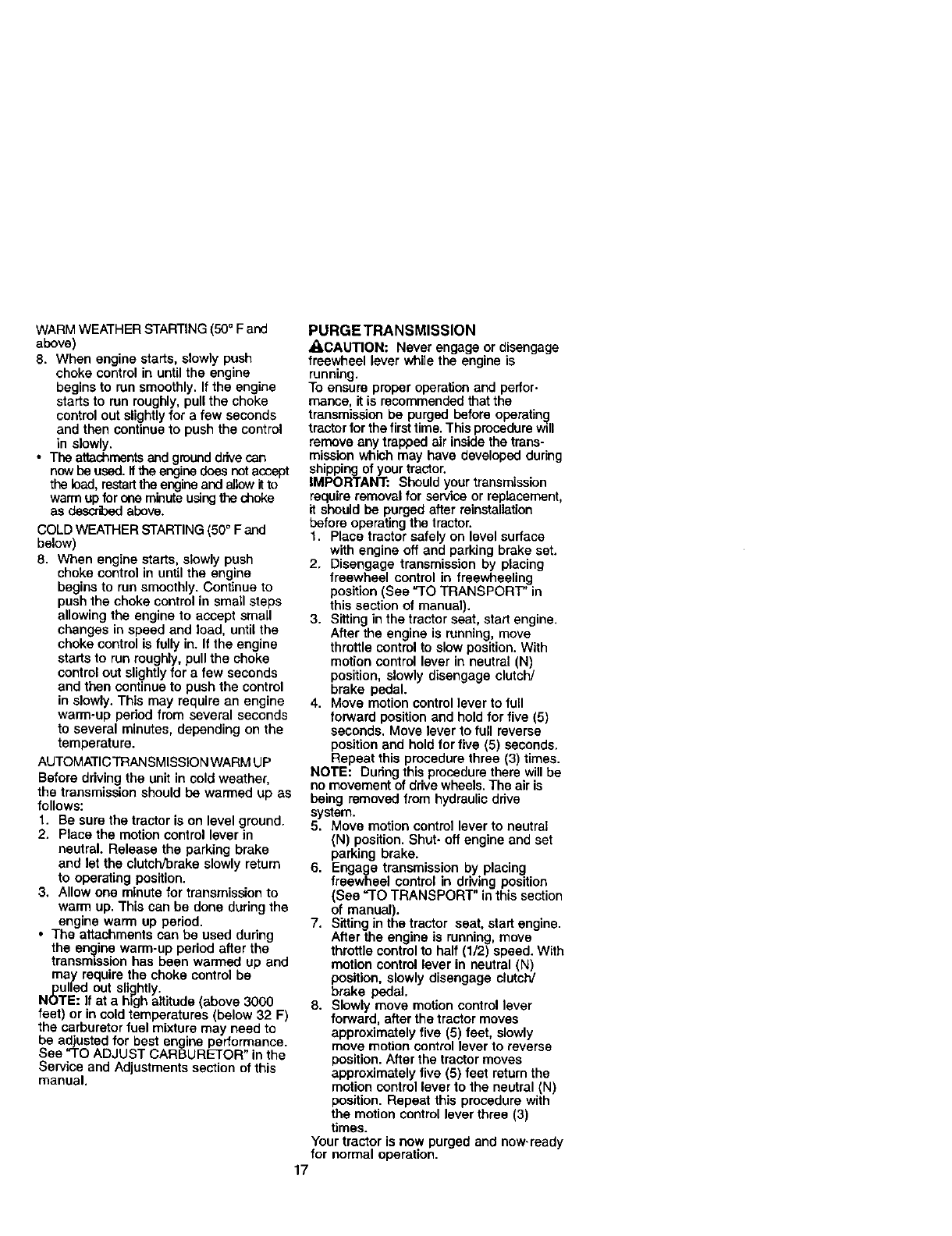

WARM WEATHER STARTING (50° F and

above)

8. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and grounddrive can

now be used. If the engine does not accept

the load, restartthe engine and allow it to

warm up for one minute using the choke

as descried above.

COLD WEATHER STARTING (50° F and

below)

8. When engine starts, slowly push

choke control in untilthe engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

AUTOMATICTPJ_ SMISSIONWARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

• The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be

pulled out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

PURGE TRANSMISSION

_,CAUTION: Never engage or disengage

freewheel lever while the engine is

running.

To ensure proper operationand perfor-

manoe, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reiostallatian

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in freewheeling

position (See "TO TRANSPORT" in

this section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position.With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this procedure there will be

nomovement of drive wheels. The air is

being removed from hydraulic drive

system.

5. Move motion control lever to neutral

(N) position. Shut- off engine and set

parking brake.

6. Engage transmission by placing

freewheel control in driving position

(See "ro TRANSPORT" in this section

of manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

8. Slowly move motion control lever

forward, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your tractor is now purged and now, ready

for normal operation.

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has been cut. Have

the cutarea to the rightof the tractor.

This will result in a more even distribu-

tion of clippingsand more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippingswill

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns untilfinished.

•If grass is extremely tail, it should be

mowed twice to reduce load and

possible fire hazard from dried dip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when itis wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housingfree of built-up

grass and trash. Clean after each use.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recuttingaction of the blades.

•Avoid cutting your lawn when it is wet.

Wet grass tends to form clumpsand

interferes with the mulching action.

The best time to mow your lawn is the

eady afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

•For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

•Certain types of grass and grass

conditions may requirethat an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

larto the firstcut path.

•Change your cutting pattern from week

to week. Mow northto south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

Max 1/3"

MAINTENANCE SCHEDULE

FILL IN DATES

AS yOU COMPLETE

REGULAR SERVICE ERVICE DATES

Ch.ck Brake Opcrat_ IS' t/

Che_k _m Pr_sum k/

Che:k Operator Pmsen{_ and

Intedoc_ Systems tf

Check for Lo_e Fastenem i/ (I/7 I_

Sharpen/Replace Mower Blades I/4

Lubricatio_ CFart IJ I/

Check Battory La*Je_ 1_6

Clean Batten/and Terminals (1_ If

Check Trat_,saxleCoo_ing ll_

Adjust Blade Befl{s) Tensi_l I1_

Adjust Motion Drive Be_(s) Tenslc_ Ifs

Check Engine C_ILevel _I/

Change Engine O_l 1_1_,3 11/

Clean Air Fiber I_=

Clean A_rScreen V'2

inspect MufflerlSpark Arrester i,/

Replace Oil F_lter(If equipped) I_1

C_an Er,g]lneCooling Fins 11/=

Replace Spark Plug If i/

Replace Air Fiber Paper Cartridge I/2

Replace Fuel Fil_er I/

GENERAL RECOMMENDATIONS

The warranty onthis tractordoes not cover

itemsthat have been subjectedto operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractoras instructedin this manual.

Some adjustmentswillneed to be made

periodicallyto properlymaintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1, Check engine oil level,

2. Check brake operation,

3, Check tire pressure,

4, Check operator presence and

interlocksystems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

(_ Spindle_i',.!

(_FrontWheel,

Bearing

Zerk _

_Eng ne ,.

i !÷°o

_i_ (_ SzPeinrkdle

: BearingZerk

(_General Purpose Grease

(_Refer to Maintenance "Engine"Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricantswill attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stoppingdistance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" inthe

Service and Adjustments section of this

manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence end interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed end

attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

•The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp, Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer secudng blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly. 20 _

4. Reassemble hex bolt, lock washer

and flat washer in exact order as

shown.

5, Tighten bolt securely (27-35 Ft, Lbs.

lorque).

IMPORTANT: Blade bolt is grade 8 heat

treated. Mandrel Assembly

Trailing EdgeUp /

"_ Bled,,Center_

Hole

Flat Washer

_d--Hex Bolt (Grade)*_"_'._

"A Grade 8 heat treated boltcanbe identified

by six lines on thebolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade -but if you do, be sure the

blade is balanced,

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with afile

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

ahodzontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

5/_

Blade

BATI'ER¥

Your tractor has a battery charging system

which is sufficientfor normaluse, How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

•Keep battery and terminals clean.

• Keep battery bolts tight.

•Keep small vent holes open.

Recharge at 6-10 amperes for 1 hour.

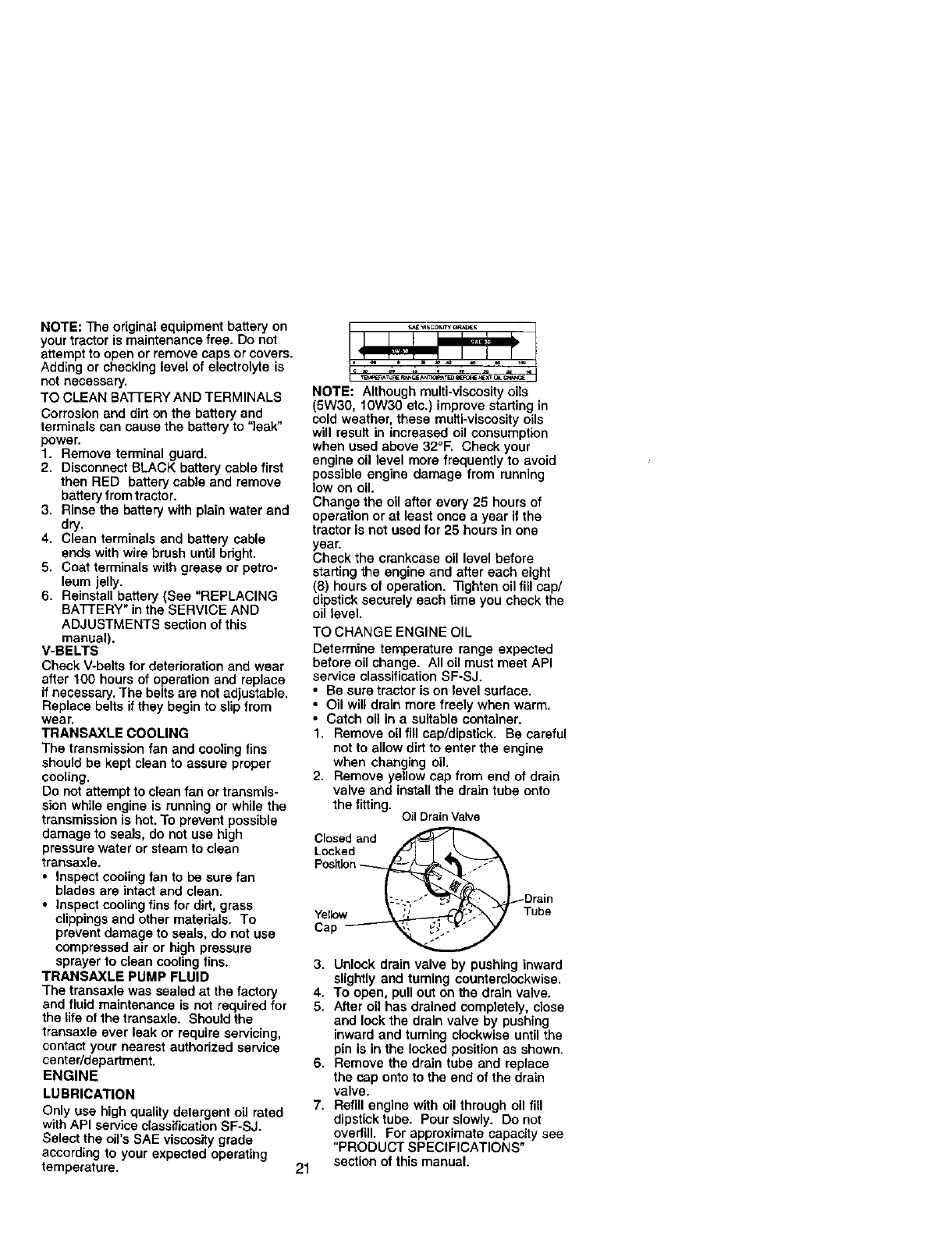

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BA'N-ERYAND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect SLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bdght.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-bolts for deteriorationand wear

after 100 hours of operation and replace

ifnecessary. The belts are not ad ustable.

Replace be ts f they beg n to s p from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmissionis hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

• Inspect cooling fan to be sure fan

blades are intact and clean.

•Inspectcooling fins for dirt,grass

clippings and other materials. To

preventdamage to seals, do not use

compressed air or high pressure

sprayerto clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authorized service

center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classificationSF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE _SCOSr_ _S

NOTE: Although multi-viscosity oils

(5W30, lOW30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°1=.Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. "nghten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

•Oil will drain more freely when warm.

•Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting. Oil DrainValve

Closed and _

Locke_

Position

Drain

Yellow Tube

Cap

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto to the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

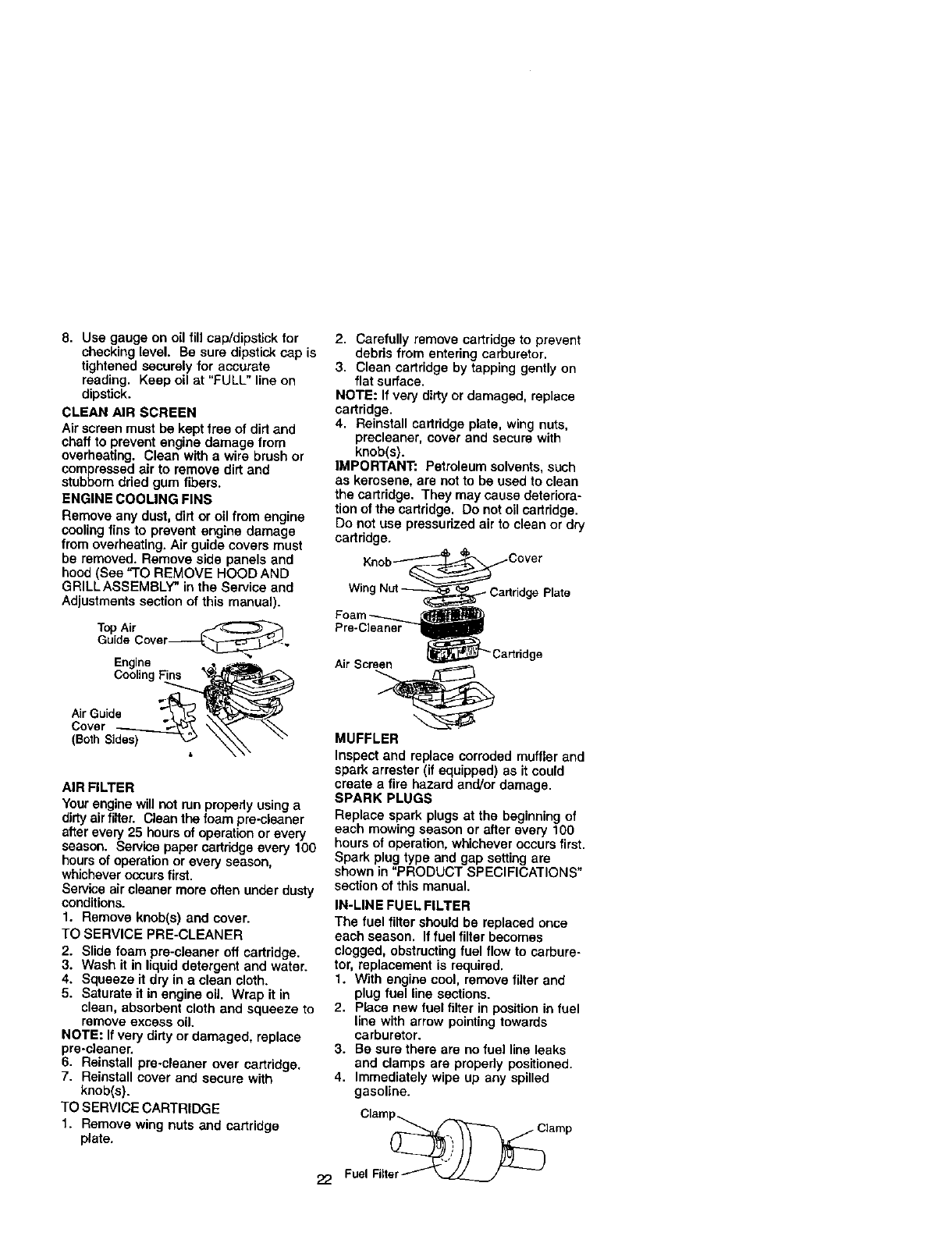

8. Use gauge on oil till cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

CLEAN AIR SCREEN

Air screen must be kept free of dirtand

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating. Air guide covers must

be removed. Remove side panels and

hood (See "TO REMOVE HOOD AND

GRILLASSEMBLY" in the Service and

Adjustments section of this manual).

TopAir

Guide Cover_ _-.

Engine ._ ,_ mL A

CoolingF_.......__

ArGu,do@N

Cover -'---'---._k \_'_

(Bo,.Sld.)

AIR FILTER

Yourengine will not run properly using a

dirtyair tilter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridgeevery 100

hours of operation or avery season,

whicheveroccurs first.

Sewice air cleaner more often under dusty

conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate it in engine oil Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove wing nuts and cartridge

plate.

2. Carefully remove cartridge to prevent

debris from entering carburetor.

3. Clean cartridge by tapping gently on

flat surface.

NOTE: If very dirty or damaged, replace

cartridge.

4. Reinstall cartridge plate, wing nuts,

precleaner, cover and secure with

knob(s).

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartddge.

Wing .- Cartridge Plate

Pre-C]eaner

"Cartddge

Air Screen

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard ancVor damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours ot operation, whichever occurstirst,

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructingfuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in positionin fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no tuel line leeks

end clamps are propedy positioned.

4. Immediately wipe up any spilled

gasoline.

Clamp__

lamp

22 Fuel Niter-'---

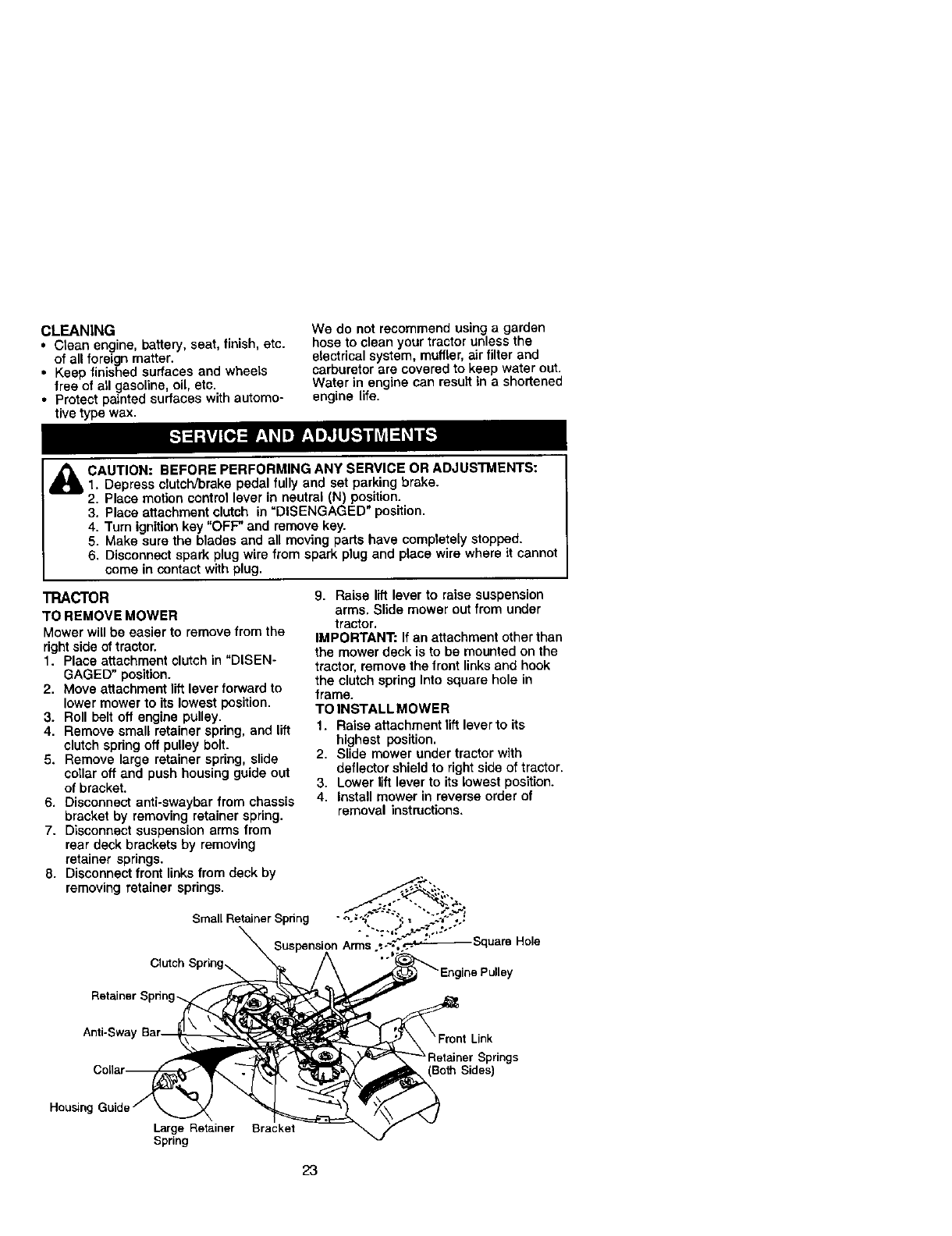

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

•Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

,_ CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2, Place motion control lever in neutral (N) position.

3. Place attachment clutch in =DISENGAGED" position,

4. Turn ignition key "OFF" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug,

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

rightside of tractor.

t. Place attachment clutch in "DISEN-

GAGED" position.

2, Move attachment liftlever forward to

lower mower to its lowest position,

3. Roll belt off engine pulley,

4, Remove small retainer spdng, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-swaybar from chassis

bracket by removing retainer spring,

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Install mower in reverse order of

removal instructions.

Small Retainer Spring "'%;°.

Clutch

Square Hole

Anti-Swa

Hou_ng

Large Retainer Bracket

Spring

(Both Sides)

TO LEVEL MOWER HOUSING

Adjustthe mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

•Raise mower to its highest position,

•At the midpointof both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A"on

both sides of mower should be the

same or within 1/4" of each other,

•If adjustment is necessary, make

adjustment on one side of mower only.

•To raise one side of mower, tighten lif_

link adjustment nut on that side.

•To lower one side of mower, loosen lift

linkadjustment nut on that side.

NOTE:Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottomedgeof Bottomedge of

mower _round

on Arm

Lift Link A(_

FRONT-TO-BACKADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the followingfront-to-beck

adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

Toobtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

•If links are not equal in length, adjust

one linkto same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

•When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts"F"

against trunnion on both front links.

•To raise front of mower, loosennut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

•o o•Mandrel

BothFront Links Shouldbe EqualinLength

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced withouttools, Park the tractor on

level surface. Engage parkingbrake,

BELT REMOVAL -

1, Remove mowerfrom tractor (See "TO

REMOVE MOWER" in thissection of

this manual).

2, Work pelt off both mandrel pulleys and

idler pulleys.

3, Pull belt away from mower.

BELT INSTALLATION -

4. Install new belt in reverse order of

removal.

5, Make sure belt is in all pulley grooves

and inside all belt guides.

6. Install mower in reverse order of

removal instructions.

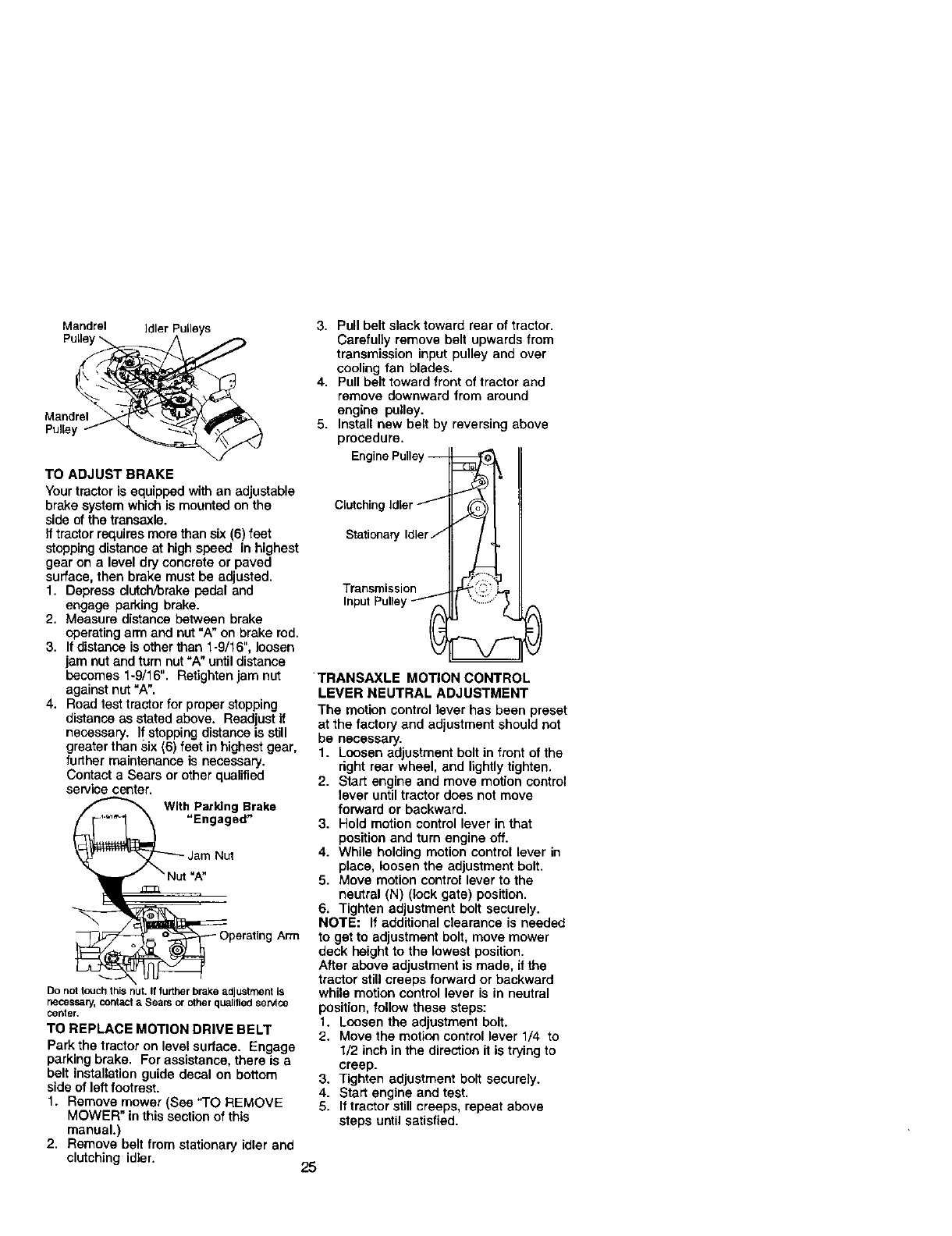

Mandrel ]dler Pulleys

TO ADJUST BRAKE

Yourtractor is equipped with an adjustable

brake system which is mounted on the

side of the transaxle.

ff tractorrequiresmore than six (6) feet

stoppingdistance at highspeed in highest

gear on a level dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutch/Drakepedal and

engage paddingbrake.

2. Measure distance between brake

operatingarm and nut "A"on brake rod.

3. If distance is other than f-9/f6", loosen

jam nut and turn nut"A" untildistance

becomes 1-9/16". Retightenjam nut

against nut "A".

4. Road test tractorfor proper stopping

distance as stated above. Readjust if

necessary. Itstoppingdistance is still

greater than six (6) foot in highest gear,

furthermaintenance is necessary.

Contact a Sears or other qualified

service center.

With Parking Brake

"Engaged"

am Nut

An11

Do not touch this nut, If further brake adjustment is

necessary, contact aSears or other qualified sePAce

csrlter.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parkingbrake. For assistance, there is a

belt installationguide decal on bottom

sideof leftfootrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

2. Remove belt from stationary idler and

clutching idler.

Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

Pull belt toward front of tractor and

remove downward from around

engine pulley.

Install new belt by reversing above

procedure.

EnginePulley--

Clutching Idler

Stationary IdlerJ

Transmission

InputPulley_= =

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion control

lever untiltractor does not move

forward or backward.

3. Hold motion control lever in that

position and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the

neutral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, it the

tractor stillcreeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Control

Lever_

NeutralLock Gate

Adjustment Bolt

TRANSMISSION REMOVAUREPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See "PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL

ALIGNMENT

Ifsteering wheel crossbars are not

horizontal (left to dght) when wheels are

positioned straight forward, remove

steedng wheel and reassemble per

instructionsinthe Assembly section of

this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contactaSears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key -Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insed square key.

4. Replace washers and snap retaining

dng securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

RetainingRing Wa_ers_

C°ver

TO START ENGINE WITH A WEAK

BA'rrERY

ACAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BATTERY" inthe MAINTENANCE

section of this manual).

If "jumper cables" are used for emergency

starling, follow this procedure:

IMPORTANT: Yourtractor is equipped

with a 12 volt negative grounded system.

The other vehical must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACHJUMPER CABLES -

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable firstfrom chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

"Positive" 1+) "Negative" (-)

REPLACING BATrERY

_. CAUTION: Do not short batterv

terminals by allowing a wrench of any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, dngs, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex holt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood. KepsNut

Terminal '-J._'"--"--_ Hex

Door ,.'J, "" ,,

, , ,.

}' ' positive

_ed)

Terminal _ Cable

Guard ""_ _ I_ Negative

<_-I _" JJ (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractorto run poorly,stop running,or

preventitfrom starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPI,J_CE FUSE

Replace with 20 amp automotive.type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1, Raise hood,

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. To replace, reverse above procedure.

°ieadlight Wire

for

ENGINE

Maintenance, repair, or replacement of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THRO'I-rLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

controllever to fast position.

2. Check that swivel is against side of

quarter circle. If it is not, loosen cable

clamp screw and pull cable back until

swivel is against quarter circle.

Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (see "AIR FILTER" in the

Maintenance section of this manual).

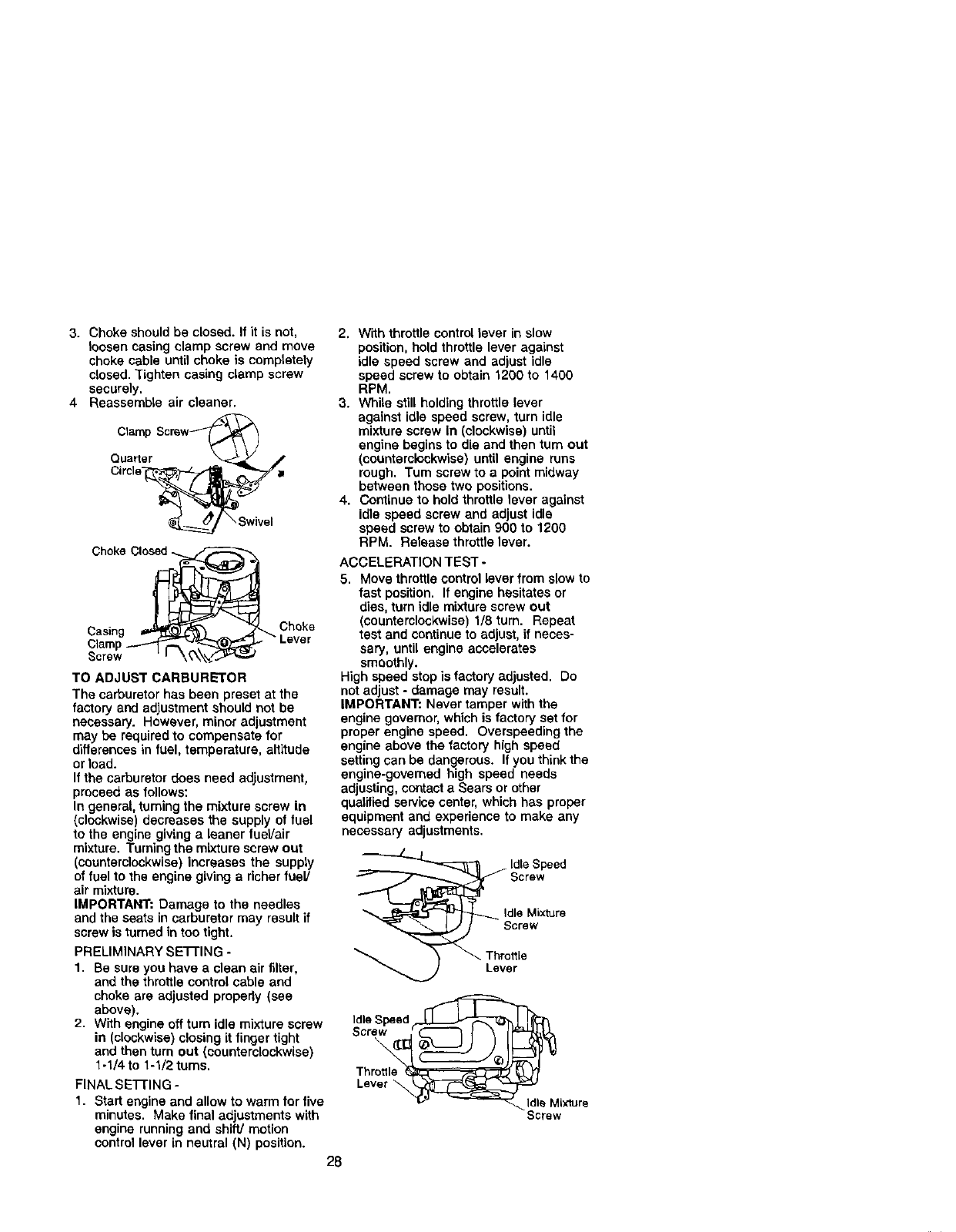

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4 Reassemble air cleaner.

Clamp Screw_

\Swivel

Choke Clo_

Casina _ _ Choke

Clamp__ _ Lever

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be requiredto compensate for

differences in fuel, temperature, altitude

or load.

If the carburetor does need adjustment,

proceed as follows:

In general, turning the mixture screw In

(clockwise) decreases the supply of fuel

to the engine giving a leaner fueVair

mixture. Turning the mixture screw out

(counterclockwise) increases the supply

of fuel to the engine giving a dcher fuel/

air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is tamed in too tight.

PRELIMINARY SE'R'ING -

1. Be sureyou have a clean air filter,

and the throttle control cable and

choke are adjusted properly (see

above).

2. With engine off turn idle mixture screw

in (clockwise) closing it finger tight

and then turn out (counterclockwise)

1-1/4 to 1-1/2 turns.

FINAL SE'I-I'IN G-

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

2. With throttle control lever in slow

position, hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 1200 to 1400

RPM.

3. While still holdingthrottle lever

against idle speed screw, turn idle

mixture screw In (clockwise) until

engine begins to die and then turn out

(counterclockwise) until engine runs

rough. Turn screw to a point midway

between those two positions.

4. Continue to hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 900 to 1200

RPM. Release throttle lever.

ACCELERATION TEST -

5. Move throttle control lever from slowto

fast position. If engine hesitates or

dies, turn idle mixture screw out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you thinkthe

engine-governed high speed needs

adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Screw

Idle Mixture

Screw

Throttle

Lever

IdleSpeed

Tehr''e_/_ __] die Mixture

Screw

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_, CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a pedod of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BA'n'ERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

•To help prevent corrosionand power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

•After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, expedance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids dudng storage. Acidic gas can

damage the fuel system of and engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it ran until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes afler adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distdbute oil.

4. Replace with new spark plug(s).

OTHER "

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

startsto rust. Rust and/or dirtin your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover it to give protectionfrom dust

and dirt,

•Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOO_NGCHART

PROBLEM

Willnotstart

Hard to start

Engine will not

turn over

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged widng.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

_ORRECTION

1. Fill fuel tank.

2. See =TOSTART ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carbure-

tor, refilltank with fresh

gasoline and replace fuel

filter.

8. Check all widng.

9. See "To Adjust Carburetor"

in Service Adjustments

section.

lg.Cootact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in

Service Adjustments section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

€. Replace fuse.

5. Clean battery terminals.

5. Check all wiring.

7. Check/replace ignition

switch.

5. Check/replace solenoid or

starter.

9. Contact a Sears or tother

qualified service center.

9. Faulty operator presence

switch(es).

Enginecllcks but 1. Weak or dead battery. 1. Recharge or replace battery.

will not start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all widng.

4. Faulty solenoid or starter. 4. Check/replace solenoid or

starter.

Loss of power 1. Cutting too much grass/too 1. Set in =Higher Cut" position/

fast. reduce speed.

2. Throttle in "CHOKE" 2. Adjust throttle cootrol.

position. 3O

TROUBLESHOOTINGCHART

CAUSE ;ORRECTIONPROBLEM

Loss of power

(continued)

Excessive

vibr_lon

Englnecongnues

to run when

operator leaves

seat with

attachment

clutch engaged

Poorcut-uneven

Mower blades will

not rotate

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

lO.Spark plug wire loose.

11.Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14.Carburetor out of

adjustment.

15.Engine valves out of

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Wom, bent orloose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/

fins.

12.Clean/replace muffler.

13.Check all wiring.

14.See "To Adjust Carburetor"

in Service Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

1. Check wiring, switches and

connections. It not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

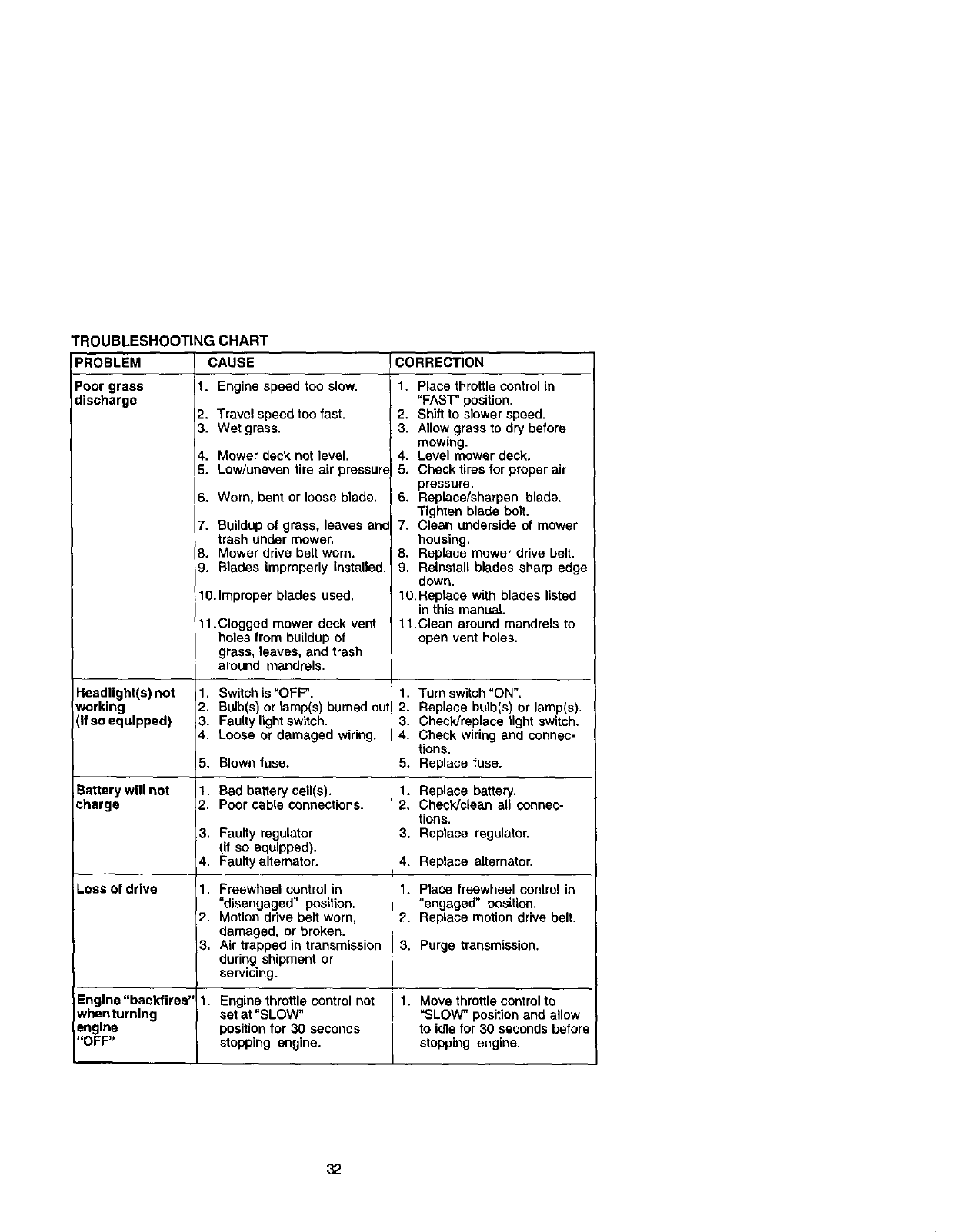

TROUBLESHOOTING CHART

CAUSEIPROBLEM

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressur_

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

i9. Blades improperly installed.

,10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out

3. Faulty lightswitch.

4. Loose or damaged wiring.

5. Blown fuse.

Battery will not

charge

Loss Ofdrive 1,

Engine "backfires" 1,

whenturning

engine

"OFF"

1. Bad battery cell(s).

2. Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Freewheel control in

"disengaged" position.

Motion drive belt worn,

damaged, or broken.

Air trapped in transmission

during shipment or

servicing.

CORRECTION

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn swRch"ON".

2. Replace bulb(s) or lamp(s).

3. Check/raplace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3, Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

Engine throttle control not 1. Move throttle controlto

set at "SLOW" "SLOW" position and allow

position for 30 seconds to idle for 30 seconds before

stopping engine, stopping engine.

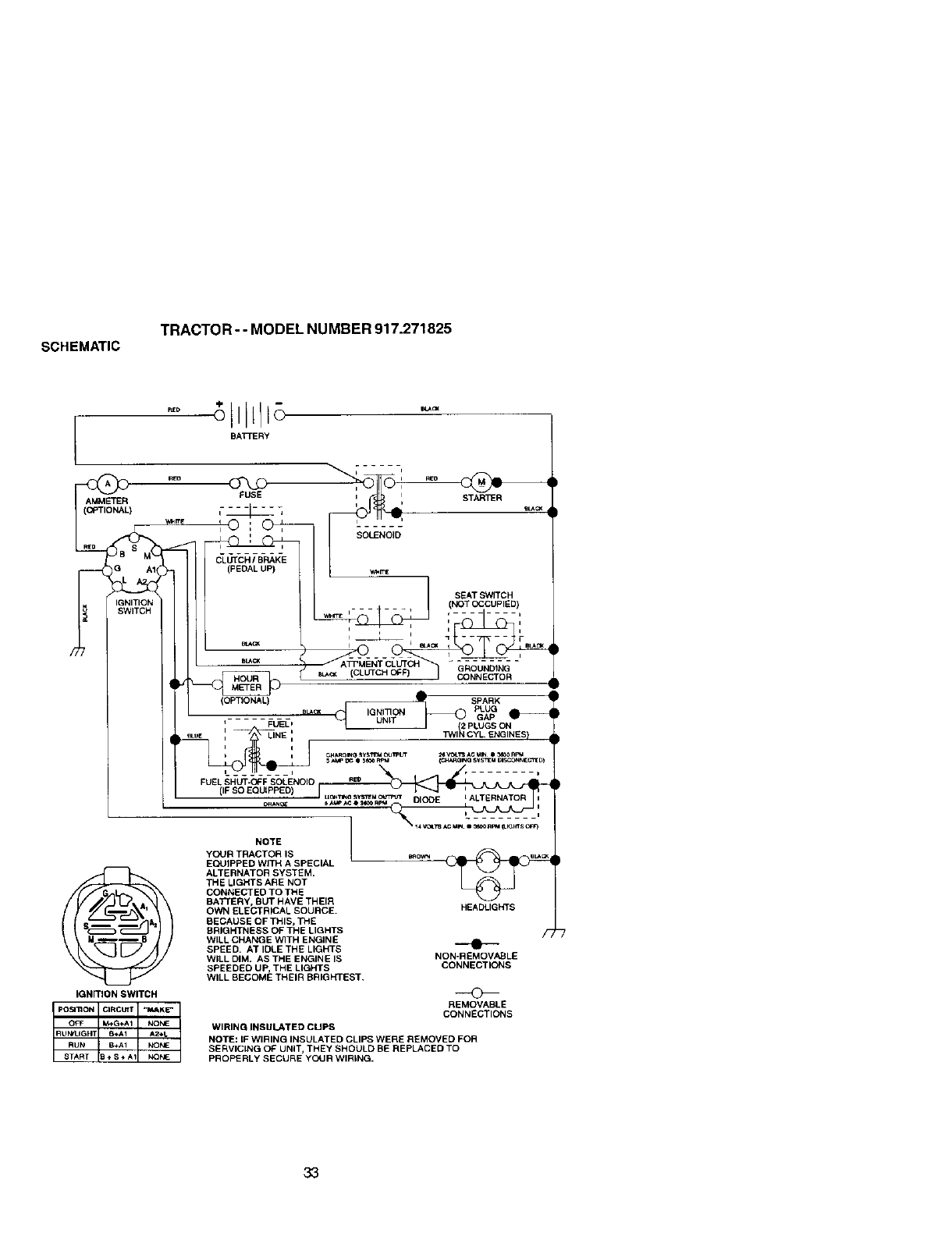

SCHEMATIC

TRACTOR-- MODEL NUMBER 917.271825

BAI_ERY

AMMETER

(OPTIONAL)

iGNITION SWITCH

STARTER

_cK

FUSE ii1_,_,

I ' SOLENOID

CLtJTCH /BRAKE

(PEDAL

LI I SEAT SWITCH

(NOT CCCUPIED)I

a_r_ lATr_IENT C/-UTCH

..= TM ] , UND1NG

CONNECTOR

(OPTIONAL) _SPARKPLUG

IGNmON GAP

I FUEL = UNIT j (2 PLUGS ON

_.E LINE TWIH CYL ENGINES I

i i

_oc• _eo=RPM _CHARO_QSys_uPlSCC_NI:_E_)

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WlTH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

WIRING INSULATED CUPS

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

ELECTRICAL TRACTOR -- MODEL NUMBER 917.271825

:34

ELECTRICAL TRACTOR -- MODEL NUMBER 917.271825

KEY PART

NO. NO. DESCRIPTION

1163465 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

87603,1 Tray, Batter/

10 145211 Bott, Mr Front 1/4-20 x 7-1/2

11 150109 Holddown Battery Front Mount

12 145769 Nut, push Nylon Bakery Front 1/4

16 153664 Switch Interlock Push-In

21 175688 Harness, Light Socket (w/4152J)

22 4152J LighlBulb

24 4799J Cable, Battery

25 146148 Cable, Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Uric

28 145491 Cable,Ground

29 121305X Switch, Seat

30 175566 Switch, Ignition

33 140403 Key, Molded

40 178437 Harness, Ignition

41 71110408 Bolt BIk Fin Hex 1/4-20 UNC x 1/2

42 131563 Cover, Terminal

43 178861 Solenoid

45 1214,33X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop (Hour Meter)

55 17490508 Screw Thdrol 5/16-18 x 1/2

NOTE: All component dimensions given In U.S. inches

1 inch = 25 4 mm

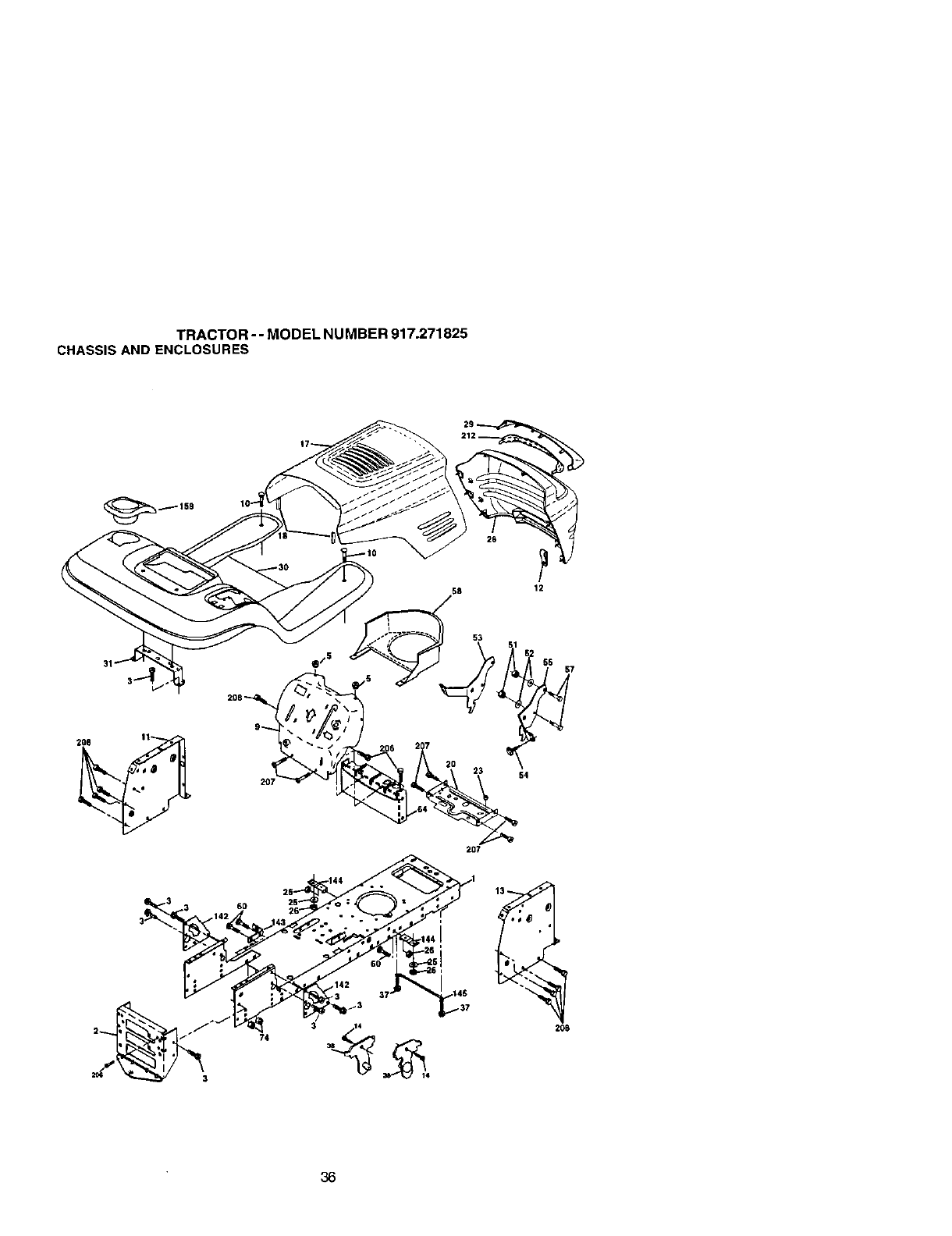

TRACTOR-- MODEL NUMBER 917.271825

CHASSISAND ENCLOSURES

58 12

207

,60

2O8

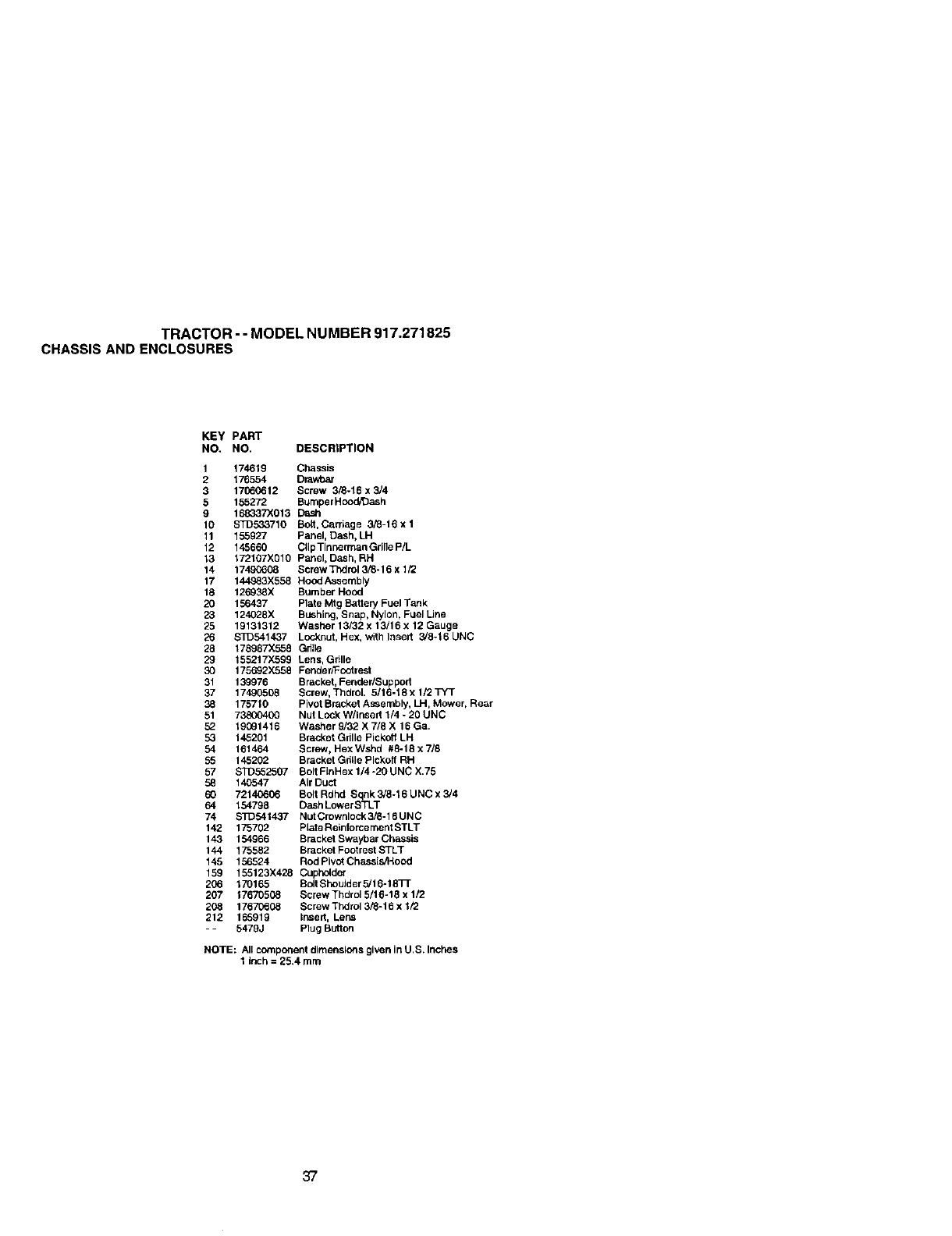

TRACTOR --MODEL NU MBER 917.271825

CHASSIS AND ENCLOSURES

KEY PART

NO, NO. DESCRIPTION

1 174619 Chassis

2176554 Drawt_ar

3 17060612 Screw 3/8-16 x 3/4

5 155272 Bumper Hood_ash

9 168337X013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 1

11 155927 Panel, Dash, LH

12 145660 C_ipTlnnerrnan Grille P/L

"_3 172107X010 Panel, Dash, RH

14 17_ Screw Thdrol 3/8-16 x 112

17 144983X558 HoodAssembly

18 126938X Bumber Hood

20 156437 Plate Mtg Battery Fuel Tank

23 124028X Bushing, Snap, Nylon, Fuel [Jne

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Lccknet, Hex, with Insert 3/8-16 UNC

28 178987X558 Grille

29 155217xsg9 Lens, Gdlle

30 175692X558 Fender/Footrest

31 139976 Bracket, Fonder/Sapport

37 17490508 Screw, Thdrol. 5/16-'_8 x 1/2 T'_r

38 175710 Pivot Bracket Assembly, LH, Mower, Rear

51 73800400 Nut Lock W/Insert "i/4 - 20 UNC

52 19(_1416 Washer 9/32 X 7/8 X 16 Ga,

53 145201 Bracket Grille Pickoff LH

54 161464 Screw, Hex Wshd #8o18 x 7/8

55 145202 Bracket Gd&lePickoff RH

57 S'K)552507 Bolt FInHex 1/4 °20 UNC X.75

58 140547 Air Duct

60 72140606 Bolt Rdhd Sqnk 3/8°16 UNC x 3/4

64 154798 Dash LowerSTLT

74 $3_541437 Nut Crownlock 3/8-1g UN C

142 175702 Plete Reinforcement STLT

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Foetreet STLT

145 156524 Rod Pivet Chassi,sJHood

15g 155123X428 Caphc(der

206 170165 Bolt SheuJder5/16o18Tr

207 17670508 Screw Thdrol 5/16°18 x 1/2

208 17670608 Screw Thdrol 3/8ol 6x 1/2

212 165919 insert, Lens

- - 5479J Plug Button

NOTE: All component dimensions given in U,S. Inches

1inch = 25.4 turn

TRACTOR--MODELNUMBER917.271825

GROUNDDRIVE

•52

212

70 116

TRACTOR-- MODEL NUMBER 917.271825

GROUNDDRIVE

KEY PART

NO. NO.

1 ......

8165866

10 STD561210

14 10040400

15 74490544

16 STD541431

19 SqI)541437

21 130564

22 169498

24 73350600

25 106888X

26 STD551037

27 STD561210

26 175765

29 71673

30 169592

3_ 74760512

34 175578

35 120183)<

36 19211616

37 1572H

38 165936

39 74760648

40 175461

41 175556

42 19131312

47 127783

48 154407

49 123_05X

50 $3D523715

51 $3_541437

52 STD541431

53 I05710X

55 105709X

56 17660616

57 140294

59 169691

61 17060612

62 8883R

63 175410

64 71170764

KEY PART

DESCRIPTION NO, NO. DESCRIPTION

Transaxle (See Breakdown) 65 8TD551143 Washer

HydroGr 314-0510 66 154778 Keeper Belt Engine Hydro

Rod Shift Fender Adjust 70 134683 Guide Belt RH Engine

Pin Cotter 1/8 x 1 CAD 71 169183 StrapTorqueLh

Washer Lock HWHelical 73 169182 Sb'ap Torque Rh

Bolt Hex FLGHD 5/16-19 GR.5 74 137057 Spacer, Split

Nut Lock Hex W/Ins. 5/16-18 Unc 75 121749X Washer 25f32 x 1-1/4 x 16 Ga.

Nut Lock Hex WhNsh 3/8-16 Unc 76 STD581075 E-RIng

Knob, Deluxe 1/2-13 77 123583X Key. Square

Rod, Brake Hydro 78 121748X Washer 25/32 x 1-5/8 x 16 Ga,

Nut, Hex Jam 5/8-16 Unc 81 165596 Shaft Asm Cross

Spdng, Brake Rod 82 165711 Spdng Torstan

Washer 83 19171216 Washer 17/32 x 3/4x 16Ga,

Pin Cotter 1/3 x 5/4 CAD. 84 169594 Link Transaxle

Rod, Parking Brake 89 164890X428 Console, Shift

Cap, Parking Brake 90 124346X Nut Se_f-Thd Wsh-hd 1/4 Zinc

Bracket, Transaxle 95 170201 Control Bypass

BOlt Hex Hd 5/16-18 Unc x 5/4 96 4497H Retainer Sp dng 1"Zinc/Cad

Shaft, Foot Pedal 116 721406(_ Bolt Cart, 3/8-16 x 1

Bearing,Nylon 120 73960660 Nut lock Fig 3/8-16

Washer 150 175456 Sgecer Retainer

Pin, Roll 151 19133210 Washer 13/32 x2x 10 Ga,

Pulley, Composite, Flat t 56 t 660G2 Washer Srrted 5/161D x 1,125

Boff.Fi, Hex 3/8-16 x 3 158 165589 Bracket Shitt Mount

Spacer, Split 159 t 65494 Hub Tappered Flange Shift Lt

Keeper, Belt Idler 161 72140406 Bolt RdlKI Sqnk 1/4-20 x 3/4 Gr. 5

Washer 13/32 x 13/16 x 12 Ga. 162 736804_0 NutCrownlockl/4-20Unc

Pulley, Idler, V-Groove 163 74780416 Bolt Hex Fin 1/4-20 Unc x 1Gr. 5

Bellerank Clutch Grnd Dry STL 164 19091010 Washer 5/3 x .281 x 10 Ga

Retainer, Belt 165 165623 Bracket Pivot Lever

Bolt 166 166880 Screw 5/16-18 x 5/8

Nut Crownlock 3/8-16 UNC 168 165492 Bolt Shoulder 5/16-19 x ,561

Nut, Crownlock 5/16-18Unc 169 165580 PlataFastaningLt

Link, Clutch 197 169613 NylinerSnap*ln

Spring, Return, Clutch 198 169593 W_sher Nyliner

Screw 3/8-16 x 1.0 199 169612 Bolt Sheutder 5/I 6-18UNC

V-Beit, Ground Ddve 200 72140508 Bait RDHD SQNK 5/16-18UNC x1

Keeper, Center Span 202 72110614 Bolt Carr SH 3/8-16 x 1-3/4

Screw 3/8-16 x 3/4 212 145212 Nut Hex Fig Lock

Cover, Pedal

Pulley, Engine NOTE: All component dimensions given in U.S. inches

Bolt Hex 7/16-20 x 4 Gr, 5 1 inch = 25.4 mrn

TRACTOR-- MODELNUMBER917.271825

STEERINGASSEMBLY

,J'

TRACTOR -- MODEL NUMBER 917.271825

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768 Steering Wheel

2 175131 Front Axle AssemlDly

3169840 Spindle Assembly, L.H.

4 169839 Spindle Assembly, R.H.

5 6266H Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Gauge

7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge

8 1200CO29 Ring, Klip

9 3386R Bearing, Steehng Column

10 175121 Link, Drag

11 STD551137 Washer, Lock

13 136518 Spacer, Bearing, Front Axle

15 145212 Nut, Hexflange Lock

17 177875 Shaft Assembly, Steehng

26 126847X Bushing, Link, Drag

28 19131416 Washer 13/32 x 7/8 x 16 Gauge

29 17060612 Screw 5/8-t6 x 3/4

30 $3_561210 Pin

32 130465 Rod,Tie

36 155099 Bushing, Steering

37 152927 Screw 331-#10-32 x 5 x 3/8 Flange

38 139769 Insed, Steering Wheel

39 19133812 Washer 13/32 x 2-3/8 x 12 Gauge

40 STD541537 Lock Nut Center 3/8-24 UNF

41 100711L Adaptor, Stee ringWheel

42 145054X423 Boot, Steering Dash P/L Mtl BIk

43 121749X Washer 25/32 x 1-1/4 x 16 Gauge

44 153720 Extension Steedng Non-Adjust

46 121232X Cap, Spindle

47 6855M Fitting, Grease

51 73800500 NLdLock Hx W/Ins 5/16-18 UNC

54 74780520 Bolt Fin Hex 5/16-18 UNC x 1-1/4

63 74780616 Bdit Fin Hex 3/8-16 unc, x 1 Gr. 5

65 160367 Spacer Brace Axle

67 72110618 Bolt Rhnd Sqnk 3/8-16 x 2-1/4

68 169827 Brace Axle

71 175146 Steering Asm

82 169835 Bracket Susp Chassis Front

85 133835 Fastener Cndstmas Tree

88 175118 Bolt Shoulder 7/16-20

91 175553 Clip Steering

NOTE: All component dimensions given In U.S. inches

1 inch = 25.4 mm

ENGINE TRACTOR --MODEL NUMBER 917.271825

_28

OPTIONAL EQUIPMENT

Spark Arrester

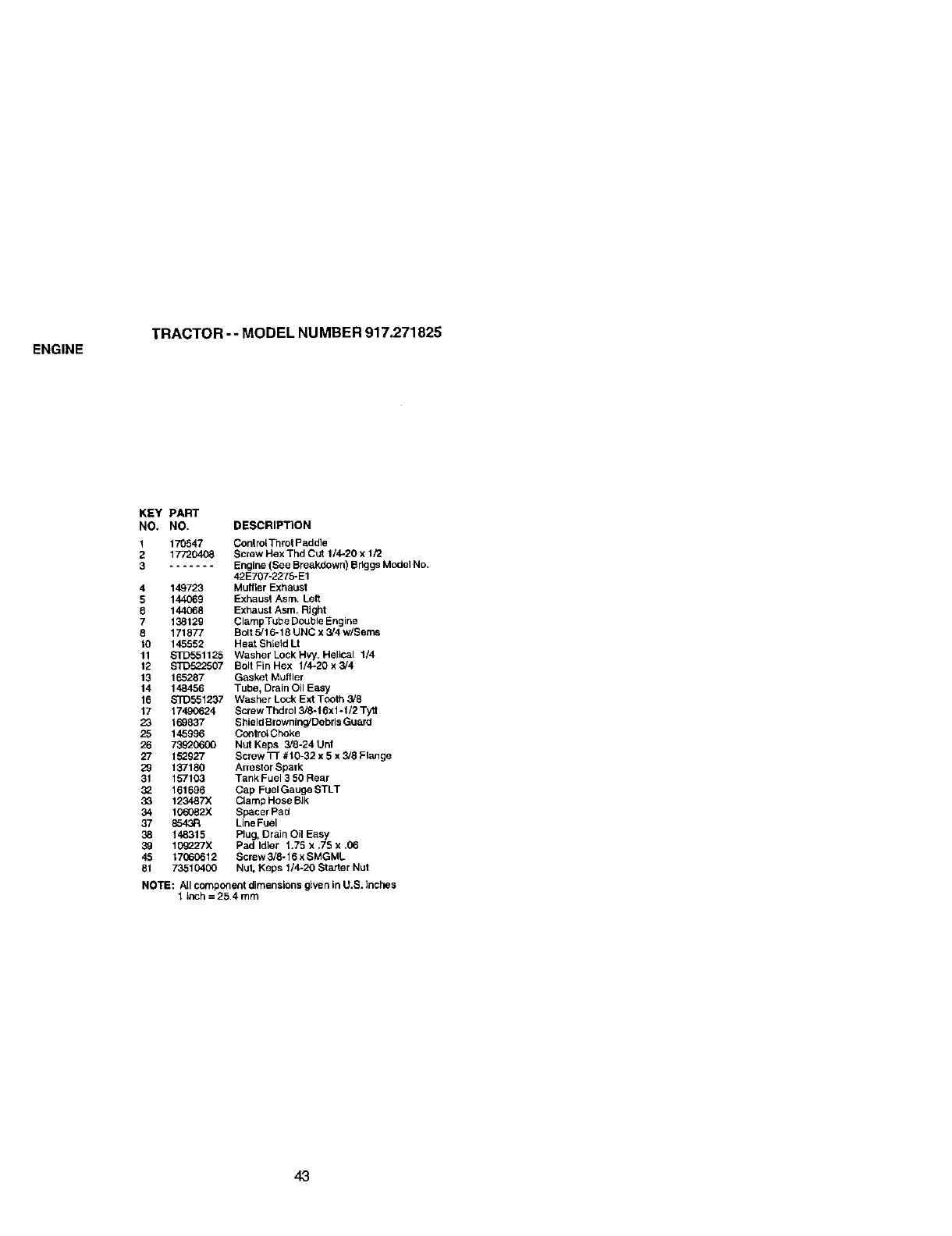

ENGINE TRACTOR -- MODEL NUMBER 917.271825

KEY PART

NO. NO. DESCRIPTION

1 170547 Cont roIThrot Paddle

217720408 Screw Hex Thd Cut 1/4-20 x 1/2

3....... Engine (See Breakdown) Brlggs Model No.

42E707o2275-E1

149723 Muffler Exhaust

144069 Exhaust Asm. Left

144068 Exhaust Asm. Right

138129 Clamp Tube Double Engine

171877 Bolt 5/t 6-18 UNC x 3/4 w/Serns

145552 Heat Shield Lt

$1_551125 Washer Lock Hvy, Helical 1/4

S'I_522507 Bolt Fin Hex 1/4-20 x 3/4

165287 Gasket Muffler

148456 Tube, Drain Oil Easy

S'_)551237 Washer Lock Ext Tooth 3/8

17490624 Screw Thdrol 3/8-16x1-1/2 Tytt

169837 Shield Browning/Debris Guard

145996 Contro_Choke

73920600 Nut Keps 3/5-24 Unf

152927 Screw Tr #10-32 x 5 x 3/8 Flange

137180 Arrestor Spark

157103 Tank Fuel 3 50 Rear

161696 Cap Fuel Gauge STLT

123487X Clamp Hose Elk

10_O82X Spacer Pad

8543R LineFuel

148315 Plug, Drain Oil Easy

100_IT/X Pad Idler 1.75 x .75 x.06

17060612 Screw3!8-16 x SMGML

73510400 Nut, Keps 1/4-20 Starter Nut

NOTE: All component dimensions given in U.S. Inches

1inch = 25.4 mm

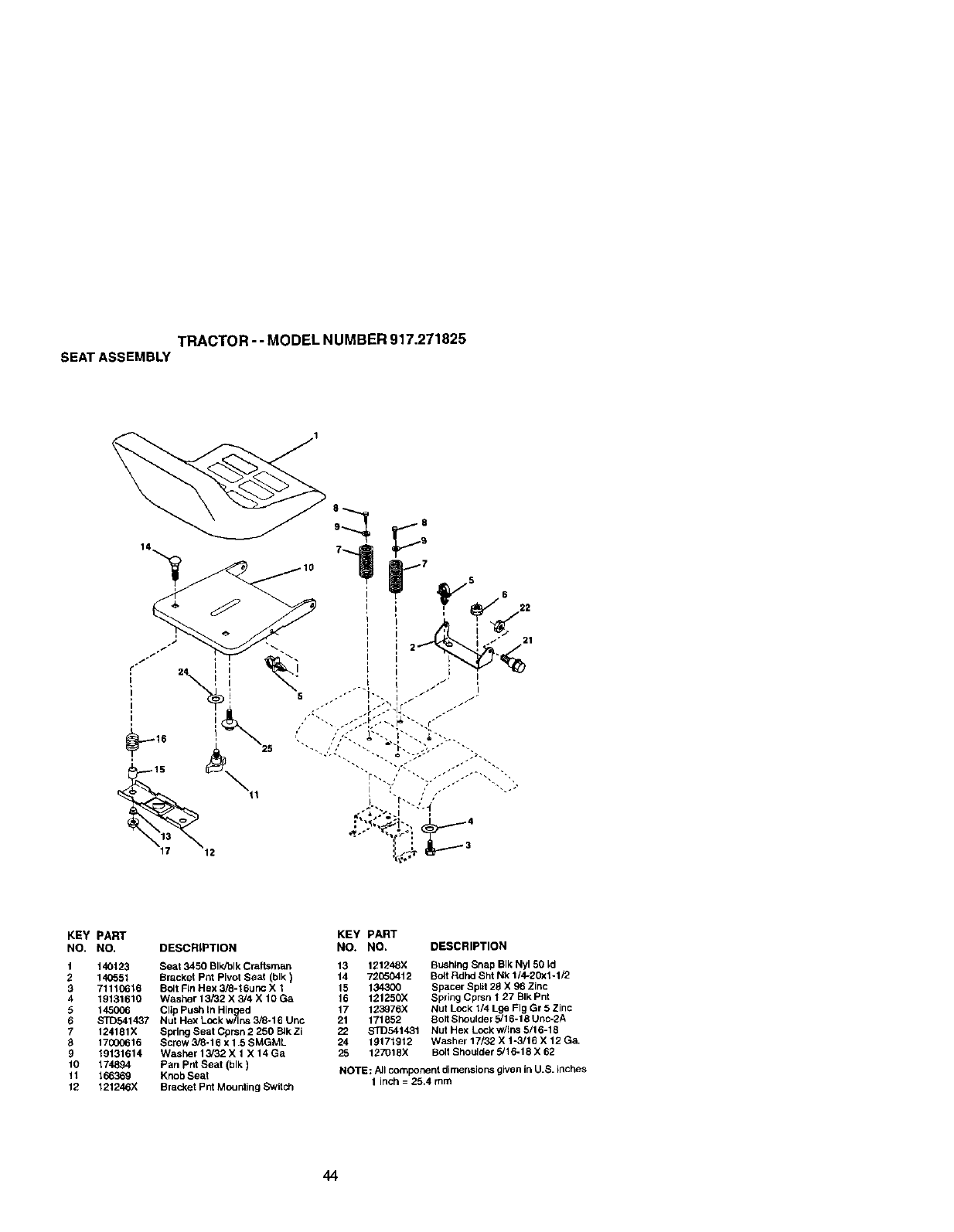

TRACTOR-- MODEL NUMBER 917.271825

SEAT ASSEMBLY

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 140123 Seat 3450 BIPJblkCrettsman

2 140551 Bracket Pnt Pivot Seat (blk)

3 71110616 Bclt Fin Hex 3/8-16uric X 1

419131610 Washer 13/32 X 3/4 X 10 Ga

9 145006 Cllp Push in Hin d

6 STD5414.37 Nut Hex Lot:k wI_r'_ _o16 Uric

7124181X Spring Seat Cprsn 2 250 Blk Zi

8 17000616 Screw 3/8-15 x 1.5 SMGML

919131614 Washer 13/32 X 1X 14 Ga

10 174894 Pan Pnt Seat (blk)

11 166369 KnobSeat

12 121246X Bracket Pnt Mounting Switch

13 121248X Bushing Snap BIk Ny150 Id

14 72050412 Bolt Rdhd Sht Nk 1/4-20x1-1/2

15 134300 Spacer Split 28 X 96 Zinc

16 121250X SpringCprsn 1 27 BIk Pnt

17 123976X Nut Lock I/4 Lge Fig Gr 5 Zinc

21 171652 Bolt Shoulder 5/16-18 Unc-2A

22 STD541431 Nut Hex Lock w/Ins 5/16-18

24 19171912 Washer 17/32 X 1-3/16 X 12 Ga,

25 127018X Bolt Shoulder 5/16-18 X 62

NOTE: NI component dimensions given inU.S. inches

1 inch = 25.4 mm

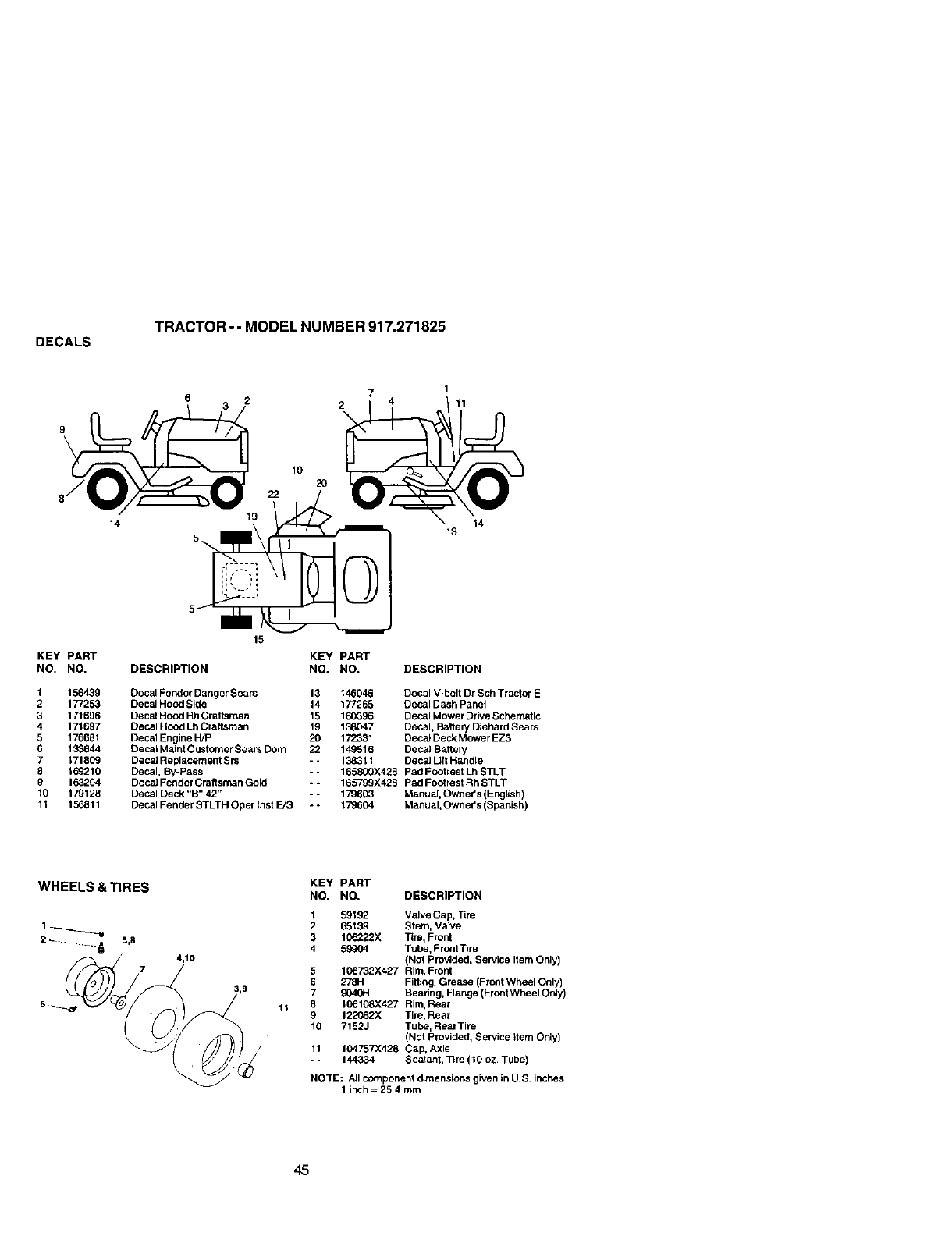

DECALS

TRACTOR-- MODEL NUMBER 917.271825

2 4

KEY PART

NO. NO.

1 156439

2 177253

3171696

4 171697

5176681

6133644

7171809

8169210

9163204

10 179128

11 156811

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Decal Fender Danger Sears 13 146046 Decal V-belt Dr Sch Tractor E

Decal Hood Side 14 177265 Decal Dash Panel

Decal Hood Rh Craltsman 15 160396 Decal Mower Drive Schematic

Decal Hood Lh Craftsman 19 138047 Decal, Battely Diehard Sears

Decal Engine WP 20 172331 Decal DeckMower EZ3

DecalMalntCu.stomerSearsDom 22 149516 Decal Battery

Decal Replacement Srs - - 138311 Decal Lift Handle

Decal, By-Pass -- t 65803X428 Pad Footrest Lh STLT

Decal Fonder Craftsman Gold -- 165799X428 Pad Footrest Rh STLT

Decal Deck "B" 42" --179603 Manual, Owne¢s (English)

Decal Fender STLTH Oper Inst E/S - - 179604 Manual, Owner's (Spanish)

WHEELS & TIRES

2.... ...._ 5,8

4,10

KEY PART

NO. NO. DESCRIPTION

59192 V_dveCap, Tire

65139 Stem, Valve

106222X Tire, Front

59904 Tube, Front]ire

(Not Provided, Service Item Only)

106T-J2X427 Rim, Front

278H Fiiting, Grease (Frc_t Wheel Only)

9040H Bearing, Flange (Front Wheel Only)

tO6108X427 Rim, Rear

122082X Tire,Rear

7152J Tube, Rear]ire

(Not Provided, Service item Only)

104757X428 Cap, Axle

144334 Seatant, T_re (10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR -- MODEL NU MBER 917.271825

LIFTASSEMBLY

19 I

TRACTOR - - MODEL NUMBER 917,271825

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever Inner 'Wire Asm.

2 159471 Shaft Asm. Lift

3 105767X Pin Groove

4 12000002 E Ring

519211621 Washer 21/32 x 1 x 21 Ga.

6 120183X Bearing Nylong

7 125631X Grip Handle Fluted

8 129365X Button Plunger Read

11 139865 Link Asm Lift LH.

12 13_866 Link Asrn Lift R,H.

13 STD624008 Retainer Spring

15 173288 Link Front

16 73,350800 Nut Jam Hex 1/2-13 Unc

17 175689 Trunnion

18 73800800 Nut Lock w/Wsh 1/2-13 Unc

19 139868 Arm Suspeneion Mower

20 163552 Retainer Spring

31 169865 Bearing, Pvt. Uft. Tapered

32 73540600 Nut Crownlock 3/8-24

No'rE: AJlcomponent dimensions given in U.B. inches

1 Inch = 25.4 mm

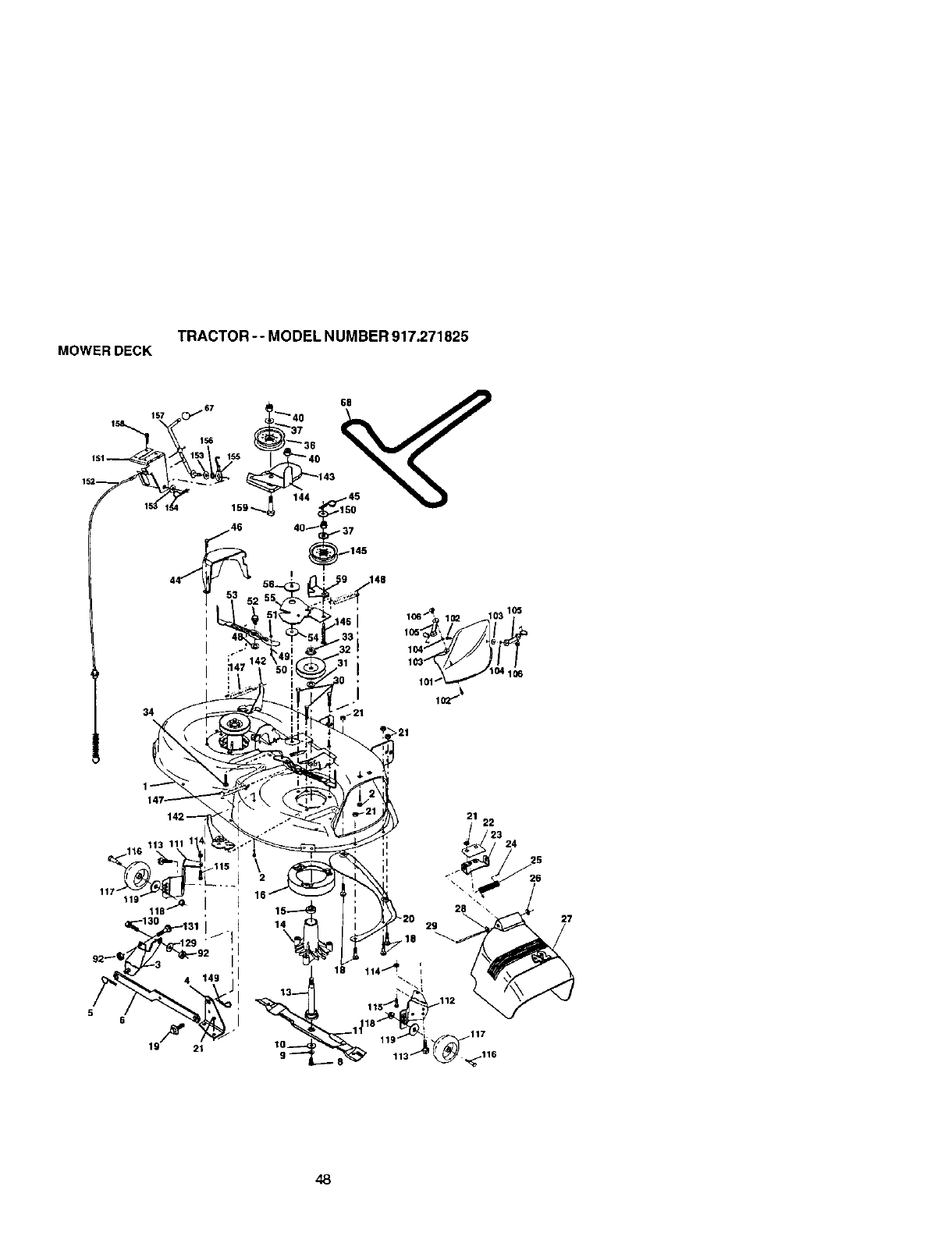

TRACTOR-- MODEL NUMBER 917.271825

MOWERDECK

>21

119 i

118

19 21

TRACTOR -- MODEL NUMBER 917.271825

MOWERDECK

KEY PART KEY PART

NO, NO, DESCRtPTION NO. NO. DESCRIPTION

116589_ Mower Housing 59 141043 Guard, TLN Idler (94)

2 $3D533107 Bolt 67 149848 Knob Custom Oval

3 138017 Bracket Assembly,Sway Bar, 68 144959 V-Beft

Front 92 ST0,541437 Locknut, Hex W/Wsh 3/8-16 UNC

4 165460 Bracket Sway Bar 38/42" 101 136420 Cover Mulching 42" Black

5$3_624008 RetainerSprlng 102 71081010 ScrewTrussHdPhi110-24x5/8

6 130832 Arm, Suspension, Rear 103 19061216 Washer #10

8850857 Bolt, Flex 3/8-24 x 1.25 Gr. 8 104 STD551110 Washer Lock

9STD551137 Washer, Lock 105 160793 Latch Asm Bagger

10 140296 Washer, Hardened 106 2029J Nut Weld

11 134149 Blade, Mulching 111 179292 Bracket Gauge, Wheel LH

13 137645 Shaft Assembly, Mandrel, Vented 112 179293 Bracket, Gauge, Wheel RH

(IncI. KeyNumher6) 113 17060508 Screw 5/16-18xl/2

14 129774 Housing, Mandrel,Vented 114 73510500 Nut, HexKeps 5/16-18UNC

15 110485)( Bearing, Ball, Mandrel 115 72110505 Bolt, Carriage 5/16-18 x 5/8 Short

16 174493 Stripper, Vented Mower Deck 116 4898H Bolt, Shoulder

18 72140505 Bolt` Carriage 5/16-18 x 5/9 117 165746 Wheel, Gauge

19 132827 Bolt, Shoulder 118 739306(;0 Nut, Crownlock 3/8-1

20 159770 Baffle, Vodex 119 19121414 Washer 13/32xT/8x14Ga.

21 STD541431 Nef,CrowolockS/16-f8UNC 129 19131312 Washer 13/32 x 13116 x 12 Ga.

22 134753 Stiffener Bracket 130 S_633710 Bolt, Fin Hex 3/8-16 UNC x I Gr 5

23 131267 Bracket, Defleefor 131 STD633710 Boff Rdhd Sqnk 3/8-16 UNC x 1

24 105304X Cap, Sleeve 142 165890 Arm Spring Brake Mower

25 123713X Spring, Torston, Deflector 143 157109 Bracket Arm Idler 42"

26 110452X Nut, Push f44 158634 Keeper Belt 42" Clutch Cable

27 130968X428 Shield, Deflector 145 165888 Pulley Idler Flat

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 146 171977 Bolt Carraige Idler

29 131491 Rod, Hinge 147 131335 Spring Extension

30 157722 Screw Thdrol Rolling Wsh Hd 148 163022 Spring Return Idler

31 129963 Washer, Spacer 149 163898 Retainer Spdng Yellow Zinc

3_ 153535 Pulley, Mandrel 150 19091216 Washer 9/32x3/4xf6Ga.

33 178342 Nut, Toplock, Flanged 151 163670 Bracket Clutch

34 STD533717 Bolt 152 169676 Cable Clutch 42"

36 131494 Pulley, Idler, Flat 153 169674 Washerllat 3/8"TypeB

33" 19131316 Washer 13/32 x 13/16 x 16 G& 154 169675 SpringRetainer

40 STD541437 Nef, Crowolock3/8-16UNC 155 163671 SprlngRetentionLever

44 140088 Guard, Mandrel, LH. 156 163672 Spacer

45 STD624003 Retainer 157 163669 RodClutch

46 137729 Screw, Thd. Roll 1/4-20 x 5/8 158 17720408 Screw Hex Thd CUt 1/4-20 x 1/2

48 13.3944 Washer, Hardened 159 STD53,3717 Bolt Rdol:lSqn 3/8-16 Unc x 1-3/4

49 174284 Roller Assembly, Cam Follower -- 130794 Mandrel Assembly (Includes Key

63 131340 Bolt, Sheulder #10-24 Grade 5 Numbers 8-10, 13-15, 31 and 33)

51 STD541410 Locknut - - 163583 ReplacementMower, Complete

63 163888 Bolt,Sheulder 5/16-18 UNC

53 131845 Arm Assembly, Pad, Brake

54 133943 Washer, Hardened NOTE: All cornponent dimensions glven In U.S.inches

55 155046 Arm, Idler 1 inch = 25.4 mm

56 165723 Spacer, Retainer

119

13_

109

107

go0

,.<

:;0

-I

r".-I

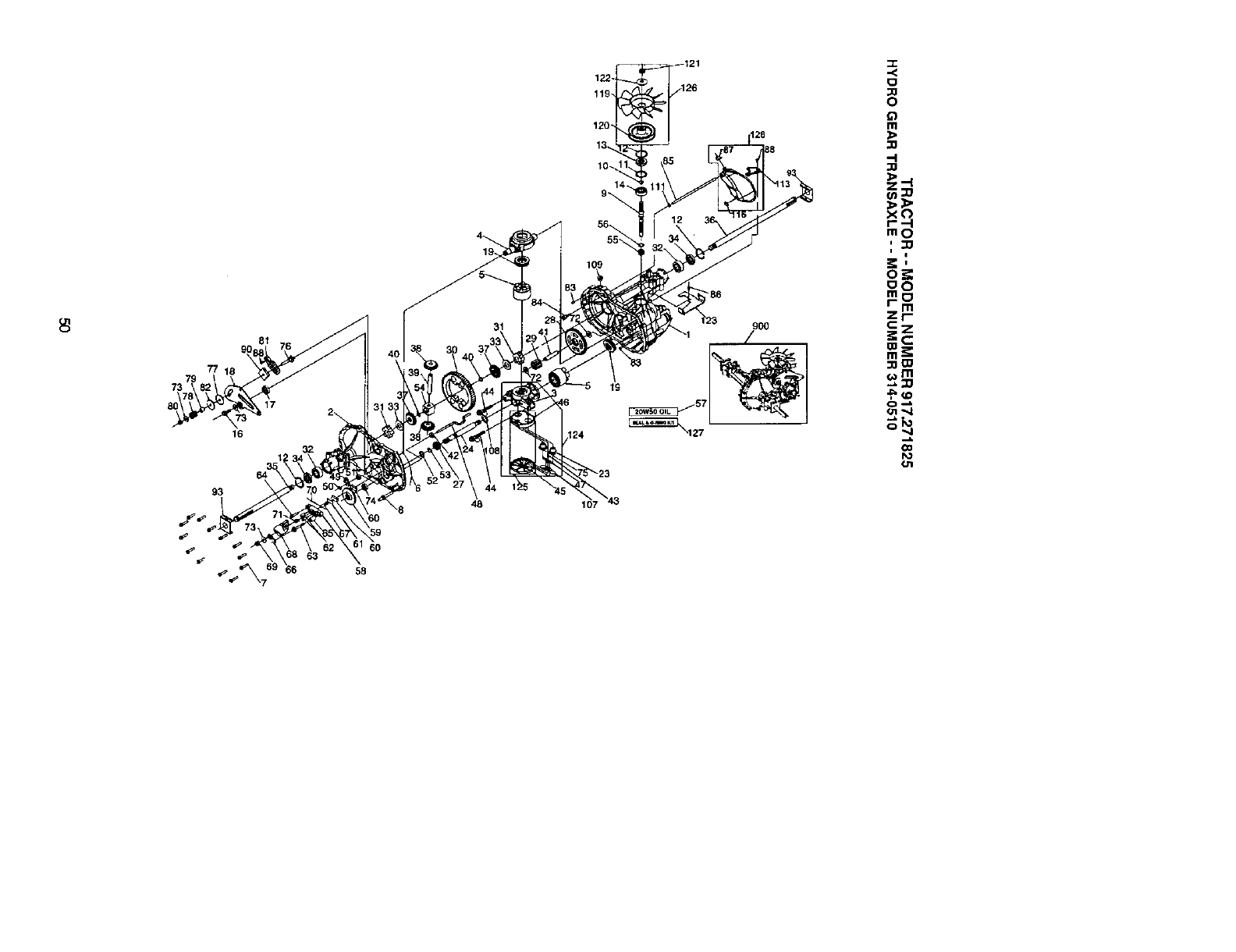

TRACTOR -- MODEL NUMBER 917.271825

HYDROGEARTRANSAXLE--MODEL NUMBER 314-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing, Assembly 59 170408 Rotor, Brake

2170352 Side Housing, Assembly 60 142883 Brake Puck

3 170353 Center Section, Assembly 61 142881 Puck Plate

4 170354 Swashplete,Trunion Machined 62 142887 Brake Actuating Pin

5 169898 Block -Assembly 63 170410 Rfhc_ 1/4-20)(2 W/Patch,

6170355 Sealant 10.50z SpeciaiRange

7 170356 Hex Flange Screw 1/4-20 X1.25 64 142892 Bcg. 1/4-20 X 1 W/Patch

5170357 Stud, 5/16-24 Hex Double End 65 170411 Spacer

9170358 Shaft, Input 66 170412 Spring, Brake Arm Bias

10 170359 Ring - Retaining 67 170413 Sq. Hd. Bo_t5/16-24-Ribbed

11 170360 Spacer 68 170414 Arm, Brake

12 169870 Ring - Retaining 69 170415 Slolted Hex Nut 5/16-24

13 170361 Seal, Lip .67 X1.58 X .276 70 170416 Cotter Pin 3/32 X 5/4

14 169869 BaU Brg 17tumid X 40ram Od X 71 170417 Compression Spdng Brake Anti-

12ram Drag

15 170332 Hex Flange Head Screw 5/16- 72 170418 Washer, Ht .5 LD. X 10.D. X.032

24X0.75 73 142884 Flat -Washer 11/32 I.D. X 7/80.D

17 170_63 Lip Seal 18 X 32 X774 170419 Oil Seal .325 X 1.0 X .25

18 170364 Arm, Control 75 170420 Chack Ptug Assembly, .027,Washer

19 150771 Rearing, 30x52x13Thruet 76 170421 Stud, 5/16-24 Friction Pack

23 170365 Check Plug Assembly, Washer 77 170422 puck, .330 X1.50 X .0975

24 170366 Shag, Motor 78 142969 Spring, Helical Comp

27 1703_7 Gear -Pinion, 131 79 142980 Spacer

28 170368 10t/48t Gear 80 150778 Hex Lock Nut 5/16-24Unjf(Nylon

29 170369 Gear, 10t Jackshaft Insert)

30 170370 60t Bull Gear 81 170423 Wedge, Fdction Pack

31 170371 Sleeve Bearing .75 X 1.575 X .625 32 170424 Clip, Washer .316xl .50x.1046

32 170389 SleeveBearing(Out board) (Plated)

.75xl.750x.625 83 161162 Pin, Standard Hendless

33 142991 Washer, 3/4 Id X 1-1/20d X .13 84 170425 Fitting, 5/15 See 3/32 Tube

_k 85 170426 Hose, Expansion Tank

34 170390 Lip Seat Axle Seal 86 170427 Expansion Tank

35 170.391 Shaft, Axle .75 X 11.39 (Key, R.H.) 87 170424 Cap - Poppet Valve

36 1703,_ Shag, Axle .75 X 16.99 (Key, L.H.) 88 170429 Bolt, Self Tapping 10-32 X 1/2

37 1507_ Miter Gear (SpLIned) 90 170430 Puck, Inner Wedge

38 150793 Miter Gear 15t (0.5 Id) _3 170431 Spring Clip- HouslngThruet

39 150809 shag 107 170432 Deflector

40 170393 Ring, Spiral Retaining 108 170433 Washer, Mctor She0

41 170394 Pin, Jackehaft .71idx1.15odx.030thk

42 170395 Magnet, Ring 109 170434 Plug, See #6

43 170396 Spnng, Bypass 111 170435 O-Ring .07 X .301 I.D.

44 150797 Hydro Mtg Screw 3/8-24 X 2.5 112 170436 Shield, Vent

Long 113 170437 Bracket, Support Expansion Tank

45 170.397 Filter 116 170438 Silicon Sponge

46 170398 Base, Filter 119 170439 Fan, 7 In.

47 17099g Actuator, Bypass 120 170440 Pulley

48 170400 Rod, Bypass Actuator 121 170441 Hex Lock Net 1/2-20 (Nylon Insert)

49 170401 Arm, Bypass 122 170442 Washer, Bellevllle

50 1702(_ RetainingRing.250 EMemai 123 170443 BultKeeper

51 170403 Seal, Up .741 X .250 X .250 Tc 124 170444 CenterSection-Filter-Bypass

52. 170404 Flat Washer, 5/5 Id X 1.00d X .05 Assembly

"n3k 125 170445 Fitier Assembly

53 1704_5 Retaining Ring 126 170446 Fan - Pulley Service Assembly

54 170406 Beadng, Center BJock 127 170447 Seal * O-Ring Kit

55 142977 Spring - Helical Compression 900 166768 Transaxle Complete

56 142978 Washer

57 150798 20w-50 Oil NOTE: All component dimensions given _nU.S. inches

58 170407 Brake Yoke 1 inch = 25.4 rnm

TRACTOR-- MODEL NUMBER 917.271825

BRIGGS & STRA'I-I'ON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

[1019 LABEL KIT I

[ 1058 OWNER'S MANUAL I

REQUIRES SPECIALTOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL

22_ 1132_

15_ 4_

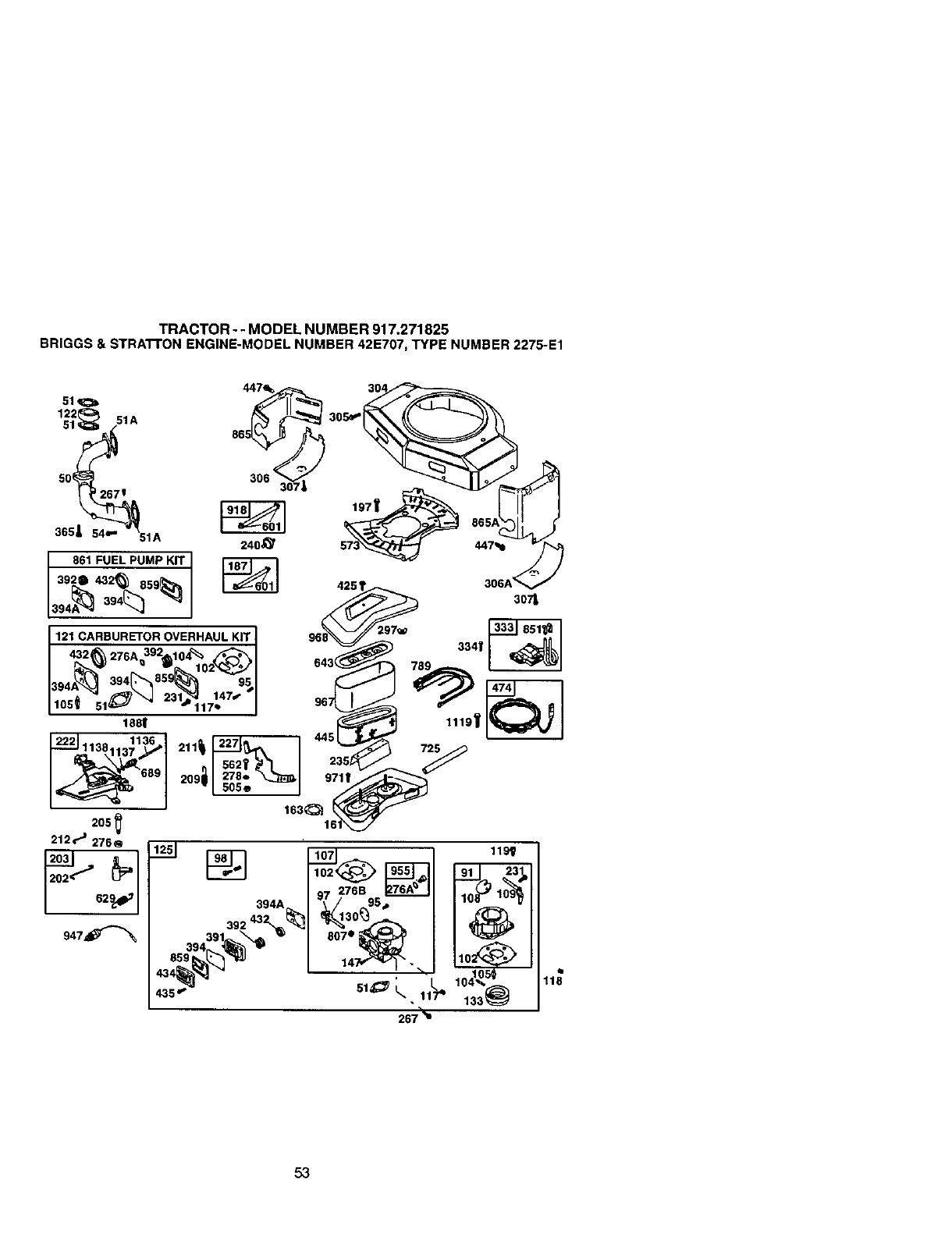

TRACTOR -- MODEL NUMBER 917.271825

BRIGGS & STRATrON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

50_

2671

365A 51A

861 FUEL PUMP KIT

306 _|

240_'

4251

947_

865A 1

447_

306A_

297_o

3341

1119_

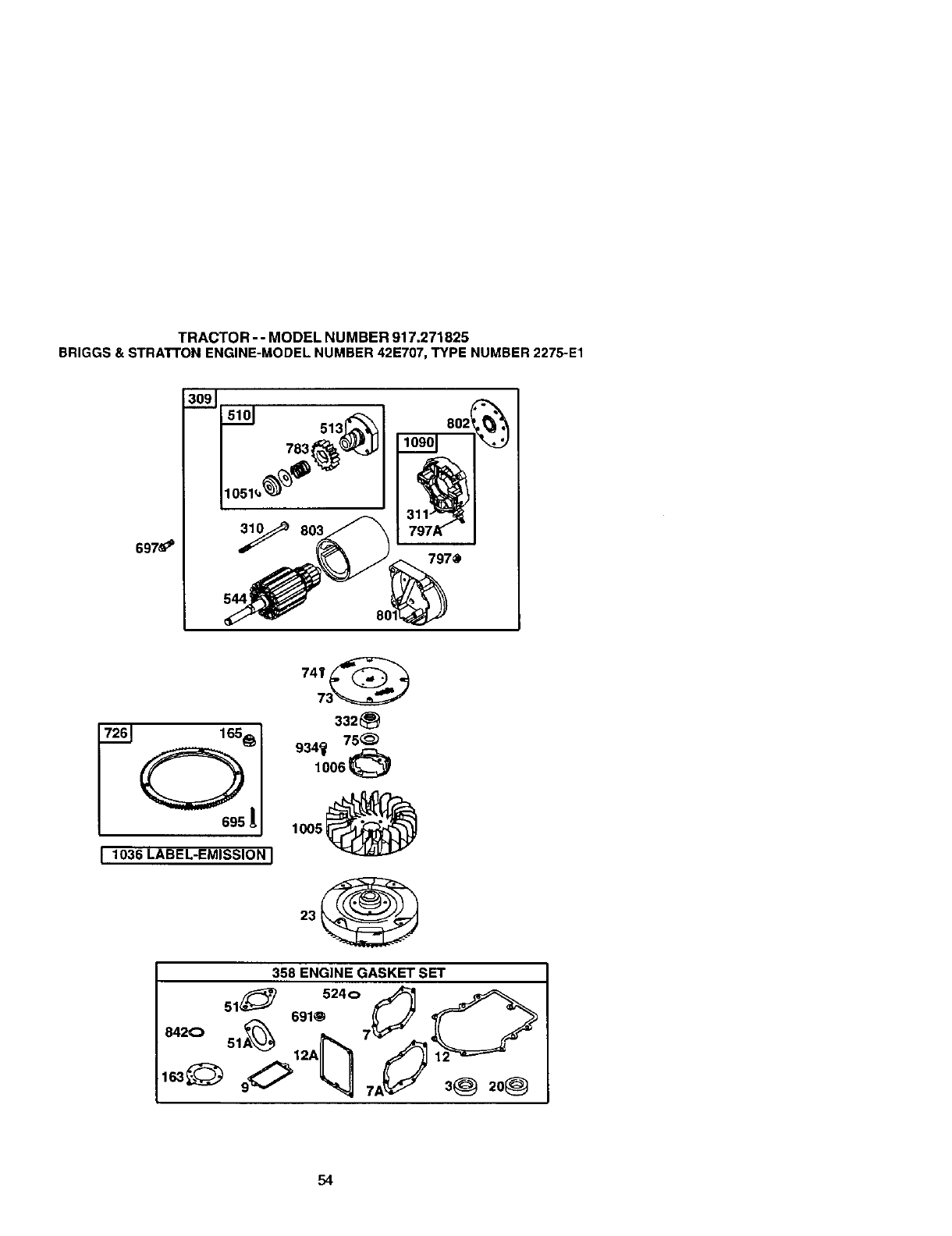

TRACTOR-- MODEL NUMBER 917.271825

BRIGGS& STRATFONENGINE-MODELNUMBER42E707, TYPE NUMBER 2275-E1

697_

1051,,_) _)_

802 I

797K

797@

1036 LABEL-EMISSION ]

74,

332_

934_ 7_.=

1006 _,._

1005_

TRACTOR -- MODEL NUMBER 917.271825

BRIGGS & STRATFON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. blO. DESCR|PTIOH

Body-Up er Carburetor

1 498583 Cylinder Assembly 91 693483 Screw _l_roffie Valve)

2 399265 Kit-Bushing/Seal (Magneto 95 690718 O

97 693486 Shaft-Thro_e

•Side)

3 391086 Seal-Oil (Magneto Side) 98 807923 KS-Idle Speed

4 493304 Sump-Engine 102 693509 _1 Gaskct-Carburctor Body

5 493457 Head-Cylinder Cylinder 1) 104 693506 IZI Pin-Float Hin e

5#. 493458 Head-Cylinder (Cyinder 2105 692078 _1 Valve- Float _eedle

7 271867 ._: Gasket-Cylinder Head 107 693482 Body-Lower Carburetor

108 693505 Valve-Choke

(cylinder 1)

7A 271868 ,_: Gaskct-Cylinder Head 109 693498 Shaft-Choke

117 693507 OJet-Main (Standard)

(Cylinder 2)

8 495754 Breather Assembly 116 693499 Jet-Main (High A_ode)

927803 .€ Gasket-Breather 119 690720 Screw (Upper Body To Lower

10 690334 Screw (Breather Cover) Body)

11 691899 Tube-Breather 121 693503 Kit-Carburet or Overbaul

12 692292 • Gasket-Crankcase (.015" 122 891928 Spacer-Carburctor

125 693480 Carburetor

Thick)

12 271188 •Gaskel-Orankcase (.005 130 693504 Valve-Throttle

Thick) 133 693512 Float-Carburetor

12 271189 • Gasket-Cra_kc_.se 4.009" 146 691639 Key-Timing

Thick) 147 693508 O Jet-Pilet

12A 692287 * Gasket-Crankcase 161 691401 Base-Air Cleaner

13 691651 Screw lCylinder Head) 163 690273 •Gasket-Air Cleaner

15 690946 Plug-Oil Drain 165 693148 Nut (Ring Gear)

16 690636 Crankshaft 186 691764 Connector-Hose

18 495901 Cover-Crankcase 187 499167 Line-Fuel (Cut to Required

19 399264 Kit-Bushleg/Seal (PTO Side) Length_

20 291675 ° Seal-Oil(PTO Side) 188 691003 Screw ,control Bracket)

22 693972 Screw (Engine Bump) 197 690364 Screw (Back Plata)

22A 691104 Screw (Crankcase Cover) 202 690570 Link-Mechanical Governor

23 691976 Flywheel 203 493230 Bell Crank

24 222698 Key-Flywheel 205 690322 Screw (Bell Crank)

25 696397 Piston Assembly (Standard) 209 691273 Spring-Governor

25 696398 Piston Assembly (.010" 211 691807 S rin -Governor Idler

Oversize) 212 693544 T_ro_t_e Link

25 696399 Piston Assembly (.020"Over- 219 696376 Gear-Governor

size) 220 690412 Washer (_Governor Gear)

25 696400 Piston Assembly (,030" 222 691366 Brackct-L;ontrol

Oversize) 227 690762 Lever-Governor Control

26 696403 Ring Set (Standard) 231 690718 O Screw (Choke Valve)

26 696404 Ring Set 4.010" Oversize) 235 691206 Shield-Fuel Spray

26 696405 Ring Set (,020"Oversize) 240 394356 Filter-Fuel

26 696406 Ring Set (.030" Oversize) 267 690316 Screw (Casing Clamp)

27 691299 Lock-Piston Pin 276 691872 Washer-Sealing

28 498319 Pin-Piston (Standard) 276A 693497 OWasher-Sealing

28 498320 Pin-Piston (,005 O.S.) 276B 693510 Washed-Sea'{n9

29 394306 Rod-Connecting (Standard) 276 692810 Washer (Governor Control

29 397158 Rod-Connecting (.020 Lever)

Undersize) 297 691331 Nut (Air Fitter Retainer)

32 691133 Screw (Cor_ec_n9 Rod) 304 691391 Housin *_]_Blower

33 691794 Valve-Exhauct 305 690960 Screw _-Iower Housing)

34 691804 Valve-Intake 306 690414 Shield_Cylinder

35 691605 Spring-Valve (intake) 306A 690435 Shield-Cylinder

36 691597 Sprir_g-Valve (Exhaust) 307 691003 Screw (Cylinder Shield)

40 690656 Retainer-Valve 309 497596 Mutor-Starter

40A 691939 Retainer-Valve (Exhaust) 310 690323 Bolt Starter Motor)

42 494553 Keeper-Valve 311 497608 Brush Se

45 691800 Tappet-Valve 332 691059 Nut (Flywheel)

46 214484 Camshaft 333 394891 Armature-Magncto

47 691964 Slinger-Oil 334 691061 Screw (Magneto Armature)

48 499945 Short Block (460707-2637-E2 337 802592 Plug-Spark

Replacement Engine) 358 495869 Engine Gasket Set

50 691709 Manifold-Intake 359 691077 Washer (Ground Terminal)

51 692278. !_ Gasket-Intake 365 690321 Screw Carburetor)

51A 692219 •:_ Gasket-intake 373 691612 Nut Ground Terminal)

54 93206 Screw (Intake ManifokJ) NOTE: All component dimensions given in U.S.

73 692527 Screen-Rcta6ng

74 691677 Screw (Rotating Screen) _nches 1inch = 25.4 mm

75 691056 Washer (Flywheel) 56

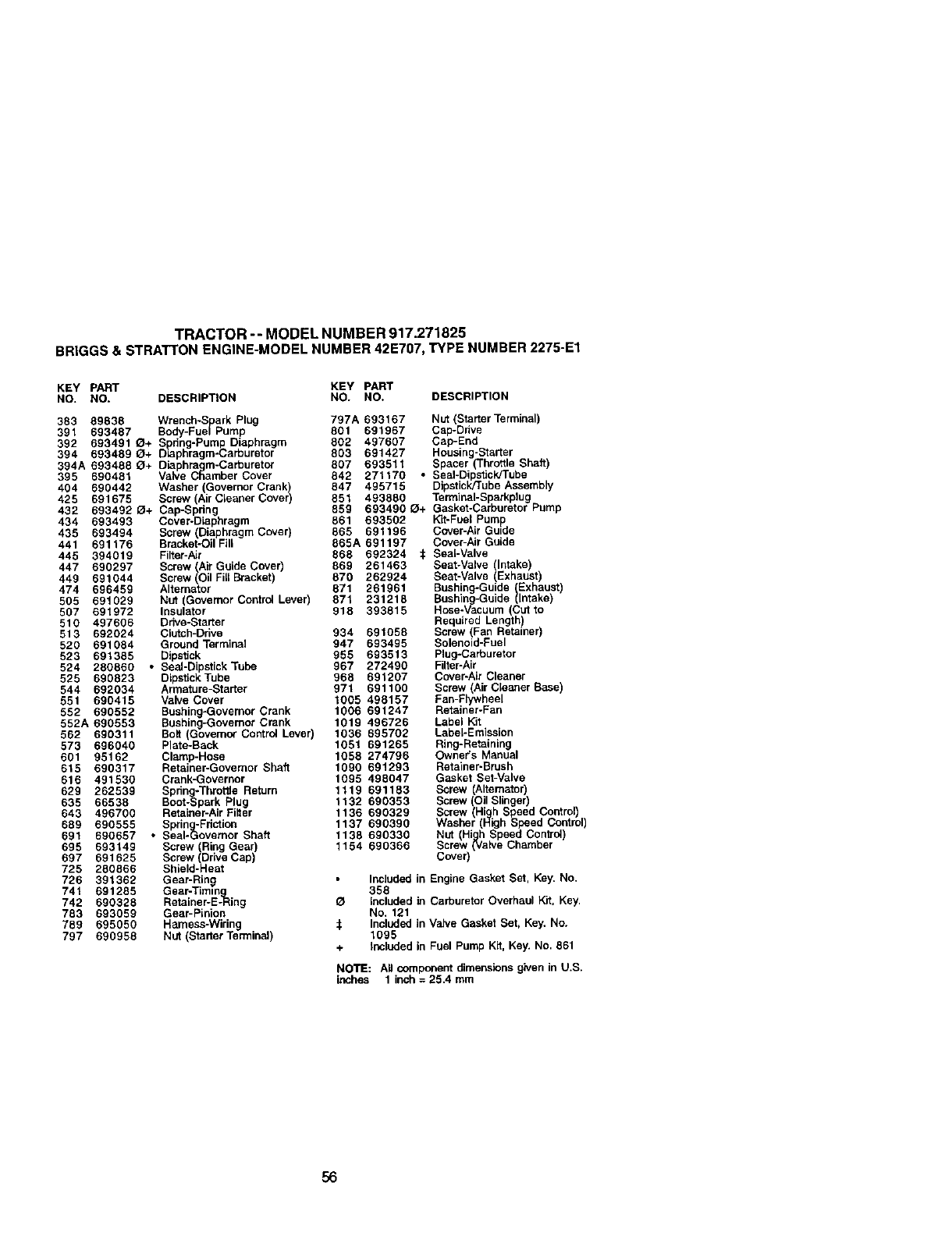

TRACTOR -- MODEL NUMBER 917.271825

BRIGGS& STRATTONENGINE-MODELNUMBER 42E707,TYPE NUMBER2275-E1

KEY PART KEY PART

NO. NO. DESCRIP'I'ION NO. NO. DESCRIPTION

383 89838 Wrench-Spark Plug 797A 693167 Nut (Starter Terminal)

391 693487 Body-FuelPump 801 691967 Cap-Drive

392 693491 O+ Spring-Pump Diaphragm 802 497607 Cap-End

394 693489 0+ D_aphragm-Carburetor 803 691427 Housing-Starter

394A 693488 _+ Diaphraqm-Carburetor 897 693511 Spacer (Throttle Shaft)

395 690461 Valve Chamber Cover 842 271170 •Seal-Dipstick/Tube

404 690442 Washer (Governor Crank) 847 495715 Dipstick/Tube Assembly

425 691675 Screw (Air Cleaner Cover) 851 493880 TerrninaI-Sparkplug

432 693492 0+ Cap-Spdng 859 693490 0+ Gasket-Carburetor Pump

434 693493 Cover-Diaphragm 861 693502 K'rt-Fuel Pum

435 693494 Screw (Diaphragm Cover) 865 691196 Cover-Air Guide

441 691176 Bracket-Oil Fill 865A 691197 Cover-Air Guide

445 394019 Filter-Air 868 692324 :_ Seal-Valve

447 690297 Screw (Air Guide Cover) 869 261463 Seat-Valve (Intake)

449 691044 Screw (Oil Fill Bracket) 870 262924 Seat-Valve (Exhaust)

474 696459 Alternator 871 261961 Bushing-Guide Exhaust

565 691029 Nut (Governor Control Lever) 871 231218 Bushing-Gude ntake)

507 691972 Insulator 918 393815 Hose-Vacuum Cut to

510 497606 Drlve-Statter Required Length)

513 692024 Clutch-Drive 934 691058 Screw (Fan Retainer)

520 691084 Ground Terminal 947 693495 Solenoid-Fuel

523 691385 Dipstick 955 693513 Plug-Carburetor

524 280860 •SeaI-Dipetick Tube 967 272490 Filter-Air

525 690823 Dipstick Tube 968 691207 Cover-Air Cleaner

544 692034 Armature-Starter 971 691100 Screw (Air Cleaner Base)

551 690415 Valve Cover 1005 498157 Fan-Flywheel

552 690552 1006 691247 Retainer-Fan

Bushing-Governor Crank

552A 690553 Bushing-Governor Crank 1019 496726 Label Kit

562 690311 Bolt (Governor Control Lever) 1036 695702 LabeL-Emission

573 696040 Plate-Back 1051 691265 Ring-Retaining

601 95162 Clamp-Hose 1058 274796 Owner's Manual

615 690317 Retainer-Governor Shaft 1090 691293 Retainer-Brush

616 491530 Crank-Governor 1095 498047 Gasket Set-Valve

629 262539 Sprin_g.oThrotge Return 1119 691183 Screw (Alternator)

635 66538 Boot-_park Plug 1132 690353 Screw Oil Slinger

643 496700 Retainer-Air Filter 1136 690329 Screw High Speed Control)

Washer High Speed Control)

689 690555 Spring--Fdntion 1137 690390

691 690657 •Seal-Governor Shaft 1138 690330 Nut (High Speed Control)

Screw (Valve Chamber695 693149 Screw RingGear) 1154 690366

687 691625 Screw (Drive Cap) Cover)

725 280866 Shield-Heat

726 391362 Gear-Ring Included in Engine Gasket Set, Key. No.

741 691285 Gear-Timin_q 358

742 690328 Retainer-E-Ring O Included in Carburetor Overhaul Kit, Key.

783 693059 Gear-Pinion No. 121

789 695050 Hamess-Wiring :_ Included in Valve Gasket Set, Key. No.

797 690958 Nut (Starter Terminal) 1095

+Included in Fuel Pump Kit. Key, No. 861

NOTE: An component dimensions given in U,S.

inches 1 inch =25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

/% Operate your Tractor up and down the face of slopes (not I

AA greater than 15 ), never across the face. Make turns gradu- I

O ally to prevent tipping or loss of control. Exercise extreme

ono,o .....

For repairof major brandappliancesin your own home...

no matter who made it,no matter who sold it!

1-800-4-MY-HOME _ Anytime,dayornight

(1-800-46,9-4663) (U.S.A.and Canada)

_ww.seal_.COITi WW_'.SI_II'S.C_

iiiiiiiiiiiiii)iiii

:::::::::::::::x:::

For repairof carry-inproductslike vacuums, lawnequipment,and

electronics,call forthe nearestSears Parts and RepairCenter.

1-800-488-1222 Anytime,dayorr_ (U.$.Aonty)

WVPN_

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectSM!

1-800-366-PART 6 a.m.- 11p.m.,7 daysaweek

(1-8_G-366-7278) (U.S.A.only)

www.sears.con_irect

To purchase or inquireabout a Sears ServiceAgreement

or Sears MaintenanceAgreement:

1-800-827-6655 (u.s._.) 1-800-361-6665 (Canada)

7&m. - 5 p.m., CST, Mort.- Sat. 9 a.m.- 8p.m. EST, M - F,4 p.m. SaL

Parapetit seiv,c_ode mparad_, a AuCanadapourserviceen fran_Ls:

domidio,ypata (xdenarpiezas: 1.800.LE.FOYIERMc

1-888-SU-HOGARs_ 11-800-_7)

............ ]

:::): ,/

........

® Registered Trademark /_MTrademark /sMService Mark of Sears, Roebuck and Co.

®Marca Registrada /_a Mama de F&bdca /sMMarca de Serviclo de Sears, Roebuck and Co.

McMarque de commerce /MDMarque ddpos_e de Sears, Roebuck and Co,

:::::::::::::::::::::::::

iiiiiiiiiiiiiiiiiiiiii

iiiiiii_l_iiiiiiiii_

i iiiiii_iiiiiiiiii

::::::::::::

:: :::::::::::::::::::::

iiiiiiiiiiiiiiii

::::::::::: :

179603 05.23.01 RH Printed in U.S.A.

Craftsman 917271825 User Manual LAWN TRACTOR Manuals And Guides L0106038

CRAFTSMAN Lawn, Tractor Manual L0106038 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
