Owner's Manual

JCRAFT$1qAWJ

21.0 HP

ELECTRIC START

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.271842

•Safety

•Assembly

• Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Une

5am - 5 pm, Mort - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.comlcraftsman

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly .............................................. 8

Operation ............................................ 12

Maintenance Schedule ...................... 19

Maintenance ....................................... 19

Service and Adjustments .................... 23

Storage ............................................... 29

Troubleshooting ................................. 39

Repair Parts ........................................ 34

Parts Ordering ..................... Back Cover

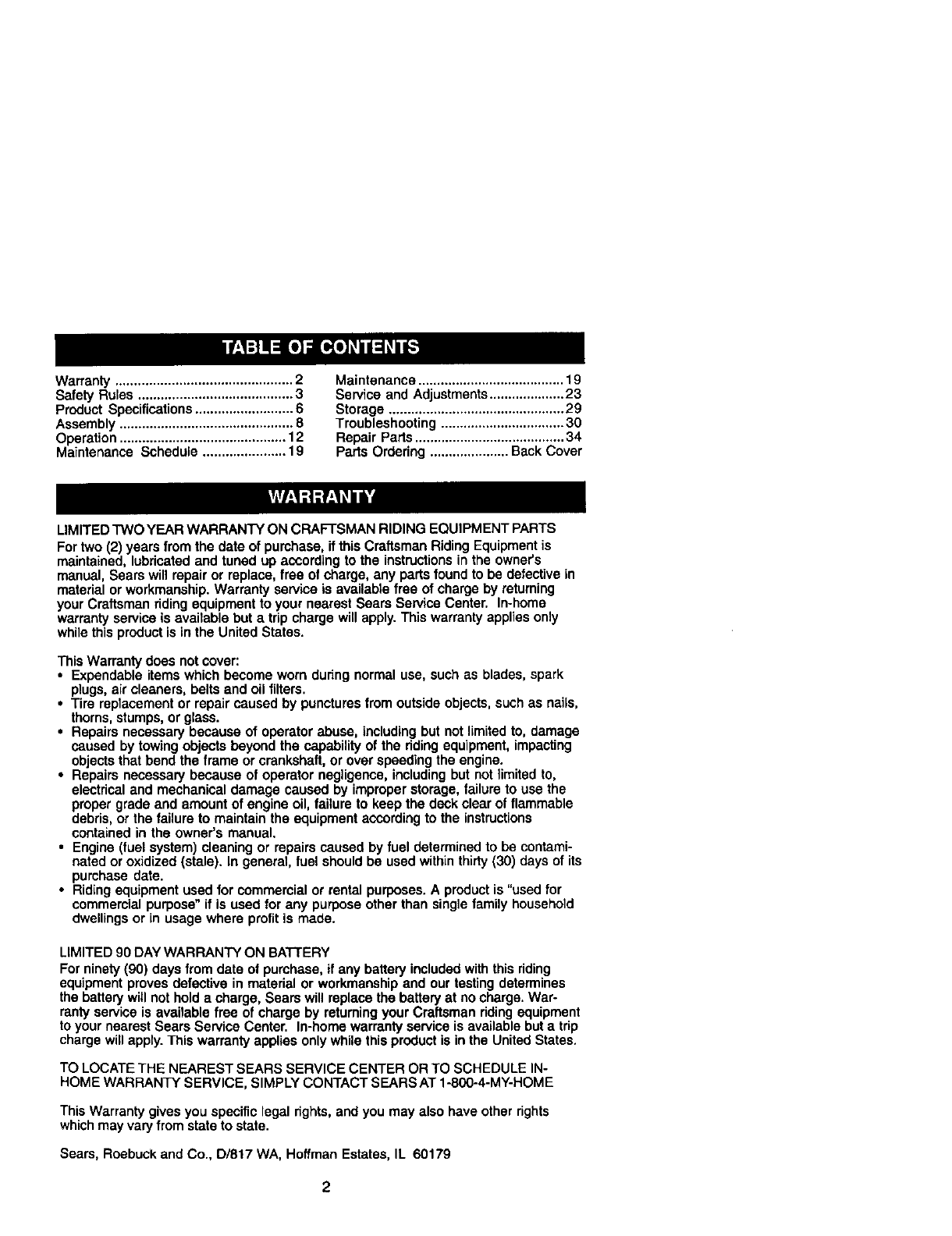

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubdcated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning

your Craftsman dding equipment to your nearest Sears Service Center. In-home

warranty service is available but a trip charge will apply. This warranty applies only

while this product is in the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the dding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

•Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this dding

equipment proves defective in material or workmanship and our testing determines

the battery witl not hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by returning your Craftsman dding equipment

to your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights

which may vary from state to state.

Sears, Roebuck end Co., D/817 WA, Hoffman Estates, IL 60179

IMPORTANT: This curtng roach ne s capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructionscould result in

serious/njury or death.

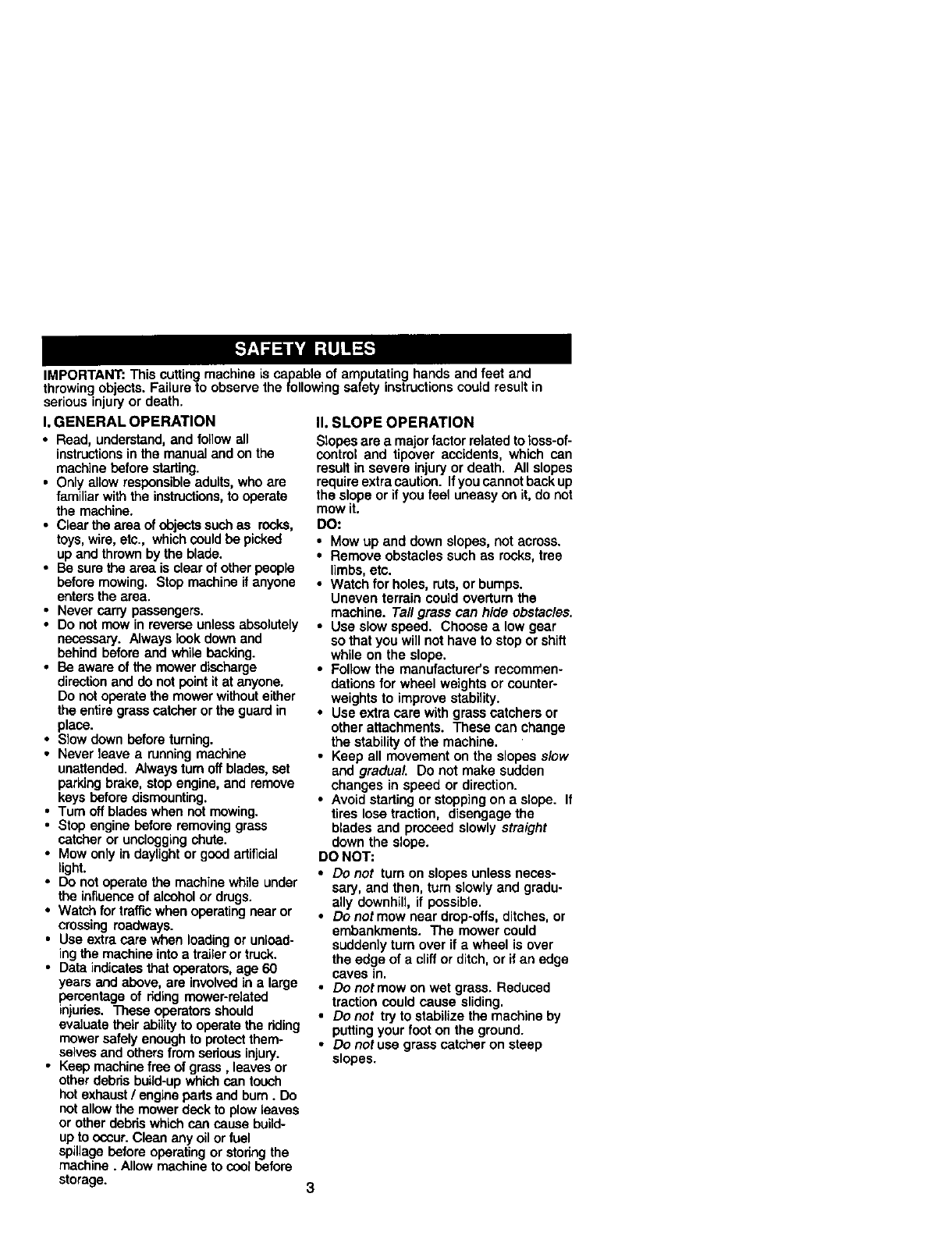

I. GENERAL OPERATION

•Read, understand,and follow all

instructionsin the manual and on the

machine before starting.

• Only allow responsibleadults,who are

familiar with the instructions,to operate

the machine.

•C_earthe area of objectssuch as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge

directionand do not point itat anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before turning.

•Never leave arunning machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Turn off blades when not mowing.

• Stop engine before removinggrass

catcher or uncloggingchute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influenceof alcohol or drugs.

•Watch for trafficwhen operating near or

crossing roadways.

•Use extra care when loading or unload-

ingthe machine into a traileror truck.

•Data indicates that operators,age 60

years and above, are involved_na large

percentage of r;ding rnower-related

injuries. These operators should

evaluate their abilityto operate the riding

mower safely enough to protect them-

selves and others from sedous injury.

•Keep machine free of grass, leaves or

other debris build-upwhich can touch

hot exhaust /engine parts and bum. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillagebefore operating or storingthe

machine. Allow machine to cool before

storage.

II, SLOPE OPERATION

Slopes are a majorfactor related to loss-of-

control and tipover accidents, which can

result in severe in ury or death. Aft stopas

require extra caution, f you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

•Use slow speed. Choose a low gear

so that you willnot have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

° Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

•Do not mow near drop-otis, ditches, or

embankments. The mower could

suddenly turn over if awheel is over

the edge of acliffor ditch, or if an edge

caves In.

•Donotmowonwetgrass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

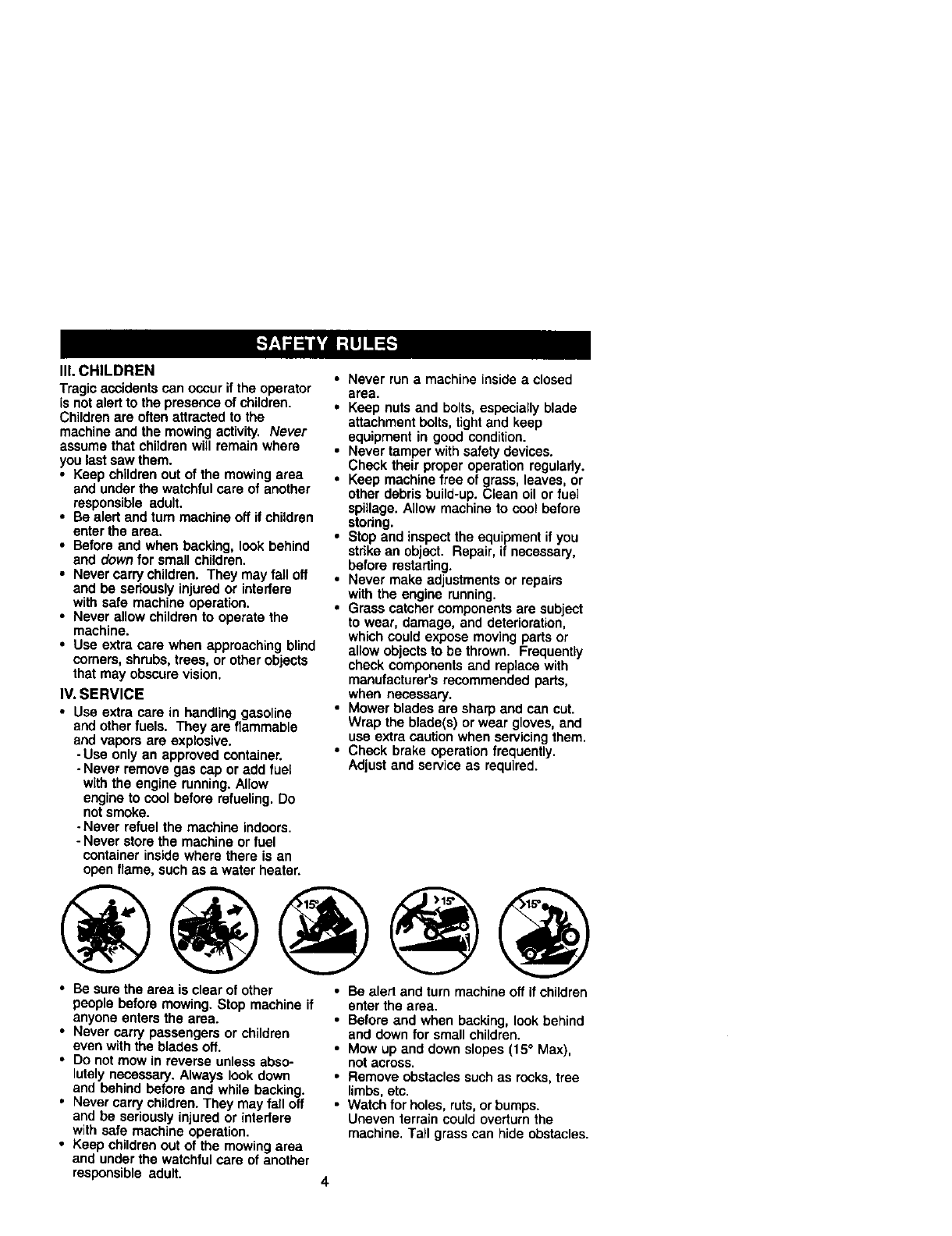

IlL CHILDREN

Tragic accidents can occur ifthe operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off ifchildren

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or intedere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

stodng.

•Stop and inspect the equipment if you

stdke an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall Off

and be seriously injured or intedere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off ifchildren

enter the area.

•Before and when backing, look behind

and down for small children.

•Mow up and down slopes (15° Max),

not across.

•Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine, Tall grass can hide obstacles.

•Use slow speed. Choose alow gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stoppingon a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

,_.Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERTI!! YOUR

SAFETY IS INVOLVED.

CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug. '

CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications el the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on aslope. Too

heavy of a load, while on a slope, is

dangerous. "Srescan lose traction with

the ground and cause you to lose control

of your tractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

,_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or ether reproductive harm.

Wash hands after handling.

PRODUCTSPECIFICATIONS

GASOLINE 3.5GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 3O

',API-SF-SJ): (ABOVE 32°F)

SAE 5Wo30

(BELOW 32°F)

OIL CAPACITY: 3.0PINTS

SPARK PLUG: CHAMPION

IGAP: .030") RJ19LM OR J19LM

GROUND FORWARD: 5.5

SPEED (MPH): REVERSE: 2.4

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 3AMPS BA'I-rERY

SYSTEM: 5 AMPSHEADLIGHTS

BA'i-rERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE:U1 R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

•Follow aregular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped

with an intemal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). It a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal taws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

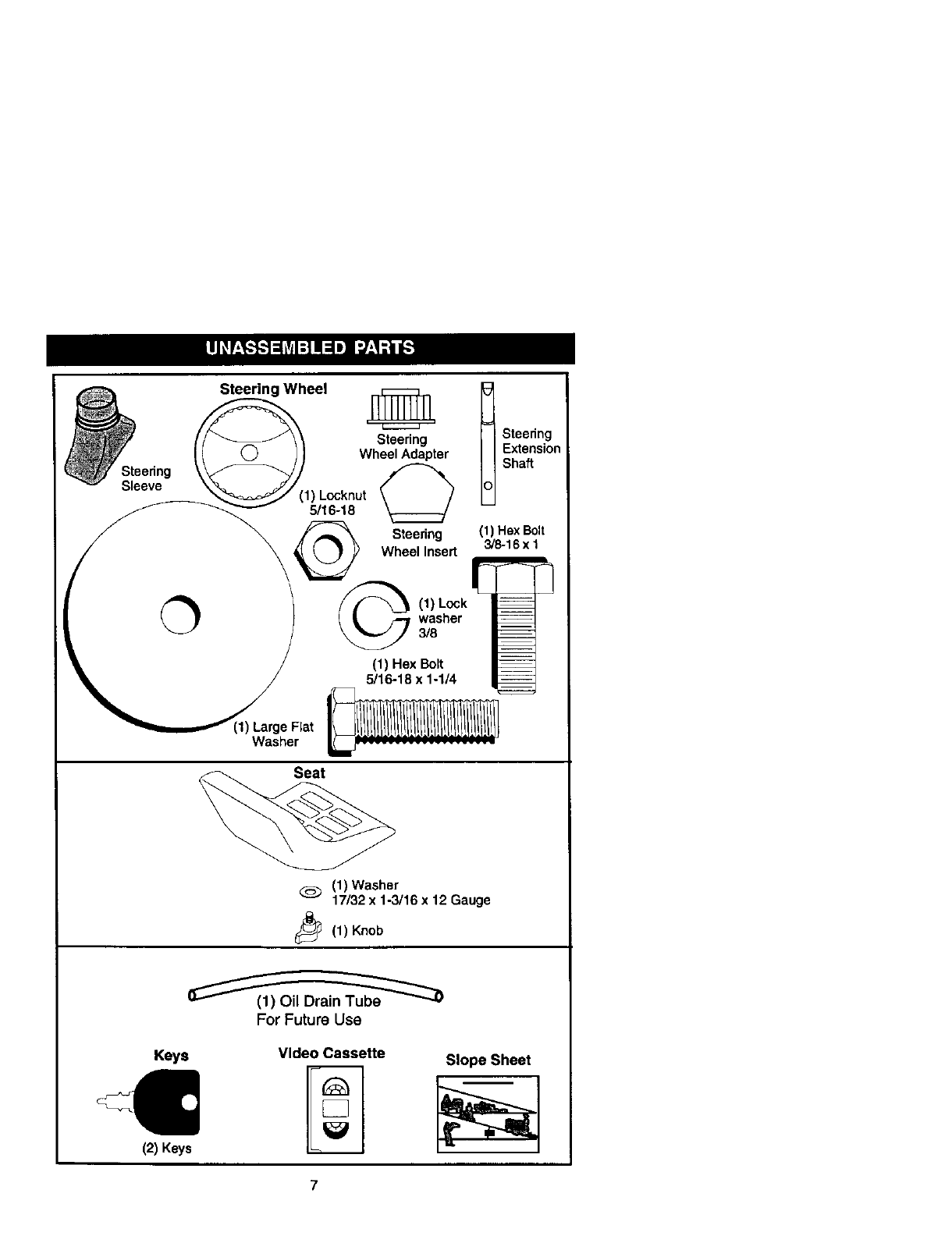

Steering Wheel j_

Steering Steedng

/ _-J / J Wheel Adapter Extension

Stee,.g \_/ _ Sha_

Sleeve __(1)Locknut _

_. _ Steering (t)H_; B_lt

W"e°"n'°"7

_ t t _ washer

_ a/a

(1) Large Fiat

Washer

(1) Hex Bolt

5/16-18 x 1-1/4

Seat

(1) Washer

17/32 x1-3/16 x12 Gauge

(1) Knob

For Future Use

Keys

(2) Keys

Video Cassette Slope Sheet

Your new tractor has been assembled at the factory with exception of those parts left

unassemble5 for sh_pping purposes. To ensure sale and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

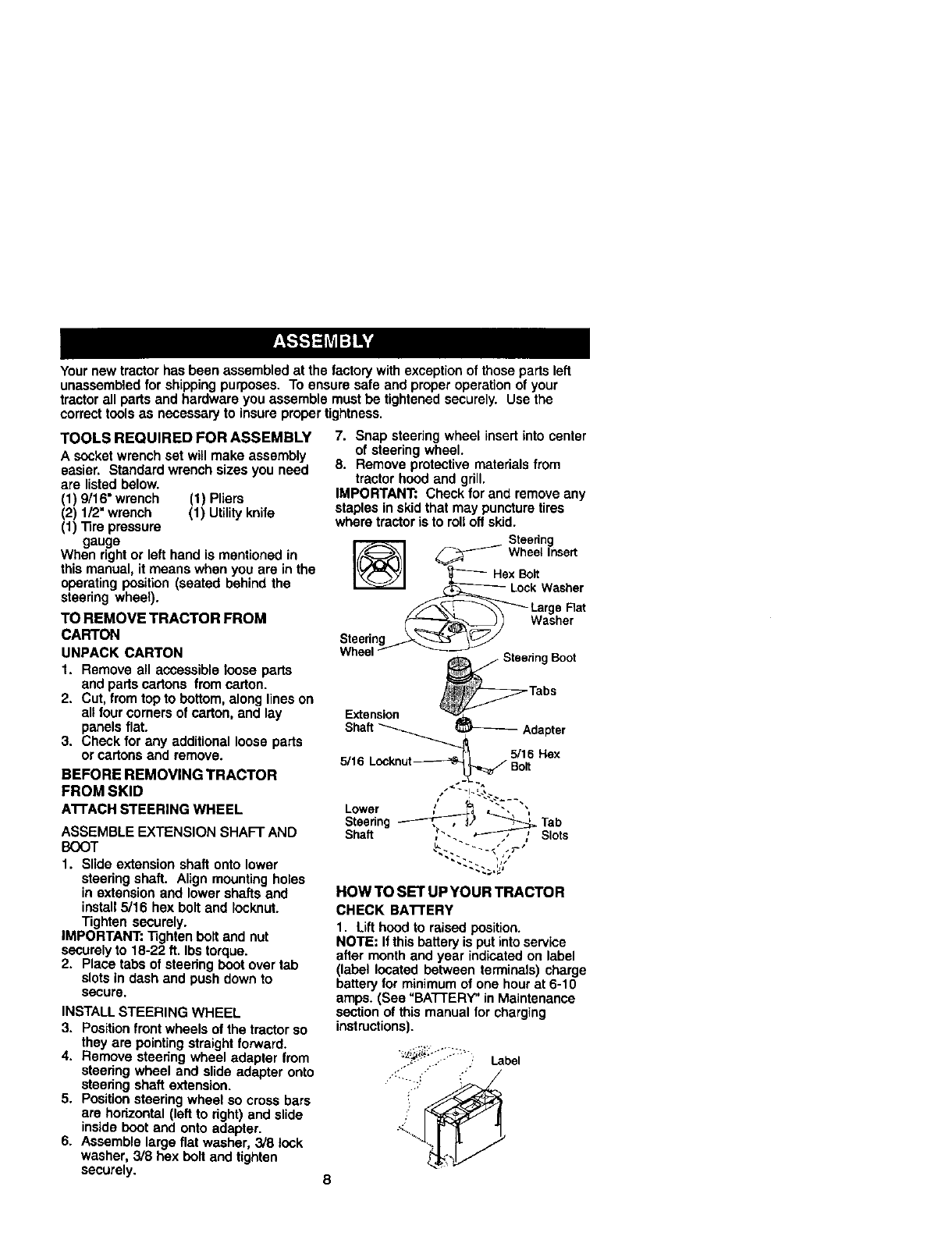

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wreP_h (1) Utili_ knife

(1) Tire pressure

gauge

When right or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATFACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT ANO

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibe torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position |rent wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

._ _ Steering

_ Wheel Insert

_-_ Hex Bolt

_._____ L_k Washer

fF'_._ ! _"- LargeRat

_=-_---_-___ )Washer

Steedng_-_'_ _JJ

Wheelf _J

_ SteeringBoot

Extension Tabs

Shaft"-_._ _--_ Adapter

Lower , "' " TabSteering-',_, '3_

Shaft _- _ ' Slots

HOW TO SET UP YOUR TRACTOR

CHECK BA'n'ERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BA'I-FERY" in Malntenance

section of this manual for charging

instructions).

_'_"ff'" "" " Label

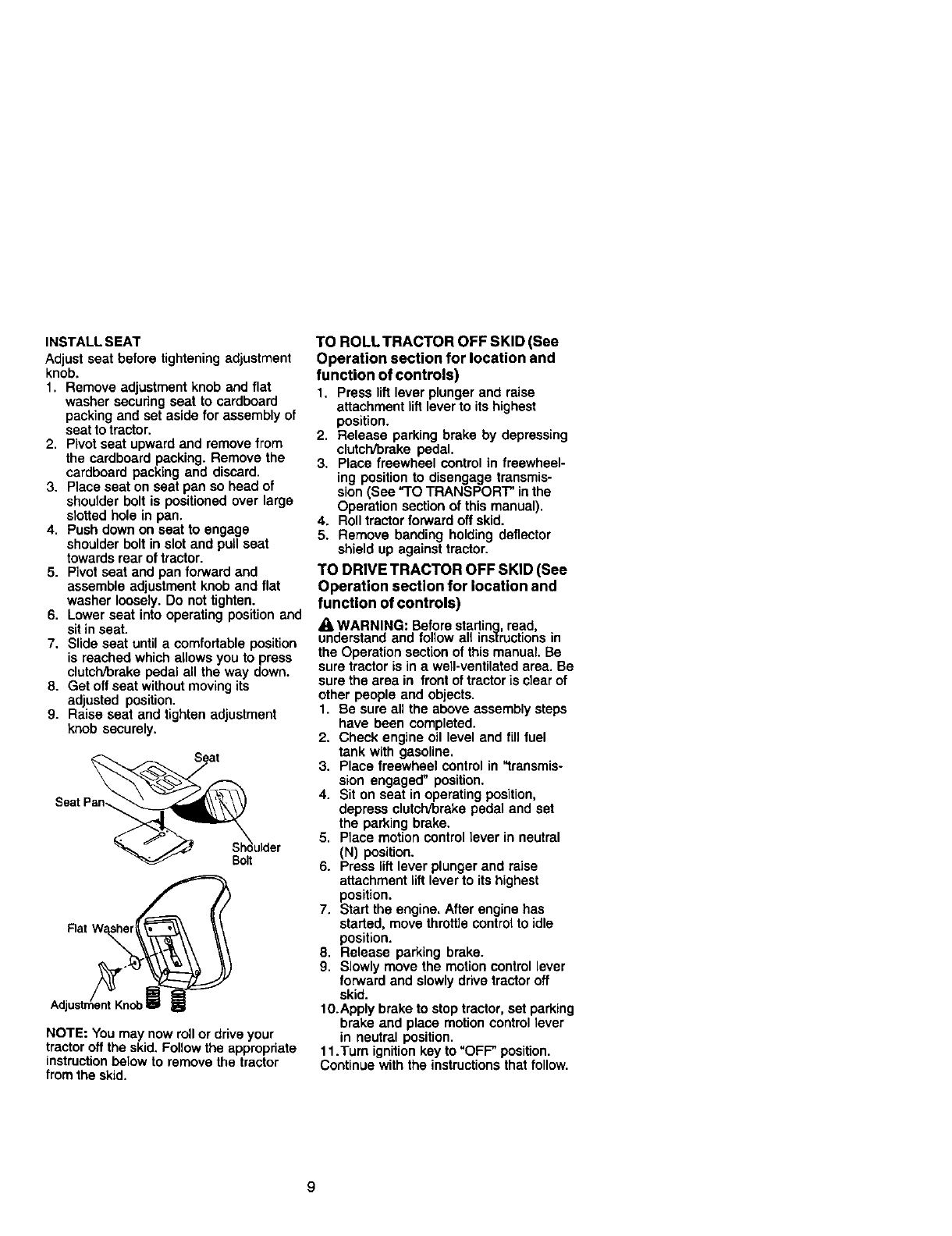

INSTALLSEAT

Adjustseatbefore tightening adjustment

knob.

1, Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2, Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pen so head of

shoulder bolt is positioned over large

slotted hole in pan,

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which a_lowsyou to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely,

Seat

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instructionbelow to remove the tractor

fromthe skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment liftlever to its highest

position.

2, Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in freewheel-

ing position to disengage transmis-

sion (See "TO TRANSPORT" inthe

Operation section of this manual),

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

•qLWARNING: Before starting, read,

understand and follow all instructionsin

the Operation section of this manual Be

sure tractor is in a well-ventilated area, Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline,

3. Place freewheel control in "transmis-

sion engaged" position,

4. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever

in neutral position.

11.Turn ignition key to "OFF" position.

Continue with the instructions that follow.

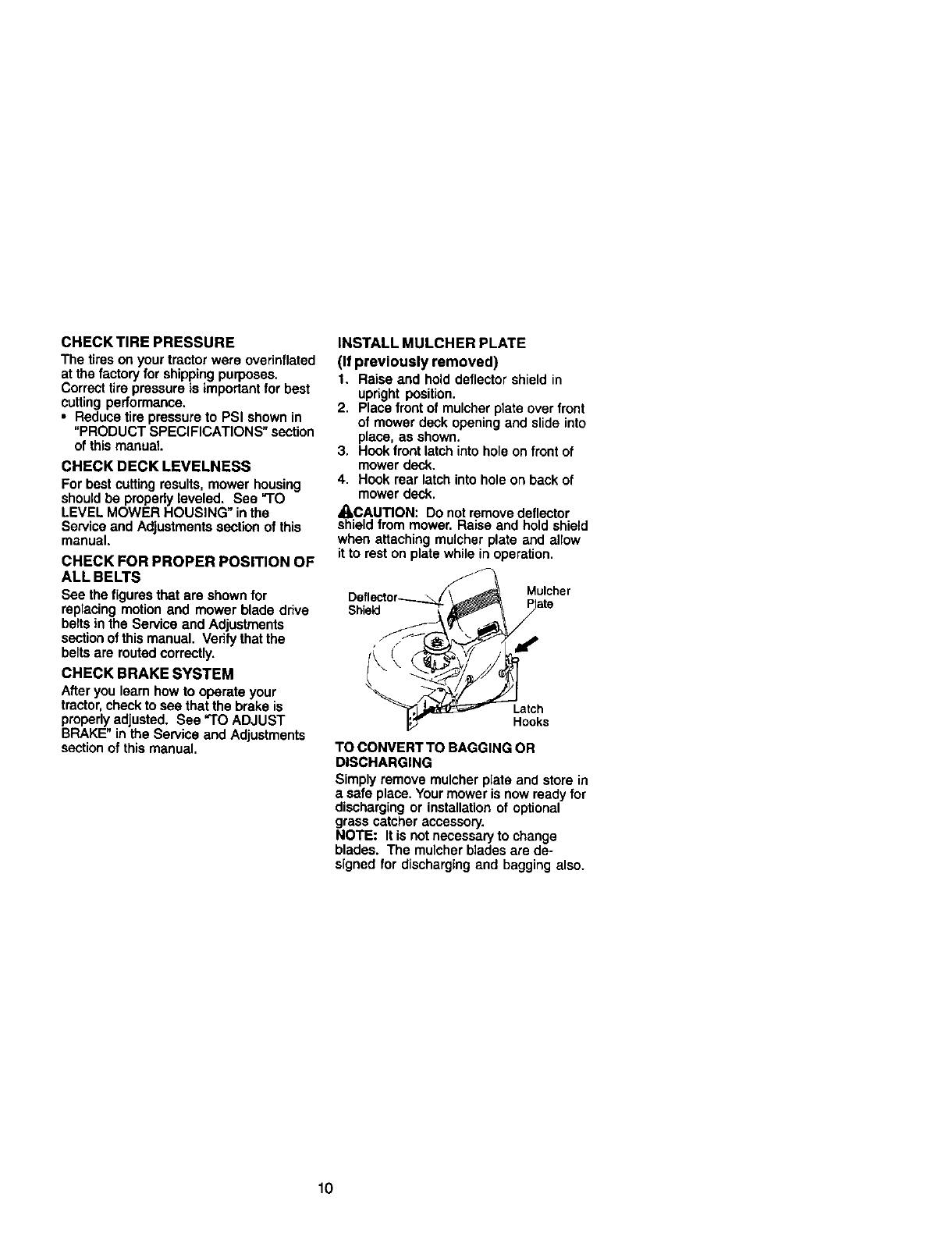

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be propedy leveled. See TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

sectionof this manual. Verify that the

belts are muted correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor,check to see that the brake is

properlyadjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

/I=CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow

it to rest on plate while in operation.

Mulcher

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

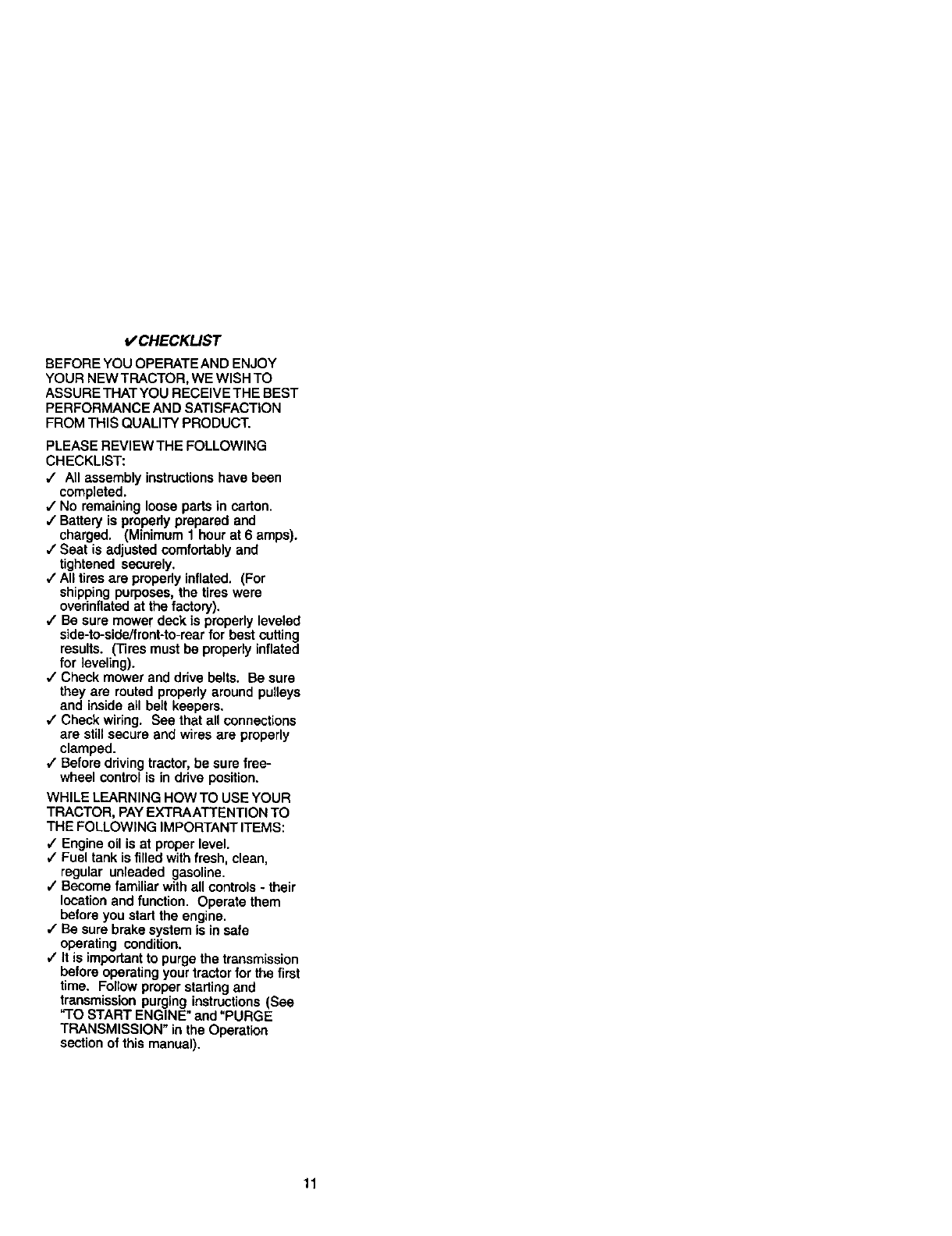

_CHECKUST

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE BEST

PERFORMANCE AND SATISFACTION

FROM THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

,/ All assembly instructions have been

completed.

,/No remaining loose pads in carton.

/" Battery is propedy prepared and

charged. (Minimum 1 hour at 6 amps).

,I Seat is adjusted comfortably and

tightened securely.

,I All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

J Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

•/Check wiring. See that all connections

are still secure and wires are properly

clamped.

/ Before driving tractor, be sure free-

wheel control is in drive position.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAYEXTRAATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

J Become familiar with all controls - their

location and function. Operate them

before you start the engine.

4 Be sure brake system is in safe

operating condition.

/ it is importantto purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

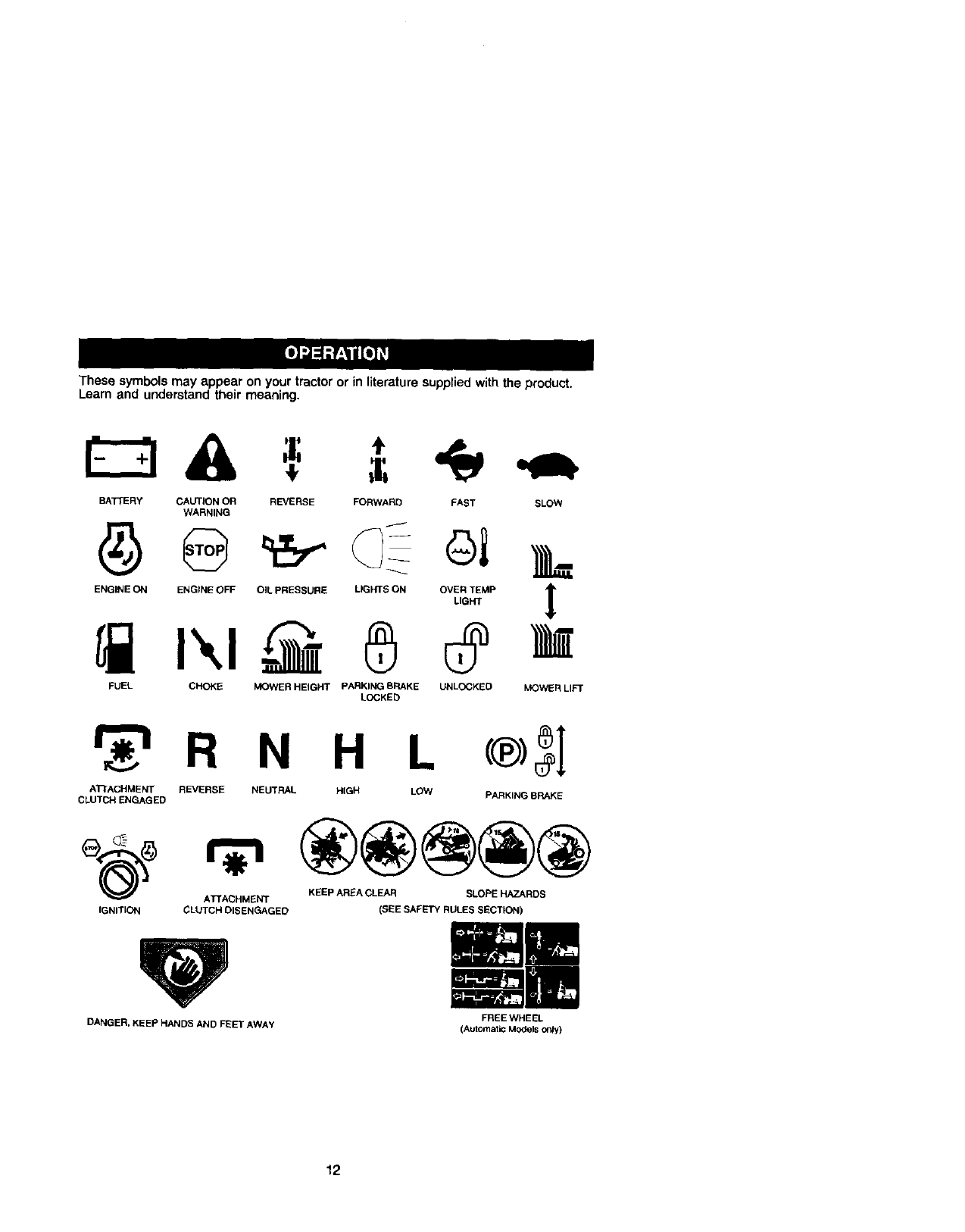

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED

LOCKED

SLOW

MOWER LIFT

N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW

CLUTCH ENGAGED PARKING BRAKE

AI_ACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED

DANGER, KEEP HANDS AND F_ET AWAY

(SEE SAFETY RULES SECTION)

FREE WHEEL

(Automatic Models only)

KNOWYOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment Ignition

Clutch Lever Switch

Ught Switch

Ammeter

Lever

Choke Control Plunger

Throttle Control

Clutch/

Brake Pedal

Uff Lever

Height

Adjustment

Indicator

FreeWheel

Control Brake Lever

Motion

Lever

Our tractors conform to the safety standards of the

American National Standards Institute,

AMMETER - Indicates charging (+) or

discharging (-) of battery.

A'I'FACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

AI-I'ACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CHOKE CONTROL - Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH -Tums the headlightson

and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THRO'I-FLE CONTROL - Used to control

engine speed.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide visionsafety mask over

spectacles or standard safety glasses.

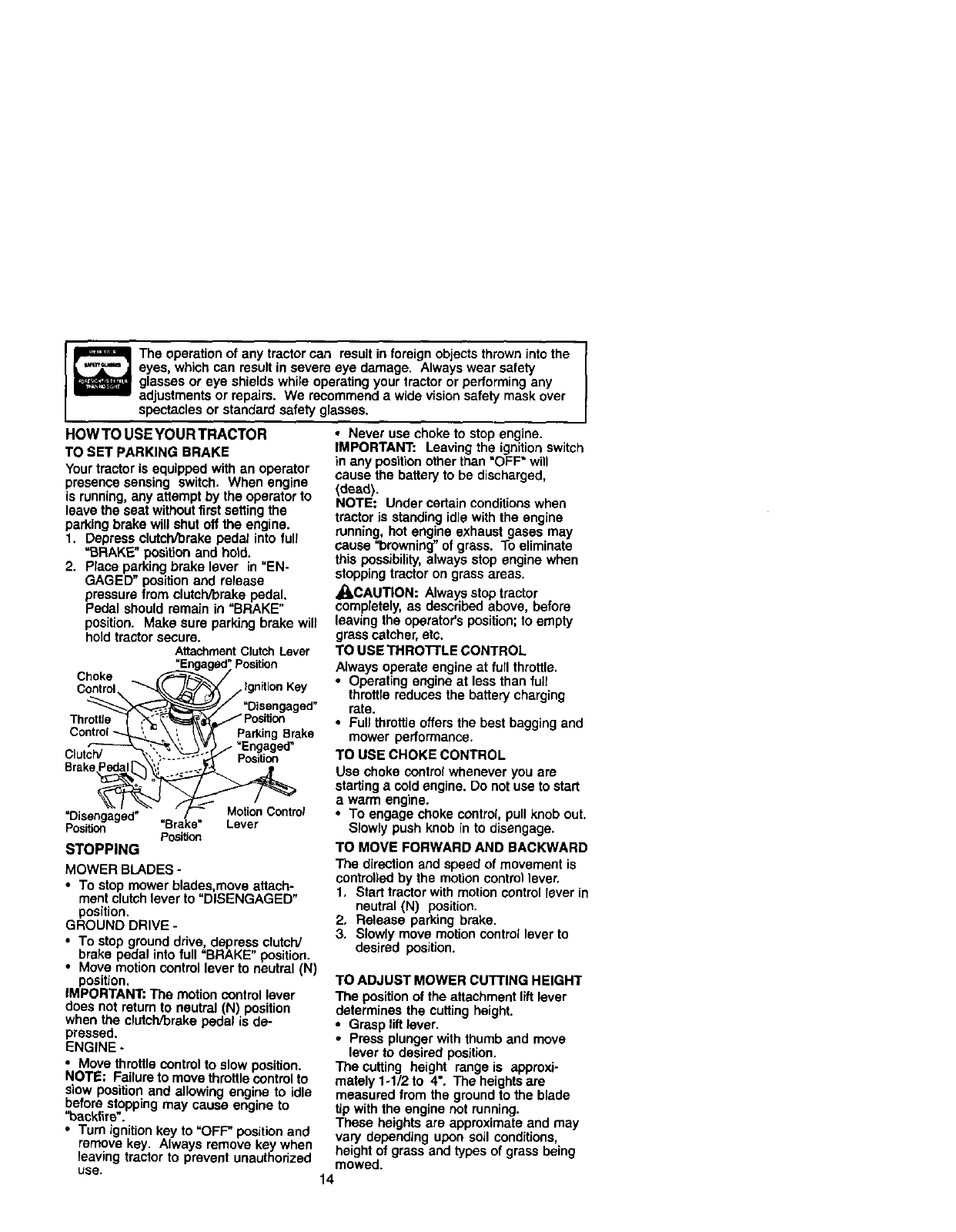

HOW TO USE YOUR TRACTOR

TO BET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat withoutfirst setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal into full

"BRAKE" positfon and hold.

2. Piece parking brake lever in "EN-

GAGED" position and release

pressure from clutch/brake pedal.

Pedal should remain in "BRAKE"

position, Make sure parking brake will

hold tractor secure.

AttachmentClutchLever

Choke

Control ,tgnition Key

ThrotUe

Parking Brake

/ _Engaged"

Clutch/ Position

Brake

=Disengaged" MoUon Contro/

Position =Brake" Lever

Position

STOPPING

MOWER BLADES -

•To stop mower blades,move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

i To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

• Move throttle control to slow position.

NOTE= Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

backfire".

• Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignitionswitch

in any position other than "OFF" will

cause the battery to be discharged,

(dead).

NOTE= Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_I=CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THRO]-rLE CONTROL

Always operate engine at full throttle.

•Operating engine at less than full

throttle reduces the battery charging

rate.

•Full threttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

•To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1, Start tractor with motion control lever in

neutral (N) position.

2, Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The positionof the attachment lift lever

determines the cutting height.

•Grasp liftlever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

•For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

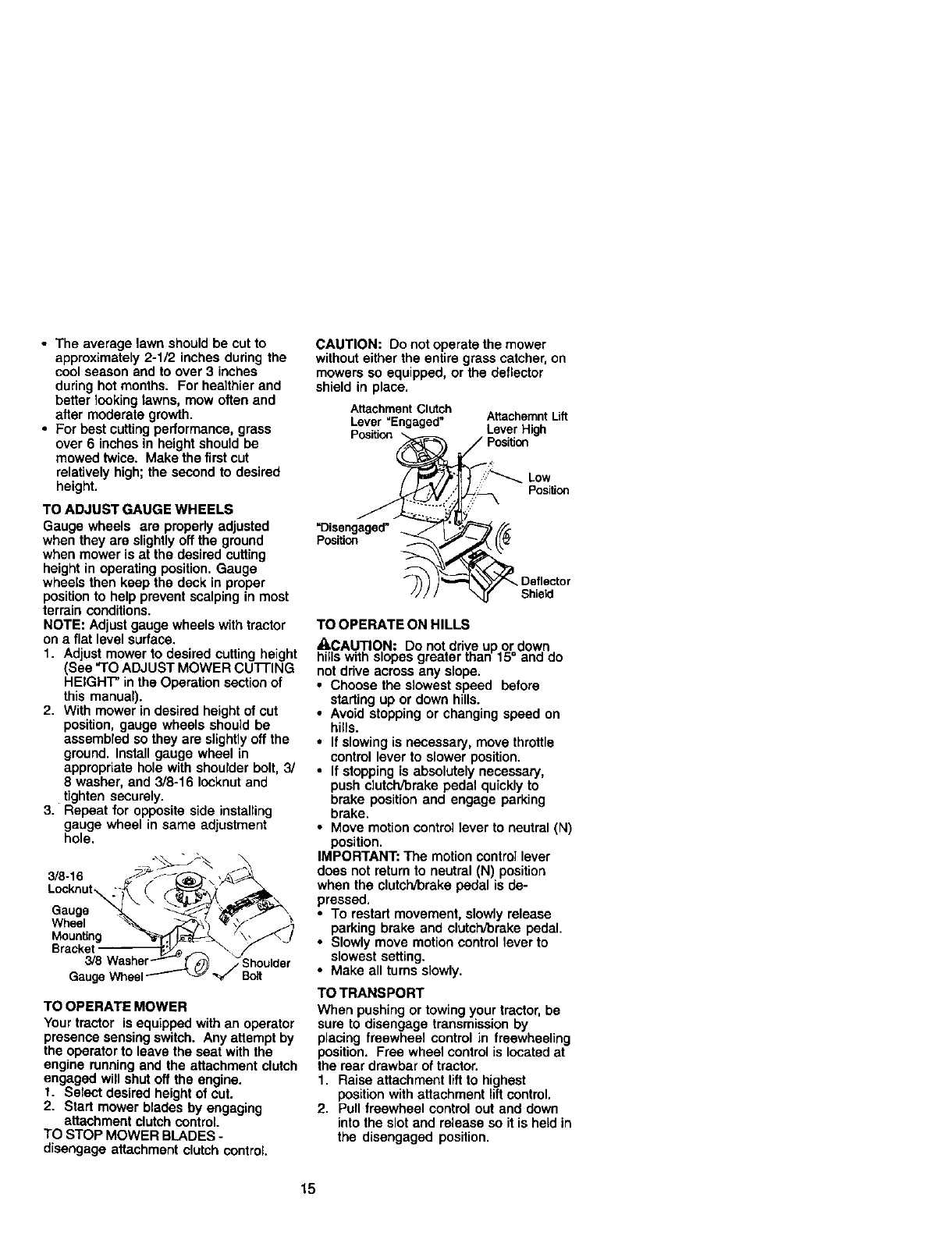

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightlyoff the ground

when mower is at the desired cutting

height in operating position, Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CU'I-rlNG

HEIGHT" in the Operation section of

this manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightlyoff the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 lecknut and

tighten securely.

3. Repeat for opposite side installing

gauge wheel in same adjustment

hole.

3/8-16 _ f --F_'_- \

Locknut..

Wheel _'_ _ "_

Mounting __ _

Bracket •

GaugeWheel_"_ Shoulder

Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut oft the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

AttachmentCinch

Lever=Engaged"

"Disengaged" ._

PosiUon

Attachemnt Lift

LeverHigh

i_ Low

Position

D_l/_dct° r

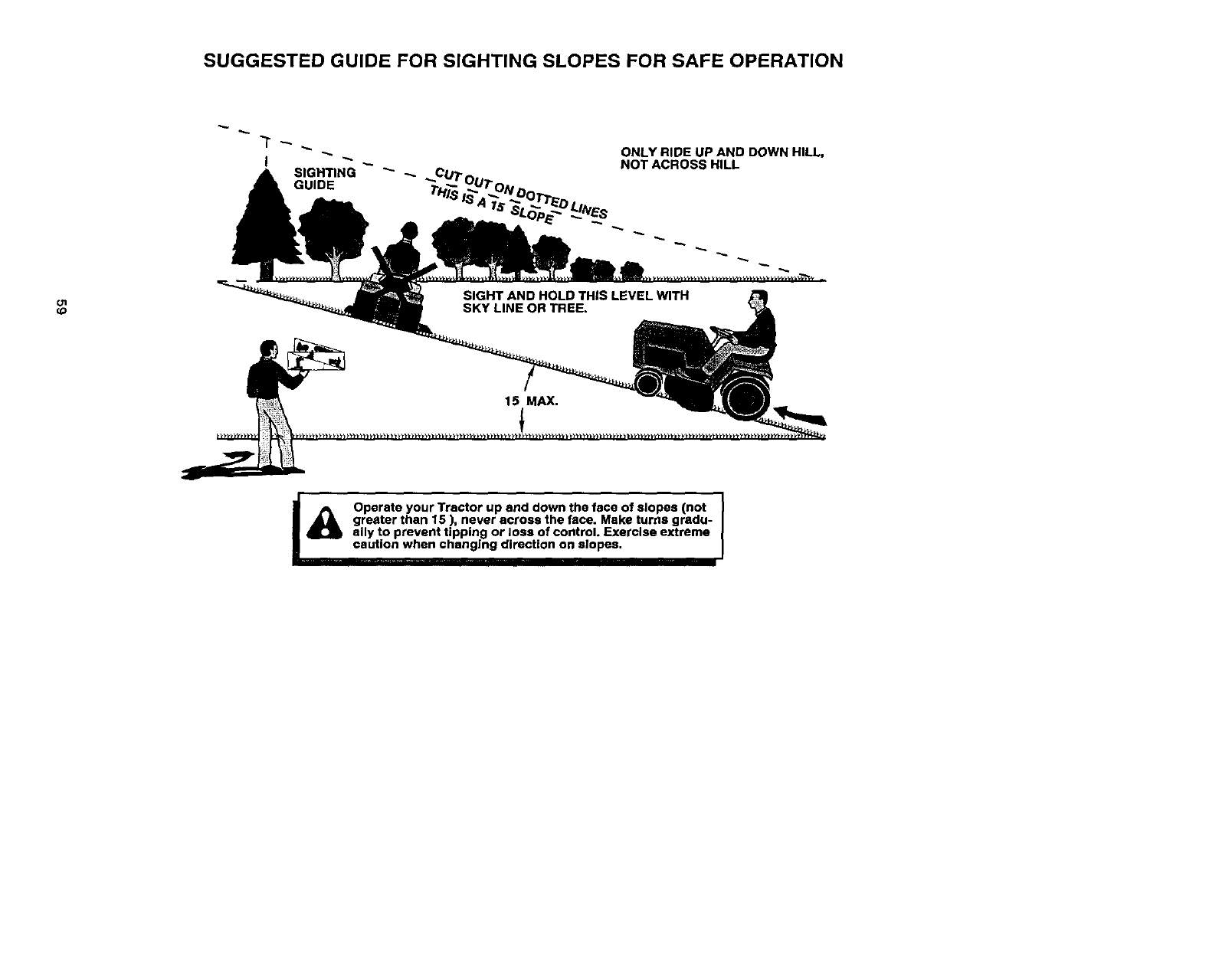

TO OPERATE ON HILLS

ACAUTION: Do net drive up or down

hillswith slopes greater than 15= end do

not drive across any slope.

•Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

•If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position end engage parking

brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

•To restart movement, slowly release

parking brake and clutch/brake pedal.

•Slowly move motion control lever to

slowest setting.

•Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Free wheel control is located at

the rear drawbar of tractor.

1. Raise attachment liftto highest

position with attachment lift control,

2. Pull freewheel control out and down

into the slot and release so itis held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To reengage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTSAND OTHER

ATrACHMENTS

Tow only the attachments that are

recommended by and comply with

specificationsof the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tiras can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsed the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting(See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

•Fill fuel tank, Use fresh clean regular

un eaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use fresh,

clean winter grade gasoline to heJp

insure good cold weather starting. 16

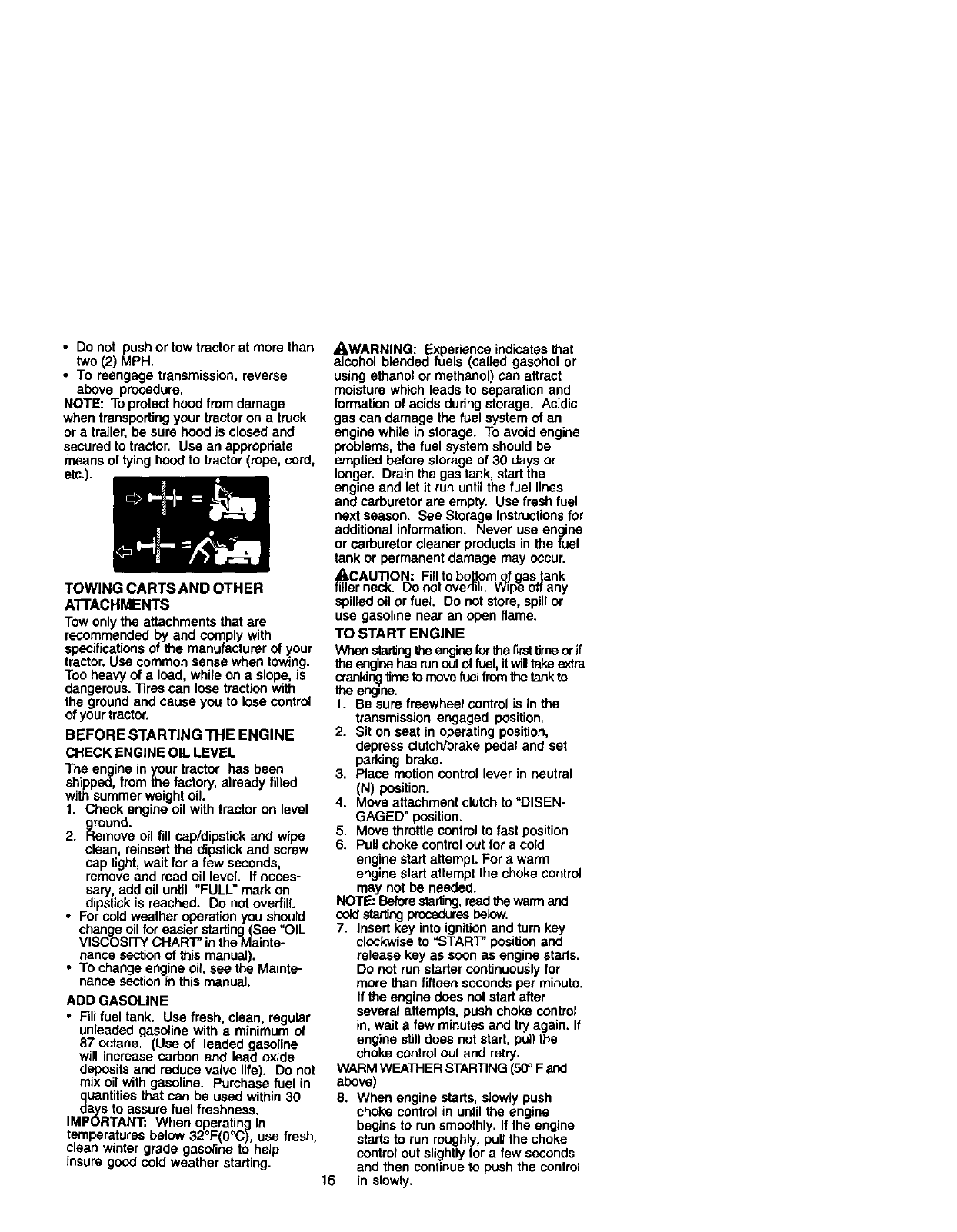

_,WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids duringstorage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, stad the

engine and let it run untilthe fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

,_..CAUTIONj Fillto bo_,.om.ofgas !ank

filler necK. uo norovenih, wipe otr any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When stadJng_enginefor the firstlime or if

the enginehasrunoct of fuel, it,,viiitake extra

crankinglirne to movefuel from thetank to

the engine.

1. Be sure freewheel control is in the

transmission engaged position,

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to "DISEN-

GAGED" position.

5. Move throttle control to fast position

6. Pull choke control out for a cold

engine stad attempt. For awarm

engine stad attempt the choke control

may not be needed.

NOTE: Before sta_ng, read the warm and

cold starling procedures below.

7. Insed key into ignition and turn key

clockwise to "START" position and

release key as soon as engine stads.

DOnot run starter continuously for

more than fifteen seconds per minute.

If the engine does not stad after

several attempts, push choke control

in, wait a few minutes and try again. If

engine stilldoes not stad, pull the

choke control out and retry.

WARM WEATHER STARTING (50' F and

above)

8. When engine stads, slowly push

choke control in until the engine

begins to run smoothly. If the engine

stads to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

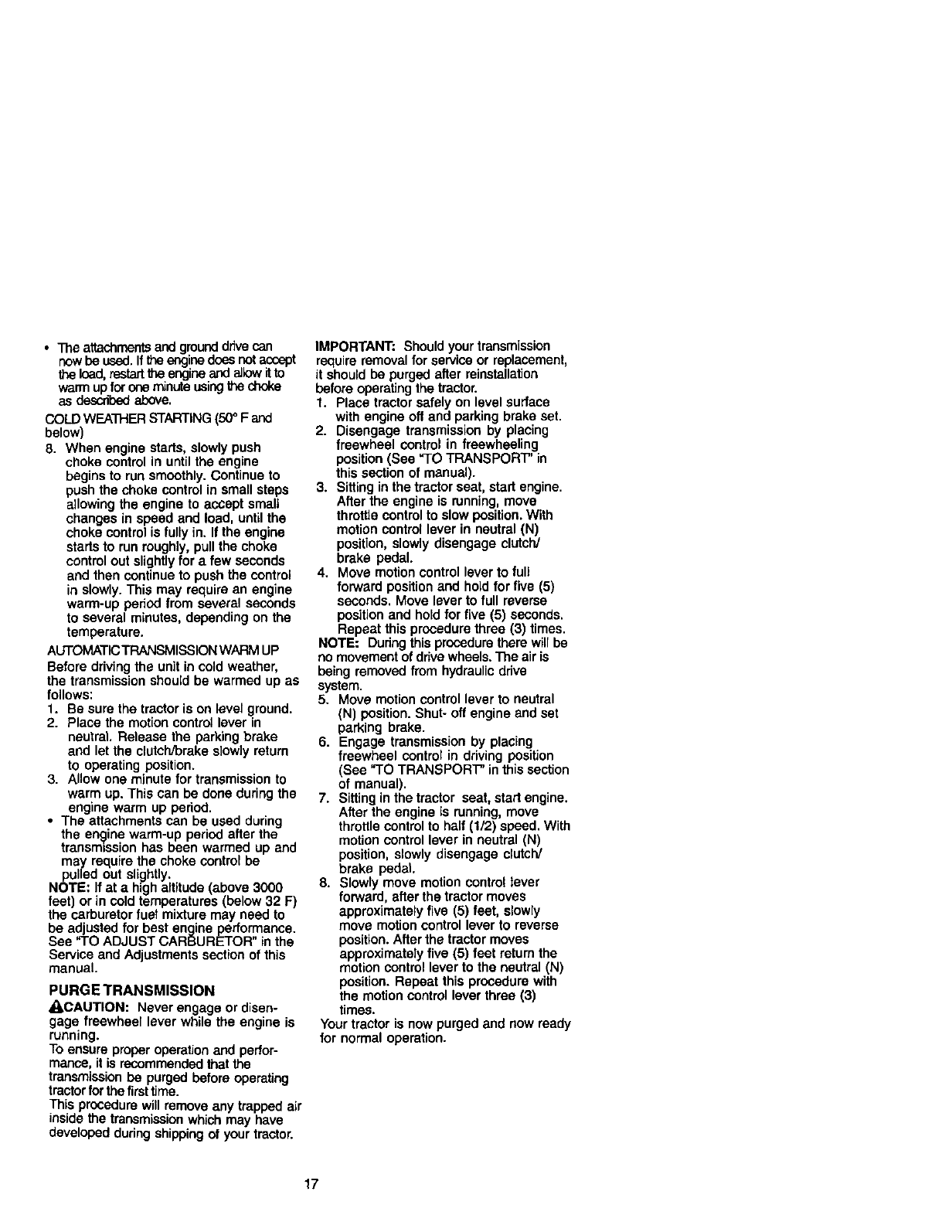

•The attachmentsand grounddrive can

nowbe used. Ifthe enginedoes not accept

the load,rastarttheengine and aJk)witto

warm up for one n_nuteusingthe choke

as describedabove.

COLD WEATHER STARTING(50_Fand

below)

8. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept smaU

changes in speed and load, untilthe

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightlyfor afew seconds

end then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

AUTOMATICTRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

•The attachments can be used during

the engine warm-up period after the

transmission has been warmed up end

may require the choke control be

pulled out slightly.

NOTE: If at a h=ghaltitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" inthe

Service and Adjustments section of this

manual.

PURGE TRANSMISSION

_,CAUTION: Never engage or disen-

gage freewheel lever while the engine is

running.

To ensure proper operation and pedor-

manoe, it is recommended that the

transmissionbe purged before operating

tractorfor the first time.

This procedure will remove any trapped a_r

insidethe transmissionwhich may have

developed during shippingof your tractor.

IMPORTANT: Should yourtransmission

require removal for service or replacement,

it should be purged after reinstallation

before operatingthe tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in freewheeling

position (See "TO TRANSPORT" in

this section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this procedure there will be

no movement of drive wheels. The air is

being removed from hydraulic drive

system.

5. Move motion control lever to neutral

(N) position. Shut- off engine and set

parking brake.

6. Engage transmission by placing

freewheel control in driving position

(See "TO TRANSPORT" in this section

of manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

8. Slowly move motion control tever

forward, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your tractor is now purged and now ready

for normal operation.

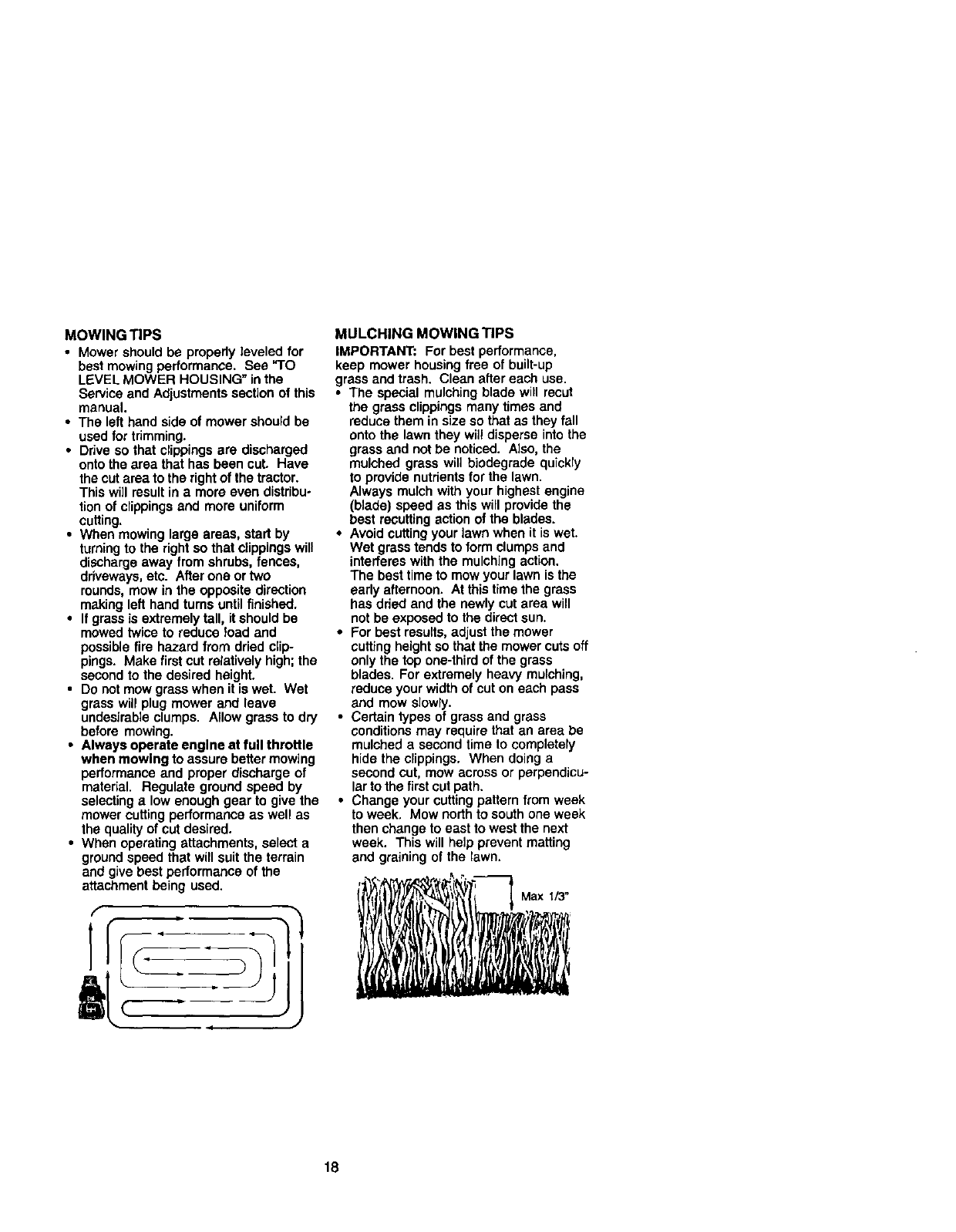

MOWING TIPS

•Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippingsand more uniform

cutting.

•When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

•If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

•Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

pedormance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

•When operating attachments, select a

ground speed that will suit the terrain

and give best pedormance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recuftingaction of the blades.

•Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

•For best results, adjust the mower

cutting heightso that tbe mower cuts oft

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

•Certain types of grass and grass

conditions may require that an area be

mulched asecond time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

•Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

Max I/3"

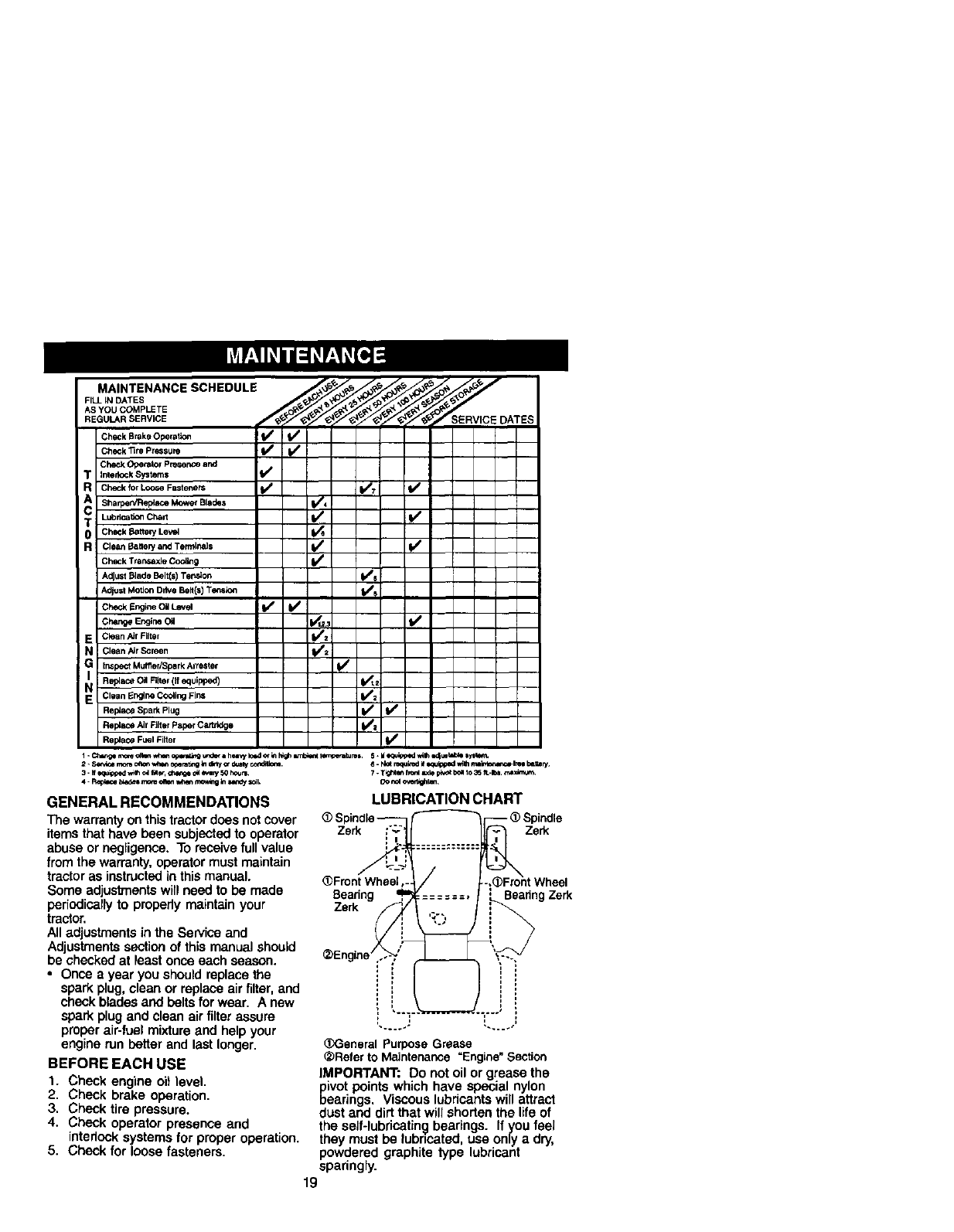

MAINTENANCE SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check Broke Opera_ I_

Check 13re Pressure (1_

Check Odemtor Pre=ence and

Interlock Systems I1#/

Check for Loose Fasteners

Sharpen/Replace Mower Blades

Lubdca_:e Chart

Check 8atter_ Lev_

Clean Beltely and TermlJ_ds

Check Trar,.tmxleCooling

Adjust _lede Belt(s) Te_Z_or_

Adjust Motion DriVe Belt(s) Tension

Check Engine O_ Level

Change En_r_ O¢

Clean ,&JrFilter

Clean Air Screen

[r_spectMuffler/Spark Attester

Replace Oil Fitter(If equipped)

Clean Eng_n_ Cooltng Fir,s

Replc_,e Spark Plug

Replace Air Filter Paper Carttlege

Replace FUel Filter

i/, i/

v',

v' v'

v',

=/=

l/ i/

i/, v'

1 -C;lmr_ohen_opembrfgun_tahea_tloe_otiqNgharnb_qtm_tatums. 5*ll_ipped_lhm:_uetab_Wlblm,

2* _ r_m o_n v.4_ opembng _n_ly _" _ly co_r_ne.

3 - If equi_ed v*_lhod fAe_, ohenge oil _va_ 50 hrmnl.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjectedto operator

abuse or negligence. To receive fullvalue

from the warranty, operator must maintain

tractor as instructedin this manual.

Some adjustmentswill need to be made

pefiedically to properly maintain your

tractor,

All adjustments in the Sewice and

Adjustments section of this manual should

be checked at least once each season,

•Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3, Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

8. Not mqui_d _K_Ji_ v_h mak4e_anc_fr_ b_ery.

7. TiiLIhle_ ftoni &xle Fi_t boa _0 35 _.-I_. _

Oo,',c4omd_h_n.

LUBRICATION CHART

(_FrontWheet

Beating

Ze_

•General purposeGrease

_Refer to Maintenance "Engine"Section

IMPORTANT: Do not oil or grease the

_ivot points which have special nylon

earings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the seJf-lubricatingbearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

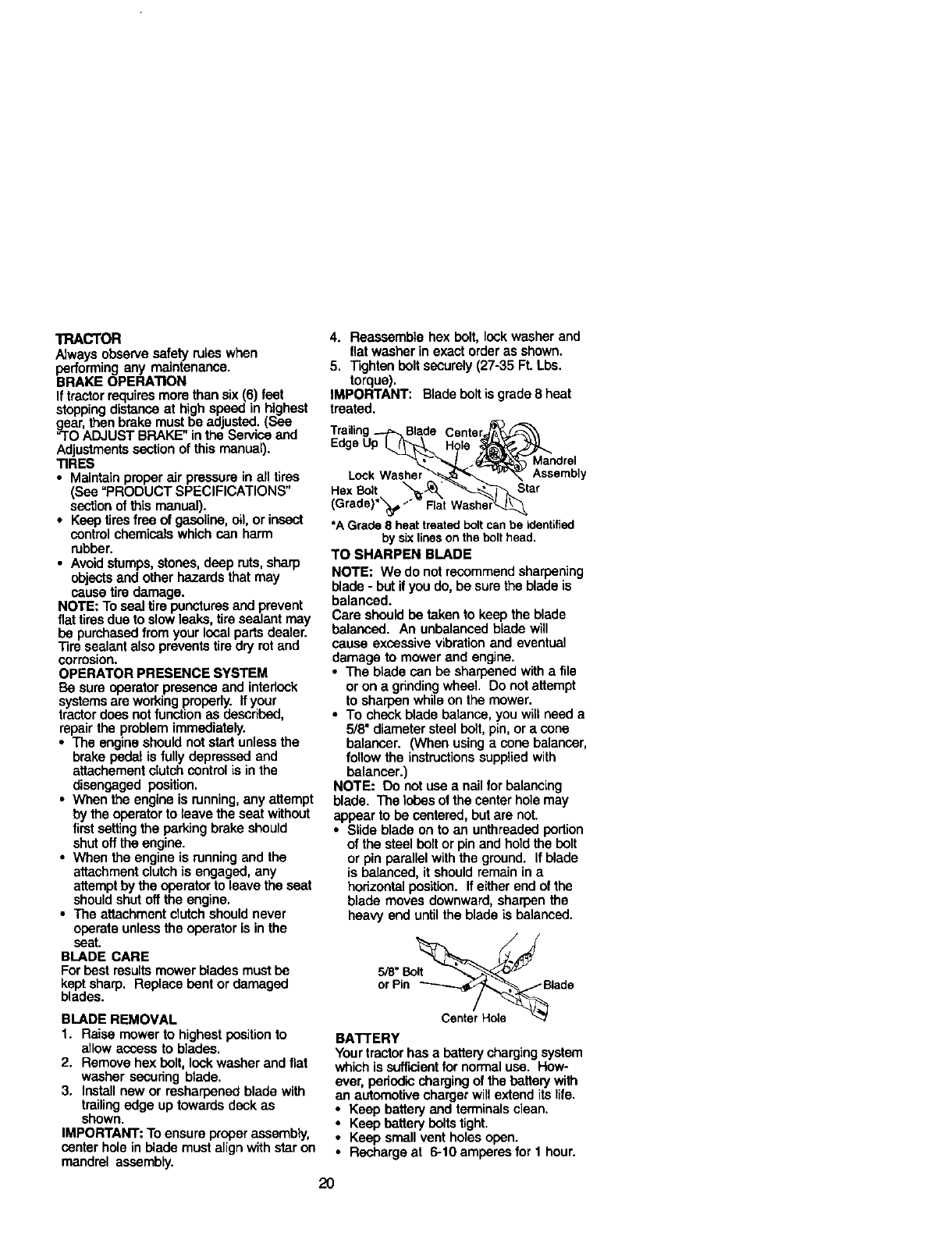

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

Iftractor requiresmore than six (6) feet

stopping distance at high speed in highest

gear,then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustmentssection of this manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

sectionof this manual).

• Keep tiresfree of gasoline,oil, or insect

controlchemicals which can harm

rubber.

•Avoidstumps, stones, deep ruts, sharp

objectsand other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

fiattiresdue to slow leaks, tire sealant may

be purchased fromyour local parts dealer.

Tire sealant also prevents tire dry rot and

corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systemsare working properly. If your

tractor does not functionas described,

repairthe problem immediately.

•The engine should not start unlessthe

brake pedal is fully depressed and

attachement clutch controlis inthe

disengaged position.

•When the engine is running, any attempt

by the operator to leave the seat without

firstsetting the parking brake should

shut off the engine.

•When the engine is running and the

attachment clutch is engaged, any

attemptby the operator to leave the seat

shouldshut off the engine.

•The attachment clutchshould never

operate unless the operator is in the

seat.

BLADE CARE

For best resultsmower blades must be

kept sharp. Replace bent or damaged

blades.

4. Reassemble hex bolt, lockwasher and

fiatwasher in exact order as shown.

5. Tighten belt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Trailing Center,

Lock Washe Assembly

Hex Bolt \ Star

(Grade)*_

*AGrade8 heattreatedboltcan be identified

by sixlineson thebolthead.

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade -but ifyou do, be surethe blade is

balanced.

Care shouldbe taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions suppliedwith

balaneer.)

NOTE: Do not use anail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel Ix)It or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" BOlt

or Pin

BLADE REMOVAL

1. Raise mower to highest positionto

allow access to b]edes.

2. Remove hex bolt, lockwasher and flat

washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure properassembly,

center hole in blade must align with star on

mandrel assembly.

Center Hole

BA'n'ERY

Your tractor has a battery chargingsystem

which is sufficientfor normal use. How-

ever, pedodic charging of the battery with

an automotive charger willextend its life.

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes open.

•Recharge at 6-10 amperes for 1 hour.

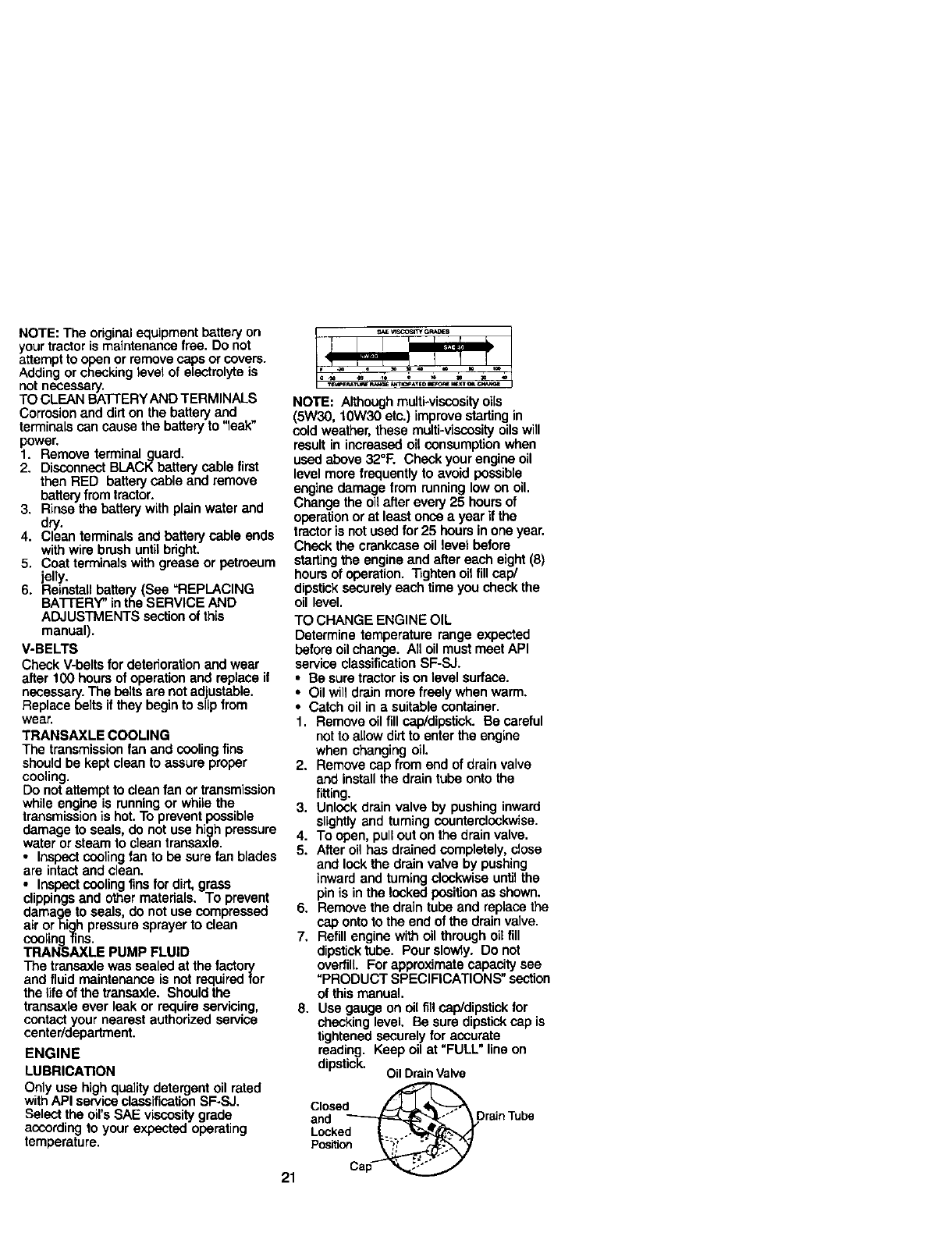

NOTE: The originalequipment battery on

yourtractor is maintenance free. DOnot

attempt to open or remove caps or covers.

Adding or checking level of electrolyteis

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosionand dirton the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard,

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petroeum

jelly.

6. Reinstall battery (See "REPLACING

BATTERY" inthe SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for detedoratian and wear

after 100 hours of operation and replace if

necessary.The belts are not adjustable.

Replacebelts ifthey begin to slipfrom

wear.

TRANSAXLE COOLING

The transmissionfan and coolingfins

should be kept clean to assure proper

cooling.

Do not attemptto clean fan or transmission

while engine is running or while the

transmissionis hot. To prevent possible

damage to seals, do not use high pressure

water orsteam to clean transaxle.

• Inspectcoolingfan to be sure fan blades

are intactand clean.

•Inspectcoolingfins for dirt, grass

clippingsand other materials. To prevent

damage to seals, do not use compressed

air orhigh pressuresprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transexle was sealed at the factory

and fluid maintenance is not requiredfor

the life of the transaxle. Shouldthe

transs,xleever leak or requireservicing,

contact your nearest authorized service

center/department.

ENGINE

LUBRICATION

Only use high qualitydetergent oil rated

withAPI service classificationSF-SJ.

Select the oil's SAE viscositygrade

according to your expected operating

temperature.

......... j

NOTE: Although multi-viscosity oils

(5W30, lOW30 etc.) improve startingin

cold weather, these multi-viscosity oils will

resultin increased oil consumptionwhen

used above 32°F. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 25 hours of

operationor at least once ayear if the

tractoris not used for 25 hours inone year.

Check the crankcase oil level before

startingthe engine and after each eight (8)

hoursof operation. "13ghtanoil fill cap/

dipsticksecurely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classificationSF-SJ.

•Be sure tractor is on level surface.

•Oil will drain more freely when warm.

•Catch oil in asuitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allowdirtto enter the engine

when changing oil.

2. Remove cap from end of drain valve

and installthe drain tube onto the

fitting.

3. Unlock drain valve by pushinginward

slightly and turning counterclockwise.

4. To open, pullout on the drain valve.

5. After oil has drainedcompletely, close

and lock the drain valve by pushing

inward and turning clockwise untilthe

pin is in the locked positionas shown.

6. Remove the drain tube and replace the

cap ontoto the end of the drain valve.

7. Refill engine with oil through oil fill

dipsticktube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section

ol this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick. Oil DrainValve

Closed_D

and rainTube

Position

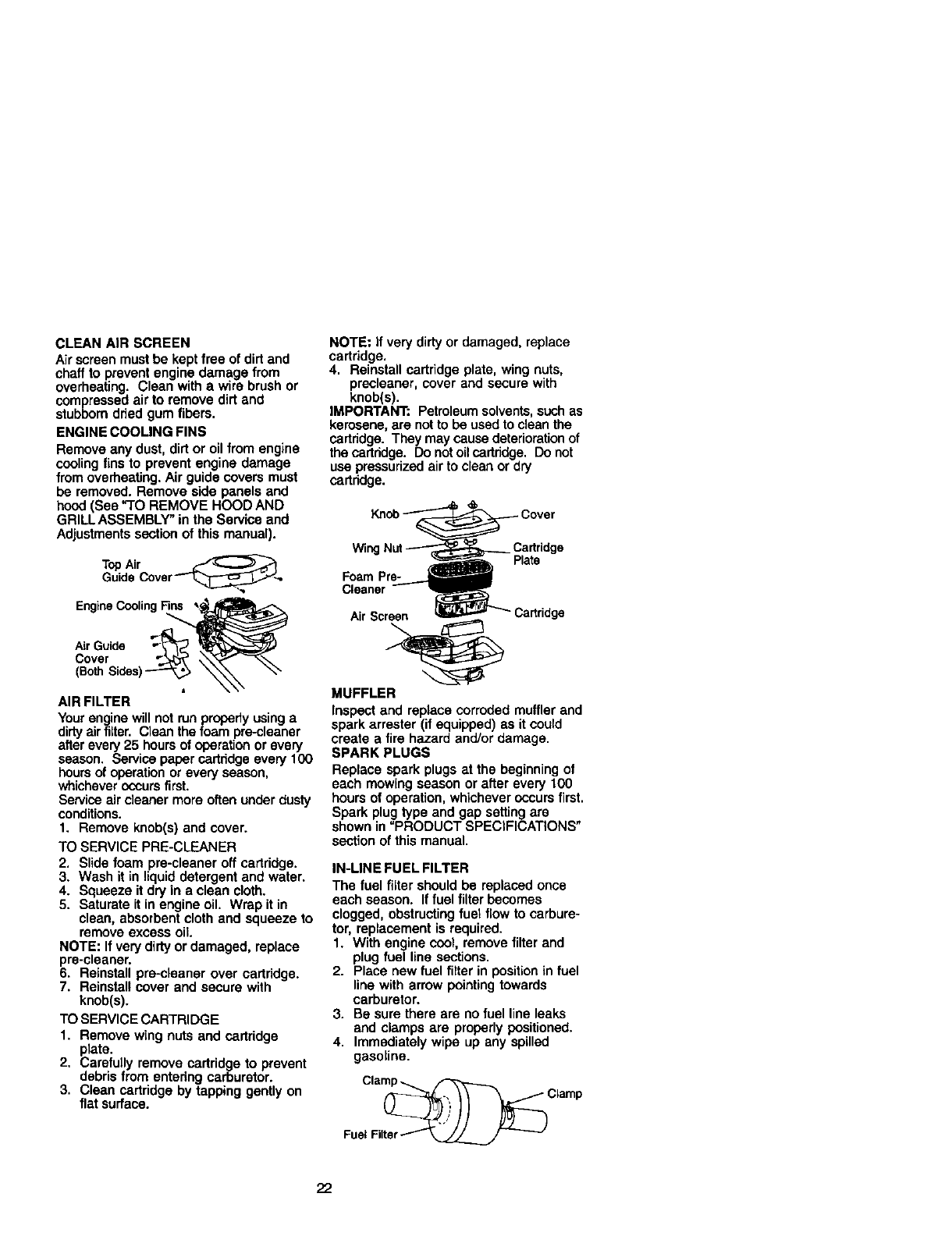

CLEAN AIR SCREEN

Air screen mustbe kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

fromoverheating. Air guide covers must

be removed. Remove side panels and

hood (See TO REMOVE HOOD AND

GRILL ASSEMBLY" in the Service and

Adjustments section of this manual).

TopAir

Guide Cover"_-J-- -_

EngineCoolingF_

Air Guide __

Cover _ xx-_-'_

(BothSides)--_, _'_ \"

AIR FILTER

Yourengine will not runpropedy using a

dirtyair filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper certndge every 100

hoursof operation or every season,

whicheveroccurs first.

Service aircleaner more often under dusty

conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate itin engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove wing nuts and cartridge

plate.

2. Carefully remove cartridge to prevent

debris from entering carburetor.

3. Clean certridge by tapping gently on

flat surface.

NOTE: If very dirty or damaged, replace

cartridge.

4. Reinstall cartridge plate, wing nuts,

precleaner, cover and secure with

knob(s).

IMPORTANT: Petroleumsolvents, such as

kerosene, are not to be used to clean the

cartridge. They may cause deteriorationof

the certddge. Do not oilcertddge. Do not

use pressurized air to clean or dry

cartridge.

Plate

Foam Pre-

Cleaner

Air Screen

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in =PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. Iffuel filter becomes

clogged, obstructingfuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in positionin fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

•Keep finished surfaces and wheels free

of ell gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using agarden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor ere covered to keep water out.

Water in engine can result in a shortened

engine life.

ACAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Piece motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignitionkey "OFF" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower willbe easier to remove from the

rightside of tractor.

1. Place attachment clutch in =DISEN-

GAGED" position.

2. Move attachment liftlever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-swaybar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms, Slide mower out from under

tractor. Small Retainer

Spdn

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook the

clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with

deflector shield to rightside of tractor.

3. Lower liftlever to its lowest position.

4. Install mower in reverse order of

removal instructions.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" sectionof this

manual). If tires ere over or

underinfleted, you will not properly adjust

your mower.

Square Hole

Clutch Spring

Retainer S

Anti-Swa

;prings

(Both Sides)

Guide Lar9e

Retainer Bracket

Spnng 23

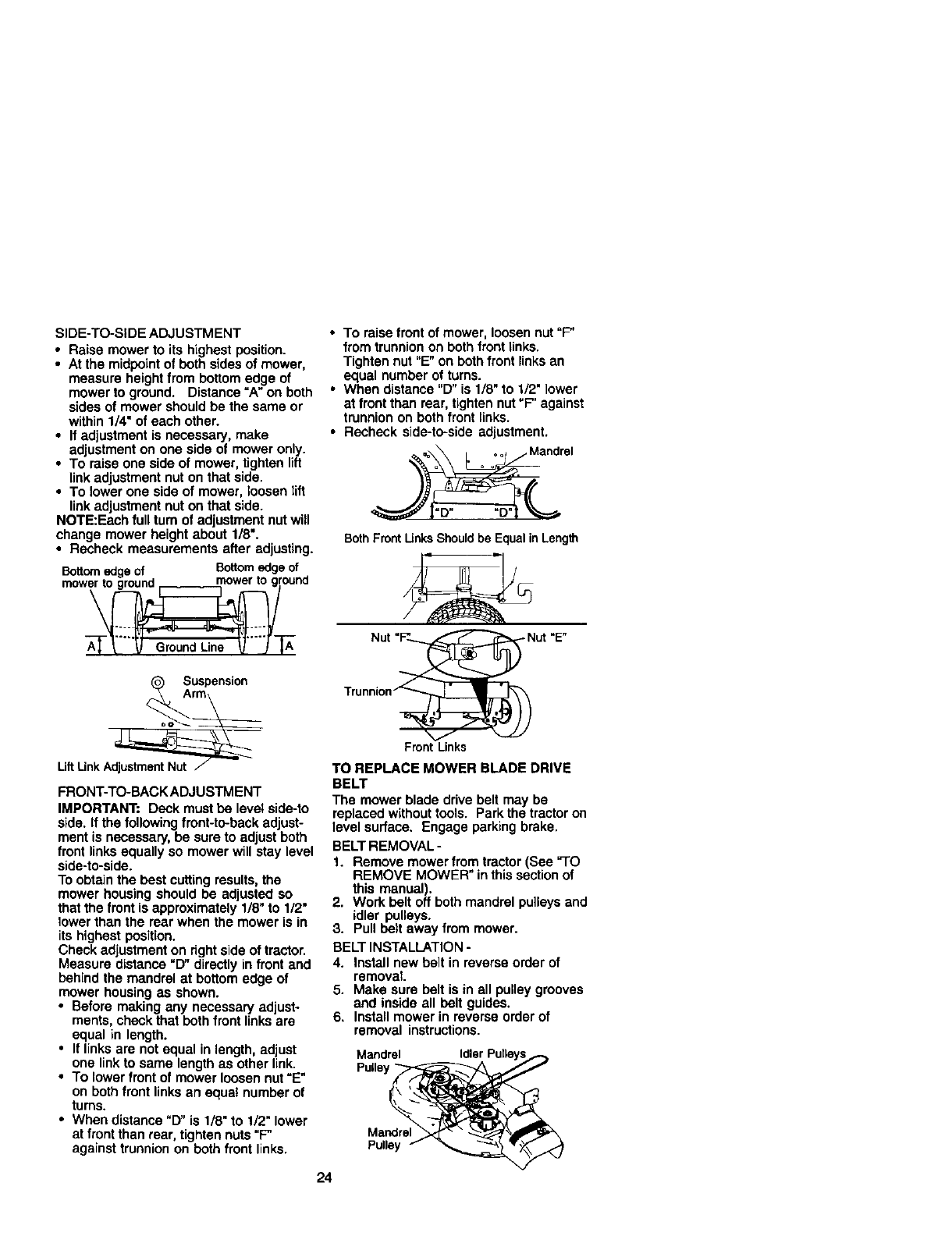

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance =A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE:Each full turn of adjustment nut will

change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge of Bottom edge of

mow_; round

_A Suspension

LiftUnk AdjustmentNut/

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

•It links are not equal in length, adjust

one link to same length as other link.

•To lower front of mower loosen nut =E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

•To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

•When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F' against

trunnion on both front links.

•Recheck side-to-side adjustment.

rel

Both FrontLinksShouldbe EqualinLength

Nut "_ Nut "E"

Trunnion"r_

FrontLinks

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" inthis section of

this manual).

2. Work belt off both mandrel pulleys end

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

4. Install new belt in reverse order of

removal.

5. Make sure belt is in all pulley grooves

and inside all belt guides.

6. Install mower in reverse order of

removal instructions.

Mandrel

Pulley '

Mandrel

Pulley

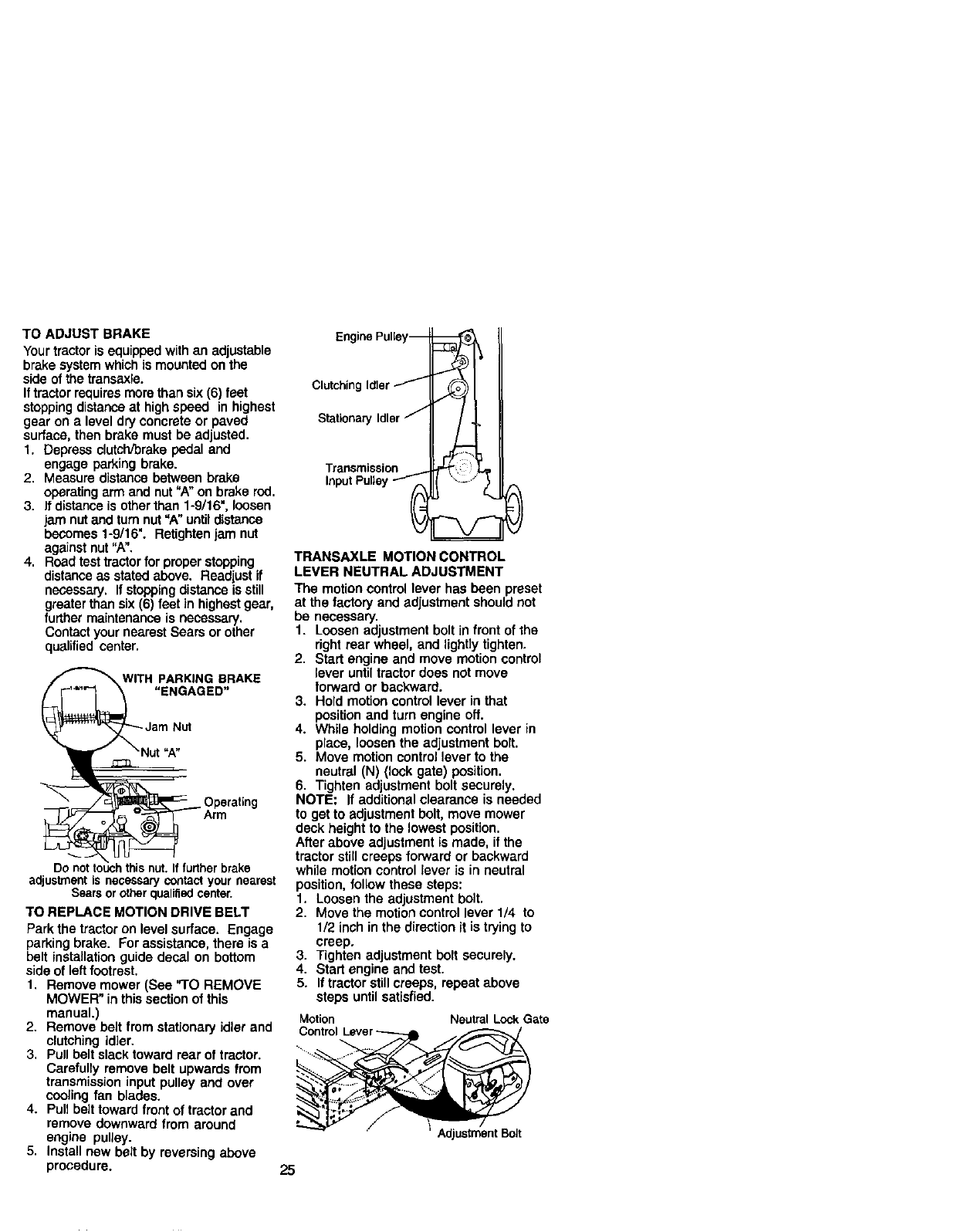

TO ADJUST BRAKE

Yourtractor is equipped with an adjustable

brake system which is mounted on the

side of the transaxle.

Iftractor requiresmore than six (6) feet

stoppingdistance at high speed in highest

gear on alevel dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A"on brake red.

3. If distance is otherthan 1-9/16", loosen

jam nut and turn nut =A"until distance

becomes 1-9/16". Retightanjam nut

against nut "A".

4. Road testtractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet ]n highest gear,

further maintenance is necessary.

Contact your nearest Sears or other

qualified center.

ENGAGED

Jam Nut

adjustment is necessary contact your nearest

Searsorotherqualifiedcenter.

TO REPLACE MOTION DRIVE BELT

Park the tractor on levelsurface. Engage

parkingbrake. For assistance, there is a

belt installationguide decal on bottom

side of left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

2. Remove belt from stationary idler and

clutching idler.

3. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

4. Pull belt toward front of tractor and

remove downward from around

engine pulJey.

5. Install new belt by reversing above

procedure.

EnginePulley--

Clutching Idler

Stationary Idlerj

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

rightrear wheel, and lightly tighten.

2. Start engine and move motion control

lever untiltractor does not move

forward or backward.

3. Hold motion control lever in that

position and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the

neutral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Neutral Lock Gate

Control

Adjustment Bolt

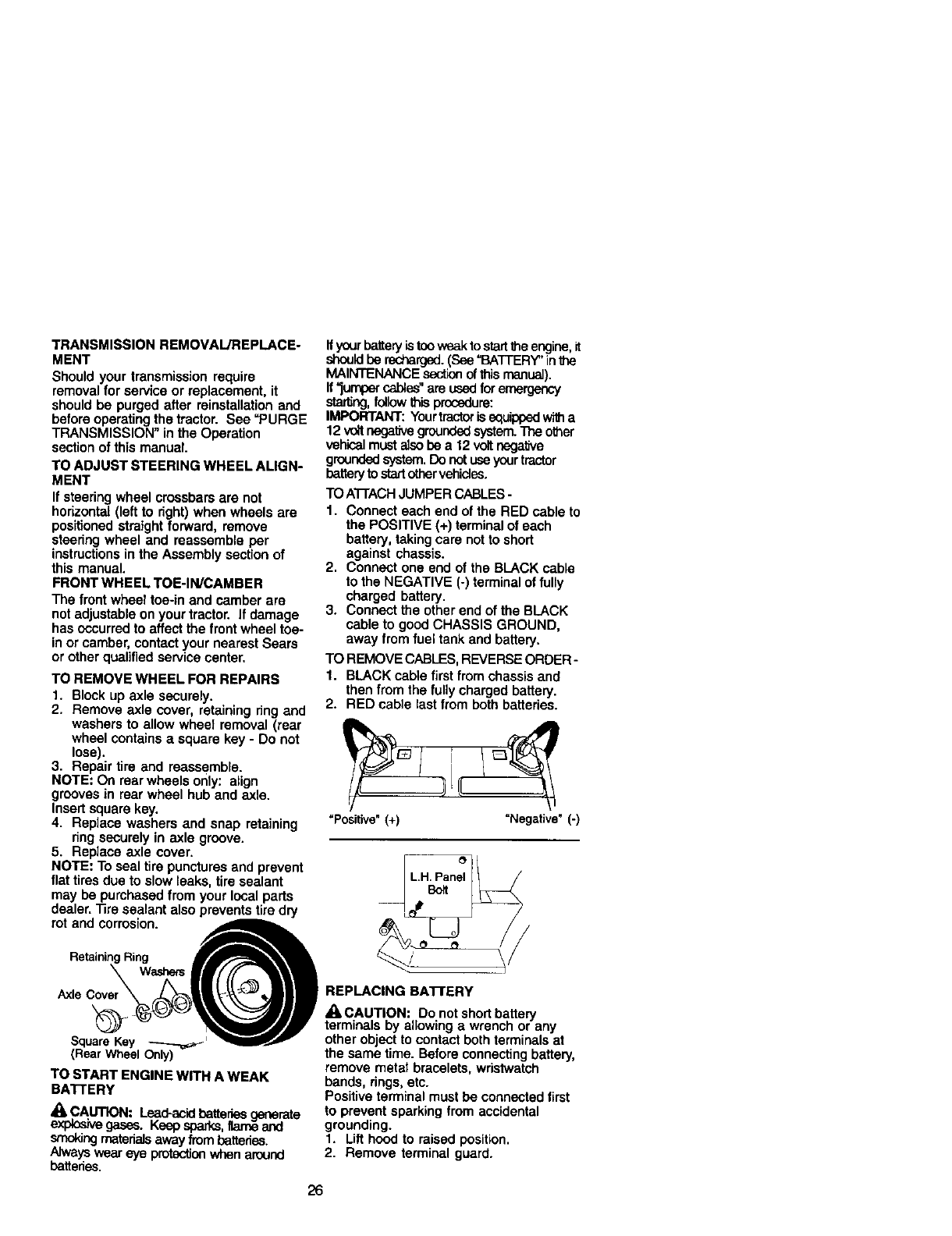

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See =PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructionsin the Assembly section of

this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact your nearest Sears

or other qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheet removal (rear

wheel contains asquare key -Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replaca axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

RetainingRing _r_, I

\wastes IN/ff _II

SquareKey _ -,_F,-

(Rear Wheel Only)

TO START ENGINE WITH A WEAK

BA'n'ERY

,CAUTION: L.ead-acldbatteries generate

exp*os_vegases. Keep sparks,fla.,'_ and

smokingmaterialsaway from batteries.

Alwayswear eye protocUonwhen around

batteries.

ffyourbattery Lstooweakto startthe engine,it

should be recharged. (See "BATTERY"in the

MAINTENANCE sectionof thismanusJ).

If =jumpercables" are used for emergency

staring, follow this procedure:

IMPORTANT: Your tractor is equippedwi_ a

12 voft negaWe grounded system. The other

vehicalmustaJsobe a 12 voltnegate

groundedsystem,Do notuse yourtractor

battery to start other vehicles.

TO ATFACH JUMPER CABLES -

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER-

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

"Positive" (+) "Negative" (-)

REPLACING BATI'ERY

_QI,CAUTION: Do not short battery

terminals by allowing awrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

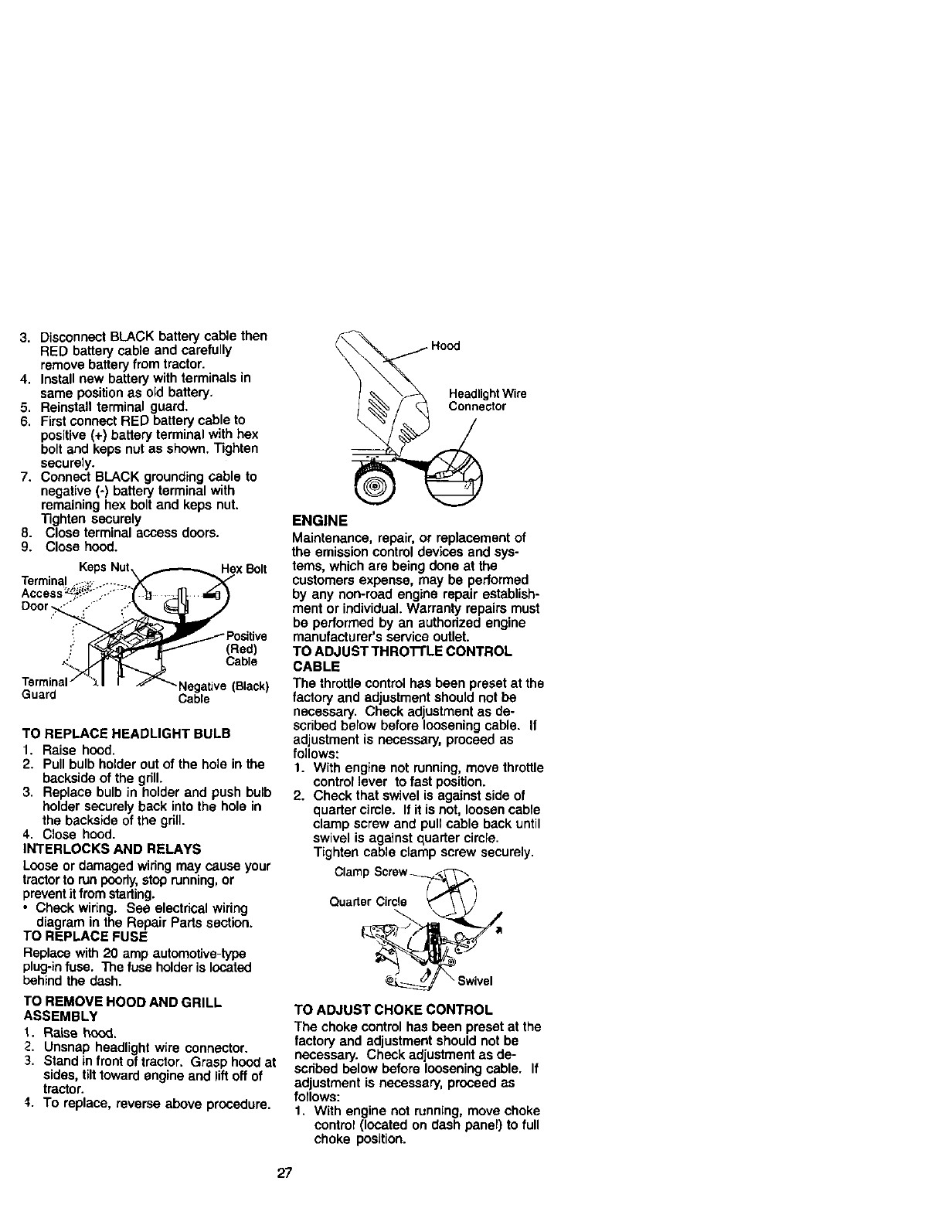

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same positionas old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt end keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Keps He:<Bolt

Terminal

(Red)

-'_,.. Cable

Negative (Black)

Guard Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractorto run poorly,stoprunning, or

prevent itfrom starting.

• Check winng. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-infuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

_. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilttoward engine and lift off of

tractor.

4. To replace, reverse above procedure.

H°_eadlight Wire

¢tor

ENGINE

Maintenance, repair, or replacement of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST TH RO'I-I'LE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

controrlever to fast position.

2. Check that swivel is against side of

quarter cimle. If it is not, loosen cable

clamp screw and pull cable back until

swivel is against quarter circle.

Tighten cable clamp screw securely.

Clamp Screw__

Quarter Circle

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scdbed below before loosening cable. If

adjustment is necessary, proceed as

follows:

t. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cadridge plate to expose carburetor

choke (see "AIR FILTER" in the

Maintenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4 Reassemble air cleaner.

Casing

Clam

Screw

Choke

Lever

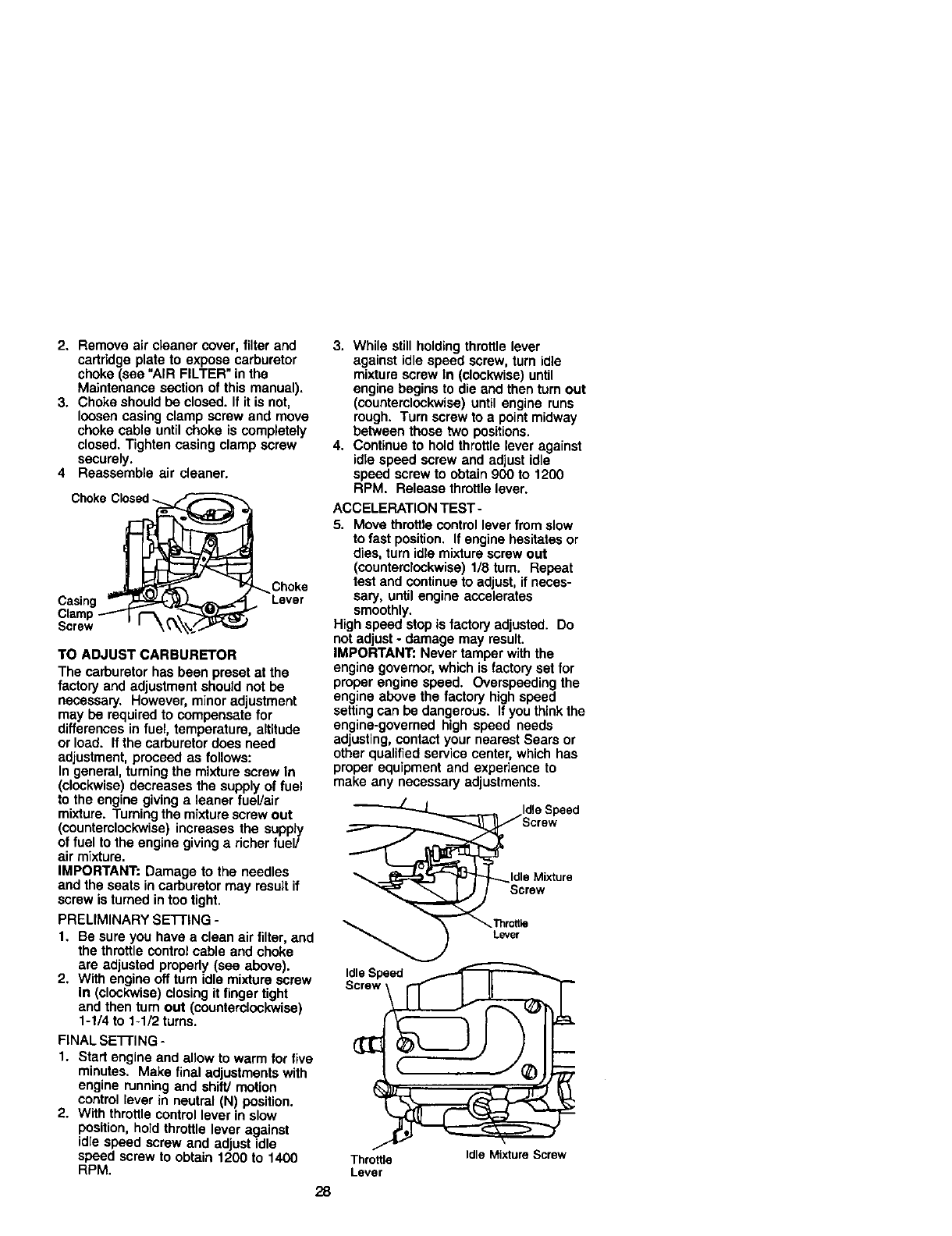

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the mixture screw In

(clockwise) decreases the supply of fuel

to the engine giving a leaner fuel/air

mixture. Turning the mixture screw out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/

air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable and choke

are adjusted propedy (see above).

2. With engine off turn idle mixture screw

In (clockwise) closing it finger tight

and then turn out (counterclockwise)

1-1/4 to 1-1/2 turns.

FINAL SE'I-rlNG -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

2. With throttle control lever in slow

position, hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 1200 to 1400

RPM.

3. While still holding throttle lever

against idle speed screw, turn idle

mixture screw In (clockwise) until

engine begins to die and then turn out

(counterclockwise) until engine runs

rough. Turn screw to a point midway

between those two positions.

4. Continue to hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 900 to 1200

RPM. Release throttle lever.

ACCELERATION TEST-

5. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture screw out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest Sears or

other qualified service center, which has

proper equipment and experience to

make any necessary adjustments.

Idle Speed

_ldle Mixture

Screw

Throttle

Lever

IdleSpeed

Throttle IdleMixture Screw

Lever

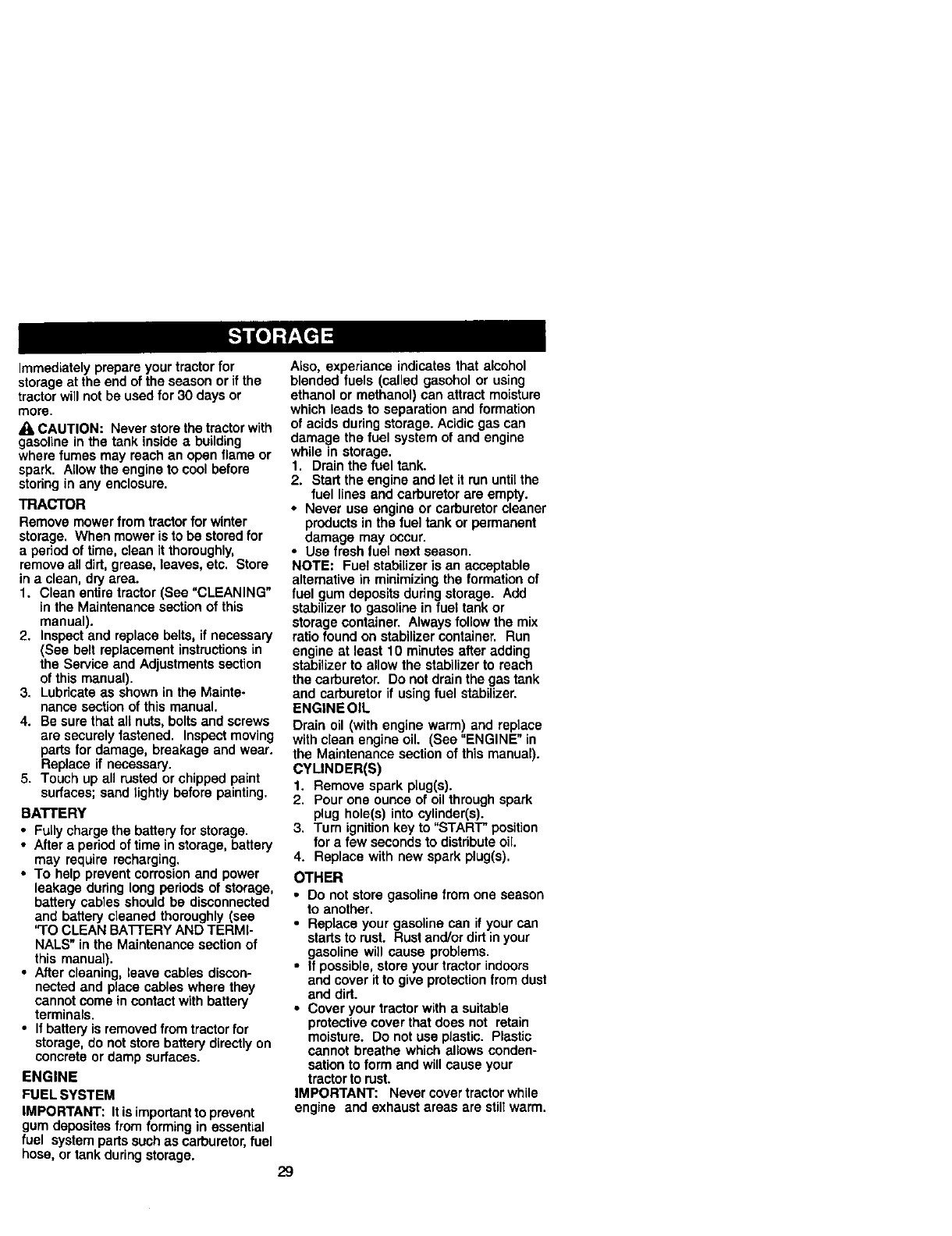

Immediatelyprepareyourtractorfor

storageat the end of the season or if the

tractor will not be used for 30 days or

more.

_l_ CAUTION: Never store the tractor with

gasoline in the tank inside abuilding

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TFL_CTOR

Remove mowerfrom tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

•Fugycharge the battery for storage.

•After a period of time in storage, battery

may require recharging,

•To help prevent corrosionand power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATrERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

•If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: Itis important to prevent

gum depesitas from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, experiance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of and engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run untilthe

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

altamative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuet tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENG|NEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignitionkey to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

startsto rust. Rust and/or dirtin your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

•Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover trector while

engine and exhaust areas are stillwarm.

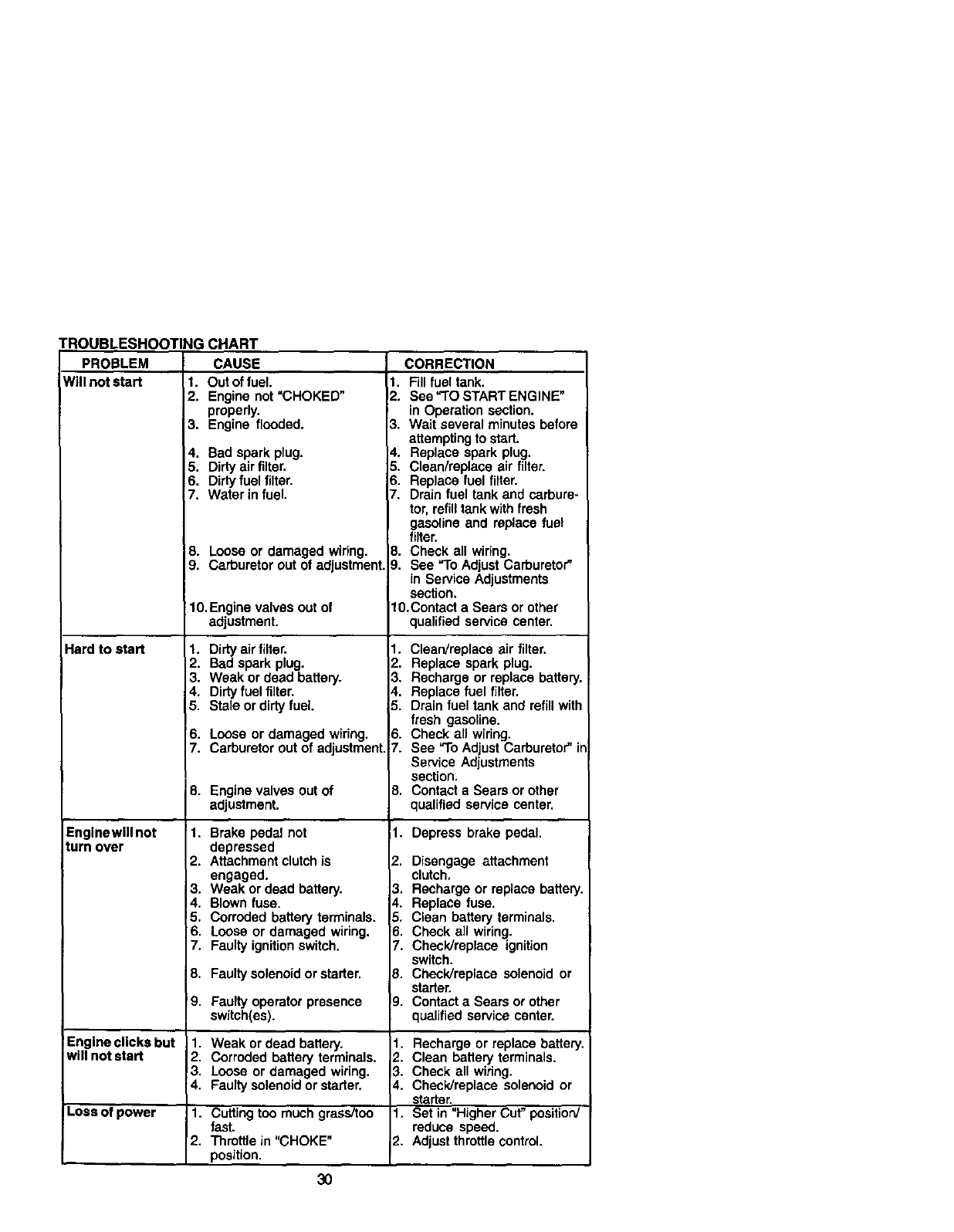

TROUBLESHOOTINGCHART

PROBLEM

Will not start 1.

Hard to start

CAUSE

Out of fuel.

Engine not "CHOKED"

properly.

Engine flooded.

Englnewlll not

turn over

4. Bad spark plug.

5. Dirty air filter.

6. Dirtyfuel filter.

7. Water in fuel.

Loose or damaged wiring.

Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty airfilter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirtyfuel filter.

5. Stale or dirty fuel

6. Loose or damaged wiring,

7. Carburetor out of adjustment.

8. Engine valves Outof

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or stader.

CORRECTION

I. Fill fuel tank,

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

5. Replace fuel filter.

7. Drain fuel tank and carbure-

tor. refilltank with fresh

gasoline and replace fuel

filter.

B. Check all wiring.

9. See "To Adjust Carburetor"

in Service Adjustments

section,

10.Contact a Sears or other

qualified service center,

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" it

Service Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2, Disengage attachment

clutch,

3. Recharge or replace battery.

4. Replace fuse,

5. Clean battery terminals,

6, Check all wiring.

7. Check/replace ignition

switch.

8, Check/replace solenoid or

starter,

9. Contact a Sears or other

qualified service center,

9. Faulty operator presence

switch(es).

Englnecllcks but 1. Weak or dead battery, 1. Recharge or replace battery.

will not start 2, Corroded battery terminals. 2. Clean battery terminals.

3• Loose or damaged wiring• 3. Check all wiring,

4. Faulty solenoid or starter. 4. Check/replace solenoid or

starter,

Loss of power 1. Cutting too much grass/too 1, Set in "Higher Cut" position/

fast. reduce speed,

2. Throttle in "CHOKE" 2. Adjustthrottle control.

position.

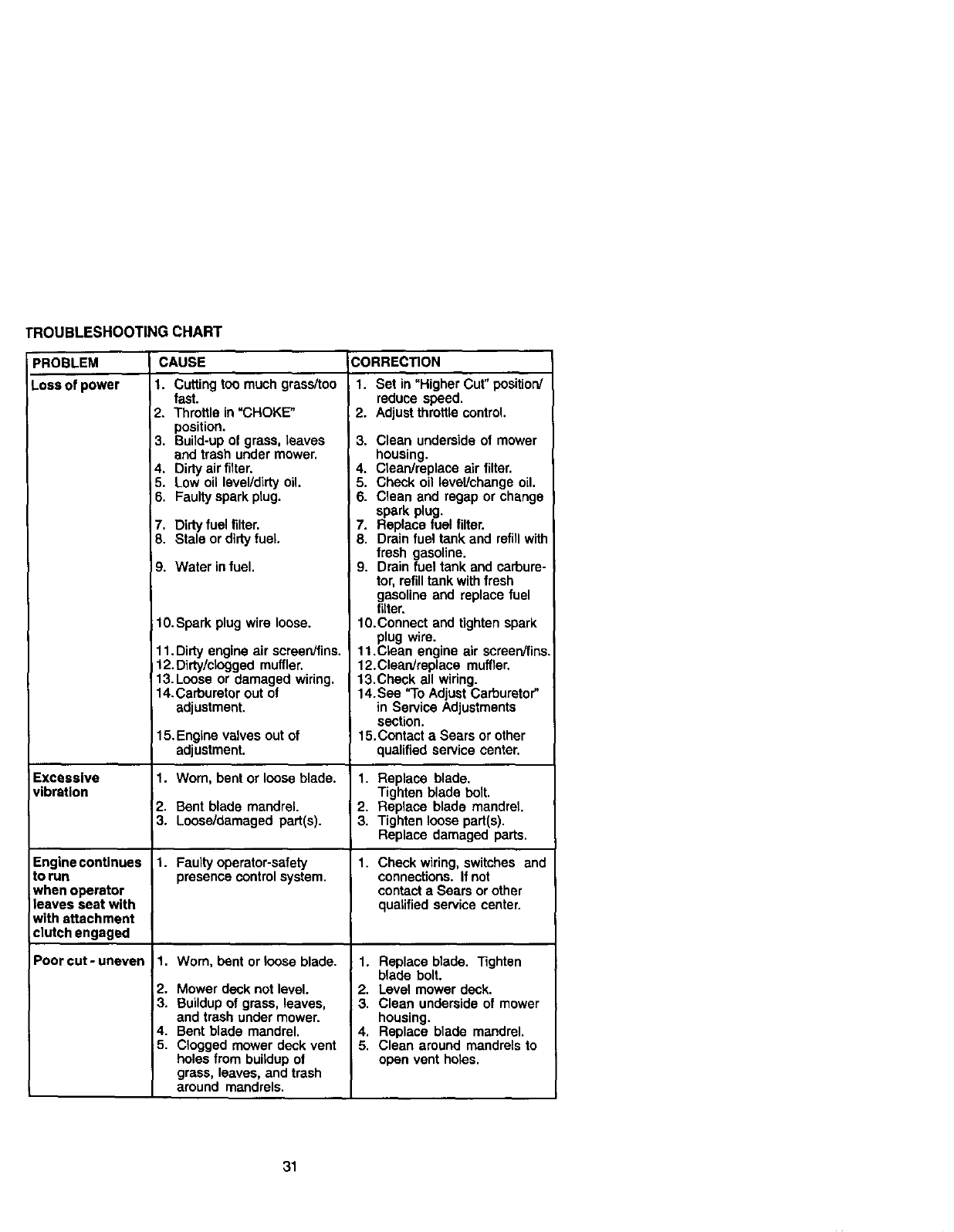

TROUBLESHOOTING CHART

IPROBLEM

Losaofpower

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poorcut-uneven

CAUSE

1. Cutting too much grass/too

fast.

2. Throttle in =CHOKE"

position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

19. Water in fuel.

10.Spark plug wire loose.

11.Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Lcose or damaged wiring.

14.Carburetor out of

adjustment.

15.Enginevalvesoutof

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

CORRECTION

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil levaVchange oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refillwith

fresh gasoline.

9. Drain fuel tank and carbure-

tor, refilltank with fresh

gasoline and replace fuel

filter,

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/fins.

12.Clean/replace muffler.

13.Check all wiring.

14.See "To Adjust Carburetor"

in Service Adjustments

section.

15.Contact aSears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel

3. Tighten loose part(s).

Replace damaged pads.

1. Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

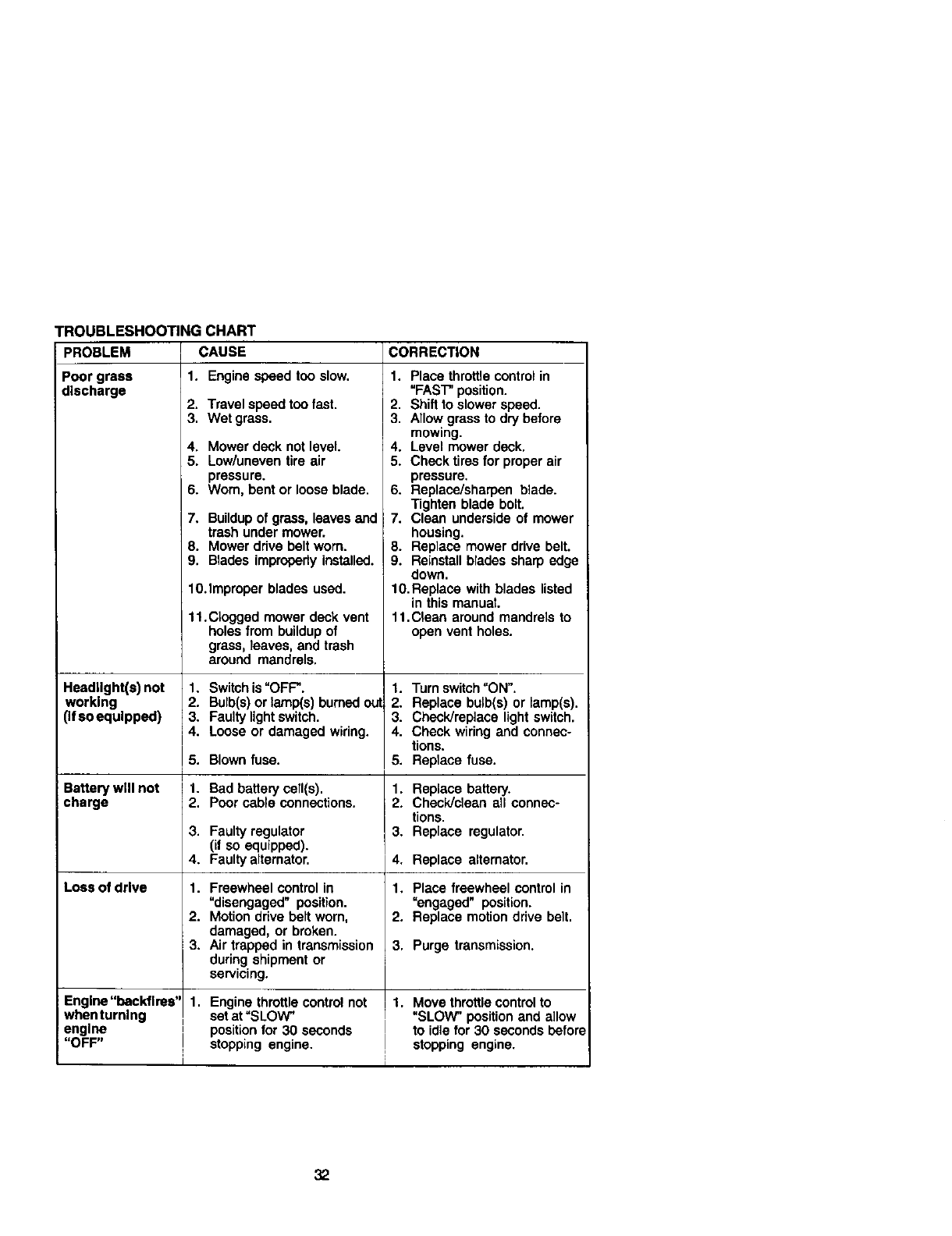

TROUBLESHOOTINGCHART

CAUSE CORRECTION

PROBLEM

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Ba_erywlllnot

charge

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7, Buildupof grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.Improper blades used.

11. Clogged mower deck vent

holes from buildupof

grass, leaves, and trash

around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(it so equipped).

4. Faulty alternator.

Lose of drive 1.

Engine"backfires" 1.

whenturnlng

engine

"OFF"

Freewheel control in

=disengaged" position.

Motion drive belt worn,

damaged, or broken.

Air trapped in transmission

during shipment or

servicing.

1. Place throttle control in

"FAST" position.

2. Shiftto slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch"ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1, Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

Engine throttle control not 1. Move throttle controlto

set at =SLOW" "SLOW" position and allow

positionfor 30 seconds to idle for 30 seconds before

stopping engine, stopping engine.

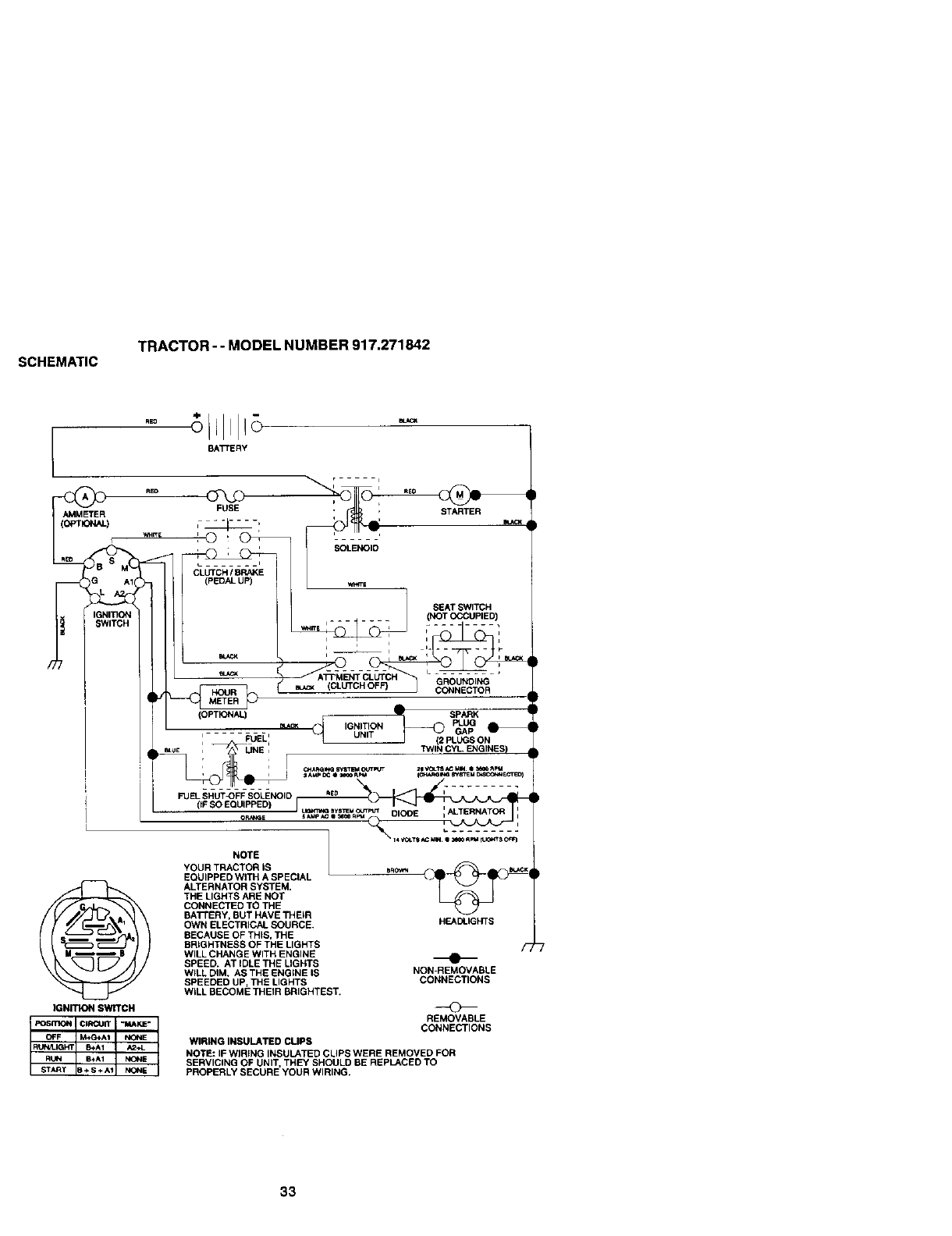

SCHEMATIC TRACTOR --MODEL NUMBER 917.271842

AMMETER

(OPTION.'_-) I

RSD

r-i

FUSE _, L STARTE_R

:©_ ,

SEAT SWITCH

_l _..... _ (NOT OCCUPIED)

_RvUND ,,_

IGNITION SWITCH

NOTE

YOUR TRACTOR IS

EQUIPPED WITH ASPECIAL

ALTERNATOR SYSTEM,

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE,

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM, AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

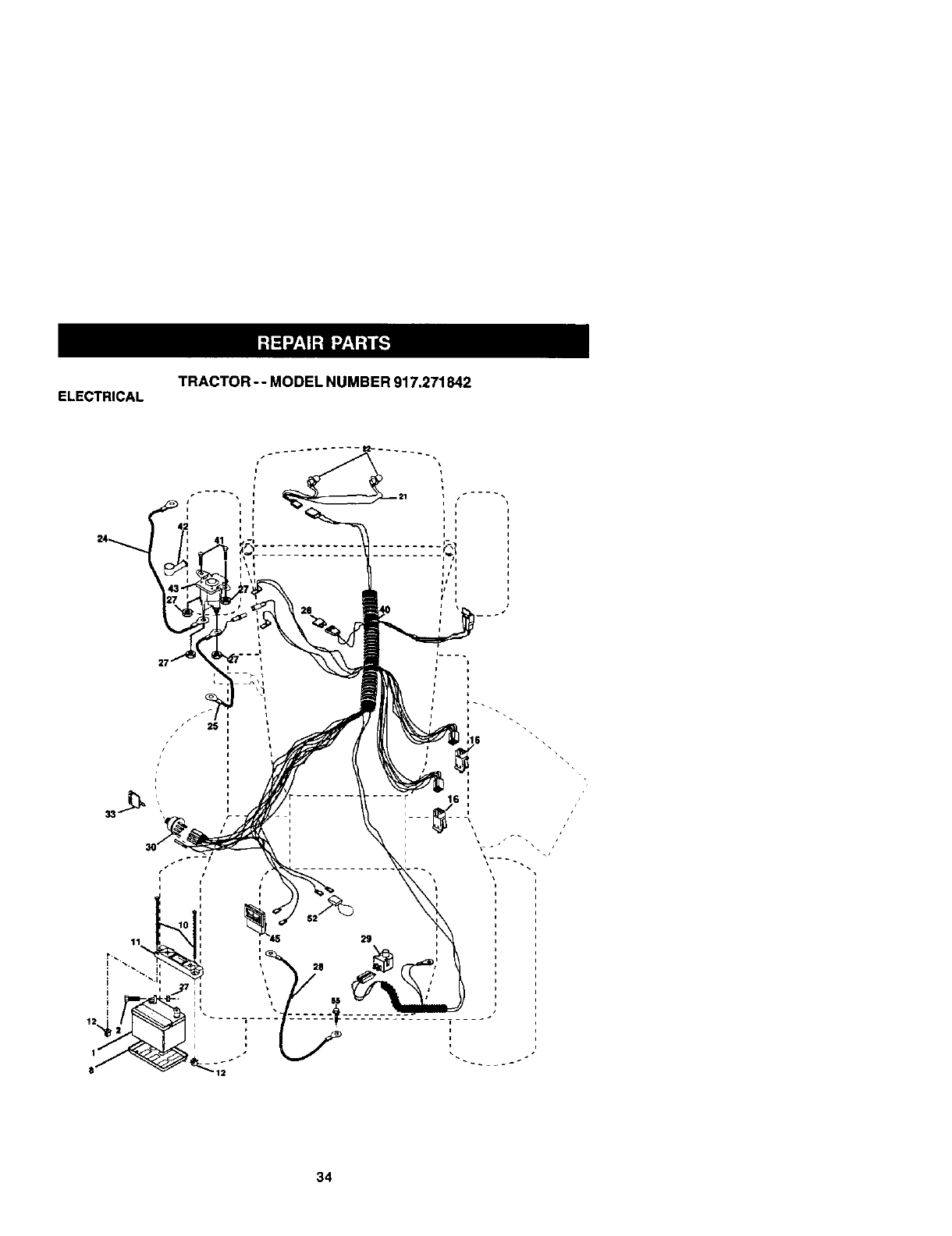

ELECTRICAL TRACTOR -- MODEL NUMBER 917.271842

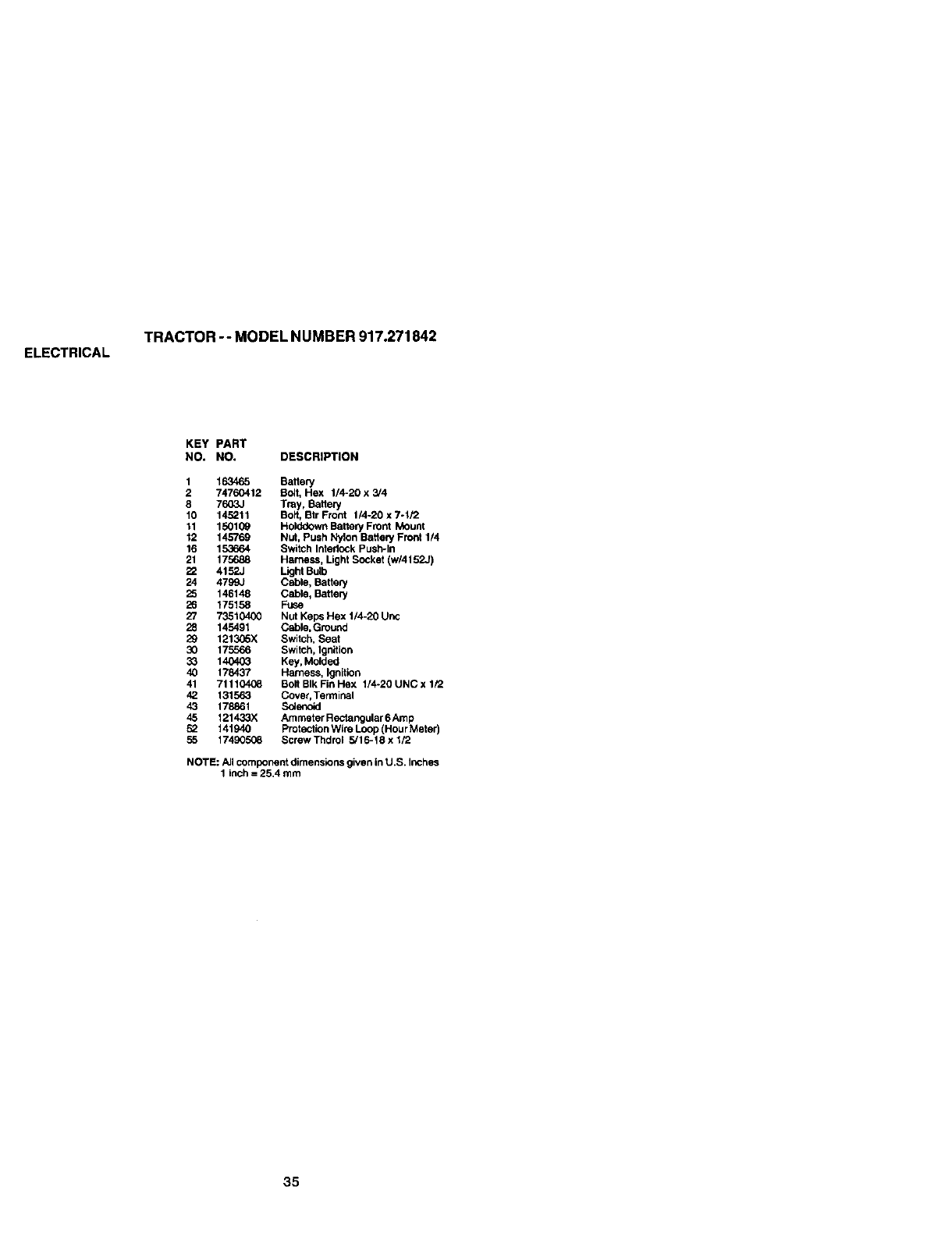

ELECTRICAL TRACTOR --MODEL NUMBER 917.271842

KEY PART

NO. NO. DESCRIPTION

163465 Battery

74760412 BoJt, Hex 1/4-20 x 3/4

7603.1 Tray, Battery

145211 Bolt, Dtr Front 1/4-20 x 7-1/2

150109 Holddown Battery Front Mount

145769 Nut, Push Nylon Battery Front 1/4

153664 Switch Interlock Push-In

175688 Harness, Light Socket (w/4152J)

4152J Light Bulb

4799J Cable, Battery

146148 Cable, Batte.3'

175158 Fuse

73510400 Nut Keps Hex 1/4-20 uric

145491 Cable, Ground

1213O5X Switch, Seat

175566 Switch, Ignition

140403 Key, Molded

178437 Harness, Ignition

71110408 Bolt BIk Fin Hex t/4-20 UNC x 1/2

131563 Cove_,Terminal

178861 S_enoid

121433X Amrneter Rectangular 6 Amp

141940 protection Wire Loop (Hour Meter)

17490508 Screw Thdrol 5/16-18x 1/2

NOTE: AJlcomponent dimensldns given inU.S. Inches

1 inch = 25.4 mm

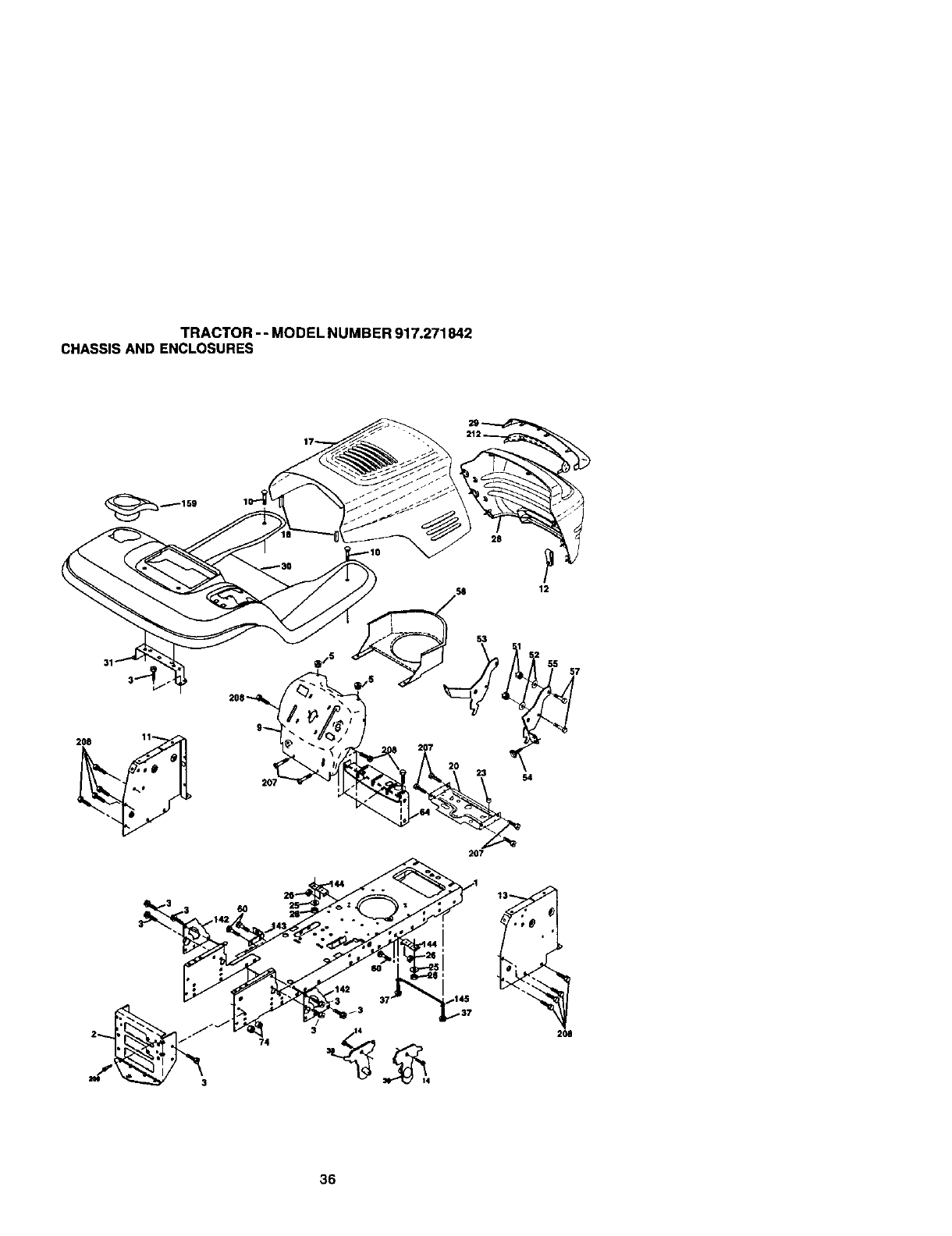

TRACTOR - - MODEL NUMBER 917.271842

CHASSISAND ENCLOSURES

207

23 54

207

74 2OO

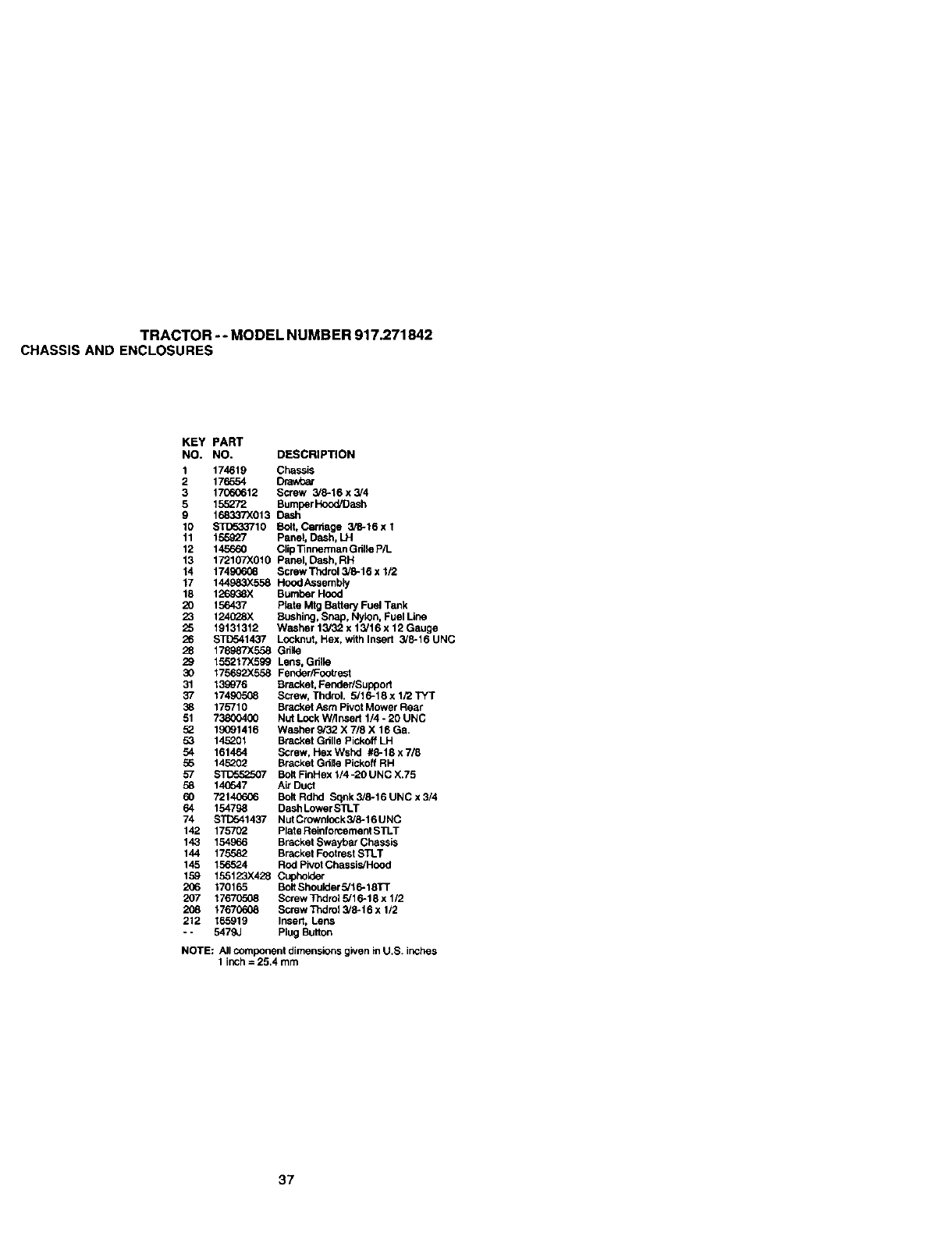

TRACTOR -- MODEL NUMBER 917.271842

CHASSISAND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554

3 17060612 Screw 3/8-16 x 3/4

5 155272 Bumper Hood/Dash

9 168337X013 Dash

10 STD533710 Bctt, Catriage 3/8-16xi

11 155927 Panel, Dash, LH

12 145660 Clip Tinnerrnan G ril!eP/L

13 172107X010 Panel, Dash, RH

14 17490608 Screw Thdml 3/8-16 x I/2

17 144983X558 Hood Assembly

18 126938X Bumber Hood

20 156437 Plate Mtg Batteq/Fuel Tank

23 124GZ8X Bushing, Snap, Nylon, Fuel Line

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STC541437 Locknut, Hex, with Insert 3/8-16 UNC

28 178987X558 Gdlle

29 155217X599 Lens, Gdllo

30 175692X558 Feoder/Footrect

31 139976 Bracket, Fender/Suppor t

37 17490508 Screw, Thdml, 3/16-18 x 1/2 TYT

38 175710 Bracket Asm Pivot Mower Rear

51 73800400 Nut Lock W/Ir_sert 1/4 -20 UNC

52 19091416 Washer 9/32 X 7/8 X 16 Ga.

53 145201 Bracket Grille Pickoff LH

54 161464 Screw, Hex Wshd #8-18 x 7/8

56 1452132 Bracket Grille Pickoff RH

57 S]_552507 Boll FinHex 1/4 -20 UNC X.75

58 14(To47 Air Duct

60 721406_6 Boll Rdhd Sqnk 3/8-16 UNC x 3/4

64 154798 Dash Lower STLT

74 STD541437 Nut CrownJcck 3/8-16 UNC

142 175702 Plate Reinforcement STLT

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Footrest STLT

145 156524 Rod Pivot Chassis/Hood

159 155123X428 Cuphaloer

206 170165 BollShoulder 3/16-18TT

207 17670508 Screw Tndrol 3/16-18 x 1/2

208 17670608 Screw Thdrol 3/8-16 x 1/2

212 165919 Insert, Lens

- - 5479J Plug Button

NOTE: All component dimensions given in U.S. inches

1 inch =25.4 mm

TRACTOR - - MODEL NUMBER 917.271842

GROUND DRIVE

•52

16 /_32

TRACTOR - - MODEL NUMBER 917.271842

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ...... Transaxle (See Breakdown) 66 154778 Keeper Bed Engine Hydro

Hydro Gr 314-0510 70 134683 Guipa Belt RH Engine

8165866 Rod Shift Fender Adjust 71 169183 Strap Torque Lh

10 STO561210 PinCotter 1/8x 1 CAD 73 189182 StrapTorqueRh

14 1(_A04_0 Washer Lock HW Helical 74 137C57 Spacer. Split

15 74490544 Bolt Hex FLGHD 5/18-18 GR.5 75 121749X Washer 25/32 x 1-1/4 x 16 Ca.

16 STD541431 Nut Lock Hex W,'lns. 5/18-18 Unc 76 STD581075 E-RIOg

19 STD541437 Nut Lock Hex W/Wsh 3/8-16 Unc ?7 123583)( Key, Square

21 13KT-_64 Knob, Deluxe 1/2-13 78 121748X Washer 25/32 x 1-5/8 x 16 Ca.

22 169498 Rod, Brake Hydro 81 165596 Shaft Asm Cross

24 73350600 Nut, Hex Jam 3/8-16 Unc 82 165711 SpdngTorsion

Z5 106008X Spdng, Brake Rod 83 19171216 Washer 17/32 x 3/4 x 16 Ca.

26 STD551037 Washer 84 169594 LinkTransa.xle

27 S]_r_61210 Pin Cotter 1/8 x 3/4 CAD. 89 164890X428 Console, Shift

28 175765 Rod, Parking Brake 90 124346X Nut Seif-Thd Wsh-hd 1/4 Zinc

29 71673 Cap, Parking Brake 95 17_01 Control Bypass

30 169592 Bracket, Transaxle 96 4497H Retainer Spdng 1"Zinc/Cad

32 74760512 BoitHexHri 5/16-18Uncx3/4 116 72140608 BOltRDHDSQNK3/8-16X1

34 175578 Shaft, Foot Pedal 120 73900600 Nut Lock Rg 3/8-16 Uric

35 120183X Bearing,Nylon 150 175456 Spacer Retainer

36 19211616 Washer 151 19133210 Washer 13/32 x 2 x 10 Ca.

37 1_ Pin, Roll 156 1660(_ Washer Srtted 5/161D x 1.125

38 165936 Pulley, IdLer, Flat 158 165589 Bracket Shift Mount

39 74760648 Bolt Fin Hex 3/8-16 x 3 159 165494 Hub Tappered Flange Shitt Lt

40 175461 Spacer, Split 161 72140406 Bolt Rrihd Sqnk 1/4-20 x 3/4 Gr. 5

41 175556 Keeper, Belt Idler 162 73680400 NutCrowniockl/4-2OUnc

42 19131312 W6sher 13/32x13/16x12Ga. 163 74780416 BoitHexFinl/4-2OUncxl Gr. 5

47 127783 Pulley, Iri[er, V-Groove 164 19091010 W_sher 5/8 x.281 x 10 Ga

48 154407 Bellc_ank Clutch Grnd Dry STL 165 165623 Br_lckel pivot Lever

49 123205X Retainer, Belt 166 166880 Screw 5/18-18 x5/8

50 $3]:F_23"/15 BoitRexHd3/8-16uncx1-1/2 168 165492 BoltShoulders/16-18x.561

51 STD541437 NutCrownlocit 3/8-16UNC 169 165580 Plate Fastening Lt

52 STD541431 Nut, Crownlock 5/18-18Unc 197 169613 NylinerSnatPIn

53 105710X Link, Clutch 100 169593 WasherNyLiner

55 1057(_X Spring, Return, Clutch 199 169612 Bolt Shoulder 5/16-18UNC

57 14(_o94 V-Belt, Ground Drive 200 72140508 Bolt RDHO SQNKS/16-18UNC x 1

59 160091 Keepar, Center Span 202 72110614 Bolt RDHD SH 3/8-16 x1o3/4 Gr.5

61 17060612 Screw 3/8-16 x 3/4 212 145212 Nut Hex Fig Lock

62 8_83R Cover, Pedal

63 175410 Pulley, Engine

64 71170764 Bolt Hex 7/18-20 x 4 Gr. 5 ROTE: All component dimensions given in U.S. inches

65 ST1_51143 Washer 1 inch =25.4 mm

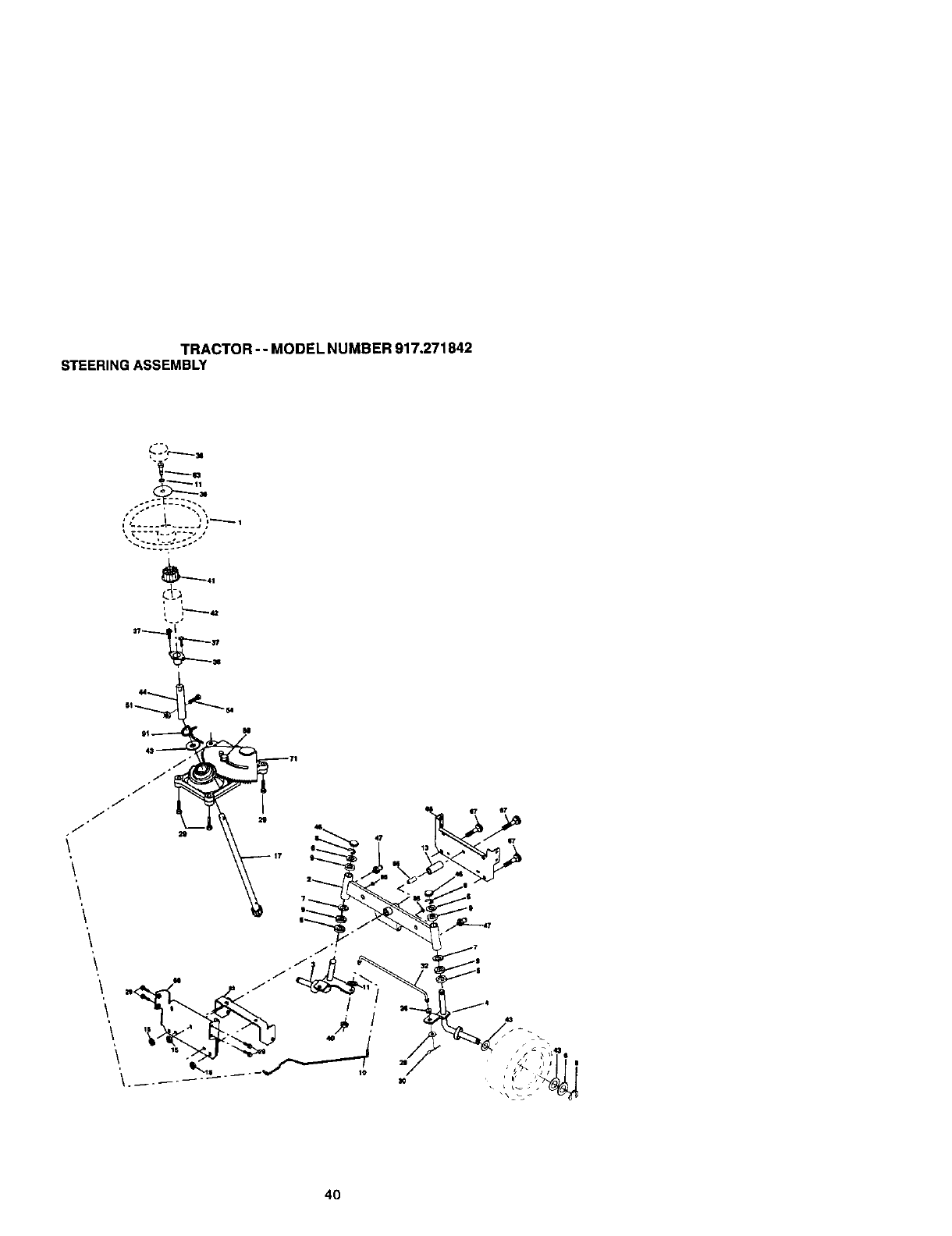

TRACTOR --MODEL NUMBER 917o271842

STEERINGASSEMBLY

i ..... -_-..._ j s

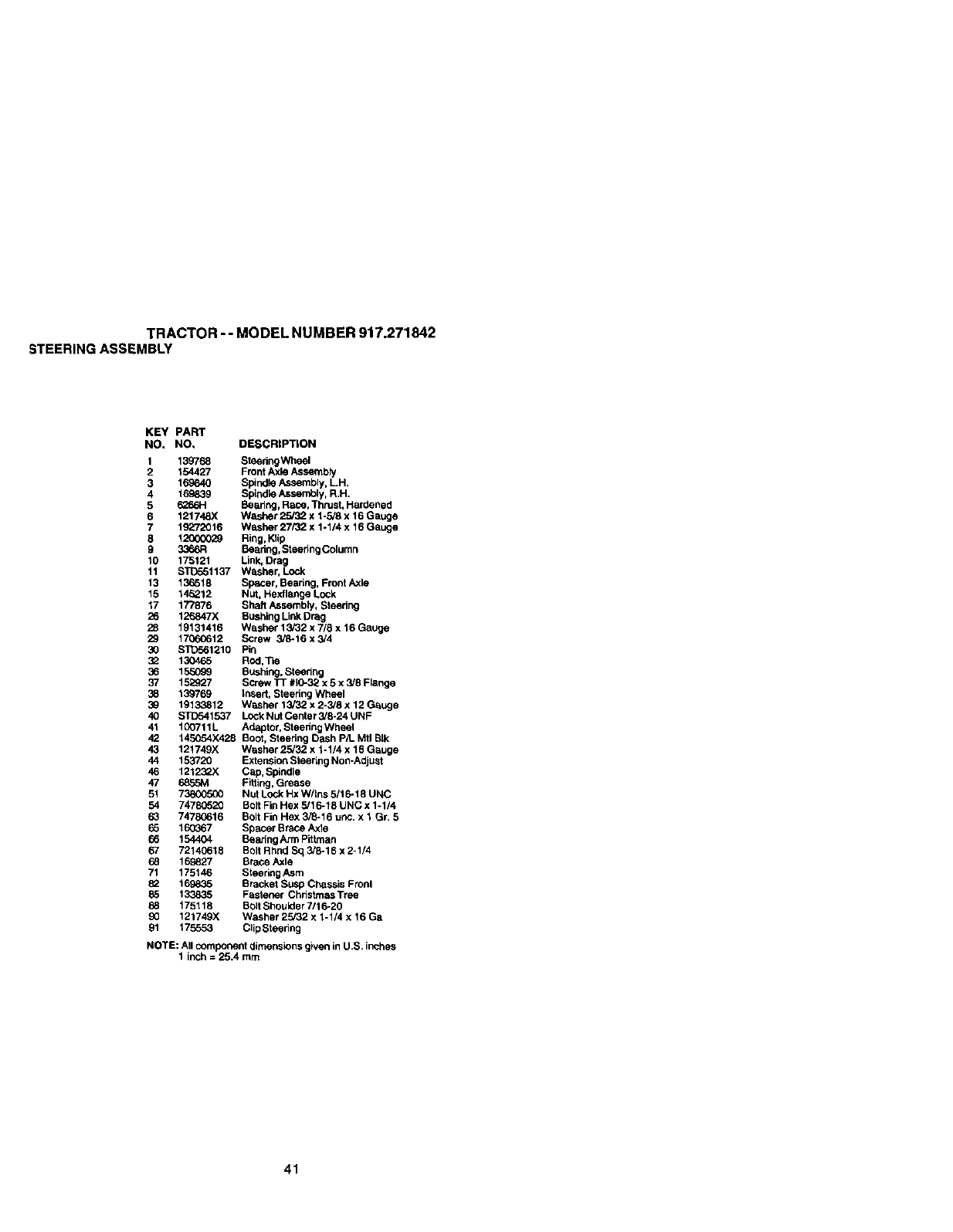

TRACTOR - - MODEL NUMBER 917.271842

STEERINGASSEMBLY

KEY

NO,

PART

NO, DESCRIPTION

139768 SteeringWheel

154427 Front Axle Assembly

169840 Spindle Assembly, LH.

169839 Spindle Assembly, R.H.

6266H Scaring, Race, Thrust, Hardened

121748X Washer 23/32 x 1-5/8 x 16 Gauge

19272016 Washer 27/3_ x 1-1/4 x 16 Gauge

1_ Ring, Klip

3366R Scaring, Steering Column

175121 Link, Drag

ST_o51137 Washer, Lock

13_518 Spewer, Bearing, Front Axle

145212 Nut, Hexflange Lock

177876 Shalt Assembly, Steering

126847X Bushing Link Drag

19131416 Washer 13/32 x 7/8 x 16 Gauge

1706(;612 Screw 3/8-16 x 3/4

S]_561210 Pin

130465 Rod,Tie

155099 Bushing, Steering

152927 Screw 17- #10-32 x 5 x 3/8 Flange

13_769 Insert, Steering Wheel

19133812 Washer 13/32 x 2-3/8 x 12 Gauge

STITo41537 LOck NUt Center 3/8-24 UNF

100711L Adaptor, Steering Wheel

14,5_54X428 Boot, Steering D_sh P/L Mtl SIk

121749X Washer 25/32 x 1-1/4 x 16 G_',uge

153720 Extension Steering Non-Arijust

121232X Cap, Spinrile

6858M Fitting, Grease

73800500 Nut Lock Hx W/Ins 5/16-18 UNC

74780520 SClt Fin Hex 3/16-18 UNC x 1-1/4

74780616 Bolt Fin Hex 3/8-16 unc. x 1 Gr. 5

160367 Spacer Brace Axle

154404 Scaring Ann Pithaan

72140618 Bolt Rhnd Sq 3/8-18 x 2-1/4

169827 Brace Axle

175146 Stsering Asm

169835 Bracket Susp Chassis Front

133835 Fastener Christmas Tree

175118 Bolt Shouleer 7/16-20

121749X Washer 25/32 x 1-1/4 x 16 Ga

175553 ClipSteering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

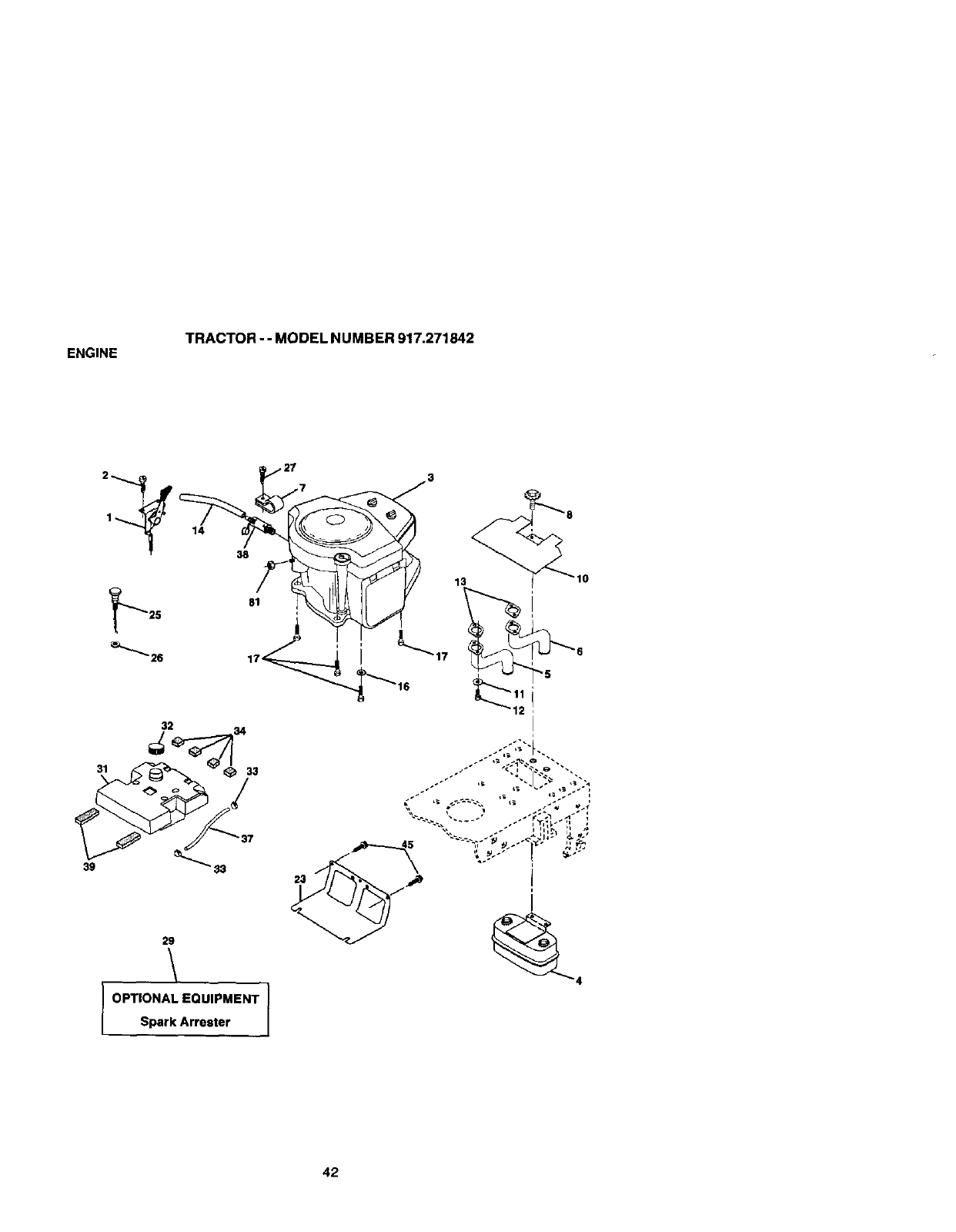

ENGINE TRACTOR --MODEL NUMBER 917.271842

1_ 14

31 33

39 33

IOPTIONAL EQUIPMENT

Spark Arrester

_::::,1i

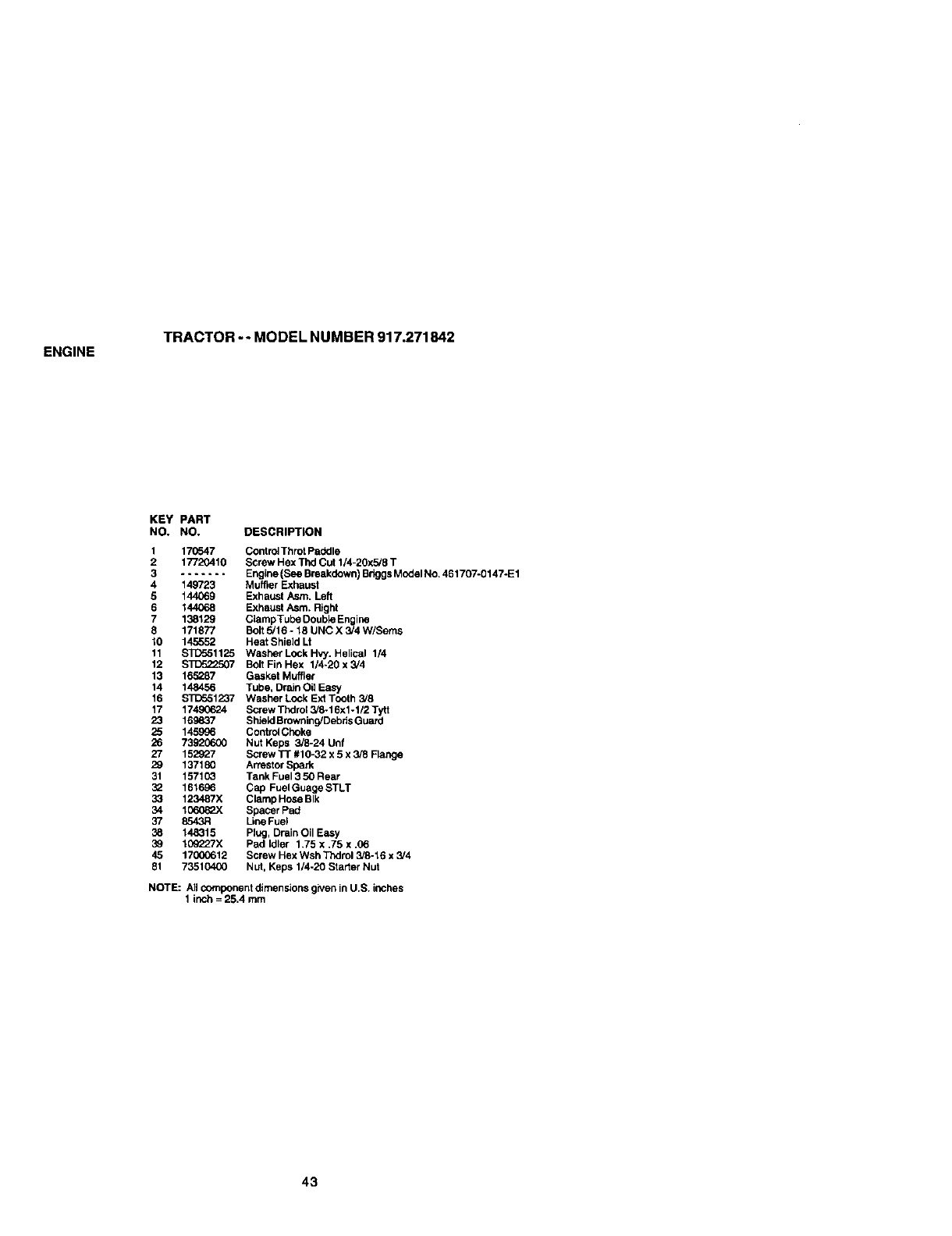

ENGINE TRACTOR -- MODEL NUMBER 917.271842

KEY PART

NO, NO, DESCRIPTION

1 170547 ControJThrot Paddle

2 17720410 Screw Hex Thd Cut 1/4-20x5/8 T

3....... Engine (See Breakdown) Briggs Model No. 461707-0147-E1

4 149723 Muffler Exhaust

5 144069 Exhaust Asm. Left

6 144068 Exhaust Asm. Right

7 138129 ClampTube Double Engine

8 171877 Bolt 5/16 - 18 UNC X 3/4 w/seres

10 145652 Heat Shield Lt

11 $317a51125 Washer Lock Hvy. Helical 1/4

12 S]_522507 Bolt Fin Hex 1/4-20 x 3/4

13 165287 Gasket Muffler

14 148456 Tube, Drain Oil Easy

16 STD561237 Washer Lock Ext Tooth 3,'8

17 17490624 Screw Thdrol 3/8-16xl -1/2 Tytt

23 169837 S hield Browning/Debris Guard

25 145996 ControlChoke

26 73920600 Nut Kepa 3/8-24 Unf

27 152927 Screw TT #10-32 x 5 x 3/8 Flange

29 137180 Arrestor Spark

31 157103 Tank Fuel 3 50 Rear

32 161696 Cap FuelGuage STLT

33 123487X Clamp Hose BIk

34 1060__X Spacer Pad

37 8543R LineFuel

38 148315 Plug, Drain Oil Easy

39 109"_7X Pad Idler 1.75 x ,75 x.06

45 1700_612 Screw Hex Wsh Thdrol 3/8-16 x 3/4

81 73510400 Nut, Kaps 1/4-20 Starter Nut

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

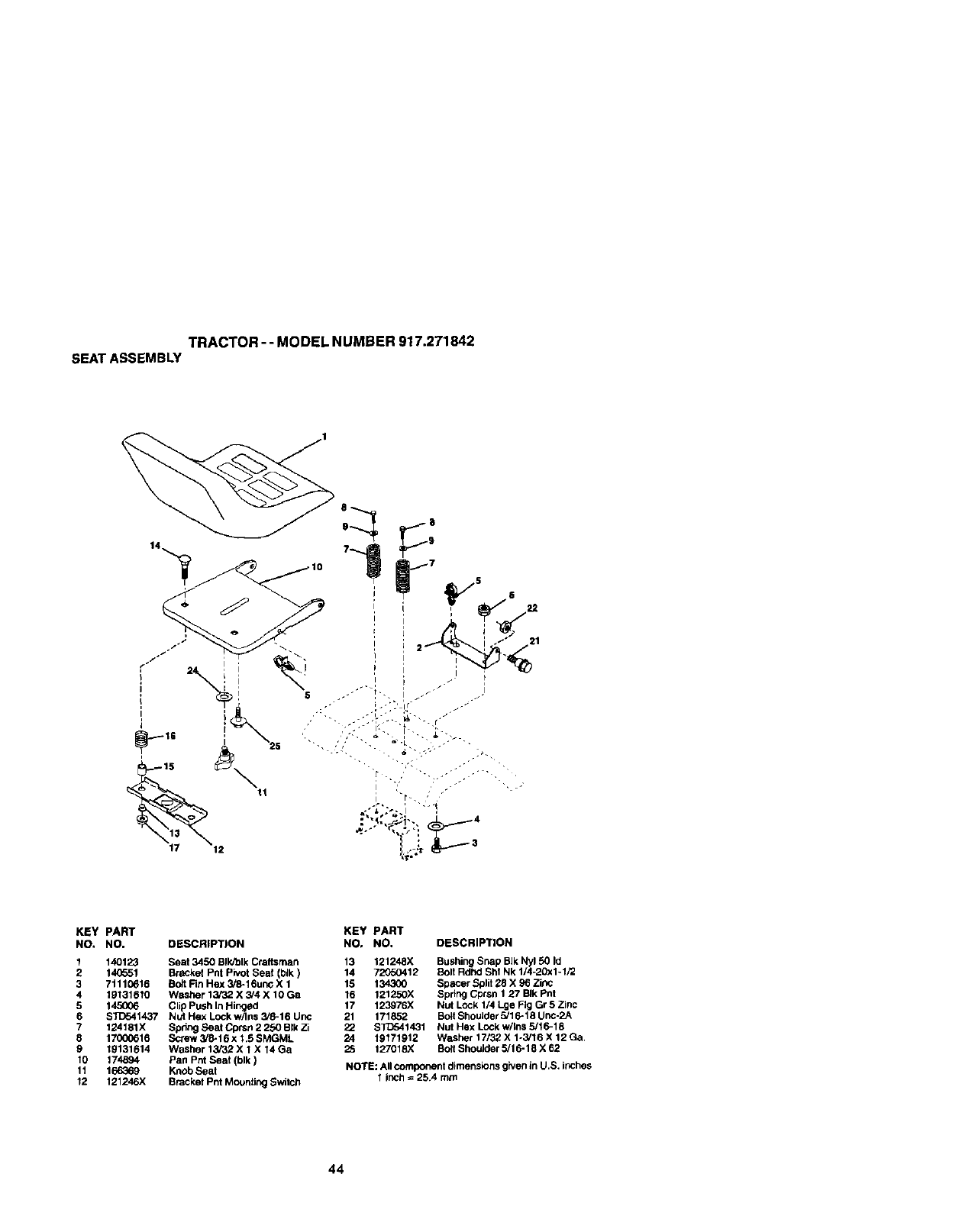

TRACTOR --MODEL NUMBER 917.271842

SEATASSEMBLY

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO. DESCRIPTION

1 140123 Seat 3450 BIIVblk Craftsman 13 121248X Bushing Snap BIk Ny150 Id

2 140651 Brackel Pnt Pivot Seat (l_k) 14 72050412 BOlt Rdhd Shl Nk 1/4-20x1-1/2

3 71110616 BoftFin Hex 3/6-16unc X 1 15 134300 Spacer ,Split28 X 96 Zinc

4 19131010 W_sher 13/32 X 3/4 X 10 Ga 16 121250X Spring Cprsn 1 27 BIk Pnt

5 145006 Clip Push In Hinged 17 123976X Nut Lock 1/4 Lge Fig Gr 5 Zinc

6$1_541437 Nut Hex Lock w/Ins 3/6-16 Unc 21 171852 Bolt Shoulder 5/16-18 Unc-2A

7 124181X Spring Seat Cprsn 2 250 BIk ZJ 22 STD541431 Nut Hex Lock w/Ins 5/16-18

8 1_16 Sc/ew 3/8-10 x 1.6 SMGML 24 19171912 Washer 17/32 X 1-3/16 X 12 Ga,

9 19131614 Washer 13/32 X 1X14 Ga 25 127018X Bolt ShouJder 5/16-18 X 62

10 174894 Pan Pnt Seat (blk)

11 166369 Knob Seat NOTE: All component dimensions g;ven in U,S. inches

12 121246)( Bracket Pnt Mounting Switch 1inch _25.4 mm

DECALS TRACTOR - - MODEL NUMBER 917,271842

2 4

KEY PART

NO, NO.

1 156439

2 177253

3 171696

4 171697

5 176682

6 133644

7 171809

8 179128

9 16..%o04

11 156811

13 146046

DESCRIPTION

Decal Fender Danger Sears

Decal Hood Side

Decal _Rh Craftsman

Decal Hood Lh Craftsman

Decal Engine WP

Decal Maint Customer Sears Dora

Decal Replacement Srs

Decal Deck

Decal Fender Craftsman Gold

Decal Fender STLTH Opor Inst E/S

DeCal V-belt Dr Sch Tractor E

KEY PART

NO, NO. DESCRIPTION

14 177289 Decal Dash Panel

15 160396 Decal Mower Drive Schematic

19 138047 Decal, Battery Diehard Sears

20 172331 DecEdDeck Mower EZ3

22 149616 Decal Battery

-- 16_10 Decal By Pass Lt Hydro

- - 138311 Decal Lift Handle

-- 16582OX428 Pad Footrest Lh STLT

-- 165799)(428 Pad Footrest Rh STLT

- - 179206 Manual,Owner's(English)

- - 179207 Manual, Owner's (Spanish)

WHEELS & TIRES

2_5,8

4,10

KEY PART

NO. NO. DESCRIPTION

159192 Valve C_lp, ]3m

2 65139 Stem, Valve

3 106222X Tim, Front

4 59904 Tube, FrontTire

(Not Provided, Service Item Only)

5 106732X427 Rim, Front

6278H Fitting, Grease (Front Wheel Only)

7 9040H Bearing, Flange (FrontWheel Only)

8 106108X427 Rim,Rear

91220_.X Tire, Rear

10 7152J Tube, Rear]3re

(Not Provided, Service Ilem Only)

11 104757X428 Cap, Axle

- - 144334 Sea!ant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch =25.4 mm

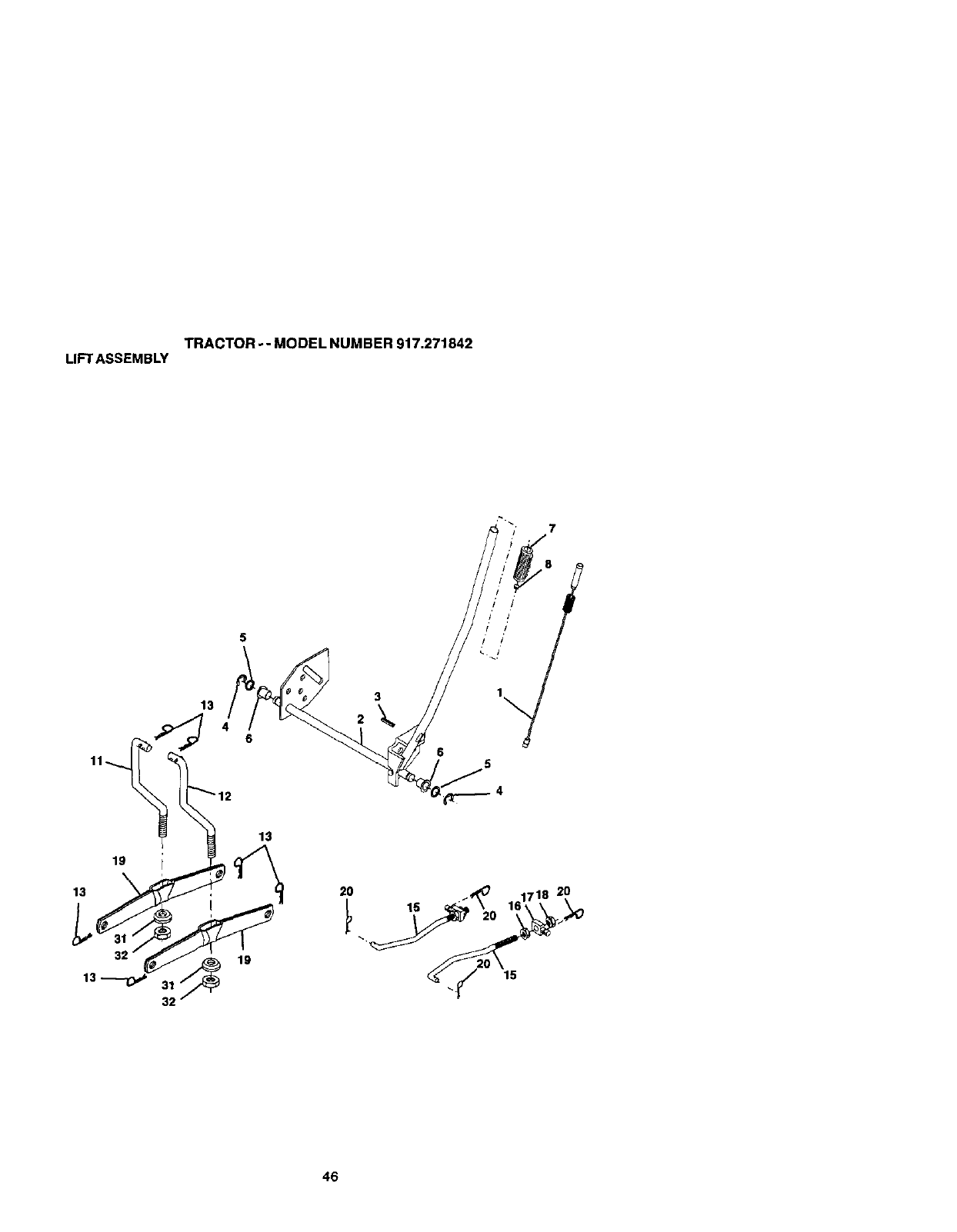

TRACTOR -- MODEL NUMBER 917.271842

LIFTASSEMBLY

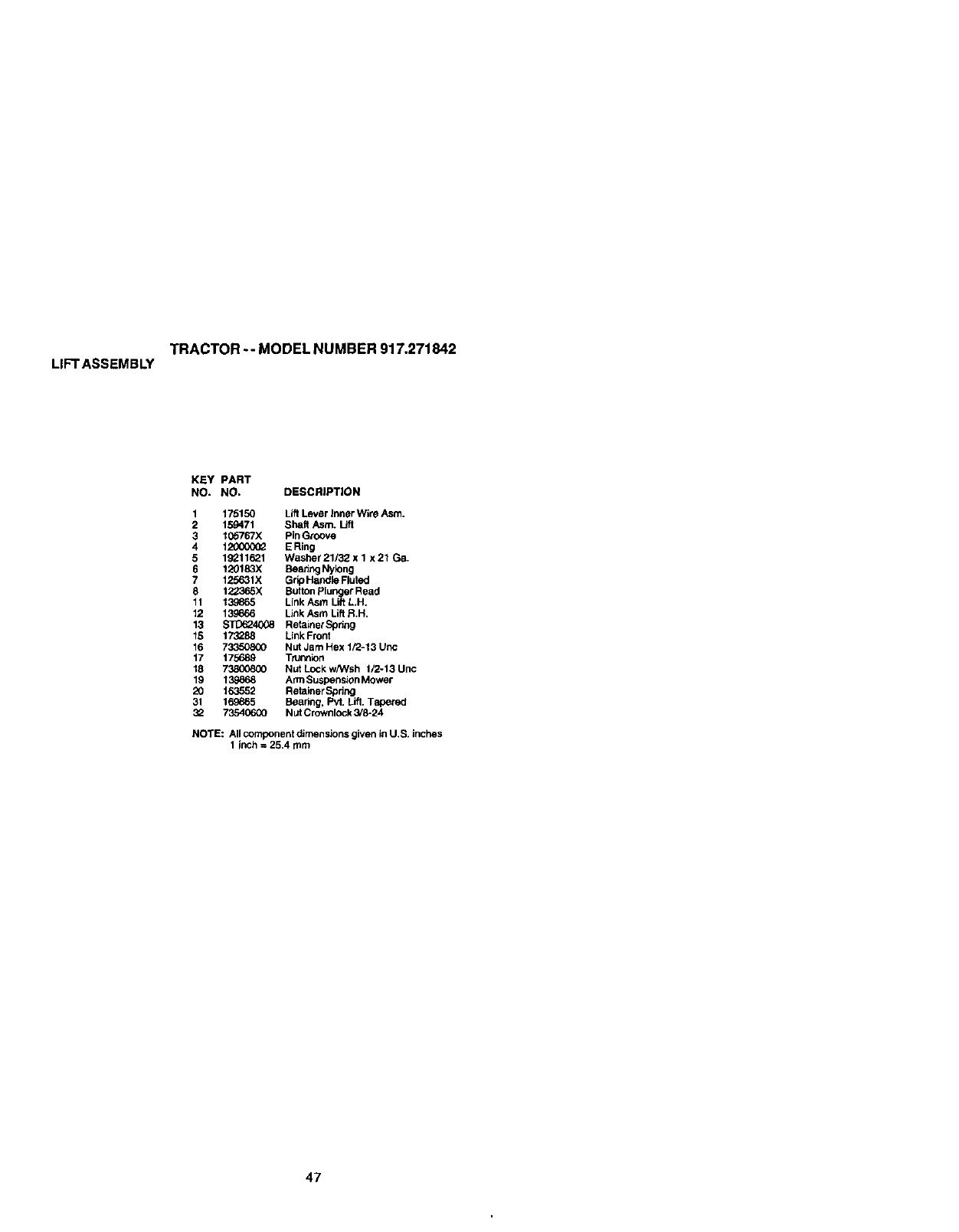

TRACTOR -- MODEL NUMBER 917.271842

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 175150 LiftLever Inner Wire Asm.

2 159471 Shaft Asm. Uft

3 105767X PinGroove

412C00(0 ERing

5 19_11621 Washar 21/32 x 1 x 21 Ga.

6 120183X Bearing Nylong

7 125631X Gr_ Handle Fluted

8 122365X Bufton Plunger Read

11 139865 Link Asm Lift L.H.

12 139866 Link Asm Lift R.H.

13 STD624_8 Retainer Spdng

15 173288 Link Front

16 733508(X) Nut Jam Hex 1/2-13 Unc

17 175689 Trur_on

18 73800800 Nut Lock w/Wsh 1/2-13 Unc

19 139868 Arm Suspension Mower

20 163552 Relainer Spdng

31 169865 Bearing, P',.t. Lift. Tapered

735406_) NUt Crownlock 3/8-24

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 rnm

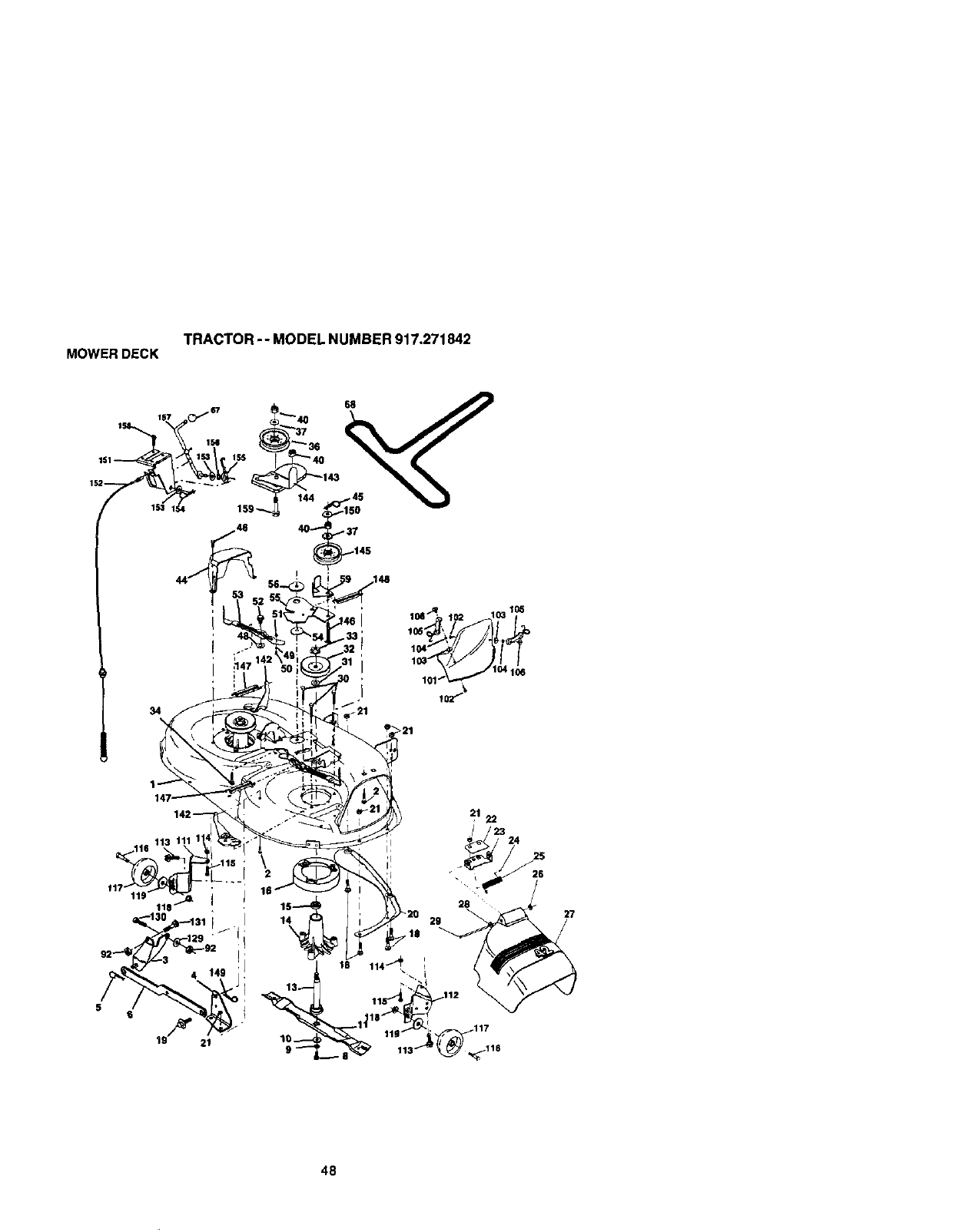

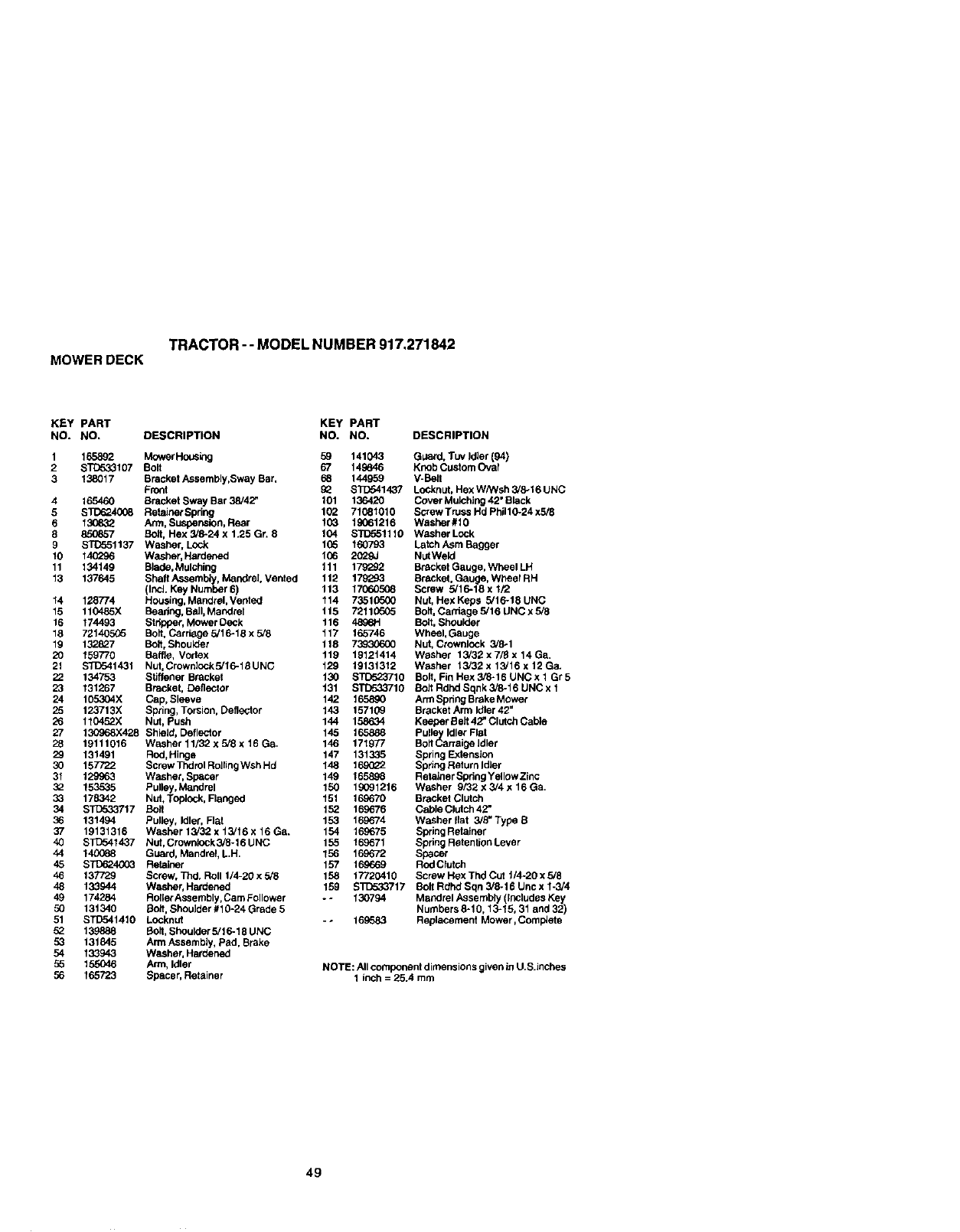

TRACTOR -- MODEL NUMBER 917.271842

MOWERDECK

TRACTOR -- MODEL NUMBER 917.271842

MOWERDECK

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO. DESCRIPTION

1 1_ Mower Hc_sing 59 141043 Guard. Tuv Idlar (94)

2 ST0533107 Bolt 67 143246 Knob Custom Oval

3 138017 Bracket Assembly,Sway Ber, 68 144S5.9 V-Be9

Front 32 S'1_541437 Locknut, Hex W/Wsh 3/8-16 UNC

4 165460 Bracket Sway Bar 38/42 _101 136420 Cover Mulching 42" Black

5 STC624008 RetalnerSpring 102 71081010 Sc_ewTrussHdPhi110-24x5/8

6130832 Ann, Suspension, Rear 103 13261216 Washer #10

8 850857 BoJt, Hex3/8-24x1.25Gr. 8 104 S'RT_lltO WasherLock

9 STD551137 Washer. LOCk 105 160793 Latch Asm Bagger

10 140296 Washer, Hardenab 106 2029J Nut Weld

11 134149 Blade,Mulching 111 179292 BrScket Gauge, Wheel LH

13 137645 Shaft Assembly, Mandrel, Vented 112 179293 Bracket, Gauge, Wheel RH

(Ir_.KeyNumber6) 113 17660508 Screw _16-18xI/2

14 128774 Houalng. Mandrel. Vented 114 7351(T_00 Nut. Hex Keps 5/16-18 UNC

15 110485X Bearing, Ball. Mandrel t15 7211G505 Bolt. Cardage 5/16 UNC x 5/8

16 174493 Slripper, Mower Deck 116 4ffl_H Bolt, Shoulder

18 721405C5 Bolt, Carriage 5/16-19 x 5/8 117 165746 Wheel, Gauge

19 132827 Bolt, Shoulder t 18 73930600 Nut, Crownlock 3/8-1

20 159770 Baffle, Vortex 119 19121414 Washer 13/32 x 7/8 x 14 Ga.

21 ST[_41431 Nut, CrewnlockS/16-19UNC 129 19131312 Washer 13!32x13/16x12Ga.

22 134753 Stiffener Bracket 130 STD323710 Bolt, Fin Hex 3/8-19 UNC x 1 Gr5

23 131267 Bracket, Deflector 131 STD53,._10 BoitRrindSqnk3/8-16UNCx1

24 105304X Cap, Sleeve 142 165890 Arm Spdng Brake Mower

25 123713X Spring, Torsion, Deflector 143 157109 Bracket Arm Idler 42"

26 110452X Nut, Push 144 158634 Keeper Belt 42" Clutch Cabla

27 130968X428 Shield, Deflector 145 165888 PulleJylldlerFlat

28 19111016 Wa_sher11/32 x 5/8 x 16 Ga, 146 171977 Boit Can'alge Idler

29 131491 Rod,Hinge 147 131335 Spring Extansion

30 157722 Screw Thdrol RottingWsh Hd 148 169(_2 Spring Rat urn Idlar

31 129963 Washer, Spacer 149 165898 Retainer Spring Yellow Zinc

32 153535 Pulley,Mandrel 150 19091216 Washer 9/32 x 3/4 x 16 Ga.

33 178342 Nut, Toplock, Flanged 151 169670 Bracket Clutch

34 STD533717 Bolt 152 169676 Cable Clutch 42"

36 131494 Pulley, Idle,', Flat 153 169674 Washer flat 3/8" Type B

37 19131316 Washer 13/32 x 13/16 x 16 Ga. 154 169675 Spring Retainer

40 STD541437 Nut, CrownJock3/8-16 UNC 155 169671 Spring Ratanlton Lever

44 140_68 Guard, Mandrel, L.H, 156 169672 Space,.

45 STD624003 Retainer 157 169669 Rod Clutch

46 137729 Screw, Thd, Roll 1/4-20 x 5/8 158 1772(_10 Screw Hex Thd Cut 1/4-20 x 5/8

48 133944 Washer, Hardened 159 S_33717 Bolt Rdhd Sqn 3/8-16 Unc x 1/3/4

49 174284 Roltar As,sembly.Cam Follower -- 130794 Mandrel Assembly (Ir_cludes Key

50 131340 Bolt. Shoulder #10-24 Grade 5 Numbers 8-10.13-15. 31 anti 32)

51 STD541410 LOCknut --169583 Replacement Mower,COml_eta

52 139888 Bolt, Shoulder 5/16-18 UNC

53 131845 Arm Assembly, Pad, Brake

54 133943 Washer, Hardened

55 155046 Arm, Idler NOTE: All component dimensions given in U.S.inches

56 165723 Spacer, Retainer 1 inch = 25.4 mm

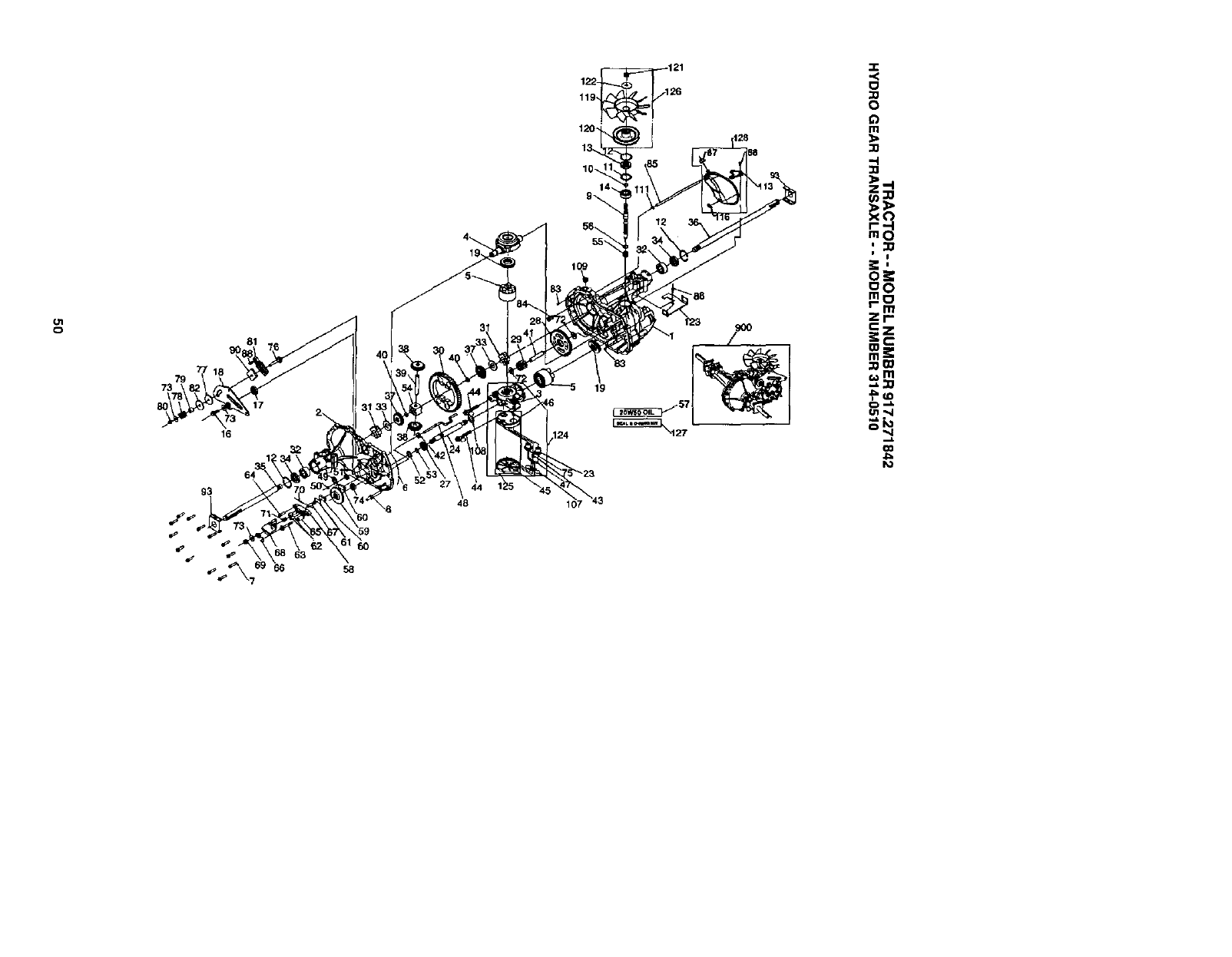

081

107 _43

90O

rrl

(n'n

,',n

Zr..

-rim

o111

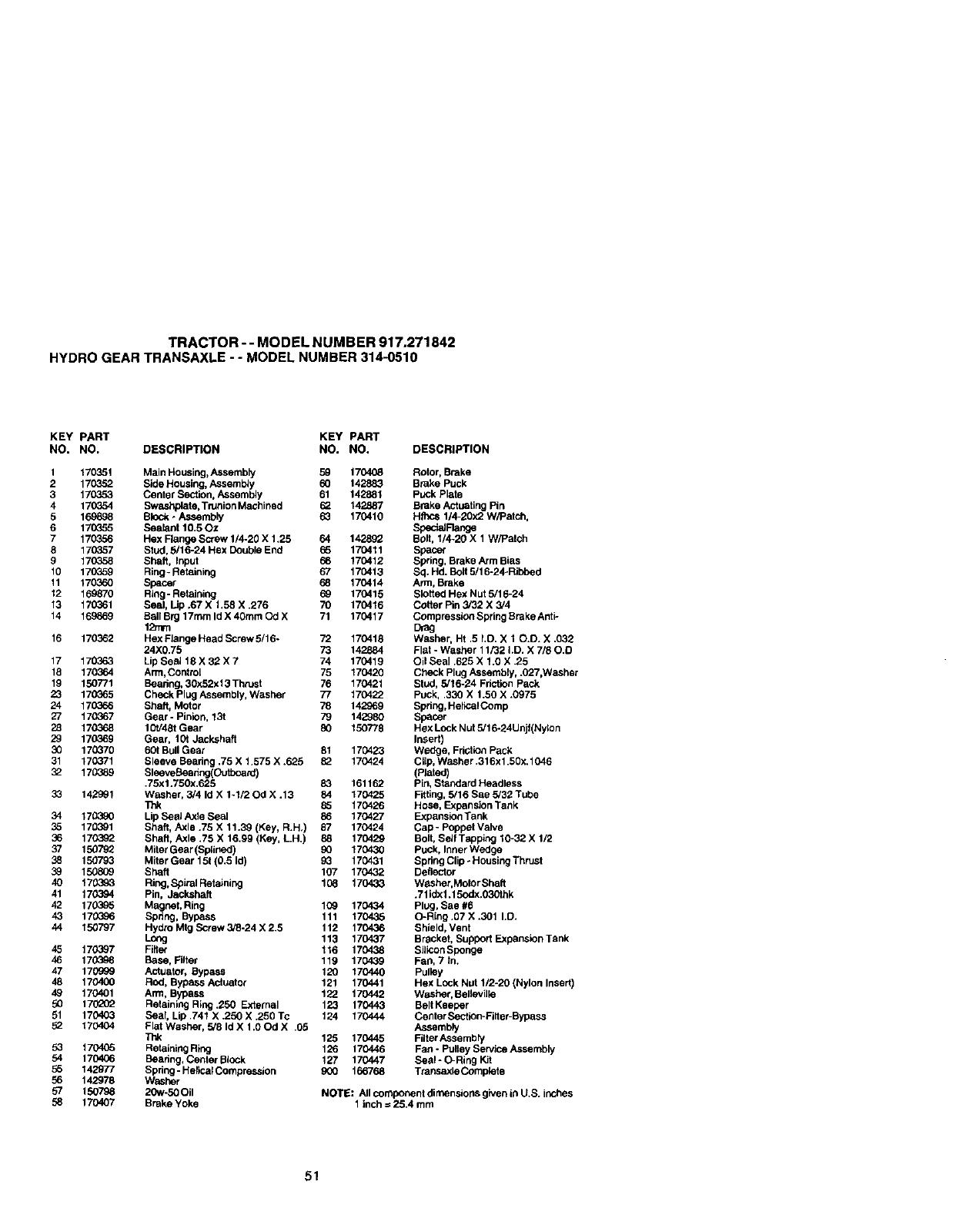

TRACTOR -- MODEL NUMBER 917.271842

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing, Assembly 59 170408 Rotor, Brake

2 170352 Side Housing, Asseml_y 60 142883 Broke Puck

3 170353 Center Section, Assembly 61 142881 puck Plate

4 170354 Swashplate, TnJnionMachined 32 142887 Brake Actuating Pin

5 169898 B!oct_-Assembly 63 170410 Hfhcs 1/4-20x2 W/Patch,

6 170355 Sealant 10.50z SpackdFlange

7170356 Hex Flange Screw 1/4-20 X 1.25 64 142892 Bolt, 1/4-20 X1W/Patch

8 170357 Stud, 5/16-24 Hex Doubio Enrt 66 170411 Spac_

9 170358 Shaft, Input 66 170412 Spring, Brake Arm BiaS

10 170359 Ring- Retaining 67 170413 Sq. Hd. Bolt 5/1 6-24-Ribbed

11 170360 Spacer 68 170414 Arm, Brake

12 169870 Ring -Retaining 69 170415 Siofted Hex Nut 5/16-24

13 170361 Seal, Lip .67 X 1.58 X .276 70 170416 Cotter Pin 3/32 X 3/4

14 169869 Ball Brg 17ram Id X 40ram Od X 71 170417 Compressle_ Spring Brake Anti-

12nTn Drag

16 170362 Hex Flange Head Serew 5/16- 72 170418 Washer, Ht ,5 LD. X I O.D. X .032

24X0.75 73 142884 Flat - Washer 11/32 I.D. X 7/8 O.0

17 170363 Lip Seal 18X 32 X 7 74 170419 Oil Seal .625 X 1.0 X_.5

18 170364 Arm,Control 75 170420 Check Plug Assembly, .027,Washer

19 150771 Searing, 36x32xt 3 Thrust 76 170421 Stud, 5/16-24 Friction Pack

23 170365 Check Plug Assembly, Washer 77 170422 Puck, ,330 X 1.50 X .0975

24 170366 Shaft, Motor 78 142969 Spring, Helicalcomp

27 170367 Gear- Pinion, 13t 79 142980 Spacer

28 170368 lot/48t Gear 80 150778 Hex Lock Nut 5/16-24Unjf(Nyion

29 170369 Gear, t0t Jackshaft Insert)

30 170370 6ot Bull Gear 81 170423 Wedge, Friction Pack

31 170371 Sleeve Bearing .75 X 1.575 X .625 32 170424 Clip, Washer .316x1.50x.1046

32 1713389 SleeveSearing(Outboa,'d) (Plated)

.75x1.750x.625 83 161162 Pin, Standarrt Headless

33 142991 Washer, 3/4 Id X 1-1/20d X .13 84 170425 Fitting, 5/16 Sae 5/32 Tube

85 170426 HoSe, Expansion Tank

34 1703_0 Lip Seal Axle Seal 86 170427 Expansion Tank

35 170391 Shaft, Axle .75 X 11.39 (Key, R.H.) 87 170424 Cap - Poppet Valve

36 170392 Shaft, Axle .75 X 16.99 (;<ey, LH.) 88 170429 Bolt, Salt Tapping 10-32 X 1/2

37 150792 Miter Gear (Splined) 90 170430 Puck, Inner Wedge

38 150793 Miter Gear 15t (0.5 Id) 03 170431 Spring Clip -Housing Thrust

39 150809 Shaft 107 170432 Deflector

40 170393 Ring, Spiral Retaining 108 170433 Washer,Motor Shaft

41 170394 Pin, Jack.shaft .71idxl.15odx.03othk

42 170395 Magnet, Ring 1(;9 170434 Plug, Sae #6

43 170396 Spring, Bypass 111 170435 O-Ring .07 X .301 I.D.

44 150797 Hydro Mtg Screw 3/8-24 X 2.5 112 170436 Shield, Vent

Long 113 170437 Bracket, Support Expansion Tank

45 170397 Filte¢ 116 170438 SiJiconSponge

46 170398 Base, Filter 119 170439 Fan, 7 In.

47 170999 Actuator, Bypass 120 170440 Pulley

48 170400 Rod, Bypass Actuator 121 170441 Hex Lock Nut 1/2-20 (Nylon Insert)

49 170401 Arm, Bypass 122 170442 Wssher, Bellevi]io

50 170_G2 Retaining Ring .250 Ex'le_l 123 170443 Belt Keeper

51 170403 Seal, Lip .741 X .250 X .250 Tc 124 170444 Center Section- Filter-Bypass

52 170404 Flat Washer, 5/8 Id X 1.OOd X ,05 Assembly

Thk 125 170445 Filter Assembly

53 170406 Retaleir_gRing 126 170446 Fan *Pulioy Service .Assembly

54 170406 Bearing, Center BlOCk 127 170447 Seal - O-Ring Kit

55 142977 Spring - Helical Compression g00 166768 Transaxio Complete

56 142978 WaSher

57 150798 20w-50 Oil NOTE: All component dimensions given in U.S. inches

58 170407 Brake Yoke 1 inch = 25.4 mm

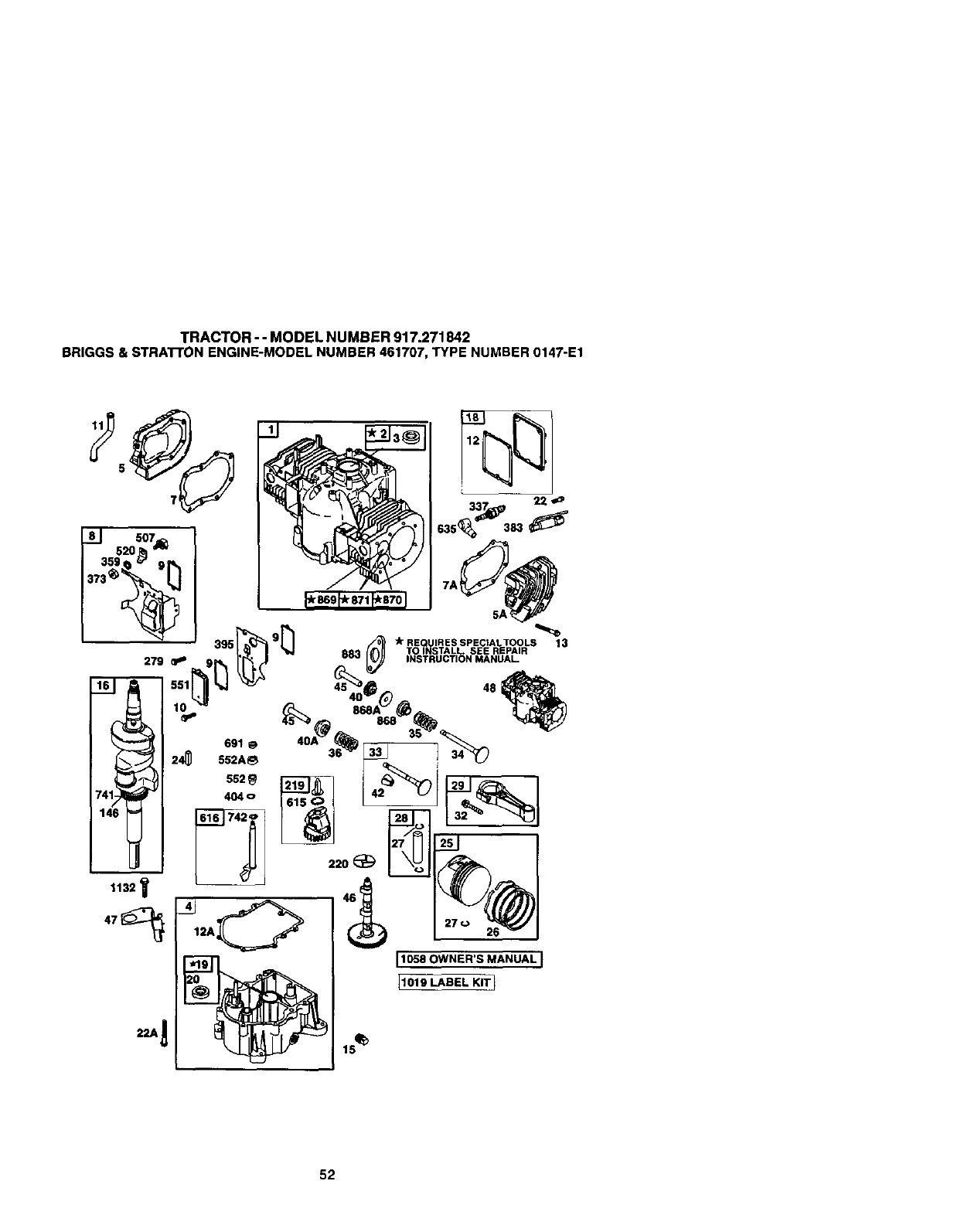

TRACTOR - - MODEL NUMBER 917.271842

BRIGGS& STRATrON ENGINE-MODELNUMBER 461707, TYPE NUMBER0147-E1

2,,!

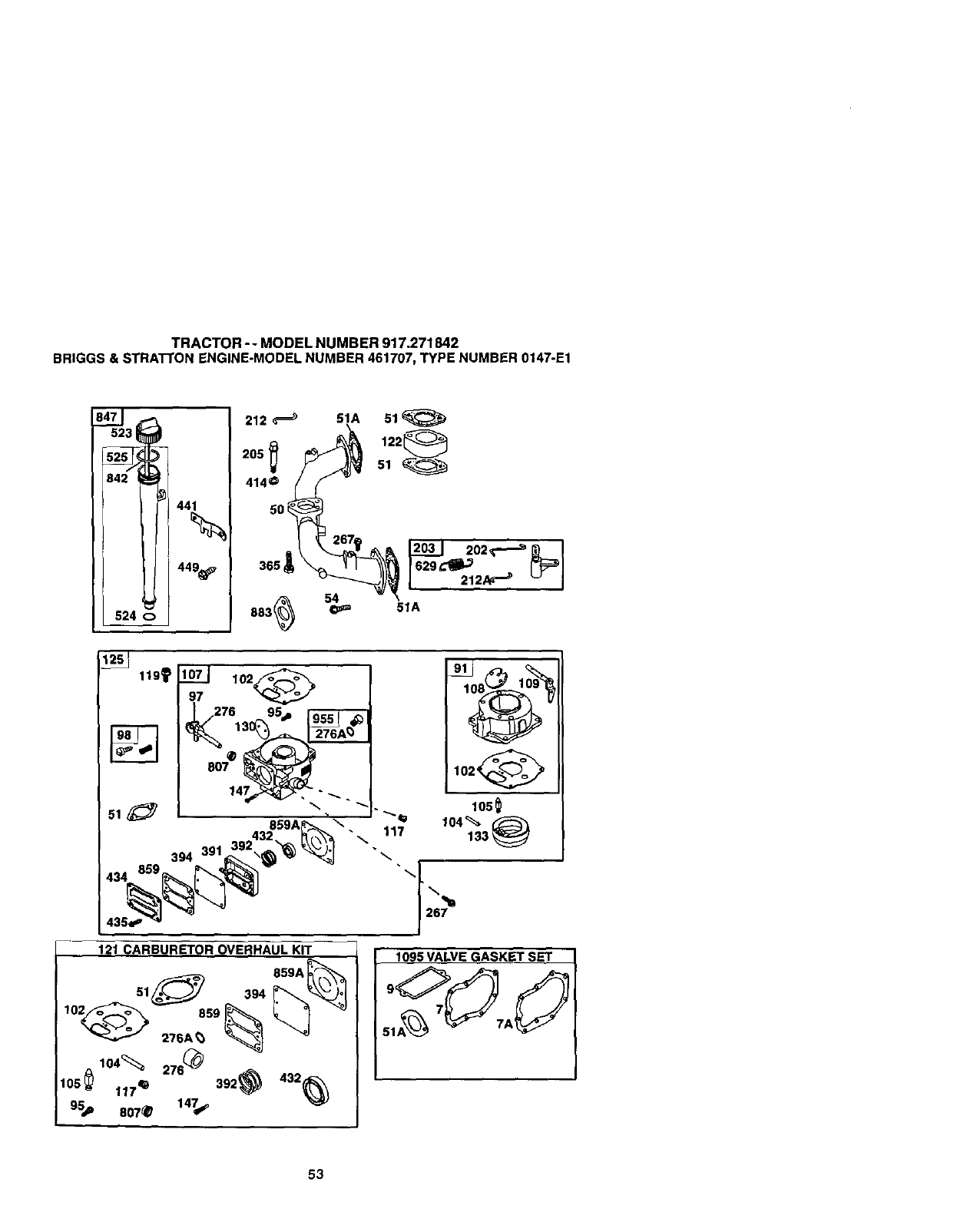

TRACTOR -- MODEL NUMBER 917,271842

BRIGGS & STRATrON ENGINE-MODELNUMBER461707, TYPE NUMBER0147-E1

523

524 o

441

449_S_

212 _A 51

205_ 122_

119_

394 391

121 CARBURETOR OVERHAUL KIT

102__59 _4 _ "_

276A_ _

^lO4_ 276_

105_ 117 _392_ 432_

9s_ 807¢ 14_

10_)5VALVE GASKET SET

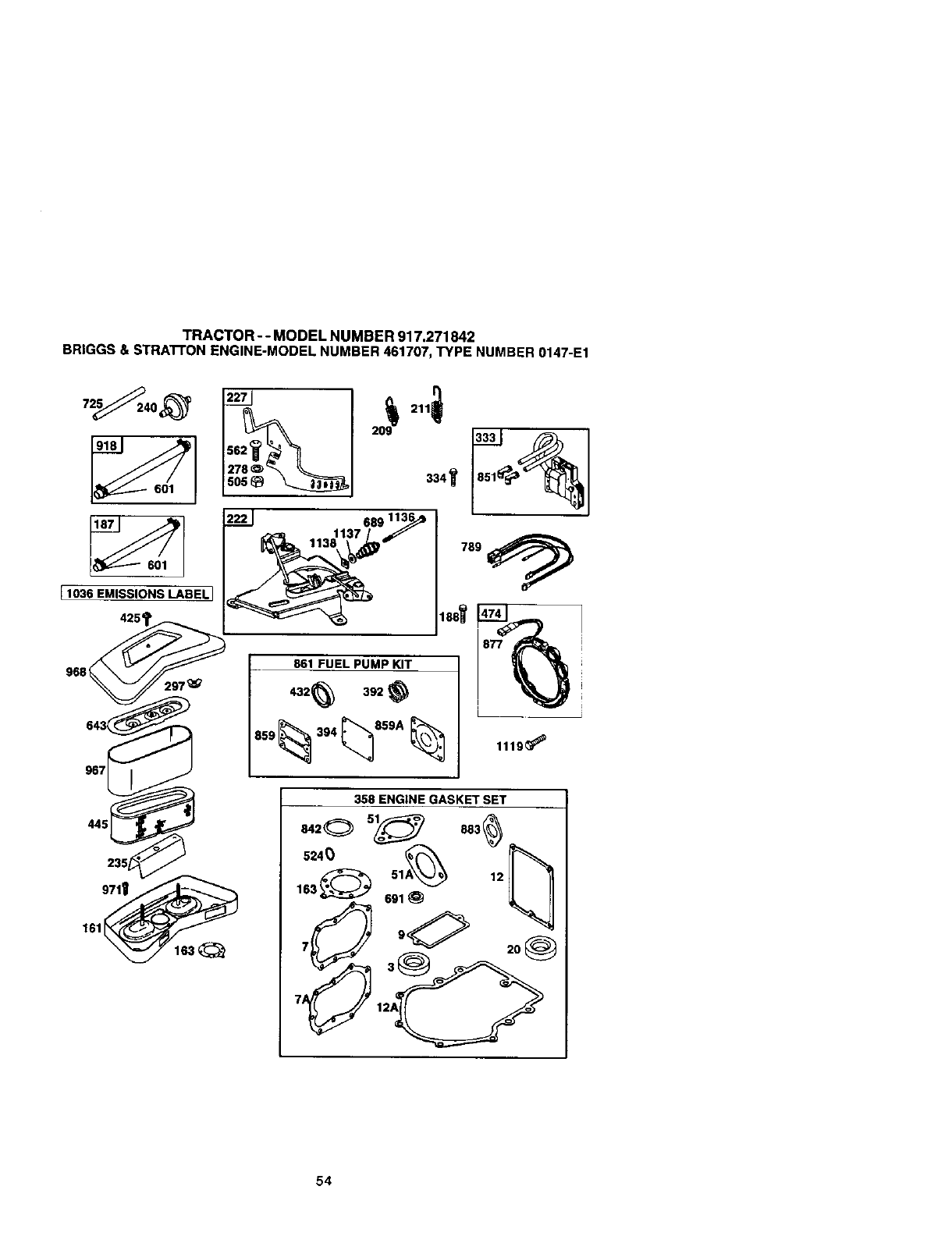

TRACTOR -- MODEL NUMBER 917.271842

BRIGGS & STRA'I-I'ONENGINE-MODELNUMBER461707, TYPE NUMBER0147-E1

,,_,o@

11036 EMISSIONS LABEL]

425 _

689 11

9681 861 FUEL PUMP KIT

445

358 ENGINE GASKET SET

_30_ 603_

TRACTOR --MODEL NUMBER 917.271842

BRIGGS& STRATI'ONENGINE-MODELNUMBER461707, TYPE NUMBER 0147-E1

783

513

544

802ti" "

797A !

79; _

697_

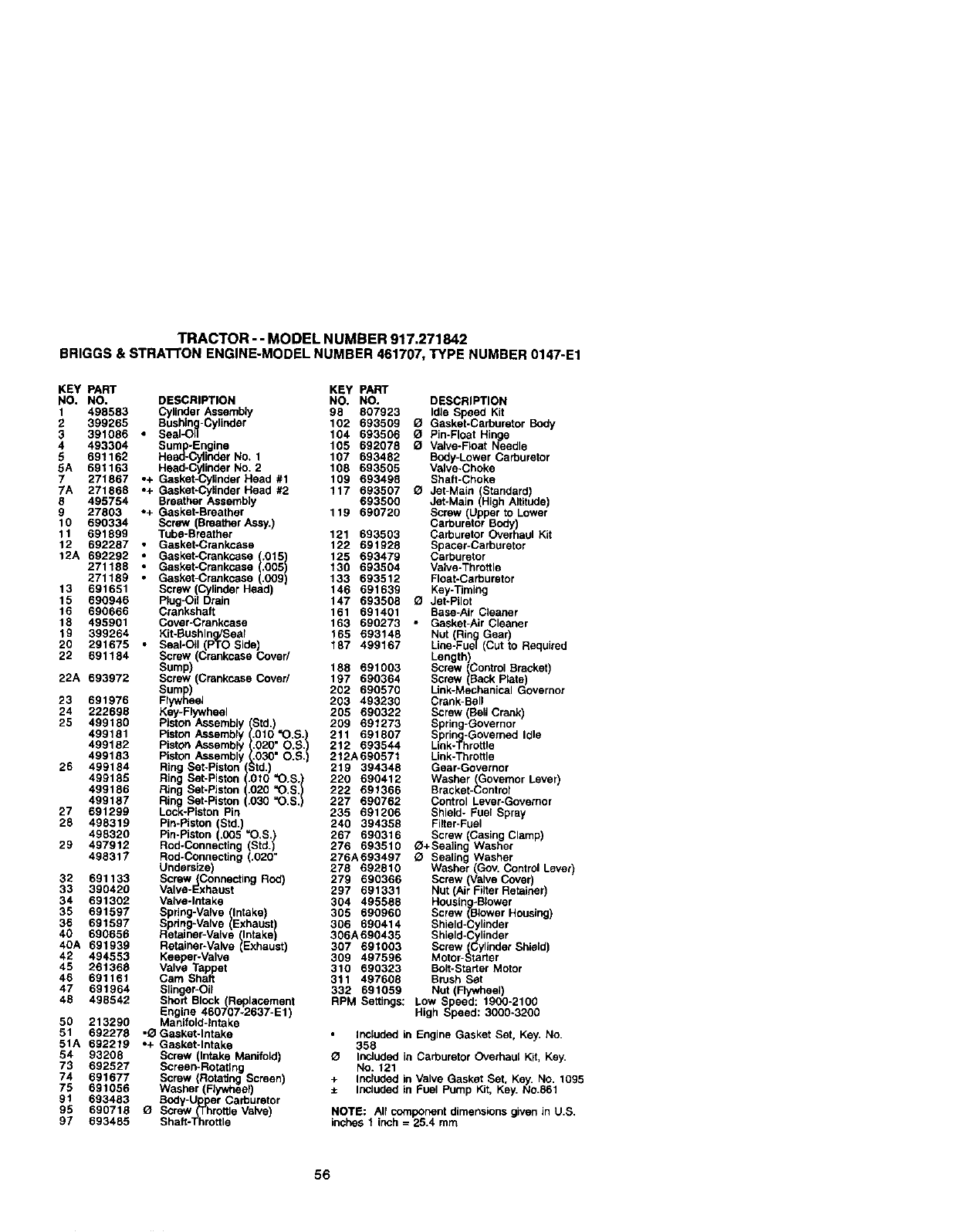

TRACTOR --MODEL NUMBER 917,271842

BRIGGS & STRATrON ENGINE-MODELNUMBER 461707,TYPE NUMBER0147-E1

KEY PART

NO. NO.

1 498583

2399265

3 391086

4 493304

5 691162

5A 891163

_A 271867

271868

8 495754

927803

10 690334

11 691899

12 692287

12A 692292

271188

271189

13 691651

15 690946

16 690668

18 495901

19 399264

20 291675

22 691184

22A 693972

23 691976

24 222698

25 499180

499181

499182

499183

26 499184

499185

499186

499187

27 691299

28 498319

498320

29 497912

498317

32 691133

33 390420

34 691302

35 691597

36 691597

40 690656

40A 691939

42 494553

45 261368

46 691161

47 691964

48 498542

50 213299

51 692278

51A 692219

54 93208

73 692527

74 691677

75 691058

91 693483

95 690718

97 693485

KEY PART

DESCRIPTION NO, NO. DESCRIPTION

BCylinder Assembly 98 807923 Idle Speed Kit

ushing-Cylinder 102 693509 OGasket-Carburetor Body

• SeaJ-OII 104 693506 _Pin*Float Hin_a_e

105 692078 _Valve-Roat Needle

Sum -Engine

He_- 107 893482

Cylinder No. 1 Body-Lower Carburetor

Head-Cylinder No, 2 108 693505 Valve-Choke

o+ Gasket-Cylinder Head #1 109 693498 Shaft-Choke

o+ Gasket-Cylinder Head #2 117 693507 QJet-Main (Standard)

Breather Assembly 693500 Jet-Main (High Altitude)

*+ Gasket-Breather 119 690720 Screw (Upper to Lower

Screw (Breather Assy,) Carburetor Body

Tube-Breather 121 693503 Carburetor Overhau Kt

•Gasket-Crankcase 122 691928 Spacer-Carburetor

Gasket-Crankcase 1.015 125 693479 Carburetor

Gasket-Crankcase .005 130 693504 Vaive-Throftle

Gasket-Crankcase .009 133 693512 Float-Carburetor

Screw (cylinder Head) 146 691839 Key-Timing

Plug-Oil Drain 147 693508 CI Jet-Pilot

Crankshaft 161 691401 Base-Air C_eaner

Cover-Crankcase 163 690273 •Gasket-Air Cleaner

Kit-Bushing/Seal 165 693148 Nut Ring Gear)

•Seal-Oil (PTO Side) 187 499167 L no-Fuel Cut to Requ red

Screw (Crankcase Cover/ Length)

Sump) 188 691003 Screw (Control Bracket)

Screw (Crankcase Cover/ 197 690364 Screw Back Plate)

Sump) 202 690570 L nk-Meohan cai Governor

Flywhee_ 203 493230 Crank-Bell

Key-Flywhoel 205 690322 Screw (Bell Crank

Piston Assembly (Std,) 209 691273 Spring-Governor

Piston Assembly (,010 =O,S.) 211 691807 Sp bg-rin-Governed Idle

Piston Assembly (.020" O.S.) 212 693544 Link-Throttle

Piston Assembly (.030" O.S,) 212A690571 Link-Throttle

Ring Set-Piston (Std.) 219 394348 Gear-Governor

I I Washer Governor Lever)C

Ring Set-Piston .010 =O.S. 220 690412 Bracket_((ontrol

Ring Set-Piston .020 _O.S, 222 691366

Ring Set-Piston (.030 "O.S,) 227 690762 Control Lever-Governor

Lock-Piston Pin 235 691206 Shield- Fuel Spray

Pin-Piston (Std.) 240 394358 Filter-Fuel

Pin-Piston (,005 =O,S,) 267 690316 Screw Casing Clamp

Rod-Connecting (Std.) 276 693510 O+Sealing Washer

Rod-Connecting (.020" 276A693497 (_ Sealing Washer

Undersize) 278 692810 Washer (Gov, Control Lever)

Screw(Connecting Rod) 279 690366 Screw Valve Cover

Valve-Exhaust 297 691331 Nut ArFilerRetaner)

Housin -Blower

Valve-Intake 304 495588 Screw _Ba'lower

Spring-Valve (Intake) 305 690960 Hou,dng)

Spdng-Valve (Exhaust) 306 690414 Shield-Cylinder

Retainer-Valve (Intake) 306A690435 Shield-Cylinder

Retainer-Valve (Exhaust) 307 691003 Screw_Cyllnder Shield)

Motor-Starter

Keeper-Valve 309 497596

Valve Tappet 310 690323 Bolt-Starter Motor

Cam Shaft 311 497608 Brush Set

Slinger-Oi_ 332 691059 Nut (Flywheel)

Low Seed: 1900-2100

Short Block Replacement RPM Settings: High sp_Pleed:

Engine 460707.2637-E1 3OOO-32OO

Man told- ntake

._ Gasket-Intake InC[udod in Engine Gasket Set, Key. No.

•+ Gasket-Intake 358

Screw (Intake Manifold) QInbludod in Carburetor Overhaul Kit, Key.

Screen-Rota6ng No. 121

Screw (Rotating Screen) + Inctoded in Valve Gasket Set, Key. No. 1095

Washer (Fiywheot) ±Included in Fuel Pump Kit, Key. NO.861

Body-U_pperr Carburetor

QScrew (ThrottJe Valve) NOTE: All component dimensions given inU.S.

Shaft-Throttle inches 1inch = 25.4 mm

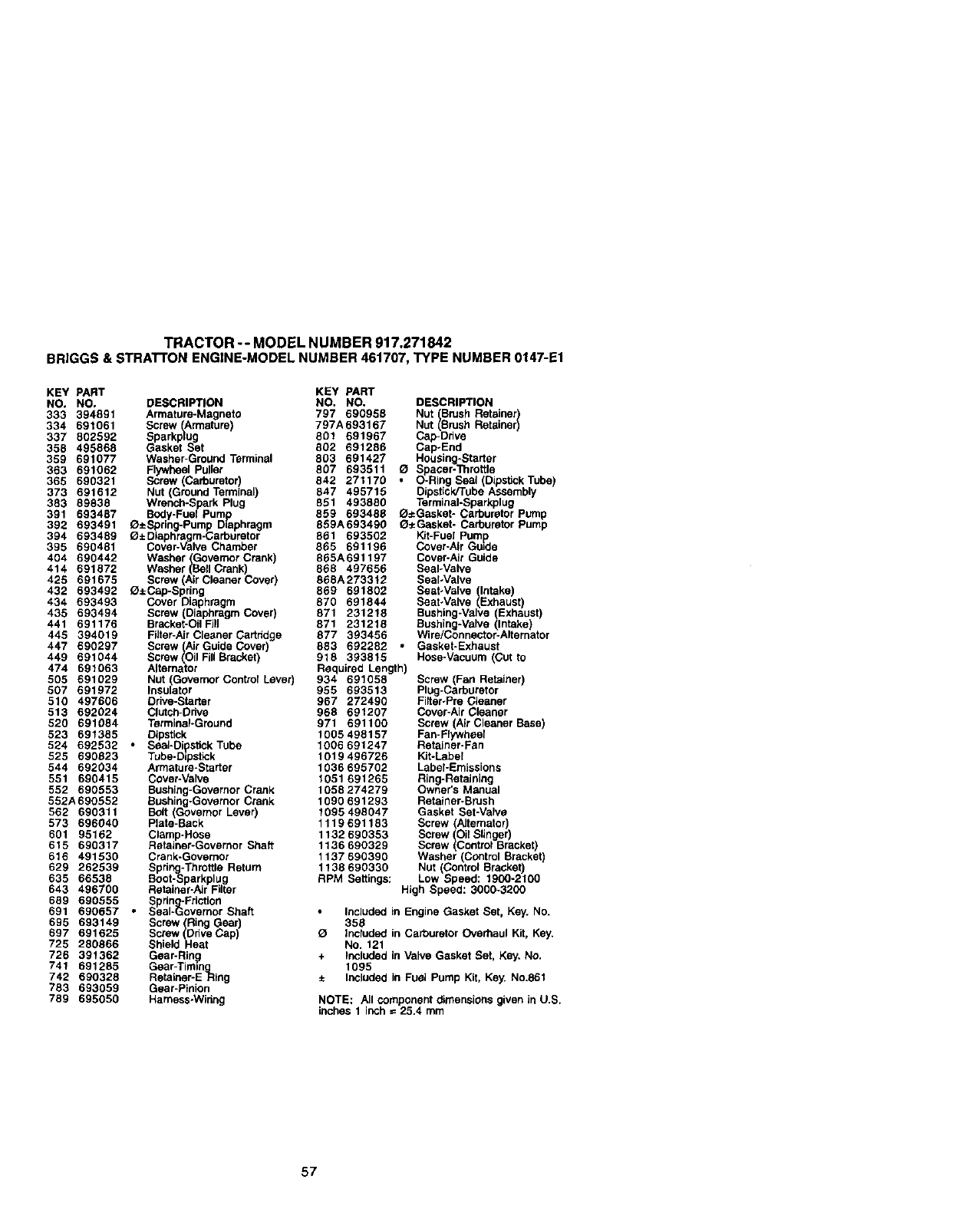

TRACTOR -- MODEL NUMBER 917.271842

BRIGGS& STRATFONENGINE-MODELNUMBER 461707, TYPE NUMBER0147-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO, DESCRIPTION

333 394891 Armature-Magneto 797 690958 Nut (Brush Retainer)

334 691061 Screw (,Armature) 797A693167 Nut (Brush Retainer )

337 802592 Sparkplug 801 691967 Cap-Drive

358 495868 Gasket Set 802 691286 Cap-End

359 691077 Washer-GroundTarrninal 803 691427 Housing-Starter

363 691062 Flywheel Puller 807 693511 _Spacer-'flzroftle

365 690321 Screw (Carburetor) 842 271170 • O-Ring Seal (Dipstick Tube)

373 691612 Nut (Ground Terminal) 847 495715 Dipstick/Tube Assembly

383 89838 Wrench-Spark Plug 851 493880 TerminaI-Sparkplug

P 859 693489 _:Gasket- Carburetor Pump391 693487 Body-Fuel Pure

392 693491 O±Spring-Pump Diaphragm 859A693490 _:Gasket- Carburetor pump

394 693489 Q:_Dlaphragm-Carburetor 851 693502 Kit-Fuel Pain P

395 690481 Cover-Valve Chamber 865 691196 Cover-Air Guide

404 690442 Washer (Governor Crank) 865A691197 Cover-Air Guide

414 691872 Washer (Bell Crank) 868 497658 Seal-Valve

425 691675 Screw (Air Cleaner Cover) 868A 2733t2 Seal-Valve

432 693492 O_Cap-Spring 869 691802 Seat-Valve (Intake)

434 693493 Cover Diaphragm 870 691844 Seat-Valve (Exhaust)

435 693494 Screw Diaphragm Cover) 871 231218 Bushing-Valve (Exhaust)

441 691176 Bracket-Oil F 871 231218 Bushing-Valve (intake)

445 394019 Filter-Air Cleaner Cart_dge 877 393456 Wire/Connector-Alternator

447 690297 Screw(Air Guide Cover) 883 692282 • Gasket-Exhaust

449 691044 Screw (Oil Fill Bracket) 918 393815 Hose-Vacuum (Cut to

474 691063 Alternator Required Length)

505 691029 Nut (Governor Control Lever) 934 691058 Screw (Fan Retainer)

507 691972 Insulator 985 693513 Ping-Carburetor

510 497606 Drive-Starter 967 272490 FiRer-PreCleaner

513 692024 Clutch-Drive 968 691207 Cover-Air Gleaner

520 691084 Terminol-Ground 971 691100 Screw (Air Cleaner Base)

523 691385 Dipstick 1005498157 Fan- Rywhael

524 692532 • Saal-DipslJck Tube 1006 691247 Retainer-Fan

825 690823 Tuhe-Dipstick 1019496726 Kit-Label

544 692034 Armature-Starter 1036695702 LabePErnlssions

551 690415 Cover-Valve 1051 691265 Ring-Retaining

552 690553 Bushing-Governor Crank 1058 274279 Owner's Manual

552A690552 Bushing-Governor Crank 1090 691293 Retainer-Brush

562 690311 Bolt (Governor Lever) 1095 498047 Gasket Set-Valve

573 696040 Plata-Back 1119691183 Screw (Aitematur)

601 95162 Clamp-Hose 1132 690353 Screw (Oil Slinger)

615 690317 Retainer-Governor Shaft 1136 690329 Screw (Control Bracket)

616 491530 Crank-Governor 1137 690390 Washer (Control Bracket)

629 262539 Spring-Throttle Return 1138 690330 Nut (Control Bracket)

635 66538 Boot-Sparkplug RPM Settings; Low Speed: 1900-2100

643 496700 Retainer-Air Filter High Speed: 3000-3200

689 690555 Spdng.-Friction

691 690657 , Seal-Governor Shaft Included in Engine Gasket Set, Key. No.

695 693149 Screw (Ring Gear) 355

697 691625 Screw (Ddve Cap) _ Included in Carburetor Overhaul Kit, Key.

725 280866 Shield Heat No. 121

726 391362 Gear-Ring + Included in Valve Gasket Set, Key. NO.

741 691285 Gear-Timing 1095

742 690328 Retalner-ERing ±Included in Fuel Pump Kit, Key. No.861

783 693059 Gear-Pinion

789 695050 Harness*Widng NOTE: A]I component dimensions given in U.S.

inches 1 inch =25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING "_ ._ CUT

GUIDE THe-8

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

1_ erate your Tractor up and down the face of slopes (not

greater than 15 ), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

Forrepairof majorbra,'_appliancesin your ownhome...

nomatterwhomadeit,nomatterwhosold

1-6O0-4-MY-HOME _An,pine.dayorr_t_

(1-8(X)-,_) (U.SA_d C,_ada

www_Ree_*sJDor_ _.sQ6r_l,C=l

Forrepairofcarry-inproductslikevacuums,lawnequ=pment,and

electronics,call for _e nearestSearsParts and RepairCenter.

1-600-488-1222 ArV_e,_ayofn_Jl(u.s_.or_)

WWW_

For thereplacementparts,accessoriesandowner'smanuals

thatyouneedtodo-it-yourself,callSears PartsDirectSM!

1-800-366-PART 6a,m,-11 pJm.,7days aweek

(1-am-3_-7278) (u_s._on,y)

wvw_mct

To pumhase or inquire about aSears Service Agreement

or Sears Maintenance Agreement:

1-800-827-6655 (u.s.A.) 1-800-361-6665 (C,_ada)

7a.m.-5 p.m.,CST,Mor_- SaL 9 am.- 8p.m.EST,M- F,4 p.m.Sat.

Parapedrse_dodereparacV_a

domiclio,yparaorder_arplezas:

1.888-SU.HOGARsM

(1-s_-Ts4.s427)

AuCana_pourser,,lce_ _anc;_s:

1-800-1_YER Mc

(1.Boo-_3-6_7)

WWW.se_rs_

@Seam,P,oebx_ a_:iCo.

®Registered Trademark /T_ Trademark /su Service Mark of Sears, Roebuck and Co.

®Mama Registrada /TUMarca de Fdbrica /su Mama de Servicio de Sears, Roebuck and CO.

_x: Marque de commerce /UOMarque ddpos_e de Sears, Roebuck and Co.

179206 5.8,01 JH Printedin U.S.A.

Craftsman 917271842 User Manual LAWN TRACTOR Manuals And Guides L0105110

CRAFTSMAN Lawn, Tractor Manual L0105110 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
