Owner's Manual

CRnFTSMnN°

25.0 HP

ELECTRIC START

46 MOWER

AUTOMATIC

AWN TRACTOR

Model No.

917.272201

•Safety

• Assembly

° Operation

•Maintenance

°Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon -Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears corn/craftsman

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 5

Assembly ................................................ 7

Operation ............................................ 12

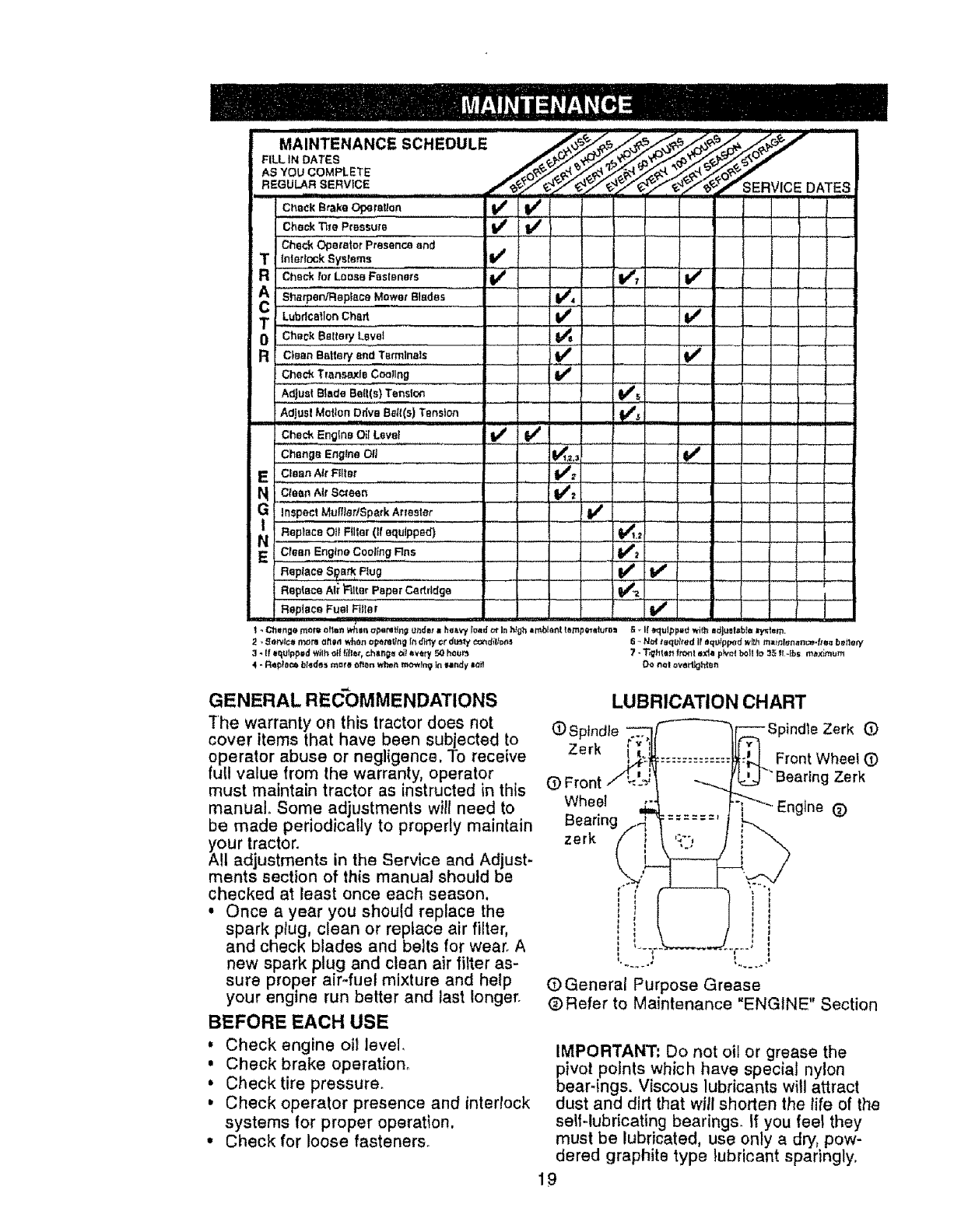

Maintenance Schedule ......................... 19

Maintenance ........................................ 19

Service and Adjustments .................... 23

Storage ................................................... 31

Troubleshooting .................................. 32

Repair Parts ........................................ 36

Paris Ordering ....................... Back Cover

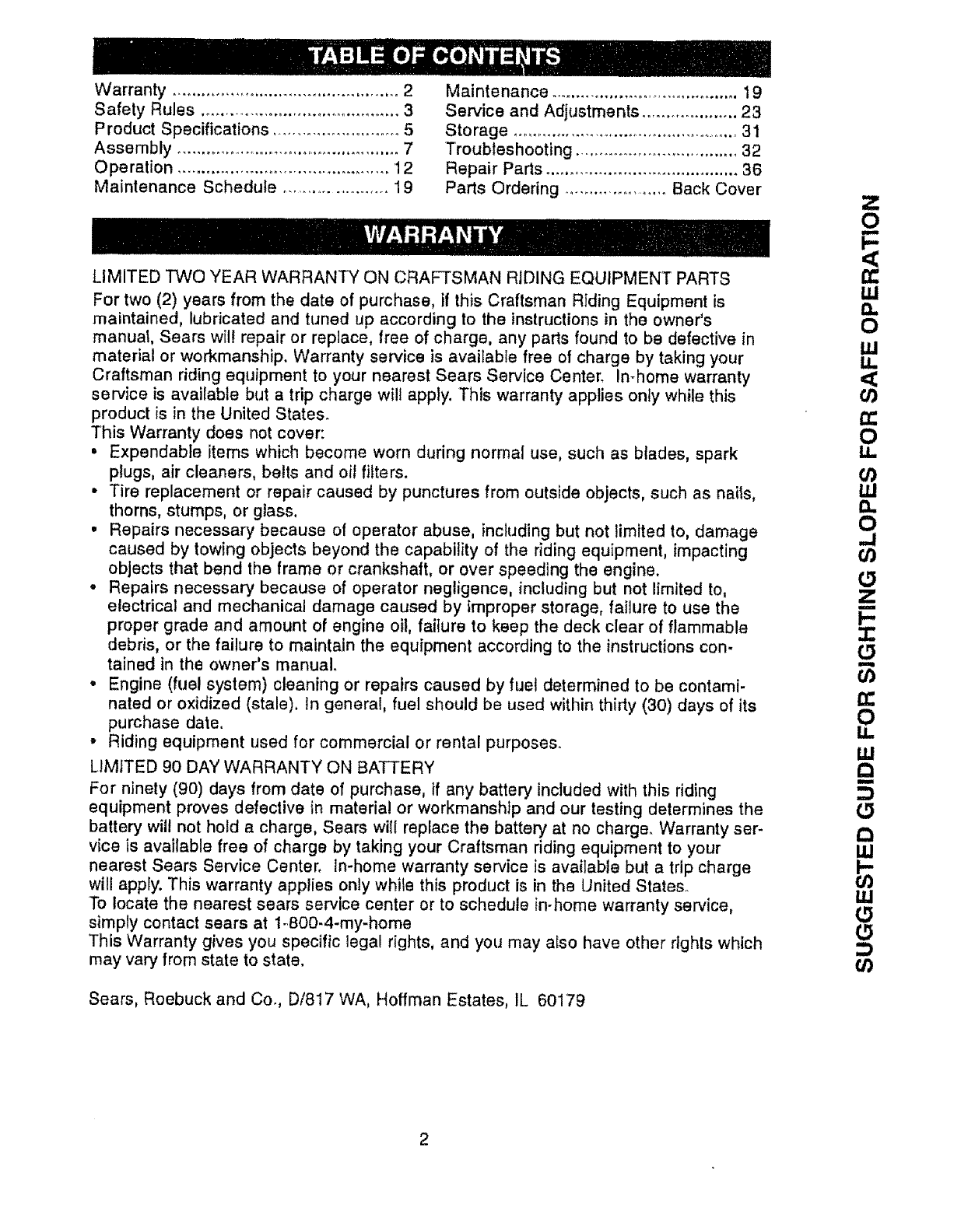

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by taking your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

, Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oit filters.

° Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass,

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

° Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debds, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual°

° Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

, Riding equipment used for commercial or rental purposes.

LtMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this dding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty ser-

vice is available free of charge by taking your Craftsman riding equipment to your

nearest Sears Service Center. In-home warranty service is available but a trip charge

will apply. This warranty applies only while this product is in the United States..

To locate the nearest sears service center or to schedule in-home warranty service,

simply contact sears at t oSO0-4-my-home

This Warranty gives you specific legal rights, and you may also have other rtghts which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

LIJ

ILl

1,1..

I,LI

O..

..i

i.-

I-

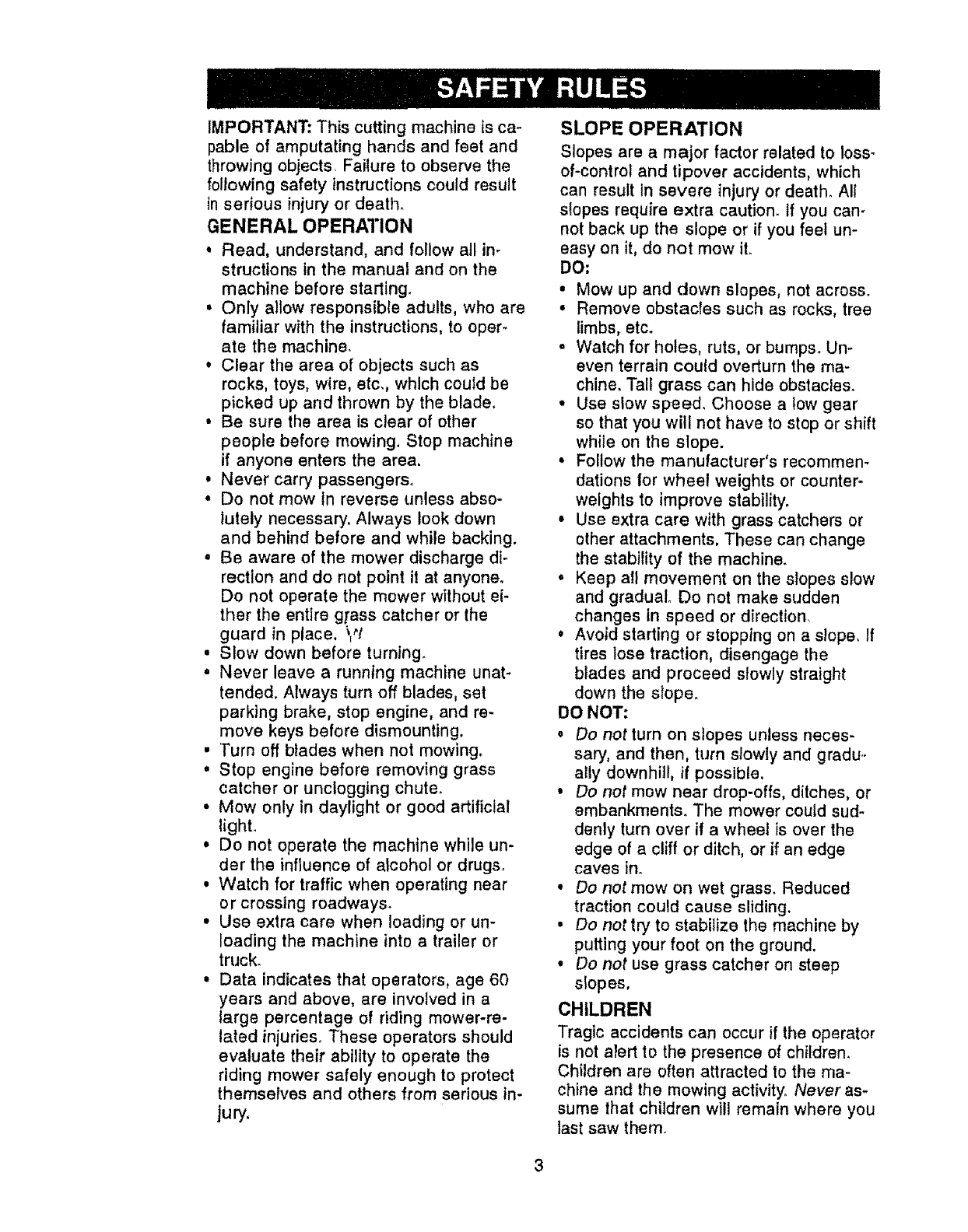

IMPORTANT:This cutting machine is ca-

pable of amputating hands and feet and

throwing objects Failure to observe the

following safety instructions could result

in serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all in-

structions in the manual and on the

machine before starting.

, Only allow responsible adults, who are

familiar with the instructions, to oper-

ate the machine.

•Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade.

•Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

•Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

, Be aware of the mower discharge di_

rection and do not point it at anyone.

Do not operate the mower without ei-

ther the entire grass catcher or the

guard in place, _'_!

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and re-

move keys before dismounting,

• Turn off blades when not mowing,

• Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

tight

• Do not operate the machine while un-

der the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or un-

loading the machine into atrailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-re-

lated injuries. These operators should

evaluate their ability to operate the

riding mower safely enough to protect

themselves and others from serious in-

jury.

SLOPE OPERATION

Slopes are a major factor related to Ioss_

of-control and tipover accidents, which

can result tn severe injury or death_ AIr

slopes require extra caution, tf you can-

not back up the slope or if you feet un-

easy on it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Un-

even terrain could overturn the ma-

chine. Tall grass can hide obstacles.

• Use slow speed. Choose a tow gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

,Use extra care with grass catchers or

other attachments. These can change

the stabitity of the machine.

•Keep all movement on the slopes slow

and gradual° Do not make sudden

changes in speed or direction,

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn stowly and gradu,.

ally downhill, if possible,

•Do not mow near drop-offs, ditches, or

embankments. The mower could sud-

denly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

s_opes,

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras.

sume that children will remain where you

last saw them.

• Keepchildrenout of the mowingarea

and underthewatchfulcare of another

responsibleadult,

• Bealertand turn machineoff if children

enter the area.

,Before and when backing, look behind

and down for small children_

• Never carry children, They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the ma-

chine°

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision_

SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to coo! before refueling, Do not

smoke°

Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Check brake operation frequently

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

• Never carry passengers or children

even with the blades off.

o Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing,

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert ahd turn machine off if chil-

dren enter the area_

• Before and when backing, look behind

and down for small children.

•Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bo_ts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly,

° Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

stodng.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running°

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut,

Wrap the blade(s) or wear gloves, and

use extra caution when servicing

them.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the ma-

chine_ Tall grass can hide obstacles.

•Use slow speed. Choose a low gear

so that you wilt not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machtne stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do not turn on slopes unless neces-

san/, and then, turn slowly and gradu-

4 ally downhill, if possible.

Look for thissy,.mbofto pointout impor-

n[ saTetyprecautions.It meansCAU-

TIONI!!BECOMEAWARE!!IYOUR

SAFETYiS INVOLVED,

la_,CAU.TION} Jn order to preyent acc!den-

i starting wnen setting up, transporting,

adjusting or making repairs always dis-

connect spark plug wire and place wire

where it cannot contact spark plug.

ACAUTION: Do not coast down a hill in

neutral, you may lose control of the tractor,

tAaC.AUTION: Tow o,nly, the atta.chments

[ are recommenaeo Dy ana comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing, Operate only at the lowest pos-

sible speed when on a slope. Too heavy of

a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

thAiWARNIN.G: Th.e engine exhaust from

s proauc_ con[alns cnemlca3s Known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OIL TYPE SAE 30 (ABOVE 32°F)

APt-SF/SG/SH): SAE 5W-30

, (BELOW 32°F)

OIL CAPACITY: W/FILTER: 4,0 PINTS

W/OFILTER: 3.75 PINTS

SPARK PLUG: CHAMPION RCt2YC

GAP: .040")

VALVE

CLEARANCE:

GROUND SPEED

(MPH):

TIRE PRESSURE:

INTAKE: .004"-o006"

EXHAUST: .004"-.006"

FORWARD: 0-5.5

REVERSE: 0-2.4

FRONT: !4 PS!

REAR: 10PSI

CHARGING

SYSTEM: 16 AMPS @ 3600 RPM

BATTERY: AMP!HR: 30

MIN. CCA: 240

CASE SIZE: U 1R

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been de-

signed, engineered and manufactured to

give you the best possible dependability

and performance,

Should you experience any problem you

cannot easily remedy, please contact your

nearest authorized service center. We

have competent, well-trained technicians

and the proper tools to service or repair

this tractor.

Please read and retain this manual The

instructions will enable you to assemble

and maintain your tractor properly. Al-

ways observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details_

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

° Follow a regurar schedule in maintain-

ing, caring for and using your tractor.

° Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

&WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any)_ If a spark arrester is used, it

should be maintained in effectiv e working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Cali-

fornia Public Resources Code)_ Other

states may have similar laws. Federal

laws apply on federal lands_ A spark ar-

rester for the muffter is available through

your nearest authorized service center/

department (See REPAIR PARTS section

of this manual).

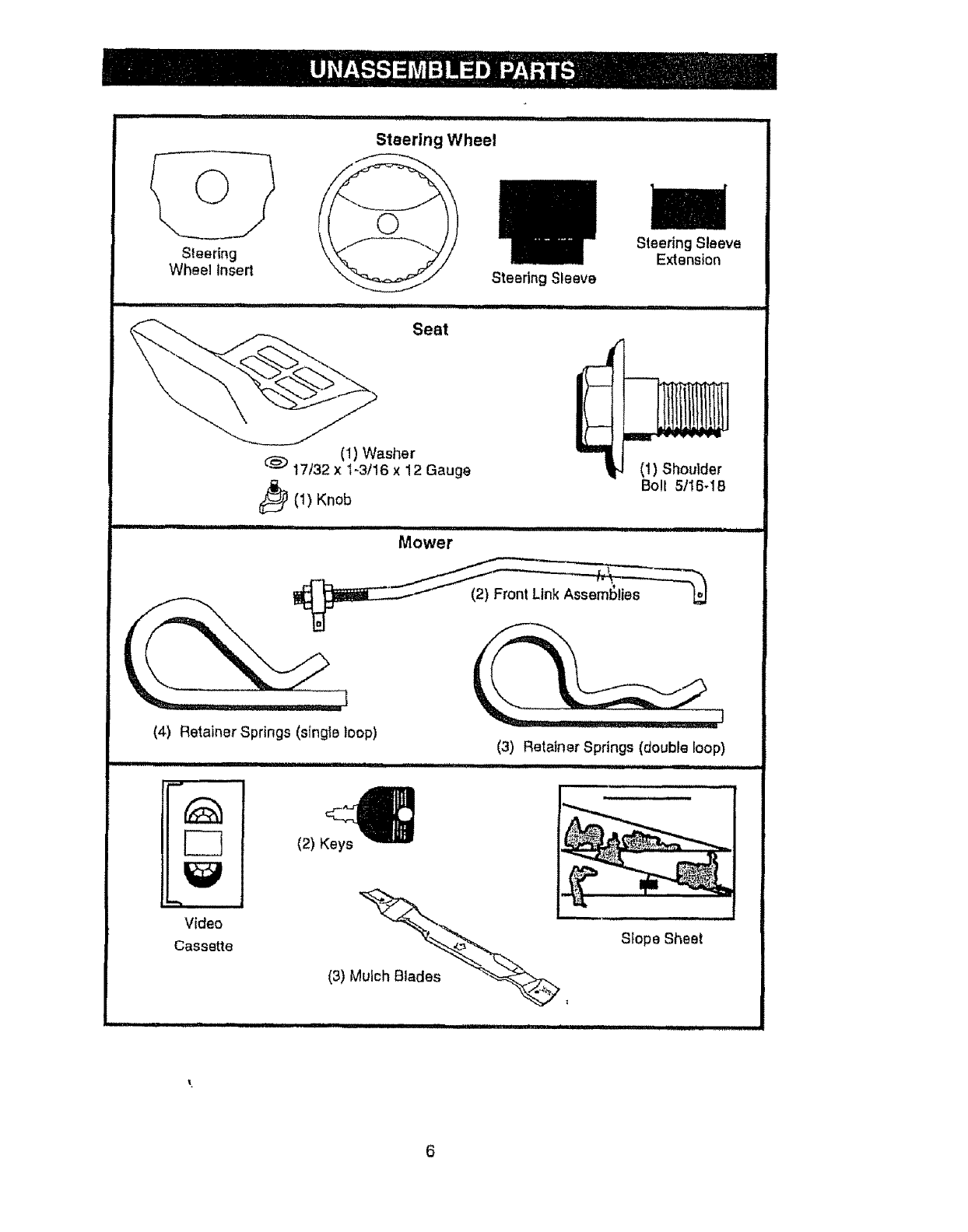

Sleering

Wheel insert

i ii1,1 i illlllllll ul= i

Steering Sleeve

Extension

(1) Washer

17t32 x 1-3/16 x 12 Gauge (t) Shoulder

Boll 5/16-18(1) Knob

Mower

__ ' (2) FrontLink Assemb!_

(4) Relainer Springs (single loop) (3) Retainer Springs (double loop)

Video

Cassette

(2) Keys

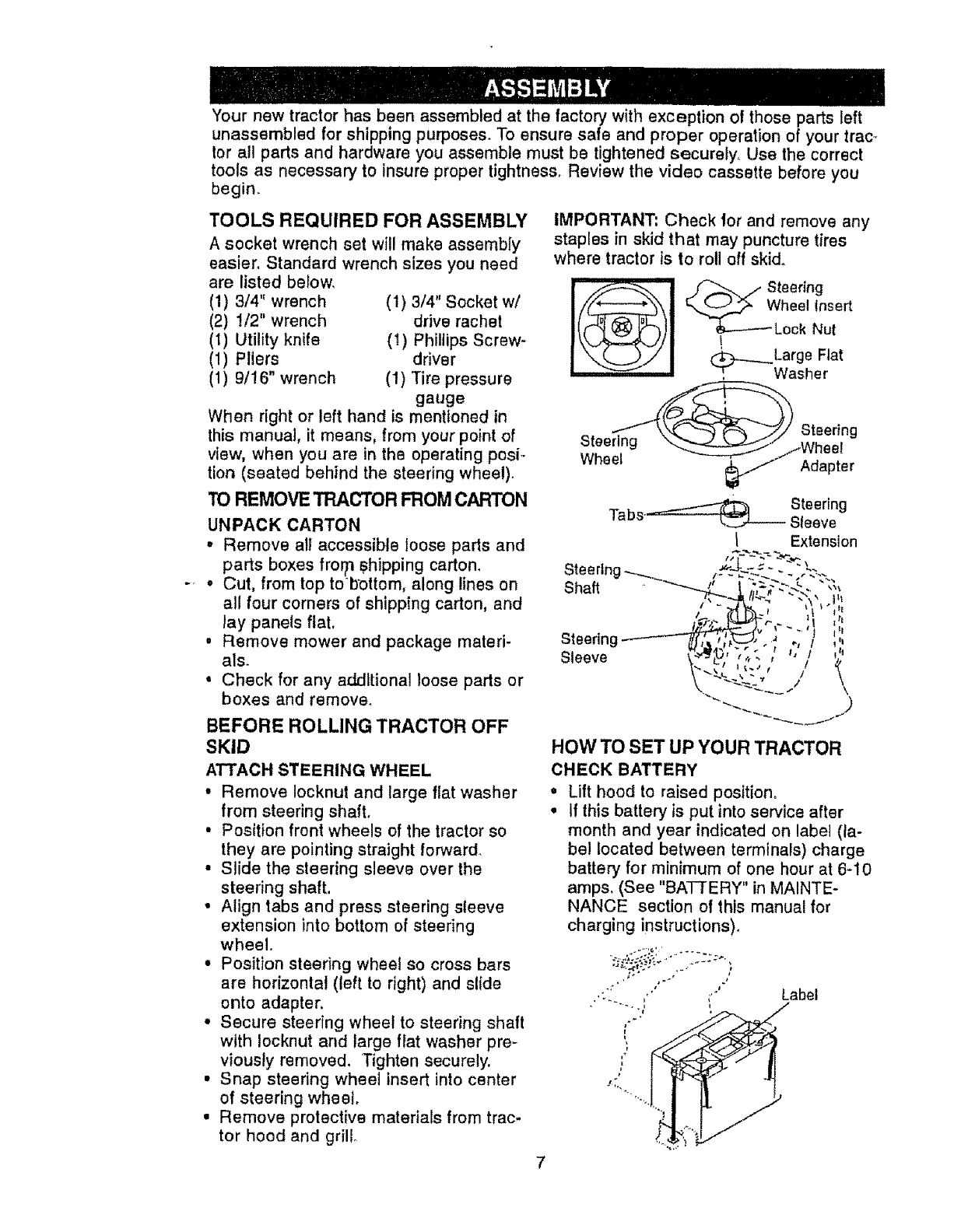

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your trac-

Ior all parts and hardware you assemble must be tightened securely, Use the correct

tools as necessary to insure proper tightness, Review the video cassette before you

begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set wil! make assembly

easier, Standard wrench sizes you need

are listed be)ow,

(1) 3/4" wrench

(2) 1/2" wrench

(1) Utility knife

(1) Pliers

(1) 9/16" wrench

(1) 3/4" Socket w/

drive rachet

(t) Phillips Screw-

driver

(1) Tire pressure

gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

• Remove all accessible loose parts and

parts boxes fro_ shipping carton,

•Cut, from top tob'ottom, along lines on

all four corners of shipping carton, and

lay panels flat,

,Remove mower and package materi-

als.

.Check for any additional loose parts or

boxes and remove.

IMPORTANT: Check tor and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

BEFORE ROLLING TRACTOR OFF

SKID

AI-rACH STEERING WHEEL

° Remove Iocknut and large flat washer

from steering shaft.

•Position front wheels of the tractor so

they are pointing straight forward

•Slide the steering sleeve over the

steering shaft,

•Align tabs and press steering sleeve

extension into bottom of steering

wheel.

• Position steering wheel so cross bars

are horizontal (left to right) and slide

onto adapter.

°Secure steering wheel to steering shaft

with Iocknut and large flat washer pre-

viously removed, Tighten securely.

° Snap steering wheel insert into center

of steering wheel,

, Remove protective materials from trac-

tor hood and grill

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

°Lift hood to raised position,

°If this battery is put into service after

month and year indicated on label (la-

bel located between terminals) charge

battery for minimum of one hour at 6-10

amps, (See "BATTERY" in MAINTE-

NANCE section of this manual for

charging instructions).

I" !

." Label

!-_

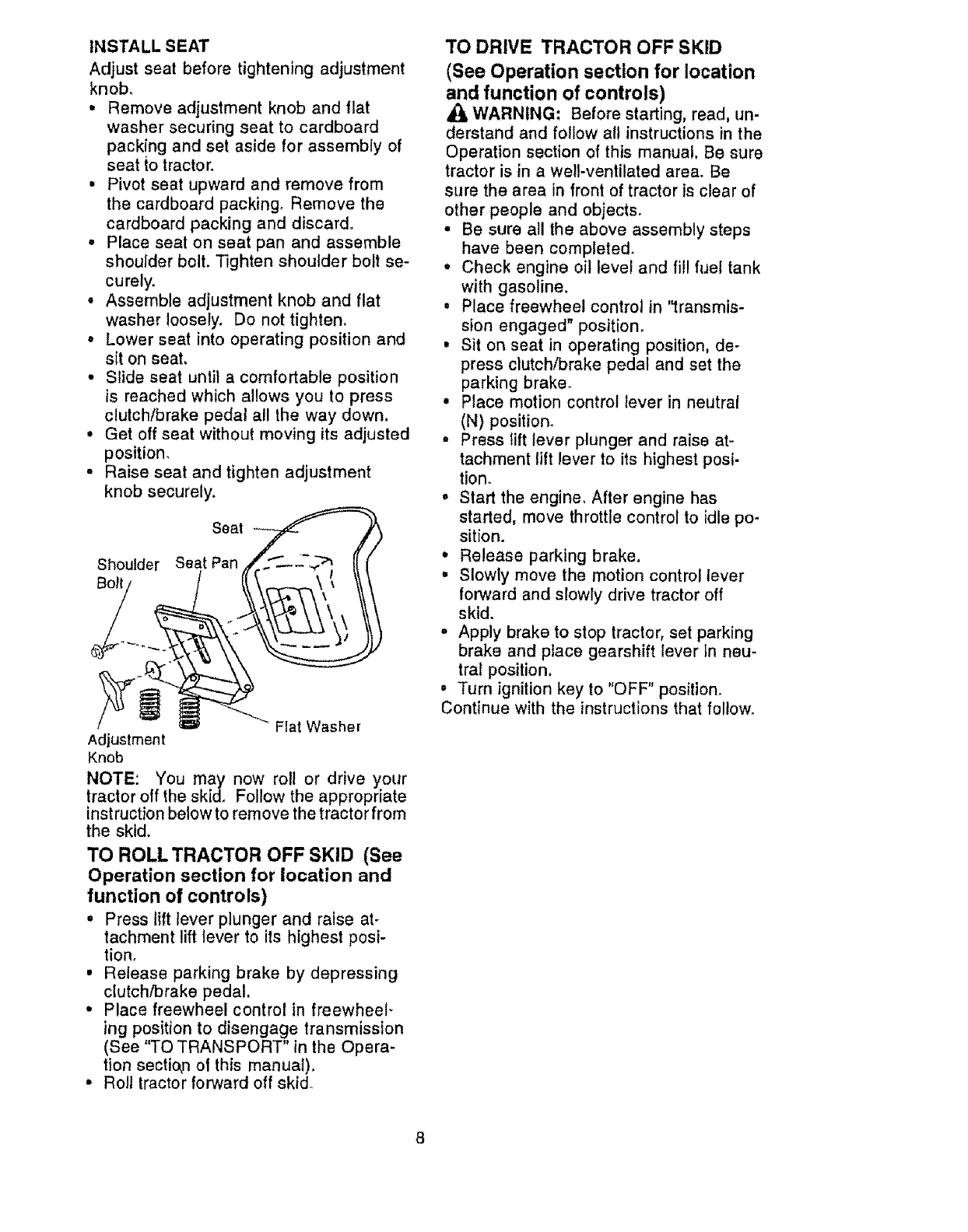

INSTALL SEAT

Adjust seat before tightening adjustment

knob,

• Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

• Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard°

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt se-

curely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

° Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

, Get off seat without moving its adjusted

position.

° Raise seat and tighten adjustment

knob securely.

Seat

Shoulder Seat Pan

Flat Washer

Adjustment

Knob

NOTE: You may now roll or drive your

tractor otf the skid. Follow the appropriate

instruction below to remove the tractor from

the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

• Press lift lever plunger and raise at-

tachment lift lever to its highest posi-

tion.

• Release parking brake by depressing

clutch/brake pedal.

• Place freewheel control in freewheel-

ing position to disengage transmission

(See "TO TRANSPORT" in the Opera-

tion sectio_n o1 this manual).

• Roll tractor forward off skid°

TO DRIVE TRACTOR OFF SKID

(See Operation section for location

and function of controls)

•lk WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

• Be sure all the above assembly steps

have been completed.

°Check engine oil level and fill fuel tank

with gasoline.

,Place freewheel control in 'lransmis-

sion engaged" position.

•Sit on seat in operating position, de-

press clutch/brake pedal and set the

parking brake.

•Place motion control lever in neutral

(N) position.

•Press lift lever plunger and raise at-

tachment lift lever to its highest posi-

tiono

•Start the engine. After engine has

started, move throttle control to idle po-

sition.

•Release parking brake.

• Slowly move the motion control lever

forward and slowly drive tractor off

skid.

, Apply brake to slop tractor, set parking

brake and place gearshift lever In neu-

tral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

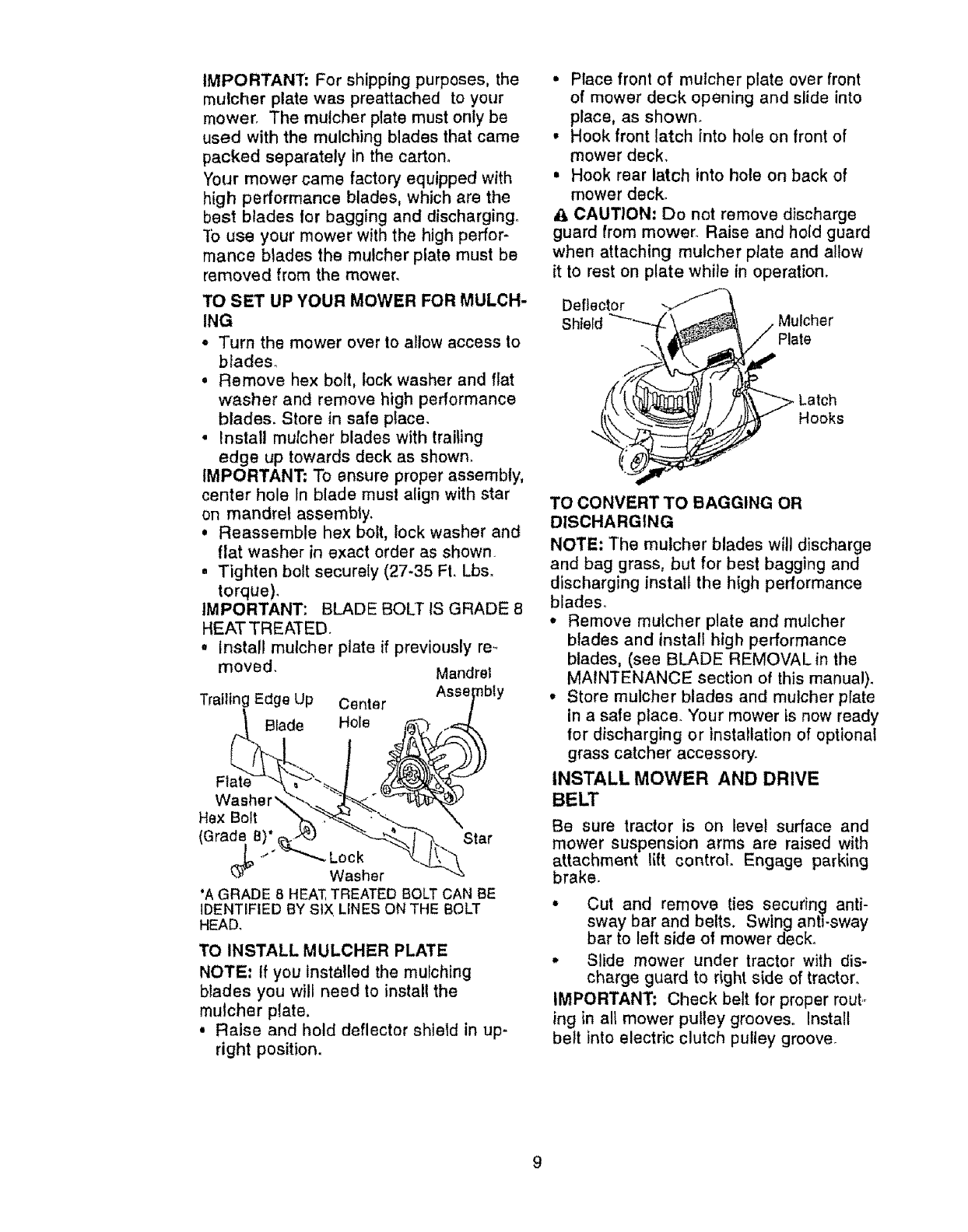

IMPORTANT; For shipping purposes, the

mulcher plate was preattached to your

mower. The mutcher plate must only be

used with the mulching blades that came

packed separately In the carton.

Your mower came factory equipped wfth

high performance blades, which are the

best blades tot bagging and discharging°

"l'b use your mower with the high perfor-

mance blades the mulcher plate must be

removed from the mower.

TO SET UP YOUR MOWER FOR MULCH-

ING

•Turn the mower over to allow access to

bladeso

,Remove hex bolt, lock washer and flat

washer and remove high performance

blades. Store in safe p_ace.

•Install mulcher blades with trailing

edge up towards deck as shown.

IMPORTANT; To ensure proper assembly,

center hole In blade must align with star

on mandrel assembty.

o Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

° Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: BLADE BOLT IS GRADE 8

HEAT TREATED.

,Install mulcher plate if previously re,.

moved, Mandrel

Asse nbly

Trailing Edge Up Center

Blade Hole

Washer',

Hex Bolt

(Gra_ Star

Lock

Washer

°AGRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT

HEAD.

TO INSTALL MULCHER PLATE

NOTE: If you installed the muiching

blades you will need to install the

mulcher plate,

. Raise and hold deflector shield in up-

right position.

• Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown°

•Hook front latch into hole on front of

mower deck,

o Hook rear latch into hole on back of

mower deck,

&CAUTION: Do not remove discharge

guard from mower, Raise and hold guard

when attaching mulcher plate and allow

it to rest on plate while in operation,

Deflector ..,_/_

Shteld _ Mulcher

Plate

/Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

NOTE: The mulcher blades will discharge

and bag grass, but for best bagging and

discharging install the high performance

blades.

°Remove mulcher plate and mulcher

blades and install high performance

blades, (see BLADE REMOVAL in the

MAINTENANCE section of this manual).

•Store mulcher blades and mutcher plate

in a safe place. "(our mower is now ready

for discharging or installation of optional

grass catcher accessory.

INSTALL MOWER AND DRIVE

BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

°Cut and remove ties securing anti-

sway bar and belts. Swing anti-sway

bar to left side of mower deck.

° Slide mower under tractor with dis-

charge guard to right side of tractor.

IMPORTANT: Check belt for proper rout,-

ing in all mower pulley grooves. Install

belt into electric clutch pulley groove.

o Install one front link in top hole of the

Roll, tront mower bracket and RHo front

suspension bracket. Retain with two

single loop retainer springs as shown,

° Install second front link in L°Hofront sus-

pension bracket only and retain with

single loop retainer spring as shown,

• Turn height adjustment knob counter-

clockwise until it stops,

,, Lower mower linkage with attachment

lift control.

° Place the Loll. suspension arm on in-

ward pointing deck pin. If necessary,

rock and raise front of mower to align

deck pin with the hole in suspension

arm, Retain with double loop retainer

spring with loops down as shown,

,, Slide left side of mower back and install

the unattached front link in top hole of

the L.H. front mower bracket, Retain

with single loop retainer spring as

shown.

• Place the R.H, suspension arm on im

ward pointing deck pin. tf necessary,

rock and raise front of mower to align

deck pin with the hole in suspension

arm, Retain with double loop retainer

spring with loops down as shown,

oConnect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring,

Chassis

Bracket

Shoulder Bolt

Gauge

Wheel

3/8

3/8-16 Center Locknut

Use Pliers for

Retainer Springs

,Loop

#own

DoUble Loop Retaler

Spring (inward

pointing deck pins)

Double Loop

Retaier Spring

Anti-Sway

Bar

Idler Pulley

° Turn height adjustment knob clockwise

to remove slack from mower suspen-

sion.

° Raise mower to highest position.

• Assemble gauge wheels (See "TO AD-

JUST GAUGE WHEELS" in the Opera-

tion section of this manual).

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best cut-

ting performance.

• Reduce tire pressure to PSt shown in

"PRODUCT SPECIFICATIONS" section

of thls manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be

properly leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replac-

ing motion, mower drive, and mower

blade drive belts in the. Service and Ad-

justments section of this manual. Verify

that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See 'q'o ADJtJS'T BRAKE" in

the Service and Adjustments section of

this manual

Suspension

Arms

Bracket

Single Loop

Retaler Spring

Discharge Guard

v' CHECKLIST

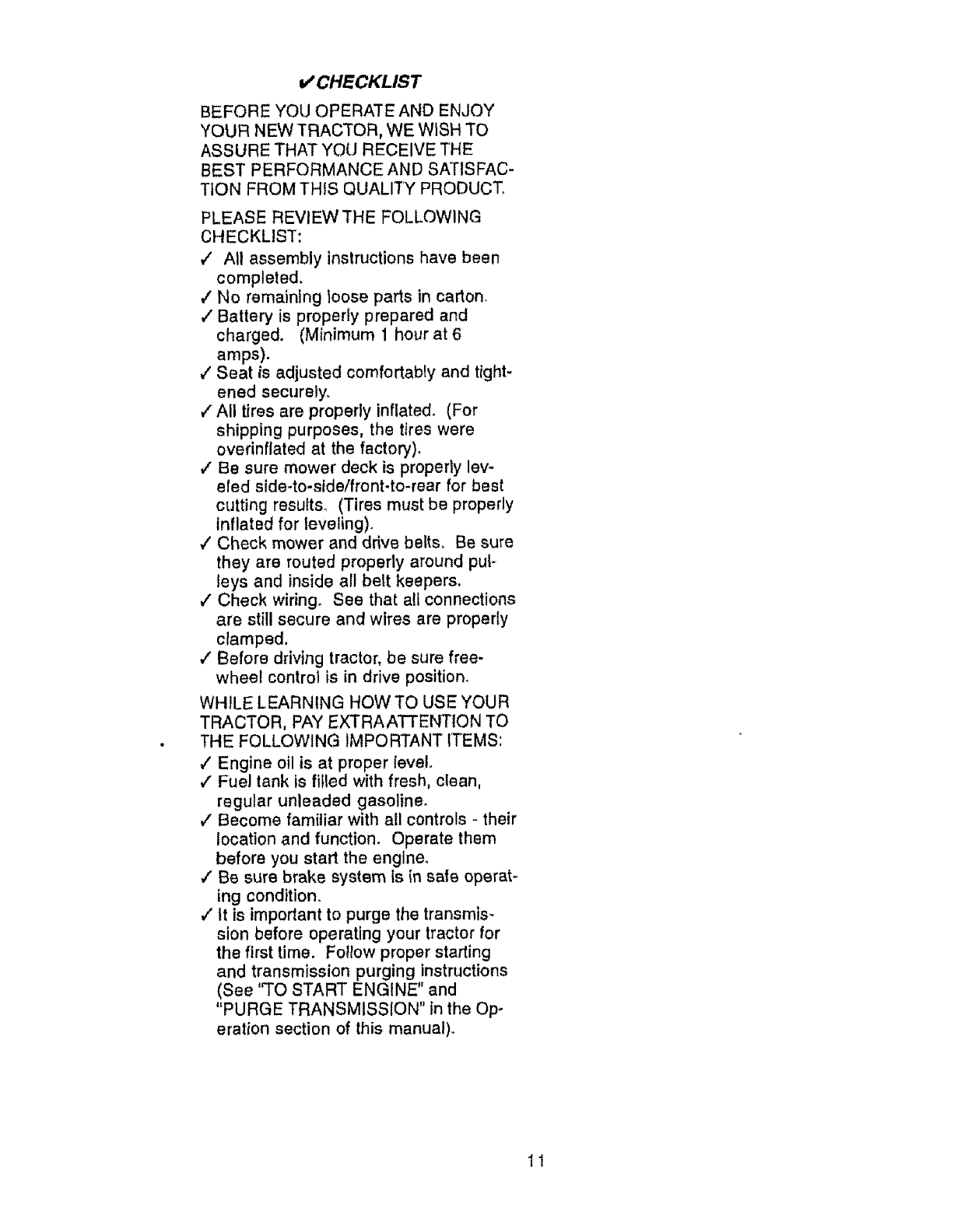

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE ]"HE

BEST PERFORMANCE AND SATISFAC-

TION FROM THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

,/ All assembly instructions have been

completed,

/No remaining loose parts in carton.

/Battery is properly prepared and

charged. (Minimum 1 hour at 6

amps).

,/' Seat is adjusted comfortably and tight-

ened securely.

€" All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

#' Be sure mower deck is properly lev-

eled side-to-side/front-to-rear for best

cutting results° (Tires must be properly

inflated for leveling)_

/Check mower and drive belts_ Be sure

they are routed properly around pul-

leys and inside all belt keepers.

/Check wiring. See that all connections

are still secure and wires are properly

clamped,

/Before driving tractor, be sure free-

wheel control is in drive position.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRAATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

/Engine oil is at proper level

4" Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

#' Become familiar with all controls - their

location and function. Operate them

before you start the englneo

#' Be sure brake system is in safe operat-

ing condition.

v" it is important to purge the transmis-

sion before operating your tractor for

the first time. Follow proper starting

and transmission purging instructions

(See "TO START ENGINE" and

"PURGE TRANSMISSION" in the Op-

eration section of this manual).

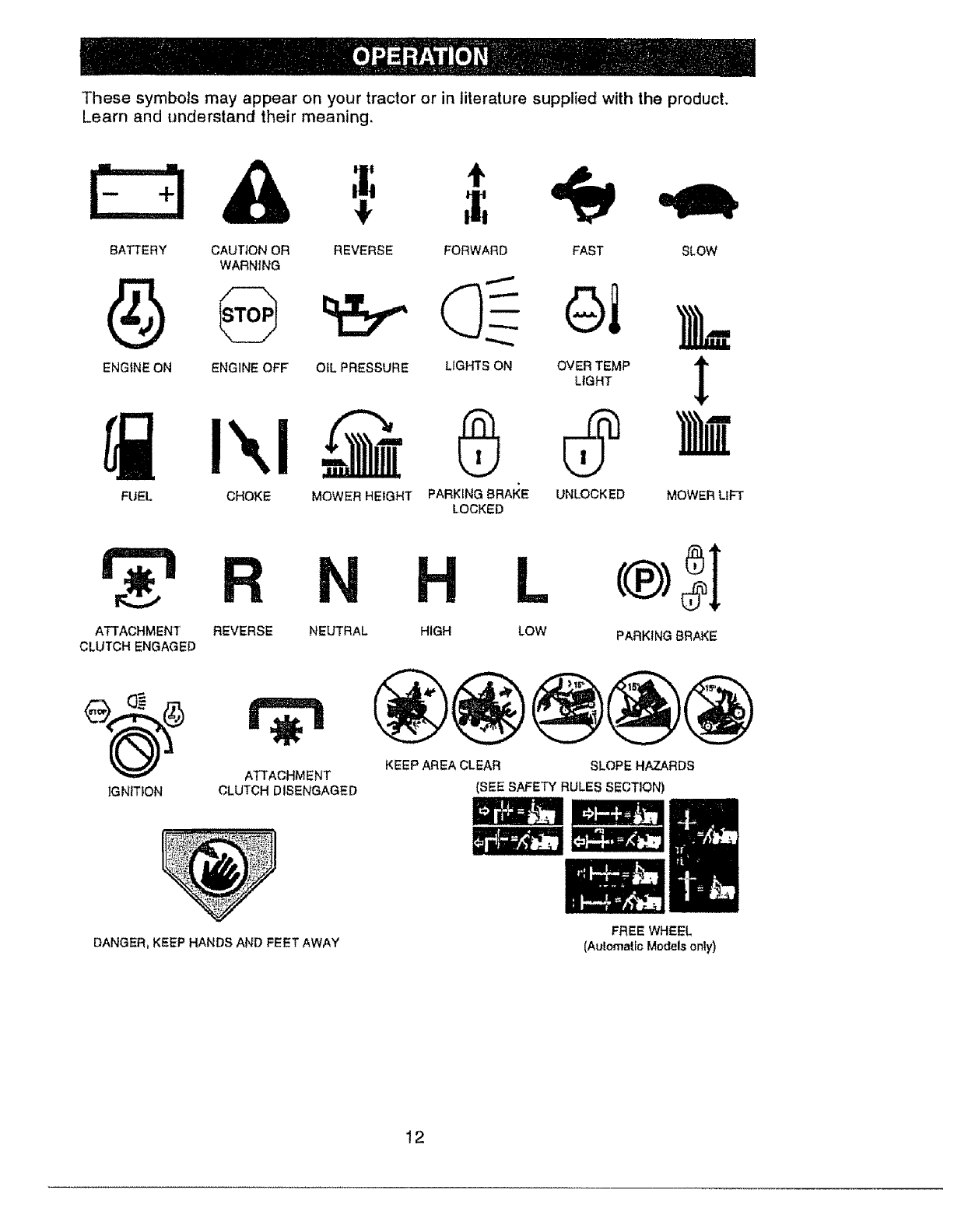

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTJON OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON

I\1

PARKING BRAI<E

LOCKED

FUEL CHOKE MOWER HEIGHT

OVER TEMP

LIGHT

UNLOCKED MOWER LIFT

ATTACHMENT REVERSE NEUTRAL

CLUTCH ENGAGED

IGNITION

ATTACHMENT

CLUTCH DISENGAGED

DANGER, KEEP HANDS AND FEET AWAY

HIGH

LOW PARKING BRAKE

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

FREE WHEEL

(Au!omatlo Models only)

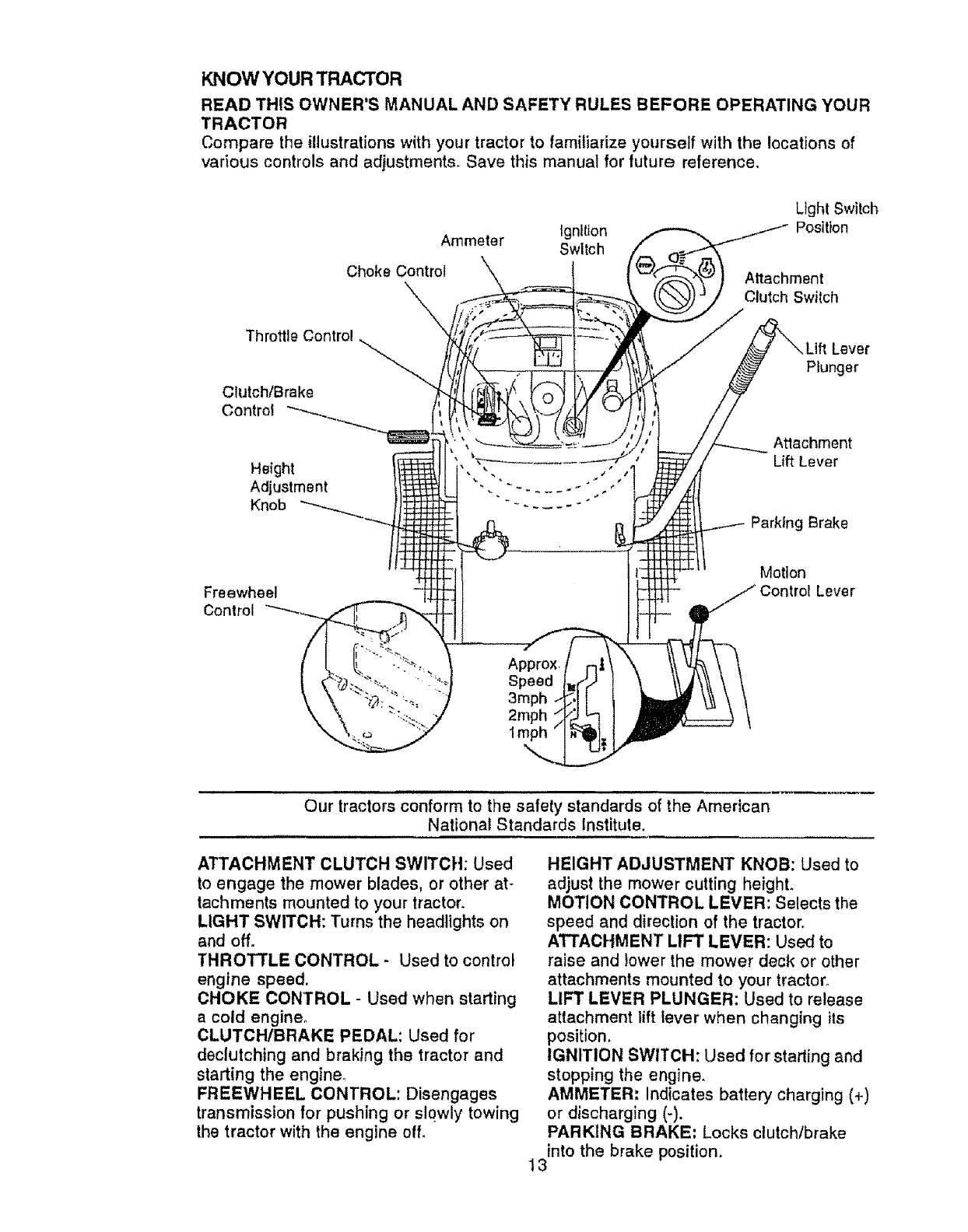

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments_ Save this manual for luture reference,

Ammeter ignition

Switch

Choke Control

Throttle Control _._._

Clutch/Brake

Control

Height

Adjustment

Knob

Light Switch

Position

Attachment

Clutch Switch

Lever

Plunger

Attachment

Lift Lever

Parking Brake

Freewheel

Control

Motion

trol Lever

Our tractors conform to the safety standards of the American

National Standards {nstitute.

ll,,, i ....

ATTACHMENT CLUTCH SWITCH: Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

LIGHT SWITCH: Turns the headlights on

and off.

THROTTLE CONTROL - Used to control

engine speed.

CHOKE CONTROL - Used when starting

acold engine.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine_

FREEWHEEL CONTROL: Disengages

transmission for pushing or s!owly towing

the tractor with the engine off.

HEIGHT ADJUSTMENT KNOB: Used to

adjust the mower cutting height.

MOTION CONTROL LEVER: Selects the

speed and direction of the tractor.

ATTACHMENT LIFT LEVER: Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: Indicates battery charging (+)

or discharging (-).

PARKING BRAKE: Locks clutch/brake

into the brake position.

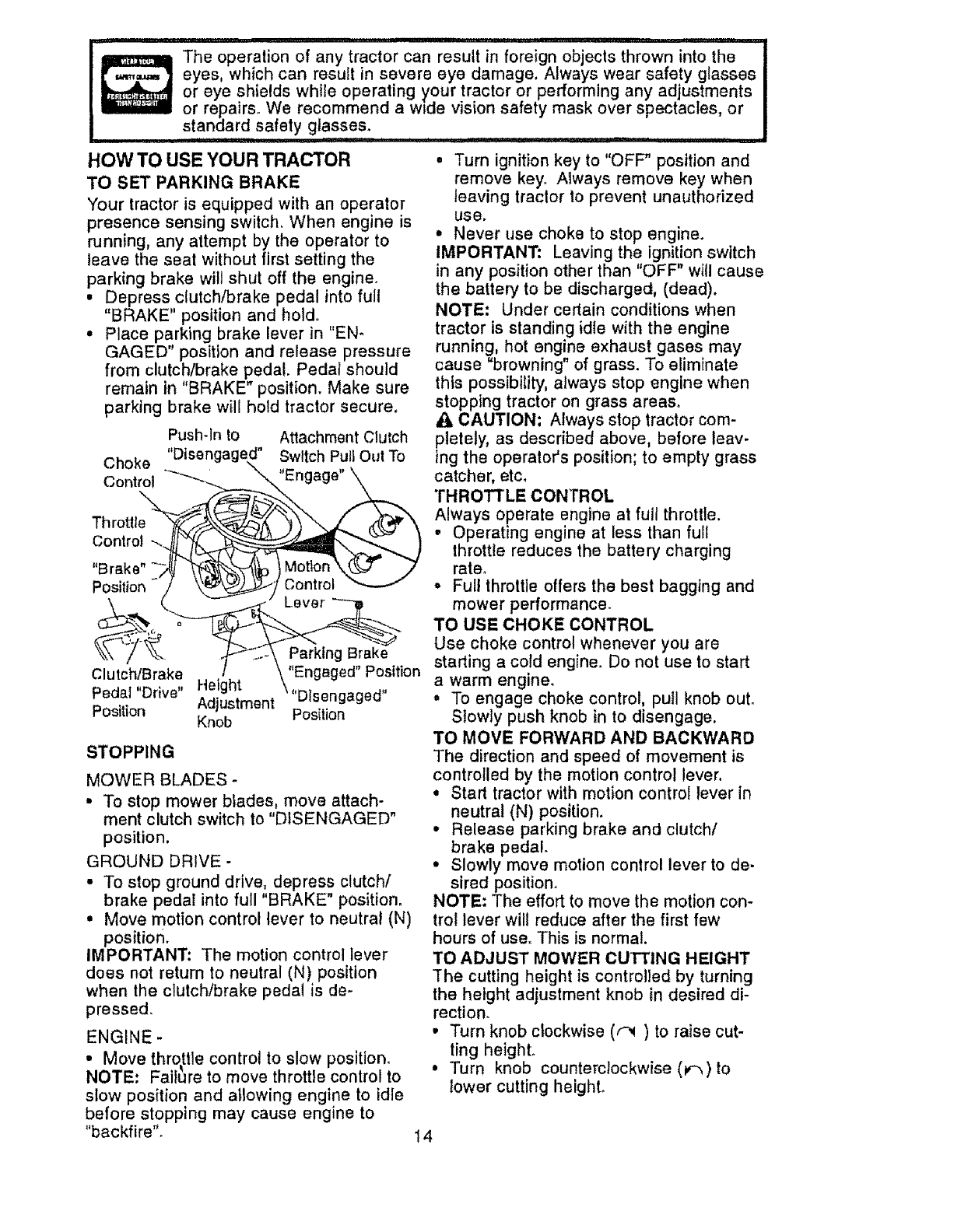

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine is

running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

,Depress clutch/brake pedal into full

"BRAKE" position and holdo

•Place parking brake lever in "EN-

GAGED" position and release pressure

from clutch/brake pedal. Pedal should

remain in "BRAKE" position. Make sure

parking brake will hold tractor secure.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses I

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend a wide vision safety mask over spectacles, or

standard safety glasses. i i i ,[ I i ........................

Push-ln to Attachment Clutch

"Disen :J" Switch Pull Out To

Choke

Contro! "Engage"

Throttle

Control

Parking Brake

Clutch/Brake "Engaged" Position

Pedal"Drive" Height

Position Adjustment "Disengaged"

Knob Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch switch to "DISENGAGED"

position.

GROUND DRIVE -

•To stop ground drive, depress clutch!

brake pedal into full "BRAKE" position.

•Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lover

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

•Move throttle control to slow position.

NOTE: Fail_re to move throttle control to

stow position and allowing engine to idle

before stopping may cause engine to

"backfire".

•Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving traclor to prevent unauthorized

use.

•Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" will cause

the battery to be discharged, (dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_i, CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty grass

catcher, etc.

THROTTLE CONTROL

Always operate engine at full throttle.

•Operating engine at less than full

throttle reduces the battery charging

rate.

•Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

•To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

,Start tractor with motion control lever in

neutral (N) position.

•Release parking brake and clutch/

brake pedal.

°Slowly move motion control lever to de-

sired position.

NOTE: The effort to move the motion con-

trol lever will reduce after the first few

hours of use. This is normal.

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turning

the height adjustment knob in desired di-

rection.

•Turn knob clockwise (r_) to raise cut-

ting height.

°Turn knob counterclockwise (p-_) to

lower cutting height.

The cuttingheight rangeis approximately

1.1/2" to 4%Theheightsare measured

from the ground to the blade tip with the

engine not running. These heights are

approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

,The average lawn should be cut to ap-

proximately 2-I/2 inches during the

Coot season and to over 3 inches dur-

ing hot months. For healthier and bet-

ter looking lawns, mow often _nd after

moderate growth.

,, For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut rela-

tively high; the second to desired

height.

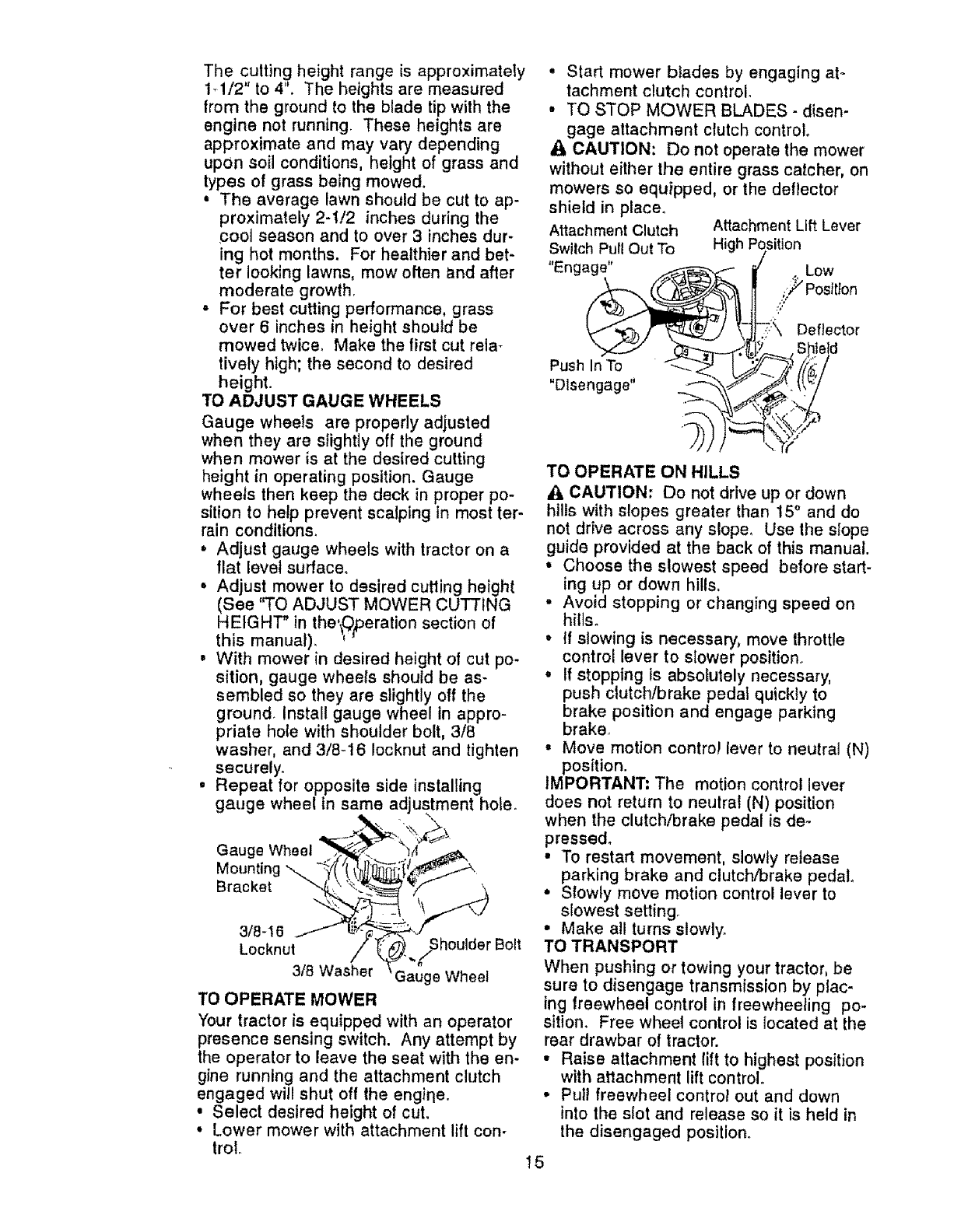

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are stightty off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper po-

sition to help prevent scalping in most ter-

rain conditions.

•Adjust gauge wheels with tractor on a

flat level surface°

• Adjust mower to dssired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in the'_Q,peration section of

this manual). _"

, With mower in desired height of cut po-

sition, gauge wheels should be as-

sembled so they are slightly off the

ground_ Install gauge wheel in appro-

priate hole with shoulder bolt, 3/8

washer, and 3/8-16 Iocknut and tighten

securely.

• Repeat for opposite side installing

gauge wheel in same adjustment hole.

Gauge Wheel

Mounting "_

Bracket

3/8-I6

Locknut ;houlder Bolt

3/8 Washer Gauge Wheel

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the en-

gine running and the attachment clutch

engaged will shut off the engiqe.

•Select desired height of cut.

• Lower mower with attachment lift con-

trol.

•Start mower blades by engaging at-

tachment clutch control.

• TO STOP MOWER BLADES -disen-

gage attachment clutch control.

ACAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch Attachment Lift Lever

Out To High Position

_witch Pull

Engage _'_'._"" i. . Low

(/__ ,:!_ Posit,on

_"-_(3_ _ Y\- _;_:N, Deflector

"Disengage" --"_ _._ .,_. (_

TO OPERATE ON HILLS

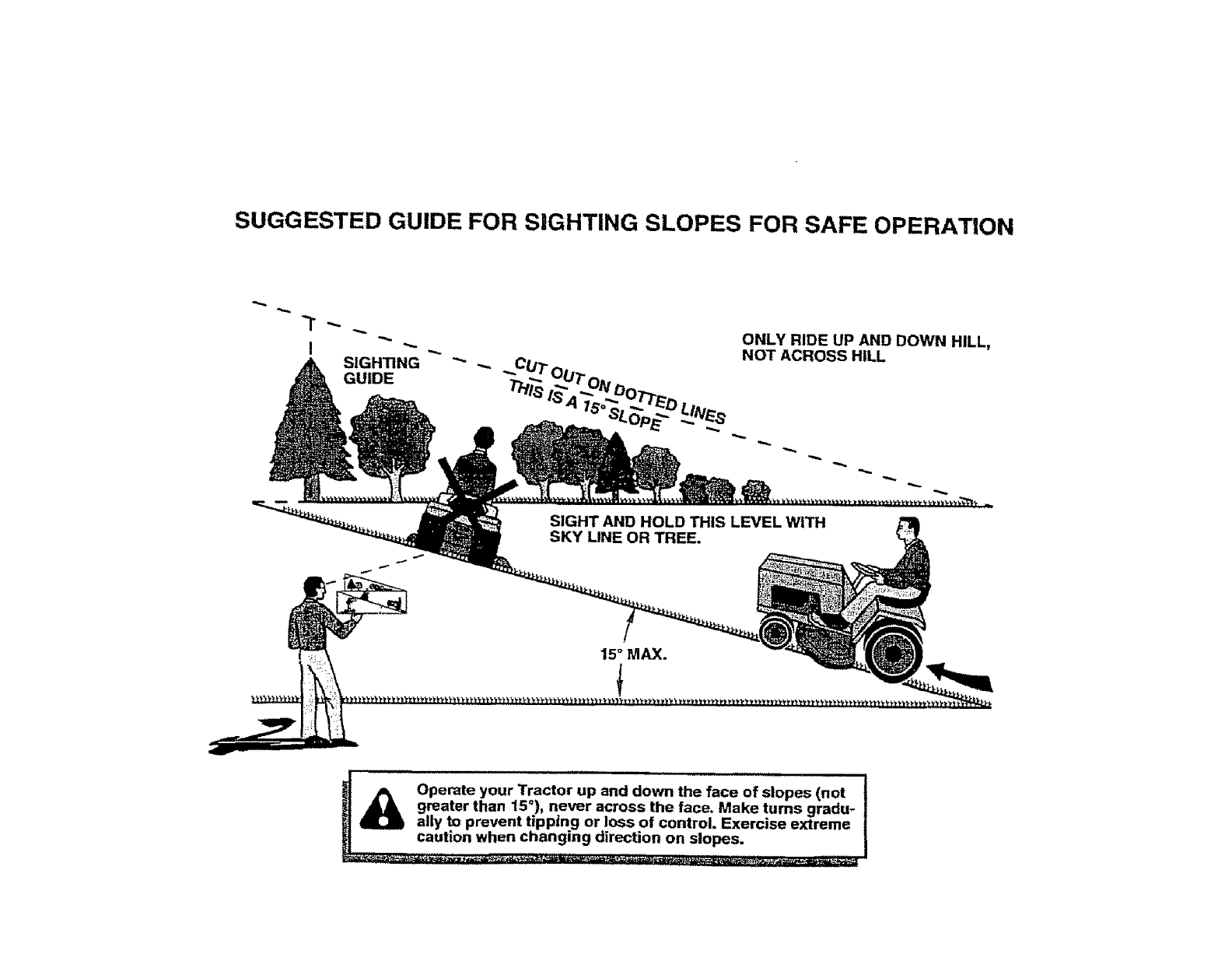

_, CAUTION: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope, Use the slope

guide provided at the back of this manual

•Choose the slowest speed before start-

ing up or down hills.

,, Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position°

•tf stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake,

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutra! (N) position

when the clutch/brake pedal is de-

pressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

•Slowly move motion control lever to

slowest setting°

•Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by plac-

ing freewheel control in freewheeling po-

sition. Free wheel control is located at the

rear drawbar of tractor.

•Raise attachment lift to highest position

with attachment lift control.

• Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To reengage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and se-

cured to tractor. Use an appropriate

means of tying hood to tractor (rope,

cord, etc_).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifica-

tions of the manufacturer of your tractor.

Use common sense when towing. Too

heavy of a load, while on a slope, is dan-

gerous. _res can lose traction with the

ground and cause you to tose control of

your tractor.

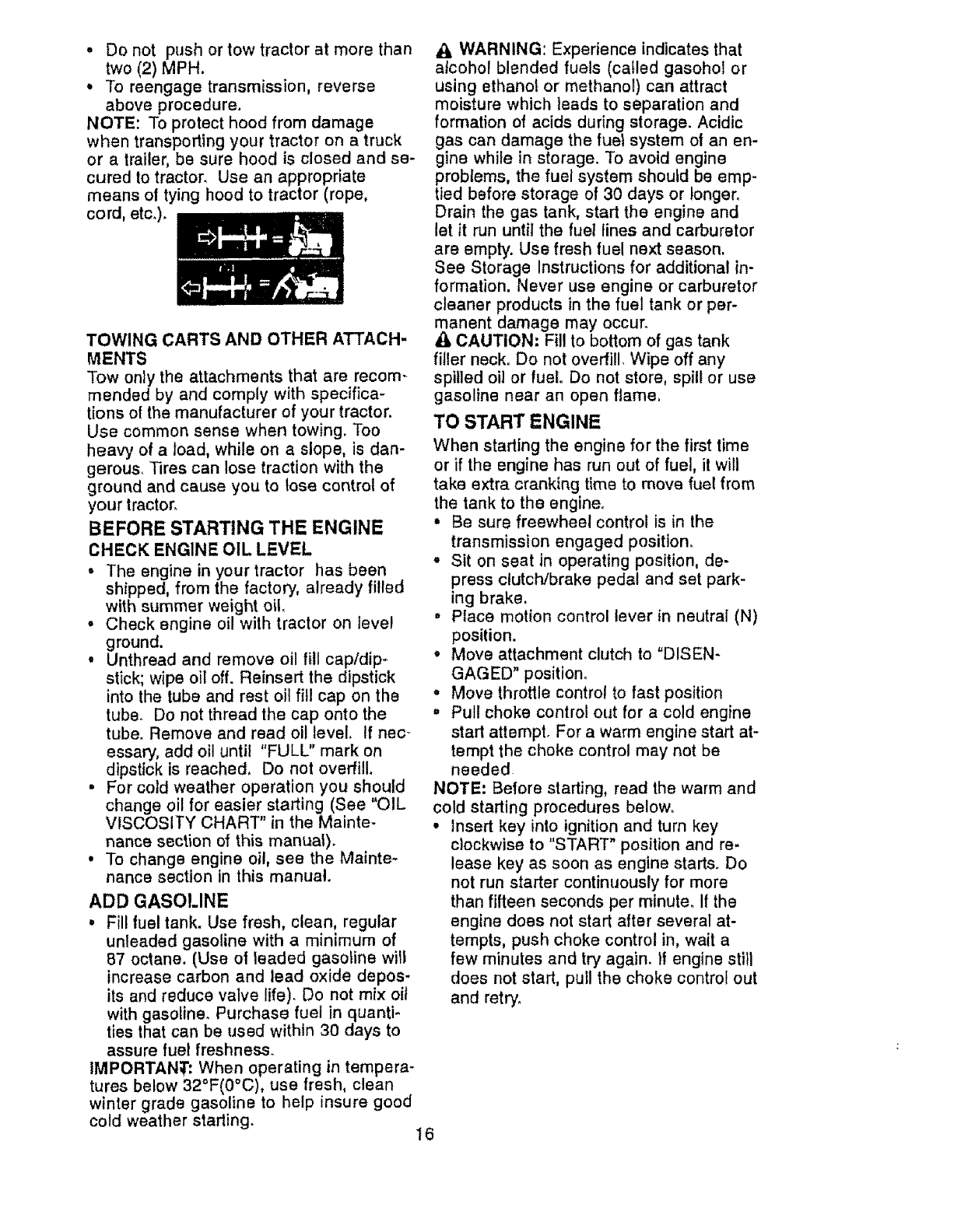

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

, The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

• Check engine oil with tractor on level

ground.

, Unthread and remove oil fill cap/dip.-

stick; wipe oil off. Reinsert the dipstick

into the tube and rest oil fill cap on the

tube. Do not thread the cap onto the

tube. Remove and read oil level. If nec-

essary, add oil until "FULL" mark on

dipstick is reached, Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manuat).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

, Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide depos-

its and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

IMPORTANT: When operating in tempera*

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting. 16

WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an en-

gine while in storage. To avoid engine

problems, the fuel system should be emp-

tied before storage of 30 clays or longer.

Drain the gas tank, start the engine and

let it run until the fuel lines and carburetor

are empty. Use fresh fuel next season.

See Storage Instructions for additional in-

formation. Never use engine or carburetor

cleaner products in the fuel tank or per-

manent damage may occur.

A CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame,

TO START ENGINE

When starling the engine for the first time

or if the engine has run out of fue!, it will

take extra cranking time to move fuel from

the tank to the engine.

° Be sure freewheel control is in the

transmission engaged position.

• Sit on seat in operating position, de-

press clutch!brake pedal and set park-

ing brake.

• Place motion control lever in neutral (N)

position.

• Move attachment clutch to "DISEN-

GAGED" position°

• Move throtlle contro! to fast position

, Pull choke control out for a cold engine

start attempt. For a warm engine start at-

tempt the choke control may not be

needed

NOTE" Before starting, read the warm and

cold starting procedures below.

• Insert key into ignition and turn key

clockwise to "START" position and re-

lease key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute° If the

engine does not start after several at-

tempts, push choke control in, wait a

few minutes and try again. If engine still

does not start, pull the choke control out

and retry_

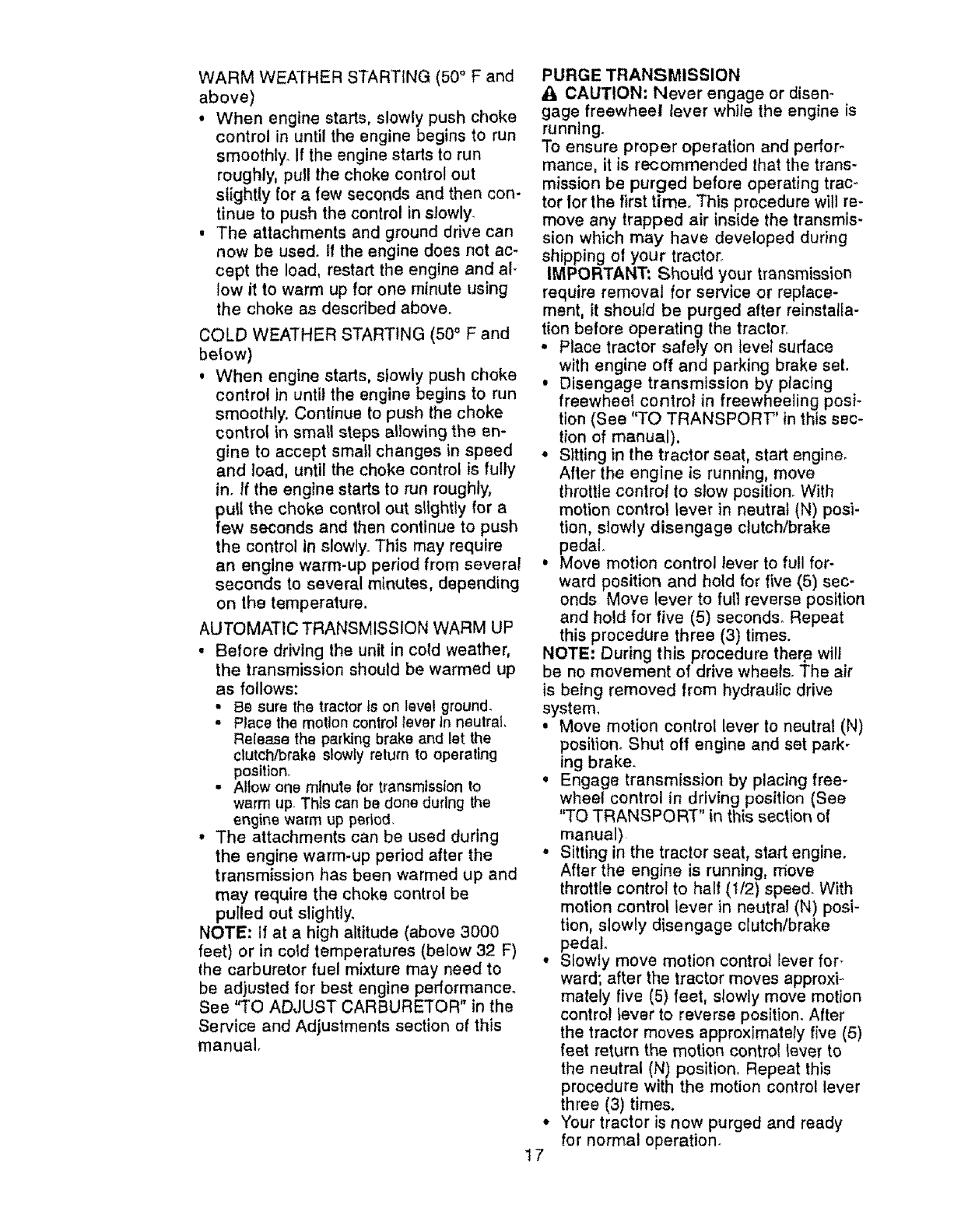

WARMWEATHERSTARTING(50° F and

above)

,When engine starts, slowly push choke

control in until the engine begins to run

smoothly. If the engine starts to run

roughly, pull the choke control out

slightly for a few seconds and then con-

tinue to push the control in slowly

, The attachments and ground drive can

now be used. If the engine does not ac-

cept the load, restart the engine and al -

low it to warm up for one minute using

the choke as described above°

COLD WEATHER STARTING (50 ° F and

below)

, When engine starts, slowly push choke

control in until the engine begins to run

smoothly, Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pu_l the choke control out s_]ghtly for a

few seconds and then continue to push

the control in slowly.. This may require

an engine warm-up period from several

seconds to several minutes, depending

on the temperature.

AUTOMATIC TRANSMISSION WARM UP

, Before driving the unit in cold weather,

the transmission should be warmed up

as follows:

• Be sure the tractor is on level ground.

° Place the motion control rover In neutral.

Release the parking brake and let the

clutch/brake slowly return to operating

position.

•Allow one minute for transmission to

warm up This can be done during the

engine warm up pedod.

• The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be

puiled out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual,

PURGE TRANSMISSION

_, CAUTION: Never engage or disen-

gage freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the trans-

mission be purged before operating trac-

tor for the first time. This procedure will re-

move any trapped air inside the transmis-

sion which may have developed during

shipping ol your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstal[a-

tion before operating the tractor.

• Place tractor safely on level surface

with engine off and parking brake set.

, Disengage transmission by ptacing

freewheel control in freewheeling posi-

tion (See "TO TRANSPORT" in this sec-

tion of manual).

• Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N) posi-

tion, slowly disengage clutch/brake

pedal.

• Move motion control lever to full for-

ward position and hold for five (5) sec-

onds Move lever to full reverse position

and hold for five (5) seconds. Repeat

this procedure three (3) times.

NOTE: During this procedure there will

be no movement of drive wheels. The air

is being removed from hydraulic drive

system,

° Move motion control lever to neutral (N)

position. Shut off engine and set park-

ing brake.

oEngage transmission by placing free-

wheel control in driving position (See

"TO TRANSPORT" in this section of

manual)

° Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed. With

motion control lever in neutral (N) posi-

tion, slowly disengage clutch/brake

pedal.

° Slowly move motion control lever for-

ward; after the tractor moves approxi-

mately five (5) feet, slowly move motion

control lever to reverse position. After

the tractor moves approximately five (5)

feet return the motion control lever to

the neutral (N) position, Repeat this

procedure with the motion control lever

three (3) times.

Your tractor is now purged and ready

for normal operation_

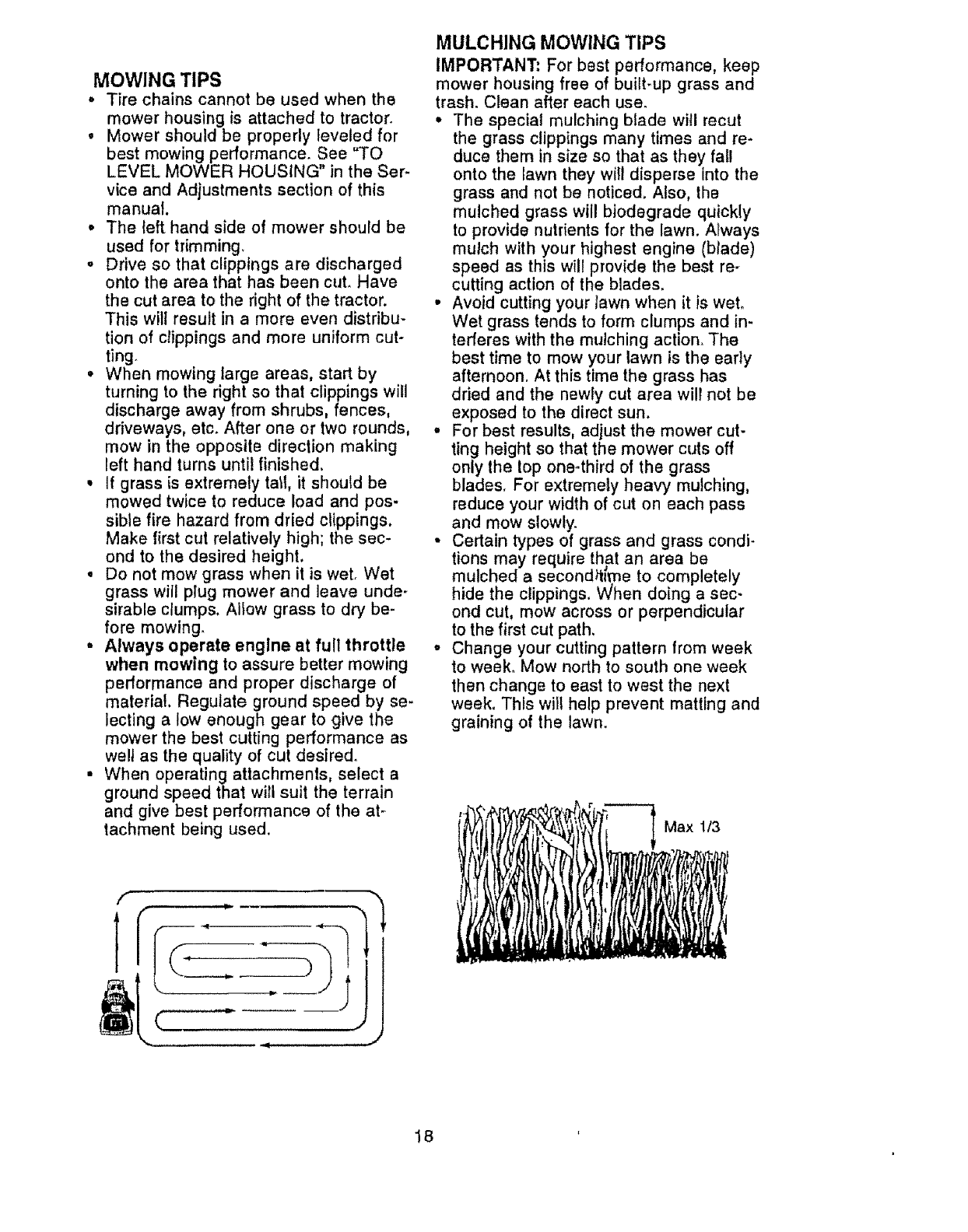

MOWING TIPS

oTire chains cannot be used when the

mower housing is attached to tractor.

•Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the Ser-

vice and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

° Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the fight of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform cut-

ting_

•When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished,

, If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the sec-

ond to the desired height,

• Do not mow grass when it is wet. Wet

grass will plug mower and leave unde-

sirable clumps. Allow grass to dry be-

fore mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material, Regulate ground speed by se-

lecting a low enough gear to give the

mower the best cutting performance as

welt as the quality of cut desired.

•When operating attachments, select a

ground speed that witl suit the terrain

and give best performance of the aF

tachment being used,

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

•The special mulching blade will recut

the grass clippings many times and re*

duce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best re-

cutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and in-

terleres with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

. For best results, adjust the mower cut-

ting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

• Certain types of grass and grass condi-

tions may require that an area be

mulched a secondffl'me to completely

hide the clippings. When doing a sec-

ond cut, mow across or perpendicular

to the first cut path,

•Change your cutting pattern from week

to week° Mow north to south one week

then change to east to west the next

week, This wilt help prevent matting and

graining of the lawn.

Max !t3

REGU_R SERWCE ............ _,_r_/_,_'_ _,_,,_'_SER VICE DATES

C,,eo,<e,+,ka V' I ( ....

°++++++-" L +

Check Operator Presence and

TInterlockSystems Ik/

R Check tot Loose Feslene,rS V_V_ _

ASharpen/Replace Mower Blades Ik/f4

T LubdcellonChad _V_V_

0Check Batlo=yLevel _ ............. (,

gclean Battery end,,Termlne!s..... Vf

v'Check Transaxle Cooling " ' ' + ''" ' ,,,' .....

AdjuslMotion......Ddve Bet,is) Tension )€+

Check Engine Oi(Level IkW#I/'

E,,,Clean Air Filter ......... V_'

_G Clean Air Sc_'een I/_'

'"i"spectMuBer/sparkAttester ....... !I_

R'eNaca O1)F+ite_l(equipped) _.2

ECFaenEngine Coot(he Rns V_z

Replace S_a_ Plug .... Vp

Replace Airniter Paper Cartridge (tW#'-_

Replace Fuel Ftlter V_

!-ChlnIle more ot_rm _'hmn +p.rg+n{lunder ah_. W (Dad _ in high ambient femp_a(ure= _ - I, (_qFuipped wiLh ed_llt=tb(t_ W,dant

2 • _etv_ce rryoraallen when opere(lng In dkly of dL_ _ndit?ot_s 6-, No4 teqtt,ted If e_fpped w(_hrn_ni_nan_.f,,e_ betlety

3 * ifeq_ppod _lh _11filler,ch_.rig((_t av_ 50 houm ? -l)((h({i_fro<itw=_ap)vo(bolllo 35 it,(bs max(mum

4 - Replace b(_de_ more Often whetl mo++,++n9in t=ar_v,_oit Do nol overlJght_n

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual° Some adjustments wilt need to

be made periodically to properly maintain

YAOUrtractor.

!1 adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

,Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear+ A

new spark plug and clean air filter as-

sure proper air-fuel mixture and help

your engine run better and last longer+

BEFORE EACH USE

, Check engine oil level.

, Check brake operation.

o Checktire pressure_

° Check operator presence and interlock

systems for proper operation.

• Check for loose fasteners+

LUBRICATION CHART

(DSptndle

Zerk " *'"

@ Front ,/_,_'_i

Wheel :

Bearing -

General Purpose Grease

@Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have specml nylon

bear-ings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

sell-lubricating bearings, if you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

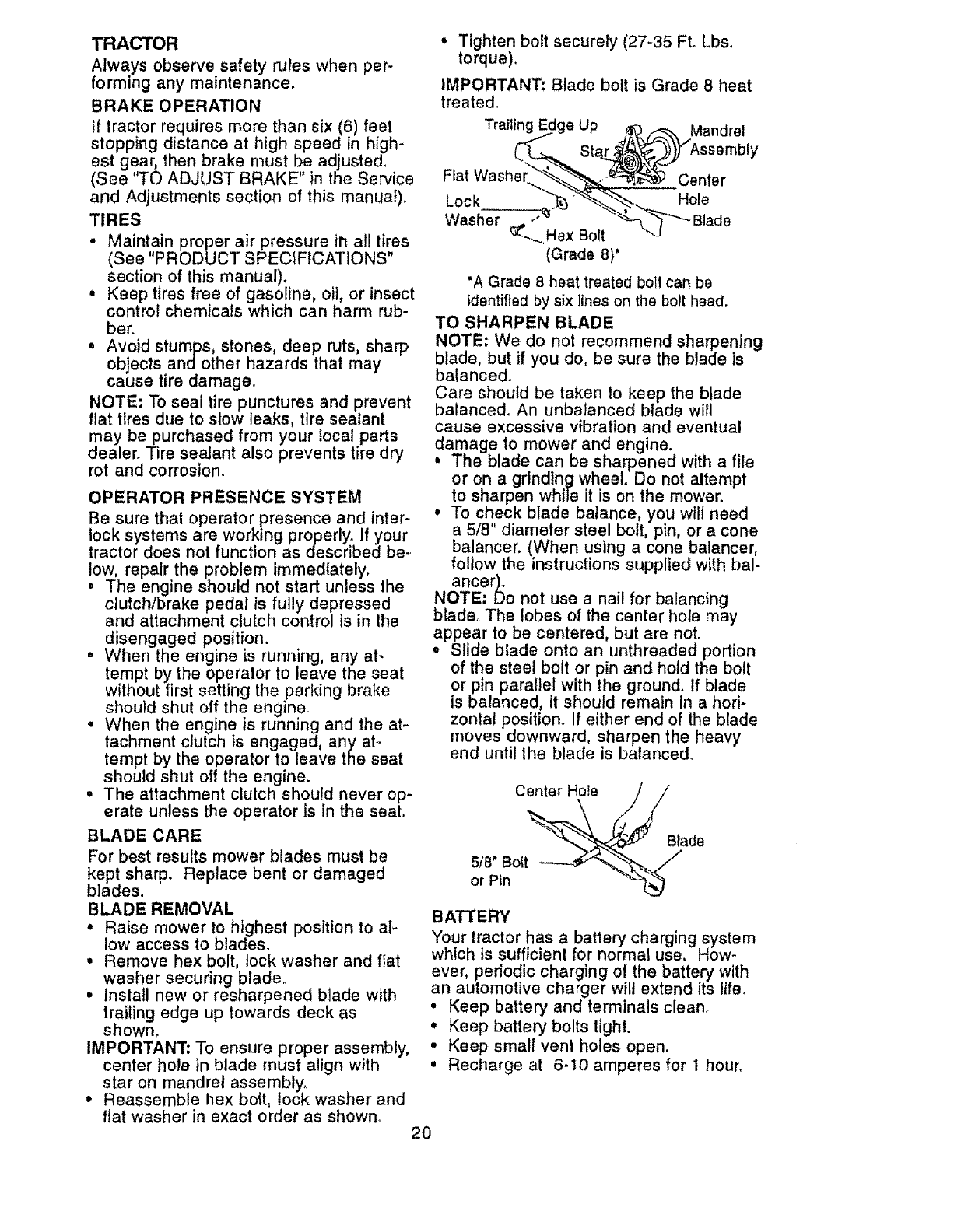

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in high-

est gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service

and Adjustments section of this manua!).

TIRES

•Main!ain proper air pressure in all tires

(See PRODUCT SPECIFICATIONS

section of this manual).

,Keep tires free of gasoline, oii, or insect

control chemicals which can harm rub-

ber.

,Avoid stumps, stones, deep ruts, sharp

objects andother hazards thai may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your tocat parts

dealer_ Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and inter-

lock systems are working properly. If your

tractor does not function as described be-

low, repair the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachment clutch control is in the

disengaged position.

•When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine

°When the engine is running and the at-

tachment clutch is engaged, any at.-

tempt by the operator to leave the seat

should shut off the engine.

,The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

,Raise mower to highest position to aim

low access to blades,

•Remove hex bolt, lock washer and fiat

washer securing blade.

• Install new or resharpened blade with

trailing edge up towards deck as

shown,

IMPORTANT: To ensure proper assembly,

center hole in blade must align with

star on mandrel assembly.

• Reassemble hex bolt, lock washer and

flat washer in exact order as shown. 2O

• Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated.

Trailing Up Mandrel

Flat

Lock

Washer -"_

_'_... Hex Bolt

(Grade 8)"

Center

Hole

"A Grade 8 heat treated boll can be

identified by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade, but if you do, be sure the blade is

balancedo

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sha_ened with a file

or on a grinding wheel. Do not attempt

to sharpen while it is on the mower.

° To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with bal-

anGer).

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

•Slide blade onto an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a hori-

zontal position. If either end of the blade

moves downward, sharpen the heavy

end until the blade is balanced.

Center Hole

5/8" Bolt

or Pin

BATTERY

Your tractor has abattery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger wilt extend its life.

•Keep battery and terminals clean.

• Keep battery bolts tight.

•Keep small vent holes open.

, Recharge at 6-10 amperes for 1 hour°

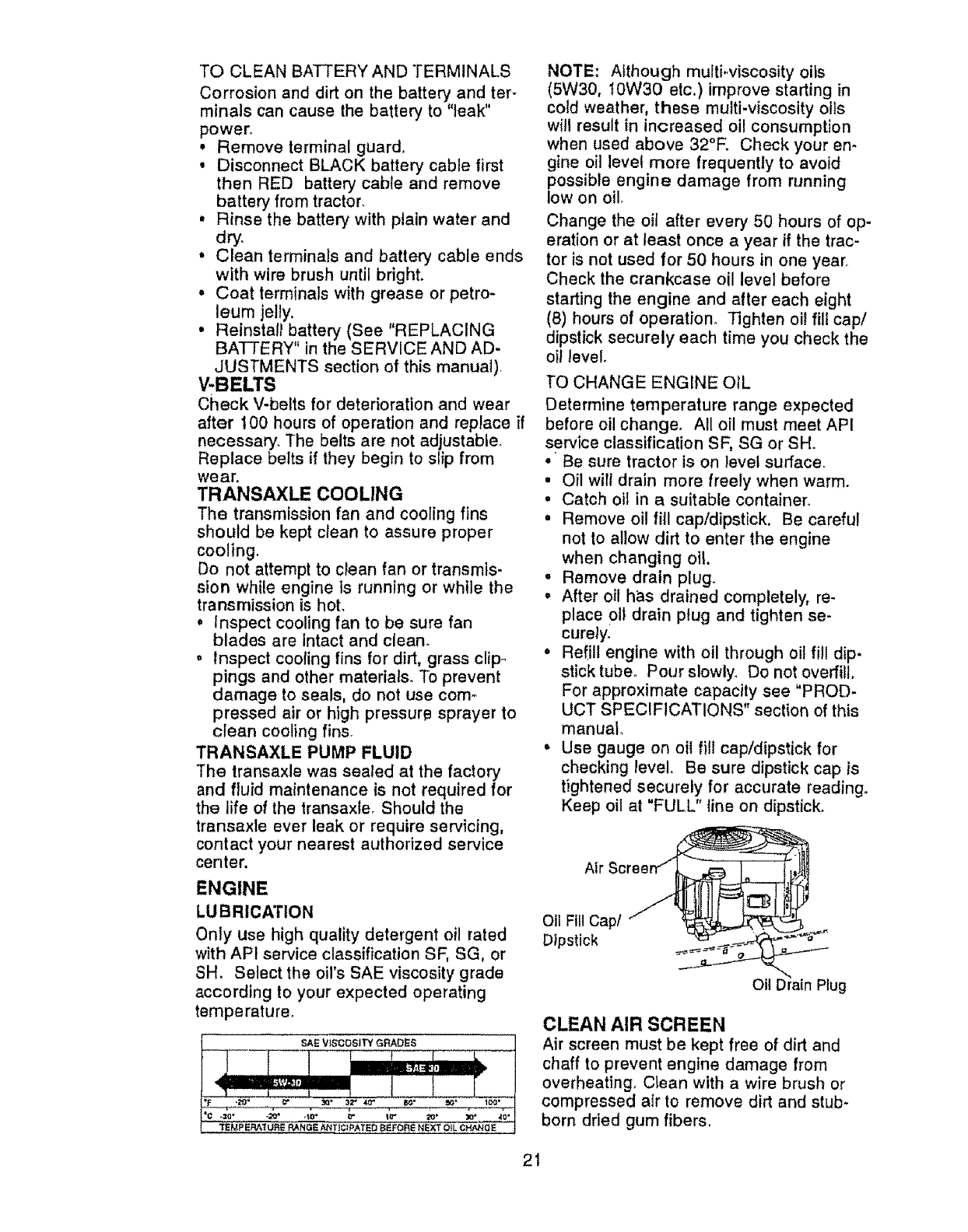

TO CLEANBATTERYANDTERMINALS

Corrosionand dirt on the batteryand ter-

minals cancausethe batteryto "leak"

power.

° Removeterminalguard,

• DisconnectBLACKbatterycablefirst

then RED batterycableand remove

batteryfromtractor.

, Rinsethe batterywith plain water and

dry.

° Clean terminalsand batterycableends

with wirebrush untilbright.

• Coat terminalswith greaseor petro-

leum jelly.

, Reinstallbattery(See"REPLACING

BATTERY"intheSERVICEANDAD-

JUSTMENTSsectionof this manual)

V-BELTS

Check V-belts for deterioration and wear

after t00 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine Is running or while the

transmission is hot.

° Inspect cooling fan to be sure fan

blades are Intact and clean.

, Inspect cooting fins for dirt, grass clipo

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressur_ sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authorized service

center.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG, or

SH, Select the oil's SAE viscosity grade

according to your expected operating

temperature°

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc,) improve starting in

cold weather, these multi-viscosity oils

will result in increased oi! consumption

when used above 32°F. Check your en-

gine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the trac-

tor is not used for 50 hours in one year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation_ Tighten oil fill cap!

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OiL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG or SH.

•Be sure tractor is on level surface.

• Oil wilt drain more freely when warm.

, Catch oil in a suitable container°

° Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil,

° Remove drain plug.

• After oil has drained completely, re-

place oll drain plug and tighten se-

curelyo

° Re{ill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacily see "PROD-

UCT SPECIFICATIONS" section of this

manual.

° Use gauge on oi! fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate reading.

Keep oil at "FULL" line on dipstick°

Air Screer

Oil Fiil Cap/

Dipstick

Oit D_rainPlug

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with awire brush or

compressed air to remove dirt and stub-

born dried gum fibers,

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exo

ternal surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds, Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds re_

moved will cause engine damage due to

overheating.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than t00 hours in one year.

•Unscrew old filler by turning counter-

clockwise. Use asuitable container to

catch oil.

,Apply a thin coating of new engine oil to

rubber gasket on replacement oil filter.

,Install replacement oil filter by turning

clockwise until rubber gasket contacts

mounting surface, then tighten filter an

additional 1/2 to 3/4 turn°

•Fill crankcase with new oil (See "TO

CHANGE ENGINE OIL" in this section of

this manual). For approximate capacity

see "PRODUCT SPECIFICATIONS"

section of this manual.

•Start engine and check for oil leaks.

Correct any leaks before placing engine

into full operation.

Filter

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs firsL

Service air cleaner more often under

dusty conditions.

•Remove knobs and covert

TO SERVICE PREoCLEANER

•Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

•Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

°If very dirty or damaged, reptace pre-

cleaner°

TO SERVICE CARTRIDGE

•Clean cartridge by tapping gently on flat

surface. If very dirty or damaged, re-

place cartridge.

° Reinstall precleaner cartridge, cover

and secure with knobs,

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause detedora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge,

Cartridge

Foam

Pre-cteaner @

MUFFLER

Inspect and replace c_Froded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first°

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

°With engine cool, remove filter and plug

fuel line sections.

•Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

°Be sure there are no fuel line leaks and

clamps are properly positioned,

•Immediately wipe up any spilled gaso-

line_ __)_. Clamp

Clamp-J \ // -_.--_..._----.'_

•-...z.z_._._.,. _ Fuel FIIter

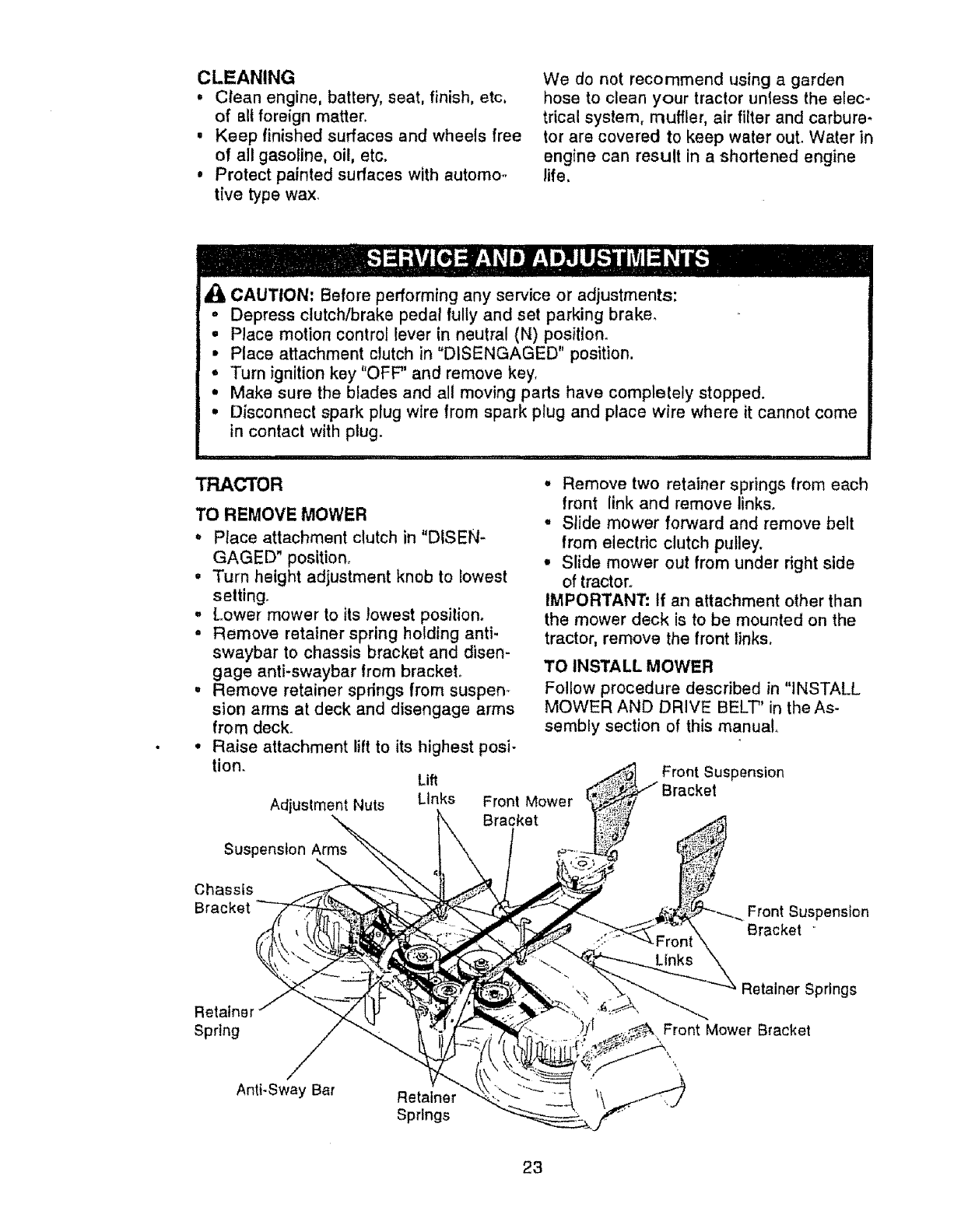

CLEANING

,Clean engine, battery, seat, finish, etc,

of alt foreign matter.

, Keep finished surfaces and wheels free

of all gasoline, oil, etc.

,Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the elec-

trical system, muffler, air filter and carbure-

tor are covered to keep water out. Water in

engine can result in a shortened engine

life.

_L, CAUTION: Before performing any service or adjustments:

oDepress clutch/brake pedal fully and set parking brake,

•Place motion control lever in neutral (N) pos}tion,

•Place attachment clutch in "DISENGAGED" position.

•Turn ignition key "OFF" and remove key,

•Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come

in contact with plug.

TRACTOR

TO REMOVE MOWER

•Place attachment clutch in "DiSEN-

GAGED" position,

•Turn height adjustment knob to lowest

setting.

•Lower mower to its _owest position.

•Remove retainer spring holding anti-

swaybar to chassis bracket and disen-

gage anti-swaybar from bracket°

.Remove retainer springs from suspen*

slon arms at deck and disengage arms

from deck.

•Raise attachment lift to its highest posi-

tion. Lift

•Remove two retainer springs from each

front llnk and remove links.

• Slide mower forward and remove belt

from electric clutch putiey.

° Slide mower out from under right side

of tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO INSTALL MOWER

Follow procedure described in "INSTALL

MOWER AND DRIVE BELT" in theAs-

sembly section of this manual.

Adjustment Nuts Links Front Mower

Bracket

Front Suspension

Suspension Arms

Chassis

Bracket Front Suspension

Bracket

Retainer

Spring

Anti-Sway Bar Retainer

Springs

_ Retainer Springs

Front Mower Bracket

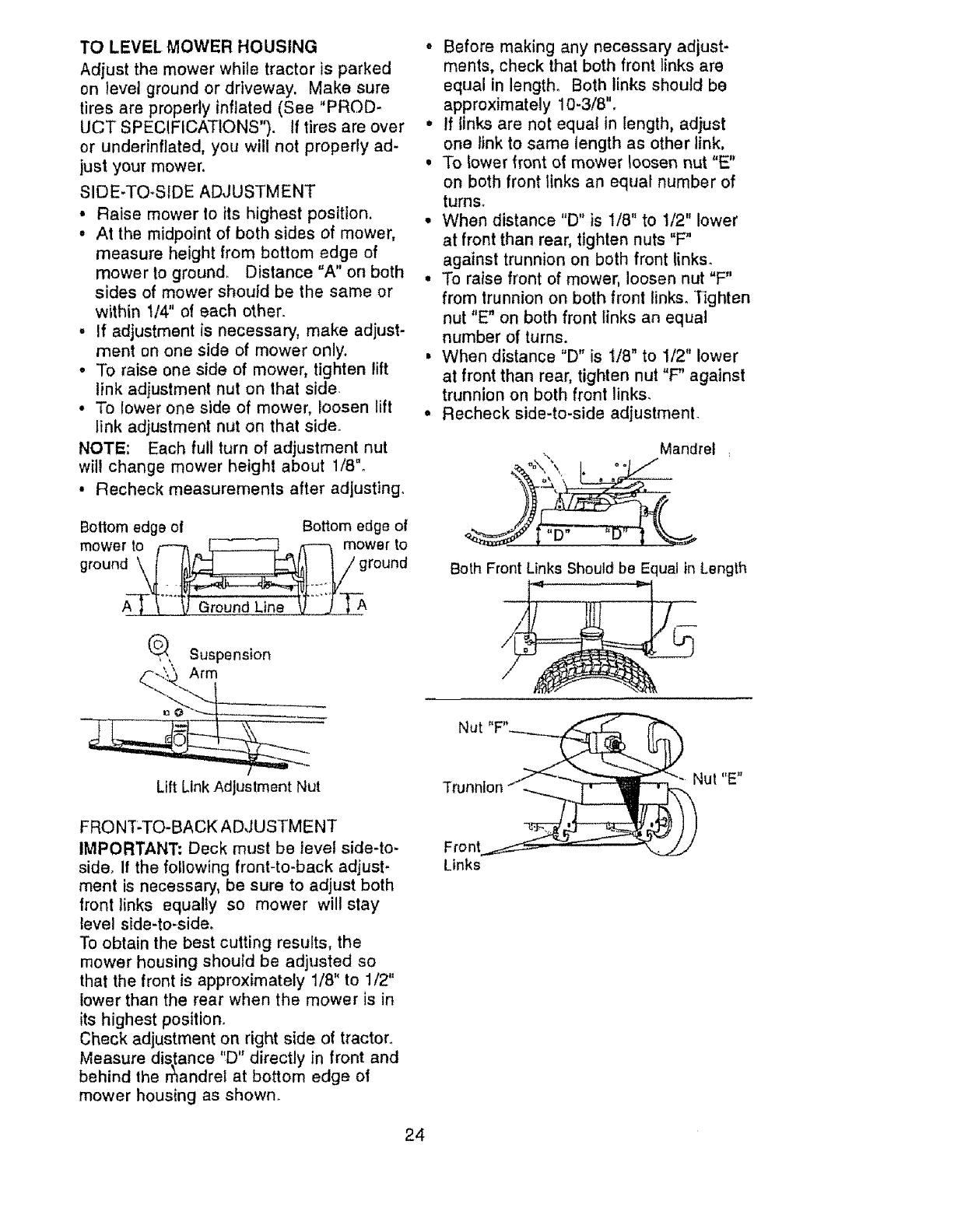

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS"). tf tires are over

or underinflated, you will not properly ad-

just your mower,

SIDE-TO_SIDE ADJUSTMENT

• Raise mower Io its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground° Distance =A" on both

sides of mower should be the same or

within !/4" el each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side

• To lower one side of mower, loosen lift

link adjustment nut on that side°

NOTE; Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge of Bottom edge of

mower to ___=_ mower to

,,ouo,\j ........

Q,, Suspension

Arm

Lift Link Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance '!D" directly in front and

behind the rfiandrel at bottom edge of

mower housing as shown_

o Before making any necessary adjust-

ments, check that both front links are

equal in length. Both links should be

approximately 10-3/8".

°If links are not equal in length, adjust

one link to same length as other link.

• To tower front of mower loosen nut "E"

on both front links an equal number of

turns,

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal

number of turns.

,When distance "D" is I/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

•Recheck side-to-side adjustment.

., Mandrel

_ o=

;",\ .

Both Front Links Should be Equal in Length

Links

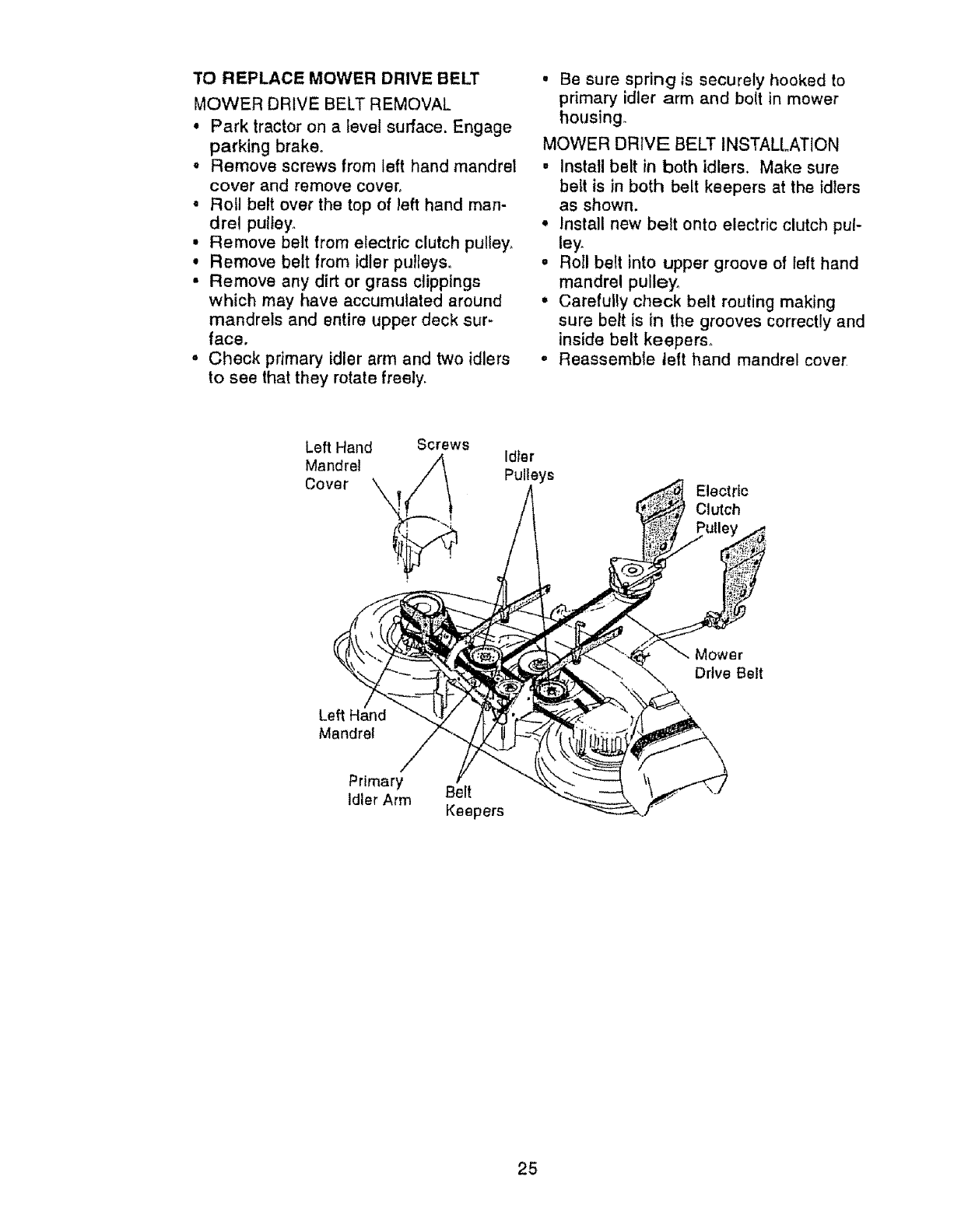

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

, Park tractor on a level surface. Engage

parking brake.

° Remove screws from left hand mandrel

cover and remove cover_

• Roll belt over the top of left hand man-

drel pulley.

• Remove belt from electric clutch pulley.

• Remove belt from idler putleyso

• Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

,Check primary idler arm and two idlers

to see that they rotate freely.

• Be sure spring is securely hooked to

primary idler arm and bolt in mower

housing.

MOWER DRIVE BELT INSTALLATION

• Install belt in both idlers. Make sure

belt is in both belt keepers at the idlers

as shown.

•Install new belt onto electric clutch pui-

ley_

•Roll belt into upper groove of left hand

mandrel pulley,

° Carefully check belt routing making

sure belt is in the grooves correctly and

inside belt keepers.

•Reassembte left hand mandrel cover.

Left Hand Screws

Mandrel

Cover '_i "

Idler

Pulleys Electric

Clutch

Mower

Drive Belt

Left Hand

Mandrel

Primary

idler Arm Belt

Keepers

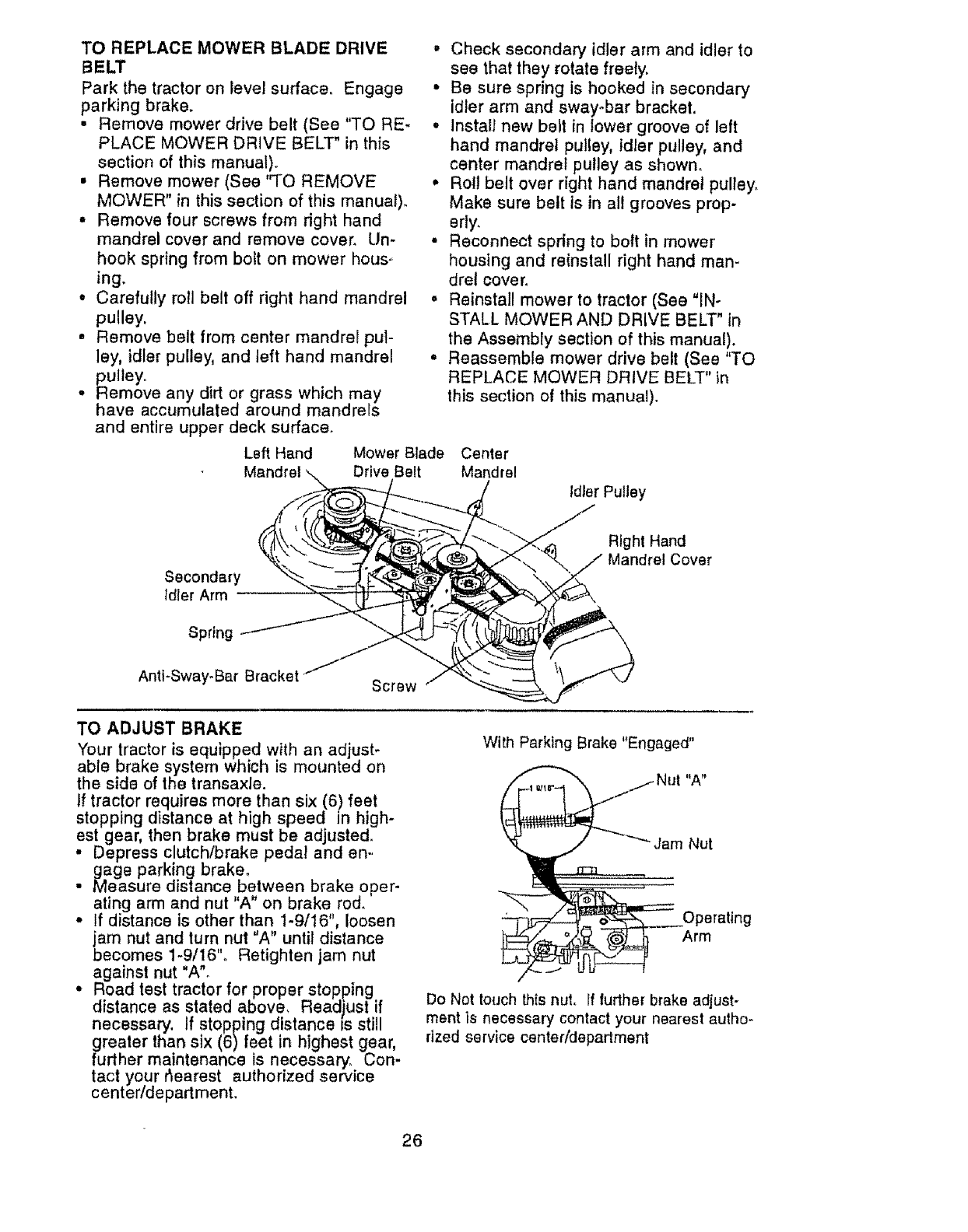

TO REPLACE MOWER BLADE DRIVE

BELT

Park the tractor on level surface. Engage

parking brake.

• Remove mower drive belt (See "TO RE-

PLACE MOWER DRIVE BELT" in this

section of this manual).

• Remove mower (See "TO REMOVE

MOWER" in this section of this manual).

• Remove four screws from right hand

mandrel cover and remove cover_ Un-

hook spring from bolt on mower hous-

ing.

• Carefully roll belt off right hand mandrel

pulley.

• Remove belt from center mandrel pul-

ley, idler pulley, and left hand mandrel

pulley.

• Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

Left Hand

Mandre!

• Check secondary idler arm and idler to

see that they rotate freely.

• Be sure spring is hooked in secondary

idler arm and sway-bar bracket.

• Install new belt in lower groove of left

hand mandrel pulley, idler pulley, and

center mandrel pulley as shown°

• Rol! belt over right hand mandrel pulley.

Make sure belt is in all grooves prop-

erly.

• Reconnect spring to bolt in mower

housing and reinstall right hand man-

drel cover.

= Reinstall mower to tractor (See "IN-

STALL MOWER AND DRIVE BELT" in

the Assembly section of this manual).

° Reassemble mower drive belt (See "TO

REPLACE MOWER DRIVE BELT" in

this section of this manua!).

Mower Blade Center

Drive Belt Mandrel

Idler Pulley

Secondary

Idler Arm

Spring

Anti-Sway-Bar Screw

Right Hand

Mandrel Cover

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in high-

est gear, then brake must be adjusted.

.Depress clutch/brake pedal and en.,

gage parking braker

•Measure distance between brake oper-

ating arm and nut "A" on brake rod_

• If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A".

• Road test tractor for proper stopping

distance as stated above. Readiust if

necessary. If stopping distance Is still

greater than six (6) feet in highest gear,

further maintenance is necessary.. Con

tact your _earest authorized service

center/department.

With Parking Brake "Engaged"

"A"

Jam Nut

Arm

Do Not touch this nut, rf further brake adjust-

ment is necessary contact your nearest autho-

rized service center/department

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface_ Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footresL

•Remove mower (See"TO REMOVE

MOWER" in this section of this manuaL)

•Disconnect clutch wire harness.

• Remove clutch Iocator.

, Remove belt from stationary idler and

clutching idler.

•Pull belt stack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

•Pull belt toward front of tractor and re-

move downwards from around electric

clutch,

•Install new belt by reversing above pro-

cedure,

EI_ Clutch

Clutch Locator

Clutchi

Idler

Statlonar_

idler

Transmission Clutch

input Wire Harness

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

•Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

,Start engine and move motion control

lever untii tractor does not move for-

ward or backward.

• Hold motion control lever in that posi-

tion and turn engine off.

•While holding motion control lever in

place, loosen the adjustment bolt.

•Move motion control lever to the neutral

(N) (lock gate) position.

-Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral po-

sition, follow these steps:

•Loosen the adjustment boll

°Move the motion control lever 1/4 to 1/2

inch in the direction it is trying to creep.

• Tighten adjustment bolt securely.

*Start engine and test.

°If tractor still creeps, repeat above steps

until satisfied°

Motlon Laver Neutral

Gate

!Bolt

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require removal

for service or replacement, it should be

purged after reinstallation and before op-

erating the tractor. See "PURGE TRANS-

MISSION" In the Operation section of this

manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not hori-

zontal (left to right) when wheels are posi-

tioned straight forward, remove steering

wheel and reassemble per instructions in

the Assembly section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor If damage has

occurred to affect the front wheel toe-in or

camber, contact your nearest authorized

service center.

TO REMOVE WHEEL FOR REPAIRS

° Block up axle securely,

° Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

tose),

• Repair tire and reassemble.

•On rear wheels only: align grooves in

rear wheel hub and axle_ Insert square

key,

°Replace washers and snap retaining

ring securely in axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining

Ring P

Axle Cover Key

(Rear Wheel Only)

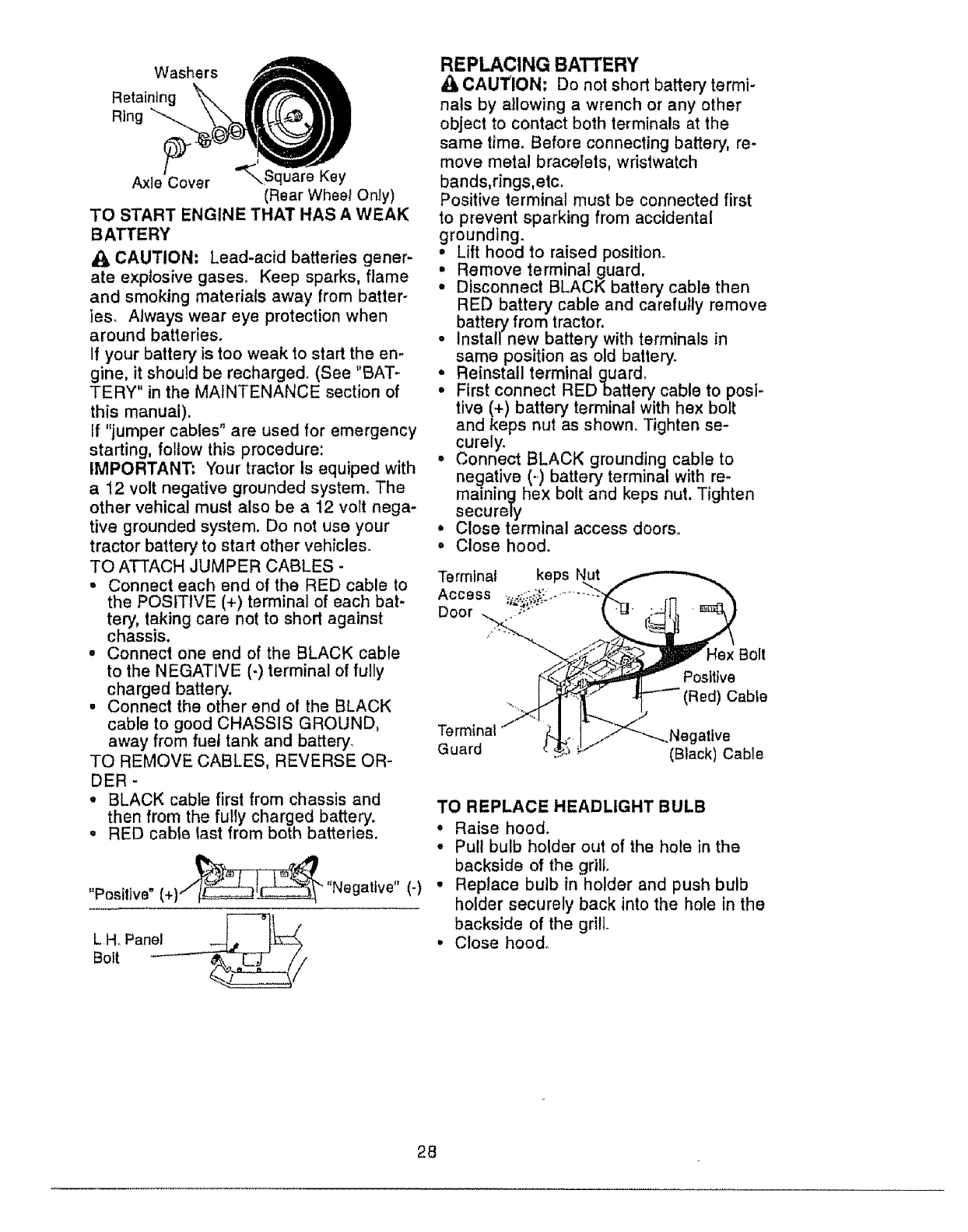

TO START ENGINE THAT HAS A WEAK

BATTERY

CAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame

and smoking materials away from batter-

ies. Always wear eye protection when

around batteries.

If your battery is too weak to start the en-

gine, it should be recharged° (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor Is equiped with

a 12 volt negative grounded system. The

other vehical must also be a 12 volt nega-

tive grounded system. Do not use your

tractor battery to start other vehicleso

TO ATTACH JUMPER CABLES -

=Connect each end of the RED cable to

the POSITIVE (+) terminal of each bat-

tery, taking care not to short against

chassis.

•Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

•Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery_

TO REMOVE CABLES, REVERSE OR-

DER -

oBLACK cable first from chassis and

then from the fully charged battery.

°RED cable last from both batteries.

"Positive" (+)"/_' __

L H, Pan__ii

""Negative" (-)

REPLACING BATTERY

ACAUTION: Do not short battery termi-

nals by allowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery, re-

move metal bracelets, wristwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

• Lift hood to raised position.

: Remove terminal guard.

Disconnect BLACK battery cable then

RED battery cable and carefully remove

battery from tractor.

o Install new battery with terminals in

same position as old battery.

Reinstall terminal guard°

First connect REDbattery cable to posi-

tive (+) battery terminal with hex bolt

and keps nut as shown. Tighten se-

curely.

° Connect BLACK grounding cable to

negative (-) battery terminal with re-

mainin_l hex bolt and keps nut. Tighten

securely

° Close terminal access doors.

• Close hood.

Terminal keps Nut

Access -"

Door

Hex Bolt

Positive

Cable

Termir .Negative

Guard (Black) Cable

TO REPLACE HEADLIGHT BULB

,Raise hood.

°Pull bulb holder out of the hole in the

backside of the grill.

•Replace bulb in holder and push bulb

holder securely back into the hole in the

backside of the grill

•Close hood°

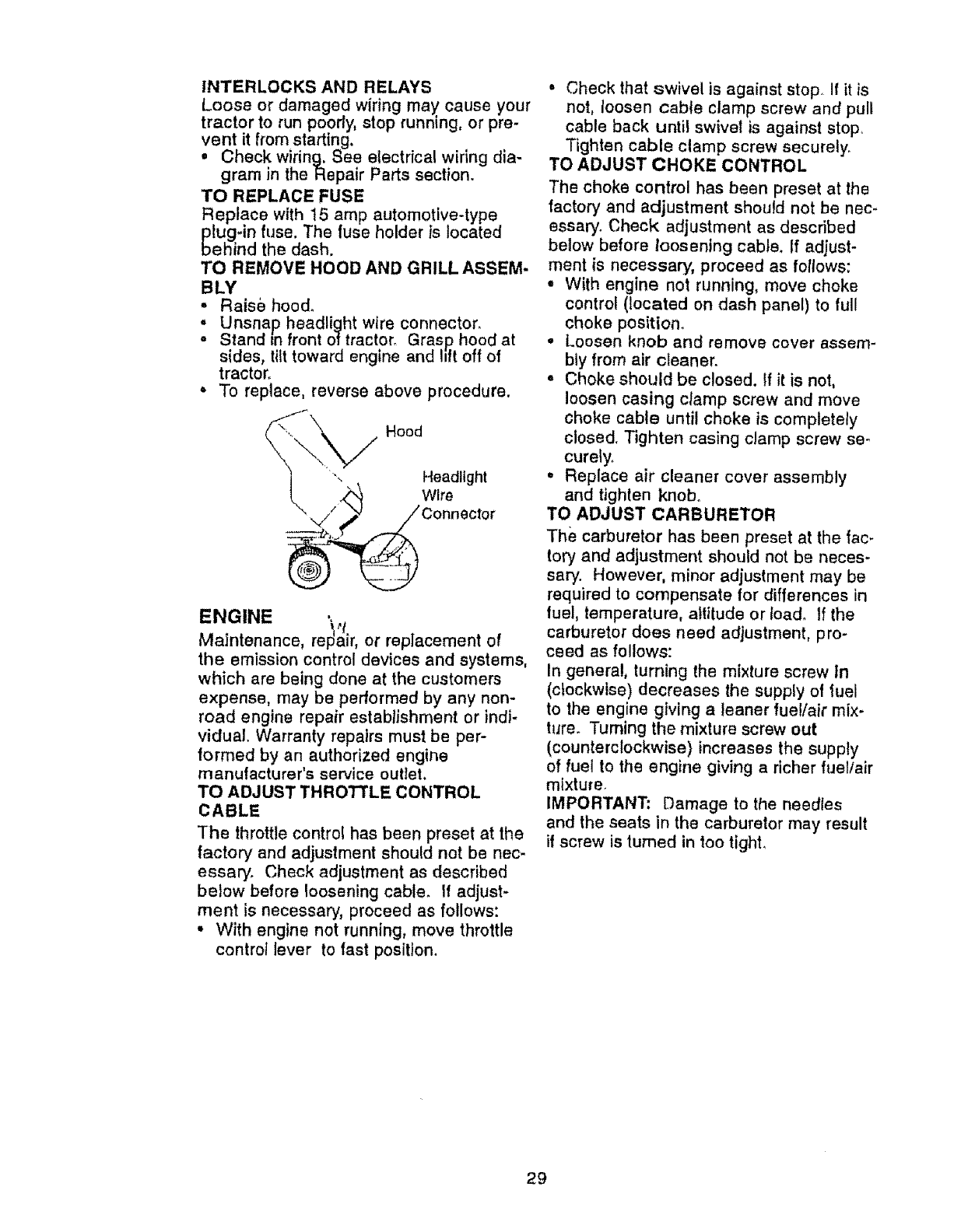

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or pre-

vent it from starting.

°Check wiring. See electrical wiring dia-

gram in the Repair Parts section.

TO REPLACE FUSE

Replace with t5 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL ASSEM-

BLY

• Raise hood°

,Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

• To replace, reverse above procedure.

Hood

ENGINE ,_,_.

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishment or indi-

vidual. Warranty repairs must be per-

formed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. !f adjust-

ment is necessary, proceed as follows:

•With engine not running, move throttle

control lever to fast position.

•Check that swivel is against stop If it is

not, loosen cable clamp screw and pull

cable back until swivel is against stop_

Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before toosening cable, tf adjust-

ment is necessary, proceed as follows:

•With engine not running, move choke

control (located on dash panel) to full

choke position.

•Loosen knob and remove cover assem-

bly from air cleaner.

°Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw se-

curely.

°Replace air cleaner cover assembly

and tighten knob°

TO ADJUST CARBURETOR

The carburetor has been preset at the fac-

tory and adjustment should not be neces-

sary. However, minor adjustment may be

required to compensate for differences in

fuel, temperature, altitude or load° If the

carburetor does need adjustment, pro-

ceed as follows:

In general, turning the mixture screw In

(clockwise) decreases the supply of 1uel

to the engine giving a leaner fuel/air mix-

ture. Turning the mixture screw out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fue!/air

mlxture

IMPORTANT: Damage to the needles

and the seats in the carburetor may result

if screw is turned in too tight.

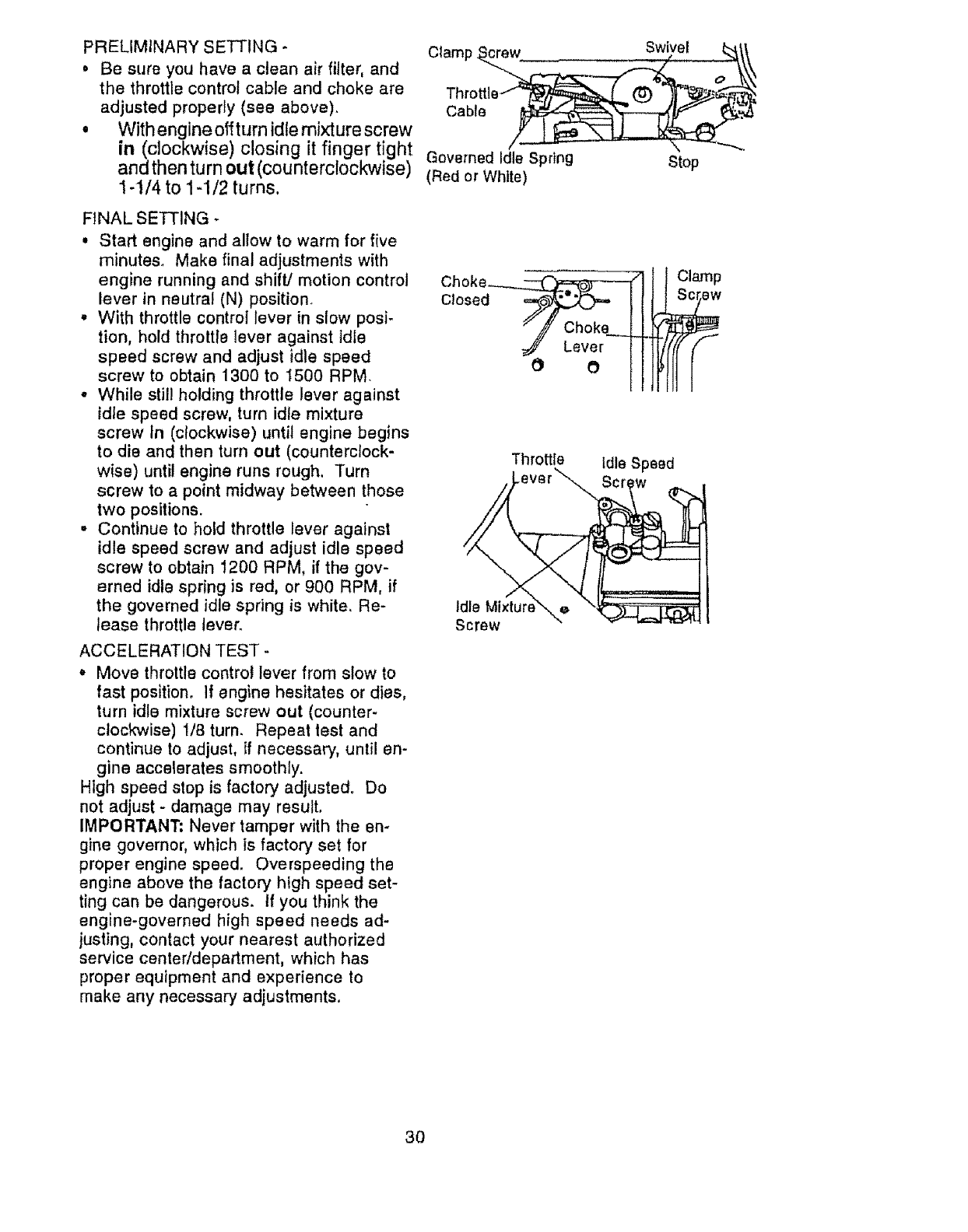

PRELIMINARYSETTING*

, Be sureyou havea clean airfilter,and

the throttlecontrolcable and chokeare

adjustedproperly(see above).

• With engine off turn idle mixture screw

in (clockwise) closing it finger t!ght

and then turn out (counterclockwise)

1-1/4 to 1-1/2 turns.

FINAL SETTING -

. Start engine and allow to warm for five

minutes° Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

• With throttle control lever in slow posi-

tion, hold throttle lever against idle

speed screw and adjust idle speed

screw to obtain 1300 to t500 RPM.

•While still holding throttle lever against

idle speed screw, turn idle mixture

screw In (clockwise) until engine begins

to die and then turn out (counterclock-

wise) until engine runs rough, Turn

screw to a point midway between those

two positions.

• Continue to hold throttle lever against

idle speed screw and adjust idle speed

screw to obtain 1200 RPM, if the gov-

erned idle spring is red, or 900 RPM, if

the governed idle spring is white. Re-

lease throttle lever.

ACCELERATION TEST -

• Move throttle control lever from slow to

fast position, If engine hesitates or dies,

turn idle mixture screw out (counter-

clockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until en-

gine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result,

IMPORTANT: Never tamper with the en-

gine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed set-

ting can be dangerous, tf you think the

engine-governed high speed needs ad-

justing, contact your nearest authorized

service center/department, which has

proper equipment and experience to

make any necessary adjustments.

Governed Idle Spring Stop

(Red or White)

Choke I i Clamp

Throttle

.evBr_

Idle Speed

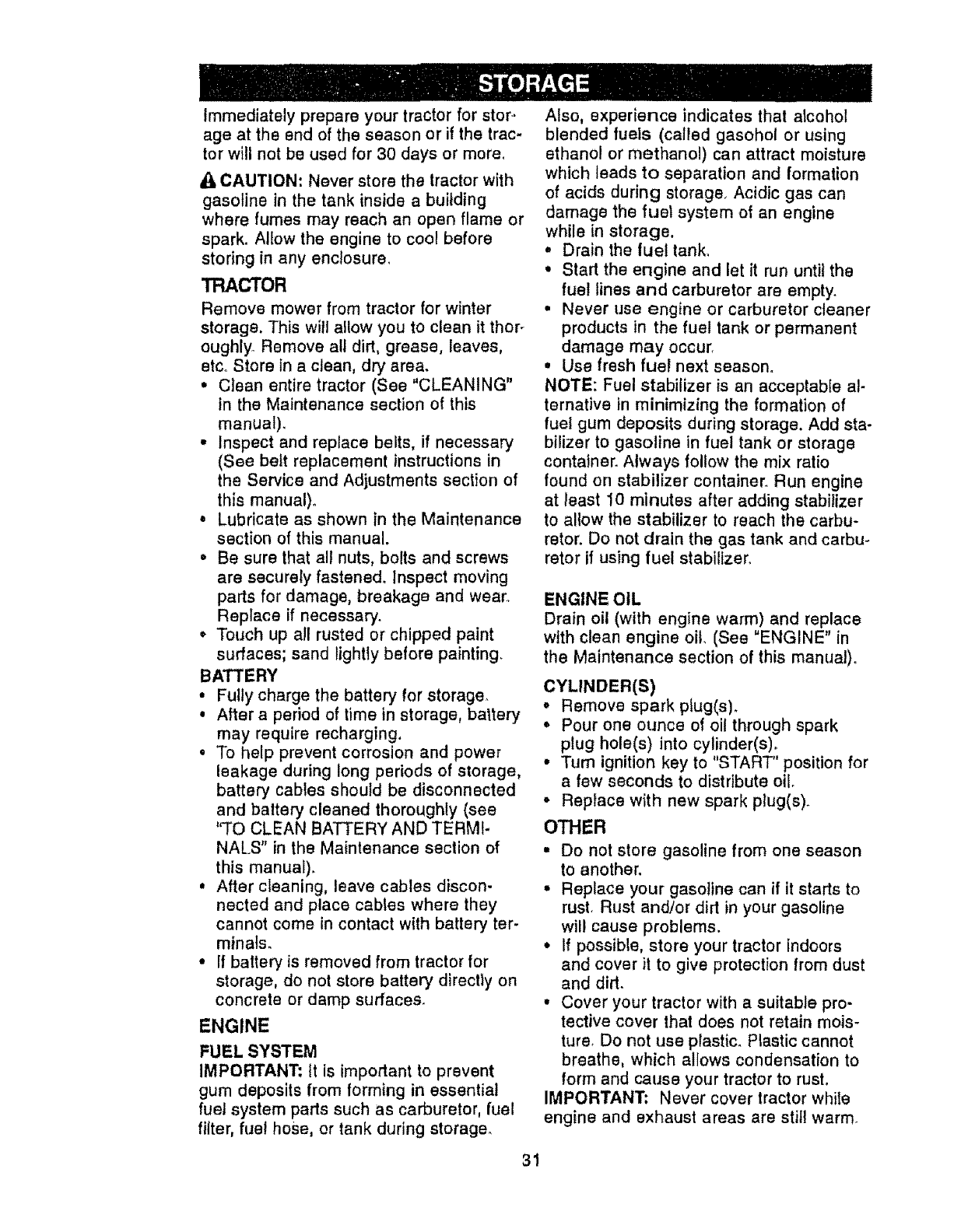

Immediately prepare your tractor for stor.,

age at the end of the season or if the trac-

tor will not be used for 30 days or more,

A0ACAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure,

TRACTOR

Remove mower from tractor for winter

storage. This will allow you to clean it thor-

oughly Remove all dirt, grease, leaves,

etco Store In a clean, dry area.

•Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

•Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual)°

• Lubricate as shown in the Maintenance

section of this manual.

• Be sure that all nuts, bolts and screws

are securely fastened° Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

•Touch up a!l rusted or chipped paint

surfaces; sand tightly before painting.

BATTERY

•Fully charge the battery for storage,

,After a period of time in storage, baltery

may require recharging.

•To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

'q'O CLEAN BATTERY AND TERMI-

NAl.S" in the Maintenance section of

this manual).

, After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery ter-

minals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohot

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage_ Acidic gas can

damage the fuel system of an engine

while in storage.

•Drain the fuel tank,

•Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur,

• Use fresh fue! next season.

NOTE: Fue! stabilizer is an acceptable al-

ternative in minimizing the formation of

fuel gum deposits during storage. Add sta-

bilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the carbu-

retor. Do not drain the gas tank and carbu-

retor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil (See "ENGINE" in

the Maintenance section of this manua!).

CYLINDER(S)

• Remove spark plug(s)_

•Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

• Turn ignition key to "START" position for

a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if it starts to

rust. Rust and/or did in your gasoline

will cause problems.

•If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

, Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture, Do not use plastic. Plastic cannot

breathe, which allows condensation to

form and cause your tractor to rust.

IMPORTANT: Never cover tractor whiIe

engine and exhaust areas are stif! warm.

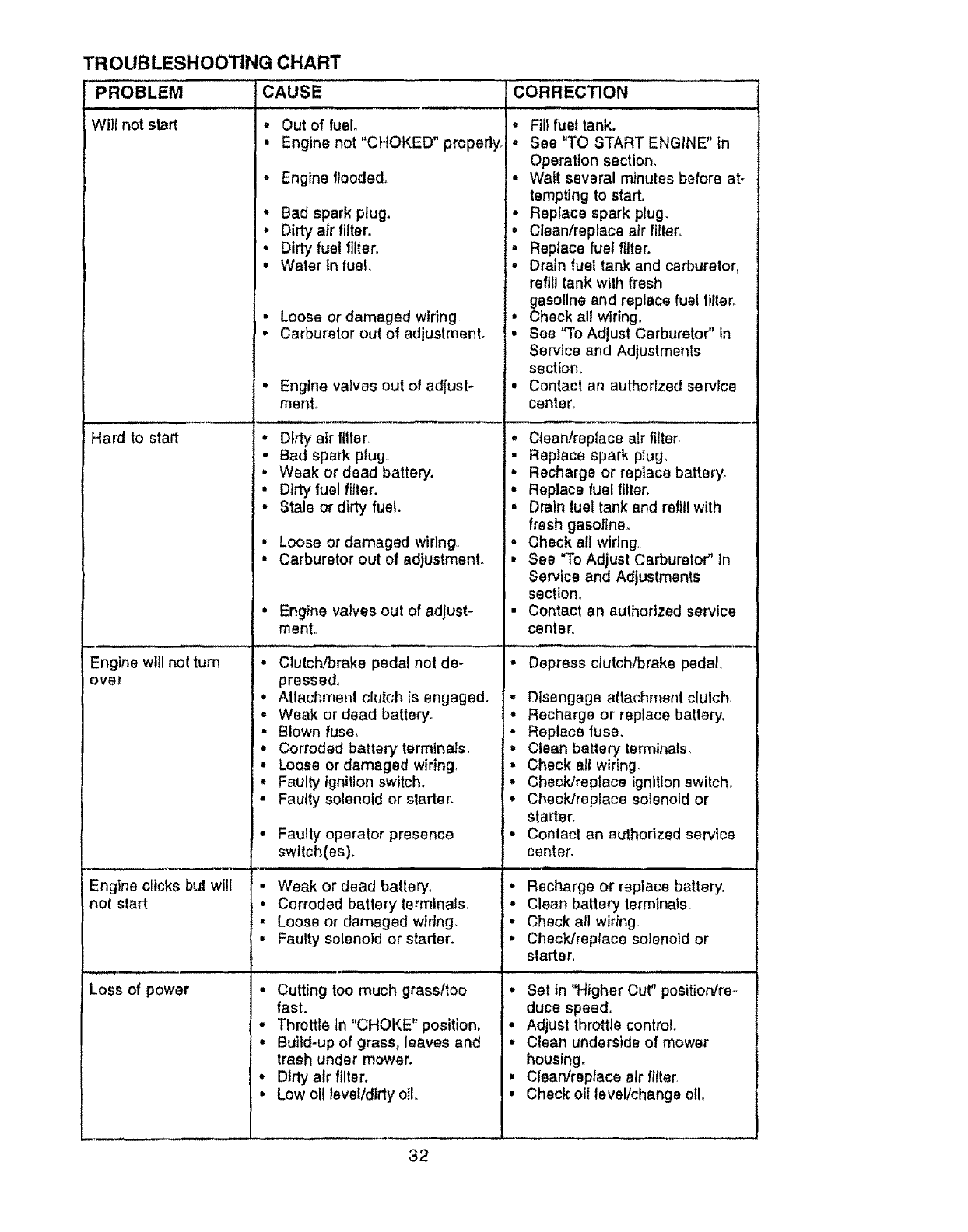

TROUBLESHOOTING CHART

PROBLEM

,, 11 H,, LLJH',,,,,

Will not slarf

Hard to start

,,, ,,,,,

Engine will not turn

over

Engine clicks but will

not start

..... :.. :.- .....

Loss of power

•Bad spark plug.

.Dirty air filter.

•Dirty fuel filter.

• Water Infuel,

• Loose or damaged wiring

•Carburetor out of adjustment°

CORRECTION

• Dirty air filler,

• Bad spark plug

, Weak or dead battery,

•Dirty fuel filter.

• Stale or dirty fuel.

Out of fuelo o

Engine not "CHOKED" properly. •

Engineflooded, !•

i•

Engine valves out of adjust- •

merit.

•Loose or damaged wirlng

• Carburetor out of ad}ustment,

Engine valves out of adjust-

menlo

°Clutch/brake pedal nol de-

pressed,

• Attachment clutch is engaged.

,, Weak or dead battery.

• Blown fuse,

• Corroded battery terminals.

• Loose or damaged wiring.

•Faulty ignition switch.

• Faulty solenoid or starter.

Faulty operator presence

switch(as).

•Weak or dead battery.

• Corroded battery terminals.

• Loose or damaged wlrlng_

• Faulty solenoid or starter.

• Cutting too much grass/too

fast.

• Throttle in "CHOKE" position,

•Build-up of grass, leaves and

trash under mower.

• Dirty air filter,

•Low oll levelldirty oil,

Fill fuel tank,

See "TO START ENGINE" in

Operation section.

Watt several minutes before at-

tempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and carburetor,

refill tank with fresh

gasoline and replace fuel filter.

Check all wiring.

See "To Adjust Carburetor" in

Service and Adjustments

section.

Contact an authorized service

center.

Clean/replace air filter,

•Replace spark plug,

• Recharge or replace battery°

•Replace fuel filler,

•Drain fuel tank and refillwith

fresh gasoline,

=Check all wiring.

. See "To Adjust Carburetor" In

Service and Adjustments

section.

• Contact an authorized service

center,

•Depress clutch/brake pedal,

,, Disengage attachment clutch.

•Recharge or replace battery.

•Replace fuse.

•Clean battery terminals,,

• Check ell wiring

• Check/replace Ignition switch.

•Check/replace solenoid or

starter.

•Contact an authorized service

center.

• Recharge or replace battery.

• Clean battery terminals.

• Check all wiring.

•Check/replace solenoid or

starter,

M., ,, , ,,

• Set in "Higher Cut" position/re.,

duce speed.

• Adjust throttle control.

•Clean underside of mower

housing.

.Cleanlreplace air filter.

• Check oil level/change o11,

TROUBLESHOOTING CHART

PROBLEM CAUSE

Loss of power (cont'd) ° Faulty spark plug,

Excessive vibration

Engine continues to

run when operator

leaves seat with at

tachment clutch

'engaged

Poor cut - uneven

Mower blades will not

rotale

Poor grass discharge

• Dirty fuel filter.

•Stale or dirty fuel.

•Water in fue!.

Spark plug wire loose.

• Dirty engine air screen/fins.

• Dirty/clogged muffler,

,, Loose or damaged wiring,

•Carburetor out of adjustment

Engine valves out of adjust-

ment.

Worn, bent or loose blade.

Bent blade mandrel.

Loose/damaged part(s)_

,Faulty operator-safety pres-

ence control system

Worn, bent or loose blade.

Mower deck not level,

Buildup of grass, leaves, and

trash under mower_

Bent blade mandrel

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Obstruction In clutch mecha-

nism.

Worn/damaged mower drive

belt,

Frozen idler pulley,

Frozen blade mandrel.

Engine speed too s_ow.

Travel speed too fast.

Wet grass.

Mower deck not level,

Low/uneven tire air pressure.

CORRECTION

• Clean and regap or c'hange _

spark plug.

• Replace fuel filter.

. Drain fuel tank and refili with

fresh gasoline.

• Drain fuel tank and carburetor,

refill tank with fresh gasoline and

replace fuel filter°

• Connect and lighten spark plug

wire.

•Clean engine air screentfins.

• Clean/replace muffler°

•Check all wiring.

• See "70 Adjust Carburetor" in

Service and Adjustments

sectton.

• Contact an authorized service

center.

•Replace blade, Tighten blade

bolt,

• Replace blade mandrel

• Tighten loose part(s), Replace

damaged parts°

I,mHI,u =

• Checl_ wiring, switches and

connections. If not

corrected, contact an autho-

rized service center/

department

•Replace blade. Tighten blade

bolt.

• Level mower deck.

. Clean underside of mower

housing.

. Replace blade mandrel.

• Clean around mandrels to open

vent holes,

•Remove obstruction.

• Replace mower drive belt.

• Replace idler pulley.

, Replace blade mandrel.

• Place throttle control in "FAST"

position,

• Shift to slower speed,,

• Allow grass to dry before mow-

ing

• Level mower deck.

• Check tires for proper air pres-

sure,

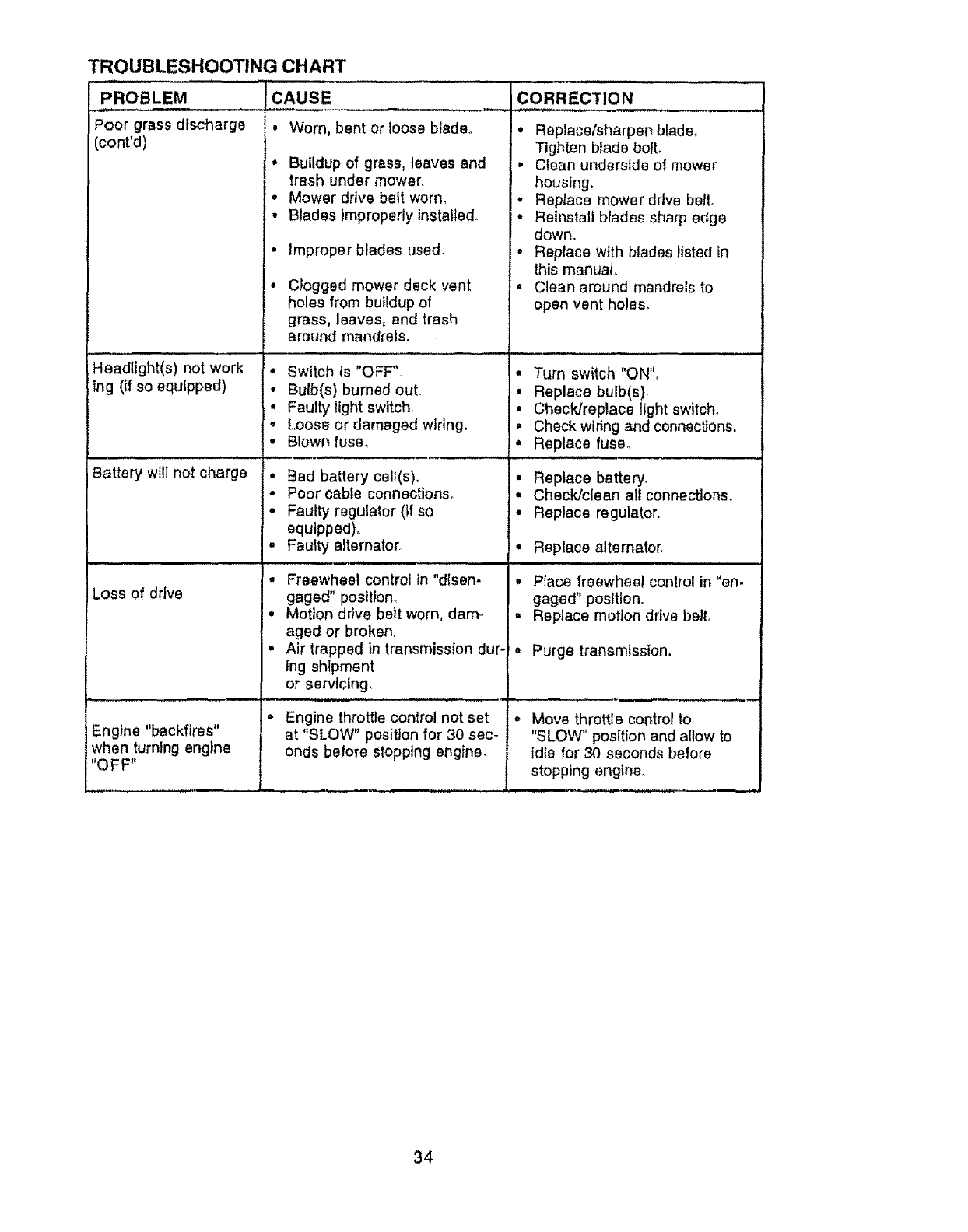

TROUBLESHOOTING CHART

PROBLEM CAUSE

Poor grass discharge .

(conrd)

Headlight(s) not work

ing (if so equipped)

Battery will not charge

........... ,,,,,

Loss of drive

Worn, bent or loose blade.

• Buildup of grass, leaves and

trash under mower.

•Mower drive belt worn.

•Blades improperly lnstalted_

•Improper blades used.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

• Switch is "OFF"

•Bulb(s) burned out.

• Faulty light switch

°Loose or damaged wiring,

•Bfown fuse_

CORRECTION i[ ___ __L

•Replace/sharpen blade.

Tighten blade boil

=Clean underside of mower

housing.

°Replace mower drive belt,

•Reinstall blades sharp edge

down.

•Replace with blades listed in

this manuato

•Clean around mandrels to

open vent holes.

.Turn switch "ON".

.Replace bulb(s),

•Check/replace light switch.

• Check wiring and connections,

• Replace fuse°

Engine "backfires"

when turning engine

"OFF"

•Bad battery celt(s).

•Poor cable connections°

•Faulty regulator (if so

equipped).

= Faulty alternator

.Freewheel control in "d{sen-

gaged" position.

°Motion drive belt worn, dam-

aged or broken,

= Air trapped in transmission dur-

ing shipment

or servlcing_

=Engine throttle control not set

at "SLOW" position for 30 sec-

onds before stopping engine.

• Replace battery,

•Check/clean all connections.

. Replace regulator,

. Replace alternator°

°Place freewheel control in "en-

gaged" posftlon.

.Replace motion drive belt.

° Purge transmission,

,, ,,, ,, ,,,,,,, j

Move throttle control to

"SLOW" position and allow to

idle for 30 seconds before

stopping engine.

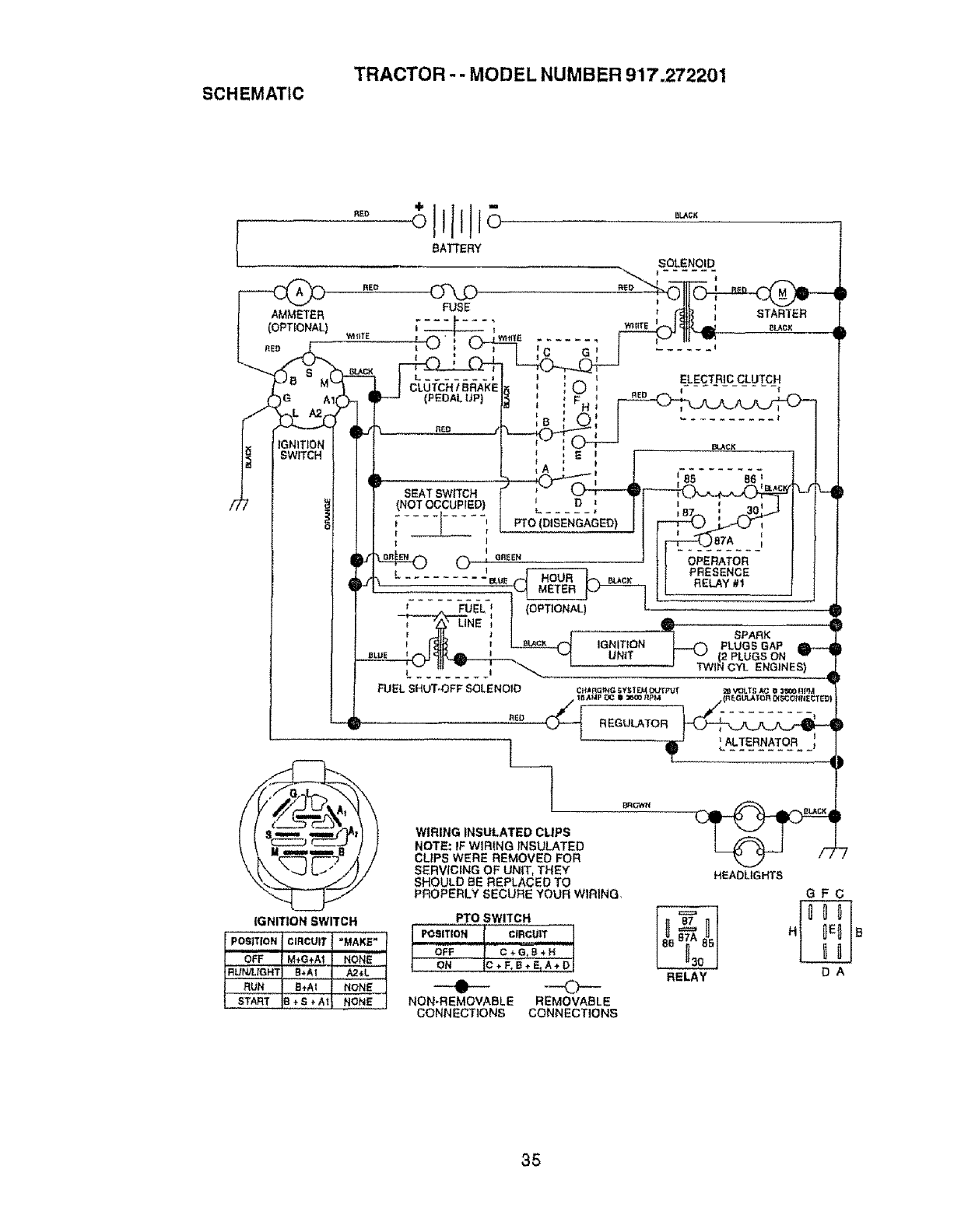

SCHEMATIC

TRACTOR -- MODEL NUMBER 917.272201

BATTERY

J(OPTIONAL)

SOLENOID

IGNITION SWITCH

POSITION CIRCUIT =MAKE"

...........OFF M+G+AI NONE....

RUN/'LIGH.__T=. B_AI . A2+L

RUN B,At NONE

START B + S÷A'_ NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERViCiNG OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING

HEADLIGHTS

GFC

RELAY

PTO SWITCH

POSITION {CIRCUIT J

0 0

NON.REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

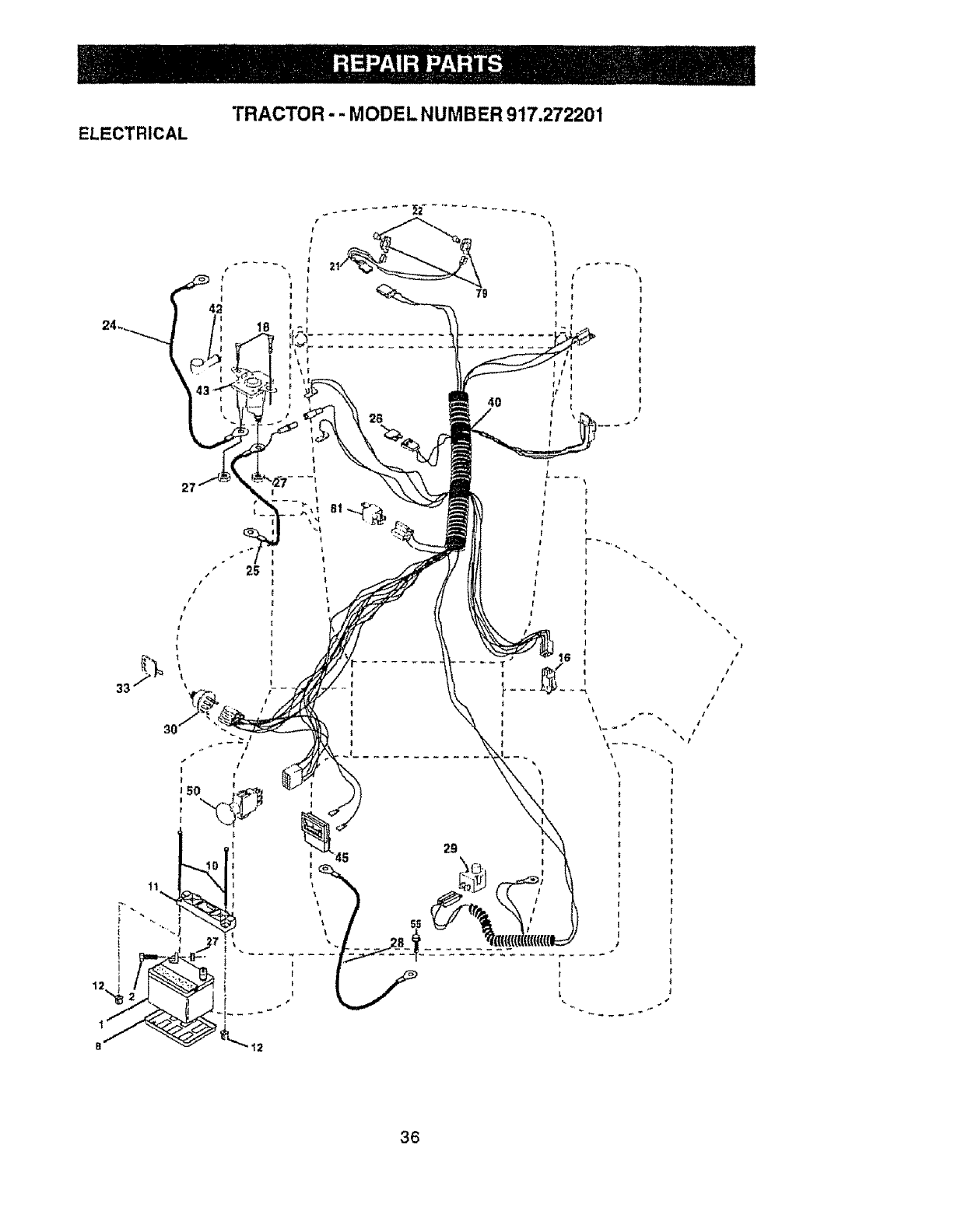

ELECTRICAL TR ACTOR -- MODEL NUMBER 917.272201

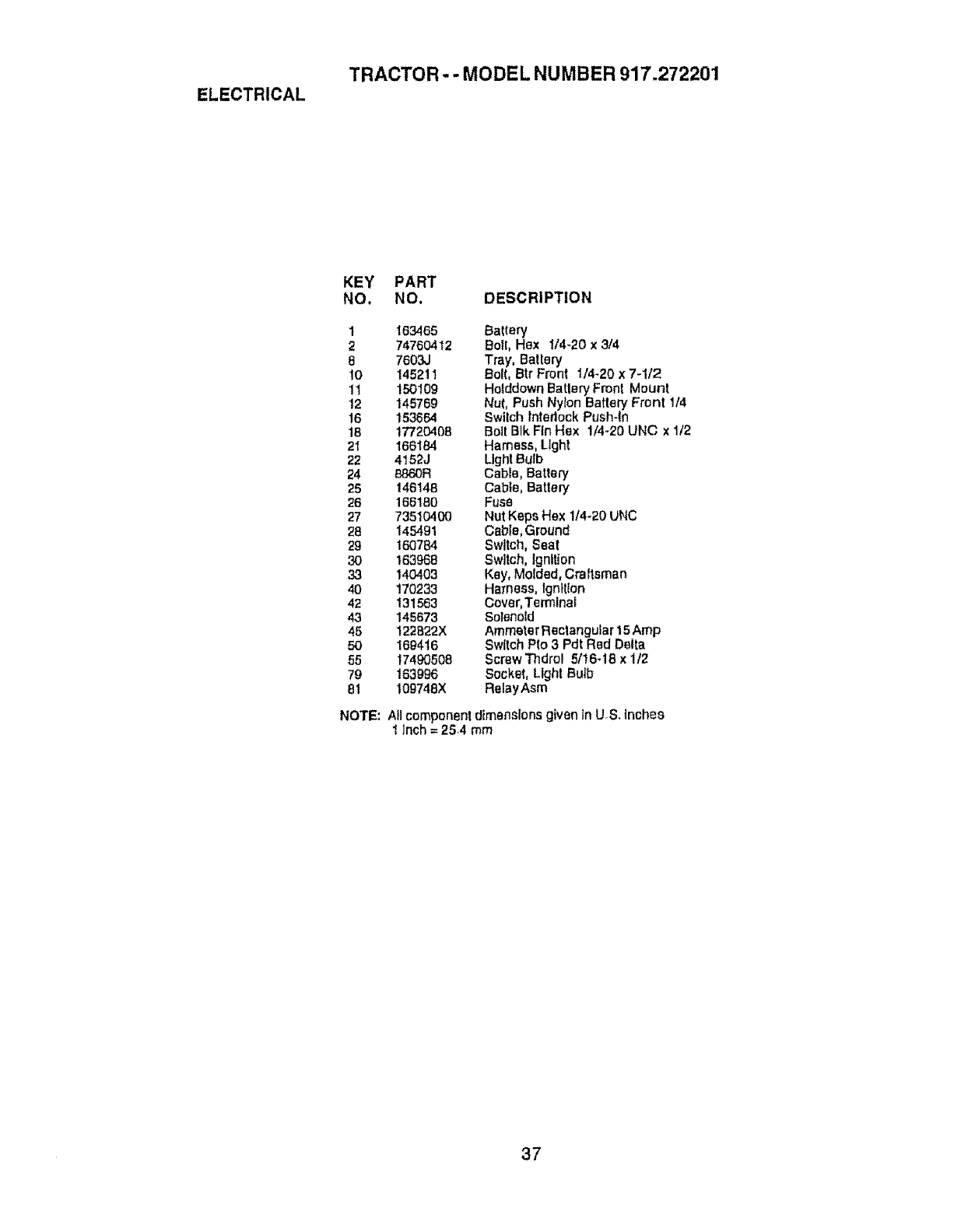

ELECTRICAL TRACTOR-- MODEL NUMBER 917.272201

KEY PART

NO. NO, DESCRIPTION

1163465 Batten/

274760412 Boll, Hex 1/4-20 x 3/4

87603,,I Tray, Battery

10 145211 Bolt, Btr Front t/4-20 x 7-!/2

1I 150109 Holddown Battery Front Mount

12 145769 Nut, Push Ny!on Battery Front 1/4

16 153664 Switch Interlock Push-tn

18 17720408 Bolt BIk Fin Hex 114_20UNC x 112

21 166184 Harness, Light

22 4152J Light Bulb

24 8860R Cable, Battery

25 146148 Cable, Battery

26 166180 Fuse

27 73510400 Nut Keps Hex 1/4-20 UHC

28 145491 Cable, Ground

29 160784 Switch, Seal

30 163968 Switch, ignition

33 140403 Key, Molded, CraItsman

40 170233 Harness, lgnitlen

42 131563 Cover,Terminal

43 145673 Solenoid

45 12;_B22X Ammeter FIectangular15 Amp

50 169416 Switch Pro 3 Pdt Red Delta

55 17490508 ScrawThdrol 5/t6.18 x 1t2

79 163996 Socket, Light Bulb

81 109748X RelayAsm

NOTE: Allcomponent dimensionsgiven in U.S. inches

1 Inch = 254 mm

TRACTOR --MODEL NUMBER 917.272201

CHASSIS AND ENCLOSURES

209

"!; .

._ 209

_16 6

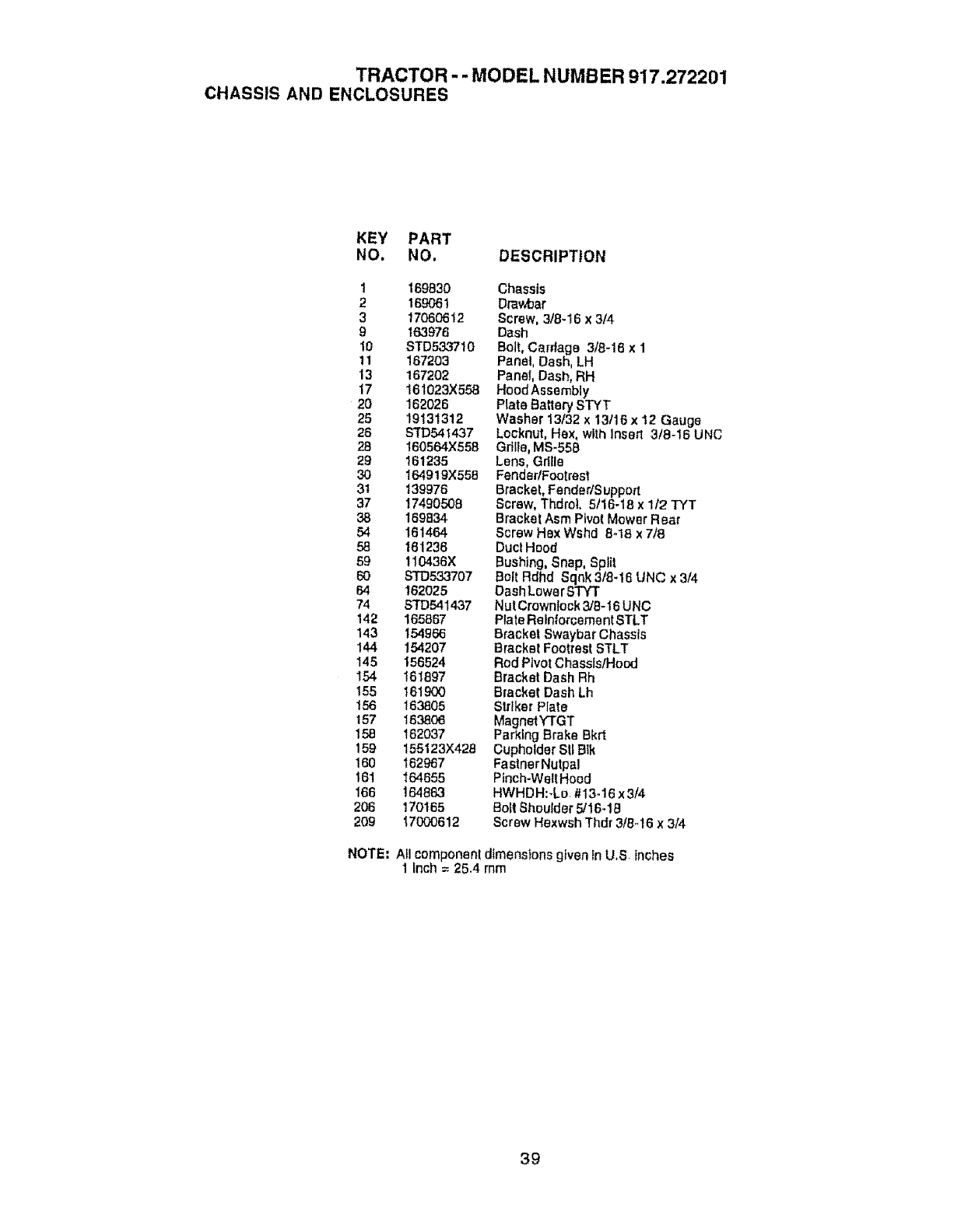

TRACTOR --MODEL NUMBER 917.272201

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 169830 Chassis

2 169061 Drawbar

3 17060612 Screw, 3t8-16 x 314

9163976 Dash

10 STD533710 Bolt, Ca[dage 318-16 x 1

11 167203 Panel, Dash, LH

13 187202 Panel, Dash, RH

17 161023X558 HoodAssembly

20 162026 Plate Battery STY]"

25 19131312 Washer 13132x 13116x 12 Gauge

26 $3"D541437 Locknut, Hex, withInsert 3/8-16 UNC

28 166564X558 Gdlle, MS-556

29 161235 Lens, Grille

30 I64919X558 FenderlFootrest

31 139976 Bracket, FendertSupport

37 17490506 Screw, Thdro!. 5116-18 x 112TYT

38 169834 Bracket Asm Pivot Mower Rear

54 161464 Screw Hex Wshd 8-18 x 7/8

58 161236 DuclHood

69 110436X Bushing, Snap, Split

60 STD533707 Belt Rdhd Sqnk 3/8-16 UNC x 3/4

64 162025 Dash LowerSTYT

74 STD541437 Nut Crownlock3/8-16 UNC

142 165867 PfateRein_ercementSTLT

143 154966 Bracket Swaybar Chassis

144 154207 Bracket Footrest STLT

145 156524 Rod Plvet ChassislHood

154 161897 Bracket Dash Rh

155 161900 Bracket Dash Lh

156 163805 Slrlker Plate

t57 183806 MagnetYTGT

158 162037 Parking Brake Bkrt

159 155123X428 Cupholder Sti Blk

160 162967 FastnarNutpal

161 164655 Plnch-WeltHood

166 164863 HWHDH:_Lo #13-16 x3/4

206 170165 Boft Shoulder 5/16-18

209 17000612 Screw Hexwsh Thdr 3/6-16 x 314

NOTE; Ail componenl dtmens}ons given In U.6. inches

1 Inch = 25.4 mm

TRACTOR - - MODEL NUM BER 917.272201

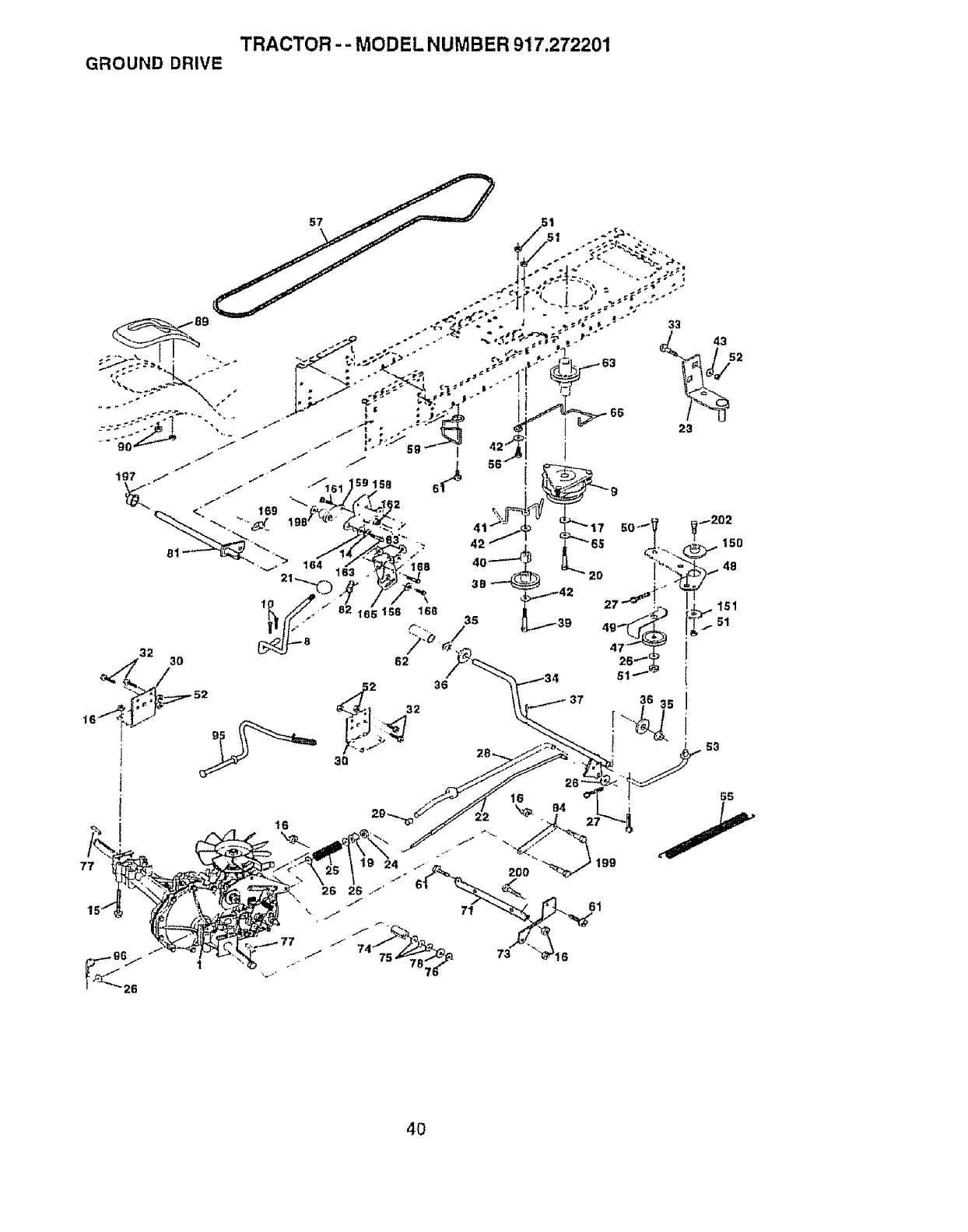

GROUND DRIVE

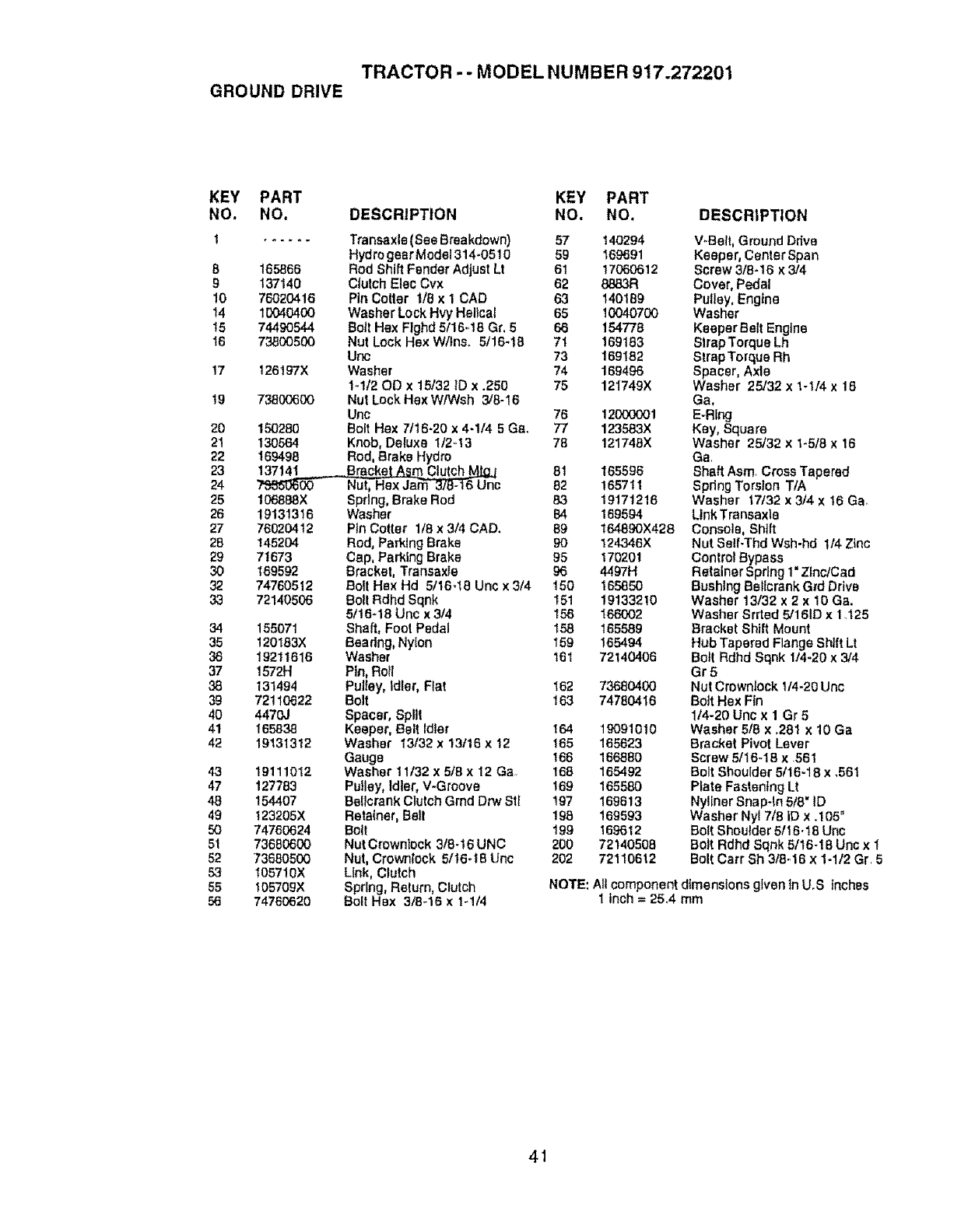

TRACTOR - - MODEL NUMBER 917.272201

GROUND DRIVE

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO.

...... Transaxle (See Breakdown) 57 140294

Hydro gear Model 314-0510 59 169691

8 165866 Rod Shift Fender Adjust Lt 61 17060612

9 137140 Clutch Elec Cvx 62 88&3R

10 76020416 Pin Cotter t/8 x 1 CAD 63 140189

14 10040400 Washer Lock Hvy Helical 65 10040700

t5 74490544 Boll Hex Flghd 5116..18Gr. 566 154778

16 73800500 Nut Lock Hex W/Ins. 5/16-16 7t 169183

Unc 73 169182

17 126197X Washer 74 169496

1_1/2 OD x 15/32 tD x .250 75 121749X

19 73800600 Nut LockHexW/Wsh 3/8-16

Uric 76 12000001

150280 Bolt Hex 7t15-20 x 4-1t4 5Ga, 77 123583X

130564 Knob, Deluxe "112-13 78 121746X

169498 Rod, Brake Hydro

137141 _=.Bracket Asm Clutch M_Loj

Nut_-RexJa_c 81 165596

82 1657t I

106888X Spdng, Brake Rod 83 19171218

19131316 Washer 84 169594

76020412 Pin Cotter 118x 3/4 CAD. 89 t64890X428

145204 Rod, Parking Brake 90 124346X

71673 Cap, Parking Brake 95 170201

189592 Bracket, Transaxte 96 4497H

74760512 Boil Hex Hd 5/16-18 Unc x 3/4 150 165050

72140506 Bolt Rdhd Sqnk 151 19133210

5116-18 Unc x3/4 156 166002

155071 Shaft, Foot Pedal 158 165589

120183X Beadng, Ny!on 159 165494

19211616 Washer 161 72140406

1572H Pin. Roll

131494 PuJley,Idler° Flat I62 73680400

72110622 Bolt 163 74780416

4470J Spacer, Spill

165838 Keeper, Belt Idler 164 19091010

19131312 Washer 13132x 13116x 12 165 165623

Gauge 166 166880

19111012 Washer t 1/32 x 5/8 x 12 Ga 168 165492

127783 Puiley, Idler, V.GJ'oove 169 165580

154407 Be!lcrank Clutch Grnd Dtw St[ 197 169613

123205X Retainer, Belt 198 169593

74760624 Bolt 199 169612

73680600 Nut Crowntock 3/8-16 UNC 200 72140508

73680500 Nut, Crowntock 5/16-18 Unc 202 72110612

t05710X Link, Clutch

105709× Spring, Return, Clutch

74760620 Bolt Hex 3/8-16 x 1-114

DESCRIPTION

V-Beft, Ground D_ve

Keeper, Center Span

Screw 3/8-16 x 3/4

Cover, Pedal

Pulley, Engine

Washer

Keeper Belt Engine

Strap Torque Lh

Strap Torque Rh

Spacer, Axle

Washer 25/32 x 1-114 x 18

Ga,

E-Ring

Key, Squa re

Washer 25/32 x1-5/8 x16

Ga.

Shaft Asm Cross Tapered

Spdng Torsion T/A

Washer 17132x3/4 x 16 Ga,

Link Transaxls

Console, Shift

Nut Self-Thd Wsh-hd 1/4 Zinc

Control Bypass

Retainer Spring 1"Zinc/Cad

Bushing BellcrankG_dDrive

Washer 13/32 x 2x 10 Ga.

Washer Srrted 5/161D x 1,125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 114-20 x 3/4

Gr5

Nut Crownlock 1/4-20 Unc

Boft Hex F{n

1/4-20 Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x .561

Bolt Shoulder 5116-1Bx .561

Plate Fastening Lt

Nylfner Snap-in 5/8" ID

Washer Nyl 7/8 iD x.I05"

Bolt Shoulder 5116.18Unc

Bolt Rdhd Sqnk 5/16-I8 Unc x 1

Bolt Carr Sh 3/8_16 x 1-1/2 Gr 5

NOTE: All component dimensions given tn U.S inches

Iinch = 25.4 mm

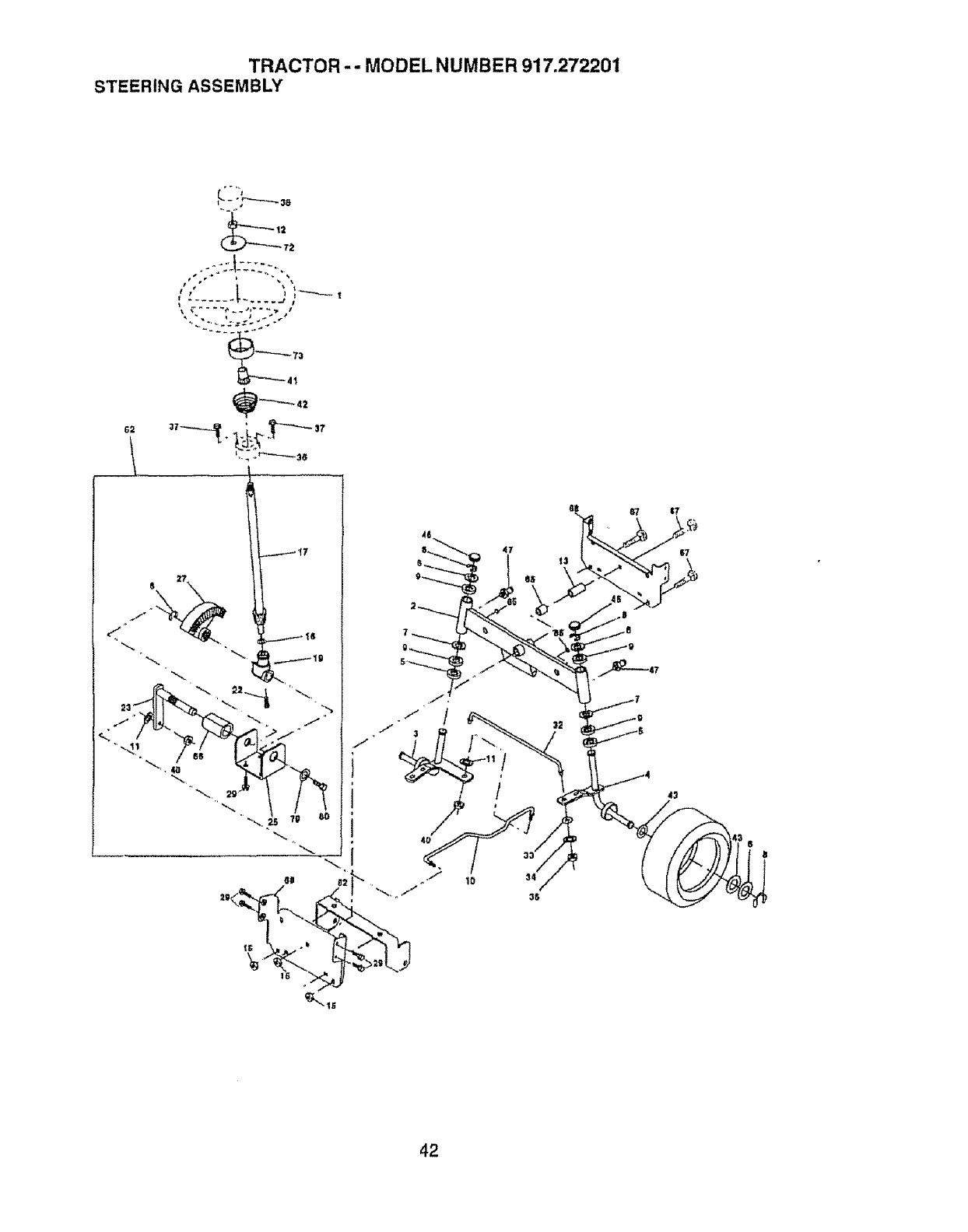

TRACTOR - - MODEL NUMBER 917.272201

STEERING ASSEMBLY

"/2

I ....... l_....J I 1

1;2

._3 :>

<1-""--,t_=/_LU'-F_ >.-i

_'. To; !

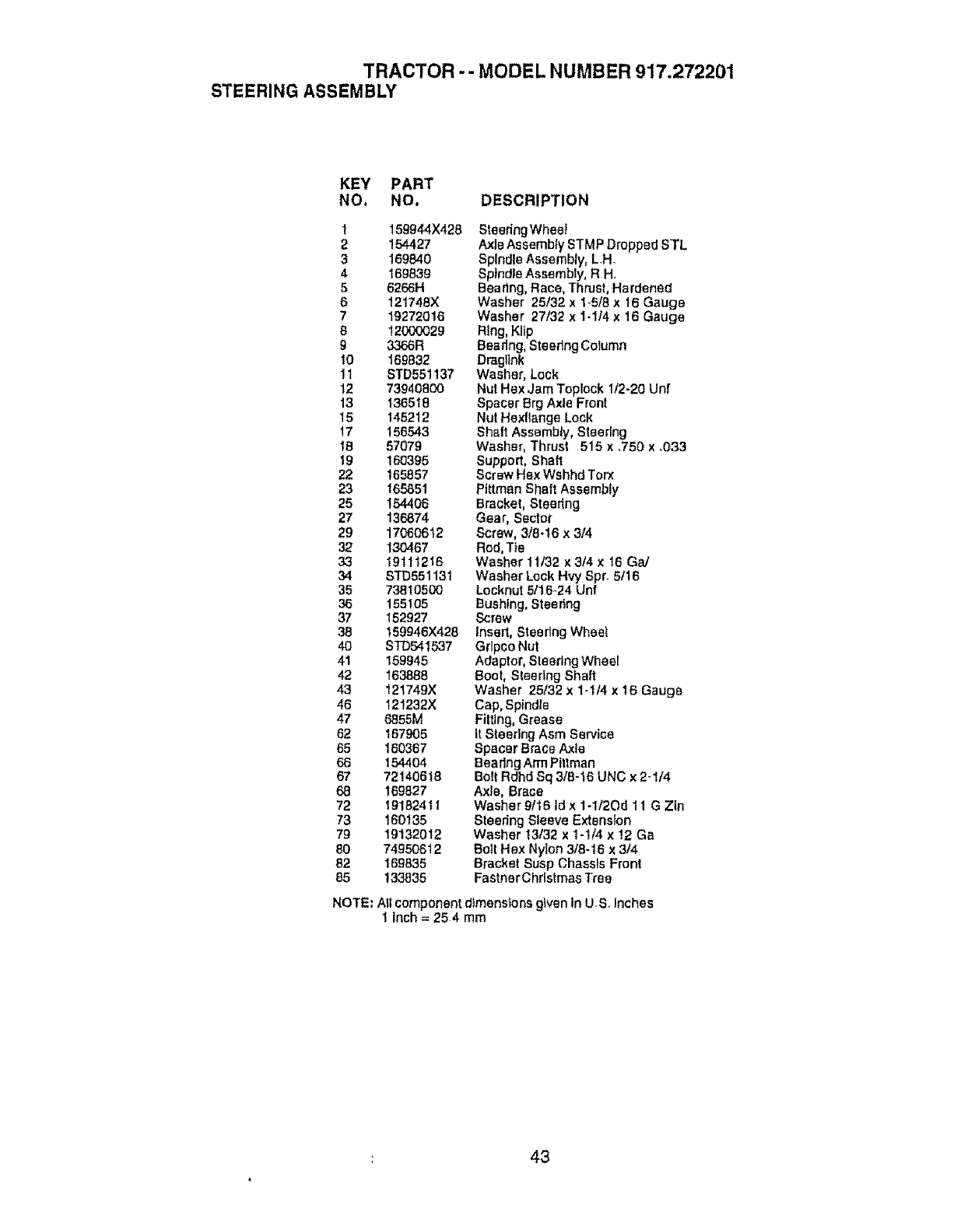

TRACTOR - -MODEL NUMBER 917.272201

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2154427

3169840

4 169839

5 6266H

6 121748X

719272016

B12000029

9 3358R

t0 169832

I1 STD55!137

12 7394080O

13 136518

15 145212

17 156543

18 57079

19 160395

22 165857

23 165851

25 154406

27 136874

29 17060612

32 130467

33 19111215

34 STD551131

35 73810500

36 1551O5

37 152927

38 159946X428

40 STD54t5,37

41 159945

42 163888

43 121749X

46 t21232X

47 6855M

62 167905

65 160367

66 154404

67 72140618

68 169827

72 191624 t t

73 160135

79 19132012

80 74950612

82 169835

85 133835

Steering Wheel

Axle Assembly STMP Dropped STL

Spindle Assembly, LH,

Spindle Assembly, R H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x t 6 Gauge

Washer 27132 x 1-114x 16 Gauge

Ring, Klip

Beadng, Steedng Column

Dragflnk

Washer, Lock

Nut Hex Jam Topiock 112-20Unf

Spacer Brg Axle Front

Nut Hexflange Lock

Shaft Assembly, Steering

Washer, Thrust 515 x .750 x .033

Support, Shaft

Screw Hex Wshhd Torx

Pittman Shaft Assembly

Bracket, Steedng

Gear, Sector

Screw, 3/8.t6 x 3/4

Rod,Tie

Washer 11/32 x 3/4 x16 GaY

Washer Lock Hvy Spr 5116

Locknut 5/16-24 Unf

Bushing, Steering

Screw

Insert, Steadng Wheel

Grlpco Nut

Adaptor, Steering Wheel

Boot, Sleedng Shaft

Washer 25132 x 1-1/4 x 16 Gauge

Cap, Spindle

Filling, Grease

itSteering Asm Service

Spacer Brace Axle

Bearing Arm Pittman

Bolt Rdhd Sq 3t8-16 UNC x 2-1/4

Axle, Brace

Washer 9116 Id xt-1/2Od 11 G Zin

Steering Sleeve Extension

Washer 13132x 1-1/4 x 12 Ga

Boll HBXNylon 3/8-16 x 3/4

Bracket Susp Chassis Front

FastnerChrlstmas Tree

NOTE: All component dimens_ens given In U.S. inches

1inch = 254 mm

:43

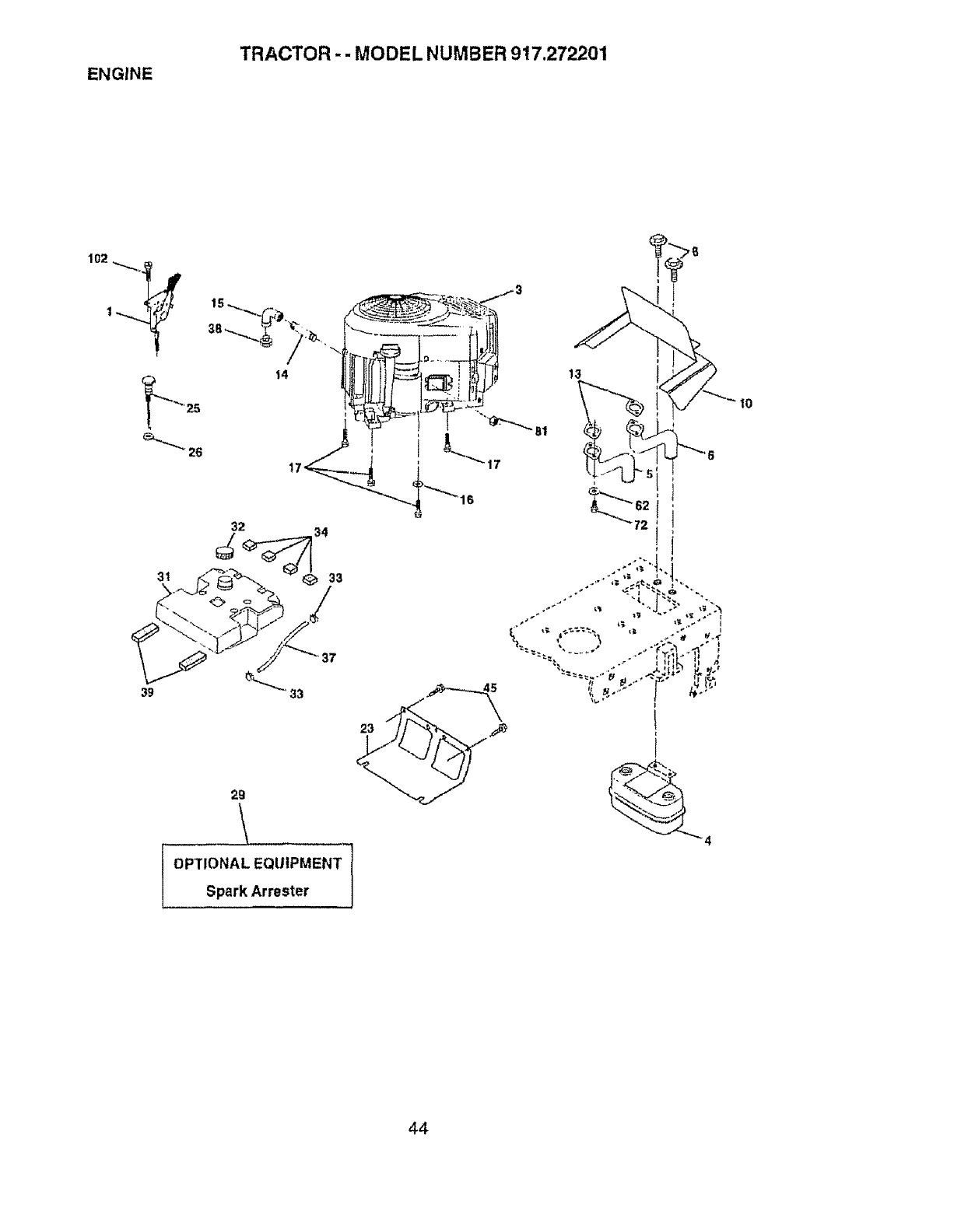

ENGINE

TRACTOR - - MODEL NUMBER 917.272201

t4 13

oPT,o.ALE=;iP._.T1

Spark Arrester J

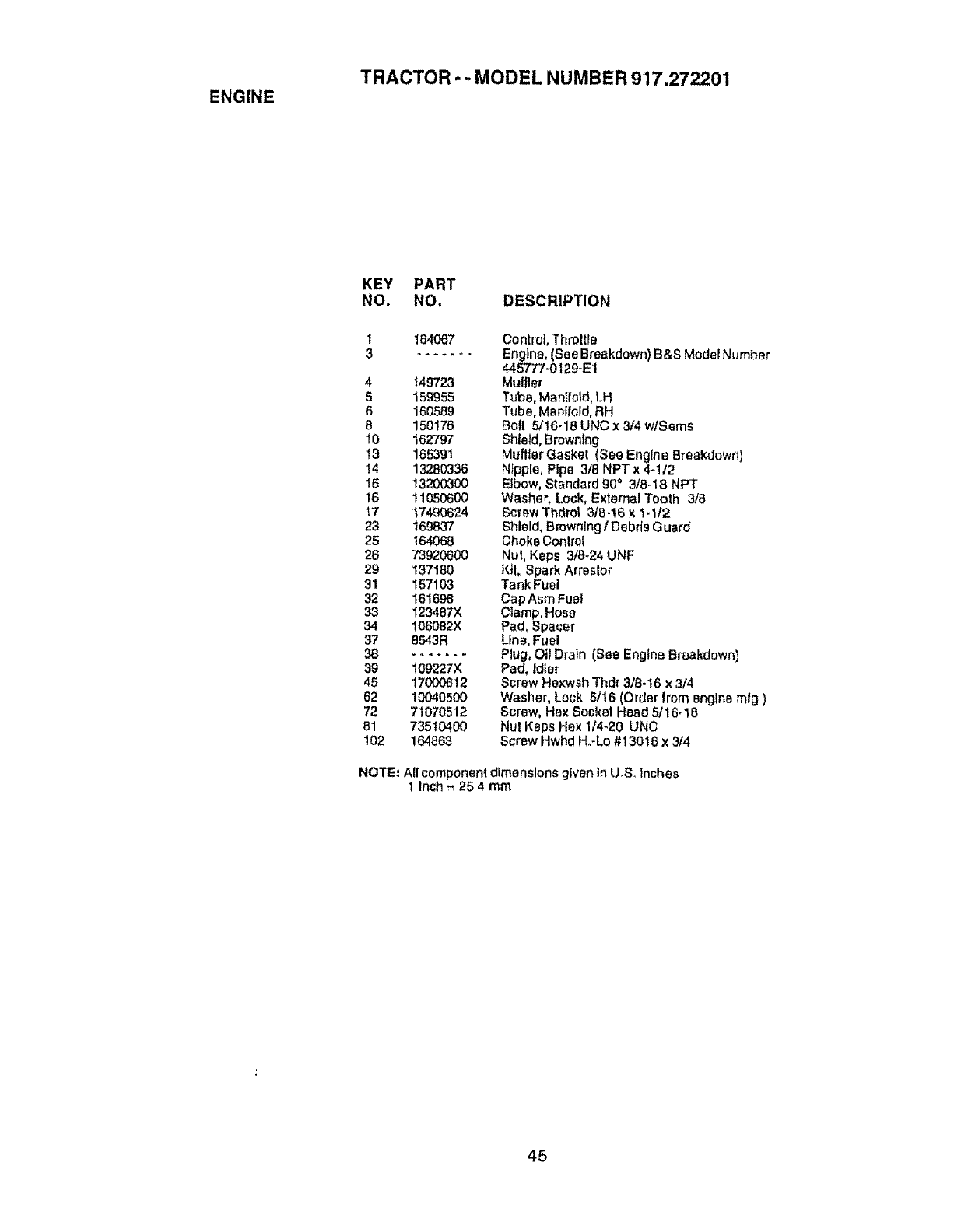

ENGINE TRACTOR - -MODEL NUMBER 917.272201

KEY PART

NO. NO, DESCRIPTION

164067

4 149723

5 159955

6 160589

8150178

10 162797

13 165391

14 13280336

15 13200300

16 11O50600

17 17490624

23 169837

25 164068

26 73920600

29 137180

31 157103

32 161696

33 123487X

34 t06082X

37 8543R

39 109227X

45 1700O612

62 10040500

72 71070512

B1 73510400

!02 164863

Control, Throttle

Engine, (See Breakdown) B&S Model Number

445777-0t29-E1

Muffler

Tube, Manifold, LH

Tube, Manifold, RH

Bolt 5/16-18 UNC x 3/4 w/Sems

Shield, Browning

Mufller Gasket (See Engine Breakdown)

N_pple, Pipe 318 NPT x4-1t2

Elbow, Standard 90° 3/6-18 NPT

Washer, Lock, External Tooth 3/8

Screw Thdto_ 316-16x1ol/2

Shield, Browning/Debris Guard

Choke Conlrol

Nut, Keps 3/8-24 UNF

Ktl, Spark Arrsslor

Tank Fuel

Cap Asm Fuet

Clamp, Hose

Pad, Spacer

Line, Fuel

Plug, Oil Drain (See Engine Breakdown)

Pad, idler

Screw Hexwsh Thdr 3/8-16 x 3/4

Washer, LoCk 5/16 (Order from engine mfg )

Screw, Hex Socket Head 5/16-18

Nul Keps Hex 1/4-20 UNC

Screw Hwhd H,-Lo #13016 x 3/4

NOTE: All component dimensions given inU,S, inches

1 Inch = 25 4mm

TRACTOR -- MODEL NUMBER 917.272201

SEAT ASSEMBLY

KEY PART

NO. NO.

1 140124

2 140551

371110616

419131610

5145OO6

6 STD541437

7124161X

B 17000616

919131614

10 155925

11 166369

12 t21246X

13 12t248X

KEY PART

DESCRIPTION NO. NO, DESCRIPTION

Seat 14 72050412 Bolt,Carriage 1/4-20 x 1-112

Bracket, Pivot, Seat 15 !2t249X Spacer, Spilt

Bolt 16 1237403< Spring

Washer 13/32 x1 x 10 Gauge 17 123976X Locknut, Flange 1/4 Grade 5

Cltp, Push-In Hinged 18 124238:< Cap Spdng Seat

Nut 21 171852 Bolt,Shoulder 5t16-18 UNC

Spring, Seal 22 STD541431 Nut

Screw 3/8-16 x 1-1/2 24 19171912 Washer I7t32 x1-3t16 x 12

Washer 13132x 1 x 14 Gauge Gauge

Pan, Seat Emboss QCK Corm. 25 t27018X Bo_t, Shoulder 5/16-18 x 62

Knob Seat

Bracket, Switch Mounting NOTE: Att componentdimensions gfven In U.S. Inches

Bushing, Snap 1 inch = 25.4 mm

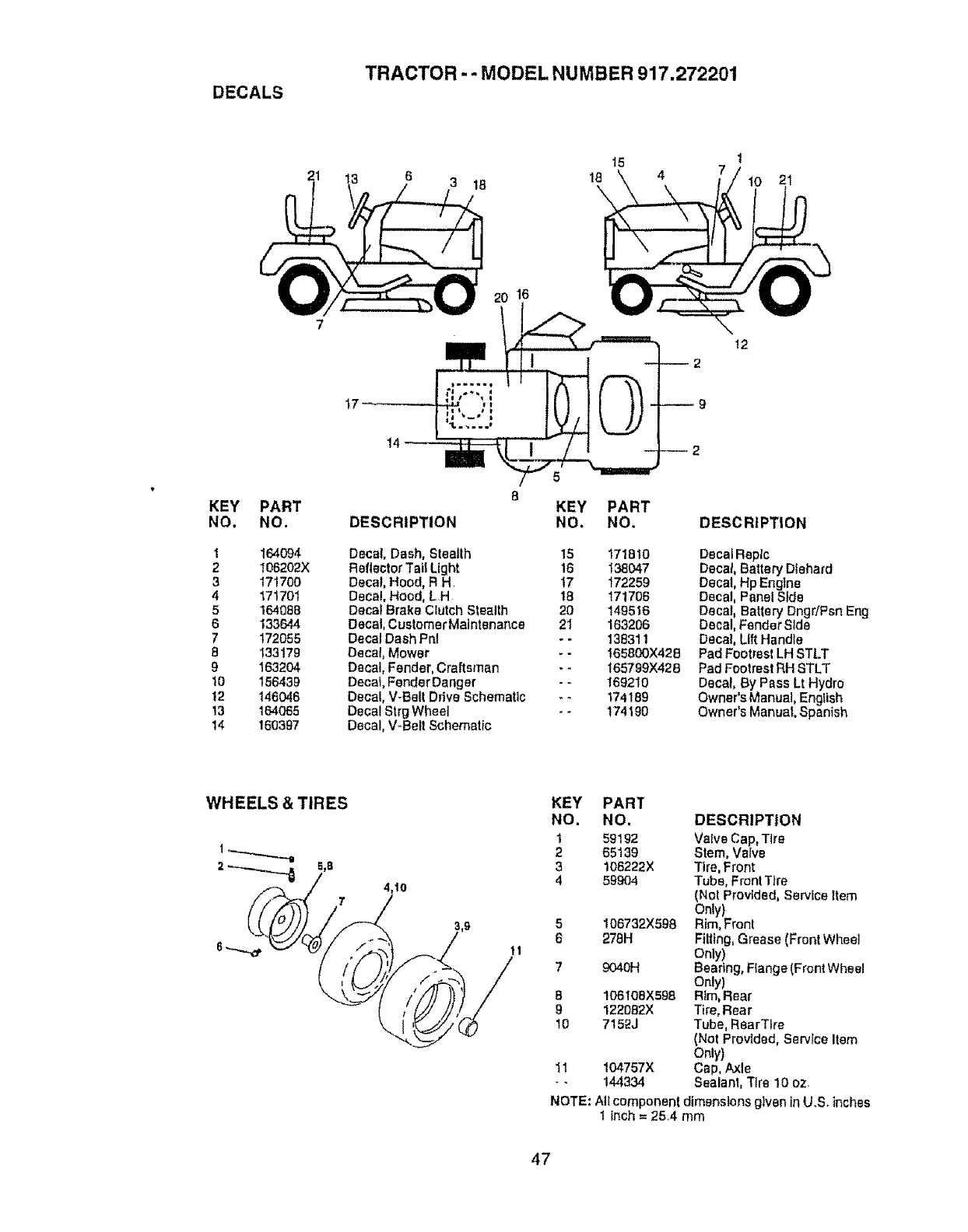

DECALS

TRACTOR - - MODEL NUMBER 917.272201

21 3 18

t5 7

18 4 21

KEY PART

NO, NO.

I 16409,',

2106202X

3171700

4171701

5164068

6 133644

7 172055

8 133179

8 163204

10 156439

12 146046

13 164065

14 160397

DESCRIPTION

8KEY PART

NO. NO.

Decal, Dash, Stealth 15 171810

Reflector Tail Light 16 138047

Decal, Hood, RH. 17 172259

Decal, Hood, LH 18 171706

Decal Brake Clutch Stealth 20 149516

Decal, Customer Maintenance 21 163206

Decal Dash Pnl . - 13831t

Decal, Mower - - I65800X426

Decal, Fender, Craftsman .- 165799)(428

Decal, FendarDanger - - 169210

Decal, V-Bait Ddve Schematic -- 174189

Decal Strg Wheel - - 174_90

Decal, V-Bef! Schematic

DESCRIPTION

Decai Replc

Decal, Battery Diehard

Decal, Hp Engine

Decal, Panel Side

Decal, Battery Dngr/Psn Eng

Decal, Fender Side

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Decal, By Pass LtHydro

Owner's Manual, English

Owner's Manual, Spanish

WHEELS &TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

159192 Valve Cap, Tlre

265139 Stem, Valve

3108222X Tire, Front

459904 Tube, FrontTire

(,Not Provided, Service Item

Only)

106732X598 Rim, Front

278H Fitting, Grease (Front Wheel

Only)

7904014 Beadng, Ftange (FrontWheel

Only)

B106108X598 Rim, Rear

9122082X Tire,Rear

10 7152J Tube, RearTIre

(Not Provided, Service Item

on_y)

11 104757X Cap, Axle

.- 144334 Sealanl, Tire 10 oZ_

NOTE" Ali component dimensions given in U.S. inches

1 inch -- 25.4 mm

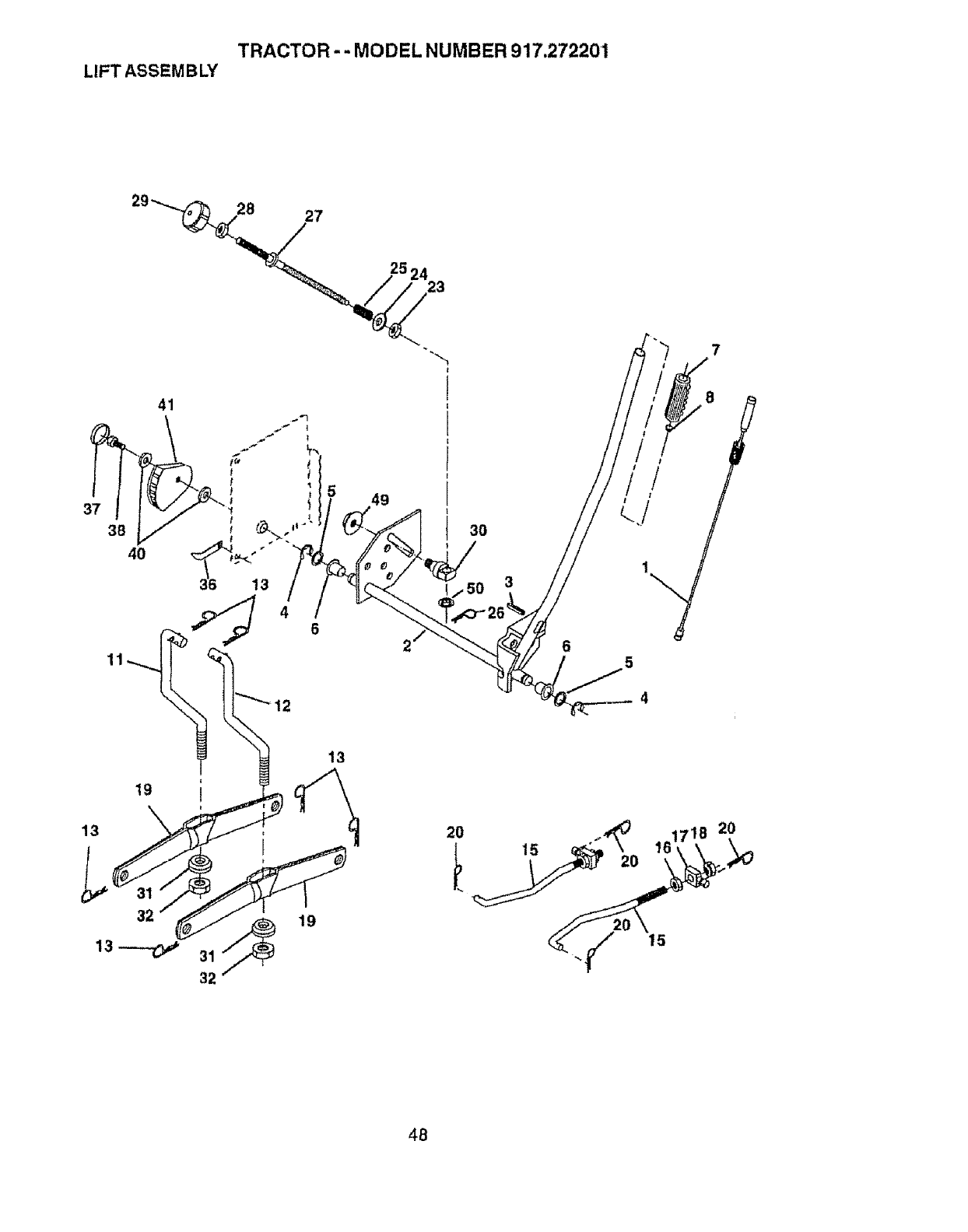

TRACTOR-- MODEL NUMBER 917.272201

LIFT ASSEMBLY

28 27

25 2423

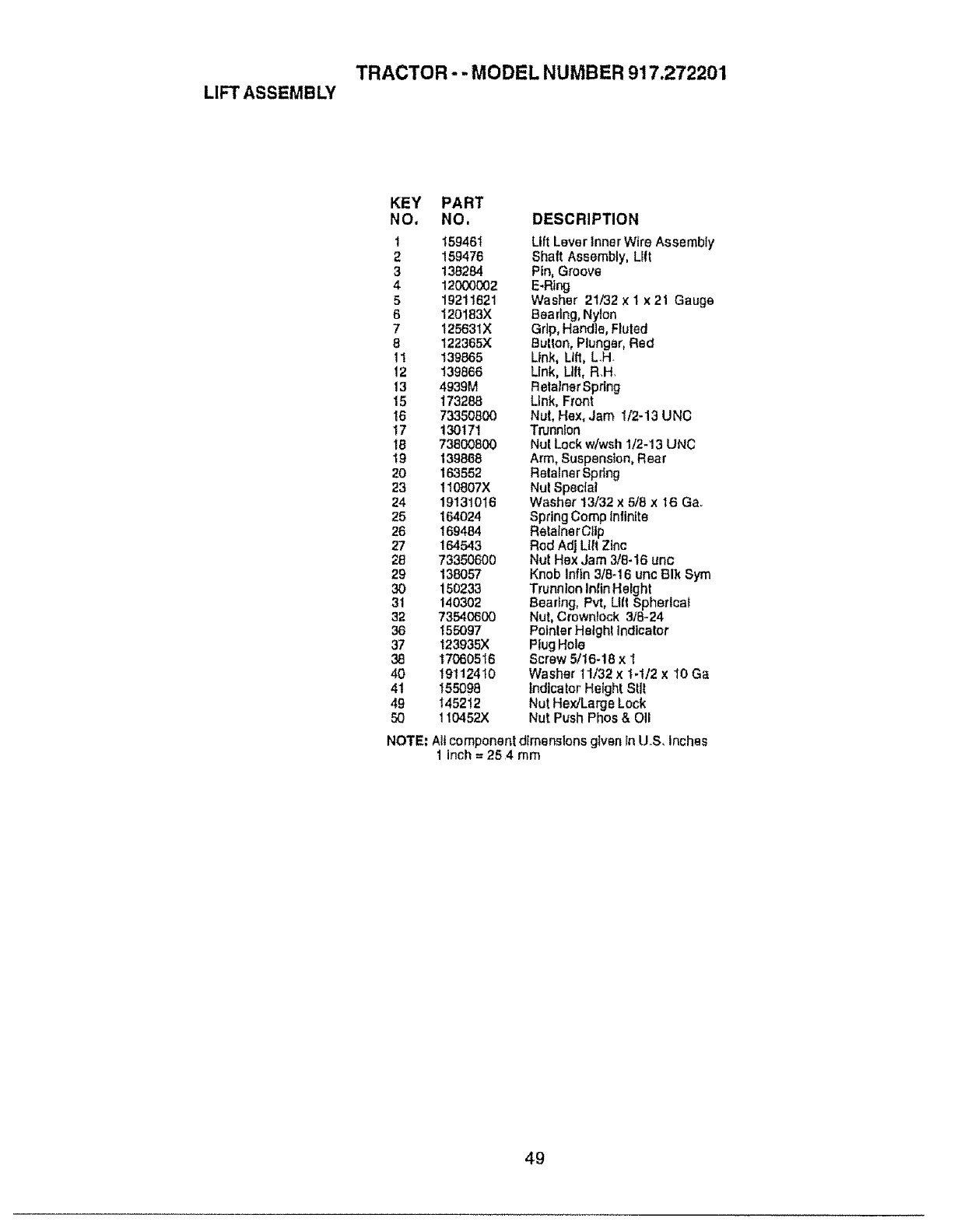

TRACTOR - -MODEL NUMBER 917.272201

LIFT ASSEMBLY

KEY PART

NO, NO. DESCRIPTION

1159461 Lift Lever inner Wire Assembly

2159476 Shaft Assembly, Lilt

3138284 Pin, Groove

4 120(XXX)2 E-Ring

5 19211621 Washer 2t/32 x 1x 21 Gauge

6t20183X Bearing, Nylon

7 125631X Grip, Handle, Fluted

8 t22365X Button, Plunger, Red

1I 139865 Link, LI(1,L.H

12 139866 Link, Ult, RH.

13 4939M Retainer Spring

15 173288 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 UNO

17 13Ot71 Trdnnlon

18 73800800 Nut Lock w/wsh 1/2-13 UNC

19 139868 Arm, Suspension, Rear

20 163552 Relalner Spling

23 110807X Nut Special

24 19131016 Washer 13/32 x 5/8 x 16 Ga.

25 164024 Spring Comp Infinite

26 169484 Retainer Clip

27 164543 Rod Adj Ll_tZinc

26 73350600 Nut Hex Jam 3/8-16 unc

29 138057 Knob infln 316.,16unc Blk Sym

30 150233 Trunnion Inlin Height

31 140302 Bearing, Pvt, Lift Spherical

32 73540600 Nut, Crownlock 3/8-24

36 f 55097 Pointer Heighl indicator

37 123935X Plug Hole

38 17060516 Screw 5/16-18 x I

40 191124t0 Washer 11/32 x 1-1/2 x 10 Ga

4t 155098 Indicator Height Sill

49 145212 Nut HexiLarge Lock

50 110452X Nut Push Phos & Oll

NOTE: All component dimensions given In U.S, Inches

1 Inch = 25.4 rnm

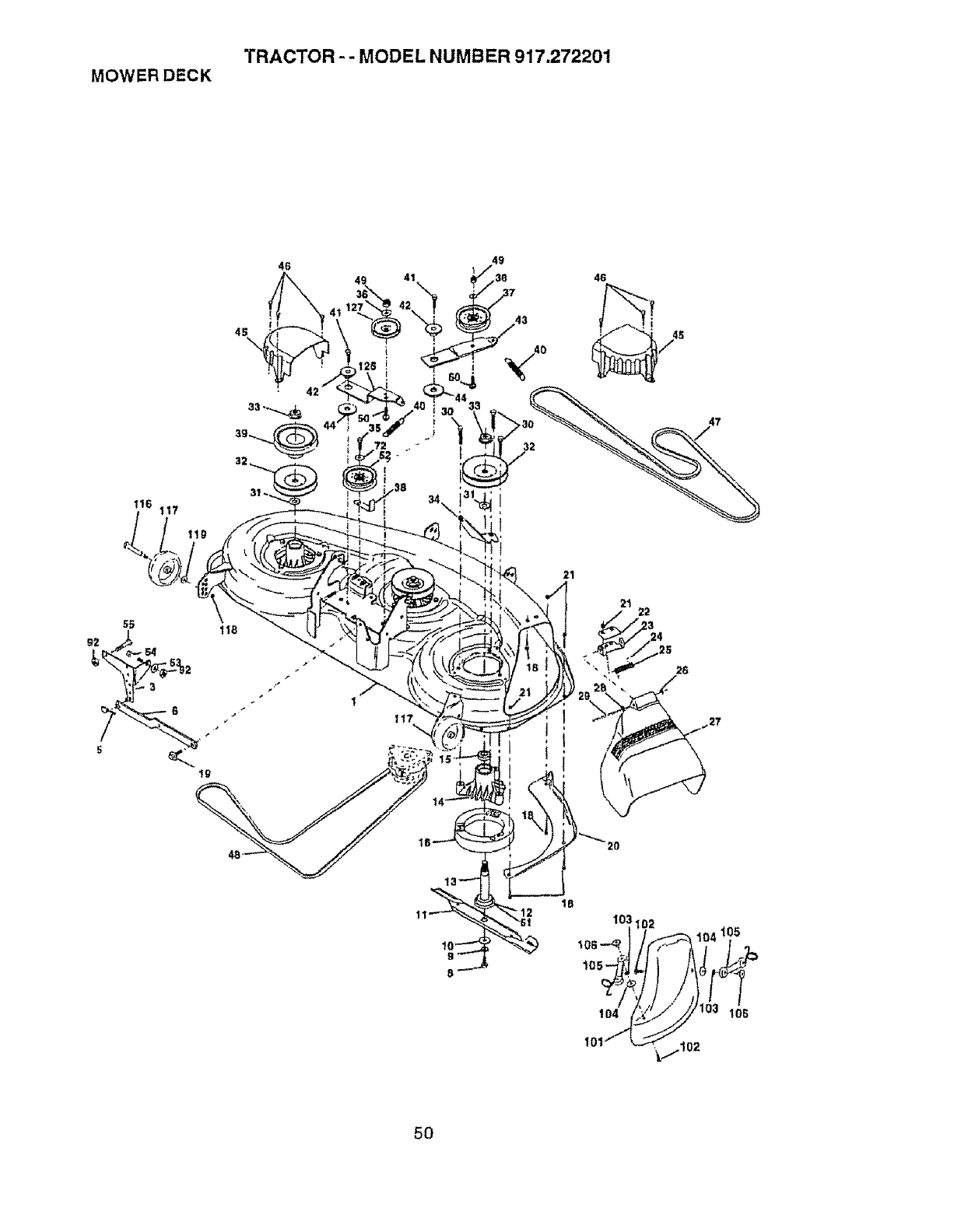

MOWER DECK

TRACTOR - - MODEL NUMBER 917.272201

i0---_

g....--

111

1031D2

I/ J'_'_ 104 t05

,oo ,{zfi-?lir.4

i_ ,°,,!o

I0 _,../102

MOWERDECK TRACTOR -- MODEL NUMBER 917.272201

KEY PART

NO, NO, KEY PART

DESCRIPTION NO, NO. DESCRIPTION

I 156943X598

3 138457

5STD624008

6 130832

8 850857

9STD551! 37

10 140296

11 170698

!2 129895

13 137553

14 137152

15 11_85X

16 140329

18 STD533106

19 132827

20 145055

21 STD541431

22 134763X598

23 131267X598

24 105304X

25 149287

26 1t0452X

27 166883X598

28 19111016

29 131491

30 157722

31 129963

32 153531

33 137266

34 144945X598

35 !7490628

36 STD551037

37 131494

38 156086

39 144917

Deck Weldment. 46" 40 137273

Bracket Asm. Sway Bar

Retainer Spdng 4t 17060620

Arm, Suspension, Rear 42 122052X

(Sway Bar) 43 144949X598

Boll, Patched 3/8-24 x 1-1/4 44 133943

Gr,,8 45 145059

Washer, Lock Hvy., Unpfated 46 137729

318 47 144959

Washer, Hard Blade, Mower 48 148763

Venled 49 STD541437

Blade, 3 in 1 46" 50 72t106t2

Bearing, Ball, Mandrel #6204

Shaft Asm, w/Lower Bearfng 51 153390

(Includes Key No. 12) 52 156493

Housing, Mandrel 53 19131312

Bearing, Ball, Mandrel 54 74780616

Slrlpper, Mower Round 55 72140608

Bolt, Carriage 5/16-18 x5/8 72 19131616

Bolt, Hex lid, Shoulder 92 STD54!437

5/18-18 101 145579

Ballle, Vortex Mower 46" 102 71161010

Nut, Crownlock 5/I6o18 UNC 103 STD551110

SUllener, Brackel t04 19061216

Bracket, Defleclor 105 160793

Cap. Steeve 106 2029J

Spring,Torsion, Deflector 116 137644

Nuh Push t17 133957

'Shield, Deflector Mower 118 73930600

Washer 1!/32 x 518 x 16 Ga, 1t9 19121414

Rod,Hinge 126 144948X598

Screw,Thd Ro!ling Washer 127 146763

Head -. 17t864

Washer, SpacerMowerVented

Pulley, Mandrel

Nut, FlgoTop Lock Cntr, 9/t6

Anchor, Spdng Deck 45" - - 143651

Screw, Thdrol 3/8-16 x 1.3t4

Tytt

Washer 13/32 x 13/16 x18

Ga.

Pulley, Idler, Rat

Keeper, Belt, Idler

Pulley, Idler, Driven

Spring, Secondary 44/46/50

Vent

Screw 3/8-18 x 1-1/4

Spacer, Relainer

Arm, Idler Secondary

Washer, Hardened

Cover, Mandrel Deck

Screw, Thdroll 1/4-20 x 518

V-Bell, Mower, Secondary

V.Belt, Mower, Prfmary

Nul, Crownlock 3/8-t6 UNC

Boll, Carriage

3/8.,t6 x1-1/2 Gr, 5

WasherFell

Pulley Idler 46" Prim, Ddve

Washer 13/32 x 13/16 x 12 Ga

Bolt Fin Hex 3/8-16 Unc x 1 Gr_5

Bolt Rdhd Sqnk 3/8-16 Unc x 1

Washer 13/32 x 1 x18 Ga

Nut Lock Hex w/Ins 3/8-16 Unc

Cover, Mulchtng

Screw

Washer, Lock #10

Washer

Latch Asm Bagger

Nuh Weld

Boll, Shoulder

Gauge Wheel

NuL Centedock 3/8-16 UNC

Washer 318x 7/8 x t4 Ga.

Arm, Idler, Primary Deck 46"

Pulley, Idler, V,,Groove Dim, 4.25

Mower Service 46" (Slandard

Deck -Order separately mutching

and gUage wheel components

Key Nos 101-106 end t 16_119

Mandrel Asm 44/50 Serv}ce

(Includes Key Nos-8-10, 12-15,

31 and 33)

NOTE: All component dimensions given In U S tnches

1 Inch = 25.4 mm

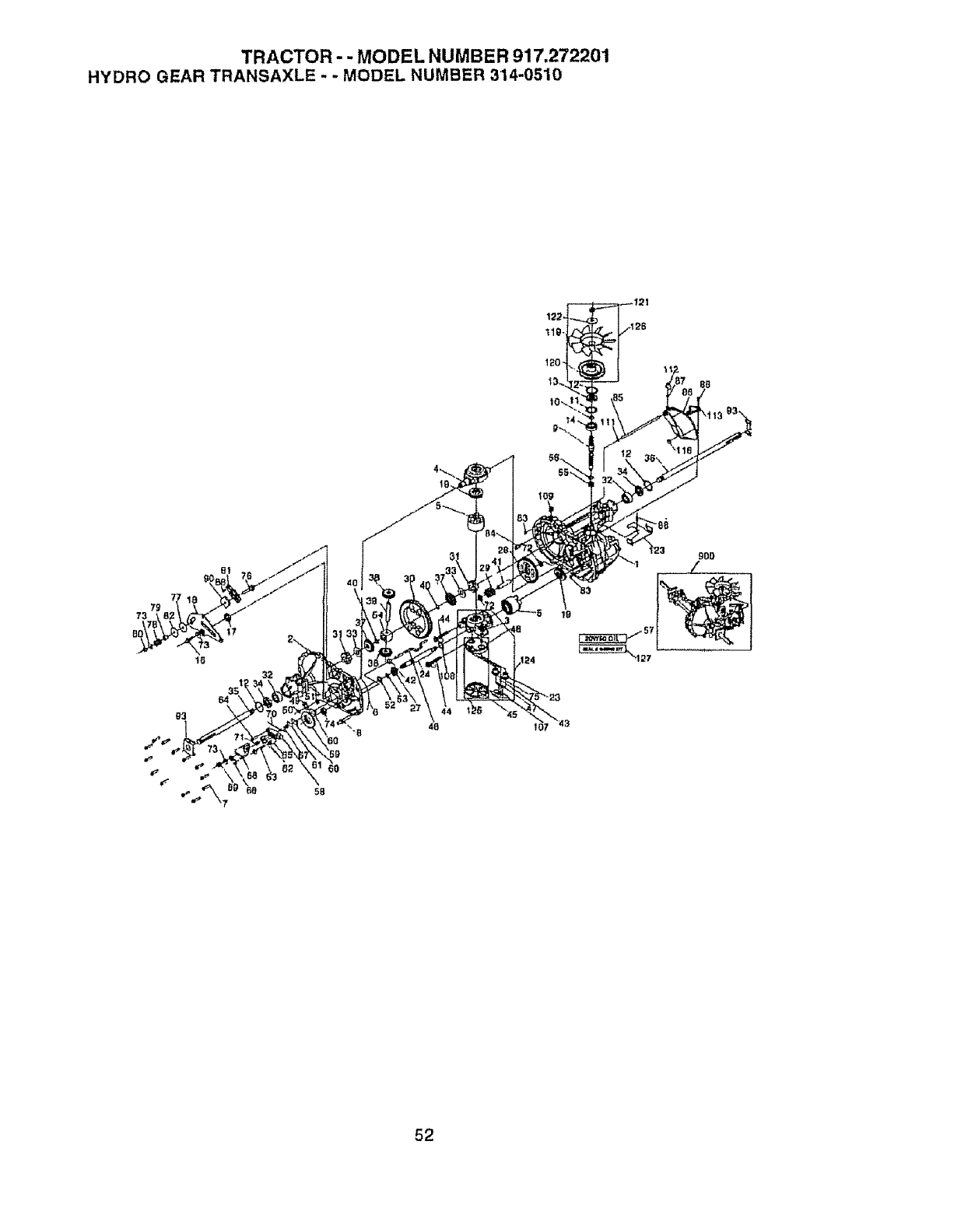

TRACTOR - - MODEL NUMBER 917.272201

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510

TRACTOR -- MODEL NUMBER 917,272201

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 170351 Main Housing, Assembly 59 t70408

2 170352 Side Housing, Assembly 60 142883

3 t 70353 Center Seclton, Assembly 6! 142881

4 170354 Swashplale, Trunion 62 t42887

Machined 63 170410

5 169898 Block - Assembly

6 170355 Sealant 10.50z 64 142892

7 170356 Hex Flange Screw 1/4-20 X 65 170411

1,25 66 170412

8 170357 Stud, 5/16.24 Hex Double 67 170413

End 68 170414

9 170358 Shaft, Input 69 170415

I0 170359 Ring - Retaining 70 170416

11 170360 Spacer 71 170417

12 169870 Ring -Retaining

t3 170361 Seal, Lip .67 XI 58 X .276 72 170418

14 169869 Bal! Brg 17ram Id X 40ram

Od X12rnm 73 142884

16 170362 Hex Flange Head Screw

5/16o24X0.75 74 170419

17 170363 Lip Seal 18 X 32 X 7 75 170420

18 170364 Arm, Control

19 150771 Bearing, 30x52x13 Thrust 76 170421

23 170365 Check Plug Assembly, 77 170422

Washer 78 142969

24 170366 Shaft, Motor 79 142980

27 170367 Gear- Pinion, 13t 80 150778

28 170368 10t/48t Gear

29 170369 Gear, 10t Jackshaft 81 170423

30 170370 60t Bull Gear 82 170424

3t 170371 Sleeve Bearing

.75 X 1.575 X ,625 83 161162

32 170389 SleeveBearlng(Outboa rd) 84 !70425

,75xl ,750Xo625 85 170426

33 142991 Washer, 86 170427

3/4 Id X1-1/20d X _13 Thk 87 170424

34 170390 Lip Sea{ Axle Sea[ 88 170429

35 170391 Shaft, Axle .75 X 11.39

(Key, R.H.) 90 170430

36 170392 Shaft, Axle .75 X1&99 93 170431

(Key, L.H) 107 170432

37 150792 Miter Gear (Splined) 108 170433

38 150793 Miter Gear 15t (045 td)

39 150809 Shalt t09 170434

40 170393 Ring, Spiral Relaining 111 170435

41 170394 Pin, Jackshaft 112 170436

42 170395 MaQnet, Ring 113 170437

43 170396 Spring, Bypass

44 150797 Hydro Mtg Screw 116 170438

3/8-24 X 2.5 Long 119 170439

45 170397 Filter 120 170440

46 170398 Base, Filter 121 170441

47 170999 Actuator, Bypass

46 170400 Rod, Bypass Actuator 122 170442

49 170401 Arm, Bypass 123 170443

50 170202 Relaining Ring 250 124 170444

External

51 170403 Seal, Lip 125 170445

,741 X .250 X .250 Tc 126 170446

52 170404 Flat Washer,

5/8 Id X t,00d X .05 Thk 127 170447

53 170405 Retaining Ring t28 173t65

54 170406 Bearing, Center Block 900 166768

55 142977 Spring -Heficat Compres

ston

56 142978 Washer

57 150798 20w-50 Oil

58 170407 Brake Yoke 53

DESCRIPTION

Rotor, Brake

Brake Puck

Puck Plate

Brake Actualing Pin

Hfhcs 1/4-20x2 W/

Patch,SpectalFlange

Bolt, 1/4-20 X I W/Patch

Spacer

Spring, Brake Arm Bias

Sq. Hd, Bolt 5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut 5/16-24

Cotter Pin 3/32 X 3/4

Compression Spring Brake

Anti-Drag

Washer, Ht

.5 I.D. X t O.DoX .032

Flat - Washer

11/32 LD. X 7/80,D

Oil Seal .625 X 10 X °25

Check Plug Assembly,

.027, Was_er

Stud, 5/16.24 Fdction Pack

Puck, .330 X 1.50 X .0975

Spring, Helical Comp

Spacer

Hex Lock Nut

5/16.24Unjf(Nylon Insert)

Wedge, FrictionPack

Clip,Washer

.316xl ,50x, 1046 (Plated)

Pin, Standard Headtess

Fitting,5/16 Sae 5/32 Tube

Hose, ExpansionTank

Expansion Tank

Cap - Poppet Valve

Bolt, Self Tapping

10-32 X1/2

Puck, Inner Wedge

Spring Clip _ Housing Thrust

Deflector

Washer, Motor Shaft

.71idx1.15odx.030thk

Plug, See #6

O-Ring ,07 X .301 I.D_

Shield, Vent

Bracket, Support Expan

slon Tank

StUcon Sponge

Fan, 7In,

Pulley

Hex Lock Nut 1/2-20 (Nylon

Insert)

Washer, Belteville

Belt Keeper

Center Section-Filter-

Bypass Assembly

Filter Assembly

Fan -Pulley Service

Assembly

Seal. O-Ring Kit

Kit, Expansion Tank

Transaxle Complete

NOTE: Allcomponent dimensions given in U.S. inches

1inch = 25,4 mm

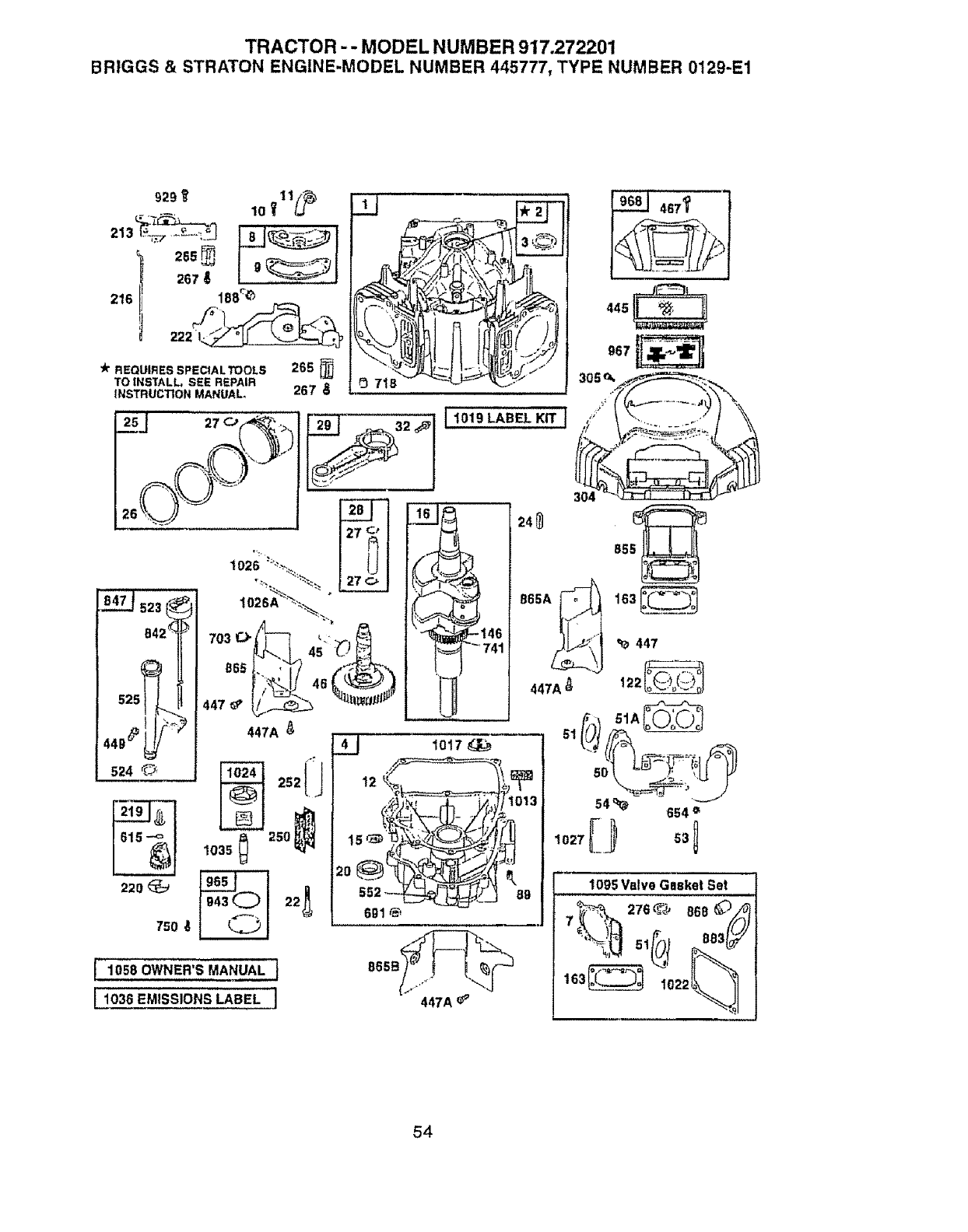

TRACTOR -- MODEL NUMBER 917.272201

BRIGGS & STRATON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0129-E1

929

216

'Jr REQUIRES SPECIALTOOLS

TO iNSTALL, SEE REPAIR

INSTRUCTION MANUAL.

267 6

265

267

• j., y

7S0

1035 _ 250

_32_J I 1019 LABEL KIT I

1058 OWNER'S MANUAL ]

[ 1036 EMISSIONS LABEL ]

304

4j 1017

691 _,

865B_

_'z..... "-'_-_

447A ¢_

445

967

447

447A _'

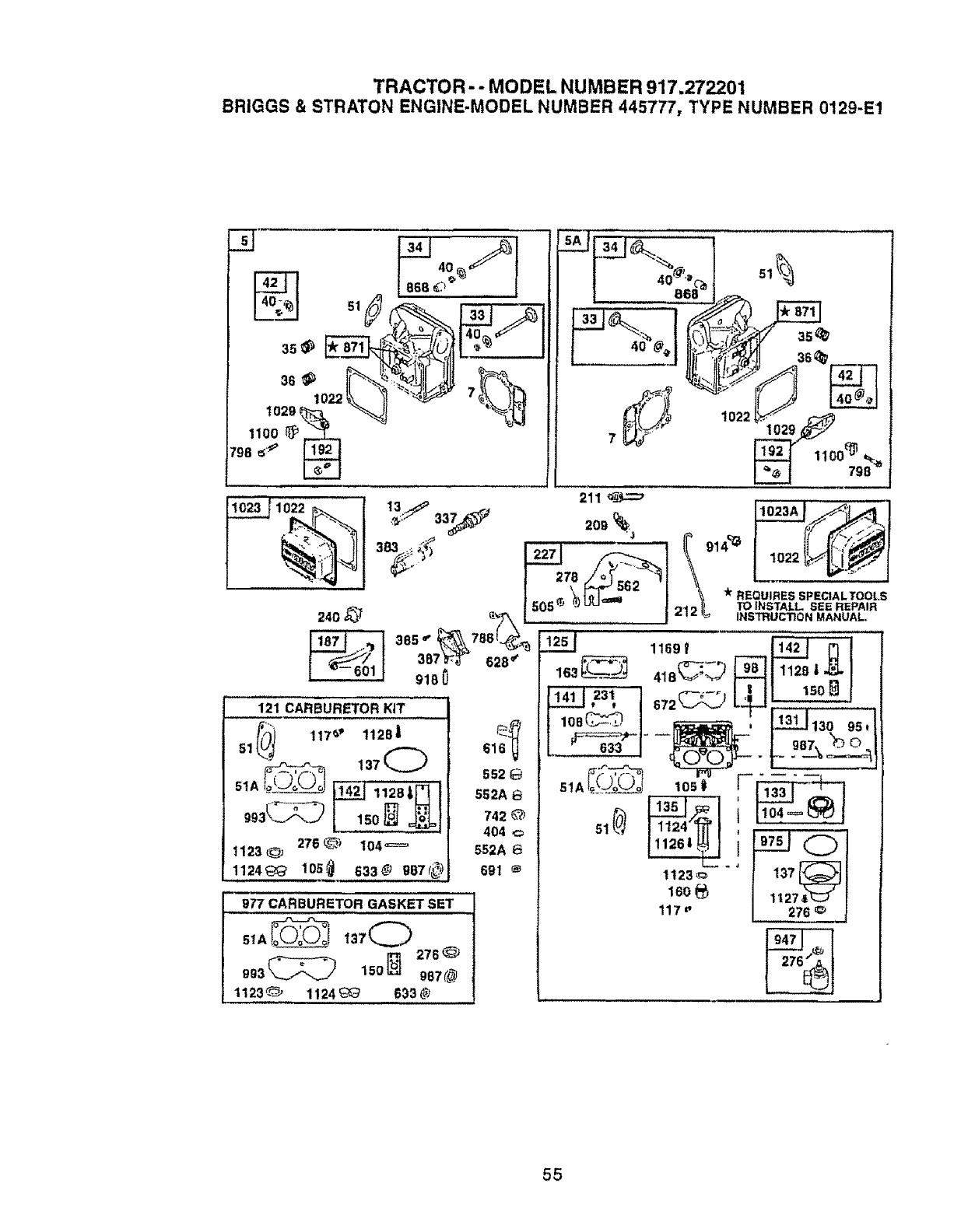

TRACTOR'" MODEL NUMBER 917.272201

BRIGGS & STRATON ENGINE.MODEL NUMBER 445777, TYPE NUMBER 0129-E1

TRACTOR - -MODEL NUMBER 917.272201

BRIGGS & STRATON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0129-E1

74t'

358 GASKET SET

2o@

51A

691

943 (_

177

t081

163_

276

868

883_

102_

578

63s_

405

69_

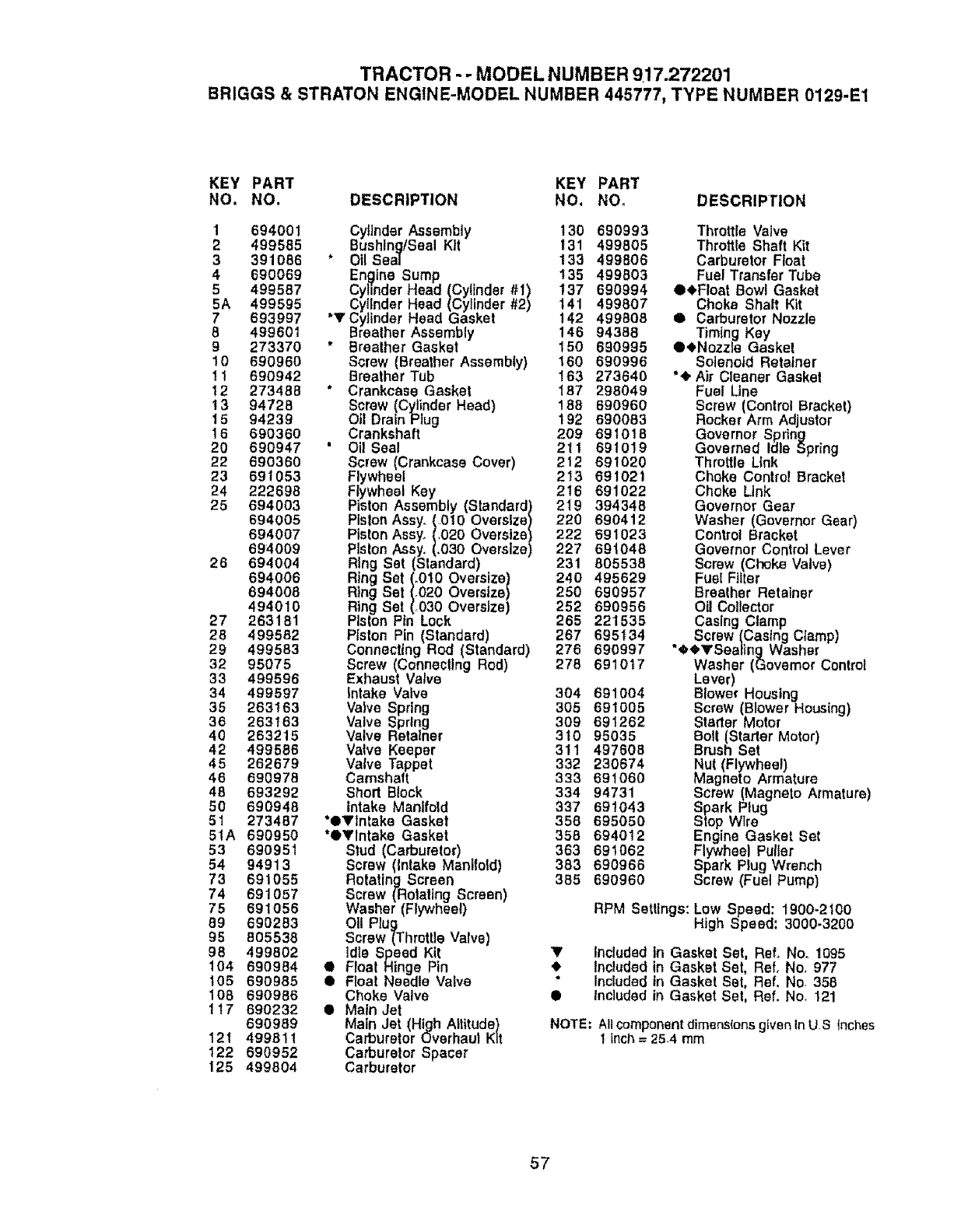

TRACTOR -- MODEL NUMBER 917.272201

BRIGGS & STRATON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0129-E1

KEY PART KEY PART

NO, NO. DESCRIPTION NO, NO, DESCRIPTION

1694001 Cylinder A.ssembly t 30 690993 Throttle Valve

2 499585 Bushing/Seal Kit 131 499805 Throttle Shaft Kit

3 391086 * Oil Seal 133 499806 Carburetor Float

4 690069 Engine Sump 135 499803 Fuel Transfer Tube

5 499587 Cylinder Head (Cylinder #t) 137 690994 Q4,Float Bowl Gasket

5A 499595 Cylinder Head (Cylinder #2) 141 499807 Choke Shaft Kit

7 693997 *YCylinder Head Gasket 142 499808 Q Carburetor Nozzle

8 499601 • Breather Assembly 146 94388 Timing Key

9 273370 Breather Gasket 150 690995 Q,I,Nozzle Gasket

10 690960 Screw (Breather Assembly) 160 690996 Solenoid Retainer

t1690942 Breather Tub 163 273640 *,1,Air Cleaner Gasket

!2 273488 *Crankcase Gasket 187 298049 Fuel Line

13 94728 Screw (Cylinder Head) 188 690960 Screw (ControlBracket)

t5 94239 Oit Drain Plug 192 690083 Rocker Arm Adjustor

16 690360 Crankshaft 209 691018 Governor Spring

20 690947 'Oil Seal 2'tl 691019 uoverned Idle Spring

22 690360 Screw (Crankcase Cover) 212 691020 Throttle Link

23 691053 Flywheel 213 691021 Choke Control Bracket

24 222698 Flywheel Key 216 691022 Choke Link

25 694003 Piston Assembly (Standard) 219 394348 Governor Gear

694005 PlslonAssy. (010 Oversize) 220 690412 Washer (Governor Gear)

694007 Piston Assyo (,020 Oversize) 222 691023 Control Bracket

694009 Plslon Assy. (.030 Oversize) 227 691048 Governor Centre] Lever

26 694004 Rtng Set (Slandard) 231 805538 Screw (Choke Valve)

694006 Ring Set (.010 Oversize) 240 495629 Fuel Filter

694008 Ring Set (.020 Oversize) 250 690957 Breather Retainer

494010 Ring Set (,030 Oversize) 252 690956 Oil Collector

27 263181 Piston P+n Lock 265 221535 Casing Clamp

28 499582 Plslon Pin (Standard) 267 695134 Screw (Casing Cfamp)

29 499583 Connecting Rod (Standard) 276 690997 "e_VSealingWasher

32 95075 Screw (Connecting Rod) 278 691017 Washer (Governor Control

33 499596 Exhaust Valve Lever)

34 499597 Intake Valve 304 691004 Blower Housing

35 263163 Valve Spring 306 691005 Screw (Blower Housing)

36 263183 Valve Spring 309 691262 Starter Motor

40 263215 Valve Retainer 310 95035 Bolt (Starler Motor)

42 499586 Valve Keeper 311 497608 Brush Set

45 262679 Valve Tappet 332 230674 Nut (Flywhee!)

46 690978 Camshaft 333 691060 Magneto Armature

48 693292 Short Block 334 94731 Screw (Magneto Armature)

50 690948 Intake Manifold 337 691043 Spark Plug

51 273487 *OVlntake Gasket 356 695050 Slop Wire

51A 690950 *O'Itlntake Gasket 358 694012 Engine Gasket Set

53 690951 Stud (Carburelor) 363 691062 Flywheel Puller

54 94913 Screw (intake Manifold) 383 690966 Spark Plug Wrench

73 691055 Rotating Screen 385 690960 Screw (Fuel Pump)

74 691057 Screw (Rotating Screen)

75 691056 Washer (Flywheel) RPM Settings: Low Speed: 1900-2100

89 690283 OU Plug High Speed', 3000-3200

95 805538 Screw (Throttle Valve)

98 499802 Idle Speed Kit T Included In Gasket Set, Ref+ No. t095

104 690984 tt Float Hinge Pin _1, Included in Gasket Sel, RefoNo. 977

105 690985 It Float Needle Valve " Includedin Gasket Sel, Ref. No+ 358

108 690986 Choke Valve !1 Included in Gasket Set, Ref+No+ 121

1t7 690232 41 Main Jet

690989 Maln Jet (High Altitude) NOTE: Allcomponentdirnenstonsgiven inU.S inches

!2I 49961 t Carburetor Overhaul Kff 1inch = 25.4 mm

122 690952 Carburetor Spacer

125 499804 Carburetor

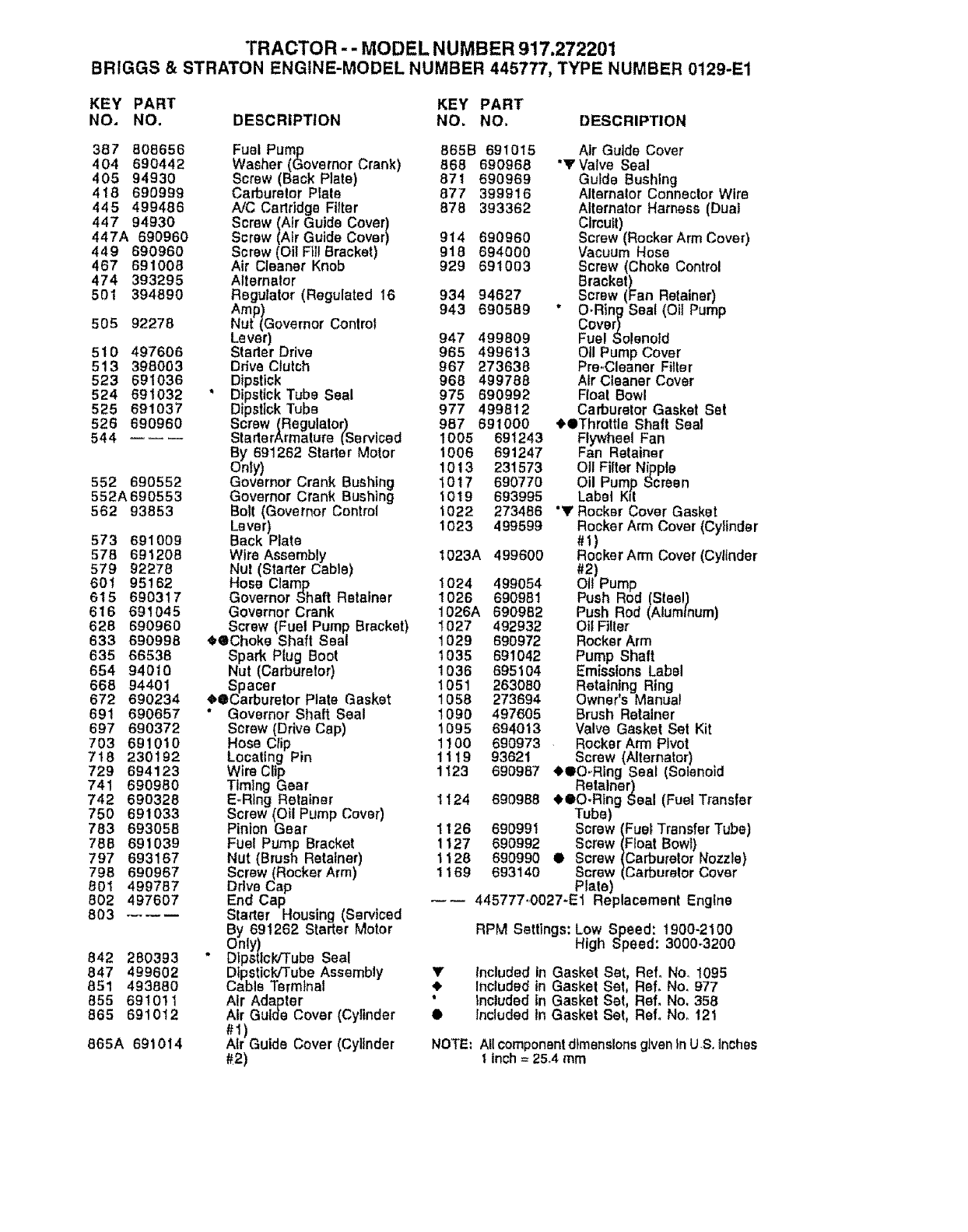

TRACTOR - - MODEL NUMBER 917.272201

BRIGGS & STRATON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0129-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

387 808656 Fuel Pump 865B 691015 Air Guide Cover

404 690442 Washer (Governor Crank) 868 690968 *VValve Seal

405 94930 Screw (Back Plate) 871 690969 Guide Bushtng

418 690999 Carburetor Plate 877 399916 Alternator Connector Wire

445 499486 NC Cartridge Filter 878 393362 Alternator Harness (Dua!

447 94930 Screw (Air Guide Cover) Circuit)

447A 690960 Screw (Air Guide Cover) 914 690960 Screw (Rocker Arm Cover)

449 690960 Screw (Oil Ftl! Bracket) 918 694000 Vacuum Hose

467 691006 Air Cleaner Knob 929 691003 Screw (Choke Control

474 393295 Alternator Bracket)

501 394890 Regutator (Regulated 16 934 94627 Screw (Fan Retainer)

Amp) 943 690589 * O..Ring Seal (Oil Pump

505 92278 Nut (Governor Control Cover)

Lever) 947 499809 Fue! Solenoid

510 497606 Starter Drive 965 499613 Oil Pump Cover

513 398003 Drive Clutch 967 273638 Pre,,CleanerFilter

523 691036 Dipstick 968 499788 Air Cleaner Cover

524 691032 "DipstickTube Seal 975 690992 Float Bowl

525 691037 Dipstick Tube 977 499812 Carburetor Gasket Set

526 890960 Screw (Regulalor) 967 691000 ,l_eThrottle Shaft Seal

544 StarterArmature (Serviced 1005 691243 Flywheel Fan

Fan Retainer

By 691262 Starter Motor 1006 691247

Only) 1013 231573 Oil Filter Nipple

552 690552 Governor Crank Bushing 1017 690770 Oil Pump. Screen

552A690553 Governor Crank Bushing 10t9 693995 Label Kit

562 93853 Bolt (Governor Control 1022 273486 "Y Rocker Cover Gasket

Lever) 1023 499599 RockerArm Cover (Cylinder

573 691009 Back Plate #1)

578 691208 Wire Assembly 1023A 499600 Rocker Arm Cover (Cyltnder

579 92276 Nut (Starter Cable) #2)

601 95162 Hose Clamp 1024 499054 OI! Pump

618 690317 Governor Shaft Retainer 1026 690961 Push Rod (Steel)

616 691045 Governor Crank 1026A 690962 Push Rod (Aluminum)

628 690960 Screw (Fue! Pump Bracket) 1027 492932 OilFilter

633 890996 eOChoke Shaft Seal 1029 690972 Rocker Arm

635 66536 Spark Plug Boot t035 691042 Pump Shaft

654 94010 Nut (Carburetor) 1036 695104 Emissions Label

668 94401 Spacer 1051 2630B0 Retaining Ring

672 690234 _6Carburetor Plate Gasket 1058 273694 Owner's Manua!

691 690657 " Governor Shaft Seal 1090 497605 Brush Retainer

697 690372 Screw (Drive Cap) 1095 694013 Valve Gasket Set Kit

703 691010 Hose Clip 1!00 690973 RockerArm Pivot

718 230192 Locating Pin 1119 93621 Screw (Alternator)

729 694123 Wire Clip 1123 690987 _tO-Rlng Seal (Solenoid

741 690960 Tlmlng Gear Retainer)

742 690328 ErRing Retainer 1124 690988 _t,eO-Rtng Seal (Fuel Transfer

750 691033 Screw (Oil Pump Cover) Tube)

783 693056 Pinion Gear 1126 690991 Screw (Fuel Transfer Tube)

788 891039 Fuel Pump Bracket 1127 690992 Screw (Float Bowl)

797 693167 Nut (Brush Retainer) 1128 690990 •Screw (Carburetor Nozzle)

798 690967 Screw (Rocker Arm) 1169 693140 Screw (Carburetor Cover

601 499787 Drive Cap Plate)

602 497607 End Cap ---- 445777.,0027-E1 Replacement Engine

803 Starter Housing (Serviced

By 691262 Starter Motor RPM Settings: Low Speed: t900-2100

Only) High Speed: 3000-3200

842 260393 " DlpstlckiTube Seal

847 499602 Dipstick/Tube Assembly V Included in Gasket Set, Ref. No. 1095

851 493880 Cable Terminal • Included in Gasket Set, Ref. No. 977

855 691011 Air Adapter 'Included In Gasket Set, Ref_ No, 358

865 691012 Air Guide Cover (Cylinder • Included In Gasket Set, Ref. No,. 121

#1)

865A 691014 Air Guide Cover (Cylinder NOTE=Allcomponentdimensionsgiven tnU.S. inches

#2) 1inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15°MAX.

__ /=_ Operate your Tractor up and down the face of slopes (not j

I| _ greater than 15"), never across the face, Make turns gradu- !

_ally to prevent tipping or loss of control. Exercise extreme j

_I c_.,io..,ho,cho.gi.9_ir_,io,,o._,o_,s. I

1-800-4-MY-HOM E _Anytime, clay or nlghl

(1-800-469.,4663)

! _!i_ www.sears.com

i_i",_'i To bring in products such as vacuums,

'_'_ lawn equipment and electronics for repair, call for

,_,_ the focation of your nearest Sears Parts & Repair Center.

:_;_ 1-800-488-1222 _n_l=,_,dayor nigh{

i! ::

!:'!:!_T! www.seare.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectSM{

1-800-366-PART 6_,m,-_ _mcaT,

(1-800-366-7278) 7daysa week

www.sears.¢omJpertsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7a,m.- 5pm, CST, Mon_ - Sat.

Pare padtr servfcio de reparaotdn a domicilto,

ypare ordenar piezas con entrega a domici{to:

1-888-SU,.HOGAR _"

(1.888-784-6427)

Au CanBda pour service en frangais:

1"877"LE-FOYER '_

(1.877-533..6937)

'HomeCentral ;;_j

t _ IU"N_I

® Registered Trademark f-r,uTrademark ol Sears, Roebuck snd Co,

® Marca Reglstrada t_'u Maria de F.'ibric_,de Seers, Roebuck end Co.

LL,'!

_,_

174189 Rev. 1 2.t6.00 MH Printedin UoS.A.

Craftsman 917272201 User Manual LAWN TRACTOR Manuals And Guides L0709257

CRAFTSMAN Lawn, Tractor Manual L0709257 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
