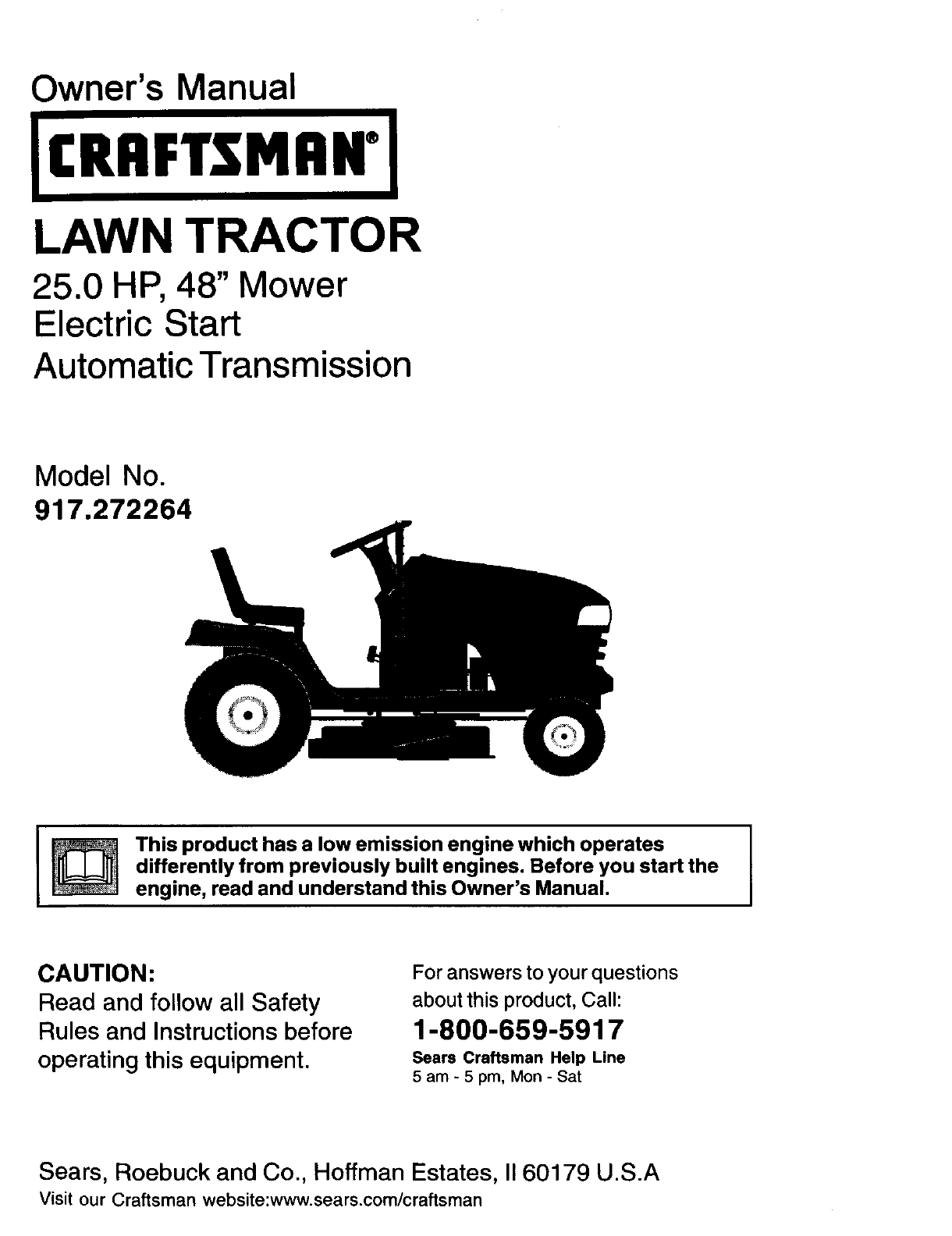

Owner's Manual

ICRRFTSMRN'I

LAWN TRACTOR

25.0 HP, 48" Mower

Electric Start

Automatic Transmission

Model No.

917.272264

1_ This product has a low emission engine which operates I

differently from previously built engines. Before you start the I

engine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

Warran T ............................................... 2

Safety Nules ......................................... 3

Product Specifications .......................... 6

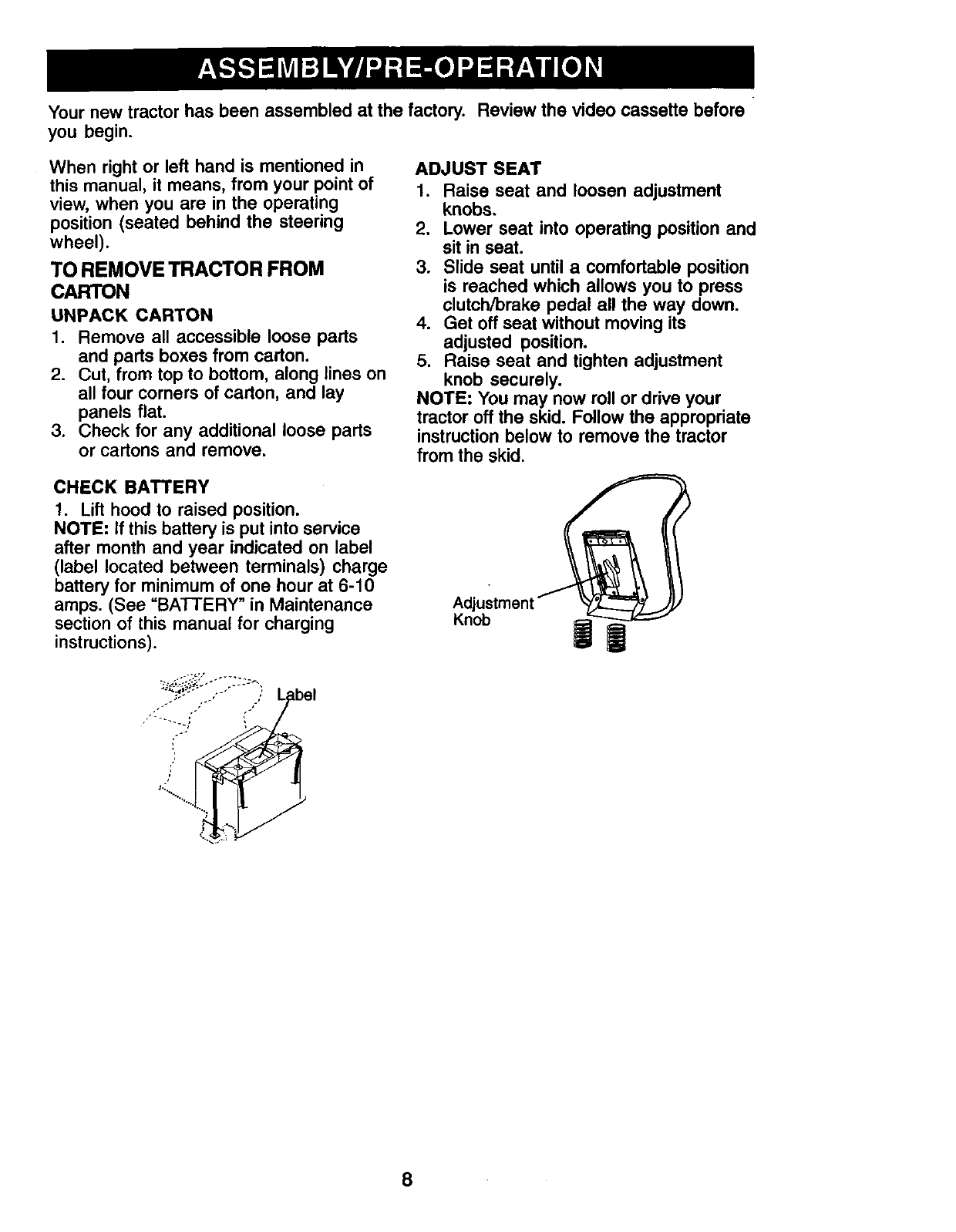

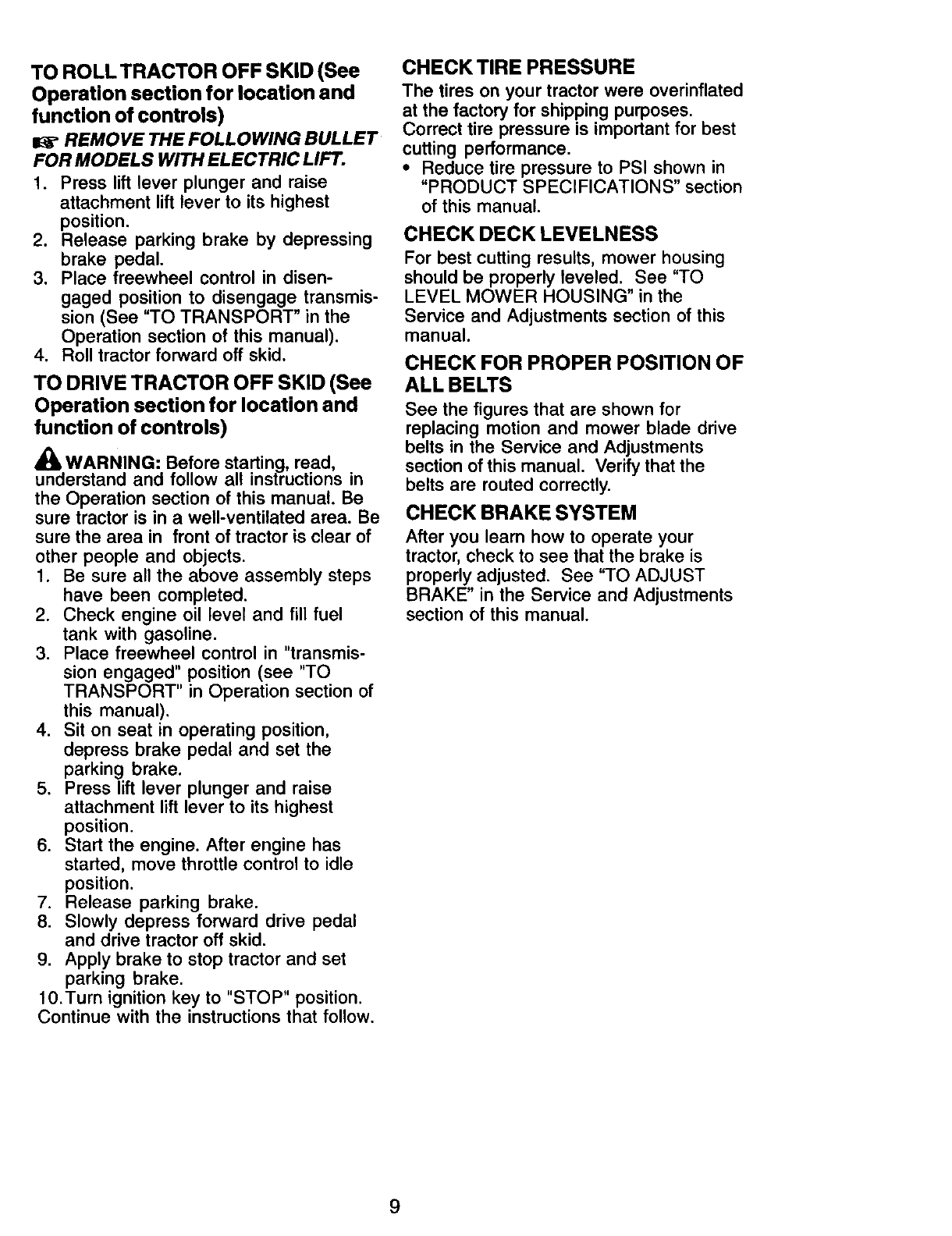

AssemblyPre-Operation ....................... 8

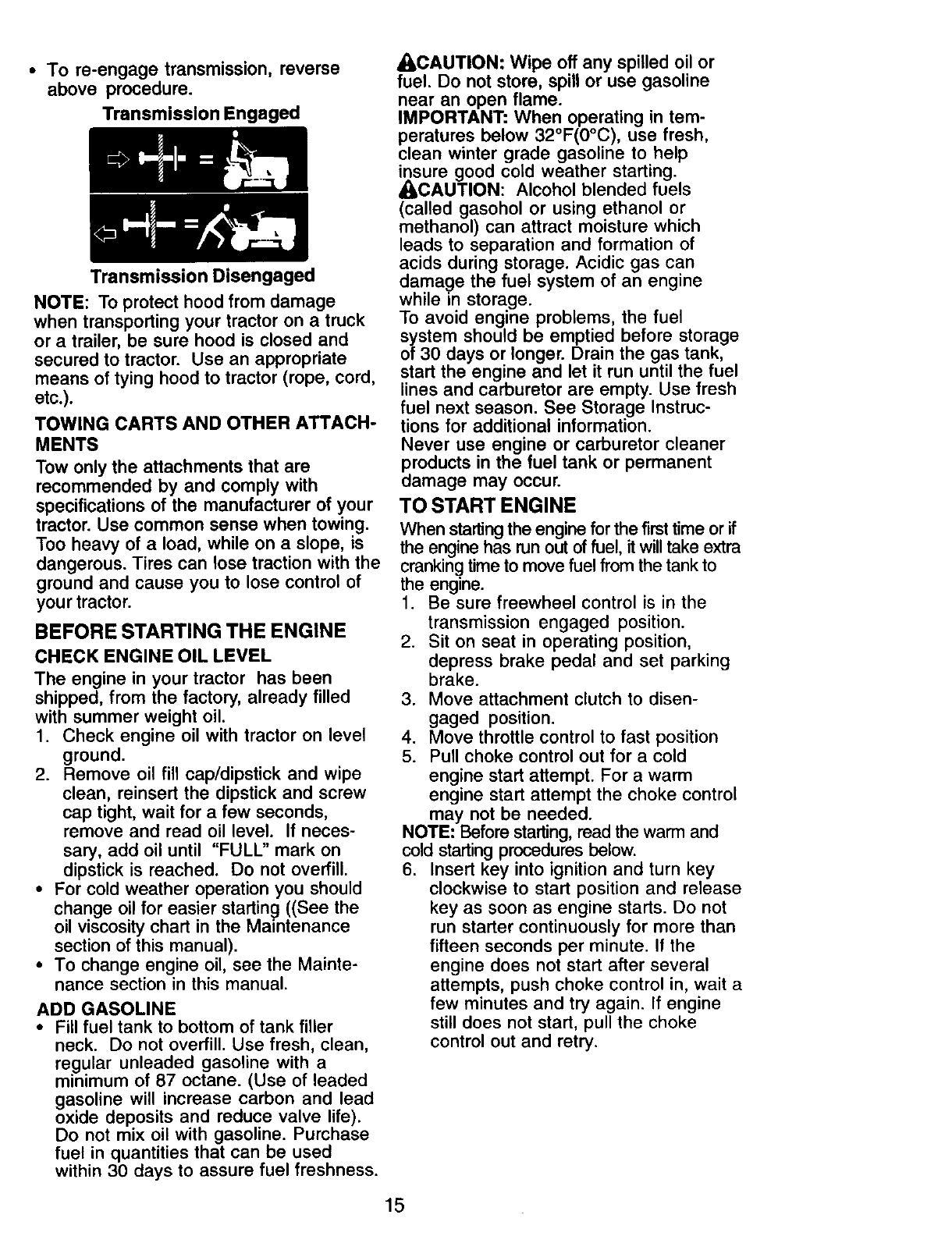

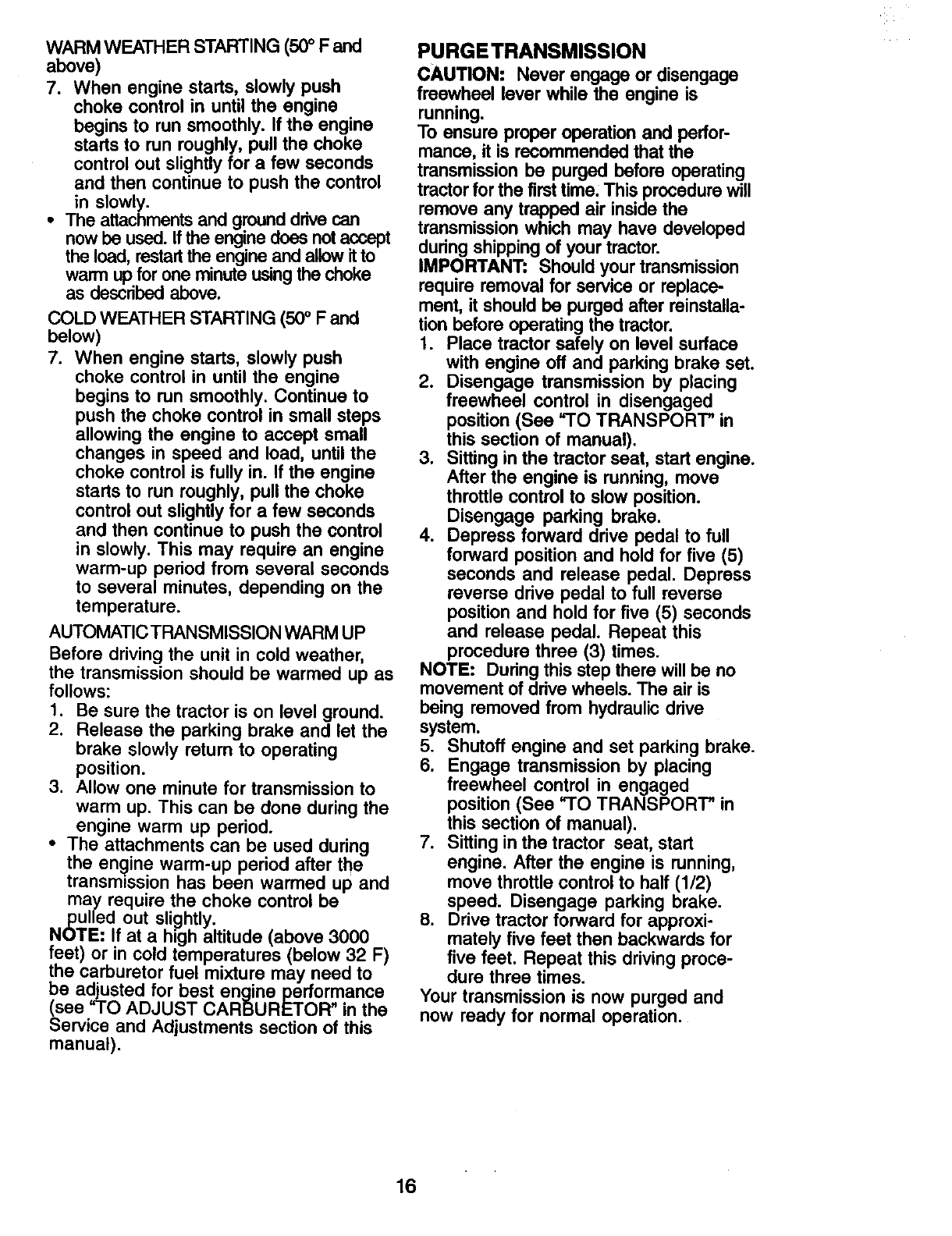

Operation ............................................ 11

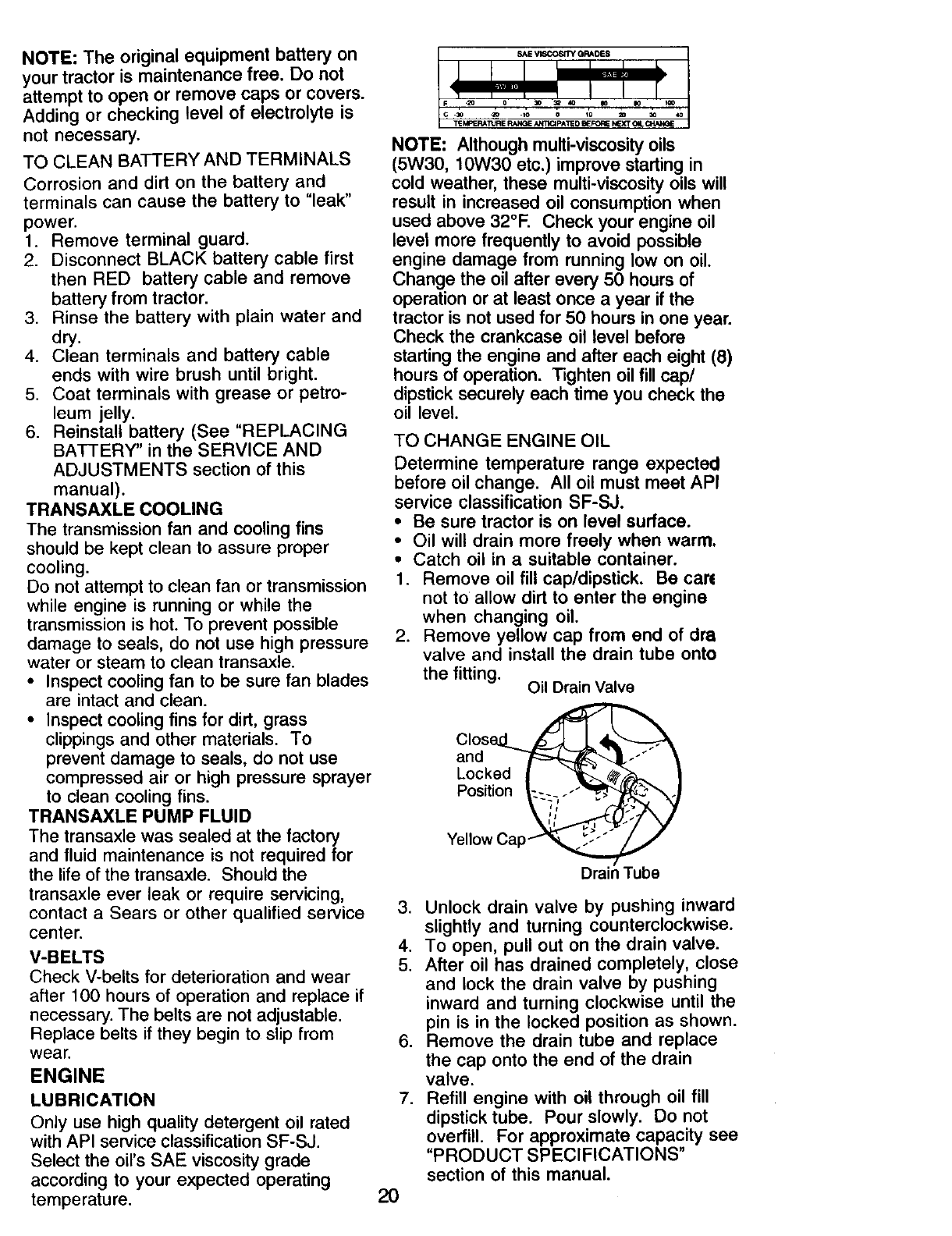

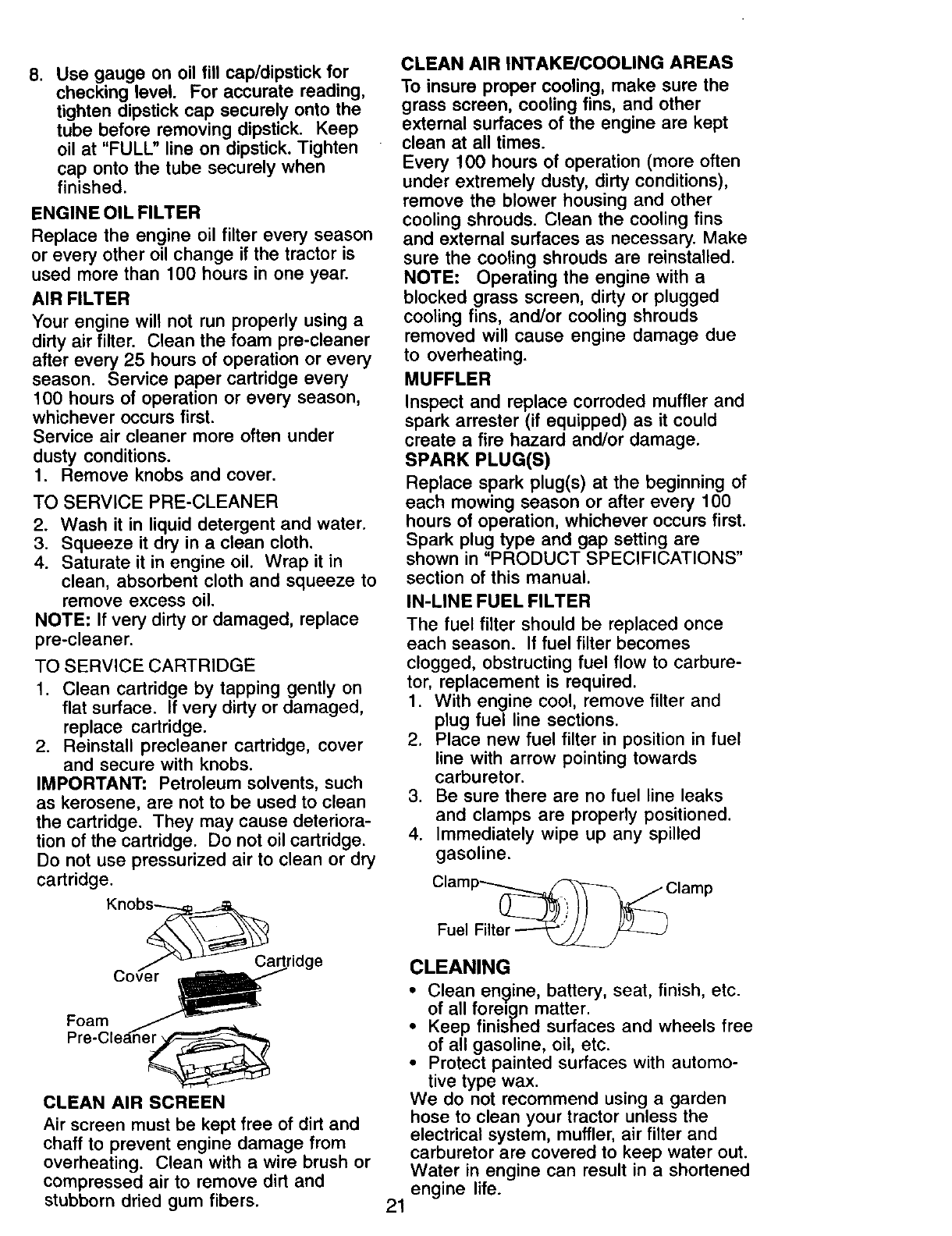

Maintenance ....................................... 18

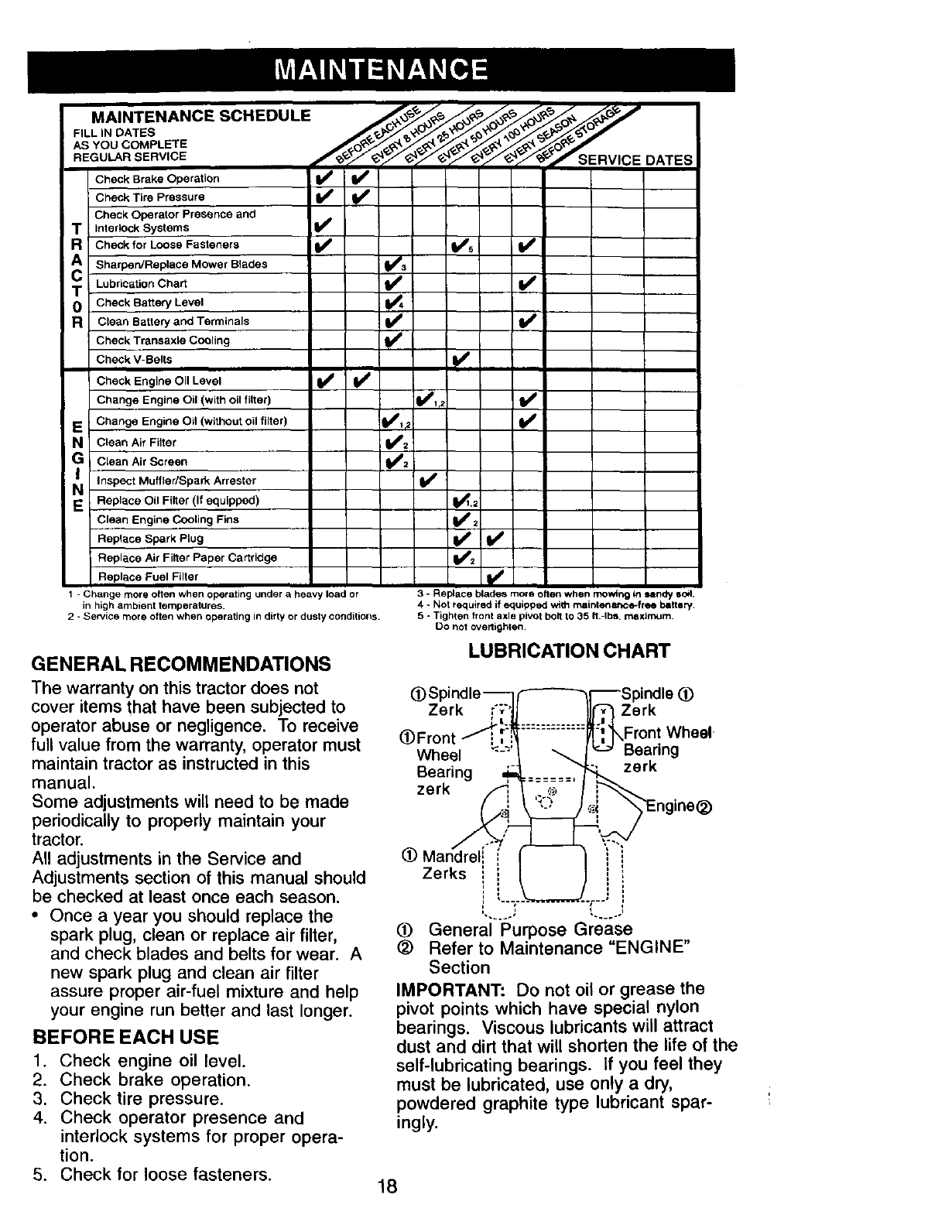

Maintenance Schedule ...................... 18

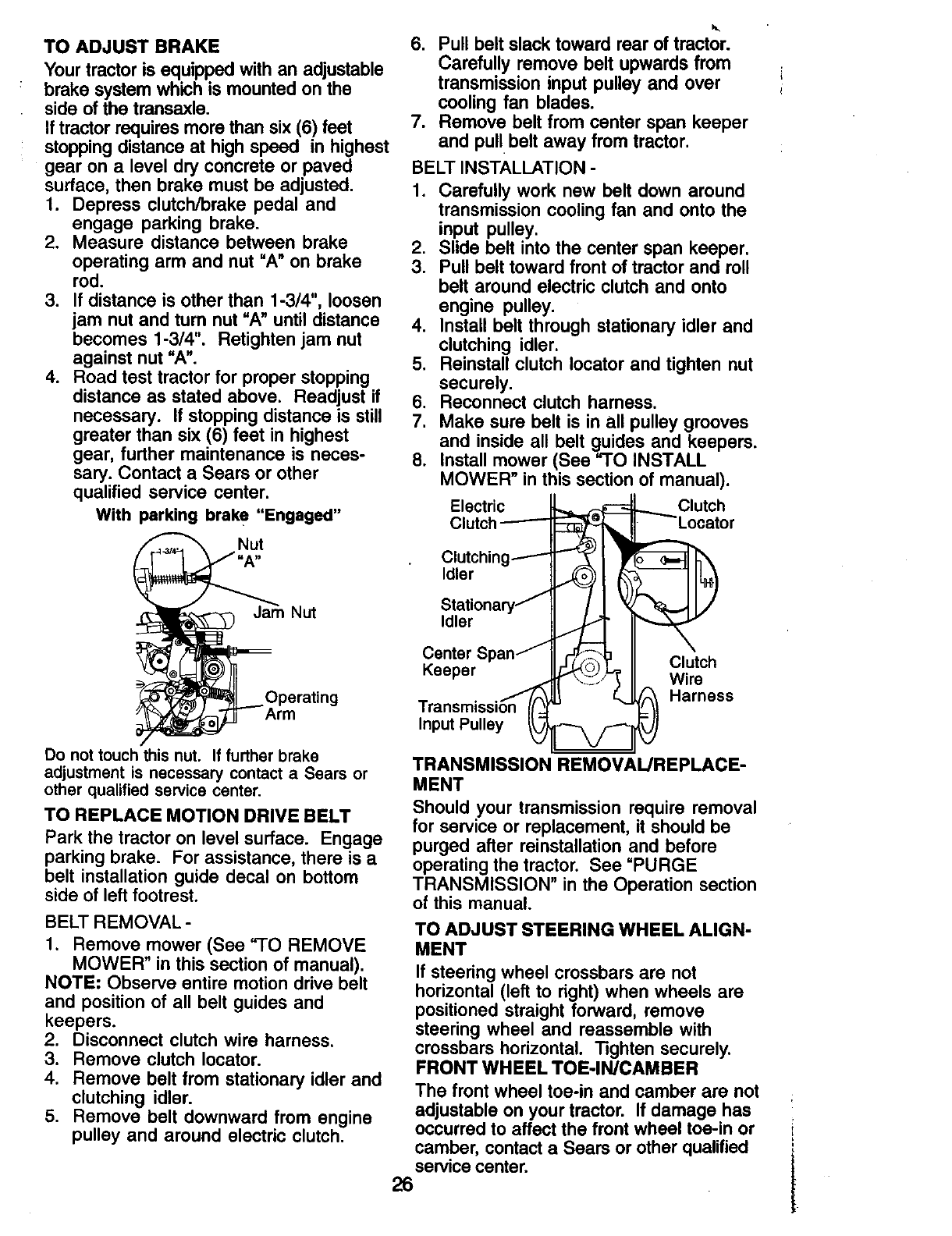

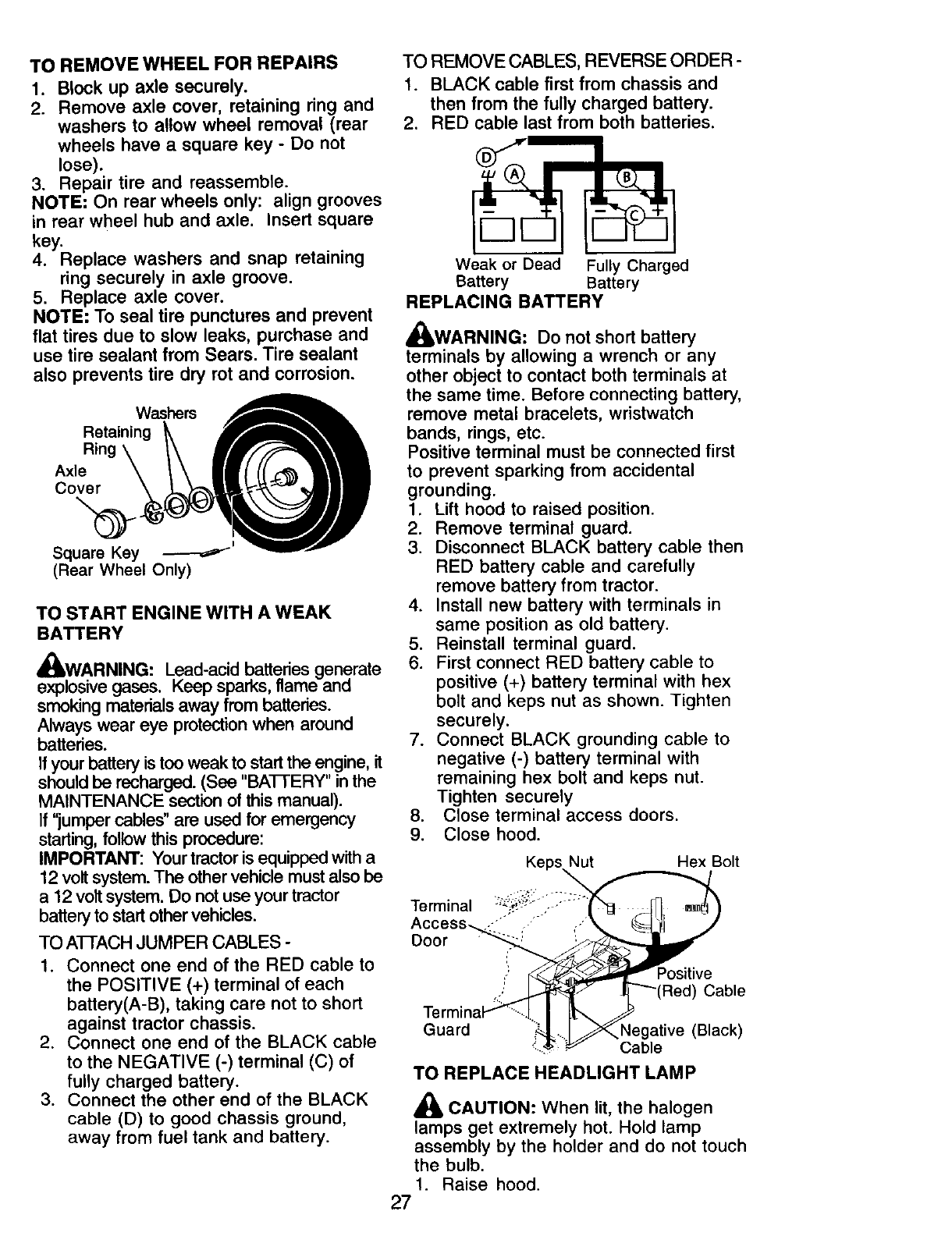

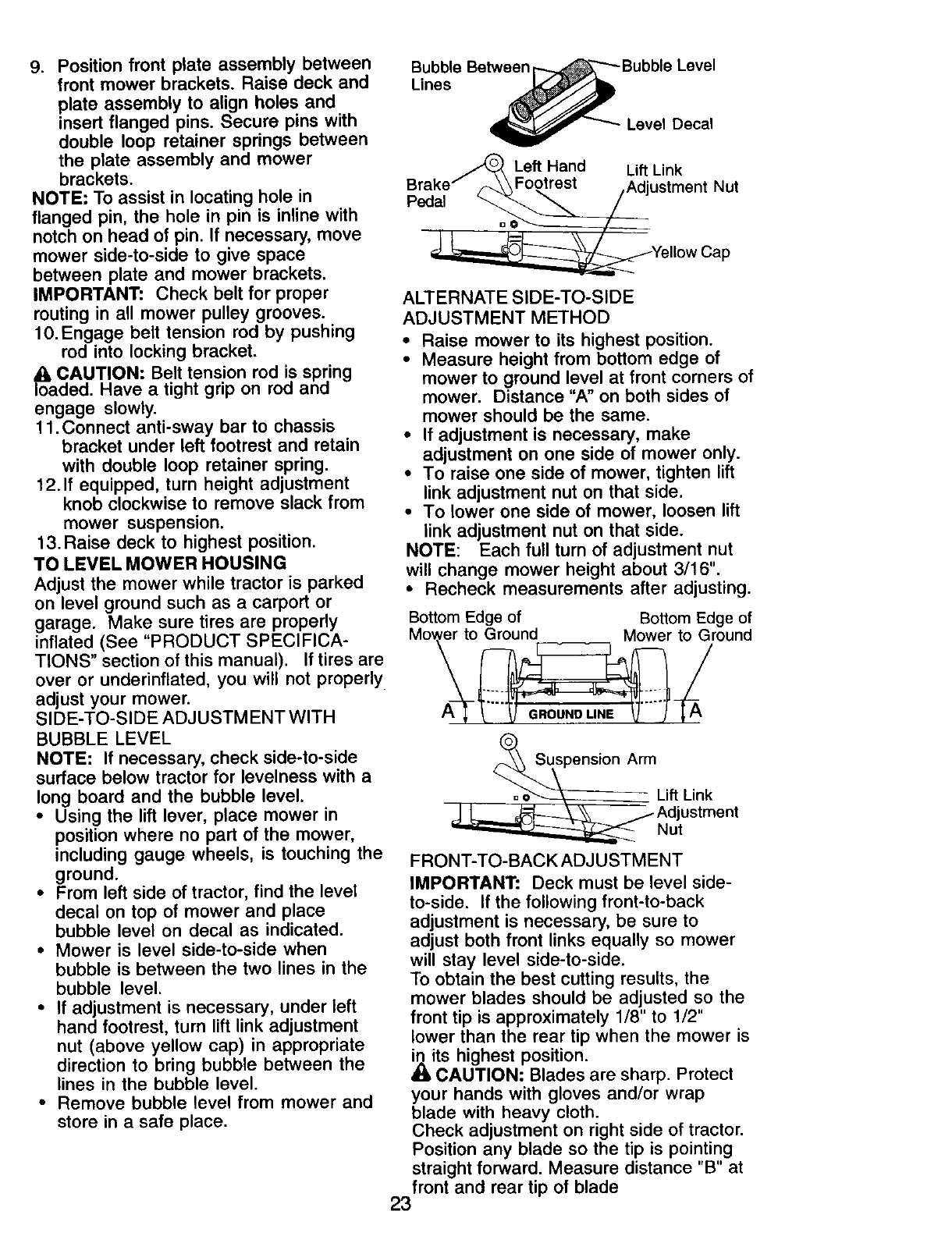

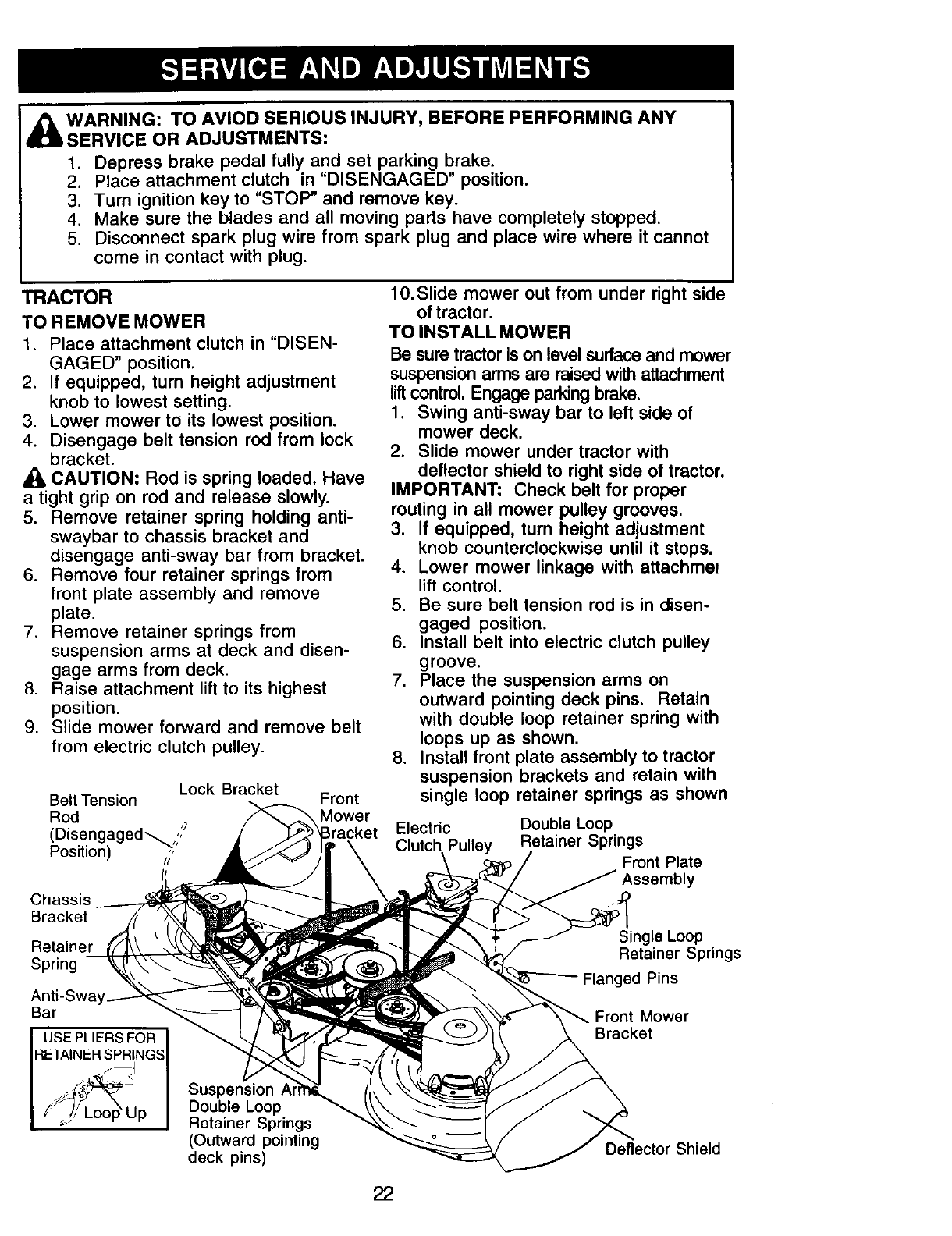

Service and Adjustments .................... 22

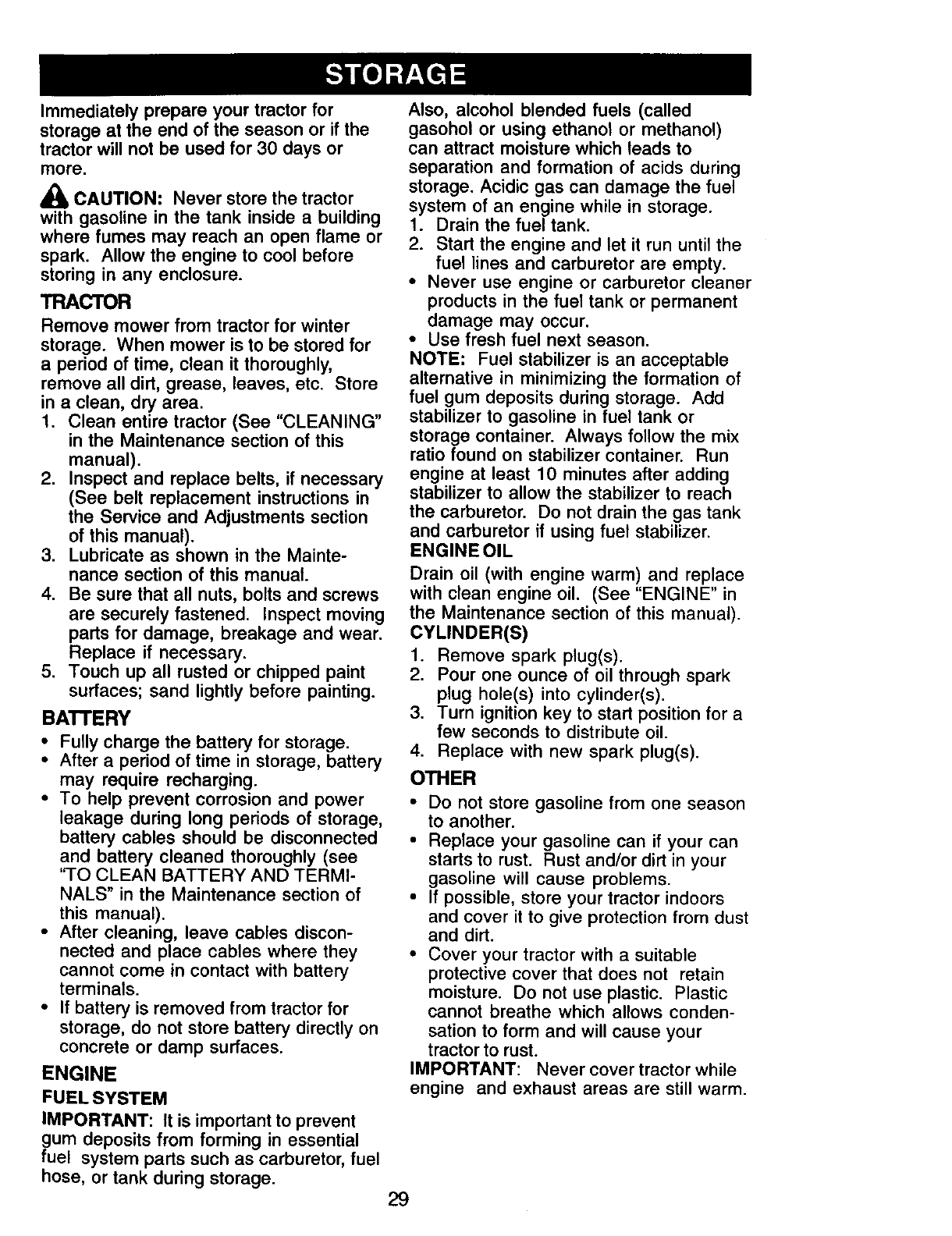

Storage ............................................... 29

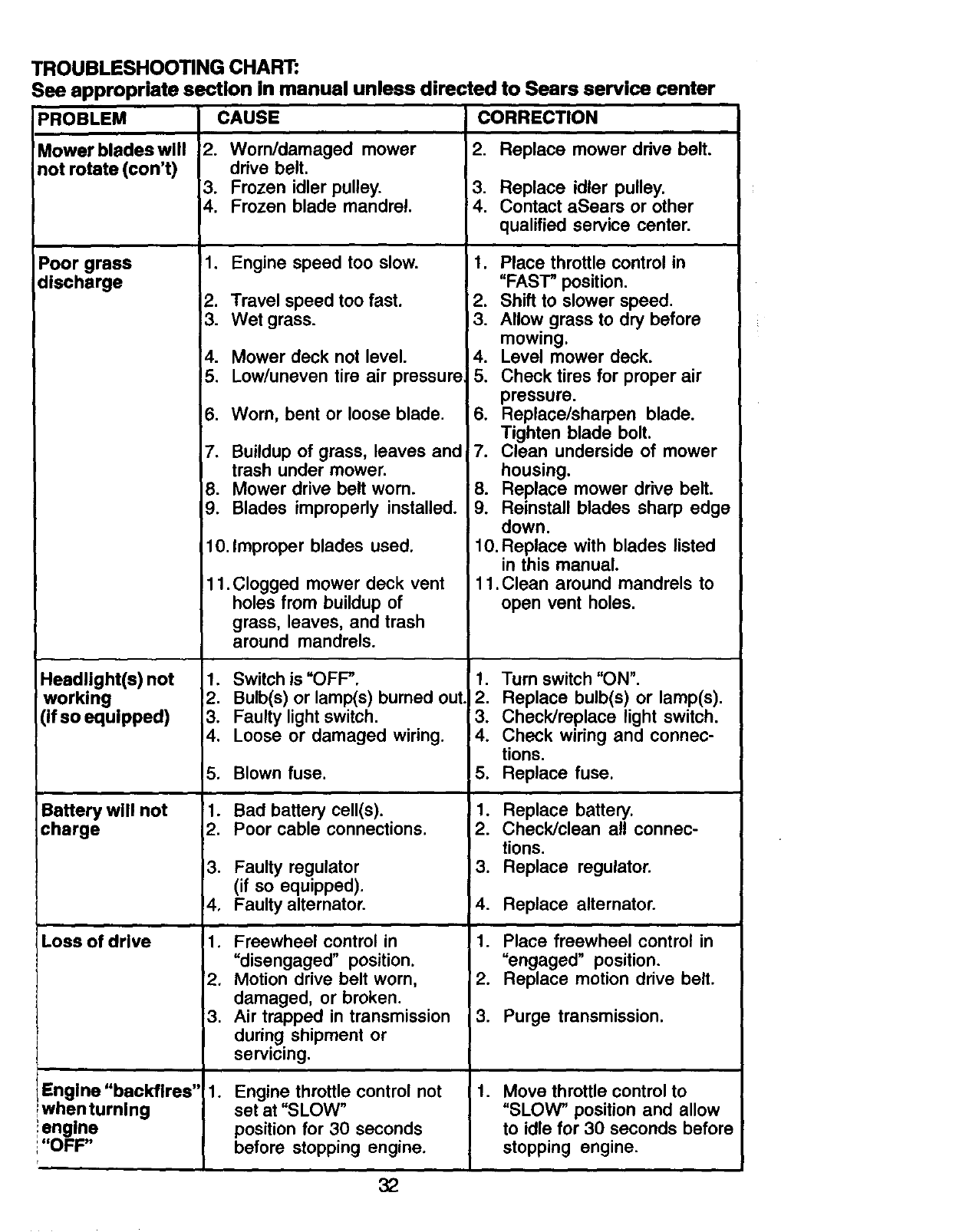

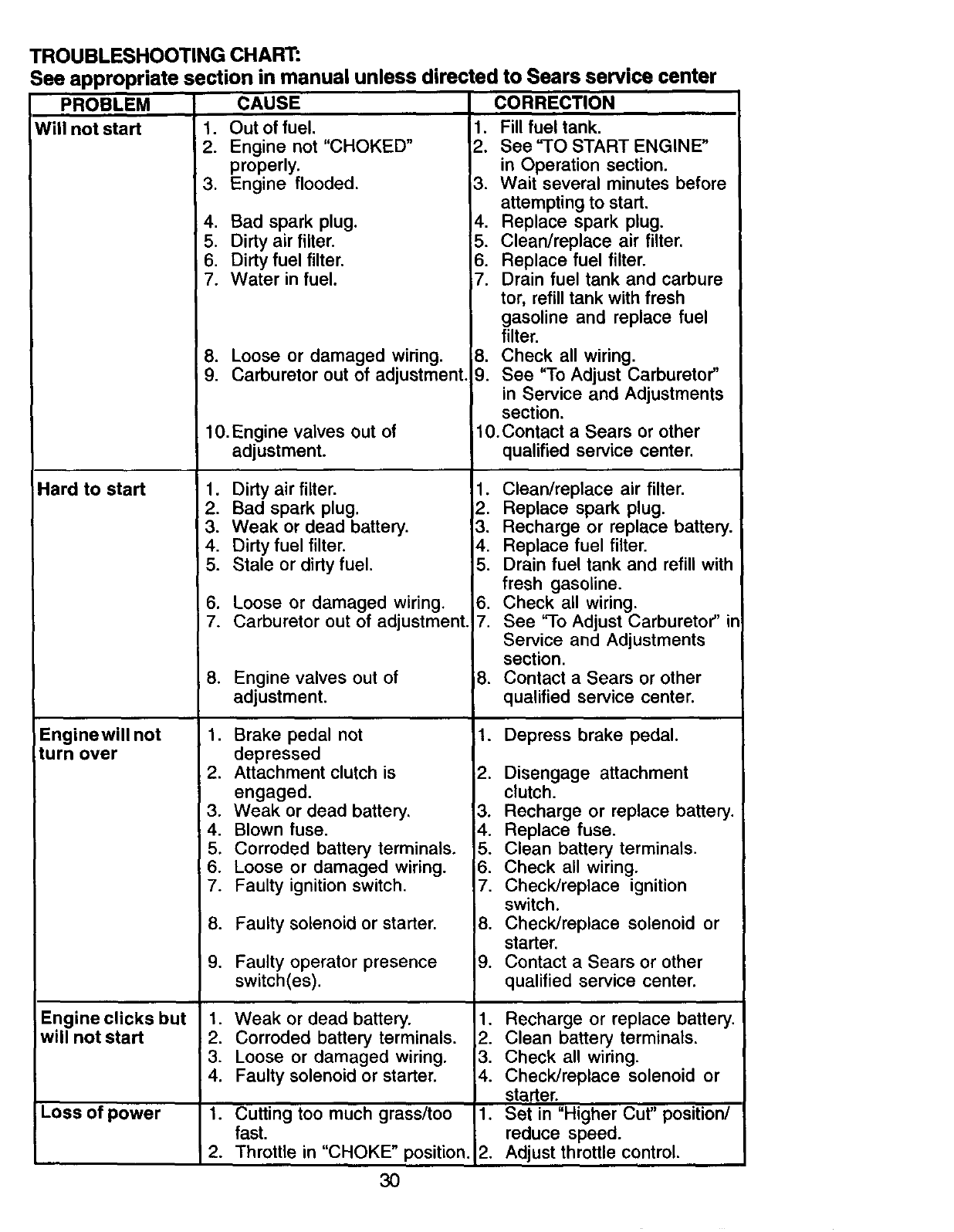

Troubleshooting ................................. 30

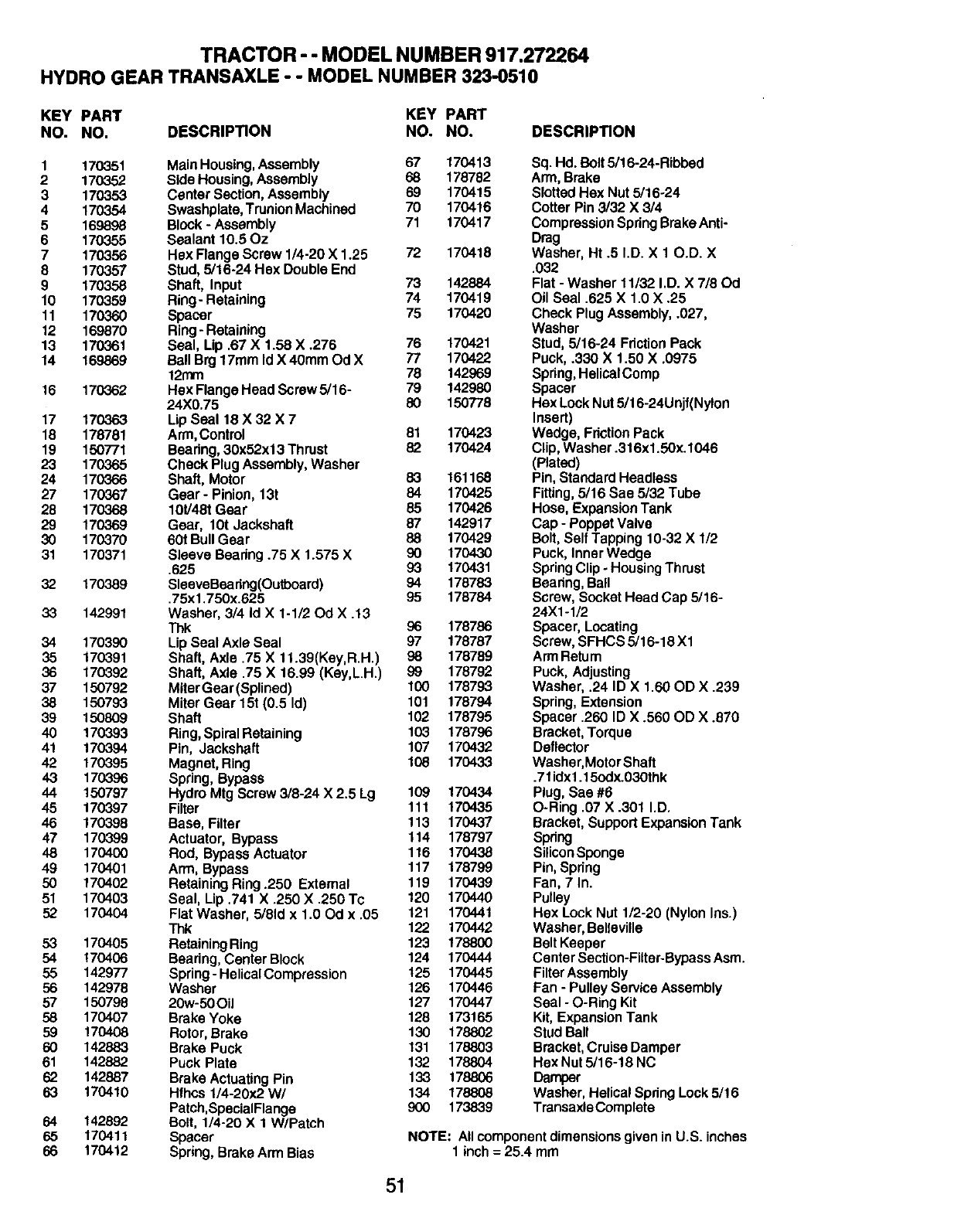

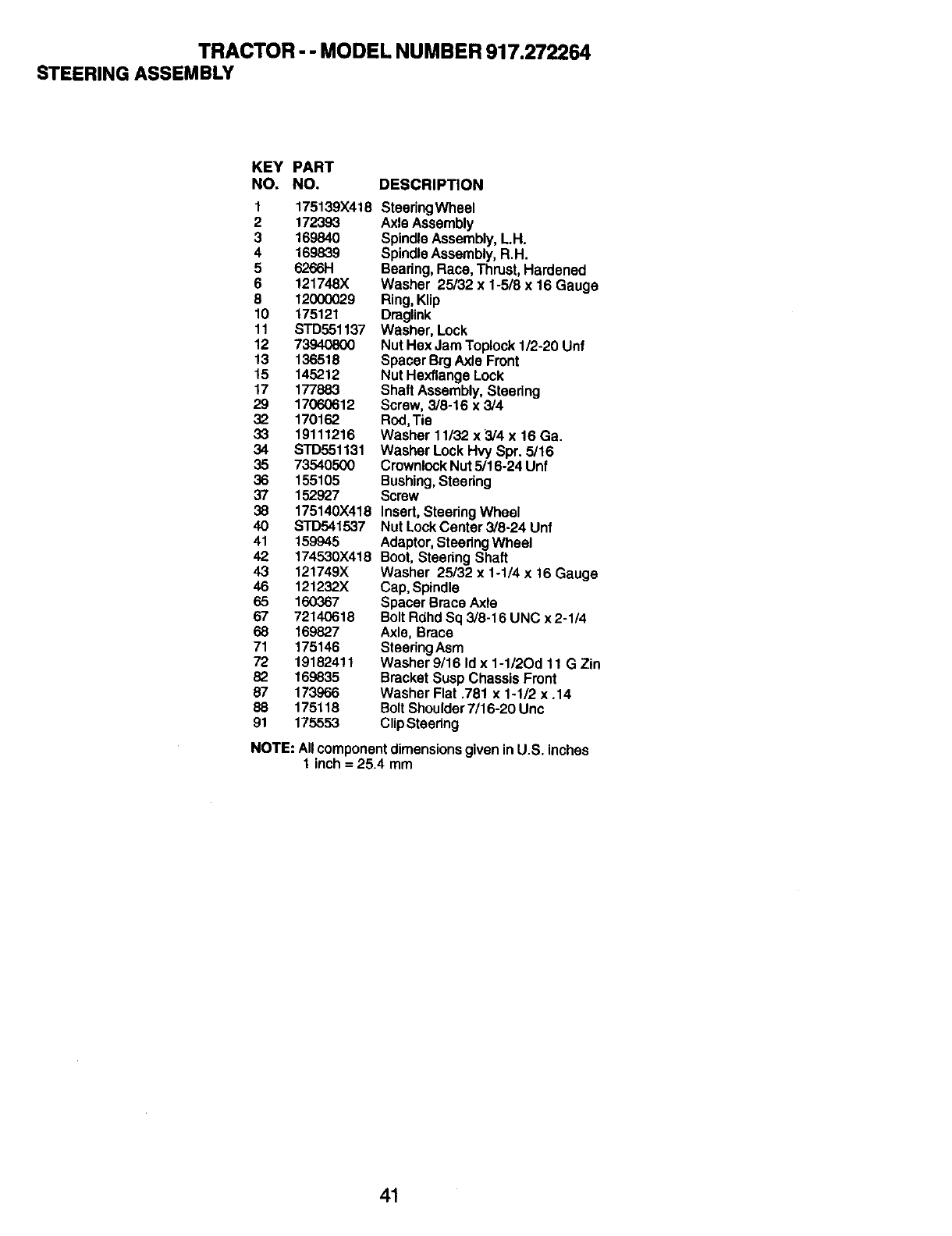

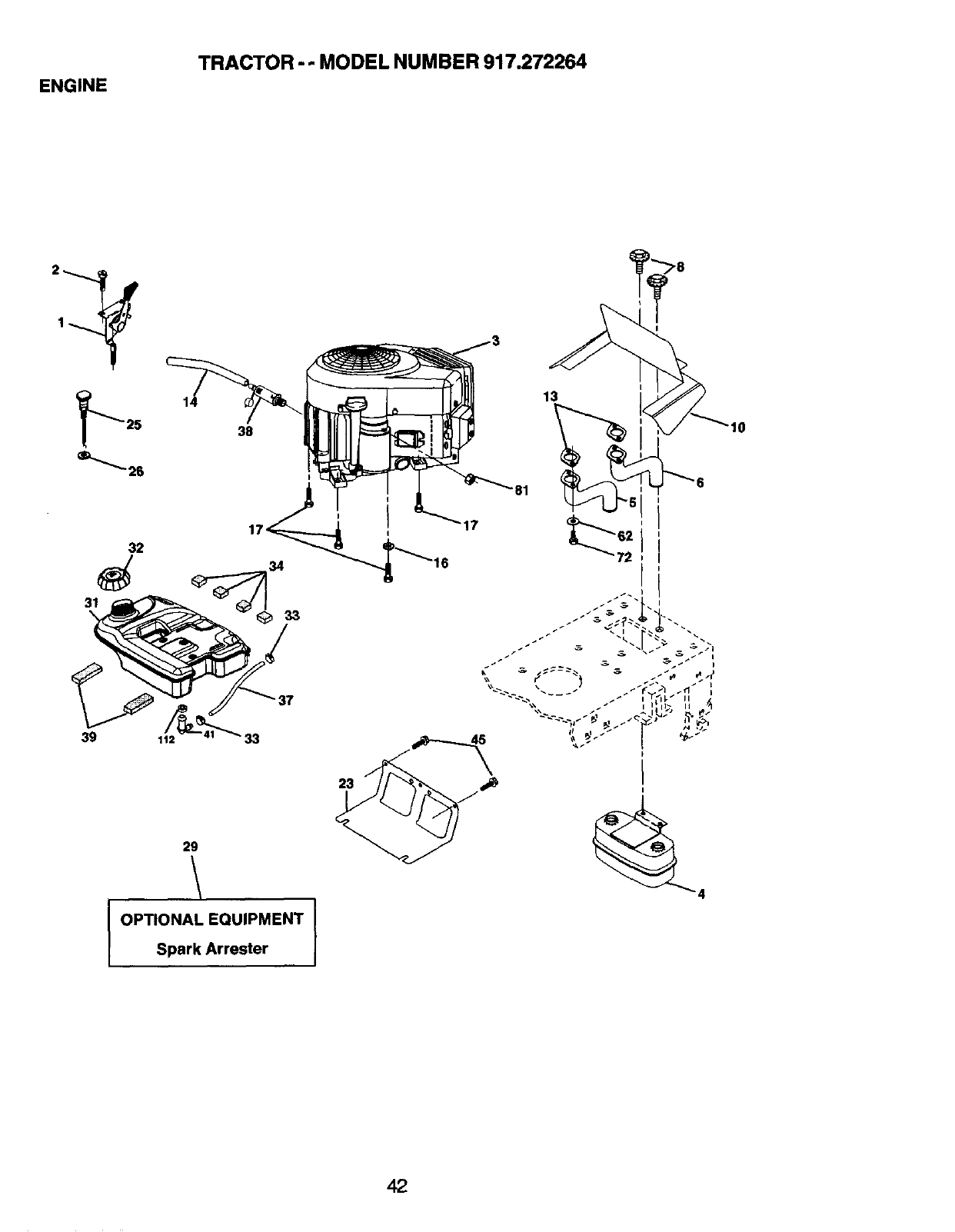

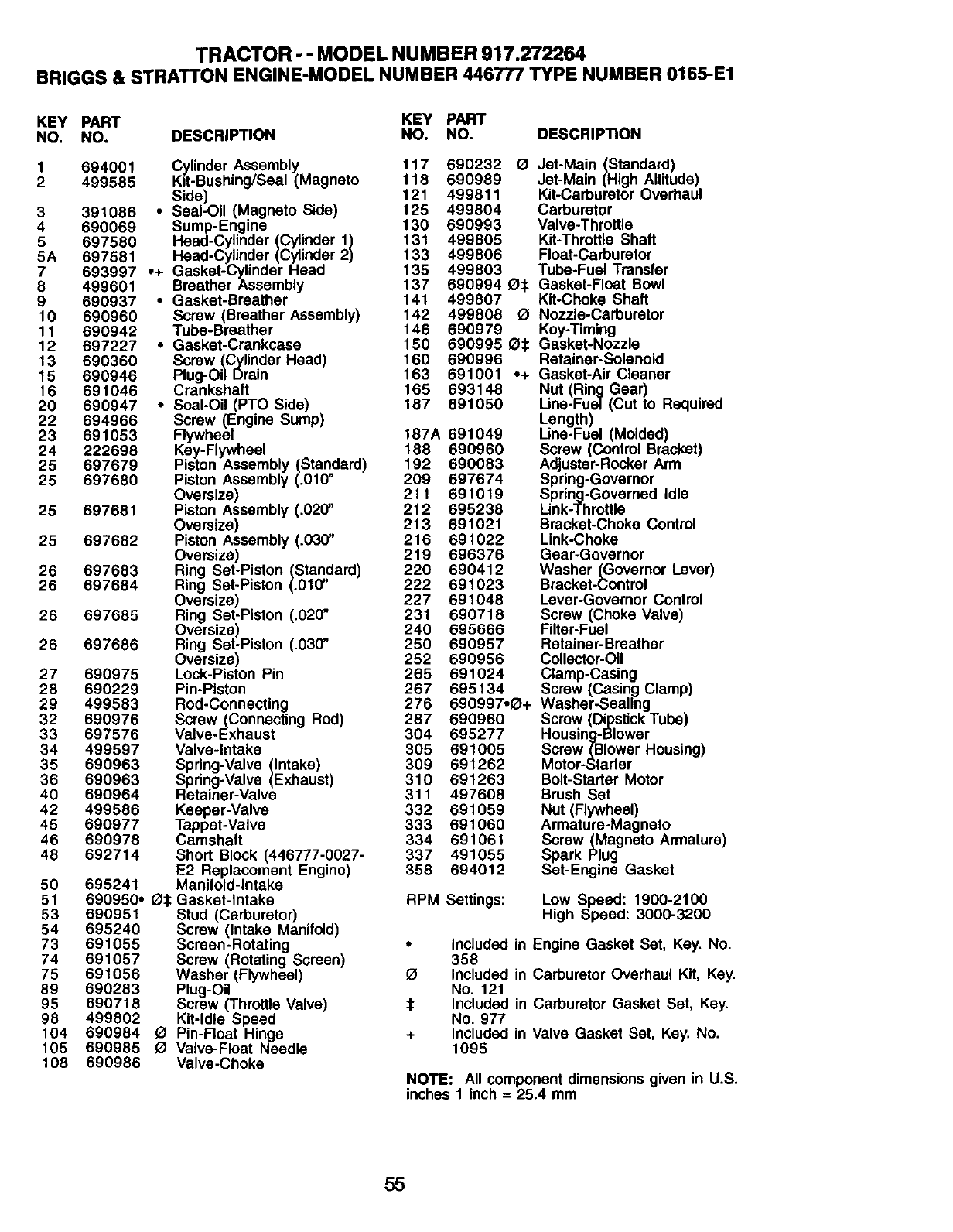

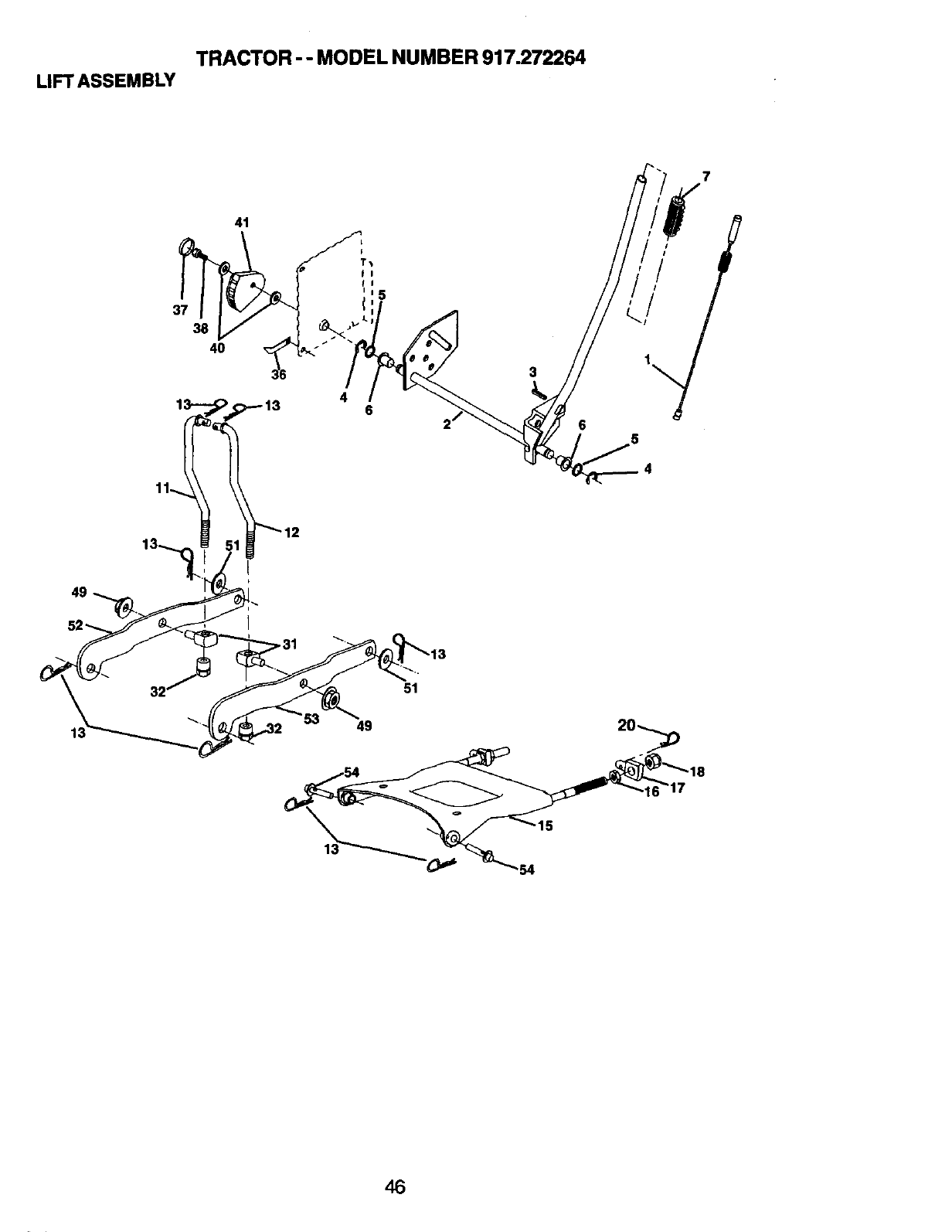

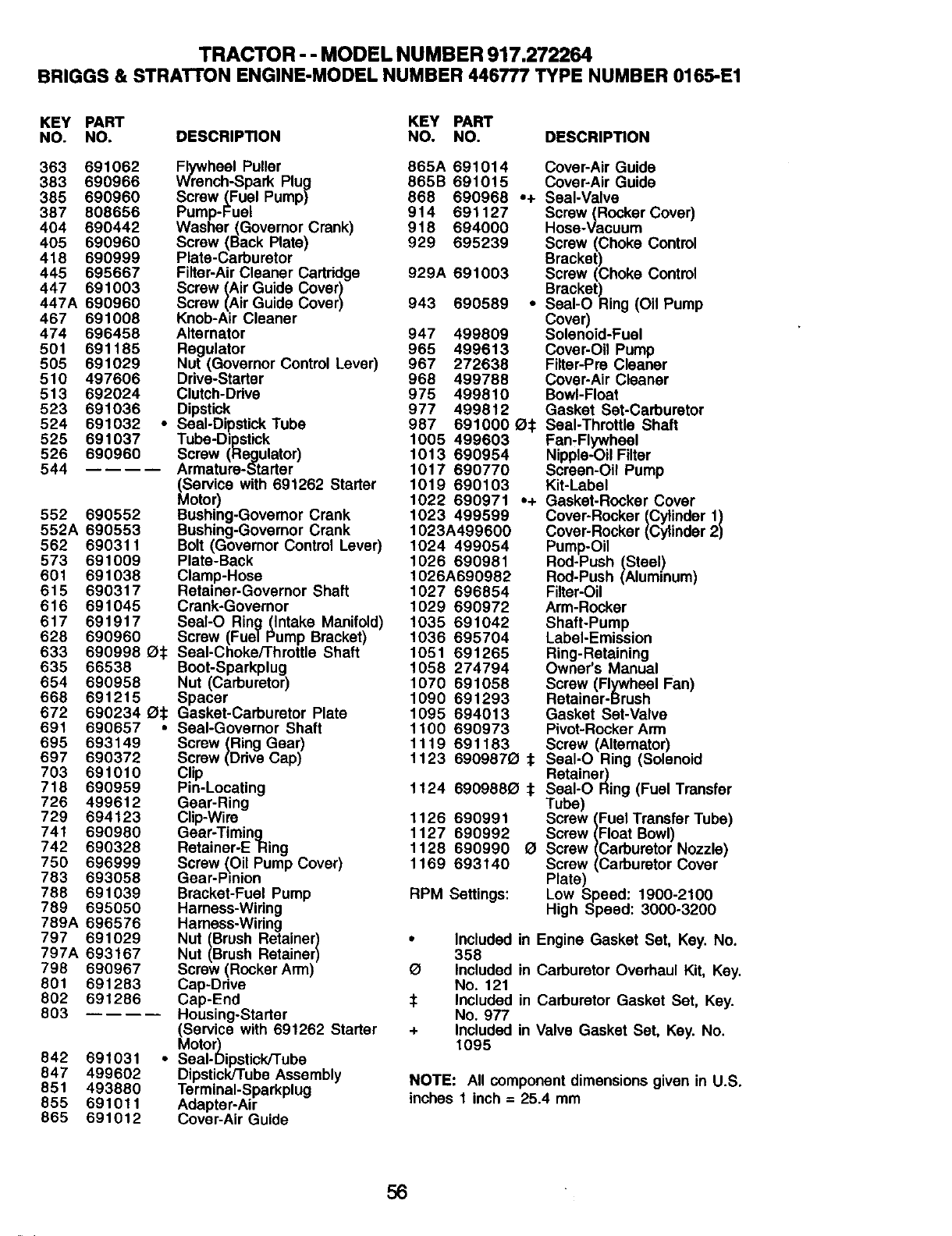

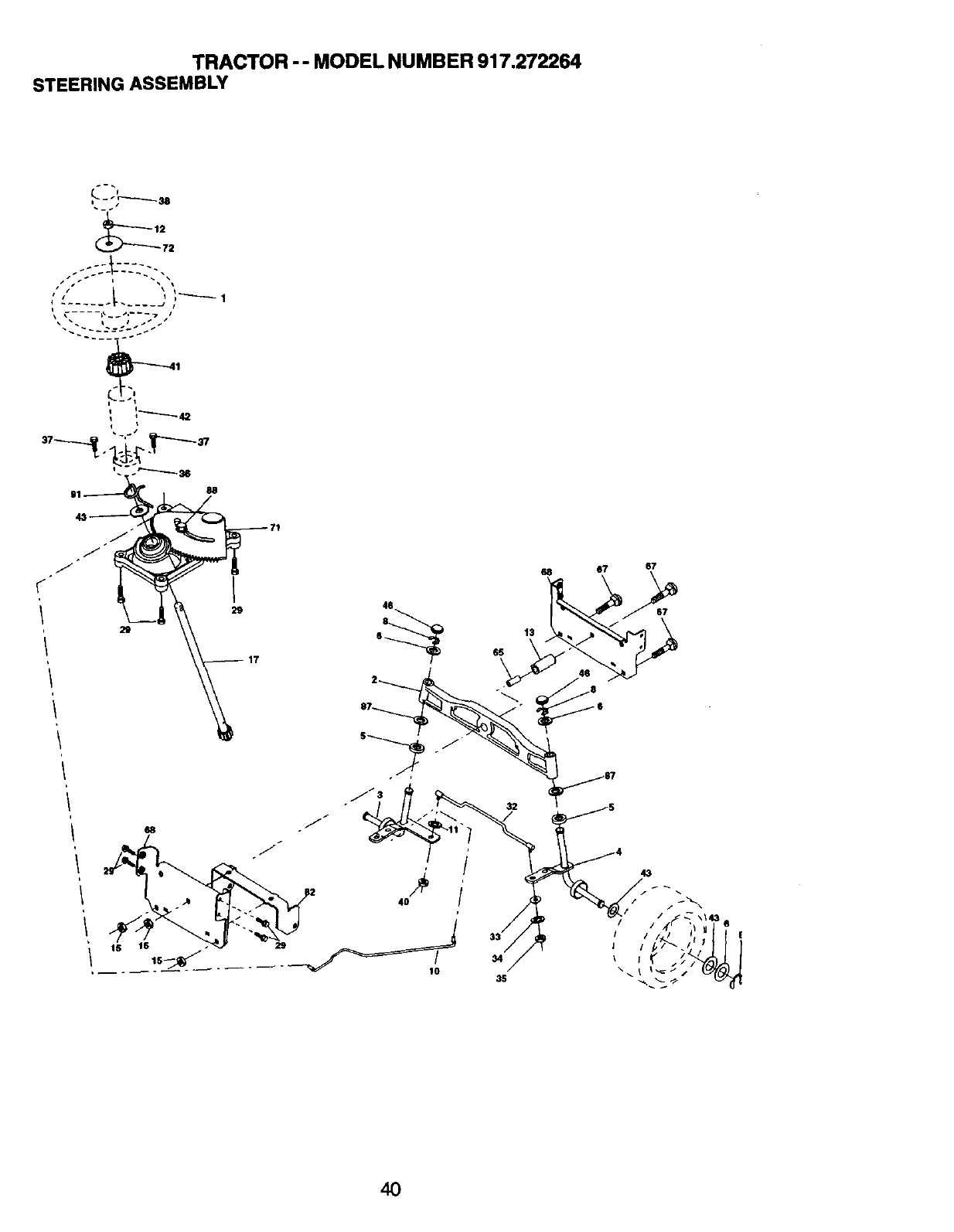

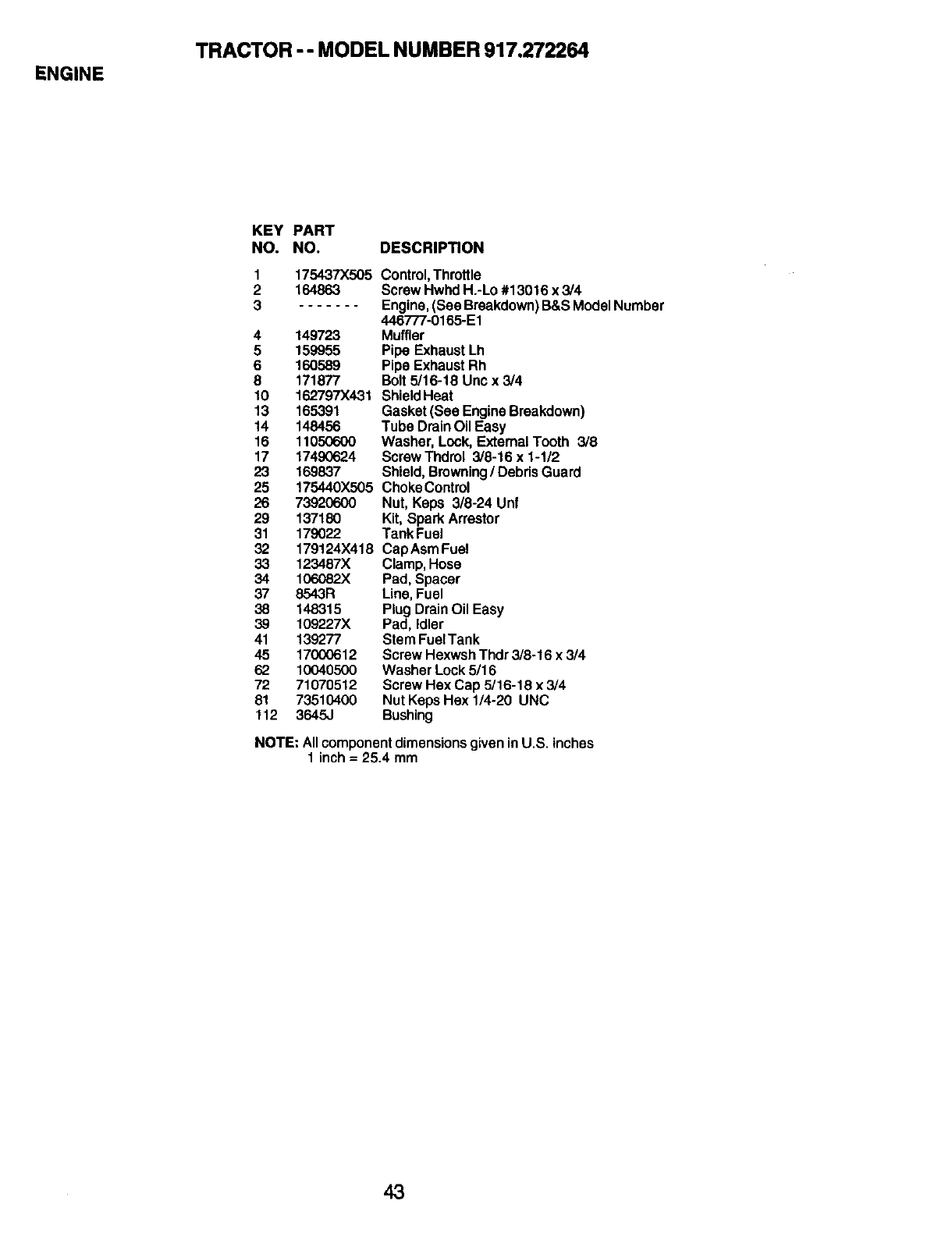

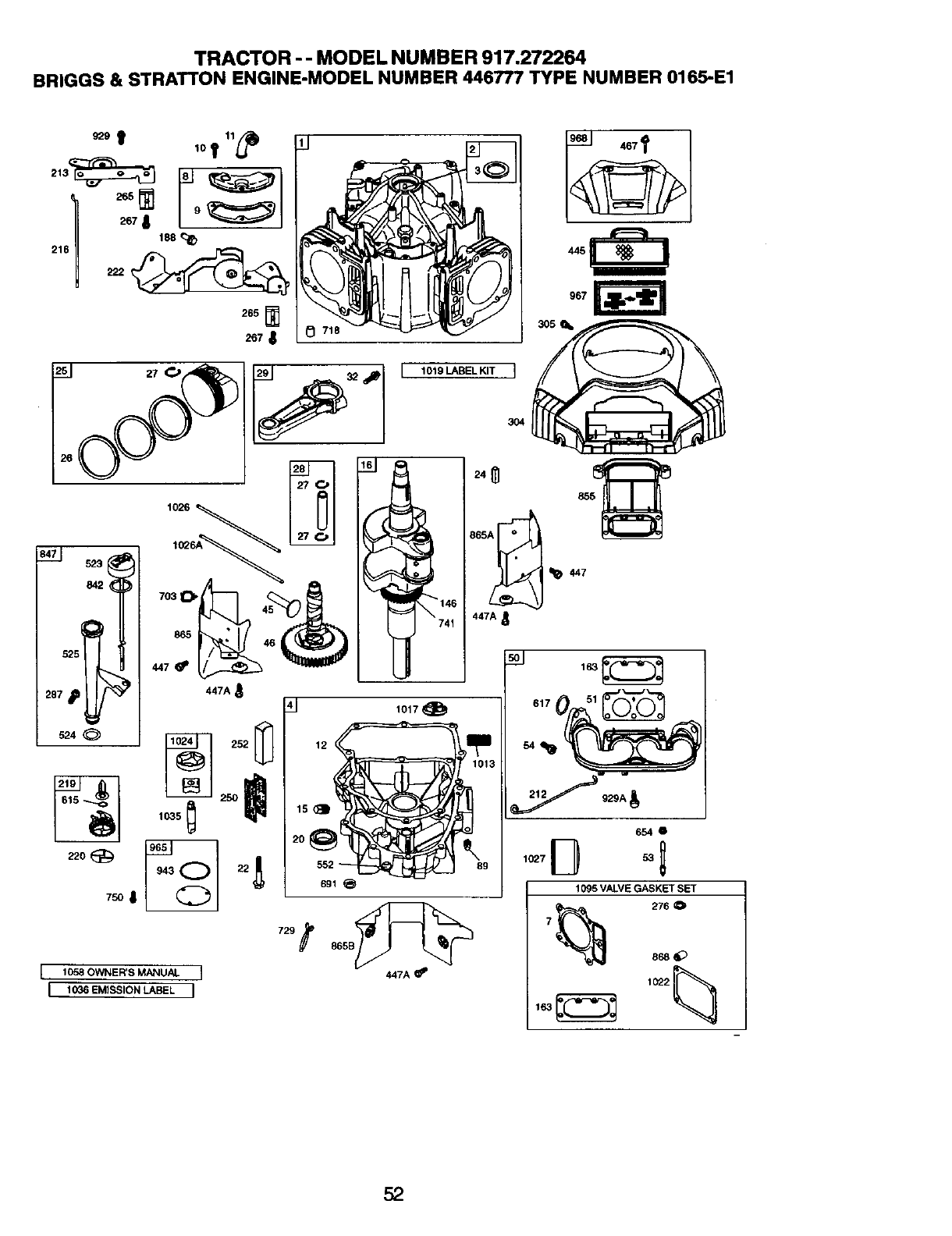

Repair Parts ........................................ 34

Sears Service ...................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will also provide free labor for these applicable warranted parts for the

two full years. During the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will still be available after the first 30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped off at an authorizedSears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

•Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructions contained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). in general, fuel should be used within 30 days of its

purchase date.

•Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

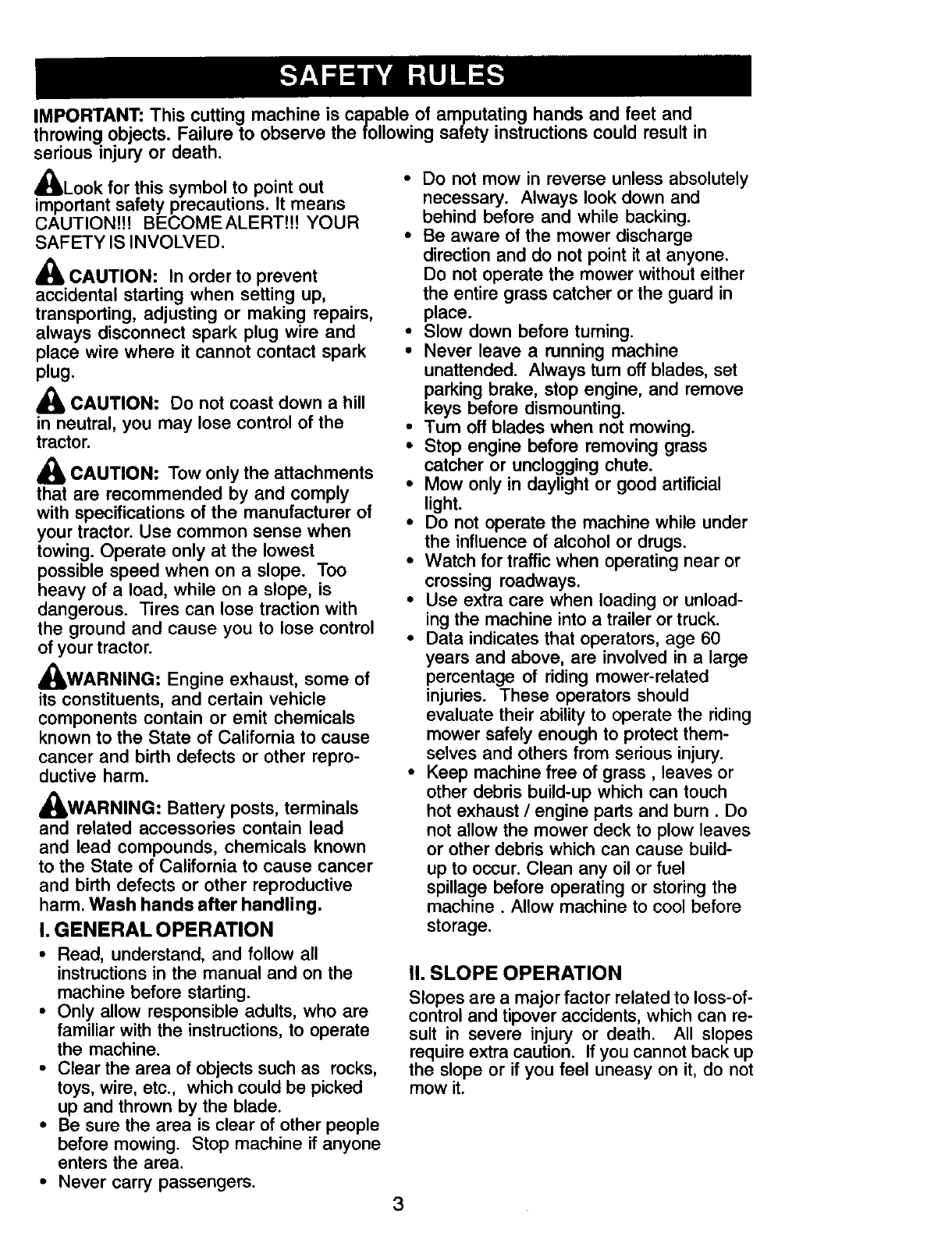

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

_Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

_CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

CAUTION- Do not coast down a hill

in neutral, you may lose control of the

tractor.

_CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Tum off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and bum. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

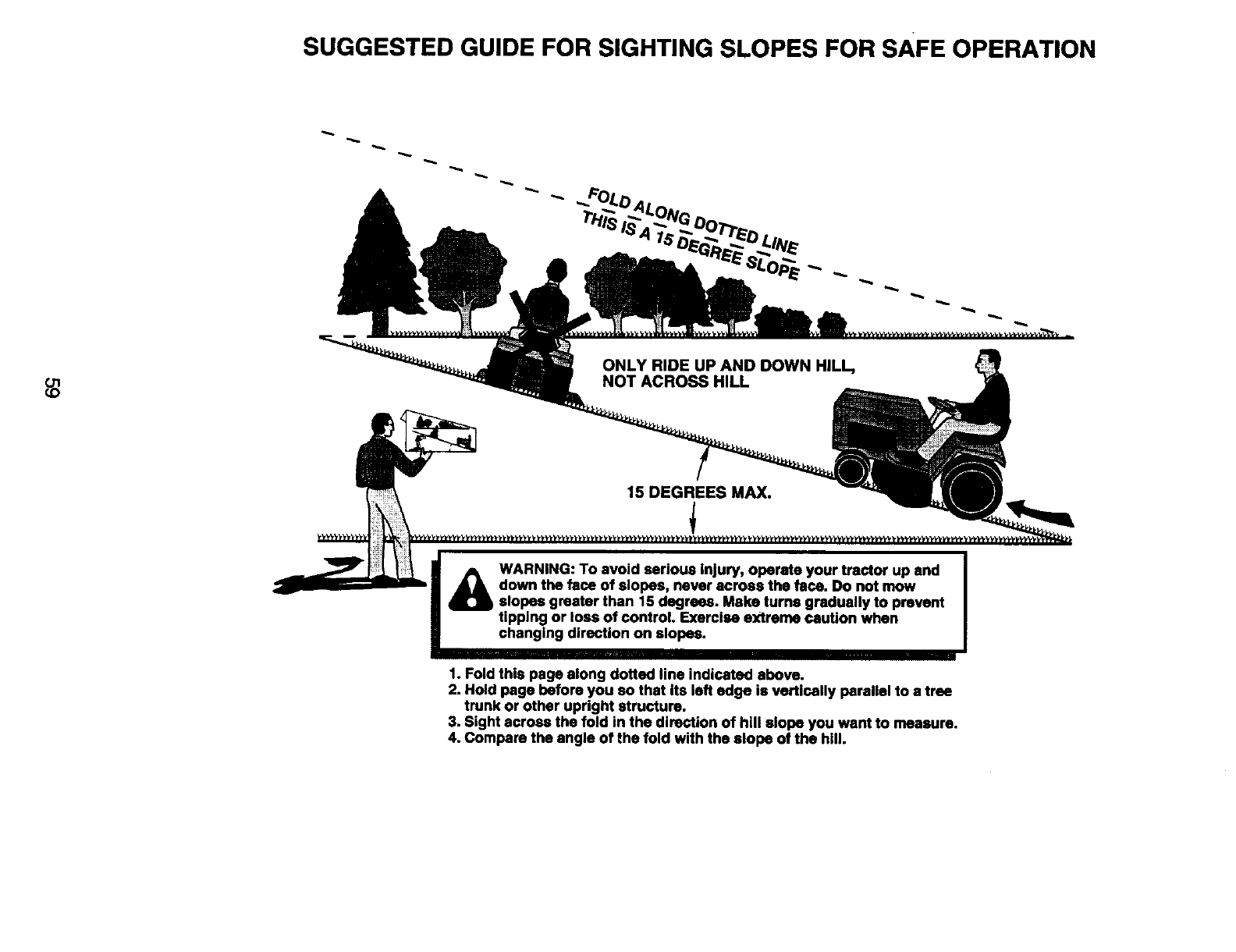

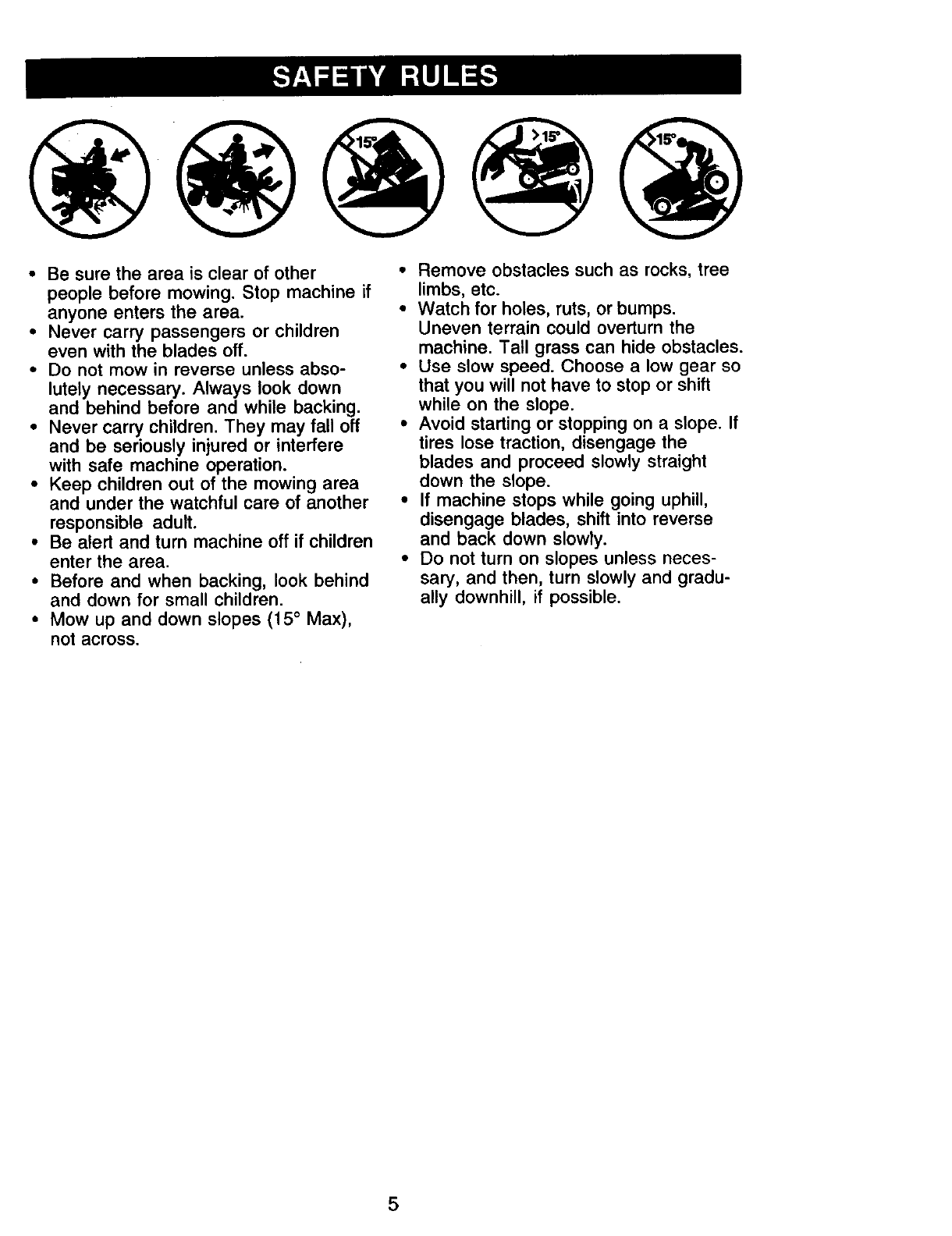

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

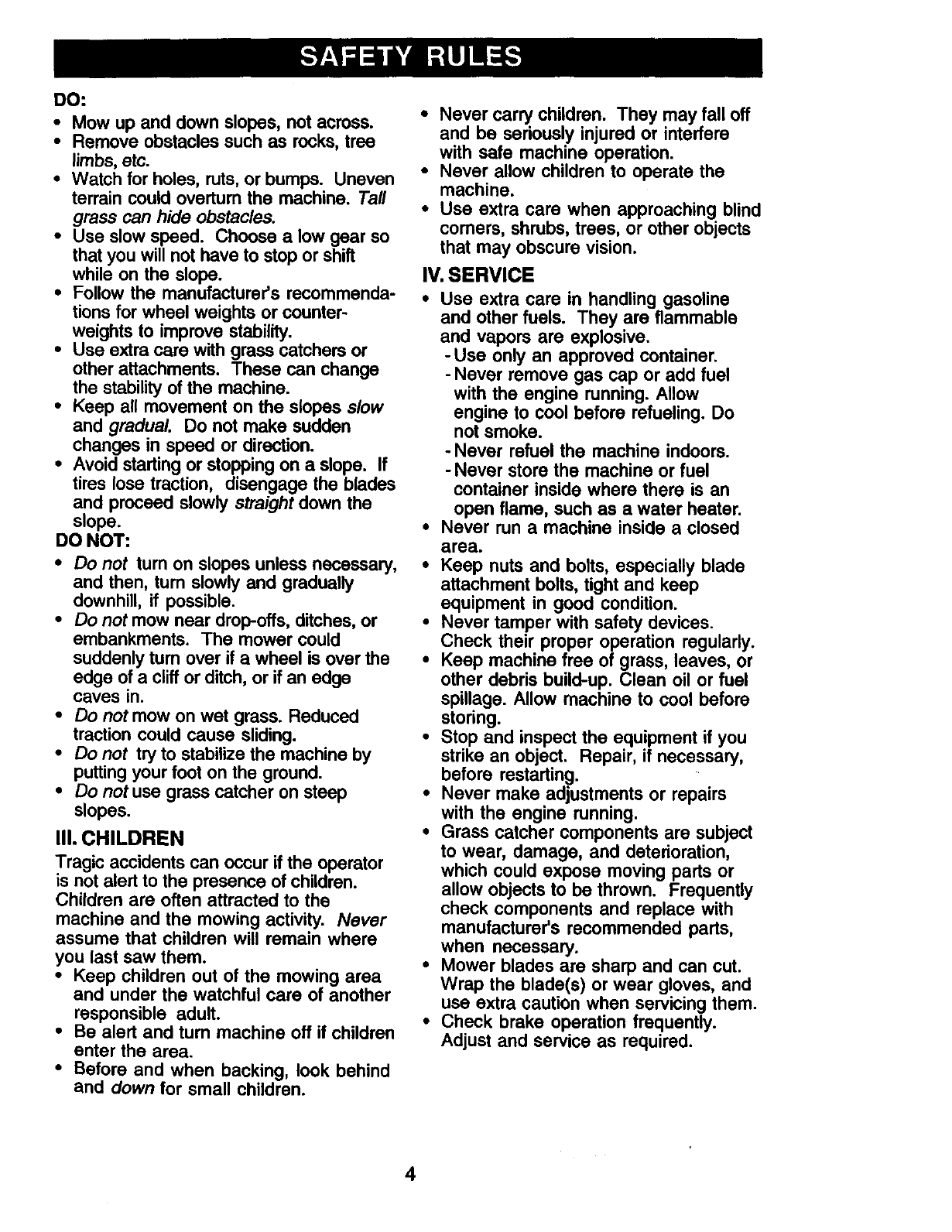

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tiros lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off ff children

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside aclosed

area.

* Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline

Capacity

and Type:

Oil Type

API-SF-SJ):

4 Gallons

Unleaded

Regular

SAE 30 (Above 32°F)

SAE 5W-30

(Below 32°F)

Oil Capacity: 4.0 Pints

Spark Plug: Champion RC12YC

GAP: .040") -

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10PSI

Charging

System: 16 Amps @ 3600 RPM

Battery: Amp/Hr. 28

Min. CCA: 230

Case Size: U 1 R

Blade Bolt 45-55 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of anew tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor,

•Follow the instructions under =Mainte-

nance" and "Storage" sections of this

owner's manual.

_LWARNING" This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

CHECK BATTERY

1. Lift hood to raised position.

NOTE: if this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

ADJUST SEAT

1. Raise seat and loosen adjustment

knobs.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its

adjusted position.

5. Raise seat and tighten adjustment

knob securely.

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

Adjustment

Knob _ W

_:.',L-:::_.."___ __Z: _.

2;'

J'2"_ n

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

i_ REMOVE THE FOLLOWING BULLET

FOR MODELS WITH ELECTRIC LIFT.

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in disen-

gaged position to disengage transmis-

sion (See "TO TRANSPORT" in the

Operation section of this manual).

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_, WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position (see "TO

TRANSPORT" in Operation section of

this manual).

4. Sit on seat in operating position,

depress brake pedal and set the

parking brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly depress forward drive pedal

and drive tractor off skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECKLEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

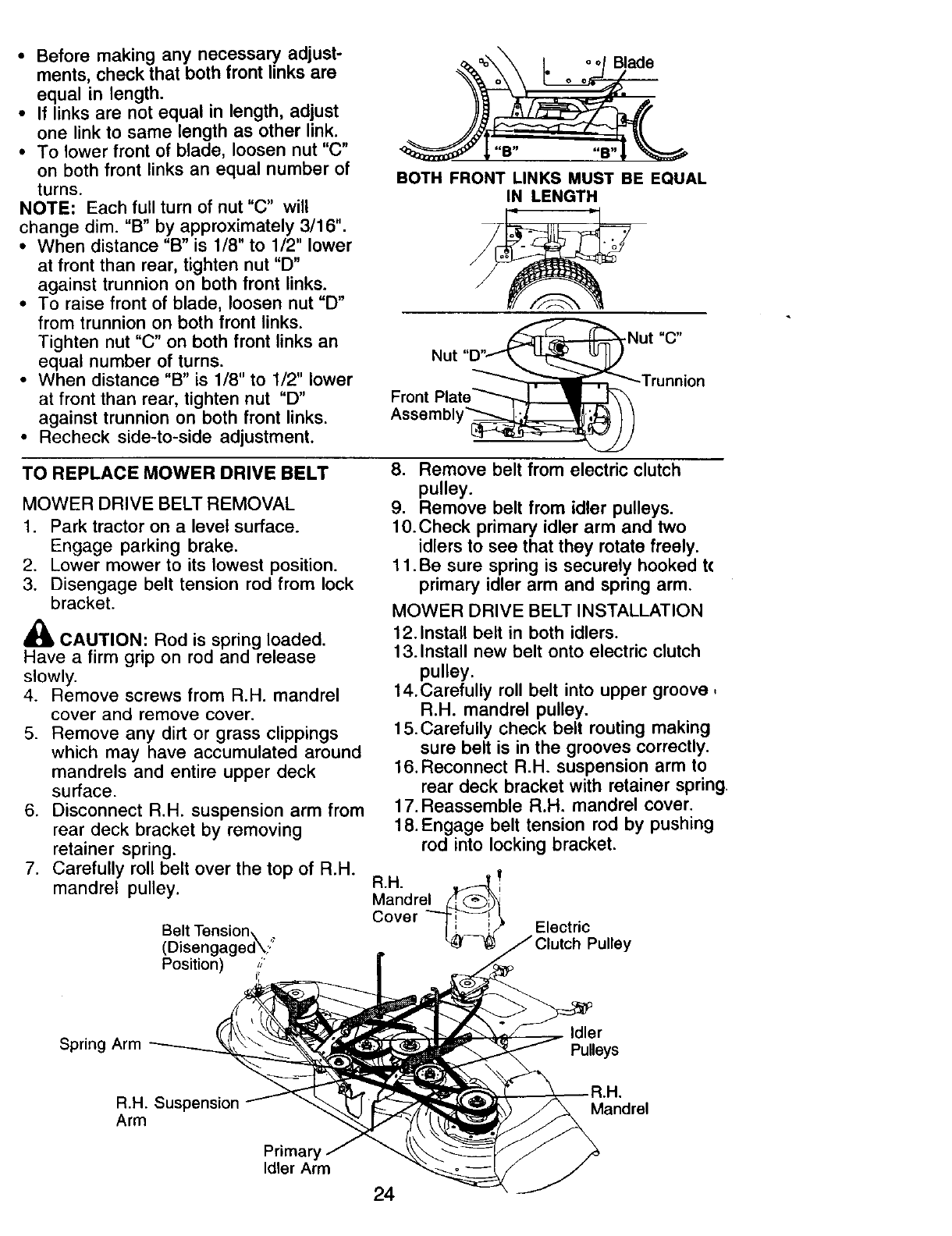

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See 'q'O ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

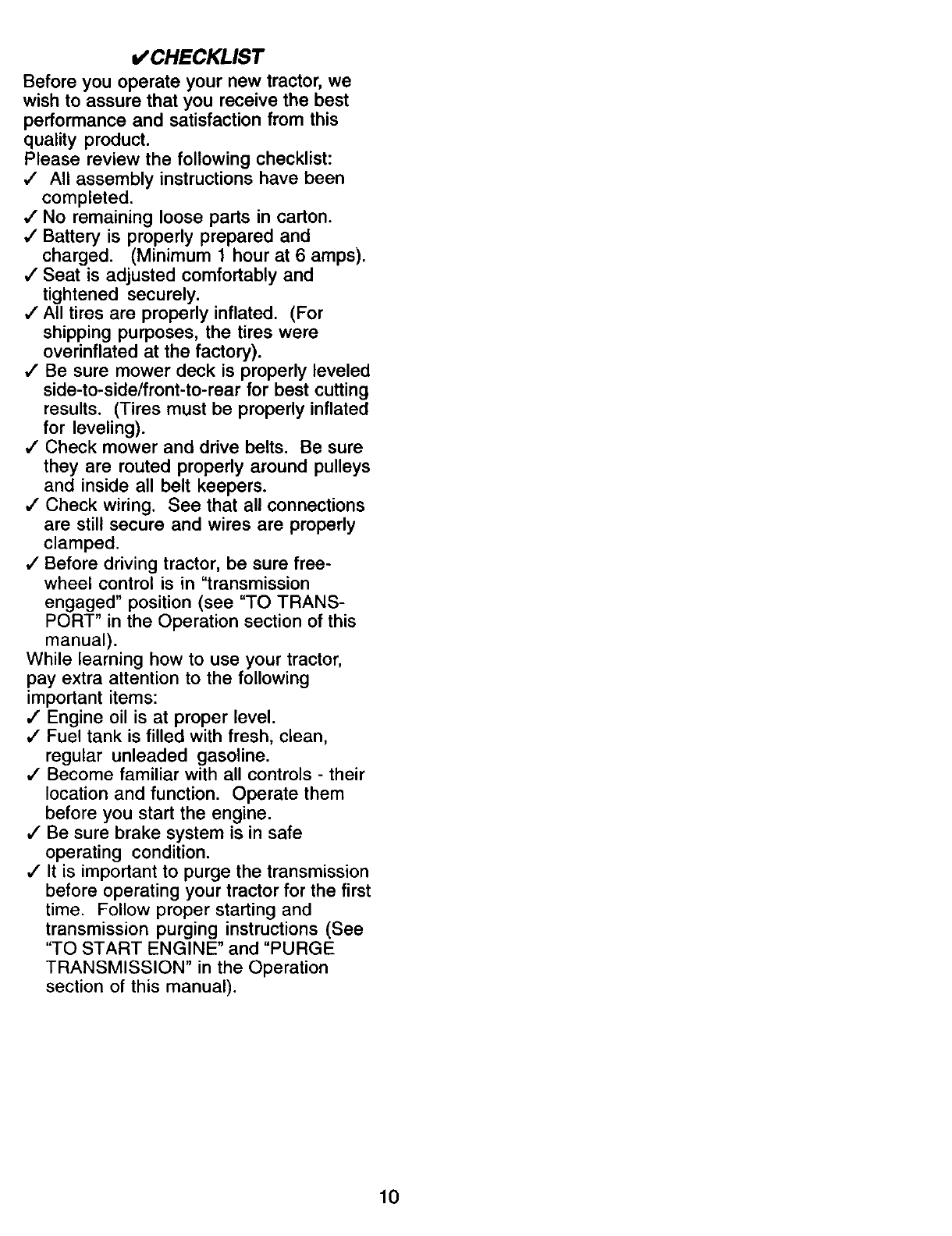

of'CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,t Seat is adjusted comfortably and

tightened securely.

•/ All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure free-

wheel control is in "transmission

engaged" position (see "TO TRANS-

PORT" in the Operation section of this

manual).

While learning how to use your tractor,

pay extra attention to the following

important items:

,I Engine oil is at proper level.

#" Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

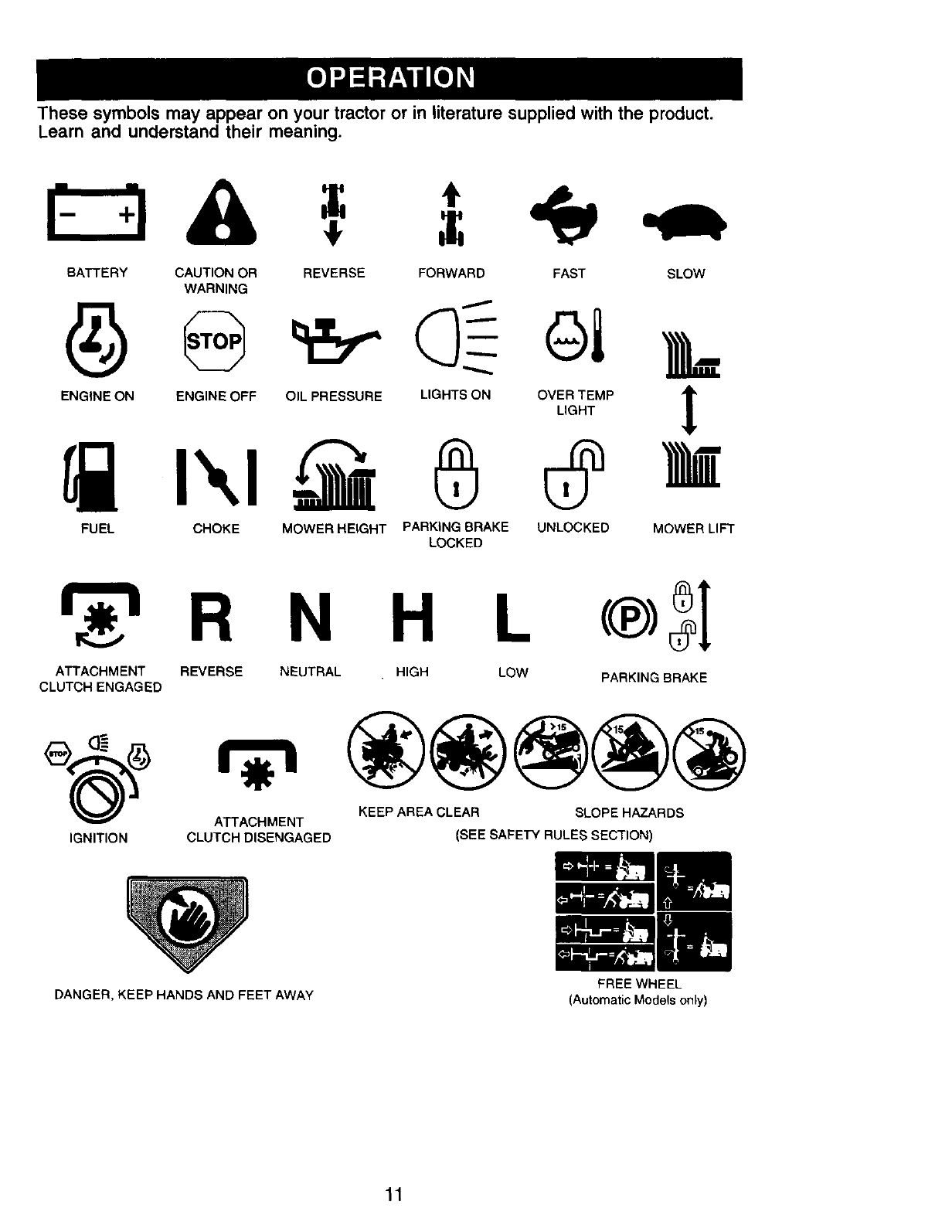

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR

WARNING

ENGINE ON ENGINE OFF

REVERSE FORWARD FAST SLOW

OIL PRESSURE

FUEL CHOKE MOWER HEIGHT

LIGHTS ON

PARKING BRAKE

LOCKED

O%_MP I

UNLOCKED MOWER LIFT

R N H L

ATTACHMENT REVERSE

CLUTCH ENGAGED NEUTRAL HIGH LOW PARKING DRAKE

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

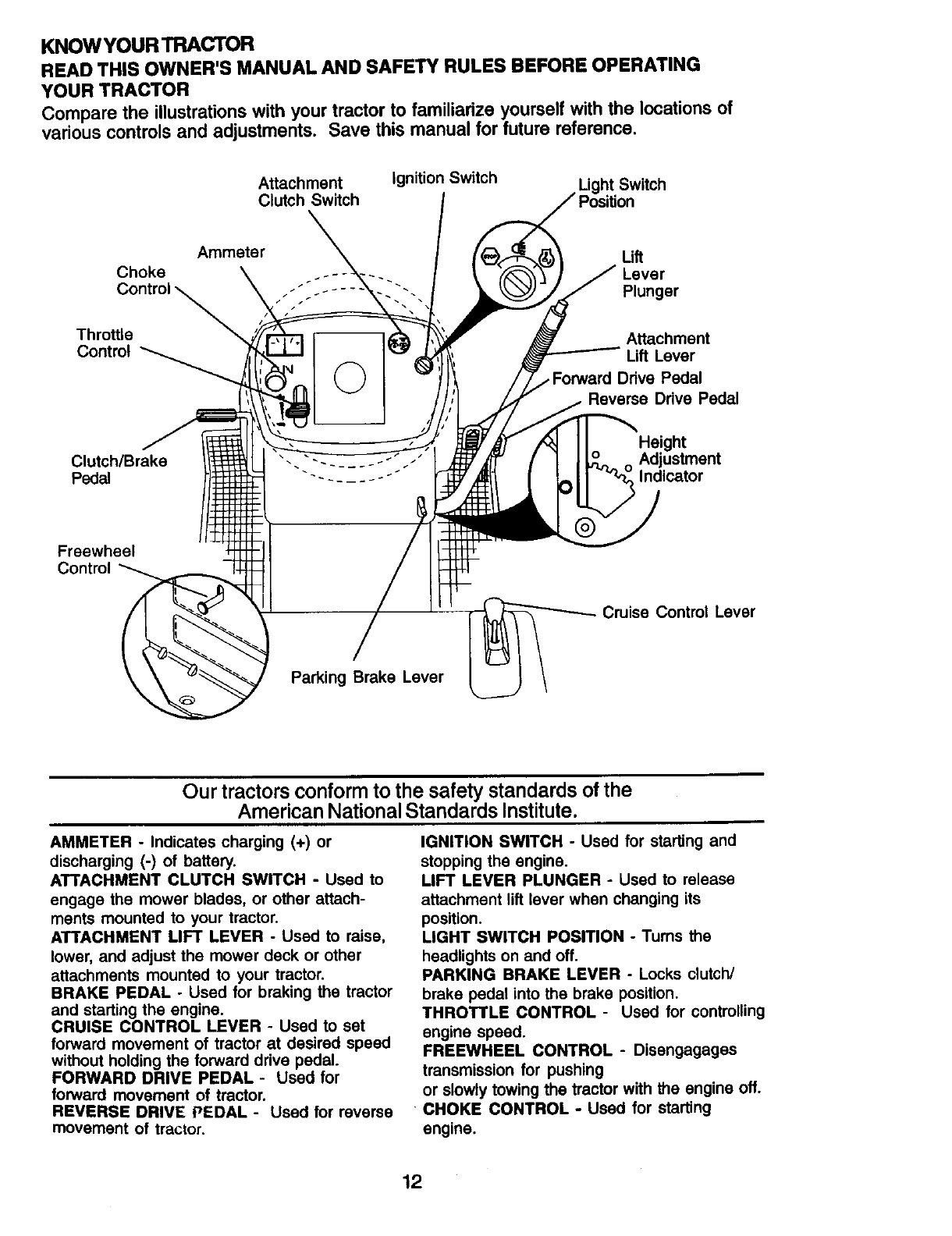

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Choke

Throttle

Control

Ammeter

Attachment Ignition Switch Light Switch

Clutch Switch

Lever

_" _ "" Plunger

Attachment

Lift Lever

Forward Drive Pedal

Reverse Ddve Pedal

Clutch/Brake

Pedal

Height

Adjustment

Indicator

Freewheel

Control

Cruise Control Lever

Parking Brake Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER -Indicates charging (÷) or

discharging (-) of battery.

ATTACHMENT CLUTCH SWITCH -Used to

engage the mower blades, or other attach-

ments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to raise,

lower, and adjust the mower deck or other

attachments mounted to your tractor.

BRAKE PEDAL - Used for braking the tractor

and starting the engine.

CRUISE CONTROL LEVER - Used to set

forward movement of tractor at desired speed

without holding the forward drive pedal.

FORWARD DRIVE PEDAL - Used for

forward movement of tractor.

REVERSE DRIVE PEDAL - Used for reverse

movement of tractor.

IGNITION SWITCH -Used for starting and

stopping the engine,

LIFT LEVER PLUNGER -Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION -Turns the

headlights on and off.

PARKING BRAKE LEVER -Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL -Used for controlling

engine speed.

FREEWHEEL CONTROL -Disengagages

transmission for pushing

or slowly towing the tractor with the engine off.

CHOKE CONTROL -Used for starting

engine.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

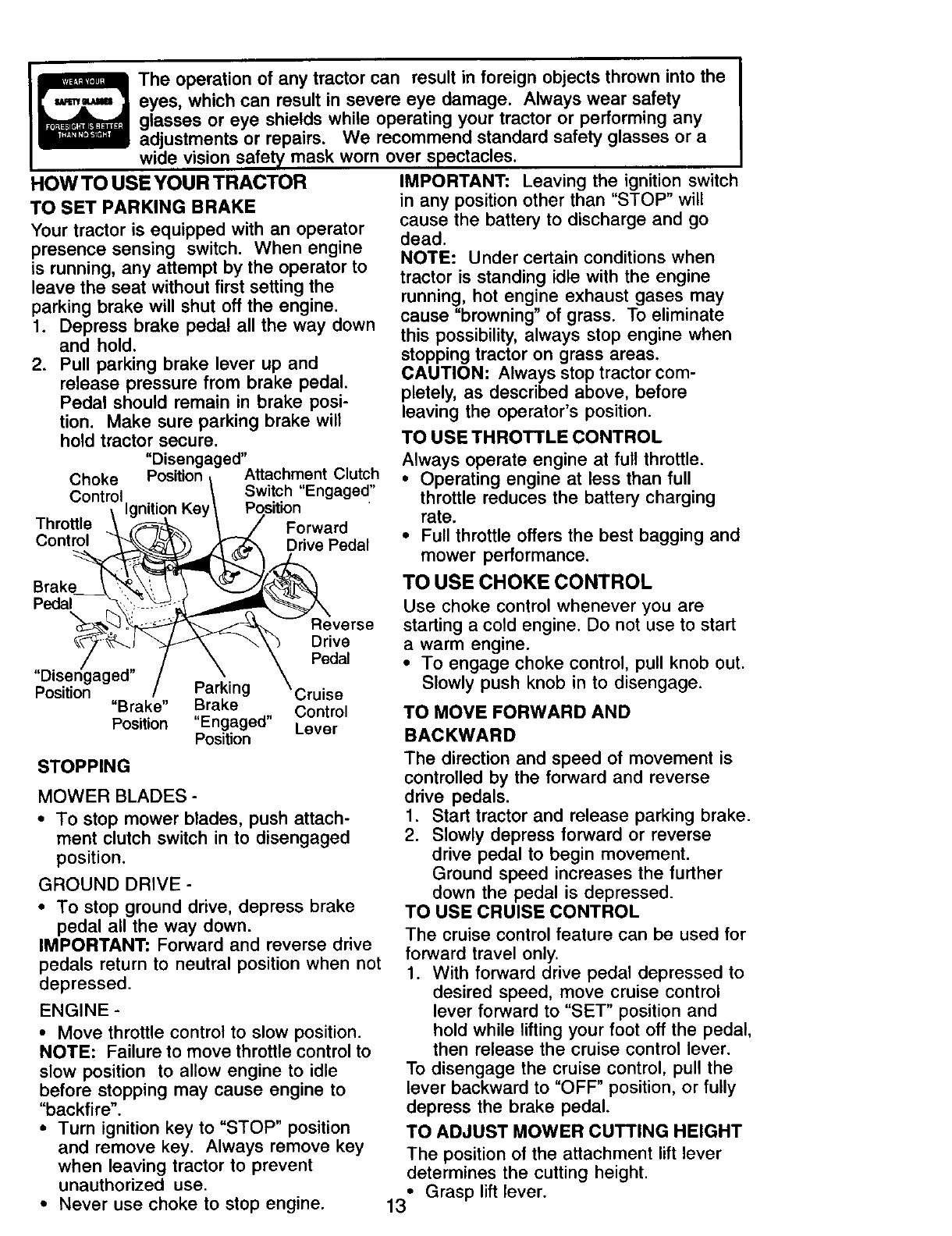

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal all the way down

and hold.

2. Pull parking brake lever up and

release pressure from brake pedal.

Pedal should remain in brake posi-

tion. Make sure parking brake will

hold tractor secure.

"Disengaged"

Choke Position_Attachment Clutch

Control \Switch "Engaged"

Ignition Key\ Position

Throttle _\ _ / /Forward

Control __) _ Drive Pedal

Pedal "_',__-;_-1 -,_,'_ A

x_k'-_--k_.I "h_/J'_ _\'3 Drive

/... /\ \ Pedal

'pDoiS_i;gaged" /Parking \Cruise

"Brake" Brake Control

Position "Engaged" Lever

Position

STOPPING

MOWER BLADES -

• To stop mower blades, push attach-

ment clutch switch in to disengaged

position.

GROUND DRIVE -

• To stop ground drive, depress brake

pedal all the way down.

IMPORTANT: Forward and reverse drive

pedals return to neutral position when not

depressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position to allow engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before

leaving the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

•Operating engine at less than full

throttle reduces the battery charging

rate.

•Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

•To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the forward and reverse

drive pedals.

1. Start tractor and release parking brake.

2. Slowly depress forward or reverse

drive pedal to begin movement.

Ground speed increases the further

down the pedal is depressed.

TO USE CRUISE CONTROL

The cruise control feature can be used for

forward travel only.

1. With forward drive pedal depressed to

desired speed, move cruise control

lever forward to "SET" position and

hold while lifting your foot off the pedal,

then release the cruise control lever.

To disengage the cruise control, pull the

lever backward to "OFF" position, or fully

depress the brake pedal.

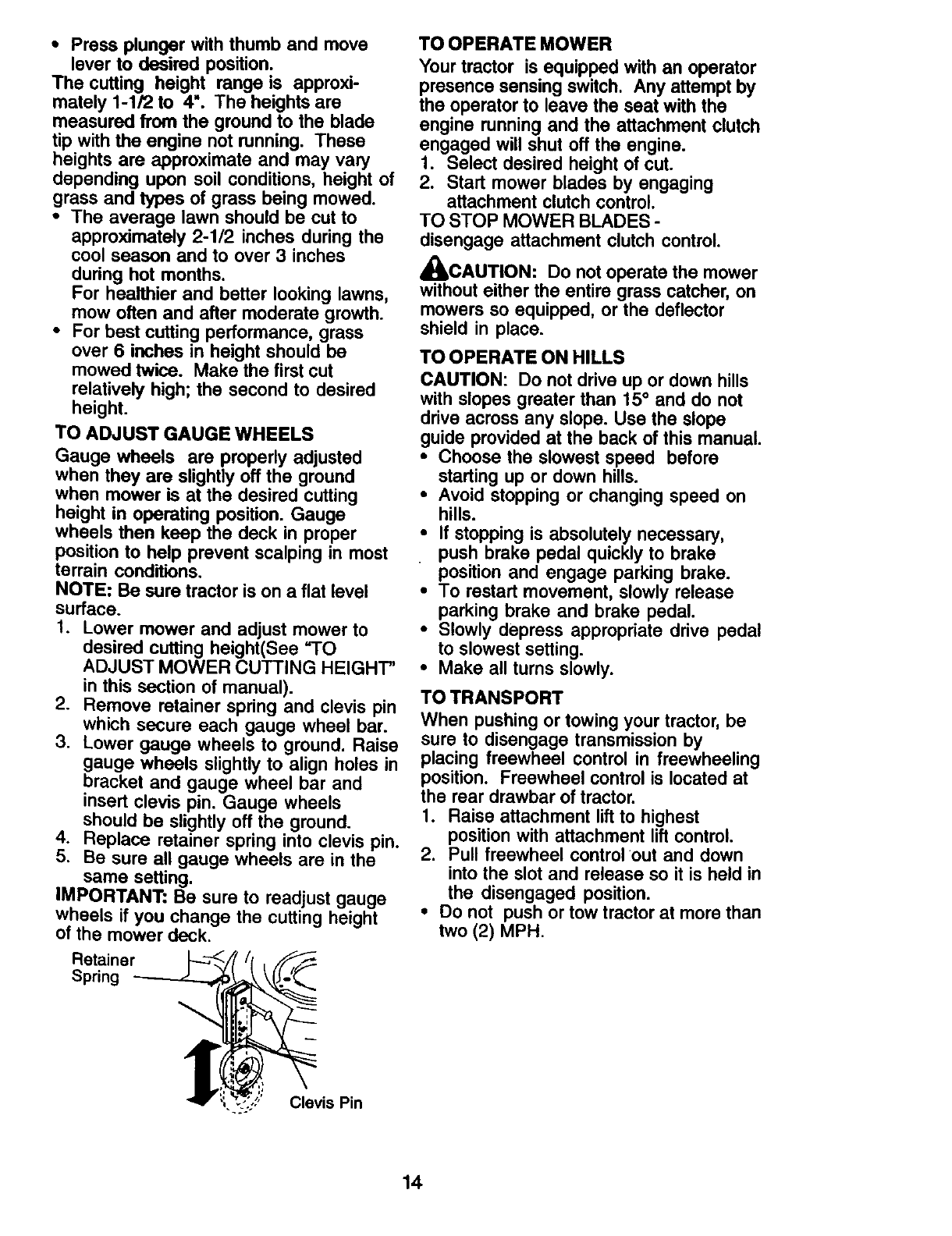

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

•Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The curing height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height of

grass and types of grass being mowed.

•The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months.

For healthier and better looking lawns,

mow often and after moderate growth.

•For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheals are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to

desired cutting height(See TO

ADJUST MOWER CUTTING HEIGHT"

in this section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes in

bracket and gauge wheel bar and

insert clevis pin. Gauge wheels

should be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

I. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_,CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills

with slopes greater than 15° and do not

drive across any slope. Use the slope

guide provided at the back of this manual.

•Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

•If stopping is absolutely necessary,

push brake pedal quickly to brake

position and engage parking brake.

•To restart movement, slowly release

parking brake and brake pedal.

•Slowly depress appropriate drive pedal

to slowest setting.

•Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Freewheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

Clevis Pin

• To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with the

ground and cause you to lose control of

your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler

neck. Do not overfill. Use fresh, clean,

regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead

oxide deposits and reduce valve life).

Do not mix oil with gasoline. Purchase

fuel in quantities that can be used

within 30 days to assure fuel freshness.

ACAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

To avoid engine problems, the fuel

system should be emptied before storage

of 30 days or longer. Drain the gas tank,

start the engine and let it run until the fuel

lines and carburetor are empty. Use fresh

fuel next season. See Storage Instruc-

tions for additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When startingthe engine forthe firsttime or if

the engine has run out of fuel, it willtake extra

crankingtime to move fuel fi'omthe tank to

the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to disen-

gaged position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, read the warm and

cold startingprocedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not

run starter continuously for more than

fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait a

few minutes and try again. If engine

still does not start, pull the choke

control out and retry.

WARM WEATHER STARTING (50° F and

above)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for afew seconds

and then continue to push the control

in slowly.

•The attachments and ground drive can

now be used. If the engine does notaccept

the load, restartthe engine and allow it to

warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 °F and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for afew seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Release the parking brake and let the

brake slowly return to operating

position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

•The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be

pulled out slightly.

NOTE, If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(_see"TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

PURGETRANSMISSION

CAUTION: Never engage or disengage

freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the

transmission which may have developed

during shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstalla-

tion before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in disengaged

position (See "TO TRANSPORT" in

this section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position.

Disengage parking brake.

4. Depress forward drive pedal to full

forward position and hold for five (5)

seconds and release pedal. Depress

reverse ddve pedal to full reverse

position and hold for five (5) seconds

and release pedal. Repeat this

procedure three (3) times.

NOTE: Dudng this step there will be no

movement of ddve wheels. The air is

being removed from hydraulic drive

system.

5. Shutoff engine and set parking brake.

6. Engage transmission by placing

freewheel control in engaged

position (See "TO TRANSPORT" in

this section of manual).

7. Sitting in the tractor seat, start

engine. After the engine is running,

move throttle control to half (1/2)

speed. Disengage parking brake.

8. Drive tractor forward for approxi-

mately five feet then backwards for

five feet. Repeat this driving proce-

dure three times.

Your transmission is now purged and

now ready for normal operation.

MOWING TIPS

•Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of

this manual.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in amore

even distribution of clippings and more

uniform cutting.

•When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

[ ..

•If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

•For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy grass,

reduce your width of cut on each pass

and mow slowly.

Max 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

REGULAR SERVICE

c::k;::;O;:::n

Check Operator Presence and

TInterlock Systems

RCheck for Loose Fasteners I_ _s

Sharpen/Replace Mower Blades i _

TLubrication Chart I_

0 Check Battery Level

RClean Battery and Terminals

Check Transaxle CoOling

Check V-Belts I_

iCheck Engine Oil Level I1_

Change Engine Oil (with oil filter) V_l_ I_

EChange Engine Oi_ (without oil filter) _1,= I_

N Clean Air Filter _#,:

GClean Air Screen

iInspect Muffler/Spark Arrester V'

Replace Oil Filter (If equipped) I_.= 2

Clean Engine Cooling Fins

Replace Spark Plug I# #

Replace Air Filter Paper Cartridge V'2

Replace Fuel Filter

1- Change more often when operating under aheavy load or

in high ambient temperatures.

2- Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 * Not required if equipped with maintenst_c<Pfreo bntteP/.

5*Tighten front axle pivot bott to 35 ft.-Ibs, maximum.

Do not overtighten,

GENERALRECOMMENDATIONS LUBRICATION CHART

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFOREEACHUSE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper opera-

tion.

5. Check for loose fasteners.

Zerk Zerk

Front Wheel,

Wheel 'g

Bearing zerk

zerk

O Man'drell

Zerks i

(_ General Purpose Grease

_) Refer to Maintenance "ENGINE"

Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry,

powdered graphite type lubricant spar-

ingly.

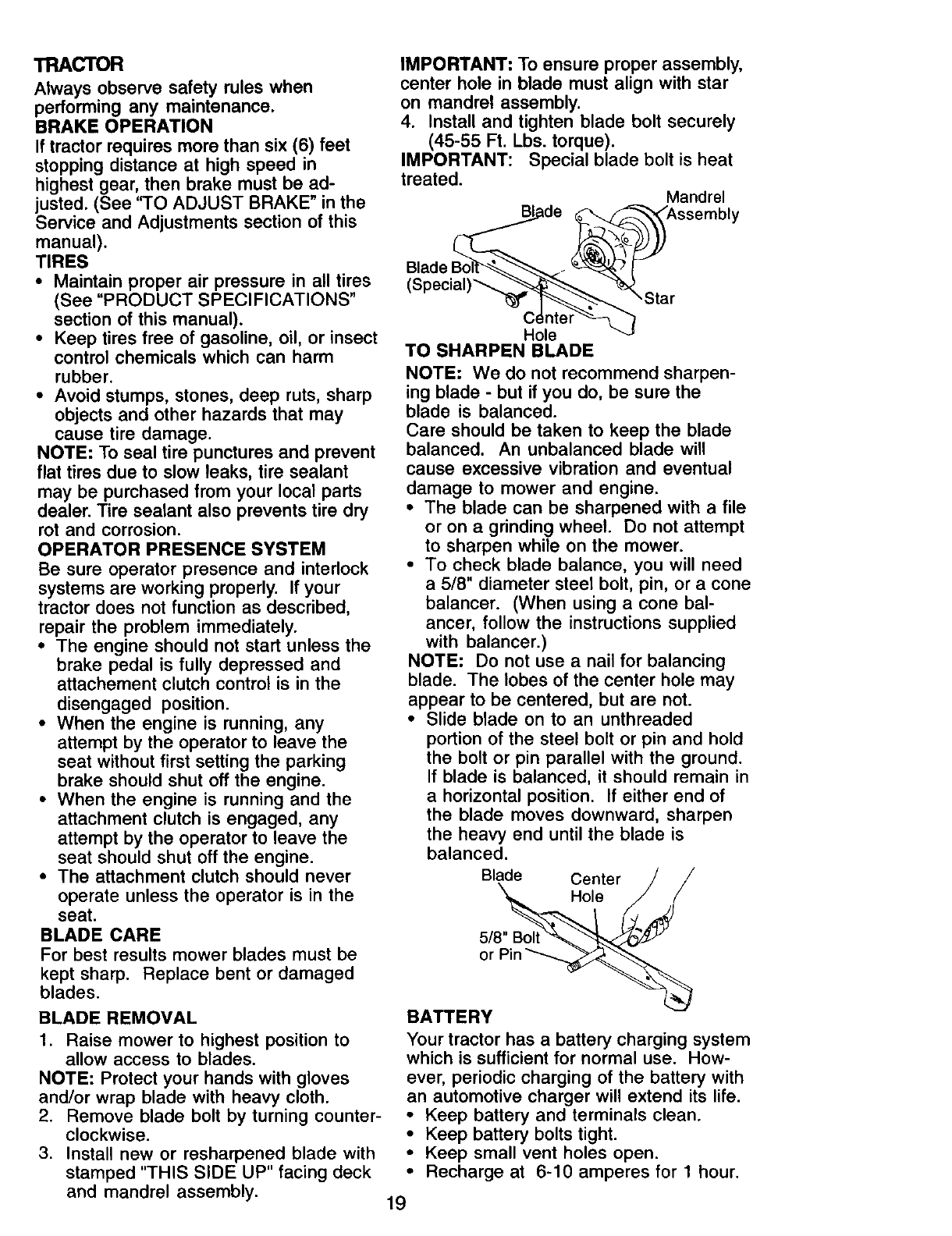

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See '%O ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SIDE UP" facing deck

and mandrel assembly.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

IMPORTANT: Special blade bolt is heat

treated. Mandrel

Blade _--_deBol_. :_Assembly

(Special)__Star

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade -but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

•Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

BI.ade Center / /

5/8-

or Pin _

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmission

while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

•Inspect cooling fan to be sure fan blades

are intact and clean.

•Inspect cooling fins for dirt, grass

clippings and other materials. To

prevent damage to seals, do not use

compressed air or high pressure sprayer

to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact a Sears or other qualified service

center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°F. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one year.

Check the crankcase oil level before

starting the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

•Be sure tractor is on level surface.

•Oil will drain more freely when warm.

•Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be care

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of dra

valve and install the drain tube onto

the fitting. Oil DrainValve

and

Locked |

Position _

Yellow CapI

Drain Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep

oil at "FULL" line on dipstick. Tighten

cap onto the tube securely when

finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knobs and cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

over

Foam

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in =PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

ClamP_clamp

Fuel Filter

CLEANING

i Clean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

WARNING: TO AVIOD SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in "DISENGAGED" position.

3, Turn ignition key to "STOP" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Disengage belt tension rod from lock

bracket.

CAUTION: Rod is spring loaded. Have

a tight grip on rod and release slowly.

5. Remove retainer spring holding anti-

swaybar to chassis bracket and

disengage anti-sway bar from bracket.

6. Remove four retainer springs from

front plate assembly and remove

plate.

7. Remove retainer springs from

suspension arms at deck and disen-

gage arms from deck.

8. Raise attachment lift to its highest

position.

9. Slide mower forward and remove belt

from electric clutch pulley.

Lock Bracket

Belt Tension Front

Rod Mower

(DJsengaged_ ,, 3racket

Position) )/

Chassis

Bracket

Retainer

Spring

Anti-Swa,

Bar

USE PLIERS FOR

RETAINER SPRING5

,!/Loop up

Suspension

Double Loop

Retainer Springs

(Outward pointing

deck pins)

10.Slide mower out from under right side

of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and mower

suspension arms are raised with attachment

lilt control. Engage parking brake.

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with

deflector shield to right side of tractor.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachmet

lift control.

5. Be sure belt tension rod is in disen-

gaged position.

6. Install belt into electric clutch pulley

groove.

7. Place the suspension arms on

outward pointing deck pins. Retain

with double loop retainer spring with

loops up as shown.

8. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown

Electric Double Loop

Clutch Pulley Retainer Springs

Front Plate

Single Loop

Retainer Springs

Pins

Front Mower

Bracket

Deflector Shield

9. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate assembly and mower

brackets.

NOTE: To assist in locating hole in

flanged pin, the hole in pin is inline with

notch on head of pin. If necessary, move

mower side-to-side to give space

between plate and mower brackets.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

10. Engage belt tension rod by pushing

rod into locking bracket.

_oaCAUTION: Belt tension rod is spring

ded. Have a tight grip on roa ana

engage slowly.

11.Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

12.If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

13. Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground such as a carport or

garage. Make sure tires are properly

inflated (See "PRODUCT SPECIFICA-

TIONS" section of this manual). If tires are

over or underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

• Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

• From left side of tractor, find the level

decal on top of mower and place

bubble level on decal as indicated.

• Mower is level side-to-side when

bubble is between the two lines in the

bubble level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

• Remove bubble level from mower and

store in a safe place.

LinesBUbbleBetw_Bubble Level

il_i_ _'''_ Level Decal

Left Hand Lift Link

Footrest ,Adjustment Nut

Pedal ,, _

_Yellow Cap

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners of

mower. Distance "A" on both sides of

mower should be the same.

• If adjustment is necessary, make

adjustment on one side of mower only.

•To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Bottom Edge of Bottom Edge of

Mower to Ground _ Mower to Ground

pension Arm

-- Lift Link

,J L-.-_ _ _-Adjustment

Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2"

lower than the rear tip when the mower is

_kits highest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap

blade with heavy cloth.

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and roar tip of blade

•Before making any necessary adjust-

ments, check that both front links are

equal in length.

•If links are not equal in length, adjust

one link to same length as other link.

•To lower front of blade, loosen nut "C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

•When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D"

against trunnion on both front links.

•To raise front of blade, loosen nut "D"

from trunnion on both front links.

Tighten nut "C" on both front links an

equal number of turns.

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D"

against trunnion on both front links.

•Recheck side-to-side adjustment.

Blade

"B .... B"

BOTH FRONT LINKS MUST BE EQUAL

IN LENGTH

Nut Nut "C"

Assembly"

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface.

Engage parking brake.

2. Lower mower to its lowest position.

3. Disengage belt tension rod from lock

bracket.

CAUTION: Rod is spring loaded.

Have a firm grip on rod and release

slowly.

4. Remove screws from R.H. mandrel

cover and remove cover.

5. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck

surface.

6. Disconnect R.H. suspension arm from

rear deck bracket by removing

retainer spring.

7. Carefully roll belt over the top of R.H.

mandrel pulley.

Belt Tension\

(Disengaged\;,"

Position) _;

8. Remove belt from electric clutch

pulley.

9. Remove belt from idler pulleys.

10.Check primary idler arm and two

idlers to see that they rotate freely.

11 .Be sure spring is securely hooked t(

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

12. Install belt in both idlers.

13.Install new belt onto electric clutch

pulley.

14.Carefully roll belt into upper groove,

R.H. mandrel pulley.

15.Carefully check belt routing making

sure belt is in the grooves correctly.

16. Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

17. Reassemble R.H. mandrel cover.

18. Engage belt tension rod by pushing

rod into locking bracket.

Mandrel _ _

Cover _Electric

Spring Arm Idler

Pulleys

R.H. Suspension

Arm

Primary

Idler Arm

Mandrel

TO REPLACE MOWER BLADE (SEC-

ONDARY) DRIVE BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

2. Remove screws from R.H. and L.H.

mandrel covers and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

3. Carefully roll belt over the top of R.H.

mandrel pulley.

4. Remove belt from idler pulleys.

5. Check primary idler arm and two

idlers to see that they rotate freely.

6. Be sure spring is securely hooked to

primary idler arm and spring arm.

REMOVE MOWER BLADE

(SECONDARY) DRIVE BELT

7. Carefully roll belt off L.H. mandrel

pulley.

8. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

9. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

10.Check secondary idler arm and idler

pulley to see that they rotate freely.

Secondary

Idler Arm Idler

L.H. Pulley

11.Be sure spring is hooked in secondary

idler arm and secondary spring arm.

INSTALL NEW MOWER BLADE

(SECONDARY) DRIVE BELT

12.Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and

center mandrel pulley as shown.

13.Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in all

grooves properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELl-" illustration in this section of

manual).

14. Install belt into upper groove of R.H.

mandrel pulley and around both

idlers. Pull belt to front of mower to

remove slack.

15. Reinstall mandrel covers and securely

tighten all screws.

16.Carefully check belt routing making

sure belt is in all grooves correctly.

17. Reinstall mower to tractor (See "TO

INSTALL MOWER" in this section of

manual).

ring

Secondary

Arm

.Center

Mandrel

Mower Blade

(Secondary)

Drive Belt a,H.

Mandrel

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear on a level dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake

rod.

3. If distance is other than 1-3/4", loosen

jam nut and tum nut =A" until distance

becomes 1-3/4". Retighten jam nut

against nut =A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

With parking brake "Engaged"

Nut

.Operating

Arm

Do not touch this nut. If further brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Disconnect clutch wire harness.

3. Remove clutch Iocator.

4. Remove belt from stationary idler and

clutching idler.

5. Remove belt downward from engine

pulley and around electric clutch.

6. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

7. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

belt around electric clutch and onto

engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Reinstall clutch Iocator and tighten nut

securely.

6. Reconnect clutch hamess.

7. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

8. Install mower (See TO INSTALL

MOWER" in this section of manual).

Electric _..........Clutch

Clutch-----"-- _Locator

•Clutching--------" _-_ I I

Idler I Ix)

Stationary j/I '

InputPulley

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require removal

for service or replacement, it should be

purged after reinstallation and before

operating the tractor. See "PURGE

TRANSMISSION" in the Operation section

of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbars horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVEWHEEL FORREPAIRS

I. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have asquare key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align grooves

in rear wheel hub and axle. Insert square

key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE" To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key

(Rear Wheel Only)

TO START ENGINE WITH A WEAK

BATTERY

_I,WARNING: Lead-acid batteries generate

explosive gases. Keep sparks, flame and

smoking materials away from batteries.

Always wear eye protection when around

batteries.

If your battery is too weak to start the engine, it

should be recharged. (See "BATTERY" in the

MAINTENANCE section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped with a

12 volt system. The other vehicle must also be

a 12 volt system. Do not use your tractor

battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_,WARNING: Do not short battery

terminals by allowing awrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Keps, Nut Hex Bolt

Terminal ;_i_i"_:;'i_:i:_

Access_-_ ,-' ,'"_. _-_L._ _/

Door "__

,.: _ogltive

,.:_ -_"(Red) Cable

TerminaP_'".L.. i_ J

Guard __Jive (Black)

<... , Cable

TO REPLACE HEADLIGHT LAMP

_IL CAUTION: When lit, the halogen

lamps get extremely hot. Hold lamp

assembly by the holder and do not touch

the bulb.

1. Raise hood.

2. Disconnect harness from lamp

assembly.

3. Rotate counterclockwise and pull

lamp assembly out of the hole in the

backside of the grill.

4. Insert new lamp assembly and rotate

clockwise to lock.

5. Reconnect harness to lamp

assembly.

6. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

Raise hood.

Unsnap headlight wire connector.

Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

i\'_\_JH°°d\\,

., .-_,,'.', Headlight Wire

'q'-..""_-.-.-.-.-.-.-.jConnector

ENGINE

Maintenance, repair,or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual.Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position. 28

2. Check that swivel is against stop. If it

is not, loosen cable clamp screw and

pull cable back until swivel is against

stop. Tighten cable clamp screw

securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover

assembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take

your tractor to an authorized service

center for repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT; Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

Setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other qualified

servicecenter,, which has proper equip-

ment and experience to make any

necessary adjustments.

Clamp

Screw

Clamp Screw,

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in aclean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATFERY

•Fully charge the battery for storage.

•After aperiod of time in storage, battery

may require recharging.

•To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

'q-O CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called

gasohol or using ethanol or methanol)

can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE; Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Enginewill not

turn over

CAUSE

Out of fuel. 1.

Engine not "CHOKED" 2,

properly.

Engine flooded. 3.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

Loose or damaged wiring. 8.

Carburetor out of adjustment. 9.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4, Dirty fuel filter.

5. Stale or dirty fuel,

6. Loose or damaged wiring.

7. Carburetor out of adjustment.!

CORRECTION

Fill fuel tank.

See "TO START ENGINE"

in Operation section.

Wait several minutes before

attempting to start,

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery,

Service and Adjustments

section.

Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Faulty solenoid or starter. 8.

Faulty operator presence 9.

switch(es).

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

Cutting too much grass/too 1.

fast.

Throttle in "CHOKE" position.

Engine clicks but 1. Recharge or replace battery.

will not start 2, Clean battery terminals,

3. Check all wiring.

4. Check/replace solenoid or

starter.

Loss of power 1. Set in "Higher Cut" position/

reduce speed.

..... 2. 2. Adjust throttle control,

TROUBLESHOOTING CHART:

Seeappropriatesectionin manualunlessdire_edto Searsse_icecenter

CAUSE CORRECTION

Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

PROBLEM

Loss of power

continued)

Excessive

vibration

Engine continues

to run when

operator leaves

;eat with

attachment

:lutch engaged

Poor cut -uneven

Mower blades will

lot rotate

7. Dirty fuel filter.

8. Stale or dirty fuel,

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14.Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/

fins.

12.Clean/replace muffler.

13. Check all wiring.

14.See "To Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

1. Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.Obstruction in clutch

mechanism.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Seers service center

PROBLEM CAUSE CORRECTION

Mower blades wlll 2. Worn/damaged mower 2. Replace mower drive belt.

not rotate (con't) drive belt.

3. Frozen idler pulley. 3, Replace idler pulley.

4. Frozen blade mandrel. 4, Contact aSears or other

qualified service center.

Poor grass 1. Engine speed too slow.

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Loss of drive

Engine "backfires"

whenturnlng

engine

"OFF"

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Wom, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt wom.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is "OFF'.

2. Bulb(s) or lamp(s) burned out

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

!4.

I1.

Faulty regulator

(if so equipped).

Faulty alternator.

Freewheel control in

"disengaged" position.

Motion drive belt worn,

damaged, or broken.

Air trapped in transmission

during shipment or

servicing.

.Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

1. Place throttle control in

"FAST' position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

ITighten blade bolt.

'7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine,

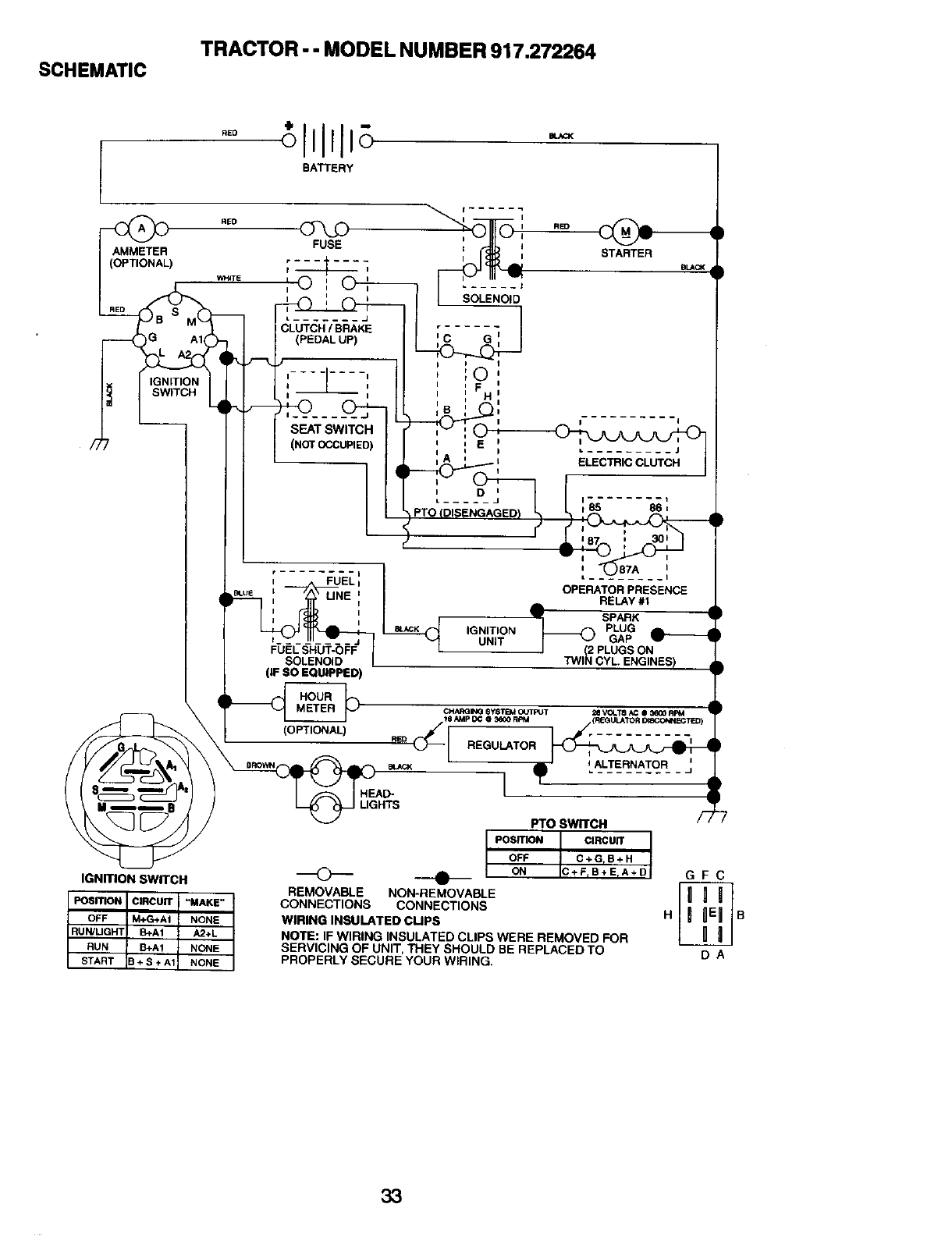

SCHEMATIC TRACTOR - - MODEL NUMBER 917.272264

BAKERY

RED

AMMETER

(OPTIONAL)

_ITE

IGNITION

SWITCH

SEAT SWITCH

(NOTOCCUPIED) E

RED

STARTER

BL_CK

-i

• ......... J

ELEC_IC CL_CH

r..... i [ L ........ I

IFUEL = _K OPERATOR PRESENCE

_ue = MNE tRELAY #1

'= I SPARK

PLUG

IGNITION _GAP

t ........ UNIT

FUEL SHUT-OFF (2 PLUGS ON

TWiN OYL. ENGtNES_

(IF SO EQUIPPED)

IGNITION SWITCH

CHARGIII_ 8ySTI_ OUTPUT 28 VQI.T8 AC • 3600 RFM

tB AMp _ • _ R_ (_U_R DI_C_IN_CTED)

(OPTIONAL) JIJ ...........

Rm (_ REGULATOR

BROWN BL_CK _ ......... J

LIGHTS

_UG PTO SWITCH n

POSITION

OFF

---O-- e _

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS

WIRING IN_TED CUPS

CIRCUIT I

C+GrB+H

C+FtB+ErA+D

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

GFC

TRACTOR -- MODEL NUMBER 917.272264

ELECTRICAL

i79

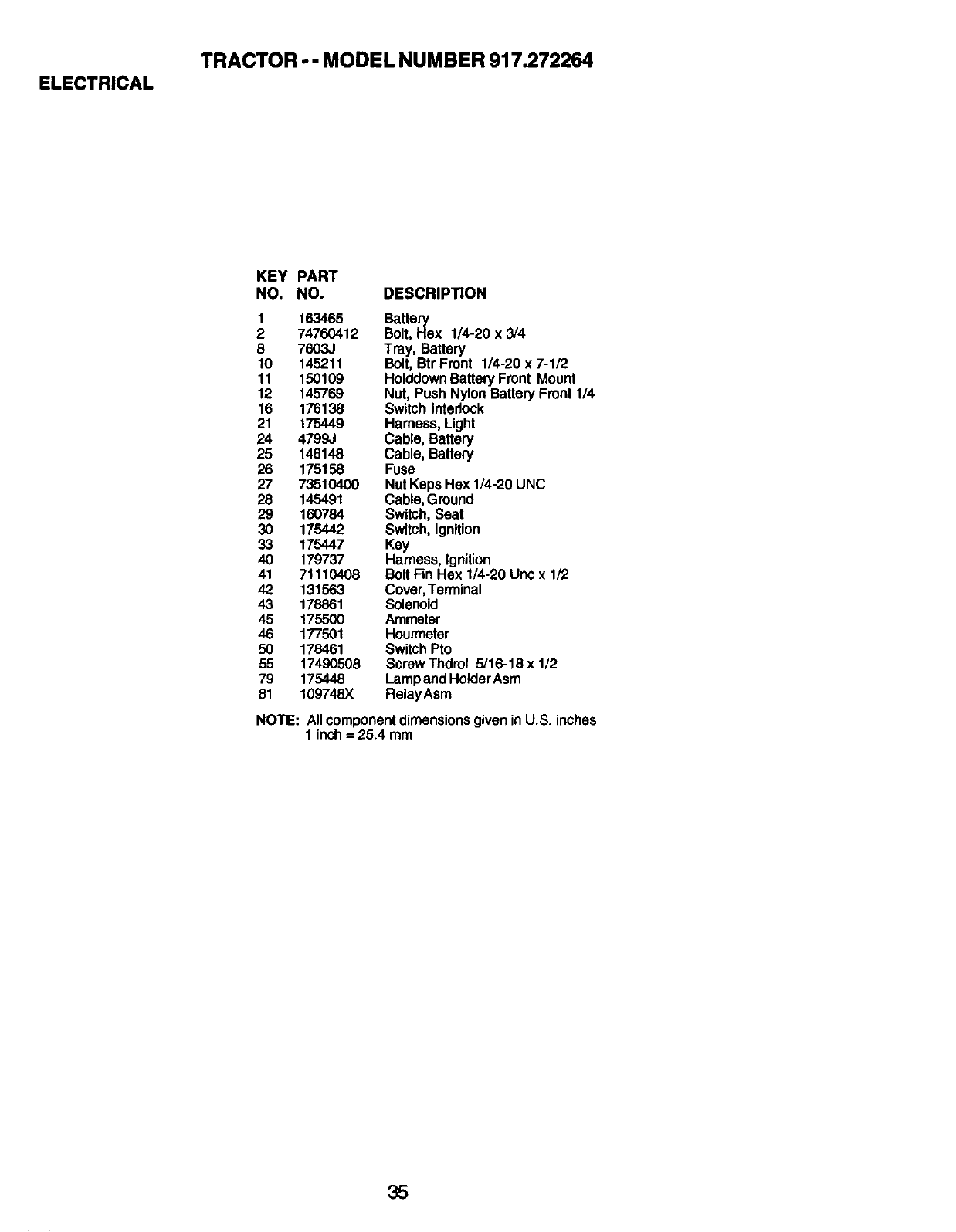

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.272264

KEY PART

NO. NO. DESCRIP_ON

1163465 Battery

2 74760412 Bolt,Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt,BtrFront 1/4-20 x 7-1/2

11 150109 HolddownBatteryFront Mount

12 145769 Nut, PushNylonBatteryFront1/4

16 176138 SwitchInterlock

21 175449 Harness,Light

24 4799J Cable, Battery

25 146148 Cable, Battery

26 175158 Fuse

27 73510400 NutKspsHex 1/4-20 UNC

28 145491 Cable,Ground

29 160784 Switch,Seat

30 175442 Switch,Ignition

33 175447 Kay

40 179737 Harness,Ignition

41 71110408 BoltFin Hex 1/4-20 Uncx 1/2

42 131563 Cover,Terminal

43 178861 Solenoid

45 175500 Ammeter

46 177501 Hourmeter

50 178461 Switch Pto

55 17490508 Screw Thdrol 5/16-18 x 1/2

79 175448 Lamp and Holder Asm

81 109748)( RelayAsm

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

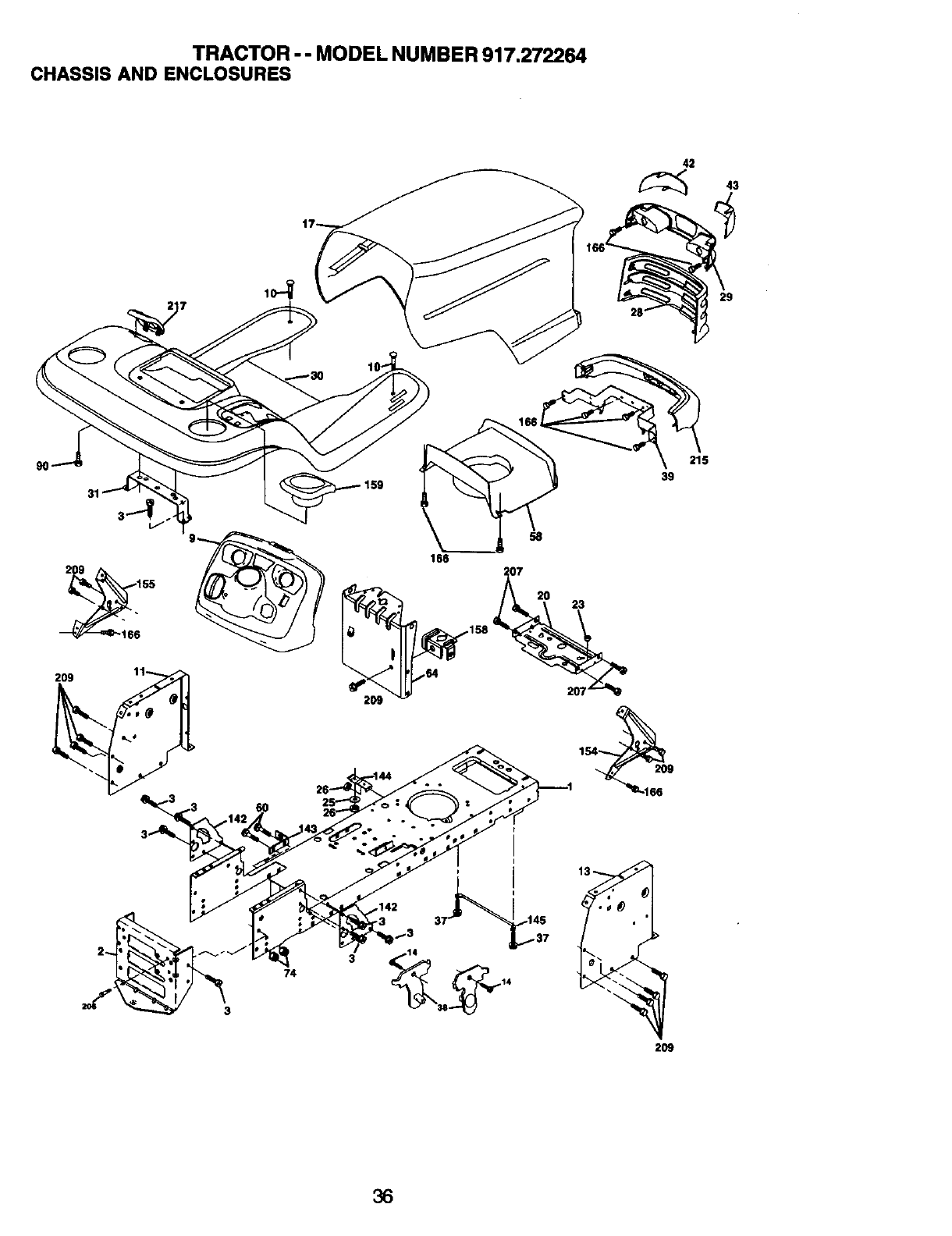

TRACTOR -- MODEL NUMBER 917.272264

CHASSIS AND ENCLOSURES

166

215

2O9

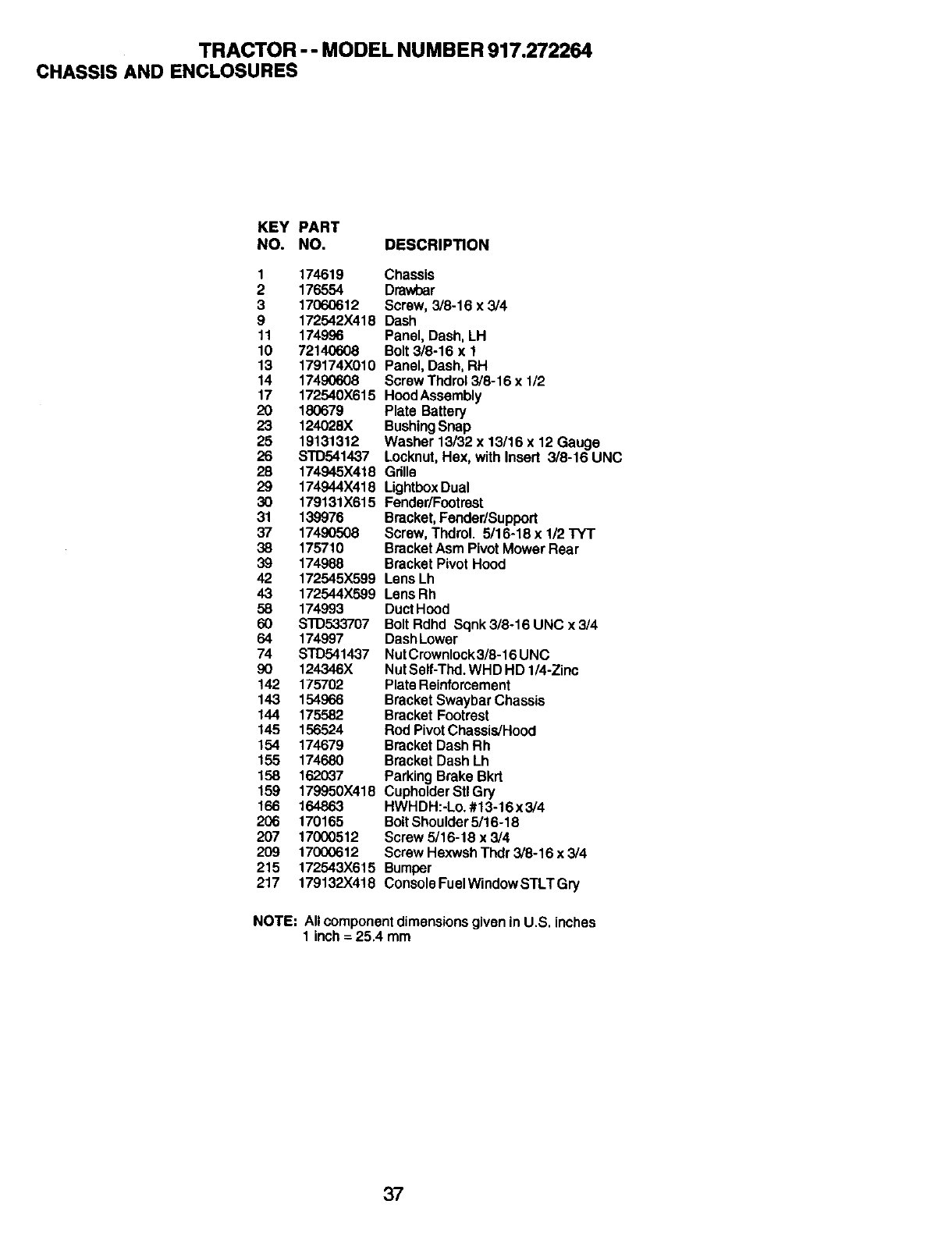

TRACTOR - - MODEL NUMBER 917.272264

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2176554 Drav/ear

3 17060612 Screw, 3/8-16 x 3/4

9 172542X418 Dash

11 174996 Panel, Dash, LH

10 72140608 Bolt 3/8-16 x 1

13 179174X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 172540X615 Hood Assembly

20 180679 Plate Battery

23 124028X Bushing Snap

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Locknut, Hex, with Insert 3/8-16 UNC

28 174945X418 Grille

29 174944X418 Lightbox Dual

30 179131X615 FendedFootmst

31 139976 Bracket, Fender/Support

37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT

38 175710 Bracket Asm Pivot Mower Rear

39 174988 Bracket Pivot Hood

42 172545X599 Lens Lh

43 172544X599 Lens Rh

58 174993 Duct Hood

60 STD533707 Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

64 174997 DashLowar

74 STD541437 Nut Crownlock3/8-16 UNC

90 124346X Nut Seif-Thd. WHD HD 1/4-Zinc

142 175702 Plate Reinfomement

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rod Pivot Chassis/Hood

154 174679 Bracket Dash Rh

155 174680 Bracket Dash Lh

158 162037 Parking Brake Bkrt

159 179950X418 CupholderSUGry

166 164863 HWHDH:-Lo. #13-16 x3/4

206 170165 Bolt Shoulder 5/16-18

207 17000512 Screw5/16-18 x 3/4

209 17000612 Screw Hexwsh Thdr 3/8-16 x3/4

215 172543X615 Bumper

217 179132X418 ConsoleFuelWindowSTLTGry

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272264

GROUND DRIVE

- 254

223

62 36

241

29".

26 26

TRACTOR -- MODEL NUMBER 917.272264

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1...... Transaxle (See Breakdown) 78

Hydro gear Model 323-0510 89

6 17060512 Screw 5/16-18 x 3/4 gO 124346X

9 174367 Clutch Elec 95 180825

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 SO 4497H

16 73800500 Nut Lock Hex W/Ins. 5/16-18 Unc 116 72140608

17 126197X Washer 1-1/20D x 15/32 ID x 120 73900600

.250 150 175456

19 73800600 Nut Look Hex W,_Nsh 3/8-16 Unc 151 19133210

20 173937 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 202 72110612

21 175036X505 KnobCustomControlCruise 212 145212

22 175896 Rod, Brake 214 174735

24 73350600 Nut, Hex Jam 3/8-16 Unc 215 175646

25 106888X Spring, Brake Rod 217 179433

26 19131316 Washer 218 174713

27 76020412 Pin Cotter 1/8 x 3/4 CAD. 219 174839

28 179607 Rod, Parking Brake 220 174711

29 179608X505 Knob Brake Parking 221 72140606

30 169592 Bracket, Transaxle 222 73680700

32 74760512 BoltHexHd 5i16-18Uncx3/4 223 174840

33 72140506 Bolt Rdhd Sqnk 5/16-18 Unc x 3/4 224 174736

34 175578 Shaft, Foot Pedal 225 174712

35 120183X Beadng, Nylon 226 174902

36 19211616 Washer 227 174710

37 1572H Pin, Roll 226 179032

38 179114 Pulley, Composite, Idler 229 176451

39 74760648 Bolt Fin Hex 3/8-16 Unc x 3 231 174573

41 175556 Keeper, Belt Idler Flat 232 175570

47 127783 Pulley, Idler, V-Groove 233 174856

48 154407 Bellcrank Clutch Grnd Drw Stl 234 174858

49 123205X Retainer, Belt 235 174857

50 74760624 Bolt 236 128903

51 73680600 NutCrownlock 3/8-16UNC 237 170165

52 73680500 Nut, Crownlook 5/16-18 Unc 238 175807

53 105710X Link, Clutch 239 17490508

55 105709X Spdng, Return, Clutch 240 175610

56 17060620 Screw 3/8-16 x 1-1/4 241 73930400

57 140294 V-Belt, Ground Ddve 242 74780412

59 169691 Keeper, CenterSpan 243 178289

61 17120614 Screw 3/8-16 x.875 244 166880

62 123533X Cover, Pedal 250 17060612

63 175417 Pulley, Engine 253 179422

65 10040700 Washer 254 178062

66 154778 Keeper Belt Engine

74 137057 Spacer, Axle

75 121749X Washer 25/32 x 1-1/4 x 16 Ga.

76 12000O01 E-Ring

77 123583X Key, Square

121748X Washer 25/32 x 1-5/8 x16 Ga.

174901X418 Console, Shift

Nut Self-Thd Wsh-hd 1/4 Zinc

Rod Bypass

Retainer Spring 1•Zinc/Cad

Bolt RDHD SQNK 3/8-16 Unc x 1

Nut Lock Fig 3/8-16 Unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5

Nut HexFlange Lock

LinkTransaxle

Cover Pedal Forward

Pedal Reverse Asm. w/Pad

Arm Control Pedal Reverse

Bracket Frast Pdl Ctrl. Hyd

Bracket Mtg. Pedal Control

Bolt Rdhd Sqnk 3/8-16 Unc x 3/4

Nut Crownlock 7/16-14 Unc

Washer Nylon 11/16 ID x .060

Pedal Forward

Arm Control Pedal Forward

Bolt Pivot Spacer

Cam Reverse Pedal LT

Bolt Shoulder 5/16-18

Washer Serrated 5/16 x .75

Strap Torque

Actuator Cruise Disengage

Pawl Control Cruise

Lever Control Cruise

Sector Control Cruise

Bolt Shoulder 3/8-16 Unc 1/44

Bolt Shoulder 5/16-18

Arm Mtg. Cruise Sector

Screw Thdrol 5/16 x 1/2

Spring Return Cruise Control

Nut Centedock 1/4-20 Unc

Bolt Fin Hex 1/4-20 Unc x 3/4

Bracket Anti-Rotation CVX

Screw 5/16-16 x 5/8

Screw 3/8-16 x3/4

Washer .3125 x .615 x 16 Ga.

Clip Retainer

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272264

STEERINGASSEMBLY

68 07

lO 35

TRACTOR - - MODEL NUMBER 917.272264

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 175139X416

2 172393

3 169840

4 169839

5 626611

6 121748X

8 12000029

10 175121

11 STD551137

12 73940800

13 136518

15 145212

17 177883

29 17060612

32 170162

33 19111216

34 STD551131

35 73540500

36 155105

37 152927

38 175140X418

40 STD541537

41 159945

42 174530X4!8

43 121749X

46 121232X

65 160367

67 72140618

68 169827

71 175146

72 19182411

82 169835

87 173966

88 175118

91 175553

SteedngWheel

AxleAssembly

SpindleAssembly,L.H.

SpindleAssembly,R.H.

Bearing,Race, Thrust,Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Ring,Klip

Drag|ink

Washer,Lock

Nut Hex JamTopk_k 1/2-20 Unf

SpacerBrg AxleFront

NutHexflangeLock

ShaftAssembly,Steedng

Screw,3/8-16 x 3/4

Rod,Tie

Washer 11/32 x 3/4 x 16 Ga.

Washer LockHvy Spr. 5/16

CrownlockNut5/16-24 Unf

Bushing, Steenng

Screw

Insert,SteeringWheel

Nut Lock Center 3/8-24 Unf

Adaptor,SteeringWheel

Boot,Steedng Shaft

Washer 25132x 1-1/4x 16 Gauge

Cap,Spindle

SpacerBraceAxle

BoltRdhdSq 3/8-16 UNC x 2-1/4

Axle, Brace

SteeringAsm

Washer 9/16 Idx 1-1/2Od 11 G Zin

BracketSuspChassisFront

Washer Flat .781 x 1-1/2 x .14

BoltShoulder7/16-20 Unc

ClipSteedng

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

ENGINE

TRACTOR -- MODEL NUMBER 917.272264

"81

OPTIONAL EQUIPMENT

Spark Arrester

ENGINE

TRACTOR -- MODEL NUMBER 917.272264

KEY PART

NO. NO. DESCRIPTION

1175437X505 Control,Throttle

2164863 Screw Hwhd H.-Lo #13016 x 3/4

3 Engine, (See Breakdown) B&S Model Number

446777-0165-E1

4 149723 Muffler

5 159955 Pipe Exhaust Lh

6 160589 Pipe Exhaust Rh

8 171877 Bolt 5/16-18 Unc x 3/4

10 162797X431 Shield Heat

13 165391 Gasket (See Engine Breakdown)

14 148456 Tube Drain Oil Easy

16 11050600 Washer, Lock, External Tooth 3/8

17 17490624 Screw Thdrol 3/8-16 x 1-1/2

23 169837 Shield, Browning /Debris Guard

25 175440X505 Choke Control

26 73920600 Nut, Keps 3/8-24 Unf

29 137180 Kit, Spark Arrestor

31 179022 TankFual

32 179124X418 Cap Asm Fuel

33 123487X Clamp, Hose

34 106082X Pad, Spacer

37 8543R Line, Fuel

38 148315 Plug Drain Oil Easy

39 109227X Pad, Idler

41 139277 Stem FuelTank

45 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

62 10040500 Washer Lock 5/16

72 71070512 Screw Hex Cap 5/16-18 x 3/4

81 73510400 Nut Keps Hex 1/4-20 UNC

112 3645J Bushing

NOTE: Allcomponent dimensions given in U.S. inches

1 inch = 25.4 mm

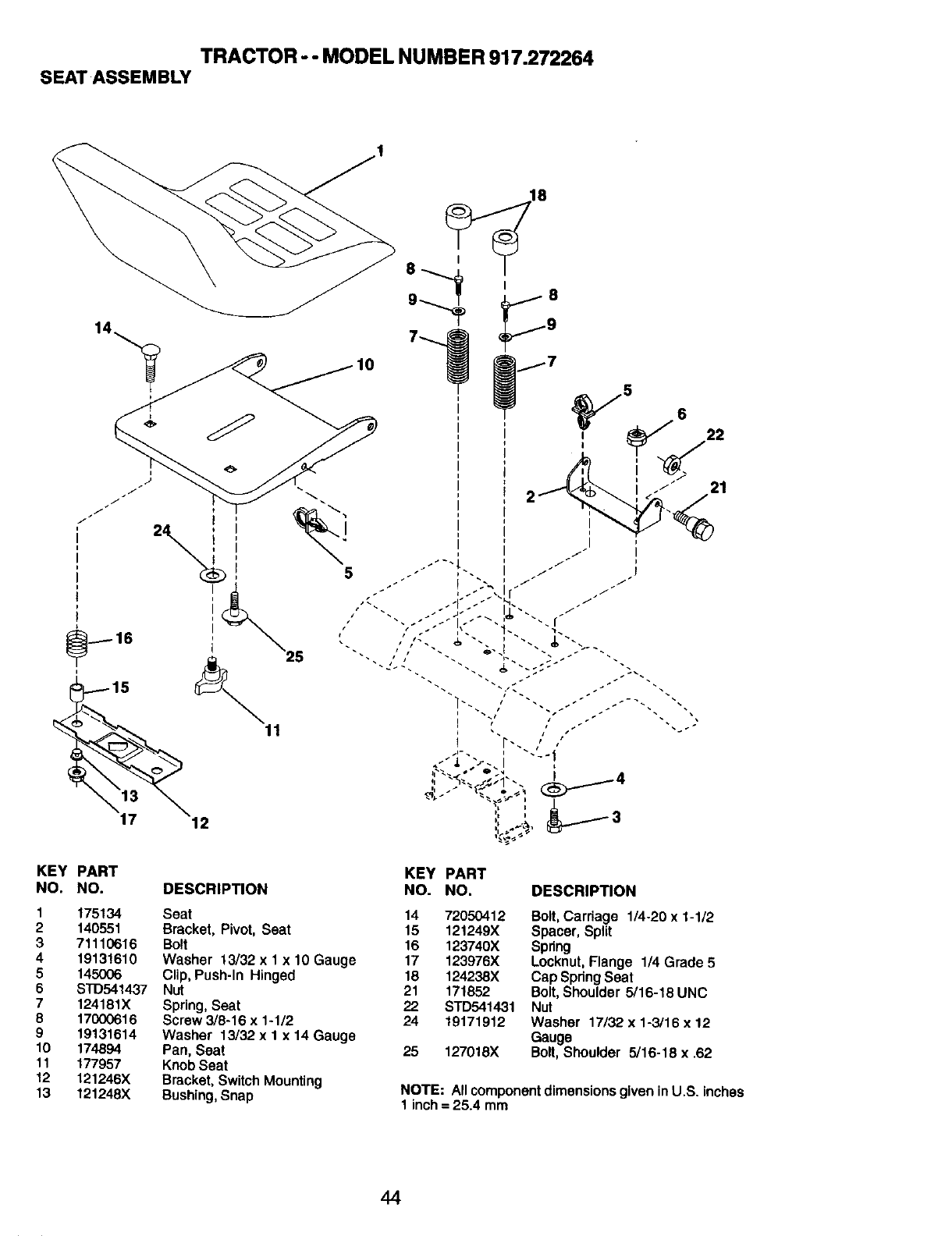

TRACTOR - - MODE L NUMB E R 917.272264

SEAT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 175134 Seat

2 140551 Bracket, Pivot, Seat

371110616 Bolt

4 19131610 Washer 13/32 x 1 x 10 Gauge

5145006 Clip, Push-In Hinged

6 STD541437 Nut

7 124181X Spring, Seat

8 17000615 Screw 3/8-16 x 1-1/2

9 19131614 Washer 13/32 x 1 x 14 Gauge

10 174894 Pan, Seat

11 177957 Knob Seat

12 121246X Bracket, Switch Mounting

13 121248X Bushing, Snap

KEY PART

NO. NO. DESCRIPTION

14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

15 121249X Spacer, Split

16 123740X Spdng

17 123976X Locknut, Flange 1/4 Grade 5

18 124238X Cap Spring Seat

21 171852 Bolt, Shoulder 5/16-19 UNC

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12

Gauge

25 127018X Bolt, Shoulder 5/16-18 x .62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

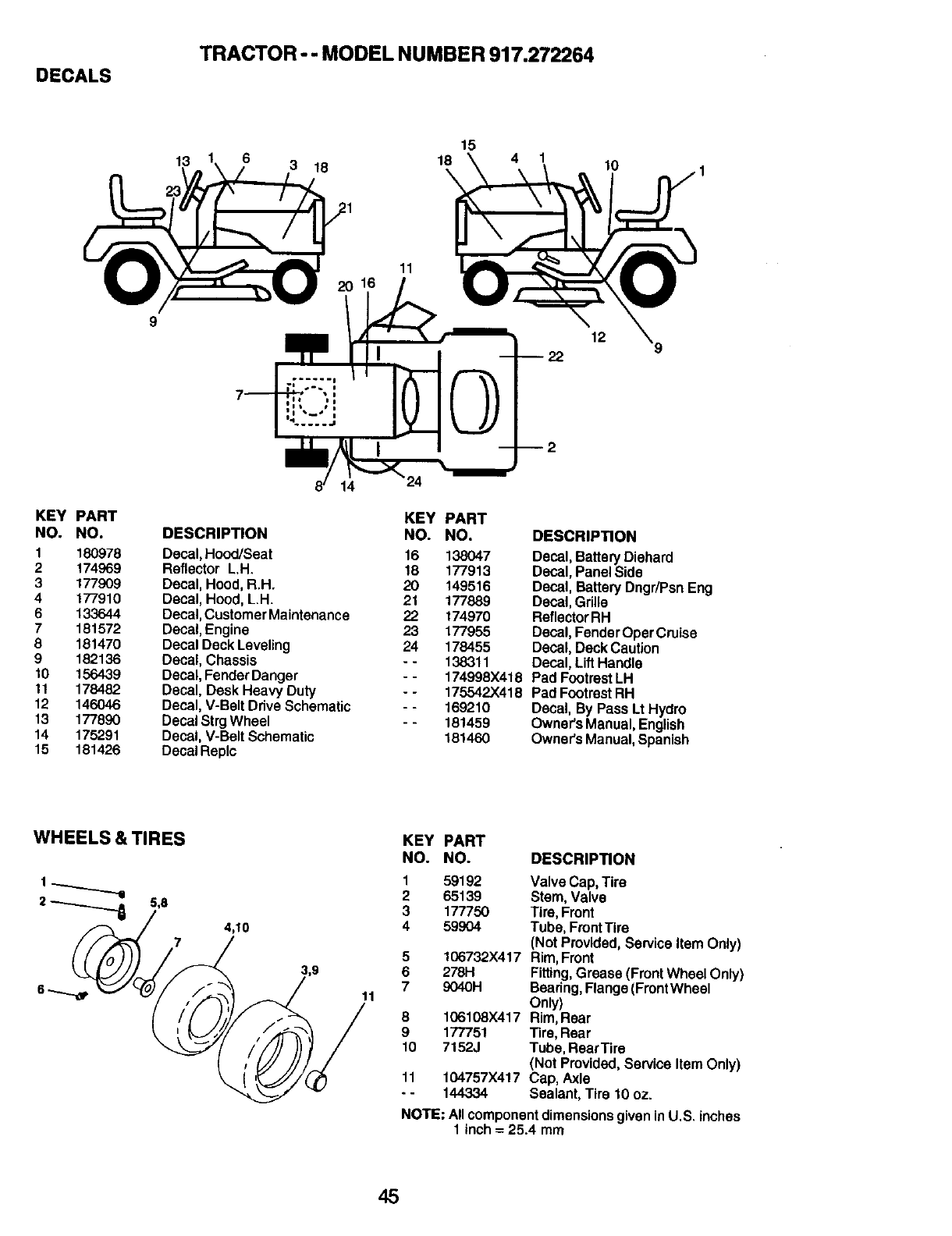

DECALS

TRACTOR - - MODEL NUMBER 917.272264

13 6 3 18

18 4 1 10

KEY PART

NO. NO.

1 180978

2 174969

3 177909

4177910

6 133644

7 181572

8 181470

9 182136

10 156439

11 178482

12 146046

13 177890

14 175291

15 181426

KEY PART

DESCRIPTION NO. NO.

Decal, Hood/Seat 16 138047

Reflector LH. 18 177913

Decal, Hood, R.H. 20 149516

Decal, Hood, L.H. 21 177889

Decal, Customer Maintenance 22 174970

Decal, Engine 23 177955

Decal Deck Leveling 24 178455

Decal, Chassis - - 138311

Decal, FenderDanger - -174998)(418

Decal, Desk Heavy Duty -- 175542X418

Decal, V-Belt Drive Schematic - - 169210

Decal Strg Wheel - - 181459

Decal, V-Belt Schematic 181460

Decal Replc

DESCRIPTION

Decal, BatteryDiehard

Decal, Panel Side

Decal, BatteryDngdPanEn9

Decal,Grills

RefiectorRH

Decal,FenderOperCruise

Decal, DeckCaution

Decal, Lift Handle

Pad Footrest LH

Pad Footrest RH

Decal, By Pass Lt Hydro

Owner'sManual,English

Owner's Manual, Spanish

WHEELS & TIRES

2_5,8 4,10

PART

NO. DESCRIPTION

KEY

NO.

159192 Valve Cap, Tire

2 65139 Stem, Valve

3 177750 Tire,Front

4 59904 Tube,FrontTire

(Not Provided,ServiceItemOnly)

5106732X417 Rim,Front

6278H Fitting,Grease (FrontWheel Only)

79040H Beadng,Flange(FrOntWheel

Only)

8 106108X417 Rim,Rear

9 177751 Tire,Rear

10 7152J Tube,RearTire

(Not Provided,ServiceItem Only)

11 104757X417 Cap, Axle

. - 144334 Sealant, Tire 10 oz.

NOTE: AllcomponentdimensionsgiveninU.S. inches

1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.272264

LIFT ASSEMBLY

_54

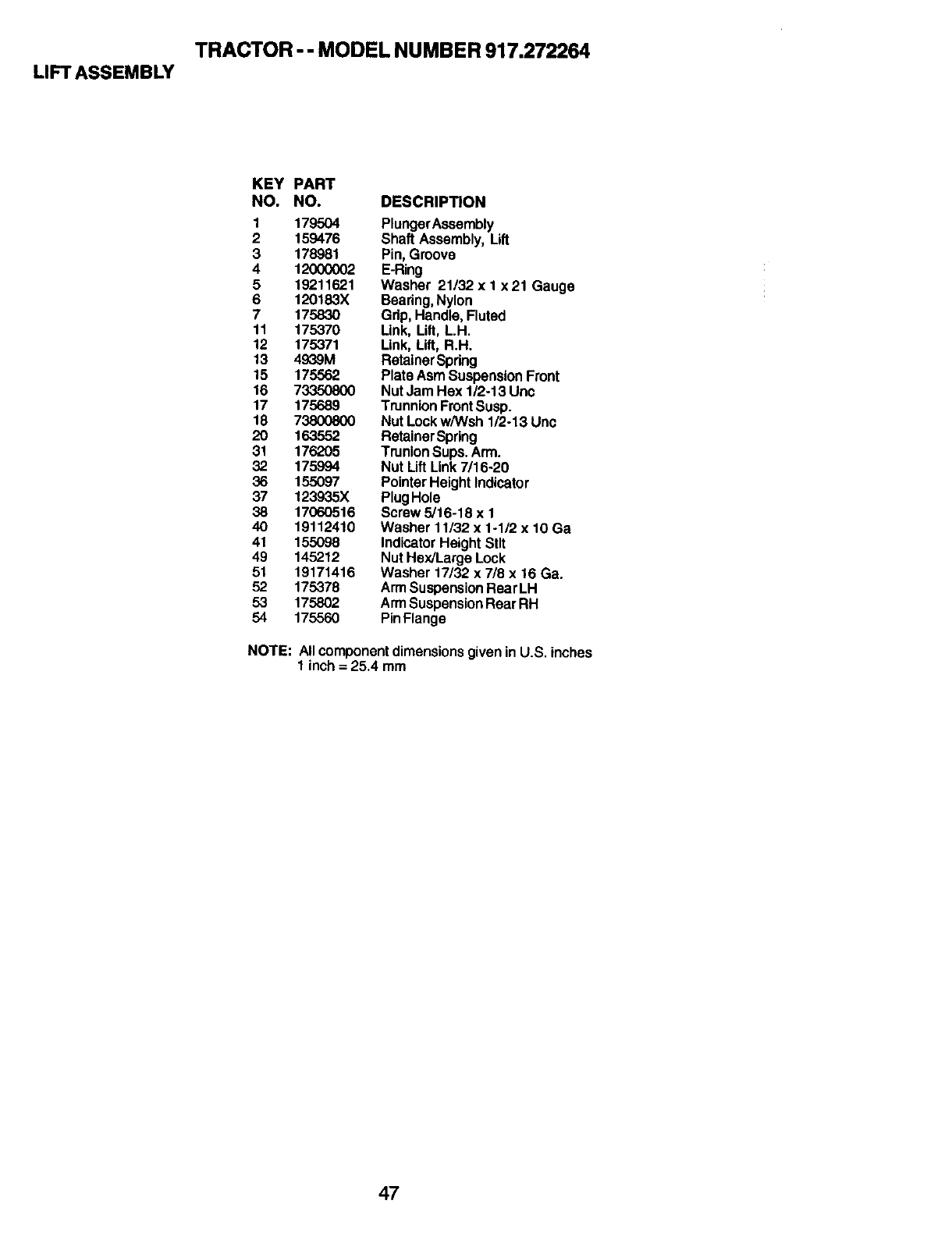

TRACTOR -- MODEL NUMBER 917.272264

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 179504 Plunger Assembly

2159476 Shaft Assembly, Lift

3 178981 Pin, Groove

4 120G0002 E-Ring

5 19211621 Washer 21/32 x I x 21 Gauge

6 120183X Bearing, Nylon

7 175830 Gdp, Handle, Fluted

11 175370 Link, Lift, L.H.

12 175371 Link, Lift, R.H.

13 4939M Retainer Spring

15 175562 Plata Asm Suspension Front

16 73350800 Nut Jam Hex 1/2-13 Uoc

17 175689 Trunnion Front Susp.

18 73800800 Nut Lock w/Wsh 1/2-13 Unc

20 163552 Retainer Spring

31 176205 Trunion Sups. Arm.

32 175994 Nut Lift Link 7/16-20

36 155097 Pointer Height Indicator

37 123935X Plug Hole

38 17060516 Screw 5/16-18 x 1

40 19112410 Washer 11/32 x 1-1/2 x 10 Ga

41 155098 Indicator Height Stlt

49 145212 Nut Hex/Larga Lock

51 19171416 Washer 17/32 x 7/8 x 16 Ga.

52 175378 Arm Suspension Rear LH

53 175802 Arm Suspension Rear RH

54 175560 Pin Flange

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

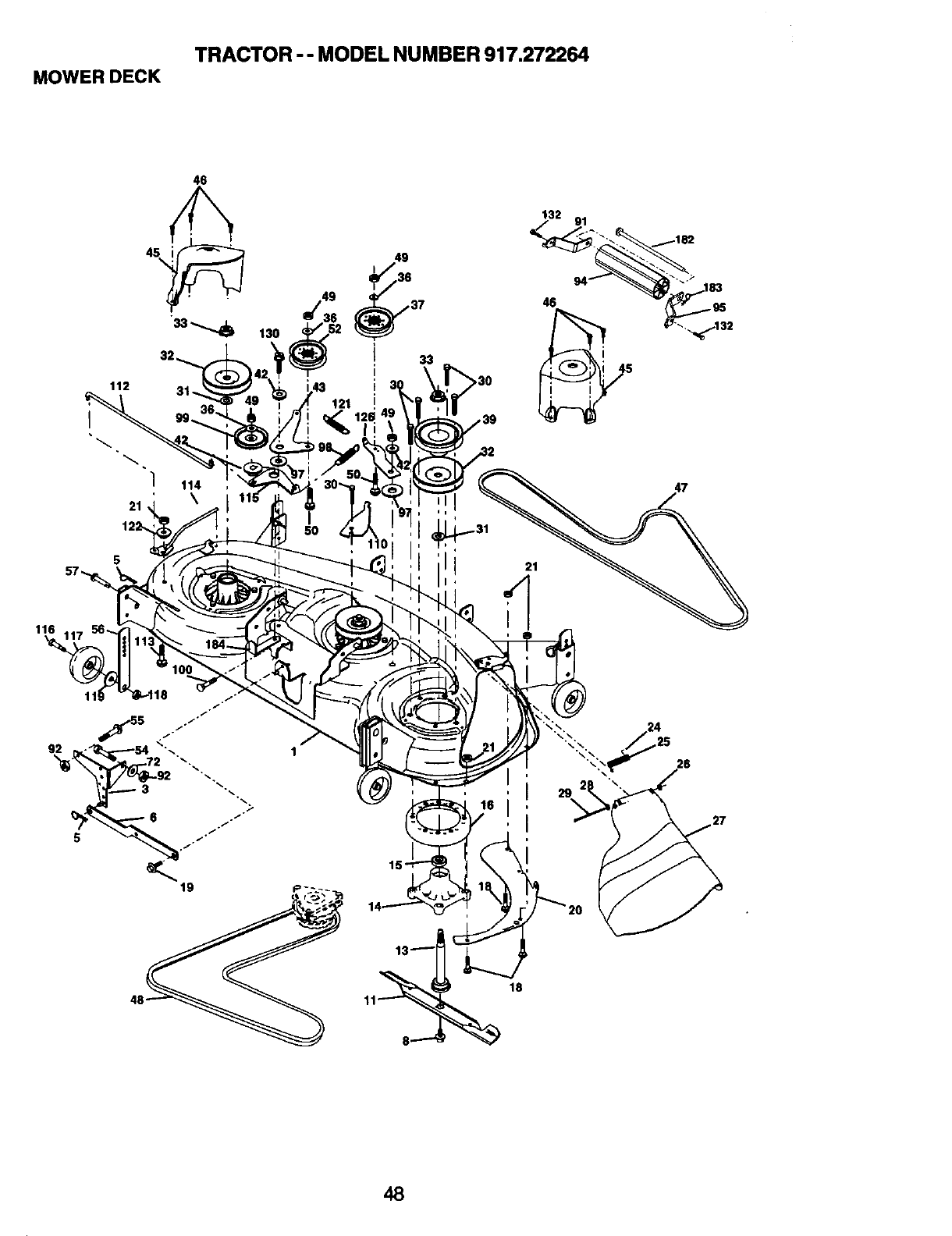

MOWER DECK

TRACTOR - - MODEL NUMBER 917.272264

112

21 •

122.,

114

116

121

132 91

TRACTOR -- MODEL NUMBER 917.272264

MOWER DECK

KEY PART

NO. NO.

1 180358

3 138017

5 4939M

6 178024

8 174365

11 180054

13 174360

14 1743,58

15 110485X

16 174493

18 72140505

19 132827

20 174378

21 73680500

24 105304X

25 178102

26 110452X

27 180655)(428

28 19111016

29 131491

30 173984

31 129963

32 177865

33 178342

36 19131316

37 177968

39 174375

42 165723

43 174373

45 174343

46 137729

47 180808

48 174368

49 73680600

50 72110612

52 175820

DESCRIPTION

KEY PART

NO. NO.

Deck Weldrnsnt Mower 48 54 74780616

Bracket Asrn., Sway Bar 55 72140608

Retainer Spdng 56 155986

Arm, Suspension, Rear (Sway Bar) 57 156941

Bolt 7/16 Asm. Blade 72 19131312

Blade 91 180534

Shaft Mandrel Asm. Greaseable 92 73800600

Housing Mandrel 94 176066

Bearing, Ball, Mandrel 95 180535

Stripper Mandrel Deck 97 133943

Bolt, Cardage 5/16-18 x 5/8 98 179479

Bolt, Hex Hd, Shoulder 5/16-18 99 181775

Baffle, Vortex Mower 100 72110616

Nut, Crownlock 5/16-18UNC 110 175016

Cap, Sleeve 112 174387

Spdng, Torsion 113 72110508

Nut, Push 114 174384

Deflector Shield 115 174609

Washer 11/32x5/8x16Ga. 116 137644

Rod, Hinge 117 174873

Screw, Thdroll Washer Head 118 73930600

Washer, Spacer Mower Vented 119 19121414

Pulley, Mandrel 121 174371

Nut, Fig. Top Lock Cntr. 9/16 122 174606

Washer 13/32 x 13/16 x 16 Ga. 126 174372

Pulley, Idler, Flat 130 17000616

Pulley, Idler, Ddven 132 17060612

Spacer, Retainer 182 179127

Arm, Idler Secondary 183 163552

Cover, Mandrel Deck 184 173979

Screw, Thdroll. 1/4-20 x 5/8 - -181579

V-Belt, Mower, Secondary --174356

V-Belt, Mower, Primary

Nut, Crownlock 3/8-16 UNC

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

Pulley Idler Flat

DESCRIPTION

BoltFin Hex 3/8-16 x 1

BoltRdhdSqnk3/8-16 x1

Bar PntAdj,

PinHeadRivet

Washer 13/32 x 13/16 x 12 Ga,

BracketAsmNoserollerLH

Nut LockHex w/Ins.3/8-16

Noseroller

BracketAsm NoserollerRH

WasherHardened

SpdngPrimaryDdve

PulleyIdler"V"

BoltRDHDSqnk3/8-16 UNC x 2

ArmSpringSecondary

Link Tension Relief Lever

Bolt Carr. 5/16-18 x 1

Tension Asrn Relief Lever

Arm SpringTension Relief

Bolt, Shoulder

GaugeWheel

Nut, Centerlcok 3/8-16 UNC

Washer 3/8 x 7/8 x 14 Ga.

Spring Secondary Drive

Bushing Pivot Tension Relief

Arm, Idler, Primary Deck

Screw 3/8-16 x 1.0

Screw Thdrol 3/8-16 x 3/4

Rod Roller NoseNarrow

RetainerSpring

Keeper Belt Idler

ReplacementMower,Complete

MandrelAsm. Service (Includes

Key Nos. 13-15)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

16 18

r124

6*Sealant (Joint d' etancheite)

57-20W50 Oil - 78,80Z (OZ de 78.820 d' Huile)

127 - Seal and O-ring Kit (Phoque 0 Sonne Jeu)

.,_129 128

123

, ..n

! II

m_3

r"rr I

ZI-

TRACTOR - - MODEL NUMBER 917.272264

HYDRO GEAR TRANSAXLE - - MODEL NUMBER323-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing, Assembly 67 170413

2 170352 Side Housing, Assembly 68 178782

3 1703,53 Center Section, Assembly 69 170415

4 170354 Swashplate, Trunion Machined 70 170416

5 169898 Block -Assembly 71 170417

6 170355 Sealant 10.50z

7 170356 Hsx Flange Screw 1/4-20 X 1.25 72 170418

8 170357 Stud, 5/16-24 Hex Double End

9 170358 Shaft, Input 73 142884

10 170359 Ring-Retaining 74 170419

11 170360 Spacer 75 170420

12 169870 Ring-Retaining

13 170361 Seal, Lip .67 X 1.58 X .276 76 170421

14 169869 Boll Brg 17ram Id X 40mm Od X 77 170422

12ram 78 142969

16 170362 Hex Flange Head Scraw 5/16- 79 142980

24X0.75 80 150778

17 170363 Lip Seal 18 X 32 X 7

18 178781 Arm, Control 81 170423

19 150771 Beadng, 30x52x13 Thrust 82 170424

23 170365 Check Plug Assembly, Washer

24 170366 Shaft, Motor 83 161168

27 170367 Gear- Pinion, 13t 84 170425

28 170368 101/48t Gear 85 170426

29 170369 Gear, 10t Jackshaft 87 142917

30 170370 60t Bull Gear 88 170429

31 170371 Sleeve Ssadng .75 X 1.575 X 90 170430

.625 93 170431

32 170389 SlseveBea dng(Outboard) 94 178783

.75x1.750x.625 95 178784

33 142991 Washer, 3/4 Id X 1-1/20d X .13

Thk 96 178786

34 170390 Lip Seal Axle Seal 97 178787

35 170391 Shaft, Axle .75 X 11.39(Key,R.H.) 98 178789

36 170392 Shaft, Axle .75 X 16.99 (Key,LH.) 99 178792

37 150792 Miter Gear (Splined) 100 178793

38 150793 Miter Gear 15t (0.5 Id) 101 178794

39 150809 Shaft 102 178795

40 170393 Ring, Spiral Retaining 103 178796

41 170394 Pin, Jackshaft 107 170432

42 170395 Magnet, Ring 108 170433

43 170396 Spring, Bypass

44 150797 Hydro Mtg Screw 3/8-24 X2.5 Lg 109 170434

45 170397 Filter 111 170435

46 170398 Bose, Filter 113 170437

47 170399 Actuator, Bypass 114 178797

48 170400 Rod, Bypass Actuator 116 170438

49 170401 Arm, Bypass 117 178799

50 170402 Retaining Ring .250 Extemal 119 170439

51 170403 Seal, Lip .741 X .250 X .250 Tc 120 170440

52 170404 Flat Washer, 5/81d x 1.00d x .05 121 170441

Thk 122 170442

53 170405 Retaining Ring 123 178800

54 170406 Baadng, Center Block 124 170444

55 142977 Spring -Helical Compression 125 170445

56 142978 Washer 126 170446

57 150798 20w-50 Oil 127 170447

58 170407 Brake Yoke 128 173165

59 170408 Rotor, Brake 130 178802

60 142883 Brake Puck 131 178803

61 142882 Puck Plate 132 178804

62 142887 Brake Actuating Pin 133 178806

63 170410 Hfhcs 1/4-20x2 W/ 134 178808

Patch,SpacialFlanga 900 173839

64 142892 Bolt, 1/4-20 X 1 W/Patch

65 170411 Spacer

66 170412 Spring, Brake Arm Bias

Sq. Hd. Bolt5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut5/16-24

CotterPin 3/32 X 3/4

CompressionSpdngBrake Anti-

Drag

Washer,Ht .5 I.D. X 10.D. X

.032

Flat- Washer 11/32 I.D. X 7/80d

Oil Seal .625 X 1.0 X .25

CheckPlug Assembly,.027,

Washer

Stud,5/16-24 FdctionPack

Puck,.330 X 1.50 X.0975

Spring,HalicalComp

Spacer

Hex LockNut5116-24Unjf(Nylon

Insert)

Wedge, FdctionPack

Clip,Washer.316x1.50x.1046

(Plated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32 Tube

Hose, ExpansionTank

Cap - Poppet Valve

Bolt, Self Tapping 10-32 X 1/2

Puck, Inner Wedge

Spring Clip -Housing Thrust

Beadng, Ball

Screw, Socket Head Cap 5/16-

24X1-1/2

Spacer, Locating

Screw, SFHCS 5/16-18 Xl

Arm Retum

Puck, Adjusting

Washer, .24 ID X 1.60 OD X .239

Spring, Extension

Spacer .260 ID X .560 OD X .870

Bracket,Torque

Deflector

Washer,Motor Shaft

.71idx1.15ndx.030thk

Plug, Sas #6

O-Ring .07 X .301 I.D.

Bracket,SupportExpansionTank

Spdng

SiliconSponge

Pin, Spring

Fan, 7 In.

Pulley

Hex Lock Nut 1/2-20 (Nylon Ins.)

Washer, Ballsville

Belt Keeper

Center Section-Filter-BypassAsm.

FilterAssembly

Fan - Pulley Service Assembly

Seal - O-Ring Kit

Kit, ExpansionTank

Stud Boll

Bracket,Cruise Damper

Hex Nut 5/16-18 NC

Damper

Washer, Helical Spring Lock 5/!6

Transaxle Complete

NOTE: Allcomponentdimensions given inU.S. inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272264

BRIGGS & STRATTONENGINE-MODELNUMBER 446777 TYPE NUMBER 0165-E1

188 <_

222

218 1

22o

_5oa

447A 41

1035 _25O _

[ 1058 OWNER'S MANUAL I

I 1036 EMISSION LABEL I

146

741

3O4

447A

447

654 •

1095 VALVE GASKET SET

7_276 O

868

TRACTOR -- MODEL NUMBER 917.272264

BRIGGS& STRATTONENGINE-MODELNUMBER446777 TYPE NUMBER0165-E1

1029

1100

798

211

_385 _787 788 [_

628 ep

552

ss_ 0

742 _'_

4O4 0

ss_ 8

691 a

121 CARBURETOR OVERHAUL KIT

51 L_,_(._^I 276 0

633 O

987 €

104 672 _

105 •1123 0

117 _1124

137

977CARBURETORGASKETSET

51 _6331

987 •

o,2

150_ 11230

276 01124_

9144_

12sI 1169!

lO_.-----------------_:_I _I13:J13o 9s,

_='=_'21-'--IJ!_V_IIJ_ 987 "o o

1123 _ _

160 _1127

117 ¢P 276 0

118_

446777-0165-E1

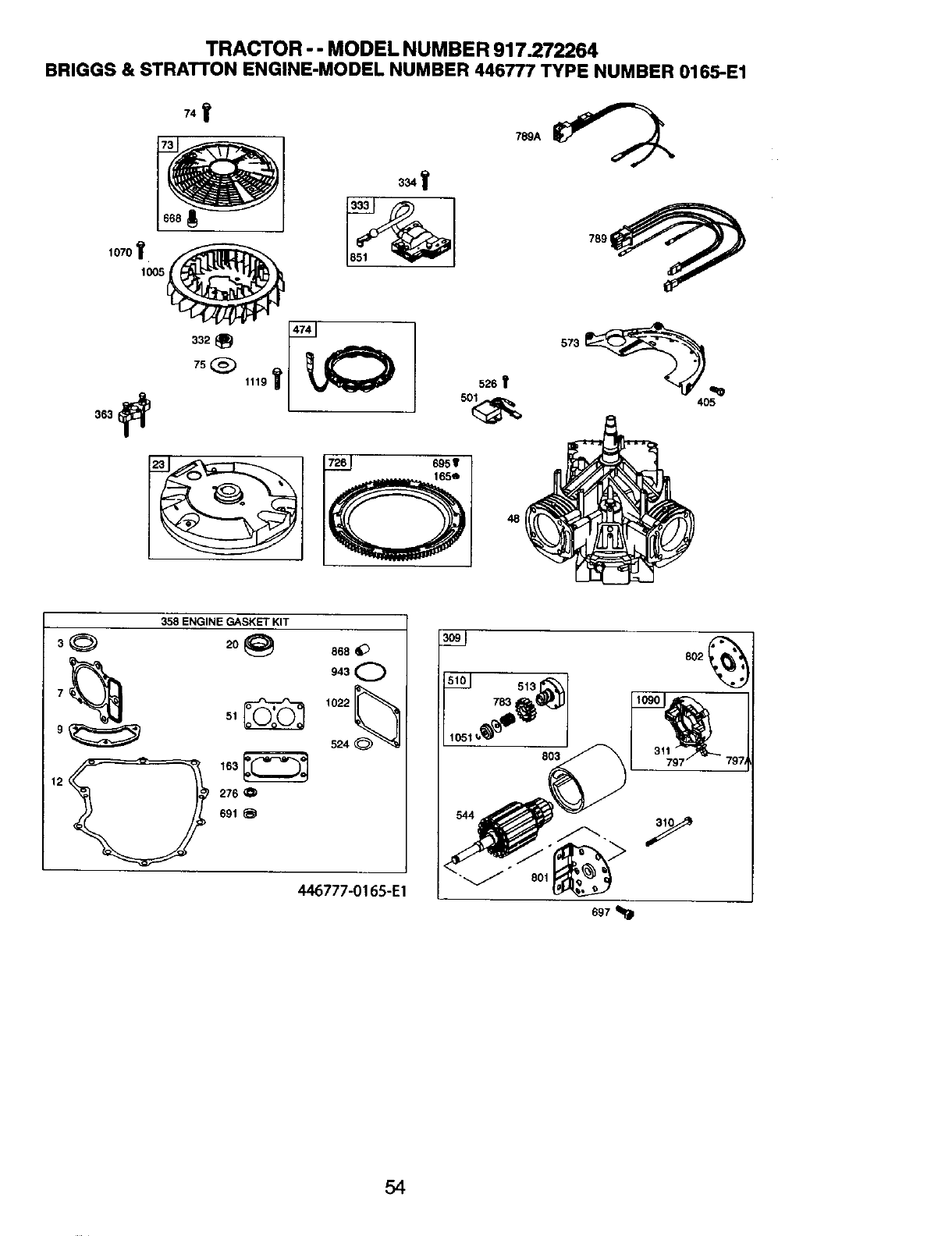

TRACTOR - - MODEL NUMBER 917.272264

BRIGGS & STRATrON ENGINE-MODEL NUMBER 446777 TYPE NUMBER 0165-E1

_,tt

789

573 _ _

405

358 ENGINE GASKET KIT

3_ 2o_

_163

276 O

E91

868

1022 _

524

446777-0165-E1

8O3

89z

TRACTOR - - MODEL NUMBER 917.272264

BRIGGS& STRATTONENGINE-MODELNUMBER446777 TYPE NUMBER0165-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 694001 Cylinder Assembly 117 690232 O

2499585 Kit-Bushing/Seal (Magneto 118 690989

Side) 121 499811

3 391086 •Seal-Oil (Magneto Side) 125 499804

4 690069 Sump-Engine 130 690993

5 697580 Heed-Cylinder (Cylinder 1) 131 499805

5A 697581 Head-Cylinder (Cylinder 2) 133 499806

7 693997 .+ Gasket-Cylinder Head 135 499803

8 499601 Breather Assembly 137 690994 O:1:

9 690937 • Gasket-Breather 141 499807

10 690960 Screw (Breather Assembly) 142 499808

11 690942 Tube-Breather 146 690979

12 697227 •Gasket-Crankcase 150 690995 _:1:

13 690360 Screw (Cylinder Head) 160 690996

15 690946 Plug-Oil Drain 163 691001 *+

16 691046 Crankshaft 165 693148

20 690947 ° Seal-Oil (PTO Side) 187 691050

22 694966 Screw (Engine Sump)

23 691053 Flywheel 187A 691049

24 222698 Key-Flywheel 188 690960

25 697679 Piston Assembly (Standard) 192 690083

25 697680 Piston Assembly (.010" 209 697674

Oversize) 211 691019

25 697681 Piston Assembly (.020" 212 695238

Oversize) 213 691021

25 697682 Piston Assembly (.030" 216 691022

Oversize) 219 696376

26 697683 Ring Set-Piston (Standard) 220 690412

26 697684 Ring Set-Piston (.010" 222 691023

Oversize) 227 691048

26 697685 Ring Set-Piston (.020" 231 690718

Oversize) 240 695666

26 697686 Ring Set-Piston (.030" 250 690957

Oversize) 252 690956

27 690975 Lock-Piston Pin 265 691024

28 690229 Pin-Piston 267 695134

29 499583 Rod-Connecting 276 690997._+

32 690976 Screw(Connecting Rod) 287 690960

33 697576 Valve-Exhaust 304 695277

34 499597 Valve-Intake 305 691005

35 690963 Spring-Valve (Intake) 309 691262

36 690963 Spring-Valve (Exhaust) 310 691263

40 690964 Retainer-Valve 311 497608

42 499586 Keeper-Valve 332 691059

45 690977 Tappet-Valve 333 691060

46 690978 Camshaft 334 691061

48 692714 Short Block (446777-0027- 337 491055

E2 Replacement Engine) 358 694012

50 695241 Manifold-Intake

51 690950. _:1: Gasket-Intake RPM Settings:

53 690951 Stud (Carburetor)

54 695240 Screw (Intake Manifold)

73 691055 Screen-Rotating •Included in

74 691057 Screw (Rotating Screen) 358

75 691056 Washer (Flywheel) _1 Included in

89 690283 Plug-Oil No. 121

95 690718 Screw (Throttle Valve) :1: Included in

98 499802 Kit-Idle Speed No. 977

104 690984 O Pin-Float Hinge + Included in

105 690985 _1 Valve-Float Needle 1095

t 08 690986 Valve-Choke

Jet-Main (Standard)

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Carburetor

Valve-Throttle

Kit-Throttle Shaft

Float-Carburetor

Tube-Fuel Transfer

Gasket-Float Bowl

Kit-Choke Shaft

Nozzle-Carburetor

Key-Timing

Gasket-Nozzle

Retainer-Solenoid

Gasket-Air Cleaner

Nut (Ring Gear)

Line-Fuel (Cut to Required

Length)

Line-Fuel (Molded)

Screw (Control Bracket)

Adjuster-Rocker Arm

Spring-Governor

Spring-Governed Idle

Link-Throttle

Bracket-Choke Control

Link-Choke

Gear-Governor

Washer (Governor Lever)

Bracket-Control

Lever-Governor Control

Screw (Choke Valve)

Filter-Fuel

Retainer-Breather

Collector-Oil

Clamp-Casing

Screw (Casing Clamp)

Washer-Sealing

Screw (Dipstick Tube)

Housing-Blower

Screw (Blower Housing)

Motor-Starter

Bolt-Starter Motor

Brush Set

Nut (Flywheel)

Armature-Magneto

Screw (Magneto Armature)

Spark Plug

Set-Engine Gasket

Low Speed: 1900-2100

High Speed: 3000-3200

Engine Gasket Set, Key. No.

Carburetor Overhaul Kit, Key.

Carburetor Gasket Set, Key.

Valve Gasket Set, Key. No.

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR-- MODEL NUMBER 917.272264

BRIGGS & STRAI"rON ENGINE-MODELNUMBER 446777 TYPE NUMBER 0165-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

363 691062 Flywheel Puller 865A 691014 Cover-Air Guide

383 690966 Wrench-Spark Plug 865B 691015 Cover-Air Guide

385 690960 Screw (Fuel Pump) 868 690968 ,+ Seal-Valve

387 808656 Pump-Fue_ 914 691127 Screw (Rocker Cover)

404 690442 Washer (Governor Crank) 918 694000 Hose-Vacuum

405 690960 Screw (Back Plate) 929 695239 Screw (Choke Control

418 690999 Plate-Carburetor Bracket)

445 695667 Filter-Air Cleaner Cartridge 929A 691003 Screw (Choke Control

447 691003 Screw (Air Guide Cover) Bracket)

447A 690960 Screw (Air Guide Cover) 943 690589 ° SeaI-O Ring (Oil Pump

467 691008 Knob-Air Cleaner Cover)

474 696458 Alternator 947 499809 Solenoid-Fuel

501 691185 Regulator 965 499613 Cover-Oil Pump

505 691029 Nut (Governor Control Lever) 967 272638 Filter-Pre Cleaner

510 497606 Drive-Starter 968 499788 Cover-Air Cleaner

513 692024 Clutch-Drive 975 499810 Bowl-Float

523 691036 Dipstick 977 499812 Gasket Set-Carburetor

524 691032 *Seal-Dipstick Tube 967 691000 _SeaI-Thrott|e Shaft

525 691037 Tube-Dipstick 1005 499603 Fan,Fl=y_'heel

526 690960 Screw (Regulator) 1013 690954 Nipple-Oil Filter

544 Armature-Starter 1017 690770 Screen-Oil Pump

(Service with 691262 Starter 1019 690103 Kit-Label

Motor) 1022 690971 .+ Gasket-Rocker Cover

552 690552 Bushing-Governor Crank 1023 499599 Cover-Rocker (Cylinder 1)

552A 690553 Bushing-Governor Crank 1023A499600 Cover-Rocker (C_nder 2)

562 690311 Bolt (Governor Control Lever) 1024 499054 Pump-Oil

573 691009 Plate-Back 1026 690981 Rod-Push (Steel.)

601 691038 Clamp-Hose 1026A690982 Rod-Push (Alum=num)

615 690317 Retainer-Governor Shaft 1027 696854 Filter-Oil

616 691045 Crank-Governor 1029 690972 Arm-Rocker

617 691917 Seal-O Ring(Intake Manifold) 1035 691042 Shaft-Pump

628 690960 Screw (Fuel Pump Bracket) 1036 695704 Label-Emission

633 690998 _-1: Seal-Choke/Throttle Shaft 1051 691265 Ring-Retaining

635 66538 Boot-Sparkplug 1058 274794 Owner's Manual

654 690958 Nut (Carburetor) 1070 691058 Screw (Flywheel Fan)

668 691215 Spacer 1090 691293 Retainer-Brush

672 690234 _:1: Gasket-Carburetor Plate 1095 694013 Gasket Set-Valve

691 690657 • Seal-Governor Shaft 1100 690973 Pivot-Rocker Arm

695 693149 Screw (Ring Gear) 1119 691183 Screw (Altemator)

697 690372 Screw (Drive Cap) 1123 690987(_ :1: SeaI-O Ring (Solenoid

703 691010 Clip Retainer)

718 690959 Pin-Locating 1124 690988_1:1: Sest-O Ring (Fuel Trensfer

726 499612 Gear-Ring Tube)

729 694123 Clip-Wire 1126 690991 Screw (Fuel Transfer Tube)

741 690980 Gear-Timing 1127 690992 Screw (Float Bowl)

742 690328 Retainer-ERing 1128 690990 _ Screw (Carburetor Nozzle)

750 696999 Screw _Oil Pump Cover) 1169 693140 Screw (Carburetor Cover

783 693058 Gear-Pinion Plate)

788 691039 Bracket-Fuet Pump RPM Settings: Low Speed: 1900-2100

789 695050 Harness-Wiring High Speed: 3000-3200

789A 696576 Harness-Wiring

797 691029 Nut (Brush Retainer) °Included in Engine Gasket Set, Key. No.

797A 693167 Nut (Brush Retainer) 358

798 690967 Screw (Rocker Arm) (_ Included in Carburetor Overhaul Kit, Key.

801 691283 Cap-Ddve No. 121

802 691286 Cap-End $Included in Carburetor Gasket Set, Key.

803 Housing-Starter No. 977

(Service with 691262 Starter + Included in Valve Gasket Set, Key. No.

Motor) 1095

842 691031 •Seal-Dipstick/Tube

847 499602 Dipstick/Tube Assembly NOTE: All component dimensions given in U.S.

851 493880 TerminaI-Sparkplug inches 1 inch = 25.4 mm

855 691011 Adapter-Air

865 691012 Cover-Air Guide

513

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

ForrepairofmajorbrandappliancesIn your own home...

nomatterwhomadeit,nomatterwhosolditJ

1-800-4,-MY-HOME @Anyl_e,dayornight

(1_) (U.SAandCanada)

WWW_ _RIwv.Ilems.ca

Forrepairofcarry-inproductslikevacuums,lawnequipment,and

electronics,callforthe nearestSears Parts and RepairCenter.

1-800-488-1222 Any,rne,dayorrt_t (U.SAody)

wwwm

Forthe replacementparts,accessoriesand owner'smanuals

thatyouneedtodo-it-yourself,callSears PartsDirectS"!

1-800-366-PART 6a.m.-11 p.m., 7days aweek

(1-800-366-7278) (U.S.A.only)

www_

To purchaseorinquireabouta SearsServiceAgreement

or SearsMaintenanceAgreement

1-800-827-6655 (u.sJ_) 1-800-361-6665 (Canada)

7 a.m. - 5 p.m.,CST, MOrL- Sat 9 a.m.- 8 p.m. EST, M - F,4 p.m.Sat

Para pedr servidode repa,'ack_ a

domicio, y parao_denarpieza_

1-888-SU-HOGAR sM

(1-e88-TS4-6427)

Au Canada pourserviceen fran_;ab:

1-800.LE-FOYER _

(1_

TMTrademark /Service Mark of Sears, Roebuck and Co.

®Registered Trademark /SM

®Mama Registrada /TMMama de Fdbdca /SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce /Marque d_pos6e de Sears, Roebuck and Co.

181459 2.25.02 Rev. 1RD Printed in U.S.A.

Craftsman 917272264 User Manual LAWN TRACTOR Manuals And Guides L0203201

CRAFTSMAN Lawn, Tractor Manual L0203201 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
