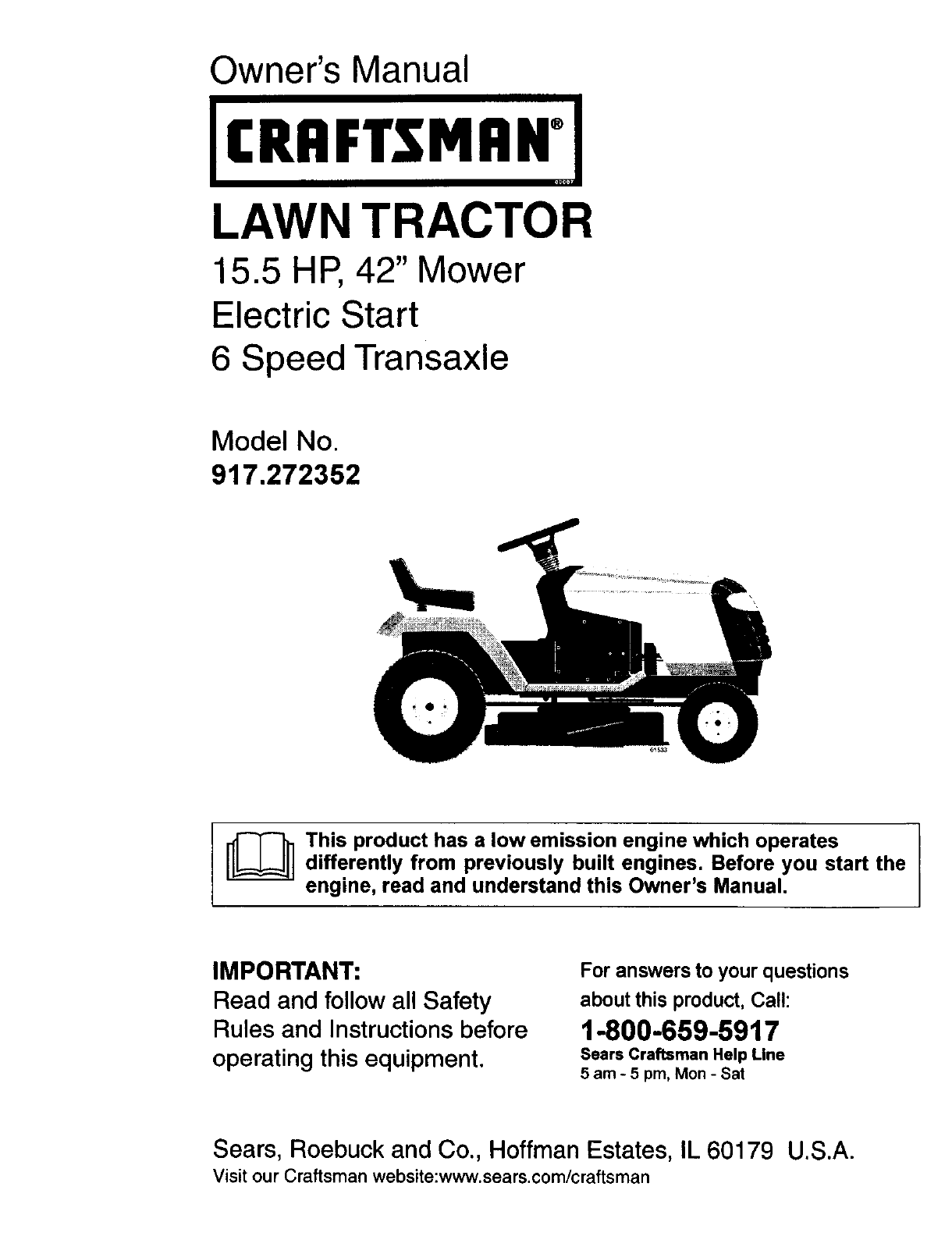

Owner's Manual

15.5 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.272352

[_ This product has a low emission engine which operatesdifferently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment,

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

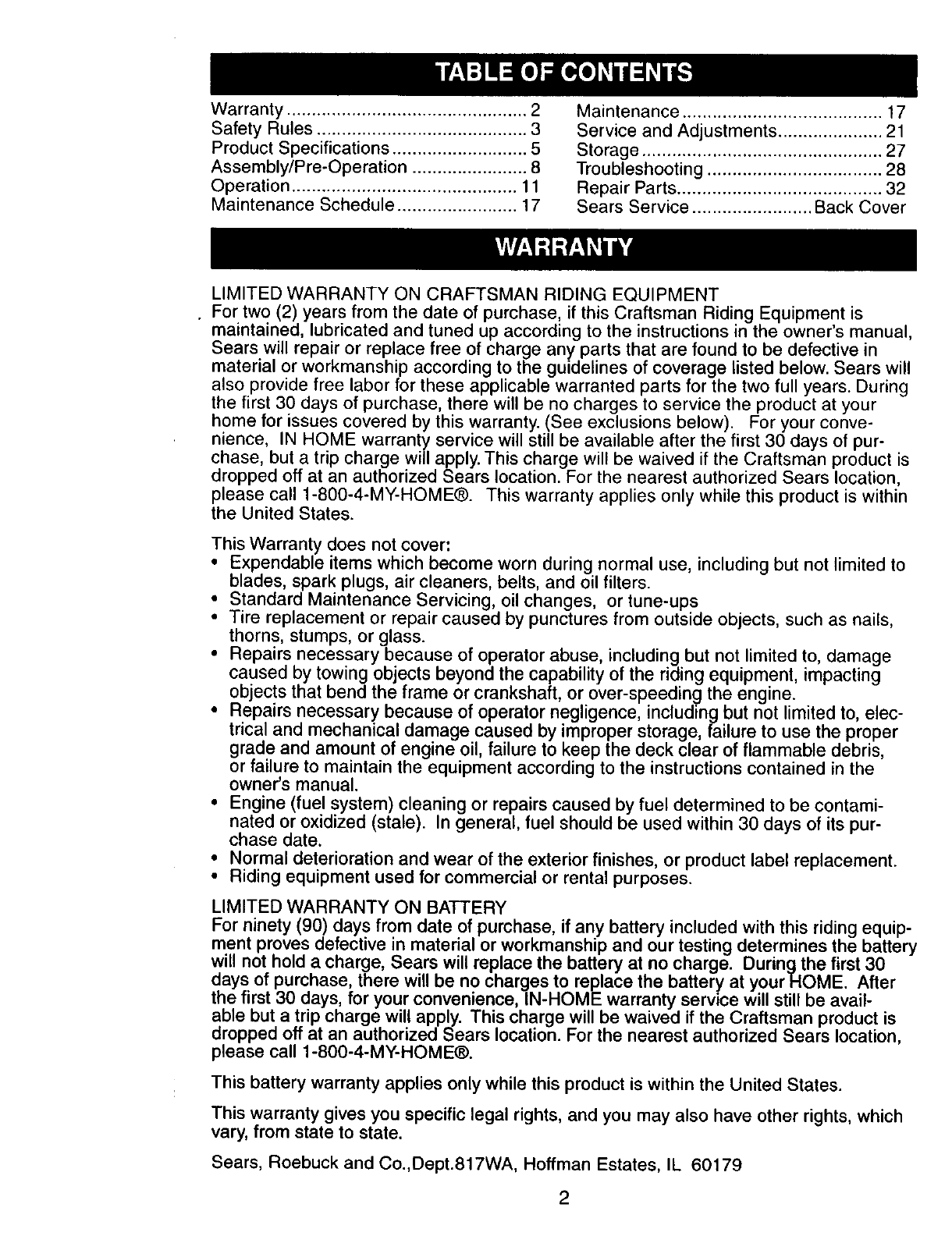

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 5

AssemblylPre-Operation ....................... 8

Operation ............................................. 11

Maintenance Schedule ........................ 17

Maintenance ........................................ 17

Service and Adjustments ..................... 21

Storage ................................................ 27

Troubleshooting ................................... 28

Repair Parts ......................................... 32

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover;

•Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the batter}/at yourHOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

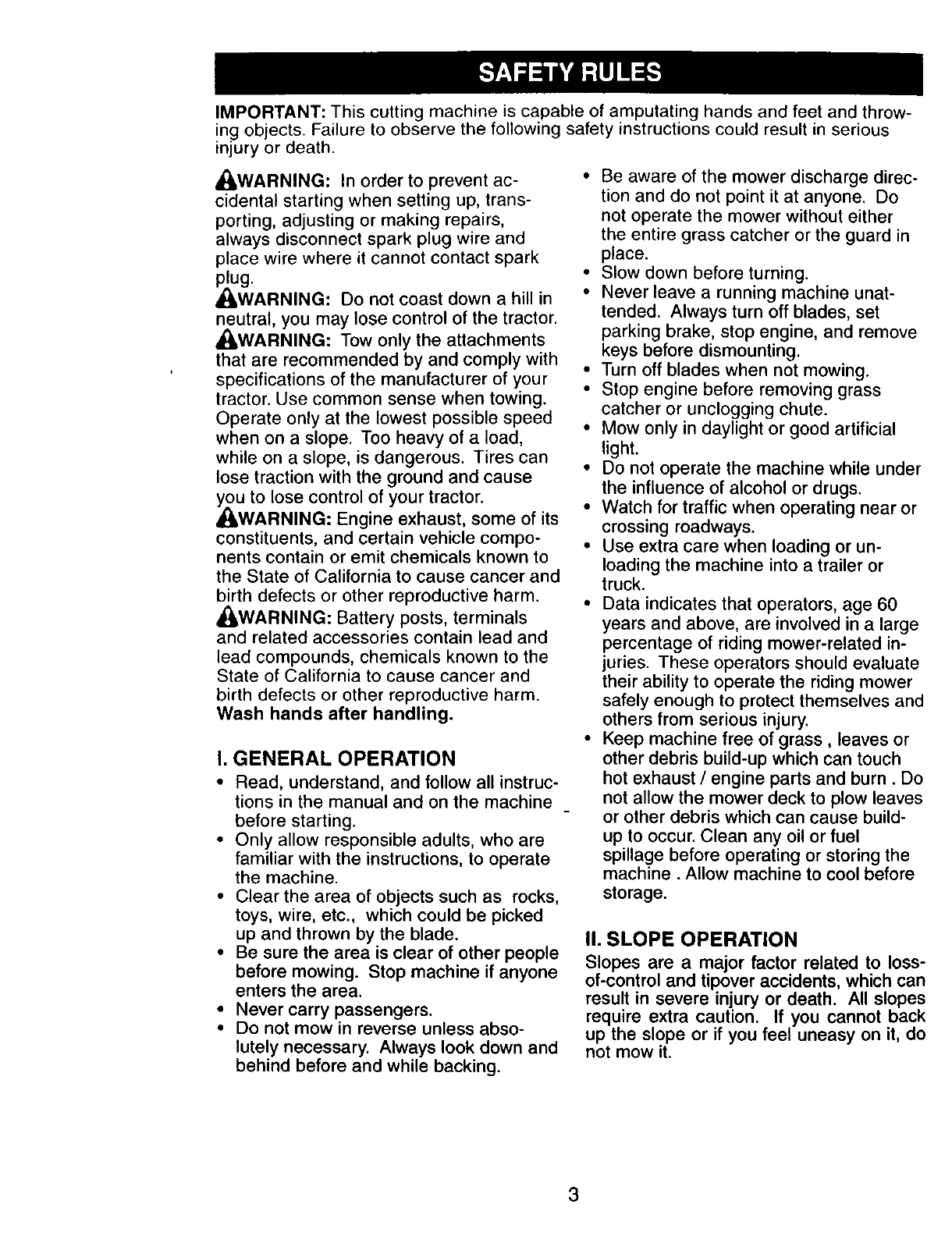

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

AI_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_k,WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_L,WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

A_,WARNING- Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

•Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

•Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

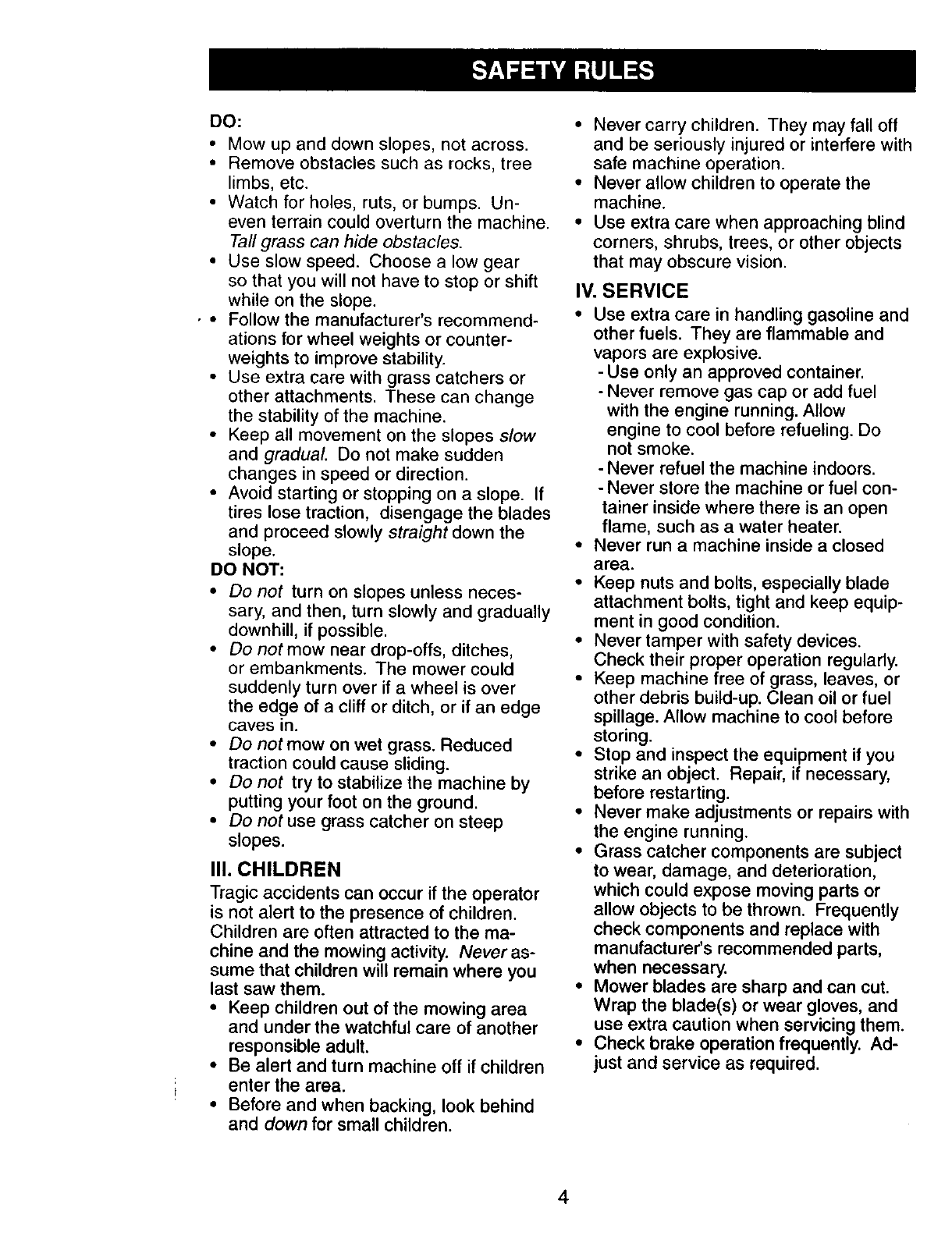

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

•• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel con-

tainer inside where there is an open

flame, such as a water heater.

• Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs with

the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently• Ad-

just and service as required.

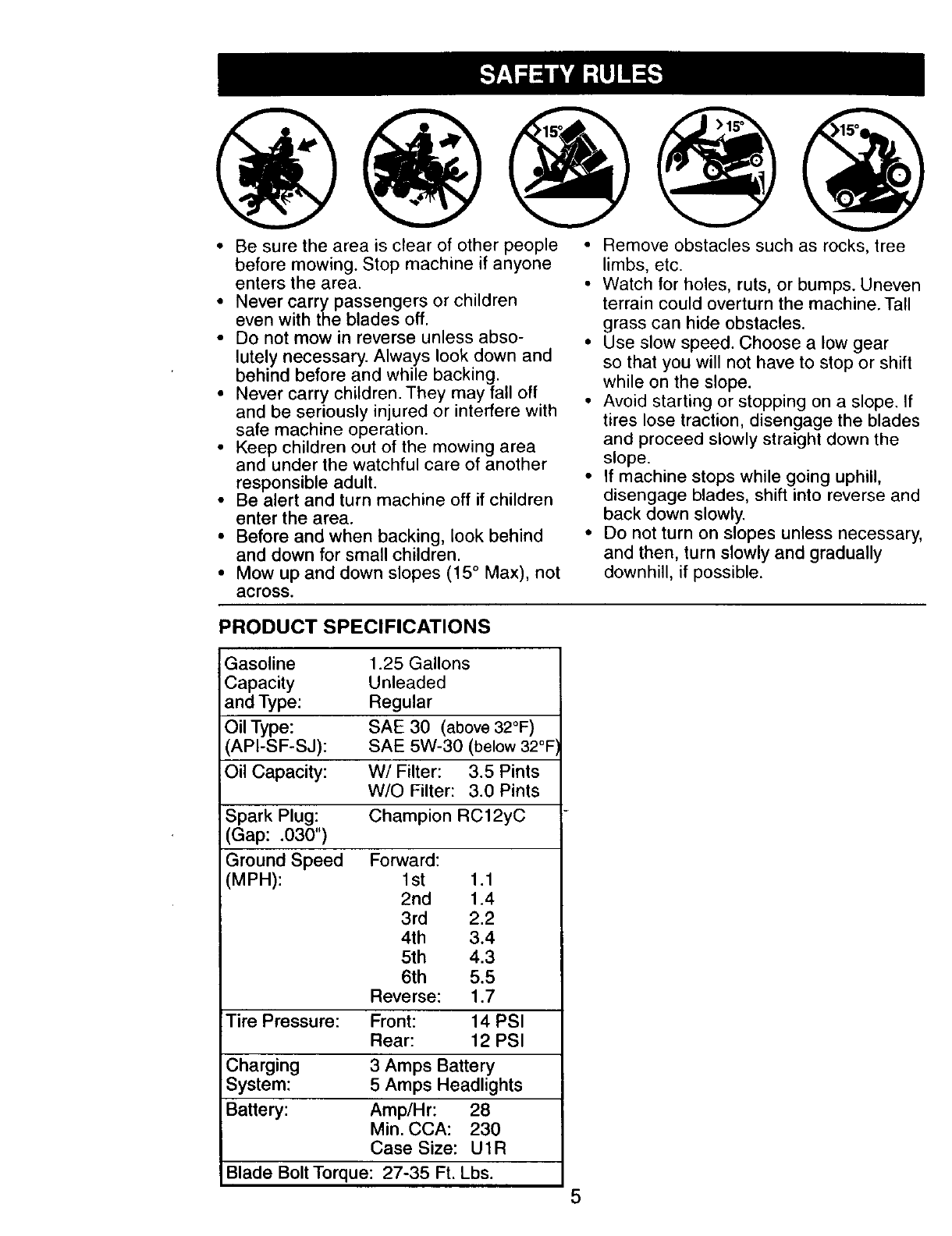

• Be sure the area is clear of other people • Remove obstacles such as rocks, tree

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max), not

across.

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 1.25 Gallons

Capacity Unleaded

and Type: Regular

Oil Type: SAE 30 (above 32°F)

(API-SF-SJ): SAE 5W-30 (below 32°F

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12yC

(Gap: .030")

Ground Speed

(MPH):

Forward:

1st 1.1

2nd 1.4

3rd 2.2

4th 3.4

5th 4.3

6th 5.5

Reverse: 1.7

Tire Pressure: Front: 14 PSI

Rear: 12 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs. 5

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

•Follow a regular schedule in main-

taining, caring for and using your tractor.

•Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your near-

est Sears service center (See REPAIR

PARTS section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making asmart pur-

chase. Your new Craftsmar_ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists. ,

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Steering

Wheel Insert

(1) Locknut

1/2-20

Steering ,_

Boot _/'

Steering Wheel

(1) Locknut

1/4-28

Steering

,_ , Wheel Adapter

(1) Large Flat Washer

(1) Hex Bolt

1/4-28 x 1-1/4

_ Steering

Extension

Shaft

(1) Washer

17/32 x 1-3/16 x 12

Gauge

-Knob

For Future Use

Slope Sheet

Keys F-1

Video Casse_e

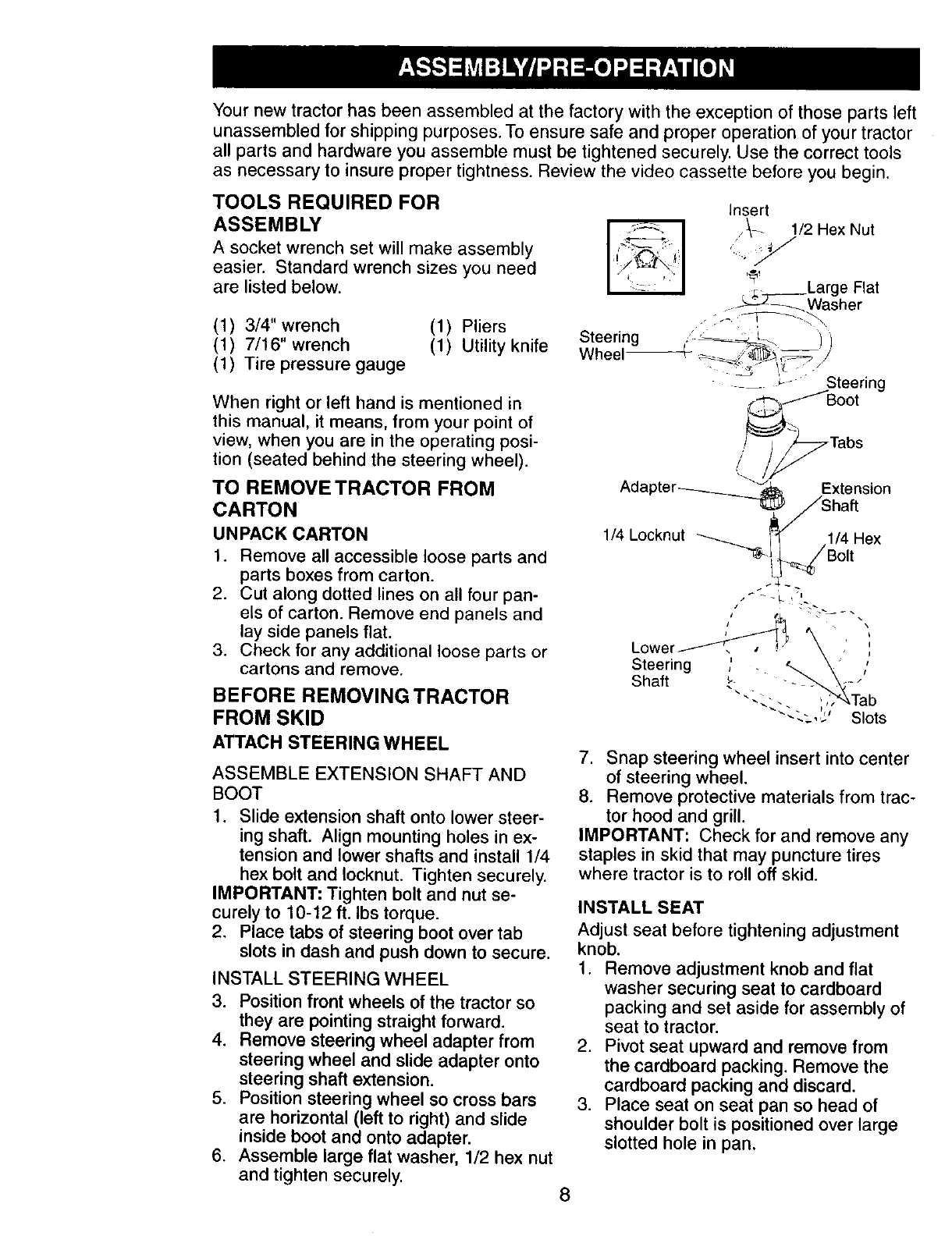

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4"wrench (1) Pliers

(1) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. tbs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex nut

and tighten securely.

1/4 Locknut I/4 Hex

Low_

Steering

Shaft

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and fiat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

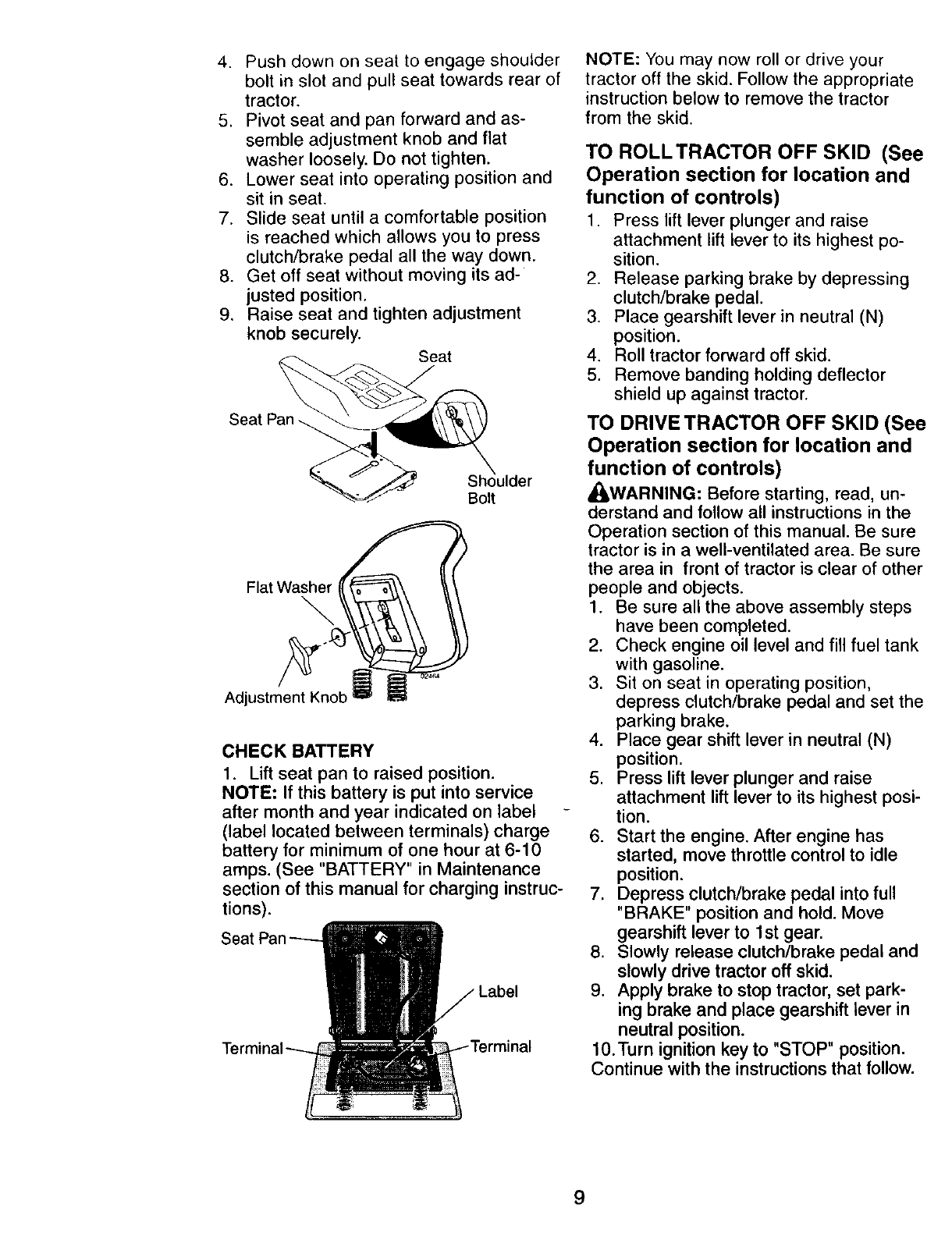

4. Push down on seat to engage shoulder

bolt in slot and pul! seat towards rear of

tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVETRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to I st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

CHECKTIREPRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes, Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKLIS T

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

•/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

/' Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,I Be sure brake system is in safe operat-

ing condition.

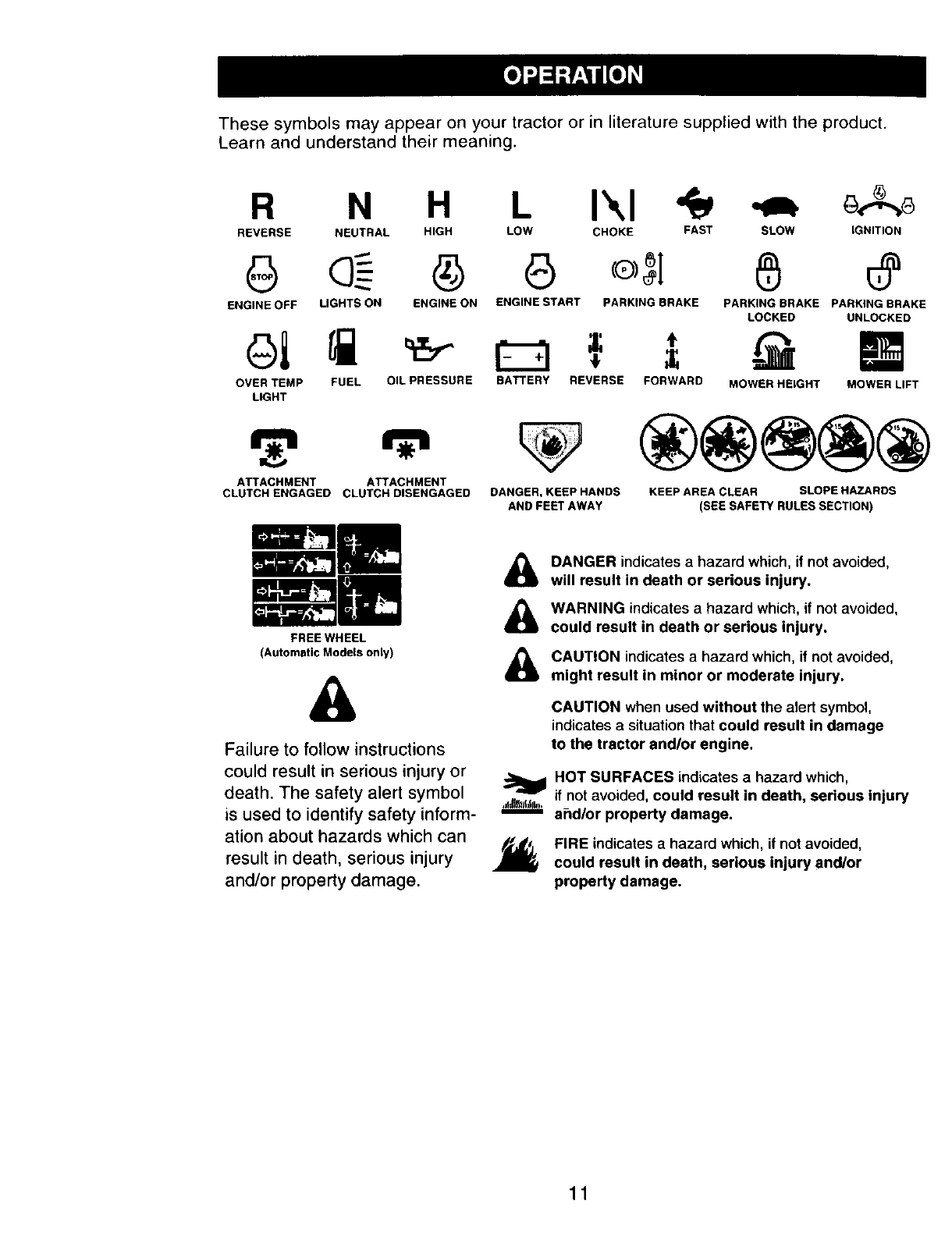

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I',,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF UGflTS ON ENGINE ON ENGINE START PARKING DRAKE PARKING BRAKE PARKING DRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGES CLUTCH DISENGAGED DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death, The safety alert symbol

is used to identify safety inform- _'

ation about hazards which can

result in death, serious injury Ji

and/or property damage.

DANGER indicatesahazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

ahd/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

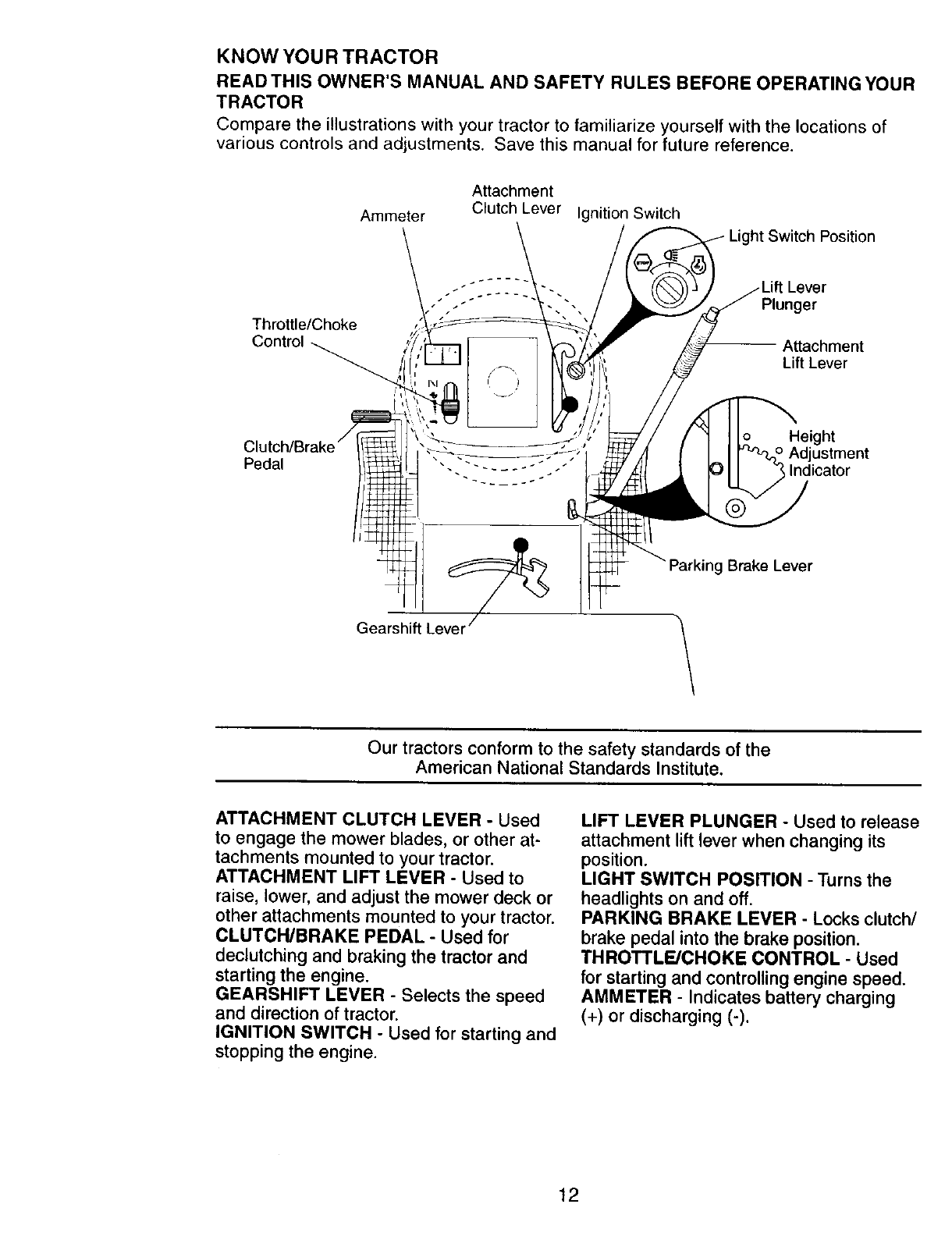

KNOW YOU R TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment

Ammeter Clutch Lever

.--"2---_

Throttle/Choke

Control _ f_,'_

ff.'l.--_.--I

Ignition Switch

ht Switch Position

Plunger

Attachment

Lift Lever

Clul

Pedal

Height

Adjustment

Indicator

Gearshift Lever /

ParkingBrake Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH LEVER -Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

AMMETER - Indicates battery charging

(+) or discharging (-).

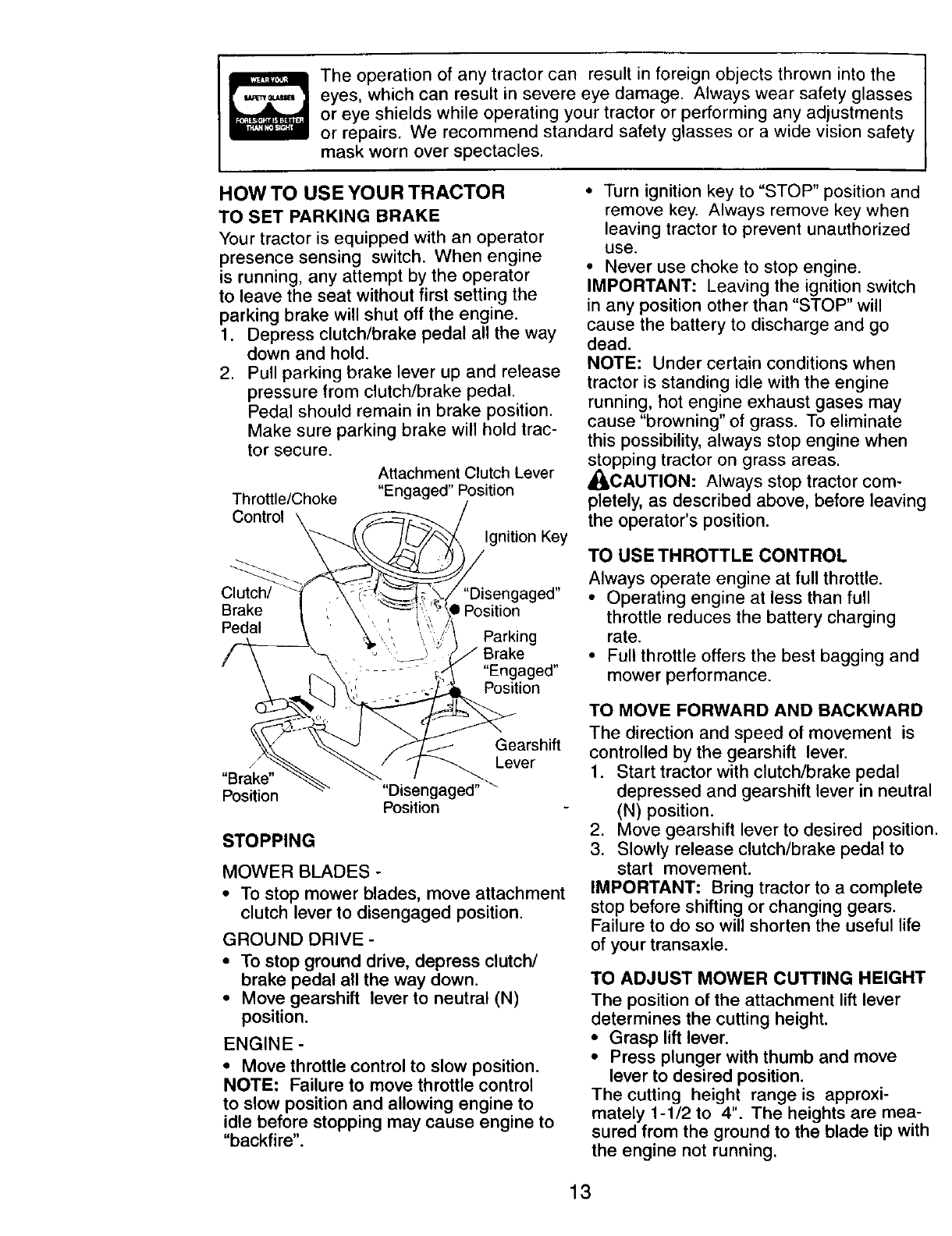

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Throttle/Choke

Control

Attachment Clutch Lever

"Engaged" Position

Ignition Key

Clutch/ "Disengaged"

Brake , Position

Pedal Parking

"Engaged"

Position

"Brake"

Position

.//- Gearshift

Lever

"Disengaged "_

Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attachment

clutch lever to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

•Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USETHROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

•Grasp lift lever.

•Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running.

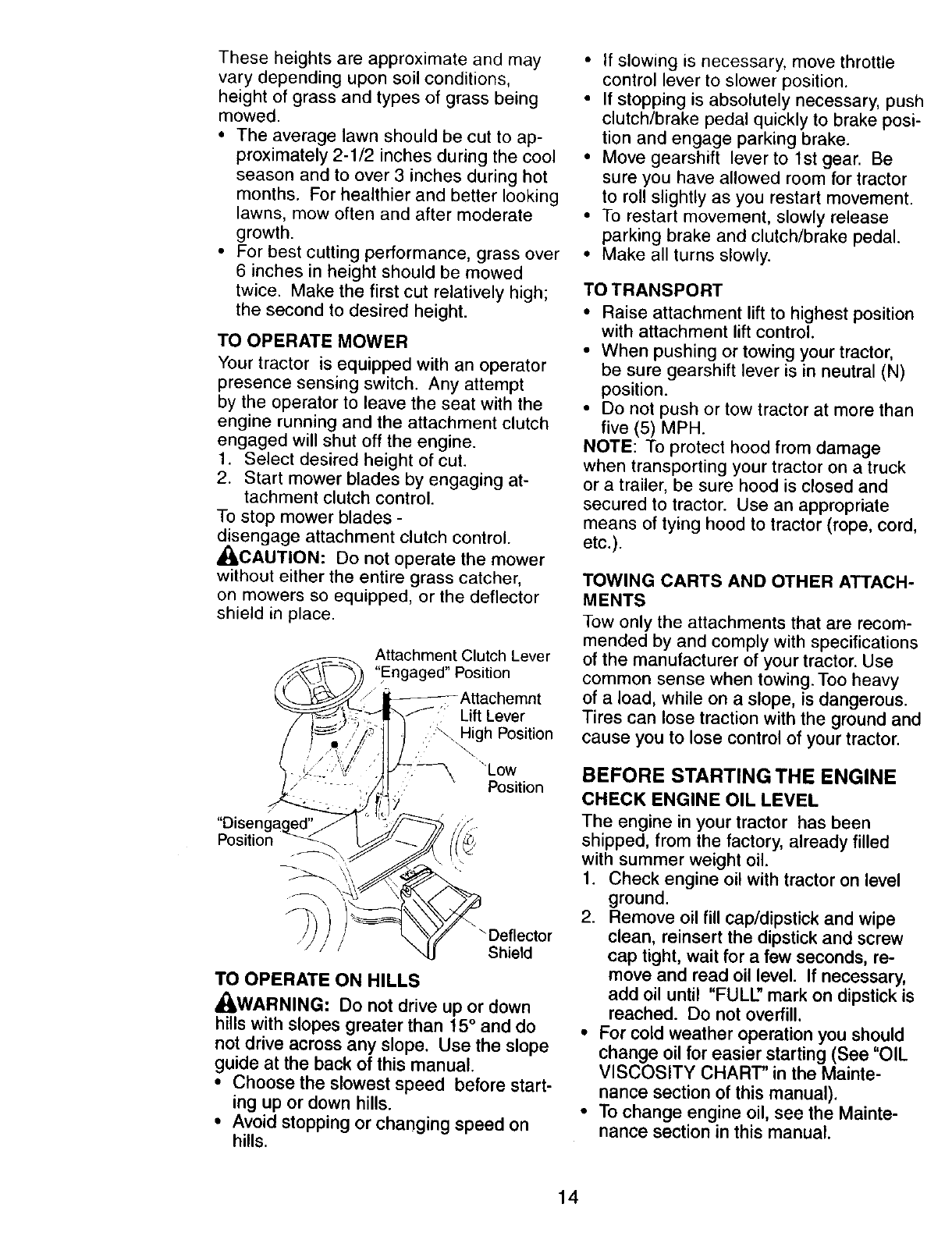

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

To stop mower blades -

disengage attachment clutch control.

AI_CAUTION- Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Clutch Lever

"Engaged " Position

Attachemnt

Lift Lever

High Position

"Disenc

Position

"Low

Position

"Deflector

Shield

TO OPERATE ON HILLS

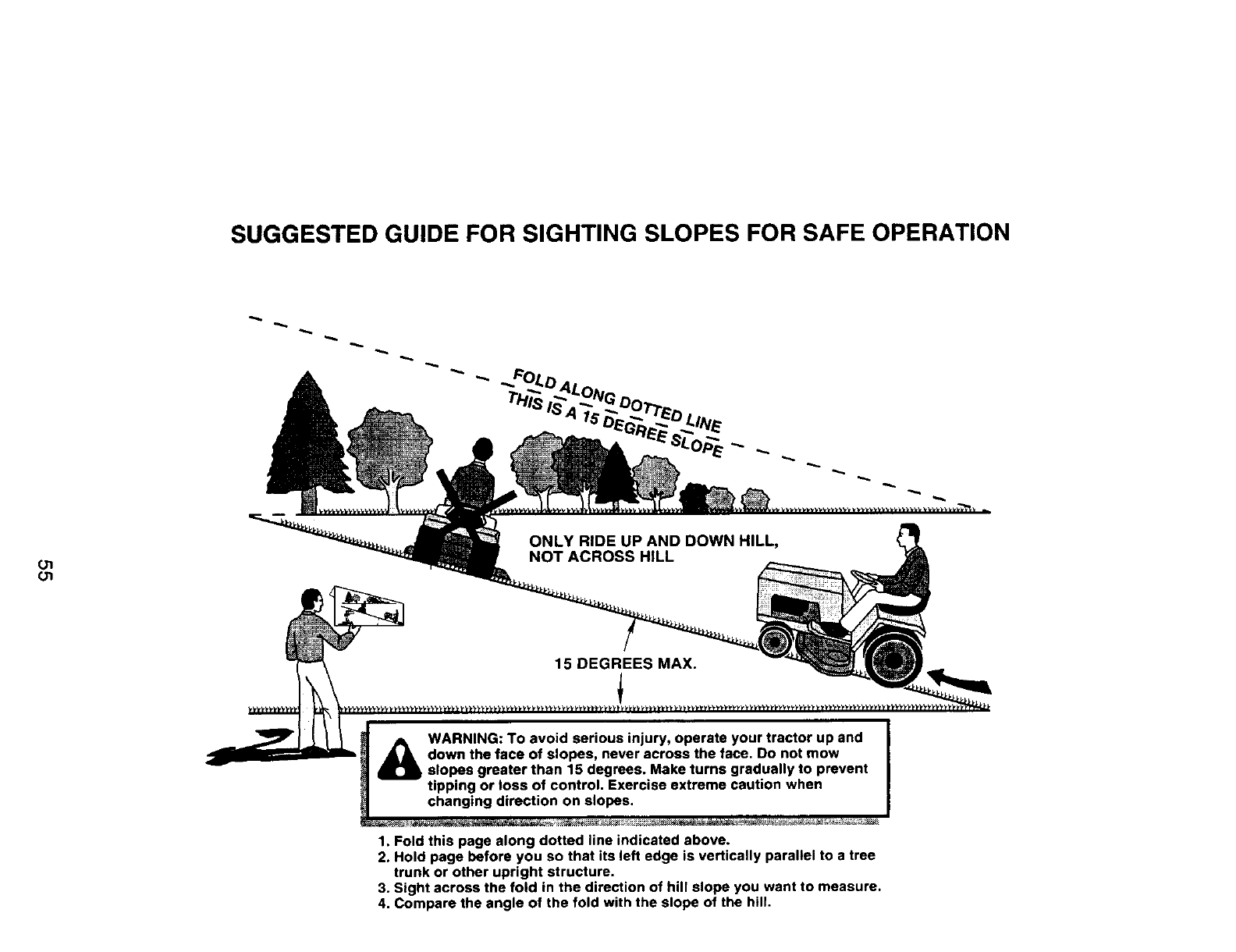

_ILWARNING: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide at the back of this manual.

•Choose the slowest speed before start-

ing up or down hills.

•Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TOTRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for afew seconds, re-

move and read oil level. If necessary,

add oil until "FULL" mark on dipstick is

reached. Do not overfill.

•For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

•To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below 32°F(0°C), use fresh, clean

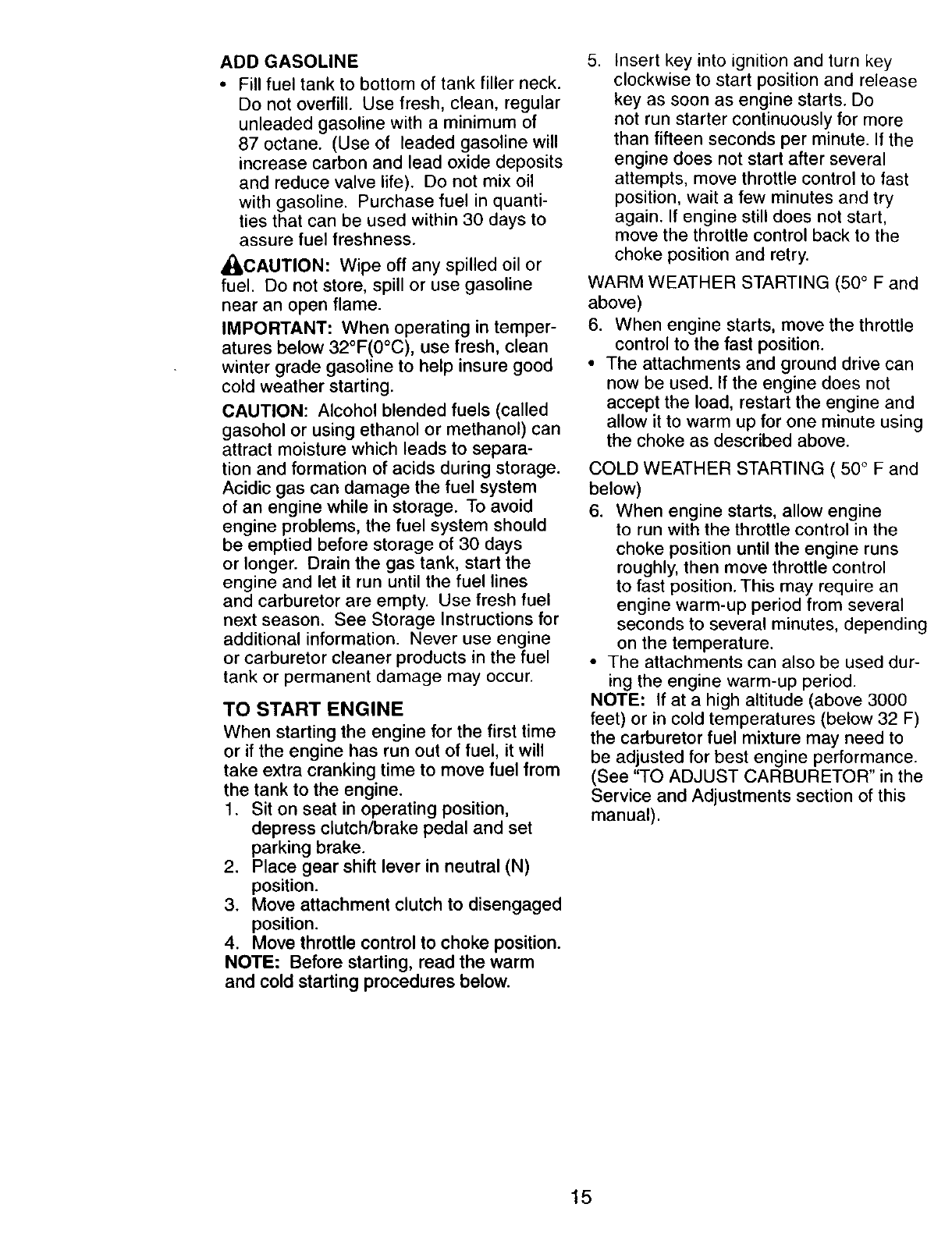

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

.Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50° F and

above)

6. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 °F and

below)

6. When engine starts, allow engine

to run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control

to fast position. This may require an

engine warm-up period from several

seconds to several minutes, depending

on the temperature.

• The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

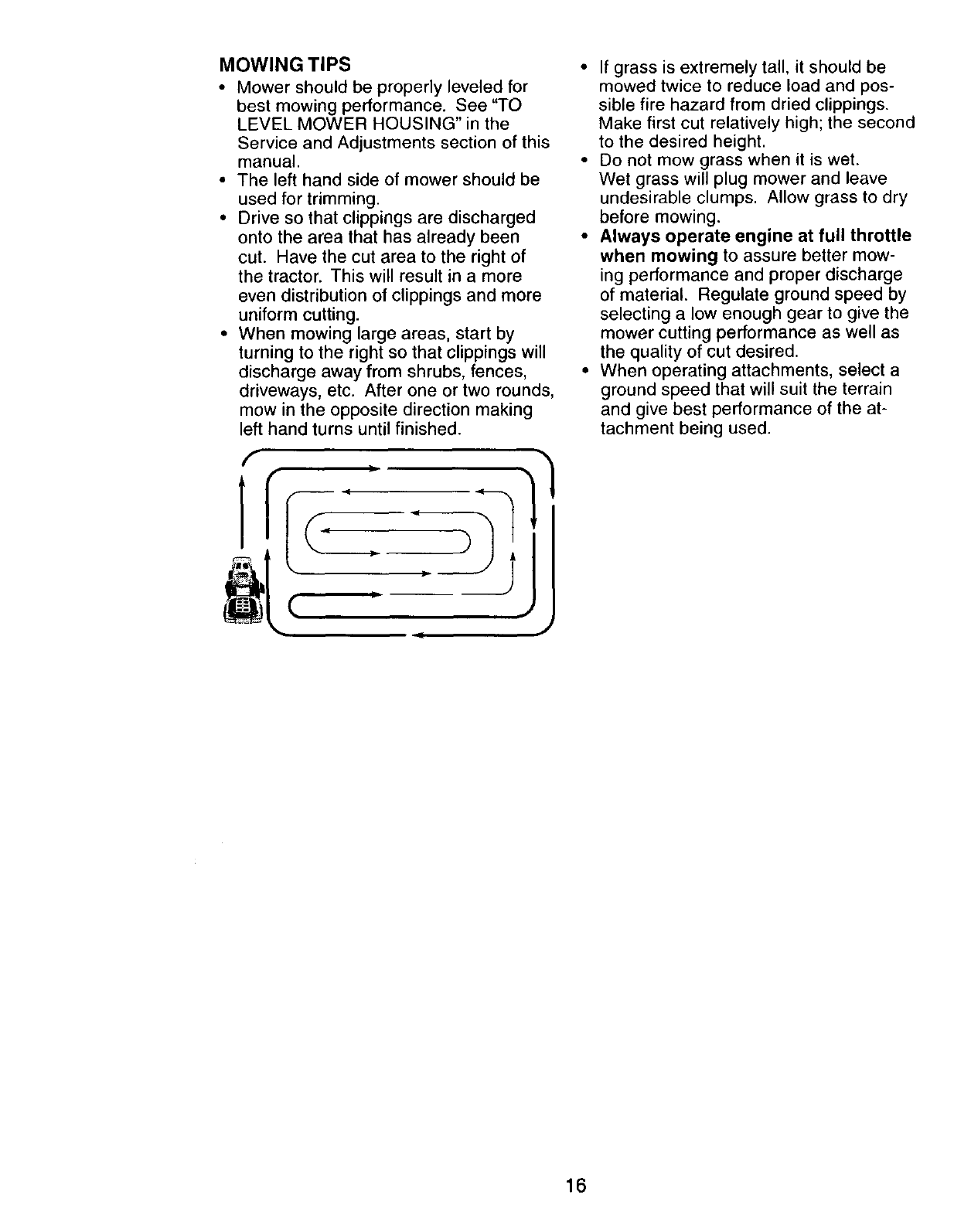

MOWING TIPS

•Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

•When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

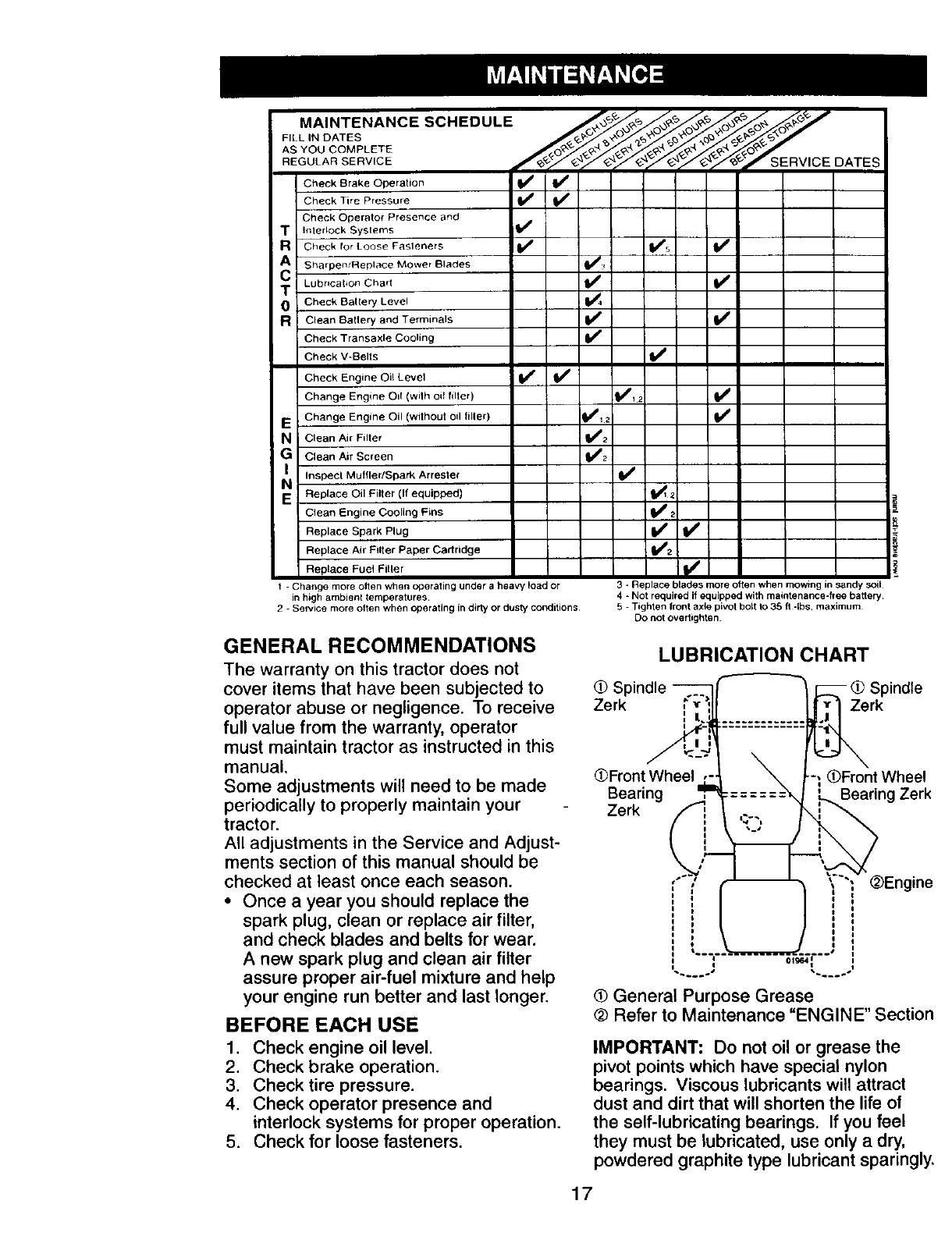

MAINTENANCE SCHEDULE _+_++_ o_+_ _o_ o_oo _ o+/_

AS YOU COMPLETE ___,/-_-(:O .._F/ .._._ .._._ 14_._ .._ _"J

RE+ULA.SE.V,CE ," SE"V'CE

DATES

Check Brake Operation _

Check Tire Pressure

Cheek Operator Presence and

"[ Inlerlock Systems i1_

a Check for Loose Fasleners ll_5 I_

ASharpen/Replace Mowe, Blades I_

C Lubrlcahon Chad v'

0Check Batlery Level

RClean Baftery and Terminals II/

Check Transaxle Cooling if

Check V-Belts If

Check Engine Oi! Level _ ll_

Change Engine Oit (wilh oil filter) 1/12

EChange Engine Oil (without oil filler) 1_12 I_

NCleanAirFilter I_:

GClean Air Screen

Inspecl Muffler/Spark Arresler I_

EReplace Oil Filler (If equipped) 1_2

Clean Engine Cooling Fins 1_2

Replace Spark Plug _Vp2 ll/

Replace Air Filter Paper Cartridge

Replace Fuel Filler I_

1 - Change more ohen when operating under a heavy load or

in high ambient temperatures¸

2-Sewice more ohen when operating in dirty or dusty conditions

3- Replace blades more often when mowing in sandy soil

4=Not required if equipped with maintenance-free battery.

5- Tighten front axle pivot bolt to 35 ft *lbs maximum

Do not overtighten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

O SF

Zerk

LUBRICATION CHART

-(_ Spindle

Zerk

(gFront Wheel

Bearing

Zerk

-_ (gFront Wheel

Bearing Zerk

_)Engine

O General Purpose Grease

@ Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant sparingly.

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

•When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

•When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

•The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

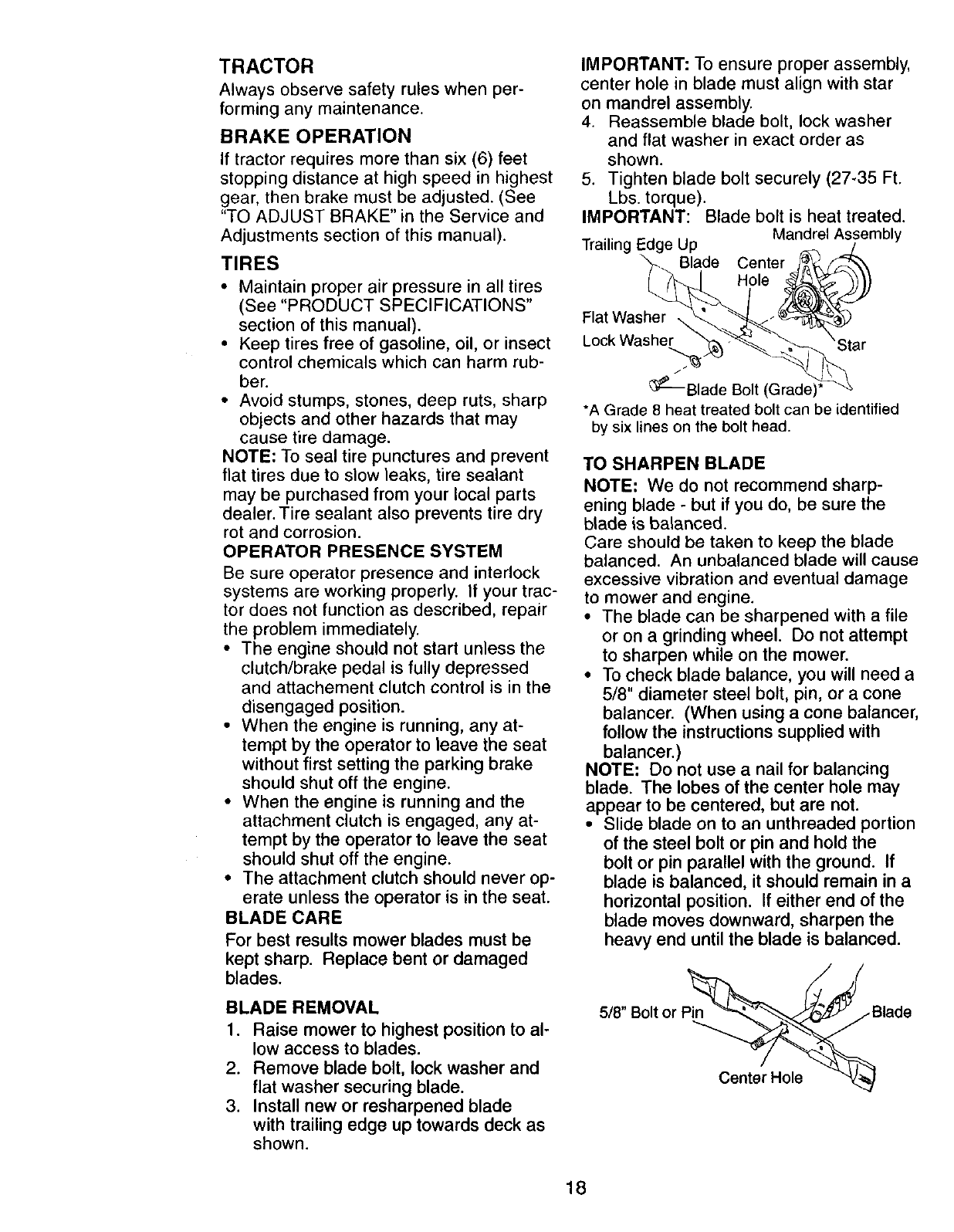

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

Mandrel Assembly

Trailing Center

Hole

FlatWasher \

Lock Washer

_--Blade Bolt (Grade)*

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt or P_Blade

Center Hole

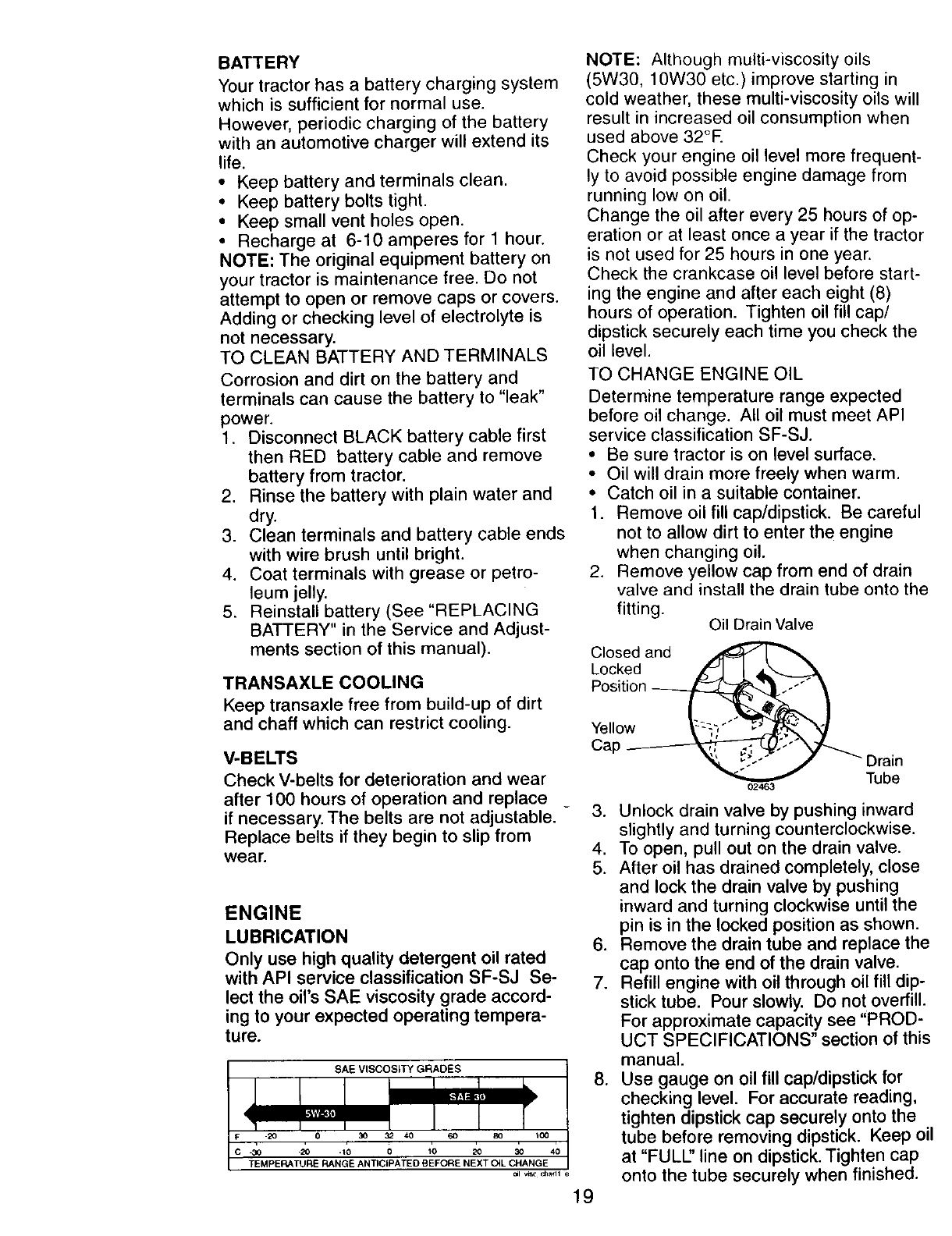

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use.

However, periodic charging of the battery

with an automotive charger will extend its

life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

2. Rinse the battery with plain water and

dry.

3. Clean terminals and battery cable ends

with wire brush until bright.

4. Coat terminals with grease or petro-

leum jelly.

5. Reinstall battery (See "REPLACING

BATTERY" in the Service and Adjust-

ments section of this manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ Se-

lect the oil's SAE viscosity grade accord-

ing to your expected operating tempera-

ture.

SAE VISCOSITY GRADES

30 32 40 60 1(30

c _ .=o .to o_o 2o _ 4o

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT O_L CHANGE

_1 v_ chad1 e

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULL" line on dipstick. Tighten cap

onto the tube securely when finished.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°F.

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 25 hours of op-

eration or at least once a year if the tractor

is not used for 25 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting. Oil Drain Valve

Closed and

Locked

Position_

Yellow

Cap

O2463

_ Drain

Tube

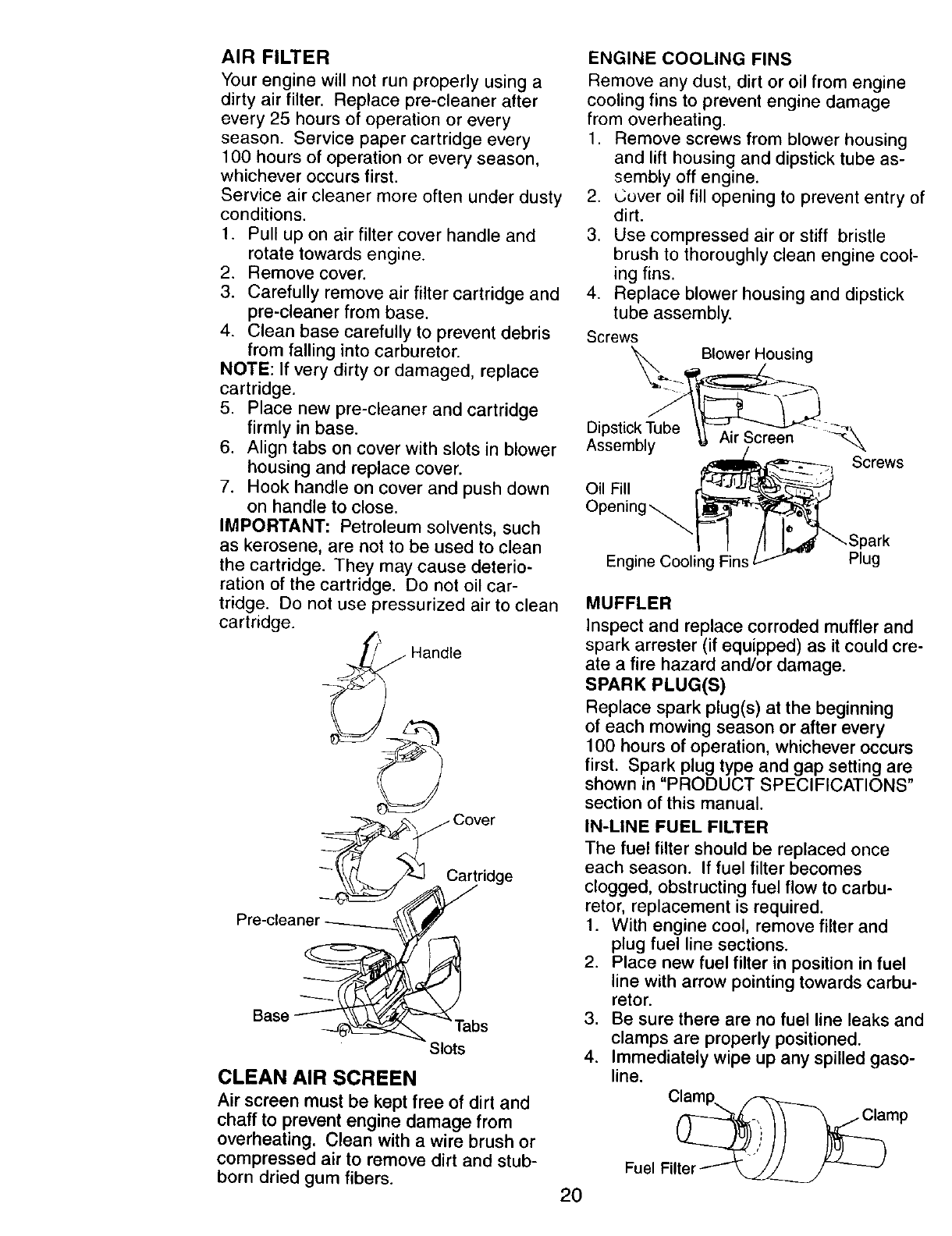

AIR FILTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Pull up on air filter cover handle and

rotate towards engine.

2. Remove cover.

3. Carefully remove air filter cartridge and

pre-cleaner from base.

4. Clean base carefully to prevent debris

from falling into carburetor.

NOTE: If very dirty or damaged, replace

cartridge.

5. Place new pre-cleaner and cartridge

firmly in base.

6. Align tabs on cover with slots in blower

housing and replace cover.

7. Hook handle on cover and push down

on handle to close.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil car-

tridge. Do not use pressurized air to clean

cartridge.

_ Handle

Cartridge

Pre-clea_

Base f ___ Tabs

Slots

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers. 2O

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating.

1. Remove screws from blower housing

and lift housing and dipstick tube as-

sembly off engine.

2. Cover oil fill opening to prevent entry of

dirt.

3. Use compressed air or stiff bristle

brush to thoroughly clean engine cool-

ing fins.

Replace blower housing and dipstick

tube assembly.

Screws

Blower Housing

Dipstick Tube Air Screen _2_\

Assembly __ Screws

Oil Fill

O en'no F

I[/t I,.._ _Spark

Engine Cooling Fins _ '- Plug

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clamp,.

Fuel Filter _-''-___J

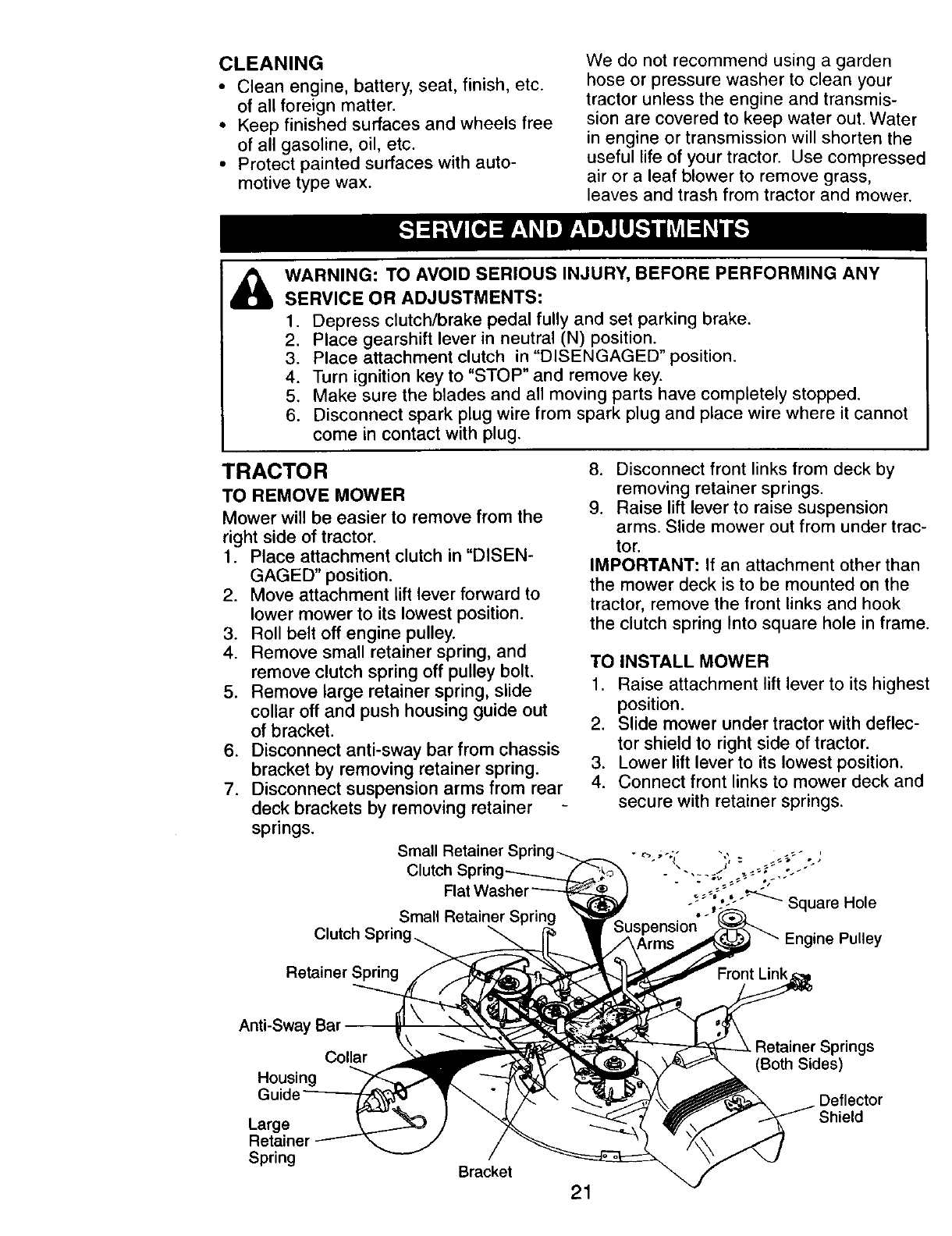

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

•Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

AWARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

Small Retainer

Small Retainer Spring

Clutch Sprin!

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

ine Pulley

Retainer Spring

Anti-Sway

Housing

Large

Retainer

Spring

Collar

Bracket 21

(Both Sides)

Deflector

Shield

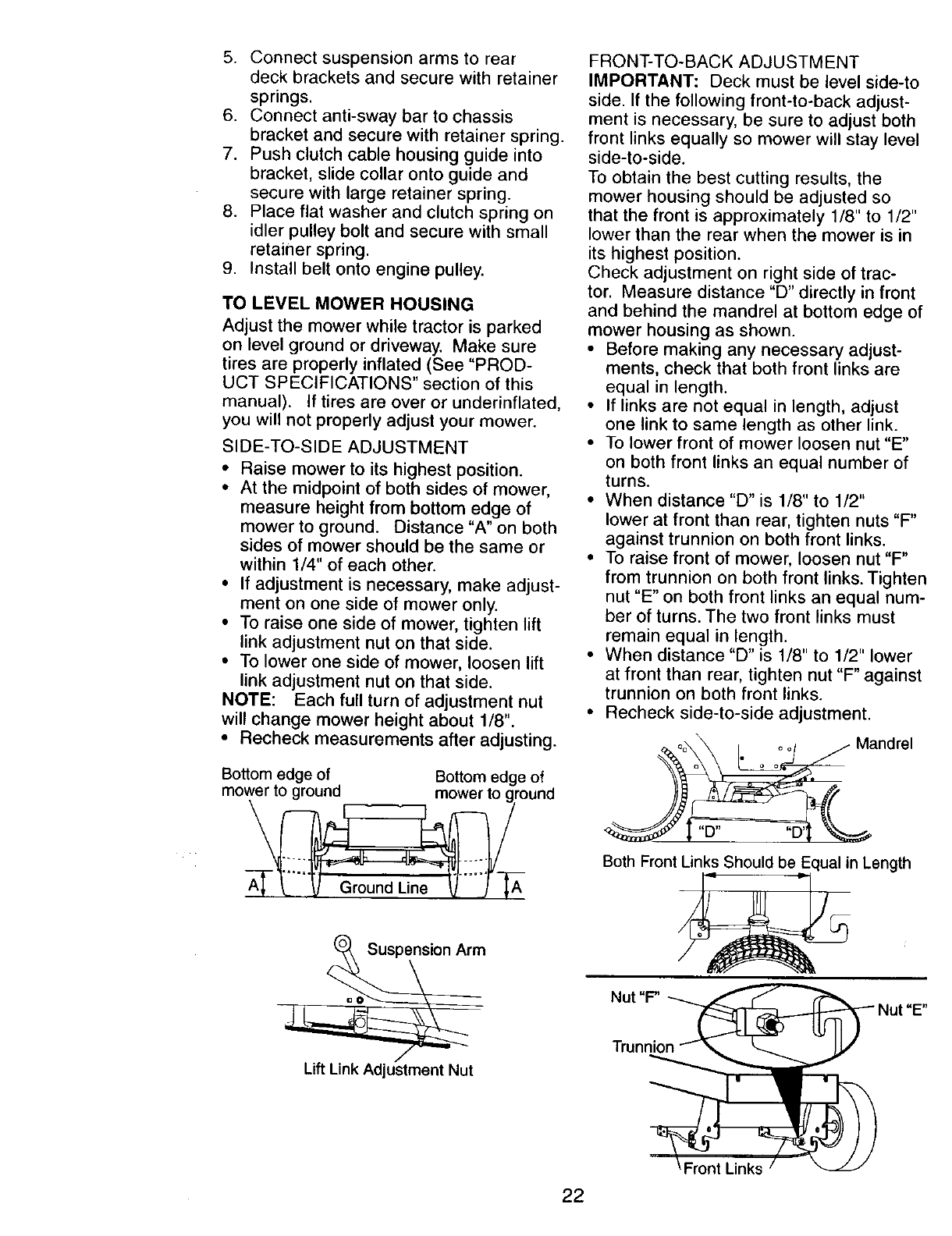

5, Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7, Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A_on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge of Bottom edge of

mower to ground mower to ground

FRONT-TO-SACK ADJUSTMENT

IMPORTANT; Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighter

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Mandrel

Both Front Links Should be Equal in Length

Lift Link Adjustment Nut

=ront Links

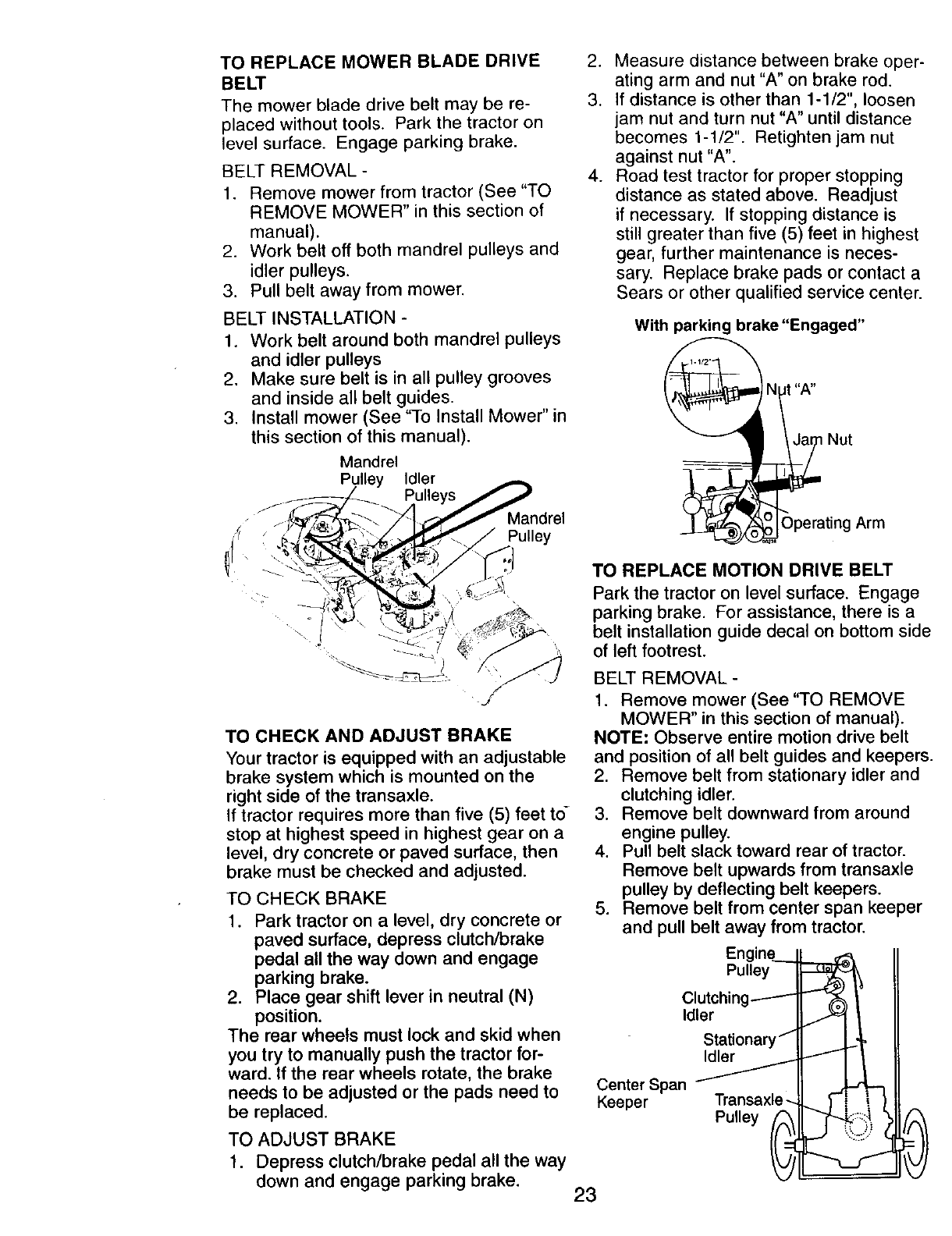

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel

Pulley Idler

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to-

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on alevel, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

Engine

Pulley

Clutching_

Idler

Stationary /

Center Span

Keeper Transaxle --.

Pulley ___

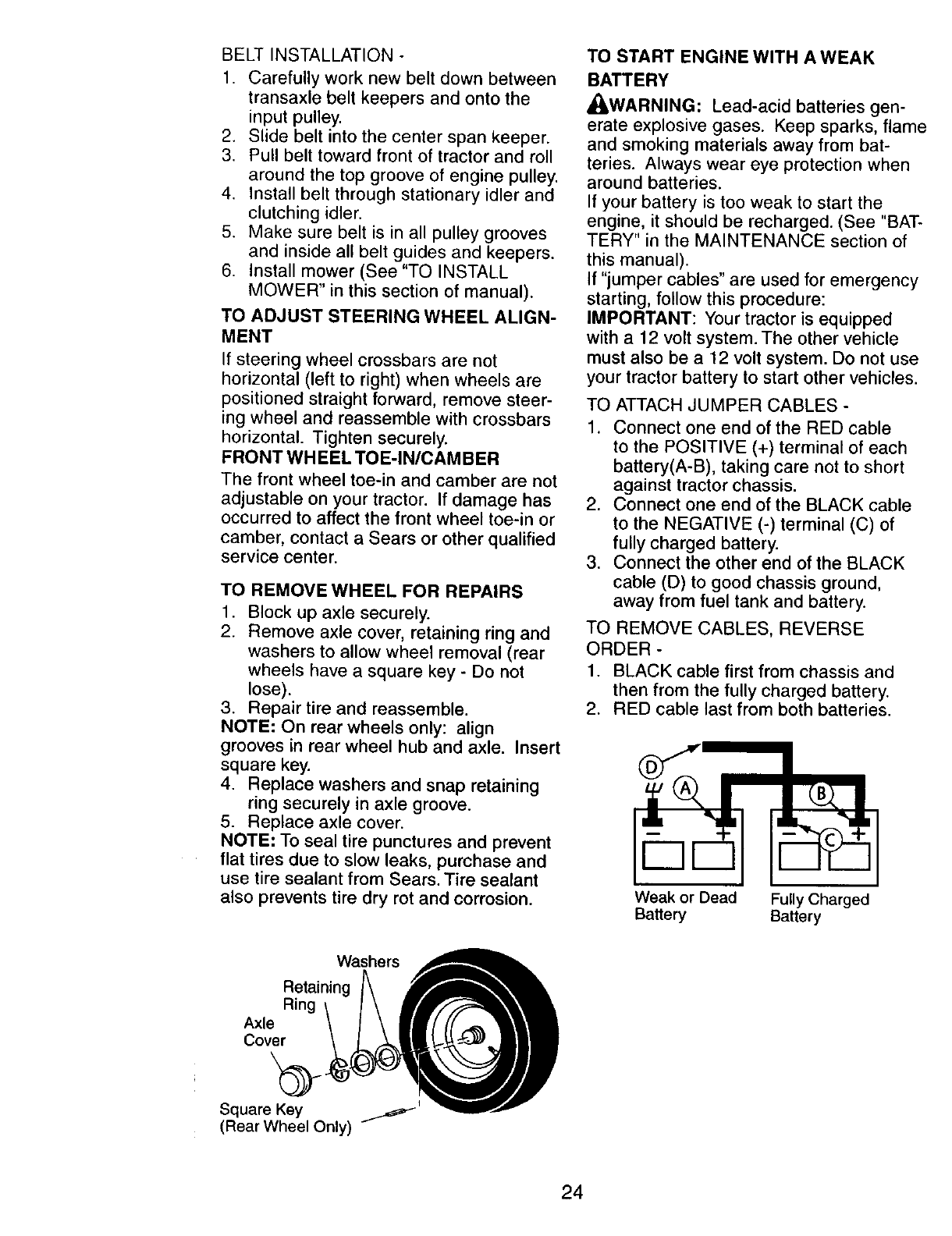

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAM BER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key -Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

TO START ENGINE WITH A WEAK

BATTERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER-

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

Washers

Retaining

Ring

Axle

Cover

Square Key

(Rear Wheel Only) "

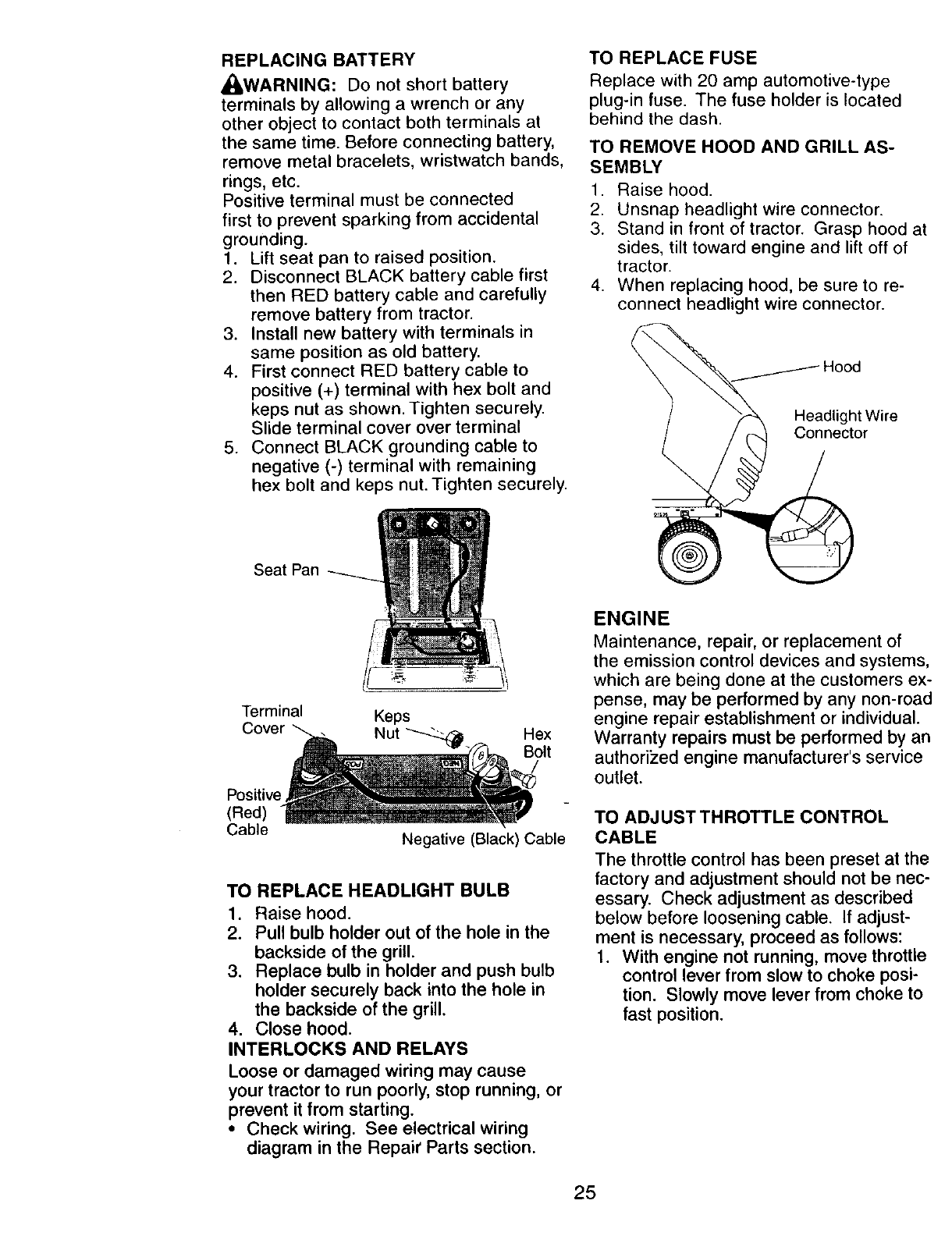

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect headlight wire connector.

Headlight Wire

Connector

Seat Pan

Terminal Keps

Cover _ Nut "_-:._. Hex

Bolt

Positive

(Red)

Cable Negative (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

•Check wiring. See electrical wiring

diagram in the Repair Parts section.

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authoriYed engine manufacturer's service

outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

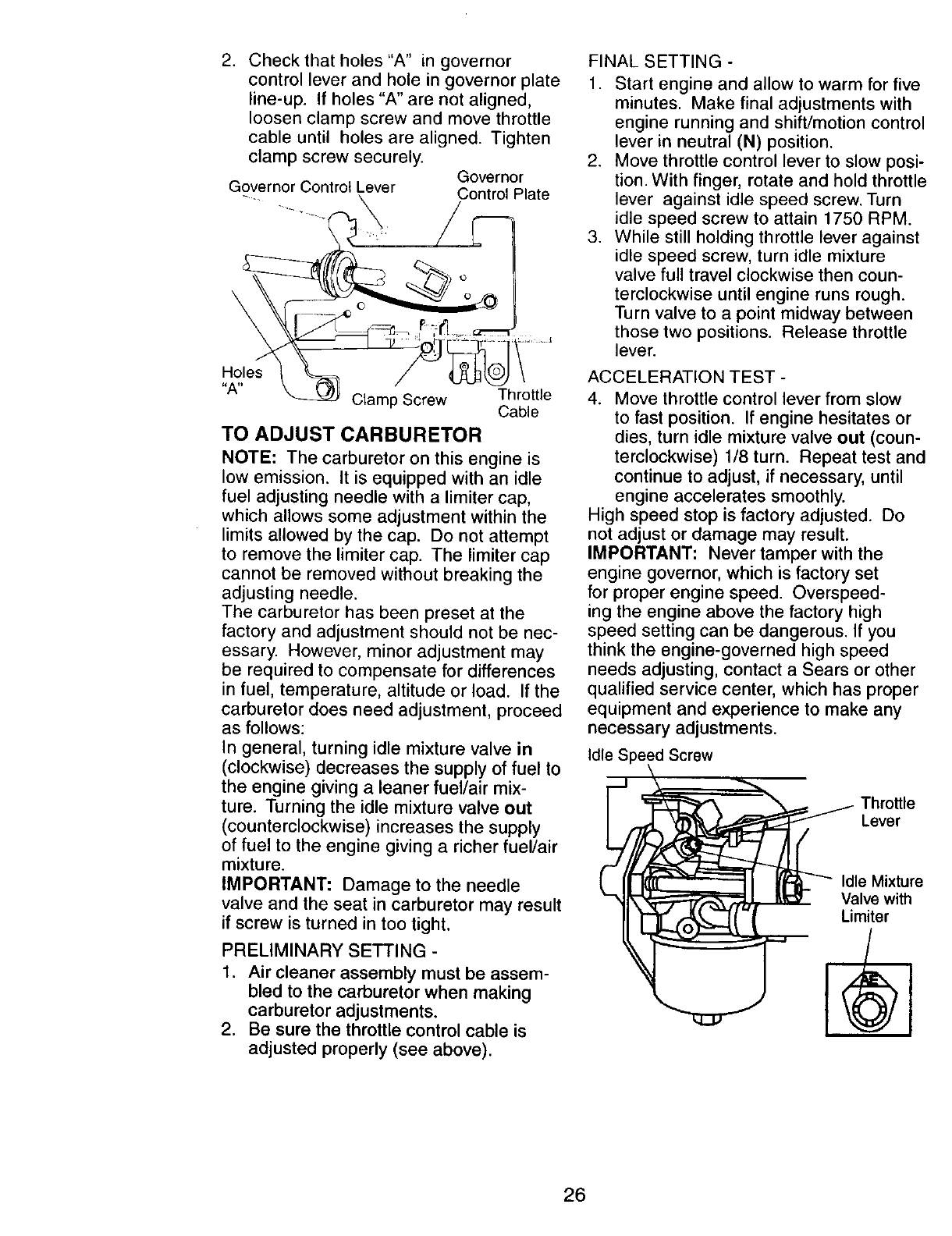

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely. Governor

Governor Control Lever Control Plate

Holes

Clamp Screw Throttle

Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with alimiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion contro

lever in neutral (N) position.

2. Move throttle control lever to slow posi.

tion. With finger, rotate and hold throttk

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Speed Screw

Lever

Idle Mixture

Valve with

Limiter

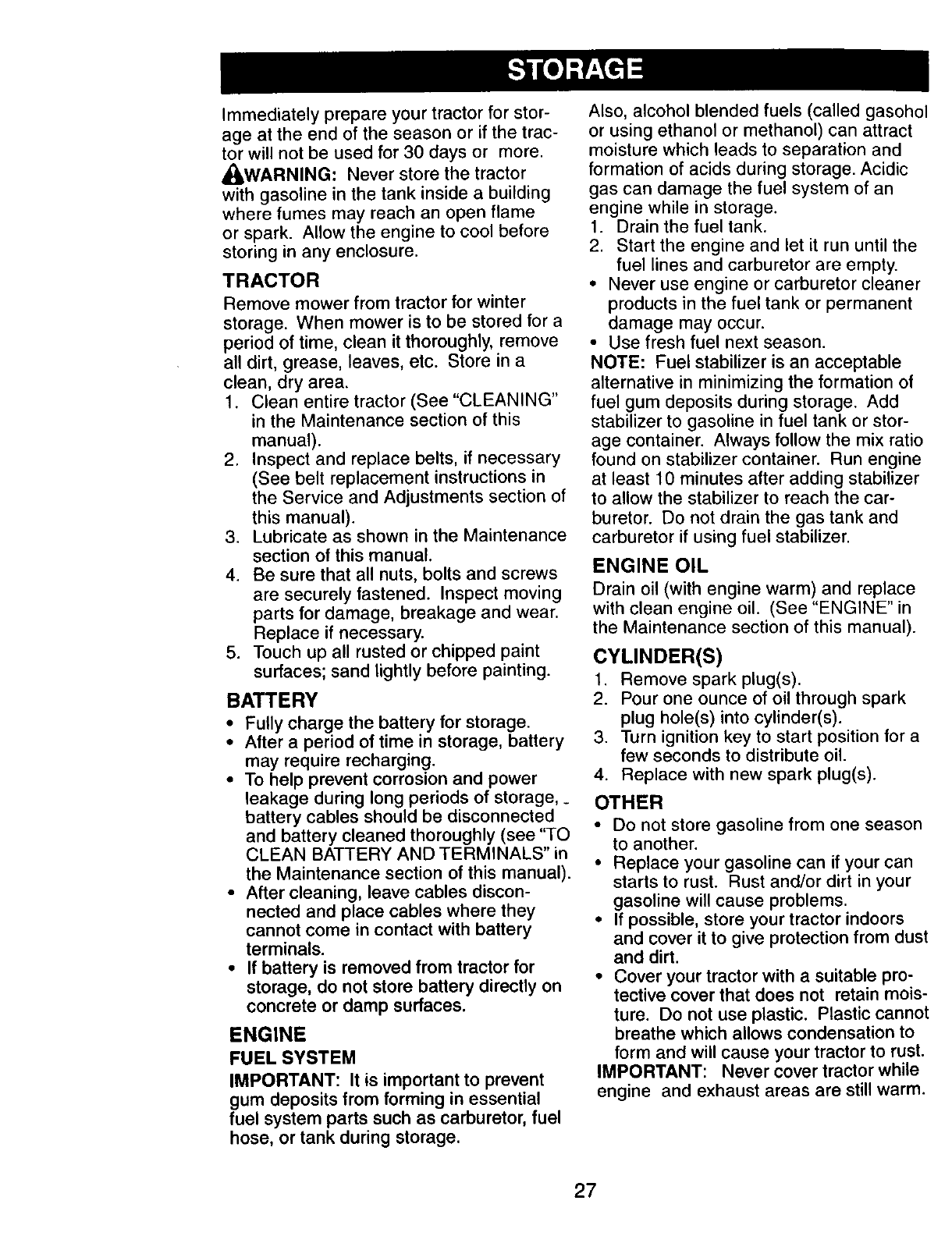

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

•Fully charge the battery for storage.

•After a period of time in storage, battery

may require recharging.

•To help prevent corrosion and power

leakage during long periods of storage, _

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called gasohol

or using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

•Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center,

Bad spark plug. 4.

Dirty air filter, 5.

Dirty fuel filter. 6.

Water in fuel. 7.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1, Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

Loose or damaged wiring. 6.

Carburetor out of adjustment, 7.

Engine valves out of 8.

adjustment.

Clutch/brake pedal not 1.

depressed.

Attachment clutch is 2.

engaged.

Weak or dead battery. 3.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch, 7.

Faulty solenoid or starter. 8.

Faulty operator presence 9.

switch(es).

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

Clean/replace air filter.

Replace spark plug.

Recharge or replace

battery.

Replace fuel filter,

Drain fuel tank and refill

with fresh gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

Contact a Sears or other

qualified service center.

Depress clutch/brake

pedal.

Disengage attachment

clutch.

Recharge or replace

battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center,

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

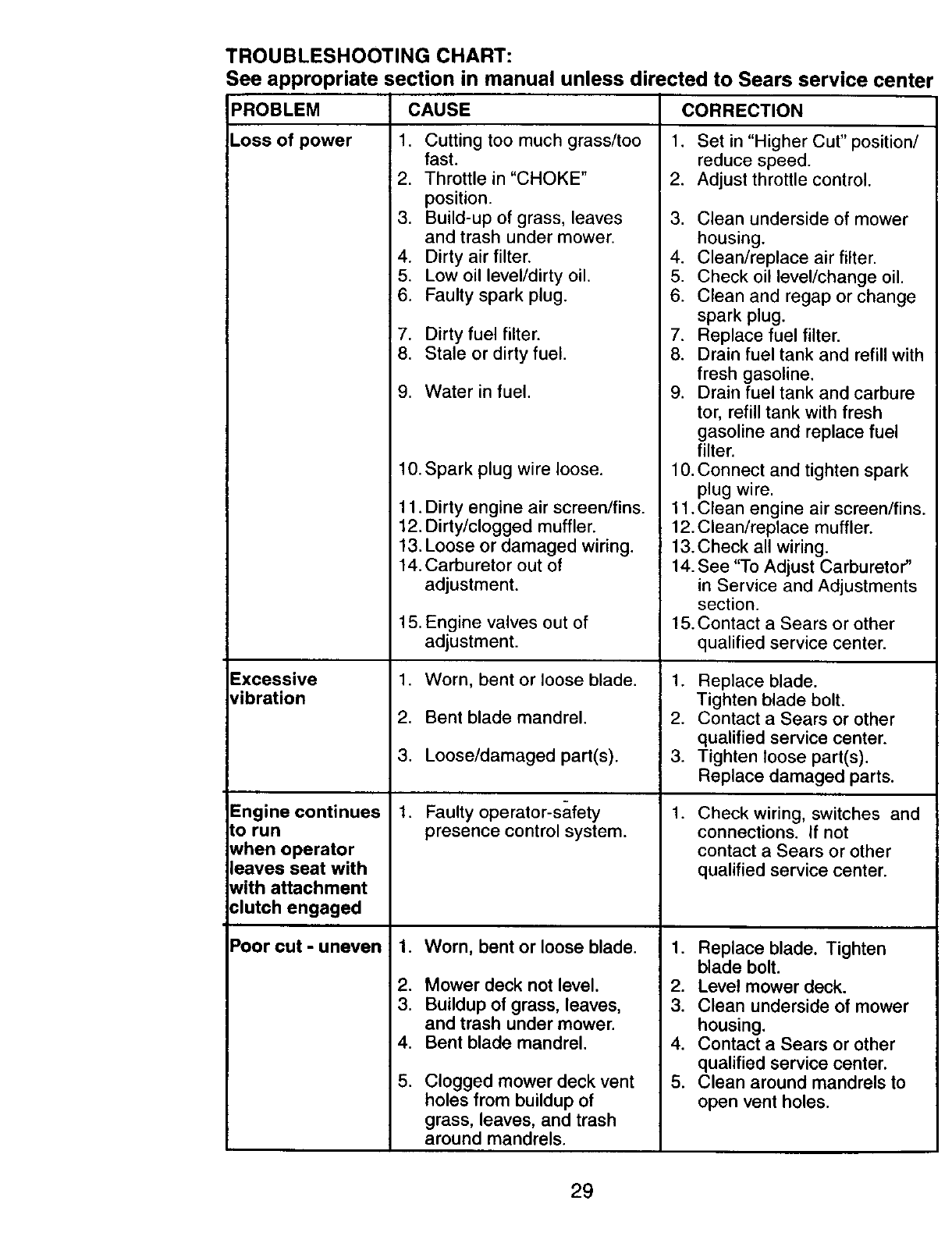

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Loss of power 1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with

fresh gasoline.

9. Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poorcut-uneven

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

10. Connect and tighten spark

plug wire.

11 .Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

.Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

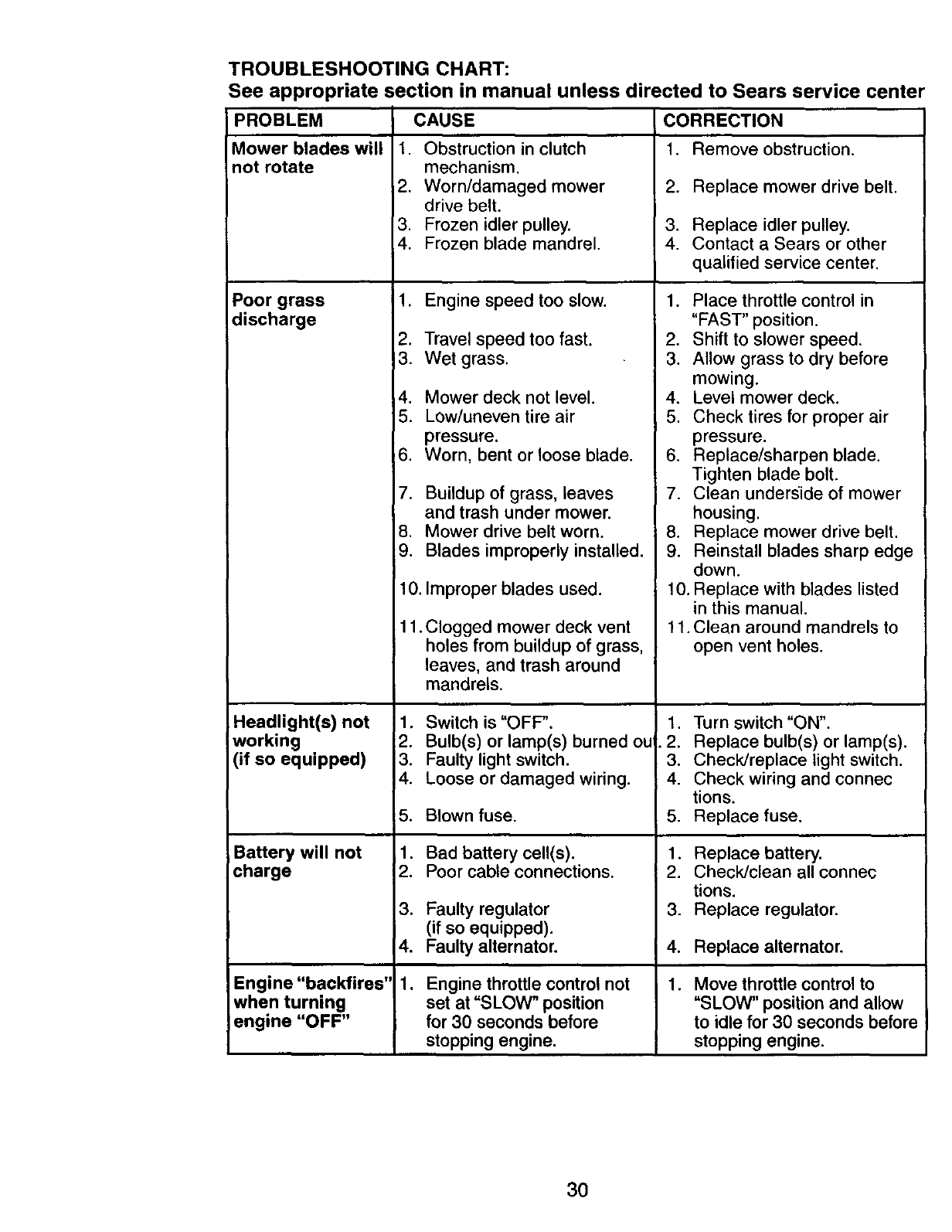

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

CAUSE

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Headlight(s) not 1.

working 2.

(if so equipped) 3.

Battery will not 1.

charge 2.

Engine "backfires" 1.

when turning

engine "OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned oul

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped)•

Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

CORRECTION

1. Remove obstruction.

2. Replace mower drive belt.

3• Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position•

2. Shift to slower speed•

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure•

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes•

1. Turn switch "ON".

•2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec

tions.

3. Replace regulator.

4. Replace alternator.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine•

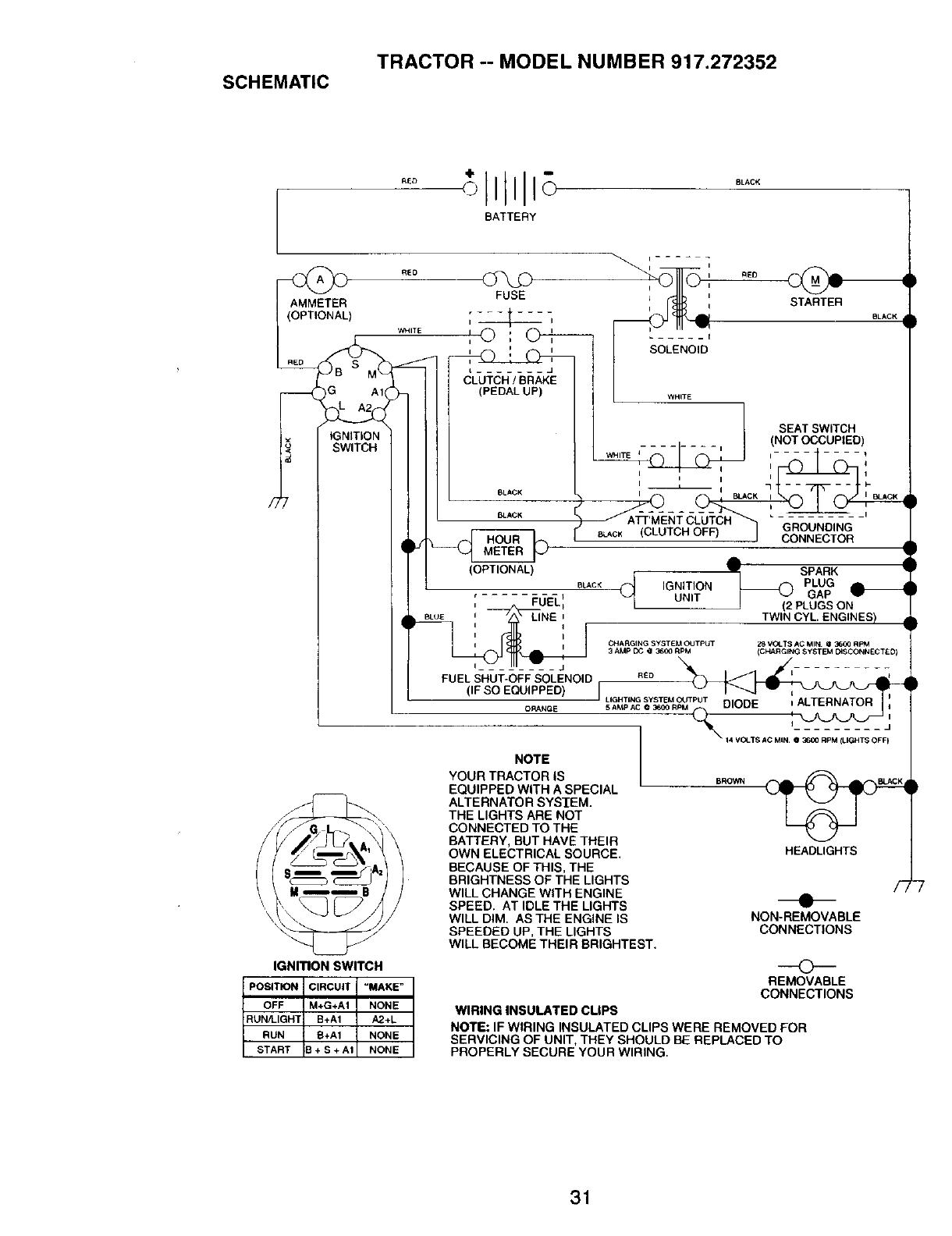

TRACTOR -- MODEL NUMBER 917.272352

SCHEMATIC

BATTERY

AMMETER FUSE

(OPTIONAL) , i

iIi

_ t J

CLUTCH !BRAKE

)G AI(

IGNITION

SWITCH

(PEDAL UP)

BLACK

___(

(OPTIONAL)

_! STARTER

I\ _ BLACK

SOLENOID

J SEAT SWITCH

........ ,J(NOT OCCUPIED)

,--', _ _

...... ...........

ATr'MENT CLUTCH GROUNDING

,FUEL_

BLUEI'__i_l LINE_IJ

FUEL SHUT-OFF SOLENOID

(IF SO EQUIPPED)

ORANGE

A •

lip SPARK •

B_CK (_ IGNITION __C) PLUG _-_UNIT GAP

I (2 PLUGS ON

TWIN CYL. ENGINES)

CHARGING SYSTEM OUTPUT 28 V(_-TS AC MIN @3600 RPM

3 AMP DC @ 3600 RPM (CHARGING SyF;r EM C4SCONNECTED)

RED I

[ LIGHTIN_YSYSTEM

sA_PAce _ R_JTMP_UT DIODE , ALTERNATOR I;

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M÷G+AI NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START B+ S+ A1 NONE

NOTE

YOUR TRACTOR tS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSIEM

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

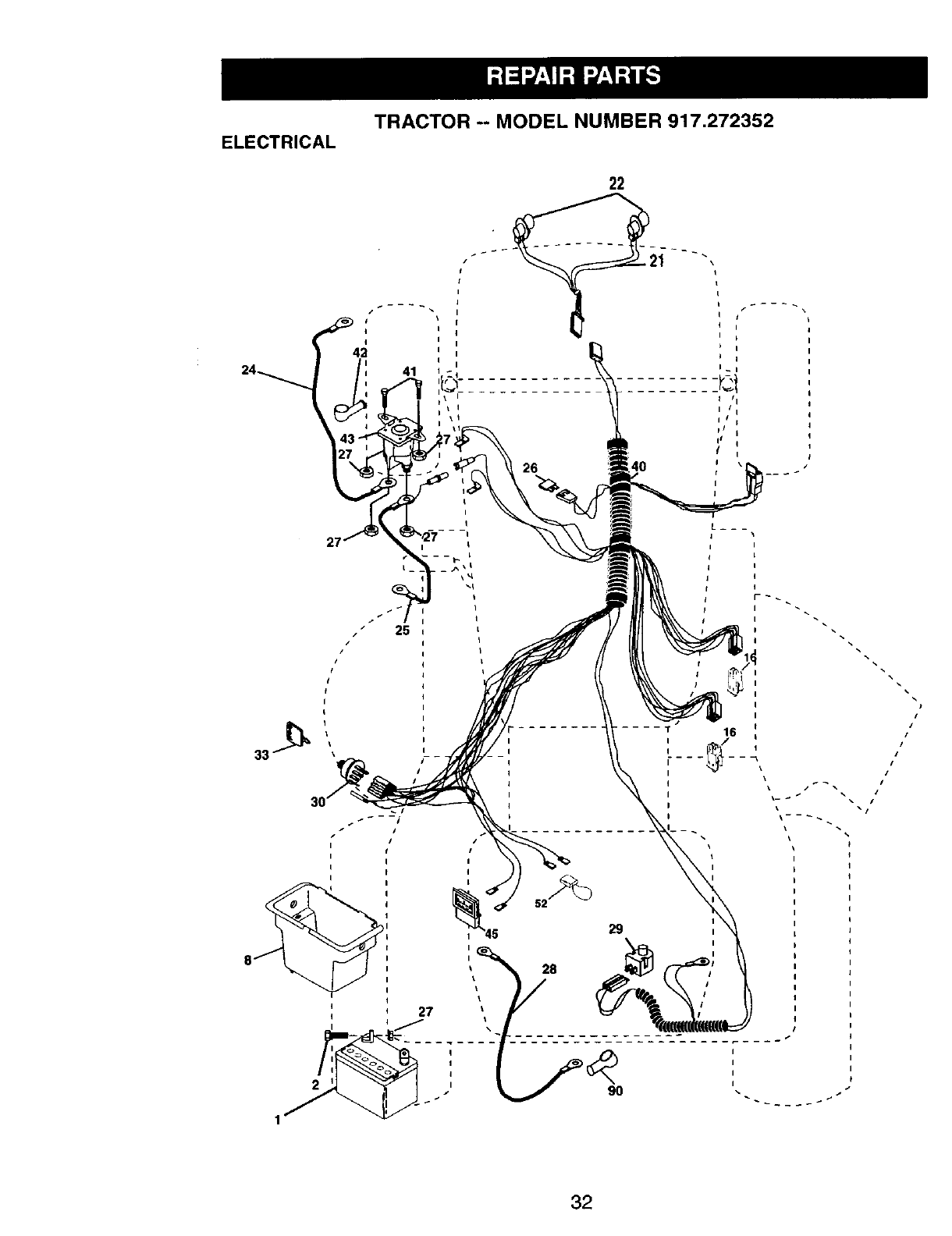

TRACTOR -- MODEL NUMBER 917.272352

ELECTRICAL

I i

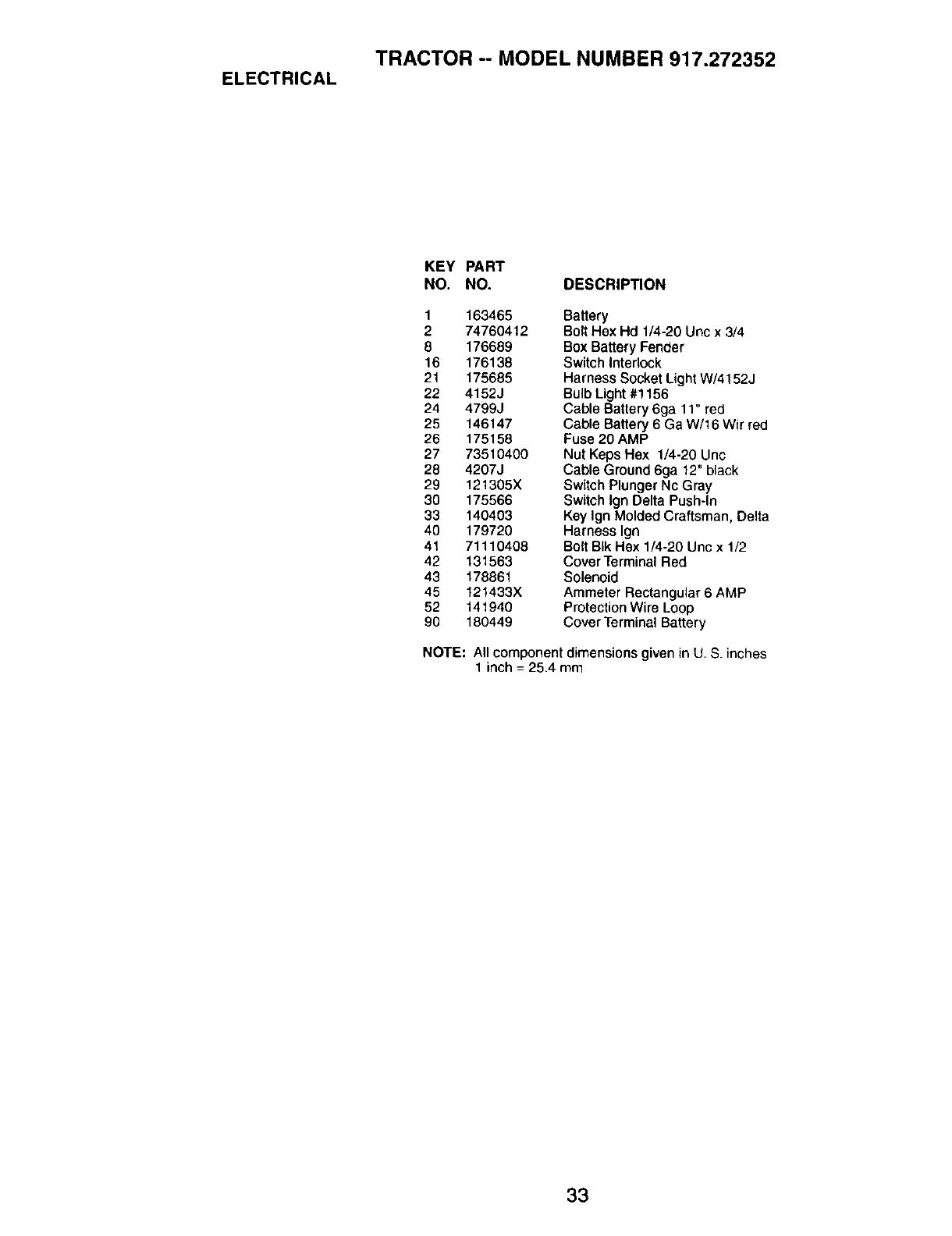

TRACTOR -- MODEL NUMBER 917.272352

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465

274760412

8176689

16 176138

21 175685

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140403

40 179720

41 71110408

42 131563

43 178861

45 121433X

52 141940

90 180449

Battery

Bolt Hex Hd 1/4-20 Unc x 3/4

Box Battery Fender

Switch Interlock

Harness Socket Light W/4152J

Bulb Light #1156

Cable Battery 6ga 11" red

Cable Battery 6 Ga W/16 Wir red

Fuse 20 AMP

Nut Keps Hex 1/4-20 Unc

Cable Ground 6ga 12" black

Switch Plunger Nc Gray

Switch Ign Delta Push-In

Key Ign Molded Craftsman, Delta

Harness Ign

Bolt BIk Hex 1/4-20 Unc x 1/2

Cover Terminal Red

Solenoid

Ammeter Rectangular 6 AMP

Protection Wire Loop

Cover Terminal Battery

NOTE: All component dimensions given in U. S. inches

1 inch = 25.4 mm

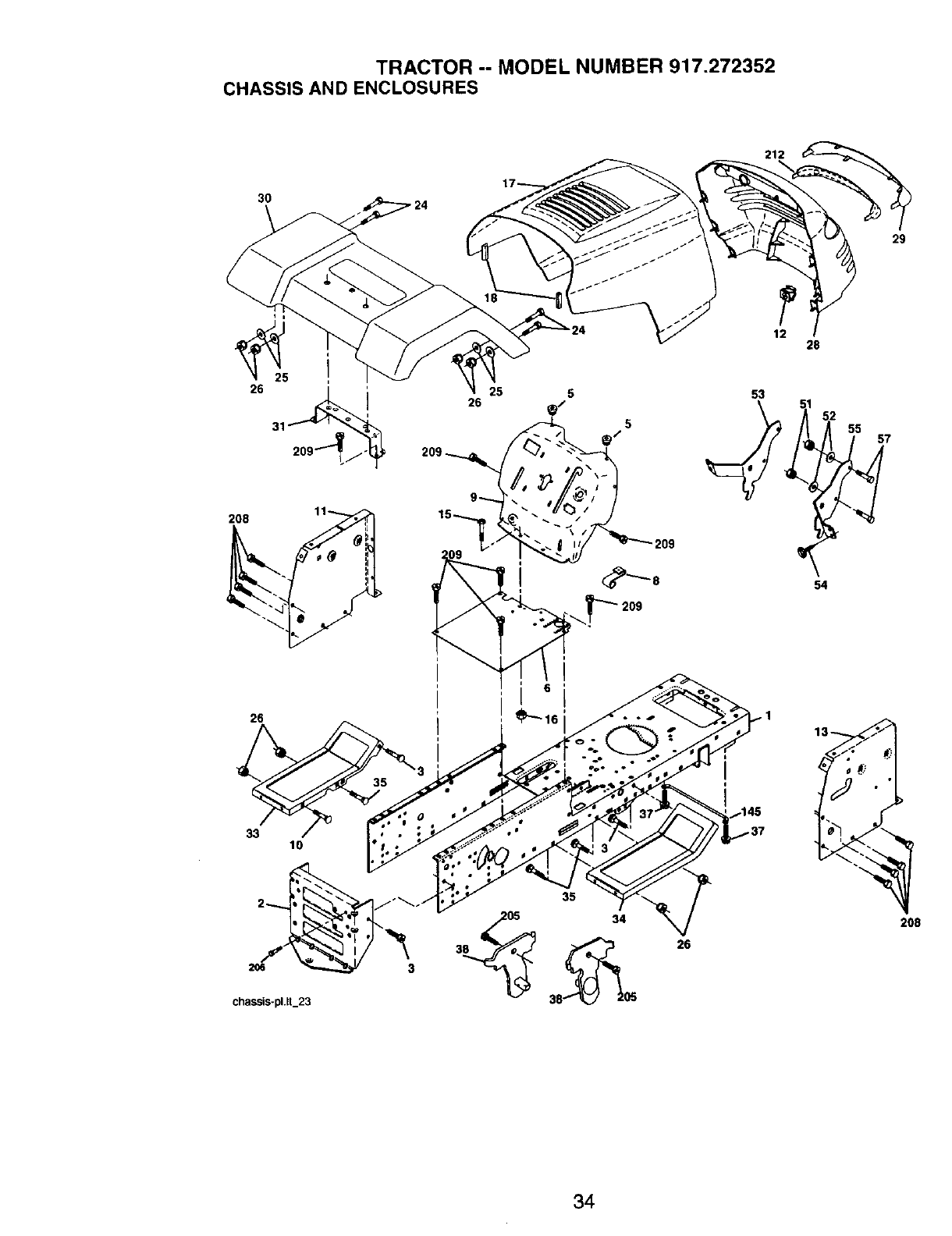

TRACTOR ooMODEL NUMBER 917.272352

CHASStS AND ENCLOSURES

212

26 31

208

chassis-pl.lt_23

25 5

26 _/

38 05

12 28

55 7

208

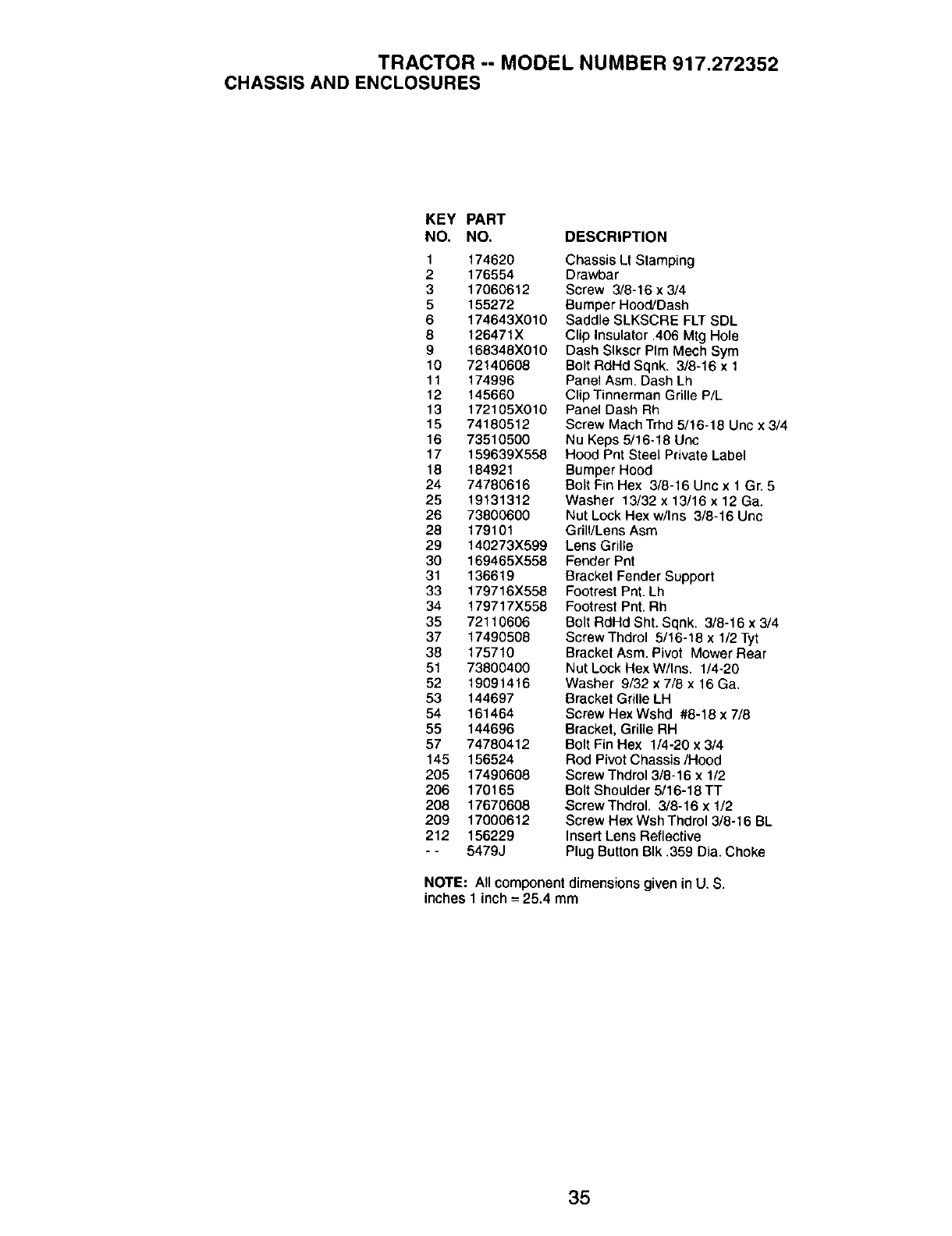

TRACTOR -- MODEL NUMBER 917.272352

CHASSISAND ENCLOSURES

KEY PART

NO. NO.

1 174620

2176554

317060612

5155272

6174643X010

8 126471X

9 168348X010

10 72140608

11 174996

12 145660

13 172105X010

15 74180512

16 73510500

17 159639X558

18 184921

24 74780616

25 19131312

26 73800600

28 179101

29 140273X599

30 169465X558

31 136619

33 179716X558

34 179717X558

35 72110606

37 17490508

38 175710

51 73800400

52 19091416

53 144697

54 161464

55 144696

57 74780412

145 156524

205 17490608

206 170165

208 17670608

209 17000612

212 156229

-- 5479J

DESCRIPTION

Chassis Lt Stamping

Drawbar

Screw 3/8-16 x3/4

Bumper Hood/Dash

Saddle SLKSCRE FLT SDL

Clip Insulator ,406 Mtg Hole

Dash Slkscr PIm Mech Sym

Bolt RdHd Sqnk. 3/8-16 x 1

Panel Asm, Dash Lh

Clip Tinnerman Grille P/L

Panel Dash Rh

Screw Mach Trhd 5/16-18 Unc x 3/4

Nu Keps 5/16-18 Uric

Hood Pnt Steel Private Label

Bumper Hood

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

Washer 13/32 x 13/16 x 12 Ga.

Nut Lock Hex w/Ins 3/8-16 Unc

Grill/Lens Asm

Lens Grille

Fender Pnt

Bracket Fender Support

Footrest Pnt. Lh

Footrest Pnt. Rh

Bolt RdHd Sht. Sqnk. 3/8-16 x 3/4

ScrewThdrol 5/t6-18 x 1/2 Tyt

Bracket Asm. Pivot Mower Rear

Nut Lock HexW/Ins. 1/4-20

Washer 9/32 x 7/8 x 16 Ga.

Bracket Grille LH

Screw Hex Wshd #8-18 x 7/8

Bracket, Grille RH

Bolt Fin Hex 1/4-20 x 3/4

Rod Pivot Chassis/Hood

Screw Thdrol 3/8-16 x 1/2

Bolt Shoulder 5/16-18 TT

ScrewThdrol. 3/8-16 x 1/2

Screw Hex Wsh Thdrol 3/8-16 BL

Insert Lens Reflective

Plug Button BIk .359 Dia. Choke

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

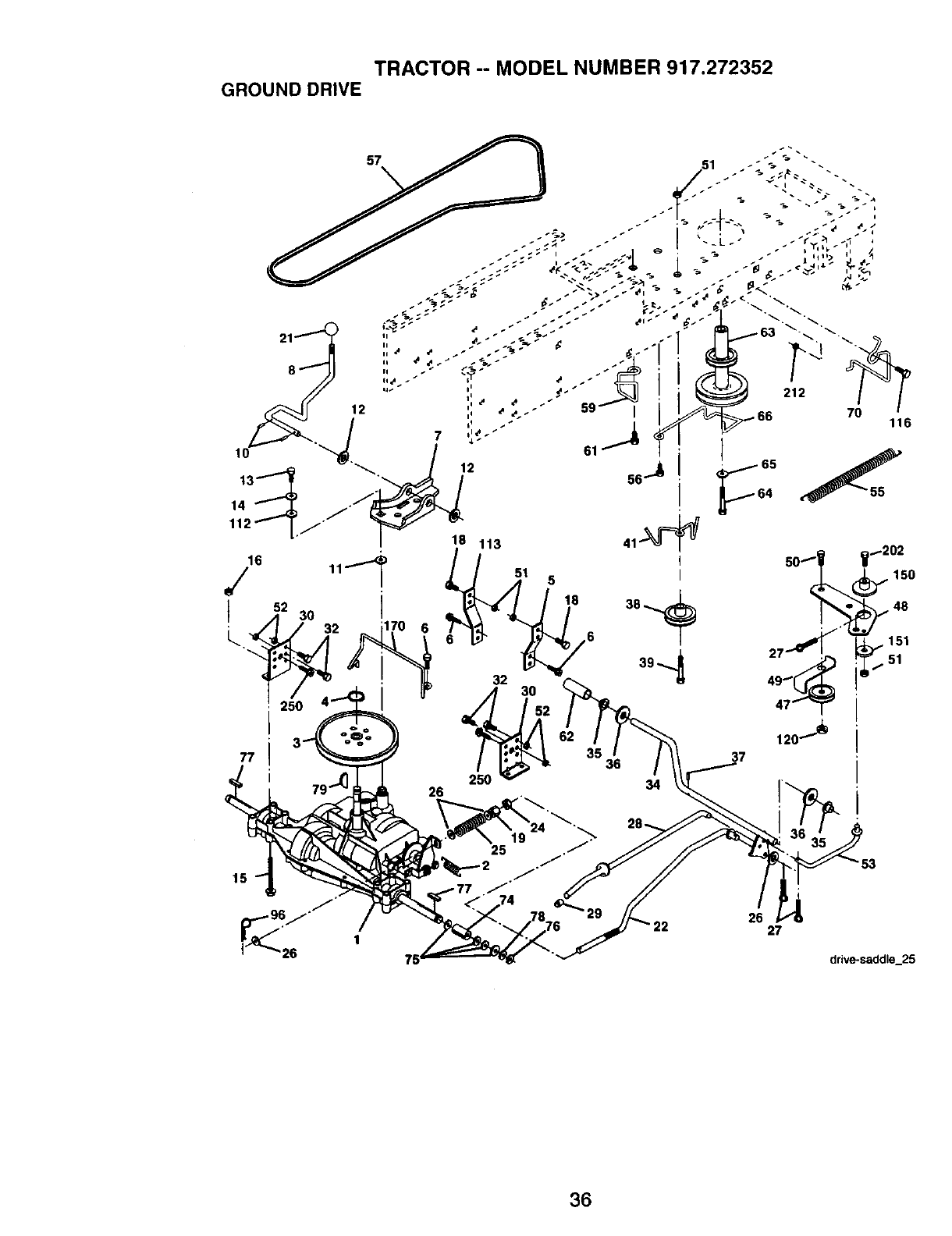

TRACTOR -- MODEL NUMBER 917.272352

GROUND DRIVE

18 113

51 5

32 3052 g_

116

15 i

26 27

drive-saddle_25

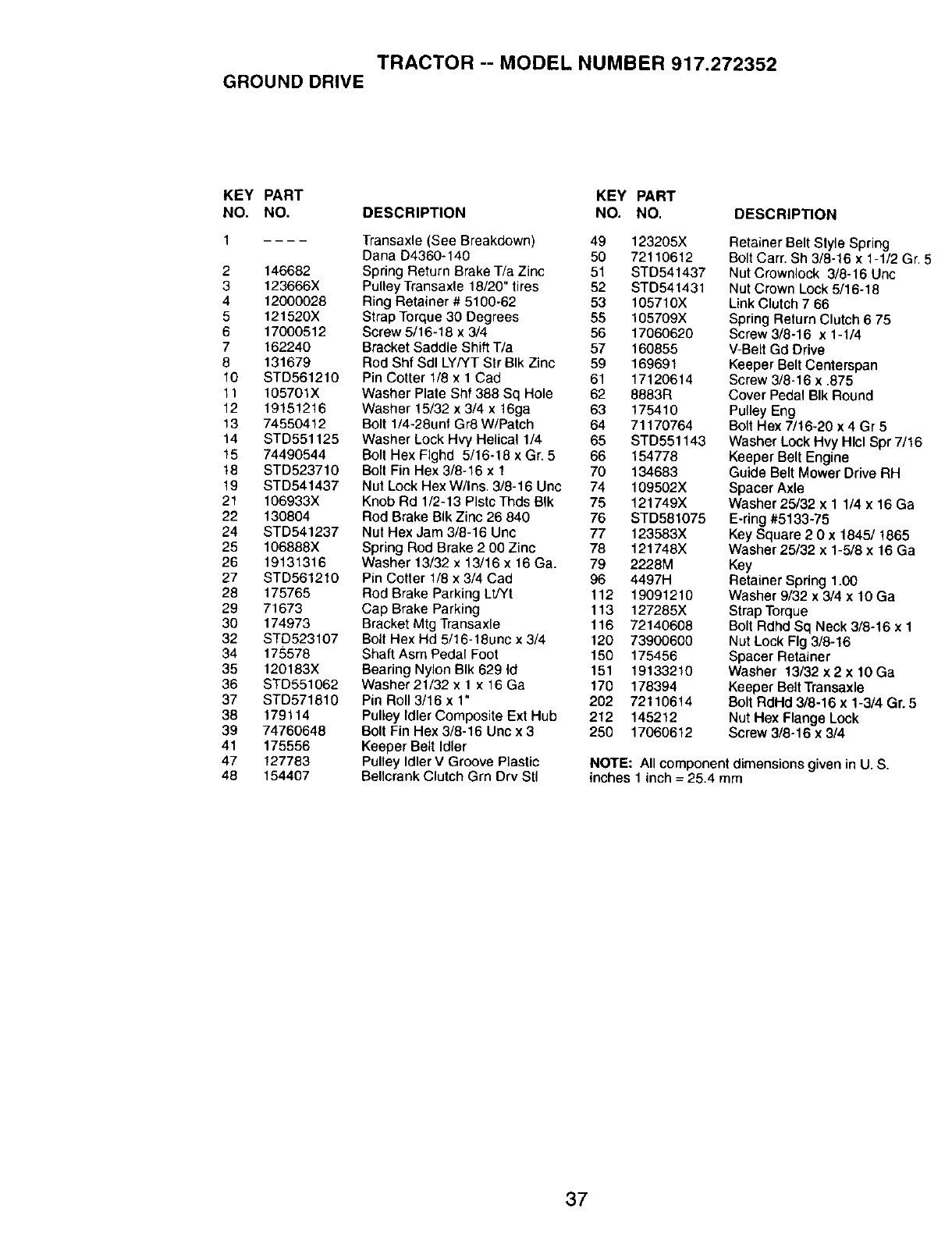

TRACTOR -- MODEL NUMBER 917.272352

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

2 146682

3123666X

412000028

5121520X

6 17000512

7 162240

8 131679

10 STD561210

11 105701X

12 19151216

13 74550412

14 STD551125

15 74490544

t8 STD523710

19 STD541437

21 106933X

22 130804

24 STD541237

25 106888X

26 19131316

27 STD561210

28 175765

29 71673

30 174973

32 STD523107

34 175578

35 120183X

36 STD551062

37 STD571810

38 179114

39 7476O648

41 175556

47 127783

48 154407

Transaxle (See Breakdown) 49 123205X

Dana D4360-140 50 72110612

Spring Return Brake T/a Zinc 51 STD541437

Pulley Transaxle 18/20" tires 52 STD541431

Ring Retainer # 5100-62 53 105710X

Strap Torque 30 Degrees 55 105709X

Screw 5/16-18 x 3/4 56 17060620

Bracket Saddle Shift T/a 57 160855

Rod Shf Sdl LY/YT Str BIk Zinc 59 169691

Pin Cotter 1/8 x 1 Cad 61 17120614

Washer Plate Shf 388 Sq Hole 62 8883R

Washer 15/32 x 3/4 x 16ga 63 175410

Bolt 1/4-28unf Gr8 W/Patch 64 71170764

Washer Lock Hvy Helical 1/4 65 STD551143

Bolt Hex Flghd 5/16-18 x Gr. 5 66 154778

Boll Fin Hex 3/8-16 x 1 70 134683

Nut Lock Hex W/Ins. 3/8-16 Unc 74 109502X

Knob Rd 1/2-13 Plstc Thds BIk 75 121749X

Rod Brake BIk Zinc 26 840 76 STD581075

Nut Hex Jam 3/8-16 Unc 77 123583X

Spring Rod Brake 2 00 Zinc 78 121748X

Washer 13/32 x 13/16 x 16 Ga. 79 2228M

Pin Cotter 1/8 x 3/4 Cad 96 4497H

Rod Brake Parking LtJYt 112 19091210

Cap Brake Parking 113 127285X

Bracket Mtg Transaxle 116 72140608

Bolt Hex Hd 5/16-18unc x 3/4 120 73900600

Shaft Asm Pedal Foot 150 175456

Bearing Nylon BIk 629 Id 151 19133210

Washer 21/32 x 1 x 16 Ga 170 178394

Pin Roll 3/16 x 1" 202 72110614

Pulley Idler Composite ExI Hub 212 145212

Bolt Fin Hex 3/8-16 Unc x 3 250 17060612

Keeper Belt Idler

Pulley Idler V Groove Plastic

Bellcrank Clutch Grn Drv Stl

DESCRIPTION

Retainer Belt Style Spring

Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5

Nut Crownlock 3/8-16 Unc

Nut Crown Lock 5/16-18

Link Clutch 7 66

Spring Return Clutch 6 75

Screw 3/8-16 x 1-1/4

V-Belt Gd Drive

Keeper Belt Centerspan

Screw 3/8-16 x .875

Cover Pedal BIk Round

Pulley Eng

Bolt Hex 7/16-20 x 4 Gr 5

Washer Lock Hvy Hlcl Spr 7/t6

Keeper Belt Engine

Guide Belt Mower Drive RH

Spacer Axle

Washer 25/32 x 1 1/4 x 16 Ga

E-ring #5133-75

Key Square 2 0 x 1845/t865

Washer 25/32 x 1-5/8 x 16 Ga

Key

Retainer Spring 1.00

Washer 9/32 x 3/4 x 10 Ga

Strap Torque

Bolt Rdhd Sq Neck 3/8-16 x 1

Nut Lock Fig 3/8-16

Spacer Retainer

Washer 13/32 x 2 x 10 Ga

Keeper Belt Transaxle

Bolt RdHd 3/8-16 x 1-3/4 Gr. 5

Nut Hex Flange Lock

Screw 3/8-16 x 3/4

NOTE: All component dimensions given in U. S.

inches 1inch = 25.4 mm

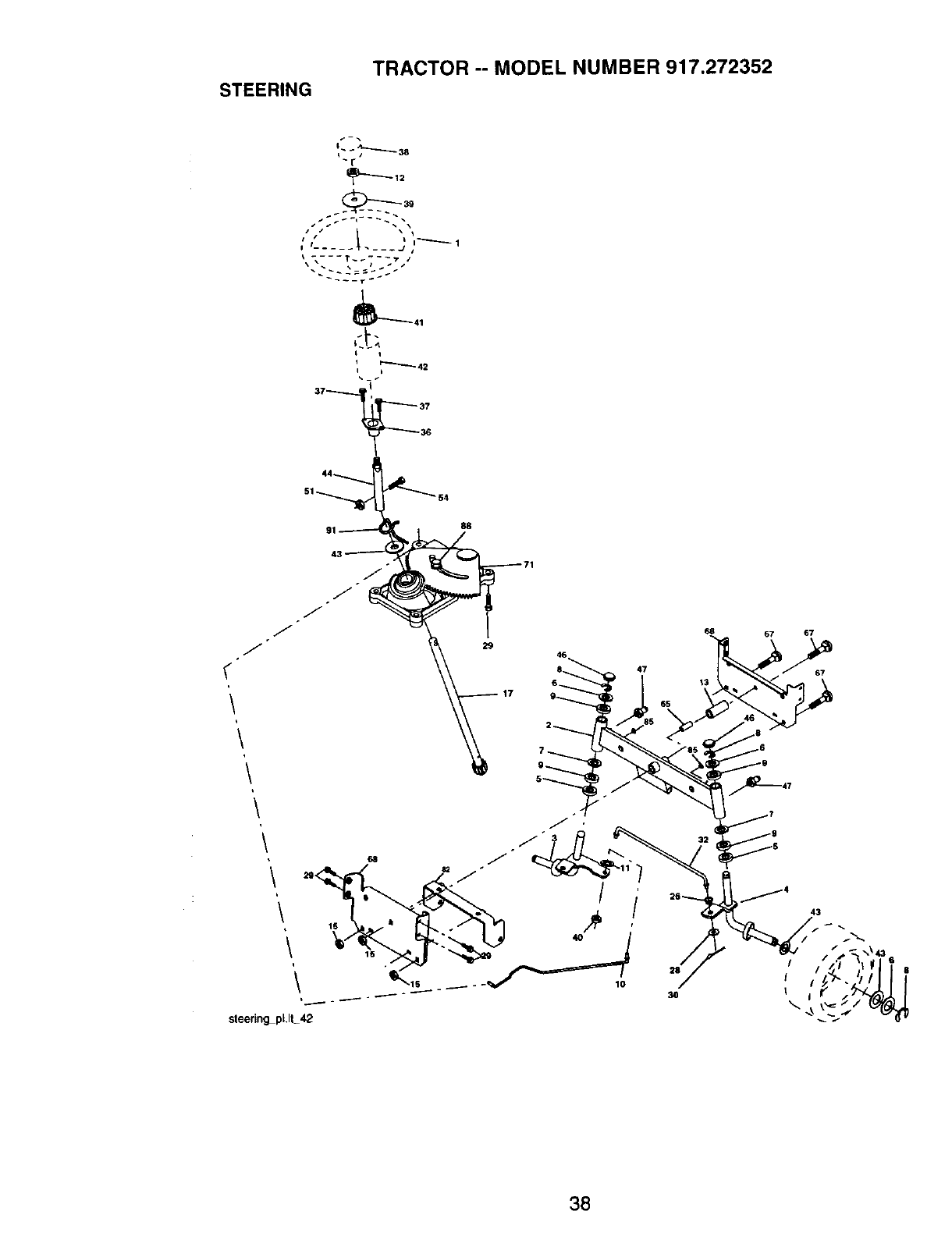

STEERING

TRACTOR -- MODEL NUMBER 917.272352

P'--*"_ 42

68 67 67

\15

steering_pLIt 42

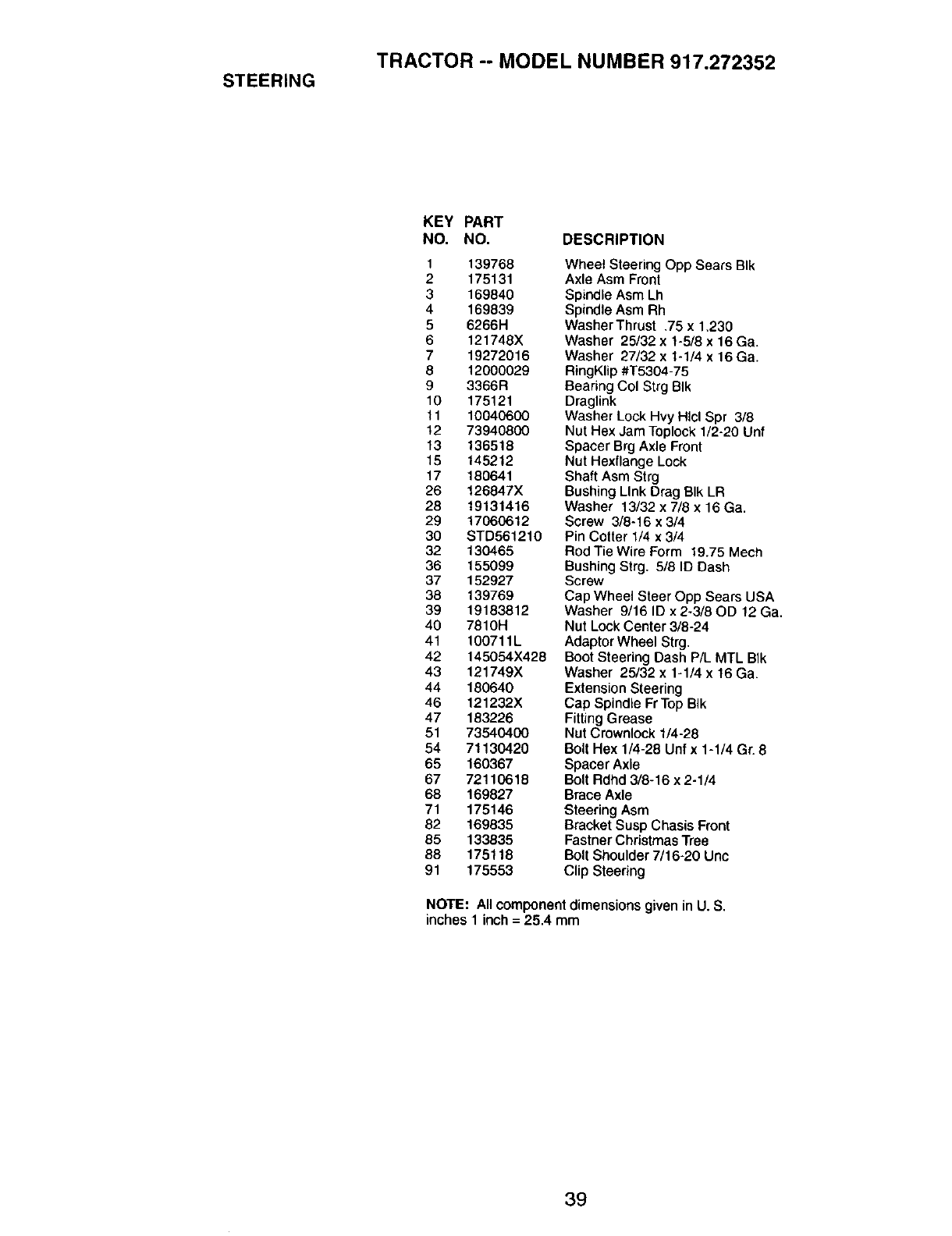

TRACTOR -- MODEL NUMBER 917.272352

STEERING

KEY PART

NO, NO, DESCRIPTION

1139768

2175131

3 16984O

4169839

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 175121

11 10040600

t2 73940800

13 136518

15 145212

17 180641

26 126847X

28 19131416

29 17060612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19183812

40 7810H

41 100711L

42 145054X428

43 121749X

44 180640

46 121232X

47 183226

51 73540400

54 71130420

65 160367

67 72110618

68 169827

71 175146

82 169835

85 133835

88 175118

91 175553

Wheel Steering Opp Sears BIk

Axle Asm Front

Spindle Asm Lh

Spindle Asm Rh

Washer Thrust .75 x 1.230

Washer 25/32 x 1-5/8 x 16 Ga.

Washer 27/32 x 1-1/4 x 16 Ga.

RingKlip #T5304-75

Bearing Col Strg BIk

Draglink

Washer Lock Hvy HIcl Spr 3/8

Nut Hex Jam Toplock 1/2-20 Unf

Spacer Brg Axle Front

Nut Hexflange Lock

Shaft Asm Strg

Bushing Link Drag BIk LR

Washer 13/32 x 7/8 x 16 Ga.

Screw 3/8-16 x 3/4

Pin Cotter 1/4 x 3/4

RodTieWire Form 19.75 Mech

Bushing Strg. 5/8 ID Dash

Screw

Cap Wheel Steer Opp Sears USA

Washer 9/16 ID x 2-3/80D 12 Ga.

Nut Lock Center 3/8-24

Adaptor Wheel Strg.

Boot Steering Dash P/L MTL BIk

Washer 25/32 x 1-1/4 x 16 Ga.

Extension Steering

Cap Spindle Fr Top BIk

Fitting Grease

Nut Crownlock 1/4-28

Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8

Spacer Axle

Bolt Rdhd 3/8-16 x 2-1/4

Brace Axle

Steering Asm

Bracket Susp Chasis Front

Fastner Christmas Tree

Bolt Shoulder 7/16-20 Unc

Clip Steering

NOTE: AIIcomponentdimensionsgivenin U.S.

inches I inch=25.4mm

ENGINE

TRACTOR -- MODEL NUMBER 917.272352

81 13 4

78,

OPTIONAL EQUIPMENT

Spark Arrester

KEY PART

NO. NO.

1 170545

2 17720408

4 137352

13 165291

14 148456

16 STD551237

23 169837

29 137180

31 184900

32 140527

KEY PART

DESCRIPTION NO. NO,

Control TWch 33 123487X

Screw Hex Thd Cut 1/4-20 x1/2 37 137040

Engine (See Breakdown) Bdggs, 38 181654

Model No. 31C707-0230-E1 40 124028X

Muffler Exh LT B&S 14HP IC 44 17670412

OHV

Gasket Eng 1 313 IdTin Plated 45 17000612

Tube Drain Oil Easy 46 19091416

Washer Lock Ext Tooth 3/8 72 183906

Shield Browning/Debds Guard 78 17060620

Kit Spark Arrestor (Flat Scrn) 81 73510400

Tank Fuel Front 1 25

Cap Asm Fuel Sears Vented

engine-bs.1c__17

DESCRIPTION

Clamp Hose BIk

Line Fuel 20"

Plug. Drain Oil Easy

Bushing Snap Nyl BIk Fuel Line

Screw Hexwsh Thdrol

1/4-20 x 3/4

Screw Hex wsh Thdr 3/8-16 x/4

Washer 9/32 x 7/8 x 16 ga

Screw Socket Head 5/16-18 x 1

Screw 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20 Unc

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

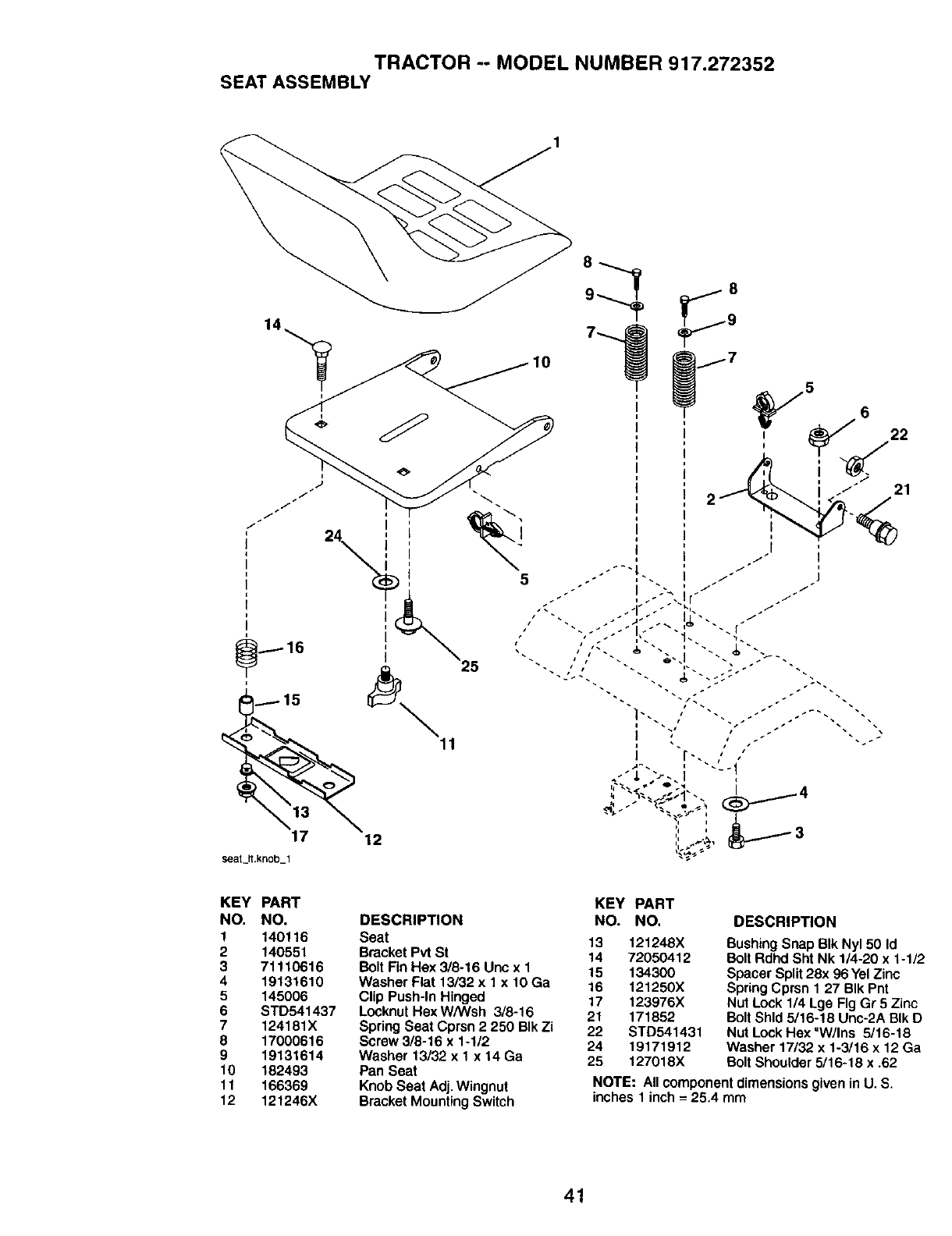

TRACTOR -- MODEL NUMBER 917.272352

SEAT ASSEMBLY

seat_lt,knob_l

KEY PART

NO. NO.

1 140116

2 140551

3 71110616

419131610

5 145006

6STD541437

7 124181X

8 17000616

9 19131614

10 182493

11 166369

12 121246X

DESCRIPTION

Seat

Bracket Pvt St

Bolt Fin Hex 3/8-16 Unc x 1

Washer Flat 13/32 x 1 x 10 Ga

Clip Push-In Hinged

Locknut HexW/Wsh 3/8-16

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 x 1-1/2

Washer 13/32 x 1 x 14 Gs

Pan Seat

Knob Seat Adj. Wingnut

Bracket Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

25 127018X

Bushing Snap BIk Ny150 Id

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

Spacer Split 28x 96 Yel Zinc

Spring Cprsn 127 BIk Pnt

Nut Lock 114Lge Fig Gr 5 Zinc

Bolt Shld 5/16-18 Unc-2A BIk D

Nut Lock Hex "W/Ins 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga

Bolt Shoulder 5/16-18 x .62

NOTE: All component dimensions given in U. S.

inches 1inch = 25.4 mm

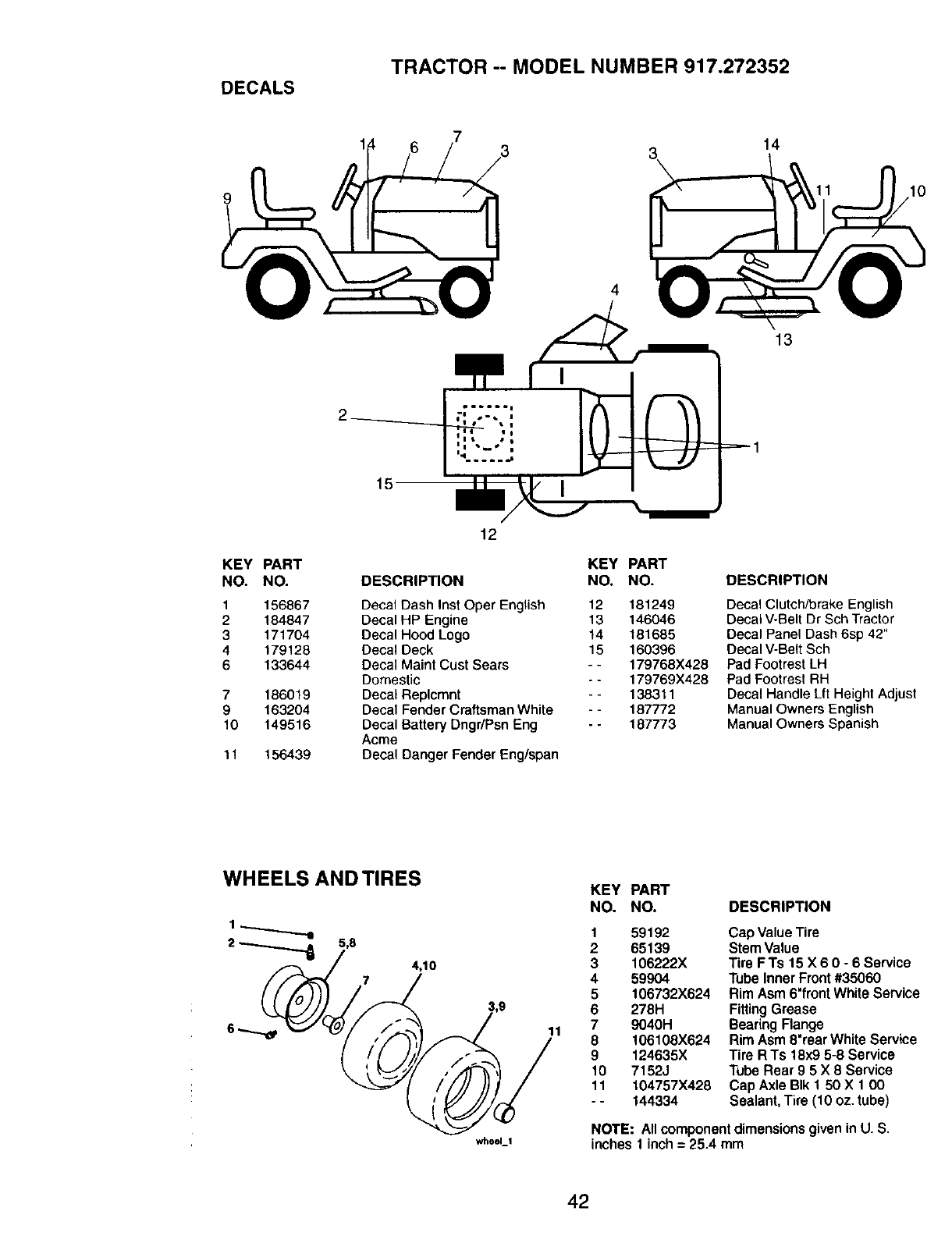

TRACTOR -- MODEL NUMBER 917.272352

DECALS

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1156867 Decal Dash Inst Oper English 12 181249

2 184847 Decal HP Engine 13 146046

3 171704 Decal Hood Logo 14 181685

4 179128 Decal Deck 15 160396

6 133644 Decal Maint Cust Sears - - 179768X428

Domestic - - 179769X428

7 186019 Decal Repicmnt - - 138311

9 163204 Decal Fender Craftsman White - - 187772

10 149516 Decal Battery Dngr/Pen Eng - - 187773

Acme

11 156439 Decal Danger Fender Eng/span

DESCRIPTION

Decal Clutch/brake English

Decal V-Belt Dr Sch Tractor

Decal Panel Dash 6sp 42"

Decal V-Belt Sch

Pad Footrest LH

Pad Footrest RH

Decal Handle Lft Height Adjust

Manual Owners English

Manual Owners Spanish

WHEELS ANDTIRES

4,10

wheeL1

KEY PART

NO. NO. DESCRIPTION

1 59192

2 65139

3106222X

4 59904

5 106732)(624

6 278H

7 9040H

8106108X624

9 124635X

10 7152J

11 104757X428

- - 144334

Cap ValueTire

StemValue

Tire FTs 15 X 6 0 -6 Service

Tube InnerFront#35060

RimAsm6"frontWhiteService

FittingGrease

BearingFlange

RimAsm 8"rearWhiteService

Tire R Ts 18x9 5-8 Service

Tube Rear 9 5X 8 Service

Cap AxleBIk1 50 X 1O0

Sealant,Tire (10 oz. tube)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

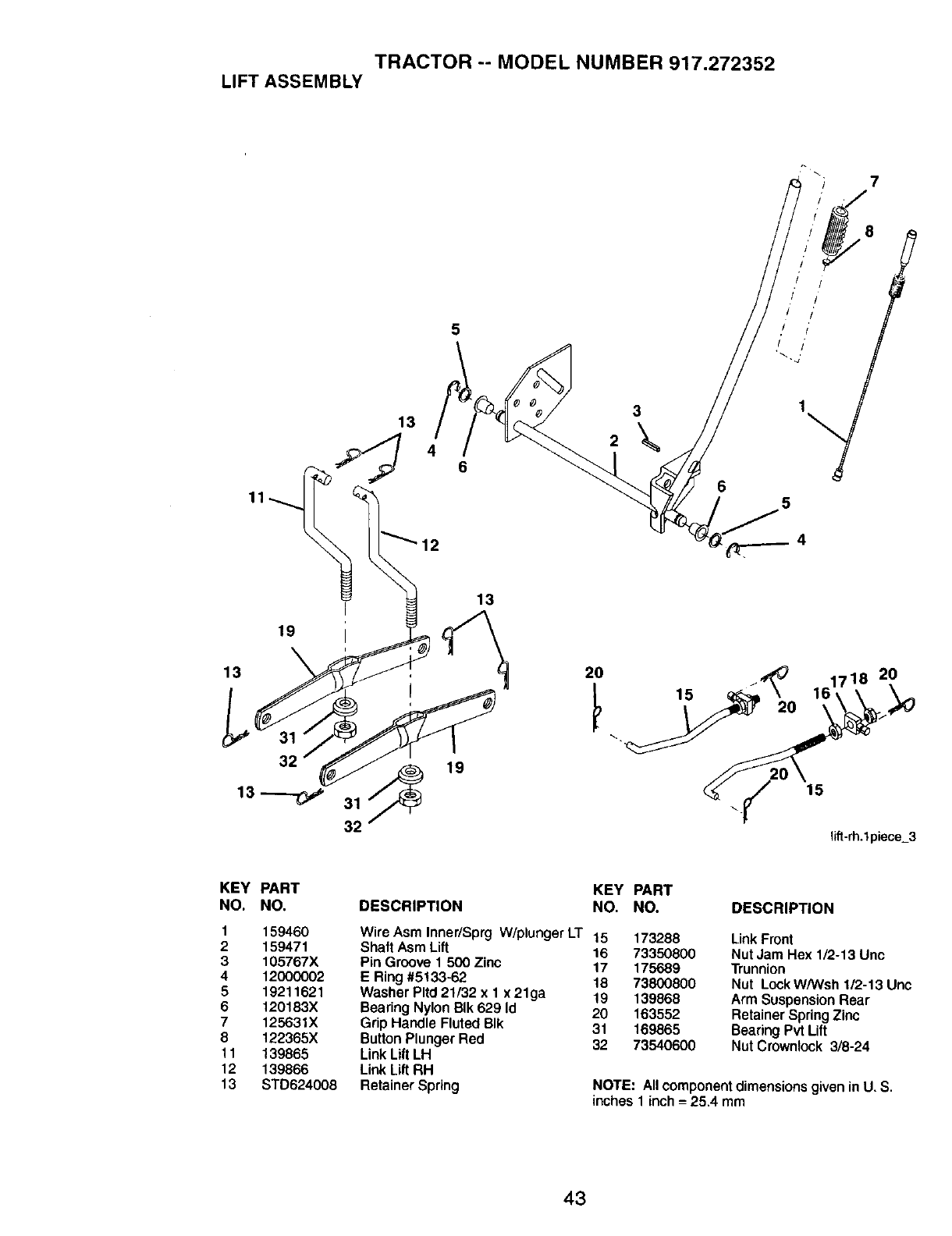

TRACTOR -- MODEL NUMBER 917.272352

LIFT ASSEMBLY

lift-rh.1 piece_3

KEY PART

NO. NO.

1 159460

2159471

3 105767X

4 12000002

519211621

6 120183X

7 125631X

8 122365X

11 139865

12 139866

13 STD624008

KEY PART

DESCRIPTION NO. NO.

Wire Asm Inner/Sprg W/plunger LT 15 173288

Shaft Asm Lift 16 73350800

Pin Groove 1 500 Zinc 17 175689

E Ring #5133-62 18 73800800

Washer Pltd 21/32 x 1 x 21ga 19 139868

Bearing Nylon BIk 629 Id 20 163552

Grip Handle Fluted BIk 31 169865

Button Plunger Red 32 73540600

Link Lift LH

Link Lift RH

Retainer Spring

DESCRIPTION

LinkFront

Nut Jam Hex 1/2-13 Uric

Trunnion

Nut LockW/Wsh 112-13Unc

Arm SuspensionRear

RetainerSpringZinc

BearingPvt Lift

Nut Crownlock 3/8-24

NOTE: All component dimensionsgiven in U. S.

inches1inch=25.4 mm

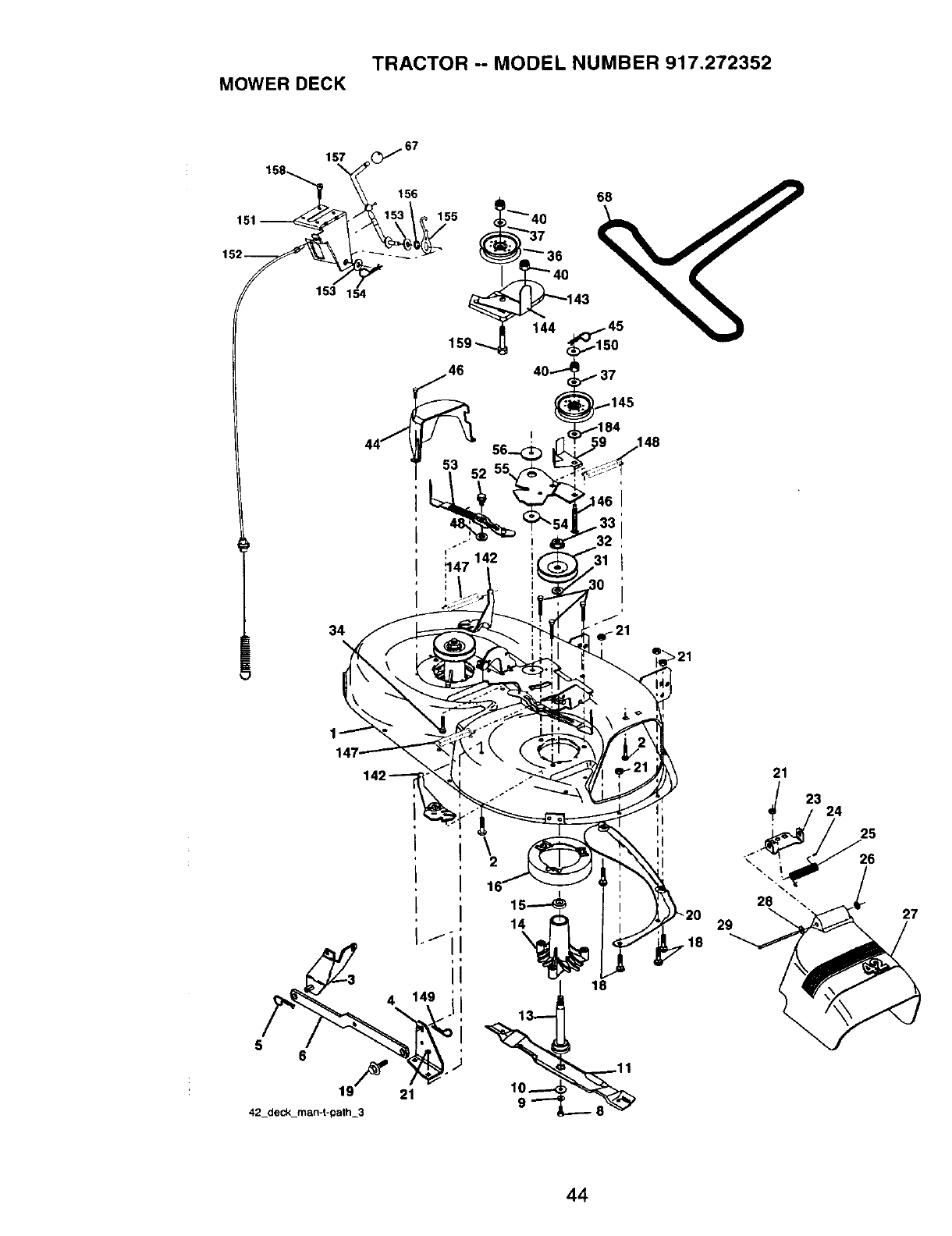

TRACTOR -- MODEL NUMBER 917.272352

MOWER DECK

157

;146

_147142 31

_18

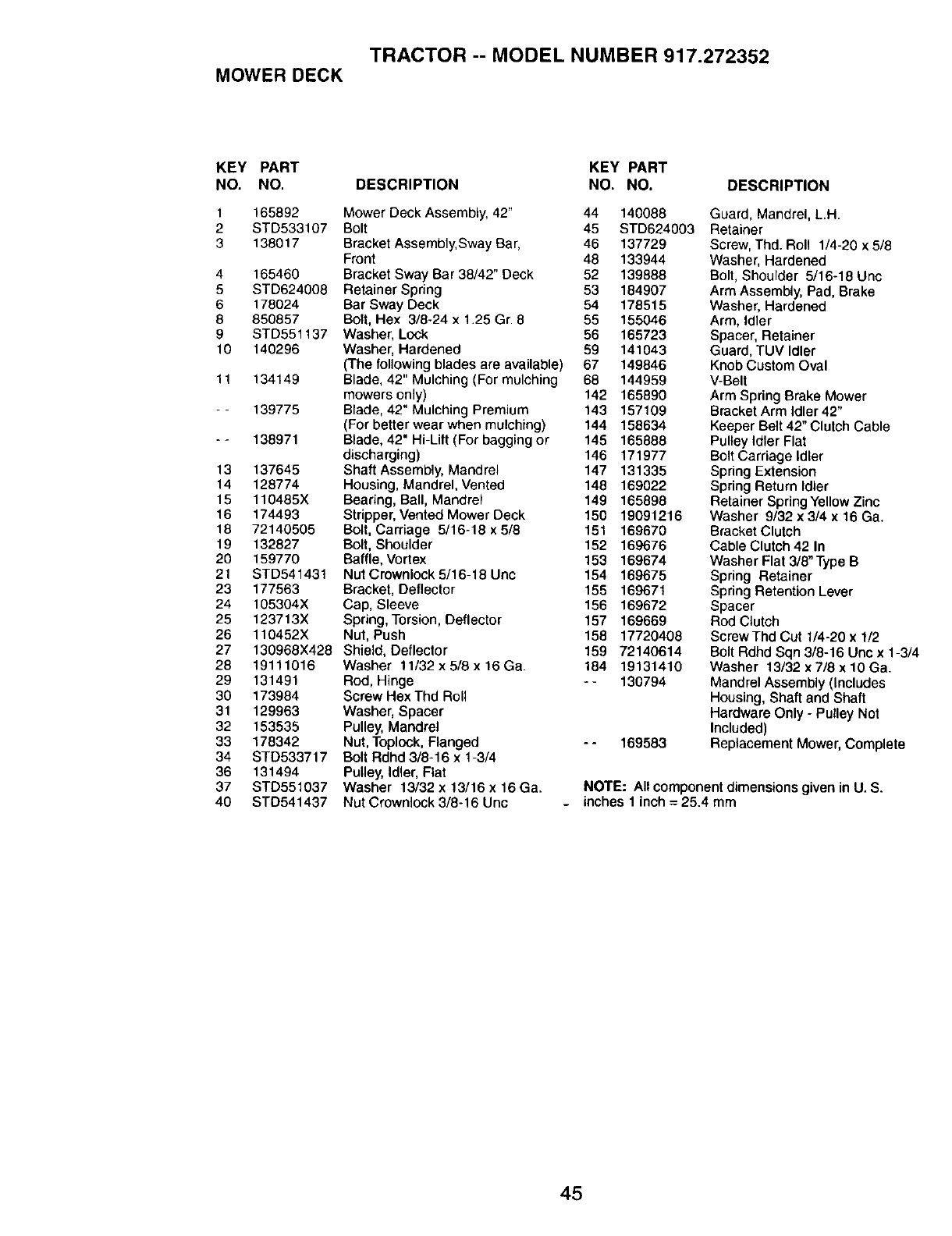

TRACTOR -- MODEL NUMBER 917.272352

MOWERDECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

165892

STD533107

138017

4 165460

5 STD624008

6 178024

8 850857

9STD551137

10 140296

11 134149

139775

138971

13 137645

14 128774

15 110485X

16 174493

18 72140505

19 132827

20 159770

21 STD54143t

23 177563

24 105304X

25 123713X

26 110452X

27 130968X428

28 19111016

29 131491

30 173984

31 129963

32 153535

33 178342

34 STD533717

36 131494

37 STD551037

40 STD541437

Mower Deck Assembly, 42"

Bolt

Bracket Assembly, Sway Bar,

Front

Bracket Sway Bar 38/42" Deck

Retainer Spring

Bar Sway Deck

Bolt, Hex 3/8-24 x 1.25 Gr. 8

Washer, Lock

Washer, Hardened

(The following blades are available)

Blade, 42" Mulching (For mulching

mowers only)

Brade, 42" Mulching Premium

(For better wear when mulching)

Blade, 42" Hi-Lift (For bagging or

discharging)

Shaft Assembly, Mandrel

Housing, Mandrel, Vented

Bearing, Ball, Mandrel

Stripper, Vented Mower Deck

Bolt, Carriage 5/16-18 x 5/8

Bolt, Shoulder

Baffle, Vortex

Nut Crownlock 5/16-18 Uric

Bracket, Deflector

Cap, Sleeve

Spring, Torsion, Deflector

Nut, Push

Shield, Deflector

Washer 11/32 x 5/8 x 16 Ga.

Rod, Hinge

Screw Hex Thd Roll

Washer, Spacer

Pulley, Mandrel

Nut, Toplock, Flanged

Bolt Rdhd 3/8-16 x 1-3/4

Pulley, Idler, Flat

Washer 13/32 x 13/16 x 16 Ga.

Nut Crownlock 3/8-16 Unc

DESCRIPTION

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened

52 139888 Boll, Shoulder 5/16-18 Unc

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, Idler

56 165723 Spacer, Retainer

59 141043 Guard, TUV Idler

67 149846 Knob Custom Oval

68 144959 V-Belt

142 165890 Arm Spring Brake Mower

143 157109 Bracket Arm Idler 42"

144 158634 Keeper Belt 42" Clutch Cable

145 165888 Pulley Idler Flat

146 171977 Bolt Carriage Idler

147 131335 Spring Extension

148 169022 Spring Return Idler

149 165898 Retainer Spring Yellow Zinc

150 19091216 Washer 9/32 x 3/4 x 16 Ga.

151 169670 Bracket Clutch

152 169676 Cable Clutch 42 In

153 169674 Washer Flat 3/8" Type B

154 169675 Spring Retainer

155 169671 Spring Retention Lever

156 169672 Spacer

157 169669 Rod Clutch

158 17720408 ScrewThd Cut 1/4-20 x 1/2

159 72140614 Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4

184 19131410 Washer 13/32x7/Sx10Ga.

- - 130794 Mandrel Assembly (Includes

Housing, Shaft and Shaft

Hardware Only - Pulley Not

Included)

- - 169583 Replacement Mower, Complete

NOTE: Allcomponent dimensions given in U. S.

-inches1inch= 25,4 mm

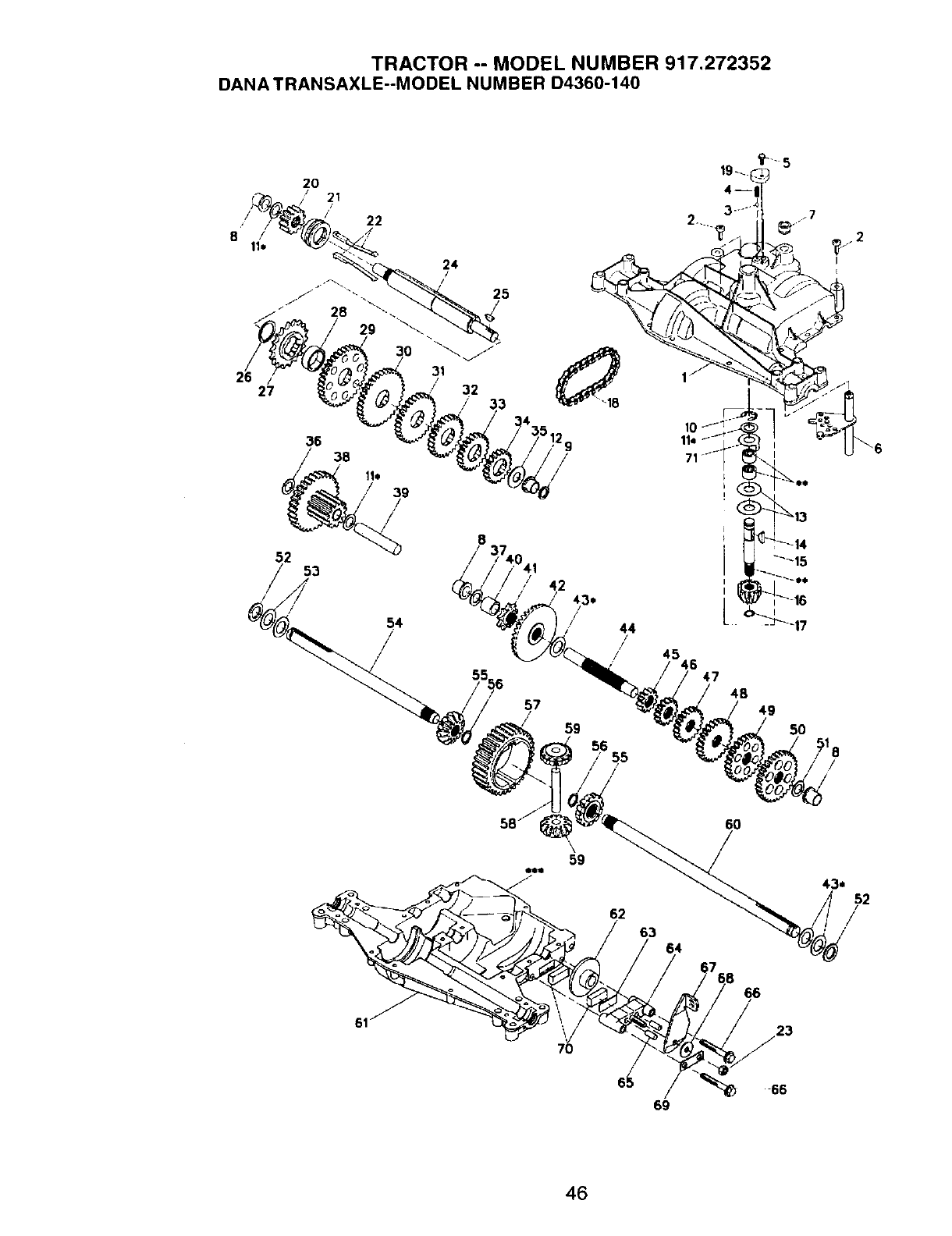

TRACTOR -- MODEL NUMBER 917.272352

DANA TRANSAXLE--MODEL NUMBER D4360-140

8 11'*

26 /

J _ 25

28 _"

29 _\

52 53

42 43*

56 35

11.

45 46 47

43. 52

/66

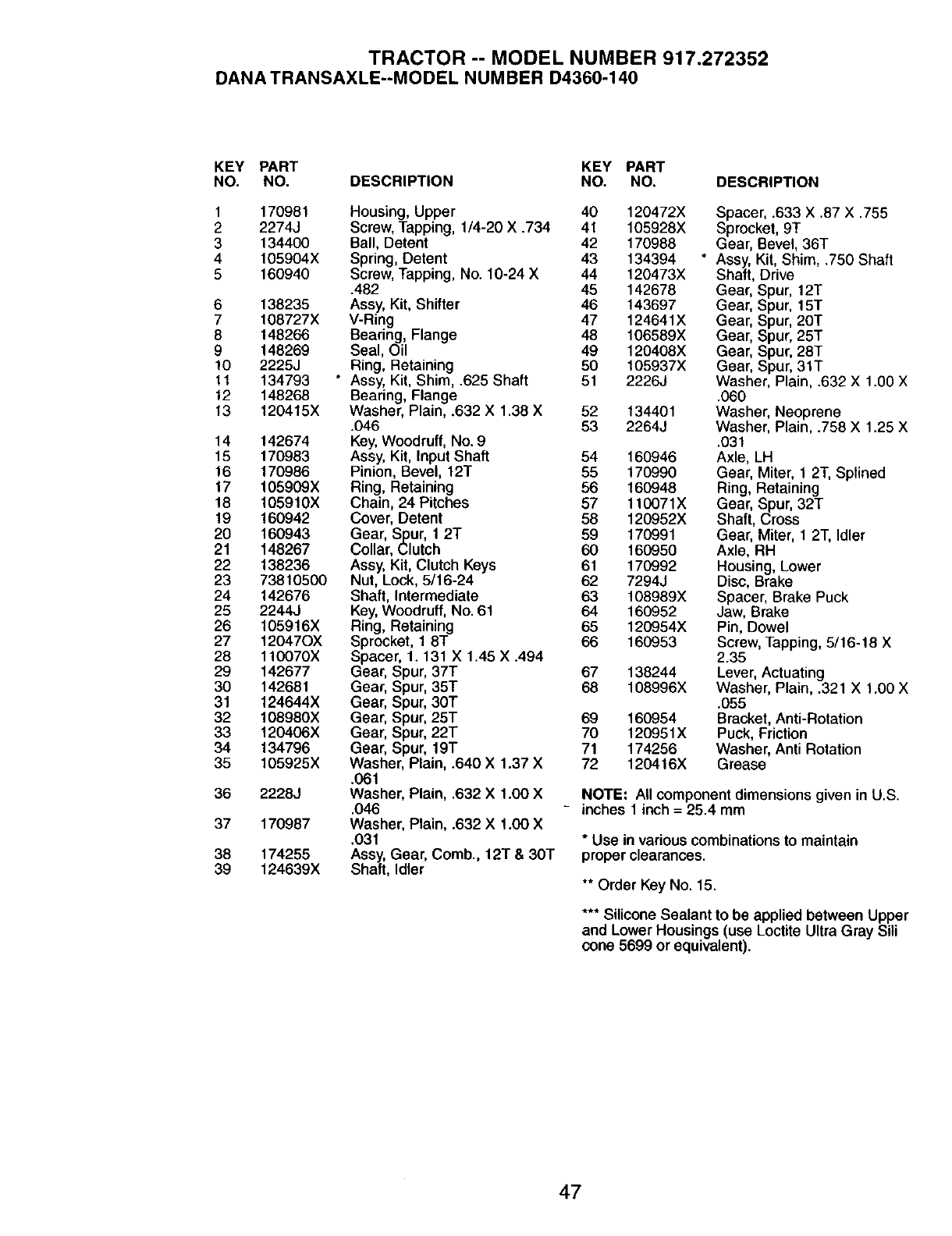

TRACTOR -- MODEL NUMBER 917.272352

DANATRANSAXLE--MODEL NUMBER D4360-140

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1170981

2 2274J

3 134400

4 105904X

5160940

6138235

7108727X

8 148266

9148269

10 2225J

11 134793

12 148268

13 120415X

14 142674

15 170983

16 170986

17 105909X

18 105910X

19 160942

20 160943

21 148267

22 138236

23 73810500

24 142676

25 2244J

26 105916X

27 12047OX

28 110070X

29 142677

30 142681

31 124644X

32 108980X

33 120406X

34 134796

35 105925X

36 2228J

37 170987

38 174255

39 124639X

Housing, Upper 40 120472X Spacer, .633 X .87 X .755

Screw, Tapping, 1/4-20 X .734 41 105928X Sprocket, 9T

Ball, Detent 42 170988 Gear, Bevel, 36T

Spring, Detent 43 134394 * Assy, Kit, Shim, .750 Shaft

Screw, Tapping, No. 10-24 X 44 120473X Shaft, Drive

.482 45 142678 Gear, Spur, 12T

Assy, Kit, Shifter 46 143697 Gear, Spur, 15T

V-Ring 47 124641X Gear, Spur, 20T

Rearing, Flange 48 106589X Gear, Spur, 25T

Seal, Oil 49 120408X Gear, Spur, 28T

Ring, Retaining 50 105937X Gear, Spur, 31T

Assy, Kit, Shim, .625 Shaft 51 2226J Washer, Plain, .632 X 1.00 X

Bearing, Flange .060

Washer, Plain, .632 X 1.38 X 52 134401 Washer, Neoprene

.046 53 2264J Washer, Plain, .758 X 1.25 X

Key,Woodruff, No. 9 .031

Assy, Kit, Input Shaft 54 160946 Axle, LH

Pinion, Bevel, 12T 55 170990 Gear, Miter, 1 2"1-,Splined

Ring, Retaining 56 160948 Ring, Retaining

Chain, 24 Pitches 57 110071X Gear, Spur, 32T

Cover, Detent 58 120952X Shaft, Cross

Gear, Spur, 1 2T 59 170991 Gear, Miter, 1 2T, Idler

Collar, Clutch 60 160950 Axle, RH

Assy, Kit, Clutch Keys 61 170992 Housing, Lower

Nut, Lock, 5/16-24 62 7294J Disc, Brake

Shaft, Intermediate 63 108989X Spacer, Brake Puck

Key,Woodruff, No. 61 64 160952 Jaw, Brake

Ring, Retaining 65 120954X Pin, Dowel

Sprocket, 1 8T 66 160953 Screw, Tapping, 5/16-18 X

Spacer, 1. 131 X 1.45 X .494 2.35

Gear, Spur, 37T 67 138244 Lever, Actuating

Gear, Spur, 35T 68 108996X Washer, Plain, .321 X 1.00 X

Gear, Spur, 30T .055

Gear, Spur, 25T 69 160954 Bracket, Anti-Rotation

Gear, Spur, 22T 70 120951X Puck, Friction

Gear, Spur, 19T 71 174256 Washer, Anti Rotation

Washer, Plain, .640 X 1.37 X 72 120416X Grease

.061

Washer, Plain, .632 X 1.00 XNOTE: All component dimensions given in U.S.

.046 -inches 1 inch = 25.4 mm

Washer, Plain, .632 X 1.00 X

.031 * Use in various combinations to maintain

Assy, Gear, Comb., 12T & 30T proper clearances.

Shaft, Idler ** Order Key No. 15.

*** Silicone Sealant 1obe applied between Upper

and Lower Housings (use Loctite Ultra Gray Sill

cone 5699 or equivalent).

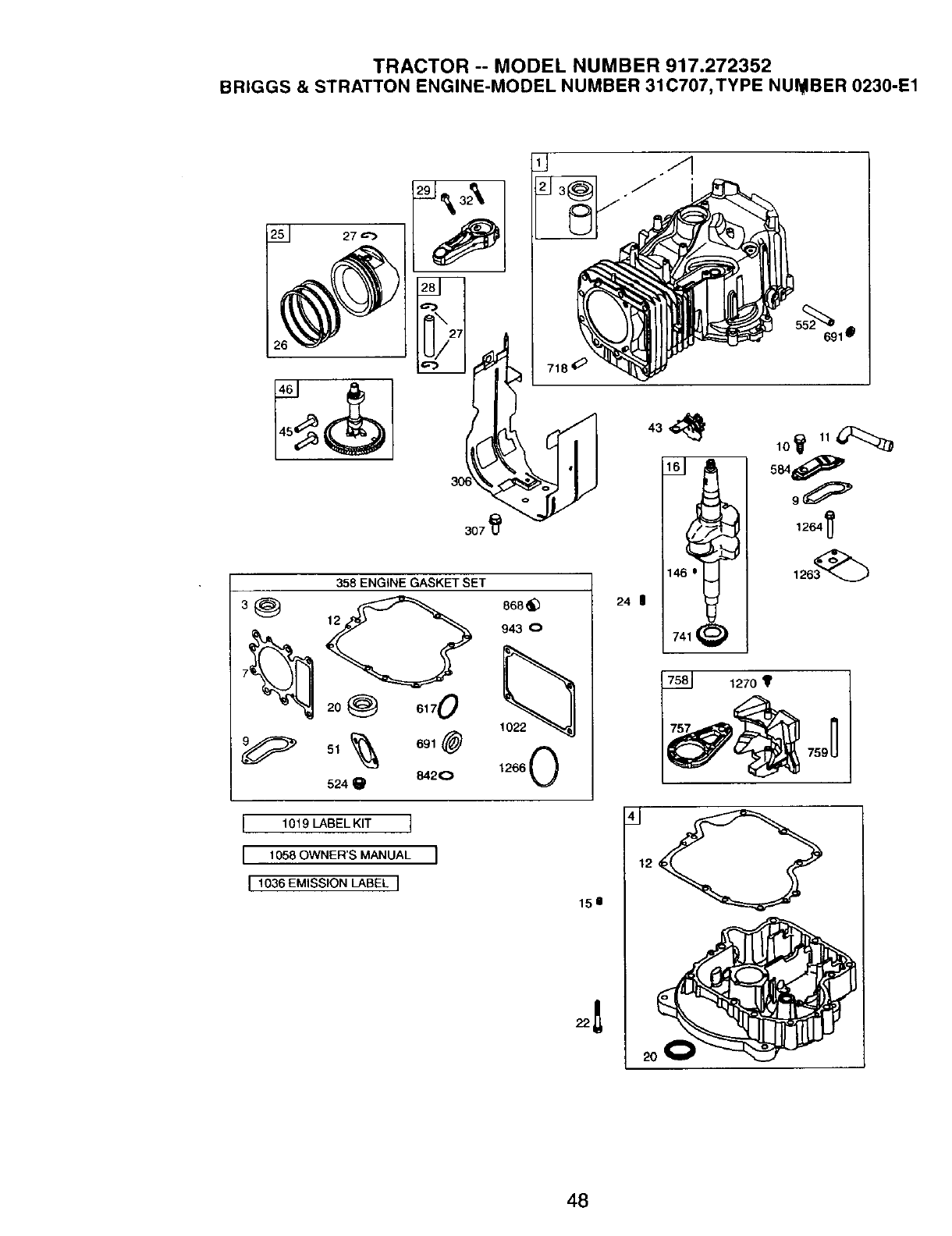

TRACTOR -- MODEL NUMBER 917.272352

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUI_BER 0230-E1

358 ENGINE GASKET SET

524 g

24 II

1264I_

I 1019 LABEL KIT I

I 1058 OWNER'S MANUAL

[ 1036 EMISSION LABEL J

1511

TRACTOR -- MODEL NUMBER 917.272352

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707, TYPE NUMBER 0230-E1

1022

914

238

1022

1095 VALVE GASKET SET

617_ )1022

869

,'IS

5240

102

616_

267"

-474

1119_

9_11'

TRACTOR -- MODEL NUMBER 917.272352

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

51_ 1091 1

634A_-._

e.. 118

24o,

1266AQ

1266 0

121 CARBURETOR OVERHAUL KIT

104 _ 127_ 231_

51 276(_

105 _137

634€e

93_ 106 {_ 142 6170

95e 1t7_

987_

1266 0

1266AQ

I977CARBURETOR GASKETSET51_ 137 O276(_

TRACTOR -- MODEL NUMBER 917.272352

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

968

643

967

3091 801

803_ 310_

802 _l

801A (_

513

803A

._ 311'a

NOTE: For Rep_cement Starter Moto_ ;

See Relerence 309.

729

697 _

1070

1005 @

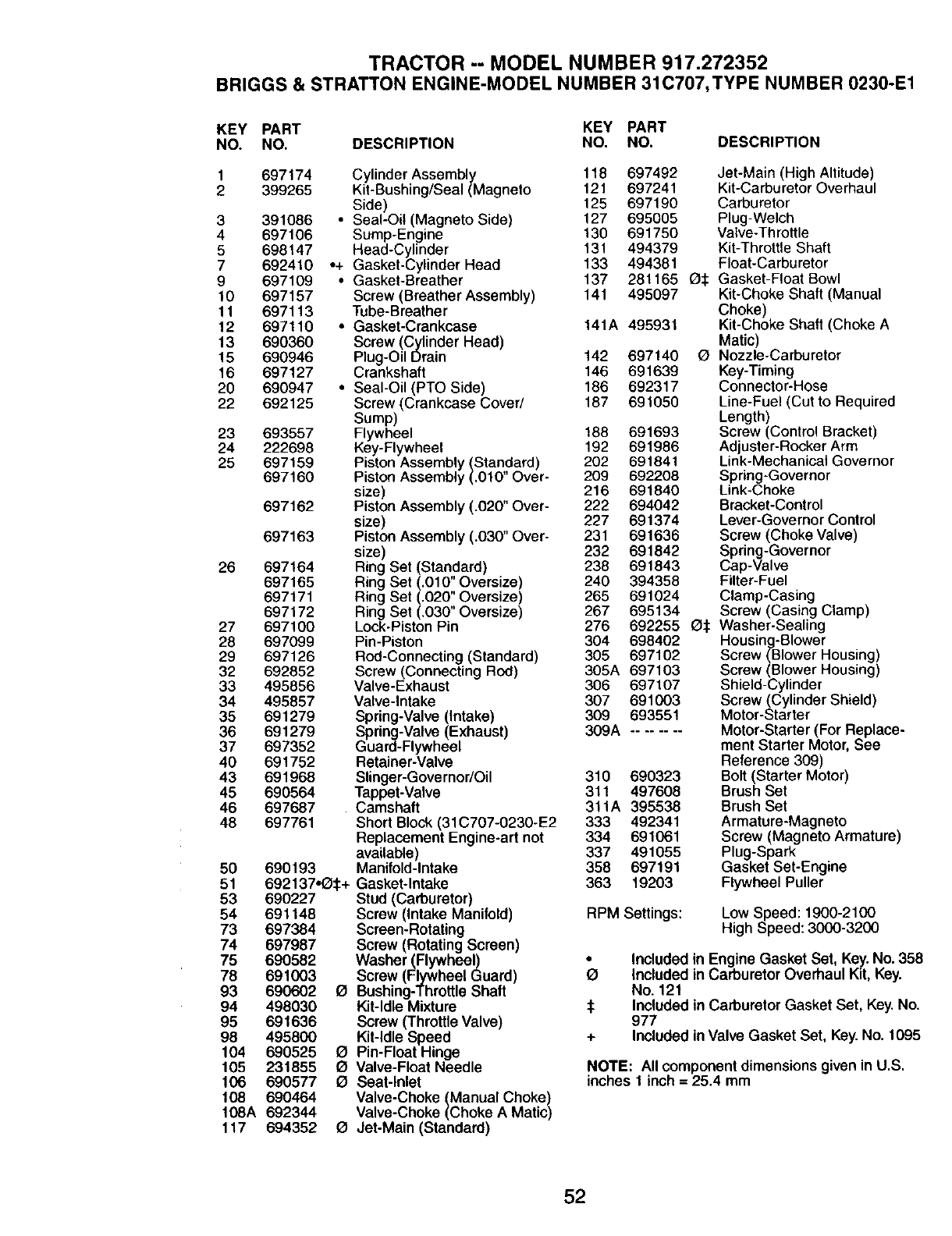

TRACTOR -- MODEL NUMBER 917.272352

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230oE1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 118 697492 Jet-Main (High Altitude)

2 399265 Kit-Bushing/Seal (Magneto 121 697241 Kit-Carburetor Overhaul

Side) 125 697190 Carburetor

3 391086 •Seal-Oil (Magneto Side) 127 695005 Plug-Welch

4 697106 Sump-Engine 130 691750 Valve-Throttle

5 698147 Head-Cylinder 131 494379 Kit-Throttle Shaft

7 692410 o+ Gasket-Cylinder Head 133 494381 Float-Carburetor

9 697109 •Gasket-Breather 137 281165 (3:1:Gasket-Float Bowl

10 697157 Screw (Breather Assembly) 141 495097 Kit-Choke Shaft (Manual

11 697113 Tube-Breather Choke)

12 697110 °Gasket-Crankcase 141A 495931 Kit-Choke Shaft (Choke A

13 690360 Screw (Cylinder Head) Matic)

15 690946 Plug-Oil Drain 142 697140 (D Nozzle-Carburetor

16 697127 Crankshaft 146 691639 Key-Timing

20 690947 •Seal-Oil (PTO Side) 186 692317 Connector-Hose

22 692125 Screw (Crankcase Coved 187 691050 Line-Fuel (Cut to Required

Sump) Length)

23 693557 Flywheel 188 691693 Screw (Control Bracket)

24 222698 Key-Flywheel 192 691986 Adjuster-Rocker Arm

25 697159 Piston Assembly (Standard) 202 691841 Link-Mechanical Governor

697160 Piston Assembly (.010" Over- 209 692208 Spring-Governor

size) 216 691840 Link-Choke

697162 Piston Assembly (.020" Over- 222 694042 Bracket-Control

size) 227 691374 Lever-Governor Control

697163 Piston Assembly (.030" Over- 231 691636 Screw (Choke Valve)

size) 232 691842 Spring-Governor

26 697164 Ring Set (Standard) 238 691843 Cap-Valve

697165 Ring Set (.010"Oversize) 240 394358 Filter-Fuel

697171 Ring Set (.020" Oversize) 265 691024 Clamp-Casing

697172 Ring Set (.030" Oversize) 267 695134 Screw (Casing Clamp)

27 697100 Lock-Piston Pin 276 692255 Gl:l:Washer-Sealing

28 697099 Pin-Piston 304 698402 Housing-Blower

29 697126 Rod-Connecting (Standard) 305 697102 Screw (Blower Housing)

32 692852 Screw (Connecting Rod) 305A 697103 Screw (Blower Housing)

33 495856 Valve-Exhaust 306 697107 Shield-Cylinder

34 495857 Valve-Intake 307 691003 Screw (Cylinder Shield)

35 691279 Spring-Valve (Intake) 309 693551 Motor-Starter

36 691279 Spdng-Valve (Exhaust) 309A ........ Motor-Starter (For Replace-

37 697352 Guard-Flywheel ment Starter Motor, See

40 691752 Retainer-Valve Reference 309)

43 691968 Slinger-Governor/Oil 310 690323 Bolt (Starter Motor)

45 690564 Tappet-Valve 311 497608 Brush Set

46 697687 Camshaft 311A 395538 Brush Set

48 697761 Short Block (31C707-0230-E2 333 492341 Armature-Magneto

Replacement Engine-art not 334 691061 Screw (Magneto Armature)

available) 337 491055 Plug-Spark

50 690193 Manifold-Intake 358 697191 Gasket Set-Engine

51 692137°O:1:+ Gasket-Intake 363 19203 Flywheel Puller

53 690227 Stud (Carburetor)

54 691148 Screw (Intake Manifold) RPM Settings: Low Speed: 1900-2100

73 697384 Screen-Rotating High Speed: 3000-3200

74 697987 Screw (Rotating Screen)

75 690582 Washer (Flywheel) -- Includedin Engine Gasket Set, Key,No. 358

78 691003 Screw (Flywheel Guard) fD Included in Carburetor Overhaul Kit, Key,

93 690602 _ Bushing-Throttle Shaft No. 121

94 498030 Kit-Idle Mixture _: Included in Carburetor Gasket Set, Key. No.

95 691636 Screw (Throttle Valve) 977

98 495800 Kit-Idle Speed + Included in Valve Gasket Set, Key. No. 1095

104 690525 (D Pin-Float Hinge

105 231855 _ Valve-Float Needle NOTE: All component dimensions given in U.S.

106 690577 Q Seat-Inlet inches 1 inch = 25.4 mm

108 690464 Valve-Choke (Manual Choke)

108A 692344 Valve-Choke (Choke A Matic)

117 694352 O Jet-Main (Standard)

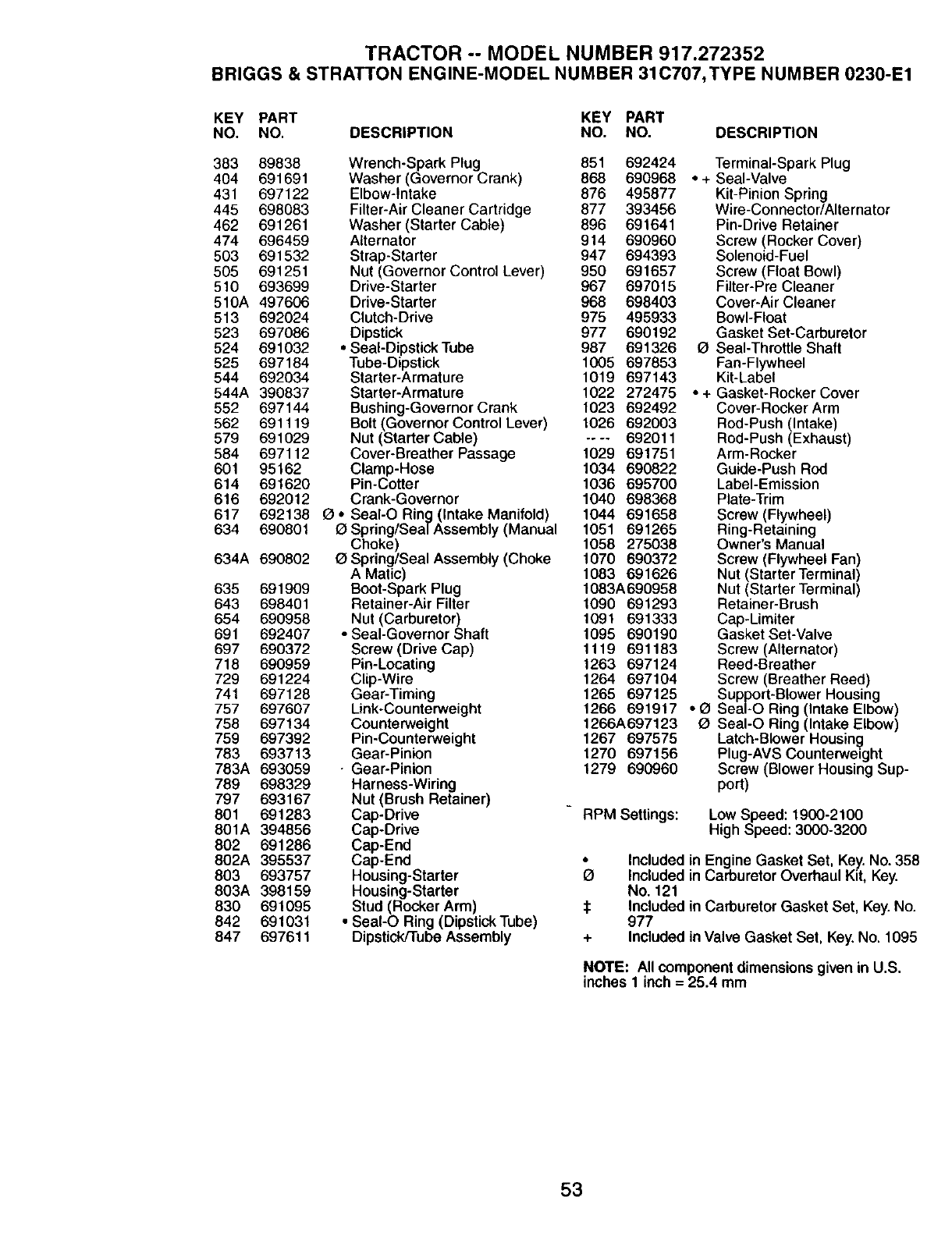

TRACTOR -- MODEL NUMBER 917.272352

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

383 89838 Wrench-Spark Plug 851 692424 Terminal-Spark Plug

404 691691 Washer (Governor Crank) 868 690968 • + Seal-Valve

431 697122 Elbow-Intake 876 495877 Kit-Pinion Spring

445 698083 Filter-Air Cleaner Cartridge 877 393456 Wire-Connector/Alternator

462 691261 Washer (Starter Cable) 896 691641 Pin-Drive Retainer

474 696459 Alternator 914 690960 Screw (Rocker Cover)

503 691532 Strap-Starter 947 694393 Solenoid-Fuel

505 691251 Nut (Governor Control Lever) 950 691657 Screw (Float Bowl)

510 693699 Drive-Starter 967 697015 Filter-Pre Cleaner

510A 497606 Drive-Starter 968 698403 Cover-AirCleaner

513 692024 Clutch-Drive 975 495933 Bowl-Float

523 697086 Dipstick 977 690192 Gasket Set-Carburetor

524 691032 •SeaI-DipstickTube 987 691326 Q Seal-Throttle Shaft

525 697184 Tube-Dipstick 1005 697853 Fan-Flywheel

544 692034 Starter-Armature 1019 697143 Kit-Label

544A 390837 Starter-Armature 1022 272475 °+ Gasket-Rocker Cover

552 697144 Bushing-GovernorCrank 1023 692492 Cover-RockerArm

562 691119 Bolt (Governor Control Lever) 1026 692003 Rod-Push(Intake)

579 691029 Nut (Starter Cable) .... 692011 Rod-Push (Exhaust)

584 697112 Cover-Breather Passage 1029 691751 Arm-Rocker

601 95162 Clamp-Hose 1034 690822 Guide-Push Rod

614 691620 Pin-Cotter 1036 695700 Label-Emission

6t6 692012 Crank-Governor 1040 698368 Plate-Trim

617 692138 O •SeaI-O Ring (Intake Manifold) 1044 691658 Screw(Flywheel)

634 690801 laSpring/SealAssembly(Manual 1051 691265 Ring-Retaining

Choke) 1058 275038 Owner's Manual

634A 690802 Q Spring/Seal Assembly (Choke 1070 690372 Screw (Flywheel Fan)

A Matic) 1083 691626 Nut (StarterTerminal)

635 691909 Boot-Spark Plug 1083A690958 Nut (Starter Terminal)

643 698401 Retainer-Air Filter 1090 691293 Retainer-Brush

654 690958 Nut (Carburetor) 1091 691333 Cap-Limiter

691 692407 •Seal-Governor Shaft t095 690190 Gasket Set-Valve

697 690372 Screw (Drive Cap) 1119 691183 Screw (Alternator)

718 690959 Pin-Locating 1263 697124 Reed-Breather

729 691224 Clip-Wire 1264 697104 Screw (Breather Reed)

741 697128 Gear-Timing 1265 697125 Support-Blower Housing

757 697607 Link-Counterweight 1266 691917 °CI SeaI-O Ring (Intake Elbow)

758 697134 Counterweight 1266A697123 O SeaI-O Ring (Intake Elbow)

759 697392 Pin-Counterweight 1267 697575 Latch-Blower Housing

783 693713 Gear-Pinion 1270 697156 Plug-AVS Counterweight

783A 693059 •Gear-Pinion 1279 690960 Screw (Blower Housing Sup-

789 698329 Harness-Wiring port)

797 693167 Nut (Brush Retainer)

801 691283 Cap-Drive RPM Settings: Low Speed: 1900-2100

801A 394856 Cap-Drive High Speed: 3000-3200

802 691286 Cap-End

802A 395537 Cap-End °Included in Engine Gasket Set, Key. No. 358

803 693757 Housing-Starter Q Included in Carburetor Overhaul Kit, Key.

803A 398159 Housing-Starter No. 121

830 691095 ° Stud (Rocker Arm) :1: Included in Carburetor Gasket Set, Key. No.

842 691031 SeaI-O Ring (Dipstick Tube) 977

847 697611 Dipstick/Tube Assembly + Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensionsgiven in U.S,

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Get it fixed, at your home or ours!

!!i

i_i i_i_i_:

!i!

_i _

ilia!

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOM E®Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

ii_ii

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR s"

(1-8BS-7B4-6427)

.... 8E/AR8

Au Canada pour service en francsais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

!ii!!!_i!i!i?i:ii_iiiii_ii:i:iiii!i!ili%_ii!ii:i_:i iii iii_!i!¸¸¸....

TM SM

®Registered Trademark /Trademark /Service Mark of Sears, Roebuck and Co.

TM SM

®Marca Registrada /Marca de Fdbdca /Marca de Se_icio de Sears, Roebuck and Co,

MC MO

Marque de commerce /Marque d6pos_e de Sears, Roebuck and Co.

187772 04.10.03 TR Printed in U.S.A.

Craftsman 917272352 User Manual LAWN TRACTOR Manuals And Guides L0306108

CRAFTSMAN Lawn, Tractor Manual L0306108 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
