Owner's Manual

ICR"mHewl

LAWN TRACTOR

17.5 HP, 42" Mower

Electric Start

6Speed Transaxle

Model No.

917.272671

L[_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5am -5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

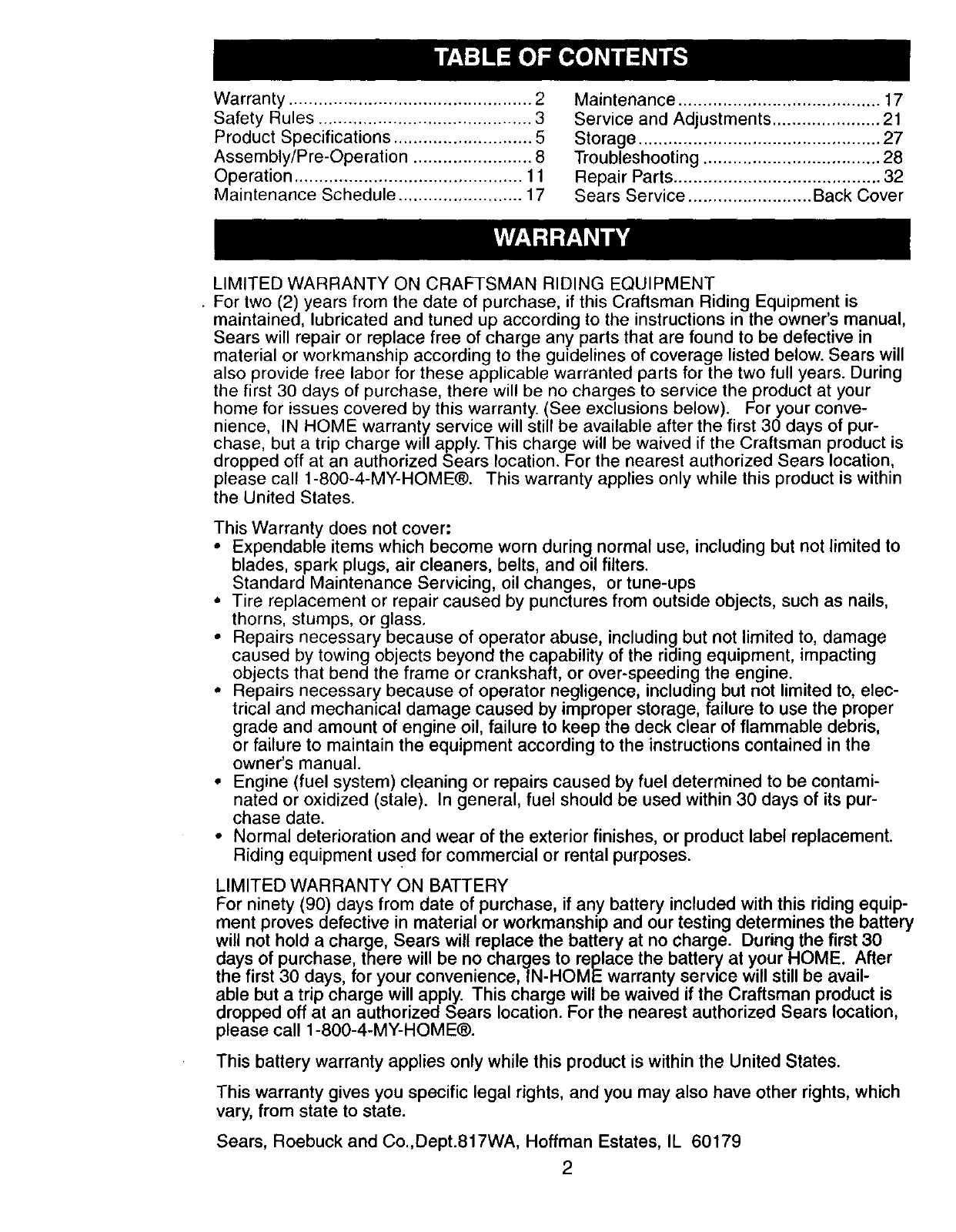

Warranty ................................................. 2

Safety Rules ........................................... 3

Product Specifications ............................ 5

Assembly/Pre-Operation ........................ 8

Operation .............................................. 11

Maintenance Schedule ......................... 17

Maintenance ......................................... 17

Service and Adjustments ...................... 21

Storage ................................................. 27

Troubleshooting .................................... 28

Repair Parts .......................................... 32

Sears Service ......................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

•For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

,, Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME• After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

2

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

,_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING= Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_k,WARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

_,WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

•Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

3

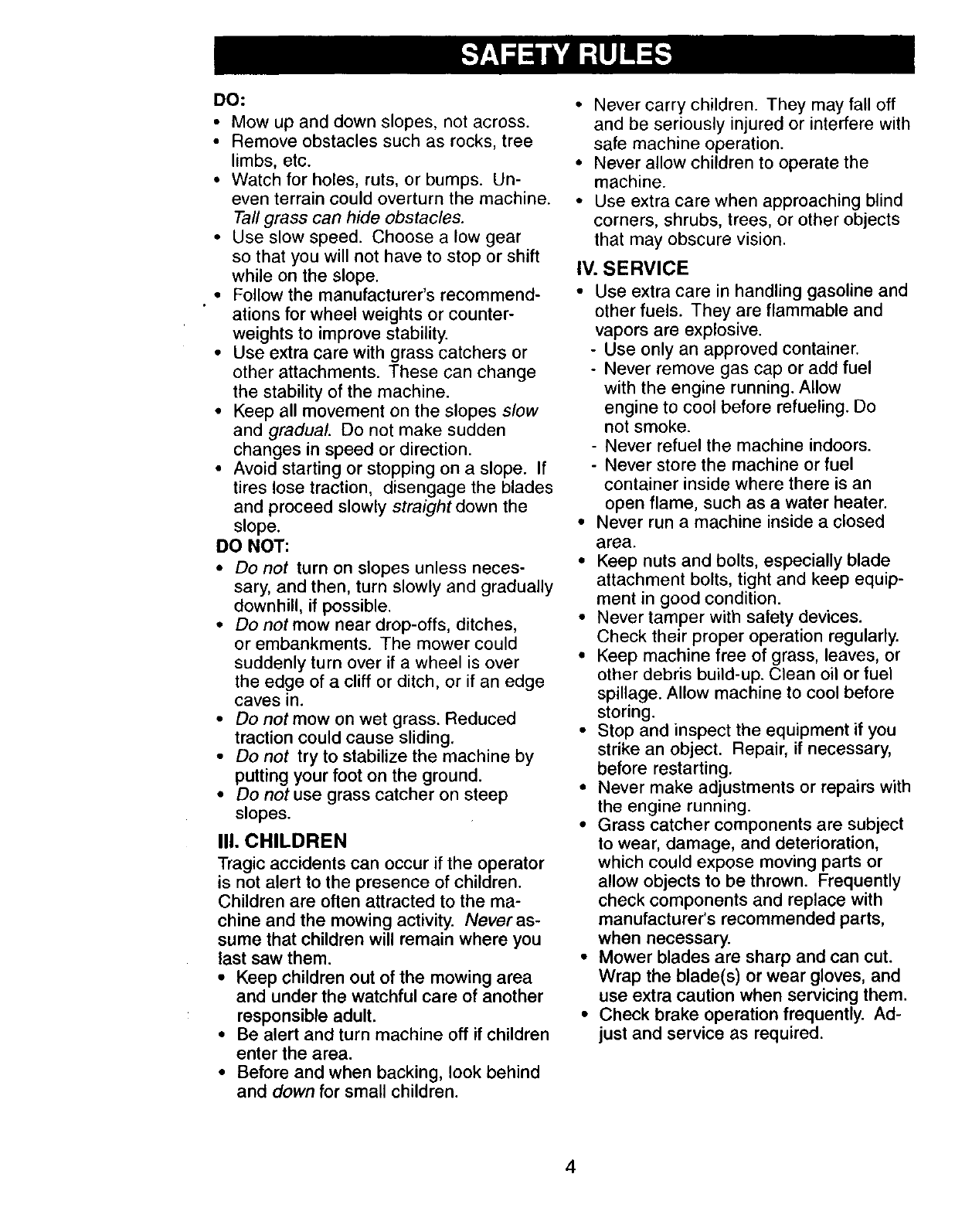

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT"

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

4

• Be sure the area is clear of other people • Remove obstacles such as rocks, tree

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

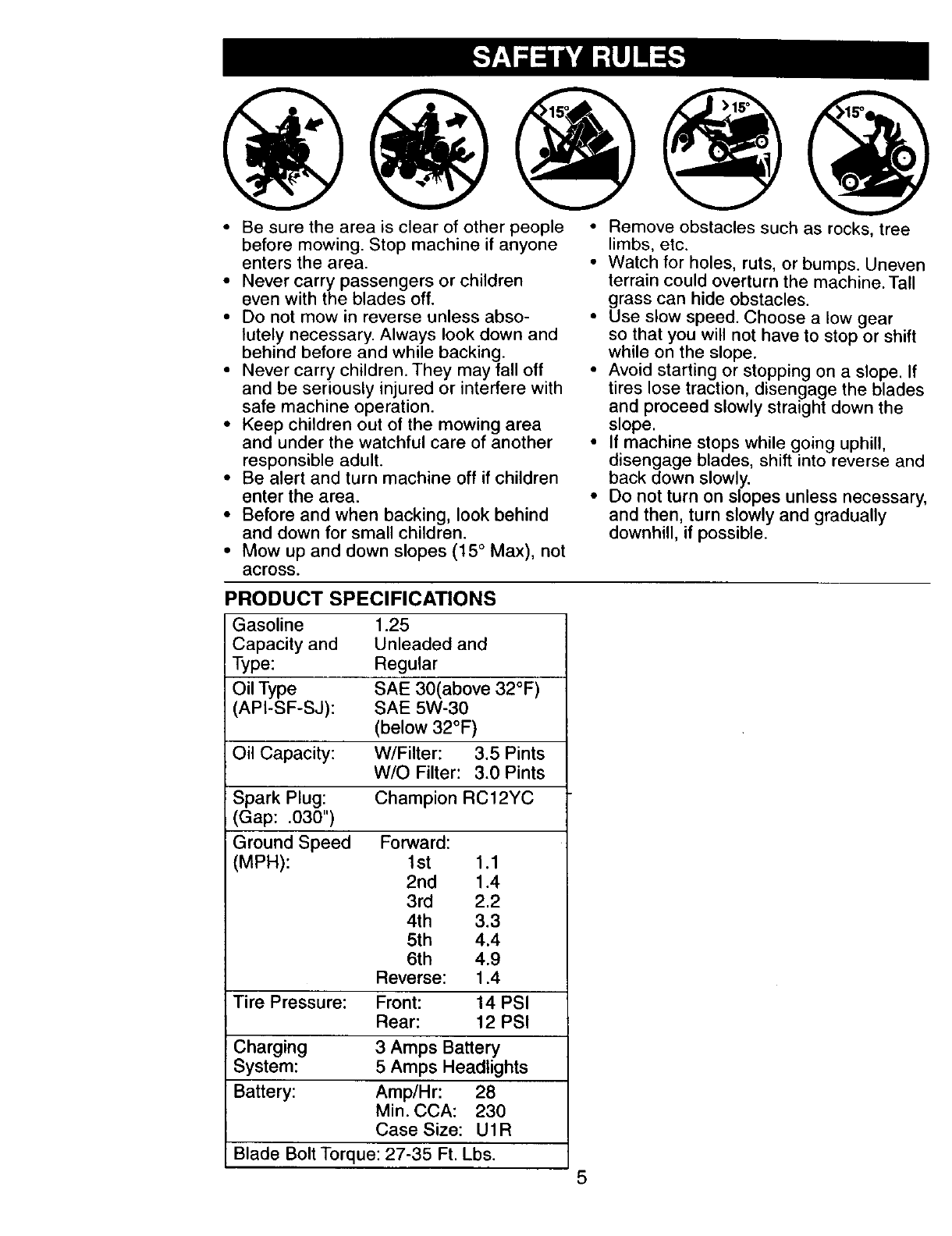

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max), not

across.

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

•Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 1.25

Capacity and Unleaded and

Type: Regular

Oil Type SAE 30(above 32°F)

API-SF-SJ): SAE 5W-30

(below 32°F)

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH):

Forward:

1st 1.1

2nd 1.4

3rd 2.2

4th 3.3

5th 4.4

6th 4.9

Reverse: 1.4

Tire Pressure: Front: 14 PSI

Rear: 12 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs. 5

CONGRATULATIONS on your purchase

of anew tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

•observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_IWARNING" This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your near-

est Sears service center (See REPAIR

PARTS section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman_ product is

designed and manufactured for years of

dependable operation. But like all products,

it m_, :e.quire repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

•Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone - phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S•A. call 1-800-4-MY-HOME®

6

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 1/4-28 x 1-1/4

_ Steering Wheel

Adapter

'I I '

(1) Locknut 1/2-20

(1) Large Flat Washer

Qi

(1) Locknut 1/4-28 _j

Steering

Extension

ig Shaft

Boot

Seat

(1) Washer

@ 17/32 x1-3/16 x12 Gauge

i_(1) Knob

Keys

(2) Keys

For Future Use

Slope Sheet Video Cassette

-1

7

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension,

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

'-., _lnsert

_f_--_ 1/2 Hex Nut

____ Large Flat

.... _- ---_", Washer

Steering ,:Z__ _ __ _'_

Wheel------+-____ _/'

U Steering

Boot

J--TTabs

L.!;X-"

Adapter_ _, _ Extension

Shaft

1/4 Locknut __ I 1/4 Hex Bolt

Lower "_._ ]

Steering _',. " ,

Shaft_ ;_- _Tab

_,.- -. - - .", ,/ Slots

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

INSTALL SEAT

Adjust seat before tightening adjustment

knob,

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3, Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor.

8

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan

Bolt

Flat Wa

Adjustment Knob

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc--

tions).

Seat Label

Terminal

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

9

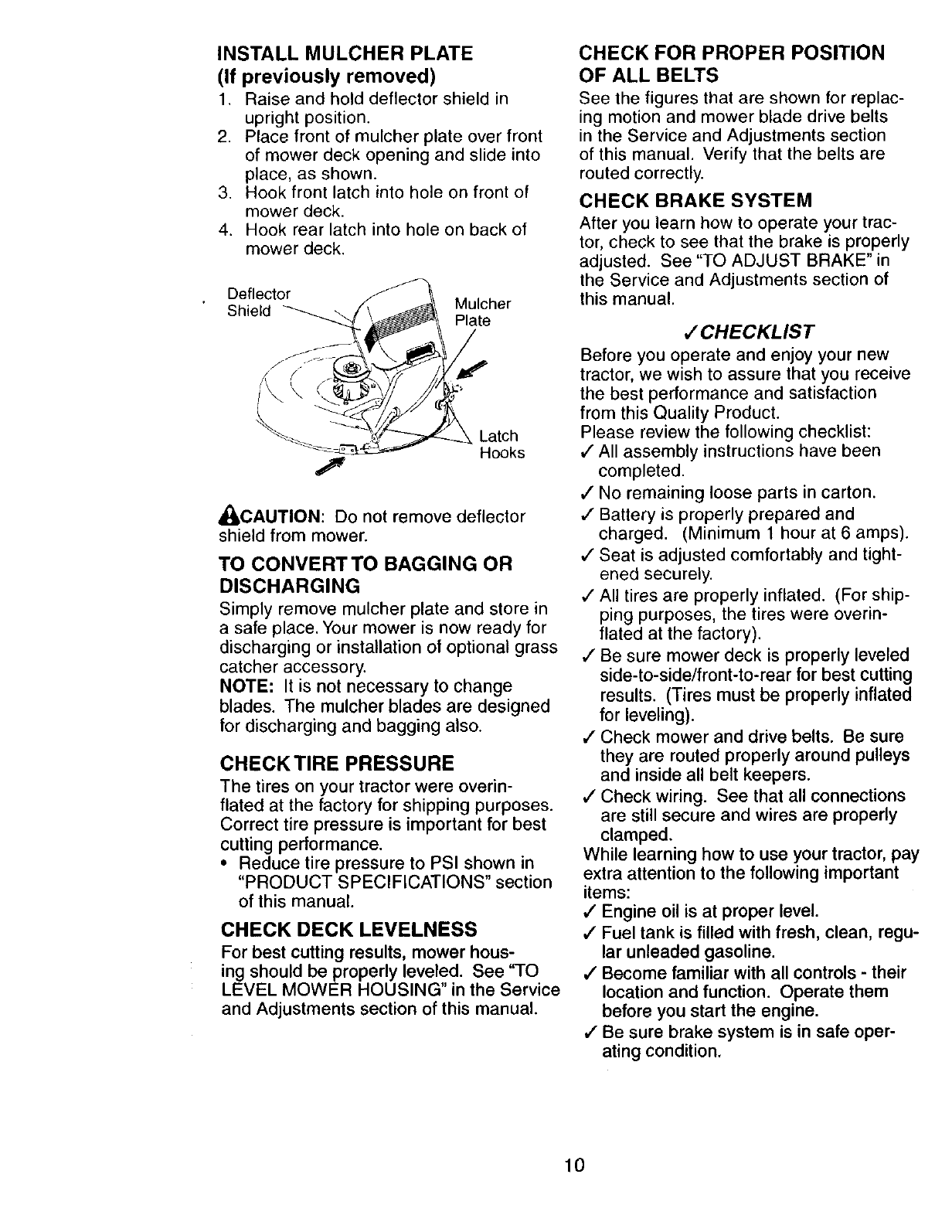

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Shield Mulcher

Plate

Latch

Hooks

,_ILCAUTION: Do not remove deflector

shield from mower.

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECKTIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

= Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flared at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

10

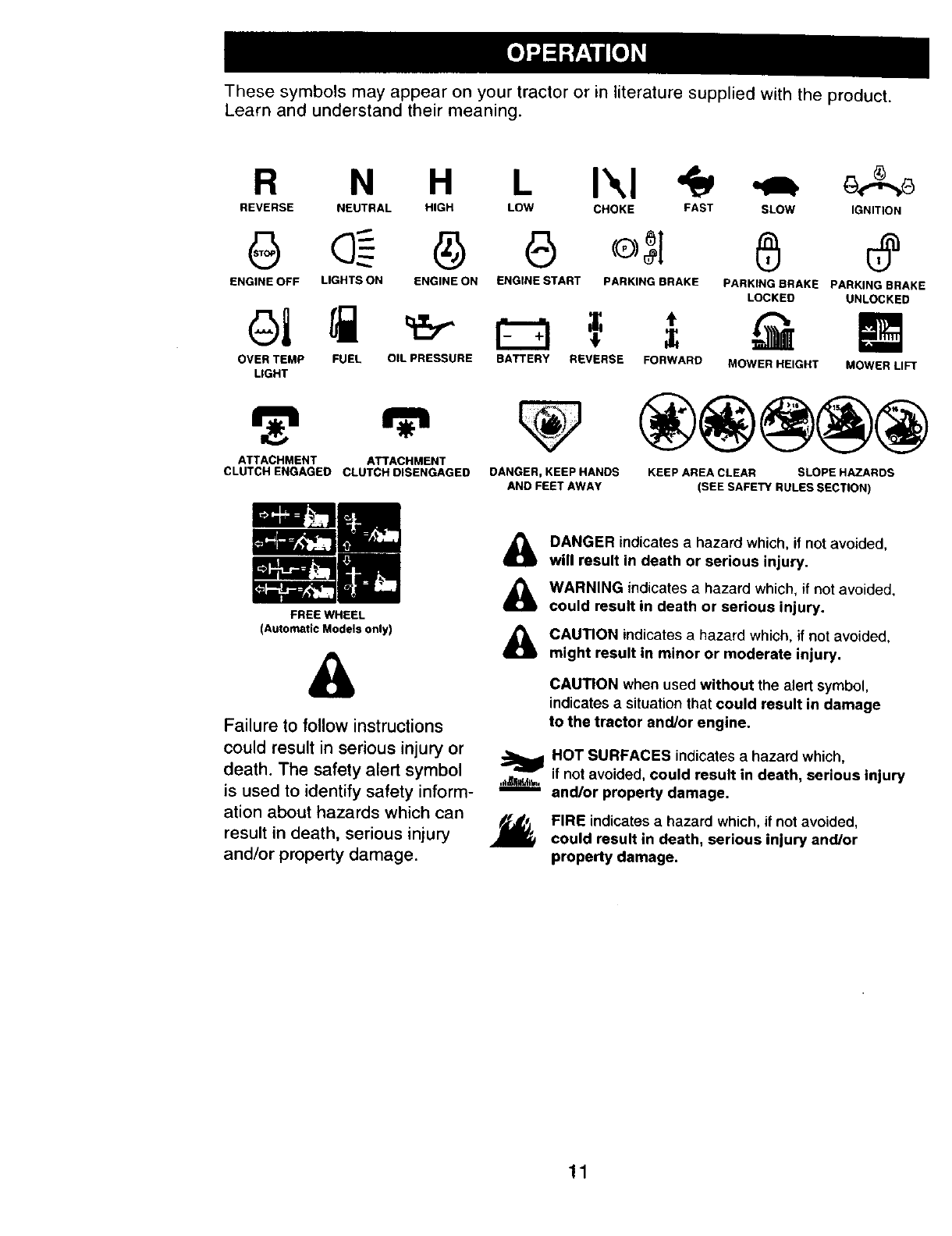

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I",1

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

0S 6 o51 ® @

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

&

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZAROS

(SEE SAFETY RULES SECTION)

&

&

&

m

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine,

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesahazard which, if not avoided,

could result in death, serious injury and/or

property damage.

11

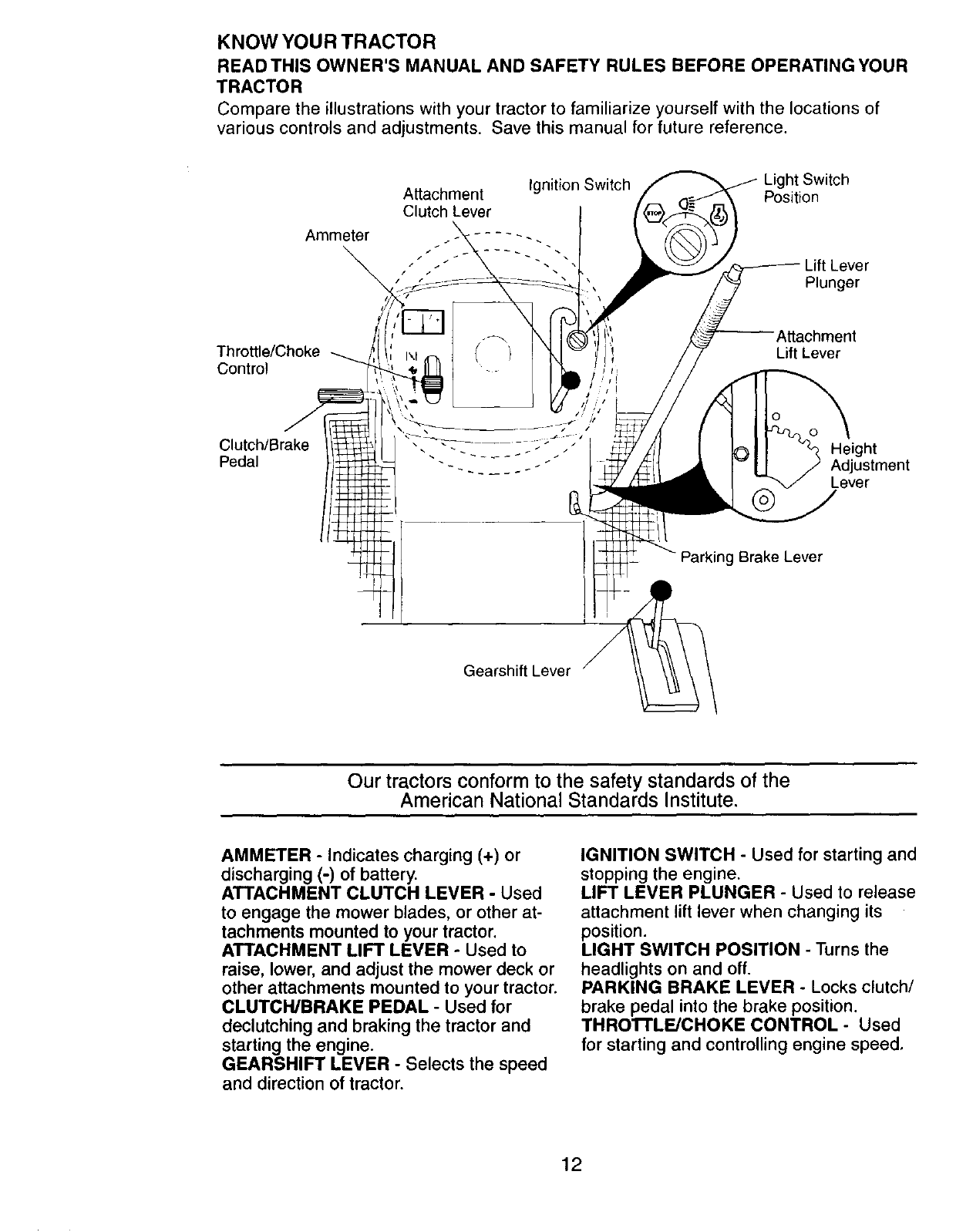

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment

Clutch Lever

Ammeter

Ignition Switch Light Switch

Position

Lift Lever

Plunger

Throttle/Choke

Control

Attachment

Lift Lever

Clutch/Brake

Pedal Height

Adjustment

Lever

Parking Brake Lever

Gearshift Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THRO'n'LE/CHOKE CONTROL - Used

for starting and controlling engine speed.

12

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

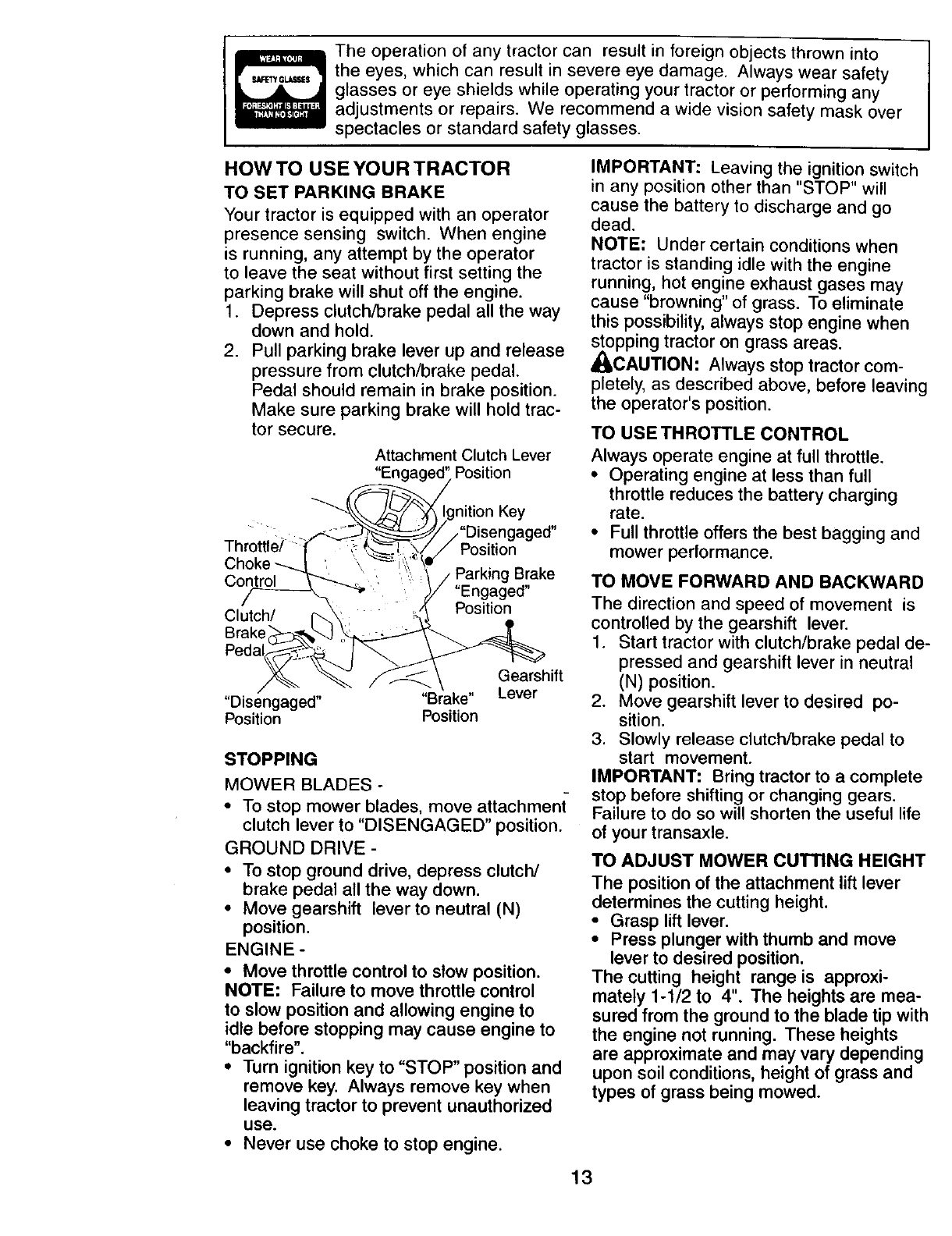

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Attachment Clutch Lever

Position

nition Key

","Disengaged"

Throttle] :: Position

Choke

Control , Brake

"Engaged"

Clutch/ Position

Gearshift

"Disengaged" "Brake" Lever

Position Position

STOPPING

MOWER BLADES -

•To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

•To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

•Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

•Operating engine at less than full

throttle reduces the battery charging

rate.

•Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

•Grasp lift lever.

•Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

13

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

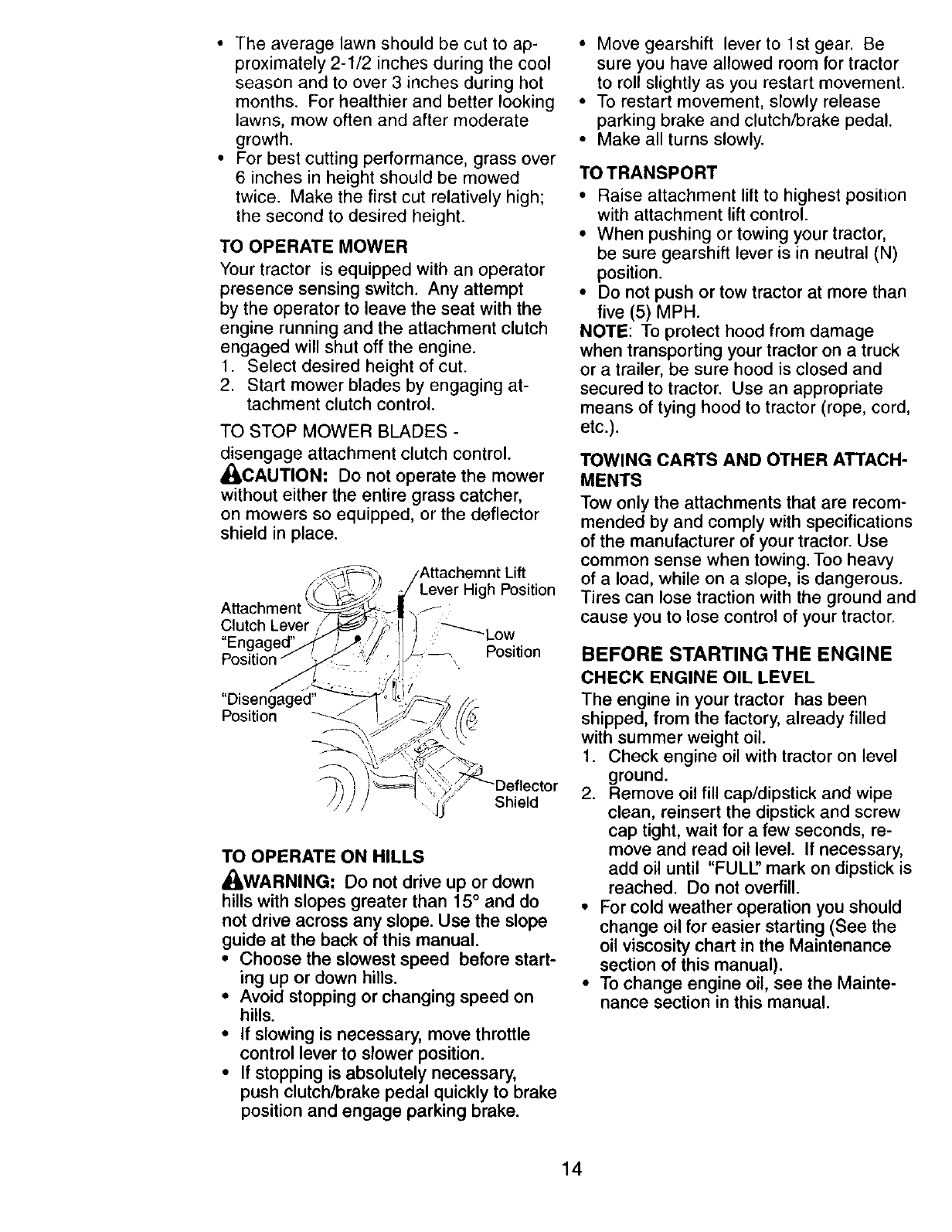

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_IkCAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Lever High Position

Clutch Lever

"En( ._Low

Position Position

"Disengaged"

Position

Shield

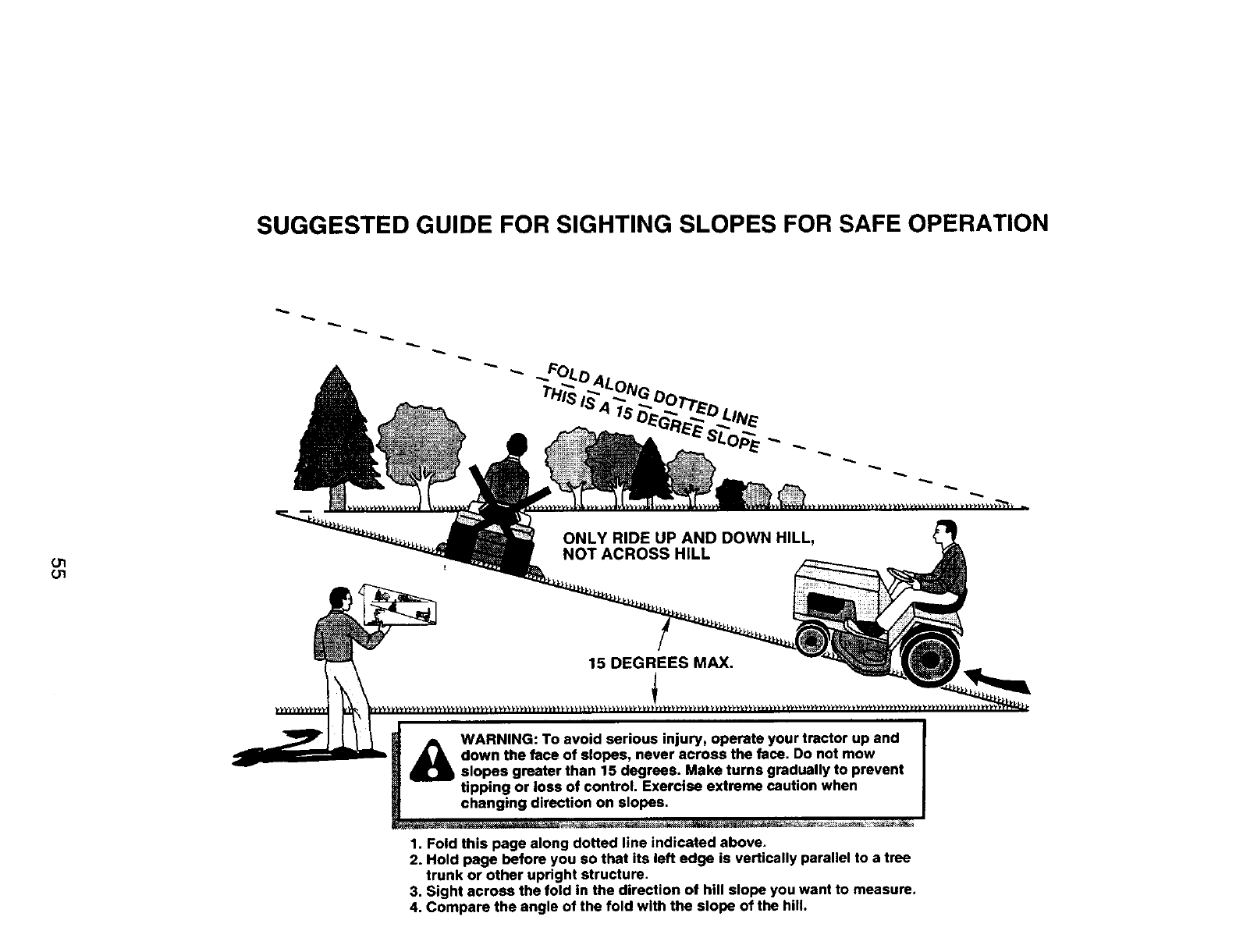

TO OPERATE ON HILLS

_IkWARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

•Choose the slowest speed before start-

ing up or down hills.

•Avoid stopping or changing speed on

hills.

•If slowing is necessary, move throttle

control lever to slower position.

•If stopping is absolutely necessary,

push clutch/brake pedal quickly to brake

position and engage parking brake.

•Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for afew seconds, re-

move and read oil level. If necessary,

add oil until "FULL" mark on dipstick is

reached. Do not overfill.

•For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

•To change engine oil, see the Mainte-

nance section in this manual.

14

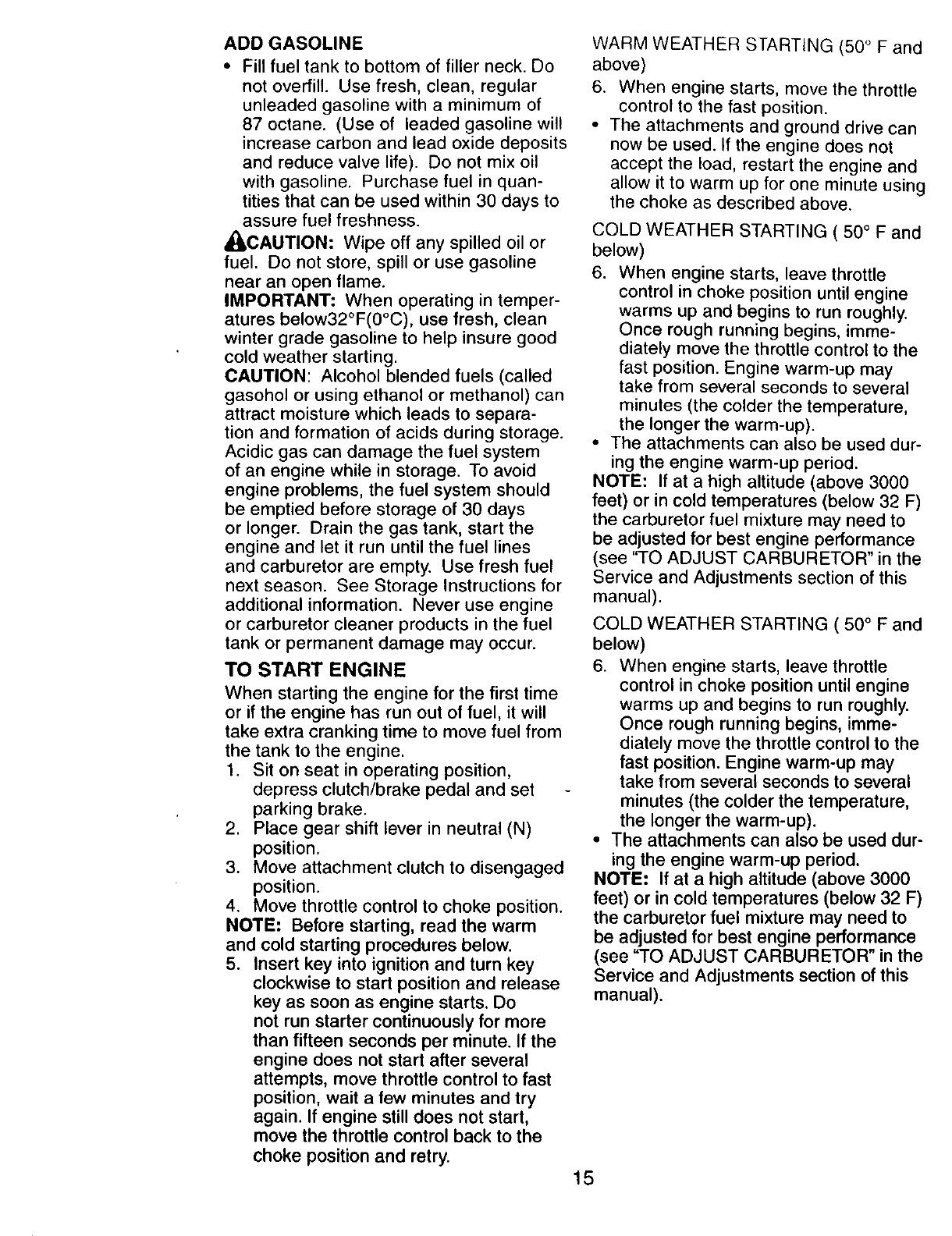

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

5. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

•The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 °F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

• The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

• The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

15

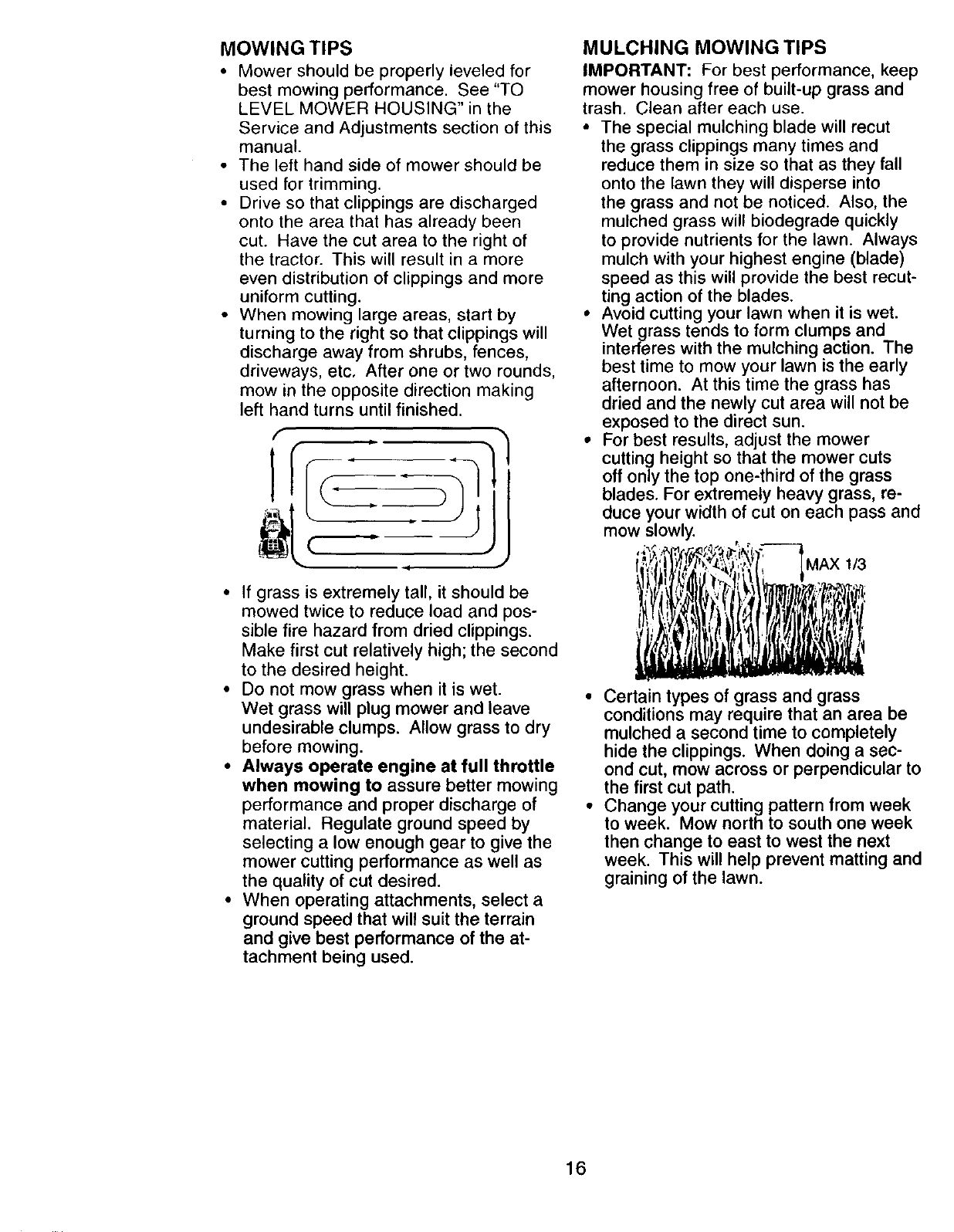

MOWING TIPS

•Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

•The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc, After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

•If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

* The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

•For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across or perpendicular to

the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

16

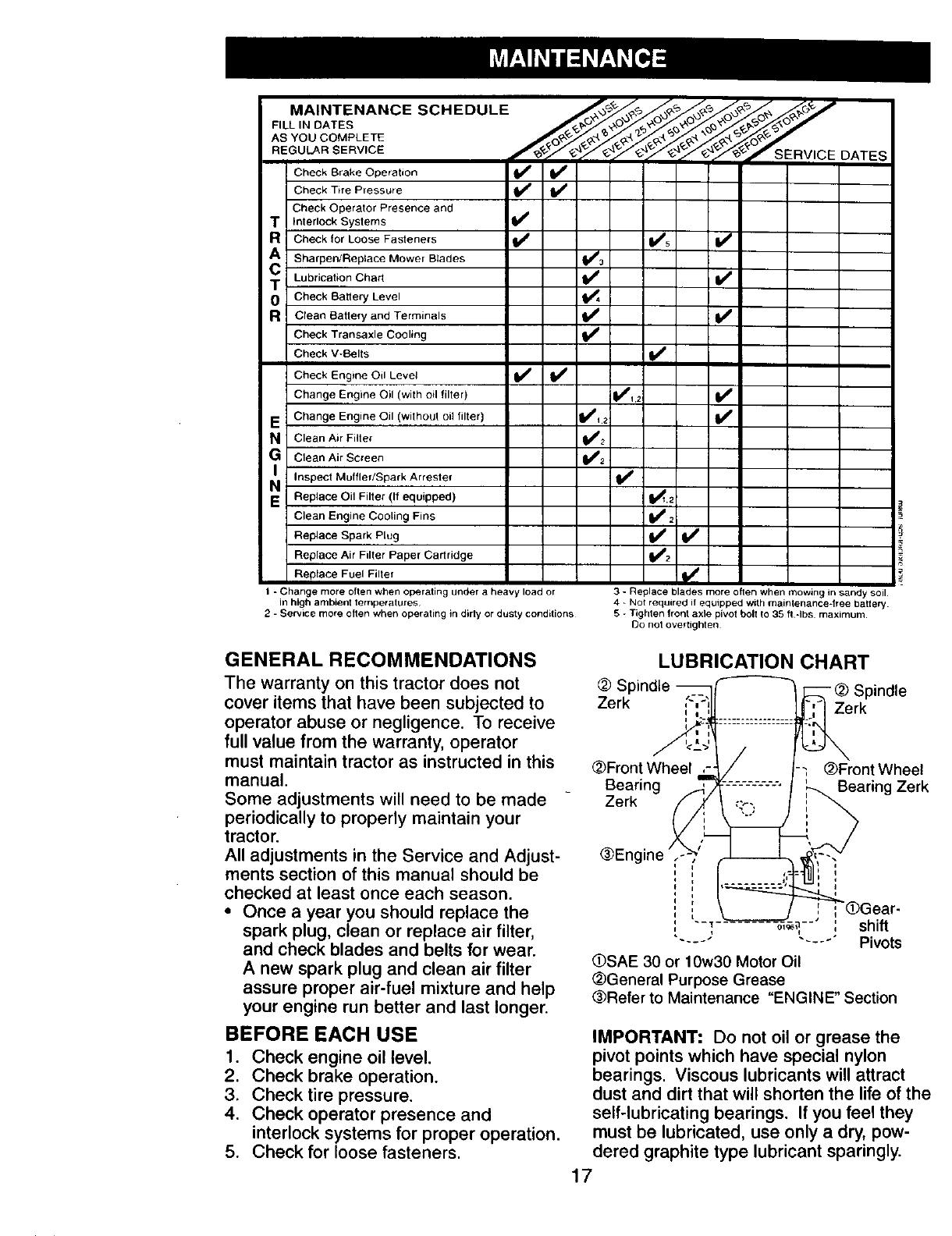

REGULAR SERVICE DATES

Check Brake Operation _

Check Tire Pressure

Check Operator Presence and

TInterlock Systems V'

a Check for Loose Fasteners ik##1_5 V_

ASharpen/Replace Mower Blades _3

TO Lubrication Chart V'

OCheck Battery Level

RClean Battery and Terminals

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level _

Change Engine O11(with oil filter) V_I,; I1_

EChange Engine Oil (without oil filter) V_,.2 v'

NClean Air Filter _

GClean Air Screen 1_2

Inspect Muffler/Spark Arrester v'

EReplace Oil Filter (If equipped) 1_1.22

Clean Engine Cooling Fins /,

Replace Spark Plug V'

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter

I - Change mote often when operating under a heavy load or

in high ambient temperatures¸

2 - Service more often when operating in dirty or dusty conditions

3 - Replace blades more often when mowing in sandy soil

4 - Not required if equipped with maintenance4ree battery

5 - Tighten front axle pivot bolt Io 35 ft -Ibs maximum.

Do not overtighten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

_e spindle _, _ L_ @ Spindle

rk _j_ ............... L_l Zerk

...............

@Front Wheel ,-. /-_ @Front Wheel

Beanng /4'. "......... _ Beanng Zerk

Zerk ///_/ r:--, i _

@Engine

11: \ _OGear-

, --_-_--, ; _hi_

I i { I _ i&

"-......... "Pivots

OSAE 30 or 10w30 Motor Oil

@General Purpose Grease

@Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

17

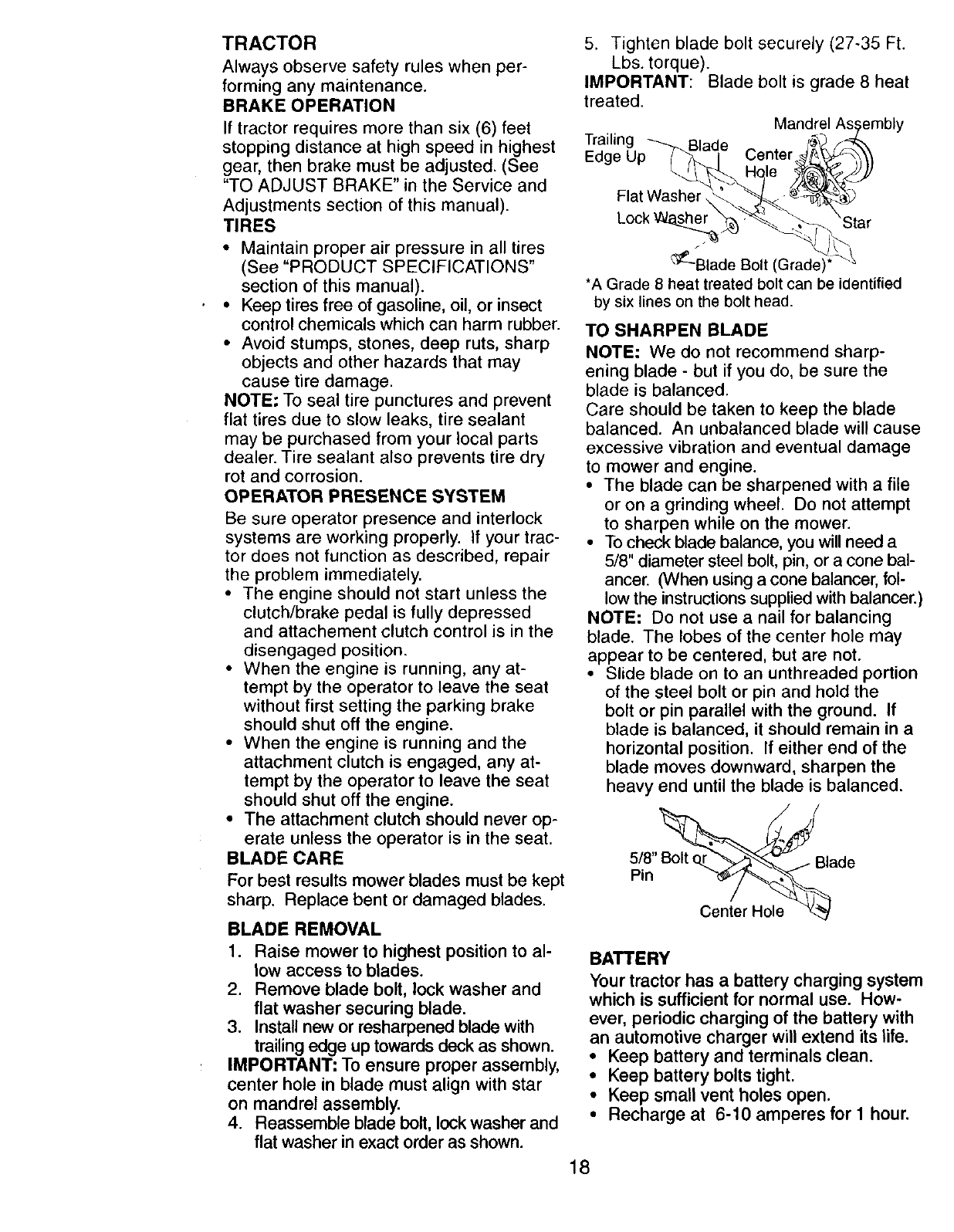

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept

sharp. Replace bent or damaged blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer and

flat washer in exact order as shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Trailing _ Bl_de Mandrel_.._mbly

Edge Up _._ Center_

L._'_-L._ Hole _ _))

Flat Wasner._ _

5;_L-Blade Bolt (Grade)*

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, you willneed a

5/8" diameter steel bolt, pin, or a cone bal-

ancer. (When using a cone balancer, fol-

lowthe instructionssupplied with balancer.)

NOTE: Do not use anail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" _B

Pin I_ade

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

•Keep battery bolts tight.

• Keep small vent holes open.

•Recharge at 6-10 amperes for 1 hour.

18

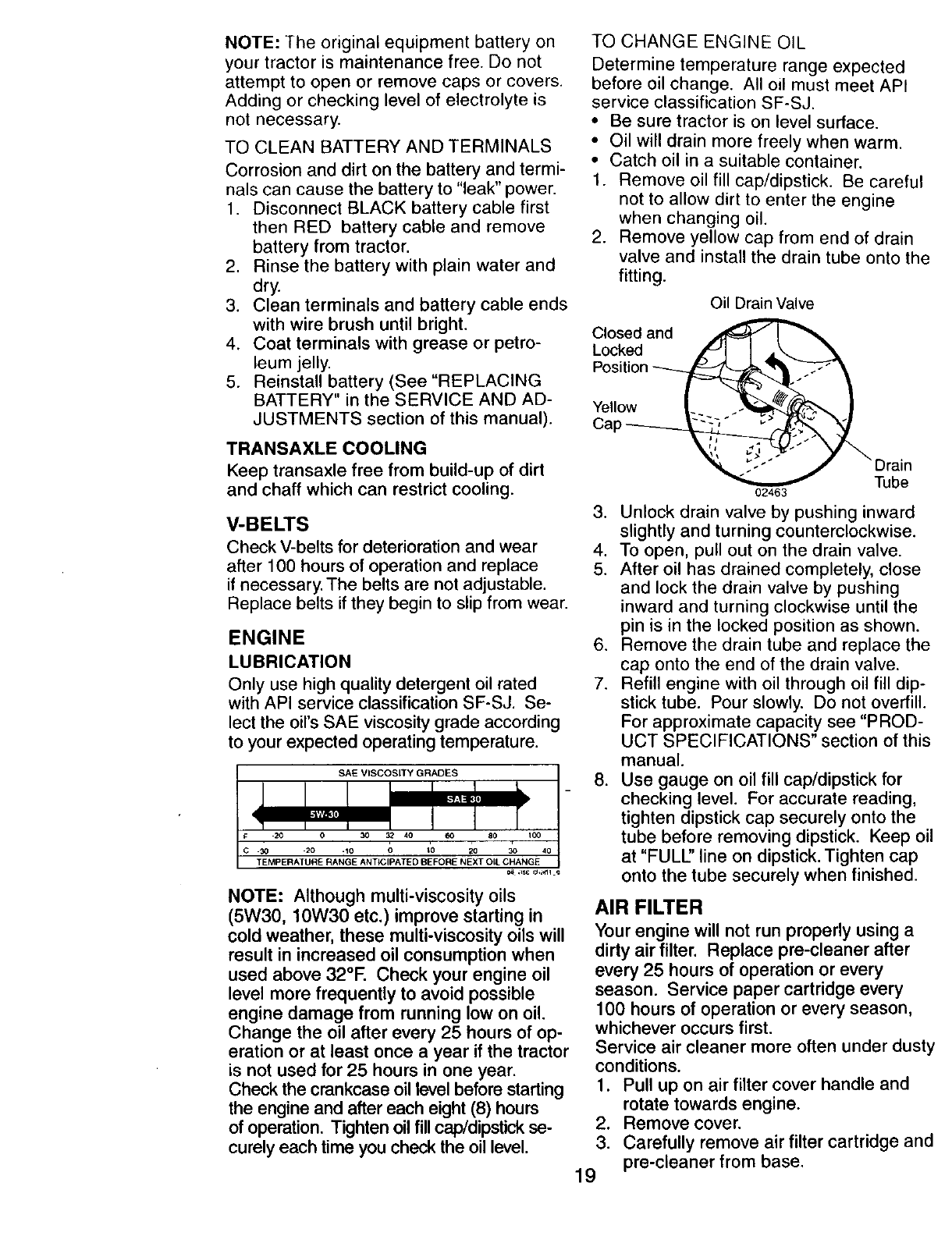

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and termi-

nals can cause the battery to "leak" power.

1. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

2. Rinse the battery with plain water and

dry.

3. Clean terminals and battery cable ends

with wire brush until bright.

4. Coat terminals with grease or petro-

leum jelly.

5. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ. Se-

lect the oil's SAE viscosity grade according

to your expected operating temperature.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°E Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 25 hours of op-

eration or at least once a year if the tractor

is not used for 25 hours in one year.

Check the crankcase oil level before starting

the engine and after each eight (8) hours

of operation. Tighten oil fillcap/dipstick se-

curely each time you check the oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

•Be sure tractor is on level surface.

•Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed and

Locked

Position

Yellow

Cal

Tube

02463

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULl" line on dipstick. Tighten cap

onto the tube securely when finished.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Pull up on air filter cover handle and

rotate towards engine.

2. Remove cover.

3. Carefully remove air filter cartridge and

pre-cleaner from base.

19

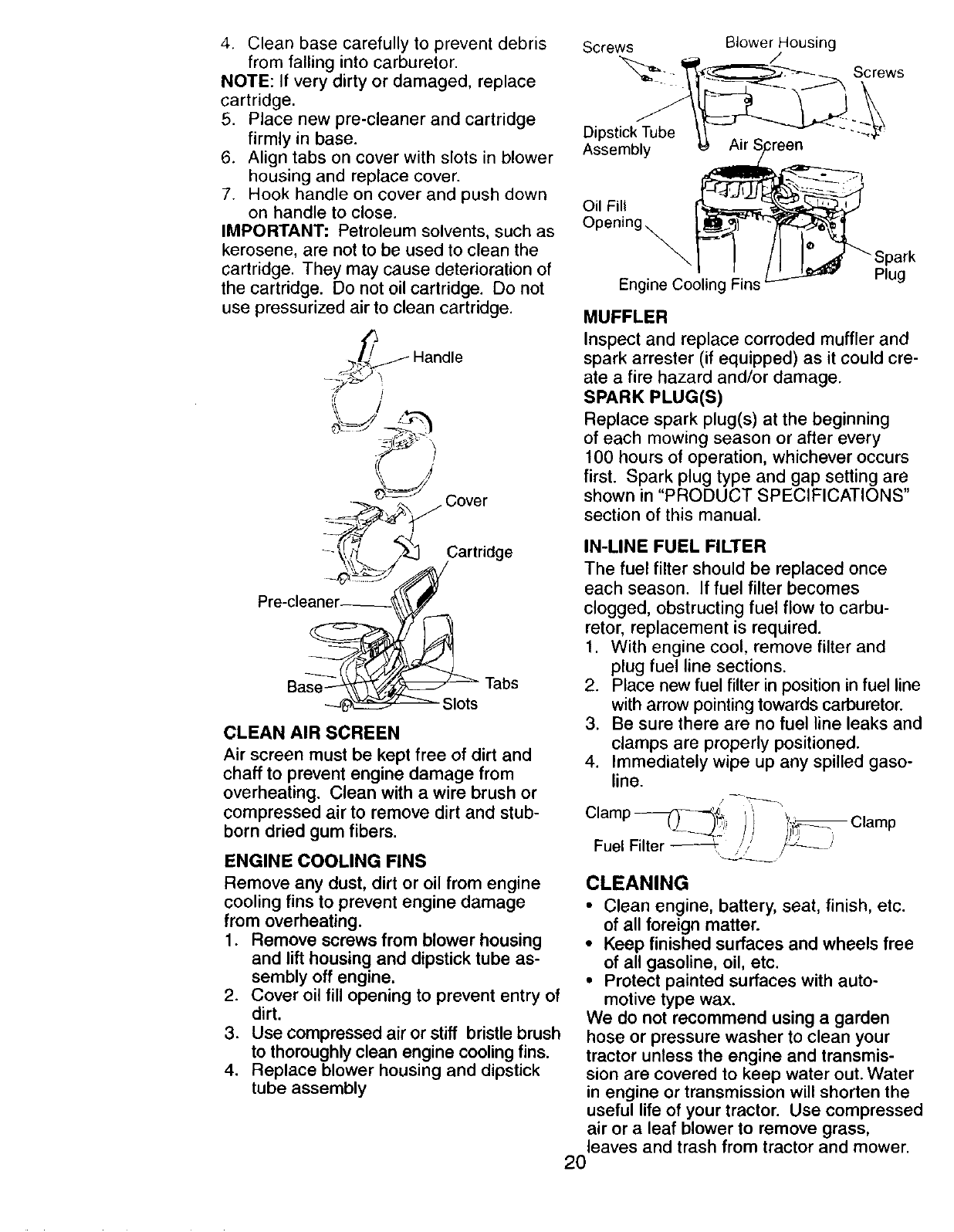

4. Clean base carefullyto preventdebris Screws

from falling into carburetor. "_-_. _

NOTE:If very dirty or damaged,replace

cartridge.

5. Place new pre-cleanerand cartridge

firmly in base. DipstickTube

6. Align tabs on coverwith slots in blower Assembly

housingand replacecover.

7. Hook handleon cover and push down

on handleto close. OilFill

IMPORTANT-Petroleumsolvents,such as

kerosene,arenot to be used to clean the

cartridge. They maycausedeteriorationof

the cartridge. Donot oilcartridge. Do not

usepressurizedairto cleancartridge.

_S_ Handle

_" ,

_ % Cover

--_(p_ __ Cartridge

Pre-cleaner--___' _

B_s_ '_ Tabs

_ ---'--Slots

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating.

1. Remove screws from blower housing

and lift housing and dipstick tube as-

sembly off engine.

2. Cover oil fill opening to prevent entry of

dirt.

3. Use compressed air or stiff bristle brush

to thoroughly clean engine cooling fins.

4. Replace blower housing and dipstick

tube assembly

Blower Housing

/Screws

3reen

Engine Cooling Fins Plug

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel line

with arrow pointing towards carburetor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

/*

Clamp '_

Fuel Filter _ ,,

j ,

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

•Keep finished surfaces and wheels free

of all gasoline, oil, etc.

•Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or aleaf blower to remove grass,

leaves and trash from tractor and mower.

20

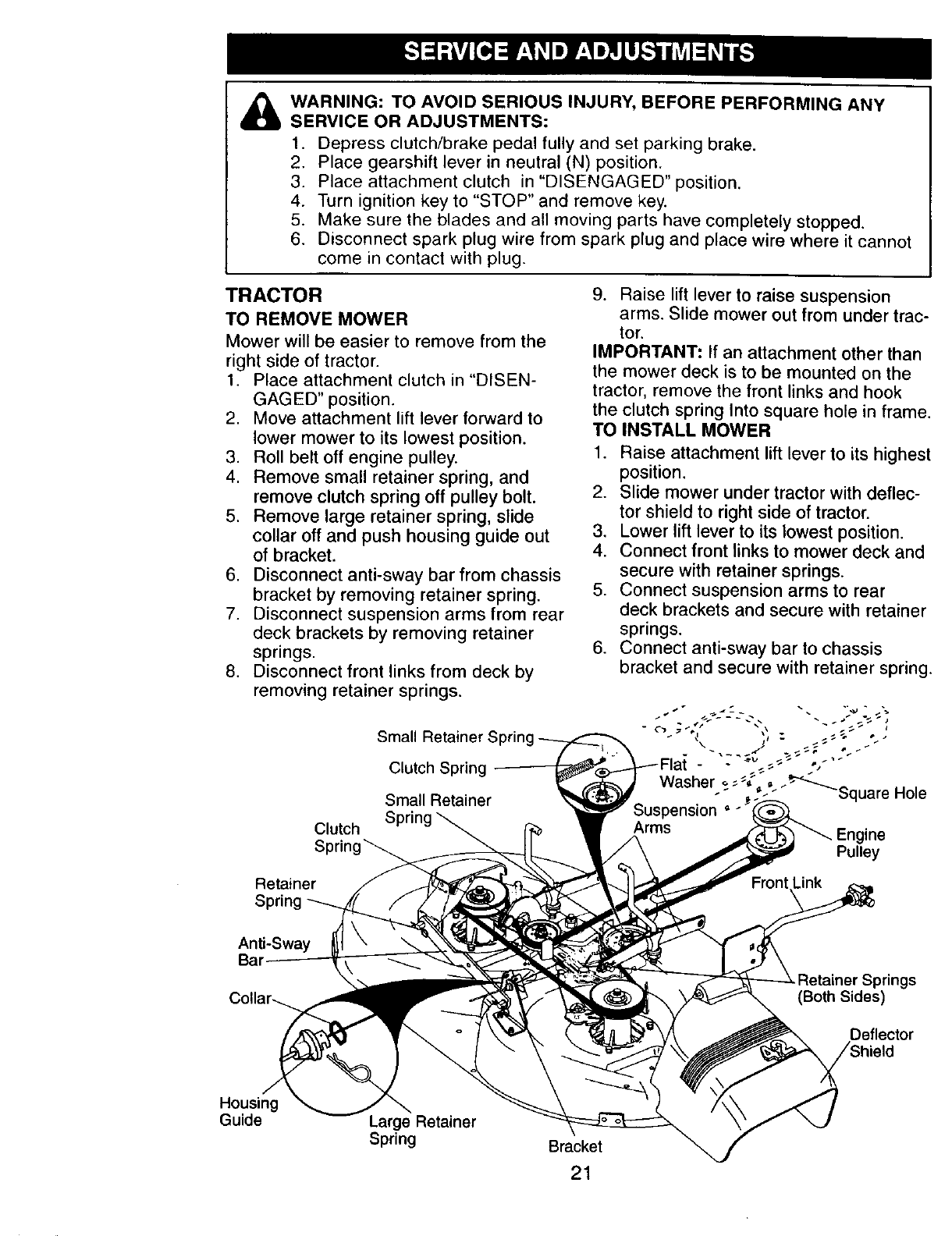

AWARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

Small Retainer Sprin

Clutch Spring

Small Retainer

Clutch Spring

Spring _

Retainer

Spring

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

Washer _ ,,, J_Square Hole

Engine

Pulley

Anti-Sway

Ba_

(Both Sides)

Deflector

Housing

Guide Large Retainer

Spring Bracket

21

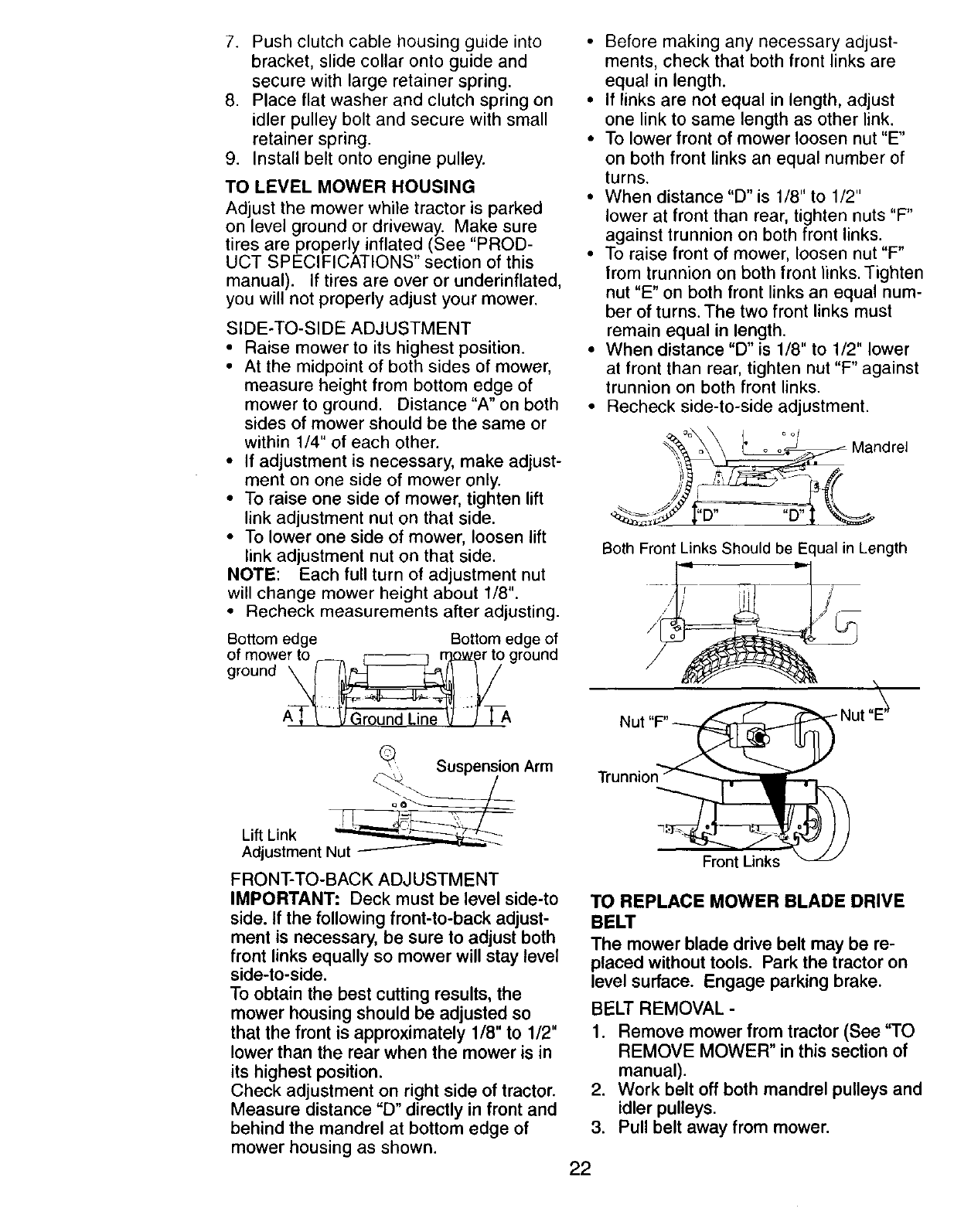

7. Push clutchcable housing guide into

bracket,slide collar onto guide and

securewith large retainerspring.

8. Place flat washer and clutch springon

idler pulleybolt and secure with small

retainerspring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge Bottom edge of

of mower to _. _ n'j_yer to ground

0roun,

A-_-'_ _'Ground Line _J--J-_--A

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

* Recheck side-to-side adjustment.

__ Mandrel

Both Front Links Should be Equal in Length

"5

Suspension Arm

Lift Link _ -

Adjustment Nut -'------

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See 'q'o

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

22

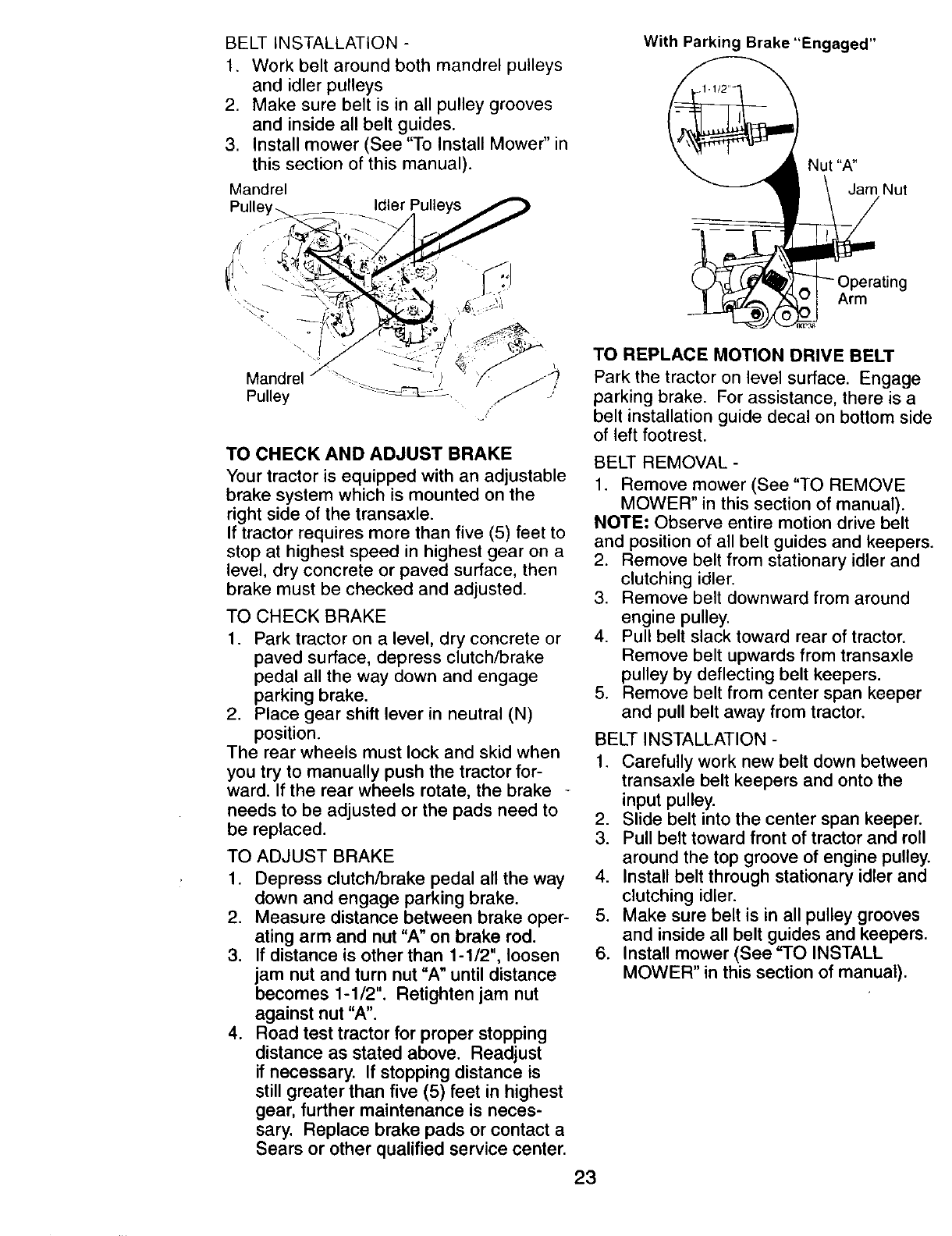

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel Idler

With Parking Brake "'Engaged"

Nut "A"

Jam Nut

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted•

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake -

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

g

Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

23

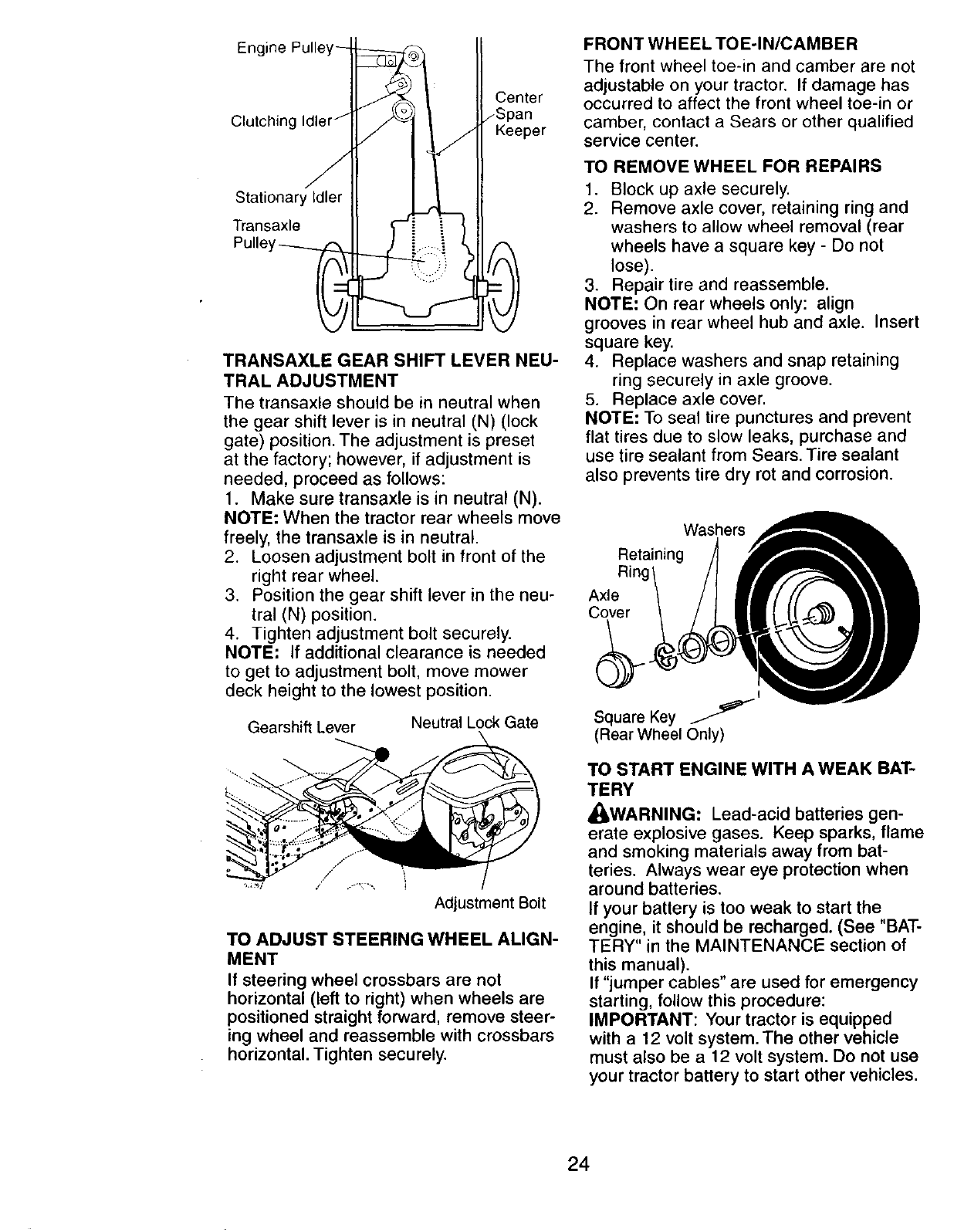

Engi

Clutching

Center

Keeper

Stationary Idler

Transaxle

Pulle

TRANSAXLE GEAR SHIFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift Lever Neutral Lock Gate

Adjustment Bolt

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal, Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Rin(

Axle

Cover

I

Square Key

(Rear Wheel Only)

TO START ENGINE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a12 volt system. Do not use

your tractor battery to start other vehicles,

24

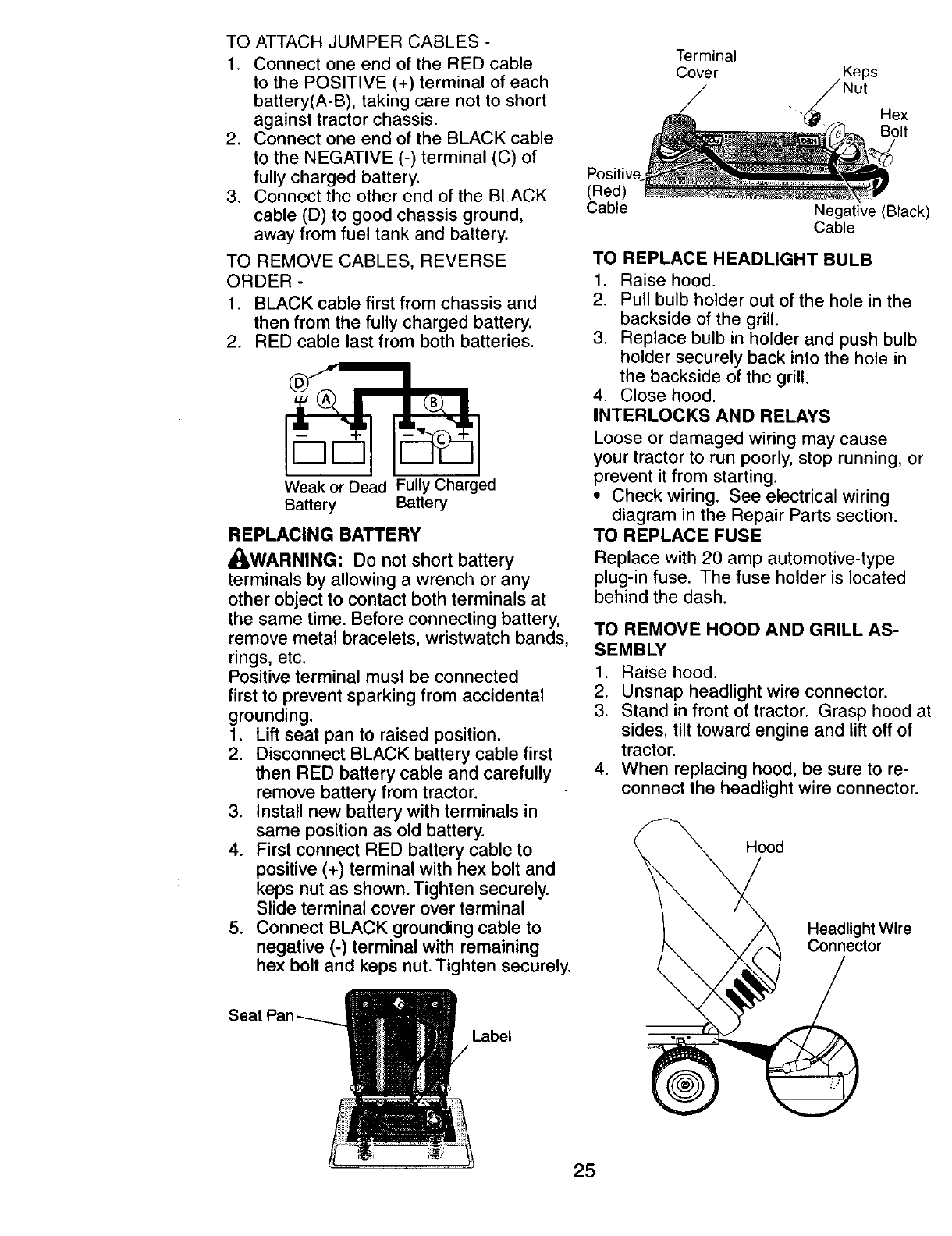

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

A(_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

Positive

(Red)

Cable

Terminal

Cover j Keps

Nut

Hex

Bolt

/

Negative (Black)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

Headlight Wire

Connector

Label

25

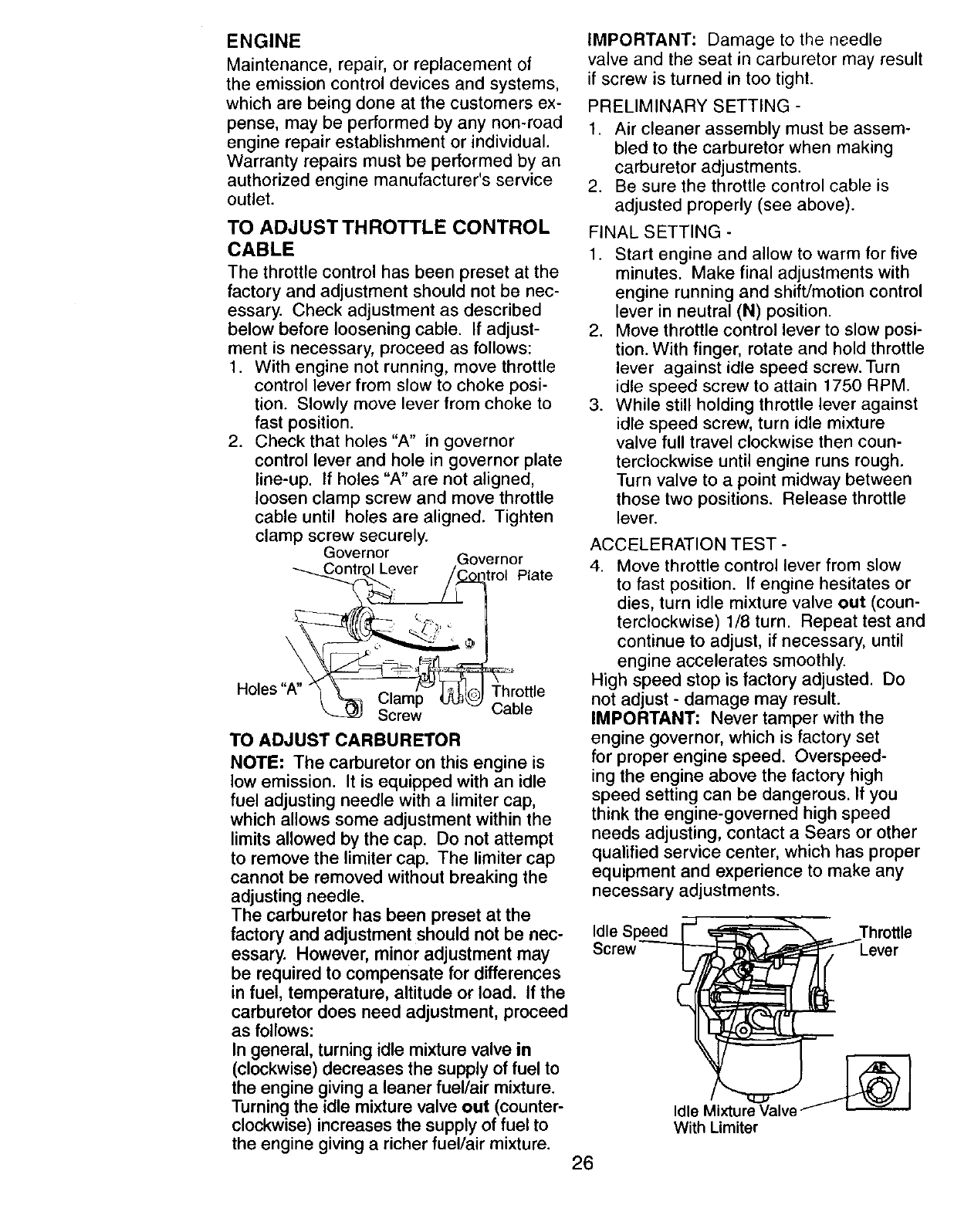

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A"are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor

Lever Plate

\

Holes "A" Throttle

Screw Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mixture.

Turning the idle mixture valve out (counter-

clockwise) increases the supply of fuel to

the engine giving a richer fuel/air mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough,

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

With Limiter

26

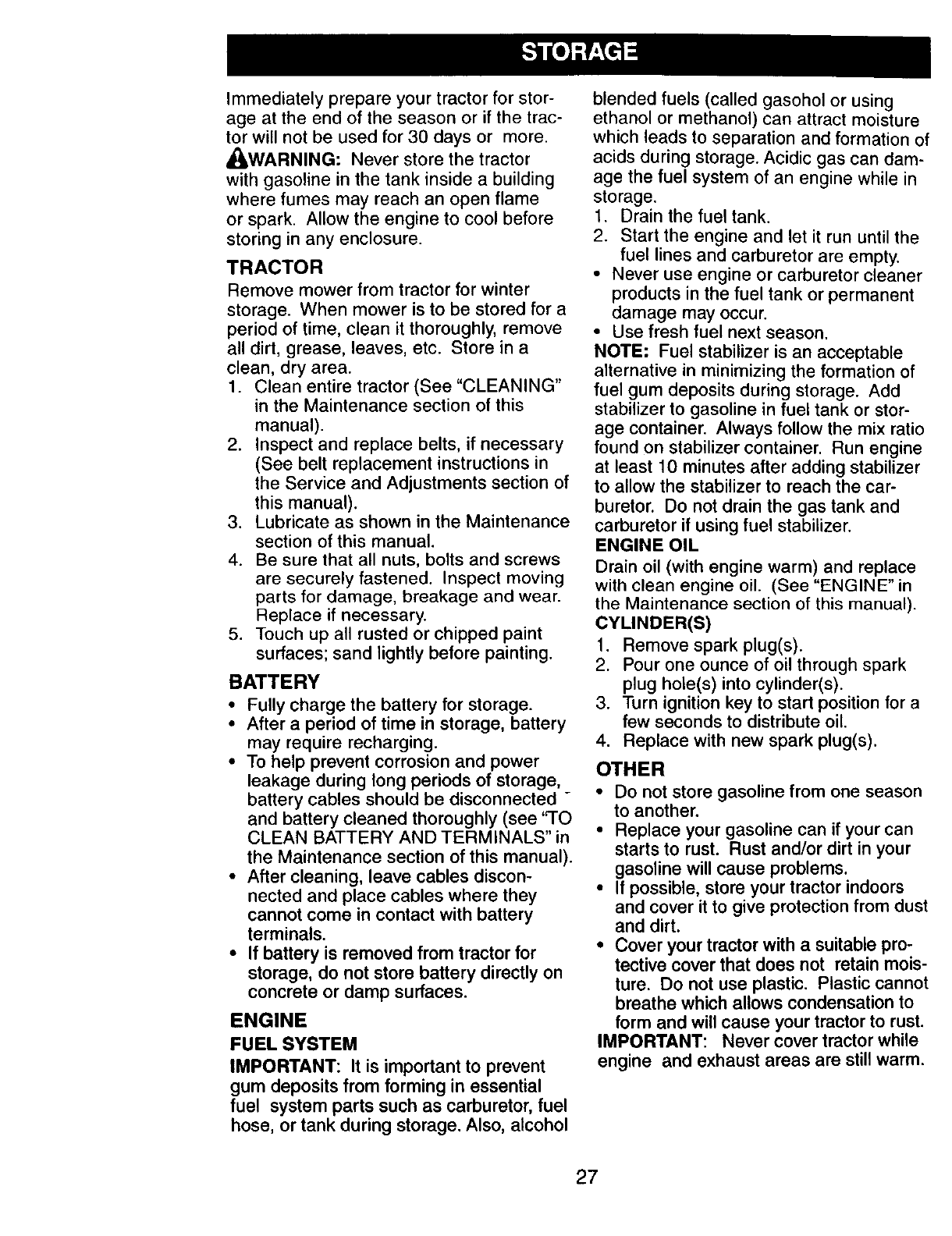

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected -

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE; Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

•Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture, Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm,

27

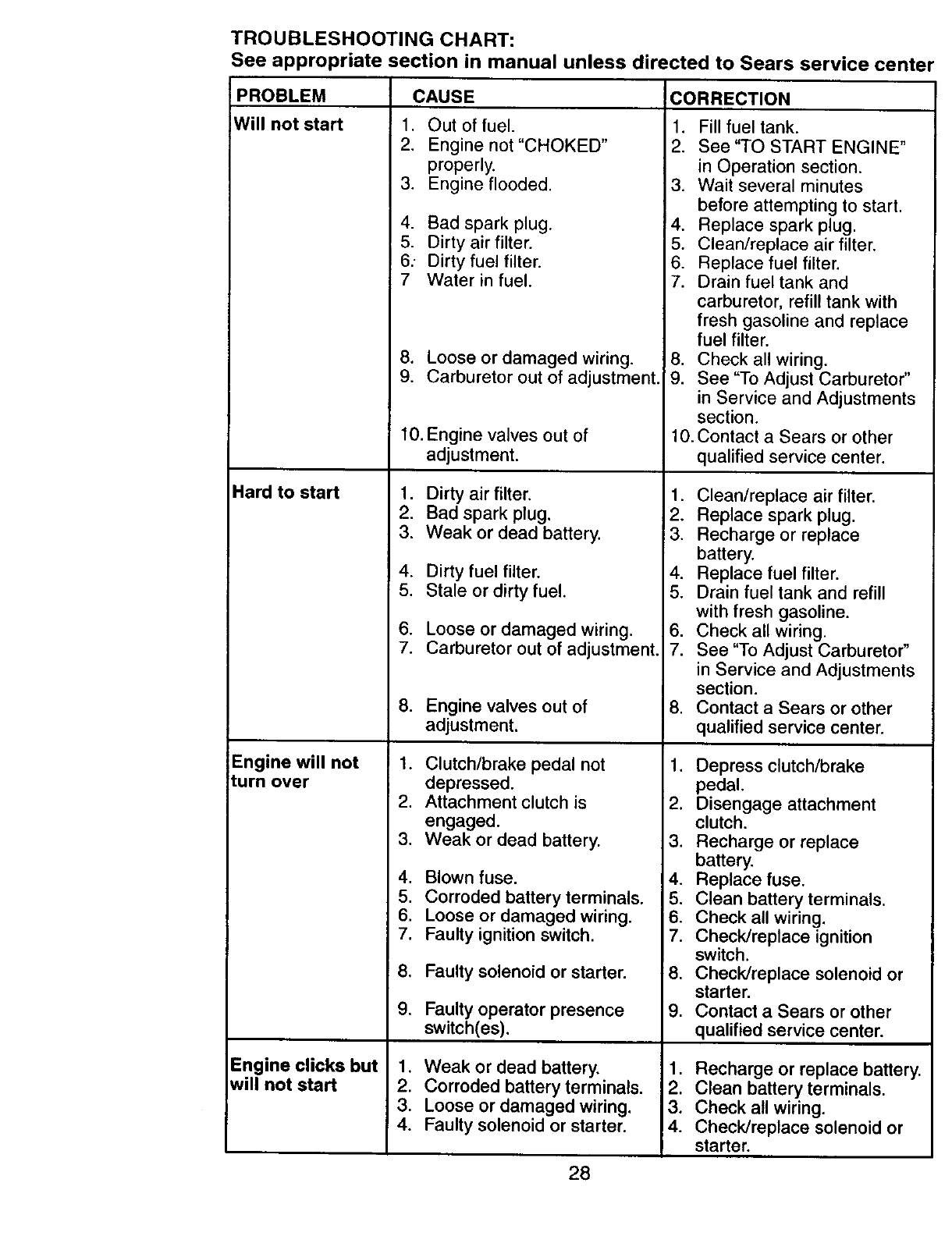

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

.

2.

.

.

5

6:

7

.

9.

10.

.

2.

3.

.

5.

.

7.

.

.

2.

3.

4.

5.

6.

7.

8,

9.

.

2.

3.

4.

Out of fuel.

Engine not "CHOKED"

properly.

Engine flooded. 3.

Bad spark plug. !4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

Loose or damaged wiring. 8.

Carburetor out of adjustment. 9.

Engine valves out of

adjustment.

Dirty air filter, 1.

Bad spark plug. 2.

Weak or dead battery. 3.

Dirty fuel filter. 4.

Stale or dirty fuel. 5.

Loose or damaged wiring. 6.

Carburetor out of adjustment. 7.

Engine valves out of 8.

adjustment.

Clutch/brake pedal not 1.

depressed.

Attachment clutch is 2.

engaged.

Weak or dead battery. 3.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Faulty solenoid or starter. 8.

Faulty operator presence 9.

switch(es).

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

Clean/replace air filter.

Replace spark plug.

Recharge or replace

battery.

Replace fuel filter.

Drain fuel tank and refill

with fresh gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

Contact a Sears or other

qualified service center.

Depress clutch/brake

pedal,

Disengage attachment

clutch.

Recharge or replace

battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

28

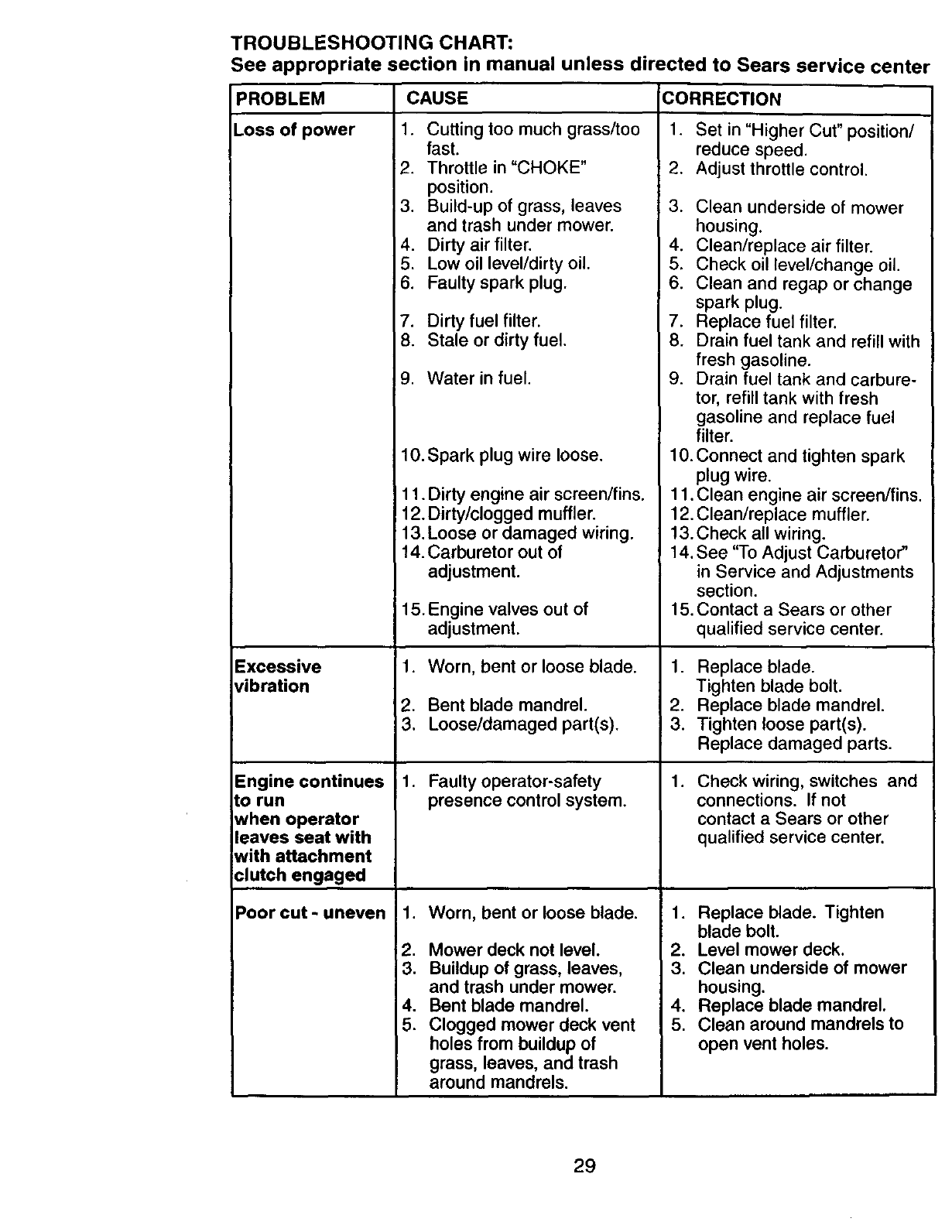

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

_ROBLEM CAUSE CORRECTION

Loss of power 1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with

fresh gasoline.

9. Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

_-Iutch engaged

Poorcut-uneven

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

f 4. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1.

!2.

3.

.

5.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

.Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

29

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

CAUSE CORRECTION

1. Remove obstruction.1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Headlight(s) not 1.

working i2.

(if so equipped) 3.

4.

5.

Battery will not 1.

charge 2.

3.

4.

Engine "backfires' 1.

when turning

engine "OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned ou I

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

Faulty regulator

(if so equipped).

Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

tions.

3. Replace regulator.

4. Replace alternator,

oMove throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

30

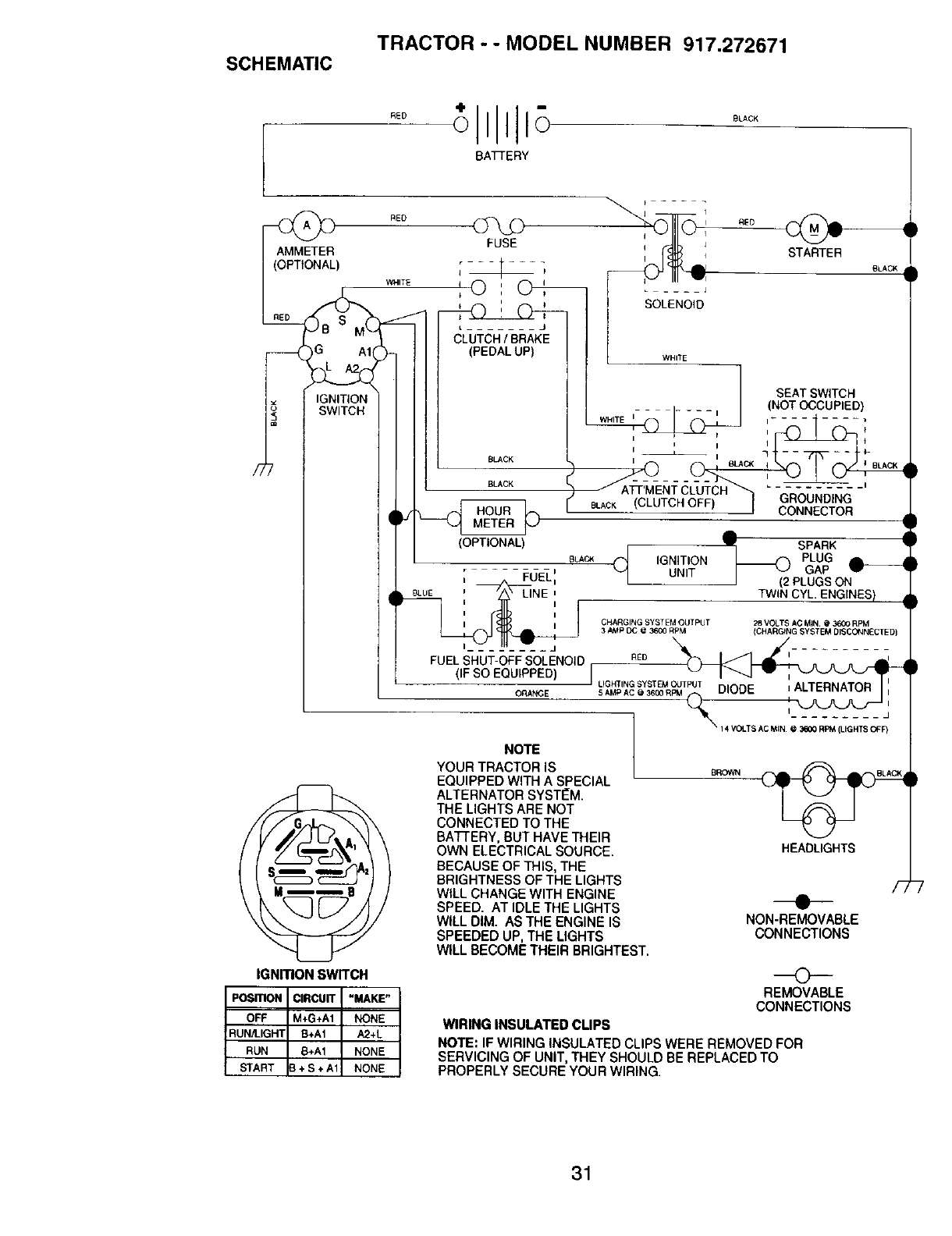

TRACTOR - -MODEL NUMBER 917.272671

SCHEMATIC

RED BLACK

/7

__ RED

AMMETER FUSE

(OPTIONAL)

_,TE ' 0' (_:--

-- L ....... J

CLUTCH/BRAKE

(PEDALUP)-_ )G All

IGNITION

SWITCH

IGNmON SWITCH

POSITION CIRCUIT "MAKE"

OFF M÷G+A1 NONE

RUN/LIGH1 B+A1 A2+L

RUN 8+A1 NONE

START 3+ S + A1 NONE

BLACK

BLACK

.... J

SOLENOID

(OPTIONAL)

9LAC_ _ IGNITION

-_:t_E-L'I UNIT

_ i _:UNE_i jBLUE : LINE:

I1'1{_ Ill CHARGING SYSTEM OUTPUT

3_iP OC @ 3600 RPM

STARTER

BLACK

WHITE

SEATSWITCH

- - I.... , I (NOTOCCUPIED)

FBLACK (CLUTCH (]FI]:) "- _;NCNUNDT_) G

A •

SPARK •

PLUG

GAP

(2PLUGSON

TWINCYL.ENGINES) _

28 VOLTS AC MIN @ 3_ RPM

ICHARGtNG SYSTEM DISCONNECTED)

FUELSHUT-OFFSOLENOID RED "X__I- - _--_--_- - _ ,

(IF SO EQUIPPED _._L) i"_l_l ._L_)._J__L._ I

ORANGE ' 5UAGMH_INAG _YSToo%_pMP_UT DIO_ _I ALTERNATOR I;

Y T NOTE _ 14_TS CMN'__

OUR RACTORIS BROWN _ _ A,_,_.AC_,,

EQUIPPED WITH A SPECIAL ' _

ALTERNATOR SYSTI_M. J _ I

THE LIGHTS ARE NOT I F-z'-_ I

CONNECTED TO THE

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

BAKERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

--O--

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE= IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

31

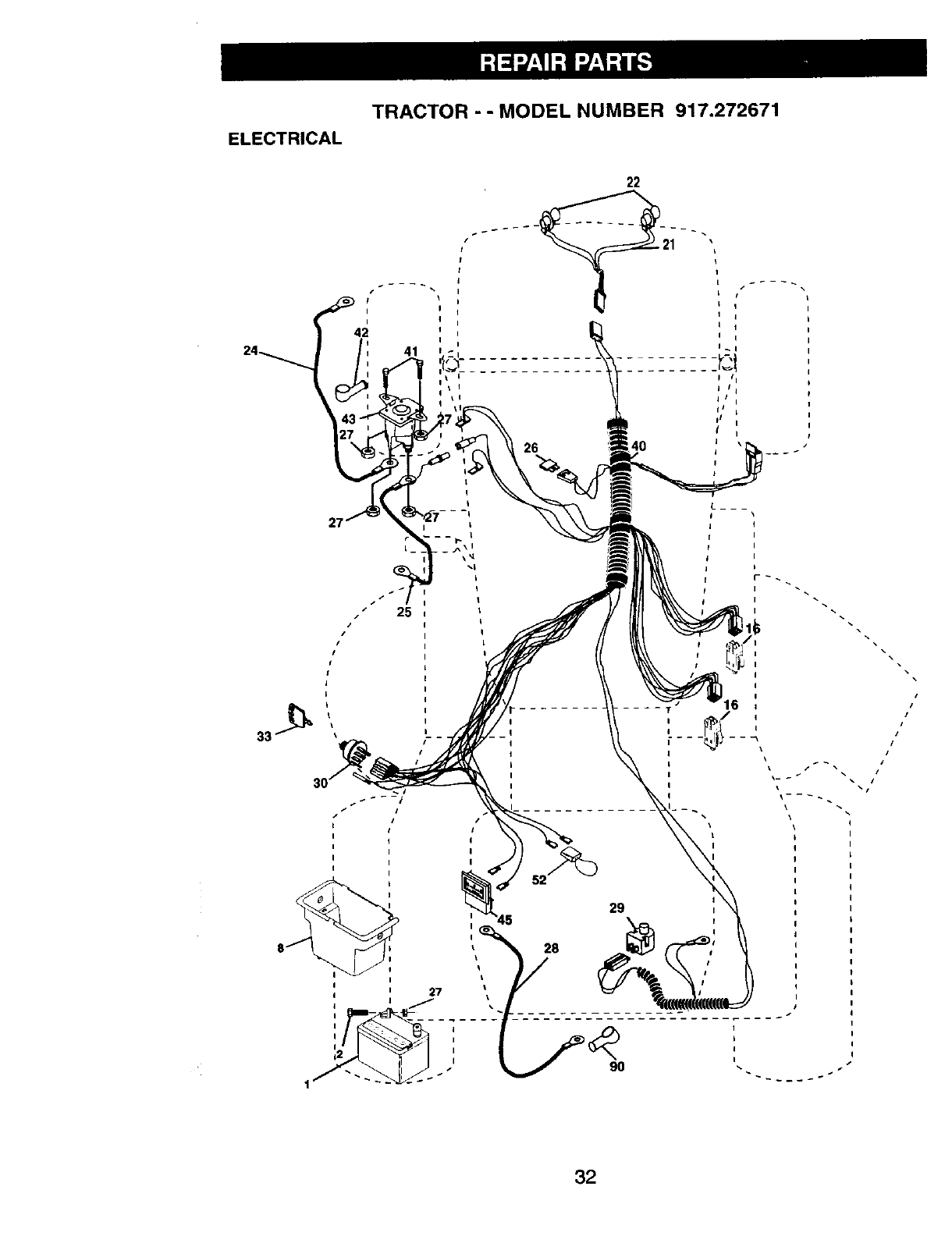

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.272671

22

26

/

II

I

II

II

I

27

I

I

32

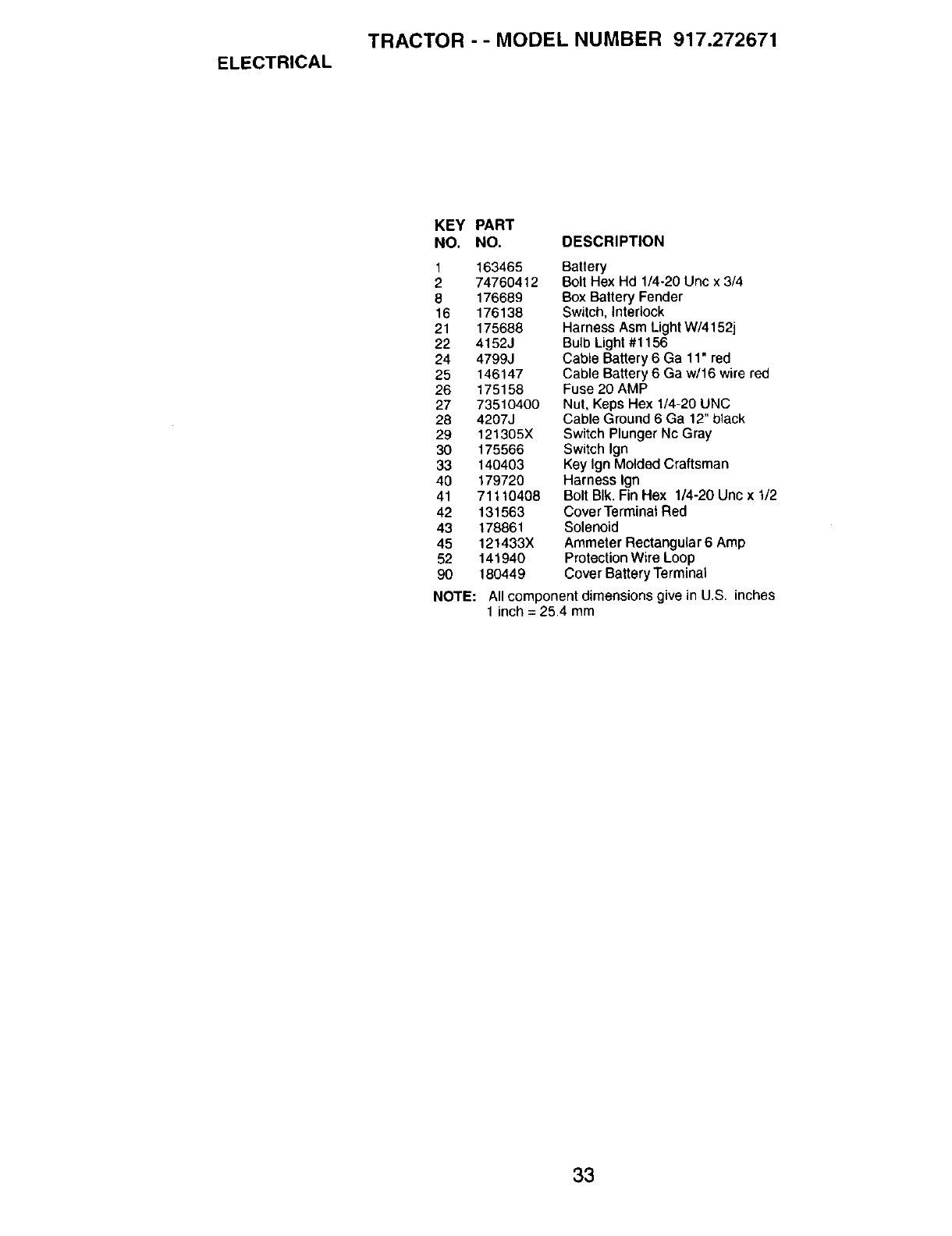

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.272671

KEY PART

NO. NO. DESCRIPTION

1 163465

2 74760412

8 176689

16 176138

21 175688

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140403

40 179720

41 71110408

42 131563

43 178861

45 121433X

52 14194O

90 180449

Battery

Bolt Hex Hd 1/4-20 Unc x 3/4

Box Battery Fender

Switch, Interlock

Harness Asm Light W/4152j

Bulb Light #1156

Cable Battery 6 Ga 11" red

Cable Battery 6 Ga w/16 wire red

Fuse 20 AMP

Nut, Keps Hex 1/4-20 UNC

Cable Ground 6 Ga 12" black

Switch Plunger Nc Gray

Switch Ign

Key Ign Molded Craftsman

Harness Ign

Bolt BIk. Fin Hex 1/4-20 Unc x 1/2

Cover Terminal Red

Solenoid

Ammeter Rectangular 6 Amp

Protection Wire Loop

Cover Battery Terminal

NOTE: All component dimensions give in U.S. inches

1 inch = 25,4 mm

33

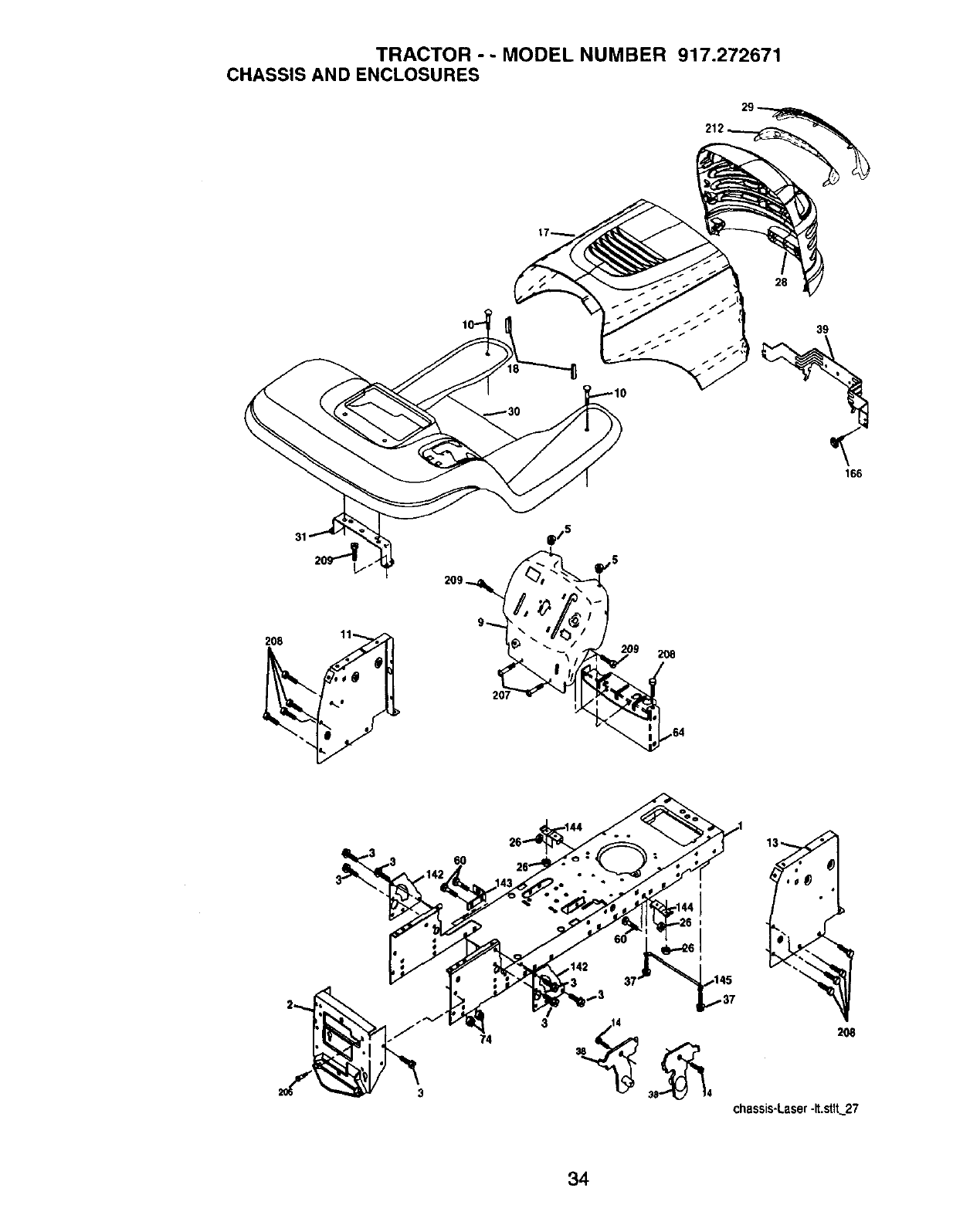

TRACTOR --MODEL NUMBER 917.272671

CHASSIS AND ENCLOSURES

28

39

166

209.

2O8 2O8

S3

3

74

13 m° •

2O8

chassis-Laser-It.stir~27

34

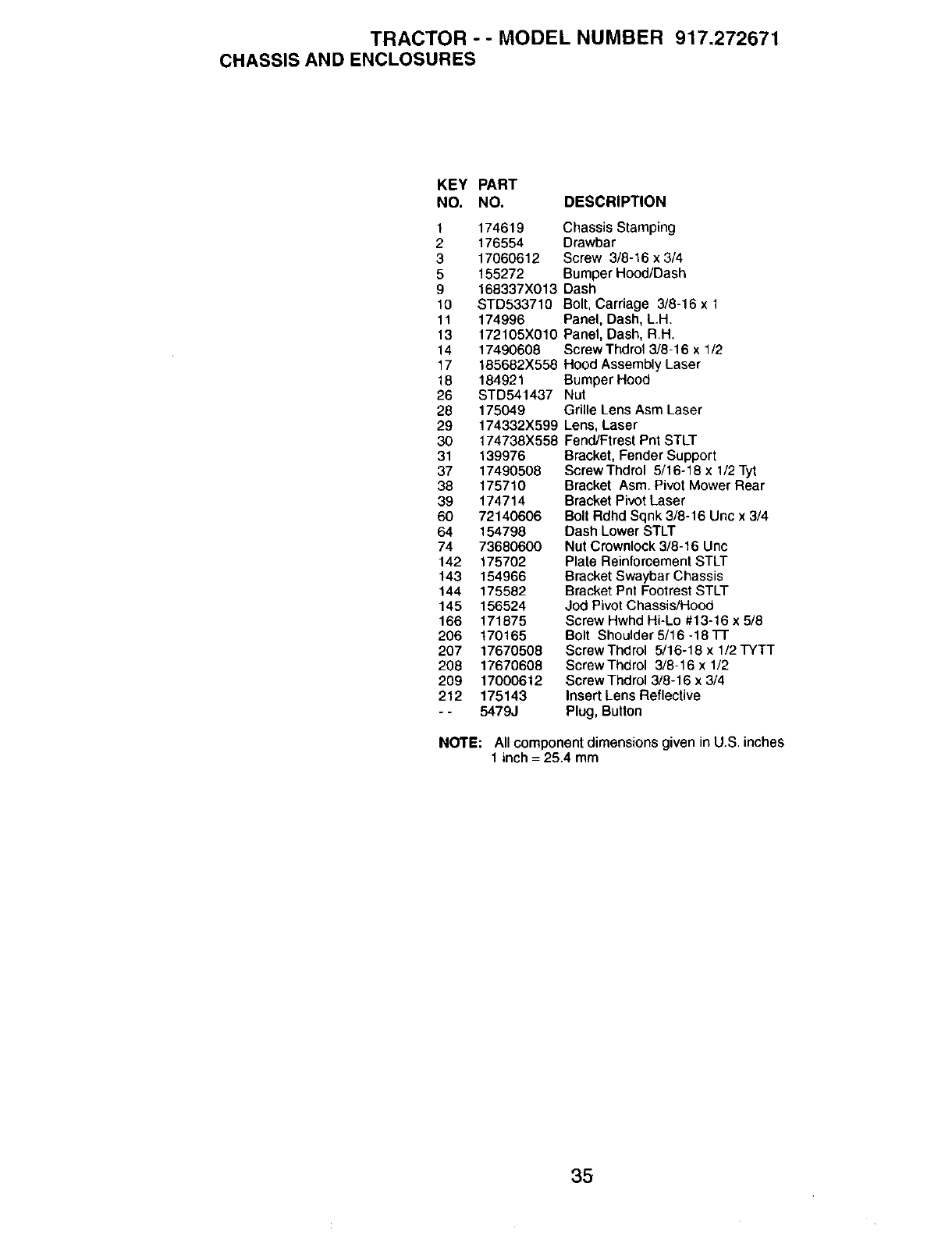

TRACTOR - - MODEL NUMBER 917.272671

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619

2176554

3 17060612

5 155272

9168337X013

10 STD533710

11 174996

13 172105X010

14 17490608

17 185682X558

18 184921

26 STD541437

28 175049

29 174332X599

30 174738X558

31 139976

37 17490508

38 175710

39 174714

60 72140606

64 154798

74 73680600

142 175702

143 154966

144 175582

145 156524

166 171875

206 170165

207 17670508

208 17670608

209 17000612

212 175143

-- 5479J

Chassis Stamping

Drawbar

Screw 3/8-16 x 3/4

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel. Dash, LH.

Panel, Dash, R.H.

Screw Thdrol 3/8-16 x 1/2

Hood Assembly Laser

Bumper Hood

Nut

Grille Lens Asm Laser

Lens, Laser

Fend/Ftrest Pnt STLT

Bracket. Fender Support

ScrewThdrol 5/16-18 x 1/2 Tyt

Bracket Asm. Pivot Mower Rear

Bracket Pivot Laser

Bolt Rdhd Sqnk 3/8-16 Unc x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 Unc

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Jod Pivot Chassis/Hood

Screw Hwhd Hi-Lo #13-16 x 5/8

Bolt Shoulder 5/16 -18 Tr

ScrewThdrol 5/16-18 x 1/2TYTT

ScrewThdrol 3/8-16 x 1/2

Screw Thdrol 3/8-16 x 3/4

Insert Lens Reflective

Plug, Button

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

35

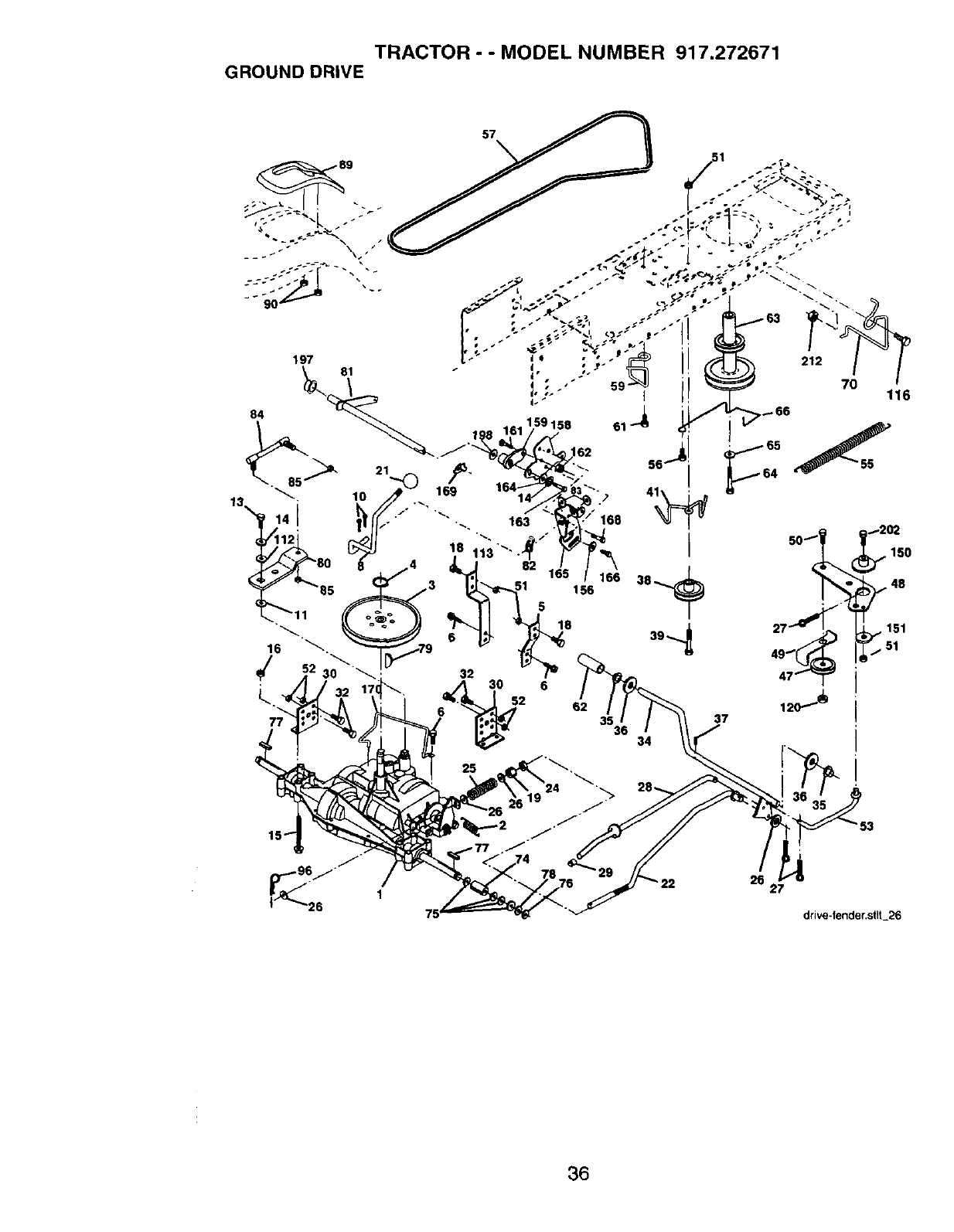

TRACTOR-- MODEL NUMBER 917.272671

GROUND DRIVE

57

26 27

drive-fender.stir26

36

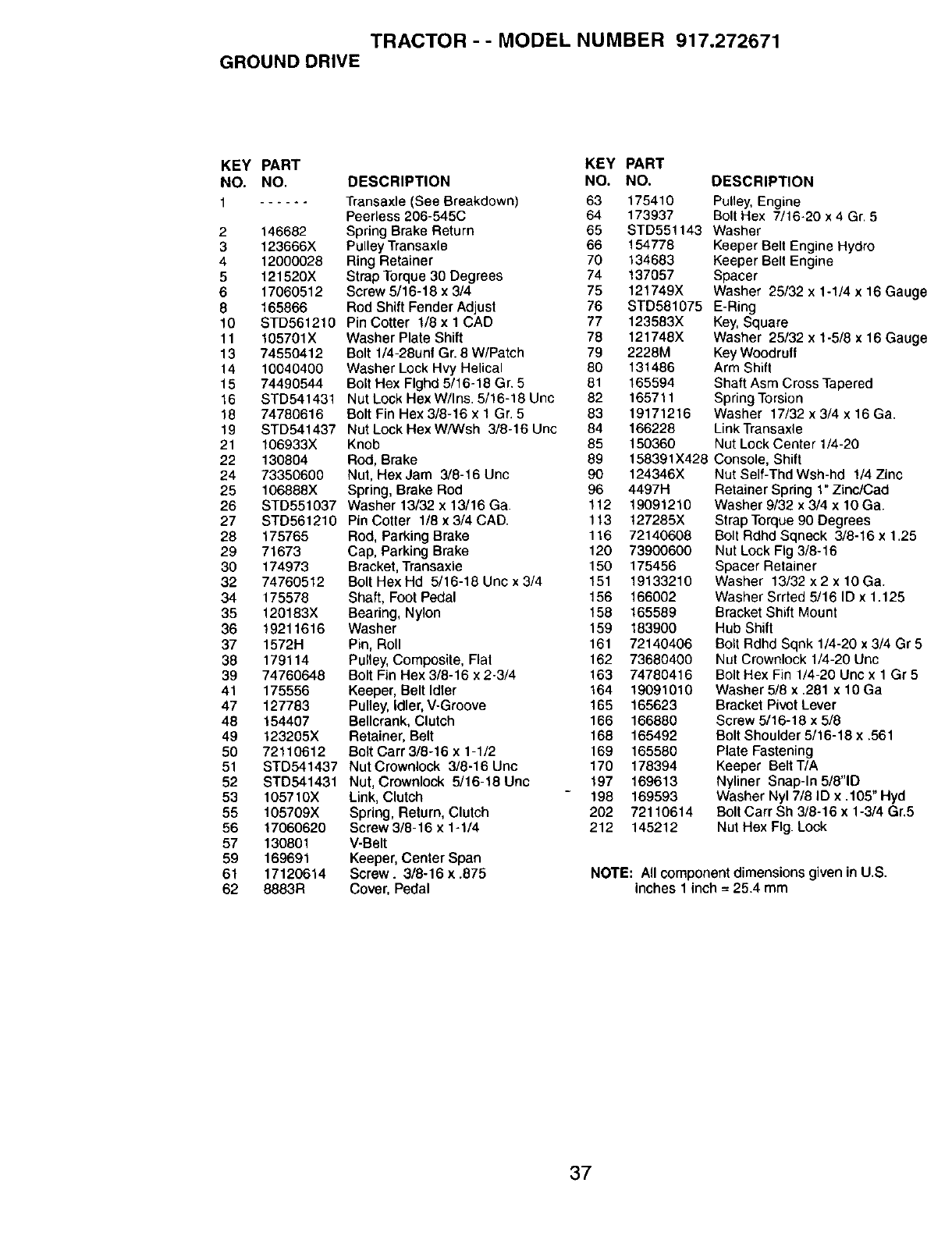

TRACTOR - - MODEL NUMBER 917,272671

GROUNDDRIVE

KEY PART KEY

NO. NO. DESCRIPTION NO.

1 Transaxle (See Breakdown) 63

Peerless 206-545C 64

2 146682 Spring Brake Return 65

3 123666X Pulley Transaxle 66

4 12000028 Ring Retainer 70

5 121520X Strap Torque 30 Degrees 74

6 17060512 Screw 5/16-18 x 3/4 75

8 165866 Rod Shift Fender Adjust 76

10 STD561210 Pin Cotter 1/8 x 1 CAD 77

11 105701X Washer Plate Shift 78

13 74550412 Bolt 1/4-28unf Gr. 8 W/Patch 79

14 10040400 Washer Lock Hvy Helical 80

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 81

16 STD541431 Nut Lock Hex W/Ins. 5/16-18 Unc 82

18 74780616 Bolt Fin Hex 3/8-16 x 1 Gr. 5 83

19 STD541437 NutLockHexW/Wsh 3/8-16Unc 84

21 106933X Knob 85

22 130804 Rod, Brake 69

24 73350600 Nut, Hex Jam 3/8-16 Unc 90

25 106888X Spring, Brake Rod 96

26 STD551037 Washer 13/32 x 13/16 Ga. 112

27 STD561210 PinCotter I/8x3/4CAD. 113

28 175765 Rod, Parking Brake 116

29 71673 Cap, Parking Brake 120

30 174973 Bracket, Transaxle 150

32 74760512 Bolt Hex Hd 5/16-18 Unc x 3/4 151

34 175578 Shaft, Foot Pedal 156

35 120183X Bearing, Nylon 158

36 19211616 Washer 159

37 1572H Pin, Roll 161

38 179114 Pulley, Composite, Flal 162

39 74760648 Bolt Fin Hex 3/8-16 x 2-3/4 163

41 175556 Keeper, Belt Idler 164

47 127783 Pulley, Idler, V-Groove 165

48 154407 Bellcrank, Clutch 166

49 123205X Retainer, Belt 168

50 72110612 Bolt Carr 3/8-16 x 1-1/2 169

51 STD541437 Nut Crownlock 3/8-16 Unc 170

52 STD541431 Nut, Crownlock 5/16-18 Unc 197

53 105710X Link, Clutch 198

55 105709X Spring, Return, Clutch 202

56 17060620 Screw 3/8-16 x 1-1/4 212

57 130801 V-Belt

59 169691 Keeper, Center Span

61 17120614 Screw. 3/8-16 x .875

62 8883R Cover, Pedal

PART

NO. DESCRIPTION

175410 Pulley, Engine

173937 Bolt Hex 7/16-20 x 4 Gr. 5

STD551143 Washer

154778 Keeper Belt Engine Hydro

134683 Keeper Belt Engine

137057 Spacer

121749X Washer 25/32 x 1-1/4 x 16 Gauge

STD581075 E-Ring

123583X Key, Square

121748X Washer 25/32 x 1-5/8 x 16 Gauge

2228M Key Woodruff

131486 Arm Shift

165594 Shaft Asm Cross Tapered

165711 Spring Torsion

19171216 Washer 17/32 x 3/4 x 16 Ga.

166228 Link Transaxle

150360 Nut Lock Center 1/4-20

158391X428 Console, Shift

124346X

4497H

19091210

t27285X

72140608

73900600

175456

19133210

166002

165589

183900

72140406

73680400

74780416

19091010

165623

166880

165492

165580

178394

169613

169593

72110614

145212

Nut Self-Thd Wsh-hd 1/4 Zinc

Retainer Spring 1" Zinc/Cad

Washer 9/32 x 3/4 x 10 Ga.

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 1.25

Nut Lock Fig 3/8-16

Spacer Retainer

Washer 13/32 x2 x 10Ga.

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5

Nut Crownlock 1/4-20 Uric

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/6

Bolt Shoulder 5/16-18 x .561

Plate Fastening

Keeper Belt T/A

Nyliner Snap-In 5/8"1D

Washer Nyl 7/8 ID x .105" Hyd

Bolt Carr Sh 3/8-16 x 1-3/4 Gr.5

Nut Hex Fig. Lock

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

37

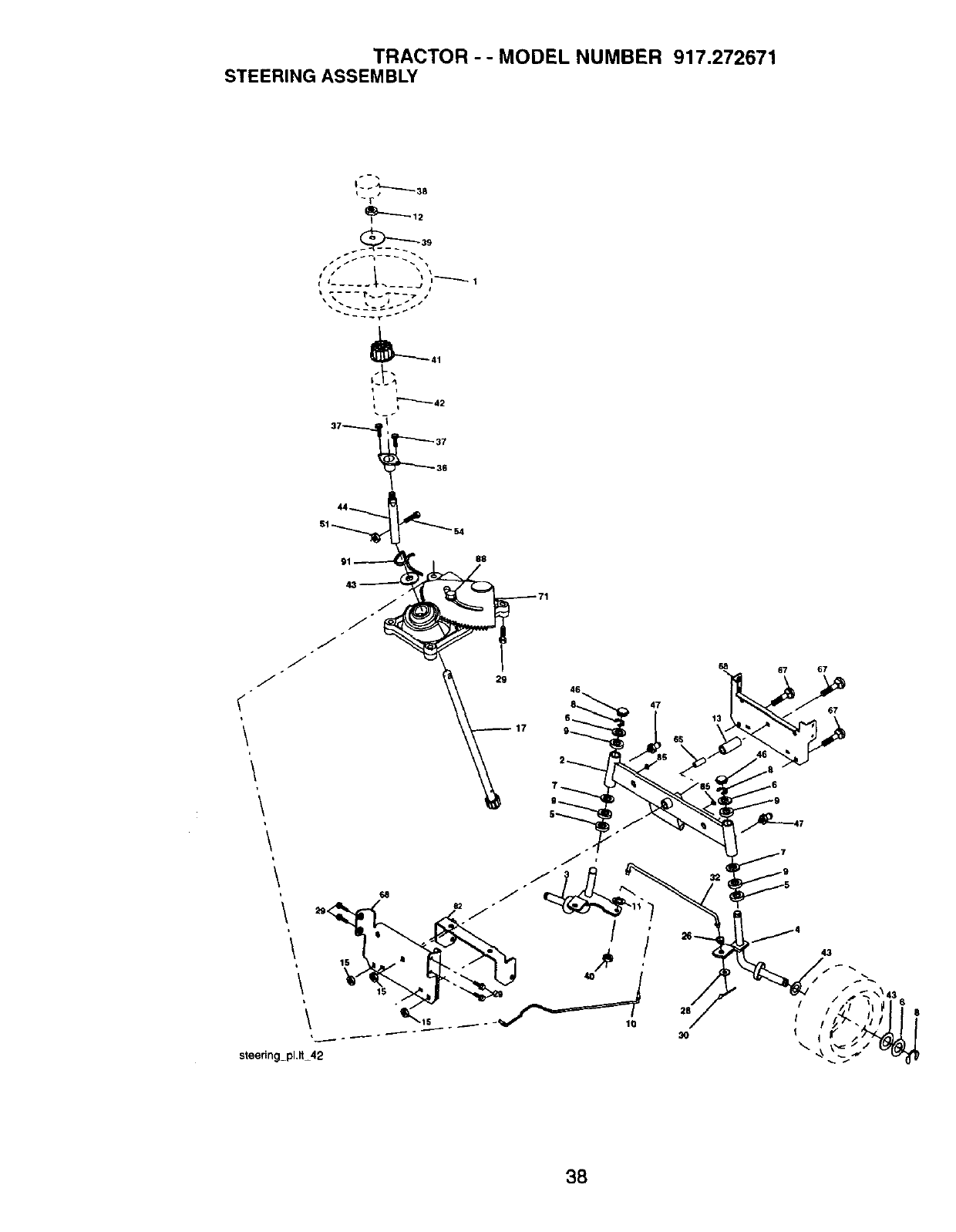

TRACTOR -- MODEL NUMBER 917.272671

STEERING ASSEMBLY

_39

T-

t-'-*--,__ 42

37_ 37

36

\

J

J29

17

47

\

\

steering_pl,lt 42

68

32

67 67

67

36

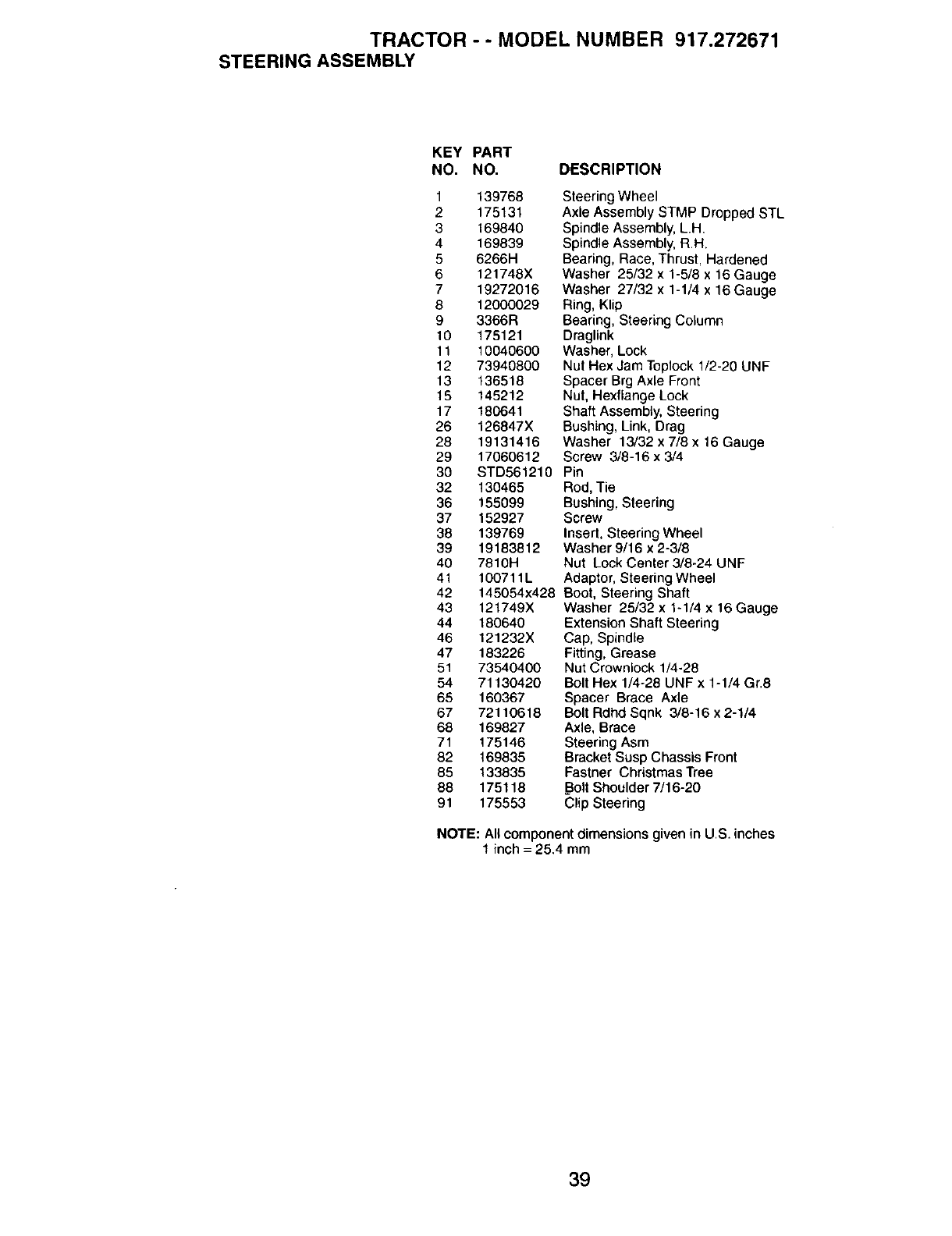

TRACTOR --MODEL NUMBER 917.272671

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 175131

3 169840

4169839

5 6266H

6121748X

7 19272016

8 12000029

9 3366R

10 175121

11 10040600

12 73940800

13 136518

15 145212

17 180641

26 126847X

28 19131416

29 17060612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19183812

40 7810H

41 100711L

42 145054x428

43 t21749X

44 180640

46 121232X

47 183226

51 73540400

54 71130420

65 160367

67 72110618

68 169827

71 175146

82 169835

85 133835

88 175118

91 175553

Steering Wheel

Axle Assembly STMP Dropped STL

Spindle Assembly, LH

Spindle Assembly, RH.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steering Column

Draglink

Washer, Lock

Nut Hex Jam Toplock 1/2-20 UNF

Spacer Brg Axle Front

Nut, Hexflange Lock

Shaft Assembly, Steering

Bushing, Link, Drag

Washer 13/32 x 7/8 x 16 Gauge

Screw 3/8-16 x 3/4

Pin

Rod, Tie

Bashing, Steering

Screw

Insert, Steering Wheel

Washer 9/16 x 2-3/8

Nut Lock Center 3/8-24 UNF

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Shaft Steering

Cap, Spindle

Fitting, Grease

Nut Crownlock 1/4-28

Bolt Hex 1/4-28 UNF x 1-1/4 Gr.8

Spacer Brace Axle

Bolt Rdhd Sqnk 3/8-16 x 2-1/4

Axle, Brace

Steering Asm

Bracket Susp Chassis Front

Fastner Christmas Tree

Bolt Shoulder 7/16-20

Clip Steering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

39

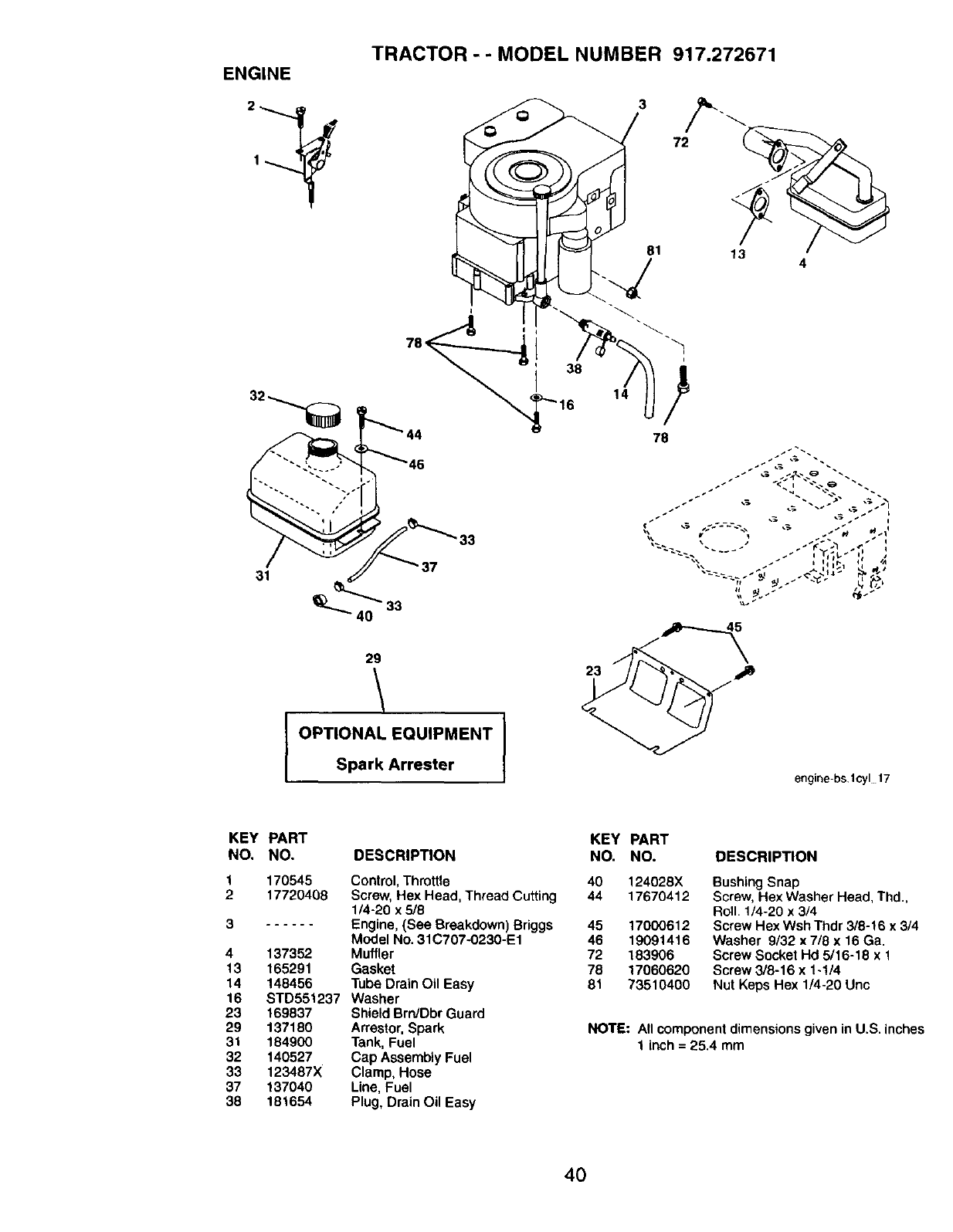

TRACTOR - - MODEL NUMBER 917.272671

ENGINE

2

1

31

33

40 33

29

OPTIONAL EQUIPMENT

Spark Arrester

3

81

78

13 4

23 ,_

engine-bs, lcyl 17

KEY PART

NO. NO.

1 170545

2 17720408

3

4137352

13 165291

14 148456

16 STD551237

23 169837

29 137180

31 184900

32 140527

33 123487X

37 137040

38 181654

DESCRIPTION

Control, Throttle

Screw, Hex Head, Thread Cutting

1/4-20 x 5/8

Engine, (See Breakdown) Briggs

Model No, 31C707-0230-E1

Muffler

Gasket

Tube Drain Oil Easy

Washer

Shield Brn/Dbr Guard

Arrestor, Spark

Tank, Fuel

Cap Assembly Fuel

Clamp, Hose

Line, Fuel

Plug, Drain Oil Easy

KEY PART

NO. NO.

40 124028X

44 17670412

45 17000612

46 19091416

72 183906

78 17060620

81 73510400

DESCRIPTION

Bushing Snap

Screw, Hex Washer Head, Thd.,

Roll. 1/4-20 x3/4

Screw Hex Wsh Thdr 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga.

Screw Socket Hd 5/16-18 x 1

Screw 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20 Unc

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

4O

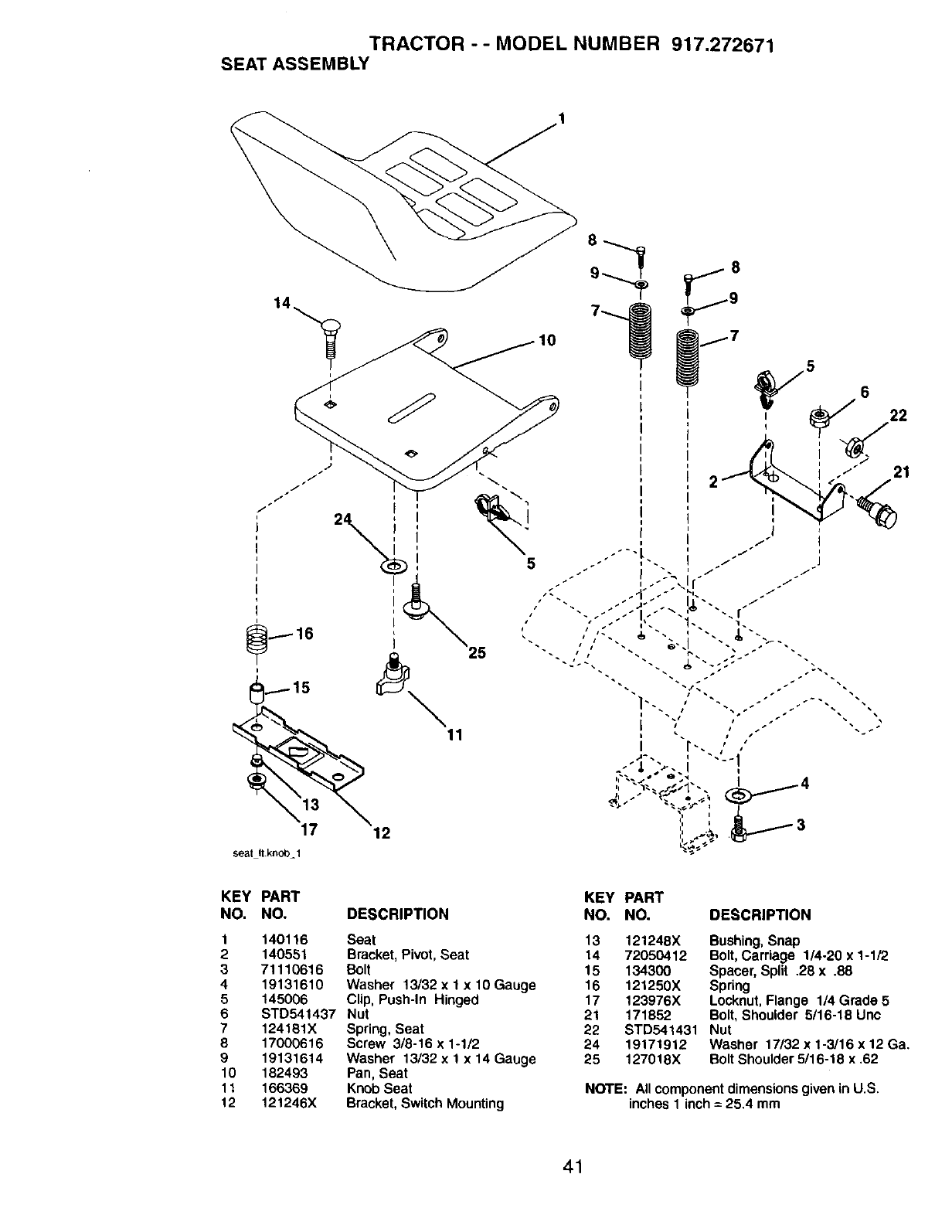

TRACTOR -- MODEL NUMBER 917.272671

SEAT ASSEMBLY

I

i

seat It.knob_ 1

5

KEY PART

NO. NO.

1 140116

2140551

3 71110616

419131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 182493

11 166369

12 121246X

DESCRIPTION

Seat

Bracket, Pivot, Seat

Bolt

Washer 13/32 x 1 x 10 Gauge

Clip, Push-In Hinged

Nut

Spring. Seat

Screw 3/8-16 x 1-1/2

Washer 13/32 x !x 14 Gauge

Pan, Seat

Knob Seat

Bracket, Switch Mounting

KEY PART

NO. NO. DESCRIPTION

13 121248X Bushing, Snap

14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

15 134300 Spacer, Split .28 x .88

16 121250X Spring

17 123976X Locknut, Flange 1/4 Grade 5

21 171852 Bolt, Shoulder 5/16-18 Unc

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.

25 127018X Bolt Shoulder 5/18-18 x .62

NOTE: Allcomponentdimensionsgiven in U.S.

inches1 inch=25.4 mm

41

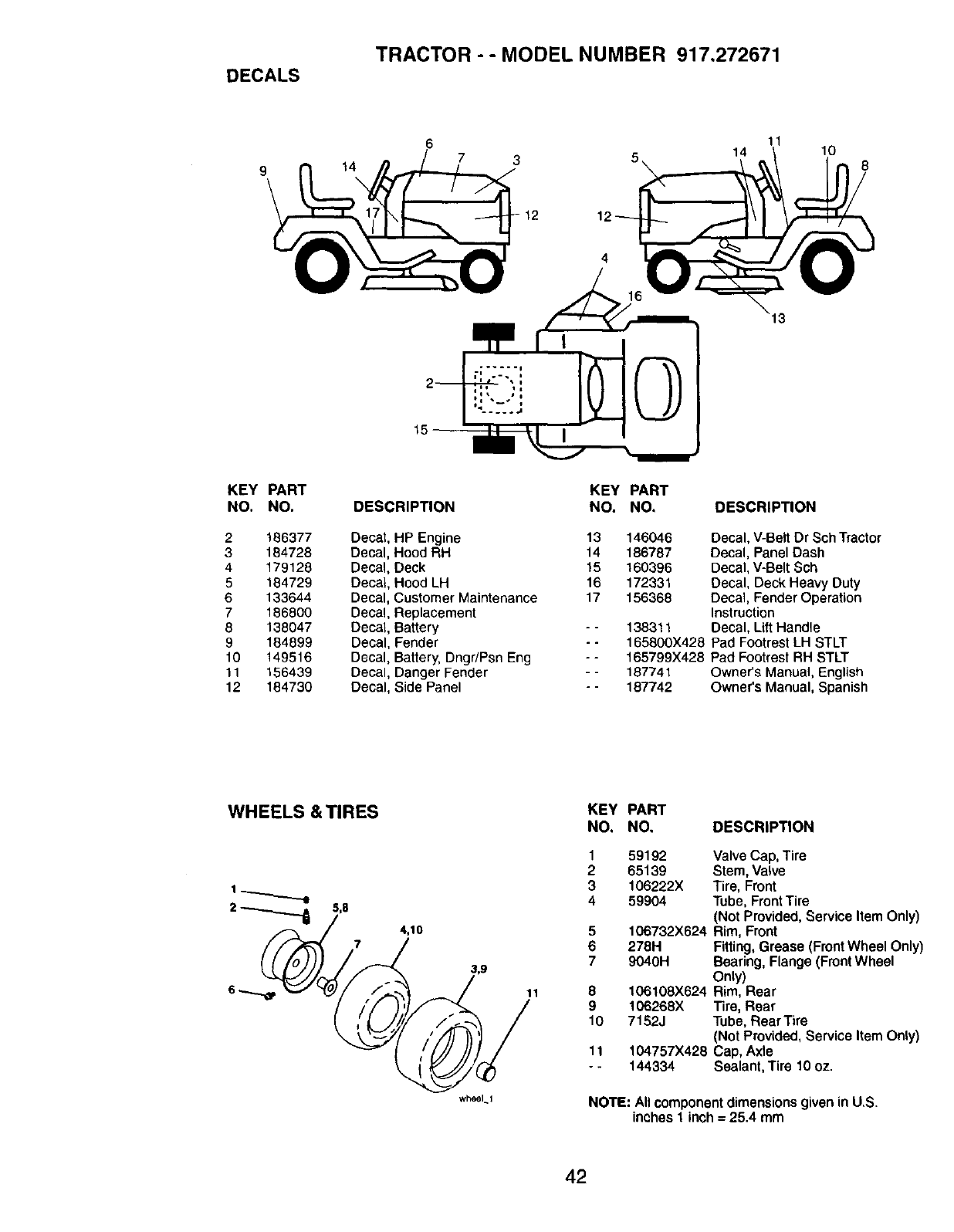

TRACTOR -- MODEL NUMBER 917.272671

DECALS

14

63

12

14 11 10 8

11

13

KEY PART

NO. NO.

2186377

3 184728

4179128

5184729

6133644

7186800

8 138047

9 184899

10 149516

11 156439

12 184730

DESCRIPTION

Decal, HP Engine

Decal, Hood RH

Decal, Deck

Decal, Hood LH

Decal, Customer Maintenance

Decal, Replacement

Decal, Battery

Decal, Fender

Decal, Battery, Dngr/Psn Eng

Decal, Danger Fender

Decal, Side Panel

KEY PART

NO. NO, DESCRIPTION

13

14

15

16

17

146046 Decal, V-Belt Dr Sch Tractor

186787 Decal, Panel Dash

160396 Decal, V-Belt Sch

172331 Decal, Deck Heavy Duty

156368 Decal, Fender Operation

Instruction

- - 138311 Decal, Lift Handle

- - 165600X428 Pad Footrest LH STLT

- - 165799X428 Pad Footrest RH STLT

- - 187741 Owner's Manual, English

- - 187742 Owner's Manual, Spanish

WHEELS & TIRES

74,10

whee U

11

KEY PART

NO, NO, DESCRIPTION

1

2

3

4

5

6

7

8

9

10

11

59192 Valve Cap, Tire

65139 Stem, Valve

106222X Tire, Front

59904 Tube, Front Tire

(Not Provided, Service Item Only)

106732X624 Rim, Front

278H Fitting, Grease (Front Wheel Only)

9040H Bearing, Flange (Front Wheel

Only)

106108X624 Rim, Rear

106268X Tire, Rear

7152J Tube, Rear Tire

(Not Provided, Service Item Only)

104757X428 Cap, Axle

144334 Sealant, Tire 10 oz.

NOTE: All component dimensions given in U.S.

inches I inch = 25.4 mm

42

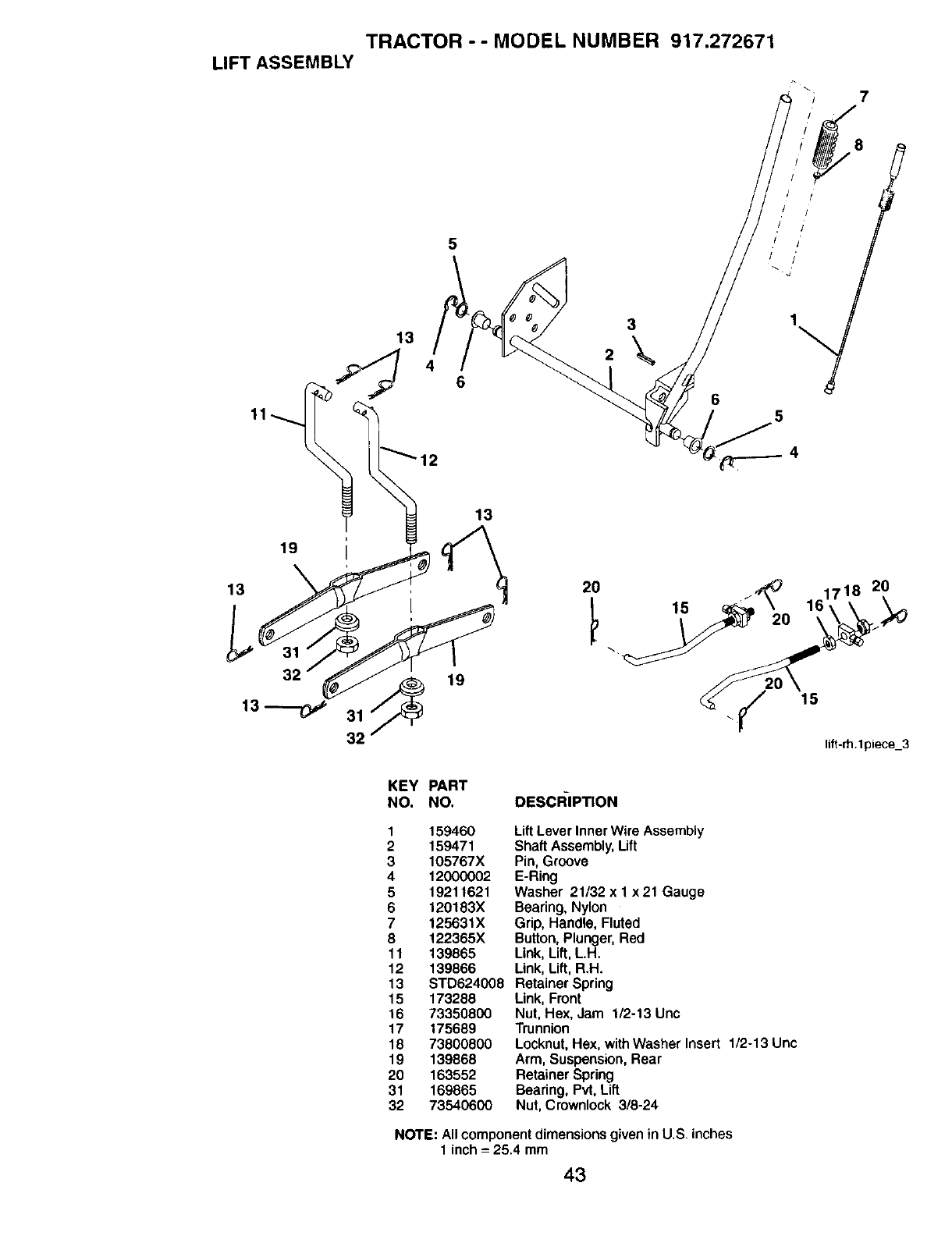

TRACTOR --MODEL NUMBER 917.272671

LIFT ASSEMBLY

7

11

13

5

46

3

2

19

13

32

13

19

2O 20

15

lifl-rh.1piece_3

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever Inner Wire Assembly

2 159471 Shaft Assembly, Lift

3 105767X Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1 x21 Gauge

6 120183X Bearing, Nylon

7 12563tX Grip, Handle, Fluted

8 122365X Button, Plunger, Red

11 139865 Link, Lift, LH.

12 139866 Link, Lift, R.H.

13 STD624008 Retainer Spring

15 173288 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 Unc

17 175689 Trunnion

18 73800800 Locknut, Hex, with Washer Insert 1/2-13 Unc

19 139868 Arm, Suspension, Rear

20 163552 Retainer Spring

31 169865 Bearing, Pvt, Lift

32 73540600 Nut, Crownlock 3/8-24

NOTE: All component dimensions given in U,S inches

1inch = 25.4 mm

43

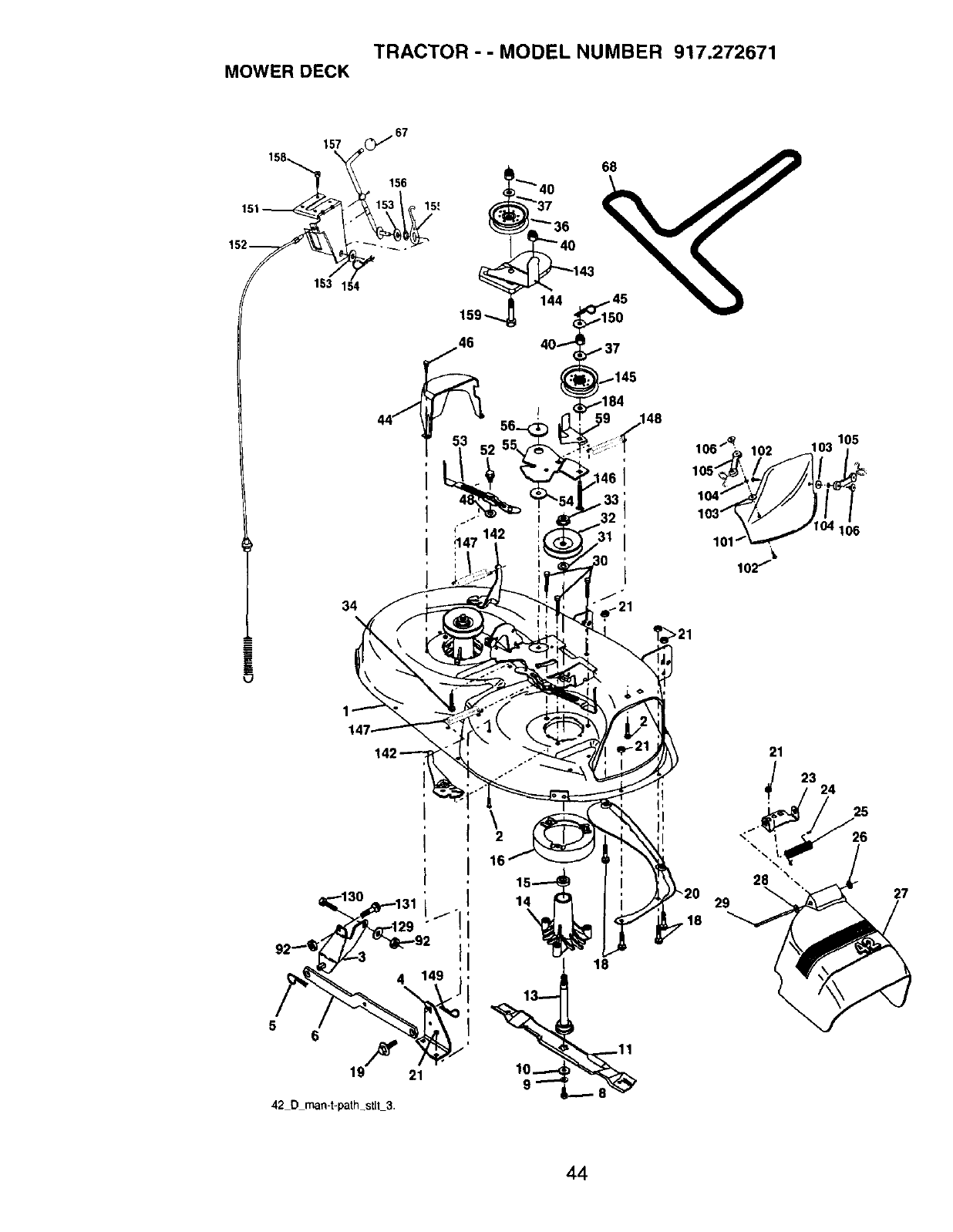

TRACTOR --MODEL NUMBER 917.272671

MOWER DECK

157

// 153

34

_147142

68

106 _- 102 103 105

lO3"_\h_ +/I /

\" _]im loe

101._"-

102/

\2

16

42 O man+t-path stlt 3.

14

\

18

21

28 ""

29 27

44

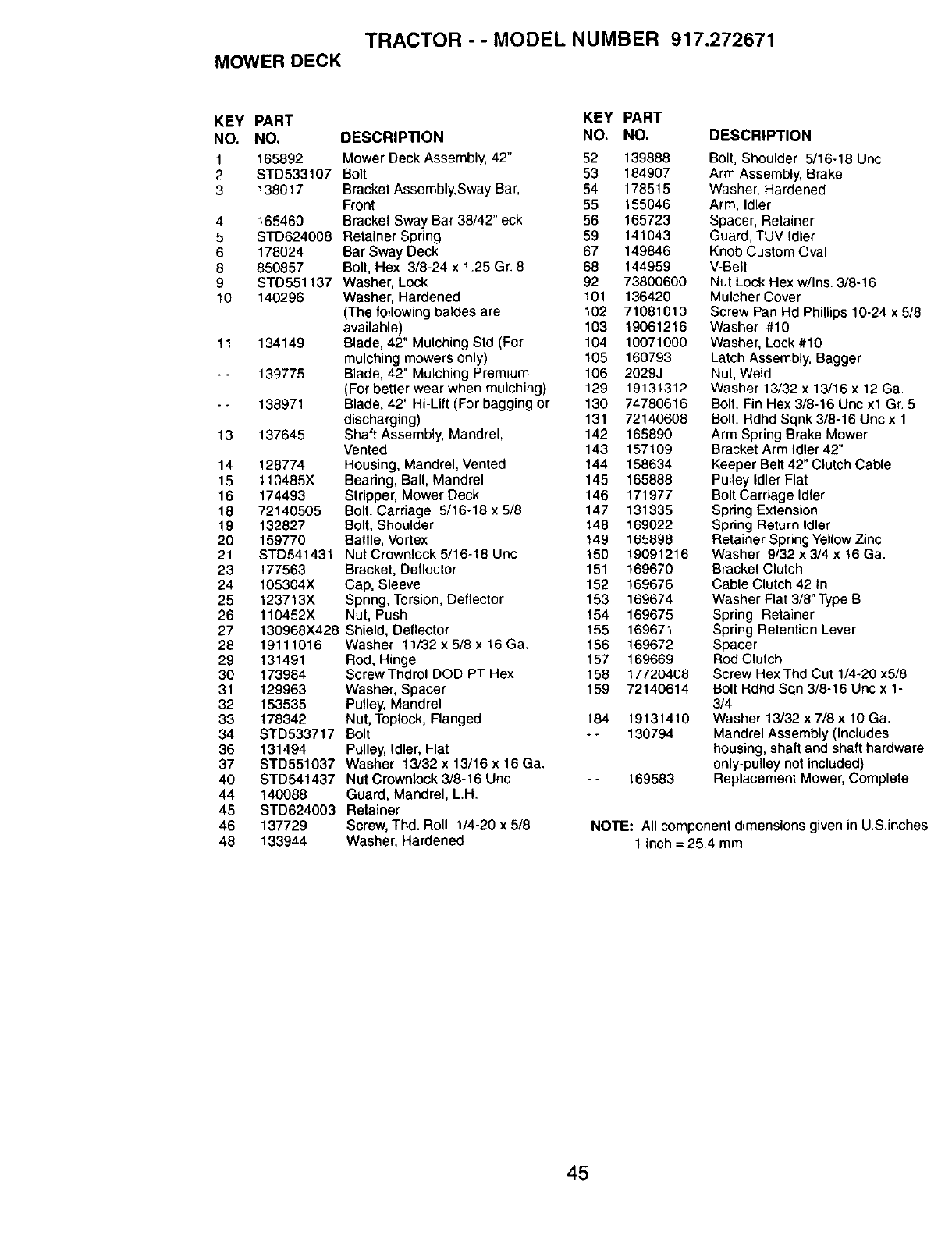

TRACTOR --MODEL NUMBER 917.272671

MOWER DECK

tl

13

14

15

16

18

19

20

21

23

24

25

26

27

28

29

3O

31

32

33

34

36

37

40

44

45

46

48

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 165892 Mower Deck Assembly, 42" 52 139888

2STD533107 Bolt 53 184907

3138017 Bracket Assembly, Sway Ba r, 54 178515

Front 55 155046

4 165460 Bracket Sway Bar 38/42" eck 56 165723

5 STD624008 Retainer Spring 59 141043

6 178024 Bar Sway Deck 67 149846

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 68 144959

9 STD551137 Washer, Lock 92 73800600

10 140296 Washer, Hardened 101 136420

(The following baldes are 102 71081010

available) 103 19061216

134149 Blade, 42" Mulching Std (For 104 10071000

mulching mowers only) 105 160793

139775 Blade, 42" Mulching Premium 106 2029J

(For better wear when mulching) 129 19131312

138971 Blade, 42" Hi-Lift (For bagging or 130 74780616

discharging) 131 72140608

137645 Shaft Assembly, Mandrel, 142 165890

Vented 143 157109

128774 Housing, Mandrel, Vented 144 158634

110485X Bearing, Ball, Mandrel 145 165888

174493 Stripper, Mower Deck 146 171977

72140505 Bolt, Carriage 5/16-18 x 5/8 147 131335

132827 Bolt, Shoulder 148 169022

159770 Baffle, Vortex t49 165898

STD541431 Nut Crownlock 5/16-18 Unc 150 19091216

177563 Bracket, Deflector 151 169670

105304X Cap, Sleeve 152 169676

123713X Spring, Torsion, Deflector 153 169674

110452X Nut, Push 154 169675

130968X428 Shield, Deflector 155 169671

19111016 Washer 11/32x5/Sx16Ga. 156 169672

131491 Rod, Hinge 157 169669

173984 Screw Thdrol DOD PT Hex 158 17720408

129963 Washer, Spacer 159 72140614

153535 Pulley, Mandrel

178342 Nut, Toplock, Flanged

STD533717 Bolt

131494 Pulley, Idler, Flat

STD551037 Washer 13/32 x 13/16 x 16 Ga.

STD541437 Nut Crowntock 3/8-16 Unc

140088 Guard, Mandrel, L.H.

STD624003 Retainer

137729 Screw, Thd. Roll 1/4-20 x 5/8

133944 Washer, Hardened

184 19131410

-- 130794

-- 169583

DESCRIPTION

Bolt, Shoulder 5/16-18 Unc

Arm Assembly, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Oval

V-Belt

Nut Lock Hex w/Ins. 3/8-16

Mulcher Cover

Screw Pan Hd Phillips 10-24 x 5/8

Washer #10

Washer, Lock #10

Latch Assembly, Bagger

Nut, Weld

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 Unc xl Gr. 5

Bolt, Rdhd Sqnk 3/8-16 Uric x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x t6 Ga.

Bracket Clutch

Cable Clutch 42 In

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut 1/4-20 x5/8

Bolt Rdhd Sqn 3/8-16 Unc x 1-

3/4

Washer 13/32 x 7/8 x 10 Ga.

Mandrel Assembly (Includes

housing, shaft and shaft hardware

only-pulley not included)

Replacement Mower, Complete

NOTE: All component dimensions given in U.S.inches

t inch = 25.4 mm

45

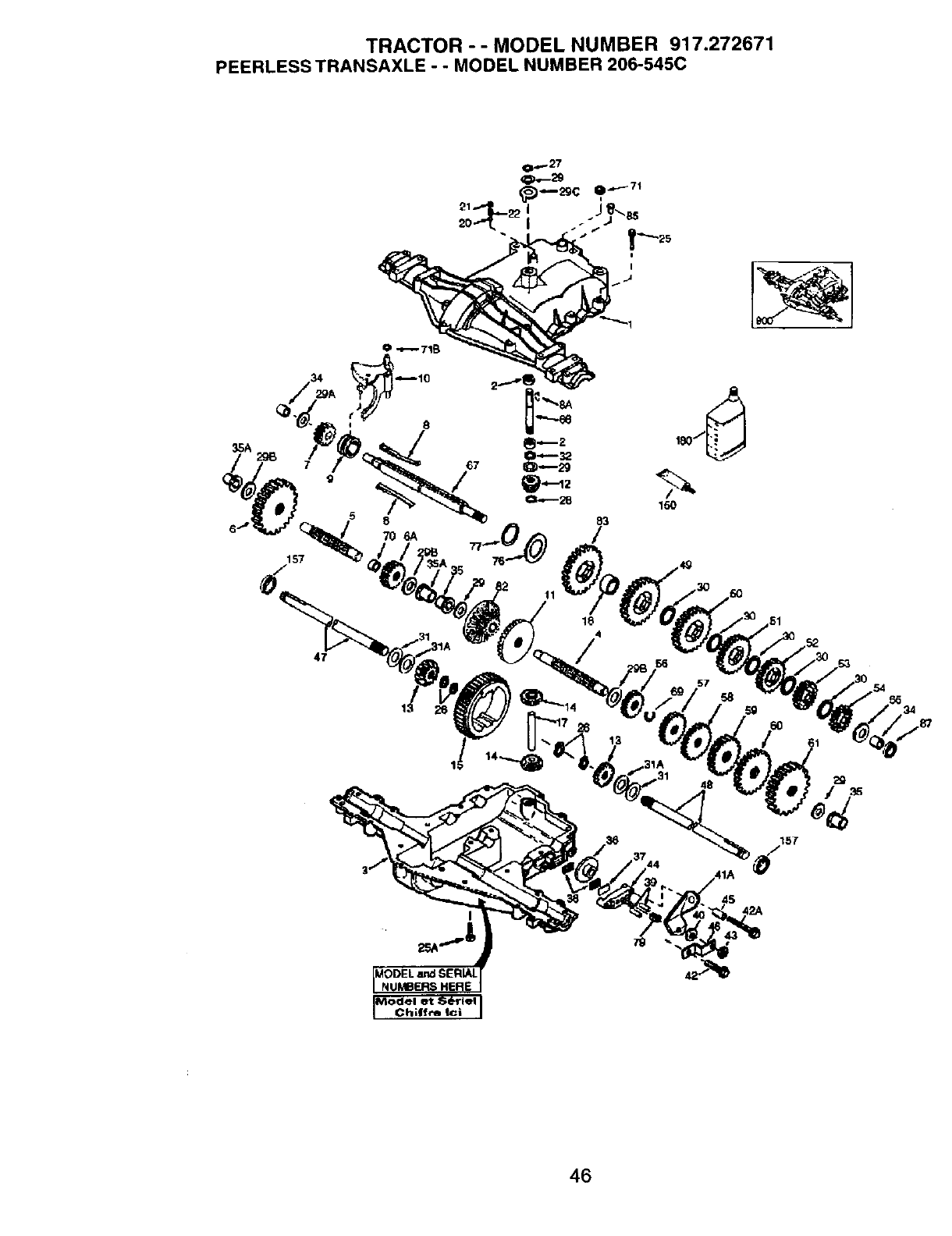

TRACTOR --MODEL NUMBER 917.272671

PEERLESS TRANSAXLE -- MODEL NUMBER 206-545C

g

47

5 8 83

18 4

/

150

157

41A _'/

42A

Model _t S6Flel

IChi|fra|cl I

46

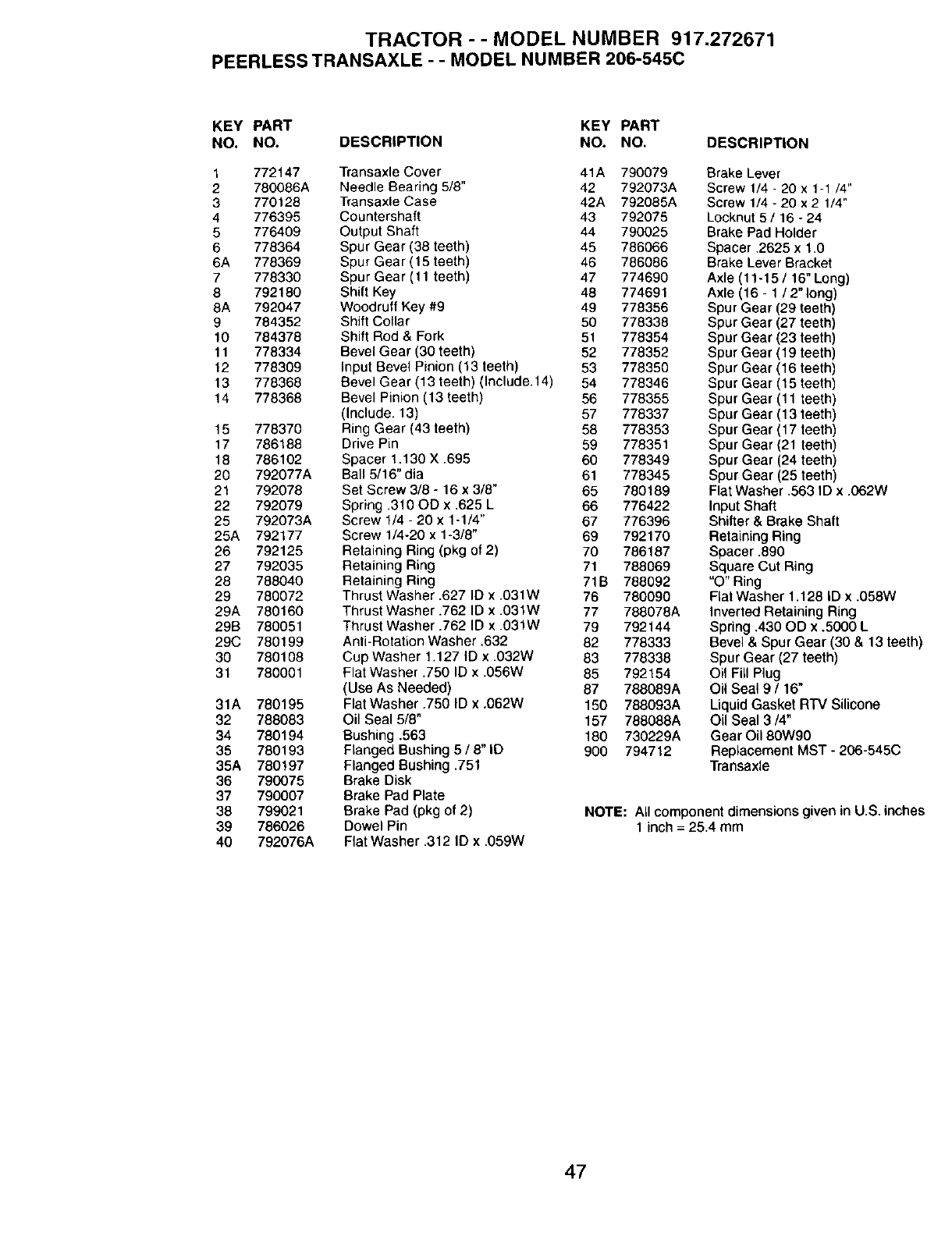

TRACTOR -- MODEL NUMBER 917.272671

PEERLESS TRANSAXLE - - MODEL NUMBER 206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1772147 Transaxle Cover 41A 790079

2 780086A Needle Bearing 5/8" 42 792073A

3 770128 Transaxle Case 42A 792085A

4 776395 Countershaft 43 792075

5 776409 Output Shaft 44 790025

6 778364 Spur Gear (38 teeth) 45 786066

6A 778369 Spur Gear (t 5 teeth) 46 786086

7 778330 Spur Gear (11 teeth) 47 774690

8 792180 Shift Key 48 774691

8A 792047 Woodruff Key #9 49 778356

9 784352 Shift Collar 50 778338

10 784378 Shift Rod & Fork 51 778354

11 778334 Bevel Gear (30 teeth) 52 778352

12 778309 Input Bevel Pinion (13 teeth) 53 778350

13 778368 Bevel Gear (13 teeth) (Include.14) 54 778346

14 778368 Bevel Pinion (13 teeth) 56 778355

(Include. 13) 57 778337

15 778370 Ring Gear (43 teeth) 58 778353

17 786188 Drive Pin 59 778351

18 786102 Spacer 1.130 X .695 60 778349

20 792077A Ball 5/16" dia 61 778345

21 792078 Set Screw 3/8 - 16 x 3/8" 65 780189

22 792079 Spring .310 OD x ,625 L 66 776422

25 792073A Screw 1/4 - 20 x 1-1/4" 67 776396

25A 792177 Screw 1/4-20 x 1-3/8" 69 792170

26 792125 Retaining Ring (pkg of 2) 70 786187

27 792035 Retaining Ring 71 788069

28 788040 Retaining Ring 71B 788092

29 780072 Thrust Washer .627 ID x .031W 76 780090

29A 780160 Thrust Washer .762 ID x .031W 77 788078A

29B 780051 Thrust Washer .762 ID x .031W 79 792144

29C 780199 Anti-Rotation Washer.632 82 778333

30 780108 Cup Washer 1.127 ID x .032W 83 778338

31 780001 Flat Washer .750 ID x .056W 85 792154

(Use As Needed) 87 788089A

31A 780195 Flat Washer.750 ID x .062W 150 788093A

32 788083 Oil Seal 5/8" 157 788088A

34 780194 Bushing .563 180 730229A

35 780193 Flanged Bushing 5 /8" ID 900 794712

35A 780197 Flanged Bushing ,751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 799021 Brake Pad (pkg of 2)

39 786026 Dowel Pin

40 792076A Flat Washer .312 ID x .059W

Brake Lever

Screw 1/4 - 20 x 1-1 /4"

Screw 1/4 - 20 x 21/4"

Locknut 5/16 - 24

Brake Pad Holder

Spacer ,2625 x 1.0

Brake Lever Bracket

Axle (11-15 /16" Long)

Axle (16 - 1 /2" long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth)

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

Flat Washer .563 ID x .062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cut Ring

"O" Ring

Flat Washer 1.128 ID x.058W

Inverted Retaining Ring

Spring ,430 OD x .5000 L

Bevel & Spur Gear (30 & 13 teeth)

Spur Gear (27 teeth)

Oil Fill Plug

Oil Seal 9116"

Liquid Gasket RTV Silicone

Oil Seal 314"

Gear Oil 80W90

Replacement MST - 206-545C

Transaxle

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

47

TRACTOR --MODEL NUMBER 917.272671

BRIGGS ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

2

358 ENGINE GASKET SET

12

868

943 O

q 1019 LABEL KIT ]

!10_OWNER'SMANUALI

[ 1036 EMISSION LABEL ]

15g

24

43_t

741 (_)

584_ j_'

1264_

12

48

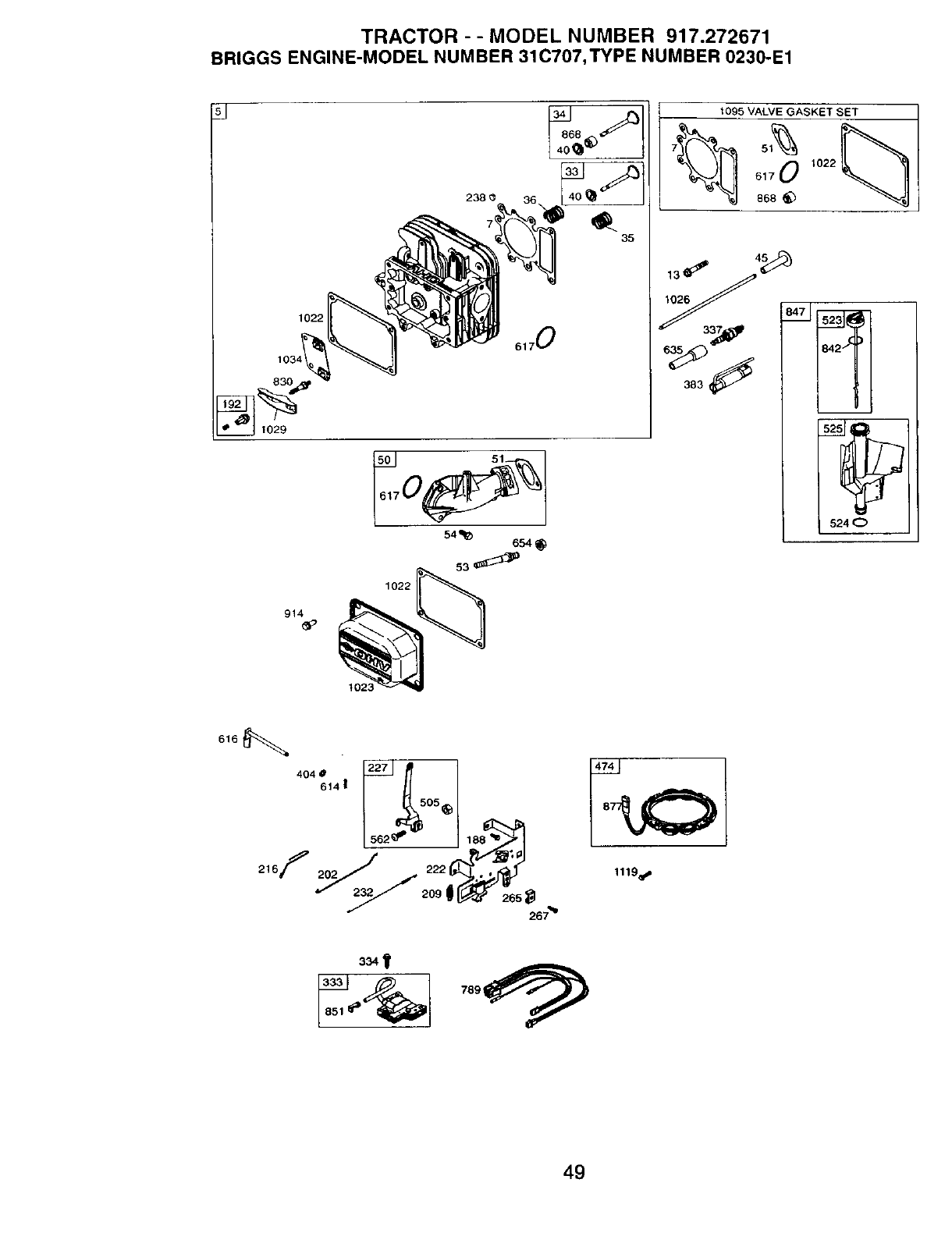

TRACTOR - - MODEL NUMBER 917.272671

BRIGGS ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

1022

1034

830

914

35

54q1_ 654

53_

1022

t095 VALVE GASKET SET

617 O 1022

e68

524 0

t023

616

267 _'

1119_

334i

49

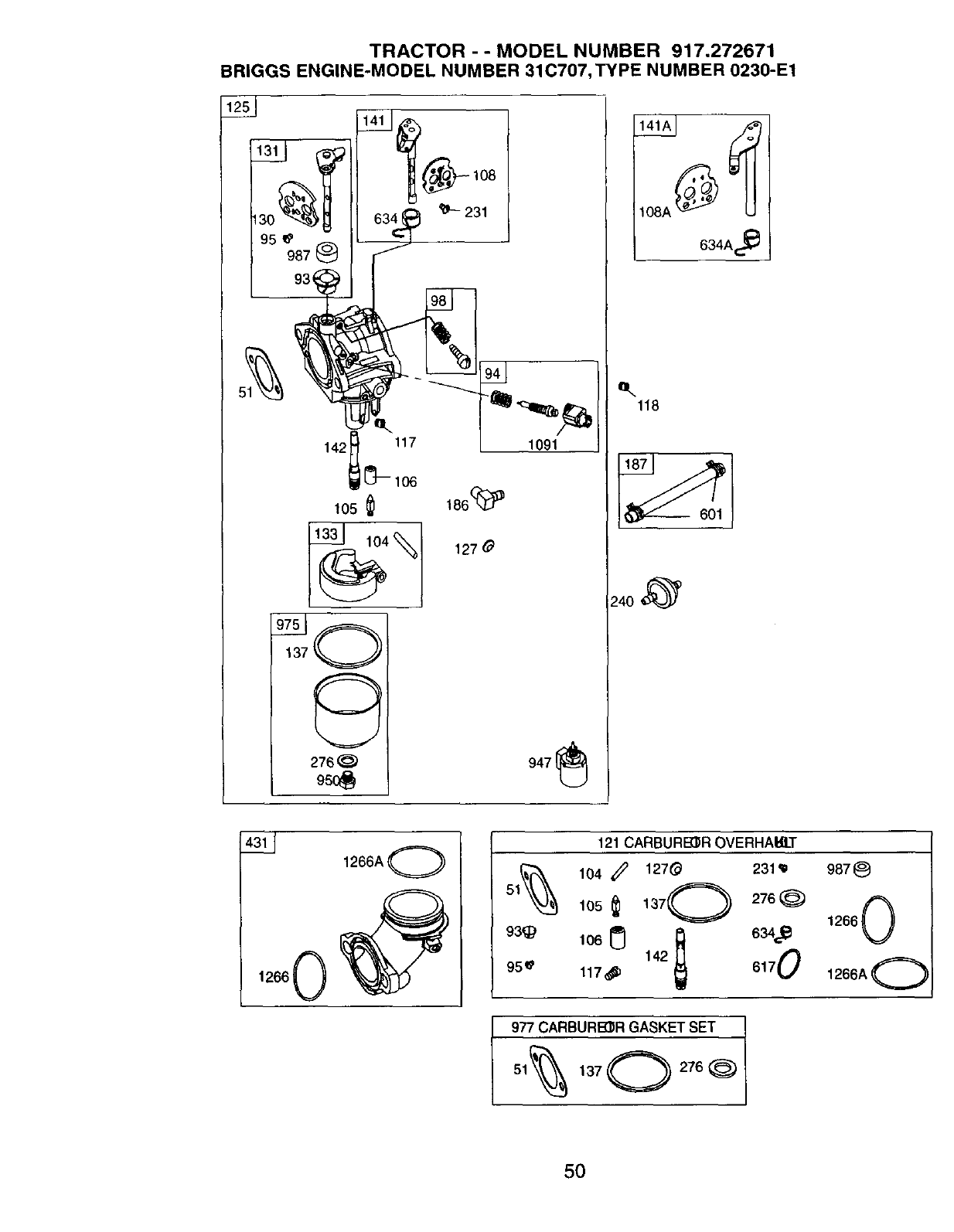

TRACTOR - -MODEL NUMBER 917.272671

BRIGGS ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

1091

127

108A_

634A_

118

1266AQ

1266 0

121 CARBURB3_ROVERHAIg-T

104 _ 127_ 231_

51 276(_

105 _ 137

634.e

93_;_ 106 {_ 142 6170

95e 117_

987_

1266 0

1266AQ

977 CARBURE]_RGASKET SET

50

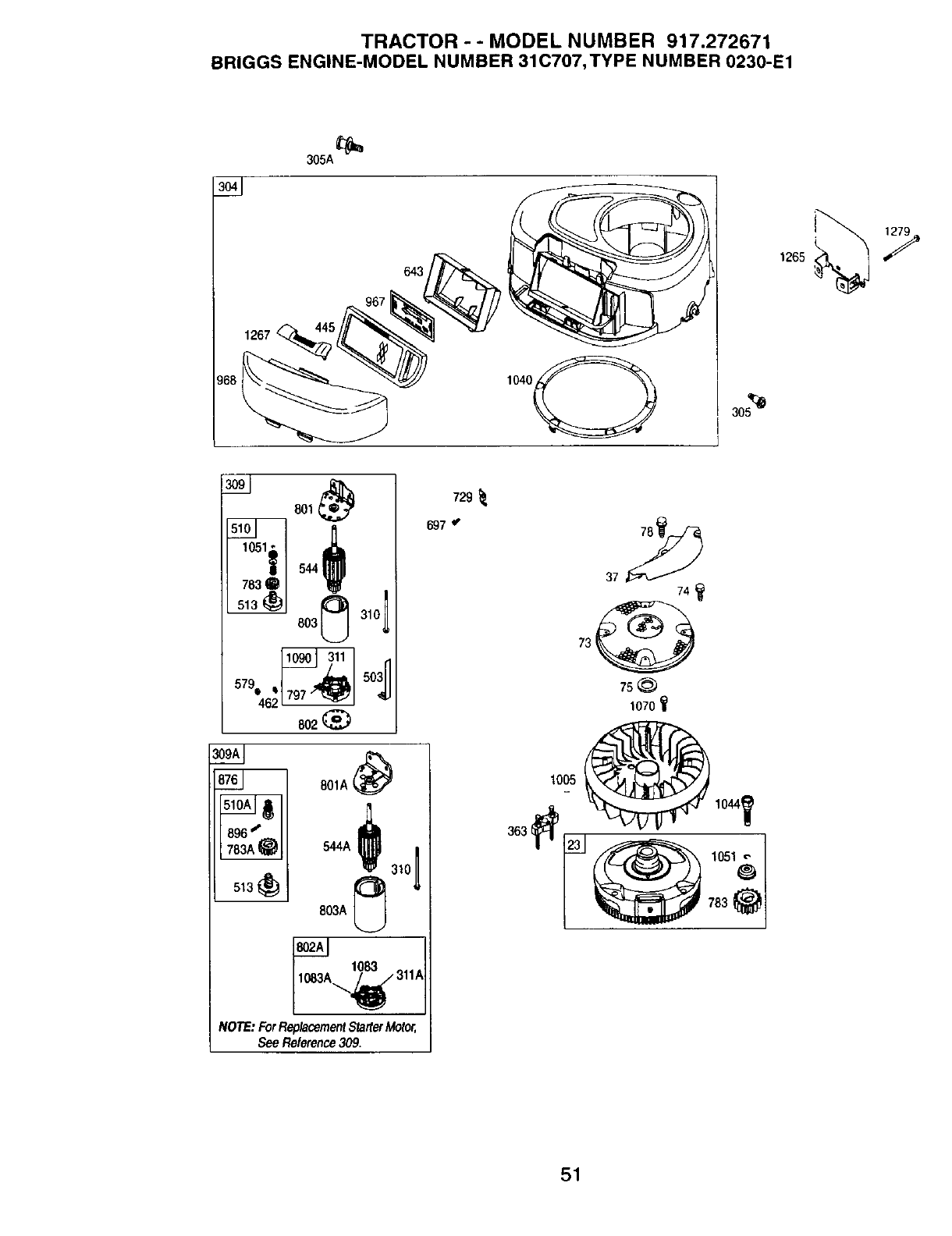

TRACTOR - - MODEL NUMBER 917.272671

BRIGGS ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

t_

305A

1267

643

10400

309_ 801

803_ 3101

802 (_

8Ol,

s13® 31°1

803A

1083 311A

NOTE:ForReplacementStarterMotor,

SeeReference309.

697 ,e

74

75@

1070

t005

1044_

1051&

51

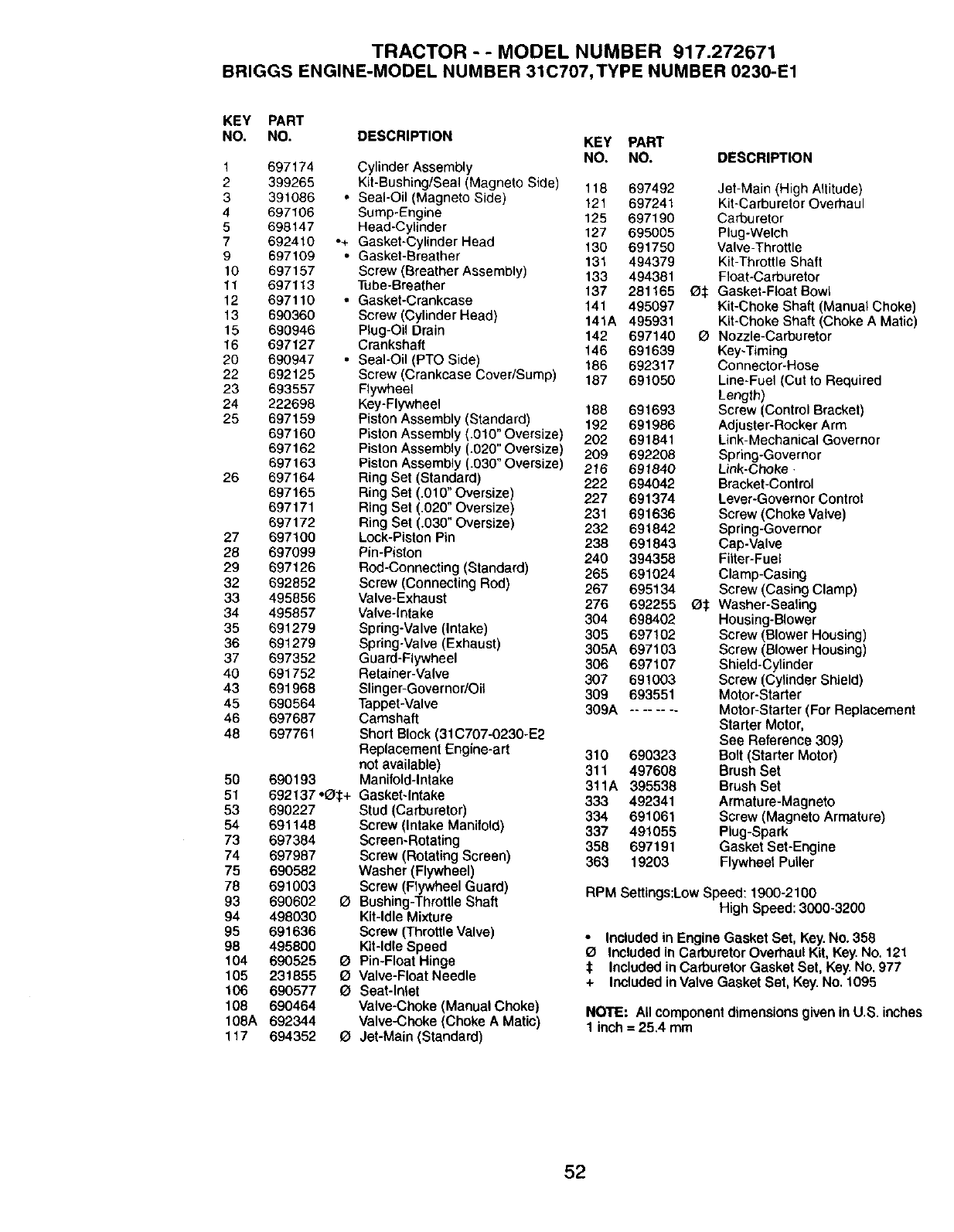

TRACTOR - - MODEL NUMBER 917.272671

BRIGGS ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

KEY PART

NO. NO. DESCRIPTION

1 697174

2 399265

3 391086

4 697106

5 698147

7692410

9 697109

10 697157

11 697113

12 697110

13 690360

15 690946

16 697127

20 690947

22 692125

23 693557

24 222698

25 697159

697160

697162

697163

26 697164

697165

697171

697172

27 697100

28 697099

29 697126

32 692852

33 495856

34 495857

35 691279

36 691279

37 697352

4O 691752

43 691968

45 690564

46 697687

48 697761

o÷

50 690193

51 692137,_+

53 690227

54 691148

73 697384

74 697987

75 690582

78 691003

93 690602 O

94 498030

95 691636

98 495800

104 690525 O

105 231855 O

106 690577 Q

108 690464

108A 692344

117 694352 O

Cylinder Assembly

Kit-Bushing/Seal (Magneto Side) 118 697492

Seal-Oil (Magneto Side) 121 697241

Sump-Engine 125 697190

Head-Cylinder 127 695005

Gasket-Cylinder Head 130 691750

Gasket-Breather 131 494379

Screw (Breather Assembly) 133 494381

Tube-Breather 137 281165

Gasket-Crankcase 141 495097

Screw (Cylinder Head) 141A 495931

Plug-Oil Drain 142 697140

Crankshaft 146 691639

Seal-Oil (PTO Side) 186 692317

Screw (Crankcase Cover/Sump) 187 691050

Flywheel

Key-Flywheel 188 691693

Piston Assembly (Standard) 192 691986

Piston Assembly (.010" Oversize) 202 691841

Piston Assembly (.020" Oversize) 209 692208

Piston Assembly (.030" Oversize) 215 691840

Ring Set (Standard) 222 694042

Ring Set (.010" Oversize) 227 691374

Ring Set (.020" Oversize) 231 691636

Ring Set (.030" Oversize) 232 691842

Lock-Piston Pin 238 691843

Pin-Piston 240 394358

Rod-Connecting (Standard) 265 691024

Screw (Connecting Rod) 267 695134

Valve-Exhaust 276 692255

Valve-intake 304 698402

Spring-Valve (intake) 305 697102

Spring-Valve (Exhaust) 305A 697103

Guard-Flywheel 306 697107

Retainer-Valve 307 691003

Slinger-Governor/Oil 309 693551

Tappet-Valve 309A ........

Camshaft

Short Block (31C707-0230-E2

Replacement Engine-art 310 690323

not available) 311 497608

Manifold-Intake 311A 395598

Gasket-Intake 333 492341

Stud (Carburetor) 334 691061

Screw (intake Manifold) 337 491055

Screen-Rotating 358 697191

Screw (Rotating Screen) 363 19203

Washer (Flywheel)

Screw (Flywheel Guard)

Bushing-Throttle Shaft

Kit-Idle Mixture

Screw (Throttle Valve)

Kit-Idle Speed

Pin-Float Hinge

Valve-Float Needle

Seat-Inlet

Valve-Choke (Manual Choke)

Valve-Choke (Choke A Matic)

Jet-Main (Standard)

KEY PART

NO. NO. DESCRIPTION

o$

Q

o:r

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Carburetor

Plug-Welch

Valve-Throttle

Kit-Throttle Shaft

Float-Carburetor

Gasket-Float Bowl

Kit-Choke Shaft (Manual Choke)

Kit-Choke Shaft (Choke A Matic)

Nozzle-Carburetor

Key-Timing

Connector-Hose

Line-Fuel (Cut to Required

Length)

Screw (Control Bracket)

Adjuster-Rocker Arm

Link-Mechanical Governor

Spring-Governor

Link-Choke

Bracket-Control

Lever-Governor Control

Screw (Choke Valve)

Spring-Governor

Cap-Valve

Filter-Fuel

Clamp-Casing

Screw (Casing Clamp)

Washer-Sealing

Housing-Blower

Screw (Blower Housing)

Screw (Blower Housing)

Shield-Cylinder

Screw (Cylinder Shield)

Motor-Starter

Motor-Starter (For Replacement

Starter Motor,

See Reference 309)

Bolt (Starter Motor)

Brush Set

Brush Set

Armature-Magneto

Screw (Magneto Armature)

Plug-Spark

Gasket Set-Engine

Flywheel Puller

RPM Settings:Low Speed: 1900-2100

High Speed: 3000-3200

_IncludedinEngineGasketSet, Key.No.358

IncludedinCarburetor Overhaul Kit, Key No. 121

:_ IncludedinCarburetorGasketSet, Key.No.977

+ IncludedinValveGasketSet, Key.No. 1095

NOTE: All componentdimensions given inU.S. inches

1 inch= 25,4 mm

52

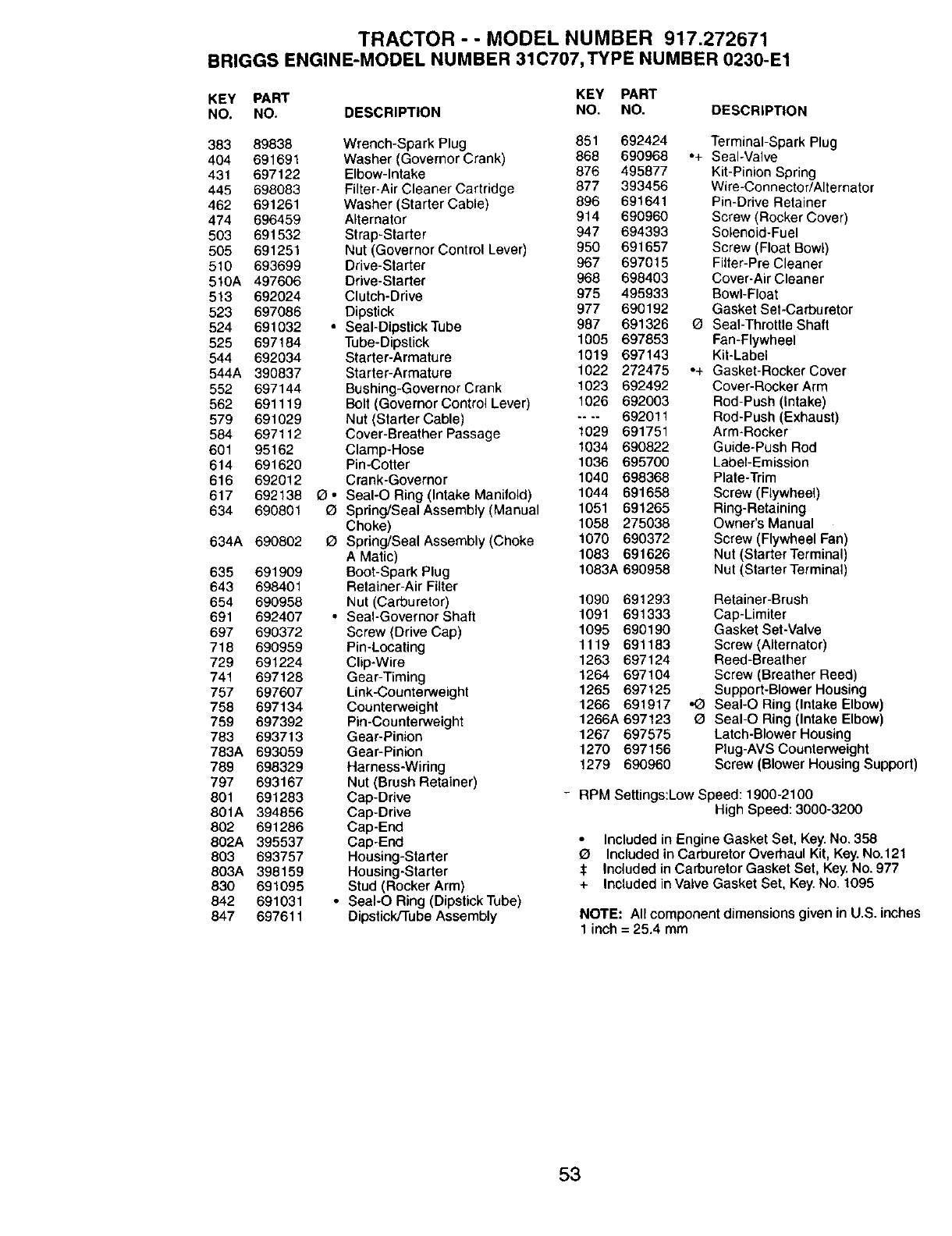

TRACTOR - - MODEL NUMBER 917.272671

BRIGGS ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

383 89838 Wrench-Spark Plug

404 691691 Washer (Governor Crank)

431 697122 Elbow-Intake

445 698083 Filter-Air Cleaner Cartridge

462 691261 Washer (Starter Cable)

474 696459 Alternator

503 691532 Strap-Starter

505 691251 Nut (Governor Control Lever)

510 693699 Drive-Starter

5t0A 497606 Drive-Starter

513 692024 Clutch-Drive

523 697086 Dipstick

524 691032 •Seal-Dipstick Tube

525 697184 Tube-Dipstick

544 692034 Starter-Armature

544A 390837 Starter-Armature

552 697144 Bushing-Governor Crank

562 691119 Bolt (Governor Control Lever)

579 691029 Nut (Starter Cable)

584 697112 Cover-Breather Passage

601 95162 Clamp-Hose

614 691620 Pin-Cotter

616 692012 Crank-Governor

617 692138 O •SeaI-O Ring (Intake Manifold)

634 690801 _ Spring/Seal Assembly (Manual

Choke)

634A 690802 O Spring/Seal Assembly (Choke

A Matic)

635 691909 Boot-Spark Plug

643 698401 Retainer-Air Filter

654 690958 Nut (Carburetor)

691 692407 • Seal-Governor Shaft

697 690372 Screw (Drive Cap)

718 690959 Pin-Locating

729 691224 Clip-Wire

741 697128 Gear-Timing

757 697607 Link-Counterweight

758 697134 Counterweight

759 697392 Pin-Counterweight

783 693713 Gear-Pinion

783A 693059 Gear-Pinion

789 698329 Harness-Wiring

797 693167 Nut (Brush Retainer)

801 691283 Cap-Drive

801A 394856 Cap-Drive

802 691286 Cap-End

802A 395537 Cap-End

803 693757 Housing-Starter

803A 398159 Housing-Starter

830 691095 Stud (Rocker Arm)

842 691031 °SeaI-O Ring (Dipstick Tube)

847 697611 Dipstick/Tube Assembly

851 692424 Terminal-Spark Plug

868 690968 °+ Seal-Valve

876 495877 Kit-Pinion Spring

877 393456 Wire-Connector/Alternator

896 691641 Pin-Drive Retainer

914 690960 Screw (Rocker Cover)

947 694393 Solenoid-Fuel

950 691657 Screw (Float Bowl)

967 697015 Filter-Pre Cleaner

968 698403 Cover-Air Cleaner

975 495933 Bowl-Float

977 690192 Gasket Set-Carburetor

987 691326 13 Seal-Throttle Shaft

1005 697853 Fan-Flywheel

1019 697143 Kit-Label

1022 272475 °+ Gasket-Rocker Cover

1023 692492 Cover-Rocker Arm

1026 692003 Rod-Push (Intake)

.... 692011 Rod-Push (Exhaust)

1029 691751 Arm-Rocker

1034 690822 Guide-Push Rod

1036 695700 Label-Emission

1040 698368 Plate-Trim

1044 691658 Screw (Flywheel)

1051 691265 Ring-Retaining

1058 275038 Owner's Manual

1070 690372 Screw (Flywheel Fan)

1083 691626 Nut (StarterTerminal)

1083A 690958 Nut (Starter Terminal)

1090 691293

1091 691333

1095 690190

1119 691183

1263 697124

1264 697104

1265 697125

1266 691917

1266A 697123

1267 697575

1270 697156

1279 690960

.e

o

Retainer-Brush

Cap-Limiter

Gasket Set-Valve

Screw (Alternator)

Reed-Breather

Screw (Breather Reed)

Support-Blower Housing

SeaI-O Ring (Intake Elbow)

SeaI-O Ring (Intake Elbow)

Latch-Blower Housing

Plug-AVS Counterweight

Screw (Blower Housing Support)

RPM Settings:Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No.121

:1: Included in Carburetor Gasket Set, Key. No. 977

+ Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

53

54

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ol

ol

15 DEGREES MAX.

t _ WARNING: To avoid serious injury, operate your tractor up and

"A down the face of slopes, never across the face, Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control, Exercise extreme caution when

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4, Compare the angle of the fold with the slope of the hill.

Get it fixed, at your home or ourst

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(I-888-784-642"/)

Au Canada pour service en francis:

1-800-LE-FOYER ic

(1-800-5.33-6937)

www.sears.ca

......8E/.41R8

©Sears,RoebuckandCO

® Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /_MMama de Fdbdca /SMMama de Servicio de Sears, Roebuck and Co.

MC MO

Marque de commerce /Marque d_posde de Sears, Roebuck and Co

187741 04.08.03 TR Printed in U.S.A.
