Owner's Manual

(RI:IFTSMI:IN"

24.0 HP

ELECTRIC START

50" MOWER

AUTOMATIC

GARDEN TRAC'I' R

Model No.

917.273220

• Safety

•Assembly

• Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment,

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am- 5 pro, Mon- Sat

Sears, Roebuck.and Co., Hoffman Estates, IL 60179

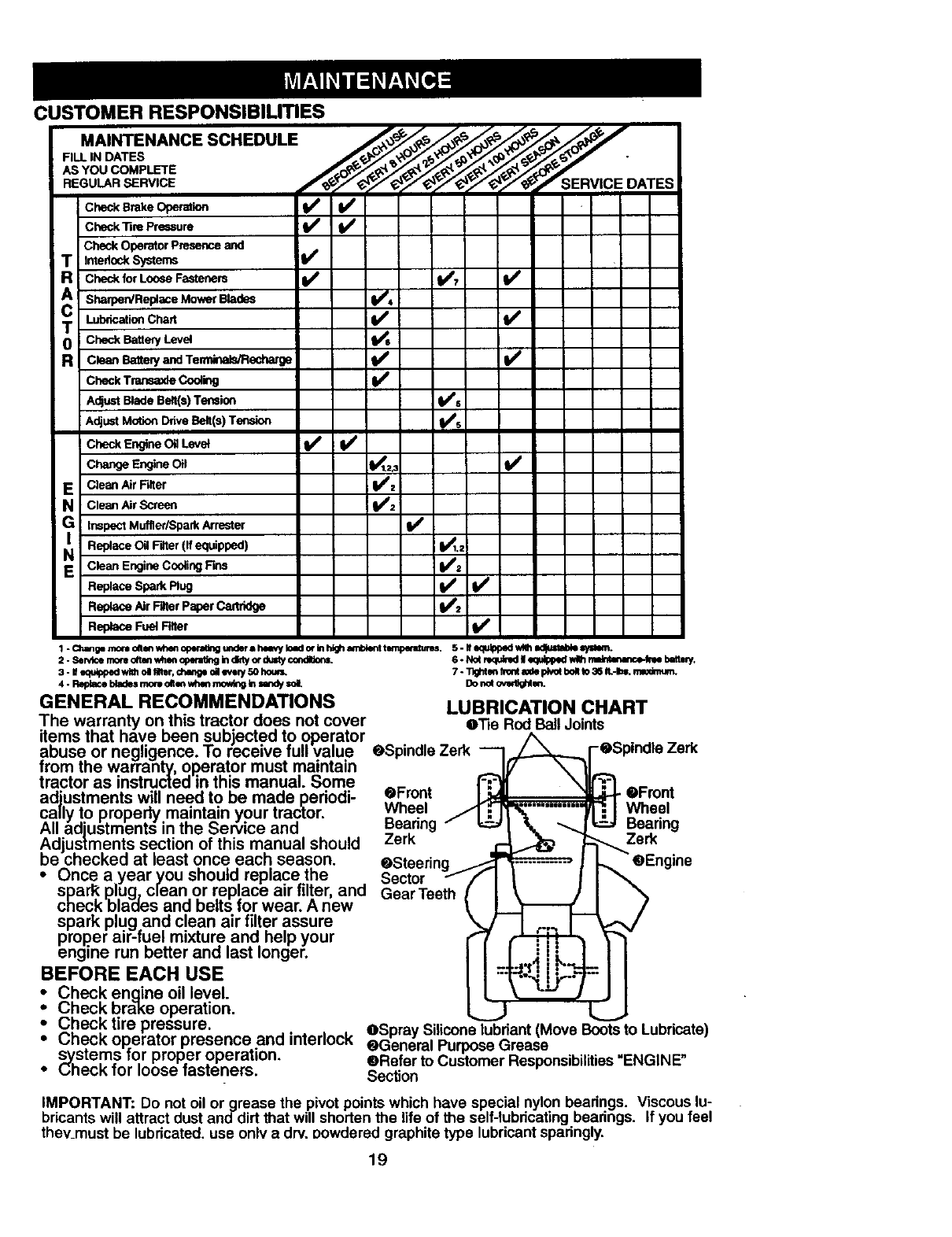

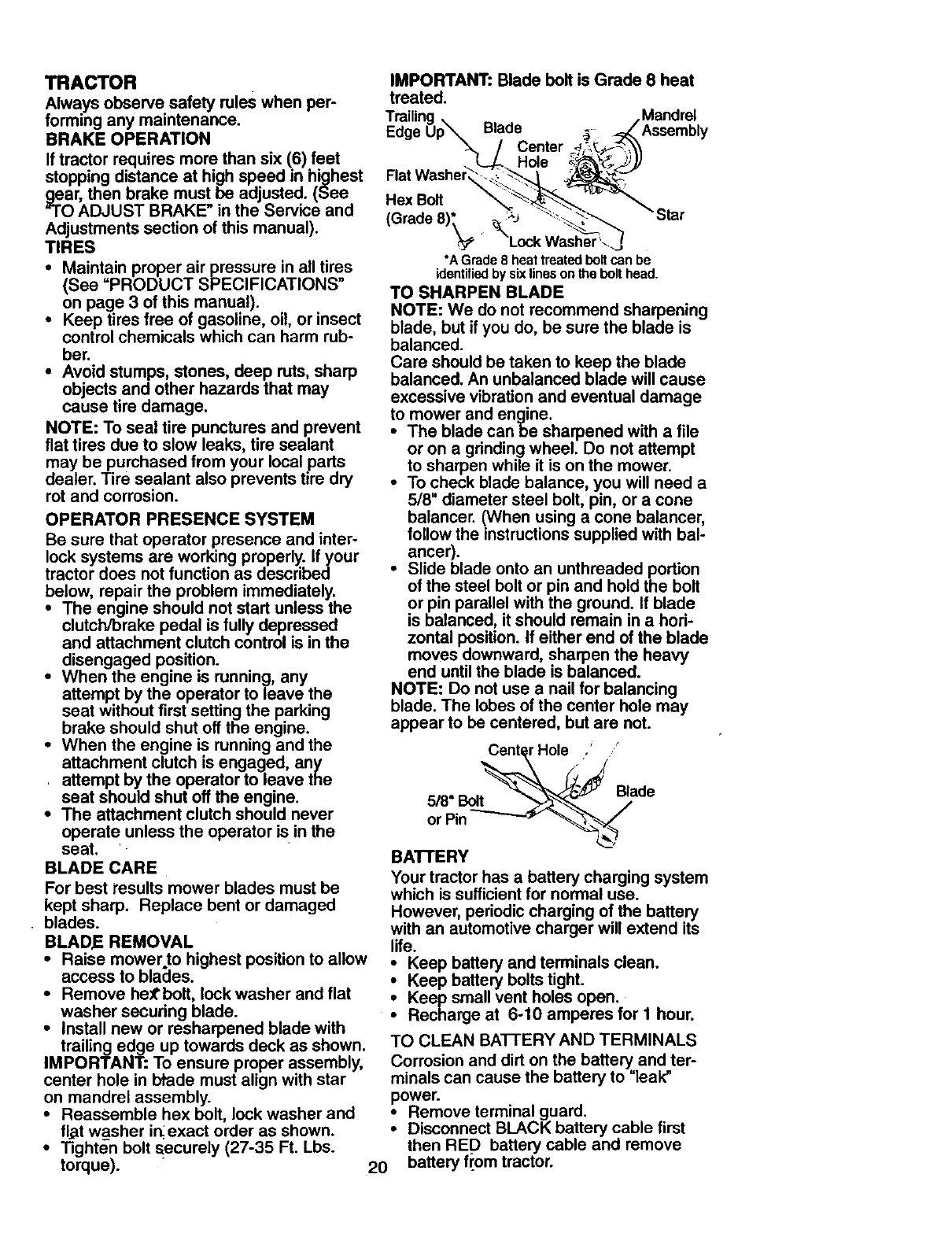

Maintenance ......................................... 19

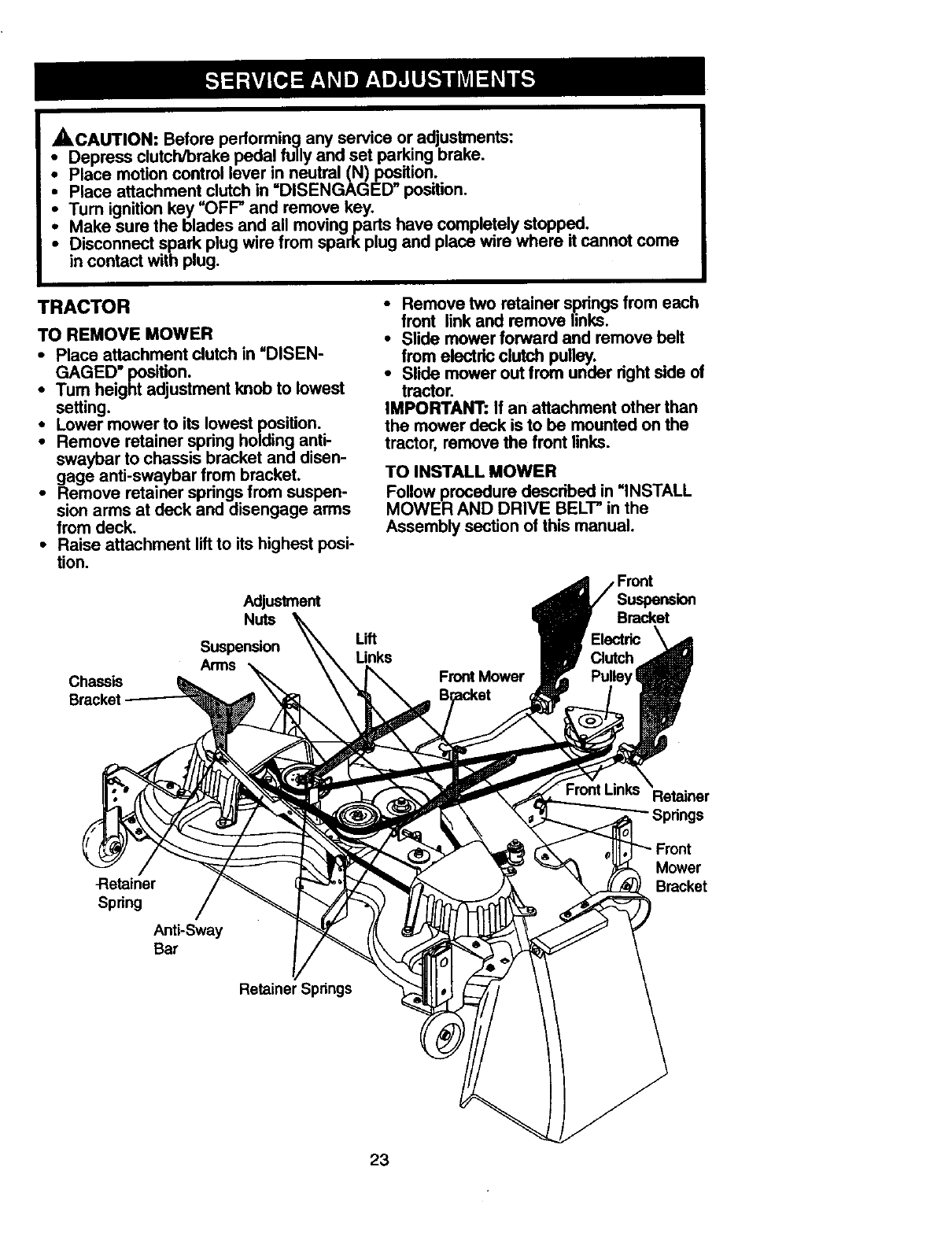

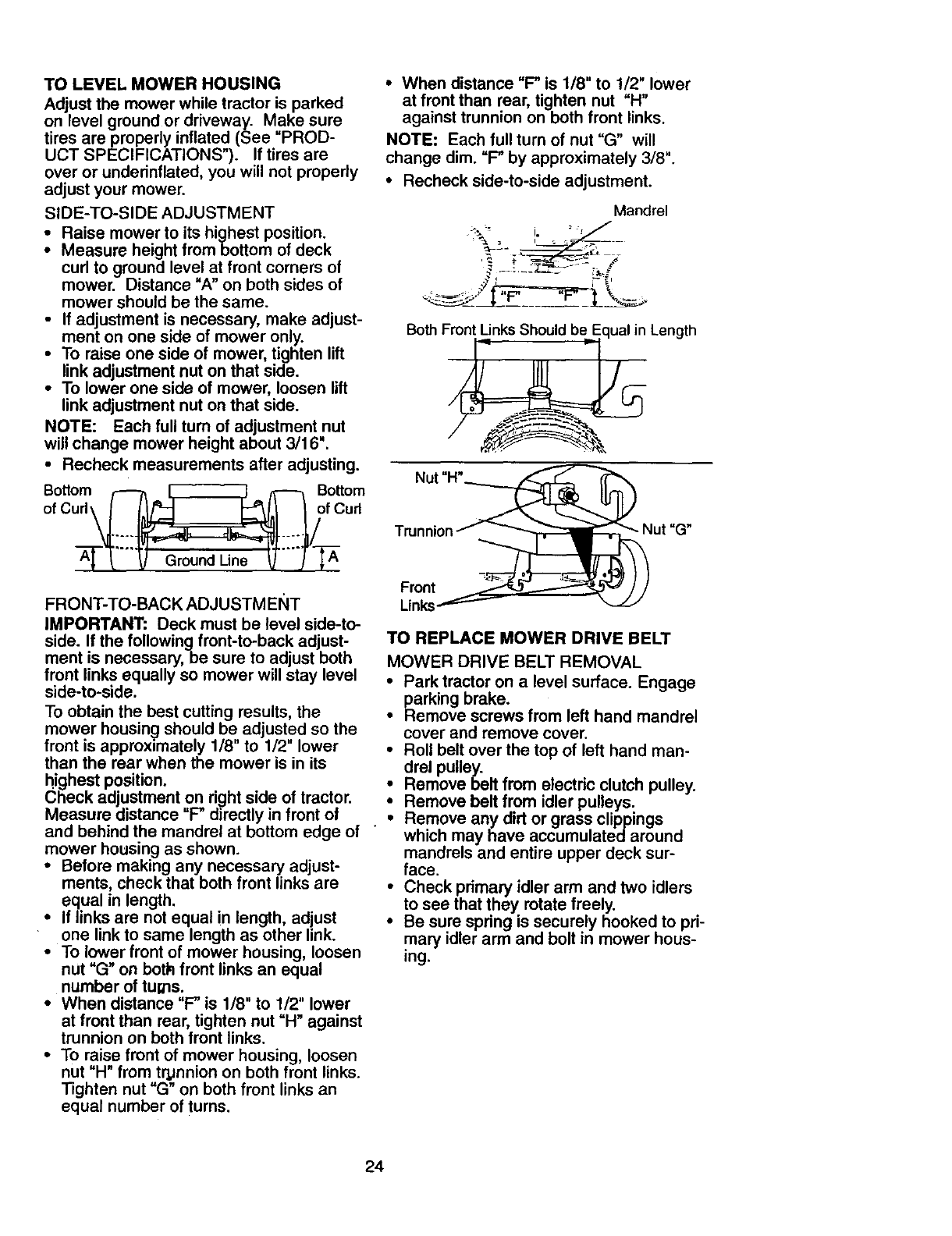

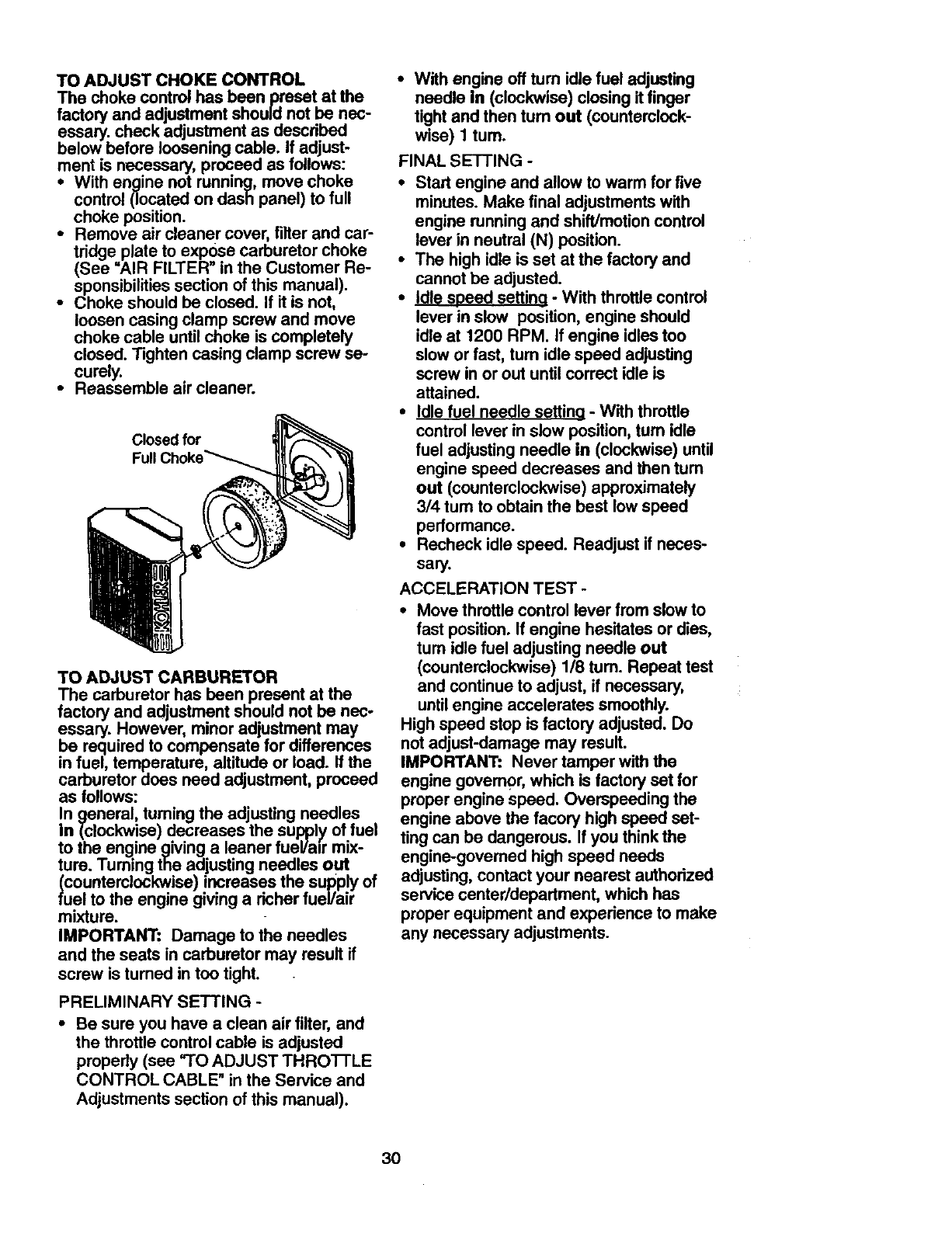

Service and Adjustments ...................... 23

Storage ................................................. 31

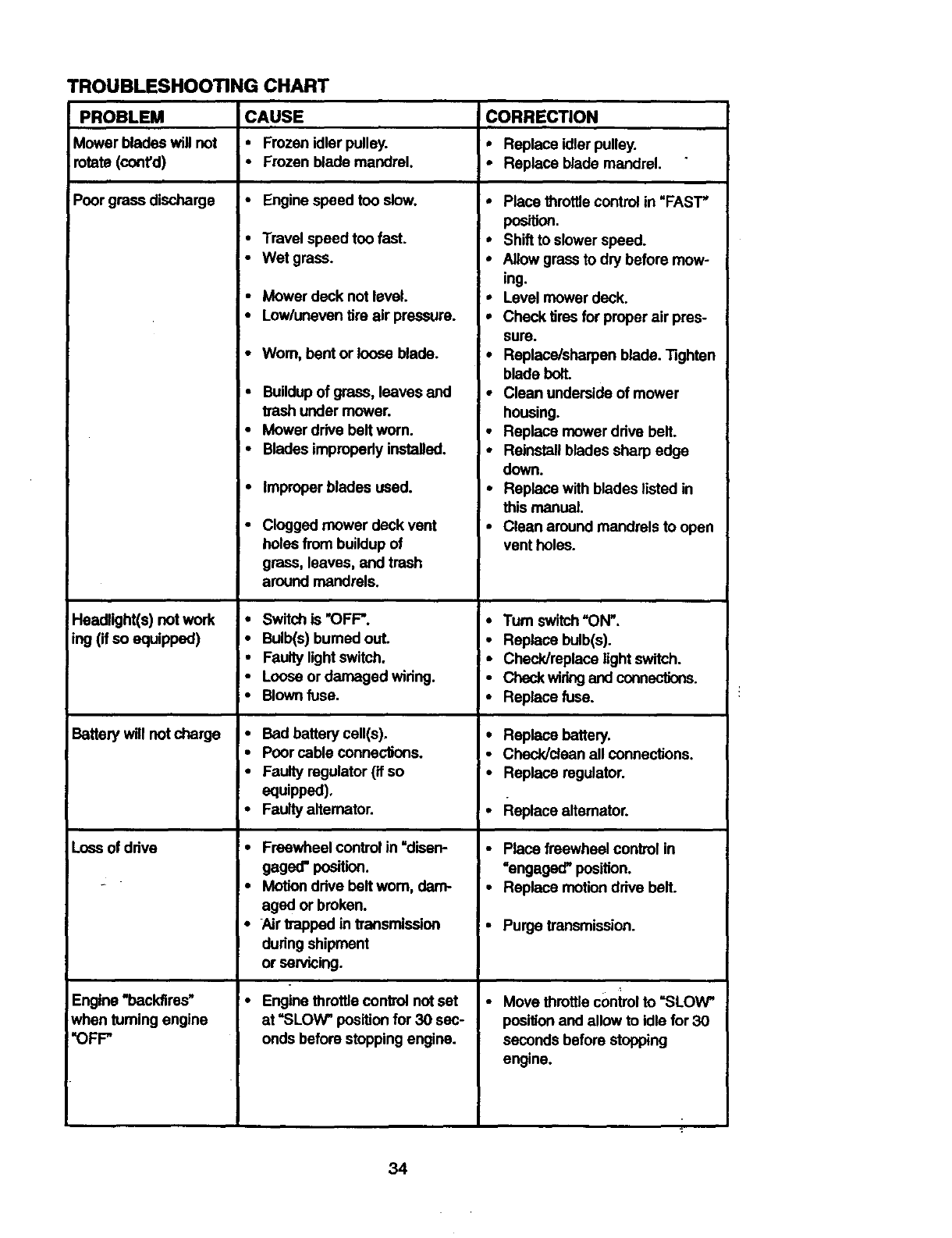

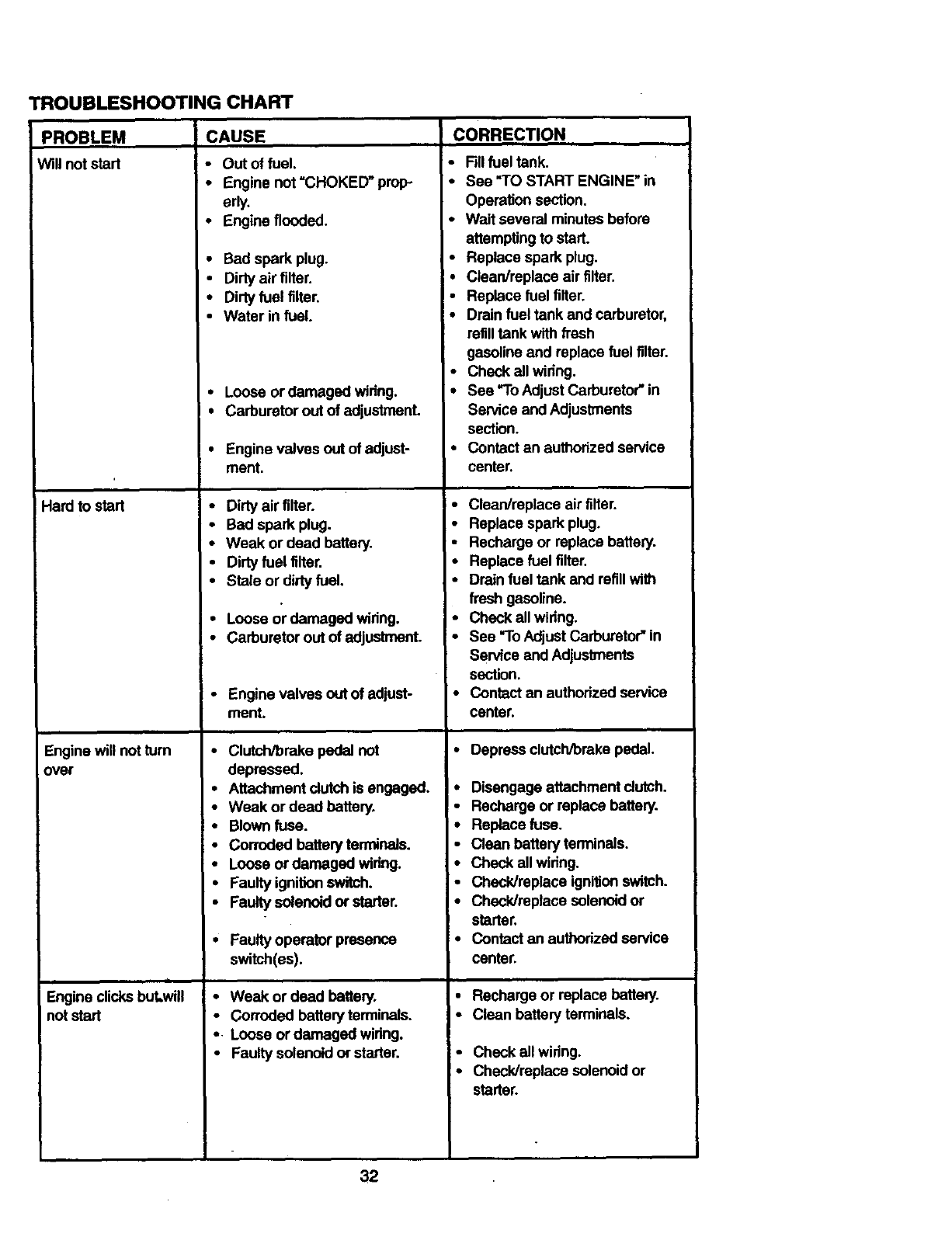

Troubleshooting .................................... 32

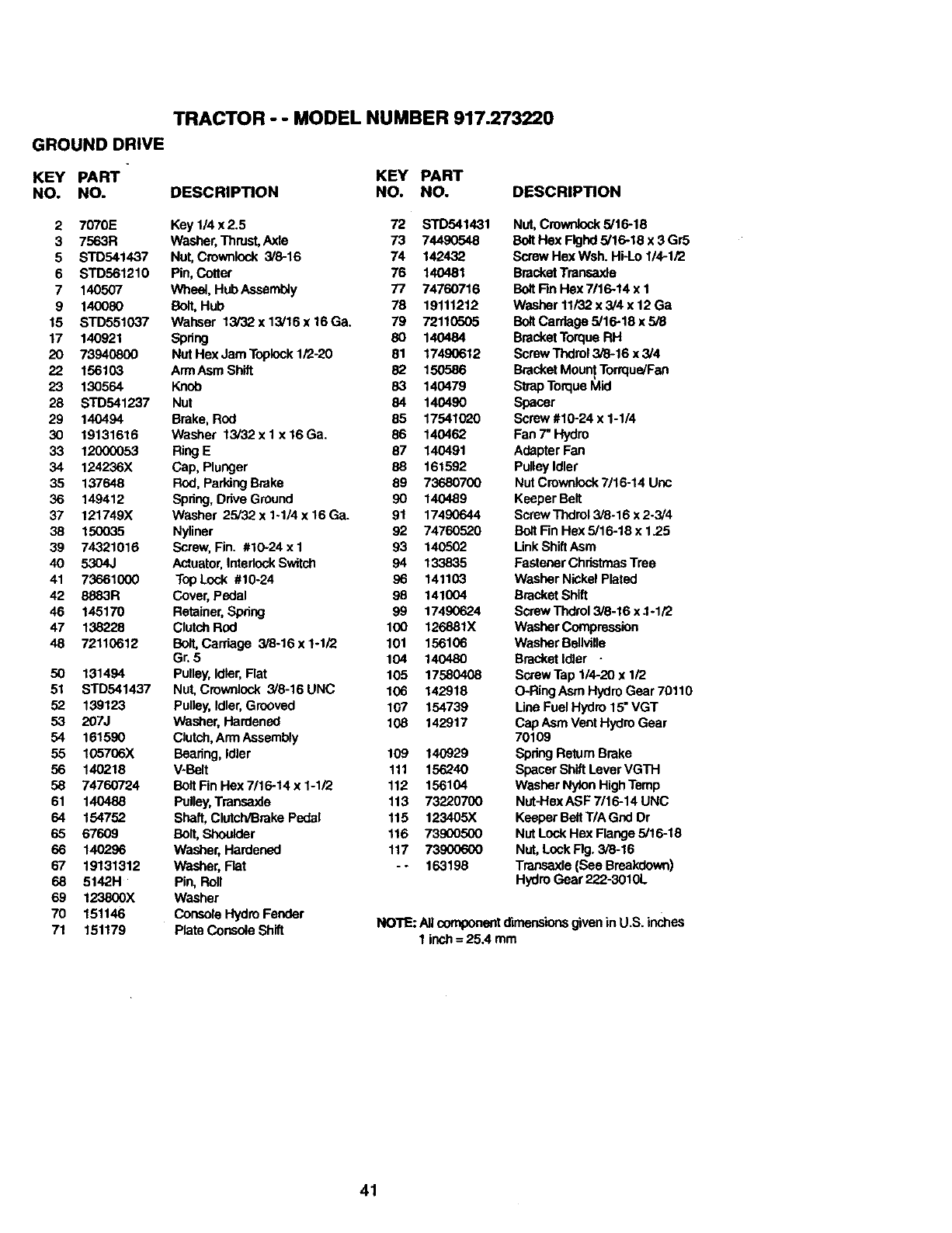

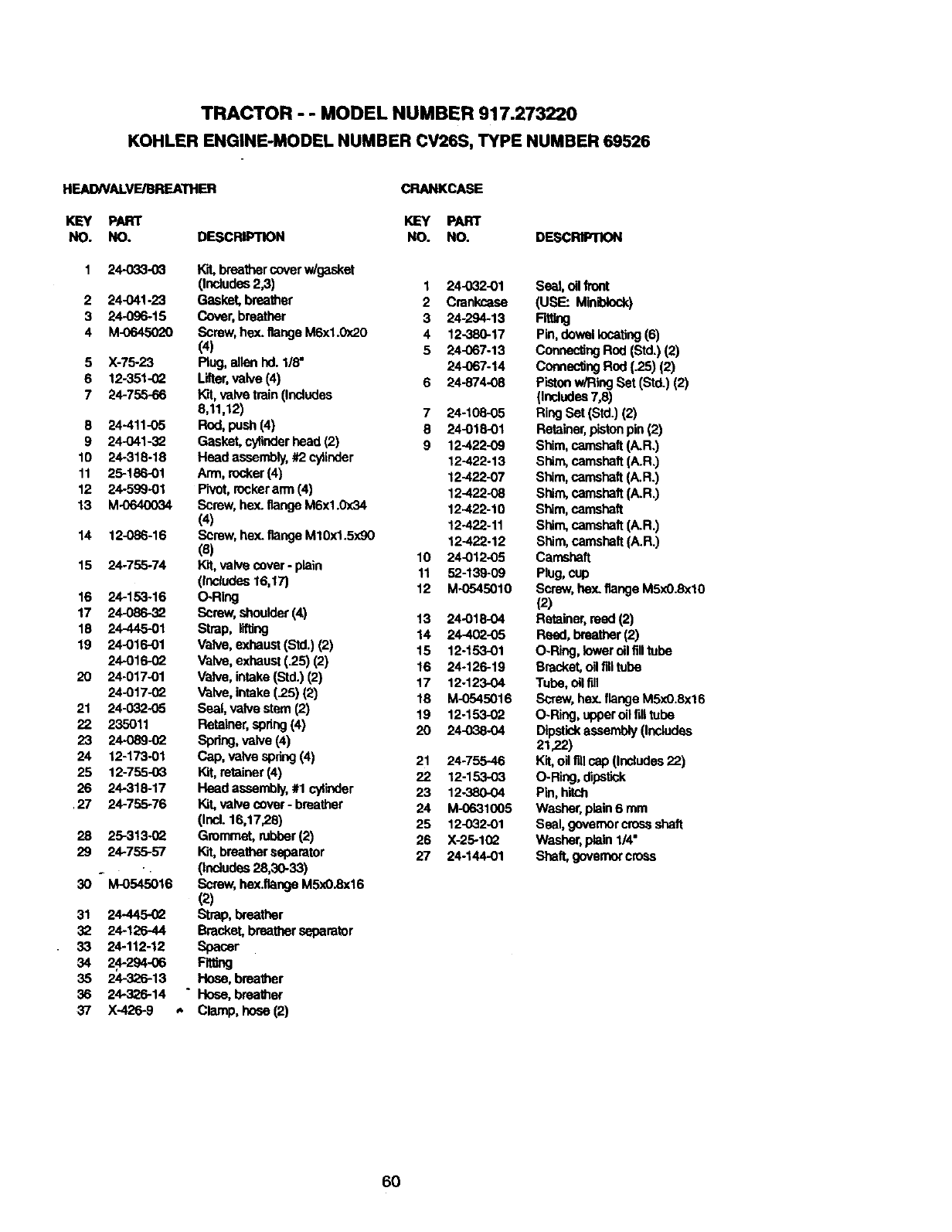

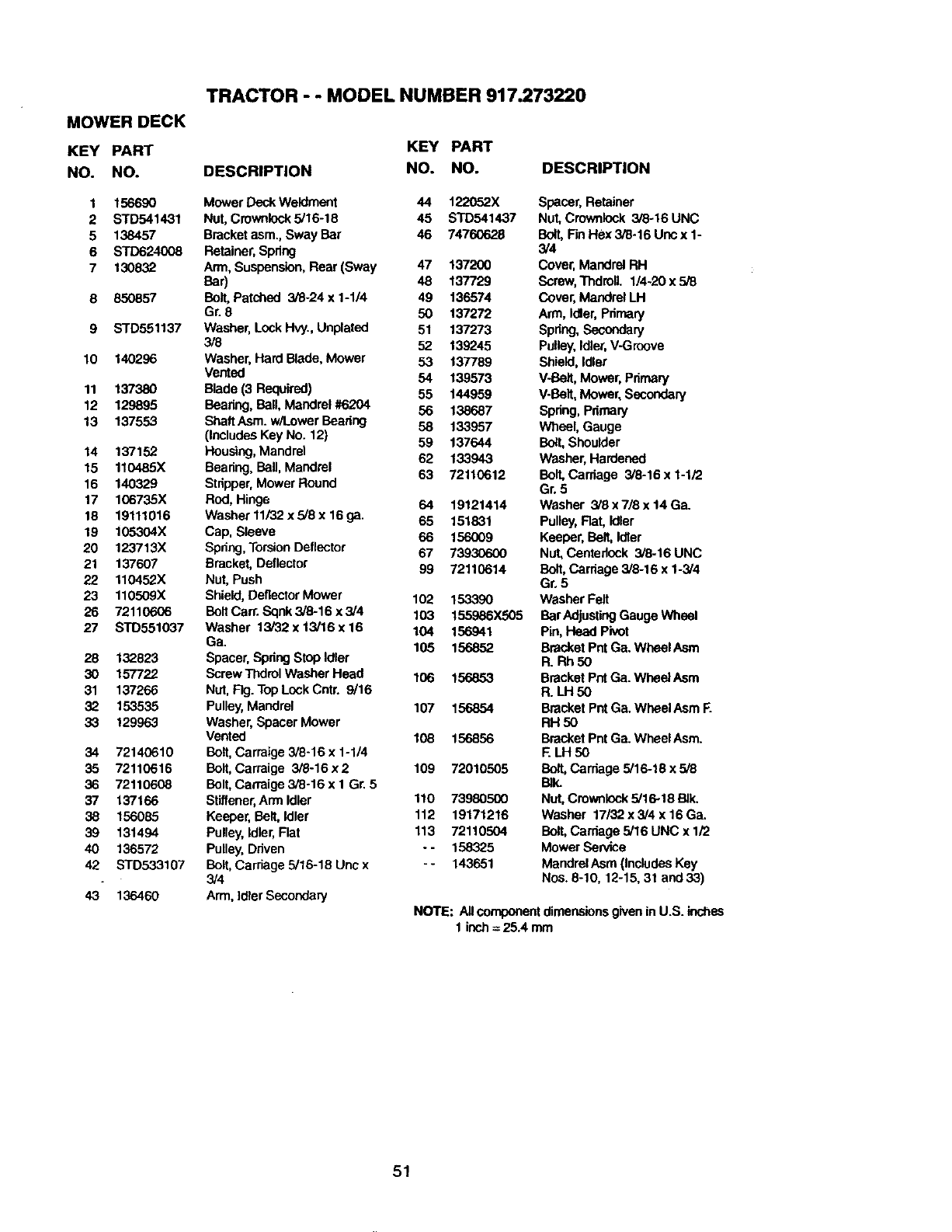

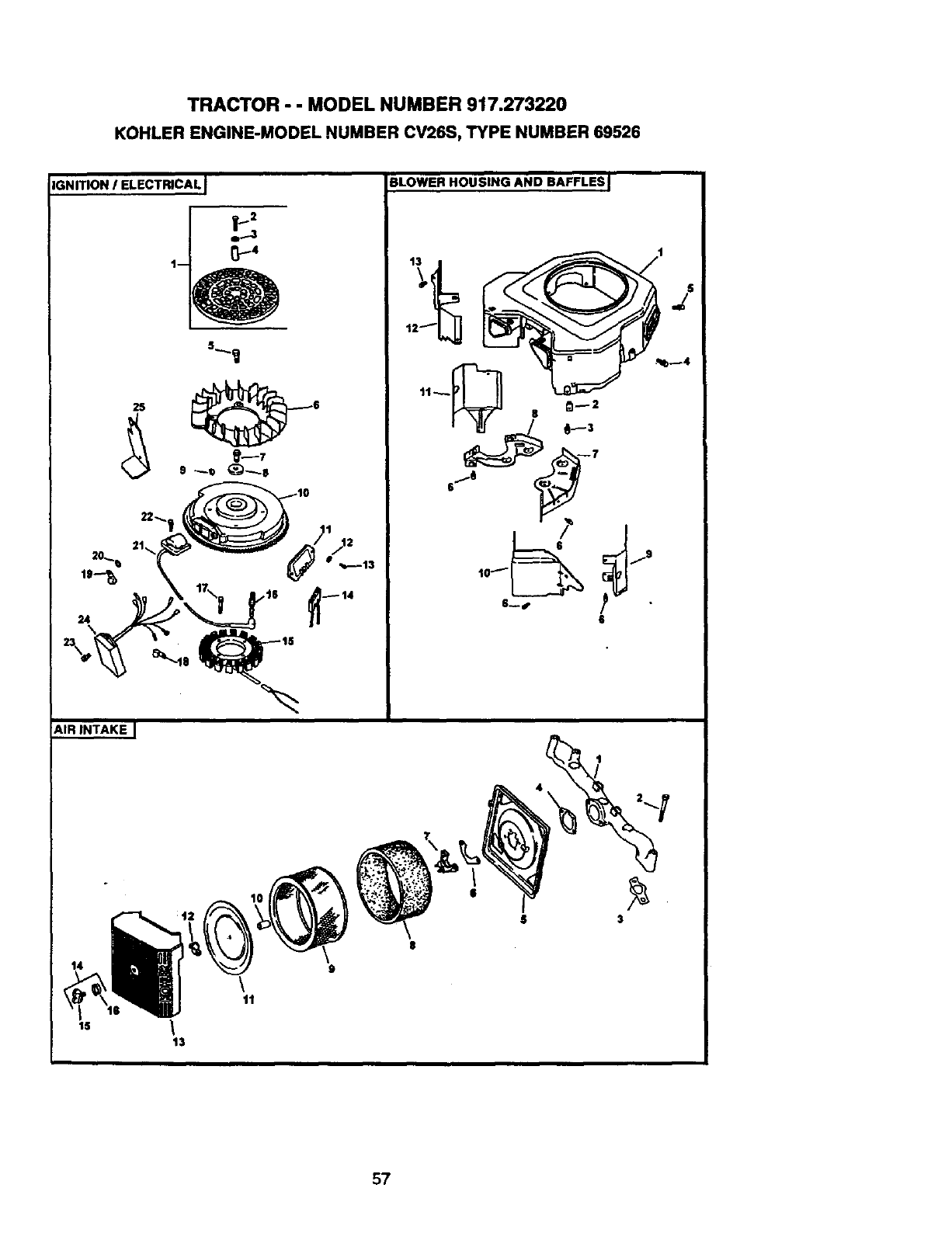

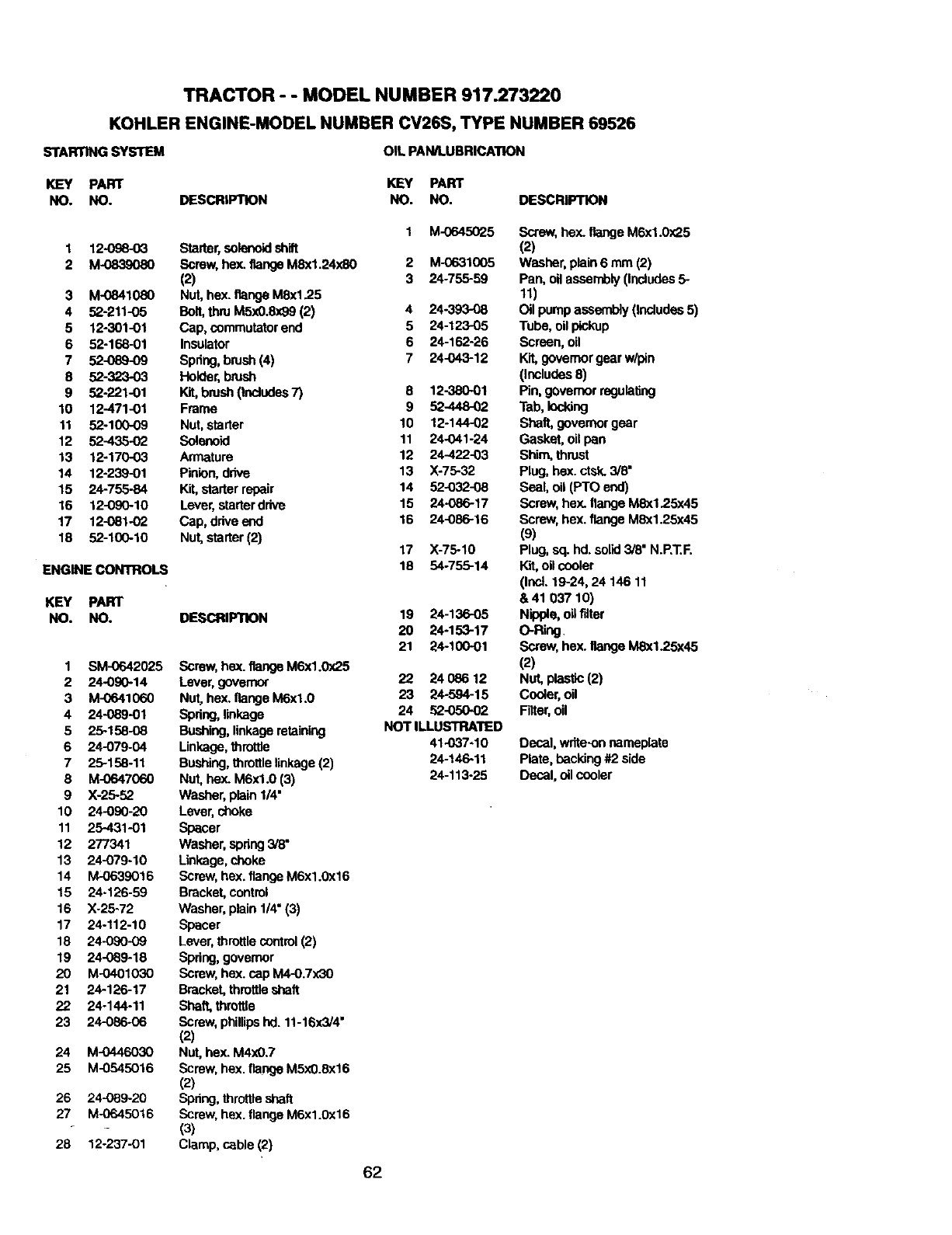

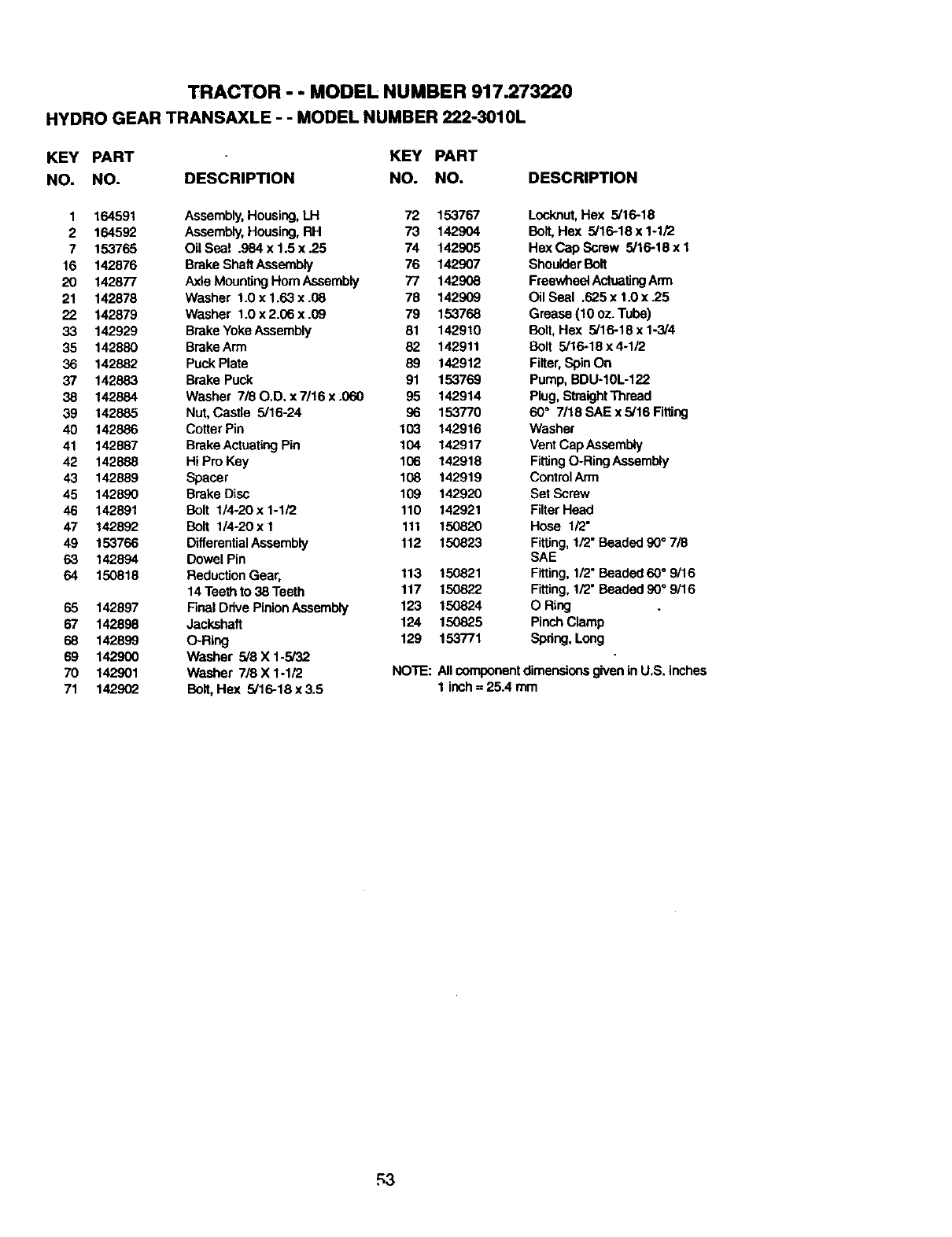

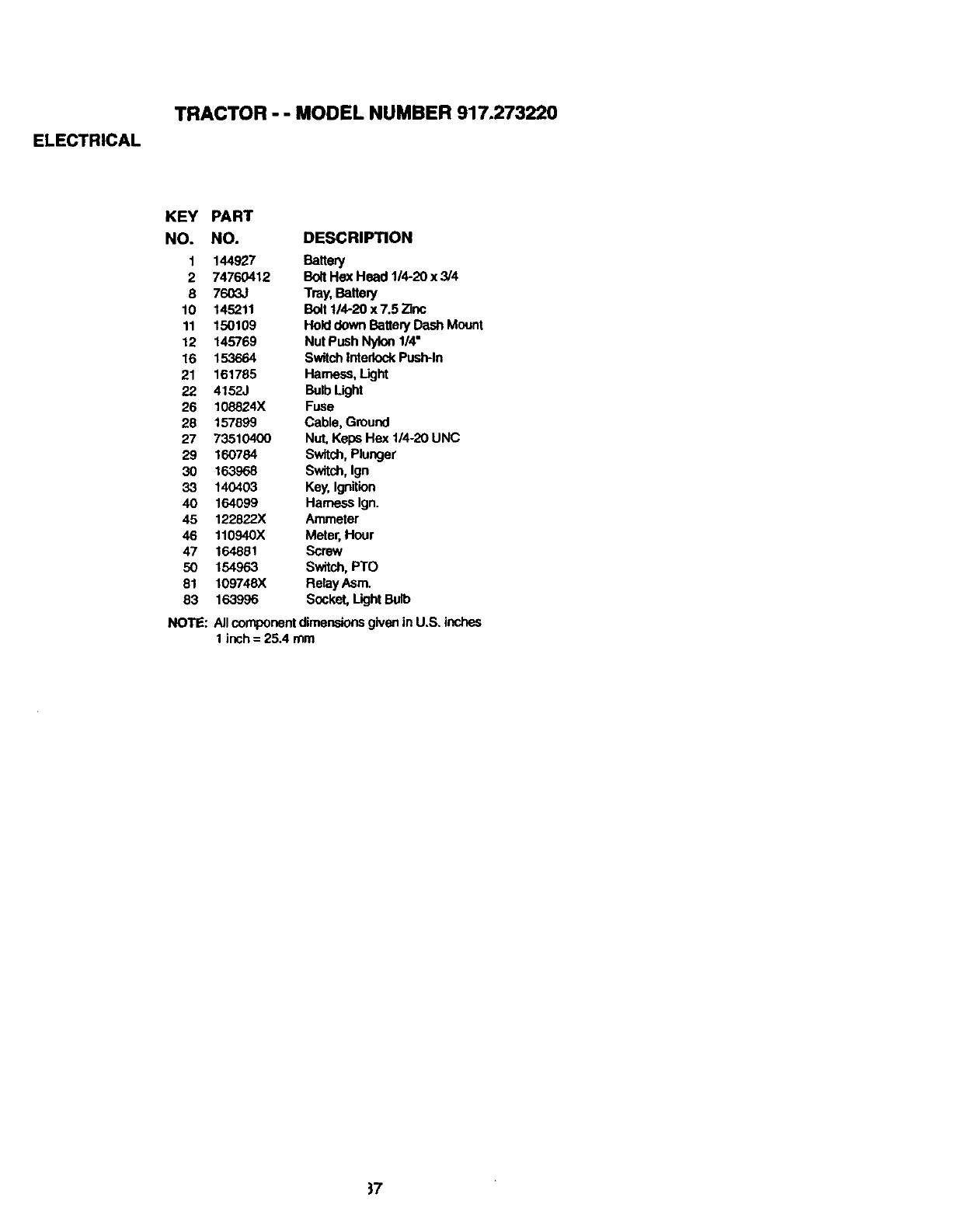

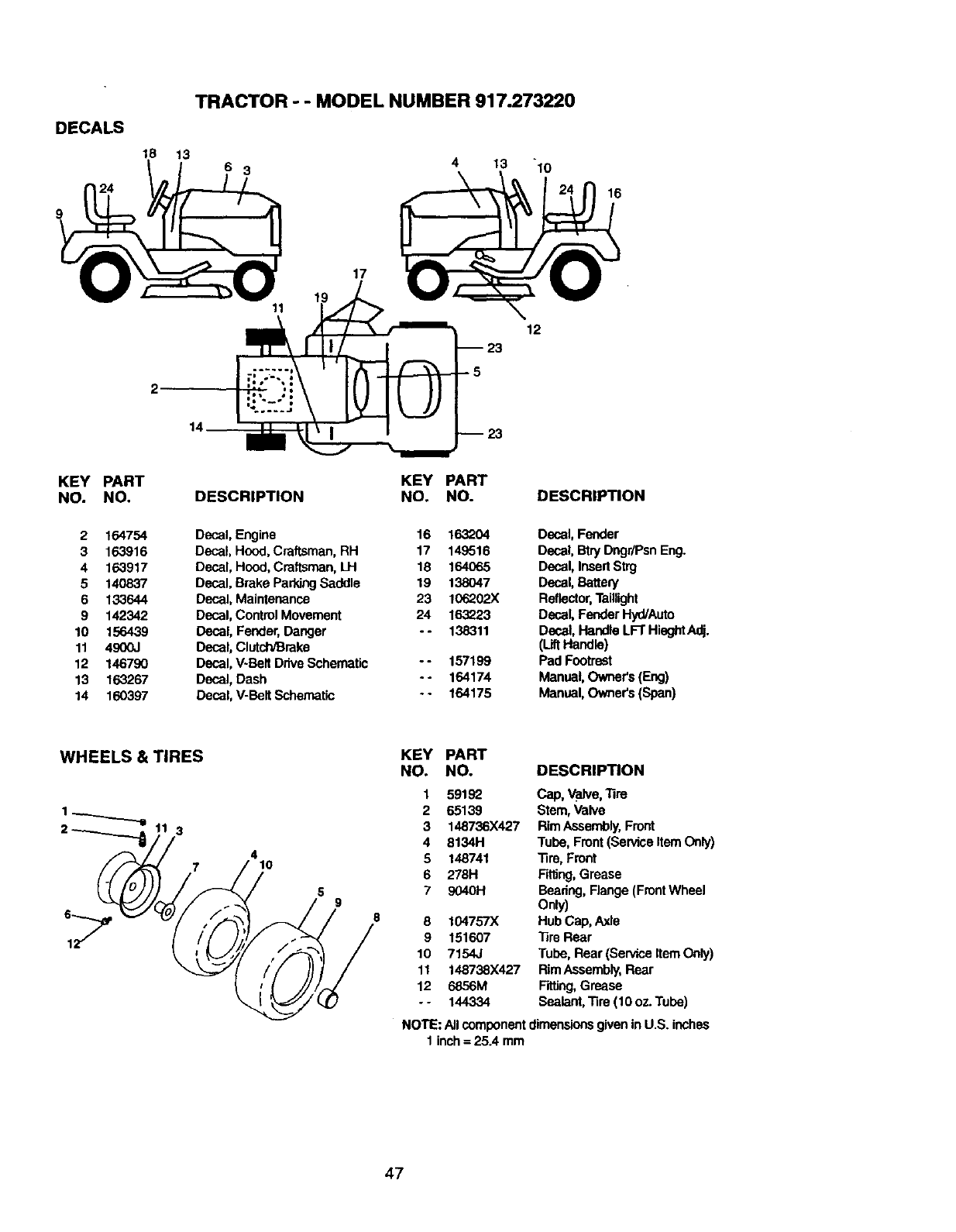

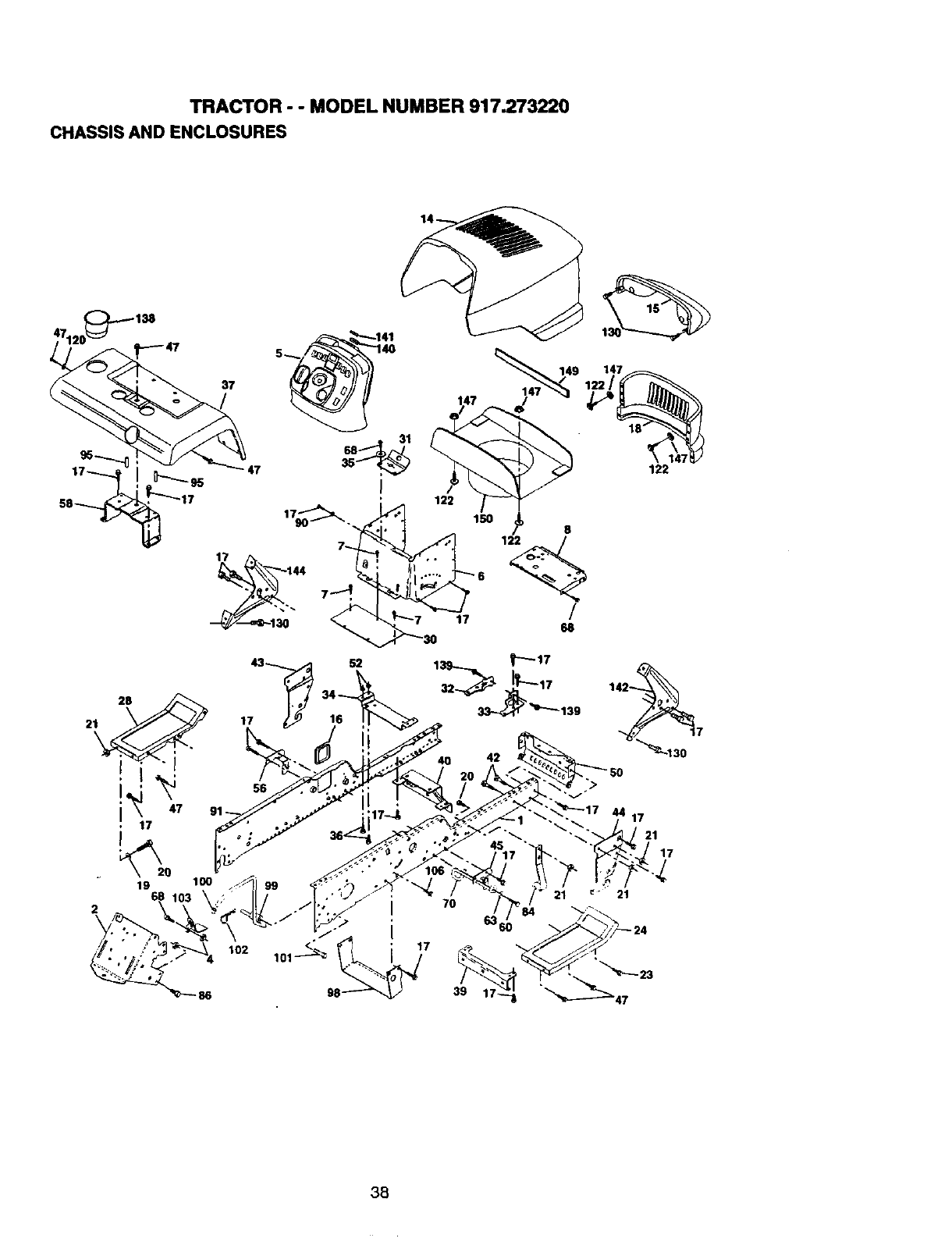

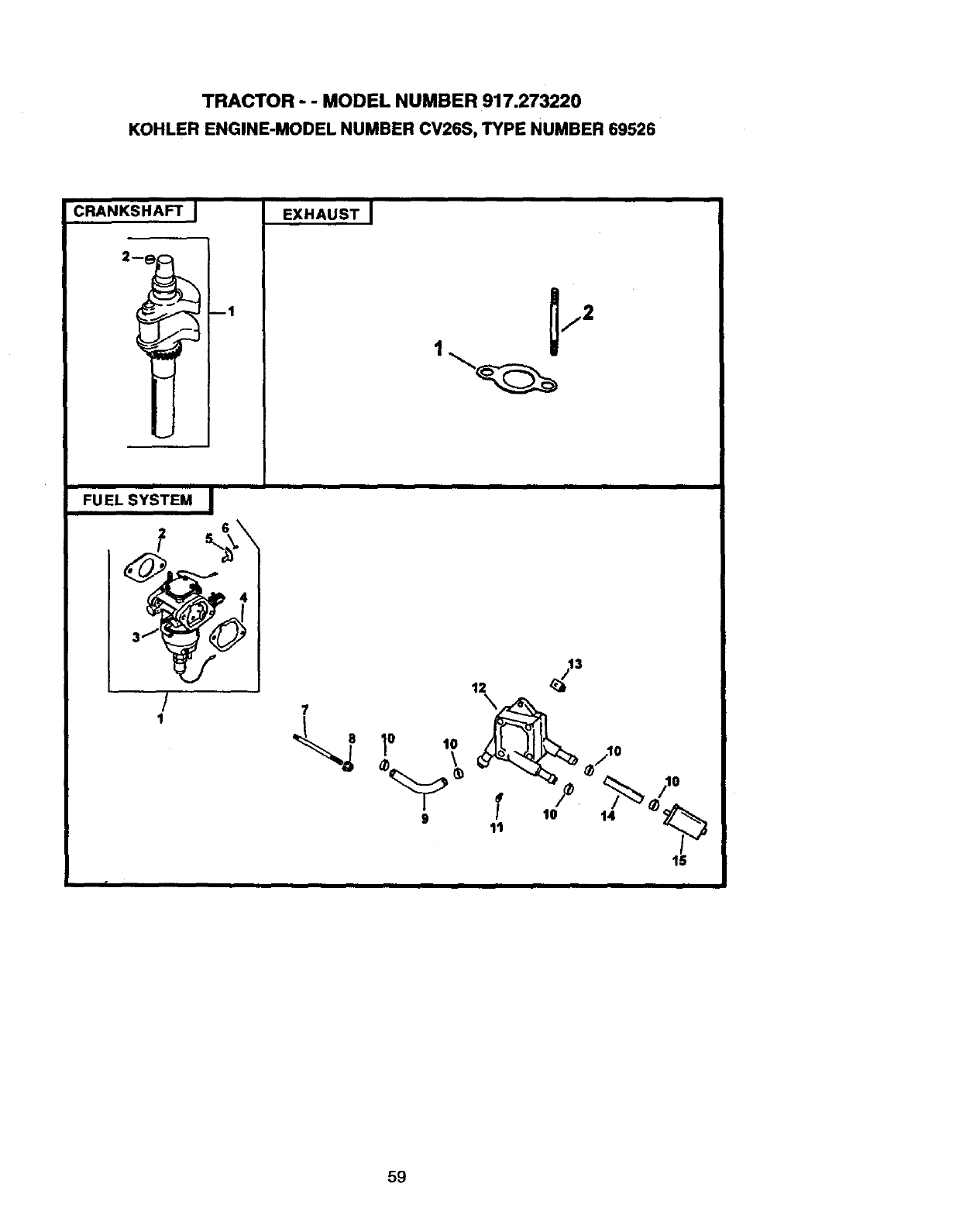

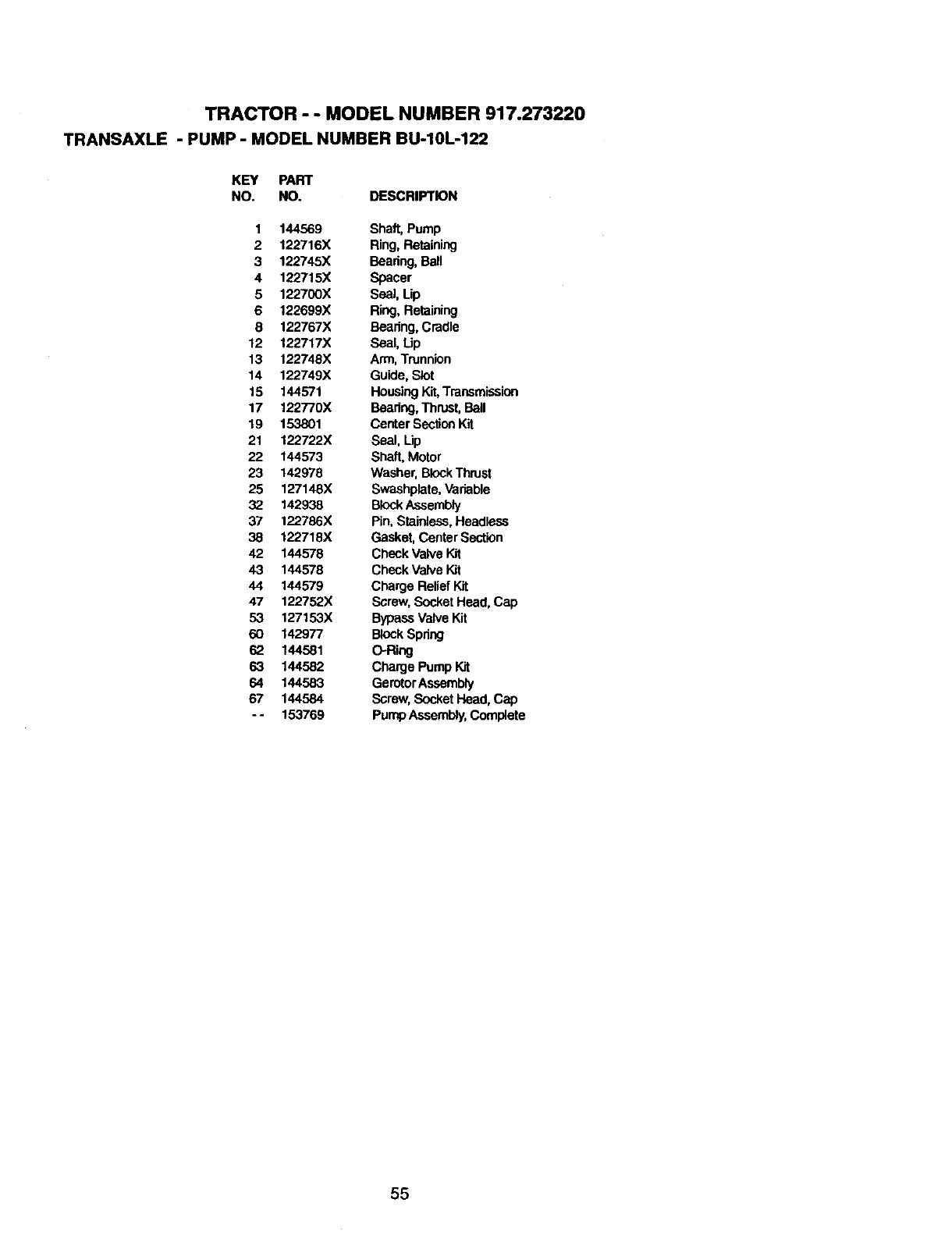

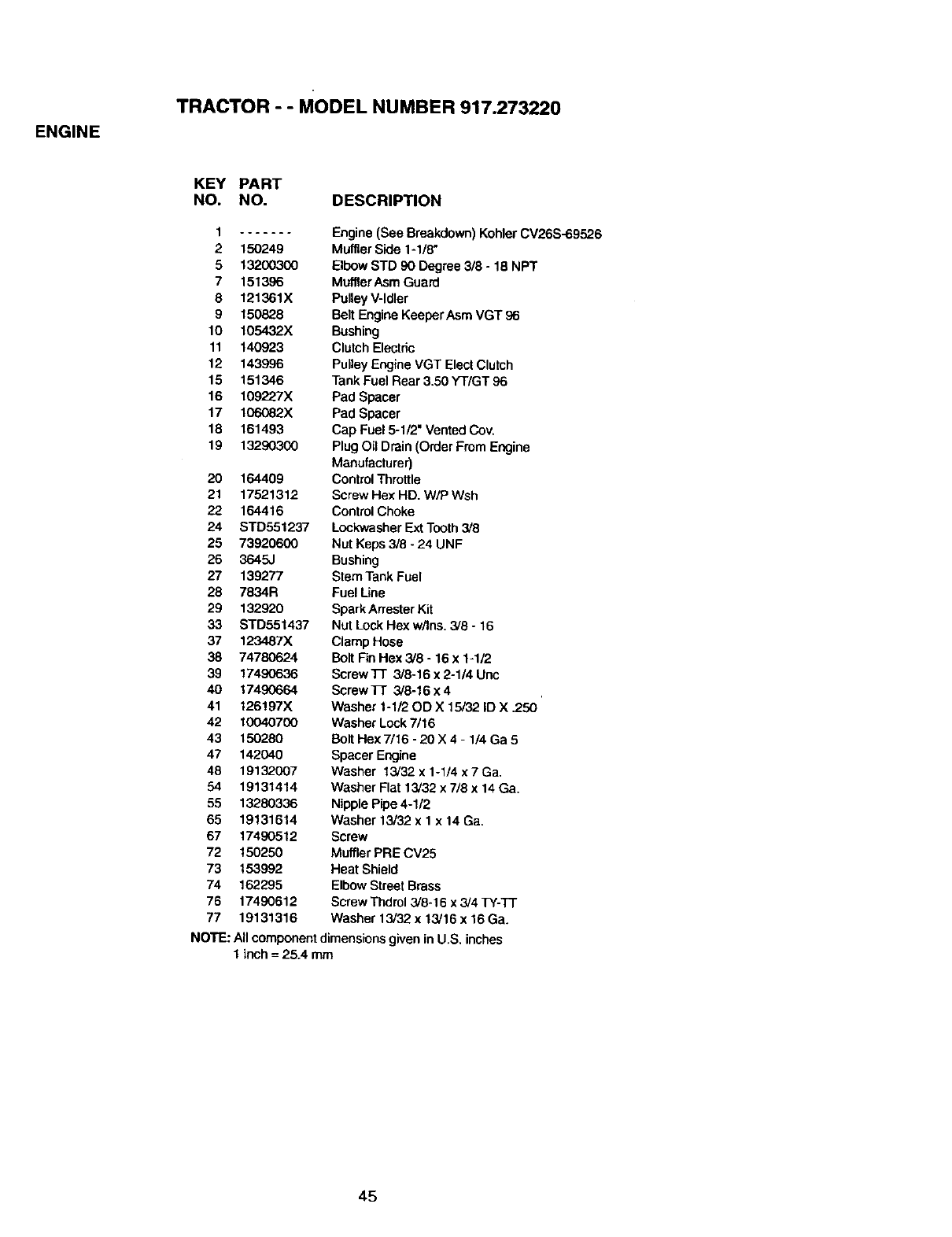

Repair Parts ......................................... 36

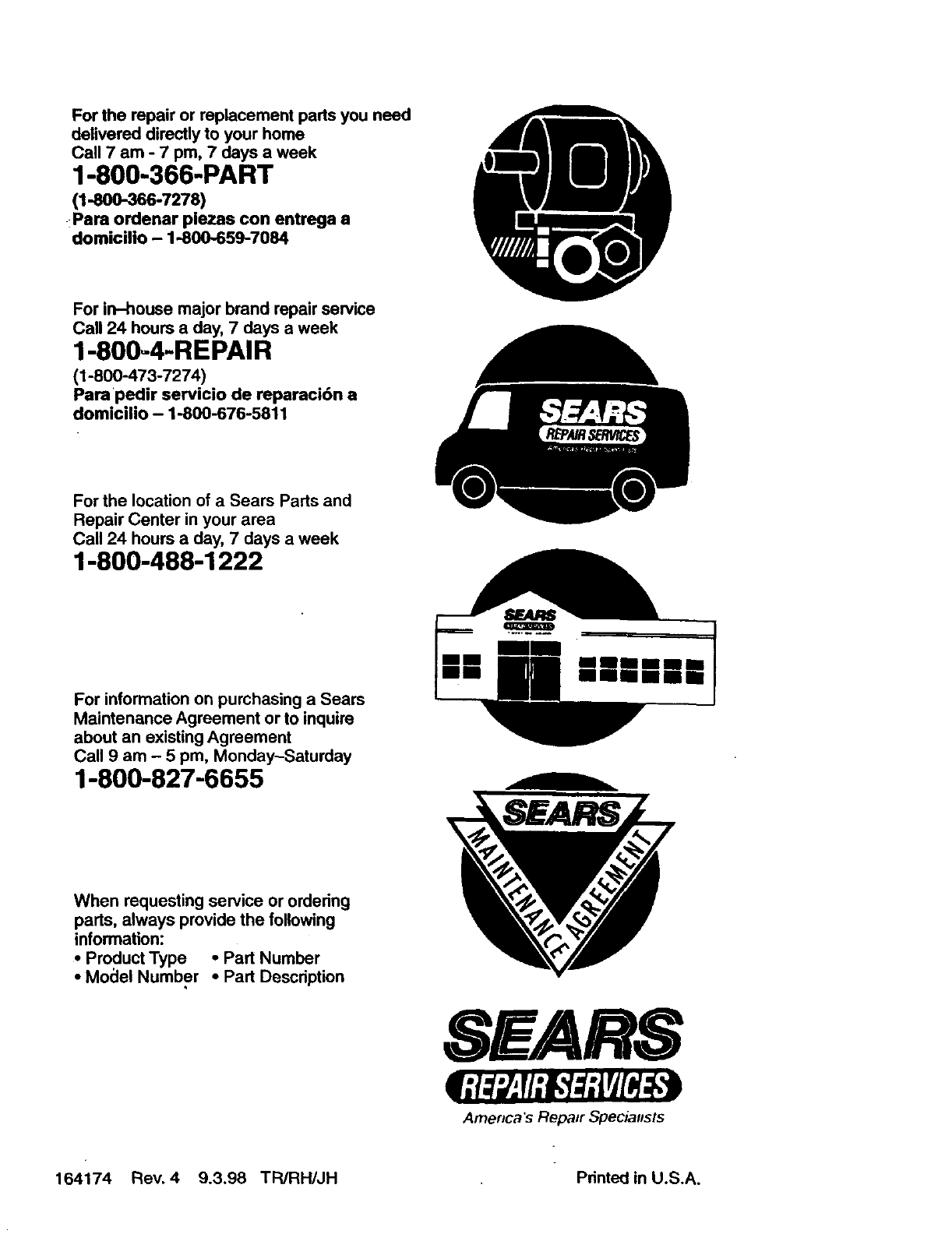

Parts Ordering ....................... Back Cover

RIDING EQUIPMENT

if this Craftsman Riding Equipment is main-

to the instructions in the owner's manual,

Sears any parts found to be defective in material or

This

•Expendable _ems which I_ecome wom during normal use, such as blades, spark

plugs, air cleaners, belts, etc. i

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructions contained in

the owner's manual.

•Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the bat-

tery will not hold a charge, Sears will replace the battery at no charge. In-home warranty

service on your Craftsman riding equipment is available at no charge for 30 days from

the date of purchasa. Please contact your nearest service center. After 30 days from the

date of purchase, warranty service is available by taking your Craftsman ridingequip-

ment to your nearest Sears Service Center. (In-home warranty service will stillbe avail-

able after 30 days from the date of purchasa but a standard trip charge will apply). This

warranty applies only while this product is in the United States. This Warranty gives you

specific legal rights, and you may also have other rightswhich may vary from state to

state.

Sears, Roebuck and Co., D/817 WA, Hoftman Estates, IL 60179

GENERAL OPERATION

•Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before turning.

•Never leave a running machine unat-

tended. Always turn off blades, set park-

ing brake, stop engine, and remove

key_ before dismounting.

• Turnoffblades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

SLOPE OPERATION

Slopes are a ma}or factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you cannot

back up the slope or if you feel uneasy on

it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

•Use slow speed. Choose alow gear so

that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do nottum on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could sud-

denly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do nottry to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur ifthe operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or intedere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

SERVICE

•Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up.. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

•Never carry children. They may fail off

and be seriously injured or interfere with

safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

, Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

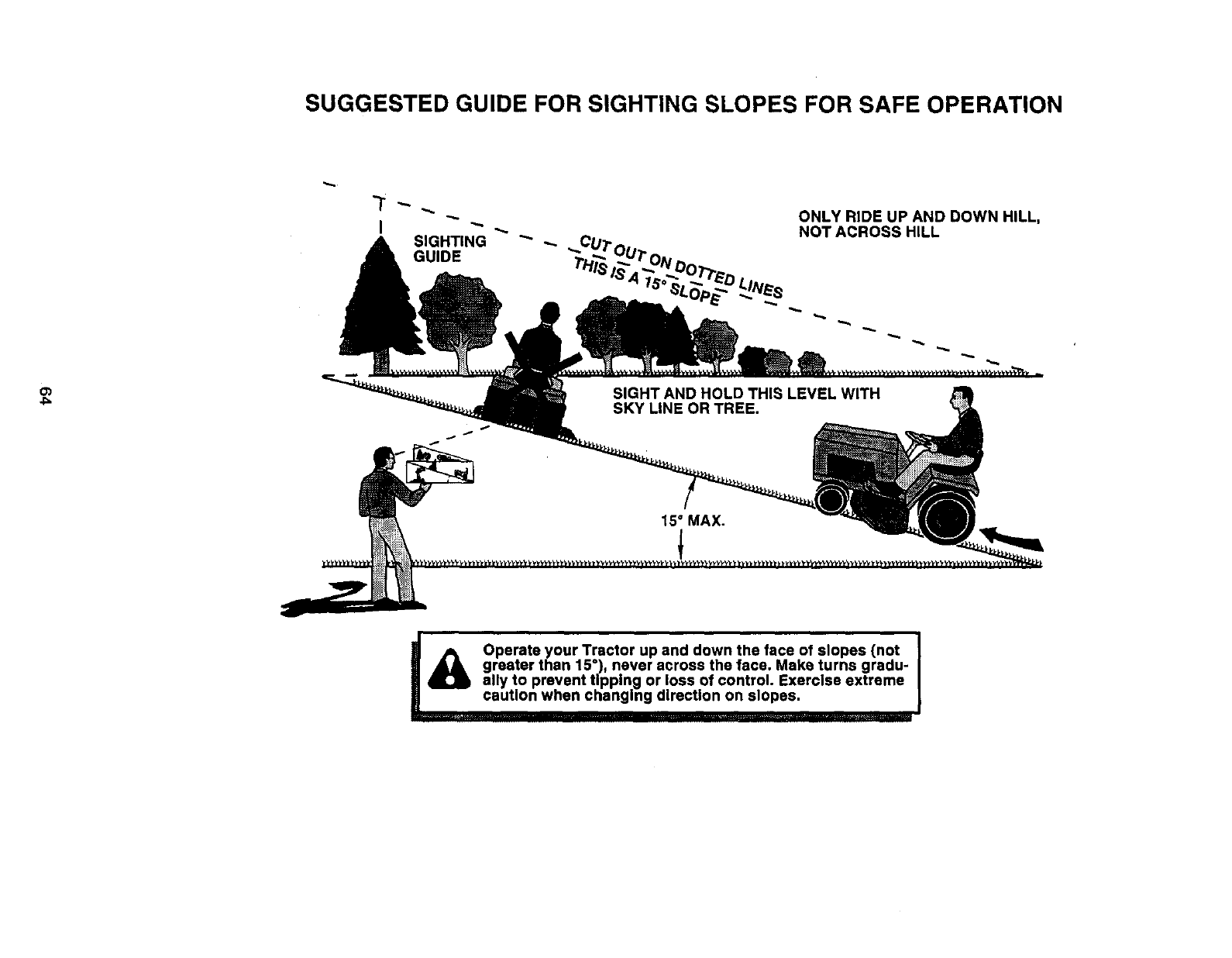

• Mow up and down slopes (15 ° Max), not

across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Taft

grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

•Do notturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

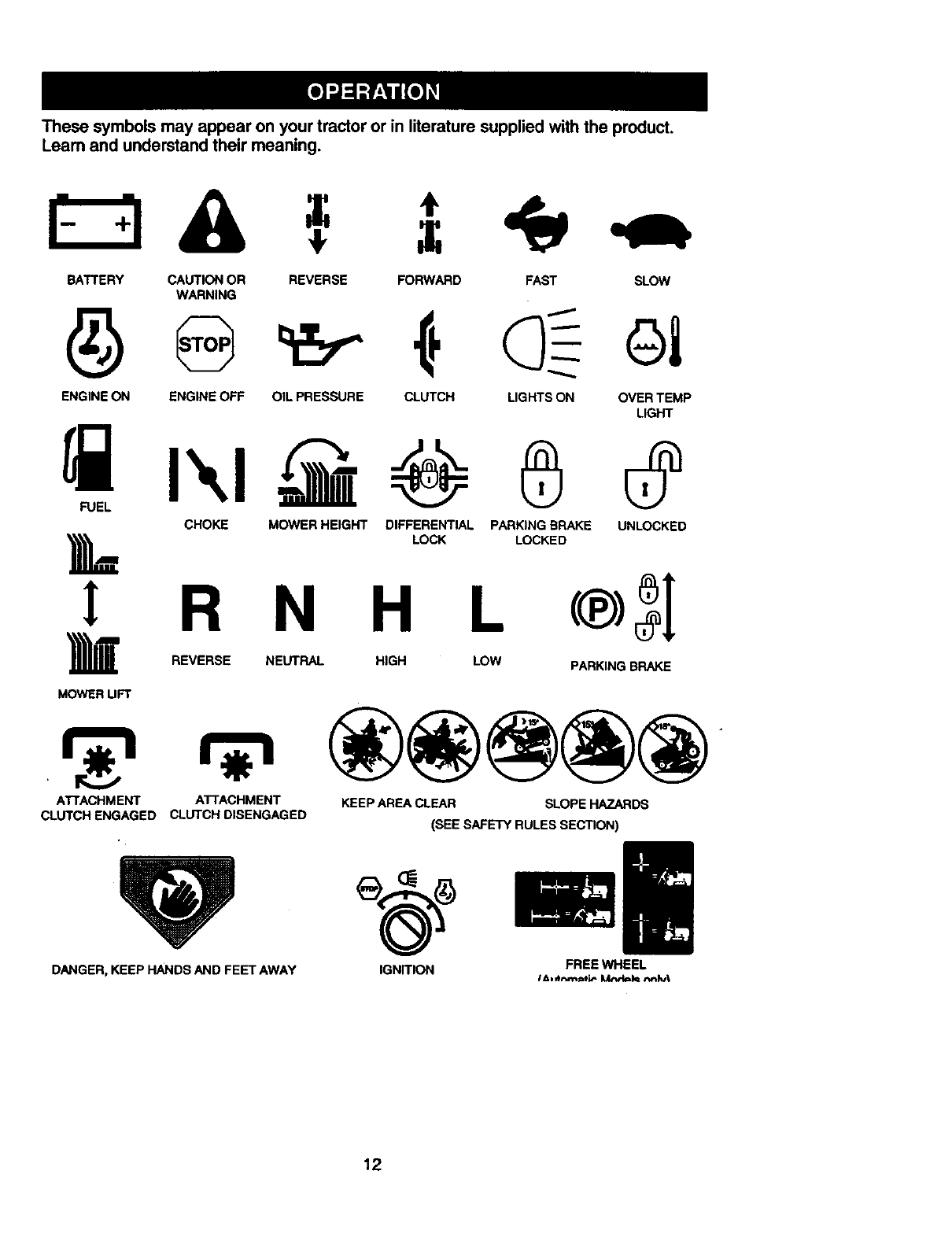

_,Look for this symbol to point out impor-

tant safety precautions. It means CAU-

TION!!! BECOME AWARE!I! YOUR SAFE-

TY IS INVOLVED.

_,WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

,_.CAIJTiON: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

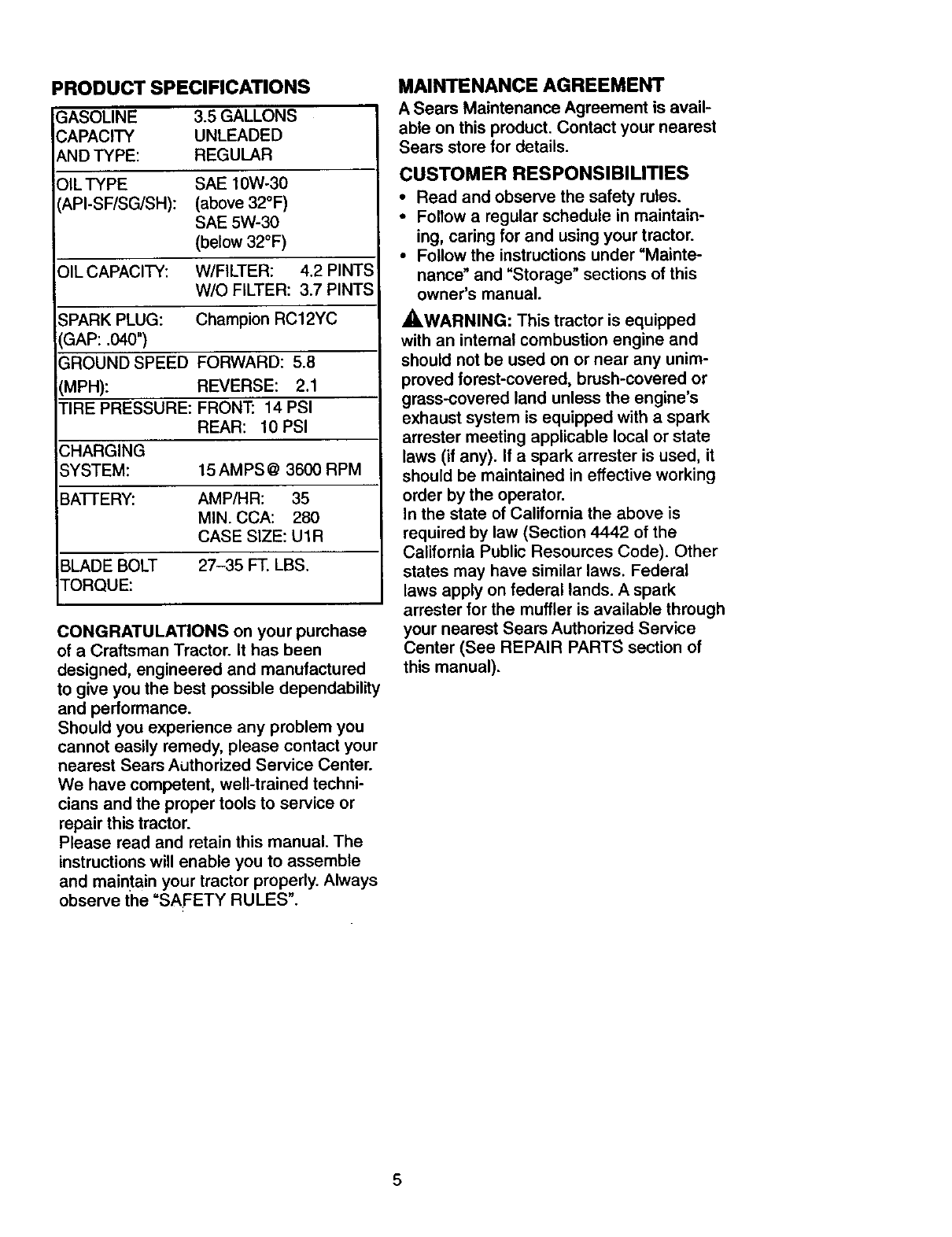

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OIL TYPE SAE 10W-30

_,PI-SF/SG/SH): (above 32°F)

SAE 5W-30

(below 32°F)

Z)IL CAPACITY: W/FILTER: 4.2 PINTS

W/O FILTER: 3.7 PINTS

SPARK PLUG: Champion RC12YC

(GAP: .040")

GROUND SPEED FORWARD: 5.8

(MPH): REVERSE: 2.1

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING

SYSTEM: 15AMPS@ 3600 RPM

BAI-FERY: AMP/HR: 35

MIN. CCA: 280

CASE SIZE: U1R

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependability

and performance.

Should you experience any problem you

cannot easily remedy, please contact your

nearest Sears Authorized Service Center.

We have competent, welt-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the =SAFETY RULES".

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is avail-

able on this product. Contact your nearest

Sears store for details.

CUSTOMER RESPONSIBIUTIES

•Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available through

your nearest Sears Authorized Service

Center (See REPAIR PARTS section of

this manual).

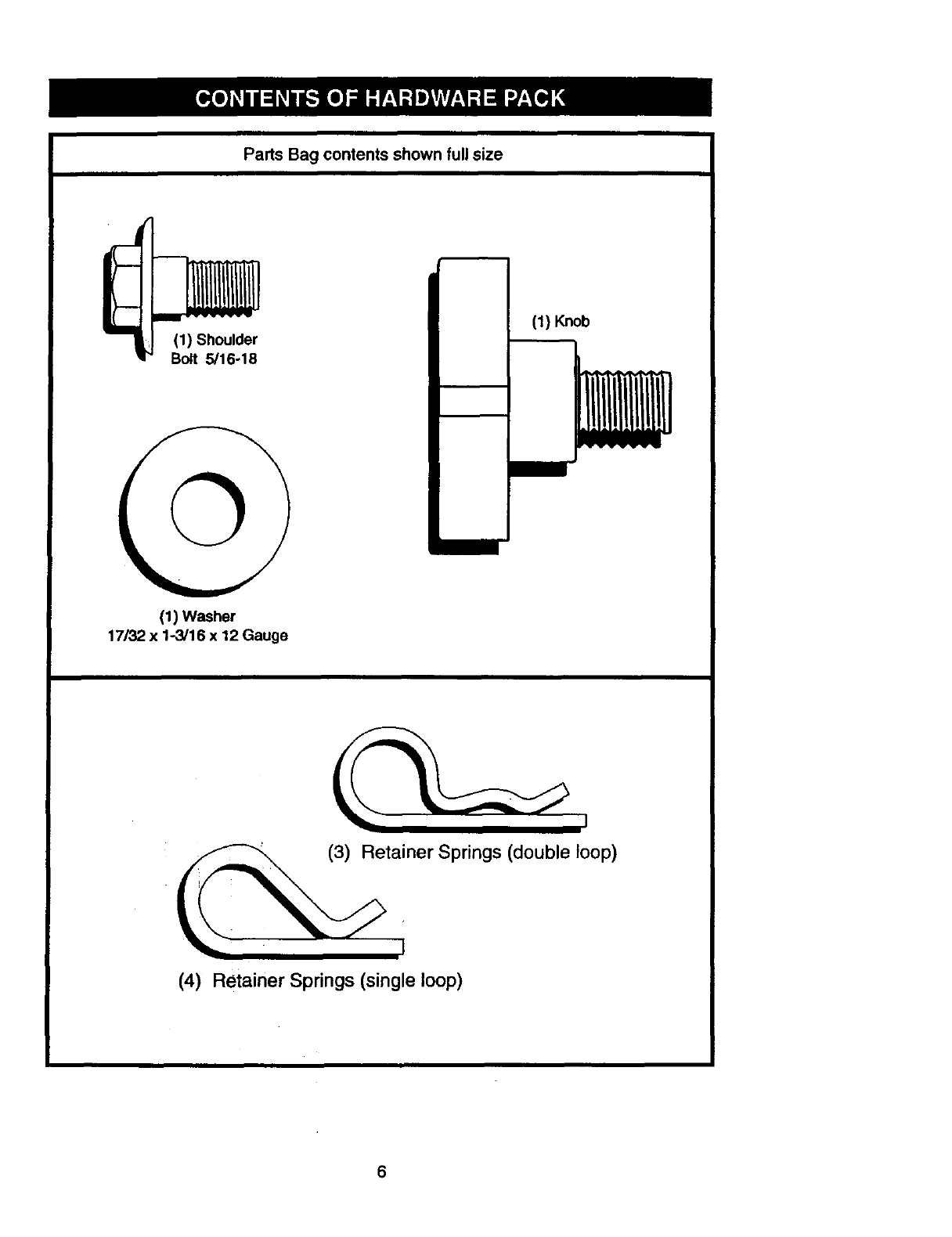

PartsBagcontentsshownfull size

(1) Shoulder

Bolt 5/16-18

(1) Washer

17/32 x 1,.3/16 x 12 Gauge

(1) Knob

a'ner Springs (double loop)

(4) Retainer Springs (single loop)

Parts packet separately in carton Parts Bag contents not shown full size

Video

Cassett_

Steedng Wheel

Seat

; i i

: ]

Parts Bag Manual

Steering

Wheel Insed

Steedng

Sleeve

'_ _(2) Front Unk Assemblies

(2) Keys

Slope Sheet

SteedngSleeve

Extension

(4) Wheels

(4) Brackets _4) AdjustingBar

(12) Gardage Bolts (12) CrownlockNuts

5/16-18 x 5/8 3/8-16 m

(4) Locknut 3/8-16 (4) Shoulder Bolt

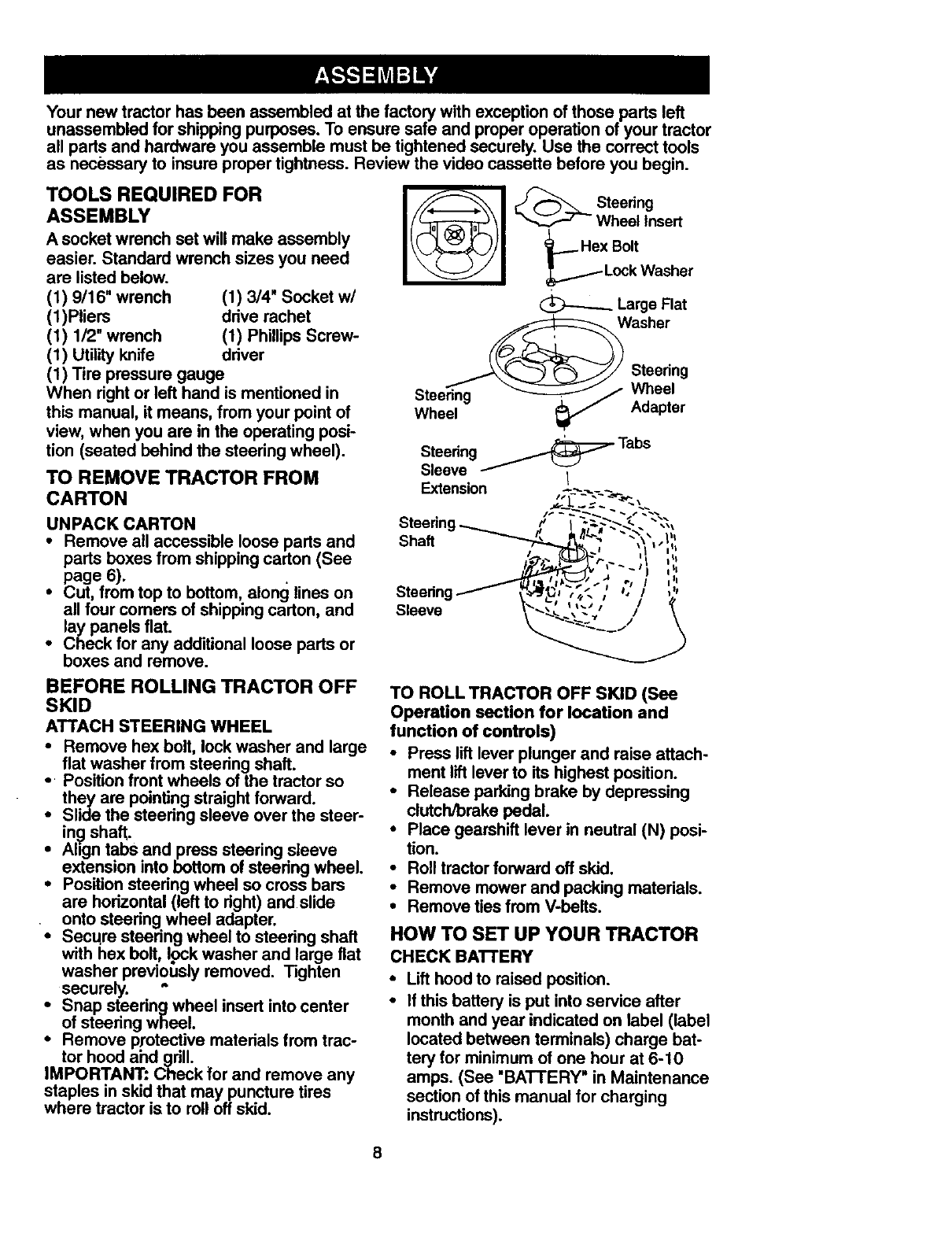

Yournewtractorhasbeenassembledatthefactorywithexception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) 3/4" Socket w/

(1)Pliers drive rachet

(1) 1/2" wrench (1) Phillips Screw-

(1) Utility knife driver

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

•Remove all accessible loose parts and

parts boxes from shipping carton (See

page 6).

•Cut, from top to bottom, along lines on

all four comers of shipping carton, and

lay panels flat.

•Check for any additional loose pads or

boxes and remove.

-- Wheel Insert

_.Hex Bolt

LockWasher

Large Flat

Washer

Steering

Steering Wheel

Wheel Adapter

Steering_Tabs

Sleeve _ _

Extension

Shaft

Steering

Sleeve

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

•Remove hex bolt, lock washer and large

flat washer from steering shaft.

• Position front wheels of the tractor so

they are pointing straight forward.

•Slide the steering sleeve over the steer-

ing shaft.

•Align tabs and press steering sleeve

extension into bottom of steering wheel.

•Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steedng wheel adapter.

•Secqre steering wheel to steedng shaft

with hex bolt, lock washer and large flat

washer previolJsly removed. Tighten

securely. "

•Snap steering wheel insert into center

of steedng wheel.

• Remove protective materials from trac-

tor hood ahd grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll offskid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

•Press lift lever plunger and raise attach-

ment lift lever to its highest position.

•Release parking brake by depressing

clutch/brake pedal.

•Place gearshift lever in neutral (N) posi-

tion.

•Roll tractor forward off skid.

•Remove mower and packing materials.

•Remove ties from V-belts.

HOW TO SET UP YOUR TRACTOR

CHECK BA'I'rERY

• Lift hood to raised position.

•If this battery is put into service after

month and year indicated on label (label

located between terminals) charge bat-

tery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

°_ :_2;" .°" •

_" e.4 • o_

Label"

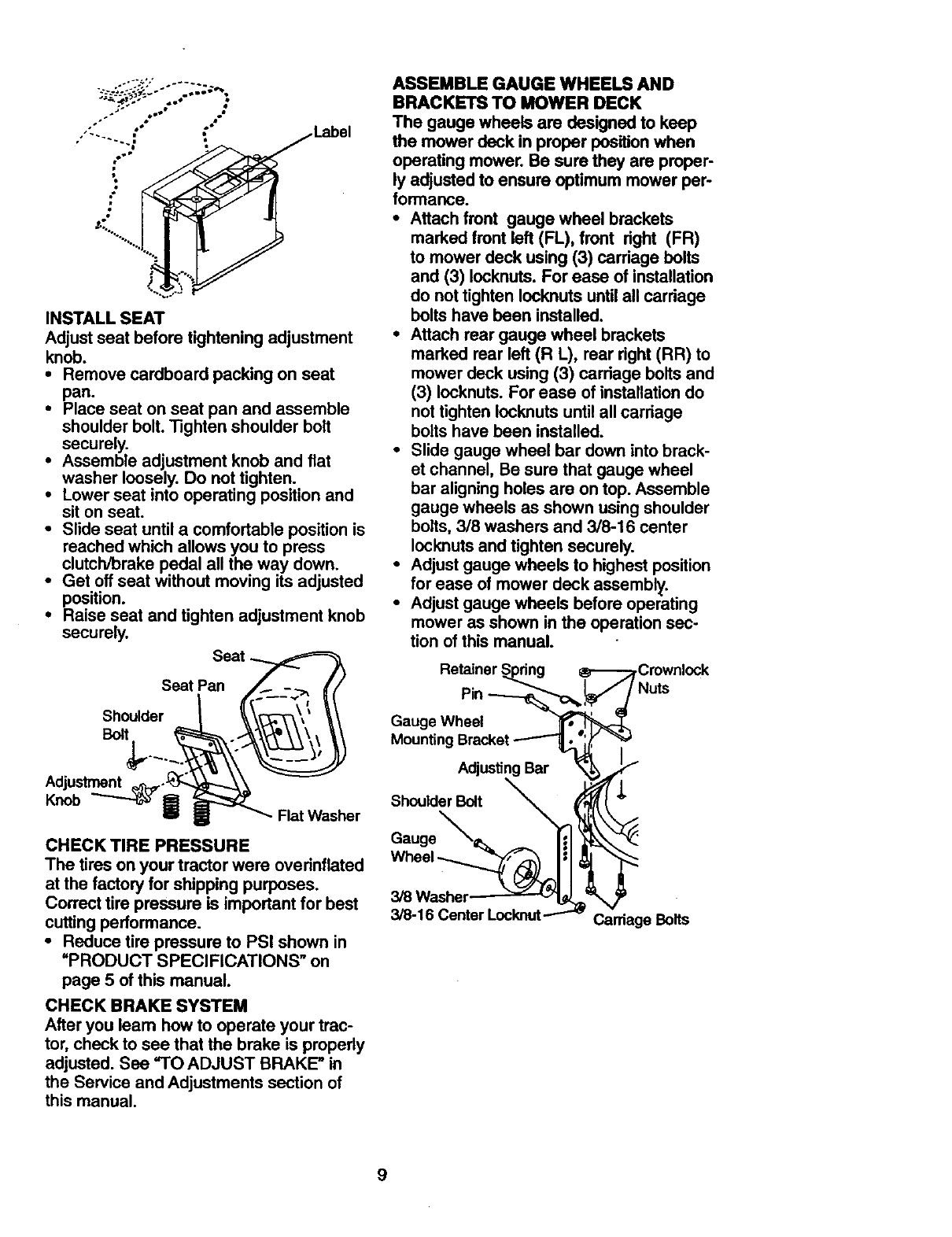

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

•Remove cardboard packing on seat

pan.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

•Assemble adjustment knob and fiat

washer loosely. Do not tighten.

•Lower seat into operating position and

sit on seat.

•Slide seat until a comfortable position is

reached which allows you to press

clutch/brake pedal all the way down.

•Get off seat without moving its adjusted

position.

•Raise seat and tighten adjustment knob

securely.

Seat

Seat Pan

Shoulder

Bolt

Adjustment

Knob Flat Washer

CHECK TIRE PRESSURE

The tires on your tractor were ovednflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

=PRODUCT SPECIFICATIONS" on

page 5 of this manual.

CHECK BRAKE SYSTEM

After you leam how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "1"O ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

ASSEMBLE GAUGE WHEELS AND

BRACKETS TO MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower. Be sure they are proper-

ly adjusted to ensure optimum mower per-

formance.

•Attach front gauge wheel brackets

marked front left (FL), front right (FR)

to mower deck using (3) carriage bolts

and (3) Iocknuts. For ease of installation

do not tighten Iocknuts until all carriage

belts have been installed.

•Attach rear gauge wheel brackets

marked rear left (R L), rear right (RR) to

mower deck using (3) carriage bolts and

(3) Iocknuts. For ease of installation do

not tighten Iocknuts until all carriage

bolts have been installed.

•Slide gauge wheel bar down into brack-

et channel, Be sure that gauge wheel

bar aligning holes are on top. Assemble

gauge wheels as shown using shoulder

bolts, 318 washers and 3/8-16 center

Iocknuts and tighten securely.

•Adjust gauge wheels to highest position

for ease of mower deck assembly.

•Adjust gauge wheels before operating

mower as shown in the operation sec-

tion of this manual.

Retainer _ _.Crownlock

rNuts

Gauge Wheel

Mounting

Adjusting Bar

Shoulder Bolt

Gauge

3/8-16 qCamageBolts

Retainer

Gauge Wheel

Mounting

Adjusting Bar

Shoulder Bolt

Gauge

rCrownlock

Nuts

3/8 Carriage Bolts

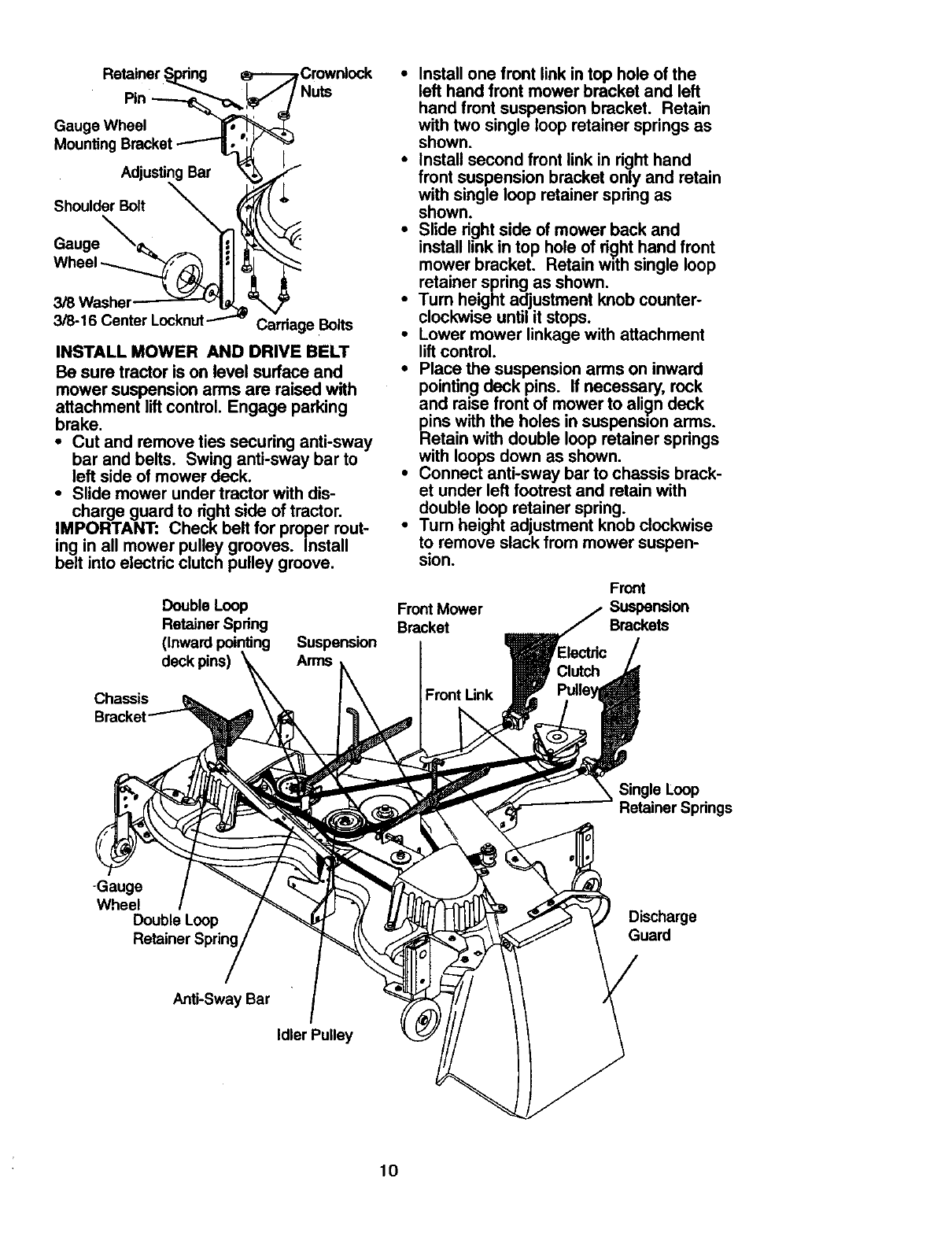

INSTALL MOWER AND DRIVE BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

•Cut and remove ties securing anti-sway

bar and belts. Swing anti-sway bar to

left side of mower deck.

•Slide mower under tractor with dis-

charge guard to right side of tractor.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves. Install

belt into electric clutch pulley groove.

Chassis

Double Loop

Retainer Spdng

Suspension

deck pins) Arms

•Install one front link in top hole of the

left hand front mower bracket and left

hand front suspension bracket. Retain

with two single loop retainer springs as

shown.

•Install second front link in right hand

front suspension bracket only and retain

with single loop retainer spnng as

shown.

•Slide right side of mower back and

install link in top hole of dght hand front

mower bracket. Retain with single loop

retainer spring as shown.

iurn height adjustment knob counter-

clockwise until it stops.

Lower mower linkage with attachment

lift control.

•Place the suspension arms on inward

pointing deck pins. If necessary, rock

and raise front of mower to all,in deck

pins with the holes in suspenston arms.

Retain with double loop retainer springs

with loops down as shown.

•Connect anti-sway bar to chassis brack-

et under left footrest and retain with

double loop retainer spring.

•Tum height adjustment knob clockwise

to remove slack from mower suspen-

sion.

Front

Front Mower Suspension

Bracket Brackets

Front Link

Single Loop

Retainer Springs

-Gauge

Wheel

Double Loop

Retainer Spring

Discharge

Guard

Anti-Sway Bar

Idler Pulley

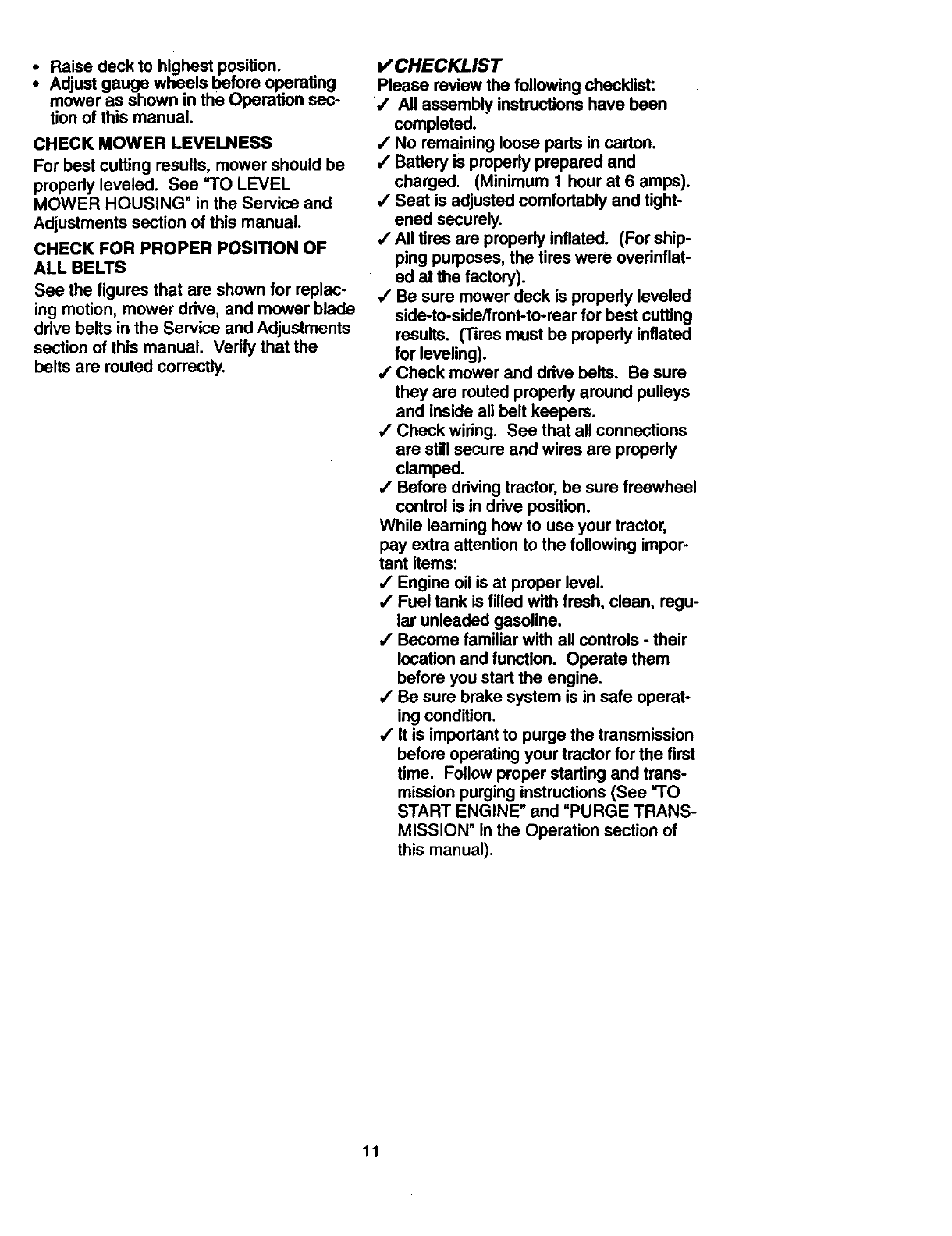

Raisedeckto highestposition.

Adjustgaugewheelsbeforeoperating

moweras shownintheOperationsec-

tionof this manual.

CHECKMOWERLEVELNESS

Forbestcuffingresults,mowershouldbe

properlyleveled. See=TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replac-

ing motion, mower drive, and mower blade

drive belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECKLIST

Please review the following checldist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overinflat-

ed at the factory).

,/Be sure mower deck is propedy leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be propedy inflated

for leveling).

,/Check mower and drive belts. Be sure

they are muted properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

/Before driving tractor, be sure freewheel

control is in drive position.

While learning how to use your tractor,

pay extra attention to the following impor-

tant items:

/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

/Be sure brake system is in safe operat-

ing condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See =TO

START ENGINE" and =PURGE TRANS-

MISSION" in the Operation section of

this manual).

These symbols may appear on your tractor or in literature supplied with the product.

Leam and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE CLUTCH LIGHTS ON OVER TEMP

LIGHT

FUEL

CHOKE MOWER HEIGHT DIFFERENTIAL PARKING BRAKE UNLOCKED

LOCK LOCKED

IR N H k

REVERSE NEUTRAL HIGH LOW PARKING BRAKE

MOWER UFT

ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY IGNITION FREE WHEEL

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrationswith your tractorto familiarize yourself with the locationsof

various controls and adjustments. Save this manual for future reference.

Throttle Control

Hourmeter

Ignition

Switch

LightSwitch

Position

Attachment

Clutch Switch

Clutch/Brake

Lift Lever

Plunger

Lift Lever

Control

-Parking Brake

Height

Adjustment

Knob

Free Wheel

Motion

Control

Lever

Our tractors conform to the safety standards of the American

National Standards Institute.

ATTACHMENT CLUTCH SWITCH: Used

to engage the mower blades, or other at-

tachments mounted to your tractor,

LIGHT SWITCH: Turns the headlights on

and off.

THROTTLE CONTROL: Used to control

engine speed.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

CHOKE CONTROL: Used when starting a

cold engine.

HEIGHT ADJUSTMENT KNOB: Used to

adjust the mower cutting height.

IGNITION SWITCH: Used for starting and

stopping the engine.

ATTACHMENT LIFT LEVER: Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

AMMETER: Indicates battery charging (+)

or discharging (-).

PARKING BRAKE: Locks clutch/brake

into the brake position.

MOTION CONTROL LEVER - Selects the

speed and direction of the tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

HOURMETER - Indicates hours of opera-

tion

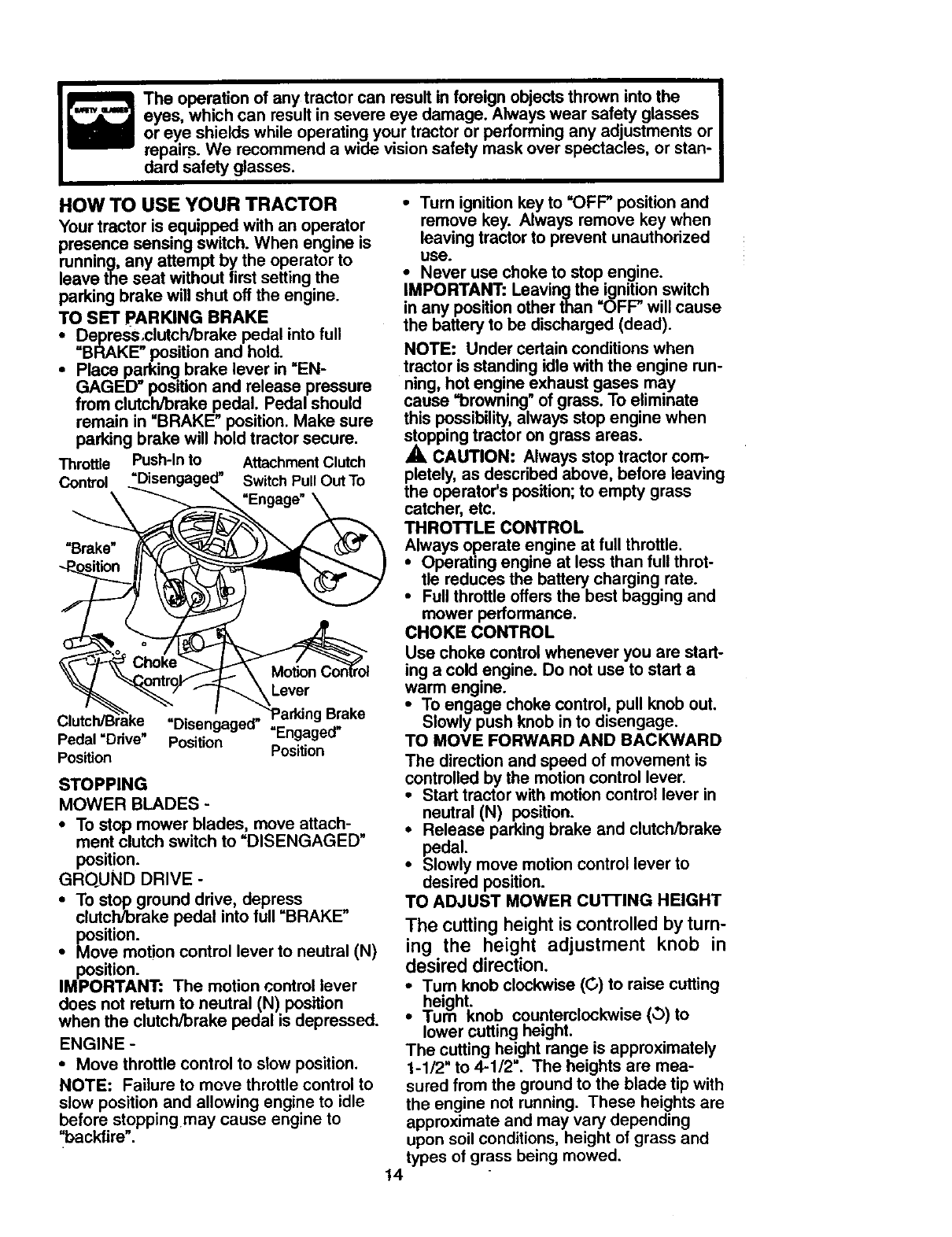

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments or

repairs. We recommend a wide vision safety mask over spectacles, or stan-

dard safety glasses.

HOW TO USE YOUR TRACTOR

Your tractor is equipped with an operator

presence sensing switch. When engine is

running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

TO SET PARKING BRAKE

•Depress,clutch/brake pedal into full

=BRAKE" position and hold.

•Place parking brake lever in "EN-

GAGED" position and release pressure

from clutch/brake pedal. Pedal should

remain in =BRAKE" position. Make sure

parking brake will hold tractor secure.

Throttle Push-In to Attachment Clutch

Control =Disengaged" Switch Pull Out To

...... \ _ "Engage"_

Pedal Drive Position u u

Position Position

STOPPING

MOWER BLADES -

•To stop mower blades, move attach-

ment clutch switch to "DISENGAGED"

position.

GROUND DRIVE -

•To stop ground drive, depress

clutch/brake pedal into full "BRAKE"

position.

•Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not retum to neutral (N) position

when the clutch/brake pedal is depressed.

ENGINE -

•Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stoppingmay cause engine to

"backfire".

•Turn ignition key to "OFP position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

•Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF' will cause

the battery to be discharged (dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine run-

ning, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_, CAUTION." Always stop tractor com-

pletely, as described above, before leaving

the operator's position; to empty grass

catcher, etc.

THROTTLE CONTROL

Always operate engine at full throttle.

•Operating engine at less than full throt-

tle reduces the battery charging rate.

•Full throttle offers the best bagging and

mower performance.

CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

•To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

•Start tractor with motion control lever in

neutral (N) position.

•Release parking brake and clutch/brake

pedal.

• Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turn-

ing the height adjustment knob in

desired direction.

•Tum knob clockwise (G) to raise cutting

height. .

•Turn knoo counterclockwise (_)to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights are

approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

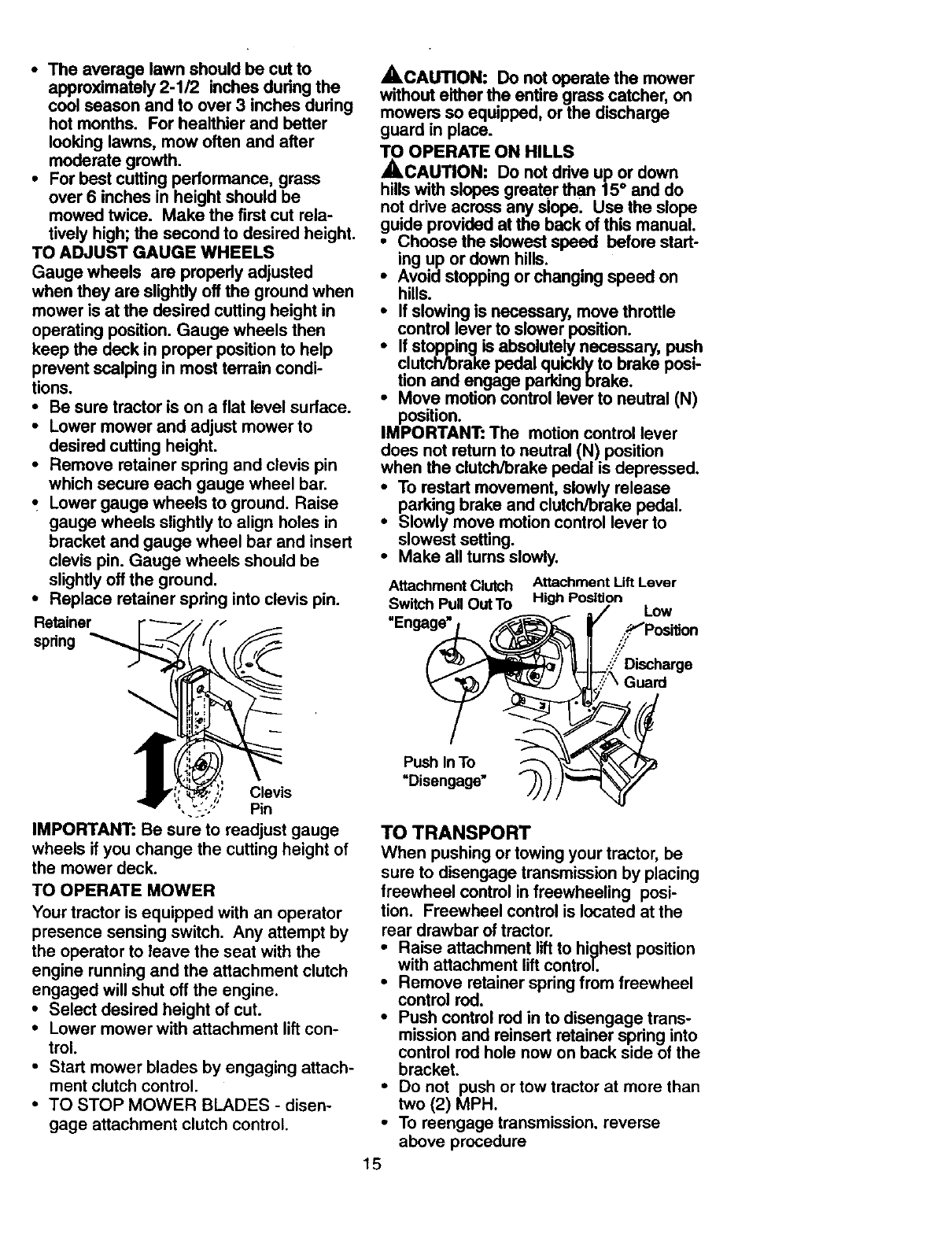

•The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

•For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut rela-

tively high; the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain condi-

tions.

•Be sure tractor is on a flat level surface.

•Lower mower and adjust mower to

desired cutting height.

•Remove retainer spring and clevis pin

which secure each gauge wheel bar.

tLower gauge wheels to ground. Raise

gauge wheels slightly to align holes in

bracket and gauge wheel bar and insert

clevis pin. Gauge wheels should be

slightly off the ground.

•Replace retainer spring into clevis pin.

Retainer

spring

Clevis

, -:" Pin

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height of

the mower deck.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

•Select desired height of cut.

•Lower mower with attachment lift con-

trol.

•Start mower blades by engaging attach-

ment clutch control.

•TO STOP MOWER BLADES - disen-

gage attachment clutch control.

,_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the discharge

guard in place.

TO OPERATE ON HILLS

,_CAUTION: Do not drive up or down

hills with slopes greater than 15 °and do

not drive across any slope. Use the slope

guide provided at the back of this manual.

•Choose the slowest speed before start-

ing up or down hills.

•Avoid stopping or changing speed on

hills.

•If slowing is necessary, move throttle

control lever to slower position.

•If stoppingis absolutely, necessary, push

clutch/brake pedal qu,ckly to brake posi-

tion and engage parking brake.

•Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutclVbrake pedal is depressed.

•To restart movement, slowly release

parking brake and clutch/brake pedal.

•Slowly move motion control lever to

slowest setting.

•Make all tums slowly.

Attachment Clutch

Switch Pull Out To

"Engage"

ush,n o

Disengage" F-_j )_,,

Attachment Lift Lever

High Position

/Low

S_/Position

j?'

..SDischarge

_._'\ Guard

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling posi-

tion. Freewheel control is located at the

rear drawbar of tractor.

•Raise attachment lift to highest position

with attachment lift control.

•Remove retainer spring from freewheel

control rod.

•Push control rod in to disengage trans-

mission and reinsert retainer spring into

control rod hole now on back side of the

bracket.

•Do not push or tow tractor at more than

two (2) MPH.

•To reengage transmission, reverse

above procedure

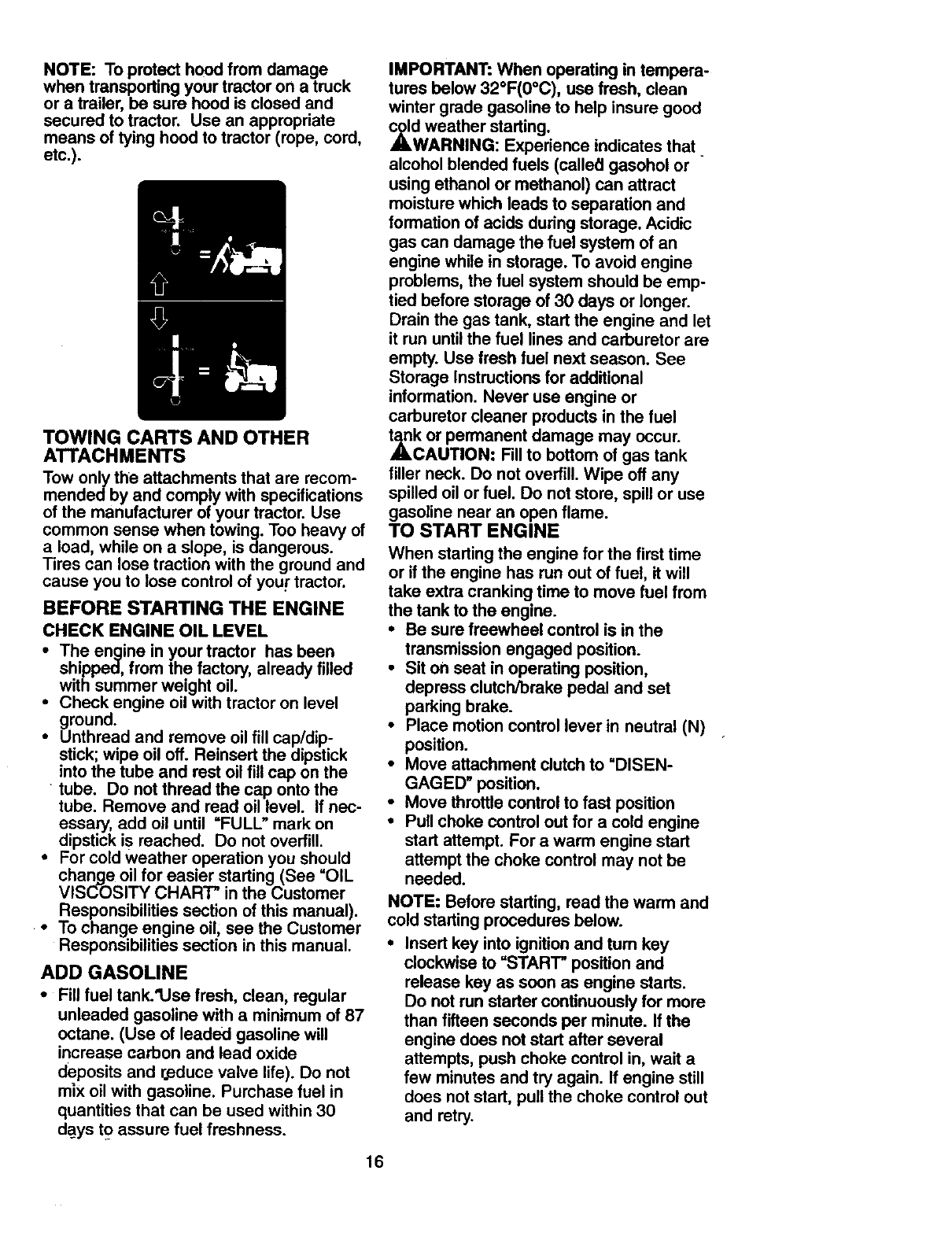

NOTE:Toprotecthoodfromdamage

whentransportingyourtractoron atruck

or a trailer,besurehoodis closedand

securedto tractor. Usean appropriate

meansof tyinghoodto tractor(rope,cord,

etc.).

TOWING CARTS AND OTHER

ATTACHMENTS

Towonlythe attachmentsthatarerecom-

mendedby andcomplywithspecifications

of themanufacturerofyourtractor.Use

commonsensewhentowing.Tooheavyof

a load,whileon a slope,is dangerous.

Tirescanlosetractionwiththe groundand

causeyouto losecontrolof yourtractor.

BEFORE STARTING THE ENGINE

CHECKENGINEOIL LEVEL

• Theengineinyourtractor hasbeen

shipped,fromthe factory,alreadyfilled

withsummerweightoil.

•Check engine oil with tractor on level

ground.

•Unthread and remove oil fill cap/dip-

stick; wipe oil off. Reinsert the dipstick

into the tube and rest oil fill cap on the

• tube. Do not thread the cap onto the

tube. Remove and read oil level. If nec-

essary, add oil until =FULL" mark on

dipstick is reached. Do not overfill.

•For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Customer

Responsibilities section of this manual).

•* To change engine oil; see the Customer

Responsibilities section in this manual.

ADD GASOLINE

•Fill fuel tank.qJse fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. (Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

,_/Aweather starting.

RNING: Experience indicates that

alcohol blended fuels (calle_lgasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be emp-

tied before storage of 30 days or longer.

Drain the gas tank, start the engine and let

it run untilthe fuel lines and carburetor are

empty. Use fresh fuel next season. See

Storage Instructionsfor additional

information. Never use engine or

carburetor cleaner productsin the fuel

t_k or permanent damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

•Be sure freewheel control is in the

transmission engaged position.

•Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

•Place motion control lever in neutral (N)

position.

•Move attachment clutch to =DISEN-

GAGED" position.

•Move throttle control to fast position

•Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

•Insert key into ignition and tum key

clockwise to =START" position and

release key as soon as engine starts.

Do not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait a

few minutes and try again. If engine still

does not start, pull the choke control out

and retry.

WARM WEATHER STARTING (50° F

AND ABOVE)

• When engine starts, slowly push choke

control in untilthe engine begins to run

smoothly. If the engine starts to run

roughly,pull the choke controlout slight-

ly for afew seconds and then continue

to push the control in slowly.

•The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° FAND

BELOW)

•When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the

engine to accept small changes in

speed and load, until the choke control

is fully in. If the engine starts to run

roughly, pull the choke control out slight-

ly for afew seconds and then continue

to push the control in slowly. This may

require an engine warm-up period from

several seconds to several minutes,

depending on the temperature.

AUTOMATIC TRANSMISSION WARM-UP

• Before driving the unit in cold weather,

the transmission should be warmed up

as follows:

•Be sure the tractor is on level ground.

•Place the motion control lever in neu-

tral. Release the parking brake and

let the clutch/brake slowly return to

operating position.

•Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

•The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be pulled

out slightly.

NOTE: A high altitude (above 3000 feet)

or in cold temperatures (below 32 F) the

carburetor fuel mixture may need to be

adjusted for best engine performance.

See =TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

PURGE TRANSMISSION

_,CAUTION: Never engage or disen-

gage freewheel lever whUe the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the trans-

mission be purged before operating tractor

for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shippingof your tractor.

IMPORTANT: Should your transmission

require removeal for service or replace-

ment, it should be purged after reinstalla-

tion before operating the tractor.

•Place tractor safely on level surface with

engine off and parking brake set.

• Disengage transmission by placing free-

wheel control in freewheehng position

(See =TO TRANSPORT" in this section

of manual).

•Sitting in the tractor seat, start engine.

After the engine is running, move throt-

tle control to slow position. With motion

control lever in neutral (N) position,

slowly disengage clutch/brake pedal.

•Move motion control lever to full forward

position and hold for five (5) seconds.

Move lever to full reverse position and

hold for five (5) seconds. Repeat'this

procedure throe (3) times.

NOTE: During this procedure there will be

no movement of drive wheels. The air is

being removed from hydraulic drive sys-

tem.

•Move motion control lever to neutral (N)

position. Shut off engine and set parking

brake.

•Engage transmission by placing free-

wheel control in driving position (See

"TO TRANSPORT" in this section cf

manual).

•Sitting in the tractor seat, start engine.

After the engine is running, move throt-

tle control to half (1/2) speed. With

motion control lever in neutral (N) posi-

tion, slowly disengage clutch/brake

pedal.

•Slowly move motion control lever for-

ward; after the tractor moves approxi-

mately five (5) feet, slowly move motion

control lever to reverse position. After

the tractor moves approximately five (5)

feet return the motion control lever to

the neutral (N) position. Repeat this pro-

cedure with the motion control lever

three (3) times.

•Your tractor is now purged and now

ready for normal operation.

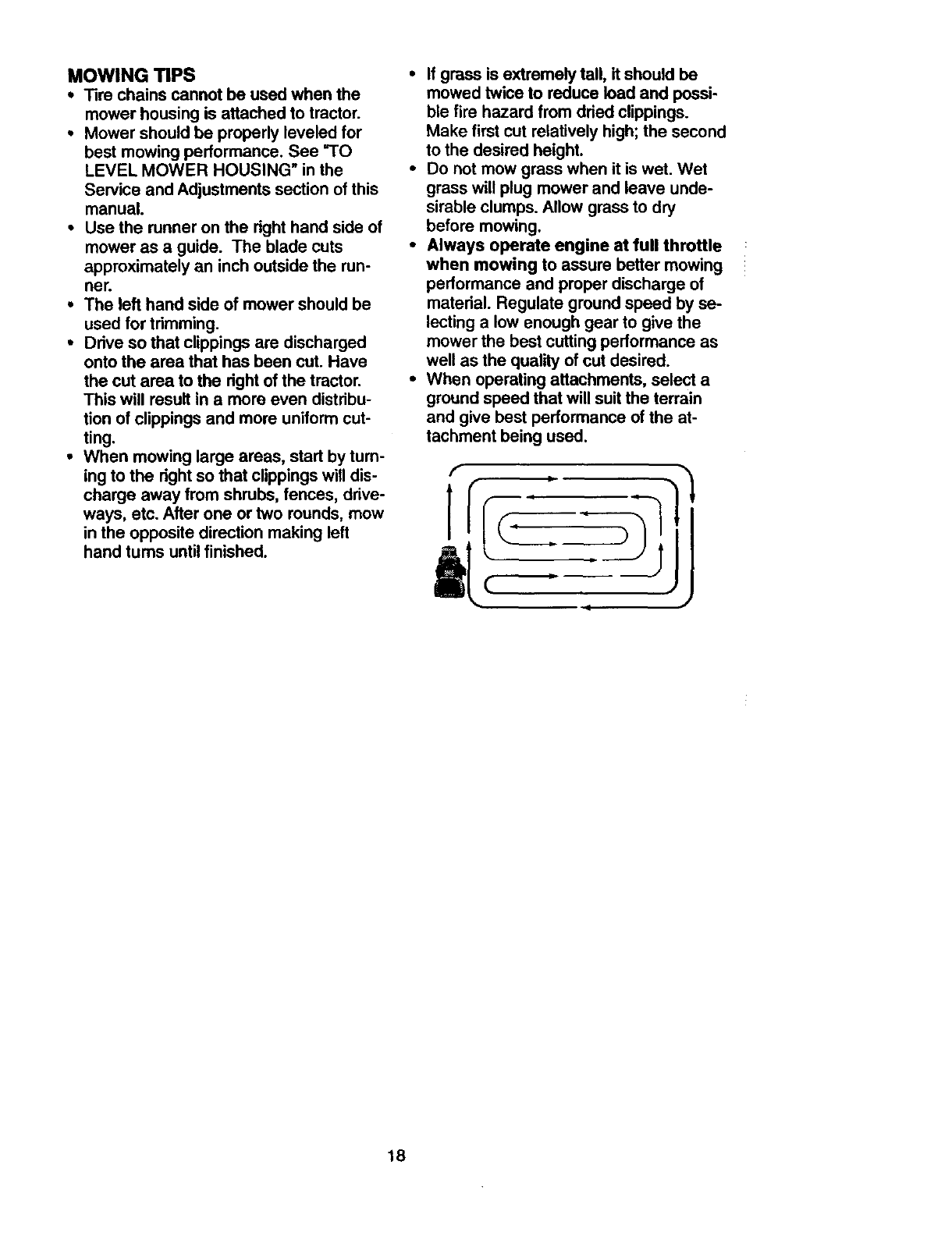

MOWING TIPS

•Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

best mowing performance. See =TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• Use the runner on the right hand side of

mower as a guide. The blade cuts

approximately an inch outside the run-

ner.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform cut-

ting.

•When mowing large areas, start by turn-

ing to the right so that clippings will dis-

charge away from shrubs, fences, drive-

ways, etc. After one or two rounds, mow

in the opposite direction making left

hand tums until finished.

•If grass is extremely tall, it should be

mowed twice to reduce load and possi-

ble fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

•Do not mow grass when it is wet. Wet

grass will plug mower and leave unde-

sirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by se-

lecting a low enough gear to give the

mower the best cutting performance as

well as the quality of cut desired.

•When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

CUSTOMER RESPONSIBILITIES

MAINTENANCE SCHEDULE ____o_f "

FILL IN DATES

ASYou --," O,,T,,

o,.c,o,..o..

Check "13rePressure

Check Operator Presence and

TInterlockSy,=ems II/'

R CheckforLooseFastenem li_ lit7 I# #

CA _Replace Mower Blades i_

T Lu_:at_ Chart II_

0 CheckBmteryLevel

R c_ BatteryandTermklals/Recharge V#

CheckTmr_axleCooling IV#

Adjust Blade Belt(s) Tension _s

Adjust Motion Drive Belt(s) Tension Ks

CheckEngineOilLevel

Change Engine Oil I_t2,s t#/

EClean Air Rlter iIf=

NClean Air Screen iV#2

Inspect Muffler/Spark Arrester V#

Replace Oil F'_er (If equipped) ._=

EN Clean Engine Coo4ing

Replace Spark Plug _I_

Replace Nr FkterPaper Cartddge _2

Replace Fuel Filter I_ #

1 - Chang* mo_ one3 ,,v_mop_alJngunderahNNy I_d or In highambl*nt hm_'ur_, s -He_ _h _ s.pmm.

2. Serv_e rr_ ohm whono_ Indldyor dustycondi_ons.

3 - If_0ped wlmoi flier, change dl qNeP/50 hour_.

4. Replacebladesmo_ _*n v,t,mmo_dng_ _ndy _i,

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have Deen suDjected to operator

abuse or negligence, io receive TUllvalue

Trom the warranty operator must maintain

tractor as nstructeo in this manual. Some

adjustments will need to be made pedodi-

cally to properly maintain your tractor.

All adjustments in the _ervice an(]

Adjus'cments section of this manual should

be checked at least once each season.

•Once a year you should replace the

spark plugz clean or replace air filter and

cneck b a(]es and bens ;'or wear. P_new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run eetter and last longer.

BEFORE EACHUSE

: Check engine oil level.

Check brake operation.

7-T_htenfrontmd_phil boltto3SIL-Ibs.rm0dmum.

Donoqo_on.

LUBRICATION CHART

@Tie Rod Ball Joints

@Spindle Zerk

eFront

Wheel

Bearing

Zerk

•Steering

Sector

Gear Teeth

_ _Spindle Zerk

OFront

_'_."I Wheel

Bearing

_Zerk

•Check tire pressure. . , . OSpray Silicone lubriant (Move _s to Lubricate)

Check operator presence ano intenocK eGeneral Purpose Grease . .

systems for proper operation. ORefer to Customer Responsibilities ENGINE

Check for loose fasteners. Section

IMPORTANT: Do not oil or grease the pivot points which have special nylon bearings. Viscous lu-

bricants will attract dust and dirt that will shorten the life of the self-lubricating bearings. If you feel

thev must be lubricated, use onlv a dry. powdered graphite type lubricant sparingly,

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

•Maintain proper air pressure in all tires

(See =PRODUCT SPECIFICATIONS"

on page 3 of this manual).

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and inter-

lock systems are working properly. If your

tractor does not function as described

below, repair the problem immediately.

•The engine should not start unless the

clutch/brake pedal is fully depressed

and attachment clutch control is in the

disengaged position.

•When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

•When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

•The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

•Raise mower to highest position to allow

access to blades.

•Remove hef'bolt, lock washer and flat

washer securing blade.

•Install new or resharpened blade with

trailing edge up towards deck as shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

•Reassemble hex bolt, lock washer and

flat washer in_exact order as shown.

•Tighten bolt ,securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated. Mandrel

Blade _

Center

Hole

Hex Bolt

(Grade 8)_k=Star

*A Grade 8 heat treated bolt can be

identifiedby six lineson the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade, but if you do, be sure the blade is

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

•The bladecanbe sharpened with afile

or on a grinding wheel. Do not attempt

to sharpen while it is on the mower.

•To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with bal-

ancer).

• Slide blade onto an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a hod-

zontal position. If either end of the blade

moves downward, sharpen the heavy

end until the blade is balanced.

NOTE; Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

ade

or Pin --"_ -_

BATrERY

Your tractor has a battery charging system

which is sufficient for normal use.

However, periodic charging of the battery

with an automotive charger will extend its

life.

•Keep battery and terminals clean.

ieep battery bolts tight.

Keep small vent holes open.

Recharge at 6-10 amperes for I hour.

TO CLEAN BA'I-rERY AND TERMINALS

Corrosion and dirt on the battery and ter-

minals can cause the battery to "leak"

power.

Remove terminal guard.

Disconnect BLACK battery cable first

then RED battery cable and remove

20 battery fr_omtractor.

•Rinse the battery with plain water and

dry.

•Clean terminals and battery cable ends

with wire brush until bright.

•Coat terminals with grease or petroleum

iel !.

• Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this manu-

al).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot.

•Inspect cooling fan to be sure fan

blades are intact and clean.

•Inspect cooling fins for dirt, grass clip-

dPingsand other materials. To prevent

amage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the (sctory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authodzed service

center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG, or

SH. Select the oil's SAE viscosity grade

according to your expected operating tem-

perature.

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/dip-

stick securely each time you check the oil

level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG, or SH.

•Be sure tractor is on level surface.

•Oil will drain more freely when warm.

•Catch oil in a suitable container.

•Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

•Remove drain plug.

•After oil has drained completely, replace

oil drain plug and tighten securely.

•Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see =PROD-

UCT SPECIFICATIONS" on page 5 of

this manual.

•Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into the

tube and rest the oil fill cap on the tube.

Do not thread the cap onto the tube

when taking reading. Keep oil at

=FULL" line on dipstick. Tighten cap

onto the tube securely when finished.

Oil Drain Plug

Oil Fill

Air Screen Cap/Dipstick

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from over-

heating. Clean with a wire brush or com-

pressed air to remove dirt and stubborn

dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirtyconditions),

remove the blower housing and other

coolingshrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

coolingfins, and/or coolingshrouds re-

movedwill cause engine damage due to

overheating.

AIR FILTER

Your engine will not run properly using a

dirty airfllter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

• Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

•Slide foam pre-cleaner off cartridge.

•Wash it in liquid detergent and water.

•Squeeze it dry in a clean cloth. Allow it

to dry.

•Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

•Replace adirty, bent, or damaged car-

tridge.

Cartridge

Foam

Pre-cleaner

Cartridge

Plate

Rubber

Seal

Nut

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will dam-

age the cartridge.

•Remove nut and cartridge plate.

•Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

•Check rubber seal for damage and

proper position around stud. Replace if

n6ces_ary.

•Reassemble air cleaner, cartridge plate,

and nut.

• Reinstall air cleaner cover and secure

by tightening knob.

ENGINE OIL FILTER

Replace the engine oil filter every season

or with every second oil change if the trac-

tor is used more than 100 hours in one

year.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in =PRODUCT SPECIFICATIONS"

on page 5 of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

•With engine cool, remove filter and plug

fuel line sections.

• Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

•Be sure there are no fuel line leaks and

clamps are pmperiy positioned.

CLEANING

iClean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

•Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unlessthe elec-

trical system, muffler,air filter and carbure-

tor are covered to keep water out. Water

in engine can result in a shortened engine

life.

,_CAUTION: Before performing any service or adjustments:

• Depress clutch/brake pedal fully and set parking brake.

•Place motion control lever in neutral (N) position.

• Place attachment clutch in =DISENGAGED" position.

ium ignition key "OFF" and remove key.

Make sure the blades and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come

in contact with plug.

TRACTOR

TO REMOVE MOWER

•Place attachment clutch in =DISEN-

GAGED" position.

•Tum height adjustment knob to lowest

setting.

•Lower mower to its lowest position.

Remove retainer spring holding anti-

swaybar to chassis bracket and disen-

gage anti-swaybar from bracket.

•Remove retainer springs from suspen-

sion arms at deck and disengage arms

from deck.

•Raise attachment lift to its highest posi-

tion.

Chassis

Bracket

Adjustment

Nuts

Suspension

Arms

•Remove two retainer spdngs from each

front link and remove links.

•Slide mower forward and remove belt

from electric clutch pulley.

•Slide mower out from under right side of

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO INSTALL MOWER

Follow procedure descdbed in =INSTALL

MOWER AND DRIVE BELT" in the

Assembly section of this manual.

Lift

Unks

Front Mower

,Front

Suspension

Bracket

Retainer

Springs

_etainer

Spring

Anti-Sway

Bar

Mower

Bracket

Retainer Springs

TOLEVELMOWERHOUSING

Adjustthemowerwhiletractoris parked

onlevelgroundor driveway.Makesure

tiresareproperlyinflated(See"PROD-

UCT SPECIFICATIONS"). If tires are

over or underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• Measure height from bottom of deck

curt to ground level at front corners of

mower. Distance "A" on both sides of

mower should be the same.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Bottom __ ___ Bottom

o, P

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the followingfrent-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so the

front is approximately 1/8" to 1/2" lower

than the rear when the mower is in its

highest position.

Check adjustment on right side of tractor.

Measure distance "F* directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower housing, loosen

nut "G" on both front links an equal

number of tu_s.

•When distance "F" is 1/8" to 1/2" lower

at front than rear, tighten nut "H" against

trunnion on both front links.

• To raise front of mower housing, loosen

nut "H" from tnjnnion on both front links.

Tighten nut "G" on both front links an

equal number of turns.

• When distance "F" is 118" to 1/2" lower

at front than rear, tighten nut "H"

against trunnion on both front links.

NOTE: Each full turn of nut "G" will

change dim. "F" by approximately 3/8".

•Recheck side-to-side adjustment.

Mandrel

*# J

_ r ..... L_=-"

Both Front_ .=Links__ih°uld-_--_-_.be__Equal.in Length

Nut "H"_

Links_

"_ Nut G"

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

• Park tractor on a level surface. Engage

parking brake.

• Remove screws from left hand mandrel

cover and remove cover.

• Roll belt over the top of left hand man-

drel pulley.

• Remove belt from electric clutch pulley.

Remove belt from idler pulleys.

Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

•Check primary idler arm and two idlers

to see that they rotate freely.

• Be sure spring is securely hooked to pri-

mary idler arm and bolt in mower hous-

ing.

Check pdmary idler arm and two idlers

ito that rotate freely.

see they

Be sure spring is securely hooked to pri-

mary idler arm and bolt in mower hous-

ing.

MOWER DRIVE BELT INSTALLATION

•Install belt in both idlers. Make sure belt

is in both bolt keepers at the idlers as

shown.

Left Hand

Mandrel

Cover

Left Hand

•Install new belt onto electric clutch pul-

ley.

•Roll belt into upper groove of left hand

mandrel pulley.

•Carefully check belt routing making sure

belt is ,n the grooves correctly and

inside belt keepers.

•Reassemble left hand mandrel cover.

Idler

Pulleys

Electric

Clutch

Mower

Drive

Belt

Keepem

Primary

Idler Arm

TO REPLACE MOWER BLADE DRIVE

BELT

Park the tractor on level surface. Engage

parking brake.

Remove mower drive bolt (See "TO

REPLACE MOWER DRIVE BELT" in

this section of this manual).

•Remove mower (See =TO REMOVE

MOWER" in th,s section of this manual).

•Remove screws from fight hand man-

drel cover and remove cover. Unhook

spring from bolt on mower housing.

•Carefully roll belt off fight hand mandrel

pulley.

•Remove belt from center mandrel pul-

ley, idler pulley, and left hand mandrel

pulley.

•Remove any dirt or grass which may

have accumulated around mandrels and

entire upper deck surface.

•Check secondary idler arm and idler to

see that they rotate freely.

Be sure spring is hookedin secondary

idler arm and sway-bar bracket.

Install new belt in lower groove of left

hand mandrel pulley, idler pulley, and

center mandrel pulley as shown.

Roll belt over right hand mandrel pulley.

iMake sure Js grooves properly.

belt in all

Reconnect spring to bolt in mower

housing and reinstall right hand mandre

cover.

•Reinstall mower to tractor (See

=INSTALL MOWER AND DRIVE BELT"

in the Assembly section of this manual).

•Reassemble mower drive belt (See =TO

REPLACE MOWER DRIVE BELT" in

this section of this manual).

Left Hand

Mandrel

Secondary IdlerArm

Spring

Anti-Sway-Bar

Bracket Screw

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years of

service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to not

engage, or, to not stop as required.

Adjustments should be made by your

nearest authonzed service center/dooart-

ment.

•Make sure attachment clutch and igni-

tion switches are in =OFF" position.

•Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012' at all three slot loca-

tions cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

Slot (3) Clutch Plate

Rotor -- ,_.. t

\ / i J .or2.

(3) _ _. Plate

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

side of the transaxle.

If tractor requires more than six (6) feet

stooping distance at high speed in high-

est gear, then brake must be adjusted.

•Depress clutch/brake pedal and engage

parking brake.

•Measure distance between brake oper-

ating arm and nut =A" on brake rod,

•If distance is other than 1-1/2", loosen

jam nut and tum nut =A" until distance

becomes 1-112". Retighten jam nut

against nut =A".

•Road test tractor for proper stooping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6)feet in highest gear,

further maintenance is necessary.

Contact your nearest authorized ser-

-vice-center/department,

Right Hand

Mandrel

Cover

W'dhParking _. Nut "A"

.Brake /_-1-1/2"-'_ /\

\ \' _ Operating

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there

a belt installation guide decal on bottom

of left footrest.

•Remove mower (See "TO REMOVE

MOWER" in this section of this manual.)

BELT REMOVAL -

•Engage parking brake (creates slack in

belt).

•Remove belt from clutching and fan

idler pulleys.

•Loosen belt keeper above transaxle pul-

ley.

•Remove belt from transaxle pulley.

•Remove belt from engine pulley and

front V-idler pulley.

•Pull belt out of all belt keepers and

remove from tractor.

BELT INSTALLATION -

•Place V part of belt intogrooves on

engine pulley and front V-idler, making

sure to route belt inside of all belt keep

ers.

•Route belt on right side, coming from V-

idler, towards back of tractor, above

midspan belt keeper and to top of

trensaxle pulley.

•Route belt on left side, coming from

engine pulley, towards back of tractor

and through loop in midspan bolt keep-

er.

•Place V part of belt into grooves on

transaxle and fan idler pulleys, making

sure to route belt inside of all belt keep-

ers.

•Retighten belt keeper above transaxle

pulley,

•Place belt around clutching idiom as

shown, making sure to route belt inside

of all belt keepers.

•Chock to be sure belt is positionedcor-

rectlyand is on proper side of all belt

keepers.

•Reinstall mower.

IMPORTANT: Chock brake adjustment.

Tractor V-Belt Drive Schematic

Viewed from L.H. Side of Tractor

Belt Transaxle

Belt Keepers I Belt Fan

(_j._r- En._ine Keeper Idler

TO ADJUST MOTION CONTROL LEVER

The motion control lever has been preset

at the factory and adjustment should not

be nocessary.

If for any reason the motion control lever

will not hold its position while at a selected

speed, it may be adjusted at the friction

pack Iocatedon the right side of chassis.

Park tractor on level surface. Stop trac-

tor by turning ignition key to "OFF" posi-

tion and engage parking brake.

•Place motion control lever in neutral (N)

position.

ihile holding Iocknut, loosen jam nut

Tighten Iocknut 114 turn.

While holding iocknut, tighten jam nut

securely.

NOTE:- If for any reason the effort to

move the motion control lever becomes

too excessive, reverse the above adjust-

ment procedure by loosening Iocknut 1/4

turn.

Road test tractor after adjustment and

repeat procedure if necessary.

TRANSMISSION REMOVAUREPLACE-

MENT

Should your transmission require removal

for service or replacement, it should be

purged after reinstallationand before

operating the tractor. See "PURGE

TRANSMISSION" in the Operation section

of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steeringwheel crossbars are not hori-

zontal (left to right) when wheels are posi-

tioned straight forward, remove steenng

wheel and reassemble per instructionsin

the Assembly section of this manual.

FRONT WHEEL TOE-IN ADJUSTMENT

Front wheel toe-in is required for proper

steering operation. Tee-in was set at the

factory and adjustment should not be nec-

essary. If parts in the front axle or steering

mechanism have bean replaced or dam-

aged, check toe-in and adjust if necessary.

TO CHECK TOE-IN

Positionfront wheels straight ahead.

Measure distance between wheels at

front and rear of tires (dimensions =A"

and "B._.).

•Front dimension •A" shouldbe 1/8" to

1/4" less than rear dimension "S".

TO ADJUST TOE-IN

•Loosen jam nuts at adjustment sleeves

on tie rod.

•Adjust tie red until dimension =A" is 1/8"

to 1/4" less than dimension "B'.

• Tighten jam nuts securely.

FRONT WHEEL CAMBER

The front wheel camber is not adjustable

on your tractor, If damage has occurred to

affect the front wheel camber, contact your

nearest authorized service center/depart-

ment.

ustment

Sleeves

_e Rod

Jam Nu_

TO REMOVEWHEELFORREPAIRS

FRONT WHEEL

• Block up axle securely.

•Remove axle cover, retaining dng and

washers to allow wheel removal.

•Repair tire and reassemble.

•Replace washers and snap retaining

dng securely in axle groove.

•Replace axle cover.

REAR WHEEL-

.* Block rear axle securely.

Remove five (5) hub bolts to allow

wheel removal.

• Repair tire and reassemble. Replace

and tighten hub boltssecurely.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining _ fff_'l_

Ax,e

Cover _

TO START ENGINE WITH A WEAK BAT-

TERY

ACAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame

and smoking materials away from batter-

ies. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BA'I-FERY" in the MAINTENANCE sec-

tion of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor Is equiped with

a 12 volt negative grounded system. The

other vehical must also be a 12 volt nega-

t!ve grounded system. Do not use your

tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

•Connect each_end of the RED cable to

the POSITIVE (+) terminal of each bat-

tery, taking care not to short against

chassis.

•Connect one end of the BLACK cable to

the NEGATIVE _-) terminal of fully

charged battery.

•Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

•BLACK cable first from chassis and

then from the fully charged battery.

• RED cable last from both batteries.

"Positive*_=__L==Negative"

REPLACING BATTERY

ACAUTION: Do not short battery termi-

nals by allowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery,

remove metal bracelets, wdstwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

•Lift hood to raised position.

•Remove terminal guard.

Disconnect BLACK battery cable then

RED battery cable and carefully remove

battery from tractor.

•Install new battery with terminals in

same position as old battery.

Reinstall terminal guard.

First connect RED battery cable to posi-

tive (+) battery terminal with hex bolt

and keps nut as shown. Tighten secure-

• _onnect BLACK grounding cable to

negative (-)battery terminal with

remaining hex bolt and keps nut.

Tighten

securely.

•Close terminal access doors.

• Close hood.

;N=

Terminal HexBolt

A_e_

..Pesitive

(Red) Cable

Guard (Black)

Cable

TO REPLACEHEADLIGHTBULB

• Raisehood.

•Pull bulb holder out of the hole in the

backside of the grill.

•Replace bulb inholder an_dpush bulb

holder securely back into the hole in the

backside of the grill.

•Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring maycause your

tractor to run poorly, stop running, or pre-

vent it from starting.

•Check wiring. See electdcal widng dia-

gram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO ADJUST ATTACHMENT LIFT

SPRING

•While holding spdng bushing with

wrench, loosen jam nut.

•Turn adjustment bolt clockwise to

extend spdng and reduce lift effort for

heavier attachments.

•Turn adjustment bolt counterclockwise

for lighter attachments.

•Retighten jam nut against spdng bush-

inq..

IMPORTANT: Do not adjust for maximum

spring tension when using light attach-

ments such as a mower. Adjust lift lever

spdng to aid in lifting attachment. Do not

overpower spring. When removing attach-

ment, always adjust spring tension to its

lowest position.

Jam Nut Spring

Bolt

Attachment

%•Uft Spring

Q•

TO REMOVE HOOD AND GRILL

ASSEMBLY

•Raise hoed.

•Unsnap headlight wire connector.

Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

•To replace, reverse above procedure.

Hood

Headlight

Wire

Connector

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishment or indi-

vidual. Warranty repairs must be per-

formed by an authodzed engine manufac-

turer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle'control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

iith engine not running, move throttle

control lever to fast position.

Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Needle Idle

Speed

Adjusting

Screw

Stop Throttle

Screw Control

Cable

Clamp Screw

Choke

Control

Cable

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary, check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

• With engine not running, move choke

control (located on dash panel) to full

choke position.

• Remove air cleaner cover, filter and car-

tridge plate to expose carburetor choke

(See =AIR FILTER" in the Customer Re-

sponsibilitiessection of this manual).

•Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable untilchoke is completely

closed. Tighten casing clamp screw se-

curely.

•Reassemble air cleaner.

Closed for

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. Ifthe

carburetor does need adjustment, proceed

as follows:

In general, tuming the adjusting needles

in (clockwise) decreases the supply of fuel

to the engine giving a leaner fuel/a=r mix-

ture. Turning the adjusting needles out

(countemlockwise) increases the supply of

fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

•Be sure you have a clean air filter, and

the throttle control cable is adjusted

propedy (see "TO ADJUST THRO'I-I'LE

CONTROL CABLE" in the Service and

Adjustments section of this manual).

•With engine off turn idle fuel adjusting

needle in (clockwise) closing it finger

tight and then turn out (counterclock-

wise) 1 tum.

FINAL SETTING -

•Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

•The high idle is set at the factory and

cannot be adjusted.

•Idle sDeed setting -With throttle control

lever in slow position, engine should

idle at 1200 RPM. If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is

attained.

•Idle fuel needle settina -With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise) until

engine speed decreases and then tum

out (counterclockwise) approximately

3/4 turn to obtain the best low speed

performance.

•Recheck idle speed. Readjust if neces-

sary.

ACCELERATION TEST -

•Move throttle control lever from slow to

fast position. If engine hesitates or dies,

tum idle fuel adjusting needle out

(counterclockwise) 1/8 tum. Repeat test

and continue to adjust, if necessary,

until engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine govern0 r, which is factory set for

proper engine speed. Overspeeding the

engine above the facory high speed set-

ting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest authorized

service senter/department, which has

proper equipment and experience to make

any necessary adjustments.

Immediatelyprepareyourtractorfor stor-

ageat the endof theseasonor if thetrac-

tor will notbeusedfor 30 days or more.

_,CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before stor-

ing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. This will allow you to clean it thor-

oughly. Remove all dirt, grease, leaves,

etc. Store in a clean, dry area.

•Clean entire tractor (See =CLEANING"

in the Maintenance section of this man-

ual).

•Inspect and replace belts, if necessary

(See belt replacement instructions in the

Service and Adjustments section of this

manual).

•Lubricate as shown in the Maintenance

section of this manual.

•Be sure that all nuts, belts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

•Touch up all rusted or chipped paint sur-

faces; sand lightly before painting.

BATTERY

•Fully charge the battery for storage.

•After a period of time in storage, battery

may require recharging.

•To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

•After cleaning, leave cables disconnect-

ed and place cables where they cannot

come in contact with battery terminals.

•If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

•Drain the fuel tank.

•Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

altemative in minimizing the formation of

fuel gum deposits during storage. Add sta-

bilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the carbure-

tor. Do not drain the gas tank and carbure-

tor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See =ENGINE" in

the Maintenance section of this manual).

CYLINDERS

•Remove spark plug(s).

•Pour one ounce of oil through spark plug

hole(s) into cylinder(s).

•Turn ignition key to =START" position for

a few seconds to distribute oil.

•Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if it starts to

rust. Rust and/or dirt in your gasoline will

cause problems.

•If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

•Cover your tractor with a suitable protec-

tive cover that does not retain moisture.

Do not use plastic. Plastic cannot

breathe, which allows condensation to

form and cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

F>ROBLEM CAUSE CORRECTION

Willnotstart

Hard to start

Engine will not turn

over

Engine clicksbut.will

not start

=• Out of fuel.

• Engine not =CHOKED" prop

edy,

• Engine flooded.

•Bad spark plug.

•Dirty air filter•

•Dirty fuel filter.

•Water in fuel.

• Loose or damaged widng.

• Carburetor out of adjustment.

•Engine valves out of adjust-

ment,

•Dirty air filter.

•Bad spark plug.

•Weak or dead battery,

•Dirty fuel filter,

•Stale or dirty fuel,

•Loose or damaged widng.

•Carburetor out of adjustment.

•Engine valves out of adjust-

ment.

•Clutch/brake pedal not

depressed.

• Attachment dutch is engaged.

•Weak or dead battery,

• Blown fuse.

•Corroded batteryterminals.

•Loose or damaged widng.

•Faulty ignitionswitch,

•Faulty solenoid or starter.

• Faulty operator presence

switch(es).

•Weak or dead battery.

•Corroded batteryterminals.

•Loose or damaged widng.

•Faulty solenoid or starter.

•RII fuel tank.

•See "TO START ENGINE" in

Operationsection.

•Walt several minutes before

attemptingto start.

•Replace spark plug•

•Clean/replace air filter.

•Replace fuel filter.

•Drain fuel tank and carburetor,

refilltank withfresh

gasoline and replace fuel filter.

•Check all widng,

•See "To AdjustCarburetor"in

Service and Adjustments

section.

•Contact an authodzed service

center.

•Clean/replace air filter.

•Replace spark plug,

•Recharge or replace battery.

•Replace fuel filter.

•Drain fuel tank and refillwith

fresh gasoline.

•Check all widng.

•See "ToAdjust Carburetor"in

Service and Adjustments

section.

• Contact an authorized service

center.

•Depress dutch/brake pedal.

•Disengage attachment clutch.

•Recharge or replace battery.

•Replace fuse.

•Clean batteryterminals.

•Check all wiring.

•Cheddraplace ignifion switch.

•Check/replace solenoid or

starter.

•Contact an authodzed service

centen

•Recharge or replace battery.

• Clean batteryterminals.

•Check all wiring.

•Check/replace solenoid or

starter.

PROBLEM

Lossofpower

"ROUBLESHOOTING CHART

CAUSE

• Cuffingtoomuchgrass/too

fast.

•Throttle in =CHOKE" position.

•Build-up of grass, leaves and

CORRECTION

•Set in "Higher Cut" posi-

tion/reduce speed.

• Adjustthrottlecontrol.

•Clean underside of mower hous-

trash under mower.

•Dirty air filter.

•Low oil level/dirtyoil.

•Faulty spark plug.

•Dirty fuel tilter.

•Stale or dirty fuel.

•Water in fuel.

• Spark plug wire loose.

•Dirty engine air soreen/nns.

•Dirty/clogged muffler.

•Loose or damaged widng.

ing.

•Claardreplace air filter.

•Check oil level/change oil.

•Clean and regap or change

spark plug.

•Replace fuel tilter.

•Drain fuel tank and refillwith

fresh gasoline.

•Drain fuel tank and carburetor,

refilltank withfresh gasoline and

replace fuel tilter.

•Connect and tighten spark plug

wire.

•Clean engine air screen/fins.

•Clean/replace muffler.

•Check all wiring.

Excessivevibration

Engine continues to

run when operator

leaves seat with at

tachrnent clutch

engaged

Poor cut - uneven

Mower blades will not

rotate

• Carburetor out of adjustment.

•Engine valves out of adjust-

ment.

•Worn, bent or loose blade.

•Bent blade mandrel.

•Loose/damaged part(s).

•Faulty operator-safety pres-

ence control system.

- Wom, bent or loose blade.

•Mower deck not level.

•Buildupof grass, leaves, and

trash under mower.

•Bent blade mandrel.

•Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

•Obstruction in clutch mecha-

nism.

•Worn/damaged mower ddve

belt.

•See "ToAdjustCarburetor"in

Service and Adjustments

section.

•Contact an authodzed service

center.

•Replace blade. Tighten blade

bolt.

•Replace blade mandrel.

•Tighten loose part(s). Replace

damaged parts.

•Check widng, switchesand con-

nections. If not

corrected, contact an authodzed

service center/

department.

•Replace blade. Tighten blade

boll

• Level mower deck.

•Clean underside of mower hous-

ing.

•Replace blade mandrel.

:• Clean around mandrels to open

vent holes.

•Remove obstruction.

•Replace mower ddve belt.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Mowerbladeswillnot • Frozenidlerpulley. , Replaceidlerpulley.

rotete(cont'd) • Frozenblademandrel. • Replaceblademandrel.

Poorgrassdischarge • Enginespeedtooslow.

Headlight(s) not work

ing (if so equipped)

Battery will not charge

Lossof drive

IEngine "backfires"

when tuming engine

!'OFF"

•Travel speed too fast.

• Wet grass.

•Mower deck not level.

•Low/uneven tire air pressure.

•Wom, bent or loose blade.

•Buildup of grass, leaves and

trash under mower.

•Mower drive belt worn.

•Blades impropedy installed.

•Improper blades used.

•Clogged mower deck vent

holes from buildupof

grass, leaves, and trash

around mandrels.

• Switch is "OFP.

• Bulb(s) bumed out.

• Faulty lightswitch.

•Loose or damaged widng.

•Blownfuse.

• Bud battery cell(s).

•Poor cable connections.

•Faulty regulator(if so

equipped).

•Faulty alternator.

•Freewheel control in =disen-

gaged"position.

• Motion drive belt wom, dam-

aged or broken.

• Air trapped in transmission

duringshipment

or servicing.

•Engine throttlecontrol not set

at "SLOW" positionfor 30 sec-

onds before stopping engine.

• Place throttlecontrol in "FAST"

position.

*Shift to slower speed.

•Allow grass to dry before mow-

ing.

•Level mower deck.

•Check tires for proper air pres-

sure.

•Replace/sharpen blade. Tighten

blade bolt.

•Clean underside of mower

housing.

•Replace mower ddve belt.

•Reinstall blades sharp edge

down.

• Replace with blades listed in

this manual

•Clean around mandrels to open

vent holes.

•Tum switch'ON'.

•Replace bulb(s).

•Checldmplace light switch.

•Check wiring and connestions.

•Replace fuse.

• Replace battery.

•Check/claan all connections.

•Replace regulator.

•Replace alternator.

•Place freewheel control in

"engaged" position.

• Replace motion drive belt.

• Purge transmission.

Move throttle conirol to =SLOW"

positionand allow to idle for 30

seconds before stopping

engine,

SCHEMATIC

TRACTOR - -MODEL NUMBER 917.273220

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE W]TH ENGINE _

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

PTO SWITCH

POSITION CIRCUIT H B

OFF C+GIB+H

ON C+Ft B+EIA+D

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS

IGNITION SWITCH

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

ENGINE CONNECTOR TRACTOR CONNECTOR

REGULATOR ENGINE IGNITION SWITCH BATTERY

_(_ "M'FORENGINEasL._C_KRT_IRN_E)IIL_---JI._--JllCHARGING

(PURPLEWIRE, SHORTING

REDWIRE) ITEWIRE) ( (REDWIRE)

SOLENOID STARTER

REDWIRE OIL SENTRY SOLENOID

_LUEWIRE) REENWIRE) _(WHKEWtRE)

•35

TRACTOR - - MODEL NUMBER 917.273220

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.273220

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Head 114-20x 3/4

8 7603J Tray, Battery

10 145211 Boll 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 15,3664 SwitchIntedockPush-In

21 161785 Harness,Light

22 4152J Bulb Light

26 108824X Fuse

28 157899 Cable, Ground

27 73510400 Nut, Keps Hex 1/4-20 UNC

29 160784 Switch,Plunger

30 163968 Switch,Ign

33 140403 Key,Ignition

40 164099 Harness Ign.

45 122822X Ammeter

46 110940X Meter, Hour

47 164881 Screw

50 154963 Switch, PTO

81 109748X Relay Asm.

83 163996 Socket, LightBulb

NOTE: AJIcomponentdimensionsgive_ in U.S. inches

1 inch= 25.4 mm

TRACTOR - - MODEL NUMBER 917.273220

CHASSIS AND ENCLOSURES

2 17

_20

19 68

TRACTOR - - MODEL NUMBER 917.273220

CHASSIS AND ENCLOSURES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

I 150253 Rail, Frame RH VGT 52 STD541431

2 140506 Drawbar,Gt 56 154914

4 73800700 Nut, Lock Hex 7/16 Unc 58 137113

5 163976 Dash 60 17490620

6 157882 DashAsm. LowerVGT 63 19131614

7 17720408 Screw,Thd Cut 114-20x 1/2 68 174.90508

8 145166 Support, Dash loPc. Battery 70 137159

14 161023X558 HoodAsm., Pnt 84 142992

15 160568 Lens,AsmHeadltght B6 74760716

16 121794X Cover,Access 90 STD551237

17 17490612 Screw,Thdrol 3/8-16x3/4

18 160564X558 Gdila 91 156586

19 19131312 Washer 13/32x 13/16x 12Ga. 95 105531X

20 STD523710 Boit, FinHex 3/8-16xl 98 140503

21 STD541437 Nut, Crawnlock 3/6-16 Unc 99 140871

23 17490616 Screw,Thdml 3/8-16 x I TY-']-(" 100 124236X

24 145243X558 Footrest,RH LT/YT/GT 95 101 17490628

28 145244X558 Footrest,LH LT/Y'r/GT 95 102 STD624(X)3

30 145052 Saddle, Hydro 1995 103 142273

31 161419 BracketSupportl-pcVGT 106 138776

Staedng 120 19131616

32 161327 BracketPivotChassis Lh 122 161464

33 161326 BracketPivotChassis Rh 130 17521312

34 142131 Bracket, Engine Support

35 19111116 Washerlli32x11/16x16Ga. 138 163975

36 74780512 Boit, FinHex 5/16-18x3/4 139 161330

37 140002X558 Fander Pnt 140 163806

39 136961 Bracket,Axle Front 141 163805

40 156111 Bracket, SupportAxle/Engine 142 161897

42 STD533710 Bait, Carriage 3/8-16 x I 144 161900

43 136939 Bracket,Sposn FrontLh 147 162967

44 136940 Bracket, Spnsn Front Rh 149 164769

45 154913 BracketAsra.,SuspChassis Rh 150 161237

47 17490608 ScrewThdrol 3/8-16xl/2 NOTE:

50 152728 Bracket, Chassis Front

DESCRIPTION

Nut, Crownlock 5/16-18

BracketAsm., SuspChassis Lh

BracketAsm., Fender

ScrewThdrol 3/8-16 x 1-I/4

Washer 13/32 x I x 14 Ga.

Screw,"rhd 5/16-18 x 1/2

Guide, BeltMid Span

Stop, Over Center Mower

Bolt,Fm Flex 7/16-14 Uncx 1

Washer,LockExternalToo_

3/6

Rail,Frame Lh VGT

Push Nut, Nylon

BracketSkidChassis

Rod By Pass

Cap ByPass Rod

ScrewThdrol 3/6-16 x 1-3/4

Retainer,Spdng

Lock,By Pass

Bo_t 5/16-18 Type TT

Washer 13/32 x 1 x 16 Ga.

Screw Hex Wshd 8-18 x 7/8

Screw Sltd Hex Hd W/PIn

Washer

Cupholder

BoltShoulder5/16-18 TT

MagnetYT/GT

StrikerPlata YT/GT

BracketDash Rh

BracketDash Lh

FastnerNut Pal

PinchWalt Hood

DuctHeat Hood

Allcomponentdimeneionsgiven in U.S. inches

1 inch= 25.4 rnm

TRACTOR - =MODEL NUMBER 917.273220

GROUND DRIVE

33 9

109

112

GROUND DRIVE

KEY PART

NO. NO.

2 7070E

3 7563R

5 STD541437

6 STD561210

7 140507

9 140080

15 STD551037

17 140921

20 73940800

22 156103

23 130564

26 STD541237

29 140494

30 19131616

33 12000053

34 124236X

35 137648

36 149412

37 121749X

38 150035

39 74321016

4O 5304J

41 73661000

42 8883R

46 145170

47 138228

48 72110612

50 131494

51 STD541437

52 139123

53 207J

54 161590

55 105706X

56 140218

58 74760724

61 140488

64 154752

65 67609

66 140296

67 19131312

68 5142H

69 123800X

70 151146

71 151179

TRACTOR - - MODEL NUMBER 917.273220

KEY PART

DESCRIPTION NO. NO.

Key 1/4 x 2.5 72 STD541431

Washer,Thrust' Axle 73 74490548

Nut, Crownlock 3/8-16 74 142432

Pin, Colter 76 140481

Wheel, Hub Assembly 77 74760716

Bolt,Hub 78 19111212

Wahser 13/32 x 13/16 x16 Ga. 79 72110505

Spring 80 140484

Nut Hex Jam Toplock1/2-20 81 17490612

ArmAsm Shift 82 150586

Knob 83 140479

Nut 84 140490

Brake, Red 85 17541020

Washer 13/32xl x16Ga. 86 140462

RingE 87 140491

Cap, Plunger 88 161592

Rod, ParkingBrake 69 73680700

Spring,Drive Ground 90 140489

Washer 25/32x1-1/4x16Ga. 91 17490644

Nyliner 92 74760520

Screw,Fin. #10-24 x I 93 140502

Actuator,InterlockSwitch 94 133835

TopLoci( #10-24 96 141103

Cover,Pedal 96 141004

Retainer,Spring 99 17490624

ClutchRcx:l 100 126881X

Bolt,Carriage 3/6-16 x 1-1/2 101 156106

Gr. 5 104 140480

Pulley,Idler,Flat 105 17580408

Nut, Crowdlock 3/8-16 UNC 106 142918

Pulley,Idler,Grooved 107 154739

Washer, Hardened 108 142917

Clutch,Arm Assembly

Bearing,Idler 109 140929

V-Belt 111 156240

Bolt Fin Hex 7/16-14x 1-1/2 112 156104

Pulley,Transaxle 113 73220700

Shaft,Clutch/BrakePedal 115 1234O5X

Bolt,Shoulder 116 73900500

Washer, Hardened 117 73900600

Washer, Flat - - 163198

Pin, Roll

Washer

Console HydroFender

Plate Console Shift

DESCRIPTION

Nut, Crowrdock5/16-18

BoltHex Flghd 5/16-18 x 3 Gr5

Screw Hex Wsh. Hi-Lo 1/4-1/2

BracketTransaxle

Bo_tFmFlex7/16-14 x 1

Washer 11/32 x 3/4 x 12 Ga

Bolt Cardage5/16-18 x 5/8

BracketTorqueRH

ScrewThdrol3/8-16 x 3/4

BracketMountTorrque/Fan

Strap TorqueMid

Spacer

Screw #10-24 x 1-1/4

Fan 7" Hydro

AdapterFan

Pulley Idler

Nut Crownlock7/16-14 Uric

Keeper Belt

Screw Thdrol3/6-16 x 2-3/4

Bolt FinHex 5/16-18 x 12.5

LinkShiftAsm

Fastener ChristmasTree

Washer Nickel Plated

BracketShift

Screw Thdrol3/8-16 x.1-1/2

Washer Compression

Washer Bellville

BracketIdler -

Screw Tap 1/4-20 x 1/2

O-Ring Asm Hydro Gear 70110

Line Fuel Hydro 15"VGT

Cap Asm Vent Hydro Gear

70109

SpringReturnBrake

Spacer Shift Lever VGTH

Washer NylonHigh Temp

Nut-HexASF 7116-14UNC

Keeper BeltT/A Grid Dr

Nut LockHex Flange 5/16-18

Nut, Lock Fig. 3/8-16

Transaxle (See Breakdown)

HydroGear 222-3010L

NOTE: AllcomponentdimensionsgiveninU.S. inches

1 inch= 25A mm

TRACTOR - - MODEL NUMBER 917.273220

STEERING ASSEMBLY

TRACTOR-- MODEL NUMBER 917.273220

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159944

2 137094

3 6855M

4 161849

5 161848

6 6266H

7 121748X

8 12000029

9 121232X

10 74781044

11 136518

12 73901000

13 121749X

14 STD551137

15 STD541537

16 145103

17 137347

18 137155

19 161419

20 163887

21 159945

22 155105

23 152927

25 STD523710

26 159946

27 3366R

28 17490612

29 104239X

30 12000034

31 138136

32 19111610

33 STD551131

34 STD523107

35 138059

36 137156

37 73360600

38 109850X

39 73700600

40 109851X

41 155246

42 17490508

44 160135

45 19132411

Wheel,Stearing

AxJeAsm., Front

F_ling, Grease

spineeAsm,LH

SpindleAsm., RH

Bearing,RaceThrust Harden

Washer 2.5/32x 1-5/8 x 16 Ga.

Ring,Klip#T5304-75

cap,_

Bolt,FinHex 5/8-11 x 2-5/4

Spacer BearingAxle Front

Nut, Lock Flange 5/8-11 Unc

Washer 25/_32x 1-1/4 x 16 Ga.

Washer,Lock Hvy Hlcl Spr 3/8

Nut,Lock Center 3/8-24 UNF

ShaftAsm.,Steering

RodAsm.,T=eBall J Ball Vgt (Inc. Key No.36-40)

Draglink,Ball JointSolidVgt

SupportAsm., SteeringVgt

Boot,Steering

Adapter,Wheel Steering

Bushing,Strg. BIk

Screw

Bolt,FinHex 3/8-16 x 1 Gr. 5

Cap, Wheel Steering

Bearing,Col. Strg.

Screw,Thrdrol 3/8-16 x 3/4

Bearing,Flange

Ring,KlipTruarc #5304-75

Bushing,NylinerSnap

Washer 11/32 x I x 10 Ga.

Washer,Lock Hvy Hlcl Spr 5/16

Bolt,Has Hd 5/16-18 x 3,'4

Gear, SectorSteering

"heRod

Jam NutRH Thread

JointAsm. Ball RH Thread

Jam Nut LH Thread

JointAsm. BallLH Thread

BracketSwitchInterlockVGT 97

ScrewTl_ml 5/16-18x 1/2 Tyt

Extension,Steadng

Washer13/32 x 1-1/20 x 11Ga.

NOTE: All componentdimensionsgivenin U.S. inches

1 inch= 25.4 mm

ENGINE

TRACTOR - - MODEL NUMBER 917.273")')0

21_20

, , _39

÷o

_j74

I SPARK ARRESTER KIT I

ENGINE

TRACTOR - - MODEL NUMBER 917.273220

KEY PART

NO. NO. DESCRIPTION

150249

13200300

151396

121361X

150828

1054-32X

140923

143996

151346

109227X

106082X

161493

13290300

164409

17521312

164416

STD551237

73920600

3645J

139277

7834R

132920

STD551437

123487X

74780624

17490636

17490664

126197X

10040700

150280

142040

19132007

19131414

13280336

19131614

17490512

150250

153992

162295

17490612

19131316

Engine (See Breakdown) Kohler CV26S-69526

MufflerSide 1-1/8"

Elbow STD 90 Degree 3/8 - 18 NPT

Muffler Asm Guard

Pulley V-Idler

Belt Engine Keeper Asm VGT 86

Bushing

Clutch Electric

Pulley Engine VGT Elect Clutch

Tank Fuel Rear 3.50 YT/GT 96

Pad Spacer

Cap Fuel 5-1/2" Vented Cov.

Plug Oil Drain (Order From Engine

Manufacturer)

Control Throttle

Screw Hex HD. W/P Wsh

Control Choke

LockwasherExt Tooth3/8

Nut Keps3/8 - 24 UNF

Bushing

Stern Tank Fuel

Fuel Line

Spark ArresterKit

Nut LockHex w/Ins,3/8 - 16

Clamp Hose

Bolt Fin Hex 3/8 -16 x 1-1/2

Screw TT 3/8-16 x 2-1/4 Unc

Screw Tf 3/8-16 x 4

Washer 1-1/20D X 15/32 ID X 250

Washer Lock7/16

Bolt Hex 7/16 - 20 X 4 - 1/4 Ga 5

Spacer Engine

Washer 13/32 x 1-1/4 x 7 Ga,

Washer Flat 13/32 x 7/8 x 14Ga.

Nipple Pipe4-1/2

Washer 13/32 x 1 x 14 Ga.

Screw

MufflerPRE CV25

Heat Shield

Elbow Street Brass

Screw Thdrol3/8-16 x3/4 TY-TT

Washer 13/32 x 13/16 x 16Ga.

NOTE: All component dimensions given inU,S, inches

1 inch = 25.4 mm

TRACTOR - "MODEL NUMBER 917.273220

SEAT ASSEMBLY

KEY

NO.

PART

NO_ DESCRIPTtON

1 140124 Se_t

2 140551 Bracket, Pivot Seat

3 140675 Strap, Fender

4 127018X BoLt,Shoulder 5/16-18 x .62

5 145006 C_, push In, H_noed

6 STD541437 Nut, Crownldck3/8-16 Unc

7 124_81X Spdng,Seat Cprsn

8150176 Bo_t5/16-18Ur_cx3/4wiSems

10 155925 Pan, Seat

12 12"1246X Bracket,MountingSwitch

13 121248X Bushing,Sr_p

KEY PART

NO. NO. DESCRIPTION

14 72050412 Bolt,Cardage 1/4-20 X 1-1/2

15 121249X Spacer,spur

16 123740X Spdng,CprSn

17 123976X Nut, Lock 1/4 Lge FigGr. 5

18 19171912 Washer 4.7/32xl_/16x12

Ga.

19 120068X KrJob,Seat 1/2-13Unc

20 124238X Cap, SpringSeat

21 153236 Bott,Shoulder 5/16-18

22 STD541431 Nut, Crownldck 5/16-18 Uric

NoTF.: ArtcomponentdimensionsgiveninU.S. inches

1inch --25.4 mm

DECALS

TRACTOR -- MODEL NUMBER 917.273220

18 13 4 13 "10

KEY PART

NO. NO.

2 164754

3 163916

4 163917

5 140837

6 133644

9 142342

10 156439

11 490OJ

12 146790

13 163267

14 160397

-- 23

-5

u23

KEY PART

DESCRIPTION NO. NO.

Decal, Engine 16 163204

Decal Hood, Craftsman, RH 17 149516

Decal, Hood, Craftsman, LH 18 164065

Decal, Brake ParkingSaddle 19 138047

Decal, Maintenance 23 106202X

Decal, ControlMovement 24 163223

Decal, Fender,Danger -o 138311

Decal, Clutch/Brake

Decal, V-BeRDriveSchematic - °157199

Decal, Dash "° 164174

Decal, V-BeltSchematic -- 164175

DESCRIPTION

Decal, Fender

Decal, BtryDngr/Psn Eng.

Decal, InsertStrg

Decal, Battery

Reflector,Taillight

Decal, Fender Hyd/Auto

Decal, Handle LFT HieghtAdj.

(LiftHandle)

Pad Footrest

Manual,Owner's (Eng)

Manual,Owner's (Span)

WHEELS & TIRES

7410

KEY PART

NO. NO. DESCRIPTION

59192 Cap, Valve,13ra

65139 Stem,Valve

148736X427 RimAssembly,Front

8134H Tube, Front(ServiceItem Only)

148741 "rim,Front

278H Fitting,Grease

9040H Bearing,Flange(Front Wheel

Only)

104757X Hub Cap, Axle

151607 Tim Rear

7154J TLIbe,Rear (Service ItemOnly)

148738X427 RimAssembly,Rear

6856M Fitting,Grease

144334 Sealant,"Rra(10 oz.Tube)

NOTE: All componentdimensionsgivenin U.S. inches

1 inch= 25.4 mm

TRACTOR - - MODEL NUMBER 917.273220

LIFT ASSEMBLY

13 I

! _ 12

•23 /_

20 19 18

TRACTOR - - MODEL NUMBER 917.273220

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 121006x RodAsm., Lever

2 159187 ShaftAsm.,Uft Vgt

3 159189 LeverAsm.,Lift Rh

4 12000022 E-Ring Troarc#5133-87

5 19292016 Washer 29/32 x 1ol/4 x 16 Ga.

6 74780624 Bolt,FinHex 3/8-16x1-1/2

7 125631X Grip, Handle Fluted

8 122365X Button,Plunger

9 122364X Plunger,Button

10 2876H Spring 2-1/8"

11 146704 Link Lift

12 163552 Retainer, Spring

13 139868 Arm, SuspensionVgt

14 140302 Bearing

15 STD541437 Nut, Crowniock 3/8-16 Uric

16 674A247 SpringAsm., AssistLift

17 STD541237 Nut, HexJam 3/8-16Unc

18 143363 Bracket,SpringAssist

19 STD551037 Washer 13/32 x 13/16 x 16 Ga.

20 5328J Belt, AdjustSpring Assist

21 STD523710 Belt, Fin Hex 3/8-16 x 1

22 127218 Link, Front

23 STD624008 Retainer, Spring

24 73350800 Nut, Jam Hex 1/2-13 Unc

25 130171 Trunnion

26 73800800 Nut, Lock W/Wsh 1/2-13 Unc

29 150233 Trunnion, Infin Height

30 110807X Nut, Special

31 19131018 Washer 13/32 x 5/8 x 16 Ga.

32 137150 Spdng, Compression Inf Hgt

33 76020308 Pin,Cotter 3/32 x 1/2

34 137167 Rod,Adj Lift

35 138057 Knob, Inf 3/8-16 Uric

38 155097 Pointer, HeightIndicator

39 123935X Plug, Hole

40 17490512 Scraw Hex Wsh 5/16-18 x 3/4

41 73540600 Nut, Crownlock 3/8-24

42 19112410 Washer 11/32 x 1-1/2 x 10Ga.

43 123934X Scale, IndicatorHeight

70 145212 Nut Hex Flange Lock

72 110452X Nut Push Phos & Oil

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273220

MOWER DECK

43 48

MOWER DECK

KEY PART

NO. NO.

1 156630

2 STD541431

5 138457

6 STD624008

7 130832

8 85O857

9 STD551137

10 140296

11 137380

12 129895

13 137553

14 137152

15 110485X

16 140329

17 106735X

18 19111016

19 105304X

20 123713X

21 137607

22 110452X

23 1105O9X

26 72110606

27 STD551037

28 132823

30 157722

31 137266

32 153535

33 129963

34 72140610

35 72110616

36 72110608

37 137166

38 156085

39 131494

40 136572

42 STD533107

43" 136460

TRACTOR -- MODEL NUMBER 917.273220

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Mower Deck Weldment 44 122052X

Nut, Crownlock5/16-18 45 STD541437

Bracketasm., Sway Bar 46 74760628

Retainer, Spdng

Arm, Suspension,Rear (Sway 47 137200

Bar) 48 137729

Bolt,Patched 3/8-24 x 1-1/4 49 136574

Gro8 50 137272

Washer, LockHvy., Unplated 51 137273

3/8 52 139245

Washer, Hard Blade, Mower 53 137789

Vented 54 139573

Blade (3 Required) 55 144959

Bearing,Ball, Mandrel #6204 56 138687

Shaft Asm. w/LowerBearing 58 133957

(IncludesKey No. 12) 59 137644

Housing,Mandrel 62 133943

Bearing,Ball, Mandrel 63 72110612

Stripper,Mower Round

Red, Hinge 64 19121414

Washer 11/32 x 5/8 x 16 ga. 65 151831

Cap, Sleeve 66 156009

Spring,TorsionDeflector 67 73930600

Bracket, Deflector 99 72110614

Hut, Push

Shield,Deflector Mower 102 153390

Bolt Cart. Sqnk 3/8-16 x 3/4 103 155986X505

Washer 13/82 x13/16 x16 104 156941

Ga. 105 156852

Spacer, SpringStopIdler

Screw Thdrel Washer Head 106 156853

Nut, Fig.Top Lock Cntr. 9/16

Pulley,Mandrel 107 156854

Washer, Spacer Mower

Vented 108 156856

Bolt,Carraige 3/8-16 x 1-1/4

Bolt,Carraige 3/8-16 x 2 109 72010505

Bolt,Carraige 3/6-16 x 1 Gr.5

Stiffener,Arm Idler 110 73980500

Keeper, Belt,Idler 112 19171216

Pulley,Idler, Flat 113 72110504

Pulley,Driven - - 158325

Bolt, Carriage 5/16-18 Unc x - - 143651

3/4

Arm, Idler Secondary

Spacer,Retainer

Nut,Crow'nlock 3/8-16 UNC

Bolt,Fin Hex 3/6-16 Unc x 1-

3/4

Cover, Mandrel RH

Screw,ThdrolL 1/4-20 x 5/8

Cover, Mandrel LH

Arm, Idler, Pdrnary

Spring,Secondary

Pulley,Idler, V-Greeve

Shield, Idler

V-Belt,Mower, Primary

V-l_lt, Mower, Secondary

Spring, Primary

Wheel, Gauge

Bo_t,Shoulder

Washer, Hardened

Bolt, Carriage 3/8-16 x 1-1/2

Gr. 5

Washer 3/6 x 7/8 x t4 Ga.

Pulley,Flat, Idler

Keeper,Belt, Idler

Nut, Centeriock 3/6-16 UNC

Bolt,Carriage 3/8-16 x 1-3/4

Gr. 5

Washer Felt

BarAdjustingGauge Wheel

Pin, Head Pivot

Bracket Pnt Ga. Wheel Asm

R. Rh50

Bracket PntGa. WheelAsm

R. LH50

Bracket Pnf Ga. Wheel Asm F.

RH 5O

Bracket Pnt Ga. Wheel Asm.

F.LH 5O

Bolt, Cardage 5/16-18 x5/8

Blt_

Nut, Cmwnlock 5/16-18 B_k.

Washer 17/32 x 3/4 x 16 Ga.

Bolt,Carriage 5/16 UNC x 1/2

Mower Service

MandrelAsm (IncludesKey

Nos. 8-10, 12-15, 31 and 33)

NOTE: All componentdimensionsgiven inU.S. inches

1 inch= 25.4 mm

TRACTOR - " MODEL NUMBER 917.273220

HYDRO GEAR THAHSAXLE - - MODEL HUMBER 222-3010L

TRACTOR - - MODEL NUMBER 917.273220

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 222-3010L

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 164591 Assembly,Housing,I_H 72 153767

2 164592 Assembly,Housing,RH 73 142904

7 153765 Oil Seal .984 x 1.5 x .25 74 142905

16 142876 Brake ShaftAssembly 76 142907

20 142877 Axle MountingHorn Assembly 77 142908

21 142878 Washer 1.0 x 1.63 x .08 78 142909

22 142879 Washer 1.0 x 2.06 x .09 79 153768

33 142929 BrakeYokeAssembly 81 142910

35 142880 BrakeArm 82 142911

36 142882 PuckPlate 89 142912

37 142883 Brake Puck 91 153769

38 142884 Washer 7i80.D, x7/16x.060 95 142914

39 142885 Nut, Castle 5/16-24 96 153770

40 142886 CotterPio 103 142916

41 142887 BrakeActuatingPin 104 142917

42 142888 Hi Pro Key 106 142918

43 142889 Spacer 108 142919

45 142890 Brake Disc 109 142920

46 142891 Bolt 1/4o20x 1-1/2 110 142921

47 142892 Bolt 1/4o20xl 111 150820

49 153766 DifferentialAssembly 112 150823

63 142894 Dowel Pin

64 150818 Reduction Gear, 113 150821

14Teeth to 38 Testh 117 150822

65 142897 Final DrivePinionAssembly 123 150824

67 142898 Jackshaft 124 150825

68 142899 O-Ring 129 153771

69 142900 Washer 5/8 X 1-5/32

70 142901 Washer 7/8 X 1-1/2 NOTE:

71 142902 Bolt, Hex 5/16-18 x 3.5

Locknut,Hex 5/16-18

Bolt,Hex 5/16-18 x 1-1/2

Hex Cap Screw 5/16-18 x 1

Shoulder Bolt

FreewheelActuatingArm

Oil Seal .625 x 1.0 x .25

Grease (10 oz. Tube)

Bolt, Hex 5/16-18x 1-3/4

Bolt 5/16-18 x4-1/2

Filter,Spin On

Pump, BDU-10L-122

Plug, StraightThread

60°7/18 SAE x 5/16 Fit_ng

Washer

Vent Cap Assembly

FittingO-RingAssembly

ControlArm

Set Screw

Filter Head

Hose 1/2"

Fitting,1/2"Beaded90°7/8

SAE

Fitting,1/2"Beaded 60° 9/16

Fitting,1/2"Beaded 90°9/16

O Ring

PinchClamp

Spring, Long

All componentdimensionsgiven in U.S. inches

1 inch= 25.4 mm

._3

TRACTOR - - MODEL NUMBER 917.273220

TRANSAXLE - PUMP - MODEL NUMBER BU-10L-122

TRACTOR - - MODEL NUMBER 917.273220

TRANSAXLE - PUMP - MODEL NUMBER BU-10L-122

KEY PART

NO. NO. DESCRIPTION

1 144569 Shaft, Pump

2 122716X Ring,Retaining

3 122745X Beadng, Ball

4 122715X Spacer

5 122700X seal, Lip

6 122699X Ring, Retaining

8 122767X Bearing,Cradle

12 122717X Seal, Up

13 122748X Arm,Trunnion

14 122749X Guide, Slot

15 144571 HousingKit,Transmission

17 122770X Beadng, Tilmst, Ball

19 153801 Center SectionKit

21 122722X Seal, Lip

22 144573 Shaft, Motor

23 142978 Washer, BlockThrust

25 127148X Swashplate,Variable

32 142938 BlockAssembly

37 122786X Pin, Stainless,Headless

38 122718X Gasket, Center Section

42 144578 Check Valve Kit

43 144578 Check Valve Kit

44 144579 Charge ReliefKit

47 122752X Screw, Socket Head, Cap

53 127153X BypassValve Kit

60 142977 BlockSpring

62 144581 O-Ring

63 144582 Charge PumpKit

64 144583 GerotorAssembly

67 144584 Screw, Socket Head,Cap

-- 153769 Pump Assembly,Complete

TRACTOR - - MODEL NUMBER 917.273220

KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526

CYUNDER HEAD VALVE &BREATHER |

30 _--28

P7_

_10

.-,g

10--

23..,t 25

_j,,,L i_ a

,3-.%

t2_-6

00-'

0--8 _

TRACTOR - - MODEL NUMBER 917.273220

KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526

IGNmON IELECTRICAL

AIR INTAKE .J

BLOWER HOUSING AND BAFFLES

\11

TRACTOR - - MODEL NUMBER 917.273220

KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526

STARTING SYSTEM

.11 _--13

OIL PAN LUBRICATIONJ

ENGINE CONTROLS

24 ®/:/.

®"_*lS

5-_.t

°---e

TRACTOR - - MODEL NUMBER 917.273220

KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526

CRANKSHAFT I

--1

EXHAUST I

FUEL SYSTEM ]

12 _3

1° ,° /1o

9 11 u_

TRACTOR - - MODEL NUMBER 917.273220

KOHLER ENGINE-MODE1 NUMBER CV26S, TYPE NUMBER 69526

HEAD/VALVE/BREATHER

KEY PART

NO. NO. DESCRIPTION

1 24-o33-03

2 24-041-23

3 24-096-15

4 M-0645020

5 X-75-23

6 12-351-02

7 24-755-66

8 24411-O5

9 24-041-32

10 24-316-18

11 25-186-01

12 24-599-01

13 M-0640034

14 12-086-16

15 24-755-74

16 24-153-16

17 24-086-,32

18 24-445-01

19 24-016-01

24-016-02

20 24-017-01

24-017-02

21 24-032*05

22 235011

23 24-089-02

24 12-173-01

25 12-755-03

26 24318-17

27 24-755-76

28 25-313-0o

29 24-755-57

30 - M-0545016

31 24.A45-(_

32 24-126-44

33 24-112-12

34 2,4-294-06

35 24-326-13

36 24-326-14 "

37 X-426-9 -

K_ breathercoverw/gasket

(Includes2,3)

Gasket, breather

Cover, breather

Screw, hex.flange M6xl.0x20

(4)

Plug, allen hd.I/8"

Lifter,valve(4)

K'd,valvetrain (Includes

8,11,12)

ROd,push(4)

Gask_, cylinderhead (2)

Head assembly,#2 cytinder

Arm, rocker(4)

Pivot, rockerarm (4)

Screw, hex.flange M6x1.0x34

(4)

Screw,hex. flange M10x1.5x90

(8)

Kit,valve cover- plain

(Inc_udes16,17)

O-Ring

Screw,shoulder (4)

Strap, lifting

Valve, exhaust(Std.) (2)

Valve, exhaust(.25) (2)

Valve, intake(Std.) (2)

Valve, intake (.25) (2)

Seal, valve stem (2)

Retainer,spring(4)

Spring,valve (4)

Cap,valvesp_Lng(4)

Kit,retainer(4)

Head assembly,#1 cylinder

Kit,valve cover- breather

(Ind. 16,17,28)

Grornmet,robber (2)

Kit,breatherseparator

(includes28,30-33)

Screw,hex.fiangeM5xO.8x16

(2)

Strap, breather

Bracket,breatherseparator

Spacer

F_ng

Hose,breaker

Hose,breather

Clamp, hose (2)

CRANKCASE

KEY PART

NO. NO.

1 24-032-01

2 Crankcase

3 24-294-13

412-380-17

5 24-067-13

24-067-14

6 24-874-08

7 24-108-05

8 24-018-01

9 12-422-09

12-422-13

12-422-07

12-422-08

12-422-10

12-422-11

12-422-12

10 24-012-05

11 52-139-09

12 M-0545010

13 24-018-04

14 24-402-05

15 12-153-01

16 24-126-19

17 12o123-04

18 M-0545016

19 12-153-02

2O 24-O38-04

21 24-755-46

22 12-153-03

23 12-380-04

24 M-0631005

25 12-032-01

26 X-25-10_

27 24-144-01

DESCRIPTION

Seal, oilfiont

(USE: MInibkx:k)

F_Ung

Pin, dowel locating(6)

Connas_ingRod (Std.) (2)

Coonec_ngRod (.25) (2)

PistonwiRingSet (Std.) (2)

(Includes7,8)

RingSet (Std.) (2)

Retainer,pistonpin (2)

Shim,camshaft(A.R.)

Shim,camshaft(A.R,)

Shim,camshaft (A.R.)

Shim, camshaft (A.R.)

Shim,camshaft

Shim,camshaft(A.R.)

Camshaft

Plug,cup

SQ'ew,hex.flange M5xO.8xlO

(2)

Retainer,reed (2)

Reed, breather(2)

O-Ring, loweroil tilltube

Bracket,oiltilltube

Tube, oil fill

Screw,hex.flangeM5xO.8x16

O-Ring, upperogfilltube

Dipstickassembly(Includes

21,22)

Kit,oil fillcap (Includes22)

O-Ring,dipstick

Pin, hitch

Washer,plain 6 mm

Seal, governorcrossshaft

Washer,plain 1/4"

Shaft,governorcross

TRACTOR - - MODEL NUMBER 917.273220

KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526

IGNmON/CHARGING BLOWER HOUSING & BAFFLES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 54-755-15 K_t,grass screen 1 54-027-95

(Includes2.4,and 24 113 18)

2 M-0403025 Screw,hex. cap M4xO.7x25 (4) 2 24-100-02

3 X-26-92 Washer,plain5/16" (4) 3 M-0545020

4 24-112-04 Spacer,grass screen (4)

5 25-086.47 Bolt,shoulder(4) 4 M-0545016

6 24-157-03 Fan

7 12-086-14 Screw, hex. flange M10x1.5x46 5 M-0551016

8 12.468-03 Washer,plain 3/8". 6 M-0645016

9 X.42-15 Key

10 24-025*08 Flywheel 7 24-146-11

11 25-403-03 Rectifier-regulator 8 24-146-08

12 X-25-92 Washer,plain 3/16" (2) 9 24-063-39

13 24-086-18 Screw, phillipshal.11-16x7/8 (2) 10 24-063-14

14 236602 Connector(3 contact) 11 24-063-31

15 54-755-09 Kit, 15amp stator 12 24-063-23

(Includes24 126 71) 13 M-0545010

16 12-132-06 Spark Plug (2) NOT ILLUSTRATED

17 M-0548025 Screw, hex. cap M5xO.8x25(2)

18 46-154-02 Clip,cable 24-063-36

19 47-154-01 Clip,cable M-0545010

20 X-25-63 Washer, plain 1/4"

21 24-584-11 Module, ignition(2) 24-086-06

22 M-0561025 Screw, thread forming

M5xO.8x25(4)

23 M-0448010 Screw, hex.flanage M4xO.7xl0 AIR INTAKE/FILTRATION

(2)

24 24-584-09 Module,speed advance KEY PART

25 24-063-27 Baffle,heat shield NO. NO.

NOT ILLUSTRATED

24-126-71 Bracket,statorwire

X-25--63 Washer, plain 1/4" 1 24-164-06

24-176-27 Plamess,widng 2M-0651055

26-518-28 Lead, black(rect.-reg. 4"- 18

gauge- insulatedgripbarrel 3 24-041-01

eyelets) 4 24-041-14

Washer, lock1/4" 5 24-094-13

Decal, grassscreen 6 24-041-13

7 24-109-05

8 24-083-05

9 24-083-03

10 230046

11 24-096-01

12 12-100-01

13 24-096.65

14 54o755-01

X-22-11

24-113-18

Housklg,blower

(Incl. M-0545010 & 24 063 36)

Nut, plastic(2)

Screw, hex.flange M5xO.8x20

(2)

Screw, hex.flange M5xO.8x16

(4)

Screw, hex.flange M5x0.8x16

Screw, hex.flange M6x1.0x16

(6)

Plate, backing - # 2 side

Plate, backing - # 1 side

Baffle, cylinderbarrel-# 2 side

Baffle, valley- #2 side

Baffle, cylinderbarrel-# 1 side

Baffle, valley -#1 side

Screw, hex.flange MSx0.8xl0

(2)

Baffle, blowerhousing

Screw, hex.flange M5x0.8xl0

(2)

Cover,control " N/A

Screw, phillipahal.11-16x3/4"

(2)

DESCRIPTION

15 24-153-15

16 25-341-03

NOT ILLUSTRATED

12-113-53

Manifold,intake

Screw, hex.flange M6xl.0x55

(4)

Gasket, intakemanifold(2)

Gasket,air cleanerbase

Base, aircleaner

Gasket, fuel spltbackcup

Cup, fuel spitback

Precleaner,element

Element,air cleaner

Seal, breather

Cover, inner air cleaner

Wing Nut

Cover,air cleaner

Kit,knobwithseal

(Includes 15& 16)

O-Ring

Knob, cover

Decal, aircleaner

61:

TRACTOR - - MODEL NUMBER 917.273220

KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526

STARTING SYSTEM OIL PAN/LUBRICATION

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 M-0645025

1 12-098-03 Starter,solenoidshift

2 M-0839080 Screw,he)(. flange M8x1.24x80 2 M-0631005

(2) 3 24-755-59

3 M-0841080 Nut, hex.flange M8x1.25

452-211-05 Bolt,thru M5x0.8x99 (2) 4 24-393-08

5 12-301-01 Cap, commutatorend 5 24-123-05

6 52-168-01 Insulator 6 24-162-26

7 52-089-09 Spdng, brush(4) 7 24-043-12

8 52-323-03 Holder, brush

9 52-221-01 Kit,brush(includes7) 8 12-380-01

10 12-471-01 Frame 9 52-448-02

11 52-100-09 Nut, starter 10 12-144-02

12 52-435-02 Solenoid 11 24-041-24

13 12-170-03 Armature 12 24-422-03

14 12-239-01 Pinion, drive 13 )(-75-32

15 24755-84 Kit,starterrepair 14 52-032-08

16 12-090-10 Lever, starterdrive 15 24-086-17

17 12-081-02 Cap, driveend 16 24-086-16

18 52-100-10 Nut, starter (2) 17 X-75-10

ENGINE CONTROLS 18 54-755-14

KEY PART

NO. NO. DESCRIPTION 19 24-136-05

20 24-153-17

21 24-100-O1

1 SM-0642025 Screw, hex. flange M6x1.0x25

2 24-090-14 Lever, governor

3 M-0641060 Nut, hex. flange M6xl.0

4 24-089-01 Spdng, linkage

5 25-158-08 Bushing,linkageretaining

6 24-079-04 Linkage,throttle

7 25-158-11 Bushing,throttle linkage(2)

8 M-0647060 Nut, hex. M6xl.0 (3)

9 X-25-52 Washer,plain 1/4"

10 24-090-20 Lever, choke

11 25-431-01 Spacer

12 277341 Washer,spdng3/8"

13 24-079-10 Linkage,choke

14 M-0639016 Screw, hex. flangeM6x1.0x16

15 24-126-59 BrackeLcontrol

16 X-25-72 Washer, plain 114"(3)

17 24-112-10 Spacer

18 24-090-09 Lever,throttle control(2)

19 24-089-18 Spdng,governor

20 M-0401030 Screw, hex. cap M4-0.7x30

21 24-126-17 Bracket,throttleshaft

22 24-144-11 Shaft,throttle

23 24-086-06 Screw, phillipshal.1t-16x3/4"

(2)

24 M-0446030 Nut, hex. M4)0D.7

25 M-0545016 Screw, hex. flange M5xO.8x16

(2)

26 24-089-20 Spring,throttle shaft

27 M-0645016 Screw, hex. flange M6x1.0x16

(3)

28 12-237-01 Clamp, cable (2)

22 24 086 12

23 24-594-15

24 52-050-0_

NOT ILLUSTRATED

41-037-10

24-145`11

24-113-25

Sc_'ew,hex. flange M6x1.0x25

(2)

Washer,plain 6 mm (2)

Pan, oil assembly(Includes5-

11)

Oil pump assembly (includes5)

Tube, oil pickup

Screen, oil

Kit,governorgear wlpin

(Includes8)

Pin, governorregulating

Tab, locking

Shaft,governorgear

Gasket, oil pan

Shim, thrust

Plug, hex.ctsk.3/8"

Seal, oil (PTO end)

Screw, hex. flange M8x1.25x45

Screw, hex.flange M8x1.25x45

(9)

Plug, sq. hal.solid 3/8" N.P.T.F.

Kit,oil cooler

(Incl. 19-24, 24 146 11

& 41 037 1O)

Nipple,oil filter

O-Rir_.

Screw, hex. flange IvlSxl.25x45

(2)

Nut, plasi_ (2)

Cooler, oil

Filter,oil

Decal, write-onnameplate

Plate, becking #2 side

Decal, oil cooler

TRACTOR - - MODEL NUMBER 917.273220

KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526

CRANKSHAFT

KEY PART

NO. NO.

1 24-014-72

2 52-139-09

EXHAUST

KEY PART

NO. NO.

1 24-041-02

2 25-072.04

24-755-03

FUEL SYSTEM

KEY PART

NO. NO.

124-853-27

224-O41-15

3 24-053-27

4 24-041-14

5 24-126-53

6 M-0_59005

7 M-0629105

8 M-0641060

9 24-353.03

10 )(-426-9

11 24-086-12

12 24-393-04

13 24-100-01

14 25-353-03

15 24-050-02

NOT ILLUSTRATED

24-234-(_

24-757-18

24-757-19

24-757-20

24-757-21

24-757-22

DESCRIPTION

Crankshaft(Indudus 2)

Plug, cup

DESCRIPTION

Gasket,exhaust (2)

Stud,MSxl.25x33 (4)

Gasket Set

DESCRIPTION

ICJt,carburetorw/gaskets

(Includes2-8)

Gasket,carburetor

Carburetor assembly

(For informationonlynot

avaUableseparately)

(Inclines 24 234 02

24 757 18, 24 757 19, 24 757

20, 24 757 21, 24 757 22)

Gasket, air cleanerbase

Bracket,throttlestop

Screw,pan hd. M2.5xOA5x5

Stud,M6x1.0x110 (2)

Nut, hex. flange M6xl.0 (2)

Une, fuel 10-5/8"

Clamp, hose (6)

Screw,hex. cap. M6xl.7x18 (2)

Pump, fuel -pulse

Nut, plastic(2)

Line, fuel 13-1/2" (2)

Filter,fuel

Chamber, float(bowl)

Kit,overhaulw/gaskets

Kit,choke repairw/gaskets

Kit,gasket

Kit,acceleratorpump w/gaskets

Kit,solenoidreplacement

w/gaskets

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

I& Operate your Tractor up and down the face of slopes (not I

greater than 15°), never across the face. Make turns gradu- I

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

For the repair or replacement parts you need

delivered directly to your home

Call 7 am -7 pm, 7days a week

1-800-366-PART

(1-800-366-7278)

Para ordenar plezas con entrega a

domicilio - 1-800659-7084

For in-house major brand repair service

Call 24 hours a day, 7 days a week

1-800=4-REPAIR

(1-800-473-7274)

Para pedir servicio de reparaci6n a

domicilio - 1-800-676-5811

For the location of a Sears Parts and

Repair Center in your area

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

Call 9 am - 5 pm, Monday-Saturday

1-800-827-6655

When requesting service or ordering

parts, always provide the following

information:

• Product Type • Part Number

•Model Number • Part Description SEARS

Amenca's Repair Speciatlsts

164174 Rev. 4 9.3.98 TR/RH/JH Printed in U.S.A.

Craftsman 917273220 User Manual TRACTOR Manuals And Guides 98120028

CRAFTSMAN Lawn, Tractor Manual 98120028 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
