Owner's Manual

ICRRFTSMRN°I

LAWN TRACTOR

17.5 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.273380

1_ his product has a low emission engine which operates I

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual,

IMPORTANT:

Read and fellow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, R_ebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

AssemblyPre-Operation ........................ 8

Operation ............................................. 11

Maintenance ....................................... 18

Maintenance Schedule ........................ 18

Service and Adjustments ..................... 23

Storage ................................................ 29

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

•Standard Maintenance Servicing, oil changes, or tune-ups

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

•Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

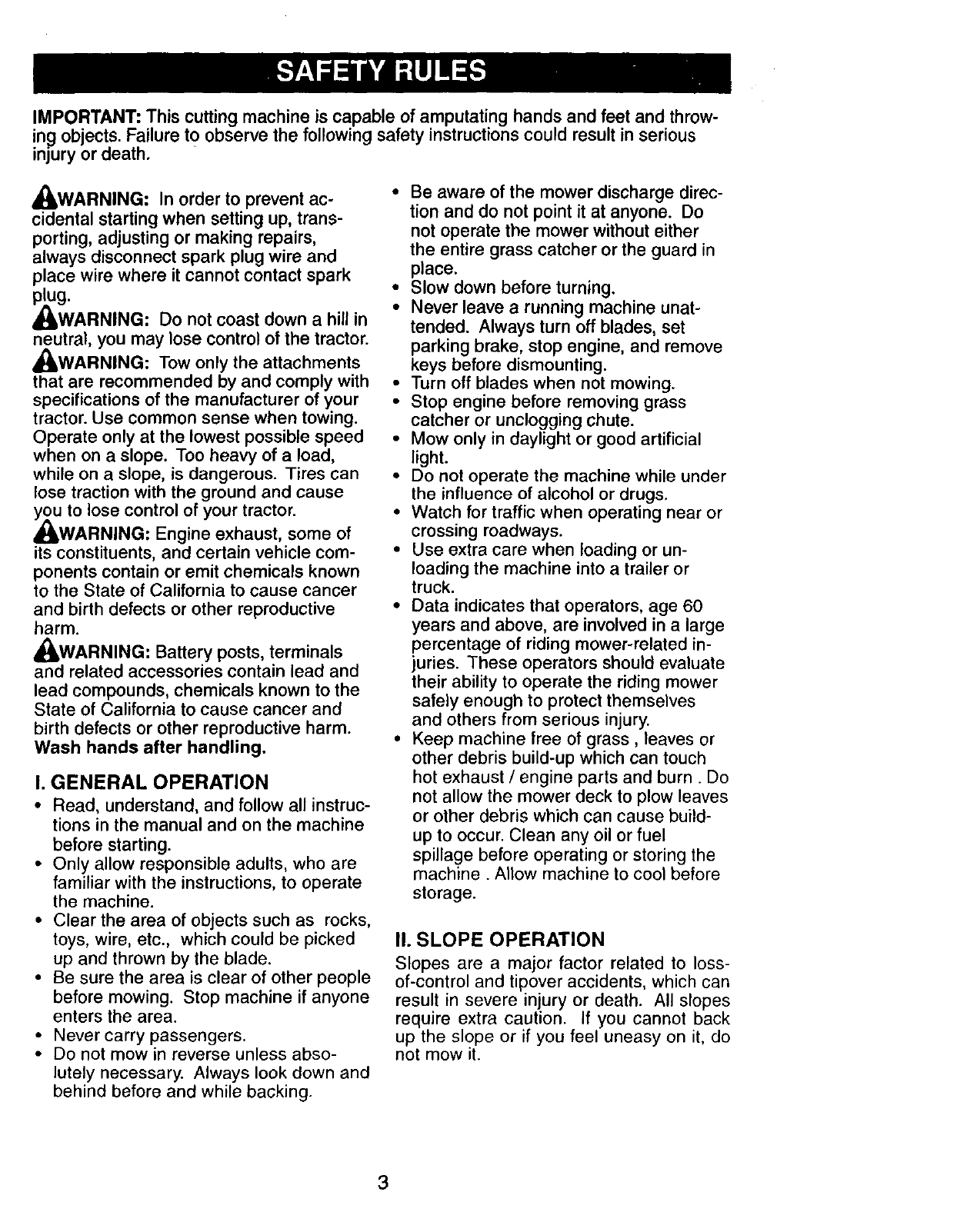

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

!ng objects. Failure tO observe the following safety instructions could result in serious

injury or death.

_.LWARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

,_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

•Road, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

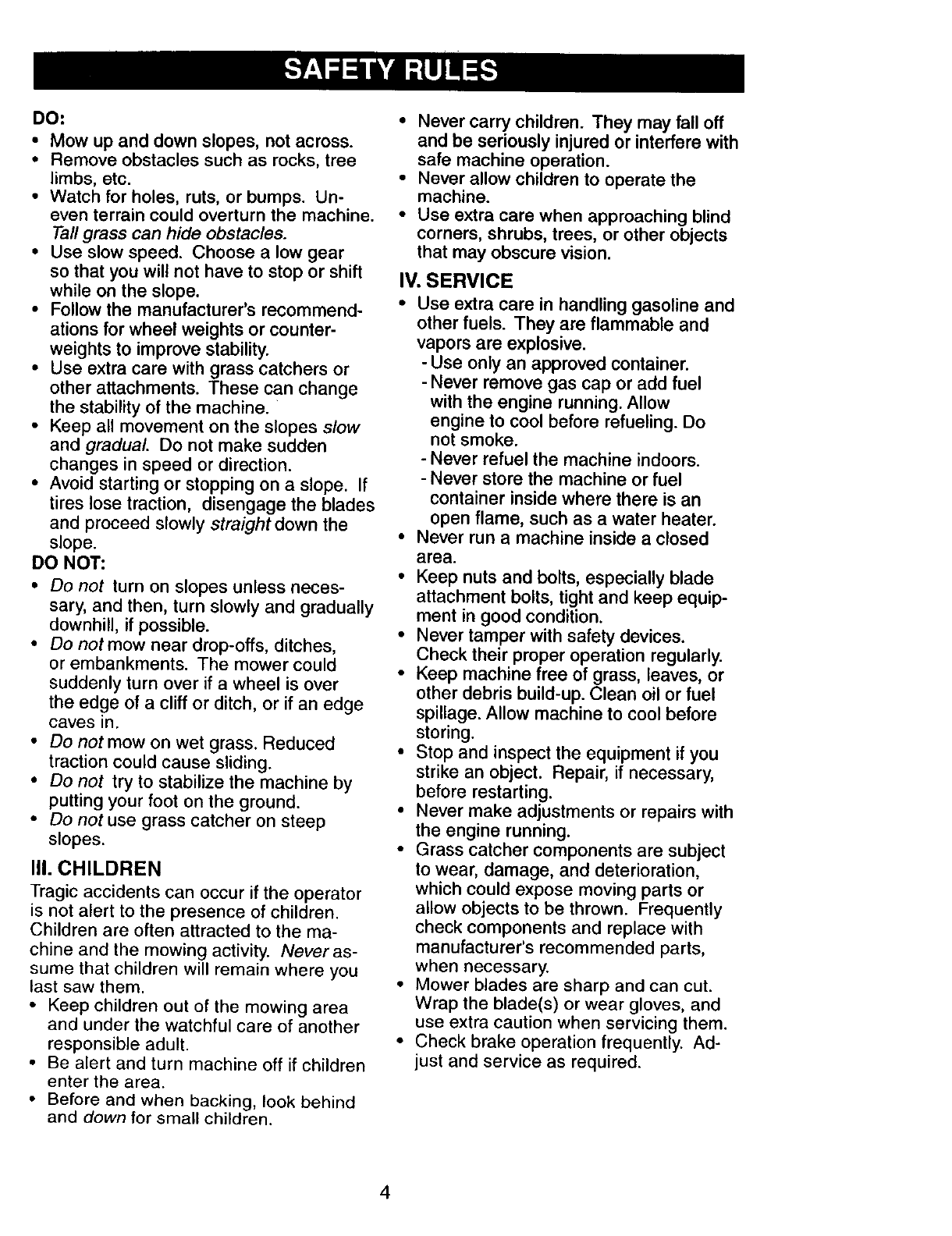

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes,notacross.

• Remove obstaclessuch as rocks,tree

limbs,etc.

• Watch forholes,ruts,or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

• Oo not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for sma_ children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs with

the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off:

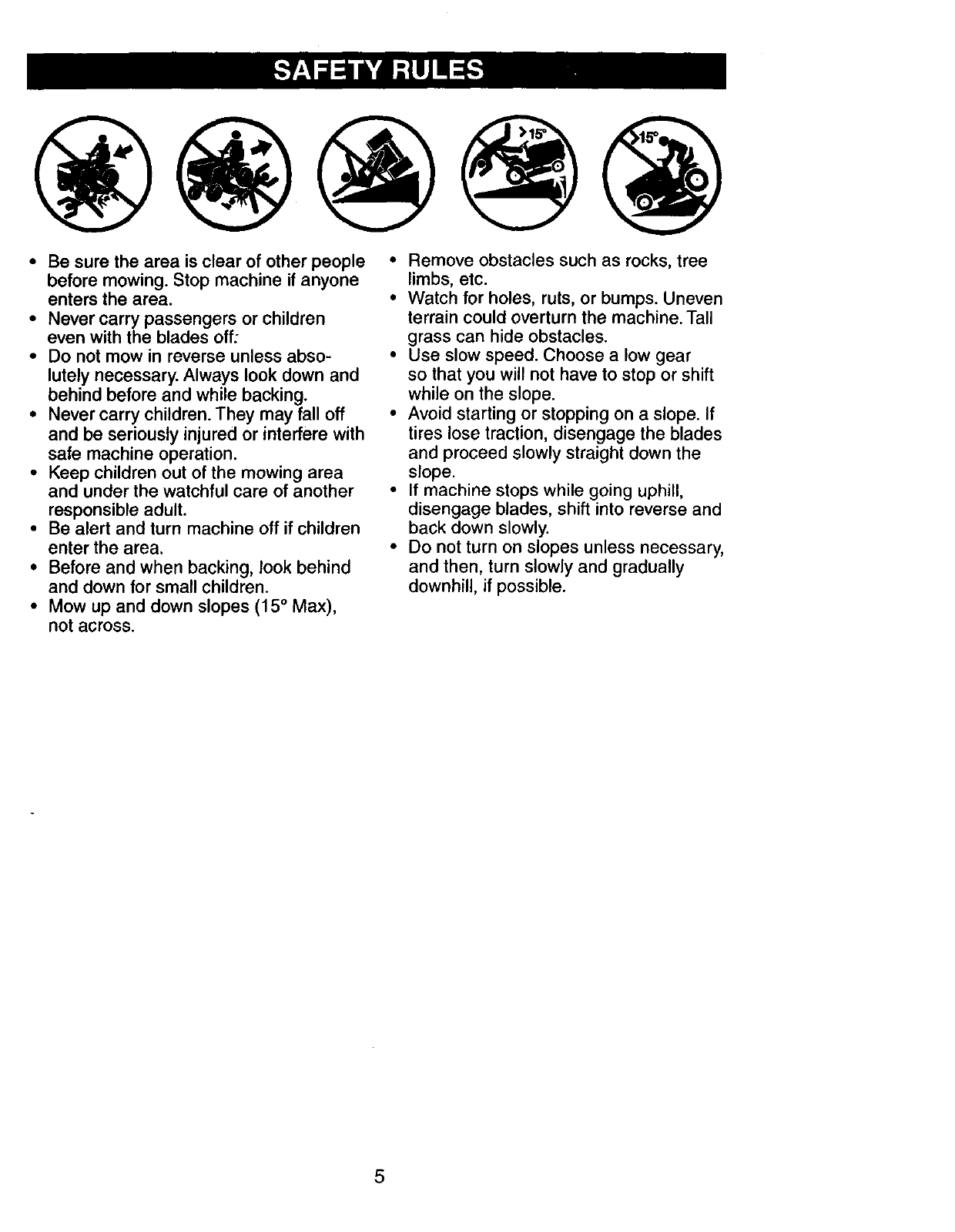

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mewing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

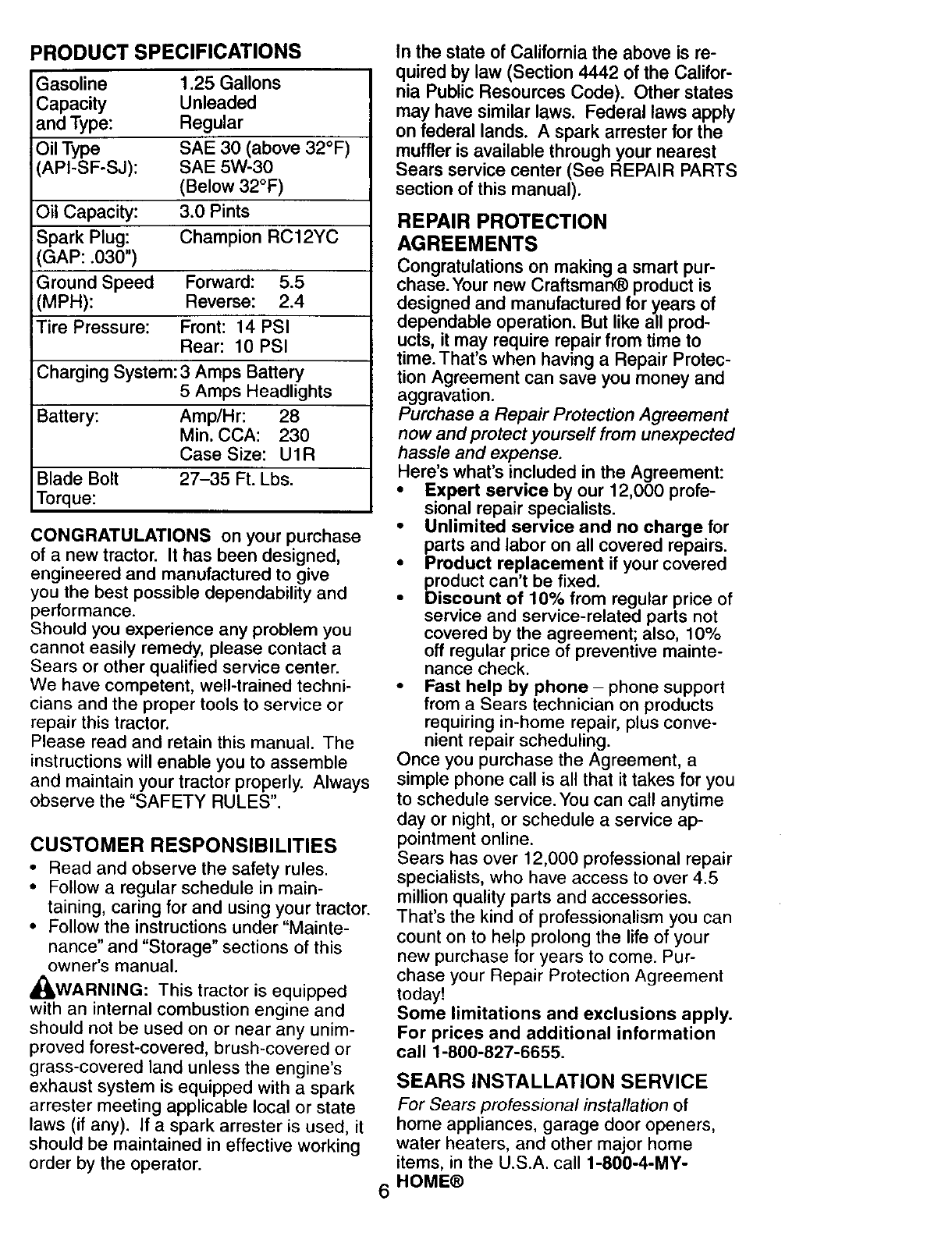

PRODUCT SPECIFICATIONS

Gasoline

Capacity

and Type:

Oil Type

API-SF-SJ):

1.25 Gallons

Unleaded

Regular

SAE 30 (above 32°F)

SAE 5W-30

(Below 32°F)

Oil Capacity: 3.0 Pints

Spark Plug: Champion RC12YC

GAP: .030")

Ground Speed Forward: 5.5

VIPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 3Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

•Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. Aspark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase.Your new Craftsman_ product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

•Unlimited service and no charge for

parts and labor on all covered repairs.

•Product replacement if your covered

product can't be fixed.

•Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

•Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule aservice ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Pur-

chase your Repair Protection Agreement

today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of

home appliances, garage door openers,

water heaters, and other major home

items, in the U.S.A. call 1-800-4-MY-

HOME®

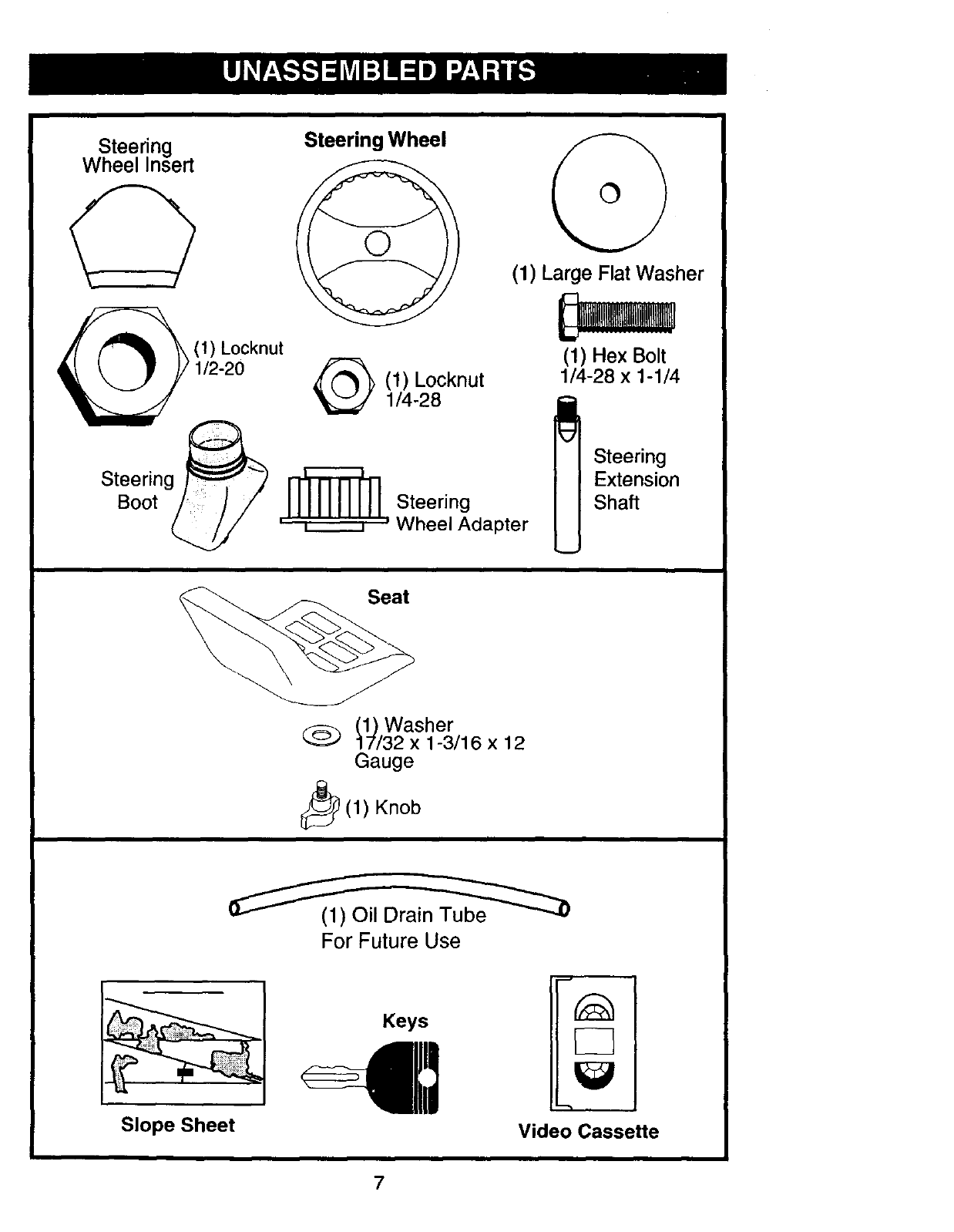

Steering

Wheel Insert

Steering Wheel

1) Locknut

1/2-20 _ (1) Locknut

1/4-28

Steering _ _

Boot / )/!111111111 Steering

(J ' ,, 'WheelAdapter

(1) Large Flat Washer

(1) Hex Bolt

1/4-28 x 1-1/4

Steering

Extension

Shaft

Seat

(_Washer

@ 17/32 x 1-3/16 x 12

Gauge

(_(1) Knob

For Future Use

Slope Sheet Video Cassette

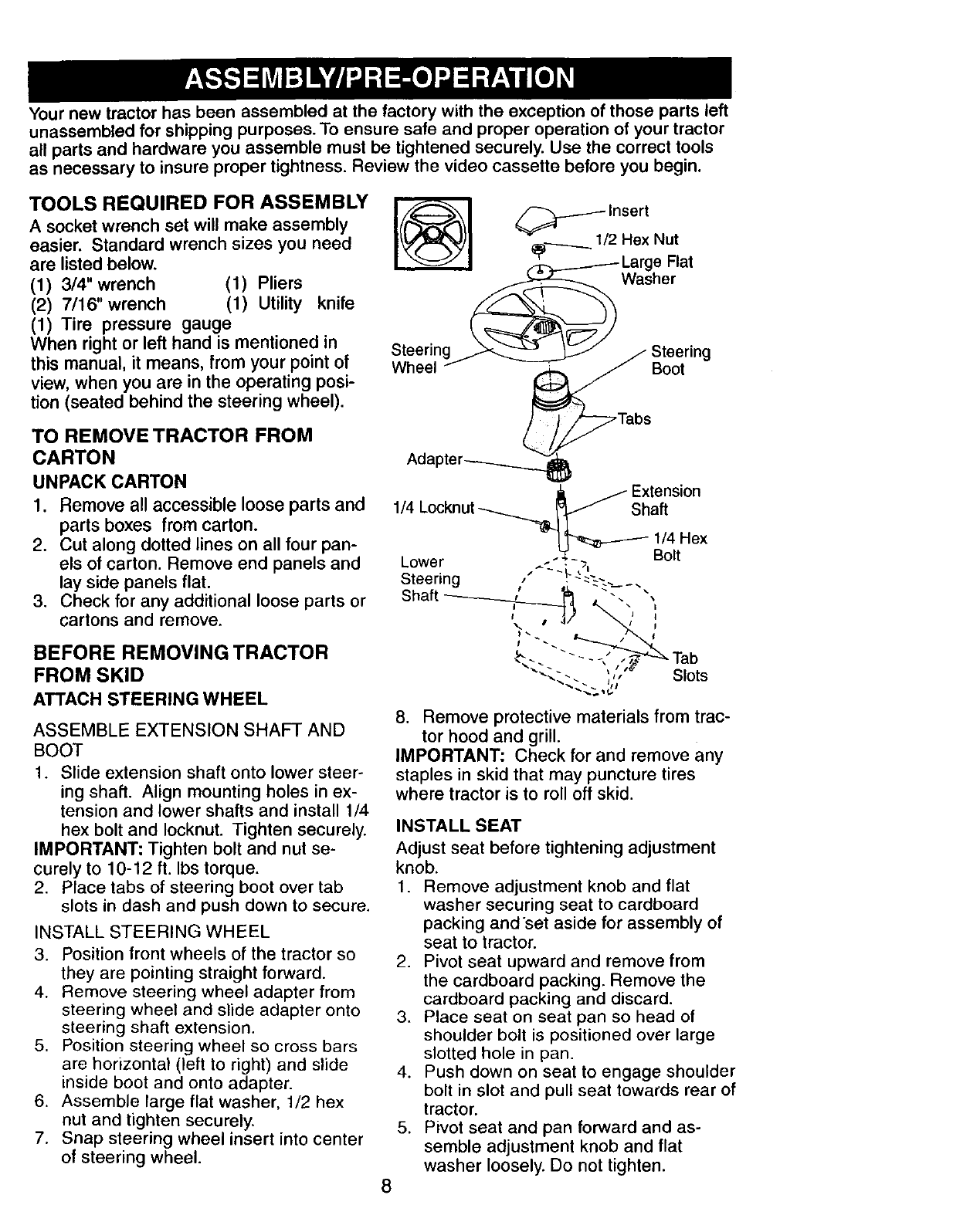

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR ASSEMBLY

Asocket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

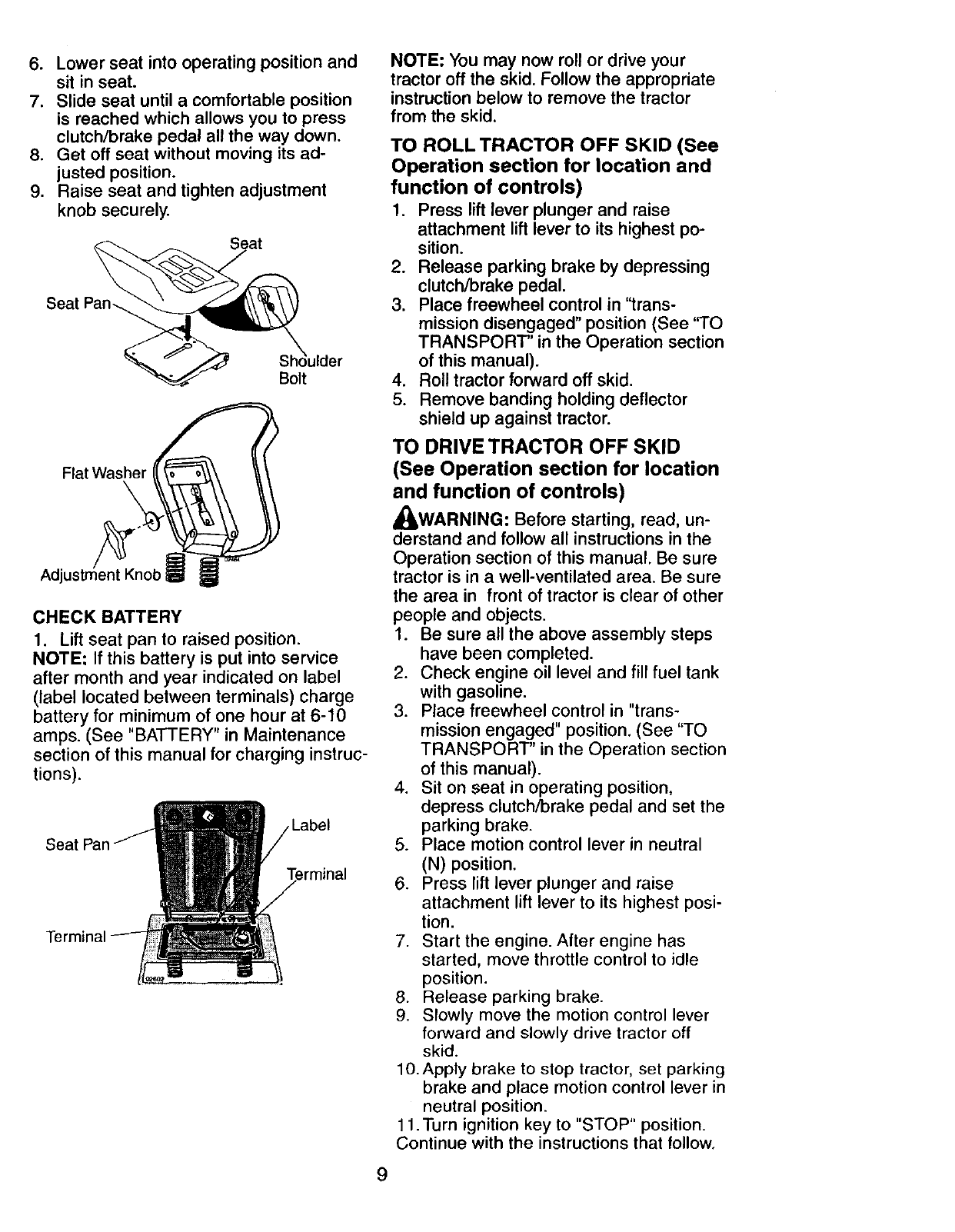

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan_

Bolt

Flat Washer

Adjustment Knob

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat

_rminal

Terminal

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID

(See Operation section for location

and function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever in

neutral position.

11.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

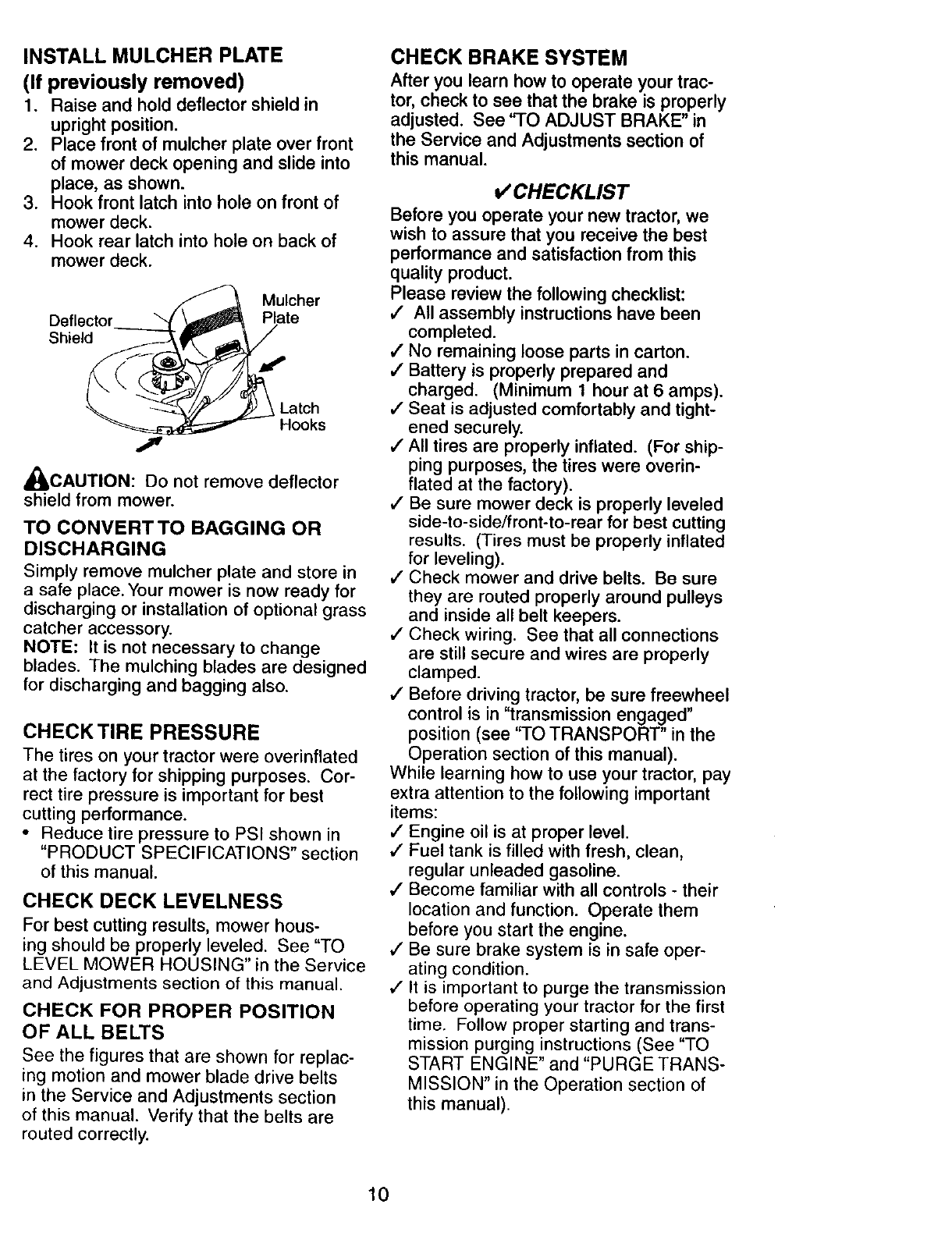

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position,

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

hi, CAUTION: Do not remove deflector

shield from mower.

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

asafe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

V' CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum I hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,I Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

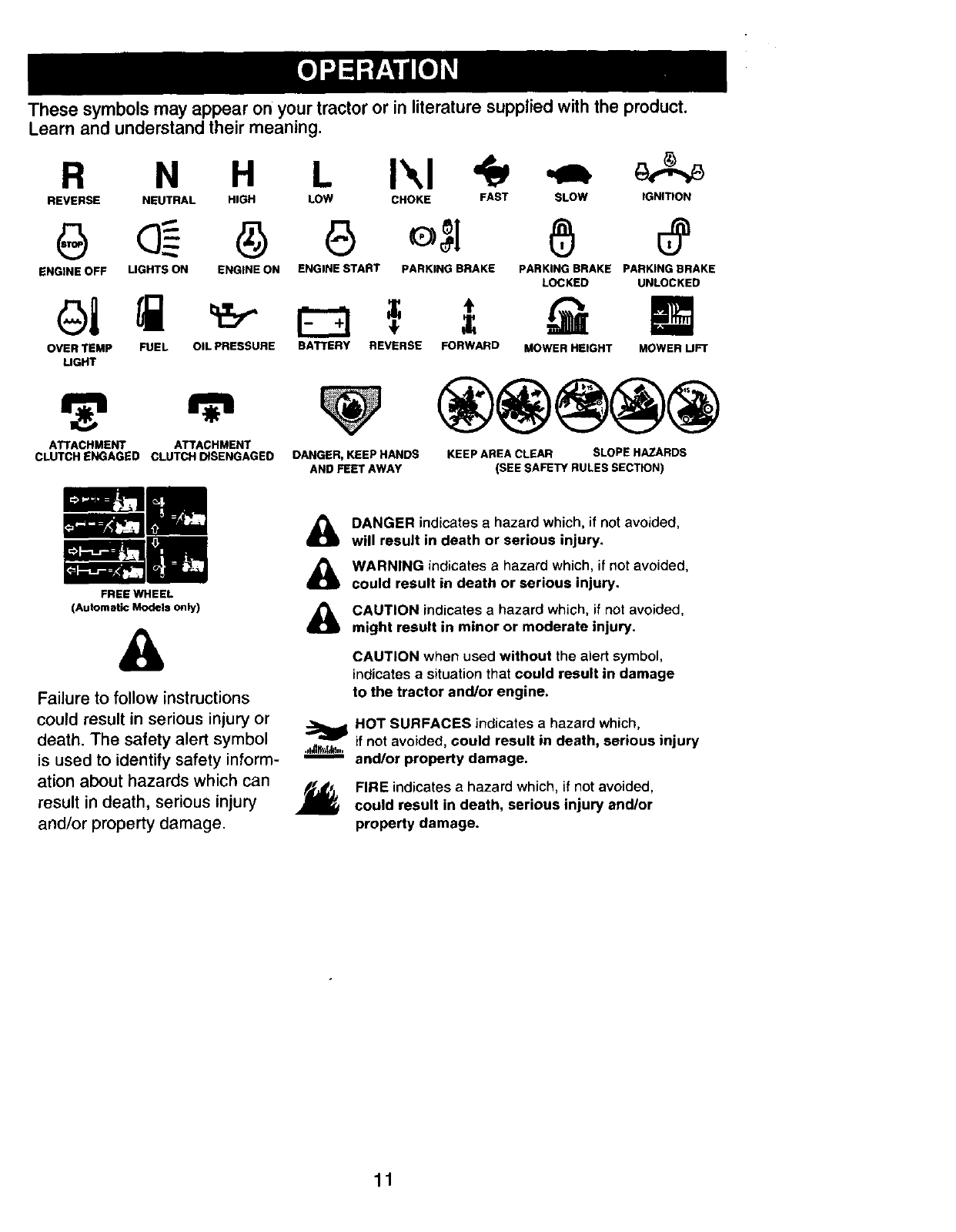

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I'.,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

8 8 e .I 8

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE

UGHT

ATTACHMENT ATTACHMENT

CLUTCHENGAGED CLUTCHI_SENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY

FORWARD MOWER HEIGHT MOWER UFT

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates asituation that could result in damage

to the tractor and/or engine.

_HOT SURFACES indicates ahazard which,

.,_Jl_., if not avoided, could result in death, serious injury

and/or property damage.

,_ FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

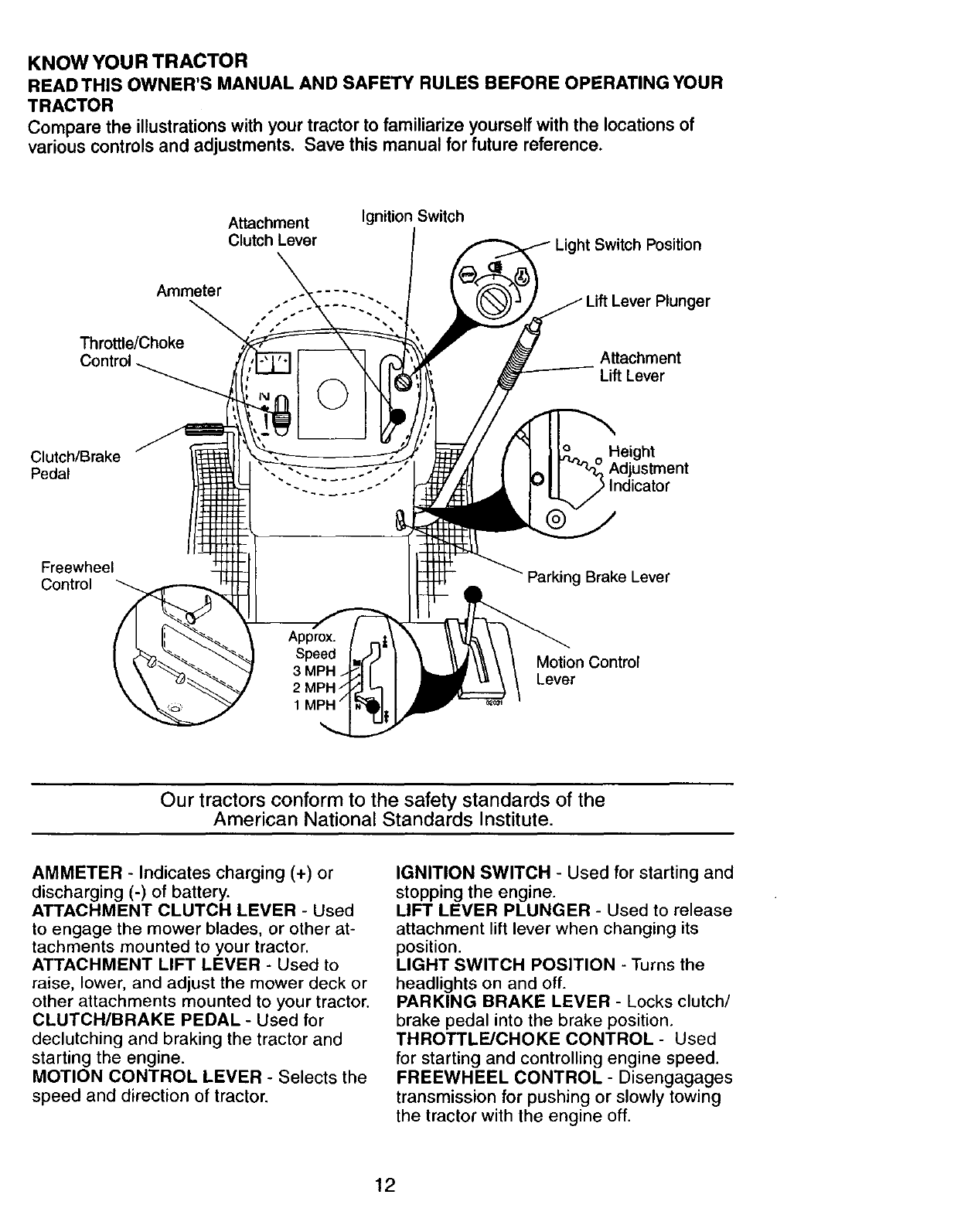

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment

Clutch Lever

Ignition Switch

it Switch Position

Ammeter ..... "'. Plunger

Throttle/Choke Attachment

Lift Lever

Clutch/Brake

Pedal

Height

Freewheel

Control Parking Brake Lever

Motion Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at*

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER -Selects the

speed and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

FREEWHEEL CONTROL - Disengagages

transmission for pushing or slowly towing

the tractor with the engine off.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectacles.

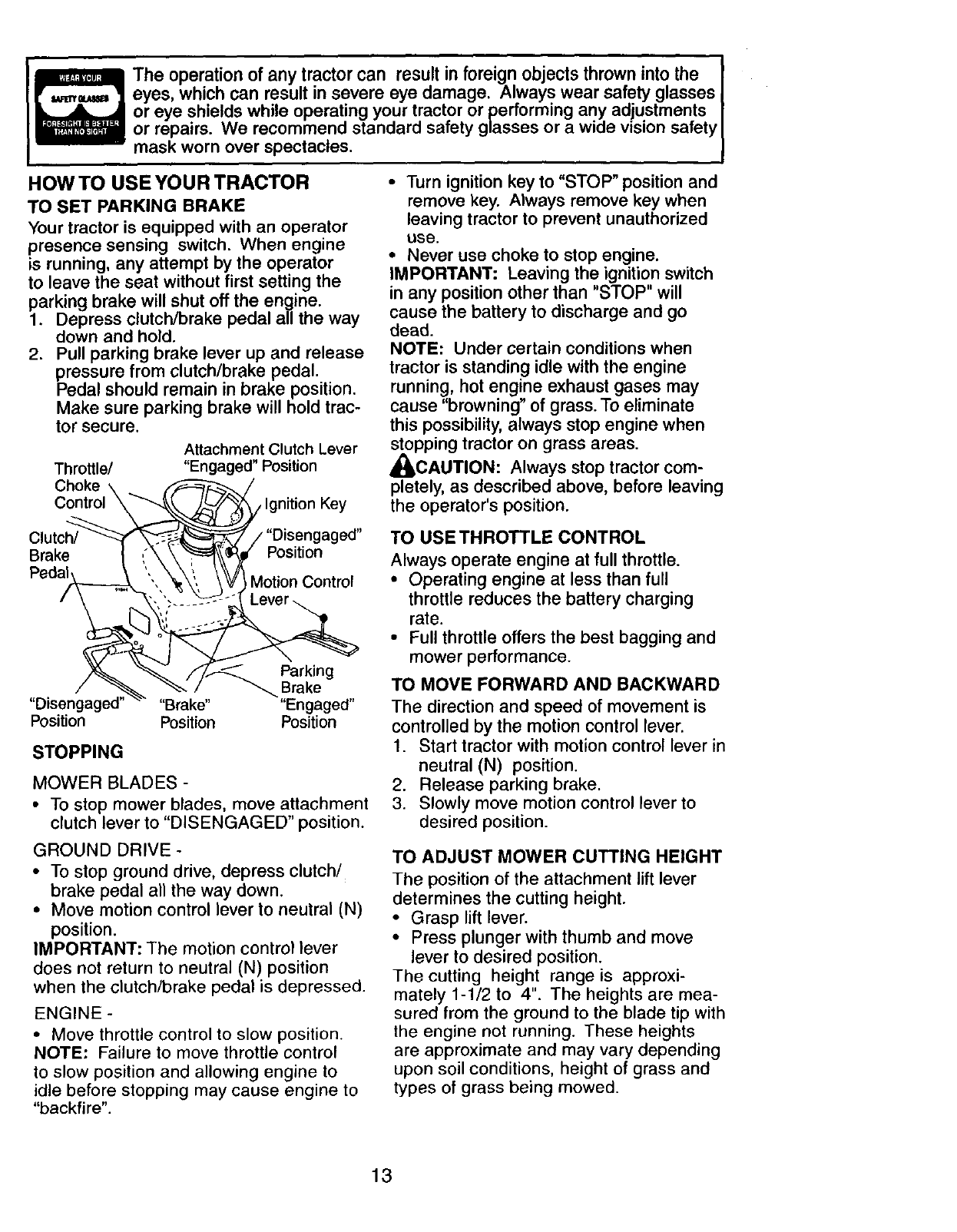

HOW TO USE YOU R TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Throttle/

Attachment Clutch Lever

"Engaged" Position

Choke \

Control \

Clutch/ ged"

Brake Position

Pedal Motion Control

J Parking

Brake

"Disengaged .... Brake.... Engaged"

Position Position Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

•To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

•Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

•Operating engine at less than full

throttle reduces the battery charging

rate.

•Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

•For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

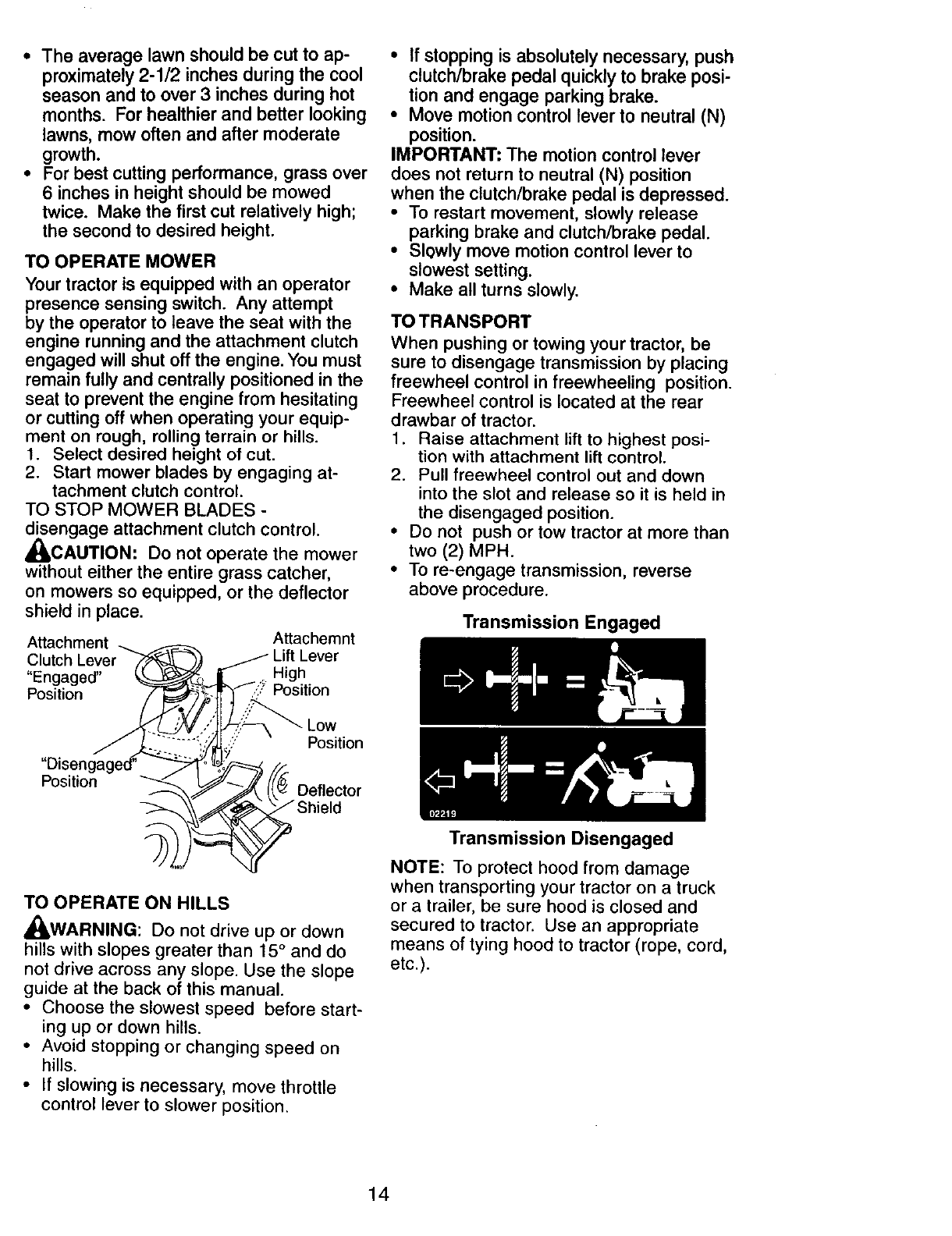

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment _ _ A.ttachemnt

Clutch Lever _-_;_)) /Ltft Lever

"Ennaned" _._, j_ ,High

Posi_iJn "f"_ "tion

Low

Position - "-'_ y_ ((6 Deflector

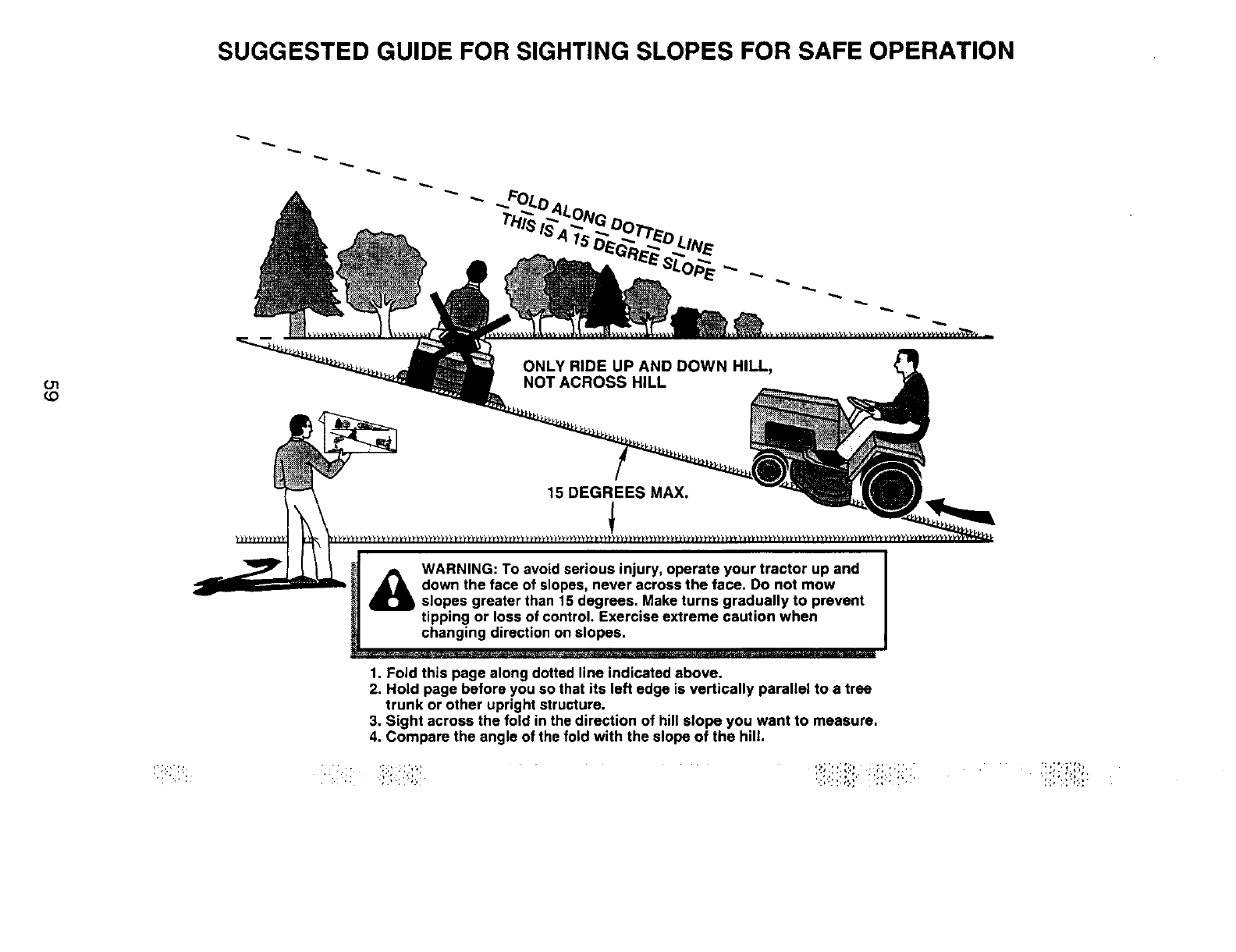

TO OPERATE ON HILLS

_WARNING: DO not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

•Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

•To restart movement, slowly release

parking brake and clutch/brake pedal.

•Slowly move motion control lever to

slowest setting.

•Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest posi-

tion with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

•To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or atrailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

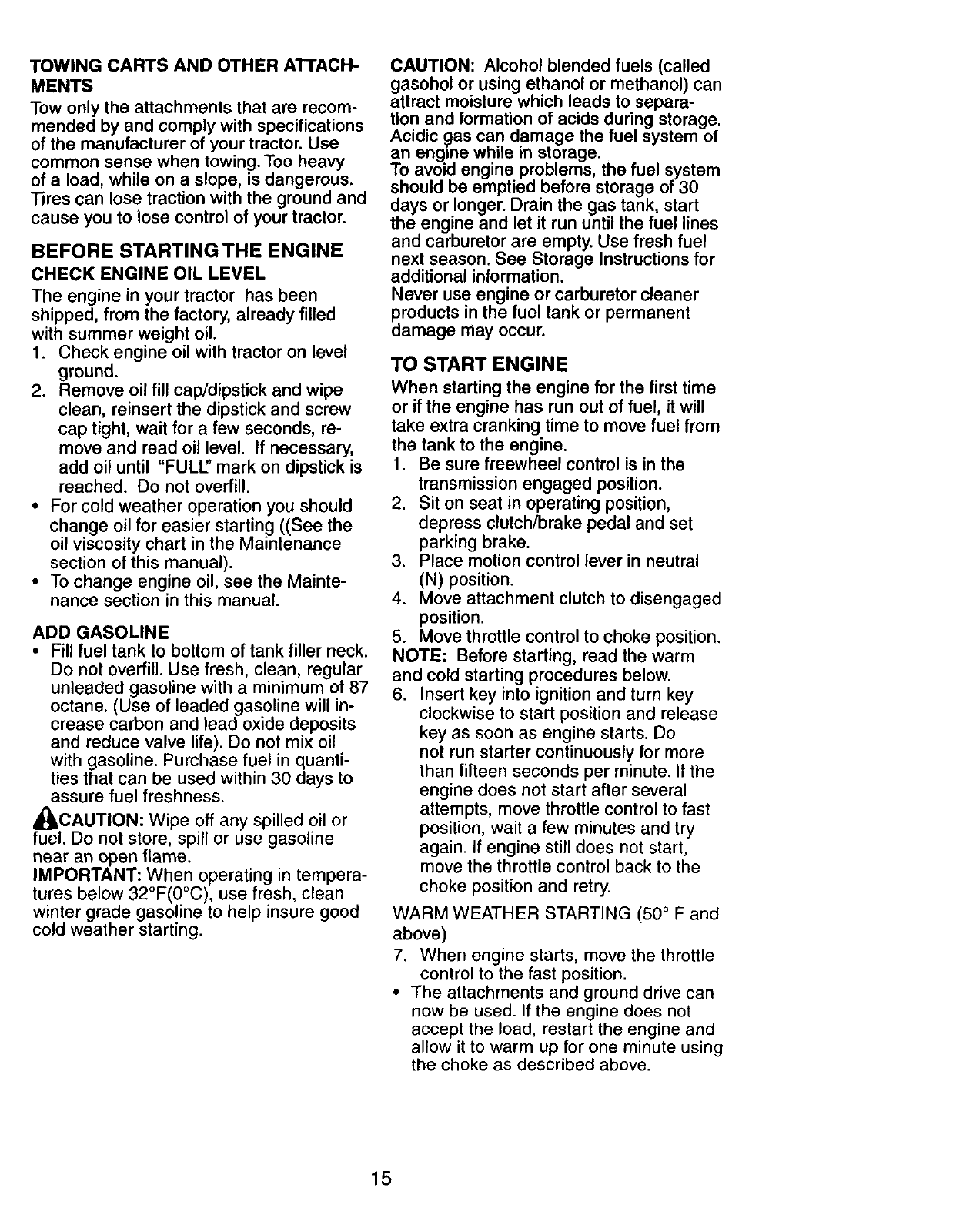

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for afew seconds, re-

move and read oil level. If necessary,

add oil until "FULL" mark on dipstick is

reached. Do not overfill.

•For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

•To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

•Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. (Use of leaded gasoline will in-

crease carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

_bCAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system of

an engine while in storage.

To avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disengaged

position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 °F and

above)

7. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 °F and

below)

7. When engine starts, allow engine

to run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control

to fast position. This may require an

engine warm-up period from several

seconds to several minutes, depending

on the temperature.

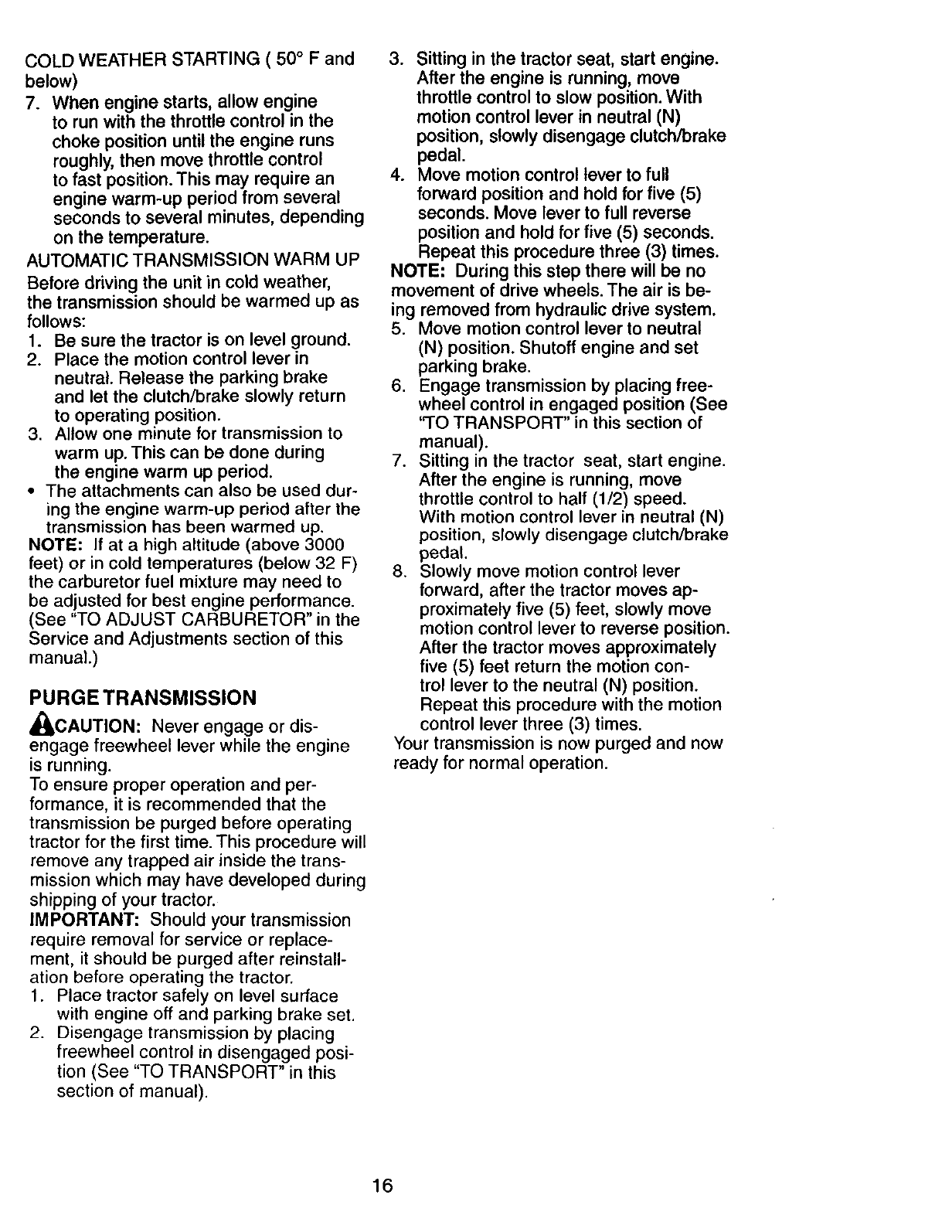

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

• The attachments can also be used dur-

ing the engine warm-up period after the

transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.)

PURGE TRANSMISSION

_CAUTION: Never engage or dis-

engage freewheel lever while the engine

is running.

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in disengaged posi-

tion (See "TO TRANSPORT" in this

section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is be-

ing removed from hydraulic drive system,

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

'q-O TRANSPORT" in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

With motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

8. Slowly move motion control lever

forward, after the tractor moves ap-

proximately five (5) feet, slowly move

motion control lever to reverse position.

After the tractor moves approximately

five (5) feet return the motion con-

trol lever to the neutral (N) position.

Repeat this procedure with the motion

control lever three (3) times.

Your transmission is now purged and now

ready for normal operation.

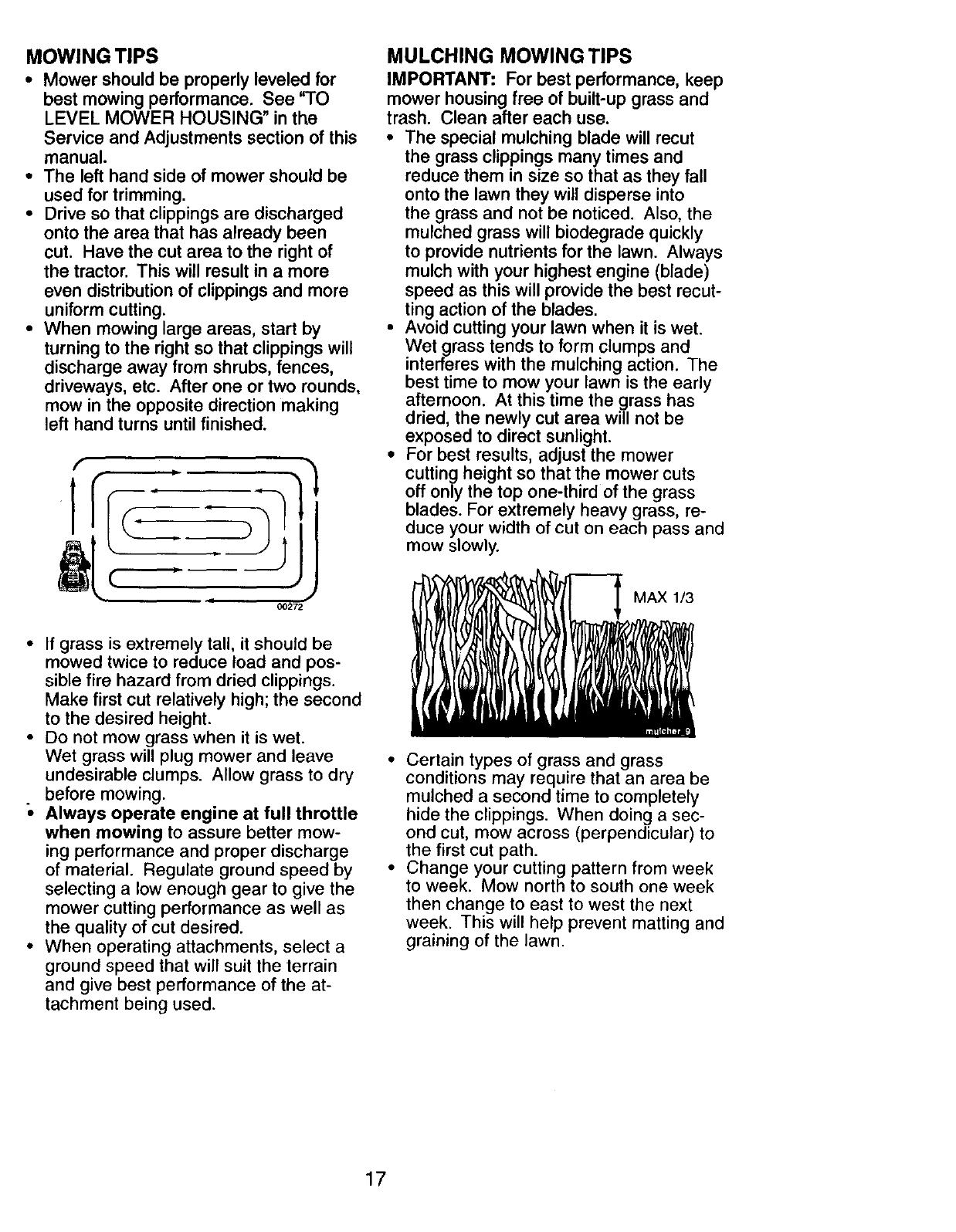

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

•Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

O,TES O.TES

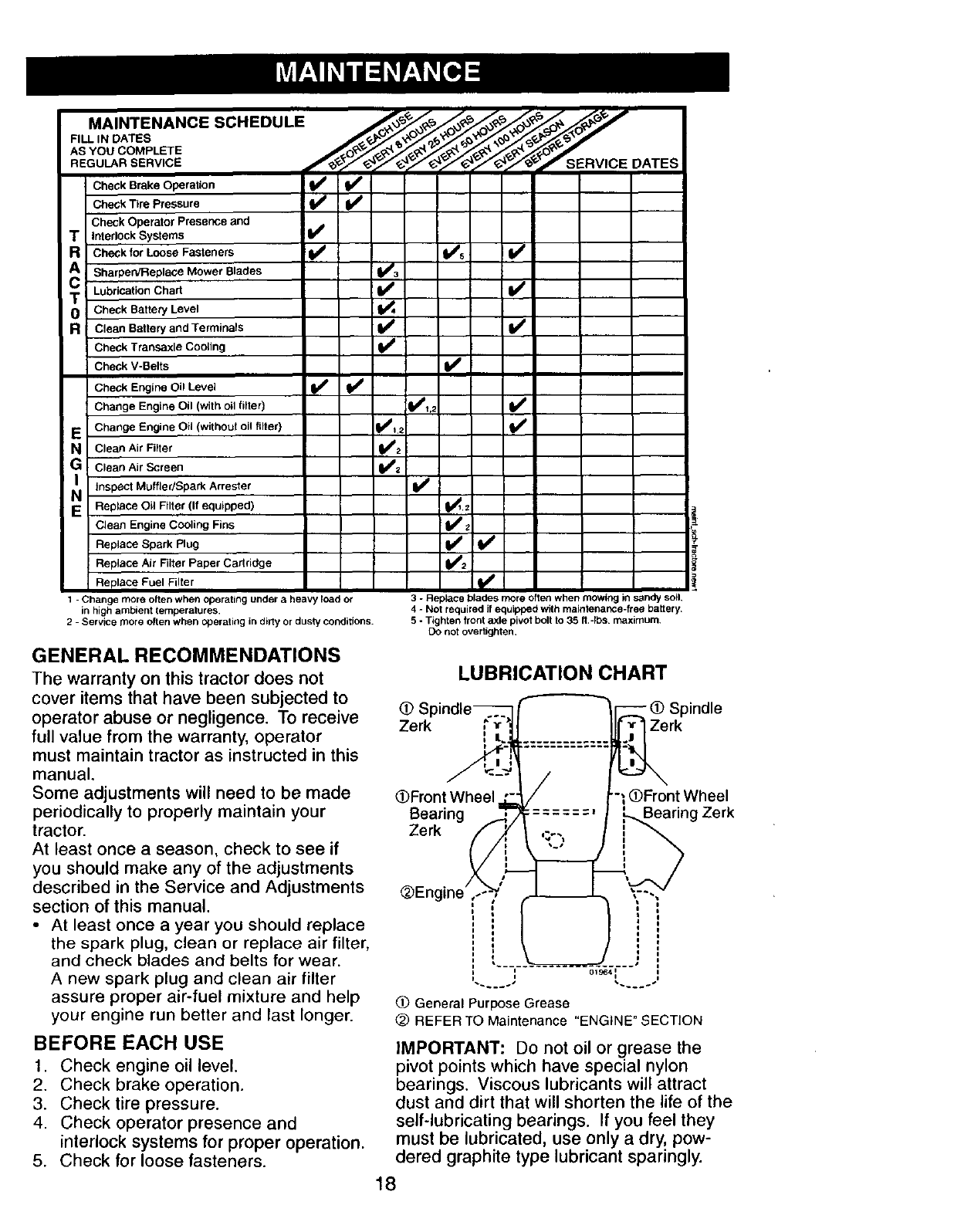

Check Brake Operation _ _#

Chask Tire Pressure

Check Operator Presence and

Tinterlock Systems Ikw

RCheck for Loose Fasteners _I_s

A Sharpen/Replace Mower Blades _3

TLubrication Chart _#

0 Check Battery Level

a Clean Battery and Terminals V'

Check Transaxle Cooling V'

Check V-Belts

Check Engine Oil Level V* t j#

Change Engine Oil (with oil filter) Vft,2

EChange Engine Oil (without oil filter) IJfl,2

NClean Air Fi,ter _V*:

GClean Air Screen

NI Muffler/Spark Arrester I1_

Inspect

EReplace Oil Filter (If equipped) _;z

Clean Engine Cooling Fins

Replace Spark Plug _If

Replace Air Filter Paper Cartridge _2_,

Replace Fuel Filter _##

1- Change more often when operating under aheavy road or

in high ambient lemperalures.

2- Service more often when operating in dirty or dusty conditions.

3- Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery

5-Tighten front axle pivot bolt to 35 It.-Ibs. maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

LUBRICATION CHART

(_ '(D Spindle

Zerk Zerk

_)Front Wheel -_(_Front Wheel

Bearing ,_earing Zerk

Zerk i ._

@Engine ;.-.

E =

(i) General Purpose Grease

01964 1

(2) REFER TO Maintenance "ENGINE" SECTION

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

•The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

•When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

•The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Trailing Mandre,IAs._embly

Edge Up_(._adl e Center __

Lock Washe;--_ "__ Star

_'f_-Blade Bolt

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade -but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Blade

5/8" Bolt o

Center He

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

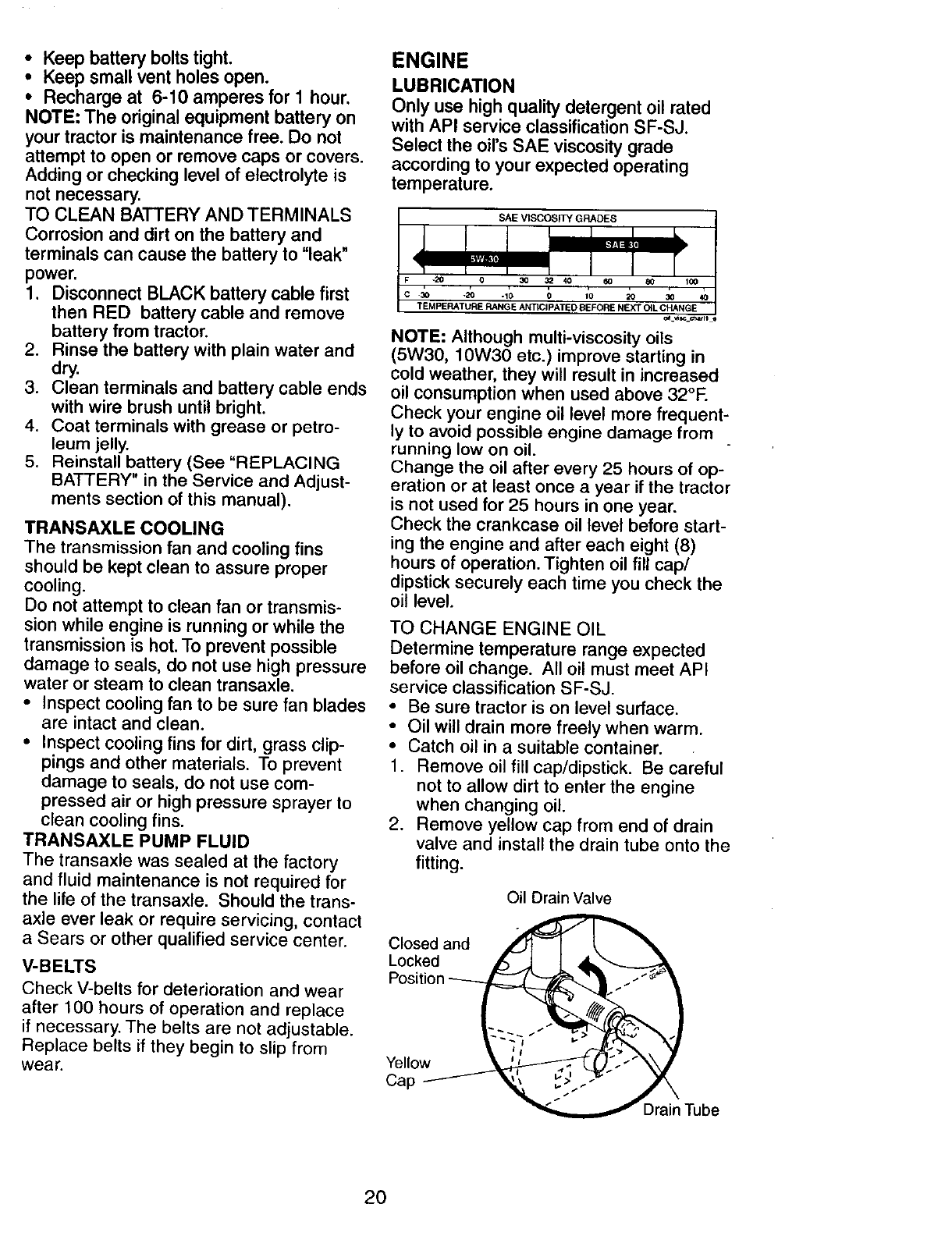

• Keep battery bolts tight.

•Keep small vent holes open.

•Recharge at 6-10 amperes for 1 hour.

NOTE; The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

2. Rinse the battery with plain water and

dry.

3. Clean terminals and battery cable ends

with wire brush until bright.

4. Coat terminals with grease or petro-

leum jelly.

5. Reinstall battery (See "REPLACING

BATTERY" in the Service and Adjust-

ments section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

•Inspect cooling fan to be sure fan blades

are intact and clean.

•Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

a Sears or other qualified service center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

-20 0 3_ 40 60

-30 *_0 .10 0 I0 _O 30

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OiL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above 32°F.

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 25 hours of op-

eration or at least once a year if the tractor

is not used for 25 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

•Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed and

Locked

Yellow

Cap

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto to the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate read-

ing. Keep oil at "FULl" line on dipstick.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Pull up on air filter cover handle and

rotate towards engine.

2. Remove cover.

3. Carefully remove air filter cartridge and

pre-cleaner from base.

4. Clean base carefully to prevent debris

from falling into carburetor.

NOTE: If very dirty or damaged, replace

cartridge.

5. Place new pre-cleaner and cartridge

firmly in base.

6. Align tabs on cover with slots in blower

housing and replace cover.

7. Hook handle on cover and push down

on handle to close.

IMPORTANT: Petroleum solvents,

such as kerosene, are not to be used

to clean the cartridge. They may cause

deterioration of the cartridge. Do not oil

cartridge. Do not use pressurized air to

clean cartridge.

Handle

Cover

art. ge

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGINE COOLING SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

Air Screen Clean out chaff and debris

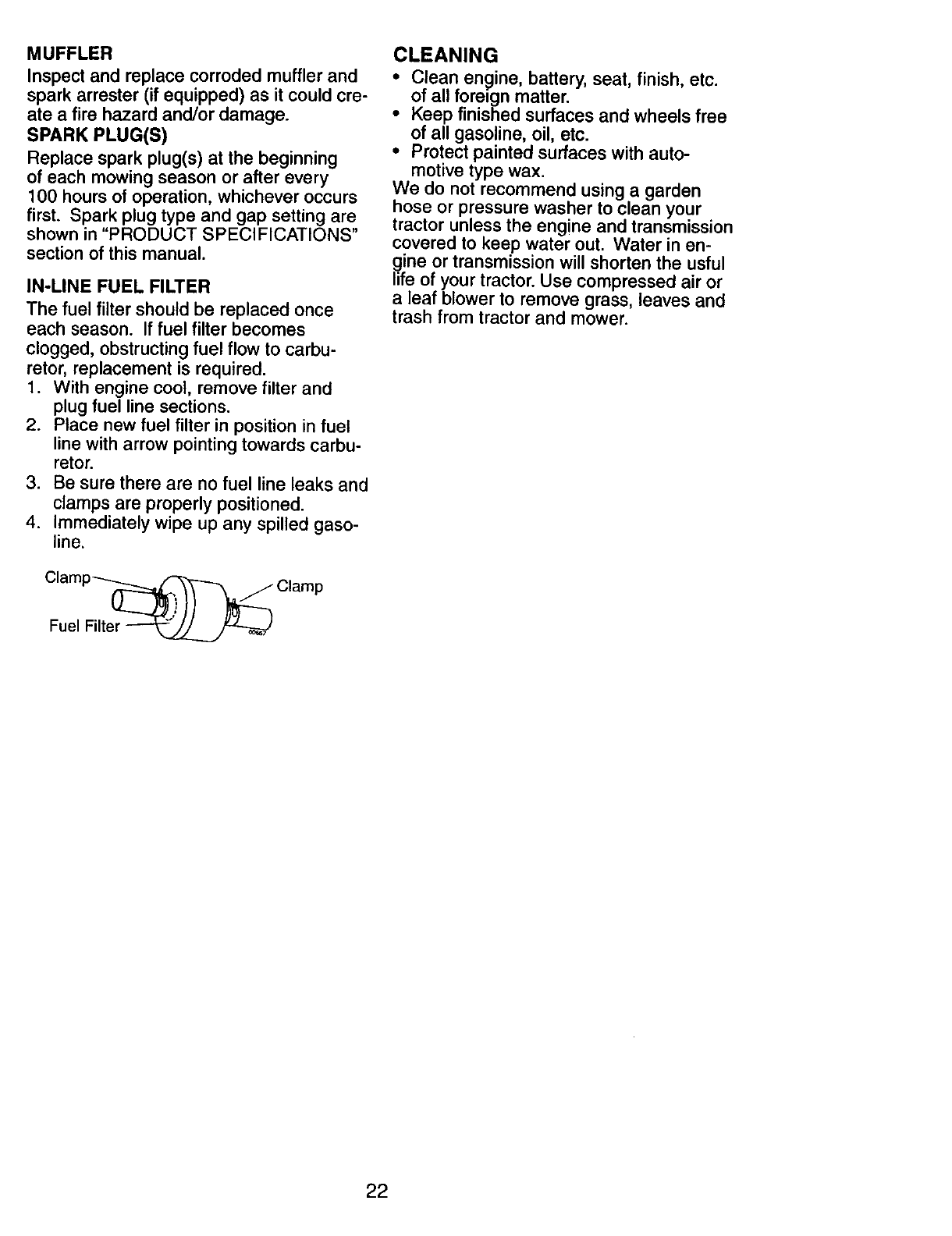

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clamp_ Clamp

Fuel Filter

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

•Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmission

covered to keep water out. Water in en-

gine or transmission will shorten the usful

life of your tractor. Use compressed air or

aleaf blower to remove grass, leaves and

trash from tractor and mower.

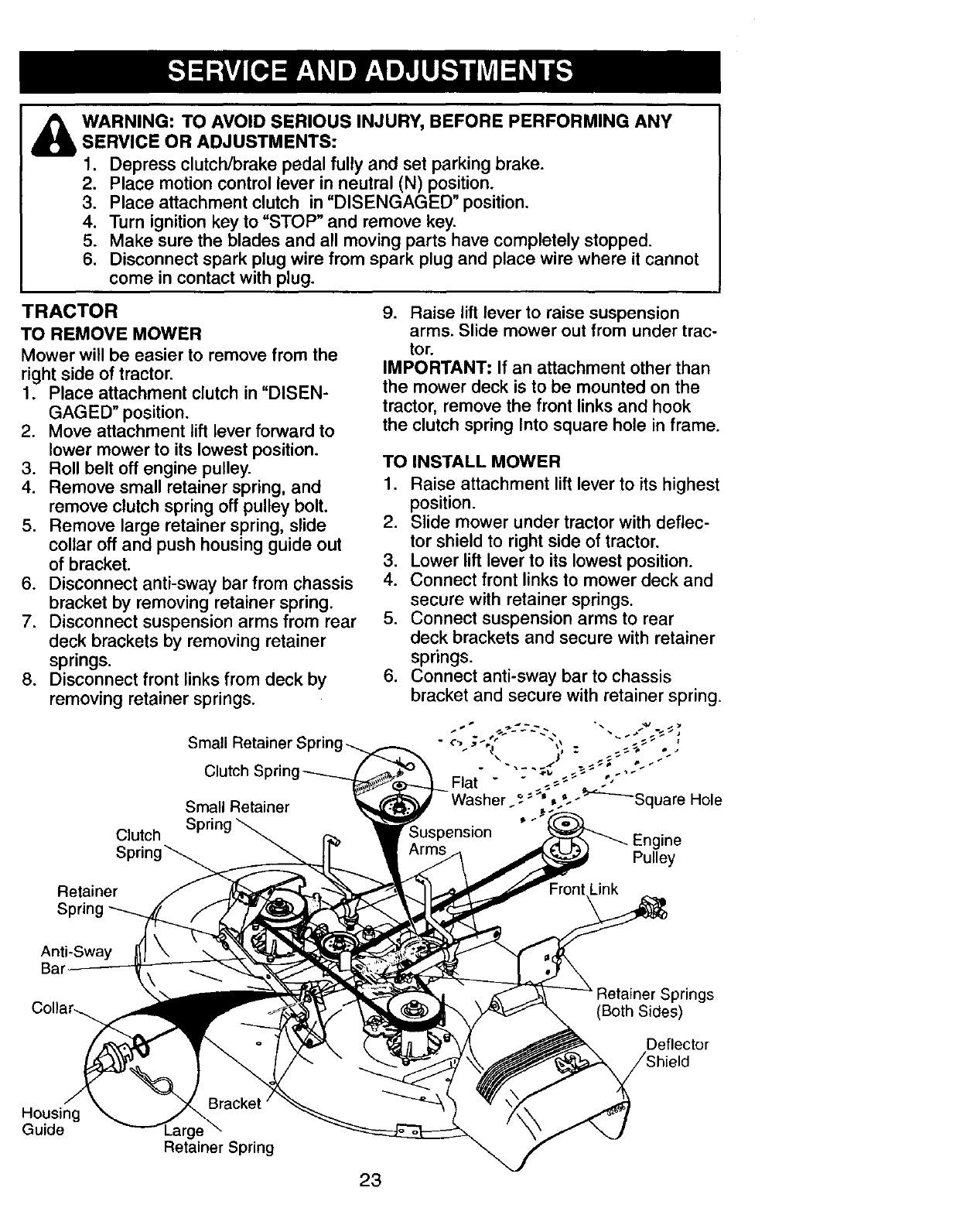

d_h) WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

Clutch

Small Retainer Sprin

Clutch Sprin

Small Retainer

Engine

Pulley

Retainer

Spring

--ront Link

Anti-Sway

Retainer Springs

(Both Sides)

Deflector

Housing

Guide

Retainer Spring

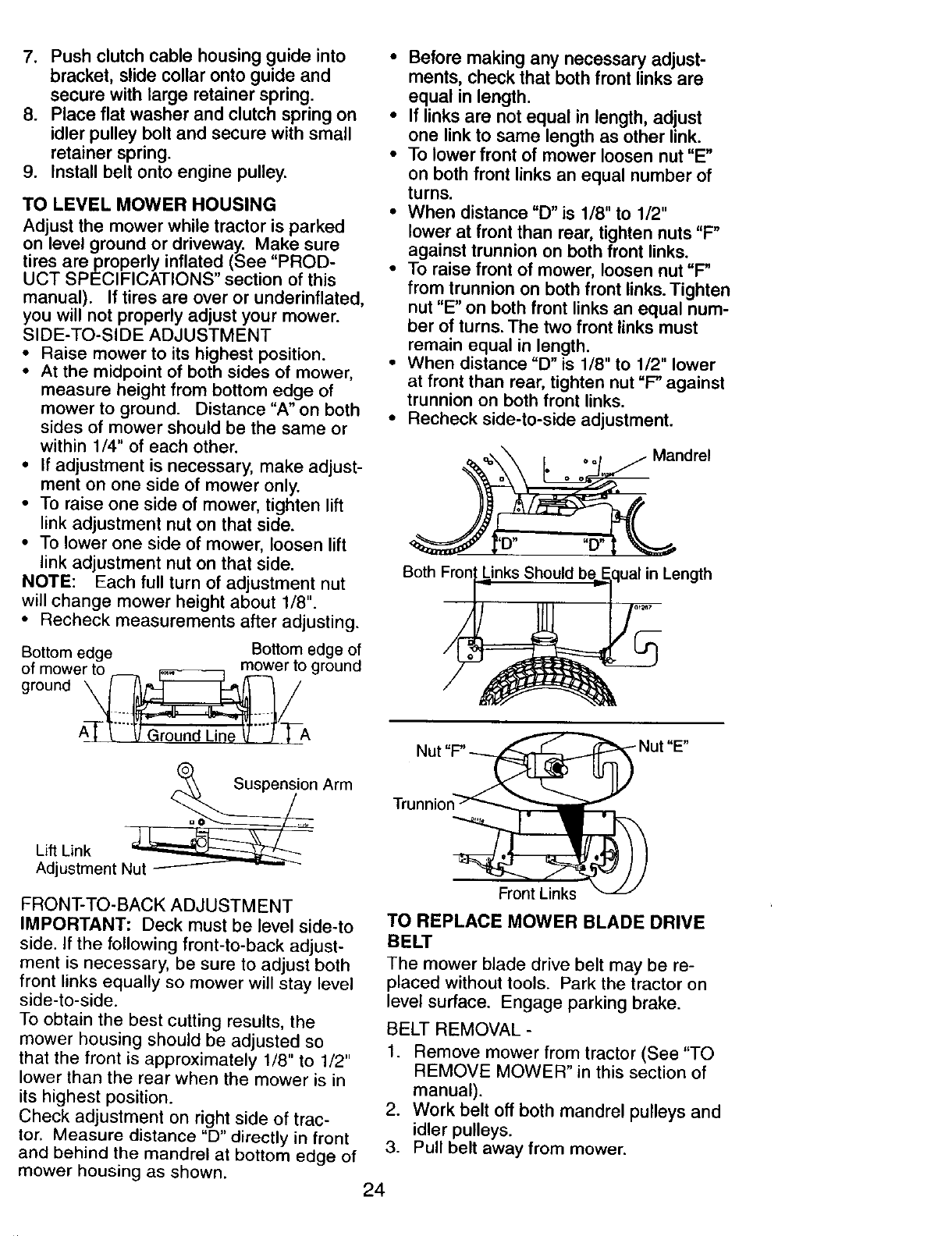

7. Pushclutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge Bottom edge of

of mower to _ mower to ground

ground _/

A_'_--_ Ground Line _"-'.)'-]--A

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "P

against trunnion on both front links.

• To raise front of mower, loosen nut "P

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "P against

trunnion on both front links.

• Recheck side-to-side adjustment.

Mandrel

Both nks Should be ual in Length

u_ension Arm

Lift Link

Adjustment N

Trunnion

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface, Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

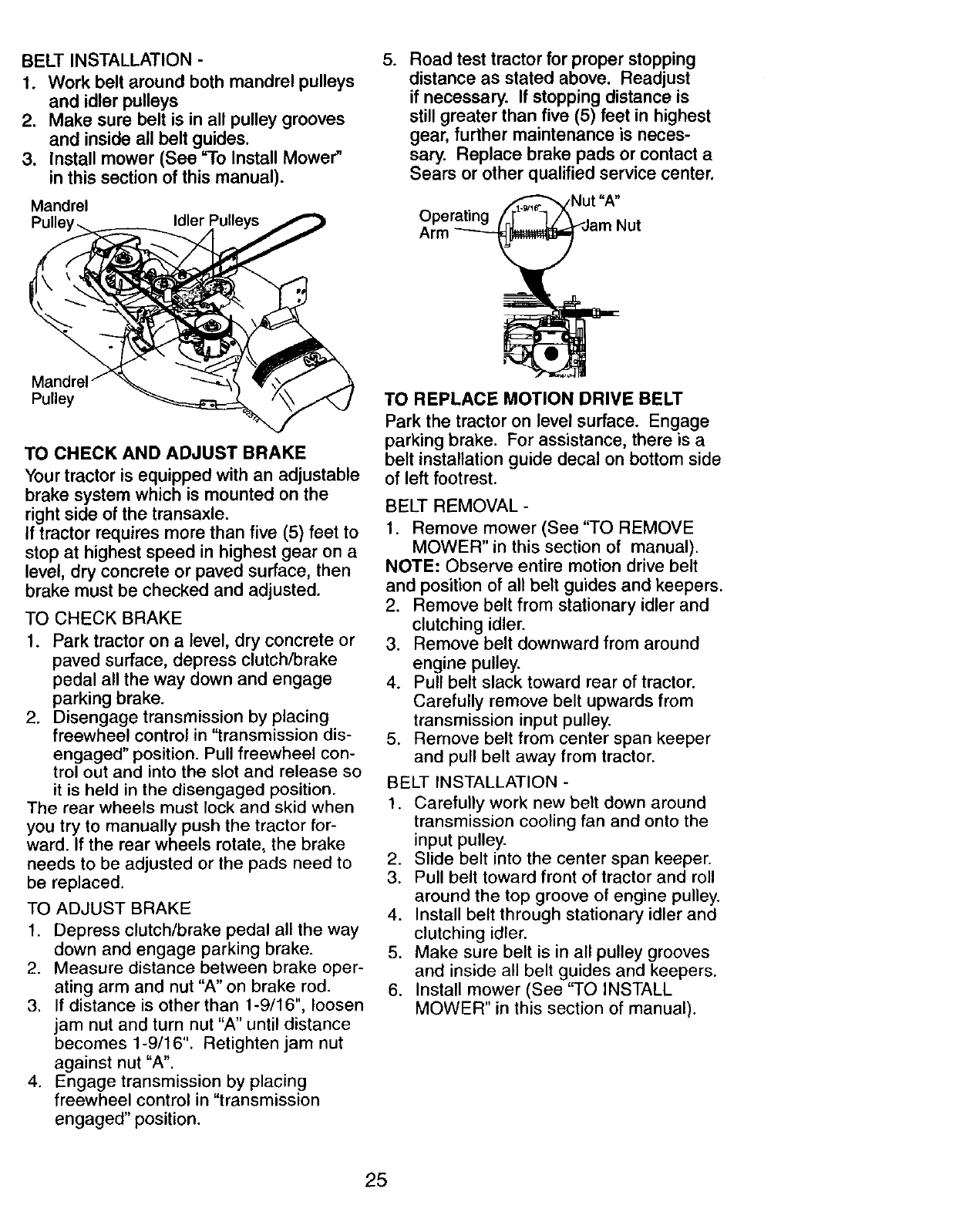

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower"

in this section of this manual).

Mandrel Idler

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16% loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A".

4. Engage transmission by placing

freewheel control in "transmission

engaged"position.

.Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center,

Operating /_

Arm _

t "A"

am Nut

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

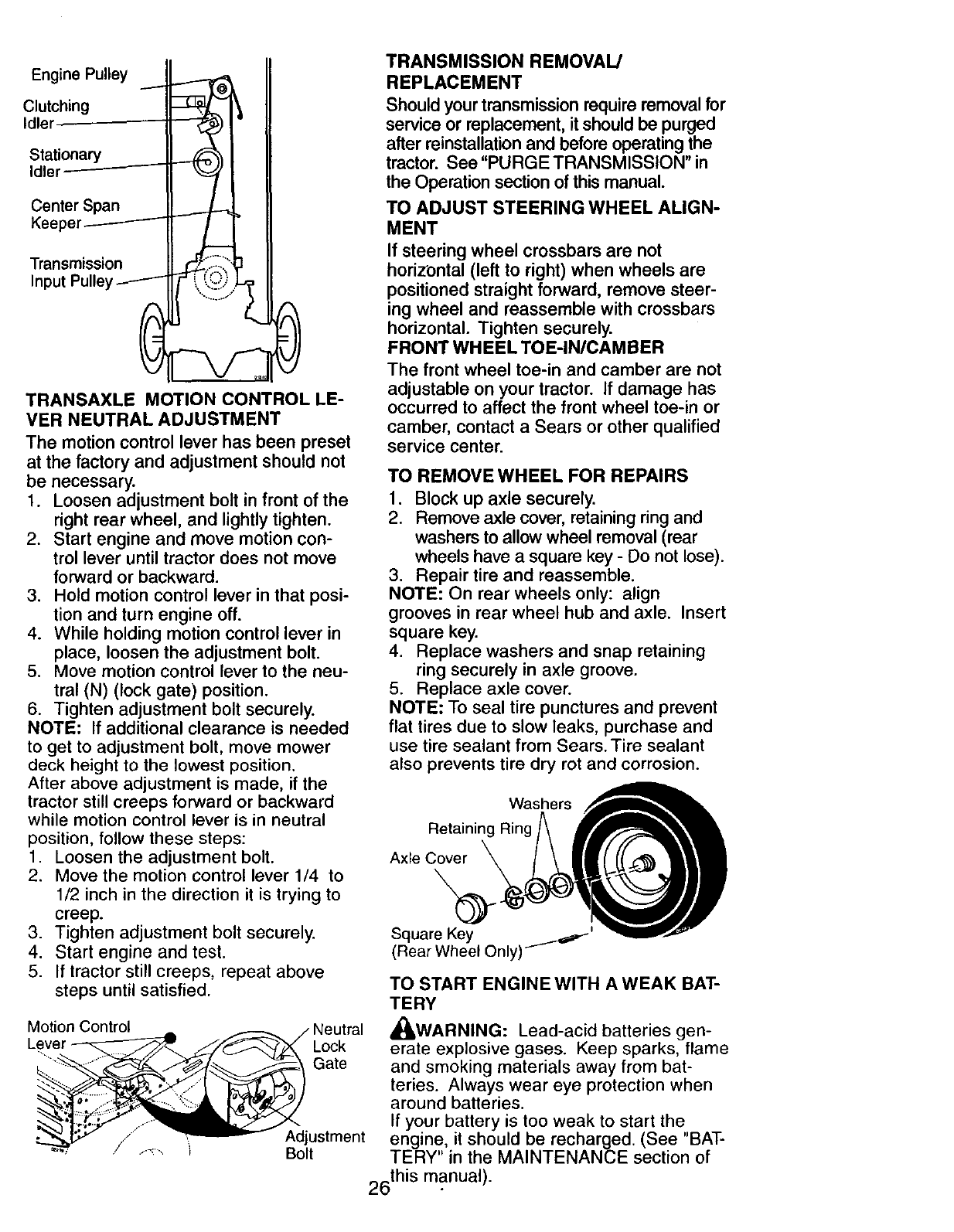

Engine Pulley

Clutching

Idler-

Stationary

Idler

Center Span

Keeper_

Transmission

Input Pulley 0

TRANSAXLE MOTION CONTROL LE-

VER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion con-

trol lever until tractor does not move

forward or backward.

3. Hold motion control lever in that posi-

tion and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the neu-

tral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Control

Lever

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal for

service or replacement, itshould be purged

after reinstallation and before operating the

tractor. See "PURGE TRANSMISSION" in

the Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining Ring

Axle Cover _

Square Key

(Rear Wheel Only) "_

TO START ENGINE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

Lock erate explosive gases. Keep sparks, flame

Gate and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

Adjustment engine, it should be recharged. (See "BAT-

Bolt TERY" in the MAINTENANCE section of

26this manual).

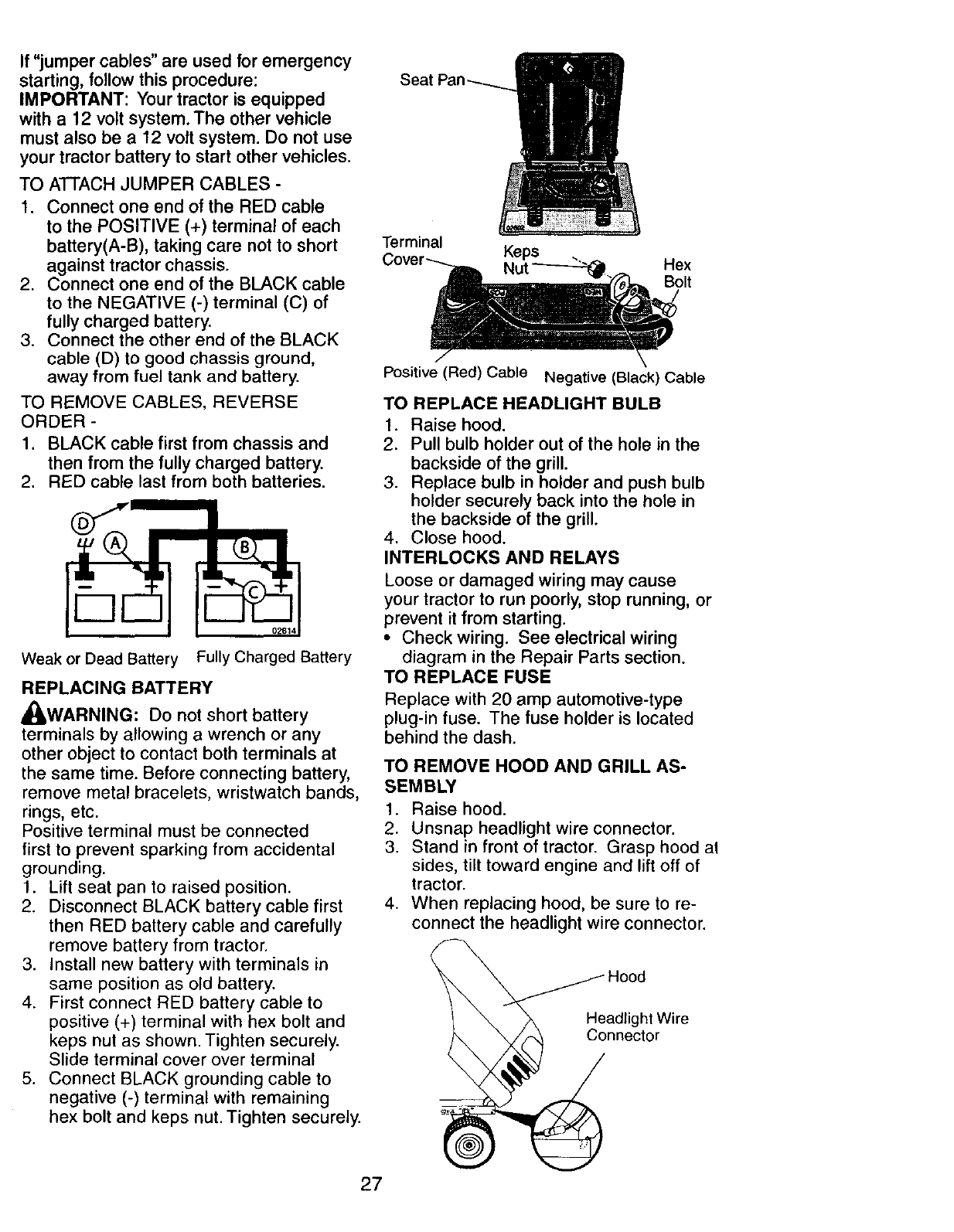

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Battery Fully Charged Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

Terminal

Cover----_ Keps ...._. Rex

Positive (Red) Cable Negative (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

•Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood a!

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Headlight Wire

Connector

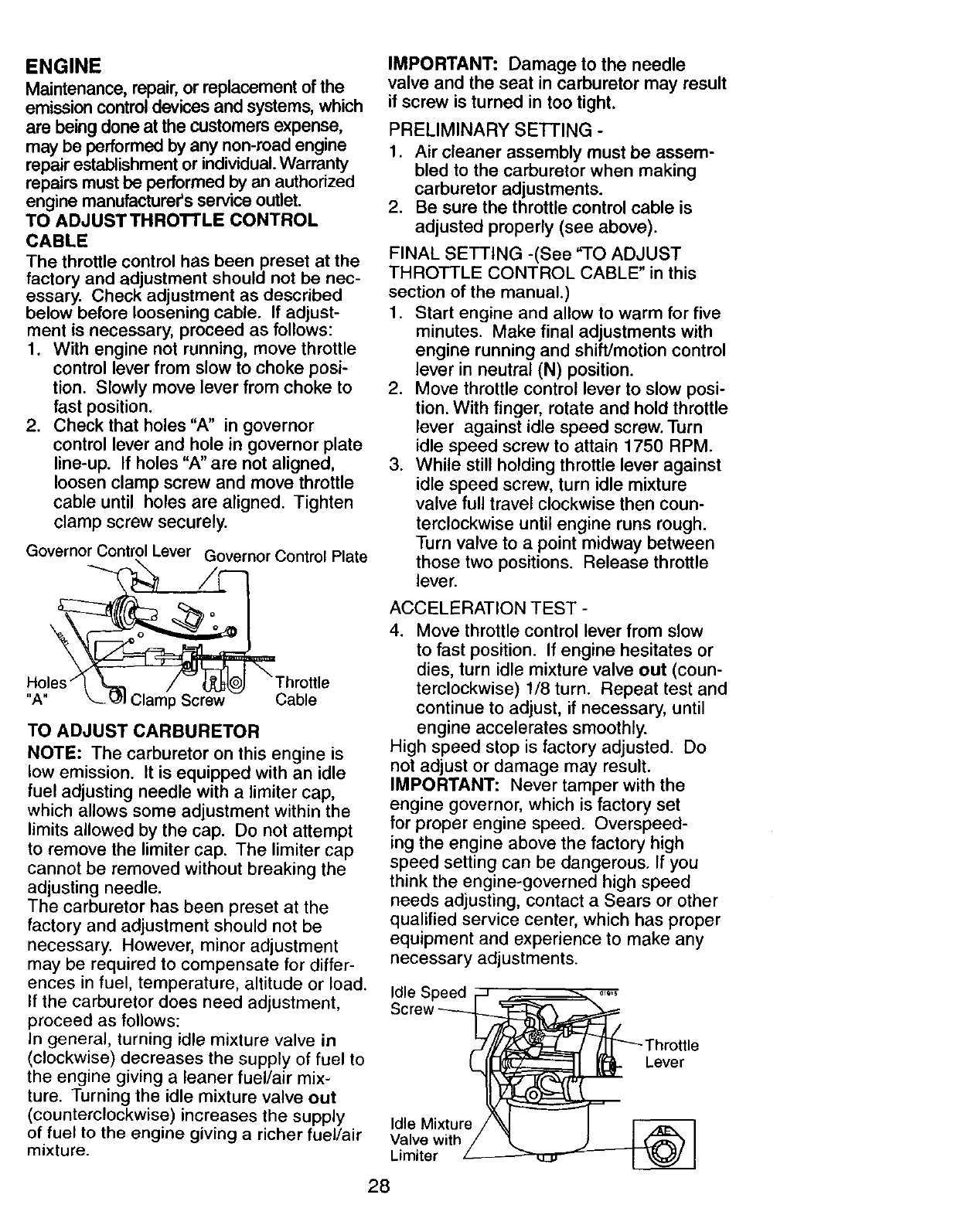

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual.Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A"are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor Control Lever

Holes " e

"A" Clamp Screw Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for differ-

ences in fuel, temperature, altitude or load.

If the carburetor does need adjustment,

proceed as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -(See "TO ADJUST

THROTTLE CONTROL CABLE" in this

section of the manual.)

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Speed

Lever

Idle Mixture

Valve with

Limiter

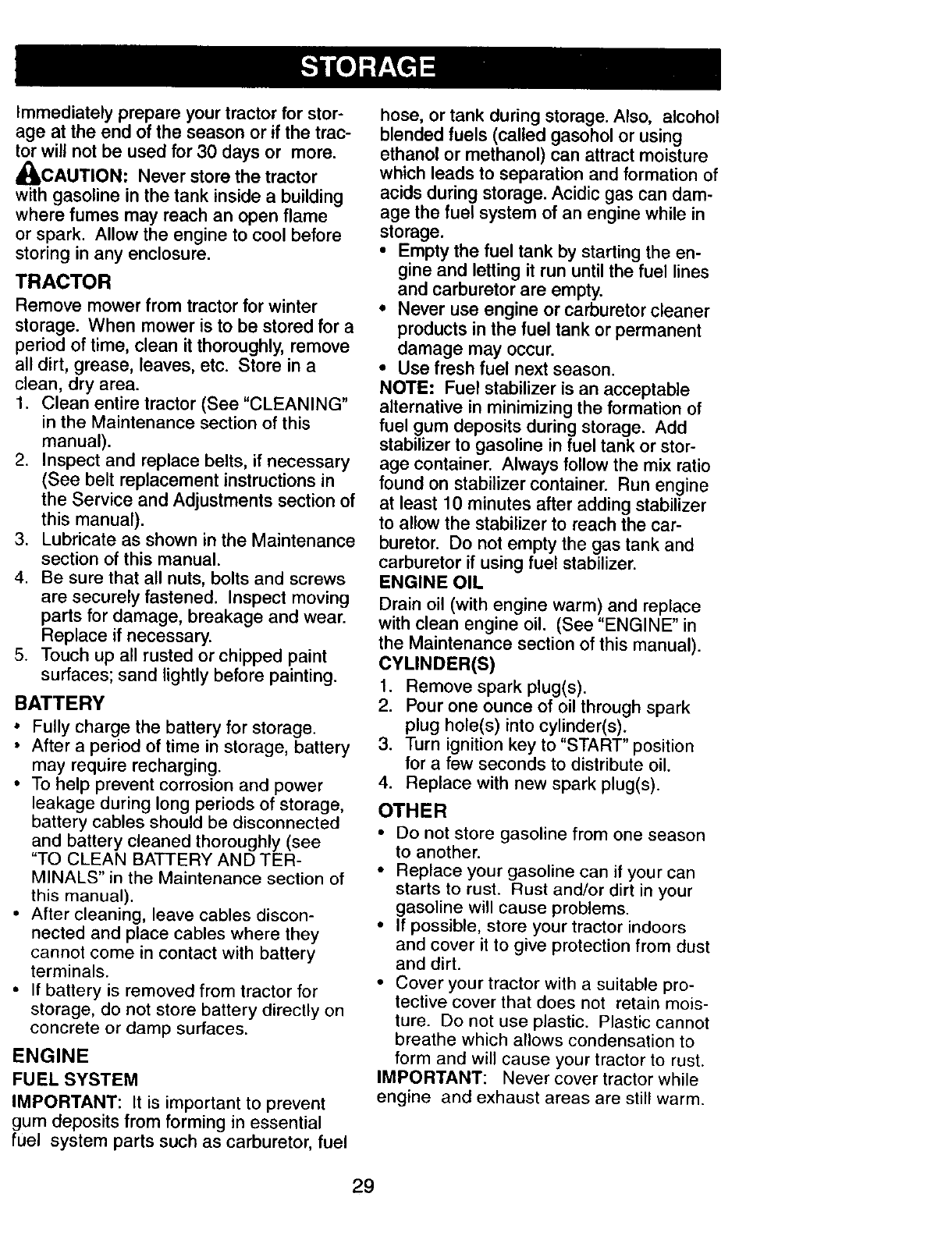

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

•To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TER-

MINALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for afew seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

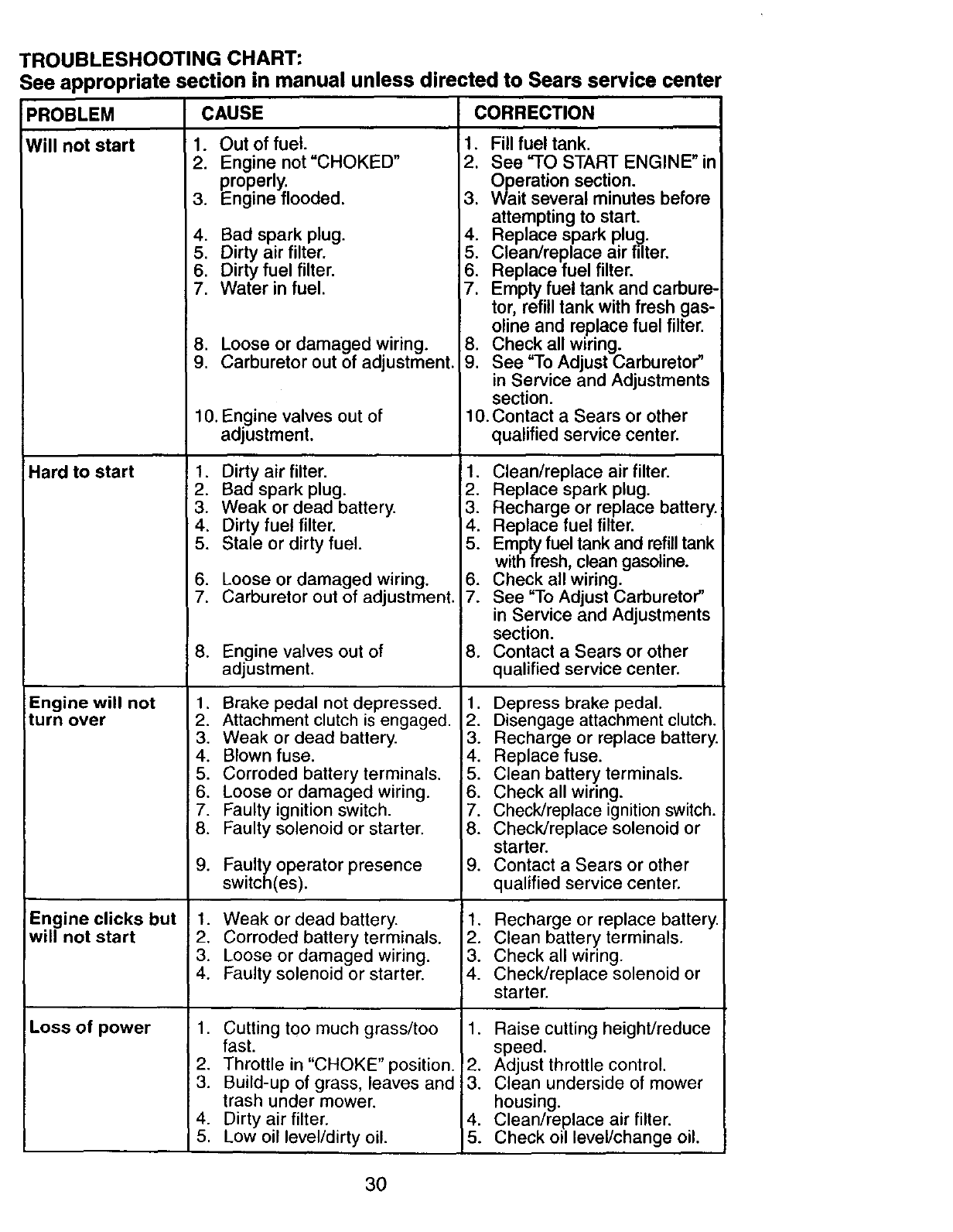

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

Loss of power

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and

trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

1. Fill fuel tank.

2. See =TO START ENGINE" in

Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

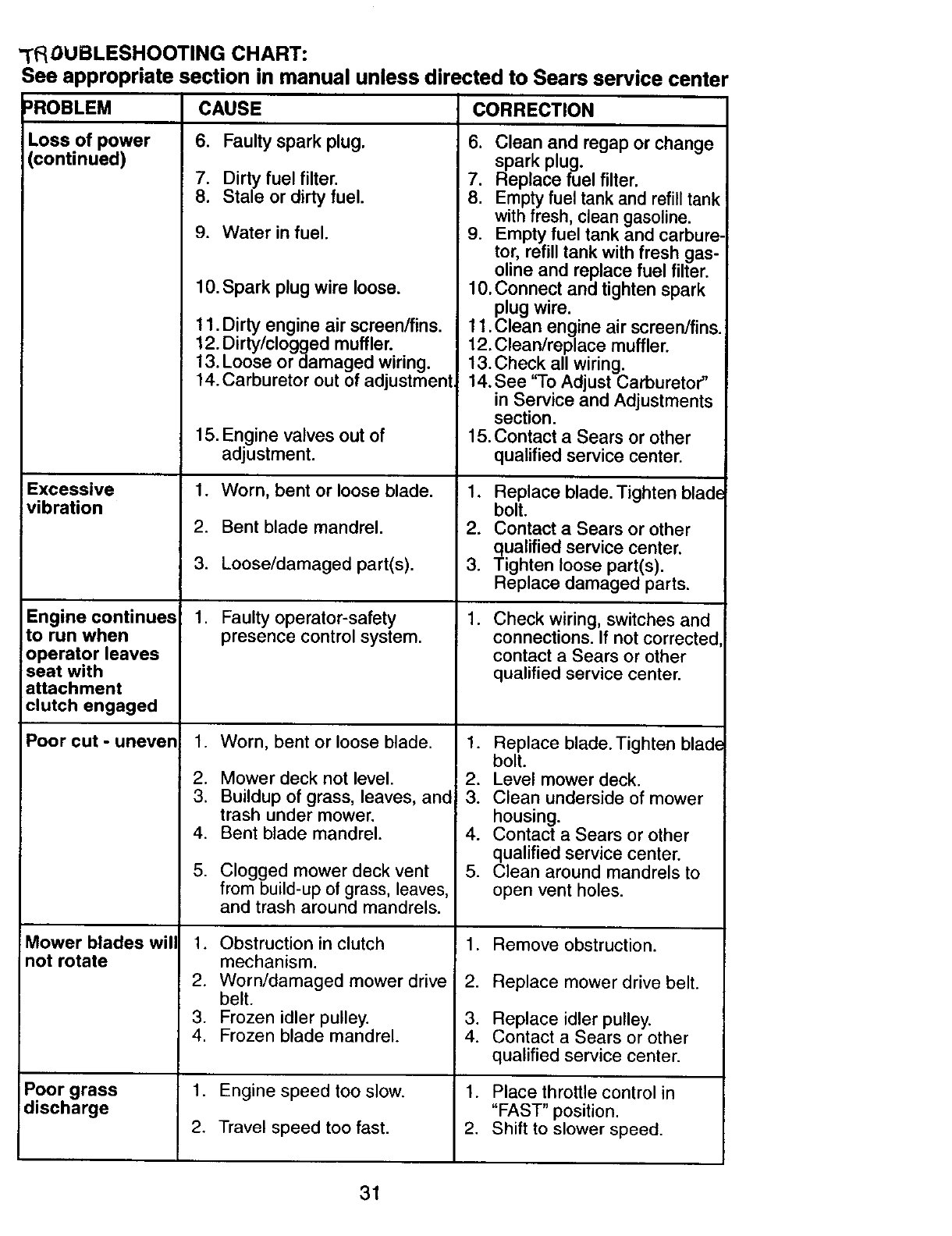

"Tf_OUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

)ROBLEM

Loss of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poorcut-uneven

Mower blades will

notrotate

Poor grass

discharge

CAUSE

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves, and

trash under mower.

Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass, leaves

and trash around mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

CORRECTION

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade. Tighten blad_

bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

.Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade.Tighten blade

bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

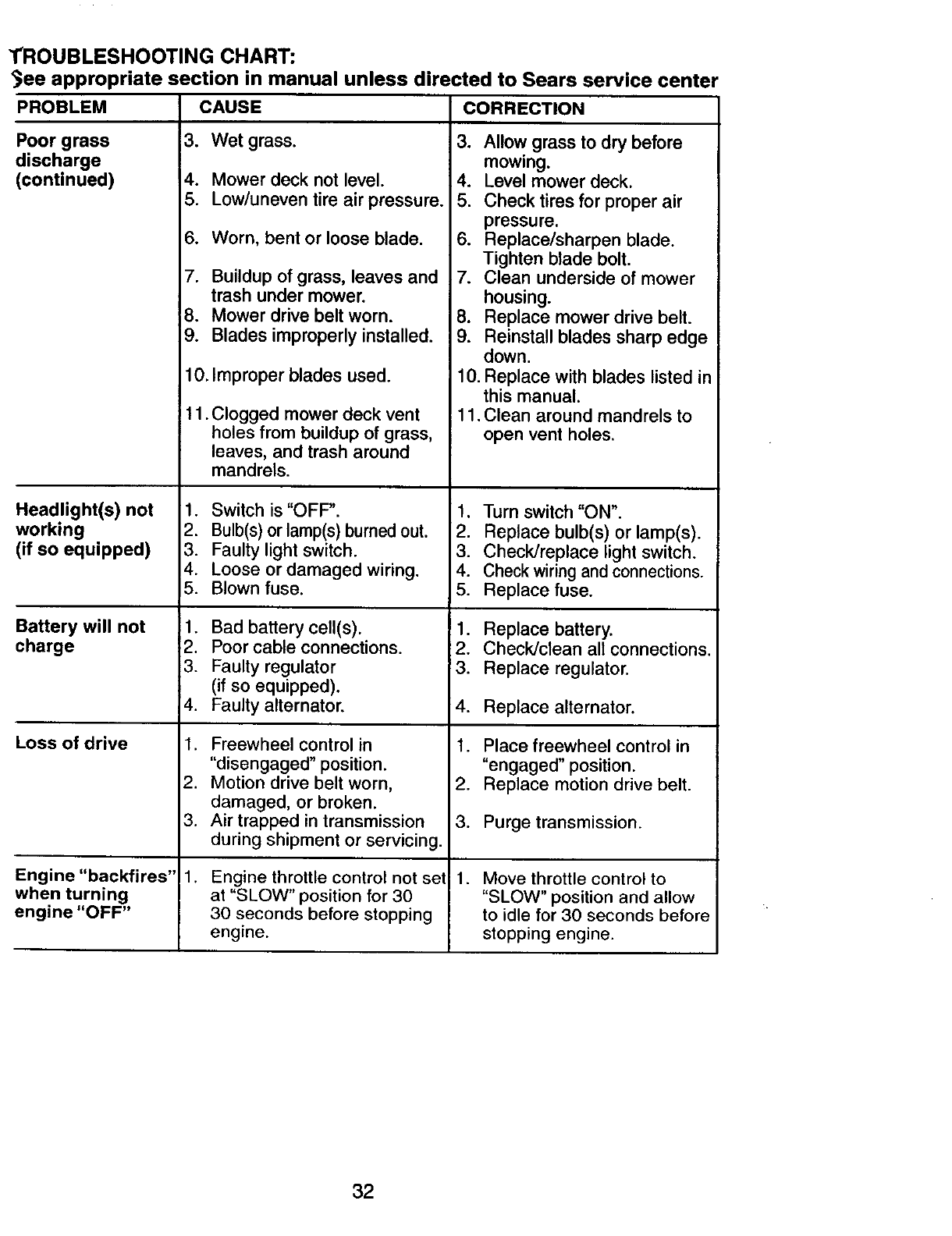

TROUBLESHOOTING CHART:

_ee appropriate section in manual unless directed to Sears service center

PROBLEM

Poor grass 3.

discharge

(continued) 4.

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Loss of drive

Engine "backfires"

when turning

engine "OFF"

CAUSE

Wetgmss.

Mower deck not level.

Low/uneven tire air pressure.

Worn, bent or loose blade.

Buildup of grass, leaves and

trash under mower.

Mower drive belt worn.

Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

15. Blown fuse.

1. Bad battery cell(s).

Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

.Engine throttle control not set

at "SLOW" position for 30

30 seconds before stopping

engine.

CORRECTION

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed in

this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

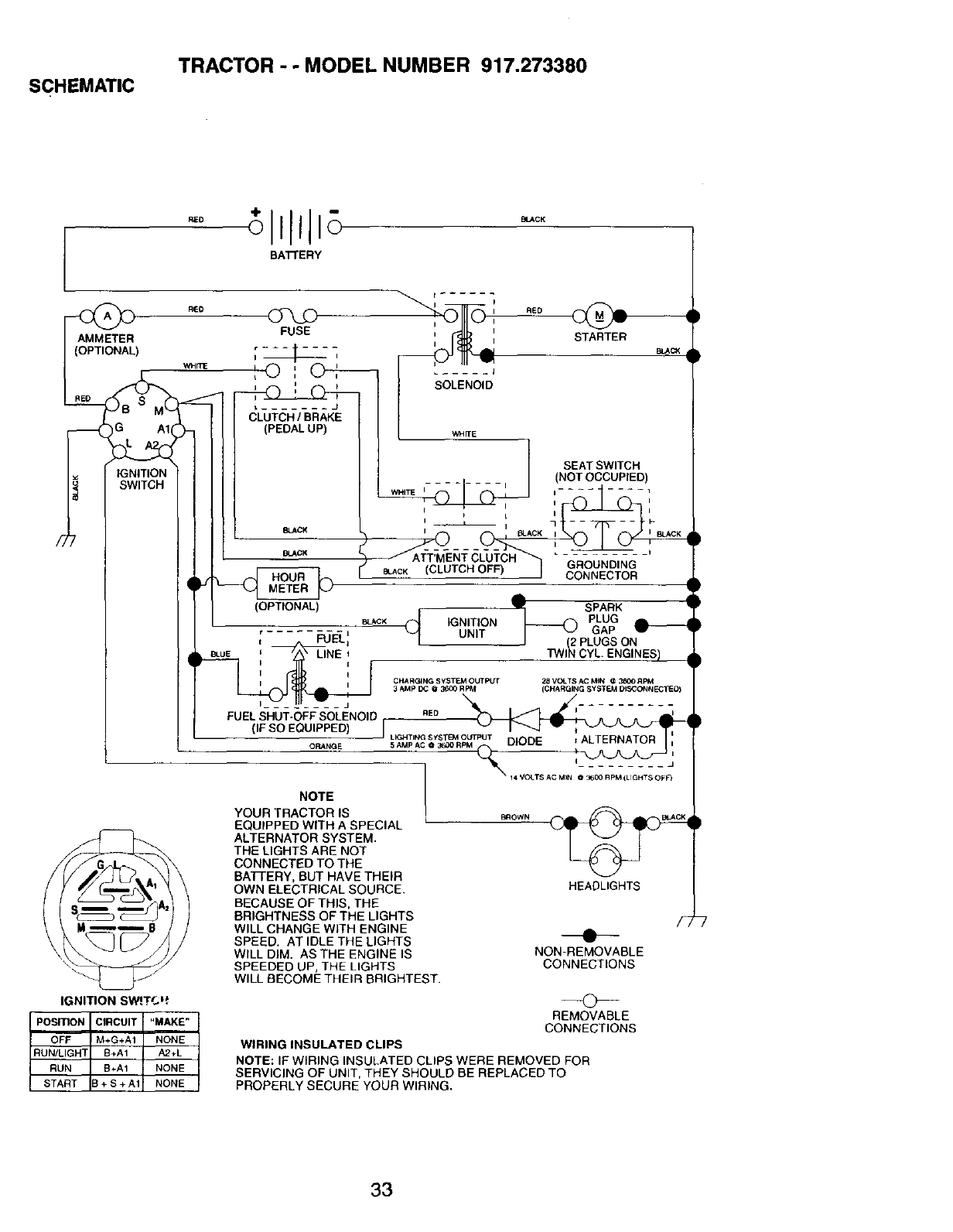

TRACTOR - - MODEL NUMBER 917.273380

SCHEMATIC

"° Illll

BA'n'ERY

AMMETER

__(OPTIONAL)

IGNITION

SWITCH

.€o (Z)_L_)

FUSE

i I t

mt....... J

CLUTCH /BRAKE

(PEDAL UP)

BLACK

_l:_ STARTER

RED

....-

SOLENOID

SEAT SWITCH

(NOT OCCUPIED)

WHIT EI........ i i ........ i

i I

e_ACK (CLUTCH OFF) j -G-ROUNDIN(_ -

CONNECTOR

SPARK

(_ _GNITION PLUG

UNiT GAP

(2 PLUGS ON

TWIN,

CHARGING SYSTEM OUTPUT

3 AMp DC O:_O0 RPM

(OPTIONAL)

BL_CK

r--i

t FUELI

_uE llt_= LINE ill

FUEL SHUT-OFF SOLENOID RED

(IF SO EQUIPPED) LIGHTINGSYSTEMOUTPUT

28 V C=,.TS AC MIN Q3600 RIM

ORANGE DIODE _ALTERNATOR

5 AMP AC O3_0 RPM ©

t4 VOLTS AC MIN O3600 RPM (LIGHTS OFF')

IGNITION SW!TCH

NOTE

YOUR TRACTOR IS

EQUIPPED WITH ASPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATrERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

PosmoN CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START 3+S+ A1 NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

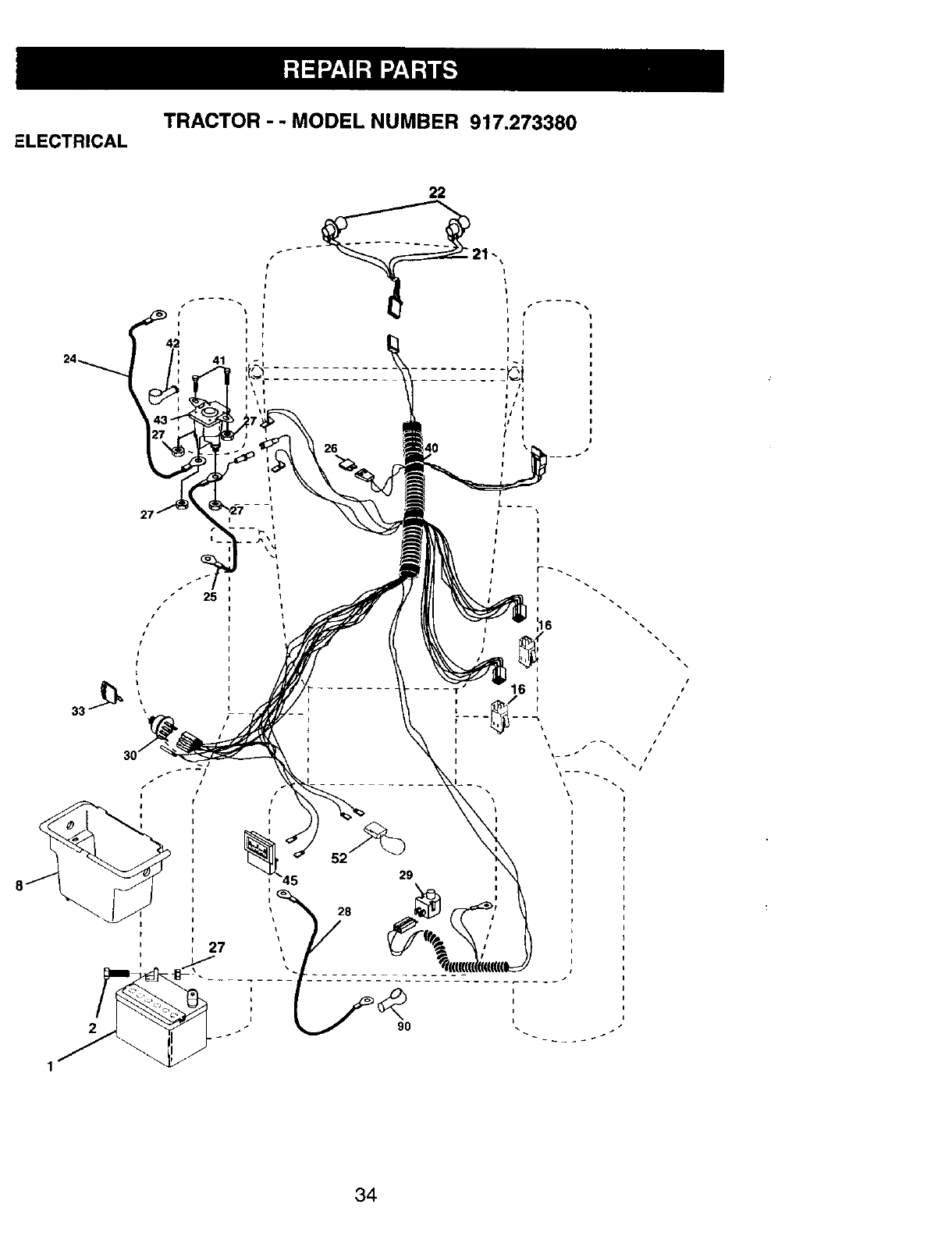

TRACTOR - - MODEL NUMBER 917.273380

ELECTRICAL

24 41

.... T 16

I \

I---

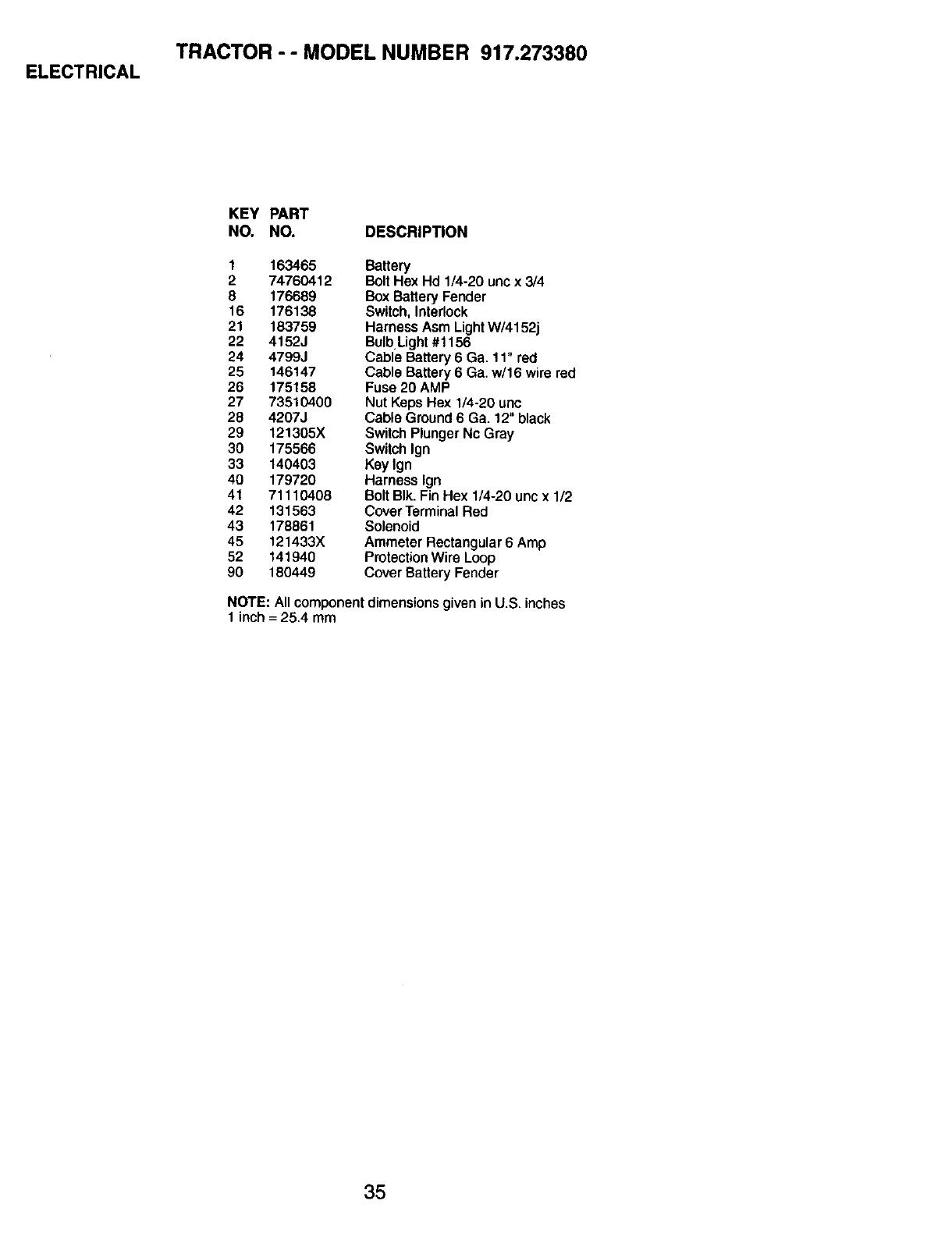

TRACTOR - - MODEL NUMBER 917.273380

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4

8176689 Box Battery Fender

16 176138 Switch, Interlock

21 183759 Harness Asm Light W/4152j

22 4152J Bulb Light #1156

24 4799J Cable Battery 6 Ga. 11" red

25 146147 Cable Battery 6 Ga. w/16 wire red

26 175158 Fuse 20 AMP

27 73510400 Nut Keps Hex 1/4-20 unc

28 4207J Cable Ground 6 Ga. 12" black

29 121305X Switch Plunger Nc Gray

30 175566 Switch Ign

33 140403 Key Ign

40 179720 Harness Ign

41 71110408 Bolt BIk. Fin Hex 1/4-20 unc x 1/2

42 131563 Cover Terminal Red

43 178861 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop

90 180449 Cover Battery Fender

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

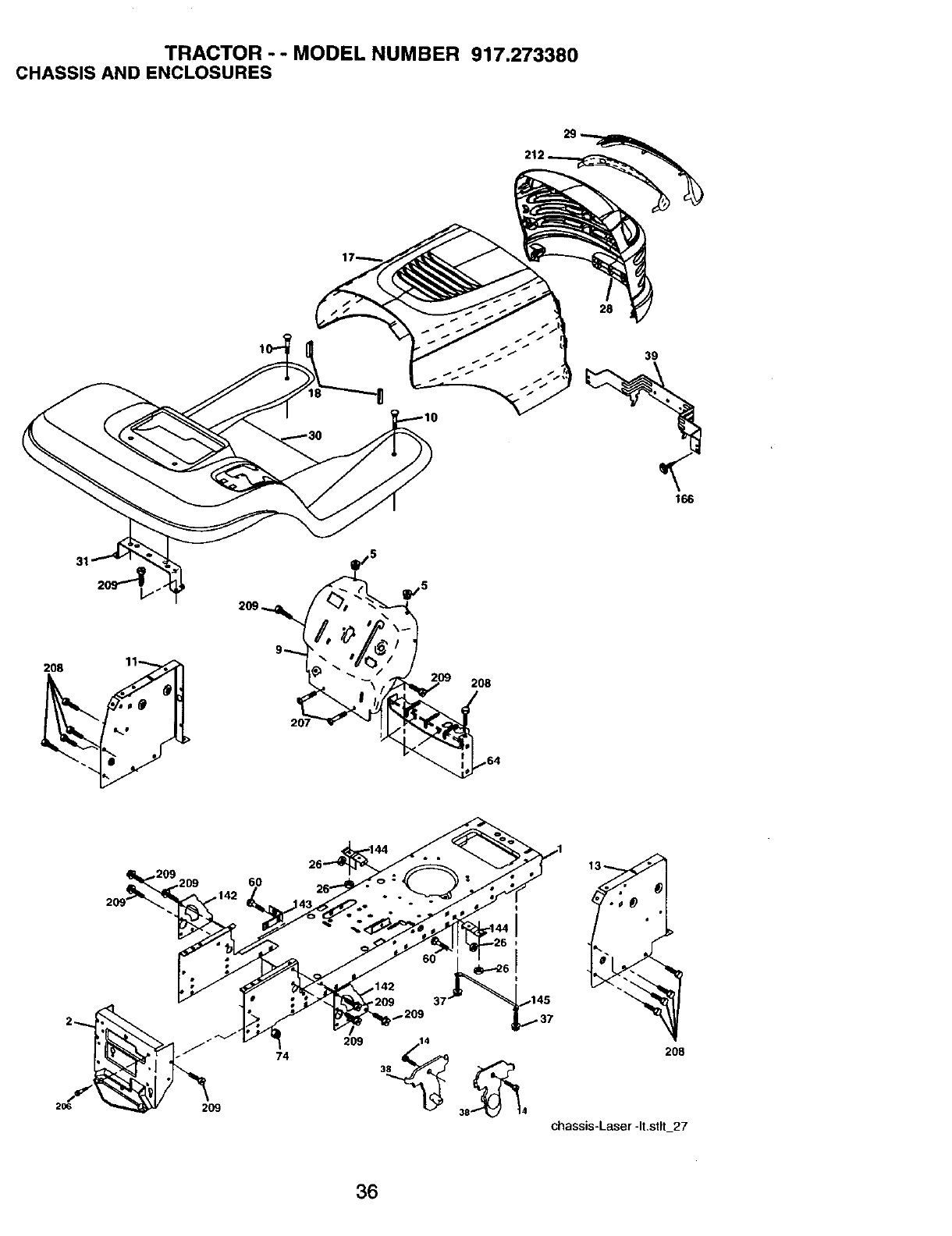

TRACTOR - - MODEL NUMBER 917.273380

CHASSIS AND ENCLOSURES

166

208

2o9 9 gp,s

209 208

207 J

209

-209 37

.209

14 208

chassis-Laser -It,stlt_27

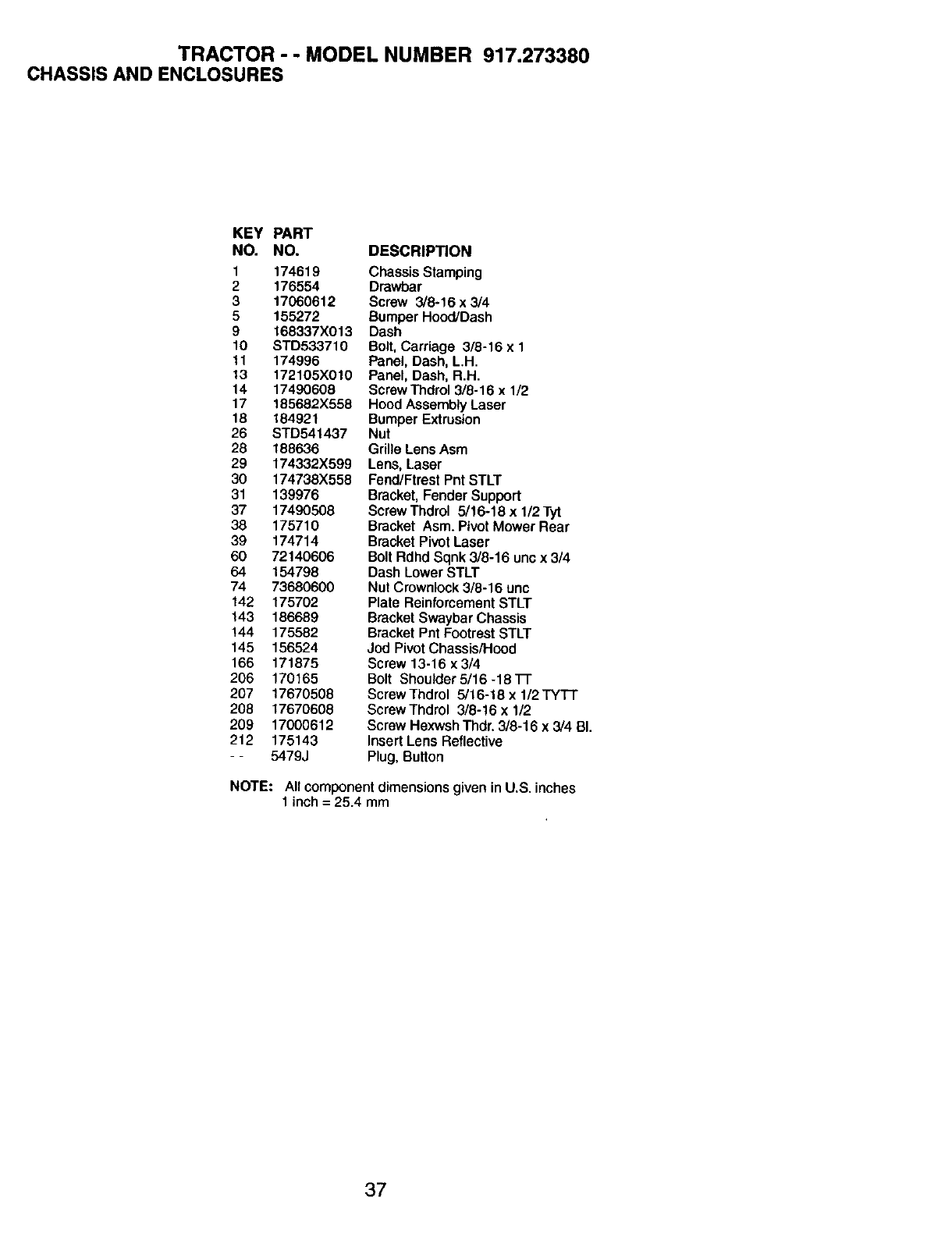

TRACTOR - - MODEL NUMBER 917.273380

CHASSIS AND ENCLOSURES

KEY PART

NO. NO.

1 174619

2 176554

3 17060612

5 155272

9 168337X013

10 STD533710

11 174996

13 172105X010

14 17490608

17 185682X558

18 184921

26 STD541437

28 188636

29 174332X599

30 174738X558

31 139976

37 17490508

38 175710

39 174714

60 72140606

64 154798

74 73680600

142 175702

143 186689

144 175582

145 156524

166 171875

206 170165

207 17670508

208 17670608

209 17000612

212 175143

-- 5479J

DESCRIPTION

Chassis Stamping

Drawbar

Screw 3/8-16 x 3/4

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel, Dash, L.H.

Panel, Dash, R.H.

Screw Thdrol 3/8-16 x 1/2

Hood Assembly Laser

Bumper Extrusion

Nut

Grille Lens Asm

Lens, Laser

Fend/Ftrest Pnt STLT

Bracket, Fender Support

Screw Thdrol 5/16-18 x 1/2 Tyt

Bracket Asm. Pivot Mower Rear

Bracket Pivot Laser

Bolt Rdhd Sqnk 3/8-16 unc x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 uric

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Jod Pivot Chassis/Hood

Screw 13-16 x 3/4

Bolt Shoulder 5/16 -18 l-r

ScrewThdrol 5/16-18 x I/2TYTr

ScrewThdrol 3/8-16 x 1/2

Screw Hexwsh Thdr. 3/8-16 x 3/4 BI.

Insert Lens Reflective

Plug, Button

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

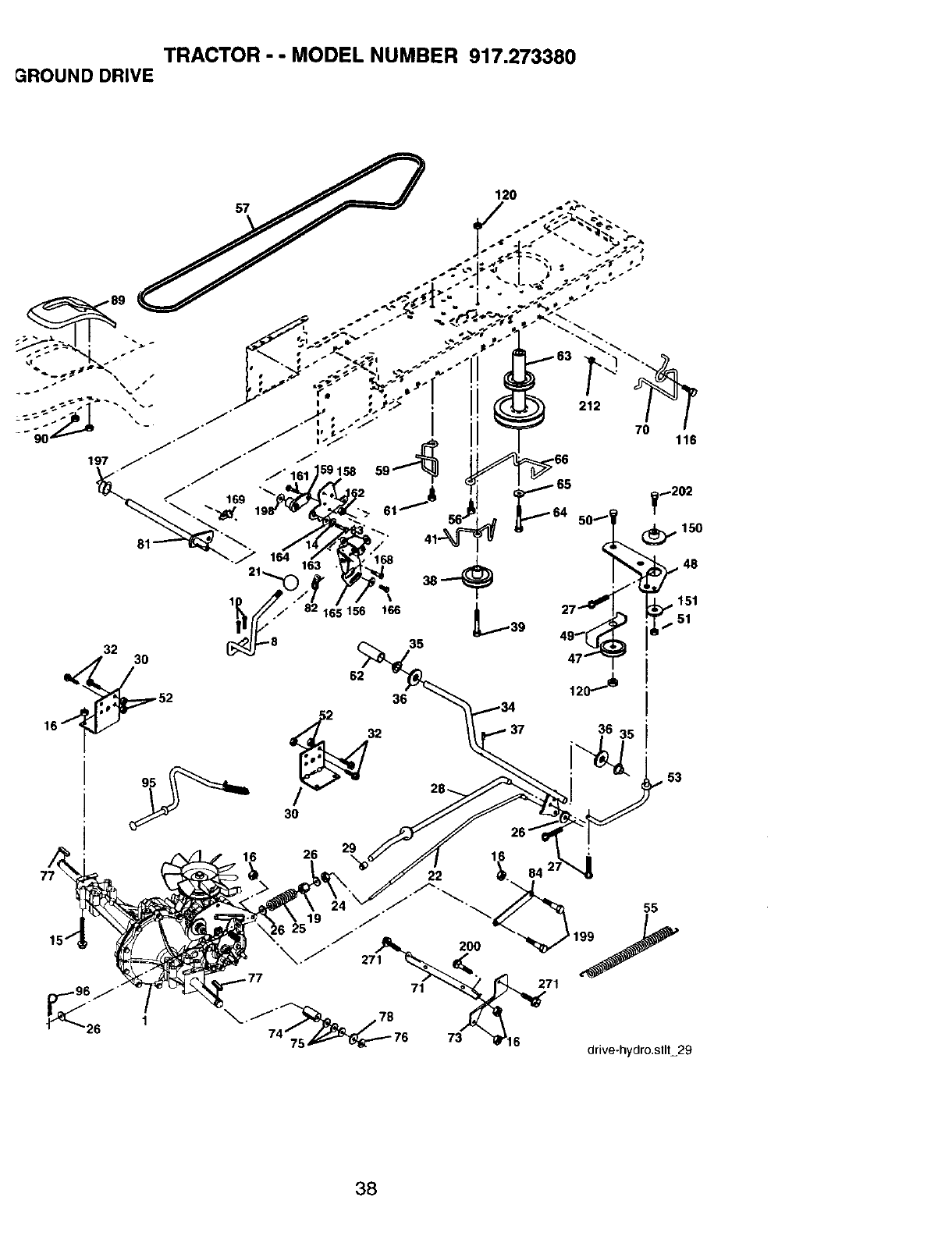

TRACTOR - - MODEL NUMBER 917.273380

GROUND DRIVE

163_ 52 32

5,. 53

drive-hydro.slit 29

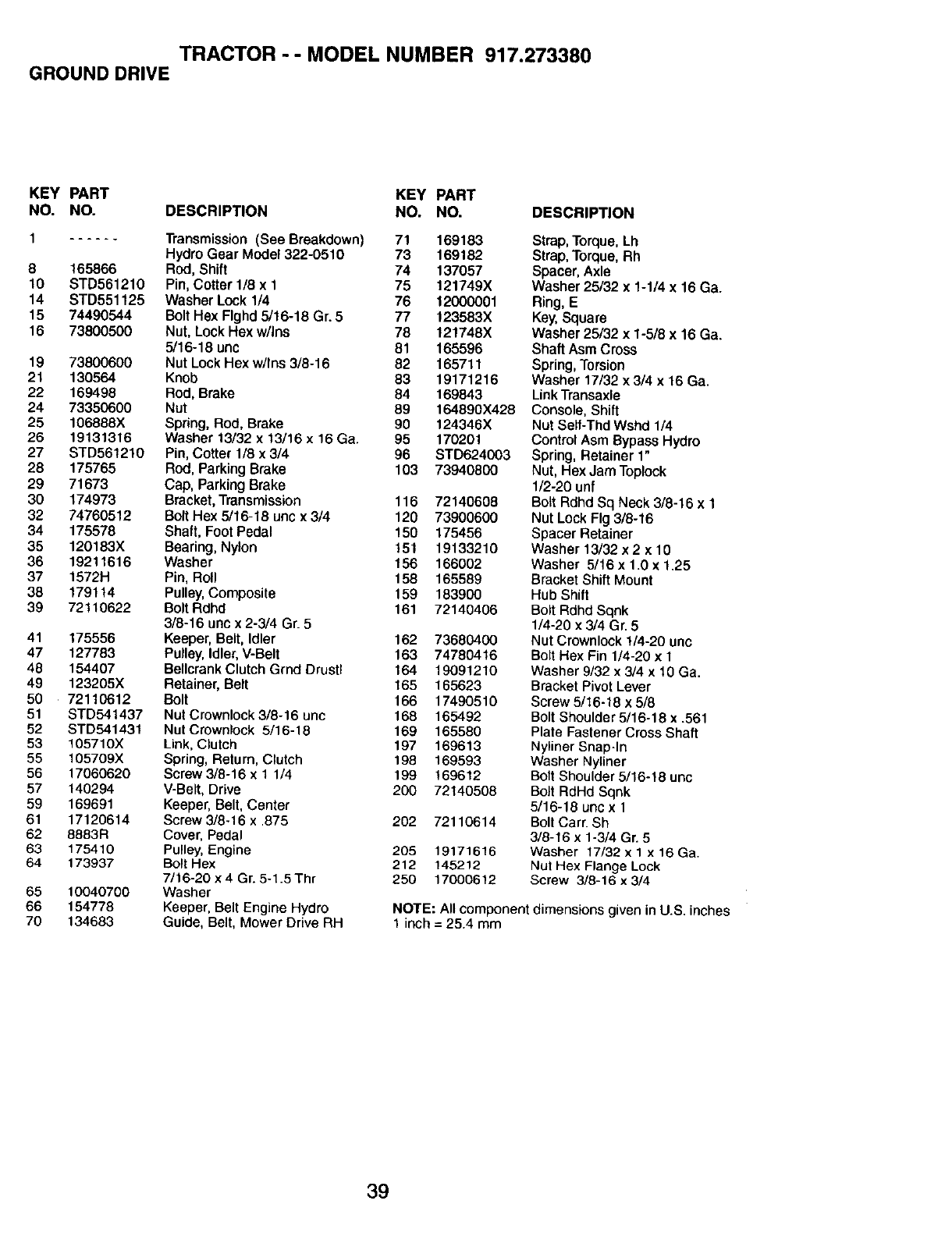

TRACTOR - - MODEL NUMBER 917.273380

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ...... Transmission (See Breakdown) 71 169183

Hydro Gear Model 322-0510 73 169182

8 165866 Rod, Shift 74 137057

10 STD561210 Pin, Cotter 1/8 x 1 75 121749X

14 STD551125 Washer Lock 1/4 76 12000001

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 77 123583X

16 73800500 Nut, Lock Hex w/Ins 78 121748X

5/16-18 unc 81 165596

19 73800600 Nut Lock Hex w/Ins 3/8-16 82 165711

21 130564 Knob 83 19171216

22 169498 Rod, Brake 84 169843

24 73350600 Nut 89 164890X428

25 106888X Spring, Rod, Brake 90 124346X

26 19131316 Washer 13/32 x 13/16 x 16 Ga. 95 170201

27 STD561210 Pin, Cotter 1/8 x 3/4 96 STD624003

28 175765 Rod, Parking Brake 103 73940800

29 71673 Cap, Parking Brake

30 174973 Bracket, Transmission 116 72140608

32 74760512 Bolt Hex 5/16-18 unc x 3/4 120 73900600

34 175578 Shaft, Fool Pedal 150 175456

35 120183X Bearing, Nylon 151 19133210

36 19211616 Washer 156 166002

37 1572H Pin, Roll 158 165589

38 179114 Pulley, Composite 159 183900

39 72110622 Bolt Rdhd 161 72140406

3/8-16 unc x 2-3/4 Gr. 5

41 175556 Keeper, Belt, Idler 162 73680400

47 127783 Pulley, Idler, V-Belt 163 74780416

48 154407 BellcrankClutch Grnd Drustl 164 19091210

49 123205X Retainer, Belt 165 165623

50 72110612 Bolt 166 17490510

51 STD54t437 Nut Crownlock 3/8-16 uric 168 165492

52 STD541431 NutCrownlock 5/16-18 169 165580

53 105710X Link, Cluloh 197 169613

55 105709X Spring, Return, Clutch 198 169593

56 17060620 Scraw3/8-16x 1 1/4 199 169612

57 140294 V-Belt, Drive 200 72140508

59 169691 Keeper, Belt, Center

61 17120614 Screw3/8-16x .875 202 72110614

62 8883R Cover, Pedal

63 175410 Pulley, Engine 205 19171616

64 173937 Bolt Hex 212 145212

7/16-20 x 4 Gr. 5-1.5 Thr 250 17000612

65 10040700 Washer

66 154778 Keeper, Belt Engine Hydro

70 134683 Guide, Belt, Mower Drive RH

Strap, Torque, Lh

Strap, Torque, Rh

Spacer, Axle

Washer 25/32 x1-1/4 x 16 Ga.

Ring, E

Key, Square

Washer 25/32 x 1-5/8 x 16 Ga.

Shaft Asm Cross

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Console, Shift

Nut Seff-Thd Wshd 1/4

Control Asm Bypass Hydro

Spring, Retainer 1"

Nut, Hex Jam Toplock

1/2-20 unf

BoLt Rdhd Sq Neck 3/8-16 x 1

Nut Lock Fig 3/8-16

Spacer Retainer

Washer 13/32 x2 x 10

Washer 5/16 x 1.0 x 1.25

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk

1/4-20 x 3/4 Gr. 5

Nut Crownlock 1/4-20 unc

Bolt Hex Fin 1/4-20 x 1

Washer 9/32 x 3/4 x 10 Ga.

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastener Cross Shaft

Nyliner Snap-In

Washer Nyliner

Bolt Shoulder 5/16-t8 uric

Bolt RdHd Sqnk

5/16-18 uric x 1

Bolt Carr. Sh

3/8-16 x 1-3/4 Gr. 5

Washer 17/32 x 1 x 16 Ga.

Nut Hex Flange Lock

Screw 3/8-16 x 3/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

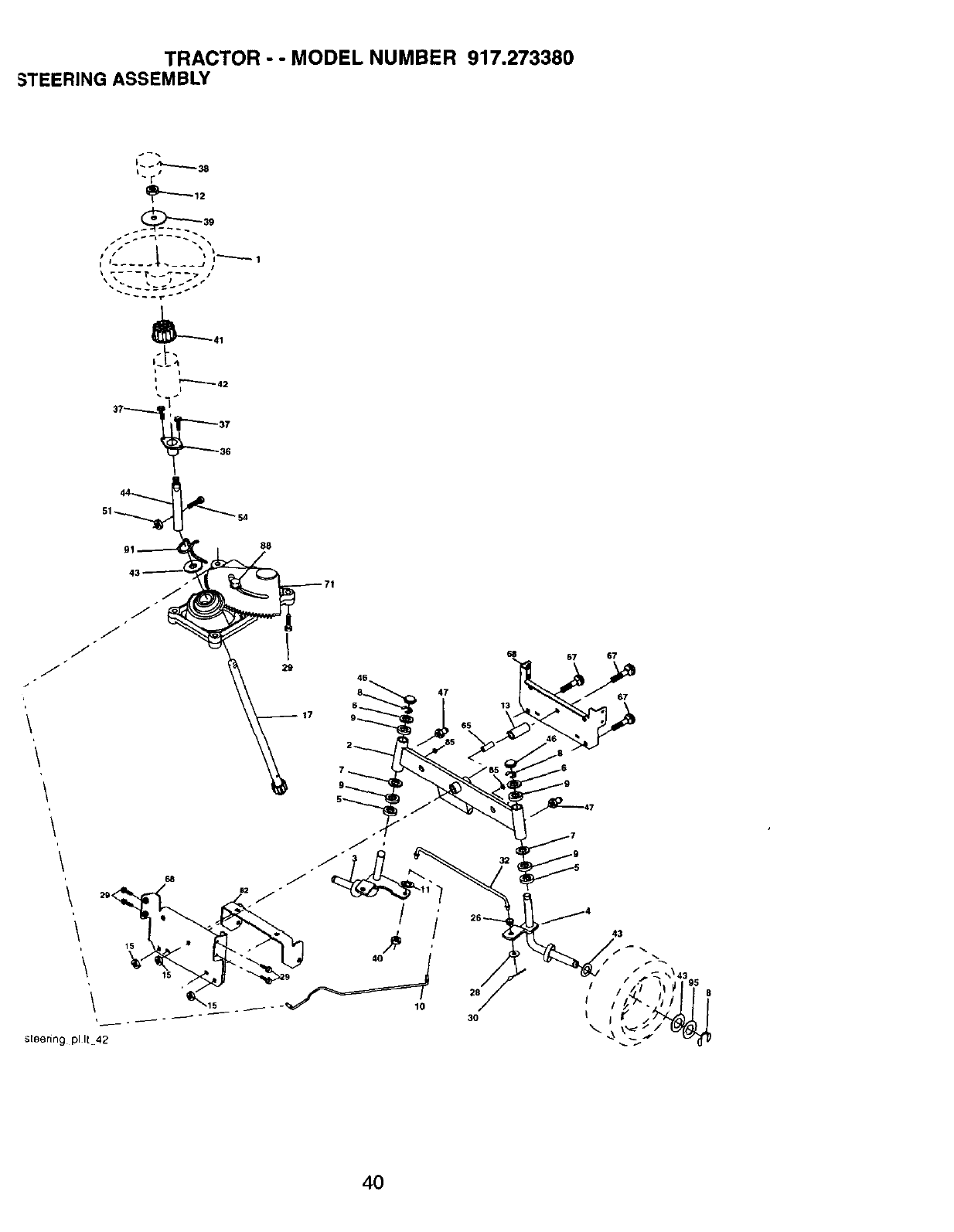

TRACTOR - - MODEL NUMBER 917.273380

STEERING ASSEMBLY

-r

\.t _ •

"t!

t.---.-._ 42

37_ "---'---37

51 _4

9_ 65

steering pill 42

68 87 67

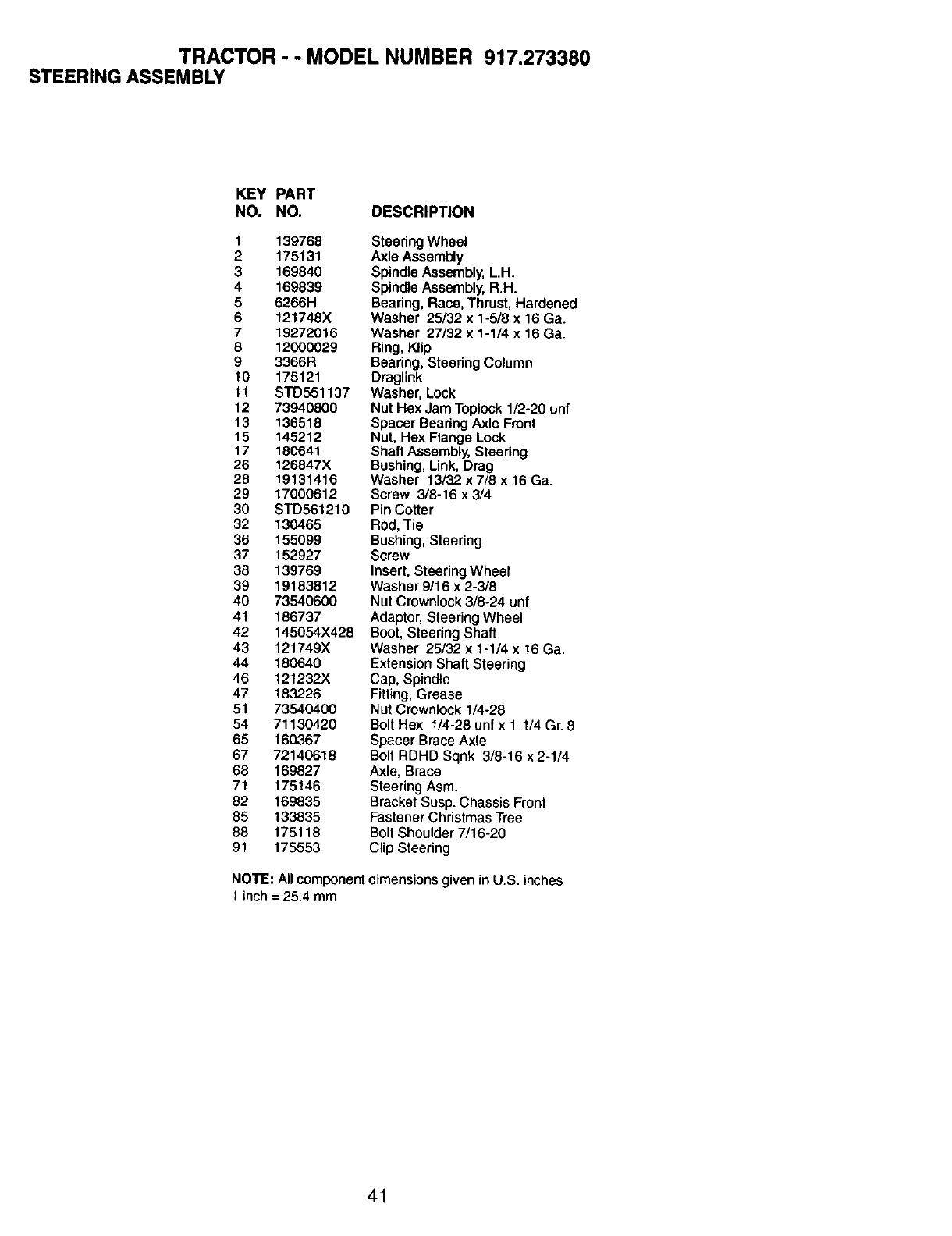

TRACTOR -- MODEL NUMBER 917.273380

STEERINGASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768 Steedng Wheel

2175131 Axle Assembly

3 169840 Spindle Assembly, L.H.

4169839 Spindle Assembly, R.H.

5 6266H Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Ga.

719272016 Washer 27/32 x 1-1/4 x 16 Ga.

8 12000029 Ring, Klip

9 3366R Bearing, Steering Column

t0 175121 Draglink

11 STD551137 Washer, Lock

12 73940800 Nut Hex Jam Toplock 1/2-20 unf

13 136518 Spacer Bearing Axle Front

15 145212 Nut, Hex Flange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing, Link, Drag

28 19131416 Washer 13/32 x 7/8 x 16 Ga.

29 17000612 Screw 3/8-16 x 3/4

30 STD561210 Pin Cotter

32 130465 Rod, Tie

36 155099 Bushing, Steering

37 152927 Screw

38 139769 Insert, Steering Wheel

39 19183812 Washer 9/16 x 2-3/8

40 73540600 Nut Cmwnlock 3/8-24 unf

41 186737 Adaptor, Steering Wheel

42 145054X428 Boot, Steering Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Ga.

44 180640 Extension Shaft Steering

46 t21232X Cap, Spindle

47 183226 Fitting, Grease

51 73540400 Nut Crownlock 1/4-28

54 71130420 Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8

65 160367 Spacer Brace Axle

67 72140618 Bolt RDHD Sqnk 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm.

82 169835 Bracket Susp. Chassis Front

85 133835 Fastener Christmas Tree

88 175118 Bolt Shoulder 7/16-20

91 175553 Clip Steering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

ENGINE

TRACTOR - - MODEL NUMBER 917.273380

78_16

4O 33

OPTIONAL EQUIPMENT

Spark Arrester

13 4

\\ _ F_ _I I

engine-bs.1cy117

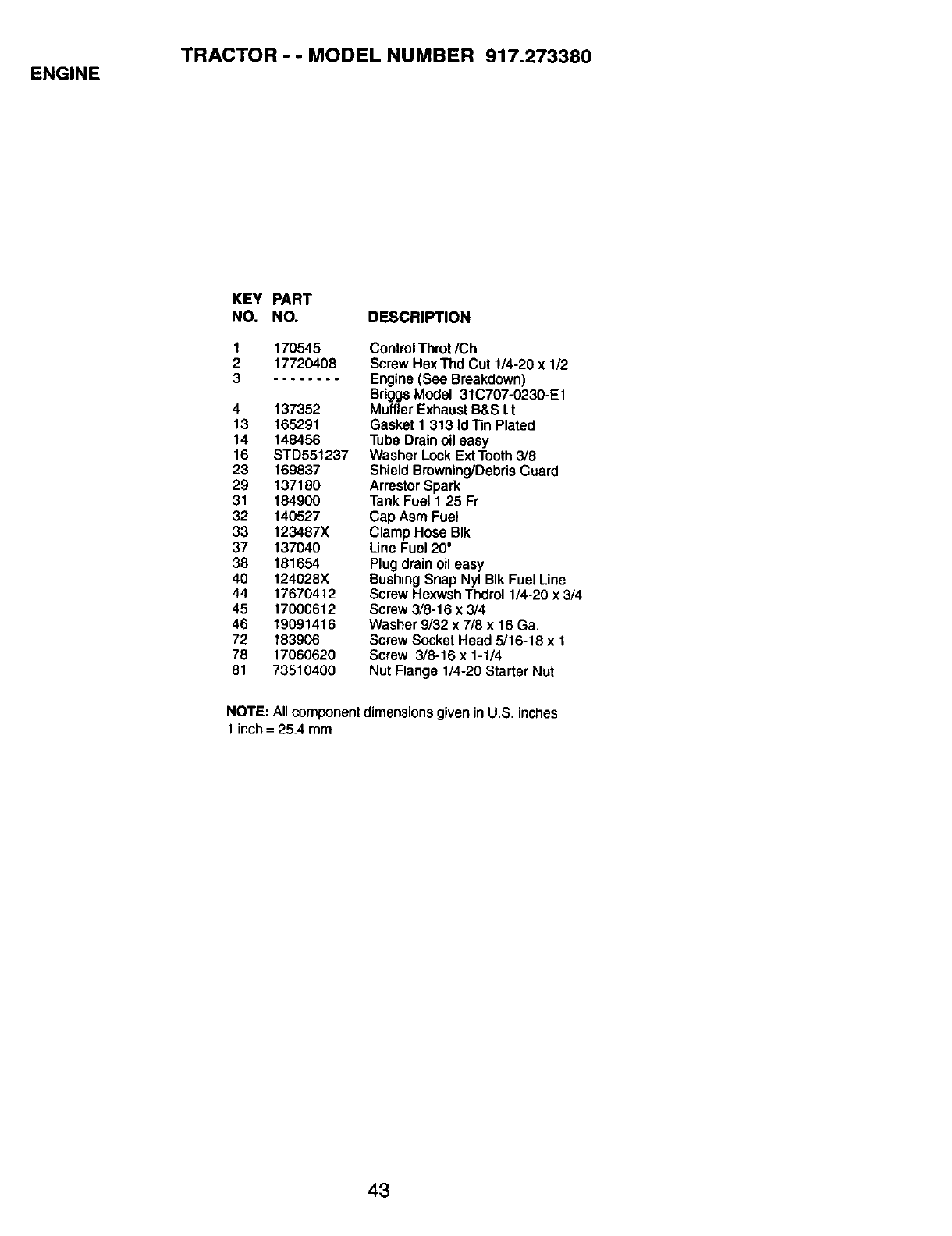

TRACTOR - - MODEL NUMBER 917.273380

ENGINE

KEY PART

NO. NO. DESCRIPTION

170545

17720408

4 137352

13 165291

14 148456

16 STD551237

23 169837

29 137180

31 184900

32 140527

33 123487X

37 137040

38 181654

40 124028X

44 17670412

45 17000612

46 19091416

72 183906

78 17060620

81 73510400

Control Throt/Ch

Screw HexThd Cut 1/4-20 x 1/2

Engine (See Breakdown)

Briggs Model 31C707-0230-E1

Muffler Exhaust B&S Lt

Gasket 1 313 Idr]n Plated

Tube Drain oil easy

Washer Lock Ext Tooth3/8

Shield Browning/Debris Guard

Arrestor Spark

Tank Fuel 125 Fr

Cap Asm Fuel

Clamp Hose BIk

Line Fuel 20"

Plug drain oil easy

Bushing Snap Nyl BIk Fuel Line

Screw HexwshThdrol 1/4-20 x 3/4

Screw 3/8-16 x 3/4

Washer 9/32x 7/8 x 16 Ga.

Screw Socket Head 5/16-18 x 1

Screw 3/8-16 x 1-1/4

Nut Flange 1/4-20 Starter Nut

NOTE:All component dimensions given in U.S. inches

1 inch = 25.4 mm

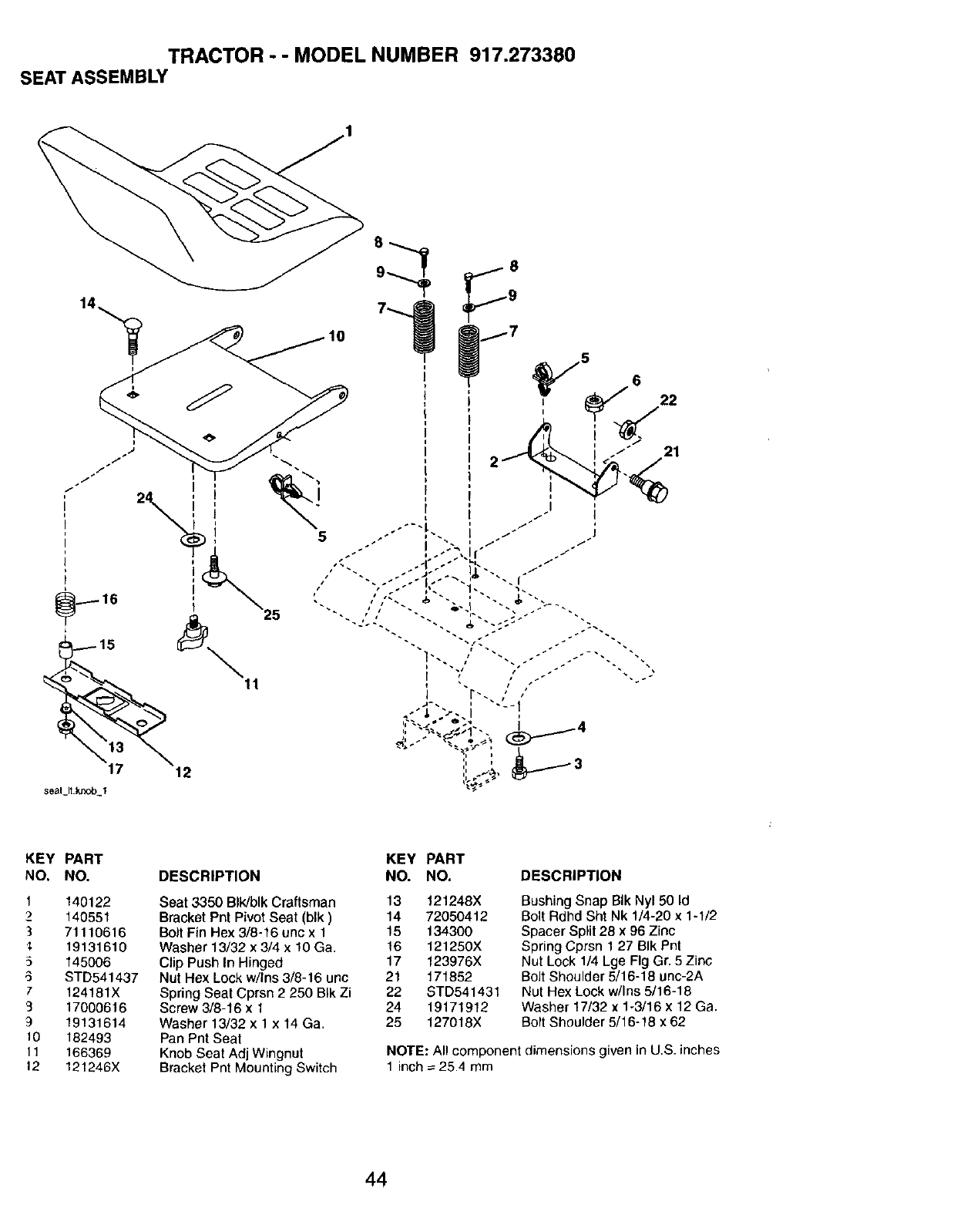

TRACTOR - - MODEL NUMBER 917.273380

SEAT ASSEMBLY

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

1140122

2 140551

3 71110616

19131610

5 145006

STD541437

7124181X

3 17O00616

9 19131614

10 182499

I1 166369

12 121246X

Seat 3350 BIk/blk Craftsman 13 121248X

Bracket Pnt Pivot Seat (blk) 14 72050412

Bolt Fin Hex 3/8-16 onc x 1 15 134300

Washer 13/32 x 3/4 x 10 Ga. t6 121250X

Clip Push In Hinged 17 123976X

Nut Hex Lock w/Ins 3/8-16 unc 21 171852

Spring Seat Cprsn 2 250 BIk Zi 22 STD541431

Screw 3/8-16 x 1 24 19171912

Washer 13/32 x 1 x 14 Ga. 25 127018X

Pan Pnt Seat

Knob Seat Adj Wingnut

Bracket Pnt Mounting Switch

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sht Nk 1/4-20 x1-1/2

Spacer Split 28 x 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr. 5 Zinc

Bolt Shoulder 5/16-18 unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga.

Bolt Shoulder 5/16-18 x 62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

DECALS TRACTOR --MODEL NUMBER 917.273380

13 6 3 7 7

1 \

2 13

t 16

KEY PART

NO. NO,

1 156811

2189264

3184728

4 184729

5179128

6 133644

7 184730

9 184899

10 156439

11 138047

12 146046

KEY PART

DESCRIPTION NO. NO.

Decal, Oper. Instr. 13 186787

Decal, Hood Replacement 14 160396

Decal, Hood, R.H+ 15 186377

Decal, Hood, L.H. 16 172331

Decal, Deck "B" 42" 20 149516

Decal, Customer Maintenance - - 166960

Decal Hood Side LT1000 - - 138311

Decal, Fender, Craftsman -- 184310X428

Decal, Fender Danger - - 184311 X428

Decal, Battery - - 189260

Decal, V-Belt Drive Schematic - - 189261

DESCRIPTION

Decal, Dash Panel

Decal, V-Belt Schematic

Decal, Engine

Decal, Mower Hvy. Duty 12 Ga.

Decal Battery Dngr/Psn Eng

Decal, Bypass

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS & TIRES

4,10

wMeel_l

KEY PART

NO. NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X624

6 278H

7 9040H

8 106108X624

9 106268X

10 7152J

11 104757X428

-- 144334

DESCRIPTION

Cap Value Tire

Stem Value

Tire F Ts 15 x 6 0 +6 Service

Tube Inner Front #35060

Rim Asm 6"front White Service

Fitting Grease

Bearing Flange

Rim Asm 8"rear White Service

Tire R Ts 18 x 9 5-8 Service

Tube Rear 9 5 x 8 Service

Cap Axle BIk 1 50 x 1 00

Sealant, Tire (10 oz. tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

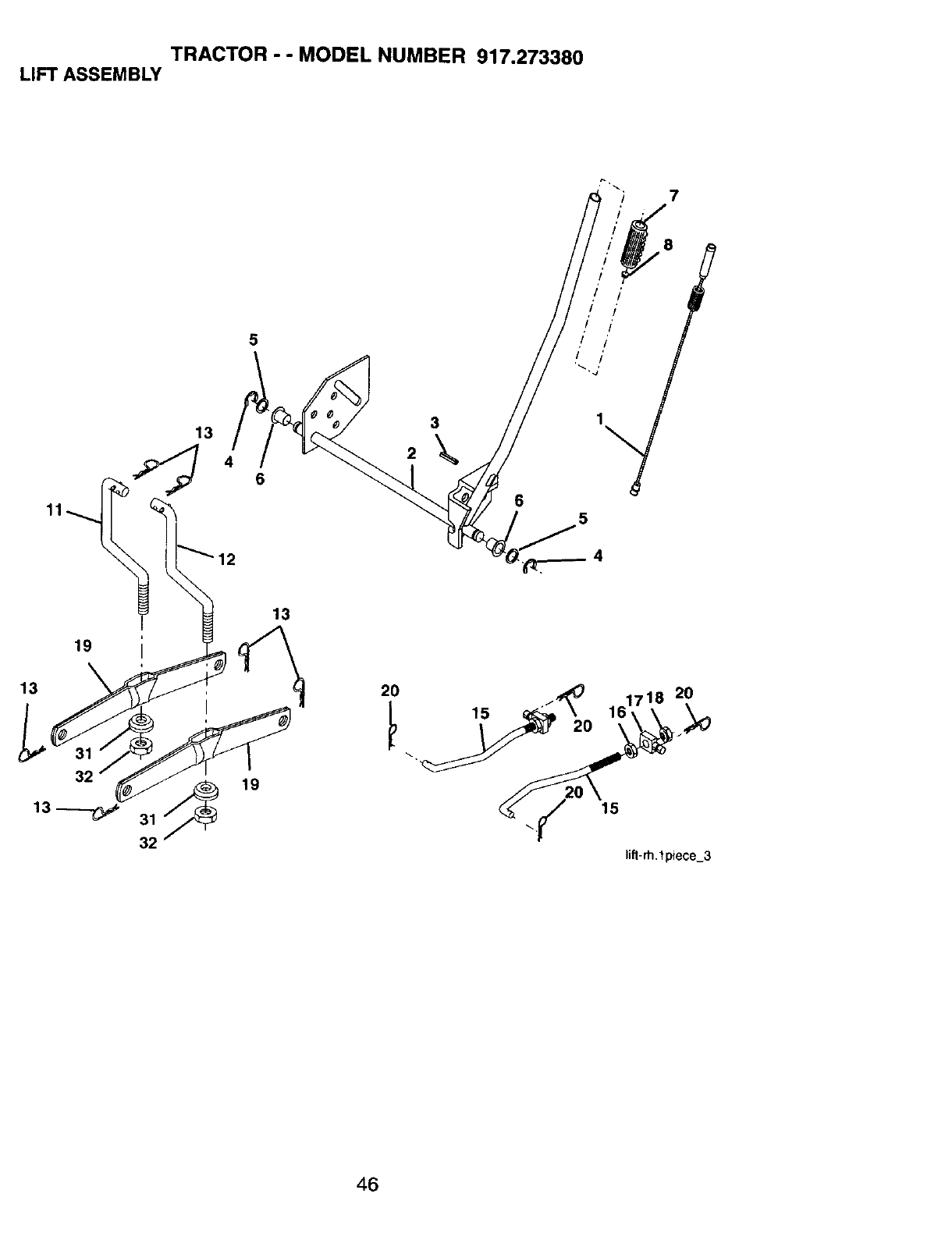

TRACTOR -- MODEL NUMBER 917.273380

LIFT ASSEMBLY

i/'

//'

I /'

//'

13_

2O 2O

lift-rh,lpiece_3

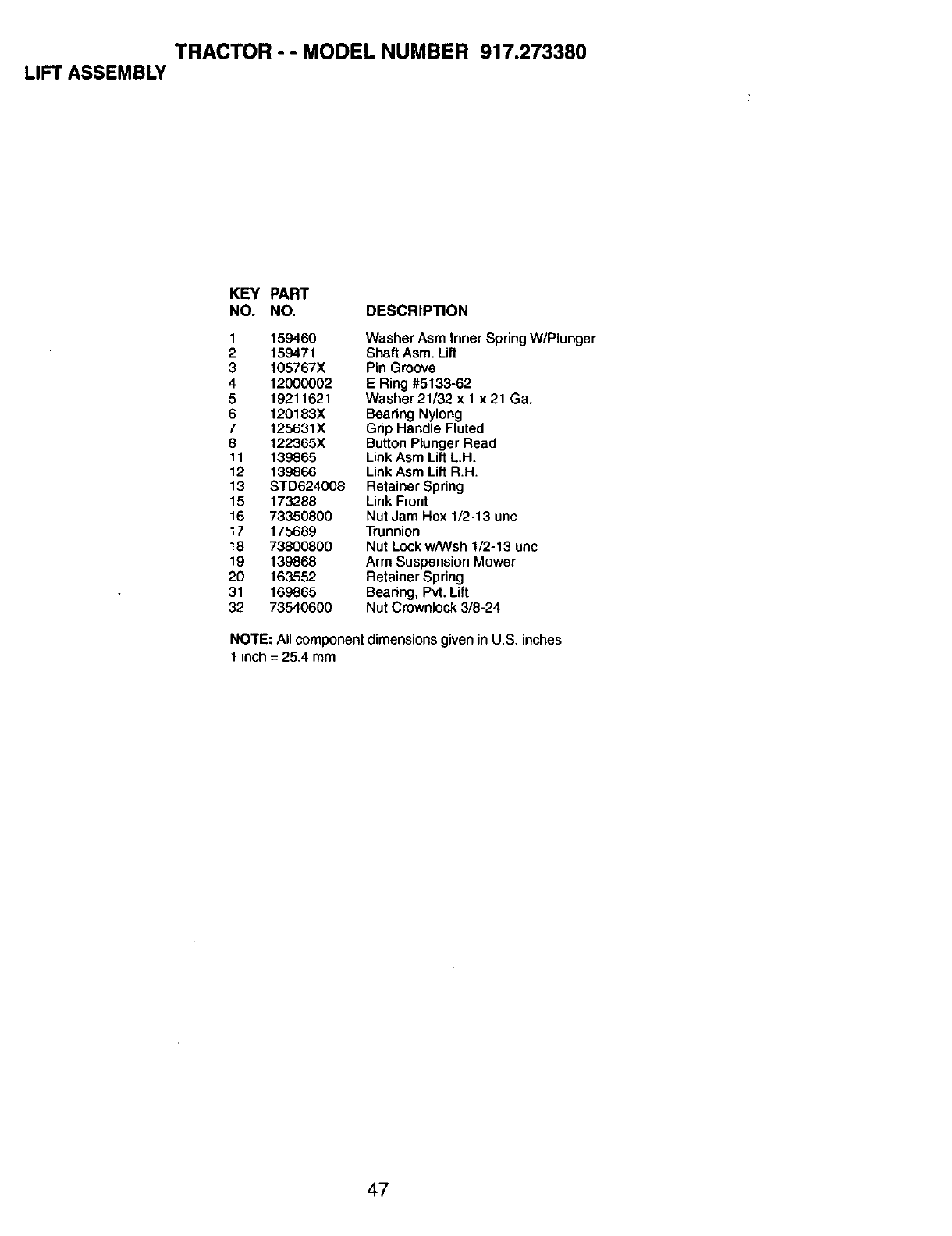

TRACTOR - - MODEL NUMBER 917.273380

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Washer Asm Inner Spring W/Plunger

2 159471 Shaft Asm. Lift

3 105767X Pin Groove

4 12000002 E Ring #5133-62

5 19211621 Washer 21/32 x 1 x21 Ga.

6 120183X Bearing Nylong

7 125631X Grip Handle Fluted

8 122365X Button Plunger Read

11 139865 Link Asm Lift L.H.

12 139866 Link Asm Lift R.H.

13 STD624008 Retainer Spring

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 unc

17 175689 Trunnion

18 73800800 Nut Lock w/Wsh 1/2-13 uric

19 139868 Arm Suspension Mower

20 163552 Retainer Spring

31 169865 Bearing, Pvt. Lift

32 73540600 Nut Crownlock 3/8-24

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

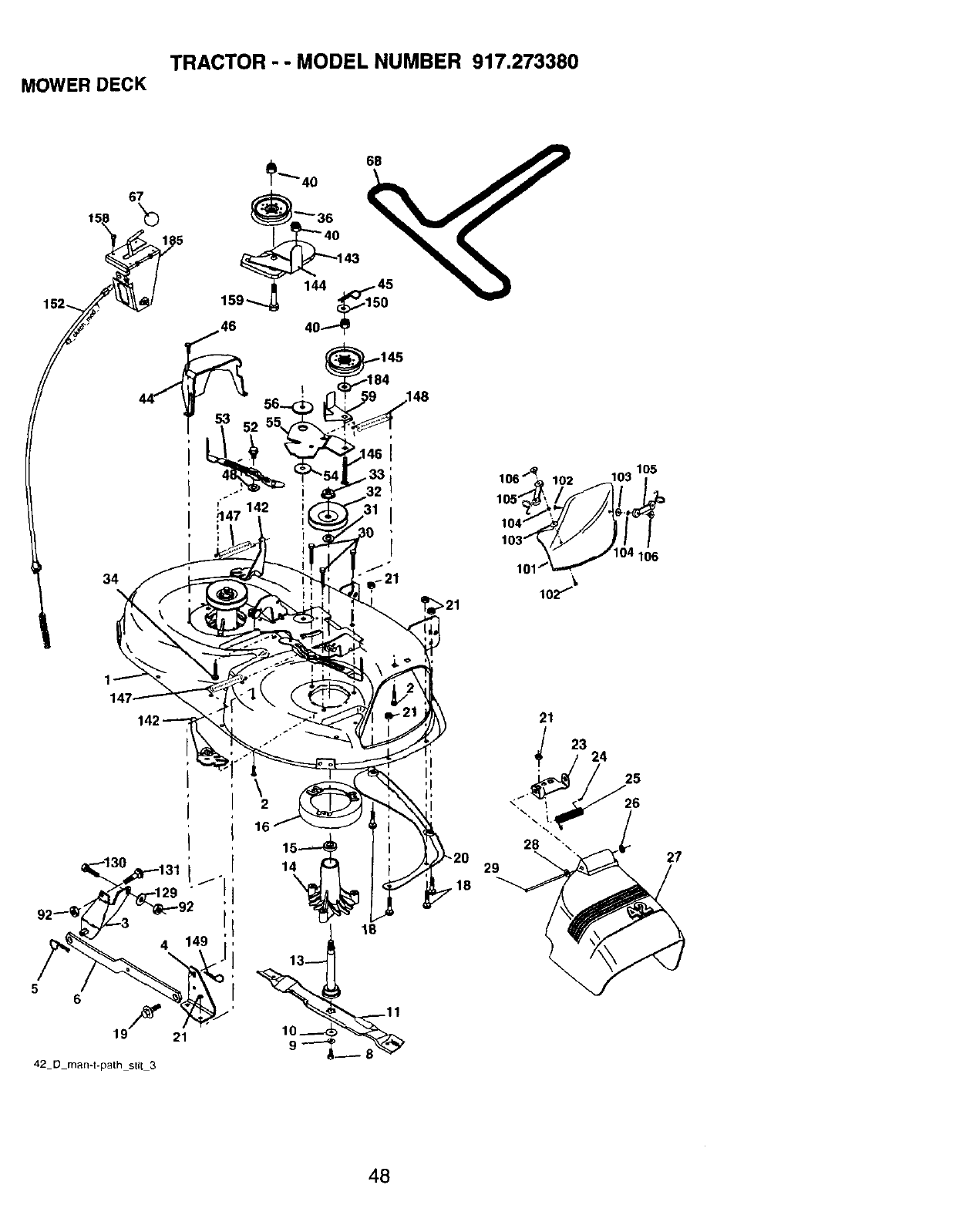

TRACTOR - - MODEL NUMBER 917.273380

MOWER DECK

106"_ 102 103 105

105_'_\ 7S'_/ I,,_

101/._,,_ 104 106

lo2->

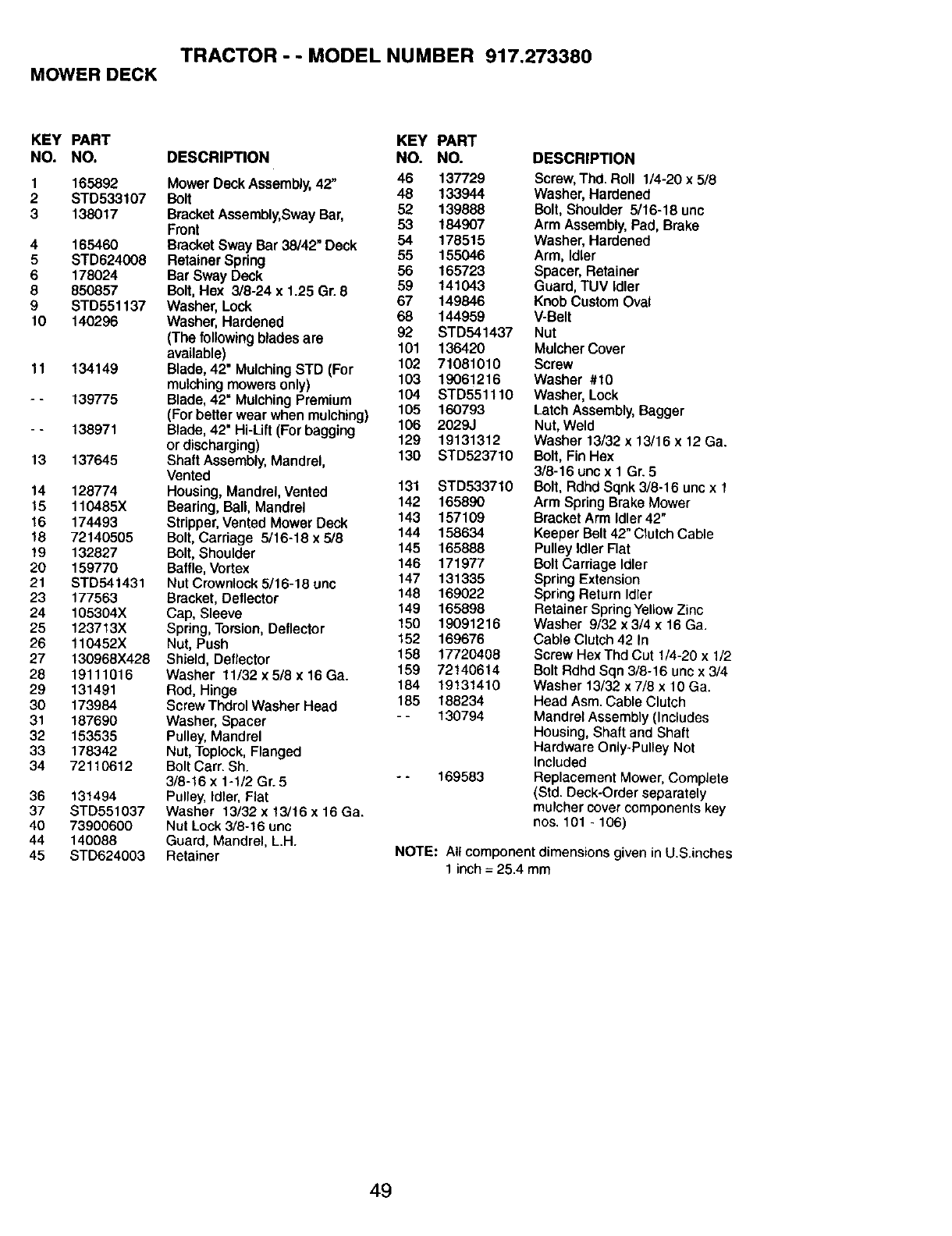

TRACTOR - - MODEL NUMBER 917.273380

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 165892 Mower Deck Assembly, 42" 46 137729

2 STD533107 Bolt 48 133944

3 138017 Bracket Assembly,Sway Bar, 52 139888

Front 53 184907

4 165460 Bracket Sway Bar 38/42" Deck 54 178515

5 STD624008 Retainer Spring 55 155046

6 178024 Bar Sway Deck 56 165723

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 59 141043

9 STD551137 Washer, Lock 67 149846

10 140296 Washer, Hardened 68 144959

(The following blades are 92 STD541437

available) 101 136420

11 134149 Blade, 42" Mulching STD (For 102 71081010

mulching mowers only) 103 19061216

--139775 Blade, 42" Mulching Premium 104 STD551110

(For better wear when mulching) 105 160793

-- 138971 Blade, 42" Hi-Lift (For bagging 106 2029J

or discharging) 129 19131312

13 137645 Shaft Assembly, Mandrel, 130 STD523710

Vented

14 128774 Housing, Mandrel, Vented 131 STD533710

15 110485X Bearing, Ball, Mandrel 142 165890

16 174493 Stripper, Vented Mower Deck 143 157109

18 72140505 Bolt, Carriage 5/16-18 x5/8 144 158634

19 132827 Bolt, Shoulder 145 165888

20 159770 Baffle, Vortex 146 171977

21 STD541431 Nut Crownlock 5/16-18 unc 147 131335

23 177563 Bracket, Deflector 148 169022

24 105304X Cap, Sleeve 149 165898

25 123713X Spring, Torsion, Deflector 150 19091216

26 110452X Nut, Push 152 169676

27 130968X428 Shield, Deflector 158 17720408

28 19111016 Washer 11/32x5/8x16Ga. 159 72140614

29 131491 Rod, Hinge 184 19131410

30 173984 Screw Thdrol Washer Head 185 188234

31 187690 Washer, Spacer - - 130794

32 153535 Pulley, Mandrel

33 178342 Nut, Toplock, Flanged

34 72110612 Bolt Carr. Sh.

3/8-16 x 1-1/2 Gr. 5 - - 169583

36 131494 Pulley, Idler, Flat

37 STD551037 Washer 13/32 x 13/16 x 16 Ga.

40 73900600 Nut Lock 3/8-16 unc

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

DESCRIPTION

Screw, Thd. Roll 1/4-20 x 5/8

Washer, Hardened

Bolt, Shoulder 5/16-18 unc

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Oval

V-Belt

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex

3/8-16 unc x 1 Gr. 5

Bolt, Rdhd Sqnk 3/8-16 unc x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Cable Clutch 42 In

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 unc x 3/4

Washer 13/32 x 7/8 x 10 Ga.

Head Asm. Cable Clutch

Mandrel Assembly (Includes

Housing, Shaft and Shaft

Hardware Only-Pulley Not

Included

Replacement Mower, Complete

(Std. Deck-Order separately

mulcher cover components key

nos. 101 - 106)

NOTE: Att component dimensions given in U.S.inches

1 inch = 25.4 mm

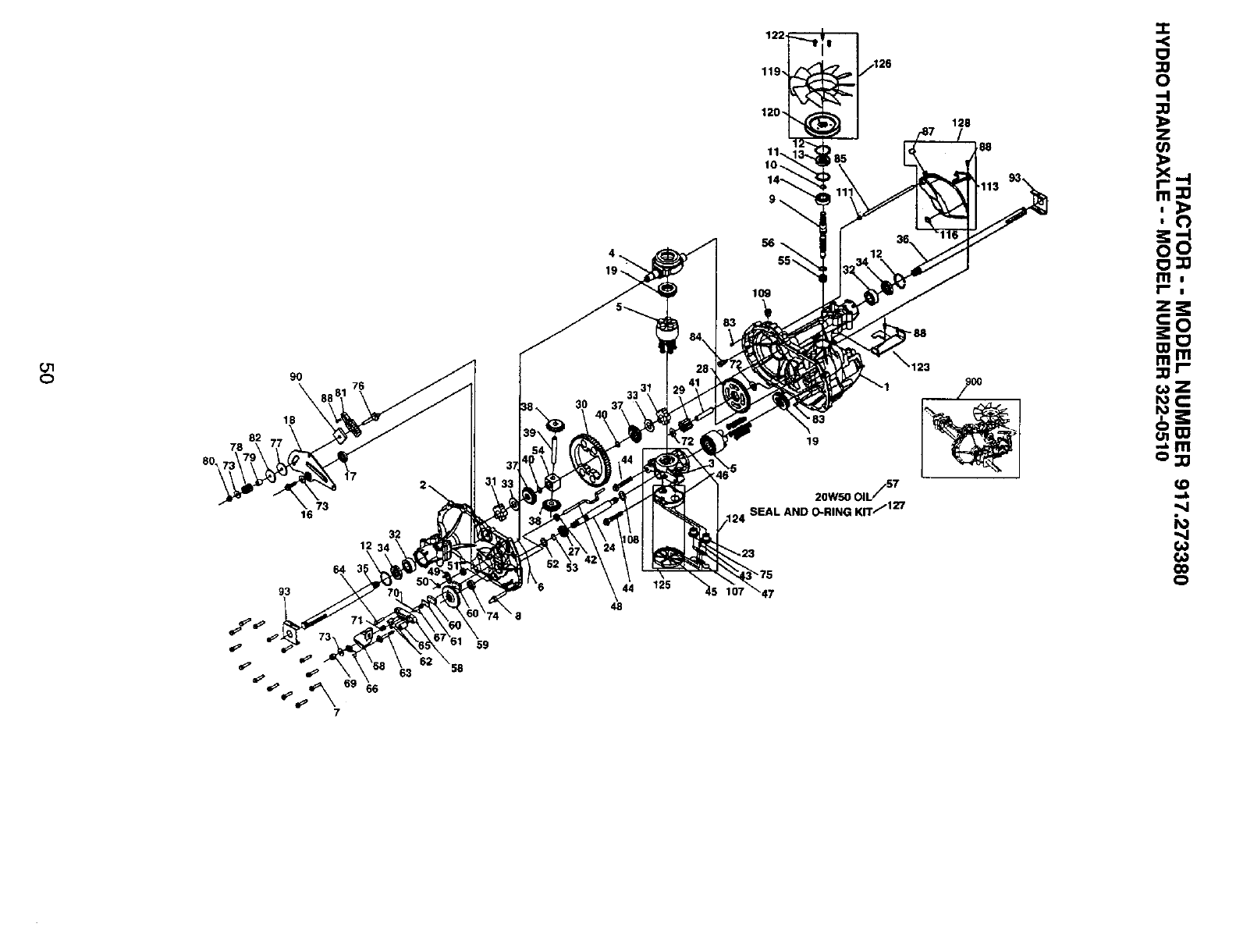

O"1

O9O

80.

63 58

125

20W50 OIL/57

SEAL AND O-RING Krr ._127

-88

90O

_:--I

o_0

m |

i'--i

=OF

--_m

o-n

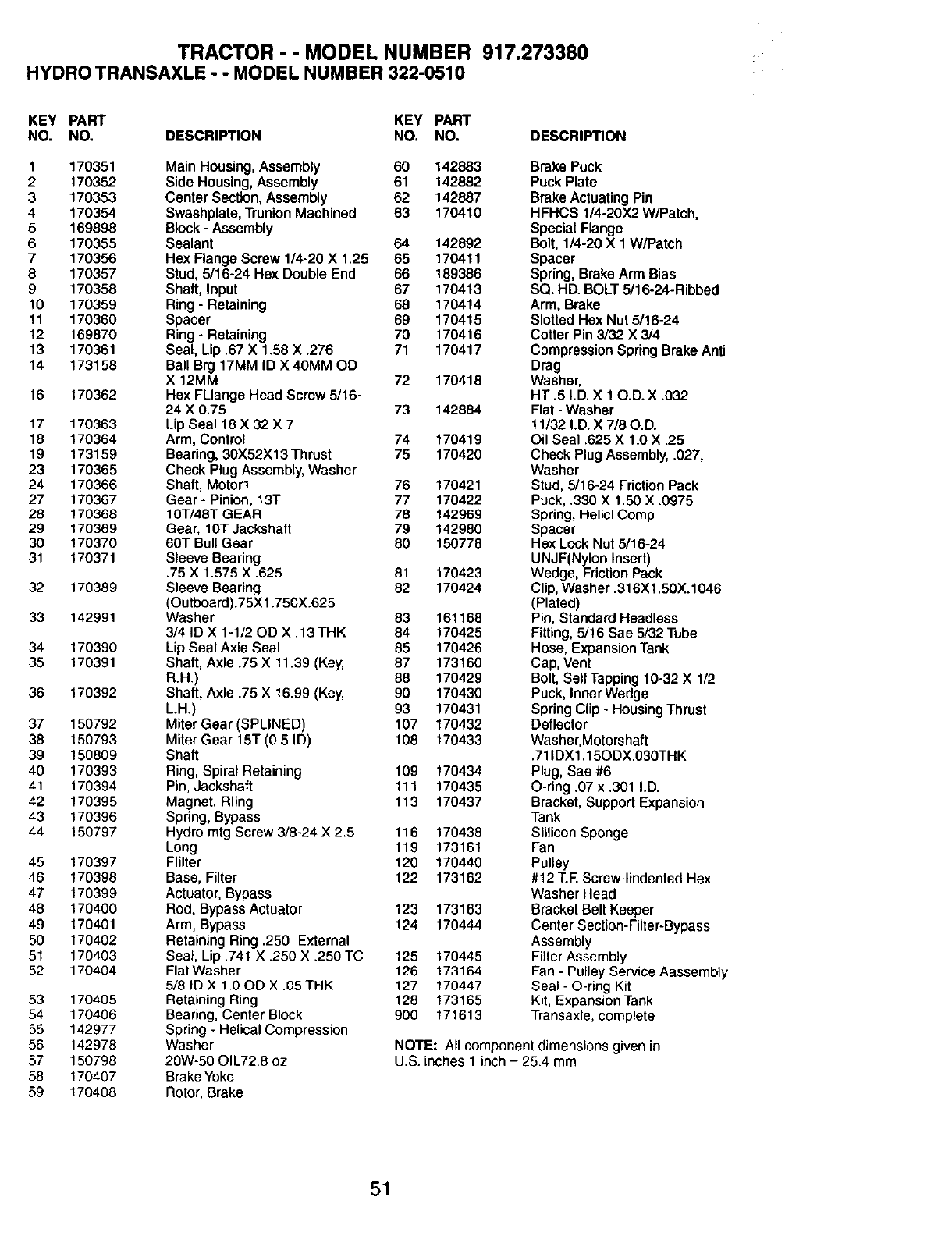

TRACTOR - - MODEL NUMBER 917.273380

HYDRO TRANSAXLE -- MODEL NUMBER 322-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1170351

2 170352

3 170353

4 170354

5169898

6 170355

7170356

8 170357

9170358

10 170359

11 170360

12 169870

13 170361

14 173158

16 170362

17 170363

18 170364

19 173159

23 170365

24 170366

27 170367

28 170368

29 170369

30 170370

31 170371

32 170389

33 142991

34 170390

35 170391

36 170392

37 150792

38 150793

39 150809

40 17O393

41 170394

42 170395

43 170396

44 180797

45 170397

46 170398

47 170399

48 170400

49 170401

50 170402

51 170403

52 170404

53 170405

54 170406

55 142977

56 142978

57 150798

58 170407

59 170408

Main Housing, Assembly 60 142883

Side Housing, Assembly 61 142882

Center Section, Assembly 62 142887

Swashplate, Trunion Machined 63 170410

Block -Assembly

Sealant 64 142892

Hex Flange Screw 1/4-20 X 1.25 65 170411

Stud, 5/16-24 Hex Double End 66 189386

Shaft, Input 67 170413

Ring - Retaining 68 170414

Spacer 69 170415

Ring. Retaining 70 170416

Seal, Lip .67 X 1.58 X .276 71 170417

Ball Brg 17MM ID X 40MM OD

X 12MM 72 170418

Hex FLlange Head Screw 5/16-

24 X 0.75 73 142884

Lip Seal 18 X 32 X 7

Arm, Control 74 170419

Bearing, 30X52X13 Thrust 75 170420

Check Plug Assembly, Washer

Shaft, Motor! 76 170421

Gear- Pinion, 13T 77 170422

10T/48T GEAR 78 142969

Gear, 10T Jackshaft 79 142980

60T Bull Gear 80 150778

Sleeve Bearing

.75 X 1.575 X .625 81 170423

Sleeve Bearing 82 170424

(Outboard).75X1.750X.625

Washer 83 161168

3/4 ID X 1-1/20D X. 13 THK 84 170425

Lip Seal Axle Seal 85 170426

Shaft, Axle .75 X 11.39 (Key, 87 173160

R.H.) 88 170429

Shaft, Axle .75 X 16.99 (Key, 90 170430

L.H.) 93 170431

Miter Gear (SPLINED) 107 170432

Miter Gear 15T (0.5 ID) 108 170433

Shaft

Ring, Spiral Retaining 109 170434

Pin, Jackshaft 111 170435

Magnet, Rling 113 170437

Spring, Bypass

Hydro mtg Screw 3/8-24 X 2.5 116 170438

Long 119 173161

Fliller 120 170440

Base, Filter 122 173162

Actuator, Bypass

Rod, Bypass Actuator 123 173163

Arm, Bypass 124 170444

Retaining Ring .250 External

Seal, Lip .741 X .250 X .250 TC 125 170445

Flat Washer 126 173164

5/8 ID X 1.00D X .05 THK 127 170447

Retaining Ring 128 173165

Bearing, Center Block 900 171613

Spring - Helical Compression

Washer

20W-50 OIL72.8 oz

Brake Yoke

Rotor, Brake

Brake Puck

Puck Plate

Brake Actuating Pin

HFHCS 1/4-20X2 W/Patch,

Special Flange

Bolt, 1/4-20 X 1 W/Patch

Spacer

Spring, Brake Arm Bias

SQ. HD. BOLT 5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut 5/16-24

Cotter Pin 3/32 X 3/4

Compression Spring Brake Anti

Drag

Washer,

HT.5 I.D. X 10.D. X .032

Flat - Washer

!1/32 I.D. X 7/80.D.

Oil Seal .625 X 1.0 X .25

Check Plug Assembly, .027,

Washer

Stud, 5/16-24 Friction Pack

Puck, .330 X 1.50 X .0975

Spring, Heticl Comp

Spacer

Hex Lock Nut 5/16-24

UNJF(Nylon Insert)

Wedge, Friction Pack

Clip, Washer .316Xl .50X.1046

(Plated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32 Tube

Hose, Expansion Tank

Cap, Vent

Bolt, Self Tapping 10-32 X 1/2

Puck, Inner Wedge

Spring Clip - Housing Thrust

Deflector

Washer, Motorshaft

.71IDX1.15ODX.030THK

Plug, Sae #6

O-ring .07 x .301 I.D.

Bracket, Support Expansion

Tank

Slilicon Sponge

Fan

Pulley

#12 T.E Screw-lindented Hex

Washer Head

Bracket Belt Keeper

Center Section-Filter-Bypass

Assembly

Filter Assembly

Fan -Pulley Service Aassembly

Seal - O-ring Kit

Kit, Expansion Tank

Transaxle, complete

NOTE: All component dimensions given in

U.S. inches 1 inch = 25.4 mm

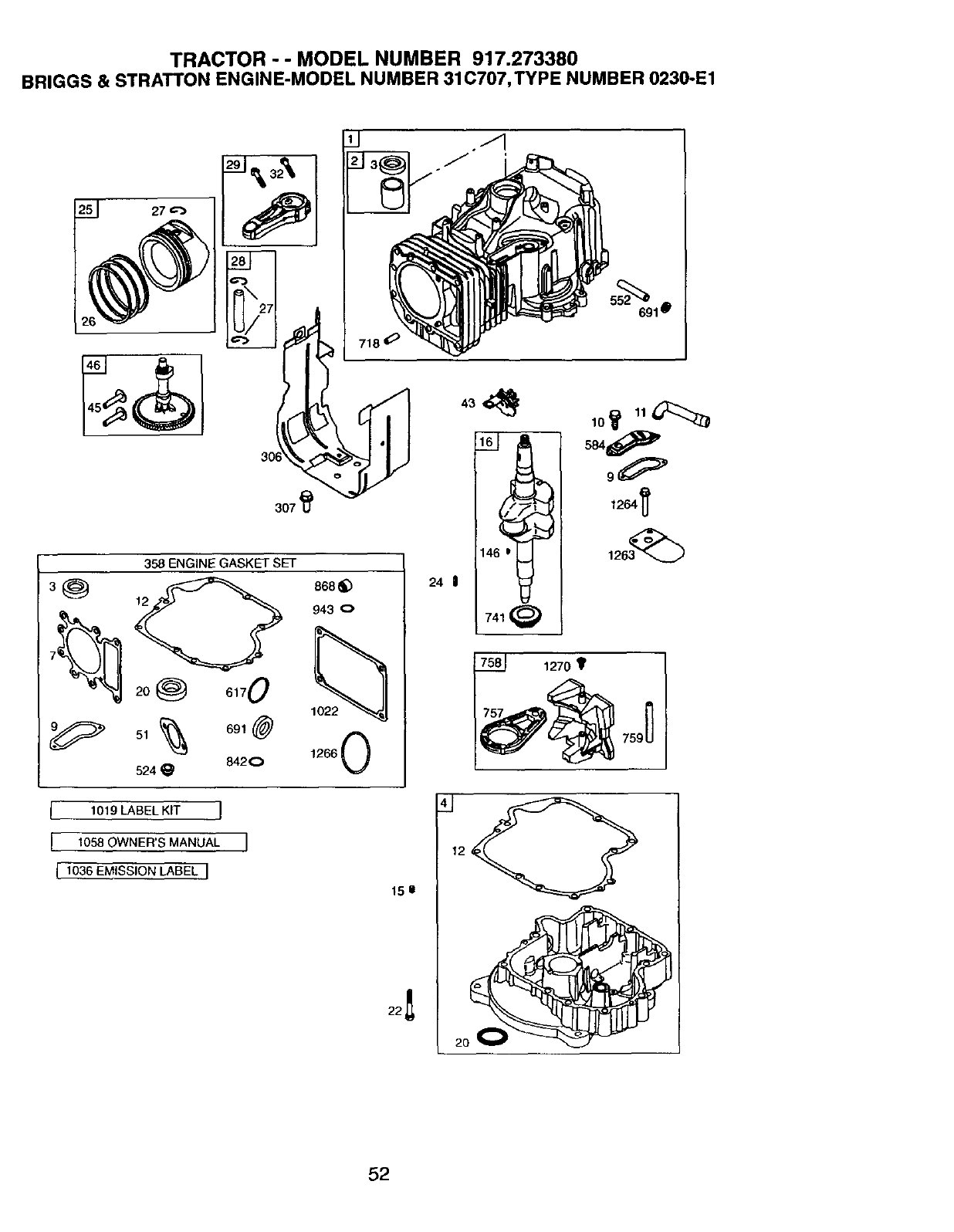

TRACTOR - - MODEL NUMBER 917.273380

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

126

358 ENGINE GASKET SET

24 |

1270

1019 LABEL KIT ]

[ lO66OWNER'SMANUAL]

I 1036 EMISSION LABEL J

1511

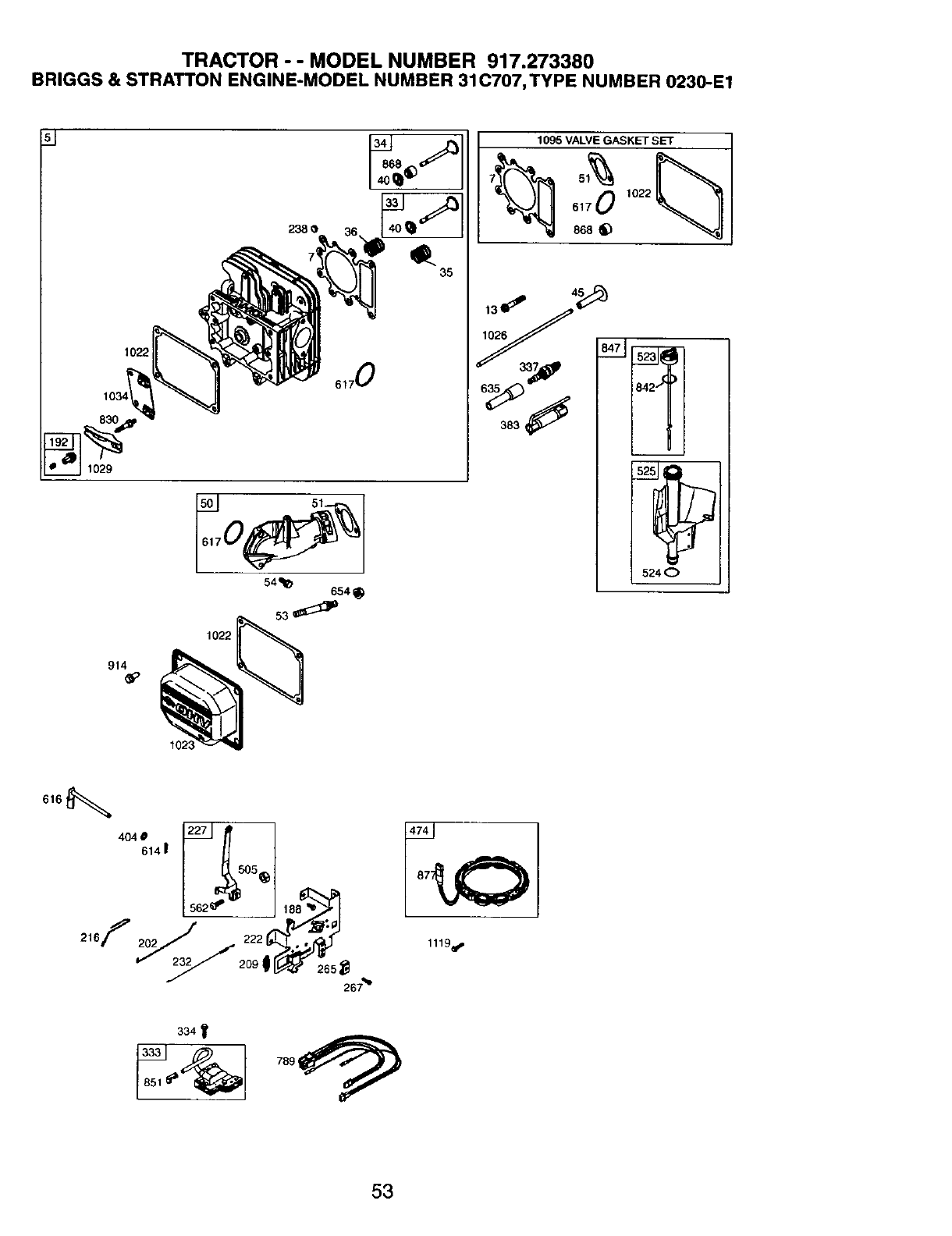

TRACTOR -- MODEL NUMBER 917.273380

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-EI

238 e

1022

10/29 --

1022

914

1095 VALVE GASKET SET

617 01022

_o8_

524 0

6,6_

404 @ 227

614| _J

2,oF2o,/ 222_W_.J

267 TM

1119_

334

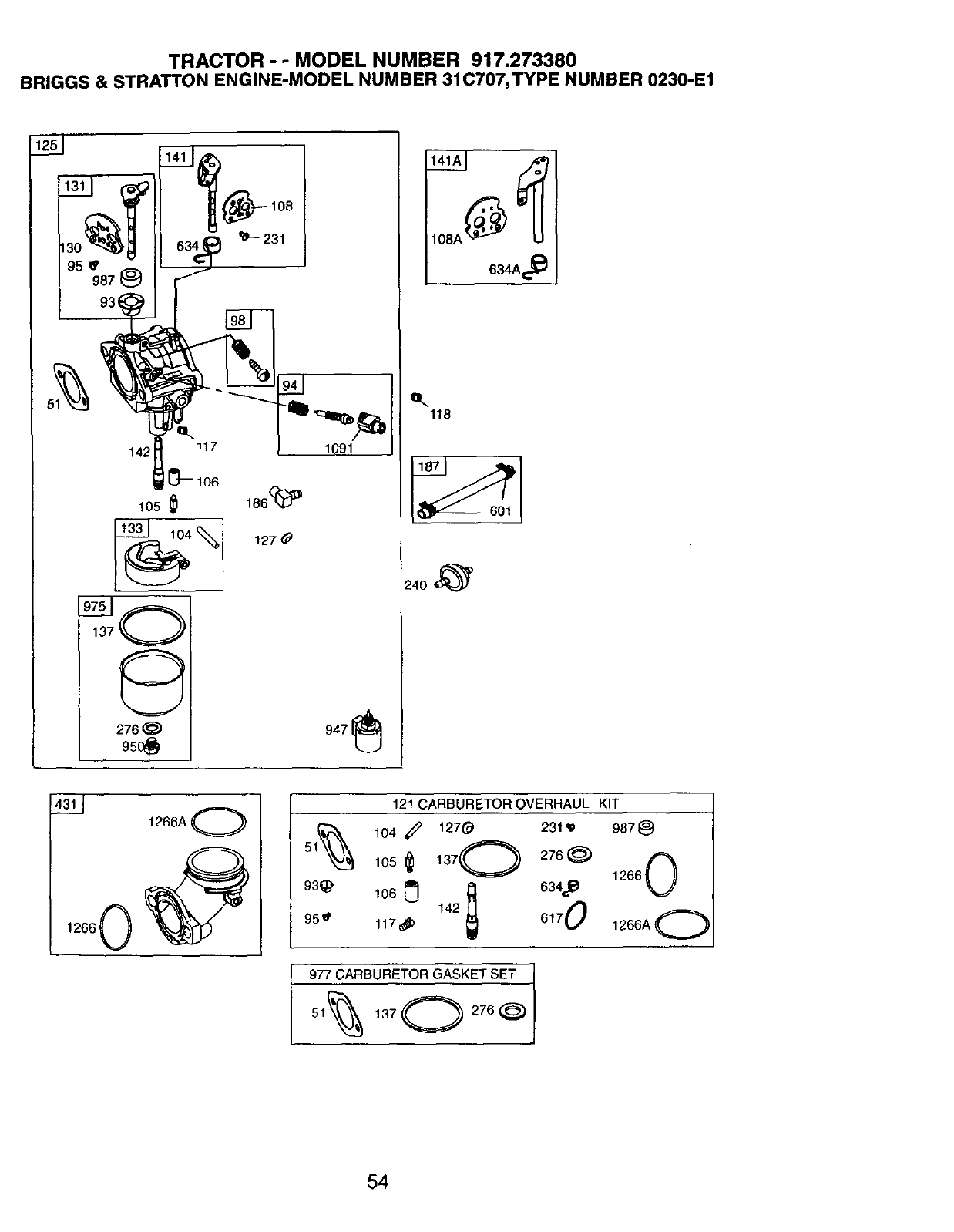

TRACTOR --MODEL NUMBER 917.273380

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

117 1091

_-- 106

105

137 _

276

95_

186(_

127 O

108A _

634A_._

118

24o,_

1266A 0

121 CARBURETOR OVERHAUL KIT

104 _ 127_ 231'# 987 8sl 276_

105 € 137 _ 634_ 1266

931i_ 106 _ 142 _ 6170 1266A--_0

95q' 117,_

977 CARBURETOR GASKET SET

51_ 137 0 276(_

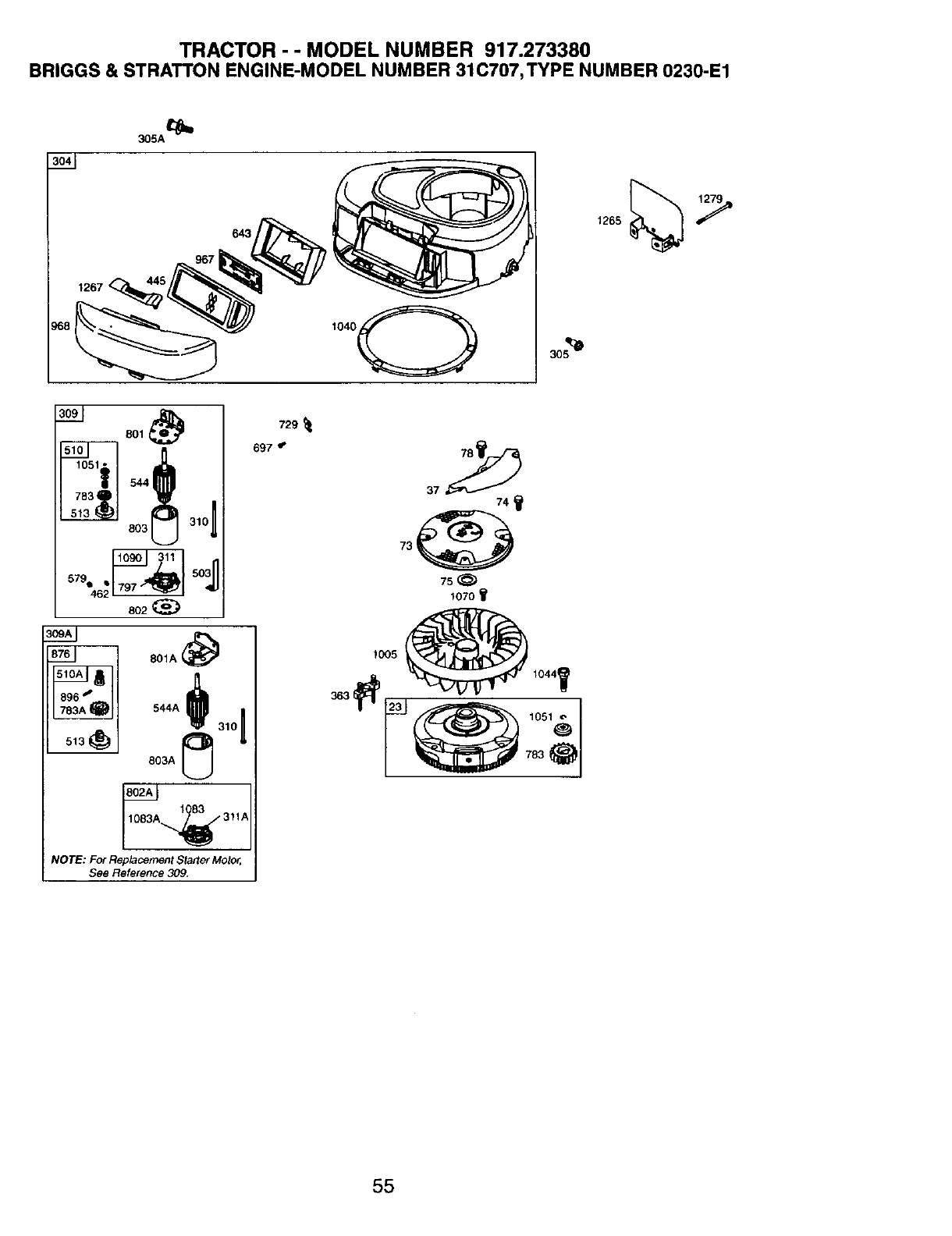

TRACTOR --MODEL NUMBER 917.273380

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

30SAtl_'

643

311

;_ ,o311

579e46 ,_)

802

544A

513

803A

10_,_ 311A

NOTE: For Rep/acement Starter Motor,

See Reference 309.

729

697 _

7s_

1070

1(X)5 _

3631_ 1044_

| " 1231 _ I

[-__ o_,_I

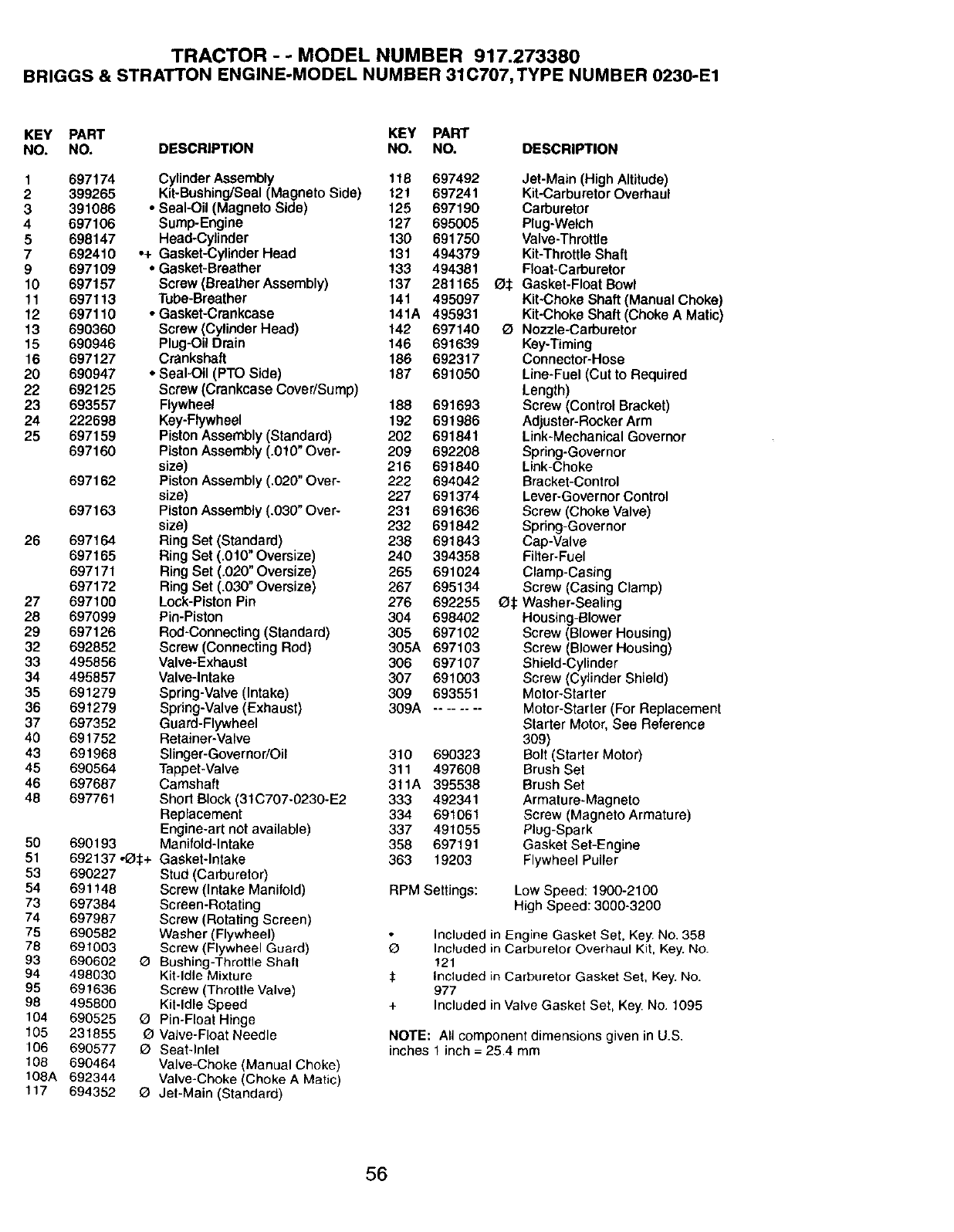

TRACTOR - -MODEL NUMBER 917.273380

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

KEY PART KEY PAI[T

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1697174

2 399265

3 391086

4 697106

5 698147

7 692410

9 697109

10 697157

11 697113

12 697110

13 690360

15 690946

16 697127

20 690947

22 692125

23 693557

24 222698

25 697159

697160

697162

697163

26 697164

697165

697171

697172

27 697100

28 697099

29 697126

32 692852

33 495856

34 495857

35 691279

36 691279

37 697352

40 691752

43 691968

45 690564

46 697687

48 697761

50 690193

51 692137

53 690227

54 691148

73 697384

74 697987

75 690582

76 691003

93 690602

94 498030

95 691636

98 495800

104 690525

105 231855

106 690577

108 690464

106A 692344

117 694352

-O:1:+

Cylinder Assembly 118 697492

Kit-Bushing/Seal (Magneto Side) 121 697241

• Seal-Oil (Magneto Side) 125 697190

Sump-Engine 127 695005

Head-Cylinder 130 691750

•+ Gasket-Cylinder Head 131 494379

• Gasket-Breather 133 494381

Screw (Breather Assembly) 137 281165

Tube-Breather 141 495097

• Gasket-Crankcase 141A 495931

Screw (Cylinder Head) 142 697140

Plug-Oi! Drain 146 691639

Crankshaft 186 692317

•Seal-Oil (PTO Side) 187 691050

Screw (Crankcase Cover/Sump)

Flywheel 188 691693

Key-Flywheel 192 691966

Piston Assembly (Standard) 202 691841

Piston Assembly (.010" Over- 209 692208

size) 216 691840

Piston Assembly (.020" Over- 222 694042

size) 227 691374

Piston Assembly (.030" Over- 231 691636

size) 232 691842

Ring Set (Standard) 238 691843

Ring Set (.010" Oversize) 240 394358

Ring Set (.020" Oversize) 265 691024

Ring Set (.030" Oversize) 267 695134

Lock-Piston Pin 276 692255

Pin-Piston 304 698402

Rod-Connecting (Standard) 305 697102

Screw (Connecting Rod) 305A 697103

Valve-Exhaust 306 697107

Valve-Intake 307 691003

Spring-Valve (Intake) 309 693551

Spring-Valve (Exhaust) 309A ........

Guard-Flywheel

Retainer-Valve

Slinger-Governor/Oil 310 690323

Tappet-Valve 311 497608

Camshaft 311A 395538

Short Block (31C707-0230-E2 333 492341

Replacement 334 691061

Engine-art not available) 337 491055

Manifold-Intake 358 697191

Gasket-Intake 363 19203

Stud (Carburetor)

Screw (Intake Manifold) RPM Settings:

Screen-Rotating

Screw (Rotating Screen)

Washer (Flywheel) o

Screw (Flywheel Guard) Q

Bushing-Throttle Shaft

Kit-Idle Mixture :1:

Screw (Throttle Valve)

Kit-Idle Speed +

Q Pin-Float Hinge

Q VaNe-Float Needle

(_ Seat-Inlet

Valve-Choke (Manual Choke)

Valve-Choke (Choke A Mat!c)

_) Jet-Main (Standard)

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Carburetor

Plug-Welch

Valve-Throttle

Kit-Throttle Shaft

Float-Carburetor

O:1: Gasket-Float Bowl

Kit-Choke Shaft (Manual Choke)

Kit-Choke Shaft (Choke AMat!c)

O Nozzle-Carburetor

Key-Timing

Connector-Hose

Line-Fuel (Cut to Required

Length)

Screw (Control Bracket)

Adjuster-Rocker Arm

Link-Mechanical Governor

Spring-Governor

Link-Choke

Bracket-Control

Lever-Governor Control

Screw (Choke Valve)

Spring-Governor

Cap-Valve

Filter-Fuel

Clamp-Casing

Screw (Casing Clamp)

e_: Washer-Sealing

Housing-Blower

Screw (Blower Housing)

Shield-Cylinder

Screw (Cylinder Shield)

Motor-Starter

Motor-Starter (For Replacement

Starter Motor, See Reference

309)

Bolt (Starter Motor)

Brush Sel

Brush Set

Armature-Magneto

Screw (Magneto Armature)

Plug-Spark

Gasket Set-Engine

Flywheel Puller

Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No.

121

Included in Carburetor Gasket Set, Key. No.

977

Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

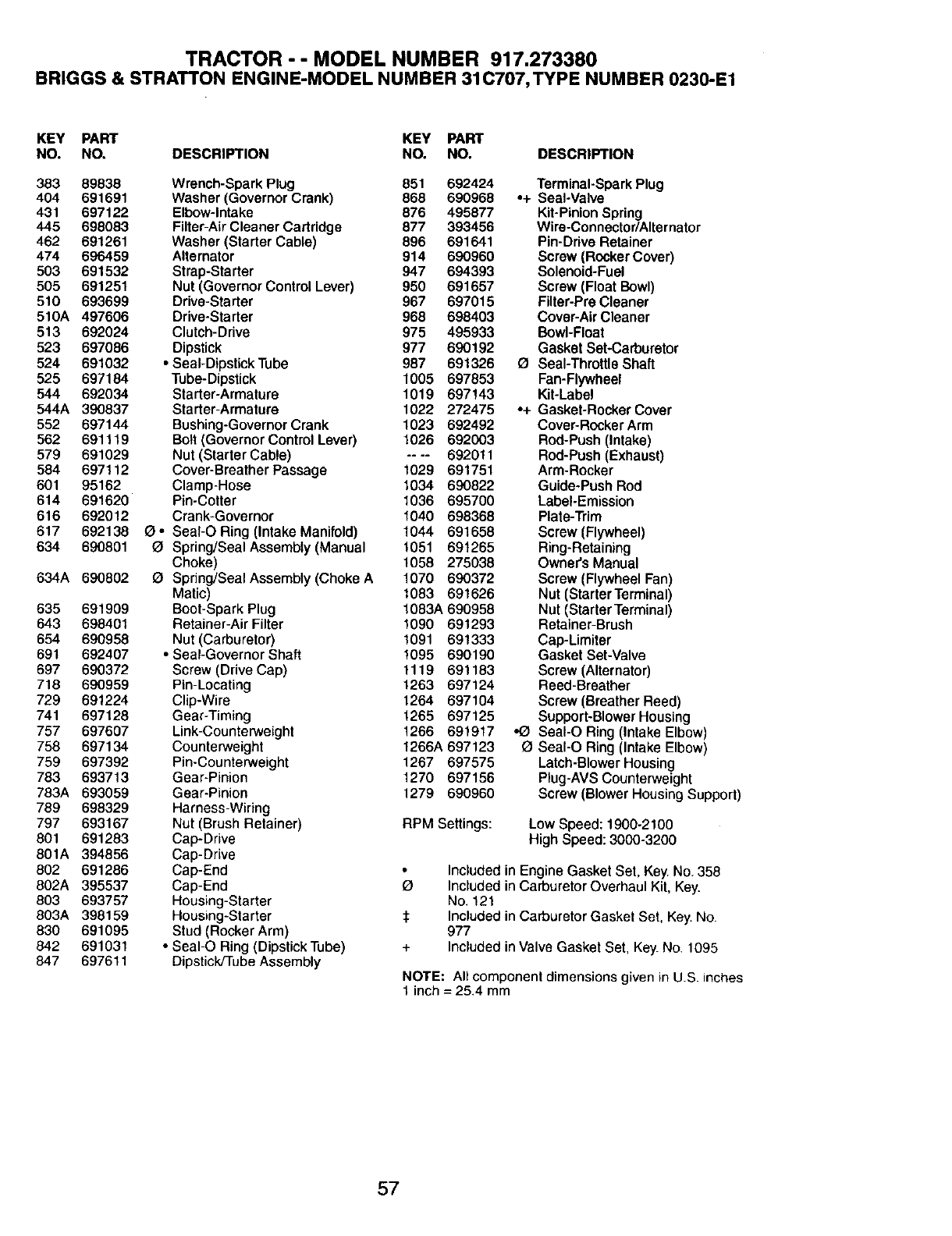

TRACTOR -- MODEL NUMBER 917.273380

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

383 89838

404 691691

431 697122

445 698083

462 691261

474 696459

503 691532

505 691251

510 693699

510A 497606

513 692024

523 697086

524 691032

525 697184

544 692034

544A 390837

552 697144

562 691119

579 691029

584 697112

601 95162

614 691620

616 692012

617 692138

634 690801

634A 690802

635 691909

643 698401

654 690958

691 692407

697 690372

718 690959

729 691224

741 697128

757 697607

758 697134

759 697392

783 693713

783A 693059

789 698329

797 693167

801 691283

801A 394856

802 691286

802A 395537

803 693757

803A 398159

830 691095

842 691031

847 697611

Wrench-Spark Plug 851 692424

Washer (Governor Crank) 868 690968

Elbow-Intake 876 495877

Filter-Air Cleaner Cartridge 877 393456

Washer (Starter Cable) 896 691641

Alternator 914 690960

Strap-Starter 947 694393

Nut (Governor Control Lever) 950 691657

Drive-Starter 967 697015

Drive-Starter 968 698403

Clutch-Drive 975 495933

Dipstick 977 690192

•Seal-Dipstick Tube 987 691326

Tube-Dipstick 1005 697853

Starter-Armature 1019 697143

Starter-Armature 1022 272475

Bushing-Governor Crenk 1023 692492

Bolt (Governor Control Lever) 1026 692003

Nut (Starter Cable) .... 692011

Cover-Breather Passage 1029 691751

Clamp-Hose 1034 690822

Pin-Cotter 1036 695700

Crank-Governor 1040 698368

SeaI-O Ring (Intake Manifold) 1044 691658

Spring/Seal Assembly (Manual 1051 691265

Choke) 1058 275038

Spring/Seal Assembty (Choke A 1070 690372

Matic) 1083 691626

Boot-Spark Plug 1083A 690958

Retainer-Air Filter 1090 691293

Nut (Carburetor) 1091 691333

• Seal-Governor Shaft 1095 690190

Screw (Drive Cap) 1119 691183

Pin-Locating 1263 697124

Clip-Wire 1264 697104

Gear-Timing 1265 697125

Link-Counterweight 1266 691917

Counterweight 1266A 697123

Pin-Counterweight 1267 697575

Gear-Pinion 1270 697156

Gear-Pinion 1279 690960

Harness-Wiring

Nut (Brush Retainer) RPM Settings:

Cap-Drive

Cap-End

Housing-Starter

Housing-Starter :1:

Stud (Rocker Arm)

•SeaI-O Ring (Dipstick Tube) +

Dipstick/Tube Assembly

Terminal-Spark Plug

•+ Seal-Valve

Kit-PinionSpring

Wire-Connector/Alternator

Pin-Drive Retainer

Screw (Rocker Cover)

Solenoid-Fuel

Screw (Float Bowl)

Filter-Pre Cleaner

Cover-Air Cleaner

Bowl-Float

Gasket Set-Carburetor

Q Seal-Throttle Shaft

Fan-Flywheel

Kit-Label

•+ Gasket-Rocker Cover

Cover-Rocker Arm

Rod-Push (Intake)

Rod-Push (Exhaust)

Arm-Rocker

Guide-Push Rod

Label-Emission

Plate-Trim

Screw (Flywheel)

Ring-Retaining

Owner's Manual

Screw (Flywheel Fan)

Nut (Starter Terminal)

Retainer-Brush

Cap-Limiter

Gasket Set-Valve

Screw (Alternator)

Reed-Breather

Screw (Breather Reed)

Support-Blower Housing

,,e SeaI-O Ring (Intake Elbow)

_1SeaI-O Ring (Intake Elbow)

Latch-Blower Housing

Plug-AVSCounterweight

Screw (Blower Housing Support)

Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No 358

Included in Carburetor Overhaul Kit, Key.

No. 121

Included in Carburetor Gasket Set, Key. No

977

Included in Valve Gasket Set, Key No. 1095

NOTE: All component dimensions given in US inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

WARNING: To avoid serious injury, operate your tractor up and I

• A down the face of slopes, never across the face. Do not mow I

slopes greater than 15 degrees. Make turns gradually to prevent

tipping, or loss of control. Exercise extreme caution when

1. Fold this page along dotted line indicated above,

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure,

4. Compare the angle of the fold with the slope of the hill.

Get it fixed, at your home 0rqUrs!

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®Anytime, day or night

(1-800-469-4663) (U.S.A and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S A only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A) 1-800-361-6665 (Canada)

Para pedlr servicio de reparaclSn

a domicdio, y para ordenar piezas:

1-888-SU-HOGAR _

(1_8-784-s427)

Au Canada pour service en franc._ls:

1-800-LE-FOYER Mc

(1_800-533-6937)

www sears ca

SE /AR,$o ,,o

®Regtstered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co

® Marca Reg_strada /TMMarca de Fabnca /SMMarca de Serv_cJo de Sears, Roebuck and Co

MCMarque de commerce /_o Marque depos_e de Sears, Roebuck and Co

189260 10.02.03 TR Printed in U.S.A.

Craftsman 917273380 User Manual LAWN TRACTOR Manuals And Guides L0311097

CRAFTSMAN Lawn, Tractor Manual L0311097 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
