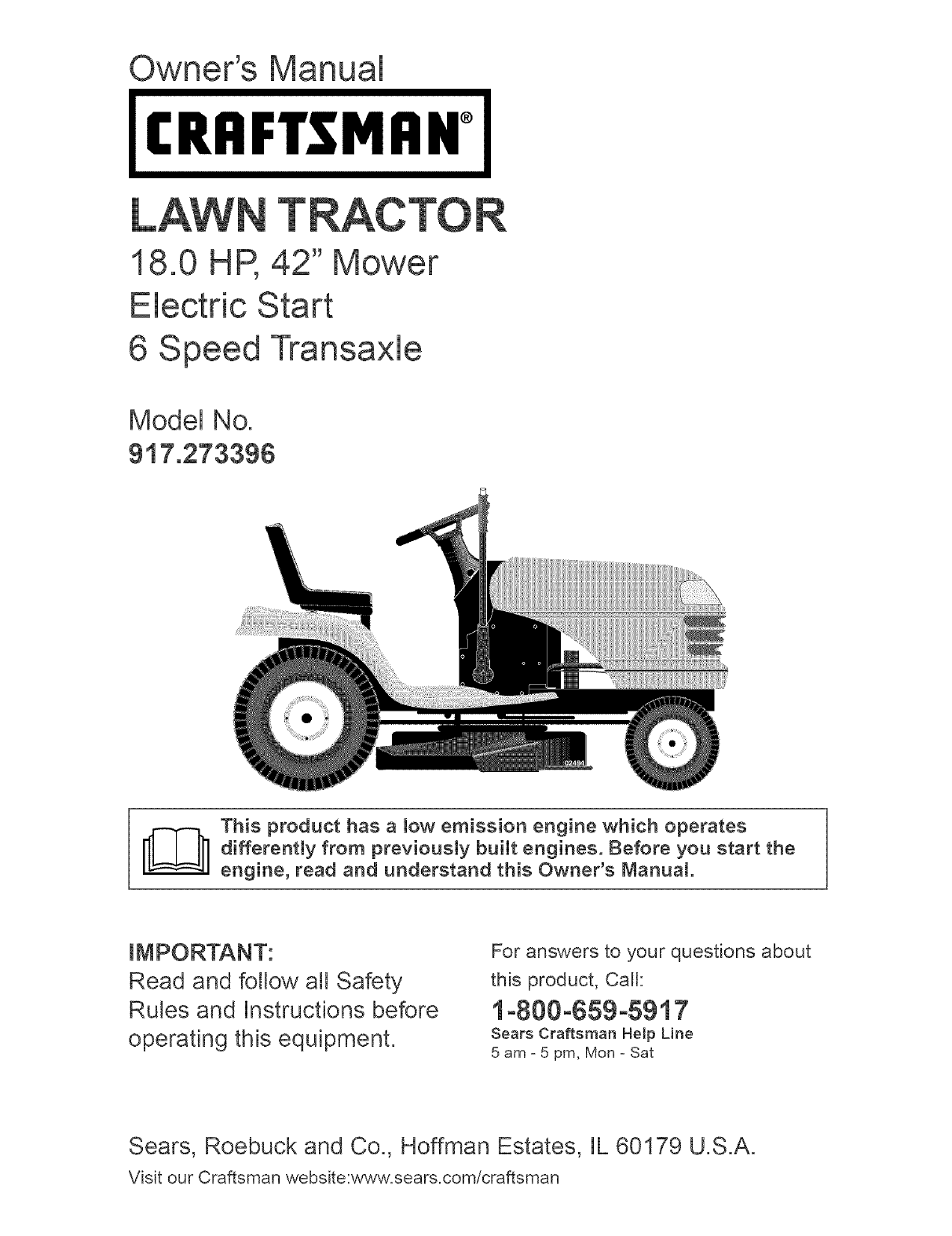

Owner's Manual

CRI FTSMIIN°

18.0 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.273396

[_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1°800°659°5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

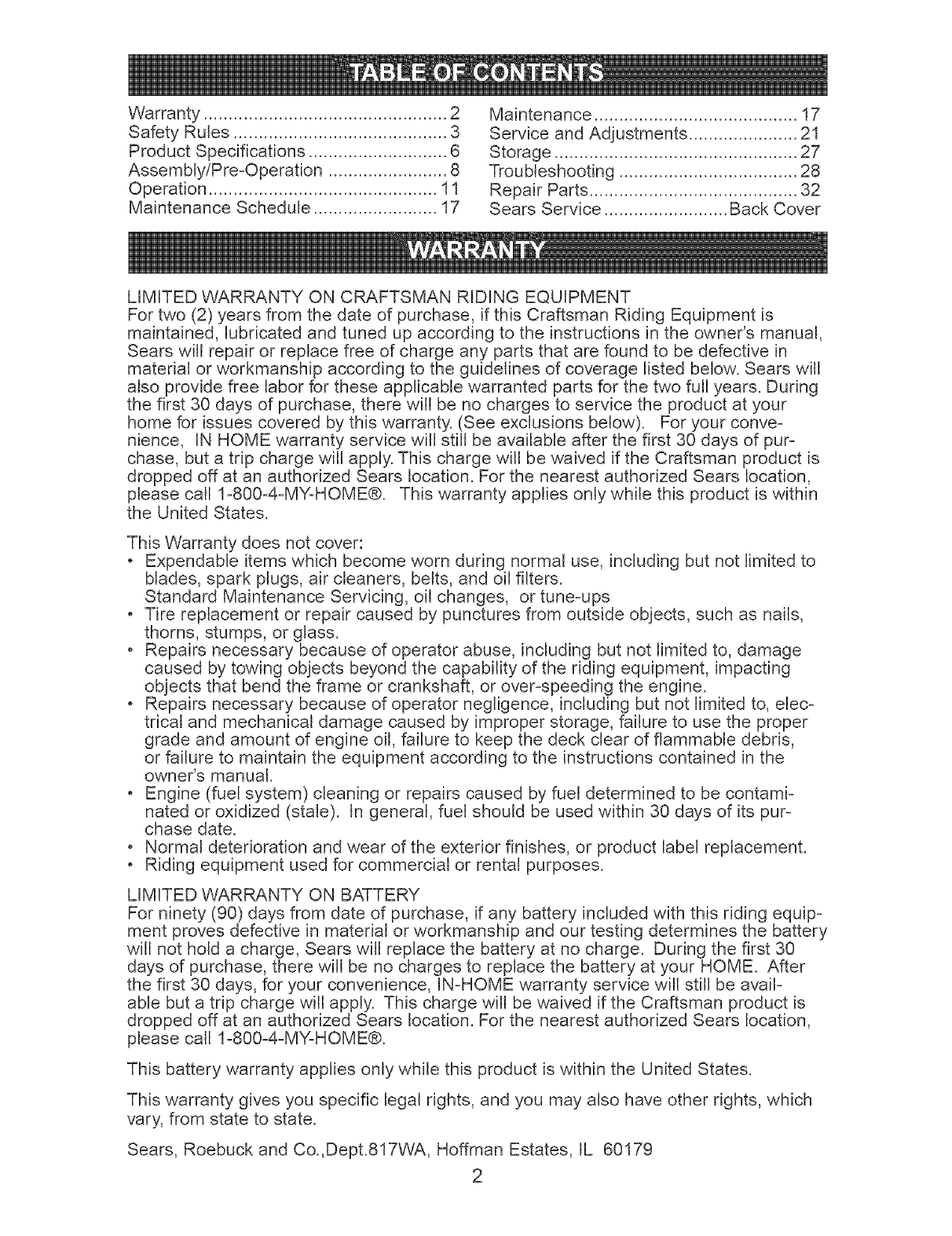

Warranty ................................................. 2

Safety Rules ........................................... 3

Product Specifications ............................ 6

Assembly/Pre-Operation ........................ 8

Operation .............................................. 11

Maintenance Schedule ......................... 17

Maintenance ......................................... 17

Service and Adjustments ...................... 21

Storage ................................................. 27

Troubleshooting .................................... 28

Repair Parts .......................................... 32

Sears Service ......................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

o Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups

o Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

o Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

o Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

o Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

o Normal deterioration and wear of the exterior finishes, or product label replacement.

o Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME@.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

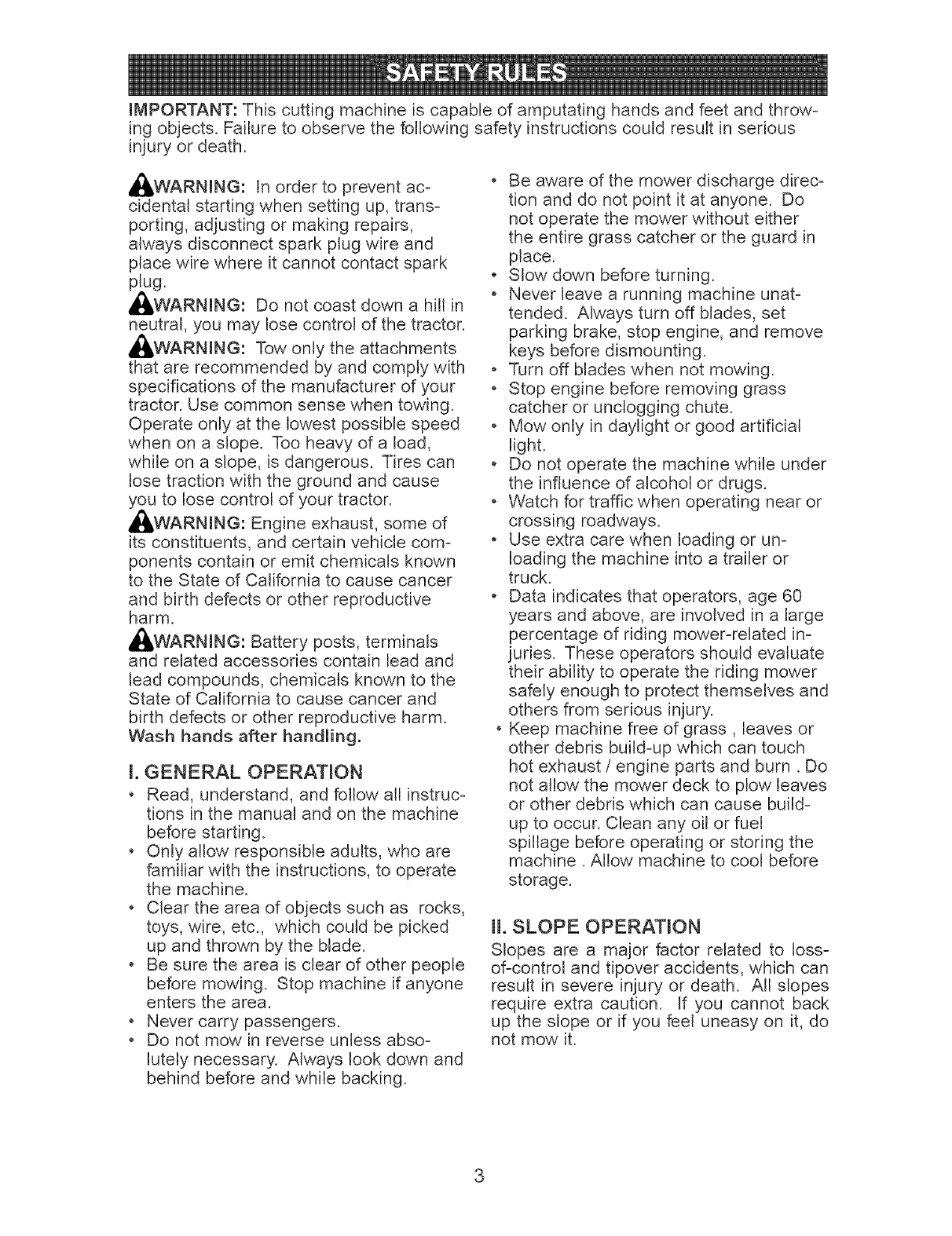

IMPORTANT:This cuttingmachineis capableof amputatinghandsandfeet and throw-

ing objects.Failureto observethe followingsafetyinstructionscould resultin serious

injuryor death.

_IWARNING: In order to preventac- °

cidentatstartingwhen settingup, trans-

porting,adjustingor makingrepairs,

alwaysdisconnectsparkplugwire and

placewire where it cannot contactspark

plug.

_I_WARNING: Do notcoastdown a hill in

neutral,you may losecontrol of the tractor.

_IWARNING: Towonly the attachments

that are recommendedby and complywith o

specificationsof the manufacturerof your o

tractor.Usecommonsensewhen towing.

Operateonly at the lowestpossiblespeed o

when on a slope. Tooheavyof a load,

while on a slope, is dangerous. Tirescan o

losetractionwith the ground and cause

you to lose controlof yourtractor, o

_IWARNmNG:Engineexhaust,someof

its constituents,and certainvehicle com- °

ponentscontainor emitchemicals known

to the State of Californiato causecancer

and birthdefectsor other reproductive °

harm.

_:_IWARNING:Batteryposts,terminals

and relatedaccessoriescontain leadand

leadcompounds,chemicals knownto the

Stateof Californiato cause cancerand

birthdefectsor other reproductiveharm.

Wash hands after handling.

L GENERAL OPERATION

o Read, understand,and followall instruc-

tions inthe manualand on the machine

beforestarting.

o Only allowresponsibleadults,who are

familiarwith the instructions,to operate

the machine.

o Clearthe areaof objectssuch as rocks,

toys,wire, etc., which couldbe picked

up and thrownby the blade.

o Be sure the area is clear of other people

before mowing. Stop machineif anyone

entersthe area.

o Nevercarry passengers.

o Do not mowin reverseunlessabso-

lutely necessary.Always lookdown and

behind beforeandwhile backing.

Be awareof the mowerdischargedirec-

tion and do not point it at anyone. Do

notoperatethe mowerwithout either

the entiregrass catcheror the guard in

place.

Slowdown beforeturning.

Neverleavea runningmachine unat-

tended. Alwaysturn off blades,set

parkingbrake,stopengine, and remove

keysbeforedismounting.

Turnoff bladeswhen not mowing.

Stopengine beforeremovinggrass

catcheror uncloggingchute.

Mowonly in daylightor good artificial

light.

Donot operatethe machinewhile under

the influenceof alcoholor drugs.

Watchfor trafficwhen operatingnearor

crossingroadways.

Useextracarewhen loadingor un-

loadingthe machineinto a traileror

truck.

Dataindicatesthat operators,age 60

yearsand above,are involvedin a large

percentageof ridingmower-relatedin-

juries. Theseoperatorsshould evaluate

their abilityto operatethe ridingmower

safelyenoughto protectthemselvesand

othersfrom seriousinjury.

Keepmachinefree of grass, leavesor

other debrisbuild-upwhich cantouch

hot exhaust/engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

H. SLOPE OPERATmON

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

o Mowup and downslopes, notacross.

o Removeobstaclessuch as rocks,tree

limbs,etc.

o Watchfor holes,ruts,or bumps. Un-

eventerrain couldoverturnthe machine.

Taft grass can hide obstacles.

o Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

o Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

o Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

o Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

oDo not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves In.

oDo not mow on wet grass. Reduced

traction could cause sliding.

oDo not try to stabilize the machine by

putting your foot on the ground.

o Do not use grass catcher on steep

slopes.

HI. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

o Keep children out of the mowing area

and under the watchful care of another

responsible adult.

o Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small children.

o Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

o Never allow children to operate the

machine.

o Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

inV.SERVmCE

o Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

o Never run a machine inside a closed

area.

o Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

o Never tamper with safety devices.

Check their proper operation regularly.

o Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

oStop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

o Never make adjustments or repairs with

the engine running.

o Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

o Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

o Check brake operation frequently. Ad-

just and service as required.

o Be sure the area is clear of other people

before mowing.Stop machineif anyone

entersthe area.

o Nevercarry passengersor children

evenwith the bladesoff.

o Do not mowin reverseunlessabsom

lutely necessary.Always lookdown and

behind beforeandwhile backing.

o Nevercarry children.Theymayfall off

and be seriously injuredor interferewith

safe machineoperation.

o Keepchildrenout of the mowingarea

and underthe watchfulcare of another

responsibleadult.

o Be alert and turn machineoff if children

enterthe area.

o Beforeand when backing,look behind

and downfor smallchildren.

o Mowup and downslopes (15° Max), not

across.

o Removeobstaclessuchas rocks,tree

limbs,etc.

o Watchfor holes,ruts,or bumps.Uneven

terrain couldoverturnthe machine.Tall

grasscan hideobstacles.

o Useslow speed.Choosea low gear

sothat youwill not haveto stop or shift

while onthe slope.

o Avoid startingor stoppingon a slope. If

tires losetraction,disengagethe blades

and proceedslowlystraightdown the

slope.

o If machinestopswhile goinguphill,

disengageblades,shift into reverseand

backdown slowly.

o Do notturn on slopes unlessnecessary,

andthen, turn slowlyand gradually

downhill,if possible.

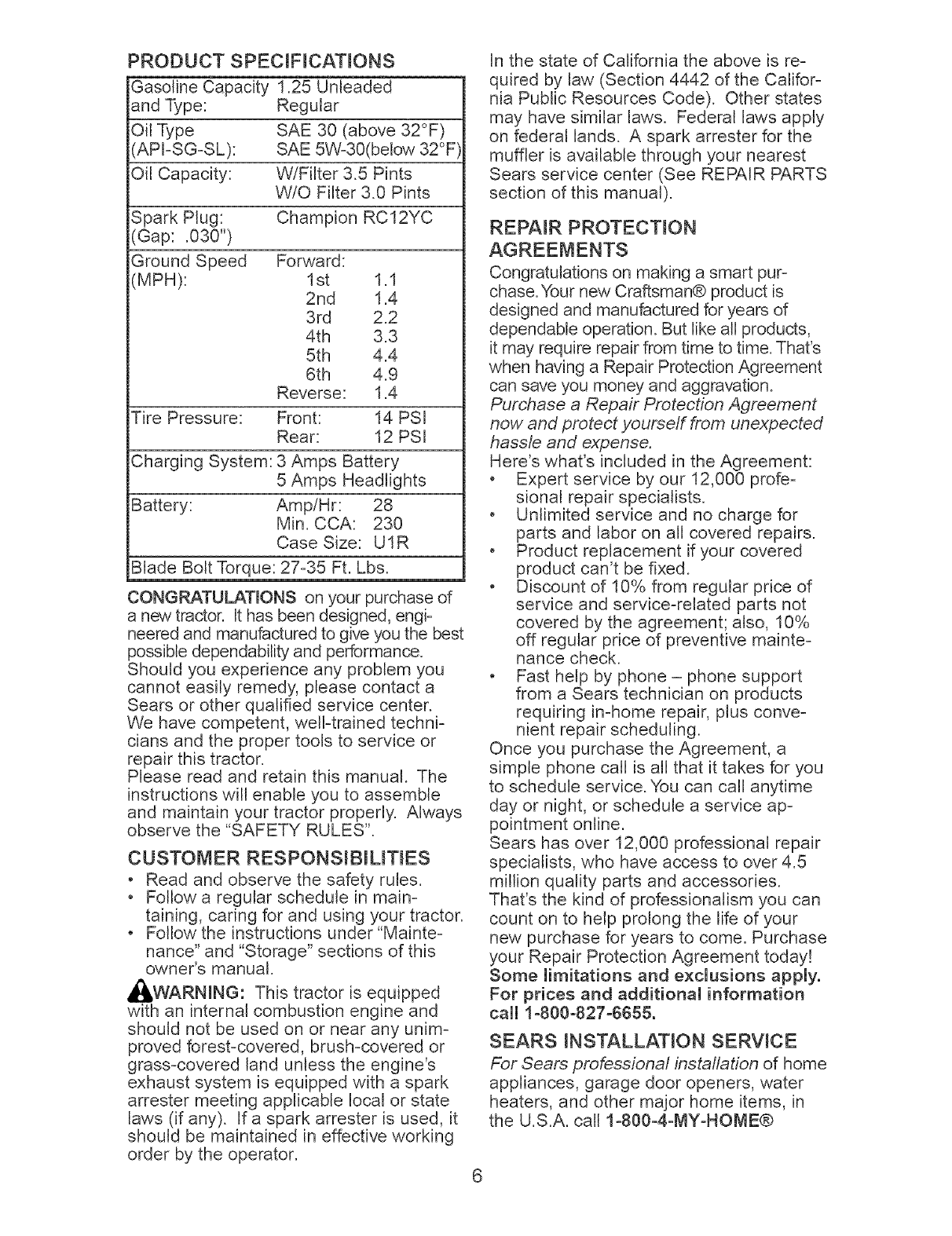

PRODUCT SPECIFICATmONS

GasolineCapacity1.25Unleaded

and Type: Regular

OilType SAE 30 (above32°F)

'APFSG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/Filter 3.5 Pints

W/O Filter 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH):

Forward:

1st 1.1

2nd 1.4

3rd 2.2

4th 3.3

5th 4.4

6th 4.9

Reverse: 1.4

Tire Pressure: Front: 14 PSI

Rear: t2 PSI

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase of

a new tractor. It has been designed, engi-

neered and manufactured to give you the best

possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBmLmES

*Read and observe the safety rules.

,Follow a regular schedule in main-

taining, caring for and using your tractor.

,Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_bWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAmR PROTECTmON

Congratulations on making a smart pup

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

°Expert service by our 12,000 profe-

sional repair specialists.

°Unlimited service and no charge for

parts and labor on all covered repairs.

°Product replacement if your covered

product can't be fixed.

°Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

°Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-665&

SEARS mNSTALLATmON SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U,S,A, call 1-800-4-MY-HOME®

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 1/4-28 x 1-1/4

[__ Steering Wheel

Adapter

I I

(1) Locknut 1/2-20

Seat

(1) Large Flat Washer

(1) Locknut 1/4-28

Steering

Extension

Steering Shaft

Boot

(1) Washer

@ 17/32 x 1-3/16 x 12 Gauge

_(1) Knob

Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet Video Cassette

(2) Keys

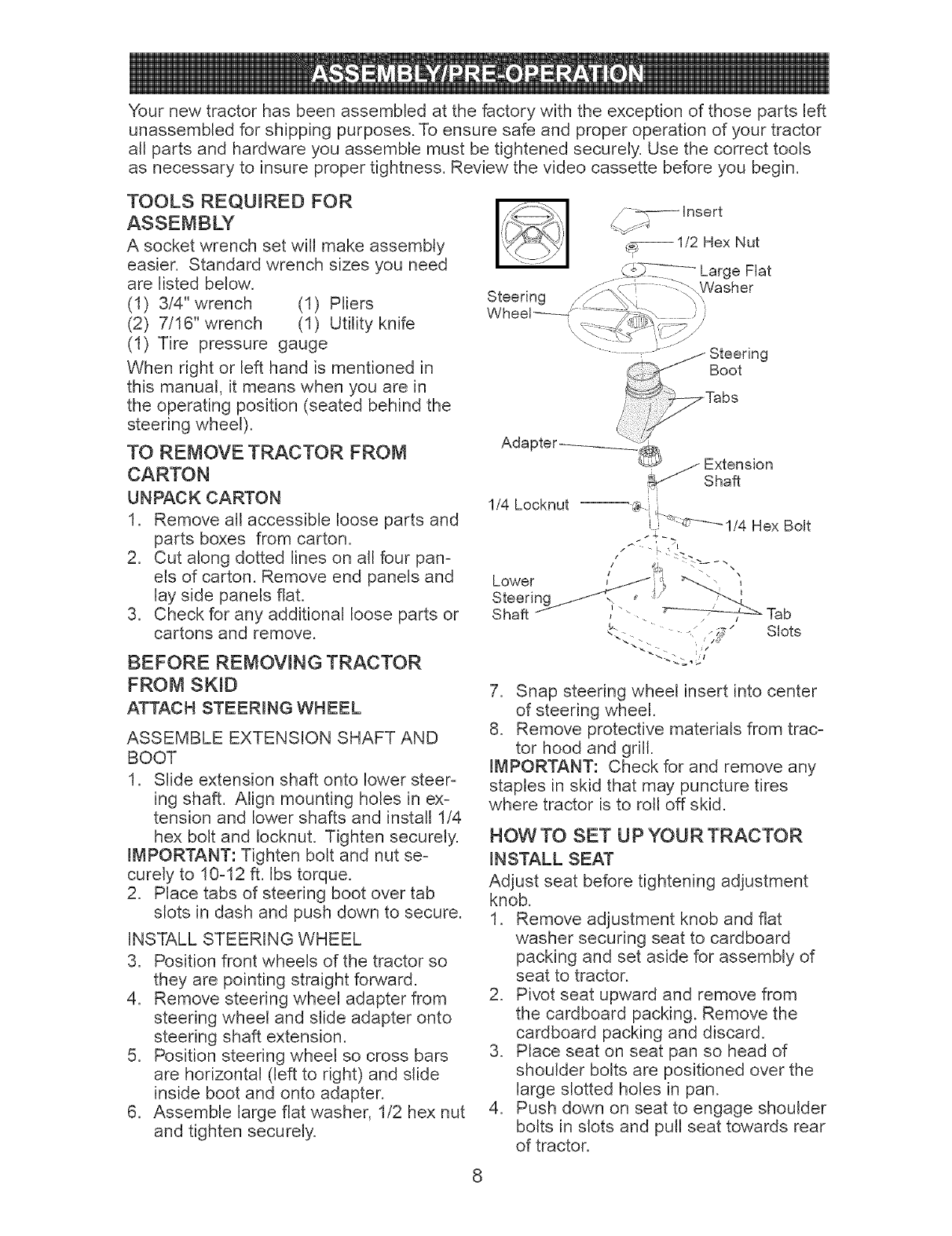

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUmRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVmNG TRACTOR

FROM SKmD

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex nut

and tighten securely.

--1/2 Hex Nut

.__ Large Flat

Washer

_¢_ ; _-_::::_--1/4 Hex Bolt

1/4 Locknut

!\ \

Lower _ /_'_ _'_.. - ,

bl:eerlng _ ,. _ - ..----q

Shaft 1>/ ]"" . __'-Tab

.... . -_,_ Slots

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage shoulder

bolts in slots and pull seat towards rear

of tractor.

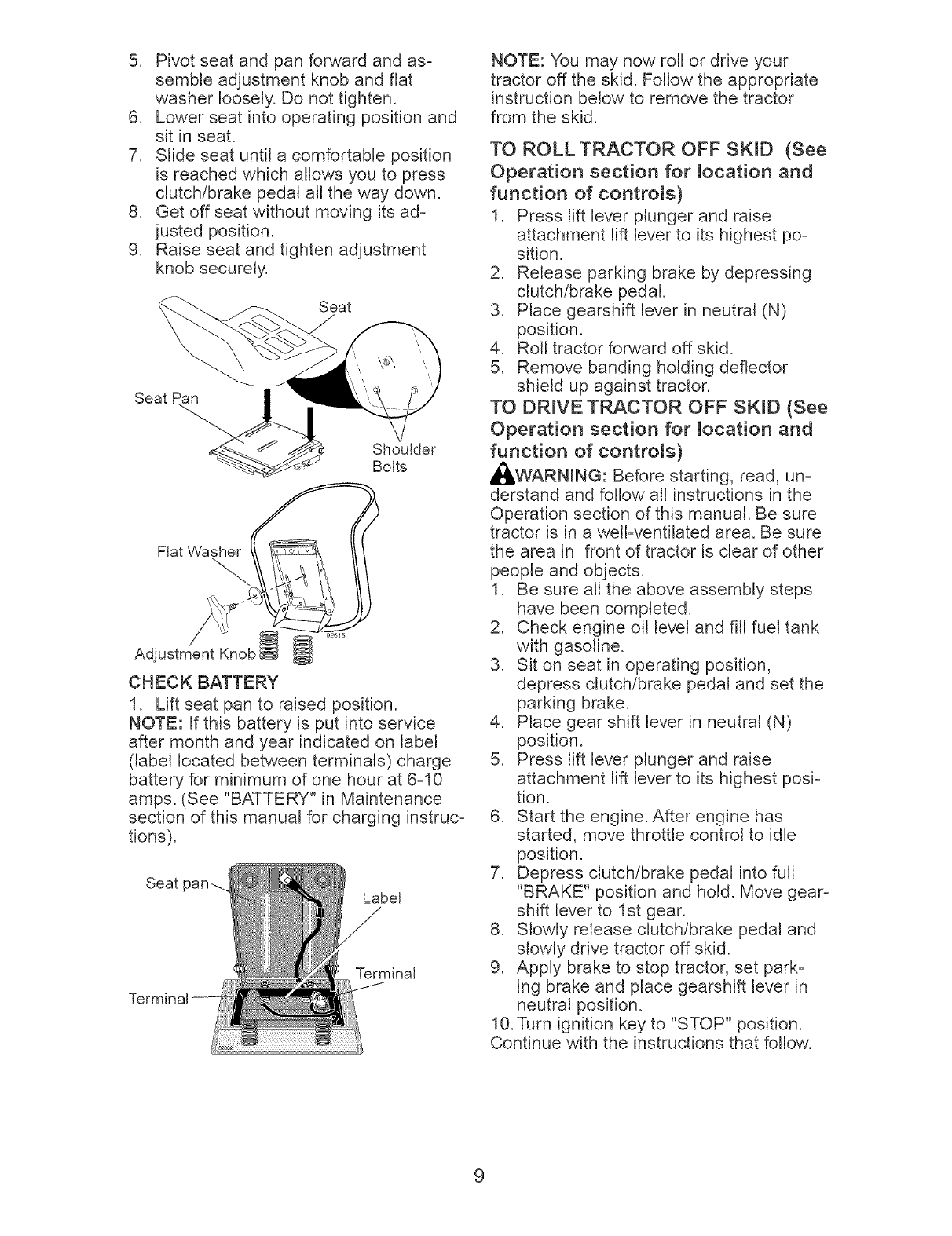

5, Pivotseat and pan forwardand as-

sembleadjustmentknoband flat

washer loosely.Donot tighten.

6, Lowerseat intooperatingpositionand

sit inseat.

7, Slideseat until a comfortableposition

is reachedwhich allowsyou to press

clutch/brakepedalall the waydown,

8, Getoff seatwithout movingits ad-

justed position,

9, Raiseseat and tightenadjustment

knob securely,

Seat

Shoulder

Bolts

Flat Washer

Adjustment Knob i

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat Label

Terminal

NOTE: You may now roll or drive your

tractor off the skid, Follow the appropriate

instruction below to remove the tractor

from the skid,

TO ROLL TRACTOR OFF SKmD (See

Operation section for mocation and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch!brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKmD (See

Operation section for mocation and

function of controms)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gear-

shift lever to Ist gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

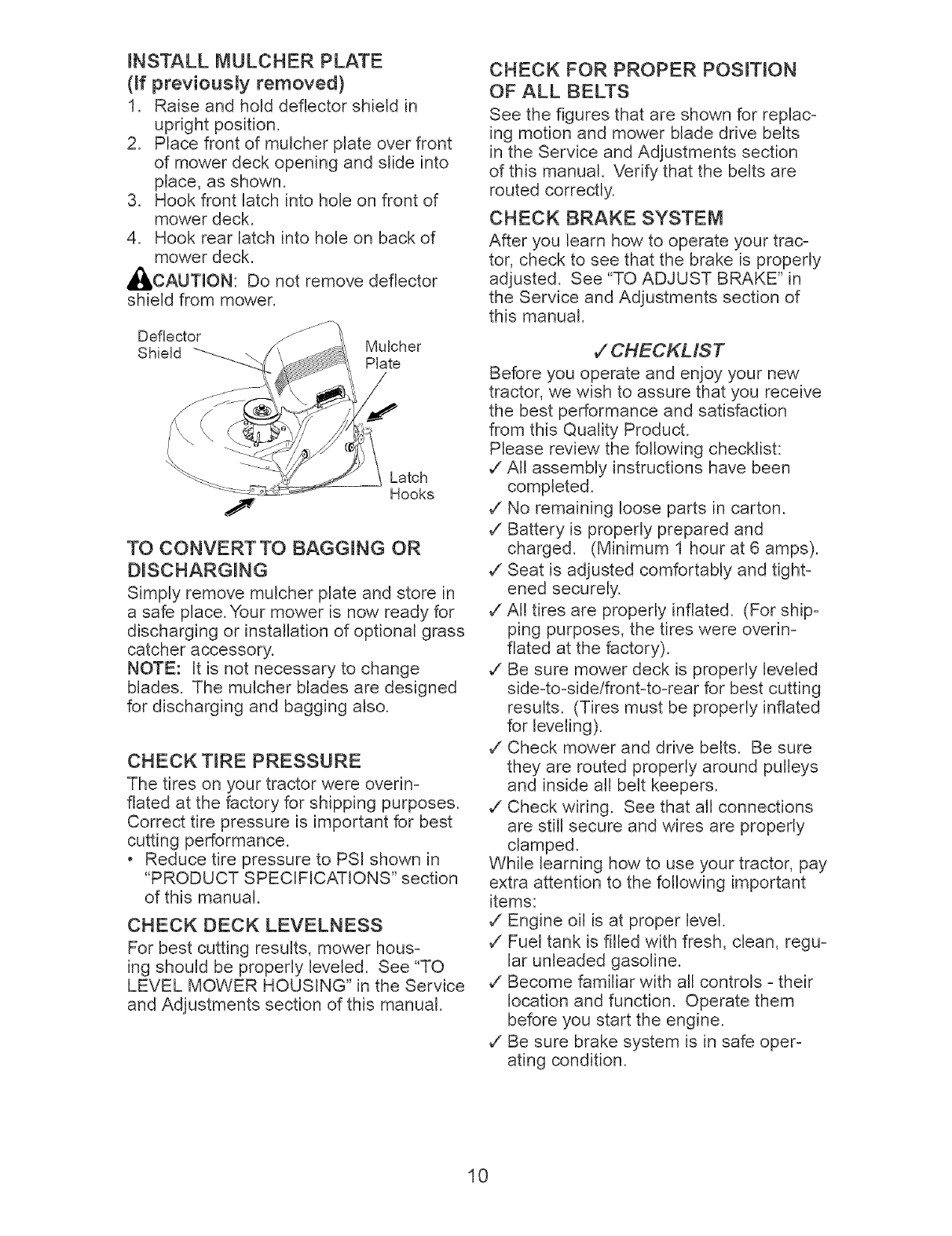

mNSTALLMULCHER PLATE

(ff previousmy removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_f;_,CAUTION: Do not remove deflector

shield from mower.

Deflector

Shield Mulcher

Plate

Latch

Hooks

TO CONVERTTO BAGGmNG OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECKTmRE PRESSURE

The tires on your tractor were ovedn-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

. Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSmTmON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKLIS T

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

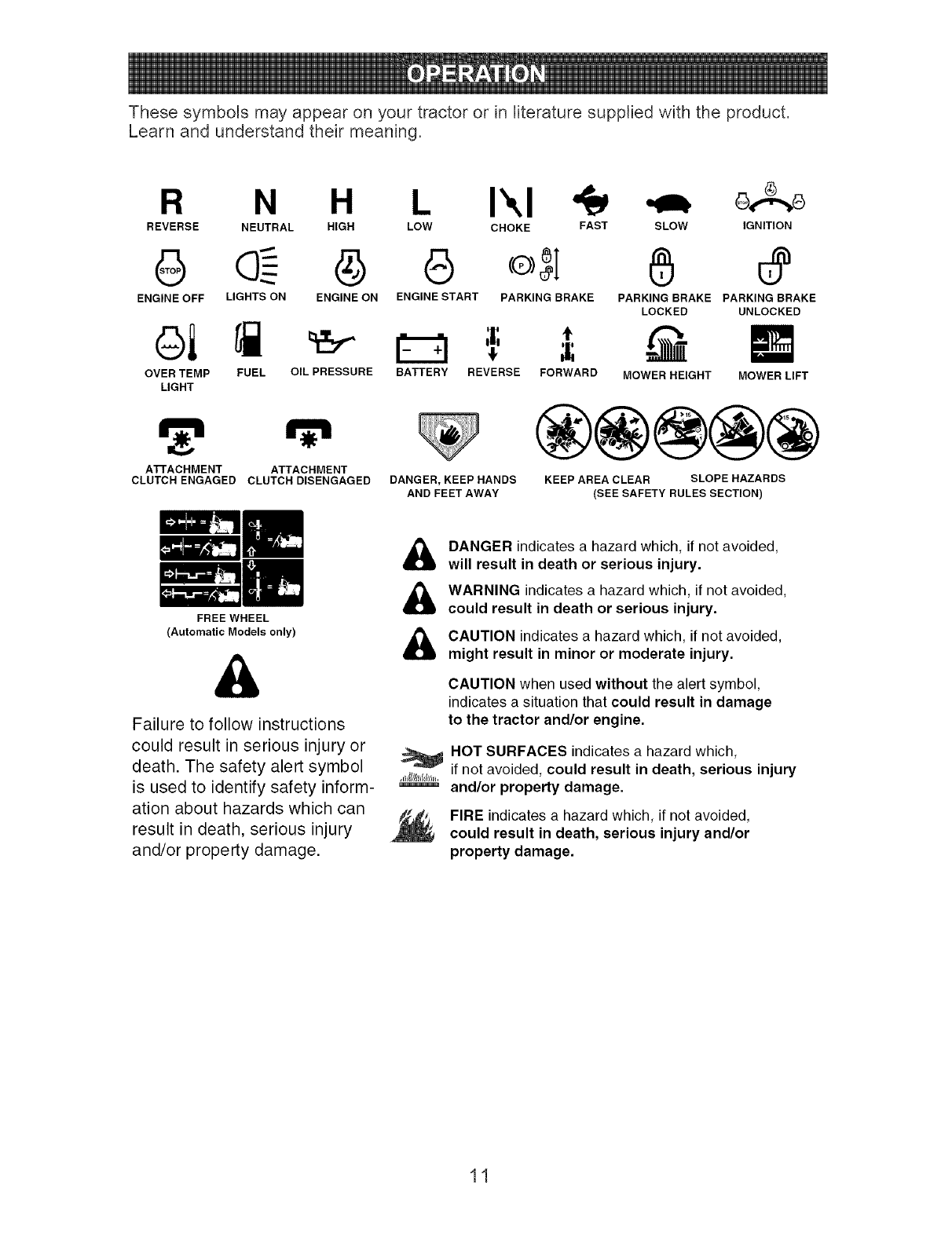

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I\1 "_

REVERSE NEUTRAL HIGH LOW CHOKE FAST

G (:::}:--- 0

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP

LIGHT

AI-rACHMENT

CLUTCH ENGAGED

BATTERY REVERSE FORWARDFUEL OIL PRESSURE

ATTACHMENT

CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

,_hlll/lll_llh_,

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

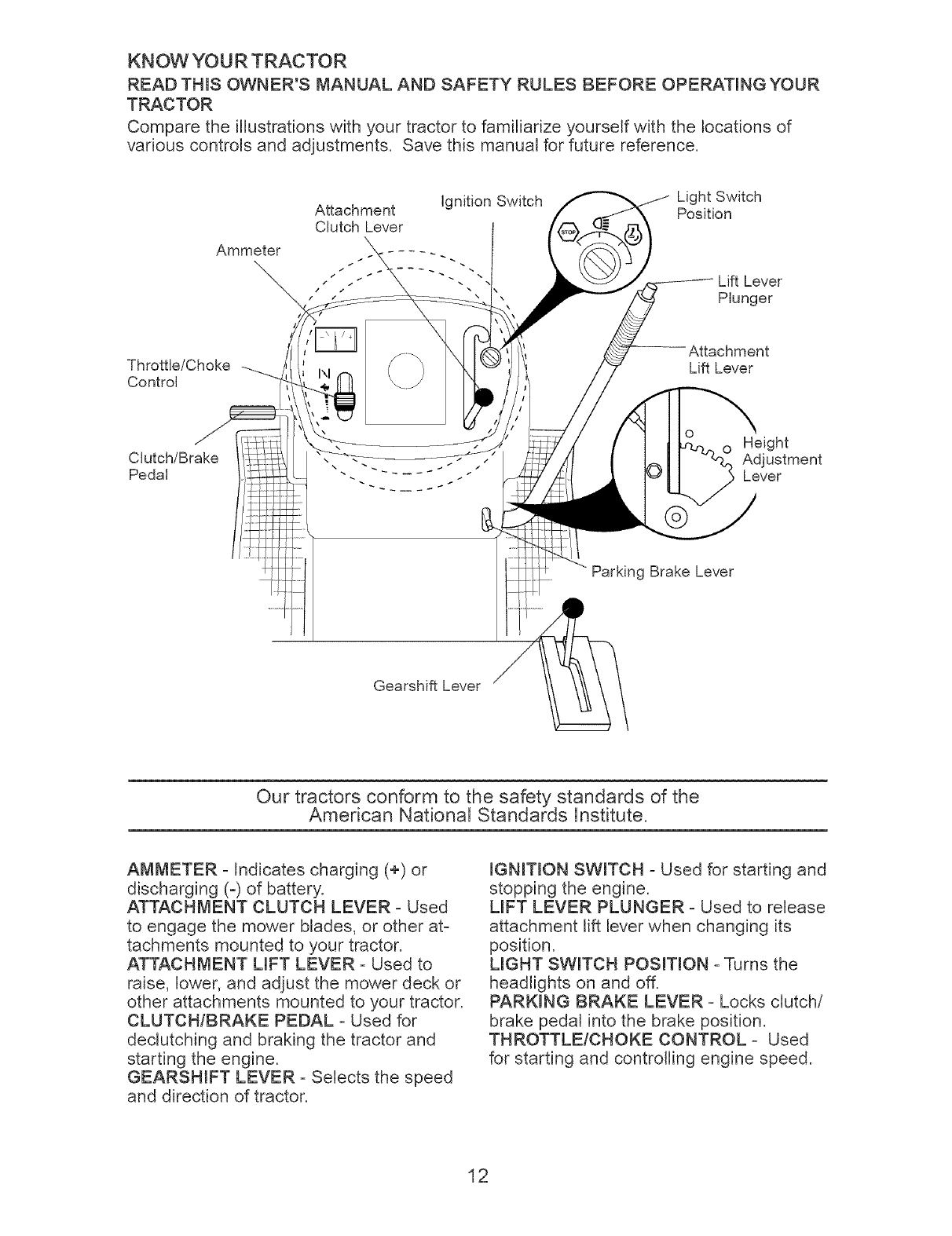

KNOW YOU R TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Attachment

Clutch Lever

ignition Switch Light Switch

Position

Lift Lever

Plunger

Throttle/Choke

Control

-- Attachment

Lift Lever

Clutch/Brake

Pedal

Height

Adjustment

Lever

Parking Brake Lever

Gearshift Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at m

tachments mounted to your tractor.

ATTACHMENT UFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

dedutcMng and braking the tractor and

starting the engine.

GEARSHIFT LEVER _ Selects the speed

and direction of tractor.

IGNmTmON SWITCH - Used for starting and

stopping the engine.

LmFT LEVER PLUNGER _ Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSmTION mTurns the

headlights on and off.

PARKmNG BRAKE LEVER _ Locks clutch/

brake pedal into the brake position.

THROTTLEICHOKE CONTROL _ Used

for starting and controlling engine speed.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

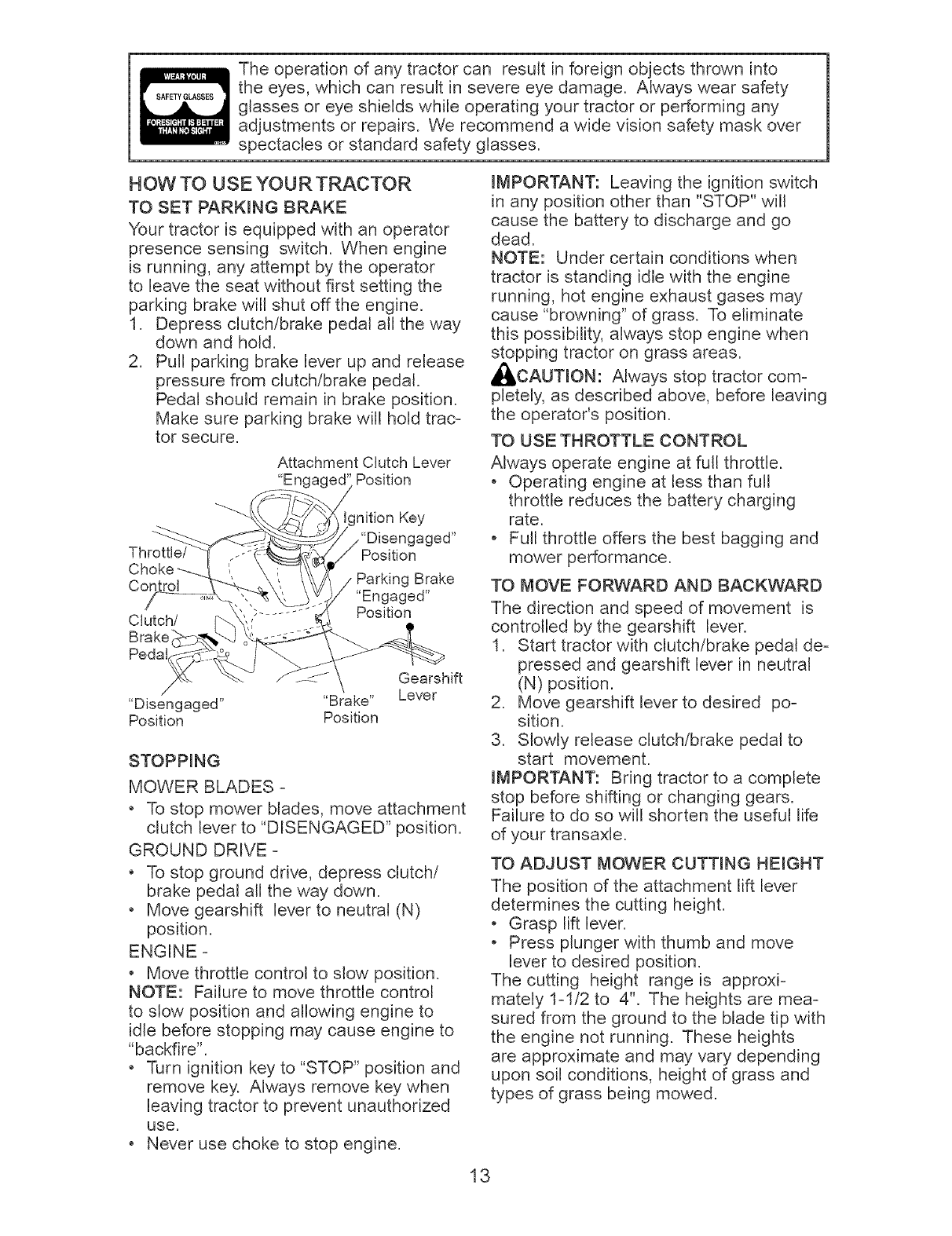

HOW TO USE YOUR TRACTOR

TO SET PARKmNG CRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Attachment Clutch Lever

"Engaged: Position

Throttle/

Choke

Control

Clutch/

Brake

Pedal

nition Key

,"Disengaged"

Position

Parking Brake

"Engaged"

Position

Gearshift

"Disengaged" "Brake" Lever

Position Position

STOPPING

MOWER BLADES -

o To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRWE -

o To stop ground drive, depress clutch!

brake pedal all the way down.

o Move gearshift lever to neutral (N)

position.

ENGINE -

o Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

o Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use,

o Never use choke to stop engine.

iMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

o Operating engine at less than fuji

throttle reduces the battery charging

rate.

o Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

iMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

o Grasp lift lever.

o Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-t/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

oThe average lawn should be cut to ap m

proximately 2ml/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

oFor best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip_

ment on rough, rolling terrain or hills,

1. Select desired height of cut,

2, Start mower blades by engaging at_

tachment clutch control,

TO STOP MOWER BLADES

disengage attachment clutch control,

_ICAUTmON: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place,

TO OPERATE ON HmLLS

_IIWARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

oChoose the slowest speed before starb

ing up or down hills.

oAvoid stopping or changing speed on

hills,

oIf slowing is necessary, move throttle

control lever to slower position.

oIf stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posim

tion and engage parking brake.

oMove gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

oTo restart movement, slowly release

parking brake and clutch!brake pedal.

oMake all turns slowly.

TO TRANSPORT

oRaise attachment lift to highest position

with attachment lift control.

oWhen pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

oDo not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWmNG CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor,

BEFORE STARTmNG THE ENGmNE

CHECK ENGINE OraL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap!dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL:' mark on dipstick is

reached. Do not overfill.

oFor cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

oTo change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLmNE

*Fill fuel tank to bottom of filler neck, Do

not overfill, Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane, (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life), Do not mix oil

with gasoline, Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness,

,I_ICAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame,

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage,

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information, Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur,

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine,

1, Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2, Place gear shift lever in neutral (N)

position,

3, Move attachment clutch to disengaged

position.

4, Move throttle control to choke position,

NOTE: Before starting, read the warm

and cold starting procedures below,

,Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

,The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

,The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

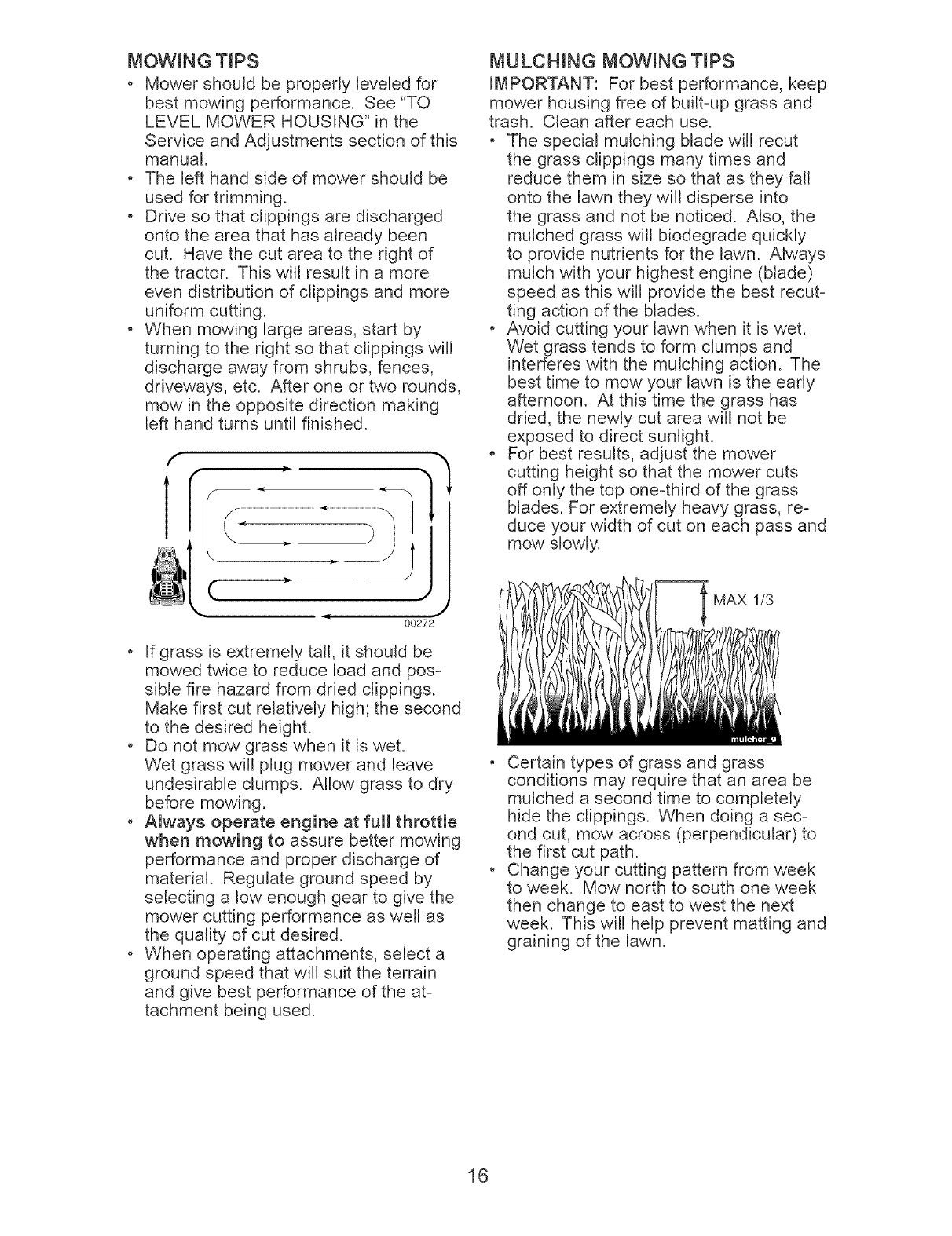

MOWING TIPS

o Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

oThe left hand side of mower should be

used for trimming.

oDrive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

o When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

00272

o If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

o Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

o Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

o When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

o The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

o Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

o Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

o Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

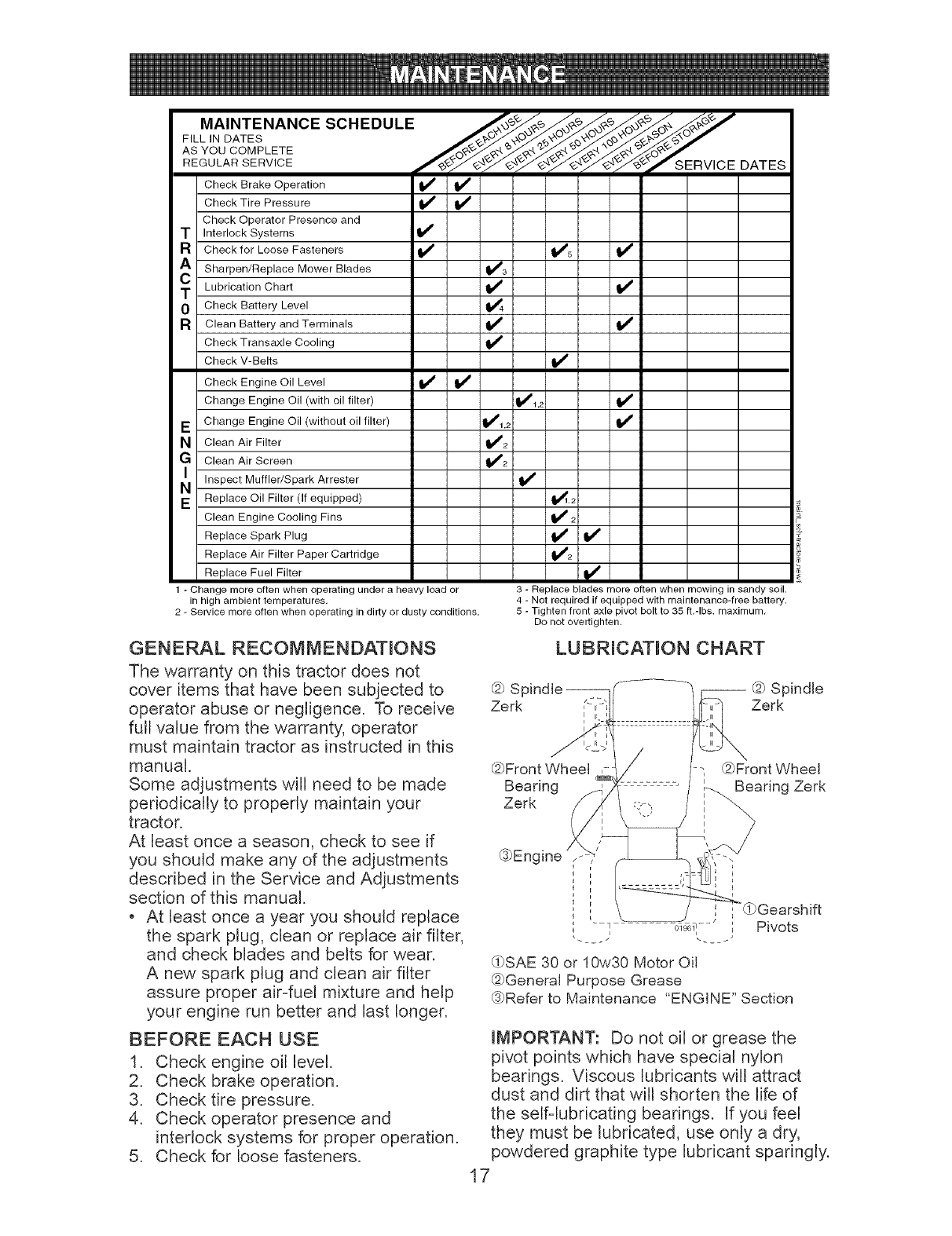

.AINTENANCESCHEDULE

AS YOU COMPLETE

REGULAR SERVICE /__ERVICEDATES

Check Brake Operation _

Check Tire Pressure

Check Operator Presence and

TInterlock Systems

R Check for Loose Fasteners if I_s if

ASharpen/Replace Mower Blades 1_3

C Lubrication Chart if if

O Check Battery Level _4

R Clean Battery and Terminals _ I_

Check Transaxle Cooling

Check V-Belts I_

Check Engine Oil Level if

Change Engine Oil (with oil filter) 1_1,2

E Change Engine Oil (without oil filter) _1,2

NClean Air Filter 1_2

G Clean Air Screen _2

NI Inspect Muffler/Spark Arrester ,/

E Replace Oil Filter (If equipped) _1,2

Clean Engine Cooling Fins I_ 2

Replace Spark Plug I_ if

Replace Air Filter Paper Cartridge 1_2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions,

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft,-Ibs, maximum,

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

o At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air=fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

@ S_

Zerk

LUBRICATION CHART

-- @ Spindle

Zerk

@Front Wheel ,

Bearing

Zerk

@Front Wheel

Bearing Zerk

@Engine .

(gSAE 30 or 10w30 Motor Oil

@General Purpose Grease

@Refer to Maintenance "ENGINE" Section

iMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the selfqubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant sparingly.

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATmON

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

o Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

o Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

o Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

o The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

o When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

o When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

o The attachment clutch should never op-

erate unless the operator is in the seat.

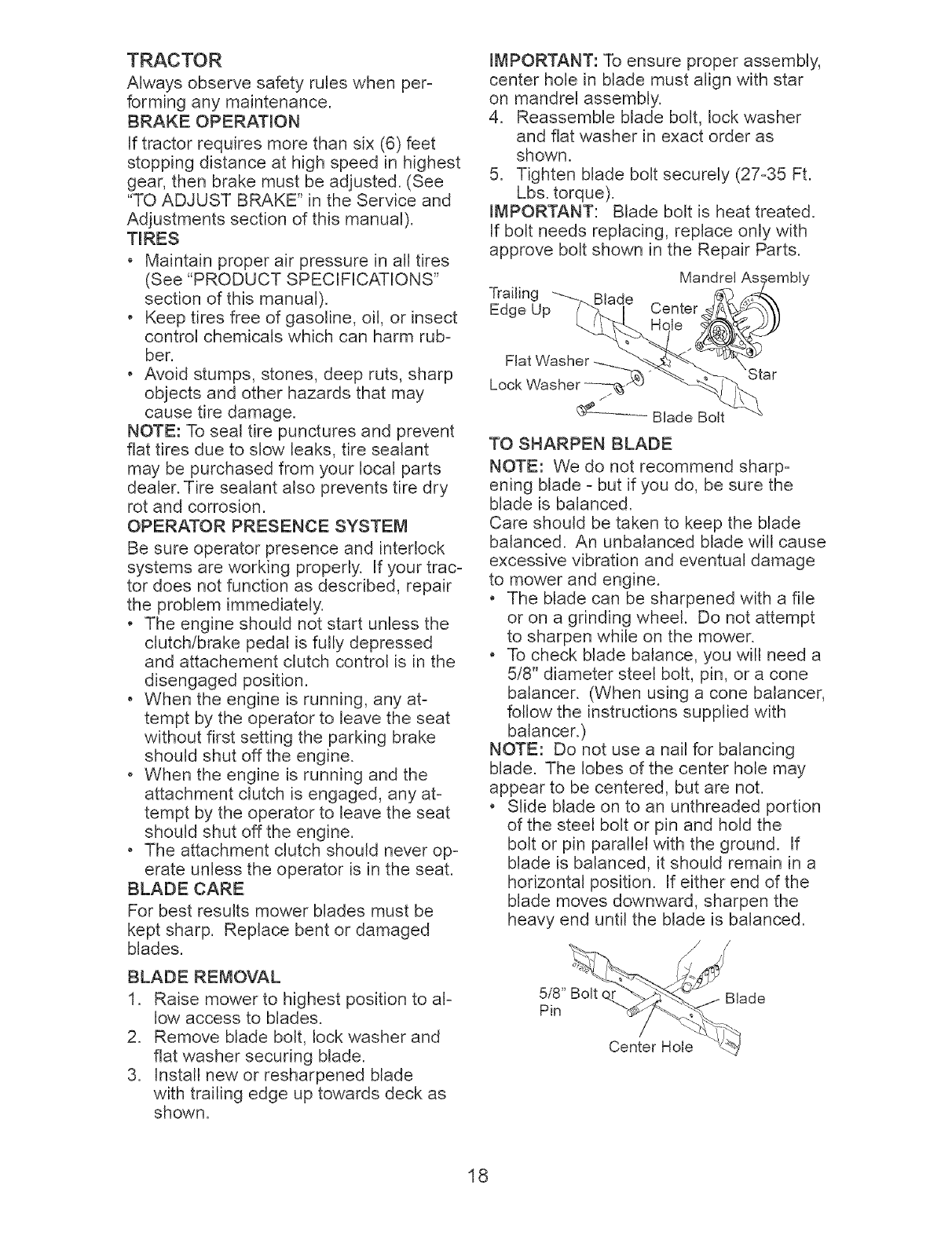

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

iMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

iMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Mandrel As._

Trailing Blade

Edge Up Center

Hole

Lock Washer

Blade Bolt

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

o The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

o To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

o Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt Blade

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

o Keep battery and terminals clean.

o Keep battery bolts tight.

o Keep small vent holes open.

o Recharge at 6-t0 amperes for t hour.

NOTE: The odginal equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1, Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

2, Rinse the battery with plain water and

dry,

3, Clean terminals and battery cable ends

with wire brush until bright.

4, Coat terminals with grease or petro-

leum jelly.

5, Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual),

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.)improve starting in

cold weather, the oils will result in im

creased oil consumption when used above

32°E Check your engine oil level more

frequently to avoid possible engine dam-

age from running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

o Be sure tractor is on level surface.

o Oil will drain more freely when warm.

o Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting, Oil Drain Valve

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling,

V-BELTS

Check V-belts for deterioration and wear

after t00 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

LUBRmCATmON

Only use high quality detergent oil rated

with API service classification SG-SL,

Select the oil's SAE viscosity grade

according to your expected operating

temperature,

SAE VISCOSITY GRADES 40' 1

oil vi_cchartl e

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULL:' line on dipstick. Tighten cap

onto the tube securely when finished.

ENGmNE OraLFmLTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AmR FmLTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Pull up on air filter cover handle and

rotate towards engine.

2. Remove cover.

3. Carefully remove air filter cartridge and

pre-cleaner from base.

4. Clean base carefully to prevent debris

from falling into carburetor.

NOTE: If very dirty or damaged, replace

cartridge.

5. Place new pre-cleaner and cartridge

firmly in base.

6. Align tabs on cover with slots in blower

housing and replace cover.

7. Hook handle on cover and push down

on handle to close.

iMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil cam

tridge. Do not use pressurized air to clean

cartridge.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGmNE COOLmNG SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

Air Screen Clean out chaff and debris

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

Cartridge

Tabs

-Slots

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine coot, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line,

_ Clamp

Clamp -I __el Filter

CLEANING

°Clean engine, battery, seat, finish, etc.

of all foreign matter.

,Keep finished surfaces and wheels free

of all gasoline, oil, etc.

,Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

&WARNmNG: TO AVOID SERmOUS raNJURY, BEFORE PERFORMING ANY

SERVmCE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

Small Retainer Spring

Small Retainer S

Clutch Spring

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

iMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO iNSTALL MOWER

1. Raise attachment lift lever to its highest

position.

Front Link

Retainer S

Anti-Sway Bar

Housing

Guide --

Large Retainer Spring Bracket

\ Retainer Springs

Sides)

Deflector Shield

2. Slide mowerundertractorwith deflec=

tor shieldto right side of tractor.

3. Lowerlift leverto its lowestposition.

4. Connectfront linksto mowerdeckand

securewith retainersprings.

5. Connectsuspensionarms to rear

deck bracketsand securewith retainer

springs.

6. ConnectantFswaybarto chassis

bracketand securewith retainerspring.

7. Pushclutch cablehousingguideinto

bracket,slidecollar ontoguideand

securewithlarge retainerspring.

8. Placeflat washer and clutchspringon

idler pulleybolt and securewith small

retainerspring.

9. Installbelt ontoengine pulley.

TO LEVEL MOWER HOUSmNG

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD=

UCT SPECIFICATIONS" section of this

manual). If tires are over or undednflated,

you will not properly adjust your mower.

SIDE=TO=SIDE ADJUSTMENT

oRaise mower to its highest position.

o At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

o If adjustment is necessary, make adjust=

ment on one side of mower only.

o To raise one side of mower, tighten lift

link adjustment nut on that side.

o To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about t/8".

o Recheck measurements after adjusting.

Bottom edge Bottom edge of

on Arm

D @ ,,

Lift Link N_

Adjustment

FRONT=TO=BAC K ADJ U STM E NT

IMPORTANT: Deck must be level side=to

side. If the following front=to=back adjust=

merit is necessary, be sure to adjust both

front links equally so mower will stay level

side=to=side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac=

tot. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

o Before making any necessary adjust=

merits, check that both front links are

equal in length.

o If links are not equal in length, adjust

one link to same length as other link.

o To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

o When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

o To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num=

ber of turns. The two front links must

remain equal in length.

o When distance "D" is t/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

o Recheck side=to=side adjustment.

_ Mandrel

Both Front, Unks Should beElual in Length

_B _

Trunnion

Front Links

TO REPLACE MOWER BLADE DRmVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all bett guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake opeF

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A'.

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With Parking Brake "Engaged"

Nut "A"

Jam Nut

Arm

00238

TO REPLACE MOTION DRmVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL-

1, Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5, Make sure belt is in all pulley grooves

and inside all belt guides and keepers,

6, Install mower (See "TO INSTALL

MOWER" in this section of manual),

Engine

Clutching

Stationary idler

Transaxle

Center

Keeper

TRANSA×LE GEAR SHmFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2, Loosen adjustment bolt in front of the

right rear wheel.

3, Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position,

Neutral Lock Gate

Gearshift

..... Adjustment Bolt

TO ADJUST STEERmNG WHEEL ALiGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-iN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAmRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to stow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key

(Rear Wheel Only)

TO START ENGINE WroTH A WEAK BAT-

TERY

_IIWARNmNG: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

iMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1, Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis,

2. Connect one end of the BLACK cable

to the NEGATWE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

02614

Weak or Dead Fully Charged

Battery Battery

REPLACmNG BATTERY

_I, WARNmNG: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

Positive

(Red)

Cable

Terminal

Cover

Negative (Black)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3, Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill,

4. Close hood.

iNTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

o Check wiring. See electrical wiring

diagram in the Repair Parts section,

TO REPLACE FUSE

Replace with 20 amp automotivemtype

plugqn fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRmLL AS-

SEMBLY

1. Raise hood,

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re=

connect the headlight wire connector.

Hood

Headlight Wire

Connector

Seat

Label

O2495 "

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor Control Lever Governor Plate

(

Holes Throttle

Clamp Cable

Screw

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

_dte Speed II _==_ ..... Throttle

Screw--_ _ __-Lever

With Limiter

Immediately prepare your tractor for stor m

age at the end of the season or if the trac m

tot will not be used for 30 days or more.

_IWARNmNG: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

atl dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

,Fully charge the battery for storage.

,After a period of time in storage, battery

may require recharging.

,To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

°After cleaning, leave cables discom

nected and place cables where they

cannot come in contact with battery

terminals.

,If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage, Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam m

age the fuel system of an engine while in

storage.

,Empty the fuel tank by starting the em

gine and letting it run until the fuel lines

and carburetor are empty.

,Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

,Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor m

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car m

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OiL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLmNDER(S)

1. Remove spark plug(s).

2, Pour one ounce of oil through spark

plug hole(s)into cylinder(s).

3, Turn ignition key to "START" position

for a few seconds to distribute oil,

4, Replace with new spark ptug(s),

,Do not store gasoline from one season

to another.

,Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

,If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

,Cover your tractor with a suitable pro m

tective cover that does not retain mois m

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manuam unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Engine will not

turn over

Engine dicks but

will not start

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch!brake pedal not

depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Fill fuel tank.

2. See"TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check!replace solenoid or

starter.

TROUBLESHOOTING CHART:

See appropriate section in manuam unless directed to Sears service center

PROBLEM

Loss of power

CAUSE

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

Excessive

15, Engine valves out of

adjustment,

1. Worn, bent or loose blade.

CORRECTmON

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

vibration Tighten blade bolt.

2. Bent blade mandrel. 2. Contact a Sears or other

3. Loose/damaged part(s).

Engine continues 1. Faulty operator-safety

to run when

operator leaves

seat with attach-

ment clutch

engaged

Poor cut -uneven 1.

qualified service center.

Tighten loose part(s).

Replace damaged parts.

1. Check wiring, switches and

presence control system.

Worn, bent or loose blade. .

connections. If not corrected,

contact Sears or other

qualified service center.

Replace blade. Tighten

blade bolt.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

.Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades wi[[

not rotate

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battemy wi[[ not

charge

Engine "backfires"

when turning

engine "OFF"

CAUSE

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

.Engine throttle control not

set at "SLOW" position for

30 seconds before stopping

engine.

CORRECTION

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.273396

BATTERY

RED O: REo

FUSE I

I STARTER

i r--I ' BLBCK

WH,TE ,© , _,, _..... ,

IISOLENOID

/_ II i i

___( )G AI( (PEDAL UP) WHITE

SWITCH WHITE I A-I-IA III I

WHITE I I ........ _ 1

III I I--

BLACK I (Z_ O BLACK II II BLACK

BLACK /A fTTM-E_lf _ L-U].CH L _1

LACK (CLUTCH OF CONNECTOR

I(_ I _1 SPARK

I BLACK f'4 IGNITION _ PLUG

[-_ LTE-L,I --k J[ UNIT I W oN" "

_ELuZq_(llD iI_i /'_l" UNE i TWIN CYL ENGINES)

I_ iI _ JIIIL iI _ CHAAMRpGDING@SYSToERMpOMUTPUT _C8 VAOLTS ACsM IsNTE@ 3D6_0_RRPM ECT E D)

FUEL SHUT-OFF SOLENOID RED I I

(IF SO EQUIPPED) I LIGHTING SYSTEM OUTPUT I

14 VOLTS AC MINI @ 3600 RPM (LIGHTS OFF)

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START B+S+A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

02363

REMOVABLE

CONNECTIONS

TRACTOR - - MODEL NUMBER 917.273396

ELECTRmCAL

k/\

\ \

i I

ELECTRICAL

TRACTOR --MODEL NUMBER 917.273396

KEY PART

NO. NO, DESCRiPTiON

1 163465

2 74760412

8 176689

16 176138

21 183759

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140403

40 179720

41 71110408

42 131563

43 178861

45 121433X

52 141940

90 180499

Battery

BoEt Hex Hd 1/4o20 unc x 3/4

Box Battery Fender

Switch, Interlock

Harness Asm Light W/4152j

Bulb Light #1156

Cable Battery 6 Ga. 11" red

Cable Battery 6 Ga. w/16 wire red

Fuse 20 AMP

Nut, Keps Hex 1/4o20 unc

Cable Ground 6 Ga. 12" black

Switch Plunger Nc Gray

Switch Ign

Key Ign Molded Craftsman

Harness Ign

Bolt BIk. Fin Hex 1/4o20 unc x 1/2

Cover Terminal Red

Sorenoid

Ammeter Rectangular 6 Amp

Protection Wire Loop

Cover Battery Terminal

NOTE: All component dimensions give in U.S. inches

1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.273396

CNASSmS AND ENCLOSURES

278

208

209

2O7

209 208

chassis-Laser-It.stlt 27

TRACTOR - -MODEL NUMBER 917.273396

CHASSmS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619

2 176554

5 155272

9 187846X013

10 STD533710

11 174996

13 172105X010

14 17490608

17 185682X558

18 184921

26 STD54!437

28 188636

29 174332X599

30 188571X558

31 139976

37 17490508

38 175710

39 174714

60 72140606

64 154798

74 73680600

142 175702

143 186689

144 175582

145 156524

206 170165

207 17670508

208 17670608

209 17000612

212 175143

278 191611

-- 5479J

-- 187801

Chassis Stamping

Drawbar

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel, Dash, LH.

Panel, Dash, R.H.

Screw Thdrol 3/8-16 x 1/2

Hood Assembly Laser

Bumper Hood Large 1.75

Nut

Grille Lens Asm Laser (Includes Key Nos. 29 and 212)

Lens, Laser

Fend/Ftrest Pnt STLT

Bracket, Fender Support

ScrewThdrol 5/16-18 x 1/2 Tyt

Bracket Asm. Pivot Mower Rear

Bracket Pivot Laser

Bolt Rdhd Sqnk 3/8-16 unc x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 unc

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Jod Pivot Chassis/Hood

Bolt Shoulder 5/16 -18 TT

ScrewThdrol 5/16-18 x 1/2 TYTT

ScrewThdrol 3/8-16 x 1/2

Screw Hex Wsh Thdr 3/8-16 x 3/4

insert Lens Reflective

Screw 10 x 3/4 Single Lead-Hex

Plug, Button

Plug Dome Plastic

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273396

GROUND DRIVE

57\120

26 27

75 drive-fender.stlt_39

TRACTOR ° ° MODEL NUMBER 917.273396

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRiPTiON NO. NO, DESCRIPTION

1 Transaxle (See Breakdown)

Dana 4360-140

2 146682 Spring Brake Return

3 123666X Pulley Transaxle

4 12000028 Ring Retainer

5 121520X Strap Torque 30 Degrees

6 17000512 Screw 5/16o18 x 3/4

8 165866 Rod Shift Fender Adjust

10 STD561210 Pin Cotter 1/8 x 1 CAD

11 105701X Washer Plate Shift

13 74550412 Bolt l/4-28unf Gr. 8 W/Patch

14 10040400 Washer Lock Hvy Helical

15 74490544 Bolt Hex FLGHD 5/16-18 Gr. 5

16 STD541431 Nut Lock Hex W/Ins. 5/16-18 unc

18 74780616 Bolt Fin Hex 3/8-16 x 1 Gr. 5

19 STD541437 Nut Lock Hex W/Wsh 3/8-16 uric

21 106933X Knob

22 130804 Rod, Brake

24 73350600 Nut, Hex Jam 3/8-16 uric

25 106888X Spring, Brake Rod

26 STD551037 Washer 13/32 x 13/!6 x 16 Ga.

27 STD561210 Pin Cotter 1/8 x 3/4 CAD.

28 175765 Rod, Parking Brake

29 71673 Cap, Parking Brake

30 174973 Bracket, Transaxle

32 74760512 Bolt Hex Hd 5/16-18 unc x 3/4

34 175578 Shaft, Foot Pedal

35 120183X Bearing, Nylon

36 19211616 Washer

37 1572H Pin, Roll

38 179114 Pulley, Composite, Flat

39 72110622 Bolt RDHD 3/8-16 unc x 2-3/4 Gr.5

41 175556 Keeper, Belt Idler

47 127783 Pulley, Idler, WGroove

48 154407 Bellcrank, Clutch

49 123205X Retainer, Belt

50 72110612 Bolt Hex Hd 3/8-16 x 1-1/2

51 STD54!437 Nut Crown!ock 3/8-16 uric

52 STD541431 Nut, Crownlock 5/16-18 uric

53 105710X Link, Clutch

55 105709X Spdng, Return, Clutch

56 17060620 Screw 3/8o16 x 1.04

57 160855 V-Belt

59 169691 Keeper, Center Span

61 17120614 Screw. 3/8-16 x .875

NOTE:

62 8883R Cover, Pedal

63 175410 Pulley, Engine

64 173937 Bolt Hex 7/16-20 x 4 Gr. 5-1.5

65 STD55! 143 Washer

66 154778 Keeper Belt Engine Hydro

69 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2 uric

70 134683 Keeper Belt Engine

74 109502X Spacer

75 121749X Washer 25/32 x 1-1/4 x 16 Ga.

76 STD581075 E-Ring

77 123583X Key, Square

78 121748X Washer 25/32 x 1-5/8 x 16 Ga.

79 2228M Key Woodruff

80 131488 Arm Shift

81 165594 Shaft Asm Cross Tapered

82 165711 Spring Torsion

83 19171216 Washer 17/32 x 3/4 x 16 Ga.

84 166229 Link Transaxle

85 150360 Nut Lock Center 1/4o20

89 188310X428 Console, Shift

96 4497H Retainer Spring I" Zinc/Cad

112 19091210 Washer 9/32 x 3/4 x 10 Ga.

113 127285X Strap Torque 90 Degrees

116 72140608 Bolt Rdhd Sqneck 3/8-16 x 1.25

120 73900600 Nut Lock Fig 3/8-16

150 175456 Spacer Retainer

151 19133210 Washer 13/32 x 2 x 10 Ga.

156 166002 Washer Srrted 5/161D x 1.125

158 165589 Bracket Shift Mount

159 183900 Hub Tapered Flange Shift Lt

161 72140406 Bolt Rdhd Sqnk 1/4o20 x 3/4 Gr 5

162 73680400 Nut Crownlock !/4-20 uric

163 74780416 Bolt Hex Fin 1/4o20 unc x 1 Gr 5

165 165623 Bracket Pivot Lever

166 17490510 Screw 5/16-18 x 5/8

168 165492 Bolt Shoulder 5/16-18 x .561

169 165580 Plate Fastening

170 187414 Keeper Belt T/A

197 169613 Nyliner Snap-In 5/8"1D

198 169593 Washer Nyl 7/8 ID x .105" Hyd

202 72110614 Bolt Carr Sh 3/8-16 x 1o3/4 Gr.5

212 145212 Nut Hex Fig. Lock

All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR --MODEL NUMBER 917.273396

STEERING ASSEMBLY

_4_

_ i 37

j.f" _ t

steering pl.lt 47

68 67

TRACTOR - - MODEL NUMBER 917.273396

STEERmNG ASSEMBLY

KEY PART

NO. NO. DESCRiPTiON

1 139768 Steering Wheel

2 184706 Axle Assembly

3 169840 Spindle Assembly, LH.

4 169839 Spindle Assembly, R.H.

5 6266H Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1o5/8 x 16 Ga.

8 12000029 Ring, Klip

10 175121 Draglink

11 STD551137 Washer, Lock

12 73940800 Nut Hex Jam Toplock 1/2-20 unf

13 136518 Spacer Brg Axle Front

15 145212 Nut, Hexflange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing, Link, Drag

28 19131416 Washer 13/32 x 7/8 x 16 Ga.

29 17000612 Screw 3/8-16 x 3/4

30 STD561210 Pin

32 130465 Rod, Tie

36 155099 Bushing, Steering

37 152927 Screw

38 139769 Insert, Steering Wheel

39 19183812 Washer 9/16 x 2-3/8

40 73540600 Nut Crown!ock 3/8-24

41 186737 Adaptor, Steering Wheel

42 145054x428 Boot, Steering Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Ga.

44 180640 Extension Shaft Steering

46 184946X505 Cap, Spindle Red

5! 73540400 Nut Crown!ock I/4o28

54 71130420 Bolt Hex 1/4o28 unfx 1-1/4 Gr. 8

65 160367 Spacer Brace Axle

67 72110618 Bolt Rdhd Sqnk 3/8-16 x 2-1/4

68 169827 Axle, Brace

7! 175146 Steering Asm

82 169835 Bracket Susp Chassis Front

87 173966 Washer Flat .78! x 1ol/2 x .14

88 175118 Bolt Shoulder 7/16-20

91 175553 Clip Steering

95 188967 Washer Hardened .793 x 1.637 x .060

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

ENGINE

TRACTOR - - MODEL NUMBER 917.273396

OPTIONAL EQUIPMENT

Spark Arrester

72 62

13 4

engine-bs.1 cyl 49

KEY PART

NO. NO.

1 170545

2 17720408

4 137352

13 165291

14 148456

23 169837

29 137180

31 187750

32 140527

33 123487X

37 137040

DESCRIPTMON

KEY PART

NO, NO, DESCRIPTION

Control, Throttle/Choke 38

Screw, Hex Head, Thread Cutting 40

1/4-20 x 1/2 44

Engine, Briggs Model No. 31P777-

0299-E1 (See Breakdown) 45

Muffler 46

Gasket 62

Tube Drain Oil Easy 72

Shield Brn/Dbr Guard 78

Arrestor, Spark 81

Tank, Fuel

Cap Assembly, Fue! Sears, Vented

Clamp, Hose

Line, Fue!

181654

124028X

17670412

17000612

19091416

10010500

71070512

17060620

73510400

Plug, Drain Oil Easy

Bushing Snap

Screw, Hex Washer Head, Thd.,

Roll. 1/4-20 x 3/4

Screw Hex Wsh Thdr 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga.

Washer Split

Screw Hex Hd Cap 5/16-18 x 3/4

Screw 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20 uric

NOTE: AI! component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273396

SEAT ASSEMBLY

seat_It.knob_9

"/ 21

KEY PART

NO. NO, DESCRIPTION

1 188716 Seat

2 180166 Bracket, Pivot, Seat

3 71110616 Bolt

4 19131610 Washer 13/32xlx10Ga,

5 145006 Clip, Push-In Hinged

6 STD541437 Nut

7 124181X Spring, Seat

8 17000616 Screw 3/8-16 x 1-1/2

9 19131614 Washer 13/32 x 1 x 14 Ga,

10 180186 Pan, Seat

11 166369 Knob Seat

12 121246X Bracket, Switch Mounting

KEY PART

NO, NO, DESCRiPTiON

13 121248X Bushing, Snap

14 72050412 Bolt, Carriage !/4-20 x 1-1/2

15 134300 Spacer, Split .28 x .88

16 121250X Spring

17 123976X Locknut, Flange 1/4 Gr. 5

21 171852 Bolt, Shoulder 5/16-18 unc

22 STD541431 Nut

24 19171912 Washer 17/32xl-3/16x12Ga.

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

DECALS TRACTOR - - MODEL NUMBER 917.273396

13 16

KEY PART

NO. NO.

KEY PART

DESCRIPTION NO. NO, DESCRMPTION

1 156368 Decal

3 184728 Decal

4 184729 Decal

5 190813 Decal

6 133644 Decal

7 184730 Decal

8 172331 Decal

9 184899 Decal

10 156439 Decal

11 179128 Decal

12 146046 Decal

Oper. Instr. 13 183827

Hood, R.H. 14 160396

Hood, L.H. 15 189100

Hood Replacement 16 138047

Customer Maintenance 20 149516

Hood Side o o 138311

Deck o o 184310X428

Fender, Craftsman o o 184311X428

Fender Danger o o 192713

Deck "B" 42" o o 192714

VoBelt Drive Schematic

Decal, Lower Dash

Decal, VoBelt Schematic

Decal, Engine

Decal, Battery Diehard

Decal, Battery Dngr/Psn Eng

Decal, Lift Handle

Pad, Footrest LH STLT

Pad, Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS & TIRES

4,10

KEY PART

NO, NO, DESCRMPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3 106222X Tire, Front

4 59904 Tube, Front Tire

(Not Provided, Service Item Only)

5 106732X624 Rim, Front

6 278H Fitting, Grease (Front Wheel Only)

7 9O4OH Bearing, Flange (Front Wheel

Only)

11 8 106108X624 Rim, Rear

9 106268X Tire, Rear

10 7152J Tube, Rear Tire

(Not Provided, Service Item Only)

11 104757X428 Cap, Axle

o o 144334 Sealant, Tire 10 oz.

NOTE: Al! component dimensions given in U.S.

inches 1 inch = 25.4 mm

LiFT ASSEMBLY TRACTOR - - MODEL NUMBER 917.273396

KEY

NO.

PART

NO,

159460

159471

105767X

12000002

19211621

120183X

125631X

122365X

139865

139866

STD624008

173288

KEY PART

DESCRiPTiON NO, NO,

Lift Lever Inner Wire Assembly 16 73350800

Shaft Assembly, Lift 17 175689

Pin, Groove 18 73800800

E-Ring

Washer 21/32 x 1 x 21 Ga. 19 139868

Bearing, Nylon 20 163552

Grip, Handle, Fluted 31 169865

Button, Plunger, Red 32 73540600

Link, Lift, LH.

Link, Lift, R.H.

Retainer Spring

Link, Front

DESCRIPTION

Nut, Hex, Jam 1/2-13 unc

Trunnion

Locknut, Hex, with Washer Insert

1/2-13 unc

Arm, Suspension, Rear

Retainer Spring

Bearing, Pvt, Lift

Nut, Crownlock 3/8-24

NOTE: Al! component dimensions given in U,S. inches

1 inch = 25.4 mm

TRACTOR ° ° MODEL NUMBER 917.273396

MOWER DECK

4__2 55

.146

142

_147

105"

101

102j_

105

103

106

19f 21

42 D man-t-path stlt 3

13_

10 _,

23 24

TRACTOR ° ° MODEL NUMBER 917.273396

MOWER DECK

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO. DESCRiPTiON

1 165892 Mower Deck Assembly, 42" 48 133944

2 STD533107 Bolt 52 139888

3 138017 Bracket Assembly, Sway Bar, Front 53 184907

4 165460 Bracket Sway Bar 38/42" eck 54 178515

5 STD624008 Retainer Spring 55 155046

6 178024 Bar Sway Deck 56 165723

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 59 141043

9 STD551137 Washer, Lock 67 149846

10 140296 Washer, Hardened 68 144959

(The following blades are avail 92 73800600

able) 101 136420

11 134149 Blade, Mulching 102 71081010

(For mulching mowers only) 103 19061216

- - 139775 Blade, 42" Mulching Premium 104 STD551110

(For better wear when mulching) 105 180793

- - 138971 Blade, 42" Hi-Lift 106 2029J

(For bagging or discharging) 129 19131312

13 137645 Shaft Assembly, Mandrel, Vented 130 STD523710

14 128774 Housing, Mandrel, Vented 131 STD533710

15 110485X Bearing, Ball, Mandrel 142 165890

16 174493 Stripper, Mower Deck 143 157109

18 72140505 Bolt, Carriage 5/16-18 x 5/8 144 158634

19 132827 Bolt, Shoulder 145 165888

20 159770 Baffle, Vortex 146 171977

21 STD54!431 Nut Crownlock 5/16-18 unc 147 131335

23 177563 Bracket, Deflector 148 169022

24 105304X Cap, Sleeve 149 165898

25 123713X Spring, Torsion, Deflector 150 19091210

26 110452X Nut, Push 152 169676

27 130968X428 Shield, Deflector 158 17720408

28 19111016 Washer 11/32x5/8x16Ga. 159 72140614

29 131491 Rod, Hinge 184 19131410

30 173984 Screw Thdrol DOD PT Hex 185 188234

31 187690 Washer, Spacer - - 130794

32 153535 Pulley, Mandrel

33 178342 Nut, Toplock, Flanged

34 72110612 Bolt Cam Sh. 3/8-16 x 1-1/2 Gr. 5 - - 169583

36 131494 Pulley, Idler, Flat

40 73900600 Nut Lock Fig. 3/8-16 unc

44 140088 Guard, Mandrel, LH.

45 STD824003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

Washer, Hardened

Bolt, Shoulder 5/16-18 unc

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Oval

WBelt

Nut Lock Hex w/Ins. 3/8-16

Mulcher Cover

Screw Pan Hd Phillips 10-24 x 5/8

Washer #10

Washer, Lock #10

Latch Assembly, Bagger

Nut, Weld

Washer 13/32 x 13/16 x12 Ga.

Bolt, Fin Hex 3/8-16 unc xl Gr. 5

Bolt, Rdhd Sqnk 3/8-18 unc x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Cable Clutch 42 In

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Washer 13/32 x 7/8 x 10 Ga.

Head Assy. Cable Clutch

Mandrel Assembly (Includes

housing, shaft and shaft hardware

only-pulley not included)

Replacement Mower, Complete

(Std. Deck-Order separately

mulcher cover components key

nos. 101-106)

NOTE: All component dimensions given in U,S.inches

1 inch = 25.4 mm

TRACTOR --MODEL NUMBER 9i7.273396

DANA TRANSAXLE - - MODEL NUMBER D4360-140

42 43*

TRACTOR - - MODEL NUMBER 917.273396

DANATRANSAXLE --MODEL NUMBER D4360-140

Key Part Key Part

No. No. Description No. No. Description

1 170981 Housing, Upper 40 120472X

2 2274J Screw, Tapping, 1/4-20 X .734 41 105928X

3 134400 Ball, Detent 42 170988

4 105904X Spring, Detent 43 134394

5 160940 Screw, Tapping, No. 10-24 X .482 44 120473X

6 138235 Assy, Kit, Shifter 45 142678

7 108727X V=Ring 46 143697

8 148266 Bearing, Flange 47 124641X

9 148269 Seal, Oi! 48 106589X

10 2225J Ring, Retaining 49 120408X

11 134793 *Assy, Kit, Shim, .625 Shaft 50 105937X

12 148268 Bearing, Flange 51 2226J

13 120415X Washer, Plain, .632 X 1.38 X .046 52 134401

14 142674 Key, Woodruff, No. 9 53 2264J

15 170983 Assy, Kit, Input Shaft 54 160946

16 170986 Pinion, Bevel, 12T 55 170990

17 105909X Ring, Retaining 56 160948

18 105910X Chain, 24 Pitches 57 110071X

19 160942 Cover, Detent 58 120952X

20 160943 Gear, Spur, 1 2T 59 170991

21 148267 Collar, Clutch 60 160950

22 138236 Assy, Kit, Clutch Keys 61 170992

23 73810500 Nut, Lock, 5/16-24 62 7294J

24 142676 Shaft, Intermediate 63 108989X

25 2244J Key, Woodruff, No. 61 64 160952

26 105916X Ring, Retaining 65 120954X

27 12047OX Sprocket, 1 8T 66 160953

28 110070X Spacer, 1. 131 X 1.45 X .494 67 138244

29 142677 Gear, Spur, 37T 68 108996X

30 142681 Gear, Spur, 35T 69 160954

31 124644X Gear, Spur, 30T 70 120951X

32 108980X Gear, Spur, 25T 71 174256

33 120406X Gear, Spur, 22T 72 120416X

34 134796 Gear, Spur, 19T

35 105925X Washer, Plain, .640 X 1.37 X .061

36 2228J Washer, Plain, .632 X 1.00 X .046

37 170987 Washer, Plain, .632 X 1.00 X .031

38 174255 Assy, Gear, Comb., 12T & 30T

39 124639X Shaft, Idler

Spacer, .633 X .87 X .755

Sprocket, 9T

Gear, Bevel, 36T

*Assy, Kit, Shim, .750 Shaft

Shaft Drive

Gear Spur, 12T

Gear Spur, 15T

Gear Spur, 20T

Gear Spur, 25T

Gear Spur, 28T

Gear Spur, 31T

Washer, Plain, .632 X 1.00 X .060

Washer, Neoprene

Washer, Plain, .758 X 1.25 X .031

Axle, LH

Gear, Miter, 1 2T, Splined

Ring, Retaining

Gear, Spur, 32T

Shaft, Cross

Gear, Miter, 1 2T, Idler

Axle, RH

Housing, Lower

Disc, Brake

Spacer, Brake Puck

Jaw, Brake

Pin, Dowel

Screw, Tapping, 5/16-18 X 2.35

Lever, Actuating

Washer, Plain, .321 X 1.00 X .055

Bracket, Anti-Rotation

Puck, Friction

Washer, Anti Rotation

Grease

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

* Use in various combinations to maintain proper

clearances.

** Order Key No. 15.

*** Silicone Sealant to be applied between Upper and

Lower Housings (use Loctite Ultra Gray Silicone

5699 or equivalent).

TRACTOR -- MODEL NUMBER 917.273396

BRIGGS ENGmNE-MODEL NUMBER 31 P777, TYPE NUMBER 0299-E1

I 1330 REPAIR MANUAL I

11329REPLACEMENTENGINEI

307

358 ENGINE GASKET SET

20@ 6170 1O22

51 (_ 6911_ 0

524 _ 8420 1266

718 !_

.Jl

691 @

43,_

146_

741

684!11_

584_ _'

1264'_

1270

7291

I 1019 LABEL KIT I

I 1058 OWNER'S MANUAL

11036EMISSION LABEL I

750 &

158

20 O 89

1027

TRACTOR -° MODEL NUMBER 917.273396

BRmGGS ENGmNE-MODEL NUMBER 31 P777, TYPE NUMBER 0299-E1

238

1022

616_

404 # 914

614 I_

1022

305A

643

54'_ 654

334 58_

1095 VALVE GASKET SET

617 01022

868 _)

525

789

8o1_

_544_

803 @ 310_

802 @

729

697 _

1005

363#

1070

1044_

1051&

TRACTOR -- MODEL NUMBER 917.273396

BRIGGS ENGmNE-MODEL NUMBER 31 P777, TYPE NUMBER 0299-E1

1091 J

127

947_

93_

105A l

1127 _

127A

276A @

947A [_

NIKKI J

1266 0

1266A O

%118

527(_ 977 CARBURETOR GASKET SET t

51_ 137 276_O_/

121 CARBURETOR OVERHAUL KIT

104 _ 1270

105 _ 137 0

106 _ 142_

117_

231_ 987L:_

276 @ 0

634_._ 1266

6170 1266A O

121A CARBURETOR OVERHAUL KIT

95A e'

127A O

104A 6/

10_A® o_

6170

634A _ 1266

997A _)

1266A _

TRACTOR -° MODEL NUMBER 917.273396

BRIGGS ENGINE-MODEL NUMBER 31 P777, TYPE NUMBER 0299-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 106 690577 O Seatqnlet

2 399265 Kit-Bushing/Seal (Magneto Side) 108 690464 Valve-Choke (Manual Choke)

3 391086 • Seal-Oil (Magneto Side) 108A 695419 Valve-Choke (Nikki)

4 697188 Sump-Engine 117 694352 O Jet-Main (Standard)

5 698147 Head-Cylinder 117A 699457 O Jet-Main (Standard) (Nikki)

7 699168 ,+ Gasket-Cylinder Head 118 697228 Jet-Main (High Altitude)

9 697109 • Gasket-Breather 118A 699458 Jet-Main (High Altitude) (Nikki)

11 697113 Tube-Breather 121 697241 Kit-Carburetor Overhaul

12 697110 • Gasket-Crankcase 121A 699521 Kit-CarburetorOverhaul (Nikki)

13 690360 Screw (Cylinder Head) 125 698445 Carburetor

15 690946 Plug-Oil Drain 125A Carburetor (For Complete

16 697127 Crankshaft Carburetor,

20 690947 • Seal-Oil (PTO Side) Service with 698445)

22 692125 Screw (Crankcase CoveffSump) 127 695005 Plug-Welch

23 693557 Flywheel 127A 690727 O Plug-Welch (Nikki)

24 222698 Key-Flywheel 130 691750 Valve-Throttle

25 699052 Piston Assembly (Standard) 130A 699500 Valve-Throttle (Nikki)

-- 699054 Piston Assembly 0020" Oversize) 131 494379 Kit-Throttle Shaft

26 699051 Ring Set (Standard) 131A 699501 Kit-Throttle Shaft (Nikki)

-- 697559 Ring Set (.020" Oversize) 133 494381 Float-Carburetor

27 698469 Lock-Piston Pin 133A 694914 Float-Carburetor (Nikki)

28 697099 Pin-Piston 135 698780 Tube-Fuel Transfer

29 697126 Rod-Connecting (Standard) 137 281165 05 Gasket-Float Bow!

-- 697263 Rod-Connecting (.020" Undersize) 137A 698781 _ Gasket-Float Bowl (Nikki)

32 692852 Screw (Connecting Rod) 141 495097 Kit-Choke Shaft (Manual Choke)

33 695760 Valve-Exhaust 141A 698778 Kit-Choke Shaft (Nikki)

34 695761 Valve-Intake 142 697140 O Nozzle-Carburetor

35 691279 Spring-Valve (Intake) 146 691639 Key-Timing

36 691279 Spring-Valve (Exhaust) 187 699331 Line-Fuel

37 697352 Guard-Flywheel 188 691693 Screw (Control Bracket)

40 690964 Retainer-Valve 192 691986 Adjuster-Rocker Arm

43 691968 Slinger-Governor/Oil 202 691841 Link-Mechanical Governor

45 690564 Tappet-Valve 209 692208 Spring-Governor

46 698492 Camshaft 216 691840 Link-Choke

48 697762 Short Block 222 694042 Bracket-Control

50 690193 Manifold-Intake 227 691374 Lever-Governor Control

51 692137 ,®$+ Gasketqntake 232 691842 Spring-Governor

53 690227 Stud (Carburetor) 238 691843 Cap-Valve

54 691148 Screw (Intake Manifold) 240 394358 Filter-Fue!

73 697133 Screen-Rotating 265 691024 Clamp-Casing

74 697897 Screw (Rotating Screen) 267 695134 Screw (Casing Clamp)

78 691003 Screw (Flywheel Guard) 276 692255 05 Washer-Sealing

89 690283 Plug-Oil 276A 695410 Washer-Sealing

93 690602 O Bushing-Throttle Shaft 304 699828 Housing-Blower

94 498030 Kitqdle Mixture 305 697102 Screw (Blower Housing)

94A 695425 Kitqdle Mixture (Nikki) 305A 697103 Screw (Blower Housing)

95 691636 Screw (Throttle Valve) 306 697107 Shield-Cylinder

95A 6907!8 O Screw (Throttle Valve (Nikki) 307 691003 Screw (Cylinder Shield)

98 495800 Kitqdle Speed 309 693551 Motor-Starter

98A 695408 Kitqdle Speed (Nikki)

104 690525 O PimFIoat Hinge included in Engine Gasket Set, Key. No. 358

104A 694918 O PimFIoat Hinge (Nikki) _ included in Carburetor Overhaul Kit, Key. No.

105 231855 _ Valve-F!oat Needle 121

105A 696136 O Valve-Float Needle (Nikki) $ included in Carburetor Gasket Set, Key. No.

977

+ Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.273396

BRIGGS ENGINE-MODEL NUMBER 31 P777, TYPE NUMBER 0299-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

310 690323 Bolt (Starter Motor) 851 692424

311 497608 Brush Set 868 690968

333 495859 Armature-Magneto 914 691108

334 691061 Screw (Magneto Armature) 943 690589

337 691043 Plug-Spark 947 694393

358 697191 Gasket Set-Engine 947A 695423

363 19203 Flywheel Puller 950 691657

383 89838 Wrench-Spark Plug 965 499613

404 691691 Washer (Governor Crank) 967 697015

431 697122 EIbowqntake 968 699848

445 698083 Filter-Air Cleaner Cartridge 975 495933

462 691261 Washer (Starter Cable) 975A 699502

474 696459 Alternator 977 690192

503 691532 Strap-Starter 987 691326

505 691251 Nut (Governor Control Lever) 987A 698777

510 693699 Drive-Starter 1005 699043

513 692024 Clutch-Drive 1017 690770

523 697086 Dipstick 1019 698814

524 691032 • SeaI-DipstickTube 1022 272475

525 697184 Tube-Dipstick 1023 692492

527 698467 Clamp-Tube 1024 499054

544 692034 Starter-Armature 1026 692003

552 697144 Bushing-Governor Crank .... 692011

559 693675 Screw (Remote Choke Stop) 1027 492932

562 691119 Bolt (Governor Control Lever) 1029 691751

579 691029 Nut (Starter Cable) 1034 690822

584 697112 Cover-Breather Passage 1035 693784

601 95162 Clamp-Hose 1036 695700

614 691620 Pin-Cotter 1040 699852

616 692012 Crank-Governor 1044 698139

617 692138 O • SeaI-O Ring (Intake Manifold) 1051 691265

634 690801 O Spring/Seal Assembly (Manual 1058 275038

Choke) 1059 698516

634A 698779 O Spring/Seal Assembly (Nikki) 1070 690372

635 691909 Boot-Spark Plug 1090 691293

643 698401 Retainer-Air Filter 1091 691333

654 690958 Nut (Carburetor) 1095 690190

684 697157 Screw (Breather Passage Cover) 1119 691183

691 692407 • Seal-Governor Shaft 1127 695407

692 690572 Spring-Detent 1263 697124

697 690372 Screw (Drive Cap) 1264 697104

718 690959 Pin-Locating 1266 691917

729 691224 Clip-Wire 1266A 697123

741 697128 Gear-Timing 1267 697424

750 691033 Screw (Oil Pump Cover) 1270 697156

757 697607 Link-Counterweight 1329

758 697134 Countep, t_eight 1330

759 697392 Pin-CounteP,^/eight

783 693713 Gear-Pinion

789 698329 Harness-Wiring

797 693167 Nut (Brush Retainer)

801 691283 Cap-Drive +

802 691286 Cap-End

803 693757 Housing-Starter

830 691095 Stud (Rocker Arm)

842 691031 • SeaI-O Ring (Dipstick Tube)

847 697611 Dipstick/Tube Assembly

Terminal-Spark Plug

*+ Seal-Valve

Screw (Rocker Cover)

*SeaI-O Ring (Oil Pump Cover)

Solenoid-Fuel

Solenoid-Fuel (Nikki)

Screw (Float Bowl)

Cover-Oil Pump

Filter-Pre Cleaner

Cover-Air Cleaner

Bowl-Float

Bowl-Float (Nikki)

Gasket Set-Carburetor

O Seal-Throttle Shaft

O Seal-Throttle Shaft (Nikki)

Fan-Flywhee!

Screen-Oi! Pump

Kit-Labe!

*+ Gasket-Rocker Cover

Cover-Rocker Arm

Pump-Oil

Rod-Push (Intake)

Rod-Push (Exhaust)

Filter-Oil

Arm-Rocker

Guide-Push Rod

Shaft-Pump

Label-Emission

Plate-Trim

Screw (Flywheel)

Ring-Retaining

Owner's Manual

Kit-Screw/Washer

Screw (Flywheel Fan)

Retainer-Brush

Cap-Limiter

Gasket Set-Valve

Screw (Alternator)

Screw-Float Bow!

Reed-Breather

Screw (Breather Reed)

.O SeaI-O Ring (Intake Elbow)

O SeaI-O Ring (Intake Elbow)

Latch-Blower Housing

Plug-AVS CounteP,,veight

31Q777-0036 Replacement Engine

272147 Repair Manual

Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No. 121

Included in Carburetor Gasket Set, Key'. No. 977

Included in Valve Gasket Set, Key'. No. 1095

NOTE: All component dimensions given in U,S. inches

1 inch = 25,4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_ ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

t, Fold this page along dotted line indicated above_

2. Hold page before you so that its Jeft edge is vertically paraitei to a tree

trunk or other upright structure.

3, Sight across the fold in the direction of hill s}ope you want to measure,

4. Compare the angle of the fold with the stope of the hill

!_i_!JJJJJJJJJJJJJJJJiii_i

_iiiiiiiiiiiiiiiiiii_i

iiiiiiiiiiiiiiiiiiii

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR SM

(1-888-784-6427)

Au Canada pour service en fran(_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

® Registered Trademark /TMTrademark /SM Service Mark of Sears, Roebuck and Co.

® Marca Registrada /TMMarca de Fabrica /SM Marca de Servicio de Sears, Roebuck and Co.

MC Marque de commerce /MD Marque depos6e de Sears, Roebuck and Co.

192713 Rev. 2 6.11.04 MH Printed in U.S.A.

Craftsman 917273396 User Manual LAWN TRACTOR Manuals And Guides L0406181

CRAFTSMAN Lawn, Tractor Manual L0406181 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
