Owner's Manual

JCRIIFTSMIIN°J

LAWN TRACTOR

20.0 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.273482

[_ This product has a low emission engine which operates I

differently from previously built engines. Before you start the I

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

Warranty ................................................ 2 Maintenance Schedule ........................ 18

Safety Rules .......................................... 3 Service and Adjustments ..................... 22

Product Specifications ........................... 6 Storage ................................................ 29

Assembly/P re-Operation ....................... 8 Troubleshooting ................................... 30

Operation ............................................. 11 Repair Parts ......................................... 34

Maintenance ....................................... 18 Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

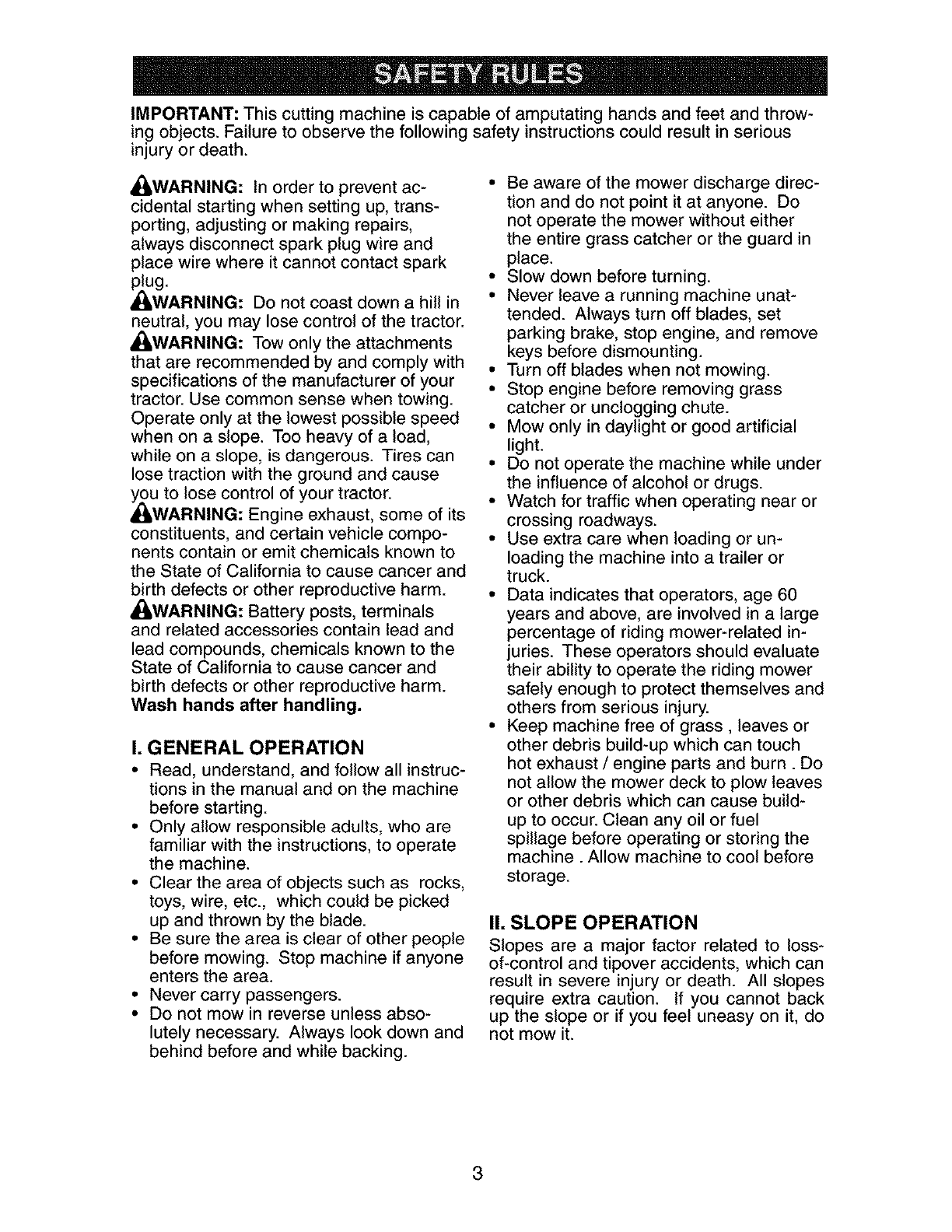

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

A(_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_;_WARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

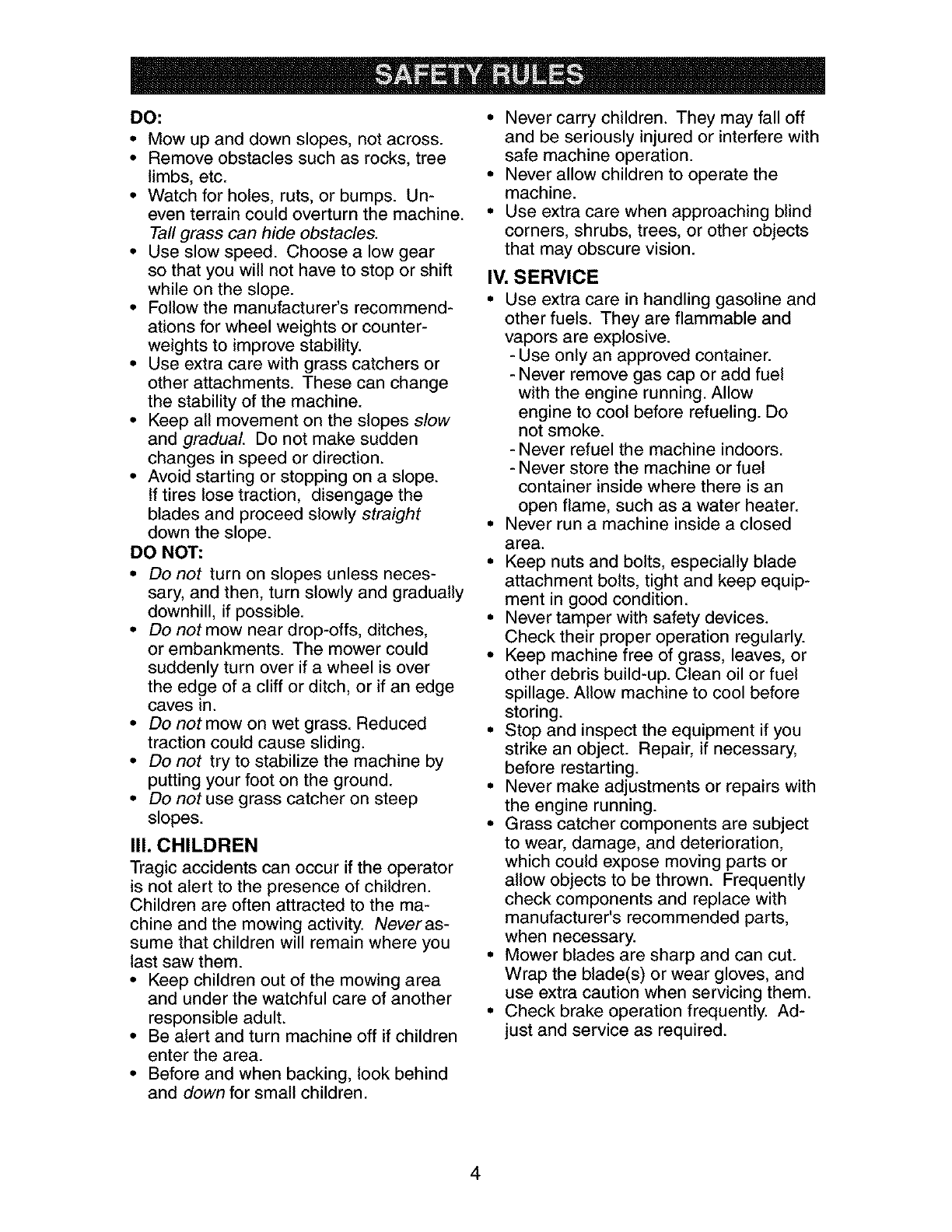

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope.

If tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

•Do notmow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do notuse grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

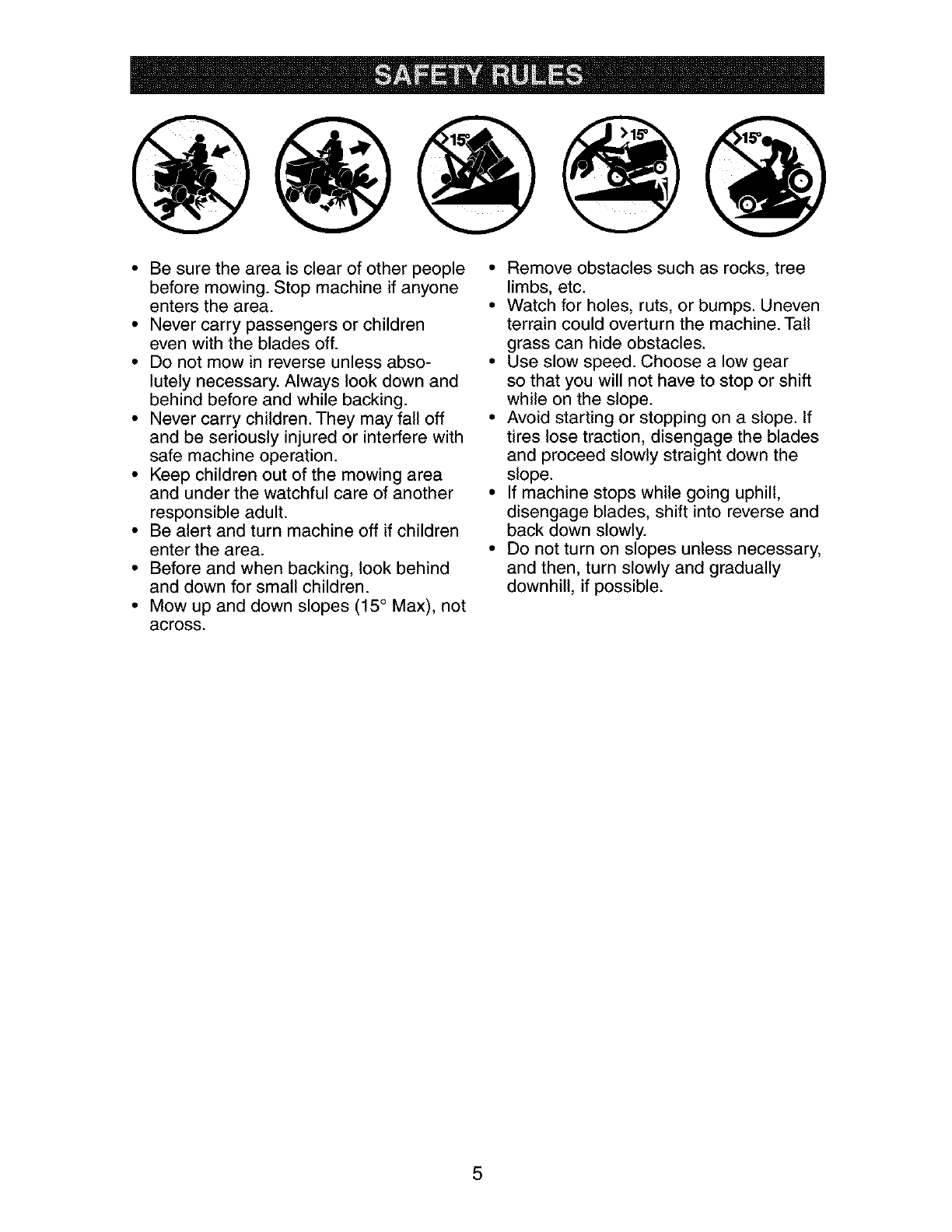

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

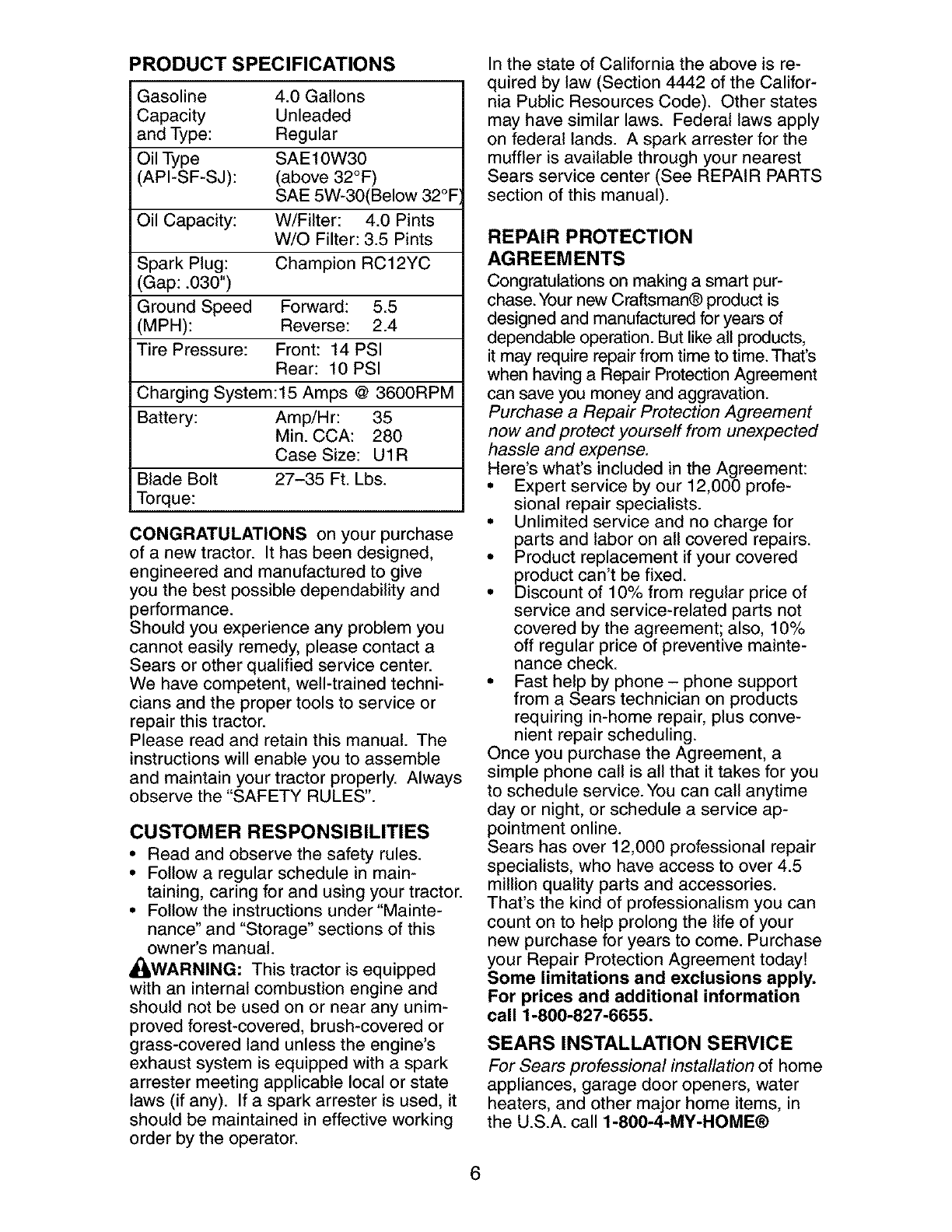

PRODUCT SPECIFICATIONS

Gasoline

Capacity

and Type:

Oil Type

API-SF-SJ):

4.0 Gallons

Unleaded

Regular

SAE10W30

(above 32°F)

SAE 5W-30(Below 32°F

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.5 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System:15 Amps @ 3600RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

(1)

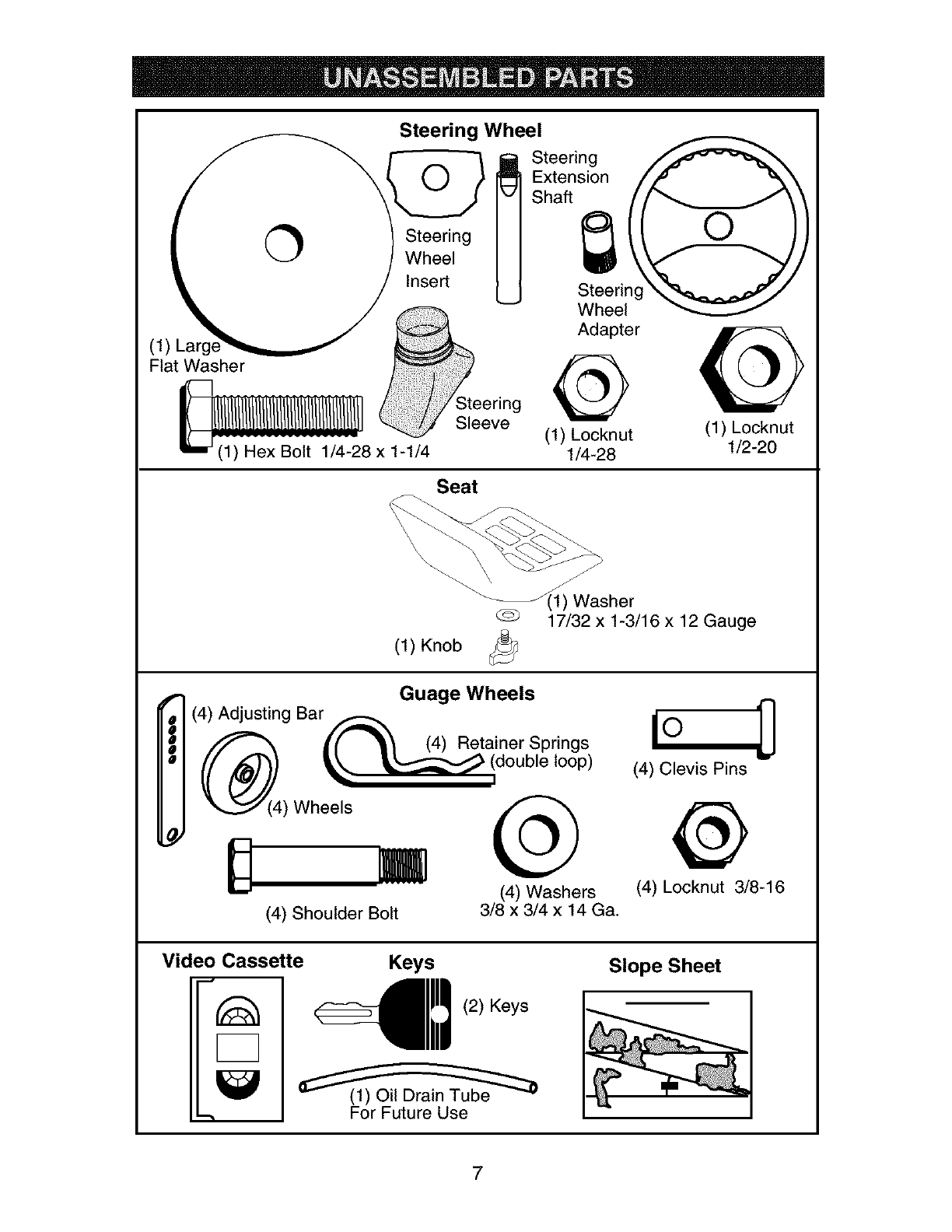

Flat Washer

ering

L__ll_!(1) H_!_18 eve

Steering Wheel

Steering

Extension //o _\

O WheelSteering Shaft __._

Insert Steering _"_._J

Wheel_

Adapter

(1) kecknut (1) kecknut

1/4-28 1/2-20

Seat

(1) Knob

"_1 ) Washer

@ 17/32 x 1-3/16 x 12 Gauge

I (4) Adjusting Bar_ Guage Wheels

i _ _'(" _ (4) RetainerSprings IO ]_]

((_'_) __.double loop, (4, Clevis Pins

_(4) Wheels _ @

(4) Washers (4) Lecknut 3/8-16

(4) Shoulder Belt 3/8 x 3/4 x 14 Ga.

Video Cassette Keys

"-t For Future Use

Slope Sheet

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

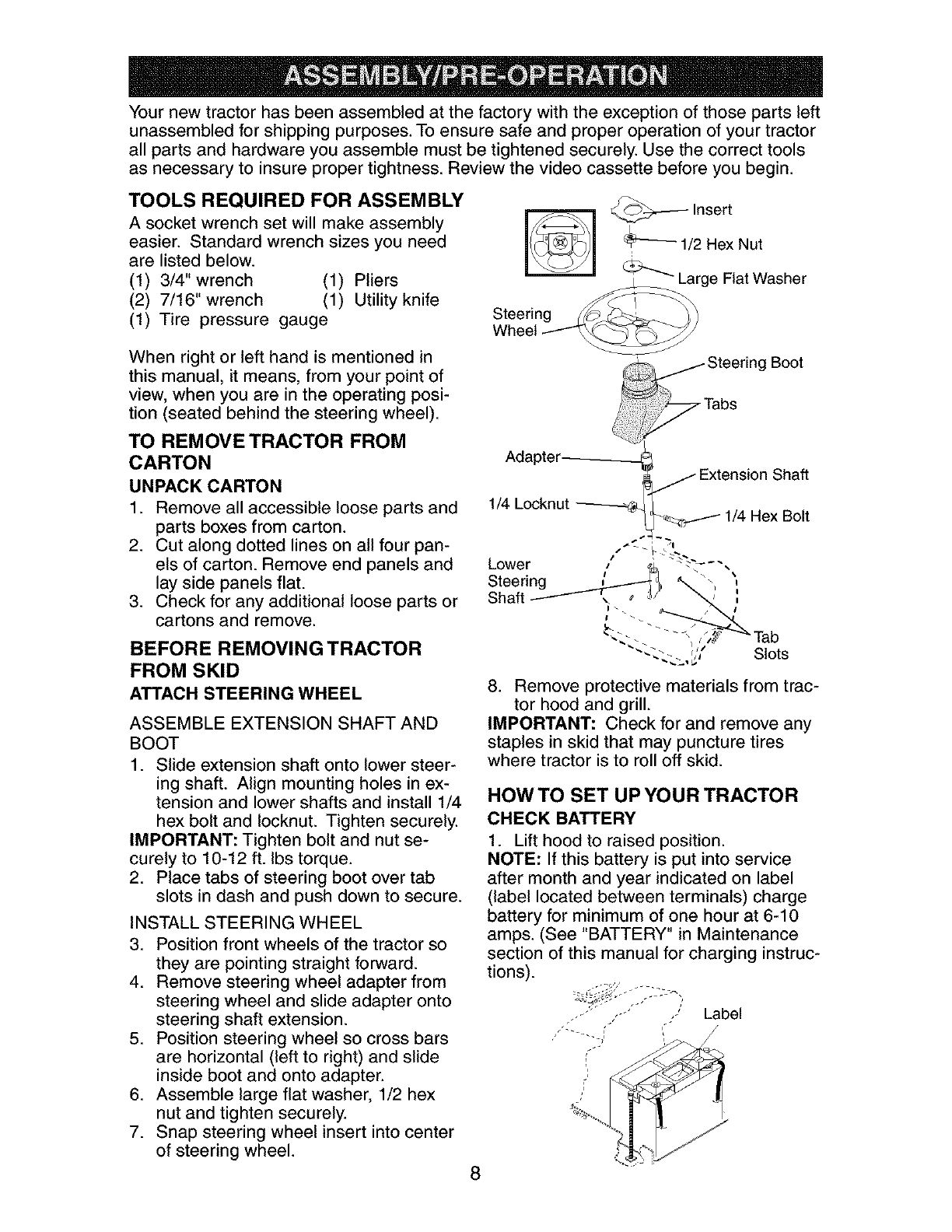

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4"wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

Adapter-------__

1/4 Locknut

_ Steering Boot

Tabs

j Extension Shaft

1/4 Hex Bolt

Slots

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOWTO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Label

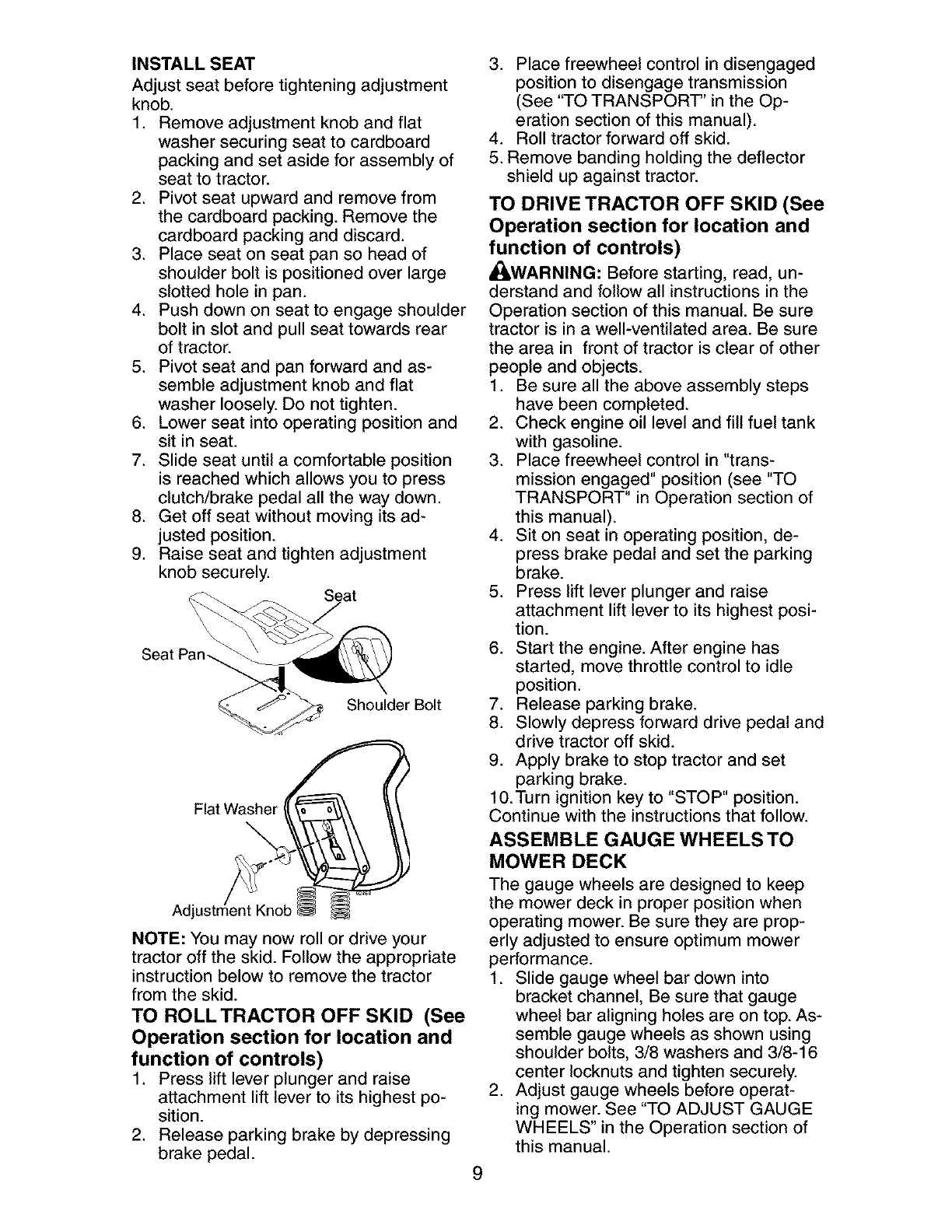

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Shoulder Bolt

Flat Washer

Adjl Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

brake pedal. 9

3. Place freewheel control in disengaged

position to disengage transmission

(See "TO TRANSPORT" in the Op-

eration section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding the deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position (see "TO

TRANSPORT" in Operation section of

this manual).

4. Sit on seat in operating position, de-

press brake pedal and set the parking

brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly depress forward drive pedal and

drive tractor off skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

ASSEMBLE GAUGE WHEELS TO

MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower. Be sure they are prop-

erly adjusted to ensure optimum mower

performance.

1. Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top. As-

semble gauge wheels as shown using

shoulder bolts, 3/8 washers and 3/8-16

center Iocknuts and tighten securely.

2. Adjust gauge wheels before operat-

ing mower. See "TO ADJUST GAUGE

WHEELS" in the Operation section of

this manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Plate

AI_CAUTION: Do not remove deflector

shield from mower.

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

v"CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

•/All assembly instructions have been

completed.

•/No remaining loose parts in carton.

•/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

•/Seat is adjusted comfortably and tight-

ened securely.

•/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

•/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

•/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

•/Check wiring. See that all connections

are still secure and wires are properly

clamped.

•/Before driving tractor, be sure freewheel

control is in '"transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

•/Engine oil is at proper level.

•/Fuel tank is filled with fresh, clean, reg-

ular unleaded gasoline.

•/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

•/Be sure brake system is in safe oper-

ating condition.

•/It is important to purge the transmission

before operating your tractor for the first

time. Follow.proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

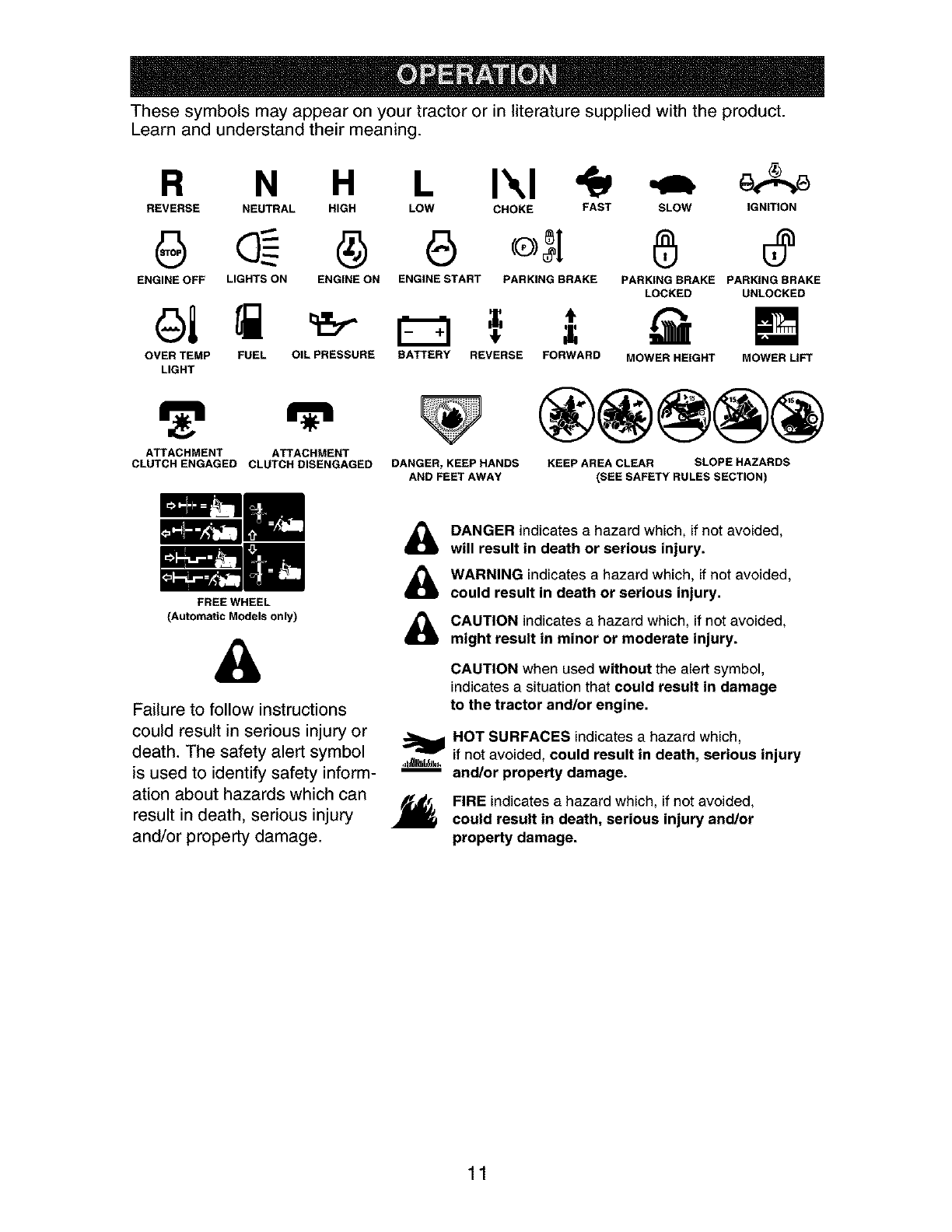

Thesesymbols mayappearon yourtractor or in literaturesuppliedwiththe product.

Learnand understandtheir meaning.

R N H L I\1

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury J_

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicatesa hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Light Switch

Position

Attachment Ignition Lift Lever

Clutch Lever Switch Plunger

Attachment

Throttle/Choke Control

Brake

Pedal

Drive Pedal

Height

Adjustment

'Indicator

Free Wheel

Control Parking Brake Lever

02730 1

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER -Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER -Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

BRAKE PEDAL -Used for braking the

tractor and starting the engine.

FORWARD DRIVE PEDAL - Used for forward

movement of tractor.

REVERSE DRIVE PEDAL - Used for reverse

movement of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION -Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks brake

pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controling engine speed.

FREEWHEEL CONTROL - Disengagages

transmission for pushing or slowly towing

the tractor with the engine off.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectacles.

HOWTO USE YOUR TRACTOR

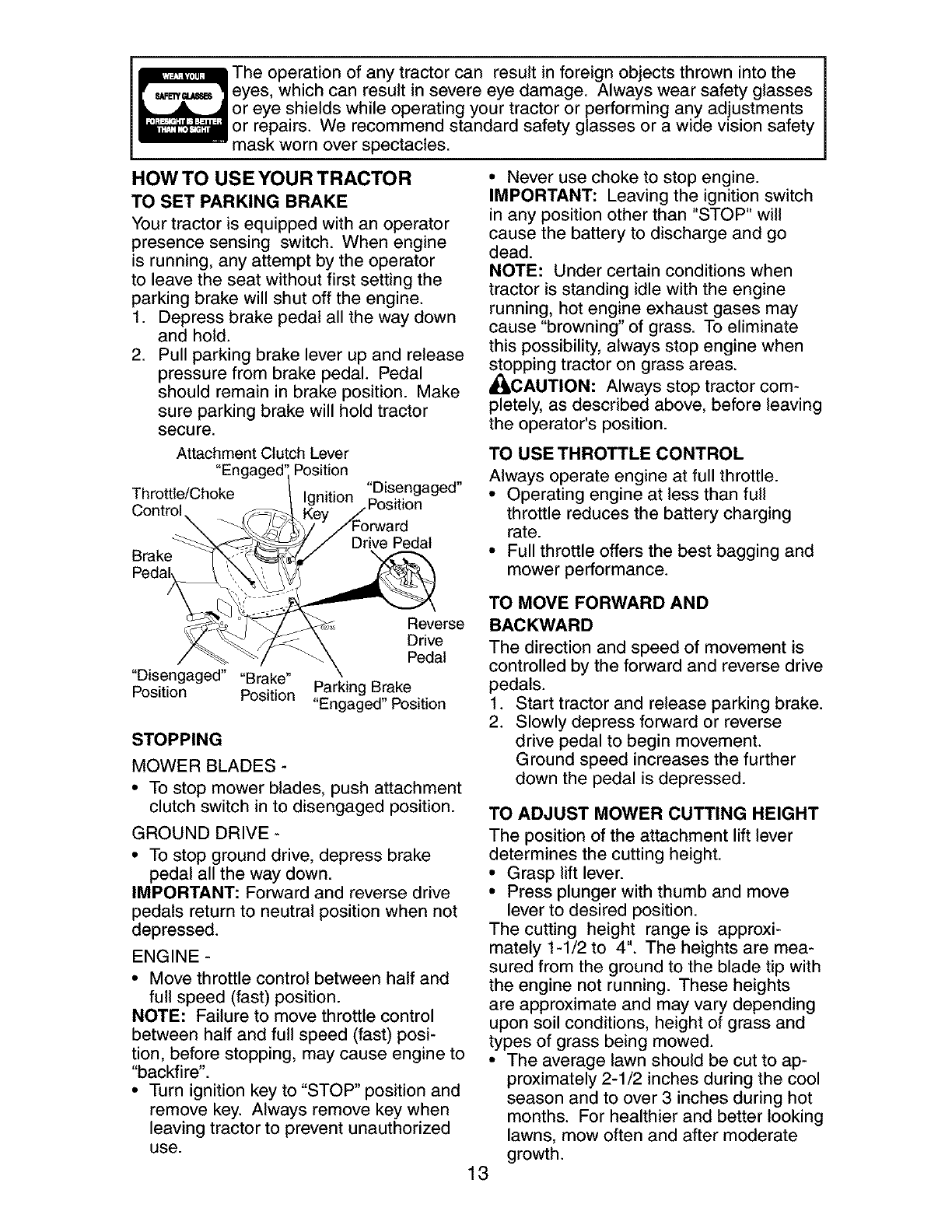

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal all the way down

and hold.

2. Pull parking brake lever up and release

pressure from brake pedal. Pedal

should remain in brake position. Make

sure parking brake will hold tractor

secu re.

Attachment Clutch Lever

Position

Throttle/Choke Ignition

Control

"Disengaged"

Brake Drive Pedal

,, Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CAUTION.- Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

"Disengaged" "Brake"

Position Position

Reverse

Drive

Pedal

Parking Brake

"Engaged" Position

STOPPING

MOWER BLADES -

• To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress brake

pedal all the way down.

IMPORTANT: Forward and reverse drive

pedals return to neutral position when not

depressed.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the forward and reverse drive

pedals.

1. Start tractor and release parking brake.

2. Slowly depress forward or reverse

drive pedal to begin movement.

Ground speed increases the further

down the pedal is depressed.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

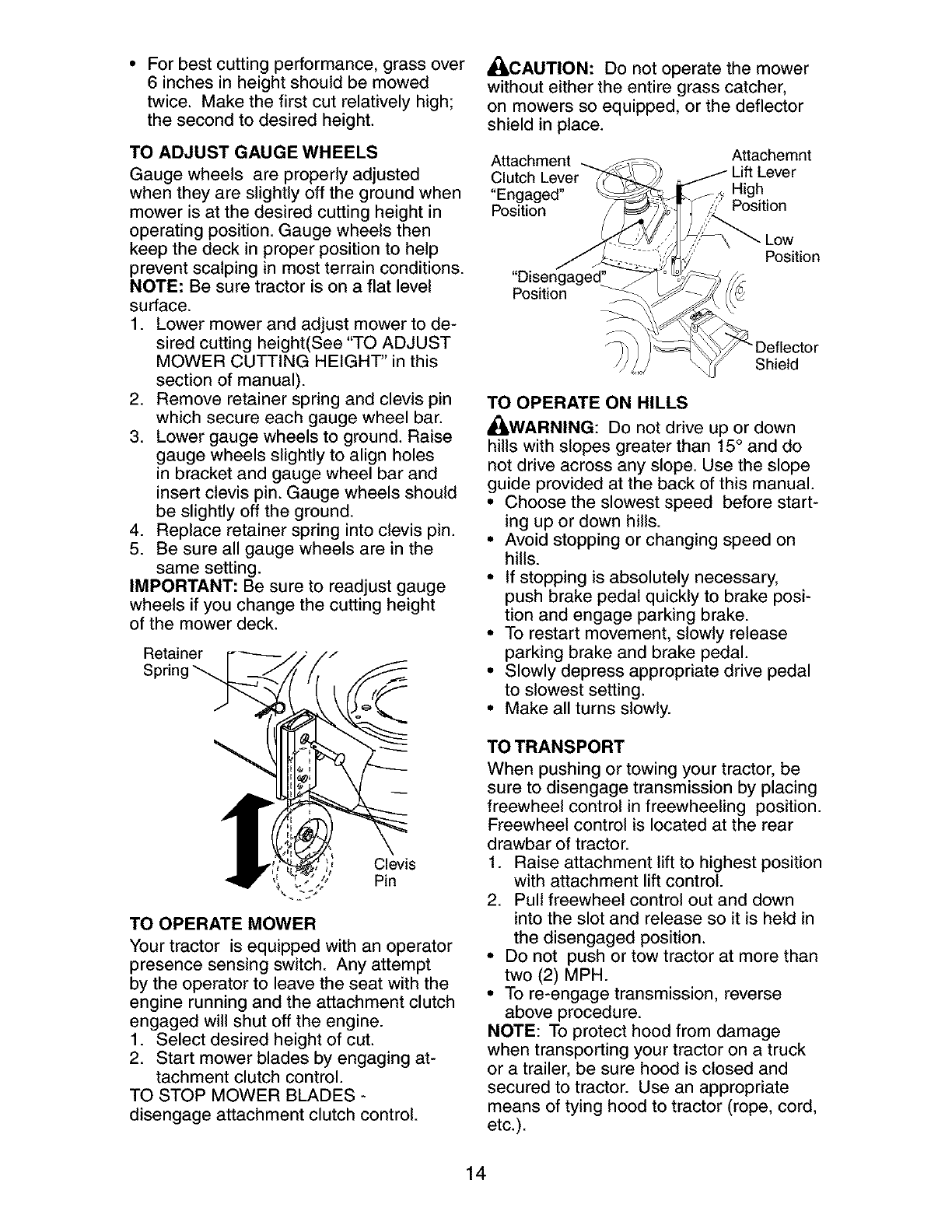

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to de-

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT' in this

section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

A(_CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Attachemnt

Lever

"Engaged" High

Position Position

"Disengaged__

Position

Shield

TO OPERATE ON HILLS

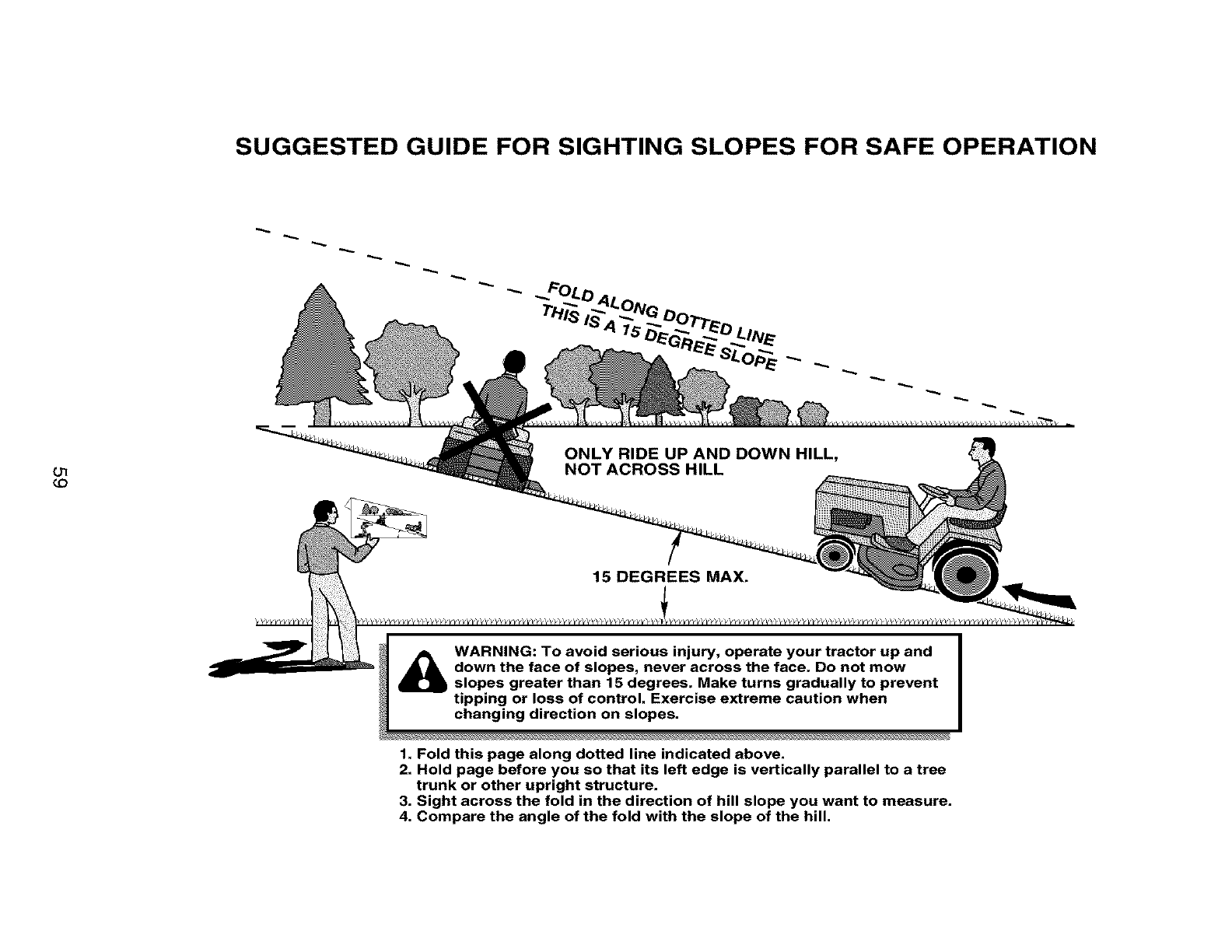

A(_WARNING: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide provided at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If stopping is absolutely necessary,

push brake pedal quickly to brake posi-

tion and engage parking brake.

• To restart movement, slowly release

parking brake and brake pedal.

• Slowly depress appropriate drive pedal

to slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

Transmission Engaged

Transmission Disengaged

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

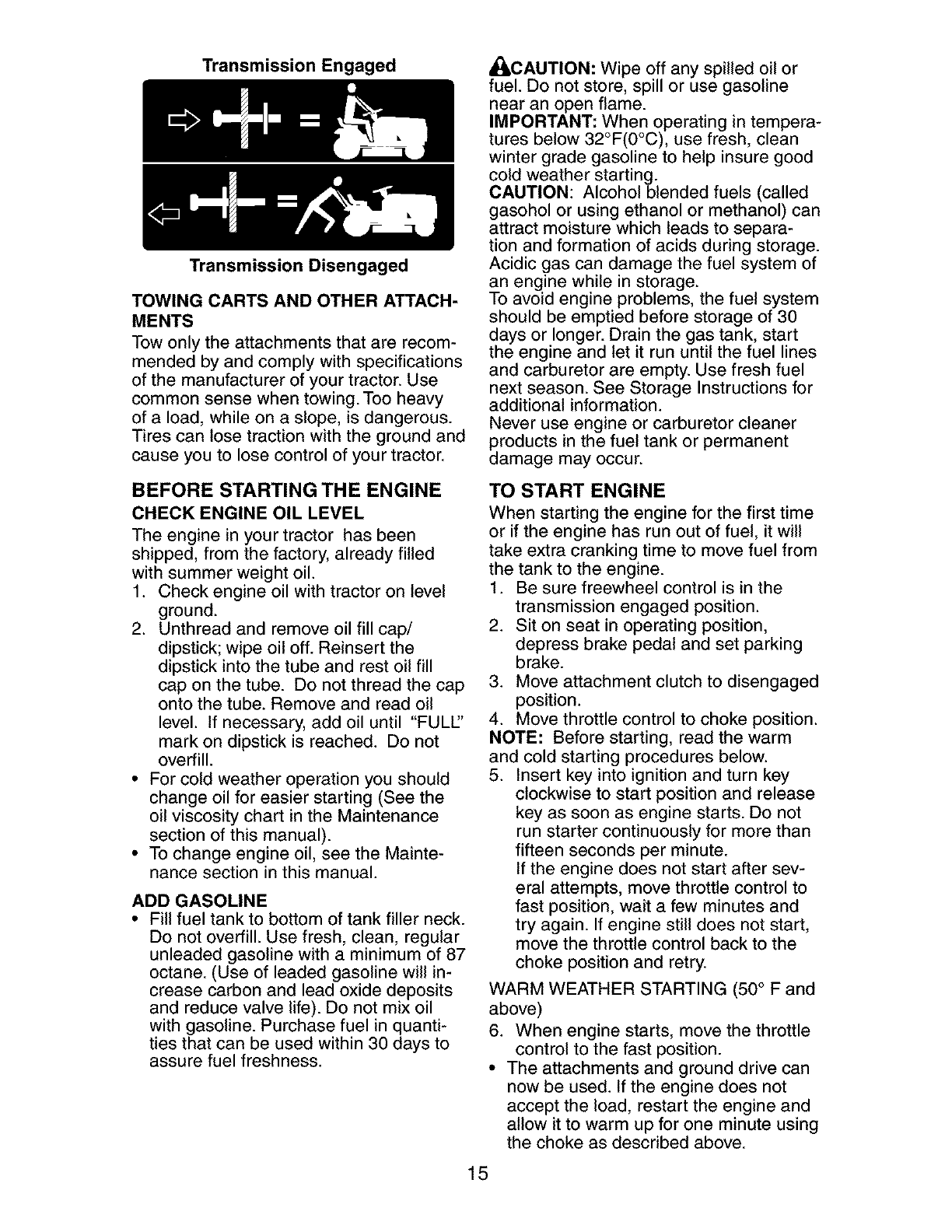

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the cap

onto the tube. Remove and read oil

level. If necessary, add oil until "FULL'

mark on dipstick is reached. Do not

overfill.

•For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. (Use of leaded gasoline will in-

crease carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system of

an engine while in storage.

To avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

5. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not

run starter continuously for more than

fifteen seconds per minute.

If the engine does not start after sev-

eral attempts, move throttle control to

fast position, wait a few minutes and

try again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

•The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

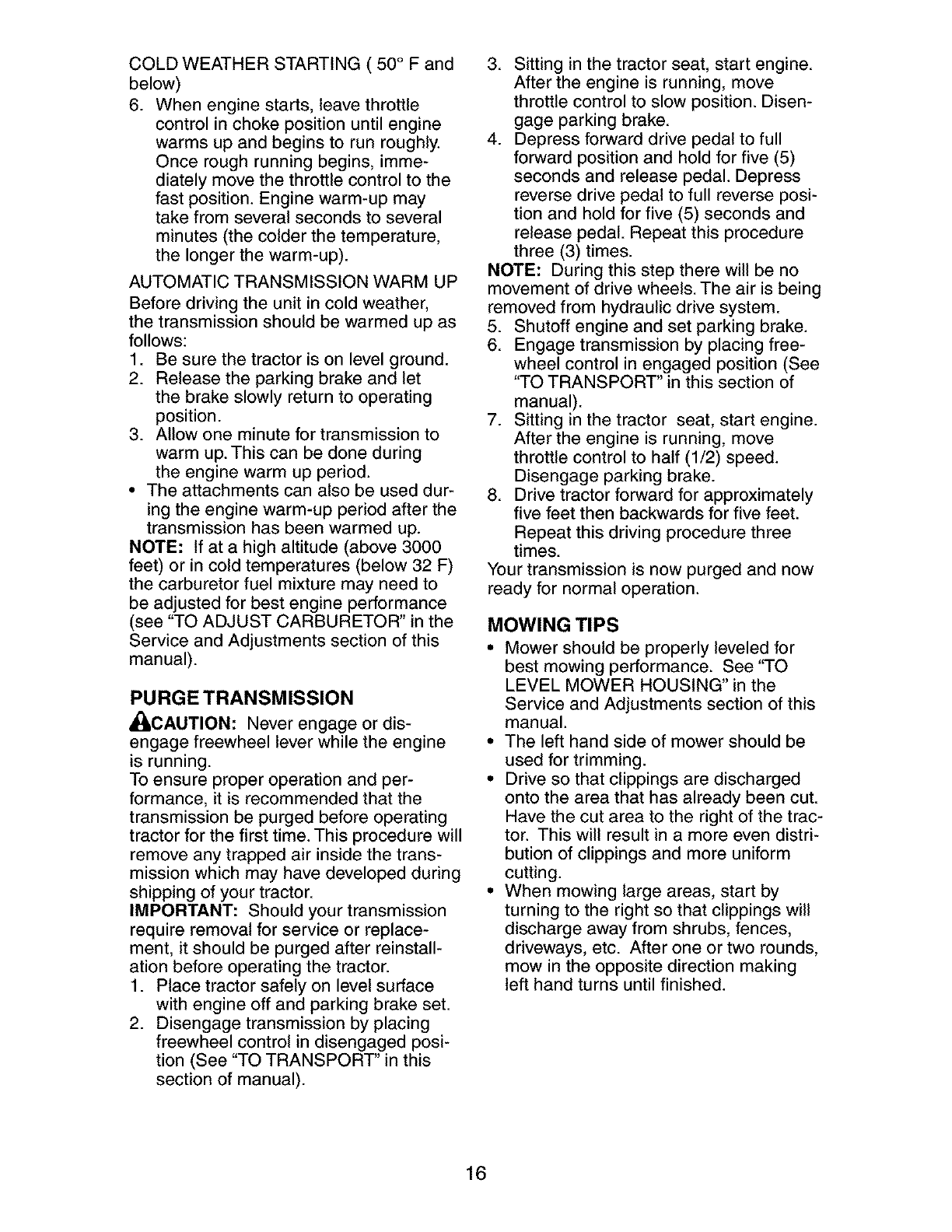

COLD WEATHER STARTING ( 50° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Release the parking brake and let

the brake slowly return to operating

position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

• The attachments can also be used dur-

ing the engine warm-up period after the

transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

PURGE TRANSMISSION

_CAUTION: Never engage or dis-

engage freewheel lever while the engine

is running.

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in disengaged posi-

tion (See "TO TRANSPORT' in this

section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. Disen-

gage parking brake.

4. Depress forward drive pedal to full

forward position and hold for five (5)

seconds and release pedal. Depress

reverse drive pedal to full reverse posi-

tion and hold for five (5) seconds and

release pedal. Repeat this procedure

three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is being

removed from hydraulic drive system.

5. Shutoff engine and set parking brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

"TO TRANSPORT" in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

Disengage parking brake.

8. Drive tractor forward for approximately

five feet then backwards for five feet.

Repeat this driving procedure three

times.

Your transmission is now purged and now

ready for normal operation.

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been cut.

Have the cut area to the right of the trac-

tor. This will result in a more even distri-

bution of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

00272

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

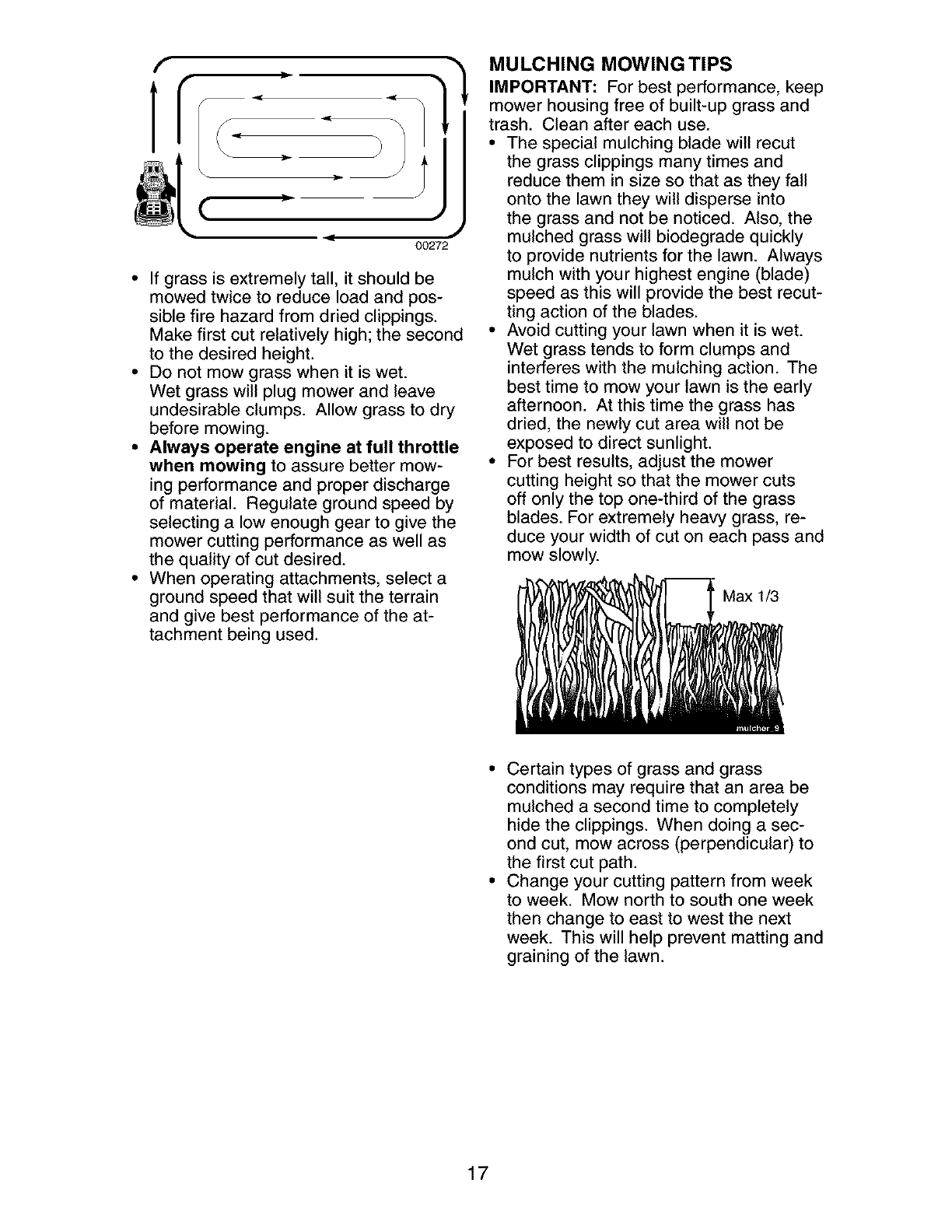

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

Max 1/3

• Certain types of grass and grass

conditions may require that an area be

mu_ched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

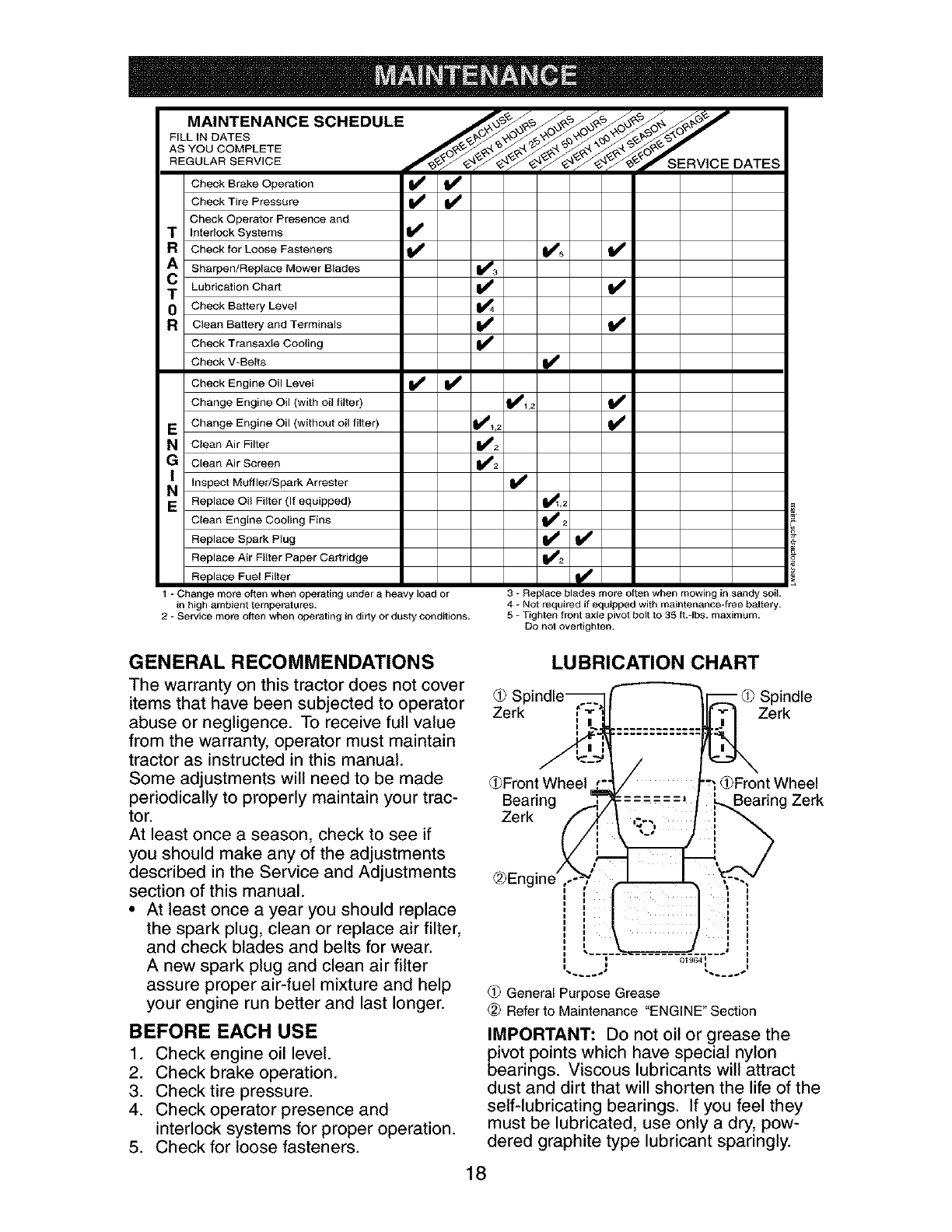

MAINTENANCE SCHEDULE _,_ _-_ ,_,_ _ _-_. ,_

AS YOU COMPLETE

REGULARSERV,OE DATES

Check Brake Operation _1_

Check Tire Pressure

Check Operator Presence and

TInterlock Systems I_

RCheck for Loose Fasteners I_ 1_5 I_'

Sharpen/Replace Mower Blades _3

TLubrication Chart

0Check Battery Level 1_4

RClean Battery and Terminals _, t_

Check Transaxle Cooling

Check V-Belts I_

Check Engine Oil Level I1_ I_

Change Engine Oil (with oil filter) I1_1,_ ql_

EChange Engine Oil (without oil filter) 1_,2

NClean Air Filter _1_:

Clean Air Screen

NI Inspect Muffler/Spark ii

Arrester

EReplaceOilFilter(Ifequipped) _i

Clean Engine Cooling Fins

Replace Spark Plug _ t_'

Replace Air Filter Paper Cartridge

Fuel Filter if

Replace lr

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Se _'ice more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soiL

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot holt to 35 ft.qbs, maximum.

DO not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your trac-

tor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

(9 Spindle-- t-z,.-,

Zerk i _"-'

_)Front Wheel :-'

Bearing _,_

Zerk _,j_

_Engine',.-_-, '

I ,'

i I

I I

i I

I I

i I

I • ....

/j "I _Front Wheel

:======' / ,_earing Zerk

",'.) i

@ General Purpose Grease

Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

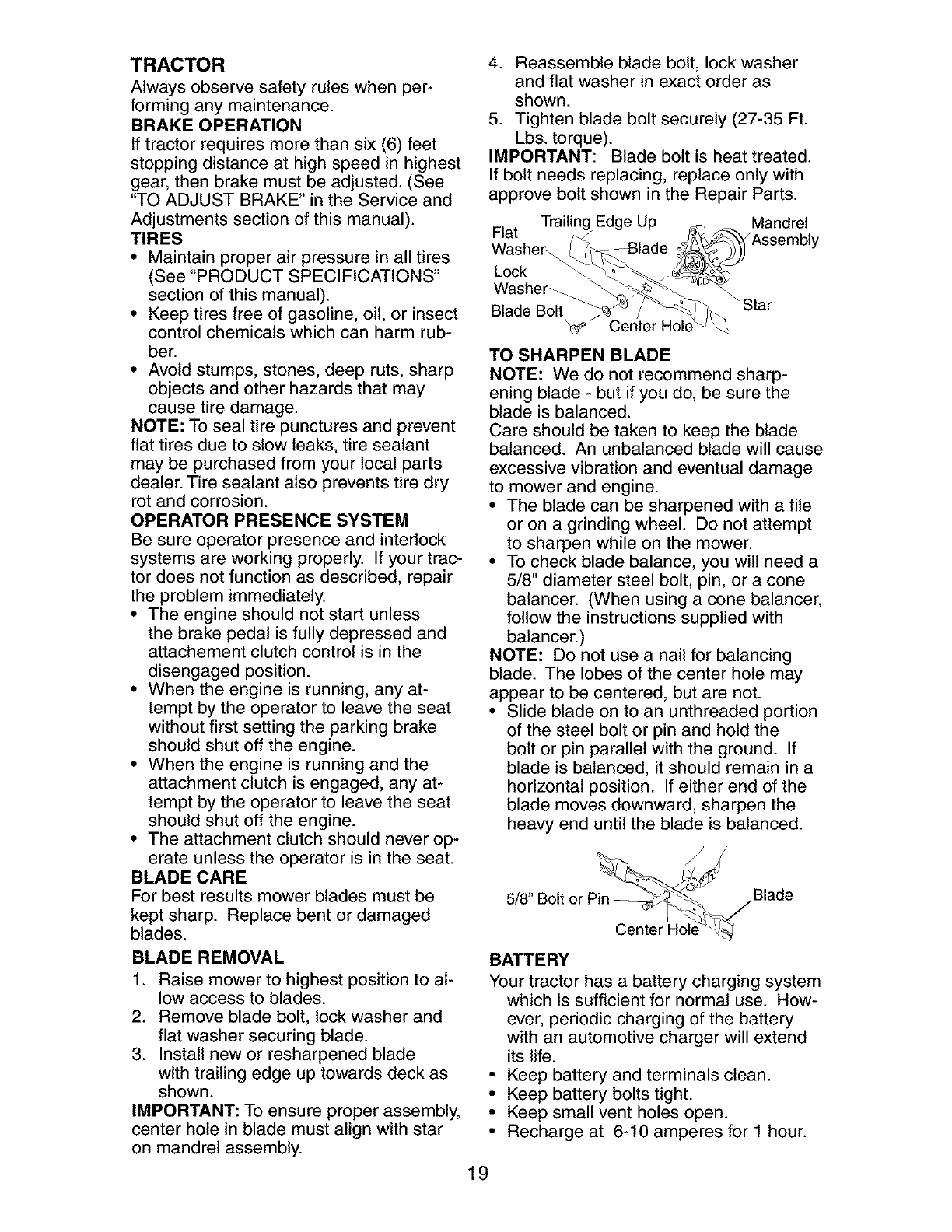

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Flat TrailingFEdge Up

Washer-. --Blade

Mandrel

Lock

Washer-__

Blade Bolt _ Center Hole

_Star

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt or

Center

Blade

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery

with an automotive charger will extend

its life.

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes open.

•Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

• Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

a Sears or other qualified service center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ. Se-

lect the oil's SAE viscosity grade accord-

ing to your expected operating tempera-

ture. 20

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed and ,_"[" _

Locked I

Yellow Cap _ _'" " Drain

Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into

the tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULl" line on dipstick. Tighten cap

onto the tube securely when finished.

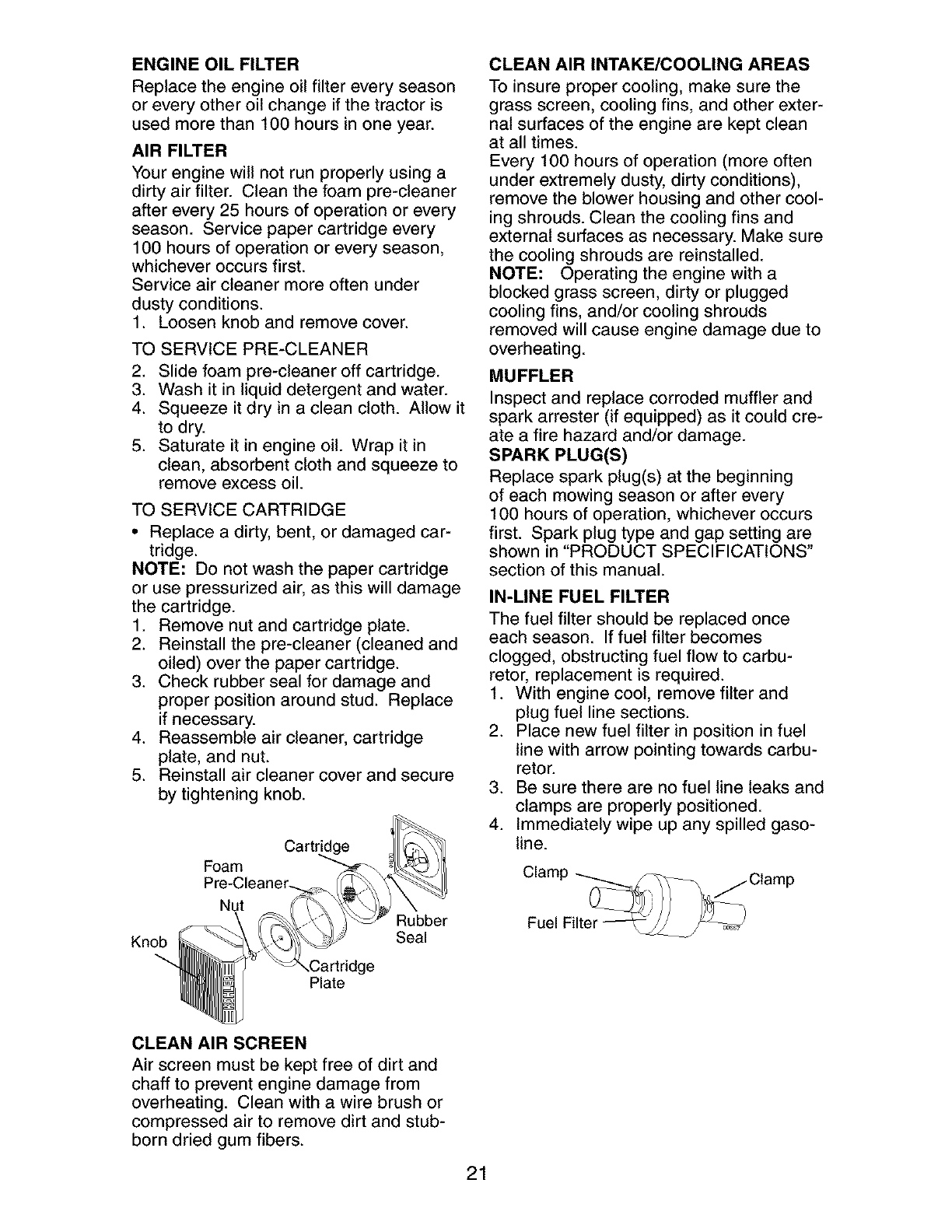

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow it

to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

•Replace a dirty, bent, or damaged car-

tridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will damage

the cartridge.

1. Remove nut and cartridge plate.

2. Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

3. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

4. Reassemble air cleaner, cartridge

plate, and nut.

5. Reinstall air cleaner cover and secure

by tightening knob.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean

at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other cool-

ing shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due to

overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clamp

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

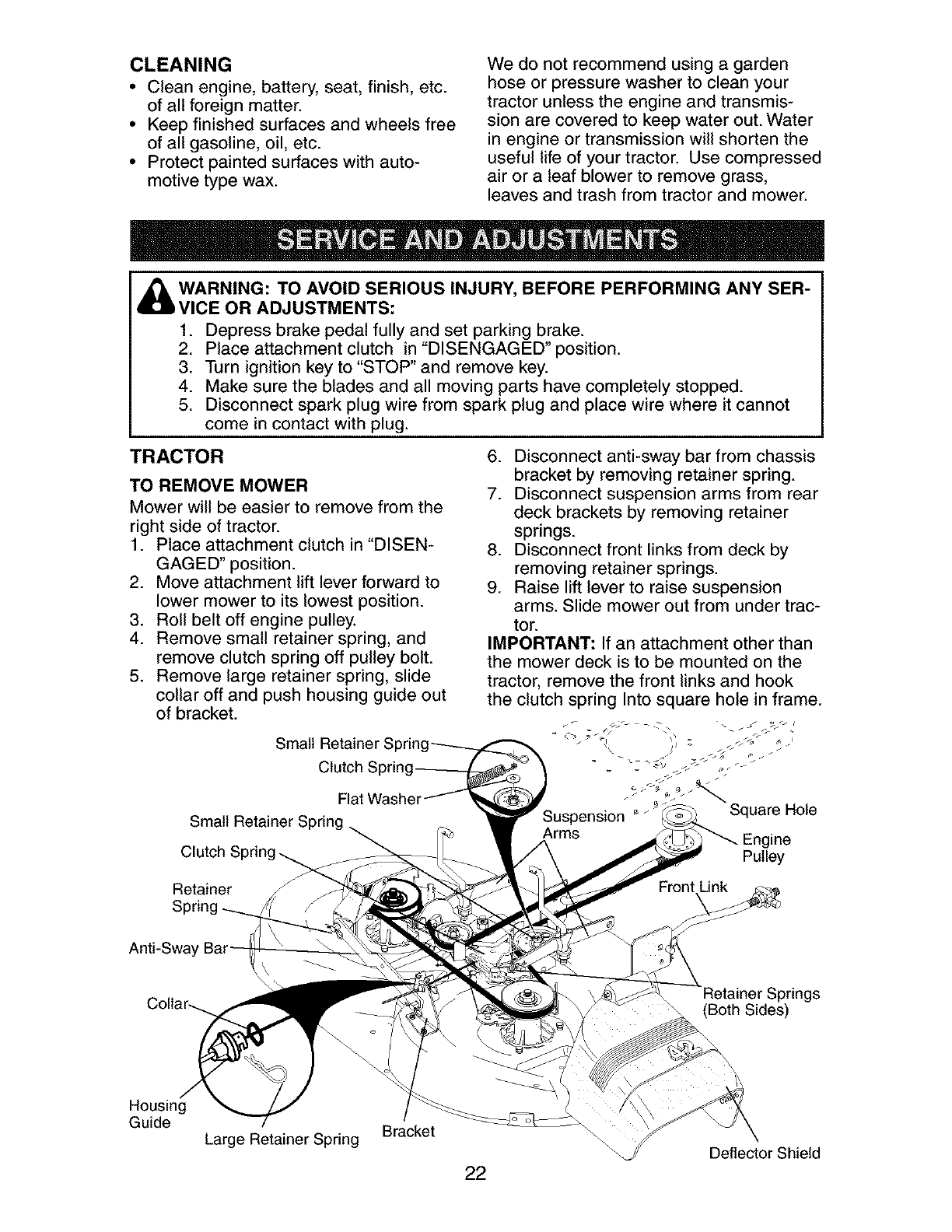

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

WARNING: TO AVOID SERIOUS BEFORE PERFORMING ANY SER-

INJURY,

VICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in "DISENGAGED" position.

3. Turn ignition key to "STOP" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

Small Retainer S

Clutch

Flat Washc

Small Retainer Spring

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

Square Hole

Clutch Spring Pulley

Retainer

Anti-Swa,

Collar_ Springs

(Both Sides)

Housing

Guide

Large Retainer Spring Bracket \\Deflector Shield

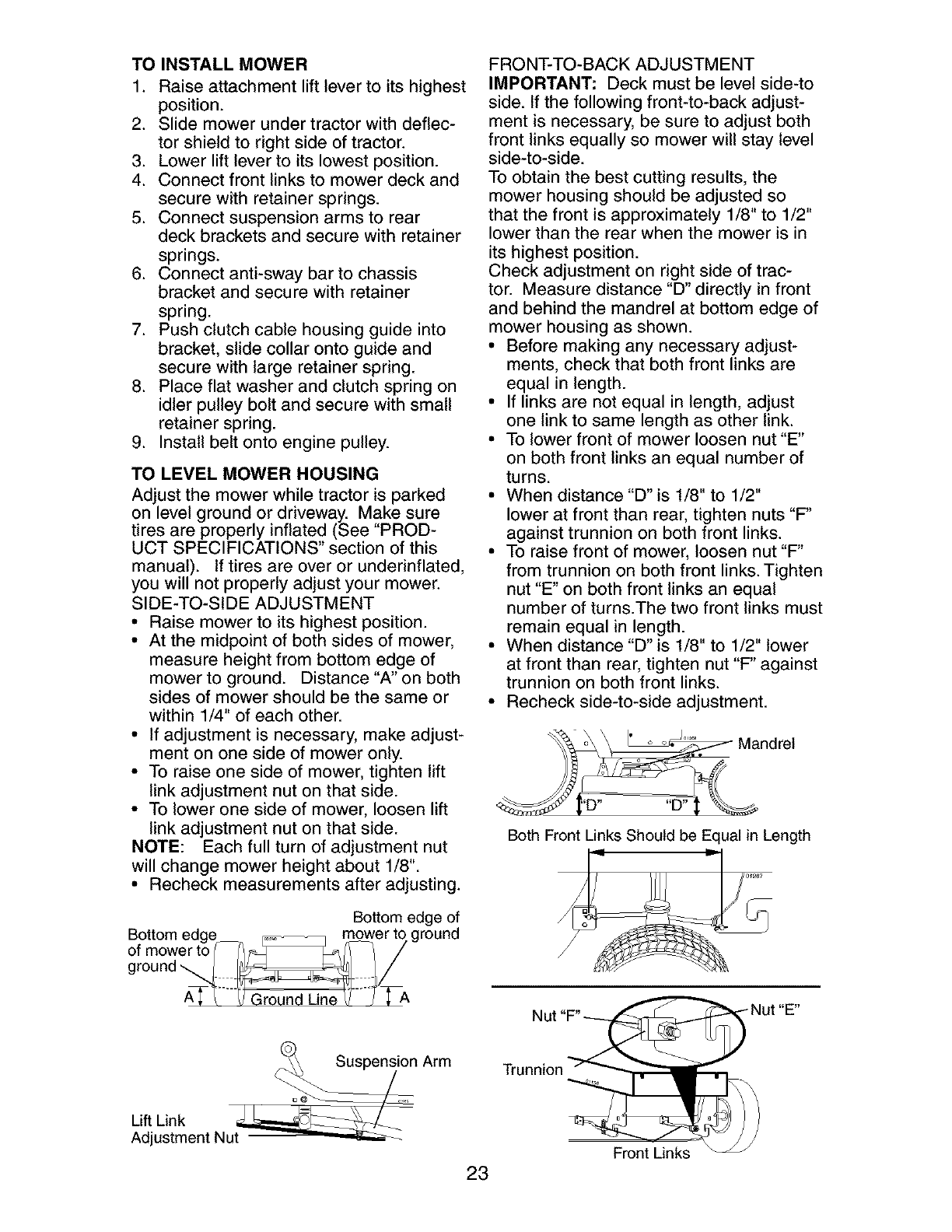

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer

spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge of

Bottom edge F_-_ mower to ground

ofmowerto/ //_// / /

ground-.,_. _l-t/

T- Grou dU,n --Y

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal

number of turns.The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Both Front Links Should be Equal in Length

Nut it "E"

Suspension Arm Trunnion

Lift Link

Adjustment Nut -- Front Links

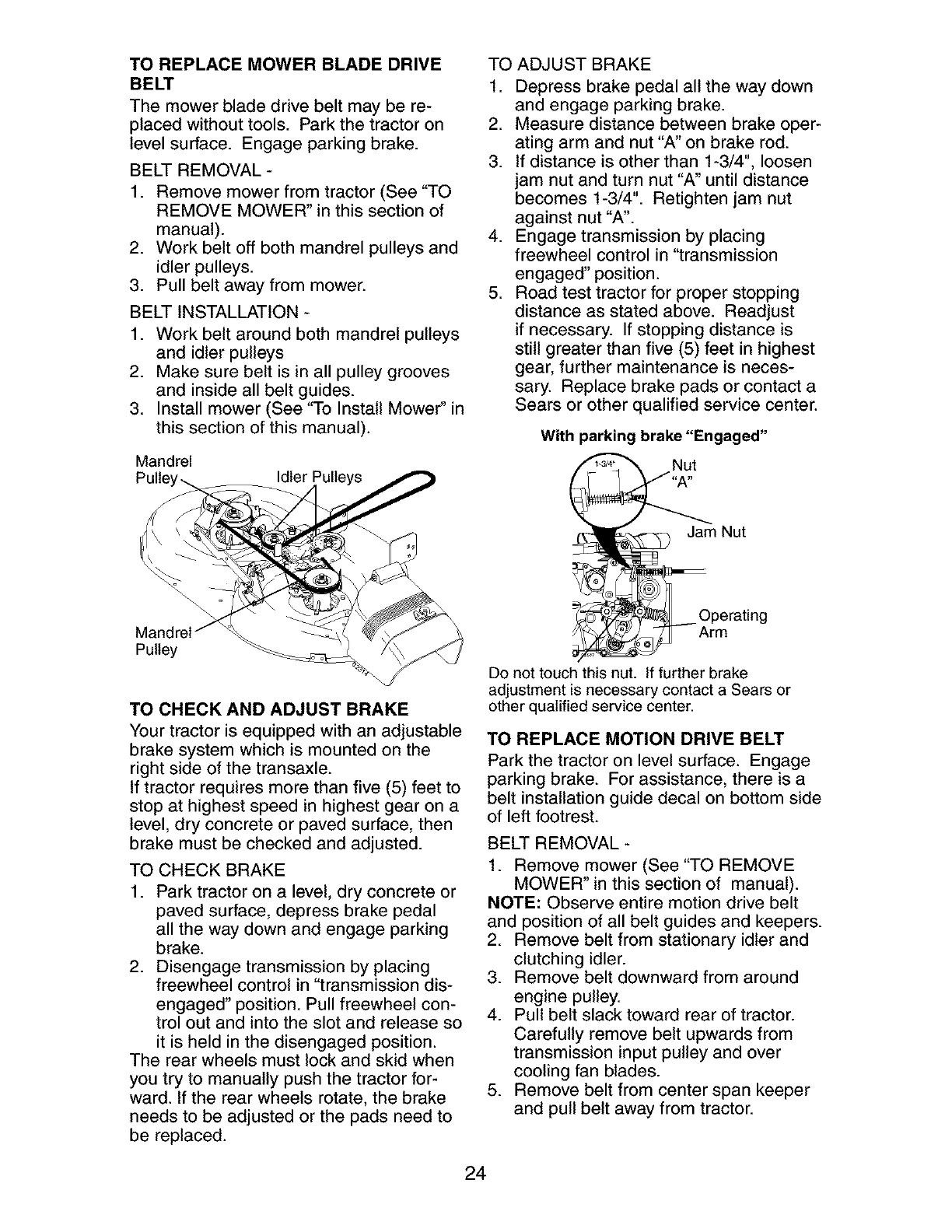

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel Idler Pulleys

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress brake pedal

all the way down and engage parking

brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress brake pedal all the way down

and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-3/4", loosen

jam nut and turn nut "A" until distance

becomes 1-3/4". Retighten jam nut

against nut "A".

4. Engage transmission by placing

freewheel control in '"transmission

engaged" position.

5. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

Nut

Jam Nut

.Operating

Arm

Do not touch this nut. If further brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine Pulley-- _,

Clutchingldler_ _1

Stationary Idler J _ I

Center Span _ _

Keeper _

Transmission _; :_

Input Pulley _-------@

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal

for service or replacement, it should be

purged after reinstallation and before op-

erating the tractor. See "PURGE TRANS-

MISSION" in the Operation section of this

manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have asquare key -Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key

(Rear Wheel Only)

TO START ENGINE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

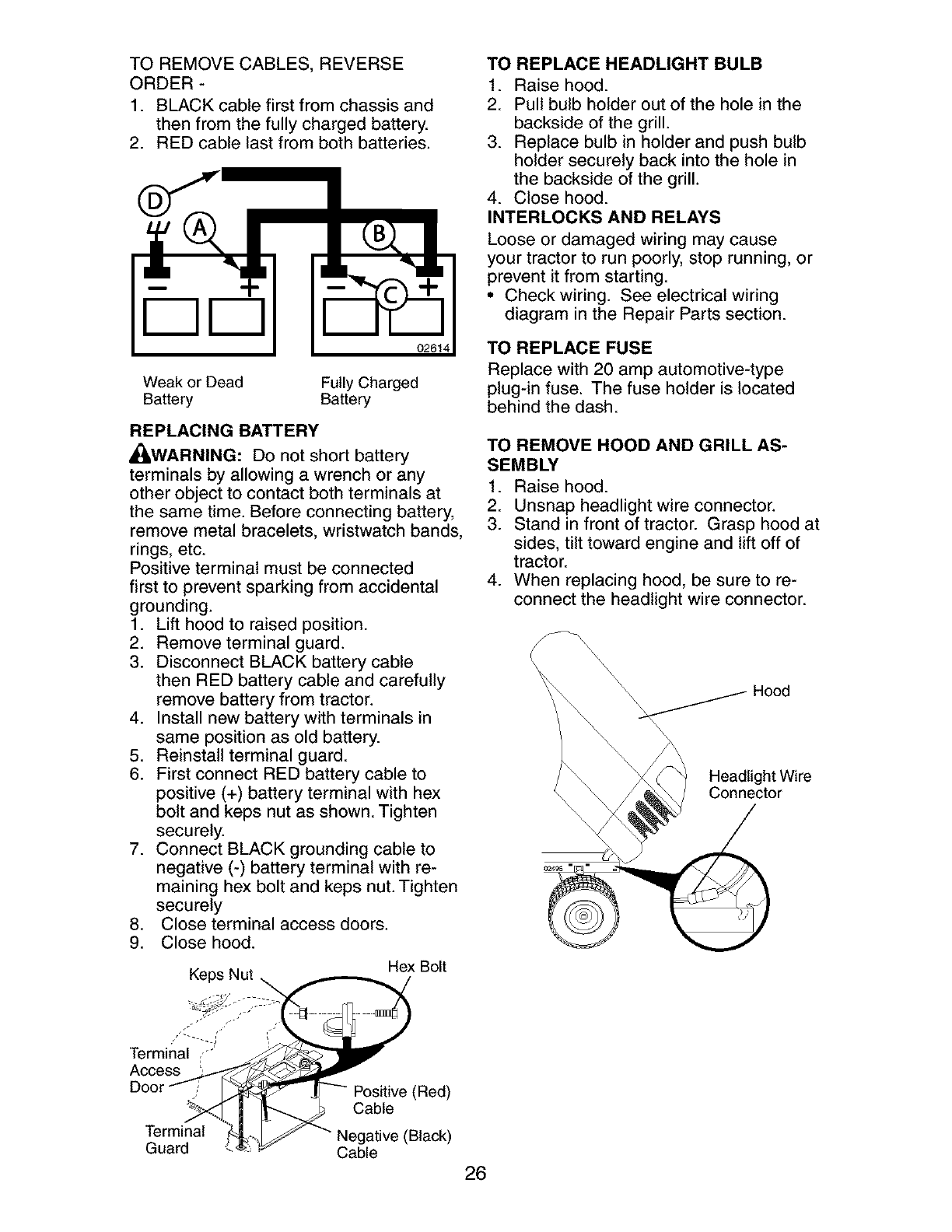

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Keps Nut Hex Bolt

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

"\_ Hood

Headlight Wire

Connector

./ /-

Terminal ,-"

Access

Positive (Red)

Cable

Terminal Negative (Black)

Guard "."., Cable

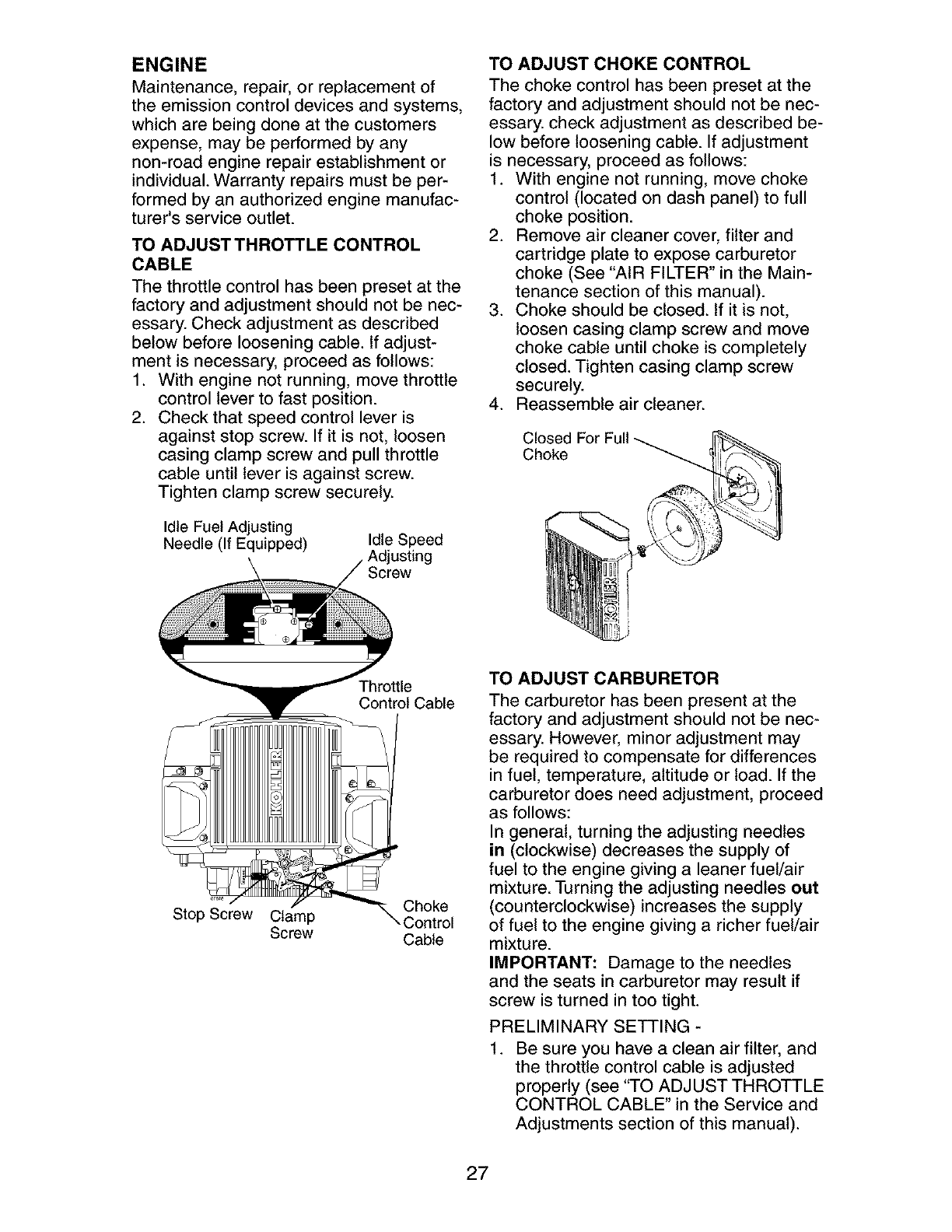

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers

expense, may be performed by any

non-road engine repair establishment or

individual. Warranty repairs must be per-

formed by an authorized engine manufac-

turer's service outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Idle Fuel Adjusting

Needle (If Equipped) Idle Speed

Adjusting

Screw

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary, check adjustment as described be-

low before loosening cable. If adjustment

is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the Main-

tenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Choke

Throttle

Control Cable

Choke

Stop Screw Clamp Control

Screw Cable

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

Be sure you have a clean air filter, and

the throttle control cable is adjusted

properly (see "TO ADJUST THROTTLE

CONTROL CABLE" in the Service and

Adjustments section of this manual).

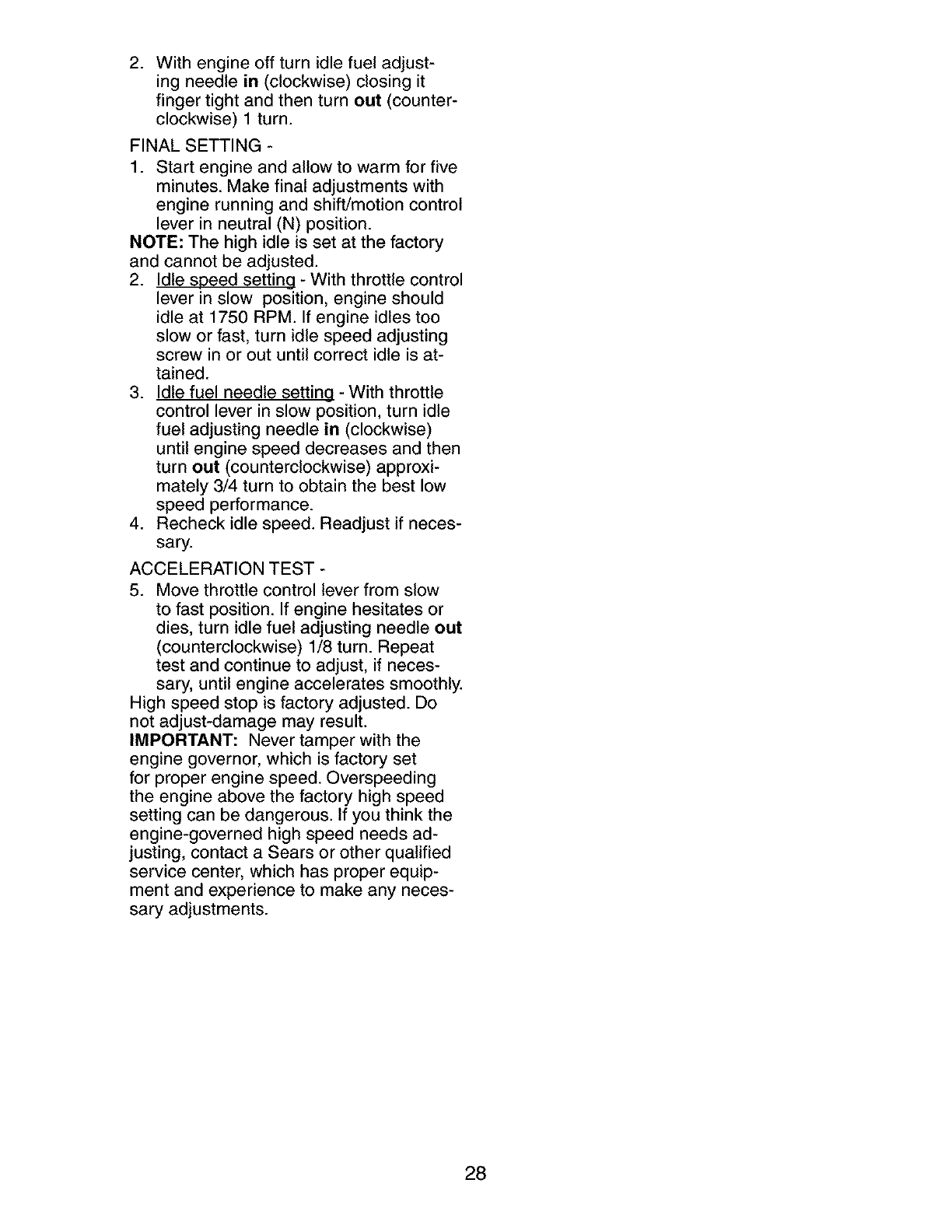

2. With engine off turn idle fuel adjust-

ing needle in (clockwise) closing it

finger tight and then turn out (counter-

clockwise) 1 turn.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle speed setting - With throttle control

lever in slow position, engine should

idle at 1750 RPM If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is at-

tained.

3. Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and then

turn out (counterclockwise) approxi-

mately 3/4 turn to obtain the best low

speed performance.

4. Recheck idle speed. Readjust if neces-

sary.

ACCELERATION TEST -

5. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle fuel adjusting needle out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs ad-

justing, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any neces-

sary adjustments.

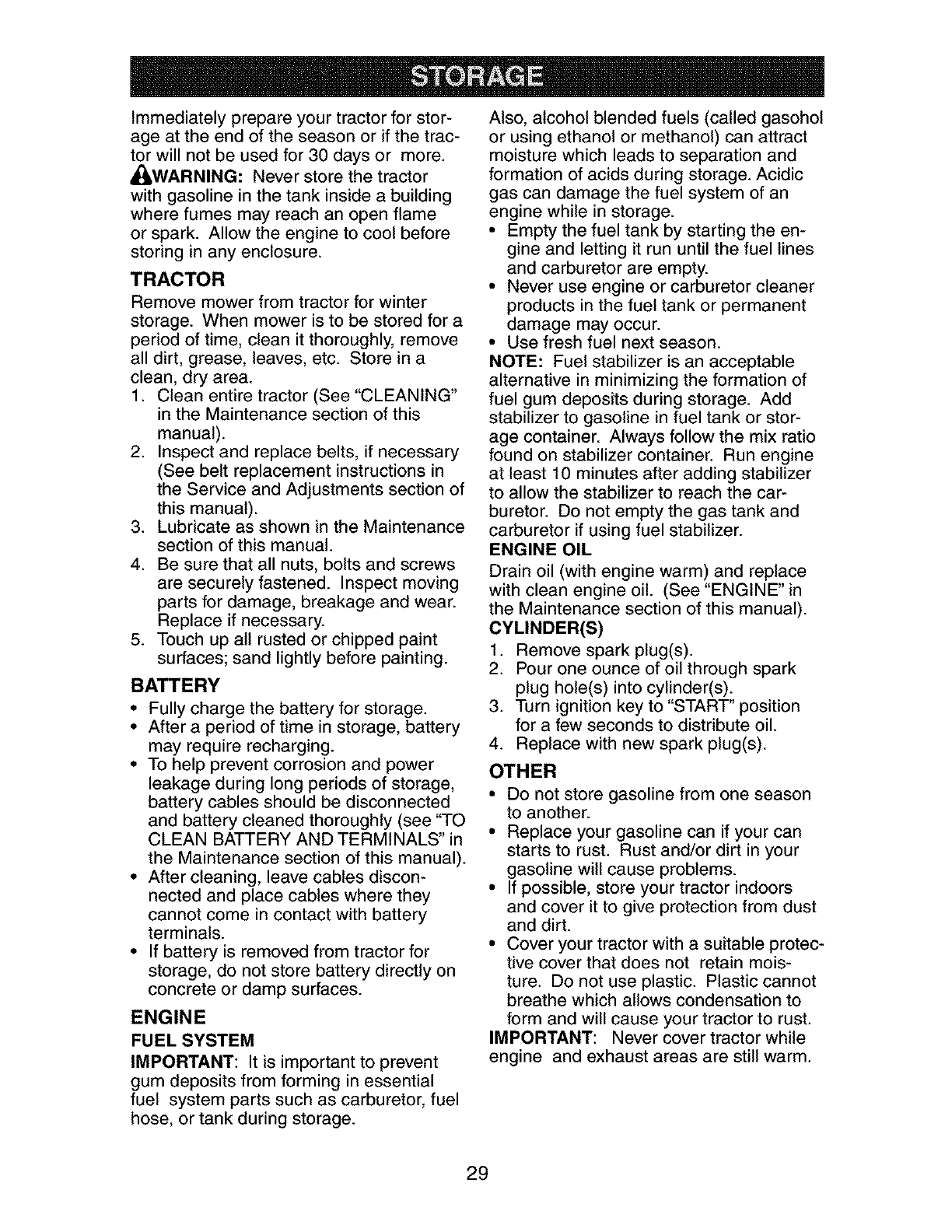

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

•Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called gasohol

or using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

° Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable protec-

tive cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

Loss of power

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

1. Fill fuel tank.

2. See "TO START ENGINE" in

Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill

tank with fresh, clean gaso

line.

6. Check all wiring.

7. See "To Adjust Carburetor" in

Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignitionswitch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

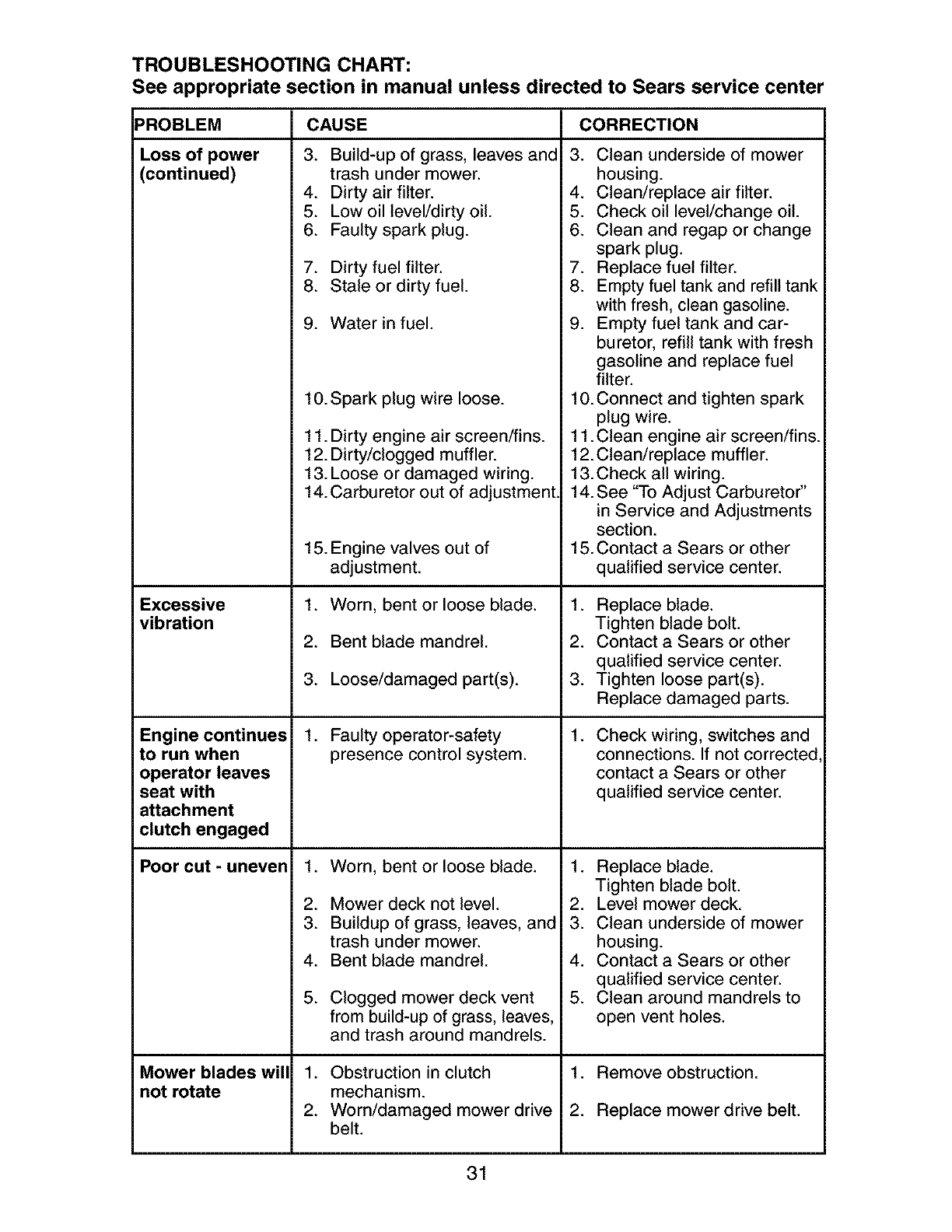

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

LOSS of power

(continued)

CAUSE

3. Build-up of grass, leaves and

trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut - uneven

Mower blades will

not rotate

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and

trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass, leaves,

and trash around mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

CORRECTION

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and car-

buretor, refill tank with fresh

gasoline and replace fuel

filter.

10. Connect and tighten spark

plug wire.

11 .Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

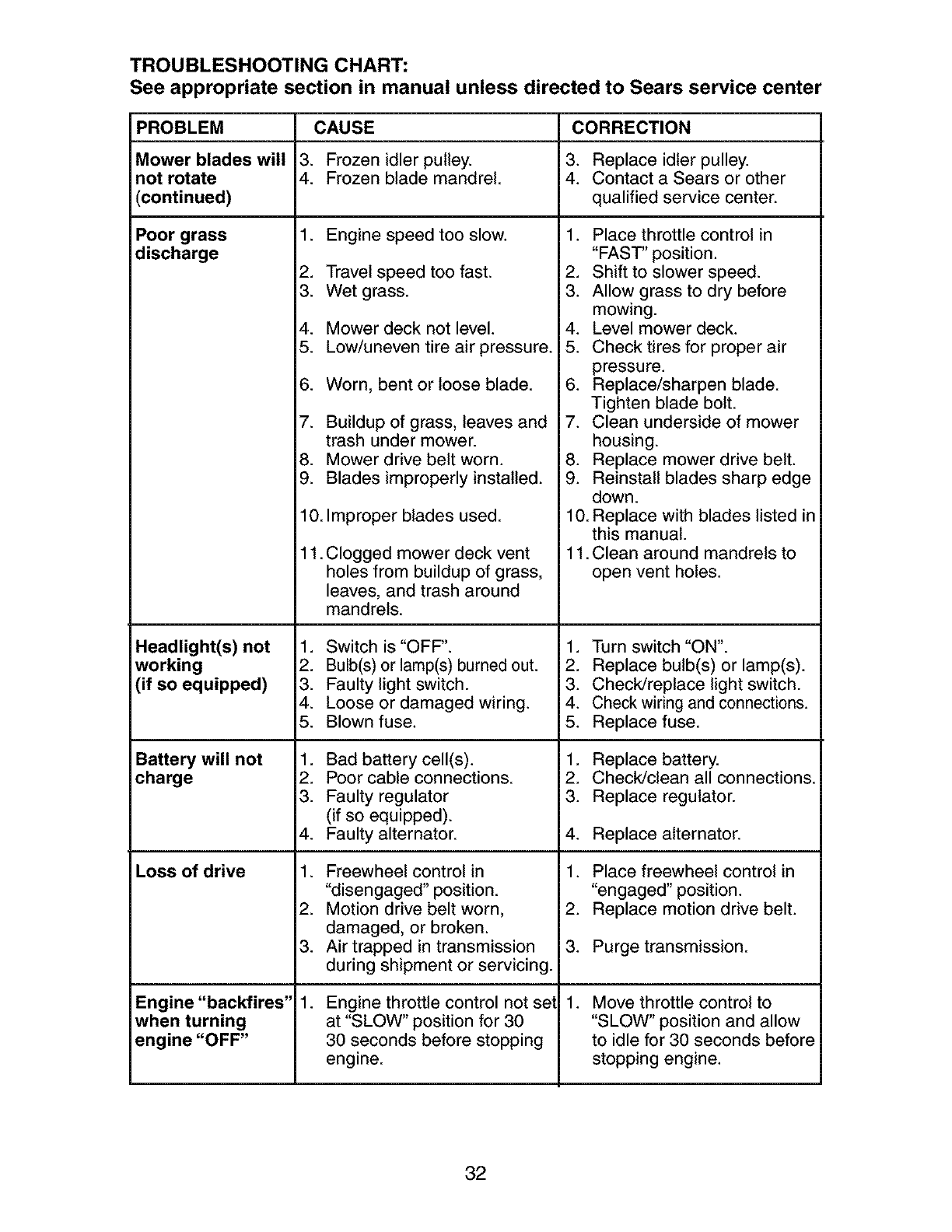

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Mower blades will 3. Frozen idler pulley. 3. Replace idler pulley.

not rotate 4. Frozen blade mandrel. 4. Contact a Sears or other

(continued) qualified service center.

1. Engine speed too slow.Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Loss of drive

Engine "backfires"

when turning

engine "OFF"

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

Engine throttle control not set

at "SLOW" position for 30

30 seconds before stopping

engine.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed in

this manual.

11 .Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

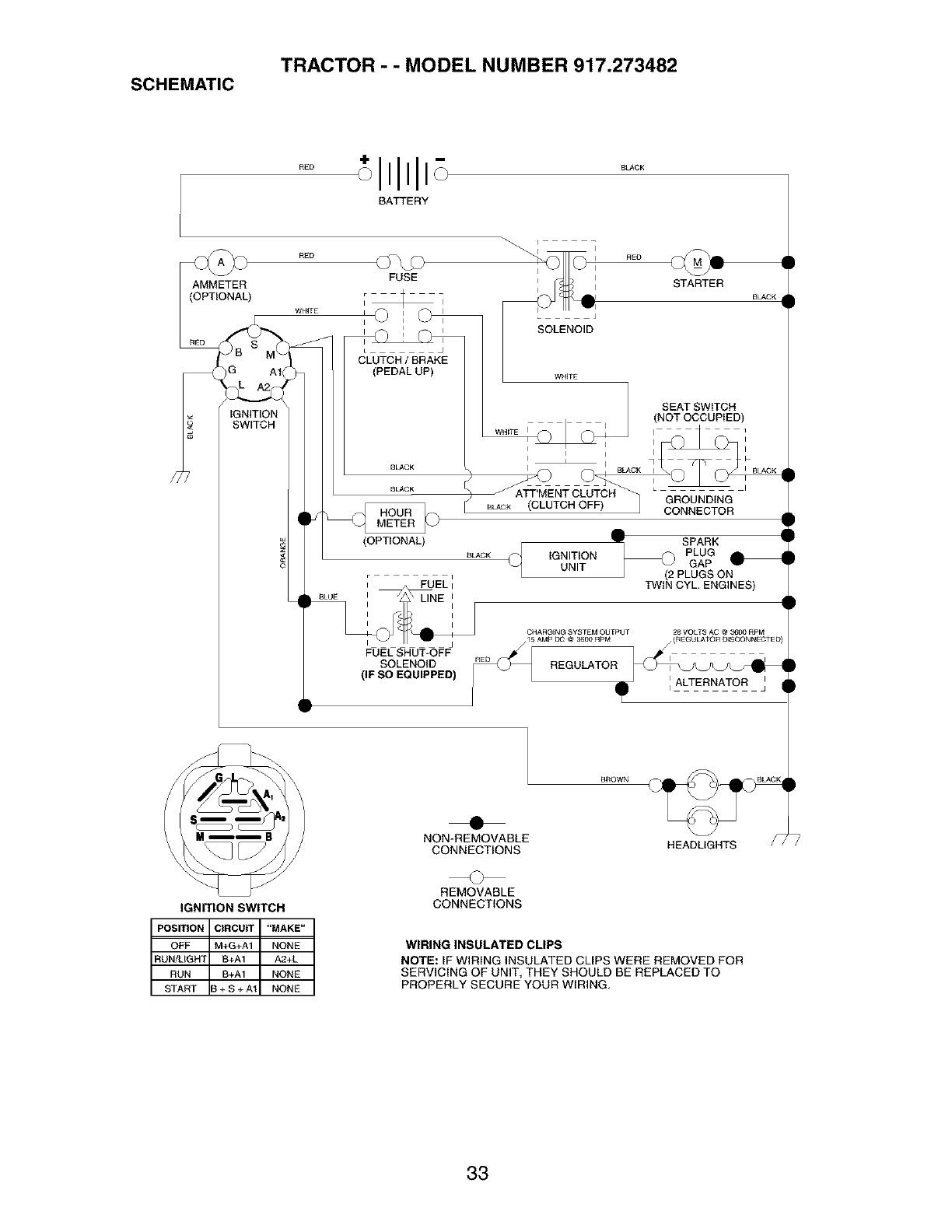

TRACTOR - - MODEL NUMBER 917.273482

SCHEMATIC

"llllll

RED _) BLACK

BATTERY

AMMETER

(OPTIONAL)

IGNITION

SWITCH

RED RED

FUSE

WNITE

CLUTCH /BRAKJE

(PEDAL UP)

B_CK

SOLENOID

WHITE

STARTER

SEATSWITCH

_OT OCCUPIED)

GROUNDING

CONNECTOR

BLACK

(OPTIONAL)

BLACK

]

FUEL I

IGNITION

UNIT

'_ SPARK

_@ PLUG

GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

FUELSHUT-OFF

SOLENOID

(IF SO EQUIPPED)

CHARGING SYSTEM OUTPUT 28 VOLTS AC @ 3600 RPM

15 AMP DC @ 360O RPM /(REGULATOR DISCONNECTED

REGULATOR I_NL AJT_R_jj D

BROWN

NON-REMOVABLE

CONNECTIONS HEADLIGHTS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/UGHT B+A1 A2+L

RUN B+A1 NONE

START B + S + A1 NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING,

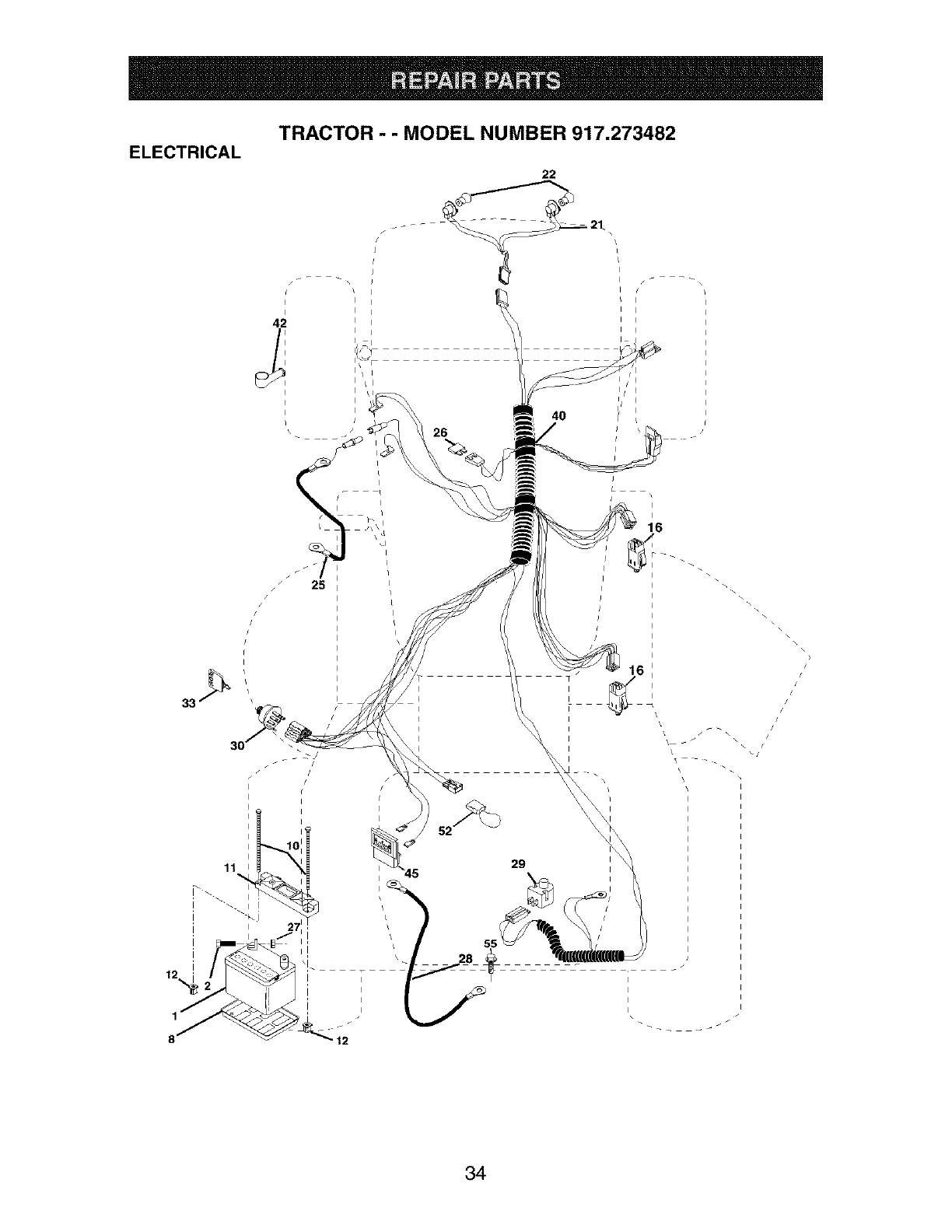

ELECTRICAL TRACTOR - - MODEL NUMBER 917.273482

i40

i I

I52

I ,

[

\\ \ i !

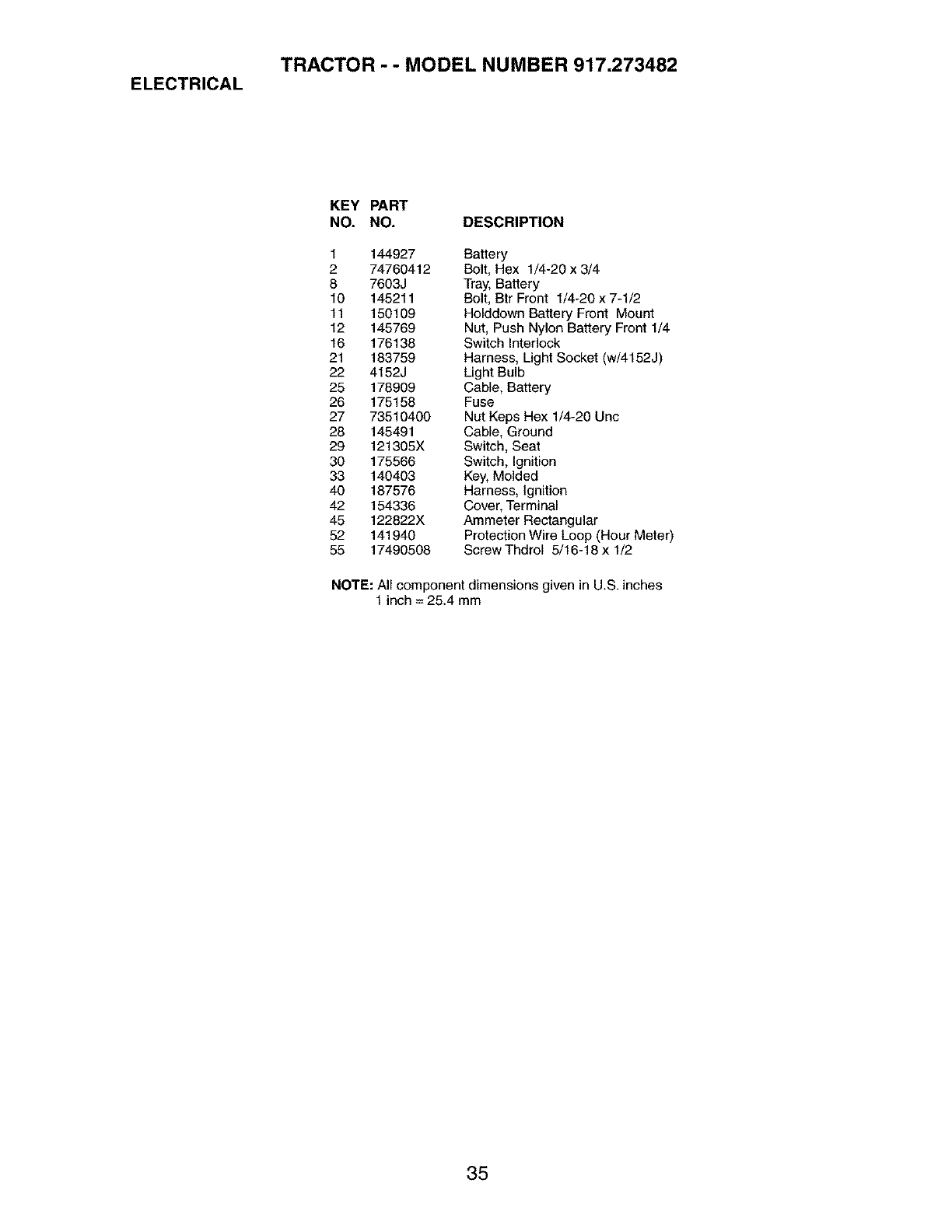

TRACTOR - - MODEL NUMBER 917.273482

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, Btr Front 1/4-20 x 7-1/2

11 150109 Holddewn Battery Front Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 176138 Switch Interlock

21 183759 Harness, Light Socket (w/4152J)

22 4152J Light Bulb

25 178909 Cable, Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 145491 Cable, Ground

29 121305X Switch, Seat

30 175566 Switch, Ignition

33 140403 Key, Molded

40 187576 Harness, Ignition

42 154336 Cover, Terminal

45 122822X Ammeter Rectangular

52 141940 Protection Wire Loop (Hour Meter)

55 17490508 ScrewThdrol 5/16-18x 1/2

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

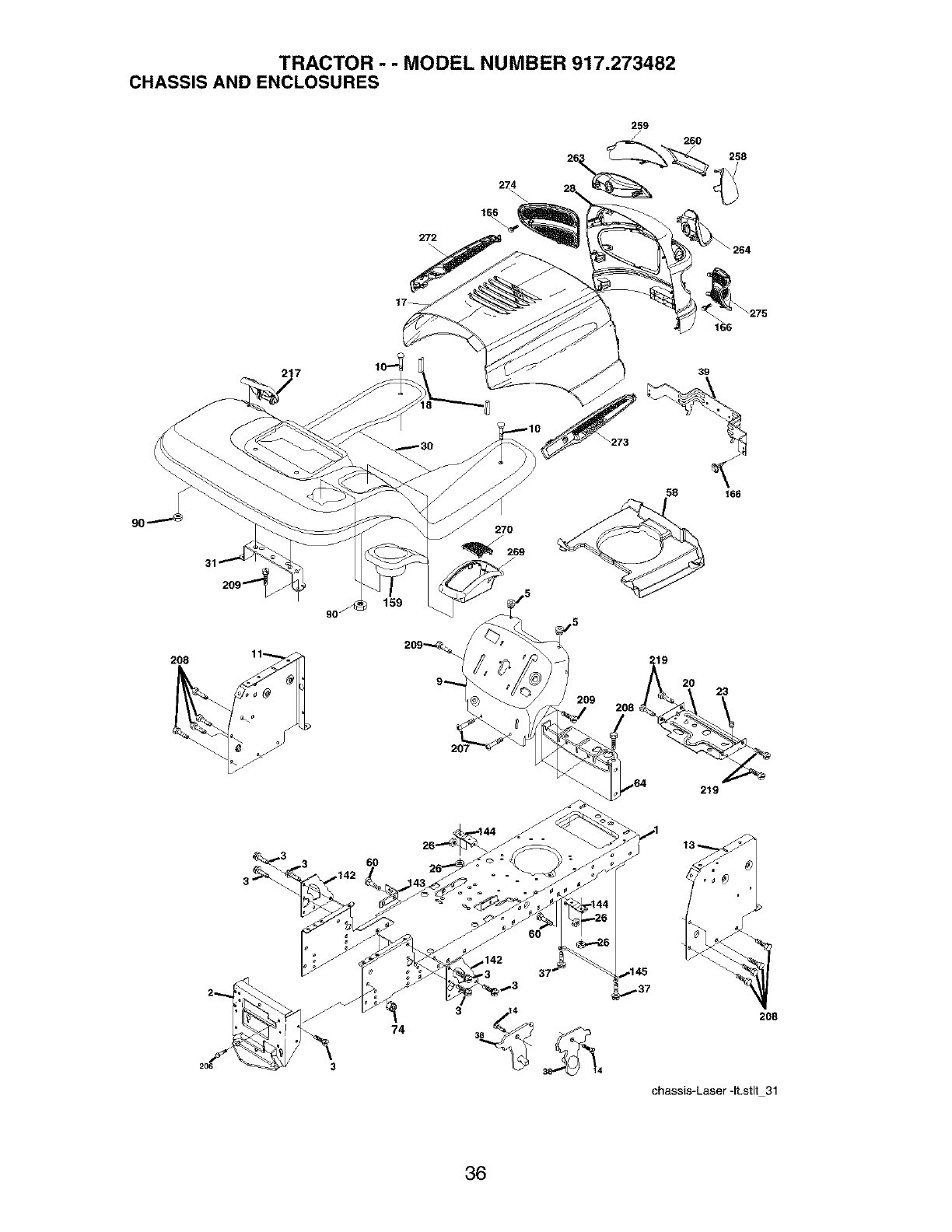

TRACTOR - - MODEL NUMBER 917.273482

CHASSIS AND ENCLOSURES

272

259

_260

208

159

90 _

270

_269

@/5

58 t66

20 23

209 208

219

•145

208

chassis-Laser-It,stlt 31

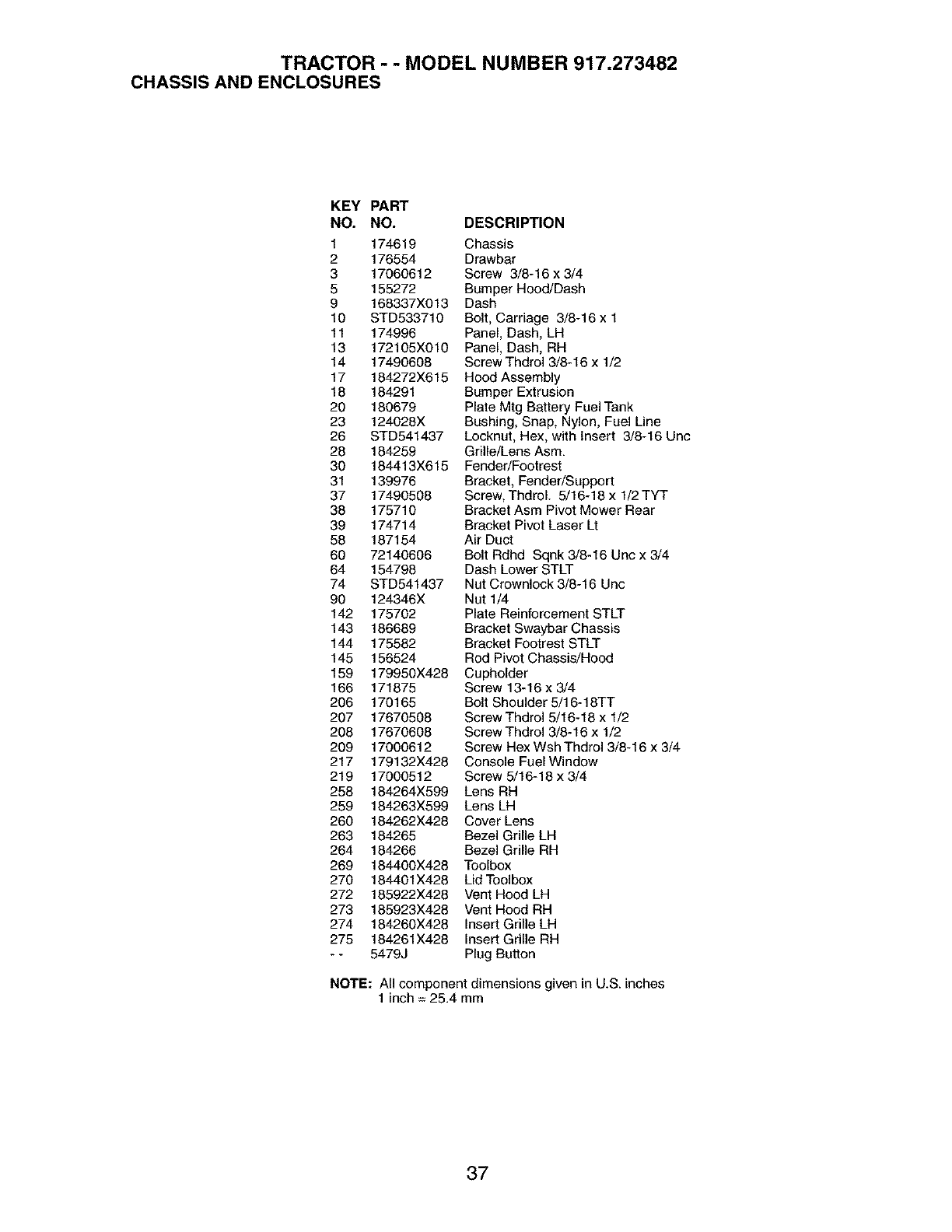

TRACTOR - - MODEL NUMBER 917.273482

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 Bumper Hood/Dash

9 168337X013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 1

11 174996 Panel, Dash, LH

13 172105X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 184272X615 Hood Assembly

18 184291 Bumper Extrusion

20 180679 Plate Mtg Battery Fuel Tank

23 124028X Bushing, Snap, Nylon, Fuel Line

26 STD541437 Locknut, Hex, with Insert 3/8-16 Unc

28 184259 Grille/Lens Asm.

30 184413X615 Fender/Footrest

31 139976 Bracket, Fender/Support

37 17490508 Screw, ThdroL 5/16-18x 1/2TYT

38 175710 Bracket Asm Pivot Mower Rear

39 174714 Bracket Pivot Laser Lt

58 187154 Air Duct

60 72140606 Bolt Rdhd Sqnk 3/8-16 Unc x 3/4

64 154798 Dash Lower STLT

74 STD541437 Nut Crownlock 3/8-16 Unc

90 124346X Nut 1/4

142 175702 Plate Reinforcement STLT

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Footrest STLT

145 156524 Rod Pivot Chassis/Hood

159 179950X428 Cupholder

166 171875 Screw 13-16 x 3/4

206 170165 Bolt Shoulder 5/16-18TT

207 17670508 ScrewThdrol 5/16-18 x 1/2

208 17670608 ScrewThdrol 3/8-16 x 1/2

209 17000612 Screw Hex Wsh Thdrol 3/8-16 x 3/4

217 179132X428 Console FuelWindow

219 17000512 Screw 5/16-18x 3/4

258 184264X599 Lens RH

259 184263X599 Lens LH

260 184262X428 Cover Lens

263 184265 Bezel Grille LH

264 184266 Bezel Grille RH

269 184400X426 Toolbox

270 184401X426 Lid Toolbox

272 185922X428 Vent Hood LH

273 185923X428 Vent Hood RH

274 184260X428 Insert Grille LH

275 184261X428 Insert Grille RH

--5479J Plug Button

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

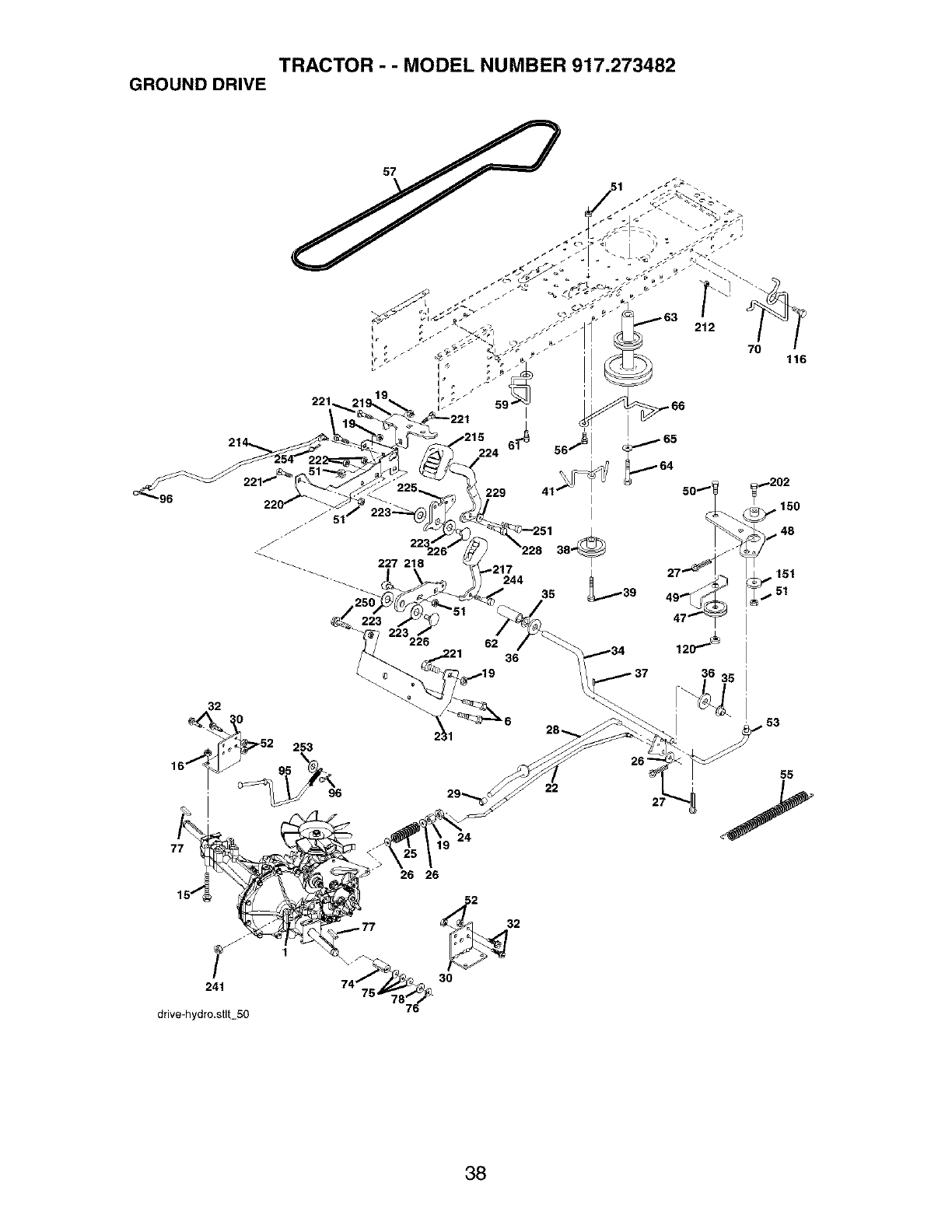

TRACTOR - - MODEL NUMBER 917.273482

GROUND DRIVE

c_96

212

70 116

32 0

16_ 52 253

96 29_

241

26 26

drive*hydro.stlt 50

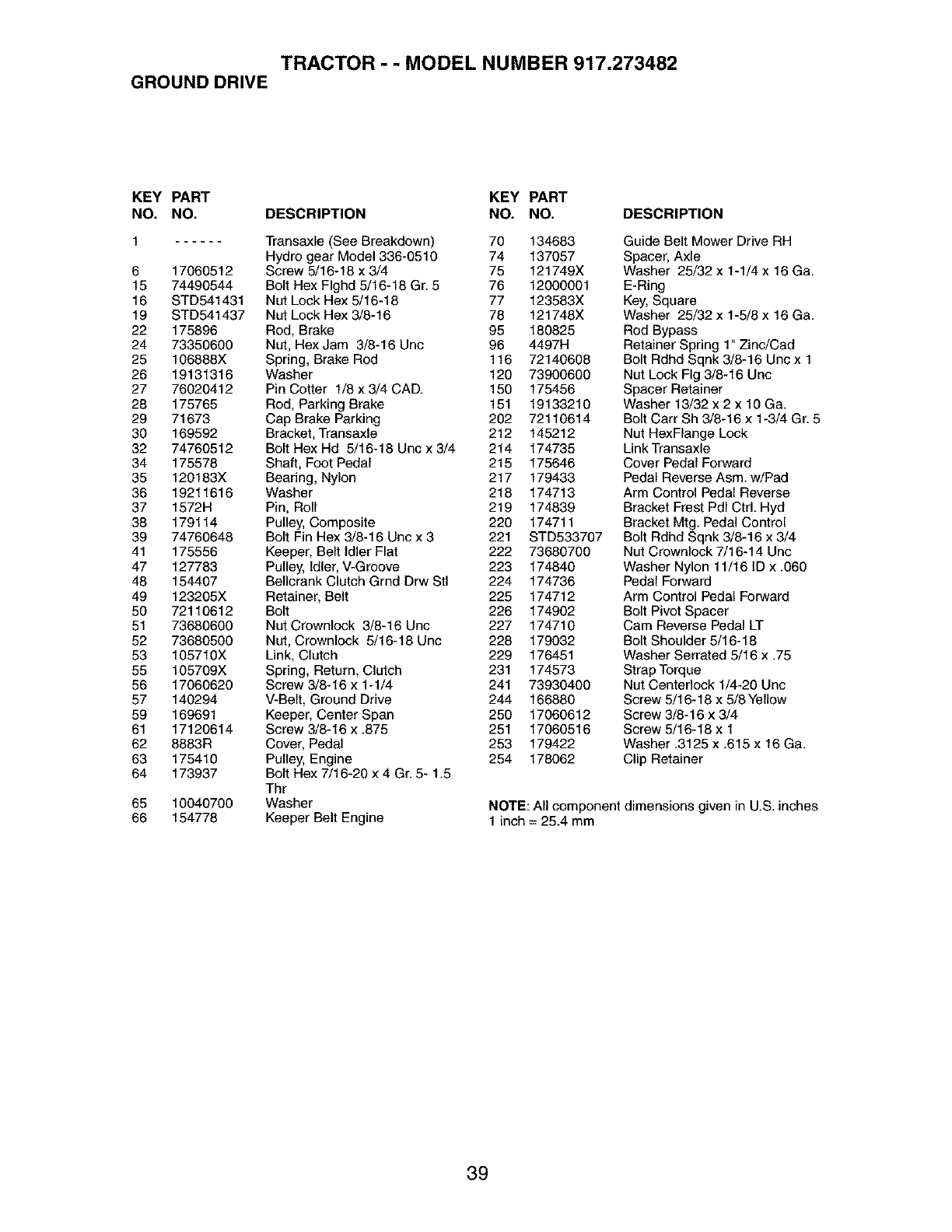

TRACTOR - - MODEL NUMBER 917.273482

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle (See Breakdown) 70 134683

Hydro gear Model 336-0510 74 137057

6 17060512 Screw 5/16-18 x 3/4 75 121749X

15 74490544 Bolt Hex FIghd 5/16-18 Gr. 5 76 12000001

16 STD541431 Nut Lock Hex 5/16-18 77 123583X

19 STD541437 Nut Lock Hex 3/8-16 78 121748X

22 175896 Rod, Brake 95 180825

24 73350600 Nut, Hex Jam 3/8-16 Unc 96 4497H

25 106888X Spring, Brake Rod 116 72140608

26 19131316 Washer 120 73900600

27 76020412 Pin Cotter 1/8 x 3/4 CAD. 150 175456

28 175765 Rod, Parking Brake 151 19133210

29 71673 Cap Brake Parking 202 72110614

30 169592 Bracket, Transaxle 212 145212

32 74760512 Bolt Hex Hd 5/16-18 Uric x 3/4 214 174735

34 175578 Shaft, Foot Pedal 215 175646

35 120183X Bearing, Nylon 217 179433

36 19211616 Washer 218 174713

37 1572H Pin, Roll 219 174839

38 179114 Pulley, Composite 220 174711

39 74760648 Bolt Fin Hex 3/8-16 Uric x 3 221 STD533707

41 175556 Keeper, Belt Idler Flat 222 73680700

47 127783 Pulley, Idler, V-Groove 223 174840

48 154407 Bellcrank Clutch Grnd Drw Stl 224 174736

49 123205X Retainer, Belt 225 174712

50 72110612 Bolt 226 174902

51 73680600 Nut Crownlock 3/8-16 Uric 227 174710

52 73680500 Nut, Crownlock 5/16-18 Unc 228 179032

53 105710X Link, Clutch 229 176451

55 105709X Spring, Return, Clutch 231 174573

56 17060620 Screw 3/8-16 x 1-1/4 241 73930400

57 140294 V-Belt, Ground Drive 244 166880

59 169691 Keeper, Center Span 250 17060612

61 17120614 Screw 3/8-16 x .875 251 17060516

62 8883B Cover, Pedal 253 179422

63 175410 Pulley, Engine 254 178062

64 173937 Bolt Hex 7/16-20 x 4 Gr. 5- 1.5

Thr

65 10040700 Washer

66 154778 Keeper Belt Engine

Guide Belt Mower Drive RH

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Ga.

Rod Bypass

Retainer Spring 1" Zinc/Cad

Bolt Rdhd Sqnk 3/8-16 Uric x 1

Nut Lock Fig 3/8-16 Unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5

Nut HexFlange Lock

Link Transaxle

Cover Pedal Forward

Pedal Reverse Asm. w/Pad

Arm Control Pedal Reverse

Bracket Frest Pdl CtrL Hyd

Bracket Mtg. Pedal Control

Bolt Rdhd Sqnk 3/8-16 x 3/4

Nut Crownleck 7/16-14 Unc

Washer Nylon 11/16 ID x .060

Pedal Forward

Arm Control Pedal Forward

Bolt Pivot Spacer

Cam Reverse Pedal LT

Bolt Shoulder 5/16-18

Washer Serrated 5/16 x .75

Strap Torque

Nut Centerlock 1/4-20 Unc

Screw 5/16-18 x 5/8 Yellow

Screw 3/8-16 x 3/4

Screw 5/16-18 x 1

Washer .3125 x .615 x 16 Ga.

Clip Retainer

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

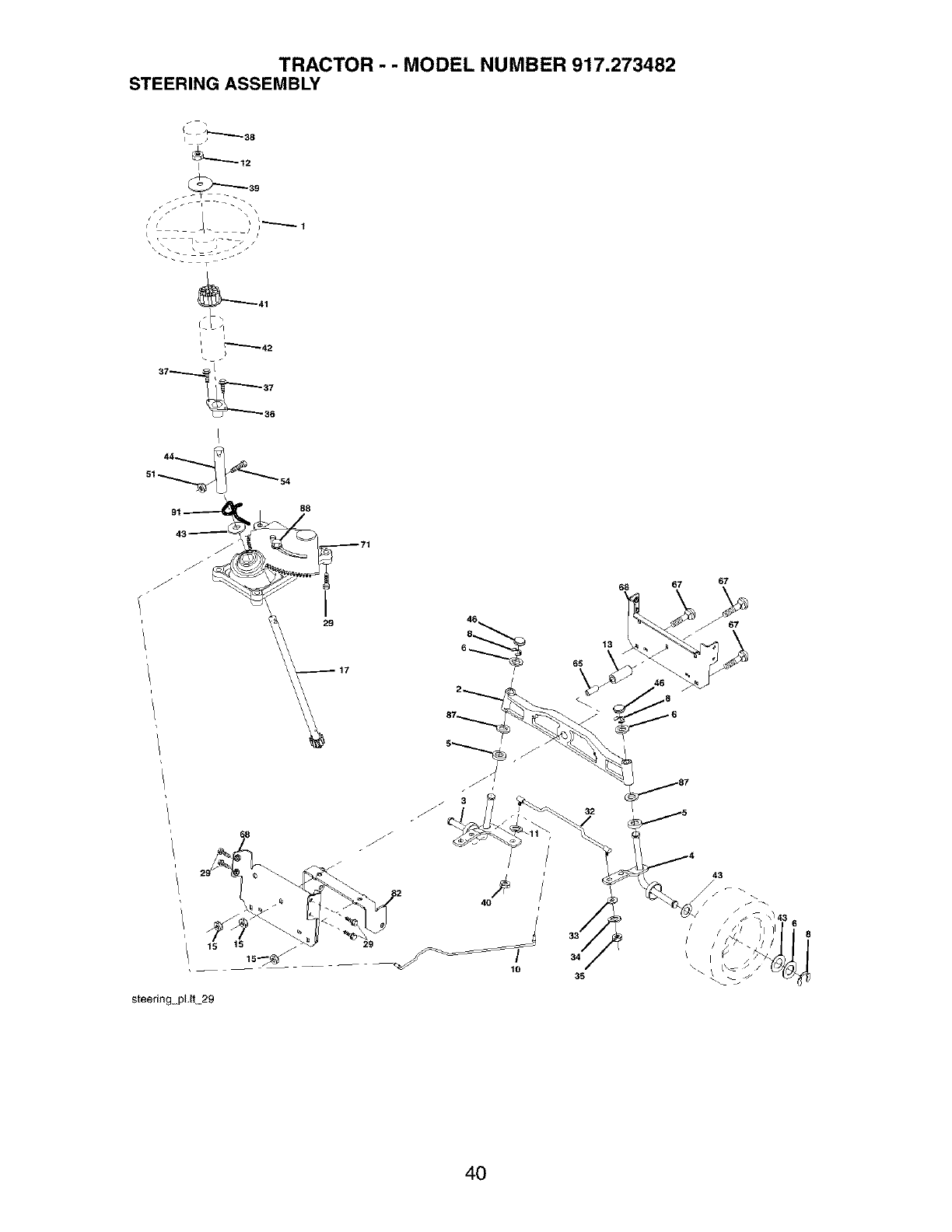

TRACTOR - - MODEL NUMBER 917.273482

STEERING ASSEMBLY

_ T

68 67 67

steering..pLIt 29

10 35

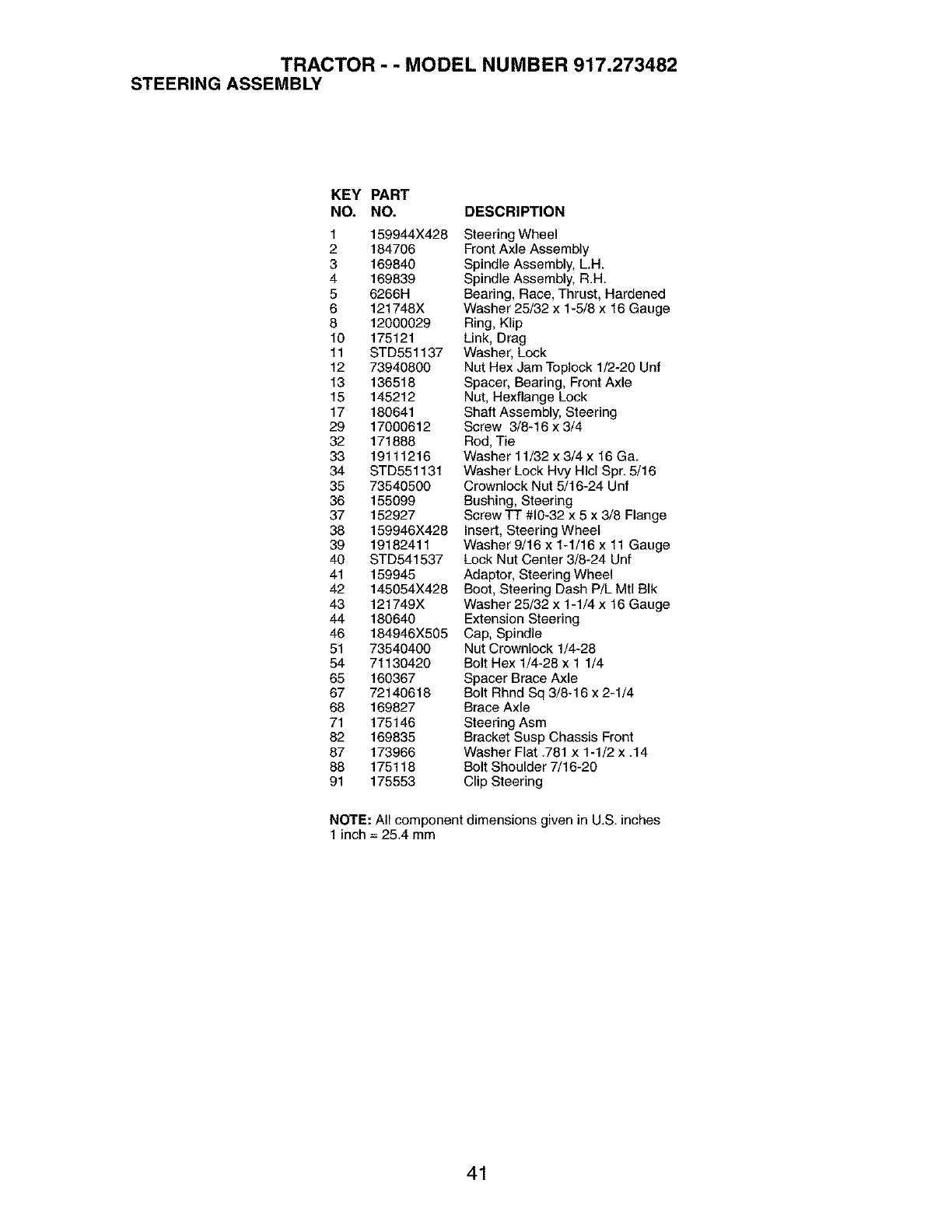

TRACTOR - - MODEL NUMBER 917.273482

STEERINGASSEMBLY

KEY PART

NO. NO.

1 159944X428

2184706

3 169840

4 169839

5 6266H

6 121748X

8 12000029

10 175121

11 STD551137

12 73940800

13 136518

15 145212

17 180641

29 17000612

32 171888

33 19111216

34 STD551131

35 73540500

36 155099

37 152927

38 159946X428

39 19182411

40 STD541537

41 159945

42 145054X428

43 121749X

44 180640

46 184946X505

51 73540400

54 71130420

65 160367

67 72140618

68 169827

71 175146

82 169835

87 173966

88 175118

91 175553

DESCRIPTION

Steering Wheel

Front Axle Assembly

Spindle Assembly, L.H.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Ring, Klip

Link, Drag

Washer, Lock

Nut Hex Jam Toplock 1/2-20 Unf

Spacer, Bearing, Front Axle

Nut, Hexflange Lock

Shaft Assembly, Steering

Screw 3/8-16 x 3/4

Rod, Tie

Washer 11/32 x 3/4 x 16 Ga.

Washer Lock Hvy HIcl Spr. 5/16

Crownlock Nut 5/16-24 Unf

Bushing, Steering

Screw TT #10-32 x 5 x 3/8 Flange

Insert, Steering Wheel

Washer 9/16 x 1-1/16 x 11 Gauge

Lock Nut Center 3/8-24 Unf

Adaptor, Steering Wheel

Boot, Steering Dash P/L Mtl BIk

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Steering

Cap, Spindle

Nut Crownlock 1/4-28

Bolt Hex 1/4-28 x 1 1/4

Spacer Brace Axle

Bolt Rhnd Sq 3/8-16 x 2-1/4

Brace Axle

Steering Asm

Bracket Susp Chassis Front

Washer Flat .781 x 1-1/2 x .14

Bolt Shoulder 7/16-20

Clip Steering

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

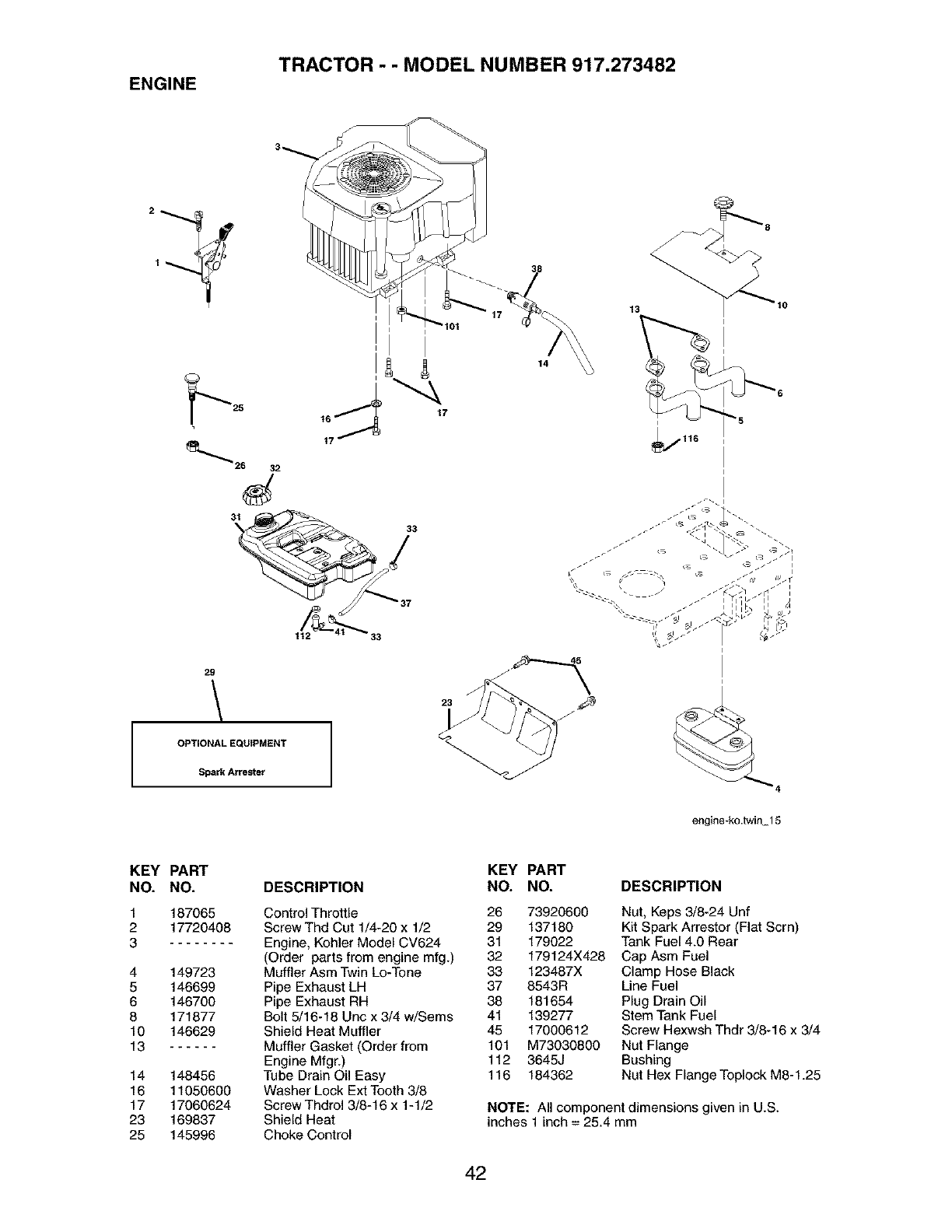

TRACTOR - - MODEL NUMBER 917.273482

ENGINE

31 33

OPTIONAL EQUIPMENT

Spark Arrester

engine_ko.twinJ 5

KEY PART

NO. NO.

1 187065

2 17720408

4 149723

5 146699

6 146700

8 171877

10 146629

14 148456

16 11050600

17 17060624

23 169837

25 145996

DESCRIPTION

Control Throttle

Screw Thd Cut 1/4-20 x 1/2

Engine, Kohler Model CV624

(Order parts from engine mfg.)

Muffler Asm Twin Lo-Tone

Pipe Exhaust LH

Pipe Exhaust RH

Bolt 5/16-18 Unc x 3/4 w/Sems

Shield Heat Muffler

Muffler Gasket (Order from

Engine Mfgr.)

Tube Drain Oil Easy

Washer Lock Ext Tooth 3/8

Screw Thdrol 3/8-16 x 1-1/2

Shield Heat

Choke Control

KEY PART

NO. NO. DESCRIPTION

26 73920600 Nut, Keps 3/8-24 Unf

29 137180 Kit Spark Arrestor (Flat Scrn)

31 179022 Tank Fuel 4.0 Rear

32 179124X428 Cap Asm Fuel

33 123487X Clamp Hose Black

37 8543R Line Fuel

38 181654 Plug Drain Oil

41 139277 Stem Tank Fuel

45 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

101 M73030800 Nut Flange

112 3645J Bushing

116 184362 Nut Hex Flange Toplock M8-1.25

NOTE: All component dimensions given in U.S.

inches 1inch = 25.4 mm

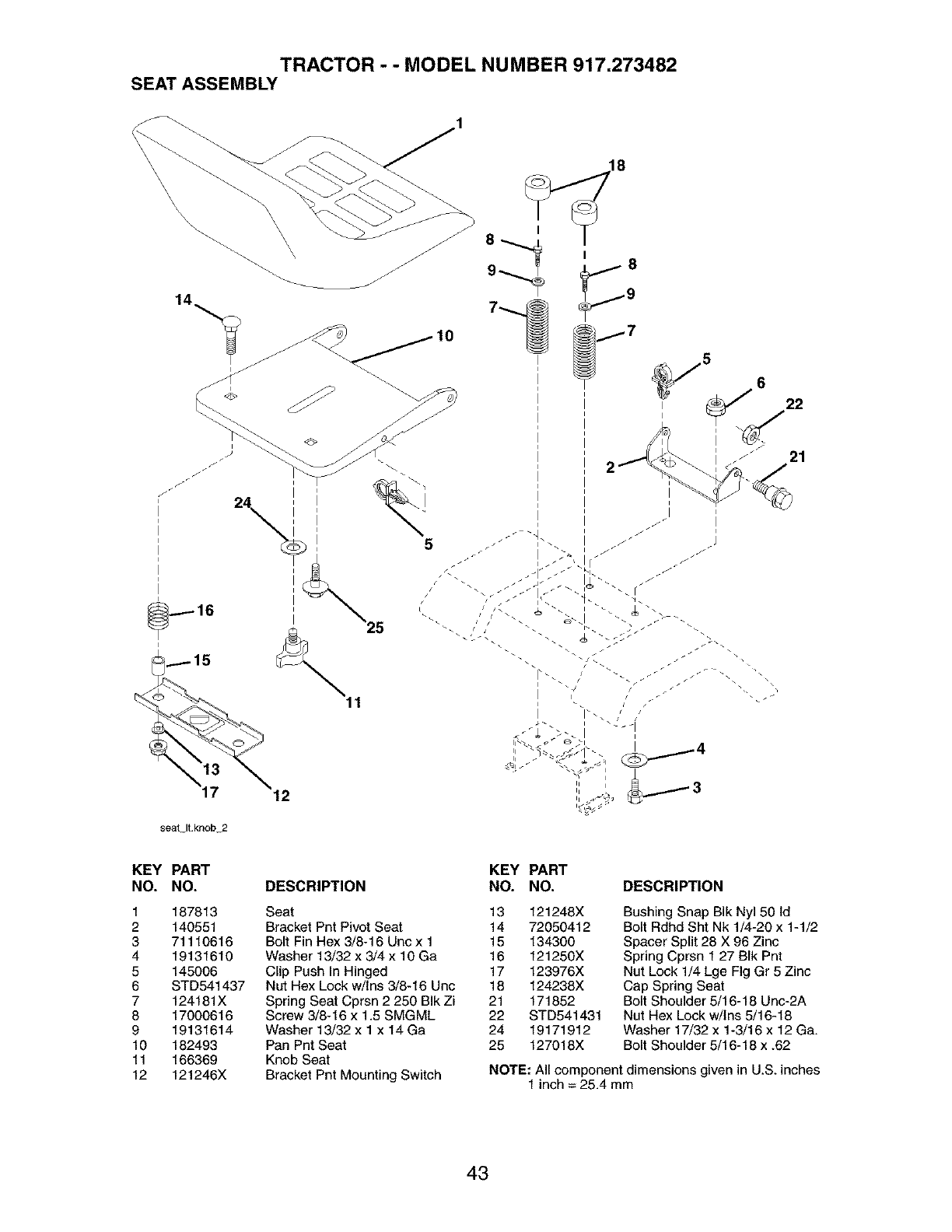

TRACTOR - - MODEL NUMBER 917.273482

SEAT ASSEMBLY

..-..--16

seaUt.knob2

KEY PART

NO. NO.

1 187813

2140551

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 182493

11 166369

12 121246X

DESCRIPTION

Seat

Bracket Pnt Pivot Seat

Bolt Fin Hex 3/8-16 Uncx 1

Washer 13/32 x 3/4 x 10 Ga

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 Uric

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 x 1.5 SMGML

Washer 13/32 x 1 x 14 Ga

Pan Pnt Seat

Knob Seat

Bracket Pnt Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 1343O0

16 121250X

17 123976X

18 124238X

21 171852

22 STD541431

24 19171912

25 127018X

Bushing Snap BIk Ny150 td

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

Spacer Split 28 X 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Cap Spring Seat

Bolt Shoulder 5/16-18 Unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga.

Bolt Shoulder 5/16-18 x .62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

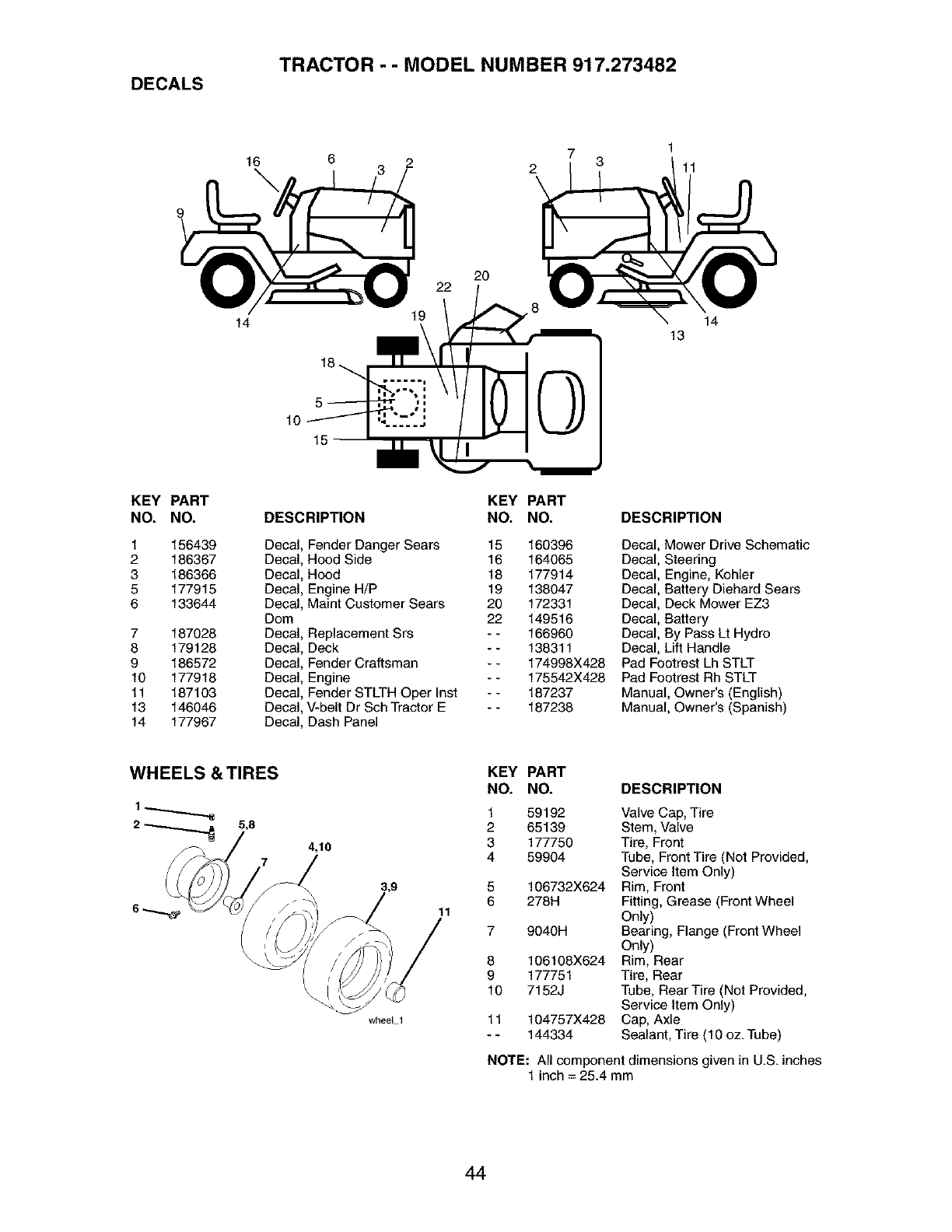

TRACTOR - - MODEL NUMBER 917.273482

DECALS

KEY PART

NO. NO.

1 156439

2 186367

3 186366

5 177915

6 133644

7 187028

8 179128

9 186572

10 177918

11 187103

13 146046

14 177967

7 1

6 3 2 2 3 11

KEY PART

DESCRIPTION NO. NO.

Decal, Fender Danger Sears 15 160396

Decal, Hood Side 16 164065

Decal, Hood 18 177914

Decal, Engine H/P 19 138047

Decal, Maint Customer Sears 20 172331

Dom 22 149516

Decal, Replacement Srs - - 166960

Decal, Deck - - 138311

Decal, Fender Craftsman - - 174998X428

Decal, Engine - - 175542X428

Decal, Fender STLTH Oper Inst - - 187237

Decal, V-belt Dr Sch Tractor E - - 187238

Decal, Dash Panel

DESCRIPTION

Decal, Mower Drive Schematic

Decal, Steering

Decal, Engine, Kohler

Decal, Battery Diehard Sears

Decal, Deck Mower EZ3

Decal, Battery

Decal, By Pass Lt Hydro

Decal, Lift Handle

Pad Footrest Lh STLT

Pad Footrest Rh STLT

Manual, Owner's (English)

Manual, Owner's (Spanish)

WHEELS &TIRES

2_5,8 4,10

wheel 1

KEY PART

NO. NO. DESCRIPTION

59192 Valve Cap, Tire

65139 Stem, Valve

177750 Tire, Front

59904 Tube, Front Tire (Not Provided,

Service Item Only)

106732X624 Rim, Front

278H Fitting, Grease (Front Wheel

Only)

9040H Bearing, Flange (Front Wheel

Only)

106108X624 Rim, Rear

177751 Tire, Rear

7152J Tube, Rear Tire (Not Provided,

Service Item Only)

104757X428 Cap, Axle

144334 Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

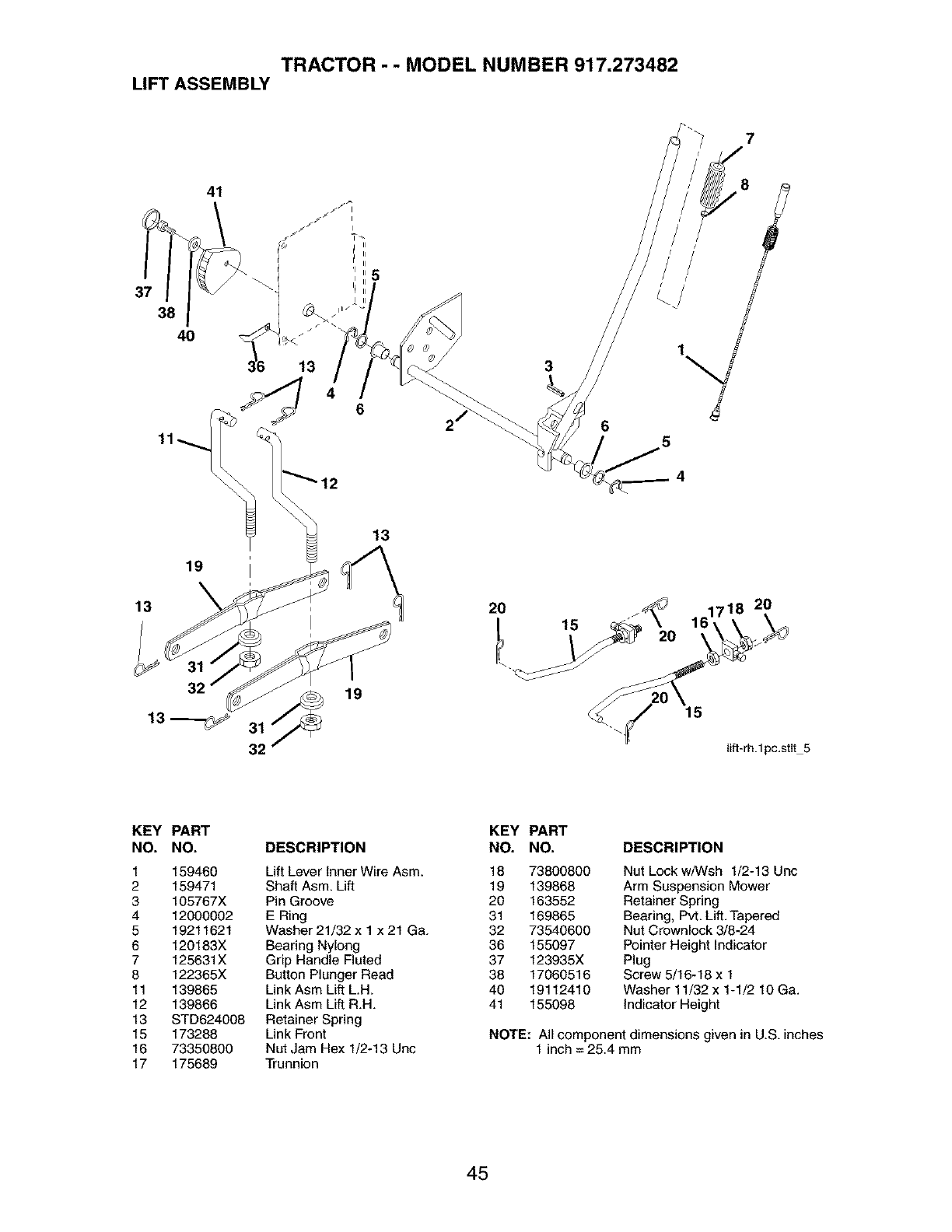

TRACTOR - - MODEL NUMBER 917.273482

LIFT ASSEMBLY

lift-rh.1pc.stlt5

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever Inner Wire Asm.

2159471 Shaft Asm. Lift

3 105767X Pin Groove

4 12000002 E Ring

5 19211621 Washer 21/32 x 1 x21 Ga.

6 120183X Bearing Nylong

7 125631X Grip Handle Fluted

8 122365X Button Plunger Read

11 139865 Link Asm Lift L.H.

12 139866 Link Asm Lift R.H.

13 STD624008 Retainer Spring

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 175689 Trunnion

KEY PART

NO. NO. DESCRIPTION

18 73800800 Nut Lock w/Wsh 1/2-13 Unc

19 139868 Arm Suspension Mower

20 163552 Retainer Spring

31 169865 Bearing, Pvt. Lift. Tapered

32 73540600 Nut Crownlock 3/8-24

36 155097 Pointer Height Indicator

37 123935X Plug

38 17060516 Screw 5/16-18 x 1

40 19112410 Washer 11/32 x 1-1/2 10 Ga.

41 155098 Indicator Height

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273482

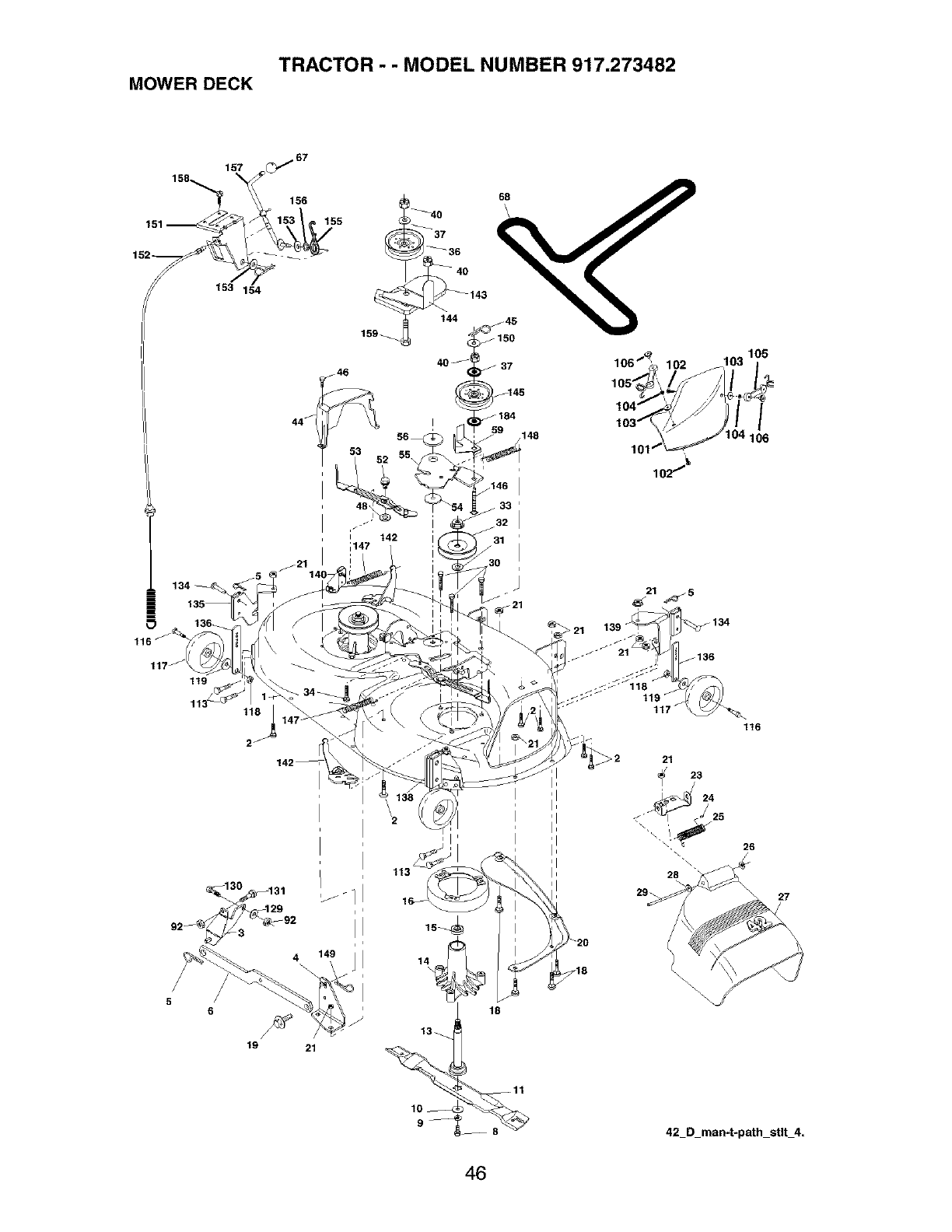

MOWER DECK

f145

148

.,,_ 105

106 _ _ 102 103 I

,o_/FS)1I

1o,:_1o4 ,oo

102''_

119

@_ 21

116

13_

42 D man-t-path sUt 4.

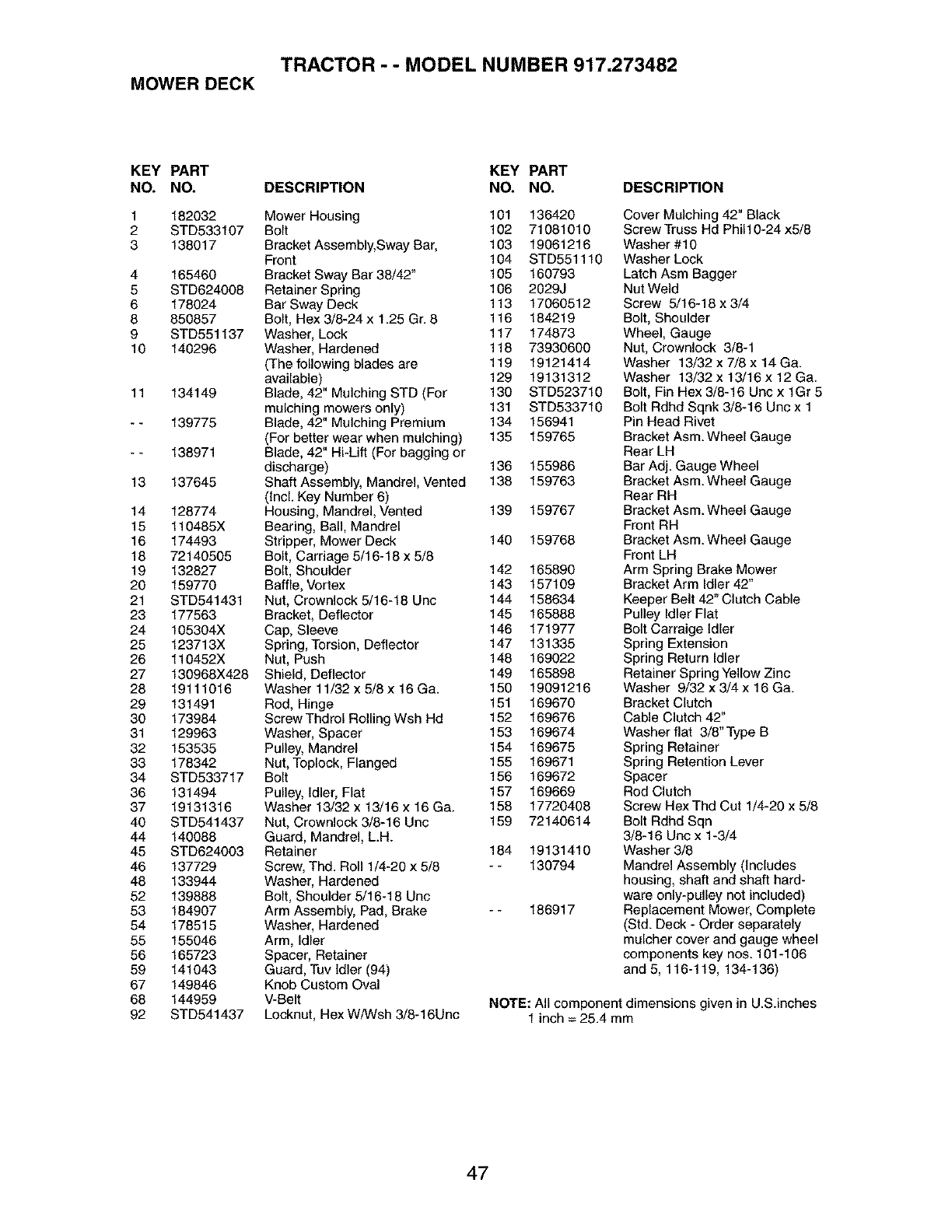

TRACTOR - - MODEL NUMBER 917.273482

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 182032 Mower Housing 101 136420

2 STD533107 Bolt 102 71081010

3 138017 Bracket Assembly, Sway Bar, 103 19061216

Front 104 STD551110

4 165460 Bracket Sway Bar 38/42" 105 160793

5 STD624008 Retainer Spring 106 2029J

6 178024 Bar Sway Deck 113 17060512

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 116 184219

9 STD551137 Washer, Lock 117 174873

10 140296 Washer, Hardened 118 73930600

(The following blades are 119 19121414

available) 129 19131312

11 134149 Blade, 42" Mulching STD (For 130 STD523710

mulching mowers only) 131 STD533710

-- 139775 Blade, 42" Mulching Premium 134 156941

(For better wear when mulching) 135 159765

- - 138971 Blade, 42" HFLift (For bagging or

discharge) 136 155986

13 137645 Shaft Assembly, Mandrel, Vented 138 159763

(Incl. Key Number 6)

14 128774 Housing, Mandrel, Vented 139 159767

15 110485X Bearing, Ball, Mandrel

16 174493 Stripper, Mower Deck 140 159768

18 72140505 Bolt, Carriage 5/16-18 x 5/8

19 132827 Bolt, Shoulder 142 165890

20 159770 Baffle, Vortex 143 157109

21 STD541431 Nut, Crownlock 5/16-18 Unc 144 158634

23 177563 Bracket, Deflector 145 165888

24 105304X Cap, Sleeve 146 171977

25 123713X Spring, Torsion, Deflector 147 131335

26 110452X Nut, Push 148 169022

27 130968X428 Shield, Deflector 149 165898

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 150 19091216

29 131491 Rod, Hinge 151 169670

30 173984 Screw Thdrol Rolling Wsh Hd 152 169676

31 129963 Washer, Spacer 153 169674

32 153535 Pulley, Mandrel 154 169675

33 178342 Nut, Toplock, Flanged 155 169671

34 STD533717 Bolt 156 169672

36 131494 Pulley, Idler, Flat 157 169669

37 19131316 Washer 13/32 x 13/16 x 16 Ga. 158 17720408

40 STD541437 Nut, Crownlock 3/8-16 Uric 159 72140614

44 140088 Guard, Mandrel, LH.

45 STD624003 Retainer 184 19131410

46 137729 Screw, Thd. Roll 1/4-20 x 5/8 - - 130794

48 133944 Washer, Hardened

52 139888 Bolt, Shoulder 5/16-18 Uric

53 184907 Arm Assembly, Pad, Brake - - 186917

54 178515 Washer, Hardened

55 155046 Arm, Idler

56 165723 Spacer, Retainer

59 141043 Guard, Tuv Idler (94)

67 149846 Knob Custom Oval

68 144959 V-Belt

92 STD541437 Locknut, Hex W/Wsh 3/8-16Unc

Cover Mulching 42" Black

Screw Truss Hd Phil10-24 x5/8

Washer #10

Washer Lock

Latch Asm Bagger

Nut Weld

Screw 5/16-18 x 3/4

Bolt, Shoulder

Wheel, Gauge

Nut, Crownlock 3/8-1

Washer 13/32 x 7/8 x 14 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 Uric x 1Gr 5

Bolt Rdhd Sqnk 3/8-16 Uric x 1

Pin Head Rivet

Bracket Asm. Wheel Gauge

Rear LH

Bar Adj. Gauge Wheel

Bracket Asm. Wheel Gauge

Rear RH

Bracket Asm. Wheel Gauge

Front RH

Bracket Asm. Wheel Gauge

Front LH

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carraige Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 42"

Washer flat 3/8"Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn

3/8-16 Uric x 1-3/4

Washer 3/8

Mandrel Assembly (Includes

housing, shaft and shaft hard-

ware only-pulley not included)

Replacement Mower, Complete

(Std. Deck - Order separately

mulcher cover and gauge wheel

components key nos. 101-106

and 5, 116-119, 134-136)

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm

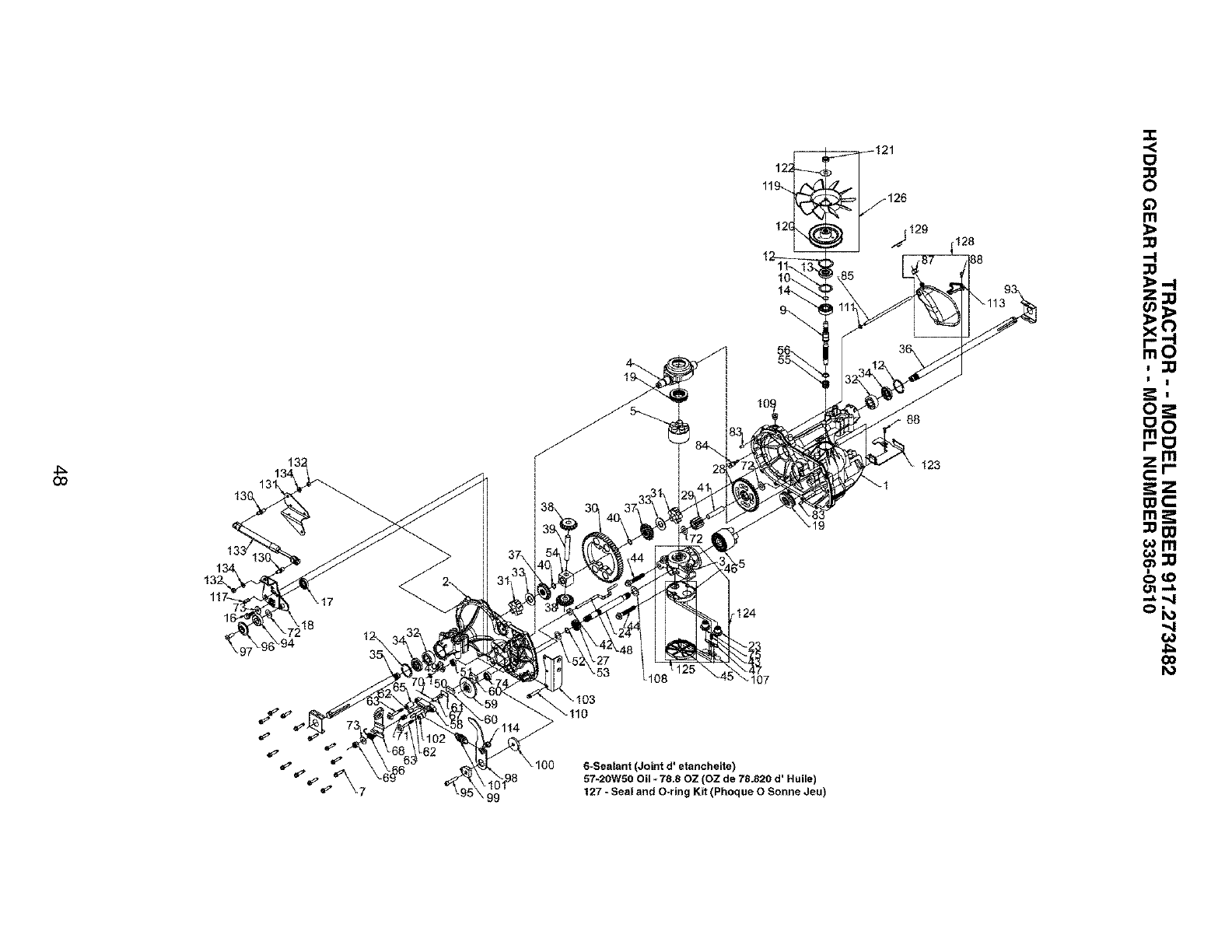

_129

123

r124

_108

6-Sealant (Joint d' etsncheite)

57-20W50 Oil - 78.80Z (OZ de 78.820 d' HuJle)

127 - Seal and O-ring Kit (Phoque 0 Sonne Jeu)

128

_>--t

,:0

z m

OlD

,.L ,,,,,1

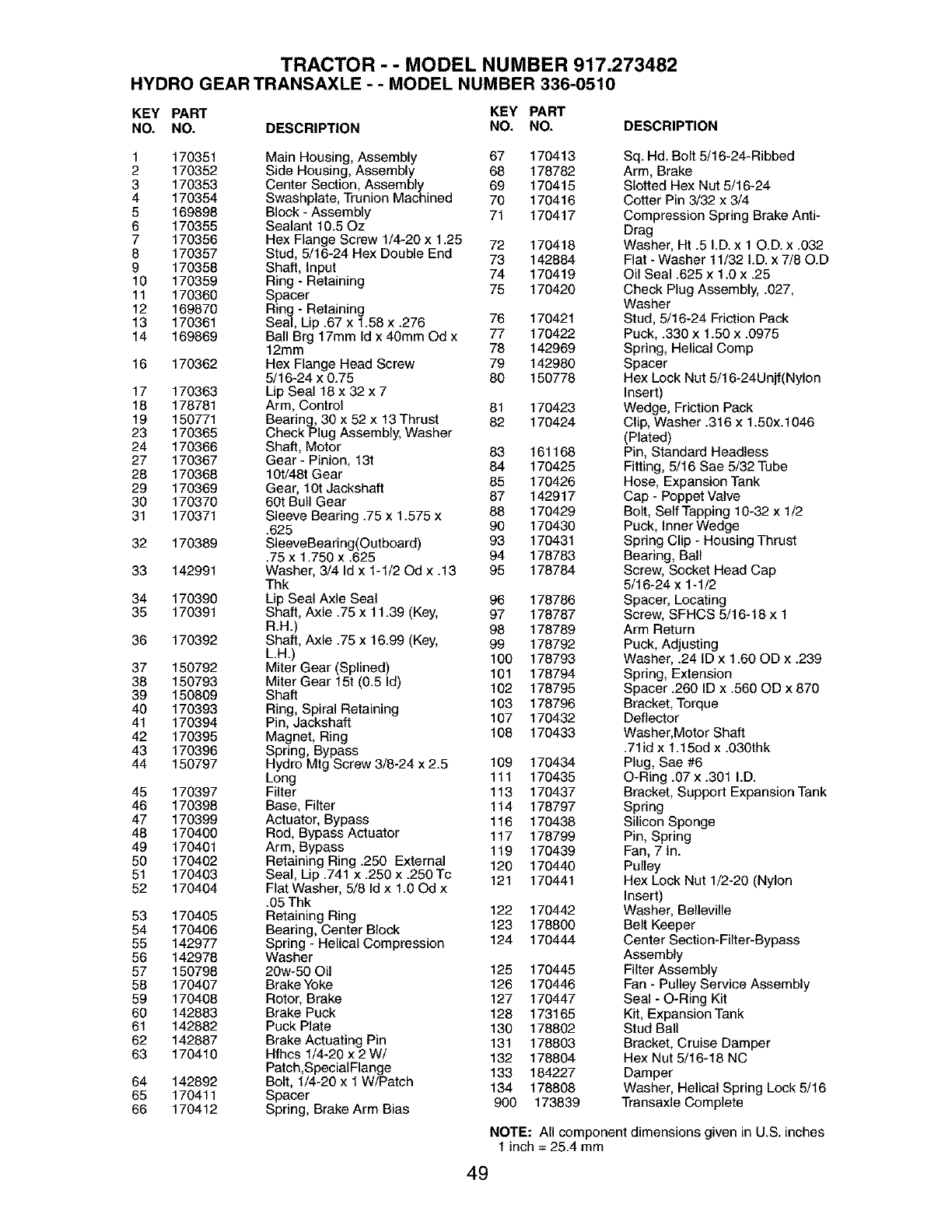

TRACTOR - - MODEL NUMBER 917.273482

HYDRO GEAR TRANSAXLE -- MODEL NUMBER 336-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing, Assembly 67 170413

2 170352 Side Housing, Assembly 68 178782

3 170353 Center Section, Assembly 69 170415

4 170354 Swashplate, Trunion Machined 70 170416

5 169898 Block-Assembly 71 170417

6 170355 Sealant 10.50z

7 170356 Hex Flange Screw 1/4-20 x 1.25 72 170418

8 170357 Stud, 5/16-24 Hex Double End 73 142884

9 170358 Shaft, Input 74 170419

10 170359 Ring - Retaining

11 170360 Spacer 75 170420

12 169870 Ring - Retaining

13 170361 Seal, Lip .67 x 1.58x .276 76 170421

14 169869 Ball Brg 17mm Id x 40mm Od x 77 170422

12mm 78 142969

16 170362 Hex Flange Head Screw 79 142980

5/16-24 x 0.75 80 150778

17 170363 Lip Seal 18 x 32 x 7

18 178781 Arm, Control 81 170423

19 150771 Bearing, 30 x 52 x 13 Thrust 82 170424

23 170365 Check Plug Assembly, Washer

24 170366 Shaft, Motor 83 161168

27 170367 Gear - Pinion, 13t 84 170425

28 170368 10t/48t Gear

29 170369 Gear, 10t Jackshaft 85 170426

30 170370 60t Bull Gear 87 142917

31 170371 Sleeve Bearing .75 x 1.575 x 88 170429

.625 90 170430

32 170389 SleeveBearing(Outboard) 93 170431

.75 x 1.750 x .625 94 178783

33 142991 Washer, 3/4 Id x 1-1/20d x .13 95 178784

Thk

34 170390 Lip Seal Axle Seal 96 178786

35 170391 Shaft, Axle .75 x 11.39 (Key, 97 178787

R.H.) 98 178789

36 170392 Shaft, Axle .75 x 16.99 (Key, 99 178792

L.H.) 100 178793

37 150792 Miter Gear (Splined) 101 178794

38 150793 Miter Gear 15t (0.5 Id) 102 178795

39 150809 Shaft

40 170393 Ring, Spiral Retaining 103 178796

41 170394 Pin, Jackshaft 107 170432

42 170395 Magnet, Ring 108 170433

43 170396 Spring, Bypass

44 150797 Hydro Mtg Screw 3/8-24 x 2.5 109 170434

Long 111 170435

45 170397 Filter 113 170437

46 170398 Base, Filter 114 178797

47 170399 Actuator, Bypass 116 170438

48 170400 Rod, Bypass Actuator 117 178799

49 170401 Arm, Bypass 119 170439

50 170402 Retaining Ring .250 External 120 170440

51 170403 Seal, Lip .741 x .250x .250Tc 121 170441

52 170404 Flat Washer, 5/8 Id x 1.00d x

.05 Thk

53 170405 Retaining Ring 122 170442

54 170406 Bearing, Center Block 123 178800

55 142977 Spring - Helical Compression 124 170444

56 142978 Washer

57 150798 20w-50 Oil 125 170445

58 170407 Brake Yoke 126 170446

59 170408 Rotor, Brake 127 170447

60 142883 Brake Puck 128 173165

61 142882 Puck Plate 130 178802

62 142887 Brake Actuating Pin 131 178803

63 170410 Hfhcs 1/4-20 x 2 W/ 132 178804

Patch,SpecialFlange 133 184227

64 142892 Bolt, 1/4-20 x 1 W/Patch 134 178808

65 170411 Spacer 900 173839

66 170412 Spring, Brake Arm Bias

Sq. Hd. Bolt 5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut 5/16-24

Cotter Pin 3/32 x 3/4

Compression Spring Brake Anti-

Drag

Washer, Ht .5 I.D. x 10.D. x .032

Flat - Washer 11/32 I.D. x 7/80.D

Oil Seal .625 x 1.0 x .25

Check Plug Assembly, .027,

Washer

Stud, 5/16-24 Friction Pack

Puck, .330 x 1.50 x .0975

Spring, Helical Comp

Spacer

Hex Lock Nut 5/16-24Unjf(Nylon

Insert)

Wedge, Friction Pack

Clip, Washer .316 x 1.50x.1046

(Plated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32 Tube

Hose, Expansion Tank

Cap - Poppet Valve

Bolt, Self Tapping 10-32 x 1/2

Puck, Inner Wedge

Spring Clip - Housing Thrust

Bearing, Ball

Screw, Socket Head Cap

5/16-24 x 1-1/2

Spacer, Locating

Screw, SFHCS 5/16-18 x 1

Arm Return

Puck, Adjusting

Washer, .24 ID x 1.60 OD x .239

Spring, Extension

Spacer .260 ID x .560 OD x 870

Bracket, Torque

Deflector

Washer, Motor Shaft

.71id x 1.15od x .030thk

Plug, Sae #6

O-Ring .07 x .301 I.D.

Bracket, Support Expansion Tank

Spring

Silicon Sponge

Pin, Spring

Fan, 7 In.

Pulley

Hex Lock Nut 1/2-20 (Nylon

Insert)

Washer, Belleville

Belt Keeper

Center Section-Filter-Bypass

Assembly

Filter Assembly

Fan - Pulley Service Assembly

Seal - O-Ring Kit

Kit, Expansion Tank

Stud Ball

Bracket, Cruise Damper

Hex Nut 5/16-18 NC

Damper

Washer, Helical Spring Lock 5/16

Transaxle Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

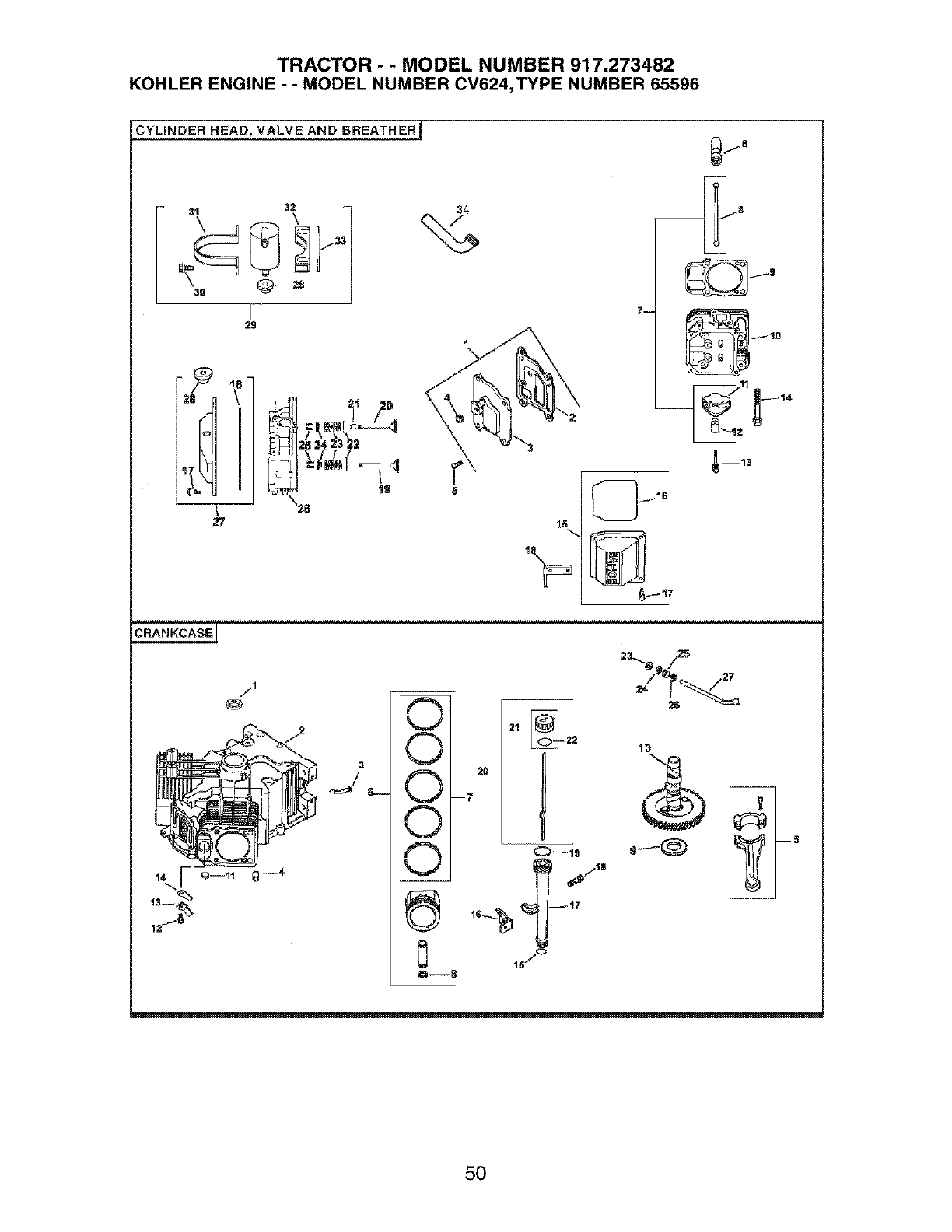

TRACTOR -- MODEL NUMBER 917.273482

KOHLER ENGINE - - MODEL NUMBER CV624,TYPE NUMBER 65596

CYLINDER HEAD, VALVE AND BREATHERJ

31 3_ , -

3Q _ -- 28

28 _2t D

i11Q

1_--13

CRANKCASE l

!8m

I2a--

r_7

_ t57_

O----8

--5

TRACTOR - - MODEL NUMBER 917.273482

KOHLER ENGINE - - MODEL NUMBER CV624,TYPE NUMBER 65596

HEAD/VALVE/BREATHER CRANKCASE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 24-033-01-S Kit, breather cover w/gasket 1 24-032-01-S

(Includes 2-4) 2

2 24-041-23-S Gasket, breather

3 24-096-87-S Cover, breather 3 24-294-13-S

4 25-139-60-S Plug, allen hd. 1/8" 4 24-380-13-S

5 M-645020 Screw, hex. f_ange M6xt .0x20 {4) 524-067-13-S

6 25-351-01-S Lifter, valve (4) 24-067-14-S

7 24-755-66-S Kit, valve train (Includes 8,11,12) 6 24-874-17-S

8 24-411-05-S Rod, push (4)

9 24-041-08-S Gasket, cylinder head (2) 24-874-18-S

10 24-318-70-S Head assembly, #2 cylinder 24-874-19-S

11 25-186-01-S Arm, rocker (4) 24-874-14-S

12 24-599-01-S Pivot, rocker arm (4) 7 24-108-11-S

13 M-640034-S Screw, hex. flange M6x1.0x34 (4) 24-108-12-S

14 12-086-16-S Screw, hex. flange Mt0xt.5x90 24-108-13-S

(8) 8 24-018-01-S

15 24-755-74-S Kit, valve cover - plain 9 12-422-09-S

(Includes 16,17) 12-422-13-S

16 24-153-23-S O-Ring 12-422-07-S

17 24-086-32-S Screw, shoulder (4) 12-422-08-S

18 24-445-01-S Strap, lifting 12-422-10-S

19 24-016-01-S Valve, exhaust (Std.) (2) 12-422-11-S

24-016-02-S Valve, exhaust (.25) (2) 12-422-12-S

20 24-017-01-S Valve, intake (Std.) (2 10 24-012-10-S

24-017-02-S Valve, intake (.25) (2) 11 52-139-09-S

21 66-032-05-S Seal, valve stem (2) 12 M-545010-S

22 235011-S Retainer, spring (4) 13 24_018-04-S

23 24-089-02-S Spring, valve (4) 14 24-402-05-S

24 12-173-01-S Cap, valve spring (4) 15 12-153-01-S

25 12-755-03-S Kit, retainer (4) 16 24-126-19-S

26 24-318-67-S Head assembly, #1 cylinder 17 12-123-04-S

27 24-755-76-S Kit, valve cover - breather 18 M-545016-S

(Incl. 16,17,28) 19 12-t 53-02-S

28 25-313-02-S Grommet, rubber 20 24-038-04-S

29 24-755-57-S Kit, breather separator

(includes 28,30-33) 21 24-755-46-S

30 M-545016-S Screw, hex. flange M5x0.8x16 (2) 22 12-153-03-S

31 24-445-02-S Strap, breather 23 24-018-09-S

32 24-126-44-S Bracket, breather separator 24 M-931010-S

33 24-112-12-S Spacer 25 28-032-09-S

34 24-326-55-S Hose, Breather 26 24-468-15-S

27 24-144-38-S

Seal, oil front

Crankcase

(USE: Miniblock 24 782 34)

Fitting

Pin, dowel locating (6)

Connecting Rod (Std.) (2)

Connecting Rod (.25) (2)

Piston w/Ring Set (Std.) (2)

(Includes 7, 8)

Piston w/Ring Set (.25) (2)

Piston w/Ring Set (.50) (2)

Piston w/ring set (.08)

Ring Set (Std.) (2)

Ring Set (.25) (2)

Ring Set (.50) (2)

Retainer, piston pin (4)

Shim, camshaft (A.R.)

Shim, camshaft

Shim, camshaft (A.R.)

Camshaft

Plug, cup

Screw, hex. flange M5x0.8xl0 (2)

Retainer, reed (2)

Reed, breather (2)

O-Ring, lower oil fill tube

Bracket, oil ftil tube

Tube, oil fill

Screw, hex. flange M5x0.ax16

O-Ring, upper oil flu tube

Dipstick assembly (Includes 21,

22)

Kit, oil fill cap (Includes 22)

O-Ring, dipstick

Retainer, ring

Washer, nylon (top)

Seal, governor cross shaft

Washer (bottom)

Shaft, governor cross

NOTE: All component dimensions given in U.S. inches

t inch = 25.4 mm

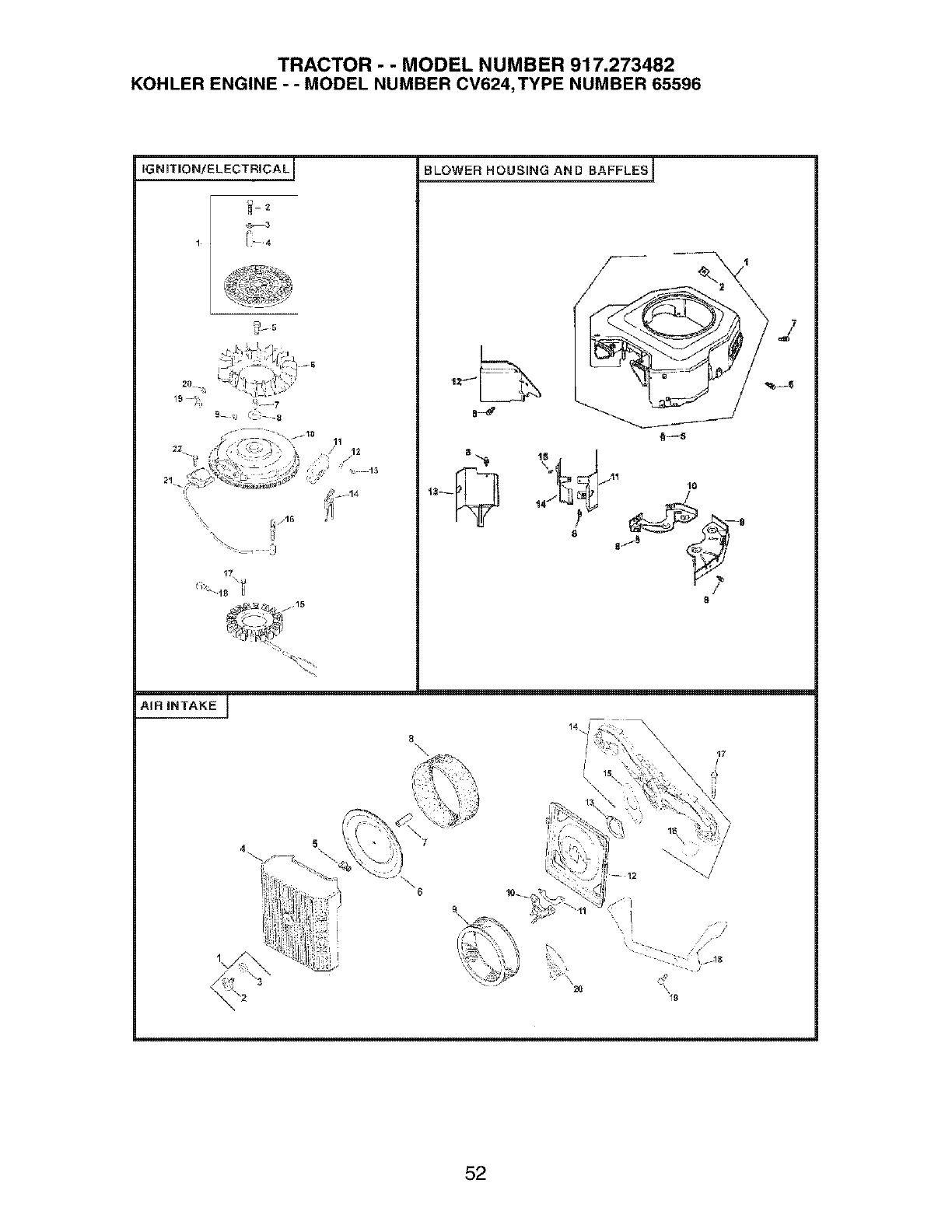

TRACTOR -- MODEL NUMBER 917.273482

KOHLER ENGINE - - MODEL NUMBER CV624,TYPE NUMBER 65596

IGN}TION/ELECTRICAL]

20 _©,

_j16

BLOWEF_ HOUSmNG AND BAFFLES]

AIR iNTAKE ]

8\ I17

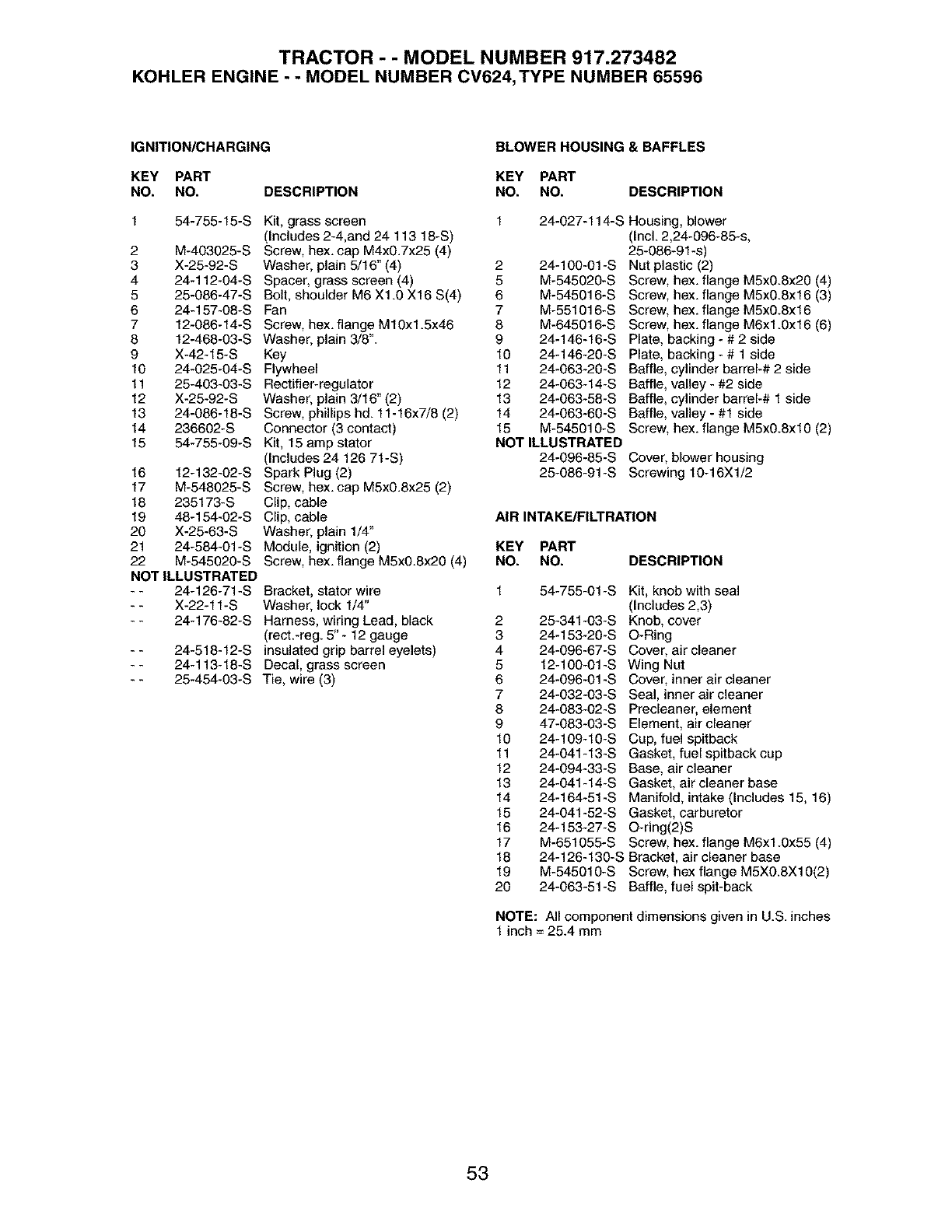

TRACTOR -- MODEL NUMBER 917.273482

KOHLER ENGINE - - MODEL NUMBER CV624,TYPE NUMBER 65596

IGNITION/CHARGING BLOWER HOUSING & BAFFLES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 54-755-15-S Kit, grass screen 1

(Includes 2-4,and 24 113 18-S)

2 M-403025-S Screw, hex.cap M4x0.7x25 (4)

3 X-25-92-S Washer, plain 5/16" (4) 2 24-100-01 -S

4 24-112-04-S Spacer, grass screen (4) 5 M-545020-S

5 25-086-47-S Bolt, shoulder M6 X1.0 X16 S(4) 6 M-545016-S

624-157-08-S Fan 7 M-551016-S

7 12-086-14-S Screw, hex. flange M10x1.5x46 8 M-645016-S

8 12-468-03-S Washer, plain 3/8". 9 24-146-16-S

9 X-42-15-S Key 10 24-146-20-S

10 24-025-04-S Flywheel 11 24-063-20-S

11 25-403-03-S Rectifier-regulator 12 24-063-14-S

12 X-25-92-S Washer, plain 3/16" (2) 13 24-063-58-S

13 24-086-18-S Screw, phillipshd. 11-16x7/8 (2) 14 24-063-60-S

14 236602-S Connector (3 contact) 15 M-545010-S

15 54-755-09-S Kit, 15 amp stator NOT ILLUSTRATED

(Includes 24 126 71-S) 24-096-85-S

16 12-132-02-S Spark Plug (2) 25-086-91-S

17 M-548025-S Screw, hex. cap M5x0.8x25 (2)

18 235173-S Clip, cable

19 48-154-02-S Clip, cable AIR INTAKE/FILTRATION

20 X-25-63-S Washer, plain 1/4"

21 24-584-01-S Module, ignition (2) KEY PART

NO. NO.

22 M-545020-S Screw, hex. flange M5x0.8x20 (4)

NOT ILLUSTRATED

- - 24-126-71-S Bracket, stator wire

- - X-22-11-S

- - 24-176-82-S

24-518-12-S

24-113-18-S

25-454-03-S

Washer, lock 1/4"

Harness, wiring Lead, black

(rect.-reg. 5"- 12 gauge

insulated grip barrel eyelets)

Decal, grass screen

Tie, wire (3)

24-027-114-S Housing, blower

(Incl. 2,24-096-85-s,

25-086-91-s)

Nut plastic (2)

Screw, hex. flange M5x0.8x20 (4)

Screw, hex. flange M5x0.8x16 (3)

Screw, hex. flange M5x0.8x16

Screw, hex. flange M6x1.0x16 (6)

Plate, backing - # 2 side

Plate, backing - # 1 side

Baffle, cylinder barrel-# 2 side

Baffle, valley - #2 side

Baffle, cylinder barrel-# 1 side

Baffle, valley - #1 side

Screw, hex. flange M5x0.8xl0 (2)

Cover, blower housing

Screwing 10-16X1/2

DESCRIPTION

1 54-755-01-S Kit, knob with seal

(Includes 2,3)

2 25-341-03-S Knob, cover

3 24-153-20-S O-Ring

4 24-096-67-S Cover, air cleaner

5 12-100-01-S Wing Nut

624-096-01-S Cover, inner air cleaner

7 24-032-03-S Seal, inner air cleaner

8 24-083-02-S Precleaner, element

9 47-083-03-S Element, air cleaner

10 24-109-10-S Cup, fuel spitback

11 24-041-13-S Gasket, fuel spitback cup

12 24-094-33-S Base, air cleaner

13 24-041-14-S Gasket, air cleaner base

14 24-164-51-S Manifold, intake (Includes 15, 16)

15 24-041-52-S Gasket, carburetor

16 24-153-27-S O-ring(2)S

17 M-651055-S Screw, hex. flange M6x1.0x55 (4)

18 24-126-130-S Bracket, air cleaner base

19 M-545010-S Screw, hex flange M5X0.8X10(2)

20 24-063-51-S Baffle, fuel spit-back

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

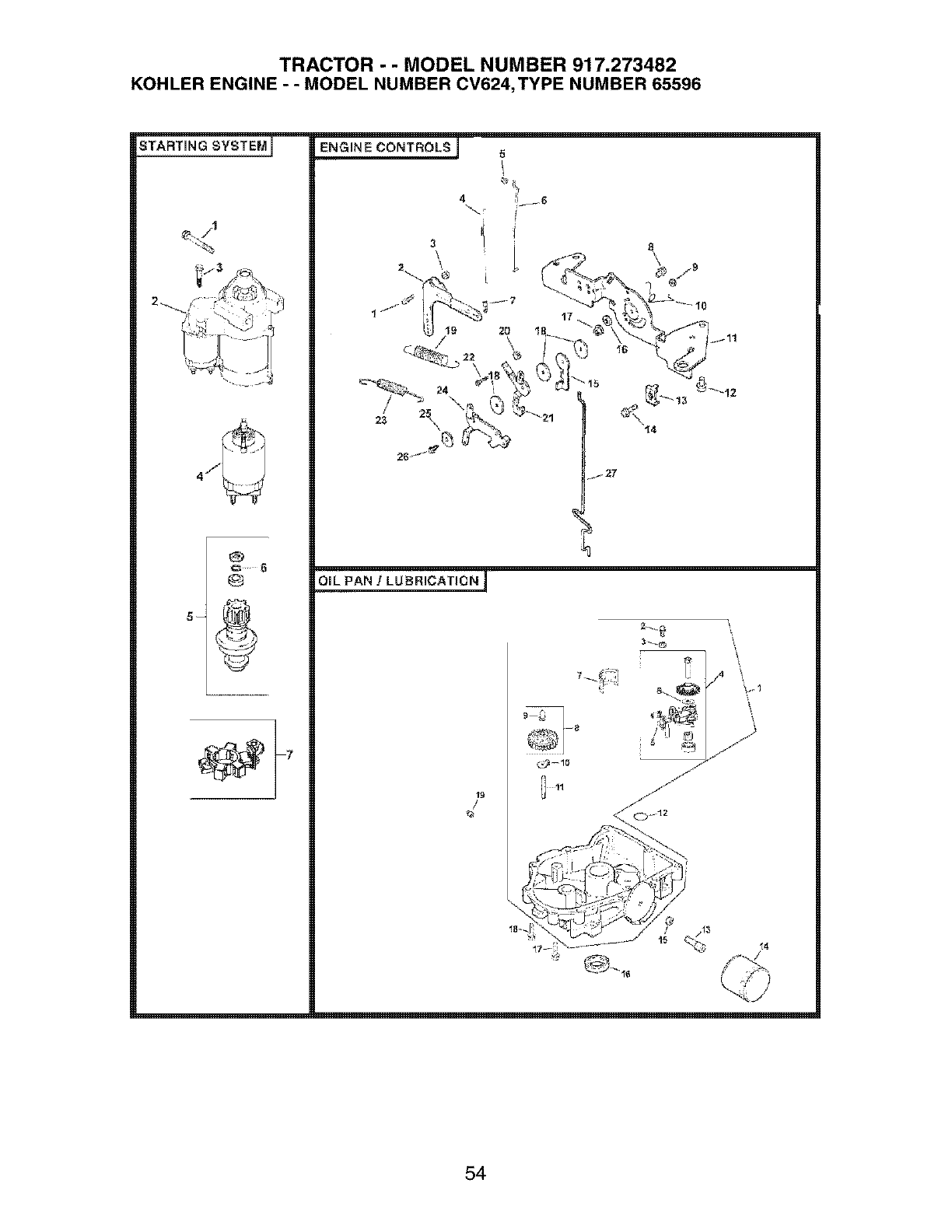

TRACTOR -- MODEL NUMBER 917.273482

KOHLER ENGINE - - MODEL NUMBER CV624,TYPE NUMBER 65596

STARTING SYSTEM]

ENGIN ECONTROLS I5

OiL PAN .f LUBRICATION

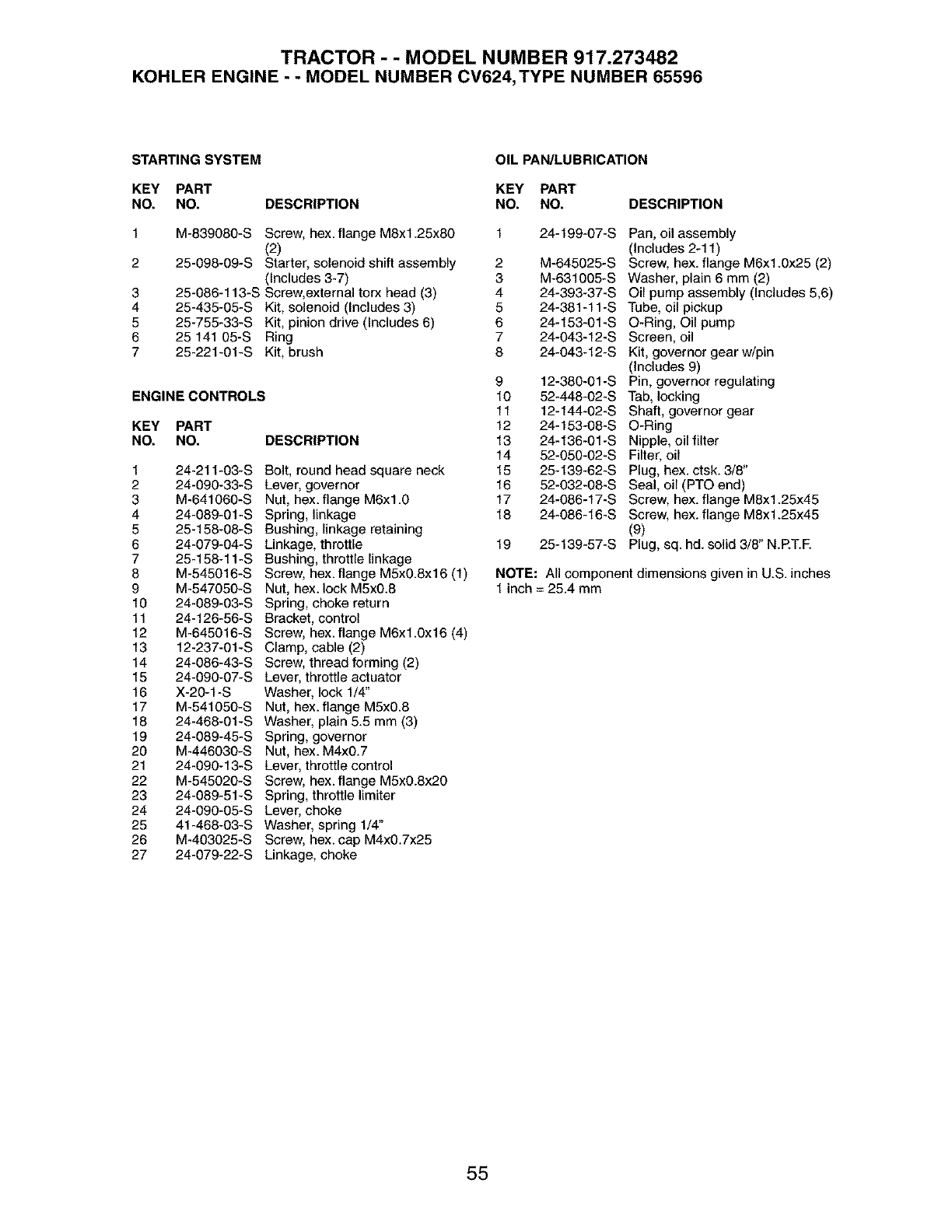

TRACTOR -- MODEL NUMBER 917.273482

KOHLER ENGINE - - MODEL NUMBER CV624,TYPE NUMBER 65596

STARTING SYSTEM OIL PAN/LUBRICATION

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 M-839080-S Screw, hex. flange M8x1.25x80 1

(2)

2 25-098-09-S Starter, solenoid shift assembly 2

(Includes 3-7) 3

3 25-086-113-S Screw, external torx head (3) 4

4 25-435-05-S Kit, solenoid (Includes 3) 5

5 25-755-33-S Kit, pinion drive (Includes 6) 6

625 141 05-S Ring 7

725-221-01-S Kit, brush 8

ENGINE CONTROLS

DESCRIPTION

KEY PART

NO. NO.

Bolt, round head square neck

Lever, governor

Nut, hex. flange M6xl.0

Spring, linkage

Bushing, linkage retaining

Linkage, throttle

Bushing, throttle linkage

Screw, hex. flange M5x0.8xl 6 (1)

Nut, hex. lock M5x0.8

Spring, choke return

Bracket, control

Screw, hex. flange M6x1.0x16 (4)

Clamp, cable (2)

Screw, thread forming (2)

Lever, throttle actuator

Washer, lock 1/4"

Nut, hex. flange M5x0.8

Washer, plain 5.5 mm (3)

Spring, governor

Nut, hex. M4x0.7

Lever, throttle control

Screw, hex. flange M5x0.8x20

Spring, throttle limiter

Lever, choke

Washer, spring 1/4"

Screw, hex. cap M4x0.7x25

Linkage, choke

124-211-03-S

2 24-090-33-S

3 M-641060-S

4 24-089-01-S

525-158-08-S

6 24-079-04-S

725-158-11-S

8 M-545016-S

9 M-547050-S

10 24-089-03-S

11 24-126-56-S

12 M-645016-S

13 12-237-01-S

14 24-086-43-S

15 24-090-07-S

16 X-20-1-S

17 M-541050-S

18 24-468-01-S

19 24-089-45-S

20 M-446030-S

21 24-090-13-S

22 M-545020-S

23 24-089-51-S

24 24-090-05-S

25 41-468-03-S

26 M-403025-S

27 24-079-22-S

DESCRIPTION

24-199-07-S

M-646026-S

M-631006-S

24-393-37-S

24-381-11-S

24-153-01-S

24-043-12-S

12-380-01-S

52-448-02-S

12-144-02-S

24-153-08-S

24-136-01-S

52-050-02-S

25-139-62-S

52-032-08-S

24-086-17-S

24-086-16-S

25-139-57-S

Pan, oil assembly

(includes 2-11)

Screw, hex. flange M6x1.0x25 (2)

Washer, plain 6 mm (2)

Oil pump assembly (Includes 5,6)

Tube, oil pickup

O-Ring, Oil pump

Screen, oil

Kit, governor gear w/pin

(Includes 9)

Pin, governor regulating

Tab, locking

Shaft, governor gear

O-Ring

Nipple, oil filter

Filter, oil

Plug, hex. ctsk. 3/8"

Seal, oil (PTO end)

Screw, hex. flange M8x1.25x45

(9)

Plug, sq. hal.solid 3/8" N.P.T.E

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

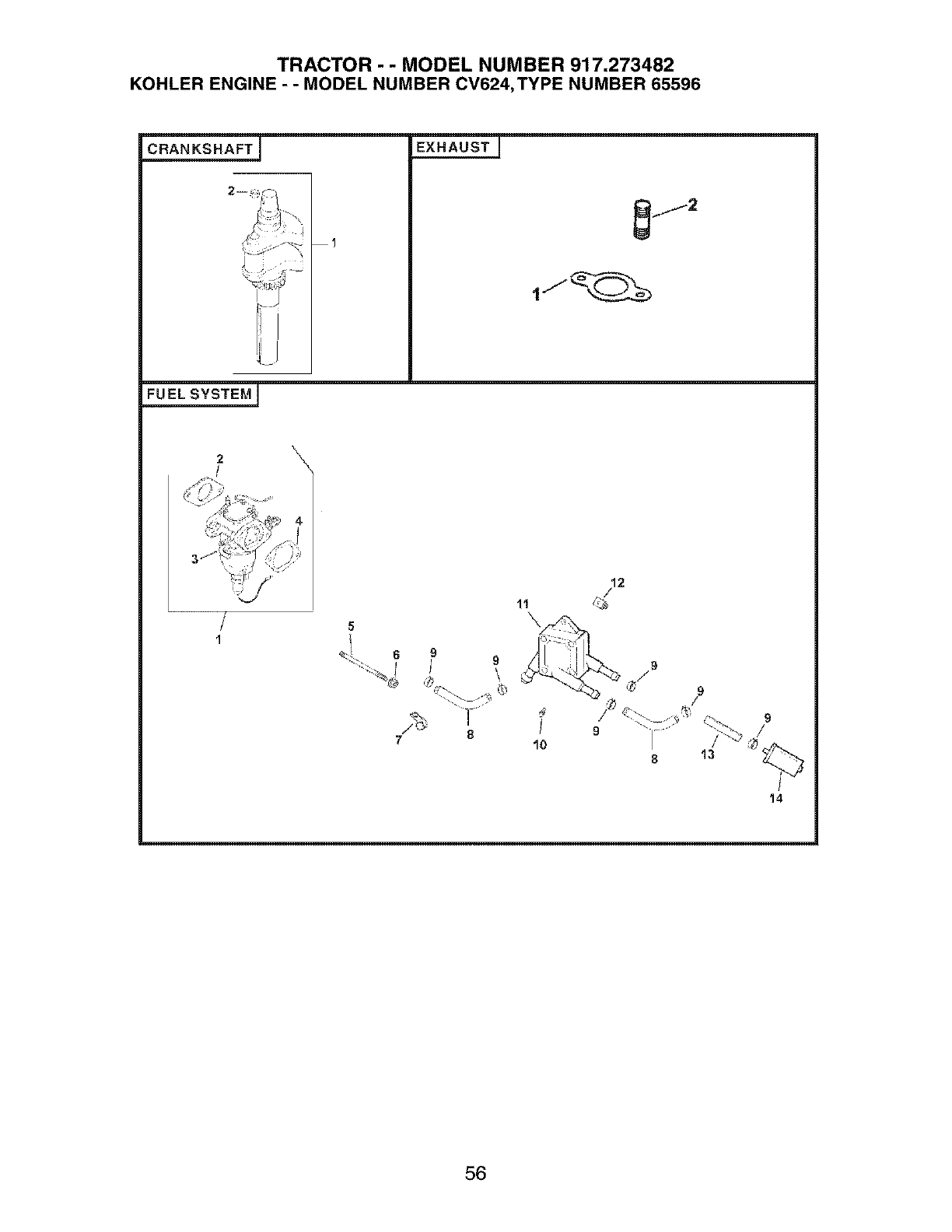

TRACTOR - -MODEL NUMBER 917.273482

KOHLER ENGINE - - MODEL NUMBER CV624,TYPE NUMBER 65596

CRA,KS,AFTI

EXHAUST I

FUEL SYSTEM J

813

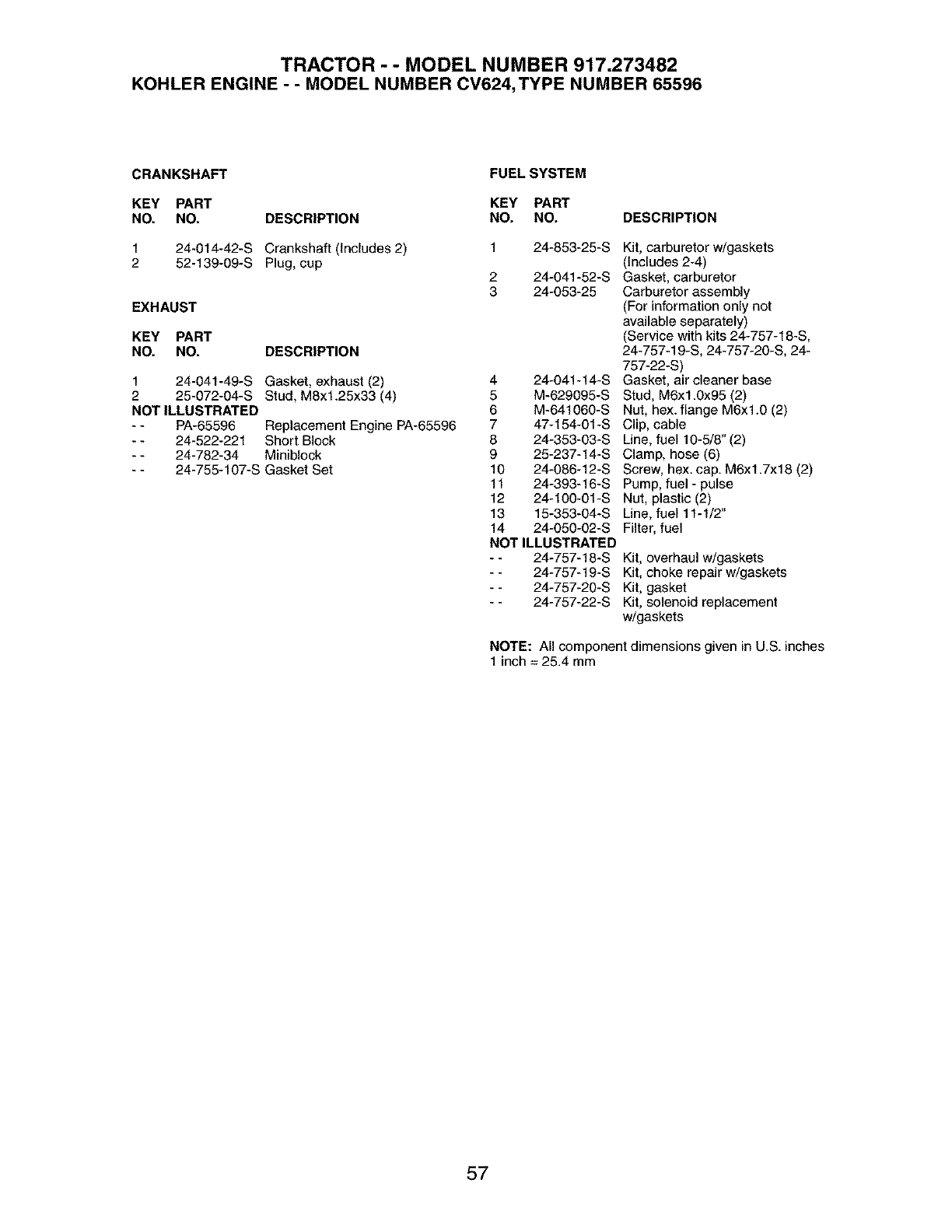

TRACTOR -- MODEL NUMBER 917.273482

KOHLER ENGINE - - MODEL NUMBER CV624,TYPE NUMBER 65596

CRANKSHAFT

KEY PART

NO. NO. DESCRIPTION

1 24-014-42-S Crankshaft (Includes 2)

252-139-09-S Plug, cup

EXHAUST

KEY PART

NO. NO. DESCRIPTION

1 24-041-49-S Gasket, exhaust (2)

2 25-072-04-S Stud, M8x1.25x33 (4)

NOT ILLUSTRATED

- - PA-65596 Replacement Engine PA-65596

- - 24-522-221 Short Block

- - 24-782-34 Miniblock

- - 24-755-107-S Gasket Set

FUEL SYSTEM

KEY PART

NO. NO. DESCRIPTION

1 24-853-25-S Kit, carburetor w/gaskets

(Includes 2-4)

2 24-041-52-S Gasket, carburetor

3 24-053-25 Carburetor assembly

(For information only not

available separately)

(Service with kits 24-757-18-S,

24-757-19-S, 24-757-20-S, 24-

757-22-S)

4 24-041-14-S Gasket, air cleaner base

5 M-629095-S Stud, M6x1.0x95 (2)

6 M-641060-S Nut, hex. flange M6xl.0 (2)

7 47-154-01-S Clip, cable

8 24-353-03-S Line, fuel 10-5/8" (2)

9 25-237-14-S Clamp, hose (6)

10 24-086-12-S Screw, hex.cap. M6x1.7x18 (2)

11 24-393-16-S Pump, fuel - pulse

12 24-100-01-S Nut, plastic (2)

13 15-353-04-S Line, fuel 11-1/2"

14 24-050-02-S Filter, fuel

NOT ILLUSTRATED

- - 24-757-18-S Kit, overhaul w/gaskets

- - 24-757-19-S Kit, choke repair w/gaskets

- - 24-757-20-S Kit, gasket

- - 24-757-22-S Kit, solenoid replacement

w/gaskets

NOTE: All component dimensions given in U.S. inches

1inch =25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

¢.o

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Get it fixed, at your home or ours!

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME _) Anytime, day or night

(1-800-469-4663) (U S A and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U S A only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (u SA) 1-800-361-6665 (Canada)

Para pedir servicio de reparaciSn

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en franq.ais:

1-800-LE-FOYER Mc

(1_:)0-533-6937)

www sears ca

6E/AR 9 o 4,o

@Sears, Roebuckand Co

® Registered Trademark /Trademark /sf,_Service Mark of Sears, Roebuck and Co

Marca Re istra Tr,_

® g da /Marca de Fabrlca /SMMarca de Servlclo de Sears, Roebuck and Co

MC 11D

Marque de commerce /Marque d_pos_e de Sears, Roebuck and Co

187237 Rev. 1 7.31.03 TR/MH Printed in U.S.A.

Craftsman 917273482 User Manual LAWN TRACTOR Manuals And Guides L0308080

CRAFTSMAN Lawn, Tractor Manual L0308080 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
