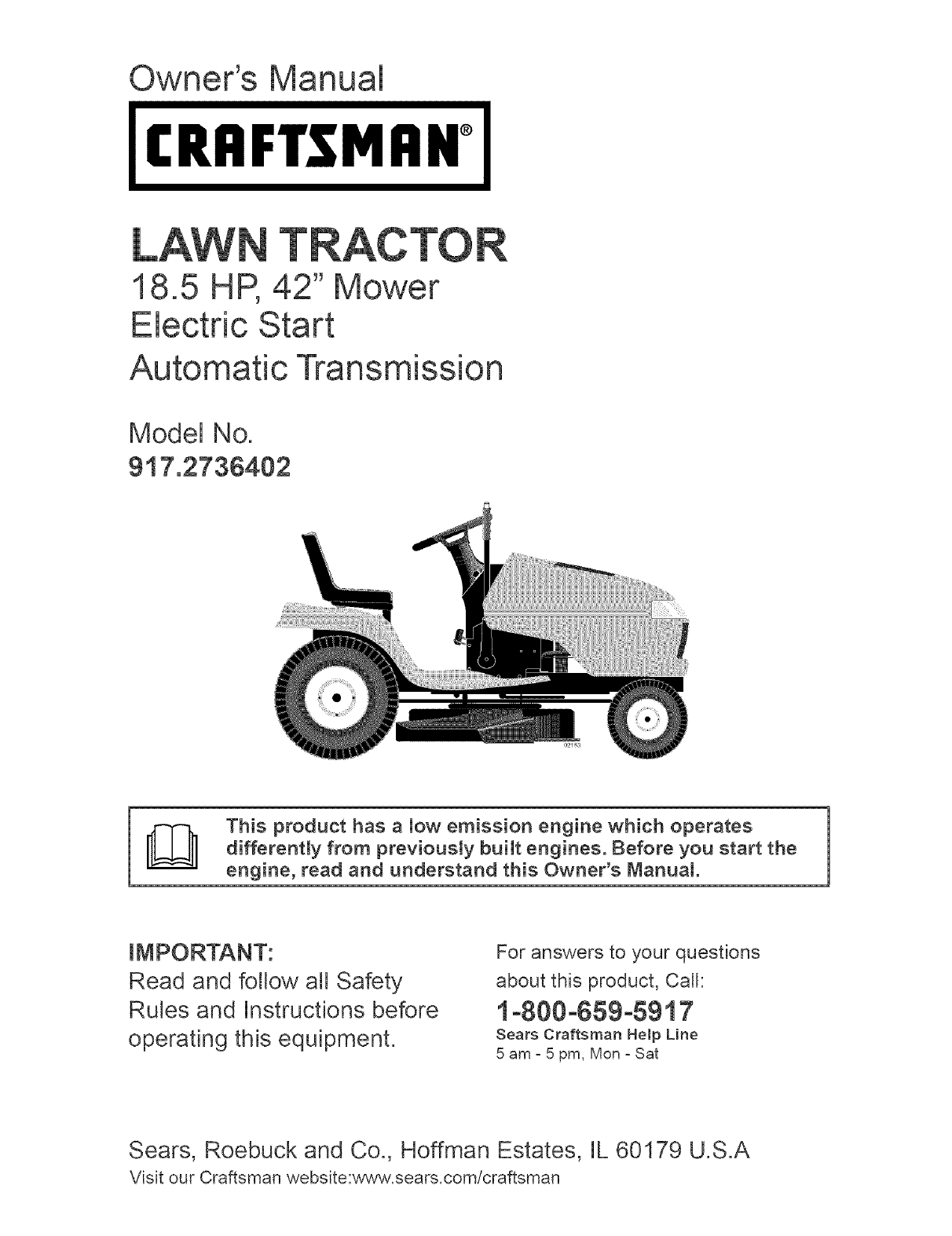

Owner's Manual

(RRFTSMRN°

18.5 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.2736402

[_ This product has a low emission engine which operates

differently from previousmy built engines. Before you start the

engine, read and understand this Owner's Manual

Read and foflow aft Safety

Rules and instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1°800°659°5917

Sears Craftsman He{p Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

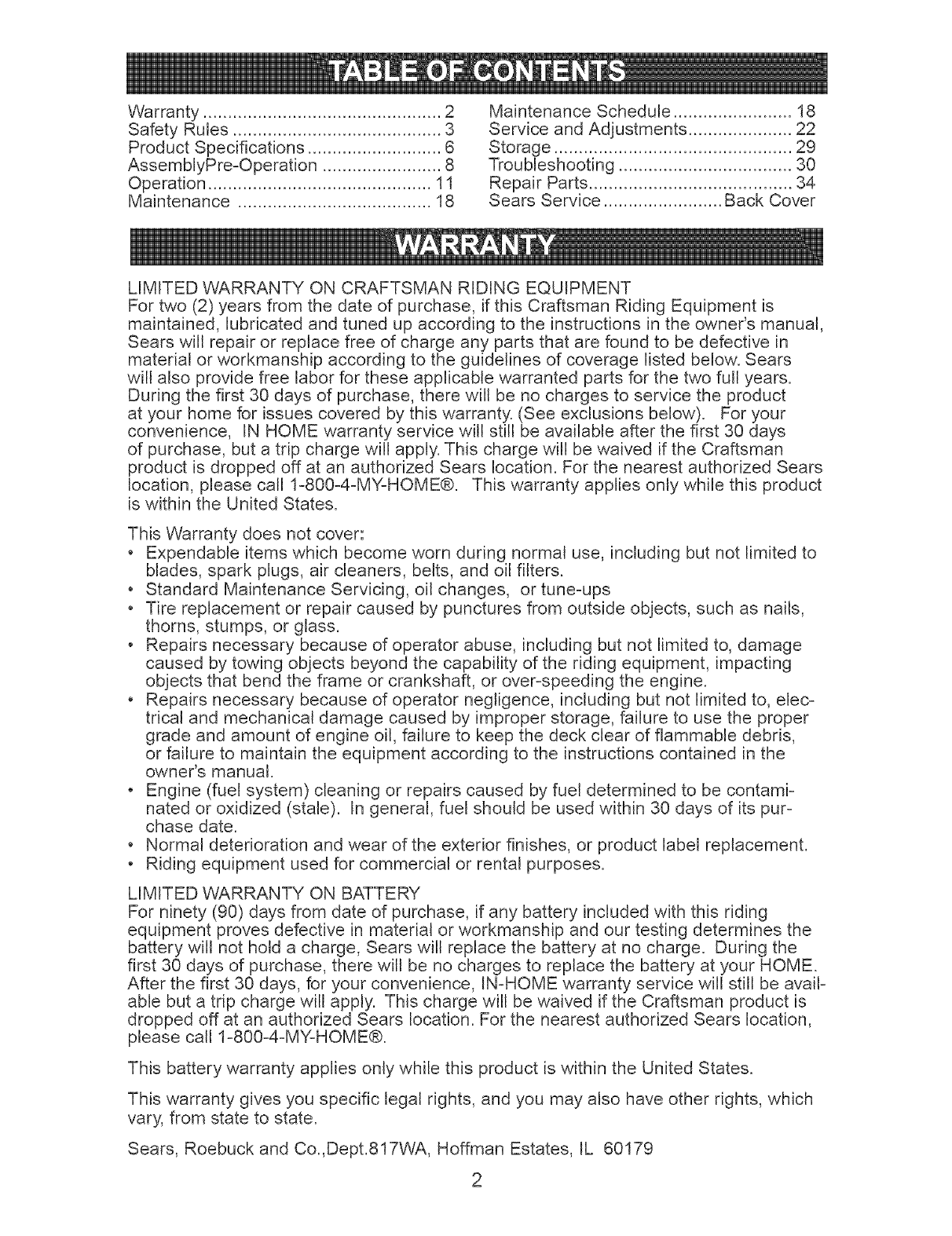

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

AssemblyPre=Operation ........................ 8

Operation ............................................. 11

Maintenance ....................................... 18

Maintenance Schedule ........................ 18

Service and Adjustments ..................... 22

Storage ................................................ 29

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears

will also provide free labor for these applicable warranted parts for the two full years.

During the first 30 days of purchase, there will be no charges to service the product

at your home for issues covered by this warranty. (See exclusions below). For your

convenience, IN HOME warranty service will still be available after the first 30 days

of purchase, but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped off at an authorized Sears location. For the nearest authorized Sears

location, please call 1=800=4=MY=HOME®. This warranty applies only while this product

is within the United States.

This Warranty does not cover:

o Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

o Standard Maintenance Servicing, oil changes, or tune=ups

o Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

o Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over=speeding the engine.

o Repairs necessary because of operator negligence, including but not limited to, elec=

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

o Engine (fuel system) cleaning or repairs caused by fuel determined to be contami=

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur=

chase date.

o Normal deterioration and wear of the exterior finishes, or product label replacement.

o Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hotd a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN=HOME warranty service will still be avail=

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1=800=4=MY=HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

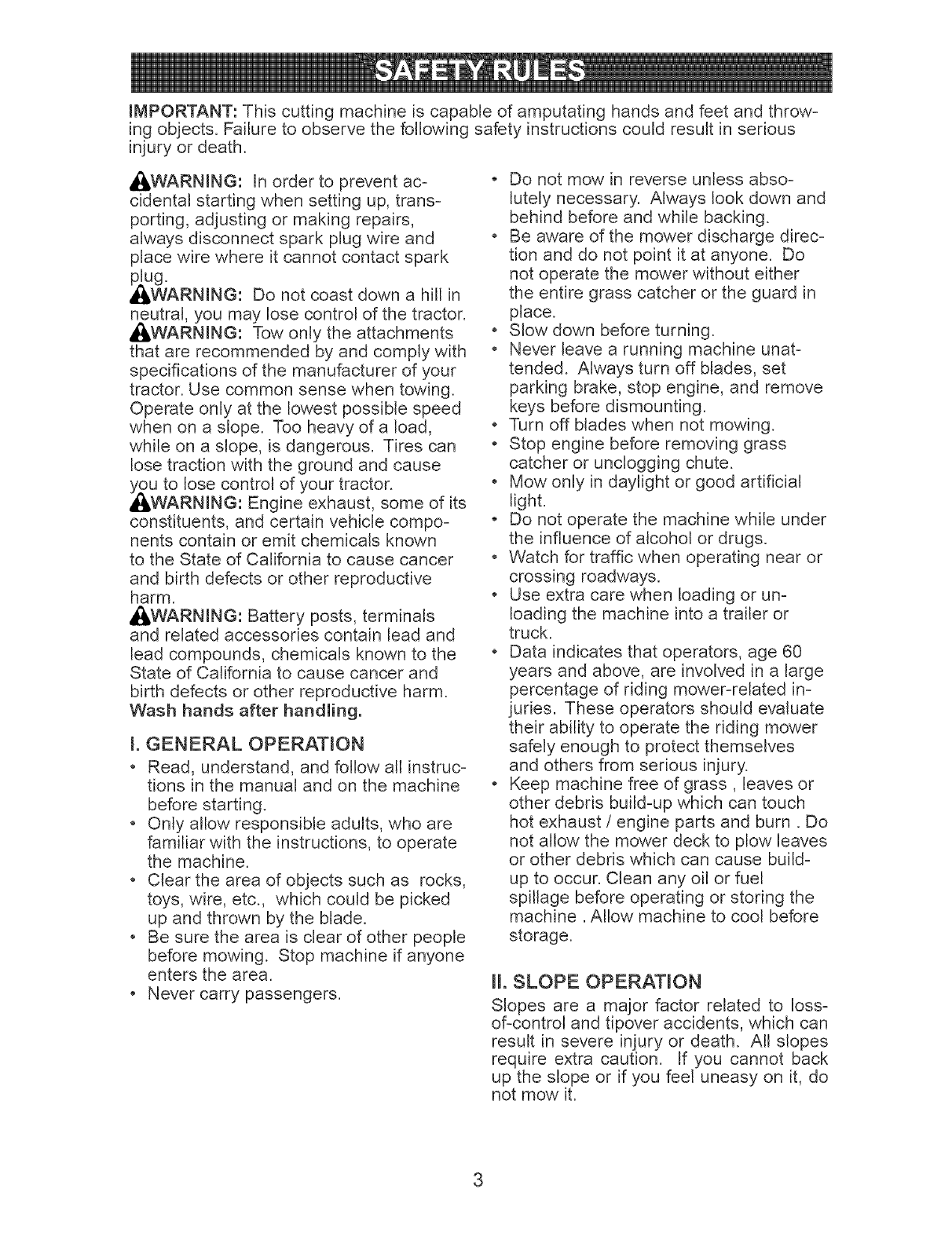

IMPORTANT:This cuttingmachineis capableof amputatinghandsandfeet and throw-

ing objects,Failureto observethe followingsafetyinstructionscould resultin serious

injuryor death,

_WARNmNG: In order to preventac-

cidentalstartingwhen settingup,trans-

porting,adjustingor makingrepairs,

alwaysdisconnectspark plugwire and

placewire where it cannotcontactspark

,_kWAug" RNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

_t_WAu to lose control of your tractor.

RNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

o Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

o Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

o Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

o Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

o Never carry passengers.

o Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

o Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

o Slow down before turning.

o Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

o Turn off blades when not mowing.

o Stop engine before removing grass

catcher or unclogging chute.

o Mow only in daylight or good artificial

light.

o Do not operate the machine while under

the influence of alcohol or drugs.

o Watch for traffic when operating near or

crossing roadways.

o Use extra care when loading or un-

loading the machine into a trailer or

truck.

o Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

o Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

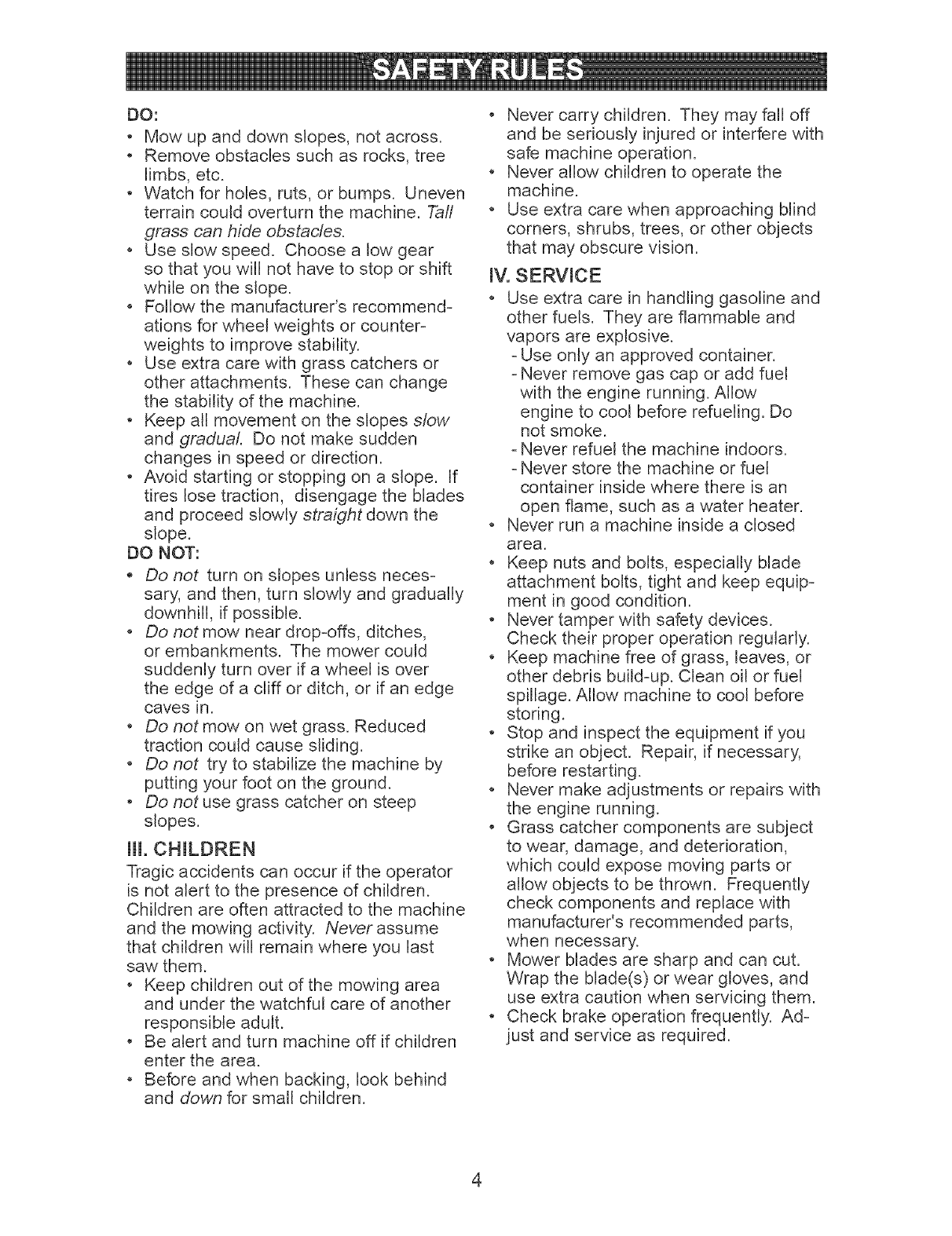

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

oMow up and down slopes, not across.

o Remove obstacles such as rocks, tree

limbs, etc.

o Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Taft

grass can hide obstacles.

o Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

o Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

o Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

o Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

o Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

oDo not mow on wet grass. Reduced

traction could cause sliding.

o Do not try to stabilize the machine by

putting your foot on the ground.

o Do not use grass catcher on steep

slopes.

HI. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

o Keep children out of the mowing area

and under the watchful care of another

responsible adult.

o Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small children.

oNever carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

o Never allow children to operate the

machine.

o Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

inV.SERVmCE

o Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

o Never run a machine inside a closed

area.

o Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

oNever tamper with safety devices.

Check their proper operation regularly.

o Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

oStop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

oNever make adjustments or repairs with

the engine running.

o Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

oMower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

o Check brake operation frequently. Ad-

just and service as required.

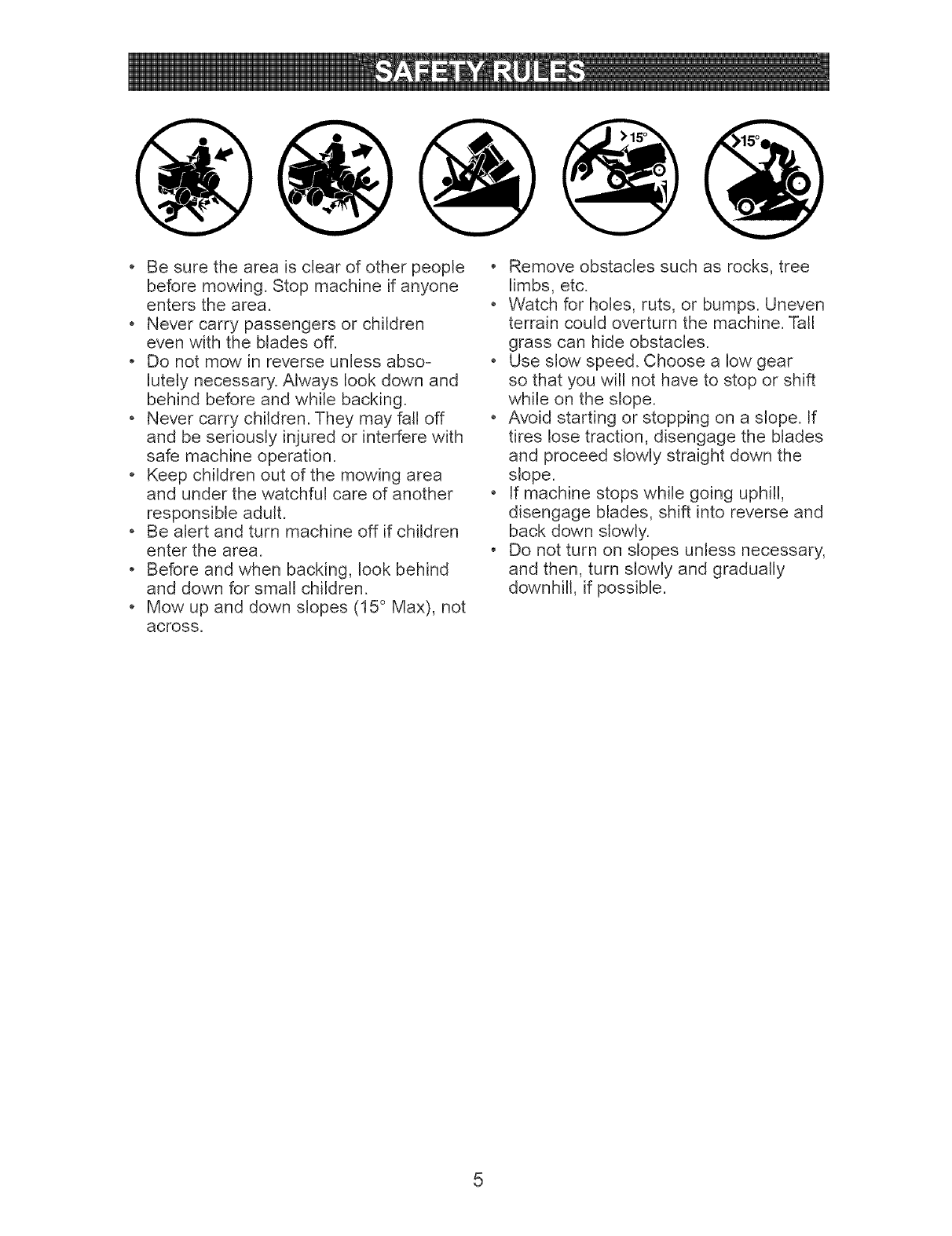

o Be surethe area is clear of other people

before mowing.Stop machineif anyone

entersthe area.

o Nevercarry passengersor children

evenwith the bladesoff.

o Do not mow in reverseunlessabsom

lutely necessary.Always lookdown and

behind beforeandwhile backing.

o Nevercarry children.Theymayfall off

and be seriouslyinjuredor interferewith

safe machineoperation.

o Keepchildrenout of the mowingarea

and underthe watchfulcare of another

responsibleadult.

o Be alert and turn machineoff if children

enterthe area.

o Beforeandwhen backing,look behind

and downfor small children.

o Mowup and downslopes (15° Max), not

across.

o Removeobstaclessuchas rocks,tree

limbs,etc.

o Watchfor holes,ruts,or bumps.Uneven

terrain couldoverturnthe machine.Tall

grasscan hideobstacles.

o Useslow speed.Choose a lowgear

sothat youwill nothaveto stopor shift

whileon the slope.

o Avoidstartingor stoppingon a slope. If

tires losetraction,disengagethe blades

and proceedslowlystraightdownthe

slope.

o If machinestopswhilegoing uphill,

disengageblades,shift into reverseand

backdown slowly.

o Donot turn on slopes unlessnecessary,

andthen, turn slowlyand gradually

downhill,if possible.

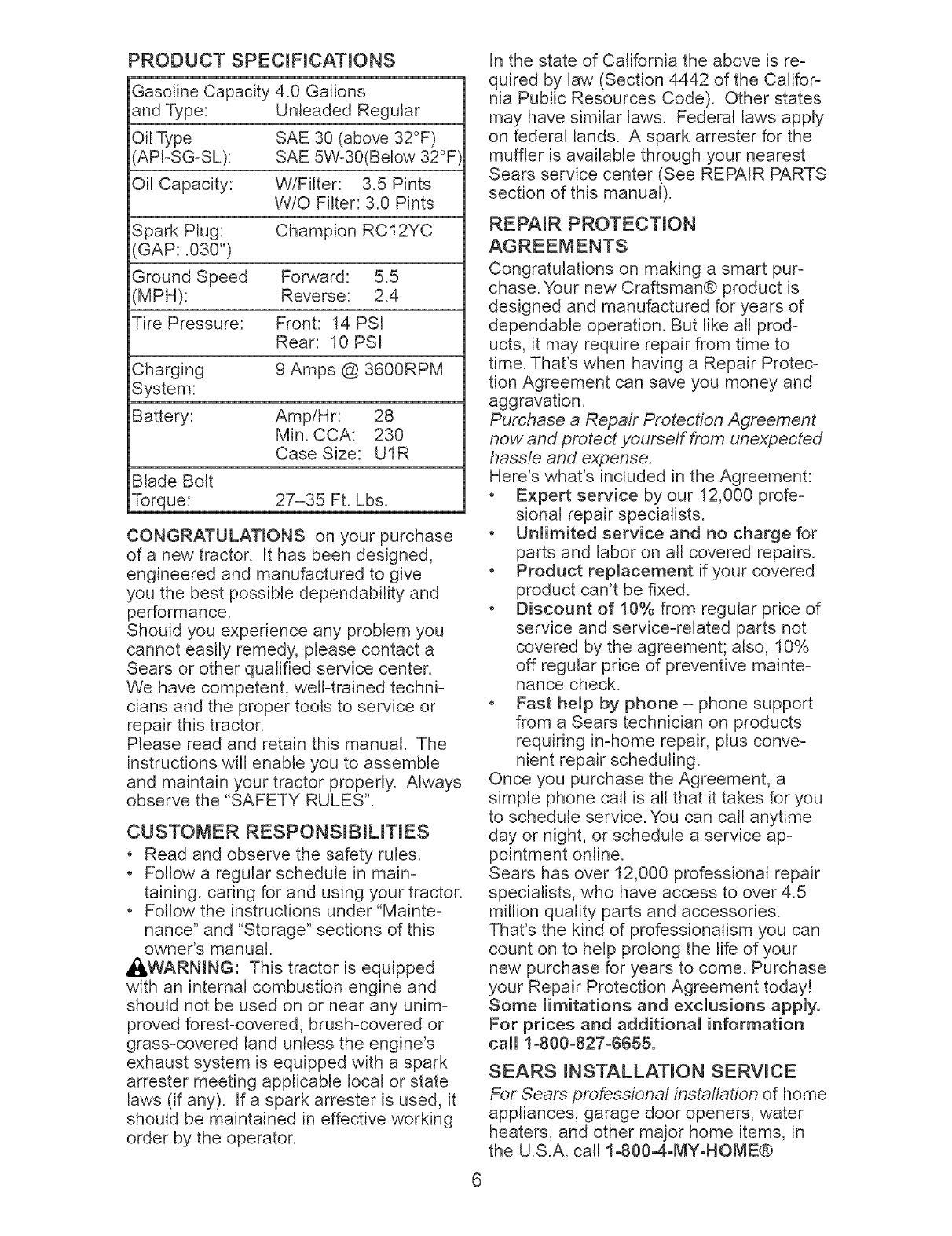

PRODUCT SPECIFICATmONS

Gasoline Capacity 4.0 Gallons

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

APFSG-SL): SAE 5W-30(Below 32°F

Oil Capacity: W/Filter: 3.5 Pints

WiO Filter: 3.0 Pints

Spark Plug: Champion RC12YC

GAP: ,030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSi

Charging 9 Amps @ 3600RPM

System:

Battery: Amp/Hr: 28

Min, CCA: 230

Case Size: U1R

Blade Bolt

Torque: 27-35 Ft. Lbs

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance,

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor,

Please read and retain this manual, The

instructions will enable you to assemble

and maintain your tractor properly, Always

observe the "SAFETY RULES",

CUSTOMER RESPONSIBILmES

o Read and observe the safety rules.

o Follow a regular schedule in main-

taining, caring for and using your tractor,

o Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual),

REPAmR PROTECTmON

Congratulations on making a smart pur-

chase, Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time, That's when having a Repair Protec-

tion Agreement can save you money and

aggravation,

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

o Expert service by our 12,000 profe-

sional repair specialists.

o Unlimited service and no charge for

parts and labor on all covered repairs.

o Product replacement if your covered

product can't be fixed.

o Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

o Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service, You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4,5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1o800-827-6655.

SEARS mNSTALLATION SERVmCE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call l o800-4-MY-HOME®

)

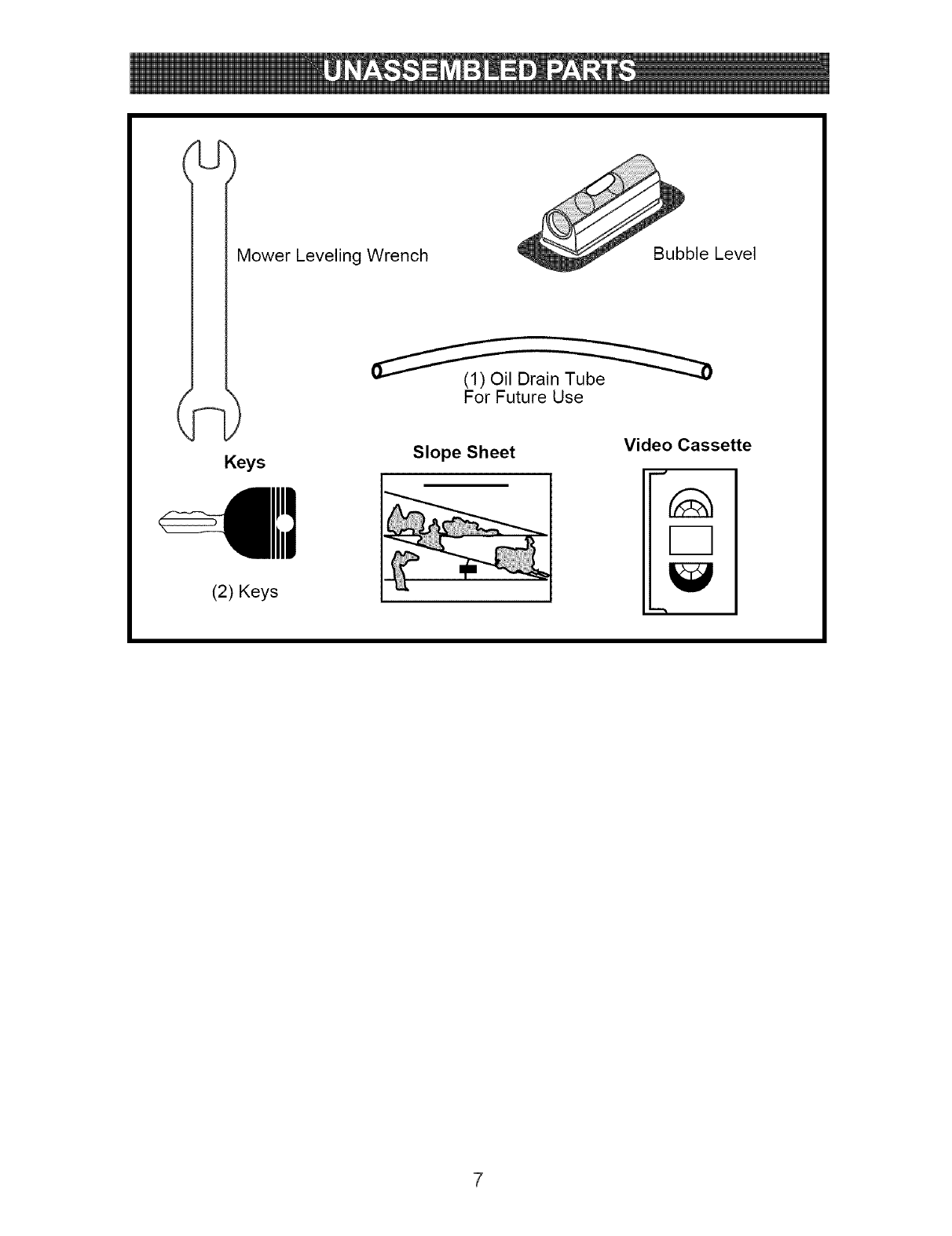

Mower Leveling Wrench Bubble Level

)

Keys

(2) Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet Video Cassette

Yournew tractorhas beenassembledat the factory.Reviewthe video cassettebefore

you begin.

When rightor left handis mentionedin this manual,it meanswhen youare in the oper-

ating position(seatedbehindthe steeringwheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat,

2, Remove protective materials from trac=

tot hood and grille.

iMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid,

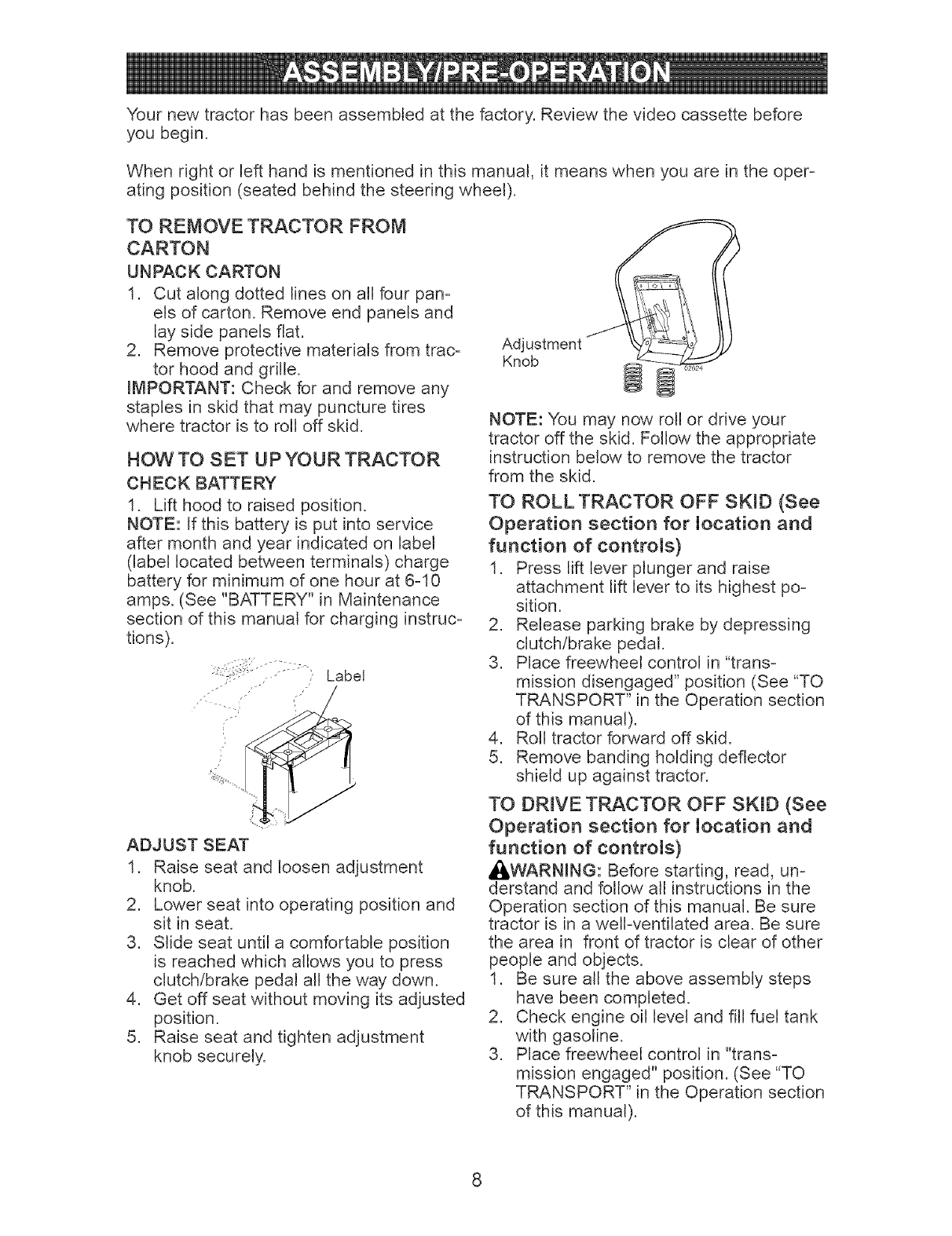

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6=10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc=

tions).

'Label

i I i

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedat all the way down.

4. Get off seat without moving its adjusted

position.

5. Raise seat and tighten adjustment

knob securely.

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKmD (See

Operation section for mocation and

function of controms}

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRmVE TRACTOR OFF SKID (See

Operation section for mocation and

function of controms)

_WARNING: Before starting, read, un-

derstand and follow atl instructions in the

Operation section of this manual. Be sure

tractor is in a well=ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Sit on seat inoperatingposition,

depressclutch/brakepedaland set the

parkingbrake.

5. Placemotion controlleverin neutral

(N)position.

6. Presslift leverplungerand raise

attachmentlift leverto its highestposi-

tion.

7. Start the engine.After engine has

started, movethrottle controlto idle

position.

8. Releaseparkingbrake.

9. Slowly movethe motioncontrol lever

forwardand slowlydrive tractoroff

skid.

10.Apply braketo stop tractor,set parking

brakeand place motioncontrollever in

neutralposition.

11.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

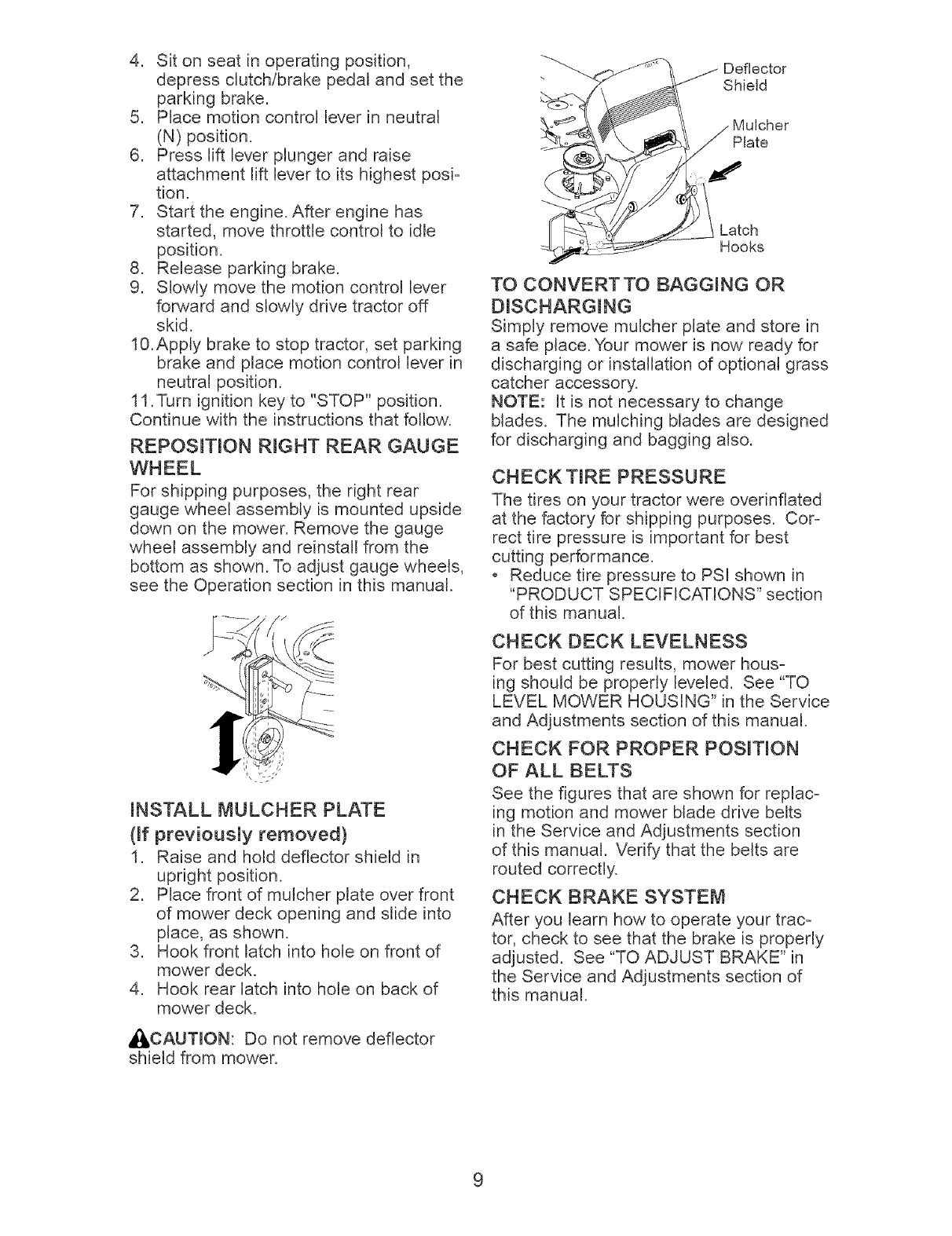

REPOSmTmON RmGHT REAR GAUGE

For shipping purposes, the right rear

gauge wheel assembly is mounted upside

down on the mower. Remove the gauge

wheel assembly and reinstall from the

bottom as shown. To adjust gauge wheels,

see the Operation section in this manual.

mNSTALL MULCHER PLATE

(if previousmy removed}

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_CAUTmON: Do not remove deflector

shield from mower.

Deflector

Shield

Plate

Latch

Hooks

TO CONVERTTO BAGGmNG OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

.Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSmTmON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

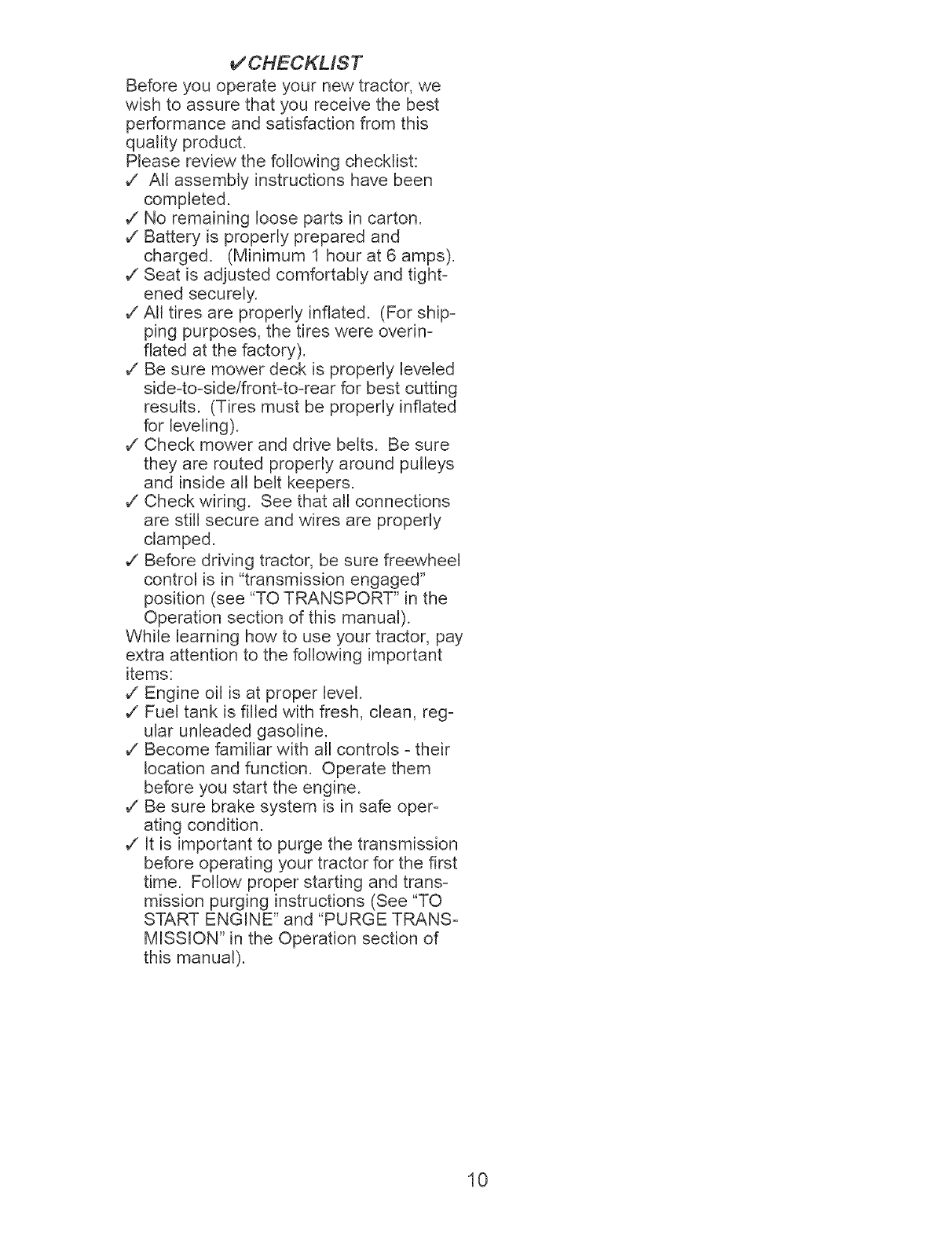

V'CHECKMST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

v" All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, reg-

ular unleaded gasoline.

v" Become familiar with all controls - their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe oper-

ating condition.

v" It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

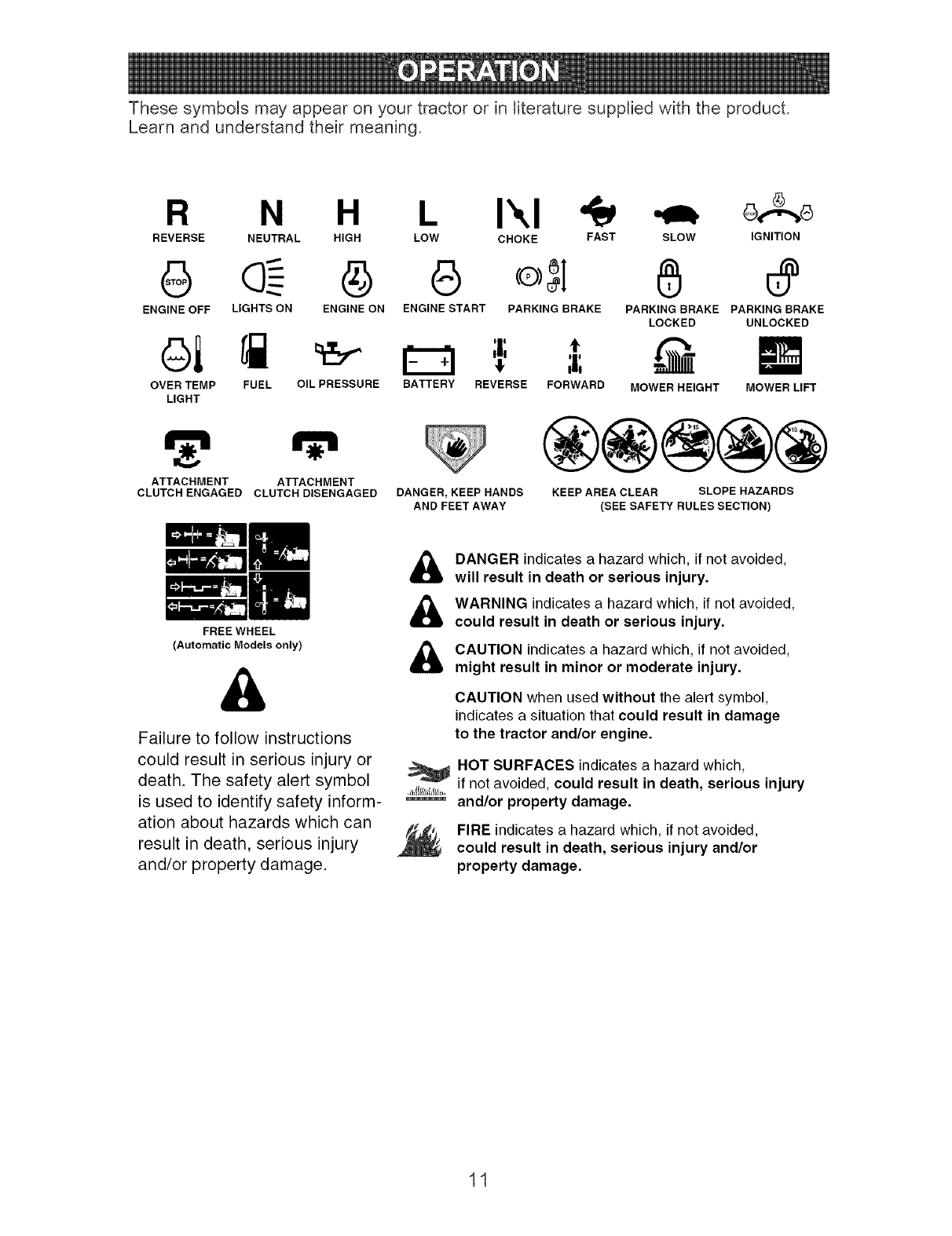

These symbols may appear on your tractor or in literature supplied with the product,

Learn and understand their meaning,

R N H L I\1

REVERSE NEUTRAL HIGH LOW CHOKE FAST

G G

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicatesa hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

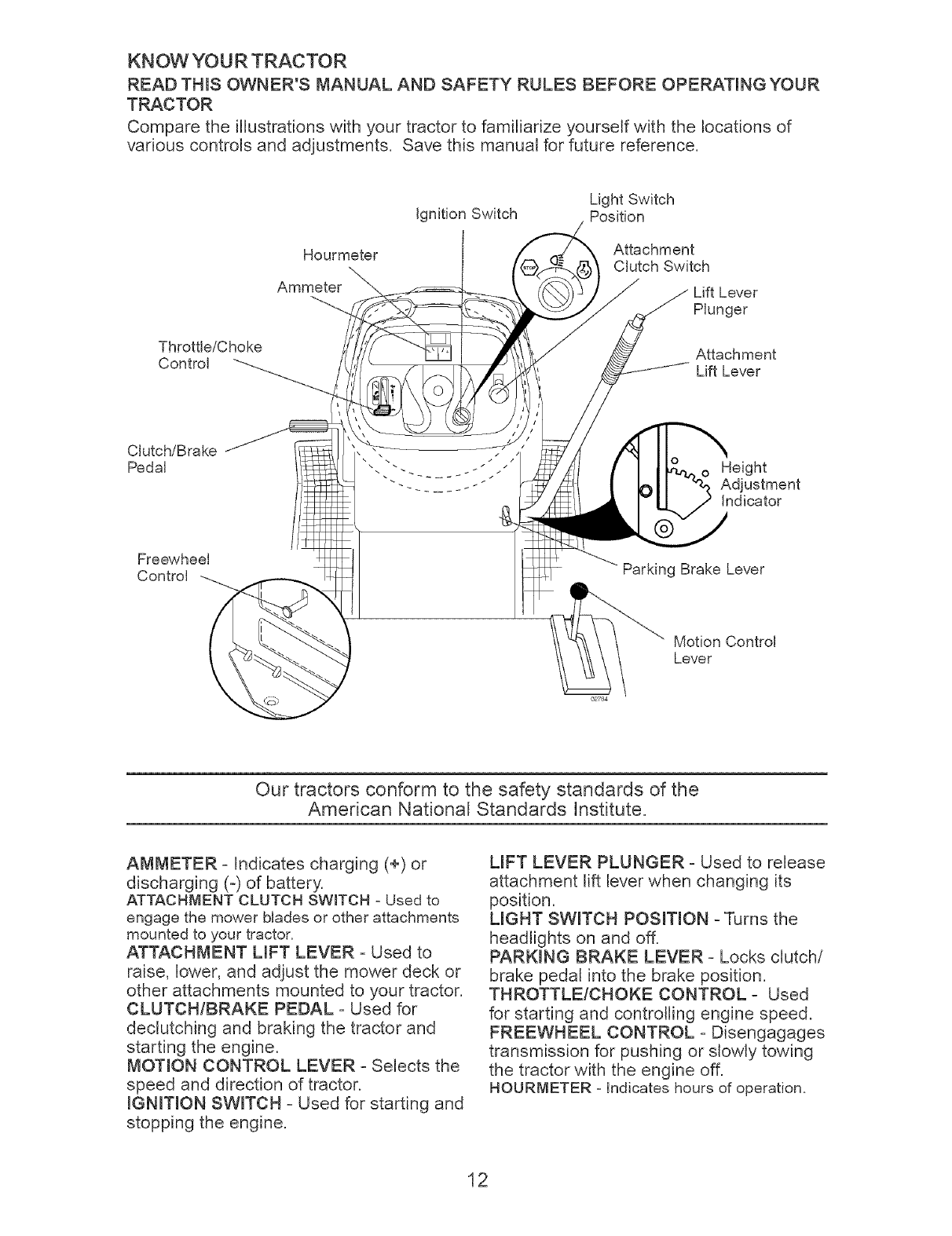

KNOW YOU R TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Throttle/Choke

Control

Hourmeter

Ammeter

Light Switch

ignition Switch Position

Attachment

Clutch Switch

Lift Lever

Plunger

Attachment

Lift Lever

Clutch/Brake

Pedal o Height

Adjustment

indicator

Freewheel

Control Parking Brake Lever

Motion Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH SWITCH - Used to

engage the mower blades or other attachments

mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutcNng and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

iGNITiON SWmTOH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position,

LIGHT SWITCH POSiTiON - Turns the

headlights on and off.

PARKmNG BRAKE LEVER- Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL- Used

for starting and controlling engine speed.

FREEWHEEL CONTROL - Disengagages

transmission for pushing or slowly towing

the tractor with the engine off.

HOURMETER - Indicates hours of operation.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety_

mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Throttle/Choke

Attachment Clutch Switch

Pull out to "Engage"

Key

Position Control Lever

"Disengaged" Parking Brake Push in to

Position "Engaged" Position "Disengage"

STOPPING

MOWER BLADES -

o To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

o To stop ground drive, depress clutch/

brake pedal all the way down.

o Move motion control lever to neutral (N)

position.

iMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch!brake pedal is depressed,

ENGINE -

o Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position to allow engine to idle before

stopping may cause engine to "backfire".

o Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

o Never use choke to stop engine.

iMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

opping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle,

o Operating engine at less than full

throttle reduces the battery charging

rate.

o Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

o Grasp lift lever.

o Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

o The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better look-

ing lawns, mow often and after moder-

ate growth.

o For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut rela-

tively high; the second to desired height.

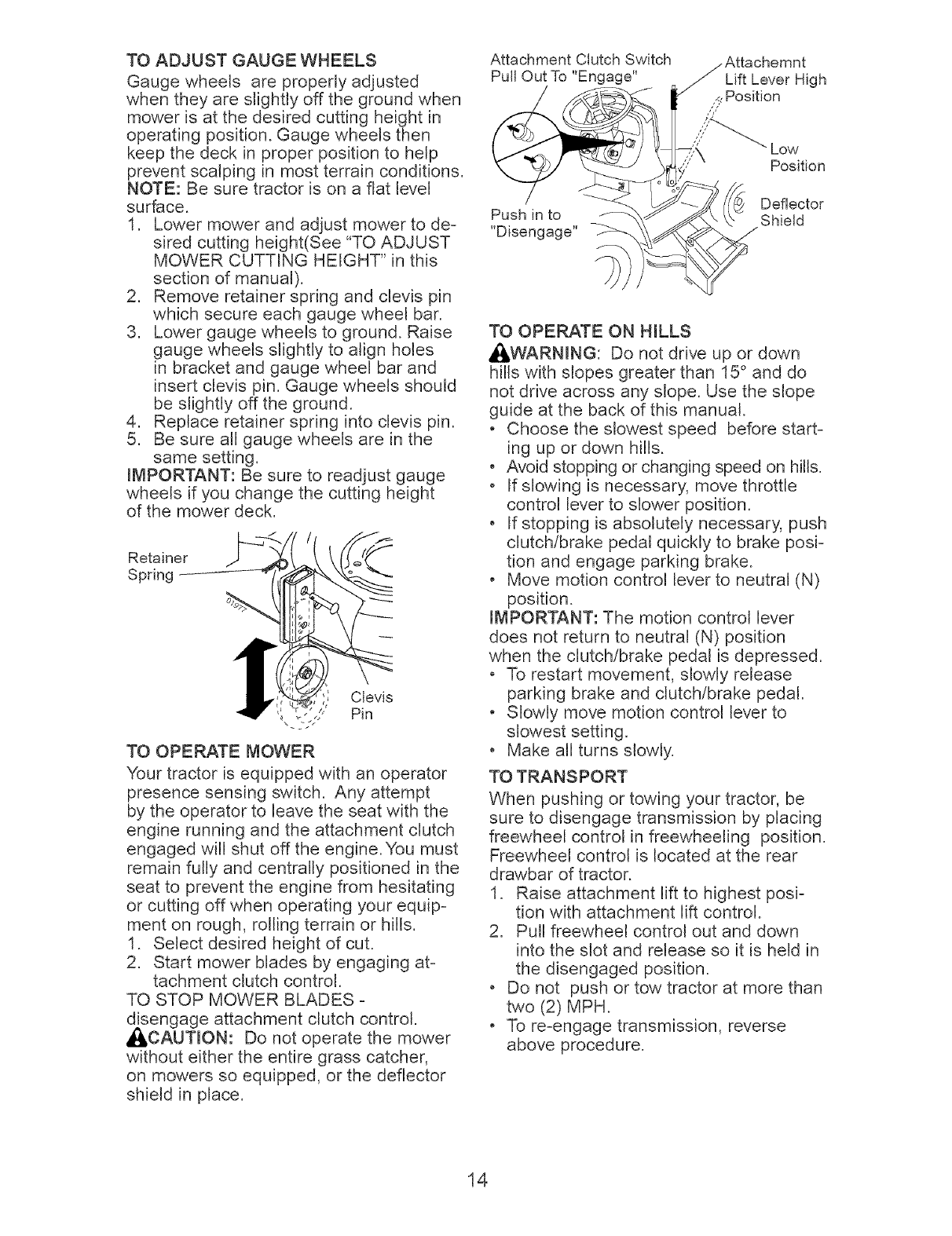

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions,

NOTE: Be sure tractor is on a fiat level

surface.

1, Lower mower and adjust mower to de m

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT" in this

section of manual),

2, Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3, Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin, Gauge wheels should

be slightly off the ground.

4, Replace retainer spring into clevis pin,

5, Be sure all gauge wheels are in the

same setting,

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck,

Retainer

Spring

"- ZJ"

Clevis

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch, Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine, You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equipm

merit on rough, rolling terrain or hills,

1. Select desired height of cut.

2, Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES

disengage attachment clutch control,

_I, CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place,

Attachment Clutch Switch

Pull Out To "Engage"

'Disengage" _.X_ j

Attachemnt

Lift Lever High

Position

/'/"

_,\ Low

,', Position

Deflector

Shield

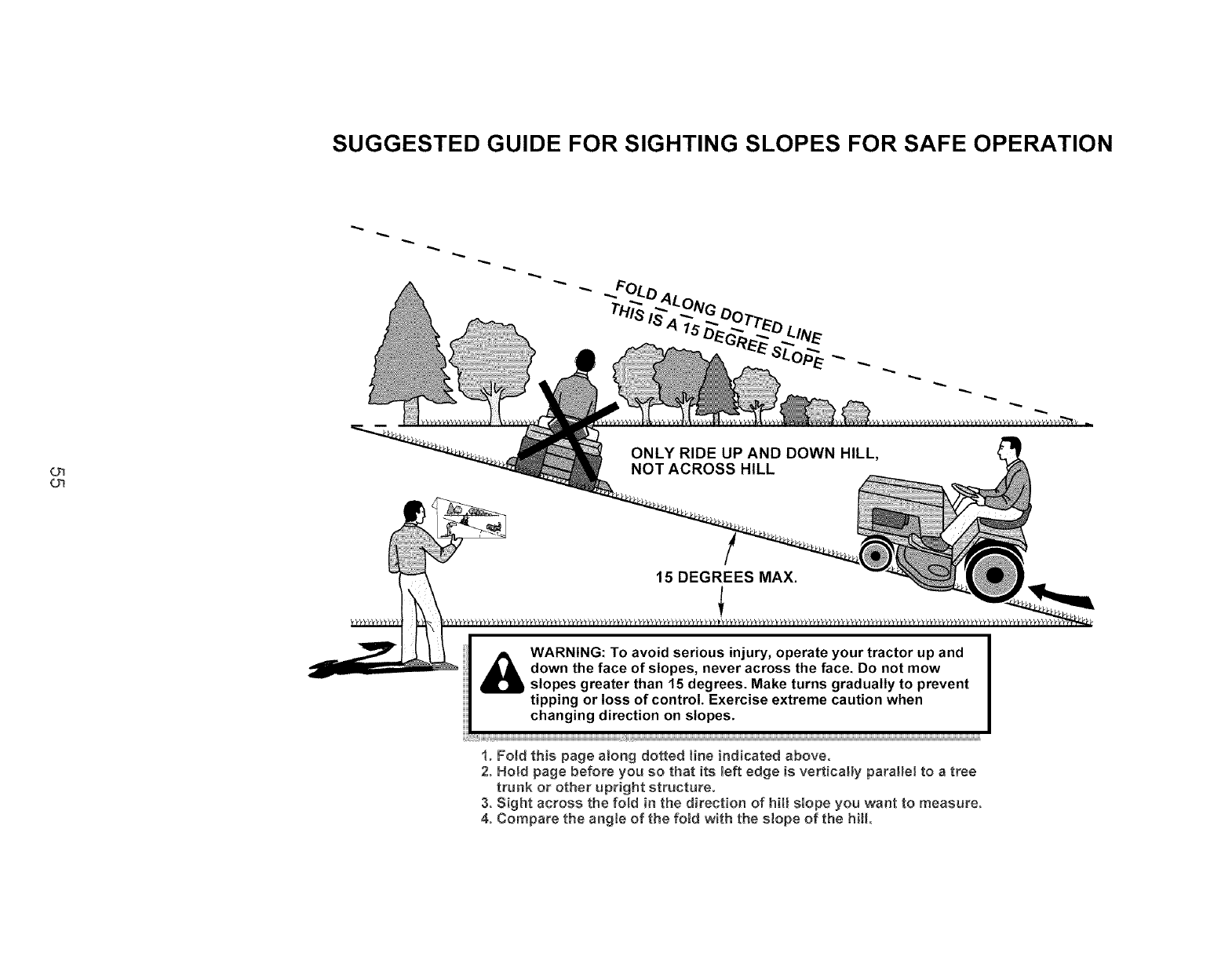

TO OPERATE ON HmLLS

_WARNmNG: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

oChoose the slowest speed before start_

ing up or down hills.

oAvoid stopping or changing speed on hills,

oIf slowing is necessary, move throttle

control lever to slower position.

oIf stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi_

tion and engage parking brake.

o Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed,

oTo restart movement, slowly release

parking brake and clutch/brake pedal,

oSlowly move motion control lever to

slowest setting.

oMake all turns slowly,

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position,

Freewheel control is located at the rear

drawbar of tractor.

1, Raise attachment lift to highest posim

tion with attachment lift control.

2, Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position,

oDo not push or tow tractor at more than

two (2) MPH.

oTo re-engage transmission, reverse

above procedure,

Transmission Engaged

Transmission Disengaged

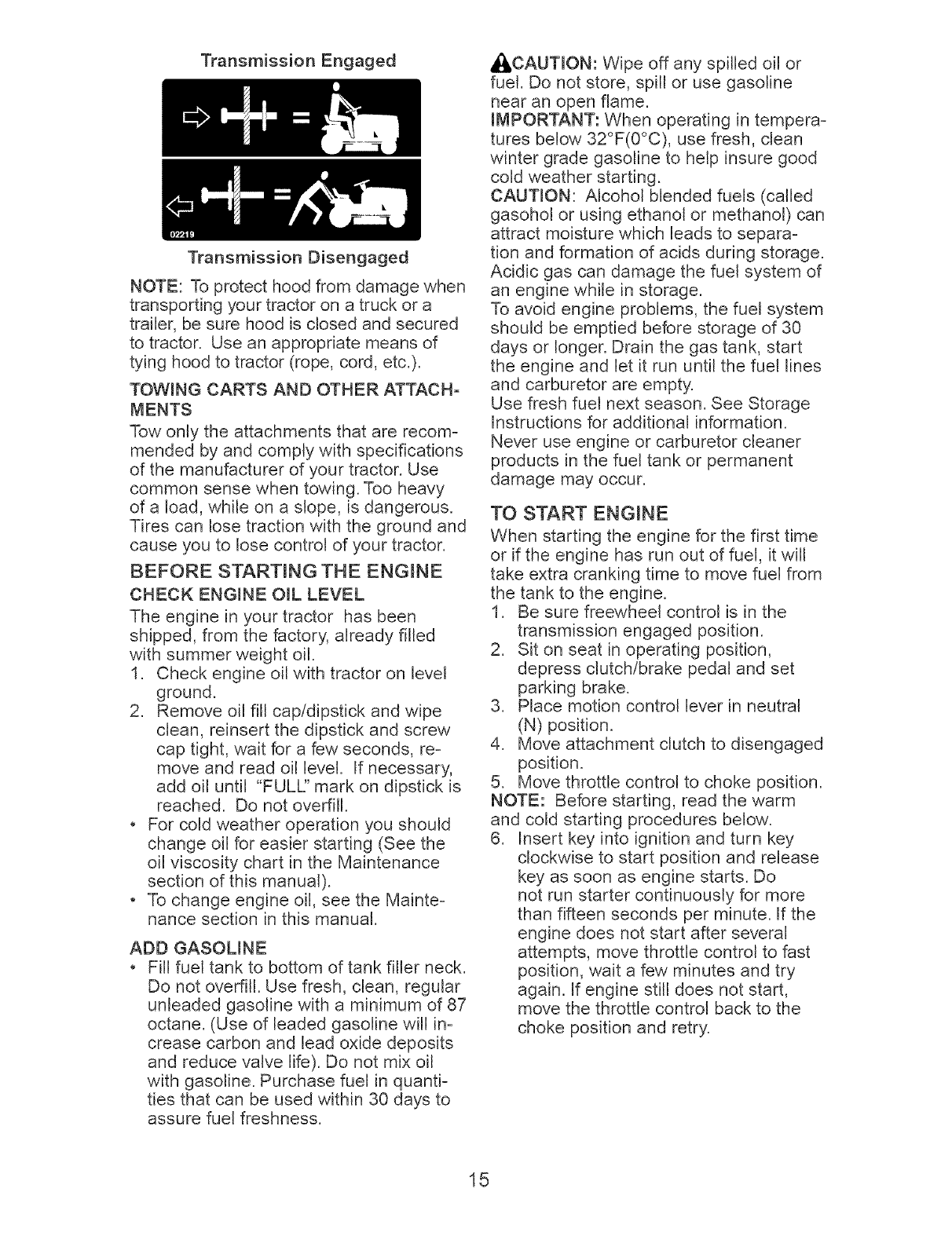

NOTE: To protect hood from damage when

transporting your tractor on a truck or a

trailer, be sure hood is closed and secured

to tractor. Use an appropriate means of

tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGmNE

CHECK ENGmNE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL_' mark on dipstick is

reached. Do not overfill.

o For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

o To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOUNE

o Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. (Use of leaded gasoline will in-

crease carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

AII_CAUTmON: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTmON: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system of

an engine while in storage.

To avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty.

Use fresh fuel next season. See Storage

Instructions for additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disengaged

position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

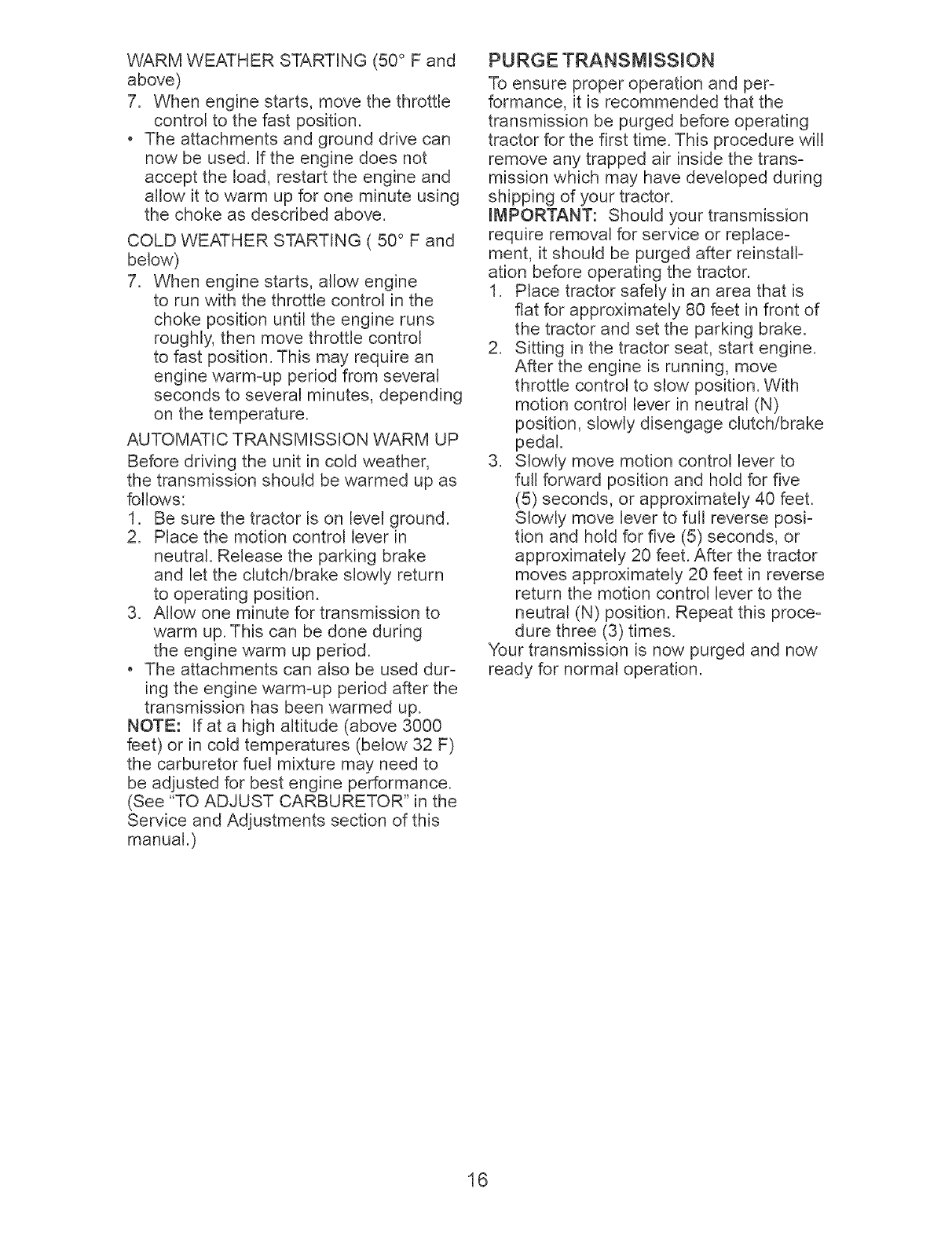

WARM WEATHER STARTING (50 ° F and

above)

7, When engine starts, move the throttle

control to the fast position.

o The attachments and ground drive can

now be used, If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above,

COLD WEATHER STARTING ( 50 ° F and

below)

7, When engine starts, allow engine

to run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control

to fast position, This may require an

engine warm-up period from several

seconds to several minutes, depending

on the temperature,

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground,

2, Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

o The attachments can also be used dur-

ing the engine warm-up period after the

transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance,

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual,)

PURGE TRANSMISSION

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor,

1, Place tractor safely in an area that is

flat for approximately 80 feet in front of

the tractor and set the parking brake.

2, Sitting in the tractor seat, start engine,

After the engine is running, move

throttle control to slow position, With

motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

3, Slowly move motion control lever to

full forward position and hold for five

(5) seconds, or approximately 40 feet,

Slowly move lever to full reverse posi-

tion and hold for five (5) seconds, or

approximately 20 feet. After the tractor

moves approximately 20 feet in reverse

return the motion control lever to the

neutral (N) position, Repeat this proce-

dure three (3) times.

Your transmission is now purged and now

ready for normal operation,

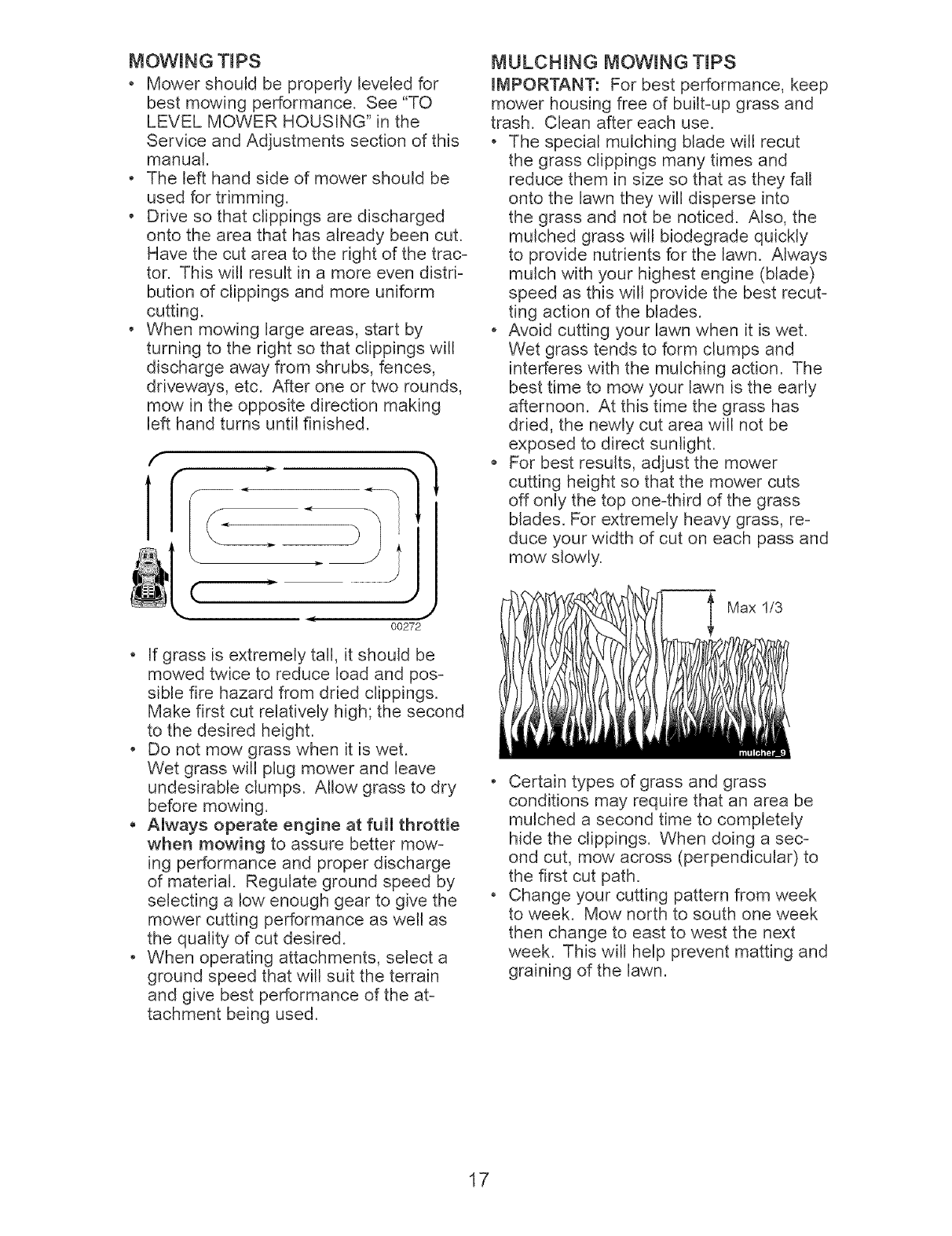

MOWING TIPS

o Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual,

o The left hand side of mower should be

used for trimming,

o Drive so that clippings are discharged

onto the area that has already been cut,

Have the cut area to the right of the trac m

tor. This will result in a more even distrim

bution of clippings and more uniform

cutting.

o When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

(

00272

o If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings,

Make first cut relatively high; the second

to the desired height.

o Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps, Allow grass to dry

before mowing,

Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

o When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used,

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of builbup grass and

trash. Clean after each use.

o The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recutm

ting action of the blades.

o Avoid cutting your lawn when it is wet,

Wet grass tends to form clumps and

interferes with the mulching action, The

best time to mow your lawn is the early

afternoon, At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight,

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re_

duce your width of cut on each pass and

mow slowly,

Max 1/3

o Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

o Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

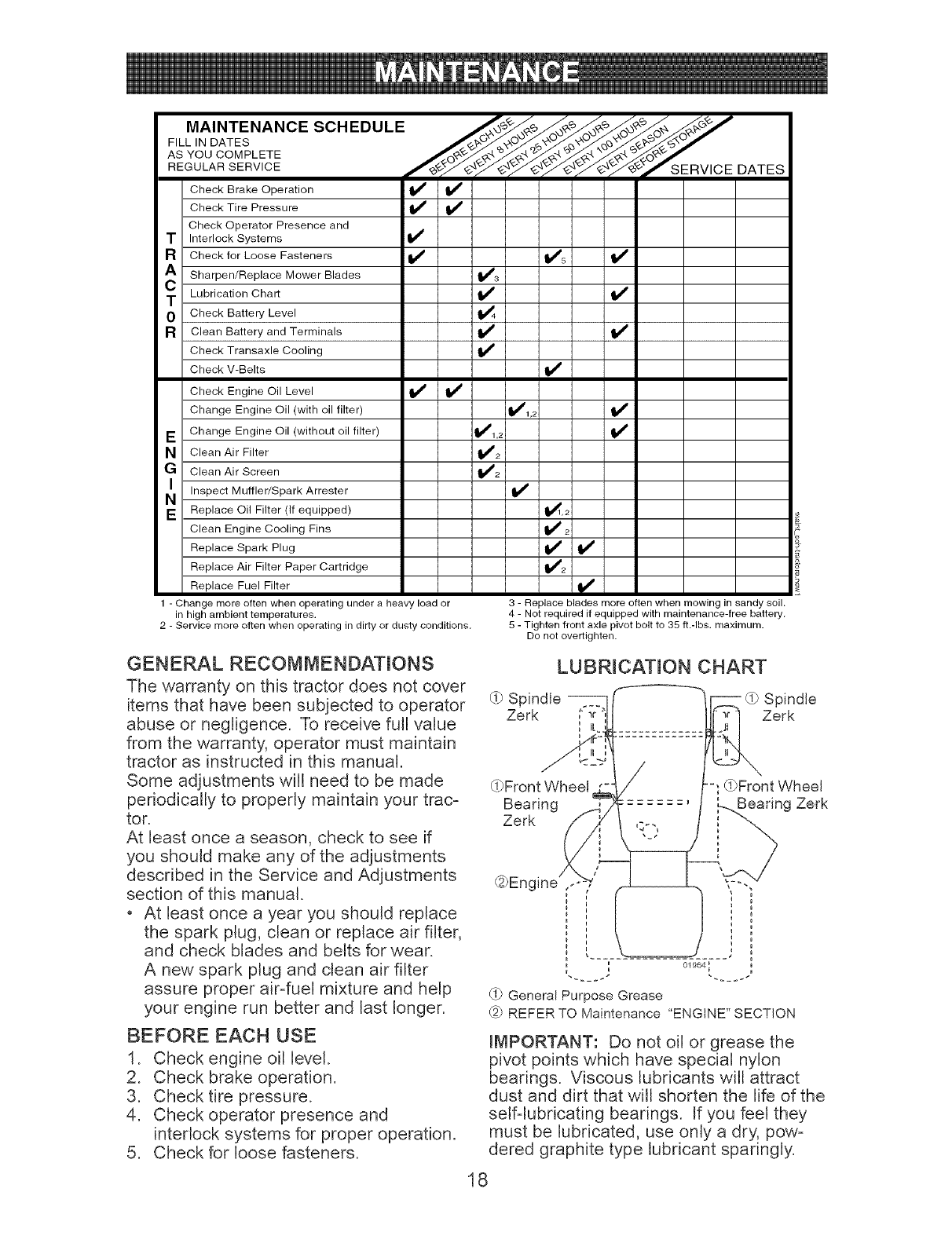

F,LL,.OATES

AS YOU COM PLETE /_9,_._" .......

REGULAR SERVICE f_r_%'4r_g-'4r_'_ll _ SERVICE DATES

Check Brake Operation _1_

Check Tire Pressure

Check Operator Presence and

TInterlock Systems If

RCheck for Loose Fasteners If Ks

ASharpen/Replace Mower Blades 11_3

C Lubrication Chart I_ If

0 Check Battery Level 1_4

RClean Battery and Terminals If If

Check Transaxle Cooling i/

Check V-Belts I_

Check Engine Oil Level If I1_

Change Engine Oil (with oil filter) lI_'1,2 I_

E Change Engine Oil (without oil filter) _1,2

N Clean Air Filter 11_'2

G Clean Air Screen 11_'2

Inspect Muffler/Spark Arrester i/

E Replace Oil Filter (If equipped) 1_1,2

Clean Engine Cooling Fins If

Replace Spark Plug If I_

Replace Air Filter Paper Cartridge 1_2

Replace Fuel Filter _#

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your trac m

tor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

. At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper aiFfuel mixture and help

your engine run better and last longer,

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation,

3, Check tire pressure.

4, Check operator presence and

interlock systems for proper operation,

5, Check for loose fasteners,

LUBRICATmON CHART

_0 Spindle -- Spindle

Zerk ;"_r Zerk

_)Front Wheel ;(OFront Wheel

Bearing ........ _ng Zerk

Zerk

@Engine ,_ ,, "--,

t i

, ' 019641

@ General Purpose Grease

@ REFER TO Maintenance "ENGINE" SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

selfqubricating bearings. If you feel they

must be lubricated, use only a dry, pow_

dered graphite type lubricant sparingly,

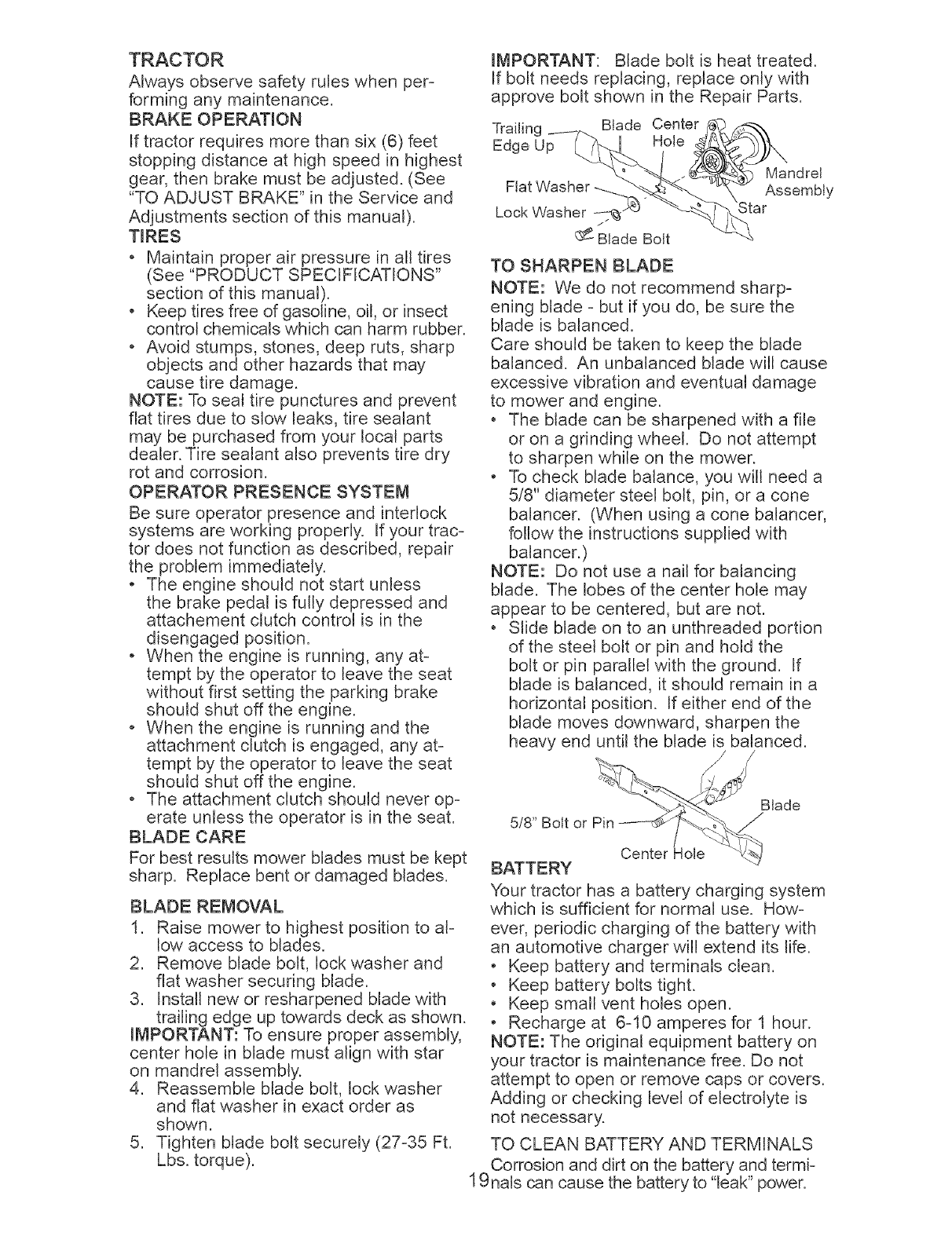

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATmON

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

o Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

o Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

o Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seat tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

o The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

o When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

o When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

o The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept

sharp. Replace bent or damaged blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Trailing Blade Center

Edge Up Hole

Flat Washer

Lock Washer

Blade Bolt

Mandrel

Assembly

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced,

Care should be taken to keep the blade

balanced, An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine,

o The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

o To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade, The lobes of the center hole may

appear to be centered, but are not,

o Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground, If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced,

5/8" Bolt or Pin Blade

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use, How-

ever, periodic charging of the battery with

an automotive charger will extend its life,

o Keep battery and terminals clean,

o Keep battery bolts tight.

o Keep small vent holes open,

o Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free, Do not

attempt to open or remove caps or covers,

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and termi-

19nals can cause the battery to "leak" power.

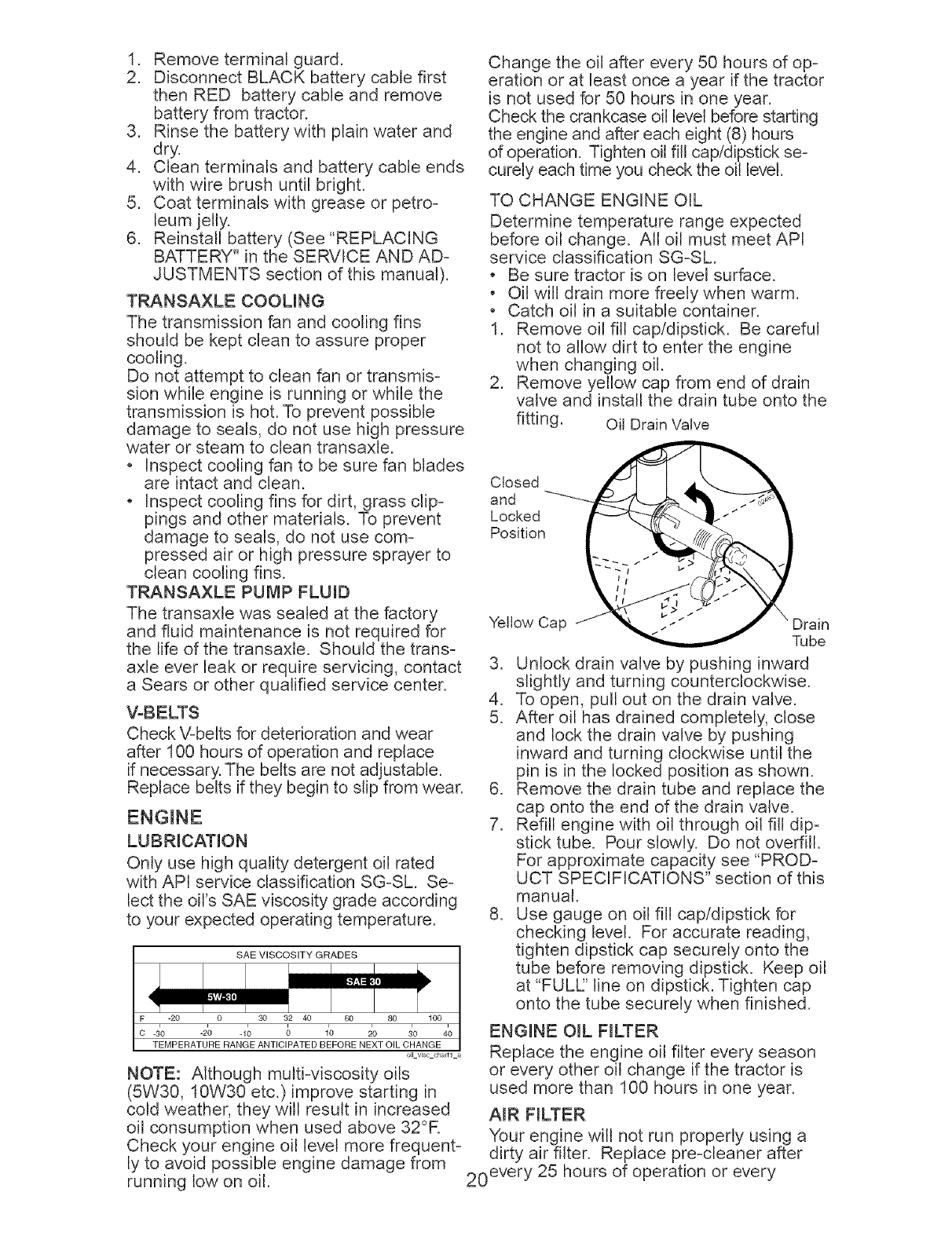

1. Removeterminalguard.

2. DisconnectBLACKbattery cablefirst

then RED batterycableand remove

batteryfrom tractor.

3. Rinsethe batterywith plainwater and

dry.

4. Cleanterminalsand batterycableends

withwire brush until bright.

5. Coatterminalswith greaseor petro-

leumjelly.

6. Reinstallbattery(See"REPLACING

BATTERY"inthe SERVICEANDAD-

JUSTMENTSsectionof this manual).

TRANSAXLECOOLING

The transmissionfan and coolingfins

shouldbe keptclean to assureproper

cooling.

Donot attemptto cleanfan or transmis-

sion whileengine is runningor whilethe

transmissionis hot.Topreventpossible

damageto seals,do not use highpressure

wateror steamto cleantransaxle.

o Inspectcoolingfanto besurefan blades

are intactand clean.

o Inspectcoolingfins for dirt, grass clip-

pingsand other materials. Toprevent

damageto seals,do not usecom-

pressedair or high pressuresprayerto

cleancoolingfins.

TRANSAXLE PUMPFLUID

The transaxlewas sealedat the factory

and fluid maintenanceis not requiredfor

the lifeof the transaxle. Shouldthe trans-

axle everleak or requireservicing,contact

a Searsor otherqualifiedservicecenter.

V-BELTS

CheckV-beltsfordeteriorationandwear

after 100hoursof operationand replace

if necessary.Thebeltsare notadjustable.

Replacebeltsif theybeginto slipfromwear.

LUBRmCATmON

Only use high quality detergent oil rated

with API service classification SG-SL. Se-

lect the oil's SAE viscosity grade according

to your expected operating temperature.

SAE VISCOSITY GRADES

F -20 0 30 32 40 60 80 100

c -_0 -2_ -1_ _ 1_ _0 i0 4_

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

o]1 visc cha_tl e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.)improve starting in

cold weather, they will result in increased

oil consumption when used above 32°R

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before starting

the engine and after each eight (8) hours

of operation. Tighten oil fill cap/dipstick se-

curely each time you check the oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

o Be sure tractor is on level surface.

o Oil will drain more freely when warm.

o Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting, oil Drain Valve

Closed

and

Locked

Position

Yellow Cap

Drain

Tube

Unlock drain valve by pushing inward

slightly and turning counterclockwise.

To open, pull out on the drain valve.

After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

Remove the drain tube and replace the

cap onto the end of the drain valve.

Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULU' line on dipstick. Tighten cap

onto the tube securely when finished.

ENGINE OraL HLTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

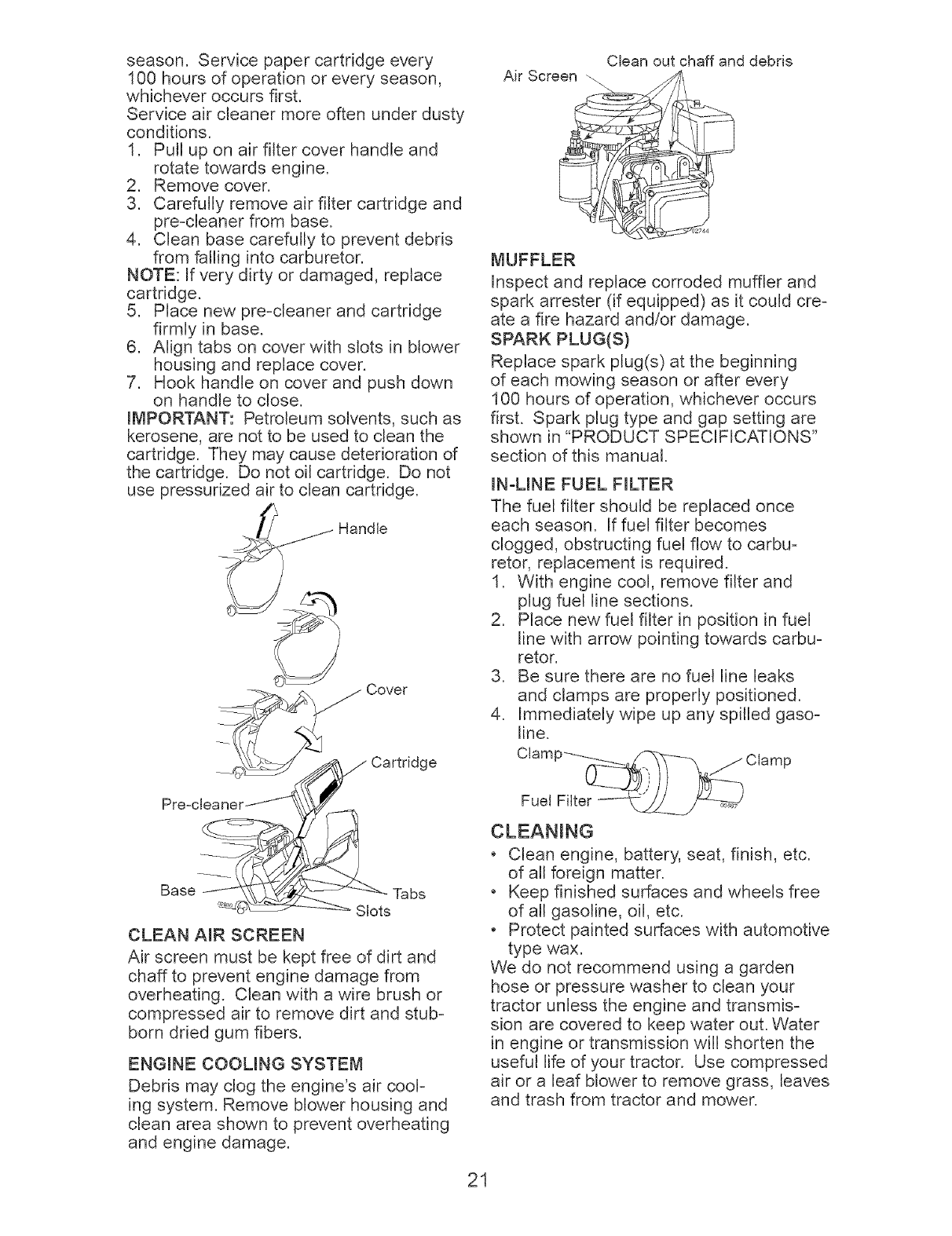

AIR FILTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

20every 25 hours of operation or every

season. Service papercartridgeevery

100 hoursof operationor every season,

whicheveroccursfirst.

Service air cleanermoreoften underdusty

conditions.

1. Pull upon air filter cover handleand

rotatetowardsengine.

2. Removecover.

3. Carefullyremoveair filter cartridgeand

pre-cleanerfrom base.

4. Clean basecarefullyto preventdebris

from fallinginto carburetor.

NOTE:If verydirty or damaged,replace

cartridge.

5. Placenew pre-cleanerand cartridge

firmly inbase.

6. Align tabson coverwith slotsin blower

housingand replacecover.

7. Hook handleon coverand pushdown

on handleto close.

iMPORTANT:Petroleumsolvents,suchas

kerosene,are notto be usedto cleanthe

cartridge. Theymaycausedeteriorationof

the cartridge. Donotoil cartridge. Donot

usepressurizedairto cleancartridge.

Prezcleaner_ _ Cartridge

Base_ __s Ta bs

CLEAN AiR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGINE COOUNG SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

Clean out chaff and debris

Air Screen \

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage,

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual,

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clamp__clamp

Fuel Filter --_

CLEANING

o Clean engine, battery, seat, finish, etc.

of all foreign matter.

o Keep finished surfaces and wheels free

of all gasoline, oil, etc.

o Protect painted surfaces with automotive

type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

WARNING: TO AVOID SERmOUS iNJURY, BEFORE PERFORIVImNG ANY SER-

VICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3, Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5, Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor,

1, Place attachment clutch switch in "DIS-

ENGAGED" position.

2, Move attachment lift lever forward to

lower mower to its lowest position.

3, Roll belt off electric clutch pulley,

4, Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

5, Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

6, Disconnect front links from deck by

removing retainer springs,

7, Raise lift lever to raise suspension

arms, Slide mower out from under trac-

tor,

iMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO iNSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3, Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Install belt into electric clutch pulley

groove.

Suspension

Arms Electric

Pulley

Front Link

Retainer

Spring

Anti-Sway

Bar

Retainer Springs

(Both Sides)

Shield

Retainer Spring

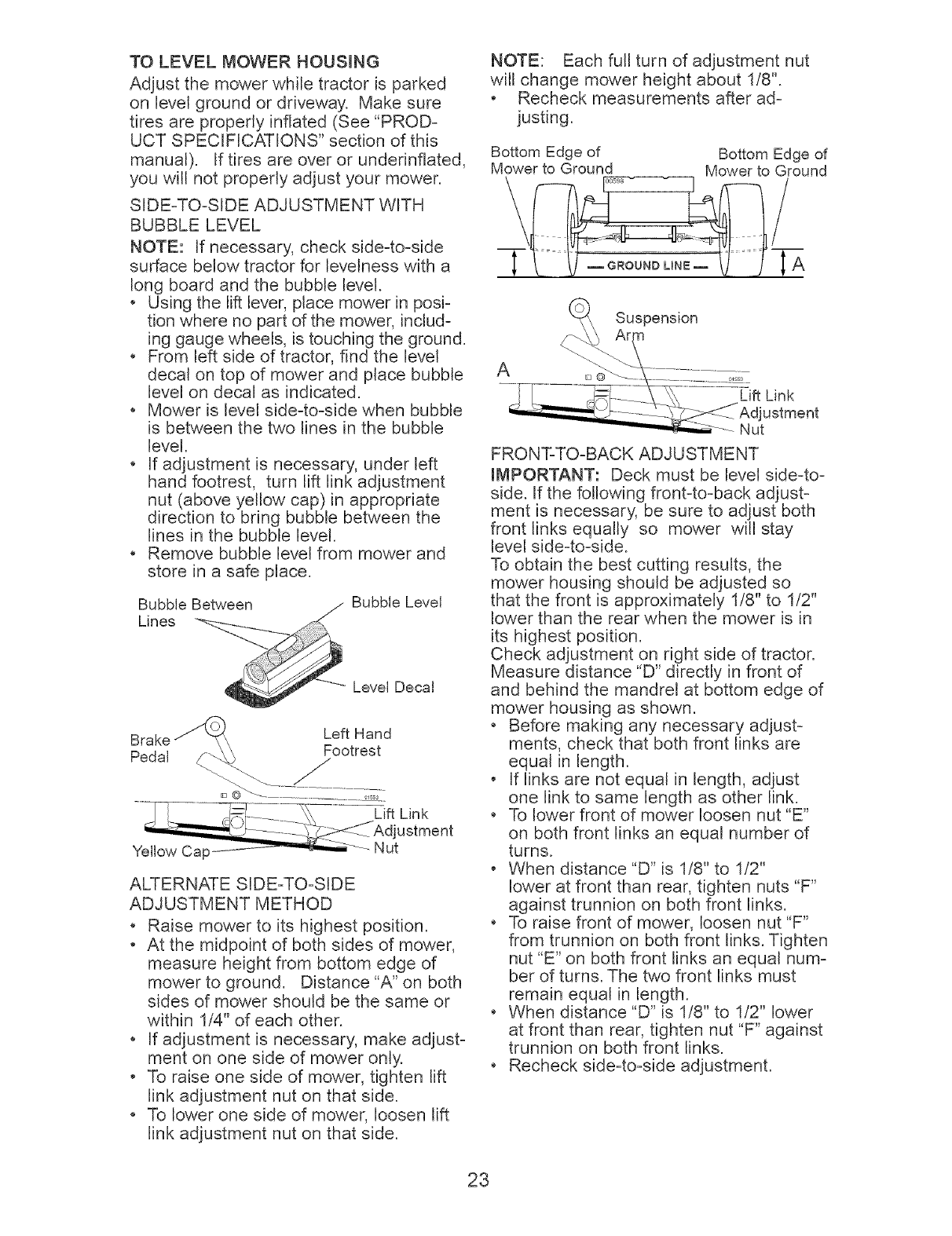

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on leveJ ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side4o-side

surface below tractor for levelness with a

long board and the bubble level.

o Using the lift lever, place mower in posi-

tion where no part of the mower, includ-

ing gauge wheels, is touching the ground.

o From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

o Mower is level side4o-side when bubble

is between the two lines in the bubble

level.

o If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap)in appropriate

direction to bring bubble between the

lines in the bubble level.

o Remove bubble level from mower and

store in a safe place.

Bubble Between/ Bubble Level

Lines

Level Decal

_)\ Left Hand

Brake f_._ Footrest

Pedal _ ......_ .................

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

o Raise mower to its highest position.

oAt the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

o If adjustment is necessary, make adjust-

ment on one side of mower only.

oTo raise one side of mower, tighten lift

link adjustment nut on that side.

oTo lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

o Recheck measurements after ad-

justing.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

FRONT-TO-BACK ADJUSTMENT

iMPORTANT: Deck must be leveJ side-to-

side. If the following front4o-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level sideqo-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

o Before making any necessary adjust-

ments, check that both front links are

equal in length.

o If links are not equal in length, adjust

one link to same length as other link.

o To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

oWhen distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

o To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

o When distance "D" is I/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

o Recheck side4o-side adjustment.

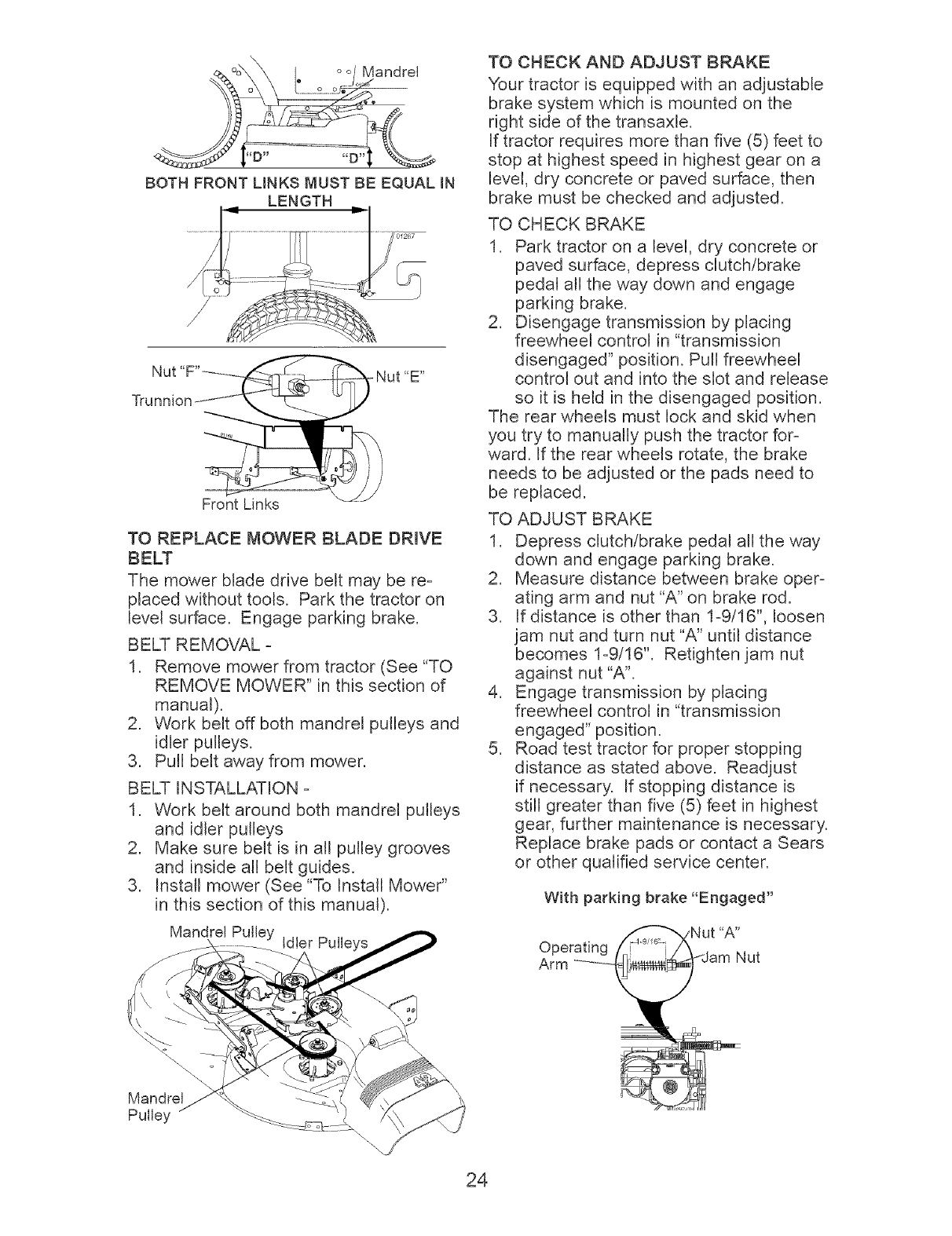

Mandrel

"D.... D"

BOTH FRONT LINKS MUST BE EQUAL IN

LENGTH

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake,

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower"

in this section of this manual).

Mandrel Pulley Idler Pulleys

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxie.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission

disengaged" position. Pull freewheel

control out and into the slot and release

so it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch!brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A".

4. Engage transmission by placing

freewheel control in "transmission

engaged" position.

5. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is necessary.

Replace brake pads or contact a Sears

or other qualified service center.

With parking brake "Engaged"

Mandrel

Pulley

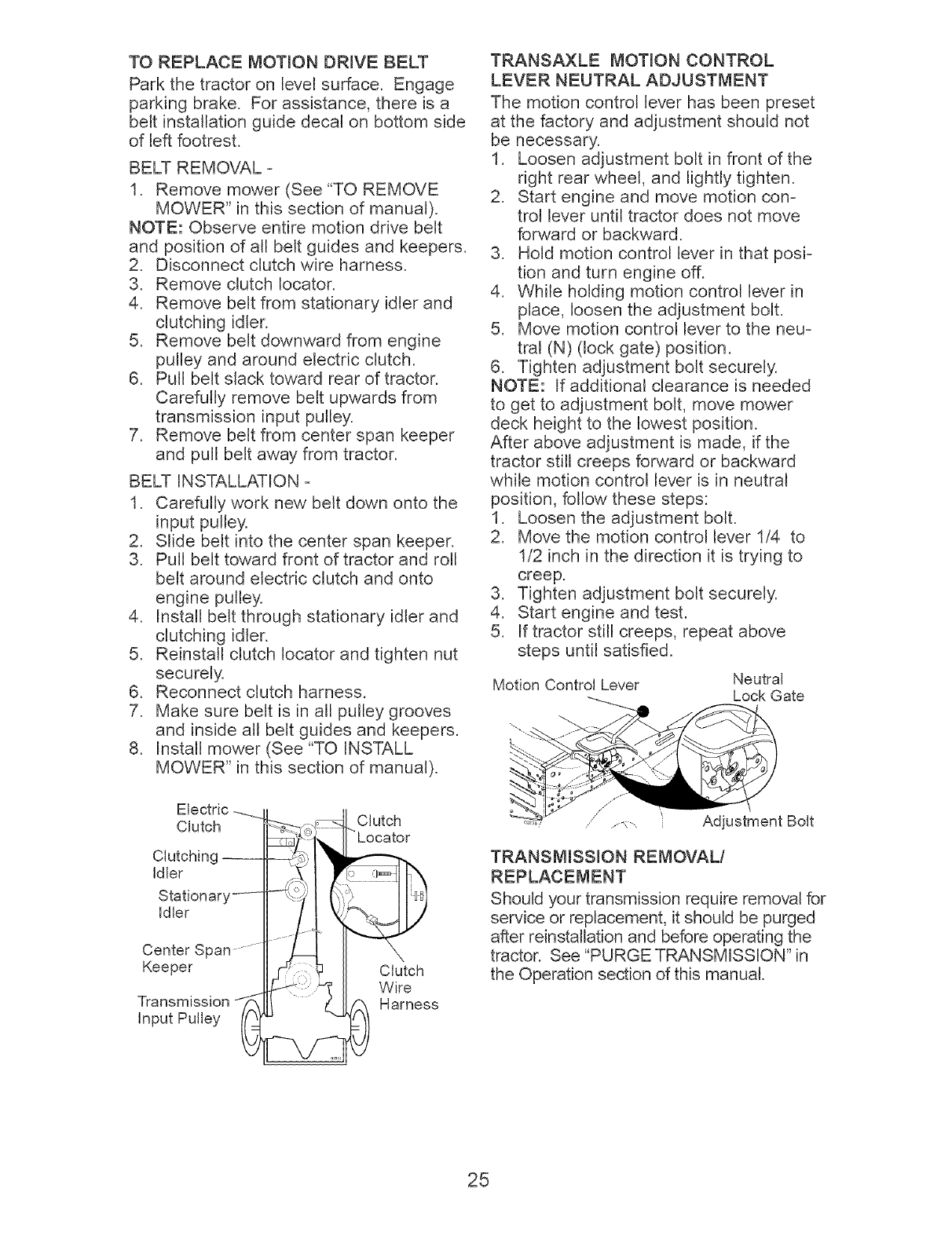

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Disconnect clutch wire harness.

3. Remove clutch Iocator.

4. Remove belt from stationary idler and

clutching idler.

5. Remove belt downward from engine

pulley and around electric clutch.

6. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley.

7. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

belt around electric clutch and onto

engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Reinstall clutch Iocator and tighten nut

securely.

6. Reconnect clutch harness.

7. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

8. Install mower (See "TO INSTALL

MOWER" in this section of manual).

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion con-

trol lever until tractor does not move

forward or backward.

3. Hold motion control lever in that posi-

tion and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the neu-

tral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Control Lever Neutral

Lock Gate

Clutching --

idler

Stationary-----

Idler

Center Span ....

Keeper

Transmission --_

Input Pulley _

_-_____ Clutch

F II Clutch

..... Adjustment Bolt

/,f<,, --,

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal for

service or replacement, it should be purged

after reinstaliation and before operating the

tractor. See "PURGE TRANSMISSION" in

the Operation section of this manual.

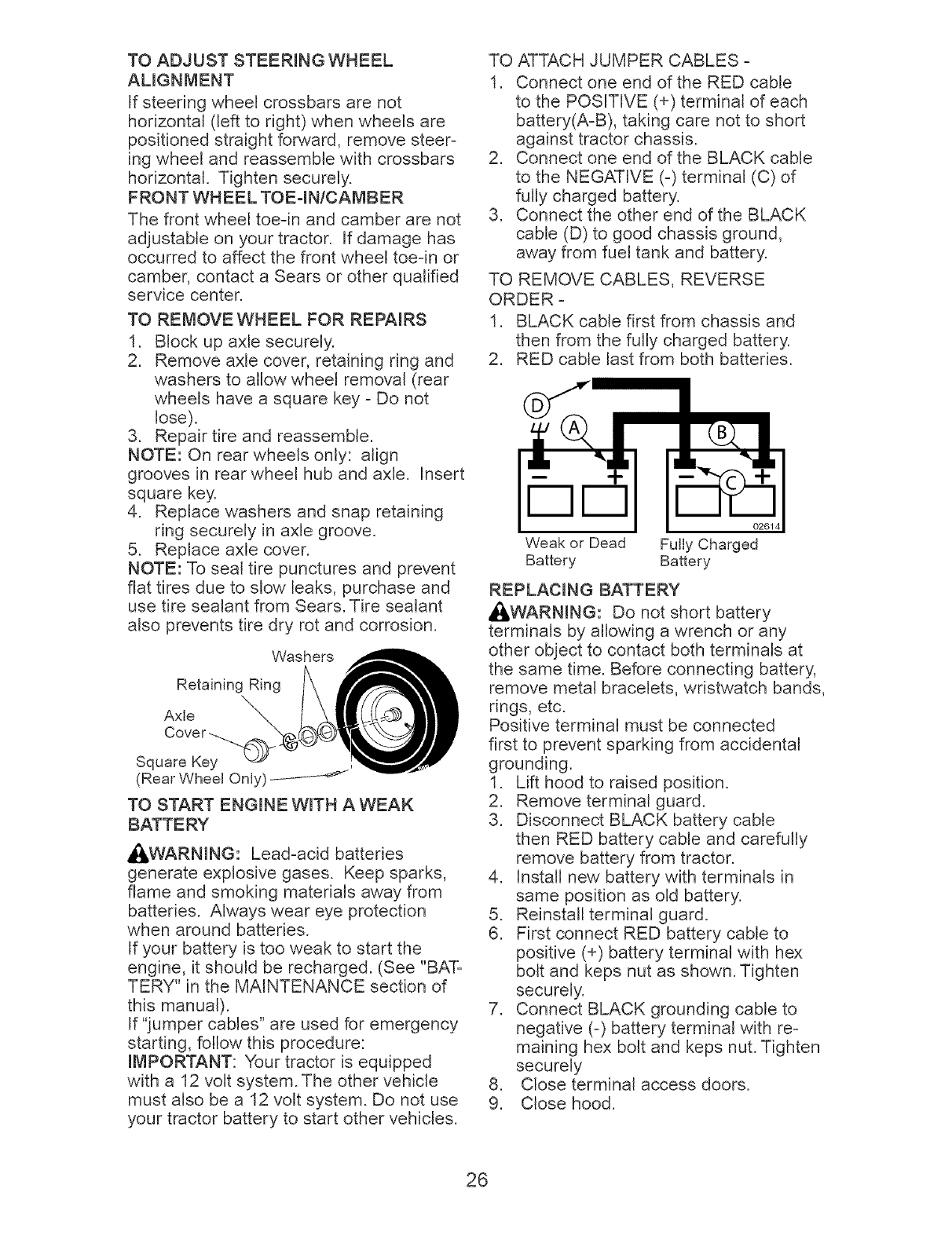

TO ADJUST STEERmNG WHEEL

ALIGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOEqN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining Ring

Axle

Cover _

Square Key

(Rear Wheel Only) ---------_

TO START ENGINE WITH A WEAK

BATTERY

A(_,WARNING: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

02614

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNmNG: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Instati new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

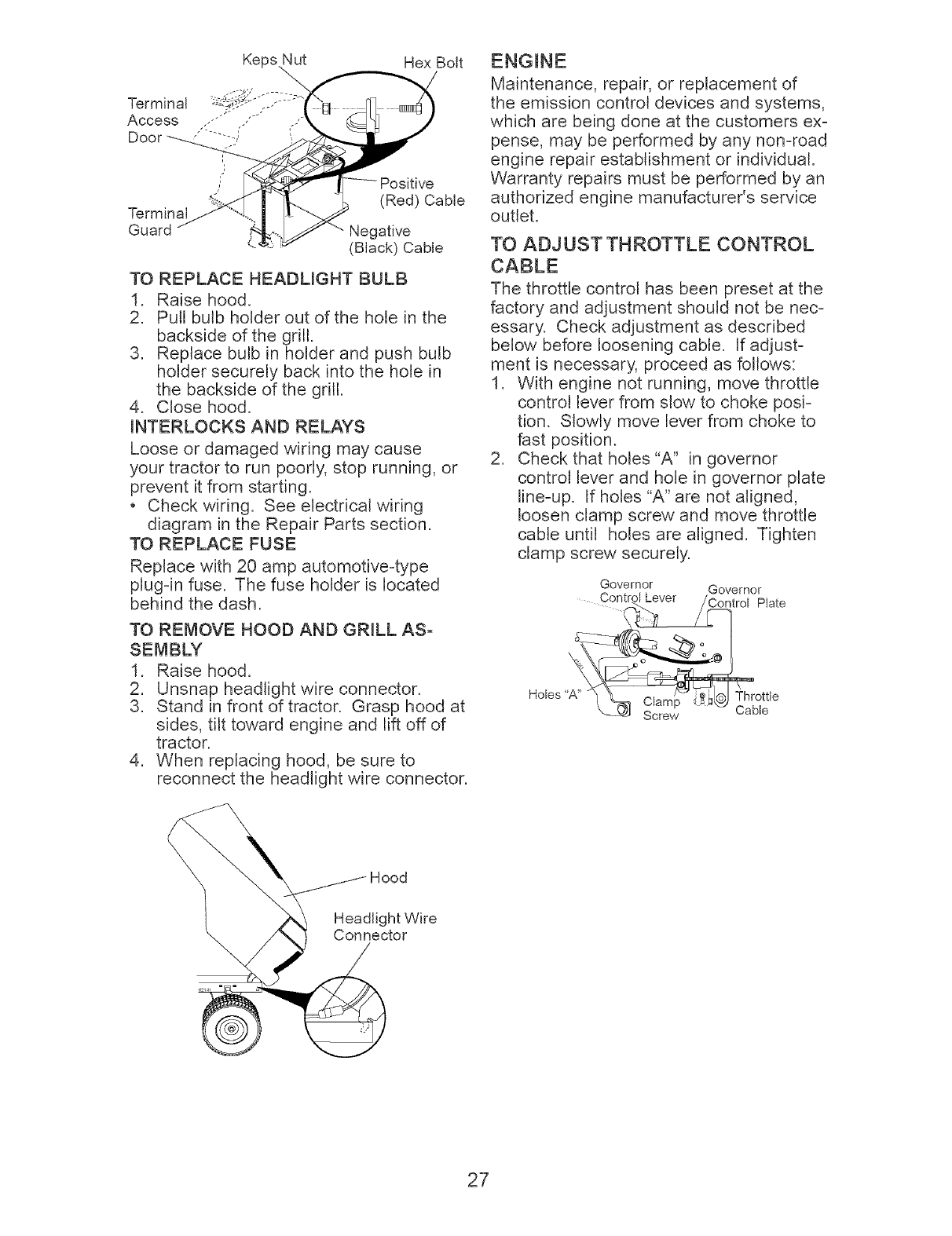

Keps Nut Hex Bolt

Terminal

Guard

Positive

(Red) Cable

Negative

'( ' (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

iNTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

oCheck wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotivemtype

plugqn fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRmLL AS-

SEMBLY

1. Raise hood,

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4, When replacing hood, be sure to

reconnect the headlight wire connector,

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any nomroad

engine repair establishment or individual,

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet,

TO ADJUST THROTTLE CONTROL

The throttle control has been preset at the

factory and adjustment should not be nec_

essary. Check adjustment as described

below before loosening cable, If adjust_

merit is necessary, proceed as follows:

1, With engine not running, move throttle

control lever from slow to choke posF

tion. Slowly move lever from choke to

fast position.

2, Check that holes "A" in governor

control lever and hole in governor plate

line_up, If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned, Tighten

clamp screw securely,

Governor Governor

Cor_<_ _,er /Oorltro' Plate

Ho,esA' % ott,e

&o_;;_ -- Cable

Headlight Wire

Connector

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec m

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mixm

ture, Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture,

iMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight,

PRELIMINARY SETTING

1, Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2, Be sure the throttle control cable is

adjusted properly (see above),

FINAL SETTING

1, Start engine and allow to warm for five

minutes, Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2, Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw, Turn

idle speed screw to attain 1750 RPM.

3, While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coum

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions, Release throttle

lever,

ACCELERATION TEST

4, Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coum

terclockwise) 1/8 turn, Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted, Do

not adjust - damage may result.

iMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the enginemgoverned high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

/Throttle

Idle Mixture Valve

With Limiter

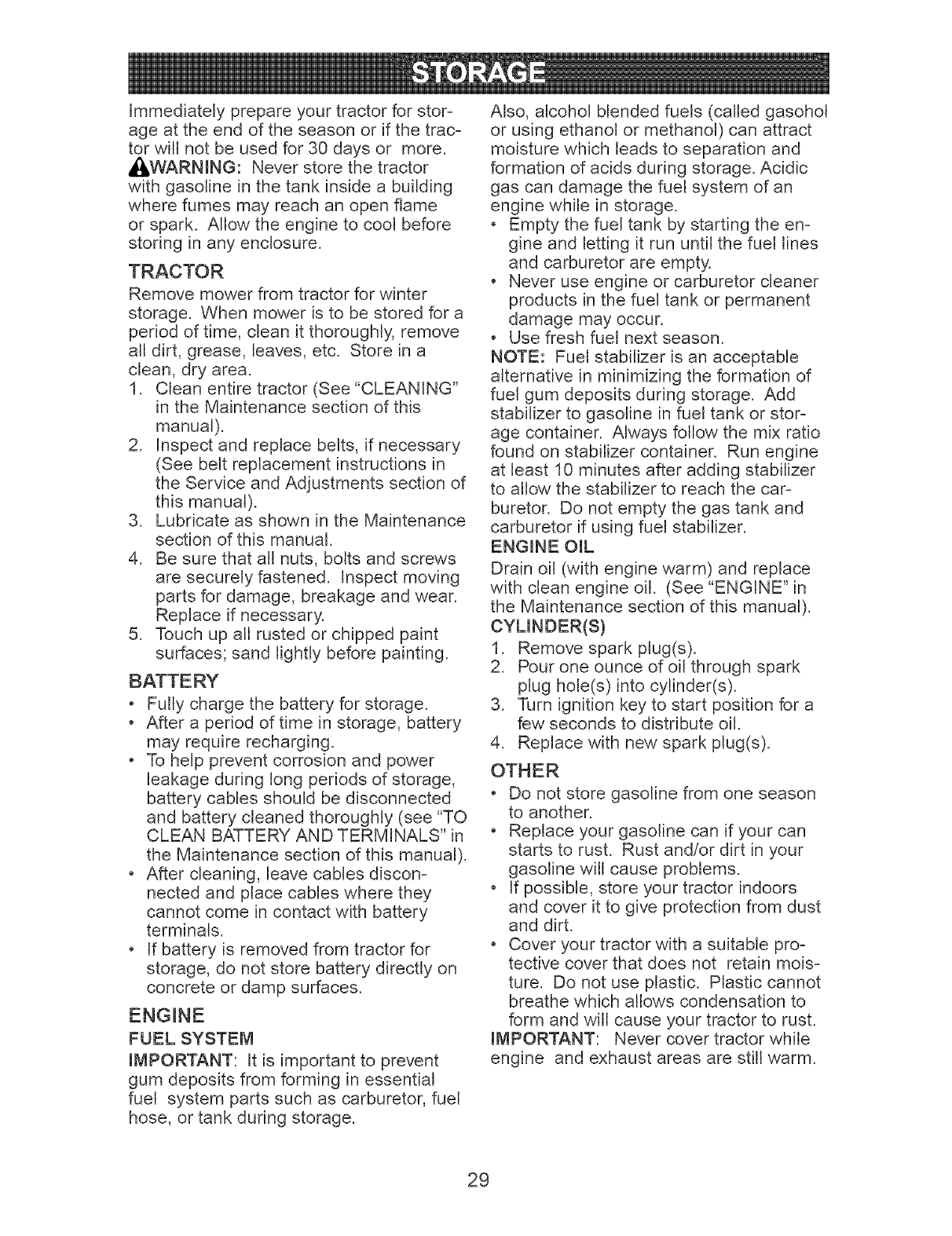

Immediately prepare your tractor for stoF

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

A(_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

o Fully charge the battery for storage.

o After a period of time in storage, battery

may require recharging.

o To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

o After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

o If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage,

Also, alcohol blended fuels (called gasohol

or using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

o Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

o Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

o Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGmNE Oral

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s)into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

o Do not store gasoline from one season

to another.

o Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

o If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

o Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

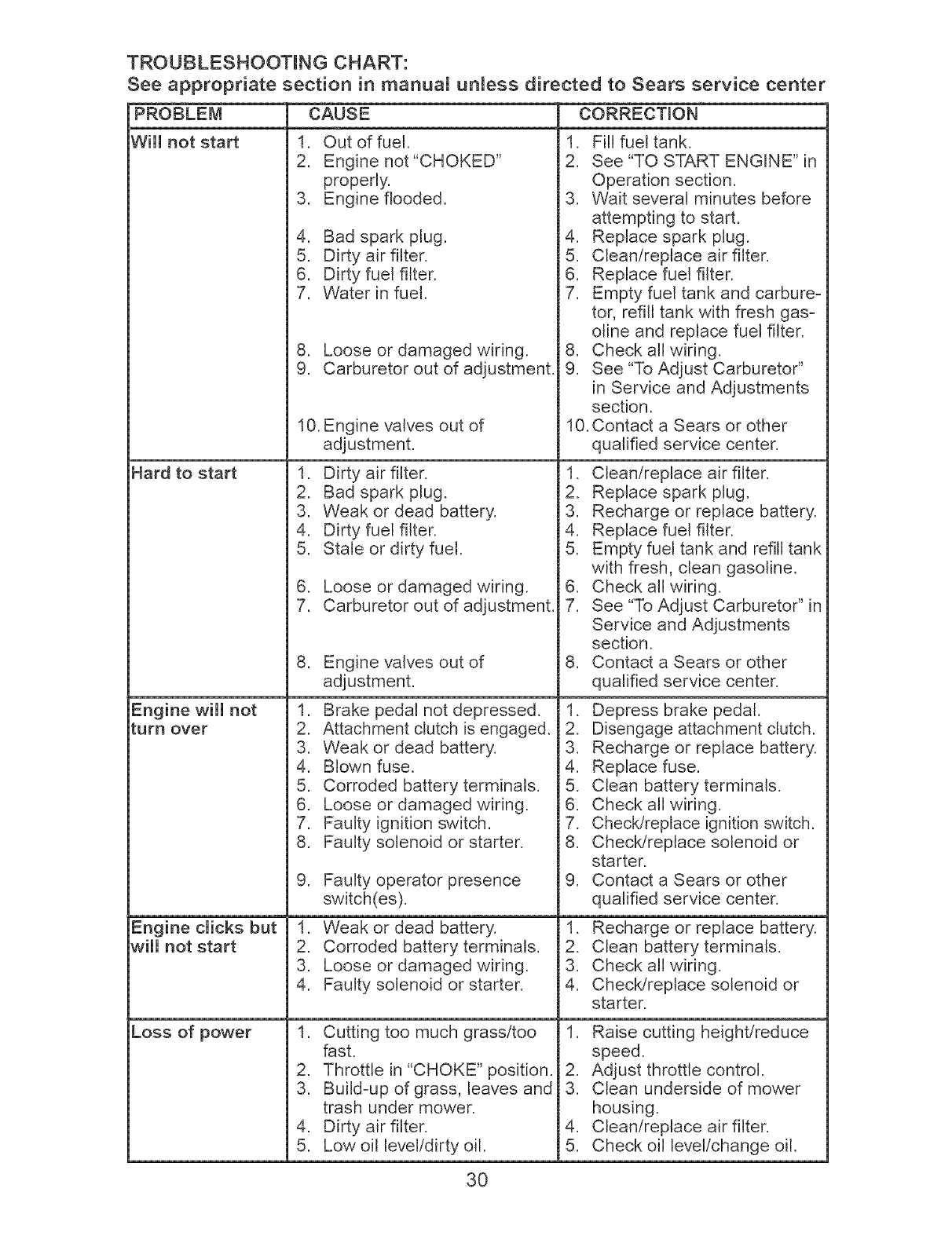

TROUBLESHOOTING CHART:

See appropriate section in nqanuam unmess directed to Sears service center

PROBLEM CAUSE CORRECTION

Wiii not start

Hard to start

Engine wiii not

turn over

Engine clicks but

wiii not start

loss of power

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment,

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8, Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and

trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

1. Fill fuel tank.

2. See "TO START ENGINE" in

Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in

Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

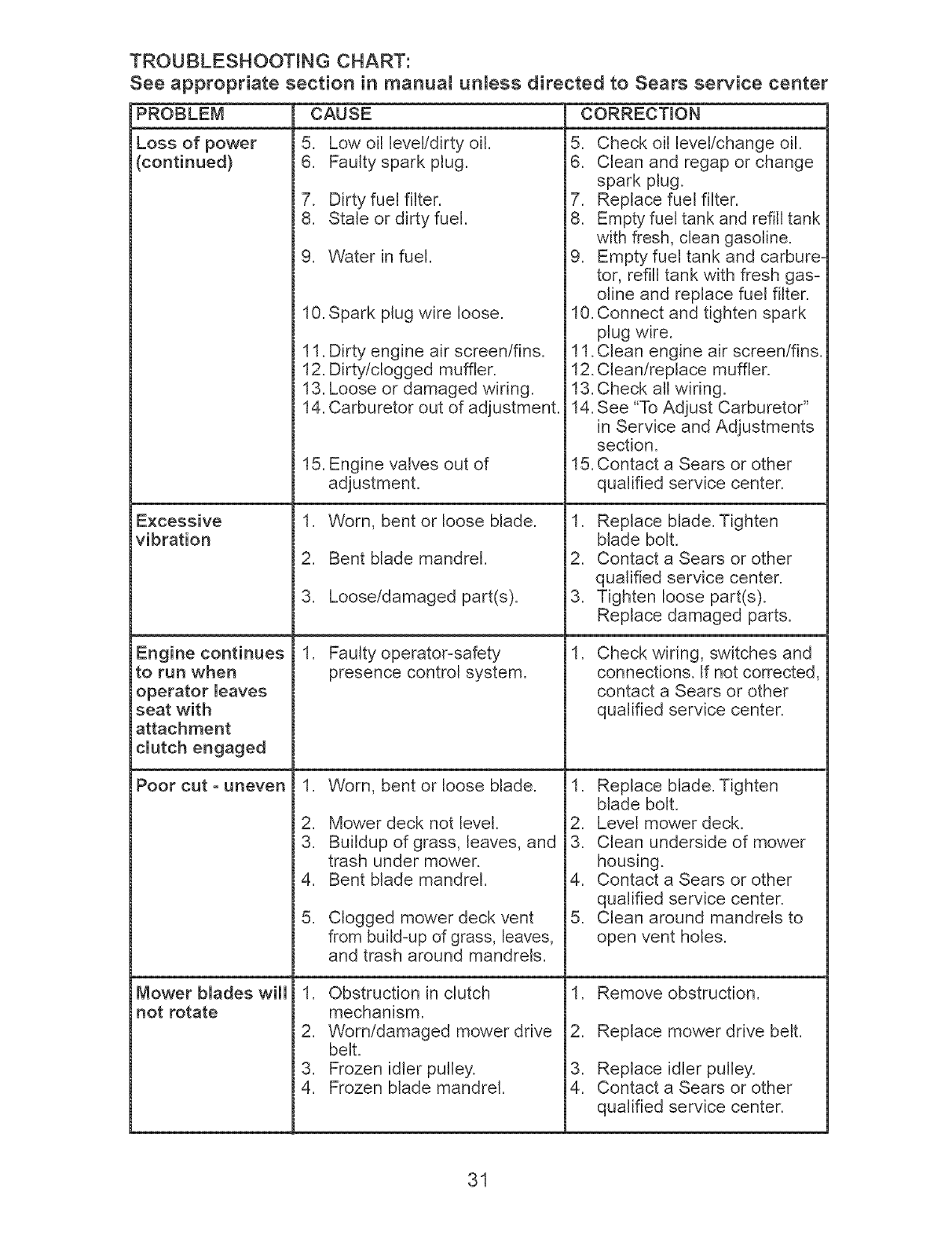

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CORRECTION

Loss of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut -uneven

Mower blades wiii

not rotate

CAUSE

5. Low oil leveVdirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13, Loose or damaged wiring.

14. Carburetor out of adjustment,

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator=safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and

trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass, leaves,

and trash around mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas=

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

.Check wiring, switches and

connections. If not corrected,

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

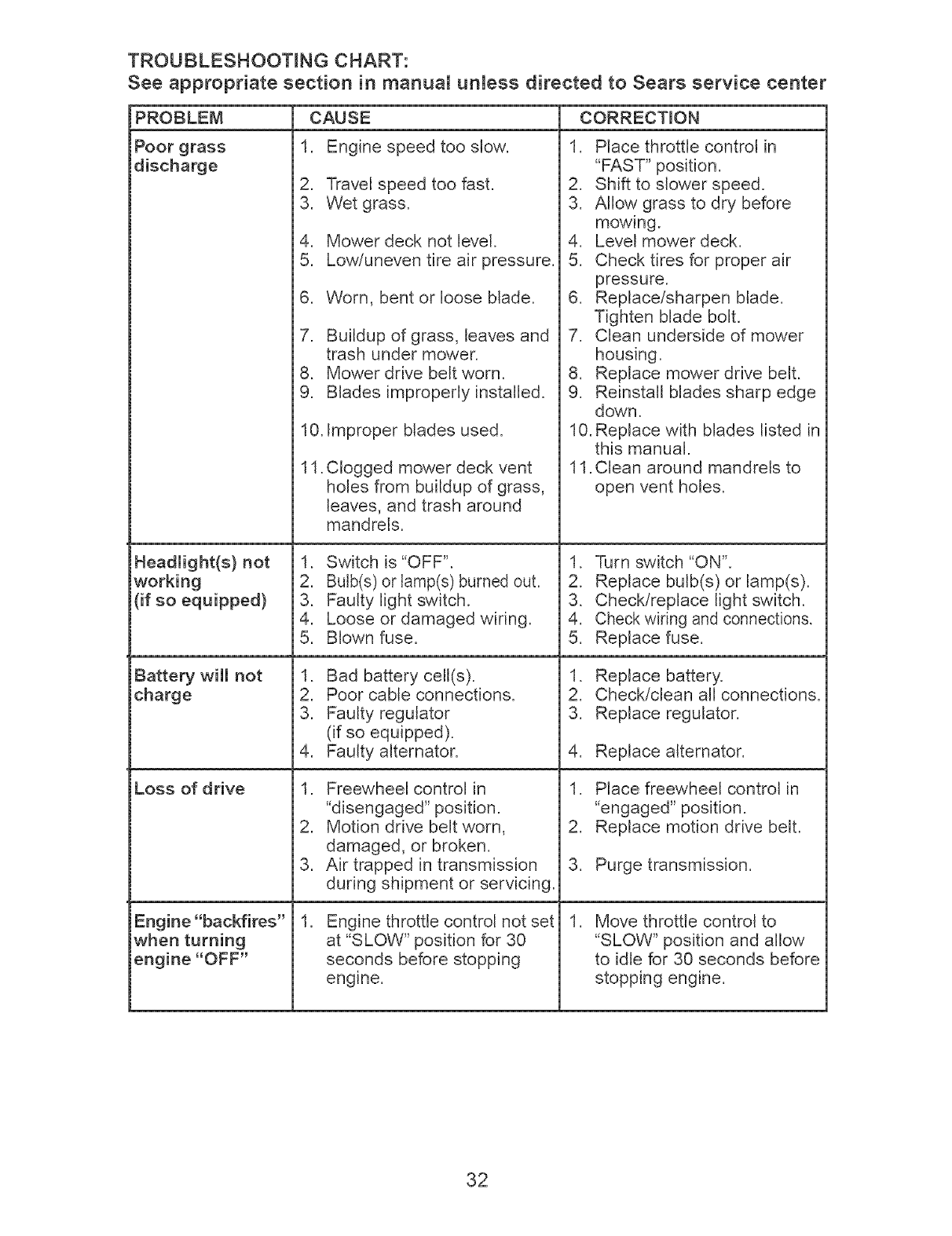

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

[PROBLEM

Poor grass

discharge

iHeadiight(s) not

working

i(if so equipped)

[Battery wiii not

icharge

Loss of drive

Engine "backfires"

when turning

iengine "OFF"

CAUSE

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.

11.

Improper blades used.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

.Engine throttle control not set

at "SLOW" position for 30

seconds before stopping

engine.

CORRECTION

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10, Replace with blades listed in

this manual,

11, Clean around mandrels to

open vent holes,

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator,

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

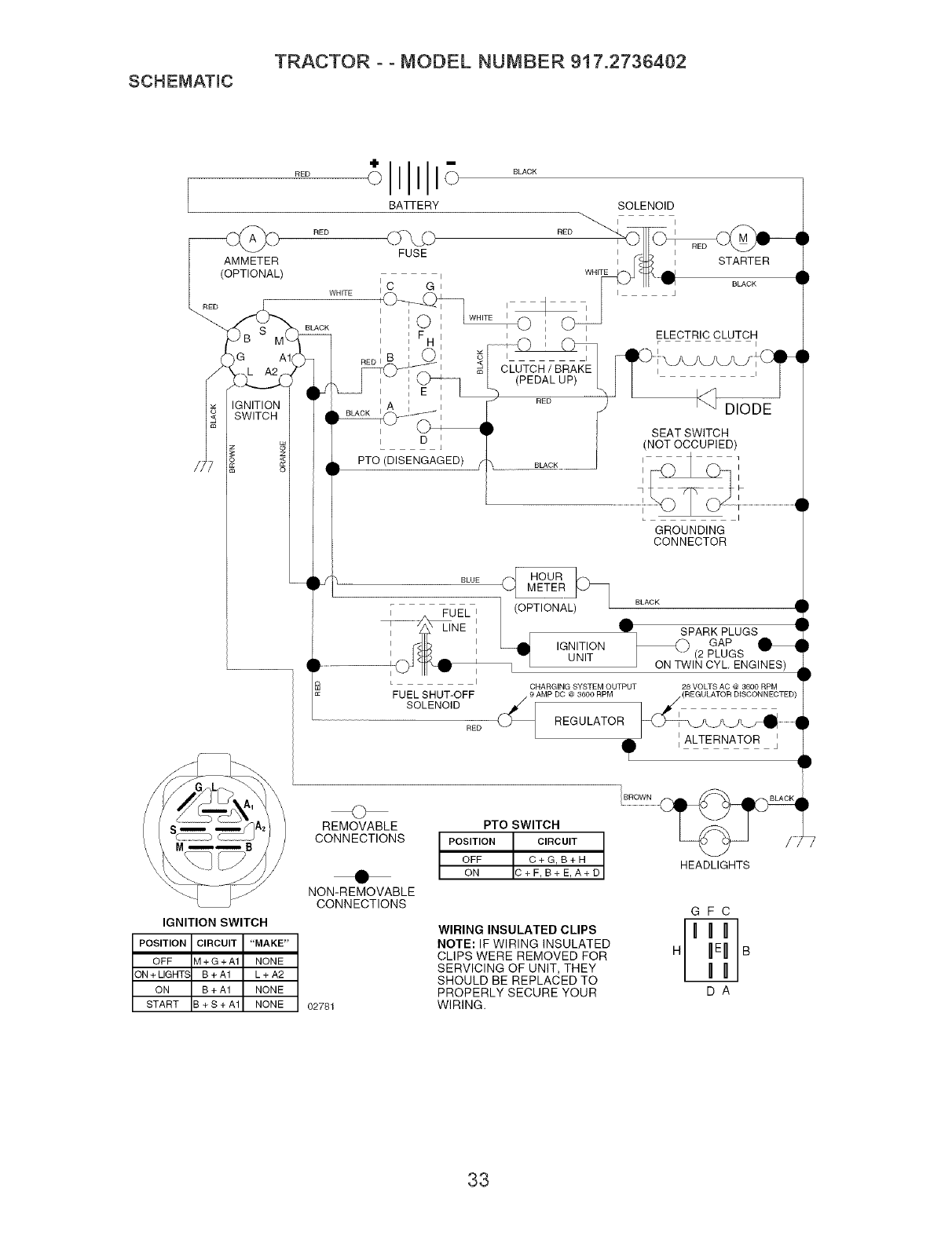

SCHEMATIC TRACTOR - - MODEL NUMBER 917.2736402

RED

BATi-ERY

BLACK

SOLENOID

STARTER

BLACK

ELECTRIC CLUTCH

I i

DIODE

SEAT SWITCH

(NOT OCCUPIED)

REMOVABLE

CONNECTIONS

GROUNDING

CONNECTOR

L_ BLACK

_ NE _F _PARK PLUGS

/(71_ IGNITION _"_ GAP _

_)_,_l UNIT _ (2 PLUGS --

J ON TWIN CYL ENGINES)

CHARGING SYSTEM OUTPUT 28 VOLTS AC @ 3600 RPM

FUEL SHUT-OFF /gAMP DC @ 3600 RPM /.(REGULATOR DISCONNECTED

SOLENOID _

RED REGULATOR Jk._,,j' '_ .................

ALTERNATOR

NON-REMOVABLE

CONNECTIONS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

ON + LIGHT_ B+A1 L+A2

ON B + A1 NONE

START B + S + A1 NONE 02781

PTO SWITCH

POSITION CIRCUIT

OFF C+G,B+H

ON C+F,B+E,A+D

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

)

HEADLIGHTS

GFC

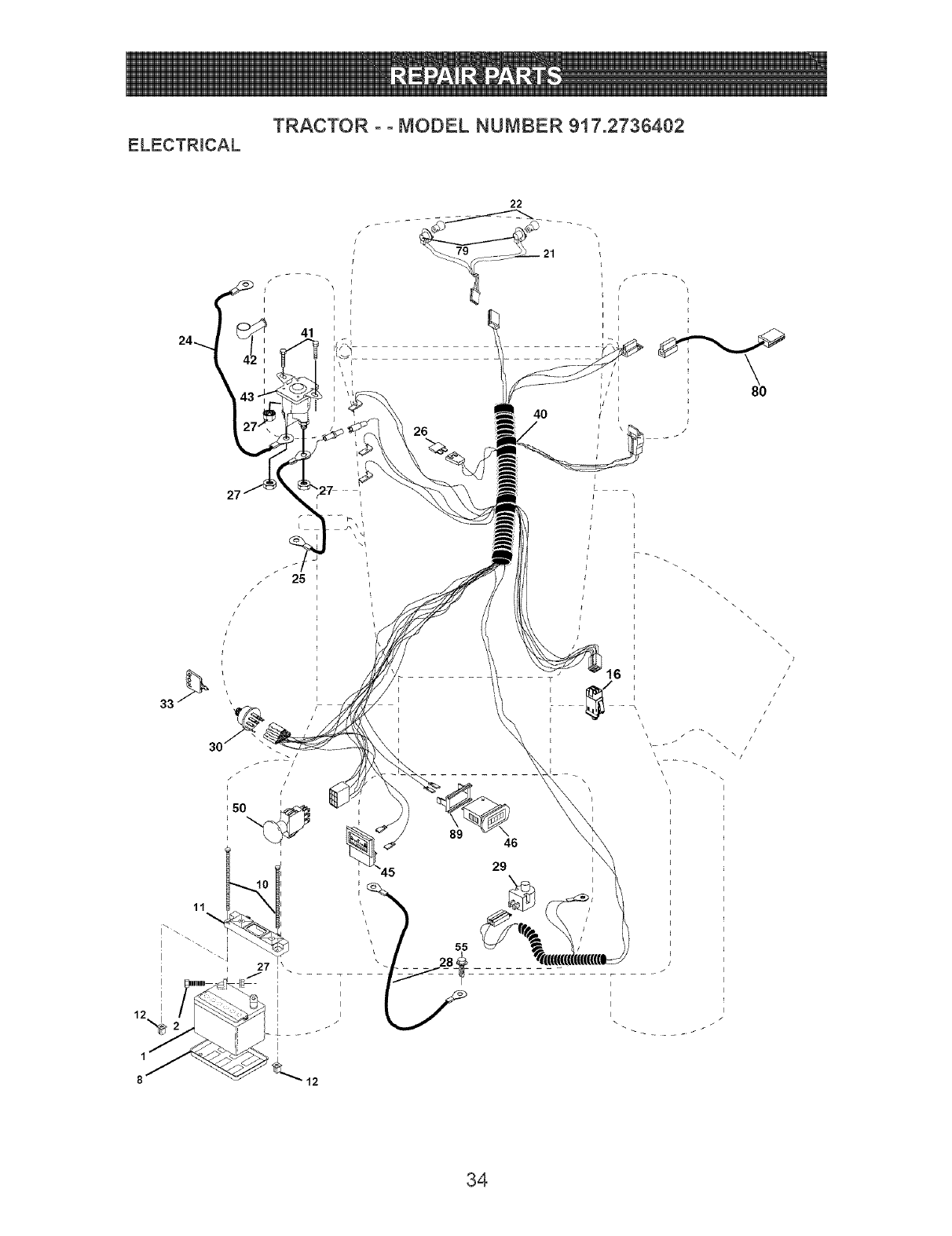

ELECTRICAL TRACTOR - - MODEL NUMBER 917.2736402

I I

f I

I80

\\\\\\\

\/i\- \

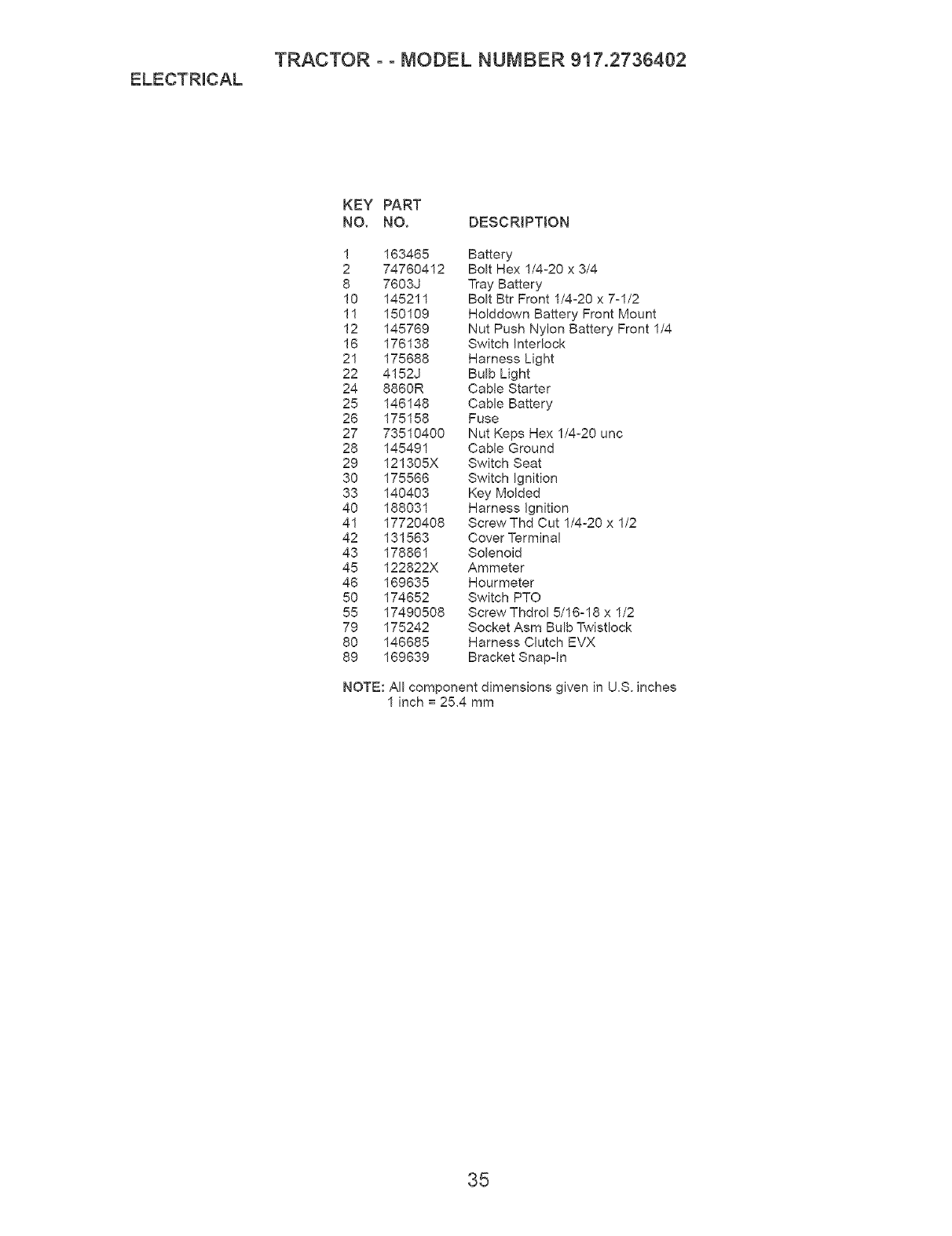

ELECTRmCAL TRACTOR - - MODEL NUMBER 917.2736402

KEY PART

NO. NO. DESCRiPTiON

1 163465 Battery

2 74760412 Bolt Hex 1/4-20 x 3/4

8 7603J Tray Battery

10 145211 Bolt Btr Front 1/4o20 x 7ol/2

11 150109 Holddown Battery Front Mount

12 145769 Nut Push Nylon Battery Front 1/4

16 176138 Switch Interlock

21 175688 Harness Light

22 4152J Bulb Light

24 8860R Cable Starter

25 146148 Cable Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 unc

28 145491 Cable Ground

29 121305X Switch Seat

30 175566 Switch Ignition

33 140403 Key Molded

40 188031 Harness Ignition

41 17720408 Screw Thd Cut 1/4-20 x 1/2

42 131563 Cover Terminal

43 178861 Solenoid

45 122822X Ammeter

46 169635 Hourmeter

50 174652 Switch PTO

55 17490508 Screw Thdrol 5/16o18 x 1/2

79 175242 Socket Asm Bulb _wistlock

80 146685 Harness Clutch EVX

89 169639 Bracket Snapqn

NOTE: All component dimensions given in U,S. inches

1 inch = 25,4 mm

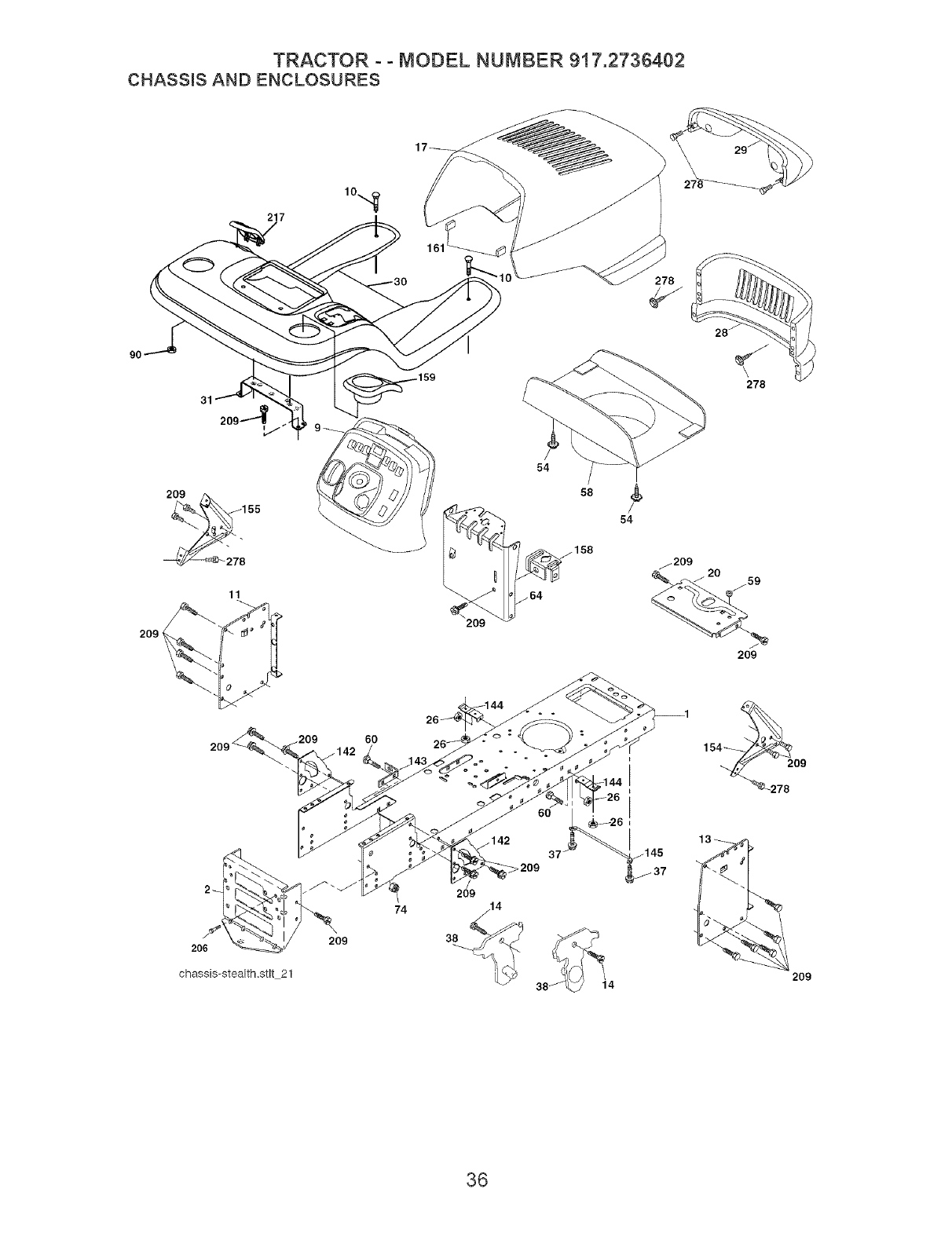

TRACTOR - -MODEL NUMBER 917.2736402

CHASSIS AND ENCLOSURES

217

209

158

278

_. 209

209

206

chassis-stealth,stlt 21

209

>209

-145

209

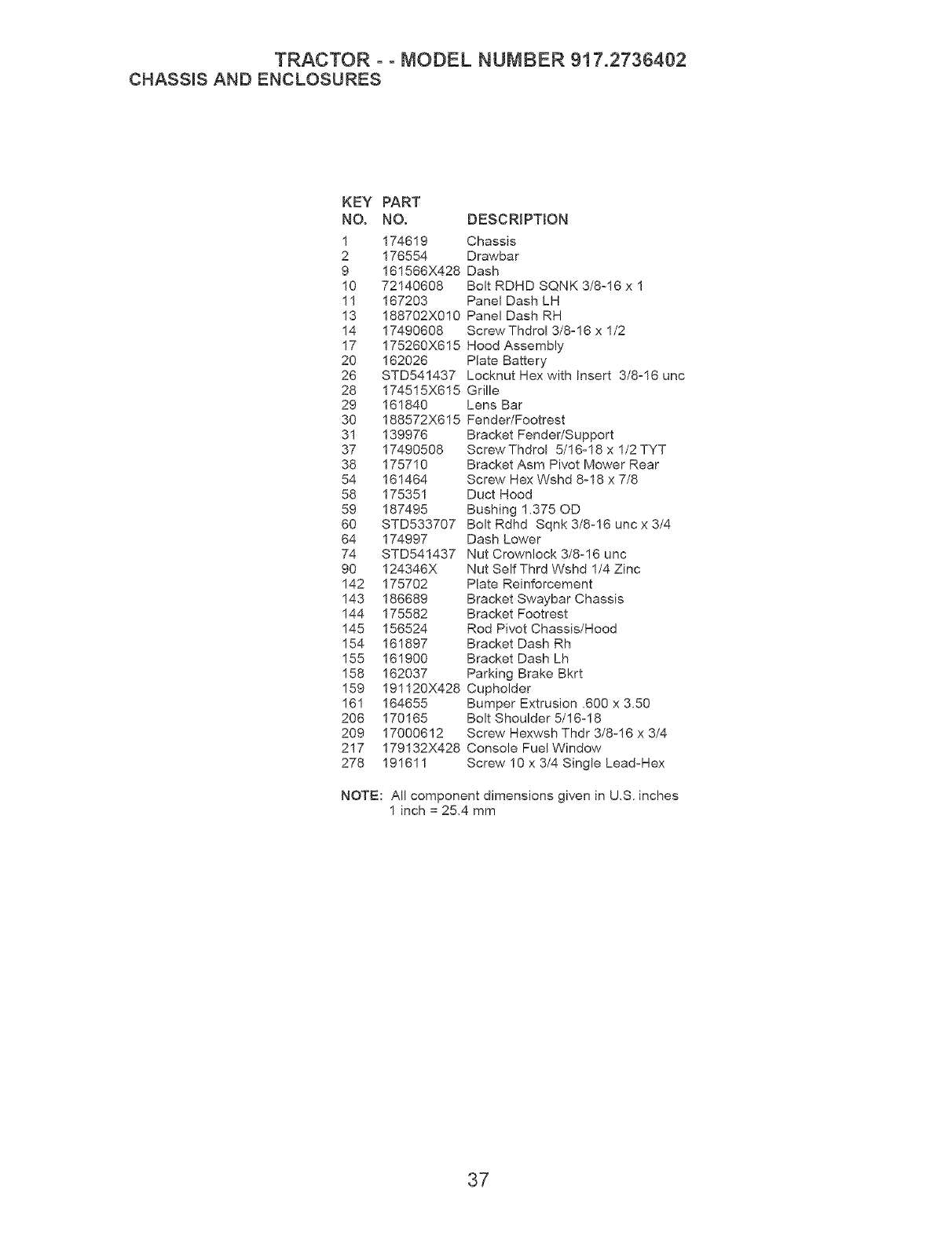

TRACTOR - - MODEL NUMBER 917.2736402

CNASSmS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

9 161566X428 Dash

10 72140608 Bolt RDHD SQNK 3/8-16 x 1

11 167203 Panel Dash LH

13 188702X010 Panel Dash RH

14 17490608 ScrewThdrol 3/8o16 x 1/2

17 175260X615 Hood Assembly

20 162026 Plate Battery

26 STD541437 Locknut Hex with Insert 3/8-16 unc

28 174515X615 Gdlle

29 161840 Lens Bar

30 188572X615 Fender/Footrest

31 139976 Bracket Fender/Support

37 17490508 ScrewThdrol 5/16o18 x 1/2TYT

38 175710 Bracket Asm Pivot Mower Rear

54 161464 Screw Hex Wshd 8-18 x 7/8

58 175351 Duct Hood

59 187495 Bushing 1_375 OD

60 STD533707 Bolt Rdhd Sqnk 3/8-16 uric x 3/4

64 174997 Dash Lower

74 STD541437 Nut Crownlock 3/8-16 unc

90 124346X Nut Self Thrd Wshd 1/4 Zinc

142 175702 Plate Reinforcement

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rod Pivot Chassis/Hood

154 161897 Bracket Dash Rh

155 161900 Bracket Dash Lh

158 162037 Parking Brake Bkrt

159 191120X428 Cupholder

161 164655 Bumper Extrusion ,600 x 3.50

206 170165 Bolt Shoulder 5/16-18

209 170006!2 Screw Hexwsh Thdr 3/8-16 x 3/4

217 179132X428 Console Fuel Window

278 191611 Screw 10 x 3/4 Single Lead-Hex

NOTE: All component dimensions given in U,S. inches

1 inch = 25,4 mm

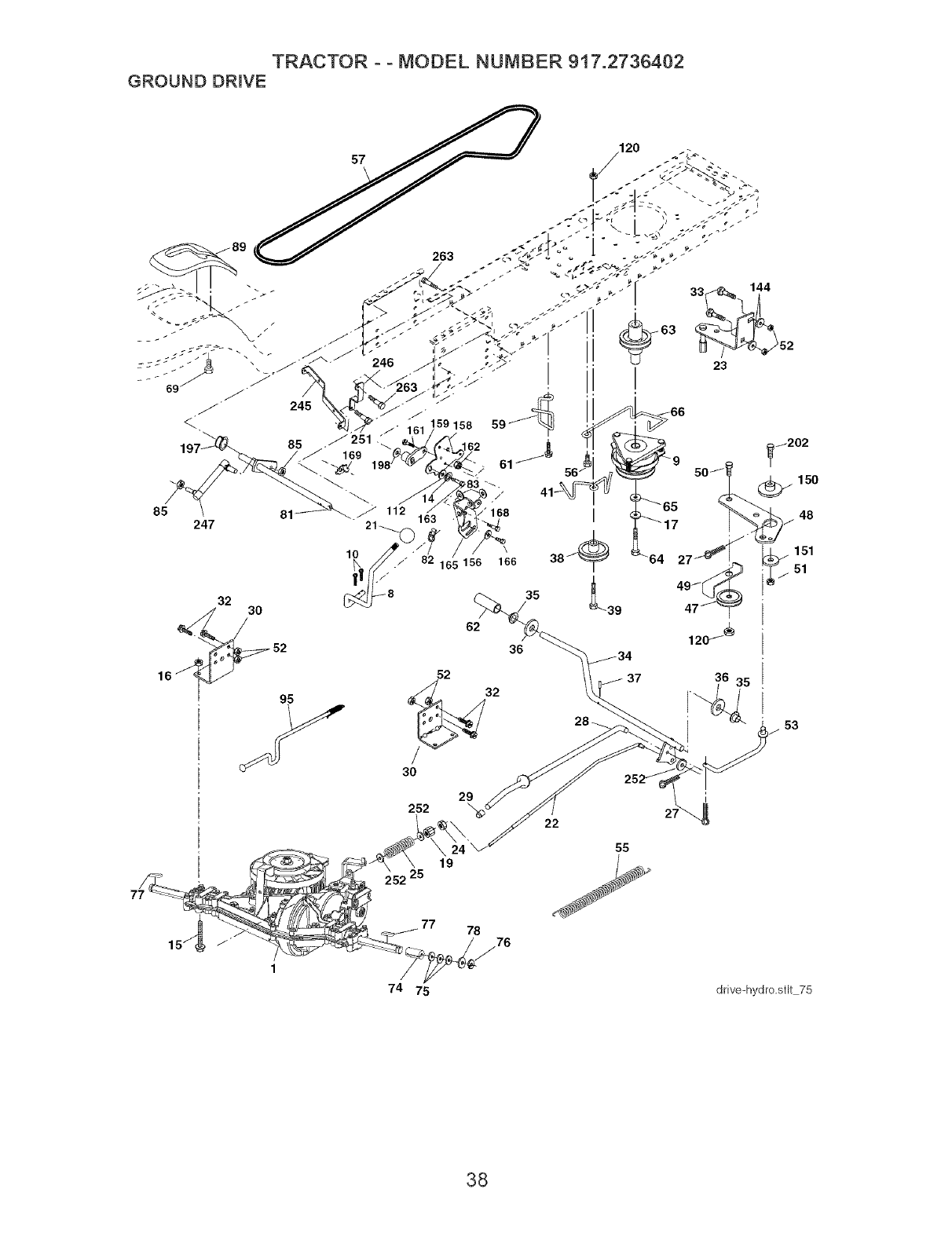

TRACTOR --MODEL NUMBER 917.2736402

GROUND DRIVE

59 158

82 165 156 166 38

5oJt 202

_150

151

37 36 35

252

52 25

74 75

drive-hydro.stlt 75

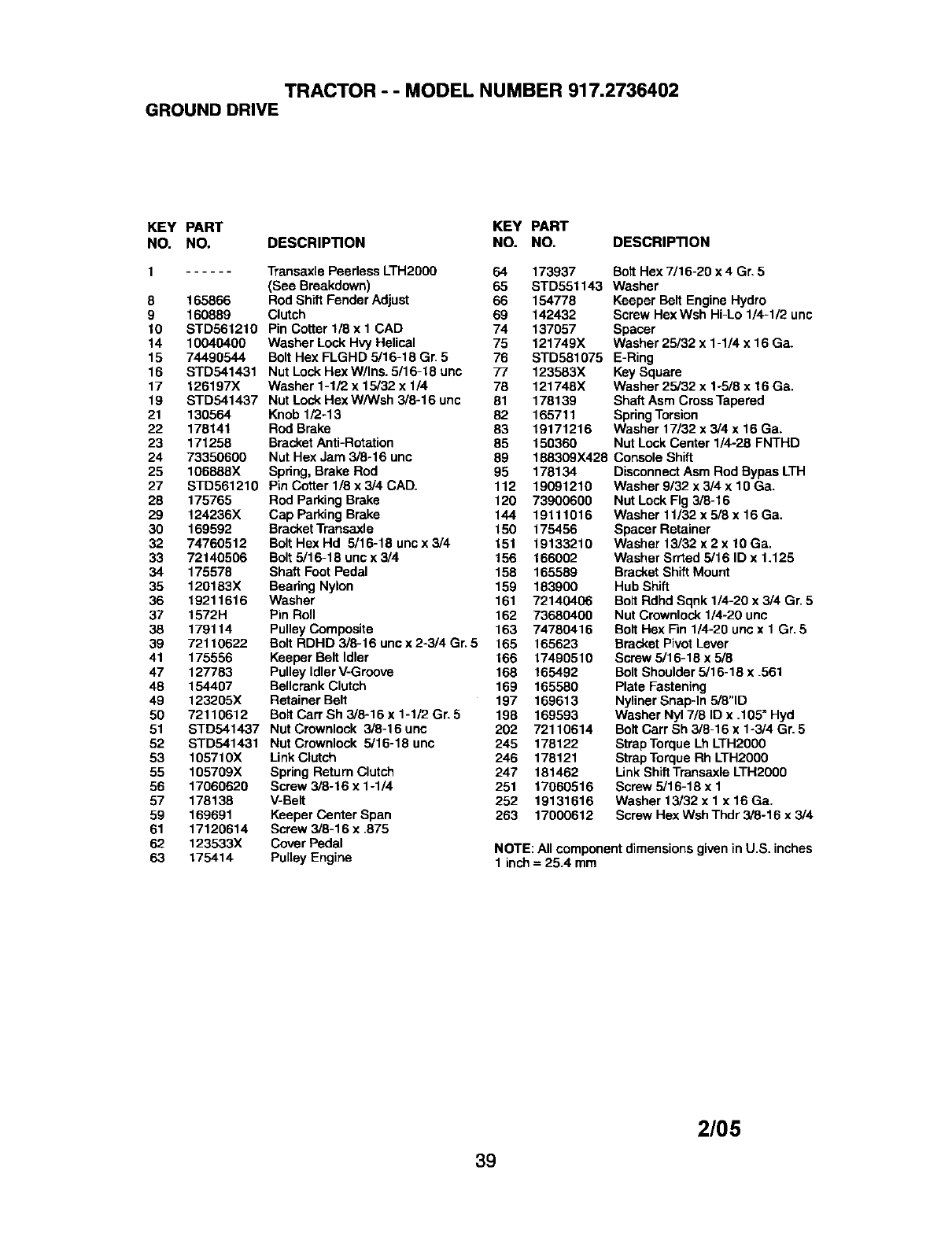

TRACTOR-- MODEL NUMBER 917.2736402

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1Transaxle Peerless LTH200O 64

(See Breakdown) 65

8 165866 Rod Shift Fender Adjust 66

9 160889 Clutch 69

10 STD561210 PinCotterl/8xl CAD 74

14 10040400 Washer Lock Hvy Helical 75

15 74490544 Bolt Hex FLGHD 5/16-18 Gr. 5 76

16 STD541431 Nut Lock Hex W/Ins. 5/16-18 unc 77

17 126197X Washer 1-1/2 x 15/32 x 1/4 78

19 STD541437 Nut Lock Hex WiWsh 3/8-16 unc 81

21 130564 Knob 1/2-13 82

22 178141 Rod Brake 83

23 171258 Bracket Anti-Rotation 85

24 73350600 Nut Hex Jam 3/8-16 unc 89

25 106888X Spring, Brake Rod 95 178134

27 STD561210 Pin Cotter l/8 x 3/4 CAD. 112 19091210

28 175765 Rod Parking Brake 120 73900600

29 124236X Cap Parking Brake 144 19111016

30 169592 Bracket Transaxle 150 175456

32 74760512 Bolt Hex Hd 8/16-18 unc x 3/4 151 19133210

33 72140506 Bolt 5/16-18 unc x 3/4 156 166002

34 175578 Shaft Foot Pedal 158 165589

35 120183X Bearing Nylon 159 183900

36 19211616 Washer 161 72140406

37 1572H Pin Roll 162 73680400

36 179114 Pulley Composite 163 74780416

39 72110622 Bolt RDHD 3/8-16 unc x 2-3/4 Gr. 5 165 165623

41 175556 Keeper Belt Idler 166 17490510

47 127783 Pulley IdlerV-Groove 168 165492

48 154407 Bellcrank Clutch 169 165589

49 123205X Retainer Belt 197 169613

50 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 198 169593

51 STD541437 Nut Crownlock 3/8-16 unc 202 72110614

52 STD541431 Nut Crewnlock 5/16-18 unc 245 178122

53 105710X Link Clutch 246 178121

55 105709X Spring Return Clutch 247 181462

56 17060620 Screw 3/8-16 x 1-1/4 251 17060516

57 178138 V-Belt 252 19131616

59 169691 Keeper Center Span 263 17000612

61 17120614 Screw 3/8-16 x .875

62 123533X Cover Pedal

63 175414 Pulley Engine

173937 Bolt Hex 7/16-20 x 4 Gr. 5

STD551143 Washer

154778 Keeper Belt Engine Hydro

142432 Screw Hex Wsh Hi-Lo 1/4-1/2 unc

137057 Spacer

121749X Washer 25/32 x1-1/4 x16 Ga.

STD581075 E-Ring

123583X Key Square

121748X Washer 25/32 x 1-5/8 x 16 Ga.

178139 Shaft Asm Cress Tapered

165711 Spring Torsion

19171216 Washer 17/32 x 3/4 x 16 Ga.

150360 Nut Lock Center 1/4-28 FNTHD

188309)(428 Console Shift

DisconnectAsm Rod Bypas LTH

Washer 9/32 x 3/4 x 10 Ga.

Nut Lock Fig 3/8-16

Washer 11132x 5/8 x 16 Ga.

Spacer Retainer

Washer 13/32 x2x10 Ga.

Washer Srrted 5/16 ID x 1.125

Bracket ShiftMount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlock1/4-20 unc

Bolt Hex Fin 1/4-20 uricx 1 Gr. 5

Bracket Pivot Lever

Screw 5/16-18 x5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening

Nyliner Snap-In 5/8"1D

Washer Nyl 7/8 ID x .105" Hyd

Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5

Strap Torque Lh LTH2000

Strap Torque Rh LTH2000

Link ShiftTransaxle LTH2000

Screw 5/16-18 x 1

Washer 13/32 x I x 16 Ga.

Screw Hex WshThdr 3/6-16 x 3/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

2/05

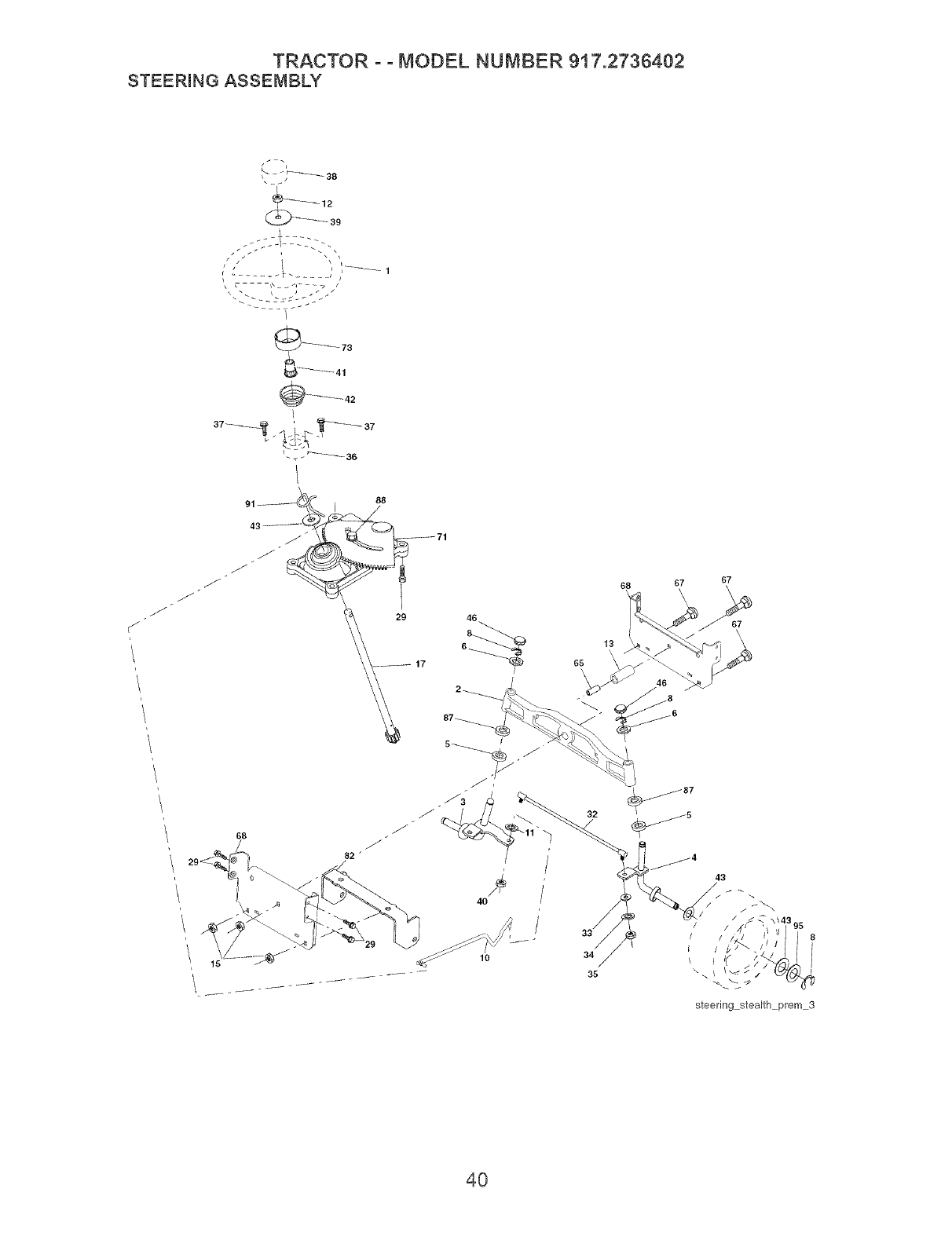

TRACTOR - - MODEL NUMBER 917.2736402

STEERING ASSEMBLY

c_J

29 46

67 67

/f <- \14395

/ / 4,_

I / /I 8

I/11

steering stealth prem 3

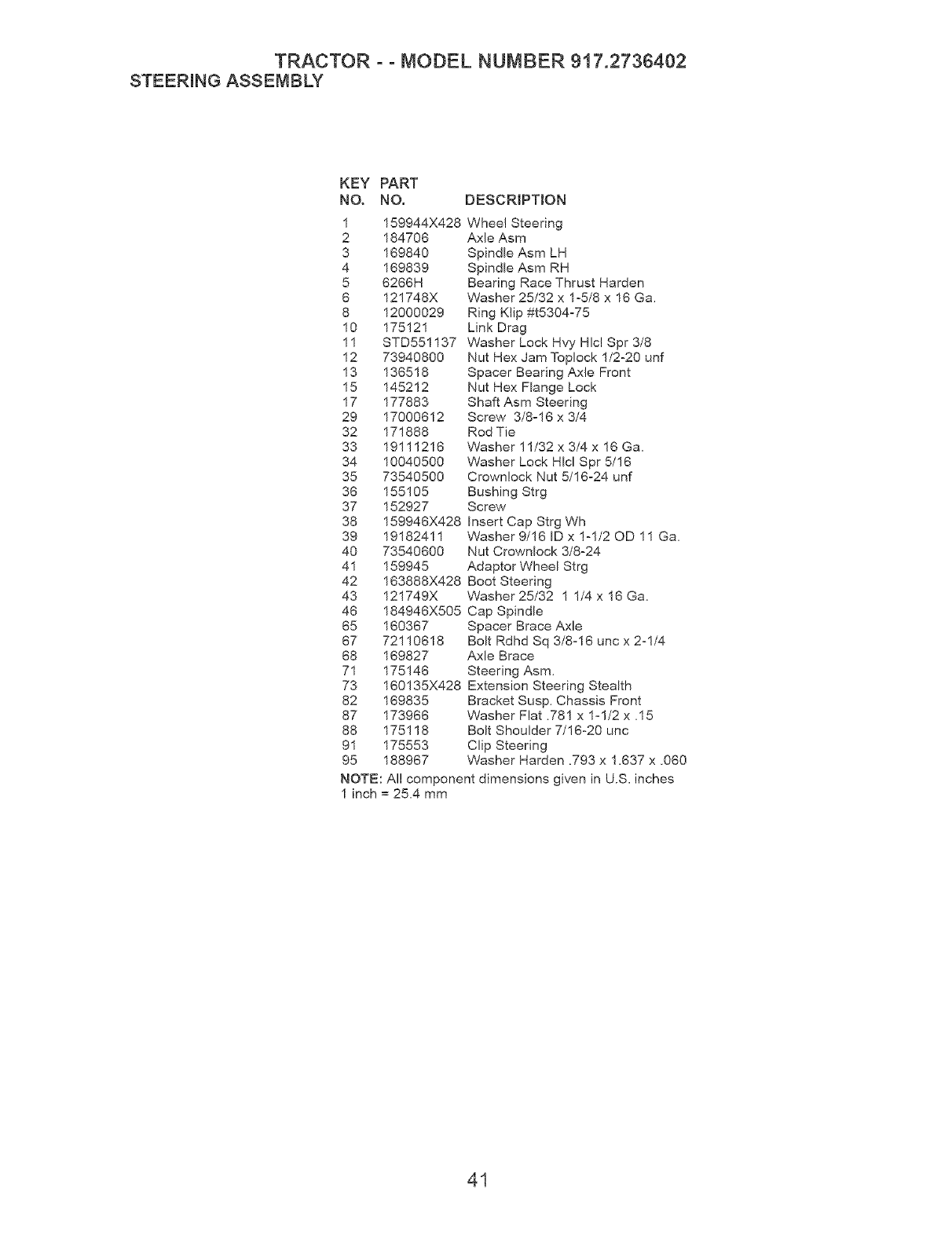

TRACTOR - - MODEL NUMBER 917.2736402

STEERING ASSEMBLY

KEY PART

NO. NO, DESCRiPTiON

1 159944X428 Wheel Steering

2 184706 Axle Asm

3 169840 Spindle Asm LH

4 169839 Spindle Asm RH

5 6266H Bearing Race Thrust Harden

6 121748X Washer 25/32 x 1-5/8 x 16 Ga,

8 12000029 Ring Klip #t5304-75

10 175121 Link Drag

11 STD551137 Washer Lock Hvy HIc! Spr 3/8

12 73940800 Nut Hex Jam Toplock 1/2-20 unf

13 136518 Spacer Bearing Axle Front

15 145212 Nut Hex Flange Lock

17 177883 Shaft Asm Steering

29 17000612 Screw 3/8o16 x 3/4

32 171888 Rod Tie

33 19111216 Washer 11/32 x 3/4 x 16 Ga,

34 10040500 Washer Lock HIcl Spr 5/16

35 73540500 Crown!ock Nut 5/16o24 unf

36 155105 Bushing Strg

37 152927 Screw

38 159946X428 Insert Cap Strg Wh

39 19182411 Washer 9/16 ID x !-1/20D 11 Ga,

40 73540600 Nut Crownlock 3/8-24

41 159945 Adaptor Wheel Strg

42 163888X428 Boot Steering

43 12!749X Washer25/32 1 1/4x 16Ga,

46 184946X505 Cap Spindle

65 160367 Spacer Brace Axle

67 72110618 Bolt Rdhd Sq 3/8o16 unc x 2_1/4

68 169827 Axle Brace

71 175146 Steering Asm,

73 160135X428 Extension Steering Stealth

82 169835 Bracket Susp. Chassis Front

87 173966 Washer Flat .781 x 1ol/2 x ,15

88 175118 Bolt Shoulder 7/16-20 uric

91 175553 Clip Steering

95 188967 Washer Harden .793 x 1,637 x .060

NOTE: All component dimensions given in U.S, inches

1 inch = 25,4 mm

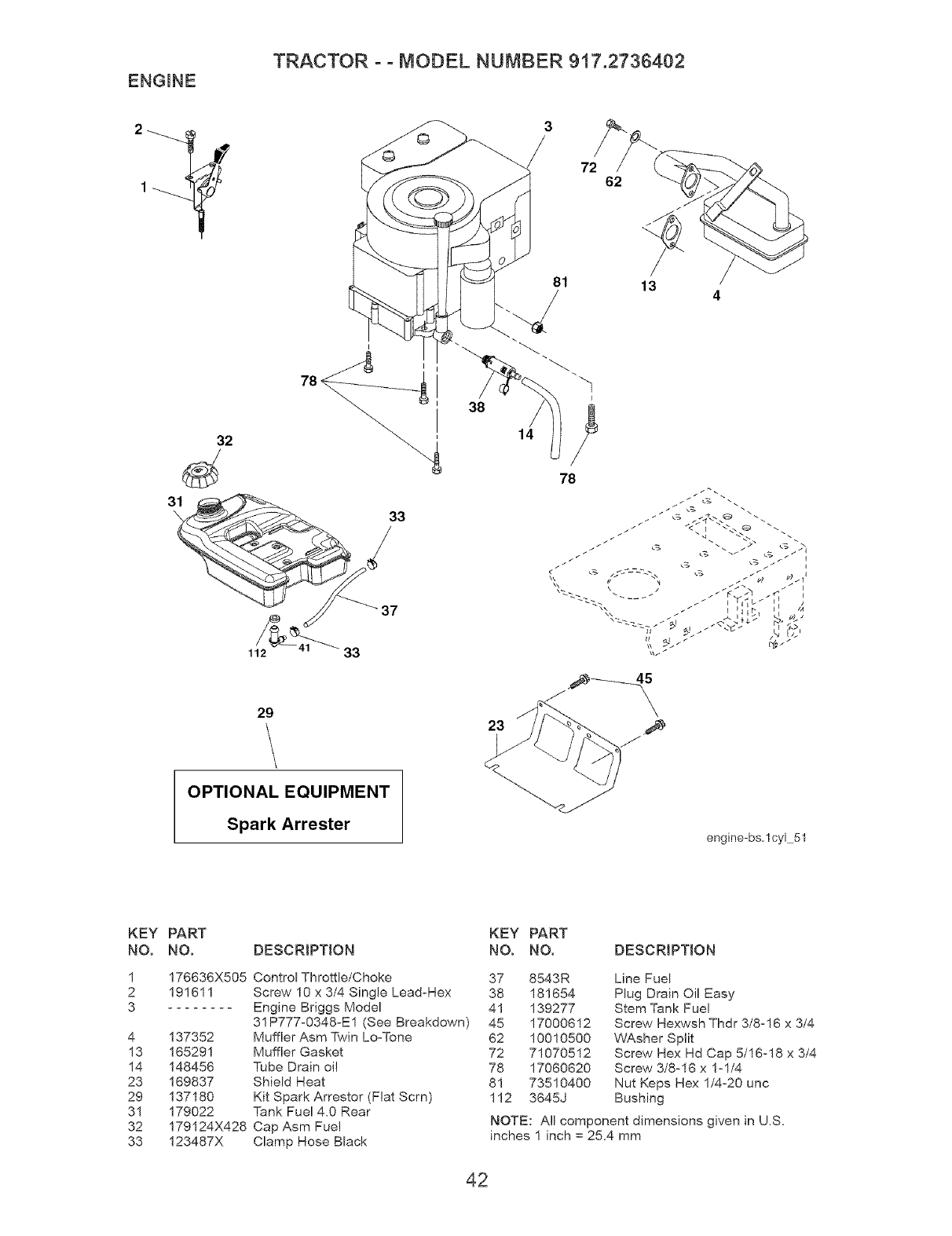

ENGINE

TRACTOR - - MODEL NUMBER 917.2736402

3337

OPTIONAL EQUIPMENT

Spark Arrester

I38

13 4

23 \

engine-bs.lcyf 51

KEY PART

NO. NO.

1 176636X505

2 191611

4 137352

13 165291

14 148456

23 169837

29 137180

31 179022

32 179124X428

33 123487X

KEY PART

DESCRIPTION NO, NO,

Control Throttle/Choke 37 8543R

Screw 10 x 3/4 Single Lead-Hex 38 181654

Engine Briggs Model 41 139277

31P777-0348-E1 (See Breakdown) 45 17000612

Muffler Asm Twin Lo=Tone 62 10010500

Muffler Gasket 72 71070512

Tube Drain oil 78 17060620

Shield Heat 81 73510400

Kit Spark Arrestor (Flat Scrn) 112 3645J

Tank Fuel 4,0 Rear

Cap Asm Fue!

Clamp Hose Black

DESCRIPTION

Line Fuel

Plug Drain Oil Easy

Stem Tank Fuel

Screw Hexwsh Thdr 3/8-16 x 3/4

WAsher Split

Screw Hex Hd Cap 5/16=18 x 3/4

Screw 3/8o16 x 1=1/4

Nut Keps Hex 1/4-20 unc

Bushing

NOTE: A!l component dimensions given in U,S.

inches 1 inch = 25.4 mm

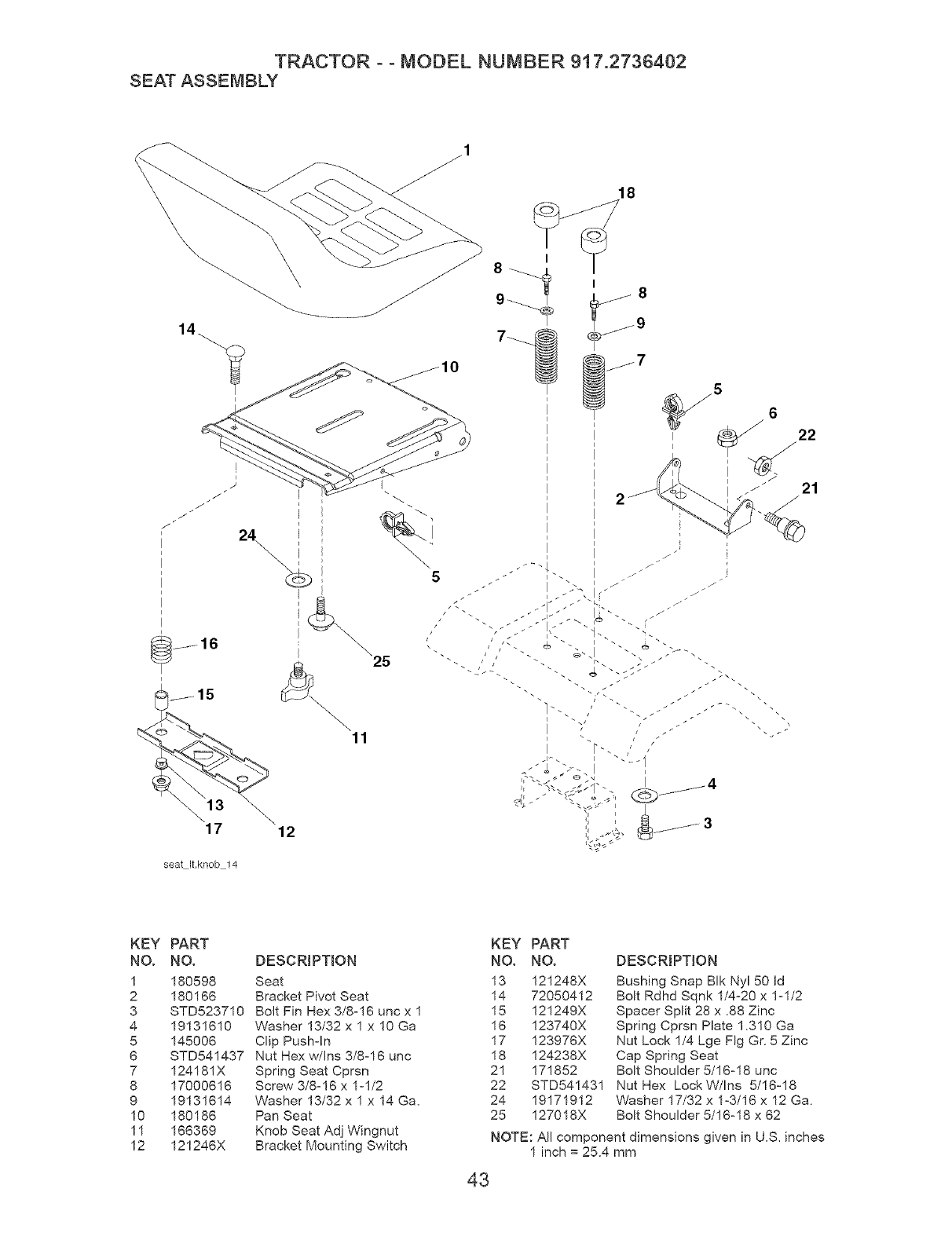

TRACTOR - - MODEL NUMBER 917.2736402

SEAT ASSEMBLY

\\\\, \

_1317

\25

\. 11

\\\\ 12

9 t 8

seat Itknob 14

KEY PART

NO. NO.

1 180598

2 180166

3 STD523710

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 180186

11 166369

12 121246X

DESCRIPTION

Seat

Bracket Pivot Seat

Bolt Fin Hex 3/8+16 unc x 1

Washer 13/32 x 1 x 10 Ga

CNp Pushdn

Nut Hex w/Ins 3/8+16 unc

Spring Seat Cprsn

Screw 3/8+16 x 1-1/2

Washer 13/32 x 1 x 14 Ga+

Pan Seat

Knob Seat Adj Wingnut

Bracket Mounting Switch

KEY PART

NO, NO,

13 121248X

14 72050412

15 121249X

16 123740X

17 123976X

18 124238X

21 171852

22 STD541431

24 19171912

25 127018X

DESCRIPTION

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sqnk I/4+20 x 1+1/2

Spacer SpNt 28 x +88 Zinc

Spring Cprsn Plate 1,310 Ga

Nut Lock 1/4 Lge Fig Gr. 5 Zinc

Cap Spring Seat

Bolt Shoulder 5/16-18 unc

Nut Hex Lock W/Ins 5/16+18

Washer 17/32 x 1-3/16 x 12 Ga.

Bolt Shoulder 5/16-18 x 62

NOTE: All component dimensions given in U.S, inches

1 inch = 25,4 mm

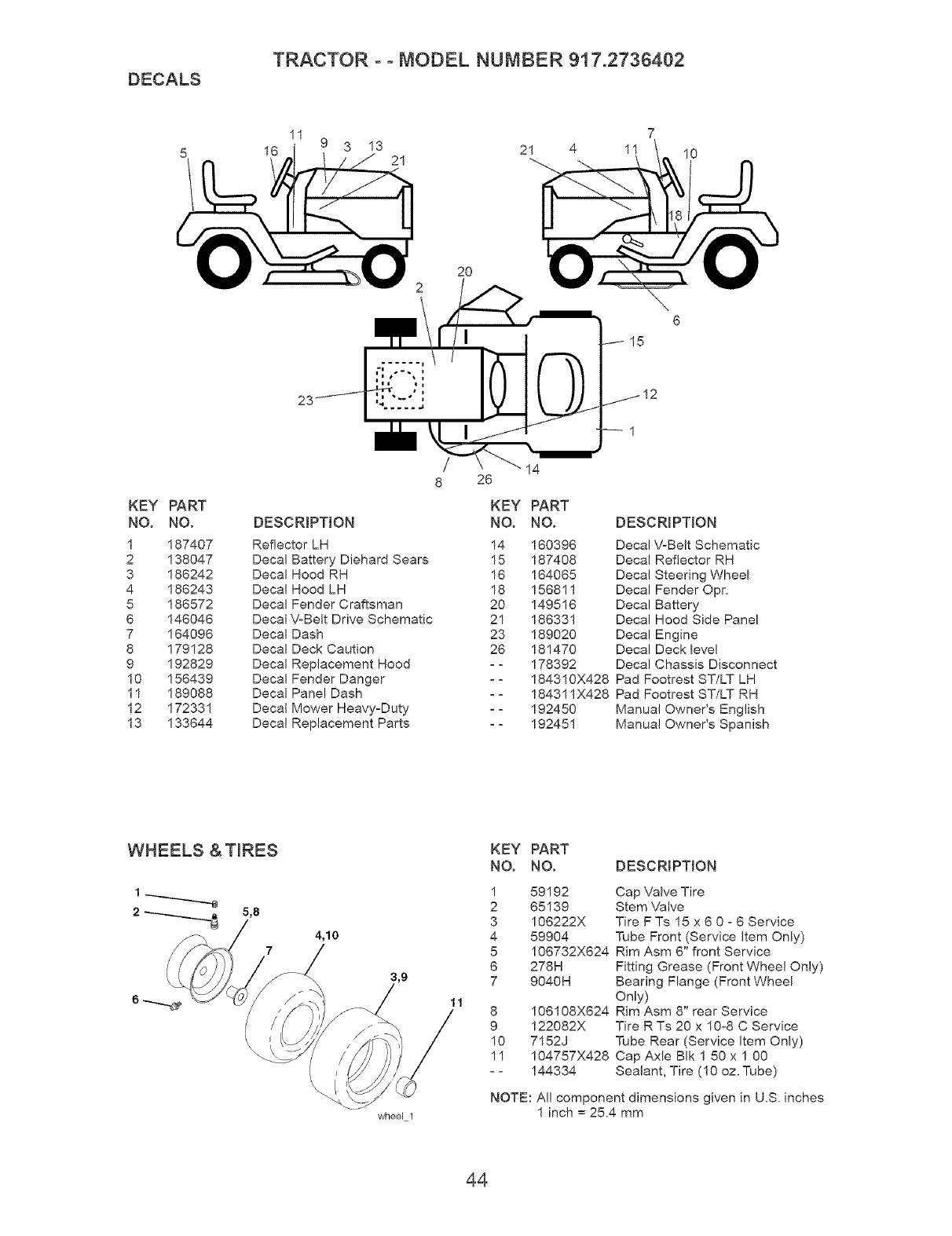

DECALS

TRACTOR - - MODEL NUMBER 917.2736402

16 21

11 7

9 3 13 4 11

KEY PART

NO. NO.

1 167407

2 136047

3 186242

4 186243

5 166572

6 146046

7 164096

8 179128

9 192829

10 156439

11 189088

12 172331

13 133644

/14

8 26

KEY PART

DESCRIPTION NO, NO,

Reflector LH 14 160396

Decal Battery Diehard Sears 15 187408

Decal Hood RH 16 164065

Decal Hood LH 18 156811

Decal Fender Craftsman 20 149516

Decal V-Belt Drive Schematic 21 186331

Decal Dash 23 189020

Decal Deck Caution 26 181470

Decal Replacement Hood - - 178392

Decal Fender Danger - - 1843!0X428

Decal Panel Dash -- 18431 lX428

Decal Mower Heavy-Duty - - 192450

Decal Replacement Parts - - 192451

DESCRIPTION

Decal V-Belt Schematic

Decal Reflector RH

Decal Steering Wheel

Decal Fender Opr.

Decal Battery

Decal Hood Side Panel

Decal Engine

Decal Deck level

Decal Chassis Disconnect

Pad Footrest ST/LT LH

Pad Footrest ST/LT RH

Manual Owner's English

Manual Owner's Spanish

WHEELS &TIRES

5,8

4,10

wheel 1

KEY PART

NO, NO, DESCRIPTION

59192

65139

106222X

59904

106732X624

278H

9040H

8 106108X624

9 122082X

10 7152J

11 104757X428

-- 144334

Cap Valve Tire

Stem Valve

Tire FTs 15 x 6 0 - 6 Service

Tube Front (Service item Only)

Rim Asm 6" front Service

Fitting Grease (Front Wheel Only)

Bearing Flange (Front Wheel

Only)

Rim Asm 8" rear Service

Tire RTs 20 x 10-8 C Service

Tube Rear (Service item Only)

Cap Axle BIk ! 50 x 1 00

Sealant, Tire (10 oz. Tube)

NOTE: Al! component dimensions given in U.S, inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.2736402

LiFT ASSEMBLY

36 4

13 6

J#_ 18 20

20 lift-rh.lpiece 24

KEY

NO,

PART

NO,

179504

159476

188822

12000002

19211621

120183X

175830

139865

139866

4939M

173288

73350800

175689

DESCRIPTION

Plunger Assembly

Shaft Assembly, Lift

Pin Groove

E=Ring

Washer 21/32 x 1 x 21 Ga.

Bearing Nylon

Grip Handle Fluted

Link Lift LH.

Link Lift R.H.

Retainer Spring

Link Front Susp

Nut Hex Jam 1/2-13 unc

Trunnion Front Susp

KEY PART

NO. NO, DESCRiPTiON

18 73800800 Nut Lock w/Wsh 1/2-13 unc

19 139868 Arm Asm Suspension Mower

20 163552 Retainer Spring

31 169865 Bearing Pivot Lift

32 73540600 Nut Crown!ock 3/8-24

36 155097 Pointer Height indicator

37 123935X Plug Hob

38 17060516 Screw 5/16-18 x 1

40 19112410 Washer11/32xl-1/2xlOGa.

41 155098 indicator Height Stlt

NOTE: All component dimensions given in U,S. inches

1 inch = 25,4 mm

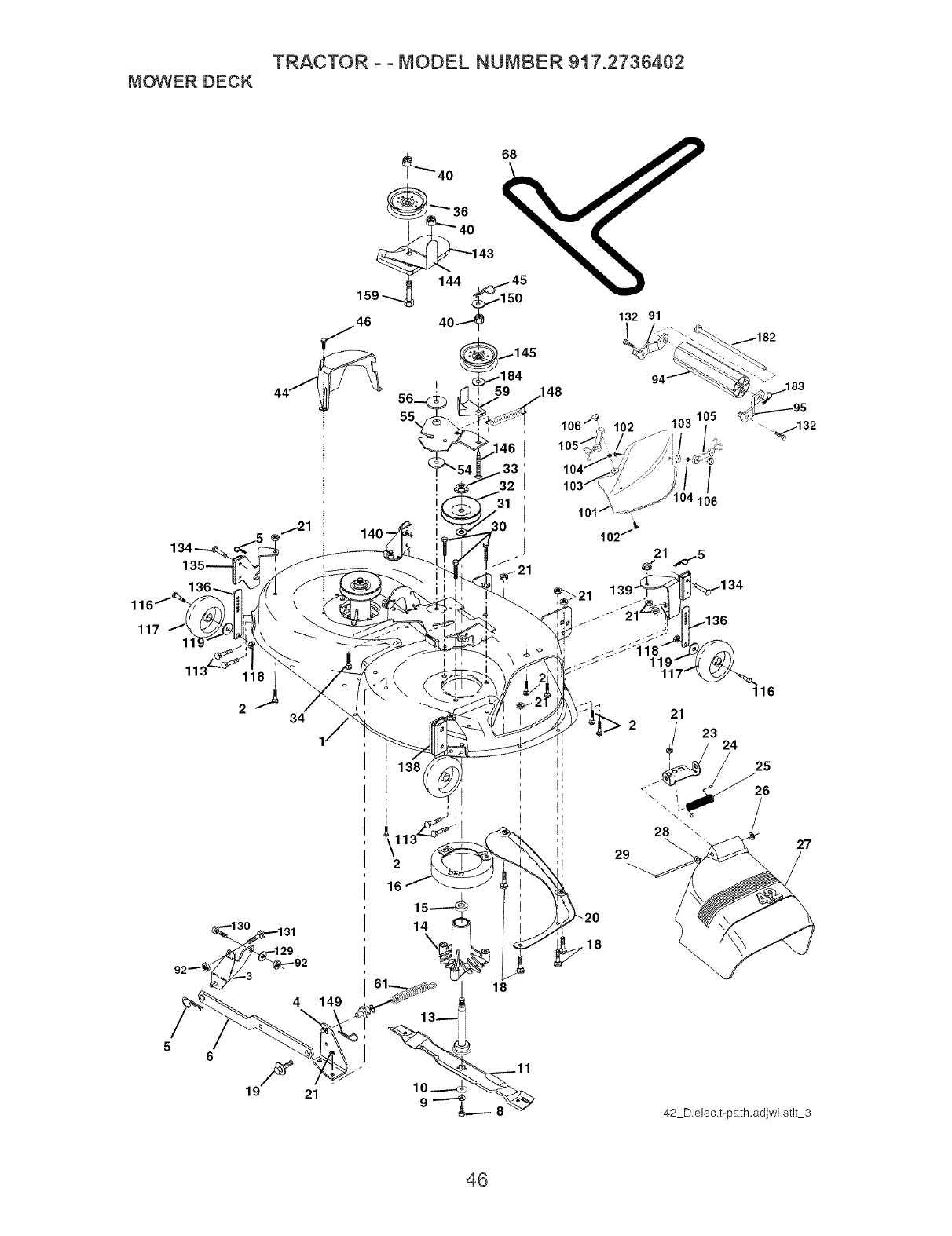

TRACTOR - - MODEL NUMBER 917.2736402

MOWER DECK

117

149

19F 21

144 ,:_.....4s

140 -

,138

2_23 24

<, 6

29 27

42 D,elec.t-path.adjwl.stlt 3

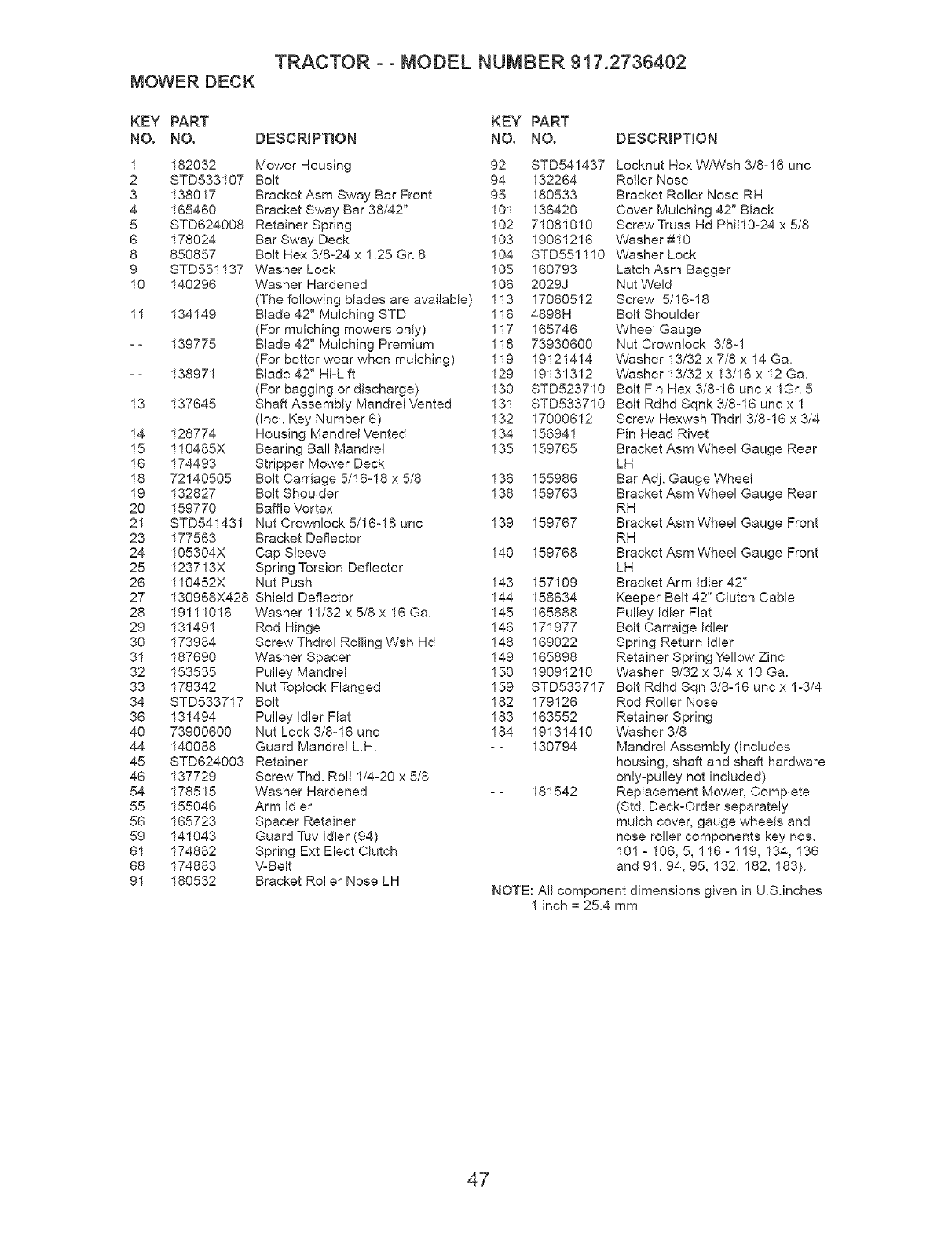

TRACTOR - - MODEL NUMBER 917.2736402

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO. DESCRIPTION

1 182032 Mower Housing 92 STD541437

2 STD533107 Bolt 94 132264

3 138017 Bracket Asm Sway Bar Front 95 180533

4 165460 Bracket Sway Bar 38/42" 101 136420

5 STD624008 Retainer Spring 102 71081010

6 178024 Bar Sway Deck 103 19061216

8 850857 Bolt Hex 3/8-24 x 1.25 Gr. 8 104 STD551110

9 STD551137 Washer Lock 105 160793

10 140296 Washer Hardened 106 2029J

(The following blades are available) 113 17060512

11 134149 Blade 42" Mulching STD 116 4898H

(For mulching mowers only) 117 165746

- - 139775 Blade 42" Mulching Premium 118 73930600

(For better wear when mulching) 119 19121414

- - 138971 Blade 42" Hi-Lift 129 19131312

(For bagging or discharge) 130 STD523710

13 137645 Shaft Assembly Mandrel Vented 131 STD533710

(Inc!. Key Number 6) 132 17000612

14 128774 Housing MandrelVented 134 156941

15 110485X Bearing Ball Mandrel 135 159765

16 174493 Stripper Mower Deck

18 72140505 Bolt Carriage 5/16-18 x 5/8 136 155986

19 132827 Bolt Shoulder 138 159763

20 159770 Baffle Vortex

21 STD541431 Nut Crownlock 5/16-18 uric 139 159767

23 177563 Bracket Deflector

24 105304X Cap Sleeve 140 159768

25 123713X Spring Torsion Deflector

26 110452X Nut Push 143 157109

27 130968X428 Shield Deflector 144 158634

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 145 165888

29 131491 Rod Hinge 146 171977

30 173984 Screw Thdro! Rolling Wsh Hd 148 169022

31 187690 Washer Spacer 149 165898

32 153535 Pulley Mandrel 150 19091210

33 178342 Nut Toplock Flanged 159 STD533717

34 STD533717 Bolt 182 179126

36 131494 Pulley Idler Flat 183 163552

40 73900600 Nut Lock 3/8-16 unc 184 19131410

44 140088 Guard Mandrel L.H. - - 130794

45 STD624003 Retainer

46 137729 Screw Thd. Roll 1/4-20 x 5/8

54 178515 Washer Hardened - - 181542

55 155046 Arm idler

56 165723 Spacer Retainer

59 141043 Guard Tuv idler (94)

61 174882 Spring Ext Elect Clutch

68 174883 \!_Belt

91 180532 Bracket Roller Nose LH

Locknut Hex W/Wsh 3/8-16 unc

Roller Nose

Bracket Roller Nose RH

Cover Mulching 42" Black

Screw Truss Hd Phil10-24 x 5/8

Washer #10

',Hasher Lock

Latch Asm Bagger

Nut Weld

Screw 5/16-18

Bolt Shoulder

Wheel Gauge

Nut Crown!ock 3/8-1

Washer 13/32 x 7/8 x 14 Ga.

VVasher 13/32 x 13/16 x 12 Ga.

Bolt Fin Hex 3/8-16 unc x 1Gr. 5

Bolt Rdhd Sqnk 3/8-16 uric x 1

Screw Hexwsh Thdrl 3/8-16 x 3/4

Pin Head Rivet

Bracket Asm Wheel Gauge Rear

Bar Adj. Gauge Wheel

Bracket Asm Wheel Gauge Rear

Bracket Asm Wheel Gauge Front

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carraige Idler

Spring Return Idler

Retainer Spring Yellow Zinc

VVasher 9/32 x 3/4 x 10 Ga.

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Rod Roller Nose

Retainer Spring

Washer 3/8

Mandrel Assembly (Includes

housing, shaft and shaft hardware

only-pulley not included)

Replacement Mower, Complete

(Std. Deck-Order separately

mulch cover, gauge wheels and

nose roller components key nos.

101 - 106, 5, 116- 119, 134, 136

and 91, 94, 95, 132, 182, 183).

NOTE: All component dimensions given in U,S.inches

1 inch = 25.4 mm

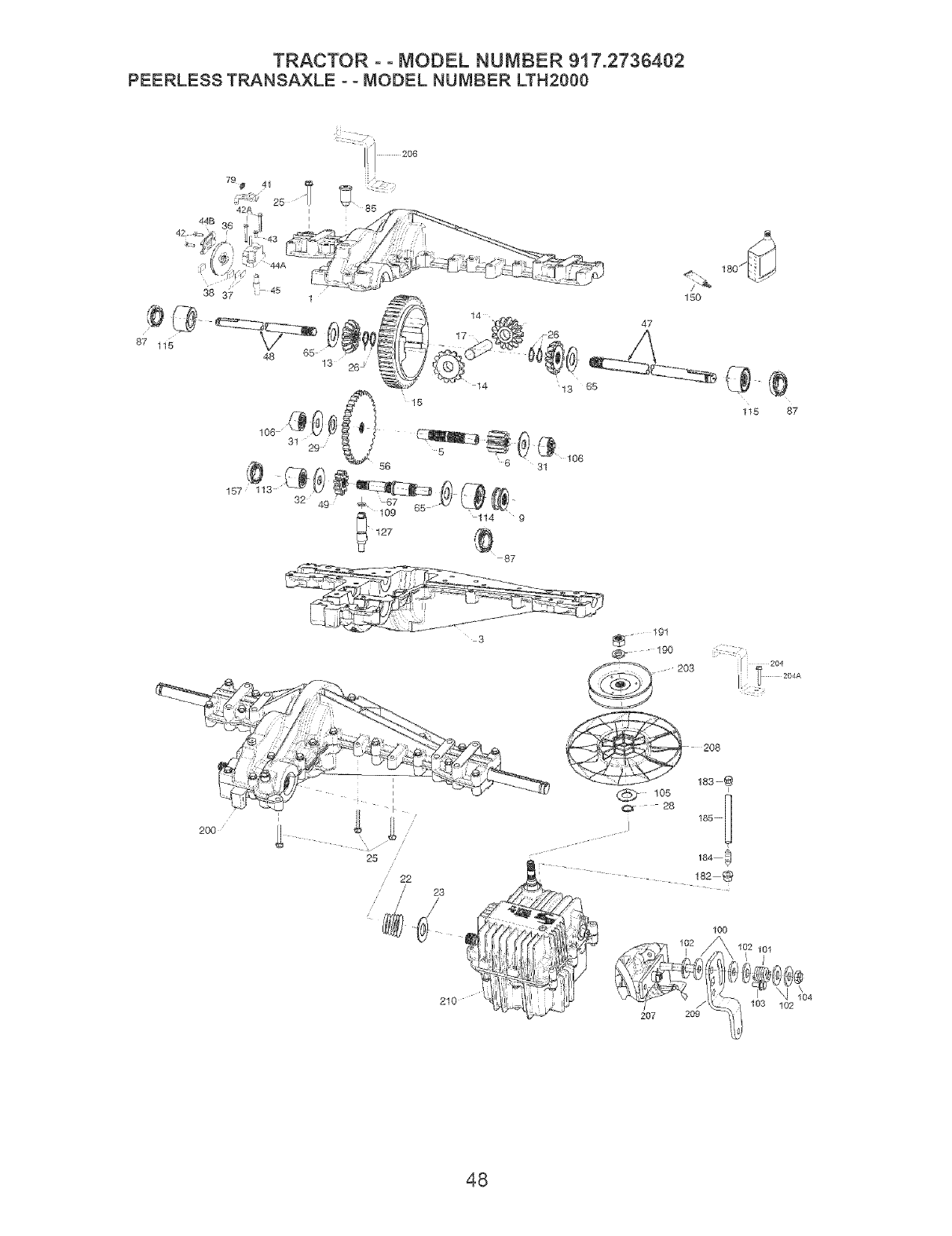

TRACTOR - "_ODEL NUMBER 917.2736402

pEERLSSS TRANSAXLE - "MODEL NUMBER LTH2000

_8 37 1

B7 115 48 65 13 283

150

5"6 31

"_' 49 '_ 109 65- "-1!4 9

127 _ -87

20(_"

_3 _ .... 19o

., 203

_, _ -- 208

2g 185_

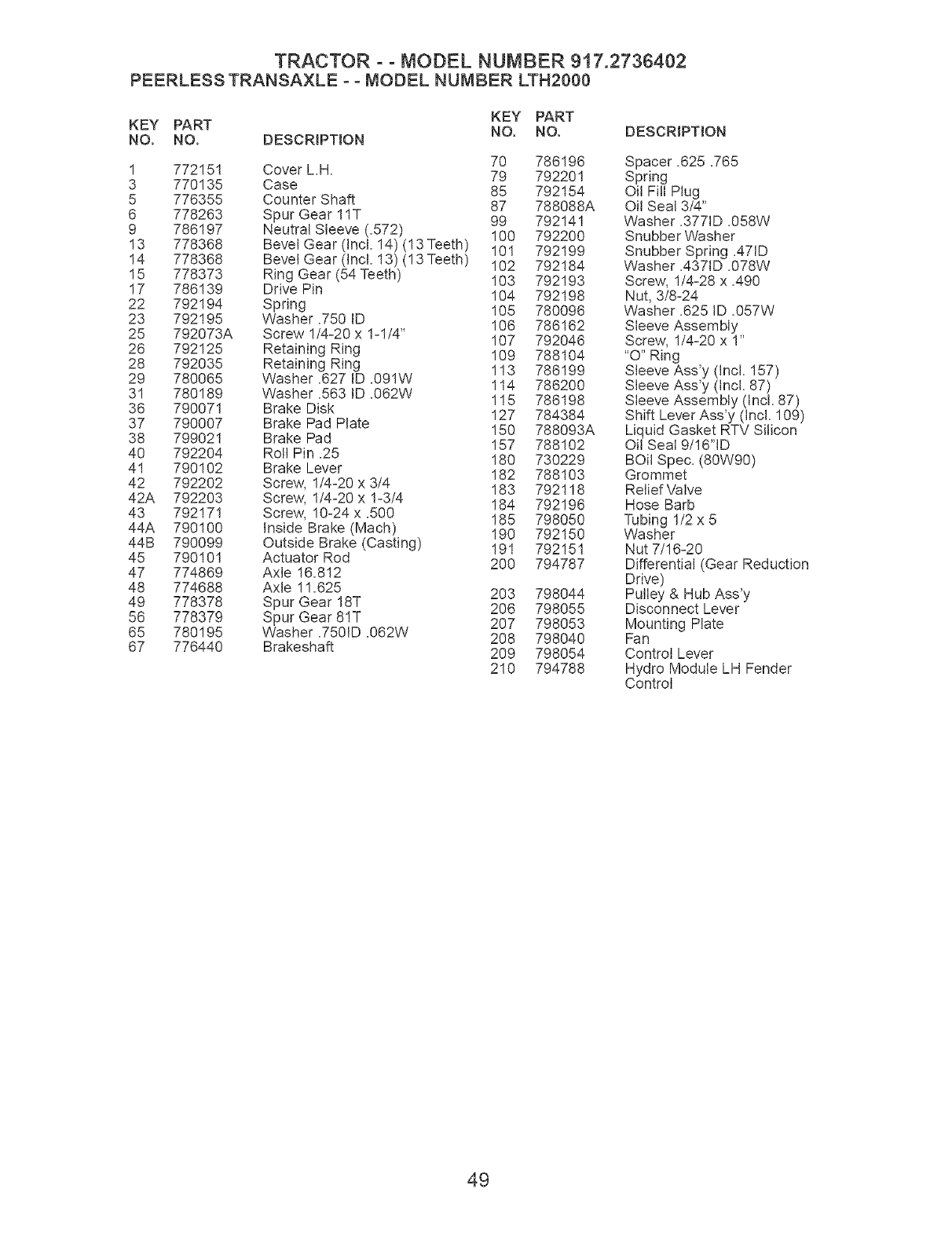

TRACTOR - - MODEL NUMBER 917.2736402

PEERLESS TRANSAXLE - - MODEL NUMBER LTH2000

KEY PART

KEY PART NO, NO. DESCRIPTION

NO. NO. DESCRMPTION 70 786196 Spacer .625.765

1 772151 Cover LH. 79 792201 Spring

3 770135 Case 85 792154 Oil Fill Plug

5 776355 Counter Shaft 87 788088A Oil Seal 3/4"

6 778263 Spur Gear 11T 99 792141 Washer .3771D .058W

9 786197 Neutral Sleeve (.572) 100 792200 Snubber Washer

13 778368 Bevel Gear (Incl. 14) (13 Teeth) 101 792199 Snubber Spring .471D

14 778368 Bevel Gear (Incl. 13) (13Teeth) 102 792184 Washer .4371D .078W

15 778373 Ring Gear (54 Teeth) 103 792193 Screw, 1/4-28 x ,490

17 786139 Drive Pin 104 792198 Nut, 3/8-24

22 792194 Spring 105 780096 Washer.625 ID ,057W

23 792195 Washer .750 ID 196 766162 S_eeveAssembly

25 792073A Screw 1/4-20 x 1-1/4" 107 792046 Screw, 1/4-20 x 1"

26 792125 Retaining Ring 109 788194 "O" Ring

28 792035 Retaining Ring 113 786199 Sleeve Ass'y (Incl. 157)

29 780065 Washer .627 _D .991W 114 786200 S_eeveAss'y (_ncl.87)

31 780189 Washer .563 ID .062W 115 786198 Sleeve Assembly (Ind. 87)

36 790071 Brake Disk 127 784384 Shift Lever Ass'y (_ncl.109)

37 790007 Brake Pad Plate 150 788093A Liquid Gasket RTV Silicon

38 799021 Brake Pad 157 788102 Oil Sea19/16qD

40 792204 Roll Pin .25 180 730229 BOil Spec. (80W90)

41 790102 Brake Lever 182 788103 Grommet

42 792202 Screw, 1/4-20 x 3/4 183 792118 Relief Valve

42A 792203 Screw, 1/4-20 x 1-3/4 184 792196 Hose Barb

43 792171 Screw, !0-24 x .500 185 798050 Tubing 1t2 x 5

44A 790100 inside Brake (Mach) 190 792150 Washer

44B 790099 Outside Brake (Casting) 191 792151 Nut 7/16-20

45 790101 Actuator Rod 200 794787 Differential (Gear Reduction

47 774869 Axle 16.812 Drive)

48 774688 Axle 11.625 203 798044 Pulley & Hub Ass'y

49 778378 Spur Gear 18T 206 798055 Disconnect Lever

56 778379 Spur Gear 81T 207 798053 Mounting Plate

65 780195 Washer .7501D.062W 208 798040 Fan

67 776440 Brakeshaft 209 798054 Control Lever

210 794788 Hydro Module LH Fender

Control

TRACTOR -- MODEL NUMBER 917.2736402

BRIGGS ENGiNE-MODEL NUMBER 31 P777, TYPE NUMBER 0348-E1

358 ENGINE GASKET SET

868_)

146 _1 I

741

524

617 0

8420

943 0

1019 LABEL KIT II

1330 REPAIR MANUAL

305A _L_

1058 OWNER'S MANUAL I I 1036 EMISSION LABEL I _ _

I [ 1329 REPLACEMENT ENGINE ]

7506

884?11_

584_

9_ 159

12641_

128_

24 _ 22

2O 89

48 SHORT BLOCK

1040

3o8_

643

729

697 _

828_

501

801

803_ 310 1

802 @

388_>_

1070

1088_ 10441_

783®J

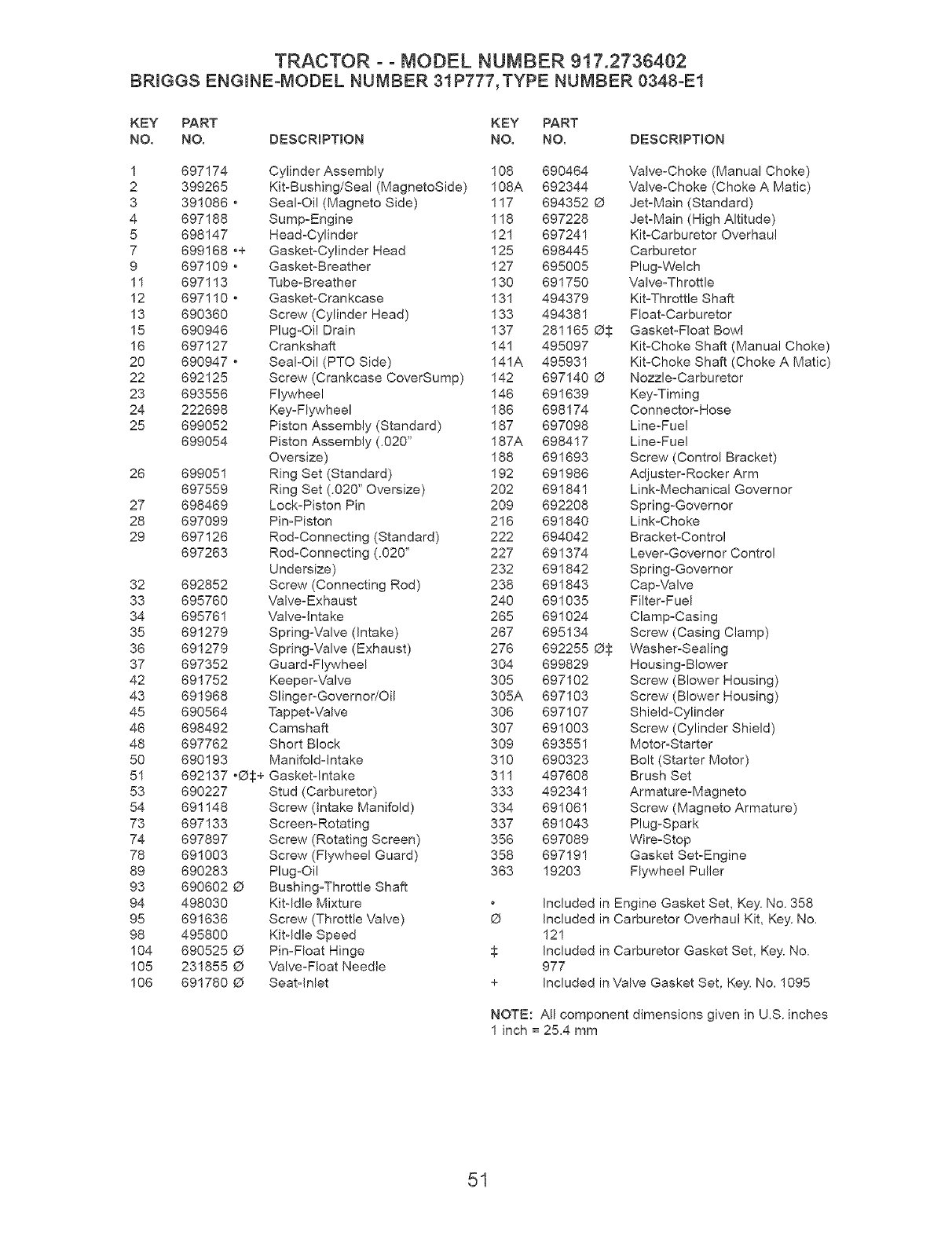

TRACTOR -- MODEL NUMBER 917.2736402

BRIGGS ENGmNE-MODEL NUMBER 31 P777, TYPE NUMBER 0348-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 108 690464

2 399265 Kit-Bushing/Sea! (MagnetoS!de) 108A 692344

3 391086 *Seal-Oi! (Magneto Side) 117 694352

4 697188 Sump-Engine 118 697228

5 698147 Head-Cylinder 121 697241

7 699168 *+ Gasket-Cylinder Head 125 698445

9 697109 *Gasket-Breather 127 695005

11 697113 Tube-Breather 130 691750

12 697110 *Gasket-Crankcase 131 494379

13 690360 Screw (Cylinder Head) 133 494381

15 690946 Plug-Oil Drain 137 281165

16 697127 Crankshaft 141 495097

20 690947 *Seal-Oi! (PTO Side) 141A 495931

22 692125 Screw (Crankcase CoverSump) 142 697140

23 693556 Flywheel 146 691639

24 222698 Key-Flywheel 186 698174

25 699052 Piston Assembly (Standard) 187 697098

699054 Piston Assembly (.020" 187A 698417

Oversize) 188 691693

26 699051 Ring Set (Standard) 192 691986

697559 Ring Set (.020" Oversize) 202 691841

27 698469 Lock-Piston Pin 209 692208

28 697099 Pin-Piston 216 691840

29 697126 Rod-Connecting (Standard) 222 694042

697263 Rod-Connecting (.020" 227 691374

Undersize) 232 691842

32 692852 Screw (Connecting Rod) 238 691843

33 695760 Valve-Exhaust 240 691035

34 695761 Valveqntake 265 691024

35 691279 Spring-Valve (Intake) 267 695134

36 691279 Spring-Valve (Exhaust) 276 692255

37 697352 Guard-Flywheel 304 699829

42 691752 Keeper-Valve 305 697102

43 691968 Slinger-Governor/Oil 305A 697103

45 690564 Tappet-Valve 306 697107

46 698492 Camshaft 307 691003

48 697762 Short Block 309 693551

50 690193 Manifoldqntake 310 690323

51 692137 .O_:+ Gasket-Intake 311 497608

53 690227 Stud (Carburetor) 333 492341

54 691148 Screw (tntake Manifold) 334 691061

73 697133 ScreemRotating 337 691043

74 697897 Screw (Rotating Screen) 356 697089

78 691003 Screw (Flywheel Guard) 358 697191

89 690283 Plug-Oil 363 19203

93 690602 O Bushing-Throttle Shaft

94 498030 Kit-Idle Mixture Included

95 691636 Screw (Throttle Valve) O Included

98 495800 Kit-Idle Speed 121

104 690525 O Pin-Float Hinge $ Included

105 231855 O Valve-Float Needle 977

106 691780 O Seat-Inlet + Included

Valve-Choke (Manual Choke)

\/alve-Choke (Choke A Mat!c)

O Jet-Main (Standard)

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Carburetor

Plug-Welch

Valve-Throttle

Kit-Throttle Shaft

F!oat-Carburetor

O$ Gasket-Float Bowl

Kit-Choke Shaft (Manual Choke)

Kit-Choke Shaft (Choke A Matic)

O Nozzle-Carburetor

Key-Timing

Connector-Hose

Line-Fue!

Screw (Control Bracket)

Adjuster-Rocker Arm

Link-Mechanical Governor

Spring-Governor

Link-Choke

Bracket-Contro!

Lever-Governor Control

Spring-Governor

Cap-Valve

Filter-Fuel

Clamp-Casing

Screw (Casing Clamp)

O5 Washer-Sealing

Housing-Blower

Screw (Blower Housing)

Shield-Cylinder

Screw (Cylinder Shield)

Motor-Starter

Bolt (Starter Motor)

Brush Set

Armature-Magneto

Screw (Magneto Armature)

Plug-Spark

Wire-Stop

Gasket Set-Engine

Flywheel Puller

in Engine Gasket Set, Key. No. 358

in Carburetor Overhaul Kit, Key. No.

in Carburetor Gasket Set, Key. No.

in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

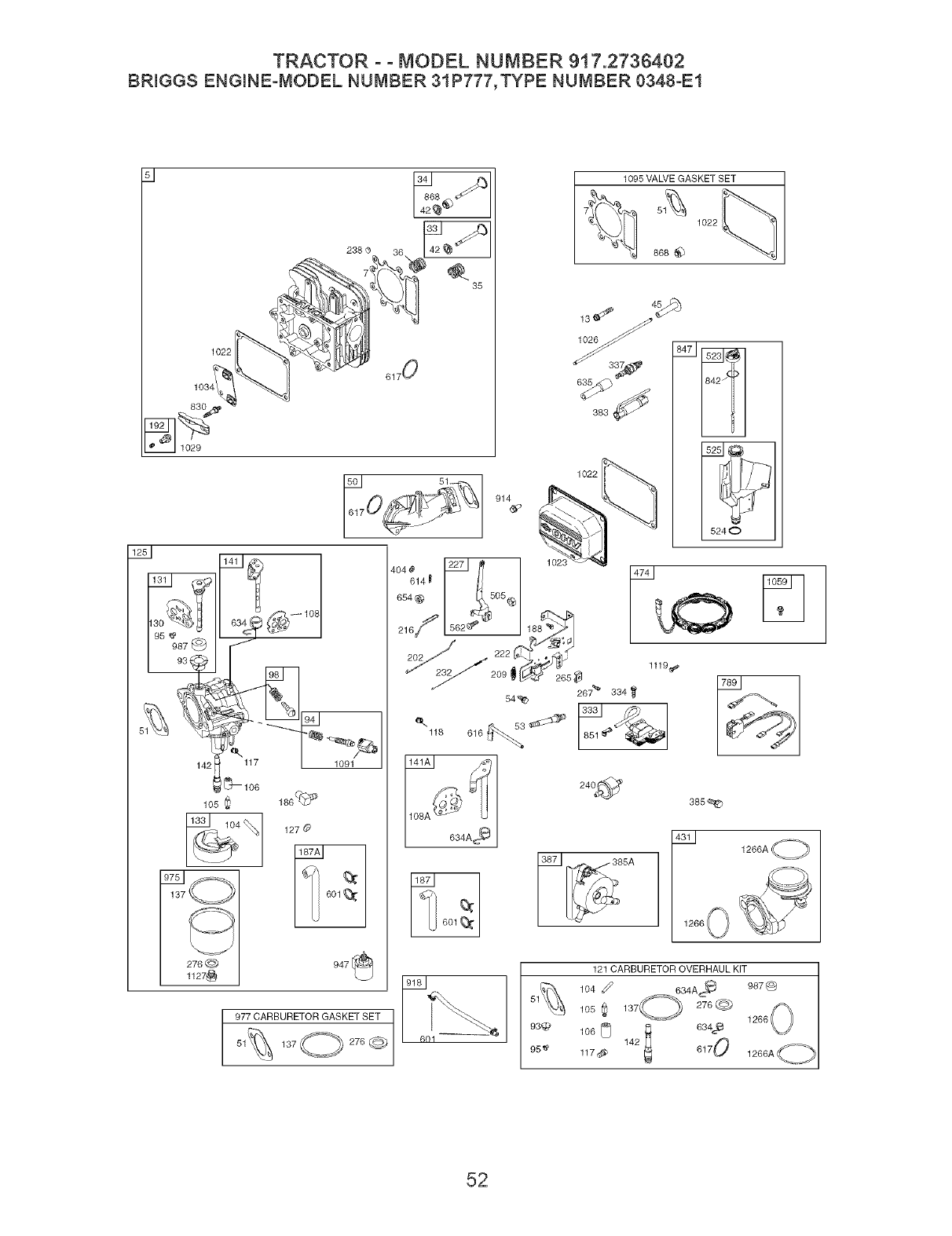

TRACTOR -° MODEL NUMBER 917.2736402

BRmGGS ENGiNE-MODEL NUMBER 31 P777, TYPE NUMBER 0348-E1

1022

83O

6170

@35

914

1095 VALVE GASKET SET

1022

868 _;_

276(d_

1127_

1091

977 CARBURETOR GASKET SET

137 _>_/_._ 276 _>_

6o1_

918

93_._

95 _

121 CARBURETOR OVERHAUL KIT

04 _ 634A_ 987_

105_ 137_ 276_ _1

1060 _ 6_4_1266WI

117_ 142_ 6170 1266A d: _

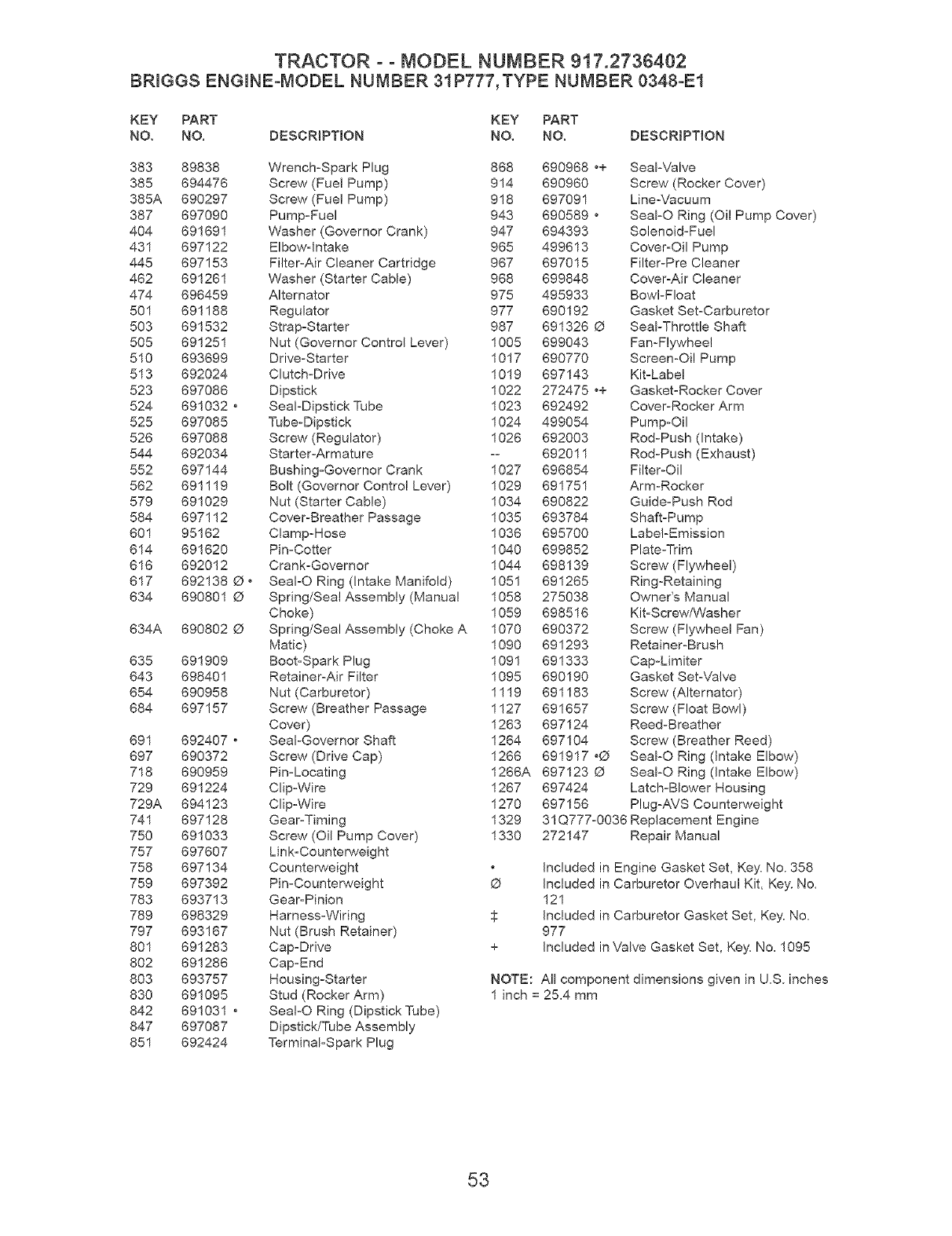

TRACTOR -- MODEL NUMBER 917.2736402

BRIGGS ENGINE-MODEL NUMBER 31 P777, TYPE NUMBER 0348-E1

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO. DESCRIPTION

383 89838 Wrench-Spark Plug 868 690968

385 694476 Screw (Fue! Pump) 914 690960

385A 690297 Screw (Fue! Pump) 918 697091

387 697090 Pump-Fuel 943 690589

404 691691 Washer (Governor Crank) 947 694393

431 697122 EIbowqntake 965 499613

445 697153 Filter-Air Cleaner Cartridge 967 697015

462 691261 Washer (Starter Cable) 968 699848

474 696459 Alternator 975 495933

501 691188 Regulator 977 690192

503 691532 Strap-Starter 987 691328

505 691251 Nut (Governor Control Lever) 1005 699043

510 693699 Drive-Starter 1017 690770

513 692024 Clutch-Drive 1019 697143

523 697086 Dipstick 1022 272475

524 691032 *Seal-Dipstick Tube 1023 692492

525 697085 Tube-Dipstick 1024 499054

526 697088 Screw (Regulator) 1026 692003

544 692034 Starter-Armature -- 692011

552 697144 Bushing-Governor Crank 1027 696854

562 691119 Bolt (Governor Control Lever) 1029 691751

579 691029 Nut (Starter Cable) 1034 690822

584 697112 Cover-Breather Passage 1035 693784

601 95162 Clamp-Hose 1036 695700

614 691620 Pin-Cotter 1040 699852

616 692012 Crank-Governor 1044 698139

617 692138 O • SeaI-O Ring (Intake Manifold) 1051 691265

634 690801 O Spring/Sea! Assembly (Manual 1058 275038

Choke) 1059 698518

634A 690802 O Spring/Seal Assembly (Choke A 1070 690372

Matic) 1090 691293

635 691909 Boot-Spark Plug 1091 691333

643 698401 Retainer-Air Filter 1095 690190

654 690958 Nut (Carburetor) 1119 691183

684 697157 Screw (Breather Passage 1127 691657

Cover) 1263 697124

691 692407 *Seal-Governor Shaft 1264 697104

697 690372 Screw (Drive Cap) 1266 691917

718 690959 Pin-Locating 1266A 697123

729 691224 Clip-Wire 1267 697424

729A 694123 Clip-Wire 1270 697156

741 697128 Gear-Timing 1329

750 691033 Screw (Oil Pump Cover) 1330

757 697607 Link-Counterweight

758 697134 Countercveight

759 697392 Pin-Counterweight O

783 693713 Gear-Pinion

789 698329 Harness-Wiring $

797 693167 Nut (Brush Retainer)

801 691283 Cap-Drive +

802 691286 Cap-End

803 693757 Housing-Starter

830 69! 095 Stud (Rocker Arm)

842 691031 *SeaI-O Ring (Dipstick Tube)

847 697087 Dipstick/Tube Assembly

851 692424 Terminal-Spark Plug

•+ Seal-Valve

Screw (Rocker Cover)

Line-Vacuum

• SeaI-O Ring (Oil Pump Cover)

Solenoid-Fuel

Cover-Oil Pump

Filter-Pre Cleaner

Cover-Air Cleaner

Bowl-Float

Gasket Set-Carburetor

O Seal-Throttle Shaft

Fan-Flywhee!

Screen-Oi! Pump

Kit-Labe!

•+ Gasket-Rocker Cover

Cover-Rocker Arm

Pump-Oil

Rod-Push (Intake)

Rod-Push (Exhaust)

Filter-Oil

Arm-Rocker

Guide-Push Rod

Shaft-Pump

Labe!-Emission

Plate-Trim

Screw (Flywheel)

Ring-Retaining

Owner's Manual

Kit-Screw/Washer

Screw (Flywheel Fan)

Retainer-Brush

Cap-Limiter

Gasket Set-Valve

Screw (Alternator)

Screw (Float Bowl)

Reed-Breather

Screw (Breather Reed)

,O SeaI-O Ring (Intake Elbow)

O SeaI-O Ring (Intake Elbow)

Latch-Blower Housing

Plug-AVS Counterweight

31Q777-0036 Replacement Engine

272147 Repair Manual

included in Engine Gasket Set, Key. No. 358

included in Carburetor Overhaul Kit, Key. No.

121

included in Carburetor Gasket Set, Key. No.

977

included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

0"1

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

I,Fold thispage along dotted lineindicatedabove.

2, Hold page before you so that its _eft edge is vertically para[te[ to a tree

trunk or other upright structure,

3. Sight across the fold in the direction of hill sJope you want to measure.

4. Compare the angte of the fold with the stope of the hitl.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

iiiiiiiiiiiiiiiiiii For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

iiiiiiiiiiiiiiiiiii

1-800-4-MY-HOME ®Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.comwww.sears.ca

iiiiiiiiiiiiiiiiiii

iiiiiHHHHHHH

HHHHHHHHHi

HHHHHHHHHi OurHome

HHHHHHHHHi For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

SearsPartsandRepairCenter.

HHHHHHHHHi

1-800-488-1222 Anytime, day or night (U.S.A. only)

HHHHHHHHHi , ,,w.sears.com

HHHHHHHHHi

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada)on a product serviced by Sears:

HHHHHHHHHi

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

HHHHHHHHHi

HHHHHHHHHi Para pedir servicio de reparaci6n Au Canada pour service en fran£;ais:

a domicilio, y para ordenar piezas: 1.8O0.LE.FOYERMO

1-888-SU-HOGARSM (1-800-533-6937)

www.sears.ca

(1-888-784-6427)

® Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /TMMarca de Fabrica /SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce /MDMarque depos6e de Sears, Roebuck and Co.

192450 Rev. 1 6.3.04 radiMH Printed in U.S.A.

Craftsman 9172736402 User Manual LAWN TRACTOR Manuals And Guides L0406037

CRAFTSMAN Lawn, Tractor Manual L0406037 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
