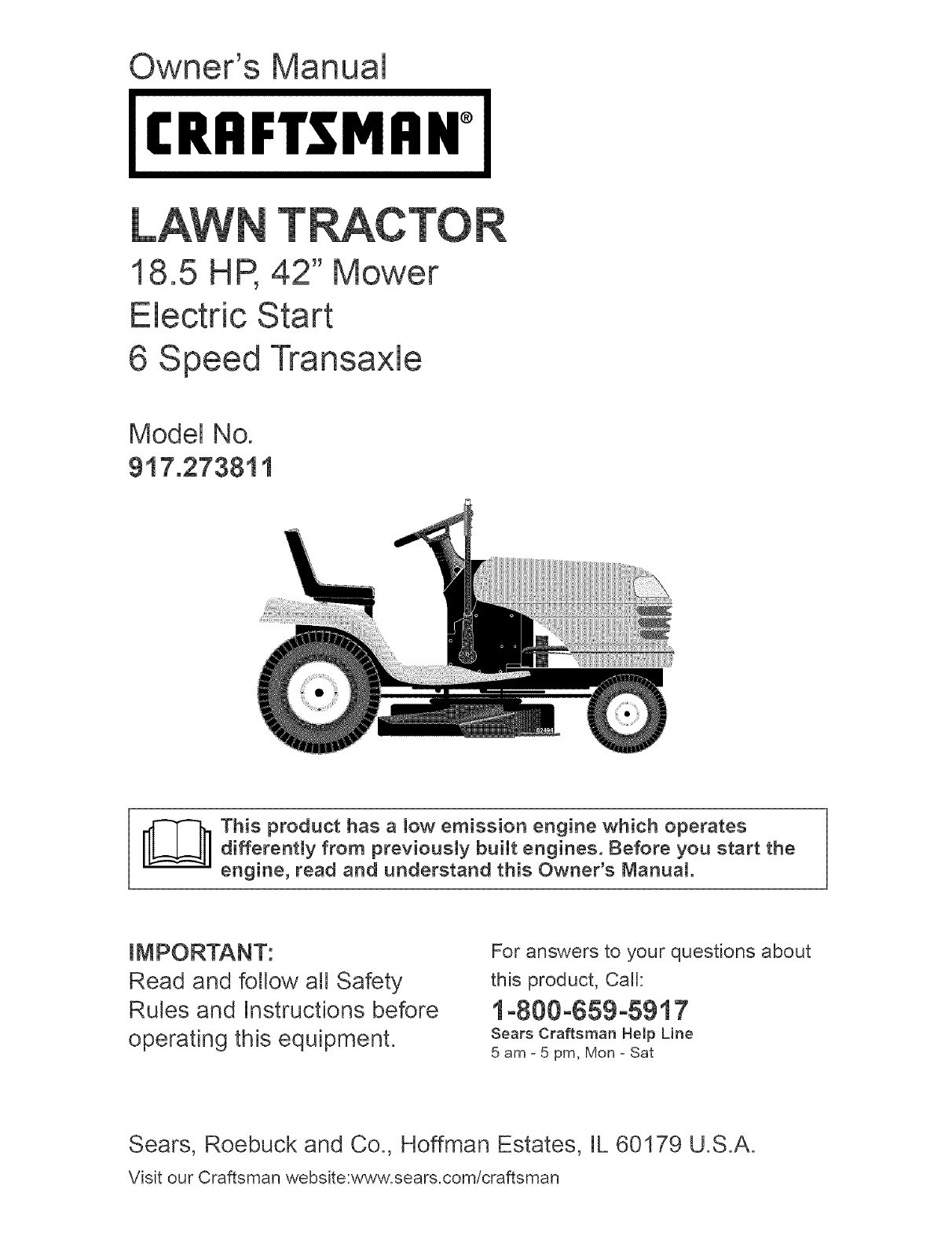

Owner's Manual

CRI FTSMIIN°

18.5 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.2738tl

i]_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

Read and follow alJ Safety

Rules and instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1°800°659°5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

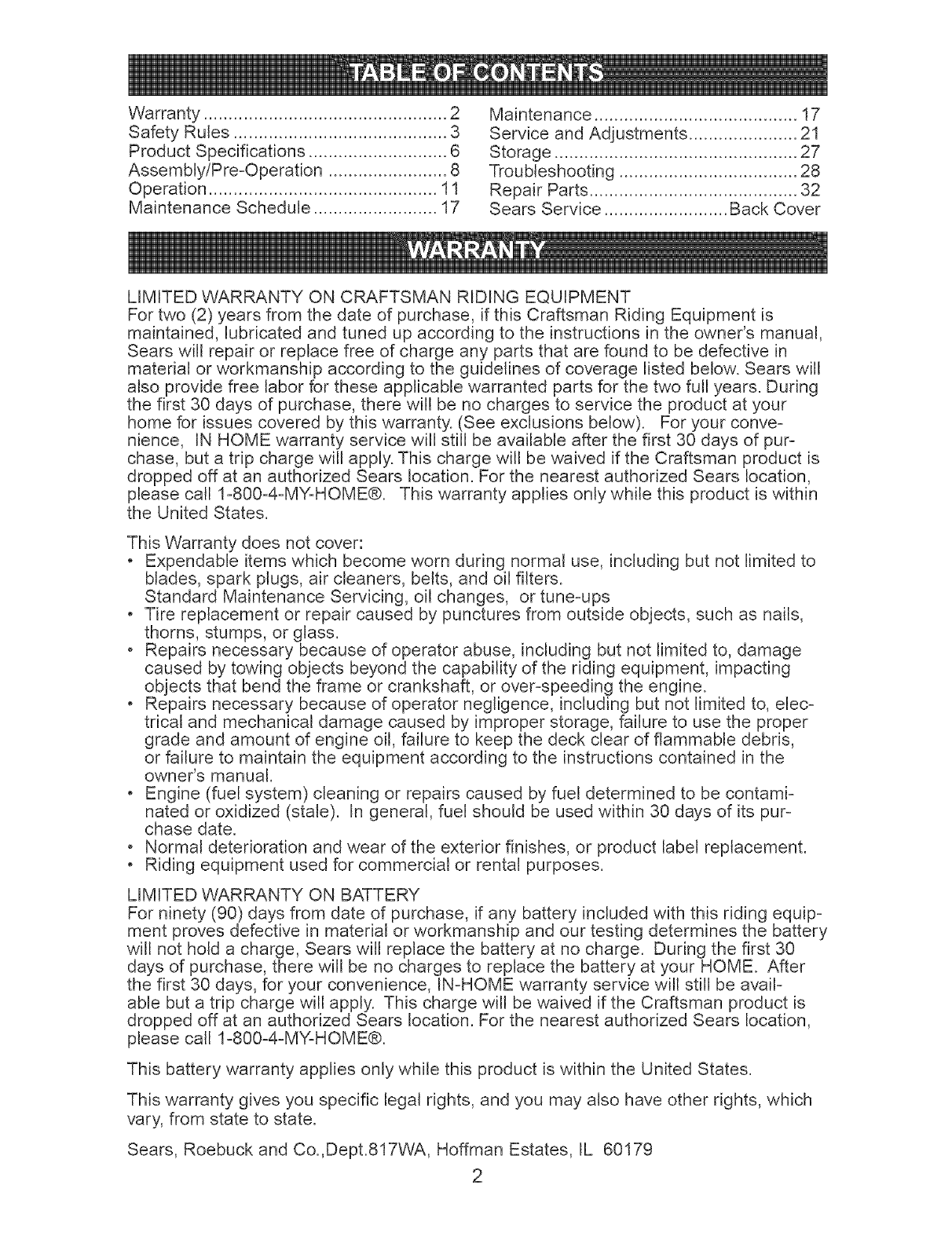

Warranty ................................................. 2

Safety Rules ........................................... 3

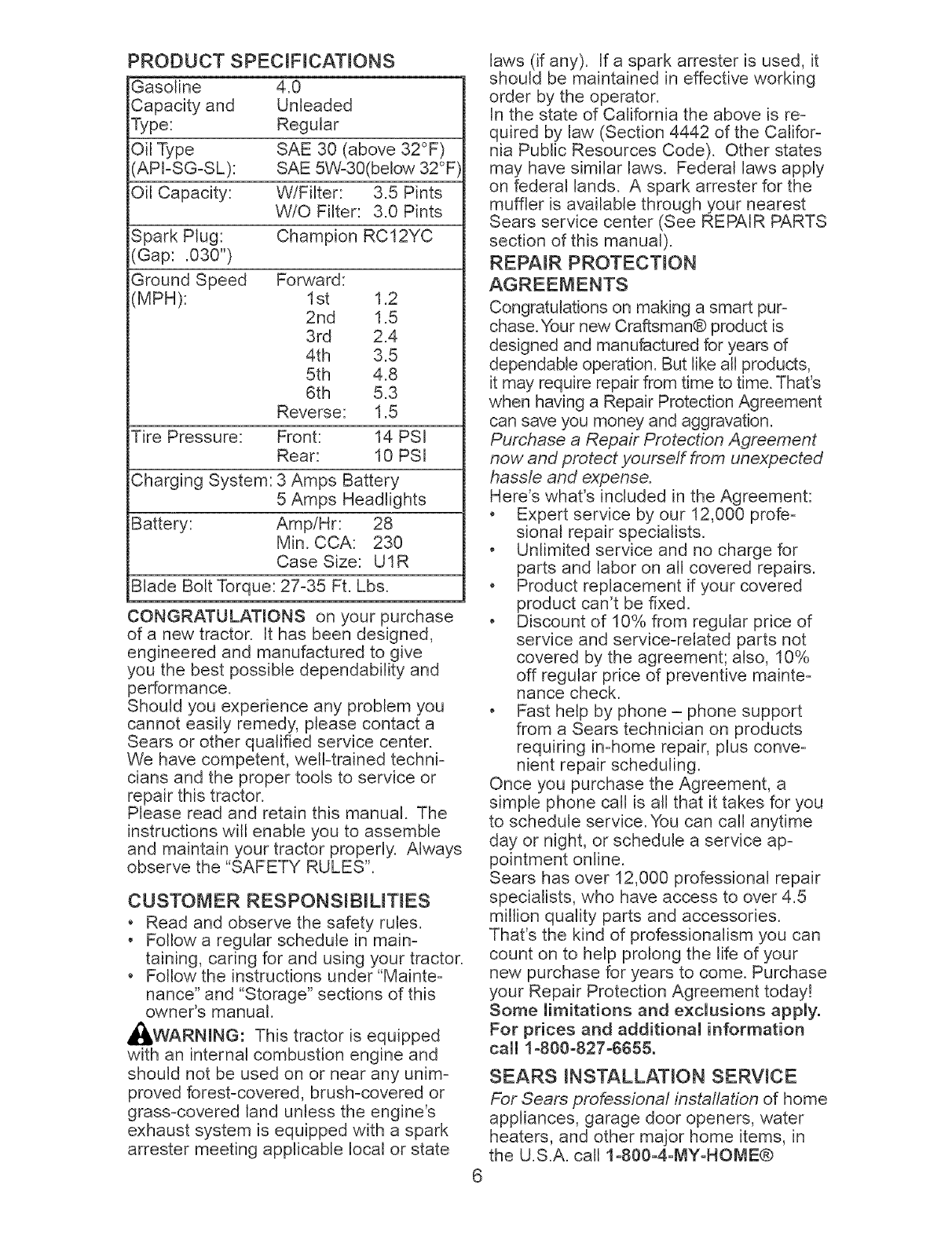

Product Specifications ............................ 6

Assembly/Pre-Operation ........................ 8

Operation .............................................. 11

Maintenance Schedule ......................... 17

Maintenance ......................................... 17

Service and Adjustments ...................... 21

Storage ................................................. 27

Troubleshooting .................................... 28

Repair Parts .......................................... 32

Sears Service ......................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

o Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups

o Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

o Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

o Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

o Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

o Normal deterioration and wear of the exterior finishes, or product label replacement.

o Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME@.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

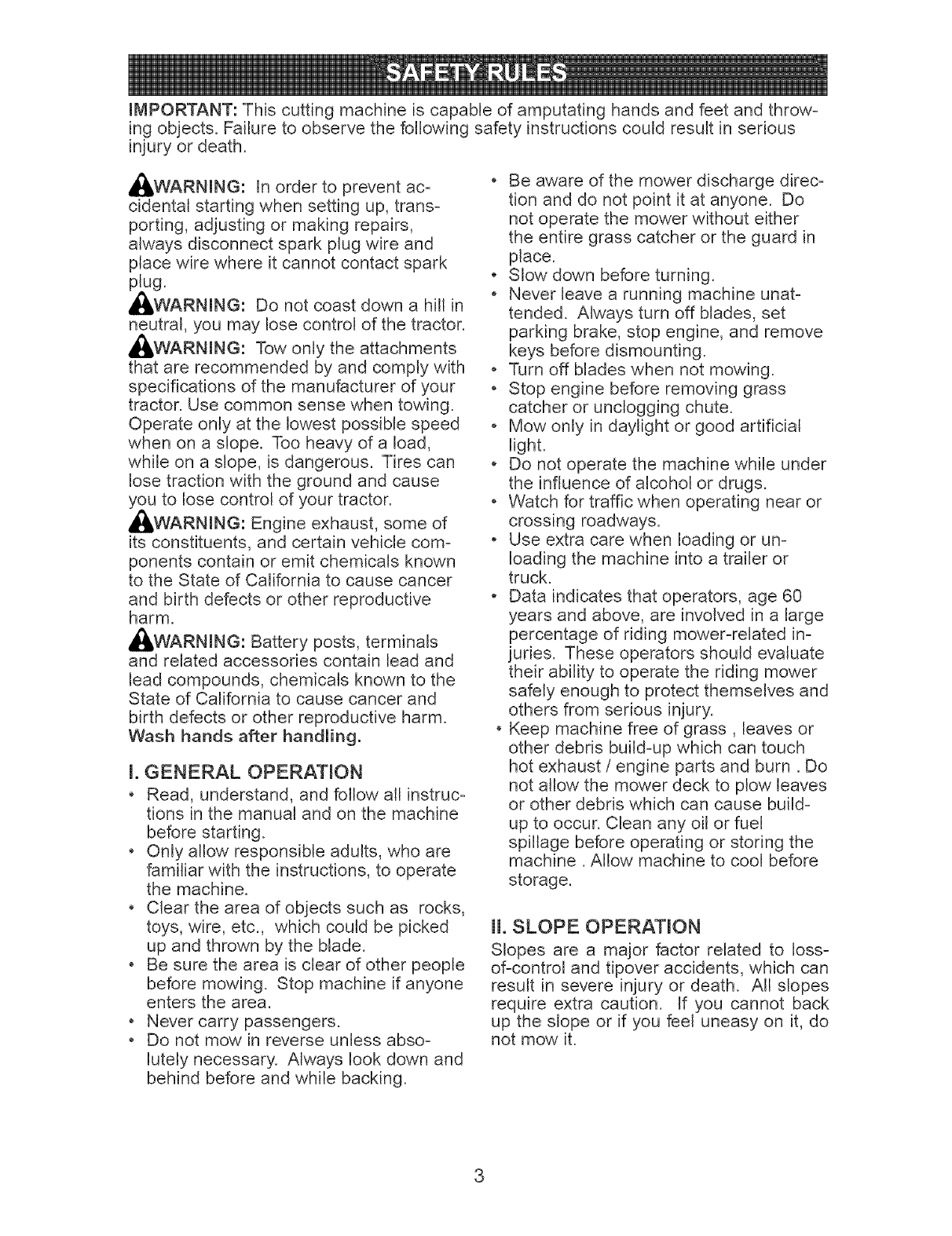

IMPORTANT:This cuttingmachineis capableof amputatinghandsandfeet and throw-

ing objects.Failureto observethe followingsafetyinstructionscould resultin serious

injuryor death.

_IWARNING: In order to preventac- °

cidentatstartingwhen settingup, trans-

porting,adjustingor makingrepairs,

alwaysdisconnectsparkplugwire and

placewire where it cannot contactspark

plug.

_I_WARNING: Do notcoastdown a hill in

neutral,you may losecontrol of the tractor.

_IWARNING: Towonly the attachments

that are recommendedby and complywith o

specificationsof the manufacturerof your o

tractor.Usecommonsensewhen towing.

Operateonly at the lowestpossiblespeed o

when on a slope. Tooheavyof a load,

while on a slope, is dangerous. Tirescan o

losetractionwith the ground and cause

you to lose controlof yourtractor, o

_IWARNmNG:Engineexhaust,someof

its constituents,and certainvehicle com- °

ponentscontainor emitchemicals known

to the State of Californiato causecancer

and birthdefectsor other reproductive °

harm.

_:_IWARNING:Batteryposts,terminals

and relatedaccessoriescontain leadand

leadcompounds,chemicals knownto the

Stateof Californiato cause cancerand

birthdefectsor other reproductiveharm.

Wash hands after handling.

L GENERAL OPERATION

o Read, understand,and followall instruc-

tions inthe manualand on the machine

beforestarting.

o Only allowresponsibleadults,who are

familiarwith the instructions,to operate

the machine.

o Clearthe areaof objectssuch as rocks,

toys,wire, etc., which couldbe picked

up and thrownby the blade.

o Be sure the area is clear of other people

before mowing. Stop machineif anyone

entersthe area.

o Nevercarry passengers.

o Do not mowin reverseunlessabso-

lutely necessary.Always lookdown and

behind beforeandwhile backing.

Be awareof the mowerdischargedirec-

tion and do not point it at anyone. Do

notoperatethe mowerwithout either

the entiregrass catcheror the guard in

place.

Slowdown beforeturning.

Neverleavea runningmachine unat-

tended. Alwaysturn off blades,set

parkingbrake,stopengine, and remove

keysbeforedismounting.

Turnoff bladeswhen not mowing.

Stopengine beforeremovinggrass

catcheror uncloggingchute.

Mowonly in daylightor good artificial

light.

Donot operatethe machinewhile under

the influenceof alcoholor drugs.

Watchfor trafficwhen operatingnearor

crossingroadways.

Useextracarewhen loadingor un-

loadingthe machineinto a traileror

truck.

Dataindicatesthat operators,age 60

yearsand above,are involvedin a large

percentageof ridingmower-relatedin-

juries. Theseoperatorsshould evaluate

their abilityto operatethe ridingmower

safelyenoughto protectthemselvesand

othersfrom seriousinjury.

Keepmachinefree of grass, leavesor

other debrisbuild-upwhich cantouch

hot exhaust/engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

H. SLOPE OPERATmON

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

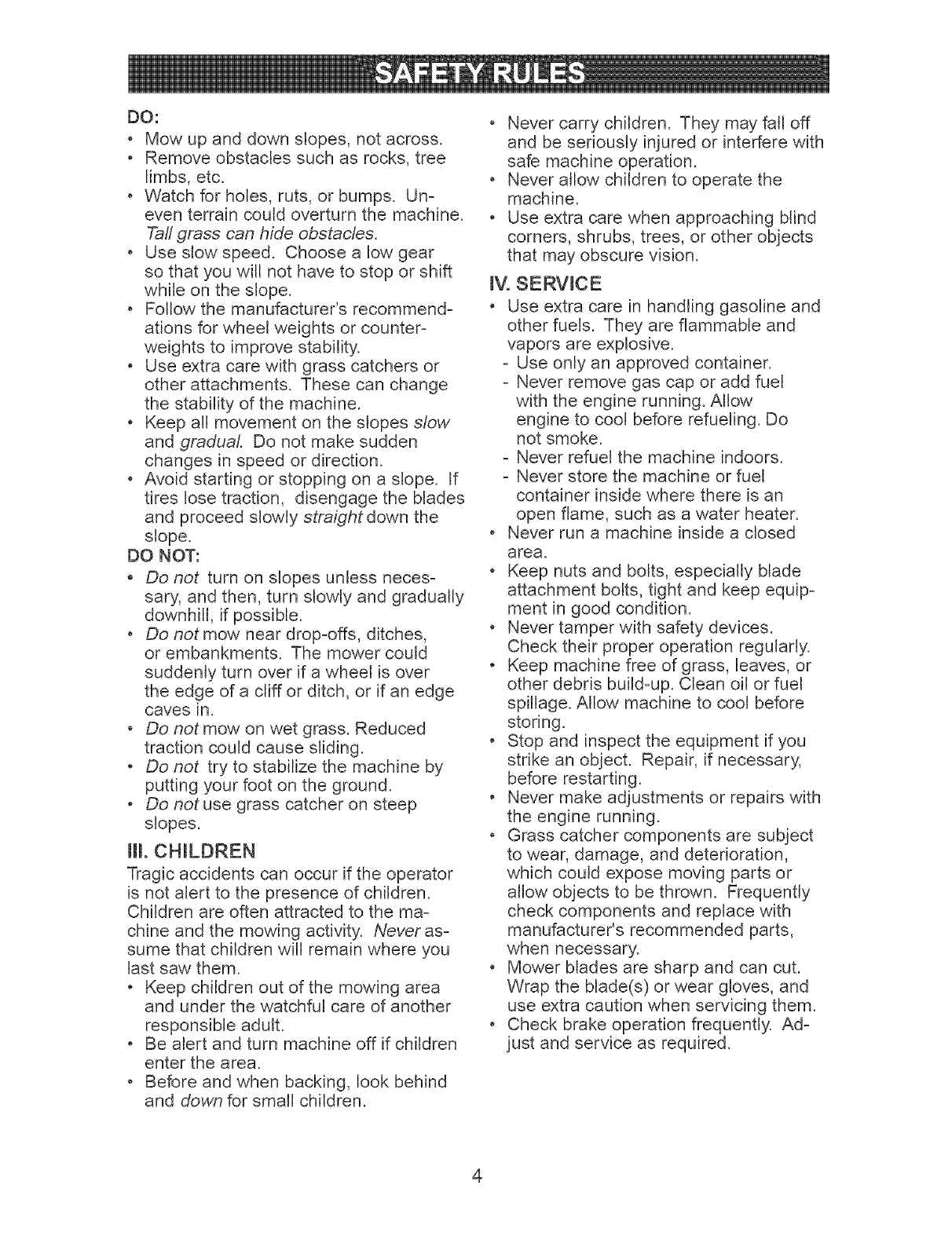

DO:

o Mowup and downslopes, notacross.

o Removeobstaclessuch as rocks,tree

limbs,etc.

o Watchfor holes,ruts,or bumps. Un-

eventerrain couldoverturnthe machine.

Taft grass can hide obstacles.

o Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

o Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

o Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

o Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

oDo not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves In.

oDo not mow on wet grass. Reduced

traction could cause sliding.

oDo not try to stabilize the machine by

putting your foot on the ground.

o Do not use grass catcher on steep

slopes.

HI. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

o Keep children out of the mowing area

and under the watchful care of another

responsible adult.

o Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small children.

o Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

o Never allow children to operate the

machine.

o Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

inV.SERVmCE

o Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

o Never run a machine inside a closed

area.

o Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

o Never tamper with safety devices.

Check their proper operation regularly.

o Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

oStop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

o Never make adjustments or repairs with

the engine running.

o Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

o Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

o Check brake operation frequently. Ad-

just and service as required.

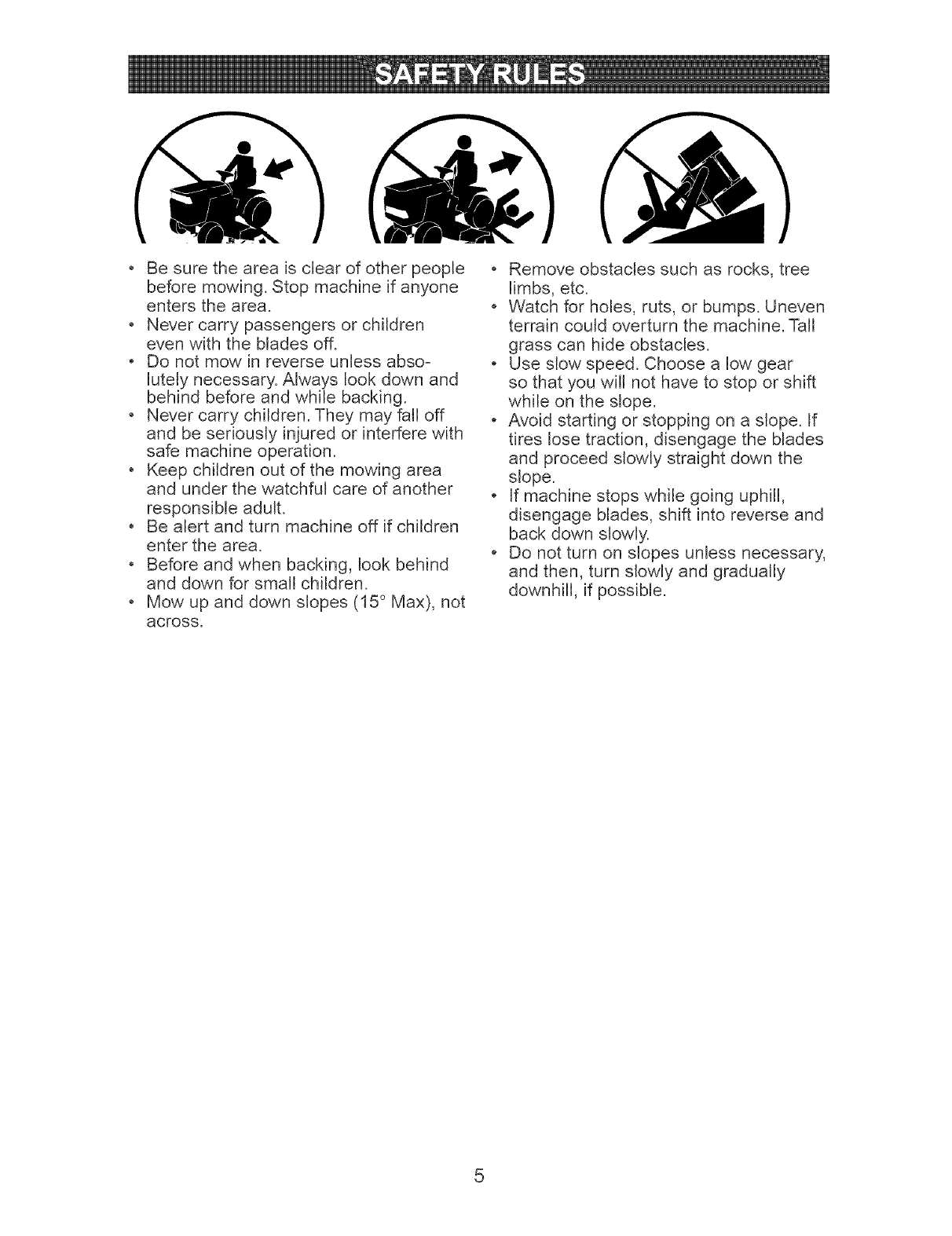

o Be sure the area is clear of other people

before mowing.Stop machineif anyone

entersthe area.

o Nevercarry passengersor children

evenwith the bladesoff.

o Do not mowin reverseunlessabsom

lutely necessary.Always lookdown and

behind beforeandwhile backing.

o Nevercarry children.Theymayfall off

and be seriously injuredor interferewith

safe machineoperation.

o Keepchildrenout of the mowingarea

and underthe watchfulcare of another

responsibleadult.

o Be alert and turn machineoff if children

enterthe area.

o Beforeand when backing,look behind

and downfor smallchildren.

o Mowup and downslopes (15° Max), not

across.

o Remove obstacles such as rocks, tree

limbs, etc.

oWatch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

o Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

o If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

oDo not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECmFICATmONS

Gasoline 4.0

Capacityand Unleaded

Type: Regular

Oil Type SAE 30 (above 32°F)

'APFSG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/'Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH):

Forward:

t st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: t0 PSI

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATmONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

o Read and observe the safety rules.

o Follow a regular schedule in main-

taining, caring for and using your tractor.

o Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual

_bWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

attester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark attester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAmR PROTECTmON

Congratulations on making a smart pur-

chase.Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

o Expert service by our 12,000 profe-

sional repair specialists.

o Unlimited service and no charge for

parts and labor on all covered repairs.

o Product replacement if your covered

product can't be fixed.

o Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

o Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-665&

SEARS INSTALLATmON SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

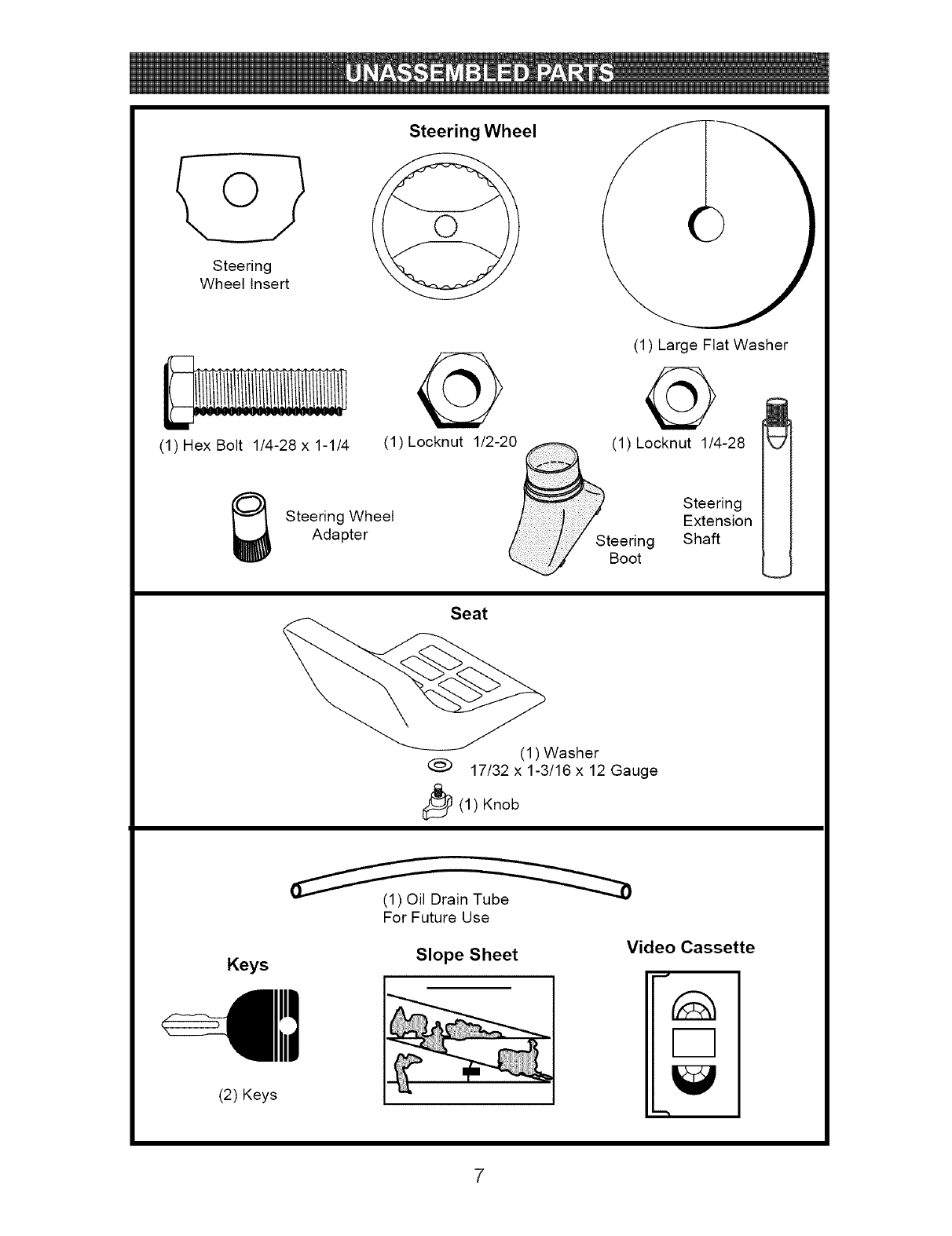

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 1/4-28 x 1-1/4

Steering Wheel

Adapter

(1) Locknut 1/2-20

Seat

(1) Large Flat Washer

(1) Locknut 1/4-28

Steering

Extension

Steering Shaft

Boot

(1) Washer

@ 17/32 x 1-3/16 x 12 Gauge

_(1) Knob

Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet Video Cassette

(2) Keys

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

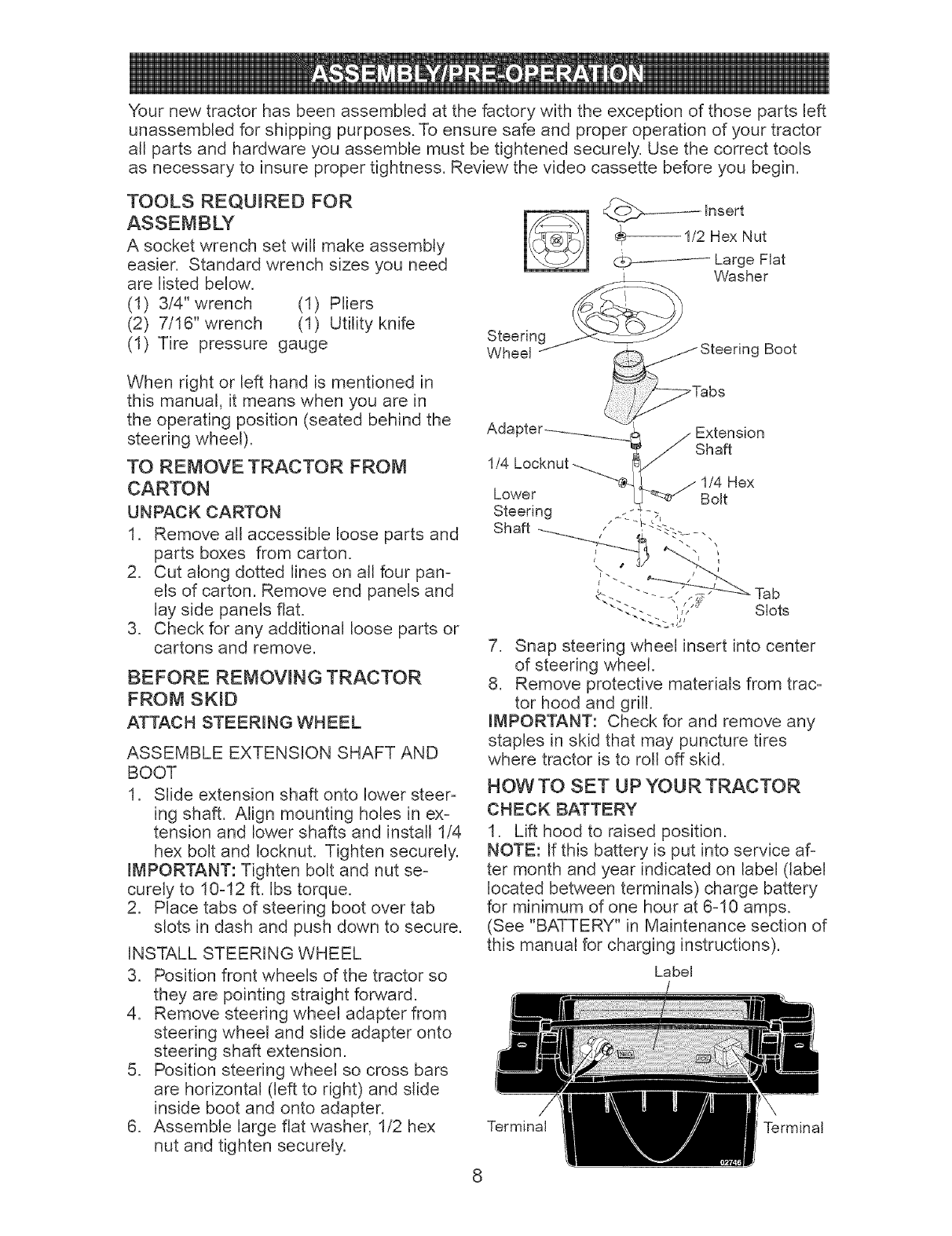

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1, Remove all accessible loose parts and

parts boxes from carton.

2, Cut along dotted lines on all four pare

els of carton, Remove end panels and

lay side panels flat,

3, Check for any additional loose parts or

cartons and remove.

BEFORE REMOVmNG TRACTOR

FROM SKmD

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in exm

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

iMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

<_------ insert

_------- 1/2 Hex Nut

_----------- Largo Flat

_@_ Washer

Steering

Wheel JJ

Steering Boot

Adapter ......... ___

1/4 Locknut _.._ @_

Lower

Extension

///Shaft

_1/4 Hex

Bolt

Steering ....

Shaft ..... .

"" "'Tab

"-'- "'' Slots

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tot hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service af_

ter month and year indicated on label (label

located between terminals) charge battery

for minimum of one hour at 6m10 amps.

(See "BATTERY" in Maintenance section of

this manual for charging instructions).

Label

Terminal Terminal

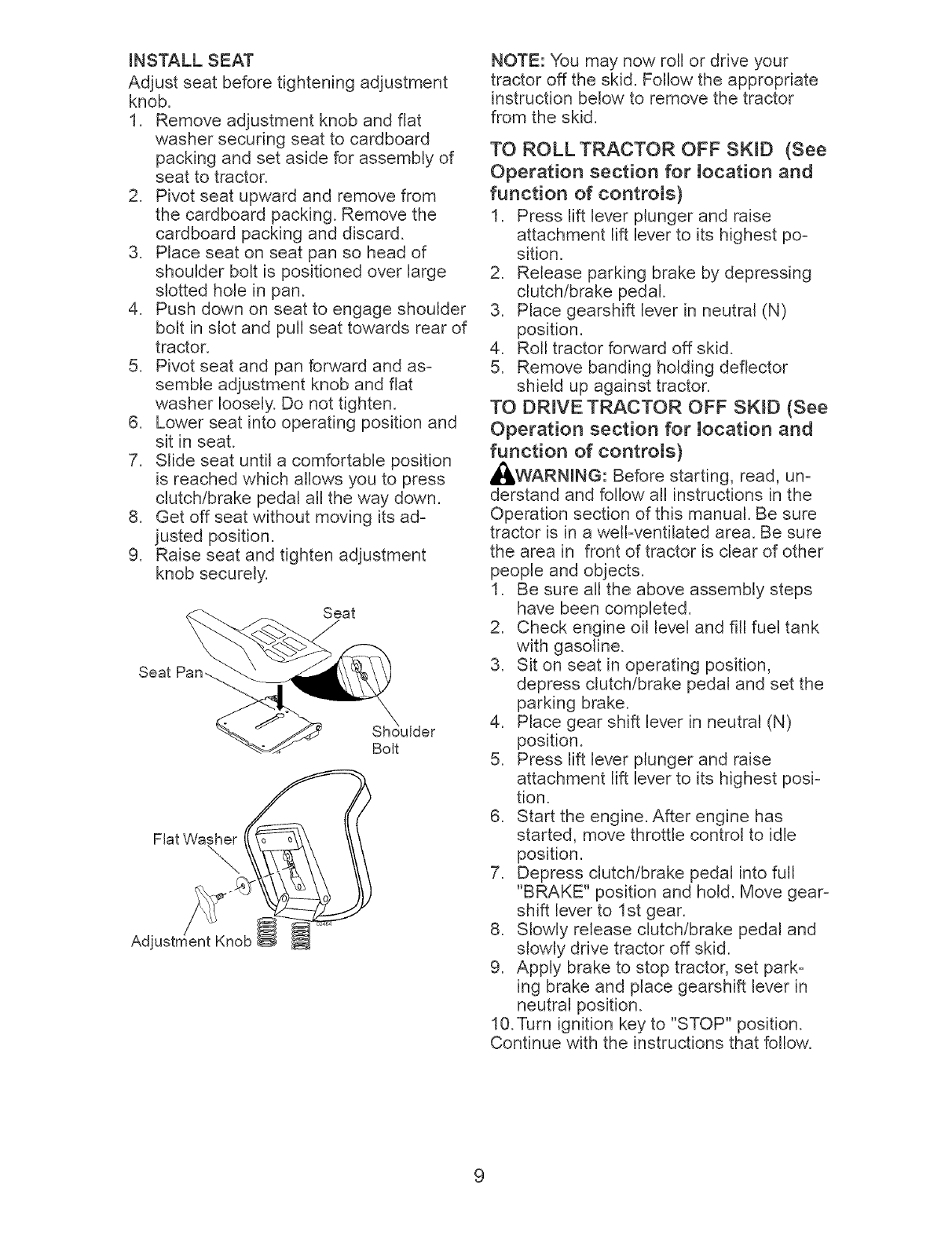

iNSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3, Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4, Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor.

5, Pivot seat and pan forward and as=

semNe adjustment knob and flat

washer loosely. Do not tighten.

6, Lower seat into operating position and

sit in seat.

7, Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down,

8, Get off seat without moving its ad=

justed position.

9, Raise seat and tighten adjustment

knob securely,

Seat

Bolt

Flat Washer

Adjl Knob

NOTE: You may now roll or drive your

tractor off the skid, Follow the appropriate

instruction below to remove the tractor

from the skid,

TO ROLL TRACTOR OFF SKmD (See

Operation section for mocation and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2, Release parking brake by depressing

clutch!brake pedal.

3, Place gearshift lever in neutral (N)

position,

4, Roll tractor forward off skid.

5, Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKmD (See

Operation section for mocation and

function of controms)

,_WARNmNG: Before starting, read, un=

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well=ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi=

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7, Depress clutch/brake pedal into full

"BRAKE" position and hold, Move gear-

shift lever to Ist gear.

8, Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9, Apply brake to stop tractor, set park=

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow,

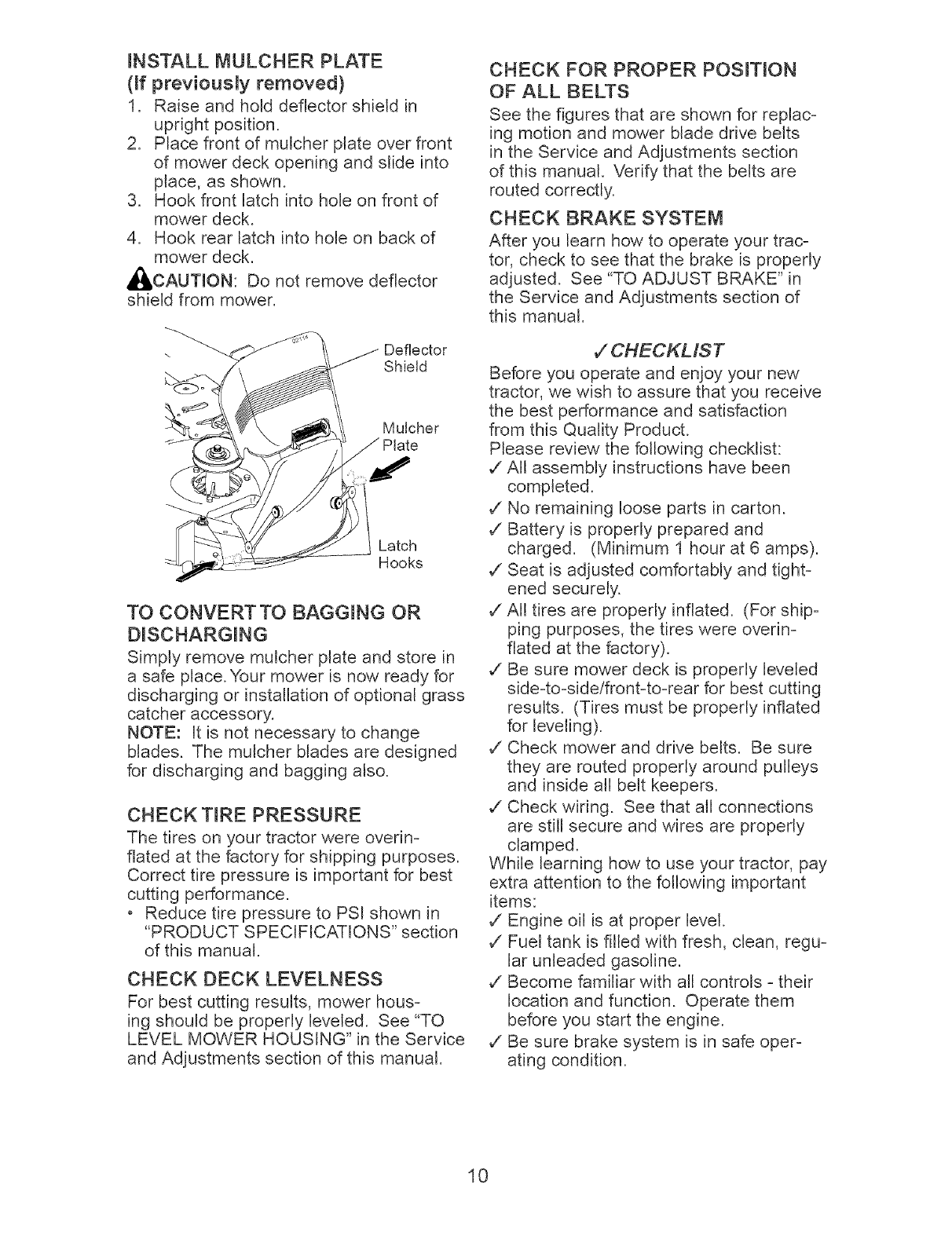

mNSTALLMULCHER PLATE

(ff previousmy removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_CAUTION: Do not remove deflector

shield from mower.

Deflector

Shield

Mulcher

Latch

Hooks

TO CONVERTTO BAGGmNG OR

DmSCHARGmNG

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECKTmRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

,Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSmTmON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKLIS T

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

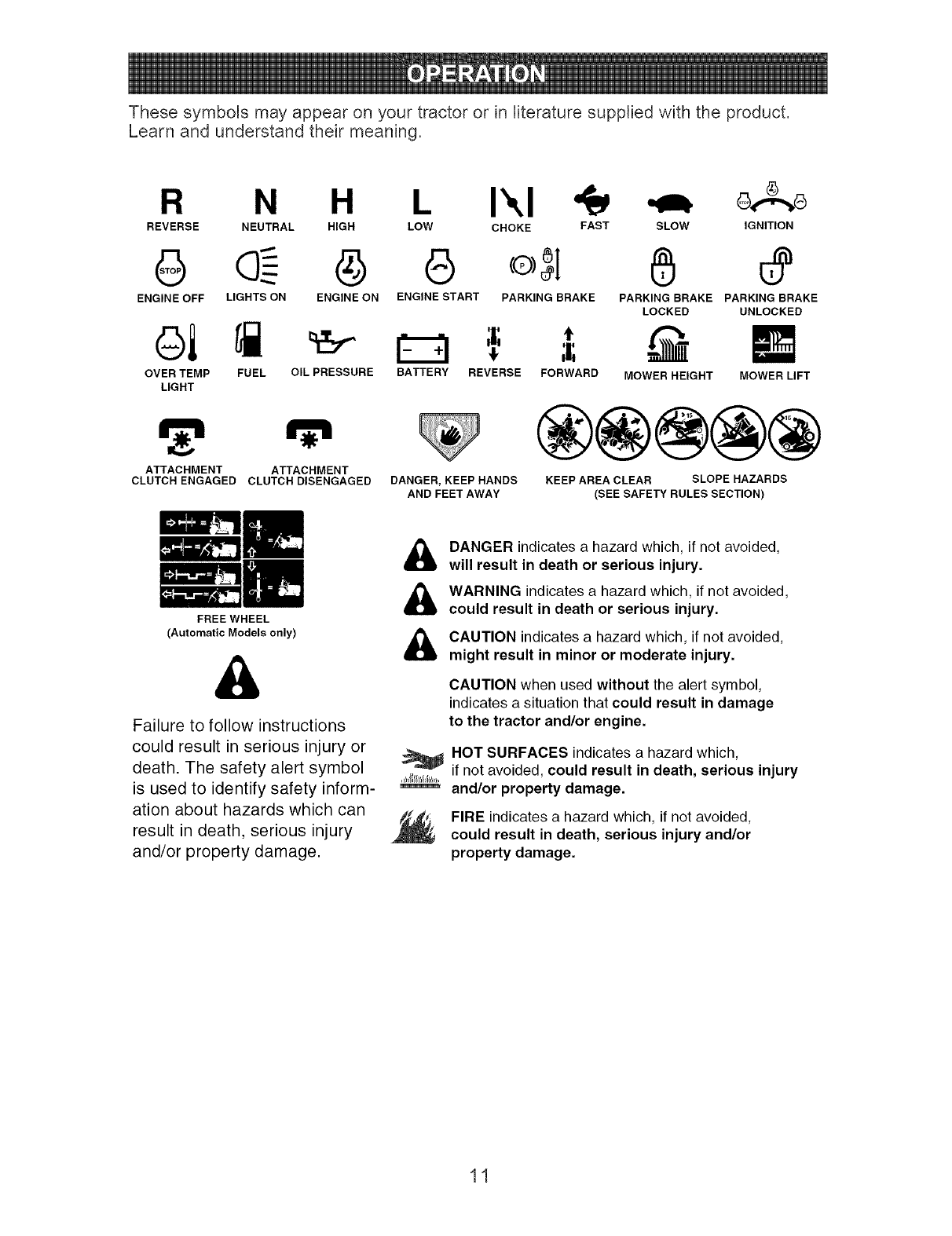

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I'-,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST

G G

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP FUEL OIL PRESSURE

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

BATTERY REVERSE FORWARD

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicatesa hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

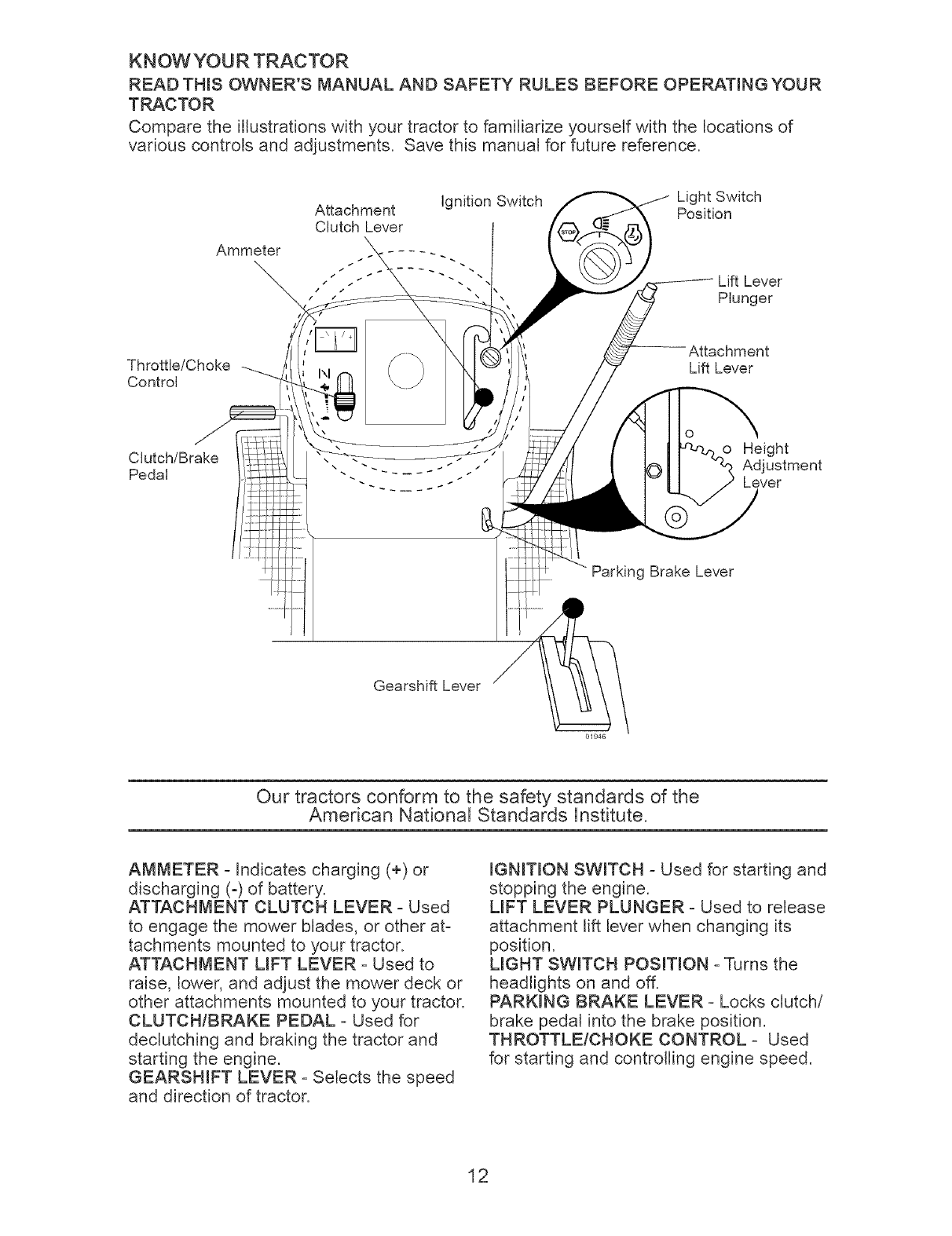

KN OW YOU R TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Attachment

Clutch Lever

ignition Switch Light Switch

Position

Lift Lever

Plunger

Throttle/Choke

Control

-- Attachment

Lift Lever

Clutch/Brake

Pedal

Height

Adjustment

Parking Brake Lever

Gearshift Lever

01946

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER- Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH!BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNmTmON SWITCH - Used for starting and

stopping the engine.

LmFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

UGHT SWITCH POSmTION - Turns the

headlights on and off.

PARKmNG BRAKE LEVER _ Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL _ Used

for starting and controlling engine speed.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

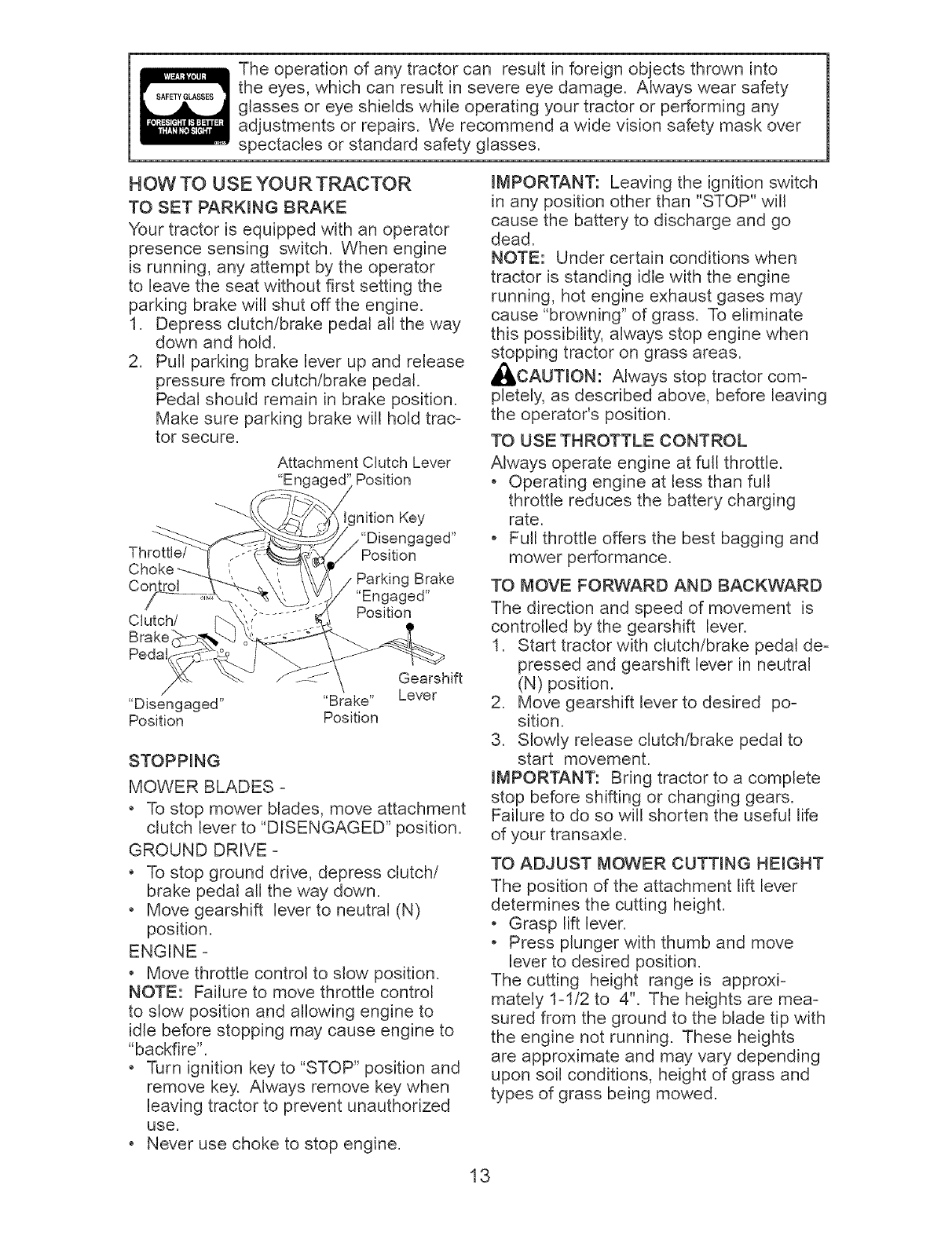

HOW TO USE YOUR TRACTOR

TO SET PARKmNG CRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Attachment Clutch Lever

"Engaged: Position

Throttle/

Choke

Control

Clutch/

Brake

Pedal

nition Key

,"Disengaged"

Position

Parking Brake

"Engaged"

Position

Gearshift

"Disengaged" "Brake" Lever

Position Position

STOPPING

MOWER BLADES -

o To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRWE -

o To stop ground drive, depress clutch!

brake pedal all the way down.

o Move gearshift lever to neutral (N)

position.

ENGINE -

o Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

o Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use,

o Never use choke to stop engine.

iMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

o Operating engine at less than fuji

throttle reduces the battery charging

rate.

o Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

iMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

o Grasp lift lever.

o Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-t/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

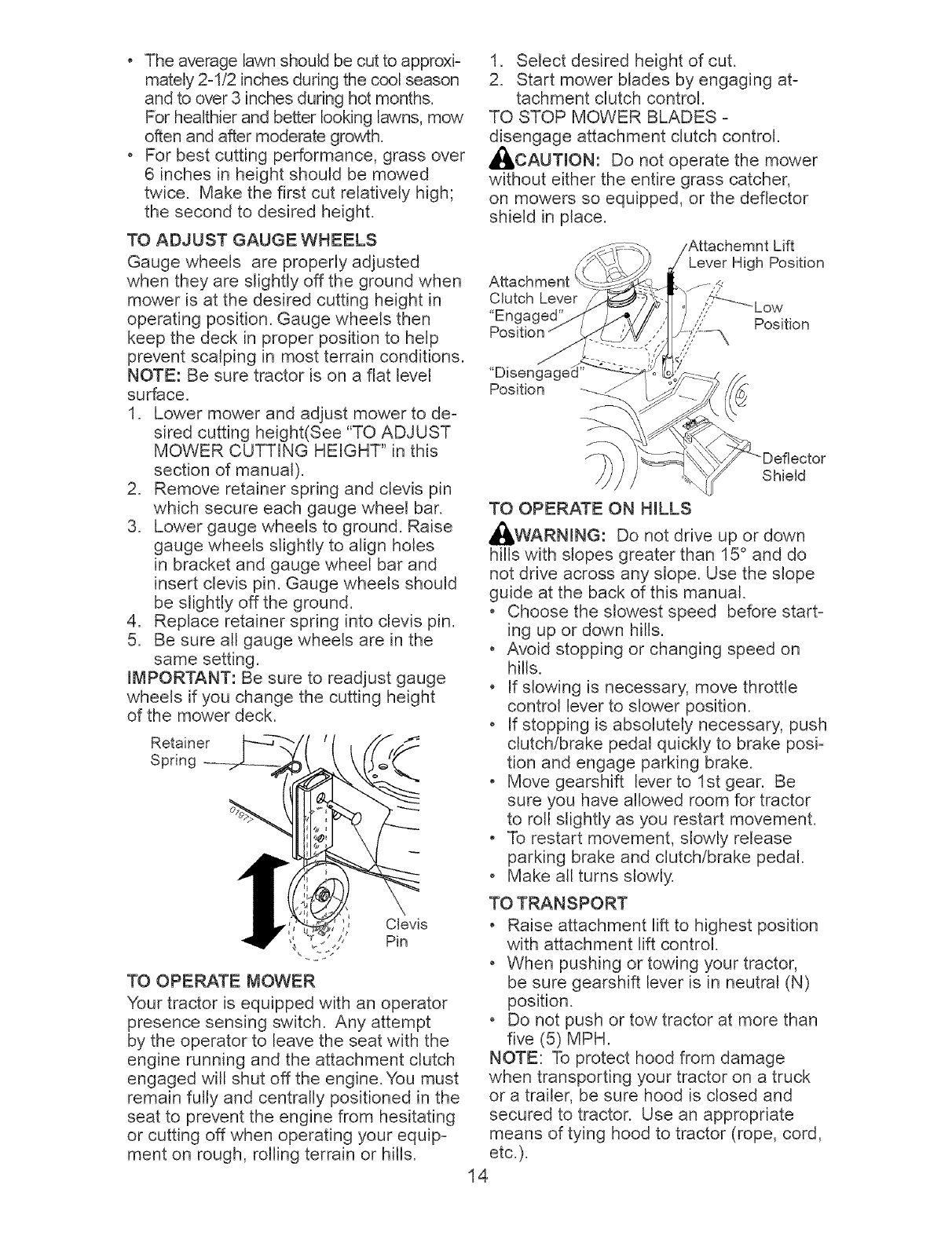

oThe average lawn should be cut to approxi-

mately 2-1/2 inches during the cool season

and to over 3 inches during hot months,

For healthier and better looking lawns, mow

often and after moderate growth,

.For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to de-

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT" in this

section of manual),

2, Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3, Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin, Gauge wheels should

be slightly off the ground,

4, Replace retainer spring into clevis pin,

5, Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck,

Retainer

Spring

i Clevis

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills,

1. Select desired height of cut.

2, Start mower blades by engaging at-

tachment clutch control,

TO STOP MOWER BLADES -

disengage attachment clutch control,

_,CAUTmON: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place,

Clutch Lever

"Engaged'

"Disengag

Position

Shield

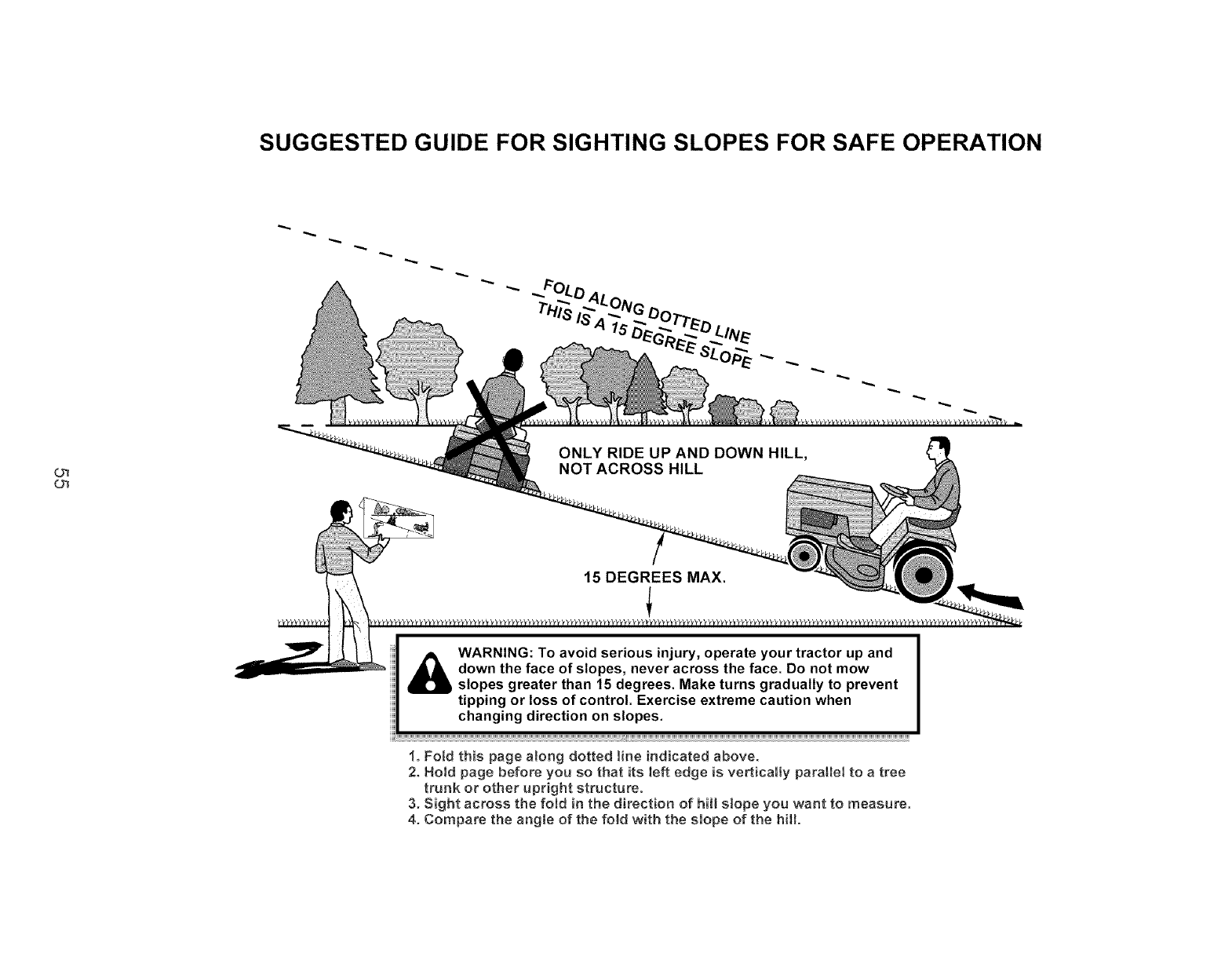

TO OPERATE ON HILLS

,_WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

,Choose the slowest speed before start-

ing up or down hills.

.Avoid stopping or changing speed on

hills.

.If slowing is necessary, move throttle

control lever to slower position.

.If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

.Move gearshift lever to 1st gear, Be

sure you have allowed room for tractor

to roll slightly as you restart movement,

oTo restart movement, slowly release

parking brake and clutch/brake pedal,

oMake all turns slowly,

TO TRANSPORT

.Raise attachment lift to highest position

with attachment lift control.

.When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

.Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWmNG CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

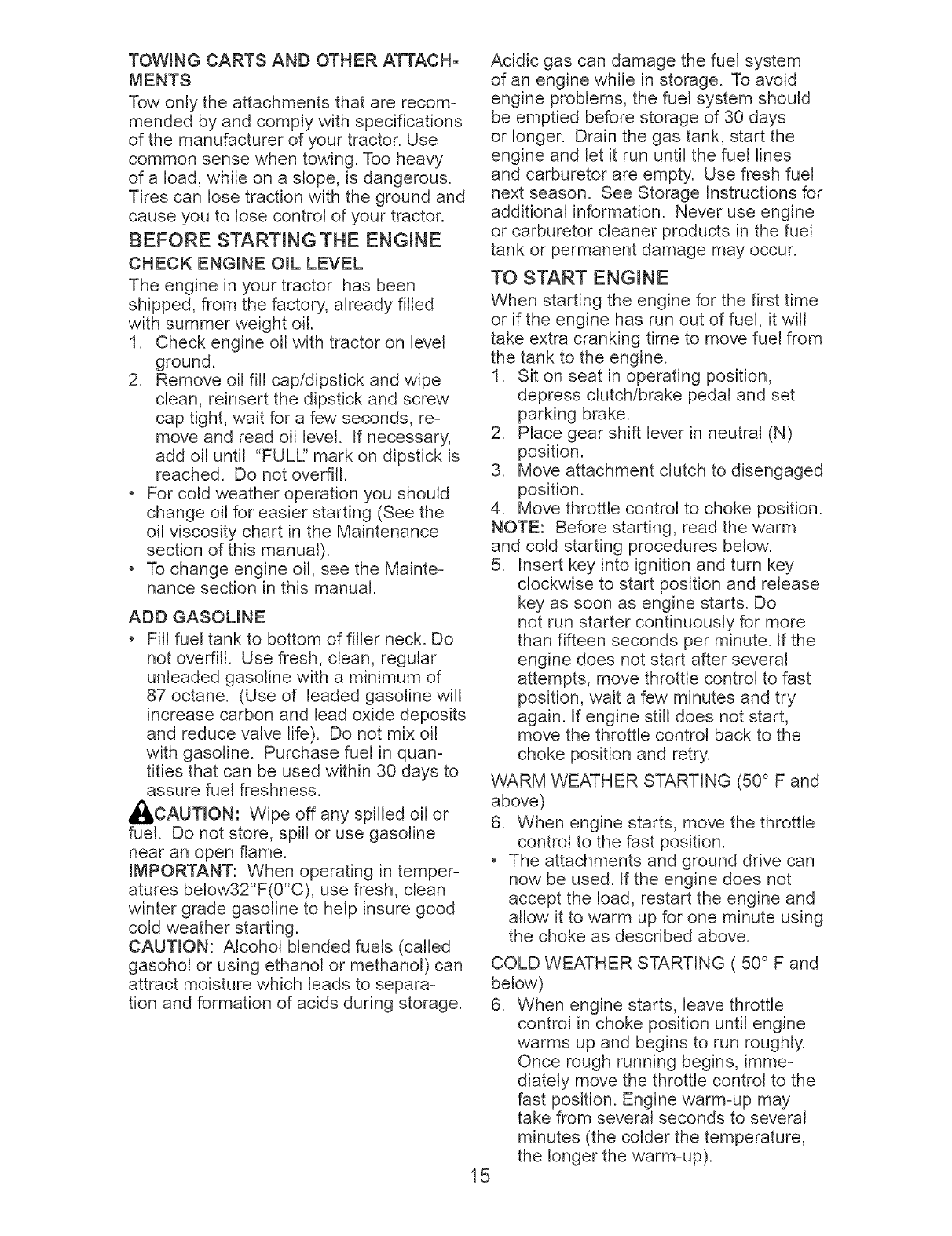

BEFORE STARTING THE ENGINE

CHECK ENGmNE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL:' mark on dipstick is

reached. Do not overfill.

o For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

o To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

o Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_ICAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGmNE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

5. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

o The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

COLD WEATHER STARTING ( 50 ° F and

below)

6, When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly,

Once rough running begins, imme-

diately move the throttle control to the

fast position, Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up),

o The attachments can also be used dur-

ing the engine warm-up period,

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual),

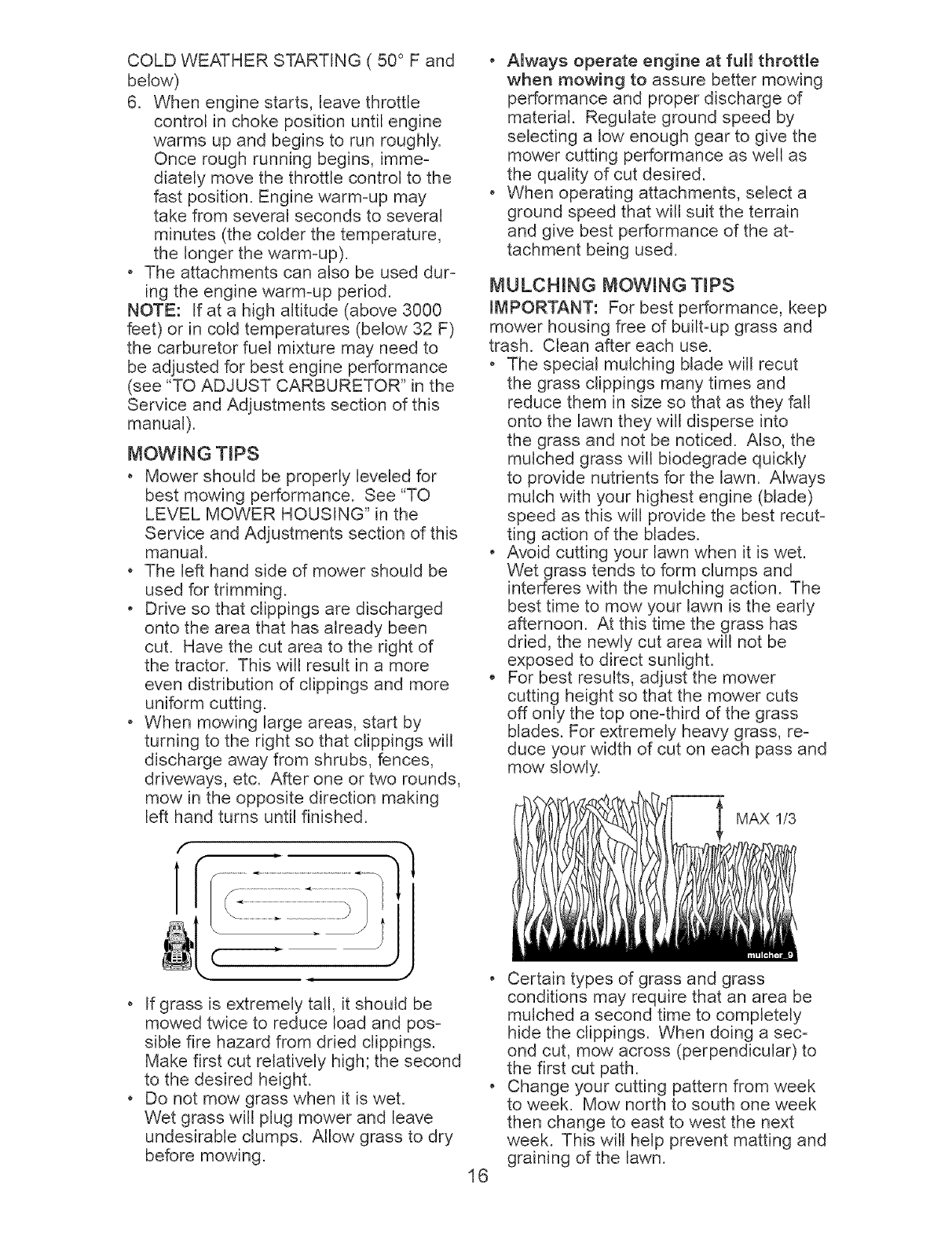

MOWING TIPS

o Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual,

oThe left hand side of mower should be

used for trimming.

oDrive so that clippings are discharged

onto the area that has already been

cut, Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting,

oWhen mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc, After one or two rounds,

mow in the opposite direction making

left hand turns until finished,

........... I

_ J

o If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

oDo not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps, Allow grass to dry

before mowing,

oAlways operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

oWhen operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used,

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

o The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

o Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

o Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings, When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

o Change your cutting pattern from week

to week, Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn,

F,LL,, DATES

AS COMPLETE ......

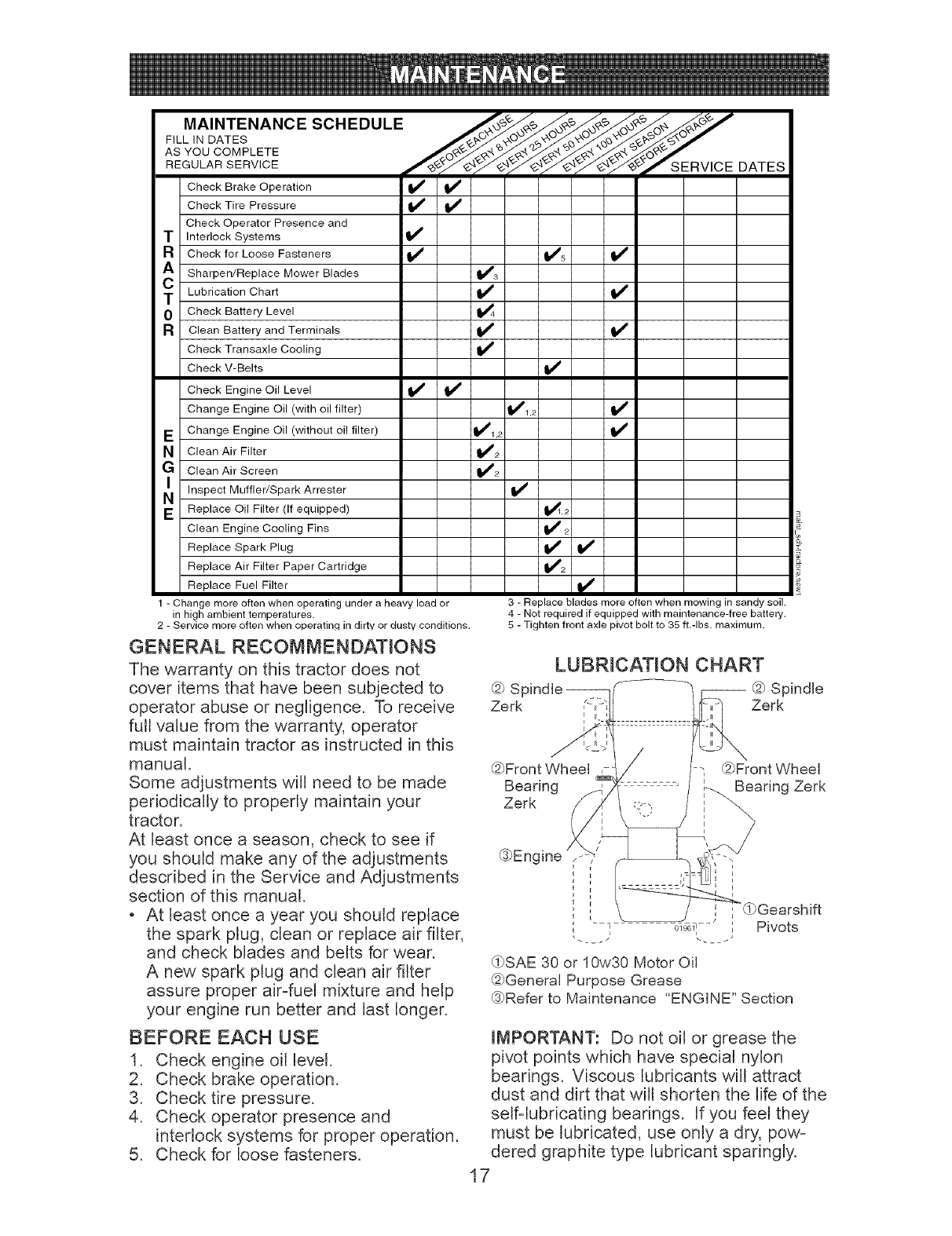

REGULARSERV,OE f y< TSERV'OE DATES

Check Brake Operation _1_ t_

Check Tire Pressure

Check Operator Presence and

TInterlock Systems If

R Check for Loose Fasteners If I_s If

ASharpen/Replace Mower Blades _3

C Lubrication Chart tf If

0 Check Battery Level _4

a Clean Battery and Terminals If

v'Check Transaxle Cooling

Check V-Belts If

Check Engine Oil Level _

Change Engine Oil (with oil filter) I_$1,2

E Change Engine Oil (without oil filter) 11_'1,2

NClean Air Filter _1_ 2

G Clean Air Screen 1_112

I Inspect Muffler/Spark Arrester i/

E Replace Oil Filter (If equipped) 1_,2

Clean Engine Cooling Fins If 2

Replace Spark Plug I_ If

Replace Air Filter Paper Cartridge 1_'2

Replace Fuel Filter _#_

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operatinq in dirty or dustv conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

o At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft,-Ibs, maximum.

LUBRICATION CHART

@ S_: -- @ Spindle

Zerk Zerk

@Front Wheel ,

Bearing

Zerk

@Front Wheel

Bearing Zerk

@Engine .

(t}SAE 30 or 10w30 Motor Oil

@General Purpose Grease

@Refer to Maintenance "ENGINE" Section

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

iMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

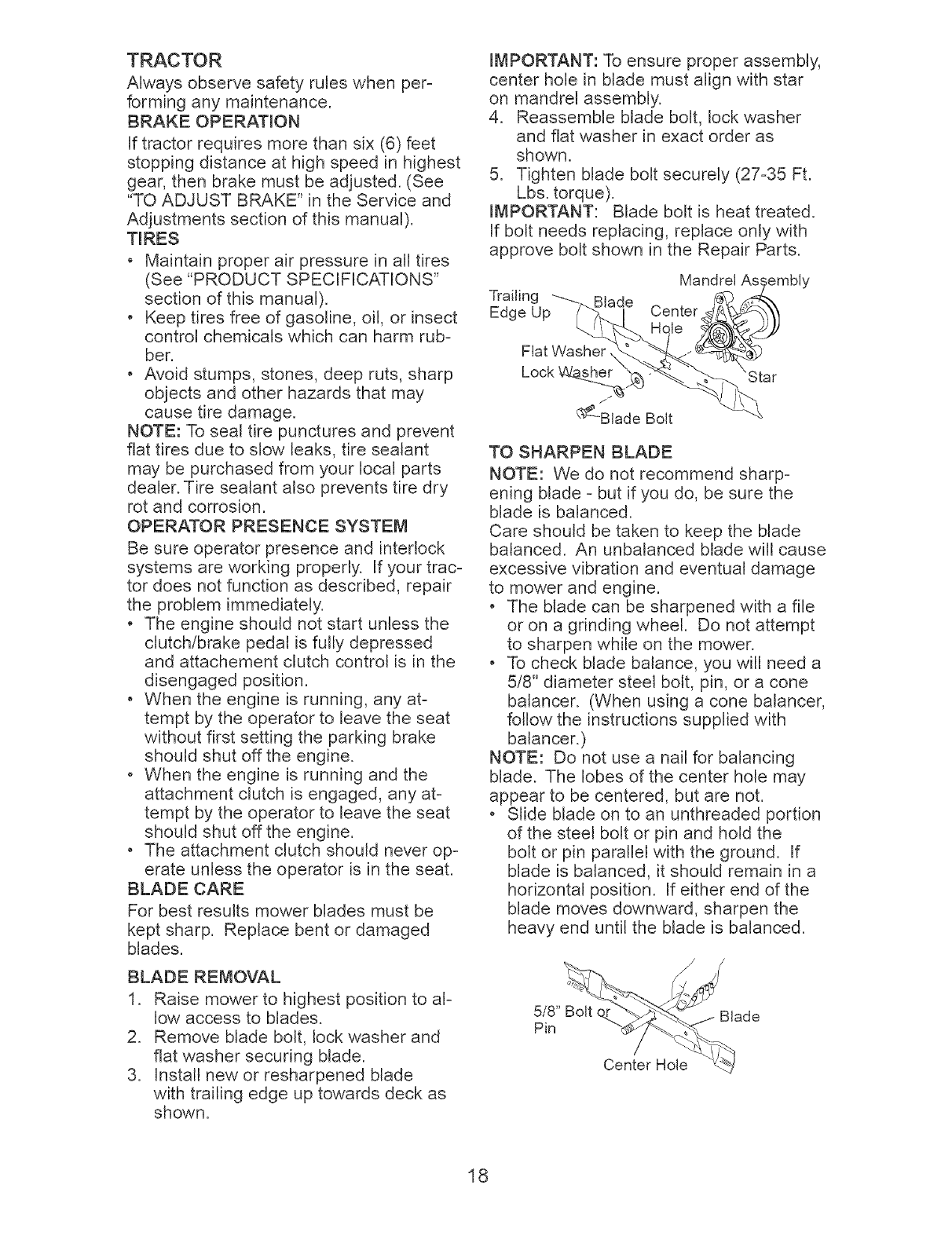

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATmON

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

o Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

o Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

o Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

o The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

o When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

o When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

o The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

iMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

iMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Mandrel As._

Trailing Blade

Edge Up Center

Lock

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

o The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

o To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

o Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt ( Blade

Center Hole

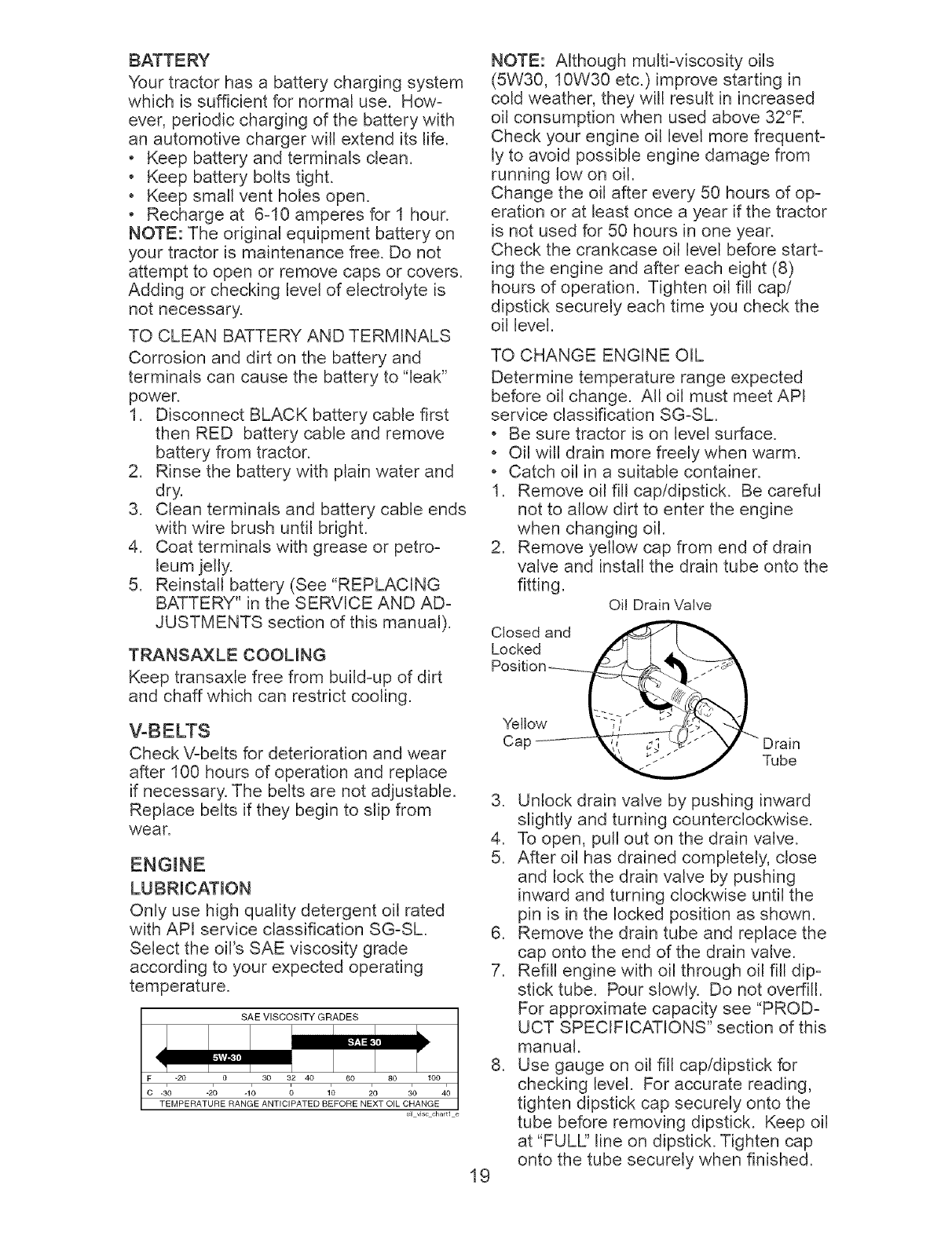

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. Howm

ever, periodic charging of the battery with

an automotive charger will extend its life.

o Keep battery and terminals clean.

o Keep battery bolts tight.

o Keep small vent holes open.

o Recharge at 6mt0 amperes for t hour.

NOTE: The odginal equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1, Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

2, Rinse the battery with plain water and

dry,

3, Clean terminals and battery cable ends

with wire brush until bright.

4, Coat terminals with grease or petro_

leum jelly.

5, Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD_

JUSTMENTS section of this manual),

NOTE: Although mukiwiscosity oils

(5W30, 10W30 etc.)improve starting in

cold weather, they will result in increased

oil consumption when used above 32°F.

Check your engine oil level more frequent_

ly to avoid possible engine damage from

running low on oil,

Change the oil after every 50 hours of opm

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation, Tighten oil fill cap/

dipstick securely each time you check the

oil level,

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG_SL.

o Be sure tractor is on level surface.

o Oil will drain more freely when warm.

o Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting, Oil Drain Valve

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling,

V-BELTS

Check V_belts for deterioration and wear

after t00 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

LUBRICATION

Only use high quality detergent oil rated

with API service classification SGmSL,

Select the oil's SAE viscosity grade

according to your expected operating

temperature,

SAE VISCOSITY GRADES 40' 1

_il vice€hart1 e

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip_

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULL:' line on dipstick. Tighten cap

onto the tube securely when finished.

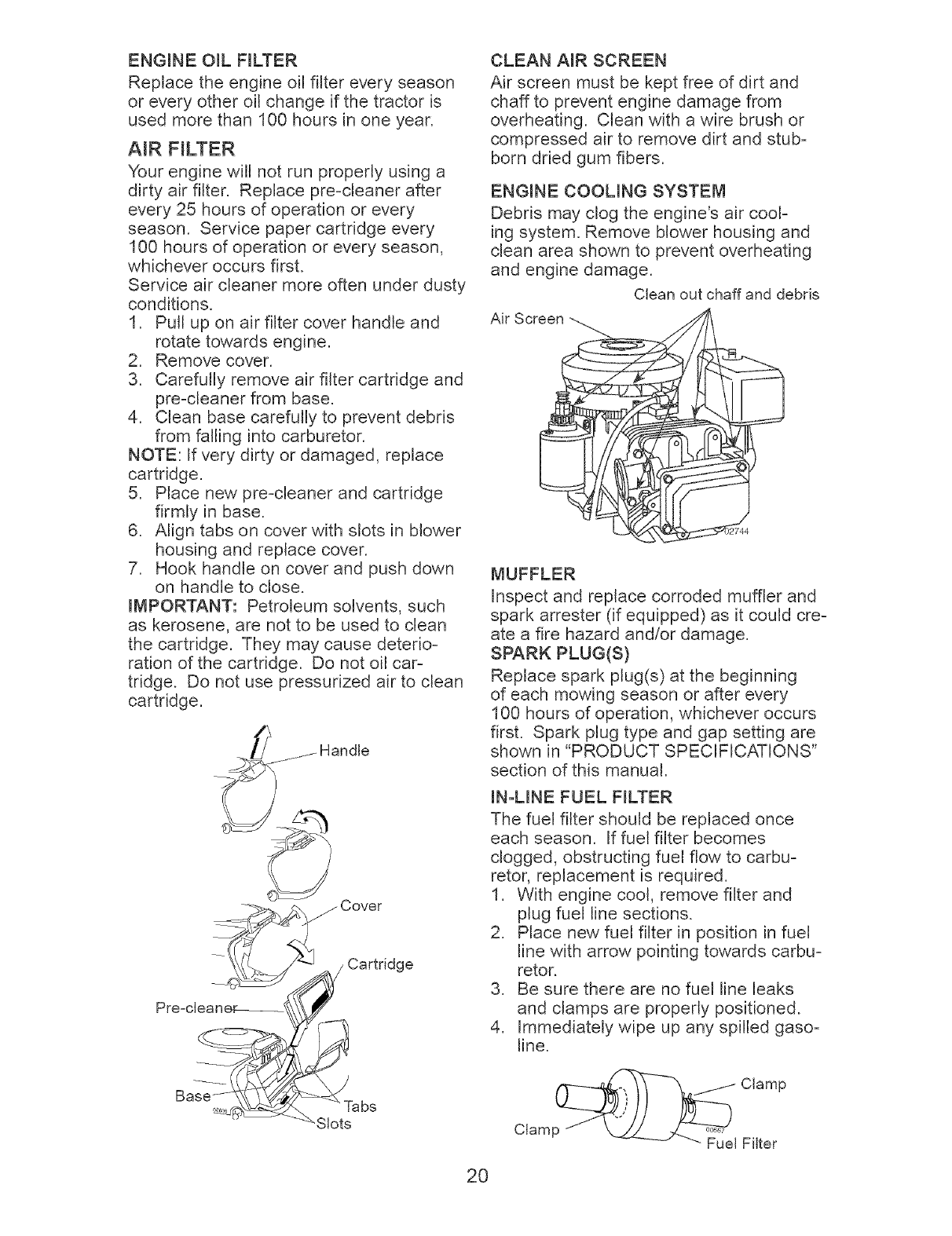

ENGmNEOiL FmLTER

Replacethe engineoil filter everyseason

or everyother oil changeif the tractor is

used morethan 100 hours in one year.

AmRFILTER

Yourenginewill not run properlyusinga

dirty airfilter. Replacepre-cleanerafter

every25 hoursof operationor every

season. Service papercartridgeevery

100 hoursof operationor every season,

whicheveroccursfirst.

Service air cleaner moreoften underdusty

conditions.

1. Pull up on air filter cover handleand

rotatetowardsengine.

2. Removecover.

3. Carefullyremoveair filter cartridgeand

pre-cleanerfrom base.

4. Clean basecarefullyto preventdebris

from fallinginto carburetor.

NOTE:If verydirty or damaged,replace

cartridge.

5. Place newpre-cleanerand cartridge

firmly in base.

6. Align tabson coverwith slotsin blower

housingand replacecover.

7. Hook handleon coverand pushdown

on handleto close.

iMPORTANT:Petroleumsolvents,such

as kerosene,are not to be usedto clean

the cartridge. They maycausedeterio-

rationof the cartridge. Do not oil car-

tridge. Do not usepressurizedair to clean

cartridge.

CLEAN AmRSCREEN

Air screen mustbe keptfree of dirt and

chaffto preventenginedamagefrom

overheating. Cleanwith a wire brushor

compressedair to removedirt and stub-

born driedgum fibers.

ENGmNECOOMNGSYSTEM

Debris mayclog the engine'sair cool-

ing system.Removeblowerhousingand

cleanarea shownto preventoverheating

and enginedamage.

Cleanoutchaffanddebris

AirScreen

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage,

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual,

Cartridge

iN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Tabs

-Slots _ Clamp

Clamp 1/ __el Filter

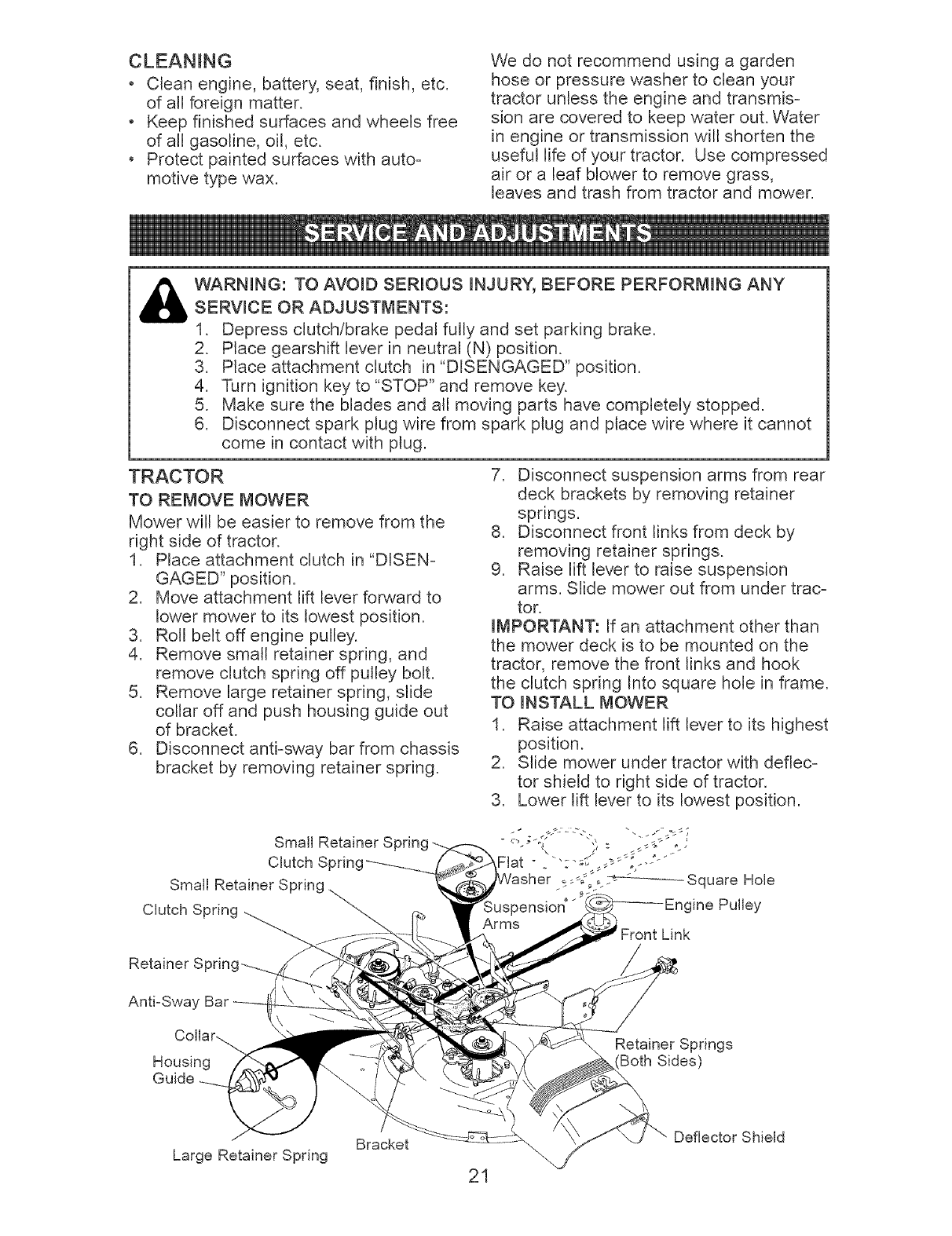

CLEANING

o Clean engine, battery, seat, finish, etc.

of all foreign matter.

o Keep finished surfaces and wheels free

of all gasoline, oil, etc.

o Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis=

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

WARNING: TO AVOID SERIOUS iNJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN=

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti=sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac=

tor.

iMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO iNSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec=

tot shield to right side of tractor.

3. Lower lift lever to its lowest position.

Small

Small Retainer S

Clutch Spring

Retainer S

Anti-Sway Bar

Collar_....

Housing

Guide

Retainer Springs

Sides)

Bracket

Large Retainer Spring 21

Deflector Shield

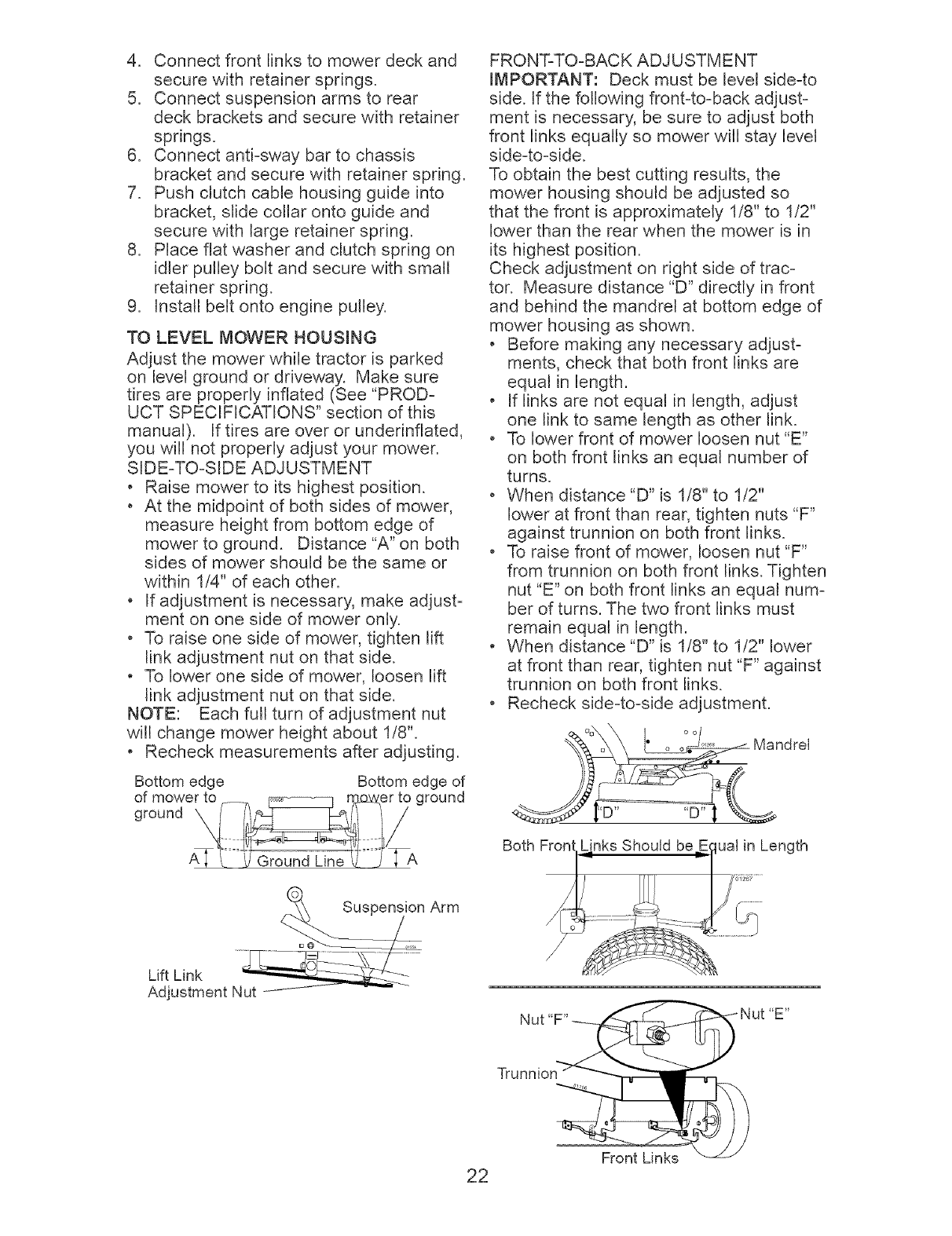

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with Jarge retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSmNG

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

o Raise mower to its highest position.

o At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within t/4" of each other.

o If adjustment is necessary, make adjust-

ment on one side of mower only.

o To raise one side of mower, tighten lift

link adjustment nut on that side.

o To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

o Recheck measurements after adjusting.

Bottom edge Bottom edge of

n Arm

Lift Link N_

Adjustment

FRON%TO-BACK ADJUSTMENT

iMPORTANT: Deck must be level side4o

side. If the following front4o-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side4o-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

o Before making any necessary adjust-

ments, check that both front links are

equal in length.

o If links are not equal in length, adjust

one link to same length as other link.

o To lower front of mower loosen nut "E"

on both front links an equat number of

turns.

o When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

o To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

o When distance "D" is t/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

o Recheck side4o-side adjustment.

_ Mandrel

Both Front, _nks Should beElual in Length

_B _

Trunnion

Front Links

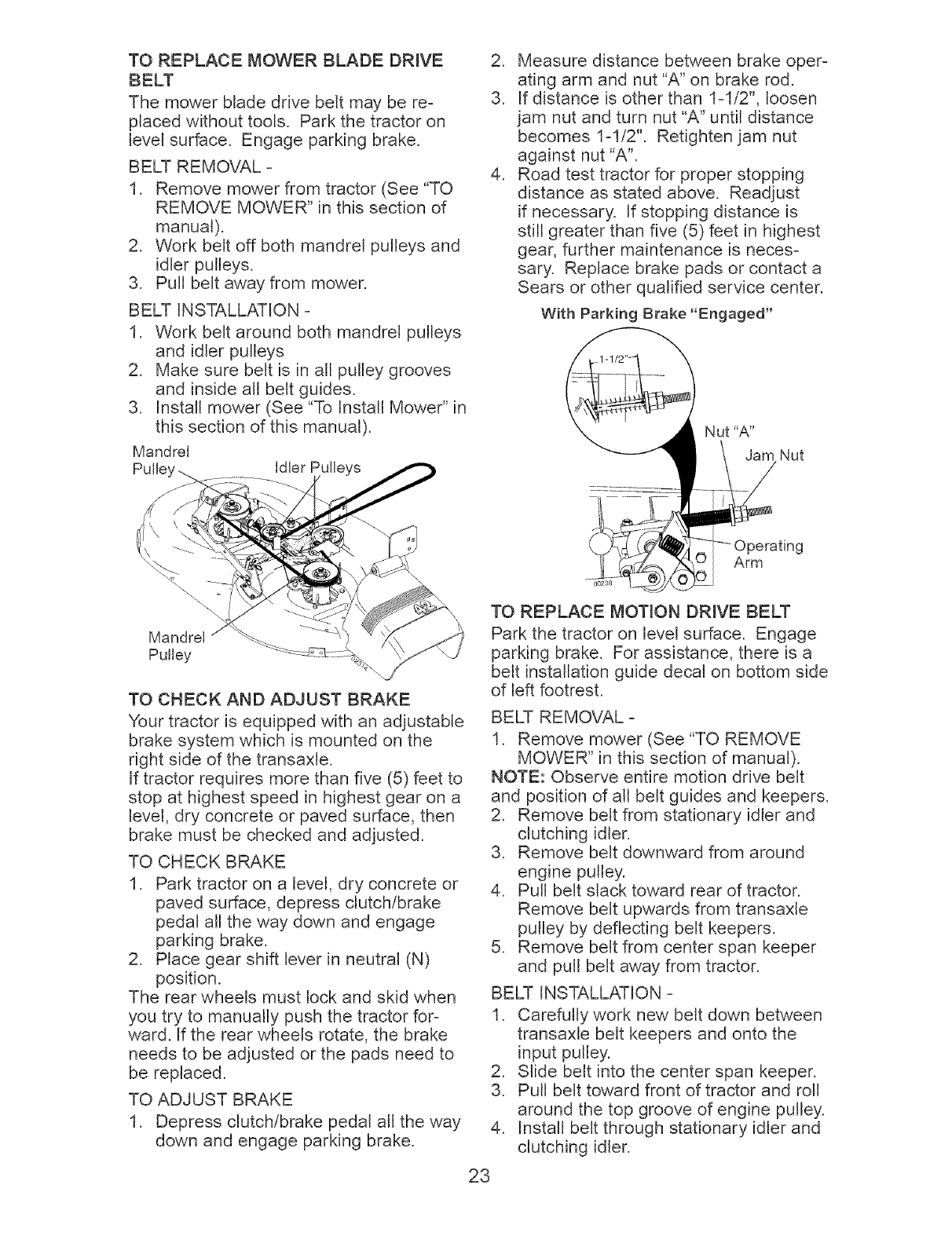

TO REPLACE MOWER BLADE DRmVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

leveJ surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all bett guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel

Idler PuJJeys

Mandrel

PulJey

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxJe.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake opeF

ating arm and nut "A" on brake rod.

3. If distance is other than IN/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A'.

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With Parking Brake "Engaged"

Nut "A"

Jam Nut

Arm

00238

TO REPLACE MOTION DRmVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL-

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxie belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Instatl belt through stationary idler and

clutching idler.

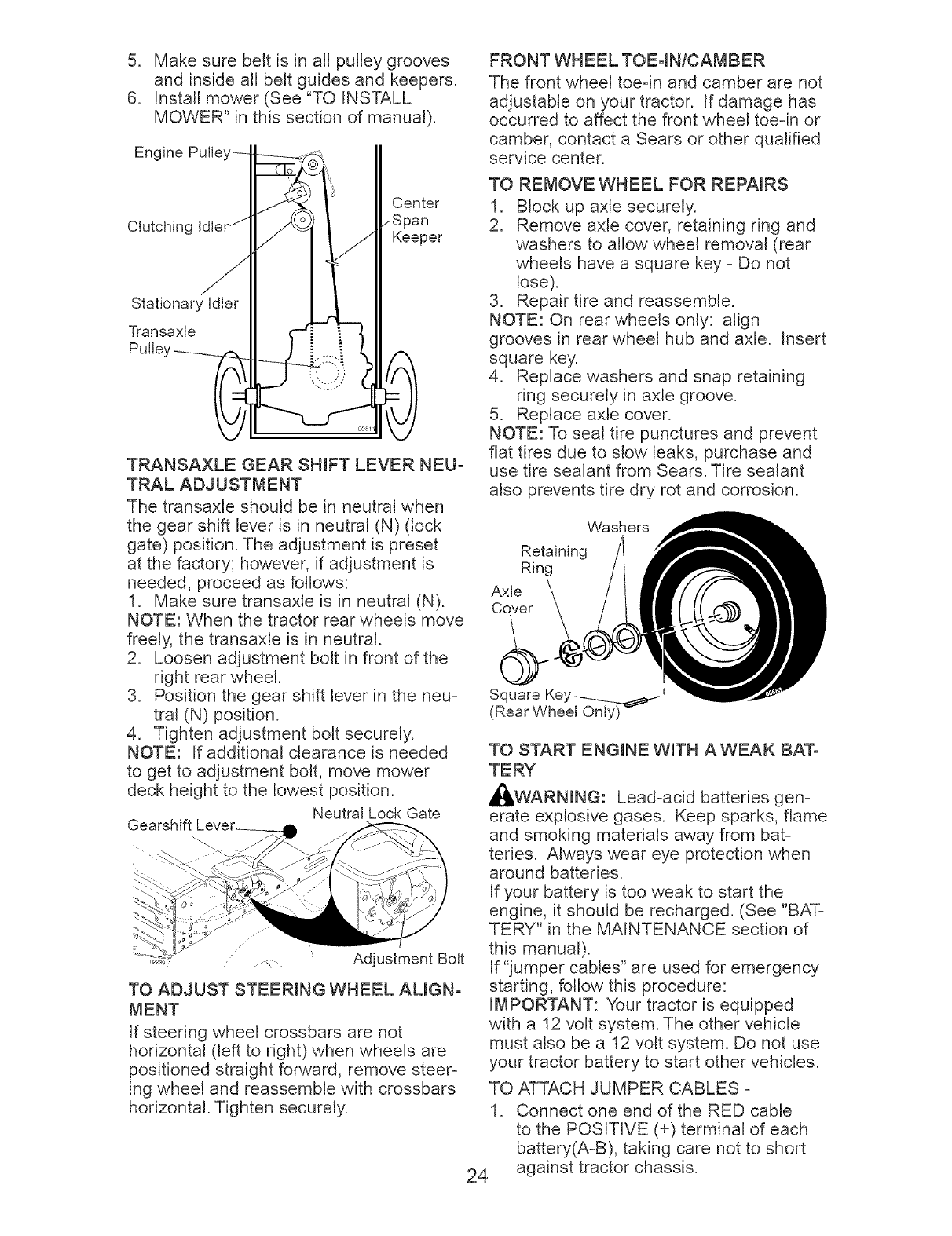

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine

Clutching

Stationary idler

Transaxle

Center

Keeper

TRANSA×LE GEAR SHmFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Neutral Lock Gate

Gearshift

..... Adjustment Bolt

TO ADJUST STEERmNG WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheet and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-iN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAmRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to stow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key ..... -_ t

(Rear Wheel Only) v

TO START ENGINE WITH A WEAK BAT-

TERY

_IWARNmNG: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

24 against tractor chassis.

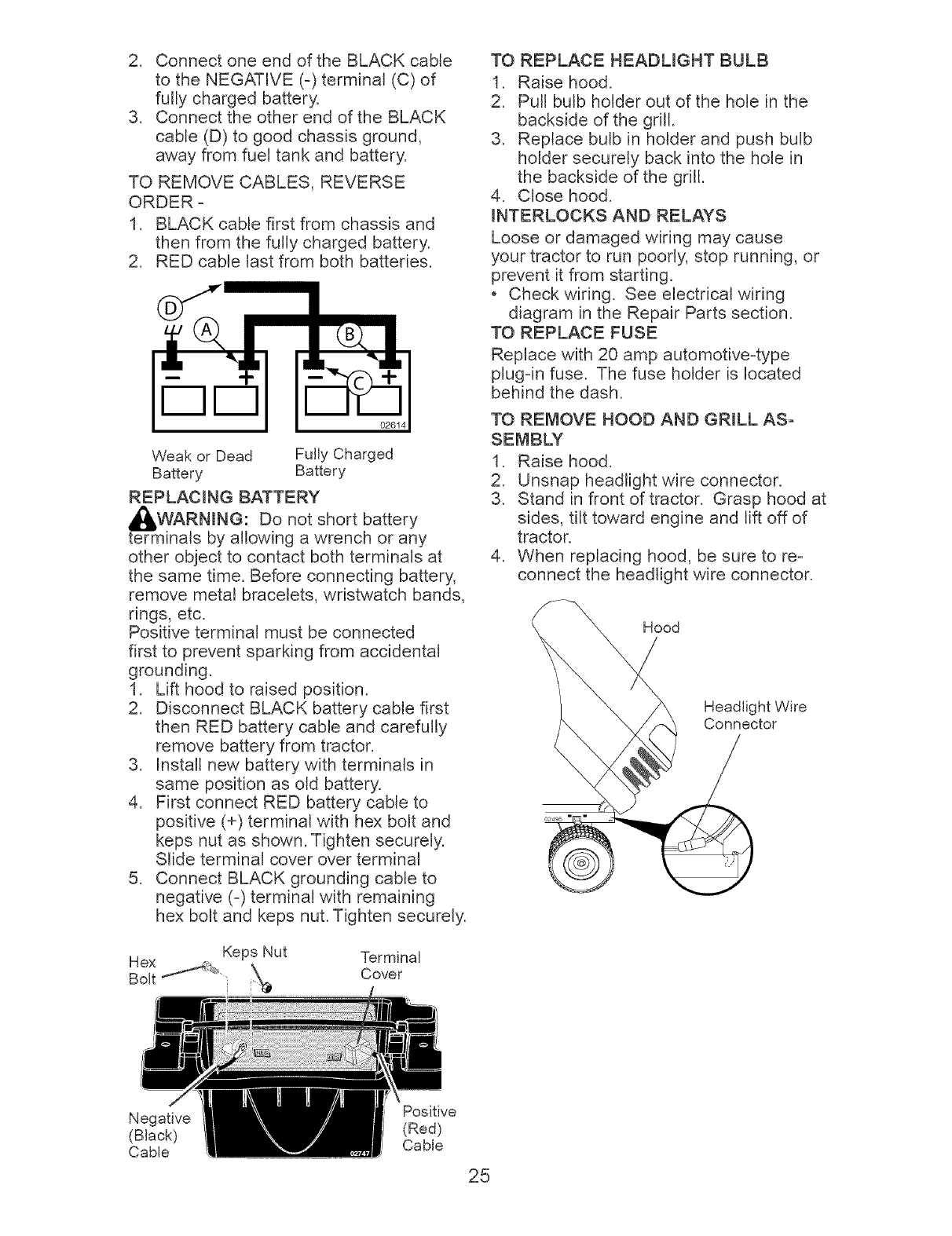

2. Connectone endof the BLACKcable

to the NEGATIVE(-) terminal (C)of

fullycharged battery.

3. Connectthe other end of the BLACK

cable(D) to good chassisground,

awayfrom fueltank and battery.

TO REMOVECABLES,REVERSE

ORDER-

1. BLACKcablefirstfrom chassisand

thenfrom the fullycharged battery.

2. RED cablelast from both batteries.

02614

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

e_rmWARNING: Do not short battery

inals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

Terminal

Cover

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

iNTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

o Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRmLL AS-

SEMBLY

1. Raise hood,

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

Headlight Wire

Connector

O2495 "

Negative

(Black)

Cable

Positive

(Red)

Cable

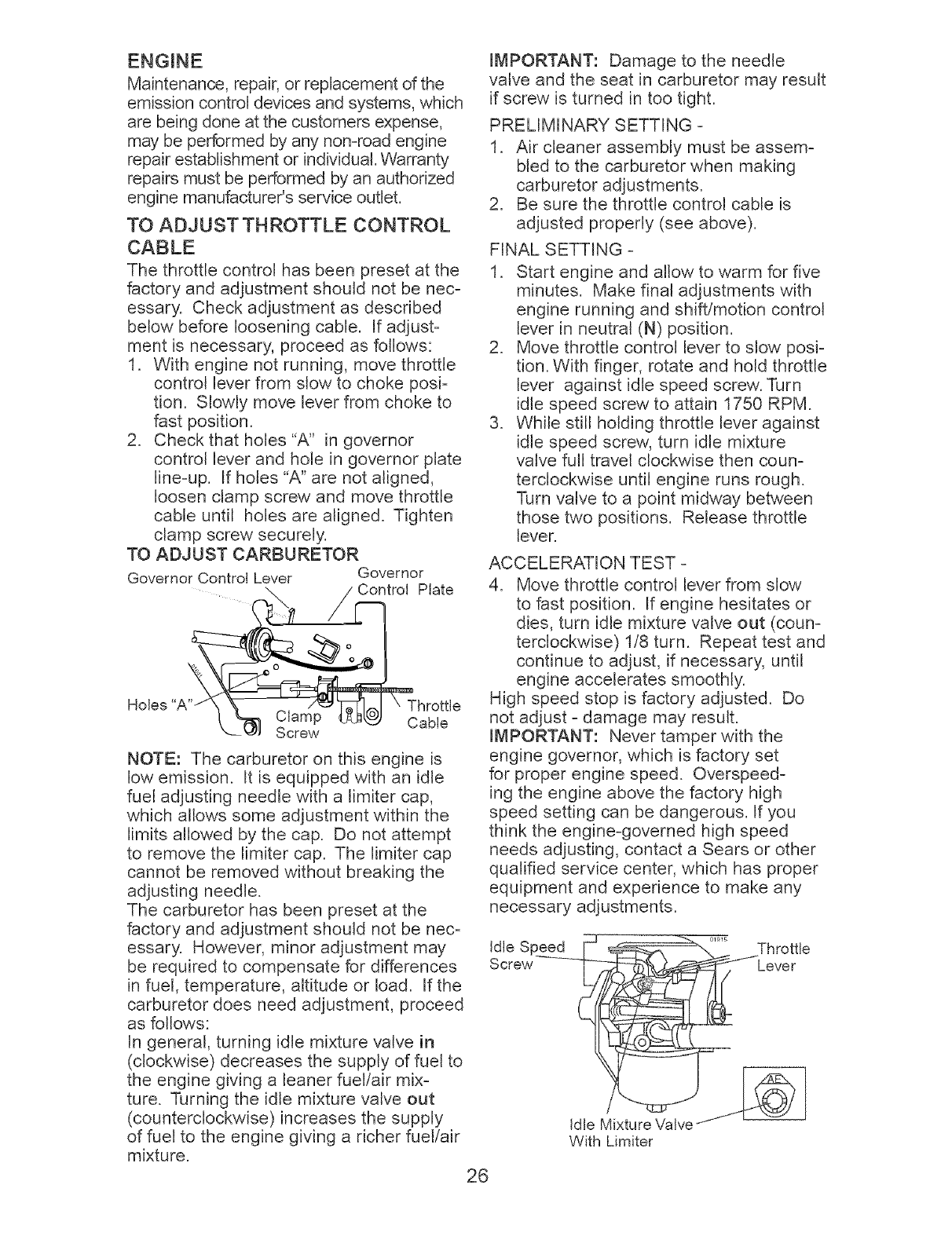

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any nomroad engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be necm

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi_

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line_up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

TO ADJUST CARBURETOR

Governor Control Lever Governor Plate

Holes Throttle

Clamp Cable

Screw

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mixm

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coum

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coum

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust _damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the enginemgoverned high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

With Limiter

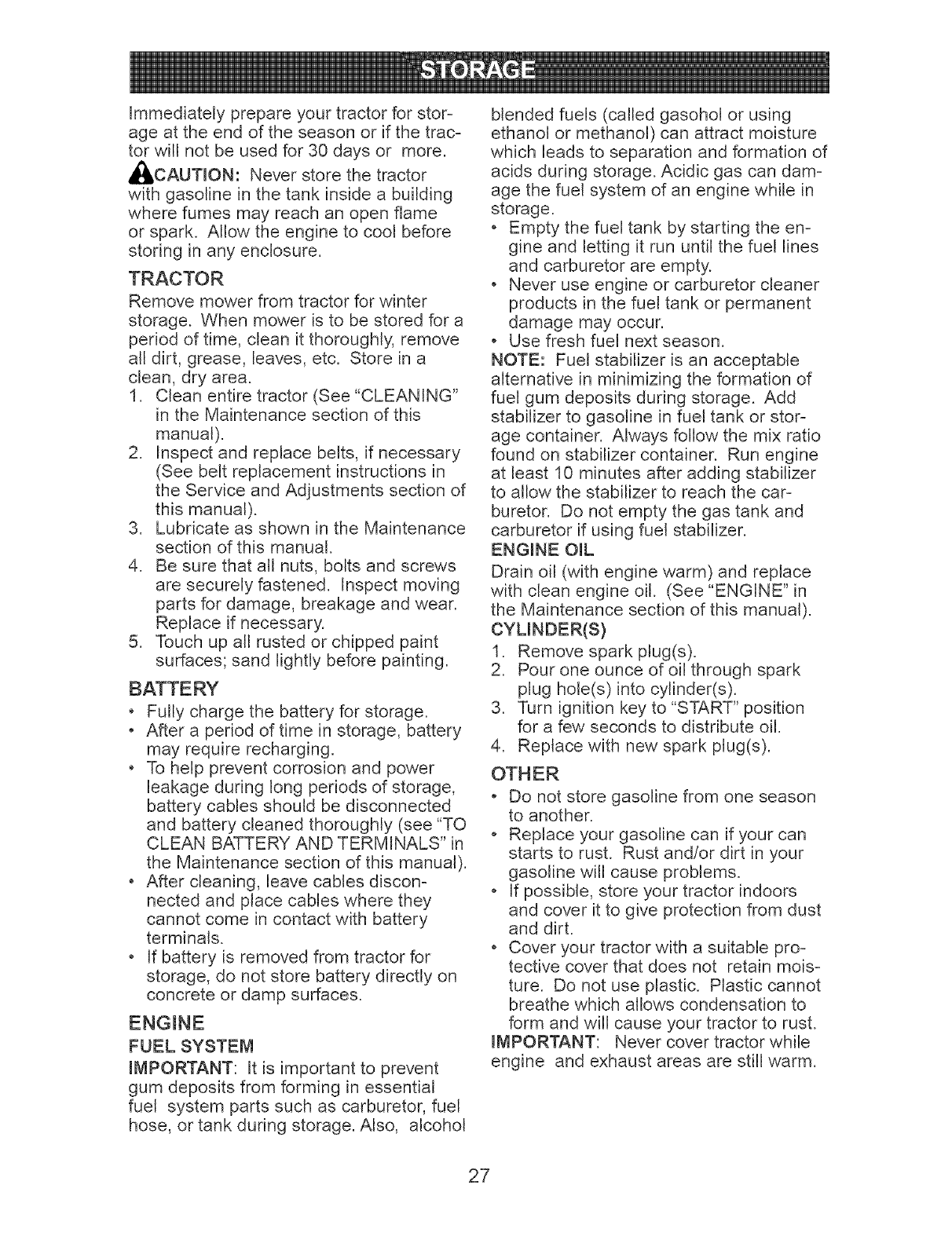

Immediately prepare your tractor for stop

age at the end of the season or if the trac-

tor will not be used for 30 days or more,

_IOAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure,

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc, Store in a

clean, dry area.

1, Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual),

2, Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3, Lubricate as shown in the Maintenance

section of this manual.

4, Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear,

Replace if necessary.

5, Touch up all rusted or chipped paint

surfaces; sand lightly before painting,

BATTERY

o Fully charge the battery for storage,

o After a period of time in storage, battery

may require recharging.

o To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual),

o After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

o If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces,

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage, Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

o Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

o Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur,

o Use fresh fuel next season,

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container, Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor, Do not empty the gas tank and

carburetor if using fuel stabilizer,

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual),

CYLINDER(S)

1. Remove spark plug(s).

2, Pour one ounce of oil through spark

plug hole(s)into cylinder(s).

3, Turn ignition key to "START" position

for a few seconds to distribute oil,

4, Replace with new spark plug(s),

OTHER

oDo not store gasoline from one season

to another.

oReplace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems,

o If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

o Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm,

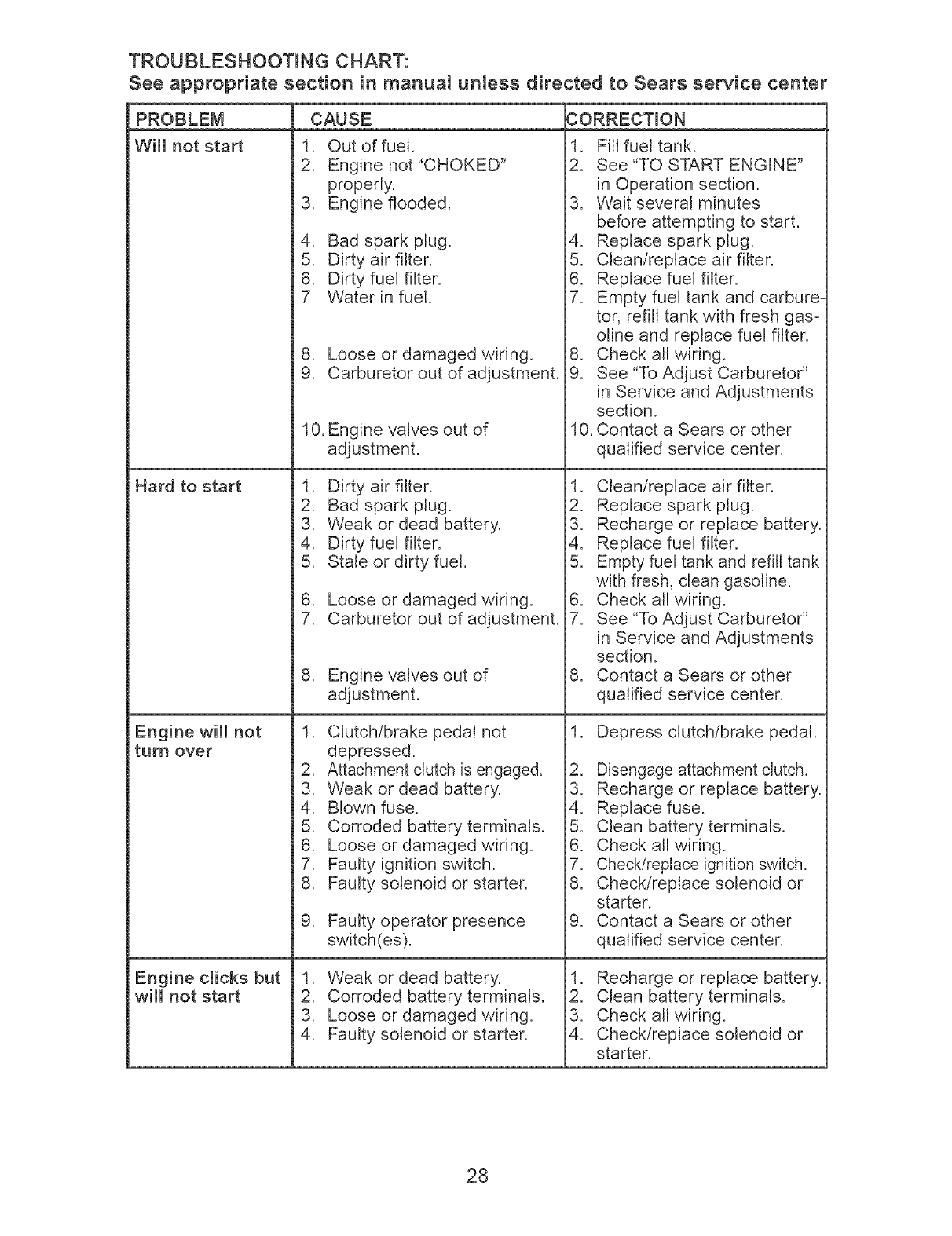

TROUBLESHOOTING CHART:

See appropriate section in manua[ unless directed to Sears service center

PROBLEM

WJI[ not start

Hard to start

Engine wJ[[ not

turn over

Engine clicks but

wJ[[ not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment,

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

OORRECTiON

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

t0. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Checklreplace ignition switch.

8. Check!replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check!replace solenoid or

starter.

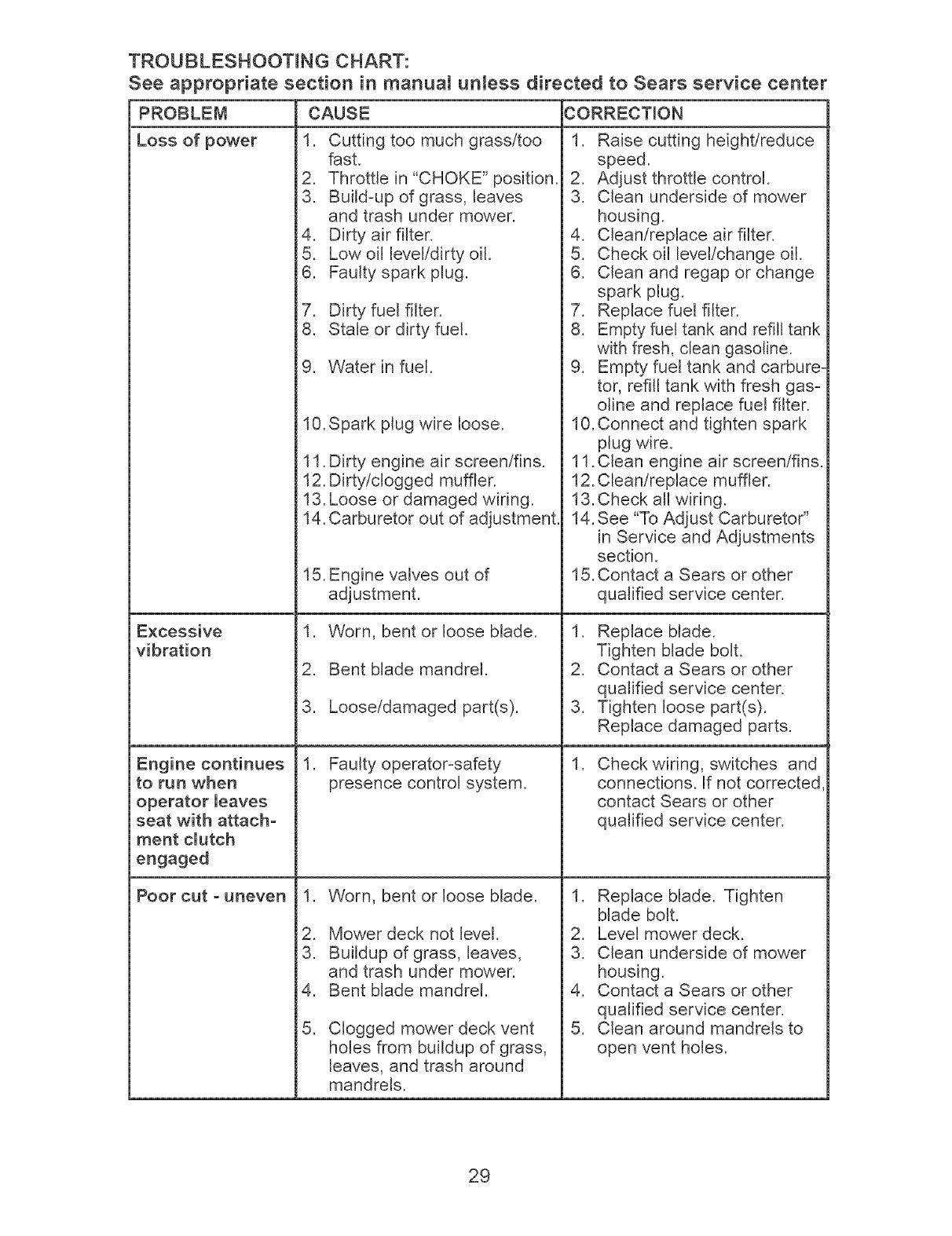

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE CORRECTION

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

PROBLEM

Loss of power

Excessive

vibration

Engine continues

to run when

operator leaves

seat with attach-

ment clutch

engaged

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Poor cut -uneven

Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

.Check wiring, switches and

connections. If not corrected

contact Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

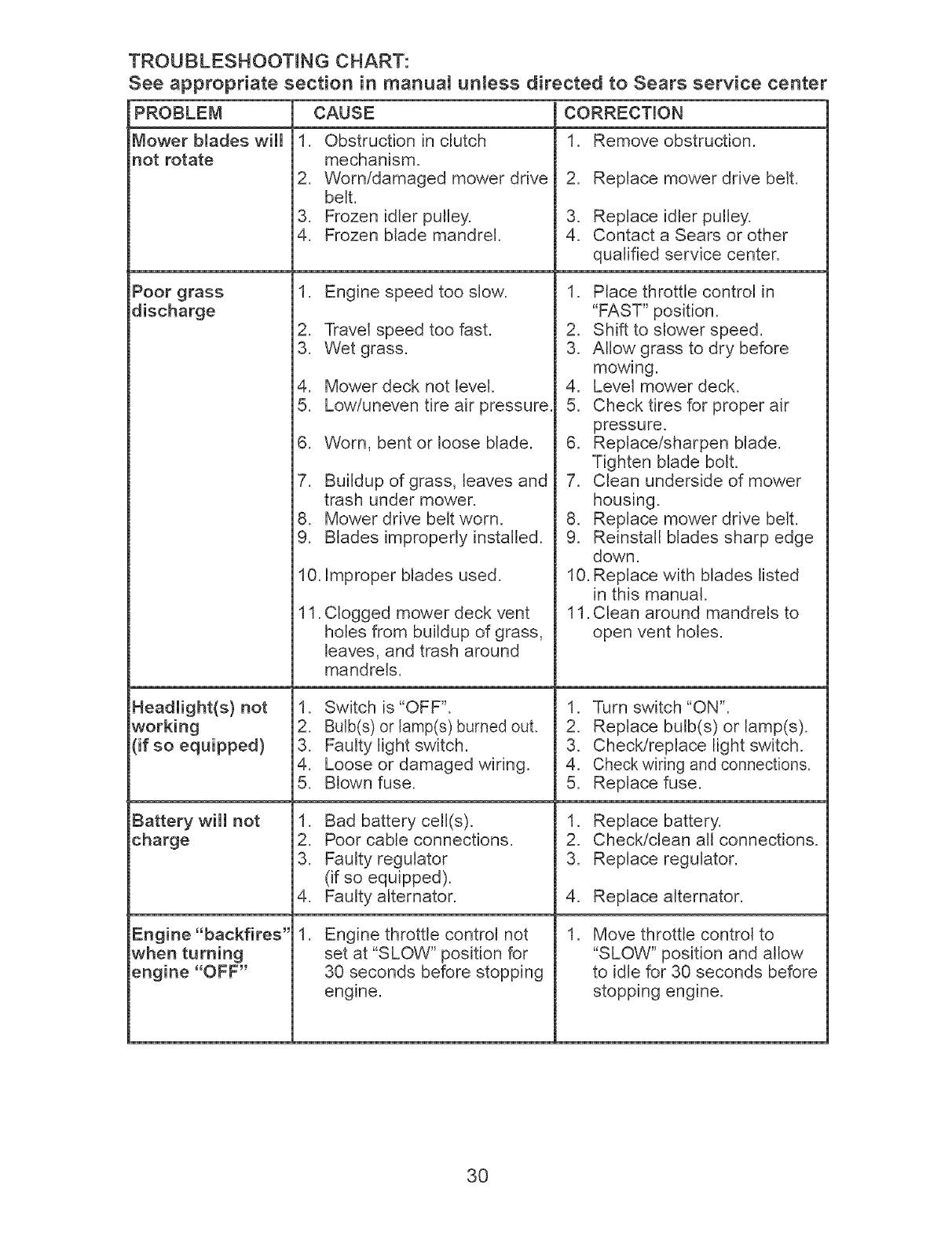

TROUBLESHOOTING CHART:

See appropriate section in manuam unless directed to Sears service center

Mower Mades will

not rotate

PROBLEM CAUSE CORRECTION

1. Remove obstruction.

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires"

when turning

engine "OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

.Engine throttle control not

set at "SLOW" position for

30 seconds before stopping

engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

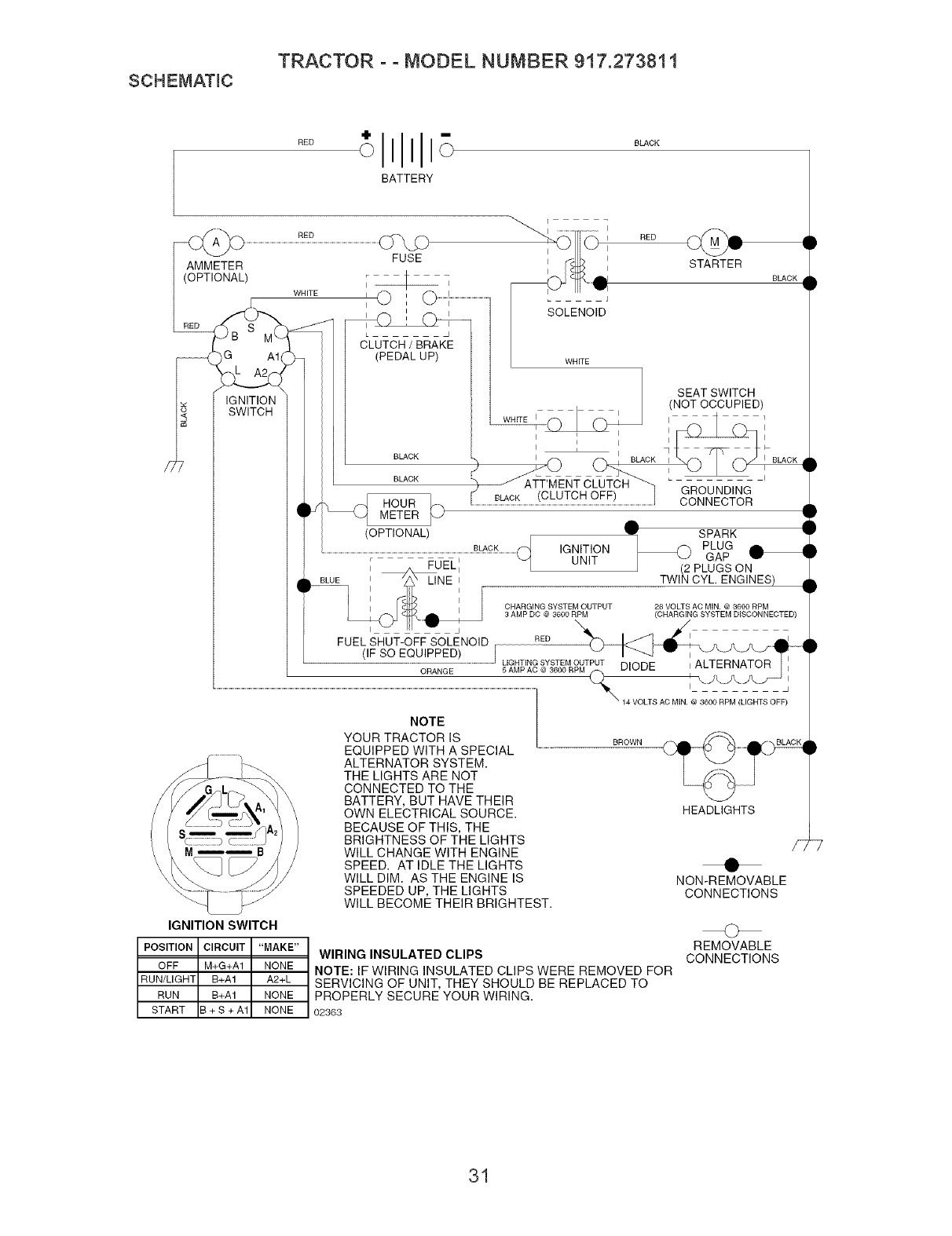

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.273811

BATTERY

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START B + S + A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

02363

REMOVABLE

CONNECTIONS

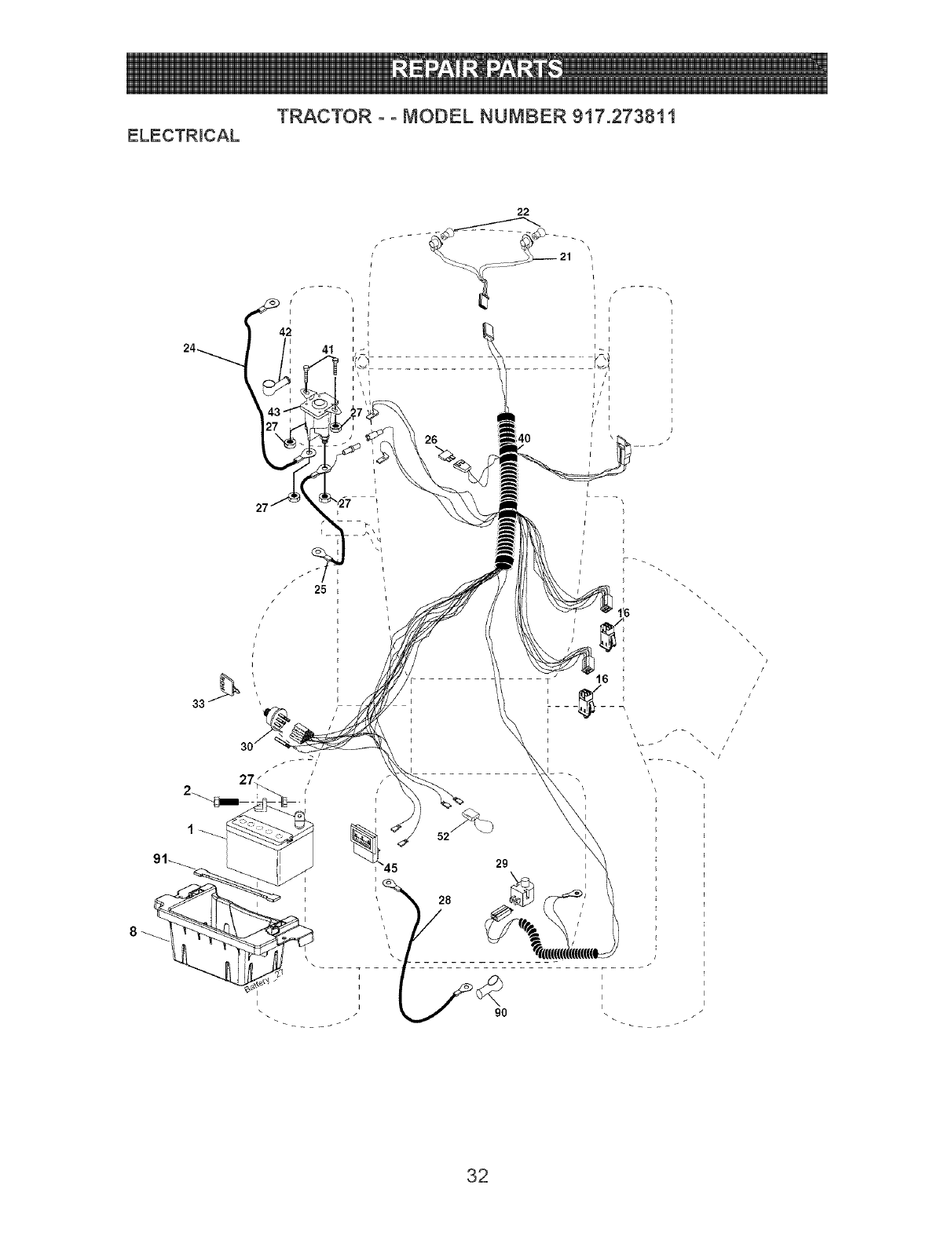

ELECTR.mCAL

TRACTOR - - MODEL NUMBER 917.273811

f i iff i

I I

I I I

I i I

I I

i !

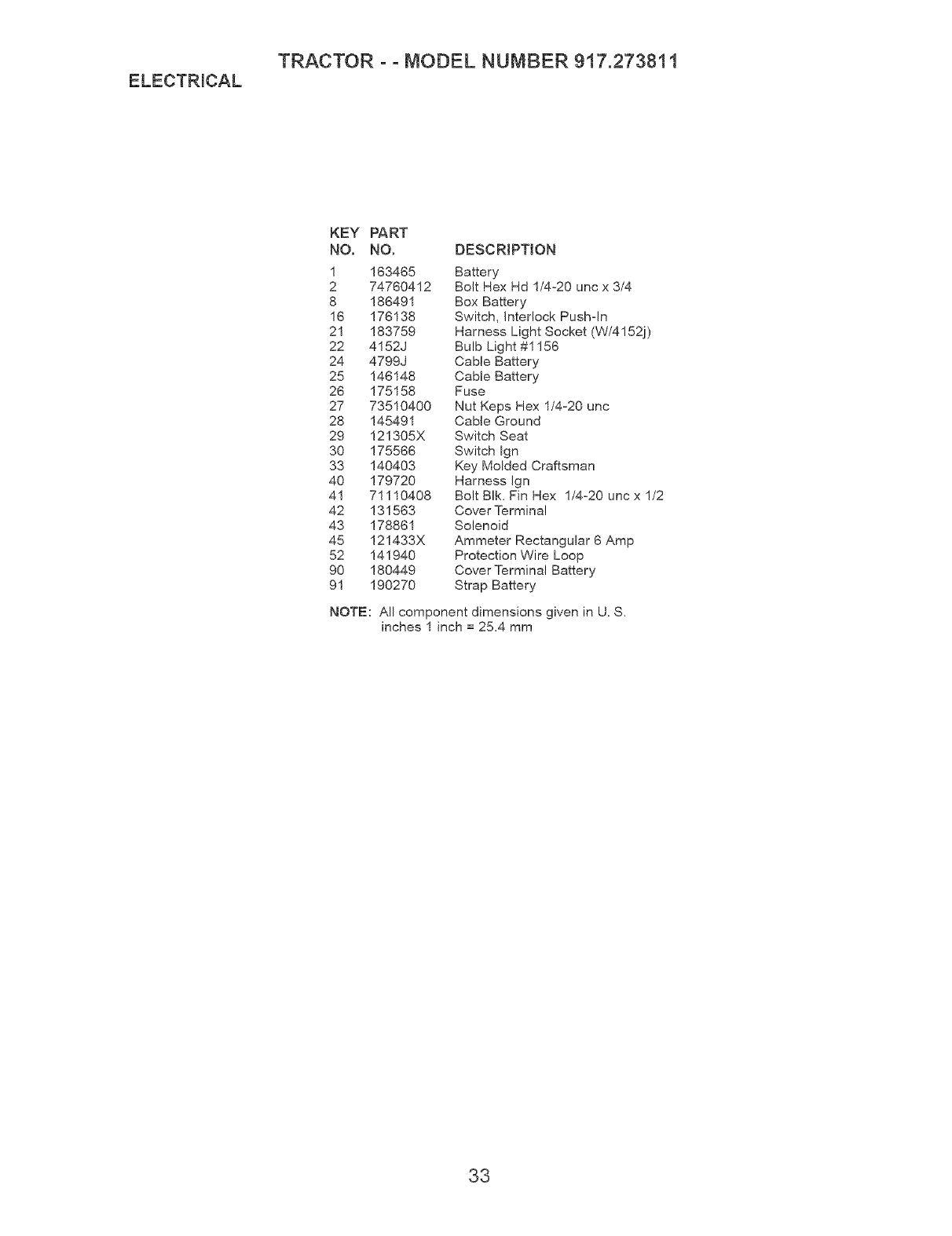

ELECTRICAL TRACTOR - - MODEL NUMBER 917.273811

KEY PART

NO. NO, DESCRIPTION

1 163465 Battery

2 74760412 Bolt Hex Hd 1/4-20 uric x 3/4

8 186491 Box Battery

16 176138 Switch, Interlock Pushqn

21 183759 Harness Light Socket (W/4152j)

22 4152J Bulb Light #1156

24 4799J Cable Battery

25 146148 Cable Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4o20 unc

28 145491 Cable Ground

29 121305X Switch Seat

30 175566 Switch Ign

33 140403 Key Molded Craftsman

40 179720 Harness Ign

41 71110408 Bolt BIk. Fin Hex 1/4o20 uric x 1/2

42 131563 Cover Termina!

43 178861 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop

90 180449 Cover Terminal Battery

91 190270 Strap Battery

NOTE: All component dimensions given in U. S,

inches 1 inch = 25,4 mm

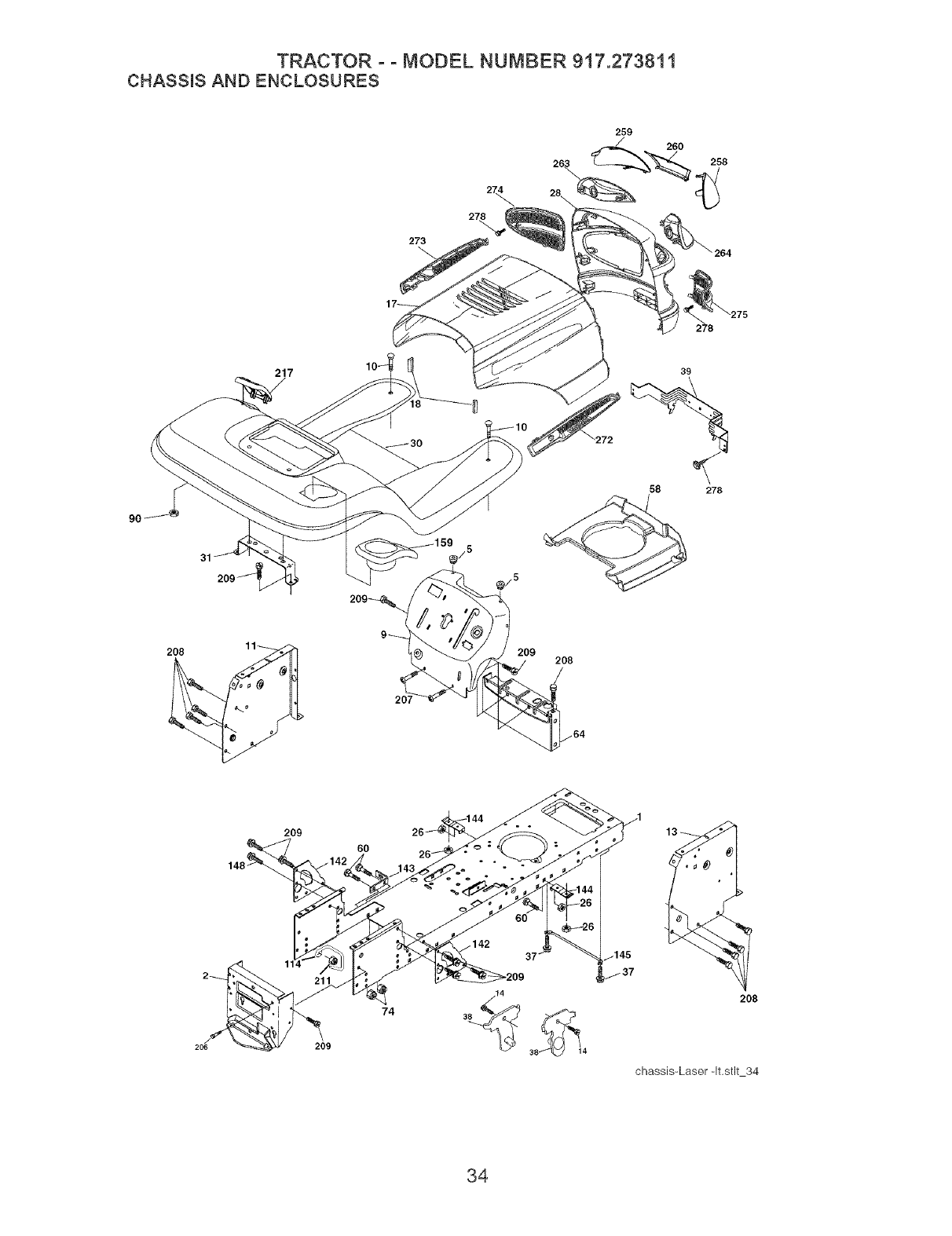

TRACTOR o- MODEL NUMBER 917.273811

CHASSIS AND ENCLOSURES

273

259

260

278

208

217

@/5

58 278

209 208

209

208

chassis-Laser-It.stlt 34

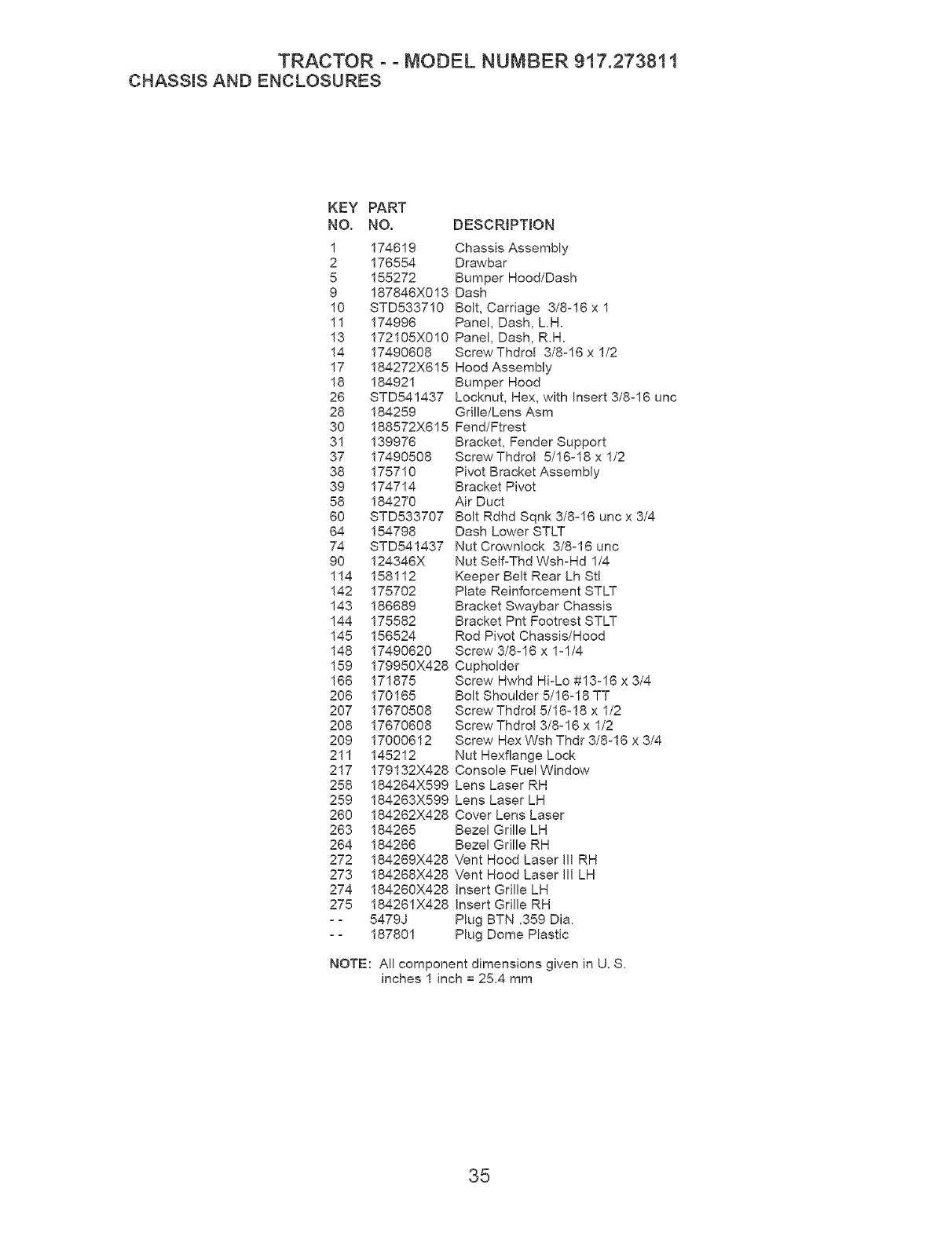

TRACTOR -° MODEL NUMBER 917.273811

CHASSmSAND ENCLOSURES

KEY PART

NO. NO, DESCRiPTiON

1 174619 Chassis Assembly

2 176554 Drawbar

5 155272 Bumper Hood/Dash

9 187846X013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 1

11 174996 Panel, Dash, L.H.

13 172105X010 Panel, Dash, R.H.

14 17490608 ScrewThdrol 3/8-16 x 1/2

17 184272X615 Hood Assembly

18 184921 Bumper Hood

26 STD541437 Locknut, Hex, with Insert 3/8-16 uric

28 184259 Grille/Lens Asm

30 188572X615 Fend/Ftrest

31 139976 Bracket, Fender Support

37 17490508 ScrewThdrol 5/16-18 x 1/2

38 175710 Pivot Bracket Assembly

39 174714 Bracket Pivot

58 184270 Air Duct

60 STD533707 Bolt Rdhd Sqnk 3/8-16 unc x 3/4

64 154798 Dash Lower STLT

74 STD541437 Nut Crown!ock 3/8-16 unc

90 124346X Nut SelfoThd Wsh-Hd 1/4

114 158112 Keeper Belt Rear Lh Stl

142 175702 Plate Reinforcement STLT

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Pnt Footrest STLT

145 156524 Rod Pivot Chassis/Hood

148 17490620 Screw 3/8o16 x 1ol/4

159 179950X428 Cupholder

166 171875 Screw Hwhd Hi-Lo #13-16 x 3/4

206 170165 Bolt Shoulder 5/16-18 TT

207 17670508 ScrewThdrol 5/16o18 x 1/2

208 17670608 ScrewThdrol 3/8o16 x 1/2

209 17000612 Screw Hex Wsh Thdr 3/8-16 x 3/4

211 145212 Nut Hexflange Lock

217 179132X428 Console Fuel Window

258 184264X599 Lens Laser RH

259 184263X599 Lens Laser LH

260 184262X428 Cover Lens Laser

263 184265 Bezel Grille LH

264 184266 Bezel Grille RH

272 184269X428 Vent Hood Laser Ill RH

273 184268X428 Vent Hood Laser Ill LH

274 184260X428 Insert Grille LH

275 184261X428 Insert Grille RH

-- 5479J Plug BTN .359 Dia.

-° 187801 Plug Dome Plastic

NOTE: All component dimensions given in U. S,

inches 1 inch = 25,4 mm

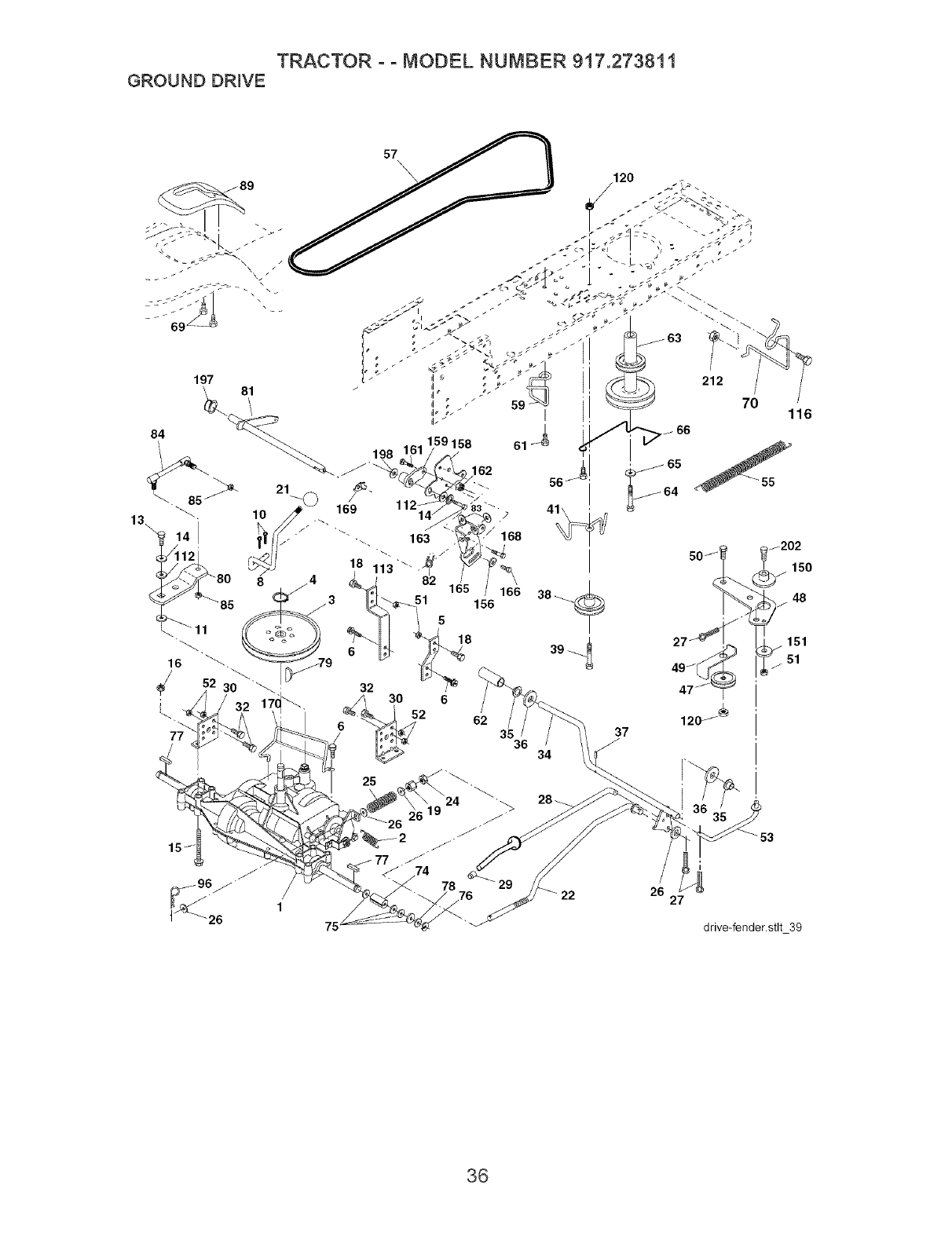

TRACTOR - ° MODEL NUMBER 917.2738i!

GROUND DRIVE

\, \

ddve-fender.sttt._39

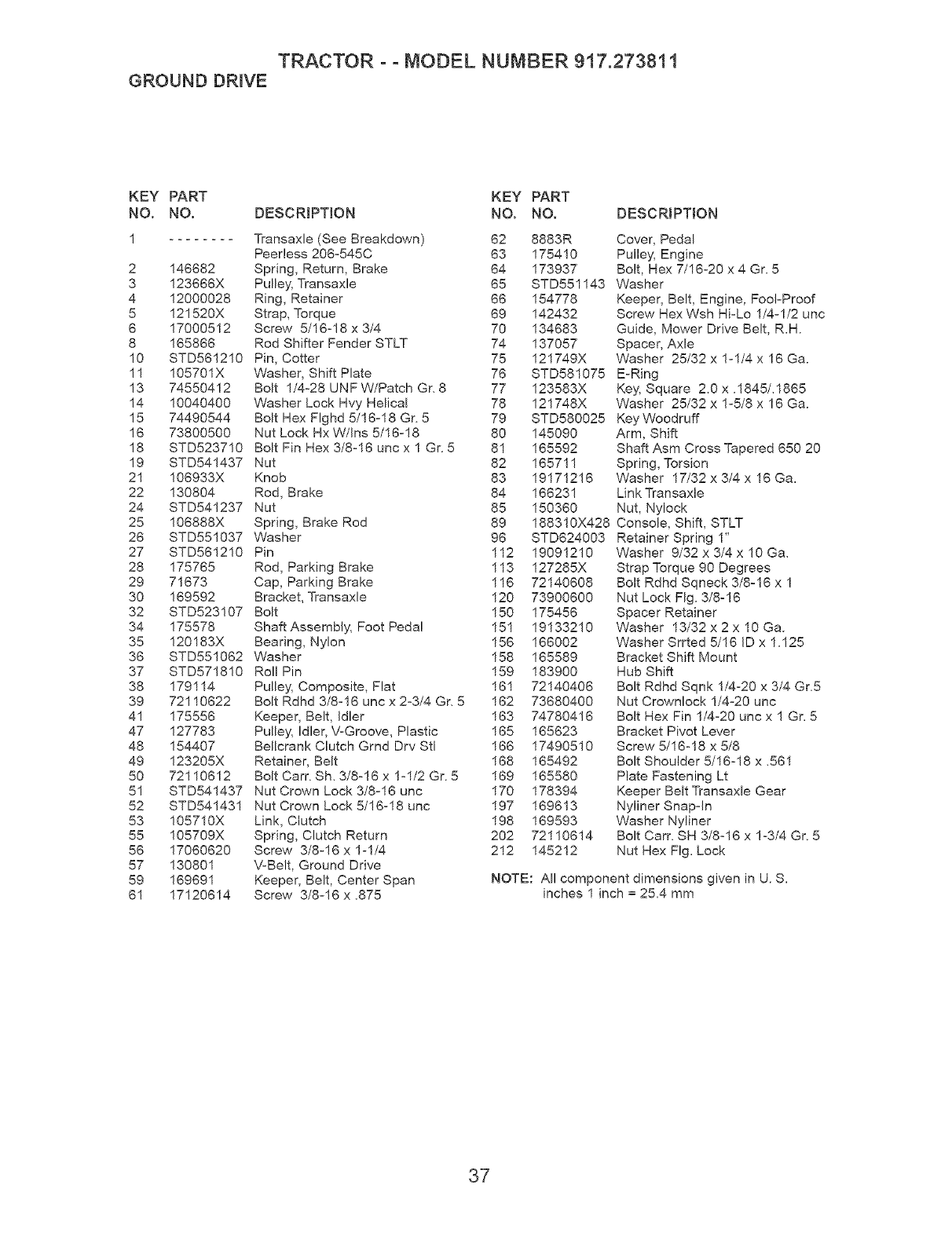

TRACTOR ° ° MODEL NUMBER 917.273811

GROUND DRmVE

KEY PART KEY PART

NO. NO. DESCRiPTiON NO. NO, DESCRiPTiON

1 Transaxle (See Breakdown) 82

Peerless 206-545C 63

2 146682 Spring, Return, Brake 64

3 123666X Pulley, Transaxle 65

4 12000028 Ring, Retainer 68

5 121520X Strap, Torque 69

6 17000512 Screw 5/16-18 x 3/4 70

8 165868 Rod Shifter Fender STLT 74

10 STD561210 Pin, Cotter 75

11 105701X Washer, Shift Plate 76

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 77

14 10040400 Washer Lock Hvy Helica! 78

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 79

16 73800500 Nut Lock Hx W/Ins 5/16-18 80

18 STD523710 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 81

19 STD541437 Nut 82

21 106933X Knob 83

22 130804 Rod, Brake 84

24 STD541237 Nut 85

25 106888X Spring, Brake Rod 89

26 STD551037 Washer 96

27 STD561210 Pin 112

28 175765 Rod, Parking Brake 113

29 71673 Cap, Parking Brake 116

30 169592 Bracket, Transaxle 120

32 STD523107 Bolt 150

34 175578 Shaft Assembly, Foot Pedal 151

35 120183X Bearing, Nylon 156

36 STD551062 Washer 158

37 STD571810 Roll Pin 159

38 179114 Pulley, Composite, Flat 161

39 72110622 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5 162

41 175556 Keeper, Belt, Idler 163

47 127783 Pulley, Idler, V-Groove, Plastic 165

48 154407 Bellcrank Clutch Grnd Drv Stl 166

49 123205X Retainer, Belt 168

50 72110612 Bolt Cart. Sh. 3/8-!6 x 1-1/2 Gr. 5 169

51 STD541437 Nut Crown Lock 3/8-16 unc 170

52 STD541431 Nut Crown Lock 5/16-18 unc 197

53 105710X Link, Clutch 198

55 105709X Spring, Clutch Return 202

56 17060620 Screw 3/8-16 x 1-1/4 212

57 130801 V-Belt, Ground Drive

59 169691 Keeper, Belt, Center Span

61 17120614 Screw 3/8-16 x .875

123583X

121748X

STD580025

145090

165592

165711

19171216

166231

150360

8883R Cover, Pedal

175410 Pulley, Engine

173937 Bolt, Hex 7/16-20 x 4 Gr. 5

STD551143 Washer

154778 Keeper, Belt, Engine, Fool-Proof

142432 Screw Hex Wsh Hi-Lo 1/4-1/2 unc

134683 Guide, Mower Drive Belt, R.H.

137057 Spacer, Axle

121749X Washer 25/32 x 1-1/4 x 16 Ga.

STD581075 E-Ring

Key, Square 2.0 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Ga.

Key Woodruff

Arm, Shift

Shaft Asm Cross Tapered 650 20

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Nut, Nylock

1883!0X428 Console, Shift, STLT

STD624003

19091210

127285X

72140608

73900600

175456

19133210

166002

165589

183900

72140406

73680400

74780416

165623

17490510

165492

165580

178394

169613

169593

72110614

145212

Retainer Spring 1"

Washer 9/32 x 3/4 x 10 Ga.

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 1

Nut Lock Fig. 3/8-16

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock 1/4-20 uric

Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt Transaxle Gear

Nyliner Snapqn

Washer Nyliner

Bolt Cam SH 3/8-16 x 1-3/4 Gr. 5

Nut Hex Fig. Lock

NOTE: All component dimensions given in U. S,

inches 1 inch = 25,4 mm

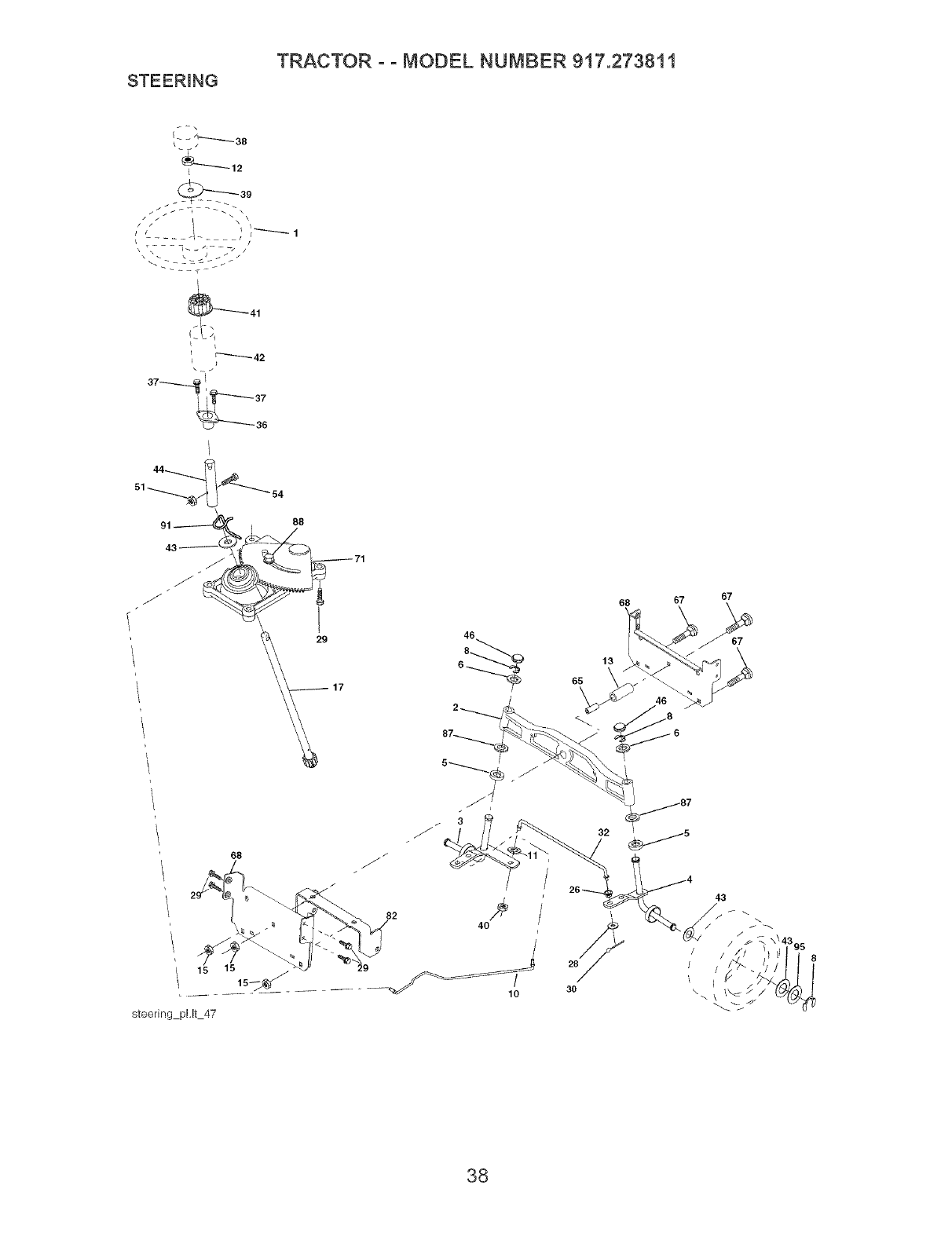

STEERING

TRACTOR - - MODEL NUMBER 917.273811

i _12

_39

\\ \

37_!

_36

15 15

steering put 47

68 67

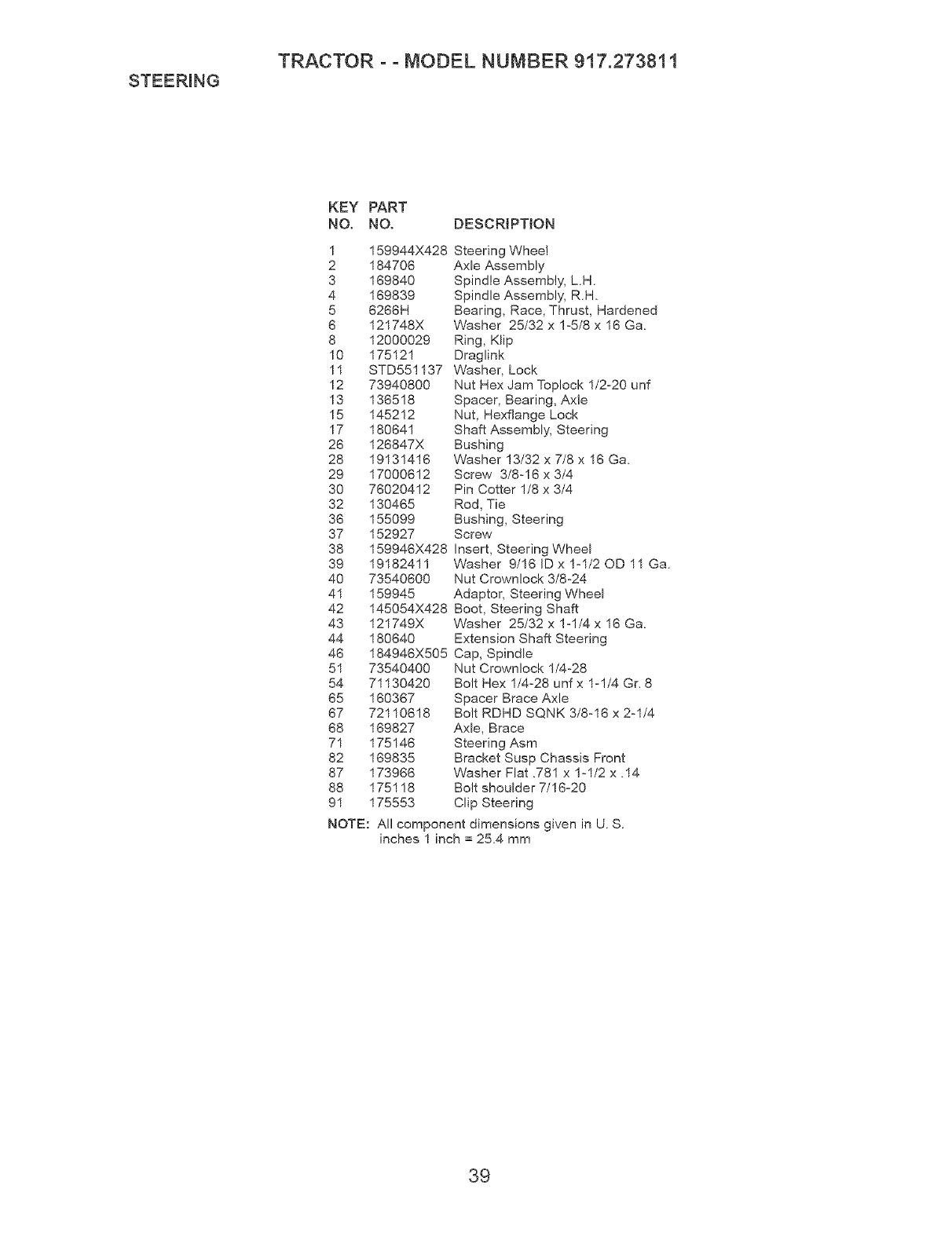

STEERING

TRACTOR - - MODEL NUMBER 917.273811

KEY PART

NO. NO. DESCRiPTiON

1 159944X428 Steering Wheel

2 184706 Axle Assembly

3 169840 Spindle Assembly, L.H.

4 169839 Spindle Assembly, R.H_

5 6266H Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 18 Ga.

8 12000029 Ring, Klip

10 175121 Draglink

11 STD55!137 Washer, Lock

12 73940800 Nut Hex Jam Toplock 1/2=20 unf

13 136518 Spacer, Bearing, Axle

15 145212 Nut, Hexflange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing

28 19131416 Washer !3/32 x 7/8 x 16 Ga.

29 17000612 Screw 3/8-16 x 3/4

30 76020412 Pin Cotter 1/8 x 3/4

32 130465 Rod, Tie

36 155099 Bushing, Steering

37 152927 Screw

38 159946X428 Insert, Steering Wheel

39 19182411 Washer 9/16 ID x 1-1/20D 11 Ga.

40 73540600 Nut Crownlock 3/8-24

41 159945 Adaptor, Steering Wheel

42 145054X428 Boot, Steering Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Ga.

44 180640 Extension Shaft Steering

48 184946X505 Cap, Spindle

51 73540400 Nut Crownlock 1/4-28

54 71130420 Bolt Hex 1/4-28 unf x 1=1/4 Gr. 8

65 160367 Spacer Brace Axle

67 72110618 Bolt RDHD SQNK 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm

82 169835 Bracket Susp Chassis Front

87 173966 Washer Flat/781 x 1-1/2 x .14

88 175118 Bolt shoulder 7/16=20

91 175553 Clip Steering

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

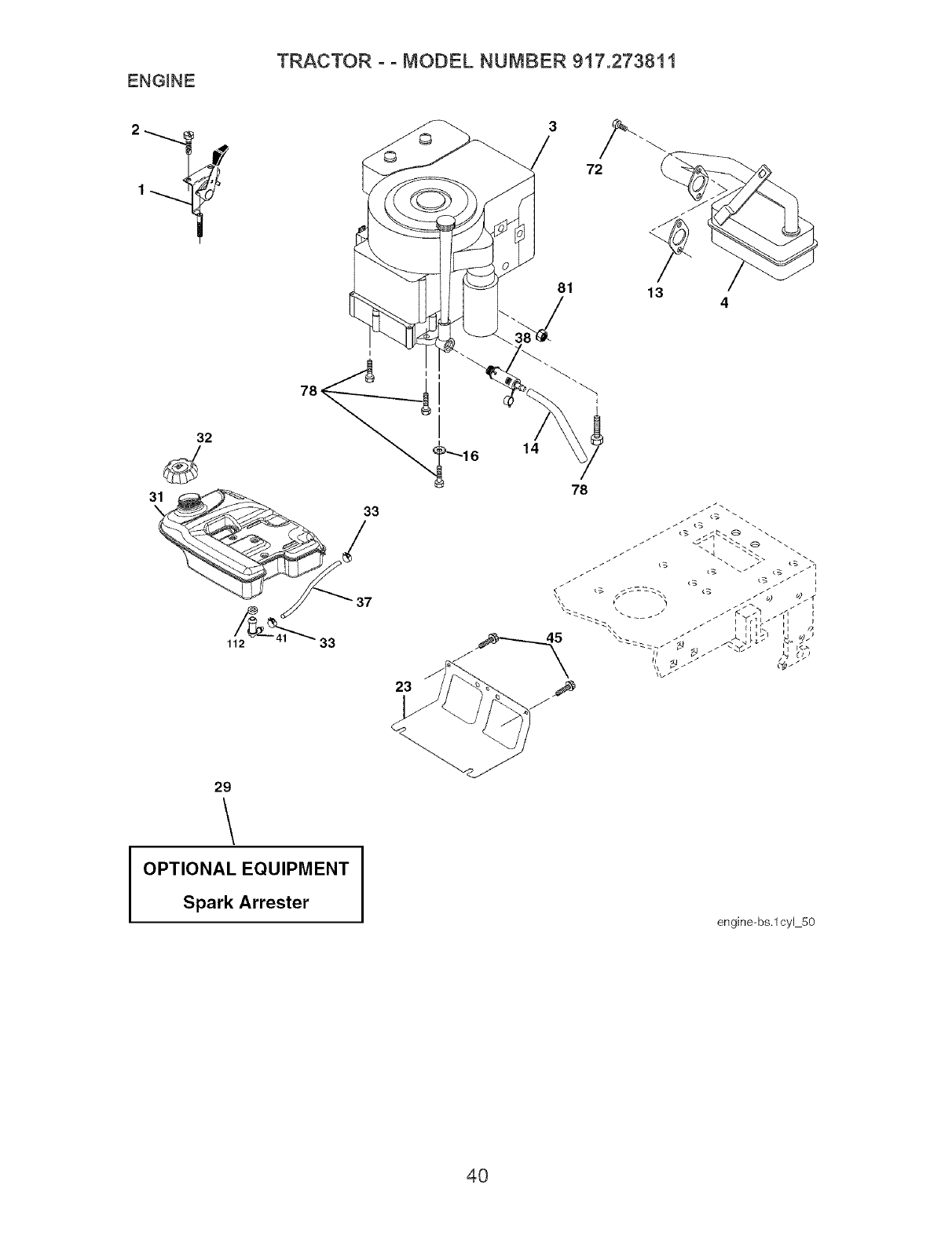

ENGINE

TRACTOR ° ° MODEL NUMBER 917.273811

112

OPTIONAL EQUIPMENT

Spark Arrester

engine-bs,lcyl 50

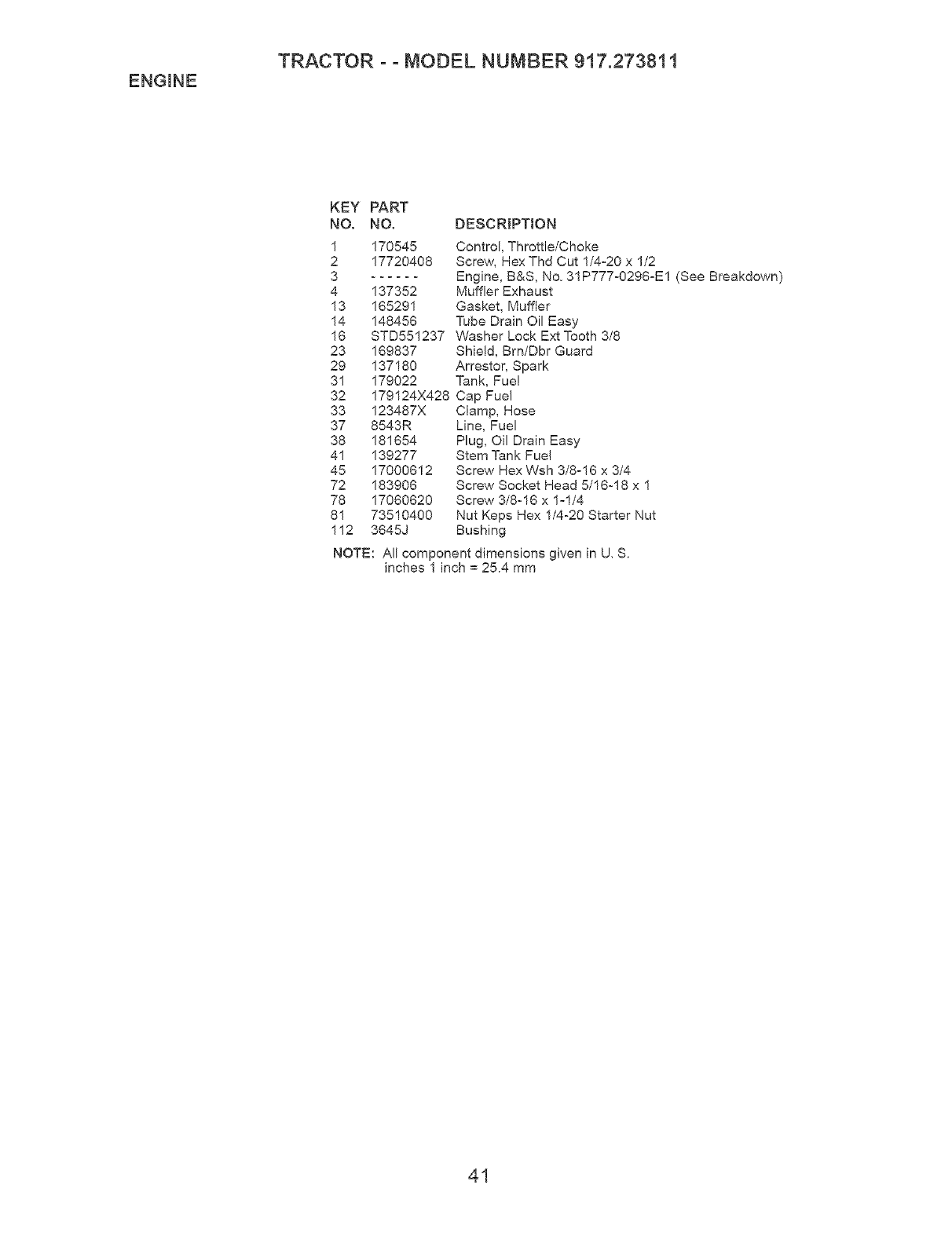

ENGINE

TRACTOR - - MODEL NUMBER 917.273811

KEY PART

NO. NO, DESCRIPTION

1 170545 Contro!, Throttle/Choke

2 17720408 Screw, Hex Thd Cut 1/4-20 x 1/2

3 Engine, B&S, No. 31P777-0296-E1 (See Breakdown)

4 137352 Muffler Exhaust

13 165291 Gasket, Muffler

14 148456 Tube Drain Oi! Easy

16 STD551237 Washer Lock Ext Tooth 3/8

23 169837 Shie!d, Brn/Dbr Guard

29 137180 Arrestor, Spark

31 179022 Tank, Fue!

32 179124X428 Cap Fuel

33 123487X Clamp, Hose

37 8543R Line, Fuel

38 181654 Plug, Oil Drain Easy

41 139277 Stem Tank Fue!

45 17000612 Screw Hex Wsh 3/8=16 x 3/4

72 183906 Screw Socket Head 5/16-18 x 1

78 17060620 Screw 3/8-16 x 1=I/4

81 73510400 Nut Keps Hex 1/4-20 Starter Nut

112 3645J Bushing

NOTE: All component dimensions given in U, S.

inches 1 inch = 25.4 mm

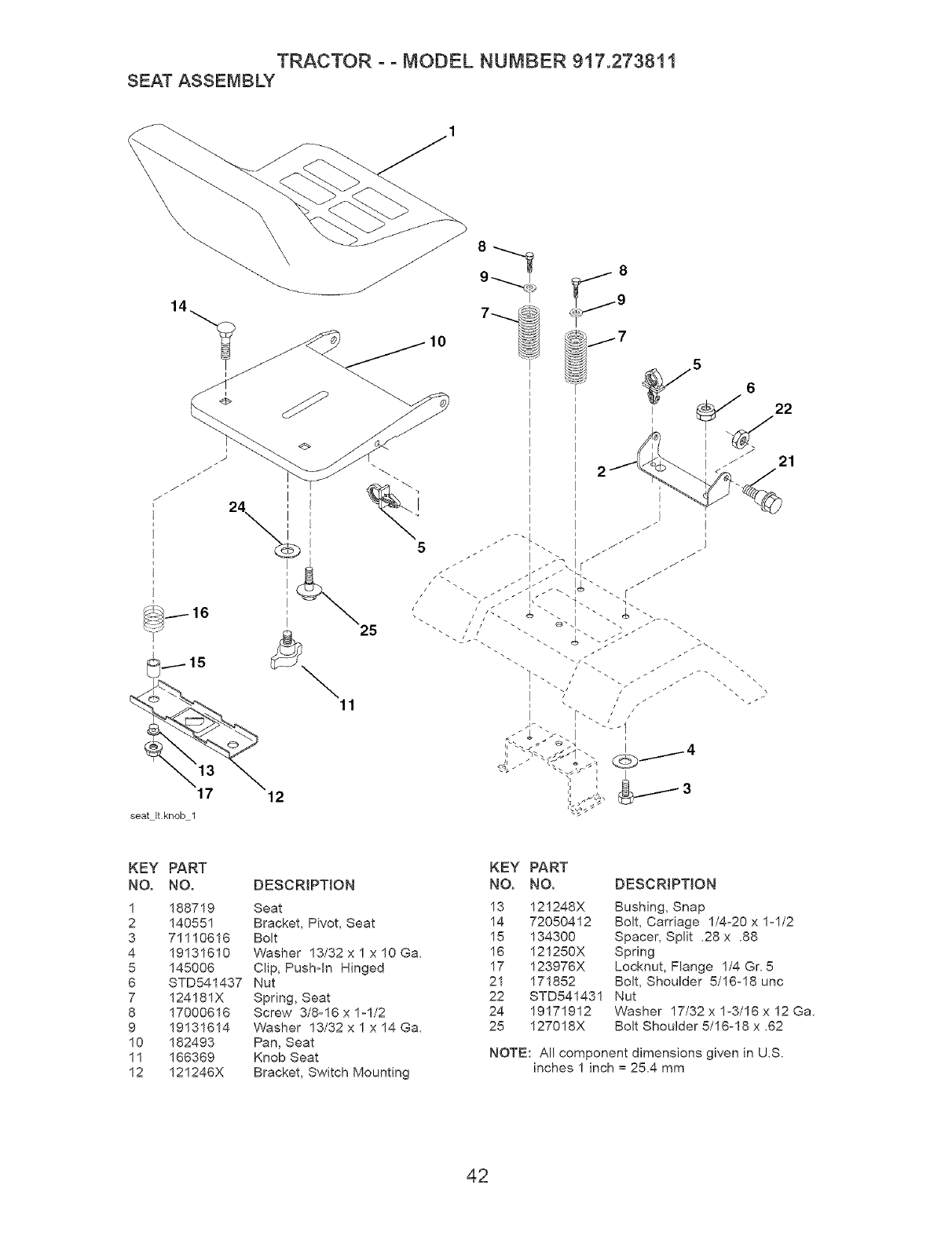

TRACTOR ° ° MODEL NUMBER 917.273811

SEAT ASSEMBLY

17 12

seat It knob 1

KEY PART

NO, NO, DESCRIPTION

1 188719 Seat

2 140551 Bracket, Pivot, Seat

3 71110616 Bolt

4 19131610 Washer 13/32xlx10Ga.

5 145006 Clip, Pusholn Hinged

6 STD541437 Nut

7 124181X Spring, Seat

8 17000616 Screw 3/8-16 x 1-1/2

9 19131614 Washer 13/32 x 1 x 14 Ga.

10 182493 Pan, Seat

11 166369 Knob Seat

12 121246X Bracket, Switch Mounting

KEY PART

NO, NO, DESCRIPTION

13 121248X Bushing, Snap

14 72050412 Bolt, Carriage 1/4-20 x 1ol/2

15 134300 Spacer, Split .28 x .88

16 121250X Spring

17 123976X Locknut, Flange 1/4 Gr. 5

21 171852 Bolt, Shoulder 5/16-18 unc

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.

25 127018X Bolt Shoulder 5/16-18 x .62

NOTE: All component dimensions given in U,S.

inches 1 inch = 25,4 mm

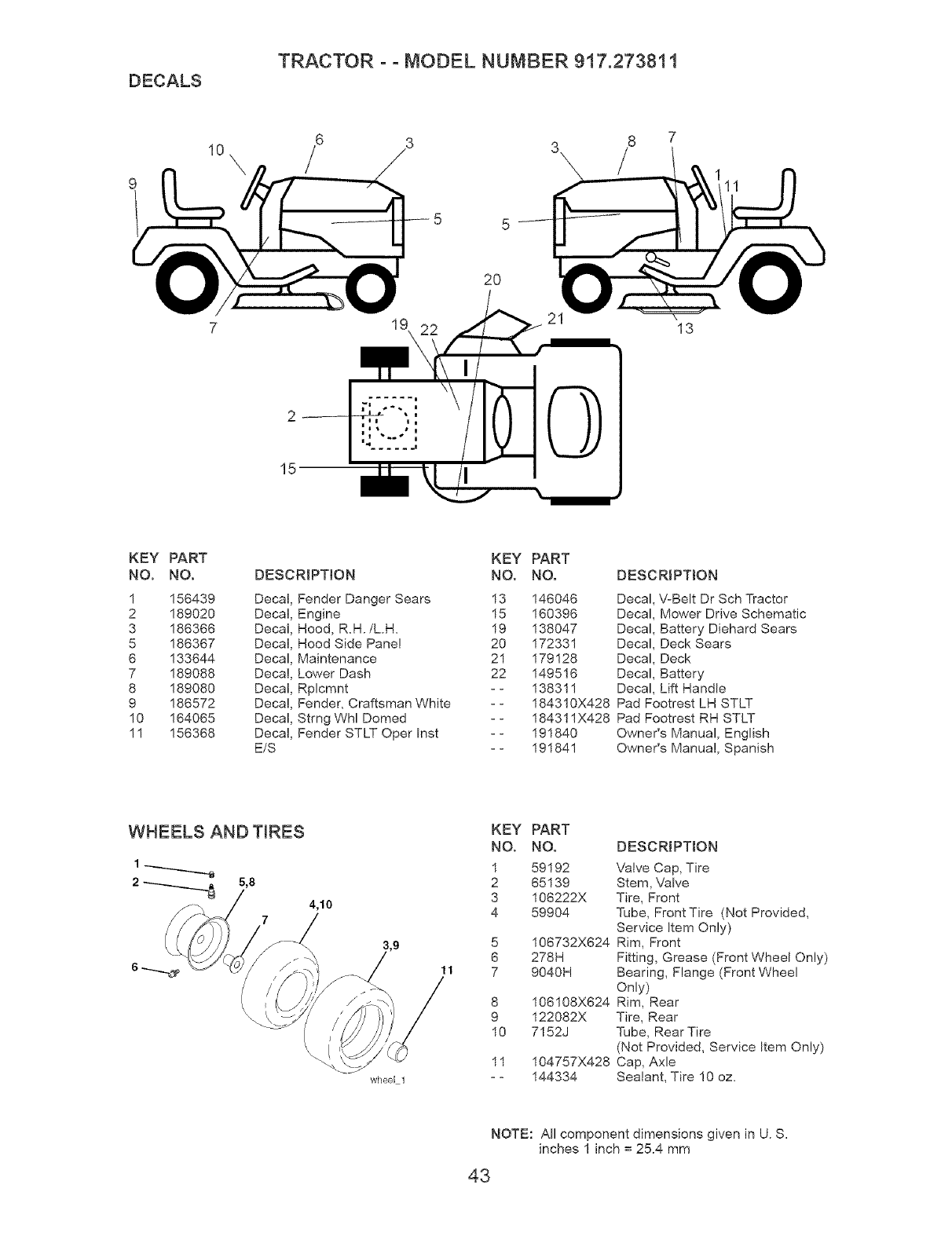

DECALS

TRACTOR - - MODEL NUMBER 917.273811

10 \

/8 7

19\13

KEY PART

NO, NO,

1 156439

2 189020 Decal

3 186366 Decal

5 186367 Decal

6 133644 Decal

7 189088 Decal

8 189080 Decal

9 186572 Decal

10 164065 Decal

11 156368 Decal

E/S

DESCRIPTION

Decal Fender Danger Sears

KEY PART

NO, NO.

13 146046

Engine 15 160396

Hood, R.H./L.H. 19 138047

Hood Side Panel 20 172331

Maintenance 21 179128

Lower Dash 22 149516

Rpicmnt o o 138311

Fender, Craftsman White °o 184310X428

Strng Whl Domed -o 18431 lX428

Fender STLT Oper Inst -o 191840

o o 191841

DESCRJPTMON

Decal, V-Belt Dr Sch Tractor

Decal, Mower Drive Schematic

Decal, Battery Diehard Sears

Decal, Deck Sears

Decal, Deck

Decal, Battery

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS AND TIRES

5,8

74,10

3,9

wheel 1

KEY PART

NO, NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X624

6 278H

11 7 9040H

8 106108X624

9 122082X

10 7152J

11 104757X428

oo 144334

DESCRiPTiON

Valve Cap, Tire

Stem, Valve

Tire, Front

Tube, Front Tire (Not Provided,

Service Item Only)

Rim, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange (Front Wheel

Only)

Rim, Rear

Tire, Rear

Tube, Rear Tire

(Not Provided, Service Item Only)

Cap, Axle

Sealant, Tire 10 oz.

NOTE: All component dimensions given in U. S,

inches 1 inch = 25.4 mm

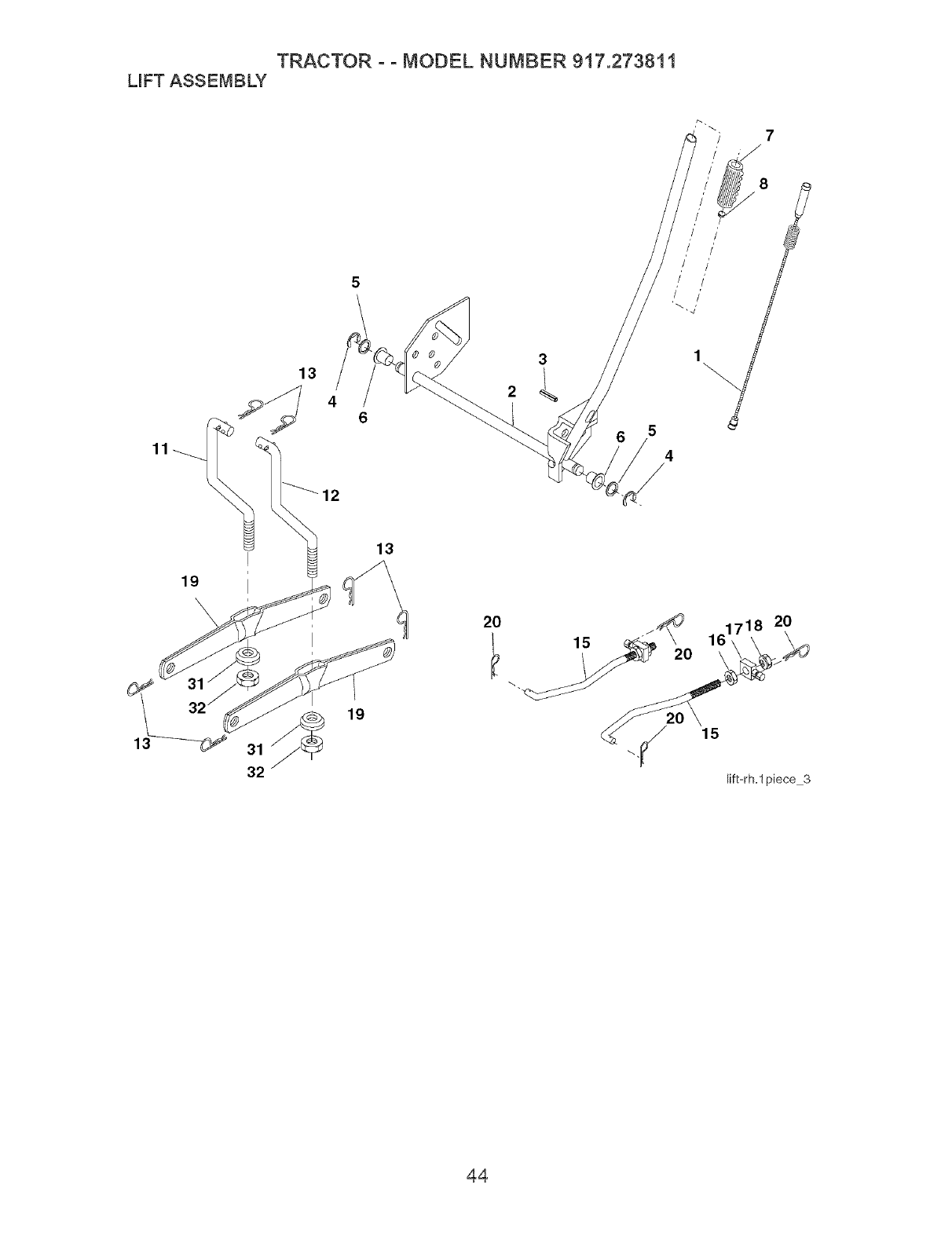

TRACTOR ° ° MODEL NUMBER 917.273811

LiFT ASSEMBLY

13 3

2O 161718 20

19 _1531 \

32 Fift-rh=lpiece 3

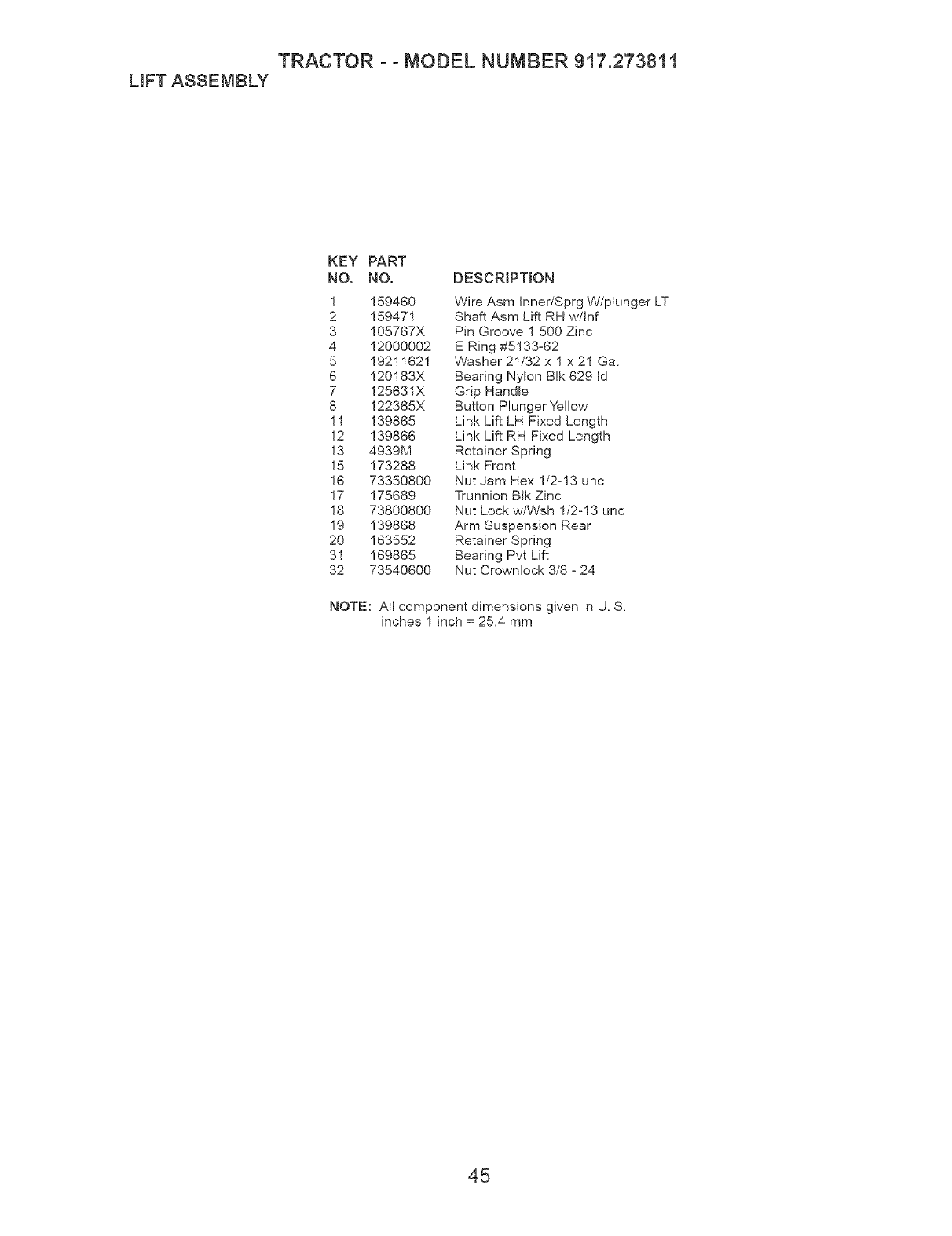

TRACTOR - - MODEL NUMBER 917.273811

LiFT ASSEMBLY

KEY PART

NO. NO, DESCRIPTION

1 159460 Wire Asm Inner/Sprg W/plunger LT

2 159471 Shaft Asm Lift RH w/Inf

3 105767X Pin Groove 1 500 Zinc

4 12000002 E Ring #5133o62

5 19211621 Washer 21/32 x 1 x21 Ga.

6 120183X Bearing Nyron BIk 629 Id

7 125631X Grip Handle

8 122365X Button Plunger Yellow

11 139865 Link Lift LH Fixed Length

12 139866 Link Lift RH Fixed Length

13 4939M Retainer Spring

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2o13 unc

17 175689 Trunnion BIk Zinc

18 73800800 Nut Lock w/Wsh 1/2-13 uric

19 139868 Arm Suspension Rear

20 163552 Retainer Spring

31 169865 Bearing Pvt Lift

32 73540600 Nut Crown!ock 3/8 o 24

NOTE: All component dimensions given in U. S,

inches 1 inch = 25,4 mm

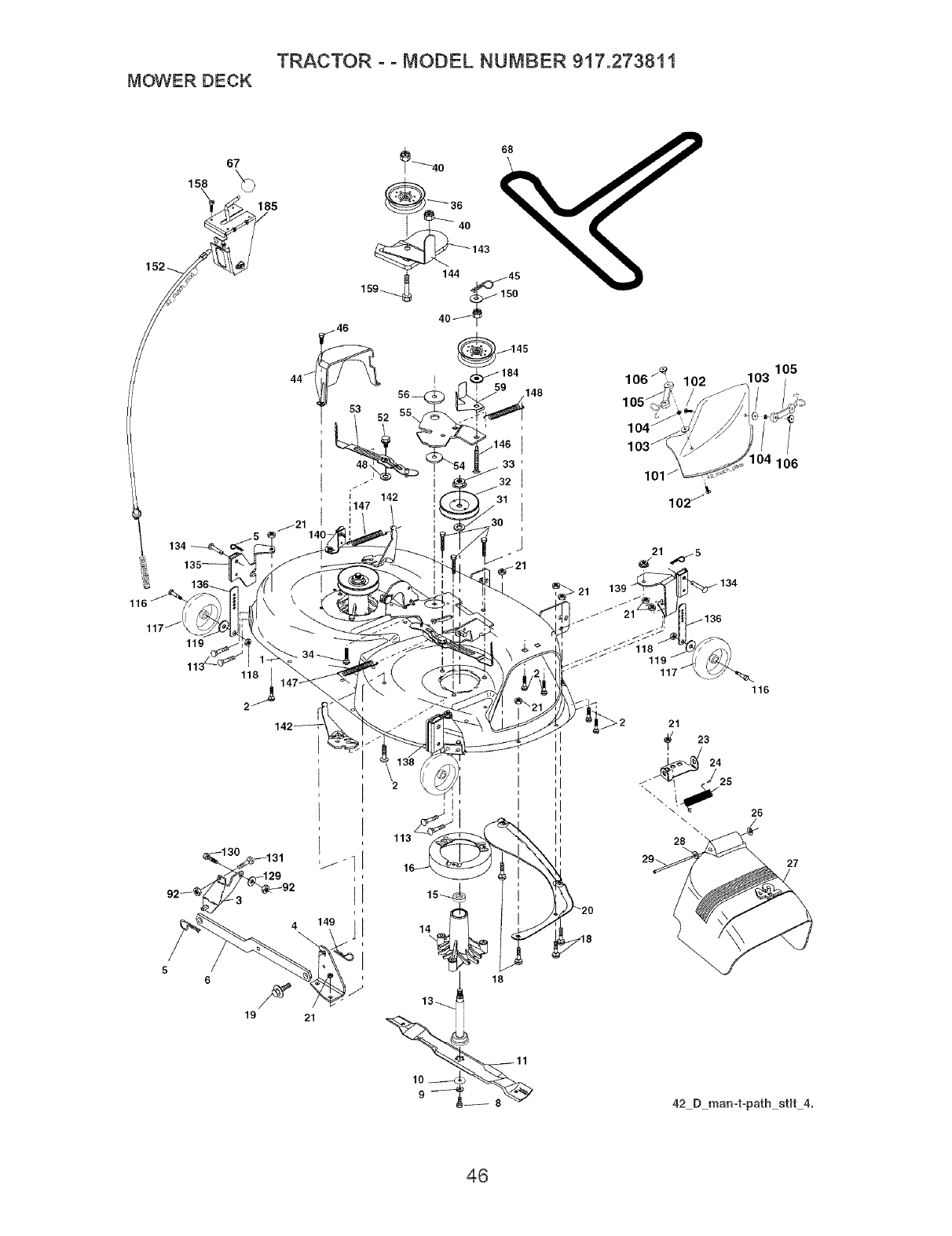

TRACTOR ° ° MODEL NUMBER 917.273811

MOWER DECK

148

117 j

119

/142

;147

105_

_21 139

lOl

102_

21 _o_5

105

103

106

134

116

,_ 23

29_. 27

42 D man=t=path stJt 4,

TRACTOR - - MODEL NUMBER 917.273811

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 182032 Mower Deck Assembly, 42" 67 149846

2 STD533107 Bolt 68 144959

3 138017 Bracket Assy., Sway Bar, Front 92 STD541437

4 165460 Bracket Sway Bar 38/42" Deck 101 136420

5 STD624008 Retainer Spring 102 71081010

6 178024 Bar Sway Deck 103 19061216

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 104 STD551110

9 STD551137 Washer, Lock 105 160793

10 140296 Washer, Hardened 106 2029J

(The following blades are available) 113 17060512

11 134149 Blade, 42" Mulching Std 116 184219

(For mulching mowers only) 117 174873

-- 139775 Blade, 42" Mulching Premium 118 73930600

(For better wear when mulching 119 STD551037

- - 138971 Blade, 42" Hi-Lift 129 19131312

(For bagging or discharging) 130 STD523710

13 137645 Shaft Assembly, Mandrel, Vented 131 STD533710

14 128774 Housing, Mandrel, Vented 134 156941

15 110485X Bearing, Ball, Mandrel 135 159765

16 174493 Stripper, Mower Deck 136 155986

18 72140505 Bolt, Carriage 5/16-18 x 5/8 138 159763

19 132827 Bolt, Shoulder 139 159767

20 159770 Baffle, Vortex 140 159768

21 STD541431 Nut Crownlock 5/16-18 unc 142 165890

23 177563 Bracket, Deflector 143 157109

24 105304X Cap, Sleeve 144 158634

25 123713X Spring, Torsion, Deflector 145 165888

26 110452X Nut, Push 146 171977

27 130968X428 Shield, Deflector 147 131335

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 148 169022

29 131491 Rod, Hinge 149 165898

30 173984 Screw Thdrol Washer Head 150 19091210

31 129963 Washer, Spacer 152 169676

32 153535 Pulley, Mandrel 158 17720408

33 178342 Nut, Top!ock, Flanged 159 STD533717

34 STD533717 Bolt 184 19131410

36 131494 Pulley, Idler, Flat 185 188234

40 73900600 Nut Lock Fig. 3/8-16 unc - - 130794

44 140088 Guard, Mandrel, LH.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened -- 186917

52 139888 Bolt, Shoulder 5/16-18 unc

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, Idler

56 165723 Spacer, Retainer

59 141043 Guard, TUV Idler

DESCRIPTION

Knob Custom Ova!

WBelt

Nut

Mulcher Cover

Screw Pan HD Phillip 10-24 x 5/8

Washer #10

Washer, Lock

Latch Assembly', Bagger

Nut, Weld

Screw 5/16-18 x 3/4

Bolt, Shoulder

Wheel, Gauge

Nut, Center!ock 3/8-16

Washer 3/8 x 7/8 x 14 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5

Bolt, Rdhd Sqnk 3/8-16 unc x 1

Pin Head Rivet

Bracket Asm. WhL Ga. Rear LH

Bar Adiusting Gauge Wheel

Bracket Asm. WhL Ga. Rear RH

Bracket Asm. WhL Ga. Front RH

Bracket Asm. Whl. Ga. Front LH

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley idler Flat

Bolt Carriage idler

Spring Extension

Spring Return idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Cable Clutch 42 In

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Washer 13/32 x 7/8 x 10 Ga.

Head Asm. Cable Clutch

Mandrel Assembly (Includes

Housing, Shaf and Shaft

Hardware Only-Pulley not

included)

Replacement Mower, Complete

(Std. Deck-Order separately

mulcher cover and guage wheel

components key nos. 101 - 106

and 5, 116- 119, 134, 136).

NOTE: All component dimensions given in U. S,

inches 1 inch = 25,4 mm

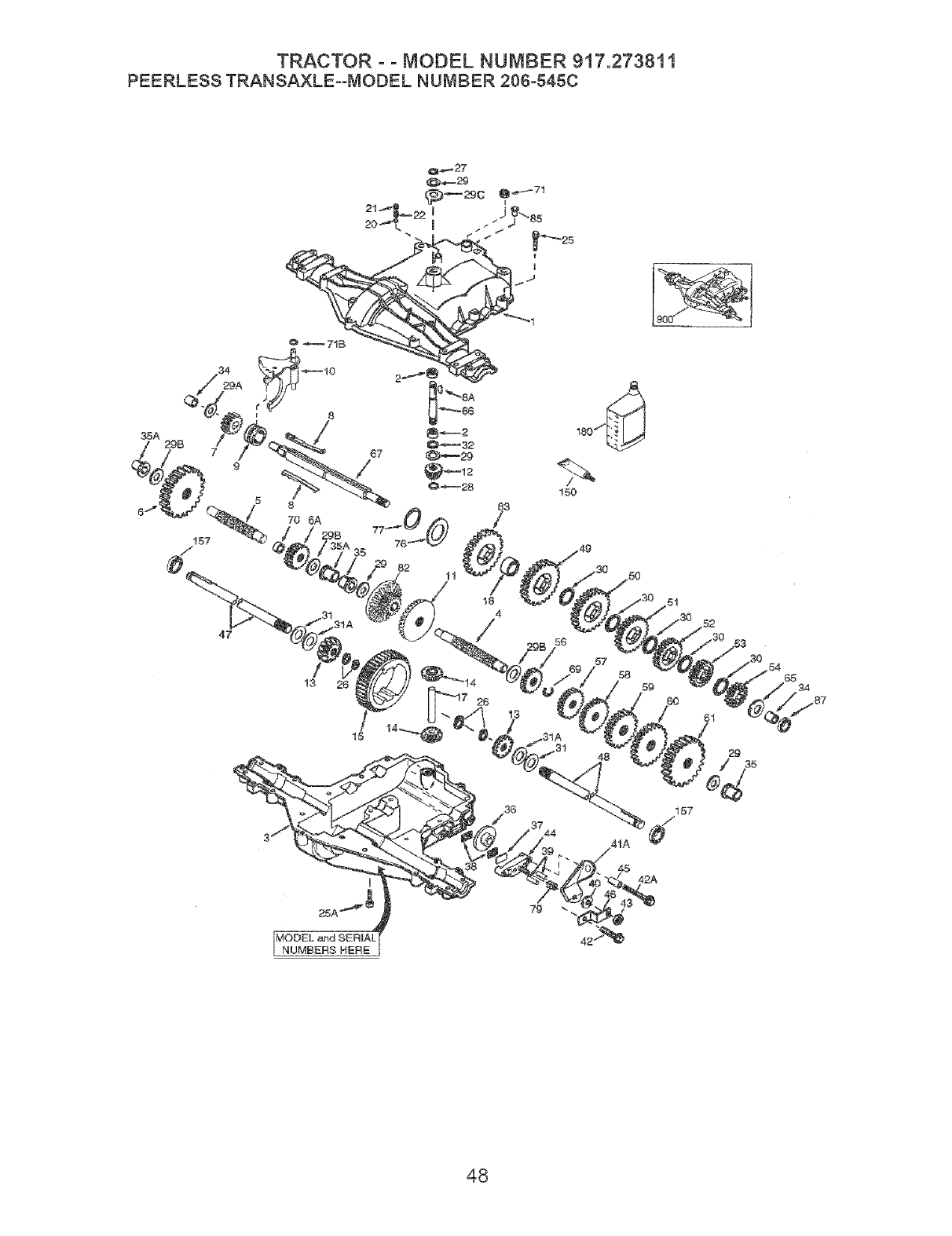

TRACTOR - - MODEL NUMBER 917.273811

PEERLESS TRANSAXLEHMODEL NUMBER 206-545C

35A

8:3

/44

58 59

6,0

29 35

t57

42A

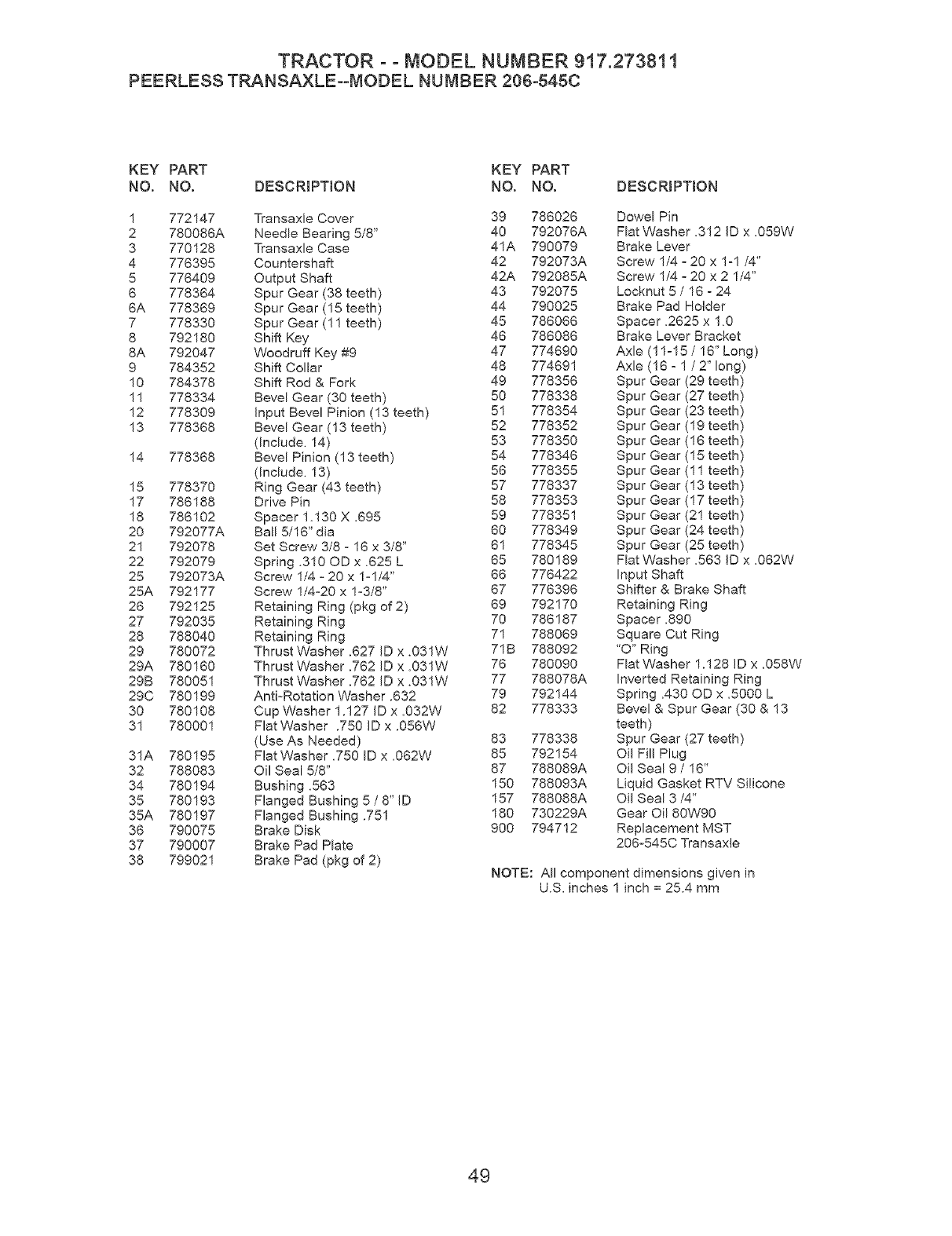

TRACTOR ° ° MODEL NUMBER 917.273811

PEERLESS TRANSAXLE--MODEL NUMBER 206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 772147 Transaxle Cover 39 786026 Dowel Pin

2 780086A Needle Bearing 5/8" 40 792076A Flat Washer .312 ID x .059W

3 770128 Transaxle Case 41A 790079 Brake Lever

4 776395 Countershaft 42 792073A Screw 1/4 - 20 x 1-1 /4"

5 776409 Output Shaft 42A 792085A Screw 1/4 - 20 x 2 1/4"

6 778364 Spur Gear (38 teeth) 43 792075 Locknut 5 /16 -24

6A 778369 Spur Gear (15 teeth) 44 790025 Brake Pad Holder

7 778330 Spur Gear (11 teeth) 45 786066 Spacer .2625 x 1.0

8 792180 Shift Key 46 786086 Brake Lever Bracket

8A 792047 Woodruff Key #9 47 774690 Axle (11-15 /16" Long)

9 784352 Shift Collar 48 774691 Axle (16 - 1 /2" long)

10 784378 Shift Rod & Fork 49 778356 Spur Gear (29 teeth)

11 778334 Bevel Gear (30 teeth) 50 778338 Spur Gear (27 teeth)

12 778309 Input Bevel Pinion (13 teeth) 51 778354 Spur Gear (23 teeth)

13 778368 Bevel Gear (13 teeth) 52 778352 Spur Gear (19 teeth)

(Include. 14) 53 778350 Spur Gear (16 teeth)

14 778368 Bevel Pinion (13 teeth) 54 778346 Spur Gear (15 teeth)

(Include. 13) 56 778355 Spur Gear (11 teeth)

15 778370 Ring Gear (43 teeth) 57 778337 Spur Gear (13 teeth)

17 786188 Drive Pin 58 778353 Spur Gear (17 teeth)

18 786102 Spacer 1,130 X ,695 59 778351 Spur Gear (21 teeth)

20 792077A Ball 5/16" dia 60 778349 Spur Gear (24 teeth)

21 792078 Set Screw 3/8 -16 x 3/8" 61 778345 Spur Gear (25 teeth)

22 792079 Spring .310 OD x .625 L 65 780189 Flat Washer .563 ID x .062W

25 792073A Screw 1/4 °20 x 1ol/4" 66 776422 Input Shaft

25A 792177 Screw 1/4-20 x 1o3/8" 67 776396 Shifter & Brake Shaft

26 792125 Retaining Ring (pkg of 2) 69 792170 Retaining Ring

27 792035 Retaining Ring 70 786187 Spacer .890

28 788040 Retaining Ring 71 788069 Square Cut Ring

29 780072 Thrust Washer .627 ID x .031W 71B 788092 'O" Ring

29A 780160 Thrust Washer .762 ID x ,031W 76 780090 Flat Washer 1.128 ID x ,058W

29B 780051 Thrust Washer .762 ID x .031W 77 788078A Inverted Retaining Ring

29C 780199 Anti-Rotation Washer .632 79 792144 Spring ,430 OD x ,5000 L

30 780108 Cup Washer 1.127 ID x ,032W 82 778333 Bevel & Spur Gear (30 & 13

31 780001 Flat Washer .750 ID x .056W teeth)

(Use As Needed) 83 778338 Spur Gear (27 teeth)

31A 780195 Flat Washer .750 ID x ,062W 85 792154 Oil Fill Plug

32 788083 Oil Seal 5/8" 87 788089A Oil Seal 9/16"

34 780194 Bushing .563 150 788093A Liquid Gasket RTV Silicone

35 780193 Flanged Bushing 5 /8" ID 157 788088A Oil Seal 3/4"

35A 780197 Flanged Bushing .751 180 730229A Gear Oil 80W90

36 790075 Brake Disk 900 794712 Replacement MST

37 790007 Brake Pad Plate 206-545C Transaxle

38 799021 Brake Pad (pkg of 2) NOTE: All component dimensions given in

U.S, inches 1 inch = 25.4 mm

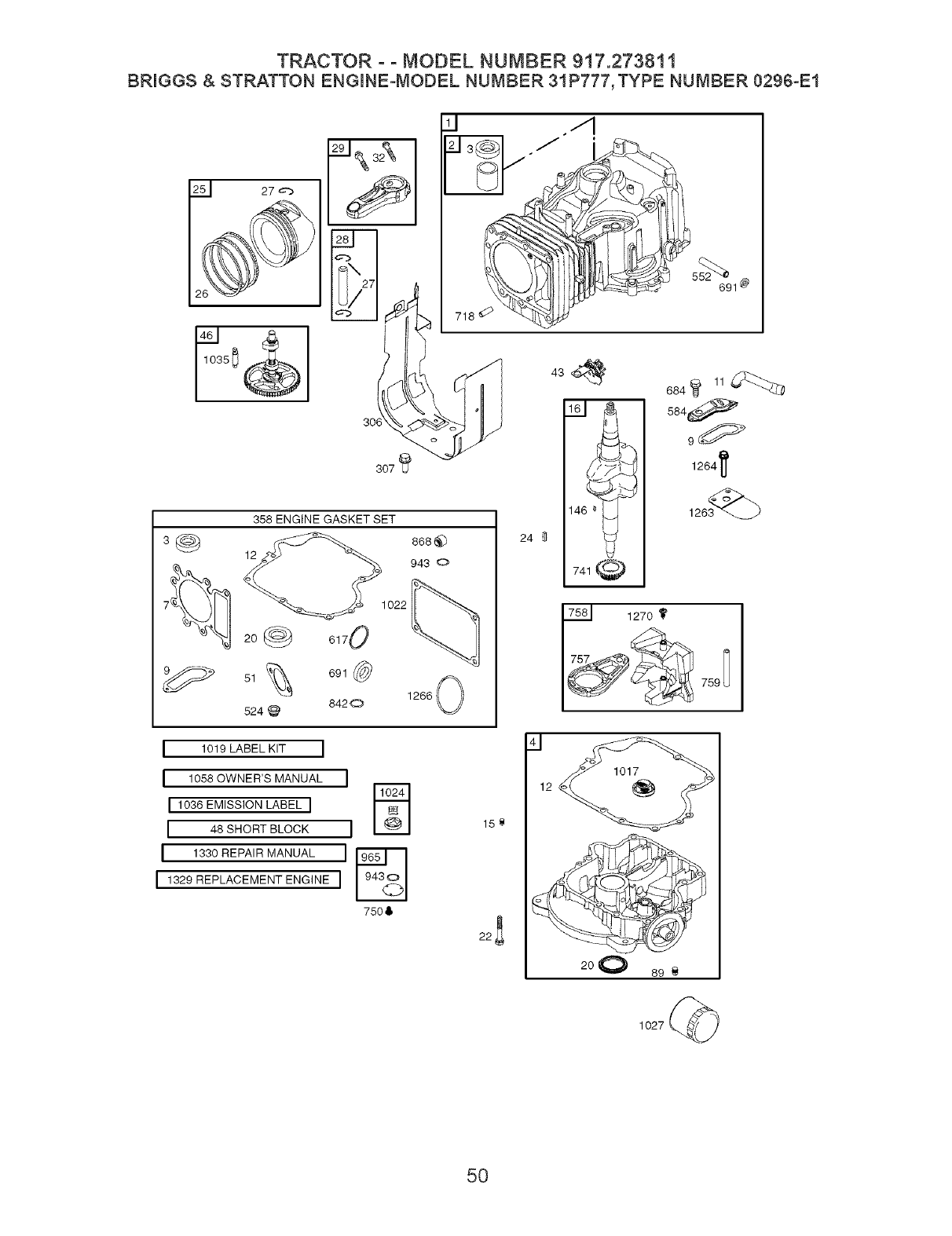

TRACTOR ° ° MODEL NUMBER 917.273811

BRIGGS & STRATTON ENGiNE-MODEL NUMBER 31 P777, TYPE NUMBER 0296-E1

301

307

718

358 ENGINE GASKET SET

3_ 12

20@ 6170

61_ 691_

842 O

524

868

943 O

1022_

1266@

I 1019 LABEL KIT I

I 1058 OWNER'S MANUAL I

I 1036EMISSIONLABELI I@1

I 46SHORTBLOCK I

I 1330REPAIRMANUALI

I 1329REPLACEMENTENGINEI

7508

15_

434_

741

664111_-__,

584_9_

12641_

200 89

1027

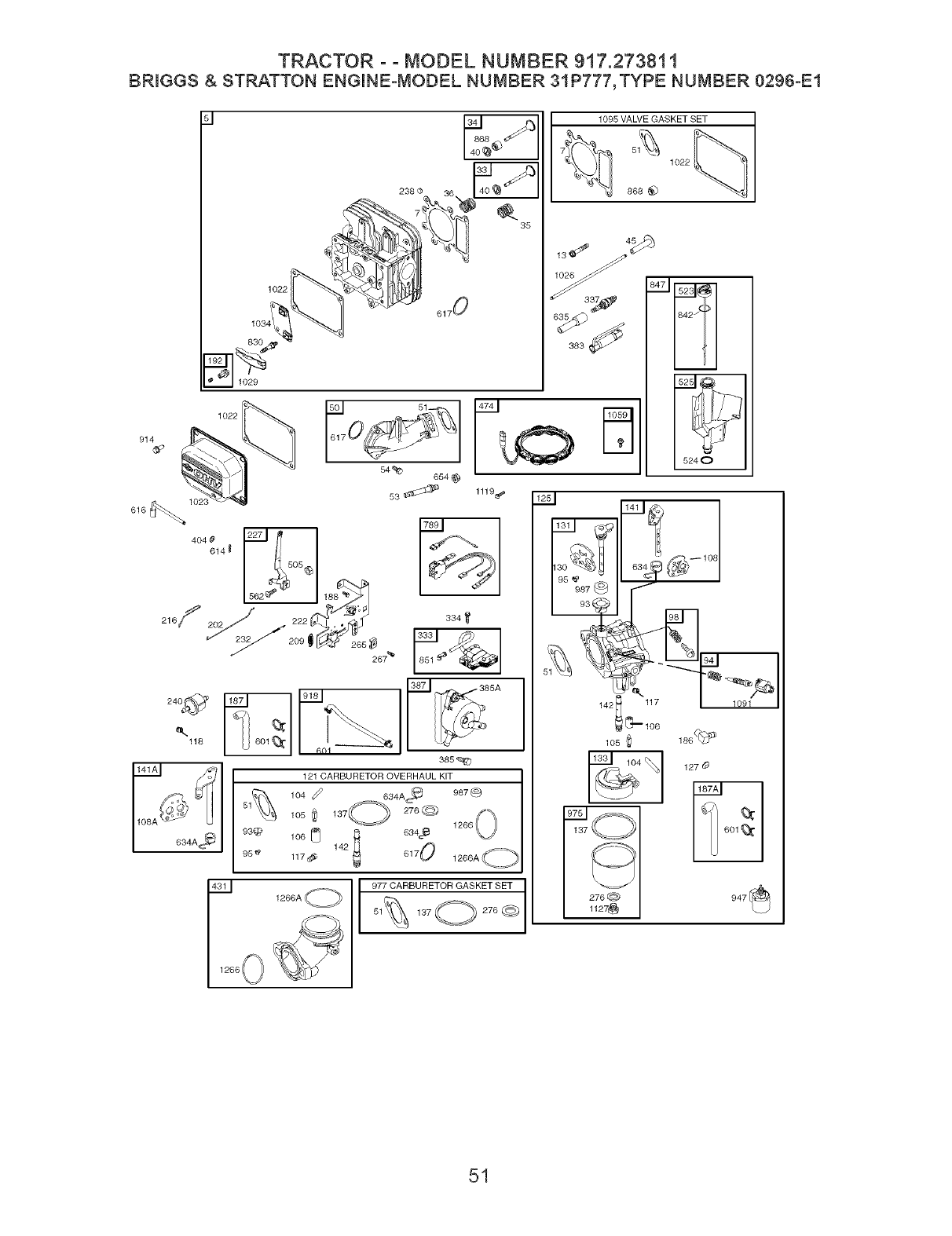

TRACTOR ° ° MODEL NUMBER 917.273811

BRIGGS & STRATTON ENGiNE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

914

238 ®

1022

616_"_ 102

404 #

614

232

@35

5170

654_

53 _ 1119_

709

977 CARBURETOR GASKET SET

126<> 137<>276_

1095 VALVE GASKET SET

1022

868

[ 5240

141

168

165 _1

@164 _l

I_7<>

276 @

112Z'_

127

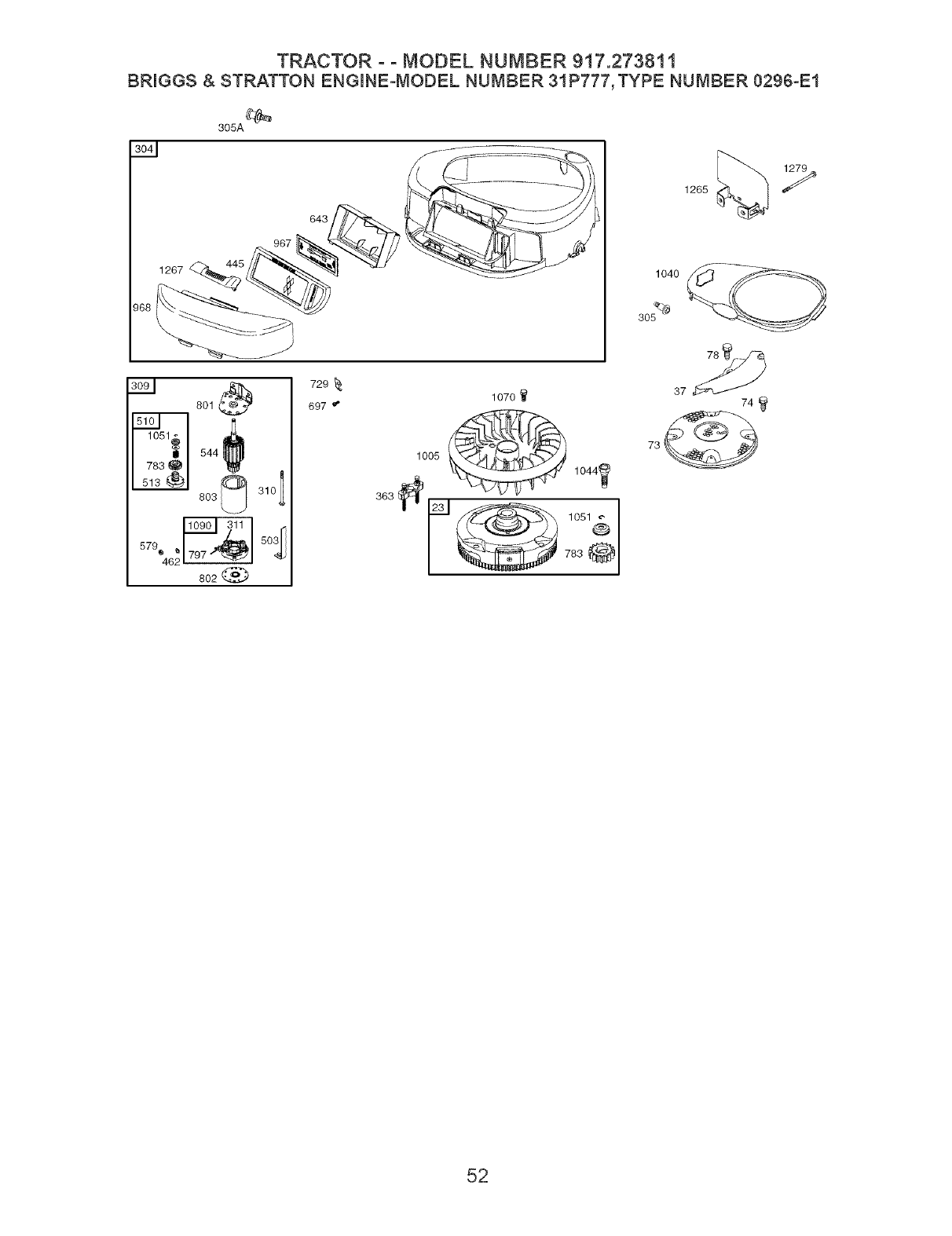

TRACTOR - - MODEL NUMBER 917.273811

BRIGGS & STRATTON ENGiNE-MODEL NUMBER 31 P777, TYPE NUMBER 0296-E1

305A

643

1265

1267

801

_ 544_

803_ 310 1

802

729

697 '_ 1070

1005 _ 1044_

1051&

363 # _'_J _ 783 _

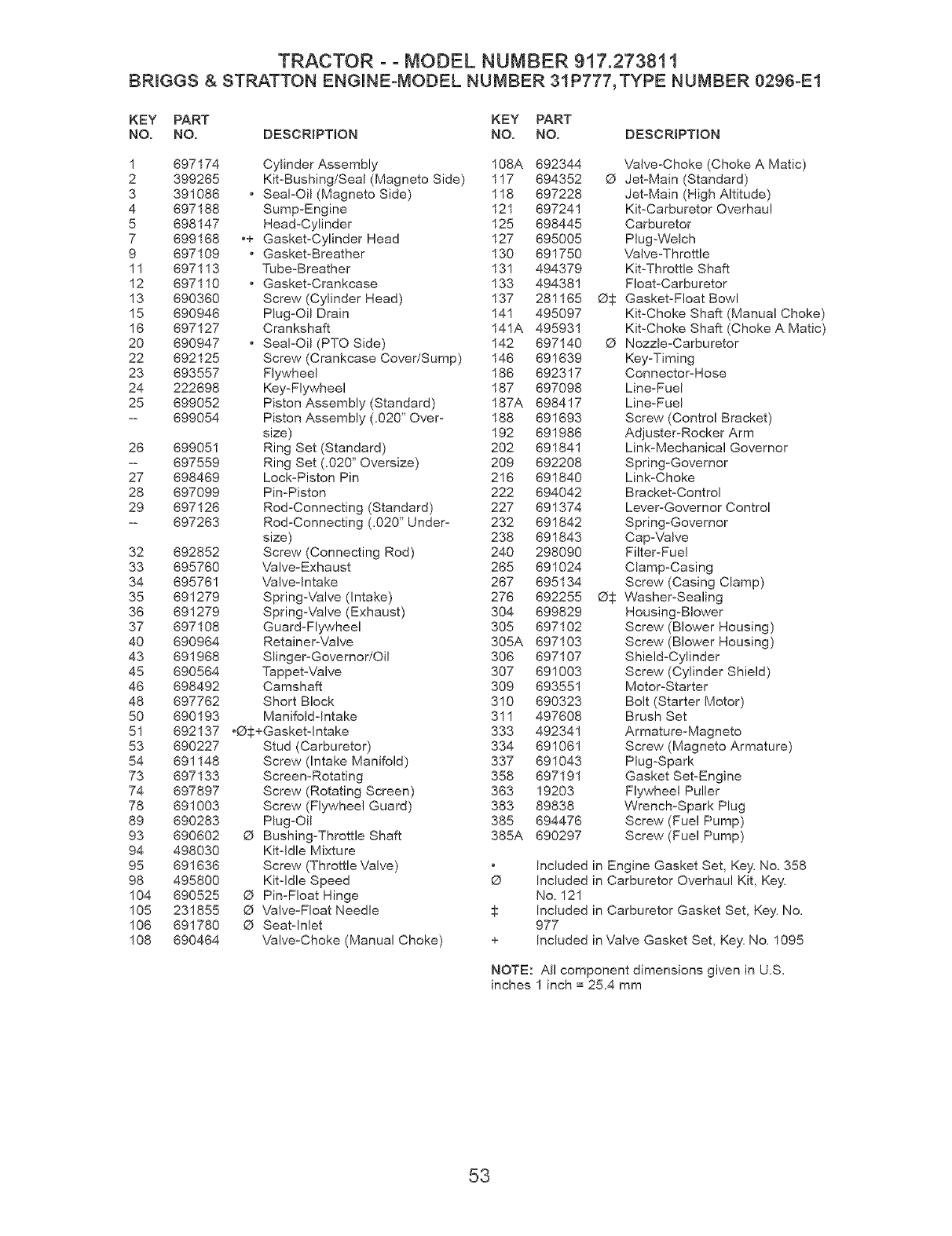

TRACTOR ° ° MODEL NUMBER 917.273811

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

KEY PART KEY PART

NO. NO. DESCR{PTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 108A 692344 Valve-Choke (Choke A Matic)

2 399265 Kit-Bushing/Seal (Magneto Side) 117 694352 O Jet-Main (Standard)

3 391086 • Seal-Oil (Magneto Side) 118 697228 Jet-Main (High Altitude)

4 697188 Sump-Engine 121 697241 Kit-Carburetor Overhaul

5 698147 Head-Cylinder 125 698445 Carburetor

7 699168 .+ Gasket-Cylinder Head 127 695005 Plug-Welch

9 697109 • Gasket-Breather 130 691750 Valve-Throttle

11 697113 Tube-Breather 131 494379 Kit-Throttle Shaft

12 697110 • Gasket-Crankcase 133 494381 Float-Carburetor

13 690360 Screw (Cylinder Head) 137 281165 _$ Gasket-Float Bowl

15 690946 Plug-Oil Drain 141 495097 Kit-Choke Shaft (Manual Choke)

16 697127 Crankshaft 141A 495931 Kit-Choke Shaft (Choke A Matic)

20 690947 • Seal-Oil (PTO Side) 142 697140 O Nozzle-Carburetor

22 692125 Screw (Crankcase Cover/Sump) 146 691639 Key-Timing

23 693557 Flywheel 186 692317 Connector-Hose

24 222698 Key-Flywheel 187 697098 Line-Fuel

25 699052 Piston Assembly (Standard) 187A 698417 Line-Fuel

-- 699054 Piston Assembly (.020" Over- 188 691693 Screw (Control Bracket)

size) 192 691986 Adjuster-Rocker Arm

26 699051 Ring Set (Standard) 202 691841 Link-Mechanical Governor

-- 697559 Ring Set (.020" Oversize) 209 692208 Spring-Governor

27 698469 Lock-Piston Pin 216 691840 Link-Choke

28 697099 Pin-Piston 222 694042 Bracket-Control

29 697126 Rod-Connecting (Standard) 227 691374 Lever-Governor Control

-- 697263 Rod-Connecting (.020" Under- 232 691842 Spring-Governor

size) 238 691843 Cap-Valve

32 692852 Screw (Connecting Rod) 240 298090 Filter-Fue!

33 695760 Valve-Exhaust 265 691024 Clamp-Casing

34 695761 Valveqntake 267 695134 Screw (Casing Clamp)

35 691279 Spring-Valve (Intake) 276 692255 05 Washer-Sealing

36 691279 SpringWalve (Exhaust) 304 699829 Housing-Blower

37 697108 Guard-Flywheel 305 697102 Screw (Blower Housing)

40 690964 Retainer-Valve 305A 697103 Screw (Blower Housing)

43 691968 SIinger-Governor/Oi! 306 697107 Shield-Cylinder

45 690564 Tappet-Valve 307 691003 Screw (Cylinder Shield)

46 698492 Camshaft 309 693551 Motor-Starter

48 697762 Short Block 310 690323 Bolt (Starter Motor)

50 690193 Manifoldqntake 311 497608 Brush Set

51 692137 .O:_:+Gasketqntake 333 492341 Armature-Magneto

53 690227 Stud (Carburetor) 334 691061 Screw (Magneto Armature)

54 691148 Screw (Intake Manifold) 337 691043 Plug-Spark

73 697133 Screen-Rotating 358 697191 Gasket Set-Engine

74 697897 Screw (Rotating Screen) 363 19203 Flywheel Puller

78 691003 Screw (Flywhee! Guard) 383 89838 Wrench-Spark Plug

89 690283 Plug-Oil 385 694476 Screw (Fue! Pump)

93 690602 O Bushing-Throttle Shaft 385A 690297 Screw (Fue! Pump)

94 498030 Kitqdle Mixture

95 691636 Screw (Throttle Valve) Included in Engine Gasket Set, Key. No. 358

98 495800 Kitqdle Speed _ Included in Carburetor Overhaul Kit, Key.

104 690525 O Pin-Float Hinge No. 121

105 231855 O Valve-Float Needle $ Included in Carburetor Gasket Set, Key, No.

106 691780 O Seat-Inlet 977

108 690464 Valve-Choke (Manual Choke) + Included in Valve Gasket Set, Key, No. 1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

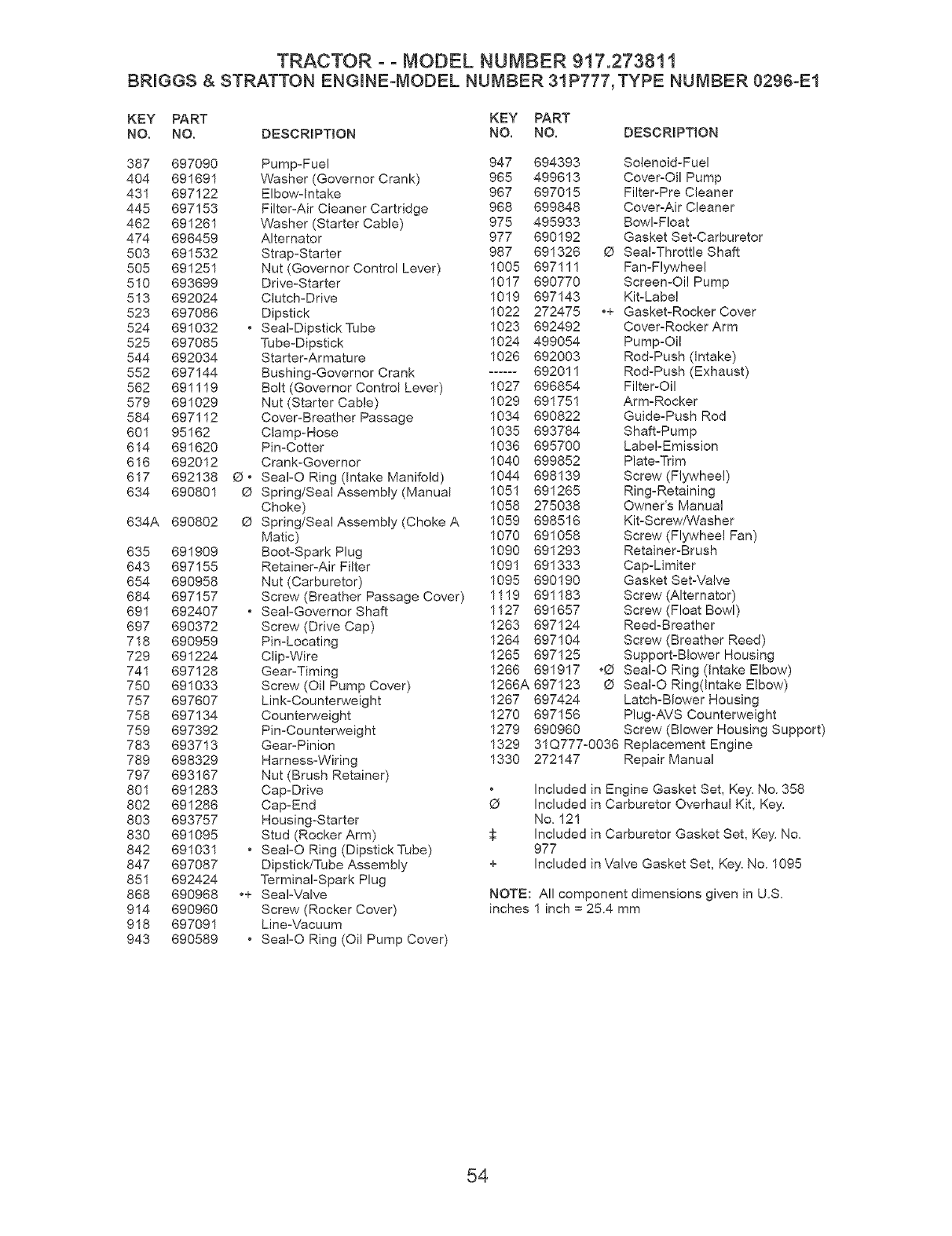

TRACTOR ° ° MODEL NUMBER 917.273811

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31 P777, TYPE NUMBER 0296-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

387 697090 Pump-Fuel 947 694393

404 691691 Washer (Governor Crank) 965 499613

431 697122 EIbowqntake 967 697015

445 697153 Filter-Air Cleaner Cartridge 968 699848

462 691261 Washer (Starter Cable) 975 495933

474 696459 Alternator 977 690192

503 691532 Strap-Starter 987 691326

505 691251 Nut (Governor Control Lever) 1005 697111

510 693699 Drive-Starter 1017 690770

513 692024 Clutch-Drive 1019 697143

523 697086 Dipstick 1022 272475

524 691032 • SeaI-DipstickTube 1023 692492

525 697085 Tube-Dipstick 1024 499054

544 692034 Starter-Armature 1026 692003

552 697144 Bushing-Governor Crank ...... 692011

562 691119 Bolt (Governor Control Lever) 1027 696854

579 691029 Nut (Starter Cable) 1029 691751

584 697112 Cover-Breather Passage 1034 690822

601 95162 Clamp-Hose 1035 693784

614 691620 Pin-Cotter 1036 695700

616 692012 Crank-Governor 1040 699852

617 692138 O • SeaI-O Ring (Intake Manifold) 1044 698139

634 690801 _8 Spring/Sea! Assembly (Manual 1051 691265

Choke) 1058 275038

634A 690802 _8 Spring/Sea! Assembly (Choke A 1059 698516

Matic) 1070 691058

635 691909 Boot-Spark Plug 1090 691293

643 697155 Retainer-Air Filter 1091 691333

654 690958 Nut (Carburetor) 1095 690190

684 697157 Screw (Breather Passage Cover) 1119 691183

691 692407 • Sea!-Governor Shaft 1127 691657

697 690372 Screw (Drive Cap) 1263 697124

718 690959 Pin-Locating 1264 697104

729 691224 Clip-Wire 1265 697125

741 697128 Gear-Timing 1266 691917

750 691033 Screw (Oil Pump Cover) 1266A 697123

757 697607 Link-Counterweight 1267 697424

758 697134 Counterweight 1270 697156

759 697392 Pin-Counterweight 1279 690960

783 693713 Gear-Pinion 1329

789 698329 Harness-Wiring 1330

797 693167 Nut (Brush Retainer)

801 691283 Cap-Drive

802 691286 Cap=End O

803 693757 Housing-Starter

830 691095 Stud (Rocker Arm)

842 691031 • SeaI-O Ring (Dipstick Tube)

847 697087 Dipstick/Tube Assembly +

851 692424 Terminal-Spark Plug

868 690968 ,+ Seal-Valve

914 690960 Screw (Rocker Cover)

918 697091 LineWacuum

943 690589 • Sea!-O Ring (Oil Pump Cover)

Solenoid-Fuel

Cover-Oil Pump

Filter-Pre Cleaner

Cover-Air Cleaner

Bowl-Float

Gasket Set-Carburetor

O Seal-Throttle Shaft

Fan-Flywheel

Screen-Oil Pump

Kit-Labe!

*+ Gasket-Rocker Cover

Cover-Rocker Arm

Pump-Oil

Rod-Push (Intake)

Rod-Push (Exhaust)

Filter-Oil

Arm-Rocker

Guide-Push Rod

Shaft-Pump

Labe!-Emission

Plate-Trim

Screw (Flywheel)

Ring-Retaining

Owner's Manual

Kit-Screw/Washer

Screw (Flywheel Fan)

Retainer-Brush

Cap-Limiter

Gasket SetWalve

Screw (Alternator)

Screw (Float Bowl)

Reed-Breather

Screw (Breather Reed)

Support-Blower Housing

,O SeaI-O Ring (Intake Elbow)

O SeaI-O Ring(Intake Elbow)

Latch-Blower Housing

Plug-AVS Counterweight

Screw (Blower Housing Support)

31Q777-0036 Replacement Engine

272147 Repair Manual

Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key.

No. 121

Included in Carburetor Gasket Set, Key. No.

977

Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U,8,

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

//VE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1, Fotd this page a_ong dotted Iine indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fotd in the direction of hiti stope you want to measure.

4. Compare the angte of the fotd with the slope of the hitl.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ¢Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en fran(;ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

SEARS

® Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /TMMarca de Fabrica /SM Marca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce /MDMarque deposee de Sears, Roebuck and Co.

191840 Rev. 1 6.11.04 TRiMH Printed in U.S.A.

Craftsman 917273811 User Manual TRACTOR Manuals And Guides L0406179

CRAFTSMAN Lawn, Tractor Manual L0406179 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
