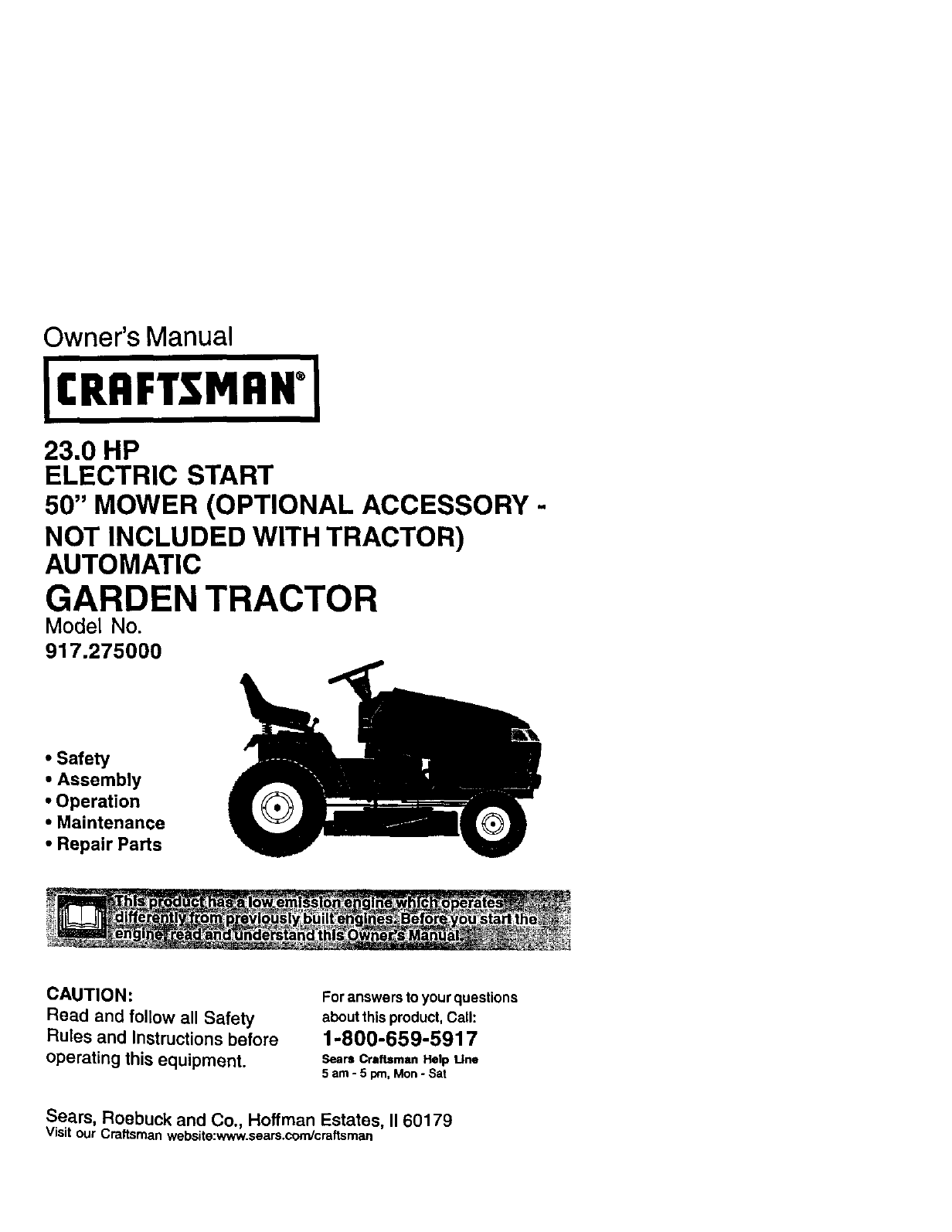

Owner's Manual

23.0 HP

ELECTRIC START

50" MOWER (OPTIONAL ACCESSORY -

NOT INCLUDED WITH TRACTOR)

AUTOMATIC

GARDEN TRACTOR

Model No.

917.275000

•Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product,Call:

1-800-659-5917

Sears Craftsman Help Une

5 am -5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

Warranty...............................................2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly .............................................. 8

Operation ............................................ 12

Maintenance Schedule ...................... 19

Maintenance ....................................... 19

Service and Adjustments.................... 23

Storage ............................................... 31

Troubleshooting ................................. 32

Repair Parts ........................................ 36

Parts Ordering ..................... Back Cover

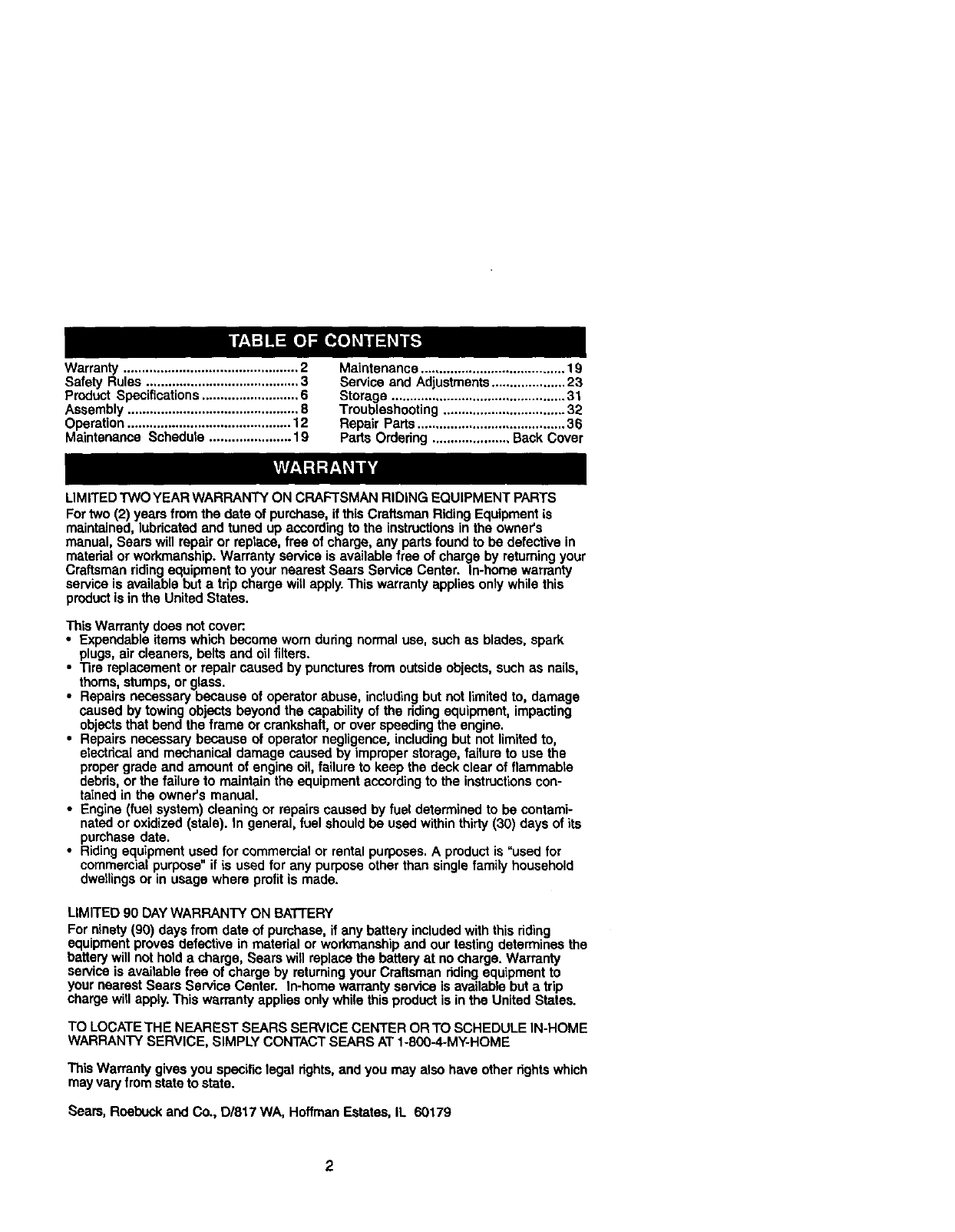

LIMITED TWOYEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

Fortwo (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructionsin the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

matedal or workmanship. Warranty service is available free of charge by returning your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but atrip charge will apply. This warranty applies only while this

productis in the United States.

This Warranty does not cover:.

•Expendable items which become wom during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objectsthat bend the frame or crankshaft, or over speeding the engine.

•Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructionscon-

rained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

•Riding equipment used for commemial or rental purposes. A product is "used for

commemial purpose" if is used for any purpose other than single family household

dweUingsor in usage where profit is made.

LIMITED 90 DAYWARRANTY ON BA'r'rERY

For ninety (90) days from date of purchase, if any battery includedwith this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by returningyour Craftsman dding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATETHE NEAREST SEARS SERVICE CENTER ORTO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Seam, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

MPORTANT: This cutting machine s capable of amputating hands and feet and

throwing..objects.Failure to observe the foUowing safety instructions coutd result in

sedous Injury or death.

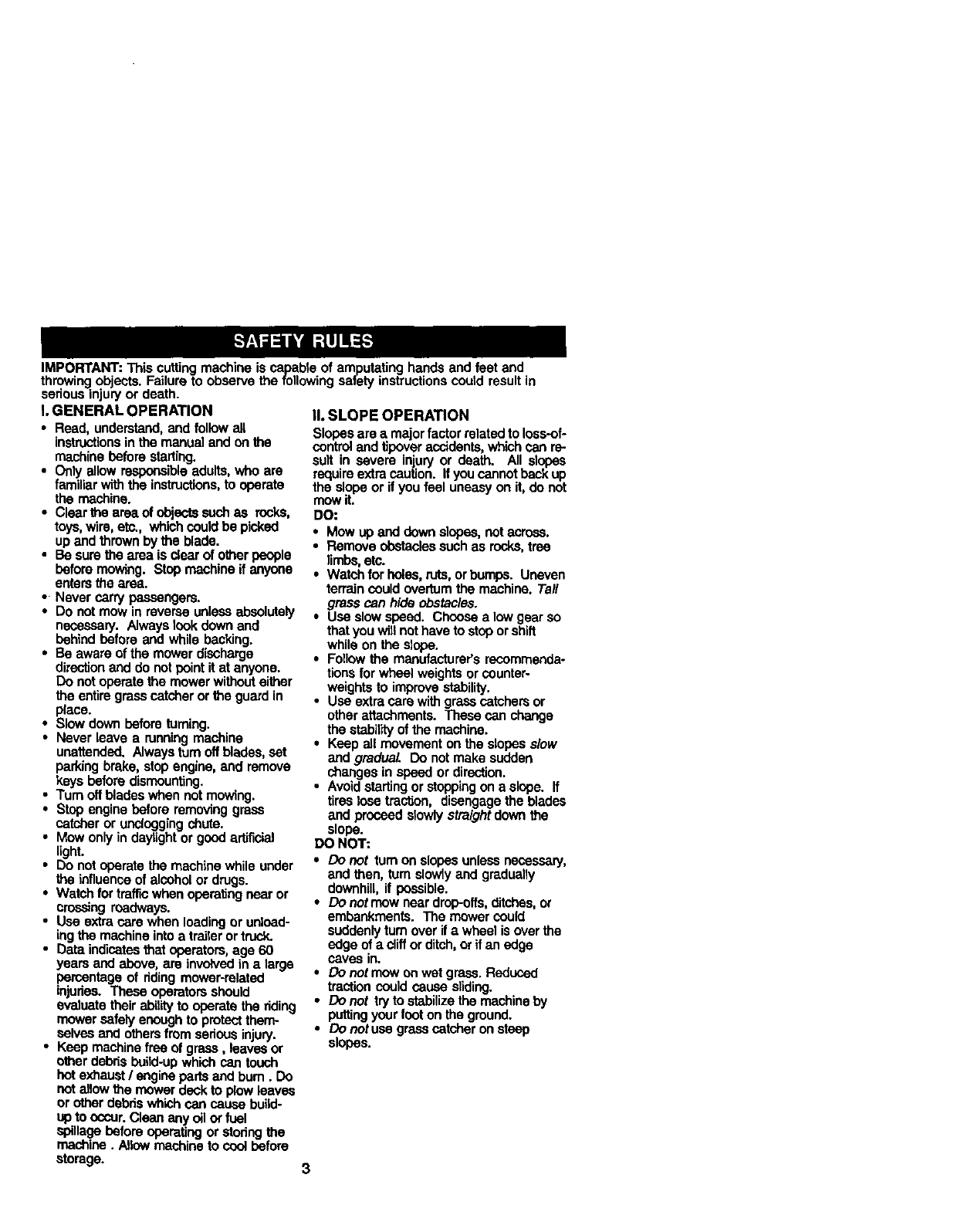

I. GENERAL OPERATION

•Read, understand, and fdik:_wa_

instructionsin the manual and on the

machine before starting.

•Only allow responsibleadults.,who

familiar withthe instructions,moperate

the machine.

•Clear the area of objectssuch as rocks,

toys, wire, etc., which co_d be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowi_. Stop machine if _jone

enlel_ the area.

•Never carry passengem.

•Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge

directionand do not point it al anyone.

Do not operate the mower without either

the entiregrass catcher or the guard in

p(ace.

•Slow down before turning.

•Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Turn off blades when not mowing.

• Stop engine before removing grass

catcher or uncloggingchute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for trafficwhen operating near or

crossing roadways.

•Use extra sere when loading or unload-

ingthe machine into a trailer or truck.

•Data indites that operators, age 60

years and above, are invOved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their abilityto operate the riding

mower Safely enough to protectthem-

selves and others from serious inju_/.

•Keep machine free of grass, reaves or

other debds build-upwhich can touch

hot exhaust /engine pads and bum. Do

not allow the mower deck to plow leaves

or other debds which can cause build-

up to occur.Clean any oil or fuel

spillage before operating or stodng the

machine. Allow machine to cco_before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

requireextra caution. If youcannot back up

the slope or ifyou feel uneasy on it, do not

mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstaclessuch as rocks, tree

limbe,etc.

Watch for h_es, rata, o_"bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

Use slow speed. ChooSe a low gear sO

that you will not have to stopor shift

while on the slope.

Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchersor

othar attachments. These can chan_

the stabil_ of the machine.

Keep all movement on the slopes slew

and gradual. Do not make sudden

changes in speed or direction.

Avoid startingor stoppingon a slope. If

tires lose traction, disengage the blades

and proceed dowly straightdown the

slope.

DO NOT:

•Do not turn on stapesunless necessary,

and then, turn slowiy and gradually

downhill, if possible.

•Do not mow neer dropoffs, ditches,or

embankments. The mower could

suddenly tum over if awheel is over the

edge of a cliffor ditch, or ff an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

• Do noi try to stabilize the machine by

puttingyour foot on the ground.

• Do not use grass catcher on steep

slopes.

III.CHILDREN

Tragic accidentscan occur ifthe operator

is not alertto the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out ol the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be sedously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV, SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

- Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside aclosed

area.

•Keep nuts and bolts, especially blade

attachment botts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

Storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required,

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Mow up and down slopes (15 °Max),

not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

•Use slow speed. Choose alow gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stoppingon a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•DO not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

_.Look for this symbol to point out

importantsafety precautions. It means

CAUTIONIII BECOME ALERTIT! YOUR

SAFETY IS INVOLVED.

_, CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

CAUTION: Do not coast down ahill

in neutral, you may lose control of the

tractor.

_CAUTION: Towonly the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on aslope, is

dangerous. "i']rescan lose traction with

the ground and cause you to lose control

of your tractor.

_bWARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of Califomia to cause

cancer and birth defects or other repro-

ductive harm.

_WARNING: Battery posts, terminals

and related eccessedas contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

OILTYPE SAE 10W30

_PI-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: W/FILTER: 4.5PINTS

W/O FILTER:4.0PINT_

SPARK PLUG: CHAMPION

3AP: .030") RC12YC

GROUND FORWARD: 5.8

SPEED(MPH): REVERSE: 2.1

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 15AMPS @3600RPM

SYSTEM:

BA'[-FERY: AMWHR: 35

MIN. CCA: 280

CASE SlZE:U 1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your pumhase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, wen-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly.

Always observe the =SAFETY RULES'.

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under =Mainte-

nance" and =Storage" sections of this

owner's manual.

_I, WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush°

covered or grass-covered land unless the

engine's exhaust system is equipped with

aspark arrester meeting applicable local

or state laws (il any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 o! the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

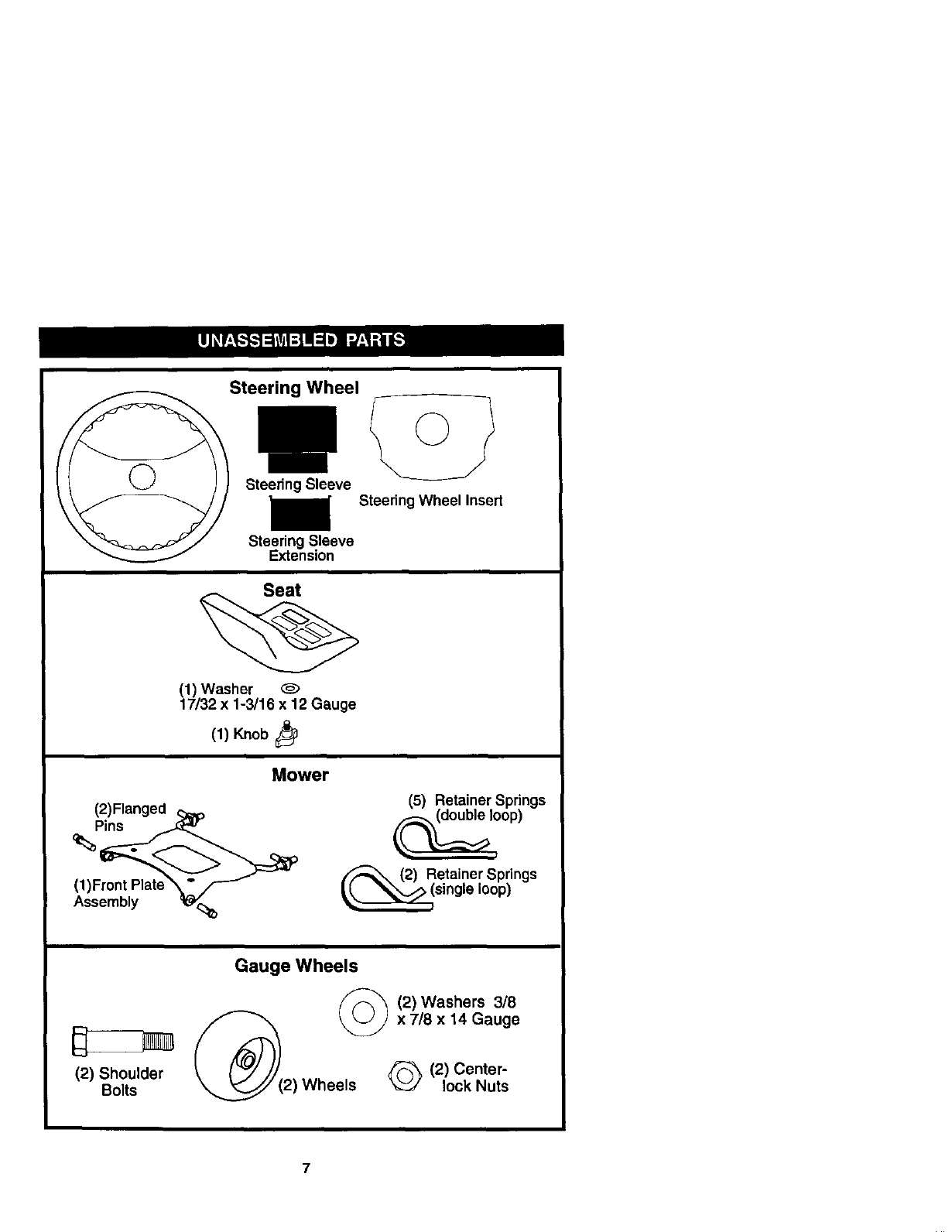

Steering Wheel ©

Steering Sleeve Steering Wheel Insert

Steering Sleeve

Extension

Seat

(1)Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

Mower

(2)Flangecl c_>

(1)Front Plate _" j-_

Assembly o_q:_

o o;ing s

(2) Retainer Springs

_single loop)

(2) Shoulder

Bolts

Gauge Wheels

_(2) Wheels

(2) Washers 3/8

x 7/8 x 14 Gauge

Q(2) Center-

lock Nuts

Video Cassette Keys Slope Sheet

€(2) Keys

(1) Oil Drain Tube

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

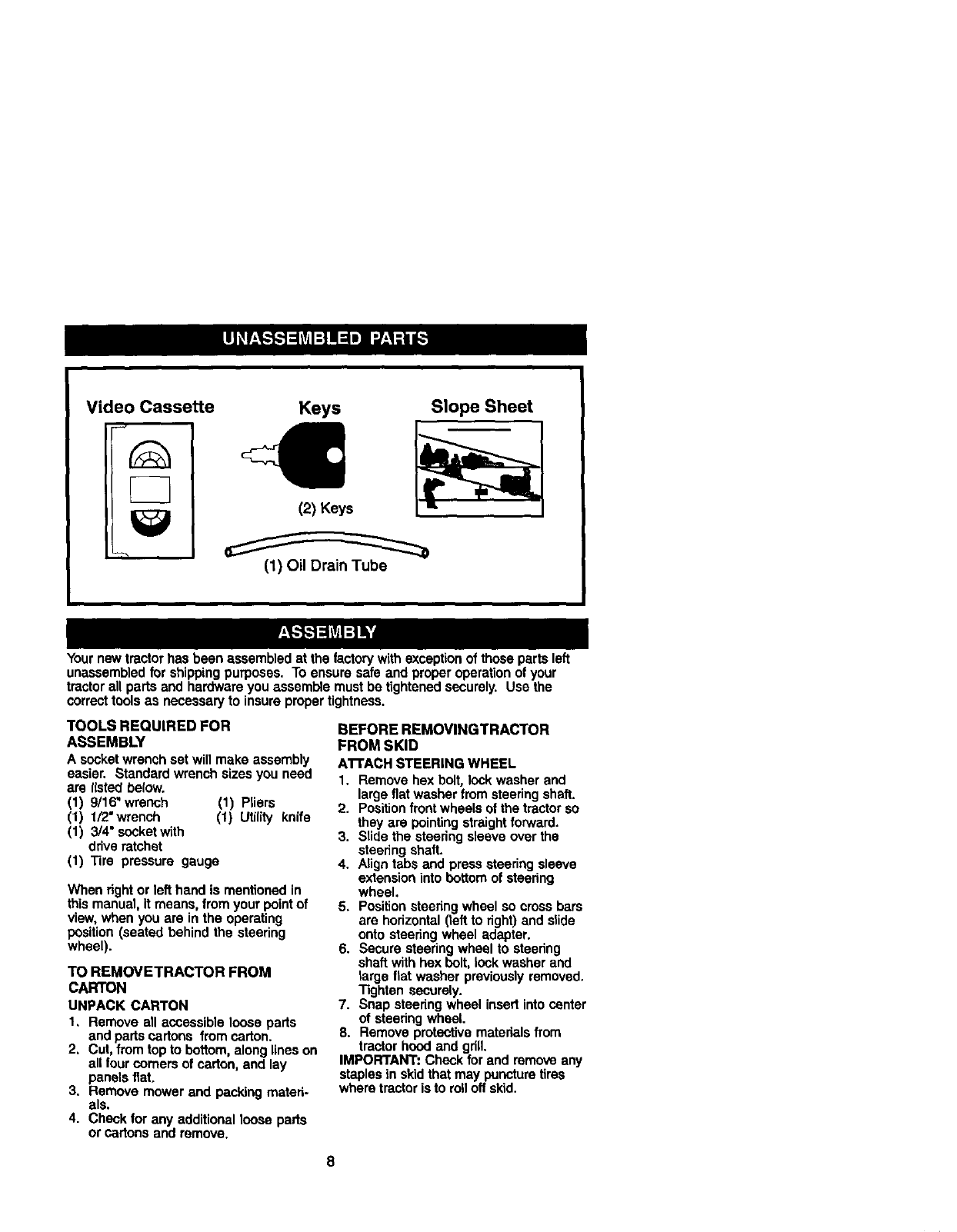

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16"wrench (1) Pliers

(1) 1/2"wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVETRACTOR FROM

CARTON

UNPACK CARTON

1, Remove all accessible loose parts

and parts cartons from carton.

2, Cut, from top to bottom, along lines on

all four comers of carton, and lay

panels fiat.

3. Remove mower and packing materi-

als.

4. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVINGTRACTOR

FROM SKID

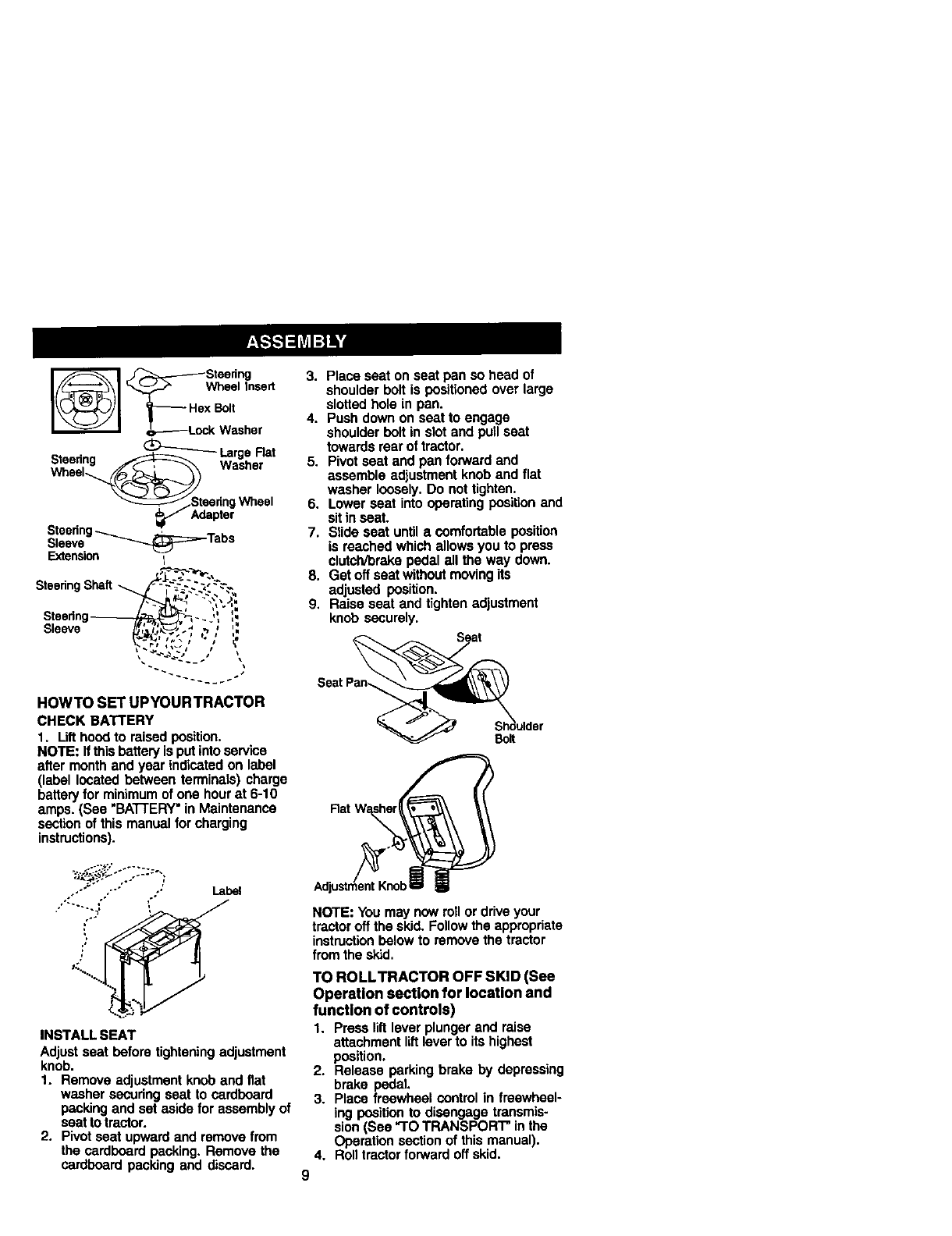

ATTACH STEERING WHEEL

1. Remove hex bolt, lock washer and

large flat washer from steering shaft.

2. Position frontwheels of the tractor so

they are pointing straight forward.

3. Stide the steering sleeve over the

steering shaft.

4. Align tabs and press steering sleeve

extension into bottom of steering

wheel.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

6. Secure steering wheel to steering

shaft with hex bolt, lock washer and

large fiat washer previously removed.

Tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skidthat may puncture tires

where tractor is to roll off skid.

_J_p_--_ Steedng

_._ Wheel insert

o-.-_-Lock Washer

LargeRat

Steering Wa.r

Steering_

Sleeve _:_:::_--Tabs

Extension I

Sleeve _#'_:/,,.;,_ -, /:

HOWTO SET UPYOURTRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: Ifthis battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

"'_ *" :Label

•i!i:-_ '

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and fiat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder belt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutcWbmke pedal all the way down.

8. Get off seat without moving its

adjusted position.

9, Raise seat and tighten adjustment

knob securely.

SeatPan_ o,.sr

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instructionbelow to remove the tractor

fromthe skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in freewheel-

ing position to disengage transmis-

sion (See "TO TRANSPORT" in the

Operation section of this manual).

4. Roll tractor forward off skid.

TODRIVETRACTOROFFSKID(See

Operationsectionfor locationand

functionofcontrols)

_ILWARNING: Before starting read,

understand and follow all insfructions in

the Operation section of this manual. Be

sure tractor is in awell-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and figfuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position.

4. Sit on seat in operating position,

depress brake pedal and set the

parking brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle controlto idle

position.

7. Release parking broke.

8. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

9, Apply brake to atop tractor and set

parking brake.

10.Turn ignitionkey to "OFF" position.

Continue with the instructions that follow.

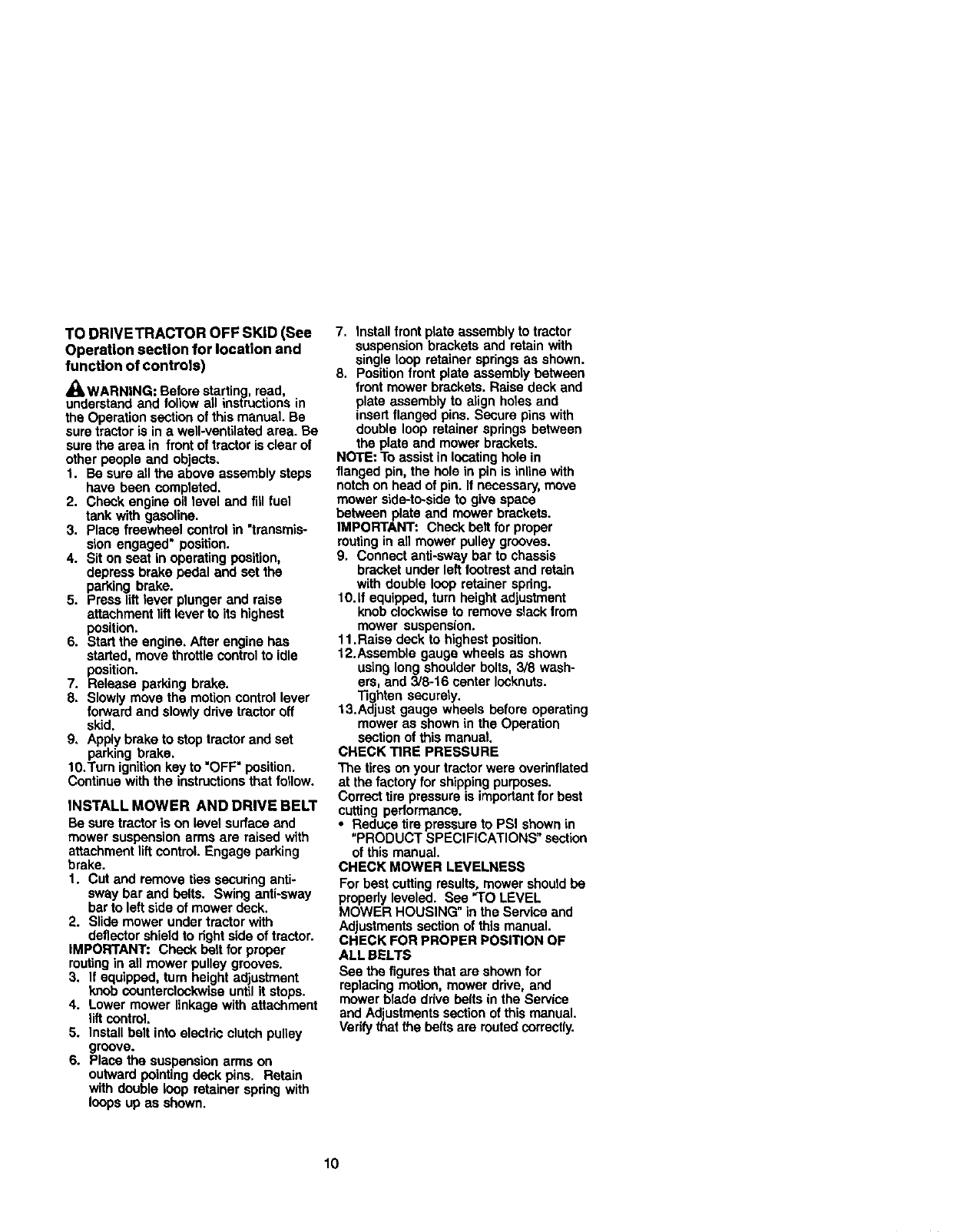

INSTALL MOWER AND DRIVE BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment liftcontrol. Engage parking

brake.

1. Cut and remove ties securing anti-

sway bar and belts. Swing anti-sway

bar to left side of mower deck.

2. Slide mower under tractor with

deflector shield to rightside of tractor.

IMPORTANT: Check belt for proper

routingin all mower pulley grooves.

3. It equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control,

5. Install belt into electric clutch pulley

groove.

6. Place the suspension arms on

outward pointing deck pins. Retain

with double loop retainer spring with

loops up as shown.

7. Install front p_ateassembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

8. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate and mower brackets.

NOTE: To assist in locating hole in

flanged pin, the hole in pin is inline with

notchon head of pin. If necessary, move

mower side-to-side to give space

between plate and mower brackets.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

9. Connect anti-sway bar to chassis

bracket under left Icotrest and retain

with double loop retainer spring.

10.If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

11.Raise deck to highest position.

12.Assemble gauge wheels as shown

using long shoulder bolts, 3/8 wash-

ers, and 3/8-16 center Iocknuts.

Tighten securely.

13.Adjust gauge wheels before operating

mower as shown in the Operation

section of this manual.

CHECK TIRE PRESSURE

The tires onyour tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is importantfor best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be

properly leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion, mower drive, and

mower blade drive belts in the Service

and Adjustments section of this manual.

Verify that the belts are routed correctly.

Shodder

Bolt

Chassis

Bracket

Double Loop

Retainer

Wlleel

Front Electric

Front Suspension Clutch

SUS_Mowe r Brackets Pulley

Bracket

Front plate

3/8

Washer

3/8-16 Double

Center Loop

Locknut Retainer Anti-Swa!

Spring Bar

Use Pliers For

Retainer Springs Double Loop

Retainer Spring

(Outward pointing

deck pins)

\-Loop Up

Single

Loop

Retainer

Springs

Deflector

V'CHECKLIST

Before you operate end enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

vAIl assembly instructionshave been

completed.

./'No remaining loose parts in carton.

./Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

./Seat is adjusted comfortably and

tightened securely.

./All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

./Be sure mower deck is property leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

./'Check mower and drive belts. Be sure

they are routed propedy around pulleys

and inside all belt keepers.

./Check wiring. See that all connections

are stillsecure and wires are properly

clamped.

,/'Before driving tractor, be sure free-

wheel control is in drive position.

While learning how to use your tractor,

pay extra attention to the following

important items:

.4" Engine oil is at proper level.

./Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

./Become familiar with all controls - their

_coation and function. Operate them

before you start the engine.

_/Be sure brake system is in safe

operating condition.

./It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning,

BATrERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNtNG

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP t

tiGhT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED

LOCKED

MOWER LIFT

r_'t R N H L

A_ACHMEHT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

ATrACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNmON CLUTCH DISENGAGEO (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY FREE WHEEL

(AutomaticMode_ only)

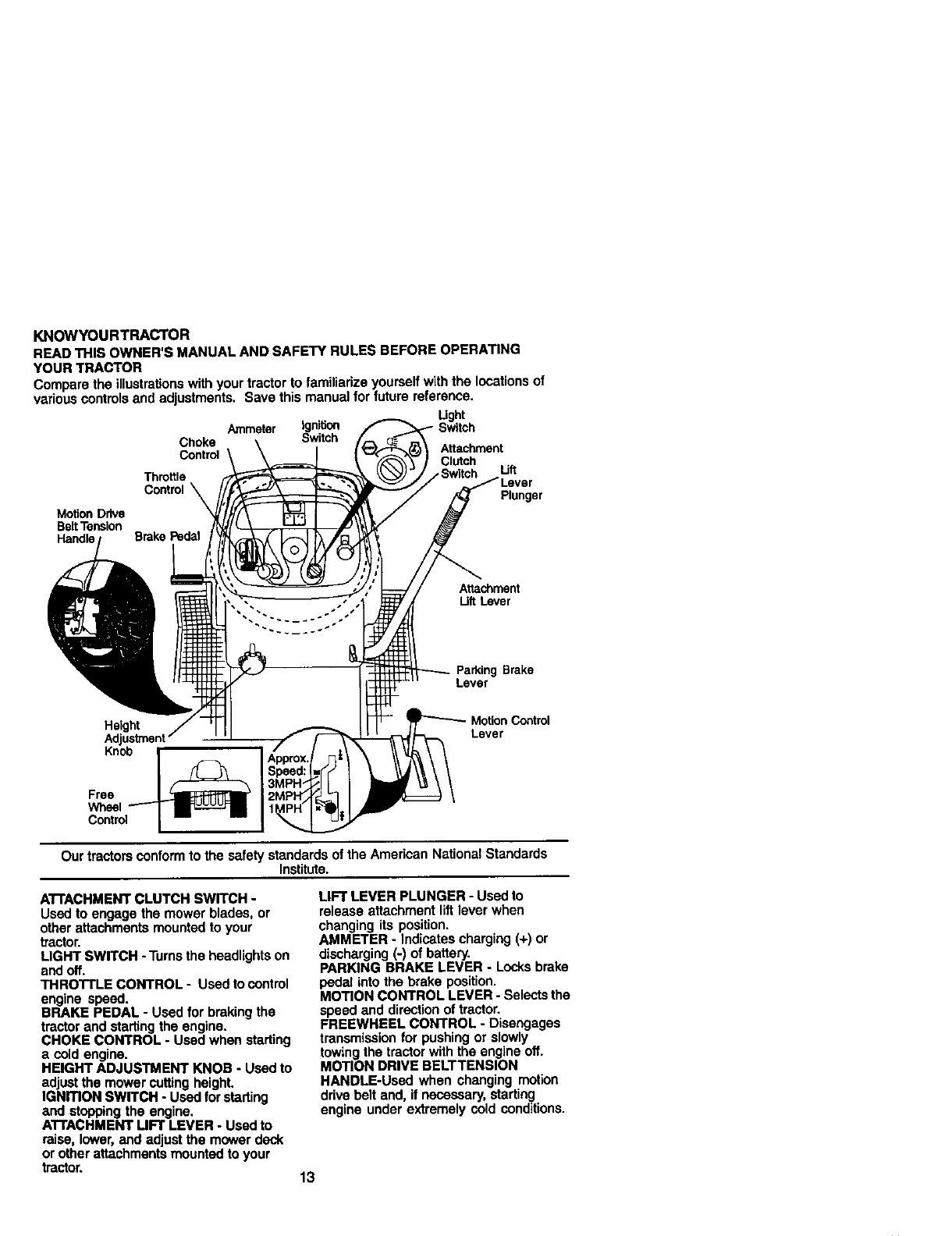

KNOWYOURTRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrationswith your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Motion Drive

Belt Tension

Handle

Light

Ammeter ignition

Choke Switch Attachment

Control Clutch Uft

Throttle

Control Plunger

Brake Pedal

Attachment

LiftLever

Brake

Lever

Height

Adjustment

Knob

Lever

Free

Wheel

Control

Our tractors conformto the safety standards of the American National Standards

Institute.

A'n'ACHMENT CLUTCH SWITCH -

Used to engage the mower blades, or

other attachments mounted to your

tractor.

LIGHT SWITCH -Turns the headlights on

and off.

THRO'I-I'LE CONTROL - Used to control

engine speed.

BRAKE PEDAL - Used for braking the

tractor and starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

IGNDON SWITCH - Used for starting

and stopping the engine.

A'n'ACHMENT UFT LEVER -Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER - Used to

release attachment lift lever when

changing its position.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

PARKING BRAKE LEVER - Locks brake

pedal into the brake position.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly

towingthe tractor with the engine off.

MOTION DRIVE BELTTENSION

HANDLE-Used when changing motion

drive belt and, if necessary, starting

engine under extremely cold conditions.

HOWTO USEYOURTRACTOR

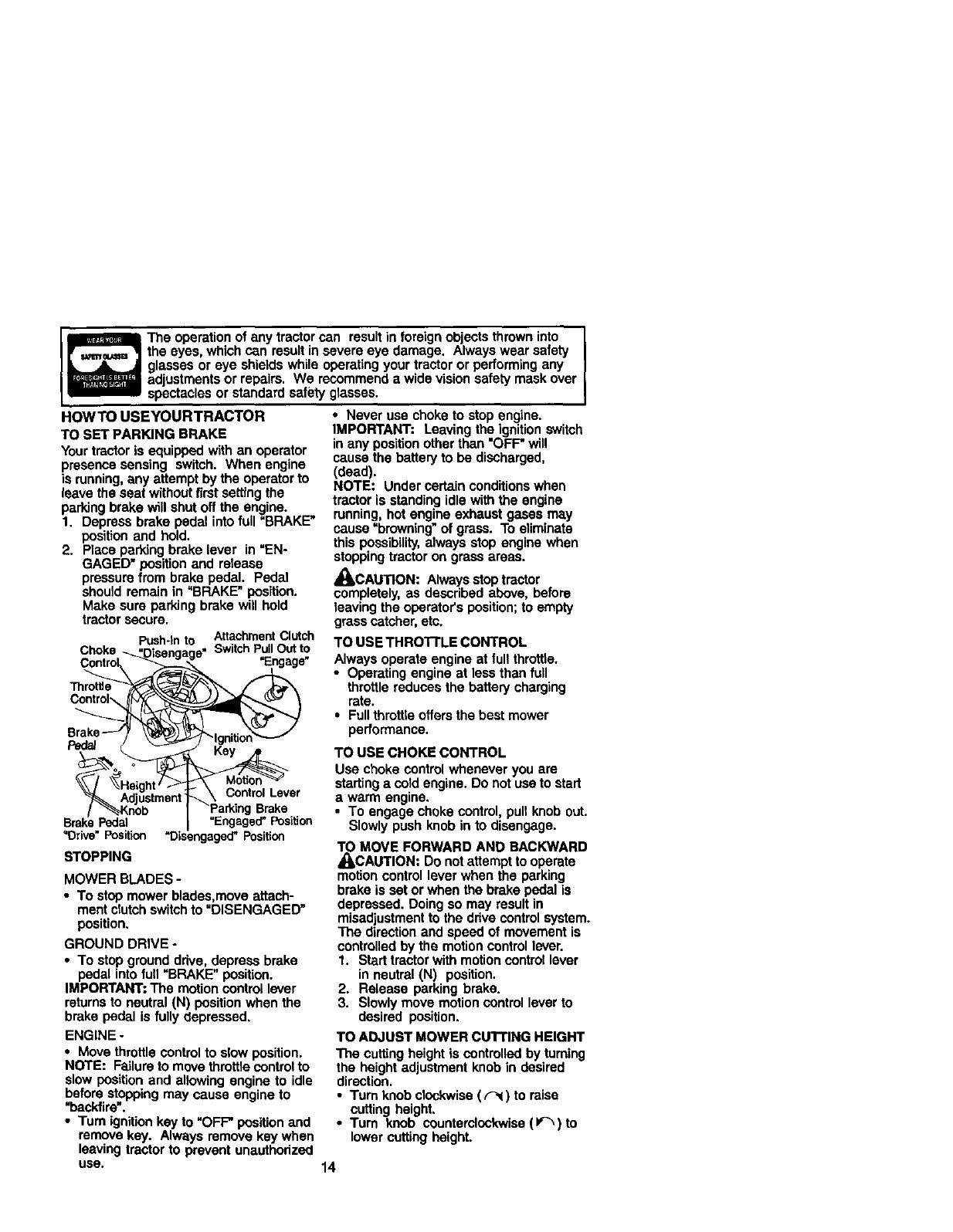

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first se_ng the

parking brake will shut off the engine.

1. Depress brake pedal into full "BRAKE"

position and hold.

2. Place parking brake lever in =EN-

GAGED" position and reteass

pressure from brake pedal. Pedal

should remain in "BRAKE" position.

Make sure parking brake will hold

tractor secure.

Push-tnto AttachmentClutch

Choke ='_Isen-a-e" SwitchPullOutto

C'ontroL_ y "Engage"

Control_j_ .J'_,lj_-'_ _=j

Brake_'_

Adjustmenl" ._

/_Knob ' ParkingBrake

SrakePe_lal "Engaged" Position

"Drive Position "Dis gaged"Position

STOPPING

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch switchto "DISENGAGED"

position,

GROUND DRIVE -

• To stop ground ddve, depress brake

pedal into full =BRAKE" position.

IMPORTANT: The motion control lever

returns to neutral (N) positionwhen the

brake pedal is fully depressed,

ENGINE -

•Move throttle control to slow position.

NOTE: Failure to move throttle controlto

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

•Turn ignitionkey to =OFF_ position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

The operation of any tractor can resultin foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend awide vision safety mask over

spectacles or standard safety glasses.

•Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any positionother than "OFF" will

cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stoppingtractor on grass areas.

_CAUTION: Always stoptractor

completely, as described above, before

leaving the operator's position;to empty

grass catcher, etc.

TO USE TH RO'I'I'LE CONTROL

Always operate engine at full throttle.

•Operating engine at less than full

throttle reduces the battery charging

rate.

•Full throttle offers the best mower

performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting acold engine. Do not use to start

awarm engine.

•To engage choke control, pull knob out.

Slowly push knob in to disengage.

_MOVE FORWARD AND BACKWARD

CAUTION: Do not attempt to operate

motion control lever when the parking

brake is set or when the brake pedal is

depressed. Doing so may result in

misadjustment to the drive control system.

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever

in neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CuI"rlNG HEIGHT

The cutting height is controlled by turning

the height adjustment knob in desired

direction.

•Turn knob clockwise (,"_) to raise

cutting height,

•Turn knob counterclockwise (I,,'_) to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip

with the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

•The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

•For best cutting performance, grass

over 6 inches in height should be

mowed twtco. Make the first cut

relatively high; the second to desired

height.

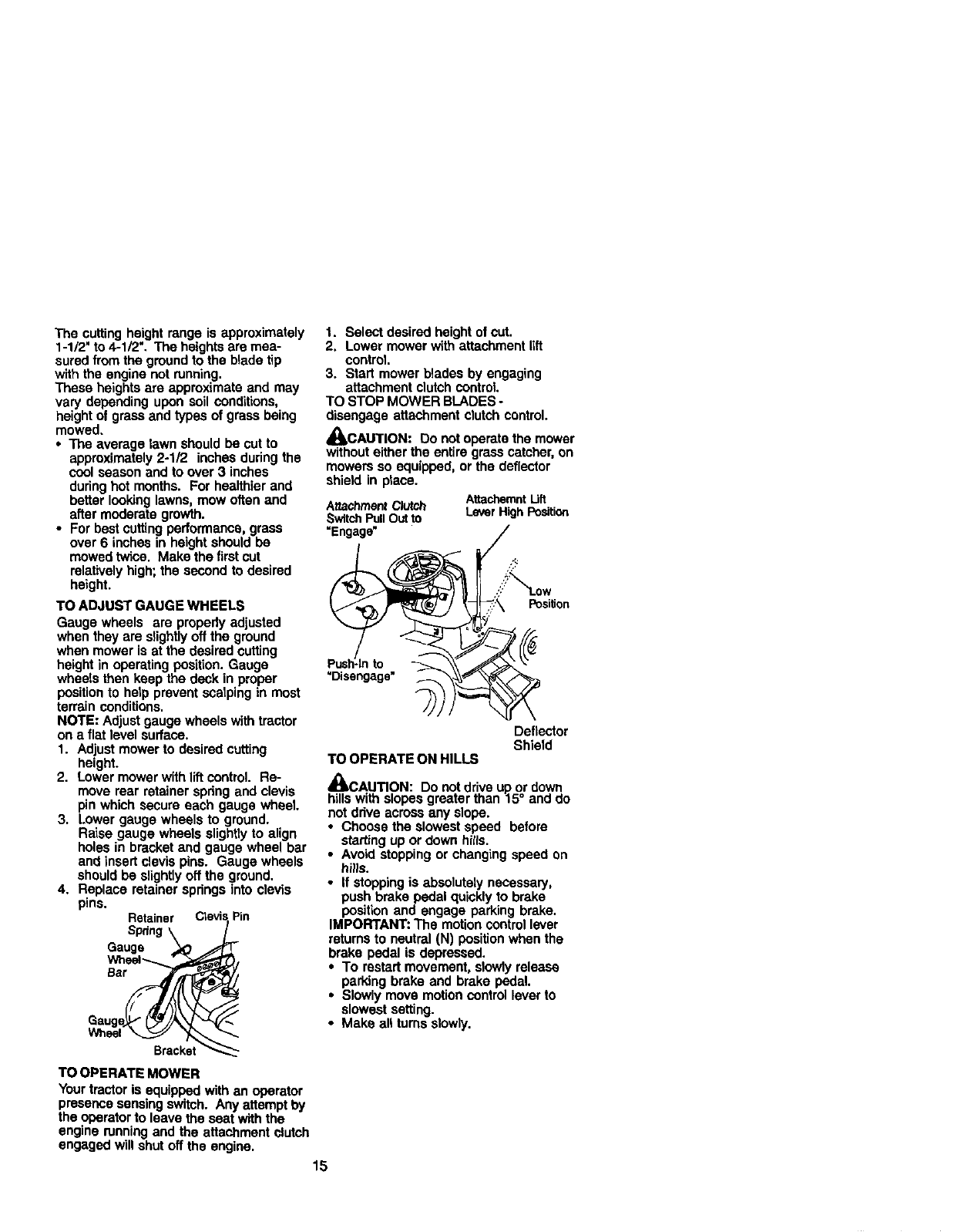

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they ere slightlyoff the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on aflat level surface.

1. Adjust mower to desired cutting

height.

2. Lower mower with lift control. Re-

move rear retainer spring and clevis

pin which secure each gauge wheel.

3. Lower gauge wheels to ground.

Raise gauge wheels slightly to align

holes in bracket and gauge wheel bar

and insert clevis pins. Gauge wheels

should be slightlyoff the ground.

4. Replace retainer springs into clevis

pins. Retainer

Spring \

Gauge

Bar

Gaug

Wheel _ •

Brack,

ClevisPin

TO OPERATE MOWER

Yourtractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Lower mower with attachment lift

control.

3. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

AttachmentClutch AttachemntUIt

Switch PullOutto LeverHighPosition

=Engage"

..;:::_L0w

PosilJ0n

"Disengage"

Deflector

Shield

TO OPERATEON HILLS

X1L

I_CAUTION: Do not drive up or down

hillswith slopes greater than 15° and do

not drive across any slope.

•Choose the slowest speed before

starting up or down hills.

•Avoid stopping or changing speed on

hills.

•If stopping is absolutely necessary,

push brake pedal quickly to brake

position and engage parking brake.

IMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is depressed.

•To restart movement, slowly release

perking brake and brake pedal.

•Slowly move motion control lever to

slowest setting.

•Make all turns slowly.

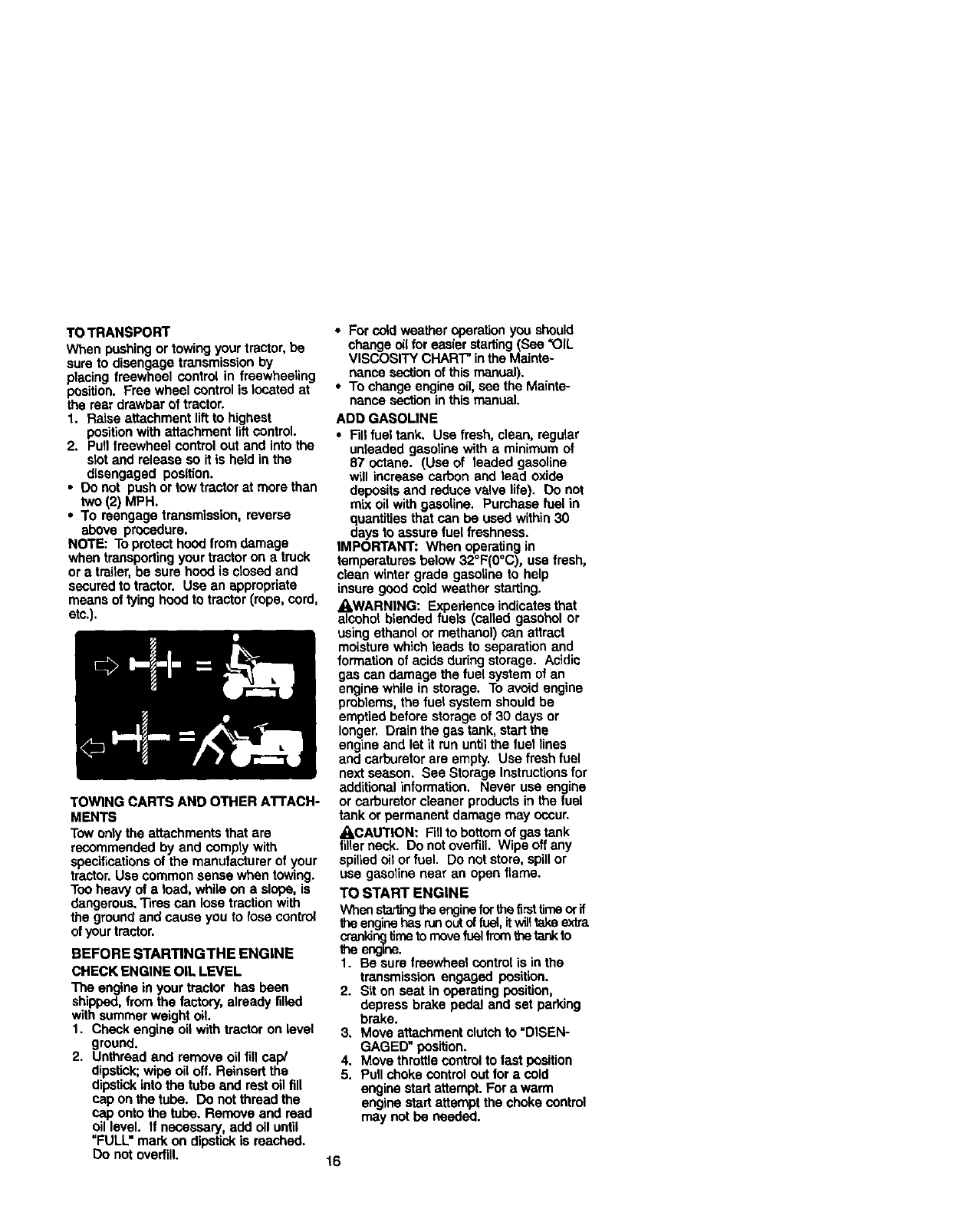

TOTRANSPORT

Whenpushingortowingyourtractor,be

suretodisengagetransmissionby

placingfreewheelcontrolinfreewheeling

position. Free wheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

positionwith attachment lift control.

2. Pull freewheel control out and into the

slot and release so it is held in the

disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

•To reengage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transportingyour tractor on a truck

or a trailer, be sure hood is ctosod and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER A'I'rACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specificationsof the manufacturer of your

tractor. Use common sense when towing.

Too heavy of aload, while on aslope, is

dangerous. Tires can lose traction with

the ground and cause you to rose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick;wipe oil off. Reinsert the

dipstickinto the tube and rest oil fill

cap on the tube. Do not thread the

cap onto the tube. Remove and read

oil level. If necessary, add oil until

"FULL" mark on dipstick is reached.

Do not overfill.

• For cold weather operation you should

change oi( for easier starting(See "OIL

VISCOSITY CHART" inthe Mainte-

nance sectionof this manual).

•To change engine oil, see the Mainte-

nanse sectionin this manual.

ADD GASOUNE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantitiesthat can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in

temperatures below 32°F(0°C), usa fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_,WARNING: Exper_enseindicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run untilthe fuel tines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructionsfor

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_I,CAUTION: Fill to bottom of gas tank

fillerneck. Do not overfill. Wipe offany

spilled oil or fuel. Do not store, spillor

use gasoline near an open flame.

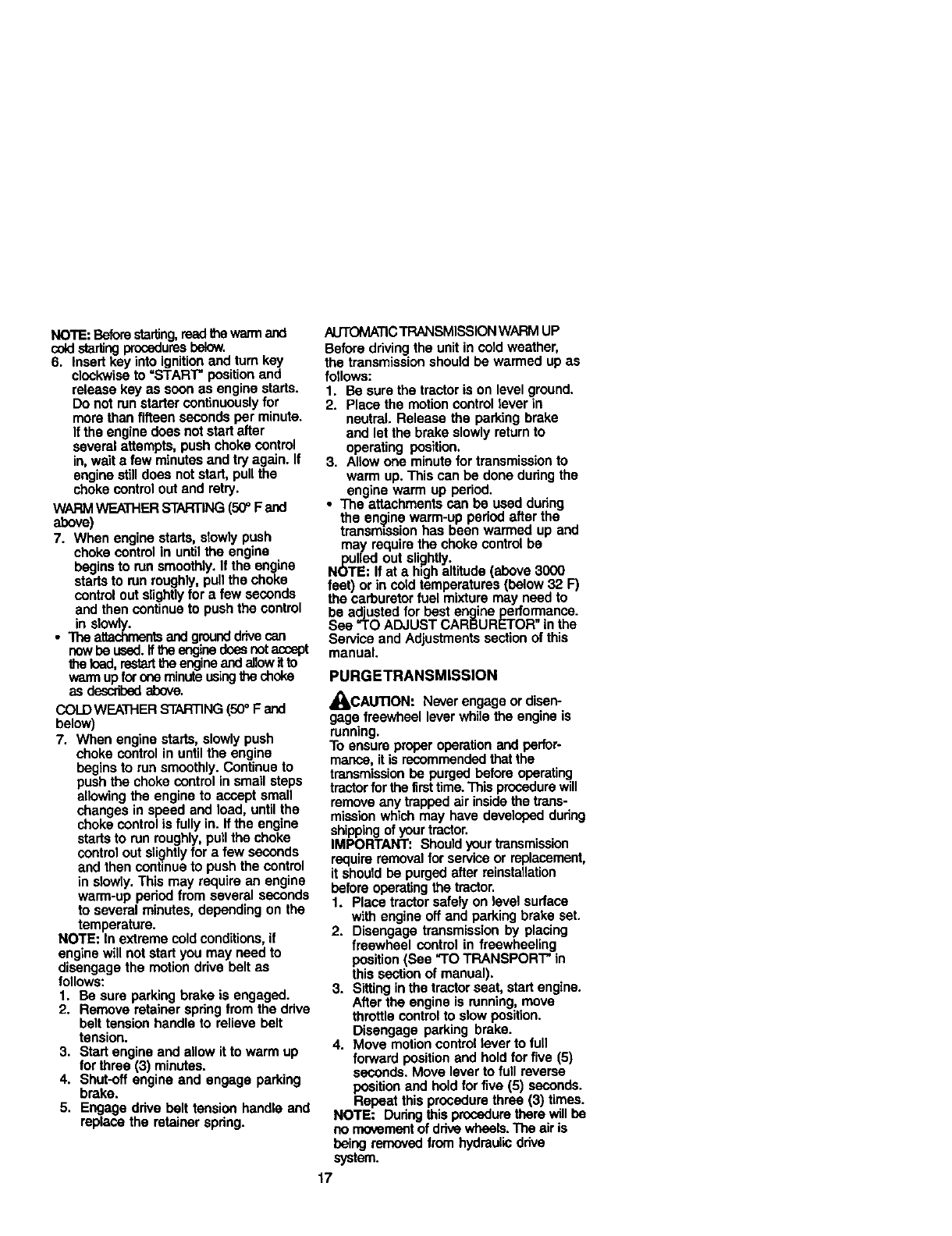

TO STAR3" ENGINE

Whec startingthe engineforthe firsttimeor if

the enginehasrunoutof fuel,it w_lltake extra

cranldn__me to movefualfromthetankto

the enghne.

1. Be sure freewheel controlis in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3, Move attachment clutch to "DISEN-

GAGED" position.

4. Move throttle controlto last position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: BeforestarUng,readthe warmand

cold startingproceduresbelow.

6. Insert key into ignitionand turn key

clockwiseto =START" positionand

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait afew minutes and try again. If

engine stilldoes not start, pull the

choke control out and retry.

WARM WEATHER STARTING (50° Fand

above)

7. When engine starts, stowiy push

choke control in until the engine

begins to runsmoothly. If the engine

starts to run roughly, pull the choke

control out slightlyfor afew seconds

and then continue to push the control

in slowly.

•The attactvsentsand groundddvecan

nowbe used. ifthe enginedoes notacsept

tbe load, restartbe engine anclalicwitto

warm upfor one minuteusingthechoke

as described above.

COLD WEATHER STARTING (50° F and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pullthe choke

control out slightlyfor afew seconds

and then continue to push the control

in slowly. This may require an engine

warm-up pedod from several seconds

to several minutes, depending on the

temperature.

NOTE: In extreme cold conditions, if

engine will not start you may need to

disengage the motion drive belt as

follows:

1. Be sure parking brake is engaged.

2. Remove retainer spdng from the drive

belt tension handle to relieve belt

tension.

3. Start engine and allow it to warm up

for three (3) minutes.

4. Shut-off engine and engage parking

brake.

5. Engage drive belt tension handle and

replace the retainer spdng.

AUTOMATICTRANSMISSION WARM UP

Before ddving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the brake slowly return to

operating position.

3. Allow one minute for transmission to

warm up. This can be done dudng the

engine warm up period.

•The attachments can be used dudng

the en_line warm-up pedod after the

transmtssion has been warmed up and

may require the choke control be

pulled out slightly.

NOTE: If at ahtgh altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

PURGETRANSMISSION

_,CAUTION: Never engage or disen-

gage freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmissionbe purged before operating

tractorfor the firsttime. This procedurewill

remove any trapped air insidethe trans-

missionwhich may have developed dudng

shippingof your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation

before operatingthe tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in freewheeling

position (See "TO TRANSPORT" in

this section of manual).

3. Sitting inthe tractor seat, start engine.

After the engine is running, move

throttle control to slow position.

Disengage parking brake.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: Duringthis procedurethere will be

no movementof drivewheels. The air is

being removed from hydraulicdrive

system.

5. Move motion control lever to neutral

(N) position. Shut- off engine and set

parking brake.

6. Engage transmission by placing

freewheel control in driving position

(See "TO TRANSPORT" in this section

of manual).

7. Sittingin the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

Disengage parking brake.

8. Slowly move motion control lever

forward, after the tractor moves

appmximataly five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your tractor is now purged and now ready

for normal operation.

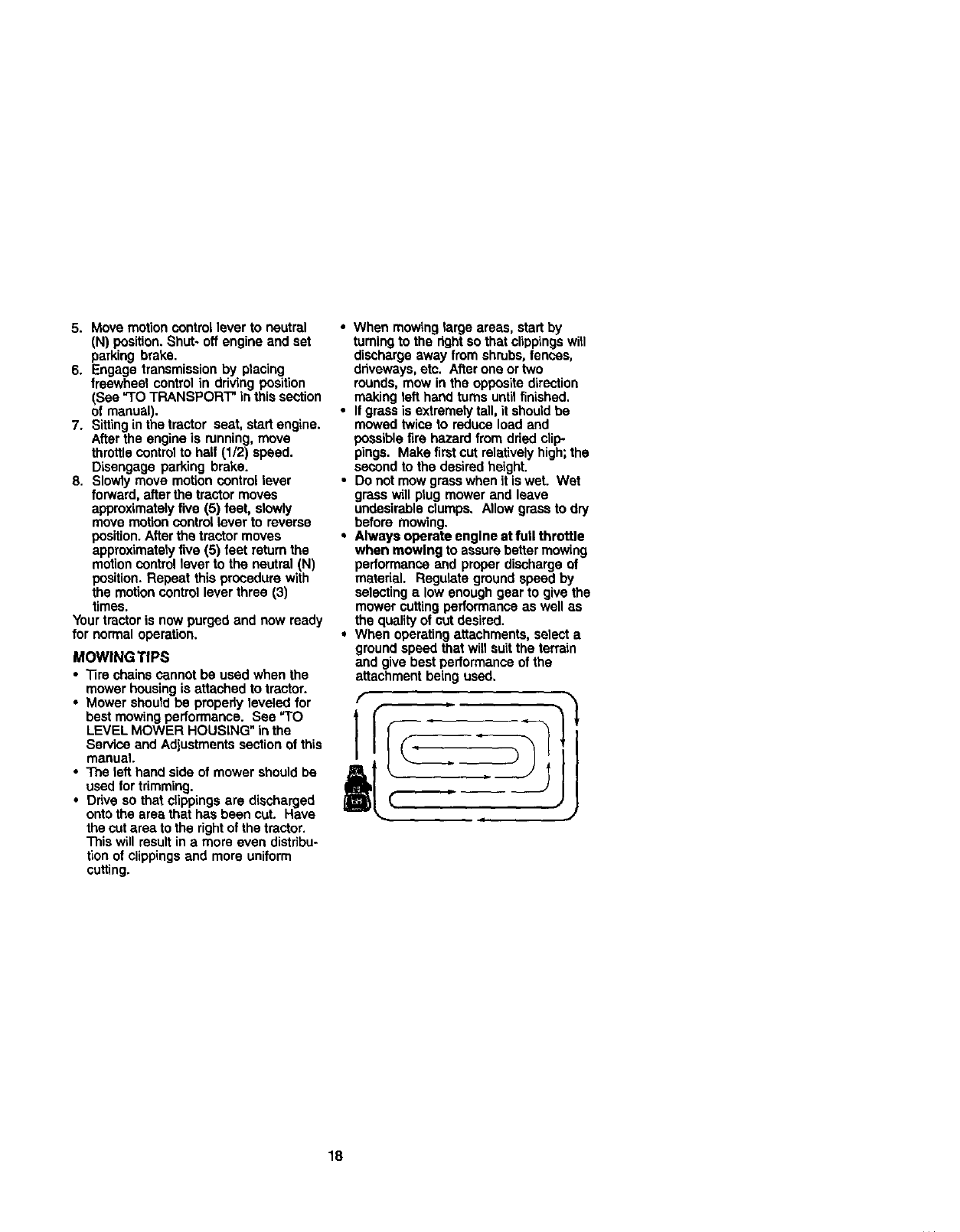

MOWINGTIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

•Mower should be propedy leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

•The left hand side of mower should be

used for trimming.

• Ddve so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will resultin a more even diStribu-

tion of clippings and more uniform

cutting.

•When mowing large areas, start by

turning to the right so that clippingswill

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns untilfinished.

•It grass is extremety tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

•Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps, Allow grass to dry

before mowing.

• Always operate engine at fu|l throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting alow enough gear to give the

mower cutting performance as well as

the quality of cut desired.

•When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used,

1 . Cl_ngl rn_e Olten when _,tg undo4- mhem_ lold ¢r kl l_,gh mT_nt mmFe.ft_ 5. If e_JIr_lld _ IdjultlbM i_

GENERAL RECOMMENDATIONS

The warranty on thistractor does not cover

itemsthat have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructedin this manual.

Some adjustmentswill need to be made

pedodicallyto properlymaintain your

tractor.

All adjustments inthe Service and

Adjustments sectionof this manual should

be checked at least once each season.

•Once a year you should replace the

spark plug,dean or replace air filter, and

check blades and belts for wear. A new

spark plugand clean air filter assure

proper alr-fual mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

intedock systems for proper operation.

5. Check for loose fasteners.

6. N_ r_llnld If_Fal_ w_lh m_nbmanCe-hel bettmy.

7*Tight _, kent _plv_ bo/t to 3_ P-J_4, r_.

DO not o_ten.

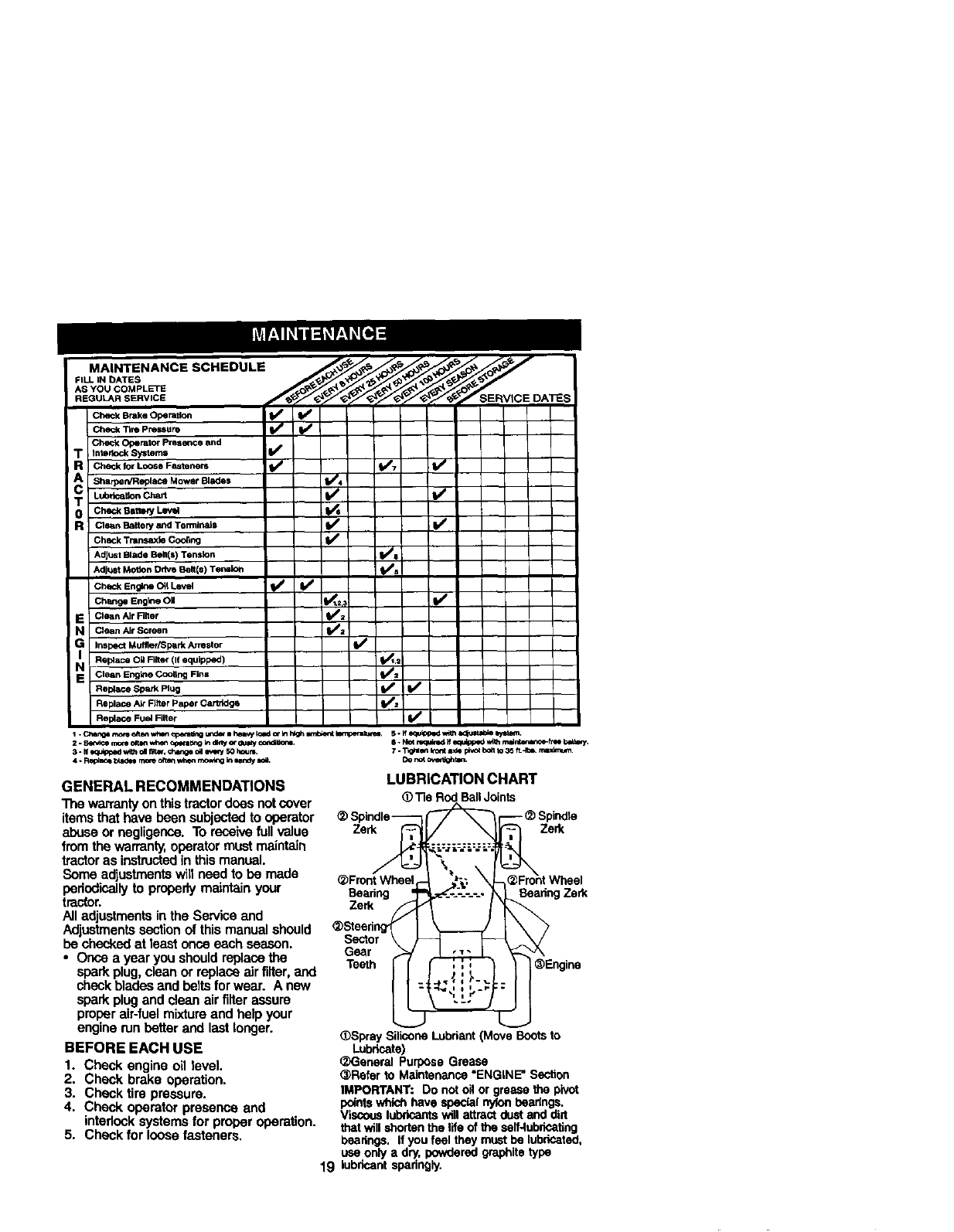

LUBRICATION CHART

_)Tie Rod BallJoints

_(_ Spindle

_Spindle_l/. ....... _ Zerk

•)Front Wheelr-_ _.'_ XJ_Front Wheel

Bearing "_='____ng Zerk

FX/

®st_an_ I

Sector \)_

Gear _/

Teeth __._= _ __ _Engine

•Spray SiliconeLubriant{Move Bootsto

Lubricate)

_Ganerel PurposeGrease

@Retsr to Maintenance=ENGINE"Section

IMPORTANT: Do notoil orgreasethe pivot

pointswhichhave specialnyk_ bearings.

Viscouslubdcantewillattractdustand dirt

thatwill shortenthelife ofthe eerf-lubricattng

bastings. Ifyoufeel they mustbe lubricated,

use only a dry, powdered graphite type

19 lubricant spaflngly.

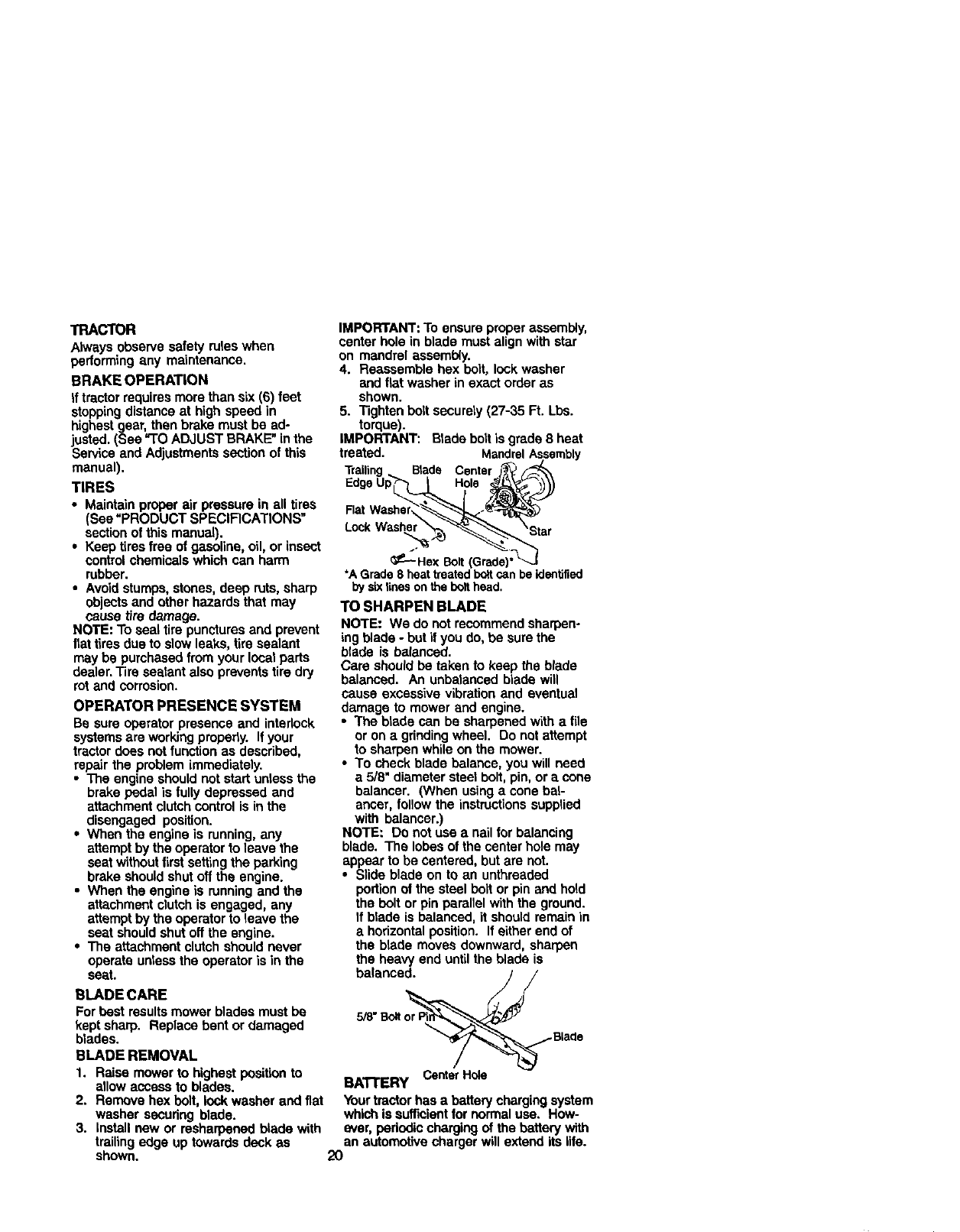

TRACTOR

Always observe safety rules when

pedorming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" inthe

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See =PRODUCT SPECIFICATIONS"

section of this manual).

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

Itat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and intedock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

•The engine should not start unless the

brake pedal is fully depressed and

attachment clutch control is in the

disengaged position.

•When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

•When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best resultsmower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer secudng blade.

3. install new or resharpeoed blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble hex belt, lock washer

and fiat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Brads boltis grade 8 heat

treated. MandrelAssembly

Trailing_Blade Center j_

Edge Up___ Hole _ _)

_--_-'Hex Bolt(Grade)_'_

*AGrade8 heattreatedbo_tcan be identified

bysixlines on_e bolthead.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade -but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

•The blade can be sharpened with a file

or on agrindingwheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, you will need

a5/8" diameter steel bolt, pin, or a cone

belancer. (When using a cone bai-

anoer, follow the instructions supplied

with belancer.)

NOTE: DO not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the belt or pin parallel with the ground.

If blade is balanced, it should remain in

a hodzontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

Blade

BATrERY CenterHole

Your tractor has a battery charging system

which is sufficiant for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

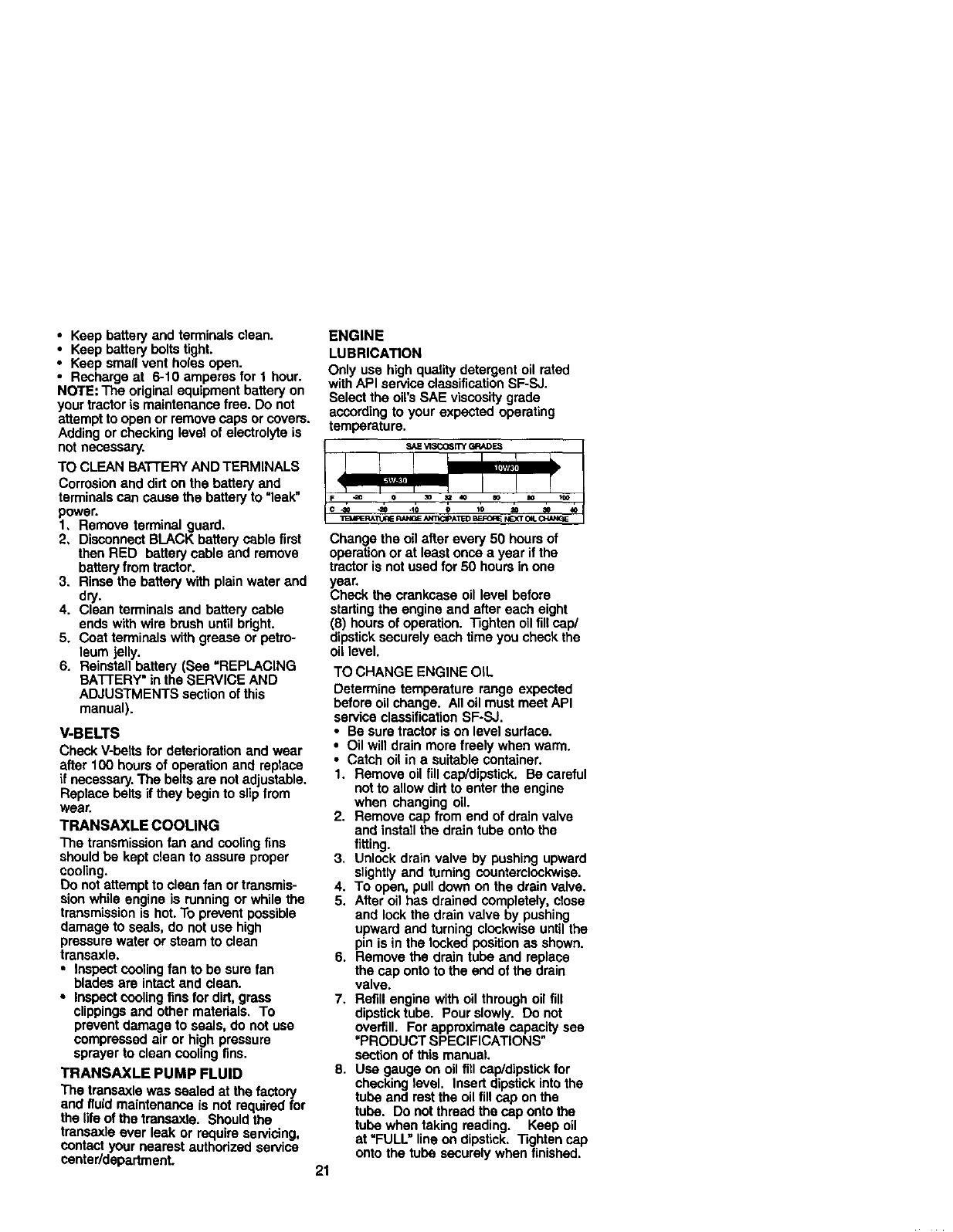

• Keepbatteryand terminals clean.

•Keep battery bolts tight.

Keep small vent holes open.

•Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1, Remove terminal guard.

2, Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush untilbright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See =REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts lor deterioration and wear

after 100 hours of operation and raptece

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

• Inspect cooling fan to be sure fan

blades are intact and clean.

•Inspect cooling fins for dirt, grass

clippings and other matarials, To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authorized service

center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

c_ _ "_ _ _o _ _ _ 1

I_/_ERATU_E RANGE AN_OIPAT_D BF_:_E NEXT OIL C_NQE

Change the oil after every 50 hours of

operation or at least once a year ifthe

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fillcap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

•Be sure tractor is on level surface.

•Oil will drain more freely when warm.

•Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove cap from end of drain valve

and install the drain tube onto the

fitting,

3. Unlock drain valve by pushing upward

slightly and turning counterclockwise.

4. To open, pull down on the drain valve.

5. After oil has drained completely, Nose

and lock the drain valve by pushing

upward and turning clockwise until the

pin is in the locked positionas shown.

6. Remove the drain tube and replace

the cap onto to the end of the drain

valve.

7. Refill engine with oil through oil fill

dipsticktube. Pour slowly. Do not

overfill. For approximate capacity see

=PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into the

tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULL" lineon dipstick. Tighten cap

onto the tube securely when finished.

Oil DrainValve

Cap_

Di -- _ _ = _CIosedand

re n Tube f _'_ "Locked Position

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOUNG AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartndge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow

it to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

Replace a dirty, bent, or damaged

cartridge.

NOTE: Do not wash the paper certridge

or use pressurized air, as this will

damage the cartridge.

6. Remove nut and cartridge plate.

7. Reinstall the pre-cteaner (cleaned

and oiled) over the paper cartridge.

8. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

9. Reassemble air cleaner, cartridge

plate, and nut.

1O.Reinstall air cleaner cover and secure

by tightening knob.

Foam

Pre-Cfeaner

Cartridge

Nut

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change ifthe tractor is

used more than 100 hours in one year.

MUFFLER

Inspect and reptsce corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occursfirst.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. Iffuel filter becomes

clogged, obstructingfuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in positionin fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are property positioned.

4. Immediately wipe up any spilled

gasoline. Cl_lam p

Fuel Fitter

CLEANING

ilean engine, battery, seat, finish, etc.

of all ford_jn matter.

Keep finished surfaces and wheels

free of all gasoline, oil, etc.

Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

22 engine life.

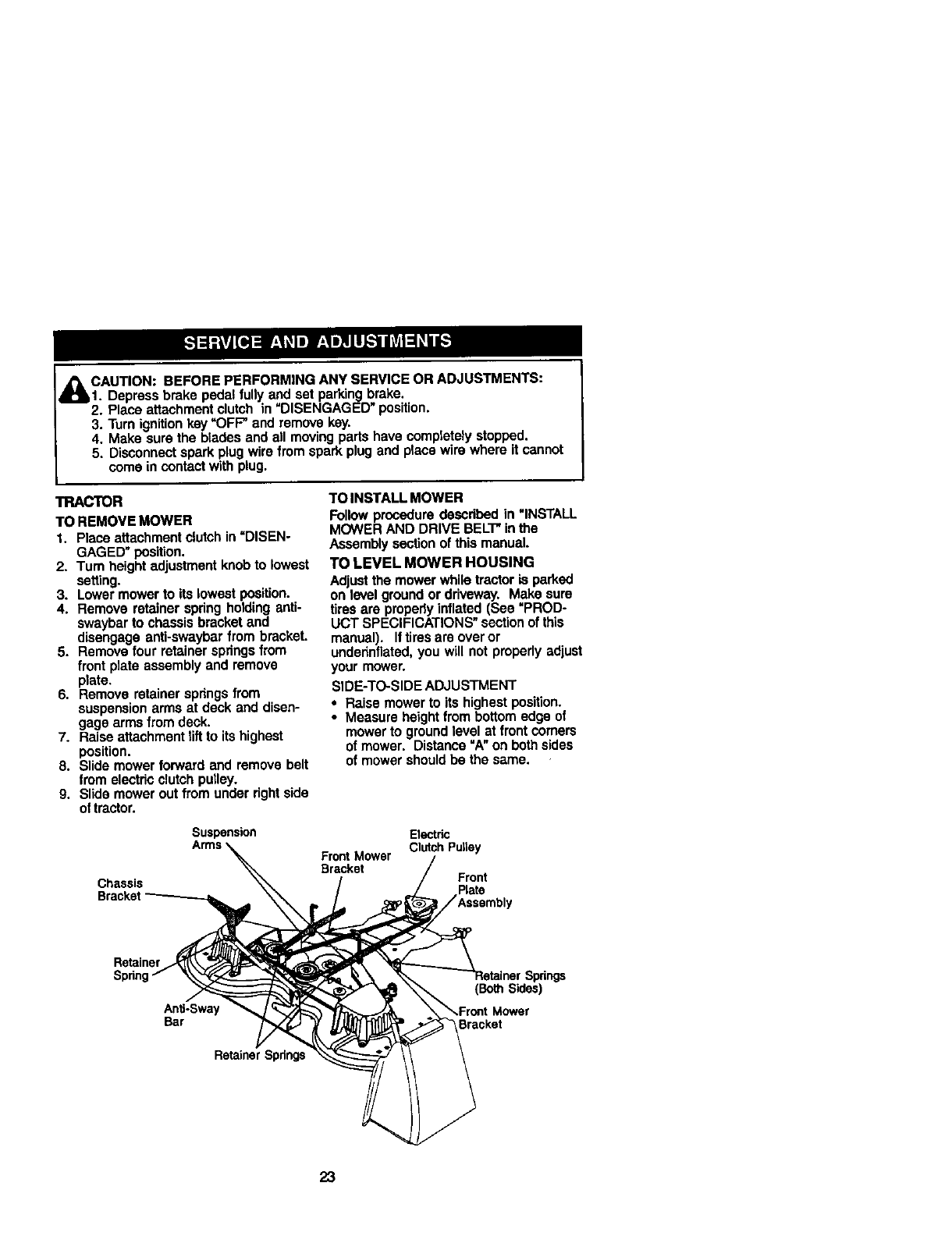

_bCAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in "DISENGAGED" position.

3. Turn ignitionkey =OFF" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and p_acewire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in =DISEN-

GAGED" position.

2. Turn height adjustment knob to lowest

setting.

3. Lower mower to its lowest position.

4. Remove retainer spring holding anti-

swaybar to chassis bracket and

disengage anti-swaybar from bracket.

5. Remove four retainer springsfrom

front plate assembly and remove

plate.

6. Remove retainer spdngs from

suspension arms at deck and disen-

gage arms from deck.

7. Raise attachment lift to its highest

position.

8. Slide mower forward and remove belt

from alectdc clutch pulley.

9, Slide mower out from under right side

of tractor.

Suspension

Chassis

Bracket

TO INSTALL MOWER

Follow procedure descdbed in "INSTALL

MOWER AND DRIVE BELT in the

Assembly section of this manual.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway, Make sure

tires are propedy inflated (See PROD-

UCT SPECIFICATIONS" section of this

manual). If tires ara over or

undednflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT

•Raise mower to its highest position.

•Measure height from bottom edge of

mower to ground level at front comers

of mower. Distance "A"on both sides

of mower should be the same.

Electric

Front Mower Clutch Pulley

Bracket Front

Plate

Retainer

Anti-Sway

Bar

Retainer Springs

_prings

(BothSides)

Bracket

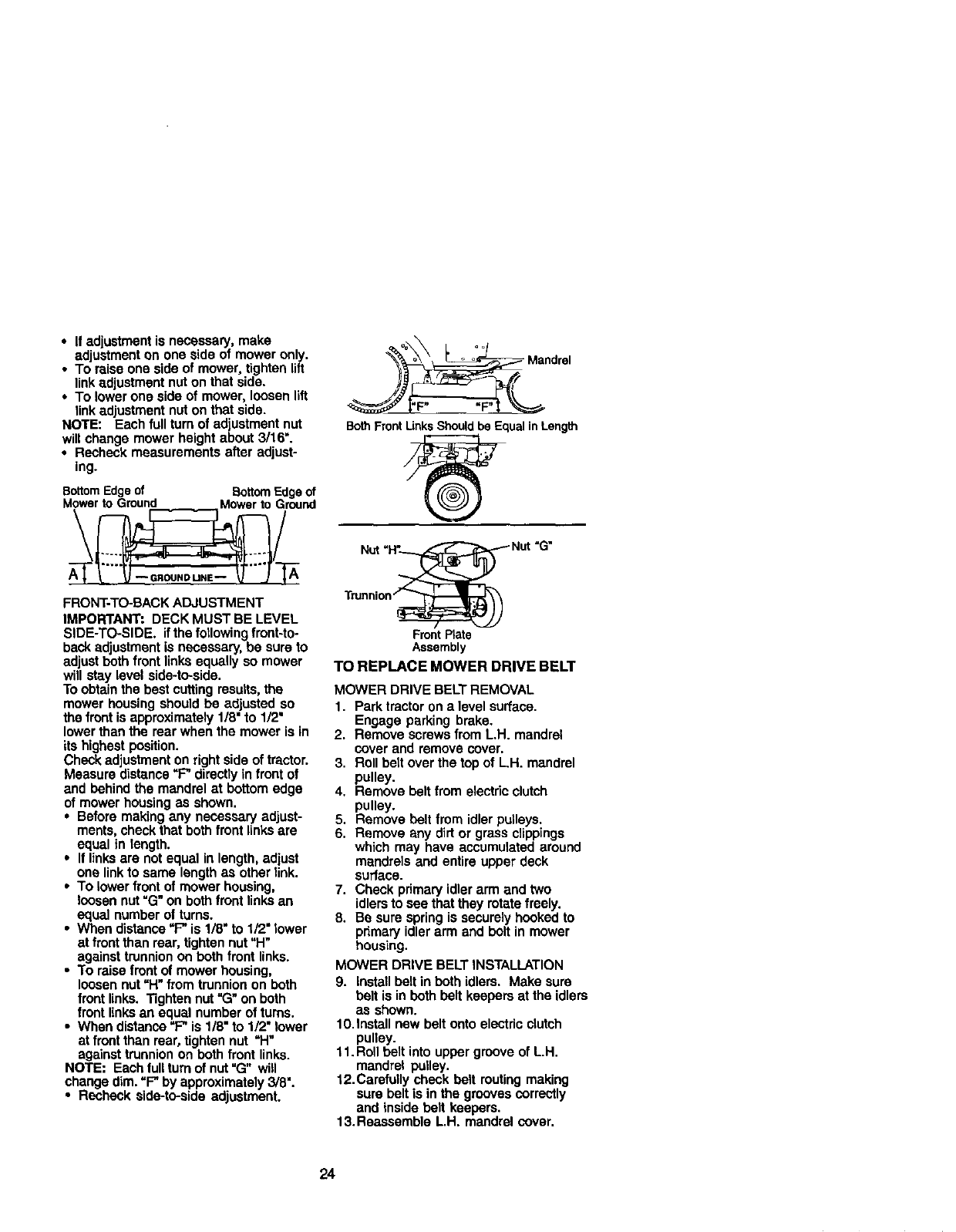

•II adjustment is necessary, make

adjustment on one side of mower only.

•To raise one side of mower, tighten lift

link adjustment nut on that side.

•To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

•Recheck measurements after adjust-

ing.

BottomEdgeof BottomEdge of

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: DECK MUST BE LEVEL

SIDE-TO-SIDE. ifthe following front-to-

back adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "F" directly in front of

and behind the mandrel at bottom edge

of mower housing as shown.

•Before making any necessary adjust-

ments, check that both front links are

equal in length.

•If links are not equal in length, adjust

one link to same length as other link.

•To lower front of mower housing,

loosen nut "G" on both front links an

equal number of turns.

•When distance =F" is 1/8" to 1/2" lower

at front than rear, tighten nut "H"

against trunnion on both front links.

•To raise front of mower housing,

loosen nut =H" from trunnion on both

front links. Tighten nut "G" on both

front links an equal number of tams.

• When distance "F" is 1/8" to 1/2" lower

at frontthan rear, tighten nut =H"

against trunnion on both front links.

NOTE: Each full turn of nut "G" will

change dim. "F" by approximately 3/8".

•Recheck side-to-side adjustment.

_ oo

_Mandrel

BothFrontUnks Shouldbe Equalin Length

Nut "H_ Nut "G"

Trunnion "_

Front Plate

Assembly

TO REPLACE MOWER DRIVE BELT

MCNVER DRIVE BELT REMOVAL

1. Park tractor on a level surface.

Engage parking brake.

2. Remove screws from L.H. mandrel

cover and remove cover.

3. Roll belt over the top of LH. mandrel

pulley.

4. Remove belt from electric clutch

pulley.

5. Remove belt from idler pulleys.

6. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck

surface.

7. Check pdmary idler arm and two

idlers to see that they rotate freely.

8. Be sure spring is securely hooked to

primary idler arm and bolt in mower

housing.

MOWER DRIVE BELT INSTALLATION

9. Install bolt in both idlers. Make sure

belt is in both belt keepers at the idlers

as shown.

10.Install new belt onto electric clutch

pulley.

11. Roll belt into upper groove of L.H.

mandrel pulley.

12.Carefully check belt muting making

sure bolt is in the grooves correctly

and inside belt keepers.

13.Reassemble L.H. mandrel cover.

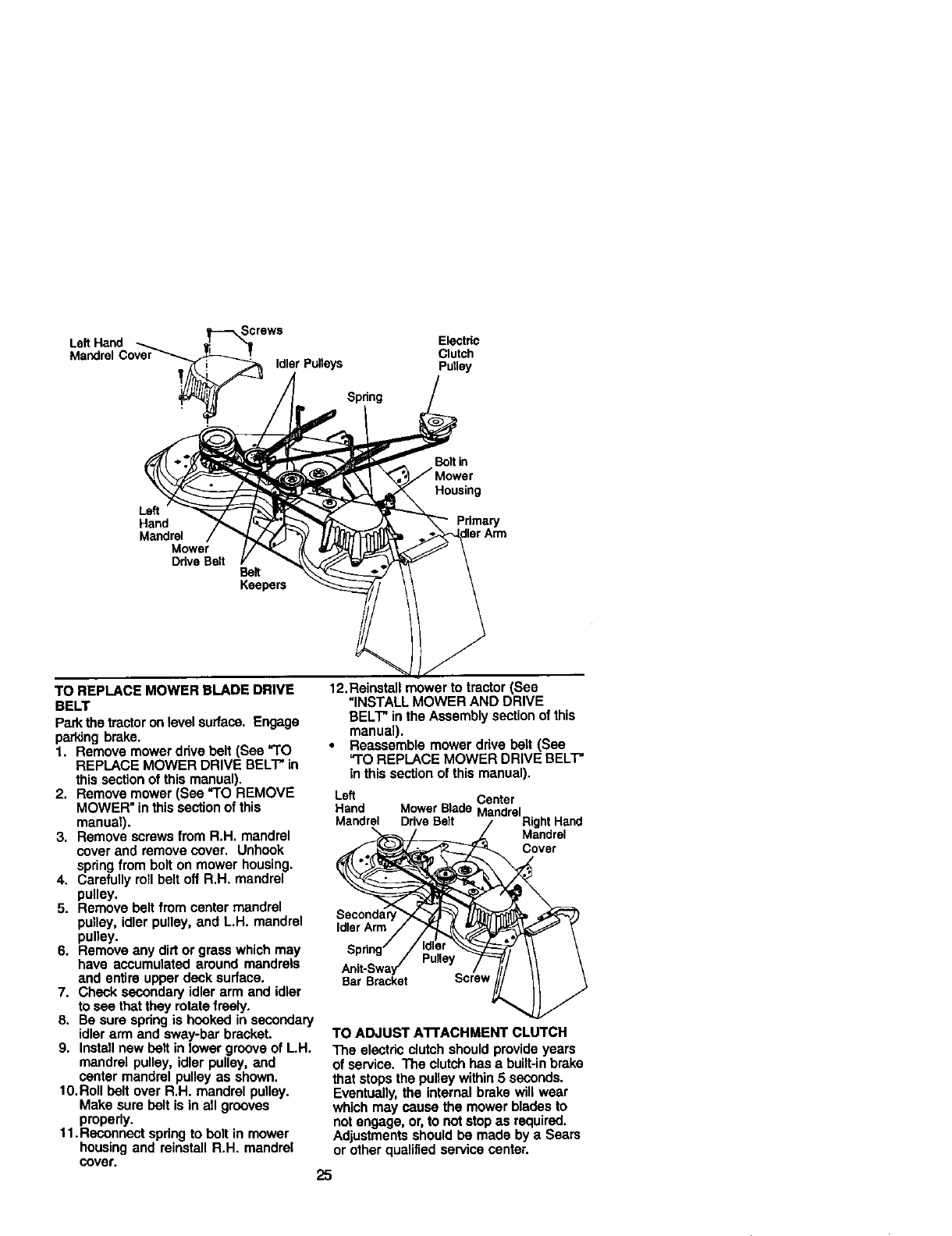

Left Hand

Mandr_

Screws

Idler Pulleys

Spdng

Electdc

Clutch

Putley

Left

Hand

Mandrel

Mower

Ddve Belt Belt

Keepers

Bolt in

Housing

Pdmary

TO REPLACE MOWER BLADE DRIVE

BELT

Park the tractoron level surface. Engage

parking brake.

1. Remove mower ddve belt (Sea TO

REPLACE MOWER DRIVE BELT" in

this section of this manual).

2. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual).

3. Remove screws from R.H. mandrel

cover and remove cover. Unhook

spring from bolt on mower housing.

4. Carefully roll belt off R.H. mandrel

pulley.

5. Remove belt from center mandrel

pulley, idler pulley, and L.H. mandrel

pulley.

6. Remove any dirt or grass which may

have accumulated around mandrels

end entire upper deck surface.

7. Check secondary idler arm and idler

to see that they rotate freely.

8. Be sure spring is hooked in secondary

idler arm and sway-bar bracket.

9. Install new belt in lower groove of LH.

mandrel pulley, idler pulley, end

center mandrel pulley as shown.

10.Roll belt over R.H. mandrel pulley.

Make sure belt is in all grooves

properly.

11.Reconnect spdng to belt in mower

housing and reinstall R.H. mandrel

cover.

12.Reinstall mower to tractor (See

=INSTALL MOWER AND DRIVE

BELT" in the Assembly section of this

manual).

• Reassemble mower ddve belt (See

"TO REPLACE MOWER DRIVE BELT-

in this section of this manual).

Left Center

Hand MowerBlade Mandrel

Mandrel DriveBelt RightHand

_// Mandrel

Id_ Arm/ _

TO ADJUST ATTACHMENT CLUTCH

The electdc clutch should provide years

of service. The clutch has e built-in brake

that stops the pulley within5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or,to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

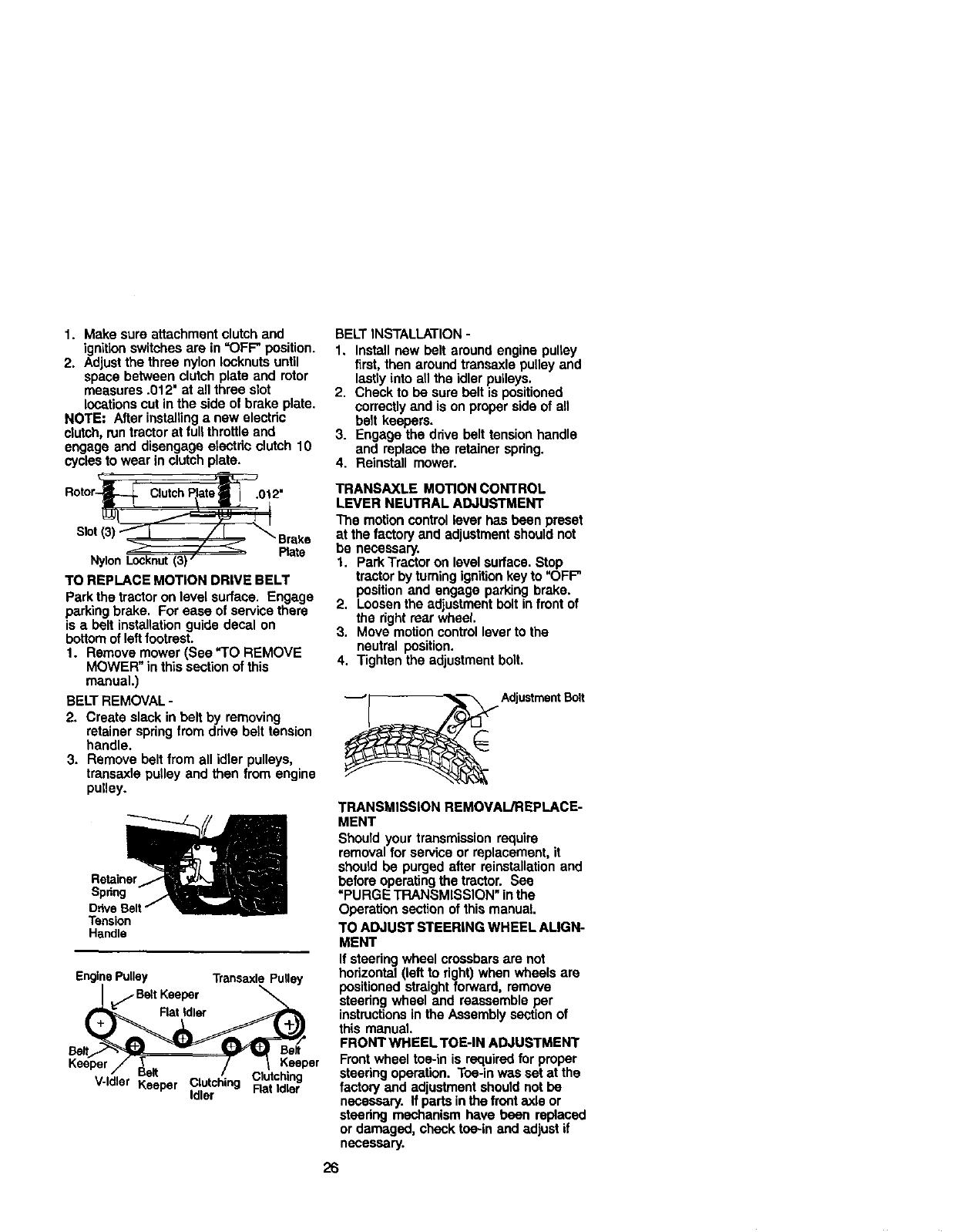

1. Make sure attachment clutch and

ignitionswitches are in =OFF" position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012" at all three slot

locations cut in the side of brake plate.

NOTE: After installinganew electric

clutch, runtractor at full throttle and

engage and disengage electde clutch 10

cycles to wear in clutch plate.

Rotor-mL.__ C,utchPlate_.012"

Slot13)"_"'-i /[_Brake

Nylon_' Rate

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there

is a belt installation guide decal on

bottom of leftfootrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

BELTREMOVAL -

2. Create slack in belt by removing

retainer spring from drive belt tension

handle.

3. Remove belt from all idler pulleys,

transexle pulley and then from engine

pulley.

Tension

Handle

EnginePulley TransaxlePulley

/_ BeltKeeper

BELT INSTALLATION -

1, Install new belt around engine pulley

first, then around transaxle pulley and

lastly into all the idler pulleys.

2. Check to be sure belt is positioned

correctly and is on proper side of all

belt keepers.

3. Engage the drive belt tension handle

and replace the retainer spring.

4. Reinstall mower.

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Park Tractor on levelsurface. Stop

tractor by taming ignitionkey to "OFF"

position and engage parking brake.

2. Loosen the adjustment bolt infront of

the right rear wheel.

3. Move motion control lever to the

neutral position.

4. Tighten the adjustment bolt.

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See

"PURGE TRANSMISSION" inthe

Operation section of this manual

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to fight) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructionsin the Assembly section of

this manual.

FRONT WHEEL TOE-IN ADJUSTMENT

Front wheel toe-in is required for proper

steering operation. Toe-in was set at the

factory and adjustment should not be

necessary. If parts in the front axle or

steering mechanism have been replaced

or damaged, check toe-in and adjust if

necessary.

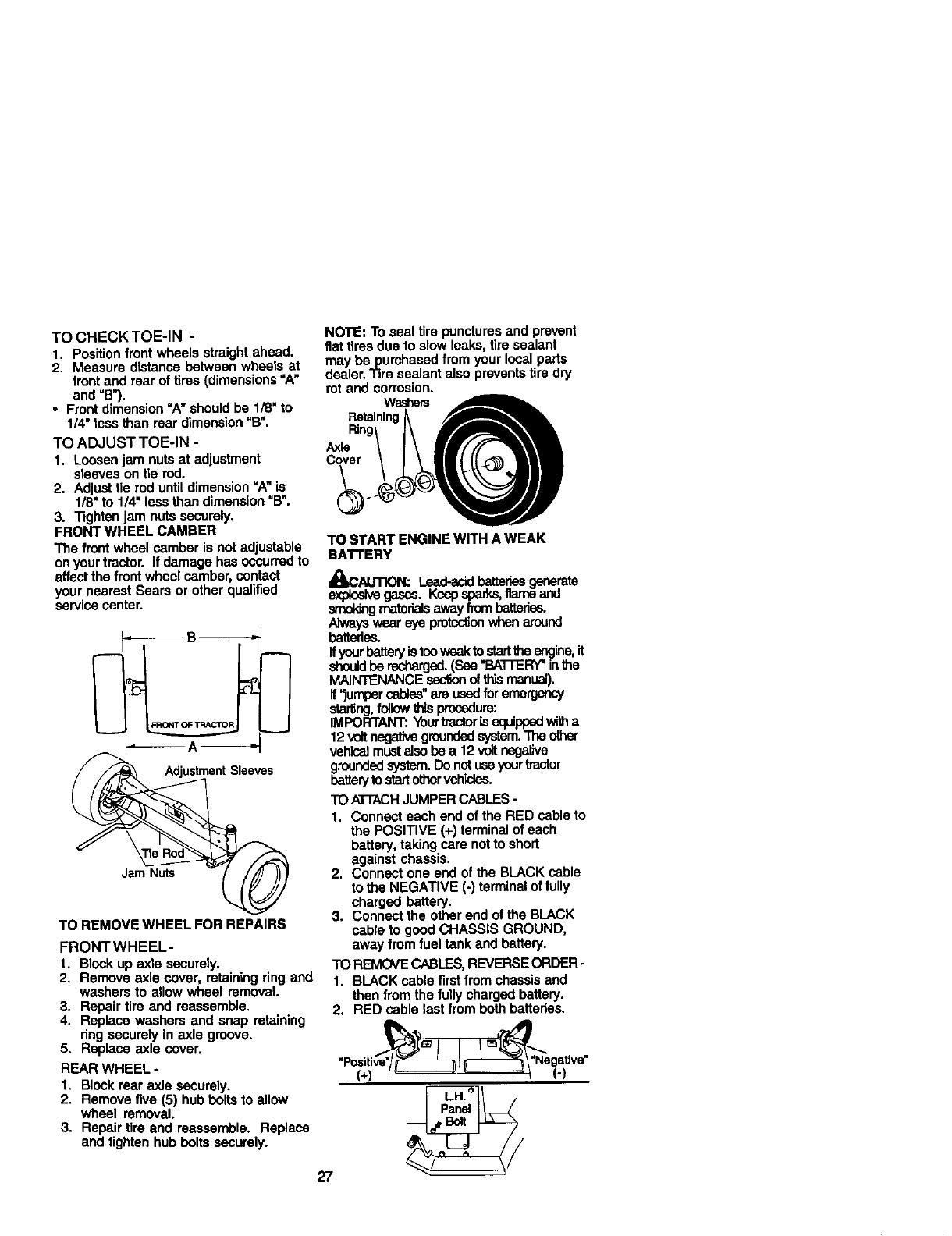

TO CHECK TOE-IN -

1. Position front wheels straight ahead.

2. Measure distance between wheels at

front and rear of tires (dimensions "A"

and "B").

• Front dimension "A" should be 1/8" to

1/4" tess than rear dimension "B".

TO ADJUST TOE-IN -

1. Loosen jam nuts at adjustment

steevas on tie rod.

2. Adjust tie rod until dimension "A" is

1/8" to 1/4" less than dimension "B".

3. Tighten jam nuts securely.

FRONT WHEEL CAMBER

The front wheel camber is not adjustable

onyour tractor. If damage has occurred to

affect the front wheel camber, contact

your nearest Sears or other qualified

service center.

_B_

Jam Nuts

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL-

1. Block up axle securely.

2. Remove axle cover, retaining dng and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL -

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair fire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retainin

Axle

TO START ENGINE WITH A WEAK

BATTERY

_bCAUTION: Lead-acidbatteriesgenerate

explosivegasos. Keep sparks,flame and

smofdngmaterials away fiom batteries.

Alwayswear eye protectionwhen around

batteries.

Ifyour battery is too weak to startthe angine, it

should be recharged. (See "BA'I-I'ERY"in the

MAINTENANCE soc_on of _s manual).

If "jumper cablss" are used for emergeecy

starting,followthis procedure:

IMPORTANT: Yourtractoris equippedwi_ a

12voltnegativegroundedsystem.The other

vehicalmustalso be a 12 voltnegative

grounded system.Do not useyourtractor

battery to startothervehicles.

TO A'I-I'ACH JUMPER CABLES-

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of lully

charged battery.

3. Connect the other end of the BLACK

cabte to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES,REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from beth batteries.

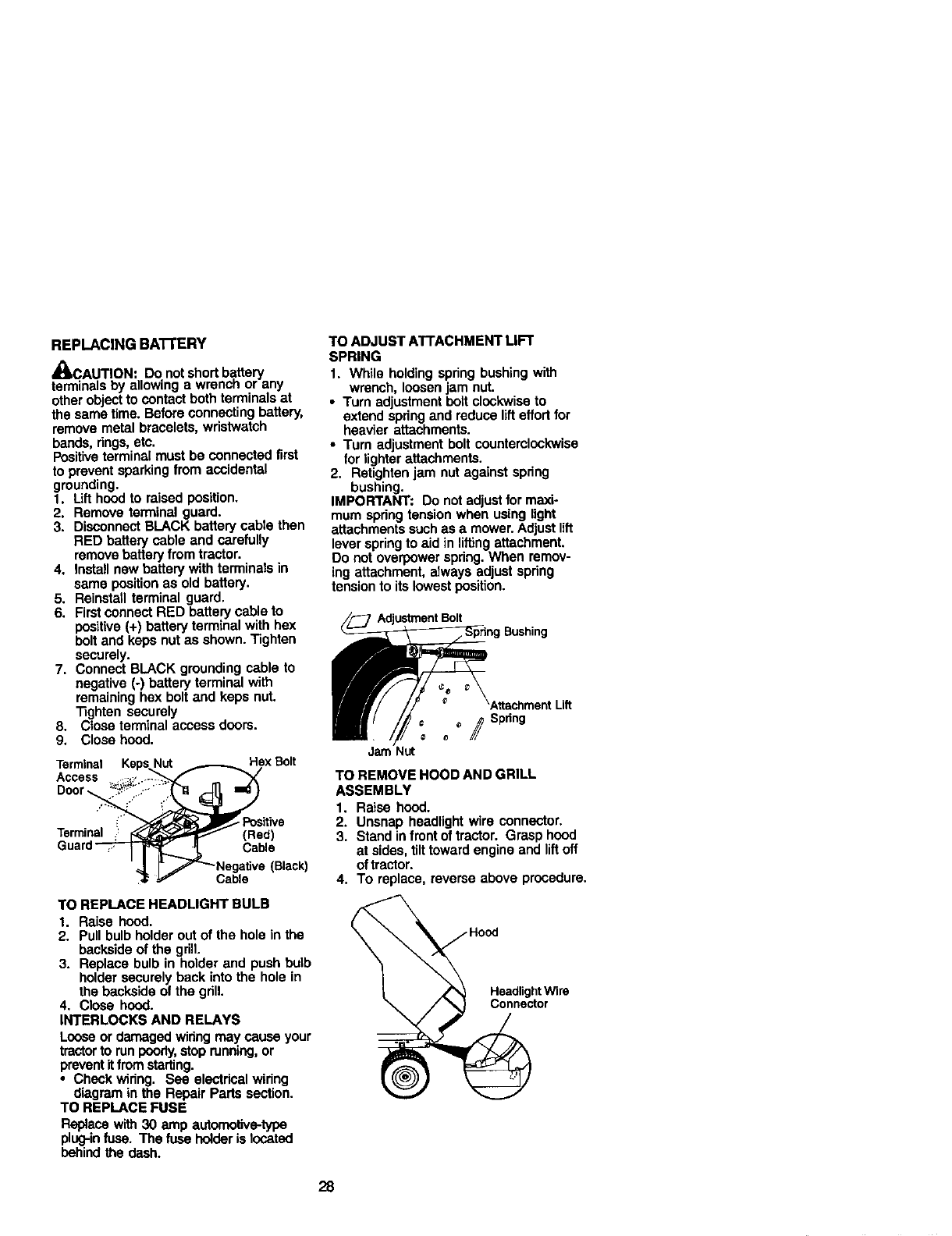

REPLACING BA'I-rERY

_3AUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings,etc.

Positiveterminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. Firstconnect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect SLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

_ghten securely

8. Close terminal access doors.

9. Close hood.

Terminal KepsN_ =,.,,.....---....,_Hex Bolt

Access _.:_:.'...--_ _

•E_ _ _ Positive

Termff_al:' _(Red)

Guard_ table

d FFNegative (Black)

_Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractorto runpoorly,stop running,or

preventitfrom starling.

•Check wiring. See electrical wiring

diagram in the Repair Pads section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-infuse. The fuse holder is located

behind the dash.

TO ADJUST ATTACHMENT LIFT

SPRING

1. While holding spring bushing with

wrench, loosen jam nut.

•Turn adjustment bolt clockwise to

extend spring and reduce lift effort for

heavier attachments.

• Turn adjustment bolt counterclockwise

for lighter attachments.

2. Retighten jam nut against spring

bushing.

IMPORTANT: Do not adjust for maxi-

mum spring tension when using light

attachments such as a mower. Adjust lift

lever spring to aid in liftingattachment.

Do not overpower spring. When remov-

ing attachment, always adjust spring

tension to its lowest position.

Adjustment Bolt

ISpdng

Jam Nut

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood

at sides, tilt toward engine and lift off

of tractor.

4. To replace, reverse above procedure.

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacament of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-roed engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service oufiet.

TO ADJUSTTHROTrLB CONTROL

CABLE

The throttle controlhas been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. It

adjustment is necessary, proceed as

follows:

1_ With engine not running, move throttle

control lever to fast position.

2. Chock that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Idle Fuel Adjusting Idle speed Adjusting

Needle

Throttle

Control

Cable

Screw Clamp Screw

Choke Control Cable

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary, check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the

Maintenance section of this manual).

3. Choke should be closed, if itis not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed for Full

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needles

In (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turningthe adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving aricher fuel/

air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETrlNG -

1. Be sure you have a clean air filter, and

the throttle control cable is adjusted

propedy (see _'O ADJUST

THRO'I-I'LE CONTROL CABLE" in the

Service and Adjustments section of

this manual).

2. With engine off turn idle fuel adjusting

needle In (clockwise) closing it finger

tight and then turn out (counterclock-

wise) 1 tum.

FINAL SE'f-rlNG -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

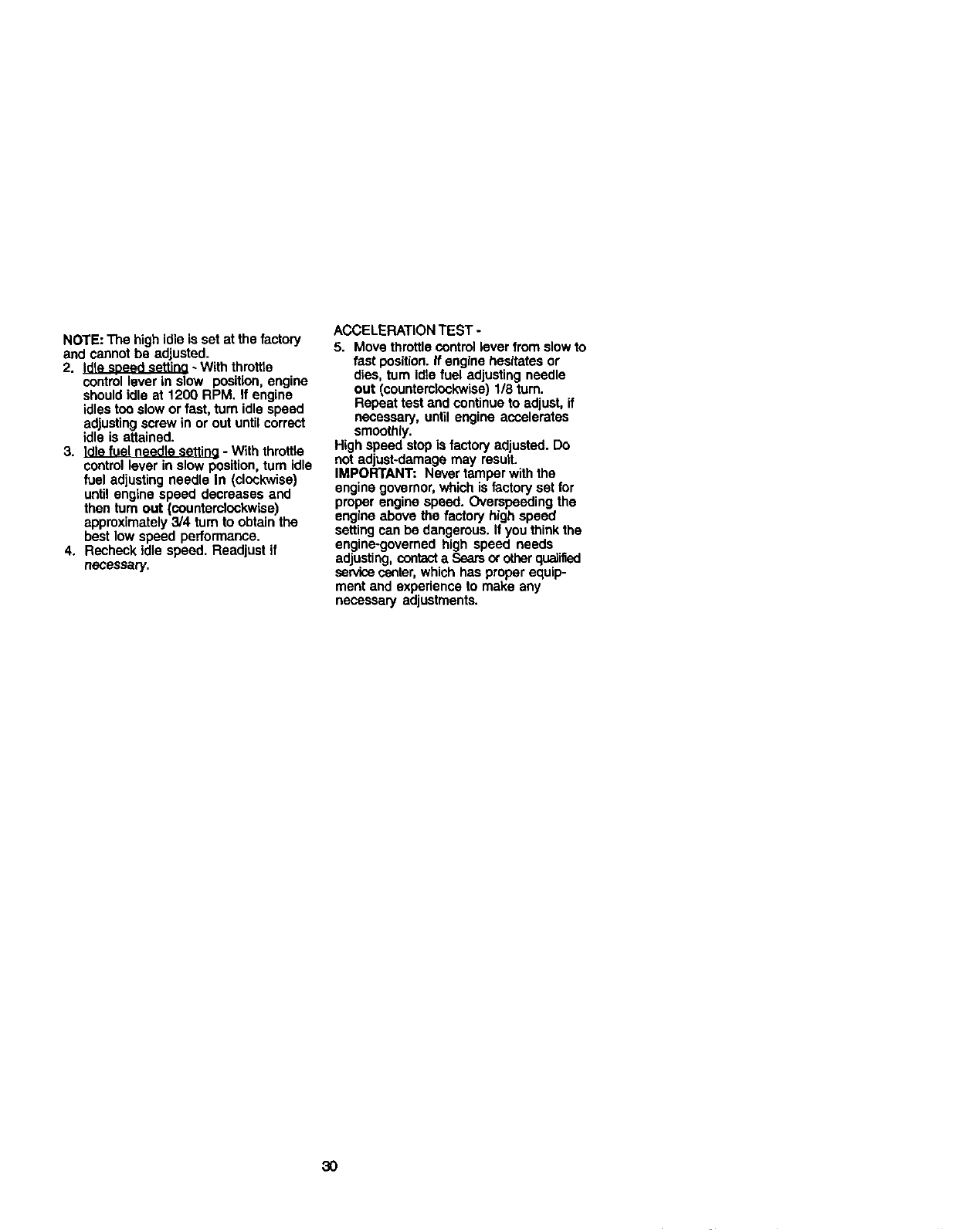

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle speed seffinn - With throttle

control lever in slow position, engine

should idle at 1200 RPM. if engine

idles too slow or fast, turn idle speed

adjusting screw in or out until correct

idle is attained.

3. Idle fuel peedle settina - With throttle

control lever in slow position, tum idle

fuel adjusting needle In (clockwise)

until engine speed decreases and

then fum out (osunterdookwise)

approximately 3/4 tum to obtain the

best low speed performance.

4. Recheck idle speed. Readjust if

necessary.

ACCELERATION TEST -

5. Move throttle control lever from slow to

fast position. If engine hesitates or

dies, fum idte fuel adjusting needle

out (countemlockwise) 1/8 tum.

Repeat test and continue to adjust, if

necessary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. Ifyou think the

engine-governed high speed needs

adjusting, contactaSears o_otherquaJified

servicecenter, which has proper equip-

ment and experienos to make any

necessary adjustments.

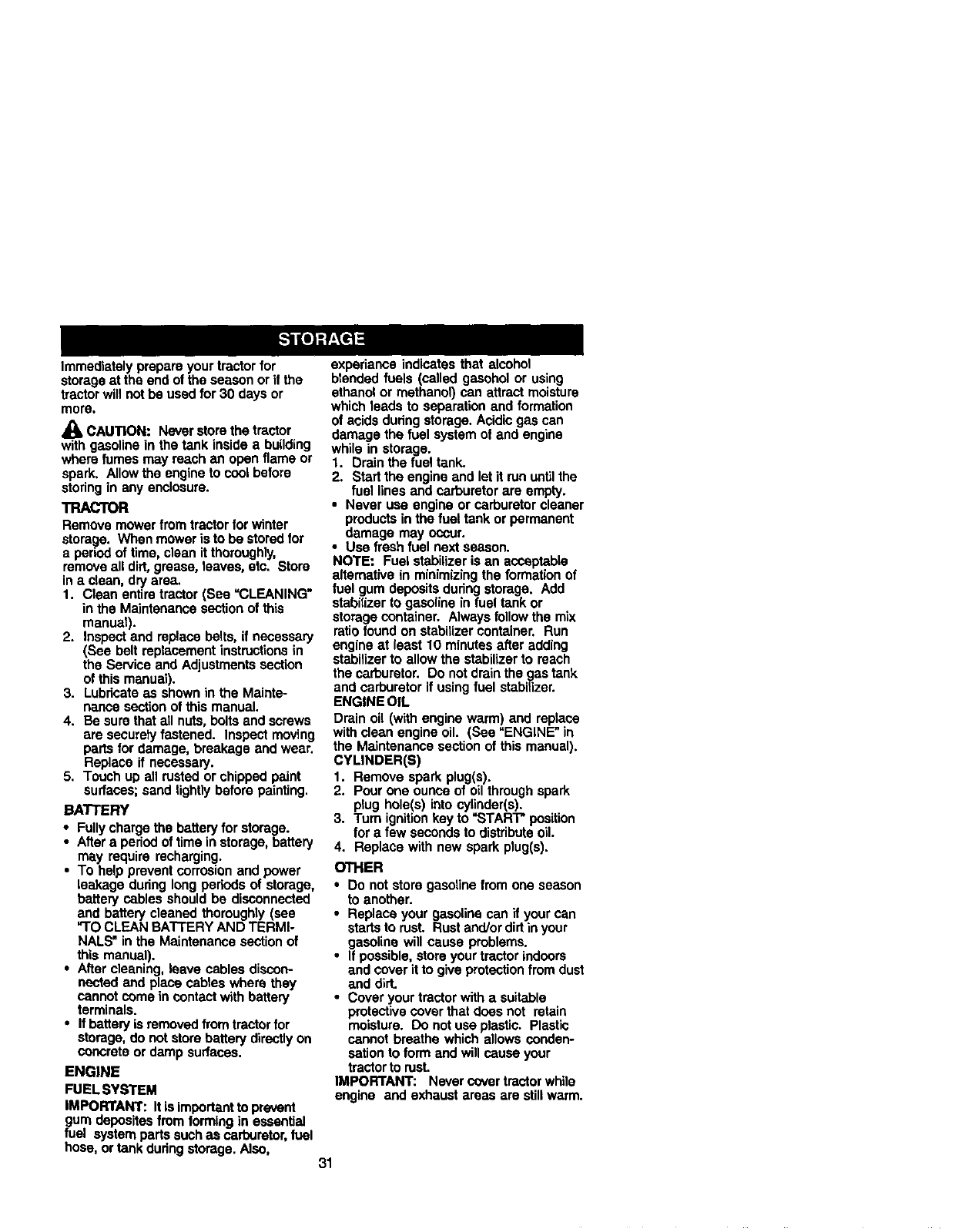

Immediately prepare your tractor for

storage at the end of the season or it the

tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor

with gasoline in the tank inside abuilding

where fumes may reach an open flame or

spark, Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for w_nter

store_e. When mower is to be stored for

a penod of time, clean it thoroughly,

remove all dirt, grease, leaves, etc, Store

in aclean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructionsin

the Service and Adjustments sactk)n

of this manual).

3. Lubdceta as shown in the Mainte-

nance section of this manual.

4. Be sure that all nutS,bolts and screws

are securely fastened. Inspect moving

pads for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

•Fully charge the battery for storage.

•After apedod of time in storage, battery

may require recharging.

•To help prevent corrosion and power

leakage dudng long pedods of storage,

b_ttary cabias should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BA'FrERY AND TERMI-

NALS" in the Maintenance section of

this manual).

•After cleaning, leave cables discon-

nected and place cablas where they

cennct come in contact v_th baltary

terminals.

•If hettery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces,

ENGINE

FUELSYSTEM

IMPORTANT: It is important to prevent

gum deposites from forming in essential

fuel system parts such as ca.d_retor, fuel

hose, or tank dudng storage. Also,

expedance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids dudng storage. Acidic gas can

damage the fuel system of and engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run untilthe

fuel lines and carburetor are empty.

•Never usa engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizingthe formation of

fuel gum depositsdudng storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always followthe mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and repiece

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manuel).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to =STAR'I" position

for a few seconds to distributeoil.

4. Replace with new spark plug(s).

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover itto give protectionfrom dust

and dirt.

• Cover your tractor with asuifable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are stillwam_.

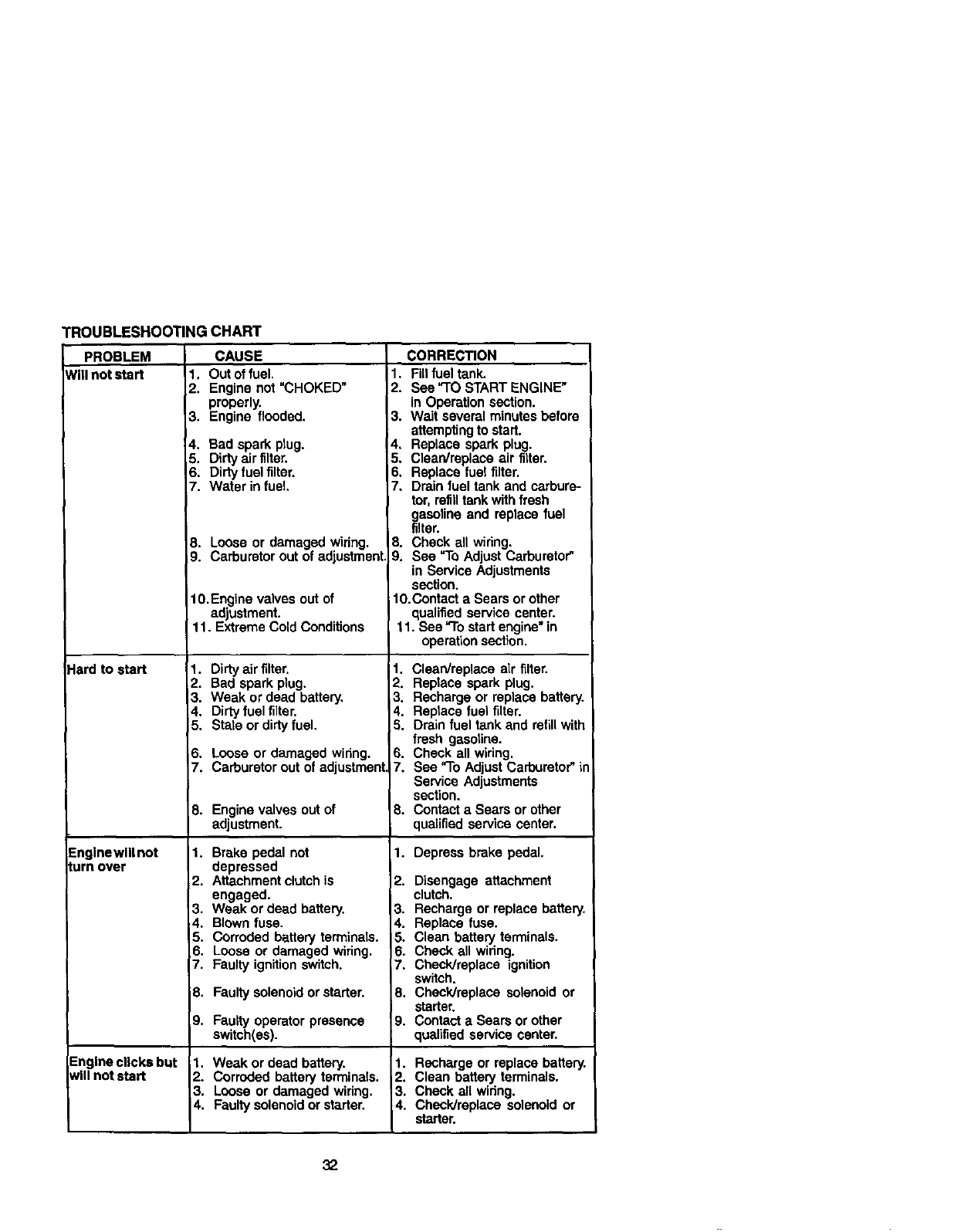

TROUBLESHOOTINGCHART

PROBLEM

_till not start 1.

i9.

Hard to start

"nglnewlllnot

:urn over

Engine clicks but

#111not start

CAUSE

Out of fuel.

Engine not "CHOKED"

properly.

Engine flooded.

Bad spark plug.

Dirty air filter.

Dirty fuel filter.

Water in fuel,

Loose or damaged wiring.

Carburetor out of adjustment.

10.Engine valves out of

adjustment.

11. Extreme Cold Conditions

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery,

4. Dirty fuel filter.

5. Stale or dirty fuel,

6. Loose or damaged widng.

7. Carburetor out of adjustment,

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faultyoperatorpresence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter,

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attemptingto start.

4, Replace spark plug.

5, Clean/replace air filter.

6, Replace fuel filter.

7, Drain fuel tank and carbure-

tor. refilltank withfresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service Adjustments

section,

10.Contact a Sears or other

qualified service center.

11. See "To start engine" in

operation section.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" ir

Service Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch,

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4, Check/replace solenoid or

starter.

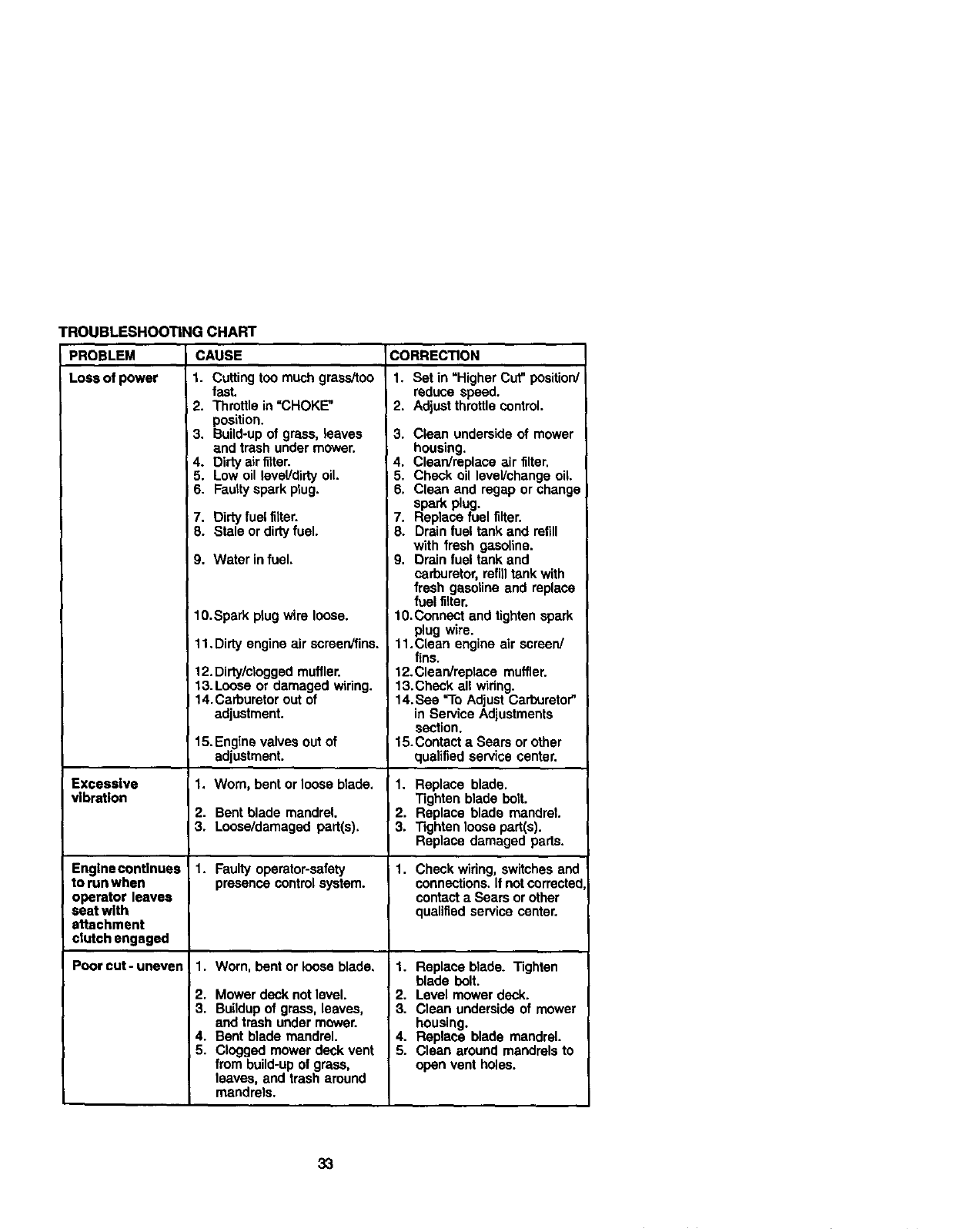

TROUBLESHOOTINGCHART

PROBLEM CAUSE

Lo_power 1. Cuttingtoom_hgraas/too

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut- uneven

fast.

2. Throttle in =CHOKE"

position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty airfilter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12.Dirty/clogged muffler.

13.Loose or damaged widng.

14.Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

CORRECTION

1. Set in =Higher Cut" position/

reduce speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refilltank with

fresh gasoline and replace

fuel filter.

10. Connect and tighten spark

plug wire.

11.Clean engine air screen/

fins.

12.Clean/replace muffler.

13.Check all widng.

14.See rio Adjust Carburetor"

in Service Adjustments

section.

15.Contact aSears or other

qualified service center.

1. Replace blade.

"lighten blade belt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged pads.

1. Check widng, switches and

connections. If not correcte_

contact a Sears or other

qualified service center.

1. Replace blede. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

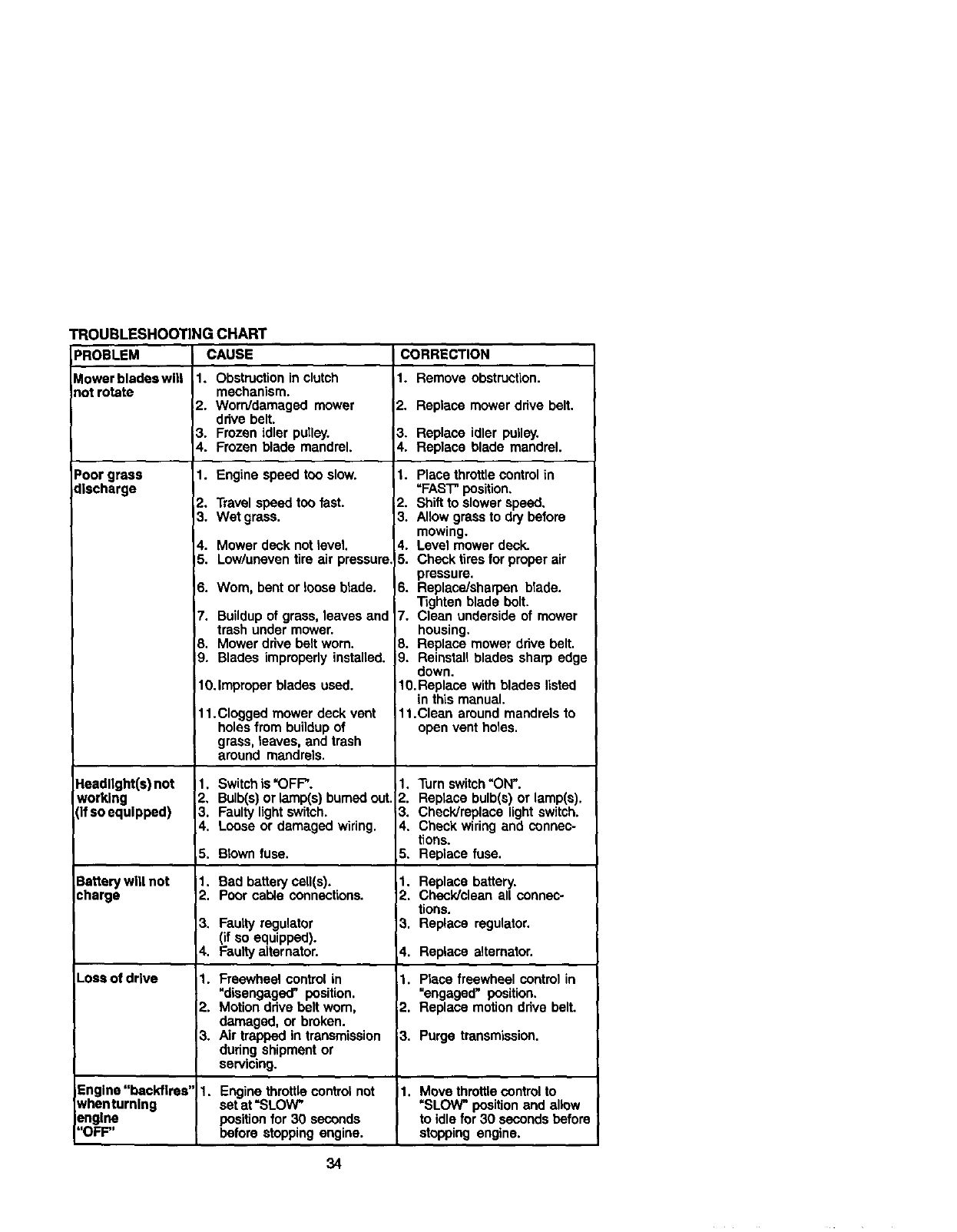

TROUBLESHOOTING CHART

CAUSE

PROBLEM

_ower blades will

rtot rotate

Poor grass

discharge

Headlight(s)not

working

(if so equipped)

Battery will not

charge

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mowerdecknotlevel.

5. Low/uneventire airpressure,_

6. Worn, bent or loose blade. I

7. Buildup of grass, leaves and I

trash under mower.

8. Mower drive belt worn.

j9. Blades improperly installed.

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switchis"OFF-'.

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alfarnaton

Loss of drive 1.

iEnglne "backfires" 1,

whenturnlng

ienglne

"OFF"

Freewheel control in

"disengaged" position.

Motion drive belt wom,

damaged, or broken.

Air trapped in transmission

during shipment or

servicing.

CORRECTION

Remove obstruction.

Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in

=FAST" position,

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1, Turn switch=ON'.

2. Replace bulb(s) or lamp(s).

3. Check]replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check]clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position,

2. Replace motion drive belt.

3. Purge transmission.

Engine throttle control not 1. Move throttle controlto

set at =SLOW" =SLOW" position and allow

position for 30 seconds to idle for 30 seconds before

before stopping engine, stopping engine.

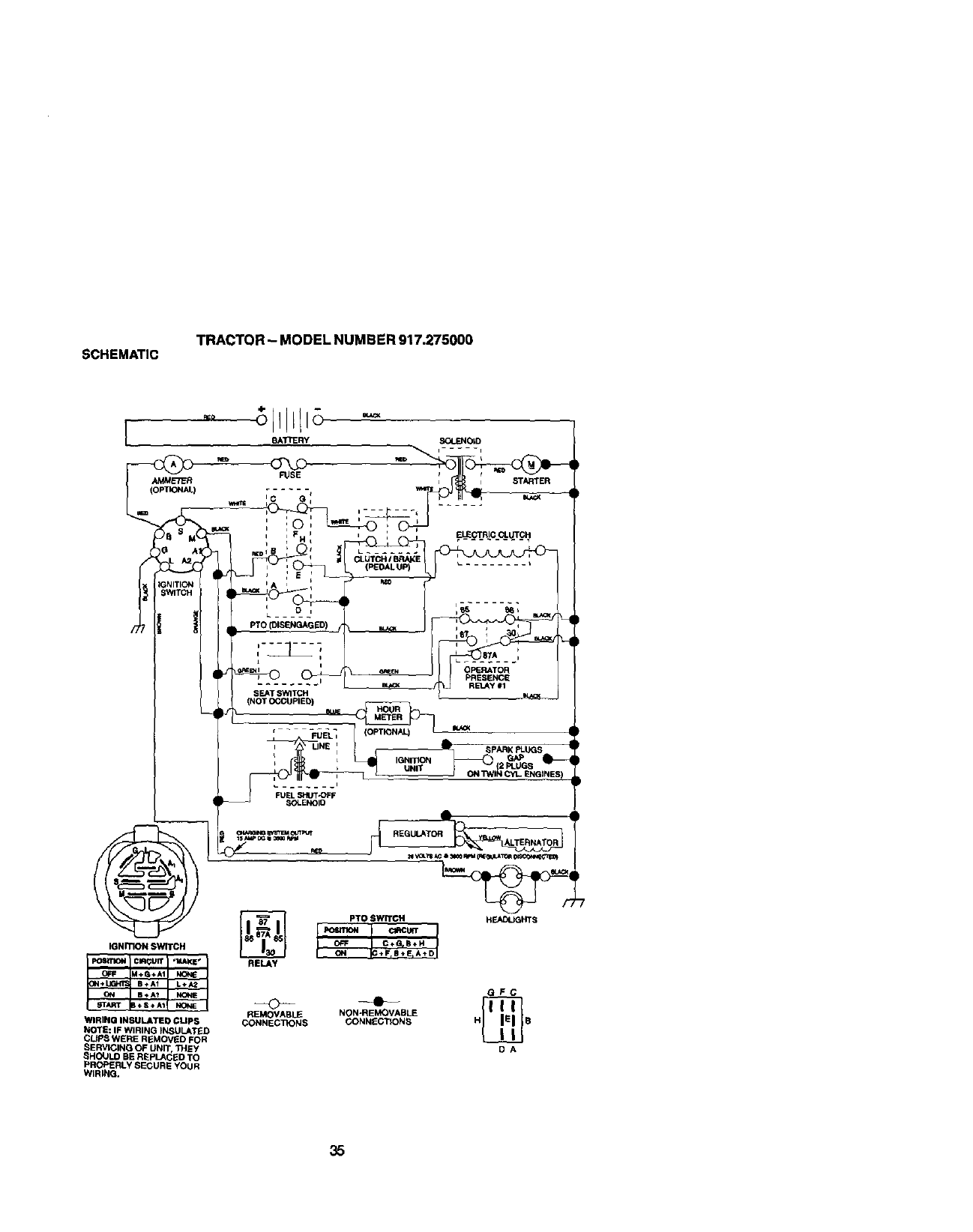

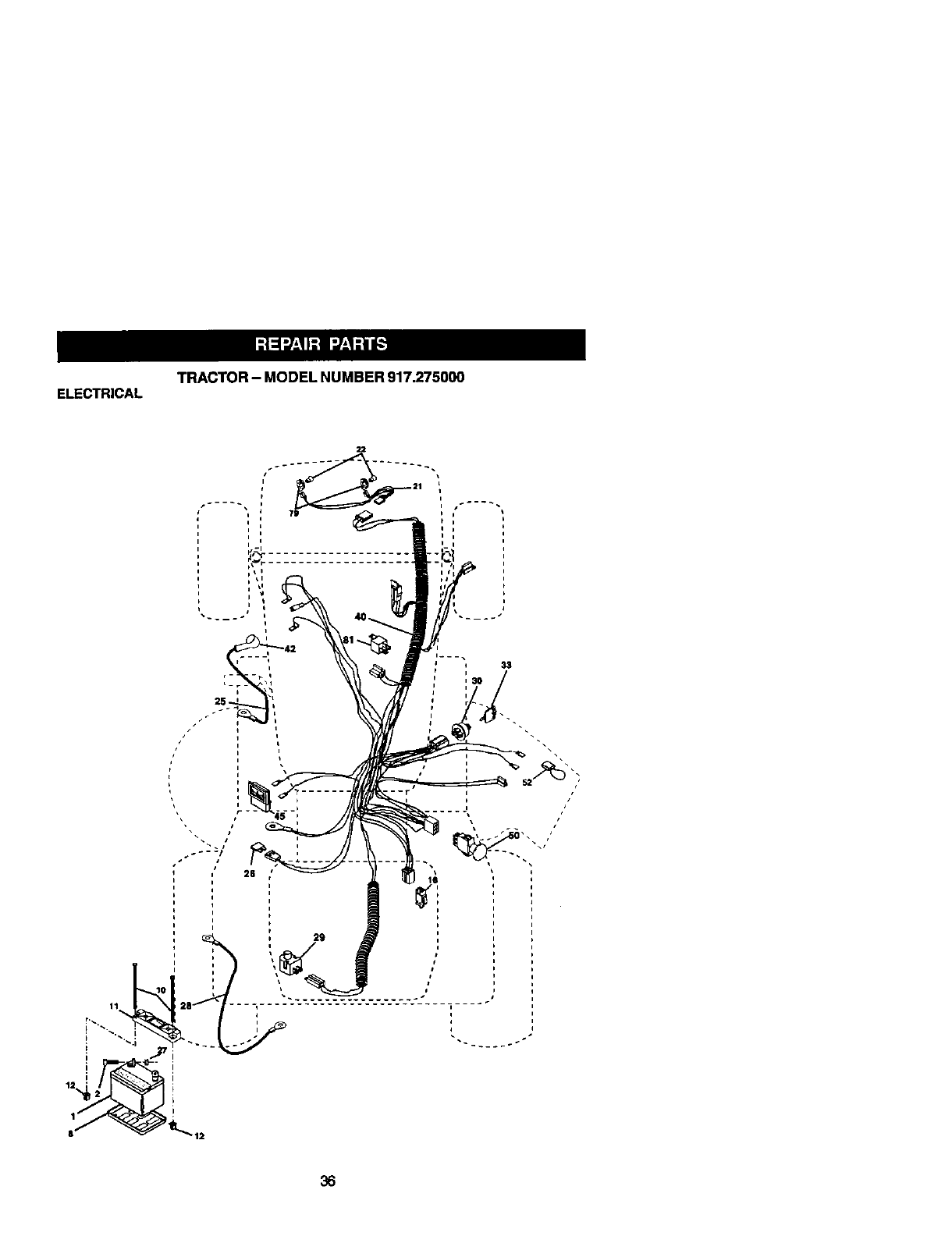

$cHEMATtC

TRACTOR - MODEL NU_t6_-.R9_t7.275000

TRACTOR- MODEL NUMBER 917.275000

ELECTRICAL

ELECTRICAL TRACTOR - MODEL NUMBER 917.275000

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, BattePJ

10 145211 Bolt I/4-20 x 7.5 Zinc

11 150109 Hald down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 153664 Switch Intedock Push-in

21 166184 Harness S_cket Light W/4152J

22 4152J Bulb Light

25 150755 Cable, Batte_

26 1088_4X Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 170697 Cable, Ground

29 160784 Switch, Plunger

30 175566 Switch, Ign

33 140403 Key, Ignition

40 17G_38 Harness Ign.

42 154336 Cover, Terminal

45 1228_2X Ammeter

50 174652 SwitCh, PTO

52 141940 Protection Wire Loop

79 163996 Bulbholder Asm Incandescent SV

81 109748)( Relay Asm,

NOTE: AJIcomponent dimensions given in U. S.

inches I inch = 25.4 mrn

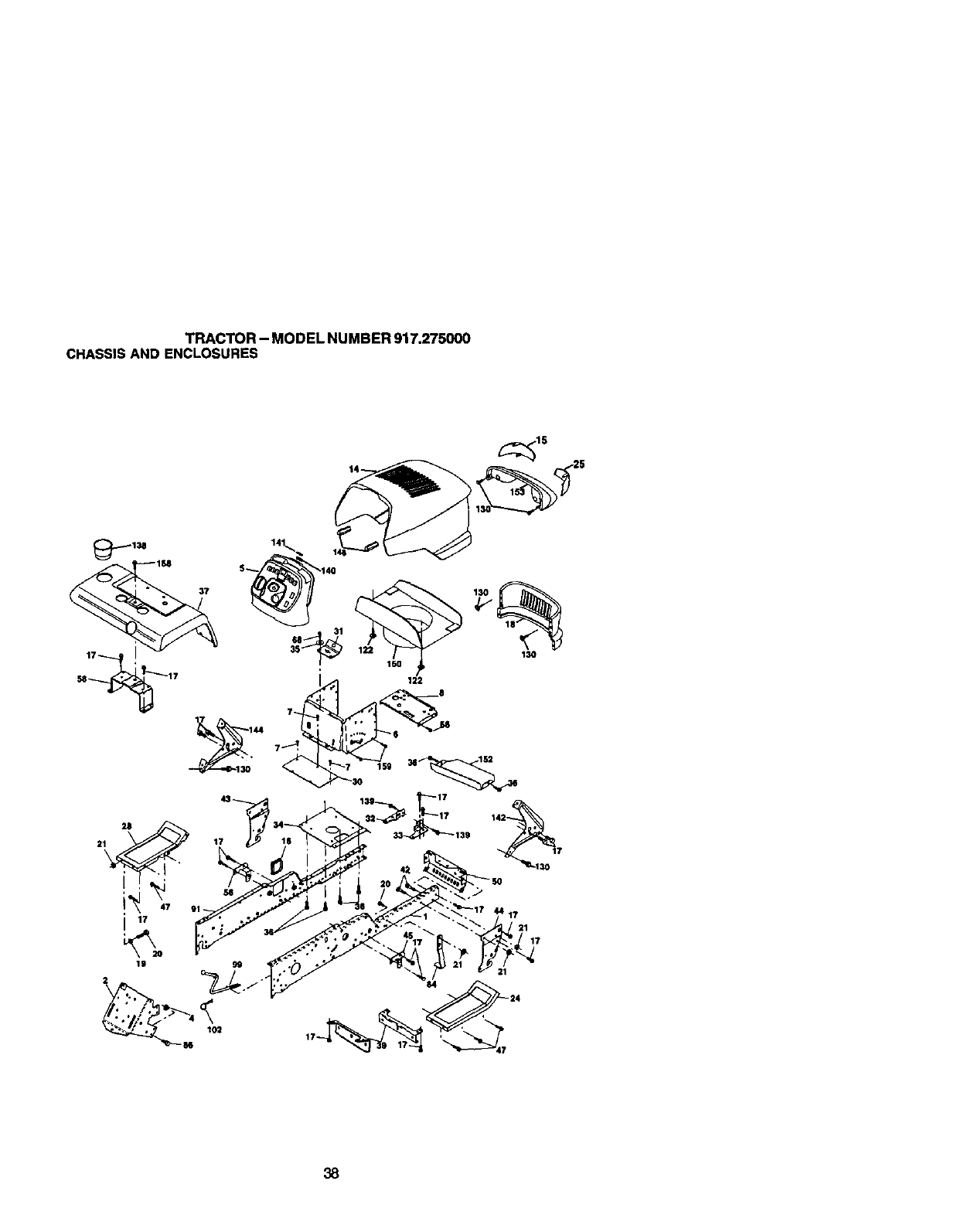

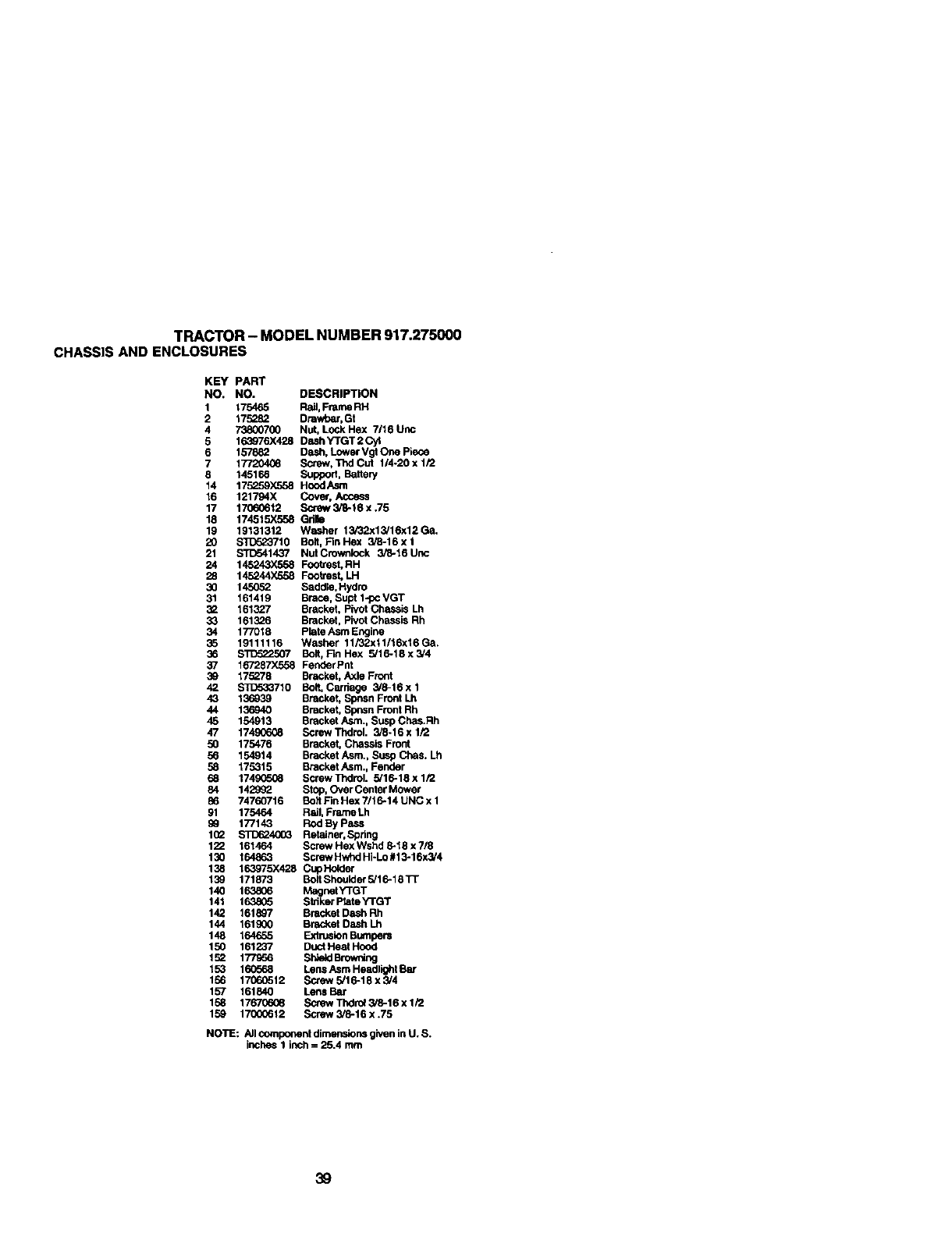

TRACTOR - MODEL NUMBER 917.275000

CHASSISAND ENCLOSURES

TRACTOR- MODELNUMBER917.275000

CHASSISANDENCLOSURES

KEY PART

NO, NO. DESCRIPTION

1 175465 Rail, Frame RH

2 175282 Drawt_ar,Gt

4 73800700 Nut, Lock Hex 7116 Unc

5 163976X428 Dash YTGT 2 Cyl

6 1578_2 Dash, Lower Vgt One Piece

717720408 Screw, Thd CUt 1/4-20 x 1/2

8145166 Support, Battery

14 175259X558 Hood AXm

16 121794X Cover, Access

17 17060612 S_'_nv 3/8-16 X .75

18 174515X&58 Grille

19 19131312 Washer 13/32x15/16x12 Ga.

20 S'RTo23710 Bolt, FInHex 3/6-16xt

21 STD541437 NutCrowntock 3/8-16Unc

24 145243X558 Footrest, RH

28 145244X558 Footrest. LH

30 145_o2 Saddle, Hydro

31 161419 Brace, Supt 1-pc VGT

32 161327 Bracket, Pivot Chassis Lh

33 161326 Bracket, Pivot Chassis Rh

34 177018 Plate Asm Engine

35 19111116 Washer 11/32xl 1/16x16 Gtt.

36 S'R3.522507 Bolt, Fin Hex 5/16-18 x 3/4

37 167287X558 Fender Pnt

39 175278 Bracket, Axle Front

42 $11T533710 Bolt. Carriage 3/8-16 x 1

43 136939 Bracket, Spnsn Front Lh

44 136940 Bracket, Spnsn Front Rh

45 154913 Bracket Asm., Susp Ches.Rh

47 174906Q8 Screw Thdrol. 3/8-16 x 1/2

50 175476 Bracket, Chassis Front

56 154914 Bracket Asm., Susp Ches. Lh

58 175315 Bracket Asm., Fender

68 1749C508 Screw Thdrol. 5/16-16 x 1/2

84 142992 Stop, Over Center Mower

86 74760716 Bait Fin Hex 7/16-14 UNC x 1

91 175464 Rail. Frame Lh

g9 177143 Rod By Pass

102 STD(_4C03 Retainer, Spring

122 161464 Screw Hex Wshd 6-18 x 7/8

130 164863 Screw Hwhd Hi*Lo #19-16x5/4

138 163975X428 CupHolder

139 171873 Bolt Shoulder 5/16-18 TT

140 1638O6 Magnet YTGT

141 163805 Stalker Prate YrGT

142 161897 Bracket Dash Rh

144 161900 Bracket Dash Lh

148 1646r_5 Extrusion Bumpers

150 161237 Duct Hest Hood

152 177956 Shield Browning

153 160568 Lens Asm Headlight Bar

156 1706(_12 So'ew 5/16-18 x 3/4

157 161840 Lens Bar

158 17_ Screw Thdro_5/6-16 x 1/2

159 17000612 Screw 3/8-16 x .75

NOTE: NI component dimensions given in U. S.

inches 1inch =25.4 mm

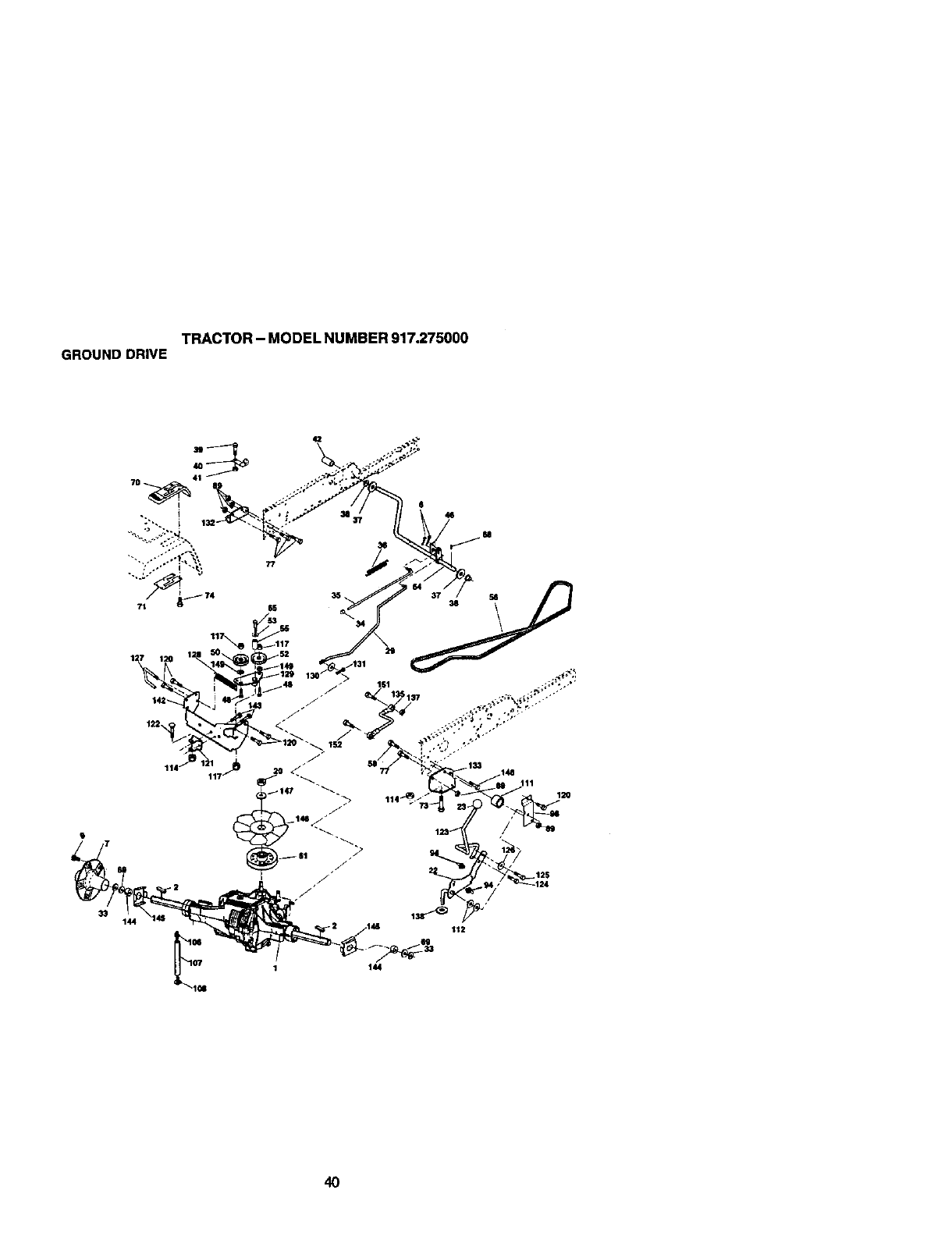

TRACTOR- MODELNUMBER917.275000

GROUNDDRIVE

144

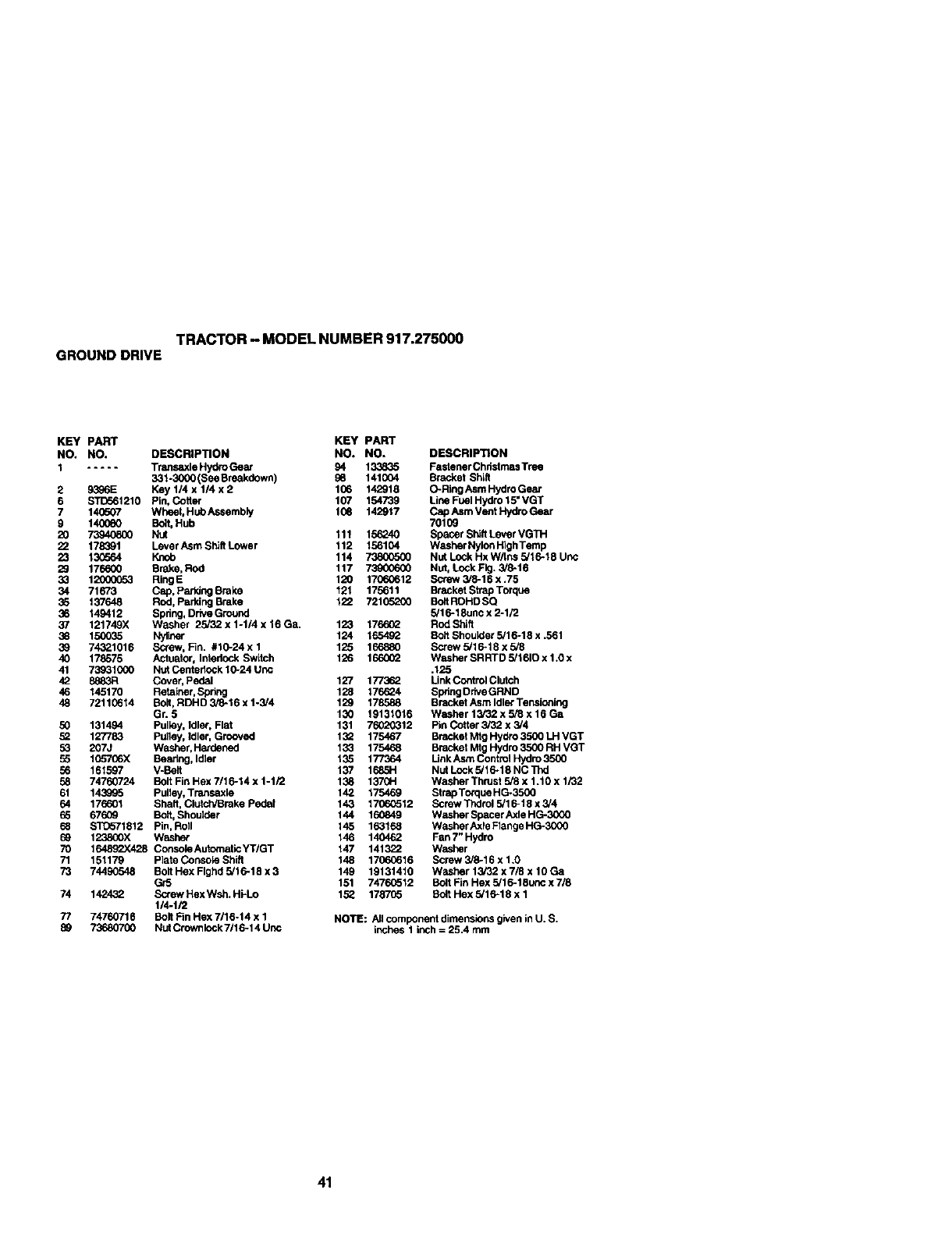

TRACTOR - MODEL NUMBER 917.275000

GROUNDDRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1..... Tmnsaxle Hydro C-ear 94 133_35 Faslaner Chdstmas Tree

331-3000 (See Breakdown) 89 141004 Bracket Shift

2 9396E Key 1/4 x 1/4 x 2 106 142918 O-RingAsm Hydro Gear

6 STKTo61210 Pin, Coher 107 154739 LineFuelHydrot5"VGT

7 140507 Wheel, Hub Assembly 106 142917 Cap Asm Vent Hydro Gear

9 140080 Bolt, Hub 70109

20 73940800 Nut 111 156240 Spacer Sh_ftLever VGTH

22 178391 Lever Asm Shilt Lower 112 156104 Washer Nylon HighTemp

23 130564 Kncb 114 _Nut Lock Hx W/Ins 5/16-18 Uric

29 176600 Brake, Rod 117 73900600 Nut, Lock Fig. 3/0-16

33 1_ RingE 120 17060612 Screw 3/8-16 x .75

34 71673 Cap, Paridng Broke 121 175611 Bracket Sttap Torque

36 137648 Rod, Parking Brake 122 721052(30 BoltRDHDSQ

36 149412 Spdng, Drive Ground 5/16-18unc x 2-1/2

37 121749X Washer 25/32 x 1-1/4 x 16 Ga. 123 176602 ROd Shift

38 1500_5 Nyltner 124 165492 BoltShoulderS/16-18x .561

39 74321016 Screw, Fin. #10-24xl 125 166880 Screw 5/16-18 x 5/8

40 178575 Actuator, Interlock Sw_tch 126 166002 WasherSRRTDS/161Ox1.0x

41 73931 _30 Nut Centerlock 10-24 Uric .125

42 8983R Cover, Pedal 127 177362 Unk Control Clutch

46 145170 Retainer, Spr_ng 128 176624 Spring Drk.e GRND

48 72110614 Bolt, RDHD 3/8-16 x 1-3/4 129 178588 Bracket Asm Idlar Tet_sioning

Gr. 5 130 19131016 Washer 13/32 x 5/8 x 16 Ga

50 131494 Pullay. Idler, Flat 131 76020312 Pin Cotter 3i32 x 3/4

52 127783 Pulley, Idler. Grooved 132 175467 Bracket Mtg Hydro3.500 LH VGT

53 207J Washer, Hazdened 133 1754_8 Bracket Mtg Hydro 3500 RH VGT

55 10b'7C6X Bearing, Idlar 135 177364 Unk Asm Control Hydro 35_)

56 161597 V-Befl 137 168514 Nut Lock 5/16-18 NC Tnd

58 74760724 Bolt Fin Hex 7/1 0-14 x 1-1/2 13_ 137(7H Washer Thrust 5/8 x 1.10 x 1/32

61 143995 Pulley, Tnmsaxle 142 175469 Strap TOKlUe HG-3500

64 176601 Shaft, Clutch/Brake Pedal 143 17060512 Screw Tndrol 5/16-18 x3/4

65 67609 Bolt, Shoulder 144 160849 Washer Spacer Axle HG-3000

58 s'rD571812 Pin, Roll 145 163168 WasherAxreFlangeHG-3000

69 123800X Washer 146 140462 Fen 7" Hydro

70 164892X428 ConsoleAutomaticYT/GT 147 141322 Washer

71 151179 plate Consola Shift 148 1706_616 Screw 3/8-16 x 1.0

73 74490548 Bolt Hex Flghd 5/10-18 x 3 149 19131410 Washer 13/32 x 7/8 x 10 Ga

Gd3 151 74760512 Bolt Fin Hex 5/16-18unc x 7/8

74 142432 Screw Hex Wsh, HFLo 152 1787_ Boft Hex 5/10-18 x 1

1/4-1/2

77 74760716 Bolt Fin Hex 7116-14 x I NOTE: All component dimensions given in U. S.

89 73680700 Nut Crownlock 7/16-14 Unc inches 1 inch =25.4 mm

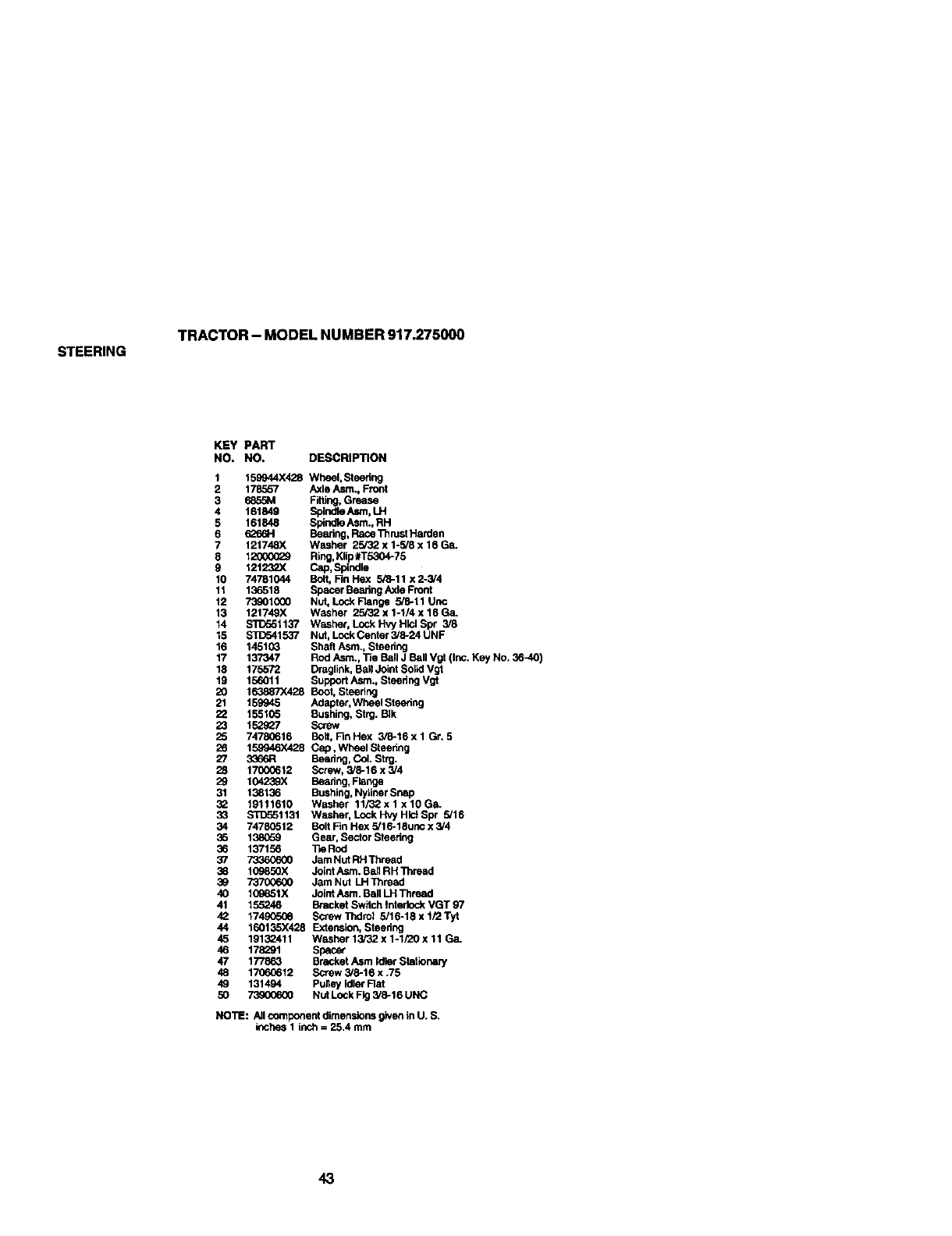

STEERING TRACTOR - MODEL NUMBER 917.275000

STEERING TRACTOR- MODEL NUMBER 917.275000

KEY PART

NO. NO. DESCRIPTION

I 159944X428 Wheel,Steering

2 178557 Axle Asm., Front

3 6&55M Fitting, Grease

4 181849 Splndta Asm, I.H

5 161848 Spindle Asm. RH

6 6266H Beadng, Race Thrust Harden

7 121748X Washer 25_J2 x 1-5/8 x 16 Ga.

8 120(XX]29 Ring. Klip#T5304-75

9 1212_.X Cap, Spindle

10 74781044 Bolt, Fin Hex .5/8-11 x 2-3/4

11 136518 Spacer Bearing Axle Front

12 73901000 Nut, Lock Flange 5/8-11 Unc

13 121749X Washer 25/32 x 1-1/4 x Ift Ga.

14 S'i_551137 wE_sher, LockHvyHIclSpr 3/8

15 STD541537 Nut, Lock Center 3/6-24 UNF

16 145103 Shaft Asrn., Steedng

17 137347 Rod Asm., Tie Bell J Bell Vgt (Inc, Key No, 36-40)

18 175572 Draglink, Ball Joint So!_l Vgt

1g 156011 Support Asm., Steedng vgt

20 163887X428 Boot, Steering

21 159945 Adapter, Wheel Steering

oo 155106 Bushing, Strg. BJk

23 1529_7 Screw

25 74780616 Bolt, Fin Hex 3/6-16 x 1Gr. 5

28 159946X428 Cap, Wheel Steedng

27 3366R Bearing, Col. Strg.

28 17000612 Screw, 3/8-16 x 3/4

29 104239x Bearing, Flange

31 138136 Bushlag, Nyliner Snap

_o 19t11610 Washer 11/32 x 1 x 10 Ga.

33 STD551131 Washer. LockHvyHIclSpr 5/16

34 74780512 Bolt Fin Hex 5/16-18uric x 3/4

35 138059 Gear, Sentor Steedng

36 137156 T_eROd

37 73360600 Jam Nut RH Thread

38 109850X Joint Asm. BaH RH Thread

39 73700600 Jam Nut LH Threap

40 10_StX Joint Asm. Ball LH Thread

41 1552A6 Bracket Switch Interlock VGT 97

42 17490508 Screw Thdrol 5/16-18 x 1/2 Tyt

44 160135X428 Extension, Steedng

45 191_411 Washer 13/32 x 1-1/20 x 11 Ga.

46 178_91 Spacer

47 177863 Bracket Asm idler Stationary

48 17060612 Screw 3/8-16 x .75

49 131494 Puney Idler Flat

50 73900600 Nut Lo<:kFig 5/6-16 UNC

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

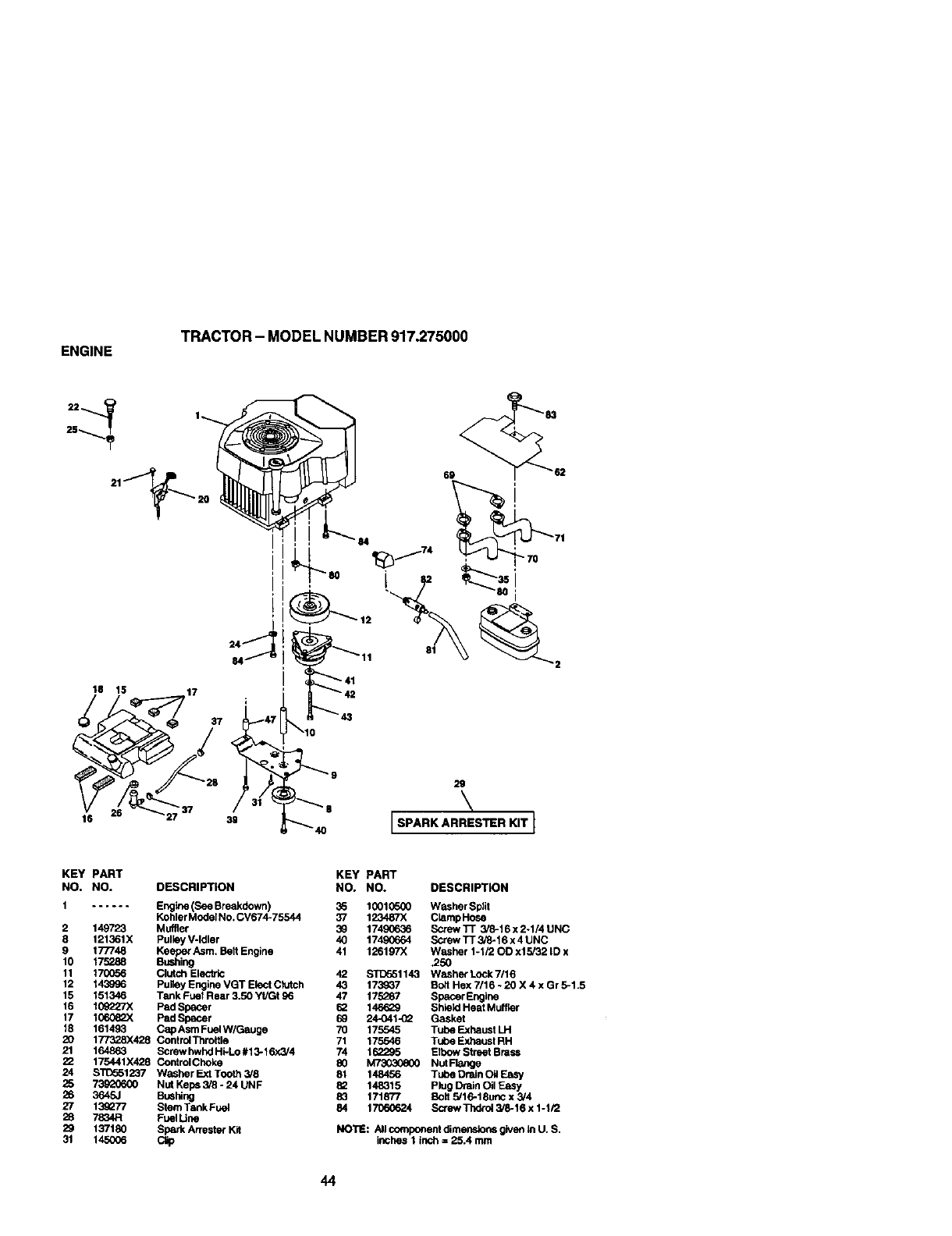

ENGINE TRACTOR - MODEL NUMBER 917.275000

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1...... Engine (See Breakdown) 35 1001G500 Washer Split

Kohler Model NO.CV674-75544 37 123487X ClampHose

2 149723 Muffler 39 17490636 Screw'IT 3/8-16 x 2-1/4 UNC

8 121361X Pulley V-Idler 40 174g_664 Screw "i'r 3/8-16 x 4 UNC

9 177748 Keepe_ Asm, Beit Engine 41 126197X Washer 1-1/20D x15/32 ID x

10 175288 Bushing ,250

11 170(To6 Clutch Elechic 42 $3_651143 WasherLock7/16

12 143996 Puney Engine VGT Elect Crutch 43 173gG7 9_t Hex 7/16 * 20 X 4 x Gr 5-1.5

15 151346 Tank Fue_ Rear 3.50 YtiGt 96 47 175287 Spewer Engine

16 10S_27X Pad Spacer 1_2 146629 Shiekt Heat Muffler

17 1060_2X Pad Spacer _) 24-O41-(_ Gasket

18 161493 Cap Asm Fuel W/Gauge 70 175545 Tube Exhaust LH

20 177328X428 Control'rnrottle 71 175546 Tube Exhaust RH

21 164863 Screw hwhd Hi-Lo #13-16x3/4 74 162295 EYoow Street Brass

22 175441X428 ControlCheke 80 M73030800 NutFlange

24 STD551237 Washer Ext Tooth 3/8 81 148456 Tube Drain Oil Easy

25 739206(_ Nut Keps 3/8 -24 UNF 82 148315 Plug Drain Oil Easy

28 3645J Bu6hing 83 171877 Bolt 5/16-18uflc x 3/4

27 13_77 Stem Tank Fuel 84 17060624 Screw Thdrol 3/8-16 x 1-1/2

28 7834R Fuel Une

29 137180 Spark Attester Kit NOTE: NJ component dimensions givefl In U. S,

31 145006 Clip inches t inch = 25.4 mm

TRACTOR- MODELNUMBER917.275000

SEATASSEMBLY

i22

KEY PART

NO. NO. DESCRIPTION

1 140124 Seat

2 14_651 Bracket. Pivot Seat

3 140675 Strap, Fender

4 127018X Bolt, Shoulder 5/16-18 x .6,?.

5 145006 Clip, Push In, Hinged

6 STD541437 Nut, Crownlock 3/8-16Unc

7 124181X Spring, Seat Cprsn

8 171877 Bolt5/16-18Uncx3/4 wlSems

10 174894 Pan, Seat

12 121246X Bracket, Mounting Switch

13 121248X Bushing, Smzp

KEY PART

NO. NO. DESCRIPTION

14 72060412 Bolt, Carriage 114-20 X 1-1/2

15 12_;249X Spacer. Split

16 123740X Spdng, Crxsn

17 123976X Nut, Lock 1/4 Lge Fig Gr. 5

18 19171912 Washer 17/32xl-3/16x12 Ga.

19 166369 Knob, Seat

20 124238X Cap, Spring Seat

21 171852 Bolt, Shoulder 5/16-18

22 STD541431 Nut, Crownlock 5/16-18Unc

NOTE: All component dimensions g_venin U. S.

inchos 1 inch ==25.4 mm

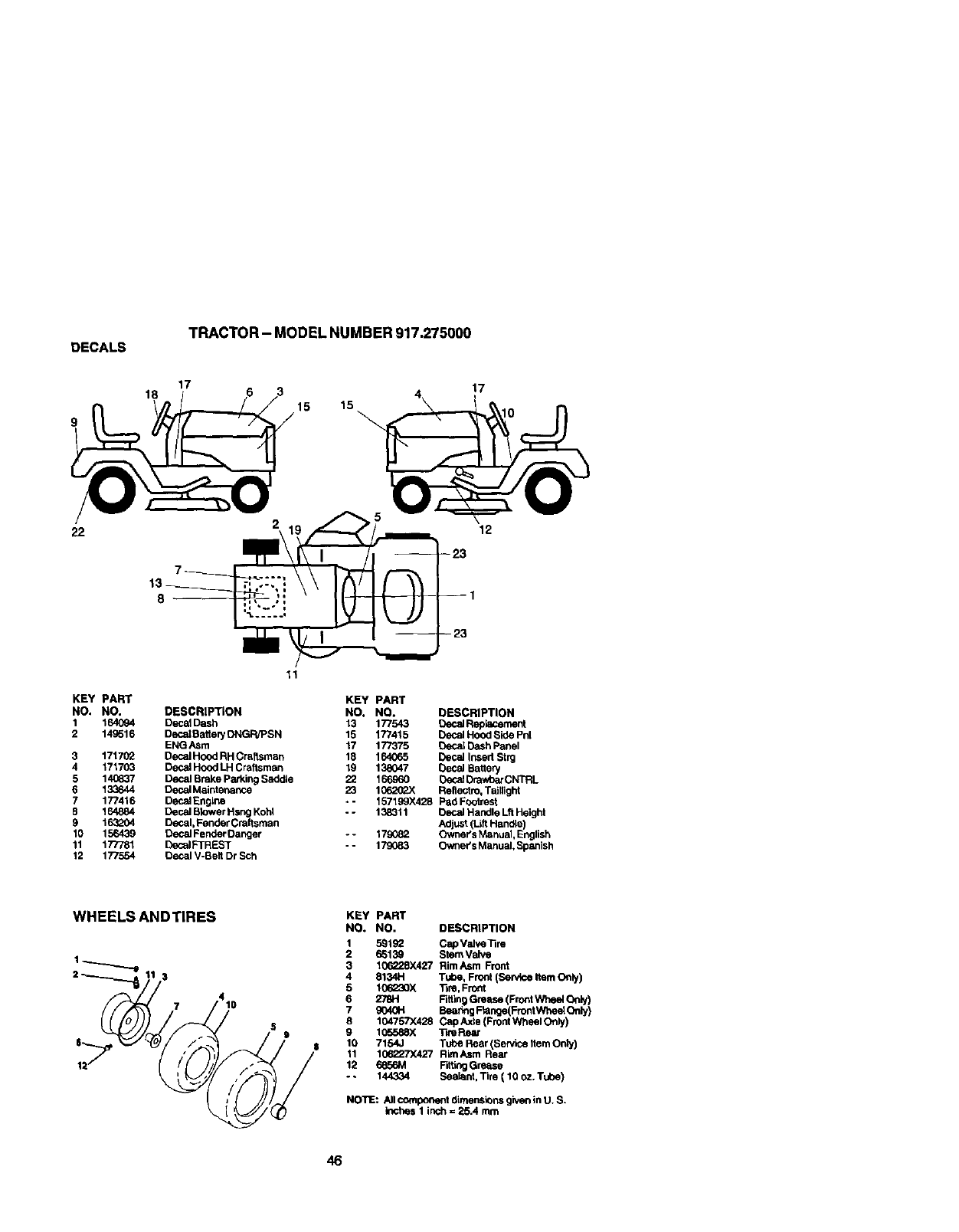

DECALS TRACTOR - MODEL NUMBER 917.275000

18 17

15 15

KEY PART

NO. NO.

1 164094

2 149516

3 171702

4 171703

5 14O837

6 133644

7 177416

8 164884

9 1632O4

10 156439

11 177781

12 177554

DESCRIPTION

DecaIDash

Decat Satterj ONGR/PSN

ENQASm

Decal Hood RH Craftsman

Decal Hood LH Craftsman

Decal Brake Parking SaddLe

Decal Maintenance

Decal Engine

Decal Bk)wer Hsng Kohl

Decal, Fender Craftsman

Decsl Fender Danger

DecalFTREST

Decal V-Belt Dr Sch

KEY PART

NO. NO. DESCRIPTION

13 177543 Decal Replacement

15 177415 Decal Hood Side Phi

17 177375 0ecai Dash Panel

18 164065 Decal I_sed Strg

19 138047 Decal Batted/

22 166960 Decal Dmwt_'CNTRL

23 1062(_X Reflectro, T_llight

*- 157199X428 Pad Footrest

-- 138311 Oecal Handle Lft Height

Adjust (Lift Handle

-- 179082 Owner's Manua, Eng sh

- - 17g083 Ownel's Manual, Spanish

WHEELS ANDTIRES KEY PART

NO. NO. DESCRIPTION

1 5919_ Cad Valve _re

2 65139 Stem Valve

3 I06228X427 RimAsm Front

4 8134H Tube, Front (Service Item Only)

5 106230X l_re, Front

6 27811 Fittin_ Gres_se(Front Wheel Only)

7 904CH Beadng Ftange(Front Wheel Only)

8 104757X428 Cap Axte (Front Wheel Only)

9 1(_o588x Tn Rear

10 7154J Tube Rear (Service Ilem Onty)

11 106_7X427 RimAsm Rear

12 6_6M FdltngGresse

-- 144334 Sealant, Tire (I0 oz. Tube)

NOTE: All component dlmenslor.s given inU. S.

inches 1 inch =25.4 mm

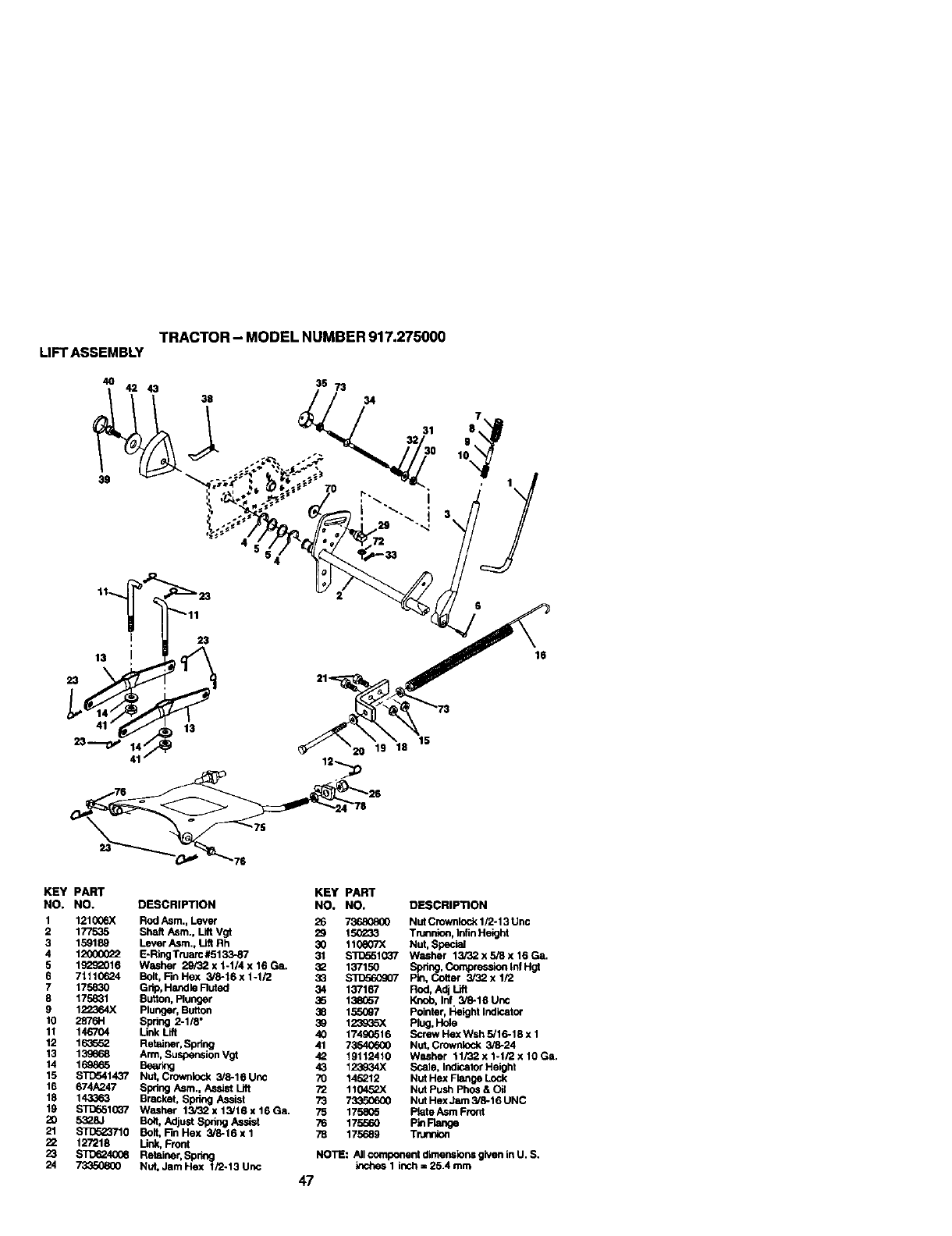

TRACTOR-MODELNUMBER917.275000

LIFT ASSEMBLY

40 42 43 3573

76 4_829

23 75

KEY PART

NO. NO. DESCRIPTION

I 121006X Rod Asm., Lever

2 177535 She_ Asrn., L_ V_

3 159189 Lever Asrn., Lift Rh

4 120000_2 E-Ring Truar¢ #5133-87

5 19292016 Washer 29/32 x I-1/4 x 16 Ga.

6Til I0624 Butt, _n Hex 3/8-'_6 x I-I/2

7 175830 Gdp, Handle Ruted

8 175831 Button, Plunger

9 122364X Plunger, Button

10 2876H Sp_ 2-I/8'

11 146704 Link Lift

12 163552 Retainer, Spring

13 13_668 Arm, Susgension Vgt

14 169665

15 STD541437 Nut, Crownleck 3/8-16Unc

16 674A2.47 Spring Asrn., Assist Lift

18 143_63 Bracket, Spring Assist

"_9 ST_651_'/ Washer 13,_2x1_16x16Ga.

20 53_8J Bolt, Adjust SPnng Assist

21 STC623710 Bolt, FinHex 3/8-t6xl

22 127218 Un_ Front

23 S]_:4006 Retainer, Spring

24 733508(X) Nut, Jam Hex I/2.13 Unc

KEY PART

NO. NO. DESCRIPTION

26 73680800 Nut Crownlock 1/2-13 Unc

29 _50233 Tmnnion, lnfin He_ht

30 11060"/X Nut, Special

31 $1_5_tG37 Washer 13/32x5_x16Ga.

32 137150 Spdng, Compression Inf Hgt

33 $11To60907 p_,Cotter 3/32xlt2

34 137167 Rod, Adj Lift

36 138057 Knob, Inf 3/8-14 Uric

38 155097 Pointer, Height Indicator

39 123935X p_,Ho_

40 174_;16 Soew Hex Wsh 5/16-18 x 1

41 73540600 NUt, Crownlock 3/8-24

42 19112410 Washer 11/32 x 1-1/2 x 10 Ga.

43 123934X S¢_e, tnd_tor Height

70 145212 Nut Hex Flange Lock

72 110452)( Nut Push PhOS& Oil

73 73350600 Nut Hex Jan13/8-16 UNC

75 175806 PkL1eAsm F_onl

76 175560 pin Flange

78 175689 Trunnion

NOTE: Artcomponentdk_ensionsgiveninU. S.

inches1 inch=25.4 mm

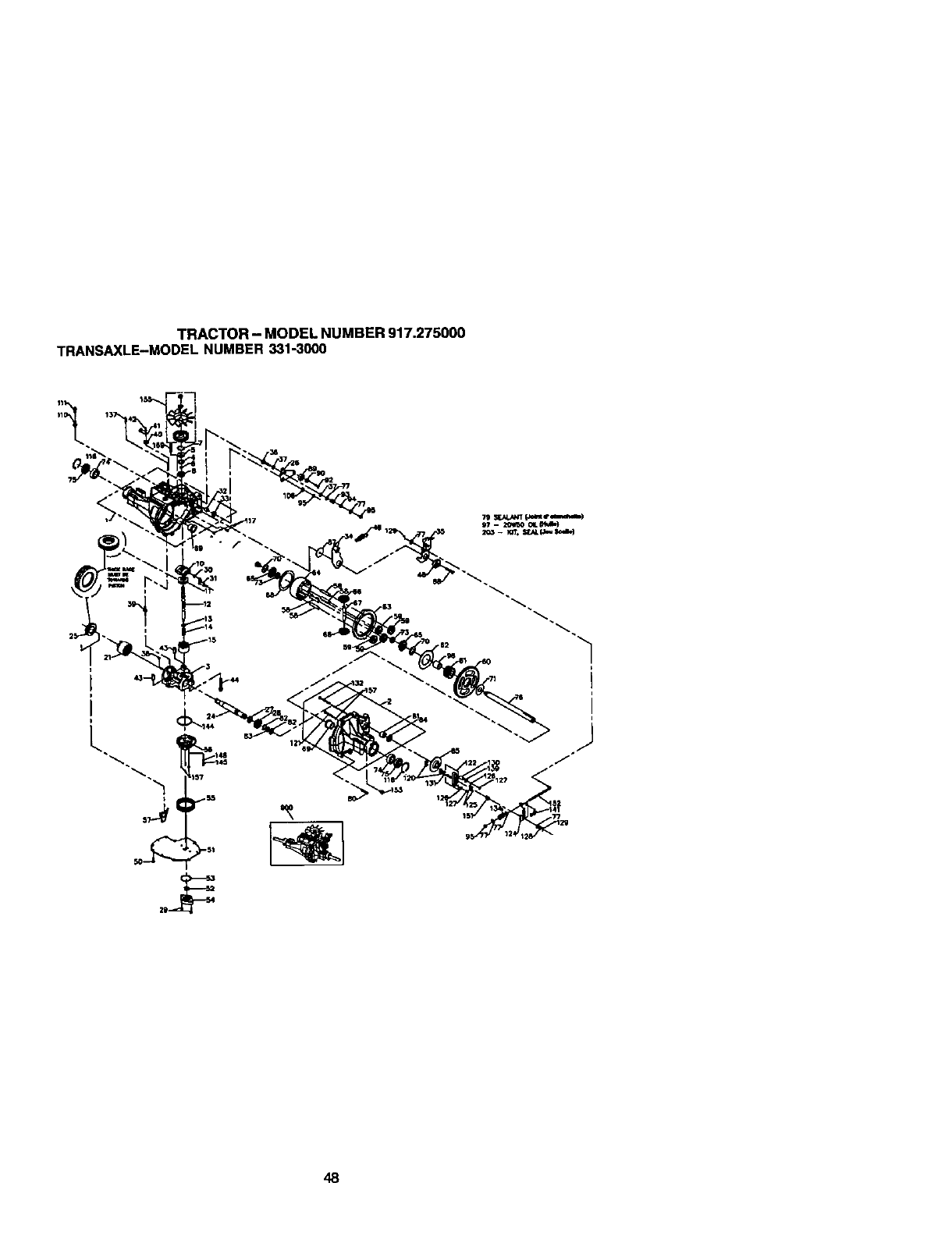

TRACTOR- MODELNUMBER917.275000

TRANSAXLE-MODELNUMBER331-3000

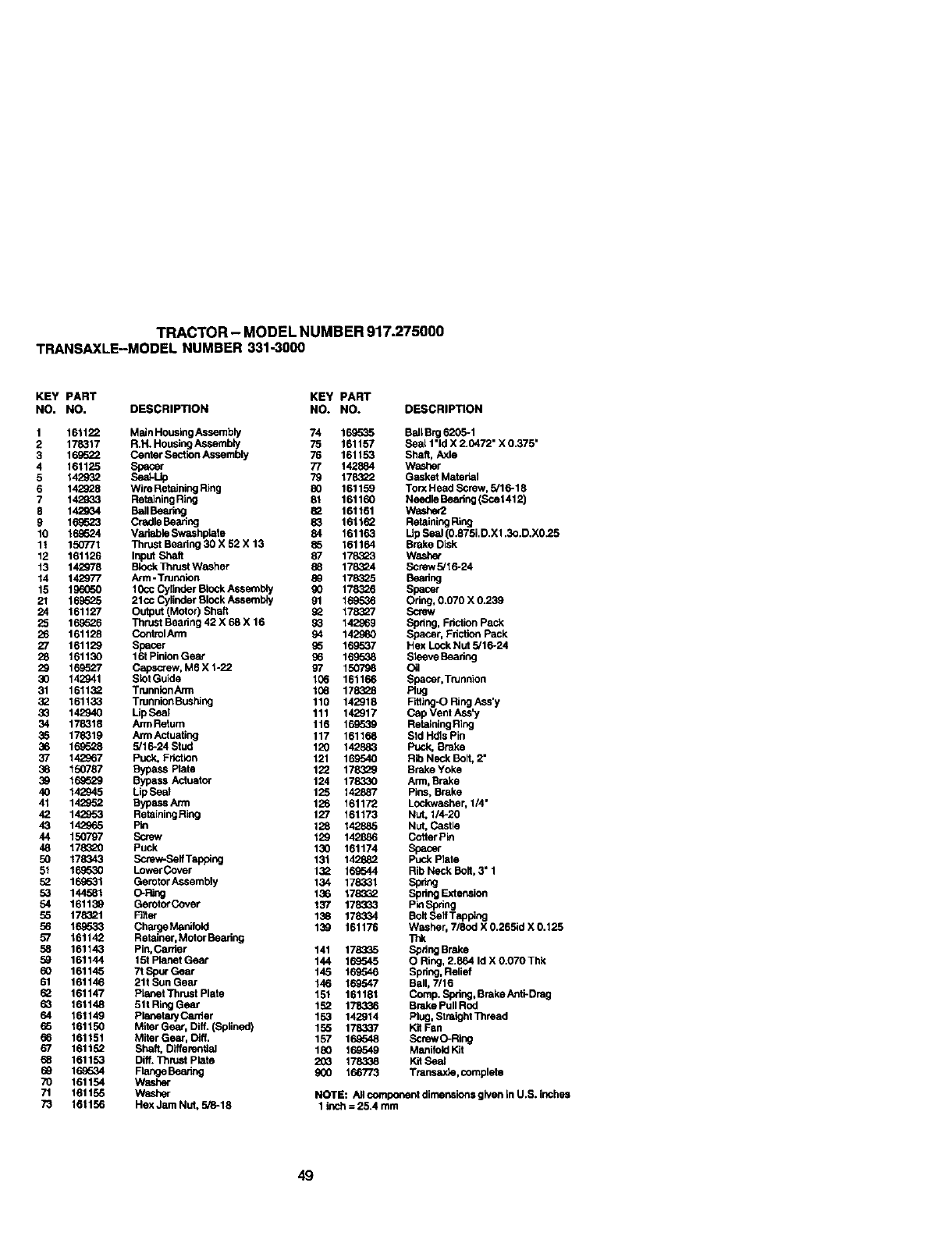

TRACTOR - MODEL NUMBER 917.275000

TRANSAXLE-MODEL NUMBER 331-3000

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 161122 Main Housiog Assembly 74 16S535 Ball Brg 6205-1

2 178317 R.H. Housing Assemb;y 75 161157 Seal 1"Id X 2.0472" X 0.375"

3 169522 Center Section Assembly 76 161153 Shaft, Axle

4 161125 Spaz_r 77 142884 Washer

5 142932 Seat-Up 79 178322 Gasket Material

6 142928 Wire Retaining Ring 80 161159 Torx Head Serew, 5/16-18

7 142933 Retaining Ring 81 161160 Needle Searing (Sce 1412)

8 1429_4 BallBearing 82 161161 Wash_2

9 169523 Cradle Bearing 83 161162 Retaining Ring

10 169524 V_iabld Swashplet e 84 161163 Up Seal (0.875i. D.X1.3O.D.XO.25

11 150771 Thrust Beadng 30 X 52 X 13 85 161164 Brake Disk

12 161126 Input Shaft 87 178323 Wash_

13 142978 Block 11_rustWasher 88 178324 Screw 5/16-24

14 142977 Arm -Trunnion 89 178325 Bearing

15 196(_0 10cc Cylinder Block Assembly g0 178326 Spacer

21 169525 21cc Cylinder Block Assembly 91 169536 Odng, 0.070 X 0.239

24 161127 Output (Motor) Shaft 9_ 178.327 Sccew

25 169526 Thrust Bearing 42 X 68 X 16 93 142969 Spring, FdcUonPack

26 161128 ControlArrn 94 142980 Spacer, Friction Pack

27 161129 Spacer _6 169537 Hex Lock Nut 5/16-24

28 161130 161Pinion Gear 96 169538 Steeve Bearing

29 169527 Capscrew, M6 X 1-22 97 150798 Oil

30 142941 Sldt Guide 106 161166 Spacer, Trunnion

31 161132 Trunnion Arm 106 178328 Rug

32 161133 Trunnion Bushing 110 142918 Rtting-O Ring Ass'y

33 142940 Lip Seal 111 142917 Cap Vent Ass'y

34 178318 Arm Return 116 169539 Retaining Ring

35 178319 Arm Actueting 117 161168 Std Hdls Pin

36 169528 5/16-24 Stud 120 142883 Puck, Brake

37 142967 Puck, Friction 121 169540 Rid Neck Bolt, 2"

38 150787 Bypass Rate 122 178329 Brake Yoke

39 169529 Bypass Actuator 124 178330 Arm, Brake

40 142945 Lip_at 125 142887 Pins, Brake

41 142952 Bypass Arm 126 161172 Lockwasher, 1/4"

42 142953 RetaioingRing 127 161173 Nut. 114-20

43 142_56 Pin 128 142885 Nut, Castle

44 150797 Screw 129 142886 Cofter Pin

48 178_0 Puck 130 161174 Spacer

50 178343 Sc_ew-SetfTapplng 131 142882 Puck Plate

51 16_o30 LowerCover 132 169544 Rib Neck Bolt, 3" 1

52 16_o31 Gerotor Assembly 134 178331 Spring

53 144581 O-Ring 136 178332 Spring Exten..sion

54 161139 Gerotor Cover 137 178333 PIOSpring

56 178321 Fi]ter 138 178334 Bolt Self Tapplng

56 169533 Charge Manifold 139 161176 Washer, 7/8od X 0.265id X 0.125

57 161142 Retainer, Motor Searing Thk

58 161143 Pin, Carder 141 178335 Sp,ltng Brake

59 161144 15t Planet Gear 144 16_,345 O Ring, 2.864 Id X 0.070 Thk

60 161145 71Spur Gear 145 169546 Spring. Relief

61 161146 21t Sun Gear 146 169547 Ball, 7/16

62 161147 Plenet ThnJst Plete 151 161181 Comp. Spdug, Brake Anti- Drag

63 161148 511 Ring Gear 152 178336 Brake Pull Rod

64 161149 Planet aPj Canter 153 142914 Plug. Stretght Thcead

65 161150 Miter Gear, Diff. (splined) 155 178337 Kit Fan

66 161151 Miter Gear, Diff. 157 16.9548 Serew O-Ring

67 161152 Shaft, DifferenBal 180 16_349 Manifold Kit

68 161153 Diff. Thrust P!ate 20_ 178338 Kit Seal

69 16_34 Flange Bea_ng 900 166773 Trans_de, complete

70 161154 Washer

71 161156 Washer NOTE: All component dimensions given In U.S. inches

73 161156 Hex Jam NUt. 5iff-18 1 inch = 25.4 mm

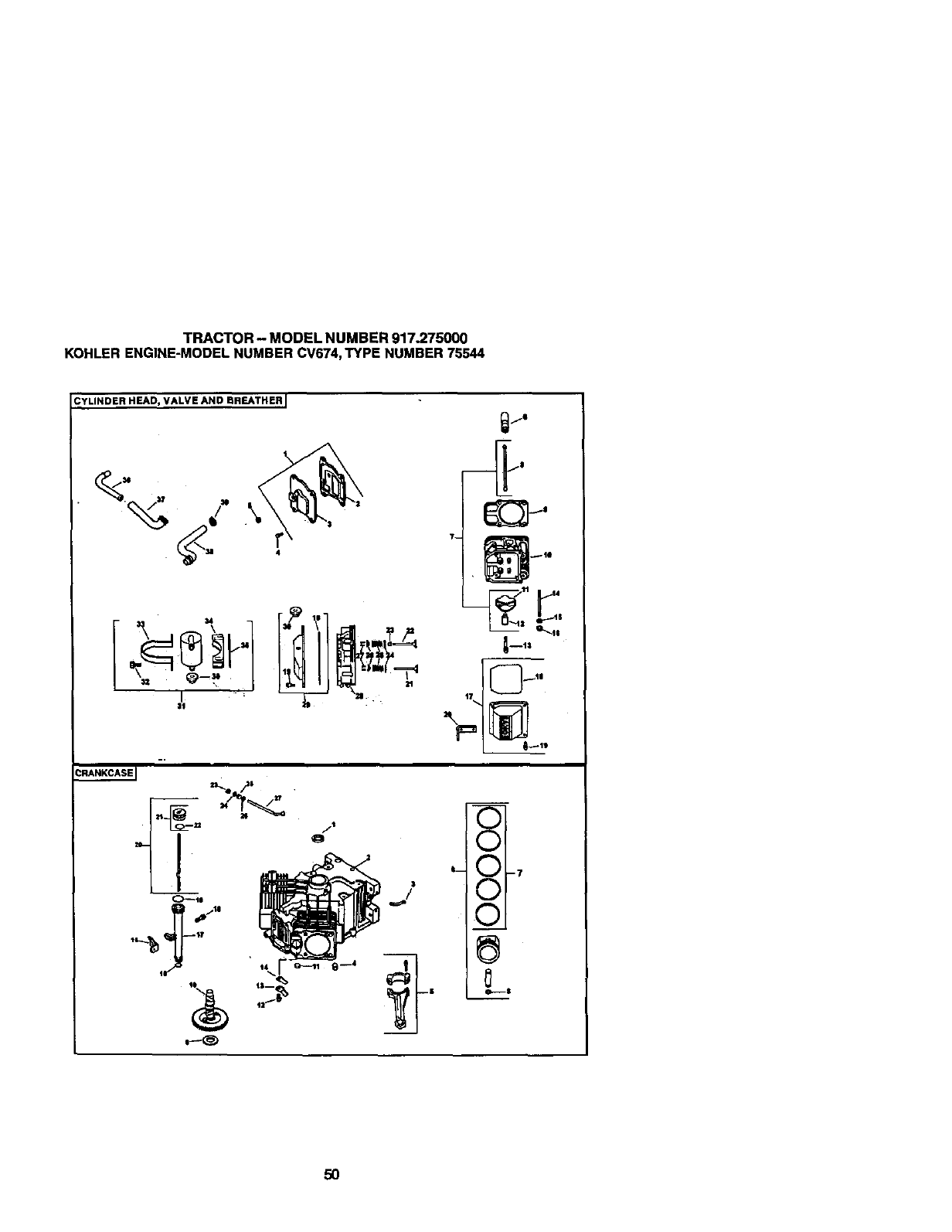

TRACTOR- MODELNUMBER917.275000

KOHLERENGINE-MODELNUMBERCV674,TYPENUMBER75544

CYLINDER HEAD, VALVE AND BREATHER I

k___

_1|

.-8t7

o--.-$

TRACTOR - MODEL NUMBER 917.275000

KOHLERENGINE-MODEL NUMBER CV674,TYPE NUMBER 75544

HEAD/VALVE/BREATHER CRANKCASE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 24-033-03-S Kit, breather cover w/gasket

Includes 2, 3

2 24-041-23-S _asket, breaker

3 24-096-59-S Cover, breather

4 M-645020-S Screw, he)(. flange

M6x1.0x20 (4)

5 X-75-23-S Plug, allen hd. I/8"

6 25-351-01-S Lifter,valve (4)

7 24-758-66-S Kit, valve train (Includes 8,

11, 12)

8 24-411-05-S Red, push (4)

9 24-041-40-S Gasket, cylinder head (2)

10 24-318-70-S Head assembly, #2 cylinder

11 25-186-01-S Arm,rocker (4)

12 24-599-01-S Pivot, rockerarm (4)

13 M-640034-S Screw, hex. flange

M6xl.0x34 (4)

14 24-072-09-S Stud, cylinder head

M8x1.25x20, M10x1.gx33,

105 mm long (8)

18 24 468 16-S Washer, flat 8 mm (8)

16 24 100 10-S Nut, bex. flange Mgx1.28(2)

17 24-755-74-S Kit,valve cover -plain

(thcludes 18, 19)

18 24-153-16-S O-Ring

19 24-086-32-S Screw, shoulder (4)

20 24-445-01-S Strap, liffing

21 24-016-01-S Valve, exhaust (Std.) (2)

24-016-02-S Valve, exhaust (.25)(2)

22 24-017-01-S Valve, intake (Std.) (2)

24-017-02-S Valve, intake (.25) (2)

23 24-032-05-S Seal, valve stem (2)

24 238011-S Retainer, sprthg (4)

25 24-089-02-S Spdng, valve (4)

26 12-173-01-S Cap, valve spring(4)

27 12-755-03-S Kit, retainer (4)

28 24-318-67-S Head assembly, #1 cylinder

29 24-755-76-S Kit, valve cover - breather

(Incl.18, 19, 30)

30 25-313-02-S Grommet, rubber

31 24-755-57-S Kit, breather separator

(Includes 30, 32-35)

32 M-545016-S Screw, has. flange

M5x0.8x16 (2)

33 24-445-02-S Strap, breather

34 24-126-44-S Bracket, breather separator

35 24-112-12-S Spacer

36 24-294-06-S Fitting

37 24-326-13-S Hose, breather

38 24-326-14-S Hose, breather

39 25-237-14-S Clamp, hose (2)

24-032-01-S Seal, oil fro_t

Crankcase

24-294-13-S

24-388-13-S Pin,

24-067-13-S Connectin

24-067-14-S

24-874-09-S

24-874-10-S

24-874-11-S

24-874-15-S

24-108-08-S

24-108-09-S

24-108-10-S

24-018-01-S

12-422-09-S

12-422-13-S

12-422-07-S

12-422-08-S

12-422-10-S

12-422-11-S

12-422-12-S

24-012-10-S

52-139-09-S

M-545010-S

24-018-04-S

24-402-05-S

12-153-01-S

24-126-19-S

12-123-04-S

M-545016-S

12-153-02-S

24-038-04-S

21 24-755-46-S

22 12-153-03-S

23 24-018-09-S

24 M-931010-S

25 28-032-09-S

26 24-468-15-S

27 24-144-33-S

Shin

Shim, camshaft

Shim, camshaft q

Shlm, camshaft

Shim, camshaft A.R.

Sh_m,camshaft IA.R.I

Camshaft

Plug, cup

Screw, hex. flange

MSx0.gxl0 (2)

Retainer, reed (2)

Reed, breather 2

O-Bing,lowerel} tube

Bracket, oil fill tube

Tube, oil fill

Screw, bex. flange

M5x0.8x16

O-Ring, upper oil filltube

Dipsflckassembly (Includes

21, 22)

Kit, oil fillcap (Includes22)

O-Ring, di tick

Ring, retanlnlnPSelr

Washer, nylon (top)

Seal, governorcross shaft

Washer (bottom)

Shaft, governor cross

NOTE: All componentdimensionsgiven in U.S.

inches 1 inch = 28.4 mm

TRACTOR- MODELNUMBER917.275000

KOHLERENGINE-MODELNUMBERCV674,TYPENUMBER75544

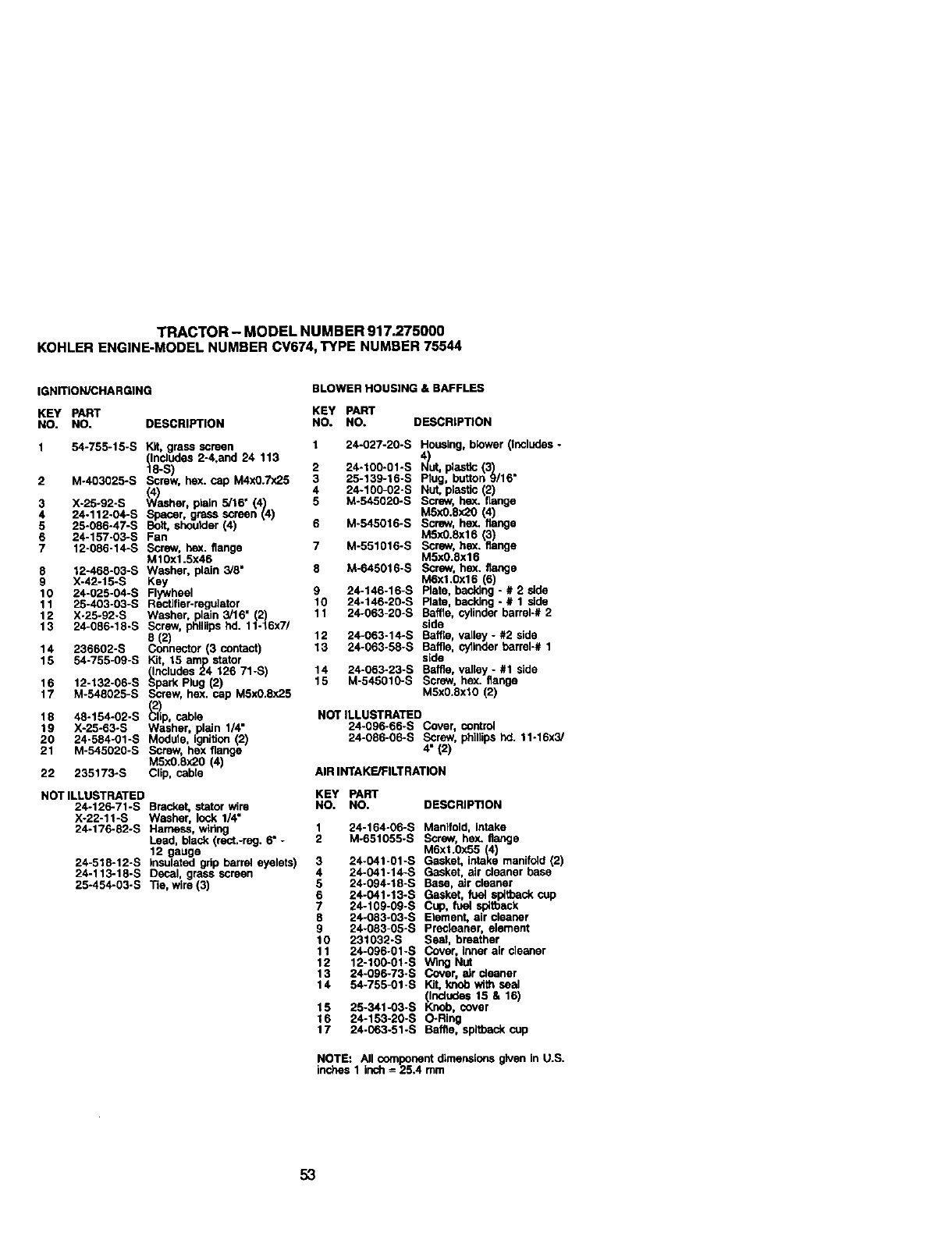

TRACTOR - MODEL NUMBER 917.275000

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

IGNITION/CHARG]NG

KEY pANT

NO. NO. DESCRIPTION

BLOWER HOUSING S BAFFLES

KEY PANT

NO. NO. DESCRIPTION

Kit, grass screen "t

t 54-755-15-S ll_'_ :_s 2-4,ax_l 24 113 2

2 M-403025oS Screw, hex. cap M4x0.7x25 3

3 X.25-92-S (V_asher,plain 5116' (4_4 5

4 24.112-04-S Spacer, grass semen _)

5 25-086-47-S Sctt, shouk:ler (4) 6

6 24.157-03-S Fan 7

7 12.086-14-S Screw, hex. flange

Mt0x1.5x46

8 12.468-03-S Washer, plain 3/8" 8

X-42-15-S Key 9

24.025-04-S FlyWheel 10

it 25.403-03-S Rectifier-regulator .

12 X-25-92-S W_sher ptain 3/16 (2) 11

13 24o086-18-S ScreW,ph,lips hd. 11-16x7/

8(2)

14 236602-S Connector (3 contact)

15 54-755-09-S Kit, 15 amp stator

(Includes 24 126 71-S)

16 12._.32.06.S Spark Plug (2)

17 Mo548025-S Screw, hex, cap MBx0,8x25

IB 48 -154-02"S _2tp, cable

19 X-25-63-S Washer, plain 1/4"

20 24-584-01-S Module, 19niflan (2)

21 M-545020-S Screw, hex flange

MBx0.ax20 (4)

22 235173-S Clip, cable

NOT ILLUSTRATED

24-126-71-S Bracket, stator wire

X-22-11-S Washer, lock I14"

24-176-82-S Harness, wlr_ng

Lead, black (rect,-reg. 6 -

12 gauge

24-518-12-S )nsulatedgrip barrel eyetets_

24-113-18-S Decal grass screen

25-454-03-S Tle, wire (3

24-027-20-S Housing,bk_Wer(includes-

24-100-01-S _,u_,ptast_ (3_ •

25-139-16-S Plug button 9/16

24-100-02-S Nut, plastic(2)

_-545020-5 Screw, hex. flange

MSxO.8xgO(4)

M-545016-S ScreW,heoCflange

MBxO.ax16 (3)

M-551016-S Screw, heX. flange

M5x0.ax16

14_645016-S Screw, he_<-flange

M6xl.0x16 (6)

24-146-16-S Plata, basing - #2aide

24-146-20-S Plate, backing - #1 s_de

24-063-20-S Baffle, cylinder flarret-# 2

side

24-063-14-S Baffle, valley - #2 side

24.063-58-S Baffle, cyllnderbaTrai-#I

s_de

24-053-23-S Baffle, vailey - #I slde

M-545010-S Screw, hex. flange

MBxO,8xl0 (2)

NOT ILLUSTRATED

24-096-66-S Cover control 3/

24.086-06-S ScreW, ph]lllpshe. 11-16x

4" (2)

AIR INTAKE/FILTRATION

KEY pART

NO, NO. DESCRIPTION

1 24-164-06-S Manifold, intake

2 M-651055-S Screw, heY. flange

M6xl QX55_4)

3 24-041-01-S Gasket, intake manifold(2)

24-041-14-S Gasket, air Meaner _case

24-094-18-S Base, air cleaner

24-041-13-S Gasket, fuel spflback cup

24-109-09-S Cup, fu_ spll_ack

8 24-083-03-S Element, sir cleaner

9 24-083-05-S preoleener, element

10 231032-S Seai, bree_h6r

11 24-096-01-S Cover, inner air cleaner

12 12-100-01-S Wing Nut

13 24-096-73-S Co_er, ;drcleaner

14 54-755-01-S Kit, knob with seal

(Includes 15 & 16)

15 25-341-03oS KnOb, cover

16 24-153.20oS O-Ring

17 24-063-51-S Baffle, spflback cup

NOTE; /_ _d_enaions gNen in U.S.

inches 1 inch-- 25.4 mm

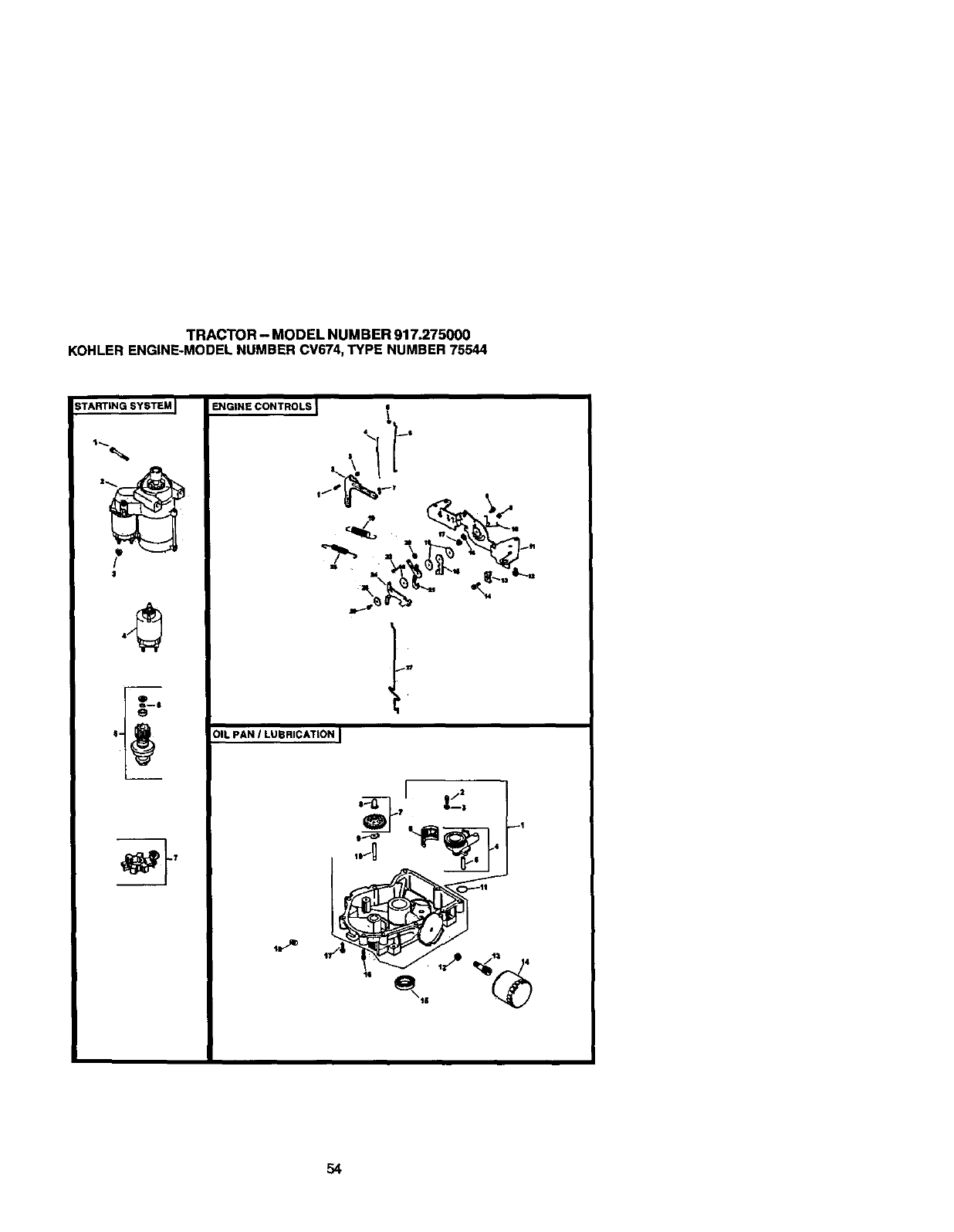

TRACTOR - MODEL NUMBER 917.275000

KOHLERENGINE-MODELNUMBER CV674,TYPE NUMBER 75544

;TARTIN G SYSTEM J

't-_.

ENGINE CONTROLS _ •

OIL PAN ILUBRICATION I

TRACTOR- MODELNUMBER917.275000

KOHLERENGINE-MODELNUMBERCV674,TYPENUMBER75544

STARTING SYSTEM OIL PAN/LUBRICATION

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 M-839080-S Screw, hes. flange

MBx1.25x80 (2)

2 25-098-08-S Starter, solenoid shift

(Includes 4-7)

3 M-841080-S Nut, hex. flange M8xl.25

4 25-435-04-S Kit, solenoid

5 25-755-33-S Kit, I_olon drive (Includes 6)

6 25-141-05-S RIn

7 25-221-01-S Kit,9_nlsh

ENGINE CONTROLS

KEY PART

NO, NO. DESCRIPTION

1 24 211 03-S Bolt, round head square

neck

2 24.090-33-S Lever, governor

3 M-641060-S Nut, hex. flange M6xl,0

4 24.089-01-S Spring, linkage

5 25-158-08-S Bushing,linkaagee retaining

6 24.079-04-S Unkage, throttle

7 25-158-11-S Bushing,,throttle linkage

8 M-545016-S Screw,he0<.flange

M5x0.8x16

9 M-547050-S Nut, hex. lock MSx0.8

10 24.089-03-S Spring, choke return

11 24.126-56-S Bracket, control

12 M-645016-S Screw, he:<.flange

M6x1.0x16 (4)

13 12-237-01-S Clamp, cable (2)

14 24-086-43-S Screw, hex. flange

M5x0.8x16 (2)

15 24.090-07-S Lever, throttle actuator

16 X-20-1-S Washer, lock 1/4"

17 M-541050-S Nut, hex. flange M5x0.8

18 24-468-01 -S Washer, plain 5.5 mm (3)

19 24.08g-45-S Spring, govemor

20 M-446030-S Nut, hex M4x0.7

21 24-090-13-S Lever, throttle control

22 M-545020-S Screw, hex. flange

MSx0.8x20

23 24.089-51-S Spdng, throttleI]mlter

24 24-090-05-S Lever, choke

25 41-468-03-S Washer, spdng 1/4'

26 M-403025-S Screw, hey. cap M4x0.7x25

27 24-079-05-S Unkage, choke

1 24.199-07-S Pan, otl assembly

(Includes 2-10)

2 M-645025-S Screw, hex_flange

M6x1.Ox25 (2)

3 M-631005-S Washer, plain 6 turn(2)

4 24-393-08-S O_1pump assembly

(Includes 5)

5 24-123-05-S Tube, oil pickup

6 24-162-26-S Screen, oil

7 24.043-12-S Kit, govemor gear w/pin

(Inoludes8)

8 12-380-01-S Pin, g¢ovemor regulating

9 52.448-02-S Tab, locking

10 12-144-02-S Shaft, govemor gear

11 24-153-08-S O-Ring

12 X-75-32-S Plug, _ex, ctsk. 3/8"

13 24-136-01-S Nipple, oil filter

14 52-050-02-S Filter, oil

15 52-032-08-S Sea], oil (PTO end)

16 24-086-17-S Screw, hex. flange

M8x1,25x45

17 24-086-16-S Screw, hex. flange

Mex1,25x45 (9)

18 X-75-10-S Pl_Fsq, hd. solid 3/8"

NOTE: All component dimensionsgiven In U.S.

inches1 inch = 25.4 rnm

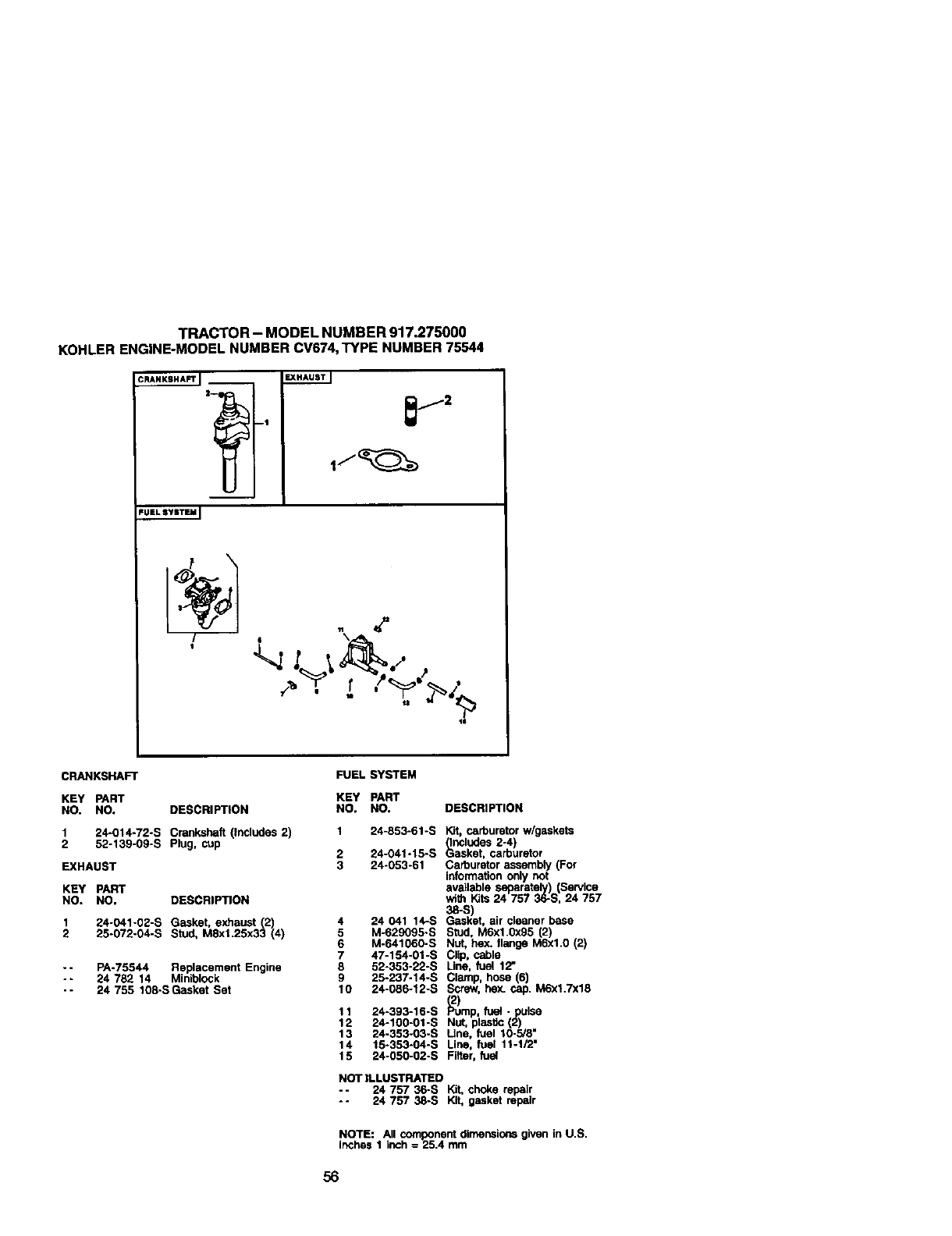

TRACTOR- MODELNUMBER917.275000

KOHLERENGINE-MODELNUMBERCV674,TYPENUMBER75544

CRANKSHAFT J

EXHAUST ]

_j2

FUEL SyIITEM J

CRANKSHAFT

KEY PART

NO. NO. DESCRIPTION

1 24-014-72-S Crankshaft (Includes 2)

2 52-139-09-S Plug, cup

EXHAUST

KEY PART

NO. NO. DESCRIPTION

1 24-041-02-S Gasket, exhaust (2)

2 25-072-04-S Stud, M8xl.25x33 (4)

-- PA-75544 Replacement Engine

-- 24 782 14 Miniblock

-- 24 755 108-SGasket Set

FUEL SYSTEM

KEY PART

NO. NO. DESCRIPTION

24-853-61 -S

24-041-15-S

24-053-61

4 24 041 14-S

5 M-629095-S

6 M-641060-S

7 47-154-01-S

8 52-353-22-S

9 25-237-14-S

10 24-086-12-S

11 24-393-16-S

12 24-100-01 -S

13 24-353-03-S

14 15÷353-04-S

15 24-050-02-S

carburetor w/gaskets

_ncludes 2-4)

asket, carburetor

Carburetorassembly (For

informationonly not

available separately) (Service

with Kits 24 757 36-S, 24 757

38-S) ner base

Gasket, air clea

Stud, M6x1.0x95 (2)

Nut, hex. flange M6xl.0 (2)

Clip, cable

Line, fuel 12"

Clamp, hose (6)

Screw, hex. cap. M6xl.7x18

_¢np, fu_ -pulse

Nut, plastic(2)

Line, fuel 10-5/8"

Line, fuel 11-1/2"

Fitter, fuel

NOT ILLUSTRATED

-- 24 757 36-S Kit, choke rabair

- - 24 757 38-S Kit, gasket repair

NOTE: All component dimensions given in U.S.

inches 1 Inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

I_ Operate your Tractor up and down the face of slopes (not I

greater than 15 ), never across the face. Make turns gradu- I

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

For repairof major brandappliancesin your own home...

no matterwho made it, no matterwho sold

1-8O0-4-MY-HOME _Any_e,daycr_1_

0-m04Sg-4_3) (U.SAandCanada)

www.qe6r,J.COfl_ WWW..qz_ztz_.c8

For repairofcarry-inproductslikevacuums,lawnequipmentand

electronics,call for file nearestSears Parts and RepairCenter.

1-800-488-1222 Any1_e,dayu r_ght(U.SAonly)

wwwJ_arlLoom

For the replacementparts,accessoriesandowner'smanuals

that you need to do-it-yourself,call ,SeamPartsDirectS'!

1-800-366-PART 6 aJ'n.-11 p.m., 7days aweek

0_7278) (u.sA onty)

www_mct

To pu_ or inquireabout a SearsServiceAgreement

or Sears MaintenanceAgreement:

1-800-827-6655 (U.SA) 1-800-361-6665 (Canada)

7a.m.- 5 pJ'n.,CST, Mort. - Sat. 9 a.m.- 8 p.m. EST, M- F, 4 p.m. Sat

Parapetit serviciode _arack_ aAu Canada pcurserviceen1Tan_:

d_niclio, ypata _denar piezas: 1-8004.E-FOVF.Ruc

1-88_SI.HtOGARsM (1-8(X)-533_'/)

(1-8_8-784-842-_ _Nw_see_s.ca

®Registered Trademark /TM Trademark Isu Service Mark of Sears, Roebuck and Co.

®Mama Registtada /TM Maria de Ftibrica IsMMama de Serviclo de Sears, Roebuck and CO.

uc Marque de commerce !MoMarque d_desde de Sears. Roebuck and Co.

179082 4.9,01 RD Printed in U.S.A.

Craftsman 917275000 User Manual LAWN TRACTOR Manuals And Guides L0104166

CRAFTSMAN Lawn, Tractor Manual L0104166 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
