Owner's Manual

CRI FTSMRN°

27.0 HE 48" Mower

Electric Start

Automatic Transmission

Model No.

917,275287

This product has a mowemission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

Read and follow all Safety

Rules and instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1_800°659-5917

Sears Craftsman Help Line

5 am =5 pm, Men =Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

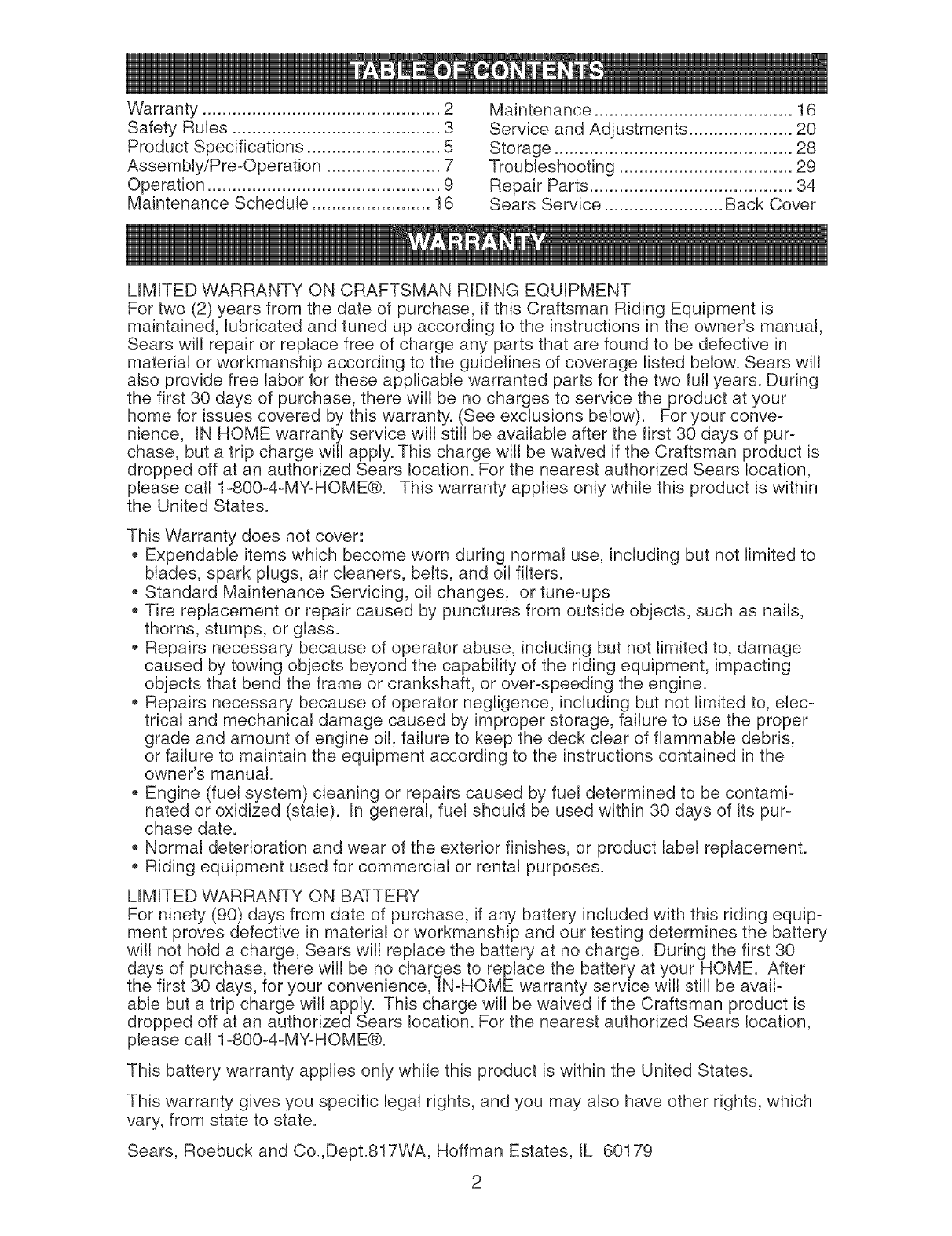

Warranty................................................2

SafetyRules..........................................3

ProductSpecifications...........................5

Assembly/Pre-Operation.......................7

Operation...............................................9

MaintenanceSchedule........................16

Maintenance........................................16

Service andAdjustments.....................20

Storage................................................28

Troubleshooting...................................29

RepairParts.........................................34

SearsService........................BackCover

LIMITEDWARRANTYON CRAFTSMANRIDINGEQUIPMENT

Fortwo (2)years from the date of purchase,if this CraftsmanRiding Equipmentis

maintained,lubricatedand tuned upaccordingto the instructionsinthe owner'smanual,

Searswill repairor replacefree of chargeany partsthat arefoundto bedefectivein

materialor workmanshipaccordingto the guidelinesof coveragelisted below.Searswill

also providefree laborfor theseapplicablewarrantedpartsfor the two full years.During

the first 30 daysof purchase,therewill be nochargesto servicethe productat your

homefor issuescoveredby this warranty.(Seeexclusionsbelow). Foryourconve-

nience, INHOMEwarrantyservicewill still be availableafterthe first 30 daysof pur-

chase, buta trip chargewill apply.Thischargewill bewaived if the Craftsmanproduct is

droppedoffat an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.This warrantyapplies onlywhile this productis within

the UnitedStates.

This Warrantydoes notcover:

Expendableitemswhich becomeworn duringnormaluse, includingbut not limitedto

blades,spark plugs,air cleaners,belts,and oil filters.

StandardMaintenanceServicing,oil changes, or tune-ups

Tire replacementor repaircausedby puncturesfrom outsideobjects,such as nails,

thorns,stumps,or glass.

Repairsnecessarybecauseof operatorabuse, includingbut not limitedto, damage

causedby towingobjectsbeyondthe capabilityof the riding equipment,impacting

objectsthat bendthe frameor crankshaft,or over-speedingthe engine.

Repairsnecessarybecauseof operatornegligence,includingbut not limitedto,elec-

tricaland mechanicaldamagecausedby improperstorage,failureto usethe proper

gradeand amount ofengine oil,failureto keepthe deckclear of flammabledebris,

or failureto maintainthe equipmentaccordingto the instructionscontainedinthe

owner'smanual.

Engine(fuelsystem)cleaningor repairscausedby fueldeterminedto becontami-

nated or oxidized(stale). In general,fuelshould beused within30 daysof its pur-

chase date.

Normaldeteriorationand wear of the exteriorfinishes,or productlabel replacement.

Ridingequipmentusedfor commercialor rental purposes.

LIMITEDWARRANTYON BATTERY

For ninety(90) daysfrom date of purchase,if anybatteryincludedwith this ridingequip-

ment provesdefectivein materialor workmanshipand our testingdeterminesthe battery

will not holda charge, Searswill replacethe batteryat nocharge. Duringthe first 30

daysof purchase,therewill be nochargesto replacethe batteryat your HOME. After

the first 30 days,foryour convenience,IN-HOMEwarrantyservicewill still be avail-

ablebut a trip chargewill apply. Thischarge will bewaivedif the Craftsmanproduct is

droppedoffat an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.

This battery warrantyapplies onlywhile this productis withinthe UnitedStates.

This warrantygivesyou specificlegalrights,and you mayalso haveotherrights,which

vary,from state to state.

Sears,Roebuckand Co.,Dept.817WA,HoffmanEstates,IL 60179

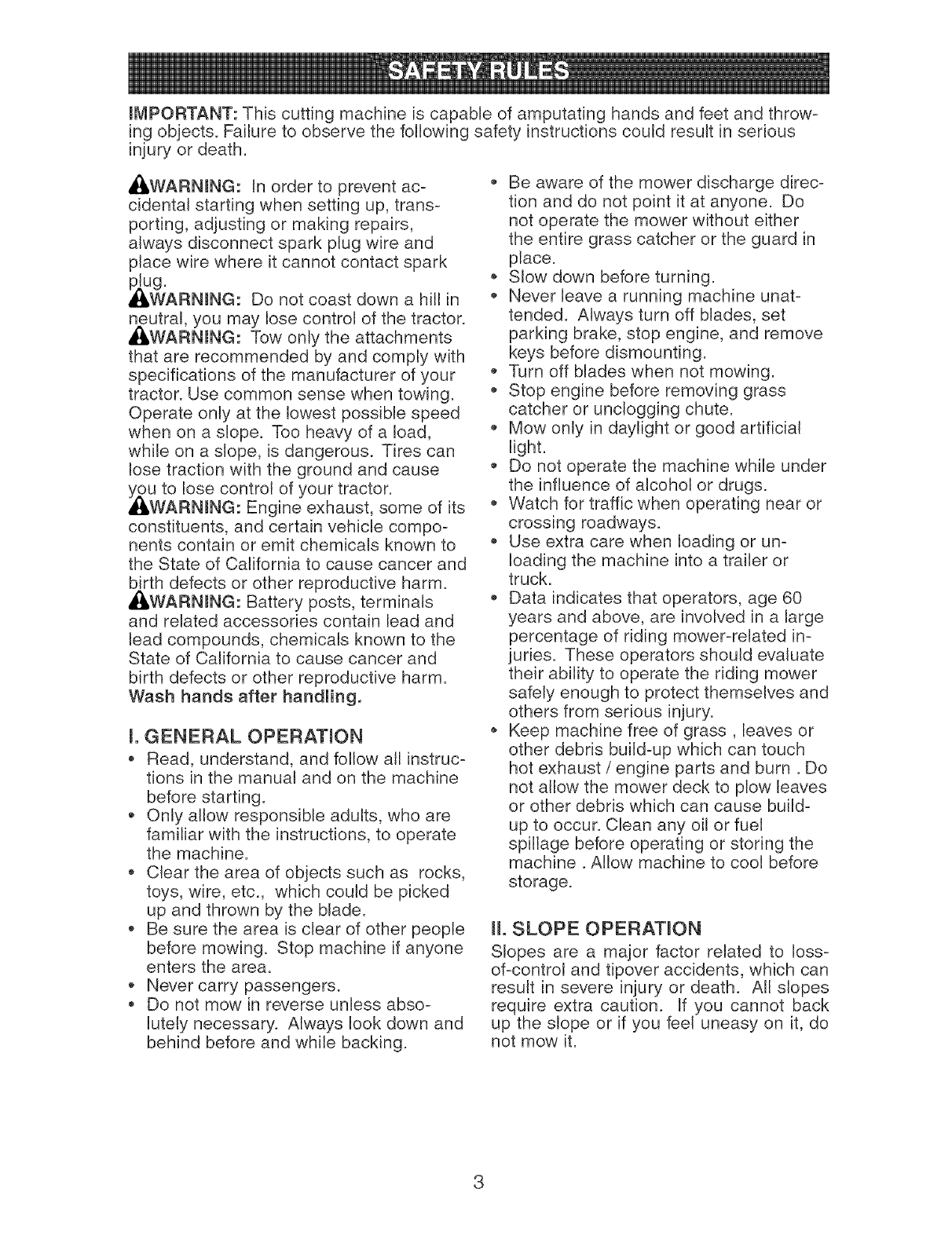

miVIPORTANT:This cuttingmachineis capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

WARNmNG: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNmNG: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

_ibu to lose control of your tractor.

WARNmNG: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

_WARNmNG: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

L GENERAL OPERATmON

*Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

*Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

, Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

*Never carry passengers.

Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

*Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

Data indicates that operators, age 60

years and above, are involved in alarge

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

*Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

H. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

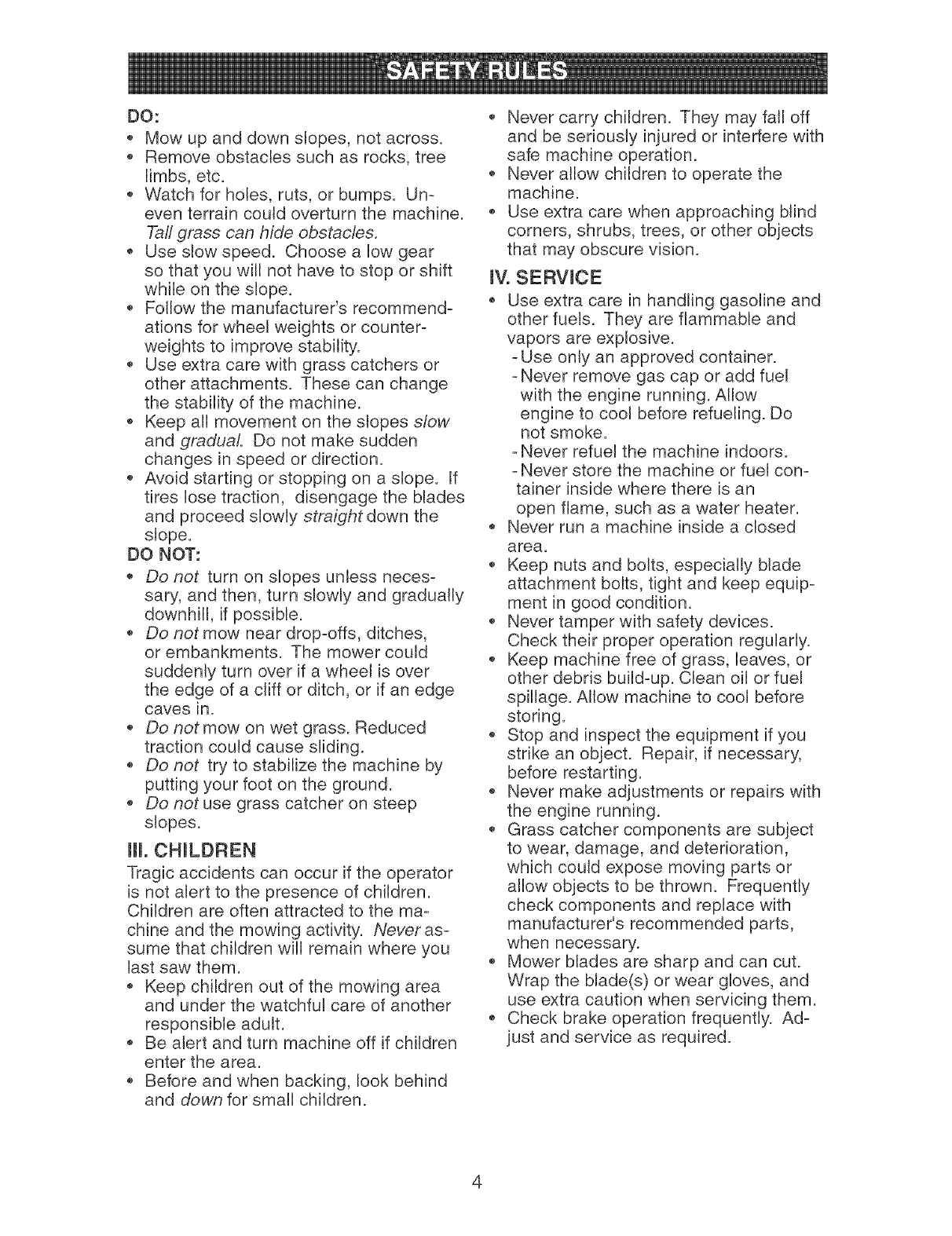

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Taft grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

oDo not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

Do not mow on wet grass. Reduced

traction could cause sliding.

Do not try to stabilize the machine by

putting your foot on the ground.

Do not use grass catcher on steep

slopes.

ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

iV, SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel con-

tainer inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs with

the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

Be surethe area is clear of other people

before mowing.Stop machineif anyone

entersthe area.

Nevercarry passengersor children

evenwith the bladesoff.

Do not mowin reverseunlessabso-

lutely necessary.Alwayslook downand

behind beforeand while backing.

Nevercarry children.Theymayfall off

and beseriouslyinjuredor interferewith

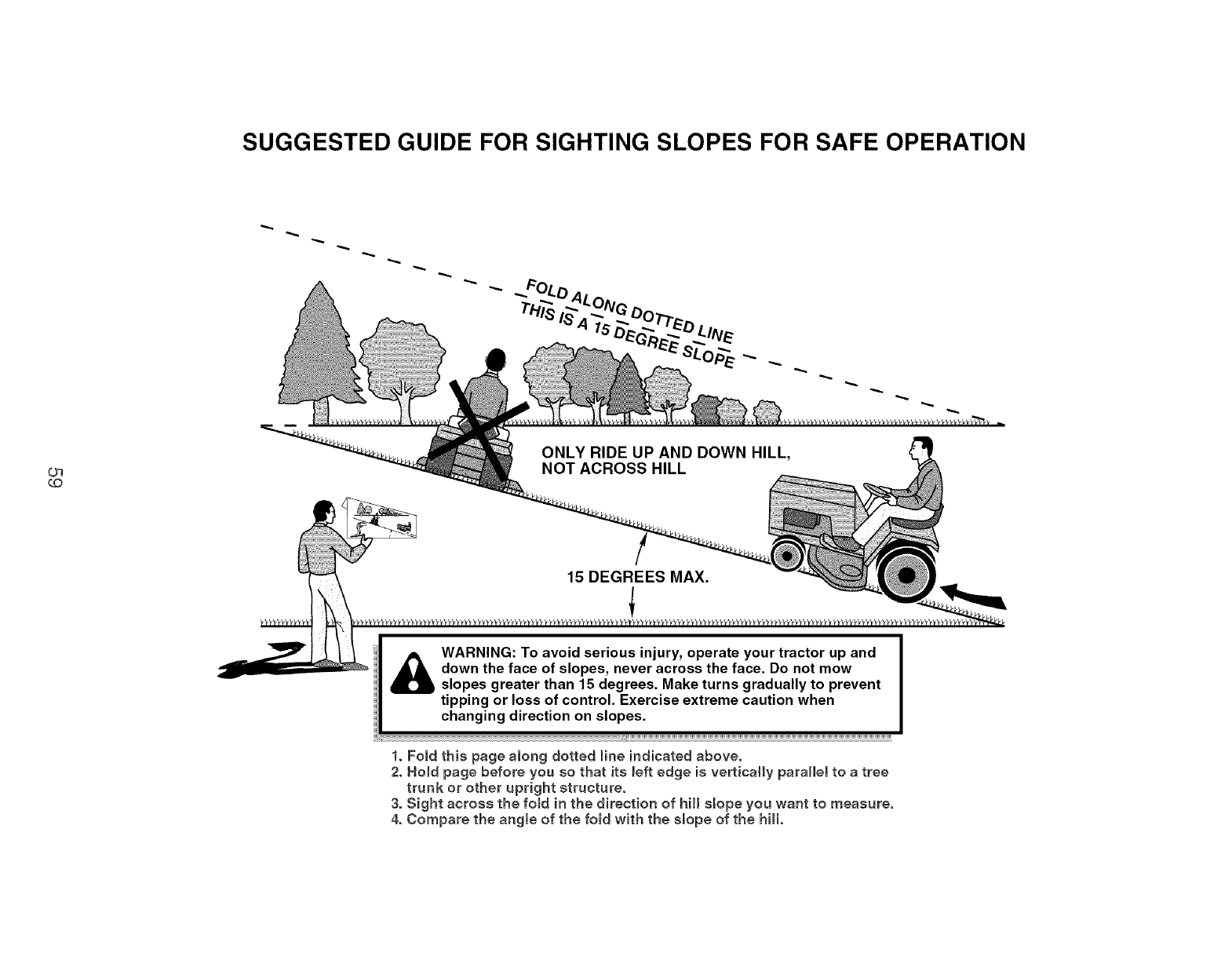

safe machineoperation.

Keepchildrenout of the mowingarea

and underthe watchfulcare of another

responsibleadult.

Be alert and turn machineoff if children

enterthe area.

Beforeand when backing,look behind

and downfor small children.

Mowup and downslopes (15° Max), not

across.

Removeobstaclessuchas rocks,tree

limbs,etc.

Watchfor holes,ruts, or bumps.Uneven

terrain couJdoverturnthe machine.Tall

grasscan hide obstacles.

Useslowspeed. Choosea low gear

so that you will not haveto stop or shift

while on the slope.

Avoidstarting or stopping on a slope. If

tires losetraction,disengagethe bJades

and proceedslowlystraight downthe

slope.

If machinestops whilegoinguphill,

disengageblades,shift into reverseand

backdownslowly.

Do notturn on slopes unlessnecessary,

andthen, turn sJowlyand graduaJly

downhiJl,if possible.

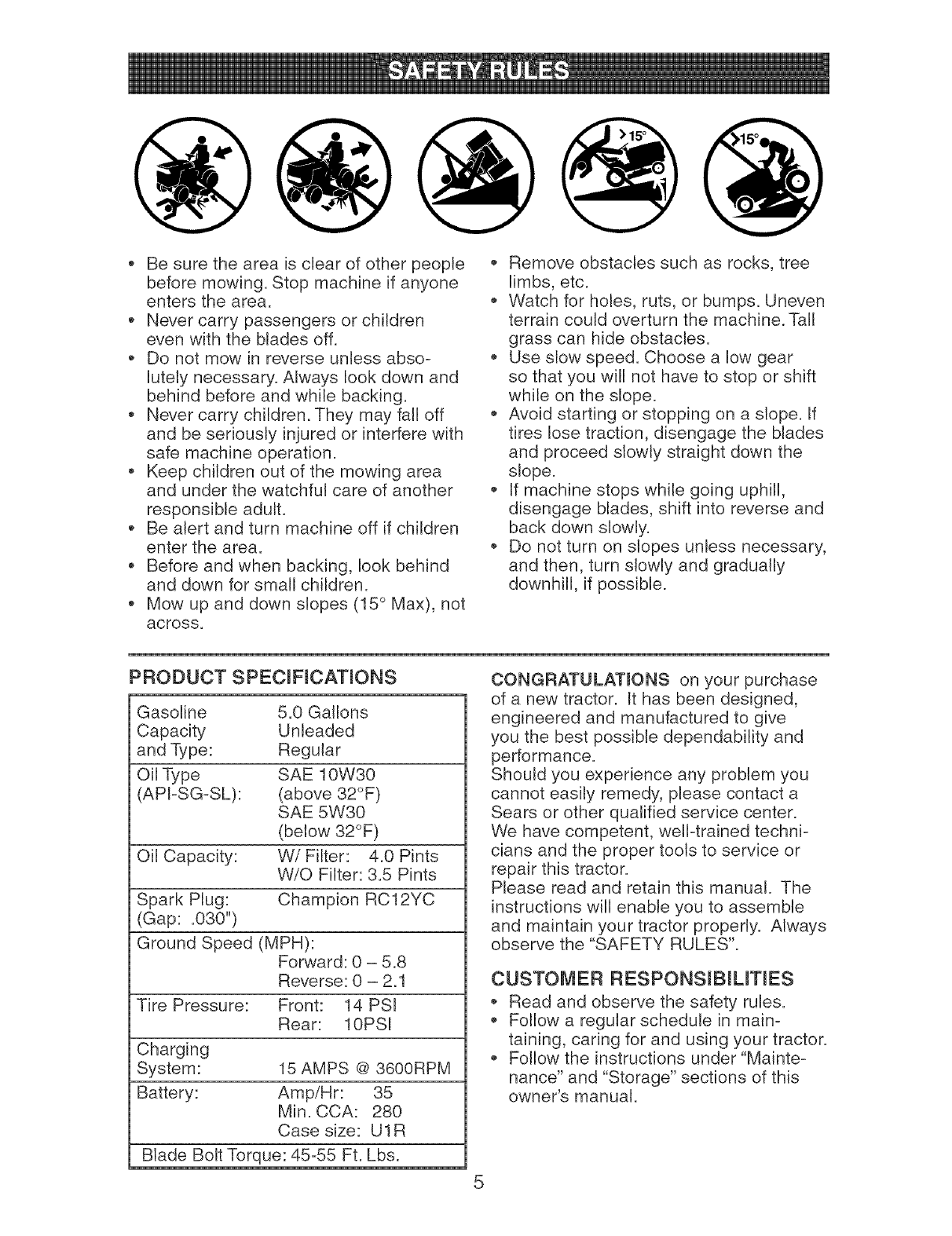

PRODUCT SPECiFiCATiONS

Gasoline 5.0 Gallons

Capacity Unleaded

andType: Regular

OilType SAE 10W30

(API-SG-SL): (above32°F)

SAE5W30

(below32°F)

Oil Capacity: Wi Filter: 4.0 Pints

W/O Filter:3.5 Pints

SparkPlug: ChampionRC12YC

(Gap: .030")

Ground Speed (MPH):

Forward: 0 - 5.8

Reverse: 0 - 2.1

Tire Pressure: Front: 14 PSI

Rear: 10PSI

Charging

System: 15 AMPS @ 3600RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSJBJLmES

,_ Read and observe the safety rules.

,, Follow a regular schedule in main-

taining, caring for and using your tractor.

,, FoJlow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manuaJ.

_,WARNmNG: This tractor is equipped

with an internat combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTmON

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourseff from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profe-

sional repair specialists.

Unlimited service and no charge for

parts and labor on all covered repairs.

*Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

Fast help by phone - phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800=827-6655.

SEARS mNSTALLATION SERVmCE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

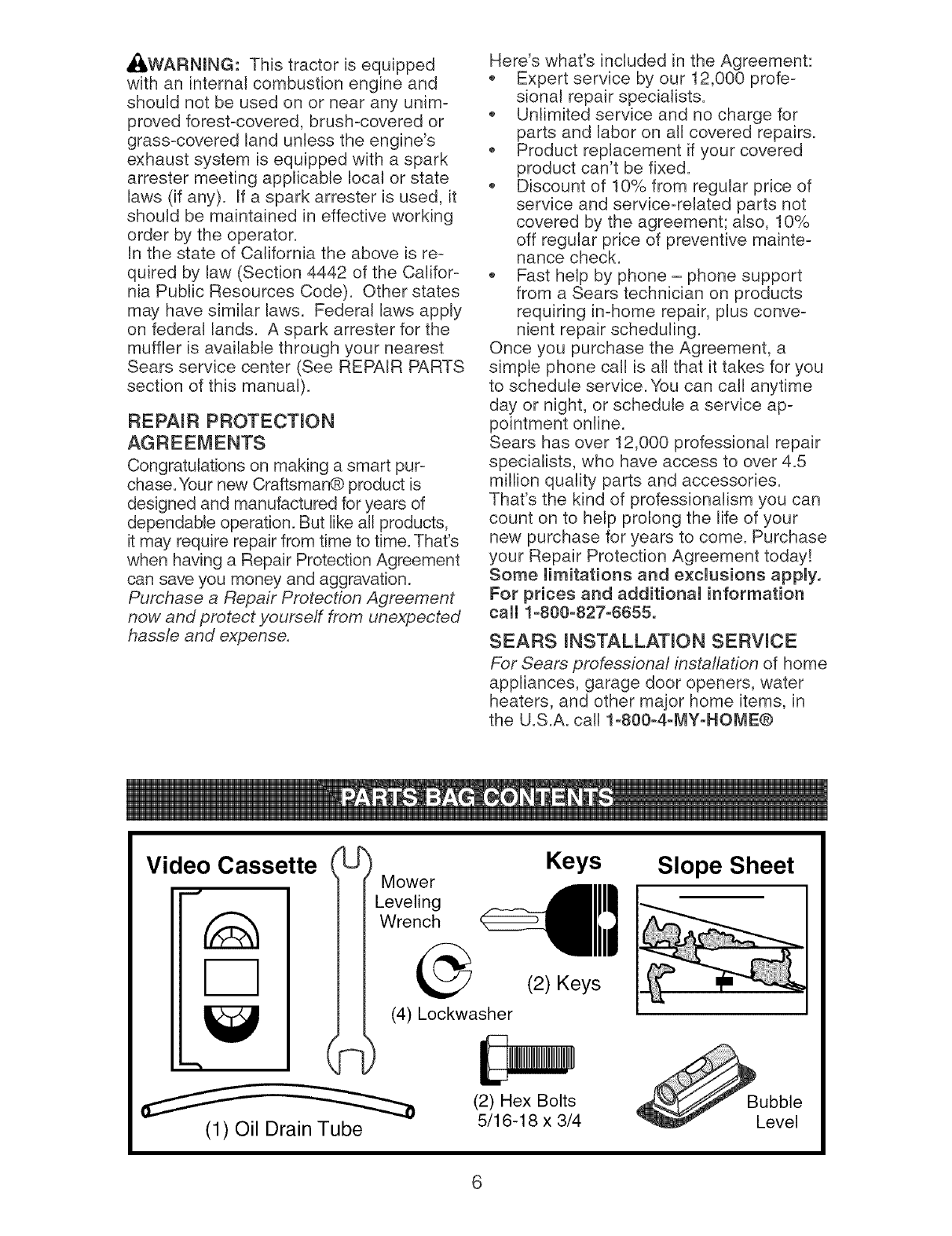

Video Cassette Slope Sheet

Bubble

Level

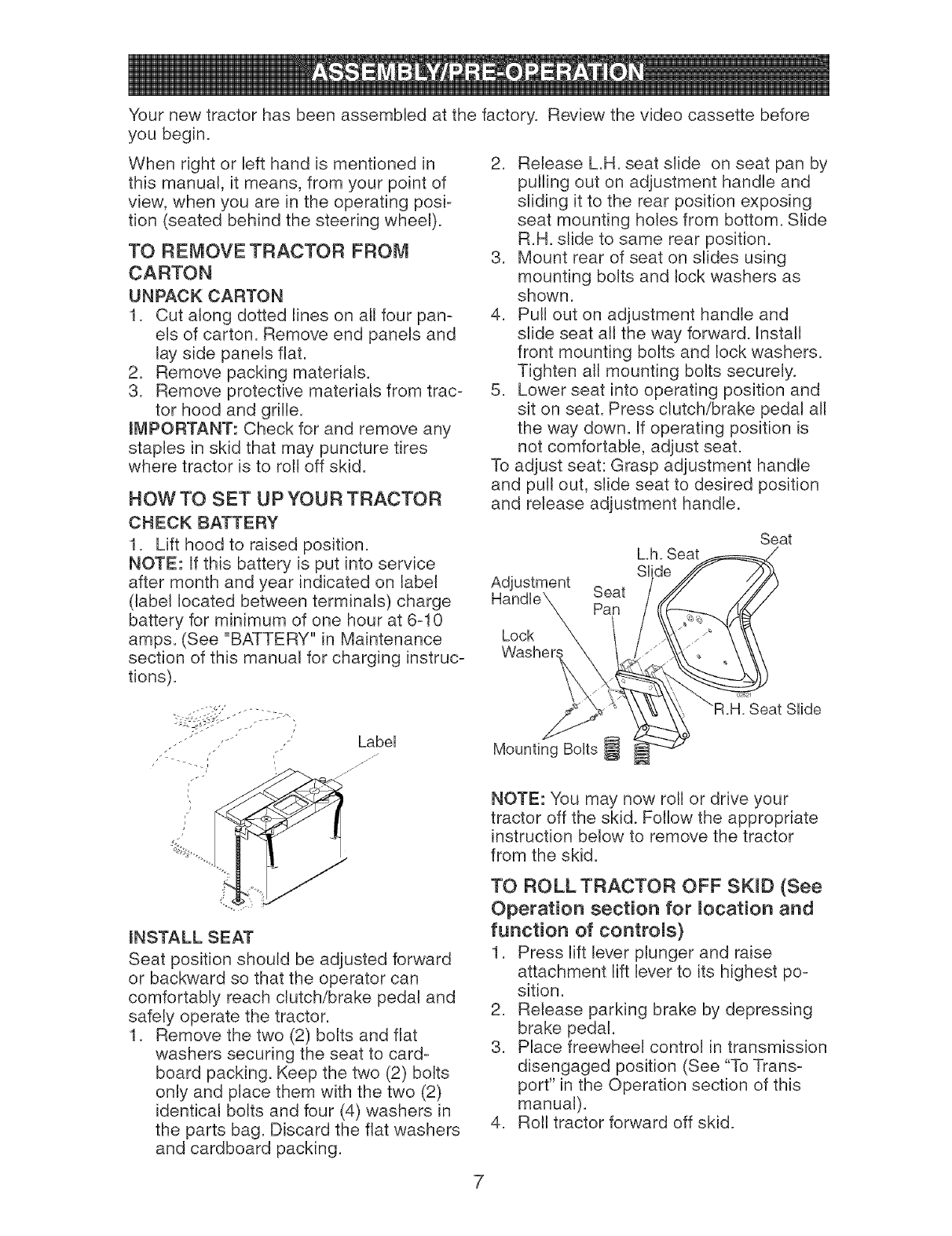

Yournew tractor hasbeen assembledat the factory. Reviewthe videocassette before

you begin.

When right or left hand is mentionedin

this manual,it means,from your point of

view,whenyou are inthe operatingposi-

tion (seated behindthe steeringwheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACKCARTON

1. Cut alongdottedlineson all four pan-

elsof carton.Removeend panelsand

layside panelsflat.

2. Removepackingmaterials.

3. Removeprotectivematerialsfrom trac-

tor hoodand grille.

mMPORTANT:Checkfor and removeany

staples in skid that maypuncturetires

where tractor is to roll offskid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hoodto raisedposition.

NOTE:If this batteryis put into service

after monthandyear indicatedon label

(labellocatedbetweenterminals)charge

batteryfor minimumof one hourat 6-10

amps.(See "BATTERY"in Maintenance

section of this manualfor charginginstruc-

tions).

2. ReleaseLH. seatslide on seat panby

pullingout onadjustmenthandle and

sliding it to the rearpositionexposing

seat mountingholesfrom bottom.Slide

R.H.slide to same rear position.

3. Mountrear of seat onslides using

mountingboltsand lockwashersas

shown.

4. Pullout on adjustmenthandleand

slide seat all the wayforward.Install

front mountingbolts and lockwashers.

Tightenall mountingboltssecurely.

5. Lowerseat into operatingpositionand

sit on seat.Pressclutch/brakepedal all

the way'down. If operatingpositionis

notcomfortable,adjustseat.

Toadjust seat:Graspadjustmenthandle

and pullout, slide seat to desiredposition

and releaseadjustmenthandle.

Seat

Pan

hh. Seat

SHde

Seat

Lock

Seat SHde

LabeU

mNSTALL SEAT

Seat position should be adjusted forward

or backward so that the operator can

comfortably reach clutch/brake pedal and

safely operate the tractor.

1. Remove the two (2) bolts and flat

washers securing the seat to card-

board packing. Keep the two (2) bolts

only and place them with the two (2)

identical bolts and four (4) washers in

the parts bag. Discard the flat washers

and cardboard packing.

Mounting BoUts

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for mocation and

function of controms)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in transmission

disengaged position (See "To Trans-

port" in the Operation section of this

manual).

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for mocation and

function of controms)

_WARNmNG: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position (See "To

Transport" in the Operation section of

this manual).

4. Sit on seat in operating position, de-

press brake pedal and set the parking

brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

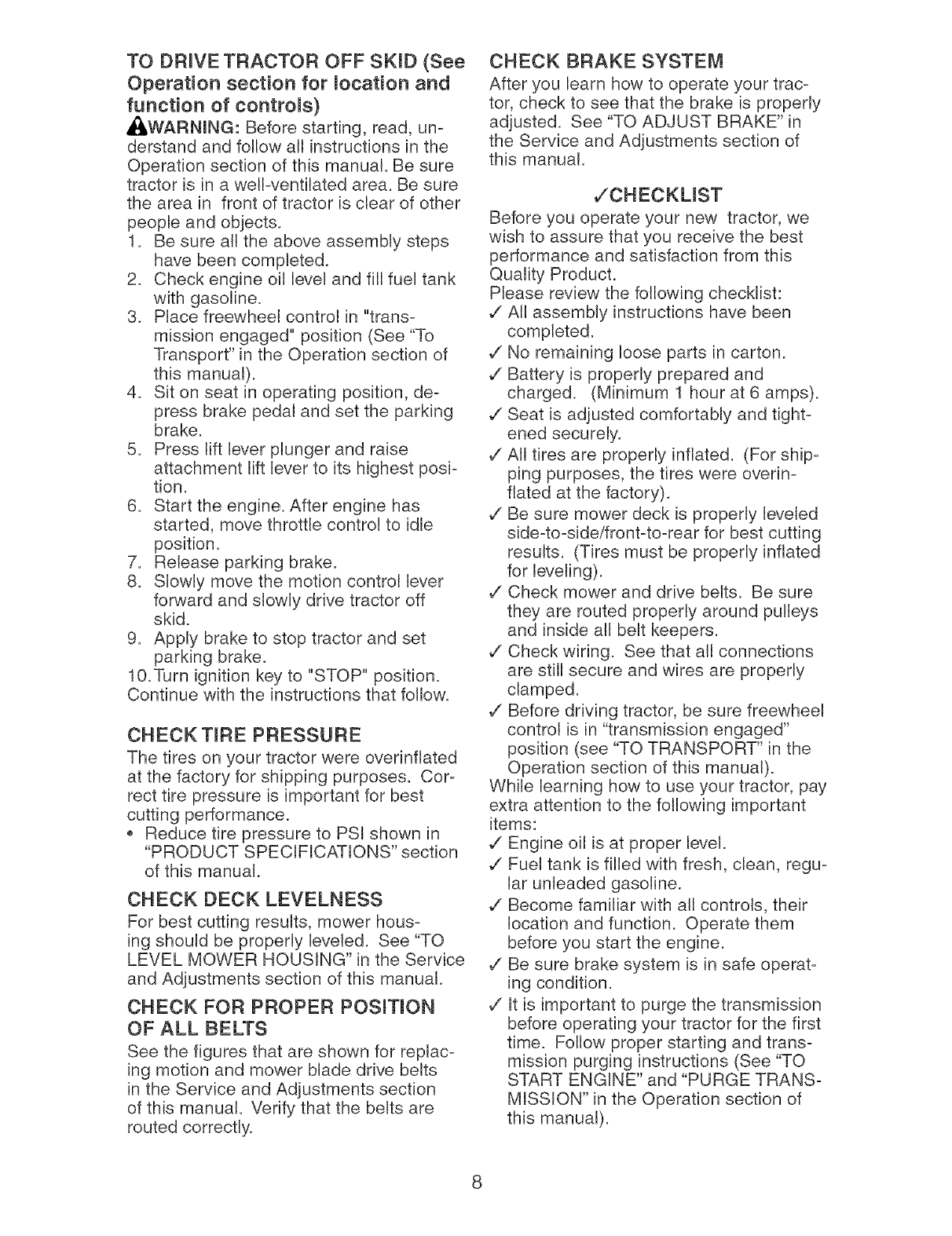

CHECK TIRE PRESSURE

The tires on your tractor were overinfiated

at the factory for shipping purposes. Cot=

rect tire pressure is important for best

cutting performance.

Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSmTmON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin=

fiated at the factory).

,/Be sure mower deck is properly leveled

side=to=sideifront=to=rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside atl belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS=

MISSION" in the Operation section of

this manual).

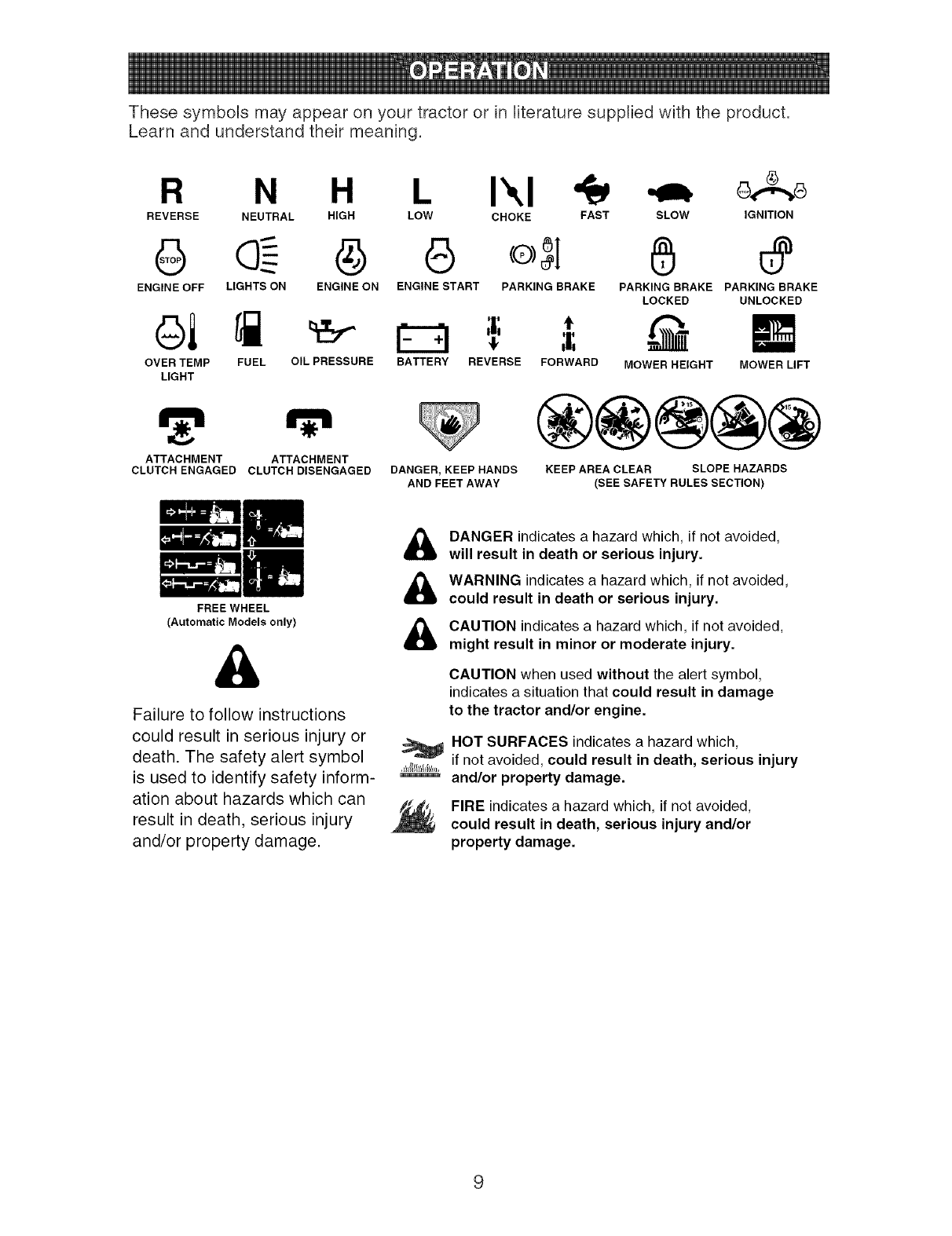

Thesesymbols mayappearon yourtractor or inliteraturesuppliedwiththe product.

Learnand understandtheir meaning.

R N H L I'-,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST

Q G:--- 0

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

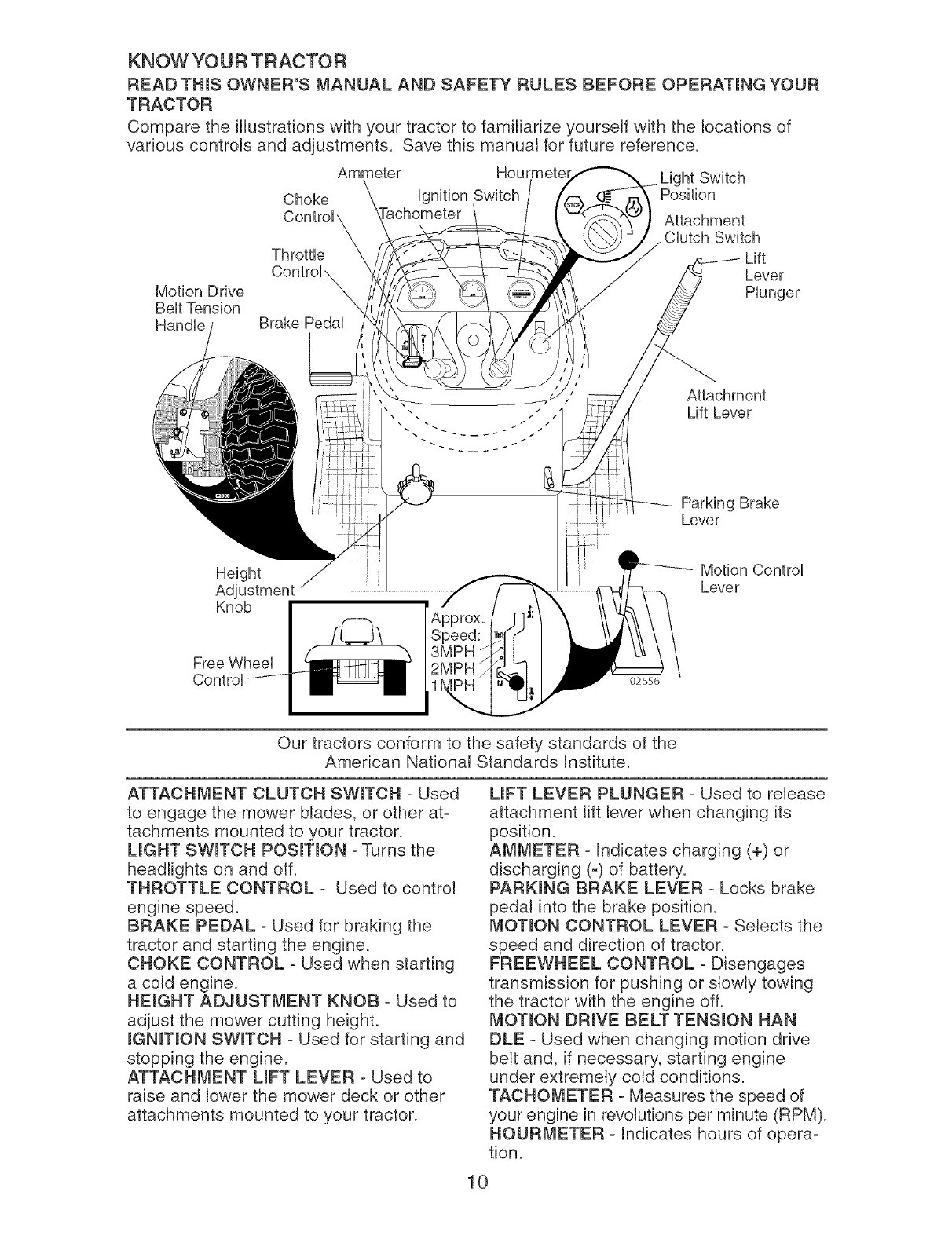

KNOW YOUR TRACTOR

READ THINSOWNER'S MANUAL AND SAFETY RULES BEFORE OPERATmNG YOUR

TRACTOR

Compare the illustrations 'with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Choke

Control

Throttle

Ammeter Hourmetel

ignition Switch

Motion Drive

Belt Tension

Handle

ht Switch

Position

Attachment

Switch

Lift

Lever

Plunger

Brake Pedal

Attachment

Lift Lever

Parking Brake

Lever

Height

Knob

Free Wheel

Control

Approx.

Speed:

3MPH

2MPH 02656

Motion Control

Lever

Our tractors conform to the safety standards of the

American Nationat Standards Institute.

ATTACHMENT CLUTCH SWmTCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

UGHT SWmTCH POSmTmON - Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

BRAKE PEDAL - Used for braking the

tractor and starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEmGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

mGNmTmONSWmTOH - Used for starting and

stopping the engine.

ATTACHMENT UFT LEVER - Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

UFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

PARKmNG BRAKE LEVER - Locks brake

pedal into the brake position.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

MOTION DRIVE BELT TENSION HAN

DLE - Used when changing motion drive

belt and, if necessary, starting engine

under extremely cold conditions.

TACHOMETER - Measures the speed of

your engine in revolutions per minute (RPM).

HOURMETER - Indicates hours of opera-

tion.

SAFETYGLASSES

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

HOW TO USE YOUR TRACTOR

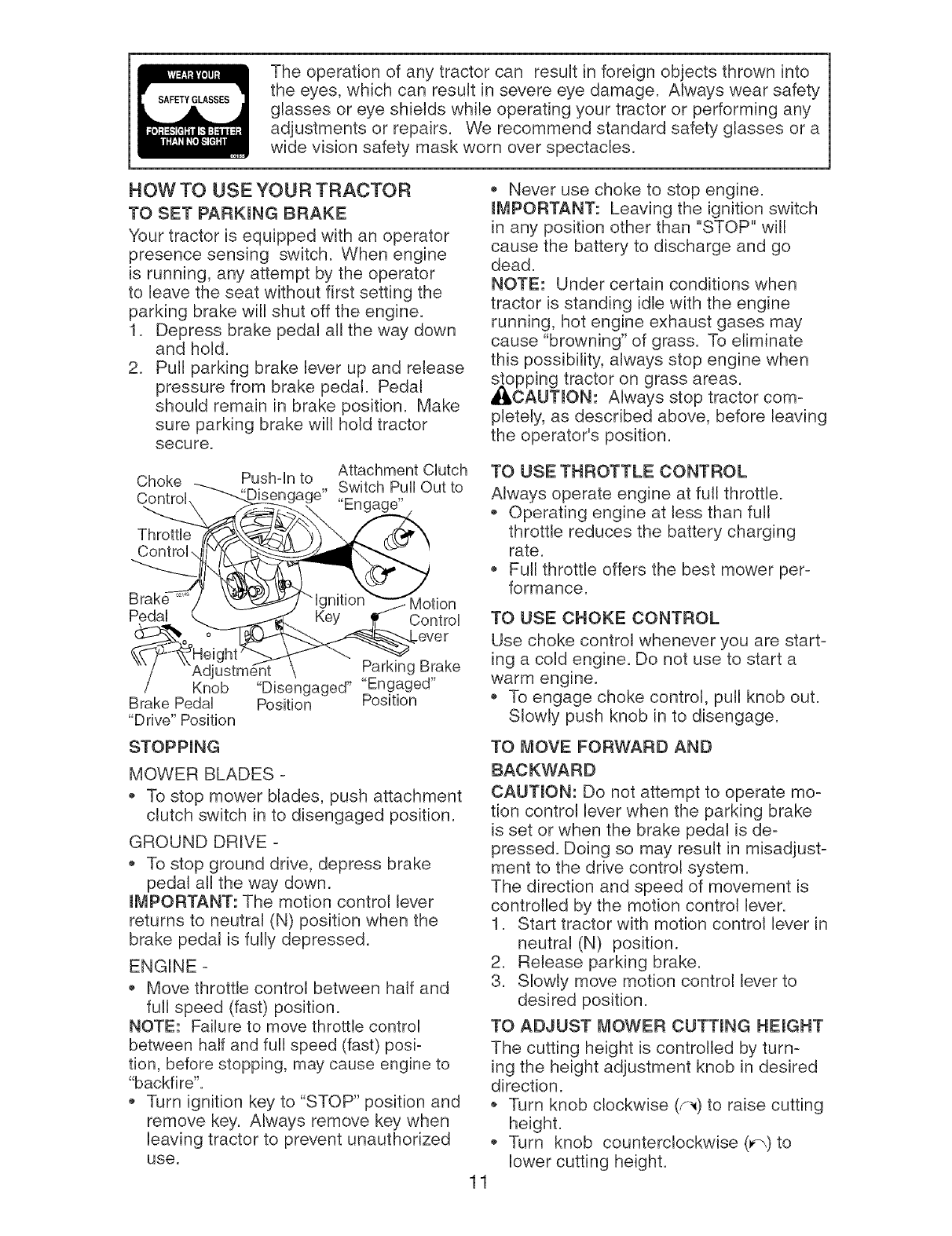

TO SET PARKmNG BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal all the way down

and hold.

2. Pull parking brake lever up and release

pressure from brake pedal. Pedal

should remain in brake position. Make

sure parking brake will hold tractor

secu re.

Choke

Control

Pushqn to Attachment Clutch

_ngage" Switch Pull Out to

Throttle

Control,

Pedal Motion

Control

=ever

Knob

Brake PedaU

"Drive" Position

Parking Brake

"Disengaged" "Engaged"

Position Position

STOPPmNG

MOWER BLADES =

To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE =

To stop ground drive, depress brake

pedal all the way down.

mMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedat is fully depressed.

ENGINE =

Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

Never use choke to stop engine.

mMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

,_opping tractor on grass areas.

CAUTmON: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

Operating engine at less than full

throttle reduces the battery charging

rate.

Full throttle offers the best mower per-

formance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

To engage choke control, putl knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

CAUTmON: Do not attempt to operate mo-

tion control lever when the parking brake

is set or when the brake pedal is de-

pressed. Doing so may result in misadjust-

ment to the drive control system.

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTmNG HEmGHT

The cutting height is controlled by turn-

ing the height adjustment knob in desired

direction.

Turn knob clockwise (F_) to raise cutting

height.

Turn knob counterclockwise (F"9 to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip with

the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

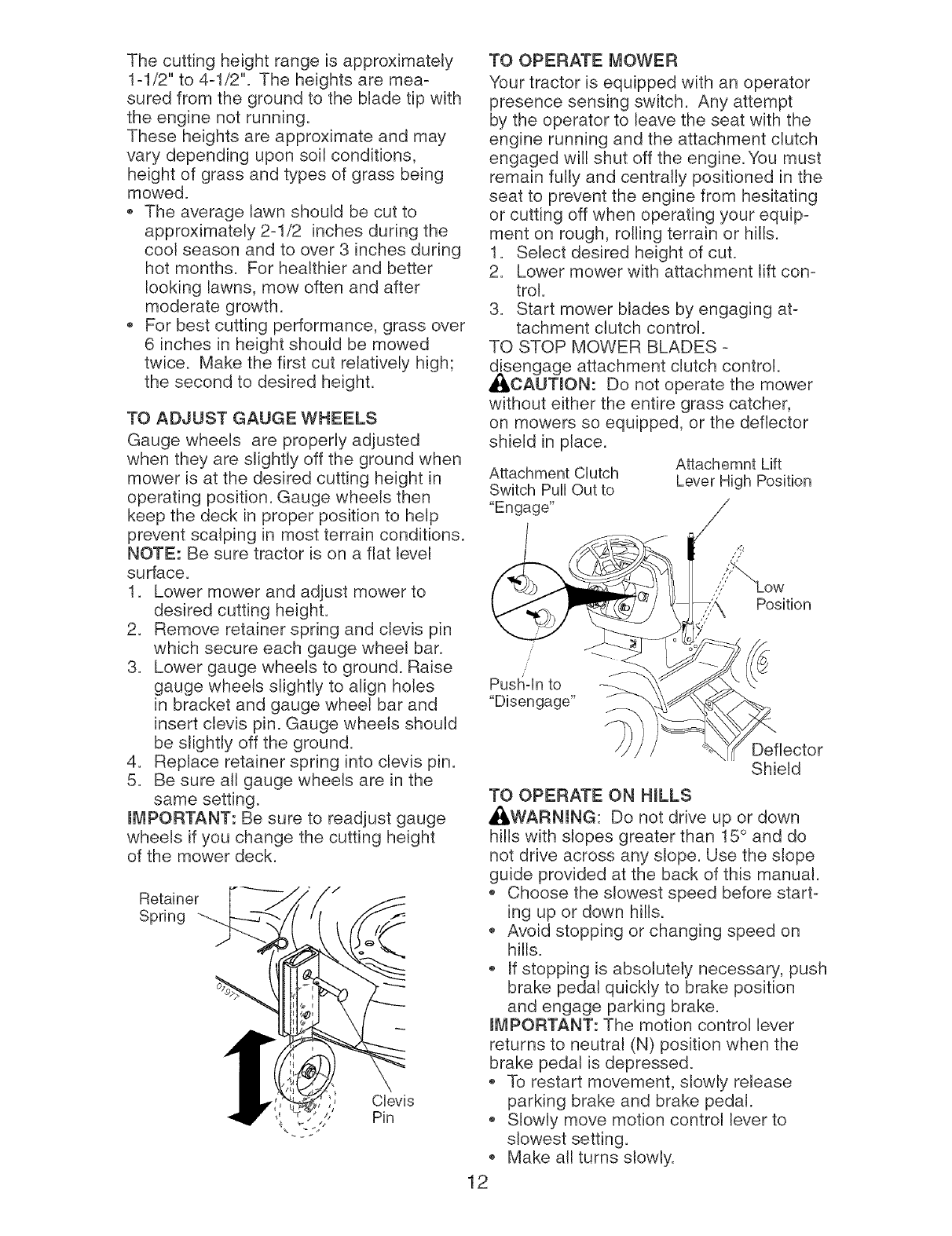

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to

desired cutting height.

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

mMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

Clevis

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Lower mower with attachment lift con-

trol.

3. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

4i_CAUTmON: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Clutch

Switch Pull Out to

"Engage"

Attachemnt Lift

Lever High Position

,;',":{'_'Low

Position

_,'l_ Deflector

Shield

TO OPERATE ON HILLS

_WARNmNG: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide provided at the back of this manual.

,, Choose the slowest speed before start-

ing up or down hills.

Avoid stopping or changing speed on

hills.

If stopping is absolutely necessary, push

brake pedal quickly to brake position

and engage parking brake.

mlVlPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is depressed.

To restart movement, slowly release

parking brake and brake pedal.

Slowly move motion control lever to

slowest setting.

Make all turns slowly.

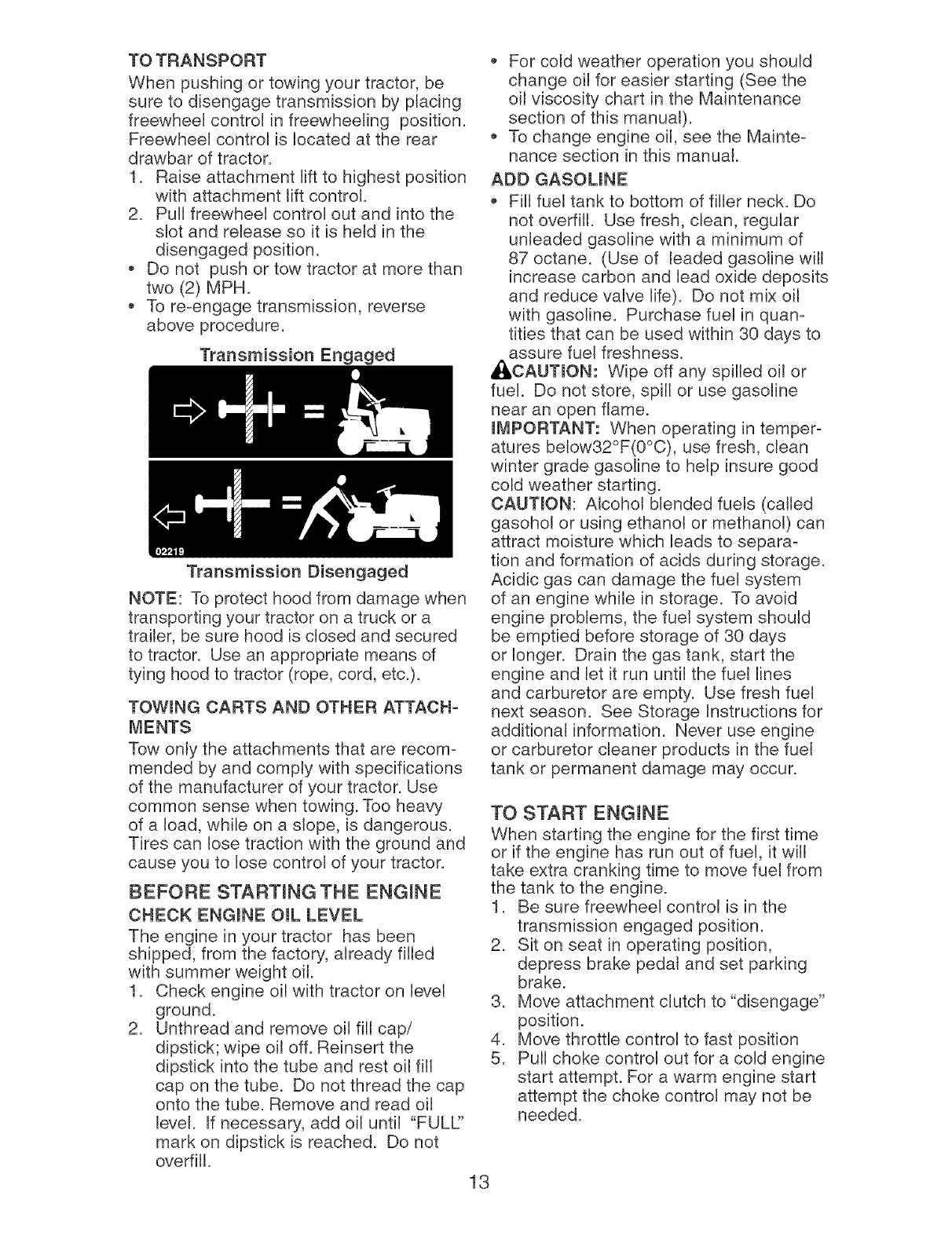

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and into the

slot and release so it is held in the

disengaged position.

Do not push or tow tractor at more than

two (2) MPH.

To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage when

transporting your tractor on a truck or a

trailer, be sure hood is closed and secured

to tractor. Use an appropriate means of

tying hood to tractor (rope, cord, etc.).

TOWmNG CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heaw

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGmNE OraL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the cap

onto the tube. Remove and read oil

level. If necessary, add oil until "FULL:'

mark on dipstick is reached. Do not

overfill.

For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLmNE

Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

Ai_OAUTmON: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

mMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTmON: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and Jet it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to "disengage"

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

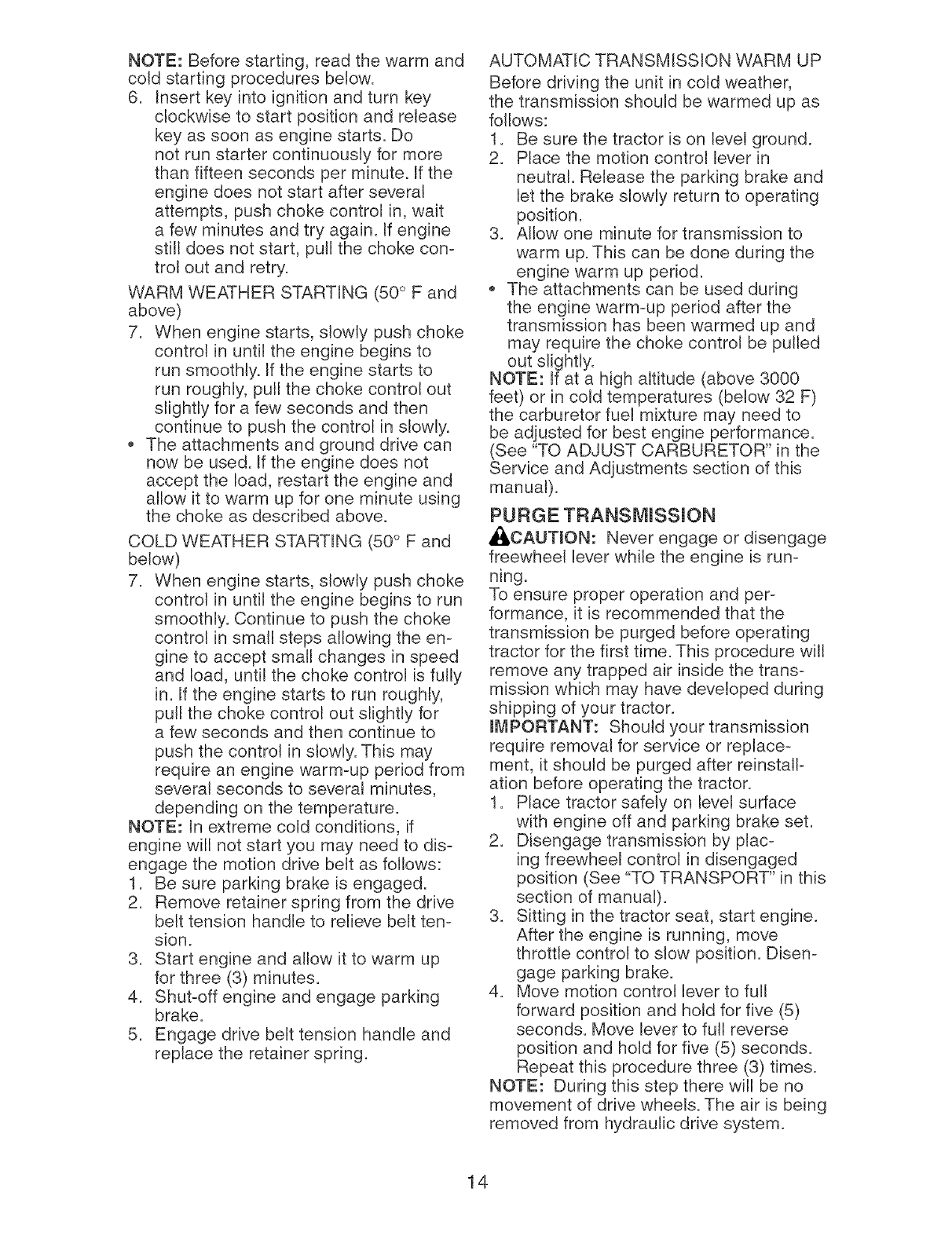

COLD WEATHER STARTING (50 ° F and

below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for

a few seconds and then continue to

push the control in slowly. This may

require an engine warm-up period from

several seconds to several minutes,

depending on the temperature.

NOTE: In extreme cold conditions, if

engine will not start you may need to dis-

engage the motion drive belt as follows:

1. Be sure parking brake is engaged.

2. Remove retainer spring from the drive

belt tension handle to relieve belt ten-

sion.

3. Start engine and allow it to warm up

for three (3) minutes.

4. Shut-off engine and engage parking

brake.

5. Engage drive belt tension handle and

replace the retainer spring.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake and

let the brake slowly return to operating

position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be pulled

out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

PURGE TRANSMISSION

_CAUTION: Never engage or disengage

freewheel lever while the engine is run-

ning.

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

HViPORTANT: Should your transmission

require removal for service or replace=

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by plac-

ing freewheel control in disengaged

position (See "TO TRANSPORT" in this

section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. Disen-

gage parking brake.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is being

removed from hydraulic drive system.

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

"TO TRANSPORT" in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

Disengage parking brake.

8. Slowly move motion control lever for-

ward, after the tractor moves approxi-

mately five (5) feet, slowly move motion

control lever to reverse position. After

the tractor moves approximately five

(5) feet return the motion control lever

to the neutral (N) position. Repeat this

procedure with the motion control lever

three (3) times.

Your transmission is now purged and now

ready for normal operation.

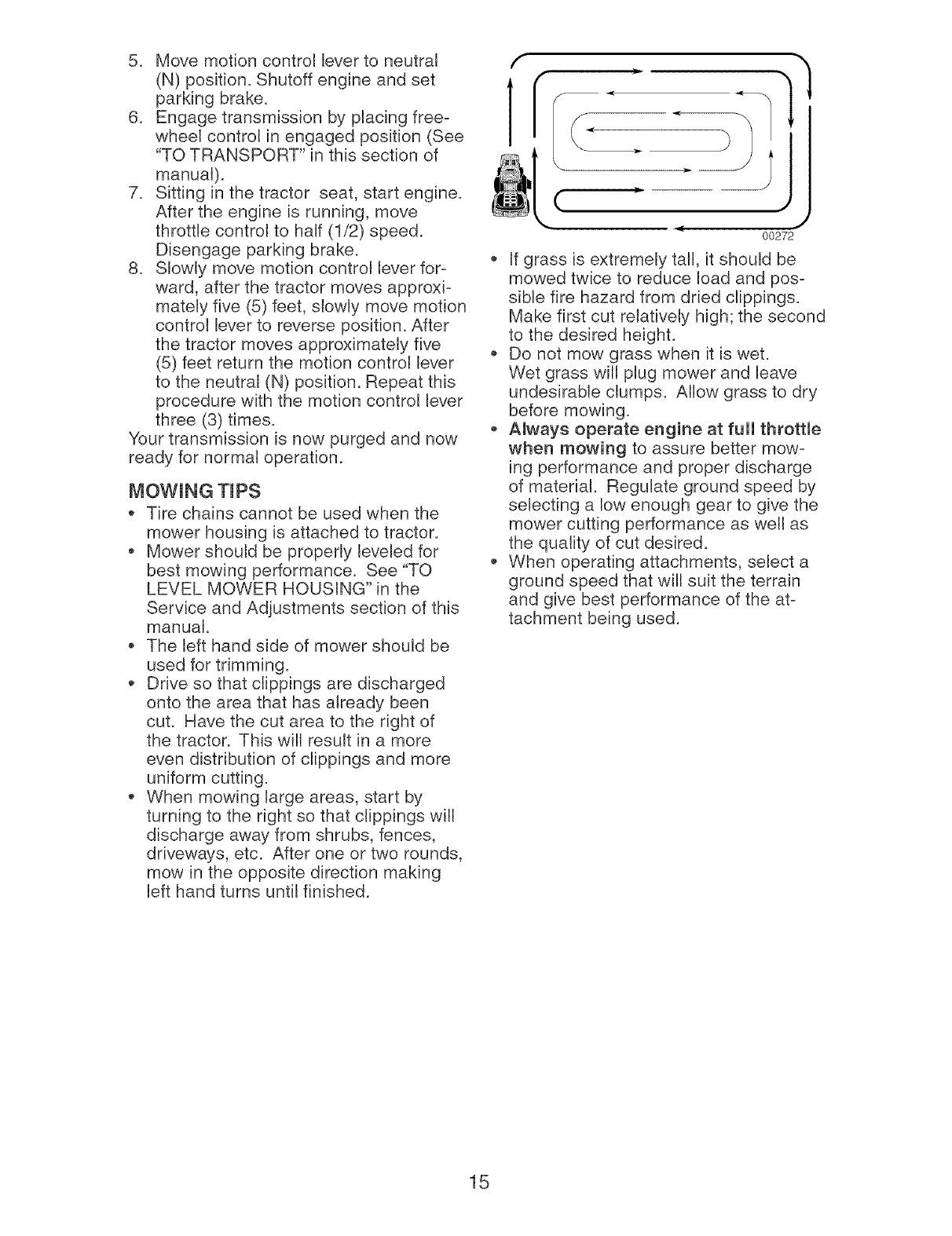

MOWING TIPS

,, Tire chains cannot be used when the

mower housing is attached to tractor.

,, Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

,, The left hand side of mower should be

used for trimming.

,_ Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

,, When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

". ,c ,J

00272

,, If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

,, Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

,, Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

,, When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

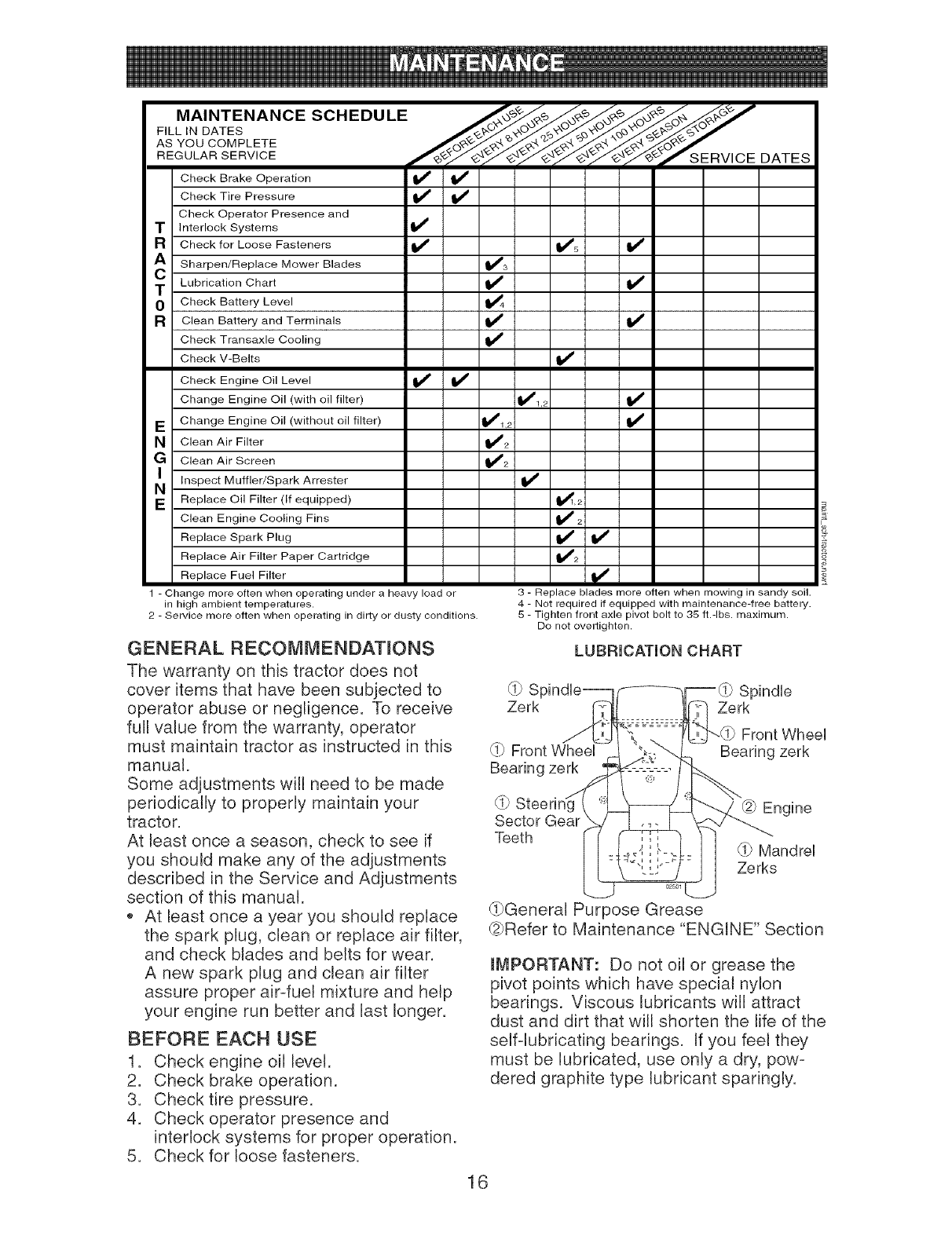

F,LL,.BATES

AS YOU COMPLETE

REG ULAR SERVICE v,CE0ATES

Check Operator Presence and

T Interlock Systems I_

R Check for Loose Fasteners If lI_'5 If

il_ Sharpen/Replace Mower Blades I_

C Lubrication Chart _ If

0 Check Battery Level

R Clean Battery and Terminals If

Check Transaxle Cooling ll_

Check V-Belts If

Check Engine Oil Level If If

Change Engine Oil (with oil filter) 1_1,2 If

i:= Change Engine Oil (without oil filter) 111_1,2

N Clean Air Filter 11_2

G Clean Air Screen 1_2

I_1 Inspect Muffler/Spark Arrester t/

i:= Replace Oil Filter (If equipped) 1_1,2

Clean Engine Cooling Fins If 2

Replace Spark Plug If If

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter II_

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

•At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

LUBRICATION CHART

(i_ S_ Spindle

Zerk Zerk

Front Wheel

(i_ Front Wheel Bearing zerk

Beadng zerk

_ecSteer_n_ Eng,ne

Teeth _ (i_ Mandrel

kZerks

:F--

(0General Put 3ose Grease

(2}Refer to Maintenance "ENGINE" Section

iMPORTANT: Do not oil or grease the

pivot points which have speciaJ nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

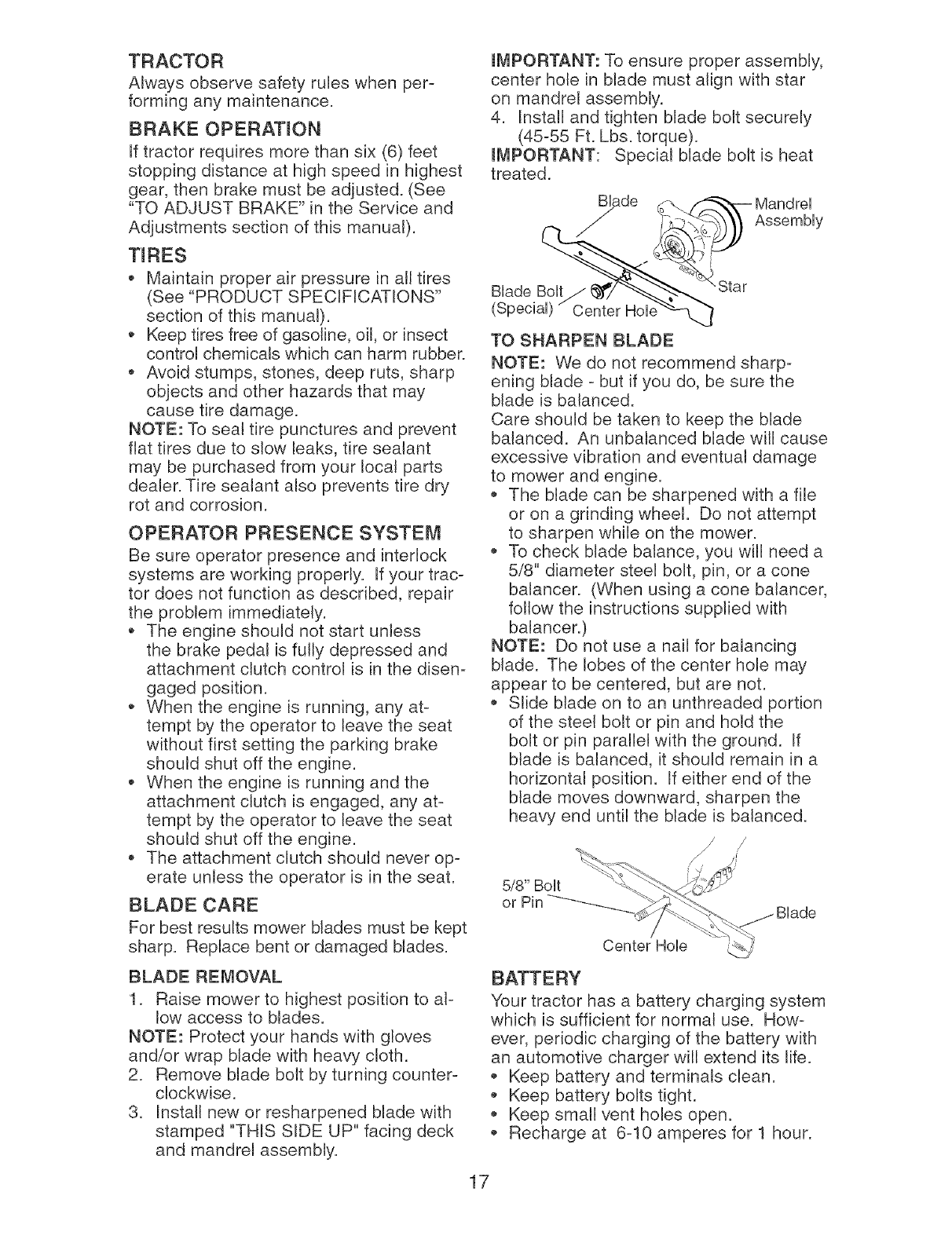

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to sJow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

The engine should not start unless

the brake pedal is fully depressed and

attachment clutch control is in the disen-

gaged position.

When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept

sharp. Replace bent or damaged blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SIDE UP" facing deck

and mandrel assembly.

iMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

iMPORTANT: Special blade bolt is heat

treated.

Bbde _\ _Mandrel

Blade Boit j__ _'°'_"Star

(Special) "Center Hole_

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt

or Pin

Center Hob

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

Keep battery and terminals clean.

Keep battery bolts tight.

Keep small vent holes open.

Recharge at 6-10 amperes for 1 hour.

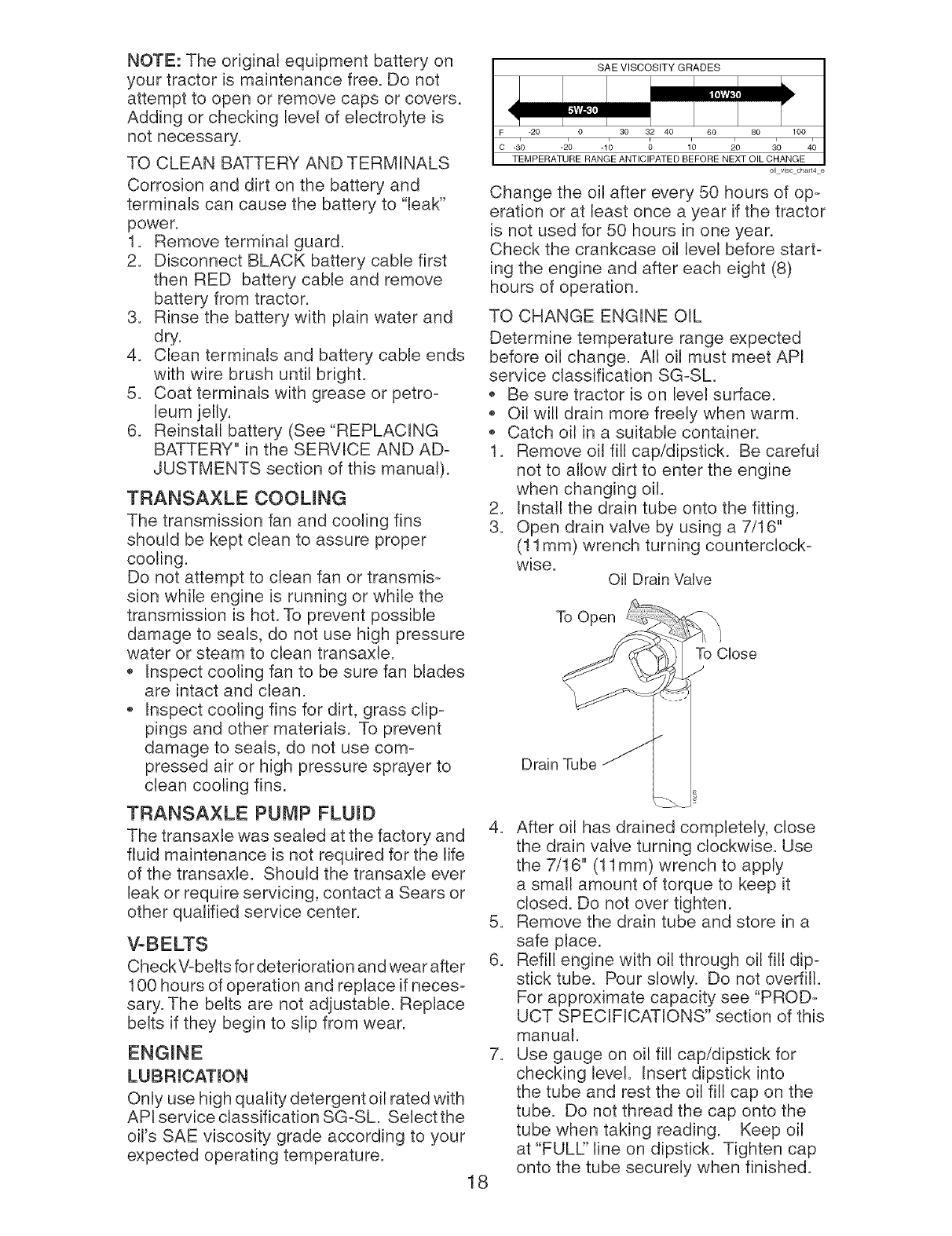

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See"REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxb.

Inspect cooling fan to be sure fan blades

are intact and clean.

Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

SAE VISCOSITY GRADES

-20 0 30 32 40 60 80 100

-30 -20 -10 0 10 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

oilvisc ¢ha_t4e

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL

Be sure tractor is on level surface.

Oil will drain more freely when warm.

Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Install the drain tube onto the fitting.

3. Open drain valve by using a 7/16"

(11 mm) wrench turning counterclock-

wise. OH Drain VaNe

To Open

To Close

Drain Tube

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and

fluid maintenance is not required for the life

of the transaxle. Should the transaxle ever

leak or require servicing, contact a Sears or

other qualified service center.

CheckV-belts for deterioration and wear after

100 hours of operation and replace if neces-

sary. The belts are not adjustable. Replace

belts if they begin to slip from wear.

LUBRiCATiON

Only use high quality detergent oil rated with

API service classification SG-SL. Select the

oil's SAE viscosity grade according to your

expected operating temperature.

4. After oil has drained completely, close

the drain valve turning clockwise. Use

the 7/16" (11 mm) wrench to apply

a small amount of torque to keep it

closed. Do not over tighten.

5. Remove the drain tube and store in a

safe place.

6. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

7. Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into

the tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULF' line on dipstick. Tighten cap

onto the tube securely when finished.

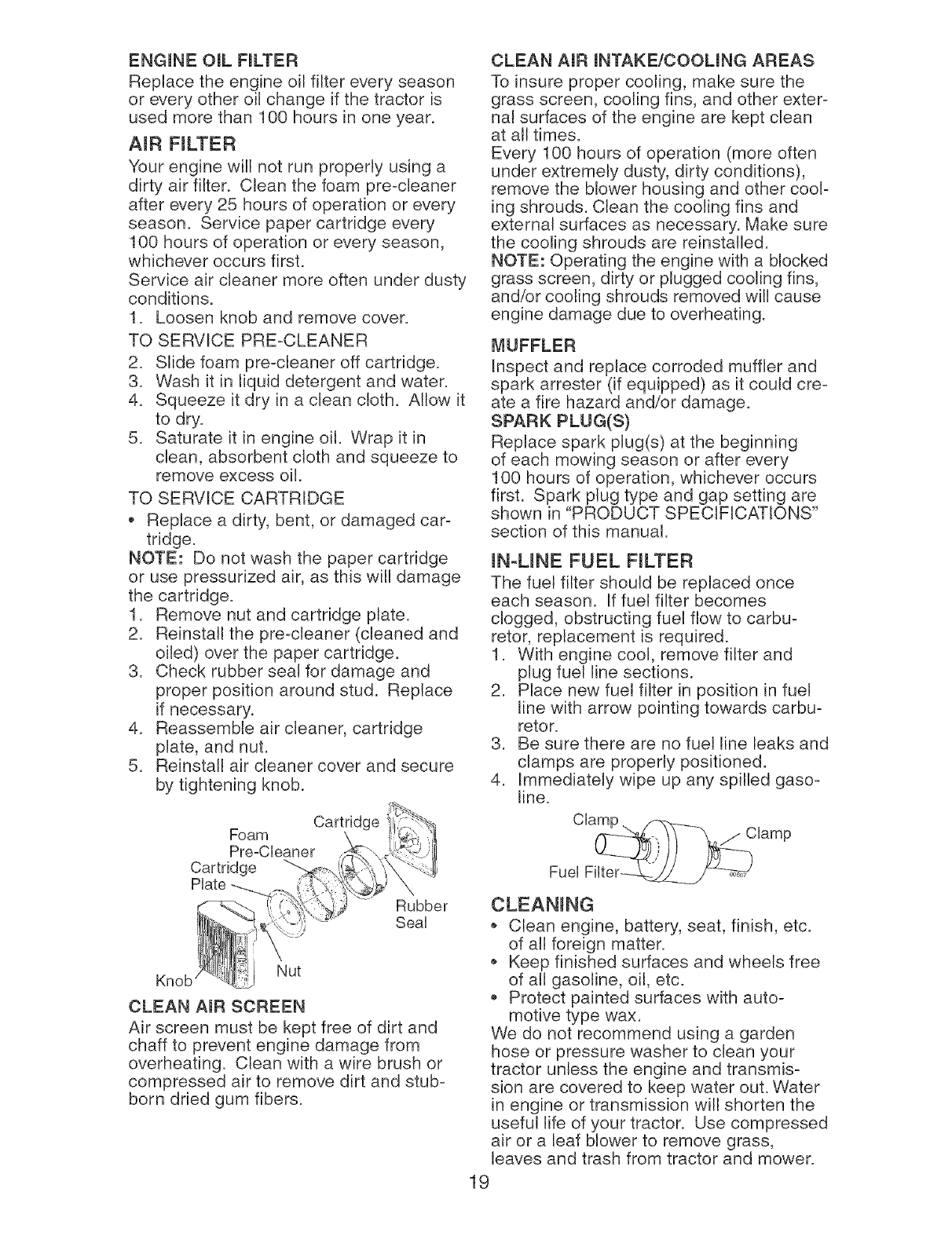

ENGINEOiL FILTER

Replacethe engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow it

to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

Replace a dirty, bent, or damaged car-

tridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will damage

the cartridge.

1. Remove nut and cartridge plate.

2. Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

3. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

4. Reassemble air cleaner, cartridge

plate, and nut.

5. Reinstall air cleaner cover and secure

by tightening knob.

Cartridge

Foam

Pre°CUeaner

Cartridge

Rubber

SeaU

Nut

Knob

CLEAN AmR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AiR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean

at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other cool-

ing shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the engine with a blocked

grass screen, dirty or plugged cooling fins,

and/or cooling shrouds removed will cause

engine damage due to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

raN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

C'i_C'amp

Fuel Filter---_

CLEANING

*Clean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

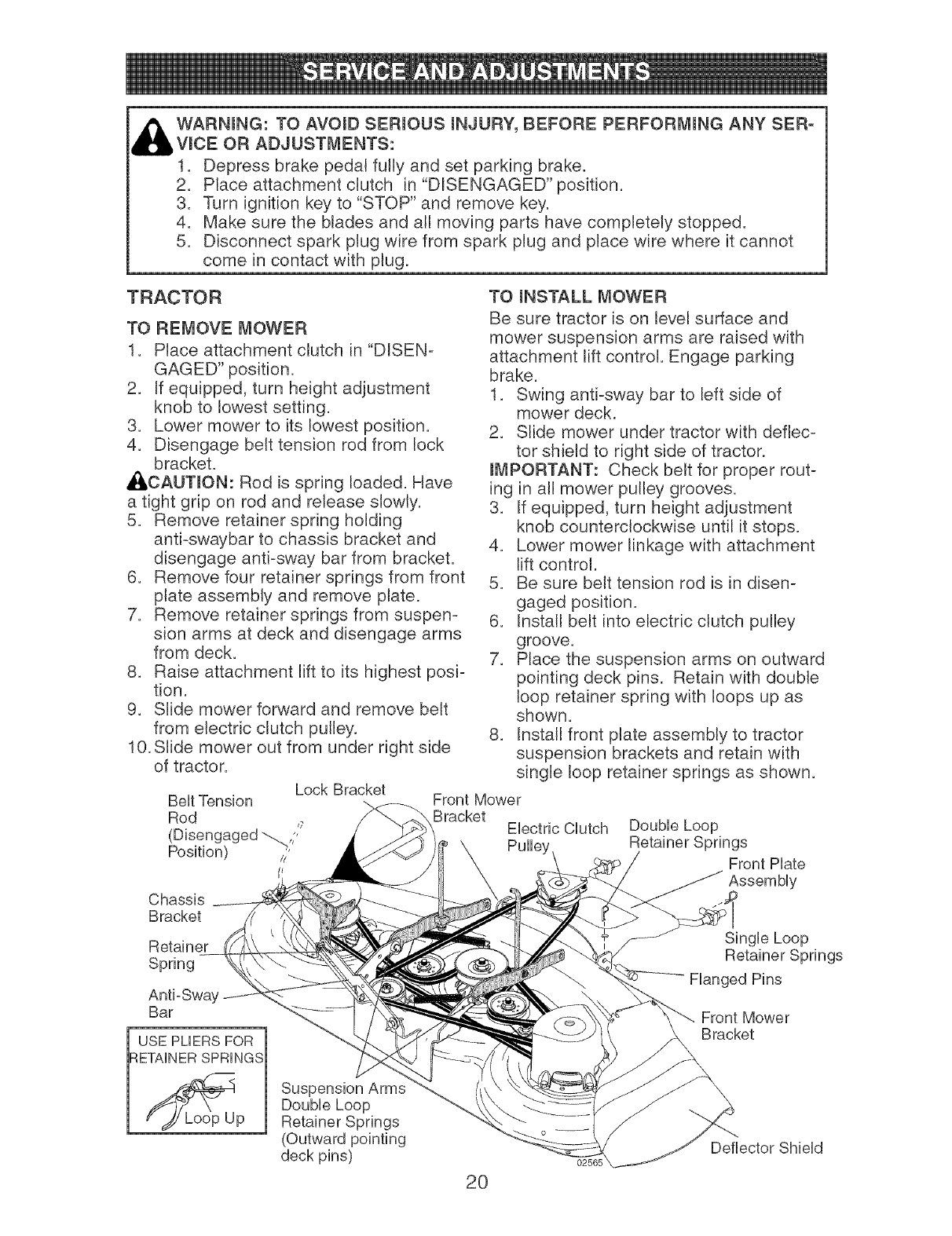

WARNmNG: TO AVOmD SERmOUS mNJURY, BEFORE PERFORMmNG ANY SER-

VmCE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in "DISENGAGED" position.

3. Turn ignition key to "STOP" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Disengage belt tension rod from lock

bracket.

_CAUTmON: Rod is spring loaded. Have

a tight grip on rod and release slowly.

5. Remove retainer spring holding

anti-swaybar to chassis bracket and

disengage anti-sway bar from bracket.

6. Remove four retainer springs from front

plate assembly and remove plate.

7. Remove retainer springs from suspen-

sion arms at deck and disengage arms

from deck.

8. Raise attachment lift to its highest posi-

tion.

9. Slide mower forward and remove belt

from electric clutch pulley.

10.Slide mower out from under right side

of tractor.

TO mNSTALL MOWER

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

mMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Be sure belt tension rod is in disen-

gaged position.

6. Install belt into electric clutch pulley

groove.

7. Place the suspension arms on outward

pointing deck pins. Retain with double

loop retainer spring with loops up as

shown.

8. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

Lock Bracket

Belt Tension Front Mower

Rod ,; Bracket Electric Clutch

(Disengaged "---.../, Pulley

Position) /'

Chassis

Bracket

Retainer

Spring

Anti-Swa_

Bar

Double Loop

(Outward pointing

deck pins)

USE PLIERS FOR

RETAINER SPRINGS

Double Loop

Front Plate

Assembly

Single Loop

Retainer Springs

Flanged Pins

Front Mower

Bracket

02565

Deflector Shield

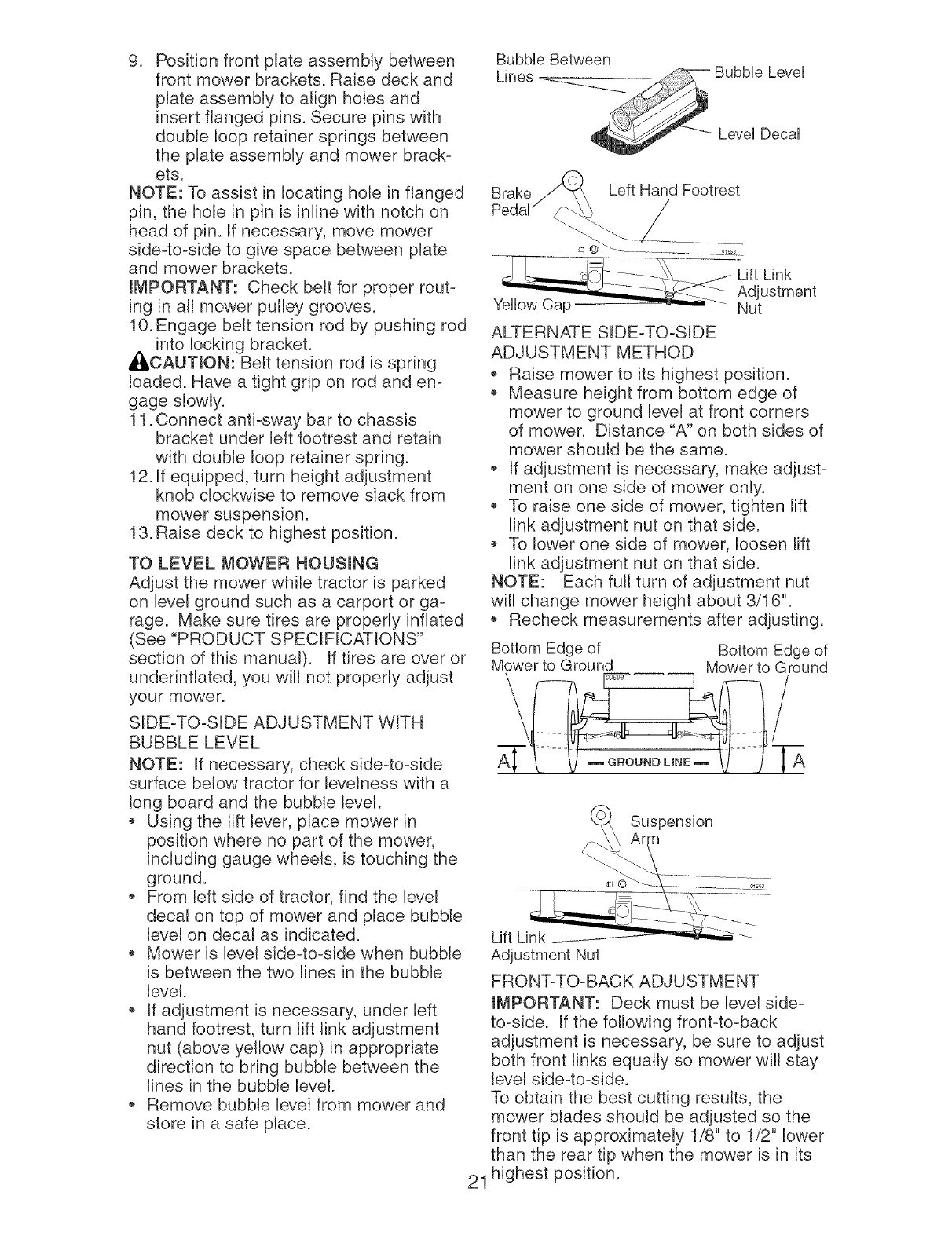

9. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate assembly and mower brack-

ets.

NOTE: To assist in locating hole in flanged

pin, the hole in pin is inline with notch on

head of pin. If necessary, move mower

side-to-side to give space between plate

and mower brackets.

mMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

10. Engage belt tension rod by pushing rod

into locking bracket.

_CAUTmON: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

11. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

12. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

13. Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground such as a carport or ga-

rage. Make sure tires are properly inflated

(See "PRODUCT SPECIFICATIONS"

section of this manual). If tires are over or

underinfiated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

Mower is level side-to-side when bubble

is between the two lines in the bubble

level.

If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

Remove bubble level from mower and

store in a safe place.

Bubble Level

Level Decal

Lift Link

Yellow Cap Nut

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

Raise mower to its highest position.

Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides of

mower should be the same.

If adjustment is necessary, make adjust-

ment on one side of mower only.

To raise one side of mower, tighten lift

link adjustment nut on that side.

To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

Recheck measurements after adjusting.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

Suspension

Lift Link

Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the rear tip when the mower is in its

21 highest position.

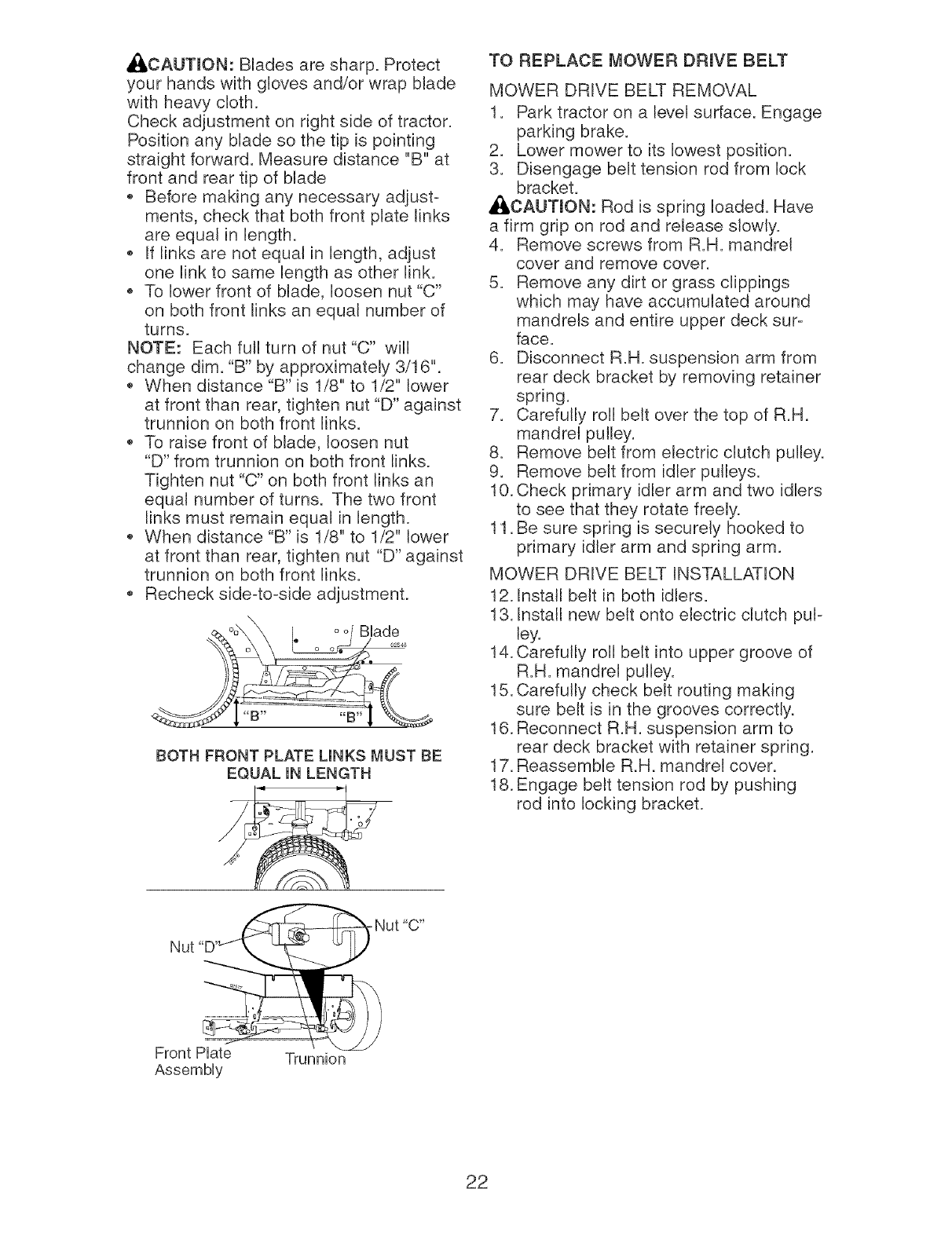

_,CAUTmON:Bladesaresharp.Protect

your handswithglovesand/orwrap blade

with heavycloth.

Checkadjustmenton rightside of tractor.

Positionany bladeso the tip is pointing

straightforward.Measuredistance"B"at

front and rear tip of blade

Beforemakingany necessaryadjust-

ments,check that bothfront platelinks

areequal in length.

If linksare notequalin length, adjust

one link to same lengthas other link.

Tolowerfront of blade,loosennut"C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

To raise front of blade, loosen nut

"D" from trunnion on both front links.

Tighten nut "C" on both front links an

equal number of turns. The two front

links must remain equal in length.

When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

Recheck side-to-side adjustment.

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

TO REPLACE I_,_OWERDRmVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface. Engage

parking brake.

2. Lower mower to its lowest position.

3. Disengage belt tension rod from lock

bracket.

A(_CAUTmON: Rod is spring loaded. Have

a firm grip on rod and release slowly.

4. Remove screws from R.H. mandrel

cover and remove cover.

5. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

6. Disconnect R.H. suspension arm from

rear deck bracket by removing retainer

spring.

7. Carefully roll belt over the top of R.H.

mandrel pulley.

8. Remove belt from electric clutch pulley.

9. Remove belt from idler pulleys.

10. Check primary idler arm and two idlers

to see that they rotate freely.

11. Be sure spring is securely hooked to

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

12. Install belt in both idlers.

13. Install new belt onto electric clutch pul-

ley.

14. Carefully roll belt into upper groove of

R.H. mandrel pulley.

15. Carefully check belt routing making

sure belt is in the grooves correctly.

16. Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

17. Reassemble R.H. mandrel cover.

18. Engage belt tension rod by pushing

rod into locking bracket.

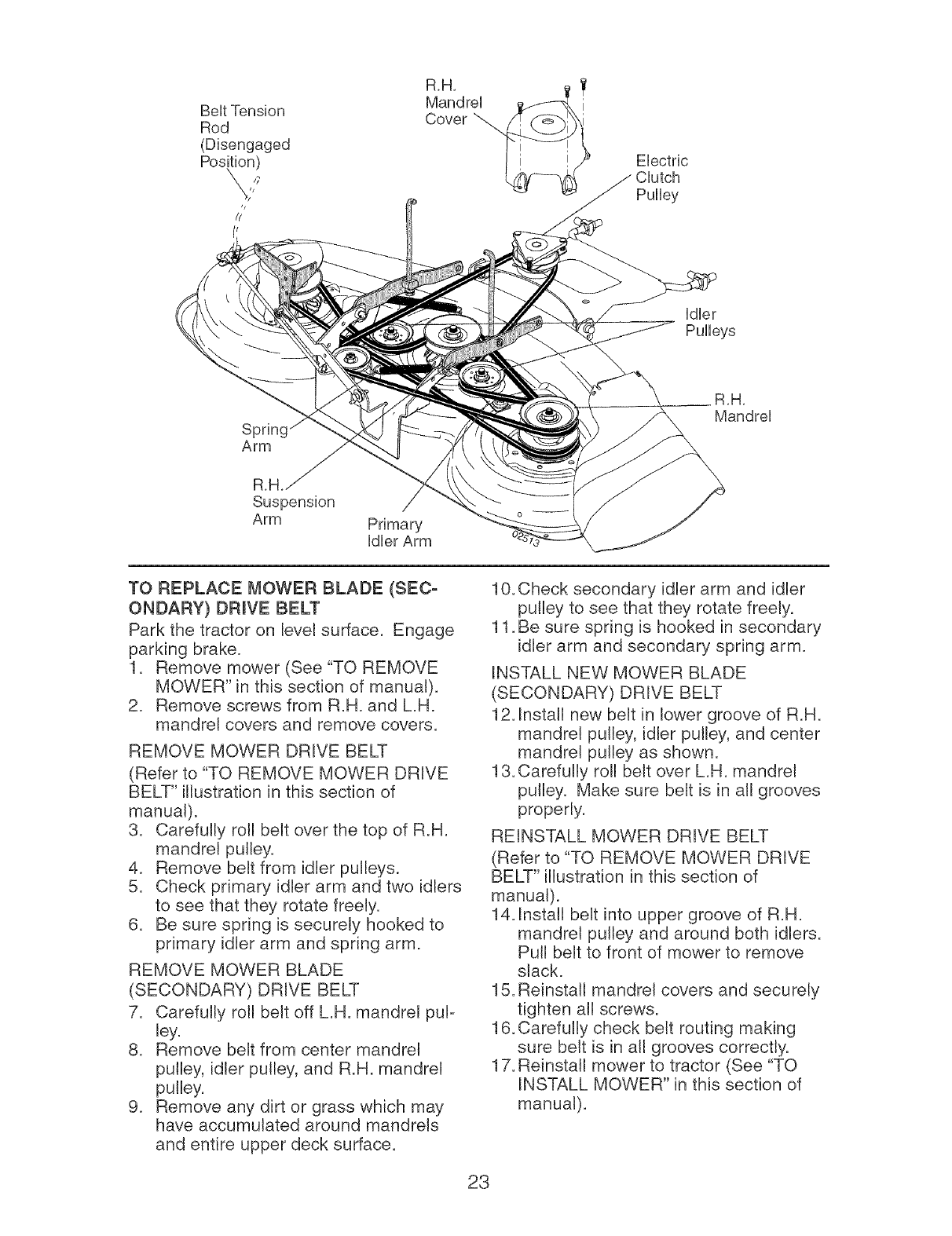

Trunnion

Belt Tension

Rod

(Disengaged

Position)

Xi?

Electric

Pulley

Idler

Pulleys

Arm

m.m.

Mandrel

Suspension

Arm Primary

Idler Arm

TO REPLACE MOWER BLADE (SEC-

ONDARY) DRmVE BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

2. Remove screws from R.H. and LH.

mandrel covers and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

3. Carefully roll belt over the top of R.H.

mandrel pulley.

4. Remove belt from idler pulleys.

5. Check primary idler arm and two idlers

to see that they rotate freely.

6. Be sure spring is securely hooked to

primary idler arm and spring arm.

REMOVE MOWER BLADE

(SECONDARY) DRIVE BELT

7. Carefully roll belt off LH. mandrel pul-

ley.

8. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

9. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

10. Check secondary idler arm and idler

pulley to see that they rotate freely.

11. Be sure spring is hooked in secondary

idler arm and secondary spring arm.

INSTALL NEW MOWER BLADE

(SECONDARY) DRIVE BELT

12. Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and center

mandrel pulley as shown.

13. Carefully roll belt over LH. mandrel

pulley. Make sure belt is in all grooves

properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

14. Install belt into upper groove of R.H.

mandrel pulley and around both idlers.

Pull belt to front of mower to remove

slack.

15. Reinstall mandrel covers and securely

tighten all screws.

16. Carefully check belt routing making

sure bett is in all grooves correctly.

17. Reinstall mower to tractor (See "TO

INSTALL MOWER" in this section of

manual).

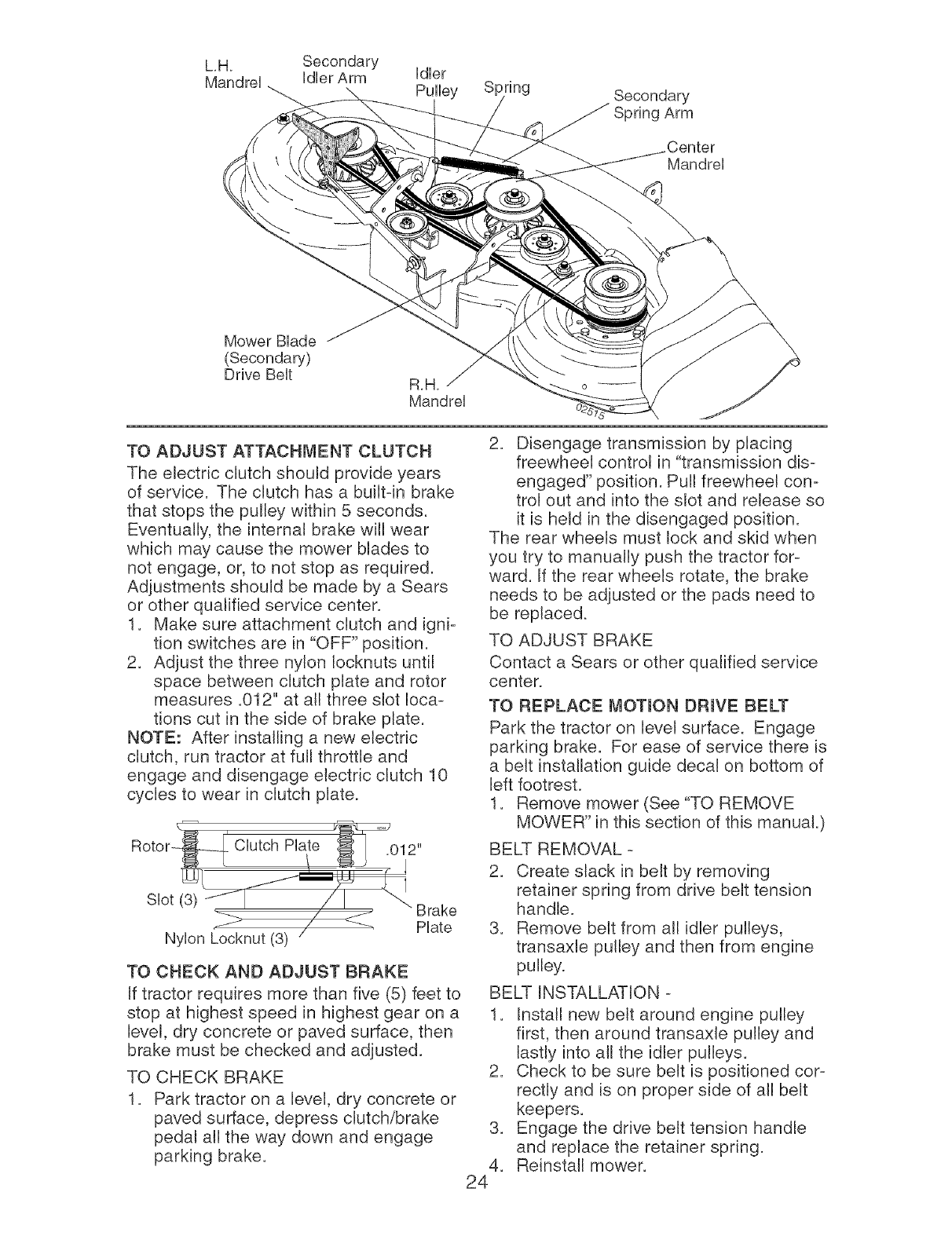

LH. Secondary

Mandrel Idler Arm Idler

"--..... Pulley Sl: ing Secondary

Arm

Mandrel

Mower Blade

(Secondary)

Drive Belt m.m_

Mandrel

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

1. Make sure attachment clutch and igni-

tion switches are in "OFF" position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012" at all three slot loca-

tions cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

Rotor- Clutch Plate .012"

Slot (3) ,--._> Brake

s Plate

Nylon Locknut (3)

TO CHECK AND ADJUST BRAKE

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal atl the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

Contact a Sears or other qualified service

center.

TO REPLACE MOTION DRmVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there is

a belt installation guide decal on bottom of

left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this manual.)

BELT REMOVAL -

2. Create slack in belt by removing

retainer spring from drive belt tension

handle.

3. Remove belt from all idler pulleys,

transaxle pulley and then from engine

pulley.

BELT INSTALLATION -

1. Install new belt around engine pulley

first, then around transaxb pulley and

lastly into all the idler pulleys.

2. Check to be sure belt is positioned cor-

rectly and is on proper side of all belt

keepers.

Engage the drive belt tension handle

and replace the retainer spring.

Reinstall mower.

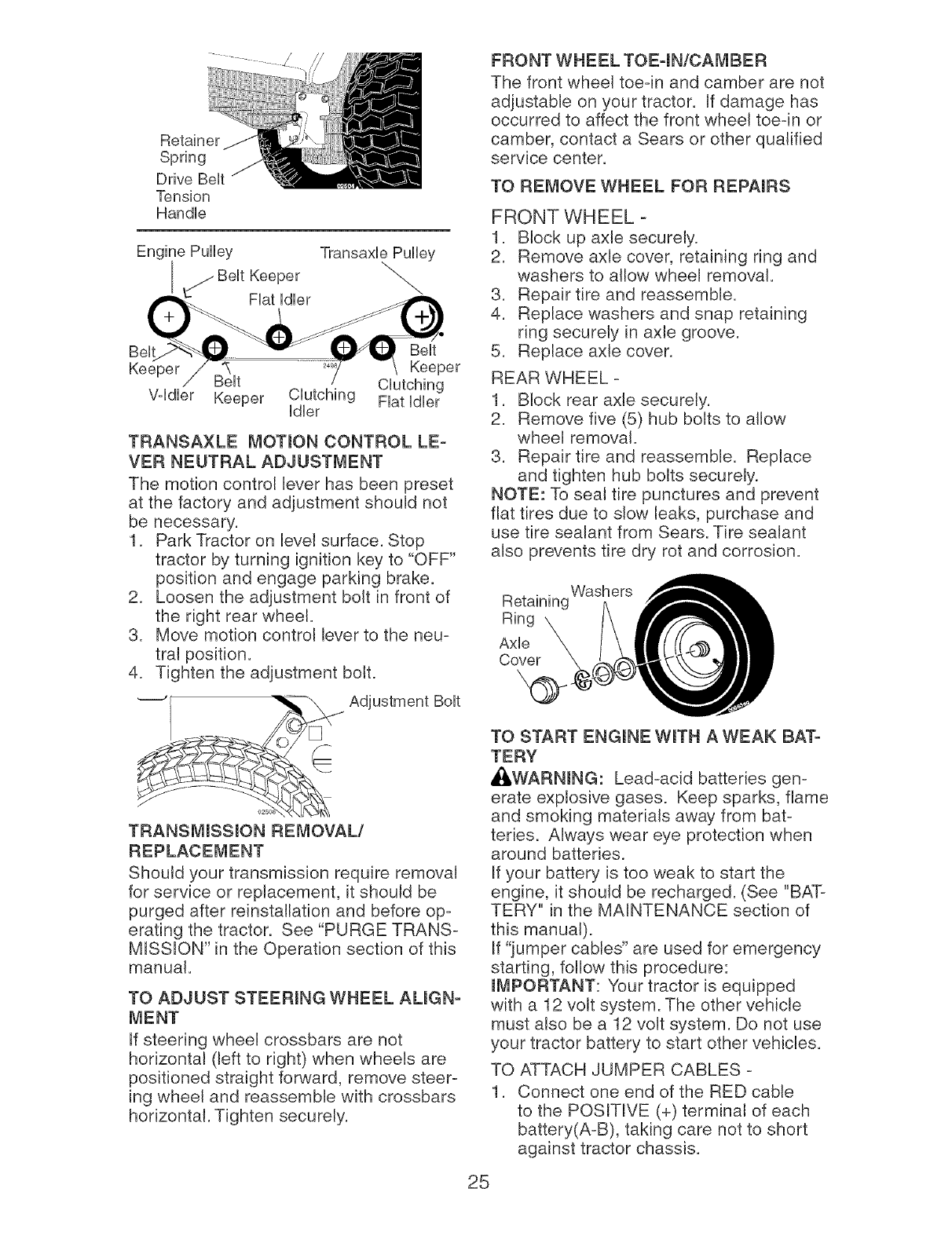

Retainer

Spring

Drive Belt

Tension

Handle

Engine Pulley Transaxle Pulley

_ Belt Keeper ""_

Fiat Idler

Belt Belt

Keeper _ Keeper

Belt Clutching

V-Idler Keeper Clutching Fiat Idler

Idler

TRANSAXLE MOTmON CONTROL LE-

VER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Park Tractor on level surface. Stop

tractor by turning ignition key to "OFF"

position and engage parking brake.

2. Loosen the adjustment bolt in front of

the right rear wheel.

3. Move motion control lever to the neu-

trat position.

4. Tighten the adjustment bolt.

,._i_. ---- Adjustment Bolt

TRANSNISSlON REMOVAL/

REPLACEMENT

Should your transmission require removal

for service or replacement, it should be

purged after reinstallation and before op-

erating the tractor. See "PURGE TRANS-

MISSION" in the Operation section of this

manual.

TO ADJUST STEERmNG WHEEL AUGN-

_,_ENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE4N/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL -

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL -

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair tire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

TO START ENGmNE WroTH A WEAK BAT-

TERY

41_WARNmNG: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

mMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

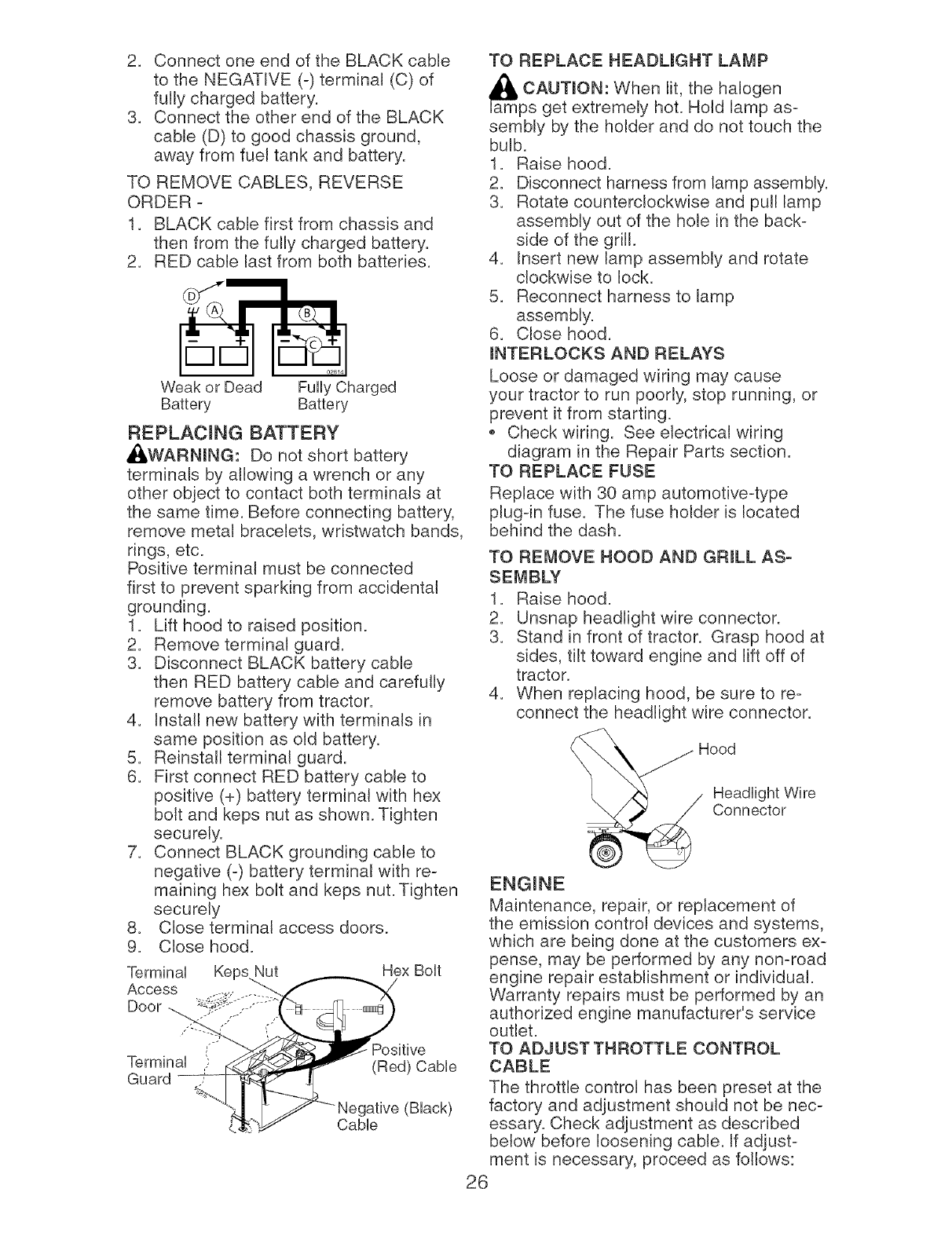

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fue{ tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARN[NG: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Terminal Ke Nut

Access

Door

Hex Bolt

'--" Positive

Terminal (Red) CaMe

Guard

gat[ve (Black)

Cable

TO REPLACE HEADLIGHT LAMP

a_lbmCAUTION: When lit, the halogen

ps get extremely hot. Hold lamp as-

sembly by the holder and do not touch the

bulb.

1. Raise hood.

2. Disconnect harness from lamp assembly.

3. Rotate counterclockwise and pull lamp

assembly out of the hole in the back-

side of the grill.

4. Insert new lamp assembly and rotate

clockwise to lock.

5. Reconnect harness to lamp

assembly.

6. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

,_ Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

__ Connector

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

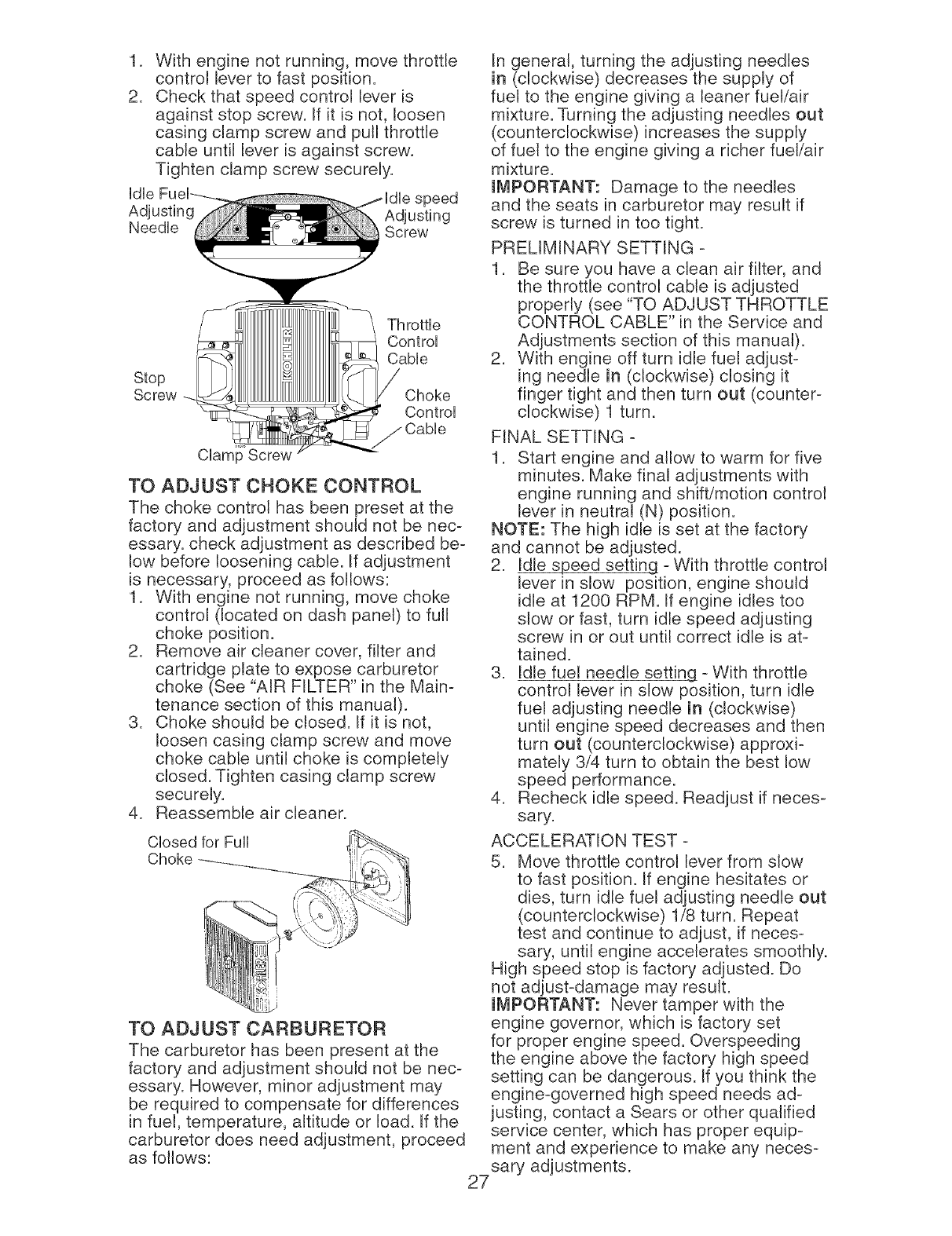

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening came. If adjust-

ment is necessary, proceed as follows:

With engine not running, move throttle

control lever to fast position.

Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

UdUe )eed

Adjusting Adjusting

Needle Screw

Stop

Screw

Throttle

Control

Cable

Choke

Control

Cable

Clamp °Screw

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary, check adjustment as described be-

low before loosening cable. If adjustment

is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the Main-

tenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed for Full

Choke

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

mMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable is adjusted

properly (see "TO ADJUST THROTTLE

CONTROL CABLE" in the Service and

Adjustments section of this manual).

2. With engine off turn idle fuel adjust-

ing needle in (clockwise) closing it

finger tight and then turn out (counter-

clockwise) 1 turn.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle speed setting - With throttle control

lever in slow position, engine should

idle at 1200 RPM. If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is at-

tained.

3. Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and then

turn out (counterclockwise) approxi-

mately 3/4 turn to obtain the best low

speed performance.

4. Recheck idle speed. Readjust if neces-

sary.

ACCELERATION TEST -

5. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle fuel adjusting needle out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs ad-

justing, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any neces-

sary adjustments.

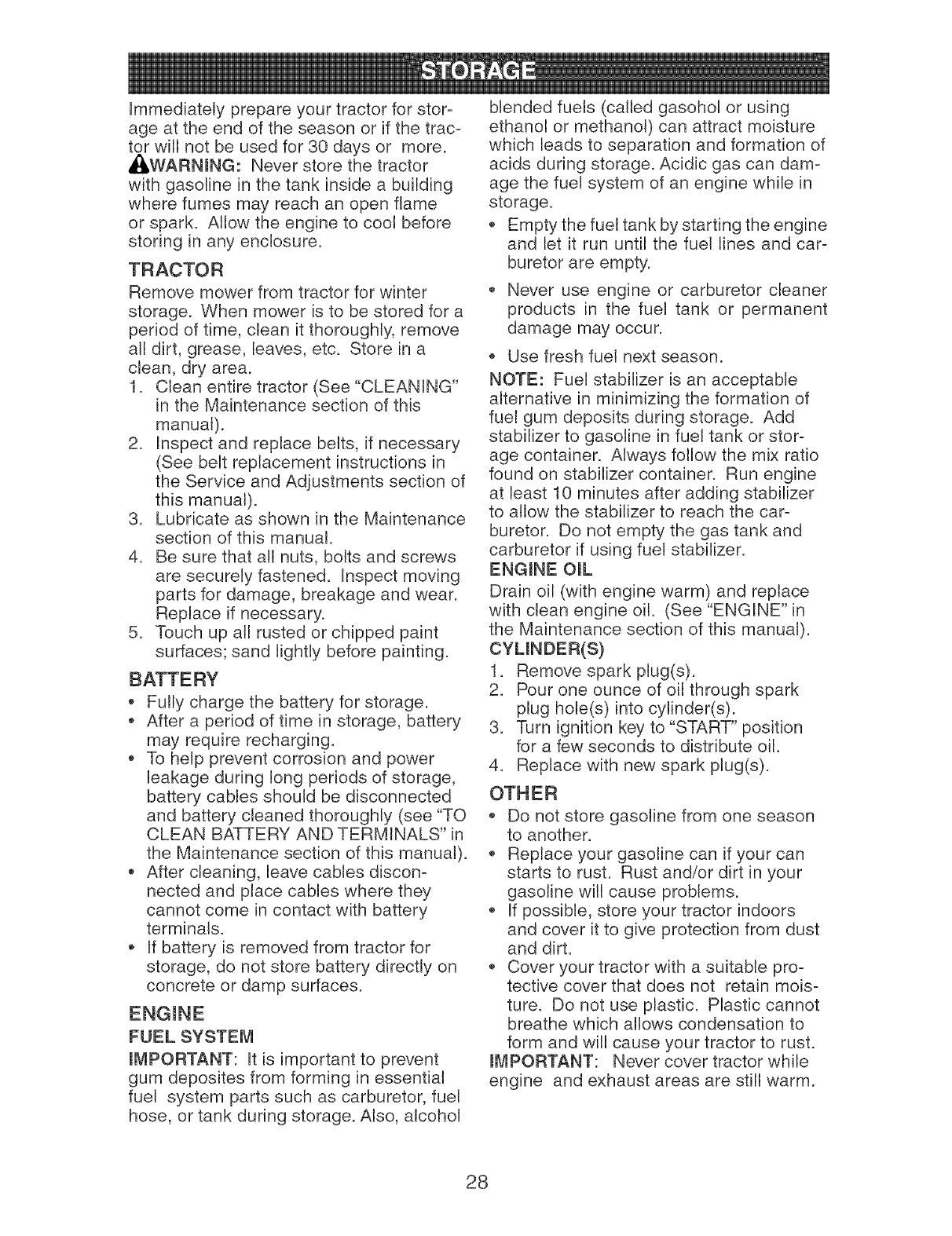

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_WARNmNG: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

•Fully charge the battery for storage.

•After a period of time in storage, battery

may require recharging.

•To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

•After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

FUEL SYSTEM

mMPORTANT: It is important to prevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

•Empty the fuel tank by starting the engine

and let it run until the fuel lines and car-

buretor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGmNE OraL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

•Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

mMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

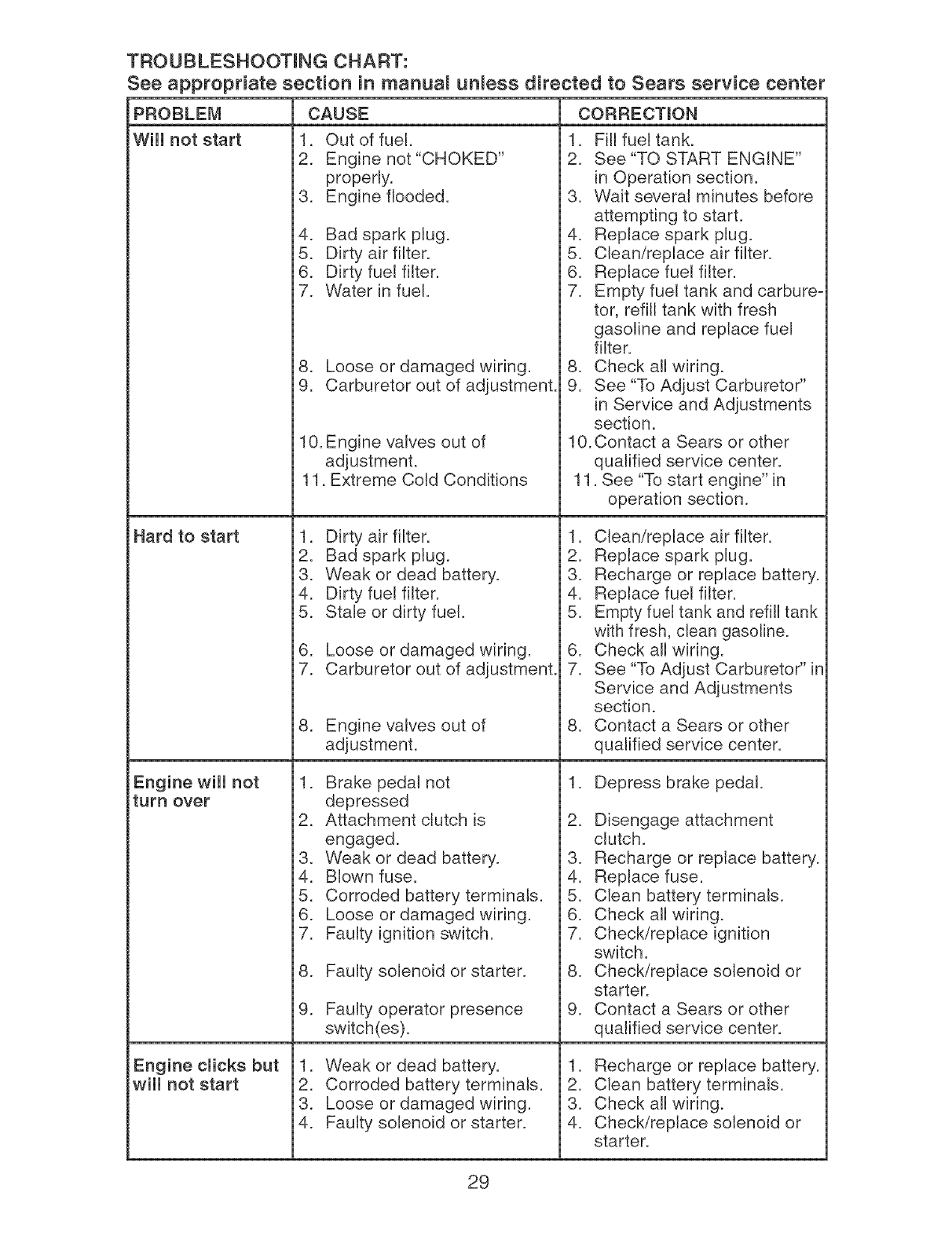

TROUBLESHOOTmNG CHART:

See appropriate section in rnanuam urfless directed to Sears service center

PROBLEM CAUSE CORRECTmON

Wiii not start

Hard to start

Engine wiii not

turn over

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

Engine clicks but

wiii not start

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

11. Extreme Cold Conditions

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

11. See "To start engine" in

operation section.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in

Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

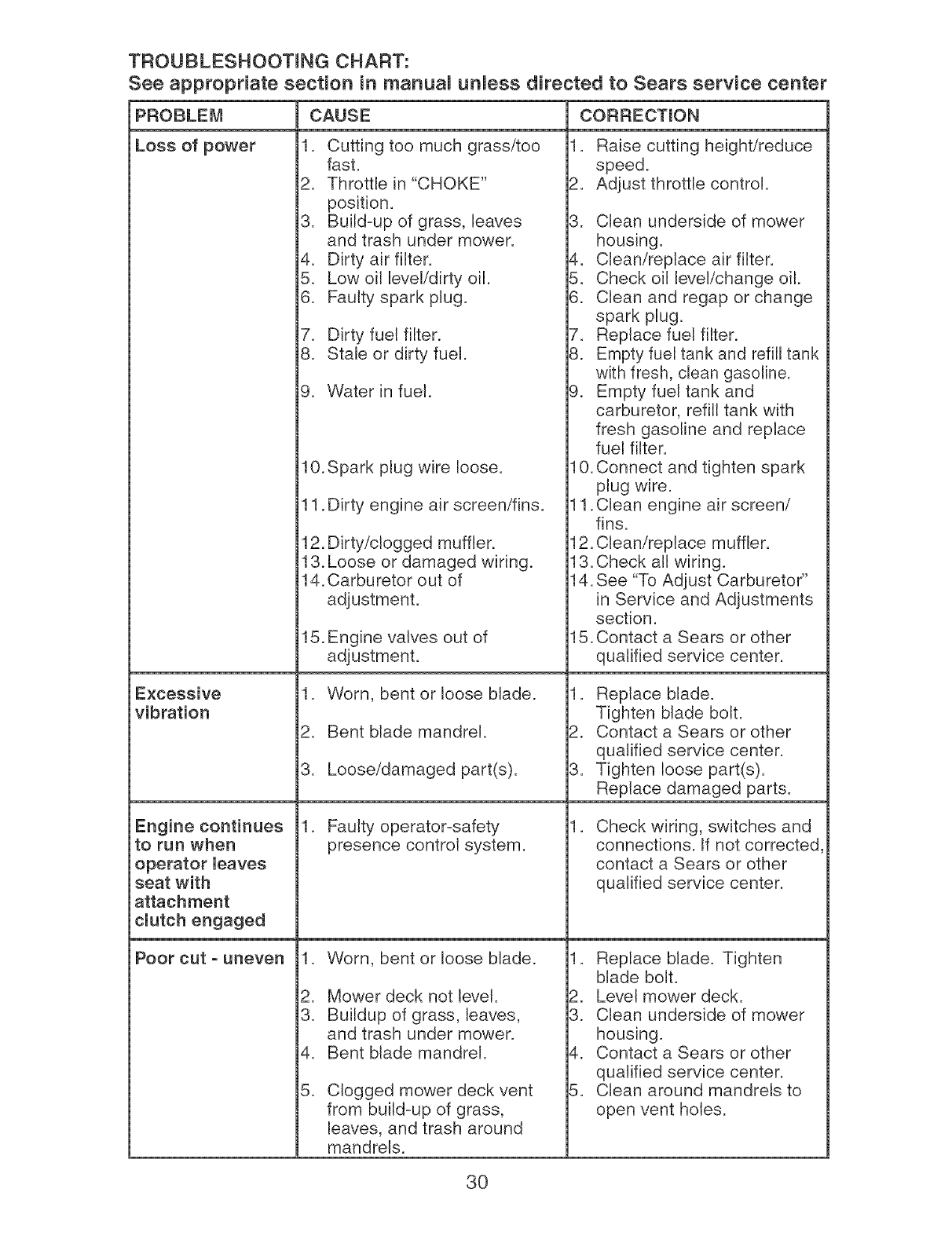

TROUBLESHOOTmNG CHART:

See appropriate section in manuam unmess directed to Sears service center

PROBLEM CAUSE CORRECTmON

Loss of power Cutting too much grass/too

fast.

Throttle in "CHOKE"

position.

Build-up of grass, leaves

and trash under mower.

Dirty air filter.

Low oil level/dirty oil.

Faulty spark plug.

Dirty fuel filter.

Stale or dirty fuel.

Water in fuel.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/

fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut ouneven

15. Engine valves out of 15. Contact a Sears or other

adjustment, qualified service center.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

from build=up of grass,

leaves, and trash around

mandrels.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

,Check wiring, switches and

connections. If not corrected,

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

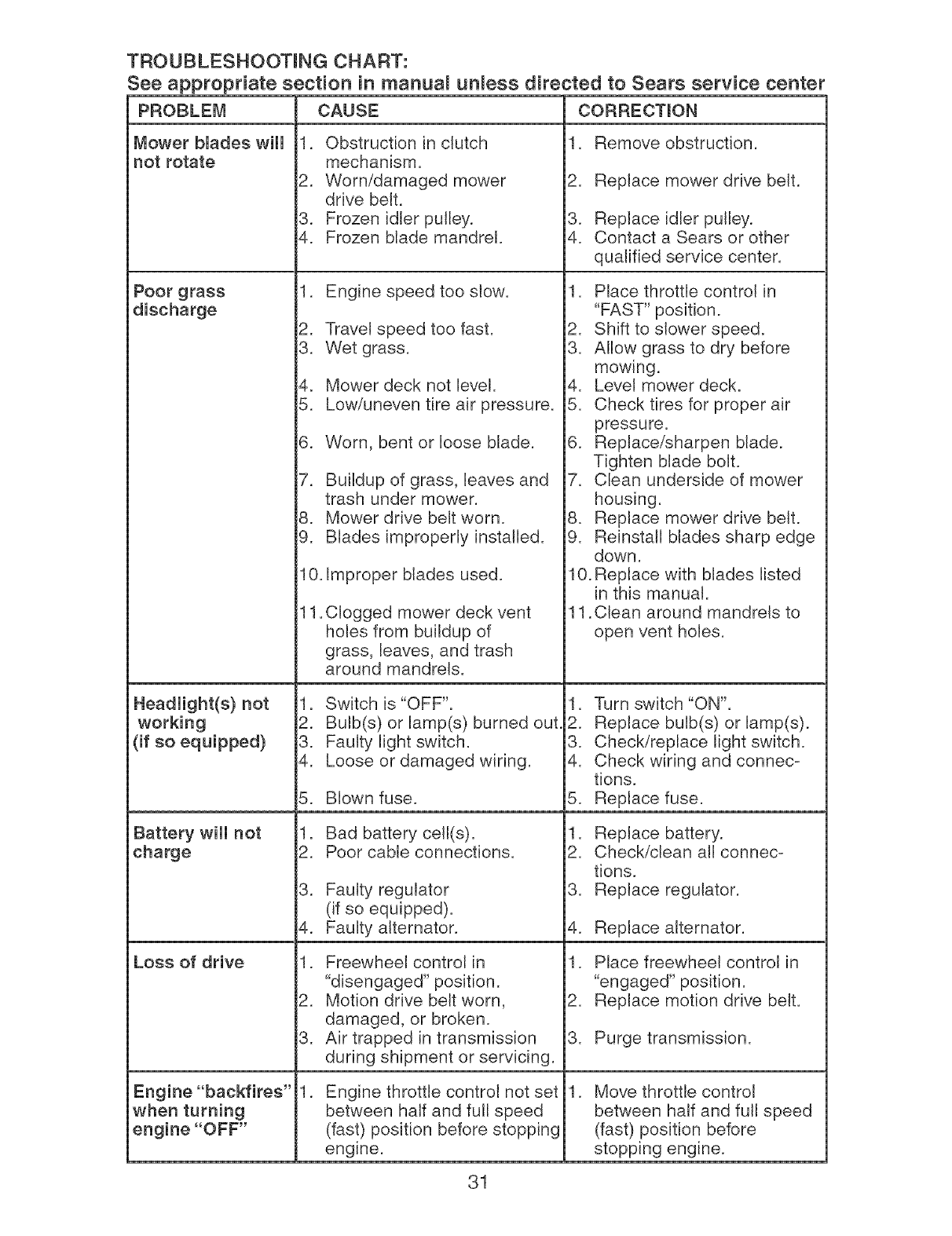

TROUBLESHOOTmNG CHART:

See appropriate section in rnanuam urfless directed to Sears service center

PROBLEM CAUSE CORRECTmON

Mower biades wiii

not rotate

Headlight(s) not

working

(if so equipped)

Battery wiii not

charge

Loss of drive

Engine "backfires"

when turning

engine "OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Tra',!el speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

.Engine throttle control not set

between half and full speed

(fast) position before stopping

engine.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

.Move throttle control

between half and full speed

(fast) position before

stopping engine.

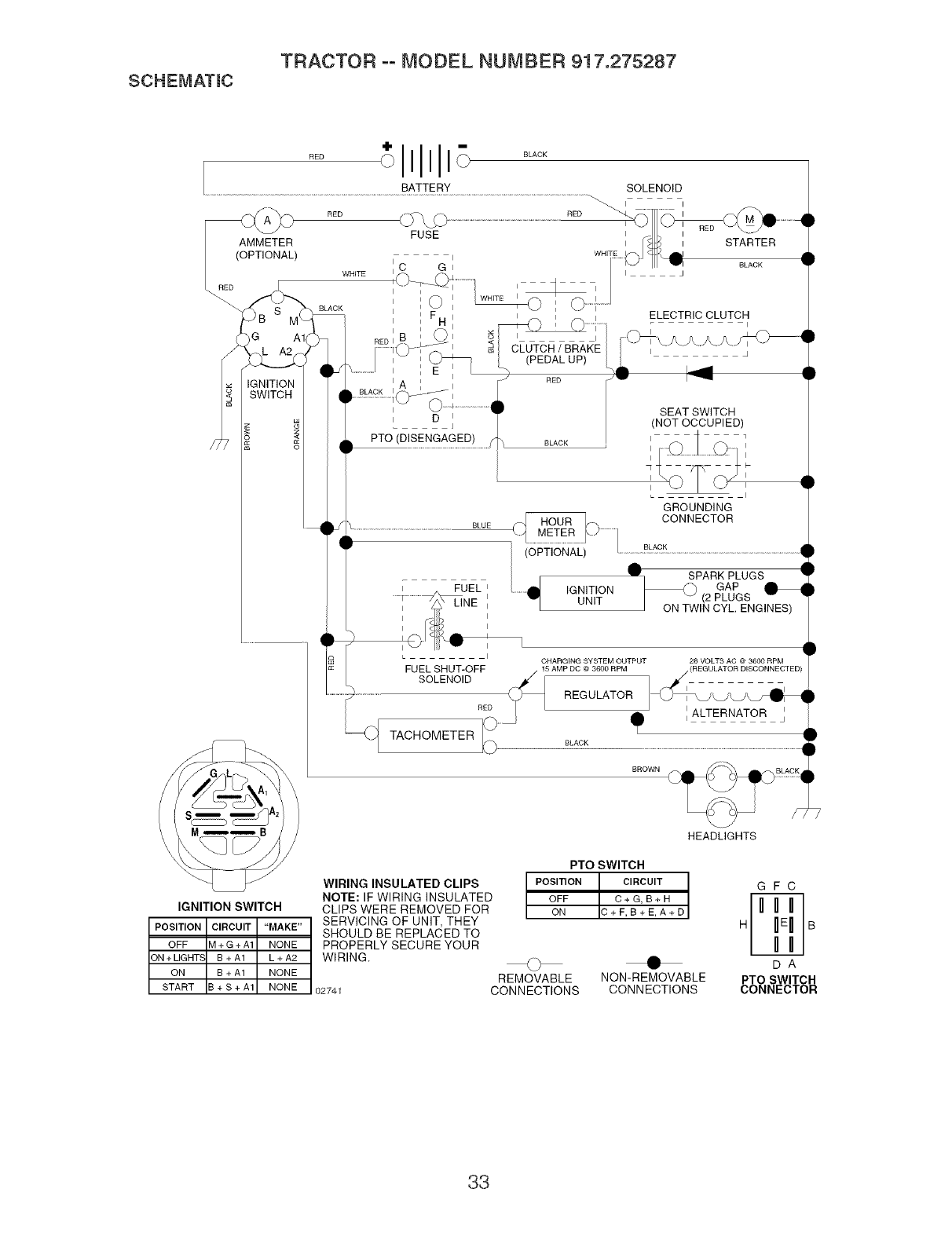

SCHEMATmC TRACTOR ooMODEL NUMBER 917.275287

[ RED OIIIo BLACK

..........................................................................................................................................................B,_,TTEIq'_......................................................................................................SOLENOID

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF VI+G+A1 NONE

DN + LIGHTS B+A1 L+A2

ON B + A1 NONE

START + S + A1 NONE

HEADLIGHTS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

02741

PTO SWITCH

POSITIONOFF C +G,'_+ HCIRCUIT ]

ON C+F,B+E,A+D

REMOVABLE

CONNECTIONS

NON-REMOVABLE

CONNECTIONS

G FC

PTO SWITCH

CONNECTOR

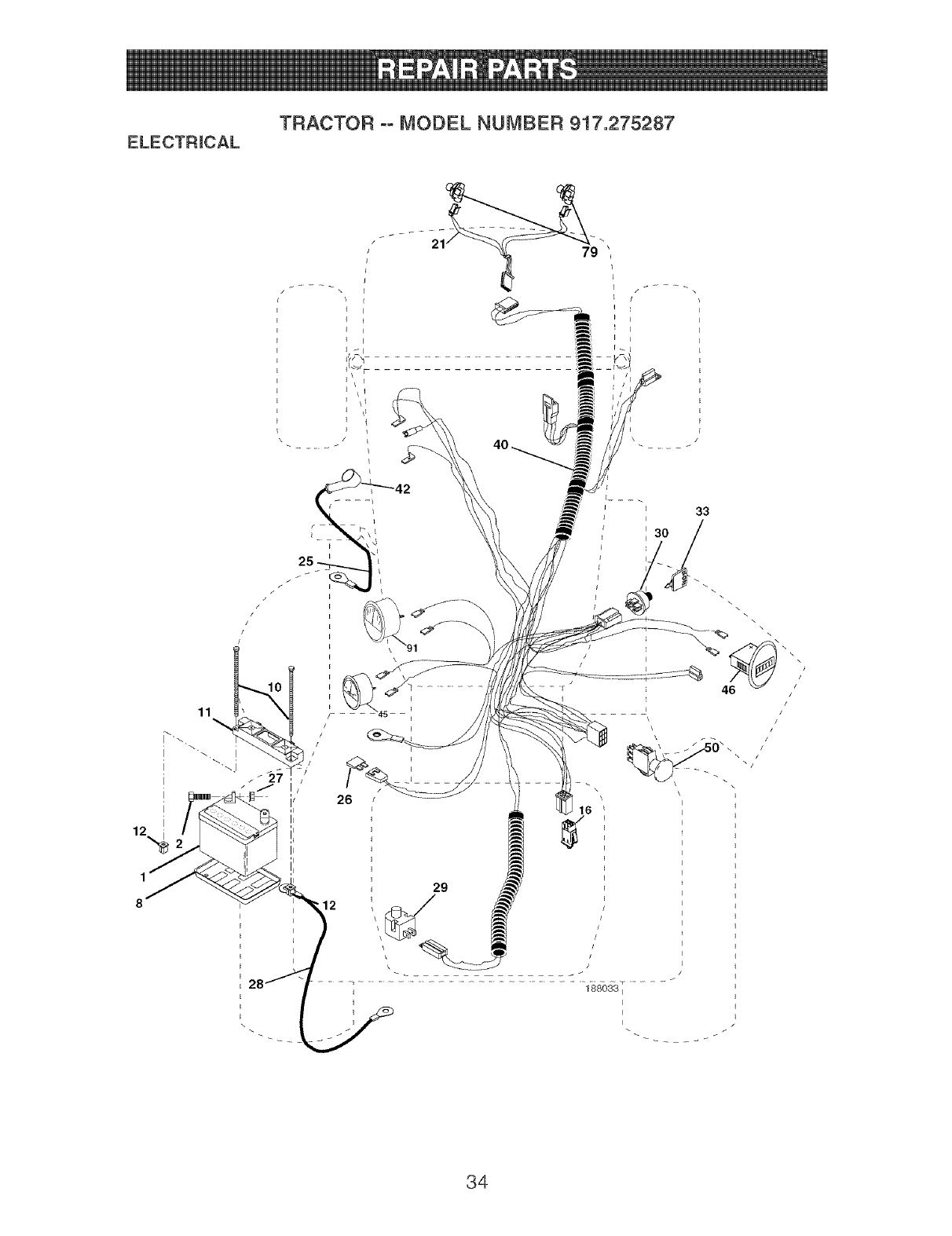

ELECTRmCAL

TRACTOR -- MODEL NUMBER 917.275287

\\\\\

//\

\ / /0\\\ /

1880331

i I

j ,

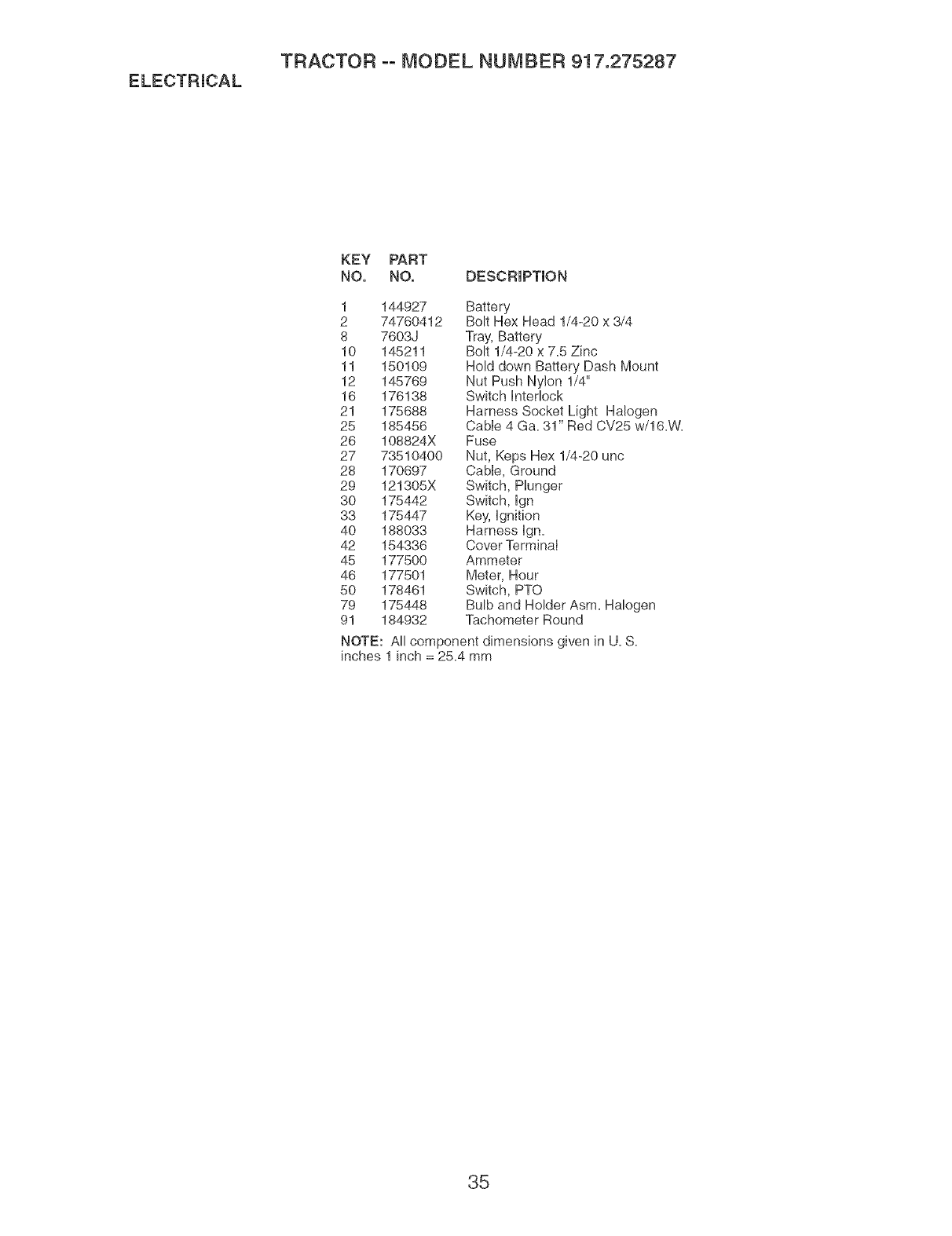

ELECTRmCAL

TRACTOR oo MODEL NUMBER 917.275287

KEY PART

NO. NO. DESCRiPTiON

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 176138 Switch hterlock

21 175688 Harness Socket Light HaLogen

25 185456 Cabte 4 Ga=31" Red CV25 w/16=W=

26 108824X Fuse

27 73510400 Nut, Keps Hex 1/4-20 uric

28 170697 Cable, Ground

29 121305X Switch, Hunger

30 175442 Switch, Hgn

33 175447 Key, Hgnition

40 188033 Harness Hgn=

42 154336 Cover TerminaI

45 177500 Ammeter

46 177501 Meter, Hour

50 178461 Switch, PTO

79 175448 Bulb and Holder Asm= Halogen

91 184932 Tachometer Round

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

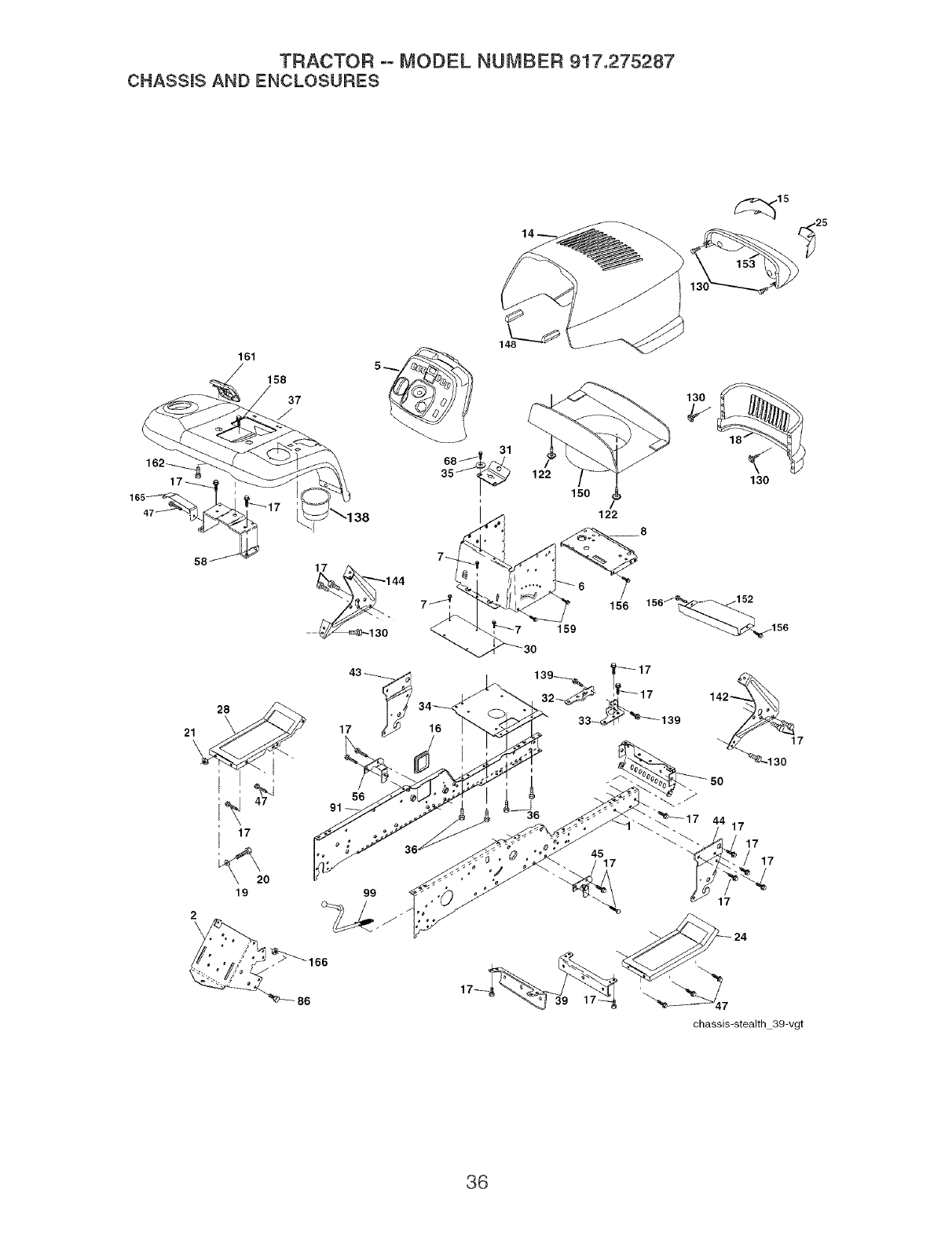

TRACTOR ooMODEL NUMBER 917.275287

CHASSmS AND ENCLOSURES

153

161

158

130/_ 18

130

1_._. 144 7_,,

............_130

17 16

159

156 156J_2 j156

chassis-stealth 39-vgt

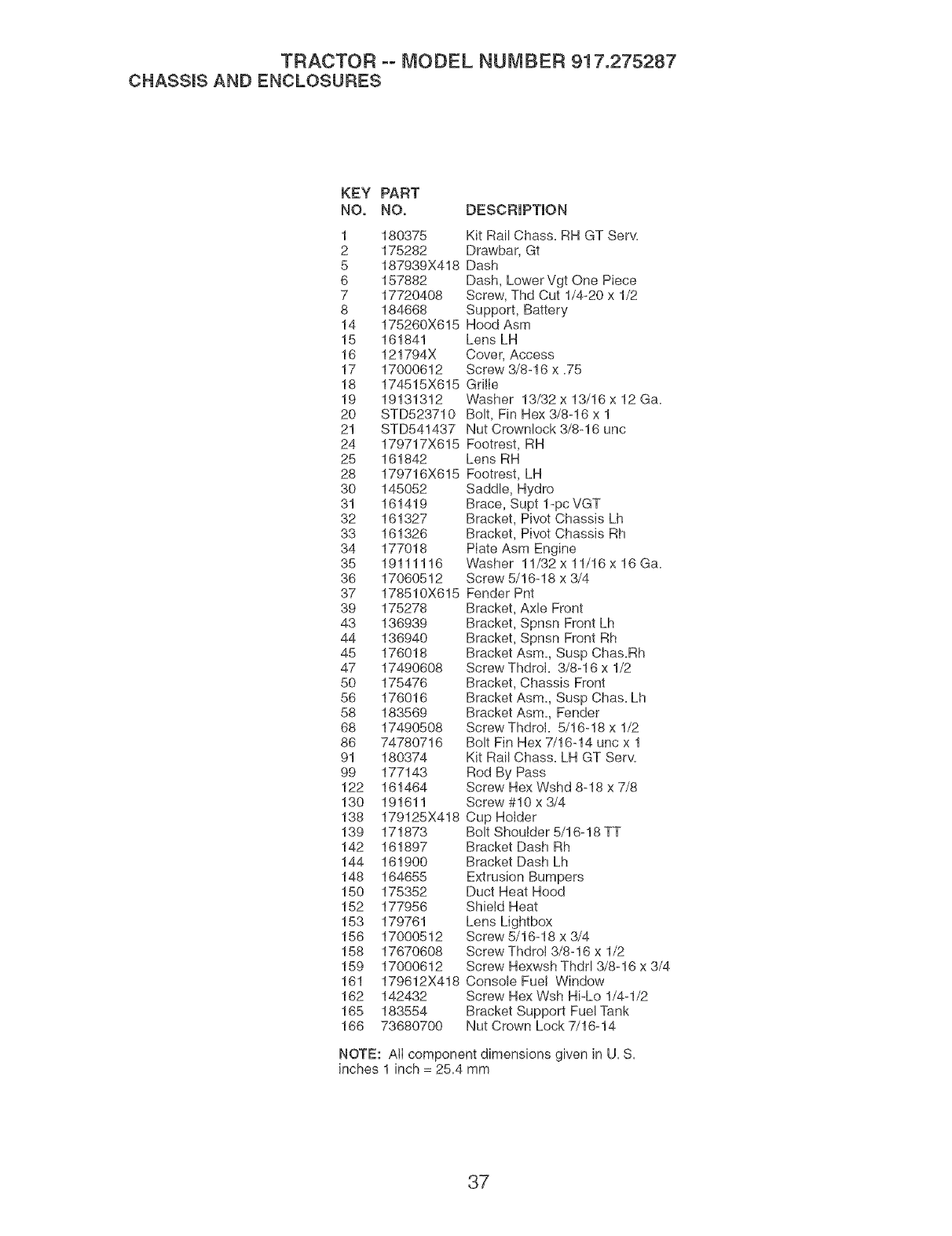

TRACTOR oo MODEL NUMBER 917.275287

CHASSmS AND ENCLOSURES

KEY PART

NO. NO. DESCRiPTiON

1 180375 Kit Rail Chass= RH GT Sew=

2 175282 Drawbar, Gt

5 187939X418 Dash

6 157882 Dash, Lower Vgt One Piece

7 17720408 Screw, Thd Cut 1/4-20 x 1/2

8 184668 Support, Battery

14 175260X615 Hood Asm

15 161841 Lens LH

16 121794X Cover, Access

17 17000612 Screw 3/8-16 x =75

18 174515X615 GrilIe

19 19131312 Washer 13/32 x 13/16 x 12 Ga=

20 STD523710 Bolt, Fin Hex 3/8-16 x 1

21 STD541437 Nut Crownlock 3/8-16 unc

24 179717X615 Footrest, RH

25 161842 Lens RH

28 179716X615 Footrest, LH

30 145052 Saddle, Hydro

31 161419 Brace, Supt 1-pcVGT

32 161327 Bracket, Pivot Chassis Lh

33 161326 Bracket, Pivot Chassis Rh

34 177018 Plate Asm Engine

35 19111116 Washer 11/32 x 11/16 x 16 Ga=

36 17060512 Screw 5/16-18 x 3/4

37 178510X615 Fender Pnt

39 175278 Bracket, Axle Front

43 136939 Bracket, Spnsn Front Lh

44 136940 Bracket, Spnsn Front Rh

45 176018 Bracket Asm. Susp Chas=Rh

47 17490608 Screw ThdroL 3/8-16 x 1/2

50 175476 Bracket, Chassis Front

56 176016 Bracket Asm., Susp Chas= Lh

58 183569 Bracket Asm. Fender

68 17490508 Screw ThdroL 5/16-18 x 1/2

86 74780716 Bolt Fin Hex 7/16-14 uric x 1

91 180374 Kit Rail Chass= LH GT Sew=

99 177143 Rod By Pass

122 161464 Screw Hex Wshd 8-18 x 7/8

130 191611 Screw #10 x 3/4

138 179125X418 Cup Holder

139 171873 Bolt Shoutder 5/16-18 TT

142 161897 Bracket Dash Rh

144 161900 Bracket Dash Lh

148 164655 Extrusion Bumpers

150 175352 Duct Heat Hood

152 177956 Shield Heat

153 179761 Lens Lightbox

156 17000512 Screw 5/16-18 x 3/4

158 17670608 ScrewThdro! 3/8-16 x 1/2

159 17000612 Screw Hexwsh Thdd 3/8-16 x 3/4

161 179612X418 Console FueI Window

162 142432 Screw Hex Wsh Hi-Lo 1/4-1/2

165 183554 Bracket Support Fue! Tank

166 73680700 Nut Crown Lock 7/16-14

NOTE: AtI component dimensions given in U=S=

inches 1 inch = 25=4 mm

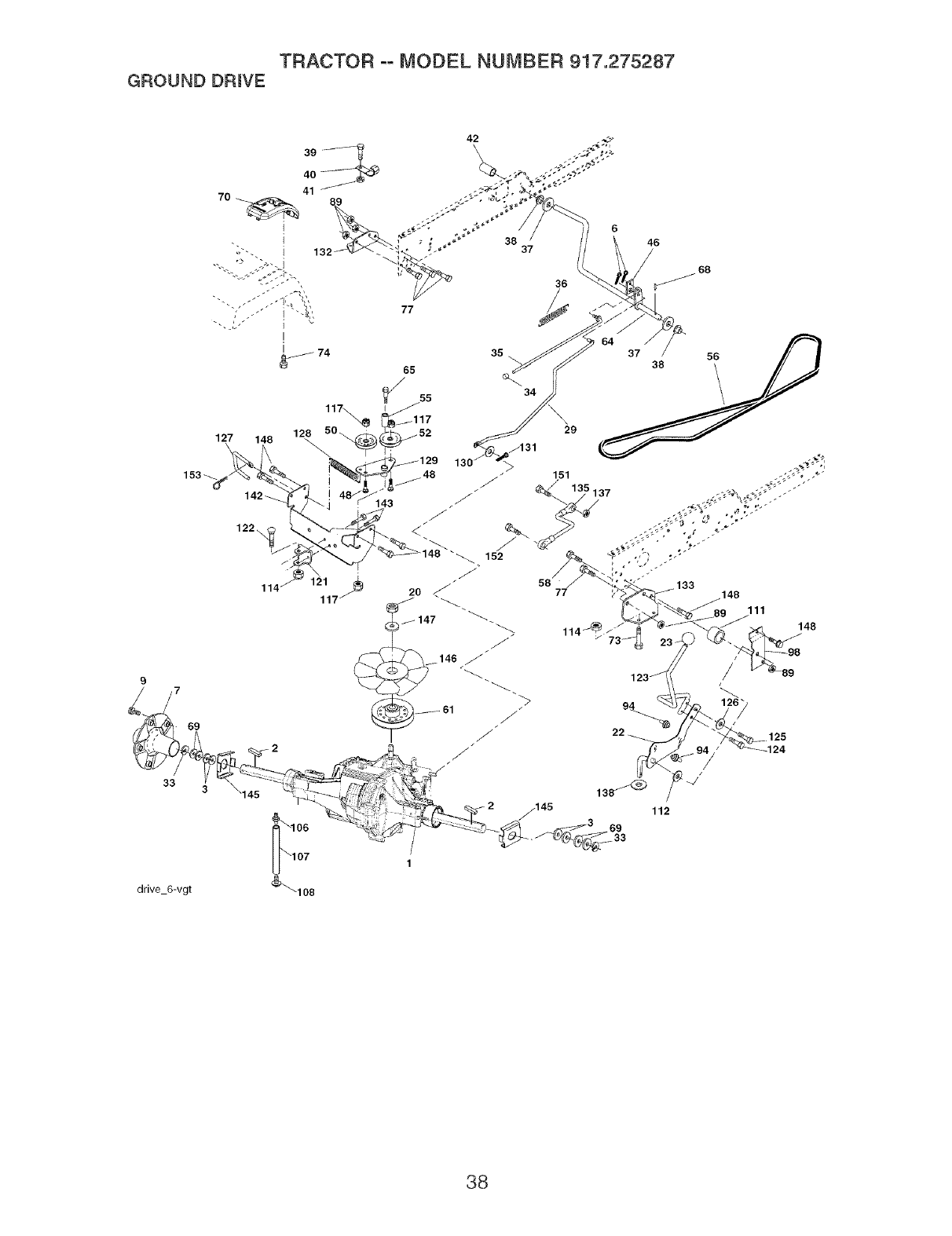

TRACTOR °° MODEL NUMBER 917.275287

GROUND DR_VE

38 /

36 _ 68

drive 6-vgt

.145

123_!_;

112

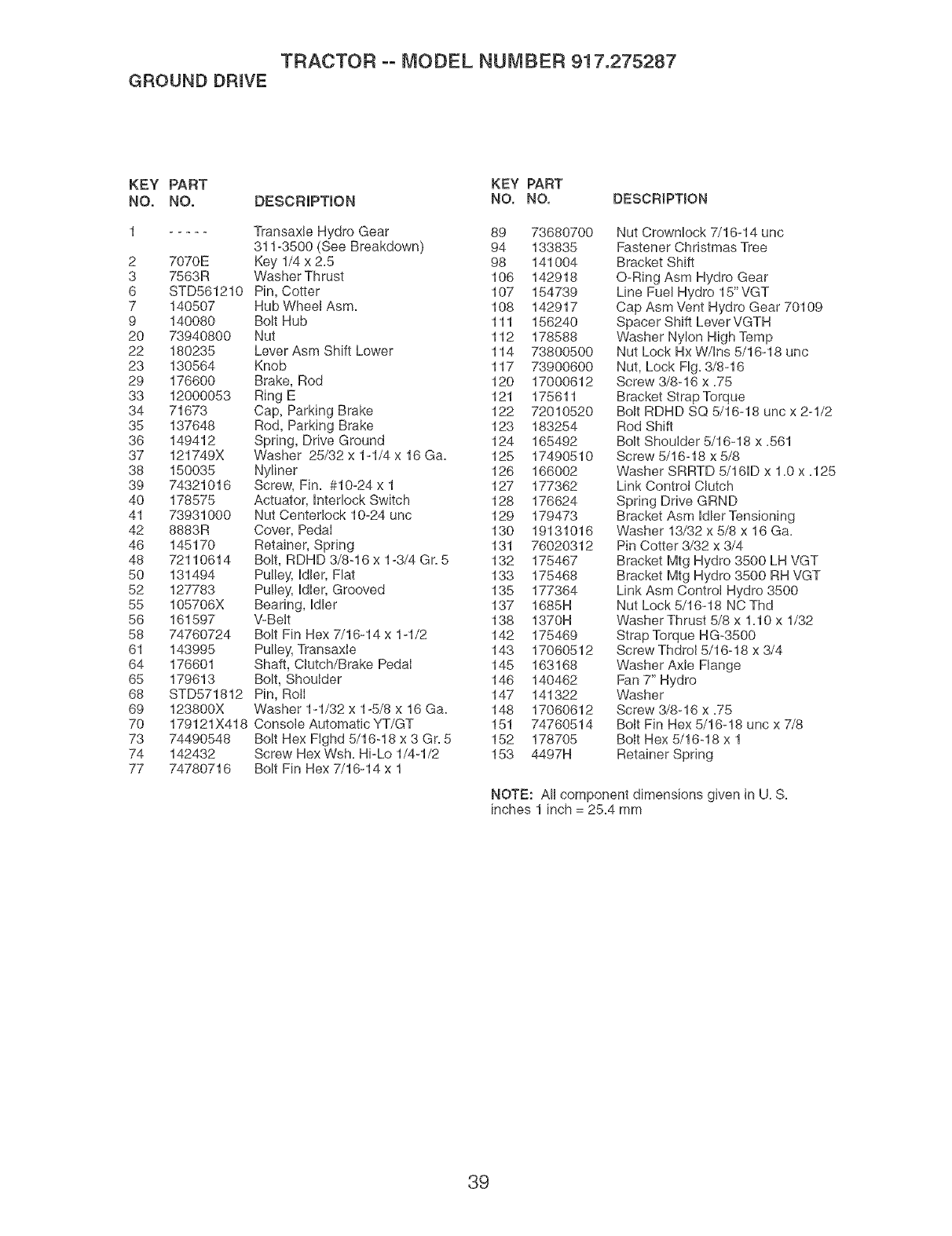

TRACTOR oo MODEL NUMBER 917.275287

GROUND DRmVE

KEY PART KEY PART

NO, NO, DESCRiPTiON NO. NO. DESCRIPTmON

1 Transaxle Hydro Gear 89 73680700

311-3500 (See Breakdown) 94 133835

2 7070E Key 1/4 x 2=5 98 141004

3 7563R Washer Thrust 106 142918

6 STD561210 Pin, Cotter 107 154739

7 140507 HubWheeI Asm= 108 142917

9 140080 Bolt Hub 111 156240

20 73940800 Nut 112 178588

22 180235 Lever Asm Shift Lower 114 73800500

23 130564 Knob 117 73900600

29 176600 Brake, Rod 120 17000612

33 12000053 Ring E 121 175611

34 71673 Cap, Parking Brake 122 72010520

35 137648 Rod, Parking Brake 123 183254

36 149412 Spring, Drive Ground 124 165492

37 121749X Washer 25/32 x 1-1/4 x 16 Ga= 125 17490510

38 150035 Nyliner 126 166002

39 74321016 Screw, Fin= #10-24 x 1 127 177362

40 178575 Actuator, Interlock Switch 128 176624

41 73931000 Nut Centerlock 10-24 unc 129 179473

42 8883R Cover, Pedat 130 19131016

46 145170 Retainer, Spring 131 76020312

48 72110614 Bolt, RDHD 3/8-16 x 1-3/4 Gr=5 132 175467

50 131494 Pulley, Idler, Flat 133 175468

52 127783 Pulley, Idler, Grooved 135 177364

55 105706X Bearing, Idler 137 1685H

56 161597 V-Belt 138 1370H

58 74760724 Bolt Fin Hex 7/16-14 x 1-1/2 142 175469

61 143995 Pulley, TransaxIe 143 17060512

64 176601 Shaft, Clutch/Brake PedaI 145 163168

65 179613 Bolt, Shoulder 146 140462

68 STD571812 Pin, RolI 147 141322

69 123800X Washer 1-1/32 x 1-5/8 x 16 Ga= 148 17060612

70 179121X418 Console Automatic YT/GT 151 74760514

73 74490548 Bolt Hex FIghd 5/16-18 x 3 G r=5 152 178705

74 142432 Screw HexWsh= Hi-Lo 1/4-1/2 153 4497H

77 74780716 Bolt Fin Hex 7/16-14 x 1

Nut Crownlock 7/16-14 uric

Fastener Christmas Tree

Bracket Shift

O-Ring Asm Hydro Gear

Line Fuel Hydro 15"VGT

Cap Asm Vent Hydro Gear 70109

Spacer Shift Lever VGTH

Washer Nylon High Temp

Nut Lock Hx W/Ins 5/16-18 uric

Nut, Lock Hg= 3/8-16

Screw 3/8-16 x .75

Bracket Strap Torque

Bolt RDHD SQ 5/16-18 unc x 2-1/2

Rod Shift

Bolt ShouIder 5/16-18 x =561

Screw 5/16-18 x 5/8

Washer SRRTD 5/161D x 1=0x =125

Link Control Clutch

Spring Drive GRND

Bracket Asm Idler Tensioning

Washer 13/32 x 5/8 x 16 Ga=

Pin Cotter 3/32 x 3/4

Bracket Mtg Hydro 3500 LH VGT

Bracket Mtg Hydro 3500 RH VGT

Link Asm Control Hydro 3500

Nut Lock 5/16-18 NC Thd

Washer Thrust 5/8 x 1=10 x 1/32

Strap Torque HG-3500

Screw Thdrol 5/16-18 x 3/4

Washer Axle Flange

Fan 7" Hydro

Washer

Screw 3/8-16 x =75

Bolt Fin Hex 5/16-18 uric x 7/8

Bolt Hex 5/16-18 x 1

Retainer Spring

NOTE: All component dimensions given in U=S=

inches 1 inch = 25=4 mm

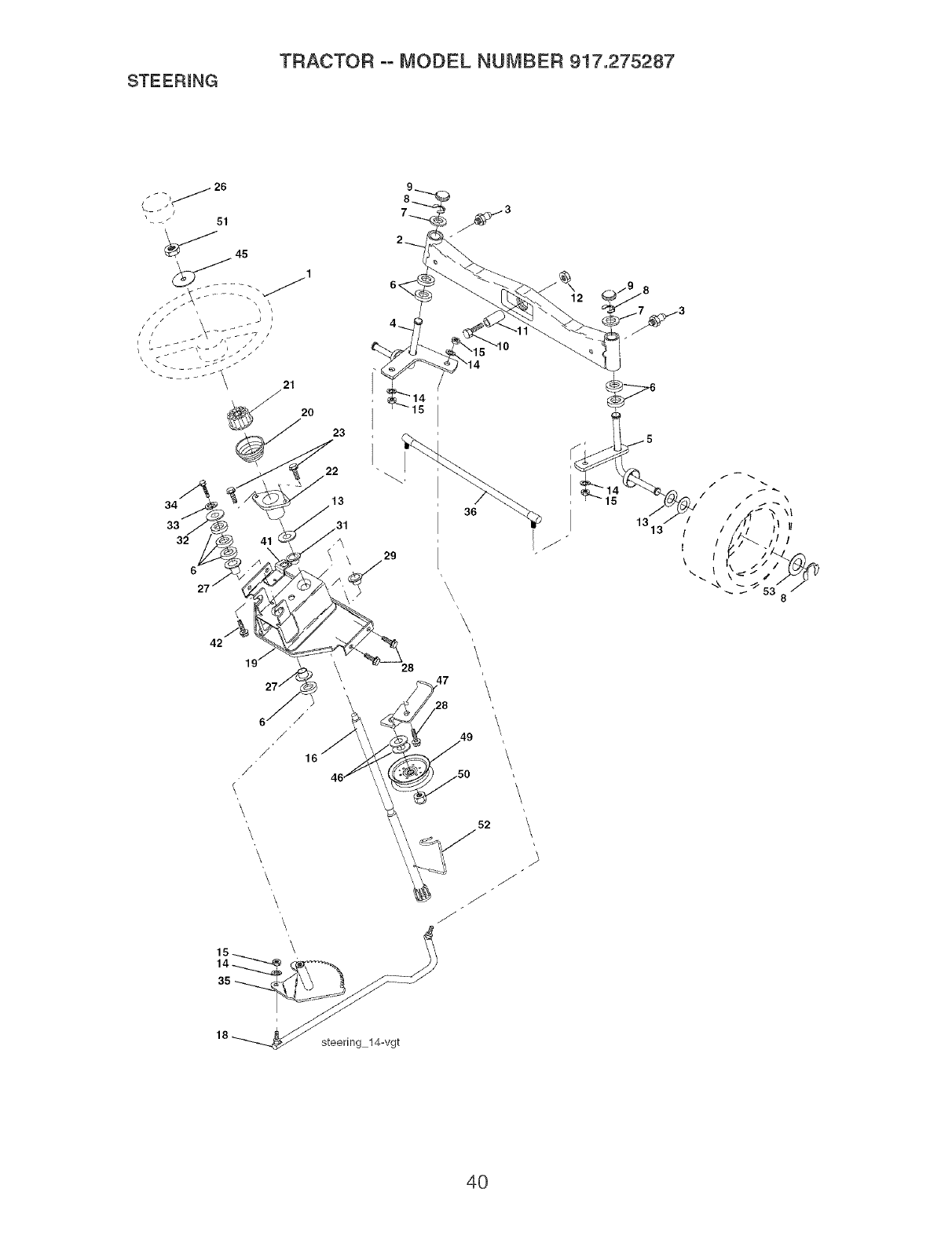

STEEFImNG

TRACTOR °° MODEL NUMBER 917.275287

J26

/x \ j I

i - -- -- -- _] t - I}ill I

\21

22 _:

/ /< 49

15 \

18 steering 14-vgt

If"

1313

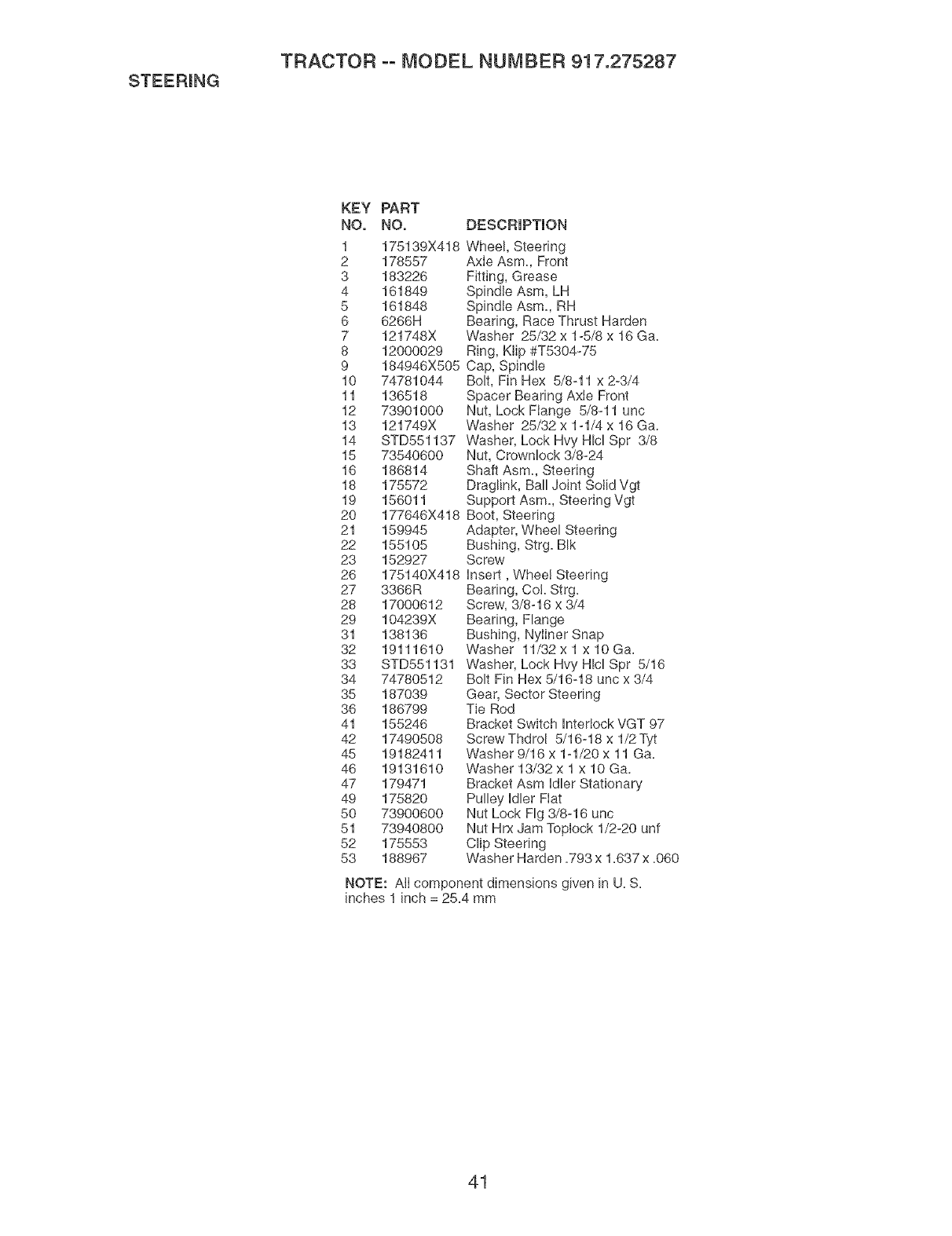

STEERmNG

TRACTOR °° MODEL NUMBER 917.275287

KEY PART

NO. NO.

1 175139X418

2 178557

3 183226

4 161849

5 161848

6 6266H

7 121748X

8 12000029

9 184946X505

10 74781044

11 136518

12 73901000

13 121749X

14 STD551137

15 73540600

16 186814

18 175572

19 156011

20 177646X418

21 159945

22 155105

23 152927

26 175140X418

27 3366R

28 17000612

29 104239X

31 138136

32 19111610

33 STD551131

34 74780512

35 187039

36 186799

41 155246

42 17490508

45 19182411

46 19131610

47 179471

49 175820

50 73900600

51 73940800

52 175553

53 188967

DESCRIPTION

Wheel, Steering

Axle Asm, Front

Fitting, Grease

Spindle Asm, LH

Spindle Asm, RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Ktip #T5304-75

Cap, Spindle

Bolt, Fin Hex 5/8-11 x 2-3/4

Spacer Bearing Axte Front

Nut, Lock Flange 5/8-11 unc

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy HIcl Spr 3/8

Nut, Crownlock 3/8-24

Shaft Asm, Steering

Draglink, Ball Joint Solid Vgt

Support Asm, Steering Vgt

Boot, Steering

Adapter, Wheel Steering

Bushing, Strg. BIk

Screw

Insert, Wheel Steering

Bearing, Co!. Strg.

Screw, 3/8-16 x 3/4

Bearing, Flange

Bushing, Nytiner Snap

Washer 11/32xlx10Ga.

Washer, Lock Hvy Hid Spr 5/16

Bolt Fin Hex 5/16-18 unc x 3/4

Gear, Sector Steering

Tie Rod

Bracket Switch Interlock VGT 97

Screw Thdrol 5/16-18 x 1/2 Tyt

Washer 9/16 x 1-1/20 x 11 Ga.

Washer 13/32 x 1 x 10 Ga.

Bracket Asm Idler Stationary

Pulley Idler Fiat

Nut Lock Fig 3/8-16 uric

Nut Hrx Jam Toplock 1/2-20 unf

Clip Steering

Washer Harden .793 x 1.637 x .060

NOTE: AII component dimensions given in U. S.

inches 1 inch = 25.4 mm

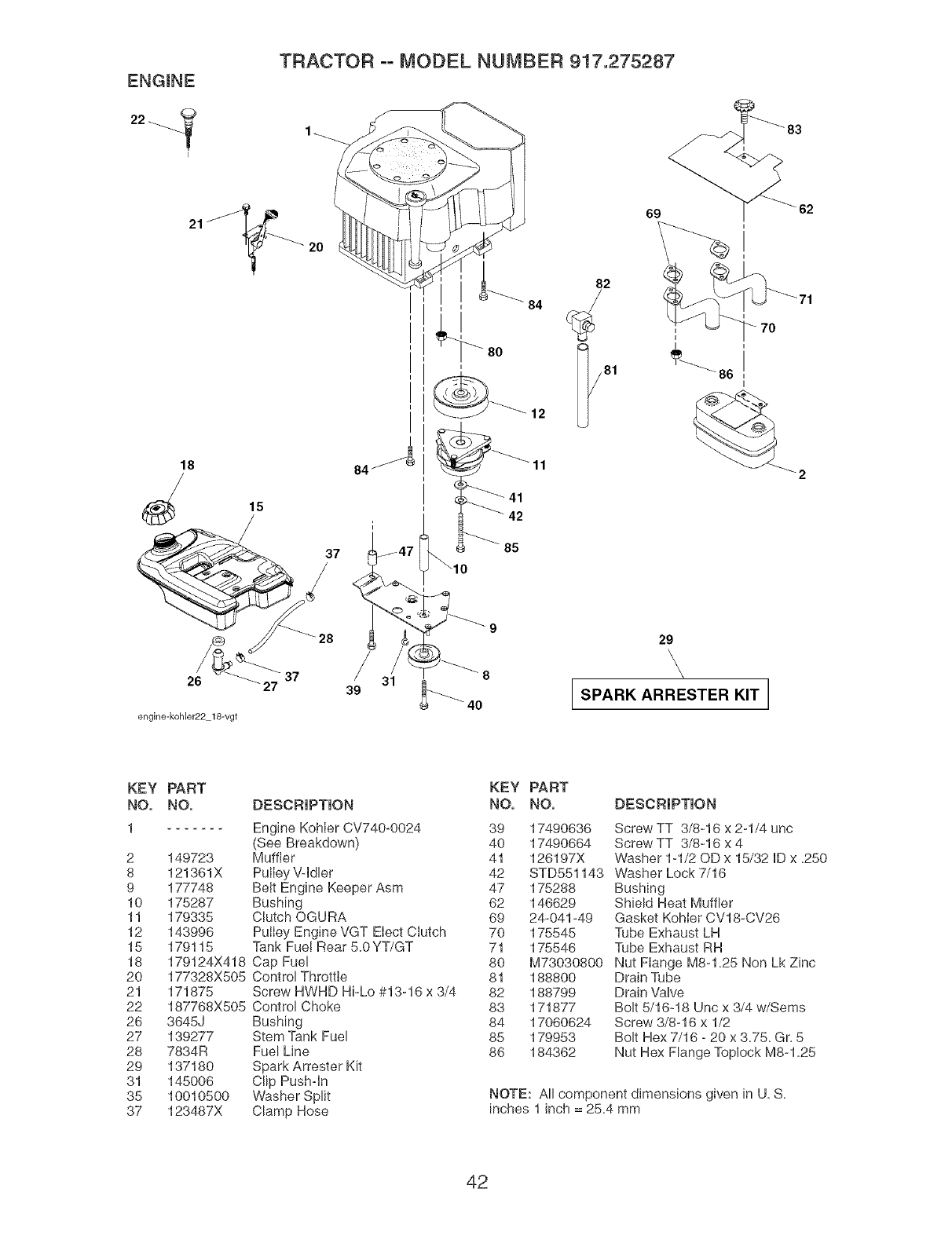

ENGmNE

TRACTOR ooMODEL NUMBER 917.275287

12 I/81

37 85

engine-kohler22 18-vgt

39 31

\\\

SPARK ARRESTER KIT

KEY PART

NO. NO.

2 149723

8 121361X

9 177748

10 175287

11 179335

12 143996

15 179115

18 179124X418

20 177328X505

21 171875

22 187768X505

26 3645J

27 139277

28 7834R

29 137180

31 145006

35 10010500

37 123487X

DESCRIPTION

Engine Kohler CV740-0024

(See Breakdown)

Muffler

Pulley V-Hdler

Belt Engine Keeper Asm

Bushing

Clutch OGURA

PulIey Engine VGT EIect Clutch

Tank Fue! Rear 5.0YT/GT

Cap Fuel

Control Throttle

Screw HWHD Hi-Lo #13-16 x 3/4

Control Choke

Bushing

Stem Tank Fuel

Fuel Line

Spark Arrester Kit

Clip Push-Hn

Washer Split

Clamp Hose

KEY PART

NO. NO. DESCRIPTION

39 17490636 Screw TT 3/8-16 x 2-1/4 unc

40 17490664 Screw TT 3/8-16 x 4

41 126197X Washer 1-1/20D x 15/32 HDx .250

42 STD551143 Washer Lock 7/16

47 175288 Bushing

62 146629 Shield Heat Muffler

69 24-041-49 Gasket Kohler CV18-CV26

70 175545 Tube Exhaust LH

71 175546 Tube Exhaust RH

80 M73030800 Nut Fiange M8-1.25 Non Lk Zinc

81 188800 Drain Tube

82 188799 Drain Valve

83 171877 Bolt 5/16-18 Unc x 3/4 w/Sems

84 17060624 Screw 3/8-16 x 1/2

85 179953 Bolt Hex 7/16 - 20 x 3.75. Gr. 5

86 184362 Nut Hex Flange Toplock M8-1.25

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

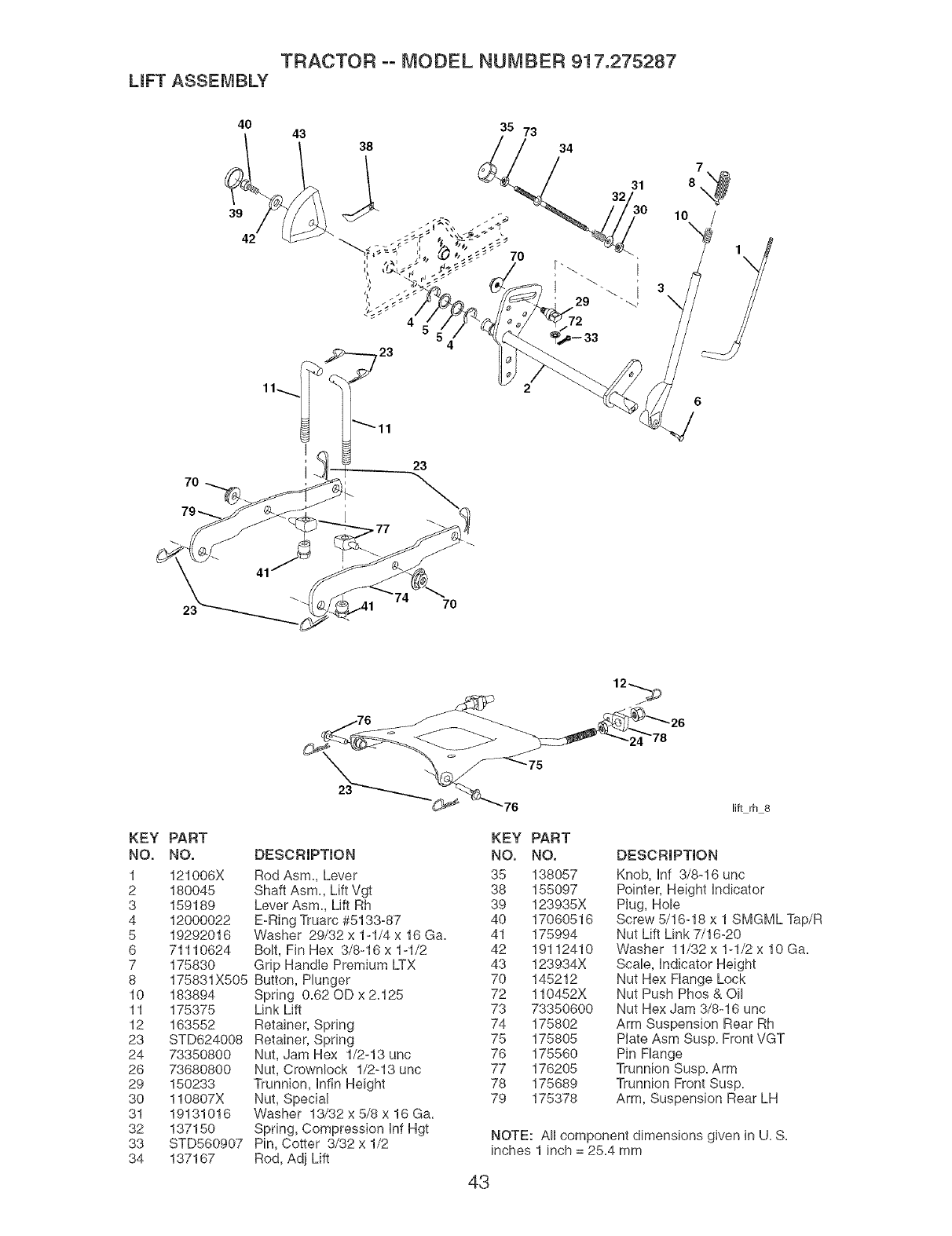

TRACTOR ooMODEL NUMBER 917.275287

UFT ASSEMBLY

43 35 73

_j_ 32 31

', -"•;" 29

10 /

KEY

NO.

PART

NO.

121006X

180045

159189

12000022

19292016

71110624

175830

175831X505

183894

175375

163552

STD624008

73350800

73680800

150233

110807X

19131016

137150

STD560907

137167

_76 __-.._ _26

_ _" 2_78

lift rh 8

KEY PART

DESCRIPTION NO, NO.

Rod Asm, Lever 35 138057

Shaft Asm, Lift Vgt 38 155097

Lever Asm, Lift Rh 39 123935X

E-Ring Truarc #5133-87 40 17060516

Washer 29/32 x 1-1/4 x 16 Ga. 41 175994

Bolt, Fin Hex 3/8-16 x 1-1/2 42 19112410

Grip Handle Premium LTX 43 123934X

Button, Plunger 70 145212

Spring 0.62 OD x 2.125 72 110452X

Link Lift 73 73350600

Retainer, Spring 74 175802

Retainer, Spring 75 175805

Nut, Jam Hex 1/2-13 unc 76 175560

Nut, Crownlock 1/2-13 unc 77 176205

Trunnion, Infin Height 78 175689

Nut, Special 79 175378

Washer 13/32 x 5/8 x 16 Ga.

Spring, Compression Inf Hgt

Pin, Cotter 3/32 x 1/2

Rod, Adj Lift

DESCRIPTION

Knob, Inf 3/8-16 unc

Pointer, Height Indicator

Plug, Hole

Screw 5/16-18 x 1 SMGML Tap/R

Nut Lift Link 7/16-20

Washer 11/32 x 1-1/2 x 10 Ga.

Scale, Indicator Height

Nut Hex Flange Lock

Nut Push Phos & Oil

Nut Hex Jam 3/8-16 unc

Arm Suspension Rear Rh

Plate Asm Susp. Front VGT

Pin Flange

Trunnion Susp. Arm

Trunnion Front Susp.

Arm, Suspension Rear LH

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

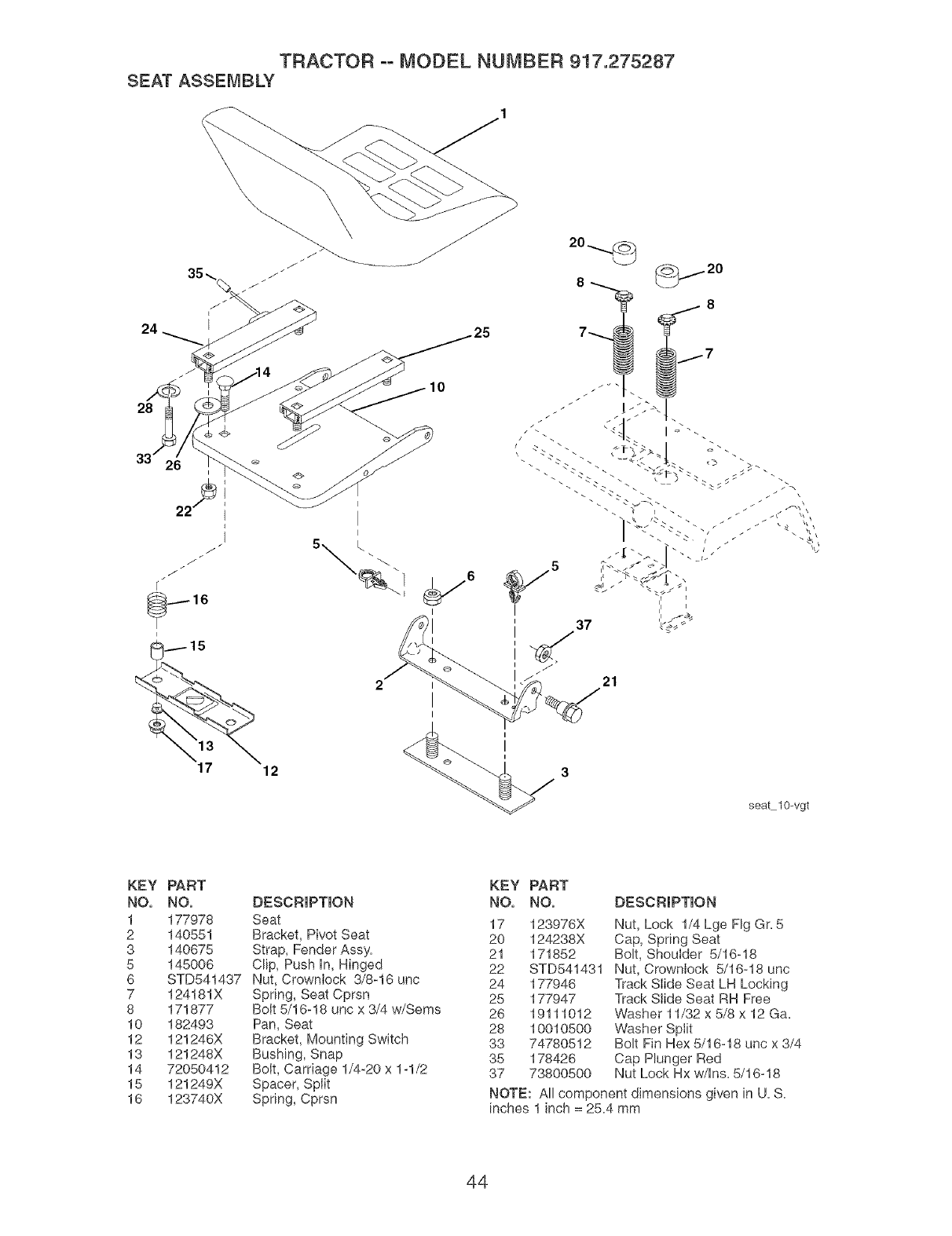

TRACTOR ooMODEL NUMBER 917.275287

SEAT ASSEMBLY

/ j

....---16

17 12

seat 10-vgt

KEY PART

NO. NO.

1 177978

2 140551

3 140675

5 145006

6 STD541437

7 124181X

8 171877

10 182493

12 121246X

13 121248X

14 72050412

15 121249X

16 123740X

DESCRIPTION

Seat

Bracket, Pivot Seat

Strap, Fender Assy,

Clip, Push In, Hinged

Nut, Crownlock 3/8-16 uric

Spring, Seat Cprsn

Bolt 5/16-18 uric x 3/4 w/Sems

Pan, Seat

Bracket, Mounting Switch

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-1/2

Spacer, Split

Spring, Cprsn

KEY PART

NO, NO, DESCRIPTION

17 123976X

20 124238X

21 171852

22 STD541431

24 177946

25 177947

26 19111012

28 10010500

33 74780512

35 178426

37 73800500

Nut, Lock 1/4 Lge Fig Gr=5

Cap, Spring Seat

Bolt, ShouIder 5/16-18

Nut, Crownlock 5/16-18 unc

Track SIide Seat LH Locking

Track Stide Seat RH Free

Washer 11/32 x 5/8 x 12 Ga,

Washer Split

Bolt Fin Hex 5/16-18 uric x 3/4

Cap Plunger Red

Nut Lock Hx w/Ins, 5/16-18

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

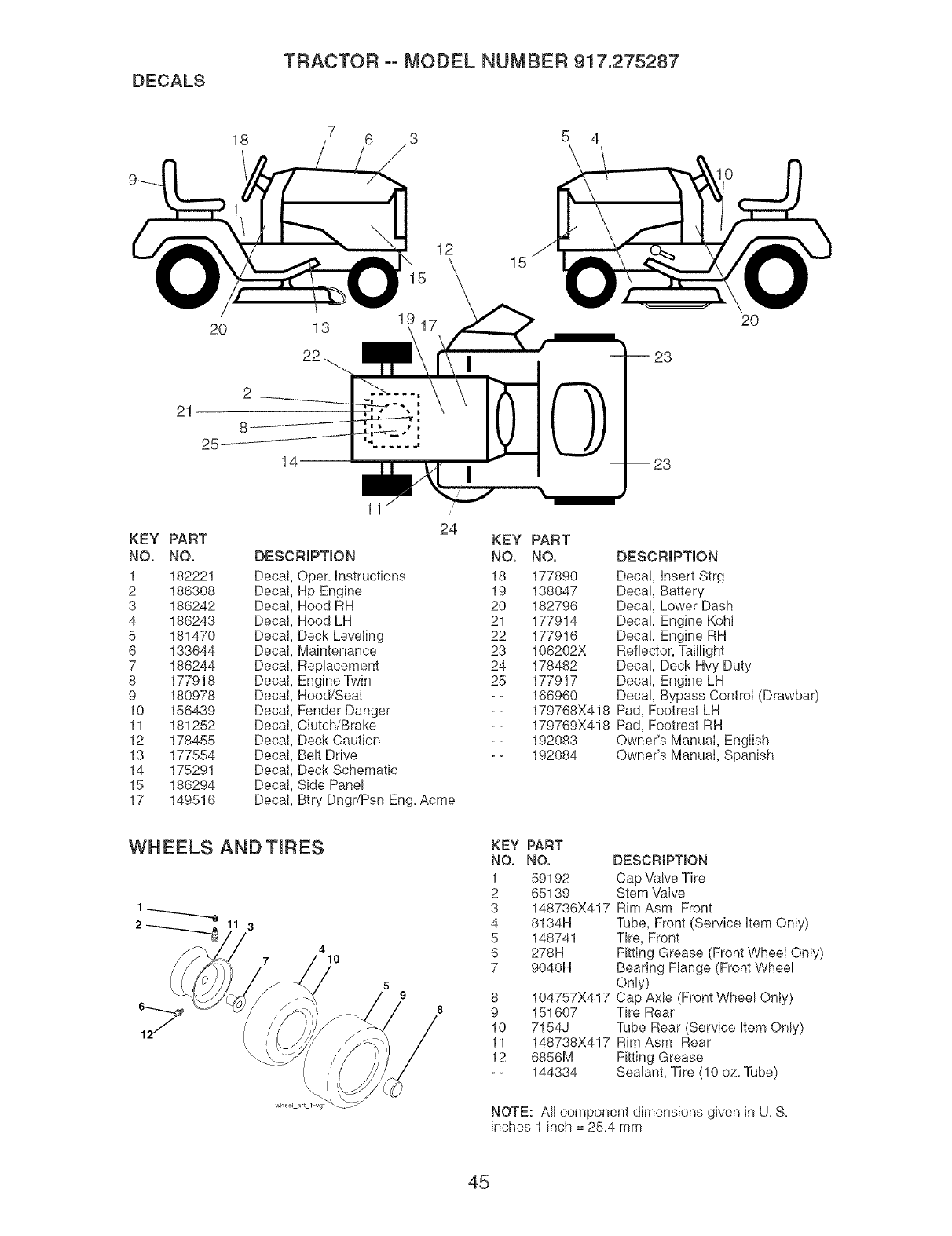

DECALS

TRACTOR ooMODEL NUMBER 917.275287

12\

5 4

21 8

14--

KEY PART

NO. NO.

1 182221

2 186308

3 186242

4 186243

5 181470

6 133644

7 186244

8 177918

9 180978

10 156439

11 181252

12 178455

13 177554

14 175291

15 186294

17 149516

11 /

DESCRIPTION

DecaI Oper. instructions

Decal Hp Engine

Decal Hood RH

Decal Hood LH

Decal Deck Leveling

Decal Maintenance

Decal Replacement

Decal Engine Twin

Decal Hood/Seat

Decal Fender Danger

Decal Clutch/Brake

Decal Deck Caution

Decal Belt Drive

Decal Deck Schematic

Decal Side Panel

Decal Btry Dngr/Psn Eng. Acme

KEY PART

NO. NO. DESCRIPTION

18 177890 Deca!, insert Strg

19 138047 Decal, Battery

20 182796 Decal, Lower Dash

21 177914 Decal, Engine Koht

22 177916 Decal, Engine RH

23 106202X Reflector, TaiIlight

24 178482 Decal, Deck Hvy Duty

25 177917 Deca!, Engine LH

- - 166960 Decal, Bypass Control (Drawbar)

- - 179768X418 Pad, Footrest LH

- - 179769X418 Pad, Footrest RH

- - 192083 Owner's Manual, English

- - 192084 Owner's Manual, Spanish

WHEELS AND TmRES

710

KEY PART

NO. NO. DESCRIPTmON

1 59192 Cap Valve Tire

2 65139 Stem Valve

3 148736X417 Rim Asm Front

4 8134H Tube, Front (Service item Only)

5 148741 Tire, Front

6 278H Fitting Grease (Front Wheel Only)

7 9040H Bearing Flange (Front Wheel

Only)

8 104757X417 Cap Axle (Front Wheel Only)

9 151607 Tire Rear

10 7154J Tube Rear (Service item Only)

11 148738X417 RimAsm Rear

12 6856M Fitting Grease

- - 144334 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

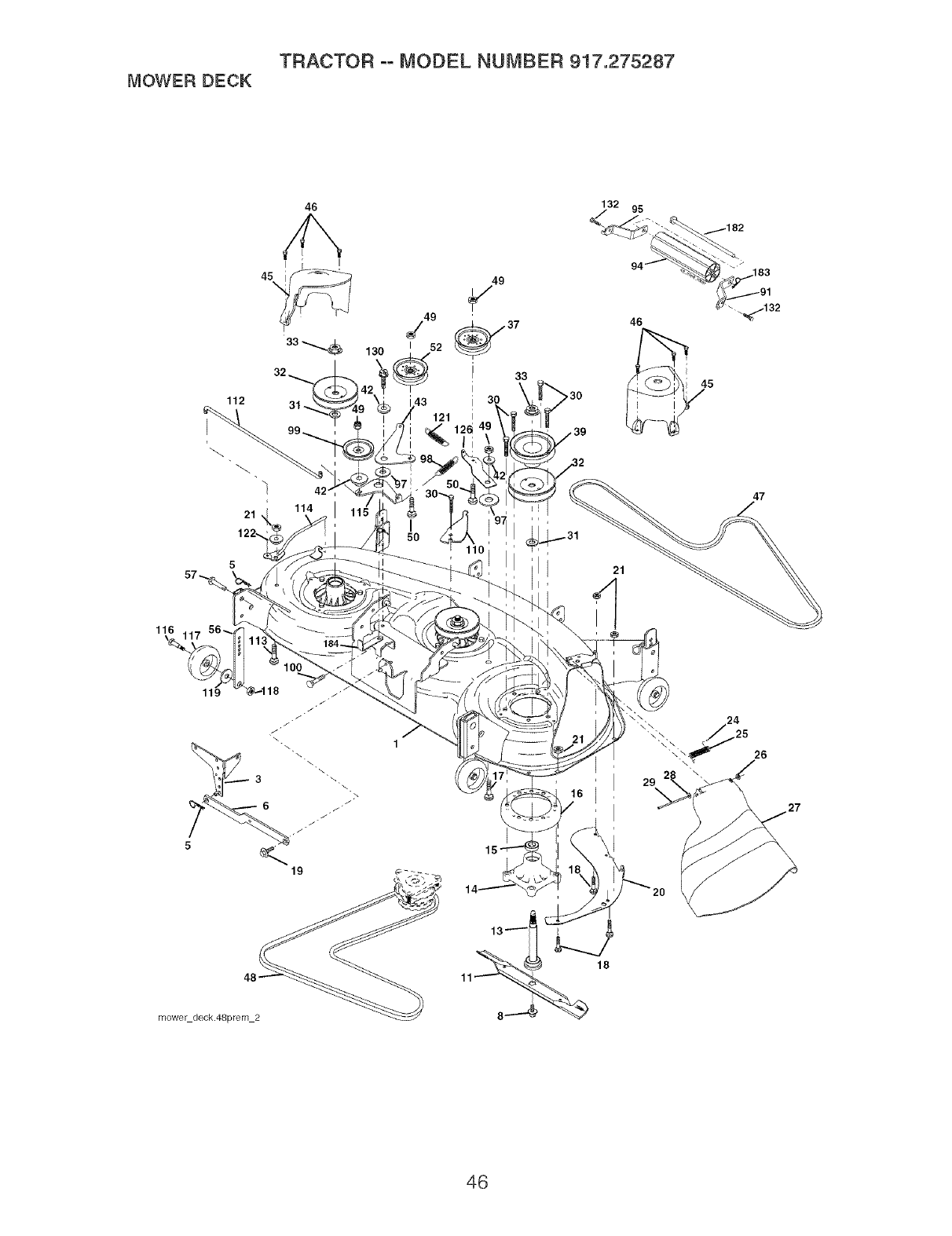

TRACTOR ooMODEL NUMBER 917.275287

MOWER DECK

116

112

122-,

I I

3a _

42 _

114

130

_(/49

11! @_118 j"

\ \\\

moweLdeck.48prem 2

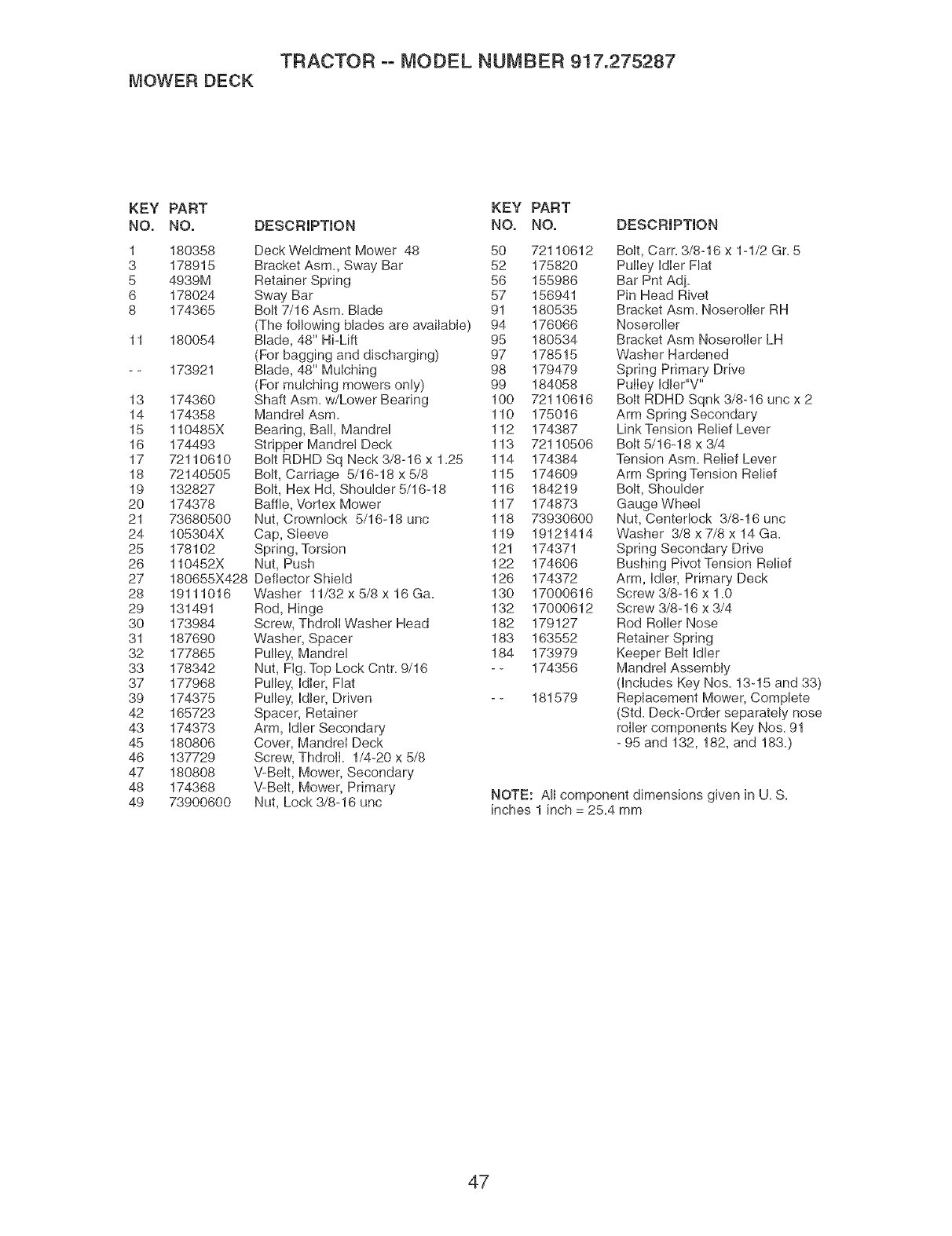

TRACTOR oo MODEL NUMBER 917.275287

MOWER DECK

KEY PART KEY PART

NO, NO, DESCRiPTiON NO, NO, DESCRiPTiON

180358

178915

4939M

178024

174365

180054

173921

174360

174358

110485X

174493

72110610

72140505

132827

174378

73680500

105304X

178102

110452X

180655X428

19111016

131491

173984

187690

177865

178342

177968

174375

165723

174373

180806

137729

180808

174368

73900600

Deck Weldment Mower 48

Bracket Asm, Sway Bar

Retainer Spring

Sway Bar

Bolt 7/16 Asm. Blade

(The following blades are available)

Blade, 48" Hi-Lift

(For bagging and discharging)

Blade, 48" Mulching

(For mulching mowers only)

Shaft Asm. w/Lower Bearing

Mandrel Asm.

Bearing, Ball, Mandrel

Stripper Mandrel Deck

Bolt RDHD Sq Neck 3/8-16 x 1.25

Bolt, Carriage 5/16-18 x 5/8

Bolt, Hex Hd, Shoulder 5/16-18

Baffle, Vortex Mower

Nut, Crownlock 5/16-18 uric

Cap, Sleeve

Spring, Torsion

Nut, Push

Deflector Shield

Washer 11/32 x 5/8 x 16 Ga.

Rod, Hinge

Screw, ThdrolI Washer Head

Washer, Spacer

Pulley, Mandrel

Nut, Fig. Top Lock Cntr. 9/16

Pulley, Hler, Flat

Pulley, Idler, Driven

Spacer, Retainer

Arm, Idler Secondary

Cover, Mandrel Deck

Screw, ThdrolL 1/4-20 x 5/8

V-Belt, Mower, Secondary

V-Belt, Mower, Primary

Nut, Lock 3/8-16 uric

50 72110612

52 175820

56 155986

57 156941

91 180535

94 176066

95 180534

97 178515

98 179479

99 184058

100 72110616

110 175016

112 174387

113 72110506

114 174384

115 174609

116 184219

117 174873

118 73930600

119 19121414

121 174371

122 174606

126 174372

130 17000616

132 17000612

182 179127

183 163552

184 173979

-- 174356

-- 181579

Bolt, Cam 3/8-16 x 1-1/2 Gr. 5

Pulley Idler Flat

Bar Pnt Adj.

Pin Head Rivet

Bracket Asm. Noserotler RH

Noseroller

Bracket Asm Noseroller LH

Washer Hardened

Spring Primary Drive

Pulley Hler"V"

Bolt RDHD Sqnk 3/8-16 unc x 2

Arm Spring Secondary

Link Tension Relief Lever

Bolt 5/16-18 x 3/4

Tension Asm. Relief Lever

Arm Spring Tension Relief

Bolt, Shoulder

Gauge Whee!

Nut, Centerlock 3/8-16 unc

Washer 3/8 x 7/8 x 14 Ga.

Spring Secondary Drive

Bushing Pivot Tension Relief

Arm, Idler, Primary Deck

Screw 3/8-16 x 1.0

Screw 3/8-16 x 3/4

Rod Roller Nose

Retainer Spring

Keeper Belt Idler

Mandrel Assembly

(Includes Key Nos. 13-15 and 33)

Replacement Mower, Complete

(Std. Deck-Order separately nose

roller components Key Nos. 91

- 95 and 132,182, and 183=)

NOTE: Allcomponentdimensions givenin U.S.

inches 1 inch = 25.4mm

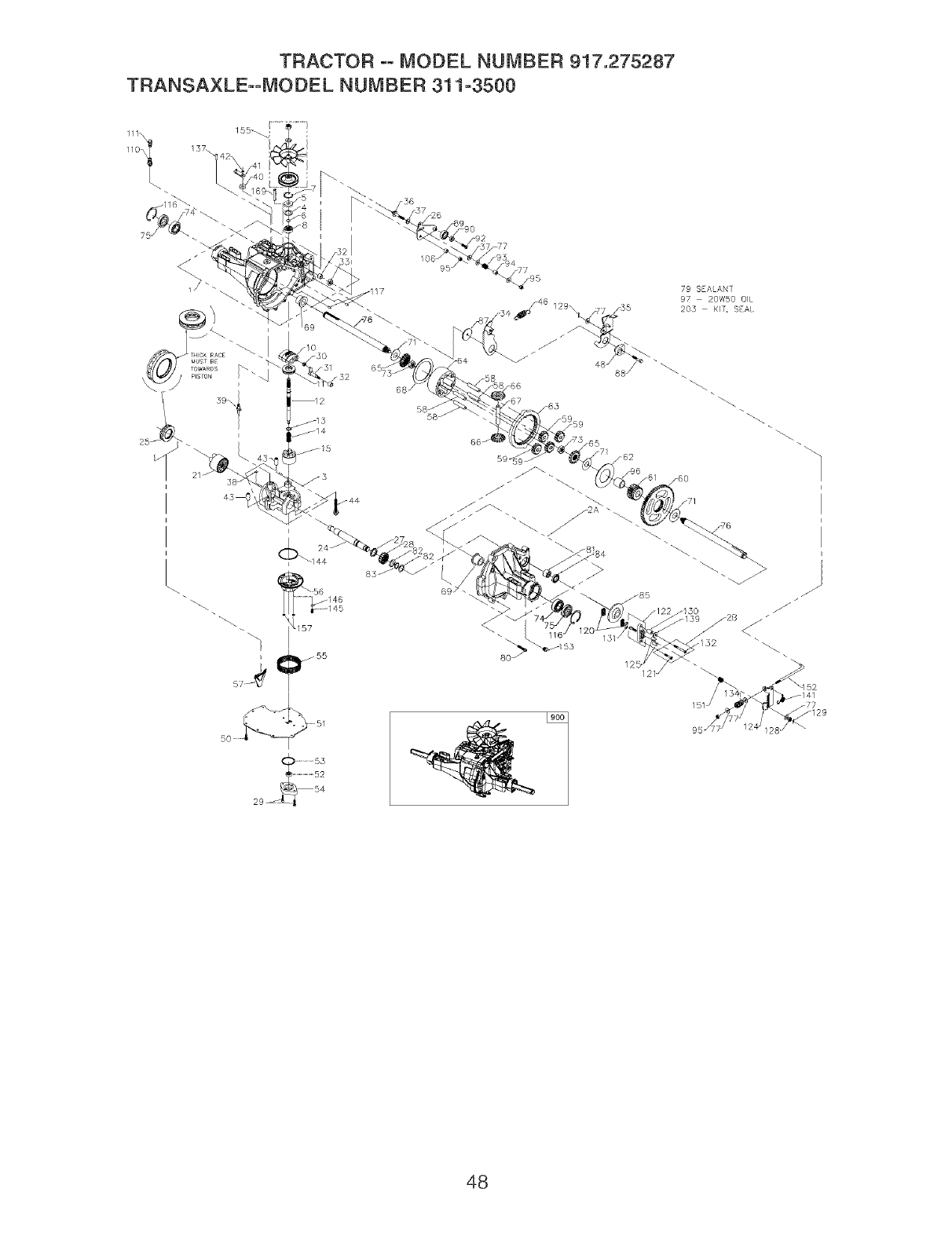

TRACTOR °° MODEL NUMBER 917.275287

TRANSA×LE°°MODEL NUMBER 311-3500

jl 3

/14

331 /06- 95 j

(_144

...... /46

,55

_o :-

79 SEALAN]

97 20W50 O}L

203 K}T, SEA/

/32

f141

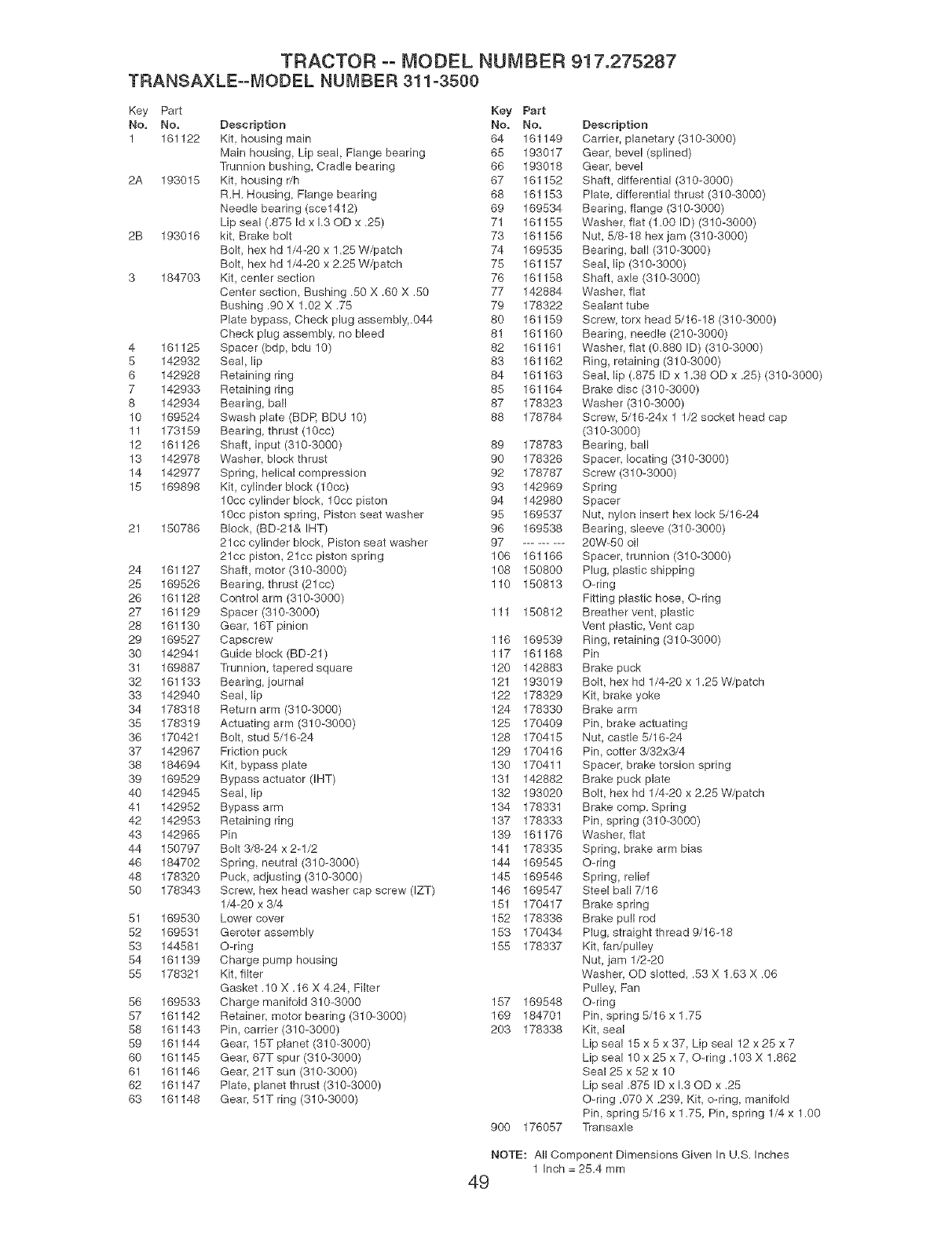

TRACTOR oo MODEL NUMBER 917.275287

TRANSA×LE==MODEL NUMBER 311-3500

Key Part Key Part

No, No, Description No. No,

1 161122 Kit housing main 64 161149

Main housing, Lip seal, Flange bearing 65 193017

Trunnion bushing, Cradle bearing 66 193018

2A 193015 Kit, housing dh 67 161152

R.H. Housing, Flange bearing 68 161153

Needle bearing (sce1412) 69 169534

Lip seal (.875 Id x 1.30D x .25) 71 161155

2B 193016 kit, Brake bolt 73 161156

Bolt, hex hd 1/4-20 x 1.25 W/patch 74 169535

Bolt, hex hd 1/4-20 x 2.25 W/patch 75 161157

3 184703 Kit, center section 76 161158

Center section, Bushing .50 X.60 X.50 77 142884

Bushing .90 X 1.02 X .75 79 178322

Plate bypass, Check plug assembly.044 80 161159

Check plug assembly, no bleed 81 161160

4 161125 Spacer (bdp, bdu 10) 82 161161

5 142932 Seal, lip 83 161162

6 142928 Retaining ring 84 161163

7 142933 Retaining ring 85 161164

8 142934 Bearing, ball 87 178323

10 169524 Swash plate (BDP, BDU 10) 88 178784

11 173159 Bearing, thrust (10cc)

12 161126 Shaft, input (310-3000) 89 178783

13 142978 Washer, block thrust 90 178326

14 142977 Spring, helical compression 92 178787

15 169898 Kit, cylinder block (10cc) 93 142969

10cc cylinder block, 10cc piston 94 142980

10cc piston spring, Piston seat washer 95 169537

21 150786 Block, (BD-21& IHT) 96 169538

21cc cylinder block, Piston seat washer 97

21ccpiston, 21cc piston spring 106 161166

24 161127 Shaft, motor (310-3000) 108 150800

25 169526 Bearing, thrust (21cc) 110 150813

26 161128 Control arm (310-3000)

27 161129 Spacer (310-3000) 111 150812

28 161130 Gear, 16T pinion

29 169527 Capscrew 116 169539

30 142941 Guide block (BD-21) 117 161168

31 169887 Trunnion, tapered square 120 142883

32 161133 Bearing, journal 121 193019

33 142940 Seal, lip 122 178329

34 178318 Return arm (310-3000) 124 178330

35 178319 Actuating arm (310-3000) 125 170409

36 170421 Bolt, stud 5/16-24 128 170415

37 142967 Friction puck 129 170416

38 184694 Kit, bypass plate 130 170411

39 169529 Bypass actuator (IHT) 131 142882

40 142945 Seal, lip 132 193020

41 142952 Bypass arm 134 178331

42 142953 Retaining ring 137 178333

43 142965 Pin 139 161176

44 150797 Bolt 3/8-24 x 2-1/2 141 178335

46 184702 Spring, neutral (310-3000) 144 169545

48 178320 Puck, adjusting (310-3000) 145 169546

50 178343 Screw, hex head washer cap screw (IZT) 146 169547

1/4-20 x 3/4 151 170417

51 169530 Lower cover 152 178336

52 169531 Geroter assembly 153 170434

53 144581 O-ring 155 178337

54 161139 Charge pump housing

55 178321 Kit, filter

Gasket .10 X.16 X 4.24, Filter

56 169533 Charge manifold 310-3000 157 169548

57 161142 Retainer, motor bearing (310-3000) 169 184701

58 161143 Pin, carrier (310-3000) 203 178338

59 161144 Gear, 15T planet (310-3000)

60 161145 Gear, 67T spur (310-3000)

61 161146 Gear, 21T sun (310-3000)

62 161147 Plate, planet thrust (310-3000)

63 161148 Gear, 51T ring (310-3000)

900 176057

Description

Carrier, planetary (310-3000)

Gear bevel (splined)

Gear, bevel

Shaft, differential (310-3000)

Plate, differential thrust (310-3000)

Bearing, flange (310-3000)

Washer, flat (1.00 ID) (310-3000)

Nut, 5/8-18 hex jam (310-3000)

Bearing, ball (310-3000)

Seal, lip (310-3000)

Shaft, axle (310-3000)

Washer, flat

Sealant tube

Screw, torx head 5/16-18 (310-3000)

Bearing, needle (210-3000)

Washer, flat (0.880 ID) (310-3000)

Ring, retaining (310-3000)

Seal, lip (.875 ID x 1.38 OD x .25) (310-3000)

Brake disc (310-3000)

Washer (310-3000)

Screw, 5/16-24x 1 1/2 socket head cap

(310-3000)

Bearing, ball

Spacer, locating (310-3000)

Screw (310-3000)

Spring

Spacer

Nut, nylon insert hex lock 5/16-24

Bearing, sleeve (310-3000)

20W-50 oil

Spacer, trunnion (310-3000)

Plug, plastic shipping

O-ring

Fitting plastic hose, O-ring

Breather vent, plastic

Vent plastic, Vent cap

Ring, retaining (310-3000)

Brake puck

Bolt, hex hd 1/4-20 x 1.25 W/patch

Kit, brake yoke

Brake arm

Pin, brake actuating

Nut, castle 5/16-24

Pin, cotter 3/32x3/4

Spacer, brake torsion spring

Brake puck plate

Bolt, hex hd 1/4-20 x 2.25 W/patch

Brake comp. Spring

Pin, spring (310-3000)

Washer, flat

Spring, brake arm bias

O-ring

Spring, relief

Steel ball 7/16

Brake spring

Brake pull rod

Plug, straight thread 9/16-18

Kit, fan/pulley

Nut, jam 1/2420

Washer, OD slotted, .53 X 1.63 X .06

Pulley. Fan

O-ring

Pin, spring 5/16 x 1.75

Kit, seal

Lip seal 15 x 5 x 37, Lip seal 12 x 25 x 7

Lip seal 10 x 25 x 7, O-ring .103 X 1.862

Seal 25 x 52 x 10

Lip seal .875 ID x 1.30D x .25

O-ring .070 X.239, Kit, o-ring, manifold

Pin, spring 5/16 x 1.75, Pin, spring 1/4 x 1.00

Transaxle

NOTE: All Component Dimensions Given In U.S. Inches

1 Inch = 25.4 mm

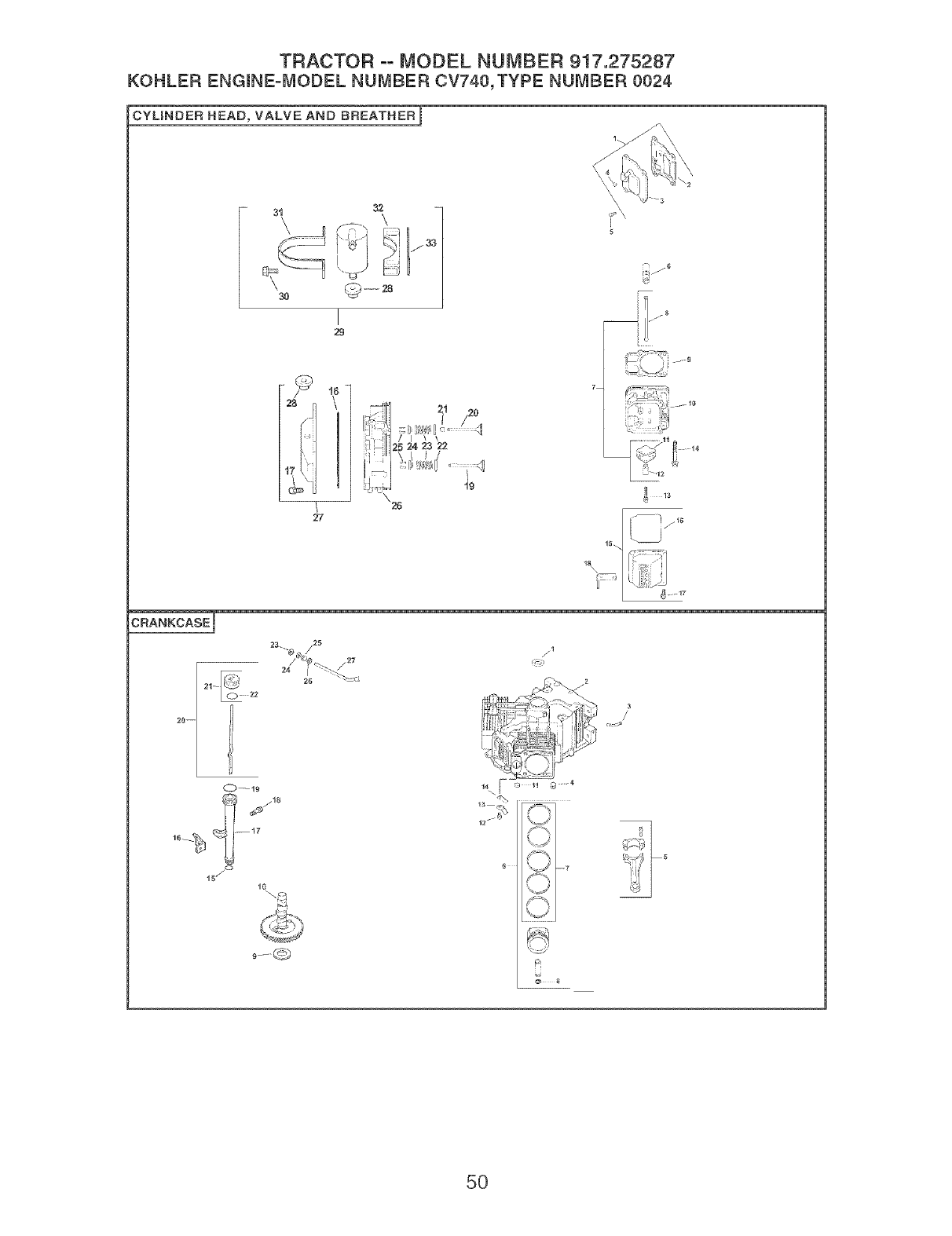

TRACTOR ooMODEL NUMBER 917.:275287

KOHLER ENGmNE-MODEL NUMBER CV740, TYPE NUMBER 0024

,_YLINDER HEAD, VALVE AND BREATHER]

28 n

M 1

'xF _ 'o

Cb--,_9

15 /

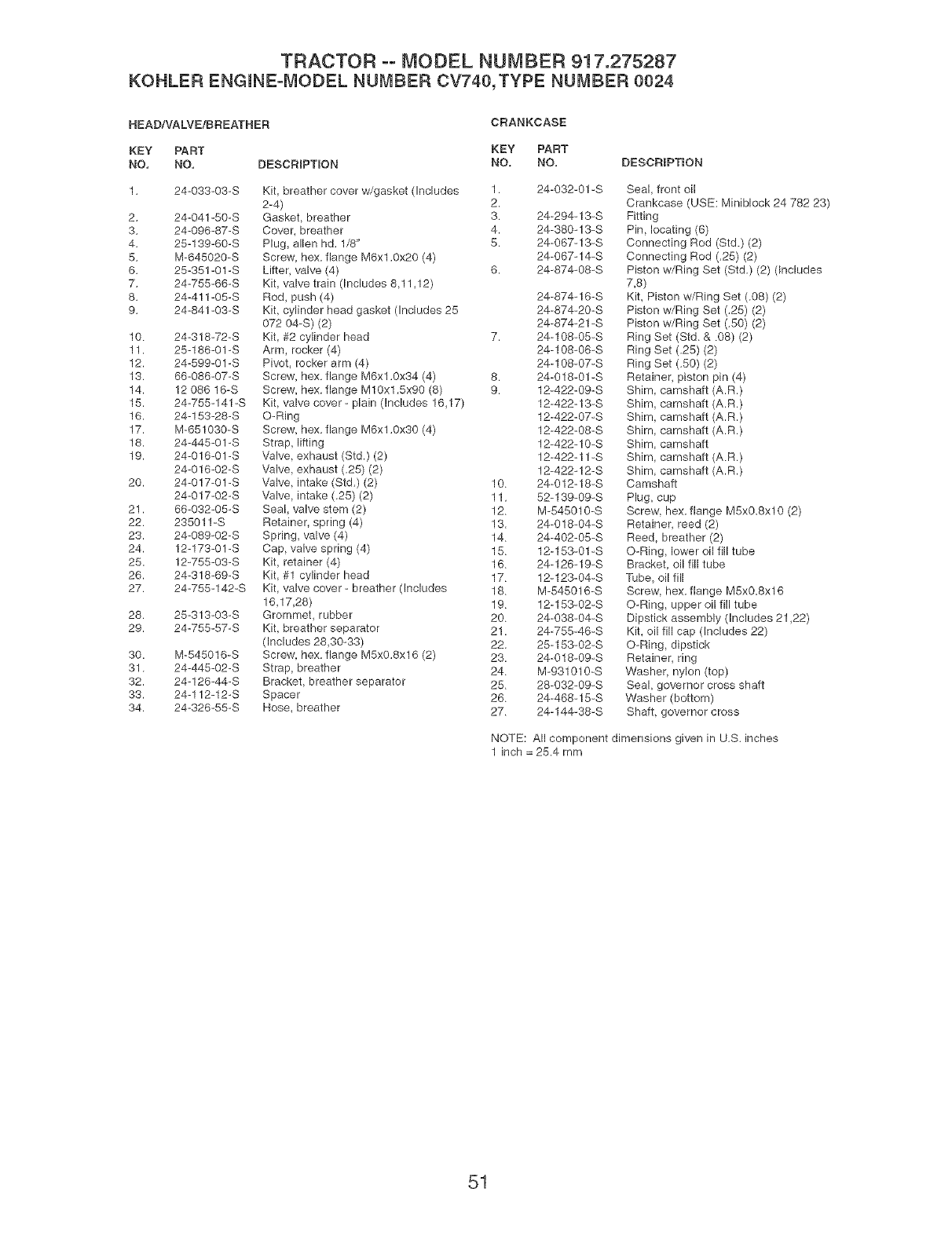

TRACTOR oo MODEL NUMBER 917.275287

KOHLER ENGmNE=MODEL NUMBER CV740,TYPE NUMBER 0024

HEAD/VALVE/BREATHER CRANKCASE

KEY PART KEY PART

NO, NO, DESCRiPTiON NO. NO. DESCRiPTiON

24-033-03-S Kit breather cover w/gasket (includes 1. 24-032-01-S

2-4) 2.

24-041-50-S Gasket, breather 3. 24-294-13-S

24-096-87-S Cover, breather 4. 24-380-13-S

25-139-60-S Plug, allen hd. 1/8" 5. 24-067-13-S

M-645020-S Screw, hex. flange M6x1.0x20 (4) 24-067-14-S

25-351-01-S Lifter, valve (4) 6. 24-874-08-S

24-755-66-S Kit valve train (Includes 8,11,12)

24-411-05-S Rod, push (4) 24-874-16-S

24-841-03-S Kit, cylinder head gasket (includes 25 24-874-20-S

072 04-S) (2) 24-874-21-S

24-318-72-S Kit #2 cylinder head 7. 24-108-05-S

25-186-01-S Arm, rocker (4) 24-108-06-S

24-599-01-S Pivot, rocker arm (4) 24-108-07-S

66-086-07-S Screw, hex. flange M6x1.0x34 (4) 8. 24-018-01-S

12 086 16-S Screw, hex. flange M10x1.5x90 (8) 9. 12-422-09-S

24-755-141-S Kit, valve cover - plain (Includes 16,17) 12-422-13-S

24-153-28-S O-Ring 12-422-07-S

M-651030-S Screw, hex. flange M6x1.0x30 (4) 12-422-08-S

24-445-01-S Strap, lifting 12-422-10-S

24-016-01-S dalve, exhaust (Std.) (2) 12-422-11-S

24-016-02-S Valve, exhaust (.25) (2) 12-422-12-S

24-017-01-S Valve, intake (Std.) (2) 10. 24-012-18-S

24-017-02-S Valve, intake (.25) (2) 11. 52-139-09-S

68-032-05-S Seal, valve stem (2) 12. M-545010-S

235011-S Retainer, spring (4) 13. 24-018-04-S

24-089-02-S Spring, valve (4) 14. 24-402-05-S

12-173-01-S Cap, valve spring (4) 15. 12-153-01-S

12-755-03-S Kit retainer (4) 16. 24-126-19-S

24-318-69-S Kit, #1 cylinder head 17. 12-123-04-S

24-755-142-S Kit, valve cover- breather (Includes 18. M-545016-S

16,17,28) 19. 12-153-02-S

25-313-03-S Grommet, rubber 20. 24-038-04-S

24-755-57-S Kit, breather separator 21. 24-755-46-S

(Includes 28,80-38) 22. 25-153-02-S

M-545016-S Screw, hex. flange M5x0.8x16 (2) 23. 24-018-09-S

24-445-02-S Strap, breather 24. M-931010-S

24-126-44-S Bracket, breather separator 25. 28-032-09-S

24-112-12-S Spacer 26. 24-468-15-S

24-326-55-S Hose, breather 27. 24-144-38-S

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

NOTE: All component

1 inch = 25.4 mm

Seal, front oil

Crankcase (USE: Miniblock 24 782 23)

Pitting

Pin, locating (6)

Connecting Rod (Std.) (2)

Connecting Rod (.25) (2)

Piston w/Ring Set (Std.) (2) (Includes

7,8)

Kit, Piston w/Ring Set (.08) (2)

Piston w/Ring Set 025) (2)

Piston w/Ring Set 050) (2)

Ring Set (Std. & .08) (2)

Ring Set (.25) (2)

Ring Set (.50) (2)

Retainer, piston pin (4)

Shim, camshaft (A.R.)

Shim, camshaft

Shim, camshaft (A.R.)

Camshaft

Plug, cup

Screw, hex. flange MSx0.8xl0 (2)

Retainer, reed (2)

Reed, breather (2)

O-Ring, lower oil fill tube

Bracket, oil fill tube

Tube, oil fill

Screw, hex. flange MSx0.8x16

O-Ring, upper oil fill tube

Dipstick assembly (Includes 21,22)

Kit, oil fill cap (Includes 22)

O-Ring, dipstick

Retainer, ring

Washer, nylon (top)

Seal, governor cross shaft

Washer (bottom)

Shaft, governor cross

dimensions given in U.S. inches

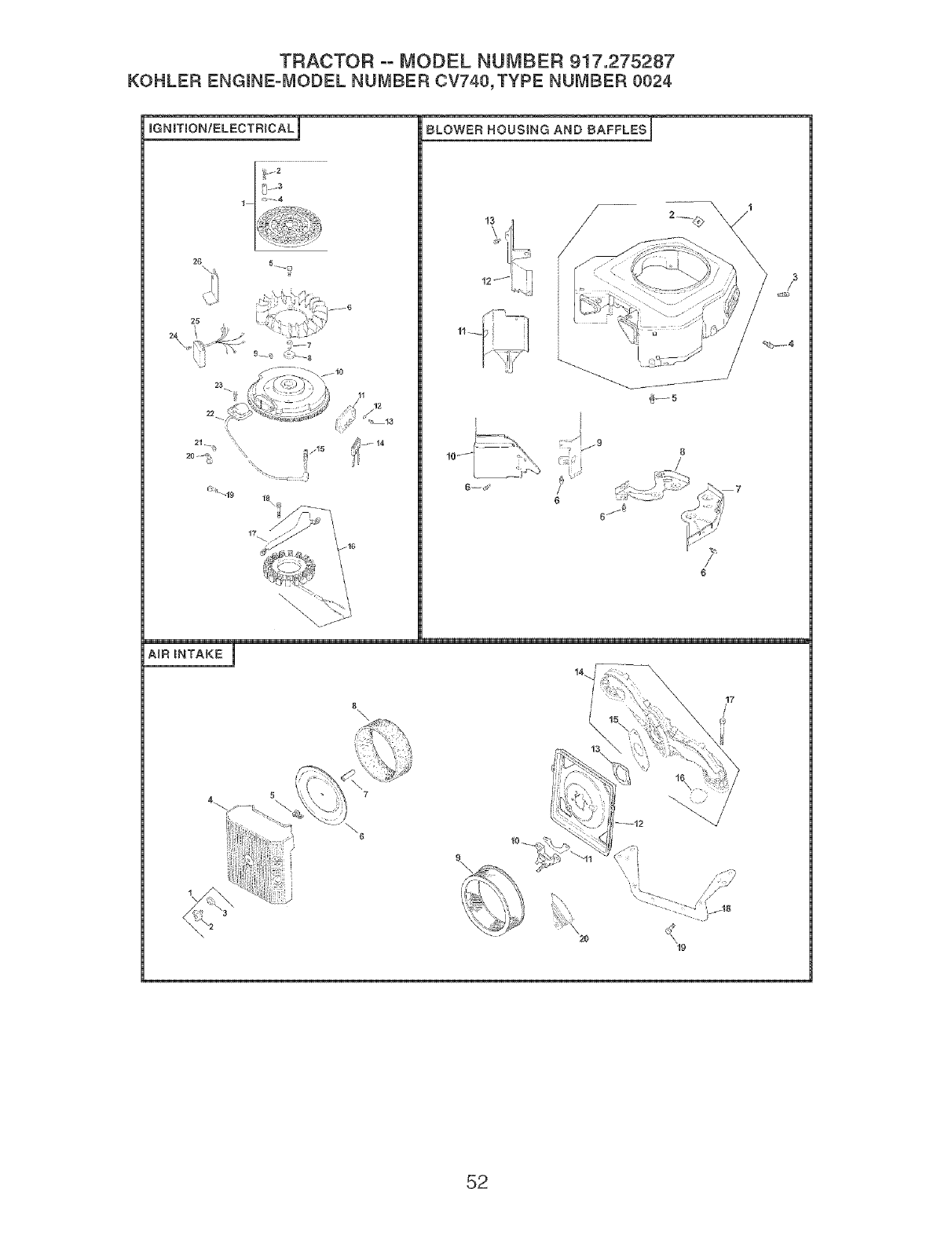

TRACTOR ooMODEL NUMBER 917.:275287

KOHLER ENGmNE=MODEL NUMBER CV740, TYPE NUMBER 0024

mGNmON/ELECTRICAL 1

\\\\ I

A_R iNTAKE J

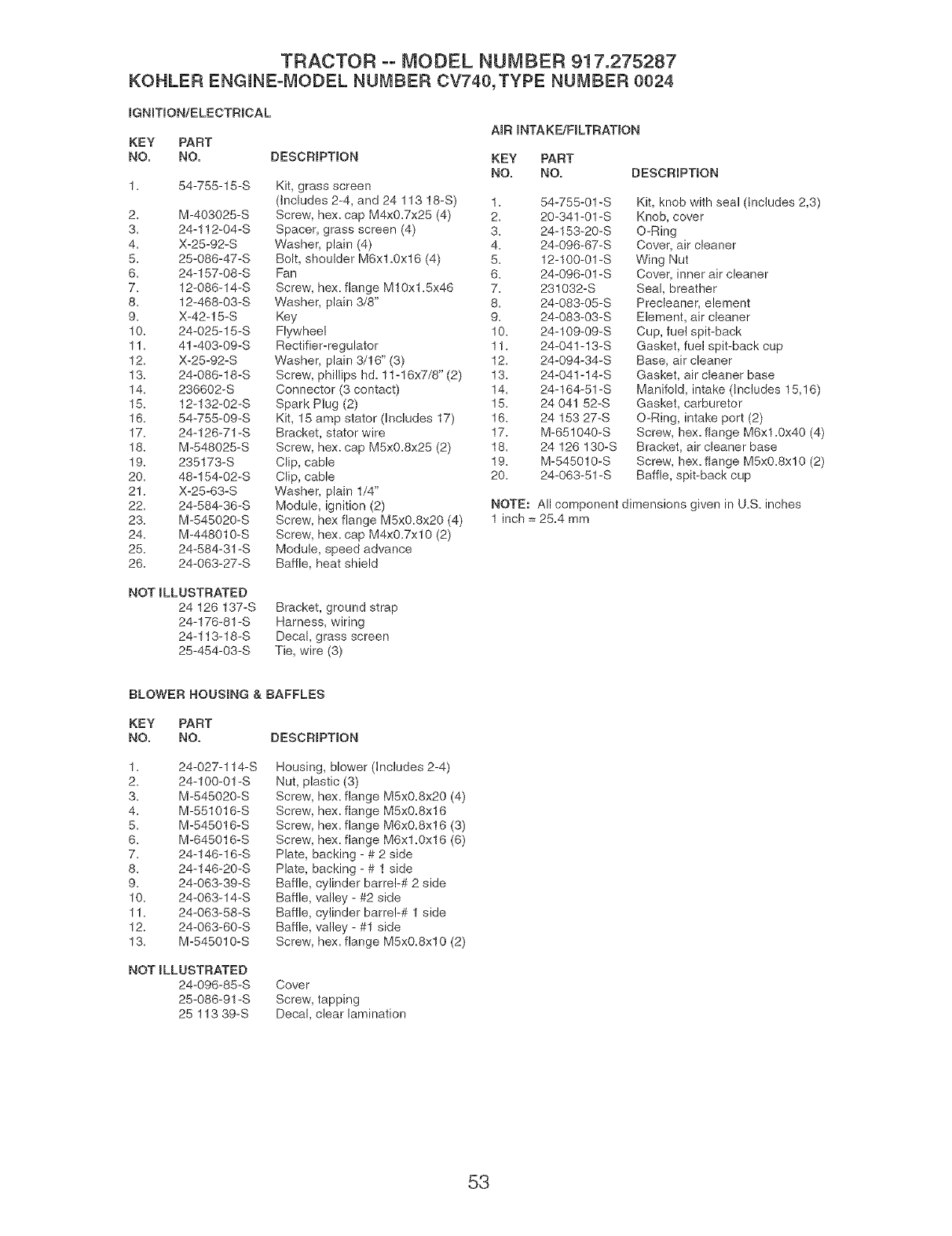

TRACTOR ooMODEL NUMBER 917.275287

KOHLERENGmNE=IVIODELNUMBERCV740,TYPE NUMBER0024

IGNITION/ELECTRICAL

KEY PART

NO. NO. DESCRiPTiON

AIR INTAKEIFILTRATmON

KEY PART

NO. NO.

1. 54-755-15-S Kit, grass screen

(Includes 2-4, and 24 113 18-S) 1.

2. M-403025-S Screw, hex. cap M4x0.7x25 (4) 2.

3. 24-112-04-S Spacer, grass screen (4) 3.

4. X-25-92-S Washer, plain (4) 4.

5. 25-086-47-S Bolt, shoulder M6x1.0x16 {4} 5.

6. 24-157-08-S Fan 6.

7. 12_086-14-S Screw, hex. flange M10x1.5x46 7.

8. 12_468-03-S Washer, plain 3/8" 8.

9. X-42-15-S Key 9.

10. 24-025-15-S Flywheel 10.

11. 41-403-09-S Rectifier-regulator 11.

12. X-25-92-S Washer, p_ain 3/16" (3) 12.

13. 24-086-18-S Screw, phillips hal. 11-16x7/8" (2) 13.

14. 236602-S Connector (3 contact) 14.

15. 12-132-02-S Spark Plug (2) 15.

16. 54-755-09-S Kit, 15 amp stator (Includes 17) 16.

17. 24-126-71-S Bracket, stator wire 17.

18. M-548025-S Screw, hex. cap M5x0.8x25 (2) 18.

19. 235173-S Clip, cable 19.

20. 48-154-02-S Clip, cable 20.

21. X-25-63-S Washer, plain 1/4"

22. 24-584-36-S Module, ignition (2)

23. M-545020-S Screw, hex flange M5x0.Sx20 (4}

24. M-448010-S Screw, hex. cap M4x0.7xl0 (2)

25. 24-584-31-S Module, speed advance

26. 24-063-27-S Baffle, heat shield

DESCRmPTmON

54-755-01-S

20-341-01 -S

24-153-20-S

24-096-67-S

12-100-01-S

24-096-01 -S

231032-S

24-083-05-S

24-083-03-S

24-109-09-S

24-04! -13-S

24-094-34-S

24-041-14-S

24-164-51-S

24 041 52-S

24 153 27-S

M°65104O-S

24 126 130-S

M-545010-S

24-063-51-S

Kit, knob with seal (Includes 2,3)

Knob, cover

O-Ring

Cover, air cleaner

Wing Nut

Cover, inner air cleaner

Seal, breather

Precbaner, element

E_ement, air cleaner

Cup, fuel spit-back

Gasket, fuel spit-back cup

Base, air cleaner

Gasket, air cleaner base

Manifold, intake (Includes 15,16)

Gasket, carburetor

O-Ring, intake port (2}

Screw, hex. flange M6xl .Ox40 (4)

Bracket, air cleaner base

Screw, hex. flange M5x0.8x!0 (2)

Baffle, spit-back cup

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

NOT ILLUSTRATED

24 126 137-S

24-176-81-S

24-113-18-S

25-454-03-S

Bracket, ground strap

Harness, wiring

Decal, grass screen

Tie, wire (3)

BLOWER HOUSING & BAFFLES

KEY PART

NO. NO. DESCRiPTiON

1. 24-027-114-S

2. 24-100-01-S

3. M-545020-S

4. M-551016-S

5. M-545016-S

6. M-645016-S

7. 24-146-16-S

8. 24-146-20-S

9. 24-063-39-S

10. 24-063-14-S

11. 24-063-58-S

12. 24-063-60-S

13. M-545010-S

Housing, blower (Includes 2-4)

Nut, plastic (3)

Screw, hex. flange M5x0.8x20 (4)

Screw, hex. flange M5x0.8x16

Screw, hex. flange M6x0.Sx16 (3}

Screw, hex. flange M6xl.0x16 (6)

Plate, backing - # 2 side

Plate, backing - # 1 side

Baffle, cylinder barrel-# 2 side

Baffle, valley - #2 side

Baffle, cylinder barrel-# 1 side

Baffle, valley - #1 side

Screw, hex. flange MSx0.8xl0 (2)

NOT ILLUSTRATED

24-096-85-S

25-086-91 _S

25 113 39-S

Cover

Screw, tapping

Decal, clear lamination

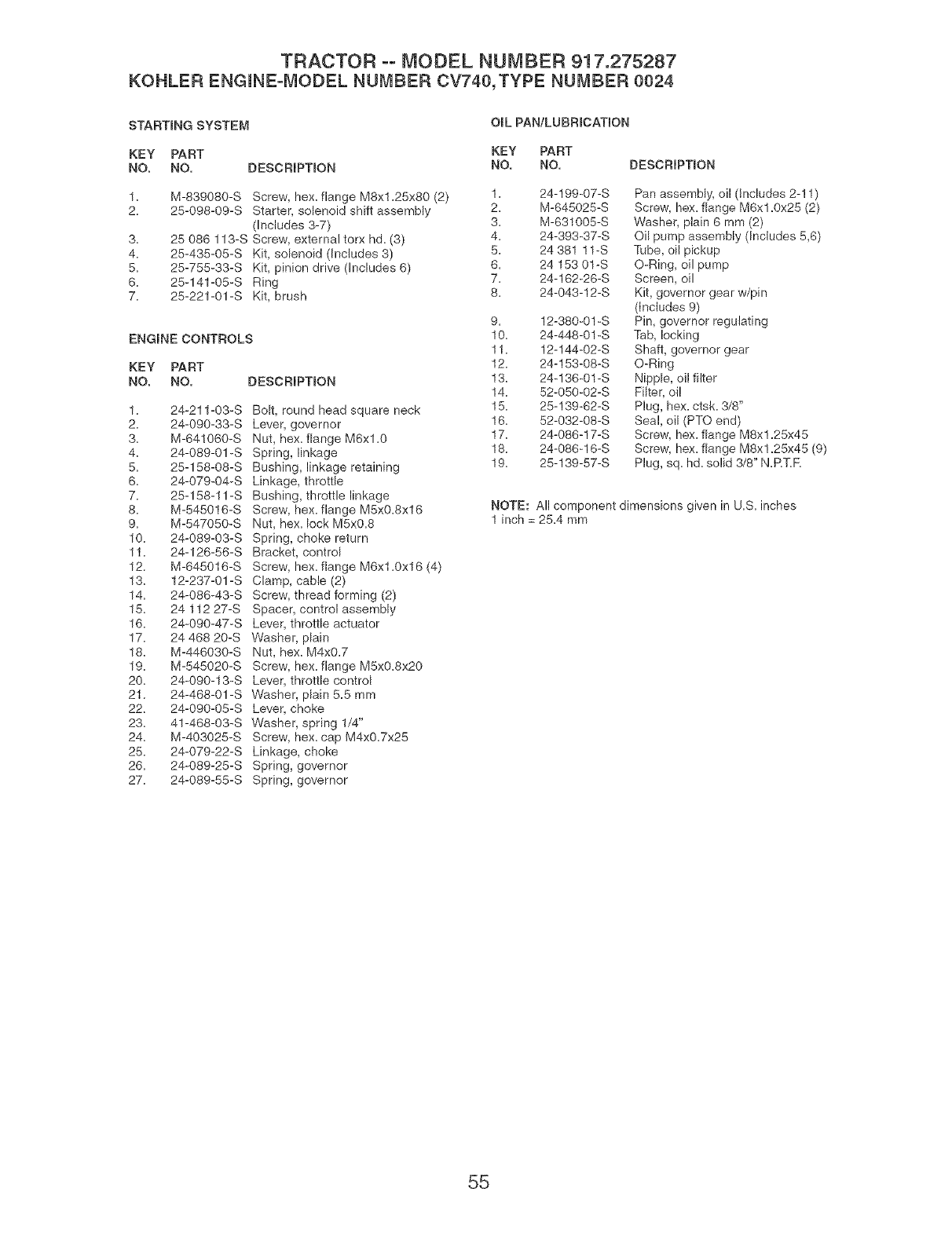

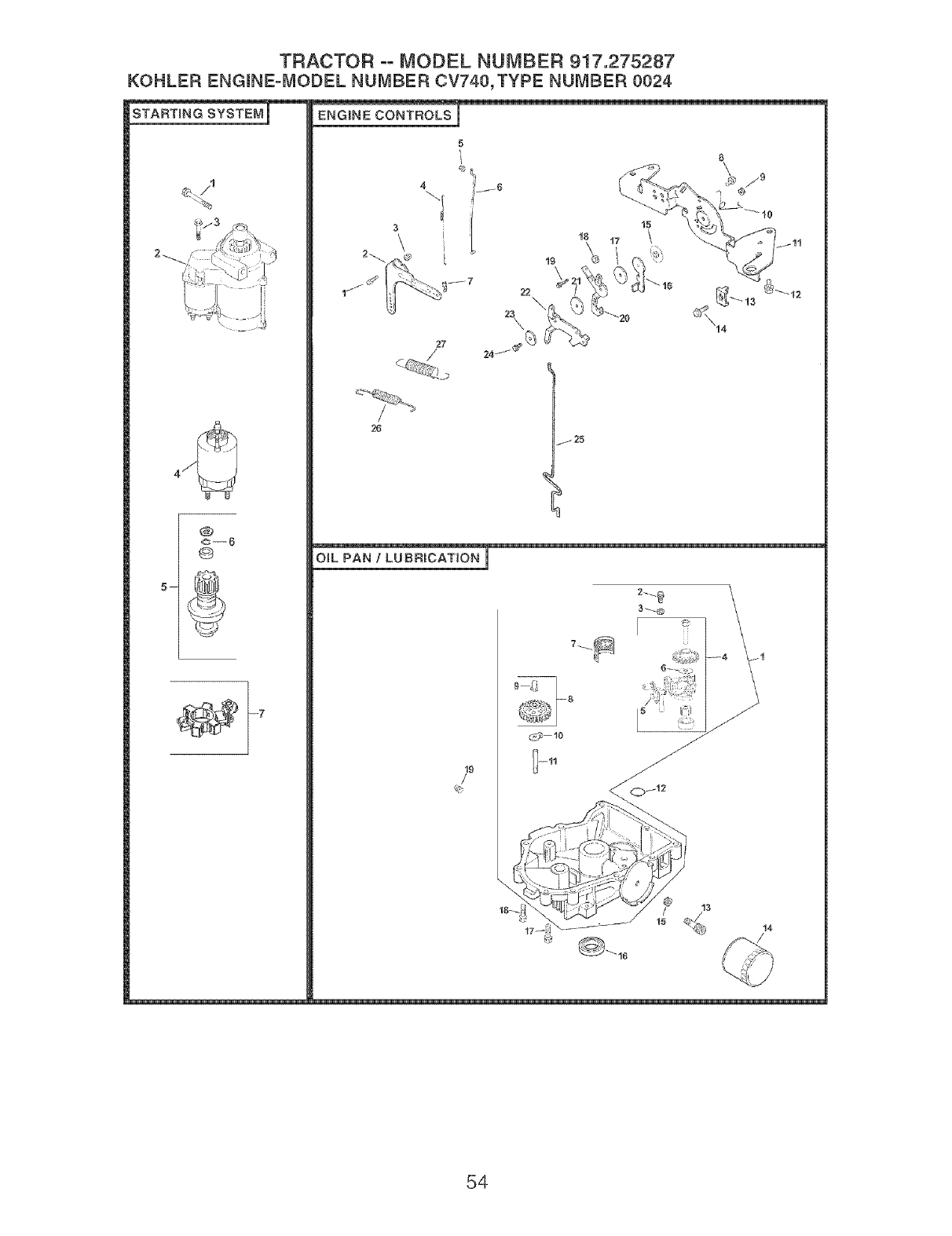

TRACTOR ooMODEL NUMBER 917.275287

KOHLERENGmNE=MODELNUMBERCV740,TYPE NUMBER0024

STARTmNG SYSTEM OIL PAN/LUBRICATmON

KEY PART KEY PART

NO. NO. DESCRmPTmON NO. NO. DESCRmPTION

M-839080-S Screw, hex. flange M8x1.25xS0 (2)

25-098-09-S Starter, solenoid shift assembly

(Includes 3-7)

25 086 113-S Screw, external torx hd. (3)

25-435-05-S Kit, solenoid (Includes 3)

25-755-33-S Kit, pinion drive dncludes 6)

25-141-05-S Ring

25-221-01-S Kit, brush

ENGmNE CONTROLS

DESCRmPTmON

KEY PART

NO. NO.

24-21 !-03-S

24-090-33-S

M-641060-S

24-089-01 -S

25-158-08-S

24-079-04-S

25-158-11 -S

M-545016-S

M-547050-S

24-089-03-S

24-126-56-S

M-645016-S

12-237-01-S

24-086-43-S

24 112 27-S

24-090-47-S

24 468 20-S

M-446030-S

M-545020-S

24-090-13-S

24-468-01 -S

24-090-05-S

41-468-03-S

M-403025-S

24-079-22-S

24-089-25-S

24-089-55-S

Bolt, round head square neck

Lever, governor

Nut, hex. flange M6xl.0

Spring, linkage

Bushing, linkage retaining

Linkage, throttle

Bushing, throttle linkage

Screw, hex. flange M5x0.8x16

Nut, hex. lock M5x0.8

Spring, choke return

Bracket, control

Screw, hex. flange M6x1.0x16 (4)

Clamp, cable (2)

Screw, thread forming (2)

Spacer, control assembly

Lever, throttle actuator

Washer, plain

Nut, hex. M4x0.7

Screw, hex. flange M5x0.8x20

Lever, throttle control

Washer, plain 5.5 mm

Lever, choke

Washer, spring !/4"

Screw, hex. cap M4x0.7x25

Linkage, choke

Spring, governor

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

1. 24-199-07-S Pan assembly, oil (Includes 2-! 1)

2. M-645025-S Screw, hex. flange M6x1.0x25 (2)

3. M-631005-S Washer, plain 6 mm (2)

4. 24-393-37-S Oil pump assembly (Includes 5,6)

5. 24 381 ! 1-S Tube, oil pickup

6. 24 153 Ol-S O-Ring, oil pump

7. 24-162-26-S Screen, oil

8. 24-043-12-S Kit, governor gear w/pin

(Includes 9)

9. 12-380-01-S Pin, governor regulating

10. 24-448-01-S Tab, locking

11. 12-144-02-S Shaft, governor gear

12. 24-153-08-S O-Ring

13. 24q 36-01-S Nipple, oil filter

14. 52-050-02-S Filter, oi!

15. 25-! 39_62-S Plug, hex. ctsk. 3/8"

16. 52-032-08-S Seal, oil (PTO end)

17. 24-086-! 7-S Screw, hex. flange M8x! .25x45

18. 24-086-16-S Screw, hex. flange M8x1.25x45 (9)

19. 25-139-57-S Plug, sq. hd. solid 3/8" N.RT.R

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

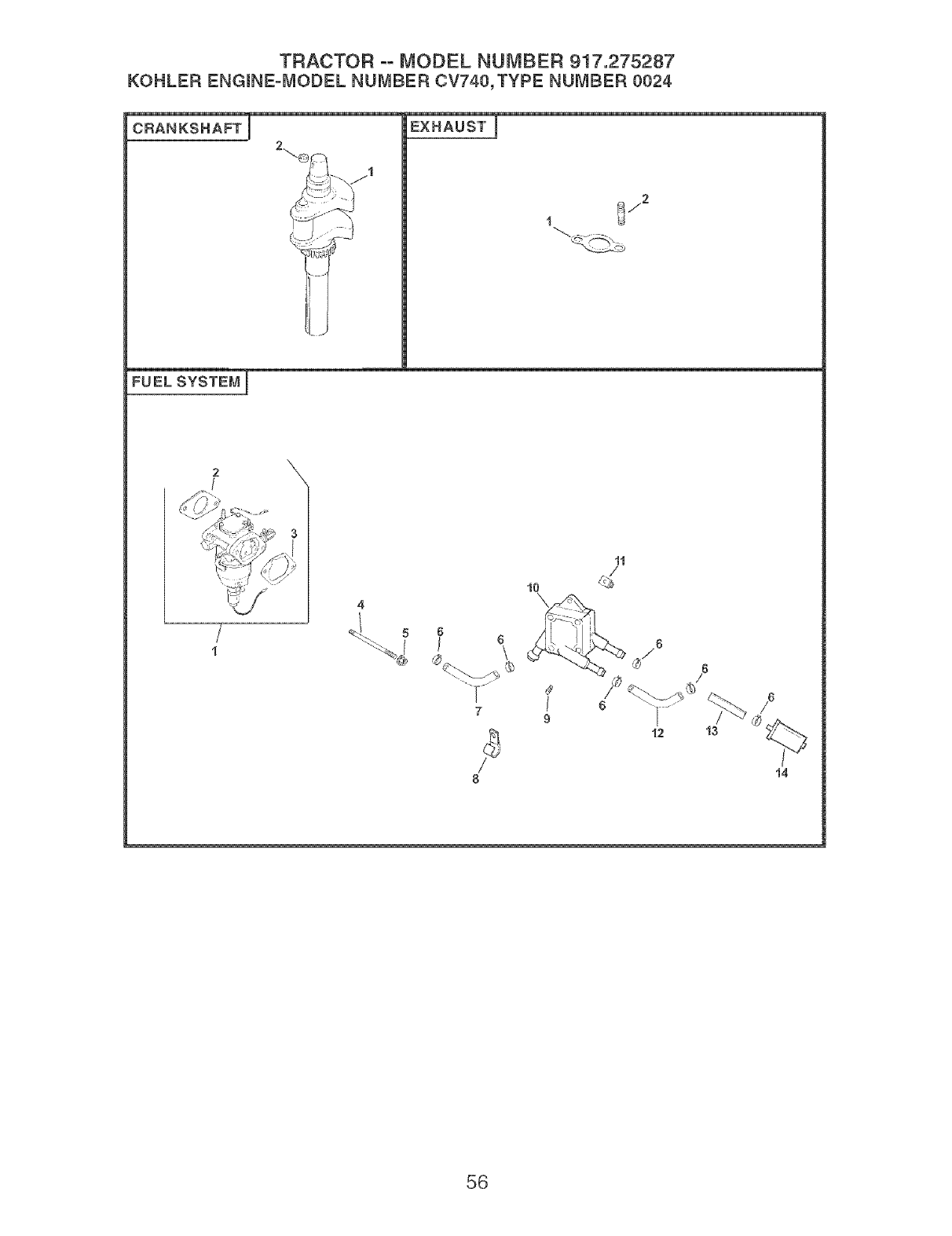

TRACTOR ooMODEL NUMBER 917.275287

KOHLER ENGINE=MODEL NUMBER CV740_ TYPE NUMBER 0024

CRANKSHAFT ] EXHAUST ]

FUEL SYSTEM l

2 \

5 6

/ 6

'o 1- J_,?

12 13

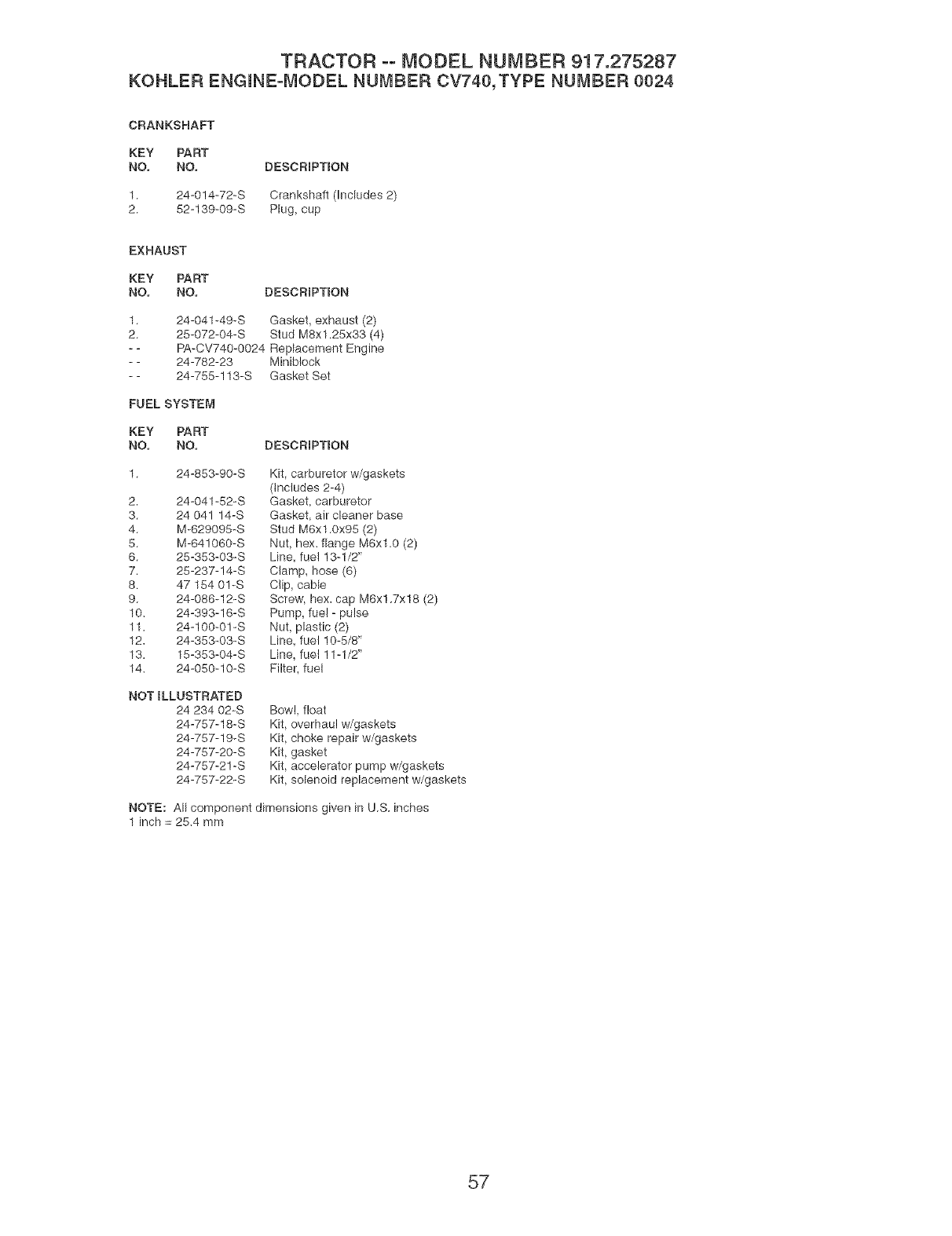

TRACTOR °o MODEL NUMBER 917.275287

KOHLER ENGmNE=MODEL NUMBER CV740,TYPE NUMBER 0024

CRANKSHAFT

KEY PART

NO. NO. DESCRIPTION

1. 24-0!4-72-S Crankshaft (h_cludes 2)

2. 52-139-09-S Plug, cup

EXHAUST

KEY PART

NO. NO. DESCRIPTION

2. 24-041-49-S Gasket, exhaust (2)

25-072-04-S Stud M8xl.25x33 (4)

PA-CV740-0024 Replacement Engine

24-782-23 Minib!ock

24-755-113-S Gasket Set

FUEL SYSTEM

KEY PART

NO. NO. DESCRIPTION

1. 24-883-90-S Kit, carburetor w/gaskets

(includes 2-4)

2. 24-041-82-S Gasket, carburetor

3. 24 041 14-S Gasket, air cleaner base

4. M-629095_S Stud M6x1.0x95 (2)

5. M-64!060-S Nut, hex. flange M6xl.0 (2)

6. 25-383-03-S Lithe, fuel 13-1/2'

7. 25-237-!4-S Clamp, hose (6)

8. 47 154 0!-S Clip, cable

9. 24-086-12-S Screw, hex. cap M6x! .7x18 (2)

10. 24-393-16-S Pump, fuel - pulse

11. 24-100-01-S Nut, plastic (2)

12. 24-383-03-S Line, fuel 10-5/8"

13. 15-383-04-S Line, fuel ! 1-1/2"

14. 24-080-10-S Filter, fuel

NOT ILLUSTRATED

24 234 02-S

24-787-18-S

24-787-19-S

24-787-20-S

24-787-2!-S

24-787-22-S

Bow!, float

Kit, overhaul w/gaskets

Kit, choke repair w/gaskets

Kit, gasket

Kit, accelerator pump w/gaskets

Kit, solenoid replacement w/gaskets

NOTE: All component dimensions given in U.S. inches

1 inch = 28.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_) ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fotd this page along dotted line indicated above.

2. Hotd page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fomd in the direction of hill emope you want to measure.

4. Compare the angle of the fo}d with the emope of the hill.

HHHHHHHHHH_

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME _ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en fran£;ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

_EAR_ 02410

® Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /TMMarca de Fabrica /SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce /MDMarque deposee de Sears, Roebuck and Co.

192083 Rev. 5 6.14.04 RDiMH Printed in U.S.A.

Craftsman 917275287 User Manual GARDEN TRACTOR Manuals And Guides L0406223

CRAFTSMAN Lawn, Tractor Manual L0406223 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
