Owner's Manual

CRRFTSMRN°

LAWN TRACTOR

18.5 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.275810

[_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

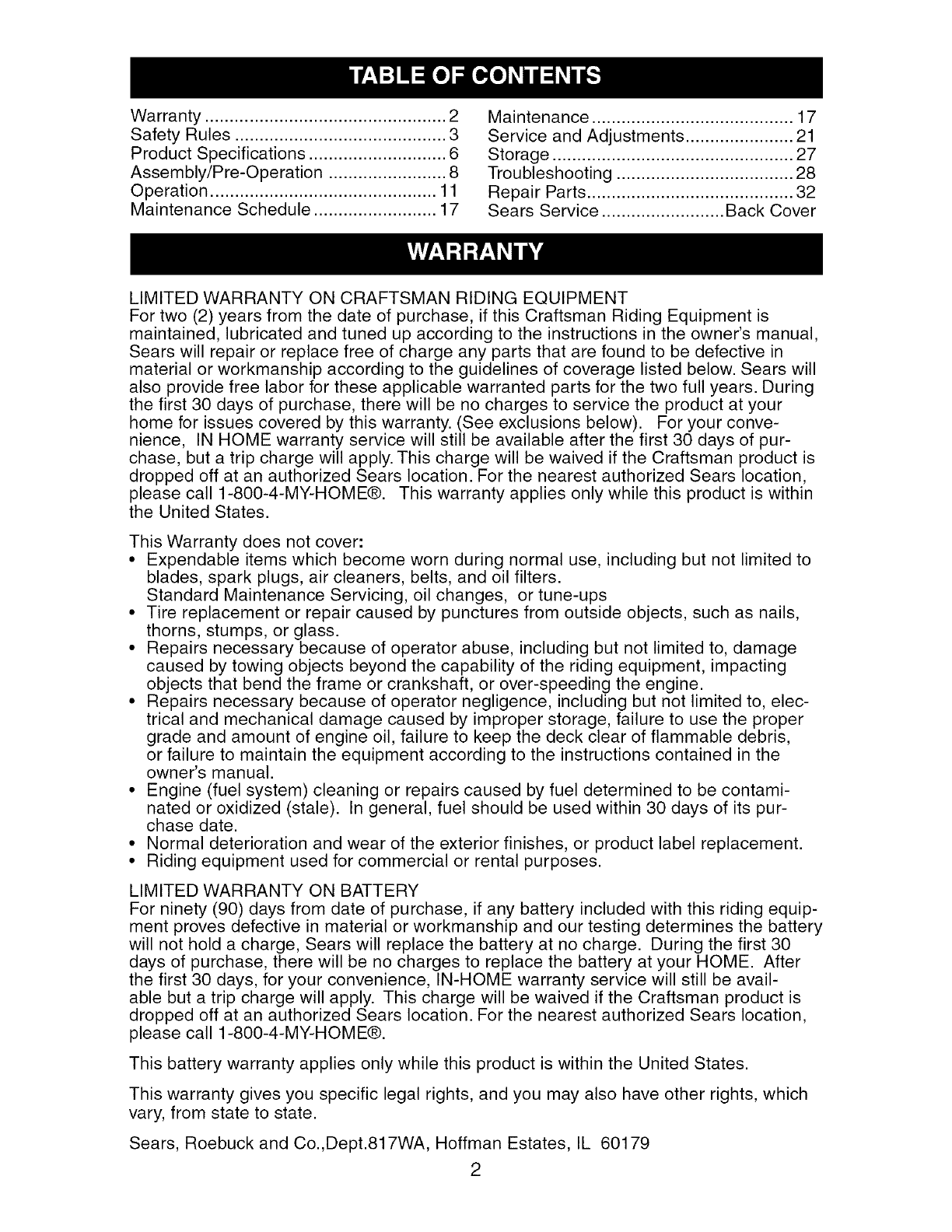

Warranty.................................................2

SafetyRules...........................................3

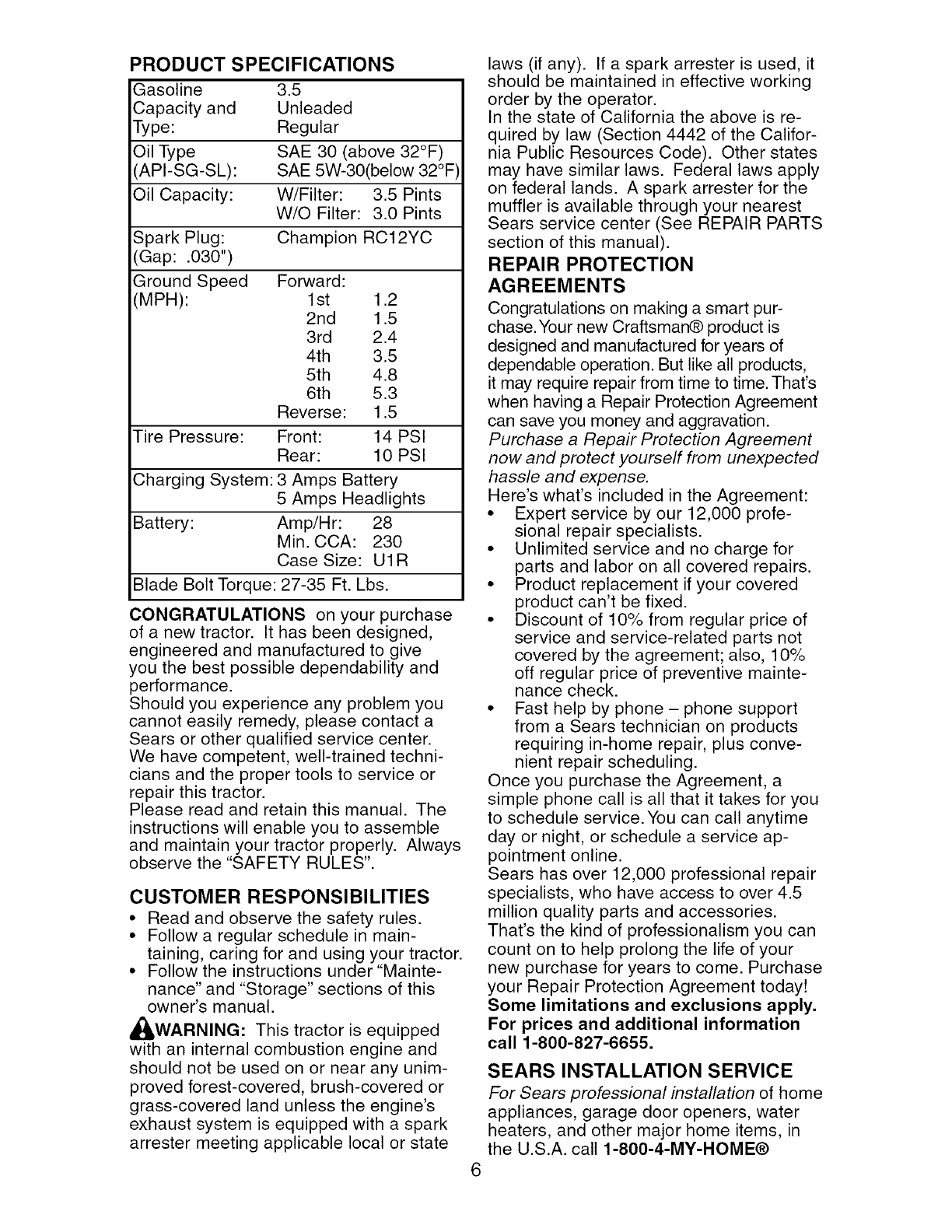

ProductSpecifications............................6

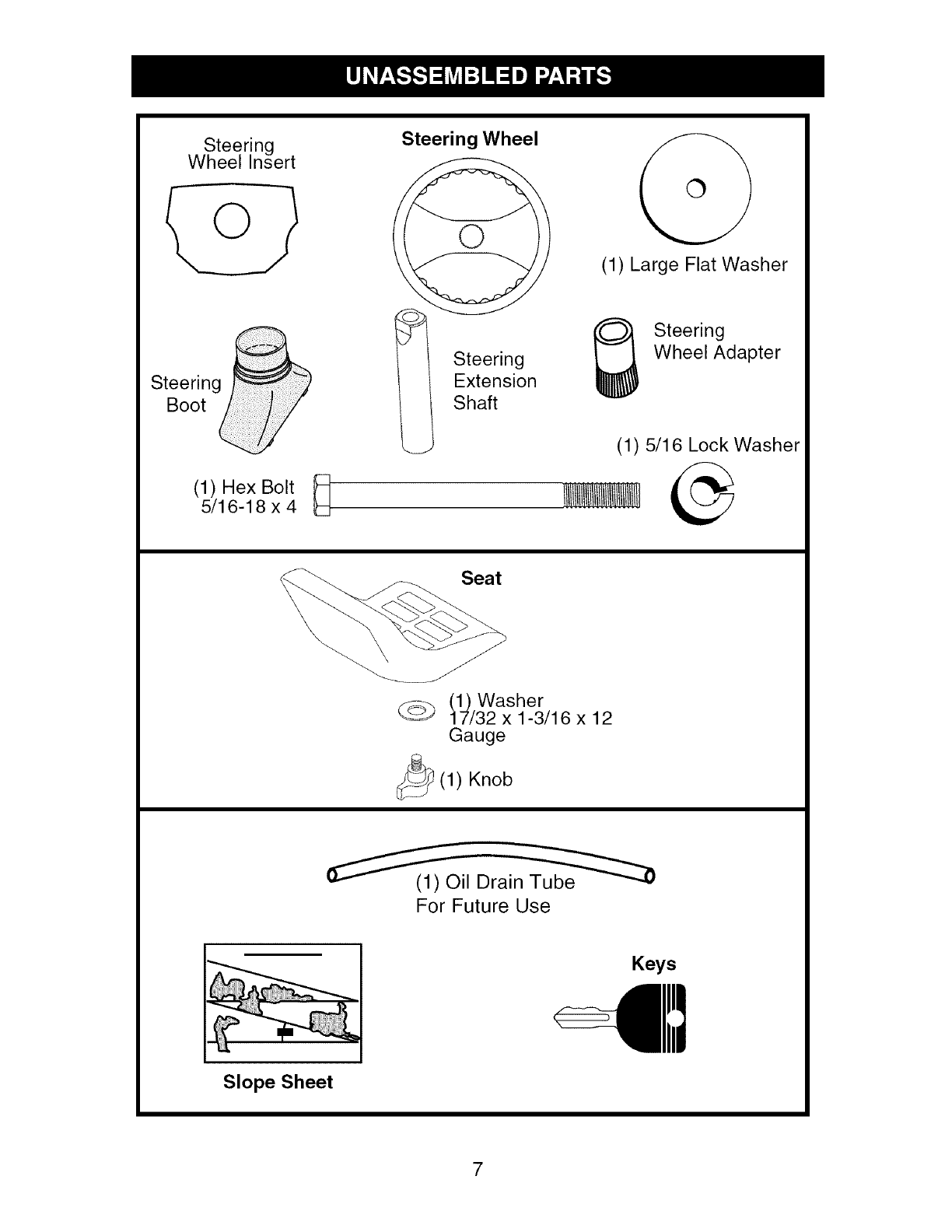

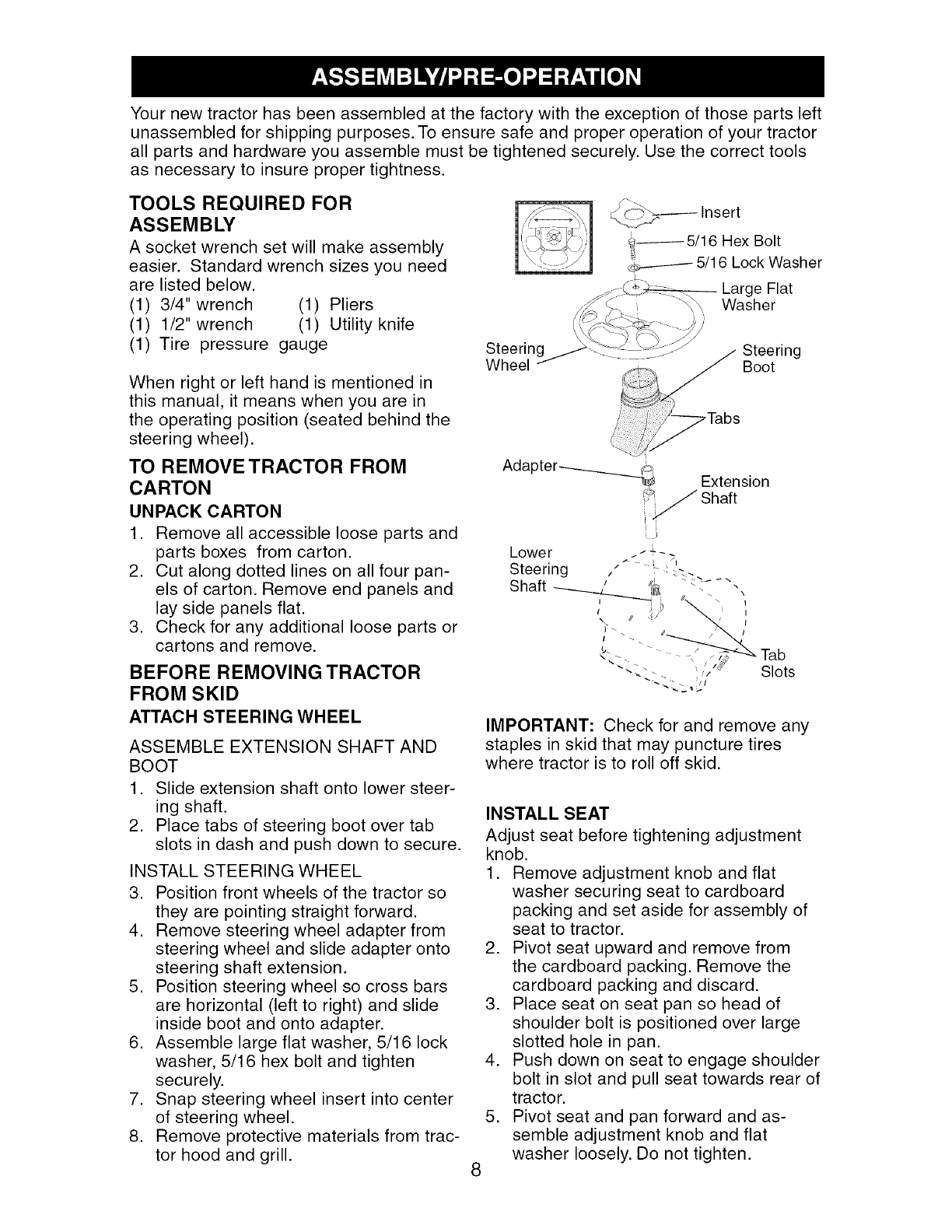

Assembly/Pre-Operation........................8

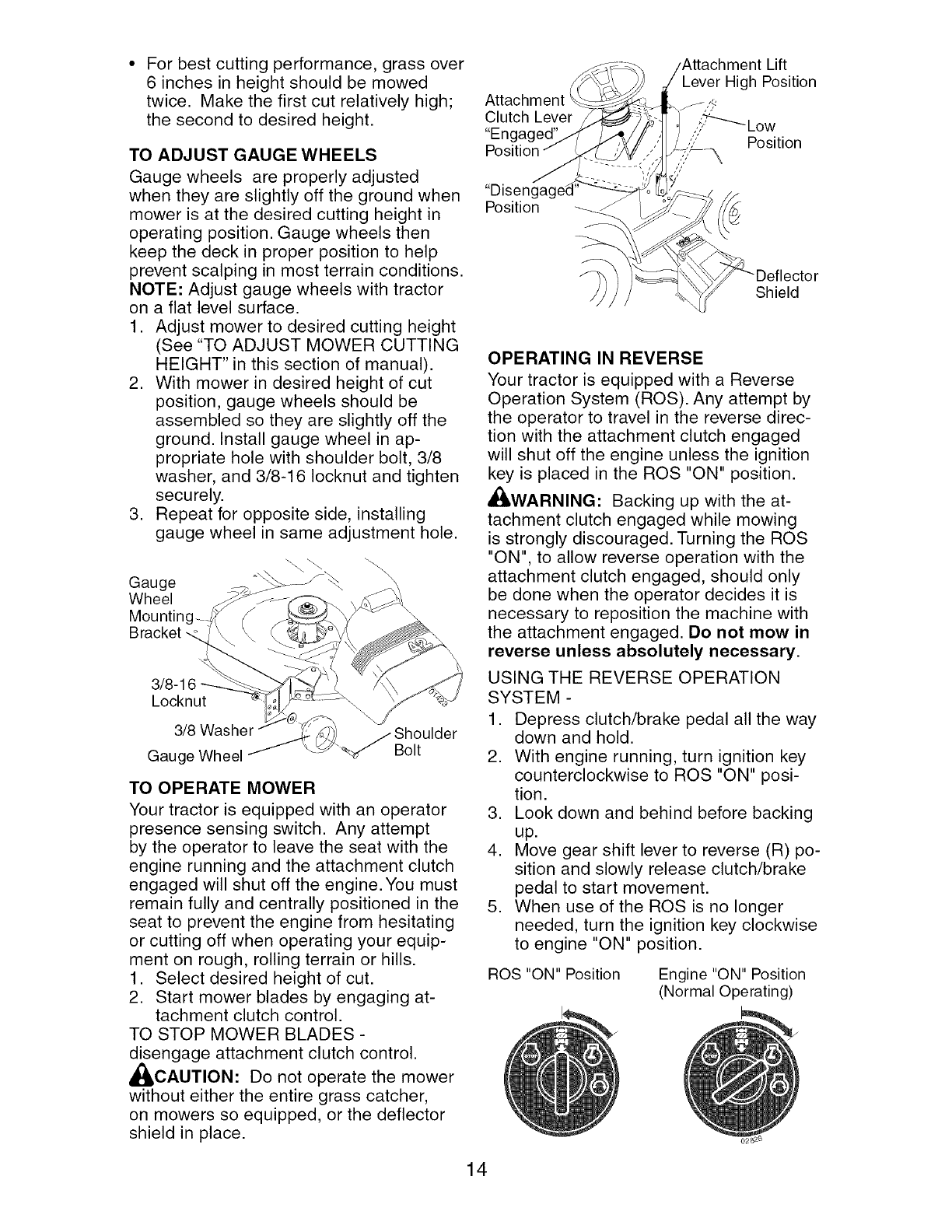

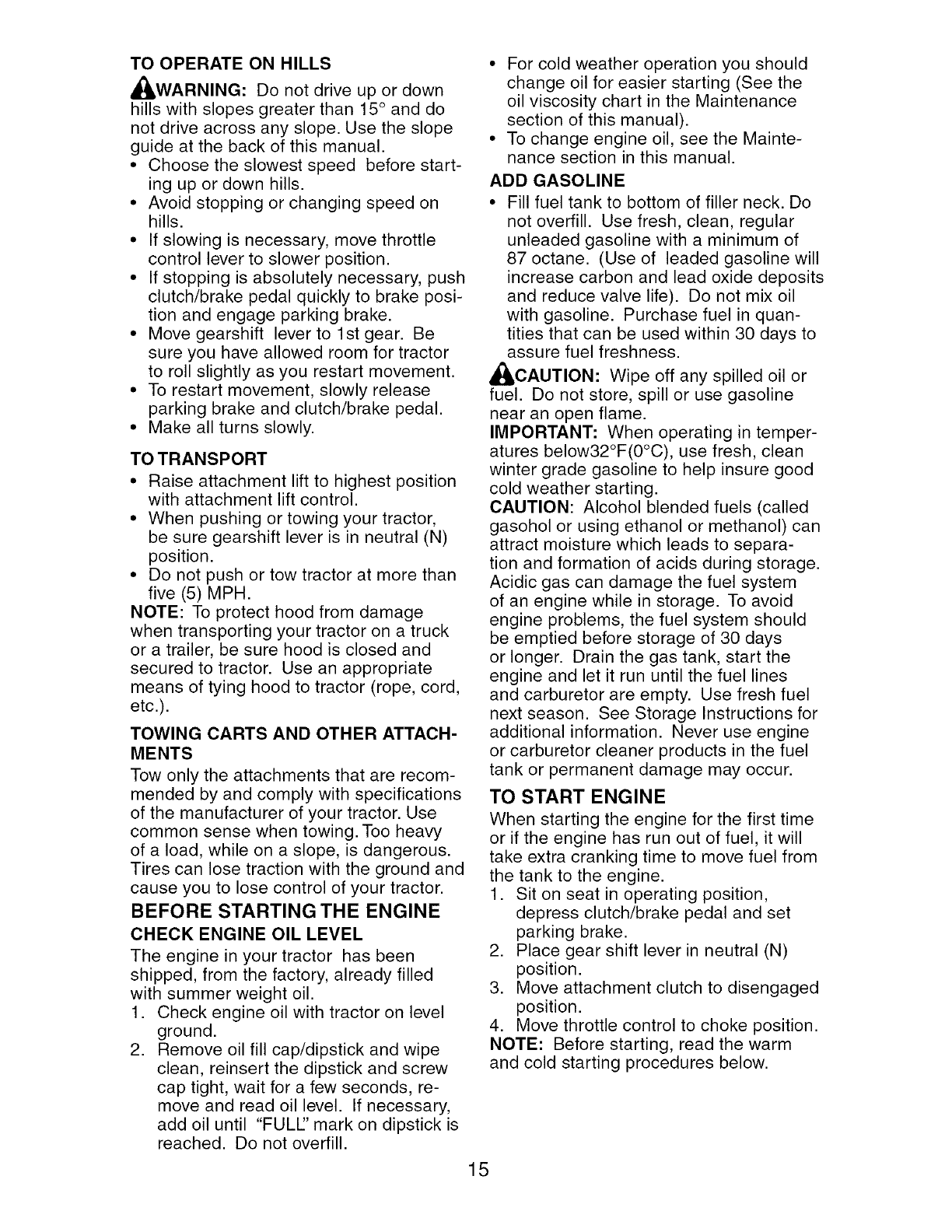

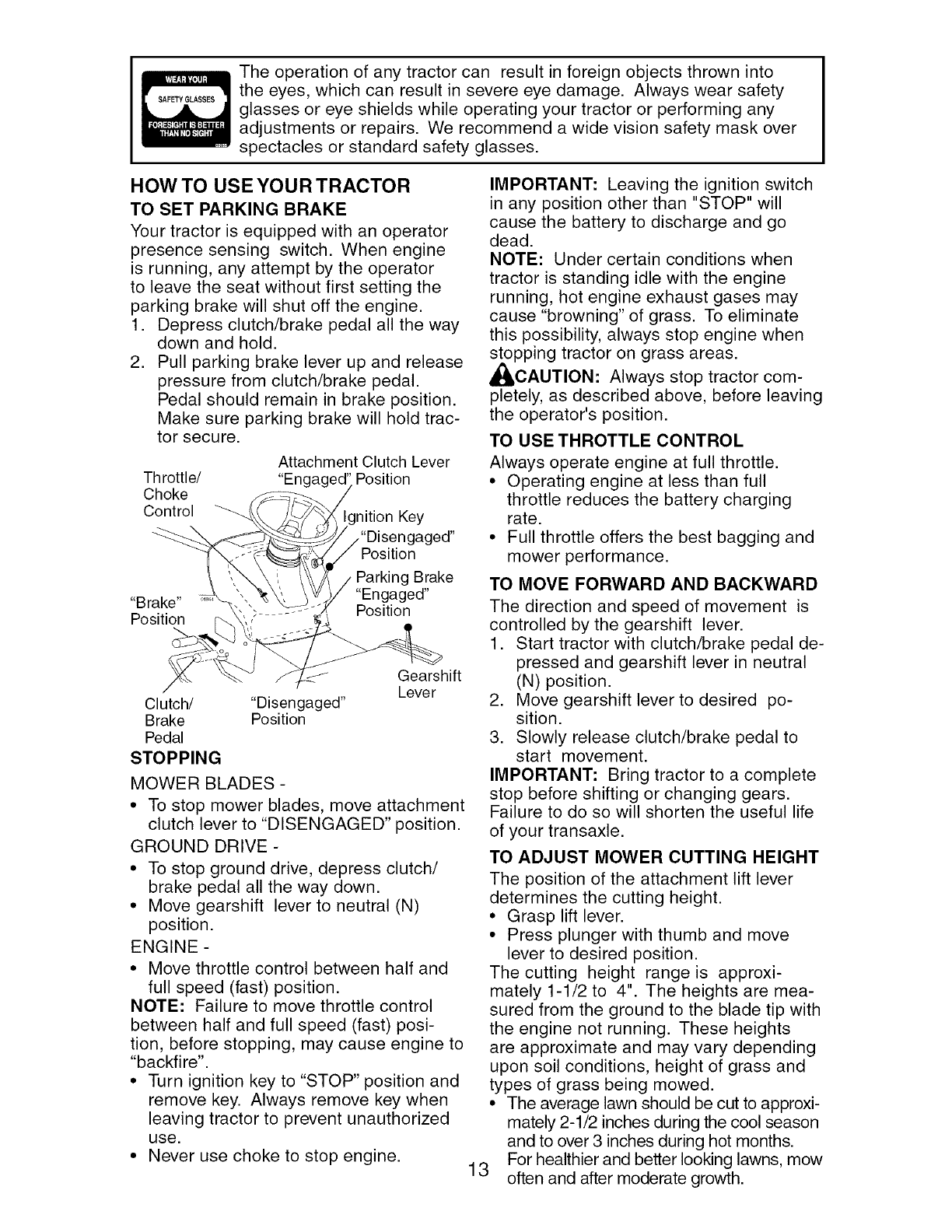

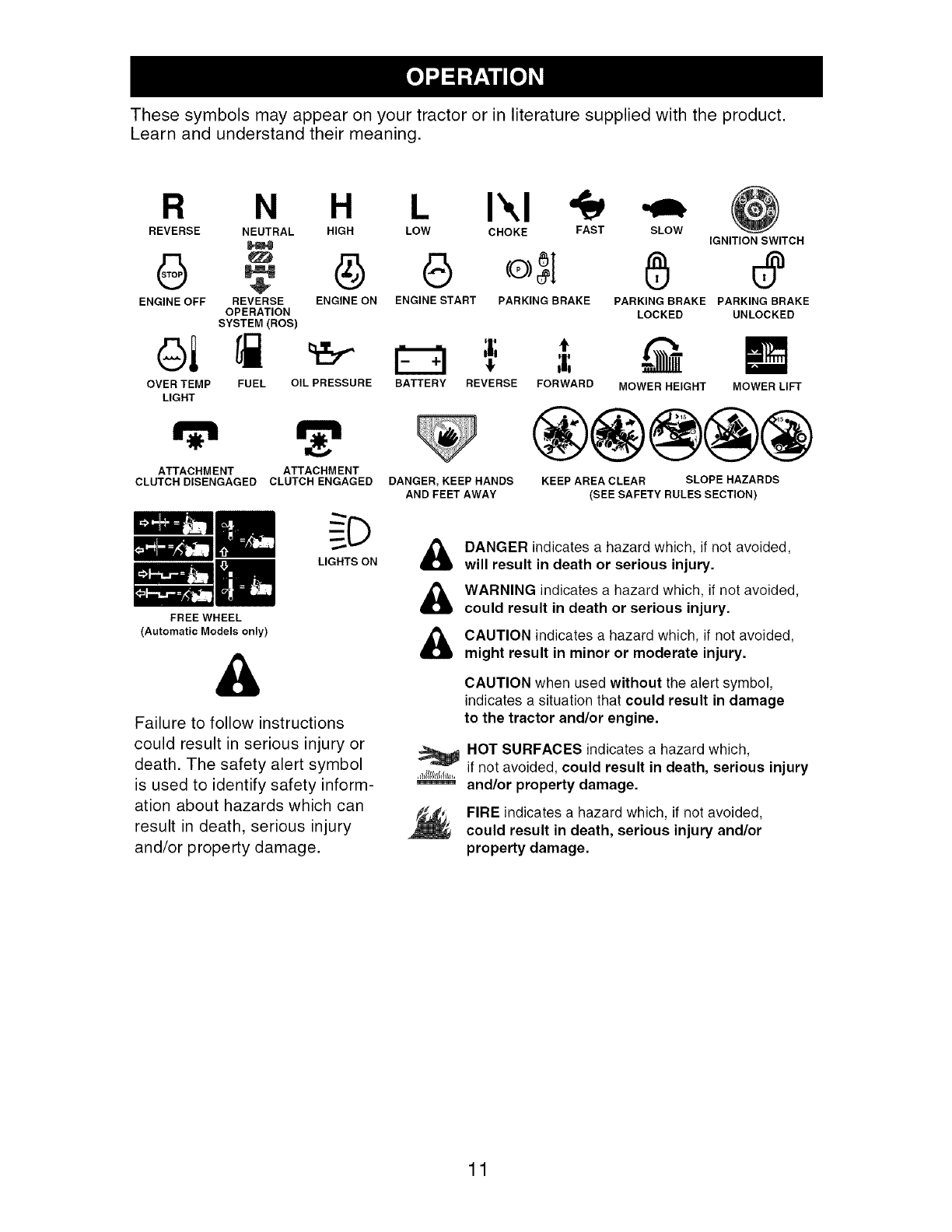

Operation..............................................11

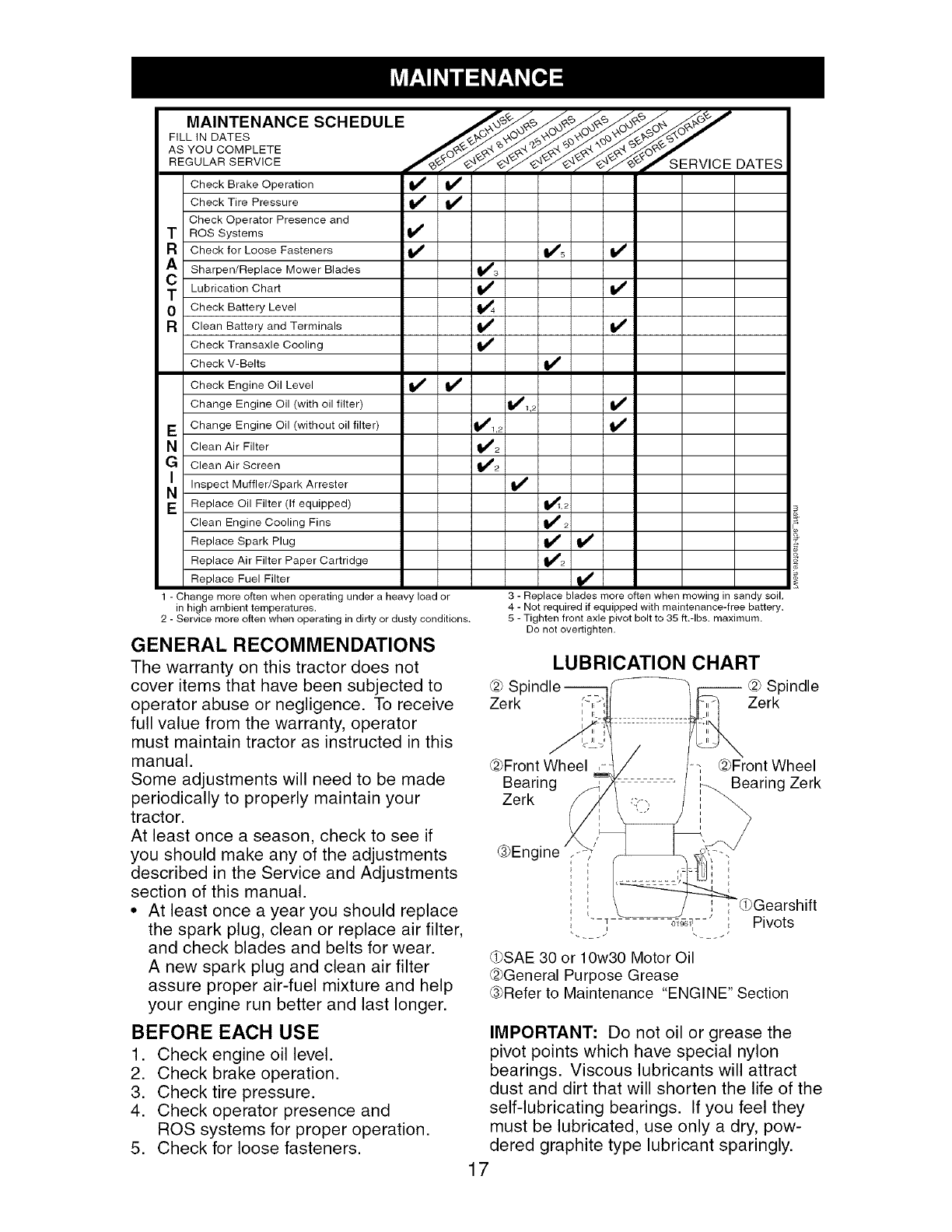

MaintenanceSchedule.........................17

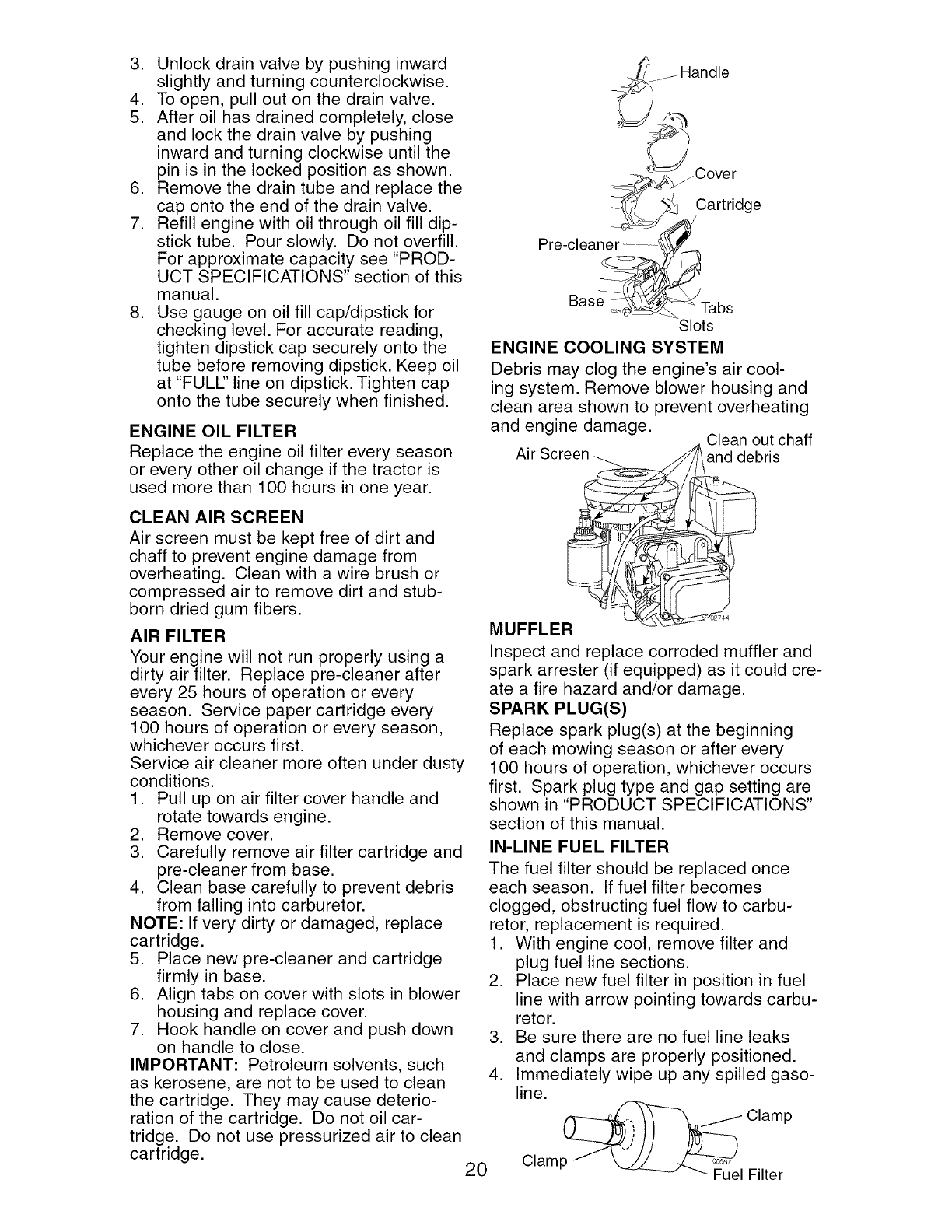

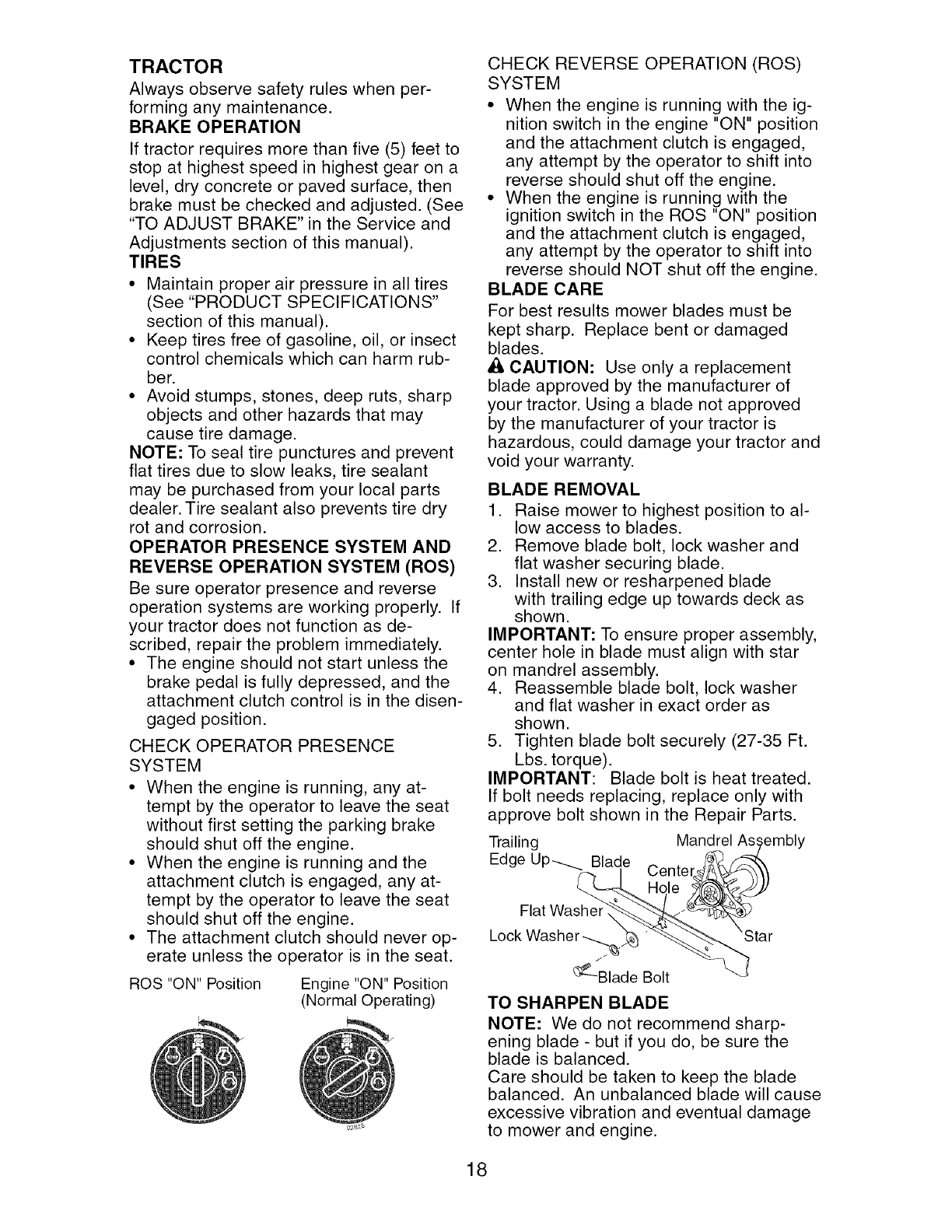

Maintenance.........................................17

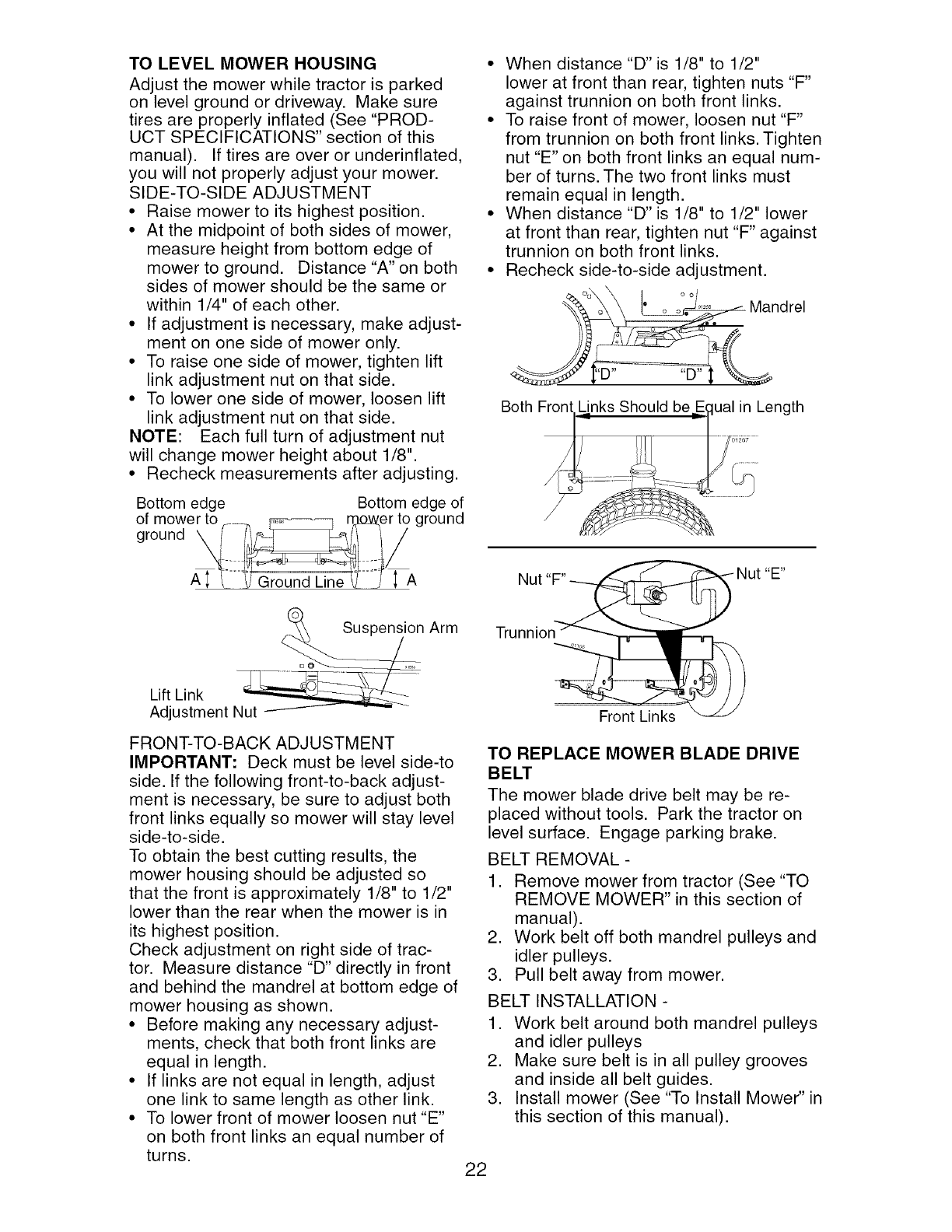

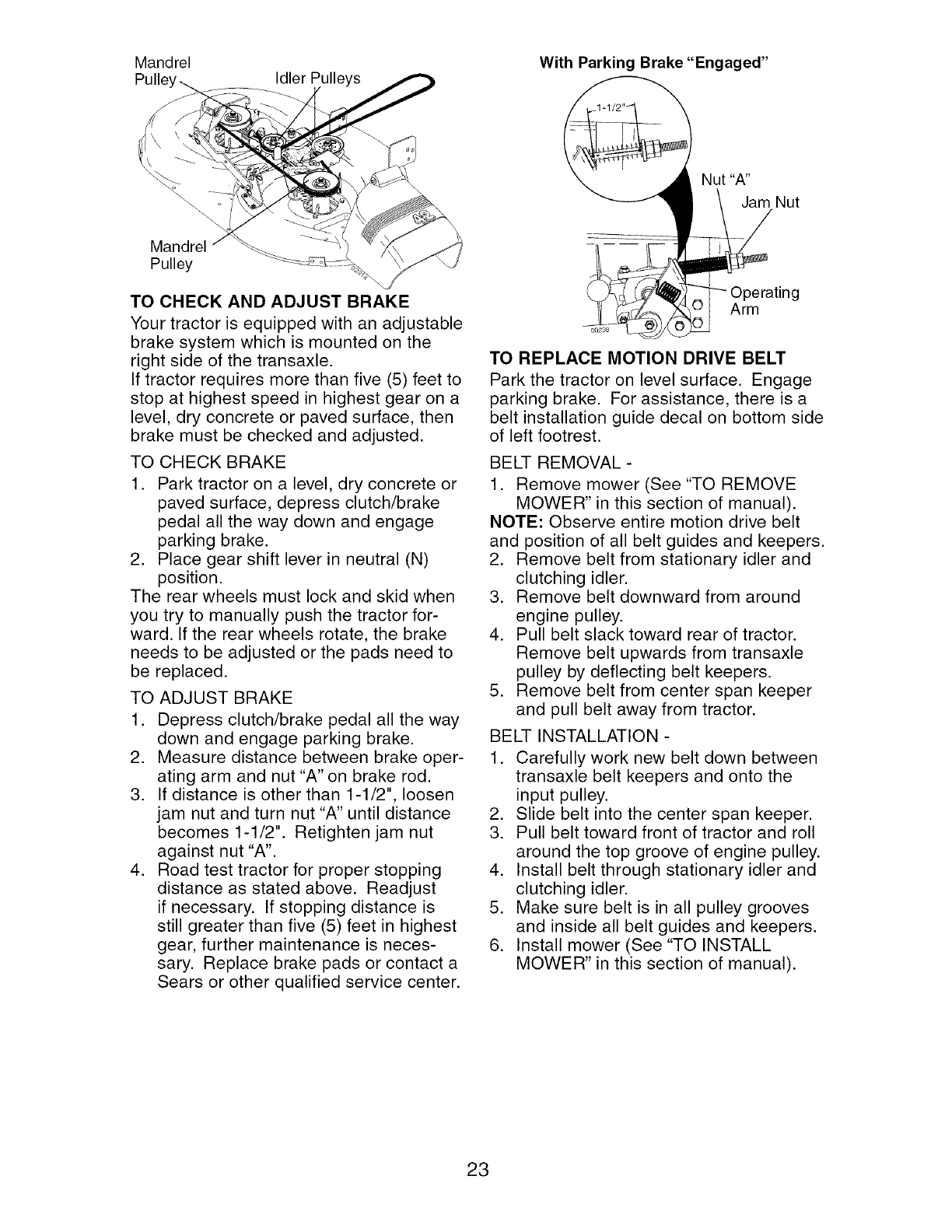

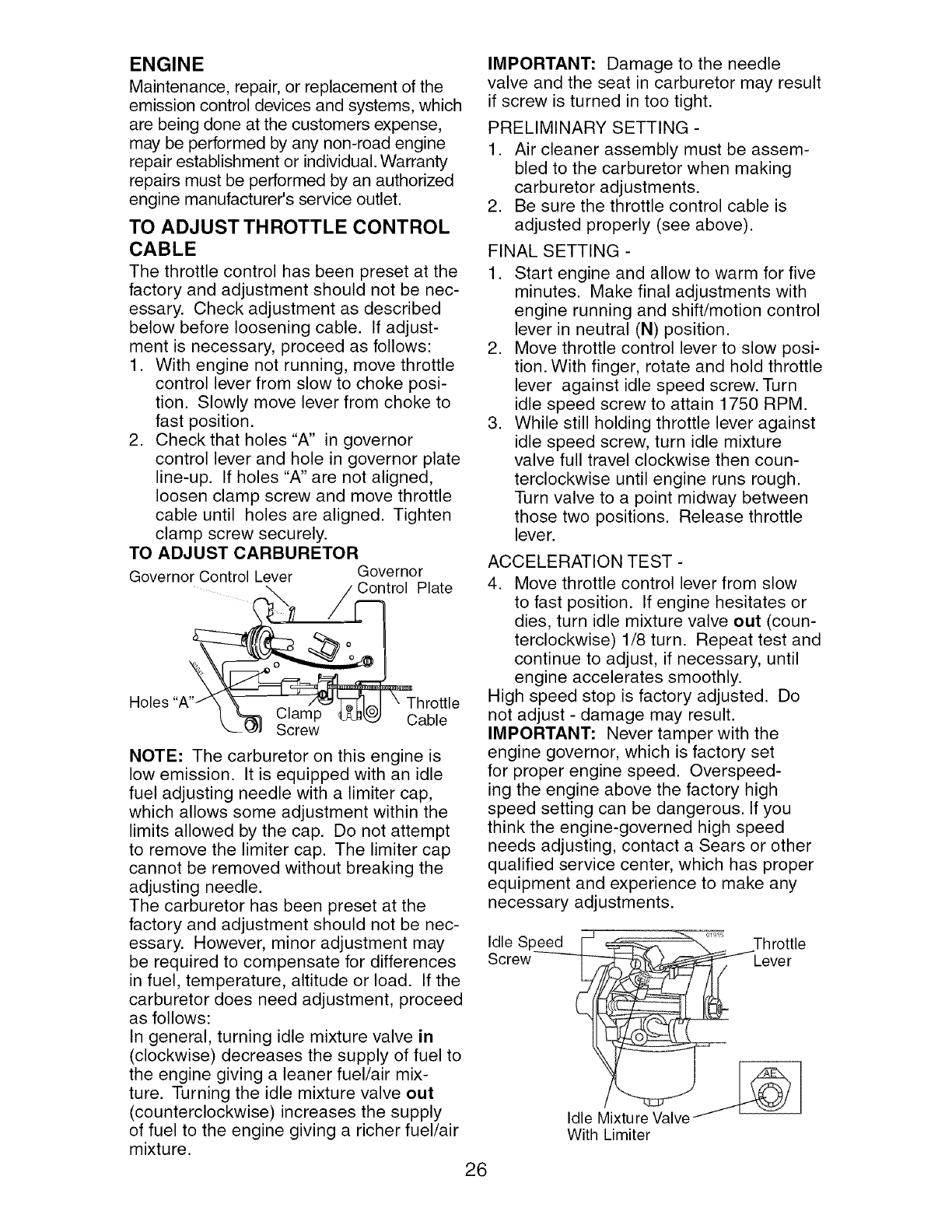

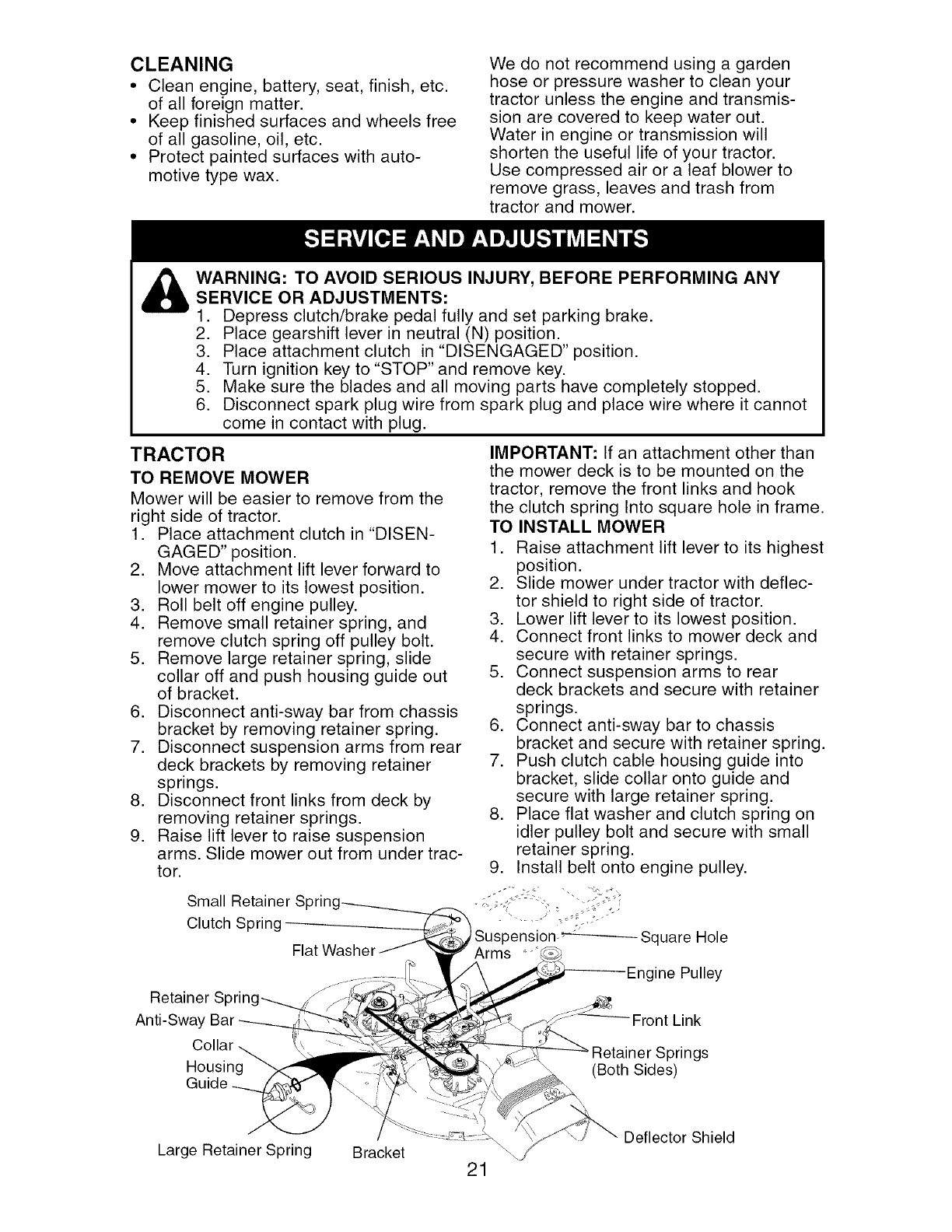

Service andAdjustments......................21

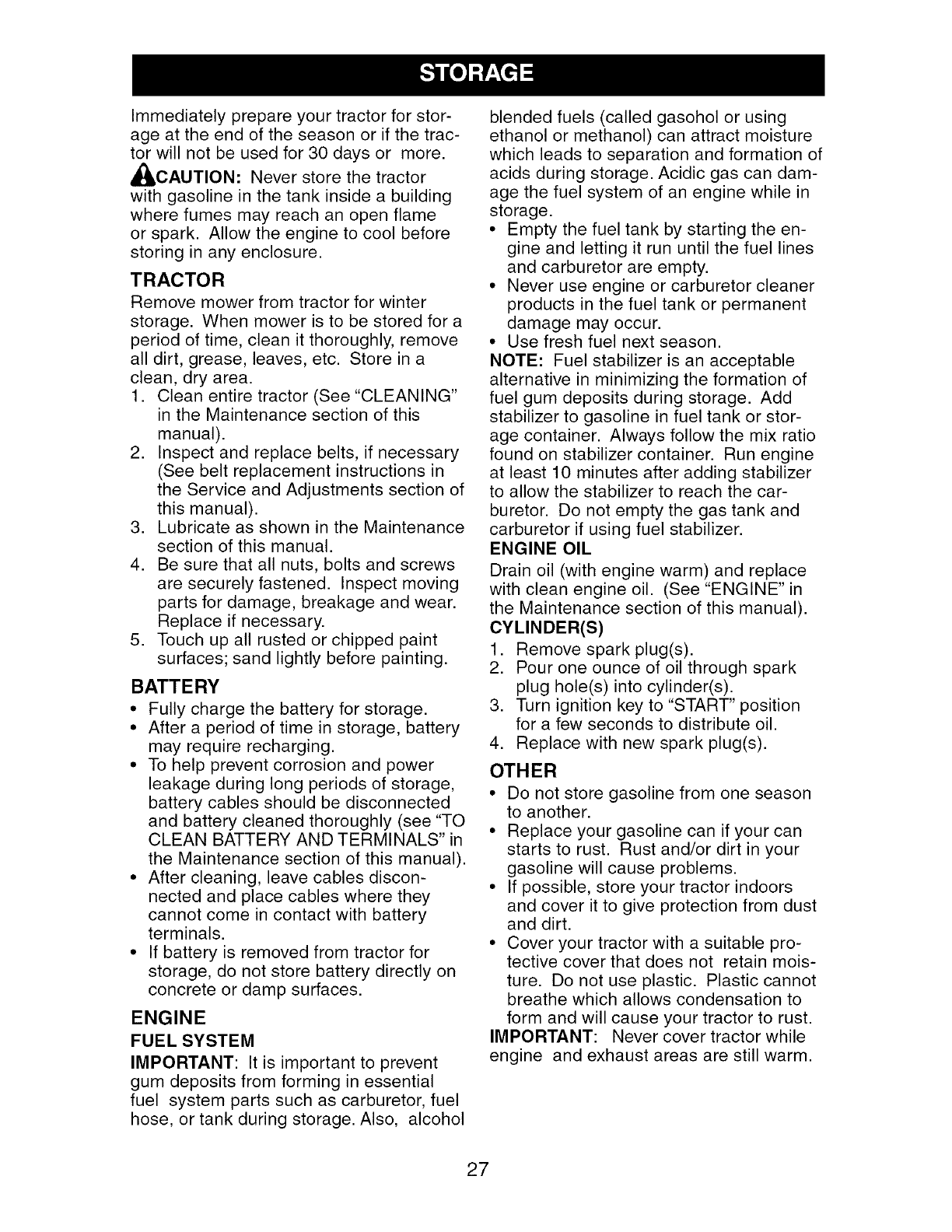

Storage.................................................27

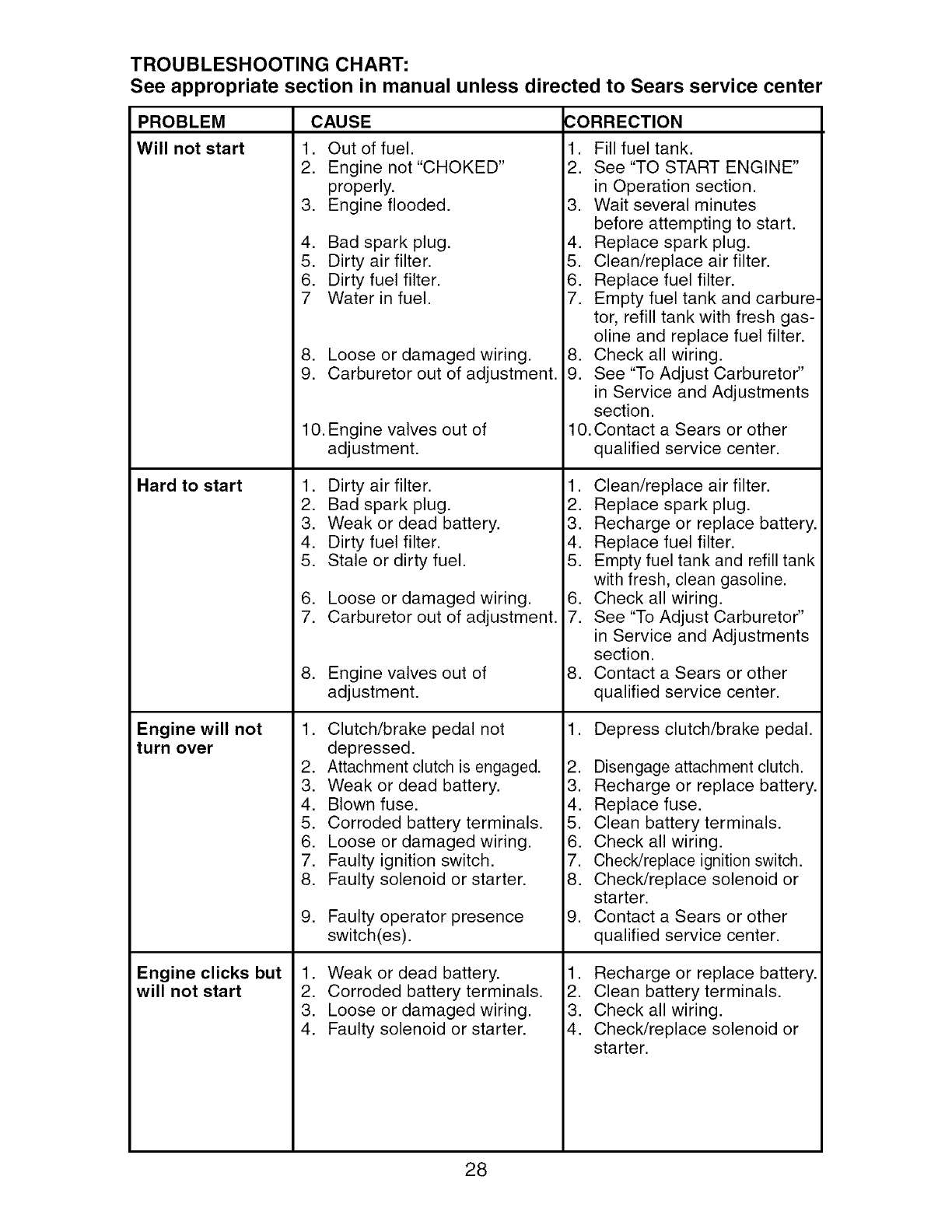

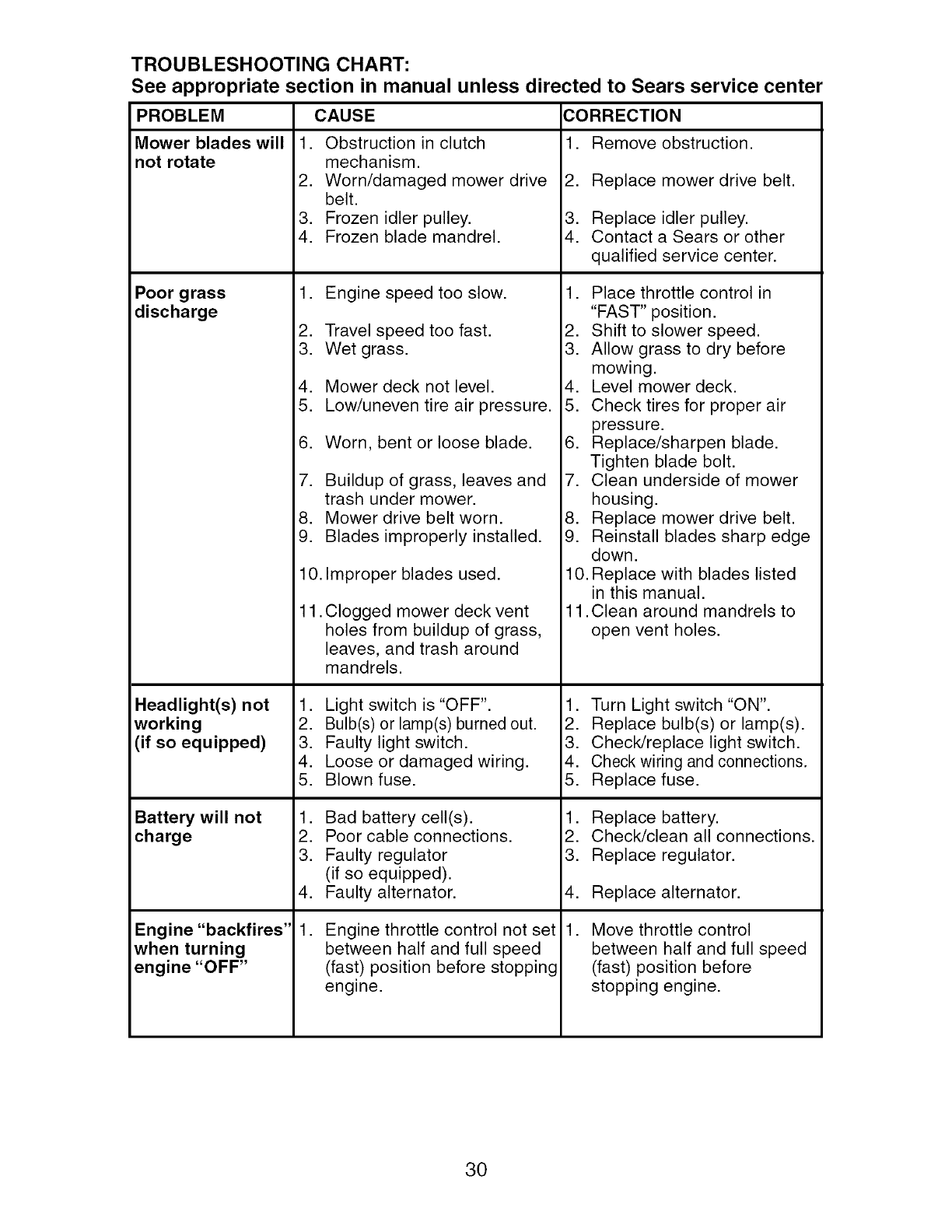

Troubleshooting....................................28

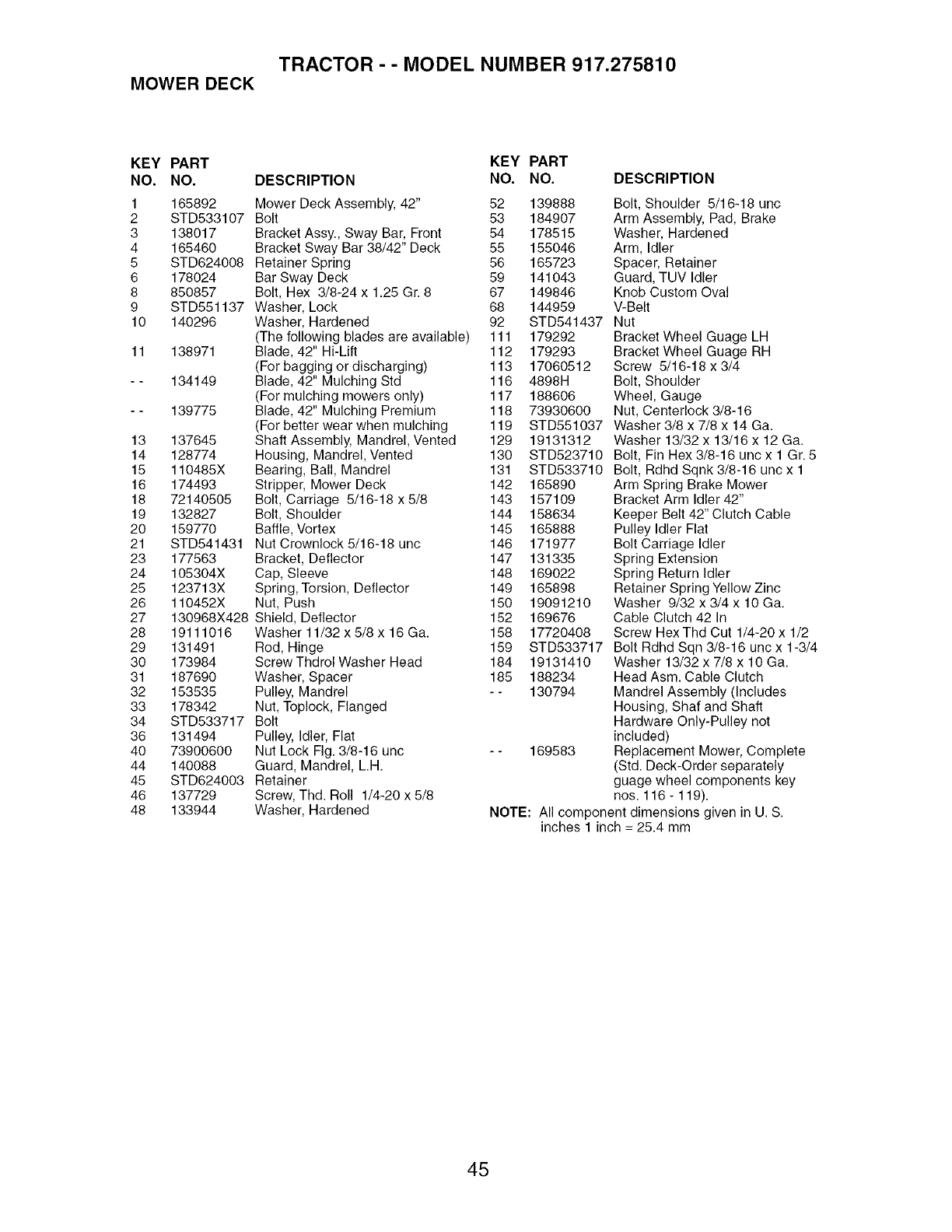

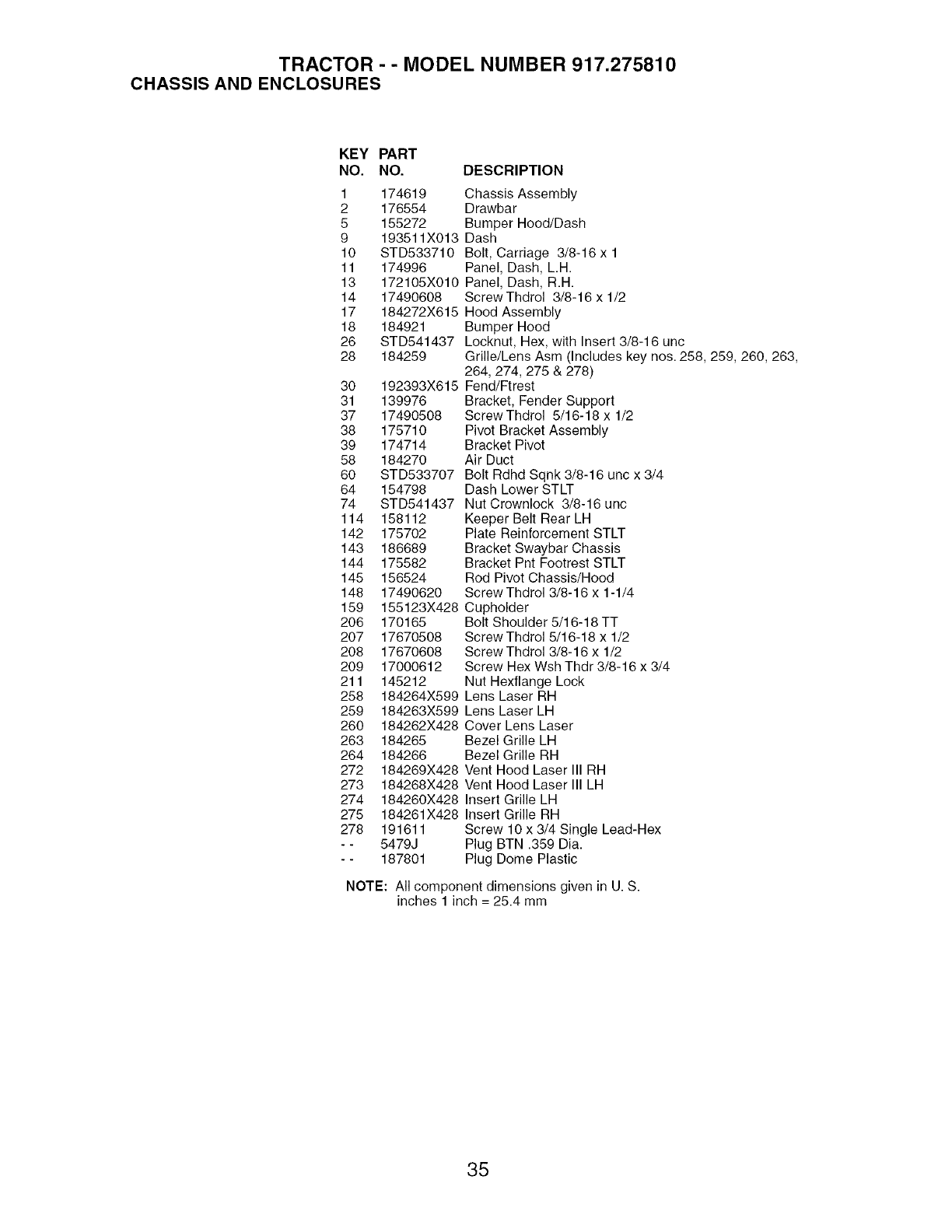

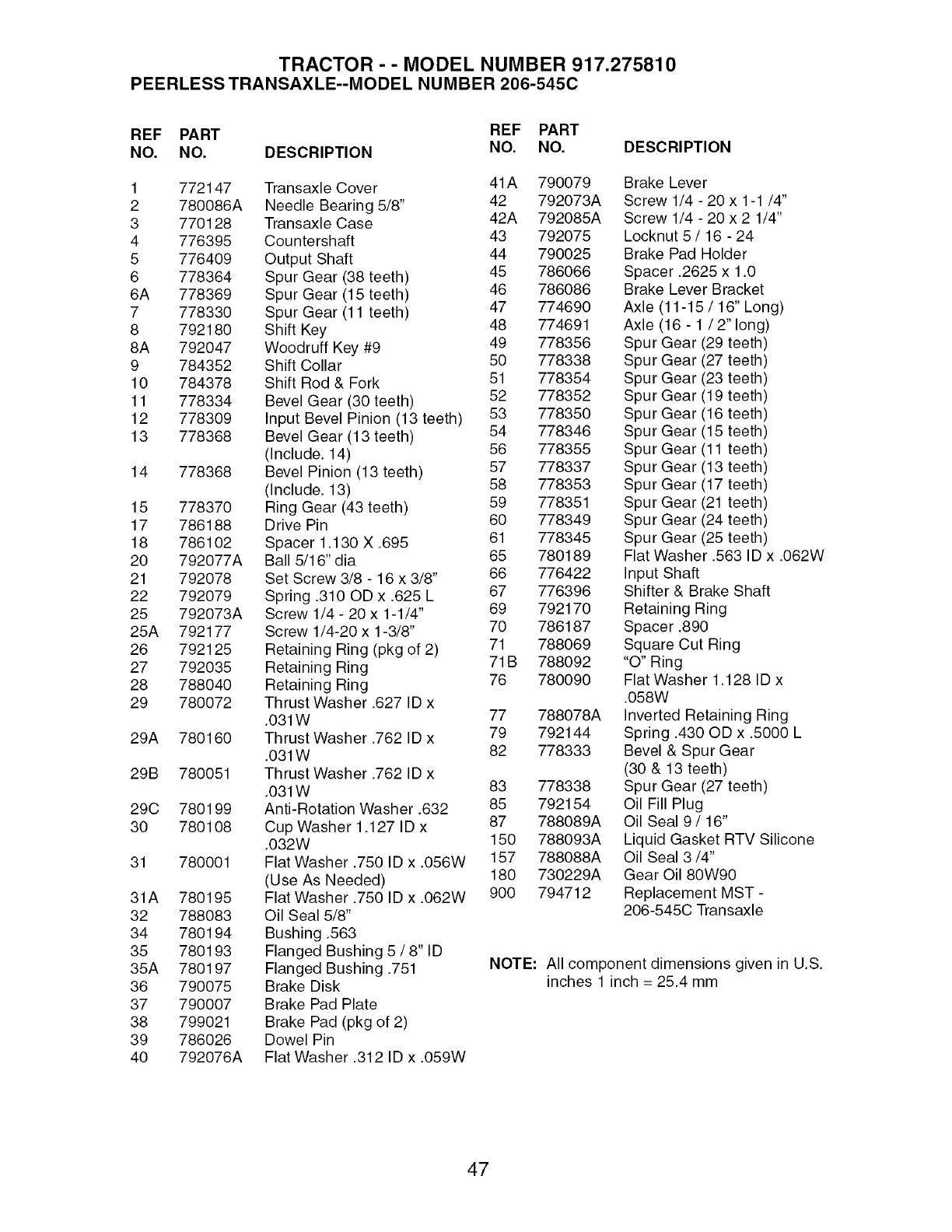

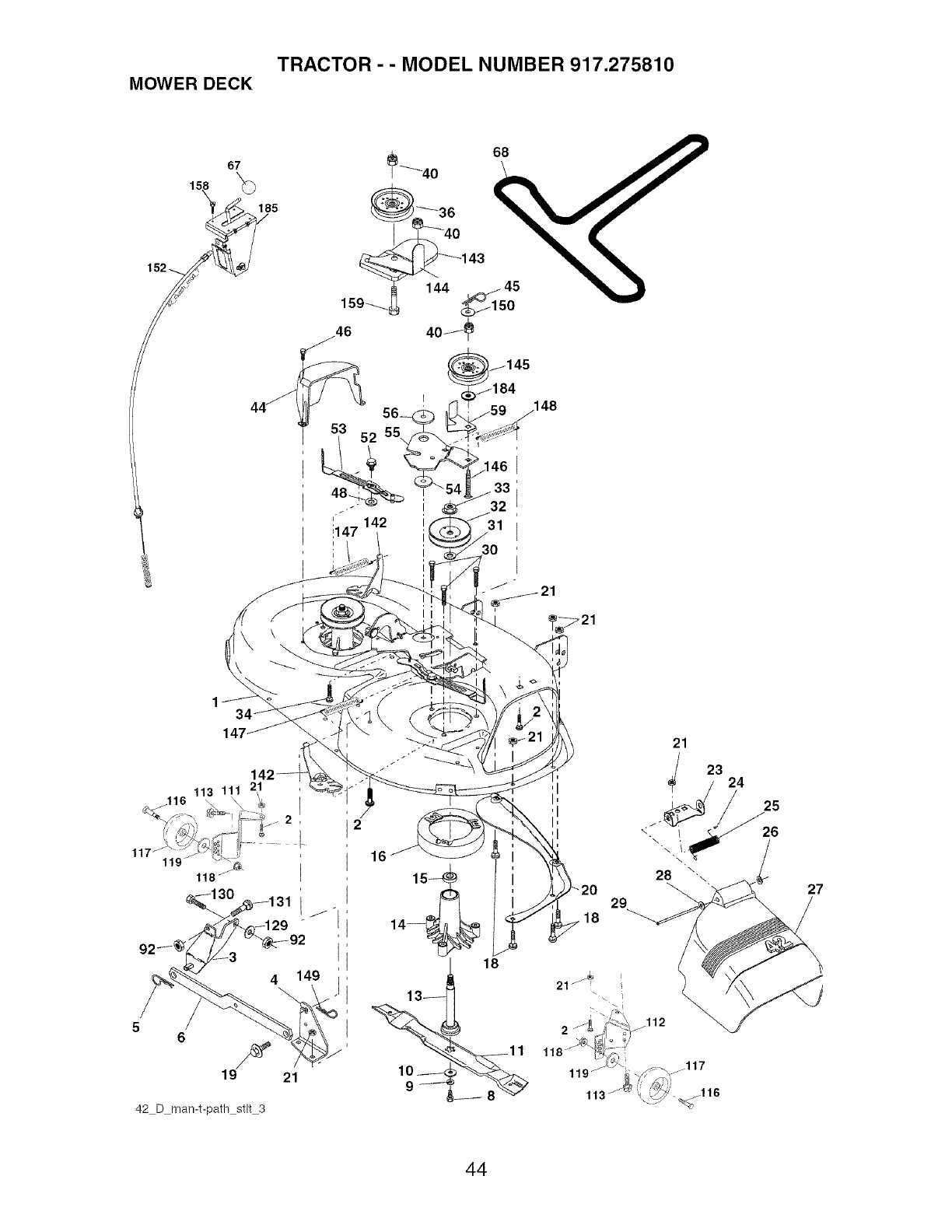

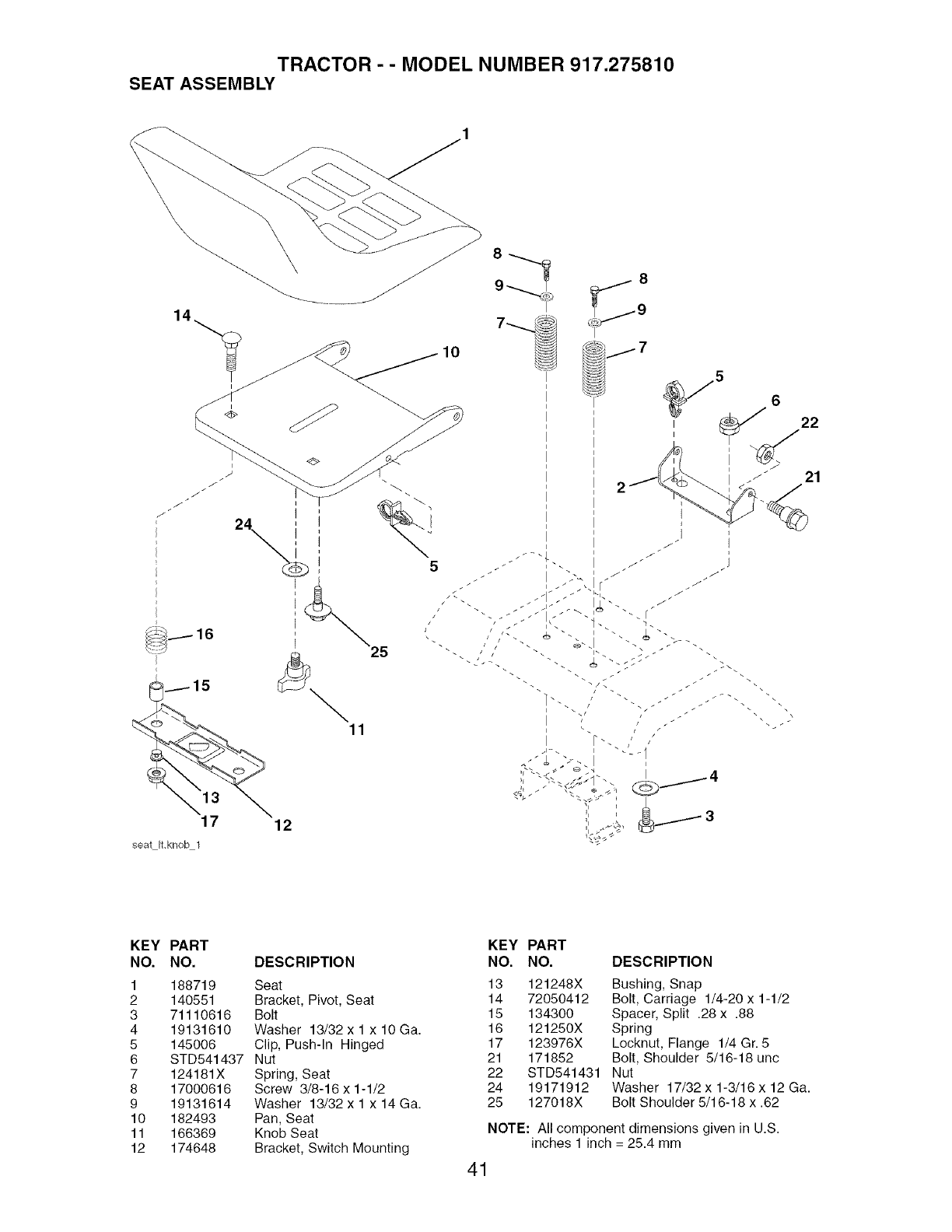

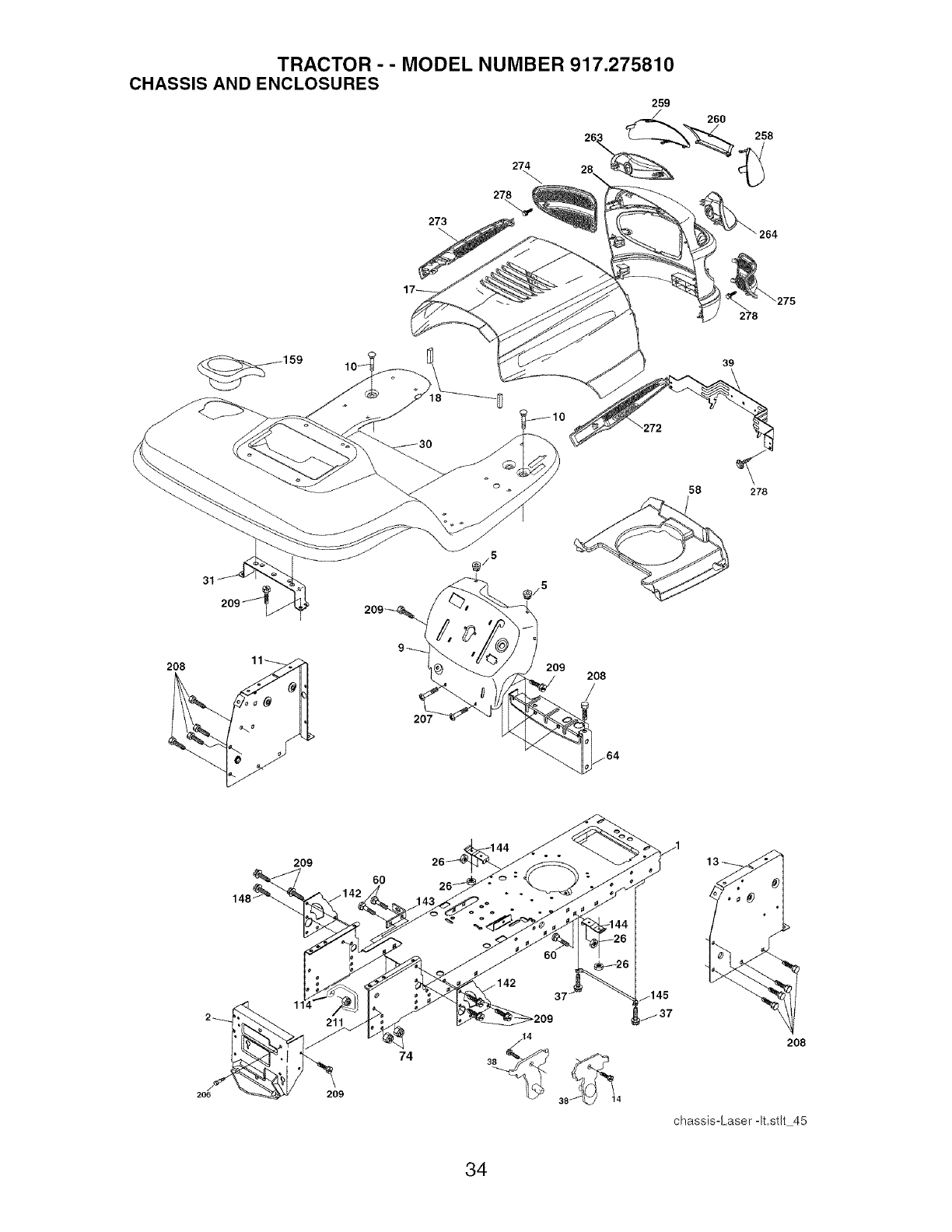

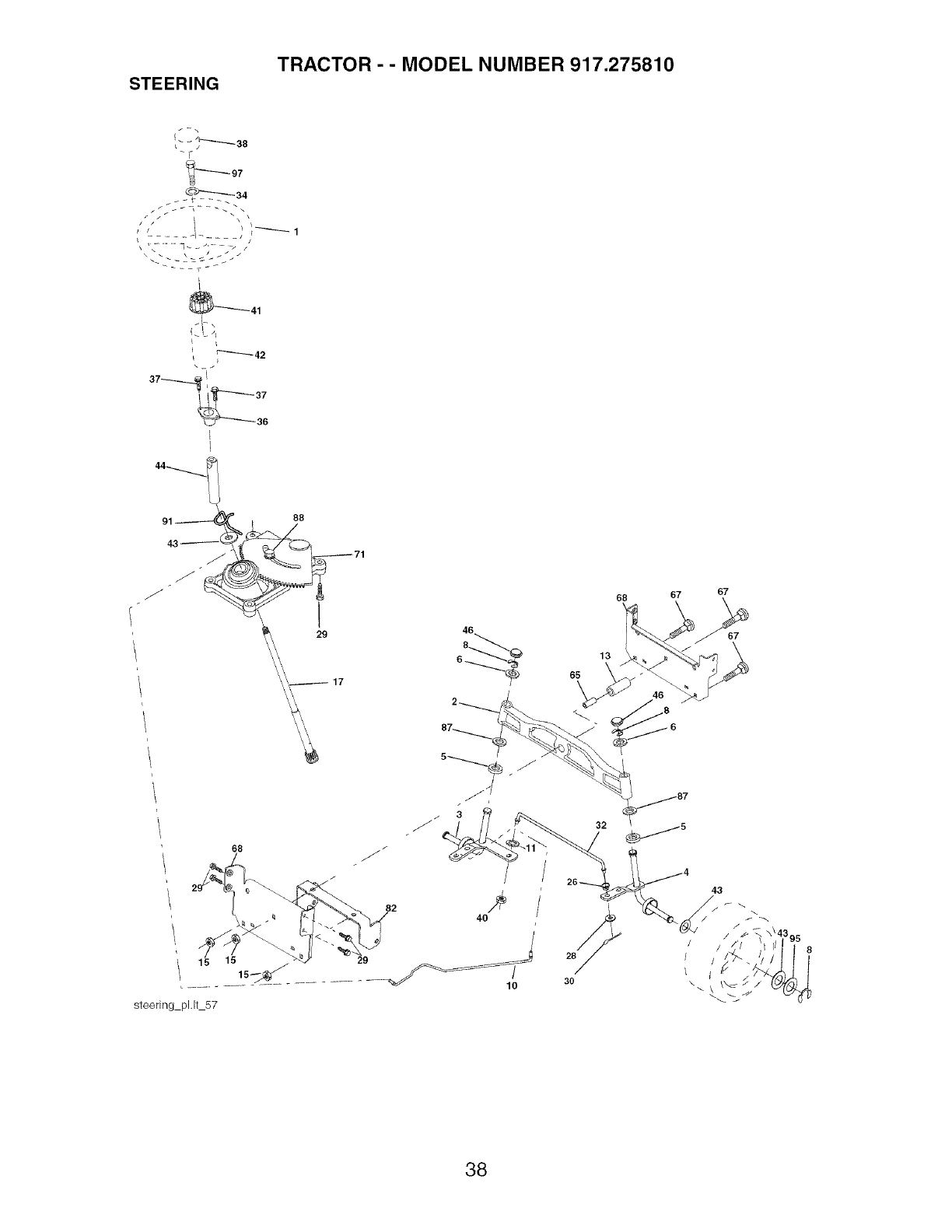

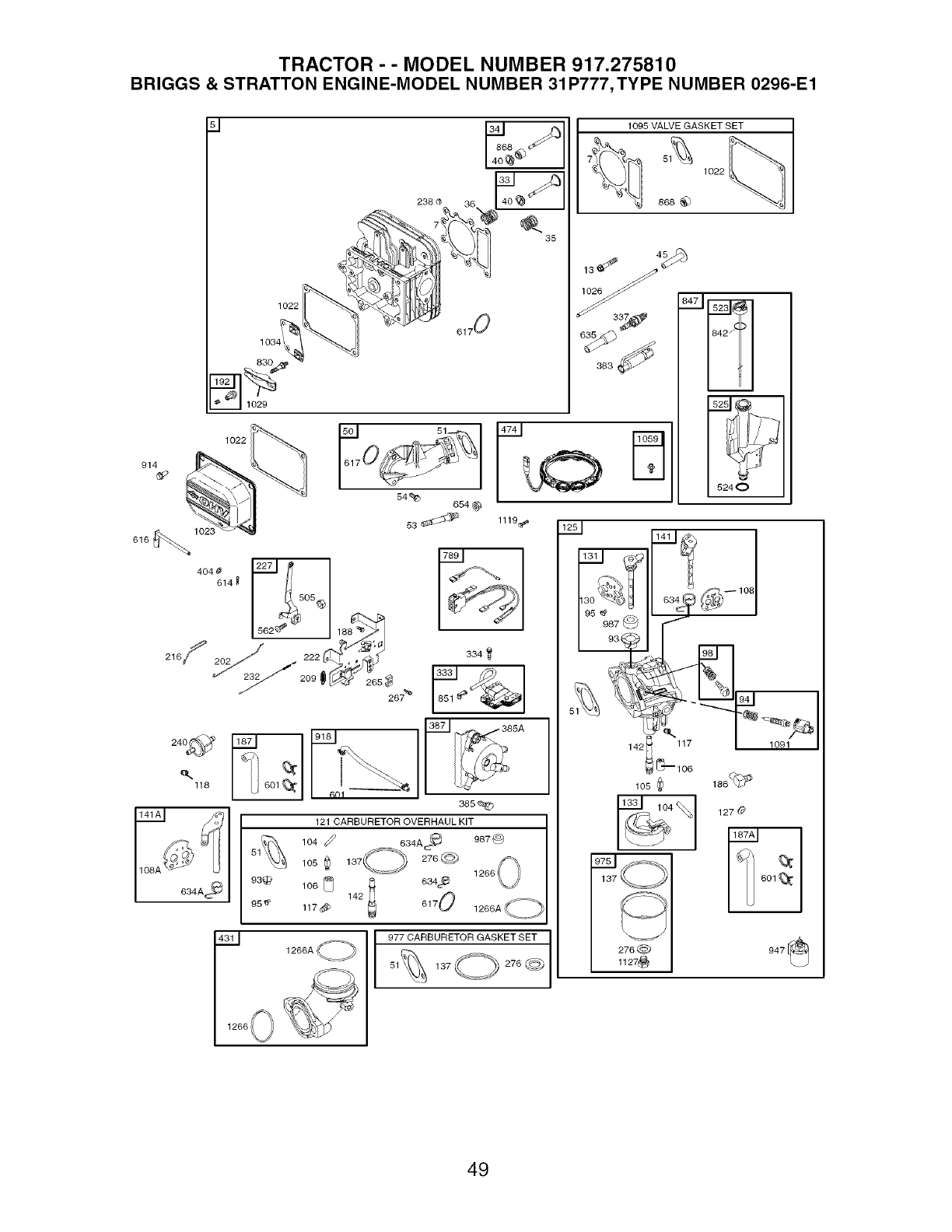

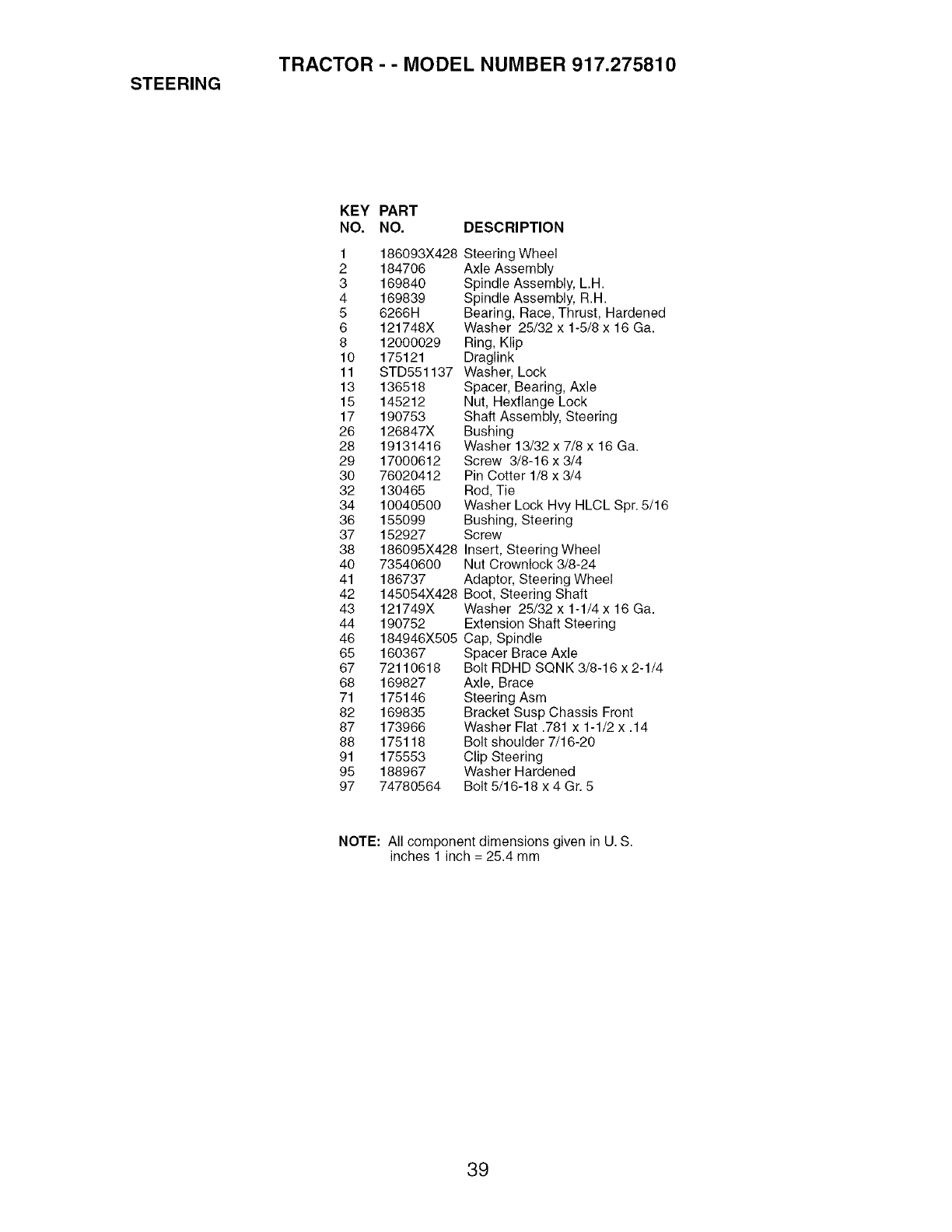

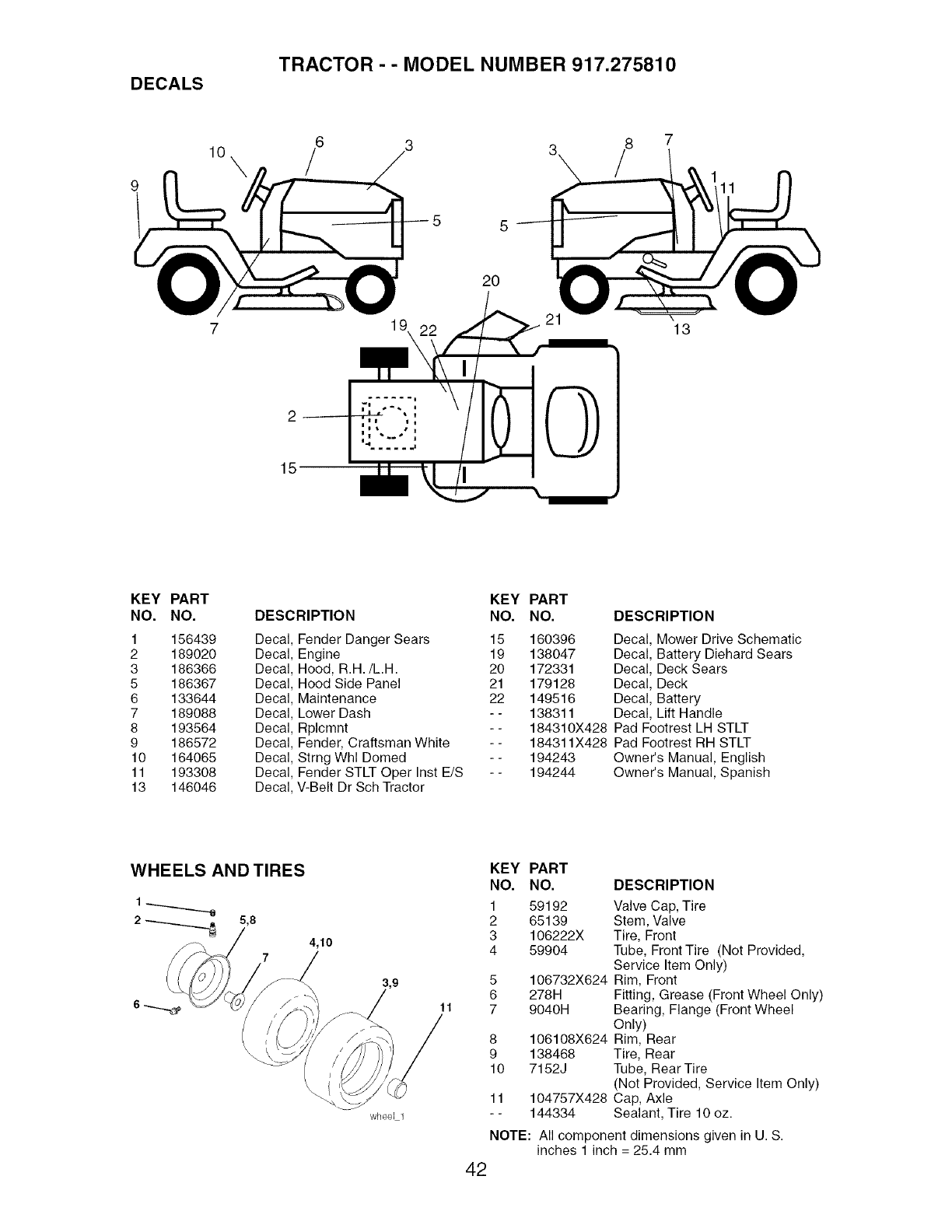

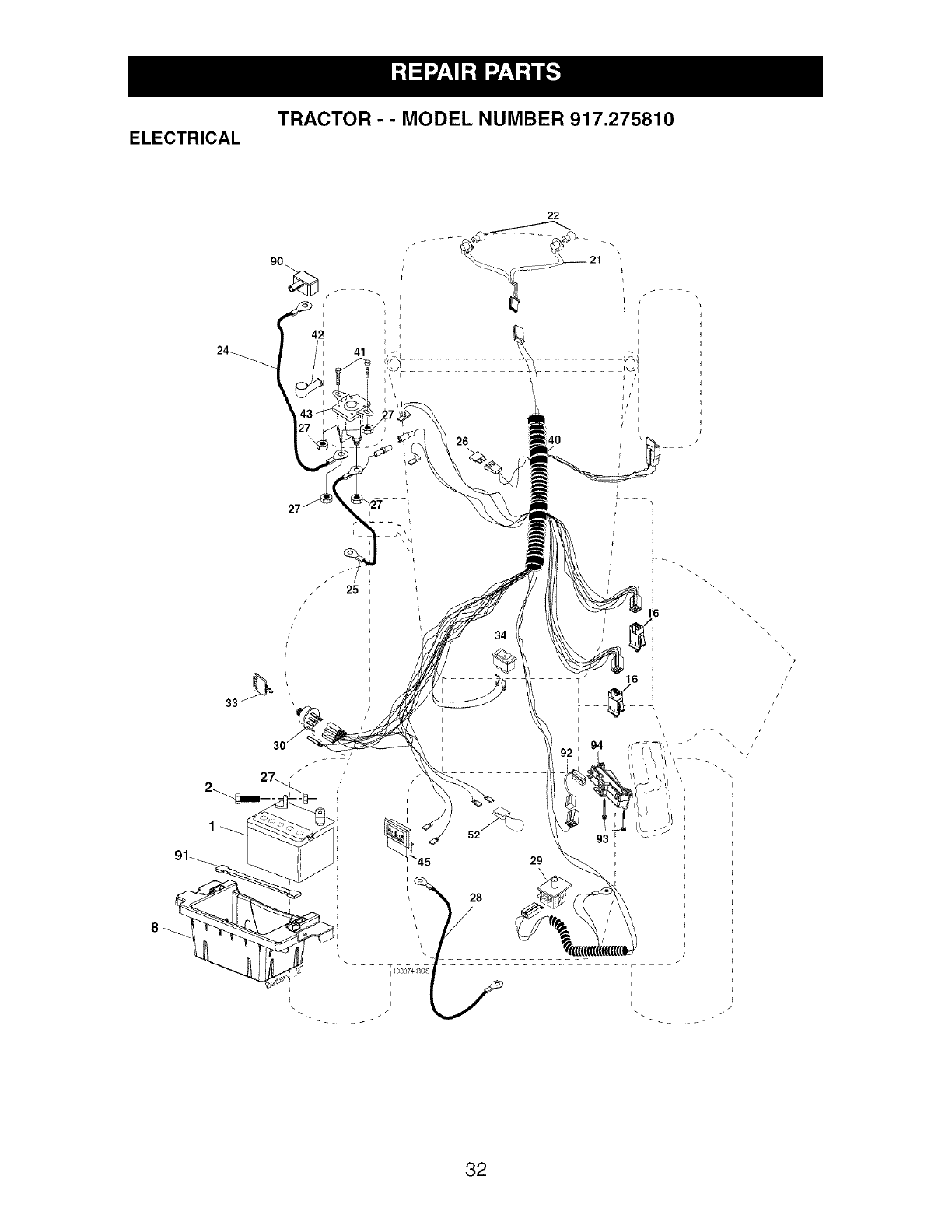

RepairParts..........................................32

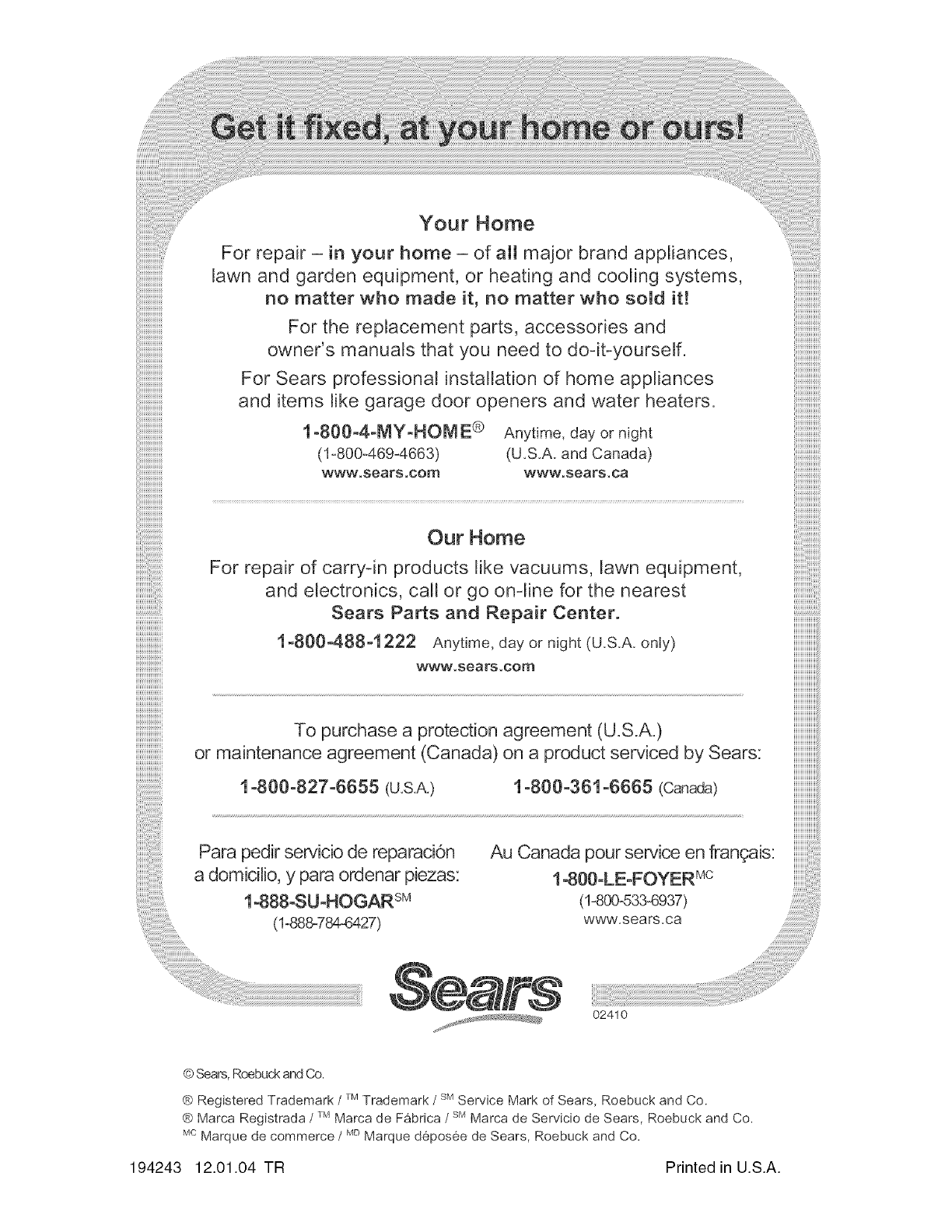

SearsService.........................BackCover

LIMITEDWARRANTYON CRAFTSMANRIDINGEQUIPMENT

Fortwo (2)yearsfrom the date of purchase,if this CraftsmanRiding Equipmentis

maintained,lubricatedand tuned upaccordingto the instructionsin the owner'smanual,

Searswill repairor replacefree of chargeanyparts that are foundto be defectivein

materialor workmanshipaccordingto the guidelinesof coveragelisted below.Searswill

also providefree laborfor these applicablewarrantedparts for the two fullyears.During

the first 30 daysof purchase,therewill be nochargesto servicethe productat your

homefor issuescoveredby this warranty.(Seeexclusionsbelow). Foryourconve-

nience, INHOMEwarrantyservicewill stillbe availableafterthe first 30 daysof pur-

chase, buta trip chargewill apply.Thischargewill bewaived if the Craftsmanproductis

droppedoff at an authorizedSearslocation.Forthe nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME®.This warrantyapplies onlywhilethis productis within

the UnitedStates.

This Warrantydoes notcover:

• Expendableitemswhich becomeworn duringnormaluse,includingbut not limitedto

blades,spark plugs,air cleaners,belts,and oil filters.

StandardMaintenanceServicing,oil changes, or tune-ups

• Tire replacementor repaircausedby puncturesfrom outsideobjects,suchas nails,

thorns,stumps,or glass.

• Repairsnecessarybecauseof operatorabuse, includingbut not limitedto, damage

causedby towingobjectsbeyondthe capabilityof the ridingequipment,impacting

objectsthat bendthe frameor crankshaft,or over-speedingthe engine.

• Repairsnecessarybecauseof operatornegligence,includingbut not limitedto, elec-

tricaland mechanicaldamage causedby improperstorage,failureto usethe proper

gradeand amount of engineoil, failureto keepthe deckclear of flammabledebris,

or failureto maintainthe equipmentaccordingto the instructionscontainedinthe

owner'smanual.

• Engine(fuelsystem)cleaningor repairscausedby fueldeterminedto becontami-

natedor oxidized(stale). In general,fuelshouldbe used within30 daysof its pur-

chasedate.

• Normaldeteriorationand wear of the exteriorfinishes,or productlabelreplacement.

• Ridingequipmentusedfor commercialor rentalpurposes.

LIMITEDWARRANTYON BATTERY

For ninety(90)days from date of purchase,if anybatteryincludedwith this riding equip-

mentprovesdefectivein materialor workmanshipand our testingdeterminesthe battery

will not holda charge, Searswill replacethe battery at no charge. Duringthe first 30

daysof purchase,there will be no chargesto replacethe batteryat your HOME. After

the first 30 days,foryour convenience,IN-HOMEwarrantyservicewill stillbe avail-

ablebut a trip chargewill apply. This chargewill bewaivedif the Craftsmanproductis

droppedoff at an authorizedSearslocation.Forthe nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.

This battery warrantyapplies onlywhile this productis withinthe UnitedStates.

This warrantygivesyou specificlegal rights,and you mayalso haveotherrights,which

vary,from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

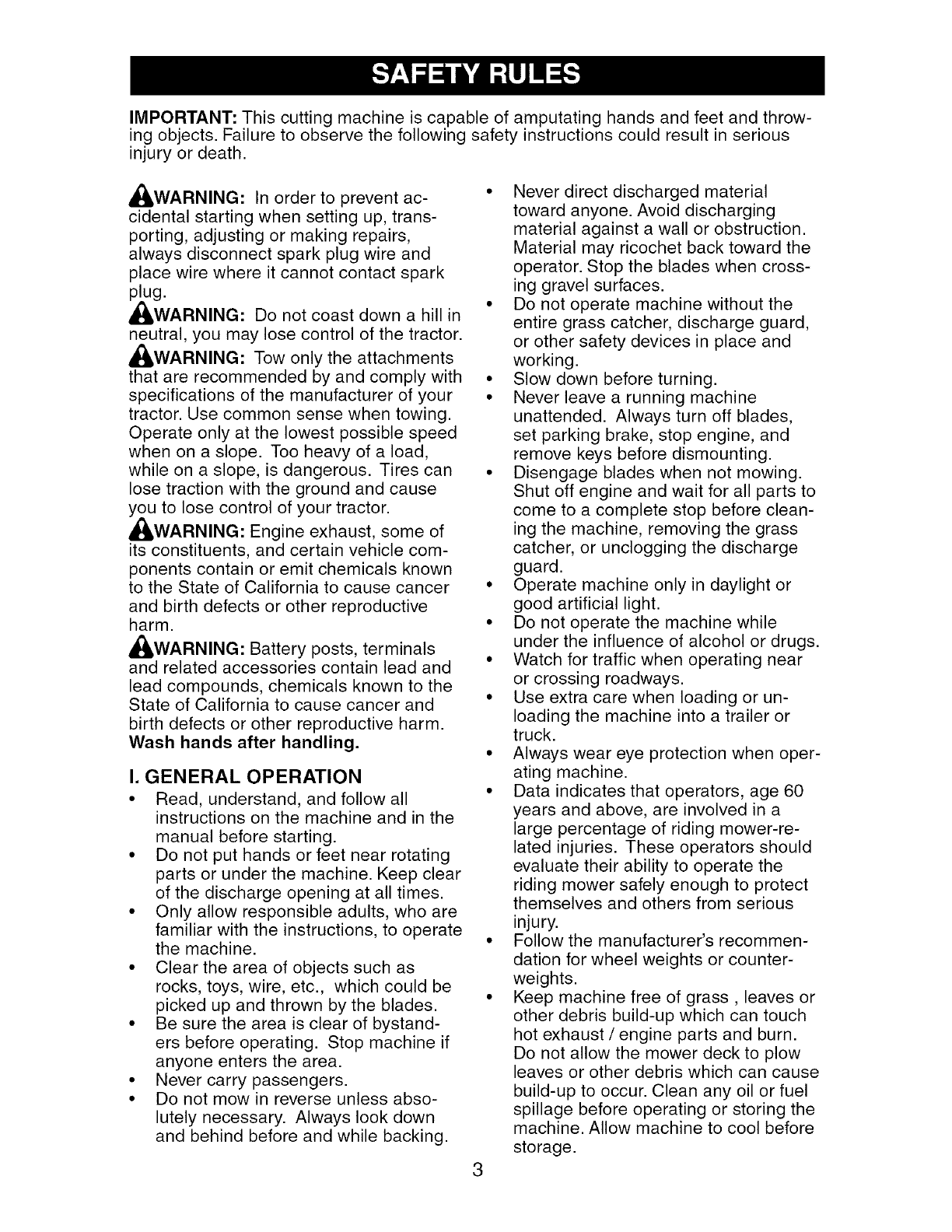

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_,WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_I_,WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_,WARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_,WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blades.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never direct discharged material

toward anyone. Avoid discharging

material against a wall or obstruction.

Material may ricochet back toward the

operator. Stop the blades when cross-

ing gravel surfaces.

• Do not operate machine without the

entire grass catcher, discharge guard,

or other safety devices in place and

working.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades,

set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before clean-

ing the machine, removing the grass

catcher, or unclogging the discharge

guard.

• Operate machine only in daylight or

good artificial light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Always wear eye protection when oper-

ating machine.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-re-

lated injuries. These operators should

evaluate their ability to operate the

riding mower safely enough to protect

themselves and others from serious

injury.

• Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

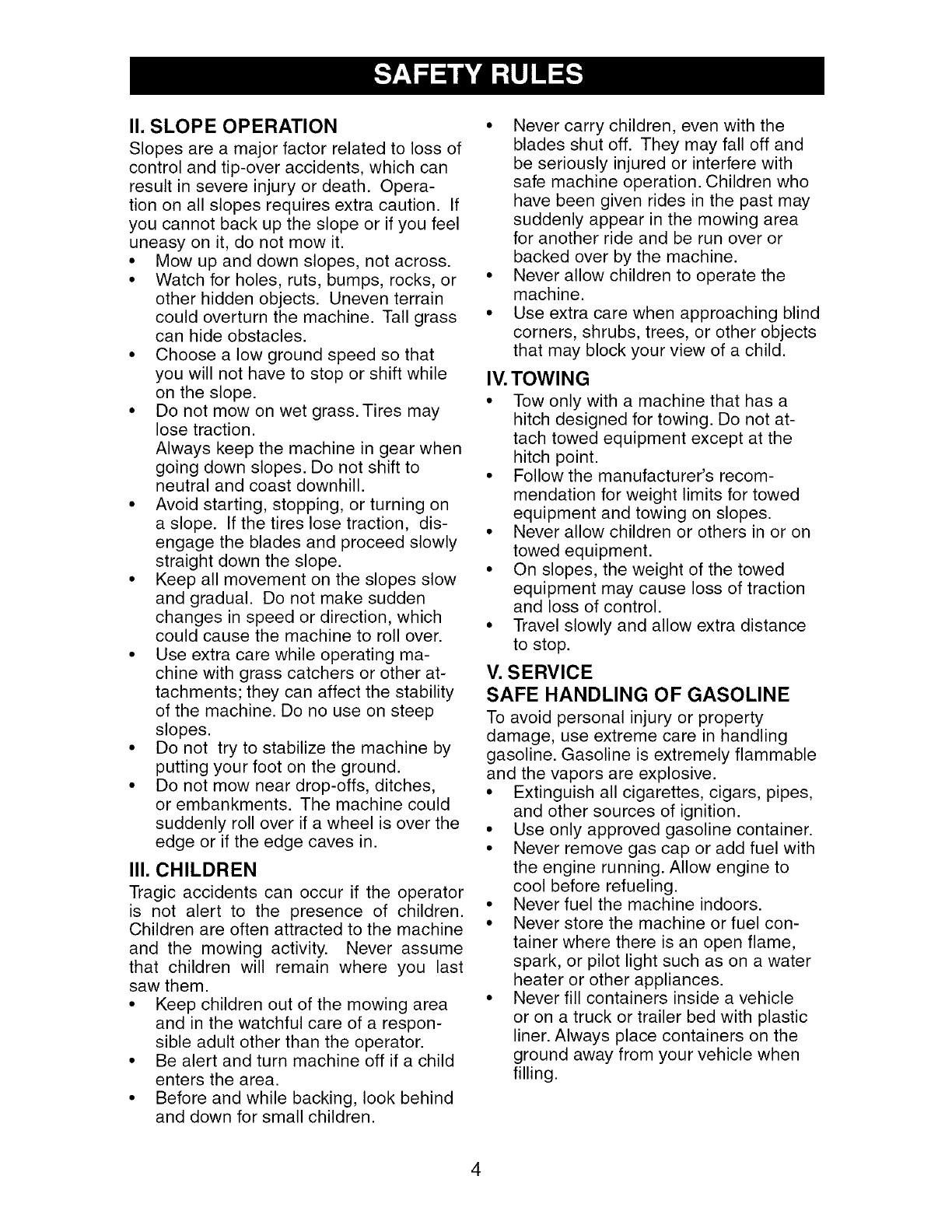

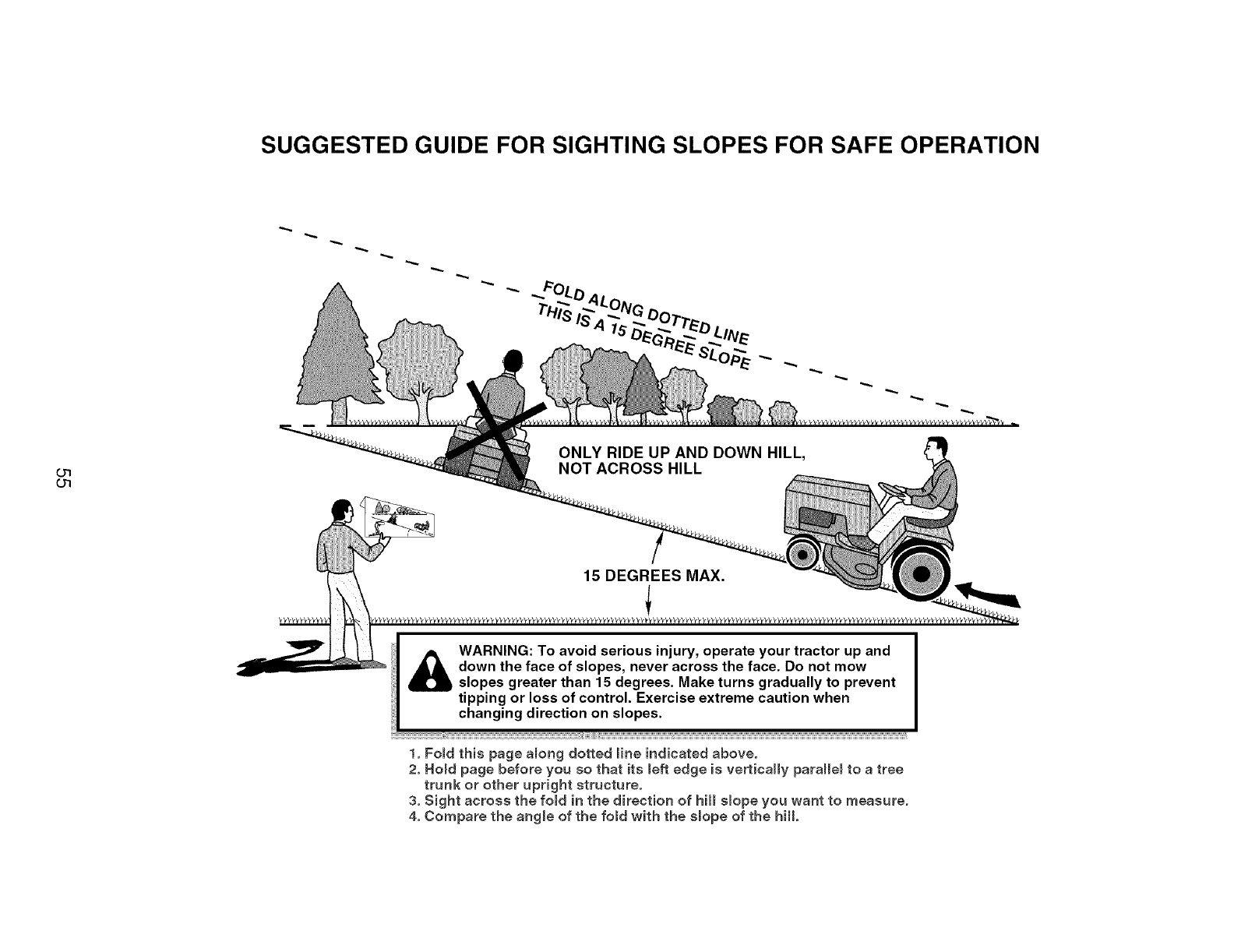

I1.SLOPE OPERATION

Slopesarea majorfactor relatedto lossof

control and tip-overaccidents,whichcan

resultin severeinjuryor death. Opera-

tion on all slopesrequiresextra caution. If

you cannot back up the slope or if you feel

uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Do not mow on wet grass. Tires may

lose traction.

Always keep the machine in gear when

going down slopes. Do not shift to

neutral and coast downhill.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

• Use extra care while operating ma-

chine with grass catchers or other at-

tachments; they can affect the stability

of the machine. Do no use on steep

slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

• Tow only with a machine that has a

hitch designed for towing. Do not at-

tach towed equipment except at the

hitch point.

• Follow the manufacturer's recom-

mendation for weight limits for towed

equipment and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes, the weight of the towed

equipment may cause loss of traction

and loss of control.

• Travel slowly and allow extra distance

to stop.

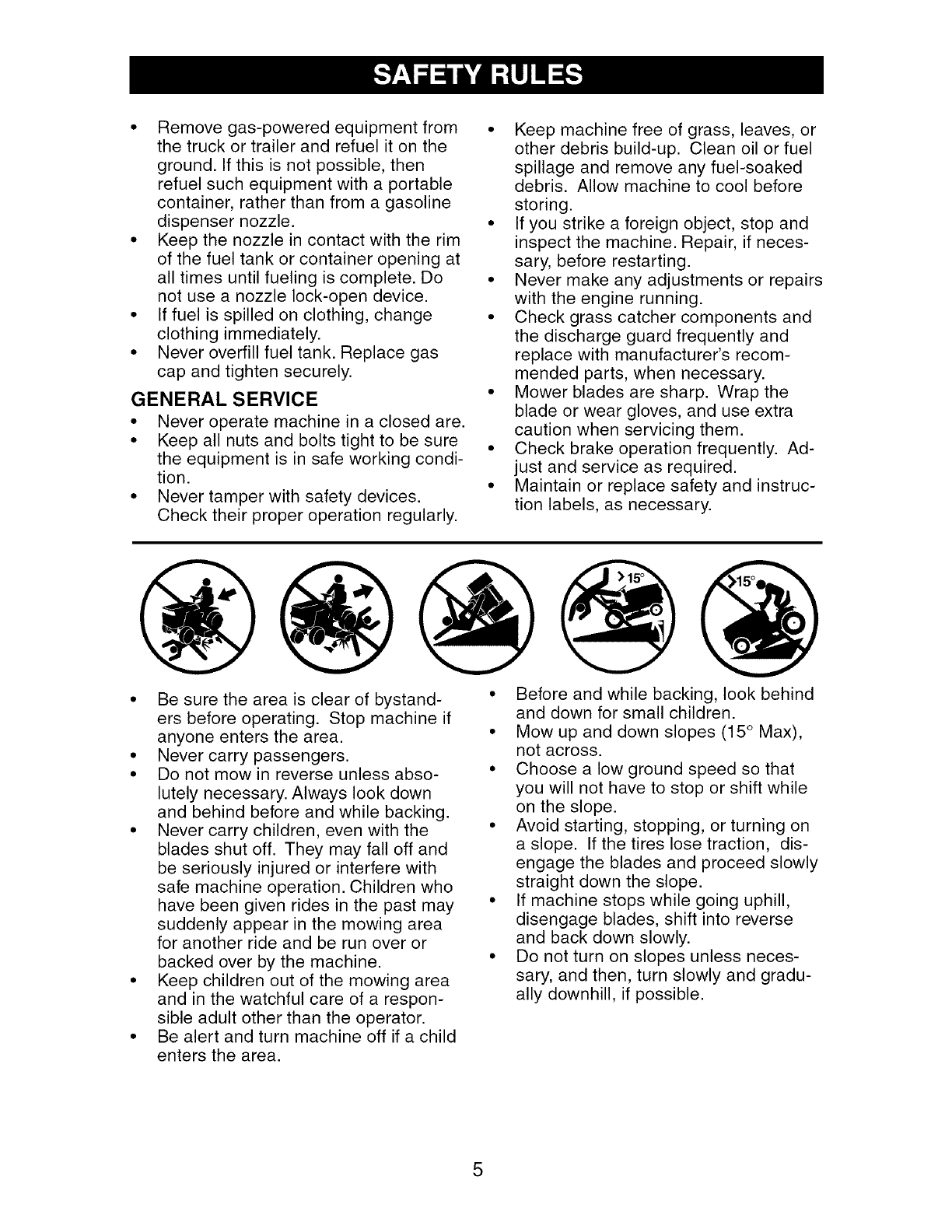

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property

damage, use extreme care in handling

gasoline. Gasoline is extremely flammable

and the vapors are explosive.

•Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never fuel the machine indoors.

•Never store the machine or fuel con-

tainer where there is an open flame,

spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle

or on a truck or trailer bed with plastic

liner. Always place containers on the

ground away from your vehicle when

filling.

• Removegas-poweredequipmentfrom

the truck or trailer and refuel it onthe

ground.Ifthis is not possible,then

refuel suchequipmentwith a portable

container,ratherthanfrom a gasoline

dispensernozzle.

• Keepthe nozzle in contactwiththe rim

of the fuel tank or containeropeningat

all times until fuelingis complete.Do

not usea nozzlelock-opendevice.

• If fuel is spilledon clothing,change

clothingimmediately.

• Neveroverfillfuel tank. Replacegas

capand tighten securely.

GENERAL SERVICE

•Never operate machine in a closed are.

• Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked

debris. Allow machine to cool before

storing.

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and

replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp. Wrap the

blade or wear gloves, and use extra

caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Maintain or replace safety and instruc-

tion labels, as necessary.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 3.5

Capacity and Unleaded

Type: Regular

Oil Type SAE 30 (above 32°F)

'API-SG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward:

(MPH): 1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_bWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Steering

Wheel insert

Steering

Boot

(1) Hex Bolt R

5/16-18 x 4 Ld

Steering Wheel

(1) Large Flat Washer

Steering

Wheel Adapter

(1) 5/16 Lock Washer

Seat

(1) Washer

_ 17/32 x 1-3/16 x 12

Gauge

_(1) Knob

For Future Use

Keys

Slope Sheet

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 5/16 lock

washer, 5/16 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

_ 5/16 Hex Bolt

__-------- 5/16 Lock Washer

_--_.J-----.-:---- Large Flat

/_) _:_ ' Washer

=, _<,- _r- _ A' '

+b J/

Steering _--- J '-:_::,_z/Steering

Wheel "/-

Boot

Adapter_ Extension

/J Shaft

Lower

Steering /---:.

Shaft _ _g "_'_.... -,

t--. " _Tab

"-.. - .., Slots

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

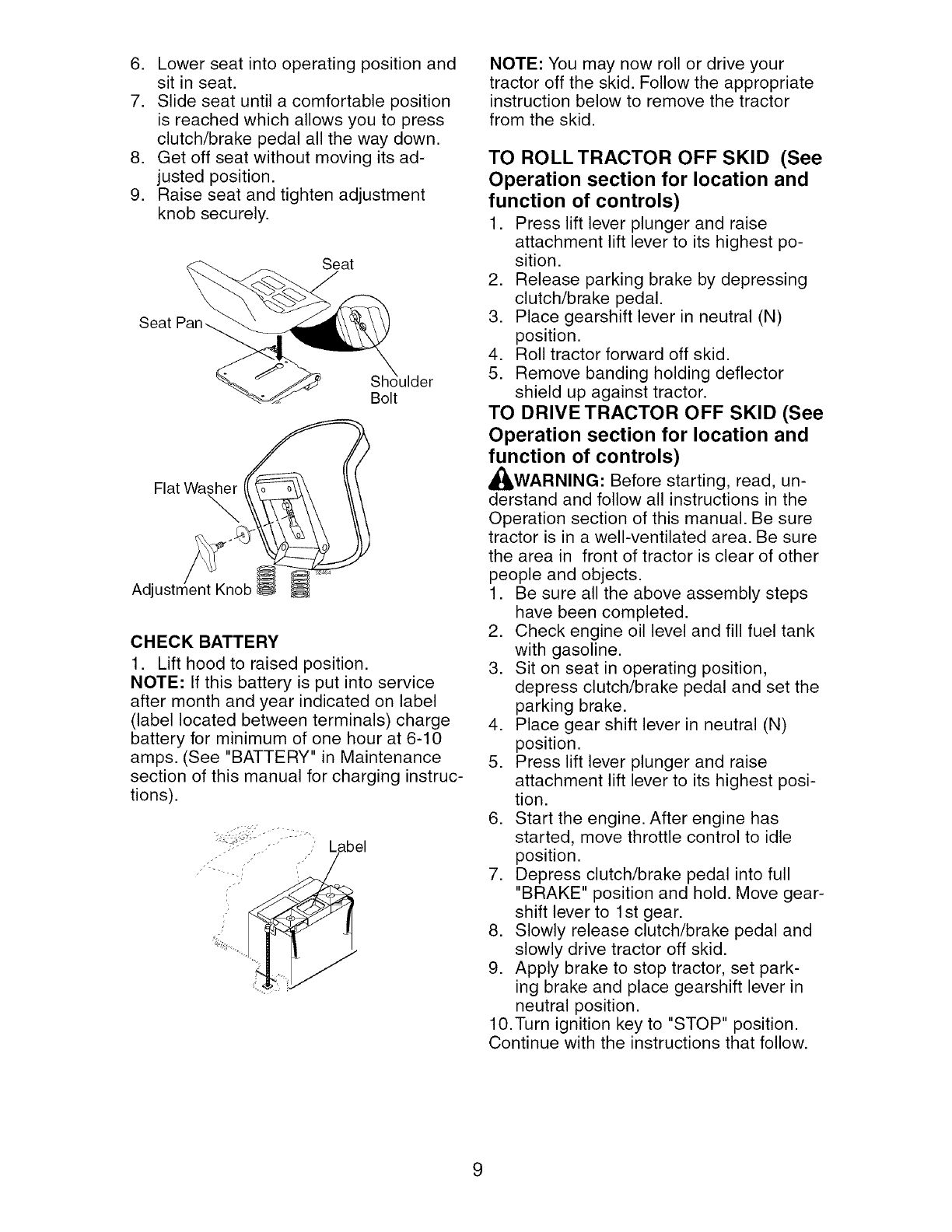

6. Lowerseatinto operatingpositionand

sit in seat.

7. Slideseat until a comfortableposition

is reachedwhich allowsyou to press

clutch/brakepedalall the way down.

8. Get off seat withoutmovingits ad-

justed position.

9. Raiseseat and tighten adjustment

knob securely.

Seat

Bolt

Flat Washer

Adjustment Knob

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Label

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

,_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gear-

shift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

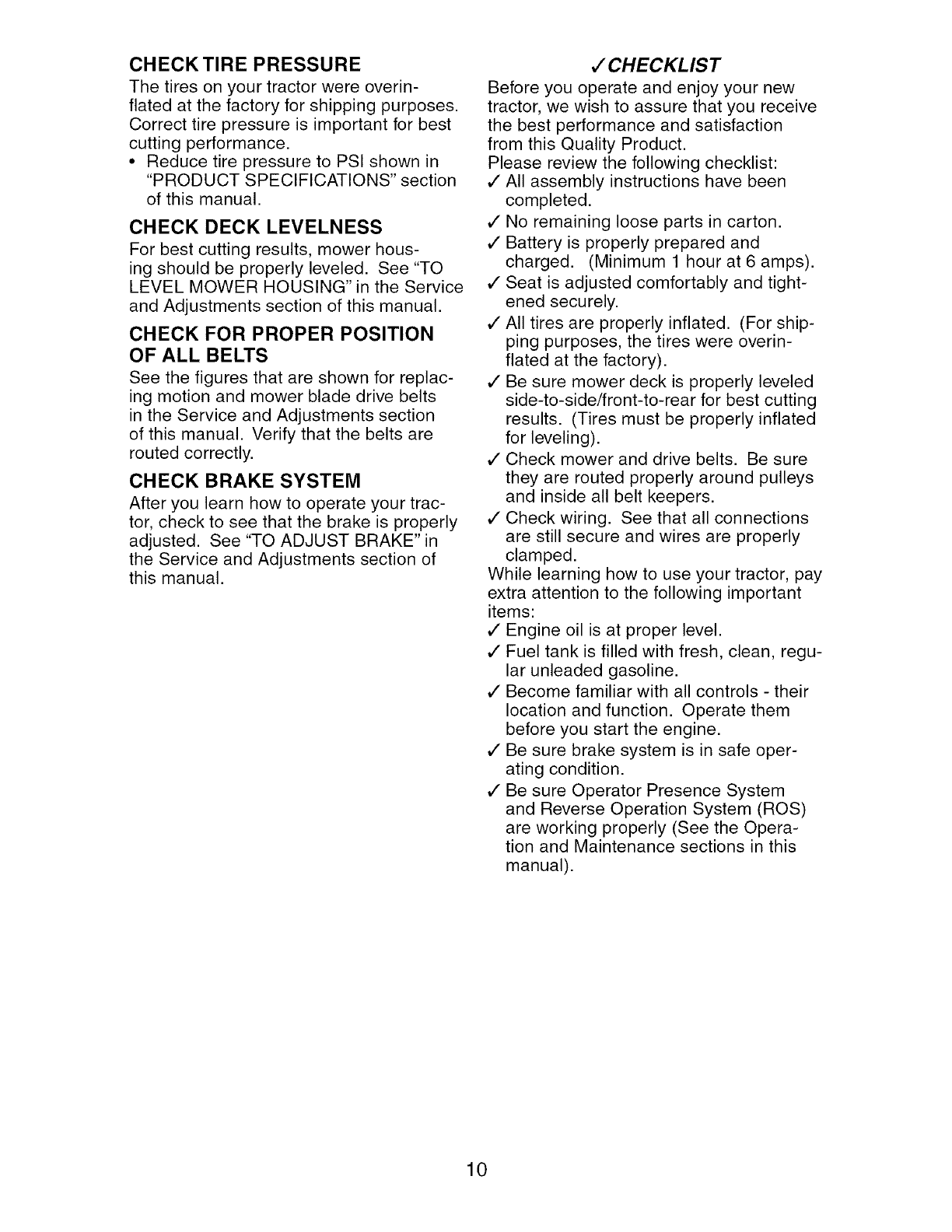

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

°Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

V"CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

v" All assembly instructions have been

completed.

v" No remaining loose parts in carton.

v" Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

v" Seat is adjusted comfortably and tight-

ened securely.

v" All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

v" Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

v" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

v" Engine oil is at proper level.

v" Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

v" Become familiar with all controls - their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe oper-

ating condition.

v" Be sure Operator Presence System

and Reverse Operation System (ROS)

are working properly (See the Opera-

tion and Maintenance sections in this

manual).

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H I'.,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST

6 G

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE

OPERATION

SYSTEM (ROS)

OVER TEMP

LIGHT

BATTERY REVERSEFUEL OIL PRESSURE

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

FREE WHEEL

(Automatic Models only)

LIGHTS ON

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

SLOW IGNITION SWITCH

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

DANGER, KEEP HANDS

AND FEET AWAY

FORWARD MOWER HEIGHT MOWER LIFT

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

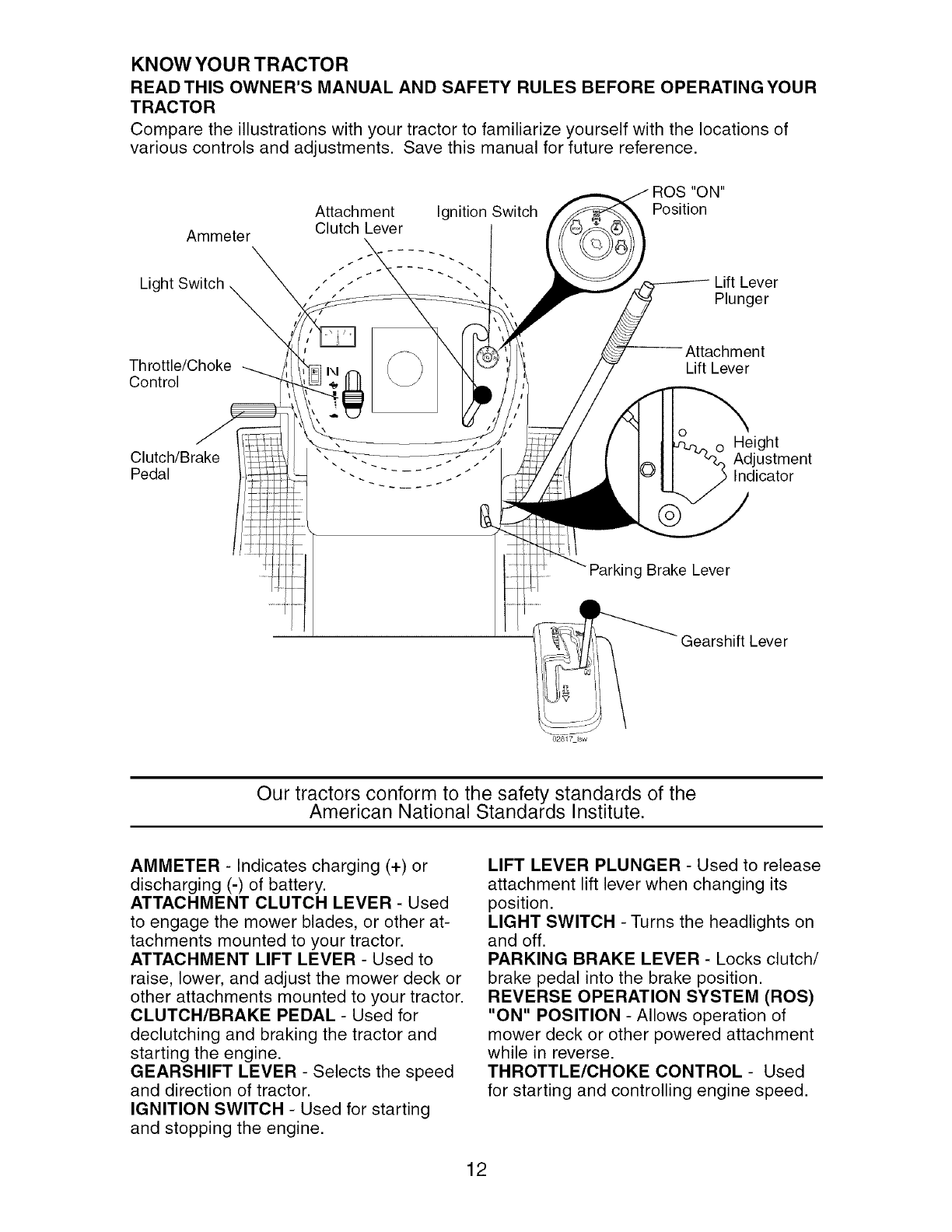

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Light Switch _

Th rottle/Choke

Control

Attachment Ignition Switch

Clutch Lever

ROS "ON"

Position

Lift Lever

Plunger

Attachment

Lift Lever

Clutch/Brake

Pedal

Height

Adjustment

Indicator

_gBrake Lever

Gearshift Lever

02817 Isw

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting

and stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH - Turns the headlights on

and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

REVERSE OPERATION SYSTEM (ROS)

"ON" POSITION - Allows operation of

mower deck or other powered attachment

while in reverse.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Throttle/

Choke

Control

Attachment Clutch Lever

"Enc Position

nition Key

,"Disengaged"

Position

Parking Brake

"Engaged"

"Brake" Position

Position

Clutch/ "Disengaged"

Brake Position

Pedal

STOPPING

Gearshift

Lever

MOWER BLADES -

• To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

,_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to approxi-

mately 2-1/2 inches during the cool season

and to over 3 inches during hot months.

For healthier and better looking lawns, mow

13 often and after moderate growth.

For bestcuttingperformance,grass over

6 inches in heightshouldbe mowed

twice. Makethe first cut relativelyhigh;

the secondto desiredheight.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in ap-

propriate hole with shoulder bolt, 3/8

washer, and 3/8-16 Iocknut and tighten

securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment hole.

Gauge

Wheel

Mountinc

Bracket

3/8-16

Locknut

Gauge Wheel

Shoulder

Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_ICAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Clutch Lever

"Engaged'

"Disengag

Position

Shield

OPERATING IN REVERSE

Your tractor is equipped with a Reverse

Operation System (ROS). Any attempt by

the operator to travel in the reverse direc-

tion with the attachment clutch engaged

will shut off the engine unless the ignition

key is placed in the ROS "ON" position.

_IIWARNING: Backing up with the at-

tachment clutch engaged while mowing

is strongly discouraged. Turning the ROS

"ON", to allow reverse operation with the

attachment clutch engaged, should only

be done when the operator decides it is

necessary to reposition the machine with

the attachment engaged. Do not mow in

reverse unless absolutely necessary.

USING THE REVERSE OPERATION

SYSTEM -

1. Depress clutch/brake pedal all the way

down and hold.

2. With engine running, turn ignition key

counterclockwise to ROS "ON" posi-

tion.

3. Look down and behind before backing

up.

4. Move gear shift lever to reverse (R) po-

sition and slowly release clutch/brake

pedal to start movement.

5. When use of the ROS is no longer

needed, turn the ignition key clockwise

to engine "ON" position.

ROS "ON" Position Engine "ON" Position

(Normal Operating)

TO OPERATE ON HILLS

_,WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

•Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

•If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

•Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

•When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULl" mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_I, CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

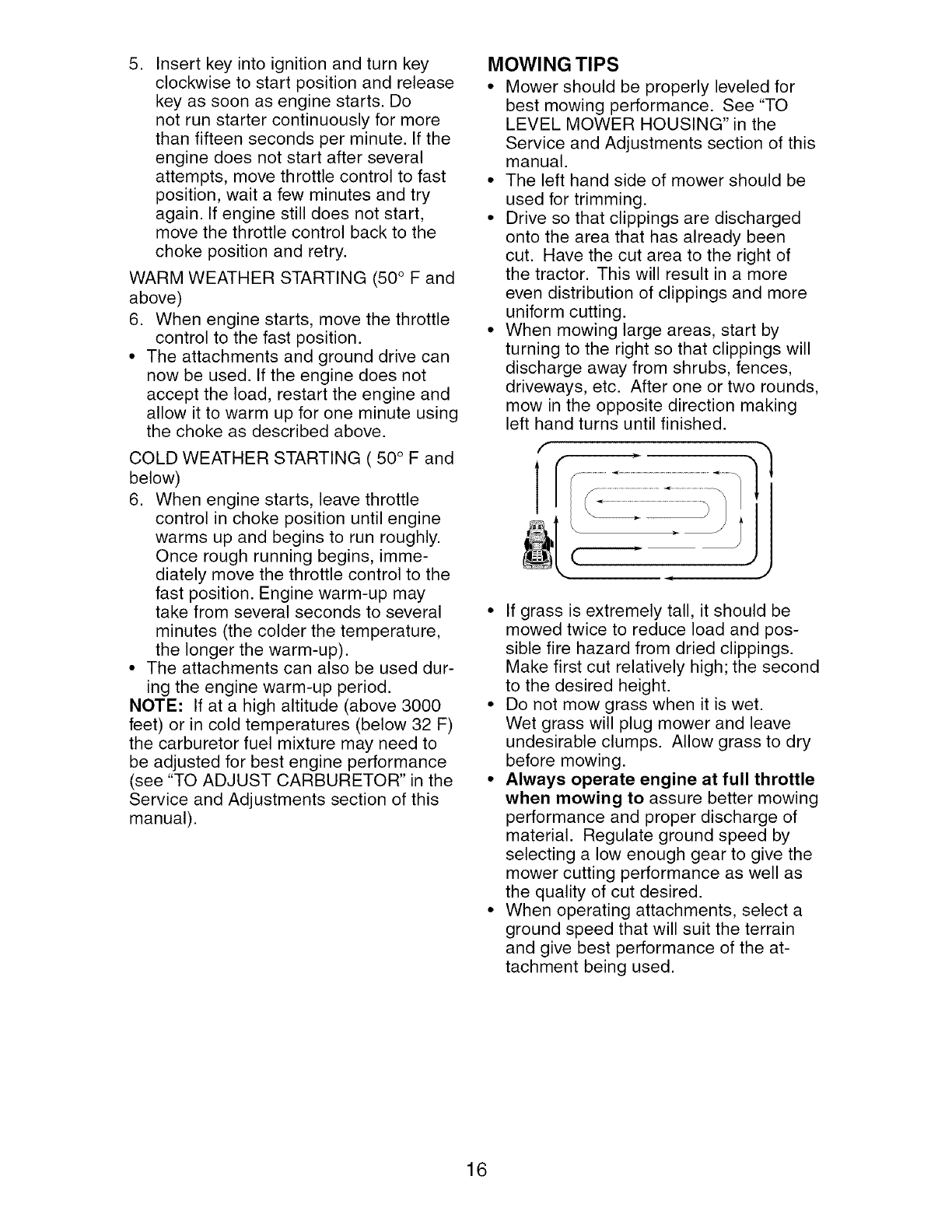

,Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

• The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

.A,.TE.A.OESO.EOU.E

AS YOU COMPLETE

REGULAR SERVICE f_r_'_TSERVlOe DATES

Check Brake Operation _

Check Tire Pressure

Check Operator Presence and

T ROSSystems If

R Check for Loose Fasteners II/ I_s If

ASharpen/Replace Mower Blades 1_3

C Lubrication Char_ I_ I_

0 Check Battery Level _4

a Clean Battery and Terminals I_ If

v'Check Transaxle Cooling

Check V-Belts I_

Check Engine Oil Level I_ If

Change Engine Oil (with oil filter) I_1,_ If

E Change Engine Oil (without oil filter) _1,2 I_

N Clean Air Filter 1_2

G Clean Air Screen 1_2

N_ Inspect Muffler/Spark Arrester

E Replace Oil Filter (If equipped) 1_1,2

Clean Engine Cooling Fins If 2

Replace Spark Plug I_ If

Replace Air Filter Paper Cartridge 1_2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

3 - Replace blades more often when mowing in sandy soil,

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

LUBRICATION CHART

@}S_ -- @ Spindle

Zerk Zerk

@Front Wheel ,-

Bearing

Zerk

@Front Wheel

Bearing Zerk

@Engine .

_SAE 30 or 10w30 Motor Oil

@General Purpose Grease

@Refer to Maintenance "ENGINE" Section

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

ROS systems for proper operation.

5. Check for loose fasteners.

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM AND

REVERSE OPERATION SYSTEM (ROS)

Be sure operator presence and reverse

operation systems are working properly. If

your tractor does not function as de-

scribed, repair the problem immediately.

•The engine should not start unless the

brake pedal is fully depressed, and the

attachment clutch control is in the disen-

gaged position.

CHECK OPERATOR PRESENCE

SYSTEM

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

ROS "ON" Position Engine "ON" Position

(Normal Operating)

CHECK REVERSE OPERATION (ROS)

SYSTEM

• When the engine is running with the ig-

nition switch in the engine "ON" position

and the attachment clutch is engaged,

any attempt by the operator to shift into

reverse should shut off the engine.

• When the engine is running with the

ignition switch in the ROS "ON" position

and the attachment clutch is engaged,

any attempt by the operator to shift into

reverse should NOT shut off the engine.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

ACAUTION: Use only a replacement

blade approved by the manufacturer of

your tractor. Using a blade not approved

by the manufacturer of your tractor is

hazardous, could damage your tractor and

void your warranty.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Trailing Mandrel As: _embly

Edge Up_ Blade Centel

Flat

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

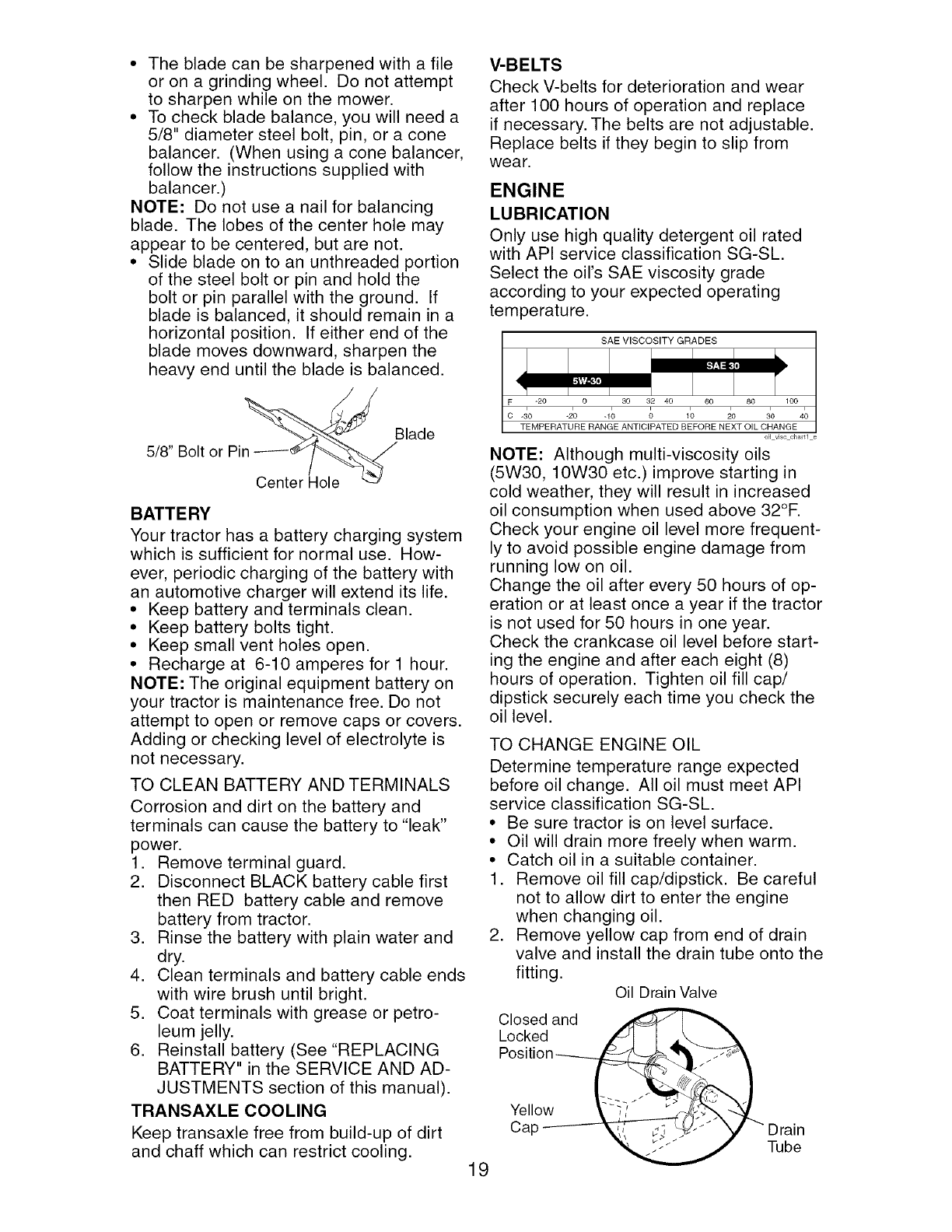

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt or Pin_ Blade

Center Hole

BATTE RY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES t

oi_ vi_ <_latf e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.)improve starting in

cold weather, they will result in increased

oil consumption when used above 32°F.

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting. Oil Drain Valve

Drain

Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULl" line on dipstick. Tighten cap

onto the tube securely when finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Pull up on air filter cover handle and

rotate towards engine.

2. Remove cover.

3. Carefully remove air filter cartridge and

pre-cleaner from base.

4. Clean base carefully to prevent debris

from falling into carburetor.

NOTE: If very dirty or damaged, replace

cartridge.

5. Place new pre-cleaner and cartridge

firmly in base.

6. Align tabs on cover with slots in blower

housing and replace cover.

7. Hook handle on cover and push down

on handle to close.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil car-

tridge. Do not use pressurized air to clean

cartridge. 20

_jHandle

Cover

_/Cartridge

Pre-cleaner ..........._ f'

Bas _/Tabs

Slots

ENGINE COOLING SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage. Clean out chaff

Air Screen and debris

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clam p_ Clamp

I Filter

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out.

Water in engine or transmission will

shorten the useful life of your tractor.

Use compressed air or a leaf blower to

remove grass, leaves and trash from

tractor and mower.

&WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

Small Retainer

Clutch Spring

Flat Washel

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

tSuspension _ _ Square Hole

Arms °

Engine Pulley

Anti-Sway

Collar

Housing

- Front Link

(Both Sides)

Deflector Shield

Large Retainer Spring Bracket

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge Bottom edge of

gfromO_/e,_to/..... n_o_e,_ ground

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

_ Mandrel

Both Front Links Should beEaual in Length

Nut _E _

Arm

Lift Link N_

Adjustment

Trunnion

Front Links

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel With Parking Brake "Engaged"

Idler Pulleys

Mandrel

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

Nut "A"

Jam Nut

Arm

00238

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

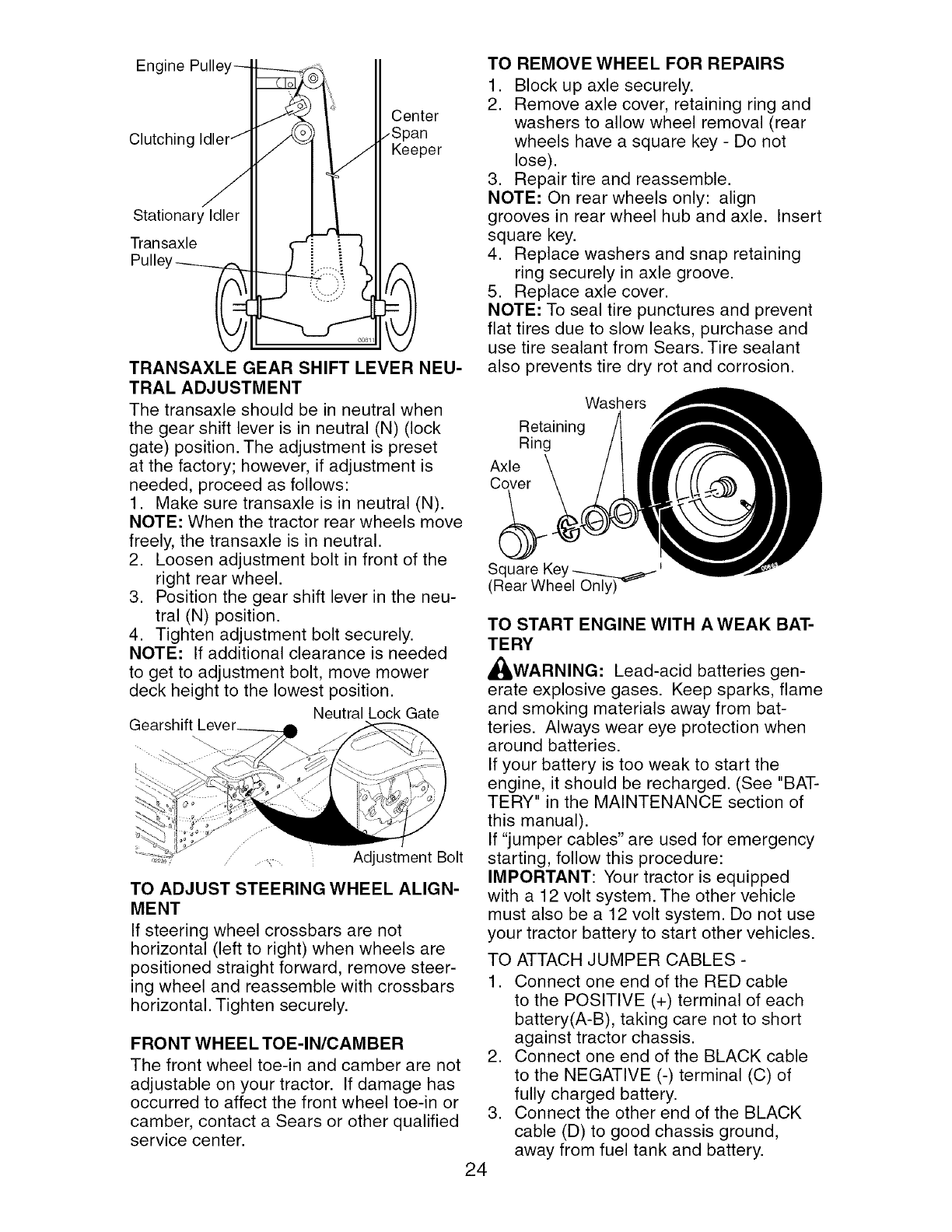

Engine

Clutching

Center

..Span

Keeper

Stationary Idler

Transaxle

TRANSAXLE GEAR SHIFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Neutral Lock Gate

Gearshift

...... ,,, Adjustment Bolt

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key _ _

(Rear Wheel Only) _

TO START ENGINE WITH AWEAK BAT-

TERY

_,WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

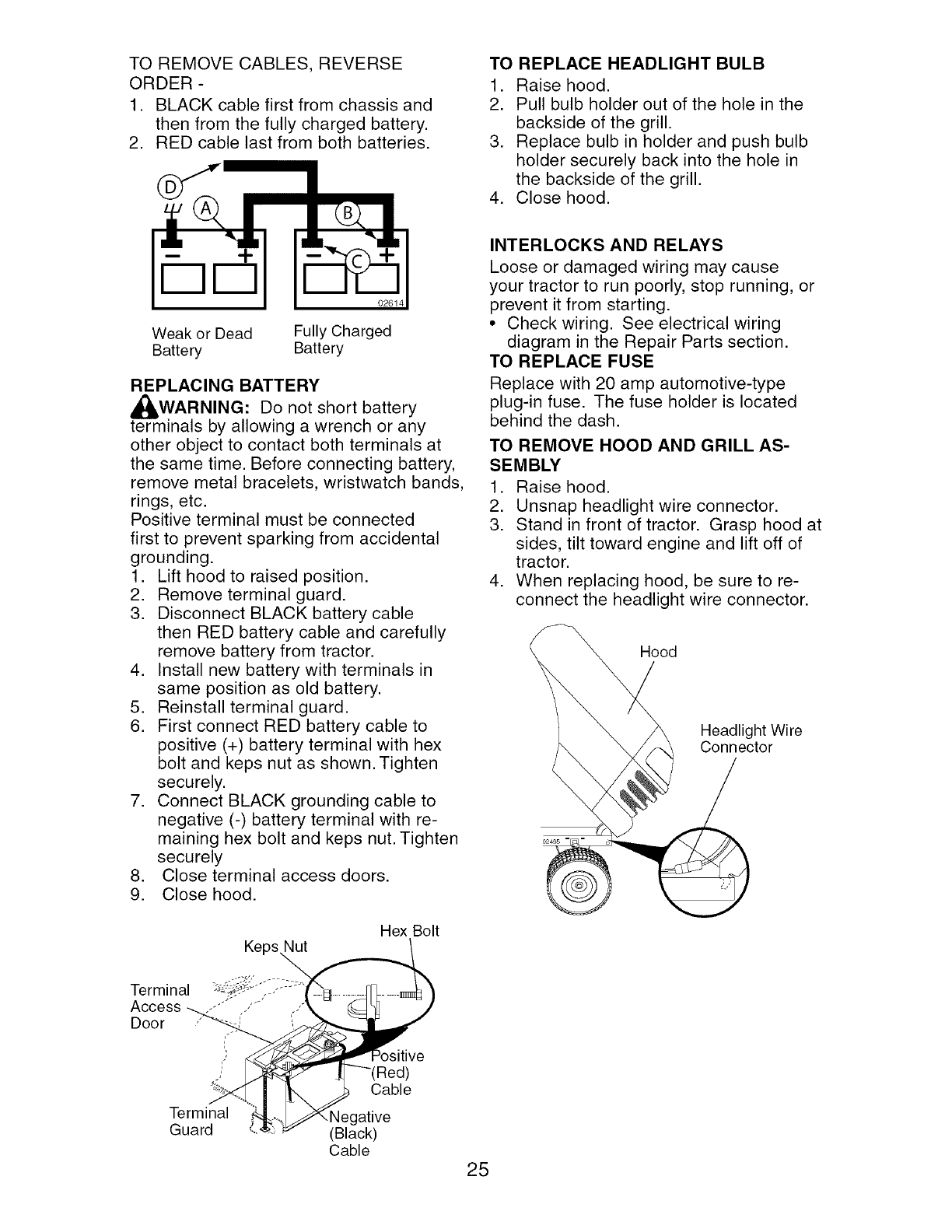

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

02614

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

WARNING • Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Hex Bolt

'e0s L

Terminal _-'_;_;_ -....

Access _

Door

,' _ JlI _(Bed)

_" i _ Cable

Terminal ?

_,j_;_, Negative

Guard (Black)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

TO ADJUST CARBURETOR

Governor Control Lever Governor Plate

Holes Throttle

Clamp Cable

Screw

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Speed Throttle

Screw

Idle Mixture Valve --'- _

With Limiter

Immediatelyprepareyourtractor for stor-

ageat the end of the seasonor if the trac-

tor will not be used for 30days or more.

_CAUTION: Neverstorethe tractor

with gasolinein the tank insidea building

where fumesmay reachan openflame

or spark. Allowthe engineto cool before

storing inany enclosure.

TRACTOR

Removemowerfrom tractorfor winter

storage.When moweris to be storedfor a

periodof time, clean it thoroughly,remove

all dirt, grease,leaves,etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

•Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

3ORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

PROBLEM

Loss of power

Excessive

vibration

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

CORRECTION

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Engine dies when 1. Reverse operation system 1. Turn ignition key to

tractor is shifted (ROS) is not "ON" while ROS "ON" position.

into reverse mower or other attachment See Operation section.

is engaged.

1. 1.

Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Engine continues

to run when

operator leaves

seat with attach-

ment clutch

engaged

Poor cut - uneven

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Check wiring, switches and

connections. If not corrected.

contact Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE

Mower blades will

not rotate

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires"

when turning

engine "OFF"

1. Obstruction in clutch

mechanism•

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley•

4. Frozen blade mandrel•

1. Engine speed too slow•

2. Travel speed too fast•

3. Wet grass•

4. Mower deck not level•

5. Low/uneven tire air pressure•

6. Worn, bent or loose blade•

7. Buildup of grass, leaves and

trash under mower•

8. Mower drive belt worn.

9. Blades improperly installed•

10. Improper blades used.

11 •Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels•

1. Light switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch•

4. Loose or damaged wiring•

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections•

3. Faulty regulator

(if so equipped)•

4. Faulty alternator•

,Engine throttle control not set

between half and full speed

(fast) position before stopping

engine•

CORRECTION

1. Remove obstruction•

2. Replace mower drive belt•

3. Replace idler pulley•

4. Contact a Sears or other

qualified service center•

1. Place throttle control in

"FAST" position•

2. Shift to slower speed•

3. Allow grass to dry before

mowing•

4. Level mower deck.

5. Check tires for proper air

pressure•

6. Replace/sharpen blade•

Tighten blade bolt.

7. Clean underside of mower

housing•

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual•

11. Clean around mandrels to

open vent holes•

1. Turn Light switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch•

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery•

2. Check/clean all connections•

3. Replace regulator•

4. Replace alternator•

,Move throttle control

between half and full speed

(fast) position before

stopping engine•

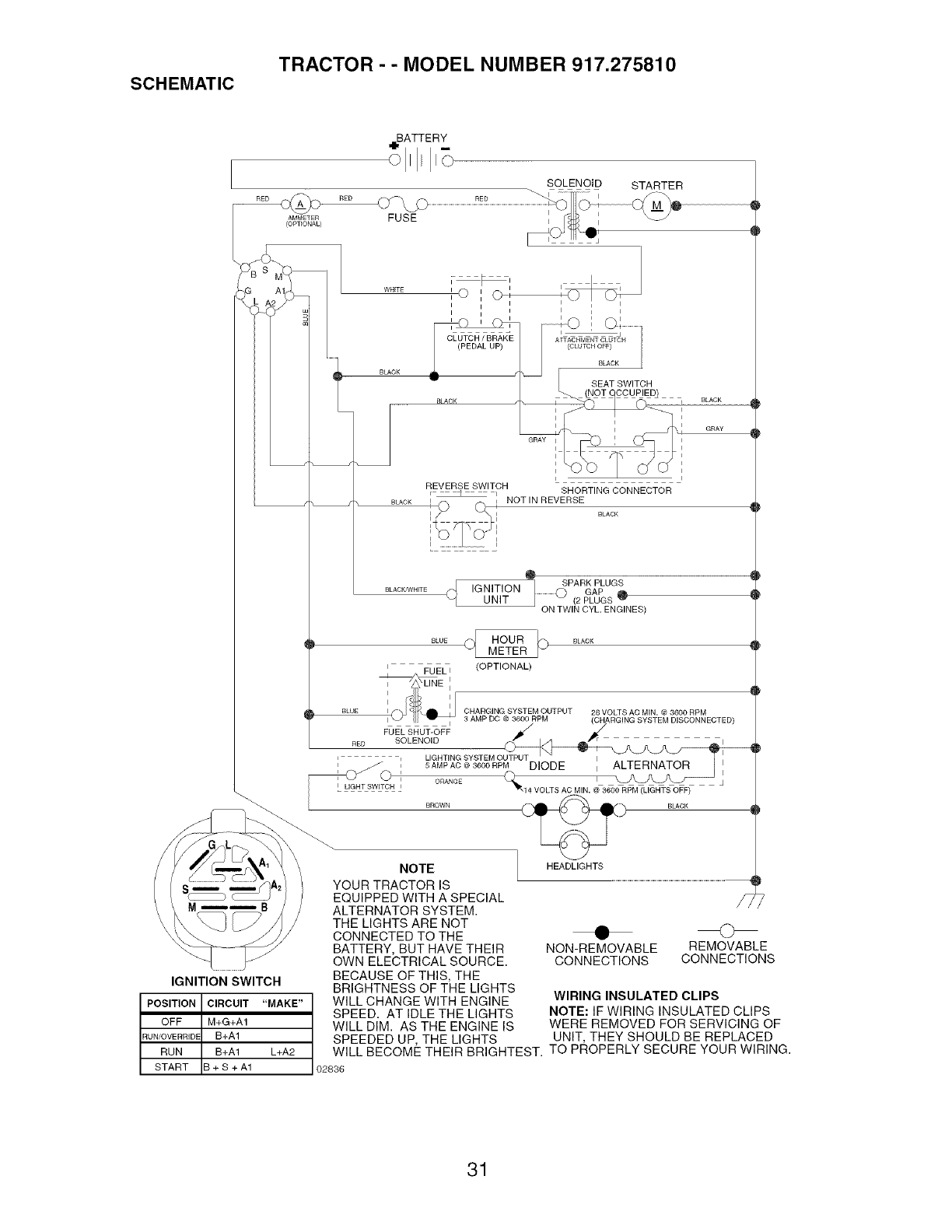

SCHEMATIC TRACTOR --MODEL NUMBER 917.275810

BATTERY

,I,,

SOLENOID STARTER

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1

_UN/OVERRIDE B+A1

RUN B+A1 L+A2

START B + S + A1

AC}O'WH]TE _J_ SPARKPLUGSIGNITION ......................O GAP O

UNIT (2PLUGS

ON TWIN CYL. ENGINES)

BLACK

GRAY

(OPTIONAL)

BLUE CHARGING SYSTEM OUTPUT 28 VOLTS AC MIN. @ 3600 RPM

3 AMP DC @ 3600 RPM (C_ARGING SYSTEM DISCONNECTED)

FUEL SHUT-OFF ('_'L._ZL._JL_I

RED SOLENOID ,_ I

I I UGNTING SYSTEM OUTPUT I TI

_Ov ' 5AMP AC @ 3600 RPM DIODE I ALTERNATOR

q ORANGE I _L_L__J j

I UGHTSWITOH I .k14VOLTSACMIN.@8600RPM(LIGHTSOFF )

HEADLIGHTS

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

• ©

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS

WERE REMOVED FOR SERVICING OF

SPEEDED UP, THE LIGHTS UNIT, THEY SHOULD BE REPLACED

WILL BECOME THEIR BRIGHTEST. TO PROPERLY SECURE YOUR WIRING.

02836

ELECTRICAL

TRACTOR --MODEL NUMBER 917.275810

24 41

I I

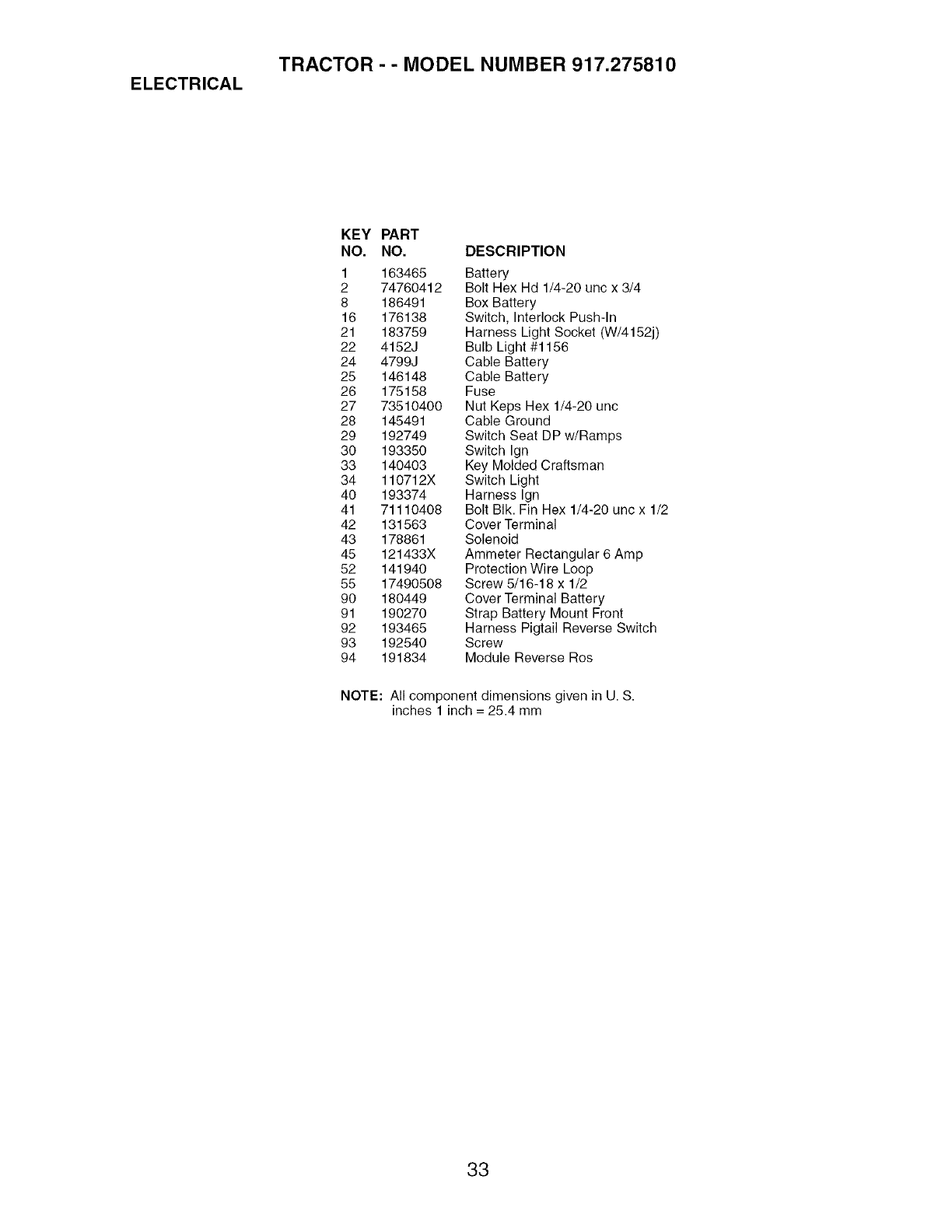

ELECTRICAL

TRACTOR --MODEL NUMBER 917.275810

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt Hex Hd 1/4-20 uric x 3/4

8 186491 Box Battery

16 176138 Switch, Interlock Push-In

21 183759 Harness Light Socket (W/4152j)

22 4152J Bulb Light #1156

24 4799J Cable Battery

25 146148 Cable Battery

26 175158 Fuse

27 73510400 Nut Kegs Hex 1/4-20 unc

28 145491 Cable Ground

29 192749 Switch Seat DP w/Ramps

30 193350 Switch Ign

33 140403 Key Molded Craftsman

34 110712X Switch Light

40 193374 Harness Ign

41 71110408 Bolt BIk. Fin Hex 1/4-20 unc x 1/2

42 131563 Cover Terminal

43 178861 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop

55 17490508 Screw 5/16-18 x 1/2

90 180449 Cover Terminal Battery

91 190270 Strap Battery Mount Front

92 193465 Harness Pigtail Reverse Switch

93 192540 Screw

94 191834 Module Reverse Ros

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR - -MODEL NUMBER 917.275810

CHASSIS AND ENCLOSURES

259

260

208

209

208

278

209

206 209

142

3_ 38_14

-37

208

chassis-Laser-It=stlt 45

TRACTOR --MODEL NUMBER 917.275810

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis Assembly

2 176554 Drawbar

5 155272 Bumper Hood/Dash

9 193511X013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 1

11 174996 Panel, Dash, L.H.

13 172105X010 Panel, Dash, R.H.

14 17490608 ScrewThdrol 3/8-16 x 1/2

17 184272X615 Hood Assembly

18 184921 Bumper Hood

26 STD541437 Locknut, Hex, with Insert 3/8-16 unc

28 184259 Grille/Lens Asm (Includes key nos. 258, 259, 260, 263,

264, 274, 275 & 278)

30 192393X615 Fend/Ftrest

31 139976 Bracket, Fender Support

37 17490508 ScrewThdrol 5/16-18 x 1/2

38 175710 Pivot Bracket Assembly

39 174714 Bracket Pivot

58 184270 Air Duct

60 STD533707 Bolt Rdhd Sqnk 3/8-16 uric x 3/4

64 154798 Dash Lower STLT

74 STD541437 Nut Crownlock 3/8-16 unc

114 158112 Keeper Belt Rear LH

142 175702 Plate Reinforcement STLT

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Pnt Footrest STLT

145 156524 Rod Pivot Chassis/Hood

148 17490620 ScrewThdrol 3/8-16 x 1-1/4

159 155123X428 Cupholder

206 170165 Bolt Shoulder 5/16-18 TT

207 17670508 ScrewThdrol 5/16-18 x 1/2

208 17670608 ScrewThdrol 3/8-16 x 1/2

209 17000612 Screw Hex Wsh Thdr 3/8-16 x 3/4

211 145212 Nut Hexflange Lock

258 184264X599 Lens Laser RH

259 184263X599 Lens Laser LH

260 184262X428 Cover Lens Laser

263 184265 Bezel Grille LH

264 184266 Bezel Grille RH

272 184269X428 Vent Hood Laser III RH

273 184268X428 Vent Hood Laser III LH

274 184260X428 Insert Grille LH

275 184261X428 Insert Grille RH

278 191611 Screw 10 x 3/4 Single Lead-Hex

- - 5479J Plug BTN .359 Dia.

- - 187801 Plug Dome Plastic

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

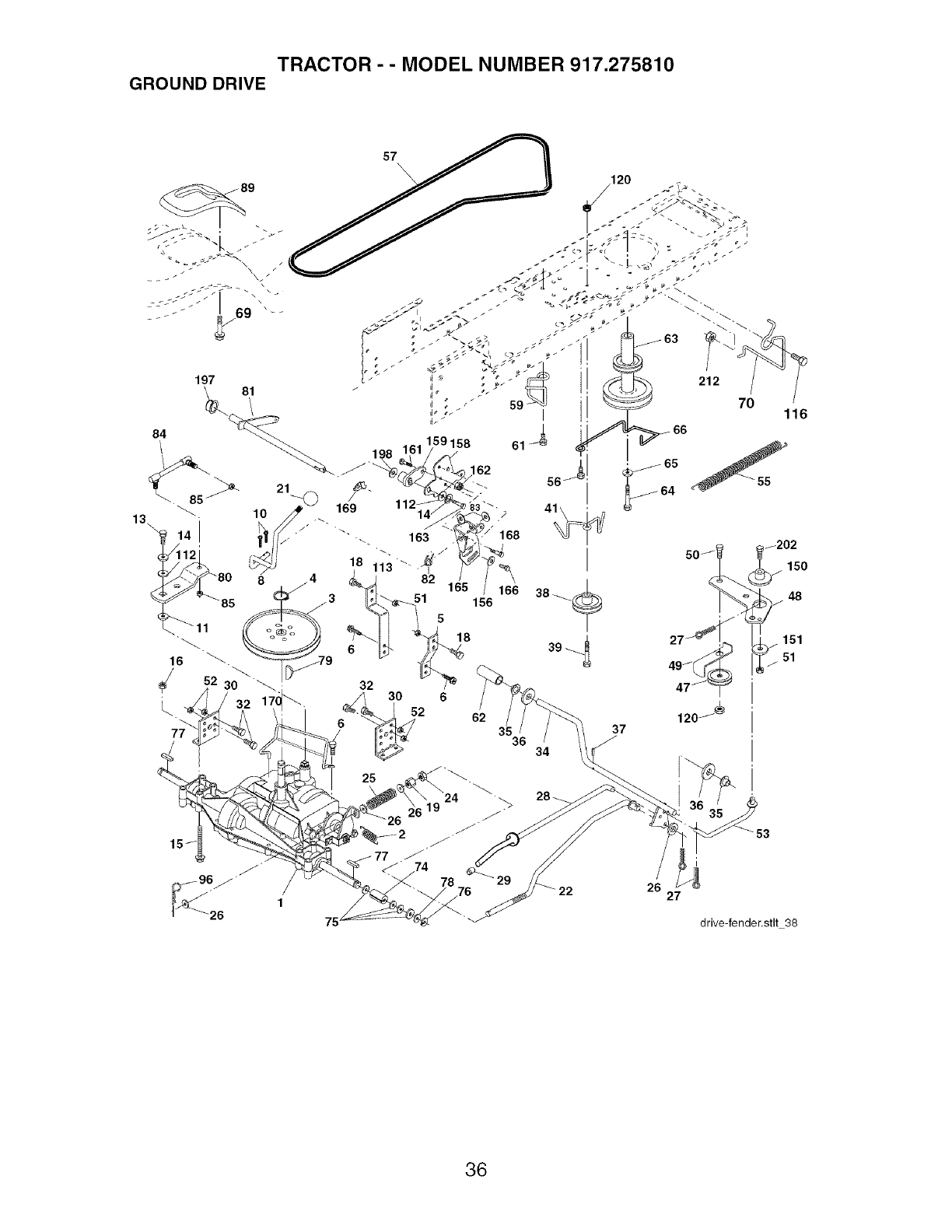

TRACTOR --MODEL NUMBER 917.275810

GROUND DRIVE

26 27

drive-fender.stlt 38

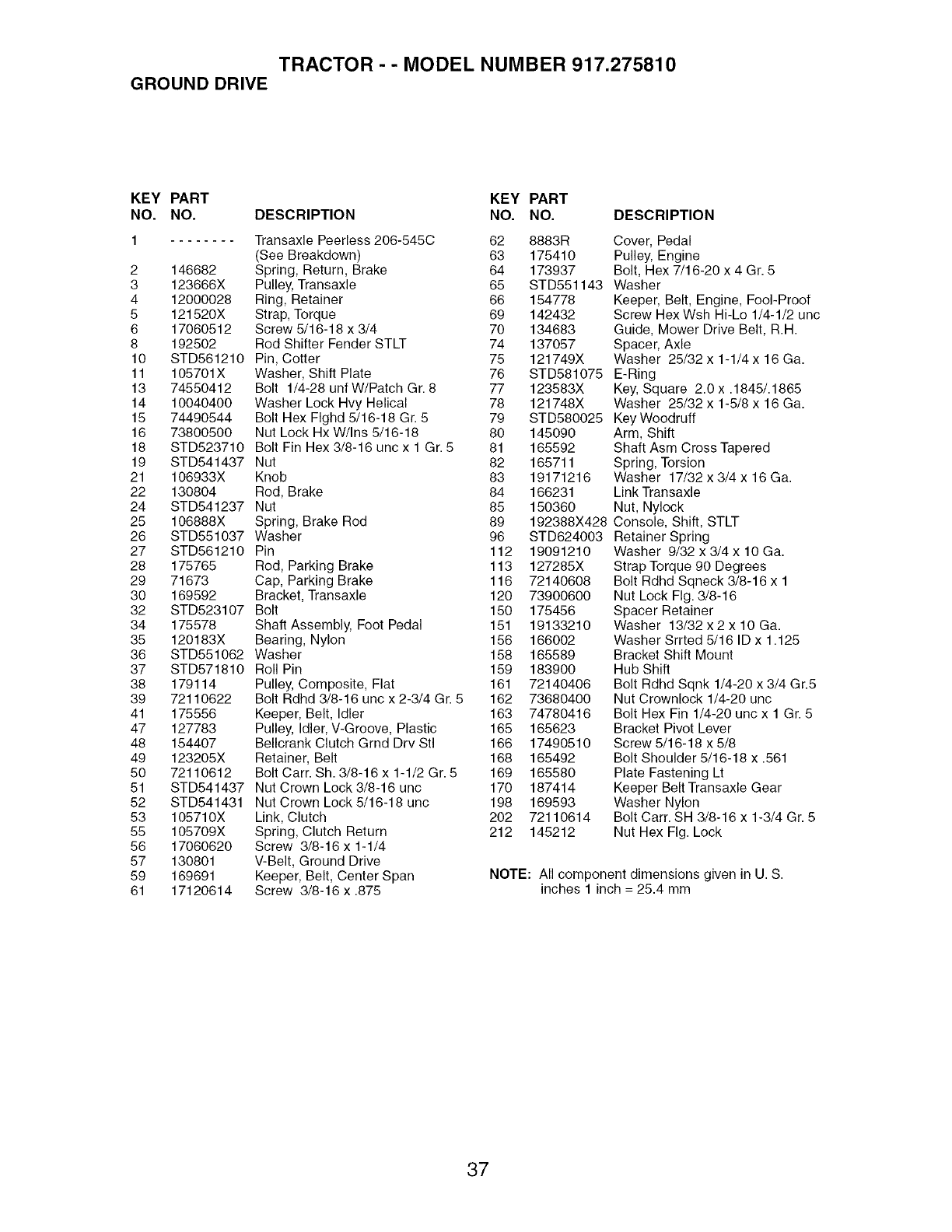

TRACTOR --MODEL NUMBER 917.275810

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle Peerless 206-545C 62

(See Breakdown) 63

2 146682 Spring, Return, Brake 64

3 123666X Pulley, Transaxle 65

4 12000028 Ring, Retainer 66

5 121520X Strap, Torque 69

6 17060512 Screw 5/16-18 x 3/4 70

8 192502 Rod Shifter Fender STLT 74

10 STD561210 Pin, Cotter 75

11 105701X Washer, Shift Plate 76

13 74550412 Bolt 1/4-28 unf W/Patch Gr. 8 77

14 10040400 Washer Lock Hvy Helical 78

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 79

16 73800500 Nut Lock Hx W/Ins 5/16-18 80

18 STD523710 BoltFinHex3/8-16uncx1Gr. 5 81

19 STD541437 Nut 82

21 106933X Knob 83

22 130804 Rod, Brake 84

24 STD541237 Nut 85

25 106888X Spring, Brake Rod 89

26 STD551037 Washer 96

27 STD561210 Pin 112

28 175765 Rod, Parking Brake 113

29 71673 Cap, Parking Brake 116

30 169592 Bracket, Transaxle 120

32 STD523107 Bolt 150

34 175578 Shaft Assembly, Foot Pedal 151

35 120183X Bearing, Nylon 156

36 STD551062 Washer 158

37 STD571810 Roll Pin 159

38 179114 Pulley, Composite, Flat 161

39 72110622 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5 162

41 175556 Keeper, Belt, Idler 163

47 127783 Pulley, Idler, V-Groove, Plastic 165

48 154407 Bellcrank Clutch Grnd Drv Stl 166

49 123205X Retainer, Belt 168

50 72110612 Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 169

51 STD541437 Nut Crown Lock 3/8-16 unc 170

52 STD541431 Nut Crown Lock 5/16-18 unc 198

53 105710X Link, Clutch 202

55 105709X Spring, Clutch Return 212

56 17060620 Screw 3/8-16 x 1-1/4

57 130801 V-Belt, Ground Drive

59 169691 Keeper, Belt, Center Span

61 17120614 Screw 3/8-16 x .875

123583X

121748X

STD580025

145090

165592

165711

19171216

166231

150360

8883R Cover, Pedal

175410 Pulley, Engine

173937 Bolt, Hex 7/16-20 x 4 Gr. 5

STD551143 Washer

154778 Keeper, Belt, Engine, Fool-Proof

142432 Screw HexWsh Hi-Lo 1/4-1/2 uric

134683 Guide, Mower Drive Belt, R.H.

137057 Spacer, Axle

121749X Washer 25/32 x 1-1/4 x 16 Ga.

STD581075 E-Ring

Key, Square 2.0 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Ga.

Key Woodruff

Arm, Shift

Shaft Asm Cross Tapered

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Nut, Nylock

192388X428 Console, Shift, STLT

STD624003

19091210

127285X

72140608

73900600

175456

19133210

166002

165589

183900

72140406

73680400

74780416

165623

17490510

165492

165580

187414

169593

72110614

145212

Retainer Spring

Washer 9/32 x 3/4 x 10 Ga.

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 1

Nut Lock Fig. 3/8-16

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock 1/4-20 unc

Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt Transaxle Gear

Washer Nylon

Bolt Carr. SH 3/8-16 x 1-3/4 Gr. 5

Nut Hex Fig. Lock

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

STEERING

TRACTOR --MODEL NUMBER 917.275810

?"-"--'_-- 38

-T

//I _\ \

I\ --i Ii

/15 15 _ 29

steering pl,lt 57

67 67

26_ 43

/ / 8

2/ /

30 \ \

STEERING

TRACTOR --MODEL NUMBER 917.275810

KEY PART

NO. NO. DESCRIPTION

1 186093X428 Steering Wheel

2 184706 Axle Assembly

3 169840 Spindle Assembly, L.FI.

4 169839 Spindle Assembly, R.FI.

5 626614 Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Ga.

8 12000029 Ring, Klip

10 175121 Draglink

11 STD551137 Washer, Lock

13 136518 Spacer, Bearing, Axle

15 145212 Nut, Hexflange Lock

17 190753 Shaft Assembly, Steering

26 126847X Bushing

28 19131416 Washer 13/32 x 7/8 x 16 Ga.

29 17000612 Screw 3/8-16 x 3/4

30 76020412 Pin Cotter 1/8 x 3/4

32 130465 Rod, Tie

34 10040500 Washer Lock Hvy HLCL Spr. 5/16

36 155099 Bushing, Steering

37 152927 Screw

38 186095X428 Insert, Steering Wheel

40 73540600 Nut Crownlock 3/8-24

41 186737 Adaptor, Steering Wheel

42 145054X428 Boot, Steering Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Ga.

44 190752 Extension Shaft Steering

46 184946X505 Cap, Spindle

65 160367 Spacer Brace Axle

67 72110618 Bolt RDHD SQNK 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm

82 169835 Bracket Susp Chassis Front

87 173966 Washer Flat .781 x 1-1/2 x .14

88 175118 Bolt shoulder 7/16-20

91 175553 Clip Steering

95 188967 Washer Hardened

97 74780564 Bolt 5/16-18 x 4 Gr. 5

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

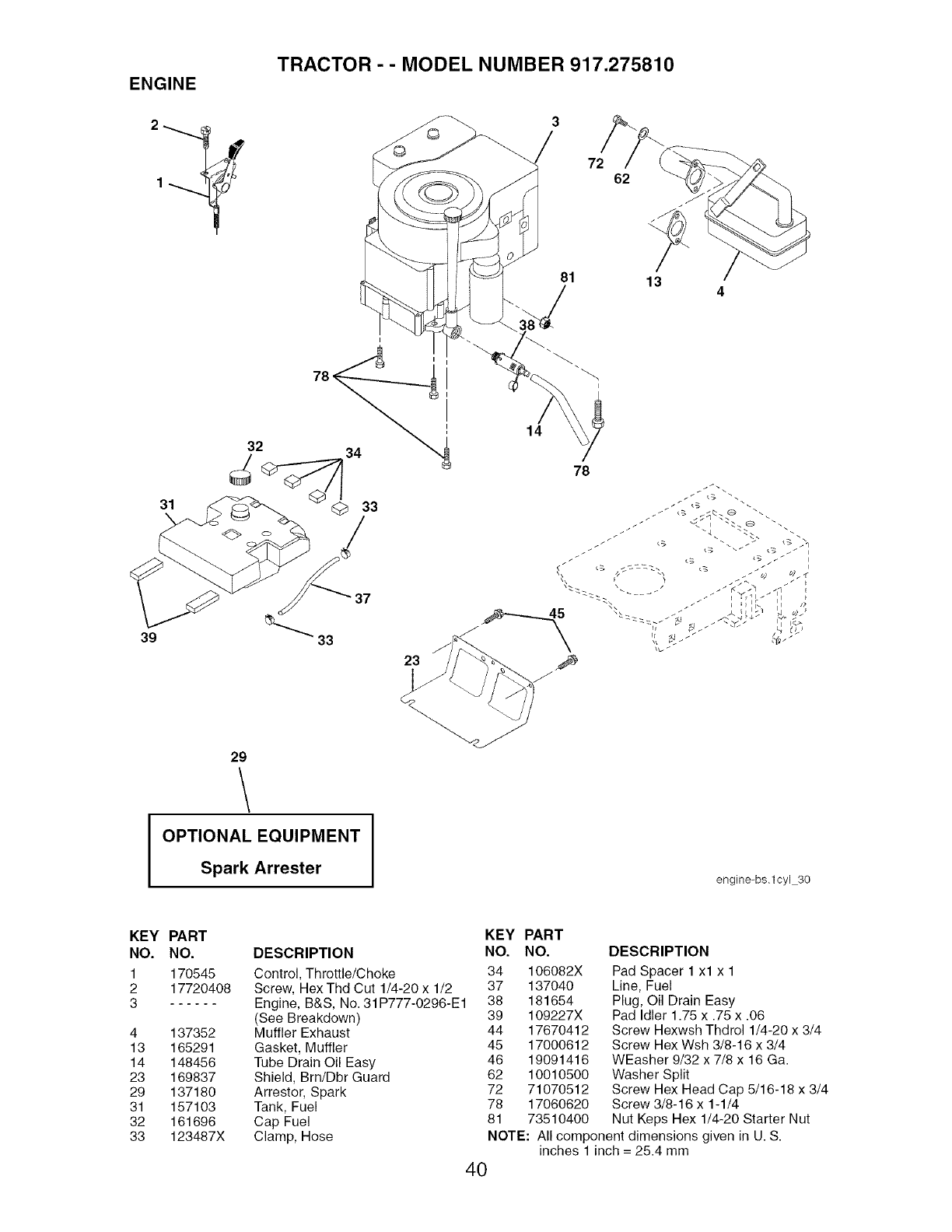

ENGINE TRACTOR --MODEL NUMBER 917.275810

72 62

OPTIONAL EQUIPMENT

Spark Arrester engine-bs,lcyl 30

KEY PART

NO. NO.

1 170545

2 17720408

4 137352

13 165291

14 148456

23 169837

29 137180

31 157103

32 161696

33 123487X

DESCRIPTION

Control, Throttle/Choke

Screw, HexThd Cut 1/4-20 x 1/2

Engine, B&S, No. 31P777-0296-E1

(See Breakdown)

Muffler Exhaust

Gasket, Muffler

Tube Drain Oil Easy

Shield, Brn/Dbr Guard

Arrestor, Spark

Tank, Fuel

Cap Fuel

Clamp, Hose

KEY PART

NO. NO.

34 106082X

37 137040

38 181654

39 109227X

44 17670412

45 17000612

46 19091416

62 10010500

72 71070512

78 17060620

81 73510400

DESCRIPTION

Pad Spacer 1 xl x 1

Line, Fuel

Plug, Oil Drain Easy

Pad Idler 1.75 x .75 x .06

Screw Hexwsh Thdrol 1/4-20 x 3/4

Screw Hex Wsh 3/8-16 x 3/4

WEasher 9/32 x 7/8 x 16 Ga.

Washer Split

Screw Hex Head Cap 5/16-18 x 3/4

Screw 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20 Starter Nut

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR --MODEL NUMBER 917.275810

SEAT ASSEMBLY

\\\\

17 12

seat _t,knob 1

KEY PART

NO. NO.

1 188719

2 140551

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 182493

11 166369

12 174648

DESCRIPTION

Seat

Bracket, Pivot, Seat

Bolt

Washer 13/32 x 1 x 10 Ga.

Clip, Push-In Hinged

Nut

Spring, Seat

Screw 3/8-16 x 1-1/2

Washer 13/32 x 1 x 14 Ga.

Pan, Seat

Knob Seat

Bracket, Switch Mounting

KEY PART

NO. NO. DESCRIPTION

13 121248X Bushing, Snap

14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

15 134300 Spacer, Split .28 x .88

16 121250X Spring

17 123976X Locknut, Flange 1/4 Gr. 5

21 171852 Bolt, Shoulder 5/16-18 unc

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.

25 127018X Bolt Shoulder 5/16-18 x .62

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

DECALS TRACTOR --MODEL NUMBER 917.275810

10 \6

/8 7

19 13

KEY PART

NO. NO.

1 156439 Decal

2 189020 Decal

3 186366 Decal

5 186367 Decal

6 133644 Decal

7 189088 Decal

8 193564 Decal

9 186572 Decal

10 164065 Decal

11 193308 Decal

13 146046 Decal

DESCRIPTION KEY PART

NO. NO.

Fender Danger Sears 15 160396

Engine 19 138047

Hood, R.H./L.H. 20 172331

Hood Side Panel 21 179128

Maintenance 22 149516

Lower Dash - - 138311

Rplcmnt - - 184310X428

Fender, Craftsman White - - 184311X428

Strng Whl Domed - - 194243

Fender STLT Oper Inst E/S - - 194244

V-Belt Dr Sch Tractor

DESCRIPTION

Decal, Mower Drive Schematic

Decal, Battery Diehard Sears

Decal, Deck Sears

Decal, Deck

Decal, Battery

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS AND TIRES

5,8

wheel 1

KEY PART

NO. NO. DESCRIPTION

59192 Valve Cap, Tire

65139 Stem, Valve

106222X Tire, Front

59904 Tube, Front Tire (Not Provided,

Service Item Only)

106732X624 Rim, Front

278H Fitting, Grease (Front Wheel Only)

9040H Bearing, Flange (Front Wheel

Only)

106108X624 Rim, Rear

138468 Tire, Rear

7152J Tube, Rear Tire

(Not Provided, Service Item Only)

104757X428 Cap, Axle

144334 Sealant, Tire 10 oz.

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

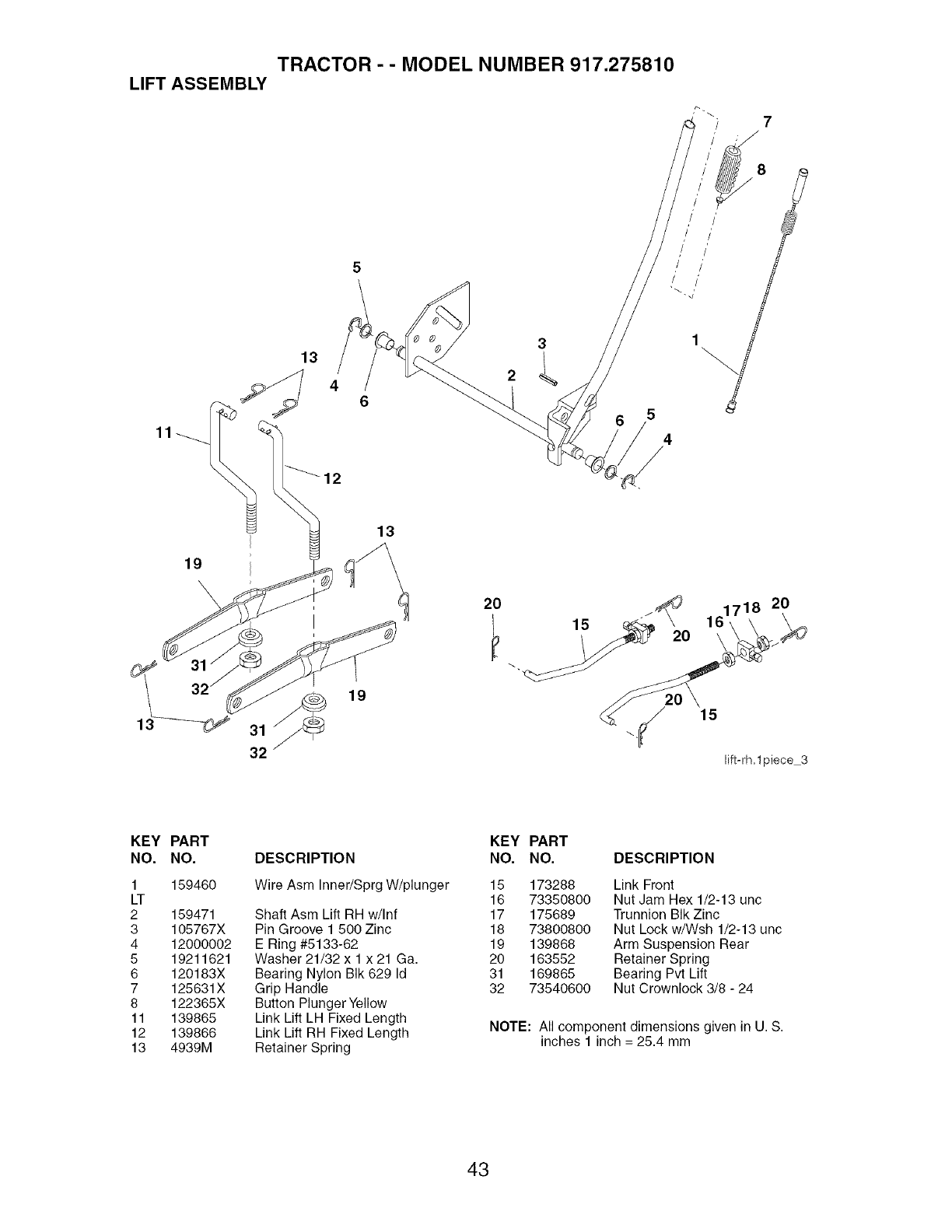

LIFT ASSEMBLY TRACTOR --MODEL NUMBER 917.275810

13 3

19\

•1718 20

20 z_ 16

lift-rh.lpiece 3

KEY PART

NO. NO.

1 159460

2 159471

3 105767X

4 12000002

5 19211621

6 120183X

7 125631X

8 122365X

11 139865

12 139866

13 4939M

DESCRIPTION

Wire Asm Inner/Sprg W/plunger

Shaft Asm Lift RH w/Inf

Pin Groove 1 500 Zinc

E Ring #5133-62

Washer 21/32 x 1 x 21 Ga.

Bearing Nylon BIk 629 Id

Grip Handle

Button Plunger Yellow

Link Lift LH Fixed Length

Link Lift RH Fixed Length

Retainer Spring

KEY PART

NO. NO. DESCRIPTION

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 unc

17 175689 Trunnion BIk Zinc

18 73800800 Nut Lock w/Wsh 1/2-13 unc

19 139868 Arm Suspension Rear

20 163552 Retainer Spring

31 169865 Bearing Pvt Lift

32 73540600 Nut Crownlock 3/8 - 24

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR --MODEL NUMBER 917.275810

MOWER DECK

4oJ_

42 D man-t-path silt 3

29 27

TRACTOR --MODEL NUMBER 917.275810

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 165892 Mower Deck Assembly, 42" 52 139888

2 STD533107 Bolt 53 184907

3 138017 Bracket Assy., Sway Bar, Front 54 178515

4 165460 Bracket Sway Bar 38/42" Deck 55 155046

5 STD624008 Retainer Spring 56 165723

6 178024 Bar Sway Deck 59 141043

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 67 149846

9 STD551137 Washer, Lock 68 144959

10 140296 Washer, Hardened 92 STD541437

(The following blades are available) 111 179292

11 138971 Blade, 42" Hi-Lift 112 179293

(For bagging or discharging) 113 17060512

- - 134149 Blade, 42" Mulching Std 116 4898H

(For mulching mowers only) 117 188606

- - 139775 Blade, 42" Mulching Premium 118 73930600

(For better wear when mulching 119 STD551037

13 137645 Shaft Assembly, Mandrel, Vented 129 19131312

14 128774 Housing, Mandrel, Vented 130 STD523710

15 110485X Bearing, Ball, Mandrel 131 STD533710

16 174493 Stripper, Mower Deck 142 165890

18 72140505 Bolt, Carriage 5/16-18 x 5/8 143 157109

19 132827 Bolt, Shoulder 144 158634

20 159770 Baffle, Vortex 145 165888

21 STD541431 Nut Crownlock 5/16-18 unc 146 171977

23 177563 Bracket, Deflector 147 131335

24 105304X Cap, Sleeve 148 169022

25 123713X Spring, Torsion, Deflector 149 165898

26 110452X Nut, Push 150 19091210

27 130968X428 Shield, Deflector 152 169676

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 158 17720408

29 131491 Rod, Hinge 159 STD533717

30 173984 Screw Thdrol Washer Head 184 19131410

31 187690 Washer, Spacer 185 188234

32 153535 Pulley, Mandrel -- 130794

33 178342 Nut, Toplock, Flanged

34 STD533717 Bolt

36 131494 Pulley, Idler, Flat

40 73900600 Nut Lock Fig. 3/8-16 unc - - 169583

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened

DESCRIPTION

Bolt, Shoulder 5/16-18 unc

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Oval

V-Belt

Nut

Bracket Wheel Guage LH

Bracket Wheel Guage RH

Screw 5/16-18 x 3/4

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8-16

Washer 3/8 x 7/8 x 14 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5

Bolt, Rdhd Sqnk 3/8-16 unc x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Cable Clutch 42 In

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Washer 13/32 x 7/8 x 10 Ga.

Head Asm. Cable Clutch

Mandrel Assembly (Includes

Housing, Shaf and Shaft

Hardware Only-Pulley not

included)

Replacement Mower, Complete

(Std. Deck-Order separately

guage wheel components key

nos. 116- 119).

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.275810

PEERLESS TRANSAXLE--MODEL NUMBER 206-545C

180J_

150

_1ODEL and SERIAL

NUMBERS HERE

Model et Seriel

Chiffre c I

157

41A _7

42A

TRACTOR - -MODEL NUMBER 917.275810

PEERLESS TRANSAXLE--MODEL NUMBER 206-5450

REF PART REF PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 772147 Transaxle Cover 41A 790079

2 780086A Needle Bearing 5/8" 42 792073A

3 770128 Transaxle Case 42A 792085A

4 776395 Countershaft 43 792075

5 776409 Output Shaft 44 790025

6 778364 Spur Gear (38 teeth) 45 786066

6A 778369 Spur Gear (15 teeth) 46 786086

7 778330 Spur Gear (11 teeth) 47 774690

8 792180 Shift Key 48 774691

8A 792047 Woodruff Key #9 49 778356

9 784352 Shift Collar 50 778338

10 784378 Shift Rod & Fork 51 778354

11 778334 Bevel Gear (30 teeth) 52 778352

12 778309 Input Bevel Pinion (13 teeth) 53 778350

13 778368 Bevel Gear (13 teeth) 54 778346

(Include. 14) 56 778355

14 778368 Bevel Pinion (13 teeth) 57 778337

(Include. 13) 58 778353

15 778370 Ring Gear (43 teeth) 59 778351

17 786188 Drive Pin 60 778349

18 786102 Spacer 1.130 X .695 61 778345

20 792077A Ball 5/16" dia 65 780189

21 792078 Set Screw 3/8 - 16 x 3/8" 66 776422

22 792079 Spring .310 OD x .625 L 67 776396

25 792073A Screw 1/4 - 20 x 1-1/4" 69 792170

25A 792177 Screw 1/4-20 x 1-3/8" 70 786187

26 792125 Retaining Ring (pkg of 2) 71 788069

27 792035 Retaining Ring 71B 788092

28 788040 Retaining Ring 76 780090

29 780072 Thrust Washer .627 ID x

.031W 77 788078A

29A 780160 Thrust Washer .762 ID x 79 792144

.031W 82 778333

29B 780051 Thrust Washer.762 ID x

.031W 83

29C 780199 Anti-Rotation Washer.632 85

30 780108 Cup Washer 1.127 ID x 87

.032W 150

31 780001 Flat Washer .750 ID x .056W 157

(Use As Needed) 180

31A 780195 Flat Washer .750 ID x .062W 900

32 788083 Oil Seal 5/8"

34 780194 Bushing .563

35 780193 Flanged Bushing 5 /8" ID

35A 780197 Flanged Bushing .751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 799021 Brake Pad (pkg of 2)

39 786026 Dowel Pin

40 792076A Flat Washer .312 ID x .059W

Brake Lever

Screw 1/4 - 20 x 1-1/4"

Screw 1/4 - 20 x 2 1/4"

Locknut 5 /16 - 24

Brake Pad Holder

Spacer .2625 x 1.0

Brake Lever Bracket

Axle (11-15 /16" Long)

Axle (16 - 1 /2" long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth)

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

Flat Washer .563 ID x .062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cut Ring

"O" Ring

Flat Washer 1.128 ID x

.058W

Inverted Retaining Ring

Spring .430 OD x .5000 L

Bevel & Spur Gear

(30 & 13 teeth)

778338 Spur Gear (27 teeth)

792154 Oil Fill Plug

788089A Oil Seal 9/16"

788093A Liquid Gasket RTV Silicone

788088A Oil Seal 3/4"

730229A Gear Oil 80W90

794712 Replacement MST -

206-545C Transaxle

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR - -MODEL NUMBER 917.275810

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

307

358 ENGINE GASKET SET

20@ 6170

718 !_

022

51 _ 691(_ 0

524 _ 8420 1266

43,_

16,

146.

741

664I'11_

584_

1264I_

I 1019 LABEL KIT I

[ 1058 OWNER'S MANUAL ]

I 1036EMISSIONLABELI I@1

I 46sHORTBLOCK I

I 133oREPAIRMANUALI_

[1329REPLACEMENTENGINEI

750 •

15_

20 O 89

1027

TRACTOR - -MODEL NUMBER 917.275810

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

914

238

1022

6170

1034

1022

240 %118 6Ol

141A

95_

-- 918

654 @

lO4

105

93_ 106

117_o

1266A _

334

385_

121 CARBURETOR OVERHAUL KIT

634A_ 987@

137_ 276_

634_ 1266<

142_ 6170 1266A<_

977 CARBURETOR GASKET SET

1095 VALVE GASKET SET

868@ lO22_

=471

525

105

(17L)137

276 @

1127_

127 O

+ii6°

947

TRACTOR - -MODEL NUMBER 917.275810

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

305A

643

1267

968

309_ 801

_ 544_

803

579 _ _,,_1_

462 1797 __

802 @

729

697 _

310 1

1070

1005 _ 1044_

1051&

363 # _'_J _ 783 @

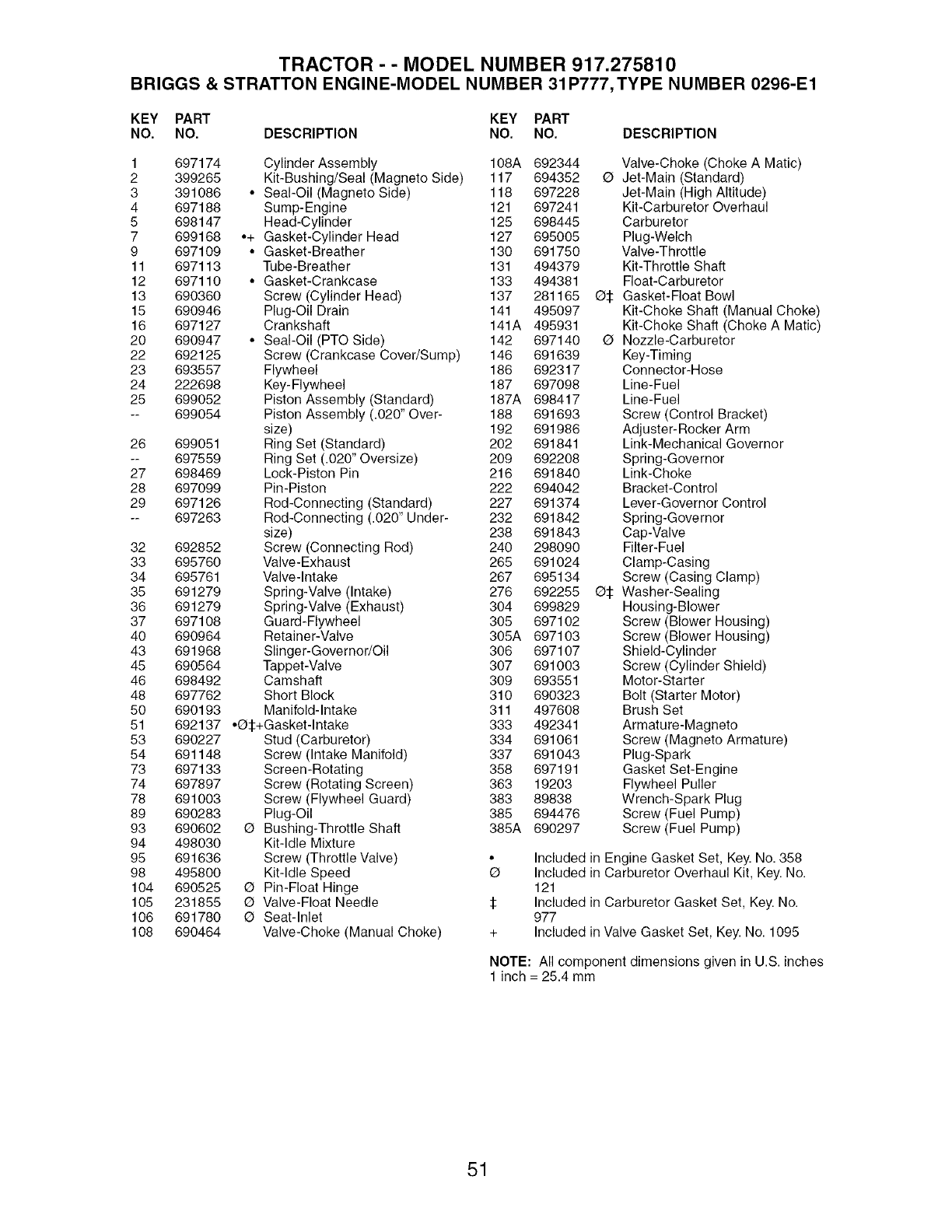

TRACTOR - -MODEL NUMBER 917.275810

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 108A 692344 Valve-Choke (Choke A Matic)

2 399265 Kit-Bushing/Seal (Magneto Side) 117 694352 (D Jet-Main (Standard)

3 391086 ° Seal-Oil (Magneto Side) 118 697228 Jet-Main (High Altitude)

4 697188 Sump-Engine 121 697241 Kit-Carburetor Overhaul

5 698147 Head-Cylinder 125 698445 Carburetor

7 699168 °+ Gasket-Cylinder Head 127 695005 Plug-Welch

9 697109 • Gasket-Breather 130 691750 Valve-Throttle

11 697113 Tube-Breather 131 494379 Kit-Throttle Shaft

12 697110 • Gasket-Crankcase 133 494381 Float-Carburetor

13 690360 Screw (Cylinder Head) 137 281165 O:1: Gasket-Float Bowl

15 690946 Plug-Oil Drain 141 495097 Kit-Choke Shaft (Manual Choke)

16 697127 Crankshaft 141A 495931 Kit-Choke Shaft (Choke A Matic)

20 690947 ° Seal-Oil (PTO Side) 142 697140 O Nozzle-Carburetor

22 692125 Screw (Crankcase Cover/Sump) 146 691639 Key-Timing

23 693557 Flywheel 186 692317 Connector-Hose

24 222698 Key-Flywheel 187 697098 Line-Fuel

25 699052 Piston Assembly (Standard) 187A 698417 Line-Fuel

-- 699054 Piston Assembly (.020" Over- 188 691693 Screw (Control Bracket)

size) 192 691986 Adjuster-Rocker Arm

26 699051 Ring Set (Standard) 202 691841 Link-Mechanical Governor

-- 697559 Ring Set (.020" Oversize) 209 692208 Spring-Governor

27 698469 Lock-Piston Pin 216 691840 Link-Choke

28 697099 Pin-Piston 222 694042 Bracket-Control

29 697126 Rod-Connecting (Standard) 227 691374 Lever-Governor Control

-- 697263 Rod-Connecting (.020" Under- 232 691842 Spring-Governor

size) 238 691843 Cap-Valve

32 692852 Screw (Connecting Rod) 240 298090 Filter-Fuel

33 695760 Valve-Exhaust 265 691024 Clamp-Casing

34 695761 Valve-Intake 267 695134 Screw (Casing Clamp)

35 691279 Spring-Valve (Intake) 276 692255 a:l: Washer-Sealing

36 691279 Spring-Valve (Exhaust) 304 699829 Housing-Blower

37 697108 Guard-Flywheel 305 697102 Screw (Blower Housing)

40 690964 Retainer-Valve 305A 697103 Screw (Blower Housing)

43 691968 Slinger-Governor/Oil 306 697107 Shield-Cylinder

45 690564 Tappet-Valve 307 691003 Screw (Cylinder Shield)

46 698492 Camshaft 309 693551 Motor-Starter

48 697762 Short Block 310 690323 Bolt (Starter Motor)

50 690193 Manifold-Intake 311 497608 Brush Set

51 692137 °O:l:+Gasket-lntake 333 492341 Armature-Magneto

53 690227 Stud (Carburetor) 334 691061 Screw (Magneto Armature)

54 691148 Screw (Intake Manifold) 337 691043 Plug-Spark

73 697133 Screen-Rotating 358 697191 Gasket Set-Engine

74 697897 Screw (Rotating Screen) 363 19203 Flywheel Puller

78 691003 Screw (Flywheel Guard) 383 89838 Wrench-Spark Plug

89 690283 Plug-Oil 385 694476 Screw (Fuel Pump)

93 690602 O Bushing-Throttle Shaft 385A 690297 Screw (Fuel Pump)

94 498030 Kit-Idle Mixture

95 691636 Screw (Throttle Valve) ° Included in Engine Gasket Set, Key. No. 358

98 495800 Kit-Idle Speed (D Included in Carburetor Overhaul Kit, Key. No.

104 690525 O Pin-Float Hinge 121

105 231855 O Valve-Float Needle :1: Included in Carburetor Gasket Set, Key. No.

106 691780 G Seat-Inlet 977

108 690464 Valve-Choke (Manual Choke) + Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

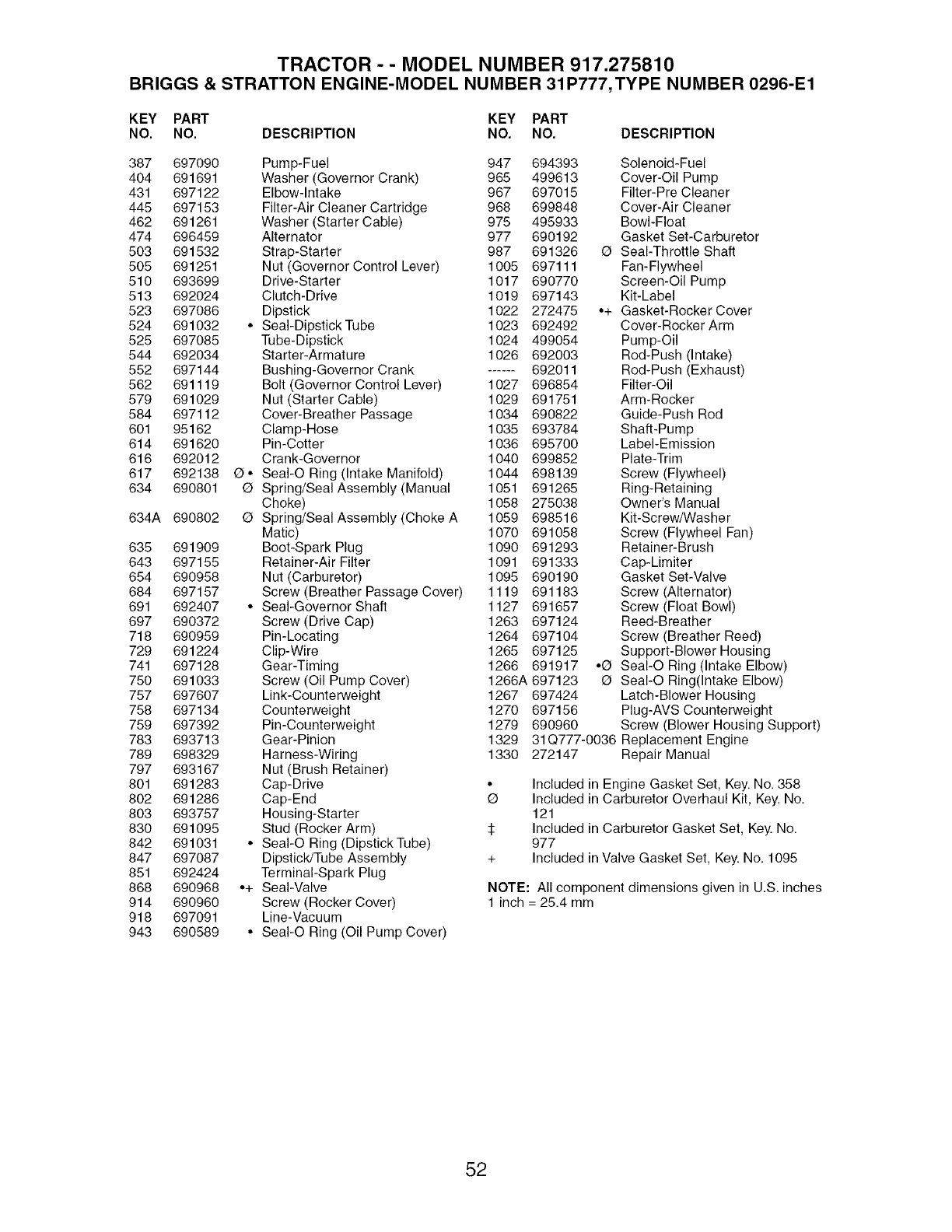

TRACTOR - -MODEL NUMBER 917.275810

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

387 697090 Pump-Fuel 947 694393

404 691691 Washer (Governor Crank) 965 499613

431 697122 Elbow-Intake 967 697015

445 697153 Filter-Air Cleaner Cartridge 968 699848

462 691261 Washer (Starter Cable) 975 495933

474 696459 Alternator 977 690192

503 691532 Strap-Starter 987 691326

505 691251 Nut (Governor Control Lever) 1005 697111

510 693699 Drive-Starter 1017 690770

513 692024 Clutch-Drive 1019 697143

523 697086 Dipstick 1022 272475

524 691032 ° SeaI-DipstickTube 1023 692492

525 697085 Tube-Dipstick 1024 499054

544 692034 Starter-Armature 1026 692003

552 697144 Bushing-Governor Crank ...... 692011

562 691119 Bolt (Governor Control Lever) 1027 696854

579 691029 Nut (Starter Cable) 1029 691751

584 697112 Cover-Breather Passage 1034 690822

601 95162 Clamp-Hose 1035 693784

614 691620 Pin-Cotter 1036 695700

616 692012 Crank-Governor 1040 699852

617 692138 O ° SeaI-O Ring (Intake Manifold) 1044 698139

634 690801 _9 Spring/Seal Assembly (Manual 1051 691265

Choke) 1058 275038

634A 690802 G Spring/Seal Assembly (Choke A 1059 698516

Matic) 1070 691058

635 691909 Boot-Spark Plug 1090 691293

643 697155 Retainer-Air Filter 1091 691333

654 690958 Nut (Carburetor) 1095 690190

684 697157 Screw (Breather Passage Cover) 1119 691183

691 692407 • Seal-Governor Shaft 1127 691657

697 690372 Screw (Drive Cap) 1263 697124

718 690959 Pin-Locating 1264 697104

729 691224 Clip-Wire 1265 697125

741 697128 Gear-Timing 1266 691917

750 691033 Screw (Oil Pump Cover) 1266A 697123

757 697607 Link-Counterweight 1267 697424

758 697134 Counterweight 1270 697156

759 697392 Pin-Counterweight 1279 690960

783 693713 Gear-Pinion 1329

789 698329 Harness-Wiring 1330

797 693167 Nut (Brush Retainer)

801 691283 Cap-Drive •

802 691286 Cap-End G

803 693757 Housing-Starter

830 691095 Stud (Rocker Arm) :1:

842 691031 ° SeaI-O Ring (Dipstick Tube)

847 697087 Dipstick/Tube Assembly +

851 692424 Terminal-Spark Plug

868 690968 °+ Seal-Valve

914 690960 Screw (Rocker Cover)

918 697091 Line-Vacuum

943 690589 ° SeaI-O Ring (Oil Pump Cover)

Solenoid-Fuel

Cover-Oil Pump

Filter-Pre Cleaner

Cover-Air Cleaner

Bowl-Float

Gasket Set-Carburetor

O Seal-Throttle Shaft

Fan- Flywheel

Screen-Oil Pump

Kit-Label

°+ Gasket-Rocker Cover

Cover-Rocker Arm

Pump-Oil

Rod-Push (Intake)

Rod-Push (Exhaust)

Filter-Oil

Arm-Rocker

Guide-Push Rod

Shaft-Pump

Label-Emission

Plate-Trim

Screw (Flywheel)

Ring-Retaining

Owner's Manual

Kit-Screw/Washer

Screw (Flywheel Fan)

Retainer-Brush

Cap-Limiter

Gasket Set-Valve

Screw (Alternator)

Screw (Float Bowl)

Reed-Breather

Screw (Breather Reed)

Support-Blower Housing

oO SeaI-O Ring (Intake Elbow)

G SeaI-O Ring(Intake Elbow)

Latch-Blower Housing

Plug-AVS Counterweight

Screw (Blower Housing Support)

31Q777-0036 Replacement Engine

272147 Repair Manual

Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No.

121

Included in Carburetor Gasket Set, Key. No.

977

Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_WARNING: To avoid serious injury, operate your tractor up and I

down the face of slopes, never across the face. Do not mow I

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Ford this page along dotted _ine indicated above.

2. Ho_d page before you so that its _eft edge is vertically paraHe_ to a tree

trunk or other upright structure.

3. Sight across the fo_d in the direction of hill s_ope you want to measure.

4. Compare the angle of the fo_d with the s_ope of the hill.

;;;;;;;;;;;;;;;;;;;i

!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!ii

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800o4oMYoHOME ® Anytime, day or night

(1o800-469-4663) (U,S.A. and Canada)

www,sears,com www.sears,ca

Our Home

For repair of carry=in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488ot222 Anytime, day or night (U,S,A, only)

www,sesrs,oom

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1°800°827°6655 (U.S.A.) 1o800o361 °6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

t°888-SU-HOGAR sM

(1°888_784_6427)

Au Canada pour service en fran(_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www,sears.ca

02410

,iiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiiii

® Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /TM Marca de Fabrica /s_4Mama de Servicio de Sears, Roebuck and Co.

MC Marque de commerce /M9 Marque d6pos6e de Sears, Roebuck and Co.

194243 12.01.04 TR Printed in U.S.A.

Craftsman 917275810 User Manual TRACTOR Manuals And Guides L0412269

CRAFTSMAN Lawn, Tractor Manual L0412269 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
