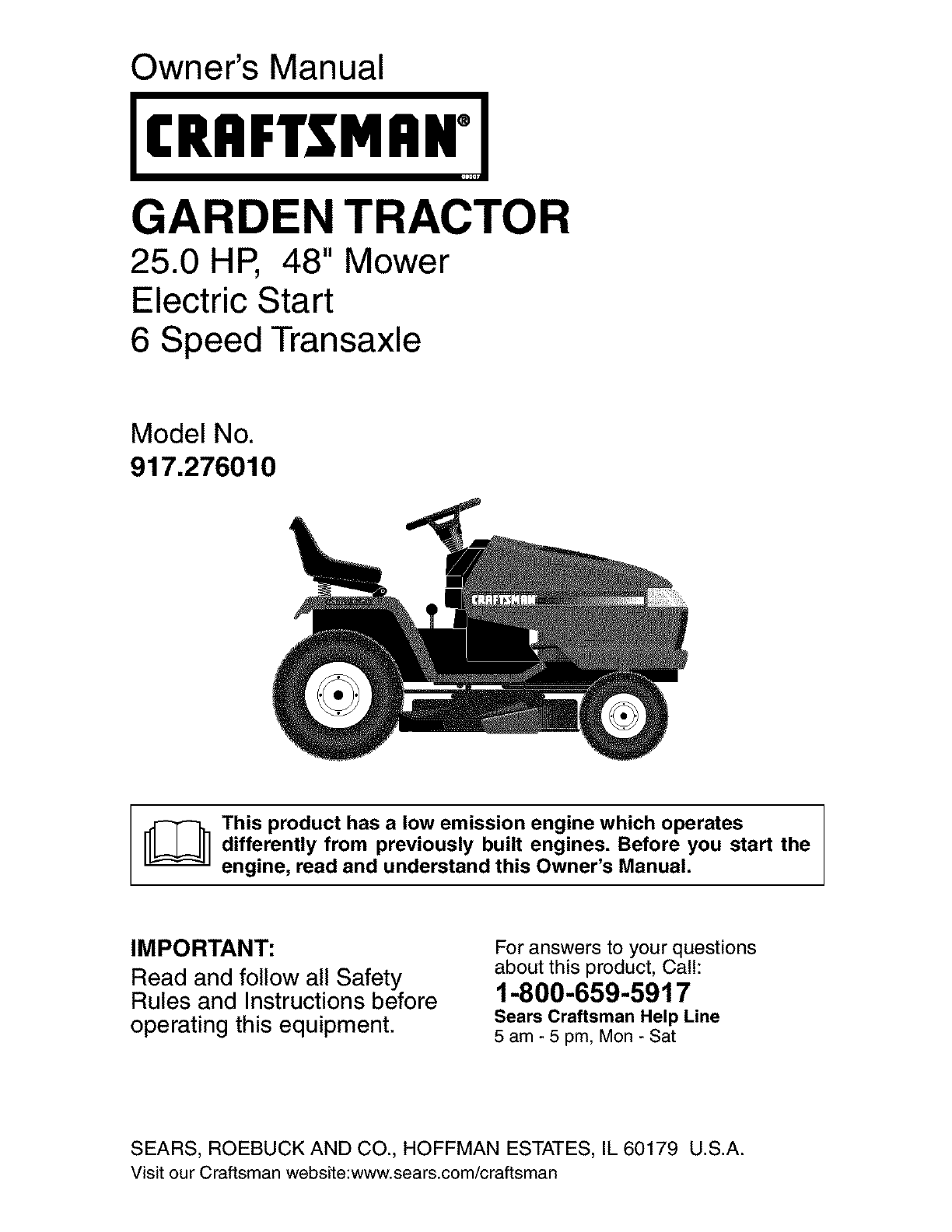

Owner's Manual

ICHFTSMeN,I

DEN TRACTOR

25.0 HP, 48" Mower

Electric Start

6 Speed Transaxle

Model No.

917.276010

[[_ This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

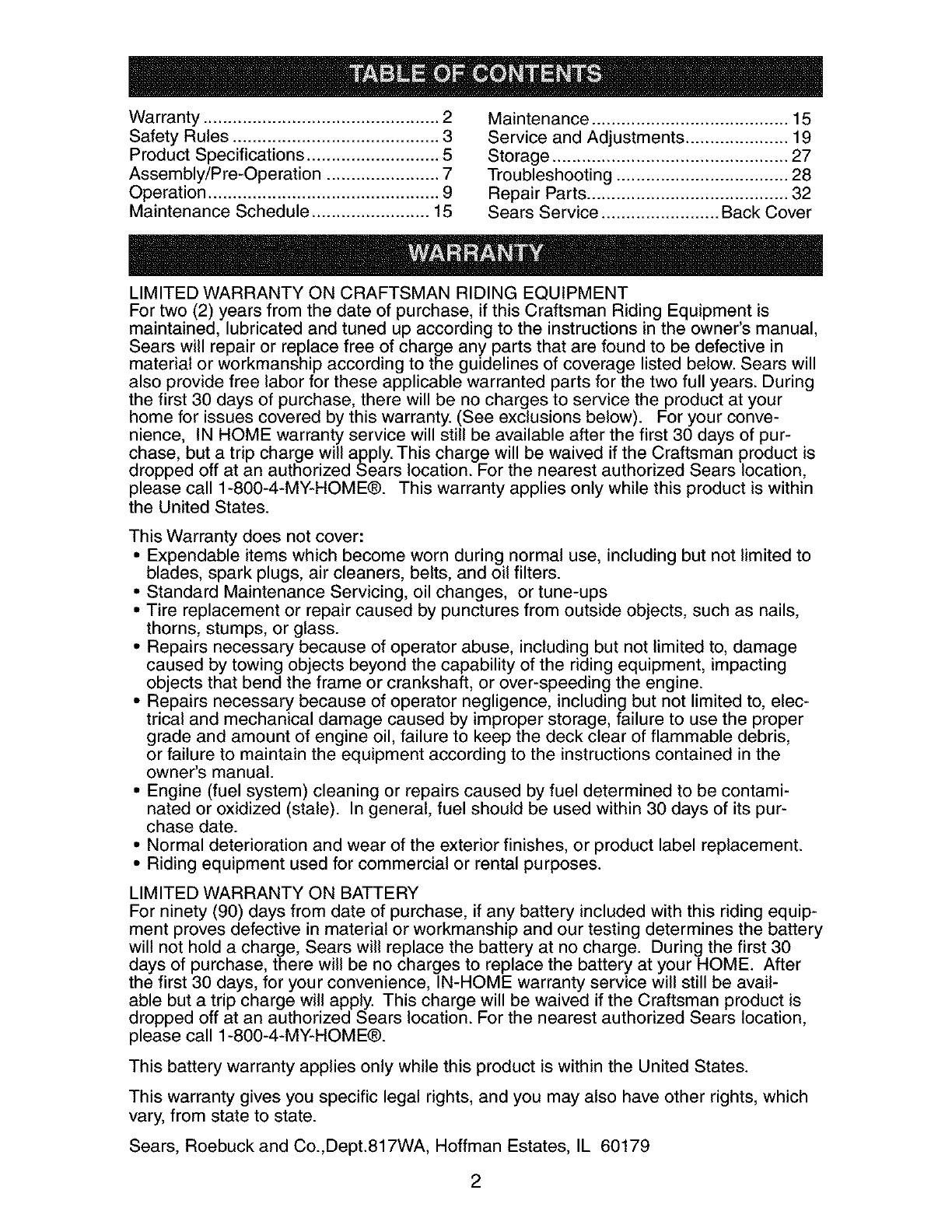

Warranty................................................2 Maintenance........................................15

SafetyRules..........................................3 Serviceand Adjustments.....................19

ProductSpecifications...........................5 Storage................................................27

Assembly/Pre-Operation.......................7 Troubleshooting...................................28

Operation...............................................9 RepairParts.........................................32

MaintenanceSchedule........................15 SearsService........................BackCover

LIMITEDWARRANTYON CRAFTSMANRIDINGEQUIPMENT

Fortwo (2) yearsfrom the dateof purchase,if this CraftsmanRiding Equipmentis

maintained,lubricatedand tuned up accordingto the instructionsin the owner'smanual,

Searswill repairor replacefree of chargeany partsthat are foundto be defectivein

materialor workmanshipaccordingto the guidelinesof coveragelisted below.Searswill

also providefree laborfor theseapplicablewarrantedparts for the two full years.During

the first 30 daysof purchase,there will be no chargesto service the product at your

homefor issuescoveredby this warranty.(Seeexclusionsbelow). Foryourconve-

nience, IN HOMEwarrantyservicewill still be availableafter the first 30 daysof pur-

chase,but a trip chargewill apply.This chargewill be waivedif the Craftsmanproductis

droppedoff at an authorizedSearslocation.Forthe nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME®.This warrantyappliesonly while this productis within

the UnitedStates.

ThisWarrantydoes notcover:

• Expendableitemswhich becomeworn during normaluse, includingbutnot limitedto

blades,spark plugs,air cleaners,belts,and oil filters.

• StandardMaintenanceServicing,oil changes, or tune-ups

• Tire replacementor repaircausedby puncturesfrom outsideobjects,such as nails,

thorns, stumps,or glass.

• Repairs necessarybecauseof operatorabuse, includingbut notlimitedto,damage

causedby towingobjectsbeyondthe capabilityof the ridingequipment,impacting

objectsthat bendthe frameor crankshaft,or over-speedingthe engine.

• Repairsnecessarybecauseof operator negligence,includingbut not limitedto, elec-

trical and mechanicaldamage causedby improperstorage,failureto usethe proper

gradeand amountof engineoil, failureto keepthe deckclear of flammabledebris,

or failureto maintainthe equipmentaccordingto the instructionscontained in the

owner'smanual.

• Engine(fuelsystem)cleaningor repairscausedbyfuel determinedto be contami-

nated or oxidized(stale). Ingeneral,fuel shouldbe used within30 daysof its pur-

chasedate.

• Normaldeteriorationand wearof the exteriorfinishes,or product labelreplacement.

• Ridingequipmentusedfor commercialor rentalpurposes.

LIMITEDWARRANTYON BATTERY

Forninety (90)daysfrom dateof purchase,if any batteryincludedwith this riding equip-

mentprovesdefectivein materialor workmanshipand our testing determinesthe battery

will not holda charge,Searswill replacethe batteryat no charge. Duringthe first 30

daysof purchase,therewill be no chargesto replacethe batteryat yourHOME. After

the first 30 days,for yourconvenience,IN-HOMEwarrantyservicewill still be avail-

able but a trip chargewill apply. This chargewill be waivedif the Craftsmanproductis

droppedoff at an authorizedSearslocation.Forthe nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME®.

This batterywarrantyappliesonly whilethis productis withinthe UnitedStates.

This warrantygivesyouspecific legalrights,and you mayalso haveother rights,which

vary,from state to state.

Sears,Roebuckand Co.,Dept.817WA,HoffmanEstates,IL 60179

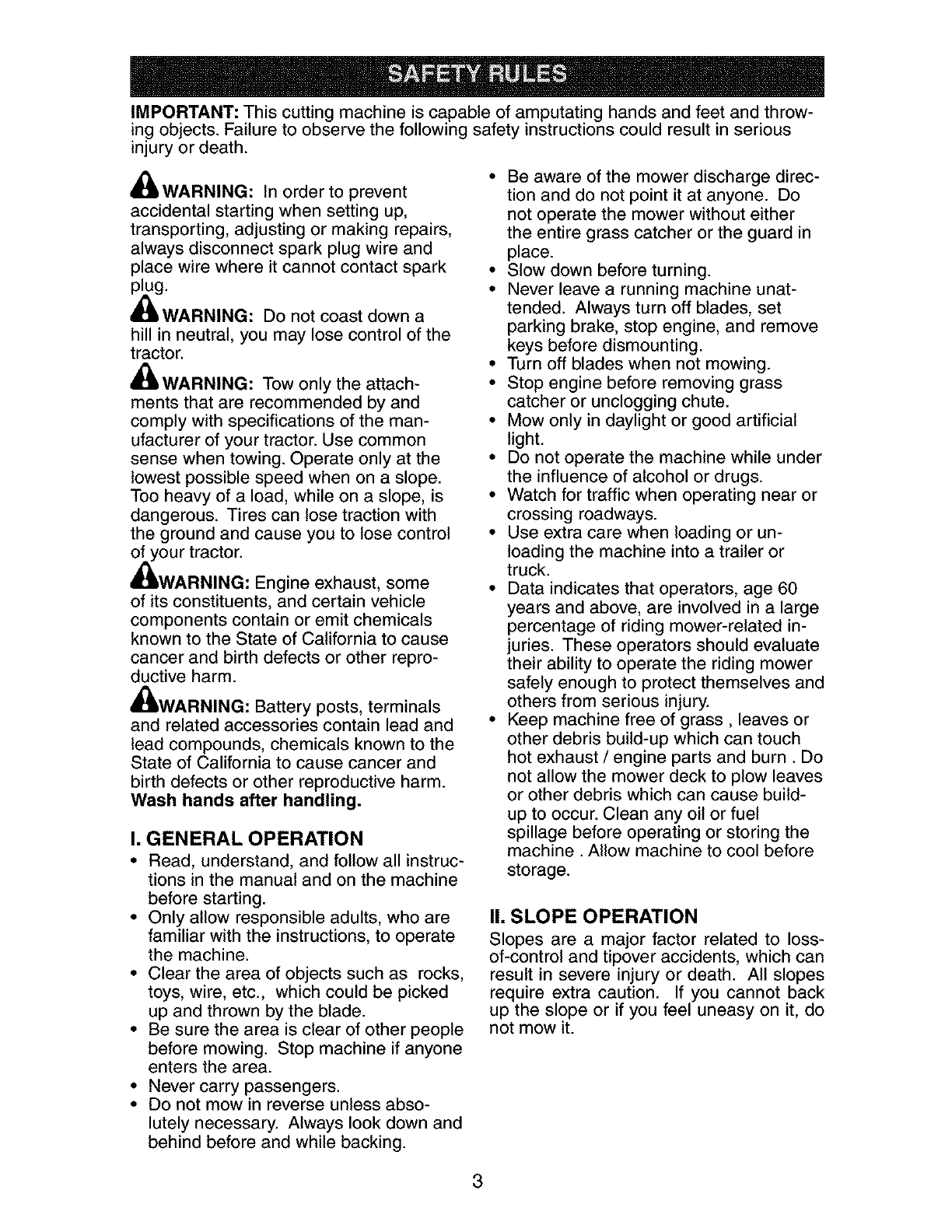

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IWARNING: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_WARNING: Do not coast down a

hill in neutral, you may lose control of the

tractor.

_WARNING: Tow only the attach-

ments that are recommended by and

comply with specifications of the man-

ufacturer of your tractor. Use common

sense when towing. Operate only at the

lowest possible speed when on a slope.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_WARNING: Engine exhaust, some

of its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

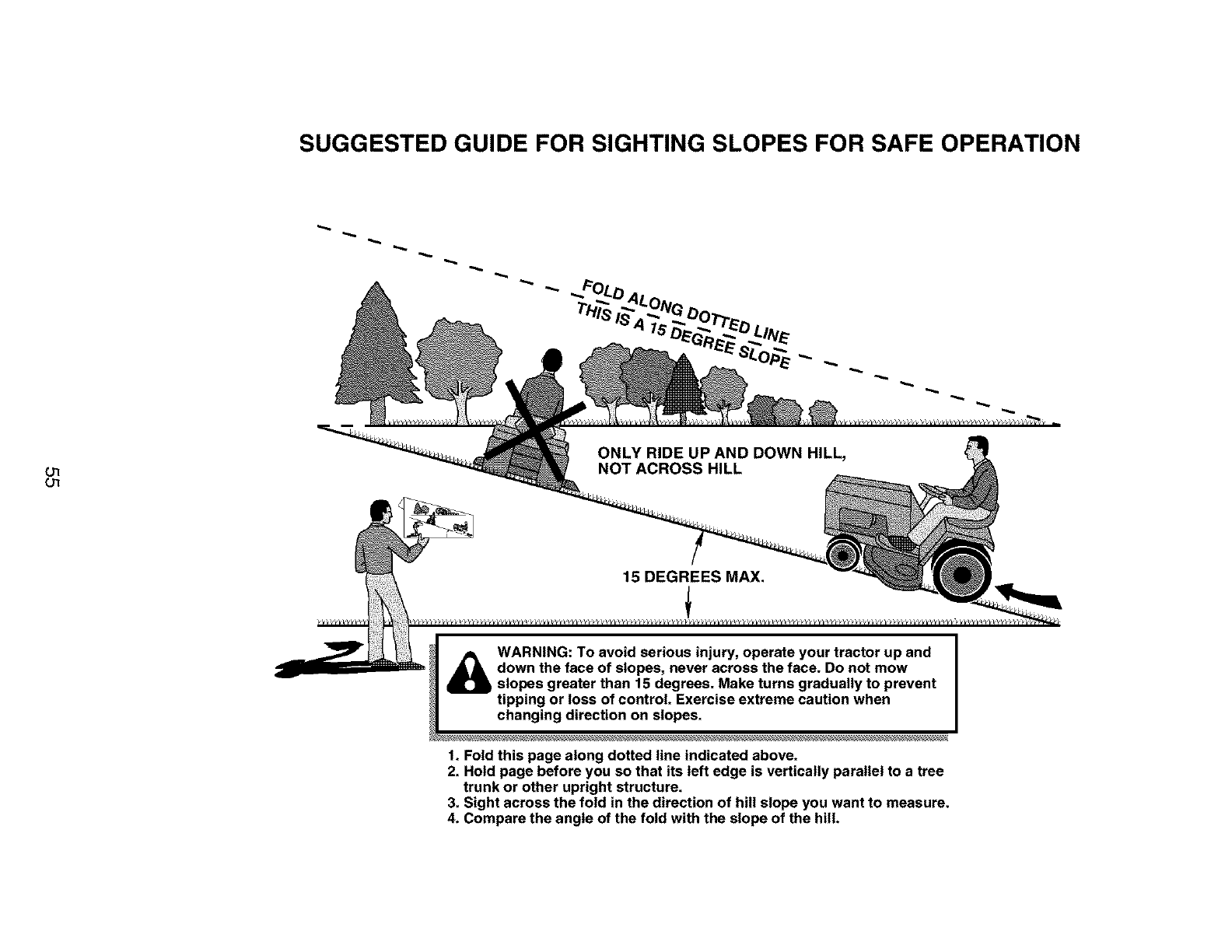

II. SLOPE OPERATION

Slopes are amajor factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

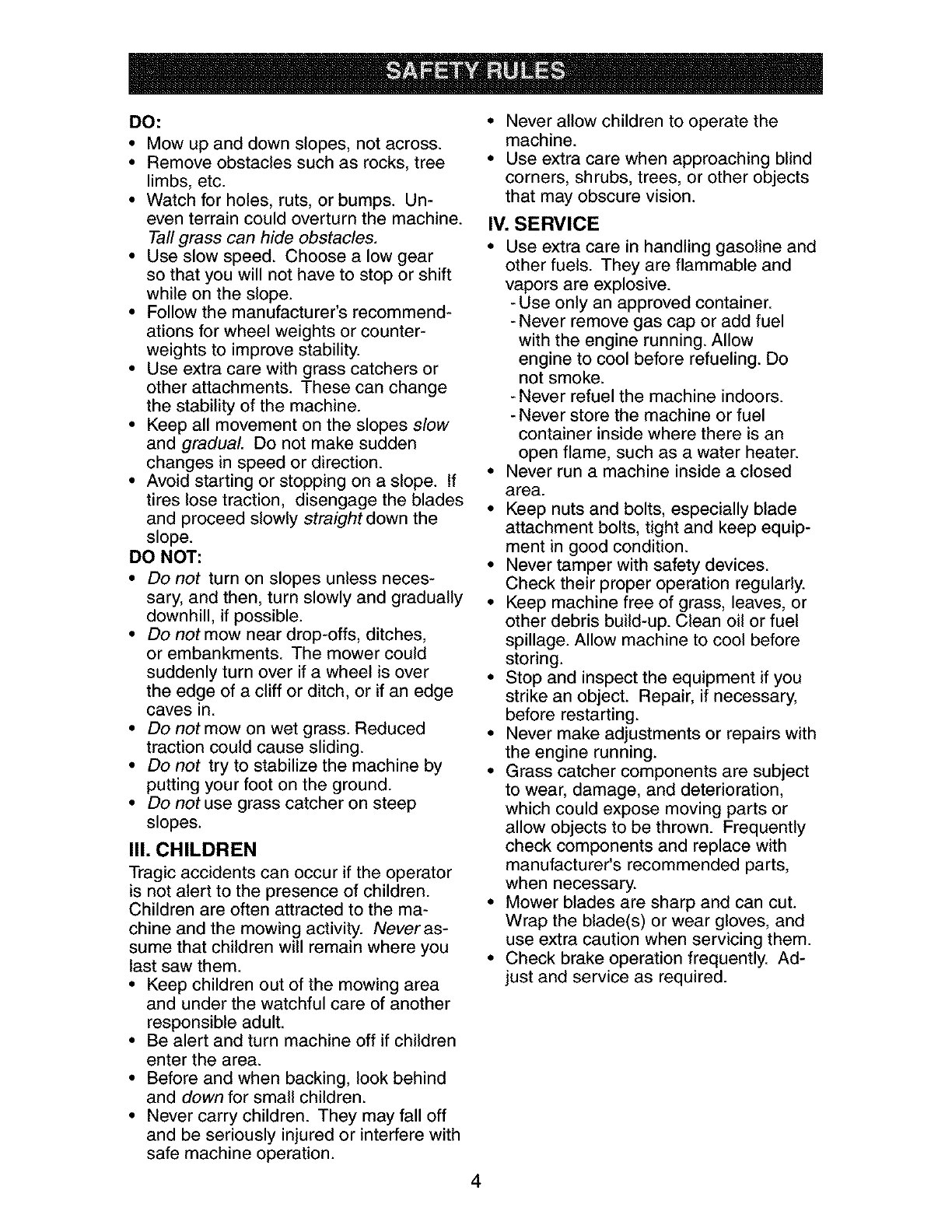

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

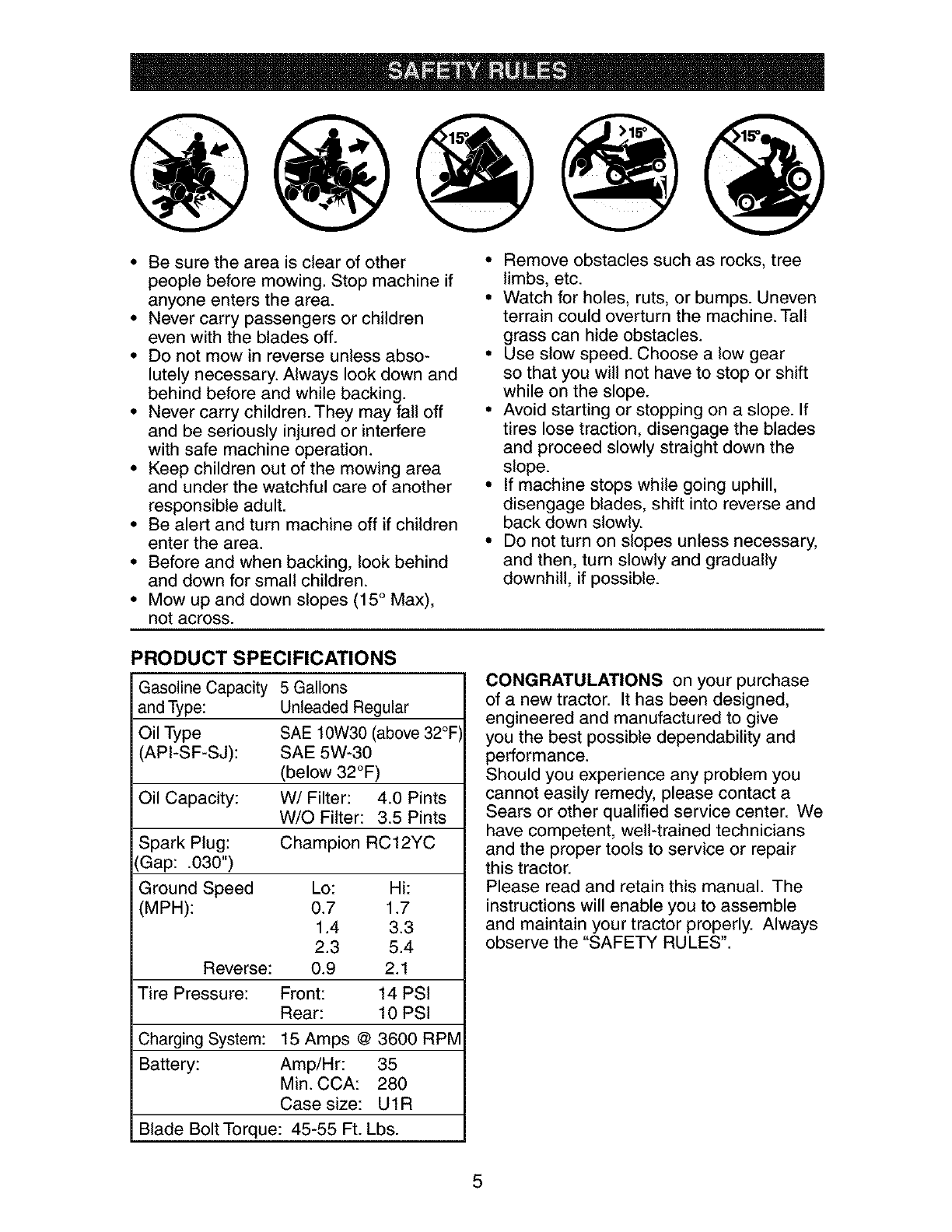

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Be not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline Capacity 5 Gallons

and Type: Unleaded Regular

Oil Type SAE 10W30 (above 32°F

API-SF-SJ): SAE 5W-30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.5 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Lo: Hi:

(MPH): 0.7 1.7

1.4 3.3

2.3 5.4

Reverse: 0.9 2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 15 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: UIR

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center. We

have competent, well-trained technicians

and the proper tools to service or repair

this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

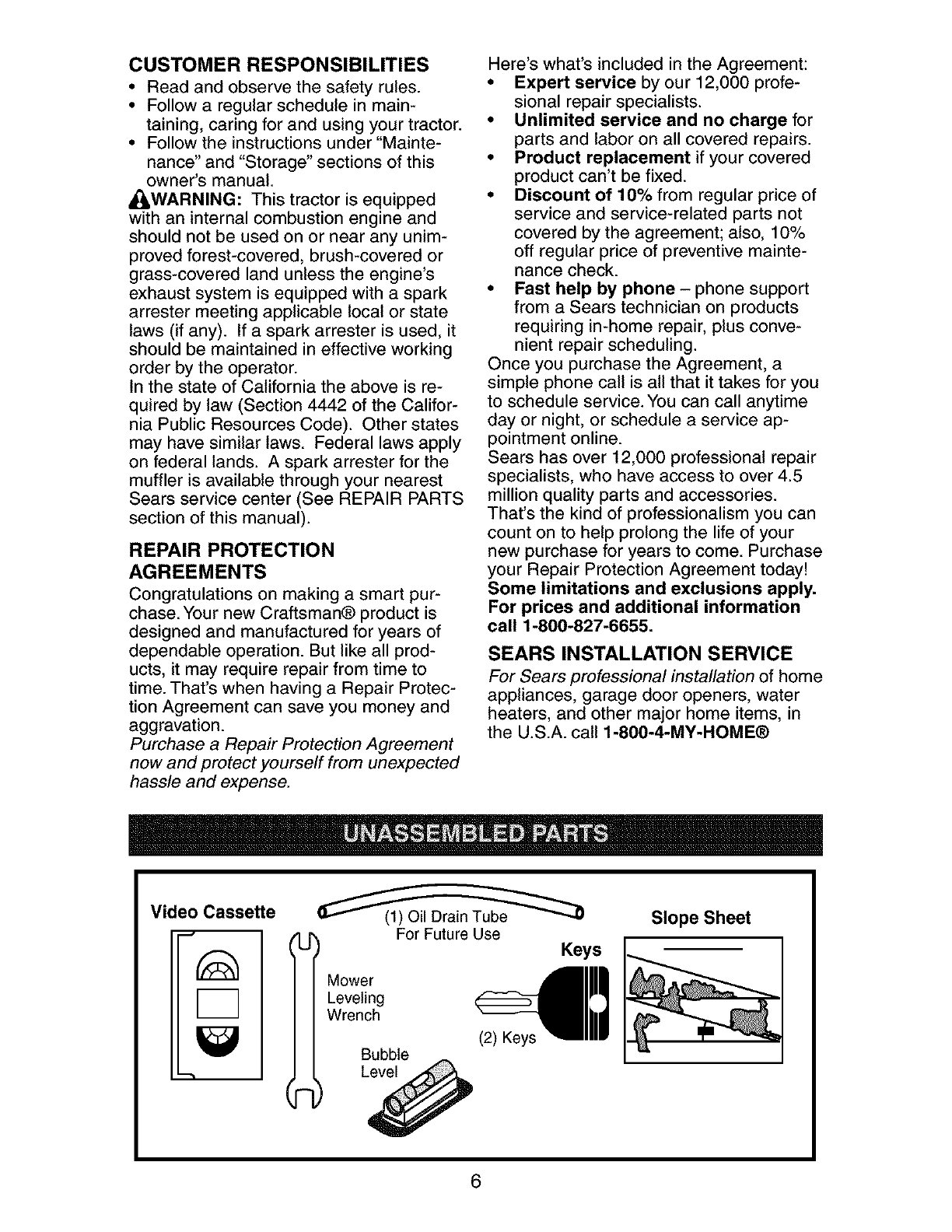

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

A(_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making asmart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

•Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Video Cassette

"-'t lMower

Leveling

Wrench

For Future Use Keys

Bubble

Slope Sheet

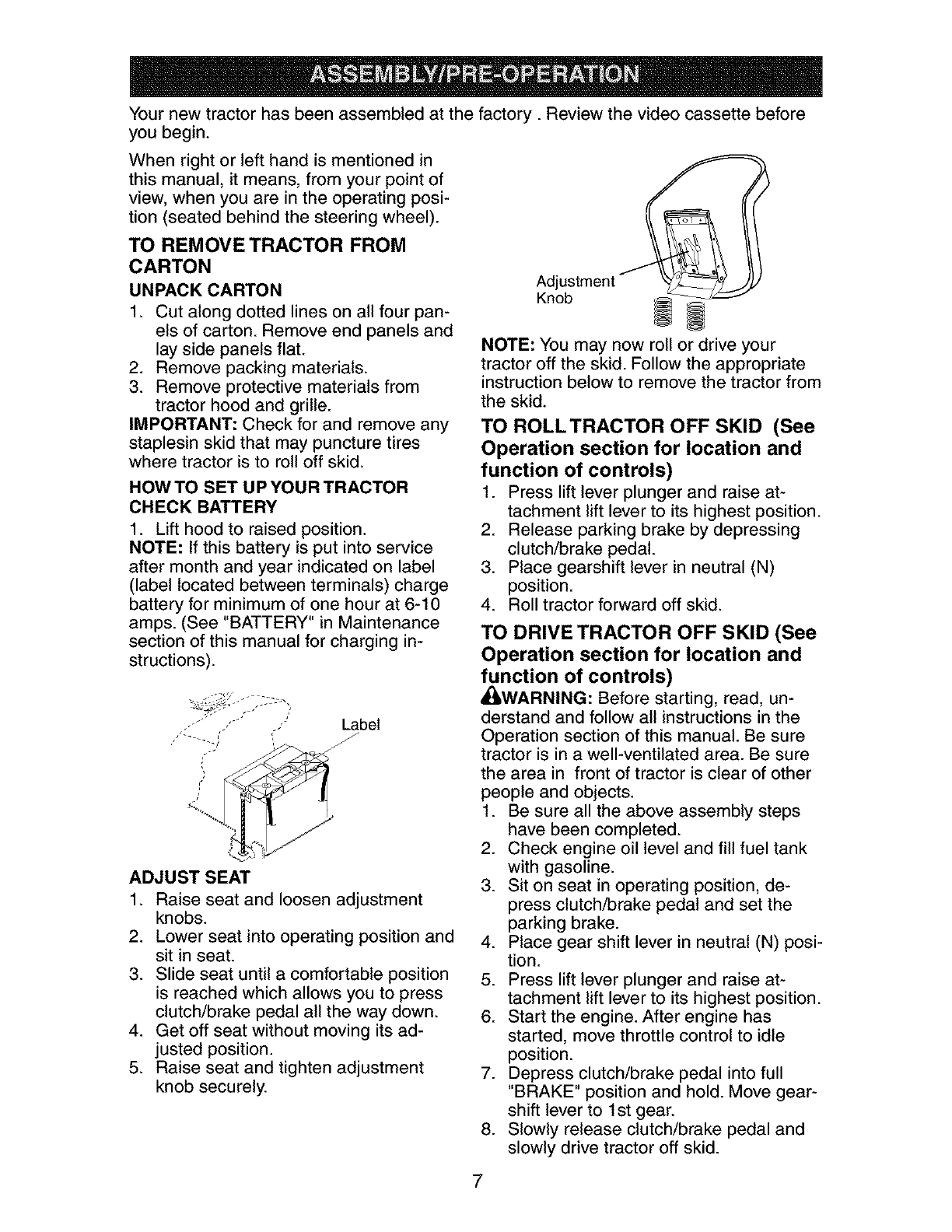

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel)•

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton• Remove end panels and

lay side panels flat.

2. Remove packing materials.

3. Remove protective materials from

tractor hood and grille•

IMPORTANT: Check for and remove any

staplesin skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET U P YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging in-

structions).

,..' .,'- Label

ADJUST SEAT

1. Raise seat and loosen adjustment

knobs.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

Adjustment

nob

NOTE: You may now roll or drive your

tractor off the skid• Follow the appropriate

instruction below to remove the tractor from

the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise at-

tachment lift lever to its highest position•

2. Release parking brake by depressing

clutch/brake pedal•

3. Place gearshift lever in neutral (N)

position•

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual• Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position, de-

press clutch/brake pedal and set the

parking brake•

4. Place gear shift lever in neutral (N) posi-

tion.

5. Press lift lever plunger and raise at-

tachment lift lever to its highest position•

6. Start the engine. After engine has

started, move throttle control to idle

position•

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gear-

shift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

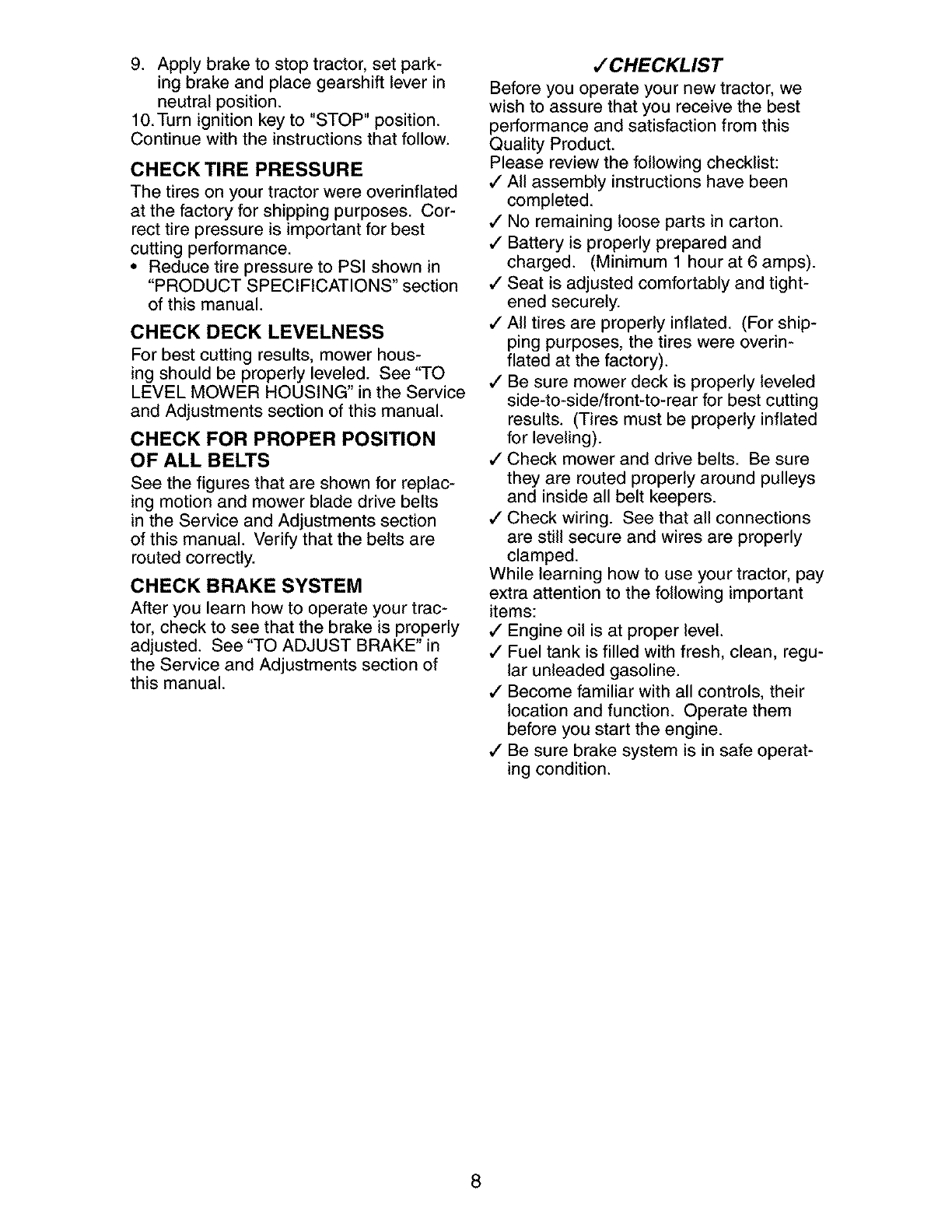

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

JCHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

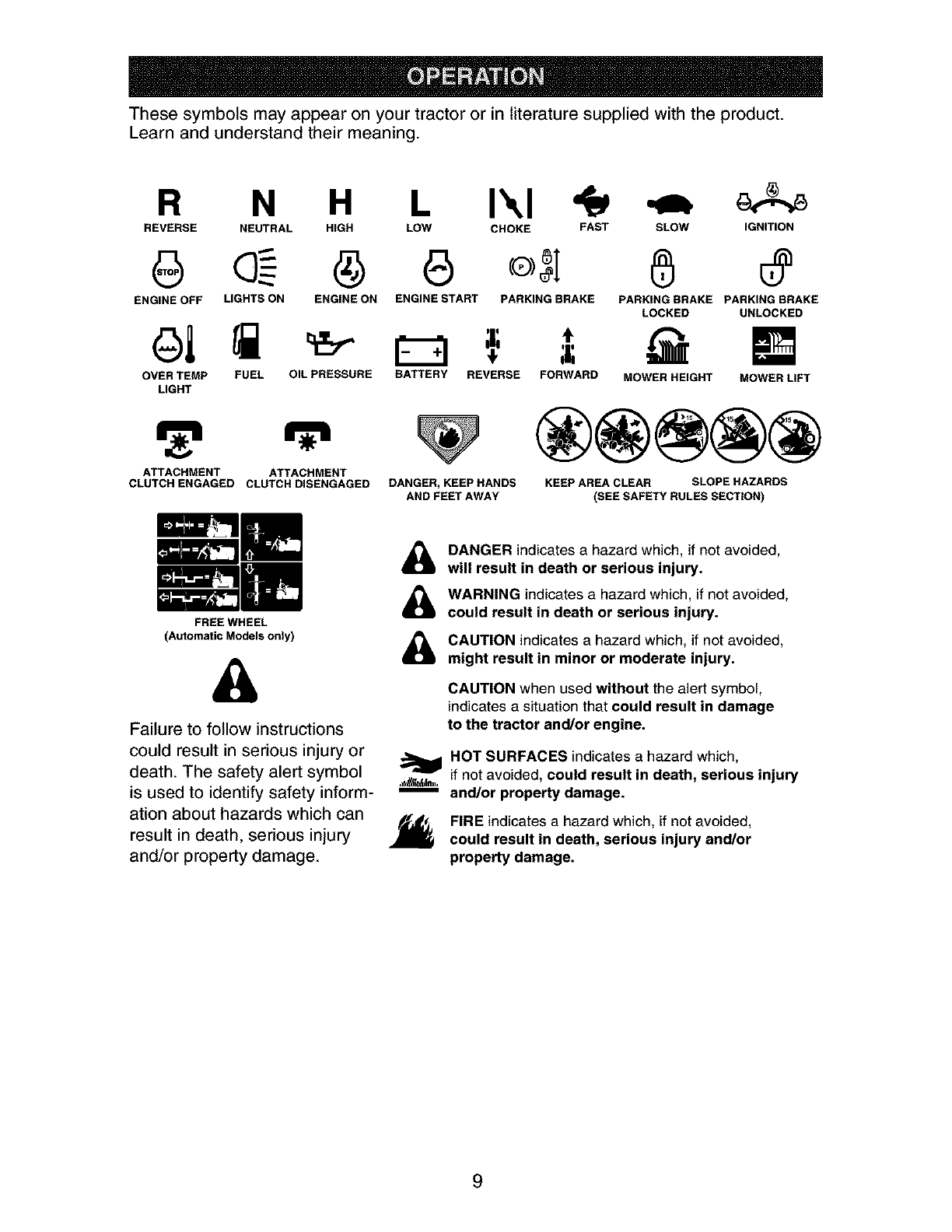

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I\1

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform- --

ation about hazards which can l_,e,

result in death, serious injury Jl_

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

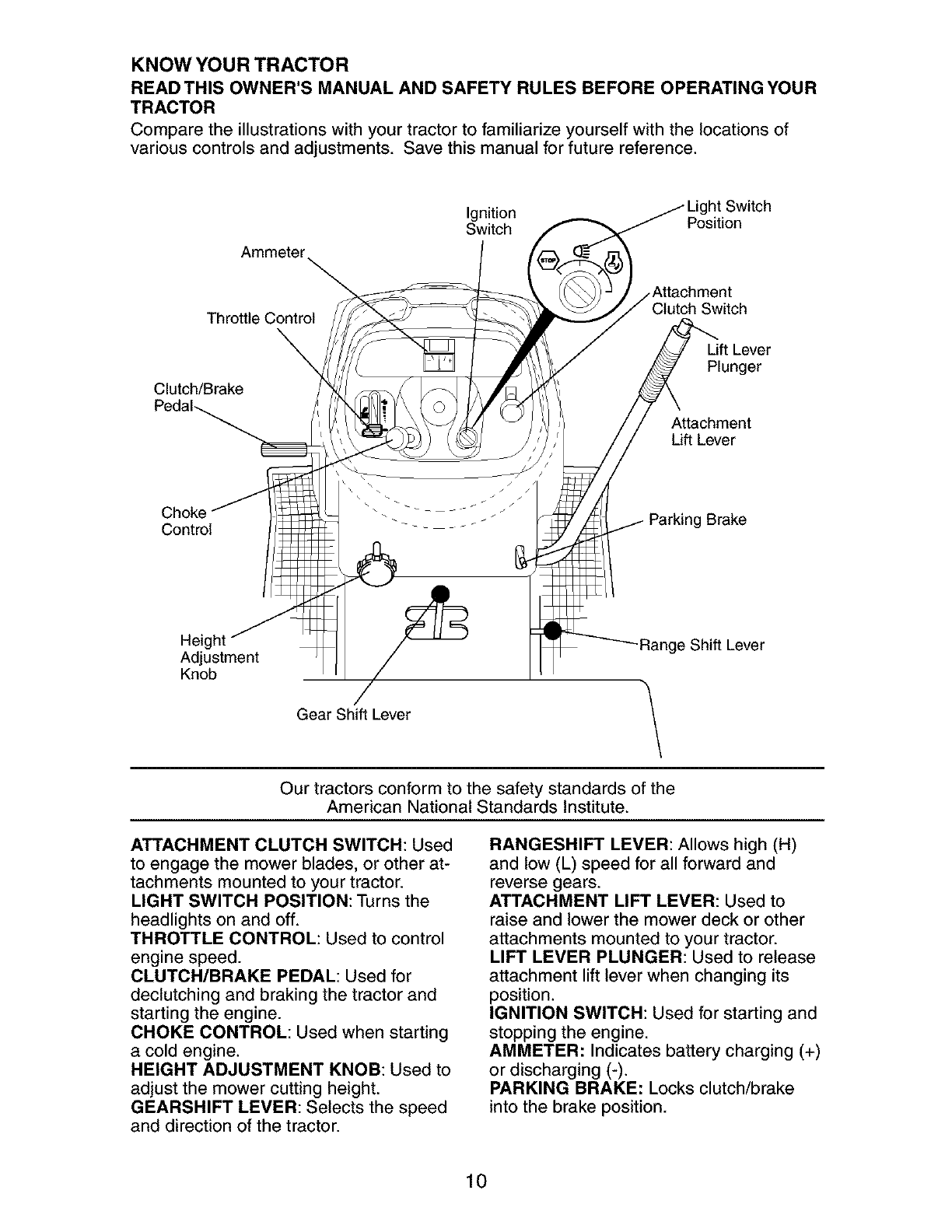

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Ignition ht Switch

Switch Position

Throttle Control Clutch Switch

Lift Lever

Plunger

Clutch/Brake

Attachment

Lift Lever

Choke

Control Brake

Height

Adjustment

Knob

Gear Shift Lever

Range Shift Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH: Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

LIGHT SWITCH POSITION: Turns the

headlights on and off.

THROTTLE CONTROL: Used to control

engine speed.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

CHOKE CONTROL: Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB: Used to

adjust the mower cutting height.

GEARSHIFT LEVER: Selects the speed

and direction of the tractor.

RANGESHIFT LEVER: Allows high (H)

and low (L) speed for all forward and

reverse gears.

ATTACHMENT LIFT LEVER: Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: Indicates battery charging (+)

or discharging (-).

PARKING BRAKE: Locks clutch/brake

into the brake position.

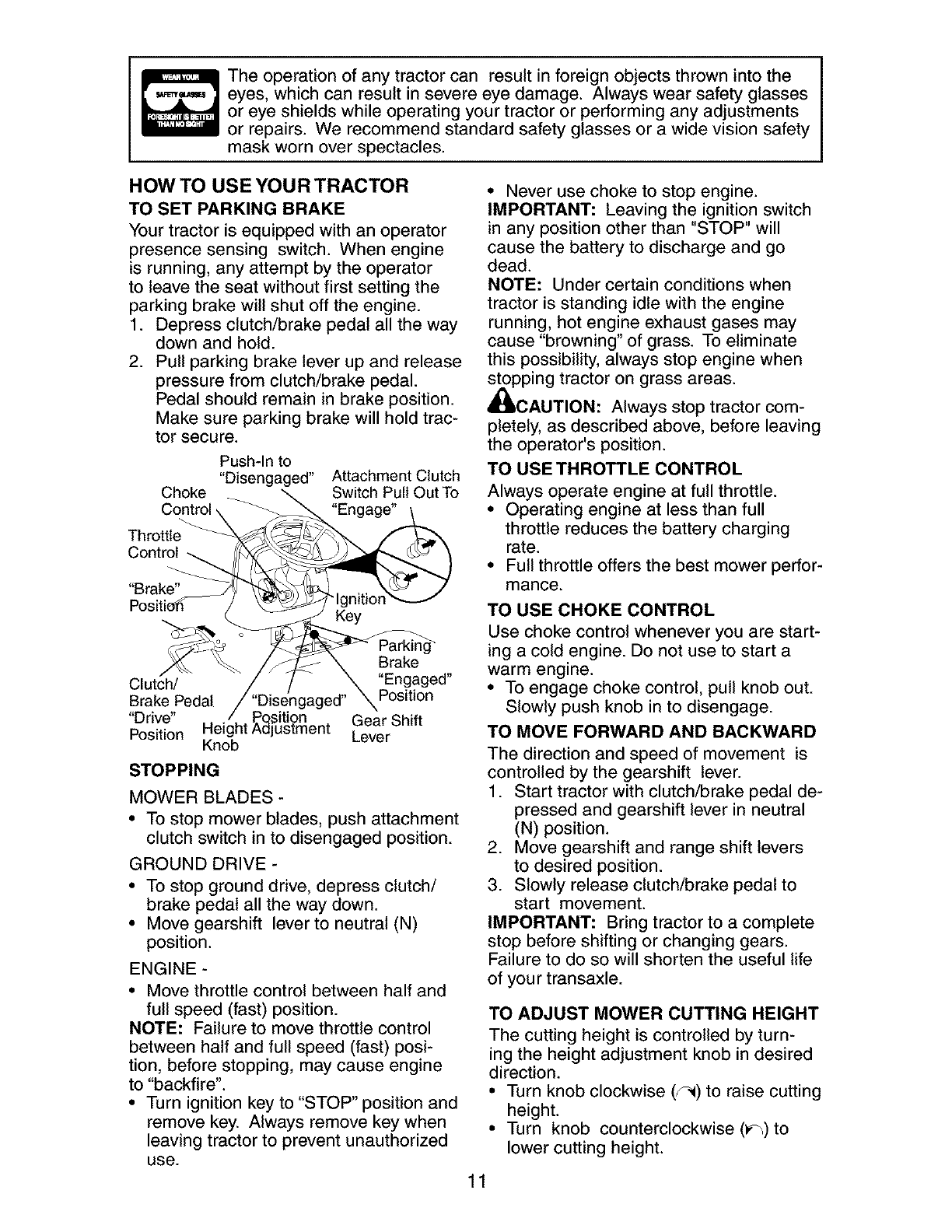

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Push-Into

"Disengaged"

Choke

Control

Throttle

Control

"Brake"

Attachment Clutch

Switch Pull Out To

"Engage"

Key

Brake

Clutch/ "Engaged"

Brake Pedal "Disengaged" Position

"Drive" , / Position Gear Shift

Position Height Adjustment Lever

Knob

STOPPING

MOWER BLADES -

• To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine

to "backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

JlULCAUTION. Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best mower perfor-

mance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift and range shift levers

to desired position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turn-

ing the height adjustment knob in desired

direction.

• Turn knob clockwise (J_) to raise cutting

height.

• Turn knob counterclockwise (v_)to

lower cutting height.

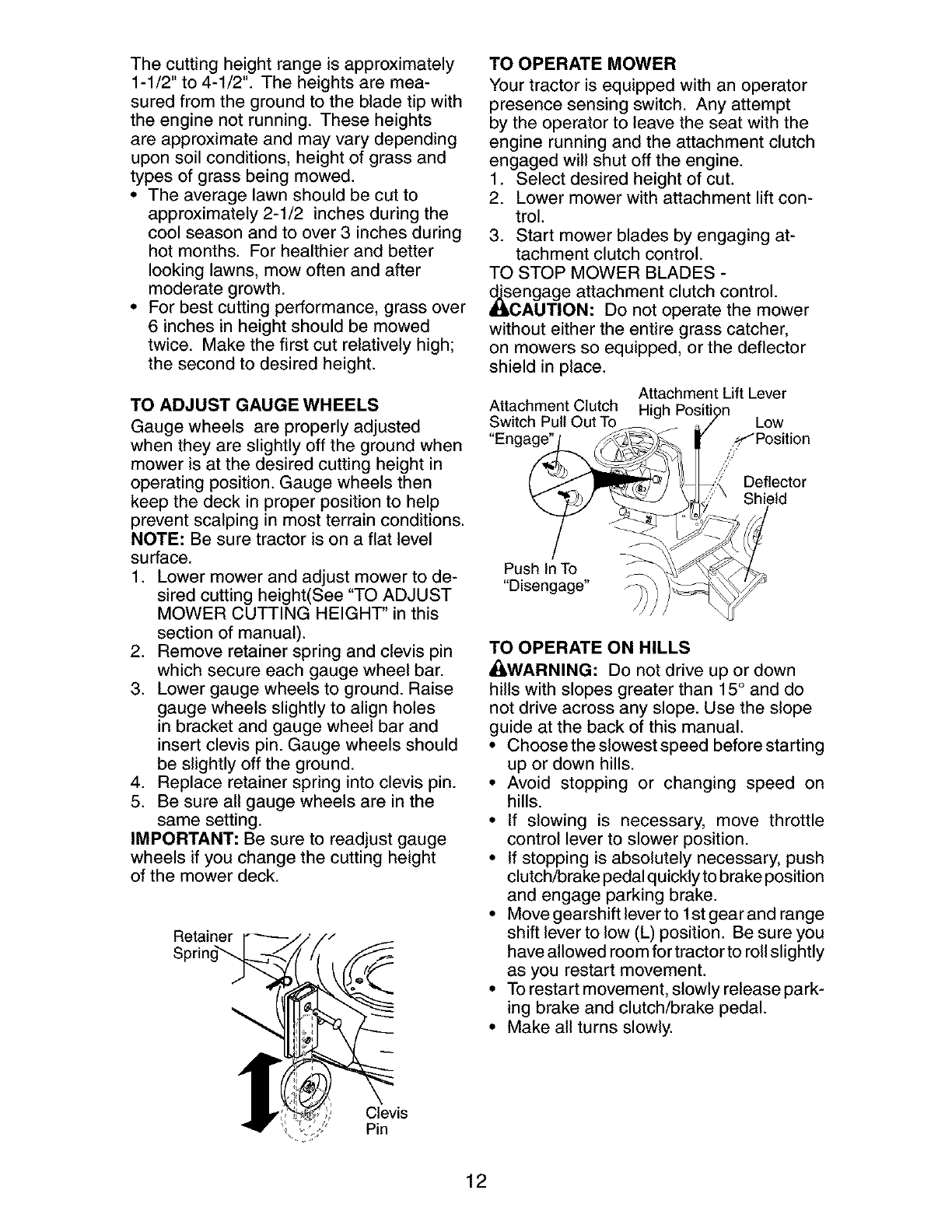

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to de-

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT' in this

section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Lower mower with attachment lift con-

trol.

3. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

_iScengage attachment clutch control.

AUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Lift Lever

Attachment Clutch High Position

Switch Pull Out To o /Low

"Enga_ _/ /,S_"Position//

_; _,,;)_ Deflector

_" "_t_.i _ \_S" Shield

Push In To ;_-_..__

"Disengage" _) )_

TO OPERATE ON HILLS

_iLWARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before starting

up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal q uickly to brake position

and engage parking brake.

• Move gearshift lever to 1st gear and range

shift lever to low (L) position. Be sure you

have allowed room for tractor to roll slightly

as you restart movement.

• To restart movement, slowly release park-

ing brake and clutch/brake pedal.

• Make all turns slowly.

Clevis

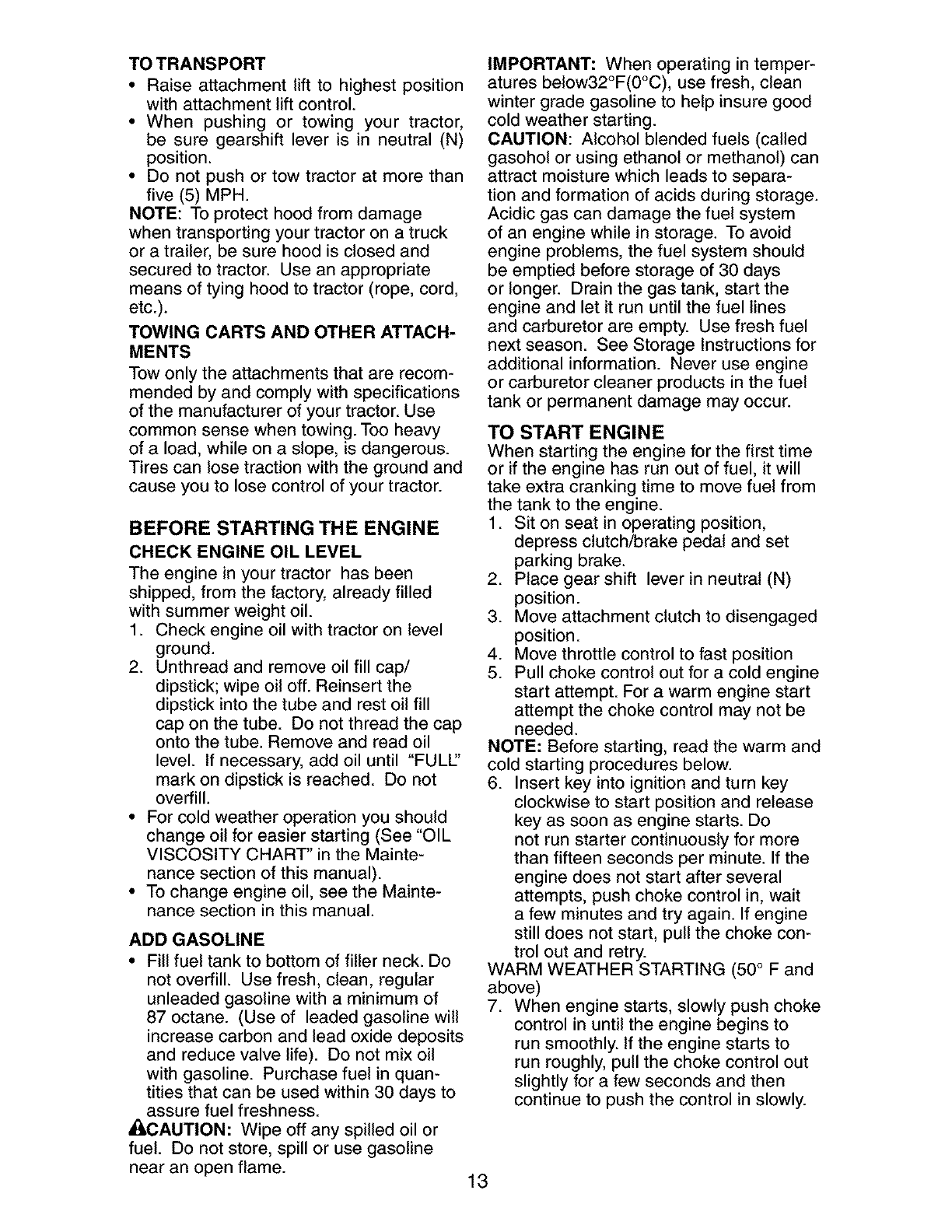

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of aload, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the cap

onto the tube. Remove and read oil

level. If necessary, add oil until "FULL'

mark on dipstick is reached. Do not

overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_I,CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

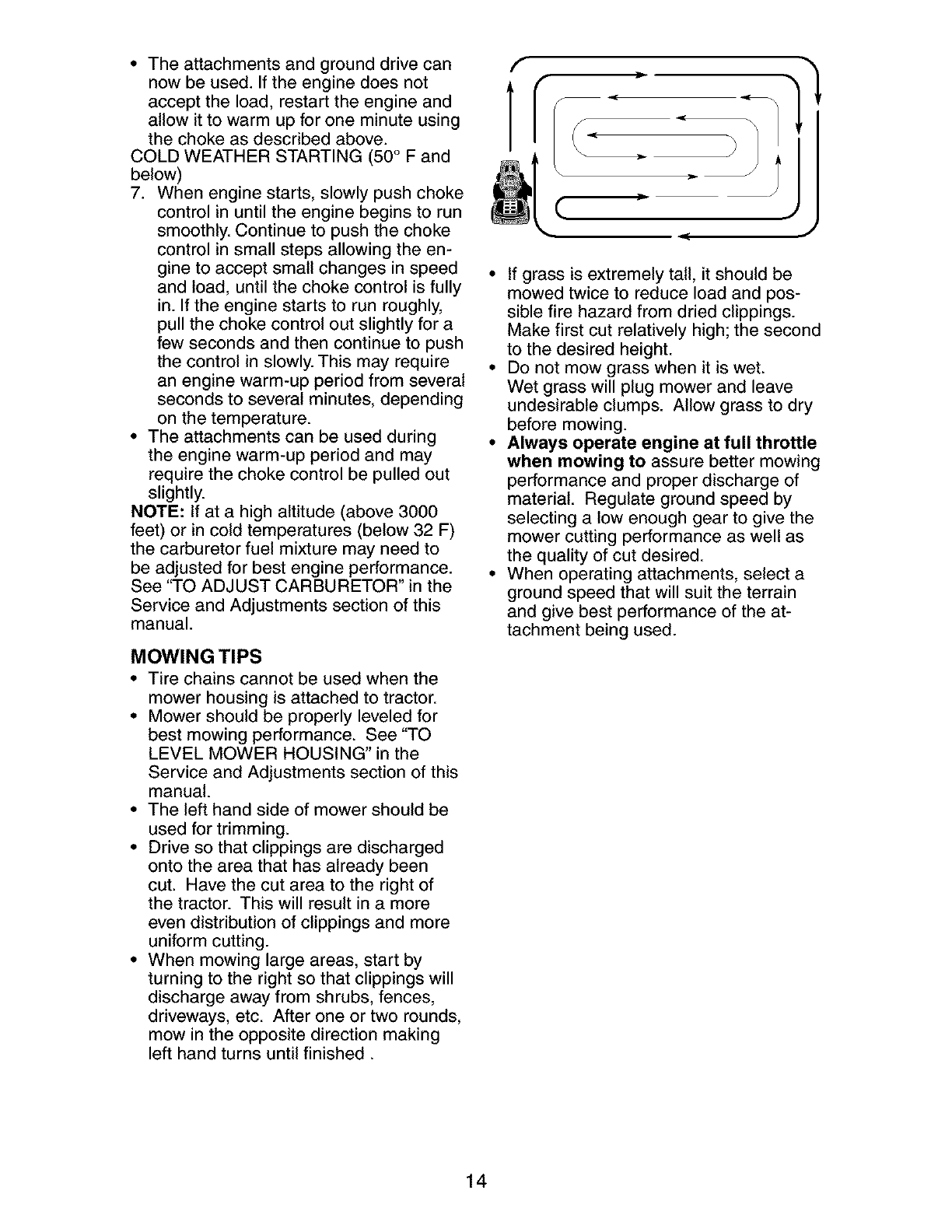

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for a

few seconds and then continue to push

the control in slowly. This may require

an engine warm-up period from several

seconds to several minutes, depending

on the temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

MOWING TIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

C-J

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

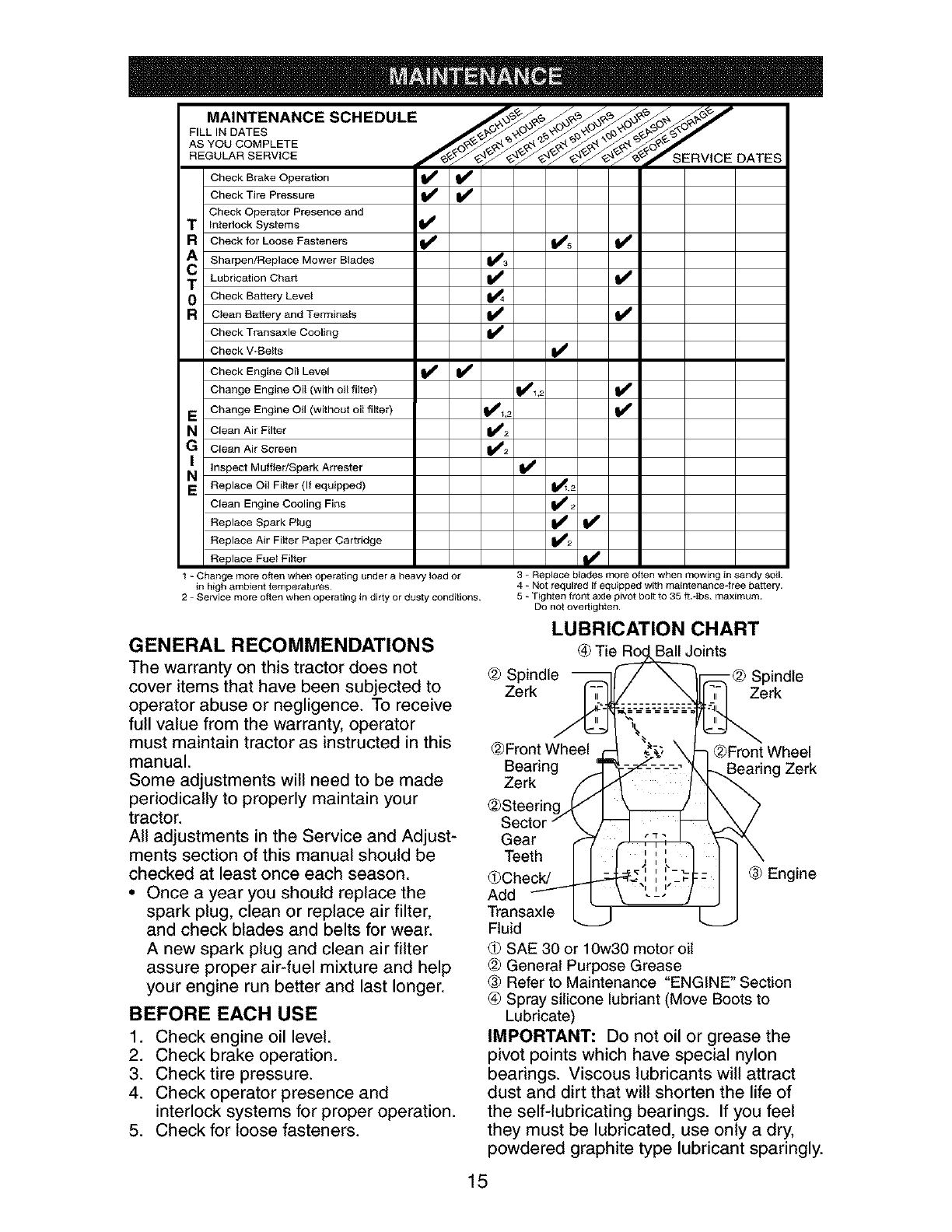

MAINTENANCE SCHEDULE ._*_ ,_ ,_-_ _ _. ,_/_

AS YOU COMPLETE

REGO 'RSERV,CE OATES

Chh:: kkTB_raek;,eOsPe_:i°n _

Check Operator Presence and

t Interlock Systems

R Check for Loose Fasteners

Sharpen/Replace Mower B_ades

t Lubrication Chart

0Check Battery Level

RC_ean Battery and Terminals

Check Transaxle Cooling

Check WBefts

Check Engine Oil Level

Change Engine Oil (with oil filter)

E Change Engine Oil (without oil filter)

N Clean Air Filter

(_ Clean Air Screen

Inspect Muffter/Spark Attester

E Replace Oil Filter (If equipped)

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 _ Service more otten when operating in di_ty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.=tbs, maximum.

Do not ovedighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

LUBRICATION CHART

Ball Joints

@ Spindle -@ Spindle

Zerk Zerk

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

@Front Wheel @Front Wheel

Bearing Zerk

Zerk

@Steerin(

Sector

Gear

Teeth

_Check/ ® Engine

Add

Transaxle

Fluid

SAE 30 or 10w30 motor oil

@ General Purpose Grease

® Refer to Maintenance "ENGINE" Section

_) Spray silicone lubriant (Move Boots to

Lubricate)

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant sparingly.

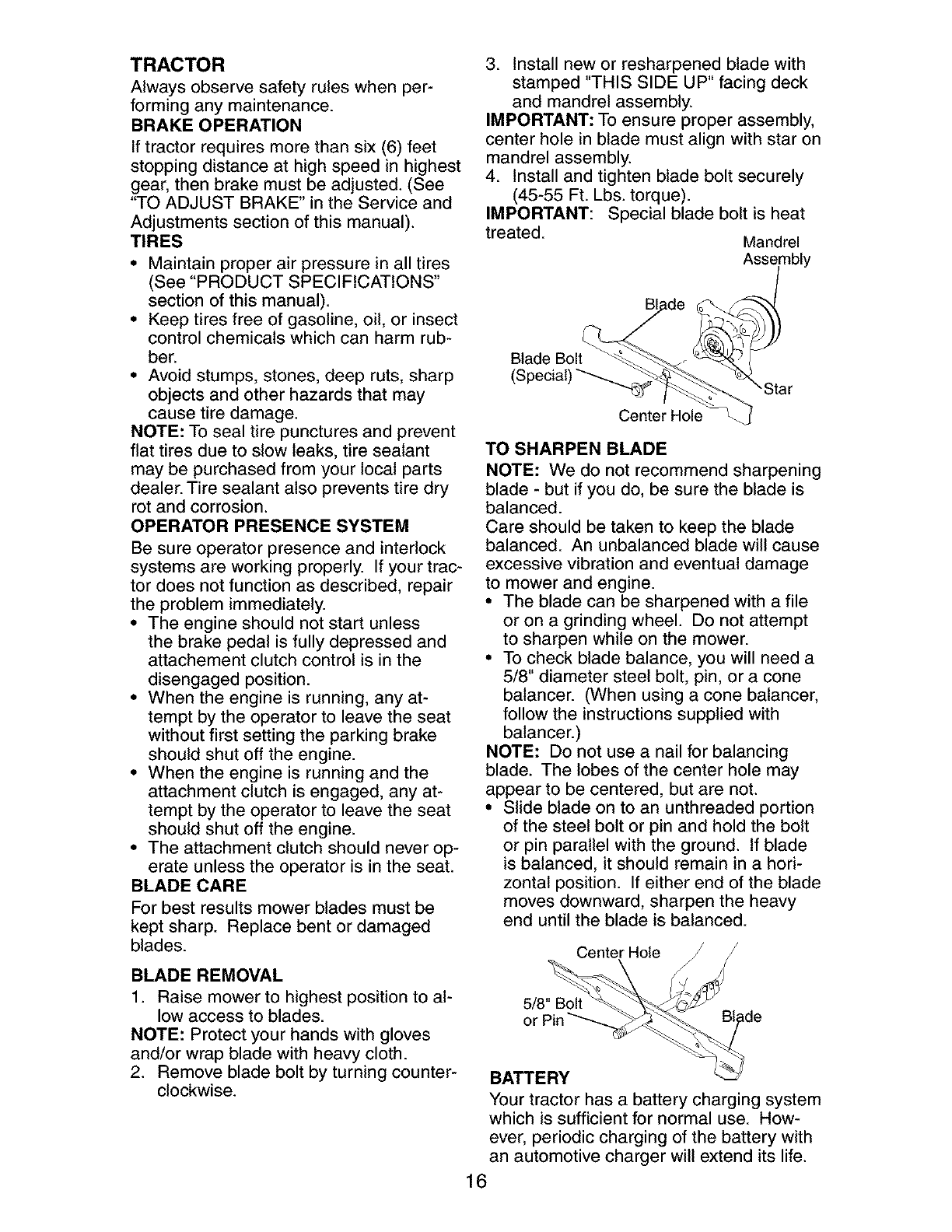

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SIDE UP" facing deck

and mandrel assembly.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star on

mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

IMPORTANT: Special blade bolt is heat

treated. Mandrel

Assembly

Blade

"Star

Center Hole

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade - but if you do, be sure the blade is

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a hori-

zontal position. If either end of the blade

moves downward, sharpen the heavy

end until the blade is balanced.

Center Hole

5/8" Bolt

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

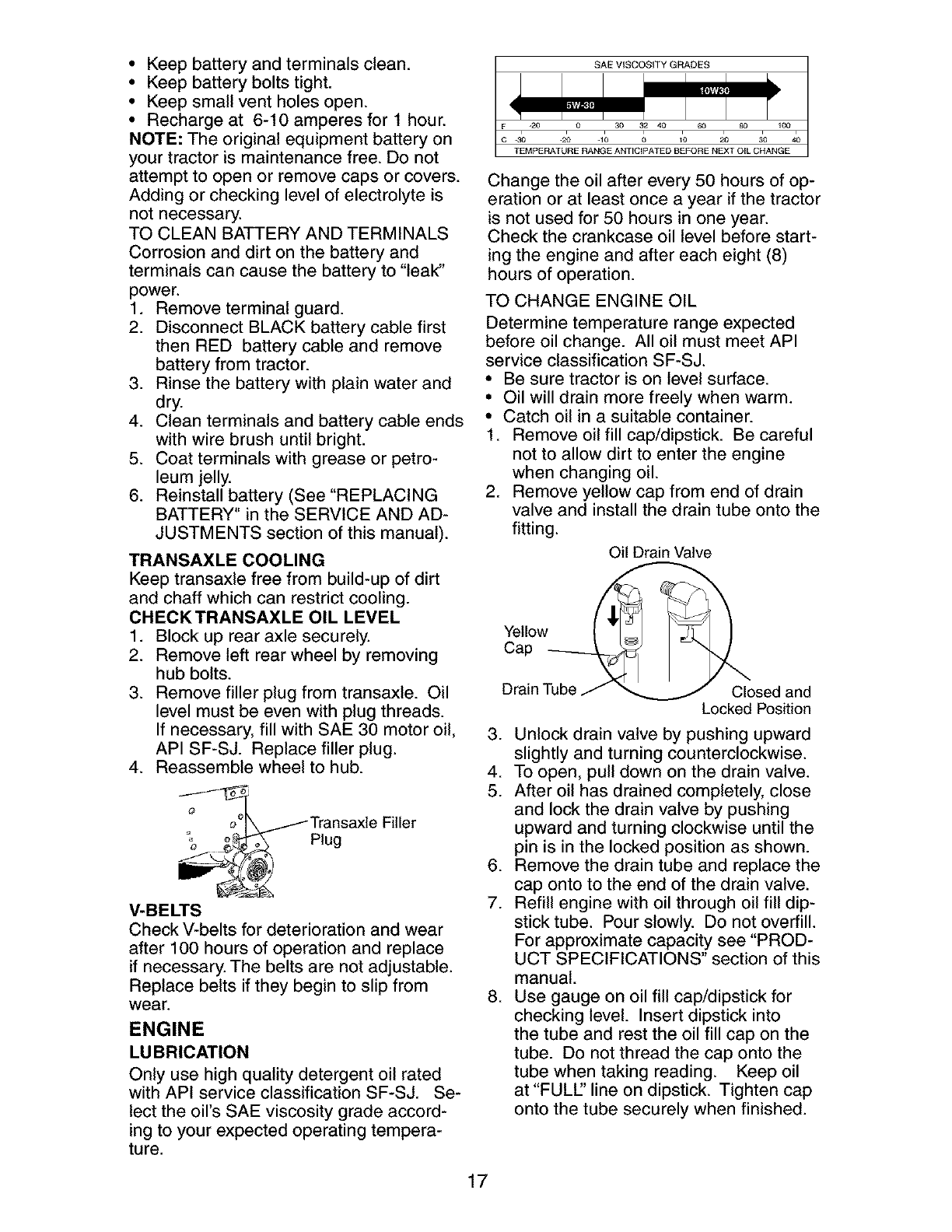

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

CHECKTRANSAXLE OIL LEVEL

1. Block up rear axle securely.

2. Remove left rear wheel by removing

hub bolts.

3. Remove filler plug from transaxle. Oil

level must be even with plug threads.

If necessary, fill with SAE 30 motor oil,

API SF-SJ. Replace filler plug.

4. Reassemble wheel to hub.

V-BELTS

Transaxle Filler

Plug

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ. Se-

lect the oil's SAE viscosity grade accord-

ing to your expected operating tempera-

ture.

SAE VISCOSITY GRADES

T_MPE RAT& E AANG°EANT,C,OATED B_FORE N2OT O,L C_ANGE

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Yellow

Cap

Drain Tube Closed and

Locked Position

3. Unlock drain valve by pushing upward

slightly and turning counterclockwise.

4. To open, pull down on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

upward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto to the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into

the tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULl.:' line on dipstick. Tighten cap

onto the tube securely when finished.

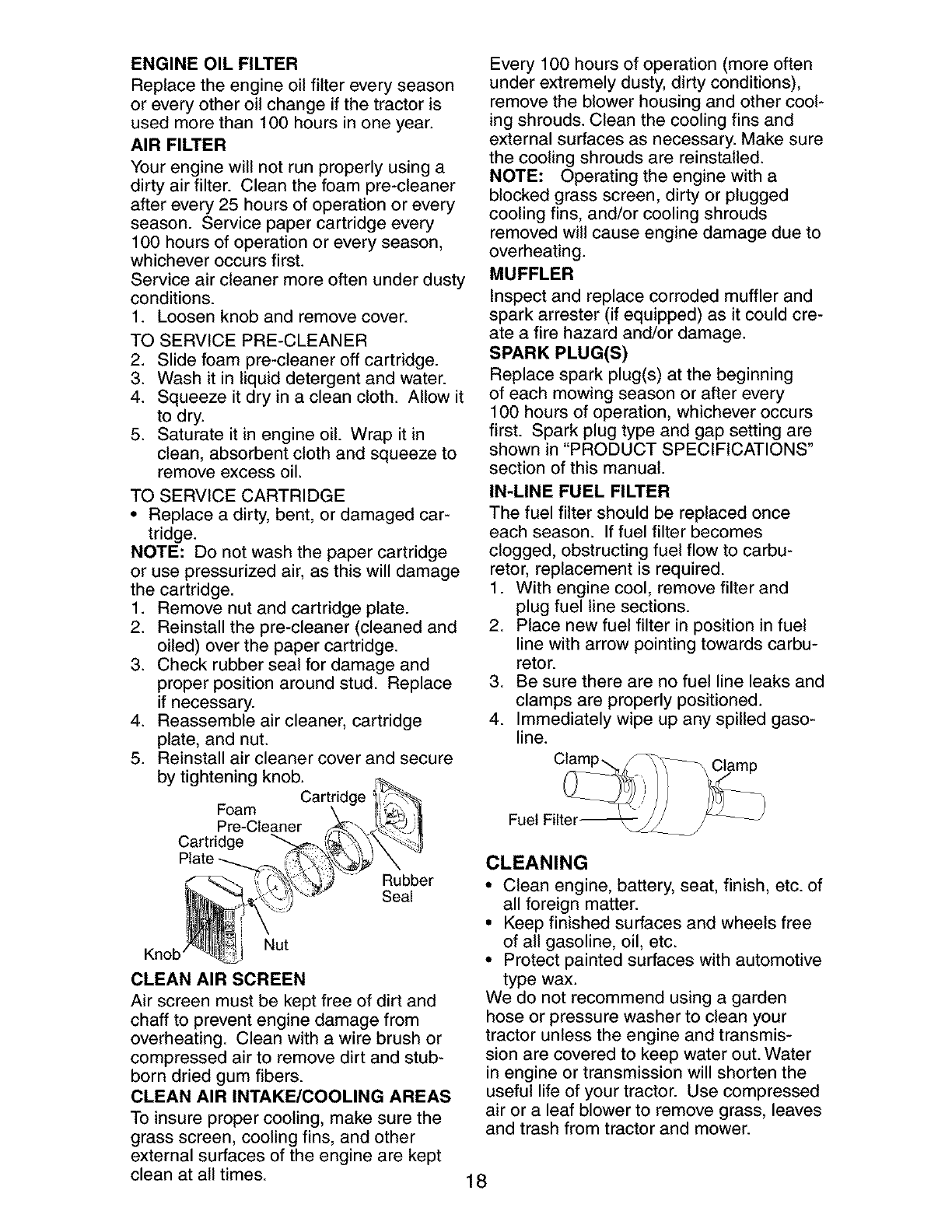

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow it

to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged car-

tridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will damage

the cartridge.

1. Remove nut and cartridge plate.

2. Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

3. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

4. Reassemble air cleaner, cartridge

plate, and nut.

5. Reinstall air cleaner cover and secure

by tightening knob.

Foam

Pre-Cleaner

Cartridge

Rubber

Seal

Nut

Knob'

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other cool-

ing shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due to

overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Fuel Filter_

CLEANING

• Clean engine, battery, seat, finish, etc. of

all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automotive

type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

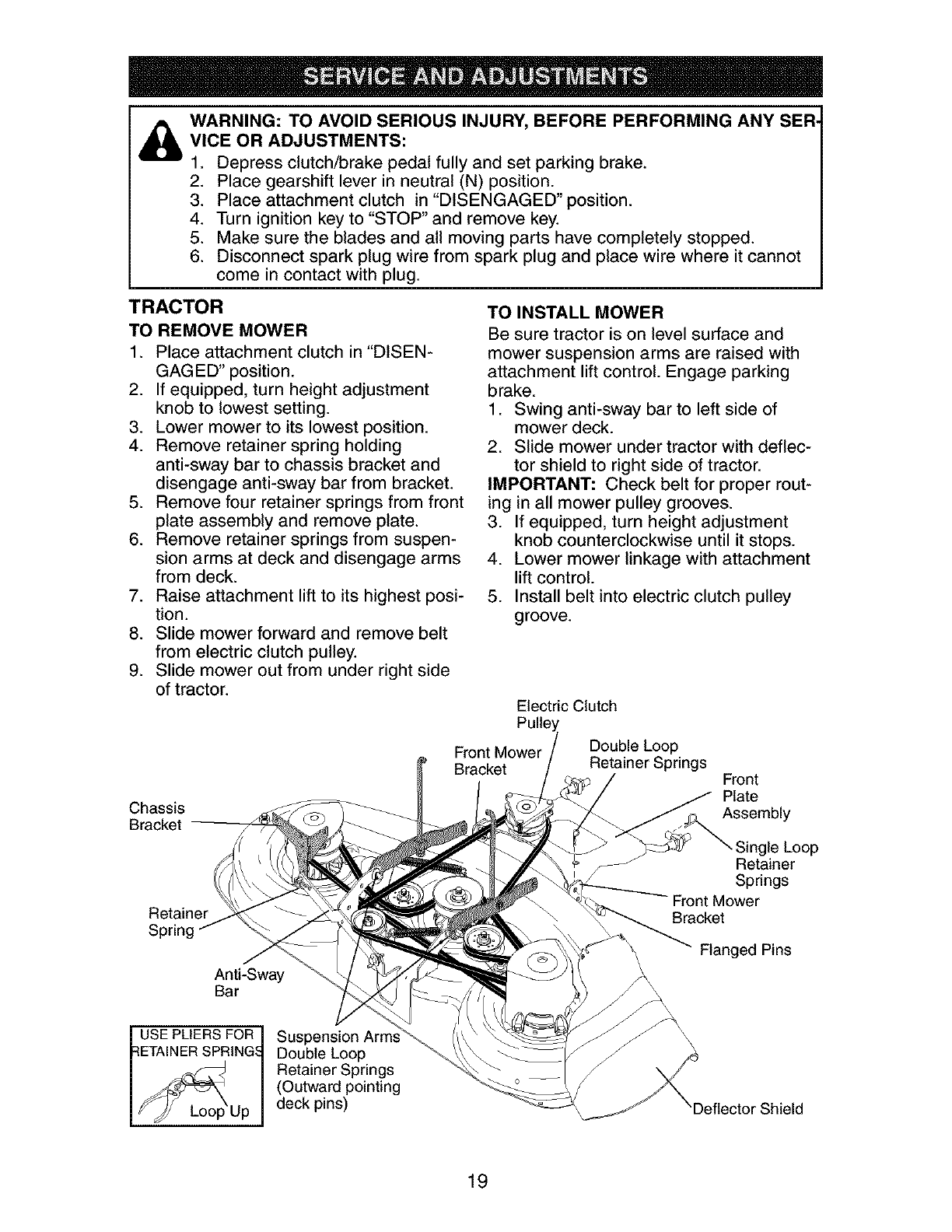

[& WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER-

VICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Remove retainer spring holding

anti-sway bar to chassis bracket and

disengage anti-sway bar from bracket.

5. Remove four retainer springs from front

plate assembly and remove plate.

6. Remove retainer springs from suspen-

sion arms at deck and disengage arms

from deck.

7. Raise attachment lift to its highest posi-

tion.

8. Slide mower forward and remove belt

from electric clutch pulley.

9. Slide mower out from under right side

of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Install belt into electric clutch pulley

groove.

Bracket

Electric Clutch

Chassis

Bracket

Retainer

Spring

Anti-Sway

Bar

Double Loop

Retainer Springs Front

Plate

Assembly

Single Loop

Retainer

Springs

Front Mower

Bracket

Flanged Pins

USE PLIERS FOR

I _°°pUpETAINERSPRING_

Suspension Arm_

Double Loop

Retainer Springs

(Outward pointing

deck pins) Deflector Shield

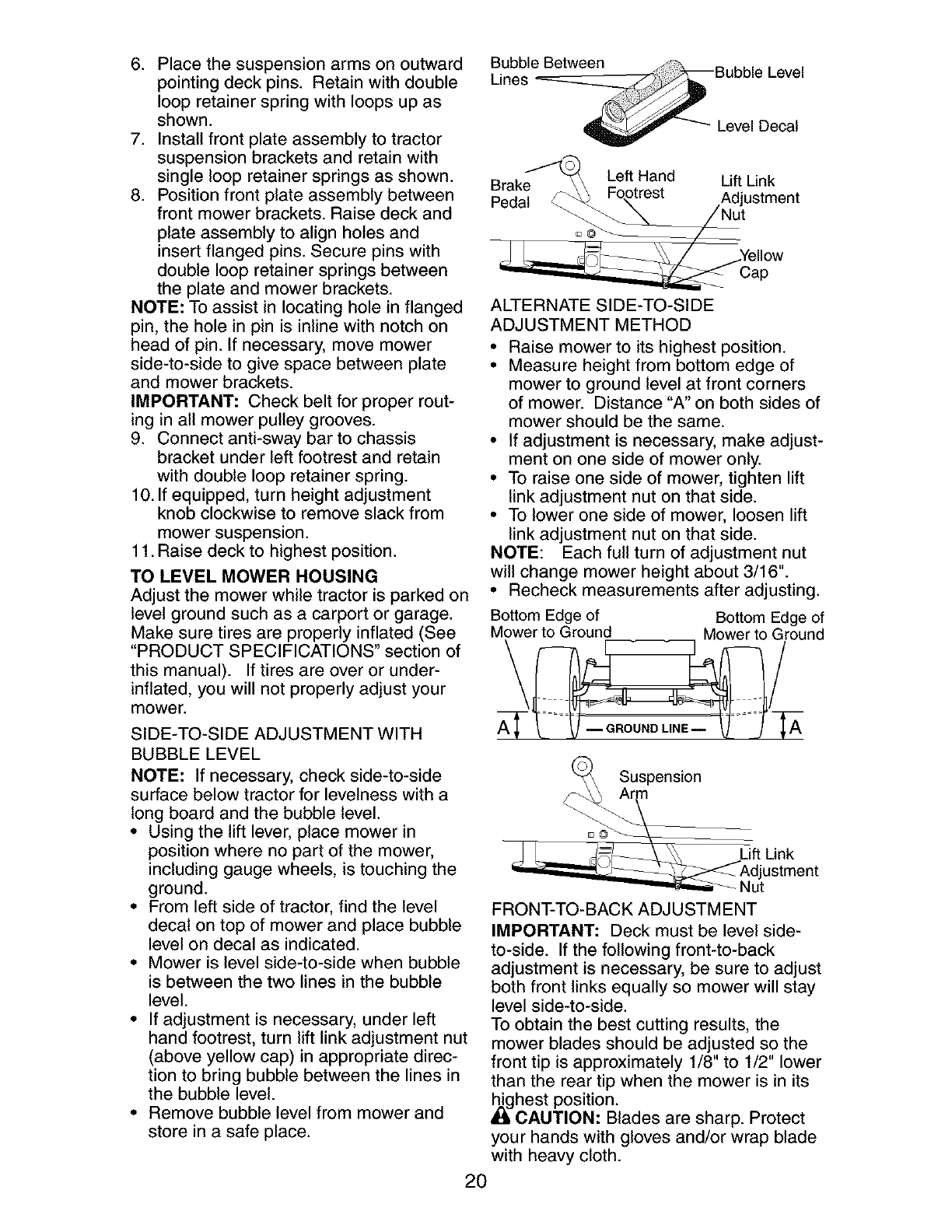

6. Place the suspension arms on outward

pointing deck pins. Retain with double

loop retainer spring with loops up as

shown.

7. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

8. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate and mower brackets.

NOTE: To assist in locating hole in flanged

pin, the hole in pin is inline with notch on

head of pin. If necessary, move mower

side-to-side to give space between plate

and mower brackets.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

9. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

10. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

11. Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on

level ground such as a carport or garage.

Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" section of

this manual). If tires are over or under-

inflated, you will not properly adjust your

mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

• Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

• From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

• Mower is level side-to-side when bubble

is between the two lines in the bubble

level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment nut

(above yellow cap) in appropriate direc-

tion to bring bubble between the lines in

the bubble level.

• Remove bubble level from mower and

store in a safe place.

Bubble Between ......

I_UDDle LeVel

Lines

_ Level Decal

pB 'i--_\ Left Hand Lift Link

e_Kal _jt ustment

_ Cap

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides of

mower should be the same.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

Suspension

J ftLink

_ Adjtustment

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the rear tip when the mower is in its

_lghest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

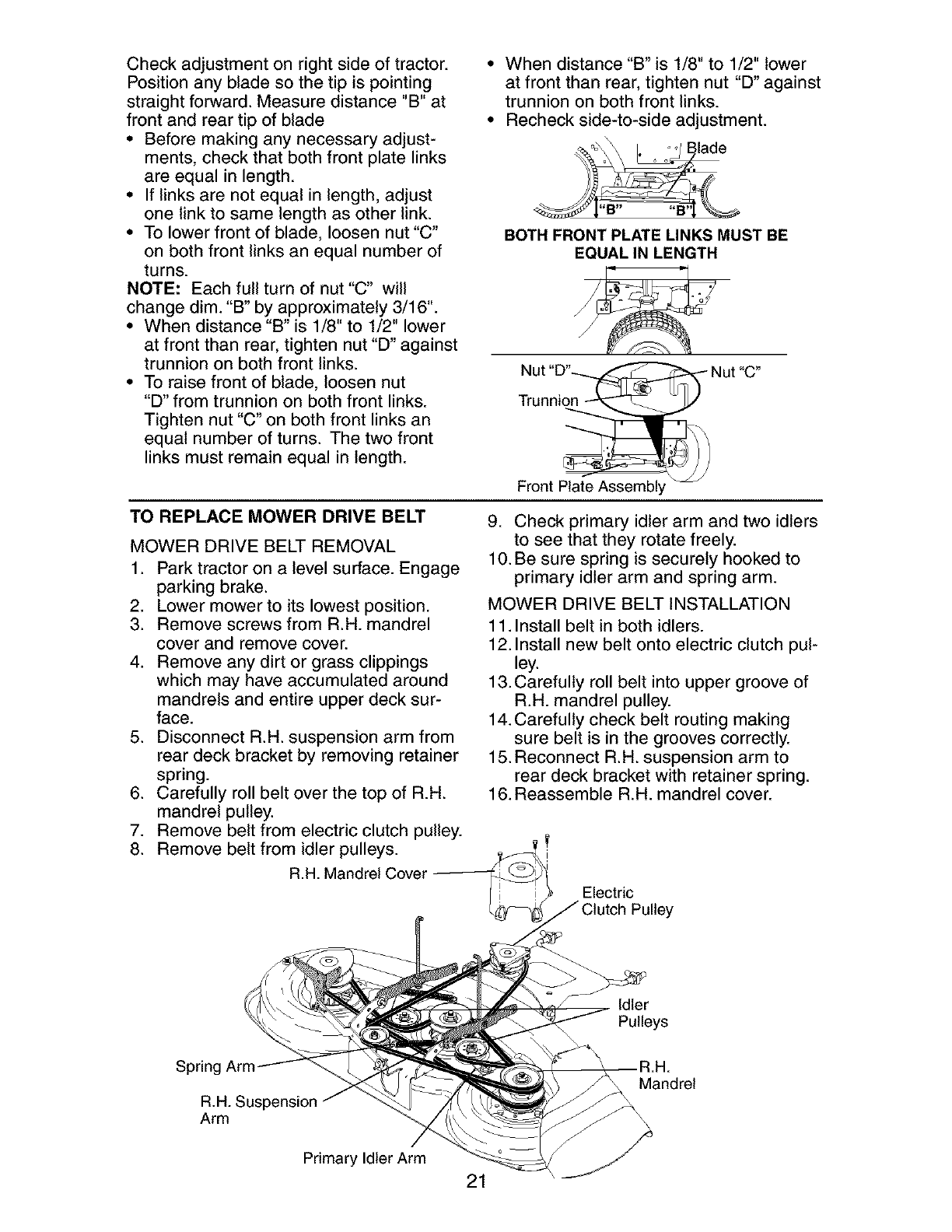

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

• Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of blade, loosen nut "C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• To raise front of blade, loosen nut

"D" from trunnion on both front links.

Tighten nut "C" on both front links an

equal number of turns. The two front

links must remain equal in length.

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• Recheck side-to-side adjustment.

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface. Engage

parking brake.

2. Lower mower to its lowest position.

3. Remove screws from R.H. mandrel

cover and remove cover.

4. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

5. Disconnect R.H. suspension arm from

rear deck bracket by removing retainer

spring.

6. Carefully roll belt over the top of R.H.

mandrel pulley.

7. Remove belt from electric clutch pulley.

8. Remove belt from idler pulleys.

R.H. Mandrel Cover

9. Check primary idler arm and two idlers

to see that they rotate freely.

10. Be sure spring is securely hooked to

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

11. Install belt in both idlers.

12. Install new belt onto electric clutch pul-

ley.

13. Carefully roll belt into upper groove of

R.H. mandrel pulley.

14. Carefully check belt routing making

sure belt is in the grooves correctly.

15. Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

16. Reassemble R.H. mandrel cover.

Electric

Idler

Pulleys

Spring Arm

R.H. Suspension

Arm

Mandrel

Primary Idler Arm

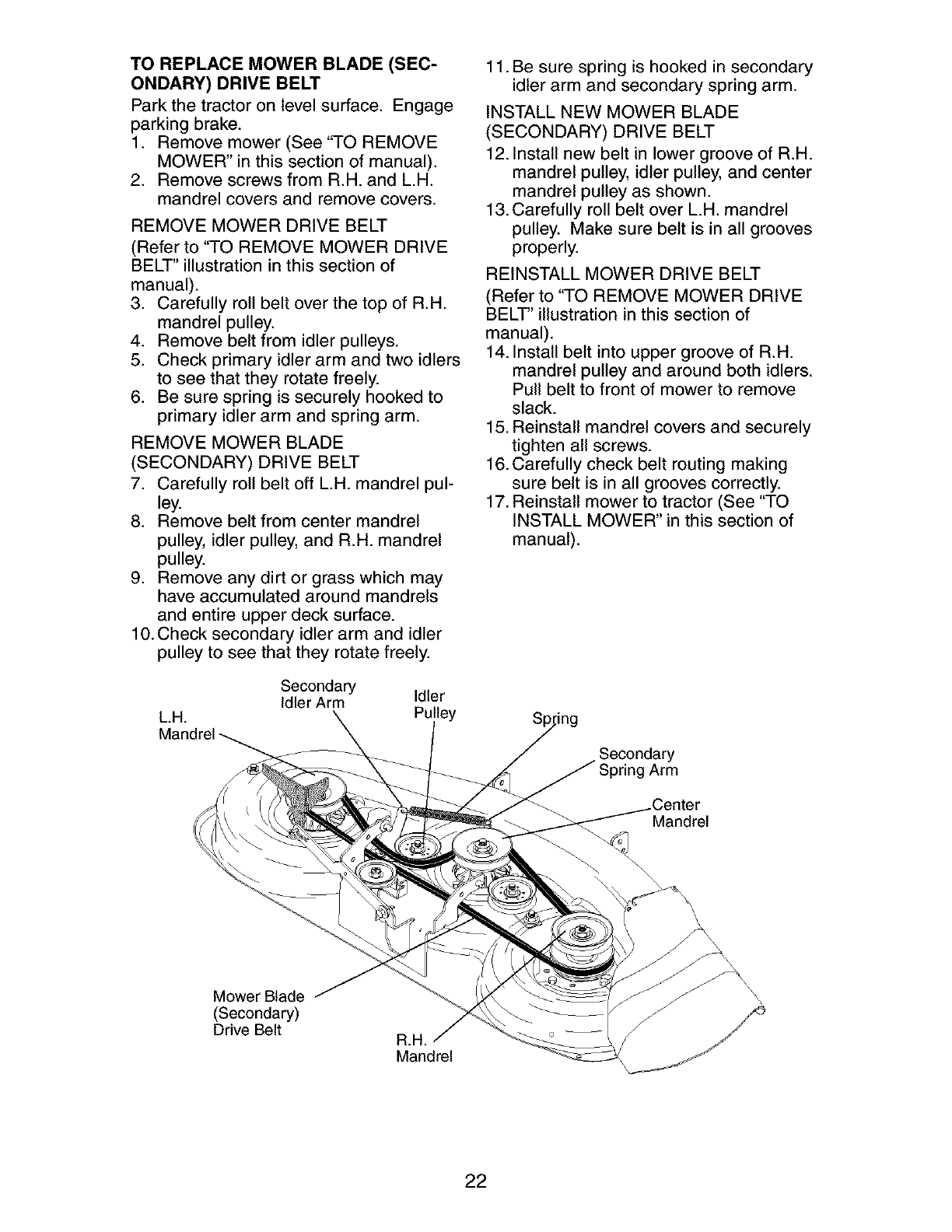

TO REPLACE MOWER BLADE (SEC-

ONDARY) DRIVE BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

2. Remove screws from R.H. and L.H.

mandrel covers and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

3. Carefully roll belt over the top of R.H.

mandrel pulley.

4. Remove belt from idler pulleys.

5. Check primary idler arm and two idlers

to see that they rotate freely.

6. Be sure spring is securely hooked to

primary idler arm and spring arm.

REMOVE MOWER BLADE

(SECONDARY) DRIVE BELT

7. Carefully roll belt off LH. mandrel pul-

ley.

8. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

9. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

10. Check secondary idler arm and idler

pulley to see that they rotate freely.

Secondary

Idler Arm Idler

L.H. Pulley

11. Be sure spring is hooked in secondary

idler arm and secondary spring arm.

INSTALL NEW MOWER BLADE

(SECONDARY) DRIVE BELT

12. Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and center

mandrel pulley as shown.

13.Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in all grooves

properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT' illustration in this section of

manual).

14. Install belt into upper groove of R.H.

mandrel pulley and around both idlers.

Pull belt to front of mower to remove

slack.

15. Reinstall mandrel covers and securely

tighten all screws.

16. Carefully check belt routing making

sure belt is in all grooves correctly.

17. Reinstall mower to tractor (See "TO

INSTALL MOWER" in this section of

manual).

Secondary

Arm

Mandrel

Mower Blade

(Secondary)

Drive Belt R.H.

Mandrel

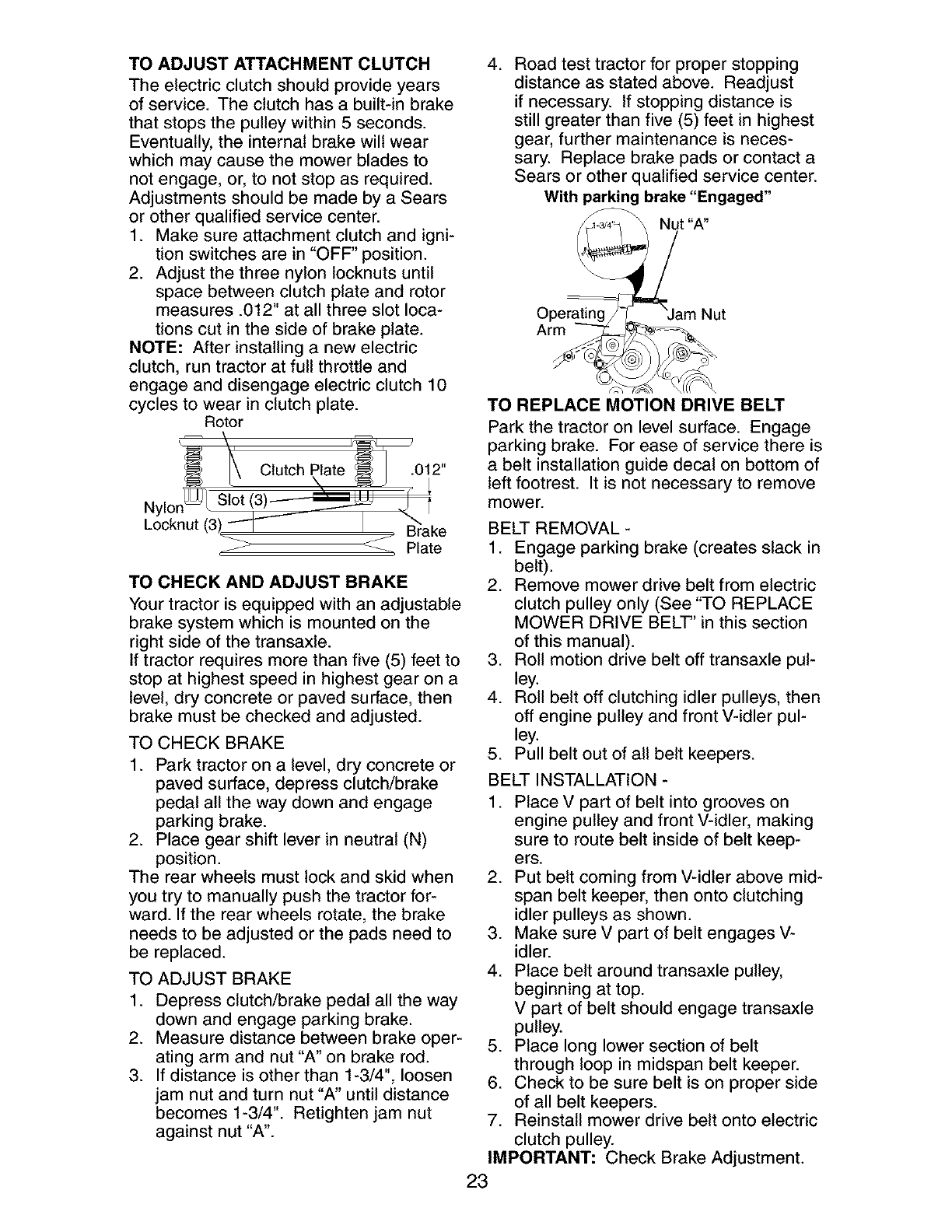

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

1. Make sure attachment clutch and igni-

tion switches are in "OFF" position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012"at all three slot loca-

tions cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

Rotor

Clutch .012"

Locknut

_ Plate

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-3/4", loosen

jam nut and turn nut "A" until distance

becomes 1-3/4". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there is

a belt installation guide decal on bottom of

left footrest. It is not necessary to remove

mower.

BELT REMOVAL -

1. Engage parking brake (creates slack in

belt).

2. Remove mower drive belt from electric

clutch pulley only (See "TO REPLACE

MOWER DRIVE BELT" in this section

of this manual).

3. Roll motion drive belt off transaxle pul-

ley.

4. Roll belt off clutching idler pulleys, then

off engine pulley and front V-idler pul-

ley.

5. Pull belt out of all belt keepers.

BELT INSTALLATION -

1. Place V part of belt into grooves on

engine pulley and front V-idler, making

sure to route belt inside of belt keep-

ers.

2. Put belt coming from V-idler above mid-

span belt keeper, then onto clutching

idler pulleys as shown.

3. Make sure V part of belt engages V-

idler.

4. Place belt around transaxle pulley,

beginning at top.

V part of belt should engage transaxle

pulley.

5. Place long lower section of belt

through loop in midspan belt keeper.

6. Check to be sure belt is on proper side

of all belt keepers.

7. Reinstall mower drive belt onto electric

clutch pulley.

IMPORTANT: Check Brake Adjustment.

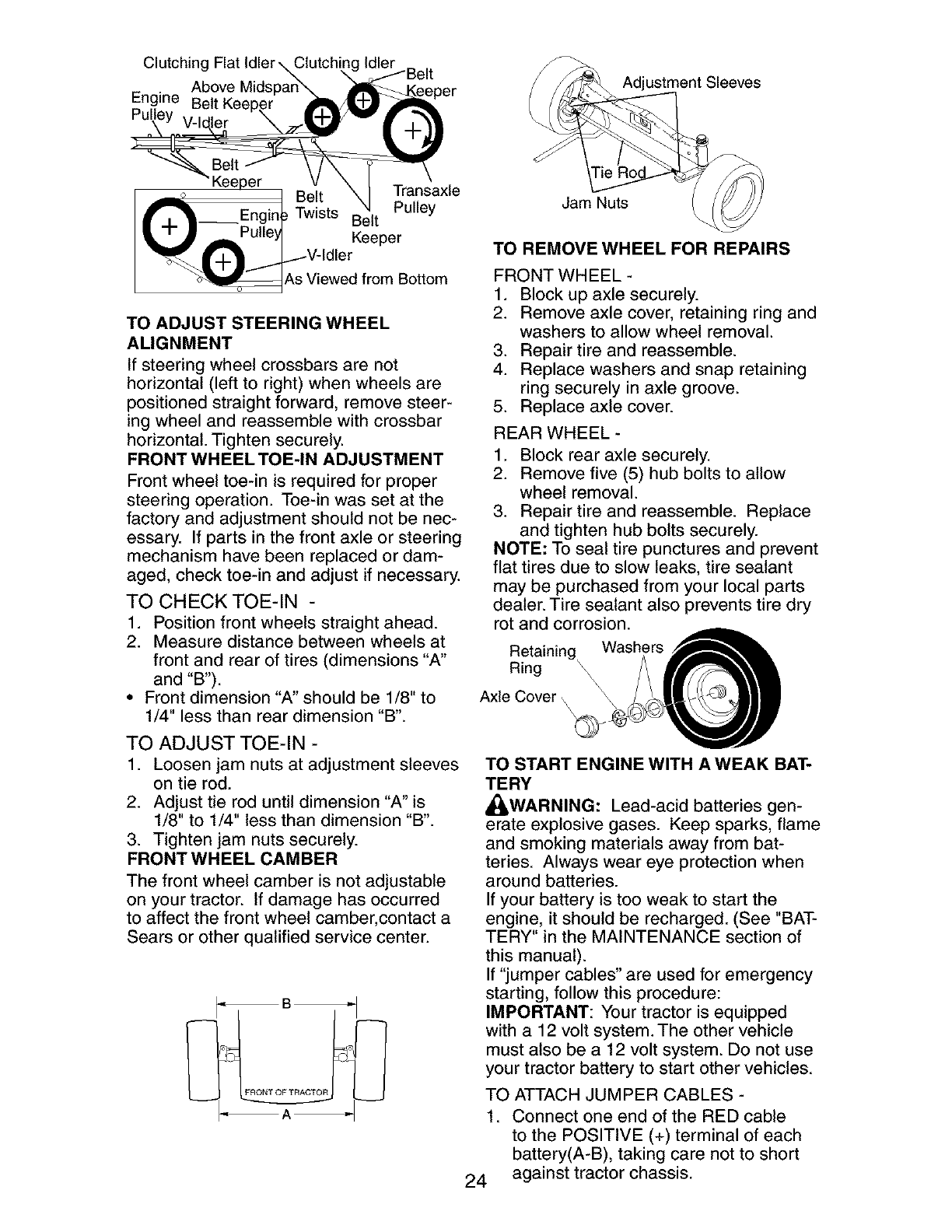

Clutching Clutchim

Above Mids

Engine

Belt

Keeper _ .

B t I ransaxle

m_e._ _ ..

f "_k Engin_ Twists Be t _ulley

_[ J¢ J--Pulle_ Keeper

_As Viewed from Bottom

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbar

horizontal. Tighten securely.

FRONT WHEEL TOE-IN ADJUSTMENT

Front wheel toe-in is required for proper

steering operation. Toe-in was set at the

factory and adjustment should not be nec-

essary. If parts in the front axle or steering

mechanism have been replaced or dam-

aged, check toe-in and adjust if necessary.

TO CHECK TOE-IN -

1. Position front wheels straight ahead.

2. Measure distance between wheels at

front and rear of tires (dimensions "A"

and "B").

• Front dimension "A" should be 1/8" to

1/4" less than rear dimension "B".

TO ADJUST TOE-IN -

1. Loosen jam nuts at adjustment sleeves

on tie rod.

2. Adjust tie rod until dimension "A" is

1/8" to 1/4" less than dimension "B".

3. Tighten jam nuts securely.

FRONT WHEEL CAMBER

The front wheel camber is not adjustable

on your tractor. If damage has occurred

to affect the front wheel camber, contact a

Sears or other qualified service center.

Adjustment Sleeves

Jam Nuts

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL -

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL -

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair tire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Retaining Washers

Ring \

Axle Cover \

TO START ENGINE WITH AWEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

24 against tractor chassis.

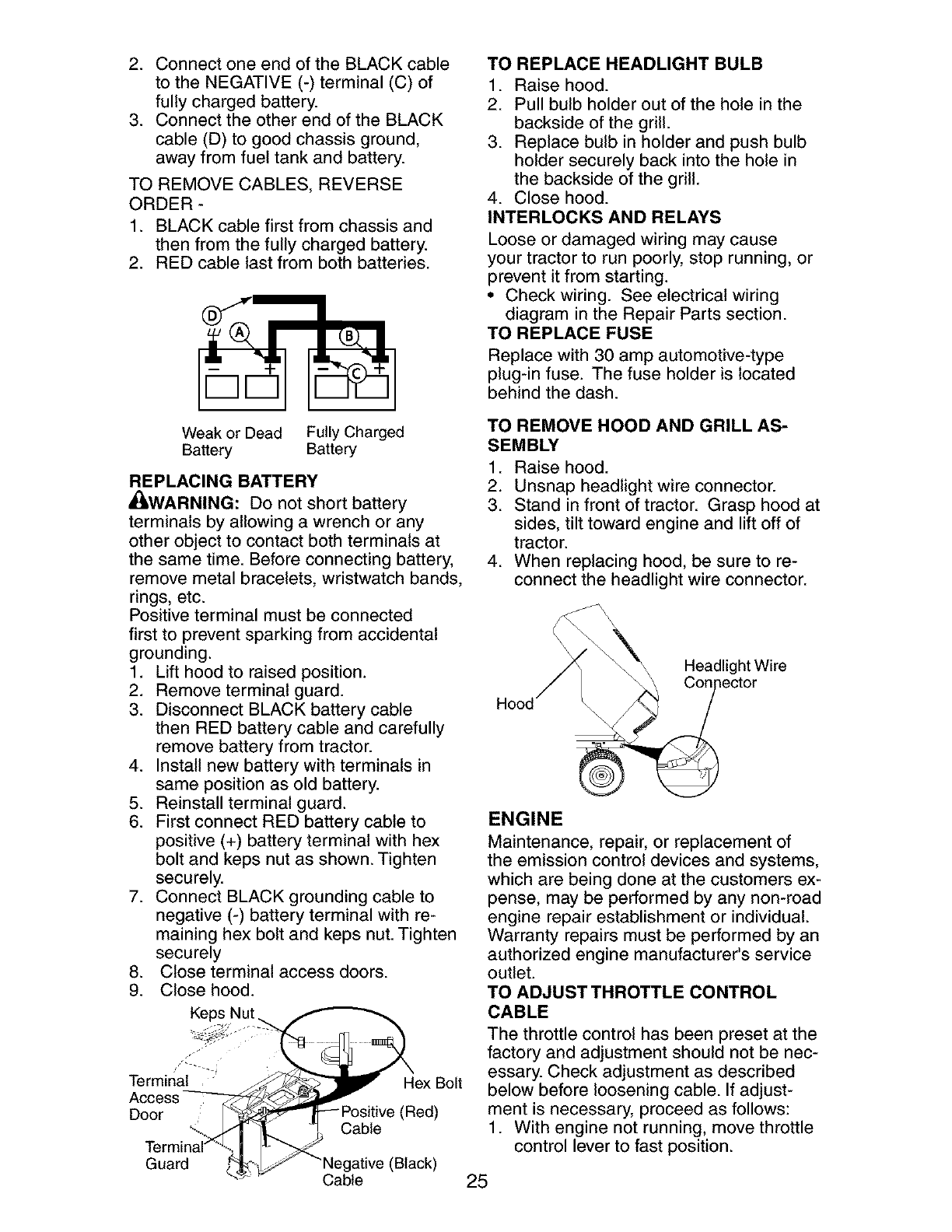

2. Connectone end of the BLACKcable

to the NEGATIVE(-) terminal(C) of

fully chargedbattery.

3. Connectthe other end of the BLACK

cable(D) to good chassisground,

awayfrom fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Terminal Hex Bolt

Access

Door (Red)

Guard

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

_ Headlight Wire

H°°dF .__. _ ._C( _ ectOr

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

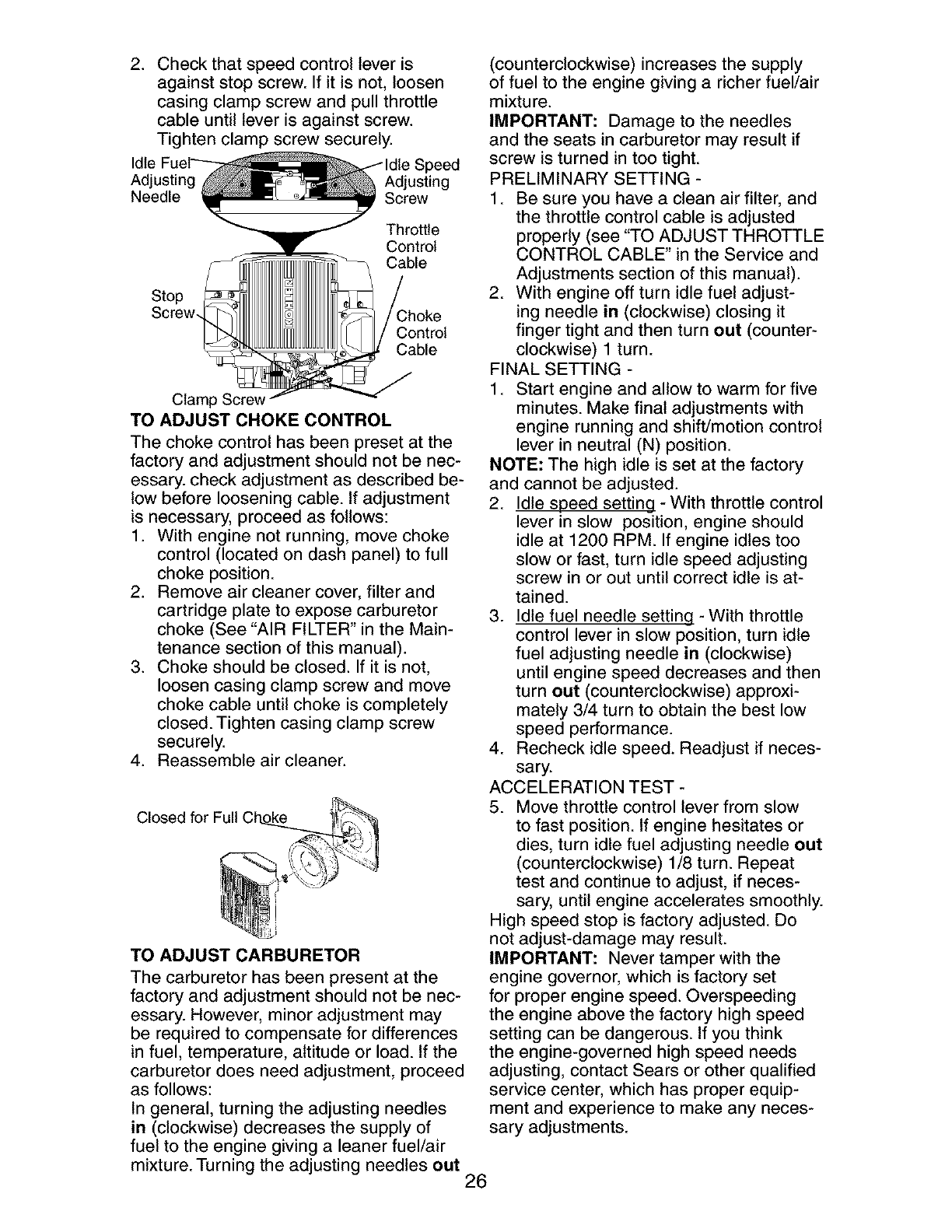

2. Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Idle

Adjusting Adjusting

Needle Screw

Throttle

Control

Cable

Stop

Screw,, ;hoke

Control

Cable

Clamp Screw

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary, check adjustment as described be-

low before loosening cable. If adjustment

is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the Main-

tenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed for Full

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixtu re.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable is adjusted

properly (see "TO ADJUST THROTTLE

CONTROL CABLE" in the Service and

Adjustments section of this manual).

2. With engine off turn idle fuel adjust-

ing needle in (clockwise) closing it

finger tight and then turn out (counter-

clockwise) 1 turn.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle speed setting - With throttle control

lever in slow position, engine should

idle at 1200 RPM. If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is at-

tained.

3. Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and then

turn out (counterclockwise) approxi-

mately 3/4 turn to obtain the best low

speed performance.

4. Recheck idle speed. Readjust if neces-

sary.

ACCELERATION TEST -

5. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle fuel adjusting needle out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

setting can be dangerous. If you think

the engine-governed high speed needs

adjusting, contact Sears or other qualified

service center, which has proper equip-

ment and experience to make any neces-

sary adjustments.

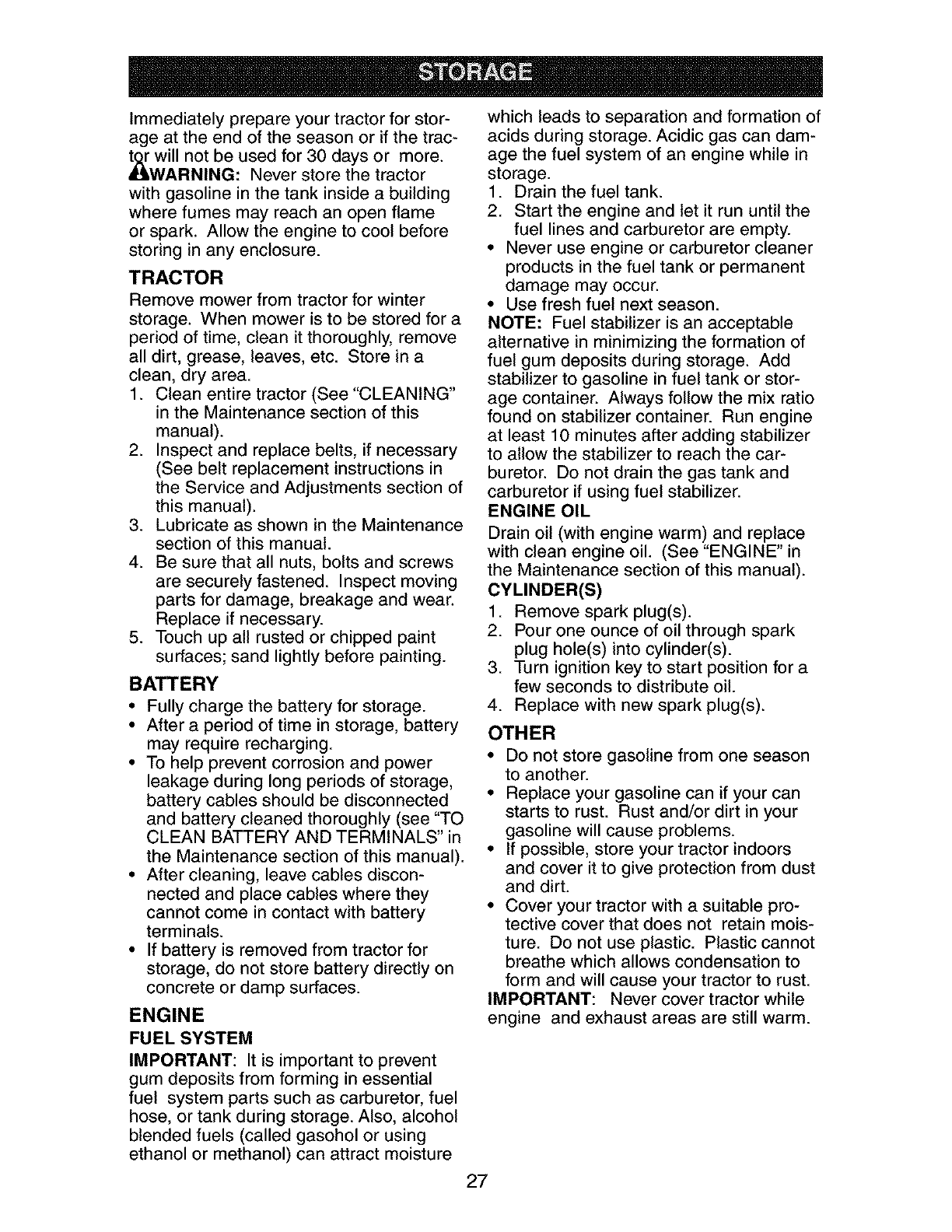

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

_will not be used for 30 days or more.

WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See"CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

•Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

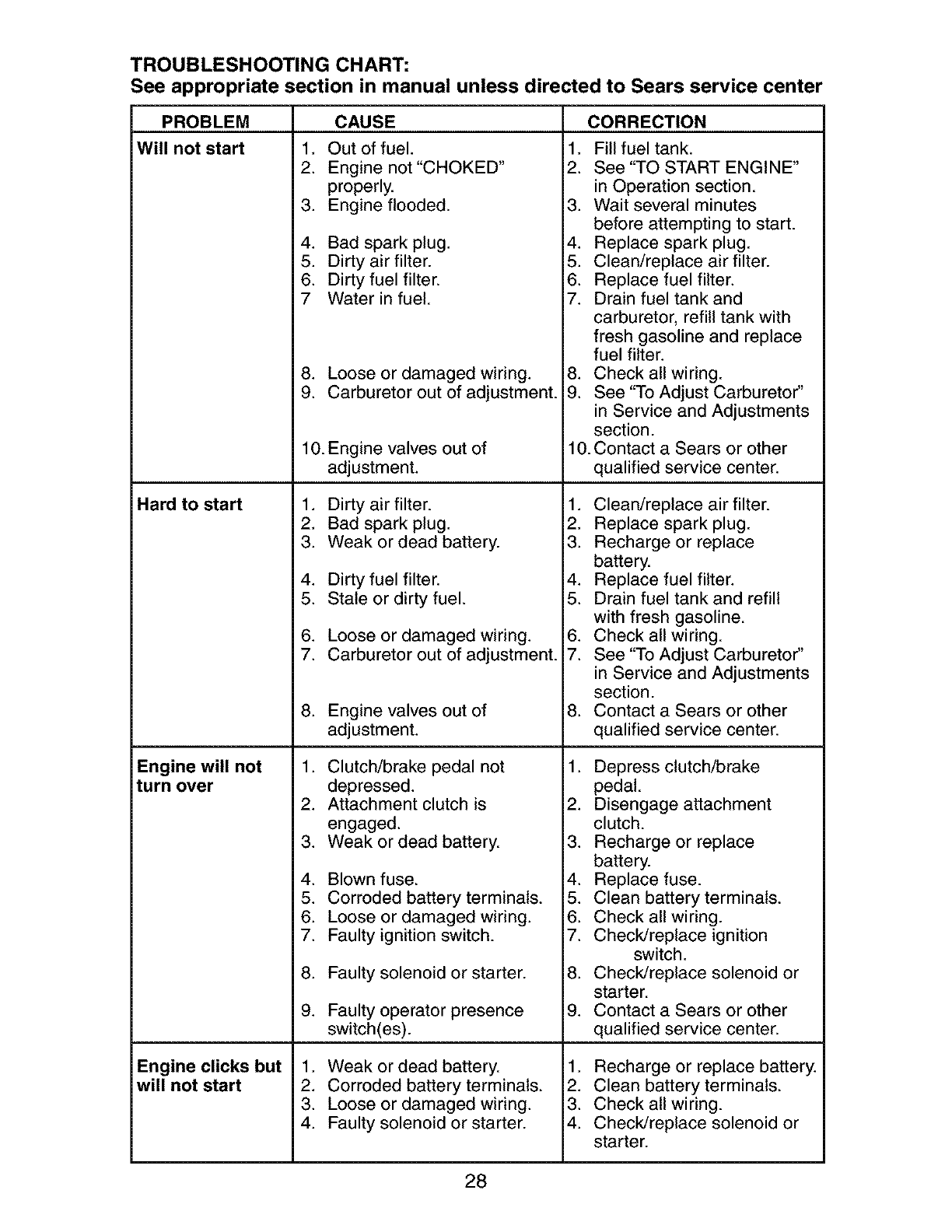

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

10. Engine valves out of

CAUSE

Out of fuel. 1.

Engine not "CHOKED" 2.

properly.

Engine flooded. 3.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

Loose or damaged wiring. 8.

Carburetor out of adjustment. 9.

adjustment.

Dirty air filter. 1.

Bad spark plug. 2.

Weak or dead battery. 3.

Dirty fuel filter. 4.

Stale or dirty fuel. 5.

Loose or damaged wiring. 6.

Carburetor out of adjustment. 7.

Engine valves out of 8.

adjustment.

Clutch/brake pedal not 1.

depressed.

Attachment clutch is 2.

engaged.

Weak or dead battery. 3.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Faulty solenoid or starter. 8.

Faulty operator presence 9.

switch(es).

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

CORRECTION

Fill fuel tank.

See "TO START ENGINE"

in Operation section.

Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

Clean/replace air filter.

Replace spark plug.

Recharge or replace

battery.

Replace fuel filter.

Drain fuel tank and refill

with fresh gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

Contact a Sears or other

qualified service center.

Depress clutch/brake

pedal.

Disengage attachment

clutch.

Recharge or replace

battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

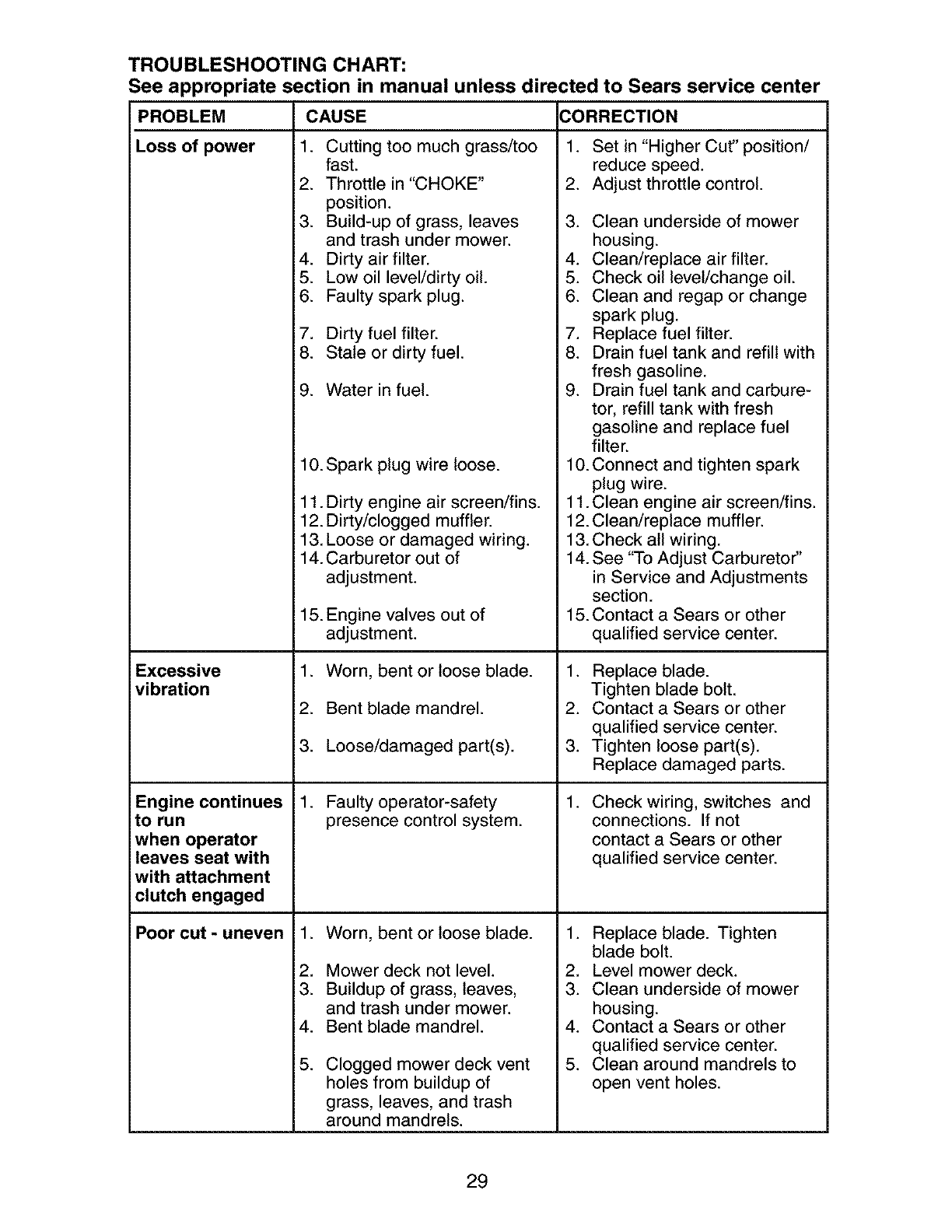

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE CORRECTION

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

iPROBLEM

Loss of power

Excessive

vibration

Engine continues

ito run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut - uneven

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with

fresh gasoline.

9. Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

10. Connect and tighten spark

plug wire.

11 .Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

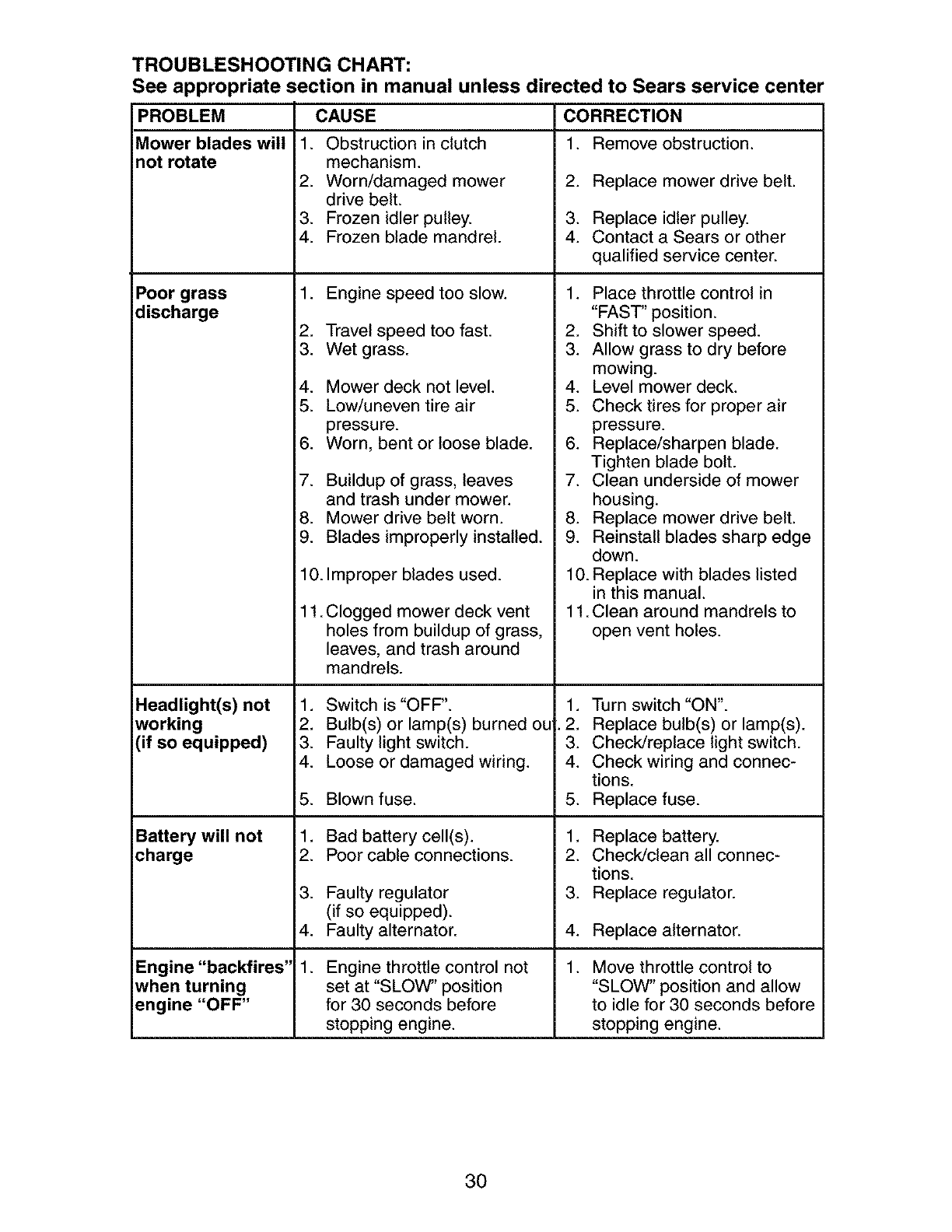

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

CAUSE CORRECTION

1. Remove obstruction.1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Headlight(s) not 1.

working 2.

(if so equipped) 3.

Battery will not 1.

charge 2.

Engine "backfires"

when turning

engine "OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned ou

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11 .Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

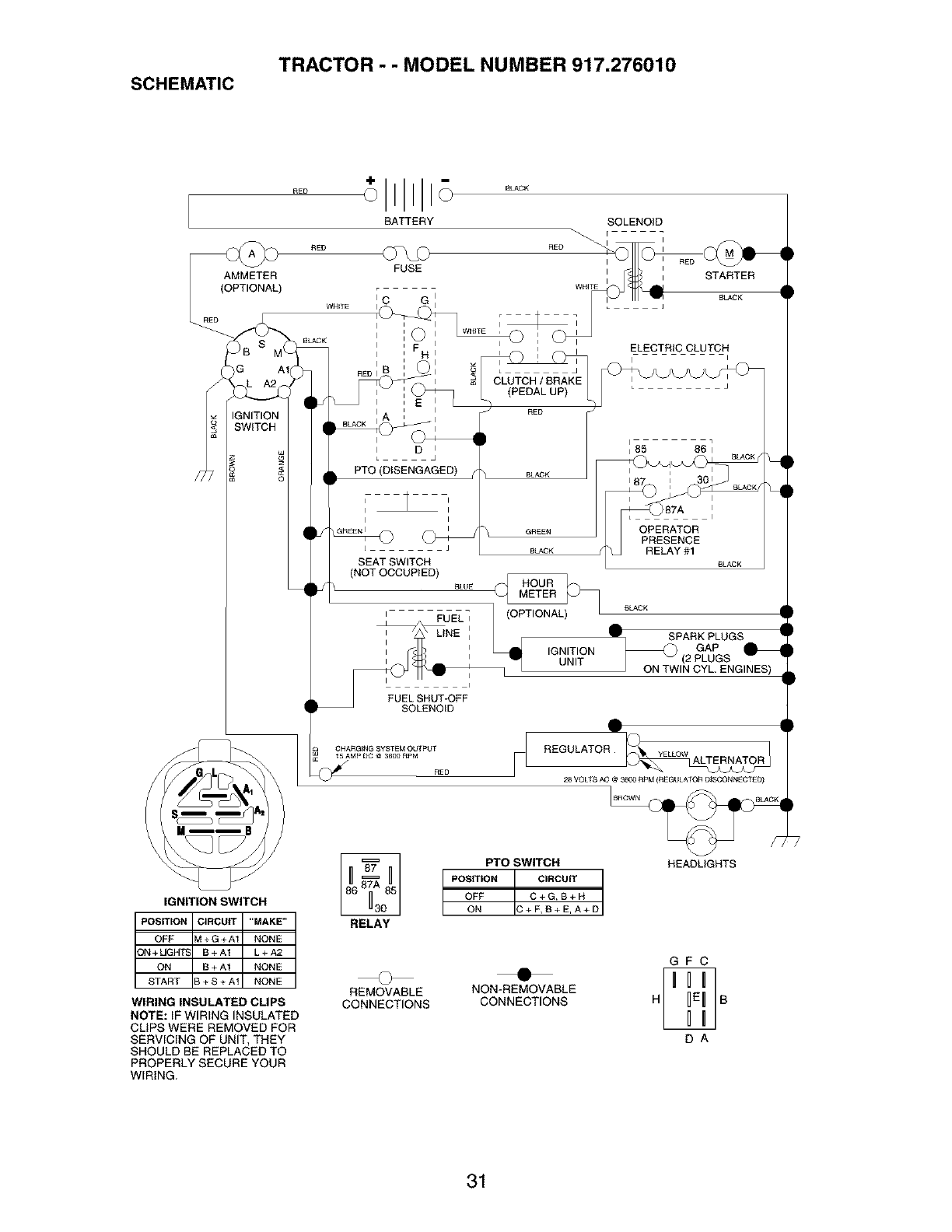

TRACTOR - - MODEL NUMBER 917.276010

SCHEMATIC

RED

_)AMMETER

)NITION

_WITCH

BATTERY SOLENOID

RED 4_

FUSE STARTER

i I SLACK

WHETE ! C G I

_LaCK I ,_ _IELECTR C CLUTCH

H I I

I_ CLUTCH /BRAKE j

IDII 85 86 I

L • BLACK

I I I

GREENI I GR£EN OPERATOR

%SENOE

L J 8_cK /]'_J RELAY #1

SEAT SWITCH /aLACK

(NOT OCCUPIED)

.... " tOPTIONALI LBLACK

FUEL i ,_-" -- ,--

UNE i _ _ SPARK PLUGS •

I , IGNITION _ GAP_o

I _ (2 PLuto

___ UNIT ] ON TWIN CYL. ENGINES)

LENOID

CHARGING1SAMP DC @SYSTEM3600RPMOUTPUT REGULATO: __

RED

2B VOLTS AC @ 3600 RpM (REGULATOR DISCONNECTED)

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

3N+UGH_ B+A1 L+A2

ON B+A1 NONE

START B+S+A NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

RELAY

PTO SWITCH

POSITION CIRCUIT

OFF C+G,B+H

ON C+F,R+E,A+D

HEADLIGHTS

GFC

•

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS H B

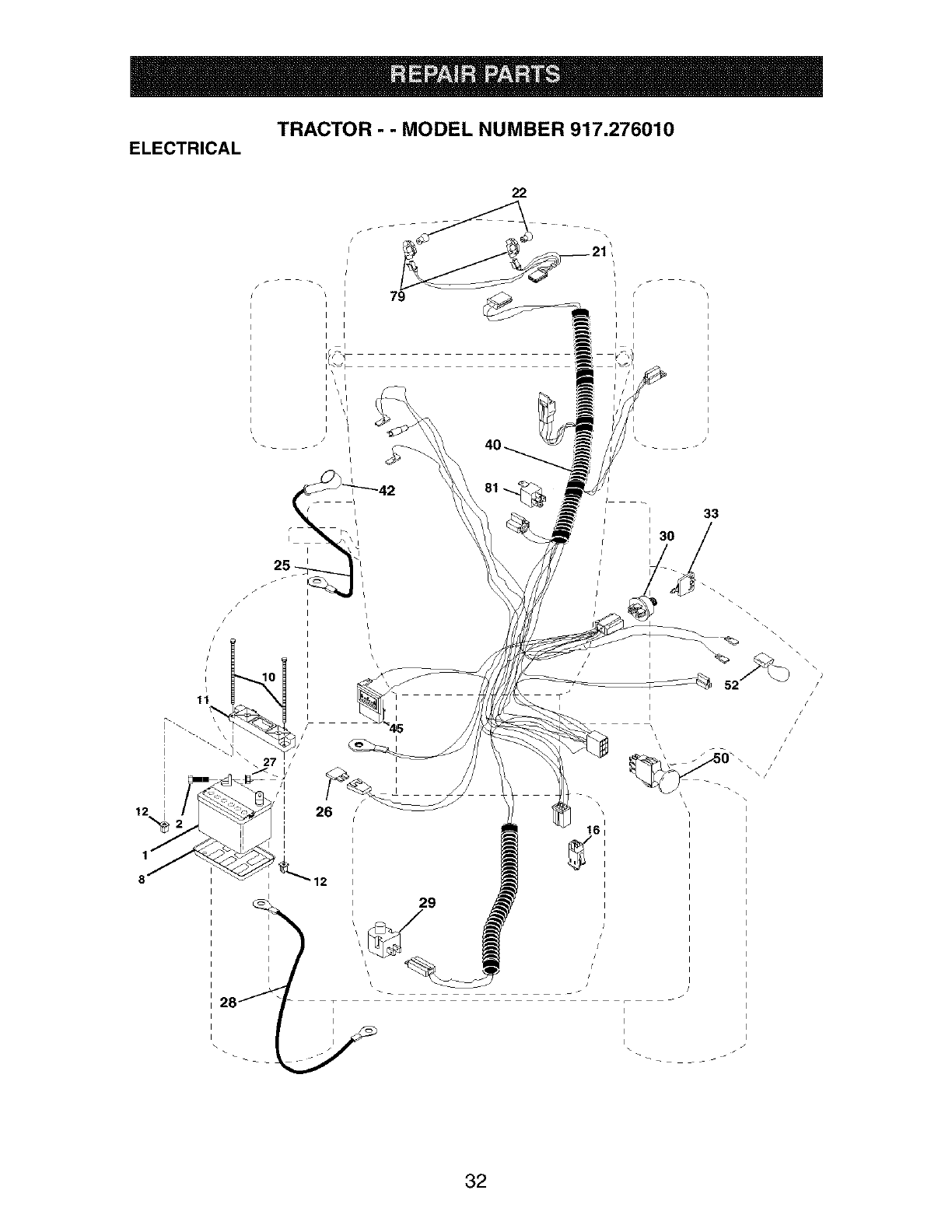

TRACTOR - - MODEL NUMBER 917.276010

ELECTRICAL

f/ /

I_I

I//I

I lo

i \_27 :/

I 'i

-- O\\\\//

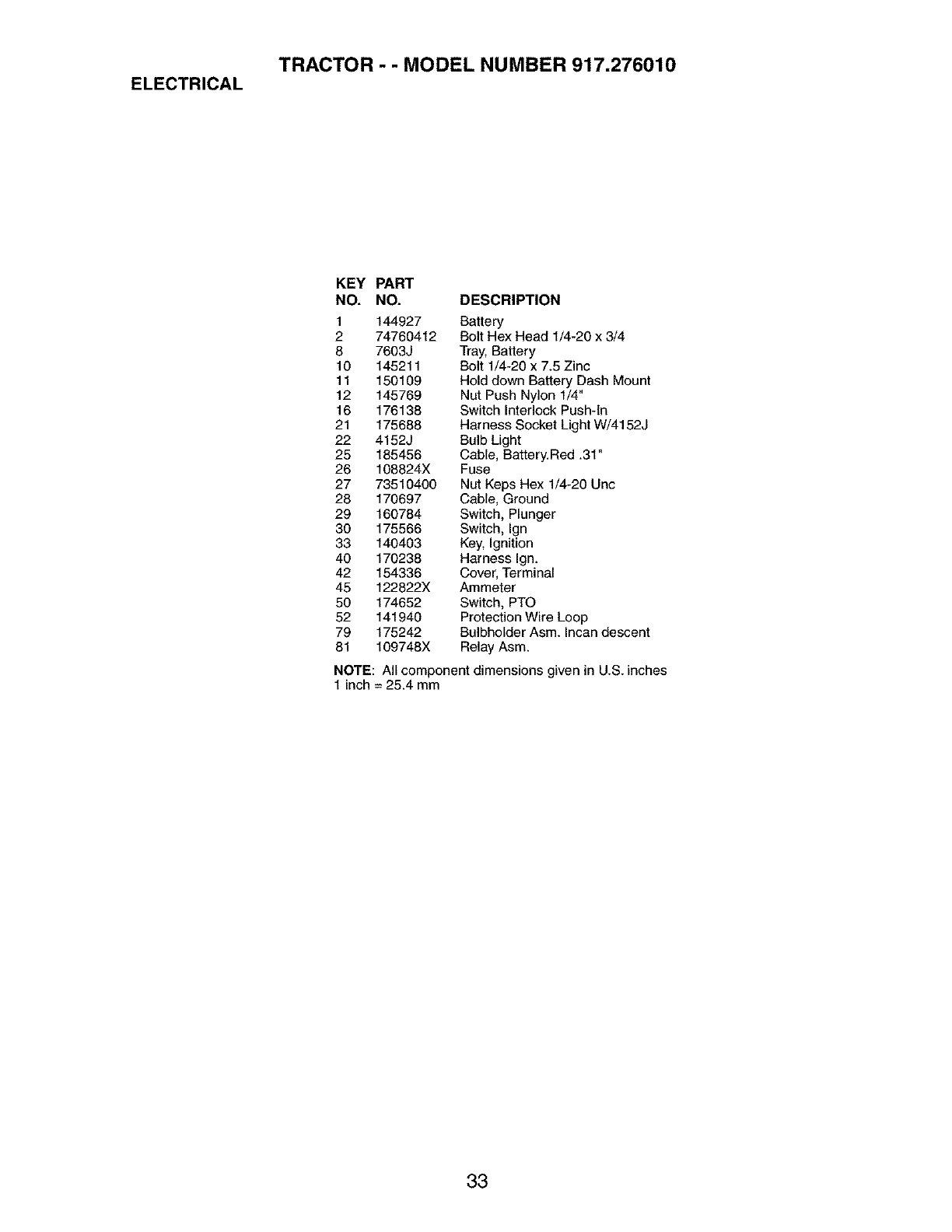

TRACTOR - - MODEL NUMBER 917.276010

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 176138 Switch Interlock Push-In

21 175688 Harness Socket Light W/4152J

22 4152J Bulb Light

25 185456 Cable, Battery.Red .31"

26 108824X Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 170697 Cable, Ground

29 160784 Switch, Plunger

30 175566 Switch, Ign

33 140403 Key, Ignition

40 170238 Harness Ign.

42 154336 Cover, Terminal

45 122822X Ammeter

50 174652 Switch, PTO

52 141940 Protection Wire Loop

79 175242 Bulbholder Asm. Incan descent

81 109748X Relay Asm.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

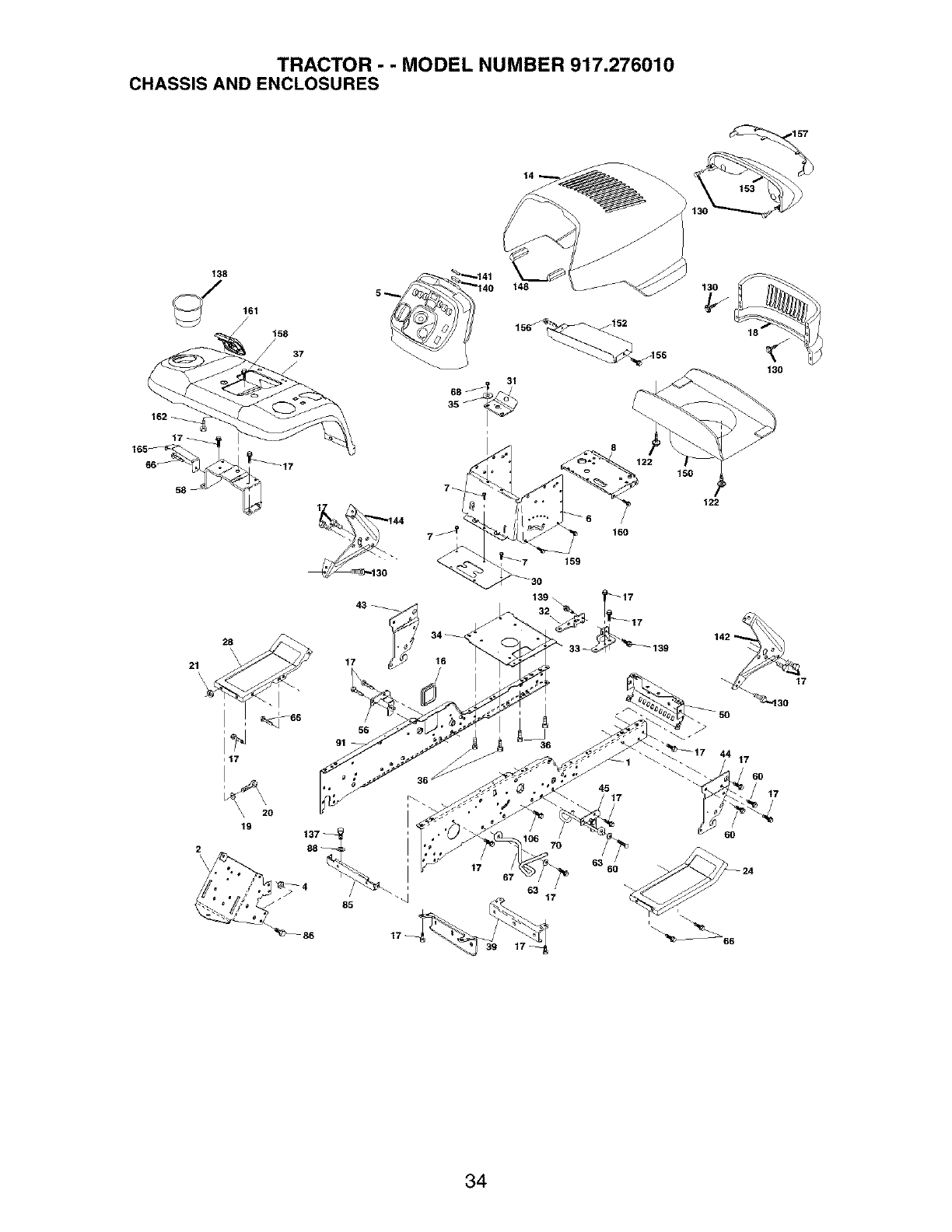

TRACTOR -- MODEL NUMBER 917.276010

CHASSIS AND ENCLOSURES

162

21\

t38

t61

158

_86

148

_7 159

11156

t30

t22

43 _139 \ I__7

17 16

63 /

150

122

_50

45 Jt7

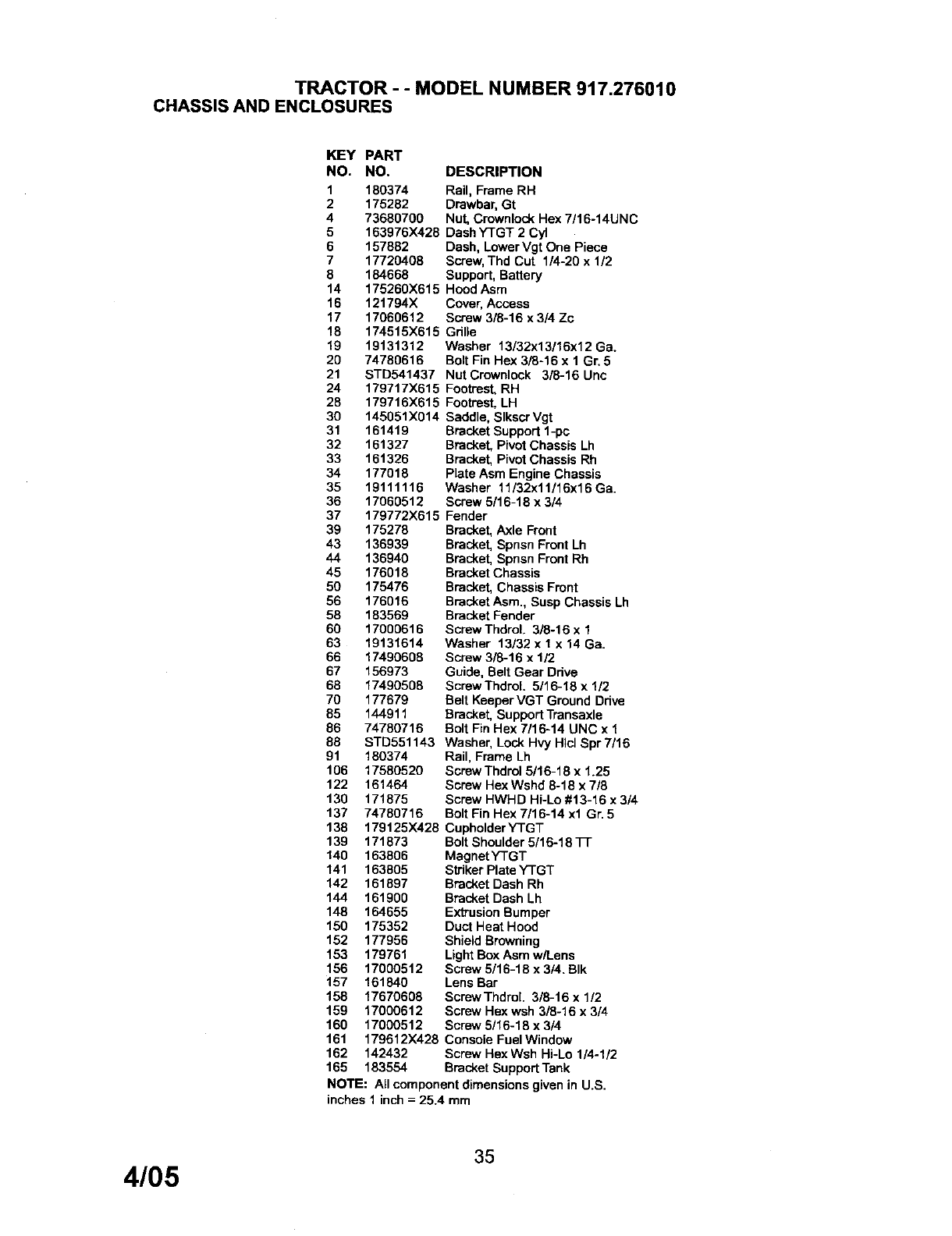

TRACTOR -- MODEL NUMBER 917.276010

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 180374 Rail, Frame RH

2 175282 Drawbar, Gt

4 73680700 Nut, CrownlockHex 7/16-14UNC

5 163976X428 Dash YTGT 2 Cyl

6 157882 Dash, LowerVgt One Piece

7 17720408 Screw, Thd Cut 1/4-20 x 1/2

8 184668 Support, Battery

14 175260X615 Hood Asm

16 121794X Cover, Access

17 17060612 Screw 3/8-16 x 3/4 Zc

18 174515X615 Gdlle

19 19131312 Washer 13/32x13/16x12 Ga.

20 74780616 Bolt Fin Hex 3/8-16 x 1 Gr. 5

21 STD541437 Nut Crownlock 3/8-16 Unc

24 179717X615 Footrest, RH

28 179716X615 Footrest, LH

30 145051X014 Saddle, SlkscrVgt

31 161419 Bracket Support 1-pc

32 161327 Bracket, Pivot Chassis Lh

33 161326 Bracket, Pivot Chassis Rh

34 177018 Plate Asm Engine Chassis

35 19111116 Washer 11/32x11/16x16 Ga.

36 17060512 Screw 5/16-18 x 3/4

37 179772X615 Fender

39 175278 Bracket, Axle Front

43 136939 Bracket, Spnsn Front Lh

44 136940 Bracket, Spnsn Front Rh

45 176018 Bracket Chassis

50 175476 Bracket, Chassis Front

56 176016 BracketAsm., Susp Chassis Lh

58 183569 Bracket Fender

60 17000616 ScrawThdroL 3/8-16 x 1

63 19131614 Washer 13132x 1 x 14 Ga.

66 17490608 Screw 3/8-16 x 1/2

67 156973 Guide, Belt Gear Drive

68 17490508 ScrewThdroL 5116-18x 1/2

70 177679 Belt KeeperVGT Ground Ddve

85 144911 Bracket, SupportTransaxle

86 74780716 Bolt Fin Hex 7116-14 UNC x 1

88 STD551143 Washer, Lock Hvy Hlcl Spr 7/16

91 180374 Rail, Frame Lh

106 17580520 ScrewThdrol 5/16-18x 1.25

122 161464 Screw HexWshd 8-18 x 7/8

130 171875 Screw HWHD Hi-Lo #13-16 x 3/4

137 74780716 Bolt Fin Hex 7/16-14 xl Gr. 5

138 179125X428 CupholderYTGT

139 171873 Bolt Shoulder 5/16-18 TI-

140 163806 MagnetYTGT

141 163805 Striker PlateY'I'GT

142 161897 Bracket Dash Rh

144 161900 Bracket Dash Lh

148 164655 ExtrusionBumper

150 175352 Duct Heat Hood

152 177956 Shield Browning

153 179761 Light BoxAsm w/Lens

156 17000512 Screw 5/16-18 x 3/4. BIk

157 161840 Lens Bar

158 17670608 ScrewThdro[. 3/8-16x 112

159 17000612 Screw Hex wsh 3/8-16 x 3/4

160 17000512 Scraw 5/16-18 x 3/4

161 179612;<428 Console Fuel Window

162 142432 Screw HexWsh Hi-Lo 1/4-1/2

165 183554 BracketSupport Tank

NOTE: All componentdimensionsgiven in U.S.

inches 1 inch = 25.4 mm

4/05 35

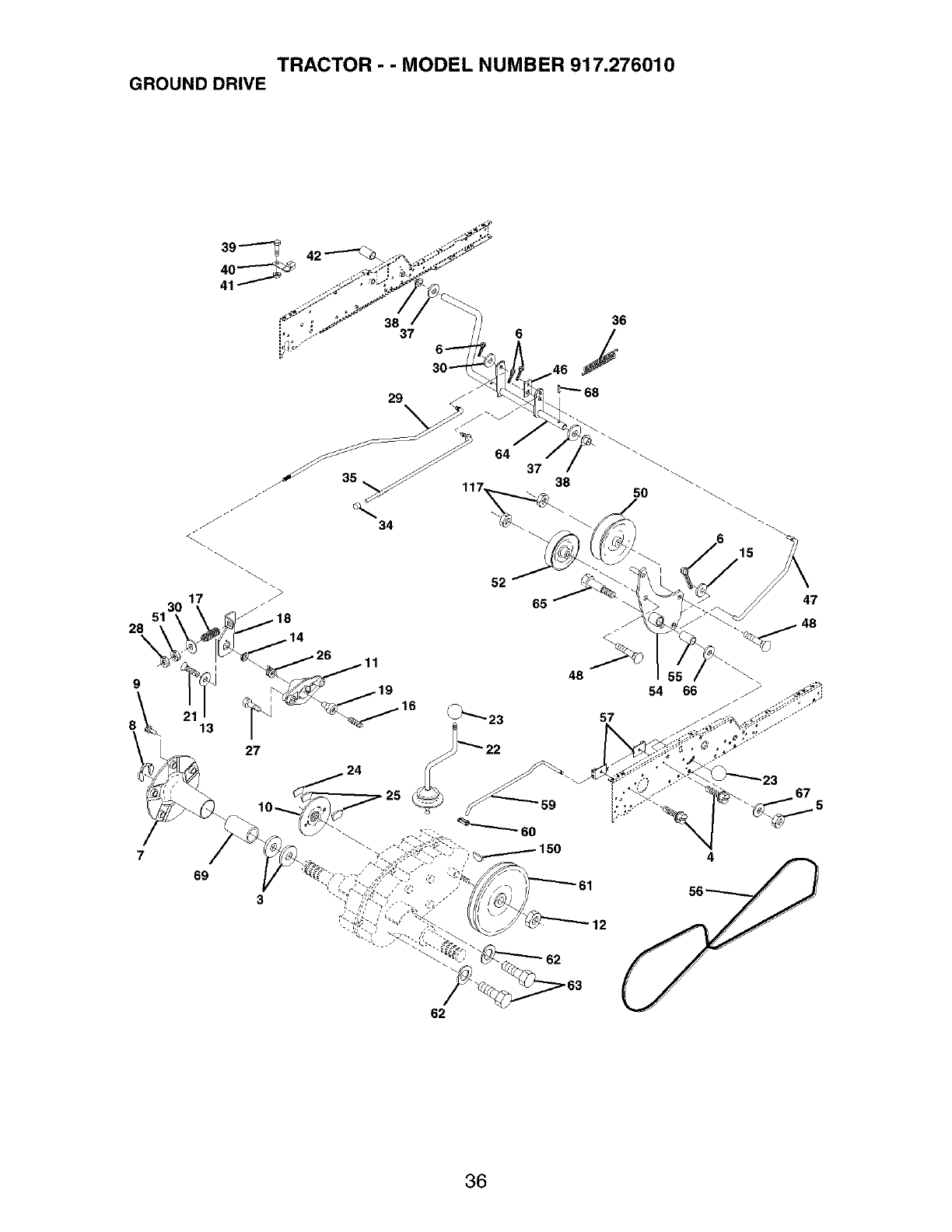

TRACTOR - - MODEL NUMBER 917.276010

GROUND DRIVE

i38 36

=., 37 6 /

50 _\

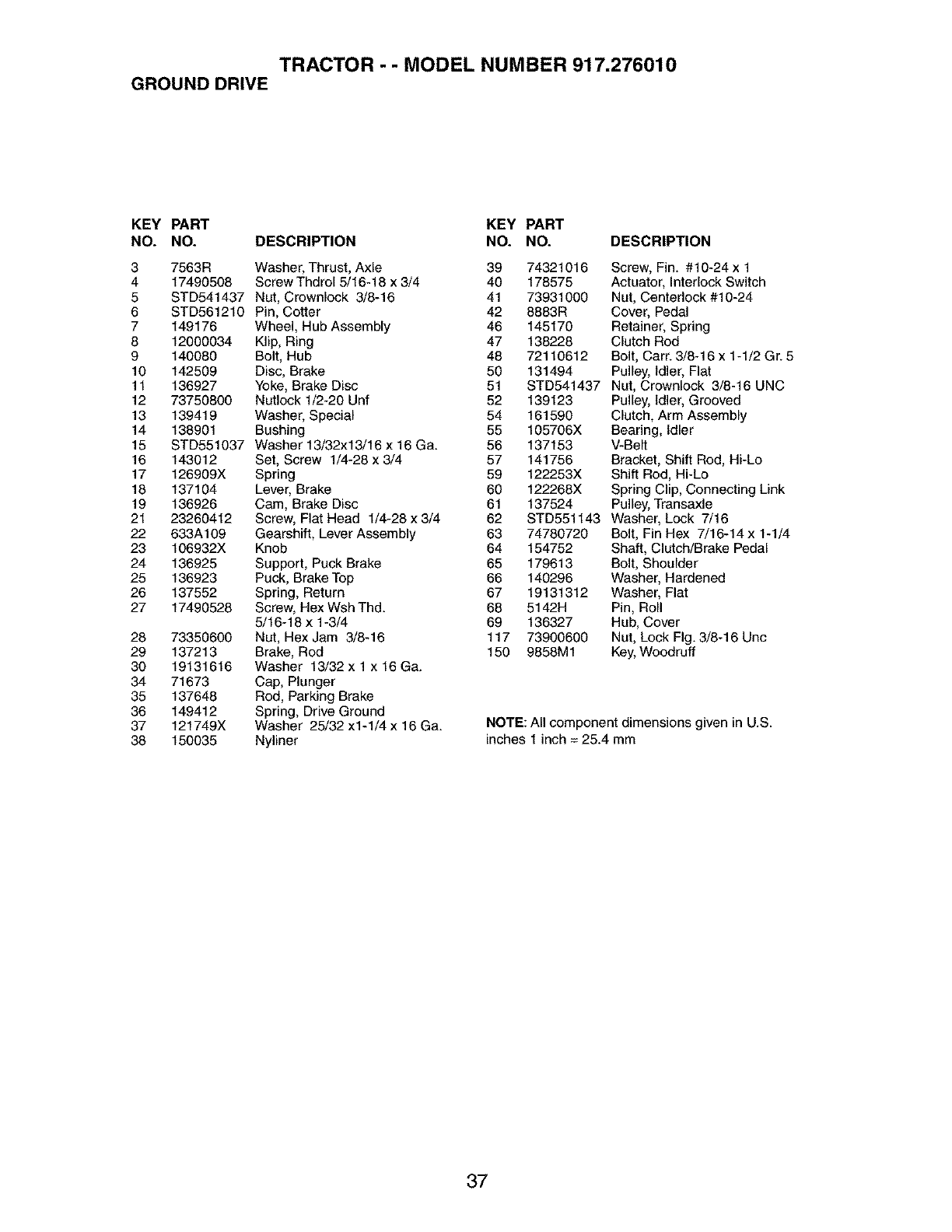

TRACTOR - - MODEL NUMBER 917.276010

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

3 7563R Washer, Thrust, Axle 39 74321016

4 17490508 Screw Thdrol 5/16-18 x 3/4 40 178575

5 STD541437 Nut, Crownlock 3/8-16 41 73931000

6 STD561210 Pin, Cotter 42 8883R

7 149176 Wheel, Hub Assembly 46 145170

8 12000034 Klip, Ring 47 138228

9 140080 Bolt, Hub 48 72110612

10 142509 Disc, Brake 50 131494

11 136927 Yoke, Brake Disc 51

12 73750800 Nutlock 1/2-20 Unf 52

13 139419 Washer, Special 54

14 138901 Bushing 55

15 STD551037 Washer 13/32x13/16 x 16 Ga. 56

16 143012 Set, Screw 1/4-28 x 3/4 57

17 126909X Spring 59

18 137104 Lever, Brake 60

19 136926 Cam, Brake Disc 61

21 23260412 Screw, Flat Head 1/4-28 x 3/4 62

22 633A109 Gearshift, Lever Assembly 63 74780720

23 106932X Knob 64 154752

24 136925 Support, Puck Brake 65 179613

25 136923 Puck, Brake Top 66 140296

26 137552 Spring, Return 67 19131312

27 17490528 Screw, Hex Wsh Thd. 68 5142H

5/16-18 x 1-3/4 69 136327

28 73350600 Nut, Hex Jam 3/8-16 117 73900600

29 137213 Brake, Rod 150 9858M1

30 19131616 Washer 13/32 x 1 x 16 Ga.

34 71673 Cap, Plunger

35 137648 Rod, Parking Brake

36 149412 Spring, Drive Ground

37 121749X Washer 25/32 x1-1/4 x 16 Ga.

38 150035 Nyliner

Screw, Fin. #10-24 x 1

Actuator, Interlock Switch

Nut, Centerlock #10-24

Cover, Pedal

Retainer, Spring

Clutch Red

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

Pulley, Idler, Flat

STD541437 Nut, Crownlock 3/8-16 UNC

139123 Pulley, Idler, Grooved

161590 Clutch, Arm Assembly

105706X Bearing, Idler

137153 V-Belt

141756 Bracket, Shift Rod, Hi-Lo

122253X Shift Rod, Hi-Lo

122268X Spring Clip, Connecting Link

137524 Pulley, Transaxle

STD551143 Washer, Lock 7/16

Bolt, Fin Hex 7/16-14x 1-1/4

Shaft, Clutch/Brake Pedal

Bolt, Shoulder

Washer, Hardened

Washer, Flat

Pin, Roll

Hub, Cover

Nut, Lock Fig. 3/8-16 Uric

Key, Woodruff

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

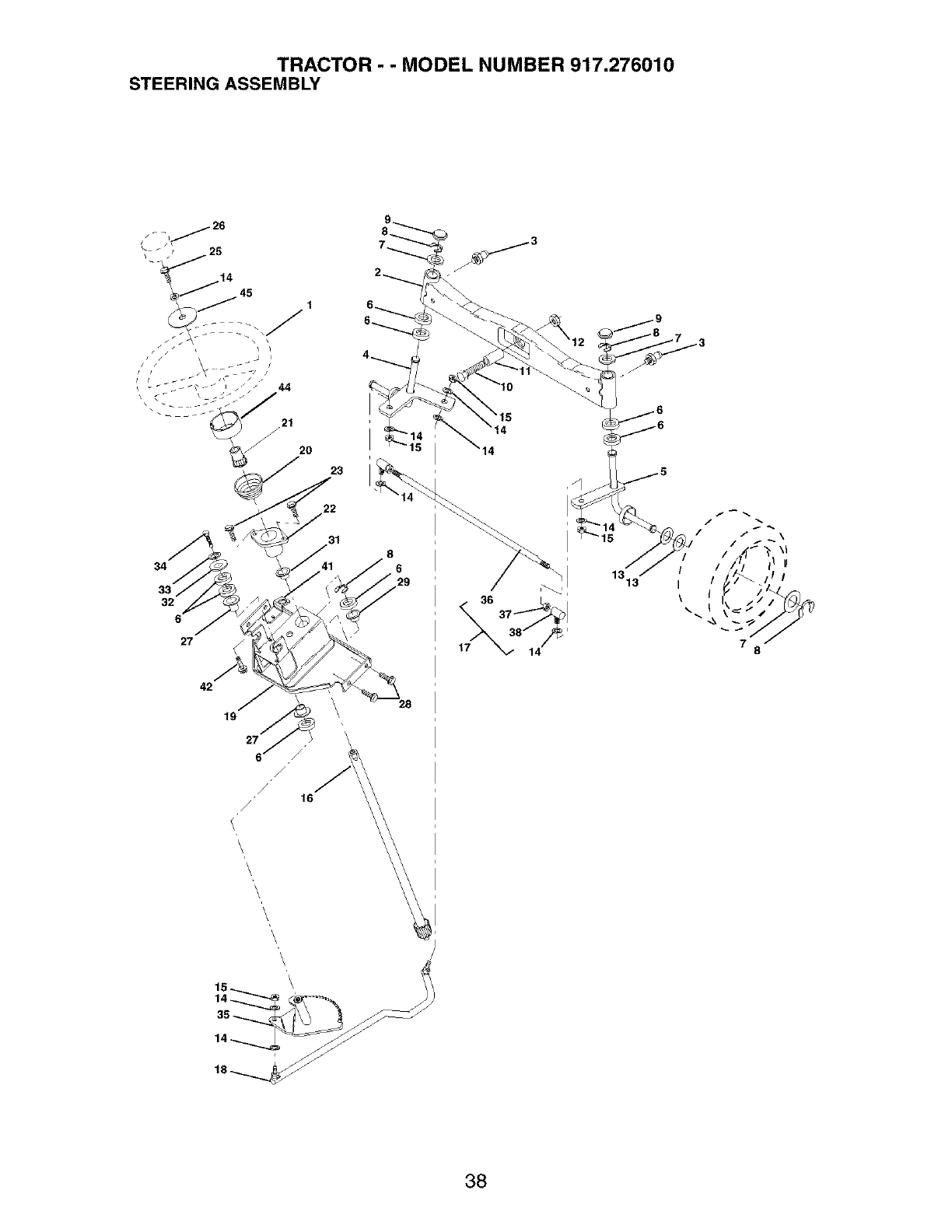

TRACTOR - - MODEL NUMBER 917.276010

STEERING ASSEMBLY

1 ,5/1

l/I/// /_ _J i

/16

r_l

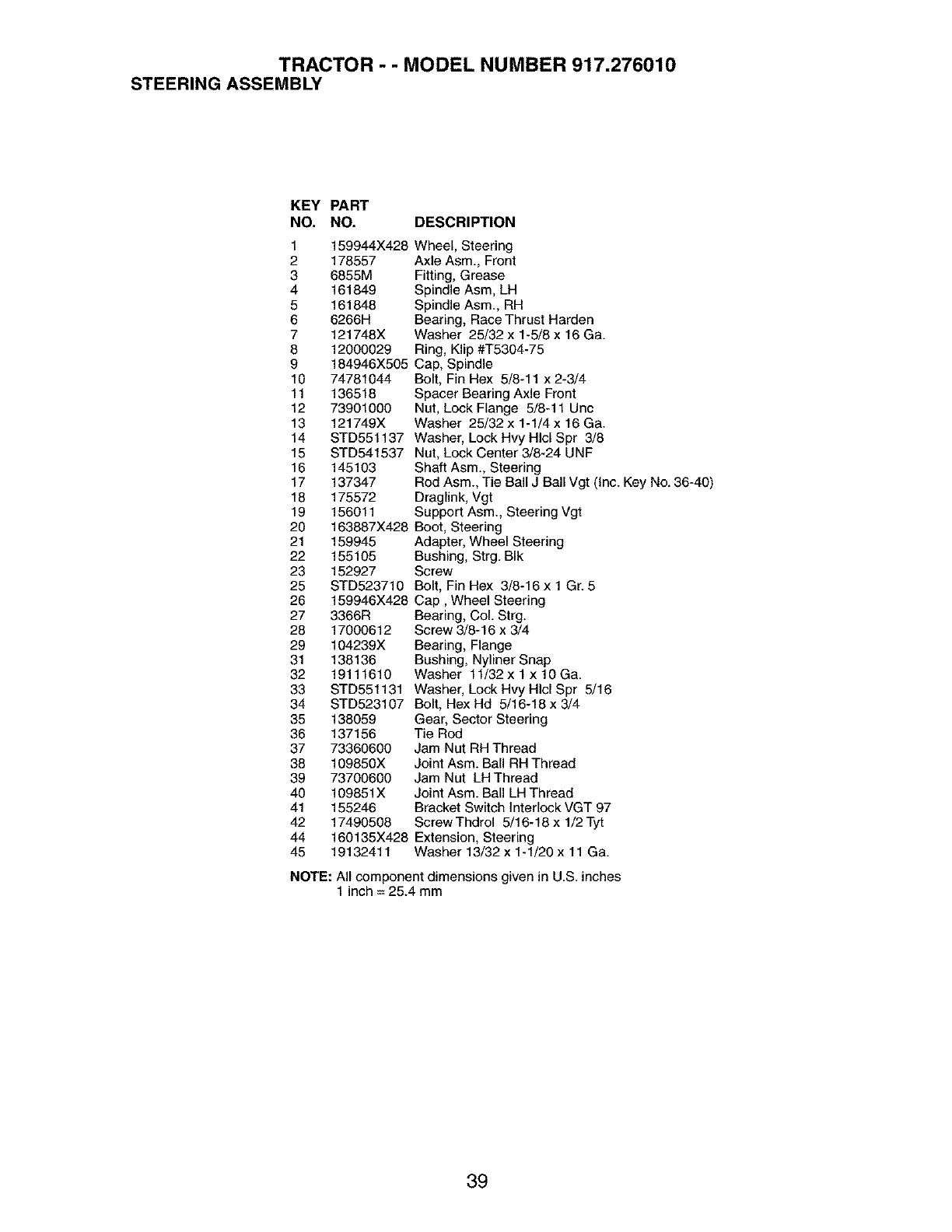

TRACTOR - - MODEL NUMBER 917.276010

STEERINGASSEMBLY

KEY PART

NO. NO.

1 159944X428

2 178557

3 6855M

4 161849

5 161848

6 6266H

7 121748X

8 12000029

9 184946X505

10 74781044

11 136518

12 73901000

13 121749X

14 STD551137

15 STD541537

16 145103

17 137347

18 175572

19 156011

20 163887X428

21 159945

22 155105

23 152927

25 STD523710

26 159946X428

27 3366R

28 17000612

29 104239X

31 138136

32 19111610

33 STD551131

34 STD523107

35 138059

36 137156

37 73360600

38 109850X

39 73700600

40 109851X

41 155246

42 17490508

44 160135X428

45 19132411

DESCRIPTION

Wheel, Steering

Axle Asm., Front

Fitting, Grease

Spindle Asm, LH

Spindle Asm., RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip #T5304-75

Cap, Spindle

Bolt, Fin Hex 5/8-11 x 2-3/4

Spacer Bearing Axle Front

Nut, Lock Flange 5/8-11 Uric

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy Hlcl Spr 3/8

Nut, Lock Center 3/8-24 UNF

Shaft Asm., Steering

Rod Asm., Tie Ball J Ball Vgt (Inc. Key No. 36-40)

Draglink, Vgt

Support Asm, Steering Vgt

Boot, Steering

Adapter, Wheel Steering

Bushing, Strg. BIk

Screw

Bolt, Fin Hex 3/8-16 x 1 Gr. 5

Cap, Wheel Steering

Bearing, CoL Strg.

Screw 3/8-16 x 3/4

Bearing, Flange

Bushing, Nyliner Snap

Washer 11/32 x 1 x 10 Ga.

Washer, Lock Hvy Hlcl Spr 5/16

Bolt, Hex Hd 5/16-18 x 3/4

Gear, Sector Steering

Tie Rod

Jam Nut RH Thread

Joint Asm. Ball RH Thread

Jam Nut LH Thread

Joint Asm. Ball LH Thread

Bracket Switch Interlock VGT 97

ScrewThdrol 5/16-18 x 1/2Tyt

Extension, Steering

Washer 13/32 x 1-1/20 x 11 Ga.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

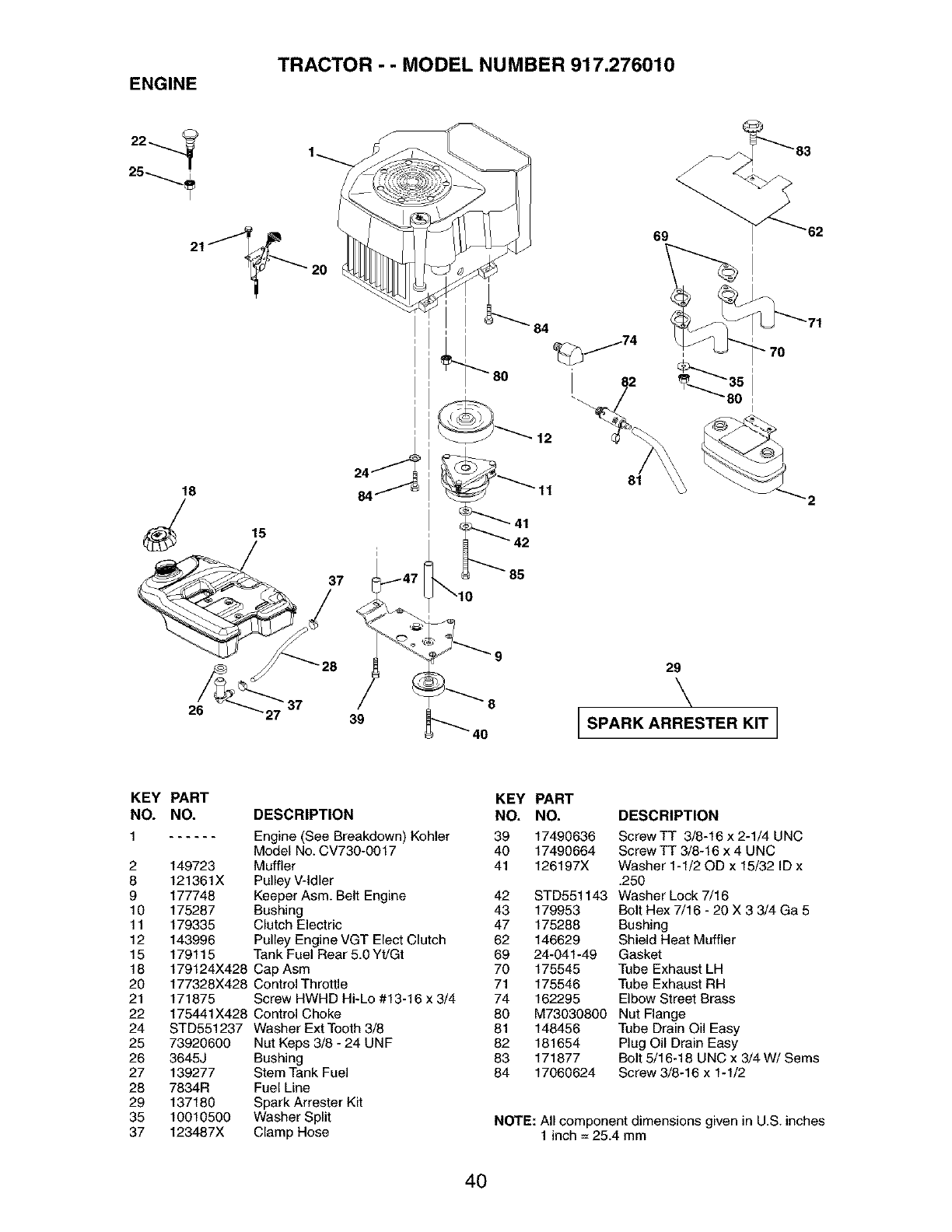

ENGINE TRACTOR - - MODEL NUMBER 917.276010

'12

929

KEY PART

NO. NO.

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Engine (See Breakdown) Kohler 39 17490636 Screw TT 3/8-16 x 2-1/4 UNC

Model No. CV730-0017 40 17490664 Screw TT 3/8-16 x 4 UNC

2 149723 Muffler 41 126197X Washer 1-1/20D x 15/32 ID x

8 121361X Pulley V-tdler .250

9 177748 Keeper Asm. Belt Engine 42 STD551143 Washer Lock 7/16

10 175287 Bushing 43 179953 Bolt Hex 7/16 - 20 X 3 3/4 Ga 5

11 179335 Clutch Electric 47 175288 Bushing

12 143996 Pulley Engine VGT Elect Clutch 62 146629 Shield Heat Muffler

15 179115 Tank Fuel Rear 5.0 Yt/Gt 69 24-041-49 Gasket

18 179124X428 Cap Asm 70 175545 Tube Exhaust LH

20 177328X428 Control Throttle 71 175546 Tube Exhaust RH

21 171875 Screw HWHD Hi-Lo #13-16 x 3/4 74 162295 Elbow Street Brass

22 175441X428 Control Choke 80 M73030800 Nut Flange

24 STD551237 Washer Ext Tooth 3/8 81 148456 Tube Drain Oil Easy

25 73920600 82 181654 Plug Oil Drain Easy

26 3645J 83 171877 Bolt 5/16-18 UNC x 3/4 W/Sems

27 139277 84 17060624 Screw 3/8-16 x 1-1/2

28 7834R

29 137180

35 10010500

37 123487X

Nut Keps 3/8 - 24 UNF

Bushing

Stem Tank Fuel

Fuel Line

Spark Arrester Kit

Washer Split

Clamp Hose NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

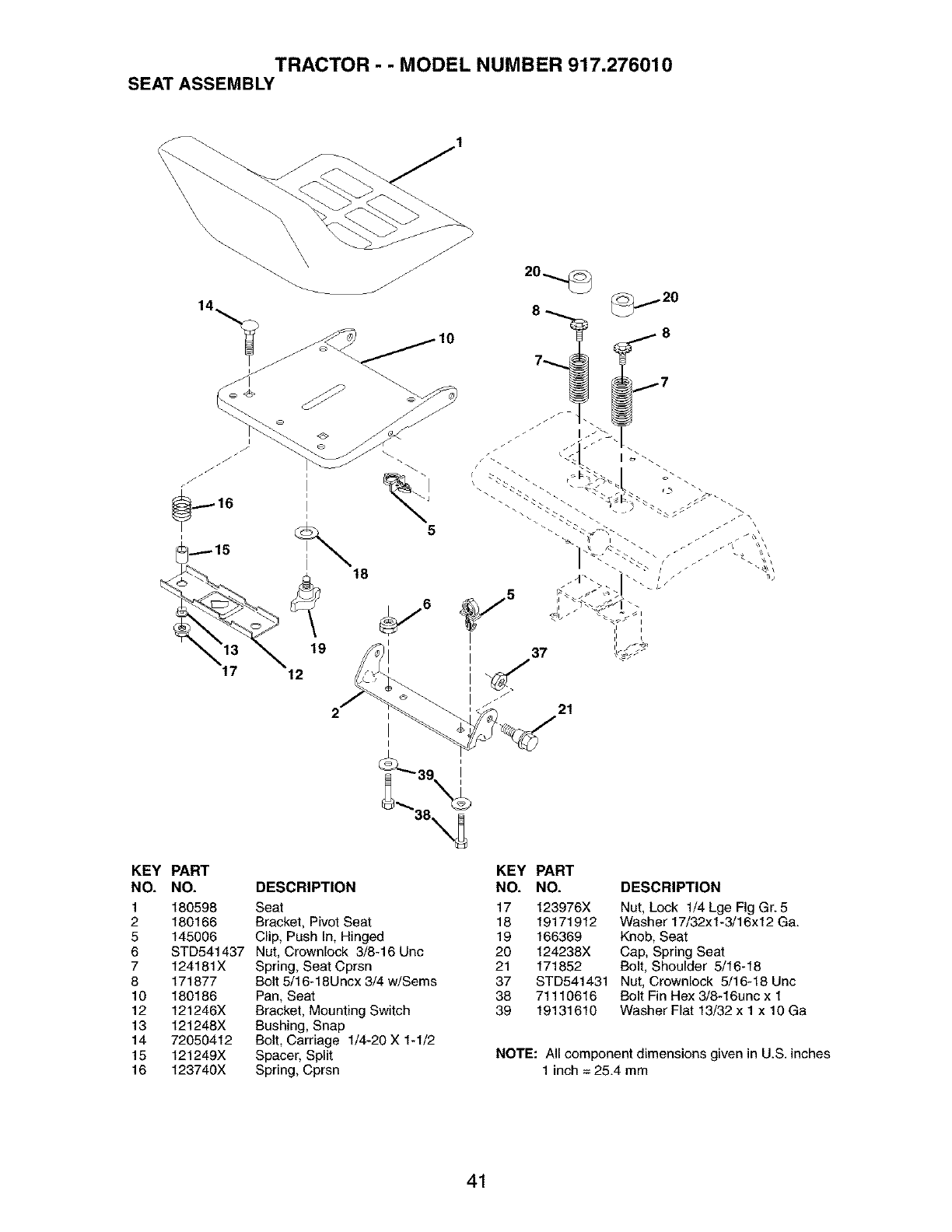

TRACTOR - - MODEL NUMBER 917.276010

SEAT ASSEMBLY

KEY PART

NO. NO.

1 180598

2 180166

5 145006

6 STD541437

7 124181X

8 171877

10 180186

12 121246X

13 121248X

14 72050412

15 121249X

16 123740X

DESCRIPTION

Seat

Bracket, Pivot Seat

Clip, Push In, Hinged

Nut, Crownlock 3/8-16 Uric

Spring, Seat Cprsn

Bolt 5/16-18Uncx 3/4 w/Sems

Pan, Seat

Bracket, Mounting Switch

Bushing, Snap

Bolt, Carriage 1/4-20 X 1-1/2

Spacer, Split

Spring, Cprsn

KEY PART

NO. NO. DESCRIPTION

17 123976X Nut, Lock 1/4 Lge Fig Gr. 5

18 19171912 Washer 17/32x1-3/16x12 Ga.

19 166369 Knob, Seat

20 124238X Cap, Spring Seat

21 171852 Bolt, Shoulder 5/16-18

37 STD541431 Nut, Crownlock 5/16-18 Unc

38 71110616 Bolt Fin Hex 3/8-16unc x 1

39 19131610 Washer Flat 13/32 x 1 x 10 Ga

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

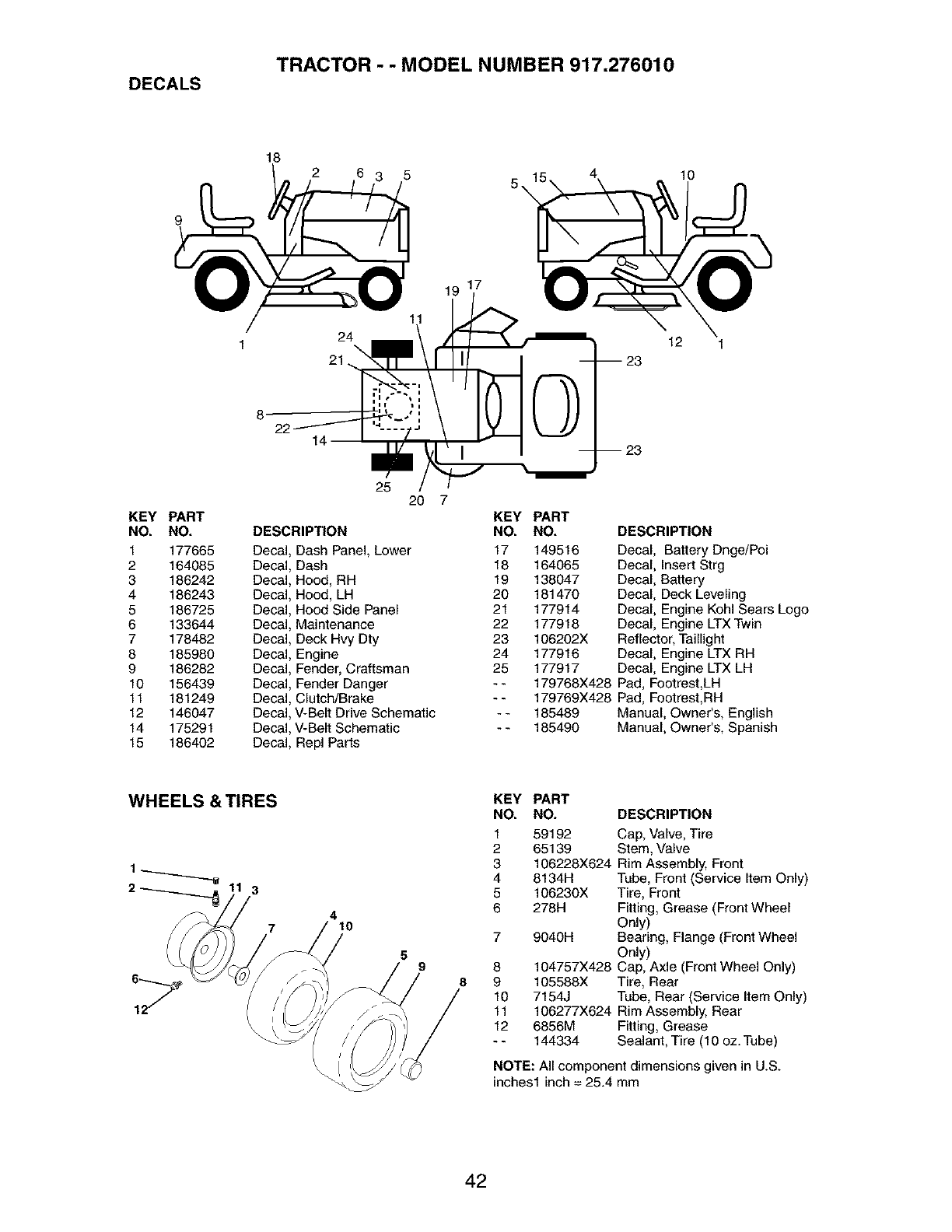

TRACTOR - - MODEL NUMBER 917.276010

DECALS

2 6

5,,

410

19 17

8h22

KEY PART

NO. NO.

1 177665

2 164085

3 186242

4 186243

5 186725

6 133644

7178482

8 185980

9 186282

10 156439

11 181249

12 146047

14 175291

15 186402

25 20

DESCRIPTION

Decal Dash Panel, Lower

Decal Dash

Decal Hood, RH

Decal Hood, LH

Decal Hood Side Panel

Decal Maintenance

Decal Deck Hvy Dty

Decal Engine

Decal Fender, Craftsman

Decal Fender Danger

Decal Clutch/Brake

Decal V-Belt Drive Schematic

Decal V-Belt Schematic

Decal Repl Parts

KEY PART

NO. NO. DESCRIPTION

17 149516 Decal, Battery Dnge/Poi

18 164065 Decal, Insert Strg

19 138047 Decal, Battery

20 181470 Decal, Deck Leveling

21 177914 Decal, Engine Kohl Sears Logo

22 177918 Decal, Engine LTX Twin

23 106202X Reflector, Taillight

24 177916 Decal, Engine LTX RH

25 177917 Decal, Engine LTX LH

-- 179768X428 Pad, Footrest,LH

-- 179769X428 Pad, Footrest,RH

- - 185489 Manual, Owner's, English

- - 185490 Manual, Owner's, Spanish

WHEELS & TIRES

7410

KEY PART

NO. NO. DESCRIPTION

1 59192 Cap, Valve, Tire

2 65139 Stem, Valve

3 106228X624 Rim Assembly, Front

4 8134H Tube, Front (Service Item Only)

5 106230X Tire, Front

6 278H Fitting, Grease (Front Wheel

Only)

7 9040H Bearing, Flange (Front Wheel

Only)

8 104757X428 Cap, Axle (Front Wheel Only)

9 105588X Tire, Rear

10 7154J Tube, Rear (Service Item Only)

11 106277X624 Rim Assembly, Rear

12 6856M Fitting, Grease

- - 144334 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S.

inches1 inch = 25.4 mm

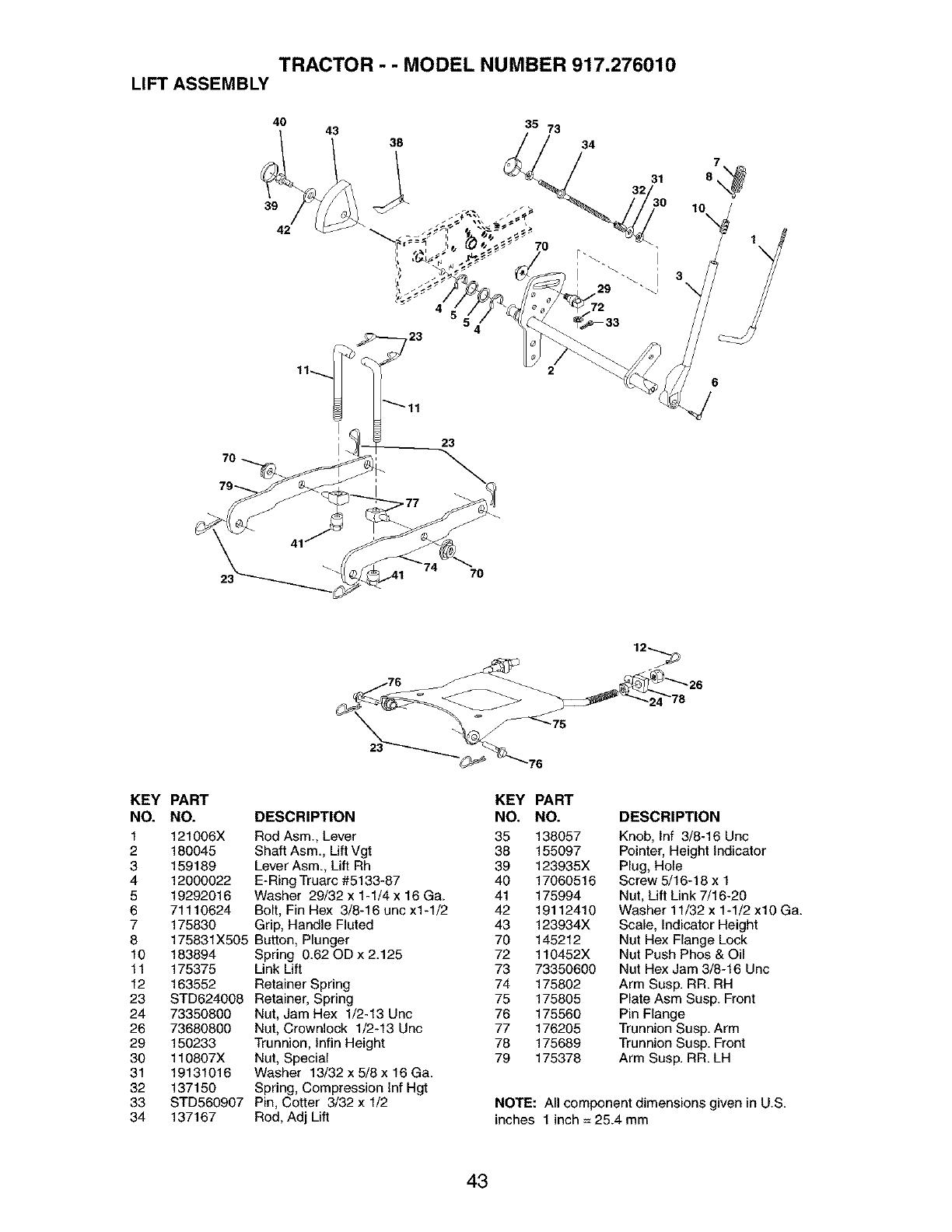

TRACTOR - - MODEL NUMBER 917.276010

LIFT ASSEMBLY

43 38

KEY PART

NO. NO. DESCRIPTION

121006X

18O045

159189

12000022

19292016

71110624

175830

Rod Asm., Lever

Shaft Asm., Lift Vgt

Lever Asm., Lift Rh

E-Ring Truarc #5133-87

Washer 29/32 x 1-1/4 x 16 Ga.

Bolt, Fin Hex 3/8-16 unc x1-1/2

Grip, Handle Fluted

175831X505 Bu_on, Plunger

183894

175375

163552

STD624008

7335O80O

7368O80O

150233

110807X

19131016

137150

STD560907

137167

Spring 0.62 OD x 2.125

Link Lift

Retainer Spring

Retainer, Spring

Nut, Jam Hex 1/2-13 Unc

Nut, Crownlock 1/2-13 Unc

Trunnion, lnfin Height

Nut, Special

Washer 13/32 x 5/8 x 16 Ga.

Spring, Compression lnf Hgt

Pin, Cotter 3/32 x 1/2

Rod, Adj Lift

KEY PART

NO. NO. DESCRIPTION

35 138057 Knob, lnf 3/8-16 Unc

38 155097 Pointer, Height Indicator

39 123935X Plug, Hole

40 17060516 Screw 5/16-18 x 1

41 175994 Nut, Lift Link 7/16-20

42 19112410 Washer 11/32 x 1-1/2 xl0 Ga.

43 123934X Scale, Indicator Height

70 145212 Nut Hex Flange Lock

72 110452X Nut Push Phos & Oil

73 73350600 Nut Hex Jam 3/8-16 Unc

74 175802 Arm Susp. RR. RH

75 175805 Plate Asm Susp. Front

76 175560 Pin Flange

77 176205 Trunnion Susp. Arm

78 175689 Trunnion Susp. Front

79 175378 Arm Susp. RR. LH

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

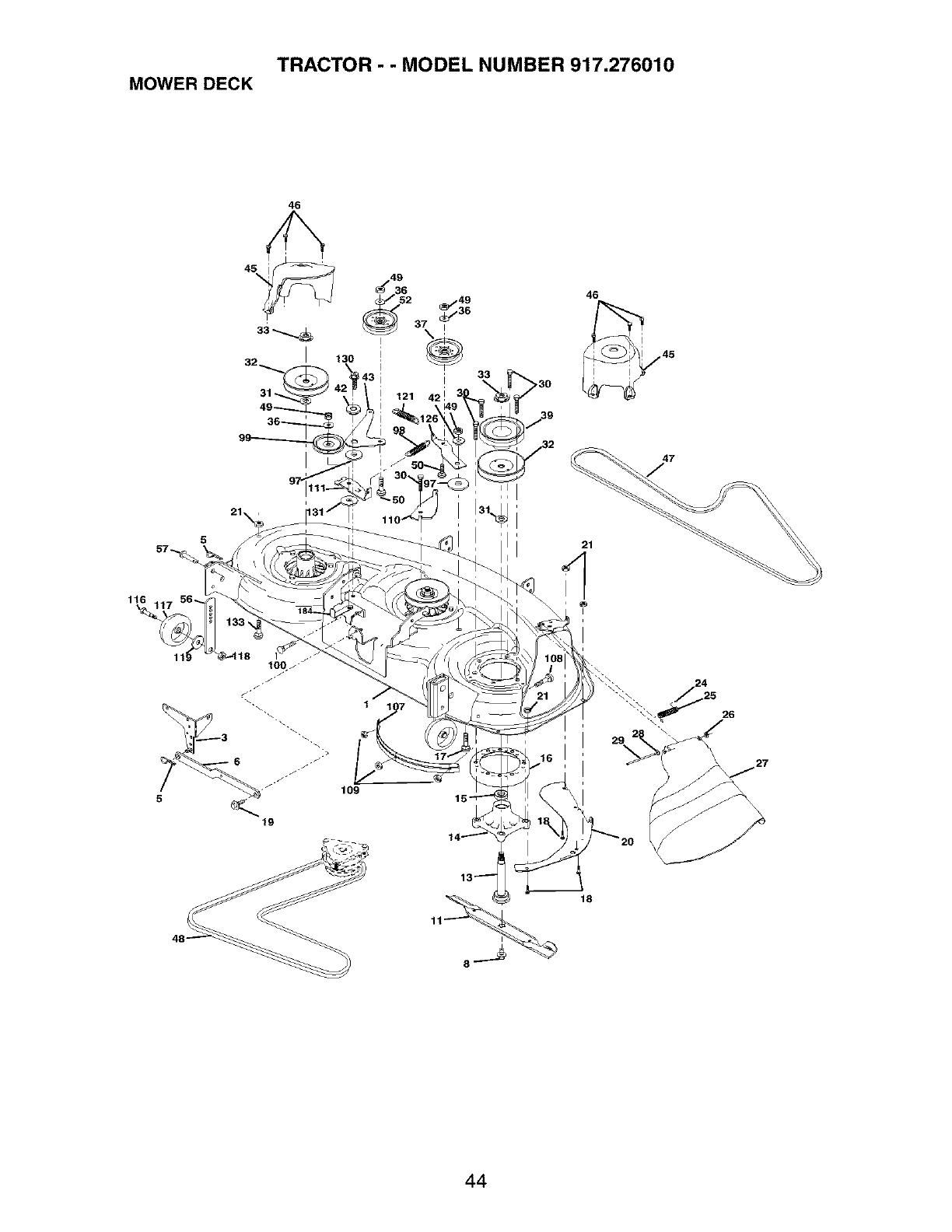

TRACTOR - - MODEL NUMBER 917.276010

MOWER DECK

116

109

_+_ 26

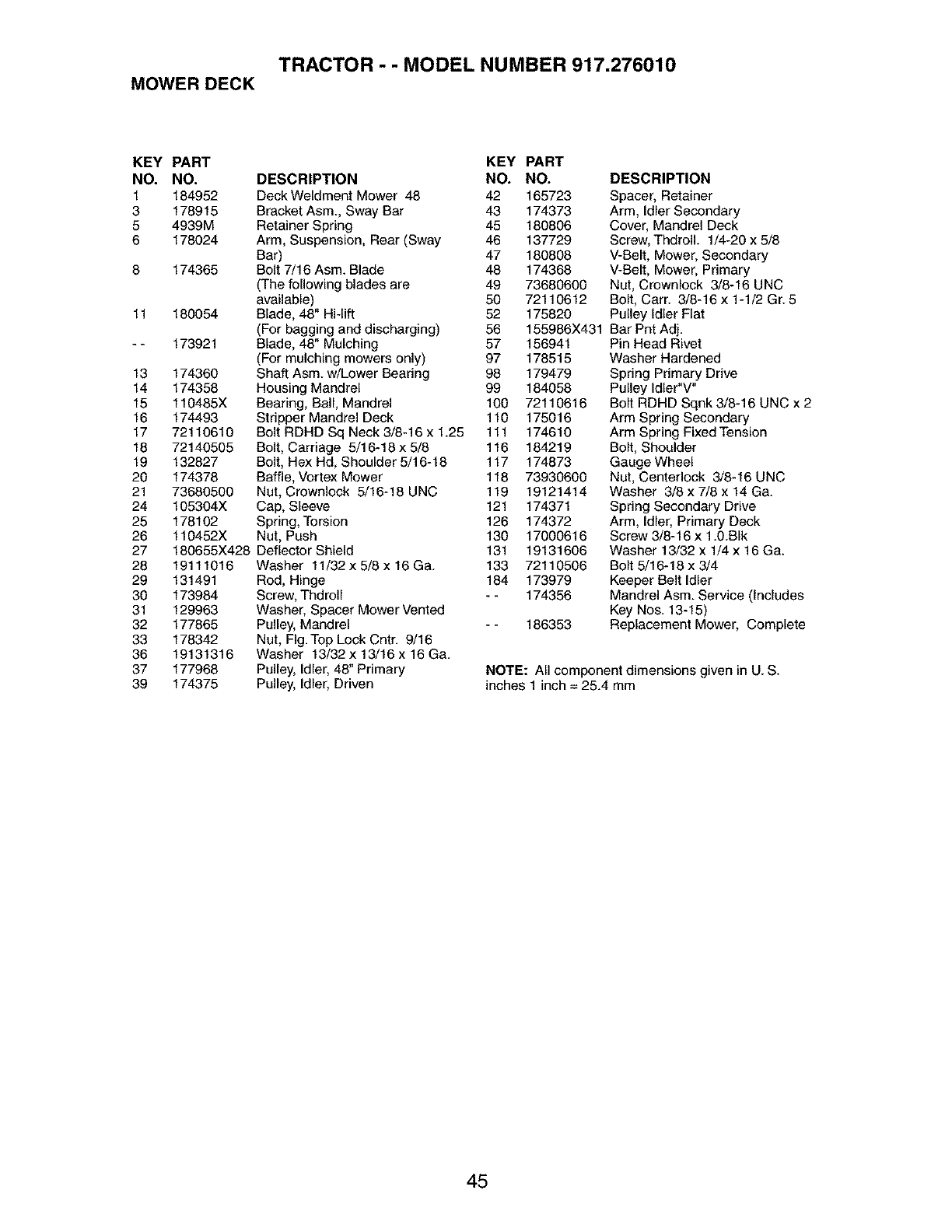

TRACTOR - - MODEL NUMBER 917.276010

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 184952 Deck Weldment Mower 48 42 165723

3 178915 Bracket Asm., Sway Bar 43 174373

5 4939M Retainer Spring 45 180806

6 178024 Arm, Suspension, Rear (Sway 46 137729

Bar) 47 180808

8 174365 Bolt 7/16 Asm. Blade 48 174368

(The following blades are 49 73680600

available) 50 72110612

11 180054 Blade, 48" Hi-lift 52 175820

(For bagging and discharging) 56

- - 173921 Blade, 48" Mulching 57 156941

(For mulching mowers only) 97 178515

13 174360 Shaft Asm. w/Lower Bearing 98 179479

14 174358 Housing Mandrel 99 184058

15 110485X Bearing, Ball, Mandrel 100 72110616

16 174493 Stripper Mandrel Deck 110 175016

17 72110610 Bolt RDHD Sq Neck 3/8-16 x 1.25 111 174610

18 72140505 Bolt, Carriage 5/16-18x5/8 116 184219

19 132827 Bolt, Hex Hd, Shoulder 5/16-18 117 174873

20 174378 Baffle, Vortex Mower 118 73930600

21 73680500 Nut, Crownlock 5/16-18UNC 119 19121414

24 105304X Cap, Sleeve 121 174371

25 178102 Spring, Torsion 126 174372

26 110452X Nut, Push 130 17000616

27 180655X428 Deflector Shield 131 19131606

28 19111016 Washer 11/32x5/8x16Ga. 133 72110506

29 131491 Rod, Hinge 184 173979

30 173984 Screw, Thdroll - - 174356

31 129963 Washer, Spacer Mower Vented

32 177865 Pulley, Mandrel - - 186353

33 178342 Nut, Fig. Top Lock Cntr. 9/16

36 19131316 Washer 13/32 x 13/16 x 16 Ga.

37 177968 Pulley, Idler, 48" Primary

39 174375 Pulley, Idler, Driven

DESCRIPTION

Spacer, Retainer

Arm, Idler Secondary

Cover, Mandrel Deck

Screw, ThdrelL 1/4-20 x 5/8

V-Belt, Mower, Secondary

V-Belt, Mower, Primary

Nut, Crownlock 3/8-16 UNC

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

Pulley Idler Flat

155986X431 Bar Pnt Adj.

Pin Head Rivet

Washer Hardened

Spring Primary Drive

Pulley Idler"V"

Bolt RDHD Sqnk 3/8-16 UNC x 2

Arm Spring Secondary

Arm Spring Fixed Tension

Bolt, Shoulder

Gauge Wheel

Nut, Centerlock 3/8-16 UNC

Washer 3/8 x 7/8 x 14 Ga.

Spring Secondary Drive

Arm, Idler, Primary Deck

Screw 3/8-16 x 1.0.BIk

Washer 13/32 x 1/4 x 16 Ga.

Bolt 5/16-18 x 3/4

Keeper Belt Idler

Mandrel Asm. Service (Includes

Key Nos. 13-15)

Replacement Mower, Complete

NOTE: All component dimensions given in U. S.

inches 1inch =25.4 mm

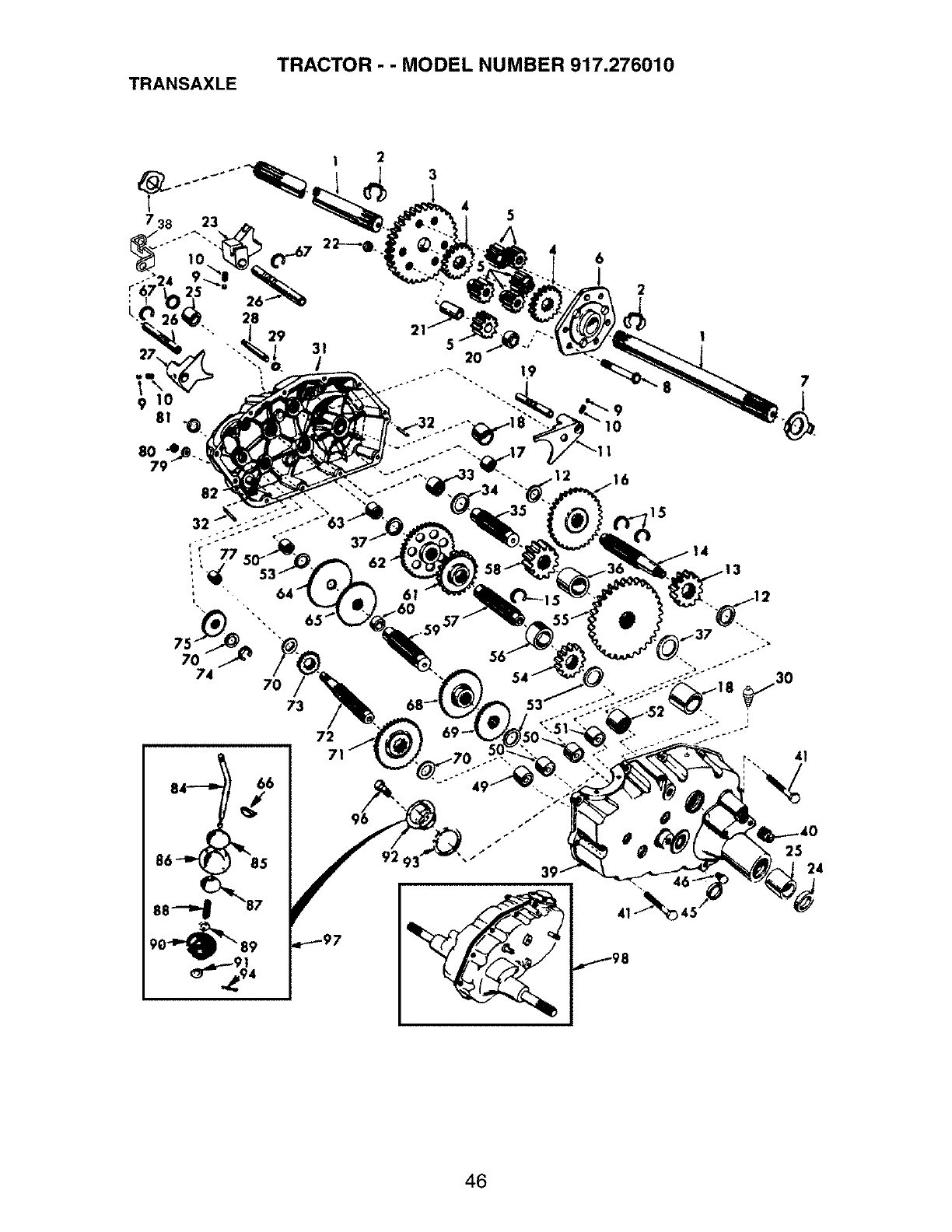

TRACTOR - - MODEL NUMBER 917.276010

TRANSAXLE

74 7O

25 24

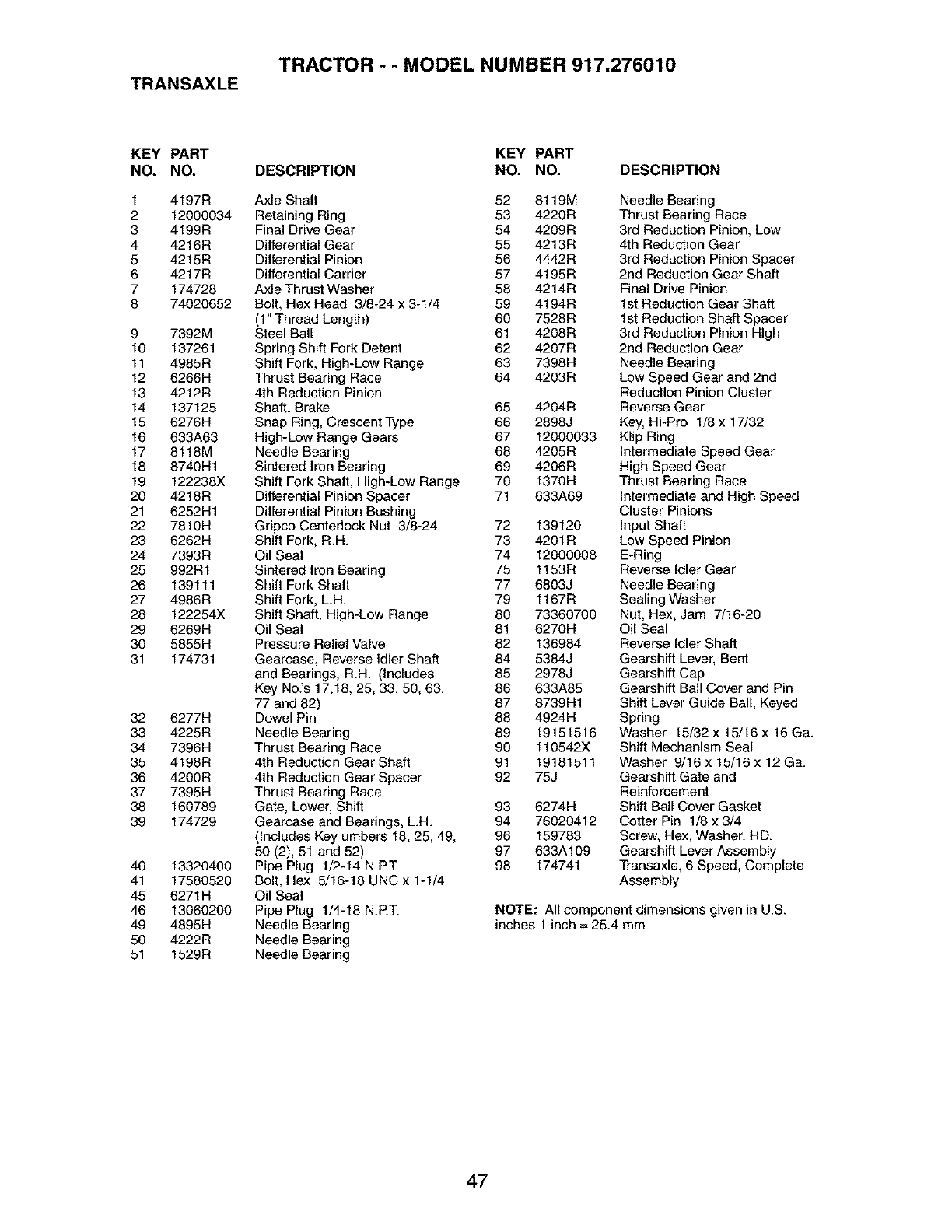

TRACTOR - - MODEL NUMBER 917.276010

TRANSAXLE

KEY PART

NO. NO.

1 4197R

2 12000034

3 4199R

4 4216R

5 4215R

6 4217R

7 174728

8 74020652

9 7392M

10 137261

11 4985R

12 6266H

13 4212R

14 137125

15 6276H

16 633A63

17 8118M

18 8740H1

19 122238X

20 4218R

21 6252H1

22 781 OH

23 6262H

24 7393R

25 992R1

26 139111

27 4986R

28 122254X

29 6269H

30 5855H

31 174731

32 6277H

33 4225R

34 7396H

35 4198R

36 4200R

37 7395H

38 160789

39 174729

40 13320400

41 17580520

45 6271H

46 13060200

49 4895H

50 4222R

51 1529R

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Axle Shaft 52 8119M

Retaining Ring 53 4220R

Final Drive Gear 54 4209R

Differential Gear 55 4213R

Differential Pinion 56 4442R

Differential Carrier 57 4195R

Axle Thrust Washer 58 4214R

Bolt, Hex Head 3/8-24 x 3-1/4 59 4194R

(1" Thread Length) 60 7528R

Steel Ball 61 4208R

Spring Shift Fork Detent 62 4207R

Shift Fork, High-Low Range 63 7398H

Thrust Bearing Race 64 4203R

4th Reduction Pinion

Shaft, Brake 65 4204R

Snap Ring, Crescent Type 66 2898J

High-Low Range Gears 67 12000033

Needle Bearing 68 4205R

Sintered Iron Bearing 69 4206R

Shift Fork Shaft, High-Low Range 70 1370H

Differential Pinion Spacer 71 633A69

Differential Pinion Bushing

Gripco Centerlock Nut 3/8-24 72 139120

Shift Fork, R.H. 73 4201R

Oil Seal 74 12000008

Sintered Iron Bearing 75 1153R

Shift Fork Shaft 77 6803J

Shift Fork, LH. 79 1167R

Shift Shaft, High-Low Range 80 73360700

Oil Seal 81 6270H

Pressure Relief Valve 82 136984

Gearcase, Reverse Idler Shaft 84 5384J

and Bearings, R.H. (Includes 85 2978J

Key No:s 17,18, 25, 33, 50, 63, 86 633A85

77 and 82) 87 8739H1

Dowel Pin 88 4924H

Needle Bearing 89 19151516

Thrust Bearing Race 90 110542X

4th Reduction Gear Shaft 91 19181511

4th Reduction Gear Spacer 92 75J

Thrust Bearing Race

Gate, Lower, Shift 93 6274H

Gearcase and Bearings, L.H. 94 76020412

(Includes Key umbers 18, 25, 49, 96 159783

50 (2), 51 and 52) 97 633A109

Pipe Plug 1/2-14 N.P.T. 98 174741

Bolt, Hex 5/16-18 UNC x 1-1/4

Oil Seal

Pipe Plug 1/4-18 N.P.T.

Needle Bearing

Thrust Bearing Race

3rd Reduction Pinion, Low

4th Reduction Gear

3rd Reduction Pinion Spacer

2nd Reduction Gear Shaft

Final Drive Pinion

1st Reduction Gear Shaft

1st Reduction Shaft Spacer

3rd Reduction Pinion High

2nd Reduction Gear

Needle Bearing

Low Speed Gear and 2rid

Reduction Pinion Cluster

Reverse Gear

Key, Hi-Pro 1/8 x 17/32

Klip Ring

Intermediate Speed Gear

High Speed Gear

Thrust Bearing Race

Intermediate and High Speed

Cluster Pinions

Input Shaft

Low Speed Pinion

E-Ring

Reverse Idler Gear

Needle Bearing

Sealing Washer

Nut, Hex, Jam 7/16-20

Oil Seal

Reverse Idler Shaft

Gearshift Lever, Bent

Gearshift Cap

Gearshift Ball Cover and Pin

Shift Lever Guide Ball, Keyed

Spring

Washer 15/32 x 15/16 x 16 Ga.

Shift Mechanism Seal

Washer 9/16 x 15/16 x 12 Ga.

Gearshift Gate and

Reinforcement

Shift Ball Cover Gasket

Cotter Pin 1/8 x 3/4

Screw, Hex, Washer, HD.

Gearshift Lever Assembly

Transaxle, 6 Speed, Complete

Assembly

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

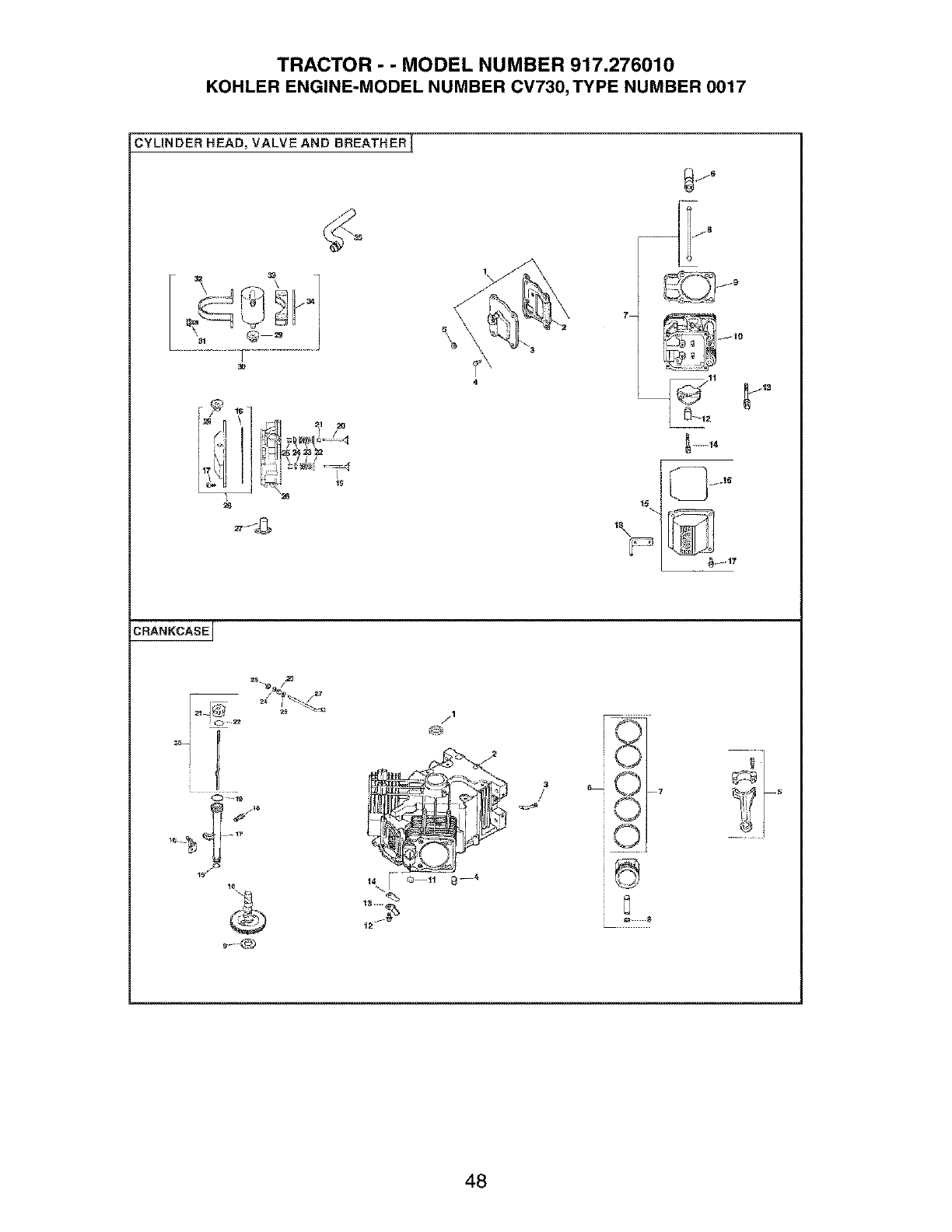

TRACTOR --MODEL NUMBER 917.276010

KOHLER ENGINE-MODEL NUMBER CV730,TYPE NUMBER 0017

CYLINDER HEAD, VALVE AND BREATHER T

r_13

DRANKCASEJ

&12-

//1

/©

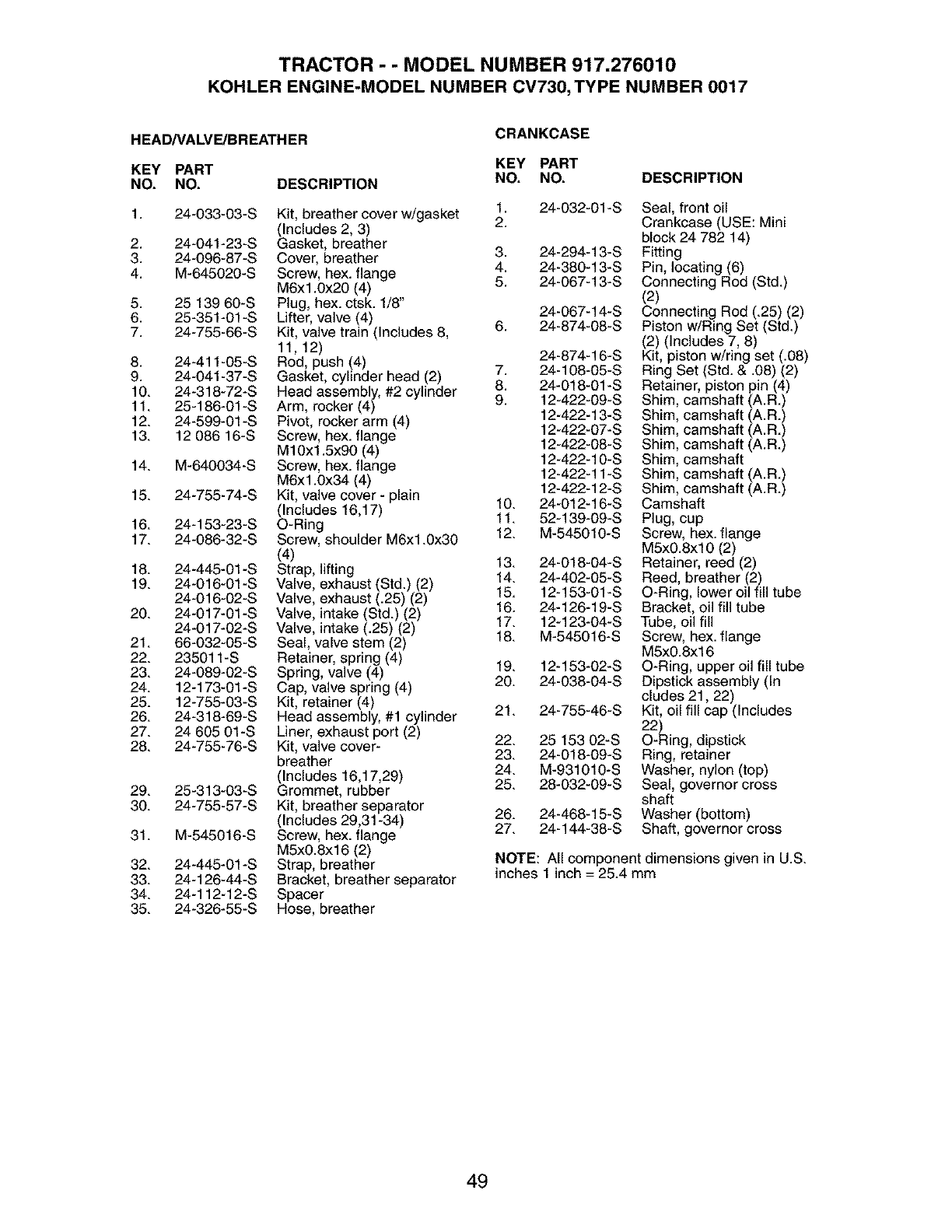

TRACTOR --MODEL NUMBER 917.276010

KOHLER ENGINE-MODEL NUMBER CV730,TYPE NUMBER 0017

HEAD/VALVE/BREATHER

KEY PART

NO. NO. DESCRIPTION

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

24-033-03-S

24-041-23-S

24-096-87-S

M-645020-S

25 139 60-S

25-351-01 -S

24-755-66-S

24-411-05-S

24-041-37-S

24-318-72-S

25-186-01 -S

24-599-01 -S

12 086 16-S

M-640034-S

24-755-74-S

24-153-23-S

24-086-32-S

24-445-01 -S

24-016-01 -S

24-016-02-S

24-017-01 -S

24-017-02-S

66-032-05-S

235011 -S

24-089-02-S

12-173-01-S

12-755-03-S

24-318-69-S

24 605 01-S

24-755-76-S

25-313-03-S

24-755-57-S

M-545016-S

24-445-01 -S

24-126-44-S

24-112-12-S

24-326-55-S

Kit, breather cover w/gasket

GlnCludes2, 3)

asket, breather

Cover, breather

Screw, hex. flange

M6x1.0x20 (4)

Plug, hex. ctsk. 1/8"

Lifter, valve (4)

Kit, valve train (Includes 8,

11, 12)

Rod, push (4)

Gasket, cylinder head (2)

Head assembly, #2 cylinder

Arm, rocker (4)

Pivot, rocker arm (4)

Screw, hex. flange

M10x1.5x90 (4)

Screw, hex. flange

M6x1.0x34 (4)

Kit, valve cover - plain

olnCludes 16,17)

-Ring

Screw, shoulder M6xl.0x30

(4)

Strap, lifting

Valve, exhaust (Std.) (2)

Valve, exhaust (.25) (2)

Valve, intake (Std.) (2)

Valve, intake (.25) (2)

Seal, valve stem (2)

Retainer, spring (4)

Spring, valve (4)

Cap, valve spring (4)

Kit, retainer (4)

Head assembly, #1 cylinder

Liner, exhaust port (2)

Kit, valve cover-

breather

GlnCludes16,17,29)

rommet, rubber

Kit, breather separator

(Includes 29,31-34)

Screw, hex. flange

M5x0.Sxl 6 (2)

Strap, breather

Bracket, breather separator

Spacer

Hose, breather

CRANKCASE

KEY PART

NO. NO. DESCRIPTION

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

24-032-01 -S

24-294-13-S

24-380-13-S

24-067-13-S

24-067-14-S

24-874-08-S

24-874-16-S

24-108-05-S

24-018-01 -S

12-422-09-S

12-422-13-S

12-422-07-S

12-422-08-S

12-422-10-S

12-422-11-S

12-422-12-S

24-012-16-S

52-139-09-S

M-545010-S

24-018-04-S

24-402-05-S

12-153-01-S

24-126-19-S

12-123-04-S

M-545016-S

12-153-02-S

24-038-04-S

24-755-46-S

25 153 02-S

24-018-09-S

M-931010-S

28-032-09-S

24-468-15-S

24-144-38-S

Seal, front oil

Crankcase (USE: Mini

block 24 782 14)

Fitting

Pin, locating (6)

Connecting Rod (Std.)

(2)

Connecting Rod (.25) (2)

Piston wiRing Set (Std.)

(2) (Includes 7, 8)

Kit, piston w/ring set (.08)

Ring Set (Std. & .08) (2)

Retainer, piston pin (4)

Shim, camshaft (A.R.)

Shim, camshaft

Shim, camshaft (A.R.)

Camshaft

Plug, cup

Screw, hex. flange

M5x0.8xl 0 (2)

Retainer, reed (2)

Reed, breather (2)

O-Ring, lower oil fill tube

Bracket, oil fill tube

Tube, oil fill

Screw, hex. flange

M5x0.Sxl 6

O-Ring, upper oil fill tube

Dipstick assembly (In

cludes 21,22)

Kit, oil fill cap (Includes

22)

O-Ring, dipstick

Ring, retainer

Washer, nylon (top)

Seal, governor cross

shaft

Washer (bottom)

Shaft, governor cross

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

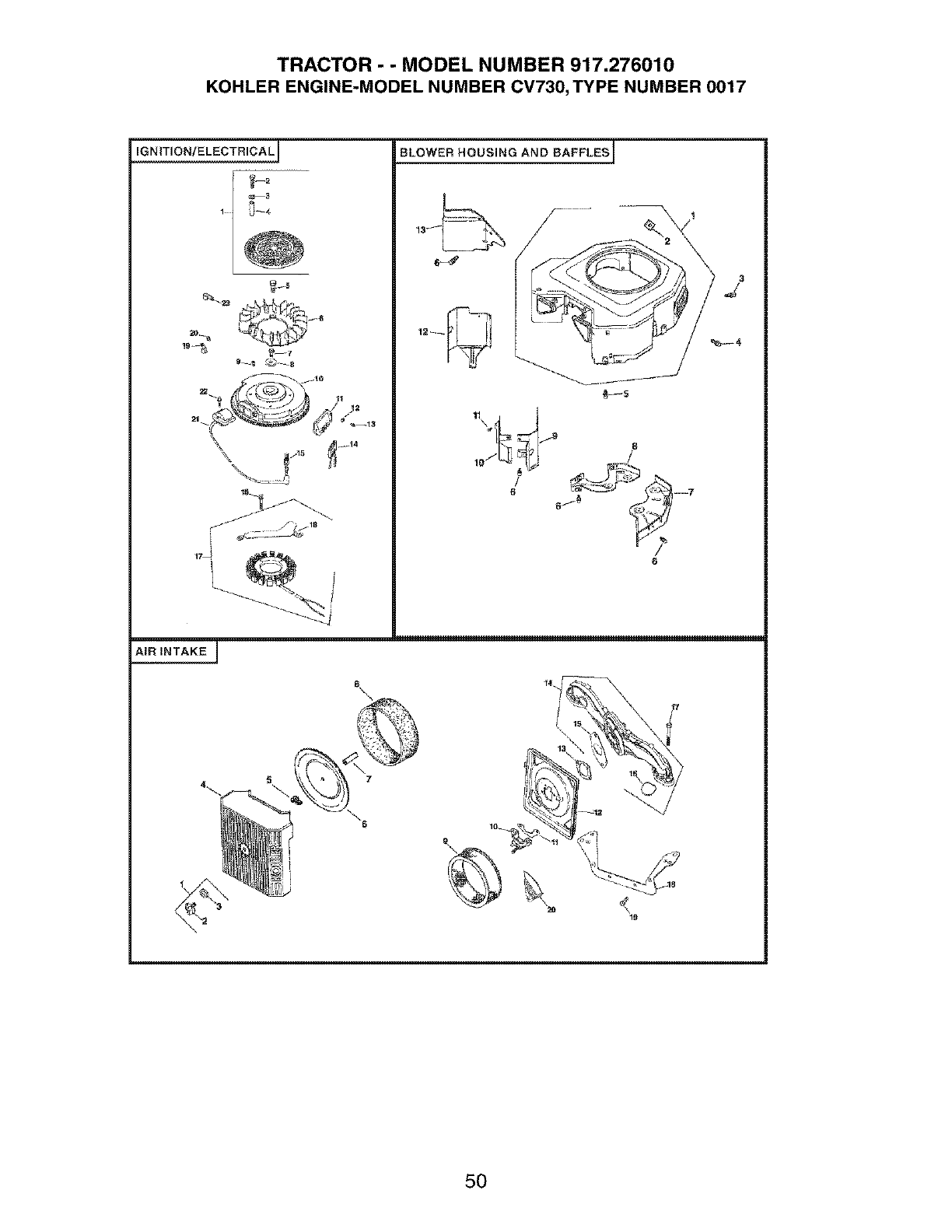

TRACTOR --MODEL NUMBER 917.276010

KOHLER ENGINE-MODEL NUMBER CV730,TYPE NUMBER 0017

IGNIT{ONIBLECTRICALJ

20_

S _,2_ -_f 18

BLOWER HOUSING AND BAFFLES i

,j9

AIR INTAKE J

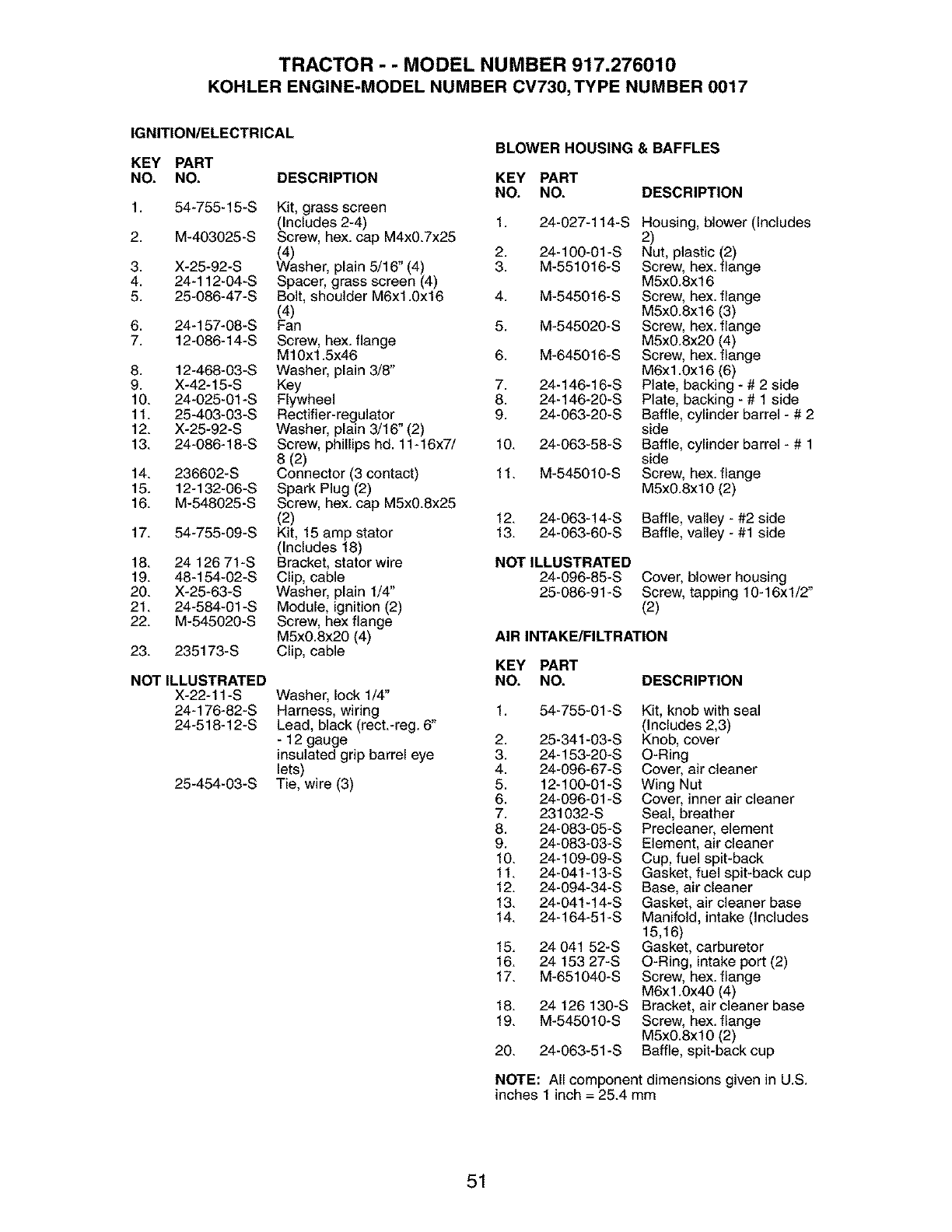

TRACTOR --MODEL NUMBER 917.276010

KOHLER ENGINE-MODEL NUMBER CV730,TYPE NUMBER 0017

IGNITION/ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1. 54-755-15-S Kit, grass screen

(Includes 2-4)

2. M-403025-S Screw, hex. cap M4x0.7x25

(4)

3. X-25-92-S Washer, plain 5/16" (4)

4. 24-112-04-S Spacer, grass screen (4)

5. 25-086-47-S Bolt, shoulder M6x1.0x16

(4)

6. 24-157-08-S Fan

7. 12-086-14-S Screw, hex. flange

M10x1.5x46

8. 12-468-03-S Washer, plain 3/8"

9. X-42-15-S Key

10. 24-025-01-S Flywheel

11. 25-403-03-S Rectifier-regulator

12. X-25-92-S Washer, plain 3/16" (2)

13. 24-086-18-S Screw, phillips hd. 11-16x7/

8 (2)

14. 236602-S Connector (3 contact)

15. 12-132-06-S Spark Plug (2)

16. M-548025-S Screw, hex. cap M5x0.8x25

(2)

17. 54-755-09-S Kit, 15 amp stator

(Includes 18)

18. 24 126 71-S Bracket, stator wire

19. 48-154-02-S Clip, cable

20. X-25-63-S Washer, plain 1/4"

21. 24-584-01-S Module, ignition (2)

22. M-545020-S Screw, hex flange

M5x0.8x20 (4)

23. 235173-S Clip, cable

NOT ILLUSTRATED

X-22-11 -S

24-176-82-S

24-518-12-S

25-454-03-S

Washer, lock 1/4"

Harness, wiring

Lead, black (rect.-reg. 6"

- 12 gauge

insulated grip barrel eye

lets)

Tie, wire (3)

BLOWER HOUSING & BAFFLES

KEY PART

NO. NO. DESCRIPTION

1. 24-027-114-S Housing, blower (Includes

2. 24-100-01-S Nut, plastic (2)

3. M-551016-S Screw, hex. flange

M5x0.8xl 6

4. M-545016-S Screw, hex. flange

M5x0.8xl 6 (3)

5. M-545020-S Screw, hex. flange

M5x0.8x20 (4)

6. M-645016-S Screw, hex. flange

M6x1.0xl 6 (6)

7. 24-146-16-S Plate, backing - # 2 side

8. 24-146-20-S Plate, backing - # 1 side

9. 24-063-20-S Baffle, cylinder barrel - # 2

side

10. 24-063-58-S Baffle, cylinder barrel - # 1

side

11. M-545010-S Screw, hex. flange

M5x0.8xl 0 (2)

12. 24-063-14-S Baffle, valley- #2 side

13. 24-063-60-S Baffle, valley- #1 side

NOT ILLUSTRATED

24-096-85-S

25-086-91-S Cover, blower housing

Screw, tapping 10-16xl/2"

(2)

AIR INTAKE/FILTRATION

KEY PART

NO. NO. DESCRIPTION

1. 54-755-01-S Kit, knobwith seal

(Includes 2,3)

2. 25-341-03-S Knob, cover

3. 24-153-20-S O-Ring

4. 24-096-67-S Cover, aircleaner

5. 12-100-01-S Wing Nut

6. 24-096-01-S Cover, inner air cleaner

7. 231032-S Seal, breather

8. 24-083-05-S Precleaner, element

9. 24-083-03-S Element, aircleaner

10. 24-109-09-S Cup, fuel spit-back

11. 24-041-13-S Gasket, fuel spit-back cup

12. 24-094-34-S Base, aircleaner

13. 24-041-14-S Gasket, air cleaner base

14. 24-164-51-S Manifold, intake (Includes

15,16)

15. 24 041 52-S Gasket, carburetor

16. 24 153 27-S O-Ring, intake port (2)

17. M-651040-S Screw, hex. flange

M6x1.0x40 (4)

18. 24 126 130-S Bracket, aircleaner base

19. M-545010-S Screw, hex. flange

M5x0.8xl 0 (2)

20. 24-063-51-S Baffle, spit-backcup

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

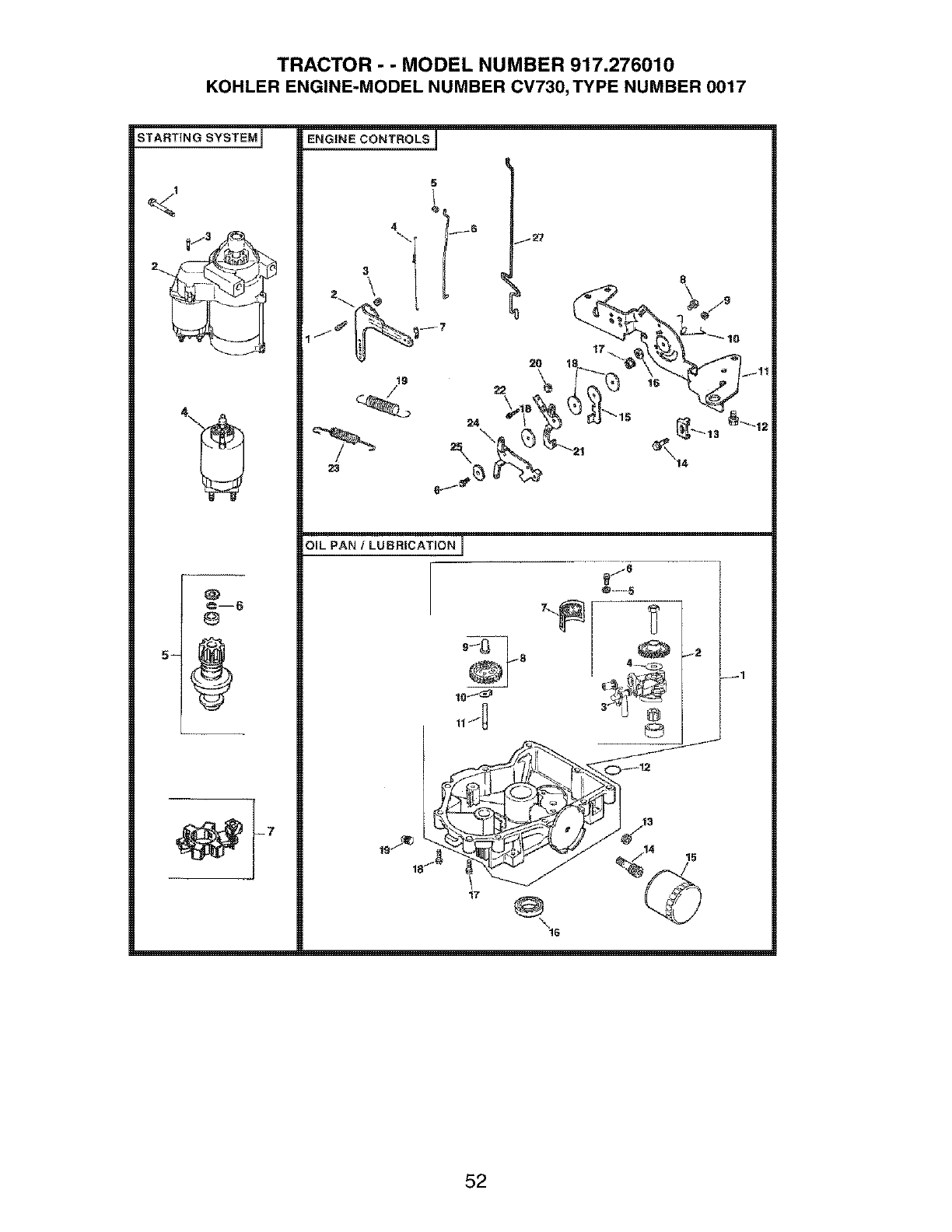

TRACTOR --MODEL NUMBER 917.276010

KOHLER ENGINE-MODEL NUMBER CV730,TYPE NUMBER 0017

STARTING SYSTEM I

ENGINE CONTROLS I

i°l

4 f6

OIL PAN /LUBRICATION J

j-°

10_

,°% _

® J

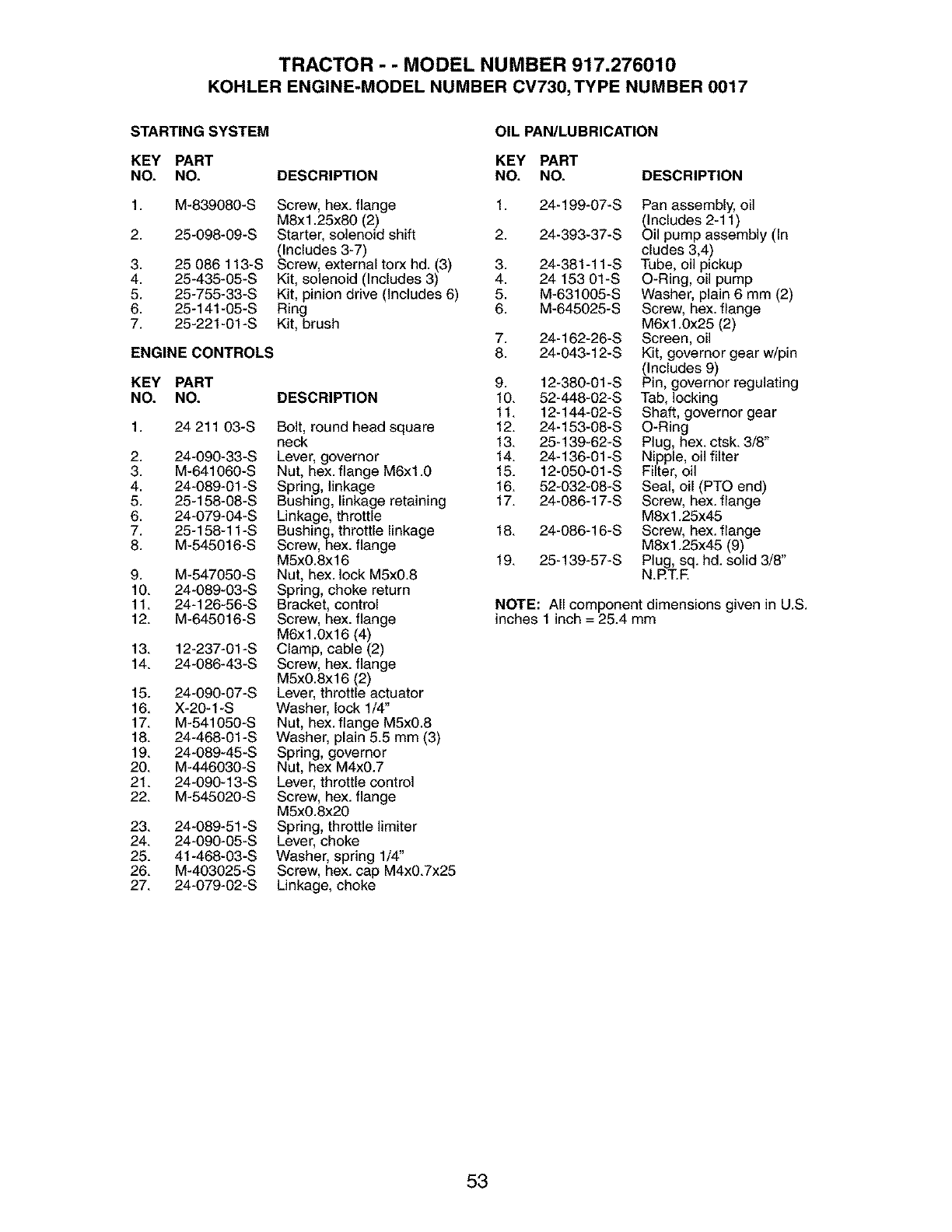

TRACTOR --MODEL NUMBER 917.276010

KOHLER ENGINE-MODEL NUMBER CV730,TYPE NUMBER 0017

STARTING SYSTEM

KEY PART

NO. NO. DESCRIPTION

M-839080-S

25-098-09-S

25 086 113-S

25-435-05-S

25-755-33-S

25-141-05-S

25-221-01 -S

Screw, hex. flange

M8x1.25x80 (2)

Starter, solenoid shift

_ncludes 3-7)

crew, external torx hd. (3)

Kit, solenoid (Includes 3)

Kit, pinion drive (Includes 6)

Ring

Kit, brush

ENGINE CONTROLS

KEY PART

NO. NO. DESCRIPTION

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

24 211 03-S

24-090-33-S

M-641060-S

24-089-01 -S

25-158-08-S

24-079-04-S

25-158-11 -S

M-545016-S

M-547050-S

24-089-03-S

24-126-56-S

M-645016-S

12-237-01-S

24-086-43-S

24-090-07-S

X-20-1 -S

M-541050-S

24-468-01 -S

24-089-45-S

M-446030-S

24-090-13-S

M-545020-S

24-089-51 -S

24-090-05-S

41-468-03-S

M-403025-S

24-079-02-S

Bolt, round head square

neck

Lever, governor

Nut, hex. flange M6xl .O

Spring, linkage

Bushing, linkage retaining

Linkage, throttle

Bushing, throttle linkage

Screw, hex. flange

M5x0.8xl 6

Nut, hex. lock M5x0.8

Spring, choke return

Bracket, control

Screw, hex. flange

M6x1.0xl 6 (4)

Clamp, cable (2)

Screw, hex. flange

M5x0.8xl 6 (2)

Lever, throttle actuator

Washer, lock 1/4"

Nut, hex. flange M5xO.8

Washer, plain 5.5 mm (3)

Spring, governor

Nut, hex M4x0.7

Lever, throttle control

Screw, hex. flange

M5x0.8x2O

Spring, throttle limiter

Lever, choke

Washer, spring 1/4"

Screw, hex. cap M4xO.7x25

Linkage, choke

OIL PAN/LUBRICATION

KEY PART

NO. NO. DESCRIPTION

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

24-199-07-S

24-393-37-S

24-381-11-S

24 153 01-S

M-631005-S

M-645025-S

24-162-26-S

24-043-12-S

12-380-01-S

52-448-02-S

12-144-02-S

24-153-08-S

25-139-62-S

24-136-01-S

12-050-01 -S

52-032-08-S

24-086-17-S

24-086-16-S

25-139-57-S

Pan assembly, oil

olnCludes2-11)

il pump assembly (In

cludes 3,4)

Tube, oil pickup

O-Ring, oil pump

Washer, plain 6 mm (2)

Screw, hex. flange

M6x1.0x25 (2)

Screen, oil

Kit, governor gear w/pin

(Includes 9)

Pin, governor regulating

Tab, locking

Shaft, governor gear

O-Ring

Plug, hex. ctsk. 3/8"

Nipple, oil filter

Filter, oil

Seal, oil (PTO end)

Screw, hex. flange

M8x1.25x45

Screw, hex. flange

M8x1.25x45 (9)

Plug, sq. hd. solid 3/8"

N.RT.E

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

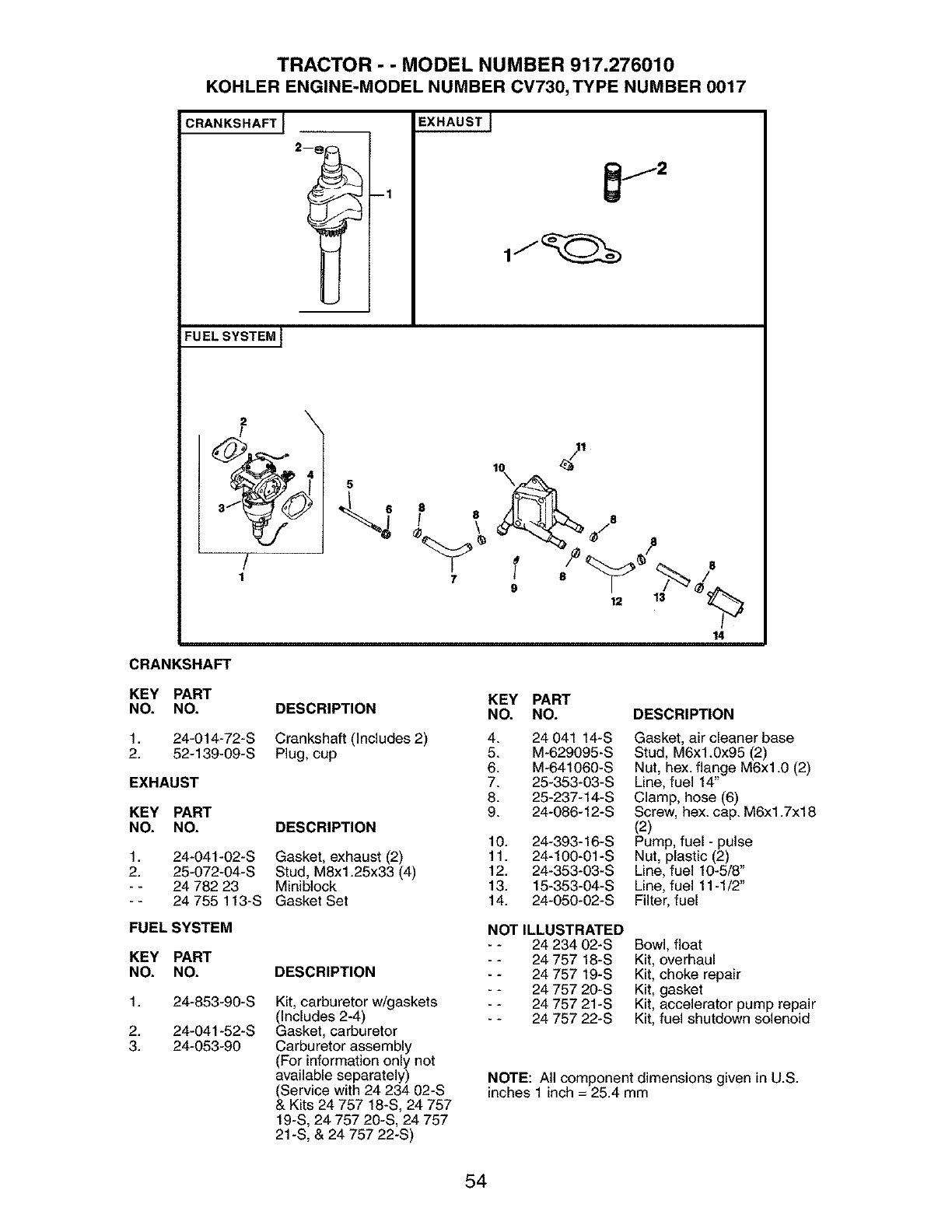

TRACTOR --MODEL NUMBER 917.276010

KOHLER ENGINE-MODEL NUMBER CV730,TYPE NUMBER 0017

CRANKSHAFT I

--1

EXHAUST I

FUEL SYSTEMJ

2 \

79812 13

CRANKSHAFT

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1. 24-014-72-S Crankshaft (Includes 2) 4. 24 041 14-S Gasket, air cleaner base

2. 52-139-09-S Plug, cup 5. M-629095-S Stud, M6x1.0x95 (2)

6. M-641060-S Nut, hex. flange M6x1.0 (2)

EXHAUST 7. 25-353-03-S Line, fuel 14"

8. 25-237-14-S Clamp, hose (6)

KEY PART 9. 24-086-12-S Screw, hex. cap. M6x1.7x18

NO. NO. DESCRIPTION (2)

10. 24-393-16-S Pump, fuel - pulse

1. 24-041-02-S Gasket, exhaust (2) 11. 24-100-01-S Nut, plastic (2)

2. 25-072-04-S Stud, M8x1.25x33 (4) 12. 24-353-03-S Line, fuel 10-5/8"

- - 24 782 23 Miniblock 13. 15-353-04-S Line, fuel 11-1/2"

- - 24 755 113-S Gasket Set 14. 24-050-02-S Filter, fuel

FUEL SYSTEM

KEY PART

NO. NO. DESCRIPTION

1. 24-853-90-S

2. 24-041-52-S

3. 24-053-90

Kit, carburetor w/gaskets

GlnCludes2-4)

asket, carburetor

Carburetor assembly

(For informationonly not

available separately)

(Service with 24 234 02-S

& Kits 24 757 18-S, 24 757

19-S, 24 757 20-S, 24 757

21-S, & 24 757 22-S)

NOT ILLUSTRATED

- - 24 234 02-S Bowl, float

- - 24 757 18-S Kit, overhaul

- - 24 757 19-S Kit, choke repair

- - 24 757 20-S Kit, gasket

- - 24 757 21-S Kit, accelerator pump repair

- - 24 757 22-S Kit, fuel shutdown solenoid

NOTE: All component dimensions given in U.S.

inches 1inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

_IL ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Get it fixed, at your home or ours!

Your Home

For repatr- in your home - of all major brand apphances,

lawn and garden equtpment, or heahng and coohng systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessones and

owner's manuals that you need to do-it-yourself.

For Sears professional mstallahon of home apphances

and _tems hke garage door openers and water heaters.

1-800-4-MY-HOME _ Anytime, day or night

(1-800-469-4663) (U S.A and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-m products hke vacuums, lawn equtpment,

and electronics, call or go on-hne for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U S A only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (u SA) 1-800-361-6665 (Canada)

Para pedtr servlcio de reparaci6n

a domtciho, y para ordenar ptezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en fran_.a=s:

1-800-LE-FOYER Mc

(1_,00-533-6937)

www sears ca

SEARS

TM SM

(_ RArlJ_tAr_H mr_ctArn_rk /Trademark /R_rvl_ fd_rk nf _r_ Rn_h_r.k _nd P.n

Craftsman 917276010 User Manual GARDEN TRACTOR Manuals And Guides L0305391

CRAFTSMAN Lawn, Tractor Manual L0305391 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
