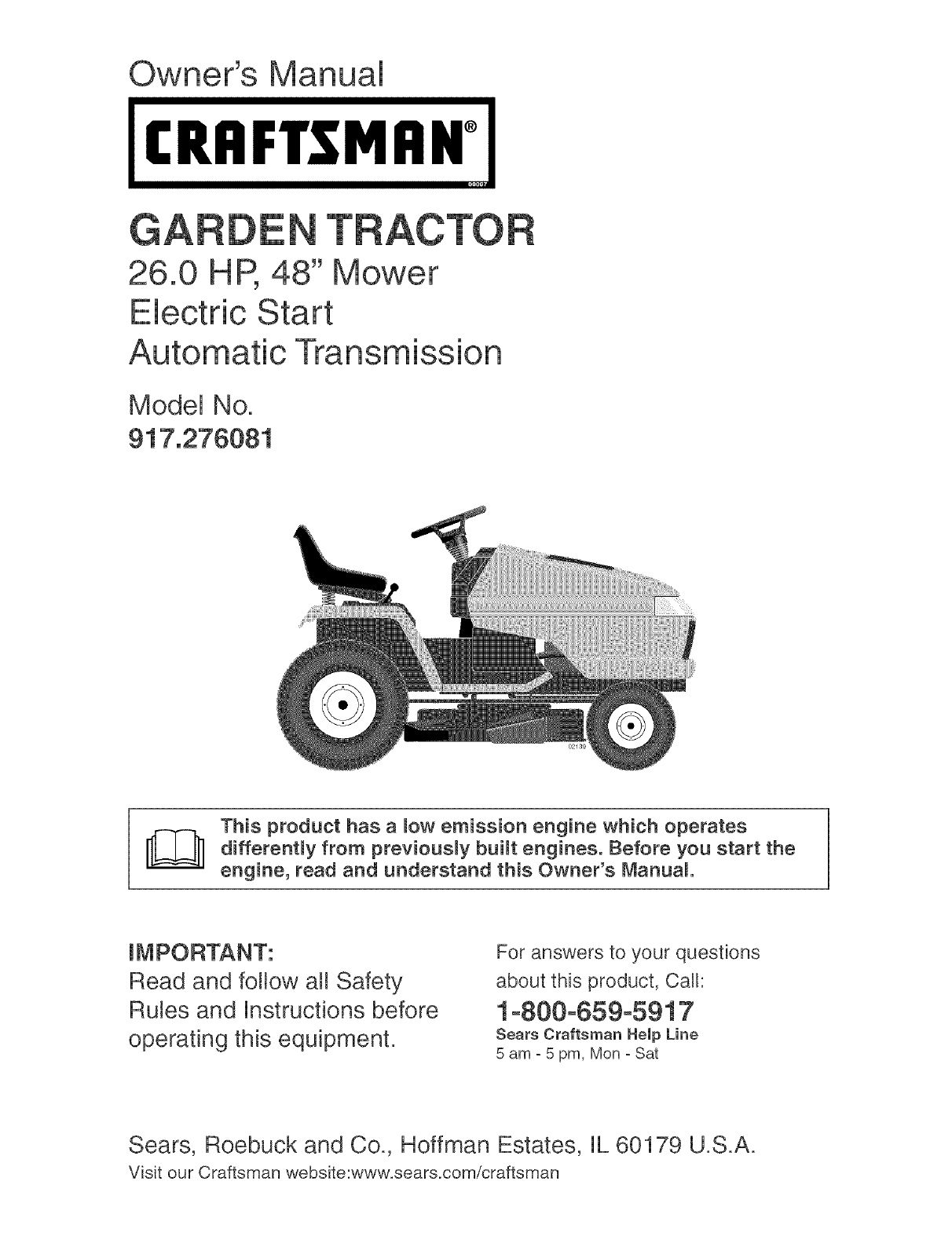

Owner's Manual

CRAFTSMAN°

l_l'lq

26.0 HP, 48" Mower

Electric Start

Automatic Transmission

Model No.

917.276081

This product has a mowemission engine which operates

[]_] from buimt Before start the

differently previously engines. you

engine, read and understand this Owner's Manual.

Read and follow aJJSafety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1_800°659-5917

Sears Craftsman Help Line

5 am =5 pm, Men =Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

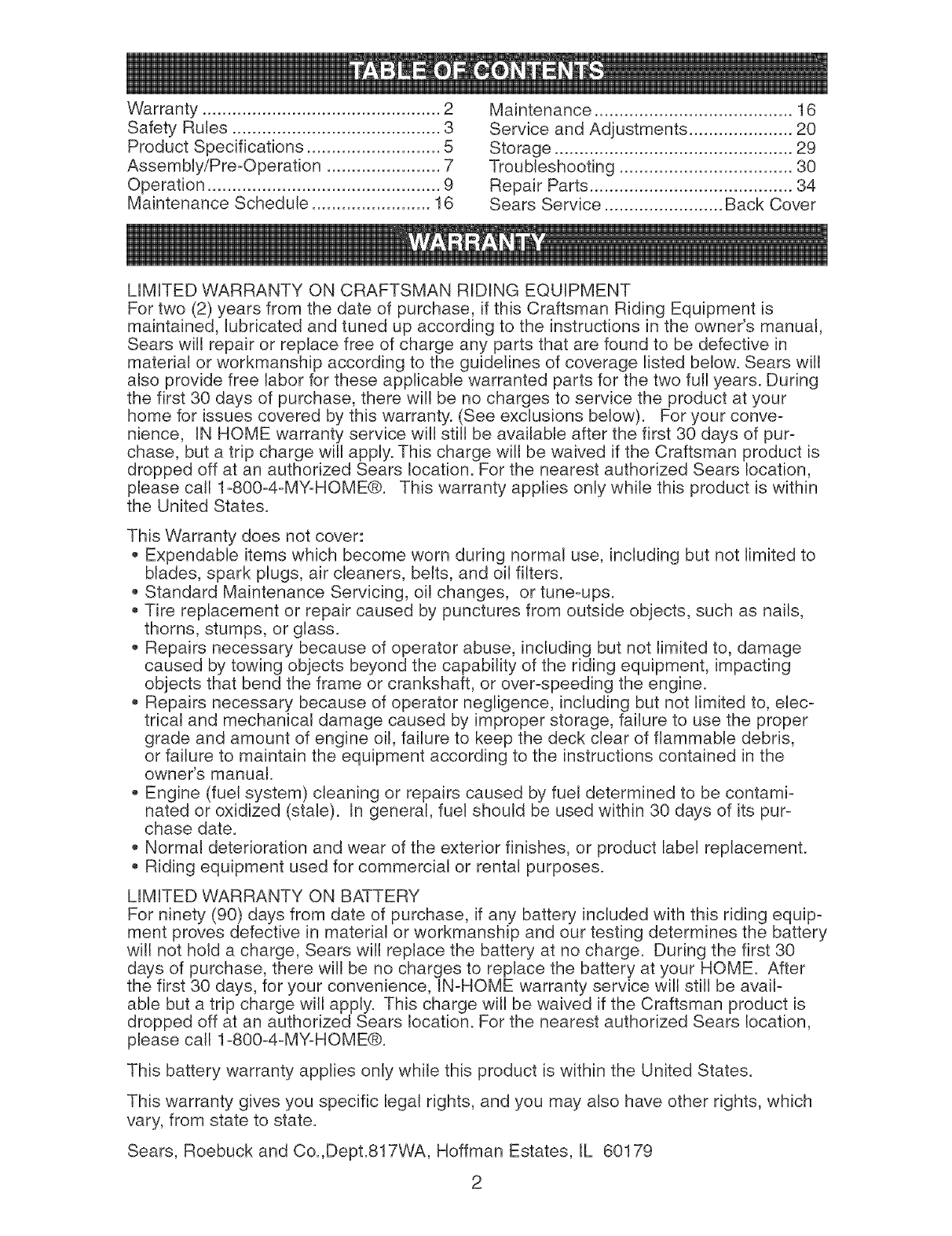

Warranty................................................2

SafetyRules..........................................3

ProductSpecifications...........................5

Assembly/Pre-Operation.......................7

Operation...............................................9

MaintenanceSchedule........................16

Maintenance........................................16

Service andAdjustments.....................20

Storage................................................29

Troubleshooting...................................30

RepairParts.........................................34

SearsService........................BackCover

LIMITEDWARRANTYON CRAFTSMANRIDINGEQUIPMENT

Fortwo (2)years from the date of purchase,if this CraftsmanRiding Equipmentis

maintained,lubricatedand tuned upaccordingto the instructionsinthe owner'smanual,

Searswill repairor replacefree of chargeany partsthat arefoundto bedefectivein

materialor workmanshipaccordingto the guidelinesof coveragelisted below.Searswill

also providefree laborfor theseapplicablewarrantedpartsfor the two full years.During

the first 30 daysof purchase,therewill be nochargesto servicethe productat your

homefor issuescoveredby this warranty.(Seeexclusionsbelow). Foryourconve-

nience, INHOMEwarrantyservicewill still be availableafterthe first 30 daysof pur-

chase, buta trip chargewill apply.Thischargewill bewaived if the Craftsmanproduct is

droppedoffat an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.This warrantyapplies onlywhile this productis within

the UnitedStates.

This Warrantydoes notcover:

Expendableitemswhich becomeworn duringnormaluse, includingbut not limitedto

blades,spark plugs,air cleaners,belts,and oil filters.

StandardMaintenanceServicing,oil changes, or tune-ups.

Tire replacementor repaircausedby puncturesfrom outsideobjects,such as nails,

thorns,stumps,or glass.

Repairsnecessarybecauseof operatorabuse, includingbut not limitedto, damage

causedby towingobjectsbeyondthe capabilityof the riding equipment,impacting

objectsthat bendthe frameor crankshaft,or over-speedingthe engine.

Repairsnecessarybecauseof operatornegligence,includingbut not limitedto,elec-

tricaland mechanicaldamagecausedby improperstorage,failureto usethe proper

gradeand amount ofengine oil,failureto keepthe deckclear of flammabledebris,

or failureto maintainthe equipmentaccordingto the instructionscontainedinthe

owner'smanual.

Engine(fuelsystem)cleaningor repairscausedby fueldeterminedto becontami-

nated or oxidized(stale). In general,fuelshould beused within30 daysof its pur-

chase date.

Normaldeteriorationand wear of the exteriorfinishes,or productlabel replacement.

Ridingequipmentusedfor commercialor rental purposes.

LIMITEDWARRANTYON BATTERY

For ninety(90) daysfrom date of purchase,if anybatteryincludedwith this ridingequip-

ment provesdefectivein materialor workmanshipand our testingdeterminesthe battery

will not holda charge, Searswill replacethe batteryat nocharge. Duringthe first 30

daysof purchase,therewill be nochargesto replacethe batteryat your HOME. After

the first 30 days,foryour convenience,IN-HOMEwarrantyservicewill still be avail-

ablebut a trip chargewill apply. Thischarge will bewaivedif the Craftsmanproduct is

droppedoffat an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.

This battery warrantyapplies onlywhile this productis withinthe UnitedStates.

This warrantygivesyou specificlegalrights,and you mayalso haveotherrights,which

vary,from state to state.

Sears,Roebuckand Co.,Dept.817WA,HoffmanEstates,IL 60179

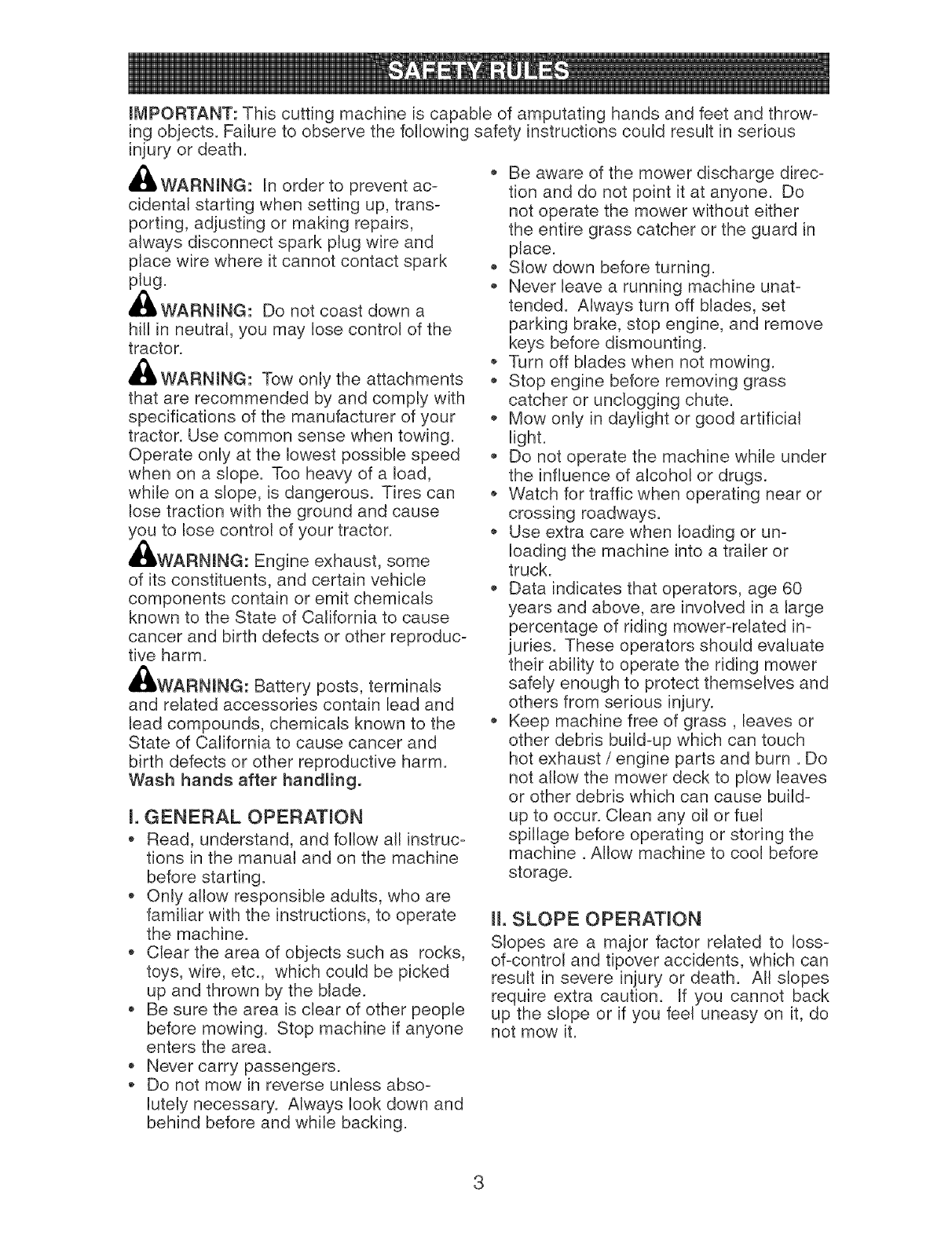

mlV]PORTANT:This cuttingmachineis capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

4_I, WARNmNG: Do not coast down a

hill in neutral, you may lose control of the

tractor.

Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

,_WARNmNG: Engine exhaust, some

of its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other reproduc-

tive harm.

Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

L GENERAL OPERATION

*Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

, Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

, Never carry passengers.

, Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

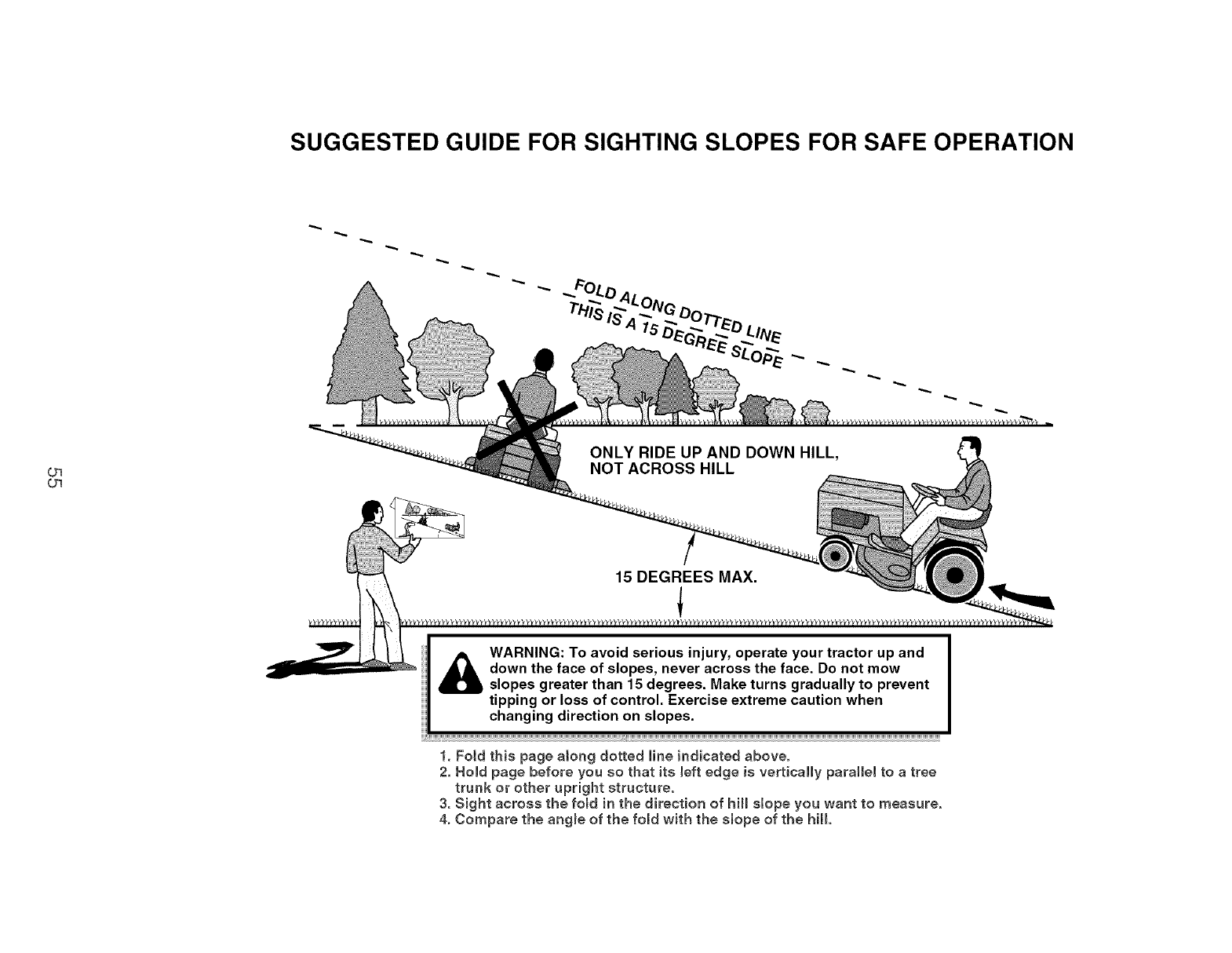

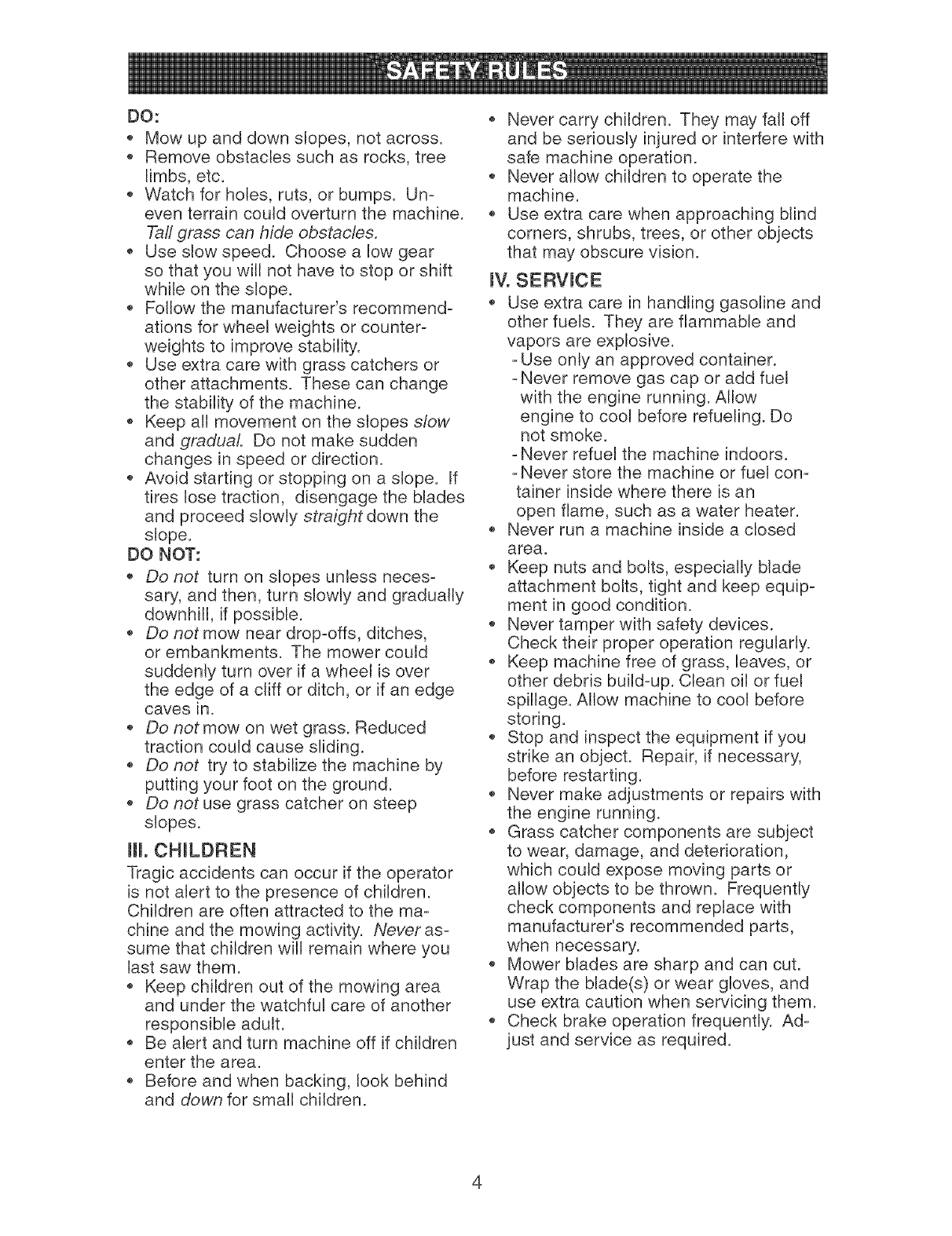

H. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Taft grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

oDo not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

Do not mow on wet grass. Reduced

traction could cause sliding.

Do not try to stabilize the machine by

putting your foot on the ground.

Do not use grass catcher on steep

slopes.

ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

iV, SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel con-

tainer inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs with

the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

@@@@@

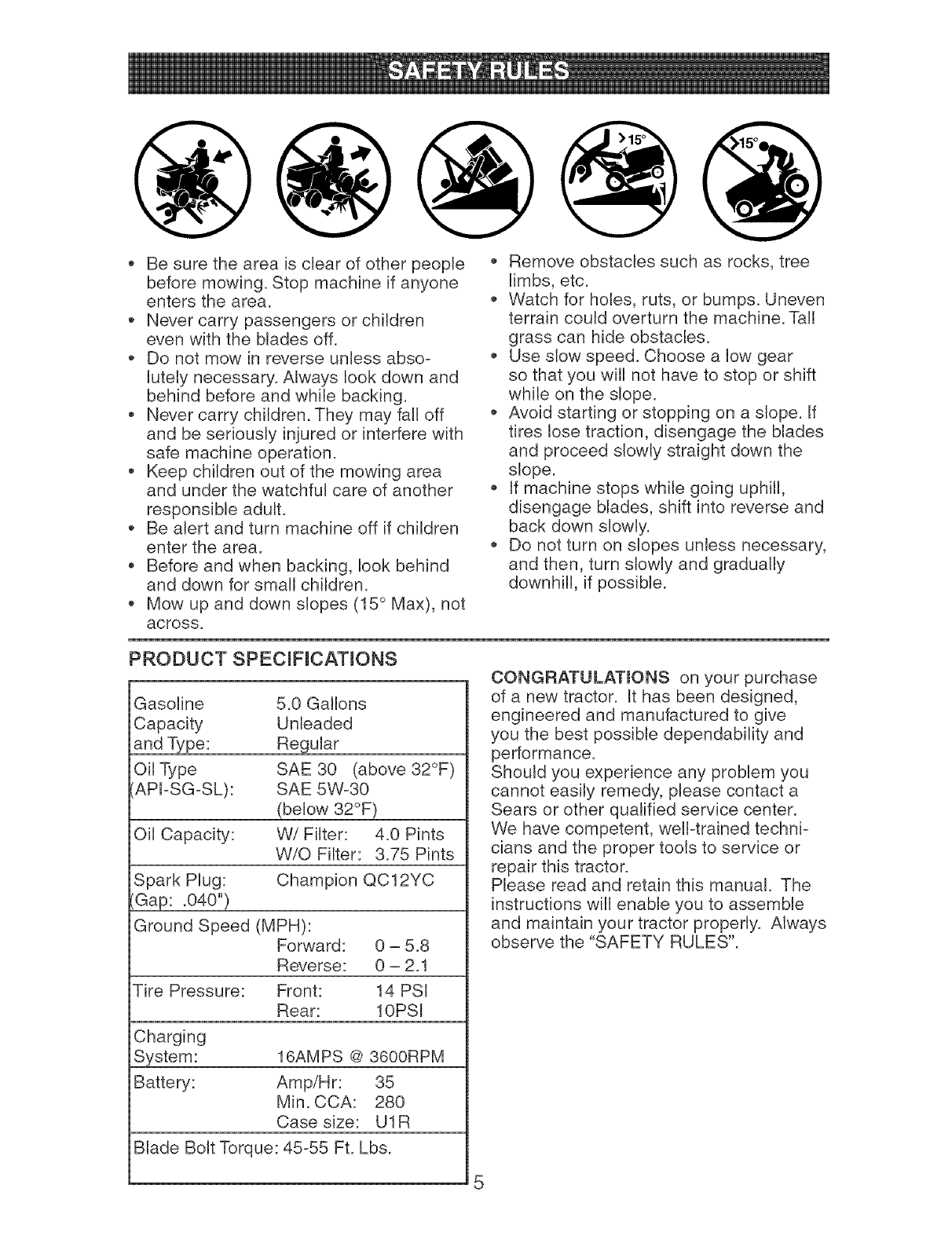

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

Never carry passengers or children

even with the blades off.

Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

Mow up and down slopes (15 ° Max), not

across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECmFmCATmONS

Gasoline 5.0 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (above 32°F)

API-SG-SL): SAE 5W-30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed (MPH):

Forward: 0 = 5.8

Reverse: 0 =2.1

Tire Pressure: Front: 14 PSI

Rear: 10PSI

Charging

System: 16AMPS @ 3600RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45%5 Ft. Lbs.

CONGRATULATmONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

*Read and observe the safety rules.

*Follow a regular schedule in main-

taining, caring for and using your tractor.

Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

AWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTmON

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourseff from unexpected

hassle and expense.

Here's what's included in the Agreement:

*Expert service by our 12,000 profe-

sional repair specialists.

Unlimited service and no charge for

parts and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

* Fast hemp by phone = phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800=827-6655.

SEARS INSTALLATION SERVmCE

For Sears professional instaflation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800=4=MY-HOME®

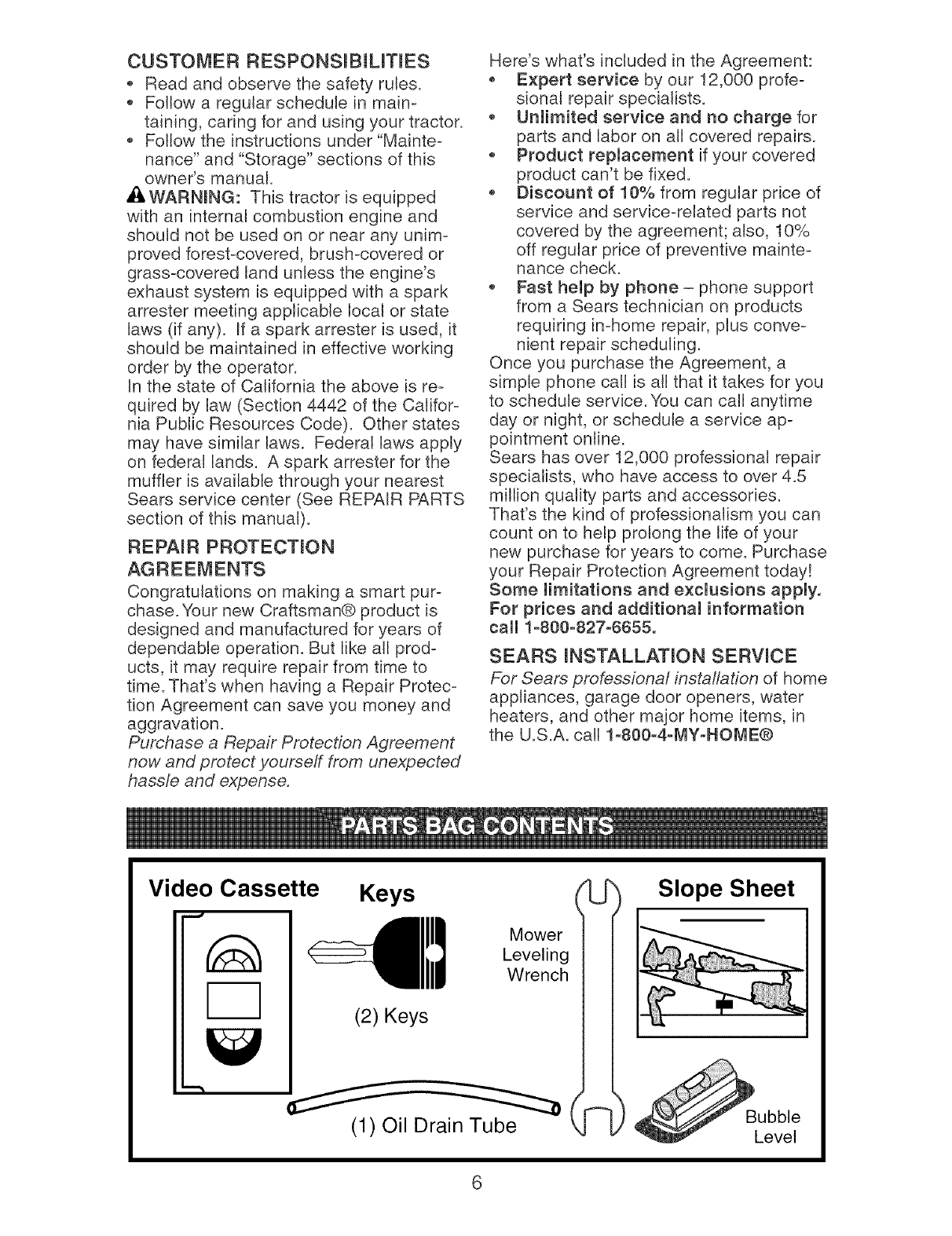

Video Cassette Keys

_ Mower l I

<ILeveling l I

'/ Wrench I I

(1) Oil Drain Tube kJ Li

Slope Sheet

Bubble

Level

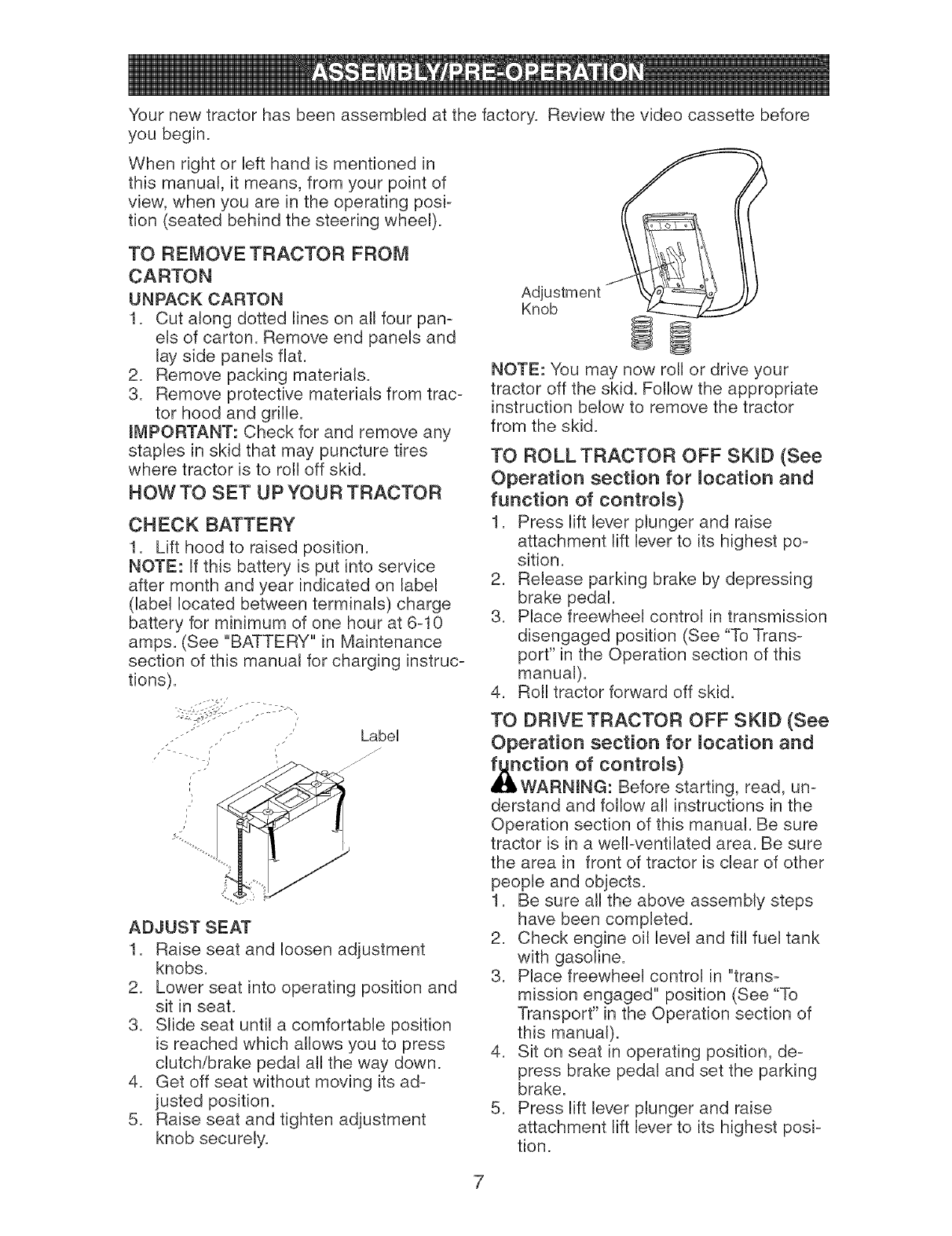

Yournew tractor hasbeen assembledat the factory. Reviewthe videocassette before

you begin.

When right or left hand is mentionedin

this manual,it means,from your point of

view,whenyou are inthe operatingposi-

tion (seated behindthe steeringwheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACKCARTON

1. Cut alongdotted lineson all four pan-

elsof carton.Removeend panelsand

layside panelsflat.

2. Removepackingmaterials.

3. Removeprotectivematerialsfrom trac-

tor hoodand grille.

mMPORTANT:Checkfor and removeany

staples in skid that maypuncturetires

where tractor is to roll offskid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hoodto raisedposition.

NOTE:If this batteryis put into service

after monthandyear indicatedon label

(labellocatedbetweenterminals)charge

batteryfor minimumof one hourat 6-10

amps.(See "BATTERY"in Maintenance

section of this manualfor charginginstruc-

tions).

Adjustment

Knob @@

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKiD (See

Operation section for mocation and

function of controms)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in transmission

disengaged position (See "To Trans-

port" in the Operation section of this

manual).

4. Roll tractor forward off skid.

_:t__ s j/ _, LabeU

ADJUST SEAT

1. Raise seat and loosen adjustment

knobs.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

TO DRIVE TRACTOR OFF SKmD (See

Operation section for mocation and

_linction of controms)

WARNmNG: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position (See "To

Transport" in the Operation section of

this manual).

4. Sit on seat in operating position, de-

press brake pedal and set the parking

brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine.After engine has

started, movethrottlecontrolto idle

position.

7. Releaseparking brake.

8. Slowlymovethe motioncontrol lever

forwardand slowlydrive tractor off

skid.

9. Apply braketo stop tractorand set

parkingbrake.

10.Turnignitionkeyto "STOP"position.

Continuewiththe instructionsthat follow.

CHECK TIRE PRESSURE

The tires on yourtractorwere overinflated

at the factoryfor shippingpurposes. Cor-

rect tire pressureis importantfor best

cutting performance.

Reducetire pressureto PSI shownin

"PRODUCTSPECIFICATIONS"section

of this manual.

CHECK DECK LEVELNESS

For bestcutting results,mowerhous-

ing shouldbe properlyleveled. See "TO

LEVELMOWERHOUSING"in the Service

and Adjustmentssection of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

Seethe figuresthat areshownfor replac-

ing motionand mowerbladedrive belts

inthe Serviceand Adjustmentssection

of this manual. Verifythat the belts are

routedcorrectly.

CHECK BRAKE SYSTEM

Afteryou learn how to operateyourtrac-

tor,check to seethat the brakeis properly

adjusted. See"TOADJUSTBRAKE"in

the Serviceand Adjustmentssectionof

this manual.

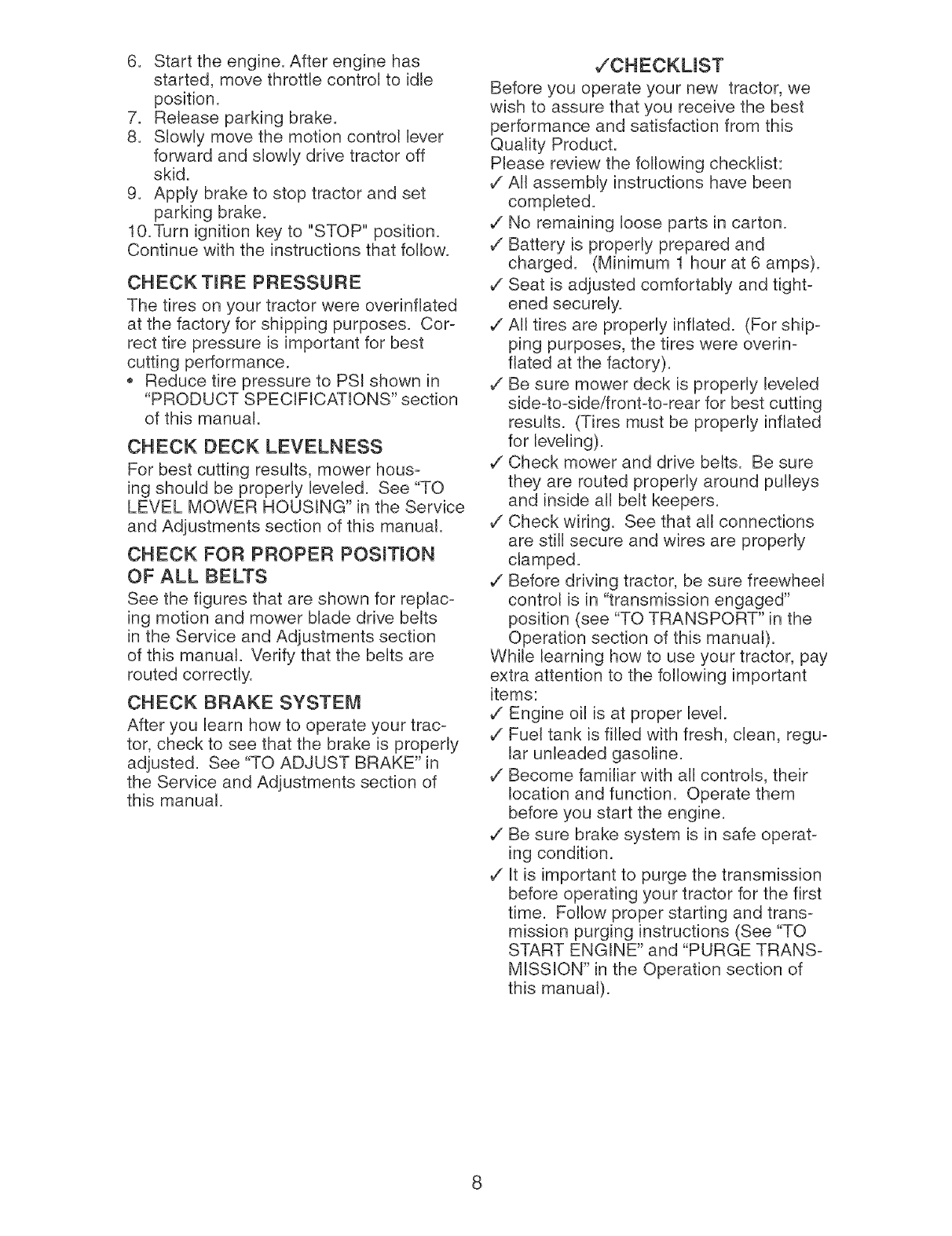

,/'CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

fiated at the factory).

,/Be sure mower deck is properly leveled

side-to-sideifront-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside atl belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

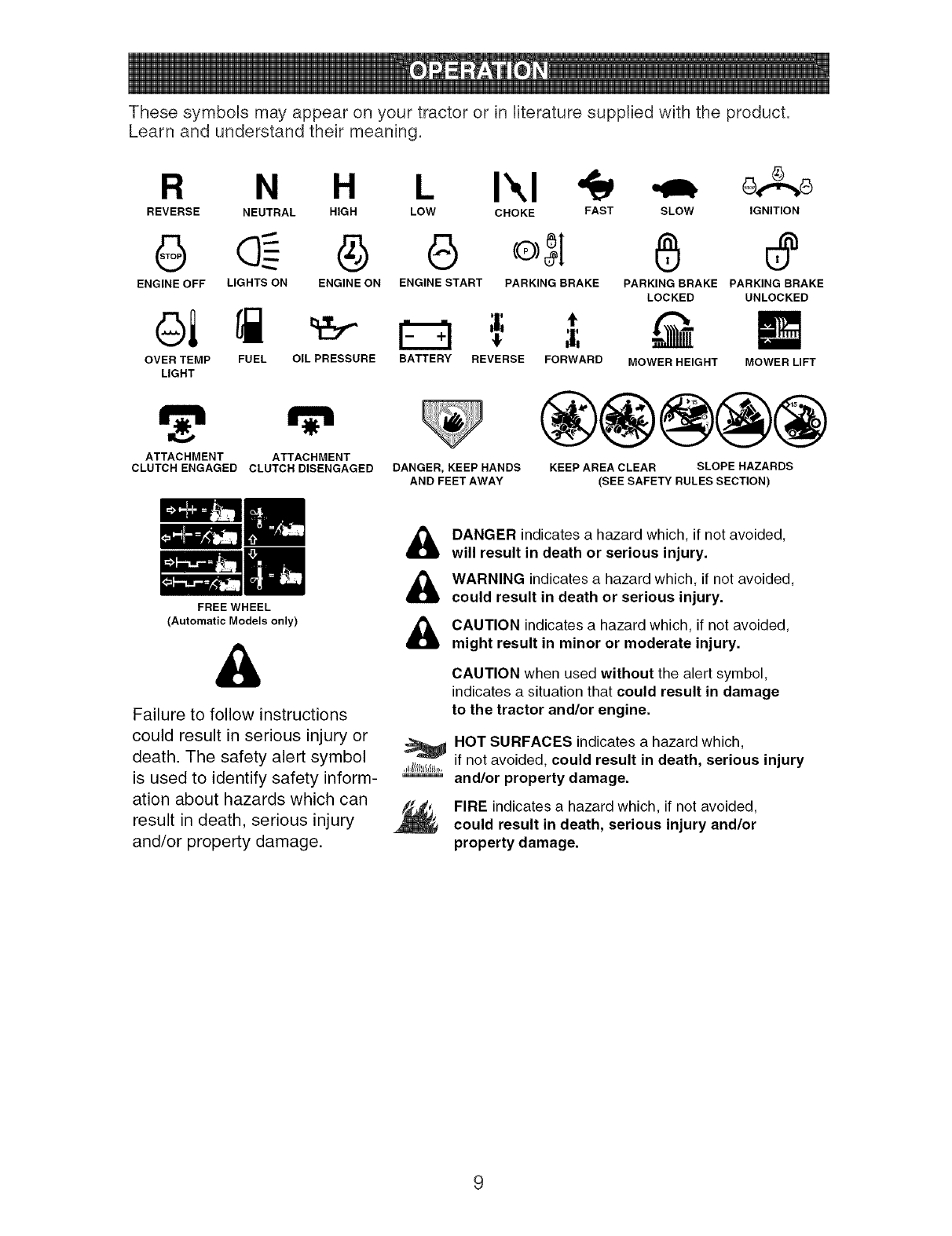

Thesesymbols mayappearon yourtractor or inliteraturesuppliedwiththe product.

Learnand understandtheir meaning.

R N H I'.,I '_

REVERSE NEUTRAL HIGH LOW CHOKE FAST

6 G o5i

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP FUEL OIL PRESSURE

LIGHT

ITI

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

BATTERY REVERSE FORWARD

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicatesa hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KNOW YOUR TRACTOR

READ THINSOWNER'S MANUAL AND SAFETY RULES BEFORE OPERATmNG YOUR

TRACTOR

Compare the illustrations 'with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Motion Drive

Belt Tension

Handle

Choke

Control

Throttle

Control

Brake Pedal

Ammeter ignition Light Switch

Position

Attachment

Clutch Lift

Plunger

Attachment

Lift Lever

Parking Brake

Lever

Height

Knob

Motion Control

Lever

Free Wheel

Control

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWmTCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

UGHT SWmTCH POSmTmON - Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

BRAKE PEDAL - Used for braking the

tractor and starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEmGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

mGNmTmONSWmTCH - Used for starting and

stopping the engine.

ATTACH_,_ENT UFT LEVER -Used to raise

and lower the mower deck or other attachments

mounted to your tractor.

UFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

PARKmNG BRAKE LEVER - Locks brake

pedal into the brake position.

MOTmON CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

MOTmON DRmVE BELT TENSmON HAN-

DLE - Used when changing motion drive

belt and, if necessary, starting engine

under extremely cold conditions.

SAFETYGLASSES

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

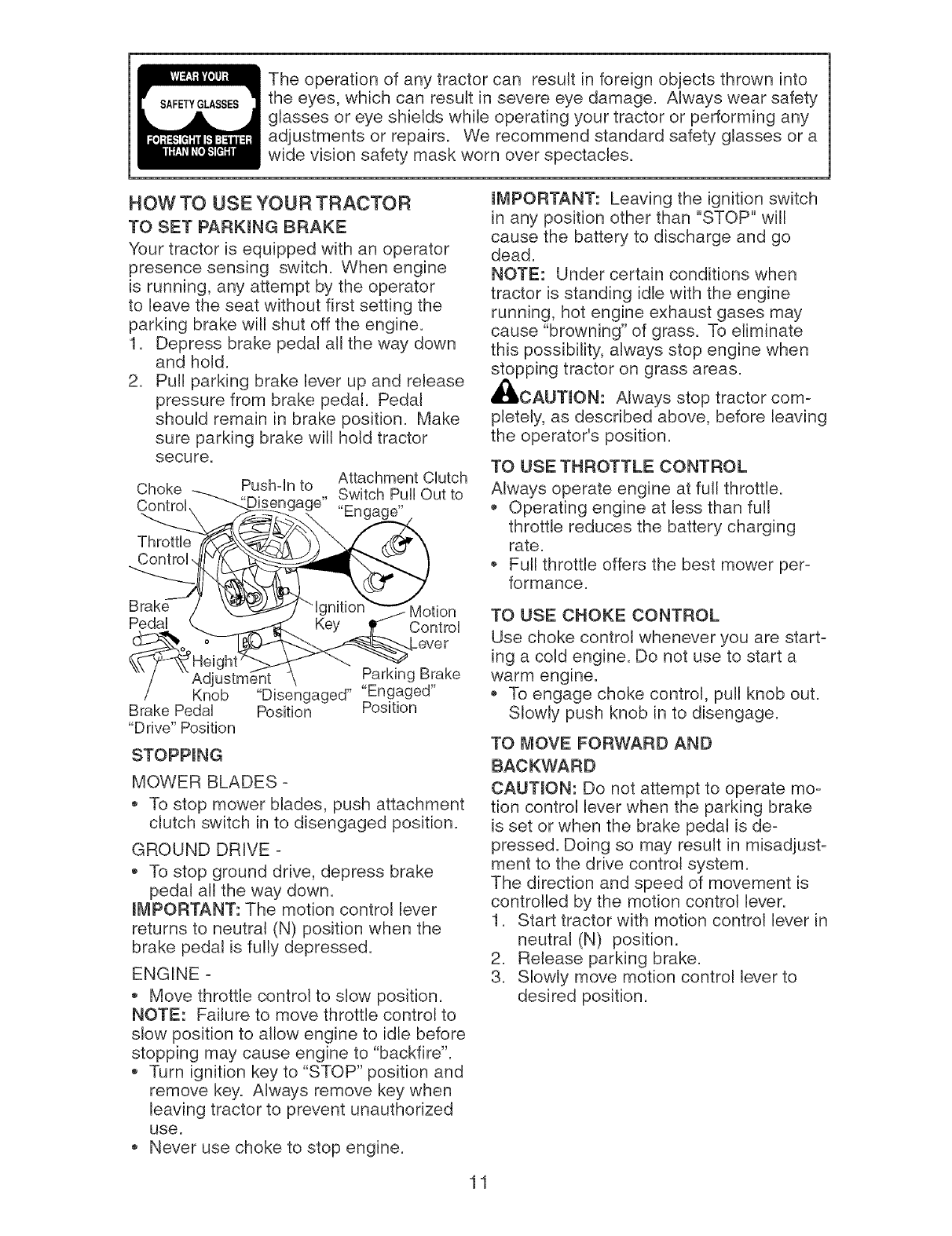

HOW TO USE YOUR TRACTOR

TO SET PARKmNG BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal all the way down

and hold.

2. Pull parking brake lever up and release

pressure from brake pedal. Pedal

should remain in brake position. Make

sure parking brake will hold tractor

secu re.

Choke Pushqn to Attachment CUutch

ControU ngage" Switch Pull Out to

"Engage"

Throttle

Control,

Pedal Motion

Control

=ever

ustment Parking Brake

Knob "Disengaged" "Engaged"

Brake PedaU Position Position

"Drive" Position

STOPPmNG

MOWER BLADES =

To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

To stop ground drive, depress brake

pedal all the way down.

mMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is fully depressed.

ENGINE =

Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position to allow engine to idle before

stopping may cause engine to "backfire".

Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

,, Never use choke to stop engine.

mMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_I_ICAUTmON: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

Operating engine at less than full

throttle reduces the battery charging

rate.

Full throttle offers the best mower per-

formance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

CAUTION: Do not attempt to operate mo-

tion control lever when the parking brake

is set or when the brake pedal is de-

pressed. Doing so may result in misadjust-

merit to the drive control system.

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

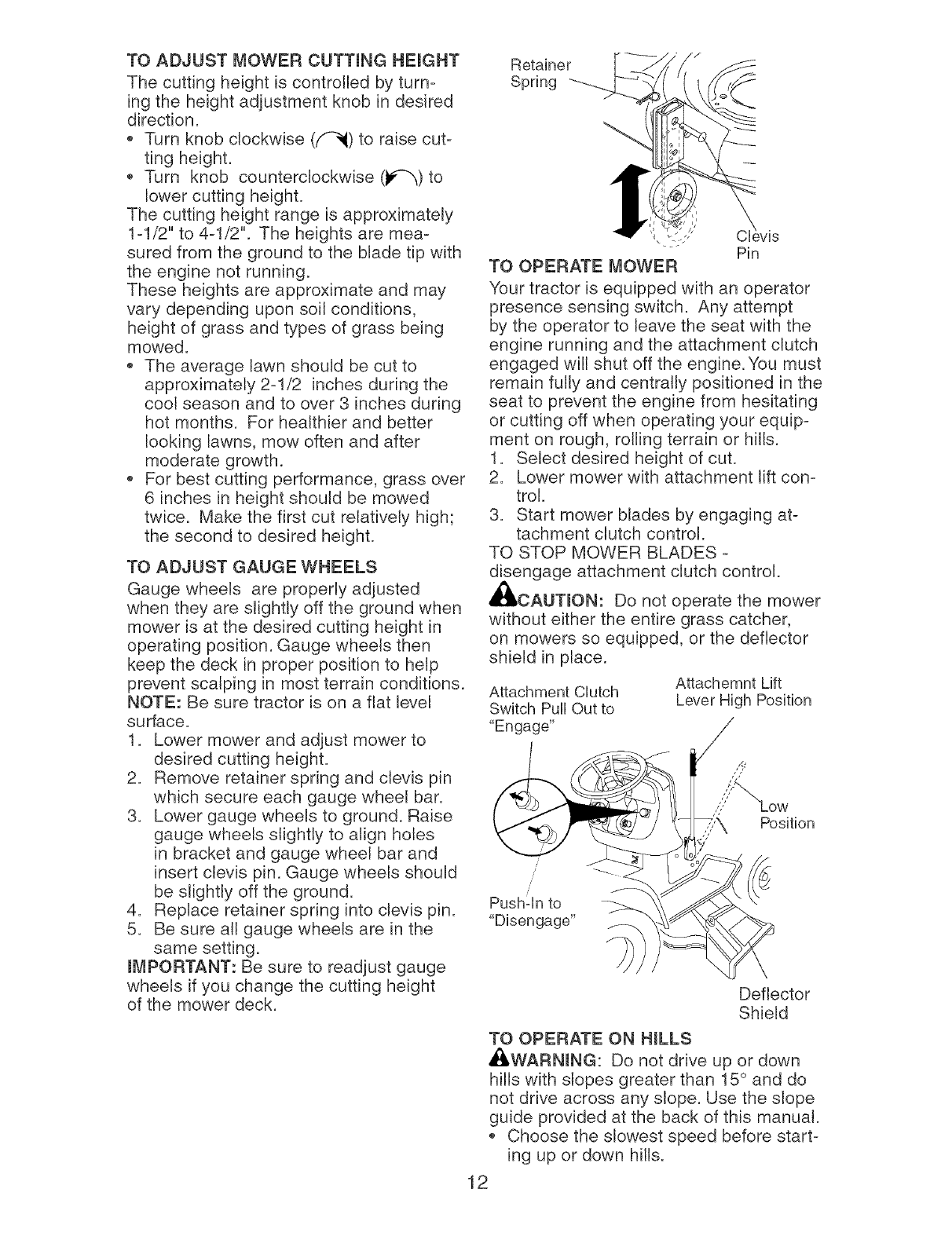

TO ADJUST MOWER CUTTmNG HEmGHT

The cutting height is controlled by turn-

ing the height adjustment knob in desired

direction.

,, Turn knob clockwise (f_t) to raise cut-

ting height.

,, Turn knob counterclockwise (_) to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip with

the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

,, The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

,, For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to

desired cutting height.

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

mMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Lower mower with attachment lift con-

trol.

3. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

I_I, CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachemnt Lift

Attachment Clutch

Switch Pull Out to Lever High Position

"Engage"

Position

Push-In to

"Disengage"

Deflector

Shield

TO OPERATE ON HmLLS

_WARNmNG: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide provided at the back of this manual.

,, Choose the slowest speed before start-

ing up or down hills.

Avoid stopping or changing speed on

hills.

If stopping is absolutely necessary, push

brake pedal quickly to brake position

and engage parking brake.

mMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is depressed.

*To restart movement, slowly release

parking brake and brake pedal.

*Slowly move motion control lever to

slowest setting.

Make all turns slowly.

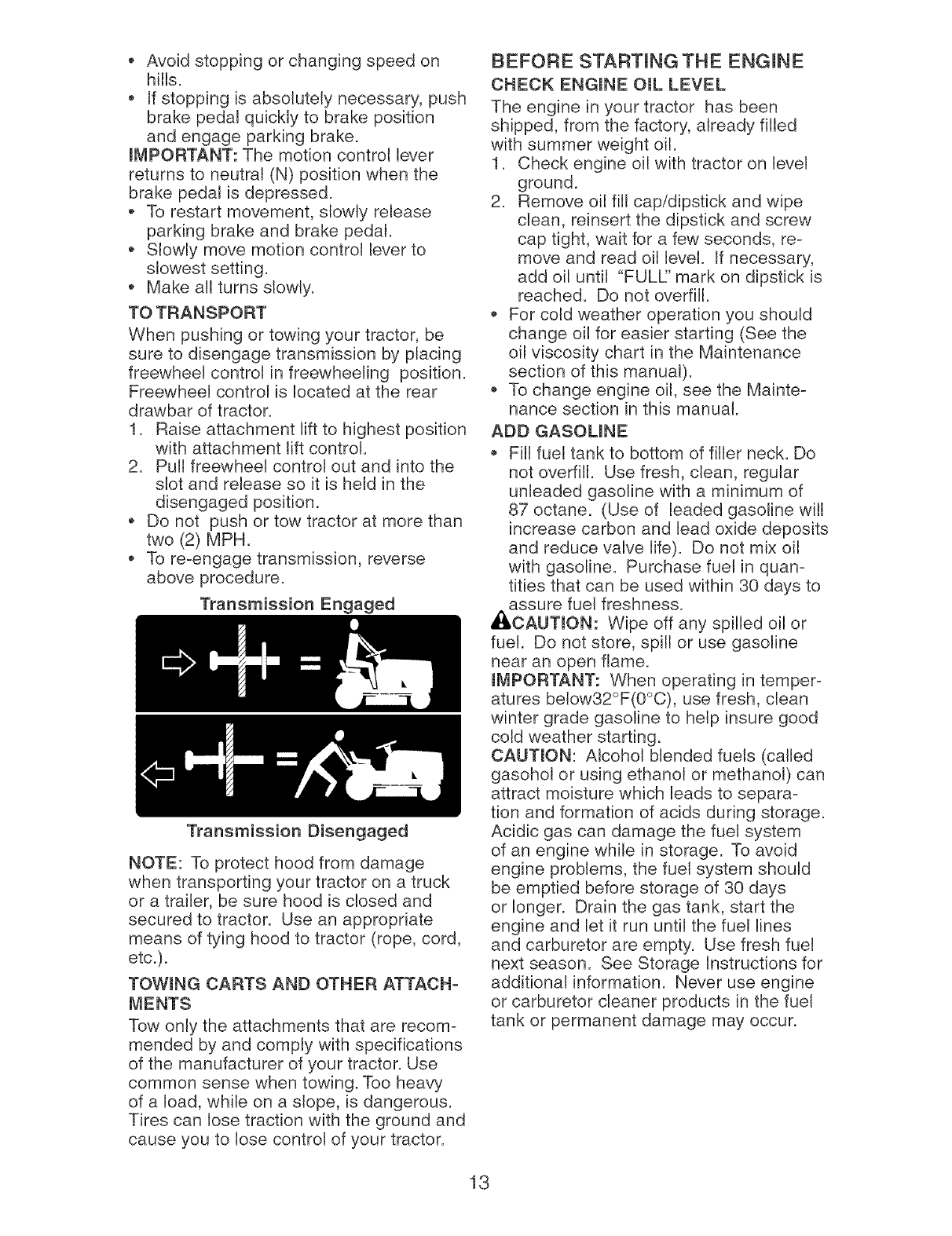

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and into the

slot and release so it is held in the

disengaged position.

*Do not push or tow tractor at more than

two (2) MPH.

* To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWmNG CARTS AND OTHER ATTACH=

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heaw

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTmNG THE ENGmNE

CHECK ENGmNE Oral LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULU' mark on dipstick is

reached. Do not overfill.

For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOUNE

•Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IIVIPORTANT: When operating in temper=

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa=

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

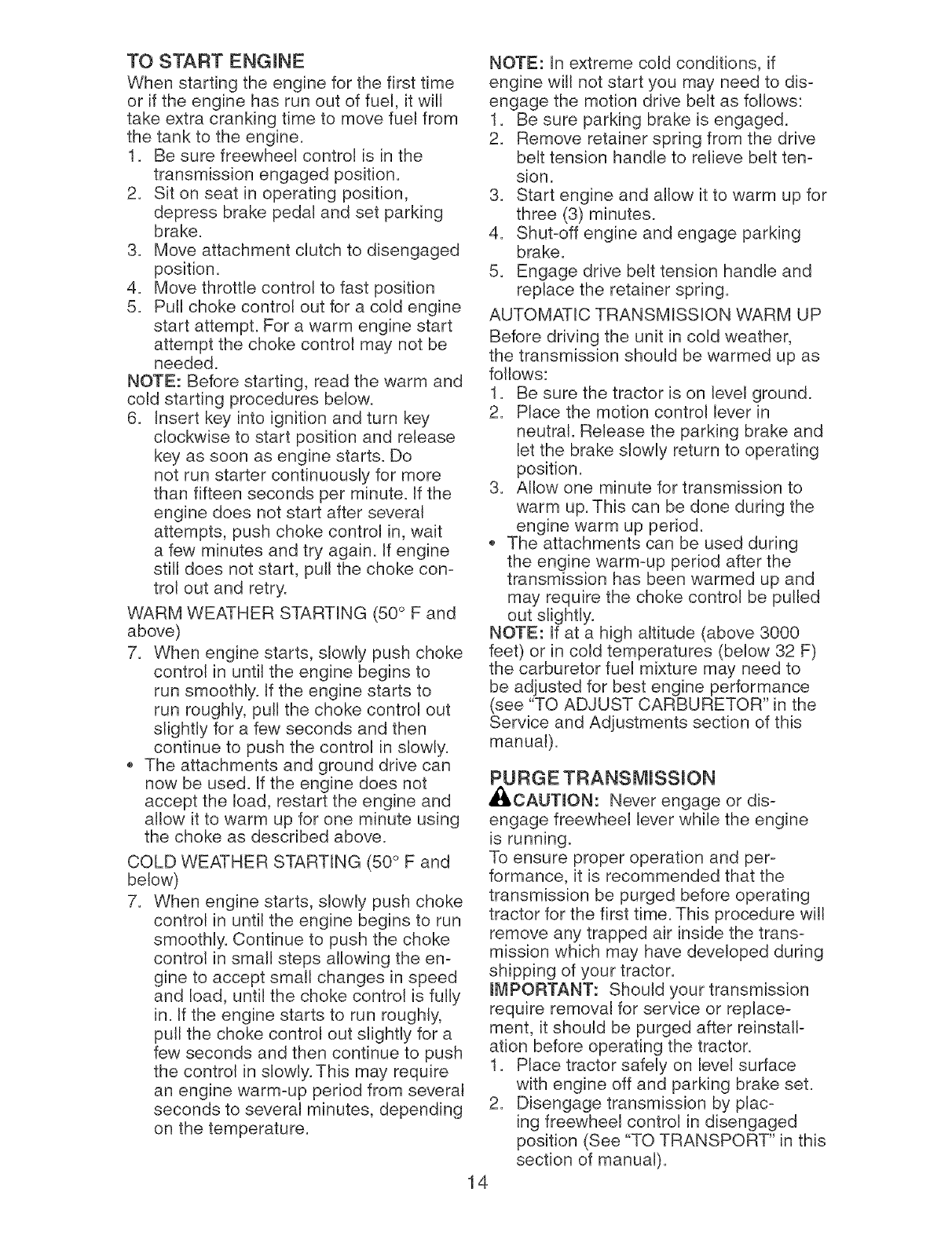

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for a

few seconds and then continue to push

the control in slowly. This may require

an engine warm-up period from several

seconds to several minutes, depending

on the temperature.

NOTE: In extreme cold conditions, if

engine will not start you may need to dis-

engage the motion drive belt as follows:

1. Be sure parking brake is engaged.

2. Remove retainer spring from the drive

belt tension handle to relieve belt ten-

sion.

3. Start engine and allow it to warm up for

three (3) minutes.

4. Shut-off engine and engage parking

brake.

5. Engage drive belt tension handle and

replace the retainer spring.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake and

let the brake slowly return to operating

position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be pulled

out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

PURGE TRANSMISSION

_I, CAUTION: Never engage or dis=

engage freewheel lever while the engine

is running.

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by plac-

ing freewheel control in disengaged

position (See "TO TRANSPORT" in this

section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. Disen-

gage parking brake.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is being

removed from hydraulic drive system.

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

"TO TRANSPORT" in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

Disengage parking brake.

8. Slowly move motion control lever for-

ward, after the tractor moves approxi-

mately five (5) feet, slowly move motion

control lever to reverse position. After

the tractor moves approximately five

(5) feet return the motion control lever

to the neutral (N) position. Repeat this

procedure with the motion control lever

three (3) times.

Your transmission is now purged and now

ready for normal operation.

MOWING TiPS

Tire chains cannot be used when the

mower housing is attached to tractor.

Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

The left hand side of mower should be

used for trimming.

Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

,c J

If grass is extremely tail, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

, When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

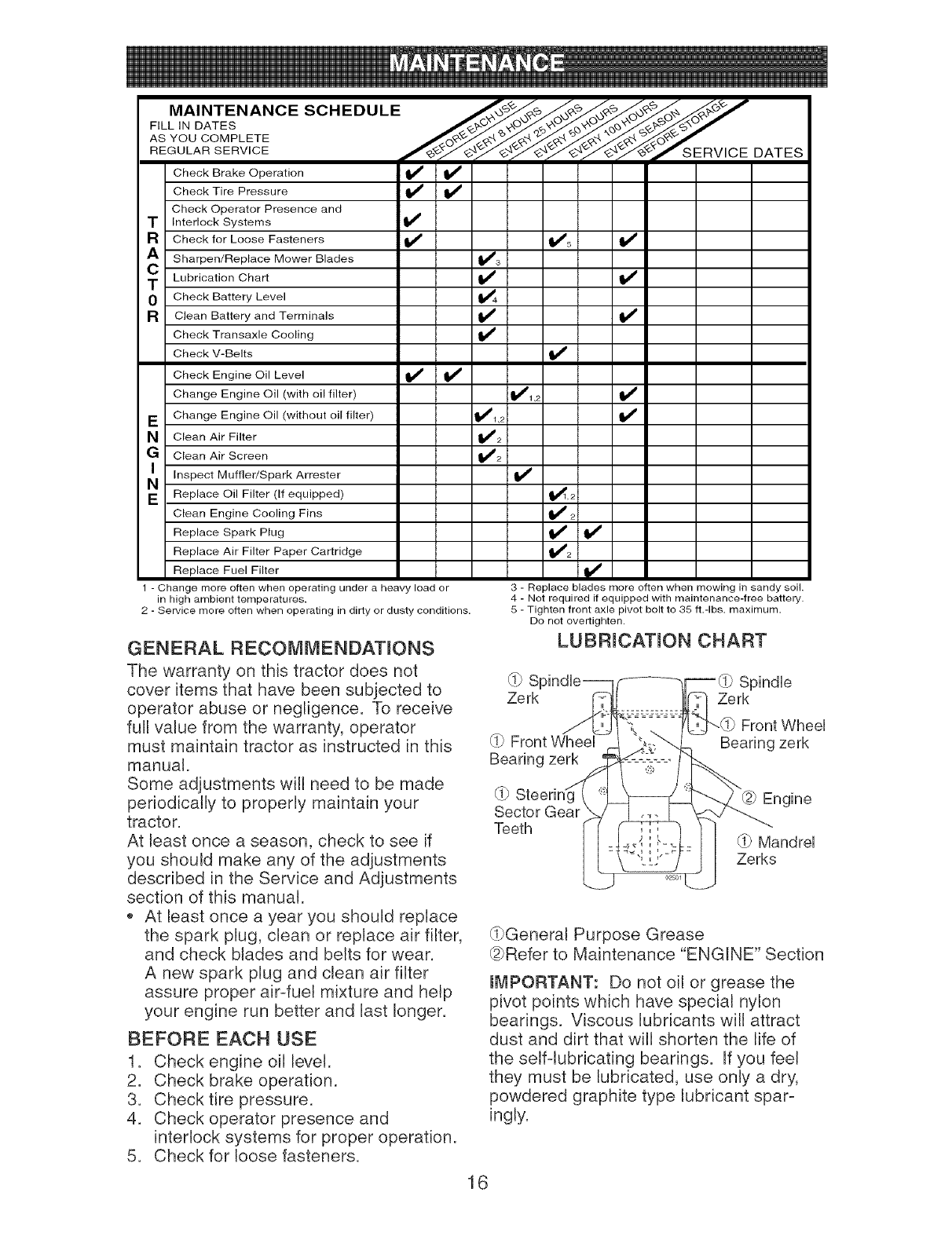

F,LL,.BATES

AS YOU CO M P LETE /__'_E D,,,," E

REGULAR SERVICE f_/£-'Ay£'_'_v SERVICE DATES

Check Operator Presence and

TInterlock Systems I_

R Check for Loose Fasteners ll_ I_s ll_

il_ Sharpen/Replace Mower Blades I_:_

C Lubrication Chart If I_

I) Check Battery Level 1_4

R Clean Battery and Terminals If ll_

Check Transaxle Cooling t,,"

Check V-Belts ll_

Check Engine Oil Level If tf

Change Engine Oil (with oil filter) 11_1,2 If

i=: Change Engine Oil (without oil filter) 1_1111,2

a clean Air Filter I_ItlIP2

1_ Clean Air Screen 1_2

i_ Inspect Muffler/Spark Arrester If

E Replace Oil Filter (If equipped) 1_,2

Clean Engine Cooling Fins If 2

Replace Spark Plug ll_ tf

Replace Air Filter Paper Cartridge 11_2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

LUBRICATION CHART

(9 S_ Spindle

Zerk Zerk

(i} Front Wheel

Bearing zerk

Front Wheel

Bearing zerk

(i} Engine

Sector Gear

Teeth (i} Mandrel

Zerks

(gGeneral Purpose Grease

@Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant spar-

ingly.

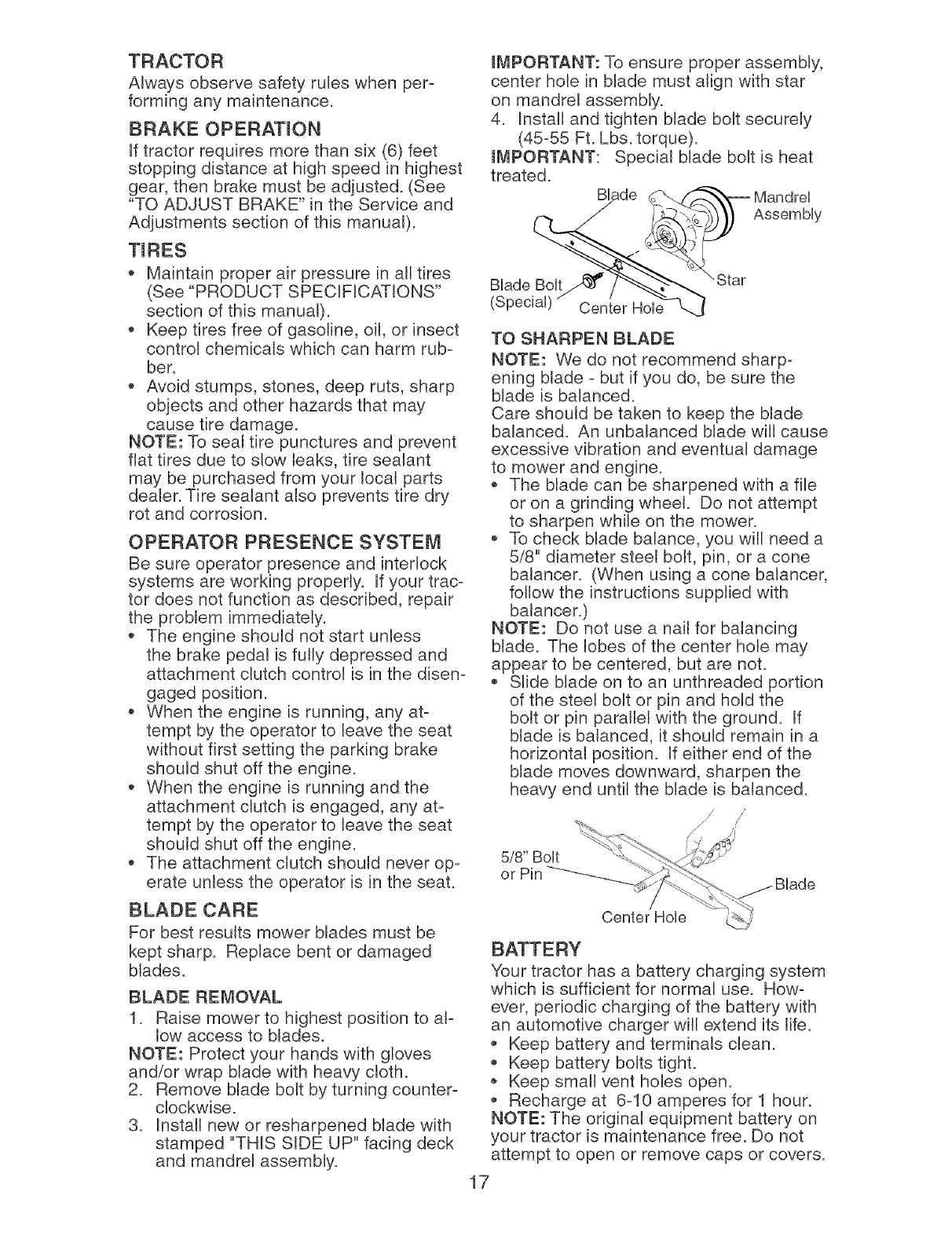

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

The engine should not start unless

the brake pedal is fully depressed and

attachment clutch control is in the disen-

gaged position.

When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SIDE UP" facing deck

and mandrel assembly.

mMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

mMPORTANT: Special blade bolt is heat

treated.

B_de

(Special) Center Hol-"_ '

_ Mandrel

Assembly

_'>#"-Star

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt

Center Hole

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

Keep battery and terminals clean.

Keep battery bolts tight.

Keep small vent holes open.

Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

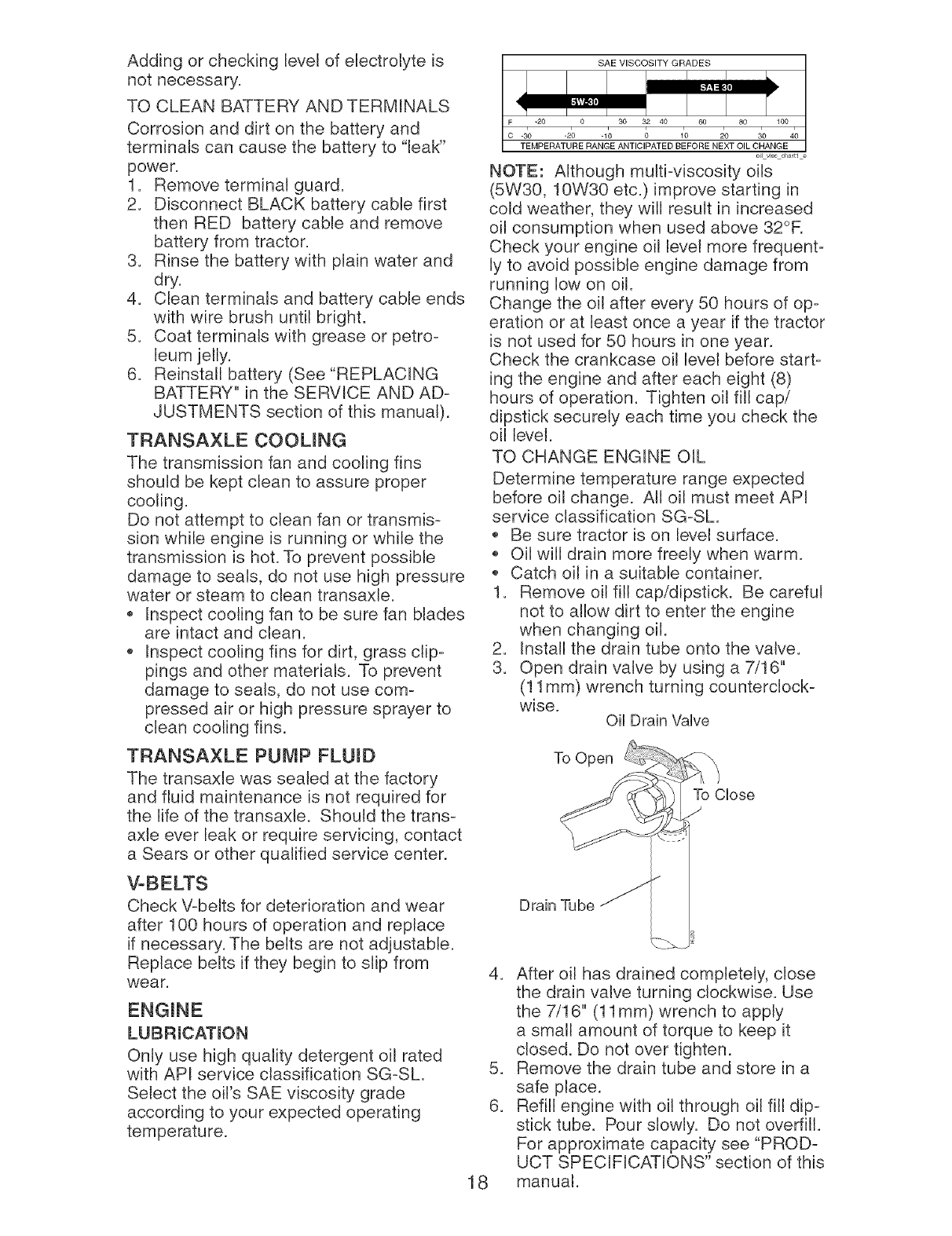

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOUNG

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxb.

Inspect cooling fan to be sure fan blades

are intact and clean.

Inspect cooling fins for dirt, grass dip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxb. Should the trans-

axle ever leak or require servicing, contact

a Sears or other qualified service center.

SAE VISCOSITY GRADES 1

F -20 0 3(3 32 40 60 80 100

c-_o -2'0 -_ _/o 20 _o 4_

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

oilvi_c @aftle

NOTE: Although muJti-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above 32°R

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL

Be sure tractor is on level surface.

* Oil will drain more freely when warm.

Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. InstaJl the drain tube onto the vaJve.

3. Open drain valve by using a 7/16"

(11 mm) wrench turning counterclock-

wise. Oil Drain Valve

To Open

To Close

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

LUBRiCATiON

Only use high quality detergent oil rated

with API service classification SG-SL

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

Drain Tube

4. After oil has drained completely, close

the drain valve turning clockwise. Use

the 7/16" (11 mm) wrench to appJy

a small amount of torque to keep it

closed. Do not over tighten.

5. Remove the drain tube and store in a

safe place.

6. Refill engine with oil through oil fill dip-

stick tube. Pour slowJy. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

1 8 manual.

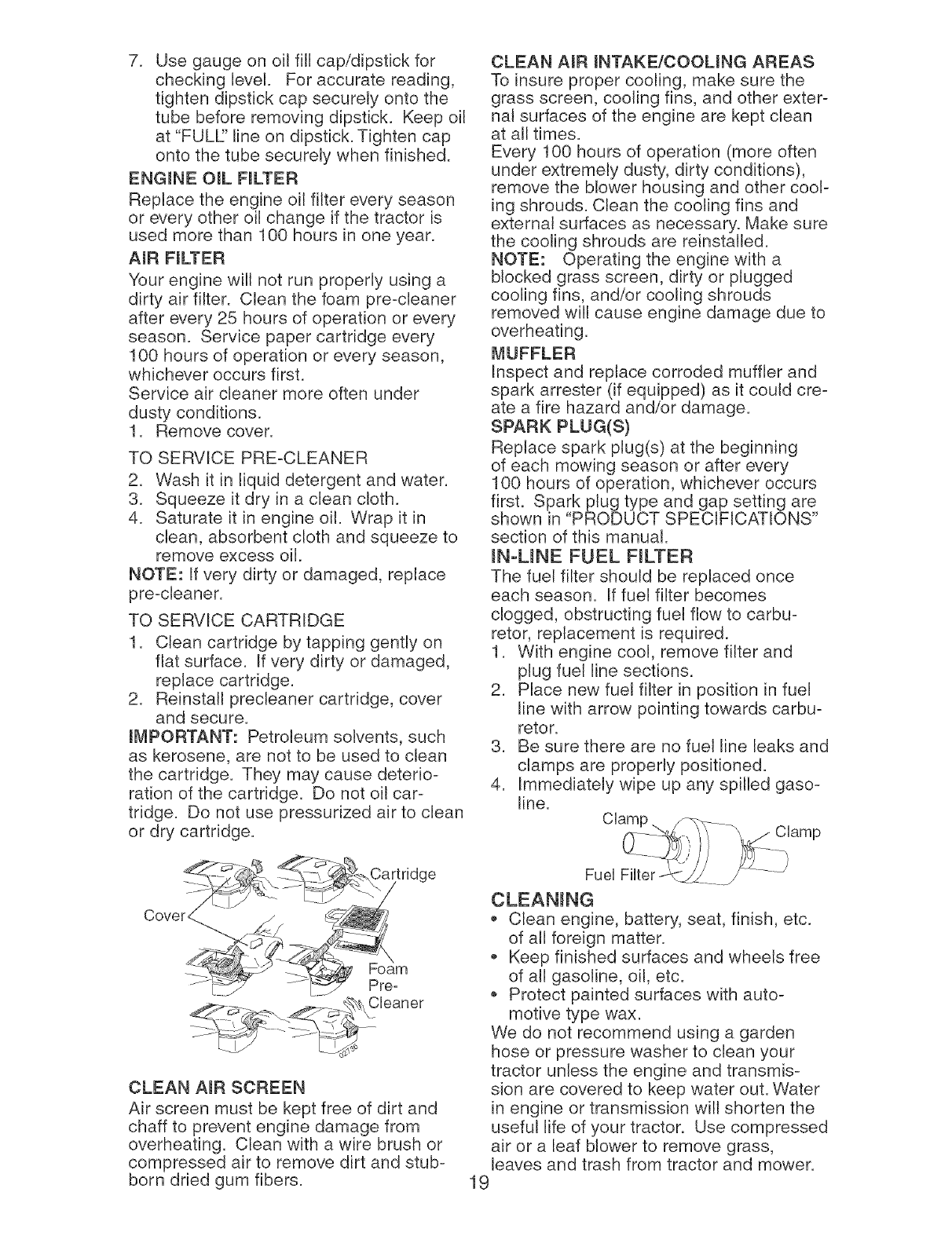

7. Use gaugeon oil fill cap/dipstickfor

checkinglevel. Foraccurate reading,

tightendipstickcap securelyontothe

tubebefore removingdipstick. Keepoil

at "FULL:'line ondipstick.Tightencap

ontothe tubesecurelywhenfinished.

ENGmNEOraLFmLTER

Replacethe engineoil filter everyseason

or everyotheroil change if the tractor is

used morethan 100hours in oneyear.

AmRFmLTER

Yourenginewill not run properlyusinga

dirty airfilter. Cleanthe foam pre-cleaner

afterevery 25 hours of operationor every

season. Service papercartridgeevery

100 hoursof operationor everyseason,

whicheveroccursfirst.

Serviceair cleanermoreoften under

dustyconditions.

1. Removecover.

TO SERVICEPRE-CLEANER

2. Washit in liquiddetergentand water.

3. Squeezeit dry in a clean cloth.

4. Saturateit in engineoil. Wrap it in

clean,absorbentclothand squeezeto

removeexcessoil.

NOTE:If very dirty or damaged,replace

pre-cleaner.

TO SERVICECARTRIDGE

1. Cleancartridge bytapping gently on

flat surface. If very dirty or damaged,

replacecartridge.

2. Reinstallprecleanercartridge,cover

and secure.

mMPORTANT:Petroleumsolvents,such

as kerosene,are notto be used to clean

the cartridge. Theymaycause deterio-

rationof the cartridge. Do notoil car-

tridge. Do not usepressurizedair to clean

or dry cartridge.

CLEAN AmRmNTAKE/COOUNGAREAS

To insurepropercooling,makesurethe

grassscreen,cooling fins, and otherexter-

nalsurfacesof the engine are keptclean

at all times.

Every100 hoursof operation(more often

underextremelydusty,dirty conditions),

removethe blowerhousingand othercool-

ingshrouds.Cleanthe coolingfins and

externalsurfacesas necessary.Makesure

the coolingshroudsare reinstalled.

NOTE: Operatingthe enginewith a

blockedgrassscreen,dirty or plugged

coolingfins, and/or coolingshrouds

removedwill cause enginedamage due to

overheating.

MUFFLER

Inspectand replacecorrodedmufflerand

sparkarrester (if equipped)as it could cre-

ate a fire hazardand/ordamage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line. Clamp Clamp

Fuel Filter _

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

Clean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

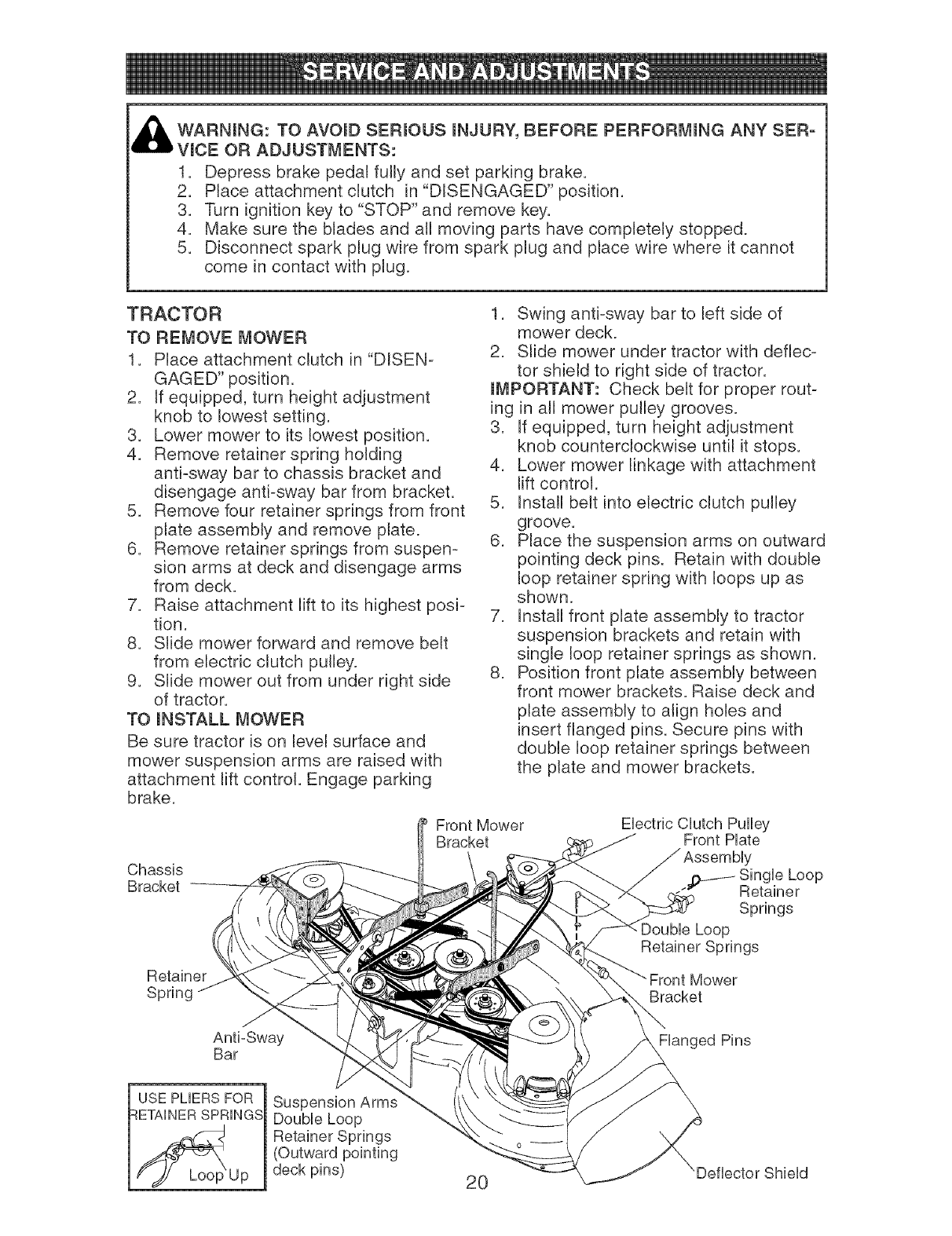

WARNmNG:TO AVOmDSERmOUSmNJURY,BEFOREPERFORMmNGANY SER-

VmCEOR ADJUSTMENTS:

1. Depressbrakepedal fullyand set parking brake.

2. Place attachmentclutch in"DISENGAGED"position.

3. Turnignitionkeyto "STOP"and removekey.

4. Makesure the bladesand all movingparts havecompletelystopped.

5. Disconnectspark plugwire from spark plugand placewire where it cannot

comein contactwith plug.

TRACTOR

TO REMOVEMOWER

1. Placeattachmentclutchin "DISEN-

GAGED"position.

2. If equipped,turn heightadjustment

knobto lowestsetting.

3. Lowermowerto its lowestposition.

4. Removeretainerspring holding

anti-swaybarto chassis bracketand

disengageanti-swaybarfrom bracket.

5. Removefour retainerspringsfrom front

plate assemblyand removeplate.

6. Removeretainerspringsfrom suspen-

sion arms at deckand disengagearms

from deck.

7. Raiseattachmentlift to its highestposi-

tion.

8. Slide mowerforwardand removebelt

from electric clutchpulley.

9. Slide mowerout from underrightside

of tractor.

TO mNSTALLMOWER

Besure tractor is on levelsurface and

mowersuspensionarmsare raisedwith

attachmentlift control.Engageparking

brake.

Chassis

Bracket

Retainer

Spring

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

mMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Install belt into electric clutch pulley

groove.

6. Place the suspension arms on outward

pointing deck pins. Retain with double

loop retainer spring with loops up as

shown.

7. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

8. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate and mower brackets.

Front Mower

Bracket Electric Clutch Pulley

Front Plate

._1:_t-- Single Loop

Retainer

Springs

Loop

Retainer Springs

Bracket

Anti-Sway

Bar Flanged Pins

USE PLIERS FOR Suspension Arms

:_ETAINERSPRING8 Double Loop

Retainer Springs

(Outward pointing

'Up deck pins) 20 Deflector Shield

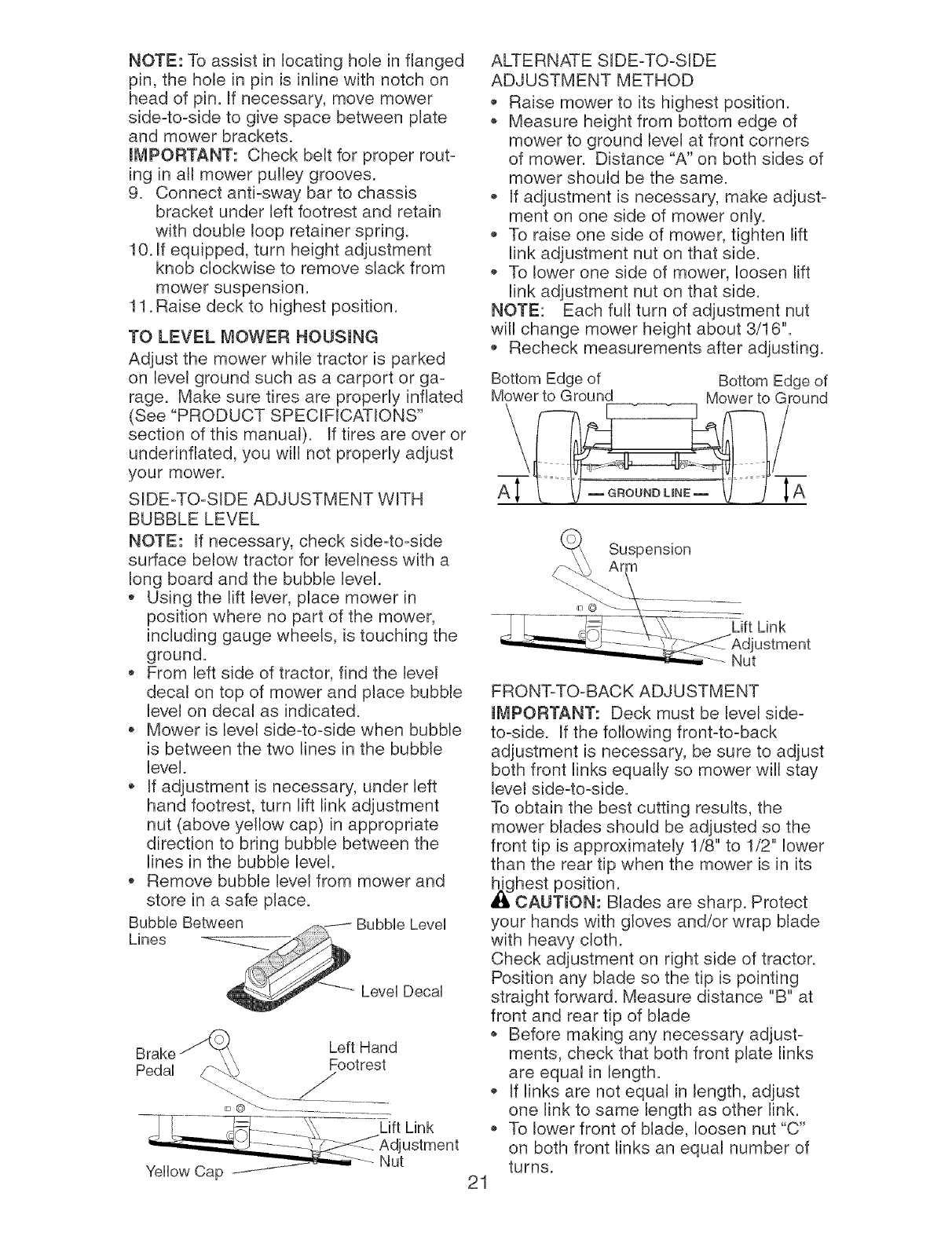

NOTE: To assist in locating hole in flanged

pin, the hole in pin is inline with notch on

head of pin. If necessary, move mower

side-to-side to give space between plate

and mower brackets.

mMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

9. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

10. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

11. Raise deck to highest position.

TO LEVEL MOWER NOUSmNG

Adjust the mower while tractor is parked

on level ground such as a carport or ga-

rage. Make sure tires are properly inflated

(See "PRODUCT SPECIFICATIONS"

section of this manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

Mower is level side-to-side when bubble

is between the two lines in the bubble

level.

If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

Remove bubble level from mower and

store in a safe place.

Bubbb Between Bubbb LeveU

Lines

LeveUDecaU

Peda]

Left Hand

Footrest

__ _

o o_ ......... J:7_-___ -Z

Lift Link

Yellow Cap Nut

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

Raise mower to its highest position.

Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides of

mower should be the same.

If adjustment is necessary, make adjust-

ment on one side of mower only.

To raise one side of mower, tighten lift

link adjustment nut on that side.

To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

Recheck measurements after adjusting.

Bottom Edge of

Mower to Ground Bottom Edge of

Mower to Ground

A- GROUND UNE m

FRONT-TO-BACK ADJUSTMENT

mMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/'8" to 1/2" lower

than the rear tip when the mower is in its

,_ghest position.

CAUTmON: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

If links are not equal in length, adjust

one link to same length as other link.

To lower front of blade, loosen nut "C"

on both front links an equal number of

turns.

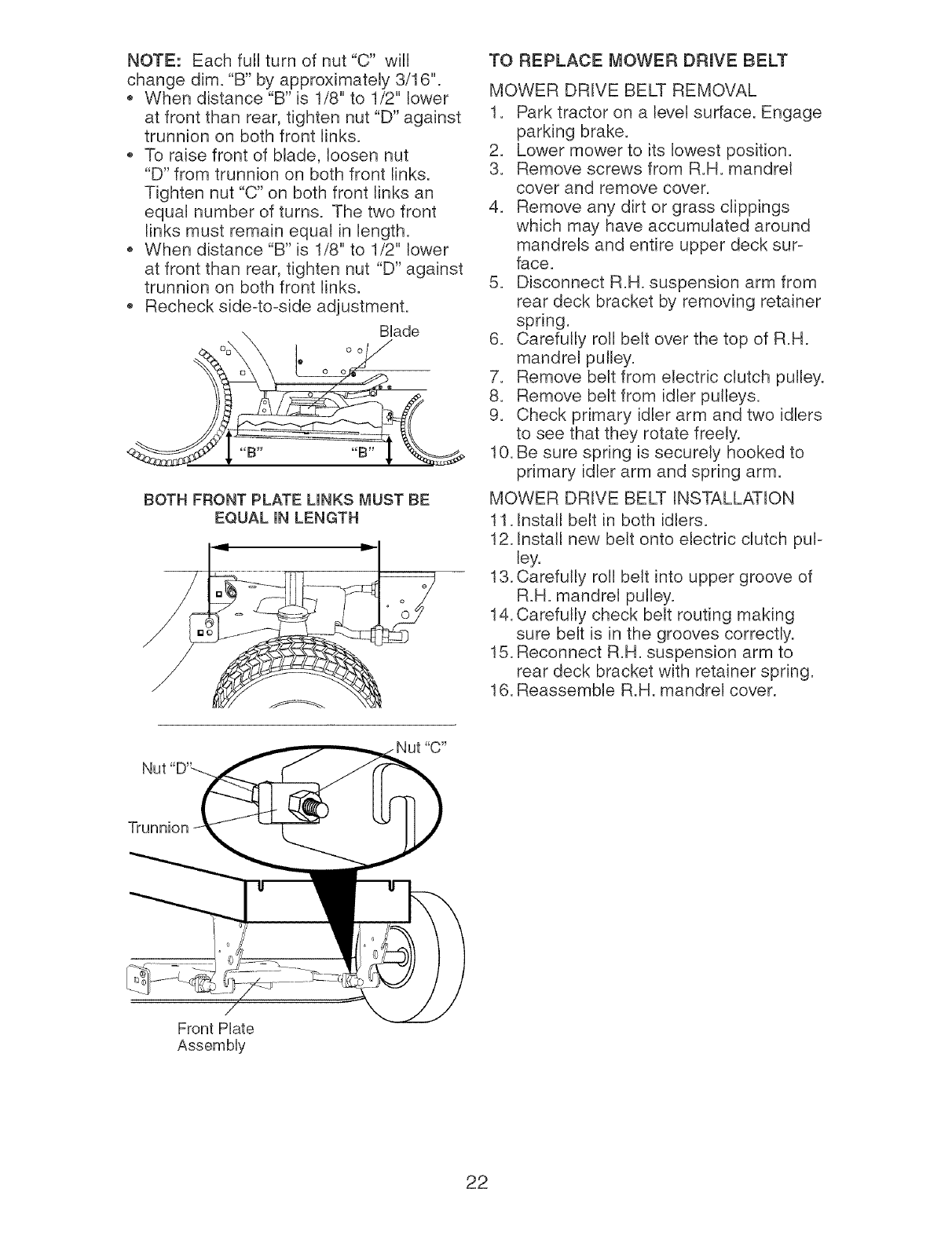

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

To raise front of blade, loosen nut

"D" from trunnion on both front links.

Tighten nut "C" on both front links an

equal number of turns. The two front

links must remain equal in length.

When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

Recheck side-to-side adjustment.

\ BUade

o o o o

o o o

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

TO REPLACE MOWER DRmVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface. Engage

parking brake.

2. Lower mower to its lowest position.

3. Remove screws from R.H. mandrel

cover and remove cover.

4. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

5. Disconnect R.H. suspension arm from

rear deck bracket by removing retainer

spring.

6. Carefully roll belt over the top of R.H.

mandrel pulley.

7. Remove belt from electric clutch pulley.

8. Remove belt from idler pulleys.

9. Check primary idler arm and two idlers

to see that they rotate freely.

10. Be sure spring is securely hooked to

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

11. Install belt in both idlers.

12. Install new belt onto electric clutch pul-

ley.

13. Carefully roll belt into upper groove of

R.H. mandrel pulley.

14. Carefully check belt routing making

sure belt is in the grooves correctly.

15. Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

16. Reassemble R.H. mandrel cover.

Nut

Trunnion

Front Plate

Assembly

R.H. MandreU

Cover

Electric

Pulley

Idler

Pulleys

Arm

m.m_

Mandrel

m.m_

Suspension Primary

Arm Idler Arm

TO REPLACE MOWER BLADE (SEC-

ONDARY) DRmVE BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

2. Remove screws from R.H. and LH.

mandrel covers and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual),

3. Carefully roll belt over the top of R.H.

mandrel pulley.

4. Remove belt from idler pulleys.

5. Check primary idler arm and two idlers

to see that they rotate freely.

6. Be sure spring is securely hooked to

primary idler arm and spring arm.

REMOVE MOWER BLADE

(SECONDARY) DRIVE BELT

7. Carefully roll belt off LH. mandrel pul-

ley.

8. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

9. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

10. Check secondary idler arm and idler

pulley to see that they rotate freely.

11. Be sure spring is hooked in secondary

idler arm and secondary spring arm.

INSTALL NEW MOWER BLADE

(SECONDARY) DRIVE BELT

12. Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and center

mandrel pulley as shown.

13. Carefully roll belt over LH. mandrel

pulley. Make sure belt is in all grooves

properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

14. Install belt into upper groove of R.H.

mandrel pulley and around both idlers.

Pull belt to front of mower to remove

slack.

15. Reinstall mandrel covers and securely

tighten all screws.

16. Carefully check belt routing making

sure belt is in all grooves correctly.

17. Reinstall mower to tractor (See "TO

INSTALL MOWER" in this section of

manual).

LH. Secondary Udbr

Udbr Arm Pulley pring Secondary

Arm

Center

Mower BUade

(Secondary)

Drive BeUt m.m.

Mandrel

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

1. Make sure attachment clutch and igni-

tion switches are in "OFF" position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012" at all three slot loca-

tions cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

Rotor- .012"

Slot (3) Brake

Plate

Nylon Locknut (3)

TO CHECK AND ADJUST BRAKE

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

Contact a Sears or other qualified service

center.

TO REPLACE I_IOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there is

a belt installation guide decal on bottom of

left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this man-

ual.)

BELT REMOVAL -

2. Create slack in belt by removing

retainer spring from drive belt tension

handle.

3. Remove belt from all idler pulleys,

transaxle pulley and then from engine

pulley.

BELT INSTALLATION -

1. Install new belt around engine pulley

first, then around transaxle pulley and

lastly into all the idler pulleys.

2. Check to be sure belt is positioned cor-

rectly and is on proper side of all belt

keepers.

3. Engage the drive belt tension handle

and replace the retainer spring.

4. Reinstall mower.

Retainer

Spring

Drive Belt

Tension

Handle

Engine Pulley Transaxle Pulley

_ Belt Keeper

Fiat Idler

Belt Belt

Keeper _ Keeper

Belt Clutching

V°ldler Keeper Clutching Fiat Idler

Idler

TRANSAXLE MOTmON CONTROL LE-

VER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Park Tractor on level surface. Stop

tractor by turning ignition key to "OFF"

position and engage parking brake.

2. Loosen the adjustment bolt in front of

the right rear wheel.

3. Move motion control lever to the neu-

tral position.

4. Tighten the adjustment bolt.

Adjustment Bolt

TRANSMmSSmON REMOVAL/

REPLACEMENT

Should your transmission require removal

for service or replacement, it should be

purged after reinstallation and before op-

erating the tractor. See "PURGE TRANS-

MISSION" in the Operation section of this

manual.

TO ADJUST STEERmNG WHEEL AUGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE4N/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAmRS

FRONT WHEEL -

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL -

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair tire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Ring

Axle

Cover

TO START ENGmNE WroTH A WEAK BAT-

TERY

_WARNmNG: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

mMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

25 against tractor chassis.

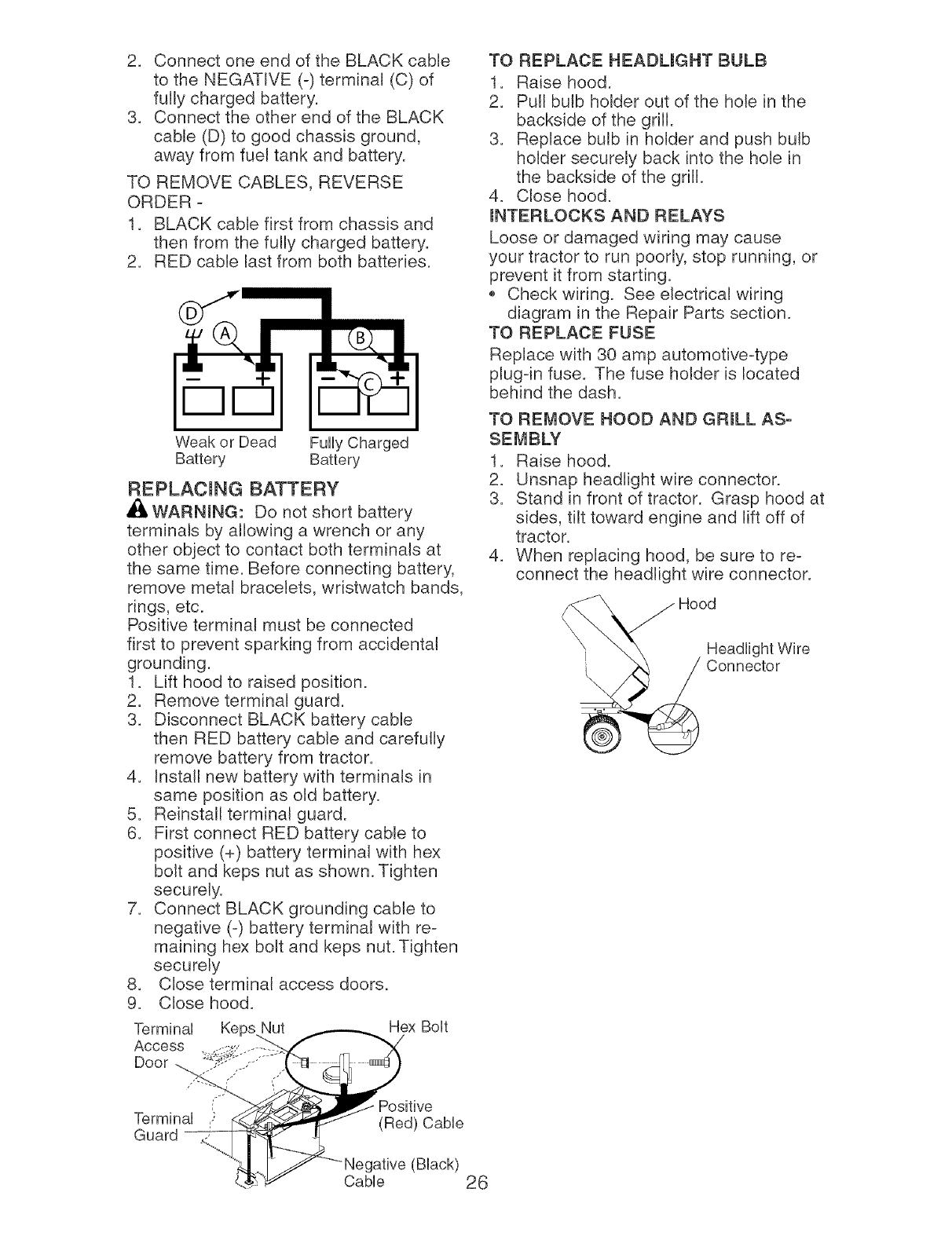

2. Connectone end of the BLACKcable

to the NEGATIVE(-) terminal (C)of

fully chargedbattery.

3. Connectthe otherend of the BLACK

cable (D) to goodchassisground,

awayfromfuel tank and battery.

TO REMOVECABLES,REVERSE

ORDER-

1. BLACKcablefirstfrom chassis and

then from the fullycharged battery.

2. RED cablelast from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACmNG BATTERY

AI_WARNmNG: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Terminal Ke

Access

Door ._,._, ,..

Terminal

Guard

Nut Hex BoUt

Positive

(Red) CaMe

TO REPLACE HEADUGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

mNTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

,, Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRmLL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Headlight Wire

Connector

,gative (Black)

Cable 26

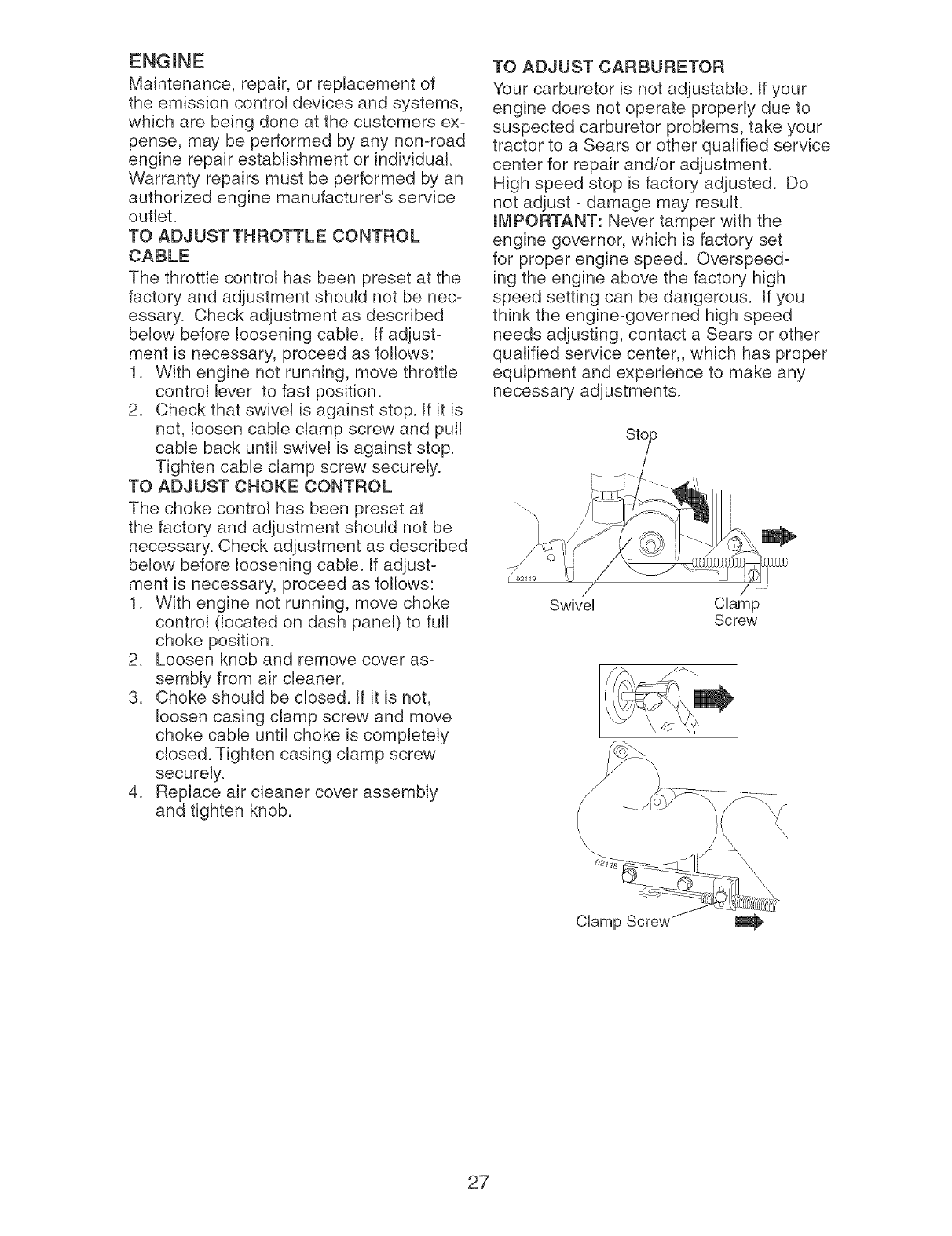

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it is

not, loosen cable clamp screw and pull

cable back until swivel is against stop.

Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at

the factory and adjustment should not be

necessary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover as-

sembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to a Sears or other qualified service

center for repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

mMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center,, which has proper

equipment and experience to make any

necessary adjustments.

Sto

SwiveU CUamp

Screw

CUamp Screw

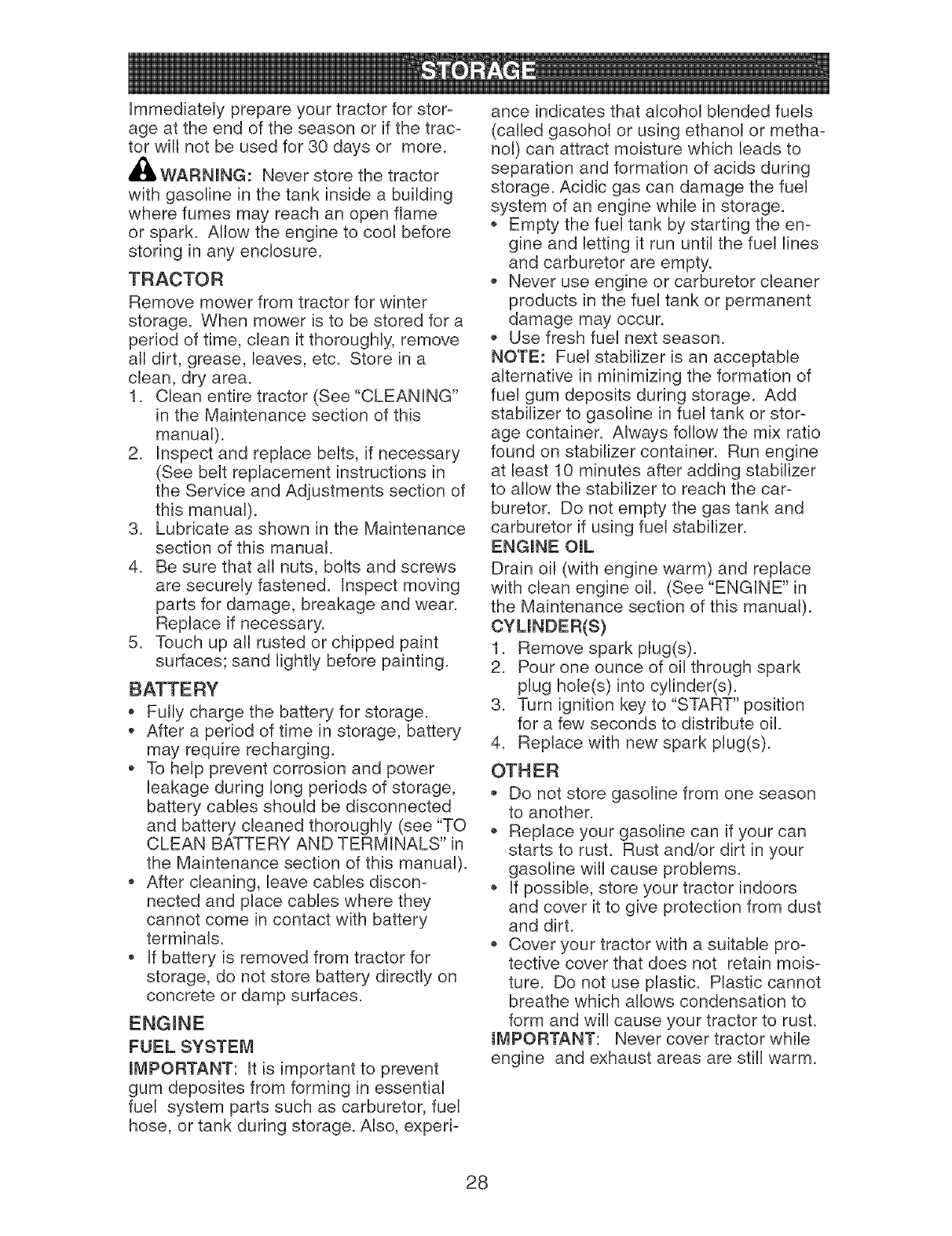

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

WARNmNG: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

aU dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

Fully charge the battery for storage.

After a period of time in storage, battery

may require recharging.

To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

FUEL SYSTEM

I_PORTANT: It is important to prevent

gum deposkes from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, exper)-

ance indicates that alcohol blended fuels

(called gasohol or using ethanol or metha-

nol) can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENG(NE O(L

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

,, Do not store gasoline from one season

to another.

,, Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

(IVIPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

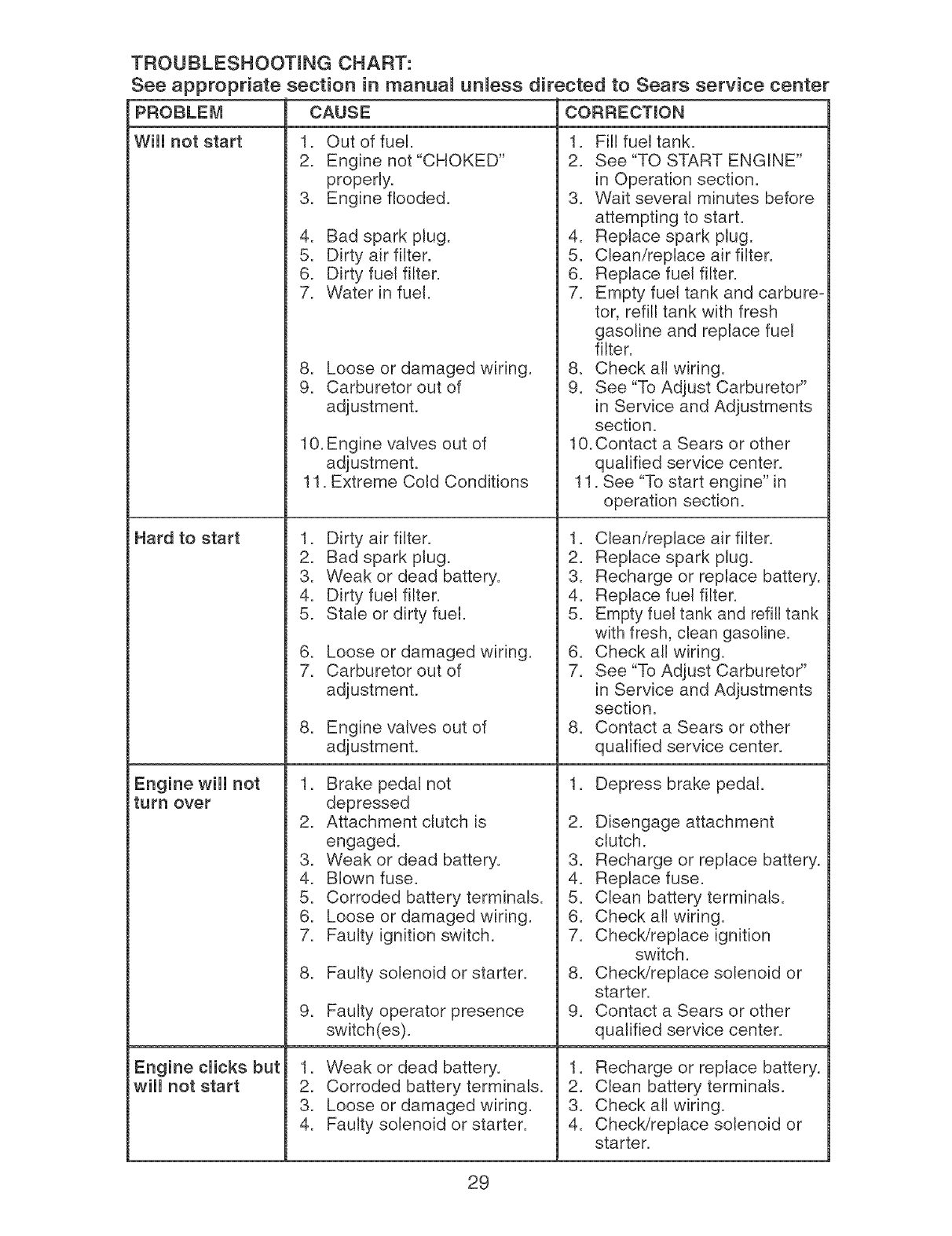

TROUBLESHOOTmNG CHART:

See appropriate section in rnanuam unmess directed to Sears service center

PROBLEM CAUSE CORRECTmON

Wiii not start

Hard to start

Engine wiii not

turn over

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

Engine clicks but

wiii not start

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of

adjustment.

10. Engine valves out of

adjustment.

11. Extreme Cold Conditions

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of

adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

11. See "To start engine" in

operation section.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. ChecWreplace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

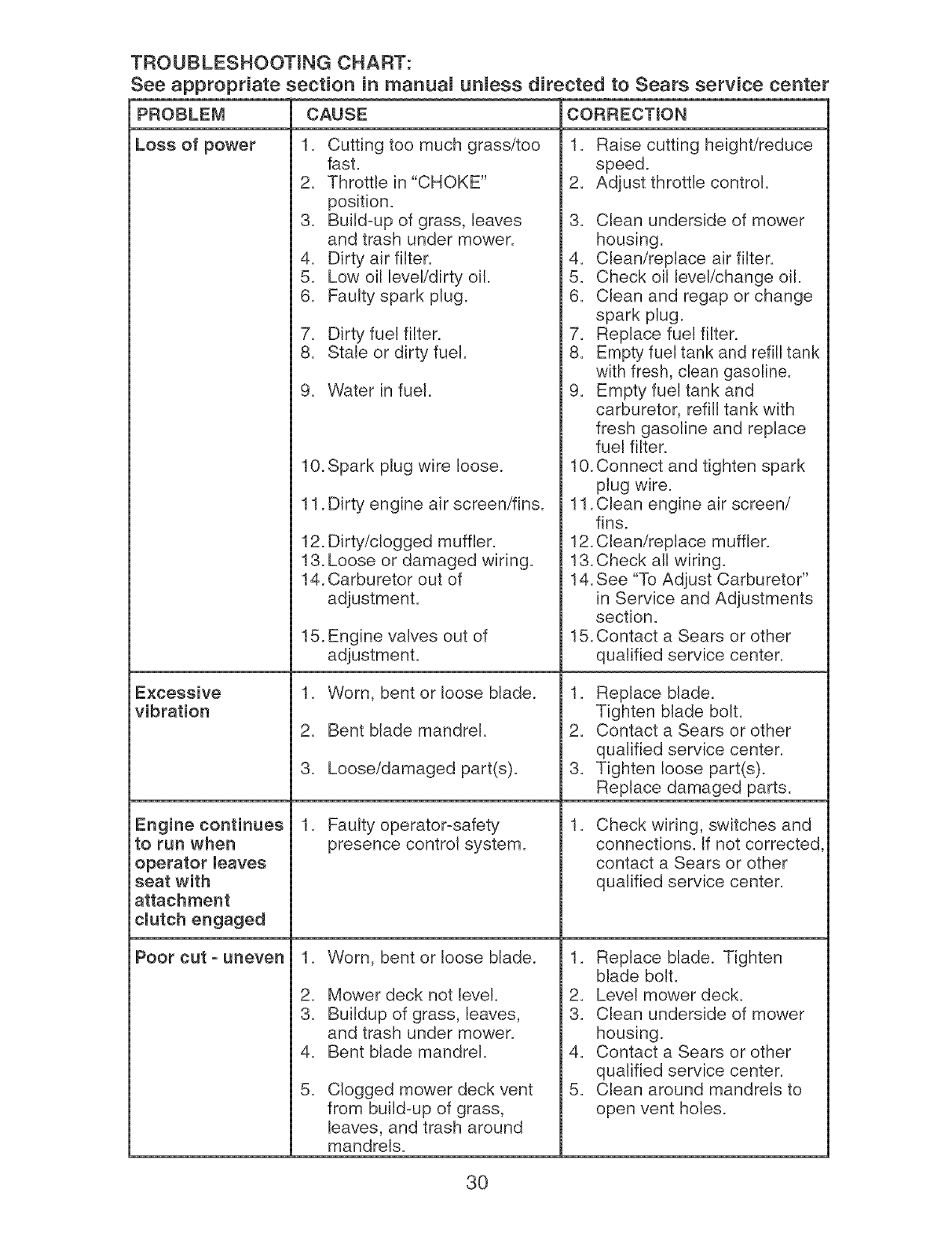

TROUBLESHOOTmNG CHART:

See appropriate section in manuam unmess directed to Sears service center

PROBLEM CAUSE CORRECTmON

Loss of power 1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

3. Build=up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poorsut-uneven

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/

fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

adjustment, qualified service center.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

Faulty operator=safety

presence control system.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

1. Worn, bent or loose blade. .

Check wiring, switches and

connections. If not corrected,

contact a Sears or other

qualified service center.

Replace blade. Tighten

blade bolt.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

.Clogged mower deck vent

from build=up of grass,

leaves, and trash around

mandrels.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

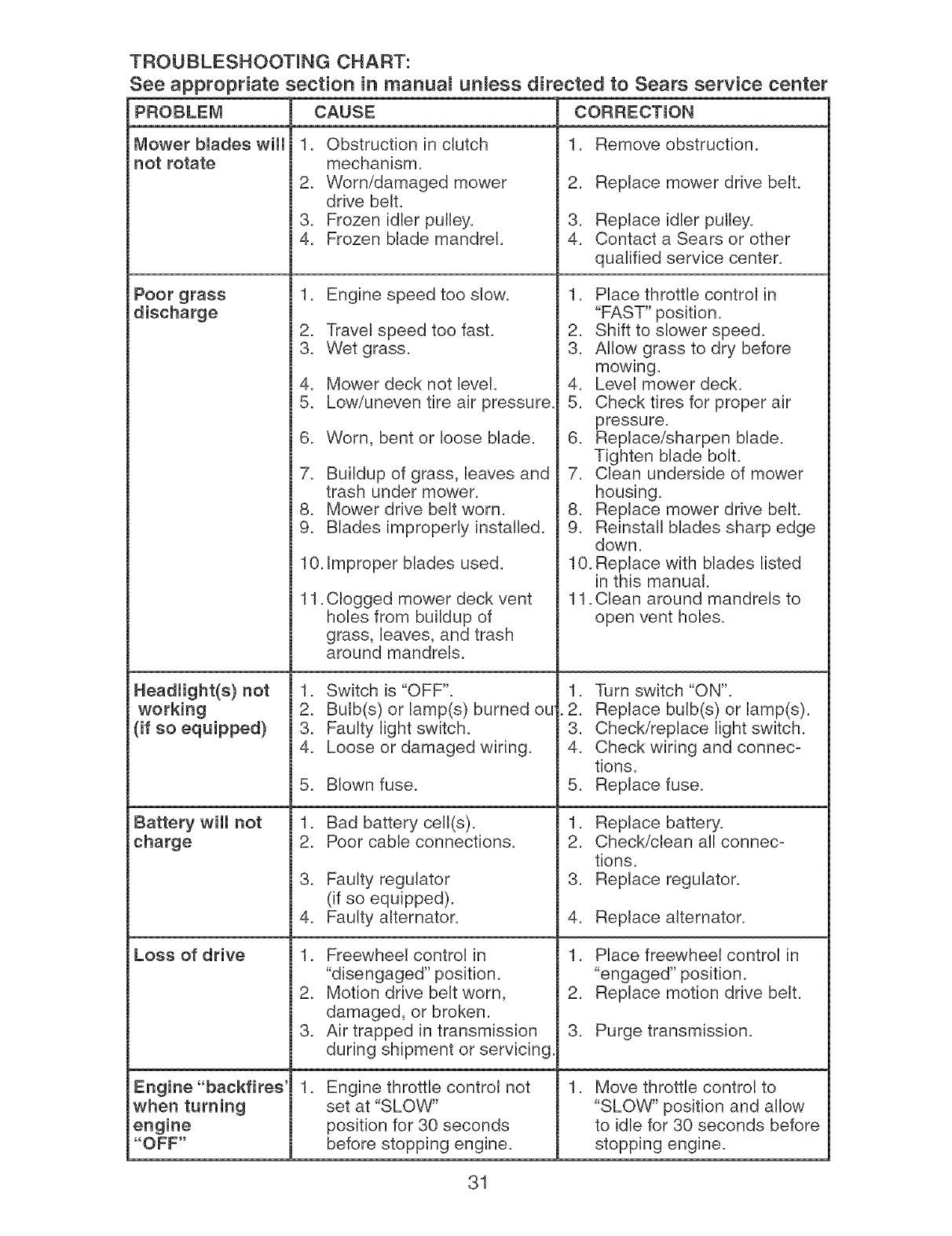

TROUBLESHOOTING CHART:

See appropriate section in manuam unmess directed to Sears service center

PROBLEM CAUSE

Mower blades wiii

not rotate

Headlight(s) not

working

(if so equipped)

Battery wiii not

charge

Loss of drive

Engine "backfires'

when turning

engine

"OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned ou

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

.Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

CORRECTmON

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

•2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean atl connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

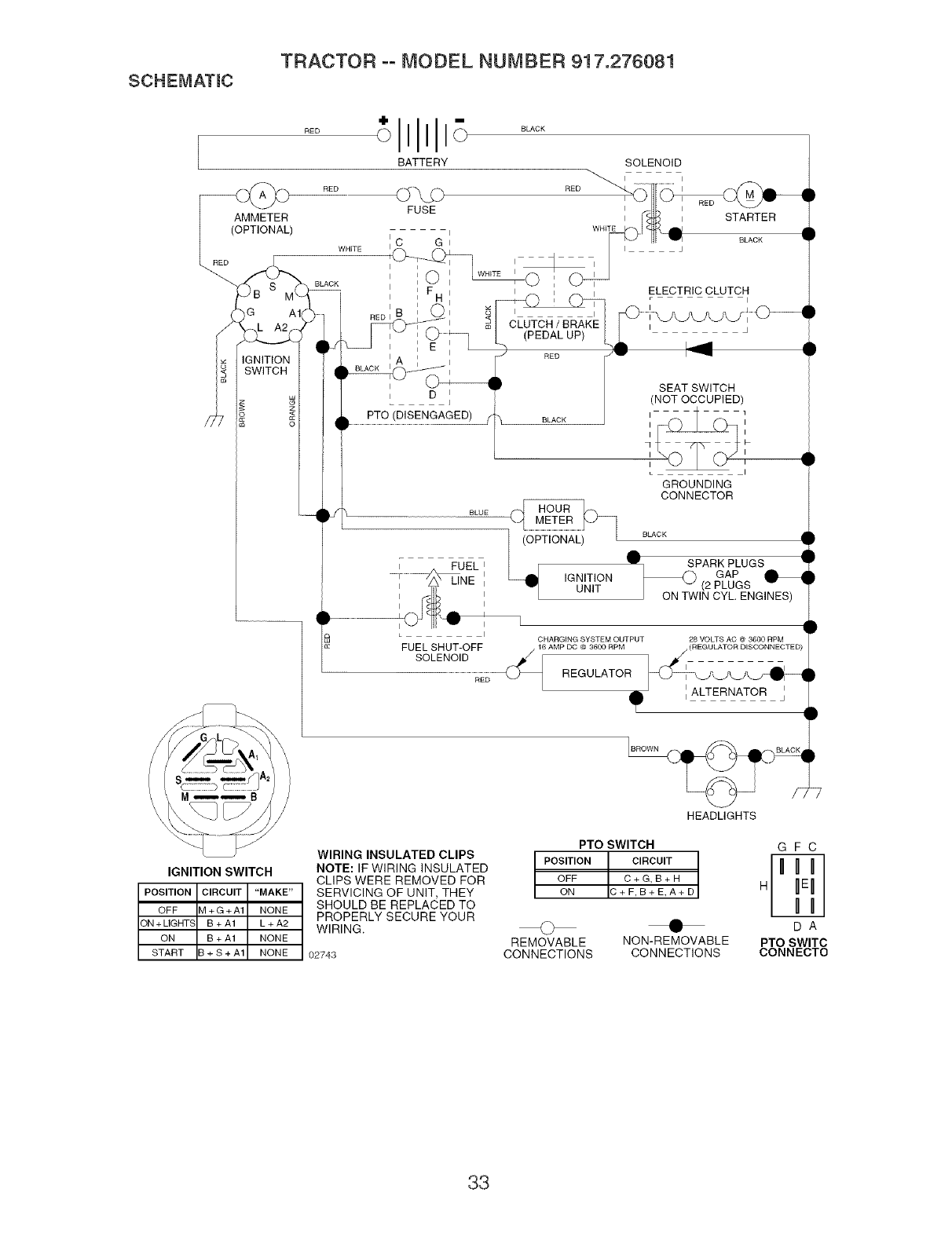

SCHEMATmC TRACTOR ooMODEL NUMBER 917.276081

RED

AMMETER

(OPTIONAL)

RED

BATTERY

RED _

FUSE

WHITE

BLACK

RED

SOLENOID

I J

STARTER

BLACK

F H

PTO (DISENGAGED)

IELECTRIC CLUTCH

I I

CLUTCH /BRAKE I •

(PEDAL UP)

RED

BLUE

SEAT SWITCH

(NOT OCCUPIED)

I I

• I

GROUNDING

CONNECTOR

_N BLACK

FUEL i w _PARK PLUGS

i _ GAP

i NE i "_ (2 PLUGS _

,' _, J ON TWIN CYL. ENGINES)

FUEL SHUT-OFF m AMP DO @ 3600 RPM

SOLENOID _€/I

................................. REGULATOR

CHARGING SYSTEM OUTPUT 28 VOLTS AC @ 3600 RPM

/(REGULATOR DISCONNECTED

ALTERNATOR j

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

DN +LIGHTS B + A1 L + A2

ON B + A1 NONE

START 3+S+A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

02743

HEADLIGHTS

PTO SWITCH

POSITION .[ CIRCUIT

OFF | C+G,B+H

ON TC +_"E-, A--+U

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS

GFC

PTO SWITC

CONNECT©

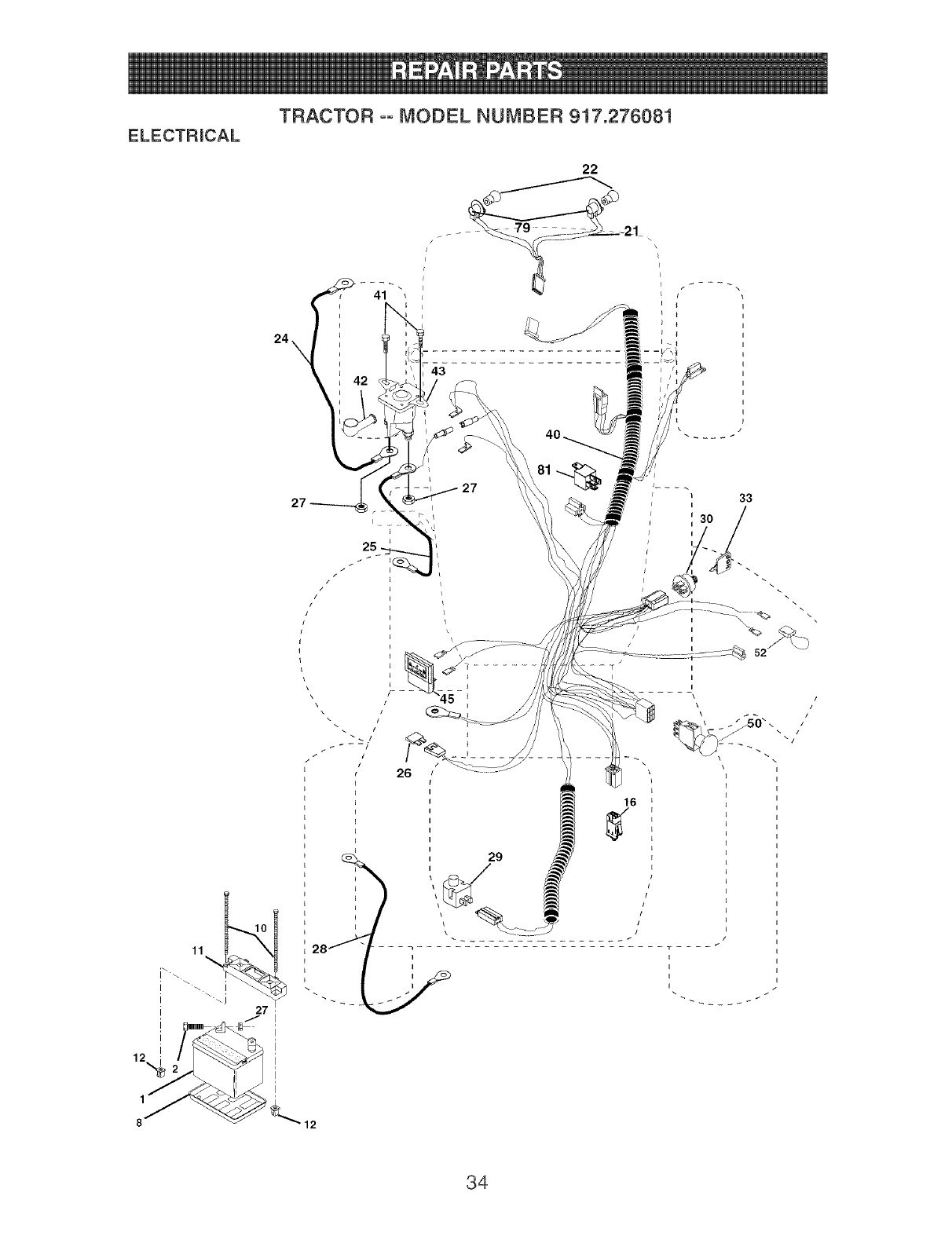

TRACTOR °° MODEL NUMBER 917.276081

ELECTRmCAL

i\\ 11 I_

I \I

i27,

i r

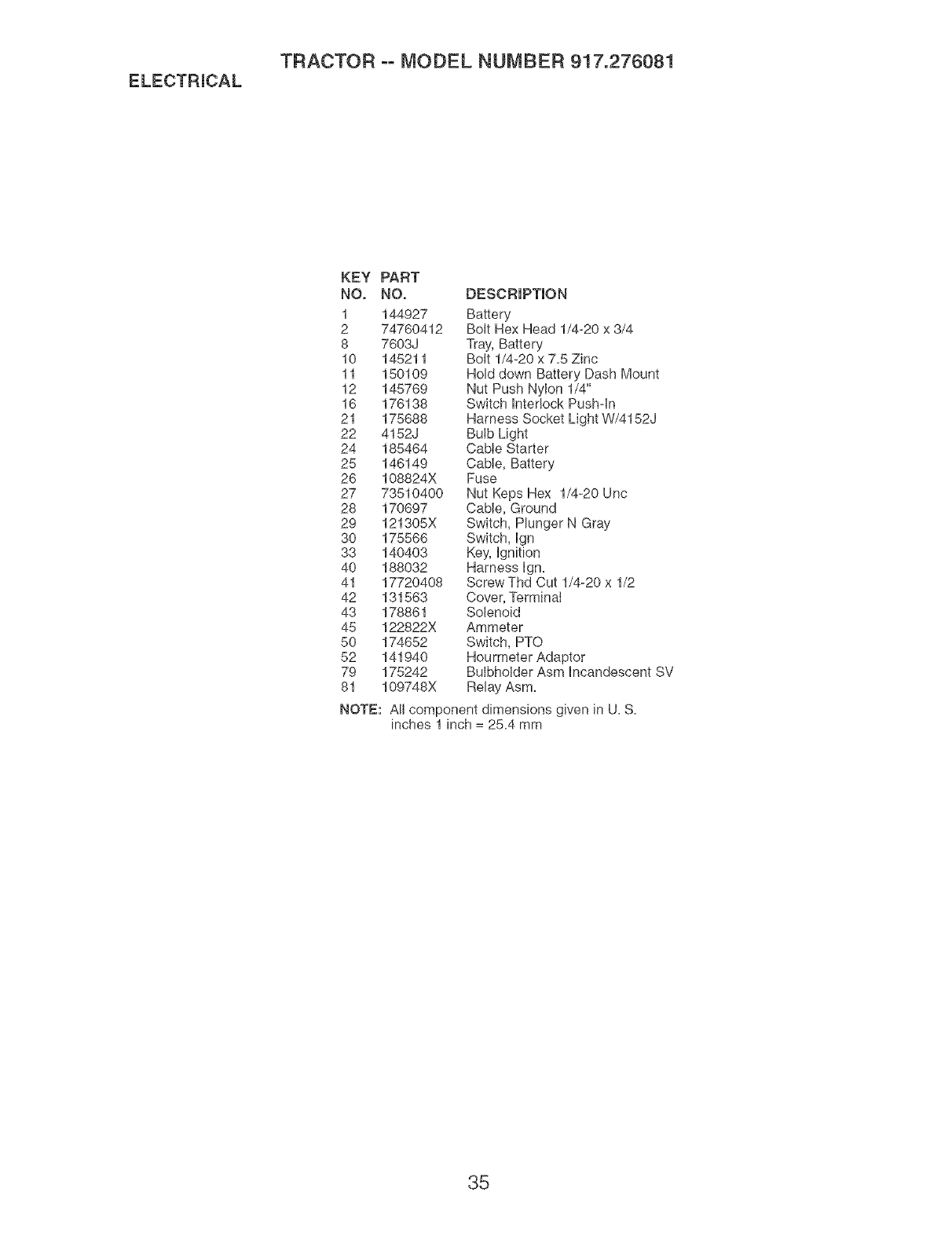

ELECTRmCAL

TRACTOR oo MODEL NUMBER 917.276081

KEY PART

NO. NO. DESCRmPTmON

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 176138 Switch Inter!ock Pushqn

21 175688 Harness Socket Light W/4152J

22 4152J Bulb Light

24 185464 Cable Starter

25 146149 Cable, Battery

26 108824X Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 170697 Cable, Ground

29 121305X Switch, Plunger N Gray

30 175566 Switch, Ign

33 140403 Key, Ignition

40 188032 Harness Ign.

41 17720408 Screw Thd Cut 1/4-20 x 1/2

42 131563 Cover, TerminaI

43 178861 Solenoid

45 122822X Ammeter

50 174652 Switch, PTO

52 141940 Hourmeter Adaptor

79 175242 BuIbholder Asm Incandescent SV

81 109748X Relay Asm.

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

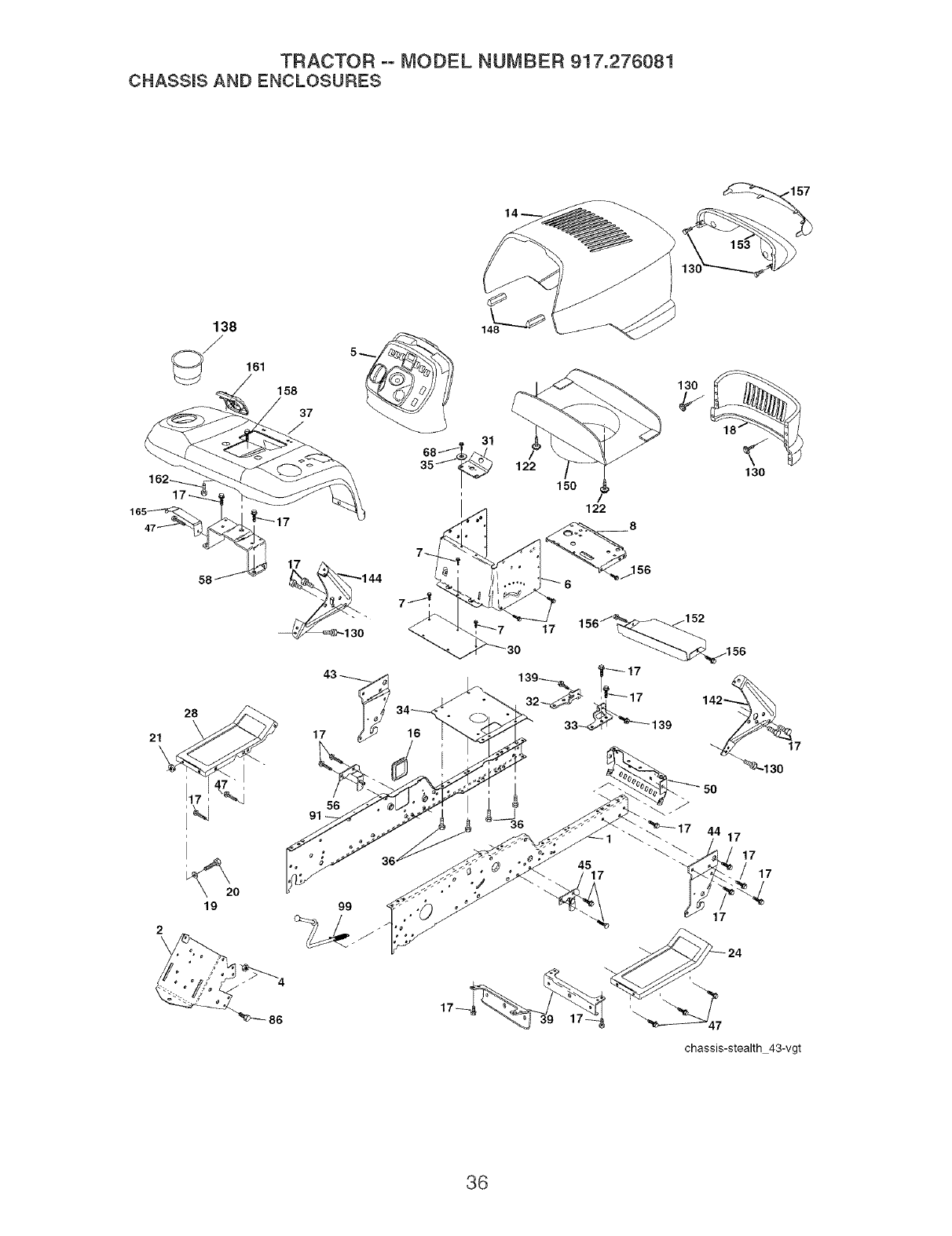

TRACTOR °° MODEL NUMBER 917.276081

CHASSmS AND ENCLOSURES

138

161

158

122

150

122

153

130

_20

chassis-stealth 43-vgt

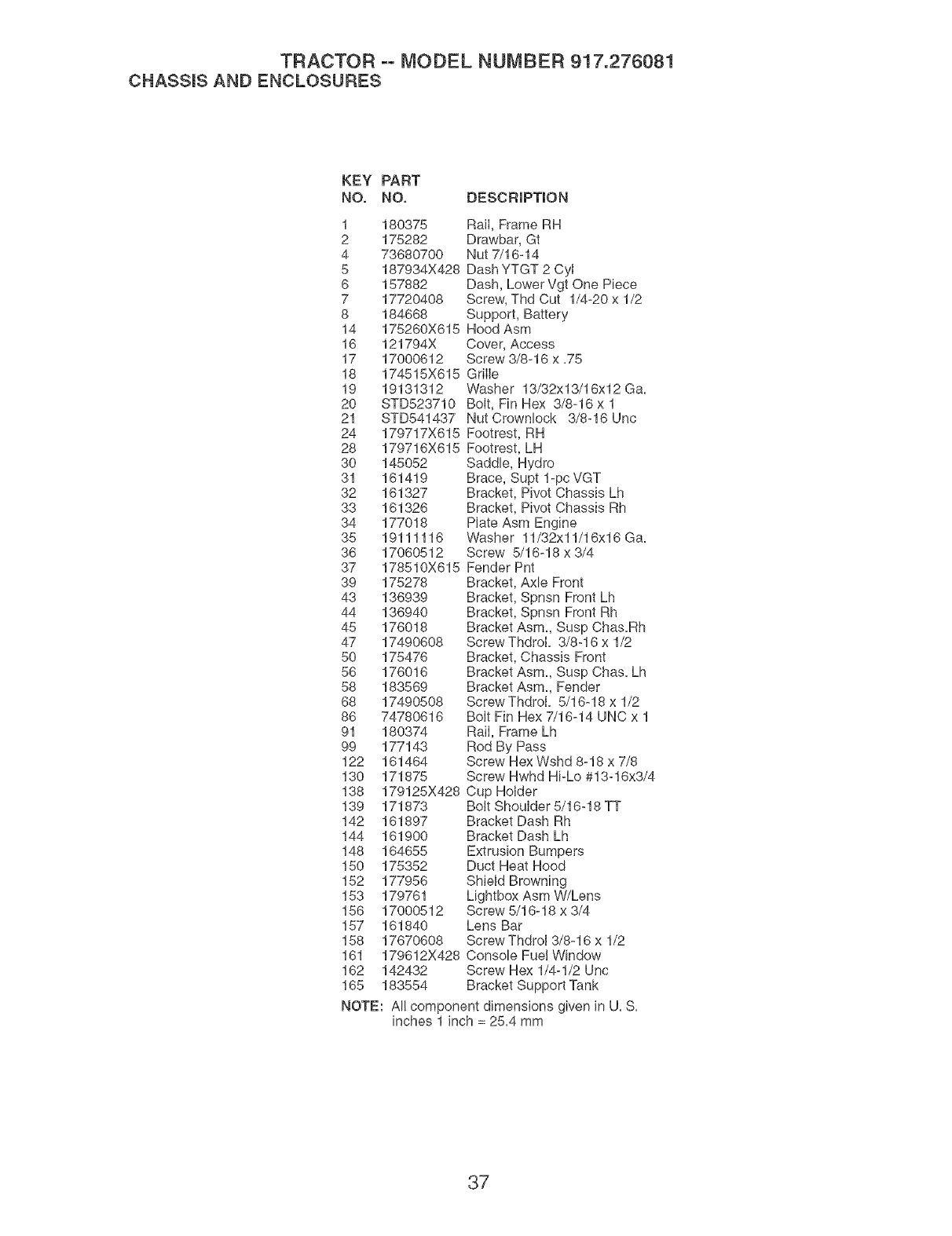

TRACTOR oo MODEL NUMBER 917.276081

CHASSmS AND ENCLOSURES

KEY PART

NO. NO. DESCRiPTiON

1 180375 Rail, Frame RH

2 175282 Drawbar, Gt

4 73680700 Nut 7/16-14

5 187934X428 Dash YTGT 2 Cyi

6 157882 Dash, Lower Vgt One Piece

7 17720408 Screw, Thd Cut 1/4-20 x 1/2

8 184668 Support, Battery

14 175260X615 Hood Asm

16 121794X Cover, Access

17 17000612 Screw 3/8-16 x .75

18 174515X615 Grille

19 19131312 Washer 13/32x13/16x12 Ga.

20 STD523710 Bolt, Fin Hex 3/8-16 x 1

21 STD541437 Nut Crownlock 3/8-16 Unc

24 179717X615 Footrest, RH

28 179716X615 Footrest, LH

30 145052 Saddle, Hydro

31 161419 Brace, Supt 1-pc VGT

32 161327 Bracket, Pivot Chassis Lh

33 161326 Bracket, Pivot Chassis Rh

34 177018 Plate Asm Engine

35 19111116 Washer 11/32xll/16x16 Ga.

36 17060512 Screw 5/16-18 x 3/4

37 178510X615 Fender Pnt

39 175278 Bracket, Axle Front

43 136939 Bracket, Spnsn Front Lh

44 136940 Bracket, Spnsn Front Rh

45 176018 Bracket Asm., Susp Chas.Rh

47 17490608 Screw ThdroL 3/8-16 x 1/2

50 175476 Bracket, Chassis Front

56 176016 Bracket Asm., Susp Chas. Lh

58 183569 Bracket Asm., Fender

68 17490508 ScrewThdroL 5/16-18 x 1/2

86 74780616 Bolt Fin Hex 7/16-14 UNC x 1

91 180374 Rail, Frame Lh

99 177143 Rod By Pass

122 161464 Screw Hex Wshd 8-18 x 7/8

130 171875 Screw Hwhd Hi-Lo #13-16x3/4

138 179125X428 Cup Holder

139 171873 Bolt Shoulder 5/16-18 TT

142 161897 Bracket Dash Rh

144 161900 Bracket Dash Lh

148 164655 Extrusion Bumpers

150 175352 Duct Heat Hood

152 177956 Shield Browning

153 179761 Lightbox Asm W/Lens

156 17000512 Screw5/16-18 x 3/4

157 161840 Lens Bar

158 17670608 ScrewThdrol 3/8-16 x 1/2

161 179612X428 Console Fue! Window

162 142432 Screw Hex 1/4-1/2 Uric

165 183554 Bracket Support Tank

NOTE: Al! component dimensions given in U. S.

inches 1 inch = 25.4 mm

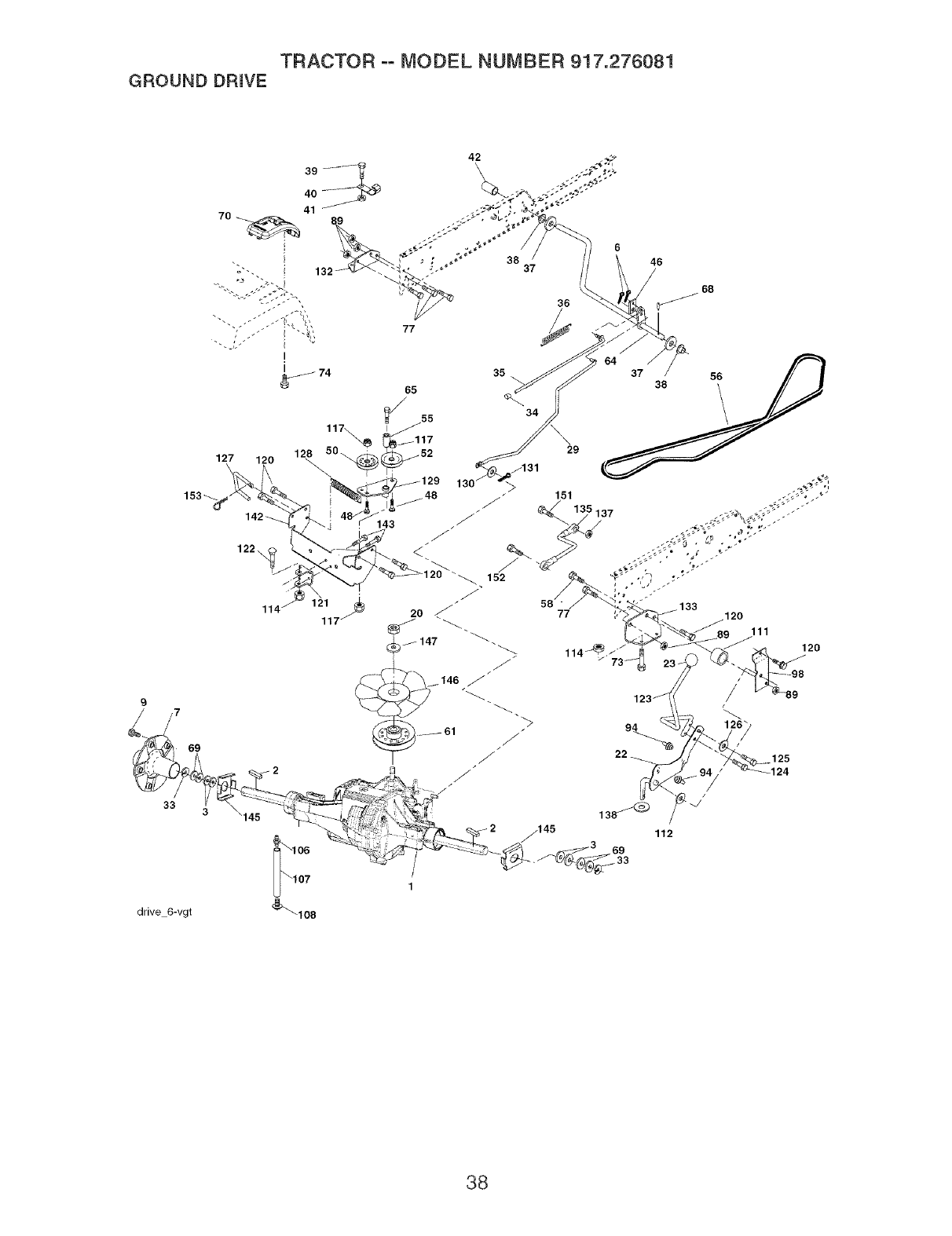

TRACTOR °° MODEL NUMBER 917.276081

GROUNDDRIVE

127

153_

drive 6-vgt

120

122

117\

128 50_

143

38 37

/145

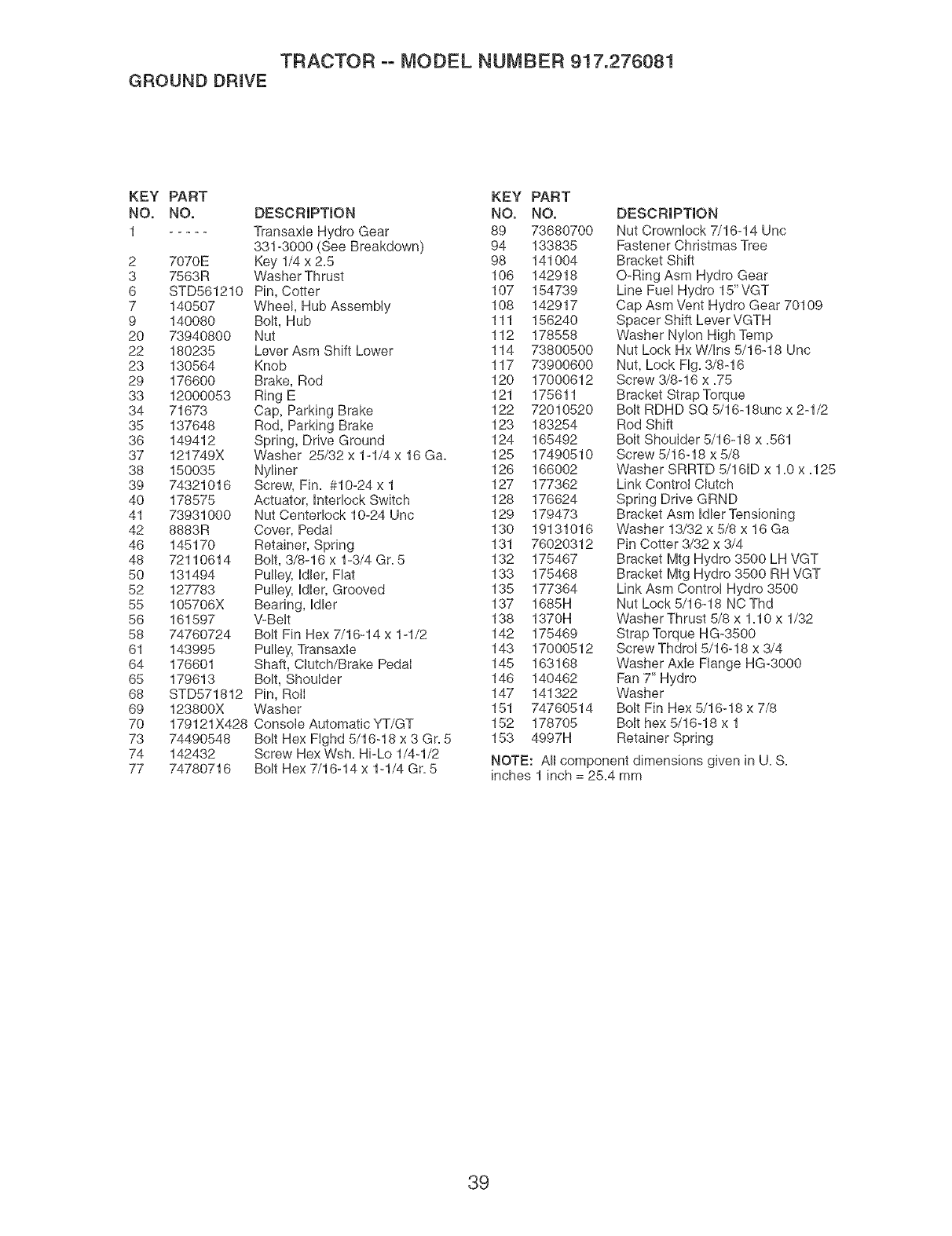

TRACTOR °° MODEL NUMBER 917.276081

GROUND DRmVE

KEY PART KEY PART

NO, NO, DESCRIPTION NO, NO,

1 Transaxle Hydro Gear 89 73680700

331-3000 (See Breakdown) 94 133835

2 7070E Key 1/4 x 2+5 98 141004

3 7563R Washer Thrust 106 142918

6 STD561210 Pin, Cotter 107 154739

7 140507 Wheel, Hub Assembly 108 142917

9 140080 Bolt, Hub 111 156240

20 73940800 Nut 112 178558

22 180235 Lever Asm Shift Lower 114 73800500

23 130564 Knob 117 73900600

29 176600 Brake, Rod 120 17000612

33 12000053 Ring E 121 175611

34 71673 Cap, Parking Brake 122 72010520

35 137648 Rod, Parking Brake 123 183254

36 149412 Spring, Drive Ground 124 165492

37 121749X Washer 25/32 x 1-1/4 x 16 Ga+ 125 17490510

38 150035 Nyliner 126 166002

39 74321016 Screw, Fin+ #10-24 x 1 127 177362

40 178575 Actuator, hterlock Switch 128 176624

41 73931000 Nut Centerlock 10-24 Unc 129 179473

42 8883R Cover, Pedai 130 19131016

46 145170 Retainer, Spring 131 76020312

48 72110614 Bolt, 3/8-16 x 1-3/4 Gr+5 132 175467

50 131494 Pulley, Hdler,Flat 133 175468

52 127783 Pulley, Hdler,Grooved 135 177364

55 105706X Bearing, Hdler 137 1685H

56 161597 V-Belt 138 1370H

58 74760724 Bolt Fin Hex 7/16-14 x 1-1/2 142 175469

61 143995 Pulley, Transaxle 143 17000512

64 176601 Shaft, Clutch/Brake PedaI 145 163168

65 179613 Bolt, Shouider 146 140462

68 STD571812 Pin, RolI 147 141322

69 123800X Washer 151 74760514

70 179121X428 Console Automatic YT/GT 152 178705

73 74490548 Bolt Hex Flghd 5/16-18 x 3 G r+5 153 4997H

74 142432 Screw Hex Wsh+ Hi-Lo 1/4-1/2 NOTE:

77 74780716 Bolt Hex 7/16-14 x 1-1/4 Gr+5 inches

DESCRIPTION

Nut Crownlock 7/16-14 Unc

Fastener Christmas Tree

Bracket Shift

O-Ring Asm Hydro Gear

Line Fuel Hydro 15"VGT

Cap Asm Vent Hydro Gear 70109

Spacer Shift Lever VGTH

Washer Nylon High Temp

Nut Lock Hx W/hs 5/16-18 Unc

Nut, Lock Fig+3/8-16

Screw 3/8-16 x .75

Bracket Strap Torque

Bolt RDHD SQ 5/16-18unc x 2-1/2

Rod Shift

Boit ShouIder 5/16-18 x +561

Screw 5/16-18 x 5/8

Washer SRRTD 5/16HD x 1+0x +125

Link Control Clutch

Spring Drive GRND

Bracket Asm Idler Tensioning

Washer 13/32 x 5/8 x 16 Ga

Pin Cotter 3/32 x 3/4

Bracket Mtg Hydro 3500 LH VGT

Bracket Mtg Hydro 3500 RH VGT

Link Asm Control Hydro 3500

Nut Lock 5/16-18 NC Thd

Washer Thrust 5/8 x 1+10 x 1/32

Strap Torque HG-3500

Screw Thdrol 5/16-18 x 3/4

Washer Axle Flange HG-3000

Fan 7" Hydro

Washer

Bolt Fin Hex 5/16-18 x 7/8

Bolt hex 5/16-18 x 1

Retainer Spring

All component dimensions given in U+S+

1 inch = 25+4 mm

STEERmNG

TRACTOR °° MODEL NUMBER 917.276081

/16

,,.31

\29

13 13 /Ii I I

II I II

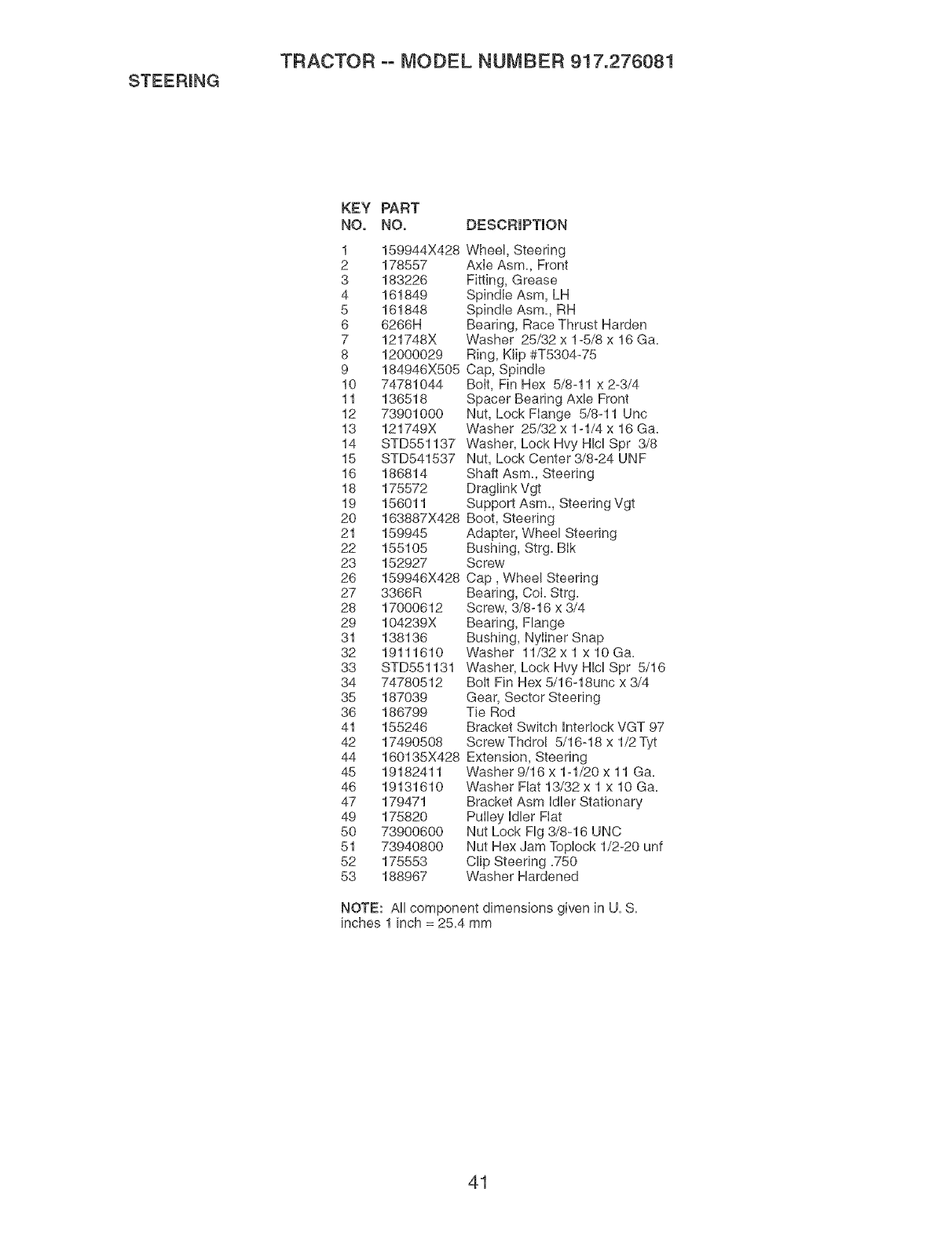

STEERmNG

TRACTOR oo MODEL NUMBER 917.276081

KEY PART

NO. NO. DESCFtmPTmON

1 159944X428

2 178557

3 183226

4 161849

5 161848

6 6266H

7 121748X

8 12000029

9 184946X505

10 74781044

11 136518

12 73901000

13 121749X

14 STD551137

15 STD541537

16 186814

18 175572

19 156011

20 163887X428

21 159945

22 155105

23 152927

26 159946X428

27 3366R

28 17000612

29 104239X

31 138136

32 19111610

33 STD551131

34 74780512

35 187039

36 186799

41 155246

42 17490508

44 160135X428

45 19182411

46 19131610

47 179471

49 175820

50 73900600

51 73940800

52 175553

53 188967

Wheel, Steering

AxIe Asm. Front

Fitting, Grease

Spindle Asm, LH

SpindIe Asm. RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Ktip #T5304-75

Cap, Spindle

BoIt, Fin Hex 5/8-11 x 2-3/4

Spacer Bearing Axle Front

Nut, Lock FIange 5/8-11 Unc

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy Hlcl Spr 3/8

Nut, Lock Center 3/8-24 UNF

Shaft Asm. Steering

Draglink Vgt

Support Asm. Steering Vgt

Boot, Steering

Adapter, Wheel Steering

Bushing, Strg. BIk

Screw

Cap, Wheel Steering

Bearing, Col. Strg.

Screw, 3/8-16 x 3/4

Bearing, Flange

Bushing, Nytiner Snap

Washer 11/32xlx10Ga.

Washer, Lock Hvy Hid Spr 5/16

BoIt Fin Hex 5/16-18unc x 3/4

Gear, Sector Steering

Tie Rod

Bracket Switch Interlock VGT 97

Screw Thdrol 5/16-18 x 1/2 Tyt

Extension, Steering

Washer 9/16 x 1-1/20 x 11 Ga.

Washer Flat 13/32 x 1 x 10 Ga.

Bracket Asm Idler Stationary

PuIley idler Fiat

Nut Lock Hg 3/8-16 UNC

Nut Hex Jam TopIock 1/2-20 unf

Clip Steering .750

Washer Hardened

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

ENGINE

TRACTOR oo MODEL NUMBER 917.276081

1\\

47_

26 27

engine ELS 1-vgt

[ SPARK ARRESTER KIT 1

KEY PART KEY

NO, NO, DESCRIPTION NO,

1 Engine (See Breakdown) 40

Briggs Model No. 446777-0244-E1 41

2 149723 Muffler 42

8 121361X Pulley V-idler 45 73510400

9 177748 Keeper Asm. Belt Engine 47 175287

10 175288 Bushing 62 146629

11 179335 Clutch Electric 69 165391

12 143996 Pulley Engine VGT Elect Clutch 70 176069

15 179115 Tank Fuel Rear 5.0Yt/Gt 96 71 176070

18 179124X428 Cap Asm Fuel W/Gauge 79 183906

20 175437X428 Control Throttle 81 188800

21 171875 Screw hwhd Hi-Lo #13-16x3/4 82 188799

22 187767X428 Control Choke 83 171877

26 3645J Bushing 84 17060624

27 139277 Stem Tank Fuel 85 179953

28 7834R FueELine

29 137180 Spark Attester Kit

31 145006 Clip Pushqn Hinged

37 123487X Clamp Hose

39 17490636 ScrewTT 3/8-16 x 2-1/4 UNC

PART

NO. DESCRIPTION

17490664 Screw TT 3/8-16 x 4 UNC

126197X Washer 1-1/20D x15/32 ID x .250

STD551143 Washer Lock 7/16

Nut Keps Hex 1/4-20 unc

Spacer Engine

Shield Heat Muffler

Gasket

Tube Exhaust LH

Tube Exhaust RH

Screw Socket Head 5/16-18 x 1

Tube Drain Oil

Drain Oil Valve

Bolt 5/16-18unc x 3/4

Screw 3/8-16 x 1-1/2

Bolt Hex 7/16 - 20 x 3,75 Gr, 5

NOTE: Al! component dimensions given in U. S.

inches 1 inch = 25.4 mm

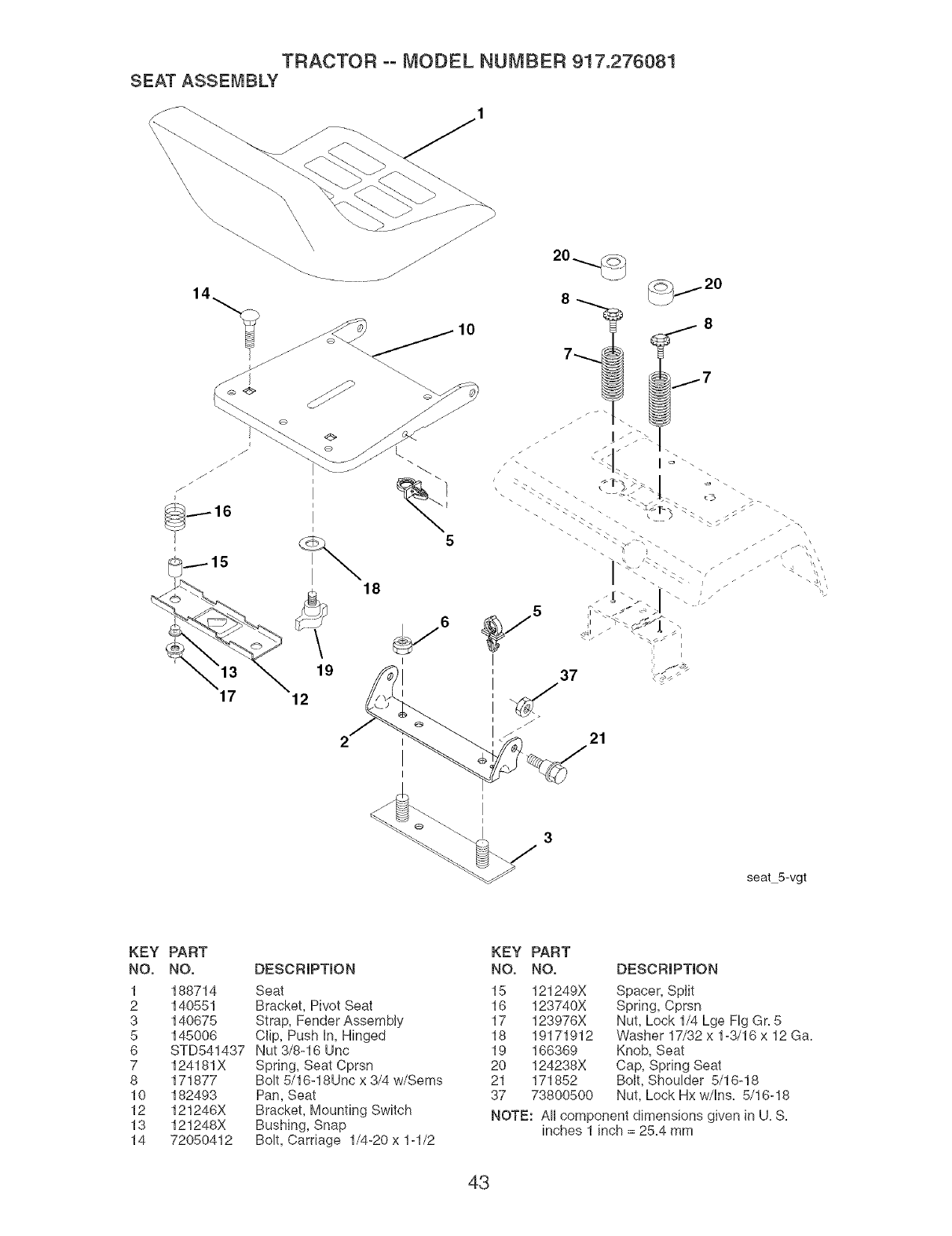

TRACTOR ooMODEL NUMBER 917.276081

SEAT ASSEMBLY

\\\

}

ii \

seat 5-vgt

KEY

NO.

PART

NO.

188714

140551

140675

145006

STD541437

124181X

171877

182493

121246X

121248X

72050412

DESCRIPTION

Seat

Bracket, Pivot Seat

Strap, Fender Assembly

Clip, Push h, Hinged

Nut 3/8-16 Unc

Spring, Seat Cprsn

Bolt 5/16-18Unc x 3/4 w/Sems

Pan, Seat

Bracket, Mounting Switch

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-1/2

KEY PART

NO. NO. DESCRIPTION

15 121249X Spacer, Split

16 123740X Spring, Cprsn

17 123976X Nut, Lock 1/4 Lge Fig Gr. 5

18 19171912 Washer 17/32 x 1-3/16 x 12 Ga.

19 166369 Knob, Seat

20 124238X Cap, Spring Seat

21 171852 Bolt, Shoulder 5/16-18

37 73800500 Nut, Lock Hx w/hs. 5/16-18

NOTE: AH component dimensions given in U. S.

inches 1 inch = 25.4 mm

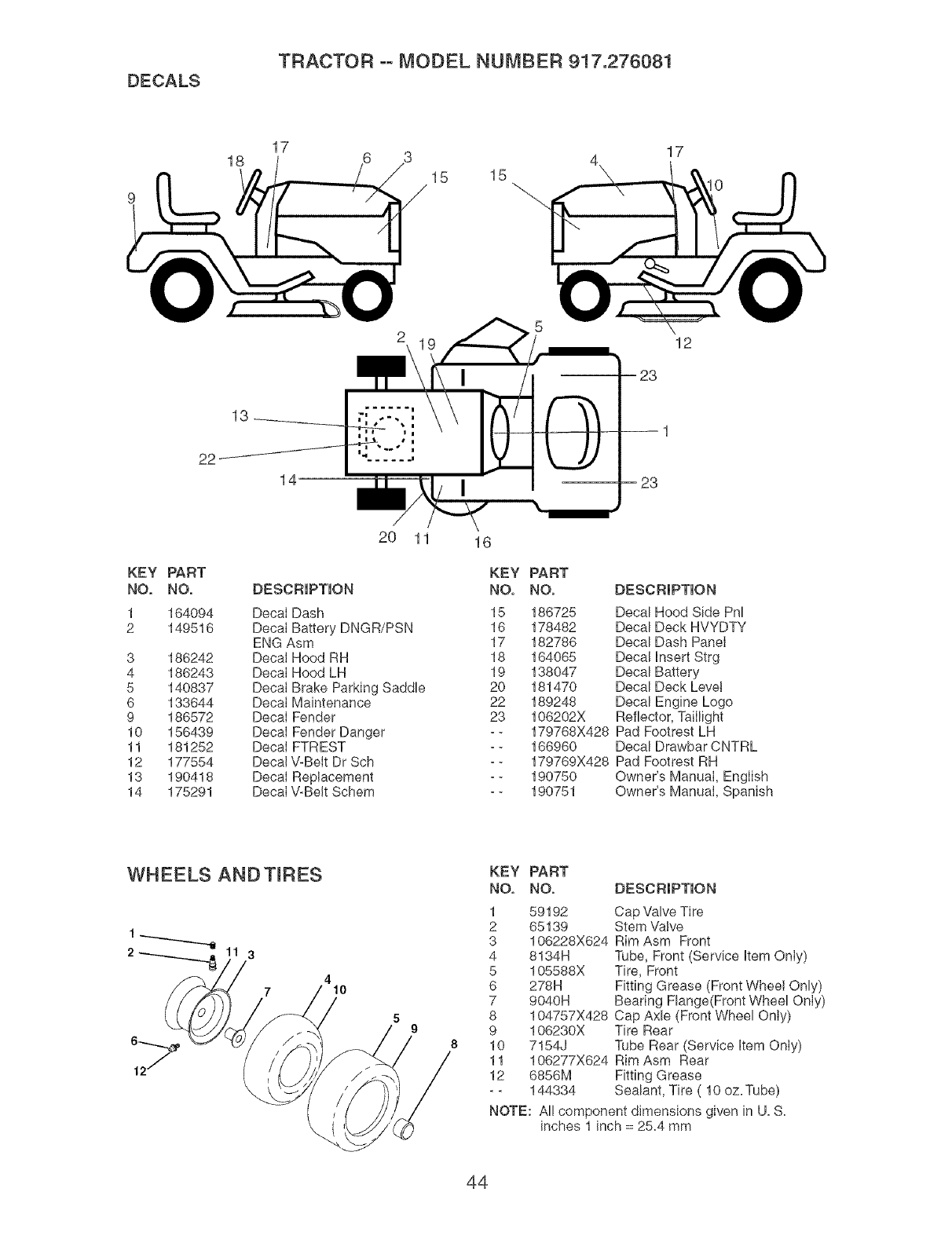

DECALS

TRACTOR oo MODEL NUMBER 917.276081

18 17

15 15

14 23

KEY PART

NO. NO.

1 164094

2 149516

3 186242

4 186243

5 140837

6 133644

9 186572

10 156439

11 181252

12 177554

13 190418

14 175291

20 11

DESCRIPTION

Decal Dash

DecaI Battery DNGR/PSN

ENG Asm

Decal Hood RH

Decal Hood LH

Decal Brake Parking Saddle

DecaI Maintenance

Decal Fender

Decal Fender Danger

DecaI FTREST

Decal V-Belt Dr Sch

Decal Replacement

Decal V-Belt Schem

KEY PART

NO. NO. DESCRIPTION

15 186725 Decal Hood Side Phi

16 178482 Decal Deck HVYDTY

17 182786 Decal Dash PaneI

18 164065 Decal Insert Strg

19 138047 Decal Battery

20 181470 Decal Deck Levet

22 189248 Decal Engine Logo

23 106202X Reflector, Taillight

- - 179768X428 Pad Footrest LH

- - 166960 Decal Drawbar CNTRL

- - 179769X428 Pad Footrest RH

- - 190750 Owner's Manual, English

-- 190751 Owner's Manual, Spanish

WHEELS ANDTmRES

410

KEY PART

NO. NO. DESCRIPTION

1 59192 Cap Valve Tire

2 65139 Stem Valve

3 106228X624 Rim Asm Front

4 8134H Tube, Front (Service Item Only)

5 105588X Tire, Front

6 278H Fitting Grease (Front Wheel Only)

7 9040H Bearing Flange(Front Wheel Only)

8 104757X428 Cap Axle (Front Wheel Only)

9 106230X Tire Rear

10 7154J Tube Rear (Service Item Only)

11 106277X624 Rim Asm Rear

12 6856M Fitting Grease

- - 144334 Sealant, Tire ( 10 oz. Tube)

NOTE: Al! component dimensions given in U. S.

inches 1 inch = 25.4 mm

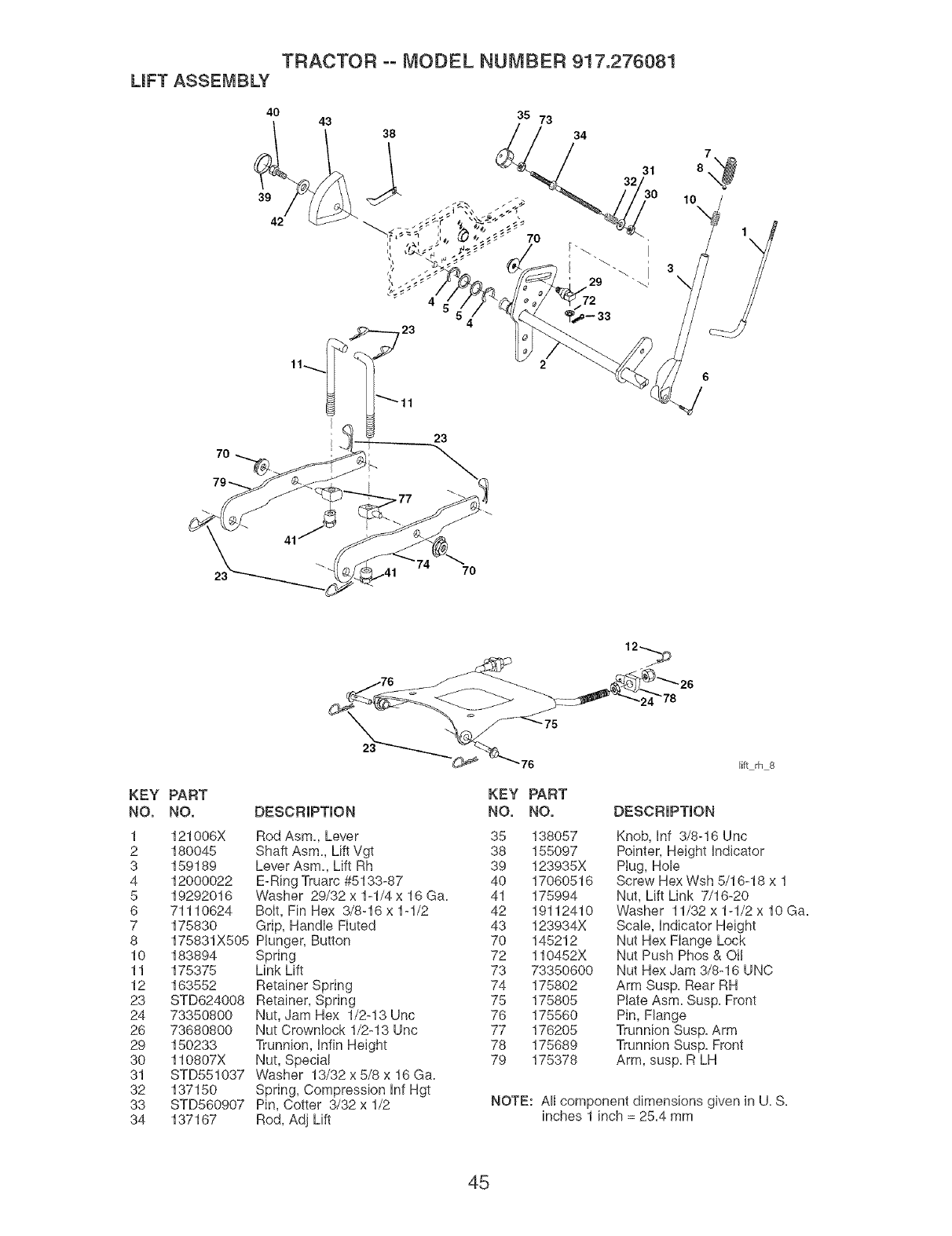

TRACTOR ooMODEL NUMBER 917.276081

UFT ASSEMBLY

35 73

23 7O

KEY PART

NO. NO.

1 121006X

2 180045

3 159189

4 12000022

5 19292016

6 71110624

7 175830

8 175831X505

10 183894

11 175375

12 163552

23 STD624008

24 73350800

26 73680800

29 150233

30 110807X

31 STD551037

32 137150

33 STD560907

34 137167

lift rh 8

DESCRIPTION

Rod Asm. Lever 35 138057

Shaft Asm. Lift Vgt 38 155097

Lever Asm. Lift Rh 39 123935X

E-Ring Truarc #5133-87 40 17060516

Washer 29/32 x 1-1/4 x 16 Ga. 41 175994

Bolt, Fin Hex 3/8-16 x 1-1/2 42 19112410

Grip, Handle Fluted 43 123934X

Plunger, Button 70 145212

Spring 72 110452X

Link Lift 73 73350600

Retainer Spring 74 175802

Retainer, Spring 75 175805

Nut, Jam Hex 1/2-13 Unc 76 175560

Nut Crownlock 1/2-13 Uric 77 176205

Trunnion, Infin Height 78 175689

Nut, Special 79 175378

Washer 13/32 x 5/8 x 16 Ga.

Spring, Compression Inf Hgt

Pin, Cotter 3/32 x 1/2

Rod, Adj Lift

KEY PART

NO. NO. DESCRIPTION

Knob, Inf 3/8-16 Unc

Pointer, Height Indicator

Plug, Hole

Screw Hex Wsh 5/16-18 x 1

Nut, Lift Link 7/16-20

Washer 11/32 x 1-1/2 x 10 Ga.

Scale, Indicator Height

Nut Hex Flange Lock

Nut Push Phos & O11

Nut Hex Jam 3/8-16 UNC

Arm Susp. Rear RH

Plate Asm. Susp. Front

Pin, Flange

Trunnion Susp. Arm

Trunnion Susp. Front

Arm, susp. R LH

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

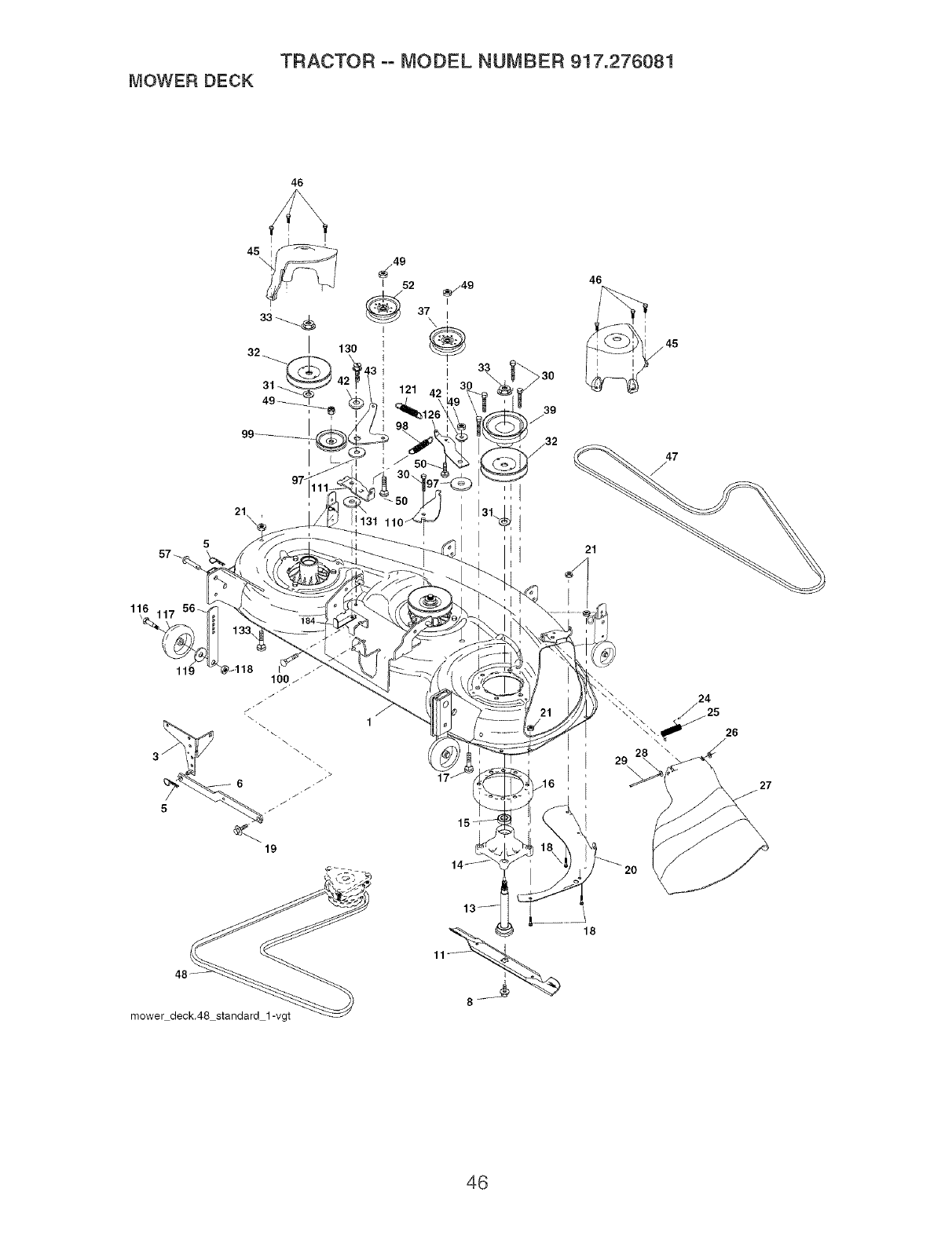

TRACTOR oo MODEL NUMBER 917.276081

MOWER DECK

21 !131

116

184_

mower deck.48 standard 1-vgt

\\ J_25

28 \.

29 \

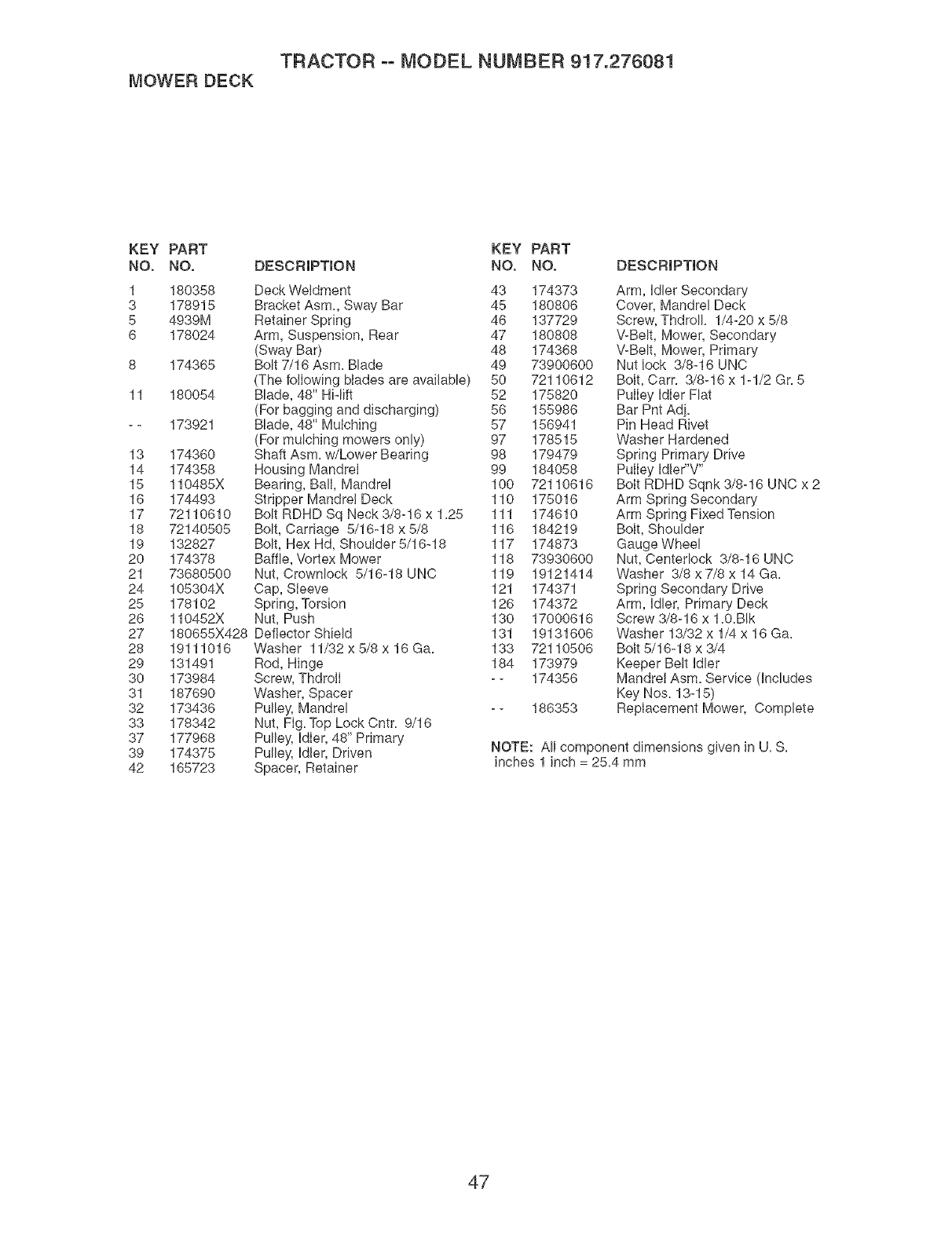

TRACTOR oo MODEL NUMBER 917.276081

MOWER DECK

KEY PART KEY PART

NO, NO, DESCRiPTiON NO, NO, DESCRiPTiON

1 180358 Deck Weldment 43 174373

3 178915 Bracket Asm, Sway Bar 45 180806

5 4939M Retainer Spring 46 137729

6 178024 Arm, Suspension, Rear 47 180808

(Sway Bar) 48 174368

8 174365 Bolt 7/16 Asm. Blade 49 73900600

(The foilowing blades are available) 50 72110612

11 180054 Blade, 48" Hi-lift 52 175820

(For bagging and discharging) 56 155986

- - 173921 Blade, 48" Mulching 57 156941

(For mulching mowers only) 97 178515

13 174360 Shaft Asm= w/Lower Bearing 98 179479

14 174358 Housing MandreI 99 184058

15 110485X Bearing, Ball, Mandrel 100 72110616

16 174493 Stripper Mandre! Deck 110 175016

17 72110610 Bolt RDHD Sq Neck 3/8-16 x 1=25 111 174610

18 72140505 Bolt, Carriage 5/16-18 x 5/8 116 184219

19 132827 Bolt, Hex Hd, Shoulder5/16-18 117 174873

20 174378 Baffle, Vortex Mower 118 73930600

21 73680500 Nut, Crownlock 5/16-18 UNC 119 19121414

24 105304X Cap, Sleeve 121 174371

25 178102 Spring, Torsion 126 174372

26 110452X Nut, Push 130 17000616

27 180655X428 Deflector Shield 131 19131606

28 19111016 Washer 11/32x5/8x16Ga= 133 72110506

29 131491 Rod, Hinge 184 173979

30 173984 Screw, ThdrolI - - 174356

31 187690 Washer, Spacer

32 173436 Pulley, Mandrel - - 186353

33 178342 Nut, Fig=Top Lock Cntr= 9/16

37 177968 Pulley, IdIer, 48" Primary

39 174375 Pulley, Idler, Driven

42 165723 Spacer, Retainer

Arm, Idler Secondary

Cover, Mandrel Deck

Screw, Thdroll. 1/4-20 x 5/8

V-Belt, Mower, Secondary

V-Belt, Mower, Primary

Nut lock 3/8-16 UNC

Bolt, Cam 3/8-16 x 1-1/2 Gr. 5

Pulley idler Flat

Bar Pnt Adj=

Pin Head Rivet

Washer Hardened

Spring Primary Drive

Pulley IdlePV"

Bolt RDHD Sqnk 3/8-16 UNC x 2

Arm Spring Secondary

Arm Spring Fixed Tension

Bolt, Shoulder

Gauge Wheel

Nut, Centerlock 3/8-16 UNC

Washer 3/8 x 7/8 x 14 Ga=

Spring Secondary Drive

Arm, Idler, Primary Deck

Screw 3/8-16 x 1=0=BIk

Washer 13/32 x 1/4 x 16 Ga=

Bolt 5/16-18 x 3/4

Keeper Belt Idler

Mandrel Asm= Service (Includes

Key Nos. 13-15)

Replacement Mower, Complete

NOTE: All component dimensions given in U=S=

inches 1 inch = 25=4 mm

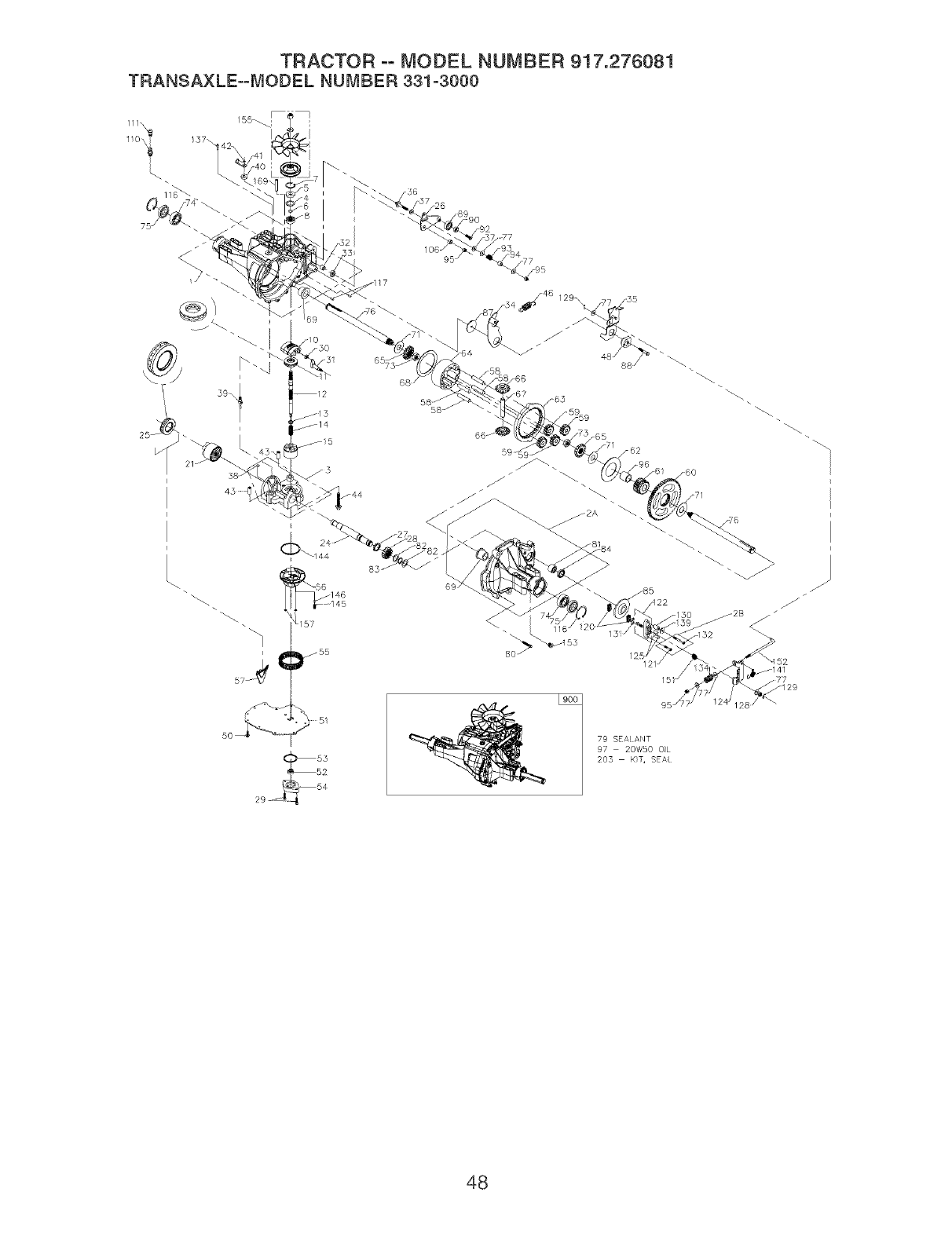

TRACTOR ooMODEL NUMBER 917.276081

TRANSA×LE=-MODELNUMBER331-3000

/60

/71

\ z-76

j85

/t22

/2', 121

79 SEA{ANT

97 - 20W50 OIL

20,3 KIT, SEAl

_1 41

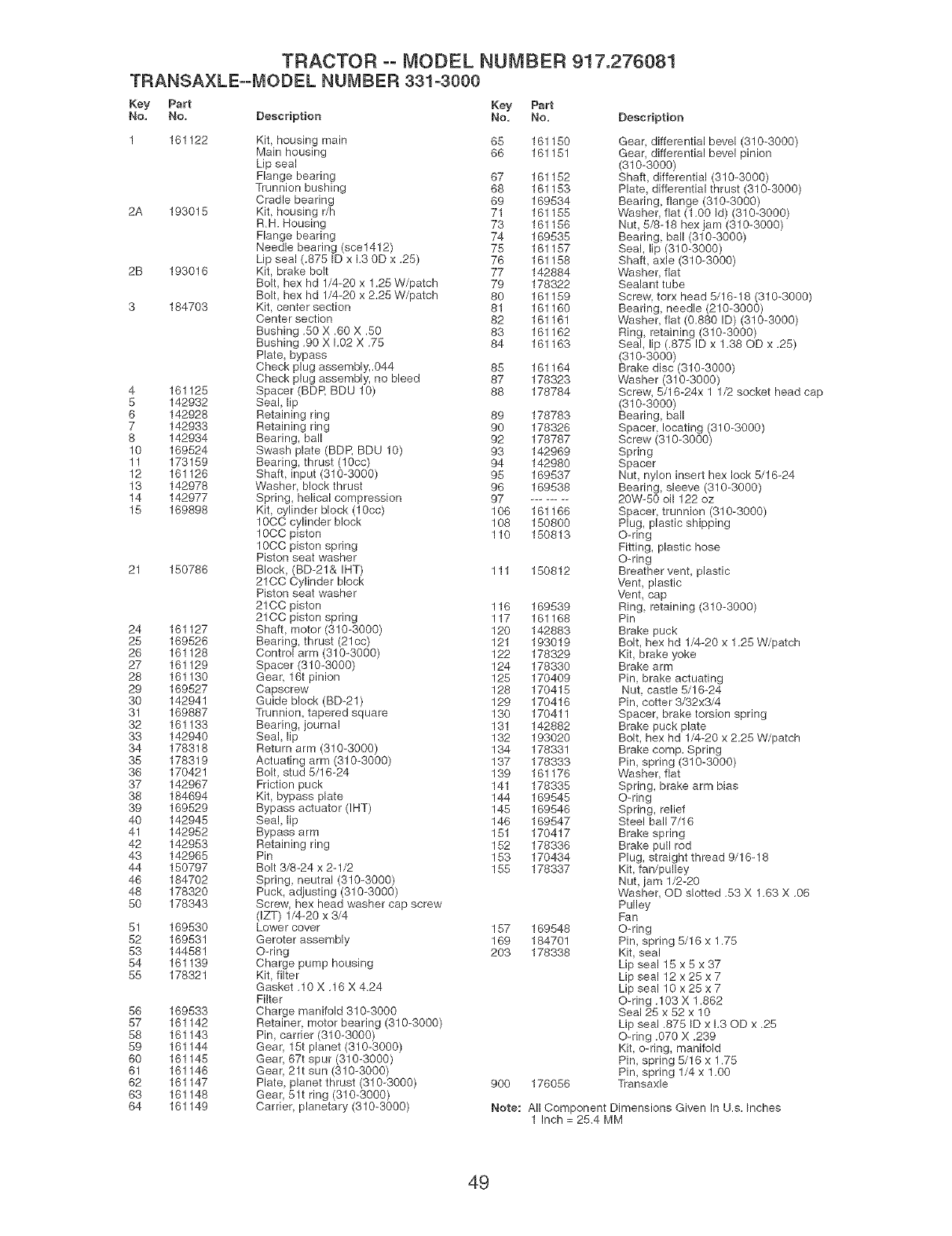

TRACTOR oo MODEL NUMBER 917.276081

TRANSAXLE==MODEL NUMBER 331-3000

Key Part Key Part

No, No. Description No, No. Description

1 161122 Kit housing main 65 161150

Main housing 66 161151

Lip seal

Flange bearing 67 161152

Trunnion bushing 68 161163

Cradle bearing 69 169534

2A 193016 Kit, housing dh 71 161155

R.H. Housing 73 161156

Flange bearing 74 169636

Needle bearing (sce1412) 76 161157

Lip seal (.875 ID x 1.3 0D x .25) 76 161158

2B 193016 Kit, brake bolt 77 142884

Bolt, hex hd 1/4-20 x 1.26 W/patch 79 178322

Bolt, hex hd 1/4-20 x 2.25 W/patch 80 161159

3 184703 Kit, center section 81 161160

Center section 82 161161

Bushing .60 X.60 X.60 83 161162

Bushing .90 X 1.02 X .76 84 161163

Plate, bypass

Check plug assembly..044 86 161164

Check plug assembly, no bleed 87 178323

4 161125 Spacer (BDR BDU 10) 88 178784

6 142932 Seal, lip

6 142928 Retaining ring 89 178783

7 142933 Retaining ring 90 178326

8 142934 Bearing, ball 92 178787

10 169624 Swash plate (BDP, BDU 10) 93 142969

11 173159 Bearing, thrust (10cc) 94 142980

12 161126 Shaft, input (310-3000) 95 169537

13 142978 Washer, block thrust 96 169538

14 142977 Spring, helical compression 97

16 169898 Kit, cylinder block (10cc) 106 161166

10CC cylinder block 108 150800

10CC piston 110 150813

10CC piston spring

Piston seat washer

21 150786 Block, (BD-21& IHT) 111 150812

21CC Cylinder block

Piston seat washer

21CC piston 116 169539

21CC piston spring 117 161168

24 161127 Shaft, motor (310o3000) 120 142883

25 169526 Bearing, thrust (21cc) 121 193019

26 161128 Control arm (310-3000) 122 178329

27 161129 Spacer (310-3000) 124 178330

28 161130 Gear, 16t pinion 125 170409

29 169527 Capscrew 128 170416

30 142941 Guide block (BDo21) 129 170416

31 169887 Trunnion, tapered square 130 170411

32 161133 Bearing, journal 131 142882

33 142940 Seal, lip 132 193020

34 178318 Return arm (310-3000) 134 178331

35 178319 Actuating arm (310-3000) 137 178333

36 170421 Bolt, stud 5/16-24 139 161176

37 142967 Friction puck 141 178335

38 184694 Kit, bypass plate 144 169546

39 169529 Bypass actuator (IHT) 145 169546

40 142946 Seal, lip 146 169547

41 142952 Bypass arm 151 170417

42 142953 Retaining ring 162 178336

43 142965 Pin 153 170434

44 150797 Bolt 3/8-24 x 2ol/2 166 178337

46 184702 Spring, neutral (310-3000)

48 178320 Puck, adjusting (310-3000)

60 178343 Screw, hex head washer cap screw

dZT) 1/4o20 x 3/4

61 169530 Lower cover 157 169548

62 169531 Geroter assembly 169 184701

63 144581 O-ring 203 178338

64 161139 Charge pump housing

66 178321 Kit, filter

Gasket .10 X.16 X 4.24

Filter

66 169533 Charge manifold 310-3000

67 161142 Retainer, motor bearing (310-3000)

68 161143 Pin, carrier (310o3000)

69 161144 Gear, 15t planet (310-3000)

60 161146 Gear, 67t spur (310-3000)

61 161146 Gear, 21t sun (310-3000)

62 161147 Plate, planet thrust (310_3000) 900 176056

63 161148 Gear, 61t ring (310-3000)

64 161149 Carrier, planetary (310-3000)

Gear, differential bevel (310-3000)

Gear, differential bevel pinion

(310-3000)

Shaft, differential (310-3000)

Plate, differential thrust (310-3000)

Bearing, flange (310-3000)

Washer, flat (1.00 Id) (310-3000)

Nut, 5/8-18 hex jam (310-3000)

Bearing, ball (310-3000)

Seal, lip (310-3000)

Shaft, axle (310-3000)

Washer, flat

Sealant tube

Screw, torx head 5/16-18 (310-3000)

Bearing, needle (210-3000)

Washer, flat (0.880 ID) (310-3000)

Ring, retaining (310-3000)

Seal, lip (.876 ID x 1.38 OD x .26)

(310-3000)

Brake disc (310-3000)

Washer (310-3000)

Screw, 5/16-24x 1 1/2 socket head cap

(310-3000)

Bearing, ball

Spacer, locating (310-3000)

Screw (310-3000)

Spring

Spacer

Nut, nylon insert hex lock 5/16-24

Bearing, sleeve (310-3000)

20W-50 oil 122 oz

Spacer, trunnion (310-3000)

Plug, plastic shipping

Coring

Fitting, plastic hose

Coring

Breather vent plastic

Vent, plastic

Vent cap

Ring, retaining (310-3000)

Brake puck

Bolt, hex hd 1/4-20 x 1.26 W/patch

Kit, brake yoke

Brake arm

Pin, brake actuating

Nut, castle 6/16-24

Pin, cotter 3/32x3/4

Spacer, brake torsion spring

Brake puck plate

Bolt, hex hd 1/4-20 x 2.25 W/patch

Brake comp. Spring

Pin, spring (310-3000)

Washer, flat

Spring, brake arm bias

O-ring

Spring, relief

Steel ball 7/16

Brake spring

Brake pull rod

Plug, straight thread 9/16-18

Kit fan/pulley

Nut, jam 1/2-20

Washer, OD slotted .63 X 1.63 X .06

Pulley

Pan

Coring

Pin, spring 6/16 x 1.76

Kit, seal

Lip seal 16x6x37

Lipsea112x25x7

Lip seal 10x25x7

O-ring .103 X 1.862

Seal 26 x 52 x 10

Lip seal .876 ID x 1.30D x .26

O-ring .070 X.239

Kit o-ring, manifold

Pin, spring 6/16 x 1.76

Pin, spring 1/4 x 1.00

Transaxle

Note: All Component Dimensions Given In U.s. Inches

1 Inch = 26,4 MM

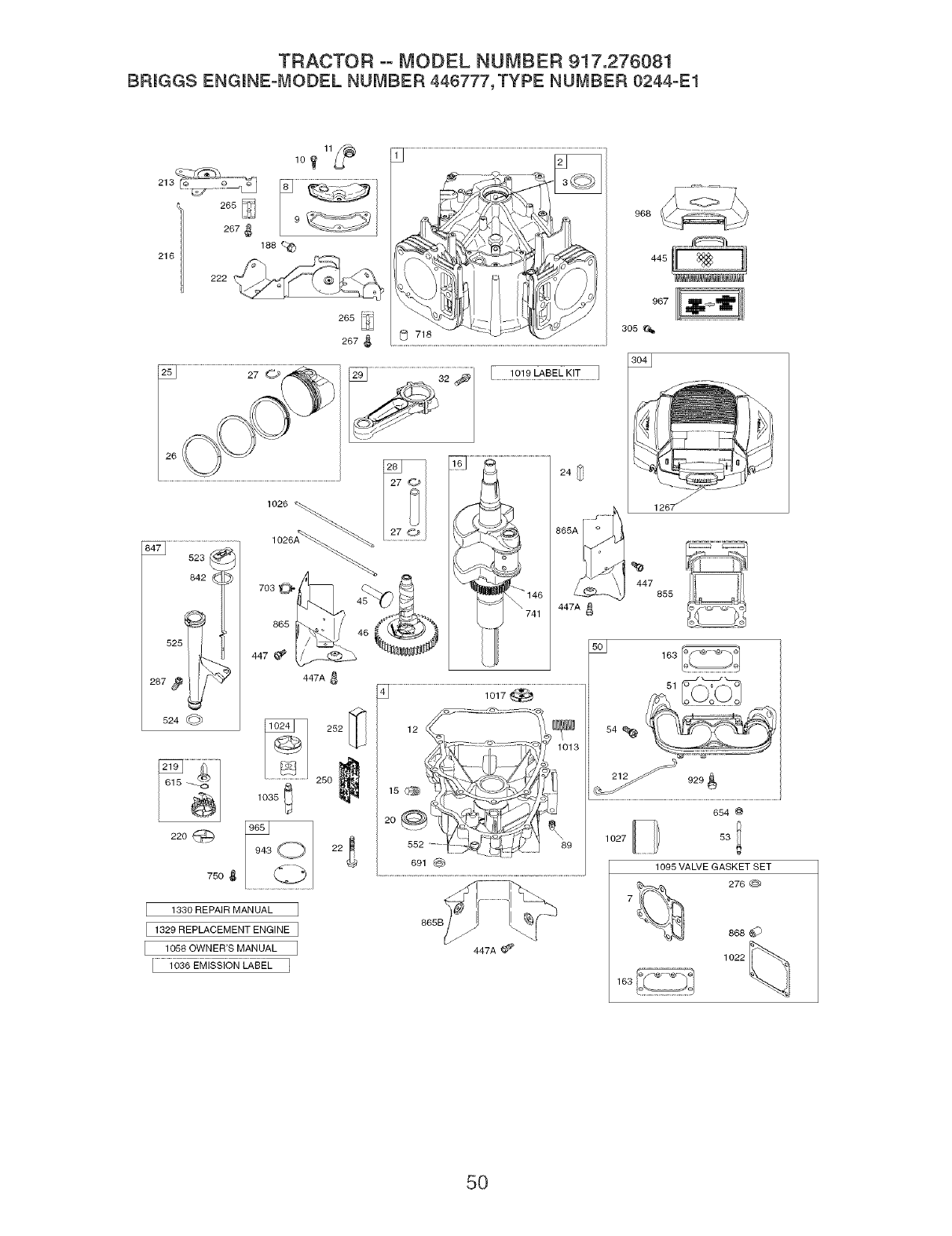

TRACTOR oo MODEL NUMBER 917.276081

BRmGGS ENGmNE=MODEL NUMBER 446777, TYPE NUMBER 0244=E1

216 i_

267

222

188_,_

255_

267 ,_

968

967

305

1330 REPAIR MANUAL

I 1329 REPLACEMENTENGINE ]

1058 OWNER'S MANUAL 447A_

276@

868_

1022_

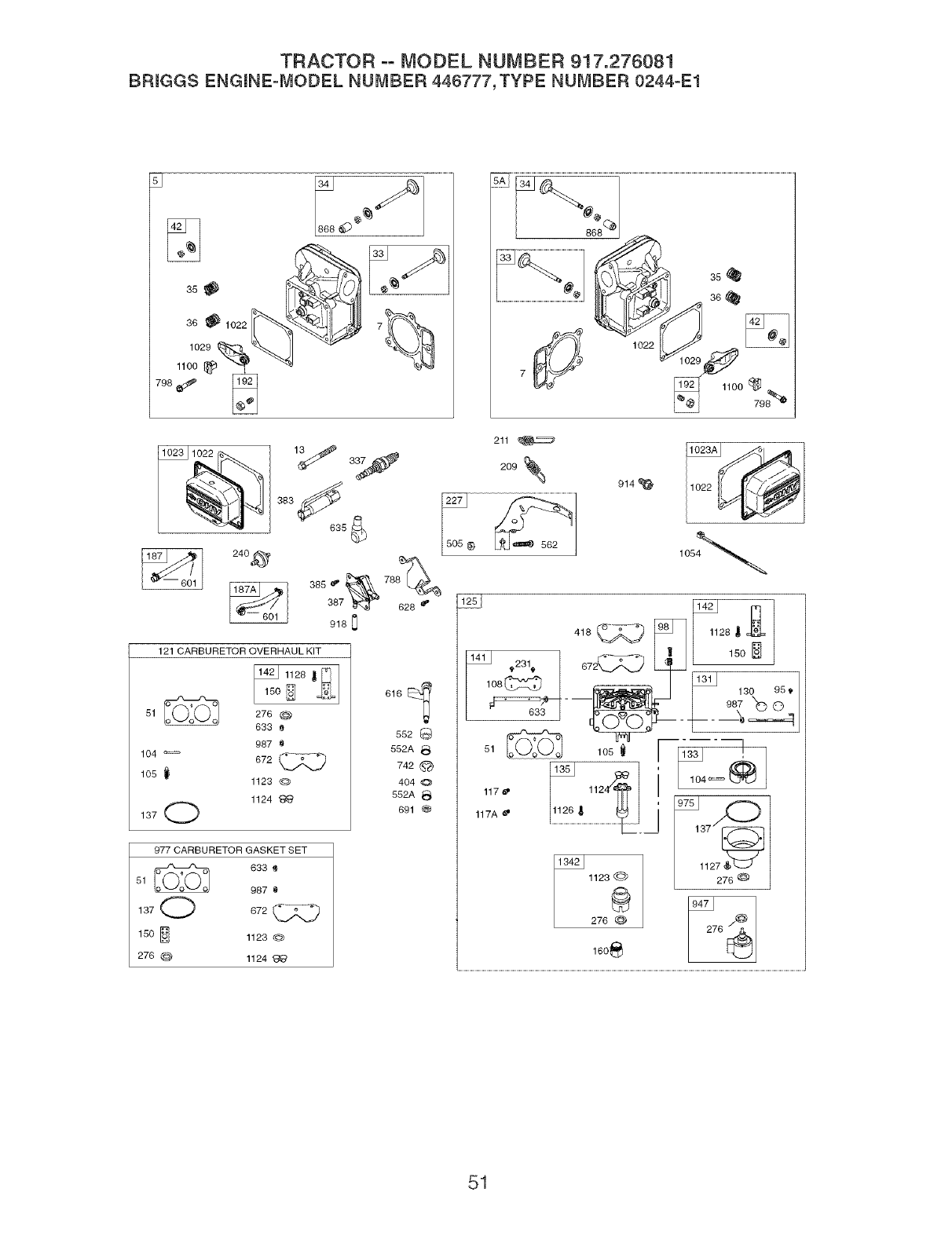

TRACTOR oo MODEL NUMBER 917.276081

BRmGGS ENGmNE-MODEL NUMBER 446777, TYPE NUMBER 0244°E1

36 _ 1022

1029

1100

798_.;:_

1023_ 1_,,_3y

383_

24o_

38538_7_ 788_628 "

918 _

121 CARBURETOR OVERHAUL KIT

51 _,_(._ 276 @

633 0

987

104 _ 672 (_-_2-_'_

105 W

1123

1124

137

o16_

552

552A

742 @

404 O

552A 6

691

977 CARBURETOR GASKET SET

633

987

137 072 _

150 _ 1123_

270 @ 1124 '_

1022

505 @

914'_

1054_

1251

_ ,2_1 072_ LI__°_ j

lO_____ I _ 13oo.

-- _._ ---

1342 1123_ 276 @

276 Q 276

160_j_

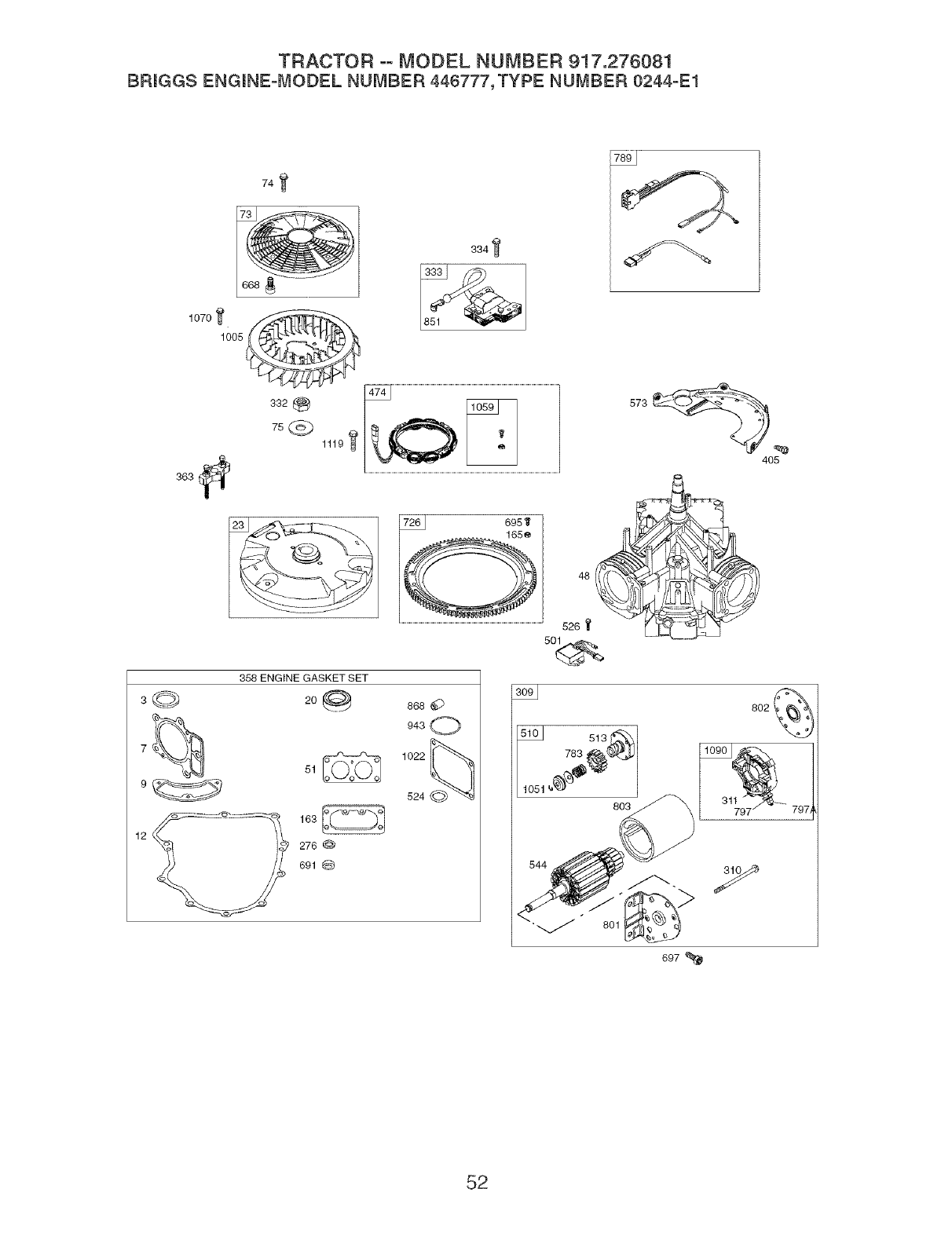

TRACTOR ooMODEL NUMBER 917.276081

BRmGGSENGmNE=MODELNUMBER446777,TYPE NUMBER0244=E1

1070_'

1005

992

75 @

1119 '_

358 ENGINE GASKET SET

2O 868 _)

943 0

51 _ 1022

524 _ ""_J

163 _

276 @

691

526

_o_

573 _

405

783

519

801"_ >

697

311 " /_

797 /797,

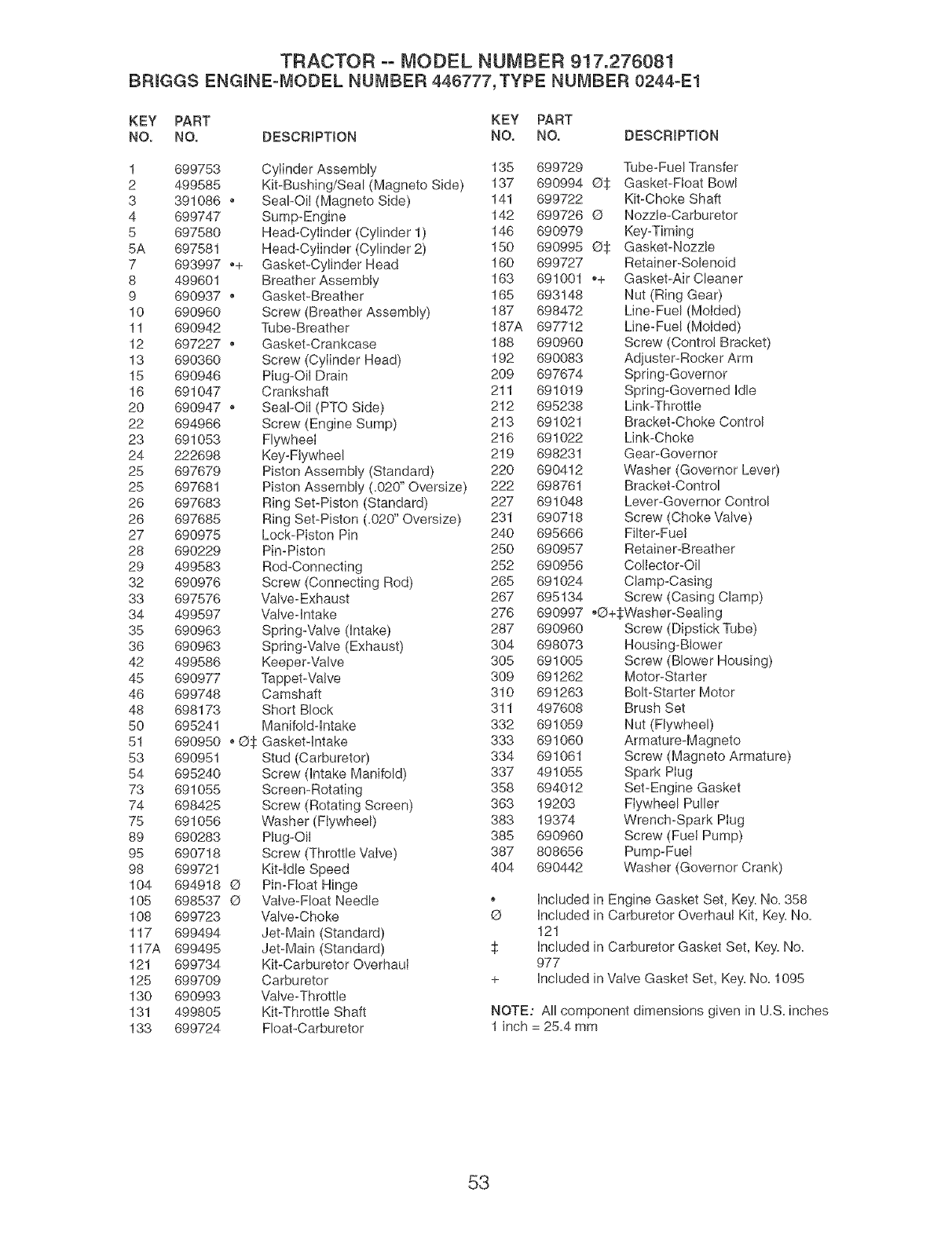

TRACTOR ooMODEL NUMBER 917.276081

BRmGGSENGmNE=MODELNUMBER446777,TYPE NUMBER0244=E1

KEY PART KEY PART

NO. NO. DESCRmPTION NO. NO. DESCRIPTmON

1 699753 Cytinder Assembly 135 699729 Tube-Fuel Transfer

2 499585 Kit-Bushing/Seal (Magneto Side) 137 690994 aS Gasket-Float Bowl

3 391086 • SeaFOiI (Magneto Side) 141 699722 Kit-Choke Shaft

4 699747 Sump-Engine 142 699726 G Nozzle-Carburetor

5 697580 Head-Cylinder (Cylinder 1) 146 690979 Key-Timing

5A 697581 Head-Cylinder (Cylinder 2) 150 690995 G$ Gasket-Nozzle

7 693997 _+ Gasket-Cylinder Head 160 699727 Retainer-Solenoid

8 499601 Breather Assembly 163 691001 ,,+ Gasket-Air Cleaner

9 690937 • Gasket-Breather 165 693148 Nut (Ring Gear)

10 690960 Screw (Breather Assembly) 187 698472 Line-Fuel (Molded)

11 690942 Tube-Breather 187A 697712 Line-Fue! (Molded)

12 697227 • Gasket-Crankcase 188 690960 Screw (Control Bracket)

13 690360 Screw (Cylinder Head) 192 690083 Adjuster-Rocker Arm

15 690946 Plug-Oil Drain 209 697674 Spring-Governor

16 691047 Crankshaft 211 691019 Spring-Governed Hie

20 690947 o SeaFOil (PTO Side) 212 695238 Link-Throttle

22 694966 Screw (Engine Sump) 213 691021 Bracket-Choke Control

23 691053 HywheeI 216 691022 Link-Choke

24 222698 Key-Flywheel 219 698231 Gear-Governor

25 697679 Piston Assembly (Standard) 220 690412 Washer (Governor Lever)

25 697681 Piston Assembly (=020" Oversize) 222 698761 Bracket-Control

26 697683 Ring Set-Piston (Standard) 227 691048 Lever-Governor Control

26 697685 Ring Set-Piston (,020" Oversize) 231 690718 Screw (Choke Valve)

27 690975 Lock-Piston Pin 240 695666 Filter-Fuel

28 690229 Pin-Piston 250 690957 Retainer-Breather

29 499583 Rod-Connecting 252 690956 Collector-Oil

32 690976 Screw (Connecting Rod) 265 691024 Clamp-Casing

33 697576 Valve-Exhaust 267 695134 Screw (Casing Clamp)

34 499597 Valveqntake 276 690997 ,,G+$VVasher-Sealing

35 690963 Spring-Valve (Intake) 287 690960 Screw (Dipstick Tube)

36 690963 Spring-Valve (Exhaust) 304 698073 Housing-Blower

42 499586 Keeper-Valve 305 691005 Screw (Blower Housing)

45 690977 Tappet-Valve 309 691262 Motor-Starter

46 699748 Camshaft 310 691263 Bolt-Starter Motor

48 698173 Short Block 311 497608 Brush Set

50 695241 Manifoldqntake 332 691059 Nut (Flywheel)

51 690950 • G$ Gasketqntake 333 691060 Armature-Magneto

53 690951 Stud (Carburetor) 334 691061 Screw (Magneto Armature)

54 695240 Screw (Intake Manifold) 337 491055 Spark Plug

73 691055 Screen-Rotating 358 694012 Set-Engine Gasket

74 698425 Screw (Rotating Screen) 363 19203 Flywheel Puller

75 691056 Washer (Flywheel) 383 19374 Wrench-Spark Plug

89 690283 Plug-Oil 385 690960 Screw (Fuel Pump)

95 690718 Screw (Throttle Valve) 387 808656 Pump-Fuel

98 699721 Kit-Hie Speed 404 690442 Washer (Governor Crank)

104 694918 O Pin-Float Hinge

105 698537 G Valve-F!oat Needle ,, Included in Engine Gasket Set, Key. No. 358

108 699723 Valve-Choke G Included in Carburetor Overhaul Kit, Key. No.

117 699494 Jet-Main (Standard) 121

117A 699495 Jet-Main (Standard) $ Included in Carburetor Gasket Set, Key, No,

121 699734 Kit-Carburetor Overhaul 977

125 699709 Carburetor + Included in Valve Gasket Set, Key, No, 1095

130 690993 Valve-Throttle

131 499805 Kit-Throttle Shaft NOTE; All component dimensions given in U,S, inches

133 699724 Float-Carburetor 1 inch = 25,4 mm

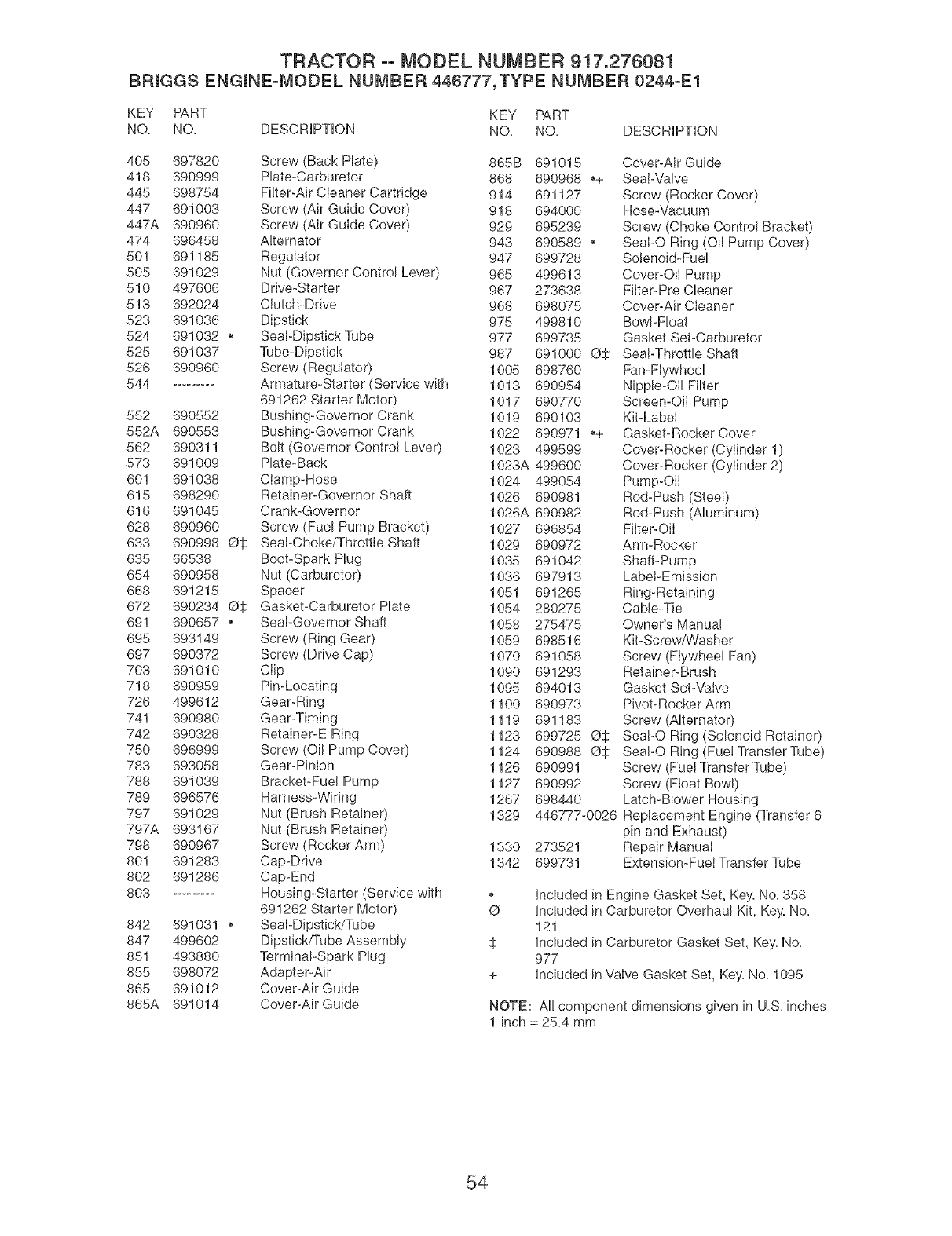

TRACTOR oo MODEL NUMBER 917.276081

BRmGGS ENGmNE-MODEL NUMBER 446777, TYPE NUMBER 0244°E1

KEY PART KEY PART

NO. NO. DESCRiPTiON NO. NO. DESCRiPTiON

405 697820 Screw (Back Plate) 865B 691015

418 690999 Plate-Carburetor 868 690968

445 698754 Filter-Air Charier Cartridge 914 691127

447 691003 Screw (Air Guide Cover) 918 694000

447A 690960 Screw (Air Guide Cover) 929 695239

474 696458 Alternator 943 690589

501 691185 Regulator 947 699728

505 691029 Nut (Governor Control Lever) 965 499613

510 497606 Drive-Starter 967 273638

513 692024 Clutch-Drive 968 698075

523 691036 Dipstick 975 499810

524 691032 ,, SeaPDipstick Tube 977 699735

525 691037 Tube-Dipstick 987 691000

526 690960 Screw (Regulator) 1005 698760

544 ......... Armature-Starter (Service with 1013 690954

691262 Starter Motor) 1017 690770

552 690552 Bushing-Governor Crank 1019 690103

552A 690553 Bushing-Governor Crank 1022 690971

562 690311 Bolt (Governor Control Lever) 1023 499599

573 691009 Hate-Back 1023A 499600

601 691038 Clamp-Hose 1024 499054

615 698290 Retainer-Governor Shaft 1026 690981

616 691045 Crank-Governor 1026A 690982

628 690960 Screw (Fuel Pump Bracket) 1027 696854

633 690998 @$ SeaPChoke/Throttie Shaft 1029 690972

635 66538 Boot-Spark Hug 1035 691042

654 690958 Nut (Carburetor) 1036 697913

668 691215 Spacer 1051 691265

672 690234 @$ Gasket-Carburetor Plate 1054 280275

691 690657 ,, SeaPGovernor Shaft 1058 275475

695 693149 Screw (Ring Gear) 1059 698516

697 690372 Screw (Drive Cap) 1070 691058

703 691010 Clip 1090 691293

718 690959 Pin-Locating 1095 694013

726 499612 Gear-Ring 1100 690973

741 690980 Gear-Timing 1119 691183

742 690328 Retainer-E Ring 1123 699725

750 696999 Screw (Oil Pump Cover) 1124 690988

783 693058 Gear-Pinion 1126 690991

788 691039 Bracket-FueI Pump 1127 690992

789 696576 Harness-Wiring 1267 698440

797 691029 Nut (Brush Retainer) 1329

797A 693167 Nut (Brush Retainer)

798 690967 Screw (Rocker Arm) 1330

801 691283 Cap-Drive 1342

802 691286 Cap-End

803 ......... Housing-Starter (Service with ,,

691262 Starter Motor) O

842 691031 ,, SeaPDipstick/Tube

847 499602 Dipstick/Tube Assembly $

851 493880 TerminaPSpark Plug

855 698072 Adapter-Air +

865 691012 Cover-Air Guide

865A 691014 Cover-Air Guide

Cover-Air Guide

•+ Sea!-Valve

Screw (Rocker Cover)

Hose-Vacuum

Screw (Choke Control Bracket)

SeaPO Ring (Oil Pump Cover)

Solenoid-Fuel

Cover-Oil Pump

FiIter-Pre Cleaner

Cover-Air CIeaner

BowPF!oat

Gasket Set-Carburetor

@$ SeaPThrotde Shaft

Fan-Flywheel

Nipple-Oil Filter

Screen-Oil Pump

Kit-Label

•+ Gasket-Rocker Cover

Cover-Rocker (CyIinder 1)

Cover-Rocker (Cylinder 2)

Pump-Oil

Rod-Push (Steel)

Rod-Push (Aluminum)

Filter-OiI

Arm-Rocker

Shaft-Pump

Label-Emission

Ring-Retaining

Cabb-Tie

Owner's Manual

Kit-Screw/Washer

Screw (Flywheel Fan)

Retainer-Brush

Gasket Set-Valve

Pivot-Rocker Arm

Screw (Alternator)

@$ Seal-O Ring (Solenoid Retainer)

G$ SeaI-O Ring (FuetTransferTube)

Screw (Fuel Transfer Tube)

Screw (Float Bowl)

Latch-Blower Housing

446777-0026 Replacement Engine (Transfer 6

pin and Exhaust)

273521 Repair Manual

699731 Extension-Fuel Transfer Tube

included in Engine Gasket Set, Key. No. 358

included in Carburetor Overhaul Kit, Key. No.

121

included in Carburetor Gasket Set, Key. No.

977

included in Valve Gasket Set, Key. No. 1095

NOTE: AI! component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

i_ WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

;;;;;;;;;;;;;;;;;

i i! ililililililililililililililili

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i_i_

iiiiiiiiiiiiiiiiiiii

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR SM

(1-888-784-6427)

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

wwwsearsca .....

® Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /TMMarca de F,_brica /SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce /MDMarque deposee de Sears, Roebuck and Co.

190750 Re',/. 1 6.15.04 RDiMH Printed in U.S.A.

Craftsman 917276081 User Manual GARDEN TRACTOR Manuals And Guides L0406225

CRAFTSMAN Lawn, Tractor Manual L0406225 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
