Owner's Manual

CRRFTSMRN°

GARDEN TRACTOR

25.0 HP, 54" Mower

Electric Start

Automatic Transmission

Model No.

917.276101

[_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual,

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

th_ product, Call:

1 800 659 5917

Sears Craftsman Help Line

5 am- 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

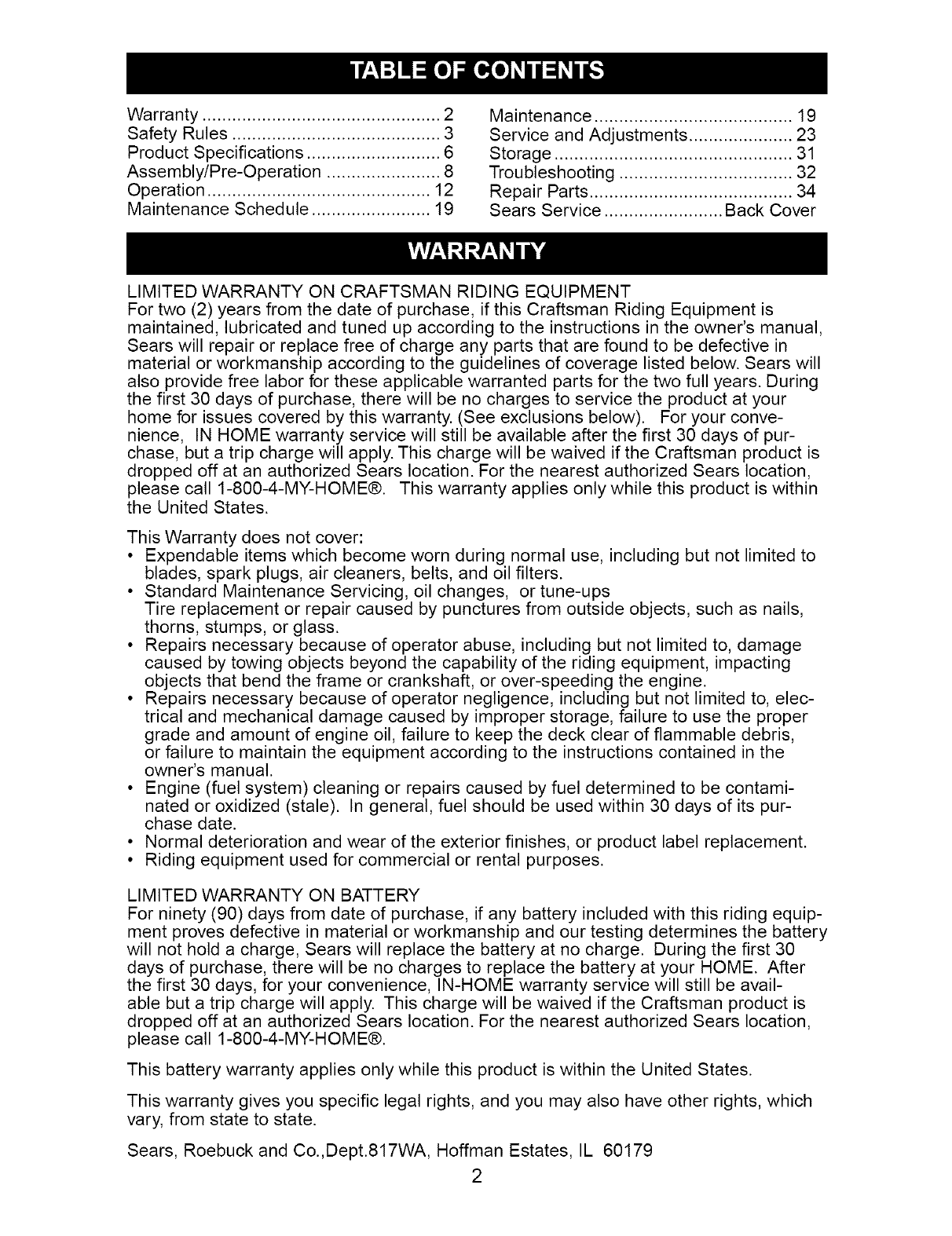

Warranty ................................................ 2

Safety Rules .......................................... 3

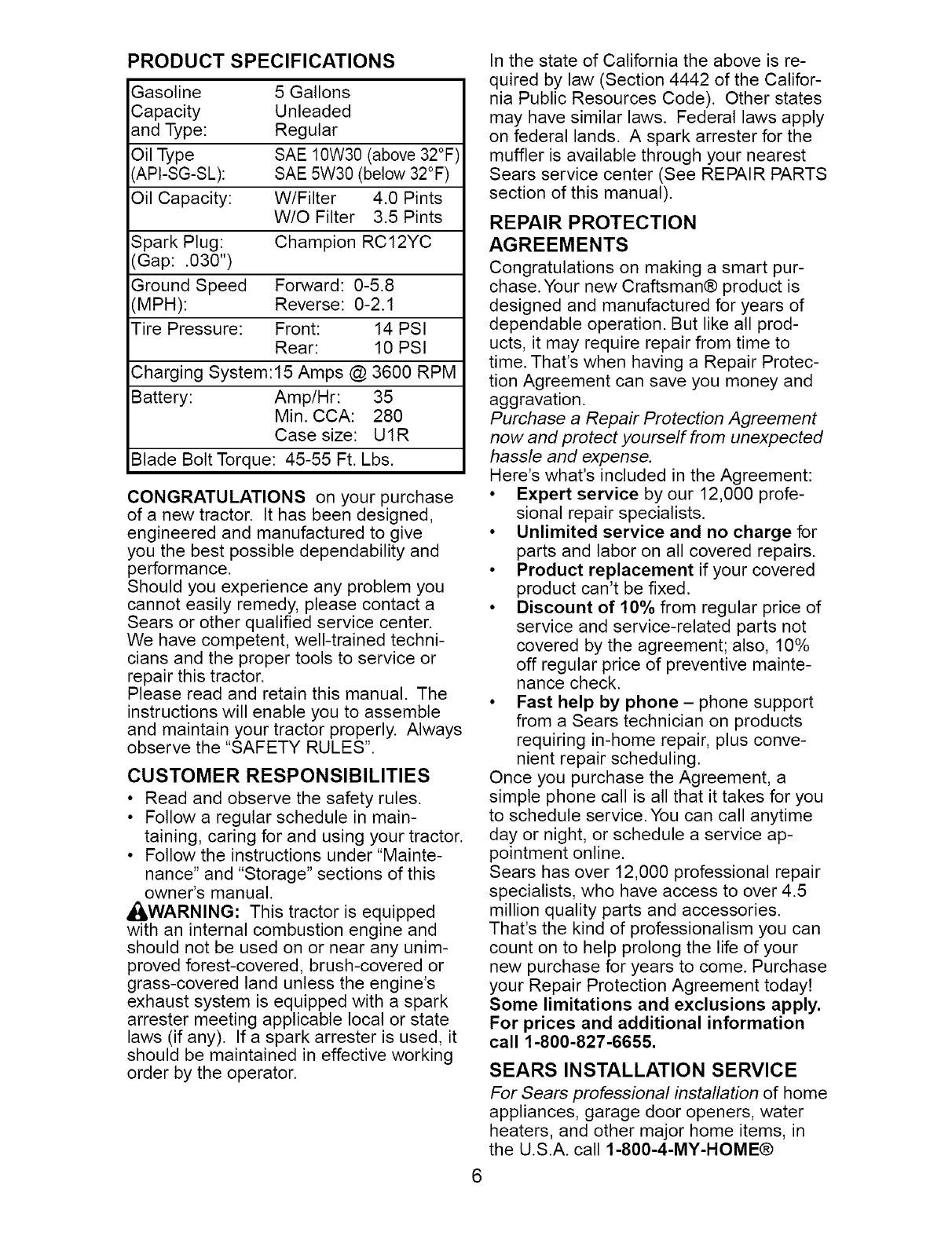

Product Specifications ........................... 6

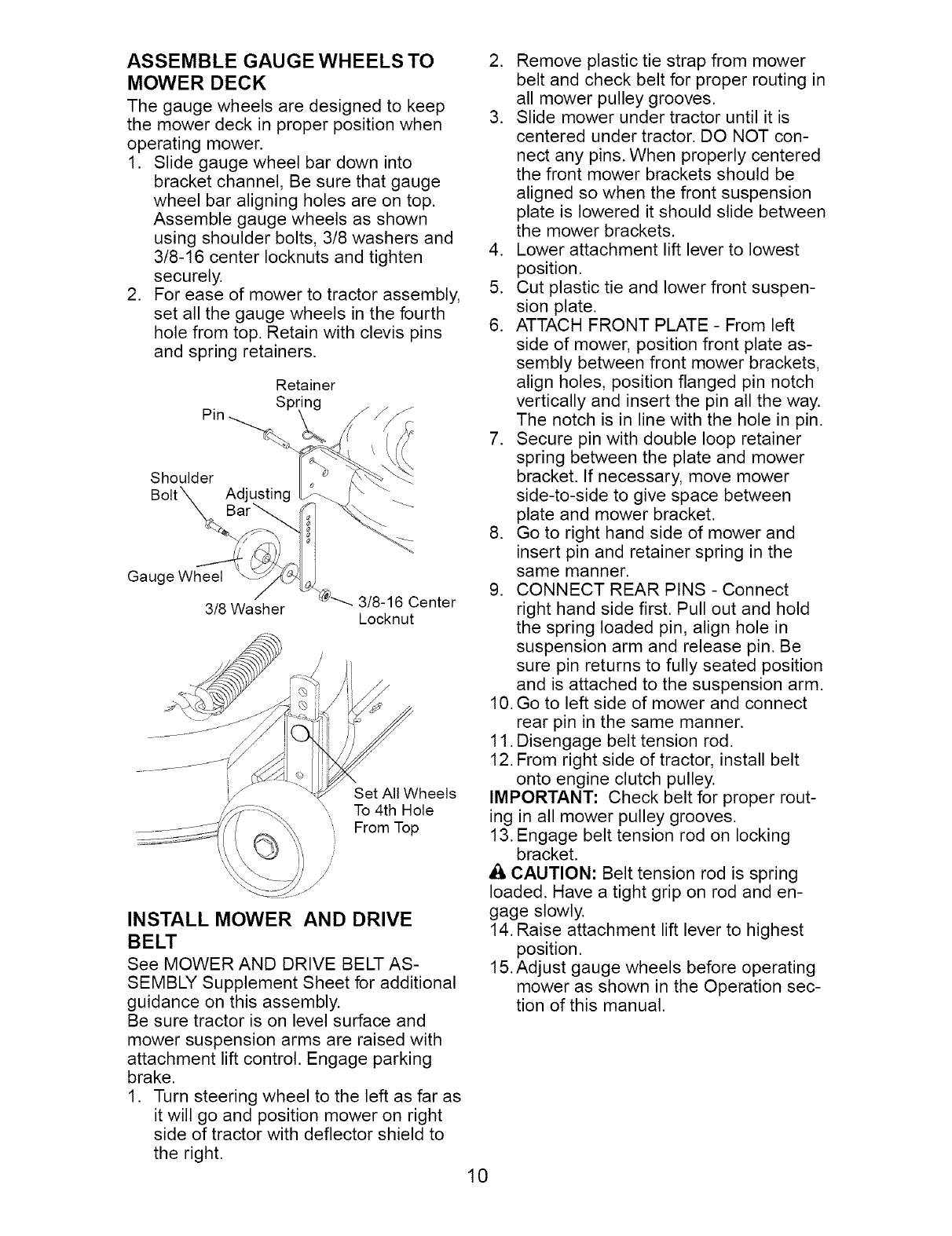

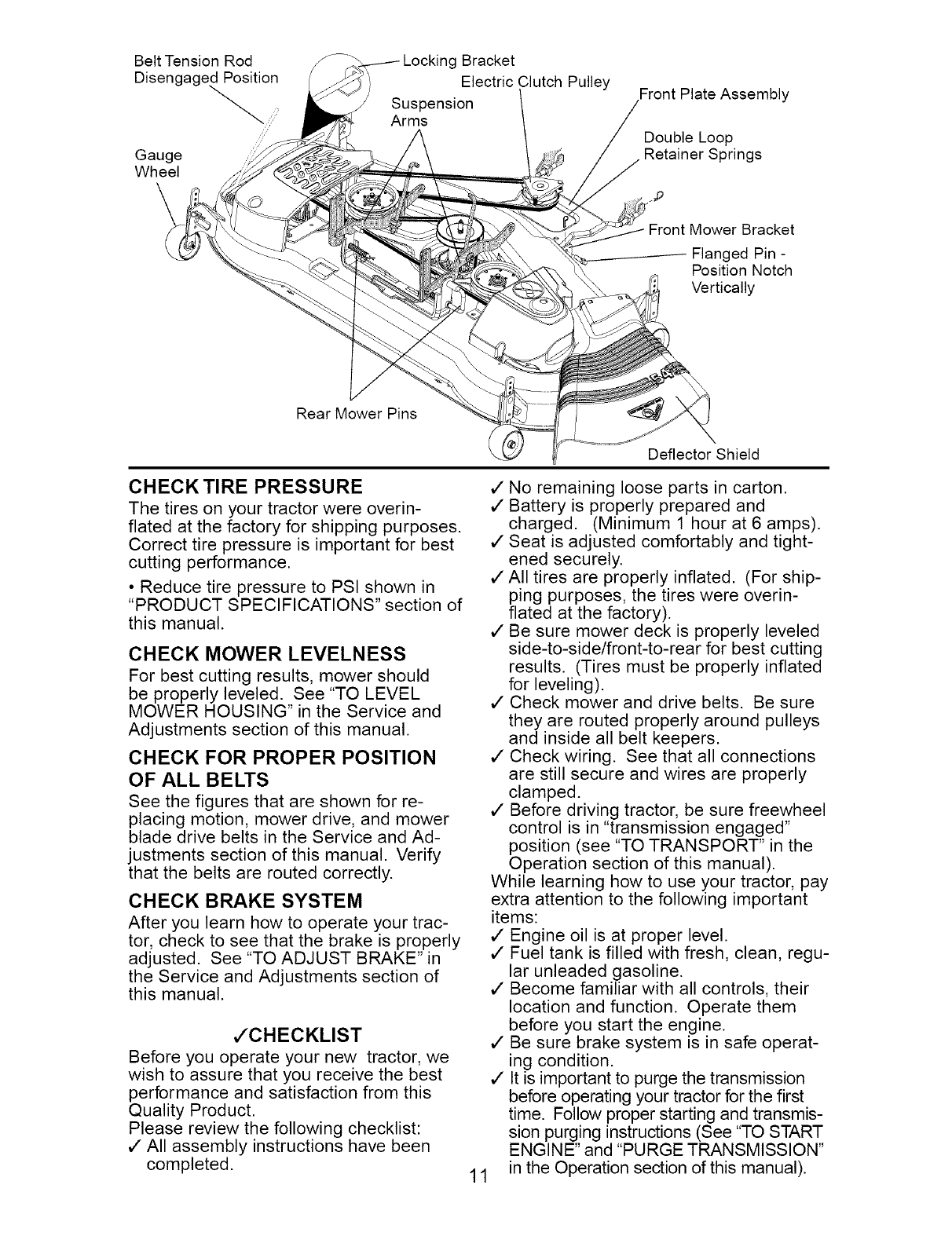

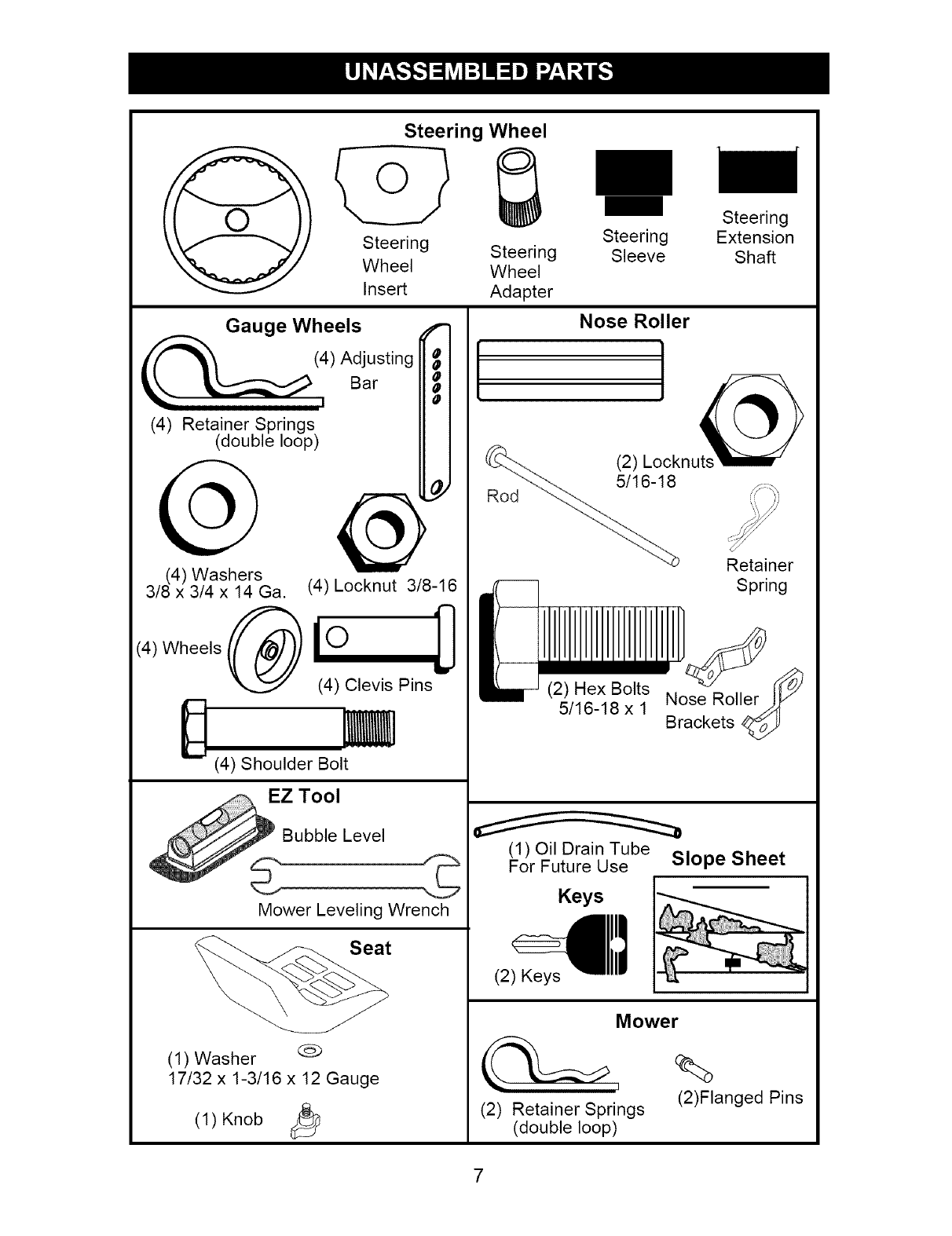

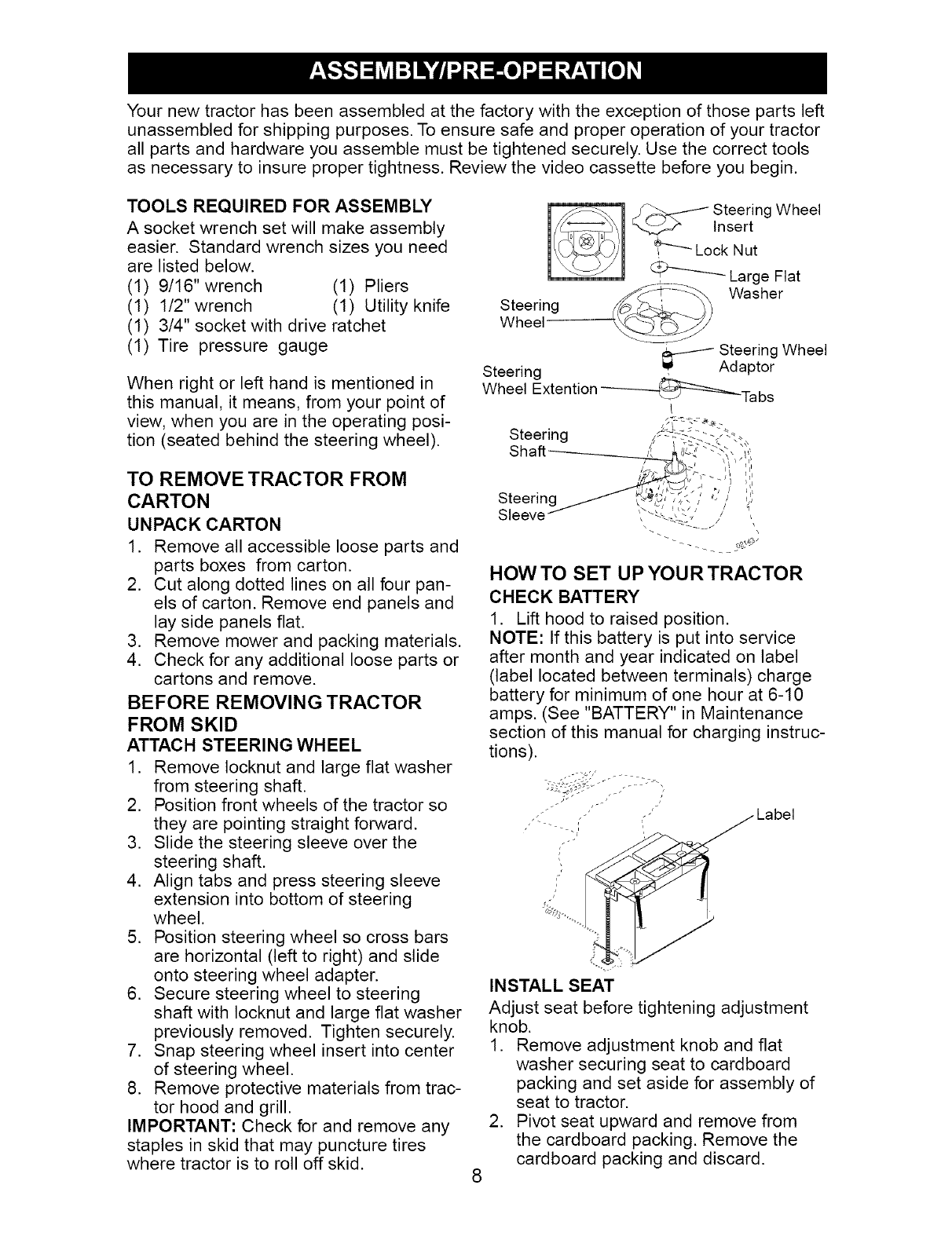

Assembly/Pre-Operation ....................... 8

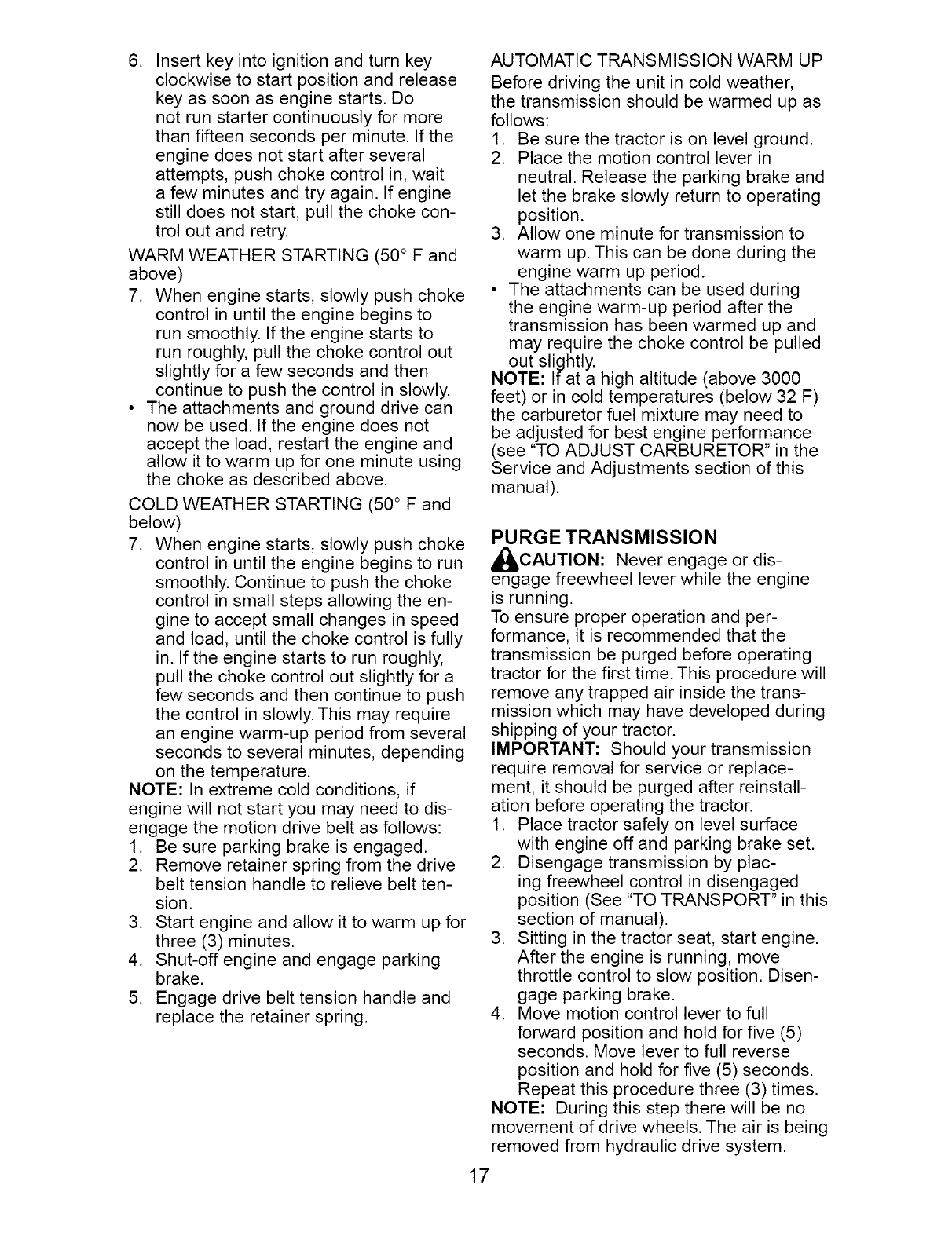

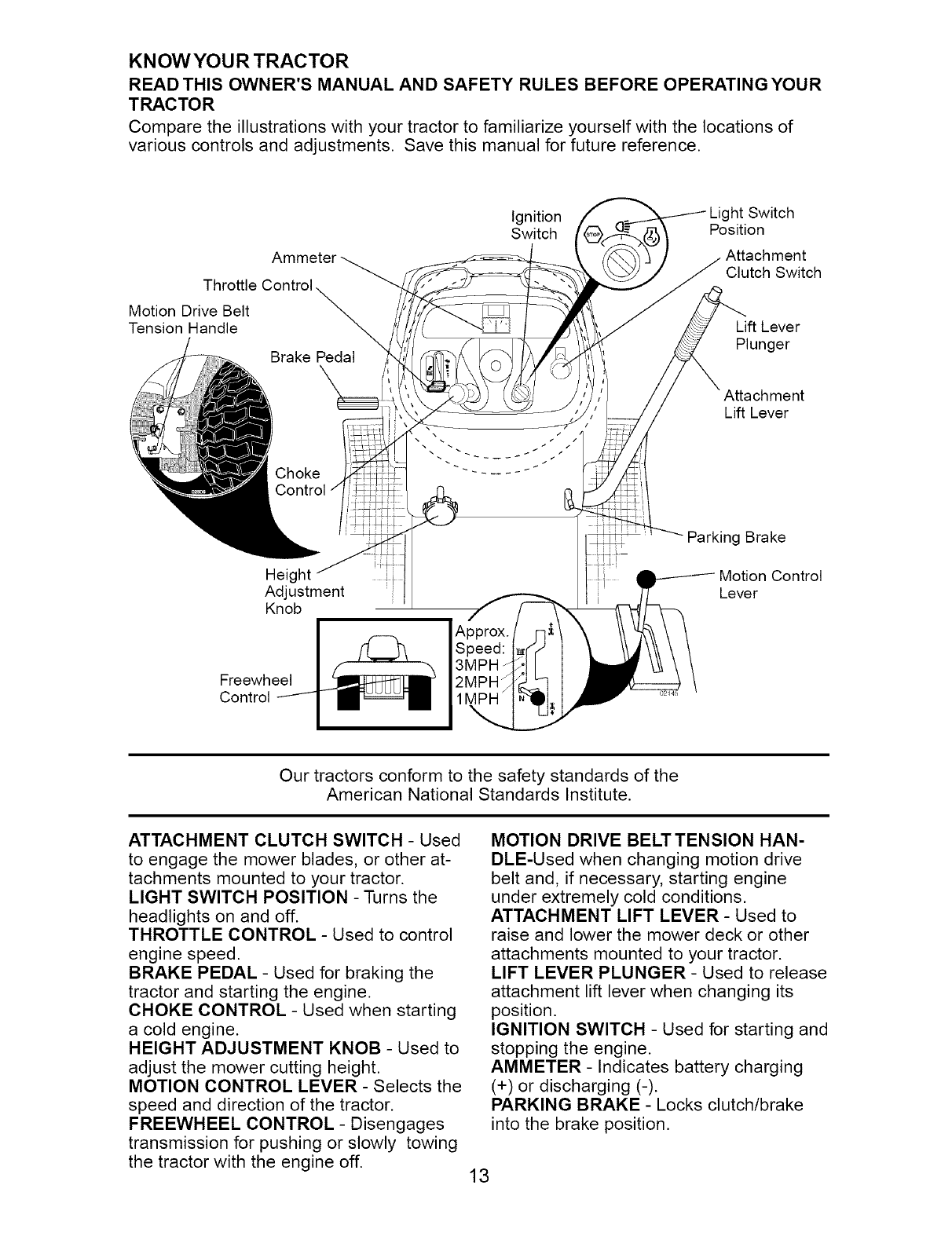

Operation ............................................. 12

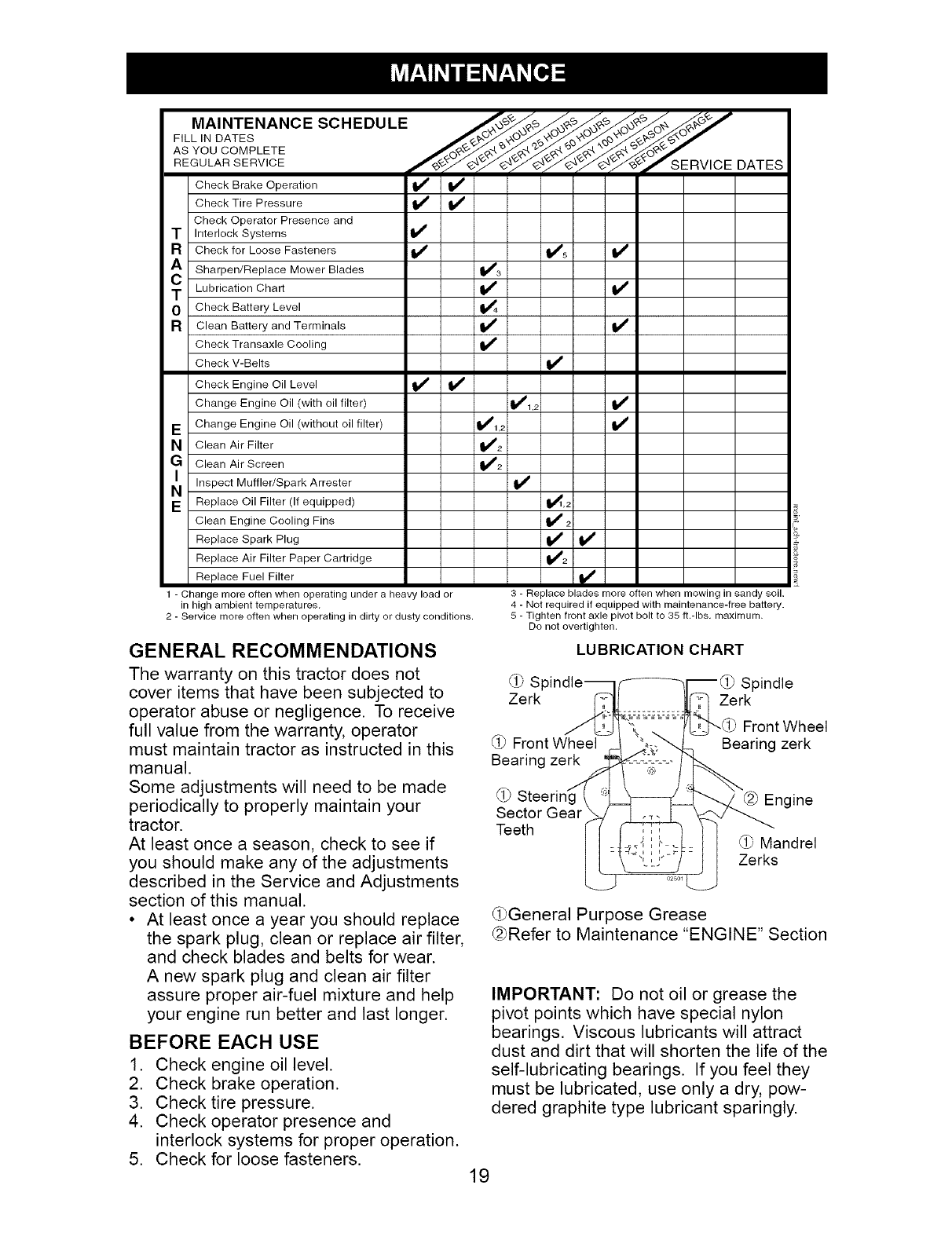

Maintenance Schedule ........................ 19

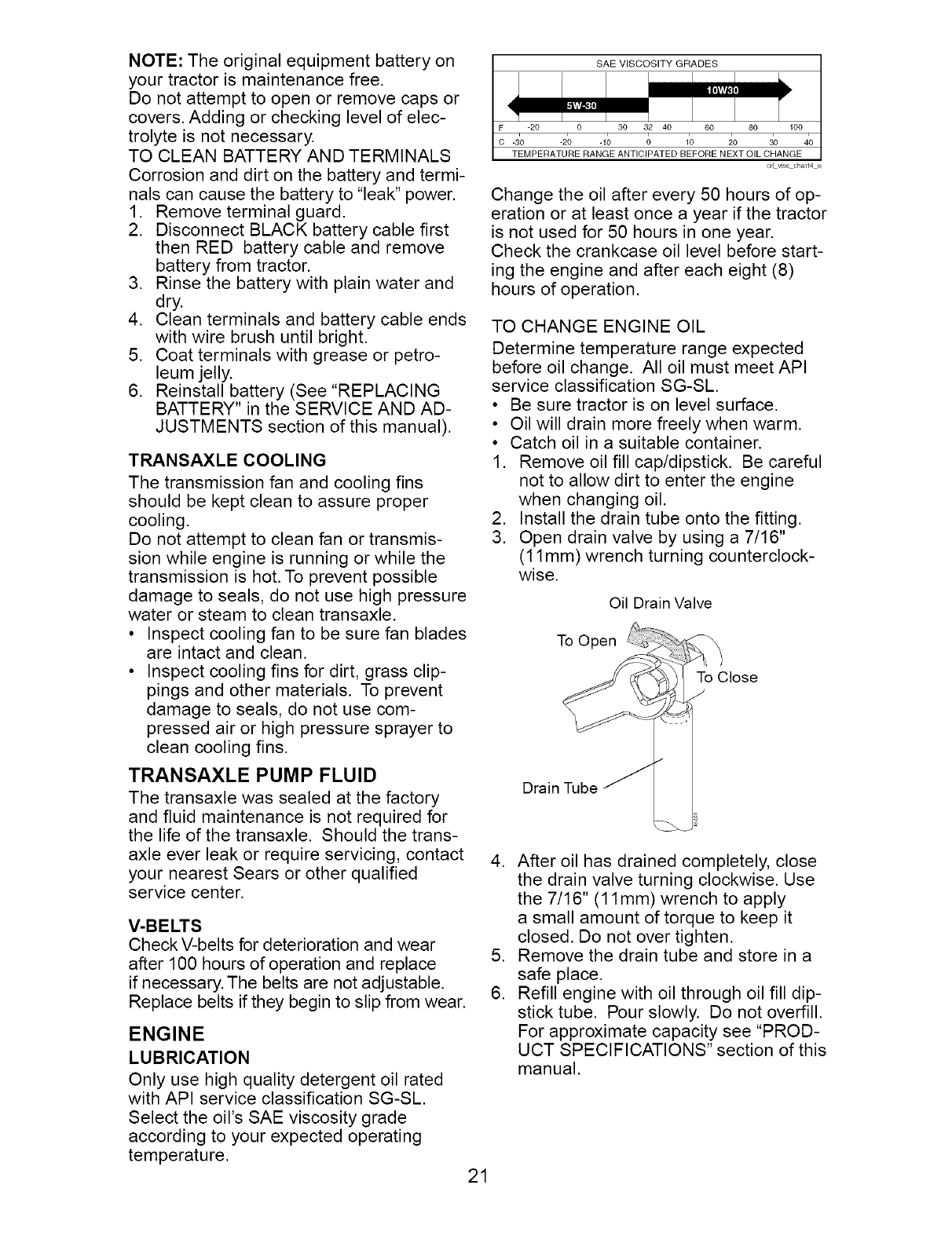

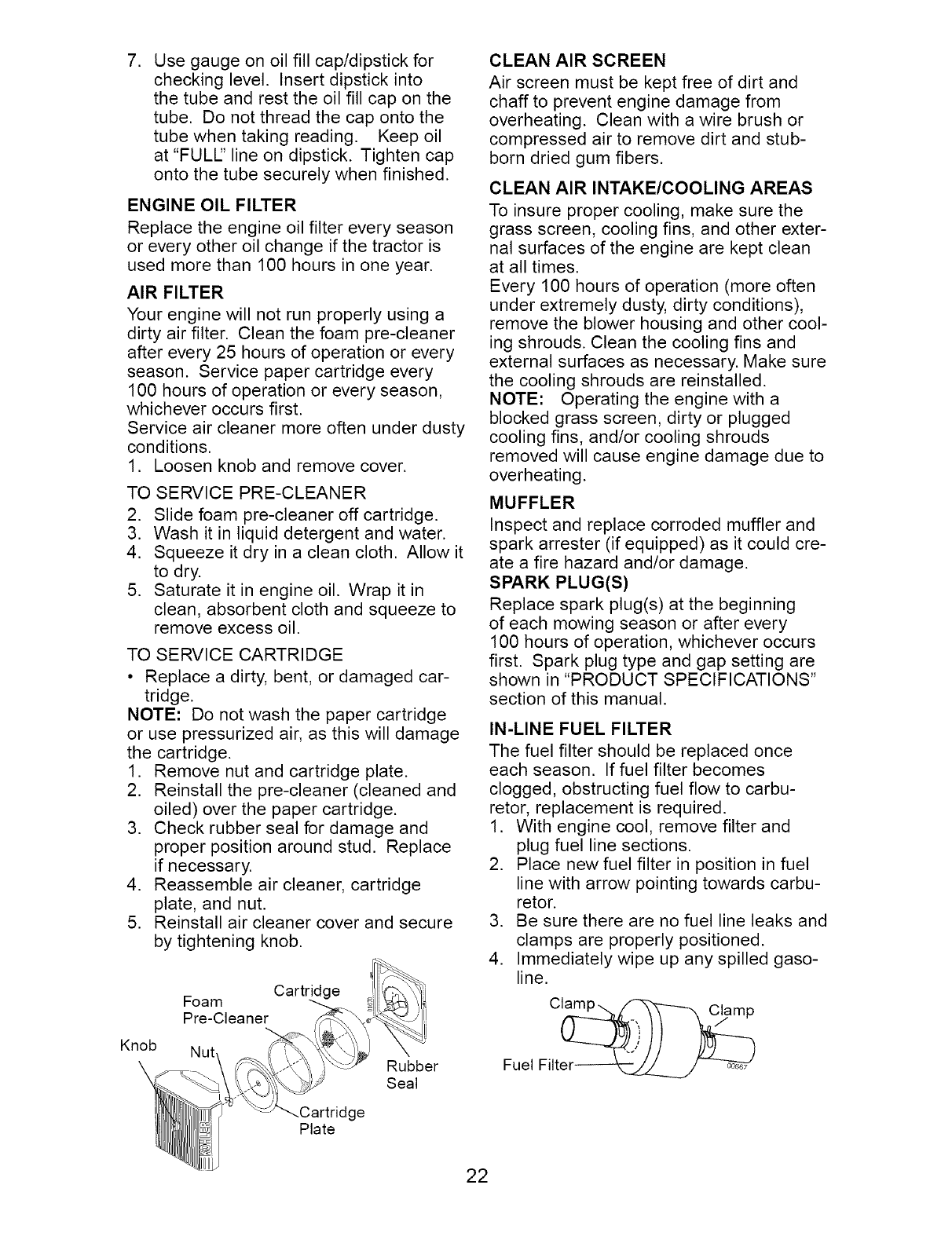

Maintenance ........................................ 19

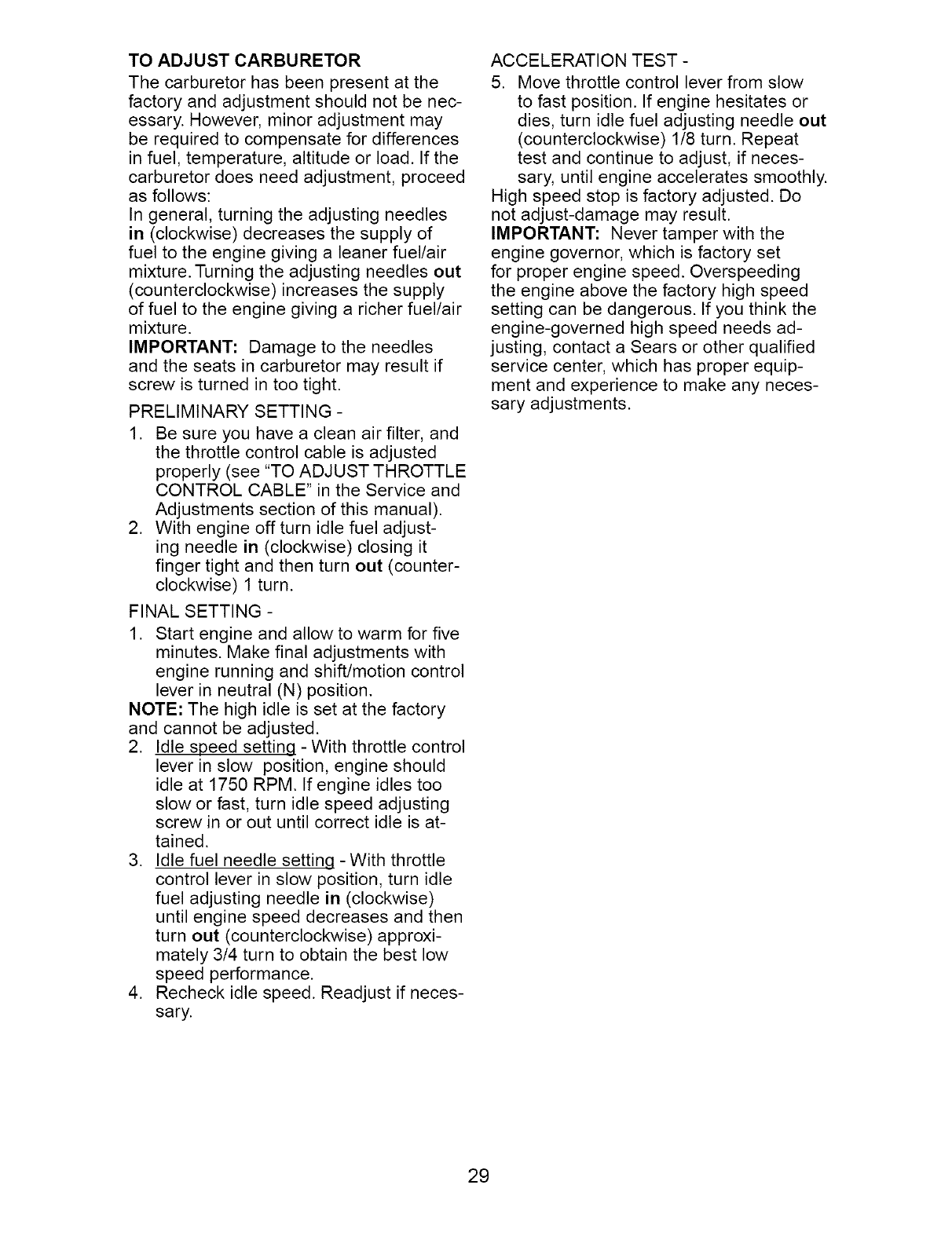

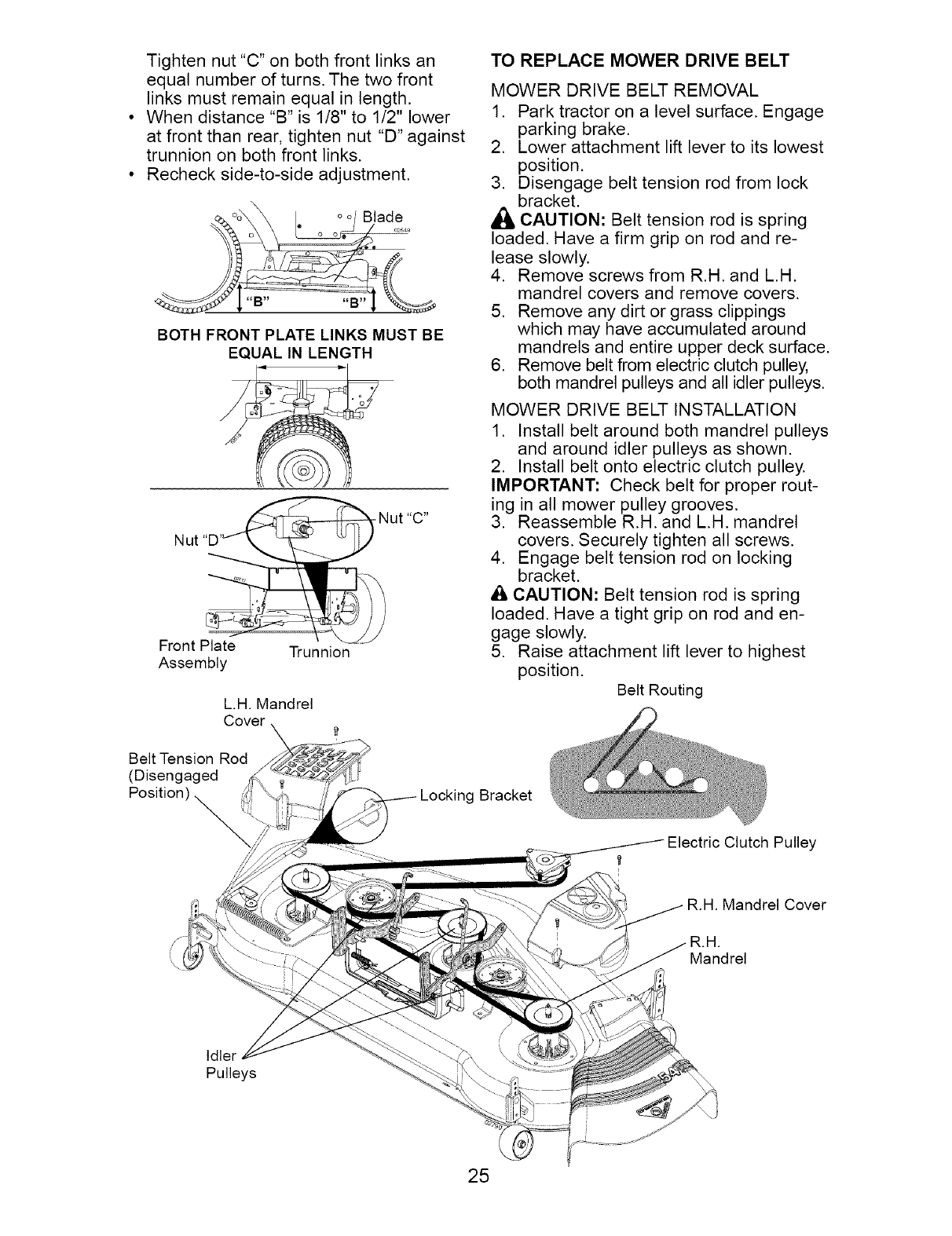

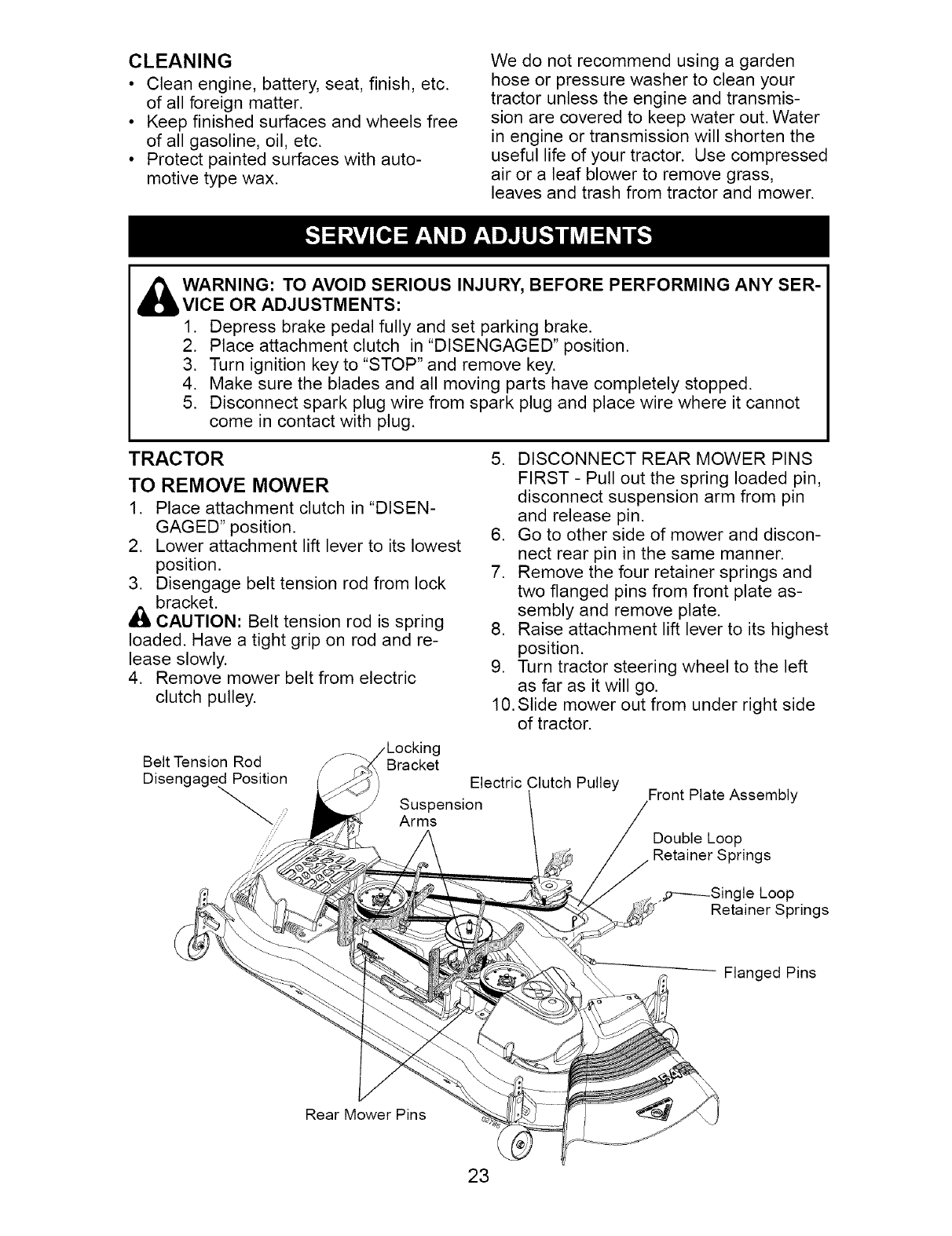

Service and Adjustments ..................... 23

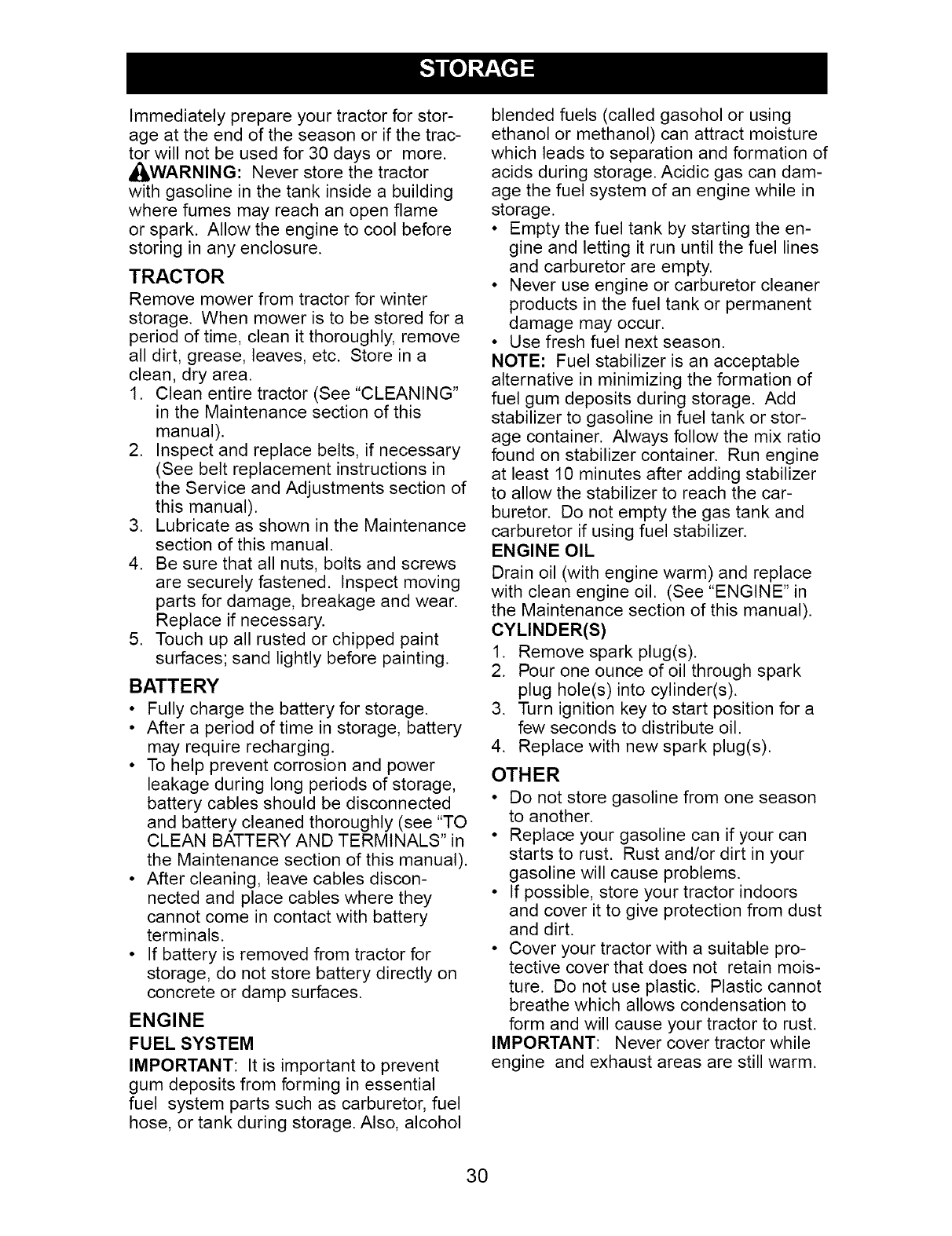

Storage ................................................ 31

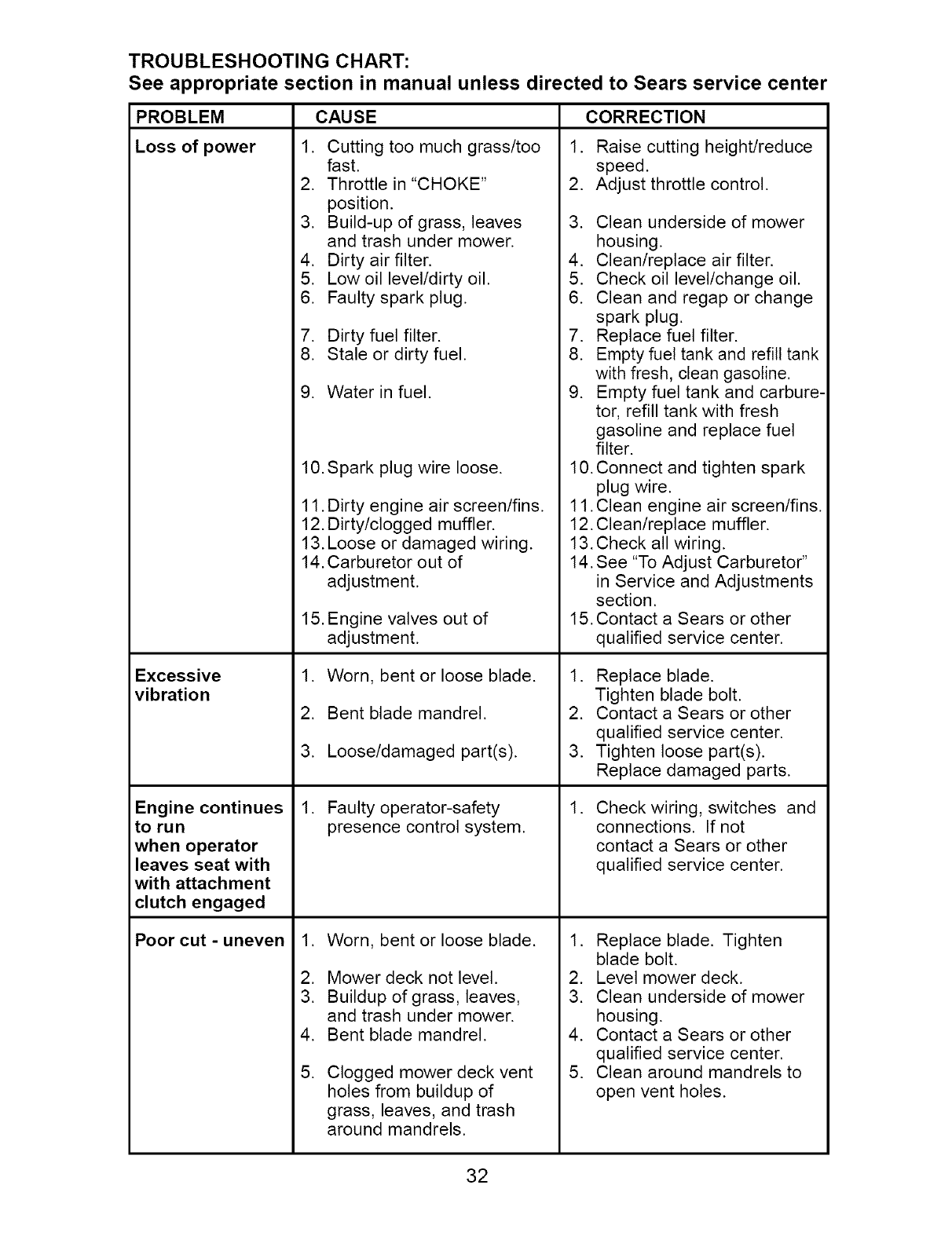

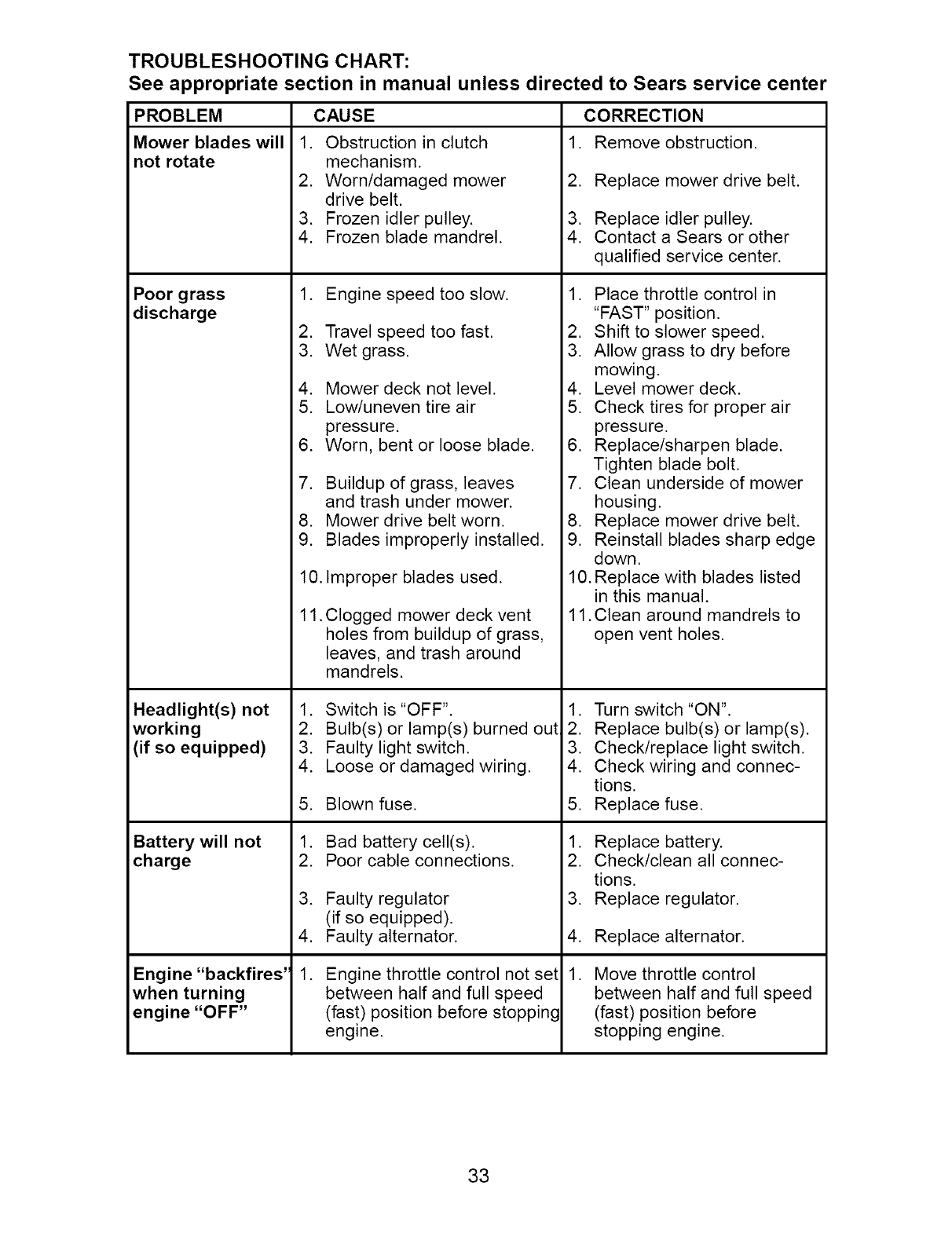

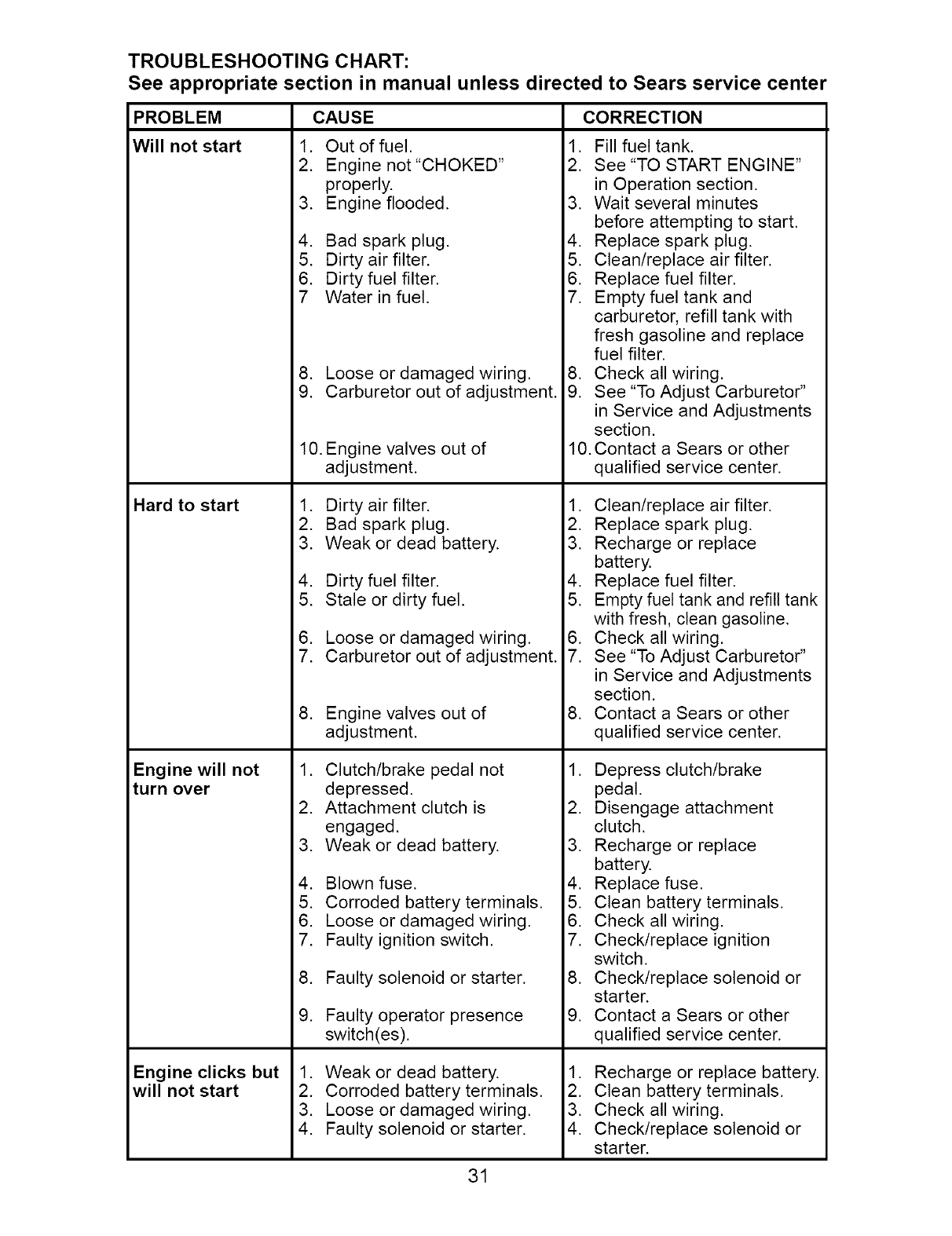

Troubleshooting ................................... 32

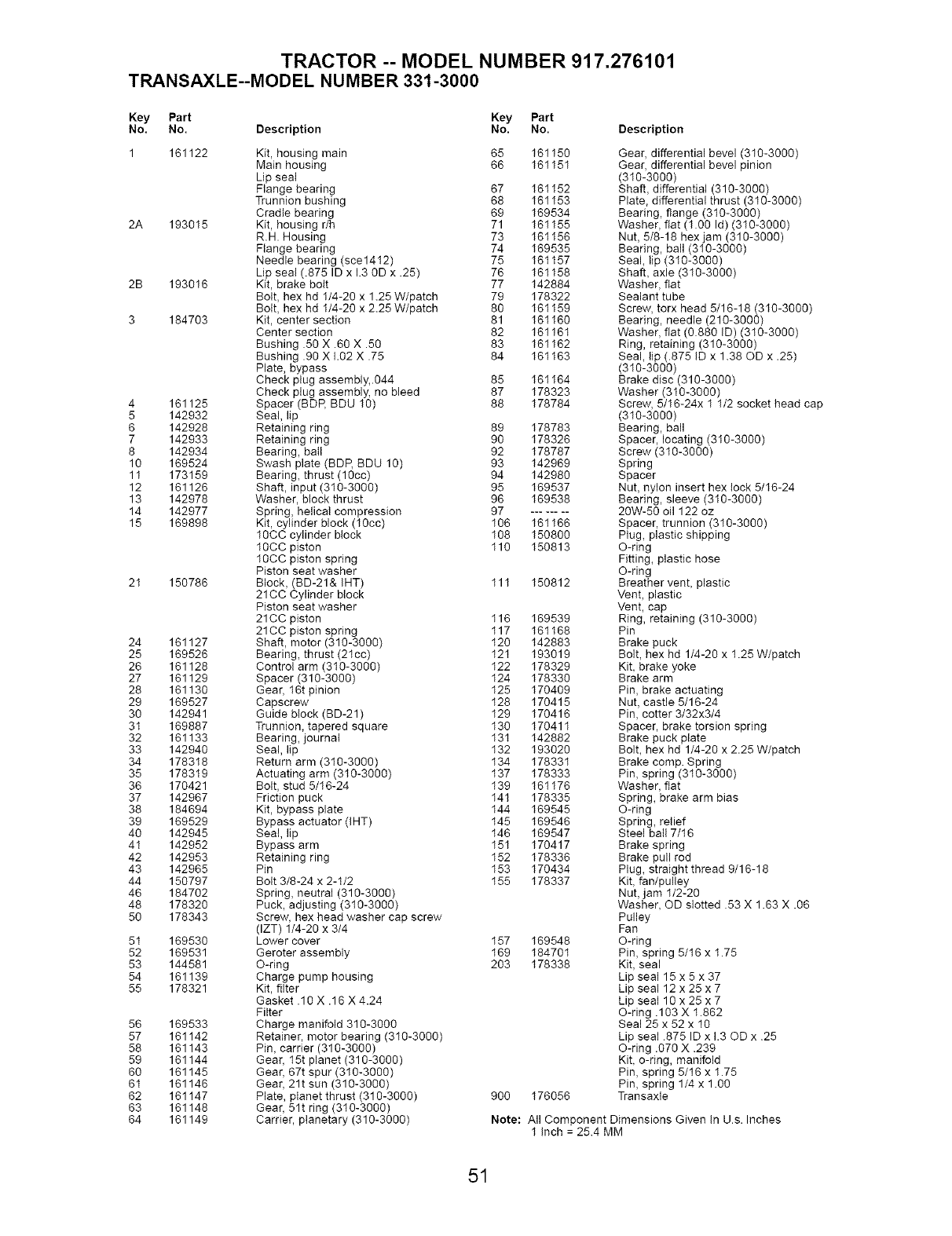

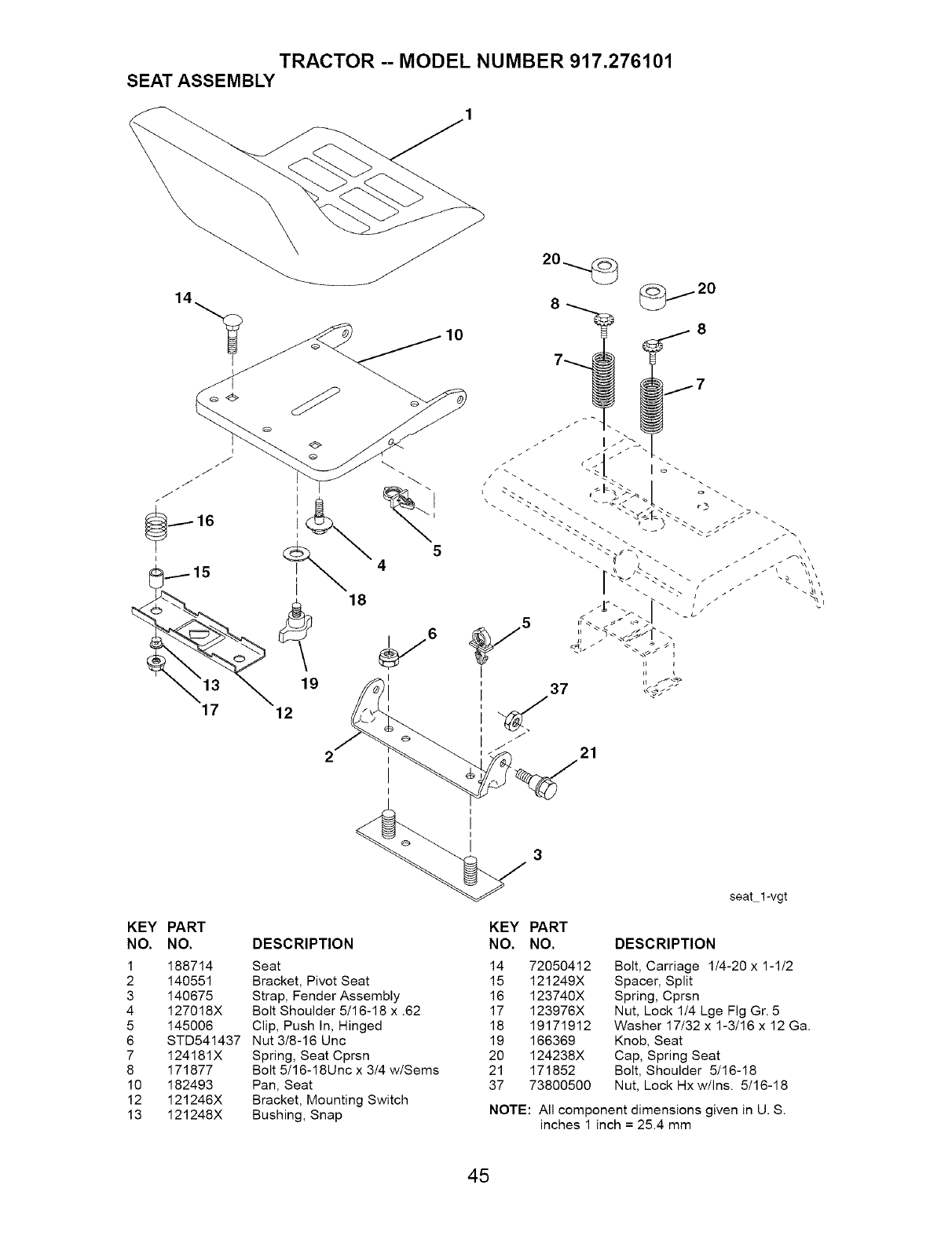

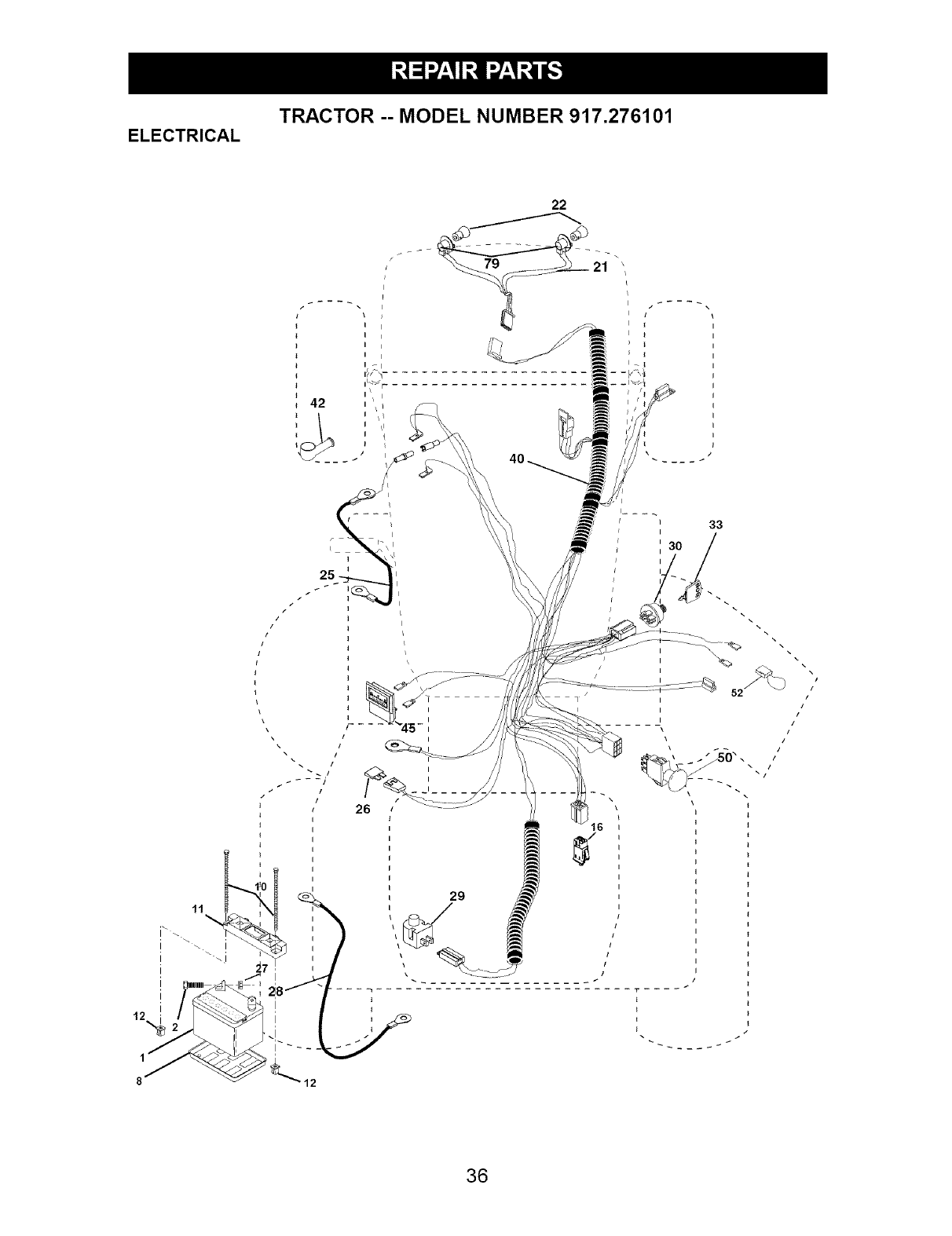

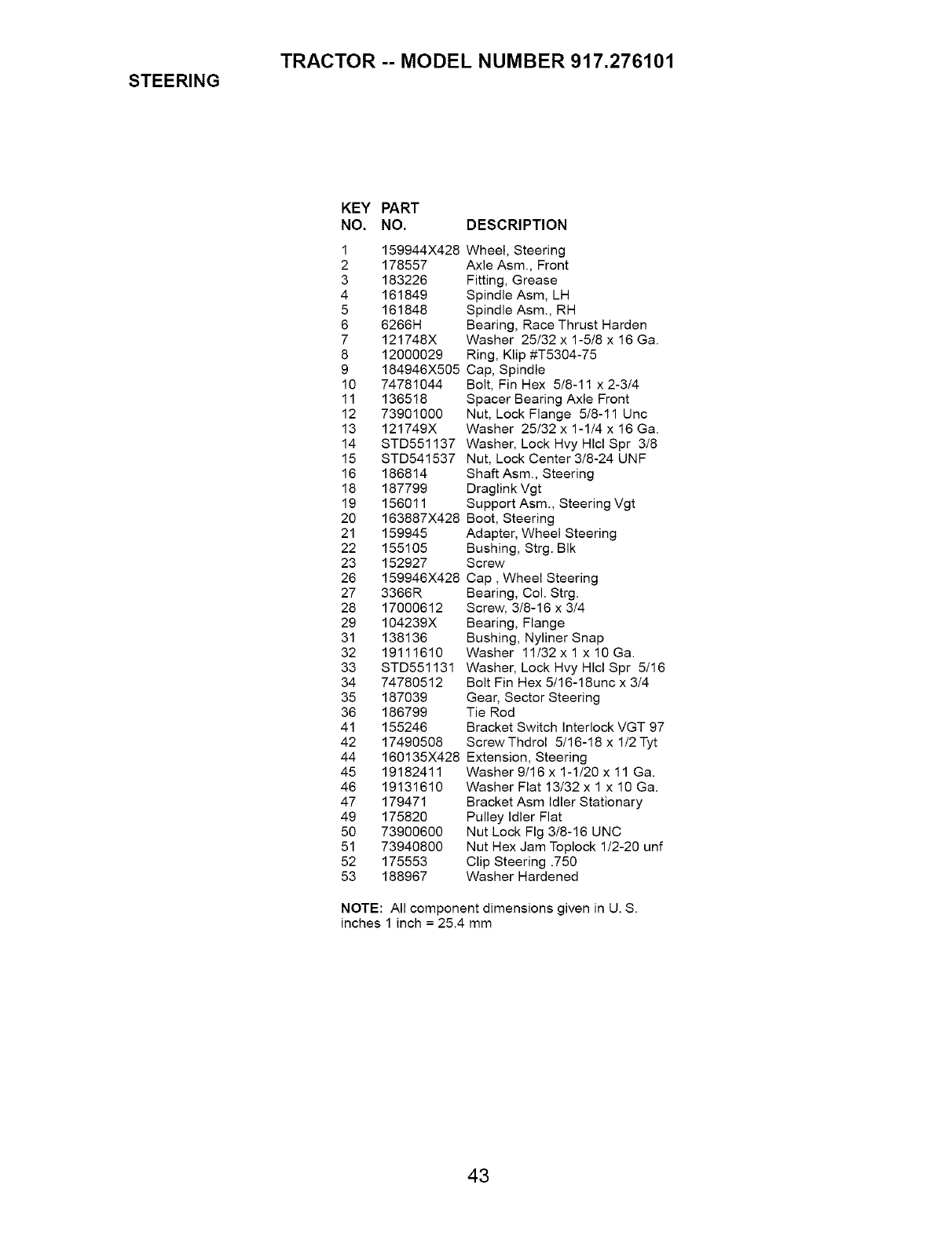

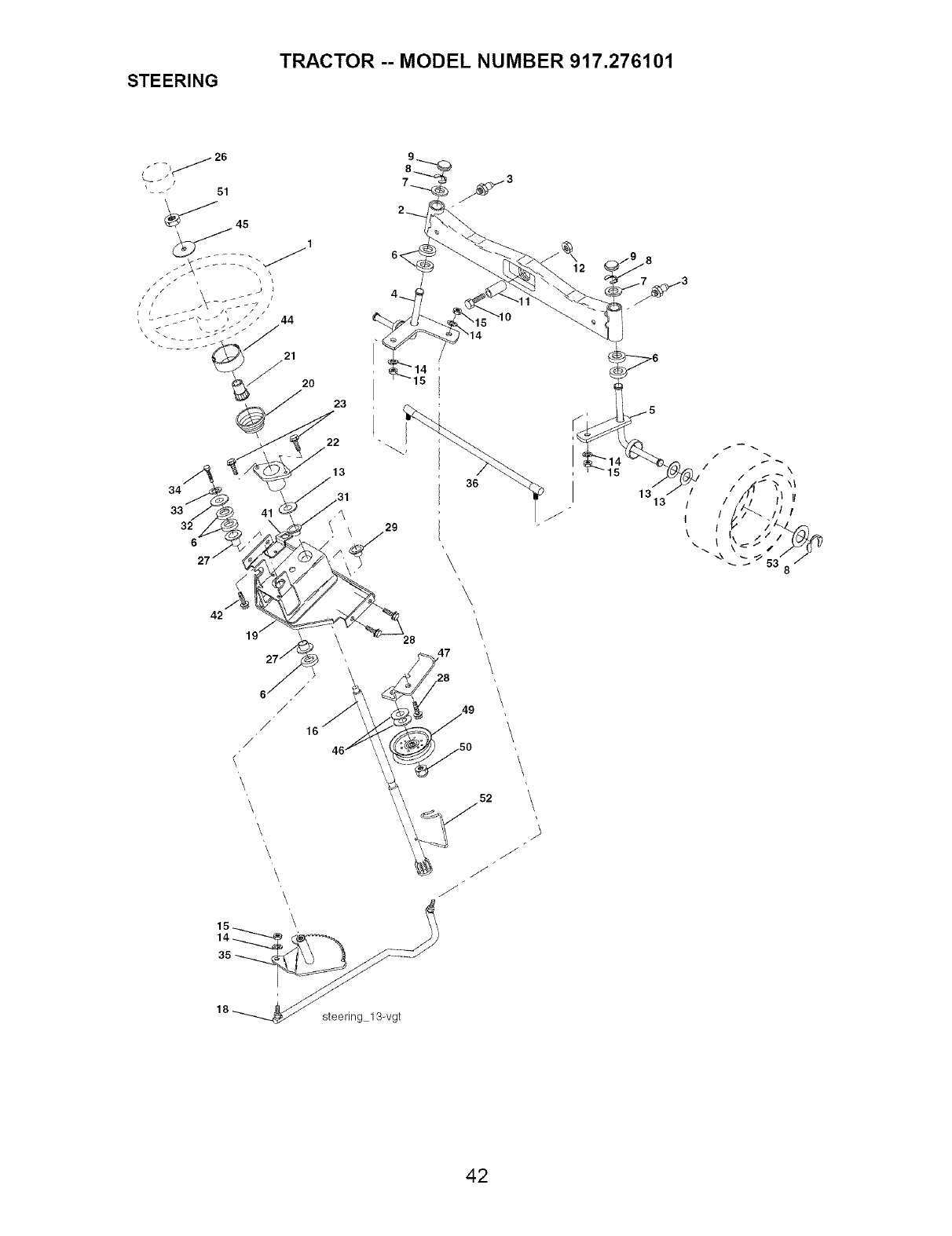

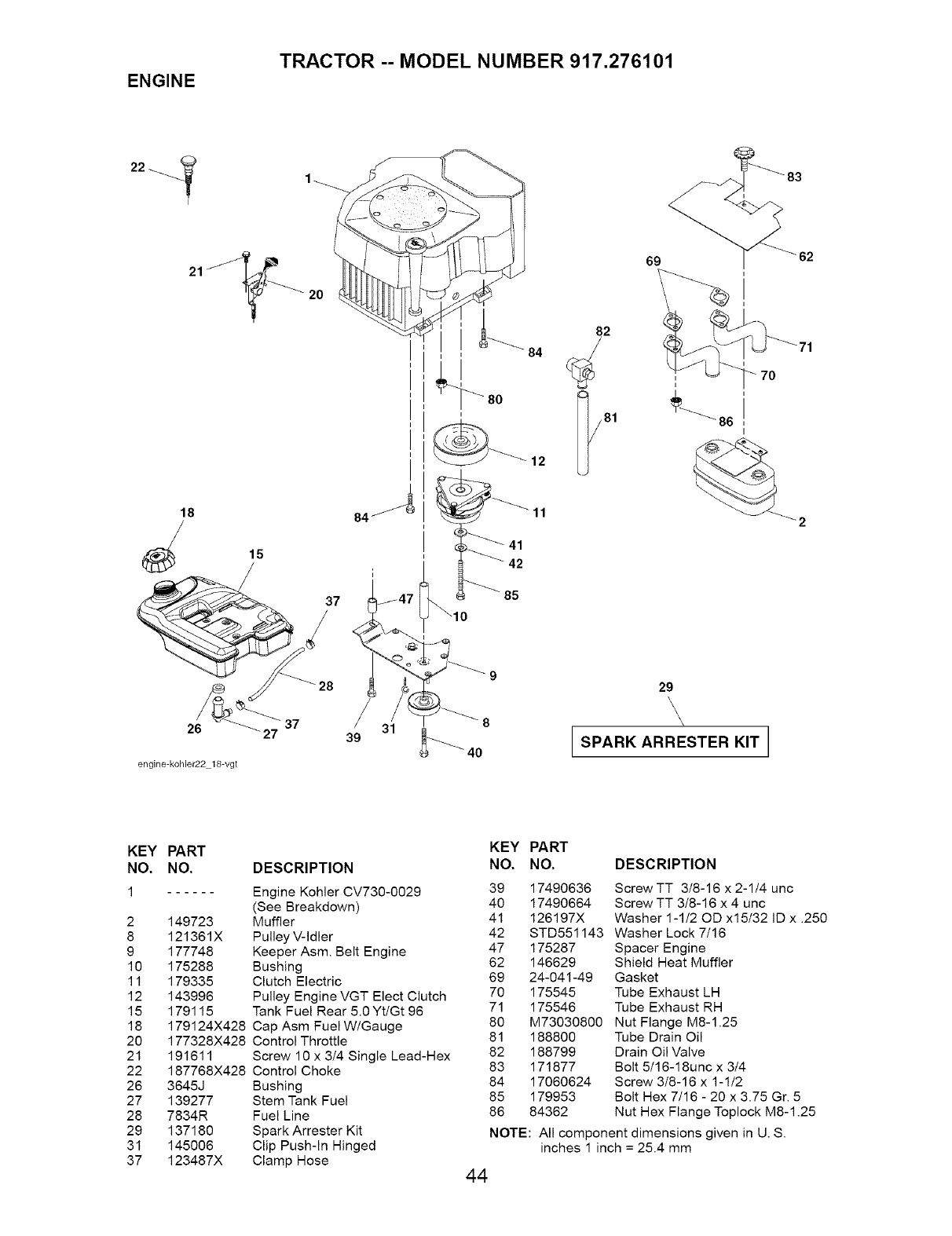

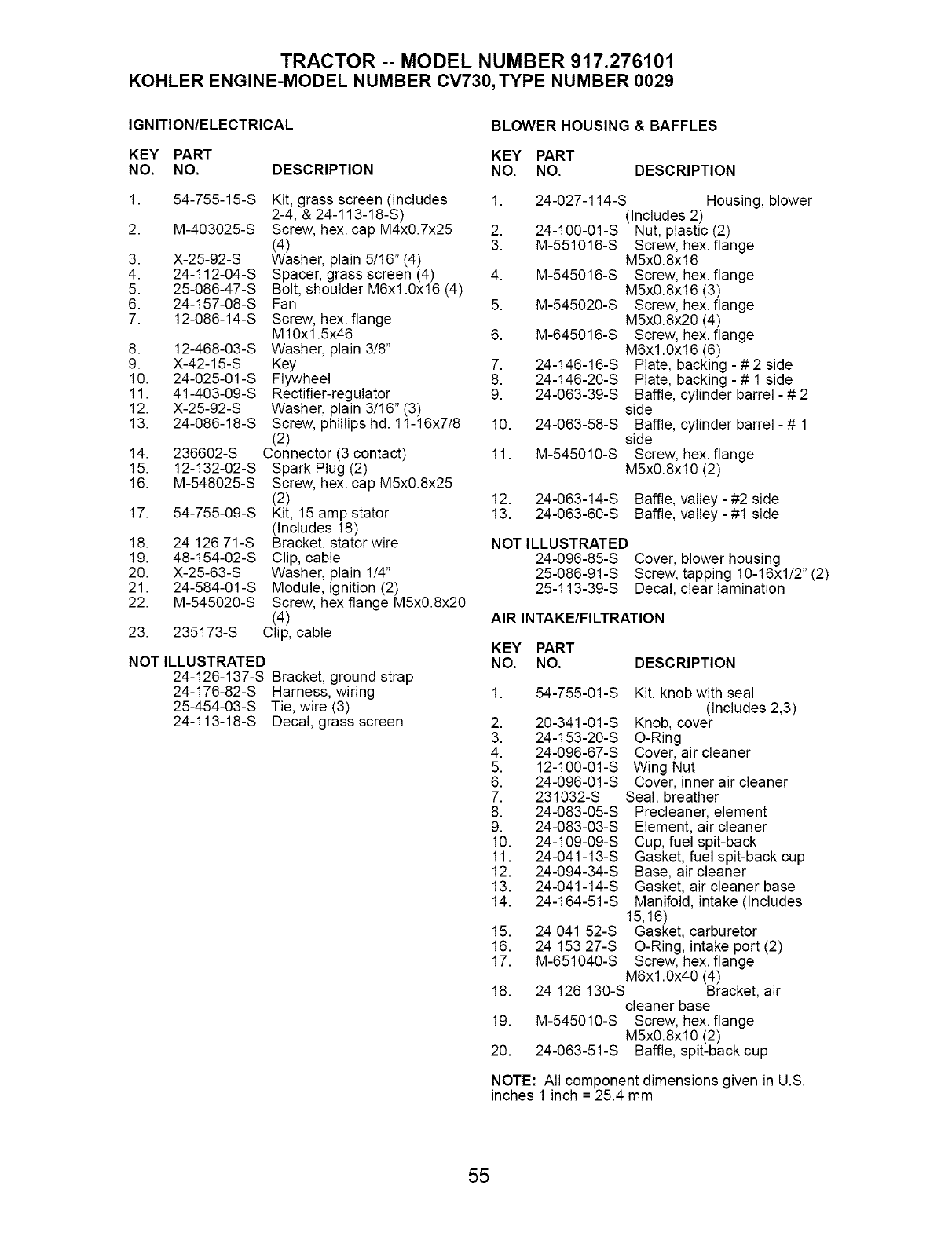

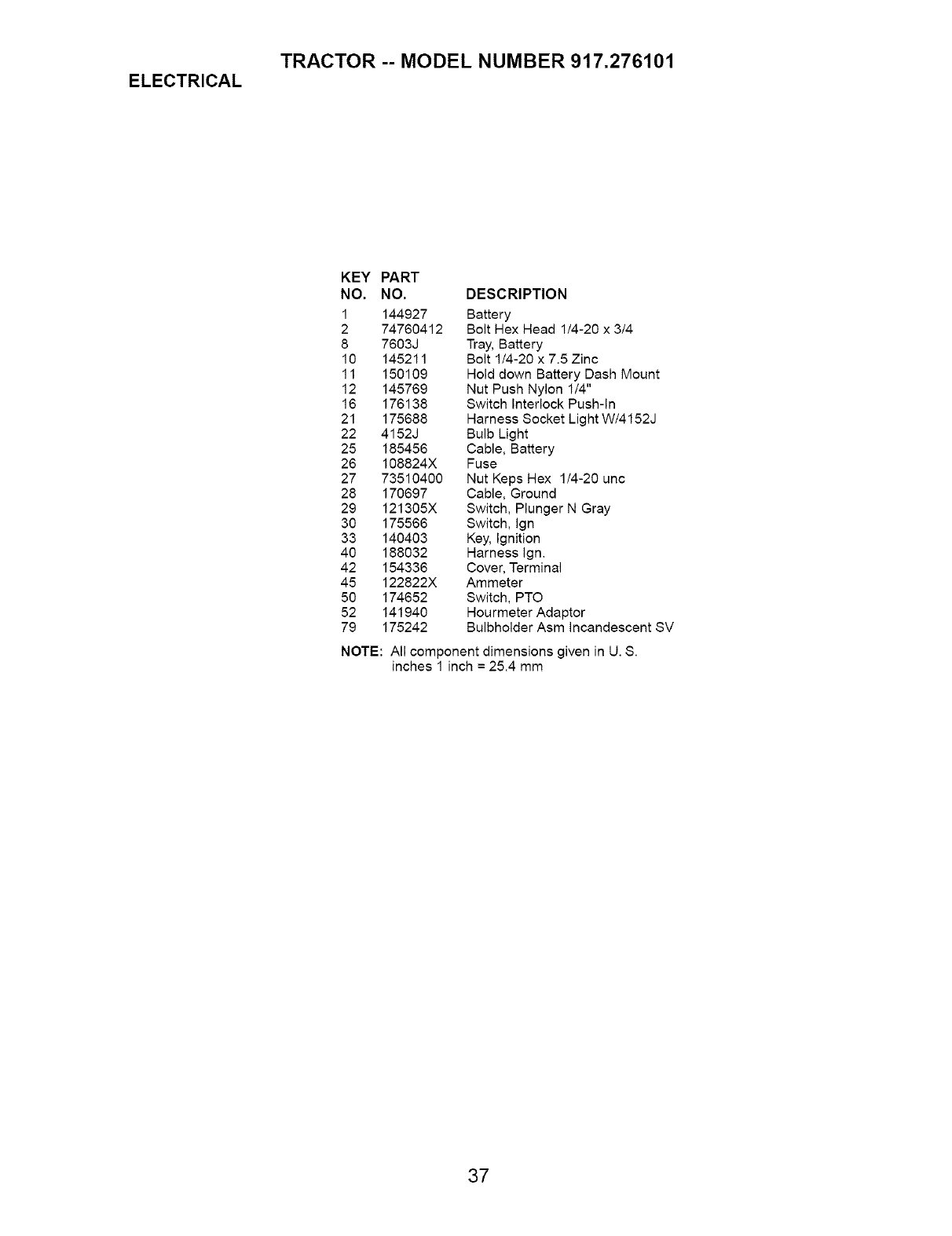

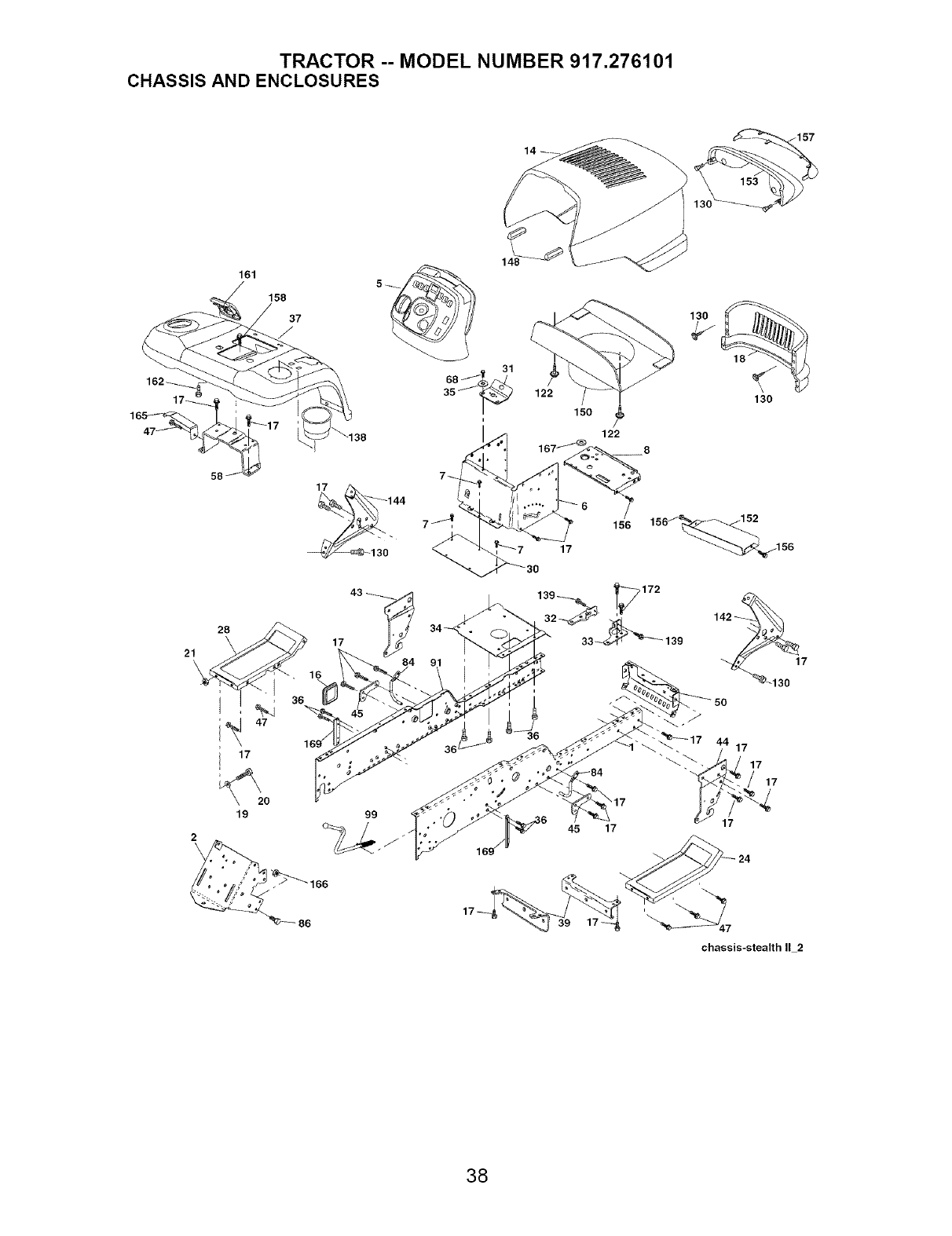

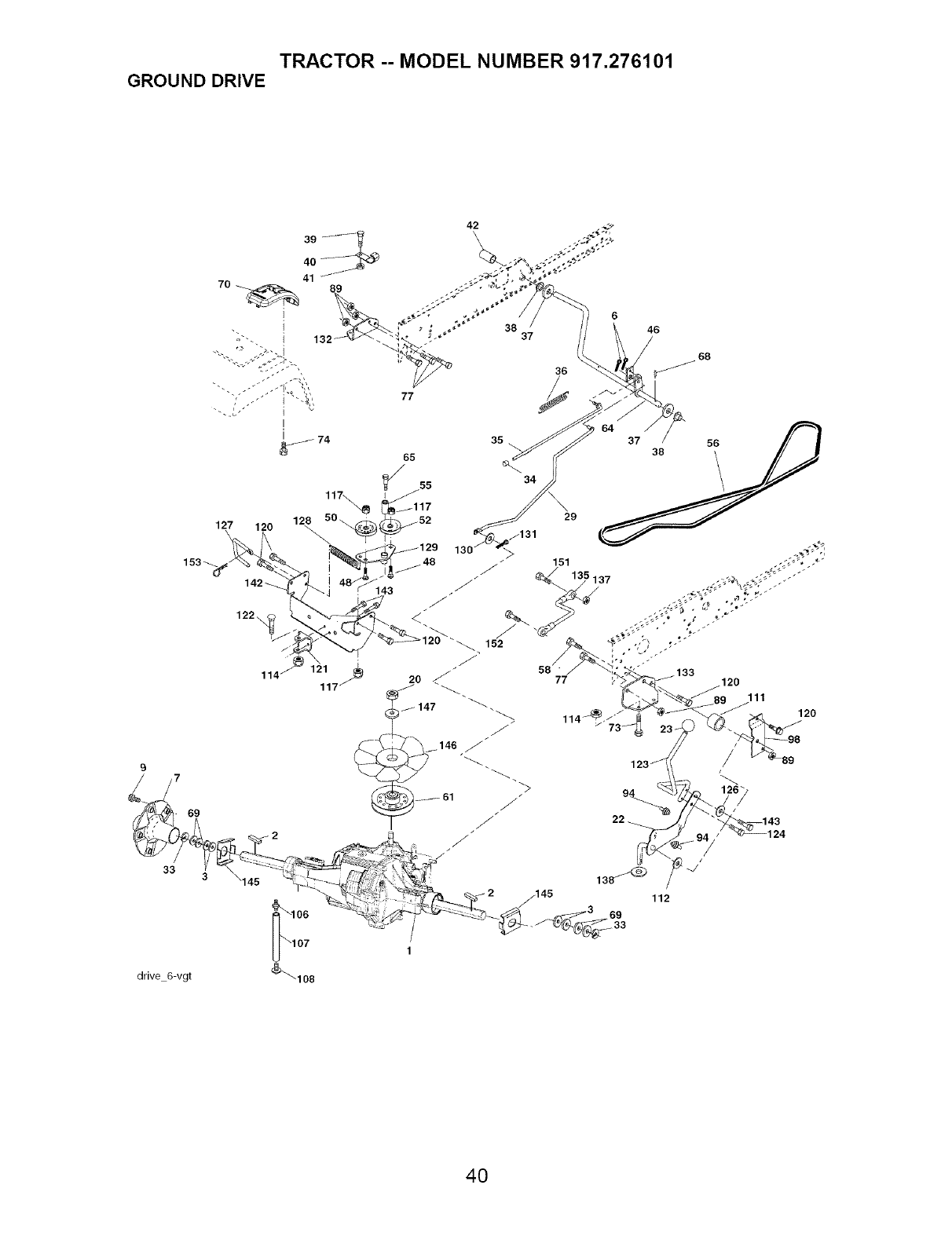

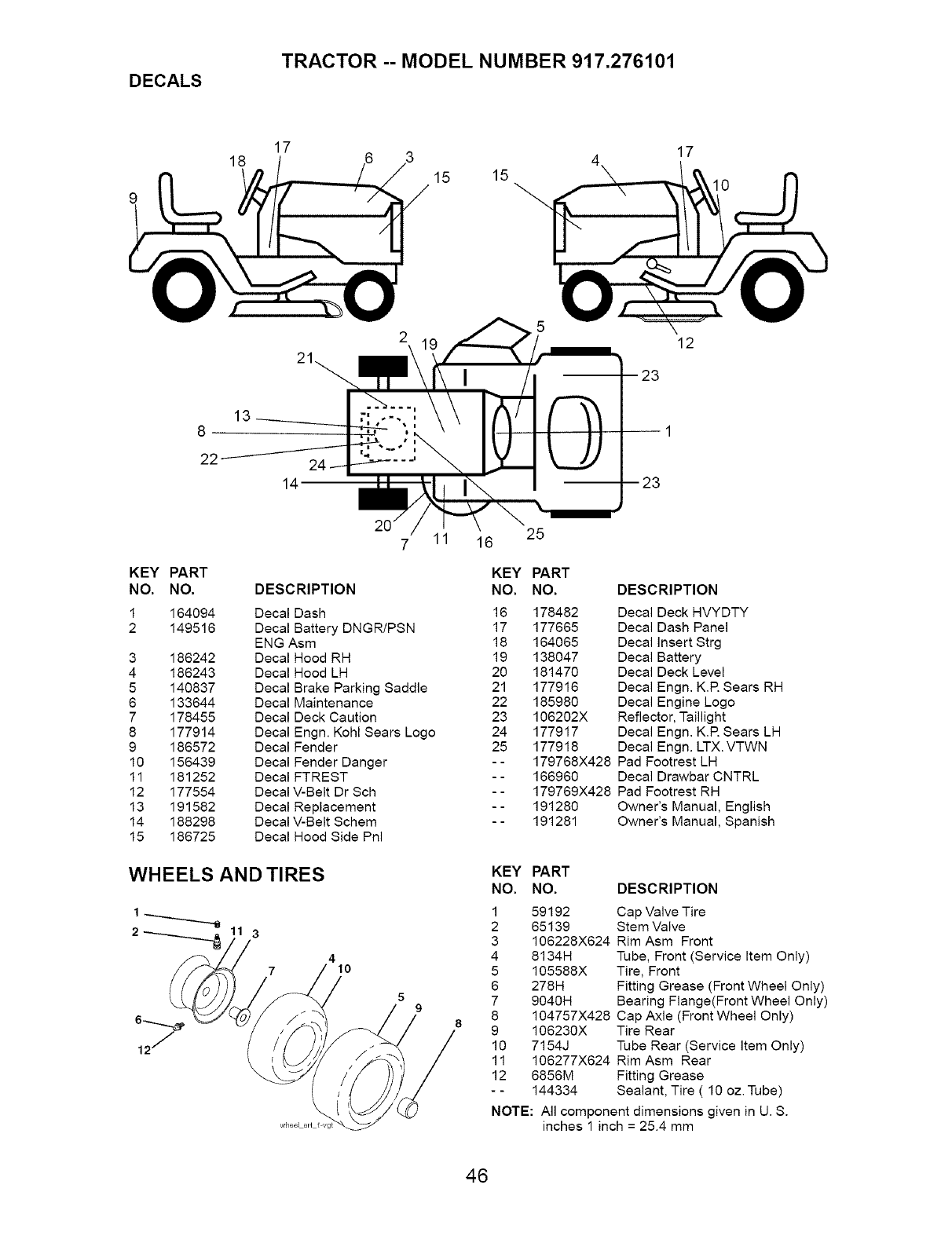

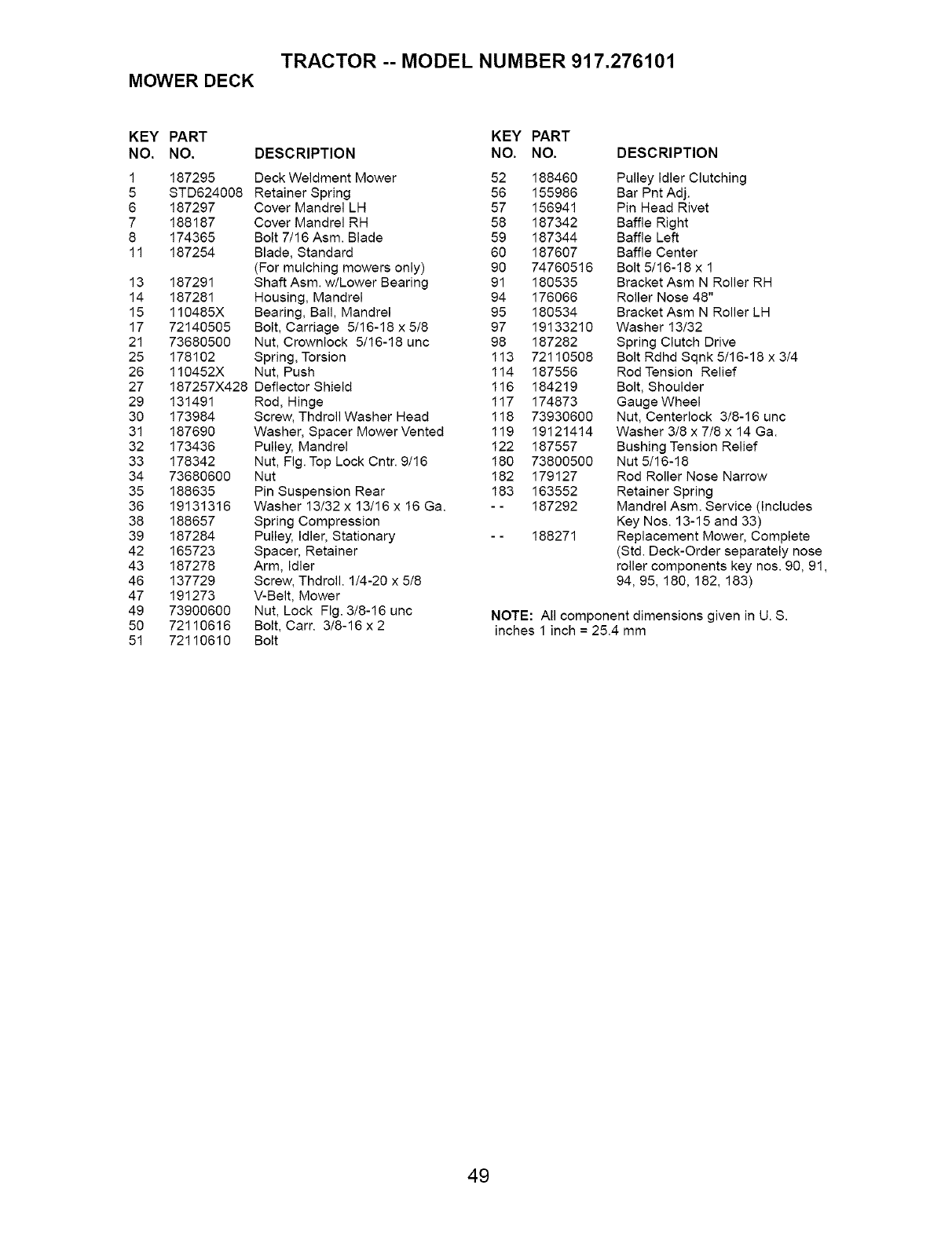

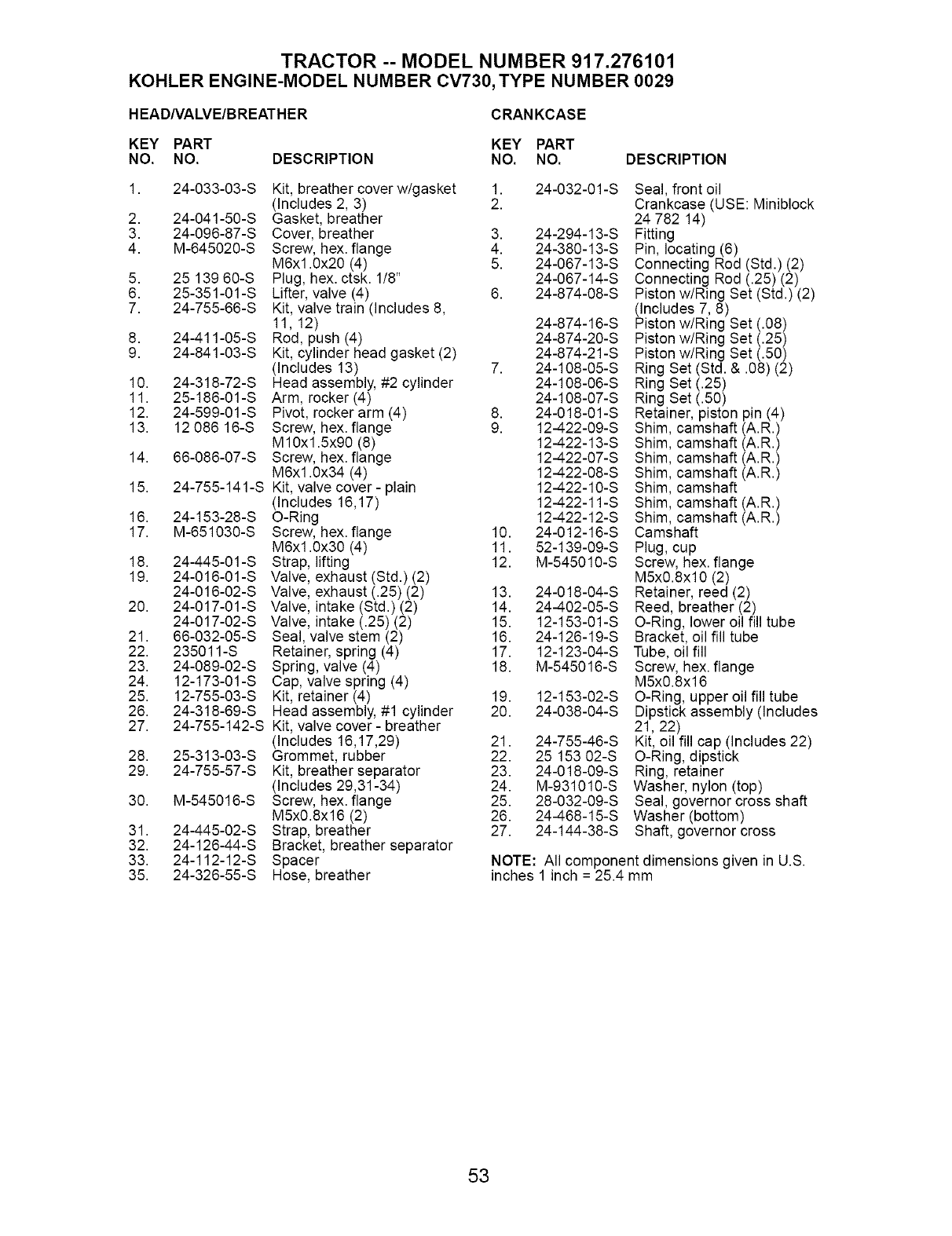

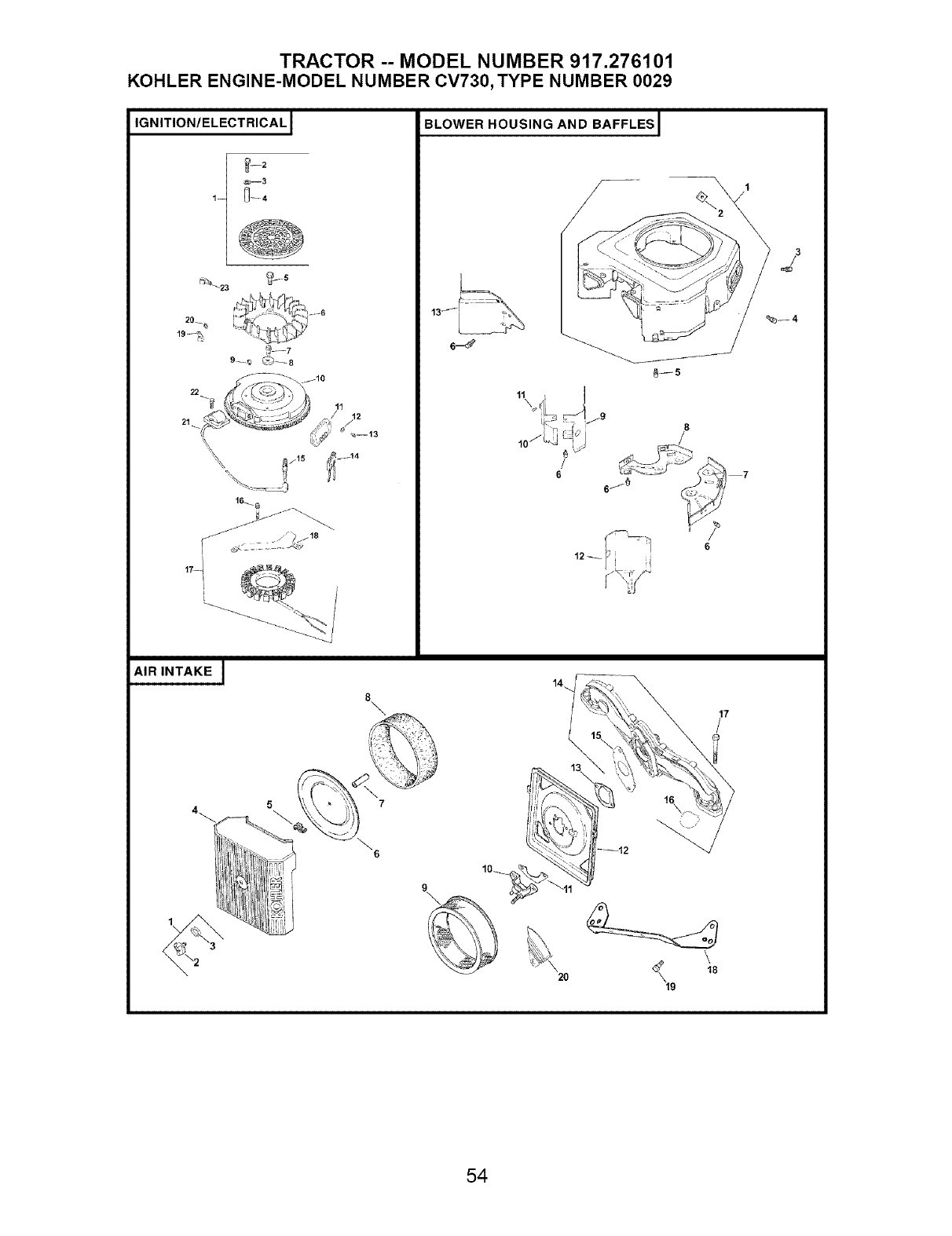

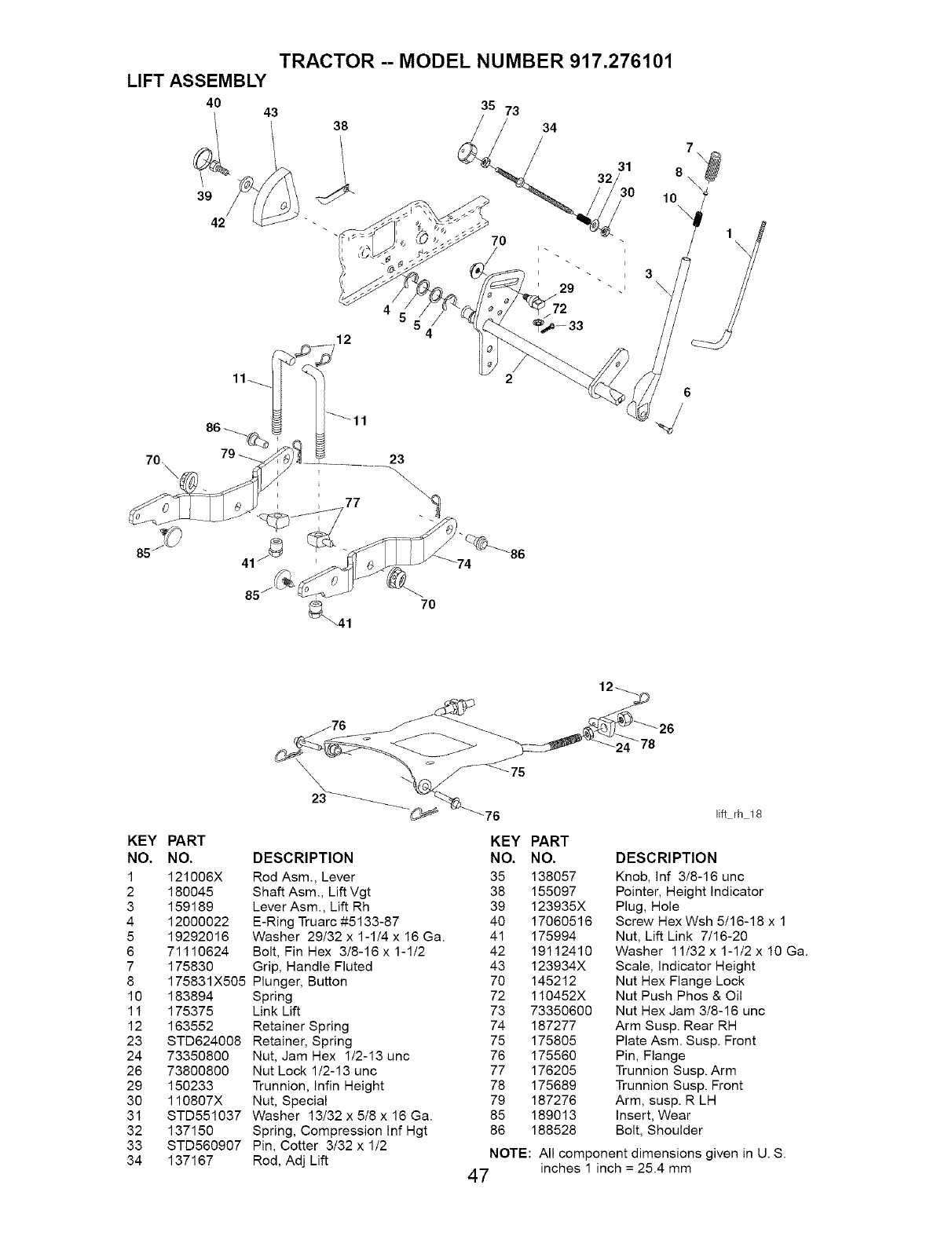

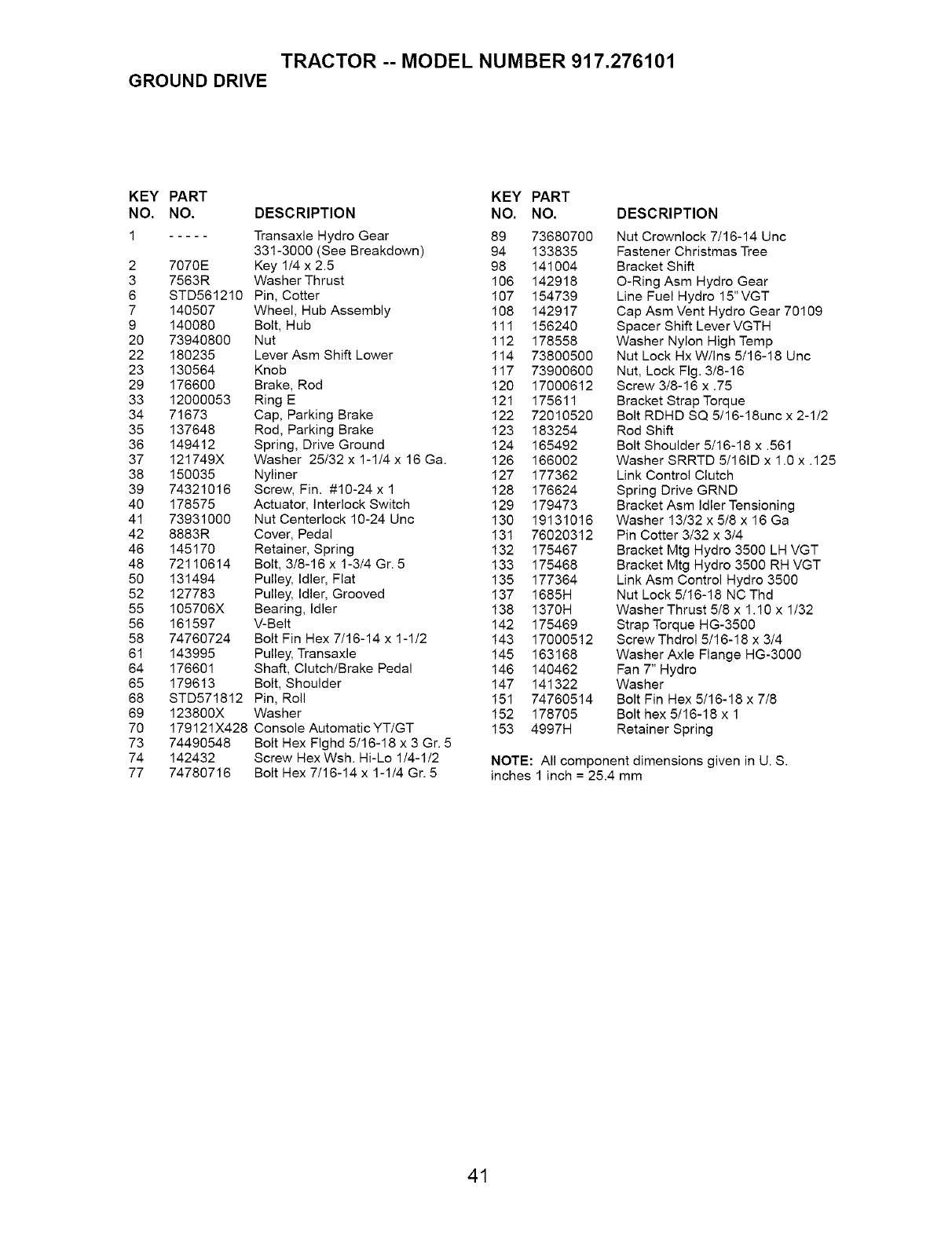

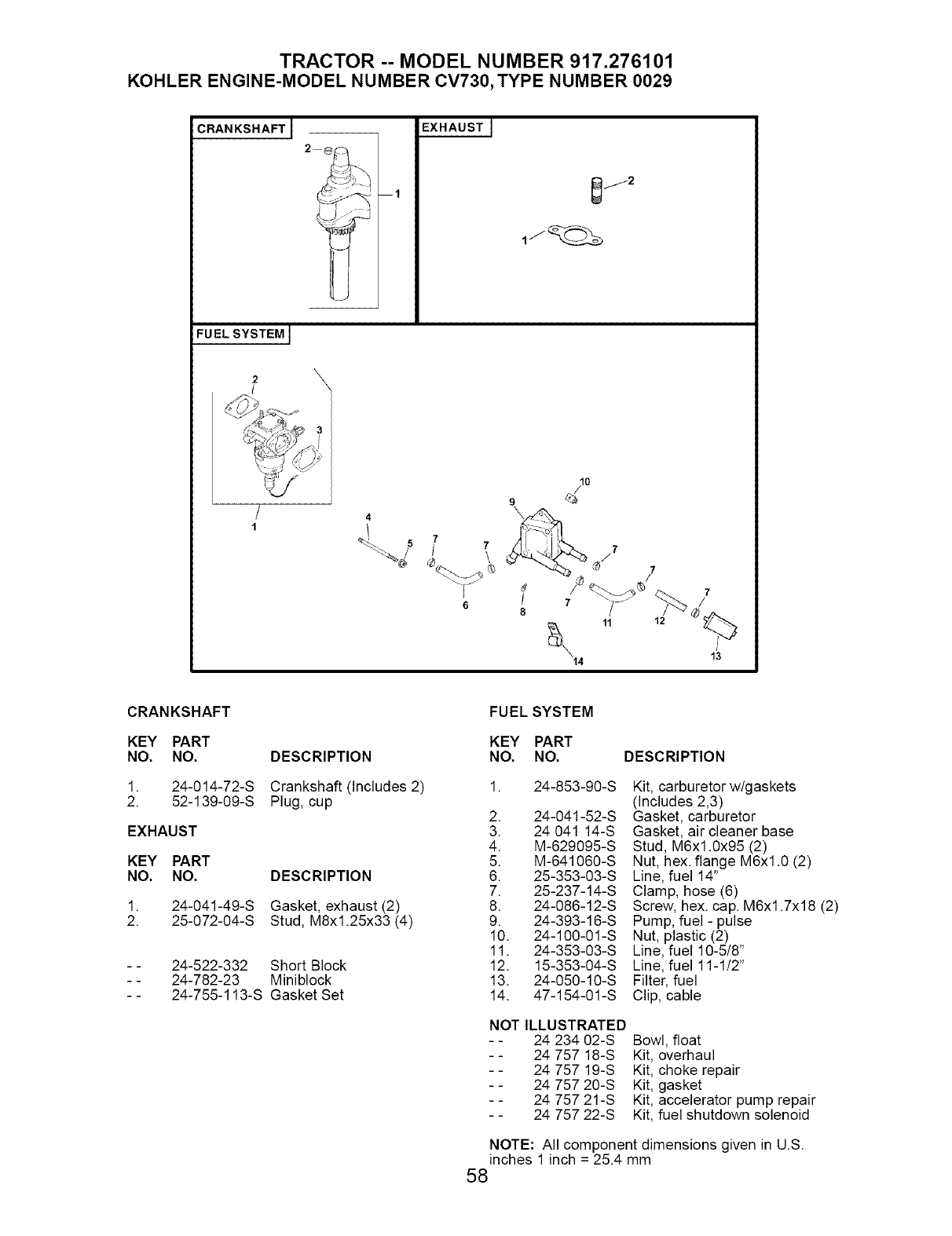

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

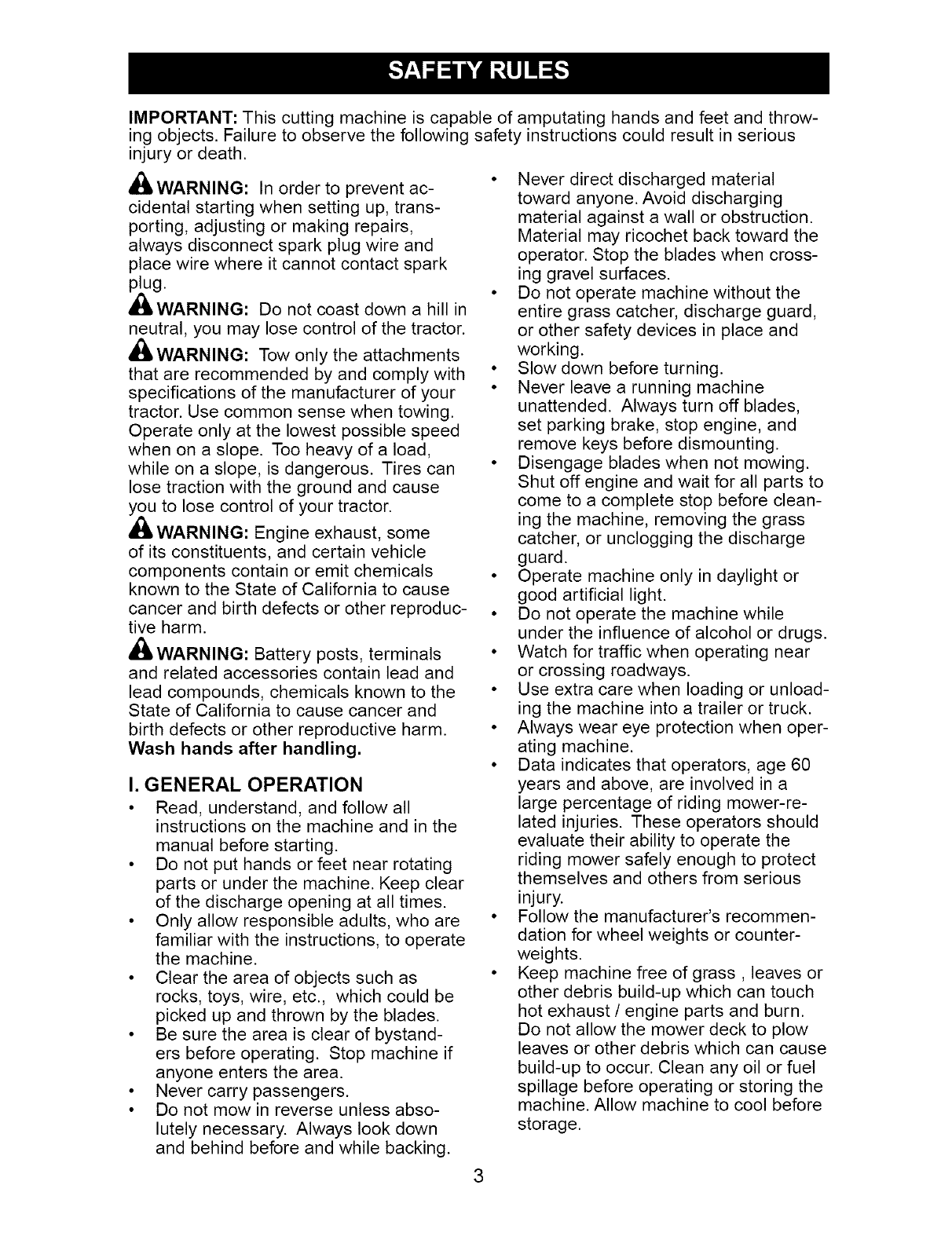

IMPORTANT:This cuttingmachineis capableof amputatinghandsandfeet and throw-

ing objects.Failureto observethe followingsafety instructionscouldresultin serious

injury or death.

_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

_lblug"

WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

WARNING: Engine exhaust, some

of its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other reproduc-

tive harm.

WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blades.

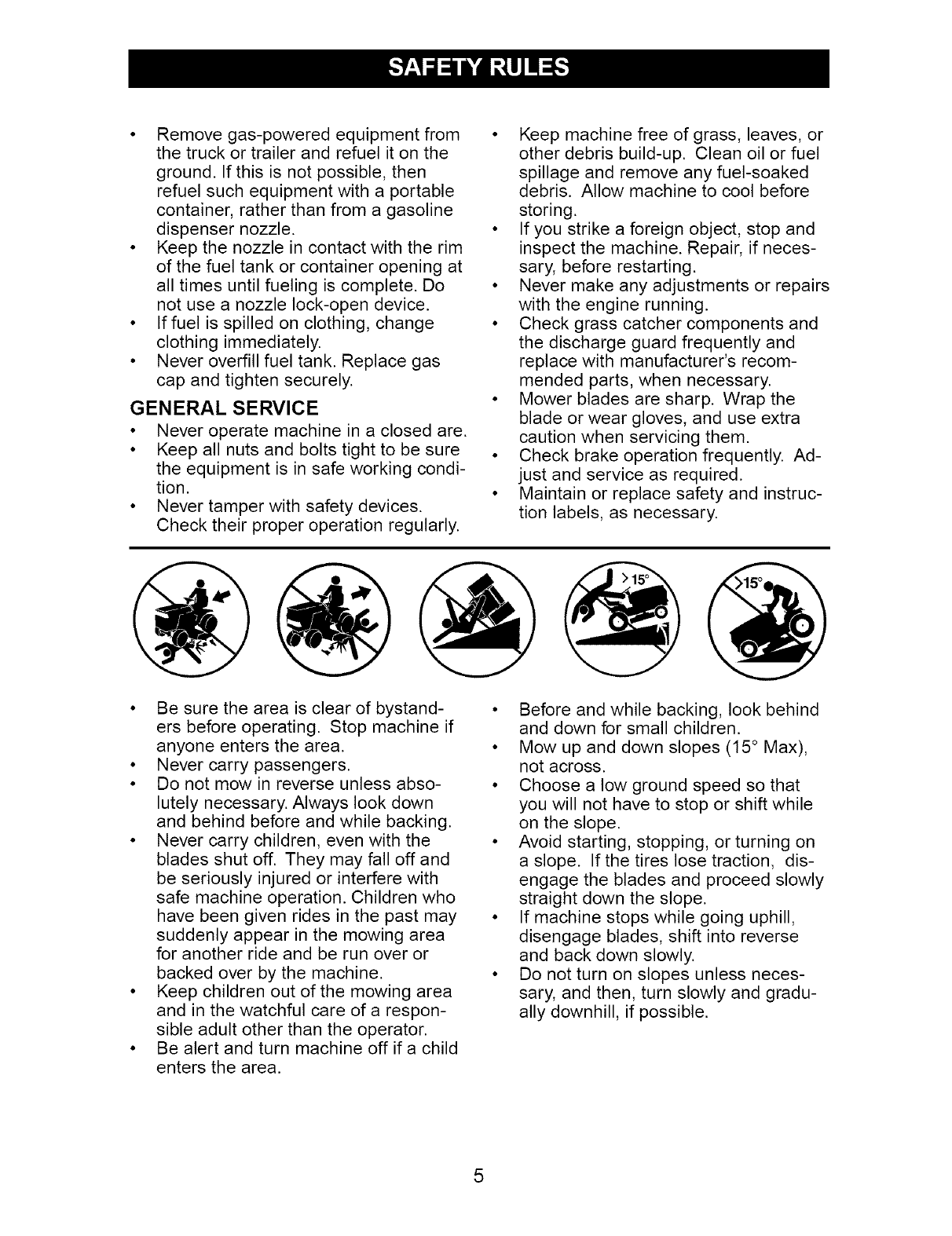

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never direct discharged material

toward anyone. Avoid discharging

material against a wall or obstruction.

Material may ricochet back toward the

operator. Stop the blades when cross-

ing gravel surfaces.

• Do not operate machine without the

entire grass catcher, discharge guard,

or other safety devices in place and

working.

• Slowdown before turning.

• Never leave a running machine

unattended. Always turn off blades,

set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before clean-

ing the machine, removing the grass

catcher, or unclogging the discharge

guard.

• Operate machine only in daylight or

good artificial light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Always wear eye protection when oper-

ating machine.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-re-

lated injuries. These operators should

evaluate their ability to operate the

riding mower safely enough to protect

themselves and others from serious

injury.

• Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

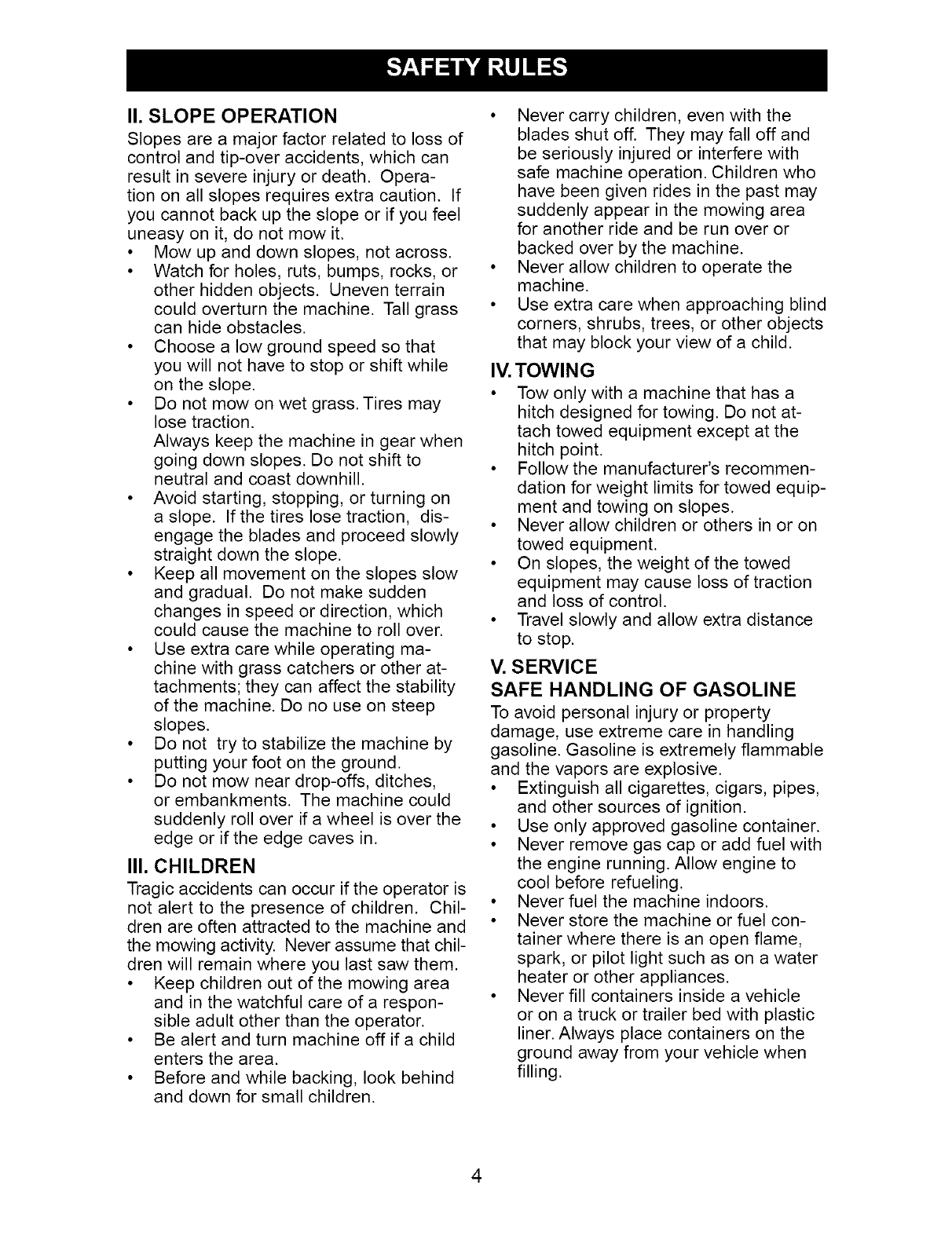

II. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Opera-

tion on all slopes requires extra caution. If

you cannot back up the slope or if you feel

uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Do not mow on wet grass. Tires may

lose traction.

Always keep the machine in gear when

going down slopes. Do not shift to

neutral and coast downhill.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

• Use extra care while operating ma-

chine with grass catchers or other at-

tachments; they can affect the stability

of the machine. Do no use on steep

slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

III. CHILDREN

Tragic accidents can occur if the operator is

not alert to the presence of children. Chil-

dren are often attracted to the machine and

the mowing activity. Never assume that chil-

dren will remain where you last saw them.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

• Tow only with a machine that has a

hitch designed for towing. Do not at-

tach towed equipment except at the

hitch point.

• Followthe manufacturer's recommen-

dation for weight limits for towed equip-

ment and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes, the weight of the towed

equipment may cause loss of traction

and loss of control.

• Travel slowly and allow extra distance

to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property

damage, use extreme care in handling

gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel con-

tainer where there is an open flame,

spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle

or on a truck or trailer bed with plastic

liner. Always place containers on the

ground away from your vehicle when

filling.

• Removegas-poweredequipmentfrom

the truck or trailer and refuel it onthe

ground.If this is notpossible,then

refuelsuchequipmentwith a portable

container,ratherthanfrom a gasoline

dispensernozzle.

• Keepthe nozzlein contactwith the rim

of the fueltank or containeropeningat

all timesuntil fueling is complete.Do

notuse a nozzlelock-opendevice.

• Iffuel is spilledon clothing,change

clothingimmediately.

• Neveroverfillfuel tank. Replacegas

cap and tightensecurely.

GENERAL SERVICE

• Never operate machine in a closed are.

• Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked

debris. Allow machine to cool before

storing.

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and

replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp. Wrap the

blade or wear gloves, and use extra

caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Maintain or replace safety and instruc-

tion labels, as necessary.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

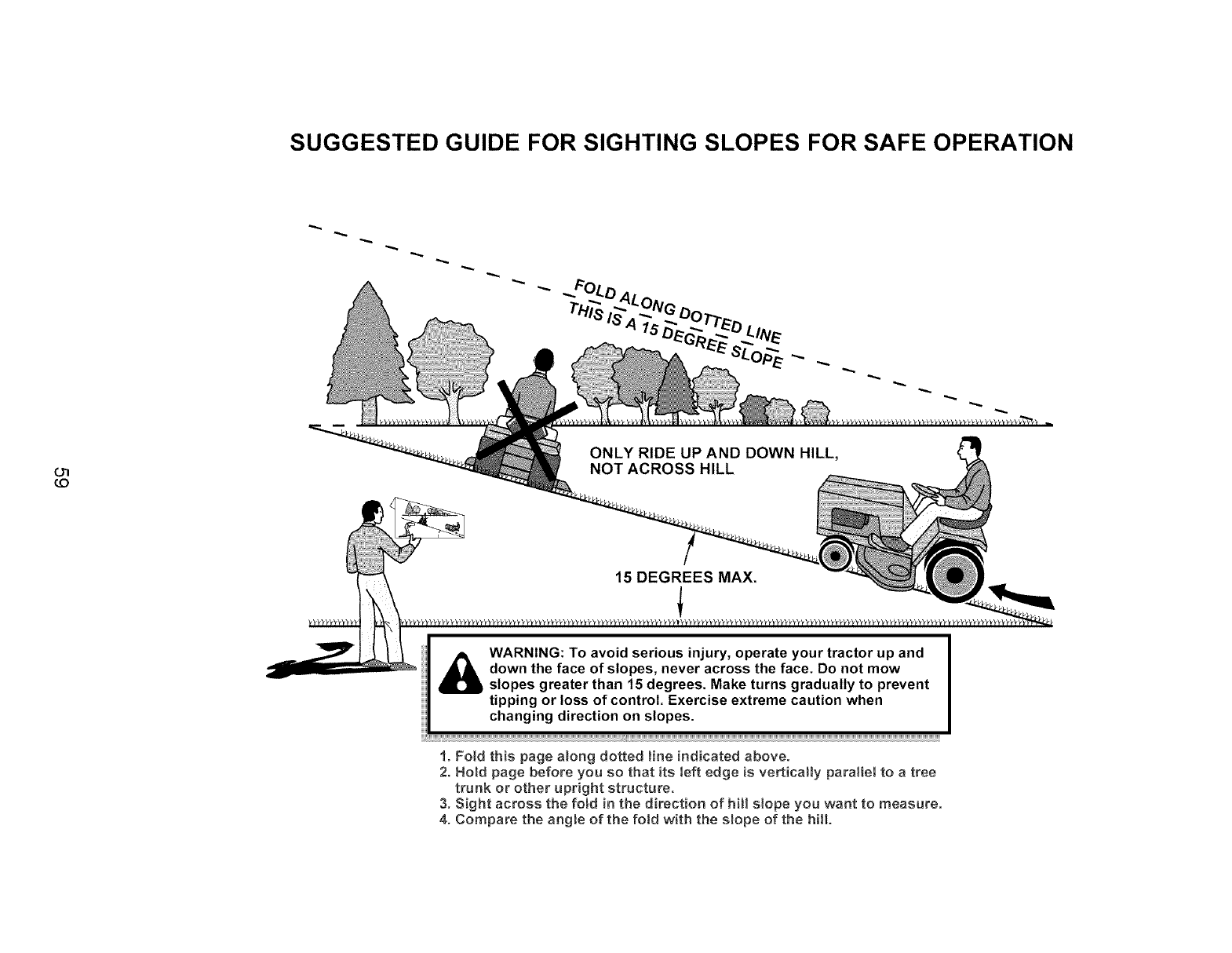

• Mow up and down slopes (15 ° Max),

not across.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 5 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 10W30 (above 32°F

API-SG-SL): SAE 5W30 (below 32°F)

Oil Capacity: W/Filter 4.0 Pints

W/O Filter 3.5 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 0-5.8

(MPH): Reverse: 0-2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System:15 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

A(_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

•Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Steering Wheel

Steering Steering

Wheel Wheel

Insert Adapter

Gauge Wheels

(i) Adjusting

Bar

(4) Retainer Springs

(double loop)

Steering

Steering Extension

(4) Washers

Rod

Sleeve Shaft

Nose Roller

(2)Lolcknut

5/16-18

Retainer

3/8 x 3/4 x 14 Ga. (4) Locknut 3/8-16

(4) Wheels@ IO ]_]

(4) Clevis Pins

(4) Shoulder Bolt

EZ Tool

Bubble Level

Mower Leveling Wrench

Seat

(1) Washer @

17/32 x 1-3/16 x 12 Gauge

(1) Knob

Spring

(2) Hex Bolts

5/16-18 x 1

Nose Roller

Brackets

(1) Oil Drain Tube

For Future Use Slope Sheet

Keys

(2) Keys

Mower

(2) Retainer Springs

(double loop)

(2)Flanged Pins

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) 3/4" socket with drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Remove mower and packing materials.

4. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

1. Remove Iocknut and large flat washer

from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Align tabs and press steering sleeve

extension into bottom of steering

wheel.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

6. Secure steering wheel to steering

shaft with Iocknut and large flat washer

previously removed. Tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

_ __1-I- Steering Wheel

_..b_ Insert

Lock Nut

_,_-''_ La rg e Flat

Steeri ng _._~_

Washer

Wheel \__'-'_--_ _

Steering Wheel

Steering _ Adaptor

Wheel Extention _Tabs

Steering

Shaft

Steering

Sleeve

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

j Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

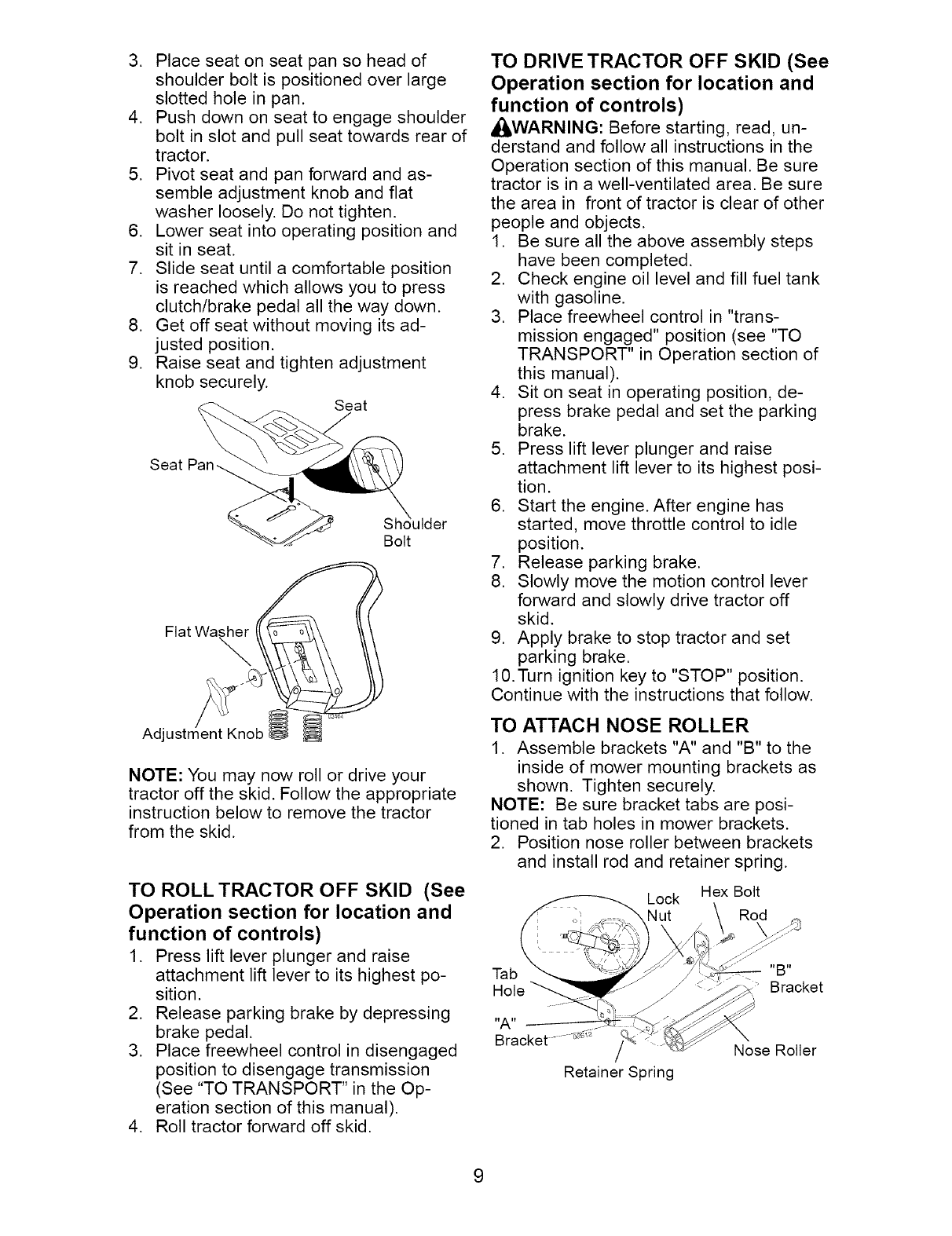

3. Placeseat on seat pan so headof

shoulderboltis positionedover large

slottedhole in pan.

4. Push downon seat to engageshoulder

boltin slot and pull seat towardsrearof

tractor.

5. Pivotseat and pan forwardand as-

sembleadjustmentknoband flat

washer loosely.Donot tighten.

6. Lowerseat into operatingpositionand

sit inseat.

7. Slideseat until a comfortableposition

is reachedwhich allowsyou to press

clutch/brakepedalall the waydown.

8. Get off seatwithout movingits ad-

justed position.

9. Raiseseat and tightenadjustment

knob securely.

Seat

Bolt

Flat Washer

Adj

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in disengaged

position to disengage transmission

(See "TO TRANSPORT" in the Op-

eration section of this manual).

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position (see "TO

TRANSPORT" in Operation section of

this manual).

4. Sit on seat in operating position, de-

press brake pedal and set the parking

brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

9. Apply brake to stop tractor and set

parking brake.

10. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

TO ATTACH NOSE ROLLER

1. Assemble brackets "A" and "B" to the

inside of mower mounting brackets as

shown. Tighten securely.

NOTE: Be sure bracket tabs are posi-

tioned in tab holes in mower brackets.

2. Position nose roller between brackets

and install rod and retainer spring.

Lock Hex Bolt

Nut Rod

Tab "B"

Hole Bracket

"A"

Bracket ........_°'_ /

Retainer Spring

Nose Roller

ASSEMBLE GAUGE WHEELS TO

MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower.

1. Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top.

Assemble gauge wheels as shown

using shoulder bolts, 3/8 washers and

3/8-16 center Iocknuts and tighten

securely.

2. For ease of mower to tractor assembly,

set all the gauge wheels in the fourth

hole from top. Retain with clevis pins

and spring retainers.

Retainer

Spl ing

Shoulder

Bolt_ Adjusting

Gauge Wheel

3/8 Washer @_ 3/8-16 Center

Locknut

Set All Wheels

To 4th Hole

From Top

INSTALL MOWER AND DRIVE

BELT

See MOWER AND DRIVE BELT AS-

SEMBLY Supplement Sheet for additional

guidance on this assembly.

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Turn steering wheel to the left as far as

it will go and position mower on right

side of tractor with deflector shield to

the right.

2. Remove plastic tie strap from mower

belt and check belt for proper routing in

all mower pulley grooves.

3. Slide mower under tractor until it is

centered under tractor. DO NOT con-

nect any pins. When properly centered

the front mower brackets should be

aligned so when the front suspension

plate is lowered it should slide between

the mower brackets.

4. Lower attachment lift lever to lowest

position.

5. Cut plastic tie and lower front suspen-

sion plate.

6. ATTACH FRONT PLATE - From left

side of mower, position front plate as-

sembly between front mower brackets,

align holes, position flanged pin notch

vertically and insert the pin all the way.

The notch is in line with the hole in pin.

7. Secure pin with double loop retainer

spring between the plate and mower

bracket. If necessary, move mower

side-to-side to give space between

plate and mower bracket.

8. Go to right hand side of mower and

insert pin and retainer spring in the

same manner.

9. CONNECT REAR PINS - Connect

right hand side first. Pull out and hold

the spring loaded pin, align hole in

suspension arm and release pin. Be

sure pin returns to fully seated position

and is attached to the suspension arm.

10. Go to left side of mower and connect

rear pin in the same manner.

11. Disengage belt tension rod.

12. From right side of tractor, install belt

onto engine clutch pulley.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

13. Engage belt tension rod on locking

bracket.

A CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

14. Raise attachment lift lever to highest

position.

15. Adjust gauge wheels before operating

mower as shown in the Operation sec-

tion of this manual.

Belt Tension Rod

Disengaged Position

Gauge

Wheel

g Bracket

Electric Clutch Pulley Front Plate Assembly

Double Loop

Retainer Springs

Front Mower Bracket

Flanged Pin-

Position Notch

Vertically

Rear Mower Pins

CHECKTIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section of

this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should

be properly leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for re-

placing motion, mower drive, and mower

blade drive belts in the Service and Ad-

justments section of this manual. Verify

that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,,/CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

Deflector Shield

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and transmis-

sion purging instructions (See "TO START

ENGINE" and "PURGE TRANSMISSION"

in the Operation section of this manual).

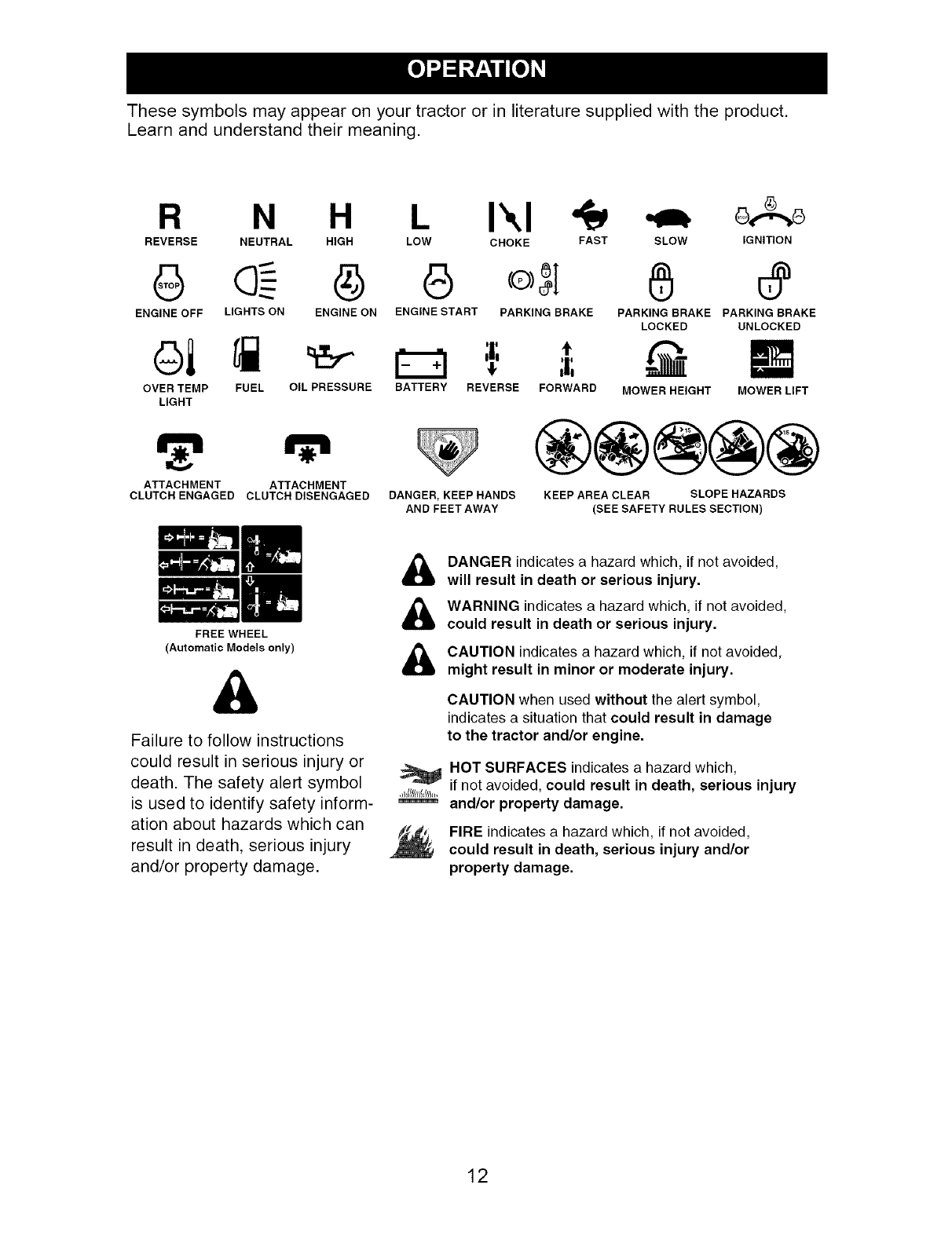

These symbols may appear on your tractor or in literature supplied with the product,

Learn and understand their meaning.

R N H L I\1

REVERSE NEUTRAL HIGH LOW CHOKE FAST

6 6 o5I

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP FUEL OIL PRESSURE

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

BATTERY REVERSE FORWARD

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

,_l_l/;lll/=ll;,,

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicatesa hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KN OW YOU RTRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATINGYOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Throttle Control

Motion Drive Belt \

Tension Handle

Brake Pedal

Ignition Light Switch

Switch Position

Attachment

Clutch Switch

Lift Lever

Plunger

Lift Lever

Choke

Control

Height

Adjustment

Knob

Parking Brake

Motion Control

Lever

Freewheel

Control

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

BRAKE PEDAL - Used for braking the

tractor and starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

MOTION CONTROL LEVER - Selects the

speed and direction of the tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

MOTION DRIVE BELTTENSION HAN-

DLE-Used when changing motion drive

belt and, if necessary, starting engine

under extremely cold conditions.

ATTACHMENT LIFT LEVER - Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH - Used for starting and

stopping the engine.

AMMETER - Indicates battery charging

(+) or discharging (-).

PARKING BRAKE - Locks clutch/brake

into the brake position.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

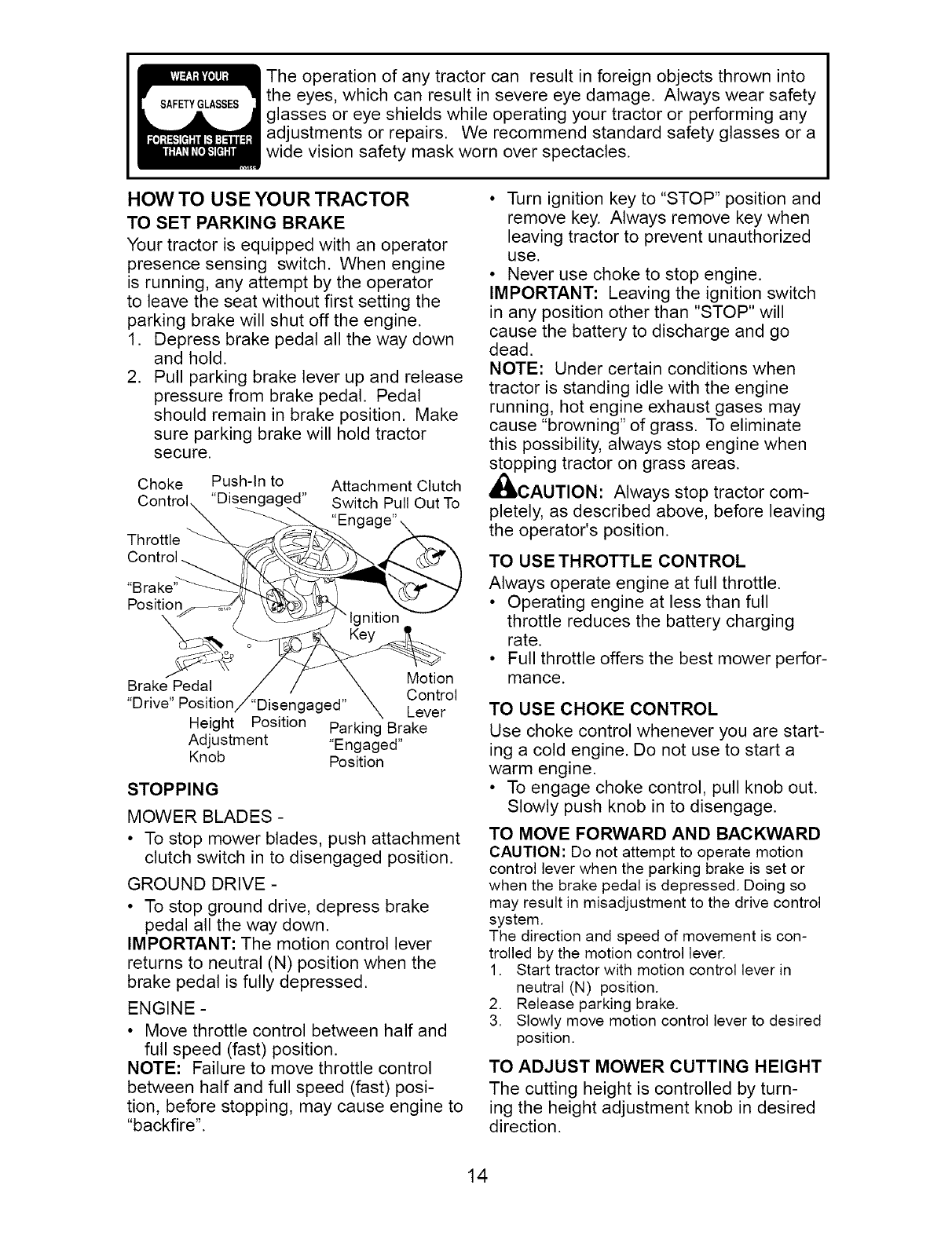

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal all the way down

and hold.

2. Pull parking brake lever up and release

pressure from brake pedal. Pedal

should remain in brake position. Make

sure parking brake will hold tractor

secure.

Choke Push-In to Attachment Clutch

"Disengaged" Switch Pull Out To

Throttle

Control

"Brake

Position

Brake Pedal Motion

Control

"Drive" Position gaged" Lever

Height Position Parking Brake

Adjustment "Engaged"

Knob Position

STOPPING

MOWER BLADES -

•To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress brake

pedal all the way down.

IMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is fully depressed.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_LCAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best mower perfor-

mance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

CAUTION: Do not attempt to operate motion

control lever when the parking brake is set or

when the brake pedal is depressed. Doing so

may result in misadjustment to the drive control

system.

The direction and speed of movement is con-

trolled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to desired

position.

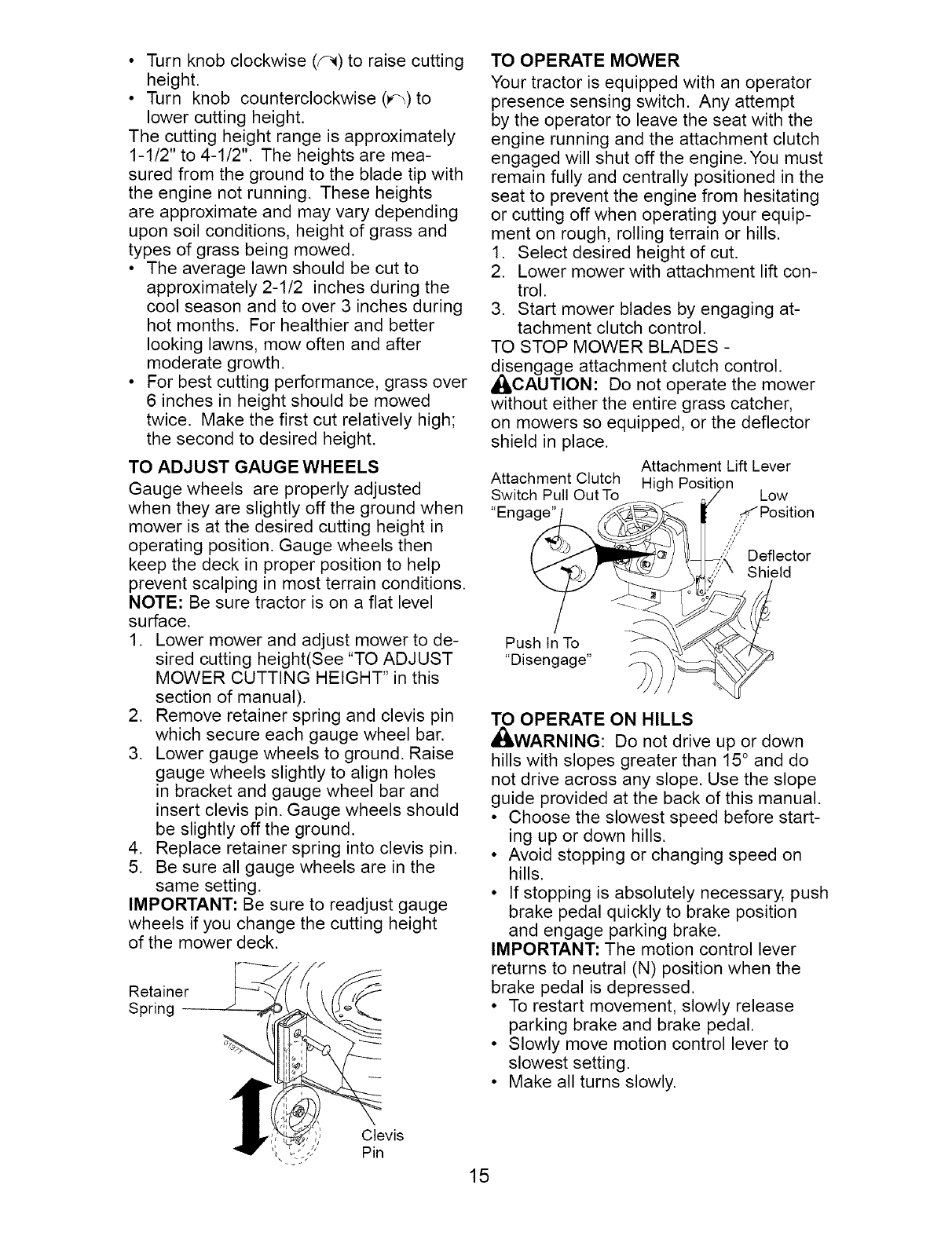

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turn-

ing the height adjustment knob in desired

direction.

• Turn knob clockwise (F_) to raise cutting

height.

• Turn knob counterclockwise (_-_)to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to de-

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT" in this

section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Lower mower with attachment lift con-

trol.

3. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Lift Lever

Attachment C utch H _" D^_ ÷^_

Switch Pull Out To ,u.... _'- Low

"Enga_ : _,ZPosition

( _ _)_'_Q_/ _ __"?" Deflector

_,_), /\"--_- /\ <,'/\ Shield

o l ""

Push In To _\j _

'Disengage" )_

TO OPERATE ON HILLS

_,WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide provided at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If stopping is absolutely necessary, push

brake pedal quickly to brake position

and engage parking brake.

IMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is depressed.

• To restart movement, slowly release

parking brake and brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

Clevis

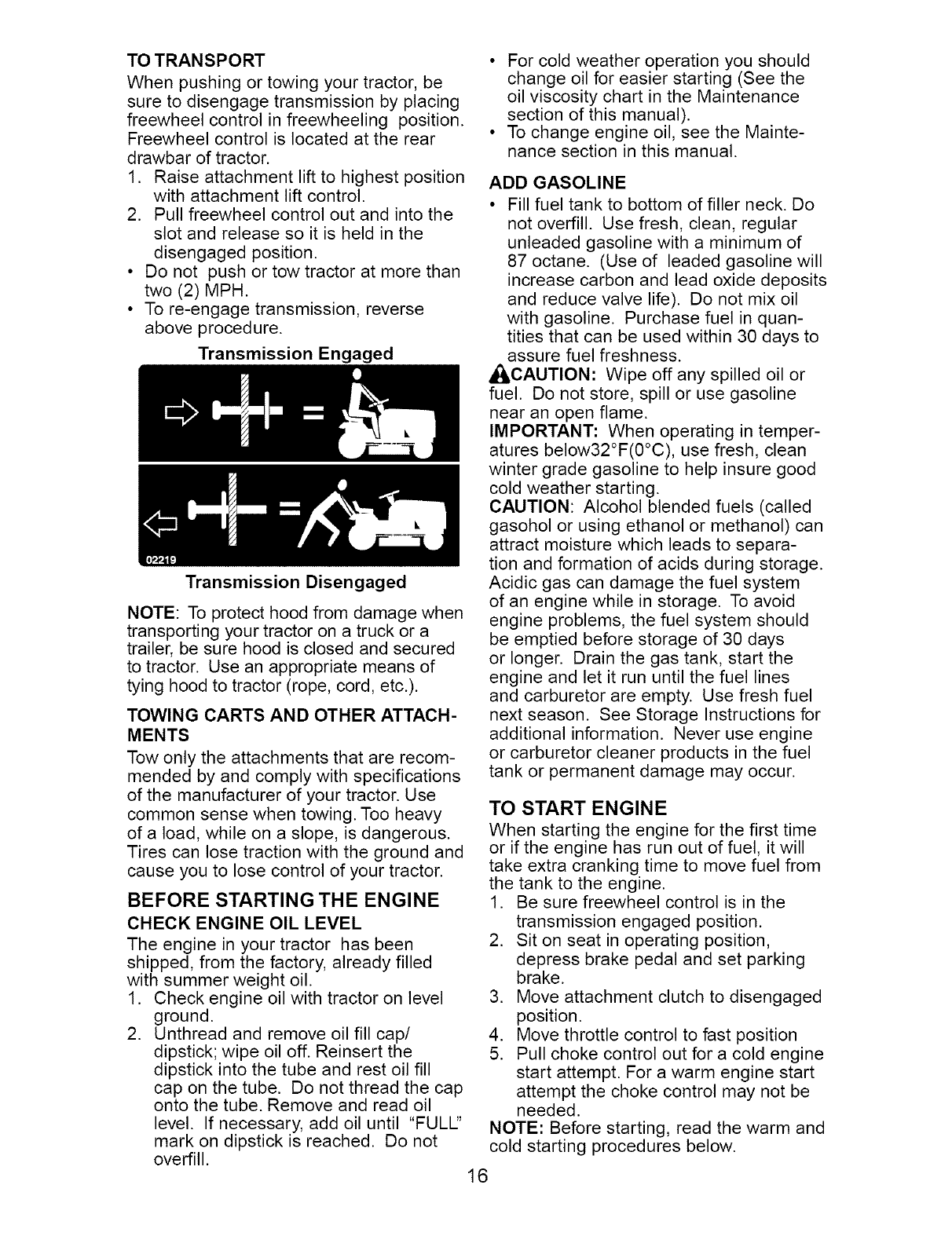

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and into the

slot and release so it is held in the

disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage when

transporting your tractor on a truck or a

trailer, be sure hood is closed and secured

to tractor. Use an appropriate means of

tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the cap

onto the tube. Remove and read oil

level. If necessary, add oil until "FULl"

mark on dipstick is reached. Do not

overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_:_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for a

few seconds and then continue to push

the control in slowly. This may require

an engine warm-up period from several

seconds to several minutes, depending

on the temperature.

NOTE: In extreme cold conditions, if

engine will not start you may need to dis-

engage the motion drive belt as follows:

1. Be sure parking brake is engaged.

2. Remove retainer spring from the drive

belt tension handle to relieve belt ten-

sion.

3. Start engine and allow it to warm up for

three (3) minutes.

4. Shut-off engine and engage parking

brake.

5. Engage drive belt tension handle and

replace the retainer spring.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake and

let the brake slowly return to operating

position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

• The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be pulled

out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

PURGE TRANSMISSION

_,CAUTION: Never engage or dis-

engage freewheel lever while the engine

is running.

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by plac-

ing freewheel control in disengaged

position (See "TO TRANSPORT" in this

section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. Disen-

gage parking brake.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is being

removed from hydraulic drive system.

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

"TO TRANSPORT" in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2)speed.

Disengage parking brake.

8. Slowly move motion control lever for-

ward, after the tractor moves approxi-

mately five (5) feet, slowly move motion

control lever to reverse position. After

the tractor moves approximately five

(5) feet return the motion control lever

to the neutral (N) position. Repeat this

procedure with the motion control lever

three (3) times.

Your transmission is now purged and now

ready for normal operation.

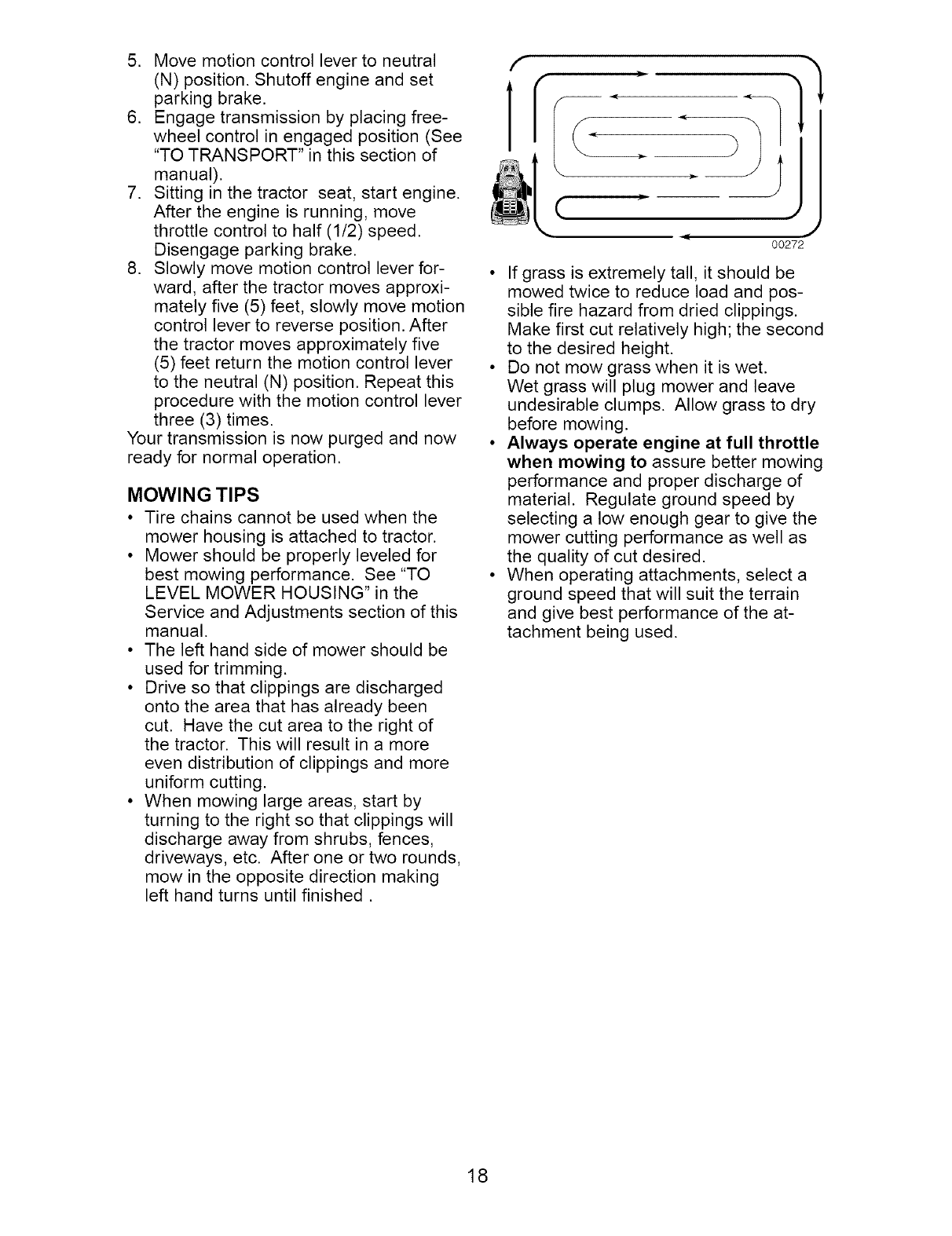

MOWING TIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

f#'- _1

00272

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MAINTENANCE SCHEDULE ___ _o'_o_°_,' ''I

F,LL,. OATES

AsYouCOMPLETE

REGULARSERV,CE OA-'-ES

Check Brake Operation I_ _1_

Check Tire Pressure

Check Operator Presence and

T Interlock Systems If

RCheck for Loose Fasteners If 11_'5

ASharpen/Replace Mower Blades 11_'3

C Lubrication Chart I_ If

0Check Battery Level 1_4

RClean Battery and Terminals _ If

Check Transaxle Cooling i,,'

Check V-Belts I_

Check Engine Oil Level I_ If

Change Engine Oil (with oil filter) 1_1,2

EChange Engine Oil (without oil filter) 1_i1_1,2

N Clean Air Filter 11_'2

G Clean Air Screen _2

NI Inspect Muffler/Spark Arrester v'

EReplace Oil Filter (If equipped) II_t2

Clean Engine Cooling Fins If 2

Replace Spark Plug I_ If

Replace Air Filter Paper Cartridge _111_ 2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3-Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

SI Spindle

Zerk Zerk

C1_Front Wheel

Bearing zerk

Front Wheel

Bearing zerk

Engine

Sector Gear

Teeth Mandrel

Zerks

dPGeneral Purpose Grease

@Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

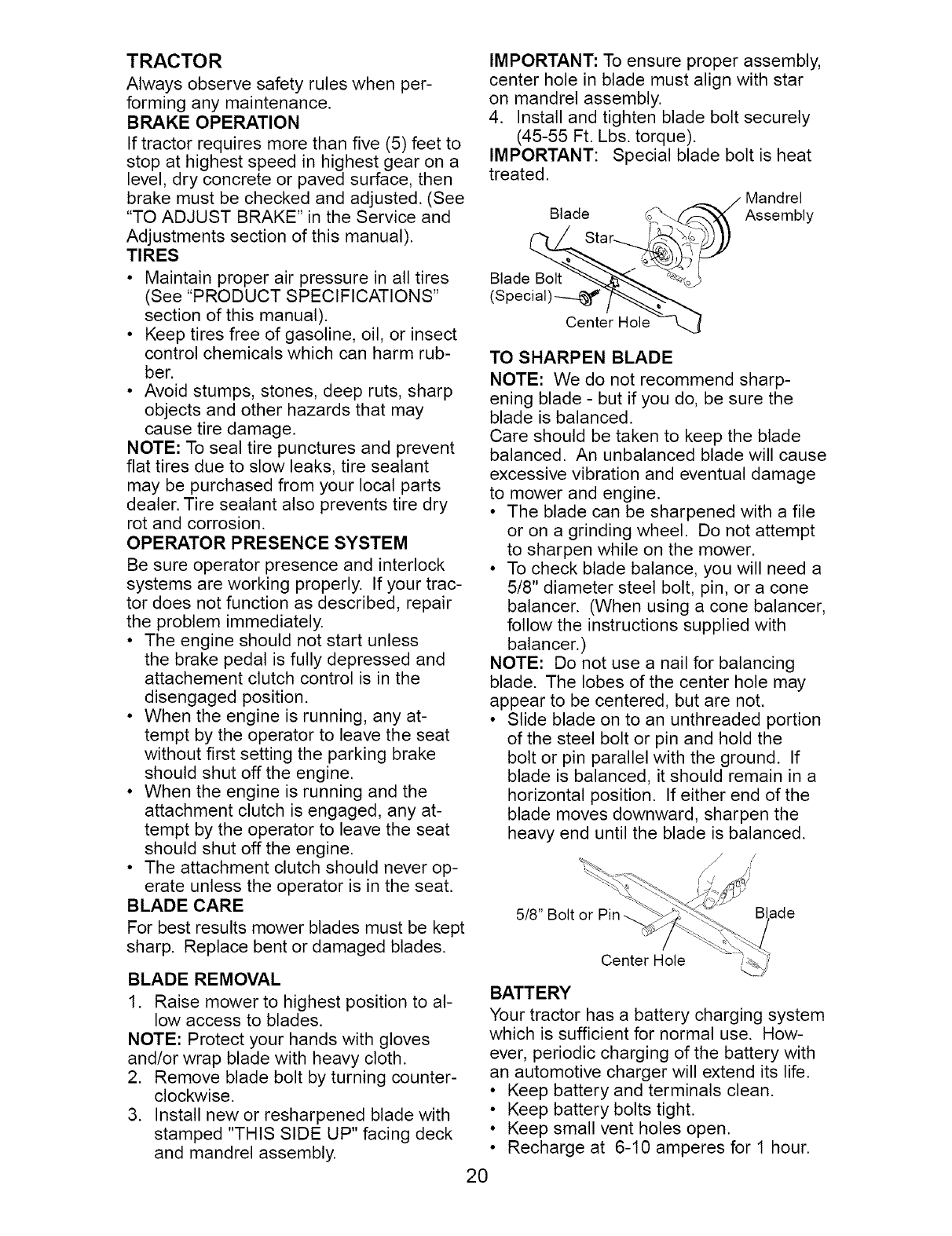

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept

sharp. Replace bent or damaged blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SIDE UP" facing deck

and mandrel assembly.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

IMPORTANT: Special blade bolt is heat

treated.

Blade __ MandrelAssembly

Center Hole - L....J

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt or Pin _ ade

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free.

Do not attempt to open or remove caps or

covers. Adding or checking level of elec-

trolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and termi-

nals can cause the battery to "leak" power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

• Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

your nearest Sears or other qualified

service center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

oil vJ cchart4 e

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Install the drain tube onto the fitting.

3. Open drain valve by using a 7/16"

(11 mm) wrench turning counterclock-

wise.

Oil Drain Valve

To Open

To Close

Drain Tube

4. After oil has drained completely, close

the drain valve turning clockwise. Use

the 7/16" (11 mm) wrench to apply

a small amount of torque to keep it

closed. Do not over tighten.

5. Remove the drain tube and store in a

safe place.

6. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

.Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into

the tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULl" line on dipstick. Tighten cap

onto the tube securely when finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow it

to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged car-

tridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will damage

the cartridge.

1. Remove nut and cartridge plate.

2. Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

3. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

4. Reassemble air cleaner, cartridge

plate, and nut.

5. Reinstall air cleaner cover and secure

by tightening knob.

Knob

Cartrid(

Foam

Pre-Cleaner

Rubber

Seal

,Cartridge

Plate

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean

at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other cool-

ing shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due to

overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Fuel Filter_

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER-

VICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in "DISENGAGED" position.

3. Turn ignition key to "STOP" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Lower attachment lift lever to its lowest

position.

3. Disengage belt tension rod from lock

bracket.

_i, CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and re-

lease slowly.

4. Remove mower belt from electric

clutch pulley.

5. DISCONNECT REAR MOWER PINS

FIRST - Pull out the spring loaded pin,

disconnect suspension arm from pin

and release pin.

6. Go to other side of mower and discon-

nect rear pin in the same manner.

7. Remove the four retainer springs and

two flanged pins from front plate as-

sembly and remove plate.

8. Raise attachment lift lever to its highest

position.

9. Turn tractor steering wheel to the left

as far as it will go.

10. Slide mower out from under right side

of tractor.

Belt Tension Rod

Disengage_en

Bracket

Electric Clutch Pulley Front Plate Assembly

Double Loop

Retainer Springs

.,p------Single Loop

Retainer Springs

Flanged Pins

Rear Mower Pins

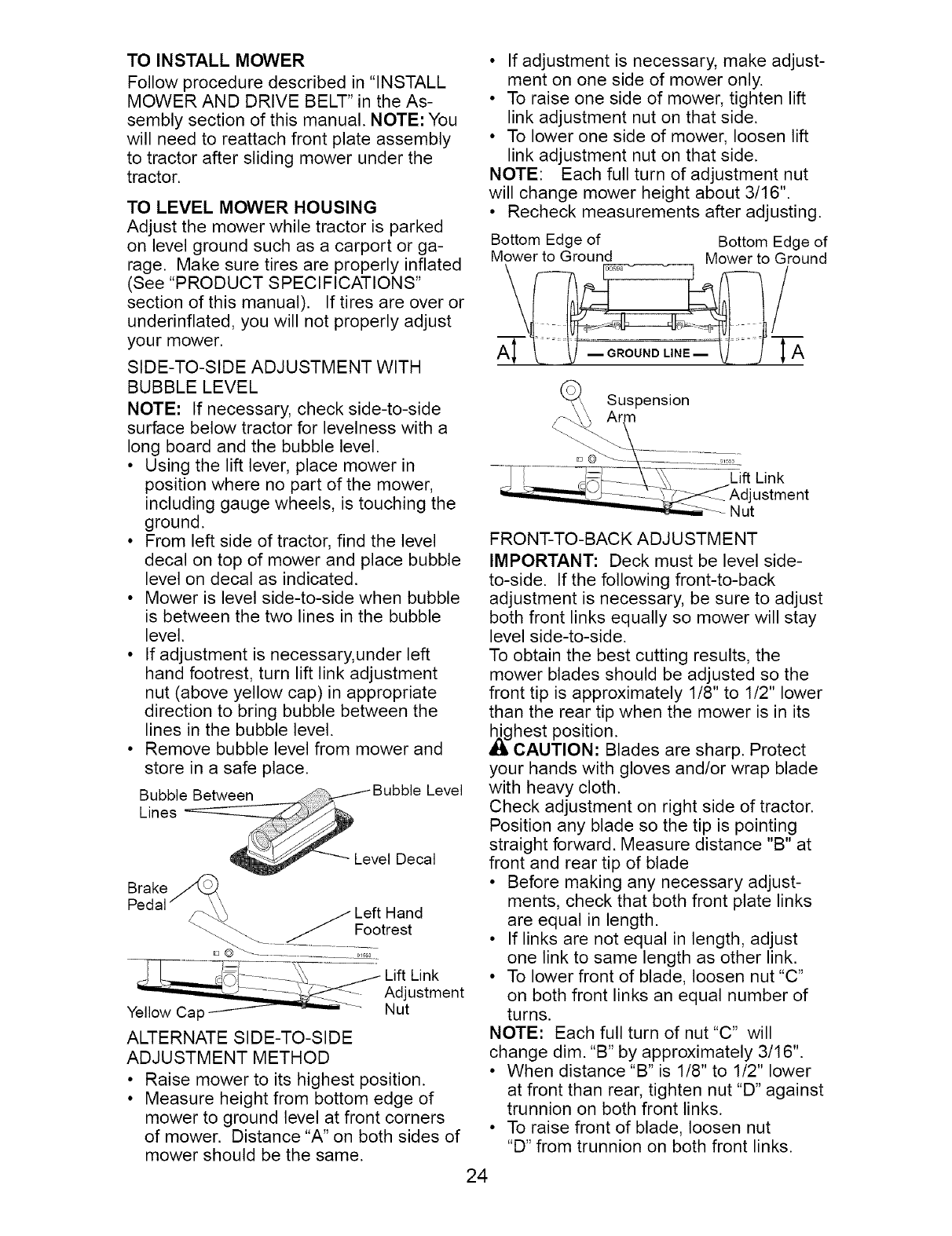

TO INSTALL MOWER

Follow procedure described in "INSTALL

MOWER AND DRIVE BELT" in the As-

sembly section of this manual. NOTE: You

will need to reattach front plate assembly

to tractor after sliding mower under the

tractor.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground such as a carport or ga-

rage. Make sure tires are properly inflated

(See "PRODUCT SPECIFICATIONS"

section of this manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

• Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

• From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

• Mower is level side-to-side when bubble

is between the two lines in the bubble

level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

• Remove bubble level from mower and

store in a safe place.

Bubble Between Level

Lines

Level Decal

Brake _

Pedal" _ ......./j_ _ _Le!tHeas_d

Lift Link

Adjustment

Yellow_ _ Nut

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides of

mower should be the same.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

Suspension

.............. _o -_- AI -_i___ _,_

_--___\_ ....... Lift Link

Adjustment

_-_ Nut

FRO NT-TO-BAC K ADJ USTM ENT

IMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the rear tip when the mower is in its

,_ghest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

• Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of blade, loosen nut"C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

To raise front of blade, loosen nut

"D" from trunnion on both front links.

Tightennut "C"on bothfront linksan

equalnumberof turns.The twofront

links must remainequalin length.

Whendistance"B" is 1/8"to 1/2" lower

at front than rear,tightennut "D"against

trunnionon bothfront links.

Recheckside-to-sideadjustment.

_':'o_X I oo/ Blade

o ° o o o2548

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

Nut

Front Plate

Assembly Trunnion

L.H. Mandrel

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface. Engage

parking brake.

2. Lower attachment lift lever to its lowest

position.

3. Disengage belt tension rod from lock

bracket.

_i CAUTION: Belt tension rod is spring

loaded. Have a firm grip on rod and re-

lease slowly.

4. Remove screws from R.H. and L.H.

mandrel covers and remove covers.

5. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck surface.

6. Remove belt from electric clutch pulley,

both mandrel pulleys and all idler pulleys.

MOWER DRIVE BELT INSTALLATION

1. Install belt around both mandrel pulleys

and around idler pulleys as shown.

2. Install belt onto electric clutch pulley.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

3. Reassemble R.H. and L.H. mandrel

covers. Securely tighten all screws.

4. Engage belt tension rod on locking

bracket.

A CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

5. Raise attachment lift lever to highest

position.

Belt Routing

Belt Tension Rod

(Disengaged

Position) _,,:;:;_,,

Locking Bracket

Clutch Pulley

R.H. Mandrel Cover

Mandrel

Idler

Pulleys

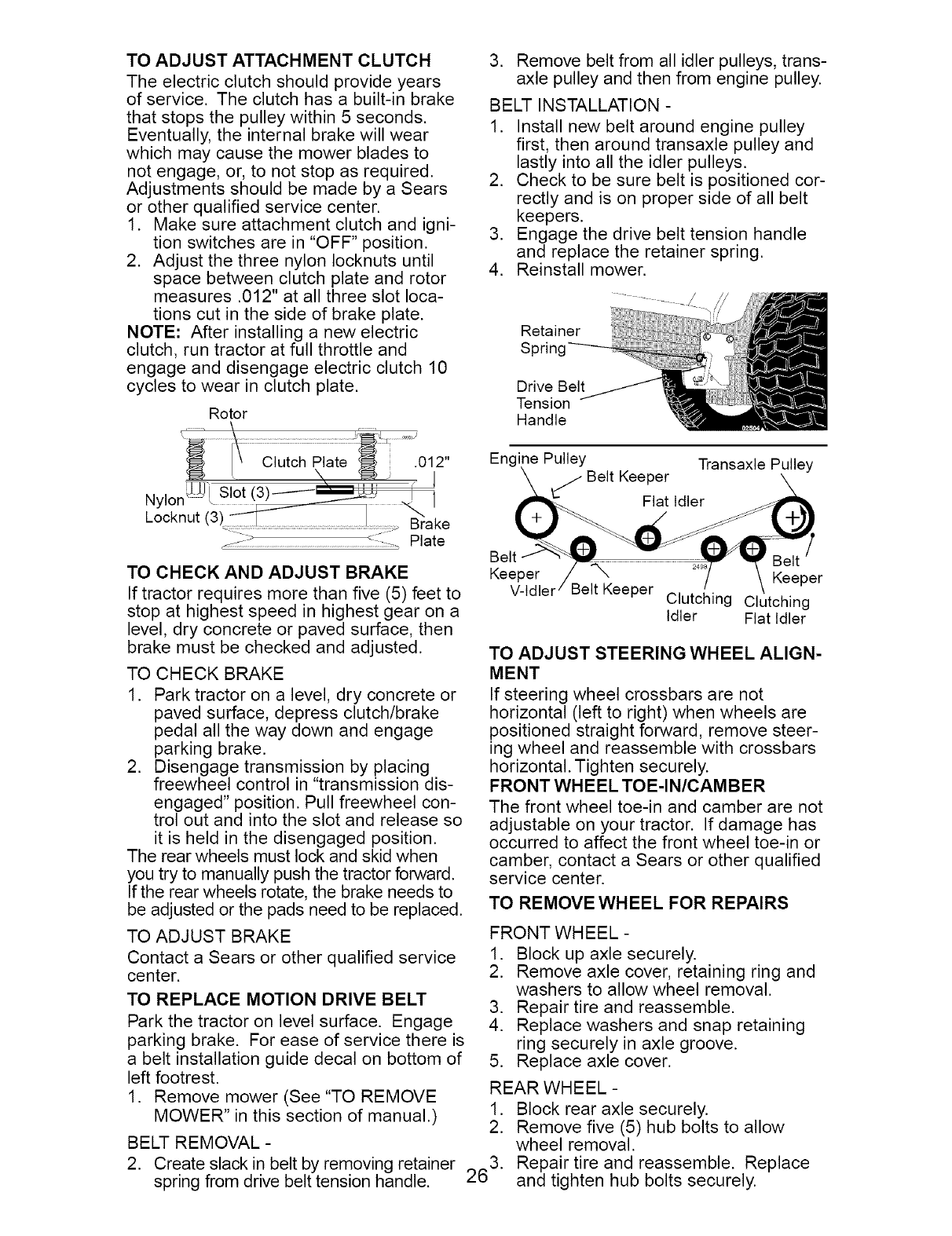

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

1. Make sure attachment clutch and igni-

tion switches are in "OFF" position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012" at all three slot loca-

tions cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

Rotor

3. Remove belt from all idler pulleys, trans-

axle pulley and then from engine pulley.

BELT INSTALLATION -

1. Install new belt around engine pulley

first, then around transaxle pulley and

lastly into all the idler pulleys.

2. Check to be sure belt is positioned cor-

rectly and is on proper side of all belt

keepers.

3. Engage the drive belt tension handle

and replace the retainer spring.

4. Reinstall mower.

Retainer

Spring

Drive Belt

Tension

Handle

.012"

Nylon_i Slot (3) I 1

Locknut (3) ::.............................................................................................:::_, Brake

_J-:..............................................................................................::::: Plate

TO CHECK AND ADJUST BRAKE

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor forward.

If the rear wheels rotate, the brake needs to

be adjusted or the pads need to be replaced.

TO ADJUST BRAKE

Contact a Sears or other qualified service

center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there is

a belt installation guide decal on bottom of

left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual.)

BELT REMOVAL -

Engine Pulley Transaxle Pulley

L.._ Belt Keeper

Flat Idler

Belt

Keeper

V-Idler Keeper Keeper

Clutching Clutching

Idler Flat Idler

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL -

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL -

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

Create slack in belt by removing retainer Repair tire and reassemble. Replace

spring from drive belt tension handle. 263 and tighten hub bolts securely.

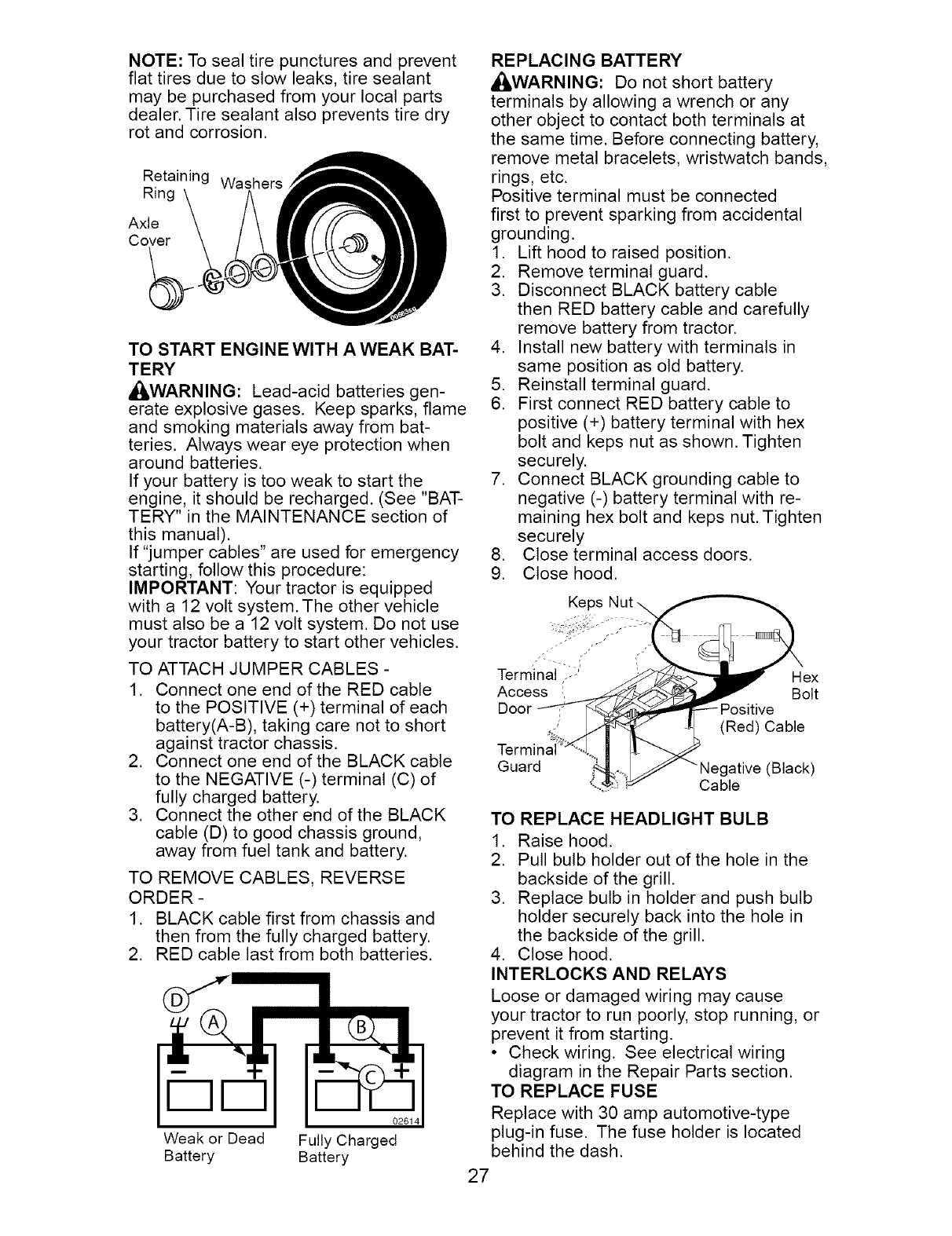

NOTE:Toseal tire puncturesand prevent

flat tiresdue to slow leaks,tire sealant

maybe purchasedfrom yourlocal parts

dealer.Tiresealant also preventstire dry

rot and corrosion.

Retaining Washers

Ring

Axle

Cover

TO START ENGINE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

02614

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Keps Nut

Terminal .--' Hex

Access :', Bolt

Door Positive

(Red) Cable

Guard _gative (Black)

... Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

•Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

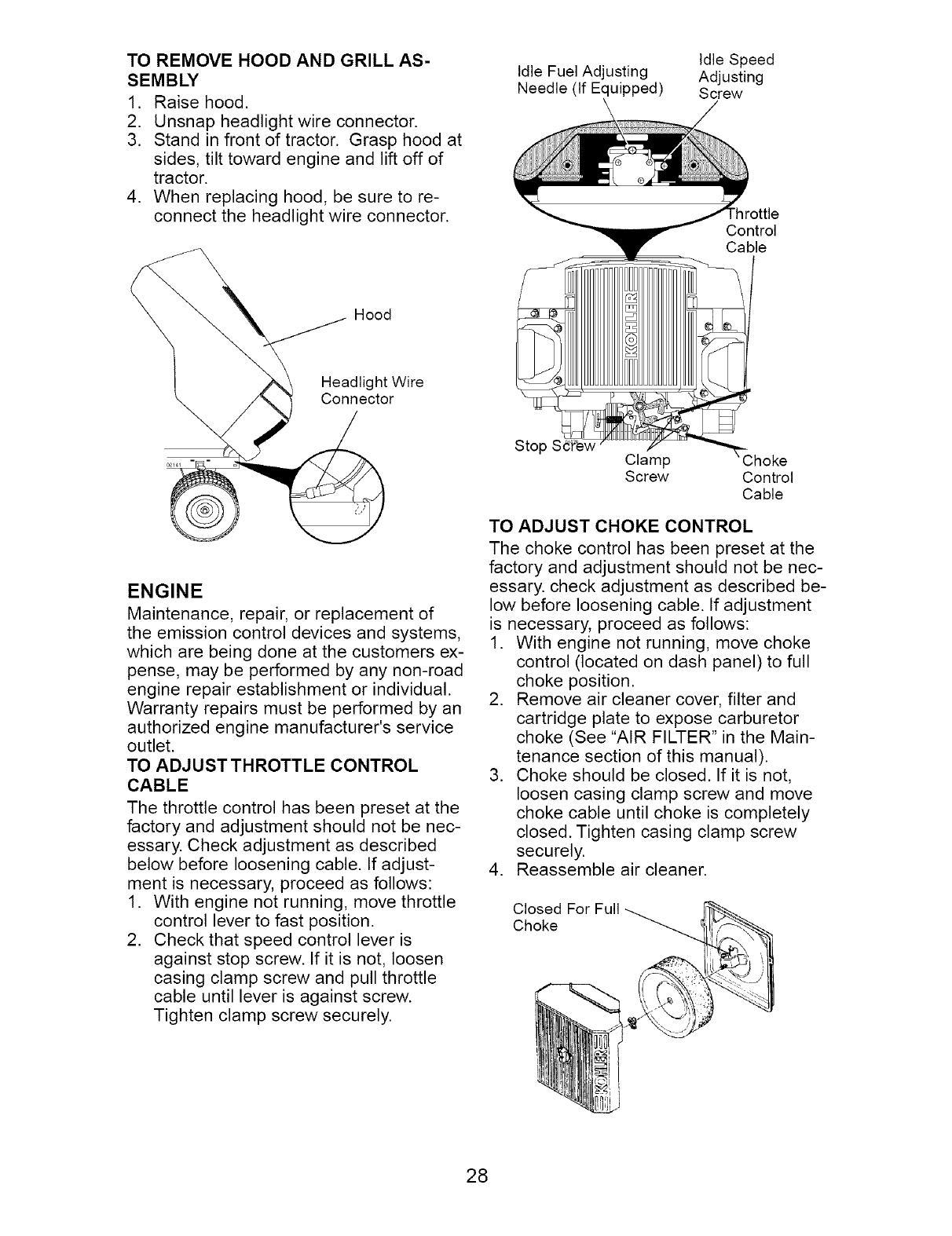

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Idle Fuel Adjusting

Needle (If Equipped)

Idle Speed

Adjusting

Screw

Control

Cable

Hood

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Stop Clamp Choke

Screw Control

Cable

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary, check adjustment as described be-

low before loosening cable. If adjustment

is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the Main-

tenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed For Full

Choke

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable is adjusted

properly (see "TO ADJUST THROTTLE

CONTROL CABLE" in the Service and

Adjustments section of this manual).

2. With engine off turn idle fuel adjust-

ing needle in (clockwise) closing it

finger tight and then turn out (counter-

clockwise) 1 turn.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle speed setting - With throttle control

lever in slow position, engine should

idle at 1750 RPM. If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is at-

tained.

3. Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and then

turn out (counterclockwise) approxi-

mately 3/4 turn to obtain the best low

speed performance.

4. Recheck idle speed. Readjust if neces-

sary.

ACCELERATION TEST -

5. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle fuel adjusting needle out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs ad-

justing, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any neces-

sary adjustments.

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s)into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

CAUSE CORRECTION

Engine clicks but

will not start

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace

battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake

pedal.

2. Disengage attachment

clutch.

3. Recharge or replace

battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Loss of power 1. Cutting too much grass/too 1. Raise cutting height/reduce

fast. speed.

2. Throttle in "CHOKE" 2. Adjust throttle control.

position.

3. Build-up of grass, leaves 3. Clean underside of mower

and trash under mower, housing.

4. Dirty air filter. 4. Clean/replace air filter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change

spark plug.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Stale or dirty fuel. 8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Water in fuel. 9. Empty fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

10. Spark plug wire loose. 10. Connect and tighten spark

plug wire.

11. Dirty engine air screen/fins. 11. Clean engine air screen/fins.

12. Dirty/clogged muffler. 12. Clean/replace muffler.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of 14. See "To Adjust Carburetor"

adjustment, in Service and Adjustments

section.

15. Engine valves out of 15. Contact a Sears or other

adjustment, qualified service center.

Excessive 1. Worn, bent or loose blade. 1. Replace blade.

vibration Tighten blade bolt.

2. Bent blade mandrel. 2. Contact a Sears or other

Engine continues 1.

to run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut- uneven 1.

Loose/damaged part(s).

Faulty operator-safety

qualified service center.

Tighten loose part(s).

Replace damaged parts.

1. Check wiring, switches and

presence control system.

Worn, bent or loose blade. .

connections. If not

contact a Sears or other

qualified service center.

Replace blade. Tighten

blade bolt.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires"

when turning

engine "OFF"

CAUSE

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

10.

Buildup of grass, leaves

and trash under mower.

Mower drive belt worn.

Blades improperly installed.

Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

.Engine throttle control not set

between half and full speed

(fast) position before stopping

engine.

CORRECTION

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

.Move throttle control

between half and full speed

(fast) position before

stopping engine.

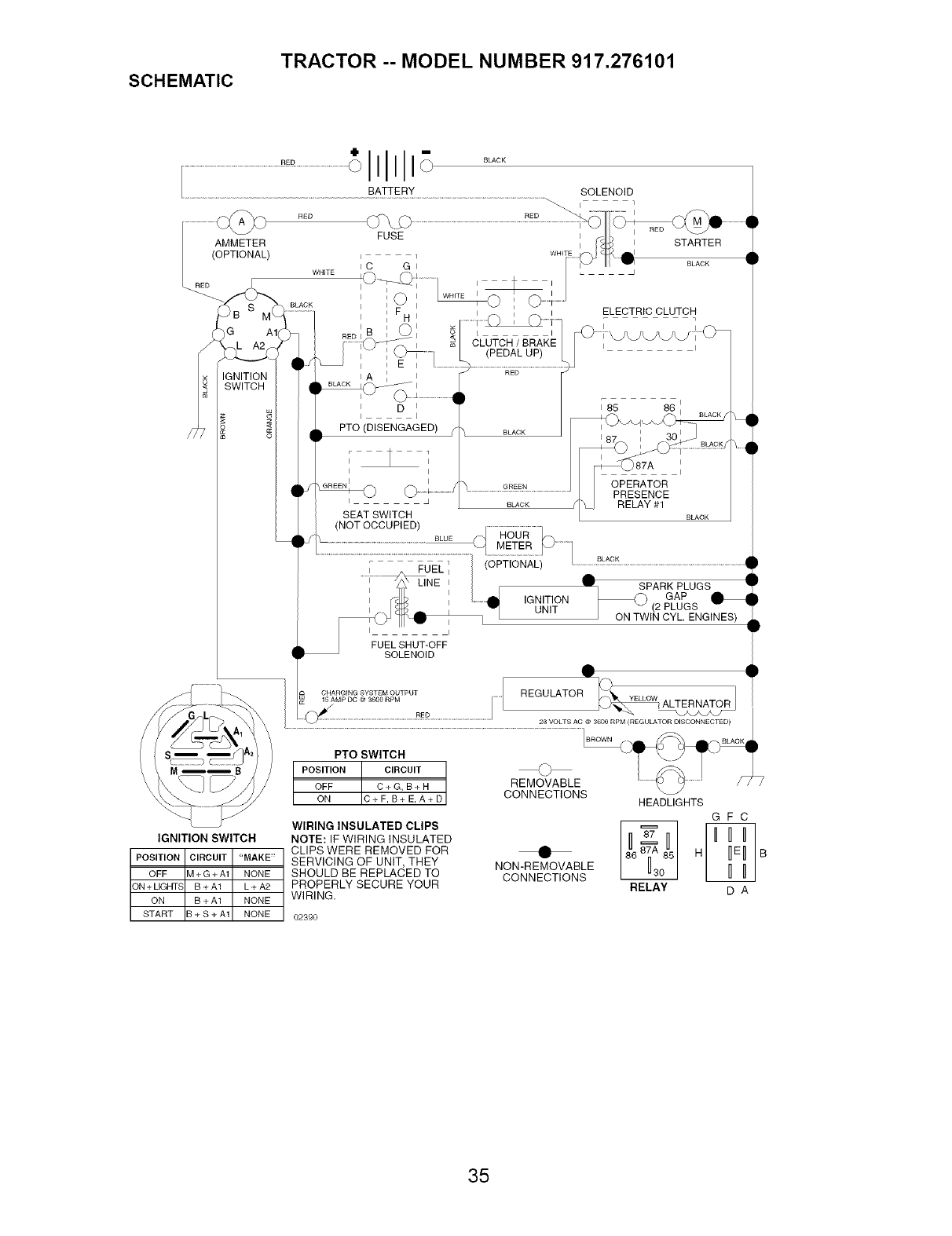

SCHEMATIC TRACTOR -- MODEL NUMBER 917.276101

........................_>

I AMMETER

(OPTIONAL)

RED

FUSE

SOLENOID

STARTER

ELECTRIC CLUTCH

OPERATOR

PRESENCE

RELAY #1

WIRING INSULATED CLIPS

IGNITION SWITCH NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

POSITION CIRCUIT "MAKE" SERVICING OF UNIT, THEY

OFF vl+G+A1 NONE SHOULD BE REPLACED TO

3N+LIGHT_cB+A1 L+A2 PROPERLY SECURE YOUR

ON B+A1 NONE WIRING.

START _ + S + A1 NONE 02390

[ FUEL i ] (OPT ONAL) L................._£E ...........................................................................................I

.......=_NE= /. =__SPAR_#UGS'';

___l_q , IGNITION _'_ (2 PLUGS _ 1

FELL/_ _ i_ I UNIT ON TWIN CYL. ENGINES) I!

FUEL SHUT-OFF

SOLENOID

.................... REGULAT02 __lt ...... IF

_sAMPco®3600RPM I ............. F"_ '

ALTERNATOR

BLACK

,TOSW,TO.

| OFF IC+G.B+H I REMOVABLE , {_ L# ///

/ ON IC+-LB:_/AgDI CONNECTIONSHEAD[C-I-TS

GFC

NON-REMOVABLE

CONNECTIONS

RELAY D A

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.276101

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.276101

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 176138 Switch Interlock Push-In

21 175688 Harness Socket Light W/4152J

22 4152J Bulb Light

25 185456 Cable, Battery

26 108824X Fuse

27 73510400 Nut Keps Hex 1/4-20 uric

28 170697 Cable, Ground

29 121305X Switch, Plunger N Gray

30 175566 Switch, Ign

33 140403 Key, Ignition

40 188032 Harness Ign.

42 154336 Cover, Terminal

45 122822X Ammeter

50 174652 Switch, PTO

52 141940 Hourmeter Adaptor

79 175242 Bulbholder Asm incandescent SV

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917,276101

CHASSIS AND ENCLOSURES

161

158

,_ 36

47 169 j

153

150 /_

122

167 _8

13o

130

156

_156

"17

_- 24

chassis-stealth II 2

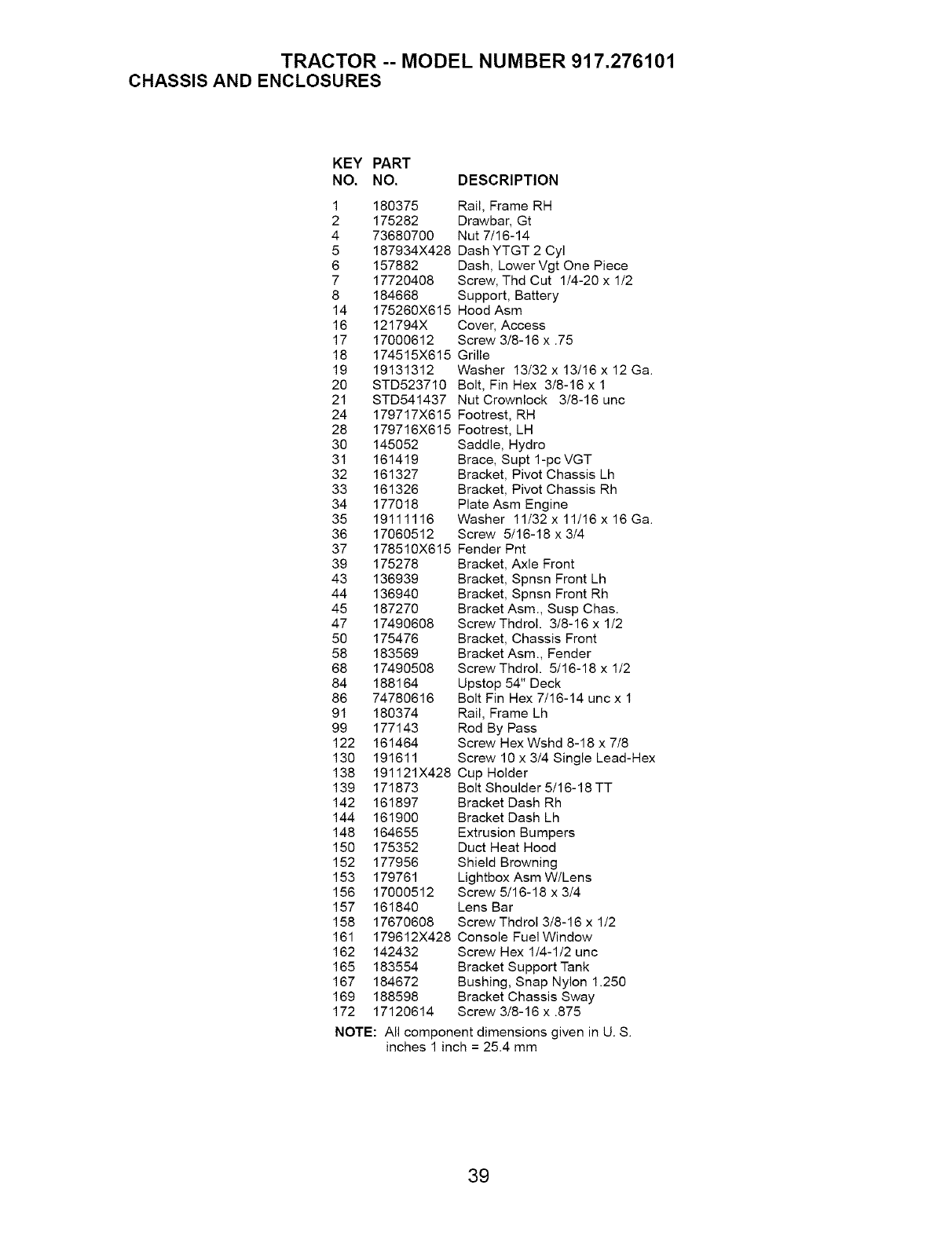

TRACTOR -- MODEL NUMBER 917,276101

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 180375 Rail, Frame RH

2 175282 Drawbar, Gt

4 73680700 Nut 7/16-14

5 187934X428 Dash YTGT 2 Cyl

6 157882 Dash, Lower Vgt One Piece

7 17720408 Screw, Thd Cut 1/4-20 x 1/2

8 184668 Support, Battery

14 175260X615 Hood Asm

16 121794X Cover, Access

17 17000612 Screw 3/8-16 x .75

18 174515X615 Grille

19 19131312 Washer 13/32x13/16x12Ga.

20 STD523710 Bolt, Fin Hex 3/8-16 x 1

21 STD541437 Nut Crownlock 3/8-16 uric

24 179717X615 Footrest, RH

28 179716X615 Footrest, LH

30 145052 Saddle, Hydro

31 161419 Brace, Supt 1-pc VGT

32 161327 Bracket, Pivot Chassis Lh

33 161326 Bracket, Pivot Chassis Rh

34 177018 Plate Asm Engine

35 19111116 Washer 11/32 x 11/16 x 16 Ga.

36 17060512 Screw 5116-18 x 3/4

37 178510X615 Fender Pnt

39 175278 Bracket, Axle Front

43 136939 Bracket, Spnsn Front Lh

44 136940 Bracket, Spnsn Front Rh

45 187270 Bracket Asm., Susp Chas.

47 17490608 ScrewThdrol. 318-16 x 112

50 175476 Bracket, Chassis Front

58 183569 Bracket Asm., Fender

68 17490508 ScrewThdrol. 5/16-18 x 1/2

84 188164 Upstop 54" Deck

86 74780616 Bolt Fin Hex 7/16-14 unc x 1

91 180374 Rail, Frame Lh

99 177143 Rod By Pass

122 161464 Screw Hex Wshd 8-18 x 7/8

130 191611 Screw 10 x 3/4 Single Lead-Hex

138 191121X428 Cup Holder

139 171873 Bolt Shoulder 5/16-18 TT

142 161897 Bracket Dash Rh

144 161900 Bracket Dash Lh

148 164655 Extrusion Bumpers

150 175352 Duct Heat Hood

152 177956 Shield Browning

153 179761 Lightbox Asm W/Lens

156 17000512 Screw 5t16-18 x 3/4

157 161840 Lens Bar

158 17670608 Screw Thdrol 3/8-16 x 1/2

161 179612X428 Console Fuel Window

162 142432 Screw Hex 114-1/2 unc

165 183554 Bracket Support Tank

167 184672 Bushing, Snap Nylon 1.250

169 188598 Bracket Chassis Sway

172 17120614 Screw 3/8-16 x .875

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.276101

GROUND DRIVE

drive 6-vgt

127 120

153_

122

58 133

111

" --143

124

TRACTOR -- MODEL NUMBER 917,276101

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 Transaxle Hydro Gear 89 73680700

331-3000 (See Breakdown) 94 133835

2 7070E Key 1/4 x 2.5 98 141004

3 7563R Washer Thrust 106 142918

6 STD561210 Pin, Cotter 107 154739

7 140507 Wheel, Hub Assembly 108 142917

9 140080 Bolt, Hub 111 156240

20 73940800 Nut 112 178558

22 180235 Lever Asm Shift Lower 114 73800500

23 130564 Knob 117 73900600

29 176600 Brake, Rod 120 17000612

33 12000053 Ring E 121 175611

34 71673 Cap, Parking Brake 122 72010520

35 137648 Rod, Parking Brake 123 183254

36 149412 Spring, Drive Ground 124 165492

37 121749X Washer 25/32 x 1-1/4 x 16 Ga. 126 166002

38 150035 Nyliner 127 177362

39 74321016 Screw, Fin. #10-24 x 1 128 176624

40 178575 Actuator, interlock Switch 129 179473

41 73931000 Nut Centerlock 10-24 Unc 130 19131016

42 8883R Cover, Pedal 131 76020312

46 145170 Retainer, Spring 132 175467

48 72110614 Bolt, 3/8-16 x 1-3/4 Gr. 5 133 175468

50 131494 Pulley, Idler, Flat 135 177364

52 127783 Pulley, Idler, Grooved 137 1685H

55 105706X Bearing, Idler 138 1370H

56 161597 V-Belt 142 175469

58 74760724 Bolt Fin Hex 7/16-14 x 1-1/2 143 17000512

61 143995 Pulley, Transaxle 145 163168

64 176601 Shaft, Clutch/Brake Pedal 146 140462

65 179613 Bolt, Shoulder 147 141322

68 STD571812 Pin, Roll 151 74760514

69 123800X Washer 152 178705

70 179121X428 Console AutomaticYT/GT 153 4997H

73 74490548 Bolt Hex Flghd 5/16-18 x 3 Gr. 5

74 142432 Screw Hex Wsh. Hi-Lo 1/4-1/2

77 74780716 Bolt Hex 7/16-14 x 1-1/4 Gr. 5

DESCRIPTION

Nut Crownlock 7/16-14 Unc

Fastener Christmas Tree

Bracket Shift

O-Ring Asm Hydro Gear

Line Fuel Hydro 15"VGT

Cap Asm Vent Hydro Gear 70109

Spacer Shift Lever VGTH

Washer Nylon High Temp

Nut Lock Hx W/Ins 5/16-18 Unc

Nut, Lock Fig. 3/8-16

Screw 3/8-16 x .75

Bracket Strap Torque

Bolt RDHD SQ 5/16-18unc x 2-1/2

Rod Shift

Bolt Shoulder 5/16-18 x .561

Washer SRRTD 5/161D x 1.0 x .125

Link Control Clutch

Spring Drive GRND

Bracket Asm Idler Tensioning

Washer 13/32 x 5/8 x 16 Ga

Pin Cotter 3/32 x 3/4

Bracket Mtg Hydro 3500 LH VGT

Bracket Mtg Hydro 3500 RH VGT

Link Asm Control Hydro 3500

Nut Lock 5/16-18 NC Thd

Washer Thrust 5/8 x 1.10 x 1/32

Strap Torque HG-3500

Screw Thdrol 5/16-18 x 3/4

Washer Axle Flange HG-3000

Fan 7" Hydro

Washer

Bolt Fin Hex 5/16-18 x 7/8

Bolt hex 5/16-18 x 1

Retainer Spring

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

STEERING TRACTOR -- MODEL NUMBER 917,276101

/16

,,.31

\29

13 13

//\

/Ii I I

II I II

\ I

STEERING TRACTOR -- MODEL NUMBER 917,276101

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2 178557

3 183226

4 161849

5 161848

6 6266H

7 121748X

8 12000029

9 184946X505

10 74781044

11 136518

12 73901000

13 121749X

14 STD551137

15 STD541537

16 186814

18 187799

19 156011

20 163887X428

21 159945

22 155105

23 152927

26 159946X428

27 3366R

28 17000612

29 104239X

31 138136

32 19111610

33 STD551131

34 74780512

35 187039

36 186799

41 155246

42 17490508

44 160135X428

45 19182411

46 19131610

47 179471

49 175820

50 73900600

51 73940800

52 175553

53 188967

Wheel, Steering

Axle Asm., Front

Fitting, Grease

Spindle Asm, LH

Spindle Asm., RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip #T5304-75

Cap, Spindle

Bolt, Fin Hex 5/8-11 x 2-3/4

Spacer Bearing Axle Front

Nut, Lock Flange 5/8-11 Unc

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy HIcl Spr 3/8

Nut, Lock Center 3/8-24 UNF

Shaft Asm., Steering

Draglink Vgt

Support Asm., Steering Vgt

Boot, Steering

Adapter, Wheel Steering

Bushing, Strg. BIk

Screw

Cap, Wheel Steering

Bearing, Col. Strg.

Screw, 3/8-16 x 3/4

Bearing, Flange

Bushing, Nyliner Snap

Washer 11/32xlx10Ga.

Washer, Lock Hvy HIcl Spr 5/16

Bolt Fin Hex 5/16-18unc x 3/4

Gear, Sector Steering

Tie Rod

Bracket Switch Interlock VGT 97

ScrewThdrol 5/16-18 x 1/2 Tyt

Extension, Steering

Washer 9/16 x 1-1/20 x 11 Ga.

Washer Flat 13/32 x 1 x 10 Ga.

Bracket Asm Idler Stationary

Pulley idler Flat

Nut Lock Fig 3/8-16 UNC

Nut Hex Jam Toplock 1/2-20 unf

Clip Steering .750

Washer Hardened

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

ENGINE TRACTOR -- MODEL NUMBER 917,276101

37 85

engine-kohler22 18-vgt

39 31

\\\

SPARK ARRESTER KIT

KEY PART

NO. NO.

2 149723

8 121361X

9 177748

10 175288

11 179335

12 143996

15 179115

18 179124X428

20 177328X428

21 191611

22 187768X428

26 3645J

27 139277

28 7834R

29 137180

31 145006

37 123487X

DESCRIPTION

Engine Kohler CV730-0029

(See Breakdown)

Muffler

Pulley V-idler

Keeper Asm. Belt Engine

Bushing

Clutch Electric

Pulley Engine VGT Elect Clutch

Tank Fuel Rear 5.0 Yt/Gt 96

Cap Asm Fuel W/Gauge

Control Throttle

Screw 10 x 3/4 Single Lead-Hex

Control Choke

Bushing

Stem Tank Fuel

Fuel Line

Spark Arrester Kit

Clip Push-In Hinged

Clamp Hose

KEY PART

NO. NO. DESCRIPTION

39 17490636 ScrewTT 3/8-16 x 2-1/4 unc

40 17490664 Screw TT 3/8-16 x 4 unc

41 126197X Washer 1-1/20D x15/32 ID x .250

42 STD551143 Washer Lock 7/16

47 175287 Spacer Engine

62 146629 Shield Heat Muffler

69 24-041-49 Gasket

70 175545 Tube Exhaust LH

71 175546 Tube Exhaust RH

80 M73030800 Nut Flange M8-1.25

81 188800 Tube Drain Oil

82 188799 Drain Oil Valve

83 171877 Bolt 5/16-18unc x 3t4

84 17060624 Screw 318-16 x 1-1/2

85 179953 Bolt Hex 7/16 - 20 x 3.75 Gr. 5

86 84362 Nut Hex Flange Toplock M8-1.25

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917,276101

SEAT ASSEMBLY

KEY

NO.

/21

seat 1-vgt

PART

NO.

188714

140551

140675

127018X

145006

STD541437

124181X

171877

182493

121246X

121248X

KEY PART

DESCRIPTION NO. NO.

Seat 14 72050412

Bracket, Pivot Seat 15 121249X

Strap, Fender Assembly 16 123740X

Bolt Shoulder 5/16-18 x .62 17 123976X

Clip, Push In, Hinged 18 19171912

Nut 3/8-16 Unc 19 166369

Spring, Seat Cprsn 20 124238X

Bolt 5/16-18Unc x 3/4 w/Sems 21 171852

Pan, Seat 37 73800500

Bracket, Mounting Switch

Bushing, Snap

DESCRIPTION

Bolt, Carriage 1/4-20 x 1-1/2

Spacer, Split

Spring, Cprsn

Nut, Lock 1/4 Lge Fig Gr. 5

Washer 17/32 x 1-3/16 x 12 Ga.

Knob, Seat

Cap, Spring Seat

Bolt, Shoulder 5/16-18

Nut, Lock Hx w/Ins. 5116-18

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

DECALS TRACTOR -- MODEL NUMBER 917,276101

18 3

15 15

22 24

KEY PART

NO. NO. DESCRIPTION

1 164094 Decal Dash

2 149516 Decal Battery DNGR/PSN

ENG Asm

3 186242 Decal Hood RH

4 186243 Decal Hood LH

5 140837 Decal Brake Parking Saddle

6 133644 Decal Maintenance

7 178455 Decal Deck Caution

8 177914 Decal Engn. Kohl Sears Logo

9 186572 Decal Fender

10 156439 Decal Fender Danger

11 181252 Decal FTREST

12 177554 Decal V-Belt Dr Sch

13 191582 Decal Replacement

14 188298 Decal V-Belt Schem

15 186725 Decal Hood Side Phi

WHEELS AND TIRES

7410

11 16 25

KEY PART

NO. NO. DESCRIPTION

16 178482 Decal Deck HVYDTY

17 177665 Decal Dash Panel

18 164065 Decal Insert Strg

19 138047 Decal Battery

20 181470 Decal Deck Level

21 177916 Decal Engn. K.P. Sears RH

22 185980 Decal Engine Logo

23 106202X Reflector, Taillight

24 177917 Decal Engn. K.P. Sears LH

25 177918 Decal Engn. LTX. VTWN

- - 179768X428 Pad Footrest LH

- - 166960 Decal Drawbar CNTRL

- - 179769X428 Pad Footrest RH

- - 191280 Owner's Manual, English

- - 191281 Owner's Manual, Spanish

KEY PART

NO. NO. DESCRIPTION

1 59192 Cap Valve Tire

2 65139 Stem Valve

3 106228X624 Rim Asm Front

4 8134H Tube, Front (Service Item Only)

5 105588X Tire, Front

6 278H Fitting Grease (Front Wheel Only)

7 9040H Bearing Flange(Front Wheel Only)

8 104757X428 Cap Axle (Front Wheel Only)

9 106230X Tire Rear

10 7154J Tube Rear (Service item Only)

11 106277X624 Rim Asm Rear

12 6856M Fitting Grease

- - 144334 Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917,276101

LIFT ASSEMBLY

40 43 35 73

38 34

32 31

70\

\\ \

KEY PART

NO, NO,

1 121006X

2 180045

3 159189

4 12000022

5 19292016

6 71110624

7 175830

8 175831X505

10 183894

11 175375

12 163552

23 STD624008

24 73350800

26 73800800

29 150233

30 110807X

31 STD551037

32 137150

33 STD560907

34 137167

lift rh 18

KEY PART

DESCRIPTION NO. NO.

Rod Asm., Lever 35 138057

Shaft Asm., Lift Vgt 38 155097

Lever Asm., Lift Rh 39 123935X

E-Ring Truarc #5133-87 40 17060516

Washer 29/32 x 1-1/4 x 16 Ga. 41 175994

Bolt, Fin Hex 3/8-16 x 1-1/2 42 19112410

Grip, Handle Fluted 43 123934X

Plunger, Button 70 145212

Spring 72 110452X

Link Lift 73 73350600

Retainer Spring 74 187277

Retainer, Spring 75 175805

Nut, Jam Hex 1/2-13 unc 76 175560

Nut Lock 1/2-13 unc 77 176205

Trunnion, Infin Height 78 175689

Nut, Special 79 187276

Washer 13/32 x 5/8 x 16 Ga. 85 189013

Spring, Compression Inf Hgt 86 188528

Pin, Cotter 3/32 x 1/2

Rod, Adj Lift

DESCRIPTION

Knob, Inf 3/8-16 unc

Pointer, Height Indicator

Plug, Hole

Screw Hex Wsh 5/16-18 x 1

Nut, Lift Link 7/16-20

Washer 11/32 x 1-1/2 x 10 Ga.

Scale, Indicator Height

Nut Hex Flange Lock

Nut Push Phos & Oil

Nut Hex Jam 3/8-16 unc

Arm Susp. Rear RH

Plate Asm. Susp. Front

Pin, Flange

Trunnion Susp. Arm

Trunnion Susp. Front

Arm, susp. R LH

Insert, Wear

Bolt, Shoulder

NOTE: All component dimensions given in U. S.

47 inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.276101

MOWER DECK

46 34 _9 5

_50 49 _7

i ' 3oX__ 3o

i \

51 33

57 5

119

I 35

i 36

113

182

mower deck-54 1

TRACTOR -- MODEL NUMBER 917,276101

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 187295 Deck Weldment Mower 52 188460

5 STD624008 Retainer Spring 56 155986

6 187297 Cover Mandrel LH 57 156941

7 188187 Cover Mandrel RH 58 187342

8 174365 Bolt 7/16 Asm. Blade 59 187344

11 187254 Blade, Standard 60 187607

(For mulching mowers only) 90 74760516

13 187291 Shaft Asm. wlLower Bearing 91 180535

14 187281 Housing, Mandrel 94 176066

15 110485X Bearing, Ball, Mandrel 95 180534

17 72140505 Bolt, Carriage 5/16-18 x 5t8 97 19133210

21 73680500 Nut, Crownlock 5/16-18 unc 98 187282

25 178102 Spring, Torsion 113 72110508

26 110452X Nut, Push 114 187556

27 187257X428 Deflector Shield 116 184219

29 131491 Rod, Hinge 117 174873

30 173984 Screw, Thdroll Washer Head 118 73930600

31 187690 Washer, Spacer Mower Vented 119 19121414

32 173436 Pulley, Mandrel 122 187557

33 178342 Nut, Fig. Top Lock Cntr. 9116 180 73800500

34 73680600 Nut 182 179127

35 188635 Pin Suspension Rear 183 163552

36 19131316 Washer 13/32 x 13/16 x 16 Ga. - - 187292

38 188657 Spring Compression

39 187284 Pulley, Idler, Stationary - - 188271

42 165723 Spacer, Retainer

43 187278 Arm, Idler

46 137729 Screw, Thdroll. 1/4-20 x 5t8

47 191273 V-Belt, Mower

49 73900600 Nut, Lock Fig. 3/8-16 unc

50 72110616 Bolt, Carr. 318-16 x 2

51 72110610 Bolt

Pulley Idler Clutching

Bar Pnt Adj.

Pin Head Rivet

Baffle Right

Baffle Left

Baffle Center

Bolt 5/16-18 x 1

Bracket Asm N Roller RH

Roller Nose 48"

Bracket Asm N Roller LH

Washer 13t32

Spring Clutch Drive

Bolt Rdhd Sqnk 5/16-18 x 3/4

Rod Tension Relief

Bolt, Shoulder

Gauge Wheel

Nut, Centerlock 3/8-16 unc

Washer 3/8 x 718 x 14 Ga.

Bushing Tension Relief

Nut 5/16-18

Rod Roller Nose Narrow

Retainer Spring

Mandrel Asm. Service (Includes

Key Nos. 13-15 and 33)

Replacement Mower, Complete

(Std. Deck-Order separately nose

roller components key nos. 90, 91,

94, 95, 180, 182, 183)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

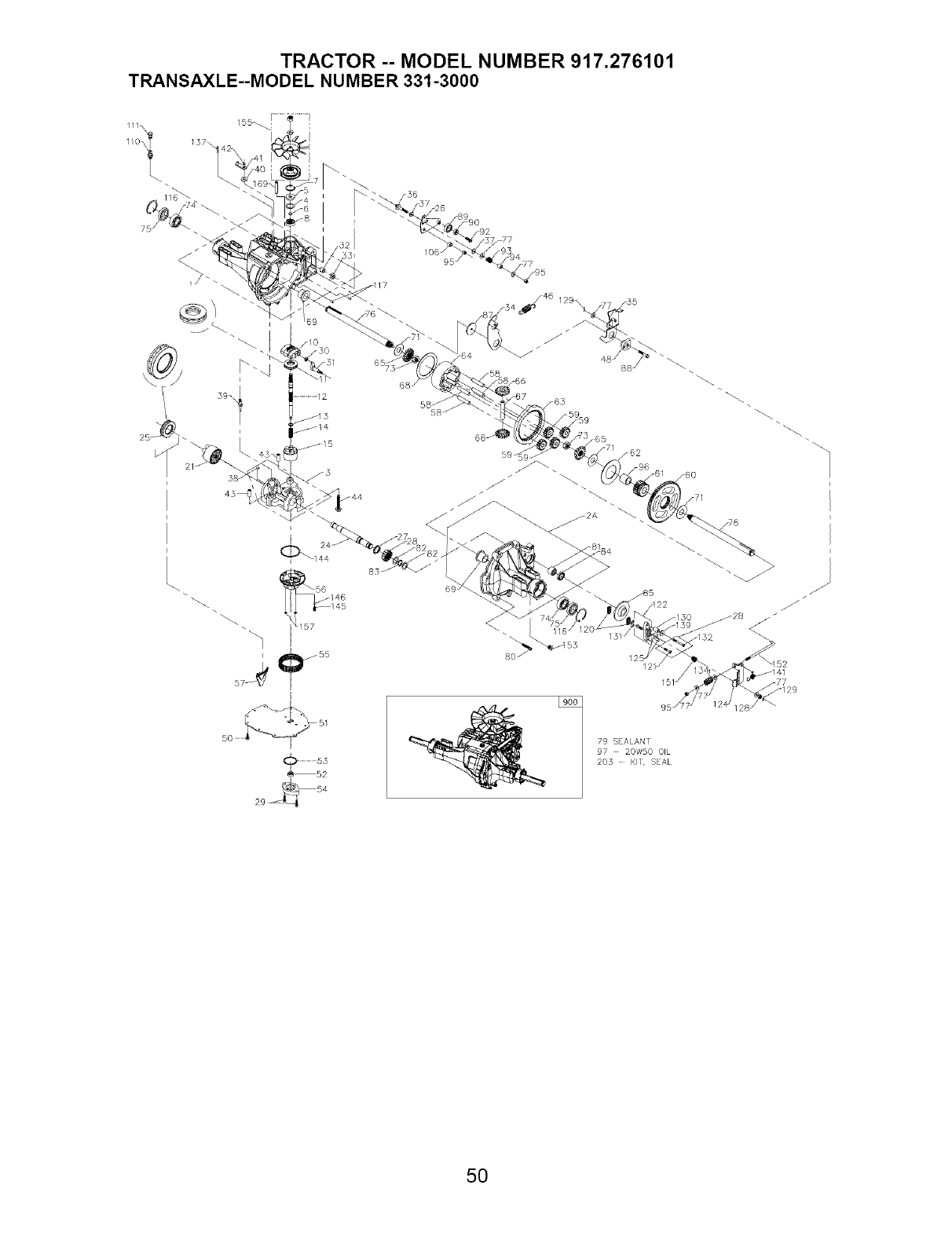

TRACTOR -- MODEL NUMBER 917,276101

TRANSAXLE--MODEL NUMBER 331-3000

8,5

8O 12{ /21 _

79 S AIANT

97 2OW50 OIL

205 k{llr SEAL

TRACTOR -- MODEL NUMBER 917,276101

TRANSAXLE--MODEL NUMBER 331-3000

Key Part Key Part

No. No. Description No. No. Description

1 161122 Kit, housing main 65 I6I I50

Main housing 66 I6I I5I

Lip seal

Flange bearing 67 I6I I52

Trunnion bushing 68 I6I I53

Cradle bearing 69 169534

2A 193015 Kit, housing r/h 71 I6I I55

R.H. Housing 73 I6I I56

Flange bearing 74 169535

Needle bearing (see1412) 75 I6t t57

Lip seal (.875 ID x 1.3 0D x .25) 76 I61158

2B 193016 Kit, brake bolt 77 142884

Bolt, hex hd I/4-20 x 1.25 W/patch 79 I78322

Bolt, hex hd I/4-20 x 2.25 W/patch 80 I6I I59

3 184703 Kit, center section 81 161160

Center section 82 I6I I6t

Bushing .50 X .60 X .50 83 I6I I62

Bushing .90 X 1.02 X .75 84 I6I I63

Plate, bypass

Check plug assembly_044 85 I6I I64

Check plug assembly, no bleed 87 178323

4 161125 Spacer (BDP, BDU I0) 88 178784

5 142932 Seal, lip

6 142928 Retaining ring 89 178783

7 142933 Retaining ring 90 178326

8 142934 Bearing, bail 92 178787

10 169524 Swash plate (BDP, BDU 10) 93 142969

11 173159 Bearing, thrust (10cc) 94 142980

12 161126 Shaft, input (310-3000) 95 169537

13 142978 Washer, block thrust 96 169538

14 142977 Spring, helical compression 97

15 169898 Kit, cylinder block (1Occ) I06 I6I I66

IOCC cylinder block I08 150800

IOCC piston I10 150813

IOCC piston spring

Piston seat washer

2I 150786 Block, (BD-21& IHT) 111 150812

21CC Cylinder block

Piston seat washer

21CC piston I16 169539

21CC piston spring I17 I6I 168

24 161127 Shaft, motor (310-3000) I20 142883

25 169526 Bearing, thrust (2Icc) I2t 193019

26 161128 Control arm (310-3000) I22 178329

27 161129 Spacer (310-3000) I24 178330

28 161130 Gear, I6t pinion I25 170409

29 169527 Capscrew I28 170415

30 142941 Guide block (BD-21) I29 170416

3t 169887 Trunnion, tapered square I30 170411

32 161133 Bearing, journal I3t 142882

33 142940 Seal, lip I32 193020

34 178318 Return arm (310-3000) I34 178331

35 178319 Actuating arm (310-3000) I37 178333

36 170421 Bolt, stud 5/I6-24 I39 I6I I76

37 142967 Friction puck I41 178335

38 184694 Kit, bypass plate I44 169545

39 169529 Bypass actuator (IHT) I45 169546

40 142945 Seal, lip I46 169547

4I 142952 Bypass arm I5I 170417

42 142953 Retaining ring I52 178336

43 142965 Pin I53 170434

44 150797 Bolt 3/8-24 x 2-1/2 I55 178337

46 184702 Spring, neutral (310-3000)

48 178320 Puck, adjusting (310-3000)

50 178343 Screw, hex head washer cap screw

(IZT) 1/4-20 x 3/4

5t 169530 Lower cover I57 169548

52 169531 Geroter assembly I69 184701

53 144581 O-ring 203 178338

54 161139 Charge pump housing

55 178321 Kit, filter

Gasket .10 X .16 X 4.24

Filter

56 169533 Charge manifold 310-3000

57 161142 Retainer, motor bearing (310-3000)

58 161143 Pin, carrier (310-3000)

59 161144 Gear, t5t planet (310-3000)

60 161145 Gear, 67t spur (310-3000)

6t 161146 Gear, 21t sun (310-3000)

62 161147 Plate, planet thrust (310-3000) 900 I76056

63 161148 Gear, 51t ring (310-3000)

64 161149 Carrier, planetary (310-3000)

Gear, differential bevel (310-3000)

Gear, differential bevel pinion

(310-3000)

Shaft, differential (310-3000)

Plate, differential thrust (3t 0-3000)

Bearing, flange (310-3000)

Washer, fiat (I .O0 Id) (310-3000)

Nut, 5/8-18 hex jam (310-3000)

Bearing, ball (310-3000)

Seal, lip (310-3000)

Shaft, axle (310-3000)

Washer, flat

Sealant tube

Screw, torx head 5/16-18 (3 I0-3000)

Bearing, needle (210-3000)

Washer, fiat (0.880 ID) (310-3000)

Ring, retaining (310-3000)

Seal, lip (.875 ID x 1.38 OD x .25)

(310-3000)

Brake disc (310-3000)

Washer (3t 0-3000)

Screw, 5/I6-24x I I/2 socket head cap

(310-3000)

Bearing, ball

Spacer, locating (310-3000)

Screw (310-3000)

Spring

Spacer

Nut, nylon insert hex lock 5/I6-24

Bearing, sleeve (310-3000)

2OW-5O oil 122 oz

Spacer, trunnion (310-3000)

Plug, plastic shipping

O-ring

Fitting, plastic hose

O-ring

Breather vent, plastic

Vent, plastic

Vent, cap

Ring, retaining (310-3000)

Brake puck

Bolt, hex hd 1/4-20 x 1.25 W/patch

Kit, brake yoke

Brake arm

Pin, brake actuating

Nut, castle 5/16-24

Pin, cotter 3/32x3/4

Spacer, brake torsion spring

Brake puck plate

Bolt, hex hd 1/4-20 x 2.25 W/patch

Brake comp. Spring

Pin, spring (310-3000)

Washer, flat

Spring, brake arm bias

O-ring

Spring, relief

Steel ball 7/I6

Brake spring

Brake pull rod

Plug, straight thread 9/16-18

Kit, fan/pulley

Nut, jam I/2-20

Washer, OD slotted .53 X 1.63 X .06

Pulley

Fan

O-ring

Pin, spring 5/I6 x 1.75

Kit, seal

Lip seal 15x5x37

Lip seal 12x25x7

Lip seal 10 x 25 x 7

O-ring .103 X 1.862

Seal 25 x 52 x t0

Lip seal .875 ID x 1.30D x .25

O-ring .070 X .239

Kit, o-ring, manifold

Pin, spring 5/t6 x 1.75

Pin, spring 1/4 x 1.00

Transaxie

Note: All Component Dimensions Given In U.s. Inches

I Inch = 25.4 MM

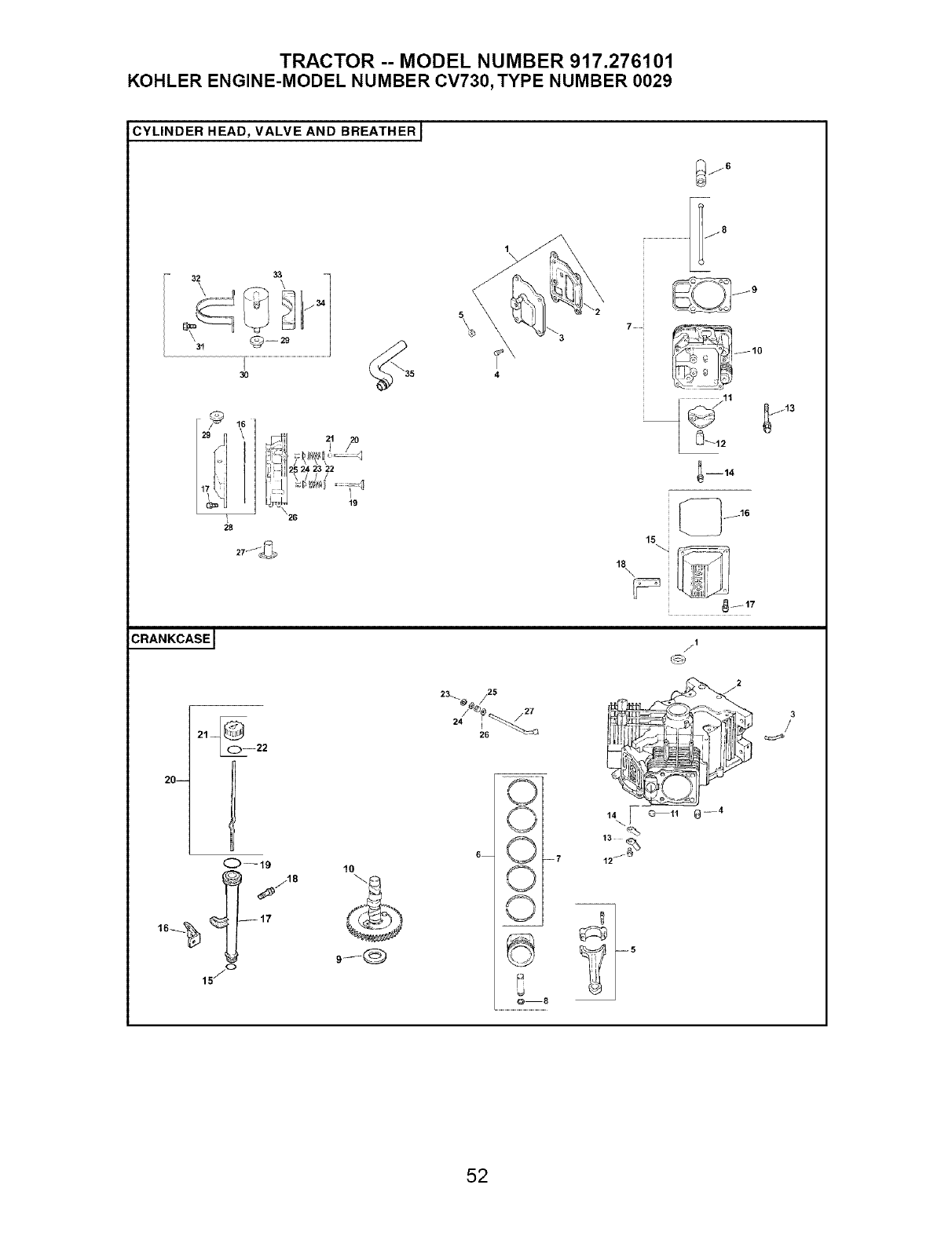

TRACTOR -- MODEL NUMBER 917.276101

KOHLER ENGINE-MODEL NUMBER CV730, TYPE NUMBER 0029

CYLINDERHEAD, VALVEAND BREATHERI

CRANKCASEJ

C_--22

20--

O--19

_j18

1 5jC,

91Q

23_@ /25

2J_./27

.....

6_ _7

_ 8

12 f_

--14

/17

TRACTOR -- MODEL NU MBER 917.276101

KOHLER ENGINE-MODEL NUMBER CV730,TYPE NUMBER 0029

HEADNALVE/BREATHER CRANKCASE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1. 24-033-03-S Kit, breather cover w/gasket 1.

(includes 2, 3) 2.

2. 24-041-50-S Gasket, breather

3. 24-096-87-S Cover, breather 3.

4. M-645020-S Screw, hex. flange 4.

M6x1.0x20 (4) 5.

5. 25 139 60-S Plug, hex. ctsk. 1/8"

6. 25-351-01-S Lifter, valve (4) 6.

7. 24-755-66-S Kit, valve train (Includes 8,

11, 12)

8. 24-411-05-S

9. 24-841-03-S

10. 24-318-72-S

11. 25-186-01-S

12. 24-599-01-S

13. 12 086 16-S

14. 66-086-07-S

15. 24-755-141-S

16. 24-153-28-S

17. M-651030-S

18. 24-445-01-S

19. 24-016-01-S

24-016-02-S

20. 24-017-01 -S

24-017-02-S

21. 66-032-05-S

22. 235011-S

23. 24-089-02-S

24. 12-173-01-S

25. 12-755-03-S

26. 24-318-69-S

27. 24-755-142-S

28. 25-313-03-S

29. 24-755-57-S

Rod, push (4)

Kit, cylinder head gasket (2)

(includes 13)

Head assembly, #2 cylinder

Arm, rocker (4)

Pivot, rocker arm (4)

Screw, hex. flange

M10x1.5x90 (8)

Screw, hex. flange

M6x1.0x34 (4)

Kit, valve cover - plain

(includes 16,17)

O-Ring

Screw, hex. flange

M6x1.0x30 (4)

Strap, lifting

Valve, exhaust (Std.) (2)

Valve, exhaust (.25) (2)

Valve, intake (Std.) (2)

Valve, intake (.25) (2)

Seal, valve stem (2)

Retainer, spring (4)

Spring, valve (4)

Cap, valve spring (4)

Kit, retainer (4)

Head assembly, #1 cylinder

Kit, valve cover - breather

(includes 16,17,29)

Grommet, rubber

Kit, breather separator

(includes 29,31-34)

Screw, hex. flange

M5x0.8x16 (2)

Strap, breather

Bracket, breather separator

Spacer

Hose, breather

30. M-545016-S

31. 24-445-02-S

32. 24-126-44-S

33. 24-112-12-S

35. 24-326-55-S

24-032-01-S

24-294-13-S

24-380-13-S

24-067 - 13-S

24-067-14-S

24-874-08-S

24-874-16-S

24-874-20-S

24-874-21-S

7. 24-108-05-S

24-108-06-S

24-108-07-S

8. 24-018-01-S

9. 12-422-09-S

12-422-13-S

12-422-07-S

12-422-08-S

12-422-10-S

12-422-11 -S

12-422-12-S

10. 24-012-16-S

11. 52-139-09-S

12. M-545010-S

13. 24-018-04-S

14. 24-402-05-S

15. 12-153-01-S

16. 24-126-19-S

17. 12-123-04-S

18. M-545016-S

DESCRIPTION

19. 12-153-02-S

20. 24-038-04-S

21. 24-755-46-S

22. 25 153 02-S

23. 24-018-09-S

24. M-931010-S

25. 28-032-09-S

26. 24-468-15-S

27. 24-144-38-S

Seal, front oil

Crankcase (USE: Miniblock

24 782 14)

Fitting

Pin, locating (6)

Connecting Rod (Std.) (2)

Connecting Rod (.25) (2)

Piston w/Ring Set (Std.) (2)

(includes 7, 8)

Piston w/Ring Set (.08)

Piston w/Ring Set (.25)

Piston w/Ring Set (.50)

Ring Set (Std. & .08) (2)

Ring Set (.25)

Ring Set (.50)

Retainer, piston pin (4)

Shim, camshaft (A.R.)

Shim, camshaft

Shim, camshaft (A.R.)

Camshaft

Plug, cup

Screw, hex. flange

M5x0.8xl 0 (2)

Retainer, reed (2)

Reed, breather (2)

O-Ring, lower oil fill tube

Bracket, oil fill tube

Tube, oil fill

Screw, hex. flange

M5xO.8xl 6

O-Ring upper oil fill tube

Dipstick assemb y (includes

21, 22)

Kit oil fill cap (Includes 22)

O-Ring, dipst ck

Ring, retainer

Washer, nylon (top)

Seal, governor cross shaft

Washer (bottom)

Shaft, governor cross

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.276101

KOHLER ENGINE-MODEL NUMBER CV730, TYPE NUMBER 0029

IGNITION/ELECTRICAL I

_--3

1-- _1--4

19 --_

BLOWER HOUSING AND BAFFLES I

AIR INTAKE J

10_

TRACTOR -- MODEL NUMBER 917.276101

KOHLER ENGINE-MODEL NUMBER CV730, TYPE NUMBER 0029

IGNITION/ELECTRICAL BLOWER HOUSING & BAFFLES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1. 54-755-15-S Kit, grass screen (Includes

2-4, & 24-113-18-S)

2. M-403025-S Screw, hex. cap M4x0.7x25

(4)

3. X-25-92-S Washer, plain 5/16" (4)

4. 24-112-04-S Spacer, grass screen (4)

5. 25-086-47-S Bolt, shoulder M6x1.0x16 (4)

6. 24-157-08-S Fan

7. 12-086-14-S Screw, hex. flange

M10x1.5x46

8. 12-468-03-S Washer, plain 3/8"

9. X-42-15-S Key

10. 24-025-01-S Flywheel

11. 41-403-09-S Rectifier-regulator

12. X-25-92-S Washer, plain 3/16" (3)

13. 24-086-18-S Screw, phillips hd. 11-16x7/8

(2)

14. 236602-S Connector (3 contact)

15. 12-132-02-S Spark Plug (2)

16. M-548025-S Screw, hex. cap M5x0.8x25

(2)

17. 54-755-09-S Kit, 15 amp stator

(Includes 18)

18. 24 126 71-S Bracket, stator wire

19. 48-154-02-S Clip, cable

20. X-25-63-S Washer, plain 1/4"

21. 24-584-01-S Module, ignition (2)

22. M-545020-S Screw, hex flange M5x0.8x20

(4)

23. 235173-S Clip, cable

NOT ILLUSTRATED

24-126-137-S Bracket, ground strap

24-176-82-S Harness, wiring

25-454-03-S Tie, wire (3)

24-113-18-S Decal, grass screen

DESCRIPTION

1. 24-027-114-S Housing, blower

(Includes 2)

2. 24-100-01-S Nut, plastic (2)

3. M-551016-S Screw, hex. flange

M5x0.8xl 6

4. M-545016-S Screw, hex. flange

M5x0.8xl 6 (3)

5. M-545020-S Screw, hex. flange

M5x0.8x20 (4)

6. M-645016-S Screw, hex. flange

M6x1.0xl 6 (6)

7. 24-146-16-S Plate, backing - # 2 side

8. 24-146-20-S Plate, backing -# 1 side

9. 24-063-39-S Baffle, cylinder barrel - # 2

side

10. 24-063-58-S Baffle, cylinder barrel- # 1

side

11. M-545010-S Screw, hex. flange

M5x0.8xl0 (2)

12. 24-063-14-S Baffle, valley- #2 side

13. 24-063-60-S Baffle, valley - #1 side

NOT ILLUSTRATED

24-096-85-S

25-086-91-S

25-113-39-S

Cover, blower housing

Screw, tapping 10-16xl/2" (2)

Decal, clear lamination

AIR INTAKE/FILTRATION

KEY PART

NO. NO. DESCRIPTION

1. 54-755-01-S Kit, knob with seal

(Includes 2,3)

2. 20-341-01-S Knob, cover

3. 24-153-20-S O-Ring

4. 24-096-67-S Cover, air cleaner

5. 12-100-01-S Wing Nut

6. 24-096-01-S Cover, inner air cleaner

7. 231032-S Seal, breather

8. 24-083-05-S Precleaner, element

9. 24-083-03-S Element, air cleaner

10. 24-109-09-S Cup, fuel spit-back

11. 24-041-13-S Gasket, fuel spit-back cup

12. 24-094-34-S Base, air cleaner

13. 24-041-14-S Gasket, air cleaner base

14. 24-164-51-S Manifold, intake (Includes

15,16)

15. 24 041 52-S Gasket, carburetor

16. 24 153 27-S O-Ring, intake port (2)

17. M-651040-S Screw, hex. flange

M6x1.0x40 (4)

18. 24 126 130-S Bracket, air

cleaner base

19. M-545010-S Screw, hex. flange

M5x0.8xl 0 (2)

20. 24-063-51-S Baffle, spit-back cup

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

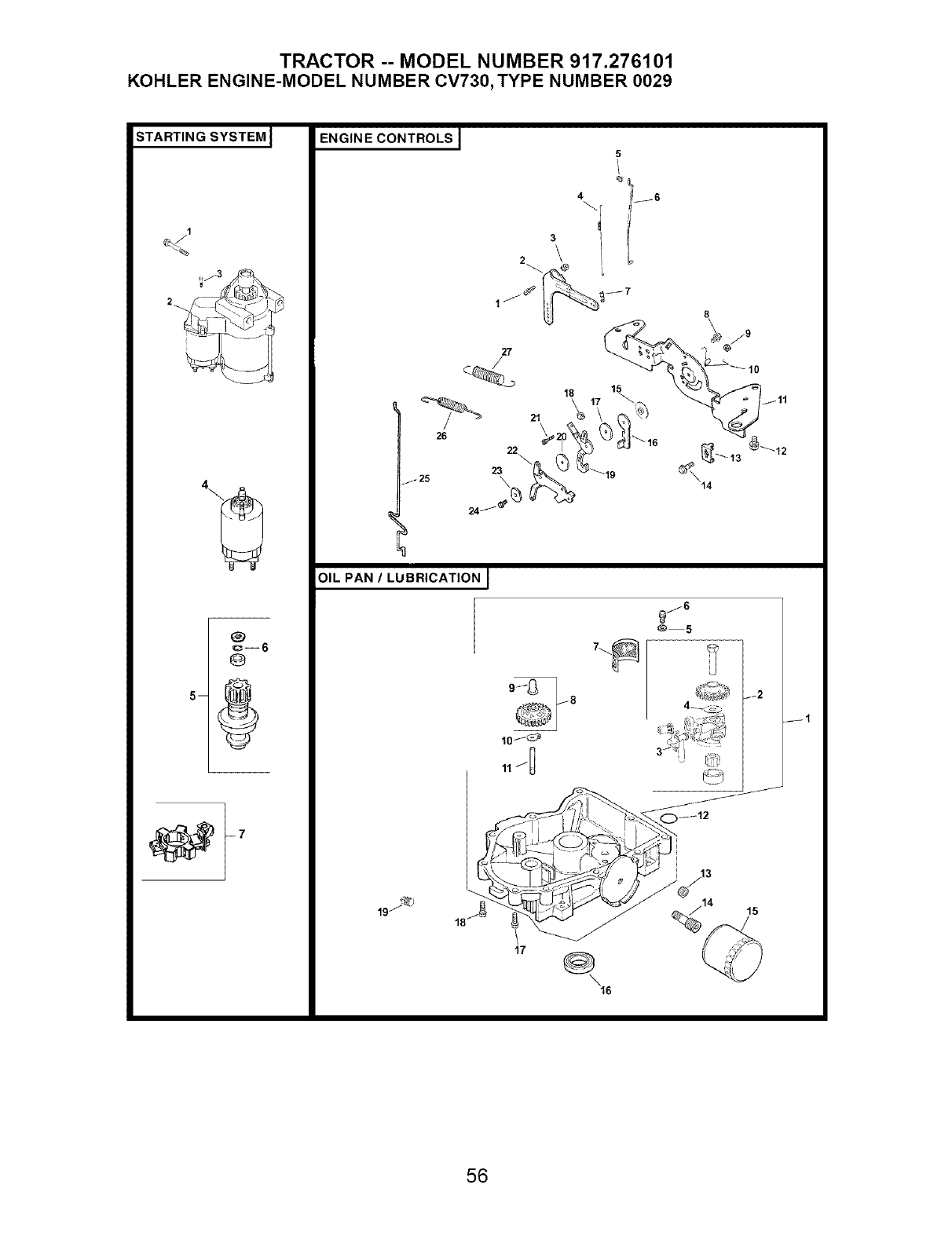

TRACTOR -- MODEL NUMBER 917.276101

KOHLER ENGINE-MODEL NUMBER CV730, TYPE NUMBER 0029

STARTING SYSTEM I

_--6

ENGINE CONTROLS J

/25

OIL PAN /LUBRICATION J

10_

11 __

@//6

19_ _; 18J_

17 @\16

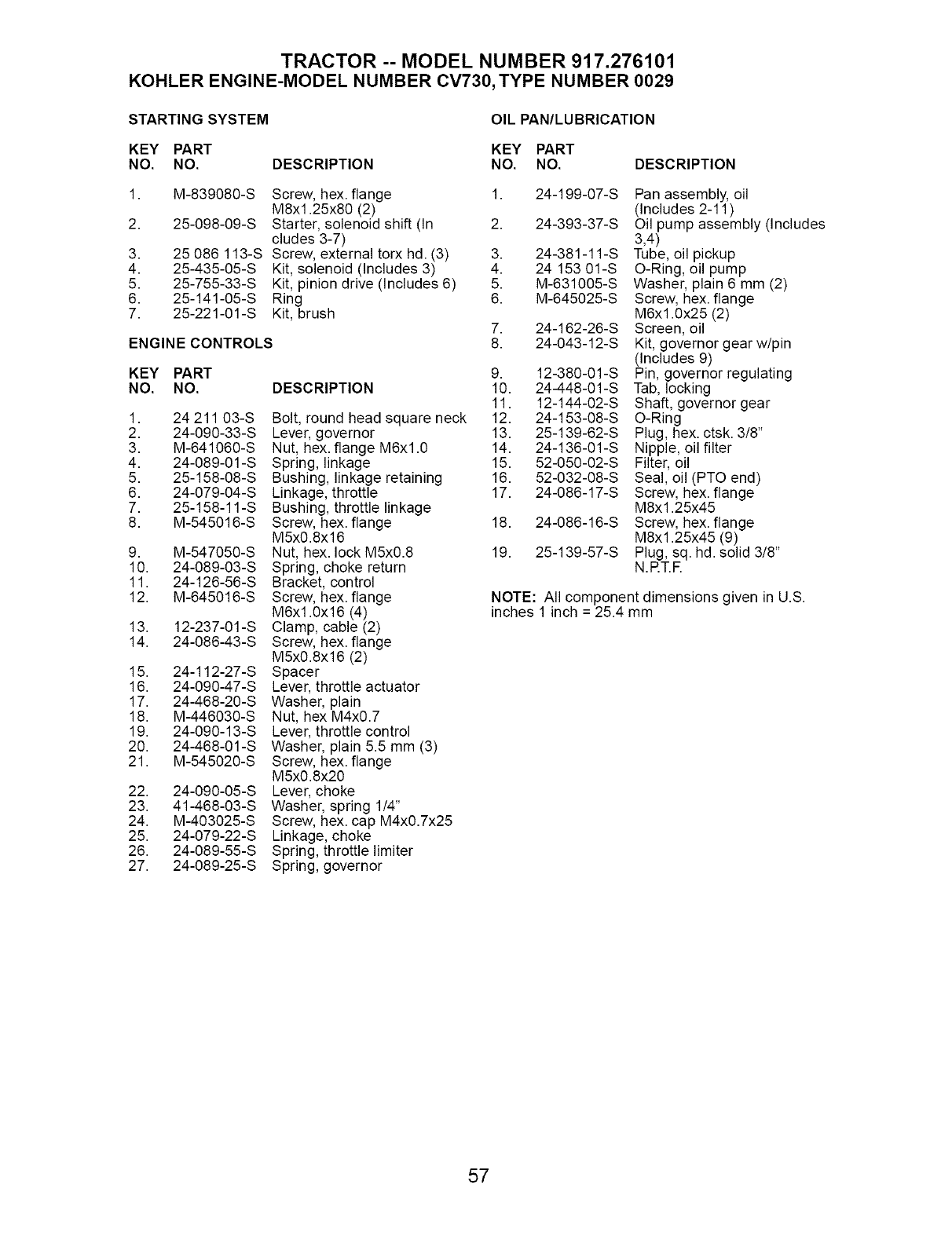

TRACTOR -- MODEL NUMBER 917.276101

KOHLER ENGINE-MODEL NUMBER CV730, TYPE NUMBER 0029

STARTING SYSTEM OIL PAN/LUBRICATION

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1. M-839080-S Screw, hex. flange

M8x1.25x80 (2)

2. 25-098-09-S Starter, solenoid shift (In

cludes 3-7)

3. 25 086 113-S Screw, external torx hd. (3)

4. 25-435-05-S Kit, solenoid (Includes 3)

5. 25-755-33-S Kit, pinion drive (Includes 6)

6. 25-141-05-S Ring

7. 25-221-01-S Kit, brush

ENGINE CONTROLS

KEY PART

NO. NO. DESCRIPTION

1. 24 211 03-S Bolt, round head square neck

2. 24-090-33-S Lever, governor

3. M-641060-S Nut, hex. flange M6xl.0

4. 24-089-01-S Spring, linkage

5. 25-158-08-S Bushing, linkage retaining

6. 24-079-04-S Linkage, throttle

7. 25-158-11-S Bushing, throttle linkage

8. M-545016-S Screw, hex. flange

M5x0.8x16

9. M-547050-S Nut, hex. lock M5x0.8

10. 24-089-03-S Spring, choke return

11. 24-126-56-S Bracket, control

12. M-645016-S Screw, hex. flange

M6x1.0x16 (4)

13. 12-237-01-S Clamp, cable (2)

14. 24-086-43-S Screw, hex. flange

M5x0.8x16 (2)

15. 24-112-27-S Spacer

16. 24-090-47-S Lever, throttle actuator

17. 24-468-20-S Washer, plain

18. M-446030-S Nut, hex M4x0.7

19. 24-090-13-S Lever, throttle control

20. 24-468-01-S Washer, plain 5.5 mm (3)

21. M-545020-S Screw, hex. flange

M5x0.8x20

22. 24-090-05-S Lever, choke

23. 41-468-03-S Washer, spring 1/4"

24. M-403025-S Screw, hex. cap M4x0.7x25

25. 24-079-22-S Linkage, choke

26. 24-089-55-S Spring, throttle limiter

27. 24-089-25-S Spring, governor

1. 24-199-07-S Pan assembly, oil

(Includes 2-11 )

2. 24-393-37-S Oil pump assembly (Includes

3,4)

3. 24-381-11-S Tube, oil pickup

4. 24 153 01-S O-Ring, oil pump

5. M-631005-S Washer, plain 6 mm (2)

6. M-645025-S Screw, hex. flange

M6x1.0x25 (2)

7. 24-162-26-S Screen, oil

8. 24-043-12-S Kit, governor gear w/pin

(Includes 9)

9. 12-380-01-S Pin, governor regulating

10. 24-448-01-S Tab, locking

11. 12-144-02-S Shaft, governor gear

12. 24-153-08-S O-Ring

13. 25-139-62-S Plug, hex. ctsk. 3/8"

14. 24-136-01-S Nipple, oil filter

15. 52-050-02-S Filter, oil

16. 52-032-08-S Seal, oil (PTO end)

17. 24-086-17-S Screw, hex. flange

M8x1.25x45

18. 24-086-16-S Screw, hex. flange

M8x1.25x45 (9)

19. 25-139-57-S Plug, sq. hd. solid 3/8"

N.ET.E

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.276101

KOHLER ENGINE-MODEL NUMBER CV730, TYPE NUMBER 0029

CRANKSHAFT l

--1

EXHAUST I

9_0

'i _ _ /_ _ 7

t4 1_3

CRANKSHAFT

KEY PART

NO. NO. DESCRIPTION

1. 24-014-72-S Crankshaft (includes 2)

2. 52-139-09-S Plug, cup

EXHAUST

KEY PART

NO. NO. DESCRIPTION

1. 24-041-49-S Gasket, exhaust (2)

2. 25-072-04-S Stud, MSx1.25x33 (4)

- - 24-522-332 Short Block

- - 24-782-23 Miniblock

- - 24-755-113-S Gasket Set

FUEL SYSTEM

KEY PART

NO. NO. DESCRIPTION

1. 24-853-90-S Kit, carburetorw/gaskets

(includes 2,3)

2. 24-041-52-S Gasket, carburetor

3. 24 041 14-S Gasket, air cleaner base

4. M-629095-S Stud, M6x1.0x95 (2)

5. M-641060-S Nut, hex. flange M6x1.0 (2)

6. 25-353-03-S Line, fuel 14"

7. 25-237-14-S Clamp, hose (6)

8. 24-086-12-S Screw, hex. cap. M6x1.7x18 (2)

9. 24-393-16-8 Pump, fuel - pulse

10. 24-100-01-S Nut, plastic (2)

11. 24-353-03-8 Line, fuel 10-5/8"

12. 15-353-04-S Line, fuel 11-1/2"

13. 24-050-10-S Filter, fuel

14. 47-154-01-S Clip, cable

NOT ILLUSTRATED

-- 24 234 02-S Bowl, float

-- 24 757 18-S Kit, overhaul

-- 24 757 19-8 Kit, choke repair

-- 24 757 20-S Kit, gasket

- - 24 757 21-S Kit, accelerator pump repair

- - 24 757 22-S Kit, fuel shutdown solenoid

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

(.O

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

;;;;;;;;;;;;;;;;;

i i! ililililililililililililililili

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www,sears,com

!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i_i_

iiiiiiiiiiiiiiiiiiii

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.SA.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca .....

® Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /TM Marca de F&brica ISMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce /MD Marque depos6e de Sears, Roebuck and Co.

191280 Rev. 3 09.13.04 TR/MH/TR Printed in U.S.A.

Craftsman 917276101 User Manual GARDEN TRACTOR Manuals And Guides L0409392

CRAFTSMAN Lawn, Tractor Manual L0409392 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
