Owner's Manual

rRAFTSMAN°

5.0 HP

17 INCH TINE WIDTH

REAR TINE WITH

COUNTER ROTATING TINES

TILLER

ModelNo.

917.293202

• Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co,, Hoffman Estates, IL 60179

Visite our Craftsman website: www.sears, com/craftsman

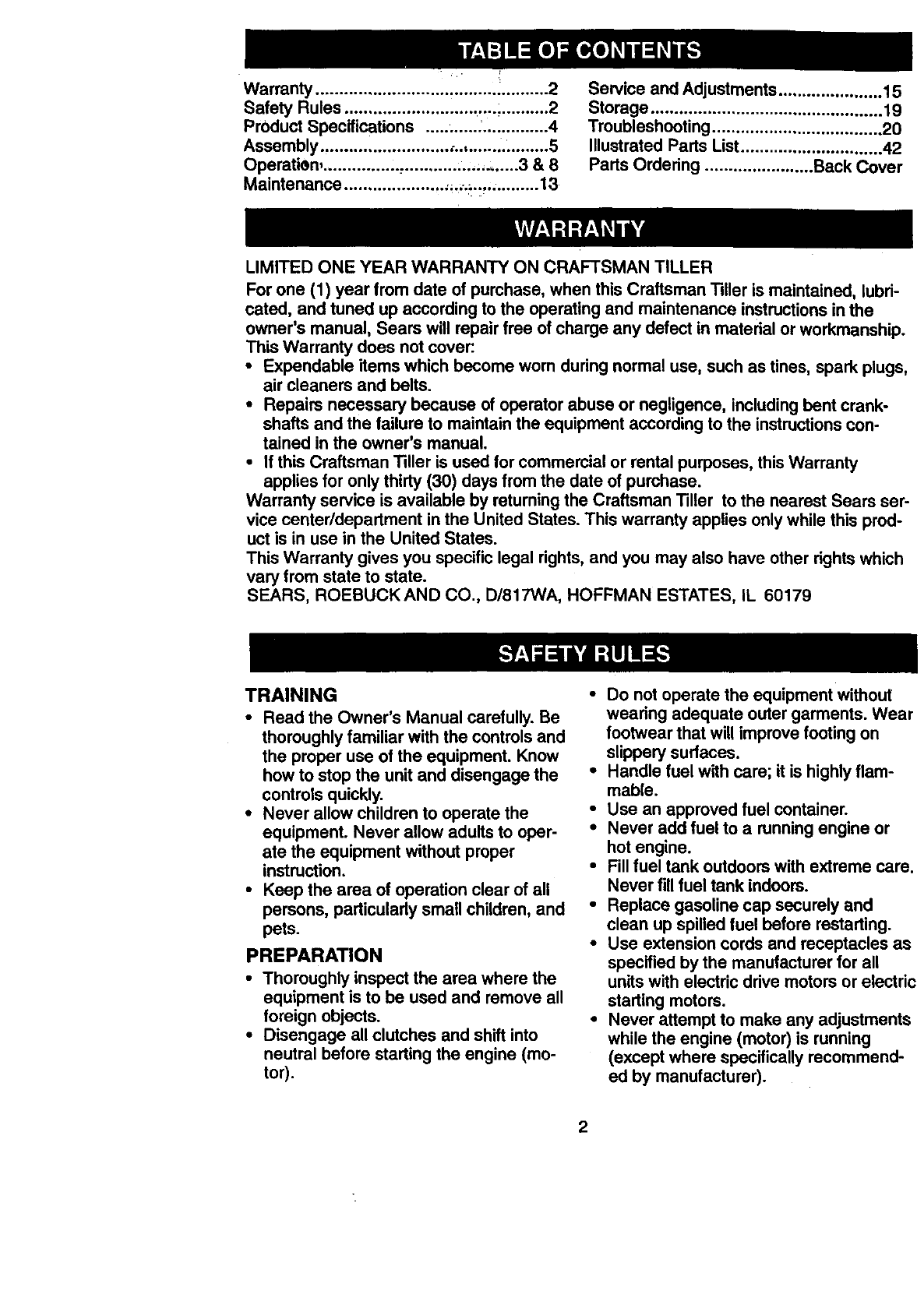

Wa nty..............................i.......!..........2

Safety Rules ................................ ;.......... 2

Prsduct Specifications .......................... 4

Assembly ........................... ,..,........ ......... 5

Operatien,................ _....................... 3 & 8

Maintenance ..................... _...._..,,;......... 13

ServiceandAdjustments......................15

Storage ................................................. 19

Troubleshooting.................................... 20

Illustrated Parts List.............................. 42

Parts Ordering ....................... Back Cover

LIMITED ONE YEAR WARRANTY ON CRAFTSMAN TILLER

For one (1) year from date of purchase, when this Craftsman Tiller is maintained, lubri-

cated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in matedal or workmanship.

This Warranty does not cover:.

•Expendable items which become worn during normal use, such as tines, spark plugs,

air cleaners and belts.

•Repairs necessary because of operator abuse or negligence, includingbent crsnk-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

•If this Craftsman Tiller is used for commercial or rental purposes, this Warranty

applies for only thirty (30) days from the date of purchase.

Warranty service is available by returning the Craftsman Tiller to the nearest Sears ser-

vice center/department in the United States. This warranty applies only while this prod-

uct is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other dghts which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817WA, HOFFMAN ESTATES, IL 60179

TRAINING

•Read the Owner's Manual carefully. Be

thoroughly familiar with the controls and

the proper use of the equipment. Know

how to stop the unit and disengage the

controls quickly.

•Never allow children to operate the

equipment. Never allow adults to oper-

ate the equipment without proper

instruction.

•Keep the area of operation clear of all

persons, particularly small children, and

pets.

PREPARATION

•Thoroughly inspect the area where the

equipment is to be used and remove all

foreign objects.

•Disengage all clutches and shift into

neutral before starting the engine (mo-

tor).

•Do not operate the equipment without

wearing adequate outer garments. Wear

footwear that will improve footing on

slippery surfaces.

•Handle fuel with care; it is highly flam-

mable.

•Use an approved fuel container.

• Never add fuel to a running engine or

hot engine.

•Fillfuel tank outdoors with extreme care.

Never fill fuel tank indoors.

•Replace gasoline cap securely and

clean up spilled fuel before restarting.

•Use extension cords and receptacles as

specified by the manufacturer for all

units with electric drive motors or electric

starting motors.

•Never attempt to make any adjustments

while the engine (motor) is running

(except where specifically recommend-

ed by manufacturer).

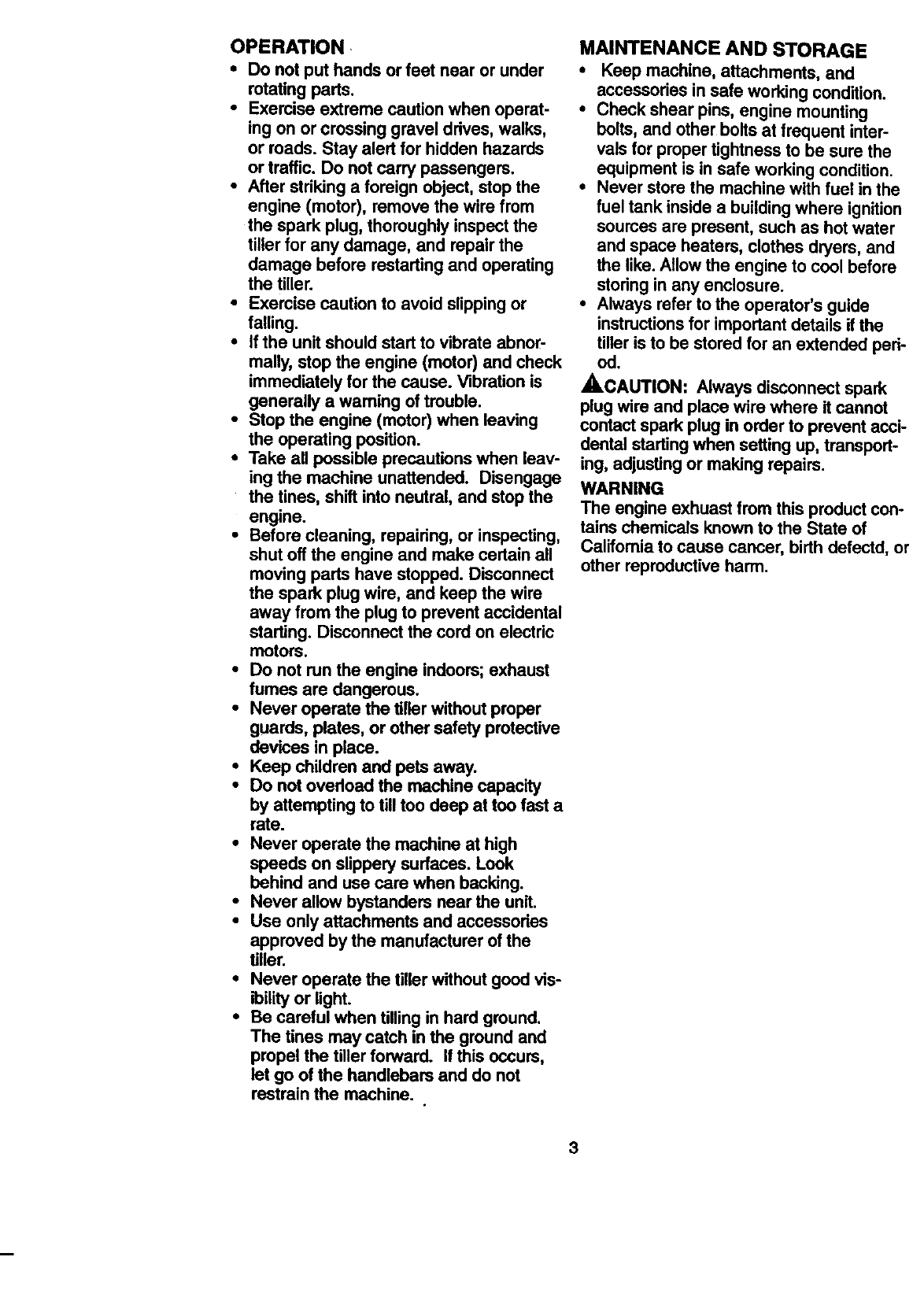

OPERATION

• Donot put handsorfeet nearor under

rotatingpads.

•Exercise extreme caution when operat-

ing on or crossing gravel drives, walks,

or roads. Stay alert for hidden hazards

or traffic. Do not carry passengers.

•After stdking a foreign object, stop the

engine (motor), remove the wire from

the spark plug, thoroughly inspect the

tiller for any damage, and repair the

damage before restarting and operating

the tiller.

•Exercise caution to avoid slipping or

falling.

•If the unit should start to vibrate abnor-

mally, stop the engine (motor) and check

immediately for the cause. Vibration is

generally a waming of trouble.

•Stop the engine (motor) when leaving

the operating position.

•Take all possible precautions when leav-

ing the machine unattended. Disengage

the tines, shift into neutral, and stop the

engine.

•Before cleaning, repaidng, or inspecting,

shut off the engine and make certain all

moving parts have stopped. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent accidental

starting. Disconnect the cord on electric

motors.

•Do not run the engine indoors; exhaust

fumes are dangerous.

•Never operate the tiller without proper

guards, plates, or other safety protective

devices in place.

•Keep children and pets away.

•Do not ovedoad the machine capacity

by attempting to till too deep at too fast a

rate.

•Never operate the machine at high

speeds on slippery surfaces. Look

behind and use care when backing.

•Never allow bystanders near the unit.

•Use only attachments and accessories

approved by the manufacturer of the

tiller.

•Never operate the tiller without good vis-

ibility or light.

•Be careful when tilling in hard ground.

The tines may catch in the ground and

propel the tiller forward. If this occurs,

let go of the handlebars and do not

restrain the machine.

MAINTENANCE AND STORAGE

•Keep machine, attachments, and

accessories in safe working condition.

•Check shear pins, engine mounting

bolts, and other bolts at frequent inter-

vals for proper tightness to be sure the

equipment is in safe working condition.

•Never store the machine with fuel in the

fuel tank inside a building where ignition

sources are present, such as hot water

and space heaters, clothes dryers, and

the like. Allow the engine to cool before

stodng in any enclosure.

•Always refer to the operator's guide

instructionsfor important details if the

tiller is to be stored for an extended ped-

od.

_.CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent acci-

dental starting when setting up, transport-

ing, adjusting or making repairs.

WARNING

The engine exhuast from this product con-

tains chemicals known to the State of

California to cause cancer, birth defectd, or

other reproductive harm.

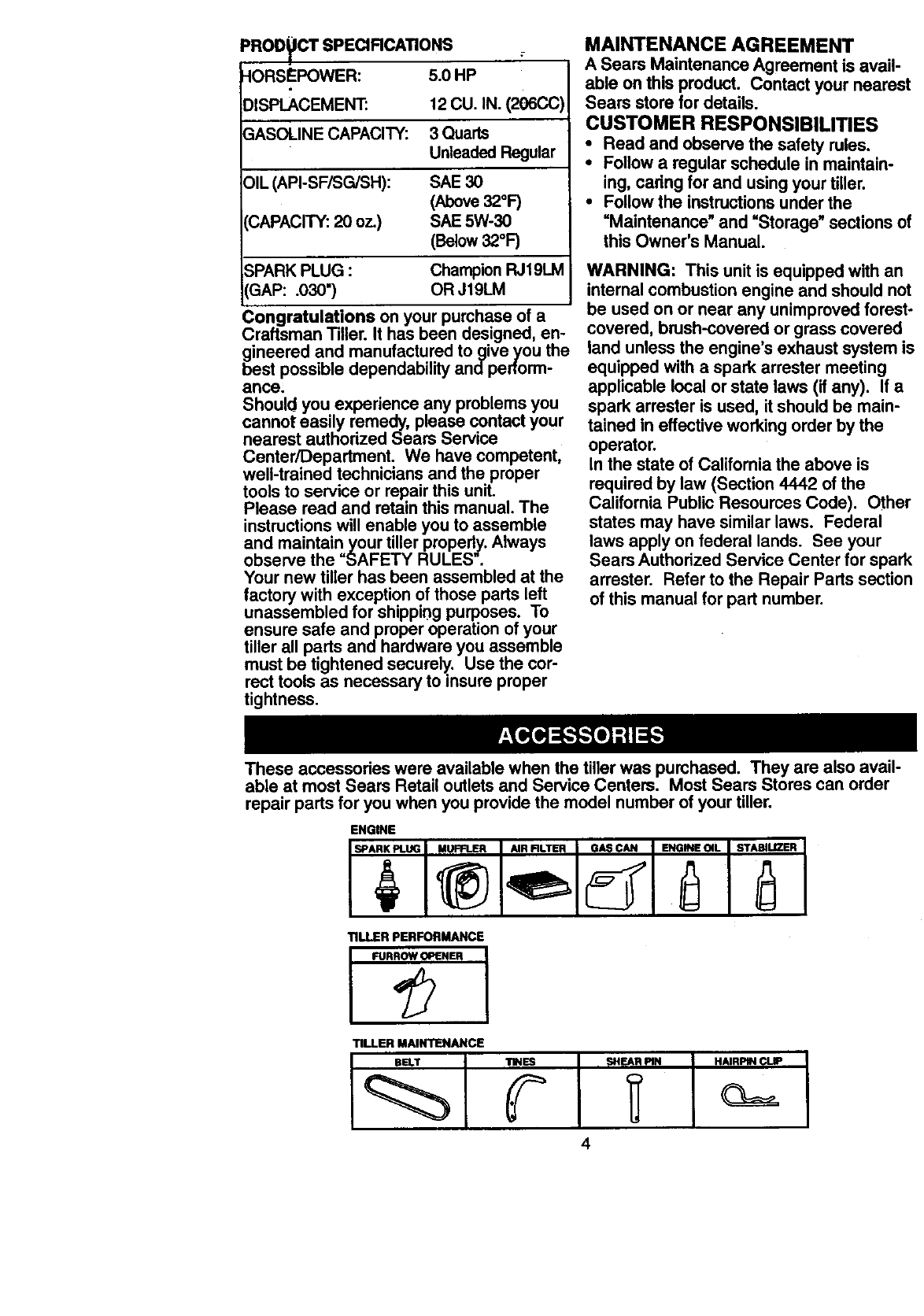

PROD_ICTSPECIRCATIONS

-IORSEPOWER: 5.0HP

DISPLACEMENT: 12 CU. IN. (206CC)

SASOLINE CAPACITY: 3 Quarts

UnleadedRegular

OIL (API-SF/SG/SH): SAE30

(Above32°F)

CAPACITY:20 oz.) SAE5W-30

(Below 32°F)

SPARKPLUG : ChampionRJt 9LM

(GAP: .030") OR JtgLM

Congratulations on your purchase of a

Craftsman Tiller. It has been designed, en-

gineered and manufactured togive you the

best possible dependability andpertorm-

ance:

Should you experience any problems you

cannot easily remedy, please contact your

nearest authorized Sears Service

Center/Department. We have competent,

well-trained technicians and the proper

tools to service or repair this unit.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tiller properly.Always

observe the =SAFETY RULES".

Your new tiller has been assembled at the

factory with exception of those parts left

unassembled for shippingpurposes. To

ensure safe and proper operation of your

tiller all parts and hardware you assemble

must be tightened securely. Use the cor-

rect tools as necessary to insure proper

tightness.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is avail-

able on this product. Contact your nearest

Sears store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, cadng for and using your tiller.

•Follow the instructionsunder the

=Maintenance" and =Storage" sections of

this Owner's Manual.

WARNING: This unit is equipped with an

internal combustion engine and should not

be used on or near any unimproved forest-

covered, brush-covered or grass covered

land unless the engine's exhaust system is

equipped with aspark arroster meeting

applicable local or state laws (if any). If a

spark arrester is used, it should be main-

tained in effective working order by the

operator.

In the state of Caiifomia the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. See your

Sears Authorized Service Center for spark

arraster. Refer to the Repair Parts section

of this manual for part number.

These accessories were available when the tiller was purchased. They are also avail-

able at most Sears Retail outlets and Service Centers. Most Sears Stores can order

repair parts for you when you provide the model number of your tiller.

ENGINE

TILLER PERFORMANCE

FURROW OPENER

TILLER MAINTENANCE

BELT TINES SHEAR PIN HAIRPIN CUP

Your new tiller has_been assembled at the factory with exception of those parts left

unassembled for Shipping purposes. To ensure safe and proper operation of your tiller

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to in_ure proper tightness.

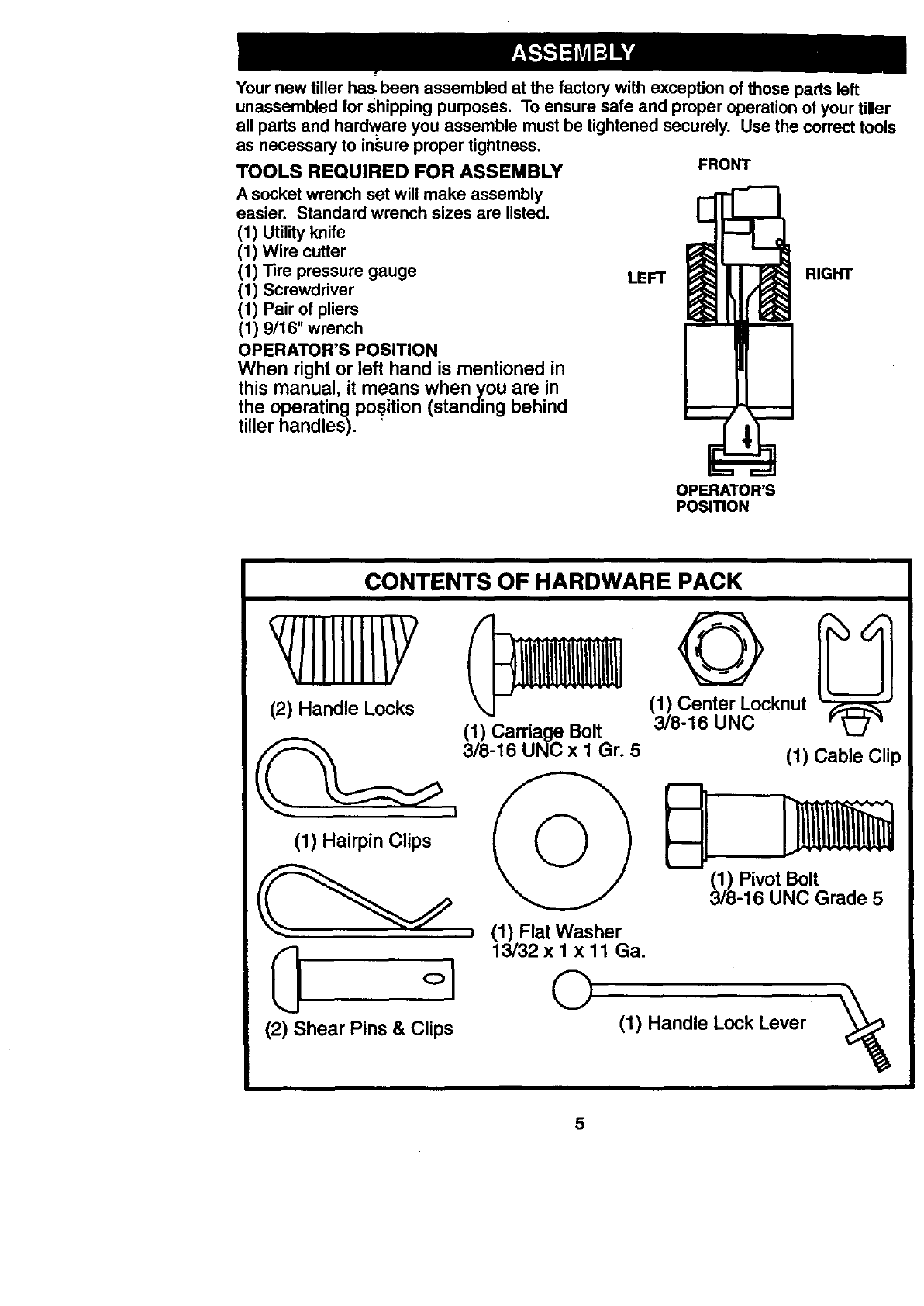

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set wilemake assembly

easier. Standard wrench sizes are listed.

(1) Utility knife

(1) Wire cutter

(1) Tire pressure gauge

(1) Screwdriver

(1) Pair of pliers

(1) 9/16" wrench

OPERATOR'S POSITION

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (standing behind

tiller handles). "

FRONT

LEFT RIGHT

OPERATOR'S

POSITION

CONTENTS OF HARDWARE PACK

(2) Handle Locks

(1)_C _r _,(e B_RGr. 5

(1) Hairpin Clips t L _)

13/32 X 1 X 11 Ga.

°1 ©

(2) Shear Pins & Clips

(1) Center Locknut

3/8-16 UNC

(1) Cable Clip

3/81)Pivot Bolt

-16 UNC Grade 5

(1) Handle Lock Lever

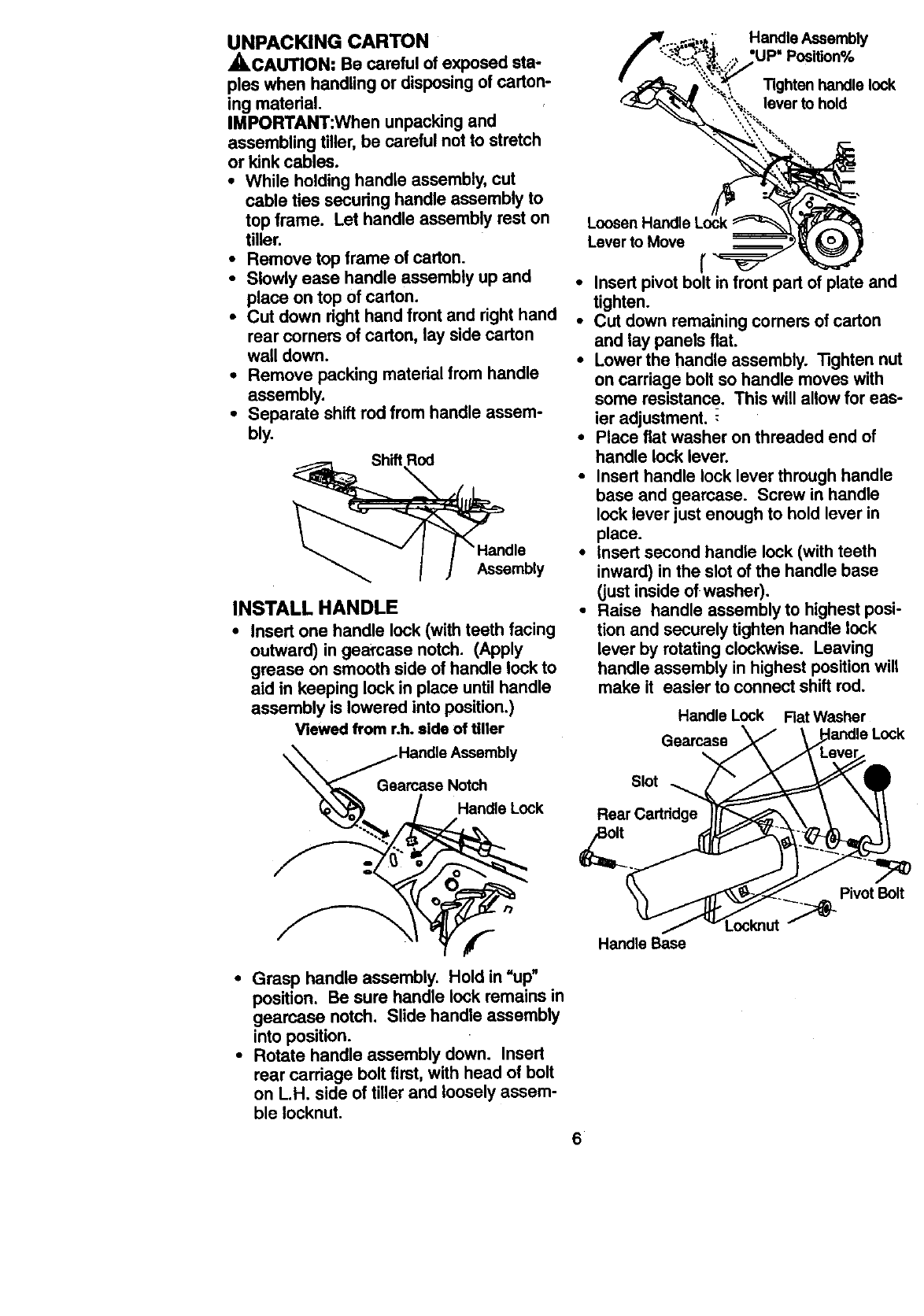

UNPACKING CARTON

_,CAUTION: Be careful of exposed sta-

ples when handling or disposing of carton-

ing material.

IMPORTANT:When unpacking and

assembling tiller, be careful not to stretch

or kink cables.

• While holding handle assembly, cut

cable ties securing handle assembly to

top frame. Let handle assembly rest on

tiller.

•Remove top frame of carton.

•Slowly ease handle assembly up and

place on top of carton.

•Cut down dght hand front and right hand

rear corners of carton, lay side carton

wall down.

•Remove packing material from handle

assembly.

•Separate shift rod from handle assem-

bly.

Shift Rod

Handle

Assembly

INSTALL HANDLE

•Insert one handle lock (with teeth facing

outward) in geafcase notch. (Apply

grease on smooth side of handle lock to

aid in keeping lock in place until handle

assembly is lowered into position.)

Viewed from r.h. side of tiller

Gearcase Notch

Handle Lock

•Grasp handle assembly. Hold in =up"

position. Be sure handle lock remains in

gearcase notch. Slide handle assembly

into position.

•Rotate handle assembly down. Insert

rear carriage bolt first, with head of bolt

on L.H. side of tiller and loosely assem-

ble Iocknut.

_......_,, ;: HandleAssembly

f" ":--'-:_-'-_;,, "UP"Pocition%

'_ • ':., ', Tightenhandlelock

_::_ ':,_, everto hold

LoosenH_

Lever to Move {,__

•Insert pivot bolt infront part of plate and

tighten.

•Cut down remaining corners of carton

and lay panels flat.

•Lower the handle assembly. Tighten nut

on carriage bolt so handle moves with

some resistance. This will allow for eas-

ier adjustment. -

•Place flat washer on threaded end of

handle lock lever.

•Insert handle lock lever through handle

base and gearcase. Screw in handle

lock lever just enough to hold lever in

place.

•Insert second handle lock (with teeth

inward) in the slot of the handle base

(just inside of washer).

•Raise handle assembly to highest posi-

tion and securely tighten handle lock

lever by rotating clockwise. Leaving

handle assembly in highest positionwill

make it easier to connect shift rod.

Handle Lock Rat Washer

Gearcase

Slot

Handle Base

Pivot Bolt

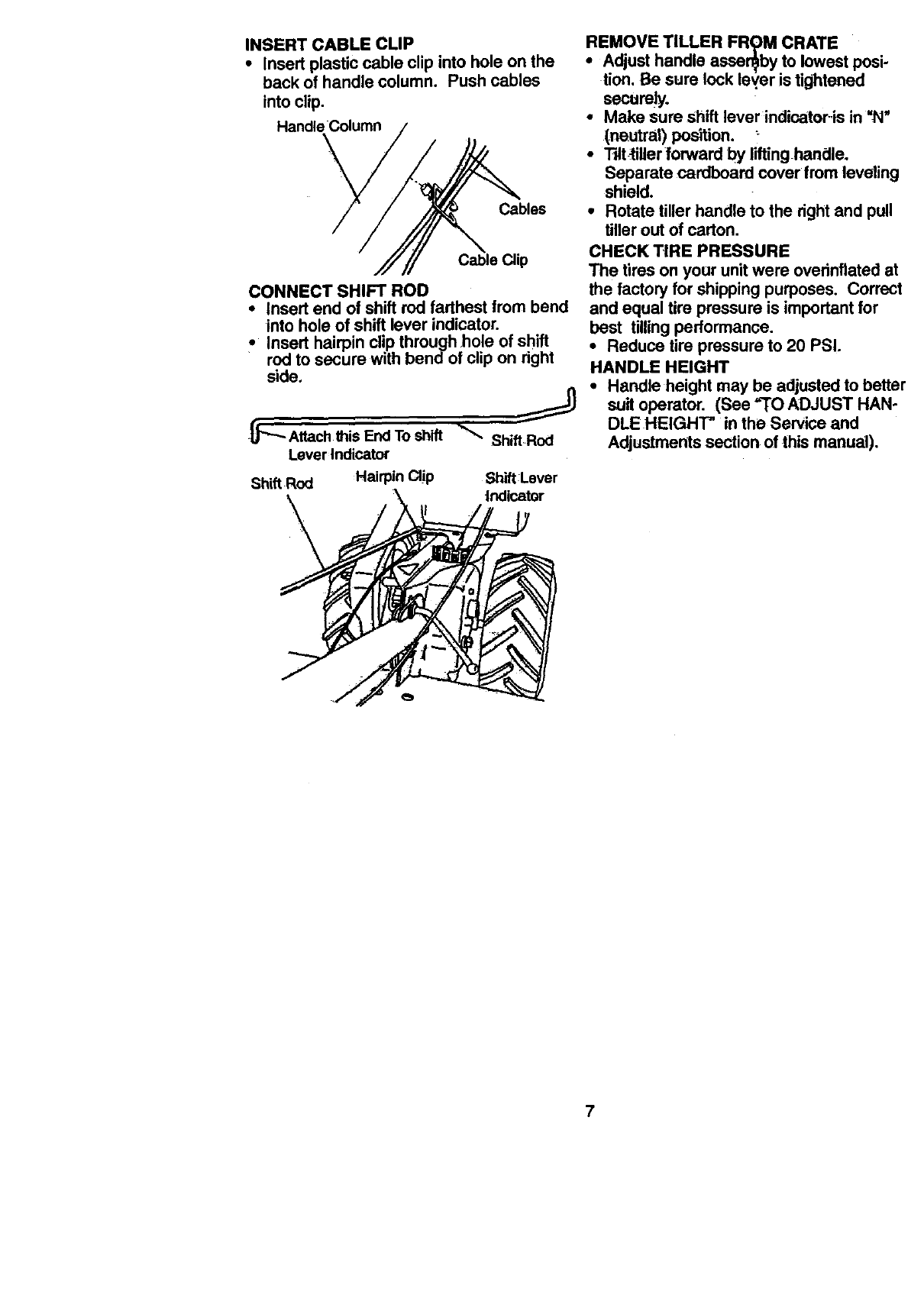

INSERTCABLE CLIP

• Insertplastic cable clip into hole on the

back of handle column. Push cables

into clip.

Handle Column

Cables

CONNECT SHIFT ROD

•Insert end of shift rod farthest from bend

into hole of shift lever indicator.

•Insert hairpin clip through hole of shift

rod to secure with bend of clip on right

side.

jr.

U""--Attach thisEndToshift "_ ShiftRod

Lever Indicator

Shift Rod Hairpin Cl_p Shift:Lever

indicator

REMOVE TILLER FROM CRATE

•Adjust handle assen_byto lowest posi-

tion, Be sure lock lever is tightened

SecUre_.

•Make sure shift lever indicator is in "N"

(neutral) position.

•T'dttiller forward by lifting handle.

Separate cardboard cover from levelin(

shield.

•Rotate tiller handle to the dght and pull

tiller out of carton.

CHECK TIRE PRESSURE

The tires on your unit were ovednflated a!

the factory for shipping purposes. Correc

and equal tire pressure is important for

best tilling performance.

•Reduce tire pressure to 20 PSI.

HANDLE HEIGHT

•Handle height may be adjusted to bett_

suit operator. (See =TO ADJUST HAN-

DLEHEIGHT" in the Service and

Adjustmenls section of this manual),

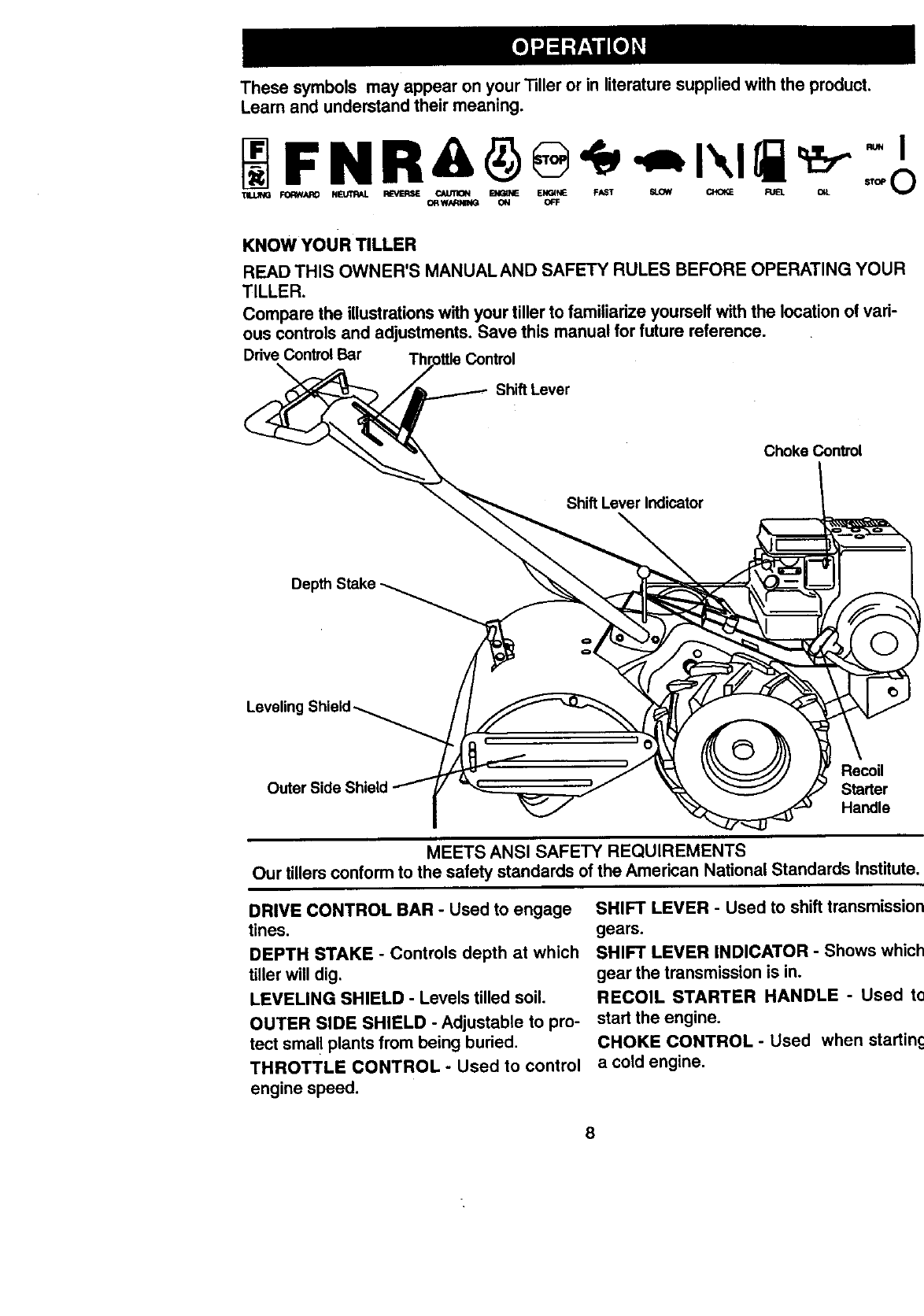

These symbols may appear on your Tiller or in literature supplied with the product.

Learn and understand their meaning.

FORWARD N_ Rk"VER_E CAUTION _Eh_INE FA._f _CHOKE RJEL OSL

_WARNIKG ON

KNOW YOUR TILLER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR

TILLER.

Compare the illustrationswith your tiller to familiarize yourself with the location of vari-

ous controls and adjustments. Save this manual for future reference.

DriveControlBar

Shift Lever

Choke Control

Shift Lever Indicator

Leveling

Outer ERecoil

Starter

Handle

MEETS ANSI SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute.

DRIVE CONTROL BAR - Used to engage

tines.

DEPTH STAKE - Controls depth at which

tiller will dig.

LEVELING SHIELD -Levels tilled soil.

OUTER SIDE SHIELD -Adjustable to pro-

tect sina!! plants from being buried,

THROTTLE CONTROL -Used to control

engine speed.

SHIFT LEVER - Used to shift transmission

gears.

SHIFT LEVER INDICATOR - Shows which

gear the transmission is in.

RECOIL STARTER HANDLE -Used to

start the engine.

CHOKE CONTROL -Used when starting

a cold engine,

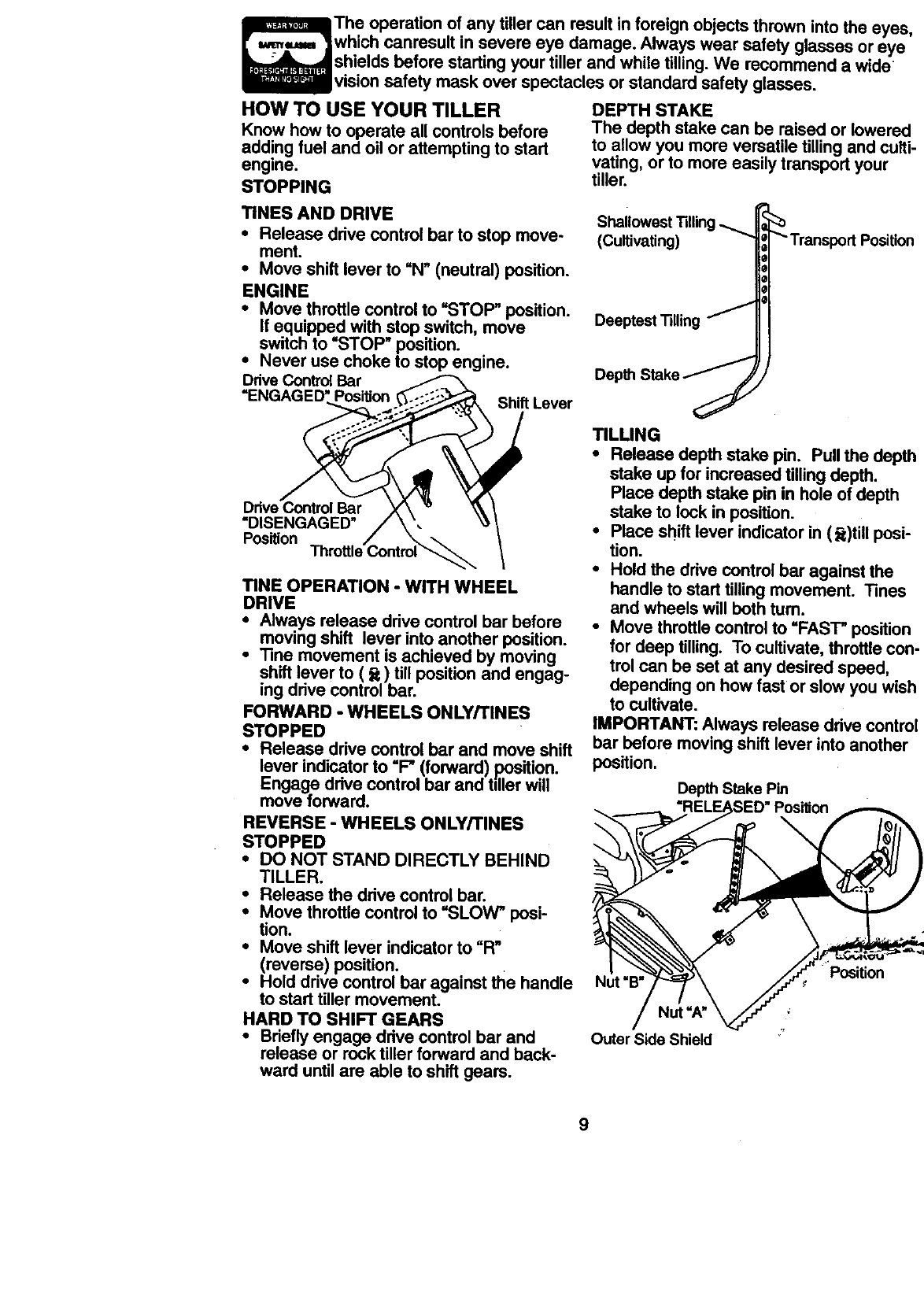

The operation of any tiller can result in foreign objects thrown into the eyes,

which canresult in severe eye damage. Always wear safety glasses or eye

shields before starting your tiller and while tilling. We recommend a wide

vision safety mask over spectacles or standard safety glasses.

HOW TO USE YOUR TILLER DEPTH STAKE

Know how to operate all controls before The depth stake can be raised or lowered

adding fuel and oil or attempting to start to allow you more versatile tilling and cuiti-

engine, vating, or to more easily transport your

STOPPING tiller.

TINES AND DRIVE

•Release drive control bar to stop move-

ment.

•Move shift lever to =N"(neutral) position.

ENGINE

• Move throttle control to =STOP" position.

If equipped with stop switch, move

switch to "STOP" position.

•Never use choke to stop engine.

DriveControlBar

Position ShiftLever

Shallowest Tilling

(Cultivating)

Deeptest TilUng

Depth Stake

"_ Transport Position

Drive Control Bar

"DISENGAGED"

Position

"FINEOPERATION -WITH WHEEL

DRIVE

•Always release drive control bar before

moving shift lever into another position.

• Tine movement is achieved by moving

shift lever to ( _) till position and engag-

ing drive control bar.

FORWARD -WHEELS ONLY/TINES

STOPPED

•Release ddve control bar and move shift

lever indicator to =P (forward) .Eosition.

Engage drive control bar and tiller will

move forward.

REVERSE -WHEELS ONLY/TINES

STOPPED

•DO NOT STAND DIRECTLY BEHIND

TILLER.

• Release the drive control bar.

•Move throttle control to "SLOW" posi-

tion.

•Move shift lever indicator to =R"

(reverse) position.

•Hold drive control bar against the handle

to start tiller movement.

HARD TO SHIFT GEARS

•Briefly engage drive control bar and

release or rock tiller forward and back-

ward until are able to shift gears.

TILLING

• Release depth stake pin. Pull the depth

stake up for increased tillingdepth.

Place depth stake pin in hole of depth

stake to lock in position.

•Place shift lever indicator in (_)tiU posi-

tion.

•Hold the drive control bar against the

handle to start tilling movement. Tines

and wheels will both turn.

•Move throttle control to =FAST" position

for deep tilling. To cultivate, throttle con-

trol can be set at any desired speed,

depending on how fast or slow you wish

to cultivate.

IMPORTANT: Always release drive control

bar before moving shift lever into another

position.

Depth Stake Pin

Nut "B"

Nut =A"

Outer Side Shield

Position

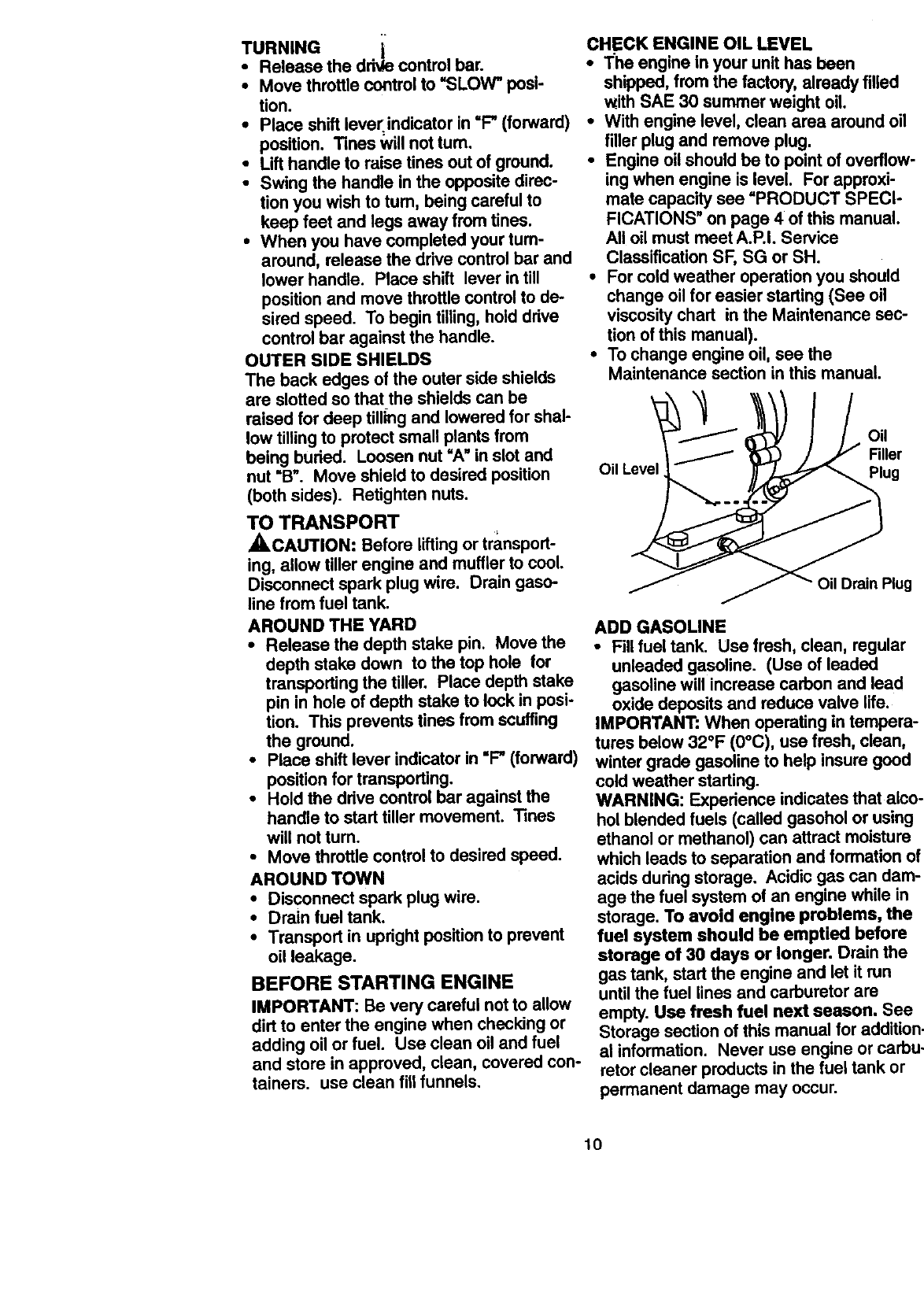

TURNING i

Release the dine control bar.

• Move throttle control to "SLOW" posi-

tion.

•Place shift lever indicator in "I:"(forward)

position. Tines Willnot tum.

•Lift handle to raise tines out of ground.

•Swing the handle in the opposite direc-

tion you wish to turn, being careful to

keep feet and legs away from tines.

•When you have completed your turn-

around, release the drive control bar and

lower handle. Place shift lever in till

position and move throttle controlto de-

sired speed. To begin tilling, hold drive

control bar against the handle.

OUTER SIDE SHIELDS

The back edges of the outer side shields

are slotted so that the shields can be

raised for deep tilling and lowered for shal-

low tillingto protect small plants from

being buried. Loosen nut "A"in slot and

nut "B'. Move shield to desired position

(both sides). Retighten nuts.

TO TRANSPORT

_CAUTION: Before liftingor transport-

ing, allow tiller engine and muffler to cool.

Disconnect spark plug wire. Drain gaso-

line from fuel tank.

AROUND THE YARD

•Release the depth stake pin. Move the

depth stake down to the top hole for

transporting the tiller. Place depth stake

pin in hole of depth stake to lock in posi-

tion. This prevents tines from scuffing

the ground.

•Place shift lever indicator in "F"(forward)

position for transporting.

•Hold the ddve control bar against the

handle to start tiller movement. Tines

will not turn.

•Move throttle control to desired speed.

AROUND TOWN

•Disconnect spark plug wire.

•Drain fuel tank.

•Transport in upright position to prevent

oil leakage.

BEFORE STARTING ENGINE

IMPORTANT: Be very careful not to allow

dirt to enter the engine when checking or

adding oil or fuel. Use clean oil and fuel

and store in approved, clean, covered con-

tainers, use clean fill funnels.

CHECK ENGINE OIL LEVEL

•The engine in your unit has been

shipped, from the factory, already filled

with SAE 30 summer weight oil.

•With engine level, clean area around oil

filler plug and remove plug.

•Engine oil should be to point of overflow

ingwhen engine is level. For approxi-

mate capacity see "PRODUCT SPECI-

FICATIONS" on page 4 of this manual.

All oilmust meet A.RL Service

Classification SF, SG or SH.

•For cold weather operation you should

change oil for easier starting (See oil

viscositychart in the Maintenance sec-

tion of this manual).

•To change engine oil, see the

Maintenance section in this manual.

Oil

Filler

Oil Level Plug

Dil Drain PluI

ADD GASOLINE

•Fillfuel tank, Use fresh, clean, regular

unleaded gasoline. (Use of leaded

gasoline will increase carbon and lead

oxide deposits and reduce valve life.

IMPORTANT: When operating in temper_

tures below 32°F (0°C), use fresh, clean,

winter grade gasoline to help insure goo_

cold weather starting.

WARNING: Experience indicates that alc

hol blended fuels (called gasohol or usin_

ethanol or methanol) can attract moisture

which leeds to separation and formation t

acids during storage. Acidic gas can dan

age the fuel system of an engine while in

storage. To avoid engine problems, thq

fuel system should be emptied before

storage of 30 days or longer. Drain the

gas tank, start the engine and let it run

until the fuel lines and carburetor are

empty. Use fresh fuel next season. Se(

Storage section of this manual for additic

al information. Never use engine or cad:

retor cleaner products in the fuel tank or

permanent damage may occur.

,_CAUTION: Fillto _tthin 1/2 inch of top

of fuel tank to prevent dpills and to allow

for fuel expansion. If gasoline is acciden-

tally spilled, move machine away from

area of spill Avoid creating any source of

ignition until gasoline vapors have disap-

peared.

Do not overfill. Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

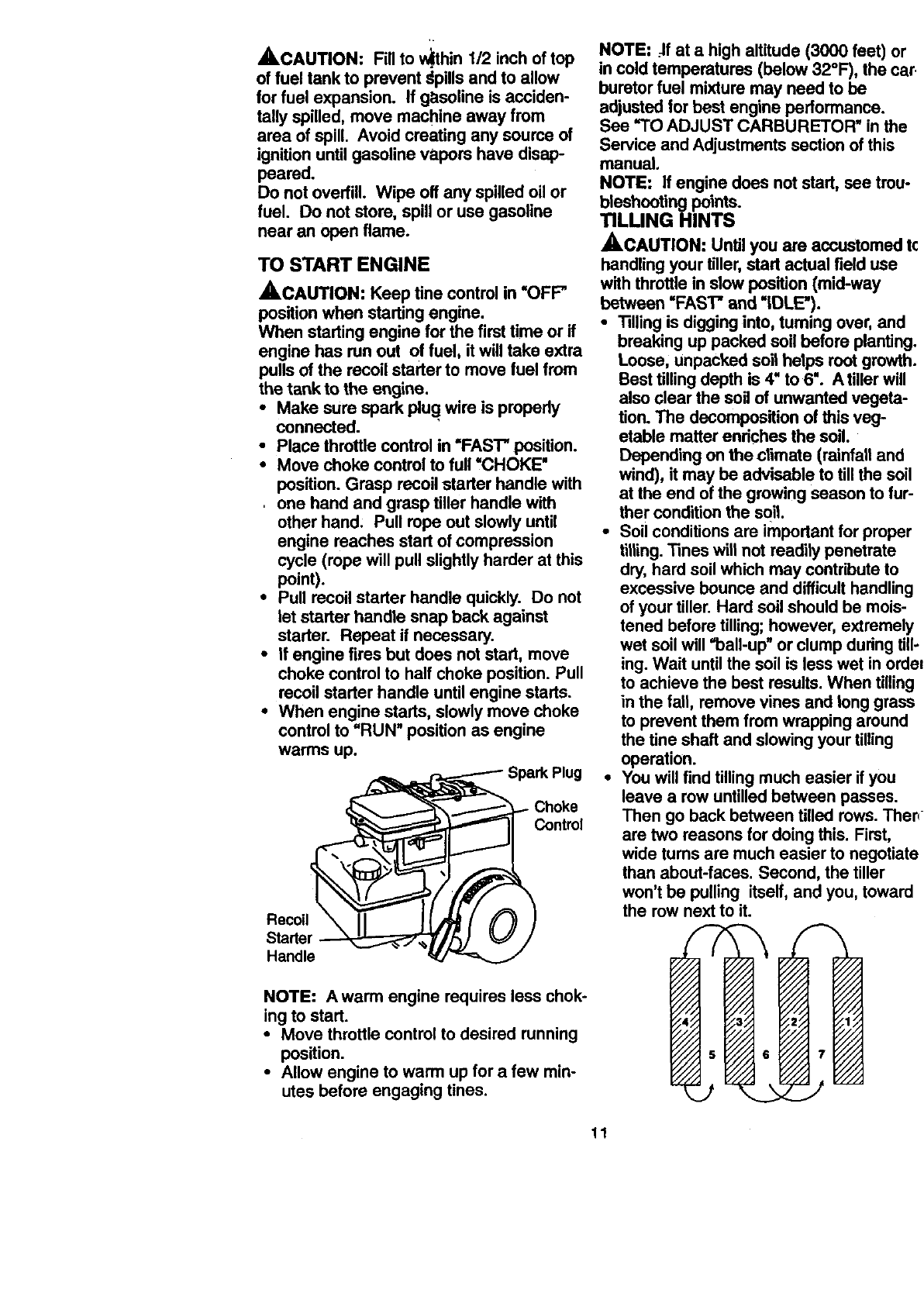

TO START ENGINE

ACAUTION: Keep tine control in "OFF"

position when starting engine.

When starting engine for the first time or if

engine has run out of fuel, it will take extra

pulls of the recoil starter to move fuel from

the tank to the engine.

•Make sure spark plug wire is propedy

connected.

•Place throttle control in "FAST" position.

•Move choke control to full =CHOKE"

position. Grasp recoil starter handle with

one hand and grasp tiller handle with

other hand: Pull rope out slowly until

engine reaches start of compression

cycle (rope will pull slightly harder at this

point).

•Pull recoil starter handle quickly. Do not

let starter handle snap back against

starter. Repeat if necessary.

•If engine fires but does not start, move

choke control to half choke position. Pull

recoil starter handle until engine starts.

• When engine starts, slowly move choke

control to "RUN" position as engine

warms up.

Control

Recoil

Starter

Handle

NOTE: .Jfat a high altitude (3000 feet) or

in cold temperatures (below 32°F), the car,

buretor fuel mixture may need to be

adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

NOTE: If engine does not start, see trou-

bleshooting points.

TILLING HINTS

ACAUTION: Until you are accustomed tc

handling your tiller,start actual field use

with throttle in slow position (mid-way

between "FAST" and "IDLE').

• Tilling is digginginto, tuming over, and

breaking up packed soil before planting.

Loose; unpacked sobhelpe root growth.

Best tilling depth is 4" to 6". A tiller will

also clear the soil of unwanted vegeta-

tion. The decomposition of this veg-

etable matter endches the soil.

Depending on the climate (rainfall and

wind), it may be advisable to till the soil

at the end of the growing season to fur-

ther condition the soil.

•Soil conditionsare important for proper

tilling.Tines will not readily penetrate

dry, hard soil which may contribute to

excessive bounce and difficult handling

of your tiller. Hard soil should be mois-

tened before tilling; however, extremely

wet soil will "ball-up"or clump during till-

ing. Wait until the soil is less wet in order

to achieve the best results.When tilling

in the fall, remove vines and long grass

to prevent them from wrapping around

the tine shaft and slowing your tilling

operation.

•You will find tillingmuch easier if you

leave a row untilledbetween passes.

Then go back between tilled rows. Ther,

are two reasons for doing this. First,

wide turns are much easier to negotiate

than about-faces. Second, the tiller

won't be pulling itself, and you, toward

the row next to it.

NOTE: A warm engine requires less chok-

ing to start.

•Move throttle control to desired running

position.

•Allow engine to warm up for afew min-

utes before engaging tines.

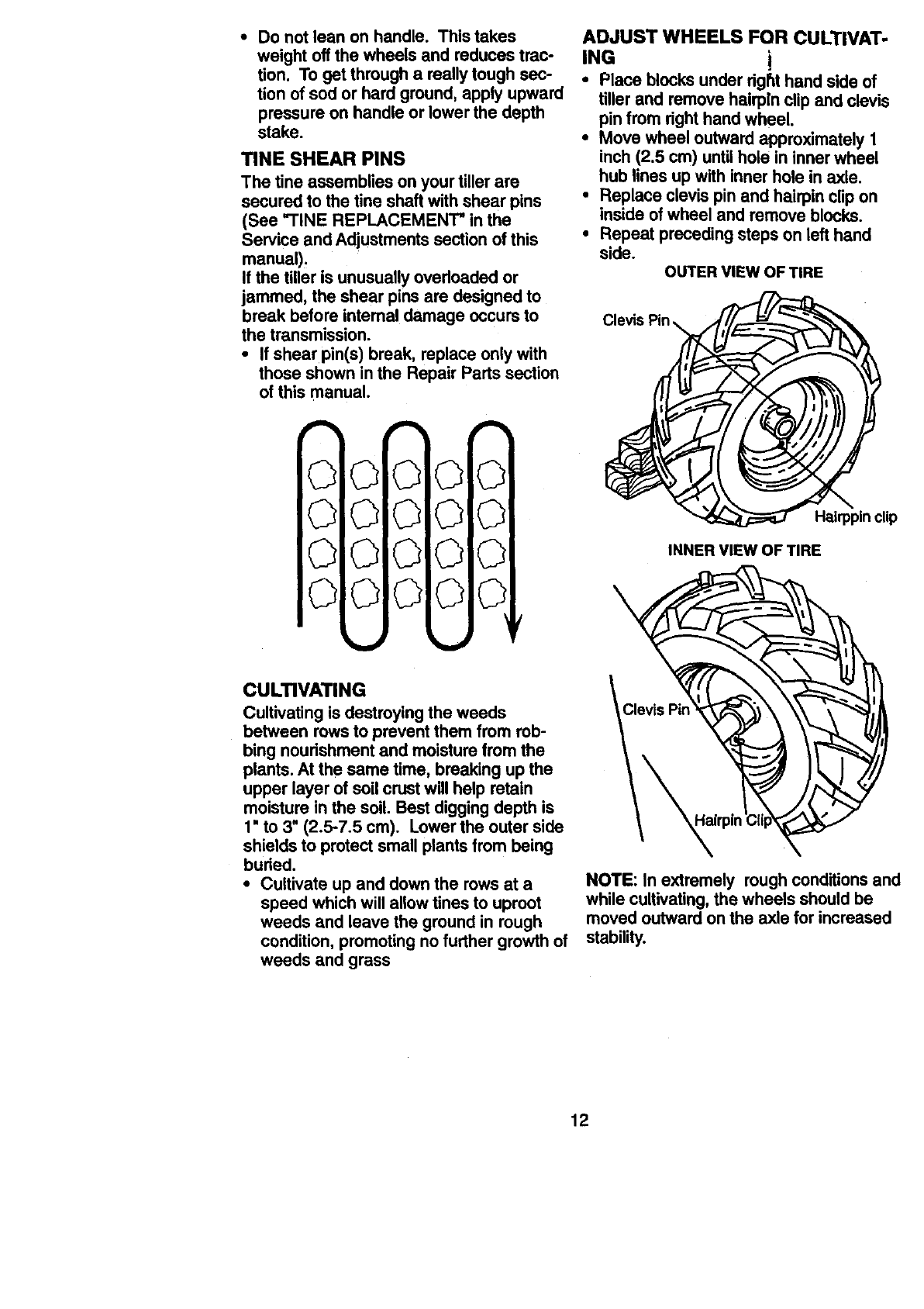

•Do not lean on handle. This takes

weight off the wheels and reduces trac-

tion. To get through a really tough sec-

tion of sod or hard ground, apply upward

pressure on handle or lower the depth

stake.

TINE SHEAR PINS

The tine assemblies on your tiller are

secured to the tine shaft with shear pins

(See "I'INE REPLACEMENT" in the

Service and Adjustments section of this

manual)_

If the tiller is unusually overloaded or

jammed, the shear pins are designed to

break before internal damage occurs to

the transmission.

• If shear pin(s) break, replace only with

those shown in the Repair Parts section

of this manual.

ADJUST WHEELS FOR CULTIVAT-

ING !

• Place blocks under dgl_thand side of

tiller and remove hairpln clip and clevis

pin from dght hand wheel.

•Move wheel outward approximately 1

inch (2.5 cm) untilhole in inner wheel

hub lines up with inner hole in axle.

•Replace clevis pin and hairpin clip on

inside of wheel and remove blocks.

•Repeat preceding steps on left hand

side.

OUTER VIEW OF TIRE

Hairppin clip

INNER VIEW OF TIRE

CULTIVATING

Cultivating is destroying the weeds

between rows to prevent them from rob-

bing nourishment and moisture from the

plants. At the same time, breaking up the

upper layer of soil crust will help retain

moisture in the soil. Best digging depth is

I • to 3* (2.5-7.5 cm). Lower the outer side

shields to protect small plants from being

buried.

•Cultivate up and down the rows at a

speed which will allow tines to uproot

weeds and leave the ground in rough

condition, promoting no further growth of

weeds and grass

NOTE: In extremely rough conditions and

while cultivating, the wheels should be

moved outward on the axle for increased

stability.

A,NTENANCE

SCHEDULE

. oU SE V, E /oo/ 7'

Check Engine Oil Level V* t/

Change Engine Oil I_1_

Oil Pivot Points I_

InspectSpark Arrestsr/Muffler I/'

Inspect Air Screen if

Clean or Replace AirCleaner Cartridge i_ 2

Clean Engine CylinderFins

Replace Spark Plug

I*(_mge rn_'e _when _ng undo" aheavy lo_Kl_kl h_gh_nblent ten_.

2- Sendce mot_ often when ogerdllg kl daly or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tiller does not cover

items that have been subjected to opera-

tor abuse or negligence. To receive full

value from the warranty, the operator must

maintain tiller as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your tiller.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year you should replace the

spark plug, clean or replace air filter, and

check tines and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

•Check engine oil level.

•Check tine operation.

•Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See =LUBRICA-

TION CHART").

LUBRICATION CHART

* Throttle Control

,_ >*Leveling

===== Shield

Hinges

Wheel Hul

* Idler Bracket

* SAE 30 OR 5W-30 MOTOR OIL

** REFER TO MAINTENANCE "ENGINE" SEC-

TION

Disconnectsparkplugwire beforeper-

forminganymaintenance(exceptcarbure-

tor adjustment)to preventaccidentalstart-

ing of engine.

Preventfiresl Keep the engine free of

grass, leaves, spilled oil, or fuel. Remove

fuel from tank before tipping unit for main-

tenance. Clean muffler area of all grass,

dirt, and dabds.

Do not touch hot muffler or cylinder fins as

contact may cause bums.

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classiFmationSF, SG or

SH. Select the oil's SAE viscositygrade

according to your expected temperature.

SAE VISCOSITY GRADES

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL C_ANGE

NOTE: Although multi-viscosityoils (5W-

30, 10W-30, etc.) improve starting in cold

weather, these multi-viscosityoils will

result in increased oil consumption when

used above 32°F (0°C). Check your

engine oil level more frequently to avoid

possible engine damage from running low

on oil.

Change the oil after every 50 hoursof

operation or at least once a year if the tiller

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each five (5)

hours of continuous use. Add SAE 30

motor oil or equivalent. Tighten oilfiller

plug securely each time you check the oil

level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG or SH.

•Be sure tiller is on level surface.

•Oil will drain more freely when warm.

•Use a funnel to prevent oil spill on tiUer,

and catch oil in a suitable container.

•Remove drain plug.

•Tip tiller forward to drain oil.

•After oil has drained completely, replace

oil drain plug and tighten securely.

•Remove oil filler plug. Be careful not to

allow dirt to enter the engine.

•Refill engine with oil. See =CHECK

ENGINE OIL LEVEL" in the Operation

section ofthis manual.

OII DrainPlug

Oil Level

Oil Filler Plug

AIR CLEANER

Service air cleaner cartddge every 50

hours, more often if engine is used in very

dusty conditions.

•Loosen air cleaner screws, one on each

side of cover.

•Remove air cleaner cover.

•Carefully remove air cleaner cartddge.

Be careful. Do not allow dirt or debds to

fall into carburetor.

•Clean by tapping gently on a flat sur-

face.

•If very dirty or damaged, replace car-

tridge.

•Clean and replace cover. Tighten screws

securely.

_,CAUTION: Petroleum solvents, such

as kerosene, are not to be used to clean

cartridge. They may cause detedoration of

the cartridge. Do not oil cartridge. Do not

use pressudzed air to clean or dry car-

tridge. Cover

Air Cleaner

Cartridge

COOLING SYSTEM

Your engine is air cooled. For proper

engine performance and long life keep

your engine clean.

•Clean air screen frequently using astiff-

bdstled brush.

•Remove blower housing and clean as

necessary.

•Keep cylinder fins free of dirt and chaff.

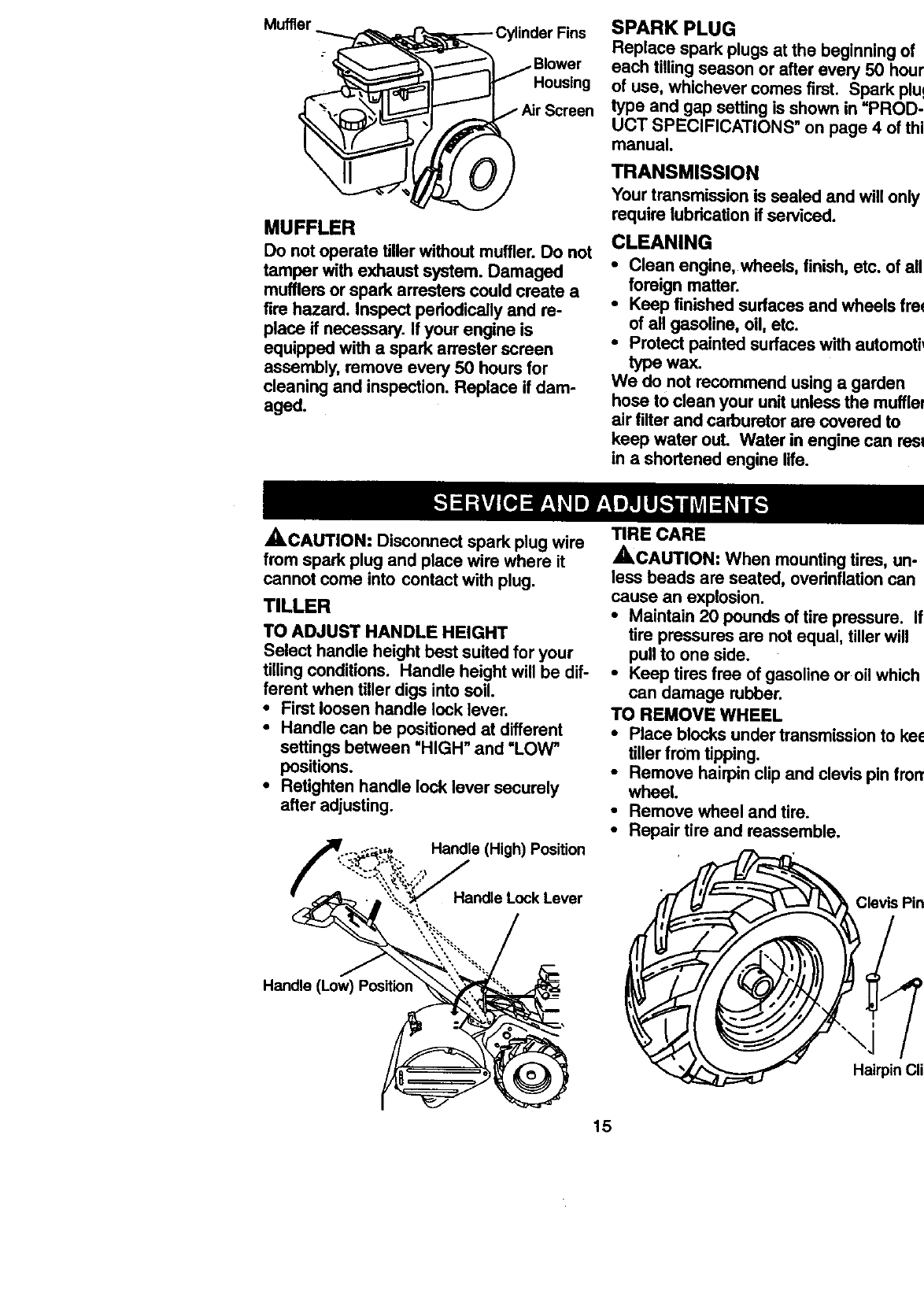

Muffler

Blower

Housing

MUFFLER

Do not operate tiller without muffler. Do not

tamper with exhaust system. Damaged

mufflers or spark arresters could create a

fire hazard. Inspect pedodically and re-

place if necessary. If your engine is

equipped with a spark arrester screen

assembly, remove every 50 hours for

cleaning and inspection. Replace if dam-

aged.

SPARK PLUG

Replace spark plugs at the beginning of

each tilling season or after every 50 hou

of use, whichever comes first. Spark ph

type and gap setting is shown in =PROD

UCT SPECIFICATIONS" on page 4 of th

manual.

TRANSMISSION

Your transmission is sealed and will only

require lubrication if serviced.

CLEANING

•Clean engine, wheels, finish, etc. of al

foreign matter.

•Keep finished surfaces and wheels fro

of all gasoline, oil, etc.

•Protect painted surfaces with automo!

type wax.

We do not recommend using a garden

hose to clean your unit unless the muffle

air filter and carburetor are covered to

keep water ouL Water in engine can ms

in a shortened engine life.

,_CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come into contact with plug.

TILLER

TO ADJUST HANDLE HEIGHT

Select handle height best suited for your

tilling conditions. Handle height will be dif-

ferent when tiller digs into soil.

•First loosen handle lock lever.

•Handle can be positioned at different

settings between =HIGH" and =LOW"

positions.

•Retighten handle lock lever securely

after adjusting.

Handle (High) Position

Handle Lock Lever

Handle(Low) Position

TIRE CARE

_CAU'rION: When mountingtires, un-

less beads are seated, ovednflation can

cause an explosion.

•Maintain 20 pounds of tire pressure. I

tire pressures are not equal, tiller will

pull to one side.

•Keep tires free of gasoline or oilwhich

can damage rubber.

TO REMOVE WHEEL

•Place blocks under transmission to ke

tiller from tipping.

•Remove hairpin clip and clevis pin frof

wheel

•Remove wheel and tire.

•Repair tire and reassemble.

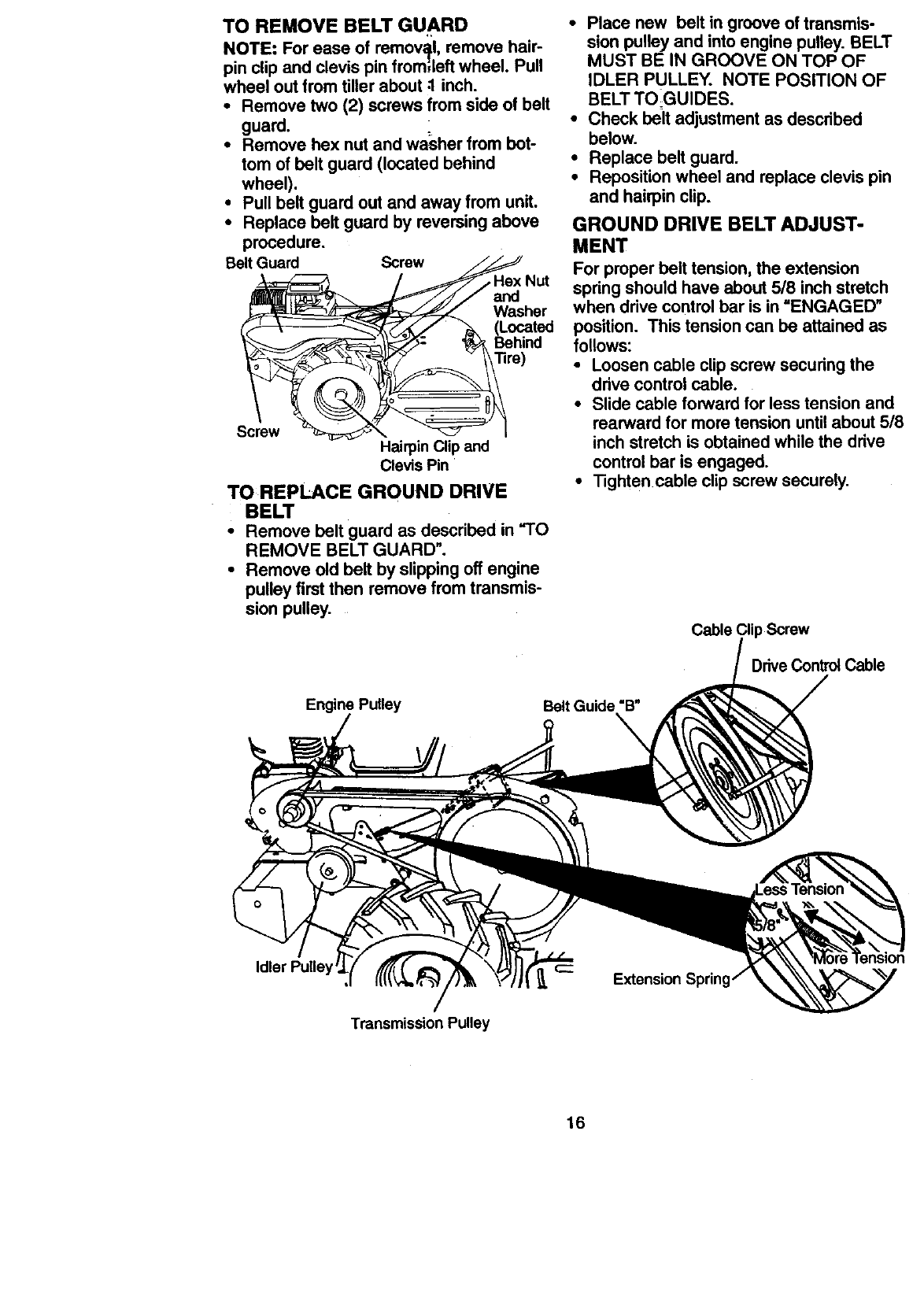

TO REMOVE BELT GUARD

NOTE: For ease of removal, remove hair-

pin clip and clevis pin from,left wheel. Pull

wheel out from tiller about ,1 inch.

•Remove two (2) screws from side of belt

guard.

•Remove hex nut and washer from bot-

tom of belt guard (located behind

wheel).

• Pull belt guard out and away from unit.

•Replace belt guard by reversing above

procedure.

Belt Guard Screw J_

/_Rex Nut

rand

__-"f _asher

C_'"%_ _ "_ (Located

\_-_/_ _: _ Behind

Hairpin Clip and

Clevis Pin

TO REPLACE GROUND DRIVE

BELT

•Remove belt guard as described in =TO

REMOVE BELT GUARD",

•Remove old belt by slipping off engine

pulley first then remove from transmis-

sion pulley.

Engine Pulley

•Place new belt in groove of transmis-

sion pulley and into engine pulley. BELT

MUST BE IN GROOVE ON TOP OF

IDLER PULLEY. NOTE POSITION OF

BELT TO GUIDES.

• Check belt adjustment as described

below.

•Replace belt guard.

• Reposition wheel and replace clevis pin

and hairpin clip.

GROUND DRIVE BELT ADJUST-

MENT

For proper belt tension, the extension

spring should have about 5/8 inch stretch

when drive control bar is in =ENGAGED"

position. This tension can be attained as

follows:

•Loosen cable clip screw securing the

drive control cable.

•Slide cable forward for less tension and

rearward for more tension until about 5/8

inch stretch is obtained while the drive

control bar is engaged.

• Tighten cable clip screw securely.

Cable Clip Screw

Drive Control Cable

Belt Guide "B_

Idler Pulley Extension Spring,"

BRSIOn

Transmission Pulley

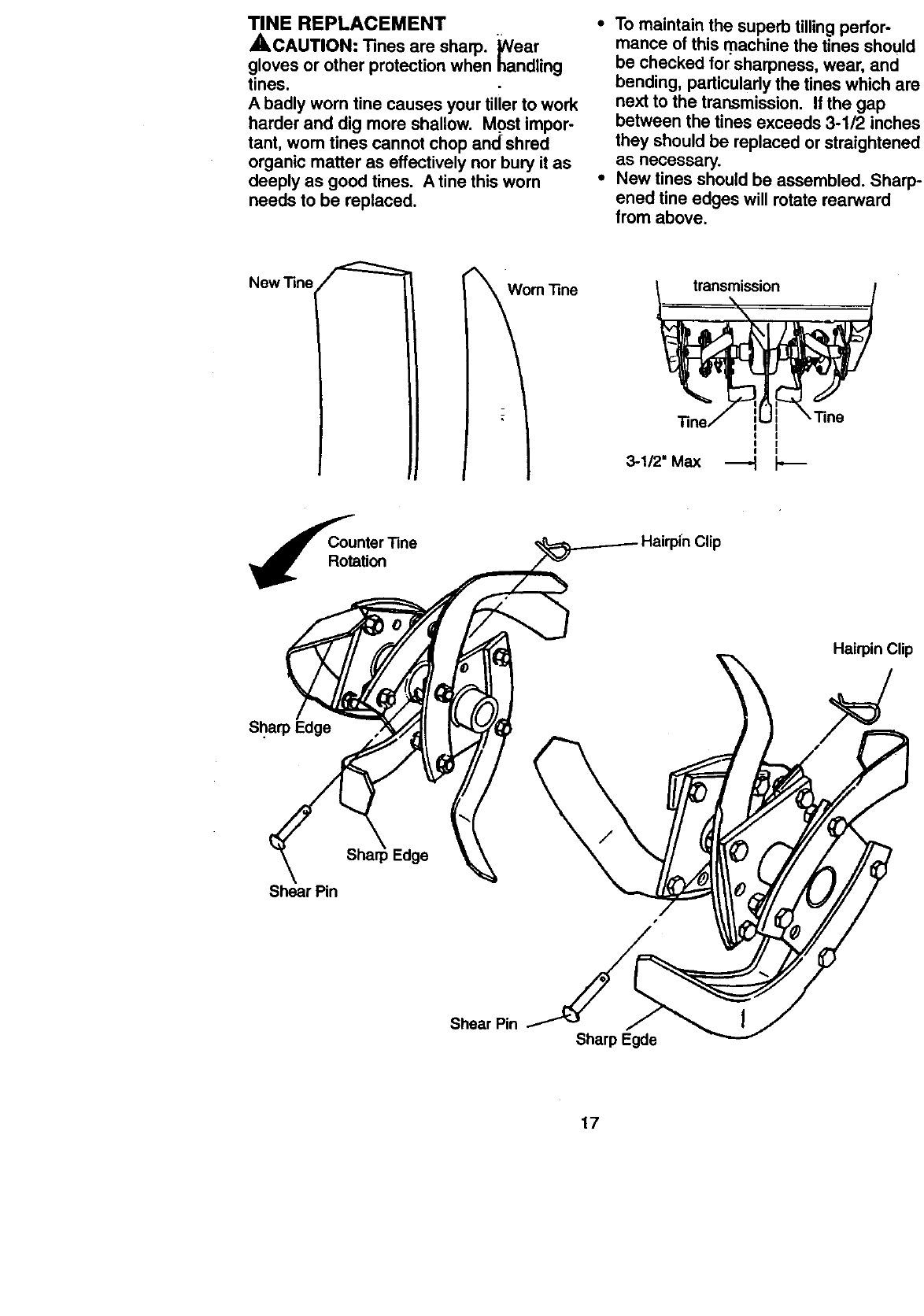

TINE REPLACEMENT

,_CAUTION: Tines are sharp. )Near

gloves or other protection when handling

tines.

A badly worn tine causes your tiller to work

harder and dig more shallow. Most impor-

tant, worn tines cannot chop and shred

organic matter as effectively nor bury it as

deeply as good tines. A tine this worn

needs to be replaced.

To maintain the superb tilling perfor-

ma_e of this machine the tines shoul_

be checked for sharpness, wear, and

bending, particularly the tines which arq

next to the transmission. If the gap

between the tines exceeds 3-1/2 inche

they should be replaced or straightene

as necessary.

New tines should be assembled. Shar_

ened tine edges will rotate rearward

from above.

New Tine 13ne transmission

I I

3-1/2" Max

nterTine

tion

Sh.arp

Hairpin Clip

Edge

Shear Pin

Shear Pin Sharp Egde

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair estab,shment or indi-

vidual. Warranty repairs must be per-

formed by an authorized engine manufac-

turer's service outlet.

TO ADJUST THROTFLE CONTROL

CABLE

• Loosen cable clamp screw to allow

cable to move.

•Move throttle control lever on upper han-

dle to =FAST" position.

•Pull throttle cable out until engine bell-

crank is back as far as it will go.

•Hold cable in this position and tighten

clamp screw securely.

Throttle Cable Screw

IDLERPMADJUSTMENTi

•Rotate throttle hnkage counterolockwise

and hold against stop while adjusting

idle speed adjusting screw to obtain

1750 RPM. Release throttle linkage.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the en-

gine govemor, which is factory set for

proper engine speed, overspeeding the

engine above the factory high speed set-

ting can be dangerous. If you think the

engine-governed high speed needs adjust-

ing, contact your nearest sears service

centerdepartment, which has proper

equipment and experience to make any

necessary adjustments.

Throttle Linkage Throttle Stop

Bell Crank

Idle Speed Adjusting Screw

TO ADJUST CARBURETOR

The carburetor has a high speed jet and

has been preset at the factory and adjust-

ment should not be necessary. However,

minor adjustments may be required to

compensate for differences in fuel, temper-

ature, altitude or load. If the carburetor

does need adjustment,,proceed as follows.

FINAL SETTING

•Start engine and allow to warm for five

minutes.

•With throttle control lever in "SLOW"

position.

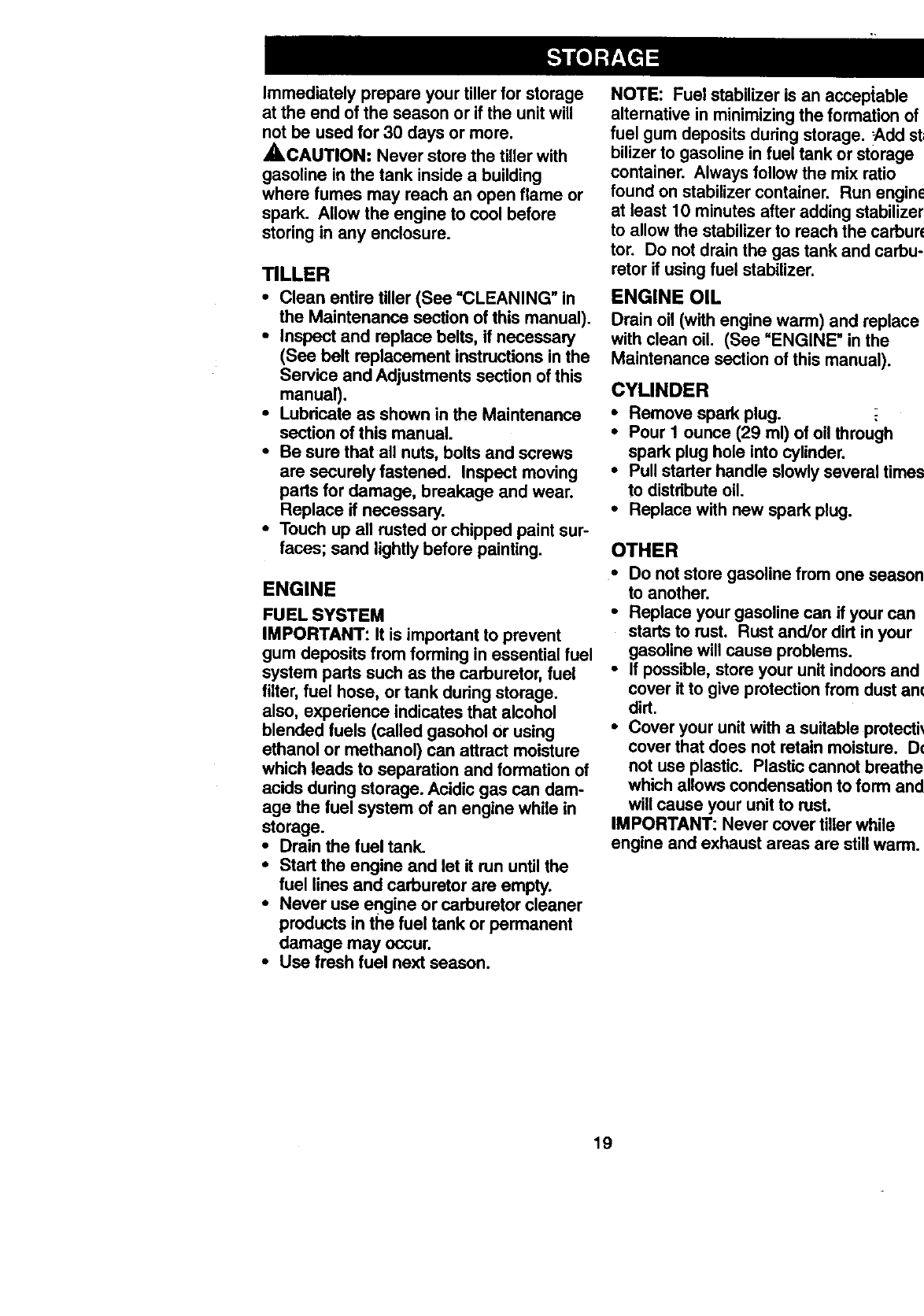

Immediately prepare your tiller for storage

at the end of the season or if the unit will

not be used for 30 days or more.

_.CAUTION: Never store the tiller with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TILLER

•Clean entire tiller (See =CLEANING" in

the Maintenance section ofthis manual).

•Inspect and replace belts, if necessary

(See belt replacement instructions in the

Service and Adjustments section of this

manual).

•Lubricate as shown in the Maintenance

section of this manual.

•Be sure that all nuts, bolts and screws

are securely tastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

•Touch up all rusted or chipped paint sur-

faces; sand lightlybefore painting.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential fuel

system parts such as the carburetor, fuel

filter,fuel hose, or tank during storage.

also, experience indicates that alcohol

blended fuels (called gasohol Orusing

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

•Drain the fuel tank.

•Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation o

fuel gum deposits during storage. _.dd.,

bilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio

found on stabilizer container. Run engir

at least 10 minutes after adding stabiliz_

to allow the stabilizer to reach the carbu

tor. Do not drain the gas tank and carbl

retor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replac4

with clean oil. (See =ENGINE" in the

Maintenance section of this manual).

CYUNDER

•Remove spark plug.

•Pour 1 ounce (29 ml) of oil through

spark plug hole into cylinder.

•Pull starter handle slowly several time

to distribute oil.

•Replace with new spark plug.

OTHER

•Do not store gasoline from one seasc

to another.

•Replace your gasoline can if your car

starts to rust. Rust and/or dirt inyour

gasoline will cause problems.

•If possible, store your unit indoorsan_

cover it to give protection from dust ar

dirt.

•Cover your unit with a suitable protect

cover that does not retain moisture. [

not use plastic. Plastic cannot breath

which allows condensation to form an

will cause your unit to rust.

IMPORTANT: Never cover tiller while

engine and exhaust areas are still warrr

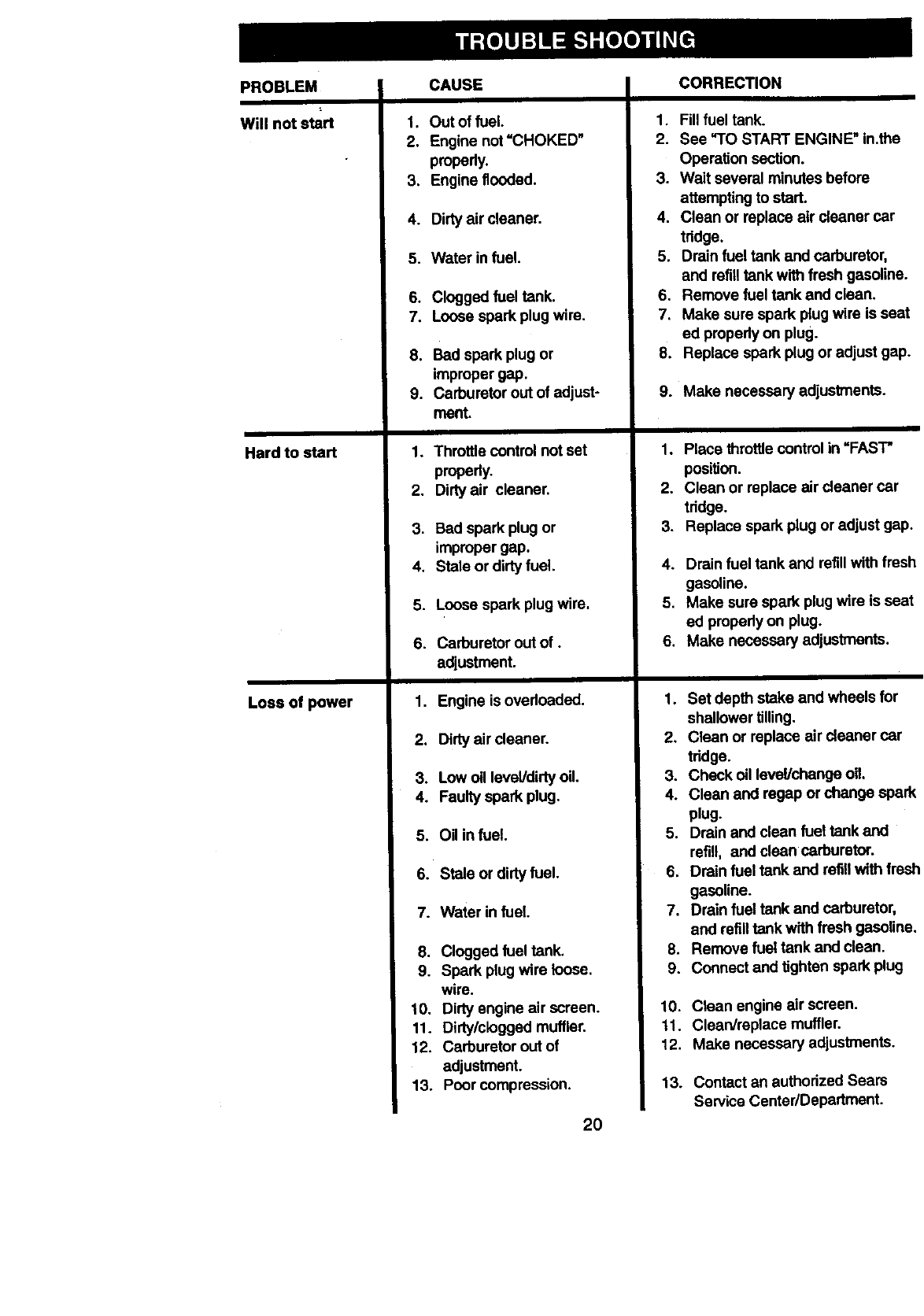

PROBLEM

Will not sN_

Hard to start

Loss of power

CAUSE

1. Out of fuel.

2. Engine not"CHOKED"

properly.

3. Engine flooded.

4. Dirty air cleaner,

5. Water in fuel.

6. Clogged fuel tank.

7. Loose spark plug wire.

8. Bad spark plug or

improper gap.

9. Carburetor out of adjust-

ment.

1. Throttle control not set

properly.

2. Dirty air cleaner.

3. Bad spark plug or

improper gap.

4. Stale or dirty fuel.

5. Loose spark plug wire.

6, Carburetor out of.

adjustment.

1, Engine is overloaded.

2. Dirty air cleaner.

3. Low oil level/dirtyoil.

4. Faulty spark plug.

5. Oil in fuel.

6. Stale or dirty fuel.

7. Water in fuel

8. Clogged fuel tank.

9. Spark plug wire loose.

wire.

10. Dirtyengine air screen.

11. Dirty/clogged muffler.

12. Carburetor out of

adjustment.

13. Poor compression.

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE" in.the

Operation section.

3. Wait several minutes before

attempting to start.

4. Clean or replace air cleaner car

ridge.

5. Drain fuel tank and carburetor,

and refilltank with fresh gasoline.

6. Remove fuel tank and clean.

7. Make sure spark plug wire is seat

ed properlyon plug.

8. Replace spark plug or adjust gap.

9. Make necessary adjustments.

10.

11.

12.

13.

Place throttle control in "FAST"

position.

Clean or replace air cleaner car

ridge.

Replace spark plug or adjust gap

Drain fuel tank and refillwith fres

gasoline.

Make sure spark plugwire is sea

ed properlyon plug.

Make necessary adjustments.

Set depth stake and wheels for

shallower tilling.

Clean or replace air cleaner car

ridge.

Check oil level/change oil.

Clean and regap or change spart

plug.

Drain and clean fuel tank and

refill, and clean carburetor.

Drain fuel tank and refillwith fres

gasoline.

Drain fuel tank and carburetor,

and refilltank with fresh gasolinq

Remove fuel tank and clean.

Connect and tighten spark plug

Clean engine air screen.

Cleardrepisce muffler.

Make necessary adjustments.

Contact an authorized Sears

Service Center/Department.

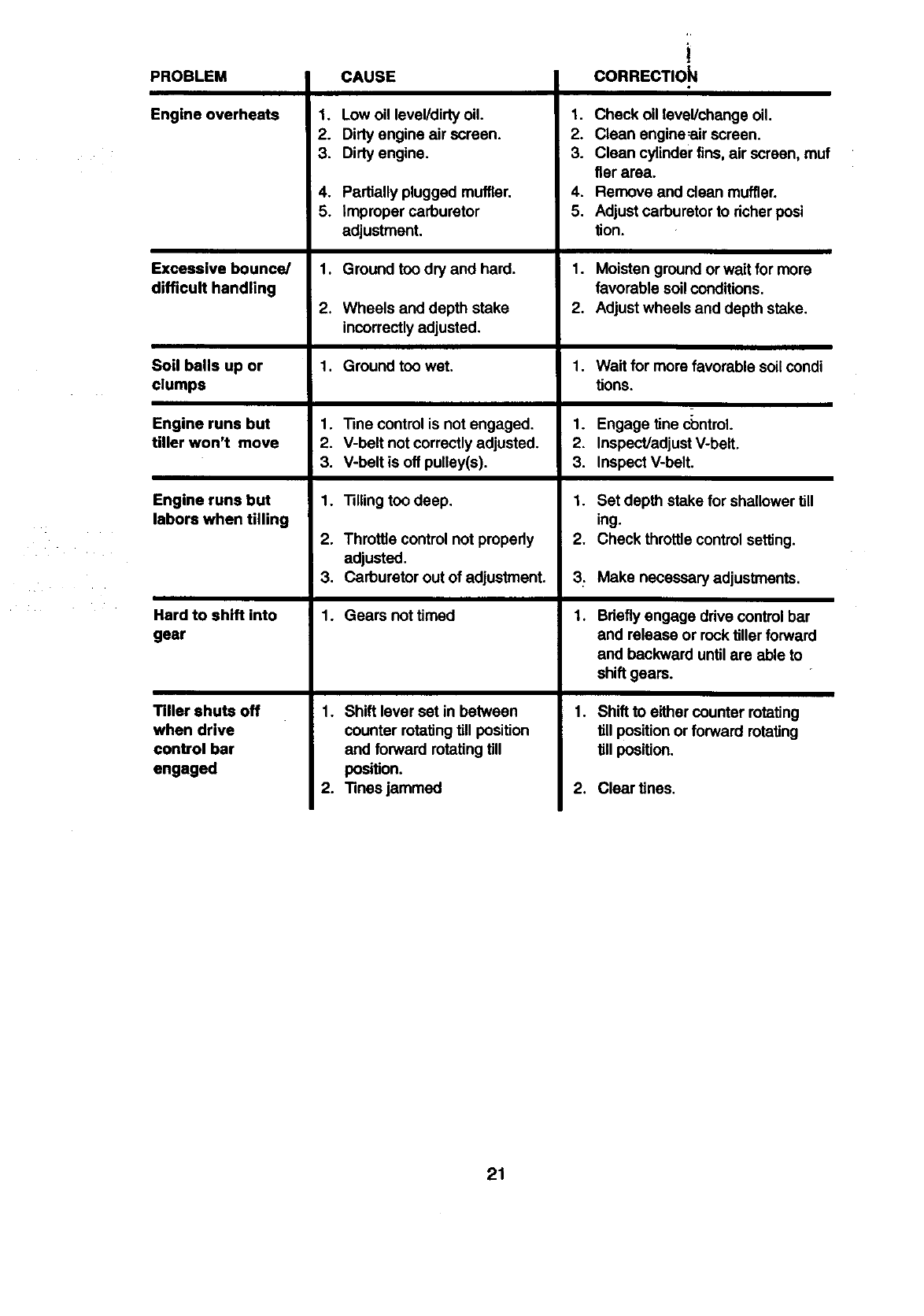

PROBLEM

Engine overheats

Excessive bounce/

difficult handling

Soil balls up or

clumps

Engine runs but

tiller won't move

Engine runs but

labors when tilling

Hard to shift into

gear

Tiller shuts off

when drive

control bar

engaged

CAUSE

1. Low oil level/dirty oil.

2. Dirty engine air screen.

3, Dirty engine.

4. Partially plugged muffler.

5. improper carburetor

adjustment.

1. Ground too dry and hard.

2. Wheels and depth stake

incorrectlyadjusted,

1. Ground too wet.

"linecontrol is not engaged.

V-belt not correctly adjusted.

V-belt is off pulley(s).

Tilling too deep.

Throttle control not propedy

adjusted.

Carburetor out of adjustment.

Gears notUmed

1. Shift lever set in between

counter rotating till position

and forward rotating till

position.

2. Tines jammed

CORRECTIOk

1. Check oil level/change oil.

2. Clean engine:air screen.

3. Clean cylinder fins, air screen, muf

tier area.

4. Remove and clean muffler.

5. Adjust carburetor to richer posi

tion.

1. Moisten ground or wait for more

favorable soil conditions.

2. Adjust wheels and depth stake.

Wait for more favorable soil condi

tions.

Engage tine cbntml.

Inspect/adjust V-belt.

Inspect V-belt.

Set depth stake for shallower till

ing.

Check throttle control setting.

Make necessary adjustments.

Brieflyengage drive control bar

and release or rocktiller forward

and backward until are able to

shift gears.

Shift to either counter rotating

till position or forward rotating

till position.

2. Clear tines.

TILLER - - MODEL NUMBER 91T.293202

HANDLES

29 15

30 \\

KEY PART

NO. NO. DESCRIPTION

1 127012X ControlThrottle

2 141406 Grip, Handle

3 110673X Grommet, Handle

4 127254X Bar, DriveControlAssembly

5 6712J Cap, Vinyl

6 137119X031 Panel, Control

7 110641X Bushing,Split

8 71191008 *Screw, Pnd. #10-24 UNC

GD 2 Phosp

9 72010520 * Bolt 5/16-18 x 2.50

10 110646X Handle, Grip

11 STD624003 *Clip, Hairpin

12 81328 Bolt,Shoulder

13 110741X Handle, Shift

14 109313X Grommet, Rubber

15 110702X Rod, Shift

KEY PART

NO. NO. DESCRIPTION

16 STD533710 * Bolt,Cardage 3/8-16xl Gr.5

17 109229X Lock,Handle

18 STD541437 * Nut, Centedock 3/8-16

19 19131611 Washer 13/32 x lx 11Ga.

20 109228X Lever, Lock,Handle

21 150258 Handle,Assemble

22 165197 Clip, Nyl BIk Cable

23 86777 Screw, Hex, Washer Hd, Slotted

#10-24 x 1/2

24 9484R Clip

25 73970500 Locknut,Hex, Range

26 110675X Clutch, Cable

27 ST0541025 * Nut, Hex 1/4-20

28 STD551125 ° Washer, Lock 1/4

29 STD541462 * Nut, Kaps #10-24

31 150696 Bolt, Pivot

* STANDARD HARDWARE - -PURCHASE LOCALLY

NOTE: Allcomponentdimensionsgivenin U.S. inches.

1 inch =25.4 mm

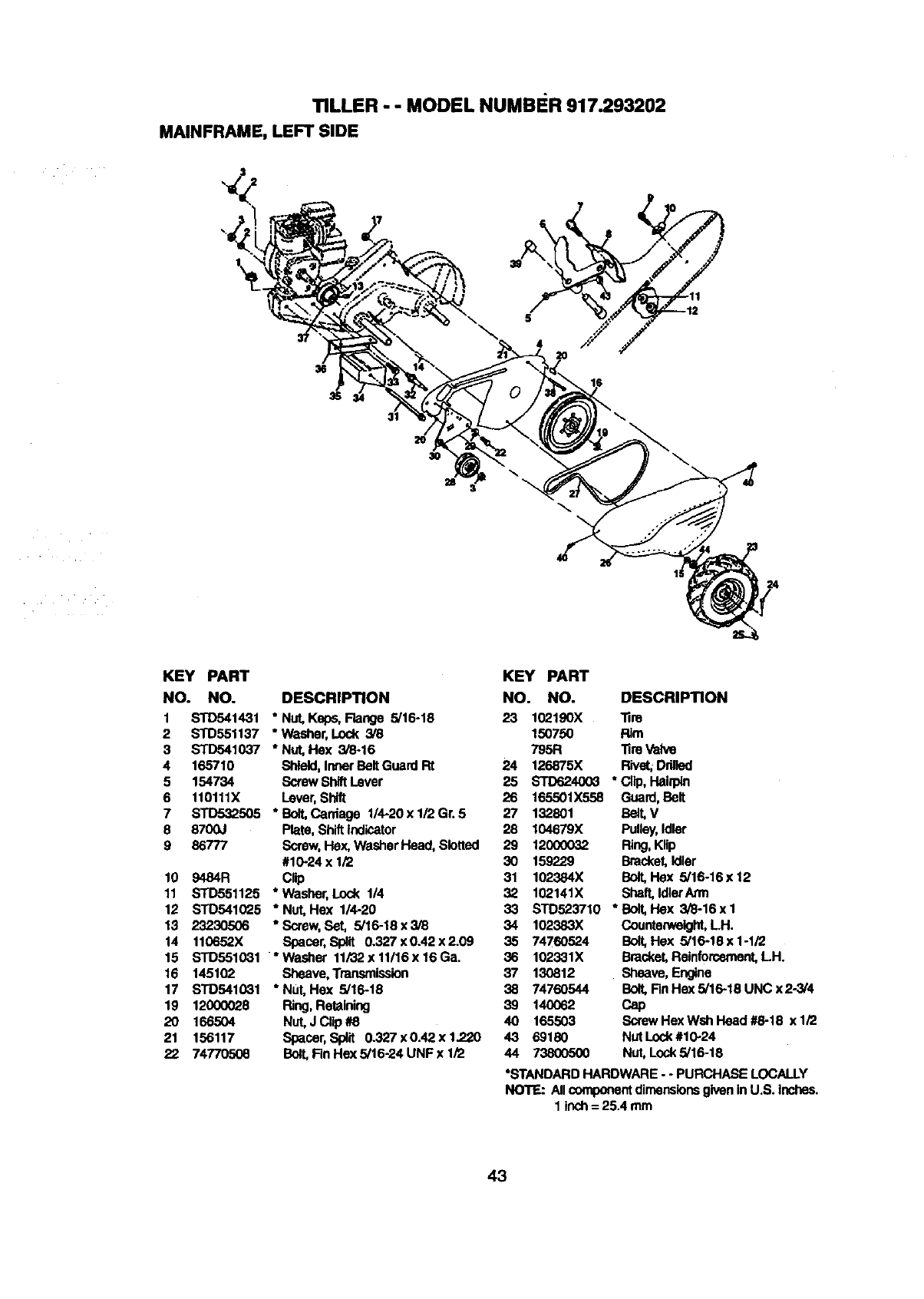

TILLER - - MODEL NUMBI=R 917.293202

MAINFRAME,LEFTSIDE

KEY PART KEY PART

NO. NO. DESCRIPTION

1 STD541431 * Nut, Kep_ Range 5/16-18

2 STD551137 "Washer, Lock 3/8

3 STD541037 *Nut, Hex 3/8-16

4 165710 Shield, Inner BeltGuard Rt

5 154734 Screw ShiftLever

6 110111X Lever, Shift

7 STD5,._505 * Bolt,Cardage 114-20x 112Gr. 5

8 8700J Plate, Shiftindicator

9 86777 Screw, Hex, Washer Head, Slotted

#10-24 x 1/2

10 9484R Clip

11 STD551125 * Washer, Lock 1/4

12 STD541025 * Nut, Hex 1/4-20

13 23230506 *Screw, Bet, 5/16-18x3/8

14 110652X Spacer, Spilt 0.327xO.42x2.09

15 STD551031 *Washer 11/'32x 11/16 x 16 Ga.

16 145102 Sheave, Transmission

17 STD541031 * Nut, Hex 5/16-18

19 12000028 Ring,Retaining

20 166504 Nut, J Clip#8

21 156117 Spacer,Spilt 0.327xO.42x1.22o

22 74770508 Bolt,Rn Hex 5/16-24 UNF x 1/2

NO. NO. DESCRIPTION

23 102190X "llm

150750 Rim

795R "fireValve

24 126875X Rivet;Drilled

25 STD624003 * Clip, Haiq_n

26 165501X558 Guard, Belt

27 132801 Belt, V

28 104679X Pulley,Idler

29 12000032 Ring,Klip

30 159229 Bracket, Idler

31 1(_384X Bolt,Hex 5/16-16x12

32 102141X Shaft,IdlerAnn

33 STD523710 *Bolt,Hex 3/8-16xl

34 102383X Countanveigllt,LH.

35 74760524 Bolt,Hex 5/16-18x1-1/2

36 102331X Bracket,Reinforcement,LH.

37 130812 Sheave, Engine

38 74760544 Bolt,Rn Hex 5/16-18 UNC x 2-3/4

39 14OO62 Cap

40 165503 ScrawHexWshl-laad#8-18 xl/2

43 69180 Nut Lock#10-24

44 73800500 Nut, Lock5/16-18

*STANDARD HARDWARE --PURCHASE LOCALLY

NOTE: All componentdimensionsgiven in U.S. inches.

1 inch= 25.4 mm

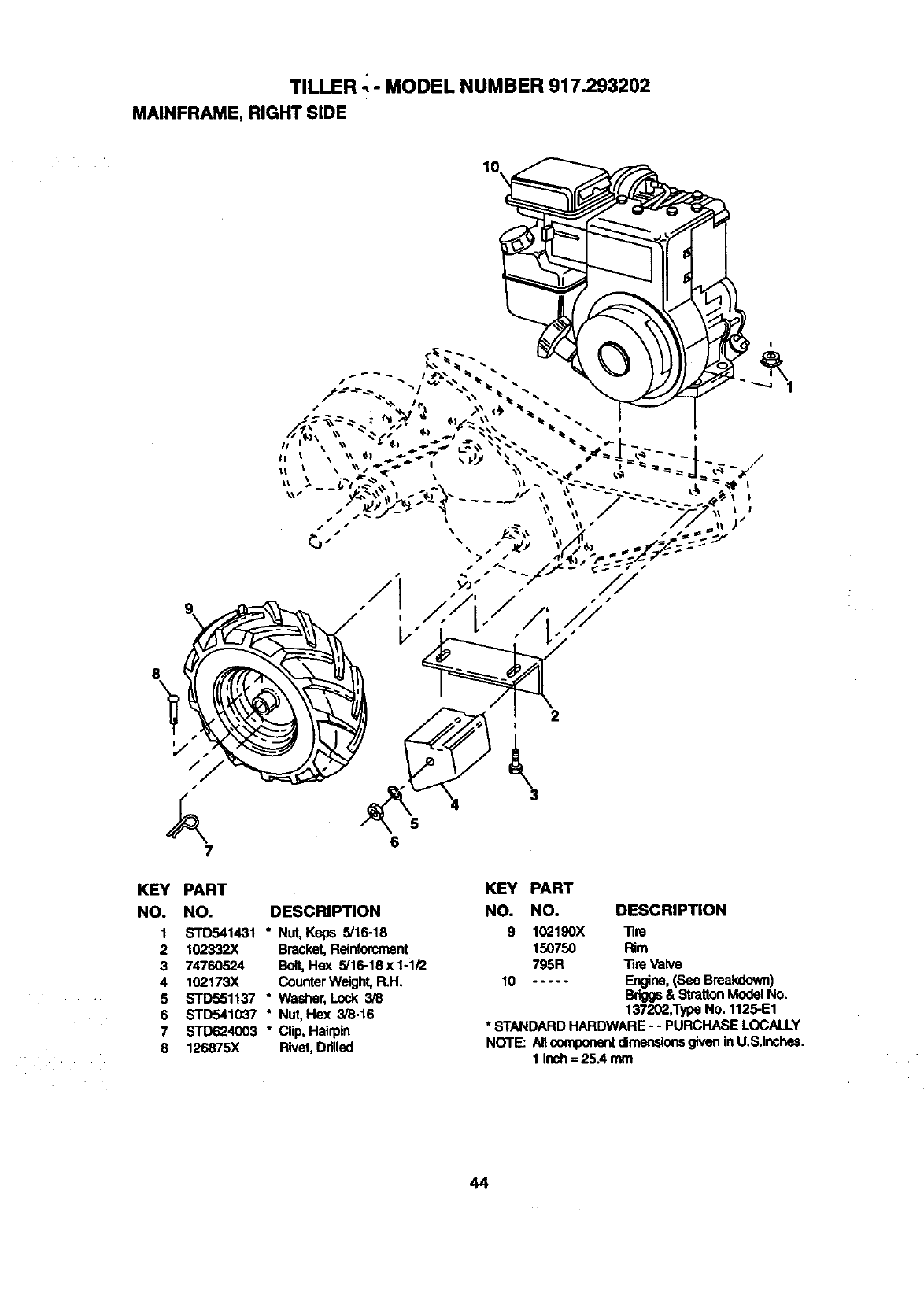

TILLER -,- MODEL NUMBER 917.293202

MAINFRAME, RIGHT SIDE

KEY PART

NO. NO. DESCRIPTION

1 STD541431 * Nut, Keps 5/16-18

2 102332X Bracket,Reinforcment

3 74760524 Bolt,Hex 5/16-18x1-1/2

4 102173X CounterWeight, R.H.

5 STD551137 * Washer, Lock 3/8

6 STD541037 * Nut, Hex 3/6-16

7 STD624003 * Clip, Haiflpin

8 126875X Rivet, Ddlled

KEY PART

NO. NO. DESCRIPTION

9 10_190X Tire

150750 Rim

795R Tire Valve

10 ..... Engine,(See Breakdown)

Briggs& StrattonModei No.

137202,Type No. 1125-E1

• STANDARD HARDWARE - - PURCHASE LOCALLY

NOTE: Allcomponentdimensionsgiven inU.S.Inchee.

1 inch= 25.4 mm

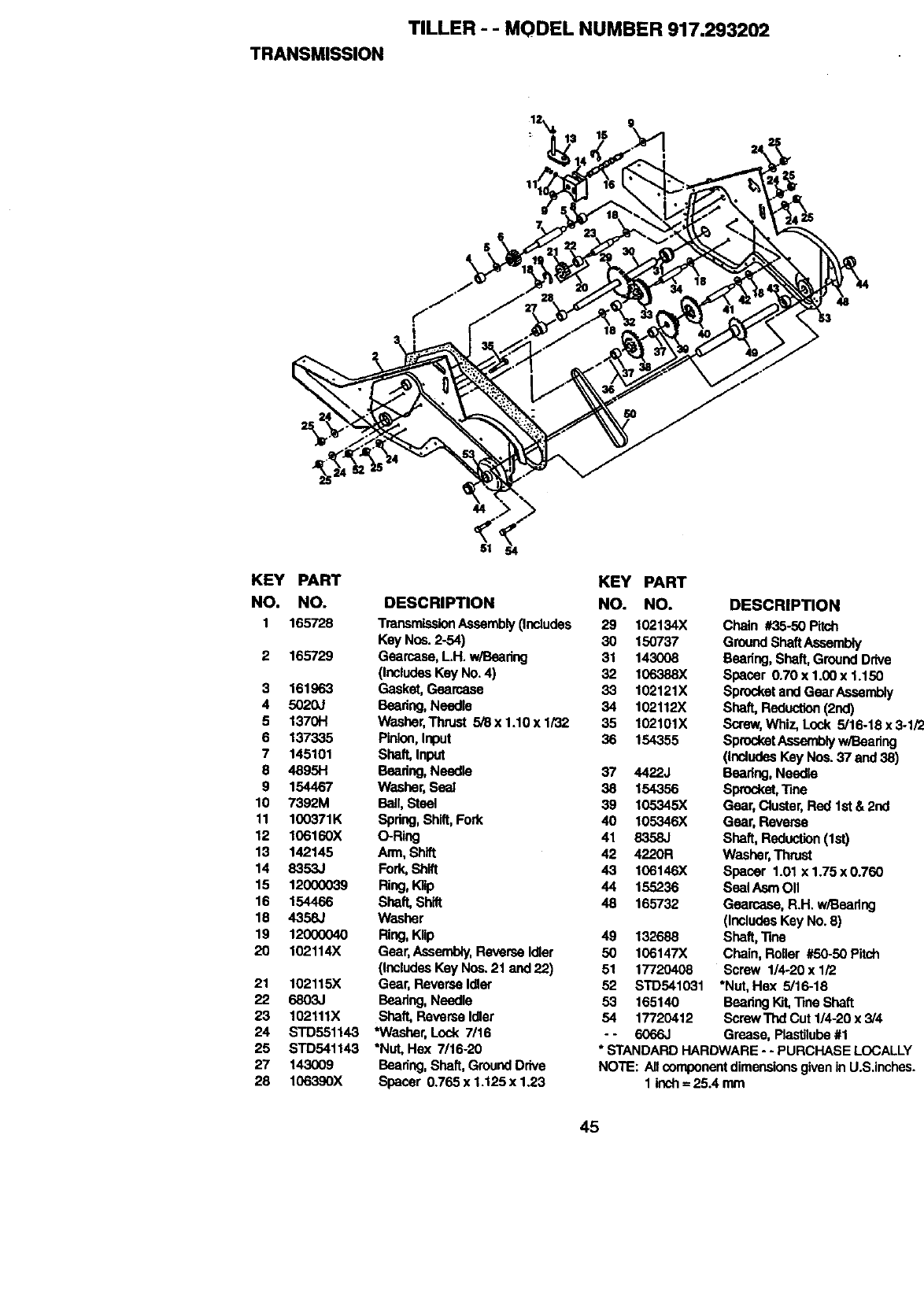

TILLER - - MODEL NUMBER 917.293202

TRANSMISSION

KEY PART

NO. NO.

1 165728

2 165729

3 161963

4 5020J

5 1370H

6 137335

7 145101

8 48951"1

9 154467

10 7392M

11 100371K

12 106160X

13 142145

14 8353J

15 12000039

16 154466

15 4358J

19 12000040

20 102114X

21 102115X

22 6803J

23 102111X

24 STD551143

25 STD541143

27 143009

28 10639OX

KEY PART

DESCRIPTION NO. NO.

TransmissionAssembly(Includes 29 102134X

Key Nos. 2-54) 30 150737

Gearcase, LH. w/Besring 31 143008

(IncludesKey No.4) 32 106388X

Gasket, Gearcase 33 102121X

Beadng, Needle 34 102112X

Washer,Thrust 5/8 x 1.10 x 1/32 35 102101X

Pinion, Input 36 154355

Shaft, Input

Beadng, Needle 37 4422J

Washer,Seal 38 154356

Ball,Steel 39 105345X

Spring,Shift, Fork 40 105346X

O-Ring 41 835&J

Arm, Shift 42 4220R

Fork, Shift 43 106146X

Ring, K]ip 44 155236

Shaft, Shift 48 165732

Washer

Ring, KUp 49 132688

Gear, Assembly,Reverse Idler 50 106147X

(IncludesKey Nes. 21 and 22) 51 17720408

Gear, Reverse Idler 52 STD541031

Beadng, Needle 53 165140

Shaft, Reverse Idler 54 17720412

*Washer, Lock 7/16 - - 6066J

*Nut, Hex 7/16-20

Bearing,Shaft, Ground Drive

Spacer 0.765 x 1.125 x 1.23

DESCRIPTION

Chain #35-50 Pitch

GroundShaftAssembiy

Bearing, Shaft,Ground Drive

Spacer 0.70 x 1.00 x 1.150

Sprocket and Gear Assembly

Shaft, Reduction(2nd)

Screw,Whiz, Lock 5/16-18 x 3-1/2

SprocketAssemblyw/Beadng

(Includes Key Nos.37 and 38)

Bearing, Needle

Sprocket,"fine

Gear, Cluster, Red 1st& 2nd

Gear, Reverse

Shaft, Rnduclion(1st)

Washer,Thrust

Spacer 1.01 x 1.75 x 0.760

Seal Asm OII

Gearce.se,R.H. w_eadng

(IncludesKey No.8)

Shaft, Tine

Chain, Roller #50-50 Pitch

Screw 1/4-20 x 1/2

*Nut, Hex 5/16-18

Beadng Kit,Tree Shaft

Screw Thd Cut 1/4-20 x 5/4

Grease, Restilube #1

* STANDARD HARDWARE - - PURCHASE LOCALLY

NOTE: All componentdimensionsgivenin U.S.inches.

1 inch= 25.4 nun

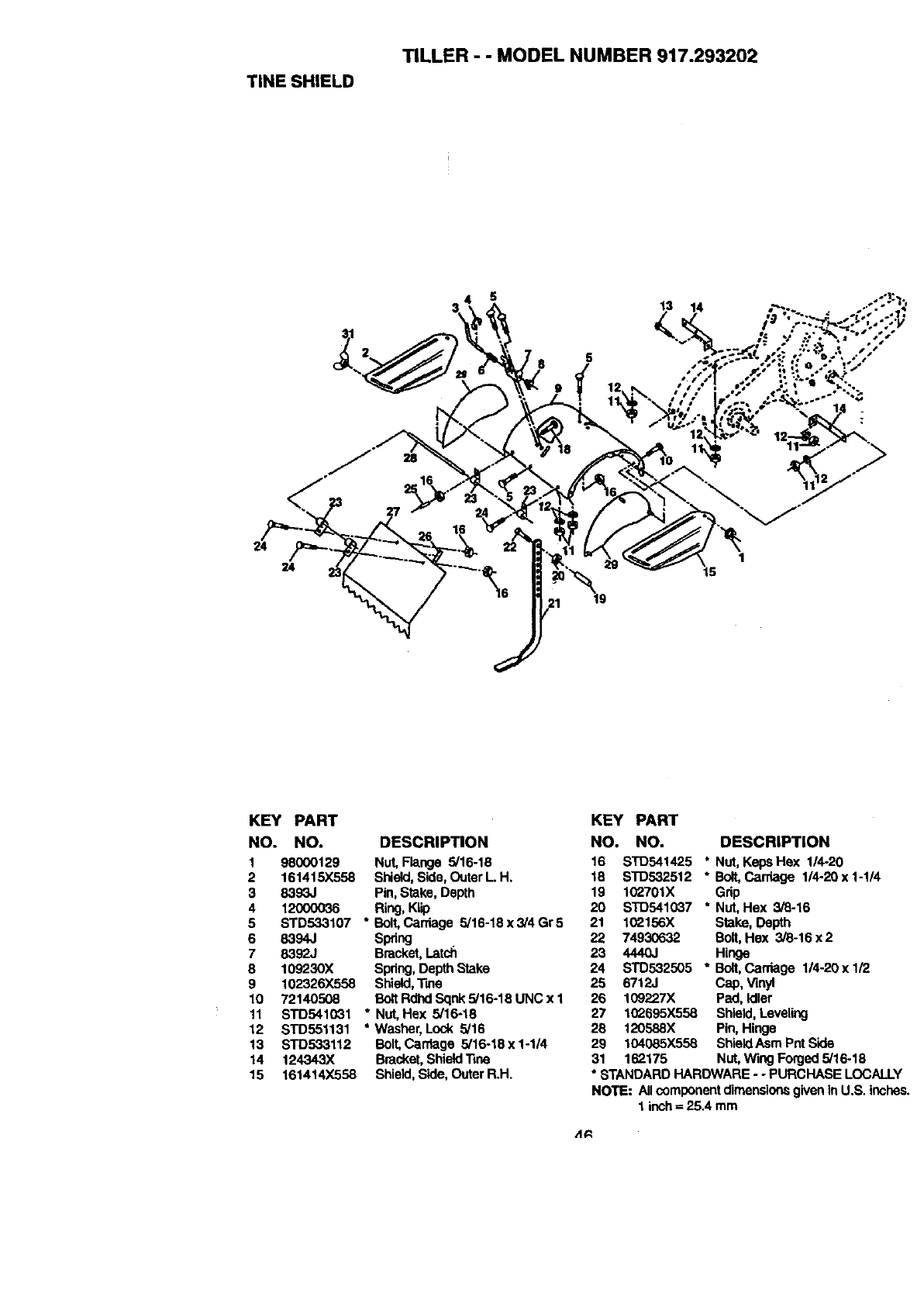

TINE SHIELD

TILLER -- MODEL NUMBER 917.293202

13 14

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 98000129 Nut, Flange 5/16-18 16 STD541425 *

2 161415X558 Shield,Side, Outer L H, 18 STD532512 *

3 8393J Pin, Stake, Depth 19 102701X

4 12000036 Ring, KUp 20 STD541037 *

5 STD533107 ° Bolt,Card.age 5/16-18x3/4Gr5 21 102156X

6 8394J Spring 22 74930632

7 8392J Bracket, Latch 23 4440J

8 109230X Spring, Depth Stake 24 STD532505 *

9 102326X558 Shlald,Tine 25 6712J

10 72140508 BoltRdhdSqnks/16-18UNCx1 26 109227X

11 STD541031 * Nut, Hex 5/16-18 27 102695X558

12 STD551131 *Washer, Lock 5/16 28 120588X

13 STD533112 Bolt, Card,age 5/16-18 x 1-1/4 29 104085X558

14 124343X Bracket, Shieldline 31 162175

15 161414X558 Shield, Side, Outer R.H.

DESCRIPTION

Nut, Keps Hex 1/4-20

Bolt,Cardage 1/4-20 x 1-1/4

Grip

Nut, Hex 3_-16

Stake, Depth

Bolt,Hex 3/8-16 x2

Hinge

Bolt,Carriage 1/4-20 x 1/2

Cap,Vinyl

Pad, Idler

Shield,Leveling

Pin, Hinge

ShieldAsm Pnt Side

Nut, Wing Fo_jed 5/16-18

* STANDARD HARDWARE --PURCHASE LOCALLY

NOTE: All componentdimensionsgivenin U.S. inches.

1 inch= 25.4 mm

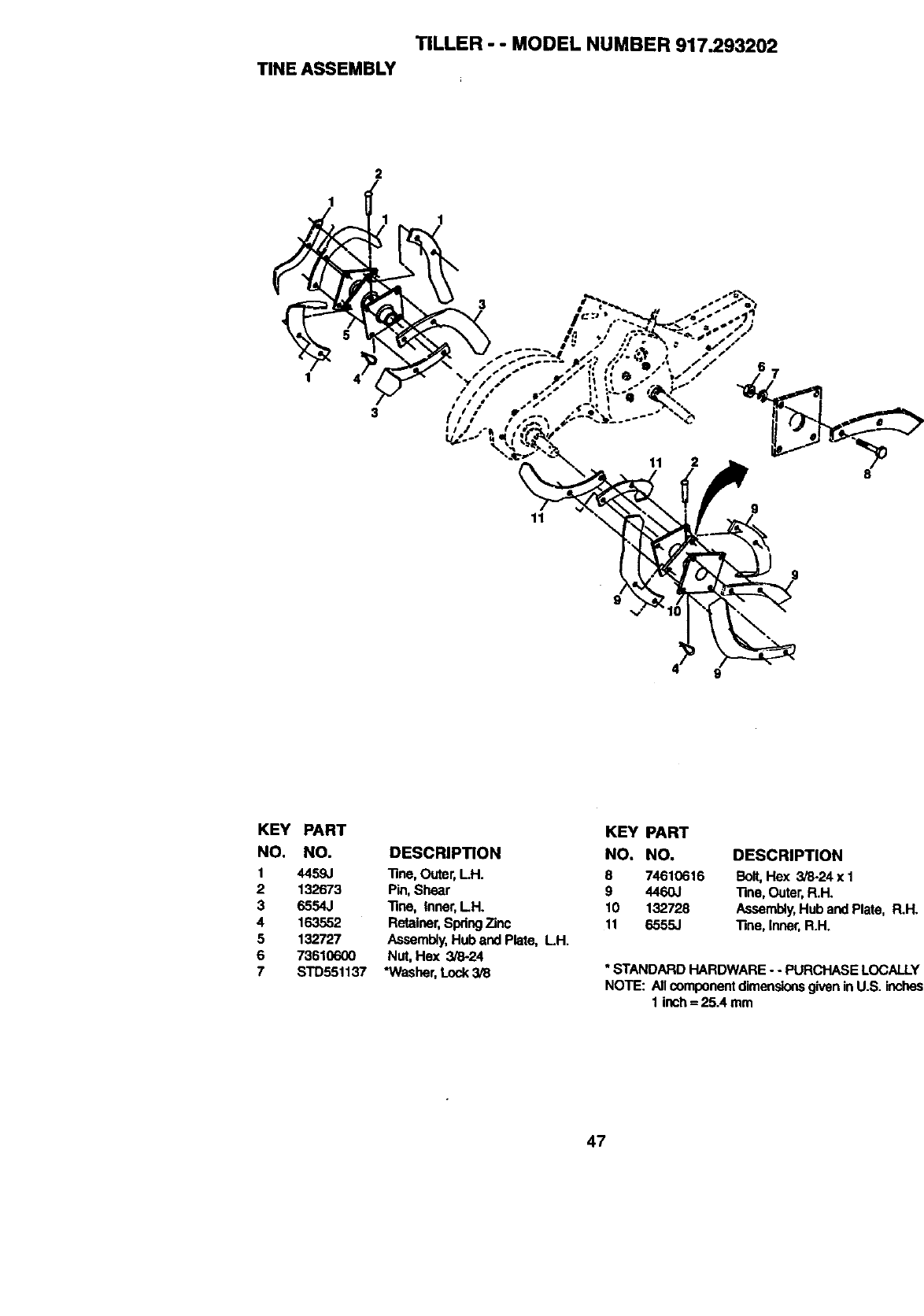

TILLER - - MODEL NUMBER 917.293202

TINE ASSEMBLY

KEY PART

NO. NO.

1 4459J

2 132673

3 6554J

4 163552

5 132727

6 73610600

7 STD551137

DESCRIPTION

"line, Outer, LH.

Pin, Shear

"Rne, Inner,LH.

Retainer, SpringZinc

Assembly,Hub and Plate, LH.

Nut, Hex 3/8-24

"Washer,Lock3/8

KEY PART

NO. NO. DESCRIPTION

8 74610616 Bolt,Hex 3/8-24 x 1

9 4460J "Rne,Outer, R.H.

10 132728 Assernb4y,Hub and Plate, R.H.

11 6555J "Rne,Inner, R.H.

* STANDARD HARDWARE - - PURCHASE LOCALLY

NOTE: Allcomponentdimensionsgiven inU.S. inches.

1 inch= 25.4 mm

DECALS

TILLER -- MODEL NUMBER 917.293202

KEY PART

NO. NO, DESCRIPTION

1 163119 Decal, Logo

2 166132 Decal, Logo

3 166133 Decal, Descdplion

4 137538 Deoal, Caution, DriveControl

5120431X Decal, Hand Ptacement

6 1nc_180X Decal, Shift Indicator

7 110719X Decal, Operationand Lubrication

8 165268 Decal, Craftsman

9 120075X Decal, Warning, Rotatinglines

10 157984 Decal, Counter RoL "llne

11 165278 Decal, 5 HP

12 162215 Decal, Tree ShieldWing Dora

13 163094 Decal, Depth Slake

- - 166493 Manual, Owner's (EngiSpan)

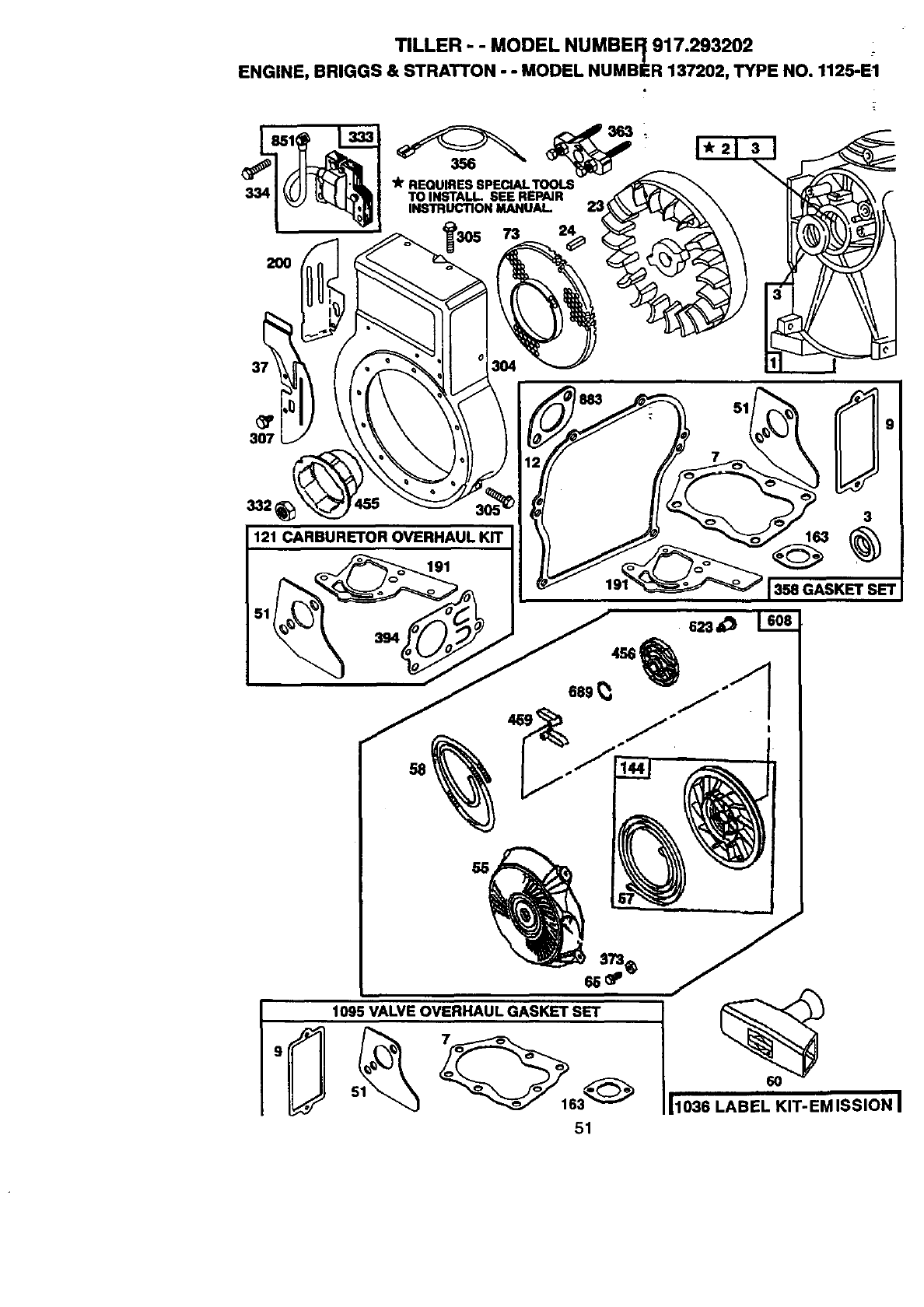

TILLER - - MODEL NUMBER 917.293202

I_NGINE, BRIGGS & STRA'I-rON - - MODEL NUMBER 137202, TYPE NO. 1125-Et

15 528

614

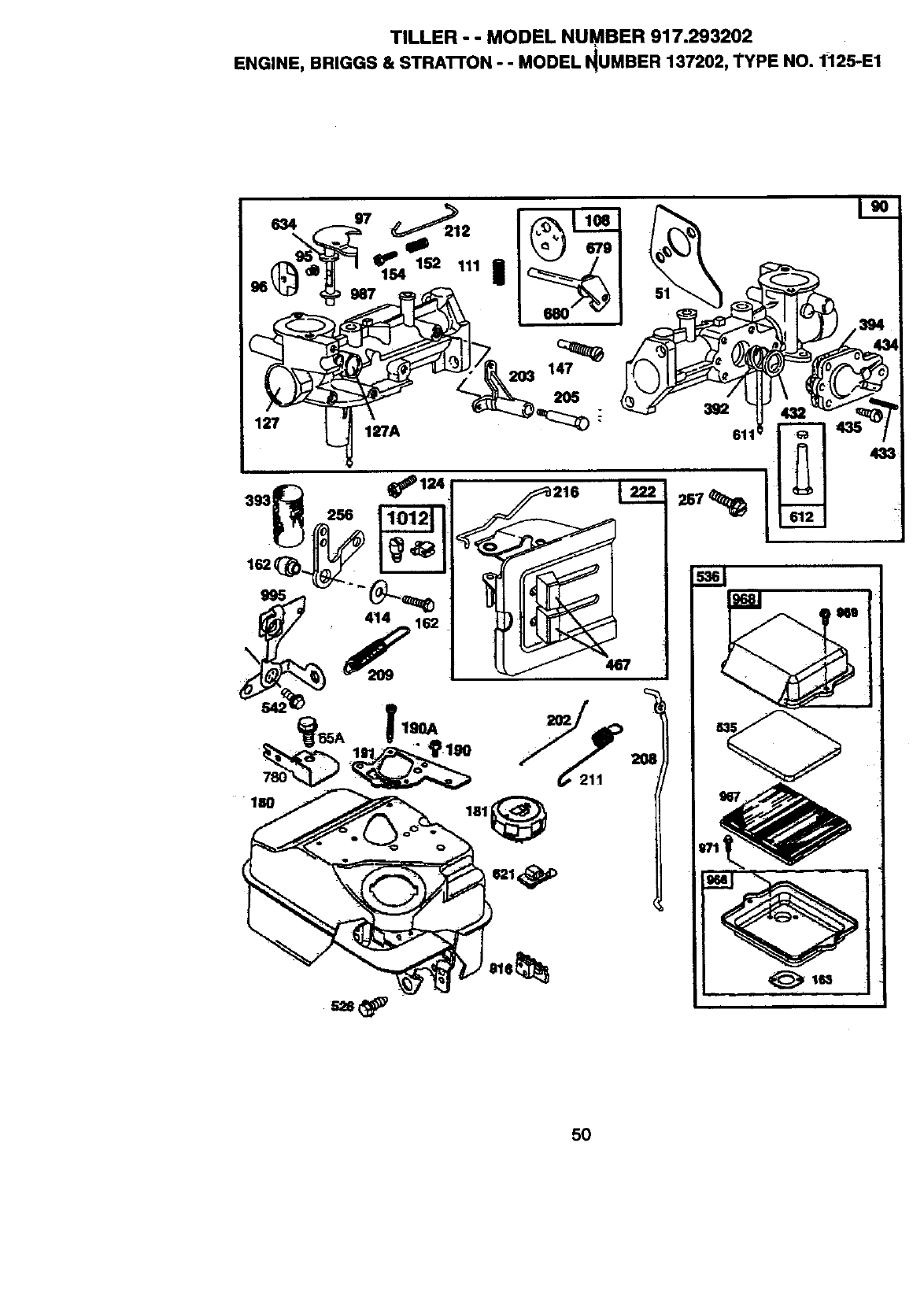

TILLER - - MODEL NUMBER 917.293202

ENGINE,BRIGGS& STRATTON- - MODELI_UMBER137202,TYPENO.1125-E1

162(

414

216 t222

2O8

21t

1110

_.o,.E,oR,oos.STRATTO..O0_'.UMO_.._202,TYP_.O.1,2_,

3O7

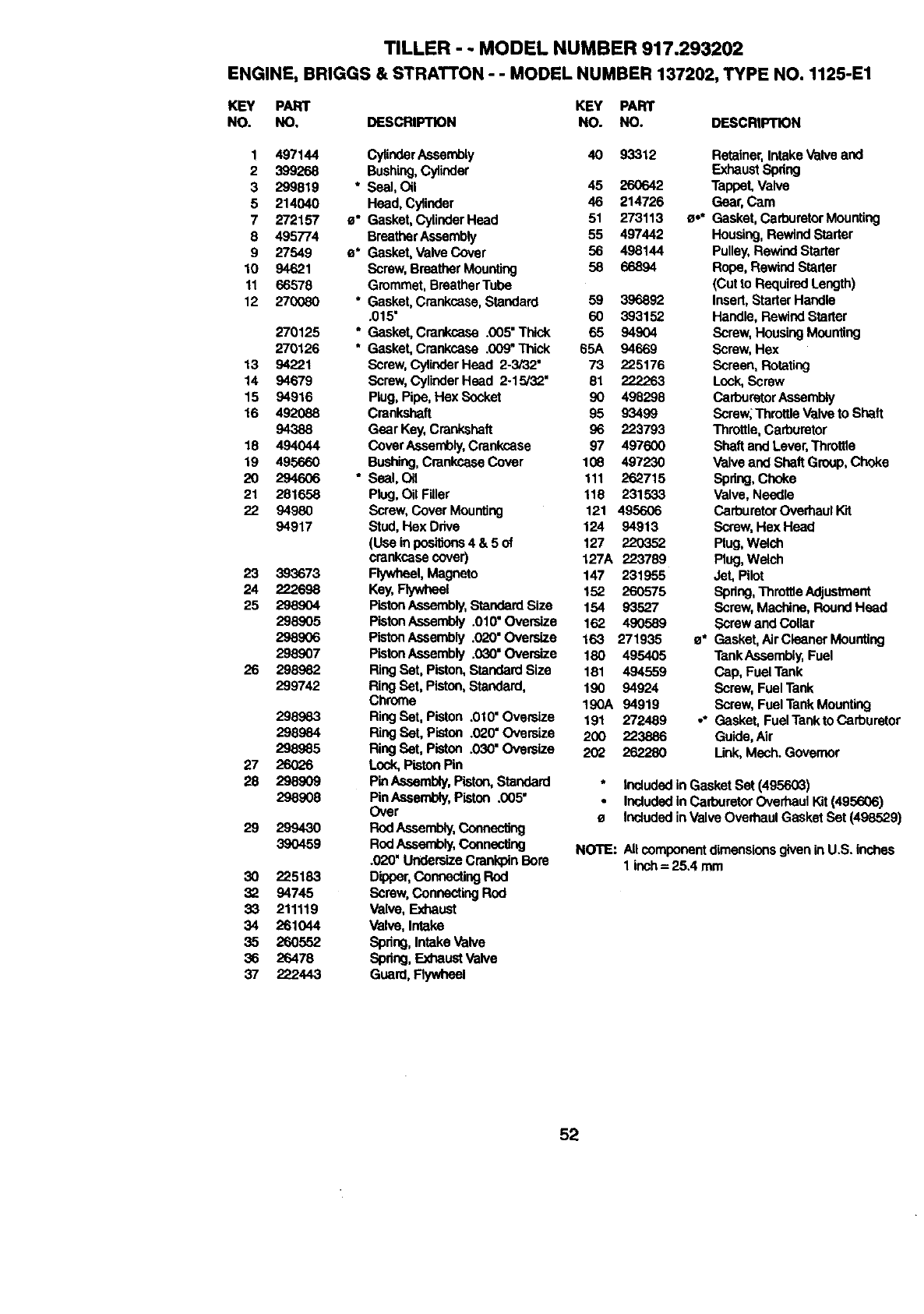

TILLER - - MODEL NUMBER 917.293202

ENGINE, BRIGGS & STRATTON - - MODEL NUMBER 137202, TYPE NO. 1125-E1

KEY PART KEY PARr

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 497144 CylinderAseambly 40 93312 Retainer, IntakeValve and

2 399268 Bushing,Cylinder Exhaust Spdng

3 299819 * Seal, Oil 45 260642 Tappet,Valve

5 214040 Head, Cylinder 46 214726 Gear, Cam

7 272157 e" Gasket, CyUnderHead 51 273113 e.* Gasket, CarburetorMounting

8 495774 BreatherAssembly 55 497442 Housing,Rewind Starter

9 27549 e* Gasket, Valve Cover 56 498144 Pulley,Rewind Starter

10 94621 Screw, Breather Mounting 58 66894 Rope, Rewind Starter

11 66579 Grommet, BreatherTube (Cut to Required Length)

12 270080 *Gasket, Crankcase, Standard 59 396892 Insed, StarterHandle

.015" 60 393152 Handle, Rewind Starter

270125 •Gasket, Crankcase .005" Thick 65 94904 Screw,HousingMounting

270126 *Gasket, CrankCase .009" Thick 65A 94669 Screw, Hex

13 94221 Screw, CylinderHead 2-3/32." 73 225176 Screen, Rotating

14 94679 Screw, CylinderHead 2-15/32' 81 222263 Lock,Screw

15 94916 Plug, Pipe, Hex Socket 90 498295 Carburetor Assembly

16 492088 Crankshaft 95 93499 Screw_Throttle Valve to Shaft

94388 Gear Key, Crankshaft g6 223793 Throttle.Carburetor

18 494044 Cover Assembly,Crankcase 97 497600 Shaftand Lever, Throttle

19 495660 Bushing,Crankcase Cover 1(38 497230 Valve and Shaft Group,Choke

20 294606 * Seal, Oil 111 262715 Spring,Choke

21 281658 Plug,Oil Filler 118 231533 Valve, Needle

22 94980 Screw, Cover Mounting 121 495606 Carburetor Overhaul Kit

94917 Stud, Hex Ddve 124 94913 Screw, Hex Head

(Use inpositions4 & 5 of 127 220352 Plug,Welch

crankcase cover) 127A 223789 Plug, Welch

23 393673 Flywheel,Magneto 147 231955 Jet, Pilot

24 222698 Key, Flywheel 152 260575 Spring,Ti_rottleAdjustment

25 298904 PistonAssembly,Standard Size 154 9352.7 Screw, Machine, RoundHead

298905 PistonAssembly .010" Oversize 162 490589 Screw and Collar

298908 PistonAssembly .020'Oversize 163 271935 e* Gasket,AirCisanerMountlng

298907 PistonAssembly .030" Oversize 180 495405 Tank Assembly,Fuel

26 298962 RingSet, Piston,Standard Size 161 494559 Cap, FueITank

299742 RingSet, PistOn,Standard, 190 94924 Screw, Fuel Tank

Chrome 190A 94919 Screw,Fuel Tank Mounting

298983 RingSet, Piston .010' Oversize 191 272489 o* Casket, FueITank to Carburetor

298984 Ring Set, Piston .020" Ovemize 200 223886 Guide, Air

298985 Ring Set, Piston .030' Oversize 202 262280 Unk, Mech. Governor

27 26026 Lock, Piston Pin

28 298909 Pin Assembly,Piston, Standard Included in Gasket Set (495603)

298908 Pin Assembly,PistOn .005" Included in CarburetorOverhaul Kit (495606)

Over eIncluded inValve Overhaul Gasket Set (498529)

29 299430 Rod Assembly,Connecting

390459 Rod Assembly,Connecting NOTE: All componentdimensionsgiven in U.S. inches

.020' UnUemlze Crankpin Bore 1 ir_ch= 25A mm

30 225183 Dipper,ConnectingRod

32 94745 Screw, Connecting Rod

33 211119 Valve, Exhaust

34 261044 Valve, Intake

35 260552 Spring, Intake Valve

36 26476 Spdng, Exhaust Valve

37 222443 Guard, Rywheel

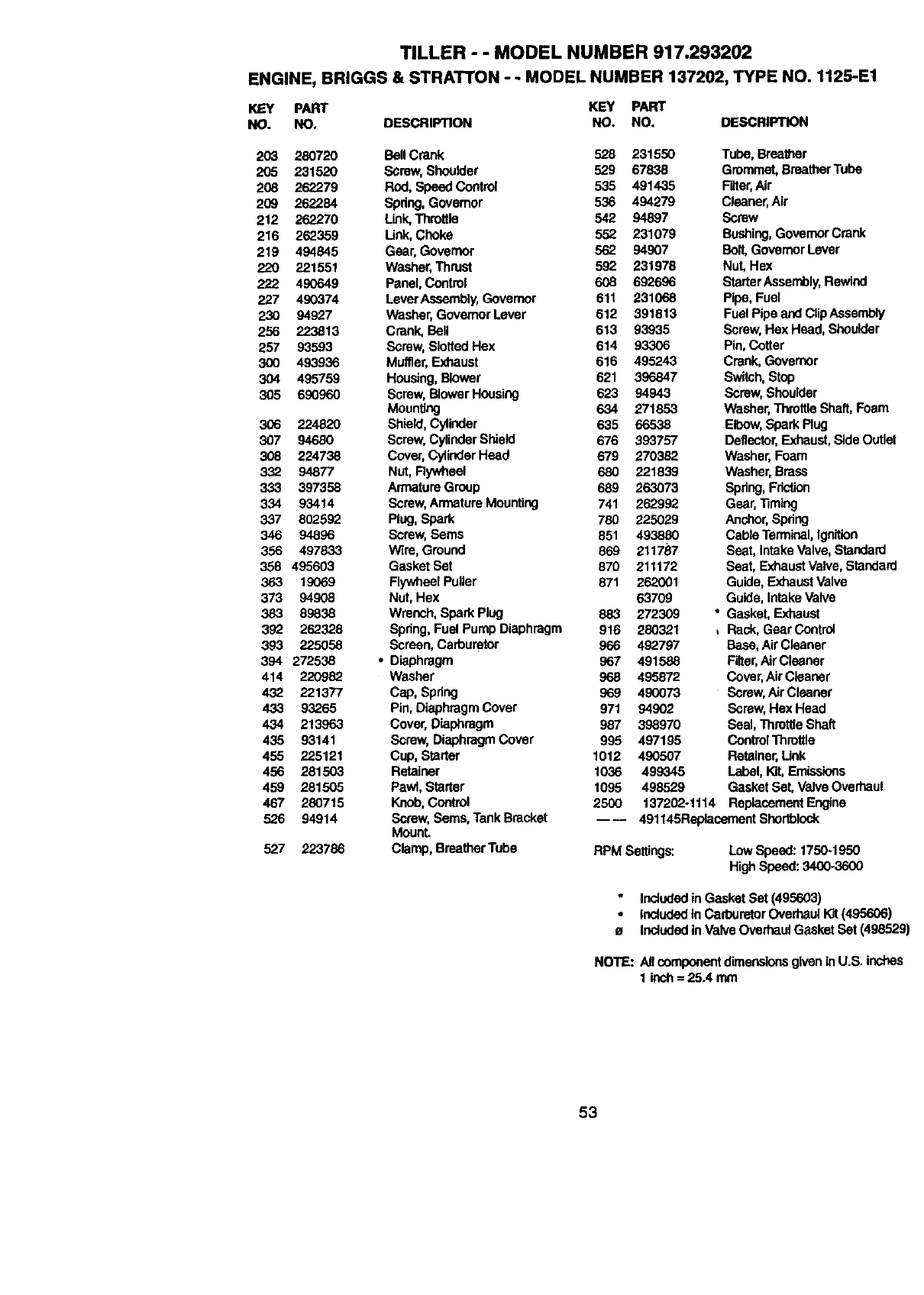

TILLER - - MODEL NUMBER 917.293202

ENGINE,BRIGGS& STRATTON- - MODELNUMBER137202,TYPENO.1125-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

203 280720 BullCrank 528 231550 Tube, Breather

205 231520 Screw, Shoulder 529 67838 Grommet,BreatherTube

208 262279 Rod, Speed Control 535 491435 Filter,Air

209 262284 Spdng,Govemor 536 494279 Cleaner, Air

212 262270 Link,Throttle 542 94897 Screw

216 262359 Unk, Choke 552 231079 Bushing,GovernorCrank

219 494845 Gear, Governor 562 94907 Bolt,GovemorLever

220 221551 Washer, Thrust 592 231978 Nut, Hex

222 490649 Panel, Control 608 692696 StarterAssembly,Rewind

227 490374 LeverAssembly, Governor 611 231068 Pipe, Fuel

230 94927 Washer, Governor Lever 612 391813 Fuel Pipe and ClipAssembly

256 223813 Crank, Bull 613 93935 Screw, Hex Head, Shoulder

257 93593 Screw, SlottedHex 614 93306 Pin,Cotter

300 493936 Muffler,Exhaust 616 495243 Crank, Governor

304 495759 Housing,Blower 621 396847 Switch,Stop

305 690960 Screw, Slower Housing 623 94943 Screw, Shoulder

Mounting 634 271853 Washer, ThrottleShaft,Foam

306 224820 Shield, Cylinder 635 66538 Elbow, Spark Plug

307 94680 Screw, CylinderShield 676 393757 Deflector,Exhaust, Side Outlet

308 224738 Cover, CylinderHead 679 270382 Washer, Foam

332 94877 Nut, Rywheal 680 221839 Washer, Brass

333 397358 Armature Group 689 263073 Spring,Friction

334 93414 Screw, Armature Mounting 741 262992 Gear, Timing

337 802592 Ping, Spark 780 225029 Andnor,Spring

346 94896 Screw, Sems 851 493880 CableTerminal,Ignition

356 497833 Wire, Ground 869 211787 Seat, Intake Valve,Standard

358 495603 Gasket Set 870 211172 Seat, ExhaustValve, Standard

363 19069 FlywheelPuller 871 262001 Guide, ExhaustValve

373 94908 Nut, Hex 63709 Guide, Intake Valve

383 89838 Wrench, Spark Plug 883 272309 * Gasket, Exhaust

332 262328 Spdng, Fuel Pump Diaphragm 916 280321 , Rack, Gear ContrO4

393 225058 Screen, Carburetor 966 432797 Base, Air Cleaner

394 272538 •Diaphragm 967 491588 Filter,AirCleaner

414 220982 Washer 968 495872 Cover, AirCloaner

432 221377 Cap, Spring 969 490073 Screw, AirCleaner

433 93265 Pin, Diaphragm Cover 971 94902 Screw, Hex Head

434 213963 Cover, Diaphragm 987 398970 Seal, Throttle Shaft

435 93141 Screw, Diaphragmcover 995 497195 Control Throttle

455 225121 Cup, Starter 1012 490507 Retainer,Link

456 281503 Retainer 1036 499345 Label,Kit,Emissions

459 281505 Paw1,Starter 1095 498529 Gasket BUt, ValveOverhaul

467 280715 Knob, Control 2500 137202-1114 Replacement Engthe

526 94914 Screw, Seres,Tank Bracket ---- 491145Replaoament Shortblock

Mount.

527 323786 Clamp, BreatherTube RPM Settings: Low Speed: 1750-1950

HighSpeed: 3400-3600

Includedin Gasket Set (495603)

Includedin CarburetorOverhaul Kit(495606)

•Includedin Valve Overhaul Gasket Set (498529)

NOTE: Allcomponentdimensionsgivenin U.S. inches

1 inch = 25.4 mm

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME sM(1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio

1-800-676-5811

In Canada for all your service and parts needs call

Au Canada pour tout le service ou les pi_ces

1-800-665-4455

For the repair or replacement parts you need:

-Call 6 am-11pm CST, 7 days a week

- PartsDirect =,

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio

1-800-659-7084

For the location of a Sears Parts and Repair Center

in your area:

Call 24 Hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance

Agreement or to inquire about an existing Agreement:

Call 9 am-5 pro, Monday -Saturday

1-800-827-6655

•SEARS •

HomeCentrarM

166493 Rev. 2 2.15.98TR Printed in U.S.A.

Craftsman 917293202 User Manual TILLER Manuals And Guides 99040587

CRAFTSMAN Rear Tine, Gas Tiller Manual 99040587 CRAFTSMAN Rear Tine, Gas Tiller Owner's Manual, CRAFTSMAN Rear Tine, Gas Tiller installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
