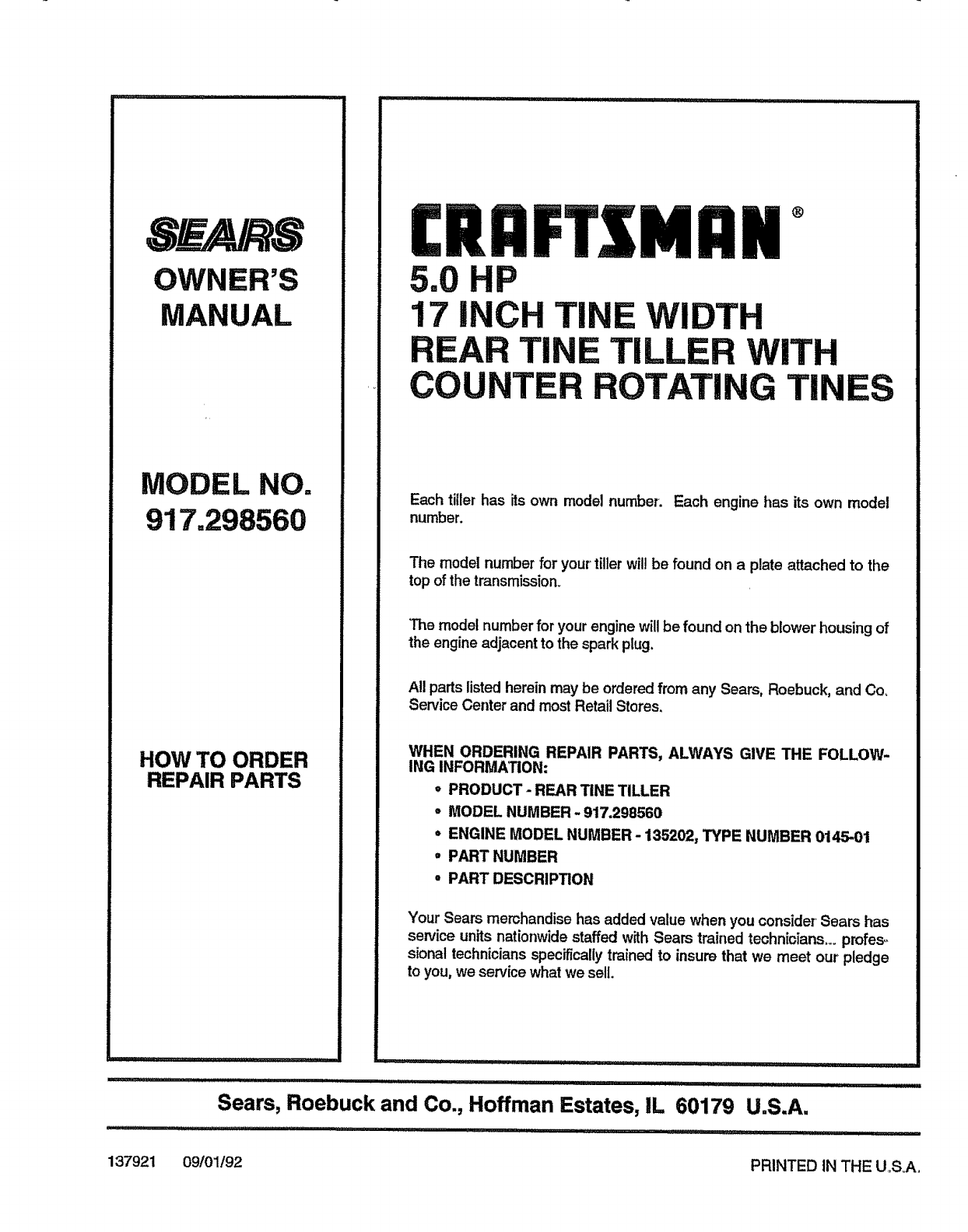

OWNER'S

MANUAL

MODEL NO.

917,298560

Caution:

Read and follow

all Safety Rules

and instructions

Before Operating

This Equipment

[RI:IFTXMAN

5.0 HP

17 INCH TINE WIDTH

REAR TINE TILLER WITH

COUNTER ROTATING TINES

•Assembly

•Operation

°Customer Responsibilities

°Service and Adjustments

°Repair Parts

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

.............................. IlllllllllllUIUIIIIII

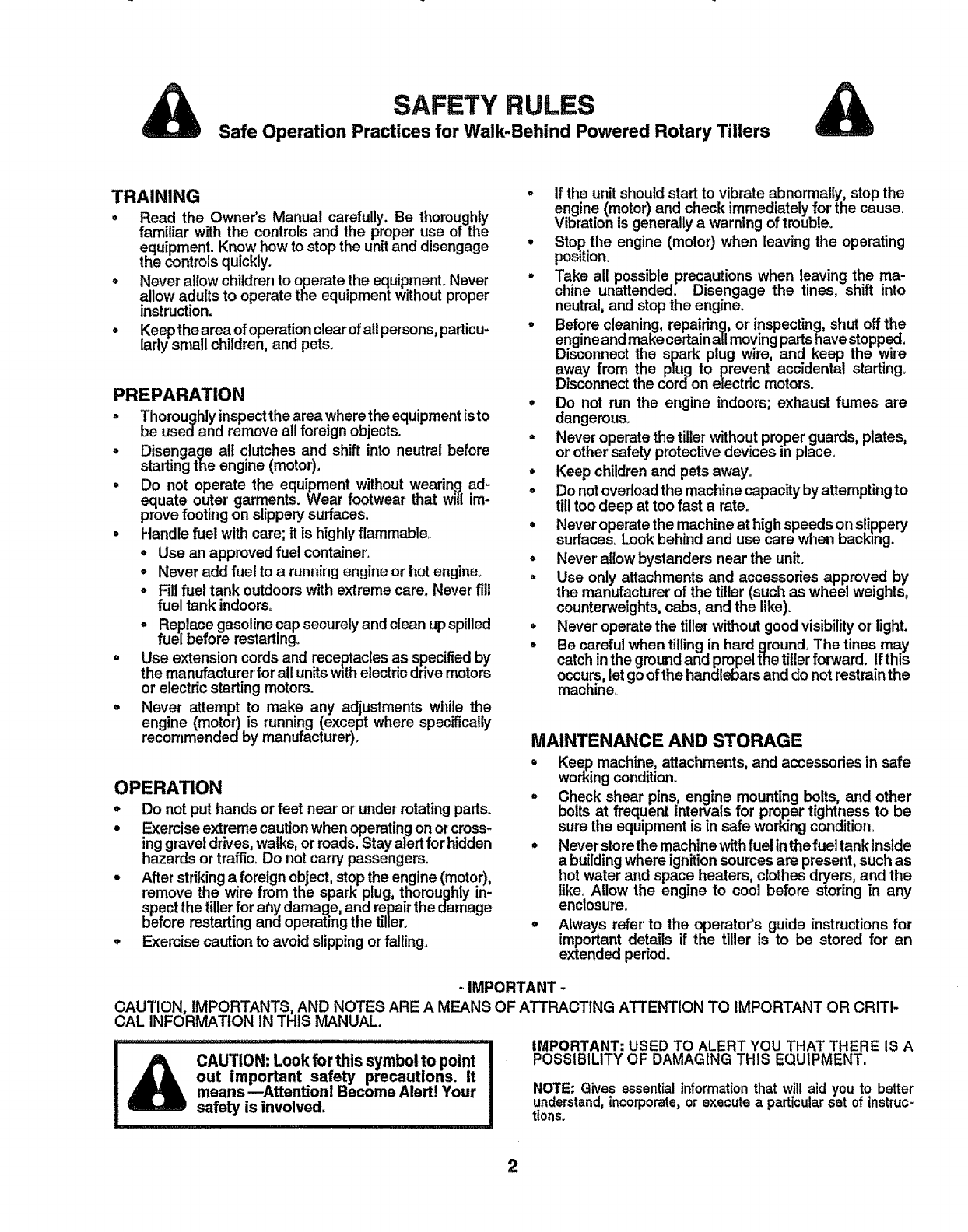

SAFETY RULES

Safe Operation Practices for Walk-Behind Powered Rotary Tillers

TRAINING

• Read the Owner's Manual carefully. Be thoroughly

familiar with the controls and the proper use of the

equipment. Know how to stop the unit and disengage

the controls quickly.

°Never allow childrento operate the equipmenL Never

allow adults to operate the equipment without proper

instruction.

o Keep the area of operation clear of al! persons,particu-

larly small children, and pets.

PREPARATION

°Thoroughlyinspectthe area where the equipment is to

be used and remove all foreign objects.

° Disengage all clutches and shift into neutral before

starting the engine (motor).

° Do not operate the equipment without wearing ad-

equate outer' garments. Wear footwear that witl im-

prove footing on slippery surfaces.

oHandle fuel with care; it is highly flammable.,

• Use an approved fuel container'.

,, Never add fuel to a running engine or hot engine_

° Rlt fuel tank outdoors with extreme care. Never fill

fuel tank indoors.

° Replace gasoline cap securely and clean up spilled

fuel before restarting.

° Use extension cords and receptacles as specified by

the manufacturer' for all unitswith electric drive motors

or electric starting motors.

o Never attempt to make any adjustments while the

engine (motor_ is running (except where specificaUy

recommended by manufacturer)_

OPERATION

oDo not put hands or feet near' or under rotating parts°

•Exercise extreme caution when operating on or cross-

ing gravel drives, walks, or roads. Stay alert for hidden

hazards or traffic° Do not carry passengers.

°After striking aforeign object, stop the engine (motor),

remove the wire from the spark plug, thoroughly in-

spect the tiller for at,,y,damage, and repair the damage

before restarting and operating the tiller°

•Exercise caution to avoid slipping or falling.

° if the unit should start to vibrate abnormally, stop the

engine (motor) and check immediately for' the cause,

Vibration is generally a warning of trouble.

°Stop the engine (motor) when leaving the operating

position°

° Take all possible precautions when leaving the ma-

chine unattended. Disengage the tines, shift into

neutral, and stop the engine.

oBefore cleaning, repairing, or' inspecting, shut off the

engine and make certain all moving partshave stopped.

Disconnect the spark plug wire, and keep the wire

away from the plug to prevent accidental starting.

Disconnect the cordon electric motors°

•Do not run the engine indoors; exhaust fumes are

dangerous_

°Never operate the tillerwithout proper guards, plates,

or other safety protective devices in place,

°Keep children and pets away.

o Do notoverloadthe machine capac_3'by attemptingto

tilltoo deep at too fast a rate.

=Never operate the machine at highspeeds on slippery

surfaces. Look behind and use care when backing.

o Never allow bystanders near the unit.

° Use only attachments and accessories approved by

the manufacturer of the tiller (such as wheel weights,

counterweights, cabs, and the like).

°Never operate the tiller without good visibility or light.

° Be careful when tillingin hard ground, The tines m.ay

catch inthe ground and propel the tiller forward. If this

occurs, let go ofthe handlebars and do not restrain the

machine_

MAINTENANCE AND STORAGE

•Keep machine, attachments, and accessories in safe

workingcondition.

°Check shear pins, engine mounting bolts, and other

bolts at frequent intervals for proper tightness to be

sure the equipment is in safe working condition.

• Neverstore the machinewithfuel inthefuel tank inside

abuildingwhere ignitionsources are present,such as

hot water and space heaters, clothes dryers, and the

like. Allow the engine to cool before storing in any

enclosure_

° Always refer'to the operator's guide instructionsfor'

important details if the tiller is to be stored for an

extended period°

-IMPORTANT -

CAUTION, IMPORTANTS, AND NOTES ARE A MEANS OF ATTRACTING ATTENTION TO IMPORTANT OR CRITI-

CAL INFORMATION IN THIS MANUAL.

CAUTION: Look for this symbol to point

out important safety precautions, it

means --Attention! Become Alert! Your

safety is involved.

IMPORTANT: USED TO ALERT YOU THAT THERE IS A

POSSIBILITY OF DAMAGING THIS EQUIPMENT,

NOTE: Gives essential information that will aid you to better

understand, incorporate, or execute a particular set of instruc-

ttoneo

CONGRATULATIONS on your purchase of a Sears Tiller.

it has been designed, engineered and manufactured to

giveyou the best possibledependability and performance°

Should you experience any problems you cannot easily

remedy, please contact your nearest authorized Sears

Service Center/Department. They have competent, weiF

trainedtechniciansand the propertoolsto serviceorrepair

this unit.

Please read and retain this manual° The instructionswill

enable you to assemble and maintain your tiller properiy_

Always observe the "SAFETY RULES'L

MODEL

NUMBER 917.298560

SERIAL

NUMBER

DATE OF

PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE

FOUND ON THE MODEL PLATE ATTACHED TO

THE "TOPOF THE TRANSMISSION_

YOU SHOULD RECORD BOTH SERIAL NUMBER

AND DATE OF PURCHASE ,&kiD KEEP IN A SAFE

PLACE FOR FUTURE REFERENCE_

PRODUCT SPECIFICATIONS

HORSEPOWER: 5,0 HP

DISPLACEMENT: 12,,57cuoino

GASOLINE CAPACITY: 3 Quarts

Unleaded Regular

OIL :SAE 30W (Above 32°F)

(CAPACITY: 20 oz ) SAE 5W-30 (Below 32aF)

SPARK PLUG : Champion

(GAP: 030") RJ19LM (STD361458)

MAINTENANCE AGREEMENT

ASears Maintenance Agreement is available onthisprod-

uct. Contact your nearest Sears store for details.

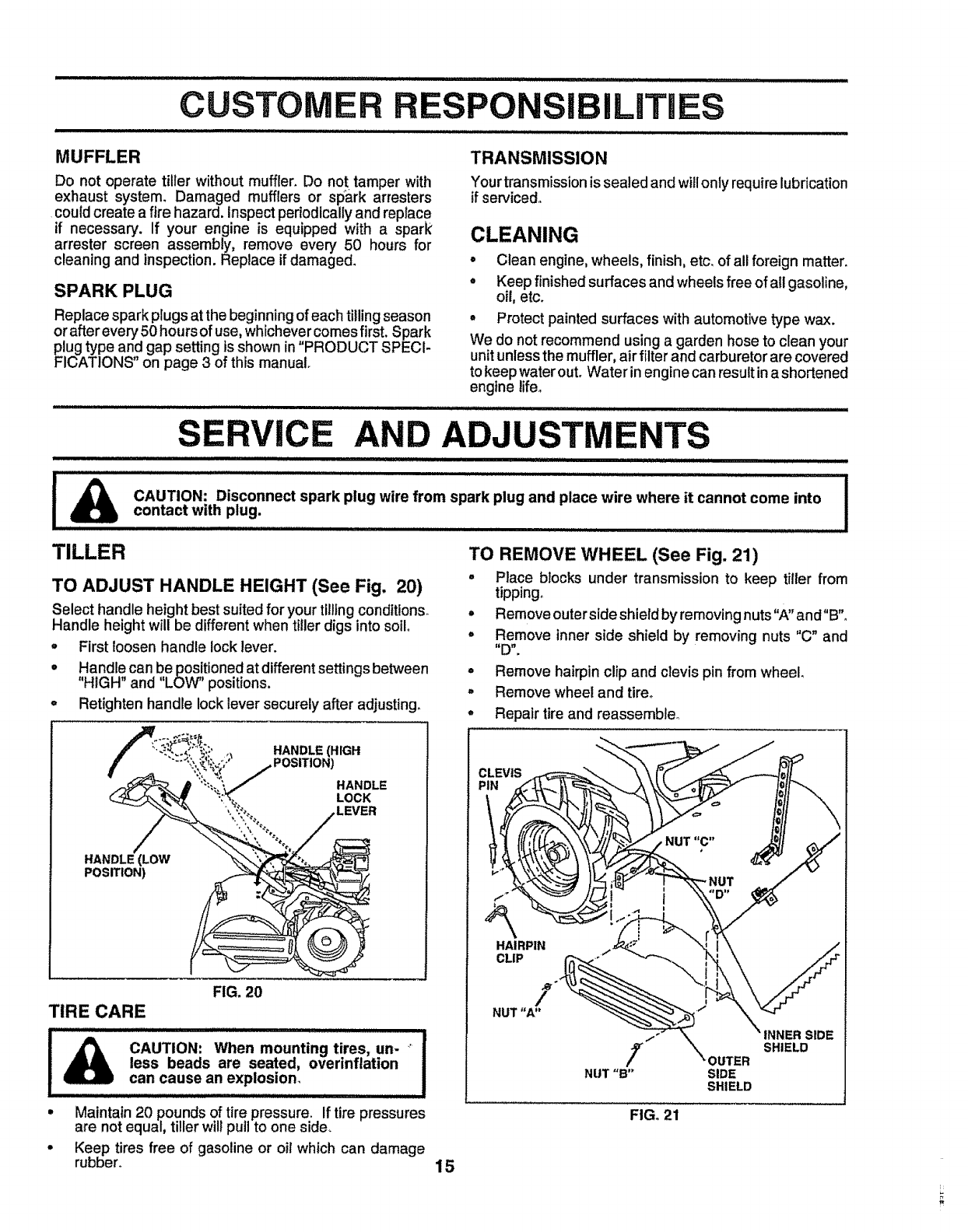

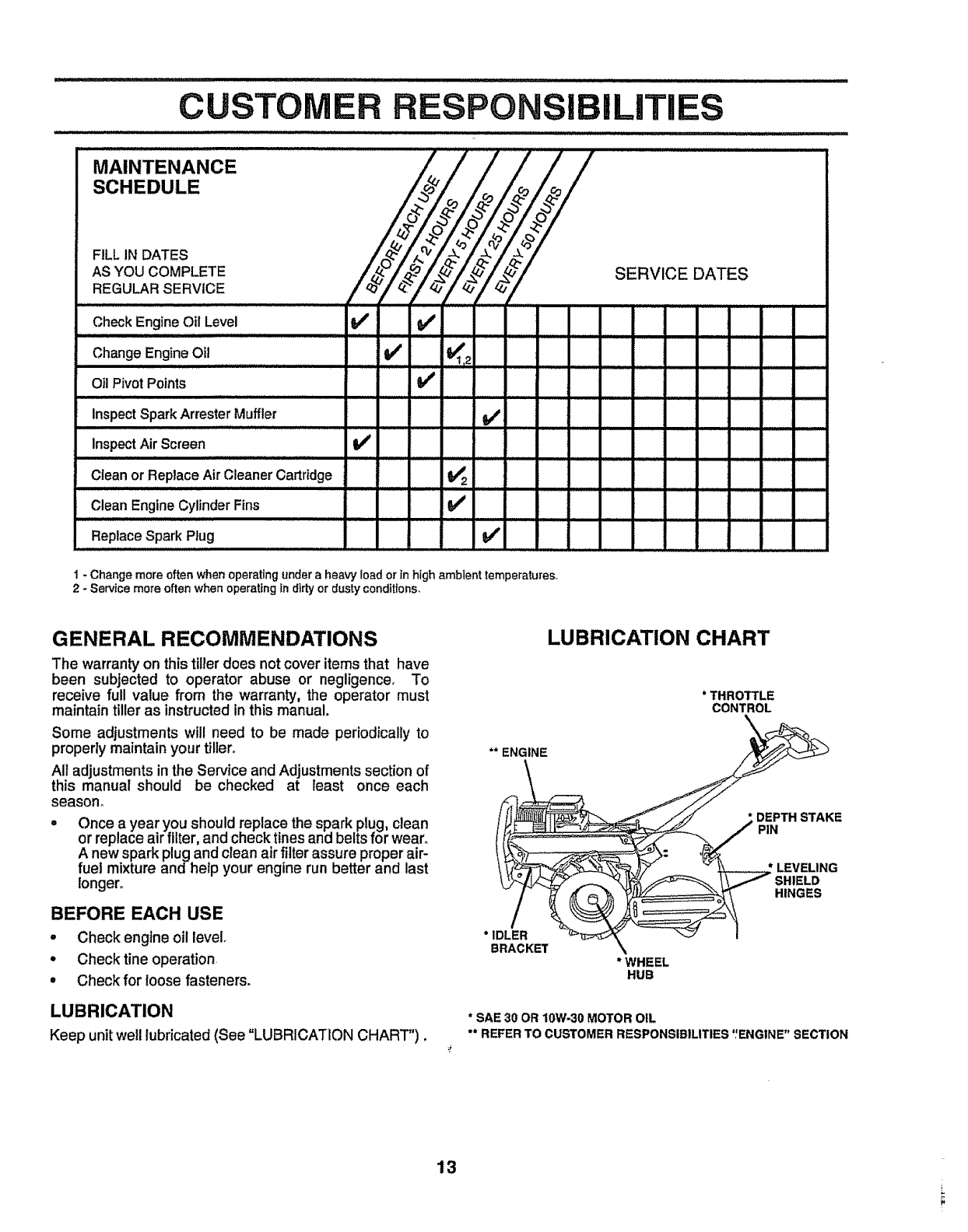

CUSTOMER RESPONSIBILITIES

*Read and observe the safety rules°

, Follow a regular schedule inmaintaining, caring for and

using your tiller_

° Follow the instructions under the "Customer

Responsibilities" and "Storage" sections of this Owner's

Manual.

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN TILLER

For two years from date of purchase, when this Craftsman Tiller is maintained,lubricated,and tuned up accordingto

the operating and maintenance instructionsin the owner's manual, Sears will repair free of charge any defect in

material or workmanship°

This Warranty does not cover:

, Expendable items which become worn during normal use, such as tines, spark plugs, air cleaners and belts.

o Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to

maintain the equipment according to the instructionscontained in the owner's manual.

= tf this Craftsman Tiller is used for commercial or rental purposes, this Warranty applies for only 30 days from the

date of purchase.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN TtLLER TO THE "NEAREST SEARS

SERVICE CENTER/DEPARTMENT IN THE UNITED STATES_ THIS WARRANTY APPLIES ONLY WHILE THIS

PRODUCT tS IN USE IN THE UNITED STATES.

This Warranty gives you specific legal rights,and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

-IMPORTANT-

This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered,

brush-covered or grass covered land unless the engine's exhaust system is equipped with a spark arrester meeting

applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the

operator.

In the state of California the above ls required by law (Section 4442 of the California Public Resources Code). Other states

may have similar laws. Federallawsapplyon federallands. SeeyourSearsAuthorizedServiceCentedDepartmentforspark

arrester. Refer to the Repair Parts section of this manual for part number.

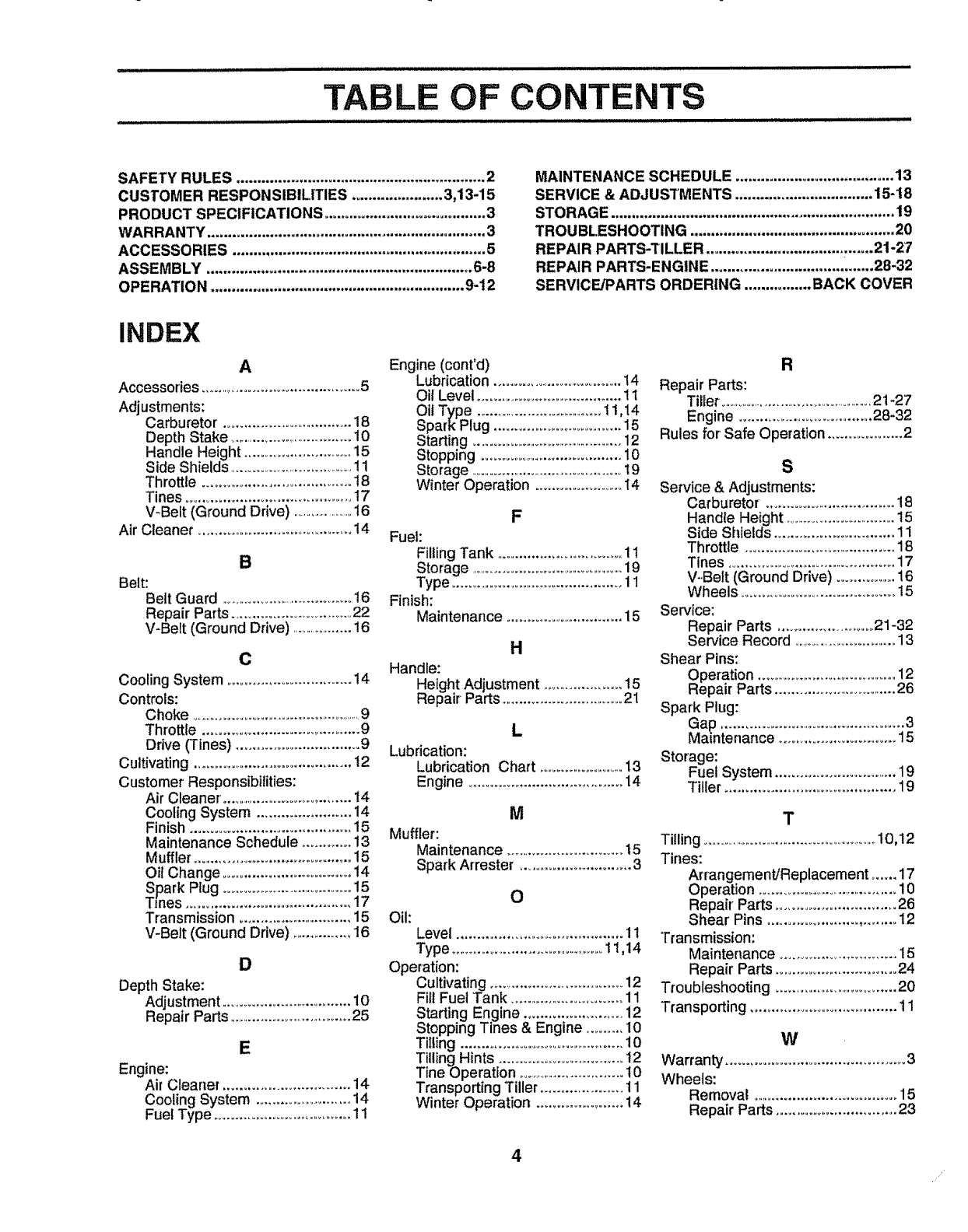

TABLE OF CONTENTS

11,//u==Jl,,Ju,Jull,JH/,,,Ju,,HU,J,/,III,J,,,,J,,,,H=

SAFETY RULES ............................................................ 2

CUSTOMER RESPONSIBILITIES ...................... 3,13-15

PRODUCT SPECIFICATIONS ....................................... 3

WARRANTY ................................................................... 3

ACCESSORIES ............................................................. 5

ASSEMBLY ................................................................ 6-8

OPERATION ............................................................. 9-12

MAINTENANCE SCHEDULE ...................................... 13

SERVICE & ADJUSTMENTS ................................. 15-18

STORAGE .................................................................... 19

TROUBLESHOOTING ................................................. 20

REPAIR PARTS-TILLER ........................................ 21-27

REPAIR PARTS-ENGINE ................................ .......28-32

SERVICE/PARTS ORDERING ................ BACK COVER

INDEX

Accessories ............................................5

Adjustments:

Carburetor. ............................... 18

Depth Stake ......................................10

Handle Height .......................... 15

Side Shields ......................................11

Throttle .................................... 18

Tines ........................................ 17

V-Belt (Ground Drive) .......................16

Air Cleaner ..........................................14

Belt:Belt Guard .......................................16

Repair Parts ...................................22

V-Belt (Ground Drive) .....................16

Cooling System ................................14

Controls:

Choke ...........................................................9

Throttle ..........................................9

Drive (Tines) ............................... 9

Cultivating ....................................... 12

Customer Responsibilities:

Air Cleaner. ...................................14

Cooling System ....................... 14

Finish ....................................... 15

Maintenance Schedule ............ 13

Muffler ........................................ 15

Oil Change ......................................14

S ark Plug 15

Trees ......................................... 17

Transmission .............................15

V-Belt (Ground Drive) ................16

Depth Stake:

Adjustment ...................................10

Repair Parts ....................................25

Engine:

Air Cleaner ................................ 14

Cooling System ............................14

Fuet Type ................................... 11

Engine (cont'd)

Lubrication...................................14

Oil Level .........................................11

Oit Type ...................................t 1,14

Spark Plug ................................ 15

Starting ...................................................12

Stopping ........................................10

Storage .........................................19

Winter Operation ..........................14

Fuel:

Filling Tank .................................11

Storage ..............................................19

Type ..............................................11

Finish:

Maintenance ...............................15

Handle:

Height Adjustment ......................15

Repair Parts ................................21

Lubrication:

Lubrication Chart ..........................13

Engine ....................................... 14

Muffler:

Maintenance ..............................t5

Spark Arrester, ............................3

Oil:

Level ......................................... 11

Type ...........................................11,14

Operation:

Cultivating ...................................12

Fill Fuel Tank ..................................11

Starting Engine ........................ 12

Stopping Tines & Engine ............10

Tilling............................................10

TillingHints...............................12

Tine Operation .................................t0

Transporting Tiller ....................11

Winter Operation ......................14

RepairParts:

Tiller.................................................21-27

Engine ................................ 28-32

Rules for' Safe Operation .................. 2

Service & Adjustments:

Carburetor. ...............................18

HandleHeight..................................15

Side Shtetds .............................11

Throttle .......................................18

Tines................................................17

V.,Belt (Ground Drive) ...............16

Wheels ............................................15

Service:

Repair Parts .........................21-32

Service Record .............................13

Shear Pins:

Operation .........................................12

Repair Parts .............................. 26

Spark Plug:

Gap ................................................3

Mamtenance ............................ 15

Storage:

Fuel System ..............................19

Tiller ......................................... 19

Tilling....................................................i0,12

Tines:

Arrangement/Replacement ...... 17

Operation......................................I0

Repair' Parts ............................. 26

Shear'Pins...............................12

Transmission'.

Maintenance ...............................15

Repair Parts ............................. 24

Troubleshooting ..............................20

Transporting ..................................... 11

Warranty ...............................................3

Wheels:

Removal ................ ................... 15

Repair Parts .............................. 23

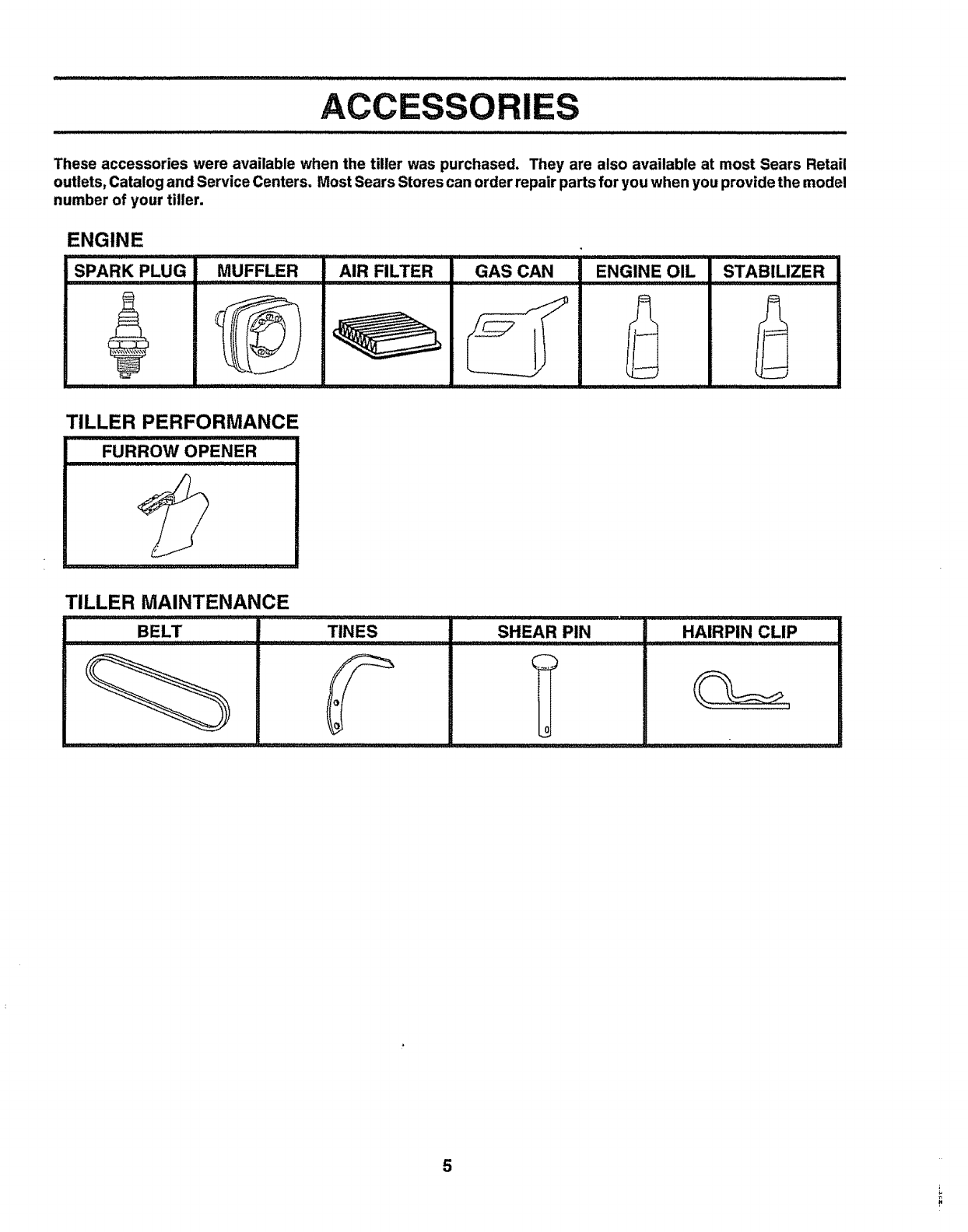

These accessories were available when the tiller was purchased. They are also available at most Sears Retail

outlets, Catalog and Service Centers. Most Sears Stores can order repair parts for you when you provide the model

number of your tiller.

ENGINE

SPARK PLUG

6MUFFLER AIR FILTER GAS CAN 'IIH" I

ENGINE OIL

......................i1,1,

STABILIZER

TILLER PERFORMANCE

,,, ,,,, ,, , ,,,

FURROW OPENER

, , ,,, ,,,,,,,,, ,

TILLER MAINTENANCE

TINES SHEAR PIN

"A="PmNCLIP

IViBLY

Your'new tiller has been assembled atthe factory withexception of thosepartsleft unassembled for shipping purposes. To

ensure safeand proper operation of your tillerall parts and hardware you assemble must be tightened securely, Use the

correct tools as necessary to insureproper tiglltness,

TOOLS REQUIRED FOR ASSEMBLY

Asocket wrench set willmake assemblyeasier, Standard

wrench sizes are listed.

(t) Utilityknife

(1) Wire cutter

(1) Screwdriver

(1) Tire pressure gauge

(1) Pair of pliers

(1) 9/16" wrench

OPERATOR'S POSITION (See Fig. 1)

When right or left hand is mentioned in this manual, it

means when you are in the operating position (standing

behind tiller handles).

FRONT

LEFT RIGHT

OPERATOR'S

POSITION

FIG, 1

_ 7 IIIIIIIIIIII IIII II II LJ

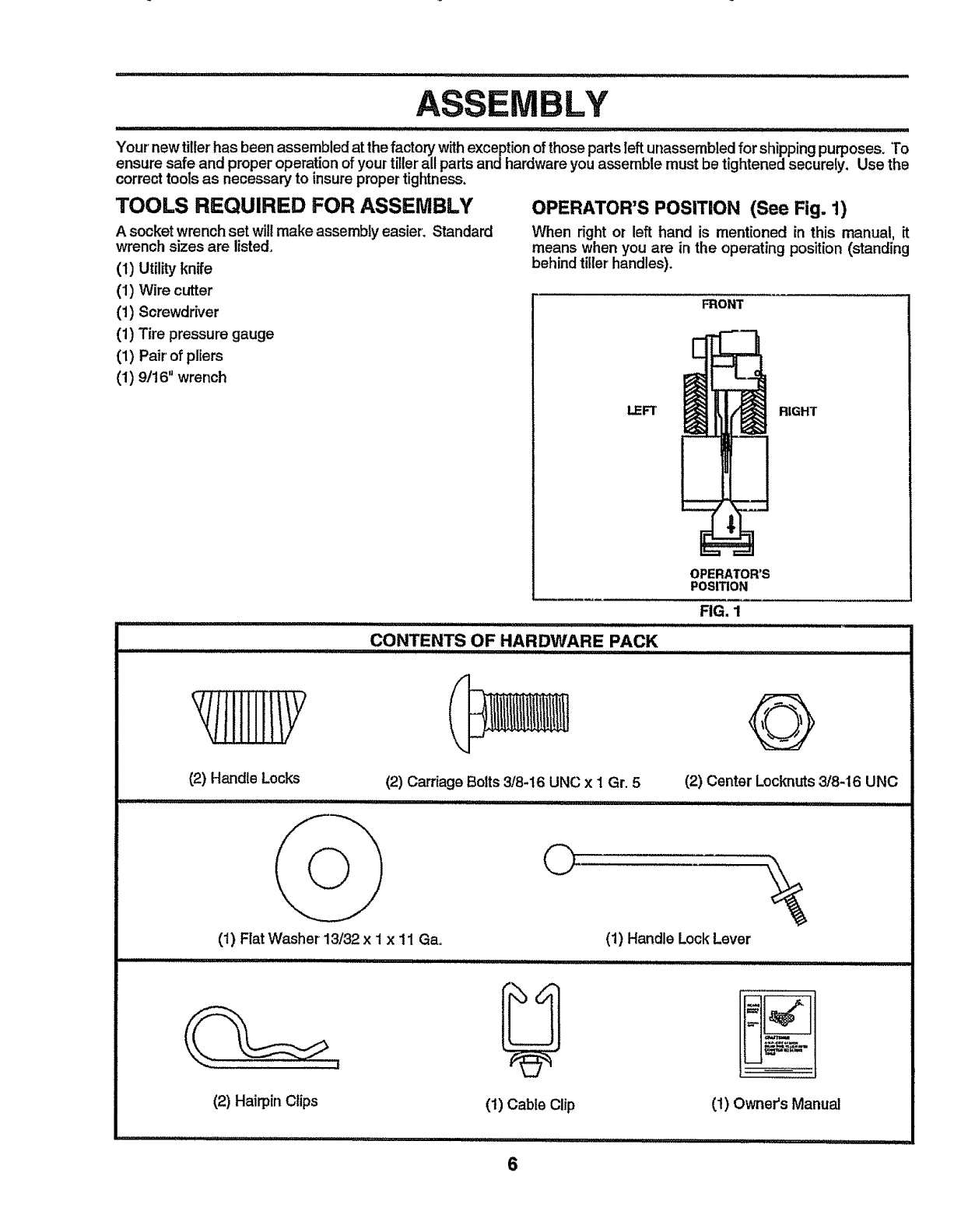

CONTENTS OF HARDWARE PACK

IIIIIIIIIIIIII II LI IIII I I I , iiiiiiii I i, II .....................................

(2) Handle Locks

(t) Fiat Washer 13/32 x 1x 11 Gao

(2) Hairpin Clips

(2) Carriage Bolts 3/8-16 UNC x i Gr. 5 (2) Center Locknuts3/8-16 UNC

(!) Cable Clip

(1) Handle Lock Lever

(1) Owner's Manual

i,iiiil,l,,i................

ASS LY

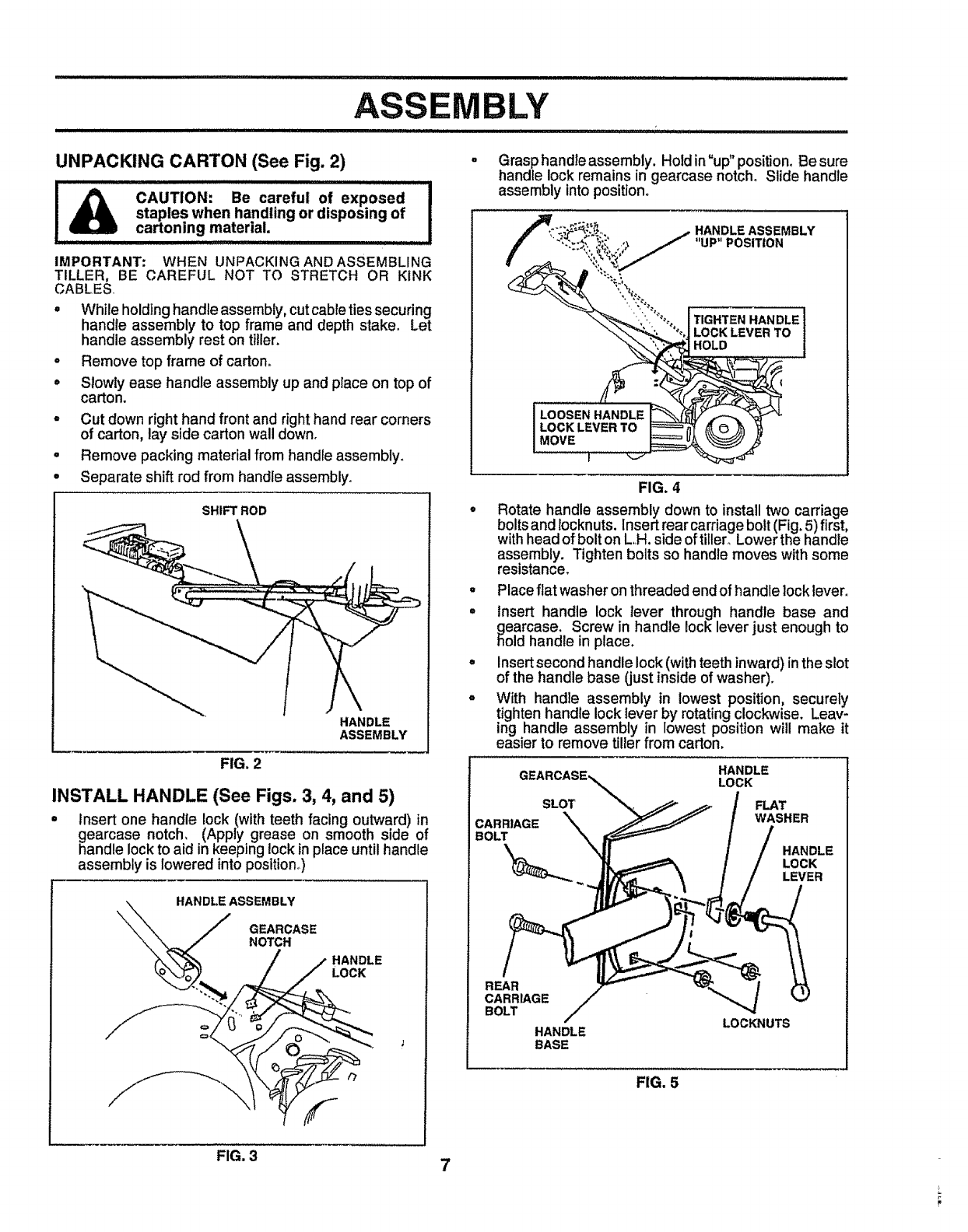

UNPACKING CARTON (See Fig. 2)

l& ...........I

CAUTION: Be careful of exposed

staples when handling or disposing of

cartoning material.

IMPORTANT: WHEN UNPACKING AND ASSEMBLING

TILLER, BE CAREFUL NOT TO STRETCH OR KINK

CABLES.

oWhile holdinghandleassembly, cutcableties securing

handle assembly to top frame and depth stake. Let

handle assembly rest on tiller.

• Remove top frame of carton.

=Slowly ease handle assembly up and place on top of

carton.

- Cut down right hand front and right hand rear corners

of carton, lay side carton wall down.

° Remove packing material from handle assembly.

° Separate shift rod from handle assembly°

SHIFT ROD

FIG. 2

HANDLE

ASSEMBLY

INSTALL HANDLE (See Figs. 3, 4, and 5)

=Insert one handle lock (with teeth facing outward) in

gearcase notch. (Apply grease on smooth side of

handle lockto aid in keeping lockinplace untilhandle

assembly is lowered into position,)

_,,,..\ HANDLE ASSEMBLY

\"_\\. /GEARCASE

"-\ "--.._/ NOTCH

Grasphandle assembly. Hold in"up"position° Be sure

handle lock remains in gearcase notch. Slide handle

assembly into position.

HANDLE ASSEMBLY

"UP" POSITION

TIGHTEN HANDLE]

LOCK LEVER TO /

HOLD |

FIG. 4

° Rotate handle assembly down to installtwo carriage

bolts and Iocknuts. Insert rearcarriagebolt(Fig.5) first,

withheadof bolt on L,H. side oftitlero Lower the handle

assembly. Tighten bolts so handle moves with some

resistance.

° Place flat washer onthreaded endof handle locklever,

° Insert handle lock lever through handle base and

gearcase. Screw in handle lock lever just enough to

hold handle in place.

° Insertsecond handle lock(withteeth inward)inthe slot

of the handle base (just inside of washer).

°With handle assembly in lowest position, securely

tighten handle lock lever by rotatingclockwise. Leav-

ing handle assembly in lowest position will make it

easier to remove tillerfrom carton.

SLOT

CARRIAGE

BOLT

HANDLE

LOCK

FLAT

WASHER

HANDLE

LOCK

LEVER

REAR

CARRIAGE

BOLT

HANDLE

BASE

LOCKNUTS

FIG. 5

FIG. 3 7

BLY

CONNECT SHIFT ROD (See Fig. 6)

,, Insert end of shift rod farthest from bend into hole of

shift lever indicator,.

=Insert hairpin clip through hole of shift rodto secure,

•Insert other end of shift rod into hole in shiftlever°

- Insert second hairpin clipthrough hole of shift rod.

ATrACH THIS

ENDTO SHIFT

SHIFT ROD

ATTACHTHIS END

TO SHIFT LEVER

H/IJRPIN

CUP SHIFT

LEVER

INDICATOR

SHIFT

HNRPIN CLIP

SHIFTLEVER

FIG. 6

SHIFT ROD

REMOVE TILLER FROM CRATE

• Make sure shiftlever indicator is in "N" (neutral) posi-

tion (See Fig. 6)

•Tilt tillerforward by liftinghandle, Separate cardboard

cover from leveling shield,

°Rotate tiller handle to the right and pull tiller out of

carton.

INSERT CABLE CLiP (See Fig. 7)

• Insertplastic cable clip intohole on the back of handle

column, Pushcables into clip.

FIG. 7

CHECK TIRE PRESSURE

The tires on your unit were overinflated at the factory for

shipping purposes, Correct and equal tire pressure is

importantfor best tilling performance.

°Reduce tire pressure to 20 PSI.

HANDLE HEIGHT

Handle height may be adjusted to better suitoperator_

(See WO ADJUST HANDLE HEIGHT" in the Service

and Adjustments section of this manual)°

OPERATION

.........,,,,,.lll l ill,ll i ,,/,,,/

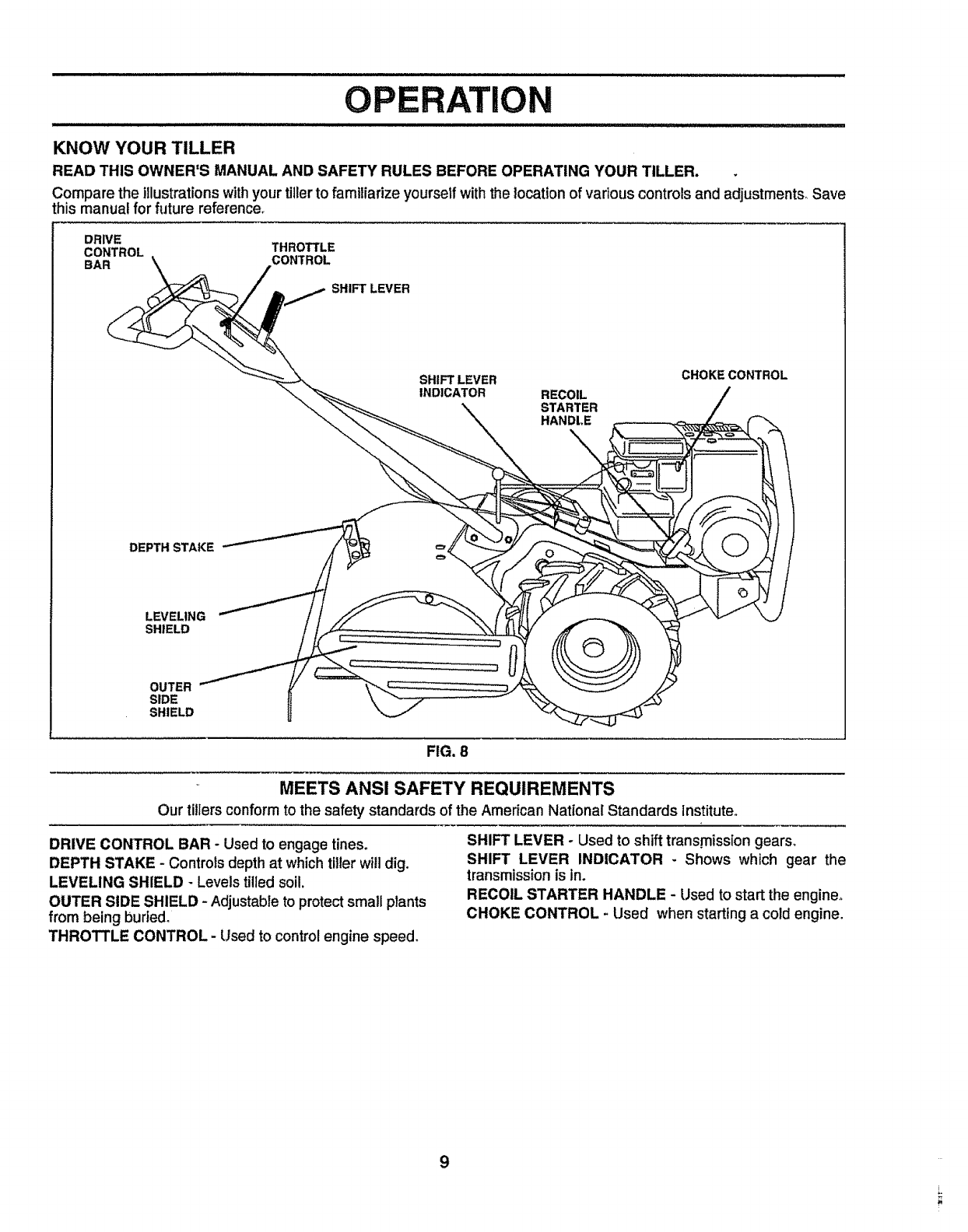

KNOW YOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

Compare the illustrationswithyour tillerto familiarize yourselfwiththe location of variouscontrols and adjustments_ Save

this manual for future reference_

DRIVE

CONTROL THROTTLE

BAR CONTROL

SHIFT LEVER

INDICATOR RECOIL

STARTER

HANDLE

CHOKE CONTROL

DEPTH STAKE

LEVELING

SHIELD

OUTER

SIDE

SHIELD

FIG. 8

MEETS ANSI SAFETY REQUIREMENTS

Our tillersconform to the safety standards of the American National Standards Institute°

DRIVE CONTROL BAR -Used to engage tines.

DEPTH STAKE - Controls depth at which tiller will dig.

LEVELING SHIELD - Levels tilled soil.

OUTER SIDE SHIELD - Adjustable to protect small plants

from being buried.

THROTTLE CONTROL- Used to control engine speed.

SHIFT LEVER - Used to shifttransmission gears,

SHIFT LEVER INDICATOR -Shows which gear the

transmissionis in,

RECOIL STARTER HANDLE - Used to start the engine,

CHOKE CONTROL -Used when starting a cold engine,

OPE N

The operation of any tiller can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields before starting

your tiller and while tilling. We recommend wide vision safety mask for over the spec-

tacles or standard safety glasses.

HOW TO USE YOUR TILLER

Know flow to operate all controls before adding fuel and

oil or attempting to start engine.

STOPPING (See Fig. 9)

"i"INESAND DRIVE

=Release drive control bar to stop movemenL

°Move shift lever to "N" (neutral) position_

ENGINE

°Move throttle controlto "STOP" position.

•Never use choke to stop engine.

TINE OPERATION -WITH WHEEL DRIVE

•Always release drive control bar before moving shift

lever into another position,

•Tine movement is achieved by movingshiftleverto =r'

(til!) position and engaging drive control bar.

FORWARD- WH EELS ONLY/TINES STOPPED

=Release drive controlbar and move shiftlever indicator

to "F" (forward)position. Engage drive controlbar and

tiller will move forward.

REVERSE- WHEELS ONLY/TINES STOPPED

° DO NOT STAND DIRECTLY BEHIND TILLER.

°Release the drive control bar.

•Move throttlecontrolto "SLOW" position°

• Move shiftlever indicator to "R" (reverse) position.

o Hold drive controlbar against Lhehandle to start tiller

movement,

DEPTH STAKE (See Fig, 10)

The depthstake can be raised orloweredto allowyou more

versatile tillingand cultivating, or to more easily transport

rout tiller.

SHALLOWEST

TILLING

DEEPEST

TILLING

DEPTHSTAKE

FIG. 10

POSITION

TILLING (See Fig. 11)

°Release depth stake pin. Pull the depth stake up for

increasedtillingdepth. Place depth stakepin in hole of

depth stake to lockin position.

°Place shift lever indicator=in '3" position.

° Hold the drive control bar against the handle to start

tilling movement. Tines and wheels will both turn

° Move throttlecontrolto"FAST" positionfor deep tilling.

To cultivate, throttlecontrol can be set at any desired

speed, depending on how fast or slow you wish to

cultivate.

IMPORTANT: ALWAYS RELEASE DRIVE CONTROL BAR

BEFORE MOVING SHIFT LEVER INTO ANOTHER

POSITION°

DEPTH STAKE PiN

"RELEASED" POSITION

"LOCKED"

POSITION

NUT "a"

SIDE SHIELD

FIG. 11

OPERATION

TURNING

oRelease the drive control bar°

oMove throttle control to "SLOW" position.

°Place shift lever indicator in "F" (forward) position_

Tines will not turn°

° Lift handte to raise tines out of ground°

=Swingthe handle in the oppositedirection youwishto

turn,being careful to keep feet and legs away from

tines,

•When you have completed your turn-around, release

the drivecontrolbarand lower handleoPlace shiftlever

in "T" (till)positionand move throttlecontrolto desired

speed. To begin tilling, hold drive controlbar against

the handle°

OUTER SIDE SHIELDS (See Fig. 11)

The front edges of the outer sideshieldsare slottedso that

the shields can be raised for deep tillingand lowered for

shallow tilling to protect small plants from being buried.

Loosen nut 'W' in slotand nut "B"oMove shieldto desired

position(both sides). Retighten nuts.

TRANSPORTING

_CAUTION: Before lifting or transport-

ing, allow tiller engine and muffler to

tool. Disconnectsparkplugwireo Drain

gasoline from fue! tank,

-Release the depth stake pin, Move the depth stake

down to the top hole for transportingthe tiller. Place

depth stake pln inhole of depth stake to lock in position,

This prevents tines from scuffing the ground,

• Place shift lever indicator in "F" (forward) position for

transporting.

oHold the drive control bar against the handle to start

tiller movement. Tines will not turn.

oMove throttle control to desired speed,

BEFORE STARTING ENGINE

IMPORTANT: BE VERY CAREFUL NOT TO ALLOW DIRT

TO ENTER THE ENGINE WHEN CHECKING OR ADDING

OIL OR FUEL. USE CLEAN OIL AND FUEL AND STORE

IN APPROVED, CLEAN, COVERED CONTAINERS. USE

CLEAN FILL FUNNELS,,

CHECK ENGINE OIL LEVEL (See Fig. 12)

•The engine in your unit has been shipped, from the

factory, aiready filled with SAE 30 summer weight oilo

=With engine level, clean area around oilfiller plug and

remove plugo

°Engine oil should be to point of overflowing, For

approx!mate capacity see "PRODUCT SPECIFICA-

TIONS on page 3 of this manual All oil must meet

AoP.IoService Classification SG.

=For cold weather operation you should change oil for

easier starting(See oilviscositychart in the Customer

Responsibilitiessection of thismanual).

°To change engine oil, see the Customer Responsibili-

ties section in this manual.

OIL

FILLER

PLUG

FIG. 12

ADD GASOLINE

°Fill fuel tank. Use fresh, clean, regular unleaded

gasoline,_ (Use of leaded gasoline will increase carbon

and lead oxide deposits and reduce valve life.

IMPORTANT= WHEN OPERATING IN TEMPERATURES

BELOW 32aF (0aC), USE FRESH. CLEAN, WINTER

GRADE GASOLINE TO HELP INSURE GOOD COLD

WEATHER STARTING,

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisturewhich leads to separation andformation of

acids during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the gas tank, start the

engine and let it run untilthe fuel lines and carburetor are

empty° Use fresh fuel next season. See Storage section

of thismanual for additional information. Never use engine

orcarburetorcleaner productsinthefuel tankorpermanent

damage may occur.

CAUTION: Fill to within 1/2 inch of top

of fuel tank to prevent spills and to

allow for fuel expansion. If gasoline is

accidentally spilled, move machine

away from area of spill. Avoid creating

any source of ignition until gasoline

vapors have disappeared.

Do not overfill. Wipe off any spilled oil

or fuel. Do not store, spill or use gaso-

line near an open flame.

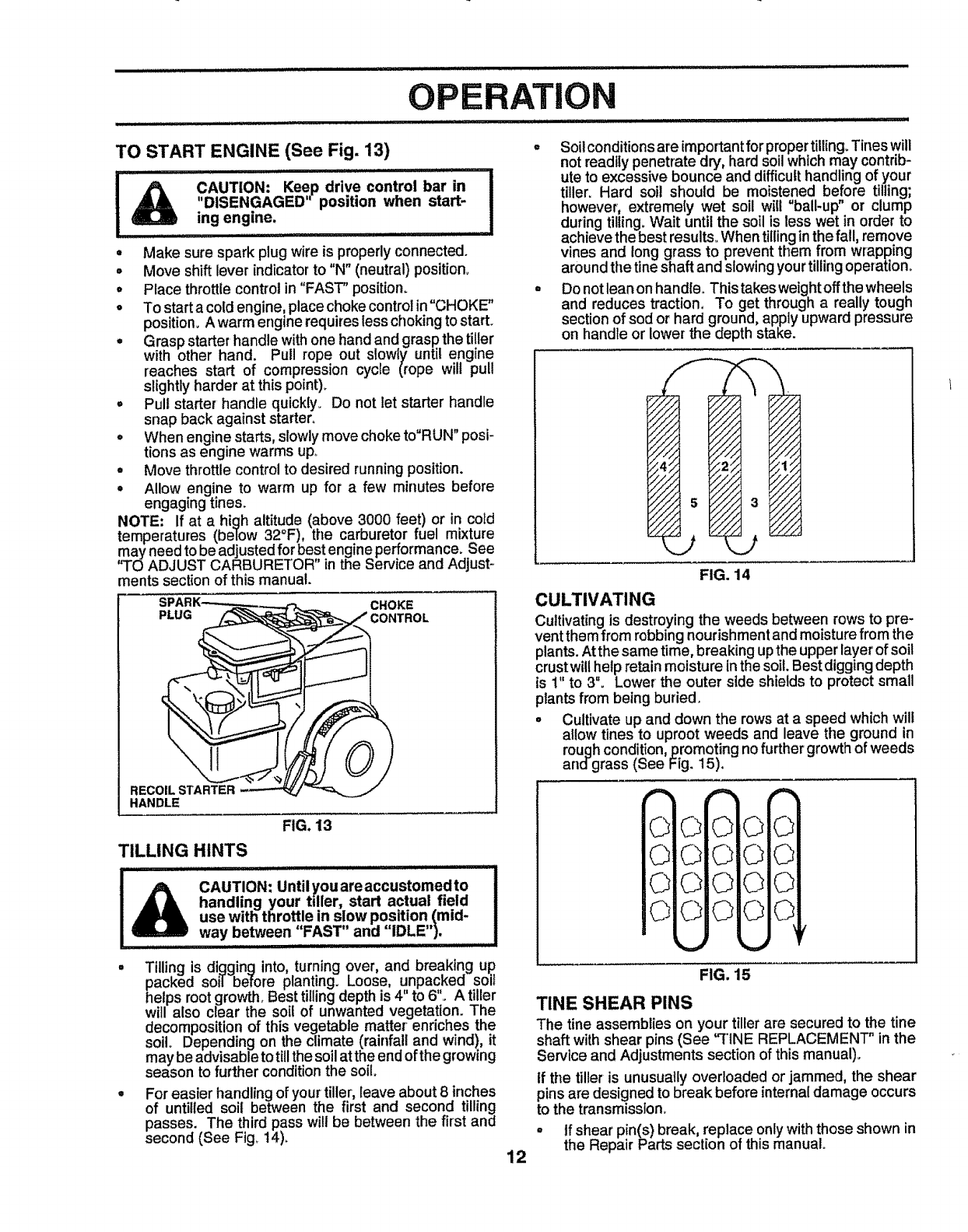

TO START ENGINE (See Fig. 13)

.............. i I II Ill I LIIIJ I _L ILUII IIIII

CAUTION: Keep drive control bar in J

DISENGAGED position when start- J

ing engine. J

............ i Hll _l j tll,l,,

,Make sure spark plug wire is properly connected.

°Move shift lever indicator to"N" (neutral) position.

, Place throttle control in "FAST" position.

=To start a cold engine, place choke control in"CHOKE"

position. Awarm engine requires less choking to starL

=Grasp starter handle with one hand and grasp the tiller

with other hand. Pull rope out slowly until engine

reaches start of compression cycle (rope wilt pull

slightly harder at this point).

,Pull starter handle quickly. Do not let starter handle

snap back against starter°

, When engine starts, slowly move choke to"RUN" posi-

tions as engine warms upo

° Move throttle control to desired running position.

°Allow engine to warm up for a few minutes before

engaging tines.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32°F), the carburetor fuel mixture

may need to be adjusted for best engine performance. See

TO ADJUST CARBURETOR in the Service and Adjust-

ments section of this manual.

CHOKE

PLUG

RECOIL STARTER

HANDLE

FIG. 13

TILLING HINTS

iA...........................

CAUTION: Until you are accustomedto

handling your tdler, start actual field

use with throttle in slow position (mid-

way between IIFAST" and "iDLE").

ti i ul

,Tilling is digging into, turning over, and breaking up

packed soil before planting. Loose, unpacked soil

helps root growth. Best tilling depth is 4' to 6". A tiller

will also clear the soil of unwanted vegetation. The

decomposition of this vegetable matter enriches the

soil. Depending on the climate (rainfall and wind), it

may be advisable to till the soil at the end of the growing

season to further condition the soil.

=For easier handling of your tiller, leave about 8 inches

of untilled soil between the first and second tilling

passes. The third pass will be between the first and

second (See Fig° 14). 12

°Soilconditions are important for proper tilling. Tines will

notreadily penetrate dry, hard soil which may contrib-

ute to excessive bounce and difficulthandling of your

tiller. Hard soil should be moistened before tilling;

however, extremely wet soil will "ball-up" or clump

duringtilling, Wait until the soil is less wet in order to

achieve the best results.When tillinginthe fall, remove

vines and long grass to prevent them from wrapping

aroundthe tineshaft and slowing your tUlingoperation.

°Do notleanonhandle. This takesweightoffthe wheels

and reduces traction, To get through a really tough

section of sod or hard ground, apply upward pressure

on handle or lower the depth stake.

FIG. 14

CULTIVATING

Cultivating is destroying the weeds between rows to pre-

vent them from robbing nourishment and moisture from the

plants. At the same time, breaking up the upper layer of soil

crust wiUhelp retain moisture in the soil. Best digging depth

ts 1" to 3"° Lower the outer side shields to protect small

plants from being buried.

• Cultivate up and down the rows at a speed which will

allow tines to uproot weeds and leave the ground in

rouqh condition, promoting no further growth of weeds

ancrgrass (See Fig. 15).

Q ©O©

©©©©©

FIG. 15

TINE SHEAR PINS

The tine assemblies on your tillerare secured to the tine

shaft with shear pins (See 'q'INE REPLACEMENT" in the

Service and Adjustments section of thismanual).

If the tiller is unusually overloaded or jammed, the shear

pins are designed to break before internaldamage occurs

to the transmission.

°If shear pin(s) break, replace onlywith those shown in

the Repair Parts section of thismanual

CUSTOMER BILITIES

MAINTENANCE / / 1 1 / /

SC.EOULE /

F,,-.,.o.._s /_/#Z_Xd/

AsYOUCOMPLETE /__/_/._e/

,EGU_,SERViOE /_"/<<'7¢/_'-'/_/ ....

Check Engine Oil Level V' M#

= ................•....... = .

Change EngineOil V' !_/2

SERVICE DATES

Oil Pivot Points !# #

Inspect Spark Arrester Muffler

............................... | ,

i.................• .............. | ....... • ,

inspect Air Screen M#I

Clean or Replace Air Cleaner Cartridge .

Clean EngineCylinder Fins 6,f

ReplaceSpark Plug _4'

1 - Change more often when operating under aheavy load or in high ambient temperatures,

2 - Service more often when operating in dirty or dusty conditions,

GENERAL RECOMMENDATIONS

The warranty on this tiller does not cover items that have

been subjected to operator abuse or negligence. To

receive full value from the warranty, the operator must

maintain tiller as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tiller.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each

season°

Once a year you should replace the spark plug, clean

or replace air filter, and check tines and belts for wear°

A new spark plug and clean air filter assure proper air-

fuel mixture and help your engine run better and last

longer°

BEFORE EACH USE

,Check engine oil level.

* Check tine operation

° Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICATION CHART").

LUBRICATION CHART

* THROTTLE

CONTROL

** ENGINE

* DEPTH STAKE

'LEVELING

SHIELD

HINGES

* IDLER

BRACKET

* WHEEL

HUB

* SAE 30 OR 10W-30 MOTOR OIL

** REFER TO CUSTOMER RESPONSIBILITIES '_ENGINE" SECTION

CUSTOMER R BILITIES

................ iii ii1,11, iii ii, i, I II iiiii iiiiii

Disconnectspark plug wire beforeperforming any maintenance(except carburetoradjustment)to prevent

accidentalstarting of engine.

Preventfires! Keeptheenginefree of grass,leaves,spllledoil, orfuel. Removefuel from tankbefore tipping

unit for maintenance. Clean mufflerarea of all grass,dirt, and debris.

Donot touch hot muffleror cylinderfins as contactmay cause burns.

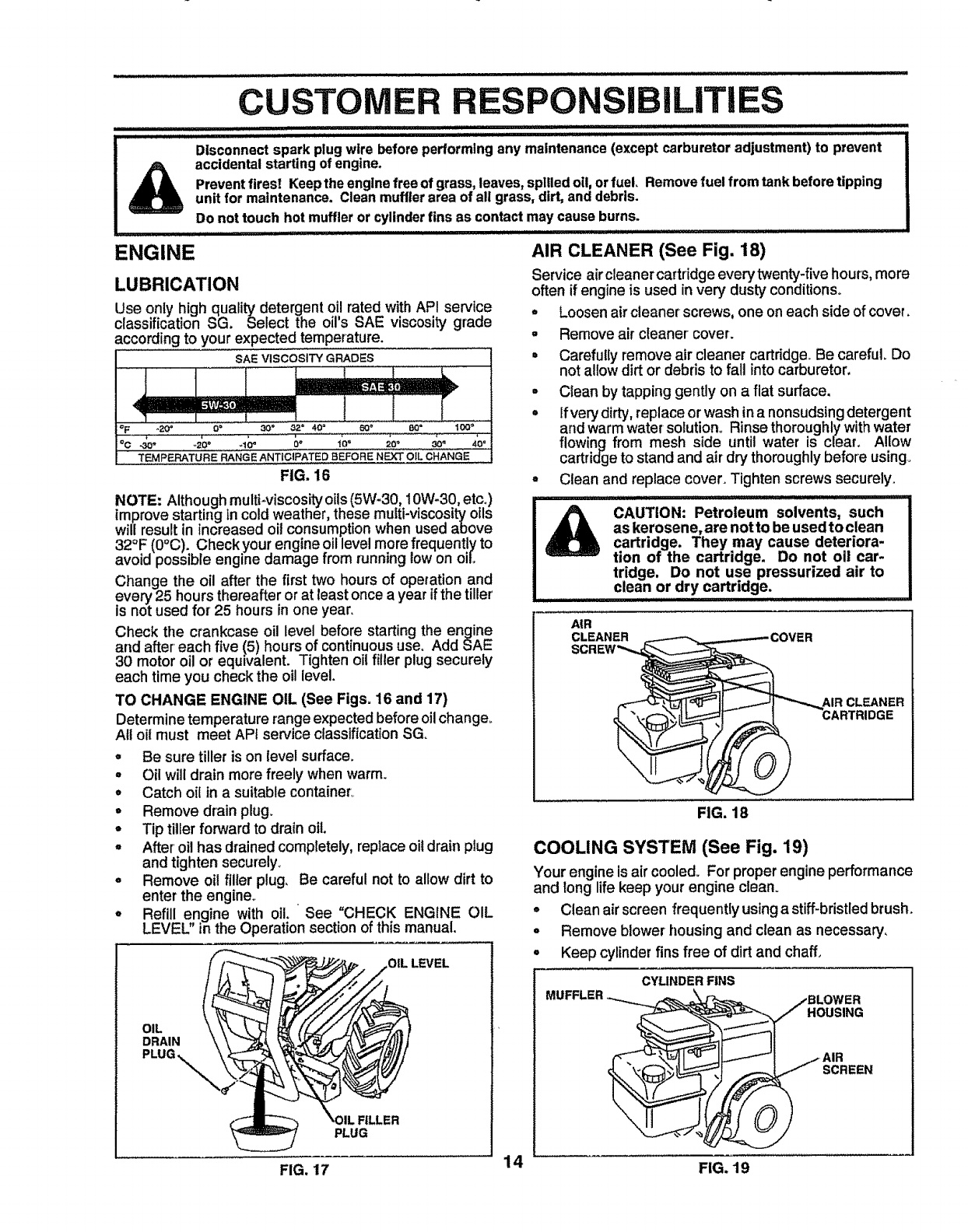

ENGINE

LUBRICATION

Use only high quality detergent o!1rated with API service

classification SG. Select the oil s SAE viscosity grade

according to your expected temperature.

SAEVISCOSITYGRACES

............ [

i°o_o -2'oo .i_- o° to° 20,...... _o,..... 40"

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT O_L CHANGE

FIG. 16

NOTE: Although multi-viscosity oils (5W-30, 10W-30, etco)

improvestarting in cold weather, these multi-viscosity otis

will result in increased oil consumption when used above

32°F (0°C). Check your engine oil level more frequently to

avoid possible engine damage from running low on oil

Change the oil after the first two hours of operation and

every 25 hours thereafter or at least once a year ifthe tiller'

is not used for' 25 hours in one year.

Check the crankcase oil level before starting the engine

and after' each five !5) hours of continuous use. Add SAE

30 motor oil or equivalent. Tighten oil filler plug securely

each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 16 and 17)

Determine temperature range expected before oil change_

All oil must meet API service classification SG.

= Be sure tiller is on level surface.

=Oil will drain more freely when warm_

•Catch oil in a suitable container,.

° Remove drain plug.

=Tip tiller forward to drain oil.

°After' oil has drained completely, replace oil drain plug

and tighten securely.

=Remove oil filler plug. Be careful not to allow dirt to

enter the engine..

• Refill engine with oil. " See "CHECK ENGINE OIL

LEVEL in the Operation section of this manual.

OIL

DRAIN

PLUG _.._%

_'_./,_"._/_, ,OIL LEVEL

_',OILFILLER

PLUG

AIR CLEANER (See Fig. 18)

Service aircleaner cartridge everytwenty-five hours, more

often if engine is used in very dusty conditions°

.Loosenair cleaner screws, one on each sideof cover.

°Remove air cleaner cover.

= Carefully remove air cleaner cartridge.Be careful. Do

not allow dirt or debris to fall intocarburetor.

•Clean by tapping gently on a flat surface.

•ffvery dirty,replace or wash in a nonsudsingdetergent

and warm water solution° Rinse thoroughlywith water

flowing from mesh side until water is clear. Allow

cartridgeto standand air dry thoroughlybefore using.

°Clean and replace cover. Tighten screws securely.

' _ IIUIILIIILIIIIIIUIII

CAUTION: Petroleum solvents, such

as kerosene, are not to be used to clean

cartridge. They may cause deteriora-

tion of the cartridge. Do not oil car-

tridge, Do not use pressurized air to

clean or dry cartridge.

AIR COVER

FIG, 18

COOLING SYSTEM (See Fig. 19)

Your engine is air cooled. For proper engine performance

and long lifekeep your engine clean.

• Clean airscreen frequently usinga stiff-bristled brush.

° Remove blower housing and clean as necessary,

°Keep cylinder finsfree of dirt and chaff,

CYLINDER FINS

FIG. 19FIG. 17 14

lUlllll,ii,,11111,1,11,11,11,i,ii..............

CUSTOMER iiii,m

BILmES

MUFFLER

Do not operate tilter without muffler. Do not tamper with

exhaust system. Damaged mufflers or sldark arresters

could create a fire hazard, inspect periodically and replace

if necessary. If your engine is equipped with a spark

arrester screen assembly, remove even/ 50 hours for

cleaning and inspection. Replace if damaged.

SPARK PLUG

Replace spark plugs at the beginning of each tilling season

or after every 50 hours of use, whichever comes first. Spark

plug type and gap setting is shown in "PRODUCT SPECI-

FICATIONS" on page 3 of this manual.

TRANSMISSION

Yourtransmissionis sealed and willonly requirelubrication

if serviced°

CLEANING

, Clean engine, wheels, finish, etc. of all foreign matter.

* Keep finished surfaces and wheels free of all gasoline,

oil, etc.

° Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

unit unless the muffler, air filter and carburetor are covered

to keep water out. Water in engine can result ina shortened

engine lifeo

SERVICE AND ADJUSTMENTS

..................................................... ,ram mill roll ii i ii

:;,,,,,,,,,,,,,,,,_ ,,,, , , ........................................................................

c.o+,o.:O,°oonne..spar.p,ugw,.e,.om+°..p,u an,p,acew,.owhere,tca.notcome,ntoJ

Icontact with plug. ....................................................................................................................

TILLER

TO ADJUST HANDLE HEIGHT (See Fig, 20)

Select handle height best suited for your tilling conditions+

Handle height will be different when tiller digs into soil.

°First loosen handle lock lever.

°Handle can bepositioned at different settings between

"HIGH" and "LOW" positions.

= Retighten handle lock lever securely after adjusting.

HANDLE(LOW

POSITION)

+ .ANDLE(H,G.

..... ::,,_',;;,_"_"jPOSITION)

'_ n "_,\/ HANDLE

_.._..,'_ ":_,_ LOCK

FIG. 20

TIRE CARE

:::: llllJ H IL II lllJJllJlll IIIIIII

CAUTION: When mounting tires, un- _'

less beads are seated, overinflation

can cause an explosion.

• Maintain 20 pounds of tire pressure. If tire pressures

are not equal, tiller will puil to one side+

• Keep tires free of gasoline or oil which can damage

rubber°

TO REMOVE WHEEL (See Fig. 21)

°Place blocks under transmission to keep tiller from

tipping°

•Remove outerside shieldby removingnuts"A" and"B",

°Remove inner side shield by removing nuts "C" and

flD_"

.Remove hairpin clip and clevis pin from wheel.

°Remove wheel and tire+

° Repair tire and reassemble°

CLEVIS

HAIRPIN

INNER SIDE

SHIELD

NUT "B" SIDE

SHIELD

FIG. 21

SERVICE AND A USTIVI

............................ .......................... ........... IH Illllllll Ill

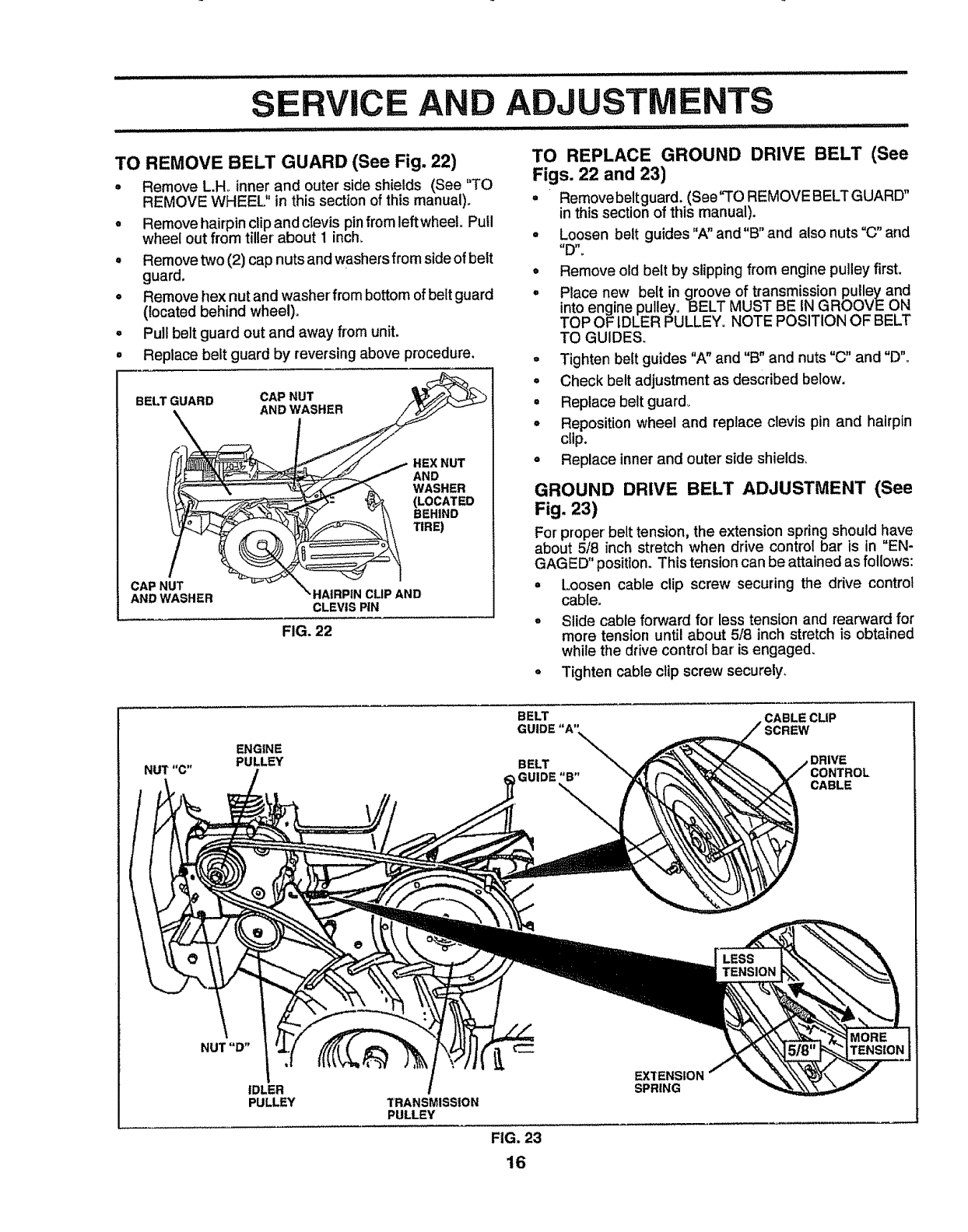

TO REMOVE BELT GUARD (See Fig. 22)

•Remove L.Hoinner and outer side shields (See "TO

REMOVE WHEEL" in this section of this manual)_

• Remove hairpin clip and clevis pinfrom left wheel. Pull

wheel out from tiller about 1 inch_

• Remove two (2) cap nuts and washers from side of belt

guard.

•Remove hex nut and vcasherfrombottom of belt guard

(located behind wheel),

- Pull belt guard out and away from unit.

• Replace belt guard by reversing above procedure.

AND WASHER CLEVIS PiN

FIG. 22

TO REPLACE GROUND

Figs. 22 and 23)

DRIVE BELT (See

Removebeltguard. (See"TO REMOVEBELTGUARD"

in this section of this manual).

Loosen belt guides "A" and "B" and also nuts "C" and

"D",

Remove old belt by slipping from engine pulley first.

Place new belt in groove of transmission putleyand

into engine pulley, BELT MUST BE iN GROOVE ON

TOP OF IDLER PULLEY, NOTE POSITION OF BELT

TO GUIDES,

Tighten belt guides "A" and "B" and nuts "C" and "D"o

Check belt adjustment as described below,

Replace belt guard_

Reposition wheel and replace clevis pin and hairpin

clip.

Replace inner and outer side shields,

GROUND DRIVE BELT ADJUSTMENT (See

Fig. 23)

For proper belt tension, the extension spring should have

about 5/8 inch stretch when drive control bar is in "EN-

GAGED" position. This tension can be attained as follows:

°Loosen cable clip screw securing the drive control

cable,

oSlide cable forward for less tension and rearward for

more tension until about 5/8 inch stretch is obtained

while the drive control bar is engaged,

°Tighten cable clip screw securely,

ENGINE

PULLEY

BELT

GUIDE "B"

;CREW

DRIVE

CONTROL

CABLE

LESS

TENSION

IDLER

PULLEY TRANSMISSION

PULLEY

FIG, 23

EXTENS

SPRING

AND ADJUSTMENTS

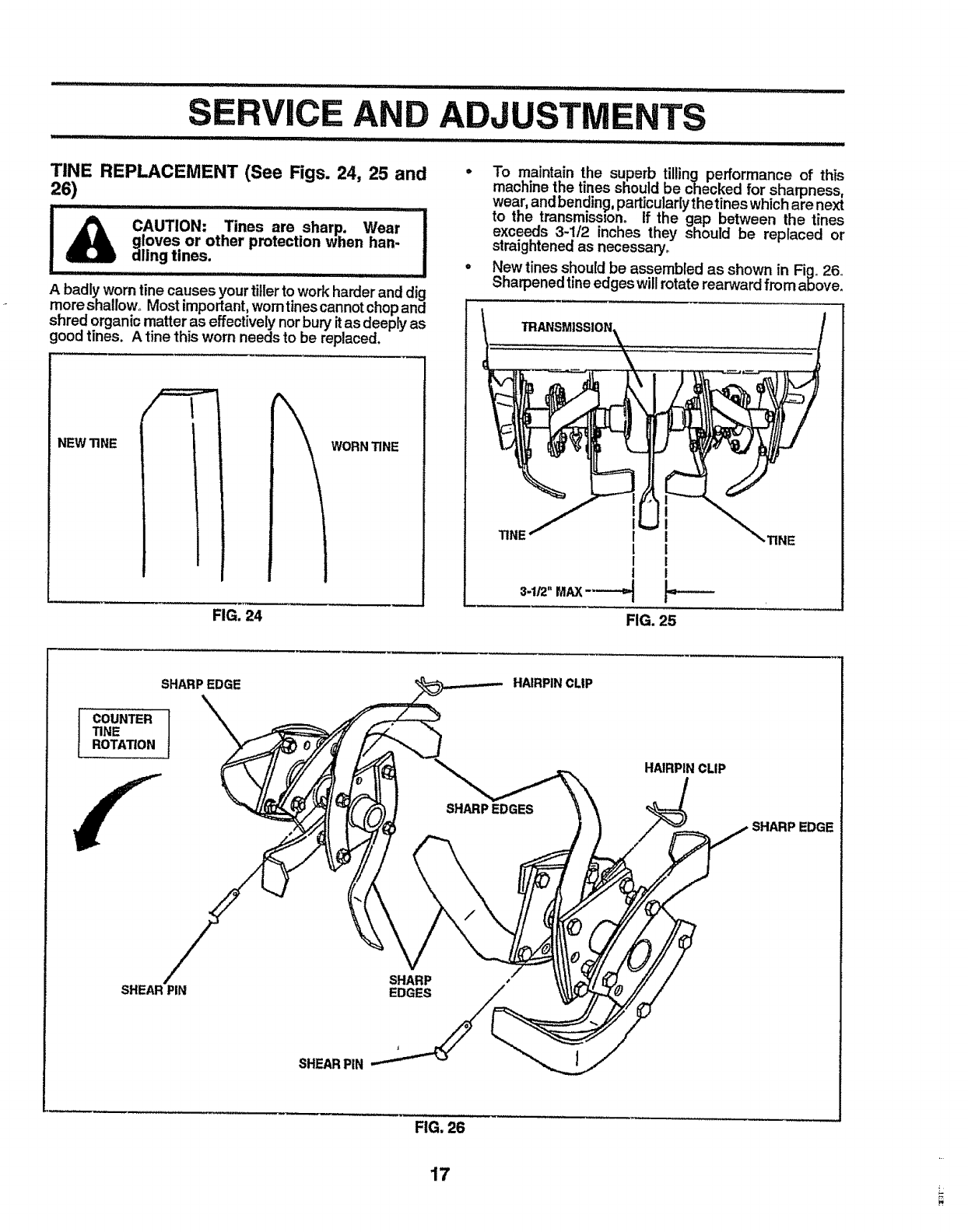

TINE REPLACEMENT (See Figs. 24, 25 and

26)

CAUTION: Tines are sharp. Wear

oves or other protection when han-

g tines.

A badly worn fine causes yourtiller to work harderand dig

more shallow. Most important, worntines cannot chop and

shred organic matter as effectively nor bury it as deeply as

good tines. A tine this worn needs to be replaced.

NEW liNE WORN"lINE

FIG. 24

•To maintain the superb tilling performance of this

machine the tines should be checked for sharpness,

wear,andbending, particu]arlythetines which are next

to the transmismon+ If the gap between the tines

exceeds 3-1!2 inches they should be replaced or

straightenedas necessary.

•New tines should be assembled as shown in Fig+26°

Sharpened tineedges willrotate rearward from above.

liNE l I lINE

1 I

I I

FIG. 25

COUNTER

"fiNE

ROTATION

SHARPEDGE

]

SHARP EDGES

HAIRPINCLiP

HAIRPINCLIP

EDGE

SHEARPIN SHARP

EDGES

SHEARPIN

FIG, 26

AND ADJUSTIVl

ENGINE

TO ADJUST THROTTLE CONrlFROL CABLE

(See Fig. 27)

oLoosen cable clamp screw to allow cable to move.

oMove throttlecontrol leveron upperhandle to "FAST"

position°

.Pull throttlecable out untilengine be!lcrankis back as

far as it wiltgo.

.Hold cable in this position and tighten clamp screw

securely.

CLAMP SCREW

THROTTLE

CABLE,

BELLCRANK

FIG. 27

TO ADJUST CARBURETOR (See Fig. 28)

The carburetor has ahighspeedjet and has beenpresetat

the factory and adjustmentshoutdnotbe necessary. How-

ever, minor' adjustments may be required to compensate

for differences in fuel, temperature, altitudeor'load. If the

carburetor does need adjustment, proceed as follows.

In general, turning the idle needle valve in (clockwise)

decreases the supplyof fuelto the engine givinga leaner

fueVair mkture. Turning the needle valve out (counter-

clockwise) increases the supplyof fuel to the enginegiving

aricher fueVair mixture.

IMPORTANT: DAMAGE TO THE NEEDLES AND THE

SEATS IN CARBURETOR MAY RESULT IF SCREWS

ARE TURNED IN TOO TIGHT.

PRELIMINARY SETTING

oAir cleaner assembly must be assembled tothe carbu-

retor when making carburetor adjustments°

o Be sure the throttle control cable is adjusted properly

(see above).

• With engine off, turn idle needle valve in (clockwise)

closing it finger tight and then turn valve out (counter-

clockwise) 1-1/2 tUmSo

FINAL SETTING

°Start engine and allow to warm forfive minutes,, Make

final adjustmentswith engine runningat idle and drive

controlbar in "DISENGAGED" position.

• With throttlecontrol lever in"SLOW" position,turn idle

needle valve in (clockwise) until engine beginsto die

then turn out (bounterclockwise) until encinerg'nuns

rough. Turn valveto a point midway between those two

positions.

IDLE RPM ADJUSTMENT

°To adjust idle RPM, rotate throttle linkage counter-

clockwise and hold against stop while adjusting idle

speed adjustingscrew to obtain 1750 RPM. Release

throttlelinkage.

ACCELERATION TEST

•Move throttle control lever from "SLOW'' to "FAST"

position. If engine hesitates or dies, turn needle valve

out (counterclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until engine acceler-

ates smoothly.

High speed stop is factory adjusted,. Do not adjust or

damage may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED° OVERSPEEDtNG THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING.CONTACT YOUR

NEAREST SEARS SERV[CE CENTER, WHICH HAS

PROPER EQUIPMENT AND EXPERIENCE TO MAKE ANY

NECESSARY ADJUSTMENTS.

THROTTLEUNKAGE THROTTLE STOP

IDLESPEED /

ADJUSTINGSCREW IDLE NEEDLE VALVE

FIG. 28

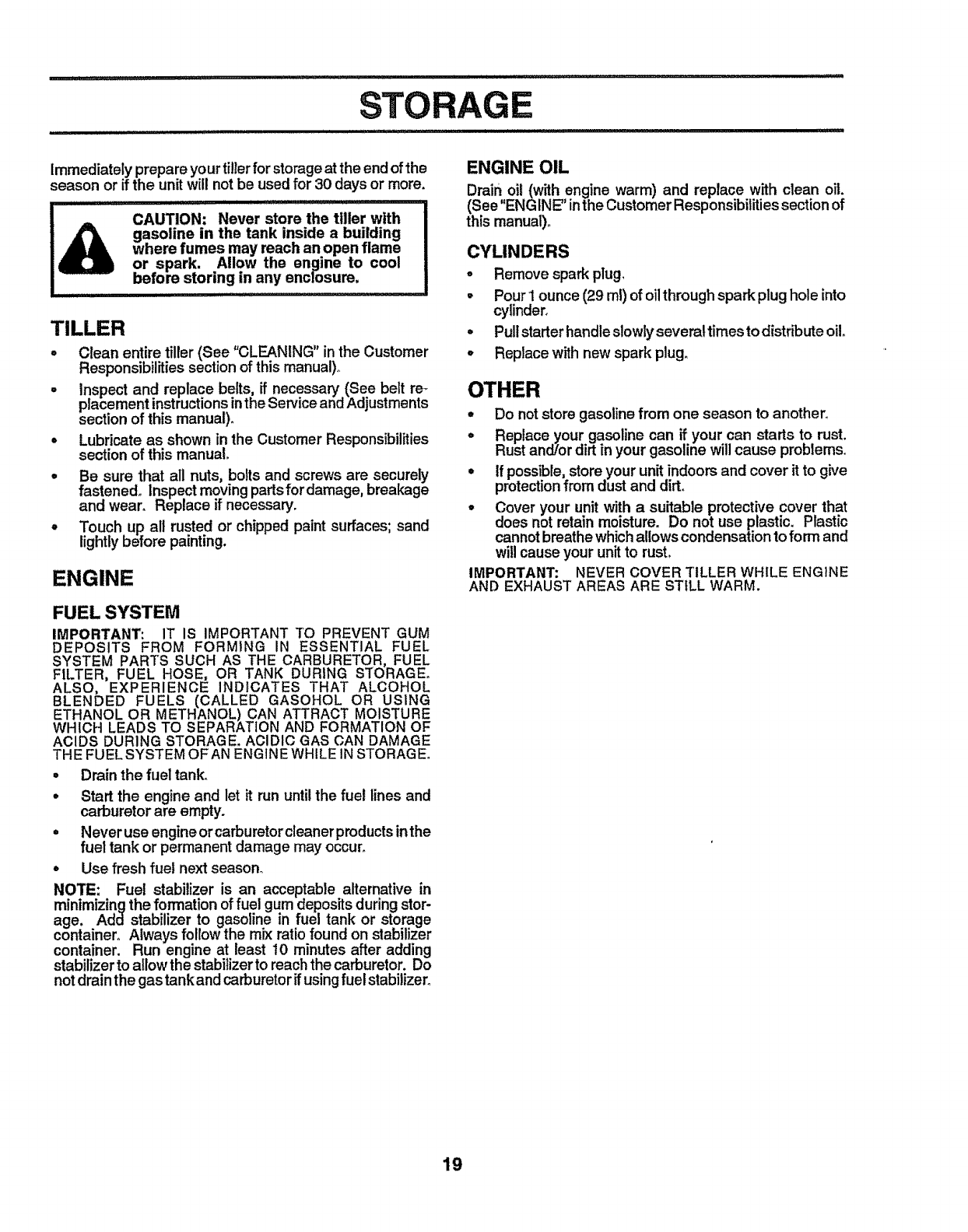

immediately prepare your tiller for storage at the end of the

season or if the unit will not be used for 30 days or more.

CAUTION: Never store the tiller with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. All?w the enpine to cool

before storing m any enclosure.

oClean entire tiller (See "CLEANING" in the Customer

Responsibilities section of this manual)°

°inspect and replace belts, if necessary (See belt re-

placement instructionsinthe Service and Adjustments

section of this manual),

°Lubricate as shown in the Customer Responsibilities

section of this manual,

°Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

•Touch up_all rusted or chipped paint surfaces; sand

lightly before painting.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS THE CARBURETOR, FUEL

FILTER, FUEL HOSE, OR TANK DURING STORAGE°

ALSO, EXPERIENCE INDICATES THAT ALCOHOL

BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOISTURE

WHICH LEADS TO SEPARATION AND FORMATION OF

ACIDS DURING STORAGE. ACIDIC GAS CAN DAMAGE

THE FUEL SYSTEM OFAN ENGINE WHILE IN STORAGE.

°Drain the fijel tank.

° Start the engine and let it run until the fuel lines and

carburetor are empty.

.Never use engine orcarburetorcleaner productsin the

fuel tank or permanent damage may occur.

-Use fresh fuel next season°

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum depositsduring stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after addi.ng

stabilizer to allow the stabilizer to reachthe carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer_

ENGINE OIL

Drain oil (with engine warm) and replace with clean oil.

(See"ENG INE" inthe CustomerResponsibilities section of

this manual),,

CYLINDERS

°Remove spark plug,

•Pour I ounce (29 ml) of oilthrough spark plug hole into

cylinder,

°Pull starter handle slowly severaltimes to distribute oilo

•Replace with new spark ptug.

OTHER

°Do not store gasoline from one season to another°

°Replace your gasoline can if your can starts to rust.

Rust and!or dirt in your gasoline will cause problems

-tf possible,store your unit indoors and cover it to give

protection from dust and dirt.

°Cover your unit with a su_able protect_e cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your unit to rusL

IMPORTANT: NEVER COVER TILLER WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

ii ii..................... i,i...... i1' i /llJllrlrl_'l..................

IIIIIIIIIIII1'11

TROU OOTING POINTS

PROBLPM

Will not start

Hard to start

Loss of power

Engine overheats

IOll III II IUUI ,,

Excessive bounce/

difficulthandling

Soll bails up or clumps

Engine runs but tiller

won't move

Engtnerune but labor8

when tllllng

Tineswlli not rotate

CAUSE

1+ Outof fuel,

2+ Enginenot"CHOKED"pmpsdy_

8. Engineflooded,

4+ Dirtyair cleaner°

5. Watertnfuel

6+ Cloggedfueltank_

7, Loosespark plugwire+

8+ Badsparkplugorimpropergap.

9. Carburetoroutof adjustment.

1+ Throttlecontrolnot setprepedy+

2+ Dirtyair cleaner,

3+ Badsparkplugorimpropergap+

4, Staleordirtytuel,

5+ Loosespark plugwire,

6. Carburetoroutof adjustment,

1+ Engineisovedoaded°

2+ Dirtyaircleaner,

3_ Low oillovclldIrtyoil,

4o Faultysparkplug,

5, Oil infuel.

6+, Staleordirtyfuel.

7, Waterin fuel.,

8+ Cloggedfuel tank.

9+ Sparkplugwire loose.

10+ Dirtyenginealrscreen+

11, Dirtylcloggedmuffler+

12, Carburetoroutof adjustment.

13+ Poorcompresden,

1+ Lowoillevelldirtyoil+

2, Dirtyengineairscreen.

,..3, Dirtyengine,

4+ Partiallypfuggsdmuffler.

5, Imprepsrcarburetoradjustment.

1+ Ground too dry and hard+

111111111111 iii i i ...............

1. Groundtoowet.

II IIUII iiiiiii]1 ] ,] ..............

1+ Drivecontrolbar is not engaged+

2, V-beltnot correctlyadjusted,

3+ Vobeltis offpulley(e)+

iiiiiiiiiii, ii 1111111 iJlllllll iii .........

1,, Tiffingtoo deep+

2+ Thro_e controlnotprepedyadjusted,

3. Carburetoroutofadjustment,,

,,,,,,, .....................................

1, Shear pin(s)broken,

:: ..................... i'111', ii I' iiii _llW'll '1

CORRECTION

1+ Rl! fueltank

2, See "TOSTARTENGINE"inOperationsection,

3+ Waitseveralminutesbeforeattemptingto start°

4. Cleanorreplaceair cleanercartridge.

5+ Drainfue! tankand carburetor, and refilltankwithfresh

ge_scline+

6. Removefuel tankand ctean+

7_ Makesuresparkplug wirets seatedprepodyonplug.

8+ Replacesparkplugoradjustgap,.

9+ Makenecessaryadjustments.

1+ PEacethrottlecontrolin "FAST"poeiUon+

2+ Cleanorreplaaeair cieanercartddge°

3_ Replacesparkplugor adjuatgap.

4+ Drainfuel tankandrefillwithfresh gasoline.

5+ Makesuresparkplugwire ts seatedpropedyonplug.

6+ Makenecessaryadjustments.

1+ Setdepthstakefor shallowertilling.

2, Cleanorreplaceair cleaner'cartridge+

,% Checkoillevet/changeoil

4. Cleanand regaporchangespark plug,

5, Drainand cleanfuel tankand refill,and cleancarburetor.

6. Drainfuel tankand refill withfreshgasoline,

7, Drainfuel tankand carburetor,and refill tank with fresh

gasoline+

8. Removefueltank and clean.

9. Connectand tightensparkplug wire+

10+ Cleanengine air'screen.

11+ Clean/replacemuffler,

12, Makenecessaryadjustments.

13. Contactan authorizedSeamService CentedDepartment.

1. Checkoillevel!changeoil+

2+ Cleanengine air screen+

3+ Cleancyfinderfins,air screen,and mufflerama,

4+ Removeandcleanmuffler+

5+ Adjustcarburetorto dchorposition,

t+ Moistengroundorwalt formers favorablesoil

condiUons+

Waitfor'morefavorable soilconditions.

ii1,11i, i i,%1, ,., ,,,Ull,,,i

Engagedrivecontrol+

Inspect/adjustV+belt+

inspectVisit+

Set depthstakefor"shallowertilling+

Checkthrottlecontrolseffing,

Makenecessaryadjustments.

imp:,ill ...........

Replaceshear'pin(s).

REPAIR PARTS

5 HP 17" TILLER -- MODEL NUMBER 917.298560

HANDLES

\\\

KEY

NO,

PART

NO.

110707)(

! 10674X

11O673X

127254X

6712J

137119

11O641X

STD511005

STD533125

! 10646X

STD624003

81328

110741X

109313X

110702X

STD533710

109229X

DESCRIPTION

Cap, Sleeve

Gnp, Handle

Grommet, Handle

Bar, Drive Control Assembly

Cap, Vinyl

Panel, Control

, Bushing, Split

Screw,Mach. Pan Head. C.R.

#10-24 x1/2

*B01t,Carriage

5116-18 UNC x 2_3t8Gr. 5

Handle, Grip

*Clip, Hairpin

Bolt, Shoulder

Handle, Shift

Grommet, Rubber

Rod, Shift

*Bolt, Carriage 3/8-16x t Gr. 5

Look, Handie

KEY PART

NO. NO.

18 STD541437

t9 19131611

20 109228X

21 121213)(

22 121145X

23 86777

24 9484R

25 7397O500

26 110675X

27 STD541025

28 STD551125

29 STD541462

30 127012X

DESCRIPTION

*Nut, Centedock 3t6o16

Washer 13/32 xI x 11 Ca.

Lever, Lock, Handle

Hand{e, Assembte

Clip, Plastic, Cable

Screw, Hex, Washer Hd, Slotted

#10-24 x 1t2

Clip

Locknut, Hex, Flange

Clutch, Cable

* Nut, Hex 1/4-20

* Washer, Lock 1/4

* Nut, Keps #10-24

Throttle, Control

*STANDARD HARDWARE - -PURCHASE LOCALLY

NOTE: All component dimensions given in UoS. inches.

1 inch = 25.4 mm

REPAIR PARTS

5 HP 17" TILLER - - MODEL NUMBER 917.298560

MAINFRAME, LEFT SIDE

38 1112

KEY PART

NO. NO.

173970500

2 STD551137

3STD541037

4 74930568

5STD571610

6 110111X

7 STD532505

8 8700J

9 86777

10 9484R

11 STD551125

12 STD541025

13 STD503103

14 120938X

15 STD551031

16 100473M

17 STD541031

18 110651X

19 2649M

20 110653X

21 131691

22 104214X

23 5015J

128952

795R

24 126875X

25 STD624003

26 131159X459

27 132801

18 20

28 27

DESCRIPTION

* Locknut, Hex, Flange 5/16-18

*Washer, Lock 3/8

* Nut, Hex 3/8-16

Bolt, Hex 5/16-t8 x 4-1/4

* Pin, Roll

Lever, Shift

* Bolt, Carriage 1!4-20 x 1/2 Gro5

Plate, Shift Indicator

Screw, Hex, Washer Head, Slotted

#10-24 x 1/2

Clip

*Washer, Lock 1/4

* Nut, Hex 1/4-20

*Screw, Set, Hex 5/16..t8 x 3/8

Spacer, Split 0.327 x 0_42x 2_68

*Washer 11132x 11116x 16 Ga.

Sheave, Transmission

* Nut, Hex 5/16-t8

Spacer, Spilt 0.327 x 0.42 x 1.75

Key, Square 3,/16x 1-118

Guard, Pinch Point

Spacer, Split 0.327 x 0.42 x 1.627

Nut, Cap 5/16-18

Tire

Rim

Tire Valve

Rivet, Drilled

* Clip, Hairpin

Guard, Belt

Belt, V

KEY PART

NO. NO.

28 104679X

29 12000032

30 t05611X

31 102384X

32 102141X

33 STD523710

34 102383X

15 23

DESCRIPTION

35 74760532

36 102331X

37 130812

38 131556

Pulley, Idler

Ring, Klip

Bracket, Idler

Bolt,Hex 5/16-16 x 12

Shaft, Idler Arm

*Bolt, Hex 3/8-16 x 1

Counterweight, L.H.

Bolt, Hex 5/16-18 x 2

Bracket, Reinforcement, L.H.

Sheave, Engine

Bracket, Guard Belt

*STANDARD HARDWARE - - PURCHASE LOCALLY

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mrn

REPAIR PARTS

5 HP 17" TILLER - - MODEL NUMBER 917.298560

MAINFRAME, RIGHT SIDE

11 10

KEY

NO,

PART

NO.

124551X

73970500

STD551031

74760512

102332X

74760532

102173X

STD551137

STD541037

74760524

STD624003

DESCRIPTION

Bumper

Locknut, Hex, Flange 5/16-18

*Washer 11/32 x 11/16 x 16 Ga.

Bolt, He× 5/16-18 x3/4

Bracket, Reinfomment

Bolt, Hex 5t16-18 x 2

Counter Weight, RH,,

* Washer, Lock 3/8

*Nut, Hex 3t8-16

Bolt, Hex 5/16-18 x 1-1/2

*Clip, Hairpin .

KEY PART DESCRIPTION

NO. NO.

12 126875X Rivet, Drilled

13 5015J Tim

128952 Rim

795R Tire Valve

14 STD54143t *Nut, Keps 5/16-18

15 137264 Engine, Briggs & Stratton

Model No. 13.5202,

Type No. 0145-01

*STANDARD HARDWARE --PURCHASE LOCALLY

NOTE: All component dimensions given in U.Soinches.

1 inch = 2&4 mm

REPAIR PARTS

5 HP

TRANSMISSION

17" TILLER --MODEL NUMBER 917.298560

12k,

KEY PART

NO. NO.

i 137409

2 121147X

3 106211X

4 5020J

5 1370H

6 102113X

7 102110X

8 4895H

9 102136X

10 7392M

t! 100371K

12 106160X

13 1021O7",'(

14 8353J

15 12000O39

16 102109X

17 104159X

18 4358J

19 12000040

20 102114)(

21 102115X

22 6803J

23 102111X

24 STD551143

25 STD54t143

DESCRIPTION

Transmission Assembly

(Includes Key Nos. 2-52)

Gearcase, L.H. w/Bearing

ncludesKey No. 4)

asket, Gearcase

Bearing, Needle

Washer, Thrust 5/6x 1.10 x 1/32

Pinion, Input

Shaft, Input

Bearing, Needle

Washer, Seal

Ball, Steel

Spring, Shift, Fork

O-Ring

Arm, Shift

Fork,Shift

Ring, Klip

Shaft, Shift

Spacer, Split

Washer

Ring,Klip

Gear, Assembly, Reverse Idler

(Includes Key Nos. 21 and 22)

Gear, Reverse Idler

Bearing, Needle

Shaft, Reverse Idler

*Washer, Lock 7116

*Nut, Hex 7/16-20 24

KEY PART

NO. NO.

26 102t28X

27 102100X

28 106390X

29 102134X

30 124458X

31 102106X

32 106388X

33 102121X

34 102112X

35 102101X

36 137300

37 4422J

38 137301

39 105345X

40 105346)(

41 8358J

42 4220R

43 106146X

44 9672R

45 102144X

46 9676R

47 9674R

48 12!745X

49 132688

50 106147X

51 17580408

52 STD541031

-- 6066J

DESCRIPTION

O-Ring

Bearing, Shaft, Ground Drive

Spacer 0.765 x 1_125x 1o23

Chain #35-50 Pitch

Ground Shaft Assembly

Bearing, Shaft, GroundDrive

Spacer 0_70 x 1_00x 1.150

Sprocket and Gear'Assembly

Shaft, Reduction (2nd)

Screw, Whiz, Lock 5/16-18 x 3-I/2

Sprocket Assembly w/Bearing

(Includes Key Nos. 37 and 38)

Bearing, Needle

Sprocket, Tine

Gear, Cluster, Red 1st & 2nd

Gear, Reverse

Shaft, Reduction (1st)

Washer, Thrust

Spacer 1.01 x 1.75 x 0.760

Cup, Formed

Ring, Spimt

Seal, Ring, Rubber

Seal, Oil

Gearcase, R.H. w/Bearing

cludes Key No. 8)

aft, Tine

Chain, Roller #50-50 Pitch

Screw 1t4-20 xtt2

* Nut, Hex 5/16-18

Grease, PlastUube#1

*STANDARD HARDWARE --PURCHASE LOCALLY

NOTE: Air component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

5 HP 17" TILLER - - MODEL NUMBER 917.298560

TINE SHIELD

13 t4

KEY

NO,

'13

't7

PART

NO.

98000129

104086X459

8393J

12oooo36

72110508

8394.1

8392J

109230X

124289X459

DESCRIPTION

Nut, Flange 5116-18

Shield, Side, Outer L. H.

Pin, Stake, Depth

Ring, Ktip

Bolt, Carriage 5/16-18 x 1

Spring

Bracket, Latch

Spring, Depth Stake

Shield, "line

STD533107 **Bolt, Carriage 5/I6-18 x 3!4 Gr5

STD54t031 . Nut, Hex 5/16-18

STD551131 Washer, Lock 5/16

72'110510 Bolt,Carriage 5/16-18 x 1-1/4

1243t 1X Bracket, Shield "line

104101X459 Shield, Side, Outer Roll.

STD541025 * Nut, Hex 114-20

STD551125 *Washer, Lock 1/4

STD5325t2 * Bolt, Carriage 1/4-20 x I-!/4 Gr_5

KEY PART DESCRIPTION

NO. NO.

19 102701X Grip

20 STD541037 *Nut, Hex 3/8-16

21 102156X Stake, Depth

22 74930632 Bolt, Hex 3/8-16 x 2

23 4440J Hinge

24 STD532505 * Bolt, Carriage 1/4o20x 1/2 Gr. 5

25 6712J Cap, Vinyl

26 109227X Pad, Idler

27 102695X459 Shield, Leveling

28 120588X Pin, Hinge

29 !24309X459 Shield, Side

30 73970500 Locknut, Hex, Flange

3't STD5331!0 * Bolt, Carriage 5/16-18x I Gr° 5

* STANDARD HARDWARE --PURCHASE LOCALLY

NOTE: All component dimensions given in IJ.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

5 HP

TINE ASSEMBLY

17" TILLER - - MODEL NUMBER 917.298560

KEY

NO,

PART

NO.

4459J

132673

c0554J

STD624008

132727

73610600

STD551137

DESCRIPTION

Tine, Outer', L.Ho

Pin, Shear

Tine, Inner, L.H.

* Clip, Hairpin

Assembly, Hub and Plate, L.H.

Nut, Hex 3/8-24

* Washer, Lock 3/8

KEY PART DESCRIPTION

NO. NO.

8 74610616 Bolt, Hex 3/8-24 x 1

9 4460J Tine, Outer, R.H.

10 132728 Assembly, Hub and Plate, R.H.

11 6555J Tine, Inner, R.H.

* STANDARD HARDWARE - - PURCHASE LOCALLY

NOTE: All component dimensions given in U.S. inches_

1inch =25.4 mm

REPAIR PARTS

5 HP 17" TILLER -- MODEL NUMBER 917.298560

DECALS

KEY PART

NO. NO.

1 137740 Decal

2124552X Decal

3132252 Decal

4 132253 Decal

5 137538 Decal

612043tX Decal

7 102180X Decal

8 t10719X Decal

9132402 Decal

10 120075X

-- 137921

DESCRIPTION

Logo

Caution, Drive Control

Hand Placement

Shift Indicator

Operation and Lubrication

Decal Warning, RotatingTines

Manual, Owner's (English)

REPAIR PARTS

5 HP 17" TILLER - - MODEL NUMBER 917.298560

ENGINE, BRIGGS & STRATTON --MODEL NUMBER 135202, TYPE NO. 0145-01

307

613

383

529

528

3O8

,,,,J,lUii,u

9r REQUIRES SPECIAL TOOLS

TO INSTALL SEE REPAIR

INSTRUCTION MANUAL.

REPAIR PARTS

5 HP 17" TILLER - -MODEL NUMBER 917.298560

ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 135202, TYPE NO. 0145-01

191 2

2O9

967

REPAIR PARTS

5 HP 17" TILLER --MODEL NUMBER 917.298560

ENGINE, BRIGGS & STRATTON - -MODEL NUMBER 135202, TYPE NO= 0145-01

334

200

3°°

"k REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL 23

307

332

121 CARBURETOR OVERHAUL KIT

191

52 163

191

3s8GASKETSET

69A

515

456

REPAIR PARTS

5 HP 17" TILLER - - MODEL NUMBER 917.298560

ENGINE, BRIGGS & STRATTON - - MODEL NUMBER 135202, TYPE NO. 0145-01

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1395990

2 297565

3299819

5 214040

7272157

8 495774

9 27549

10 94621

11 66578

12 270080

270125

270126

13 94221

14 94679

15 93448

94387

16 492088

230978

18 297602

19 495660

20 294606

21 66768

22 94682

94666

23 297229

24 222698

25 298904

298905

298906

298907

26 298982

299742

298983

298984

298985

27 26026

28 298909

298908

29 299430

390459

221890

94745

211119

261044

260552

26478

Cylinder Assembly 37 222443

Bushing, Cylinder 40 93312

* Seal, Oil

Head, Cylinder 45 260642

* Gasket, Cylinder Head 46 212733

Breather Assembly 52 271936

* Gasket, Valve Cover 55 494846

Screw, Breather Mounting 56 493824

Grommet, Breather Tube 57 262594

* Gasket, Crankcase, Standard o015" 58 280406

* Gasket, Crankcase _005"Thick

* Gasket, Crankcase .009" Thick 59 396892

Screw, Cylinder Head 2-3/32" 60 393152

Screw, Cylinder Head 2-15/32" 65 94686

Plug, Pipe, Hex Socket 69 280973

Plug, Oil Drain 69A 224322

Crankshaft 73 224632

Gear Pin, Crankshaft 8t 222263

Cover Assembly, Crankcase 90 495426

Bushing, Crankcase Cover 95 93499

* Seal, Oi! 96 223793

Plug, Oil Filler 97 490048

Screw, Cover Mounting 108 491177

Stud, Crankcase Cover 118 231533

Flywheel, Magneto 121 495606

Key, Flywheel 124 94616

Piston Assembly, Standard Size 127 220352

Piston Assembly .010" Oversize 127A 223789

Piston Assembly .020" Oversize 149 26336

Piston Assembly .030" Oversize 152 260575

Ring Set, Piston, Standard Size 153 490589

Ring Set, Piston, Standard, Chrome 154 93527

Ring Set, Piston ,010" Oversize 163 271935

Ring Set, Piston .020" Oversize 180 495301

Ring Set, Piston .030" Oversize 181 494559

Lock, Piston Pin 190 94712

Pin Assembly, Piston, Standard 190A 94677

Pin Assembly, Piston .005" Over 191 272489

Rod Assembly, Connecting 200 223886

Rod Assembly, Connecting 201 262280

.020" Undersize Crankpin Bore

Dipper, Connecting Rod

Screw, Connecting Rod

Valve, Exhaust

Valve, Intake

Spring, Intake Valve

Spring, Exhaust Valve NOTE:

Guard, Flywheel

Retainer, intake Valve and Exhaust

Spring

Tappet, Valve

Gear, Cam

*** Gasket, Carburetor Mounting (2)

Housing, Rewind Starter

Pulley, Rewind Starter

Spring, Rewind Starter

Rope, Rewind Starter

(Cut to Required Length)

insert, Starter Handle

Handle, Rewind Starter

Screw, Housing Mounting

Washer

Screen, Rotating

Lock, Screw

Carburetor Assembly

Screw, Throttle Valve to Shaft

Throttle, Carburetor

Shaft and Lever, Throttle

Valve and Shaft Group, Choke

Valve, Needle

Carburetor Overhaul Kit

Screw, Hex Head

Plug, Welch

Plu_l, Welch

Spnng, Needle Valve

Spring, Throttle Adjustment

Screw and Collar

Screw, Machine, Round Head

*** Gasket, Air Cleaner Mounting

Tank Assembly, Fuel

Cap, Fuel Tank

Screw, Fuel Tank

** Screw, Fuel Tank Mounting t-3/4"

* Gasket, Fuel Tank to Carburetor

Guide, Air

Link, Governor

* included in Gasket Set (495603)

** Included in Carburetor Overhaul Kit (495606)

*** Included in both Gasket Set (495603), and

Carburetor Overhaul Kit (495606)

All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

5 HP 17" TILLER -- MODEL NUMBER 917.298560

ENGINE, BRIGGS & STRATTON - - MODEL NUMBER 135202, TYPE NO. 0145-01

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO. DESCRIPTION

202 262270 Link, ThrotUe 515 262625

202A 262470 Link, Control 526 94659

203 280720 Bell Crank 527 223786

204 222962 Bushing, Governor Lever', Flat 528 231550

205 231520 Screw, Shoulder 529 67838

208 262279 Rod, Speed Control 542 93572

209 262282 Spring, Governor 552 231079

216 262359 Link, Choke 562 92613

219 494845 Gear, Governor 592 231082

220 221551 Washer, Thrust 608 495766

222 490649 Panel, Control 611 391813

223 223455 Lever, Governor Control 613 93935

224 93491 Rivet, Governor ControlLever 614 93306

Mounting 615 93307

227 490374 Lever Assembly, Governor 616 231077

230 222450 Washer, Governor Lever 621 396847

256 223813 Crank, Bell 634 271853

300 393615 Muffler, Exhaust 635 66538

304 495759 Housing, Blower 676 393757

305 94619 Screw, Blower Housing Mounting 679 270382

306 221511 Shield, Cylinder 680 221839

307 94680 Screw, Cylinder Shield 741 261696

308 224738 Cover, Cylfnder Head 851 221798

332 92284 Nut, Flywheel 869 211787

333 397358 Armature Group 870 211172

334 93414 Screw, Armature Mounting 871 262001

337 802592 Plug, Spark 63709

346 93705 Screw, Seres 916 280321

356 398808 Wire, Ground 966 492797

358 495603 Gasket Set 967 491588

363 19069 Flywheel Puller' 968 495357

373 92987 Nut, Hex 969 490073

383 89838 Wrench, Spark Plug 97i 94018

392 262328 Spring, Fuel Pump Diaphragm 987 398970

394 272538 **Diaphragm 995 491577

414 220982 Washer 1012 490507

432 221377 Cap, Spring 1016 224278

433 93265 Pin, Diaphragm Cover

434 214021 Cover, Diaphragm

435 93141 Screw, Diaphragm Cover'

455 224250 Cup, Starter

456 224321 Retainer

459 492833 Pawl, Starter

461 262626 Pin, Spring

467 280715 Knob, Control

Spring

Screw, Sems, Tank Bracket Mount,

Clamp, Breather Tube

Tube, Breather

Grommet, Breather Tube

Screw

Bushing, Governor Crank

Bolt, Governor Lever

Nut, Hex

Starter Assembly, Rewind

Fuel Pipe and Clip Assembly

Screw, Hex Head, Shoulder

Pin, Cotter

Retainer, E-Ring

Crank, Governor

Switch, Stop

Washer', Throttle Shaft, Foam

Elbow, Spark Plug

Deflector', Exhaust, Side Outlet

Washer, Foam

Washer, Brass

Gear, Timin_l

Cable Terminal, Ignition

Seat, intake Valve, Standard

Seat, Exhaust Valve, Standard

Guide, Exhaust Valve

Guide, Intake Valve

Rack, Gear Control

Base, Air Cleaner

Filter, Air Cleaner

Cover, Air Cleaner

Screw, Air Cleaner

Screw, Hex Head

Seat, Throttle Shaft

Lever, Bracket Assembly

Retainer, Link

Spacer

* included in Gasket Set(495603)

** Included in Carburetor Overhaul Kit (495606)

*** Included in both Gasket Set (495603), and

Carburetor Overhaul Kit (495606)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SiCE NOTES

VIC

H , I I ' I I I" I'll III II II IIIII III "

E NOTES

OWNER'S

MANUAL

MODEL NO.

917,298560

HOW TO ORDER

REPAIR PARTS

(RfiFTXMuN°

5,0

171 PWl

TILLER WITH

ROTATING

COUNTER ES

Each tiller has its own model number. Each engine has its own model

number.

The model number for your tiller will be found on aplate attached to the

top of the transmission_

The model number for your engine will be found on the blower housing of

the engine adjacent to the spark plug.

All parts listed herein may be ordered from any Sears, Roebuck, and Co,

Service Center and most Retail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOW-

ING INFORMATION:

• PRODUCT -REAR TINE TILLER

.MODEL NUMBER -917.298560

•ENGINE MODEL NUMBER -135202, TYPE NUMBER 0145-01

•PART NUMBER

• PART DESCRIPTION

Your Sears merchandise has added value when you consider' Sears has

service units nationwide staffed with Sears trained technicians,_, profes,,

sional technicians specifically trained to insure that we meet our pledge

to you, we service what we sell.

ir,,lllll,i ,1111,,ii ii ,i,iiiii i i ,i

ii,,iJ ii ..............

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

%,11 :::r:,: I llllllllL I Illllllllllll................. III .............

137921 09/01/92 PRINTED IN THE U,SoA,

Craftsman 917298560 User Manual TILLER Manuals And Guides L0909241

CRAFTSMAN Rear Tine, Gas Tiller Manual L0909241 CRAFTSMAN Rear Tine, Gas Tiller Owner's Manual, CRAFTSMAN Rear Tine, Gas Tiller installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
