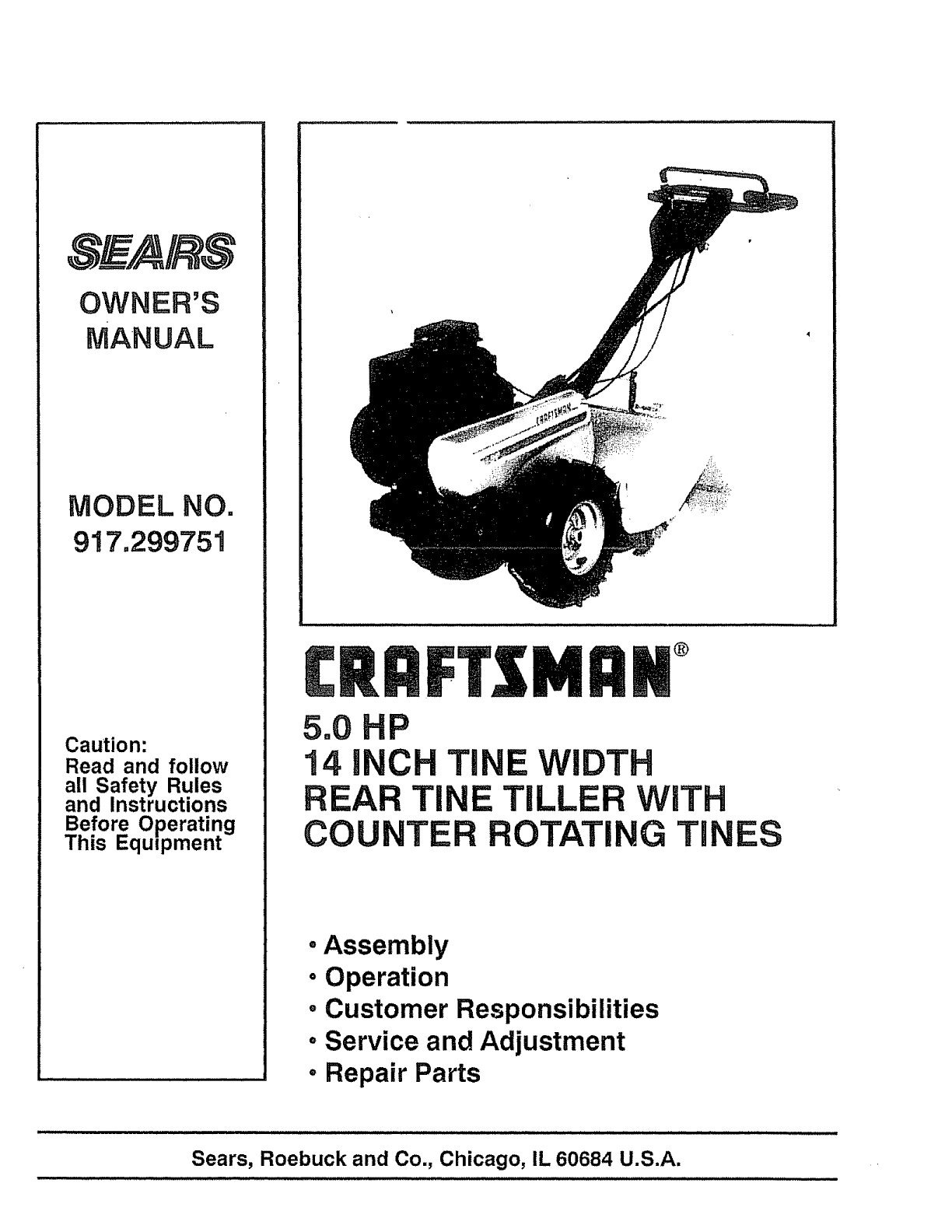

OWNER'S
MANUAL
MODEL NO.
917.299751
Caution:
Read and follow
all Safety Rules
and Instructmns
Before Operating
This Eqmpment
CRRFrZMR#®
5.0 HP
14 INCH DTH
REAR TINE TILLER W_TH
COUNTER ROTATING TINES
• Assembly
•Operation
° Customer Responsibilities
•Service and Adjustment
°Repair Parts
Sears, Roebuck and Co., Chicago, IL 60684 U.S.A.

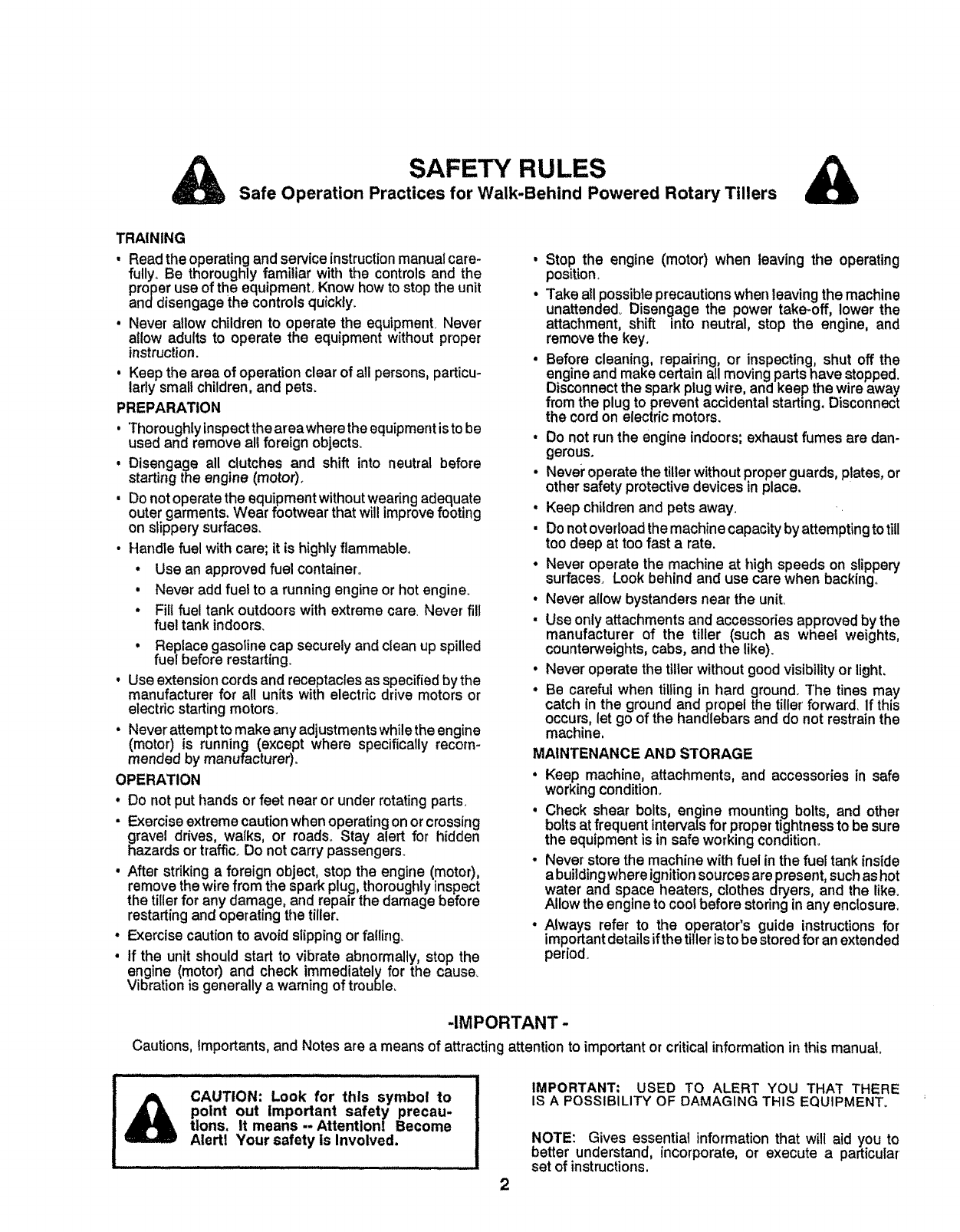

SAFETY RULES
Safe Operation Practices for Walk-Behind Powered Rotary Tillers
TRAINING
• Read the operatingand service instructionmanuai care-
fully. Be thoroughlyfamiliar with the controls and the
proper use of the equipment, Know howto stopthe unit
anddisengage the controls quickly.
•Never allow childrento operate the equipmenL Never
allow adults to operate the equipment without proper
instruction.
,Keep the area of operationclear of all persons,particu-
larly small children, and pets.
PREPARATION
, Thoroughly inspect theareawhere the equipment is to be
used and remove all foreign objects.
.Disengage all clutches and shift into neutral before
startingthe engine (motor).
. Donot operate the equipment withoutwearingadequate
outer garments. Wear footwear that will improvefooting
on slipperysurfaces.
• Handle fuel with care; it is highlyflammable.
• Use an approved fuel container°
•Never add fuel to arunningengine or hot engine.
• Fill fuel tank outdoorswith extreme care, Never fill
fue! tank indoors.
• Replace gasolinecap securely and clean up spilled
fuel before restarting.
•Use extensioncords and receptaclesas specified by the
manufacturer for all units with electric drive motors or
electric startingmotors.
• Never'attemptto make any adjustments whilethe engine
(motor) is running (except where specifically recom-
mended by manufacturer).
OPERATION
•Do not puthands orfeet near or under rotating parts,
• Exerciseextreme cautionwhen operatingonor crossing
gravel drives, walks, or roads. Stay alert for hidden
hazards or traffic. Do notcarry passengers_
•After strikinga foreign object, stop the engine (motor),
remove the wirefrom the spark plug, thoroughlyinspect
the tillerfor any damage, and repair the damage before
restartingand operatingthe tiller.
•Exercisecautionto avoid slippingor falling.
• If the unit should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause.
Vibrationis generally a warning of trouble_
, Stop the engine (motor) when leaving the operating
position.
• Take allpossibleprecautionswhen leavingthe machine
unattended_ Disengage the power take-off, lower the
attachment, shift into neutral, stop the engine, and
remove the key.
• Before cleaning, repairing, or inspecting, shut off the
engineand make certain all movingparts have stopped.
Disconnectthe spark plugwire, and keep the wire away
from the plugto prevent accidental starting.Disconnect
the cordon electricmotors_
• Do not runthe engine indoors;exhaust fumes are dan-
gerous.
•Nevel"operate the tillerwithoutproper guards, plates,or
other safety protectivedevices in place.
•Keep childrenand pets away
• Do not overload the machine capacity by attempting to tiU
too deep at too fast a rate
•Never operate the machine at high speeds on slippery
surfaces Look behind and use care when backing,
•Never allow bystanders near the unit
•Use only attachments and accessories approved by the
manufacturer of the tiller (such as wheel weights,
counterweights, cabs, and the like)
•Never operate the tiller without good visibility or light,
• Be careful when tilling in hard ground The tines may
catch inthe ground and propel the tiller forward If this
occurs, let go of the handlebars and do not restrain the
machine
MAINTENANCE AND STORAGE
,Keep machine, attachments, and accessories in safe
working condition,
• Check shear bolts, engine mounting bolts, and other
bolts at frequent intervals for proper tightness to be sure
the equipment is in safe working condition,
• Never store the machine with fuel in the fuel tank inside
a building where ignition sources are present, such as hot
water and space heaters, clothes dryers, and the like
Allow the engine to cool before storing in any enclosure
•Always refer to the operator's guide instructions for
important details if the tiller is to be stored for an extended
period
-IMPORTANT -
Cautions, tmportants, and Notes are a means of attracting attention to important or criticalinformation in this manual
I& CAUTIONI Look for this symbol to 1
point out Important safety precau- |
tlons. It means -- Attention! Become i
Aiertl Your safety is Involved. I
I
..... ii ..............
IMPORTANT= USED TO ALERT YOU THAT THERE
IS A POSSIBILITY OF DAMAGING THIS EQUIPMENT.
2
NOTE: Gives essential information that will aid you to
better understand, incorporate, or execute a particular
set of instructions

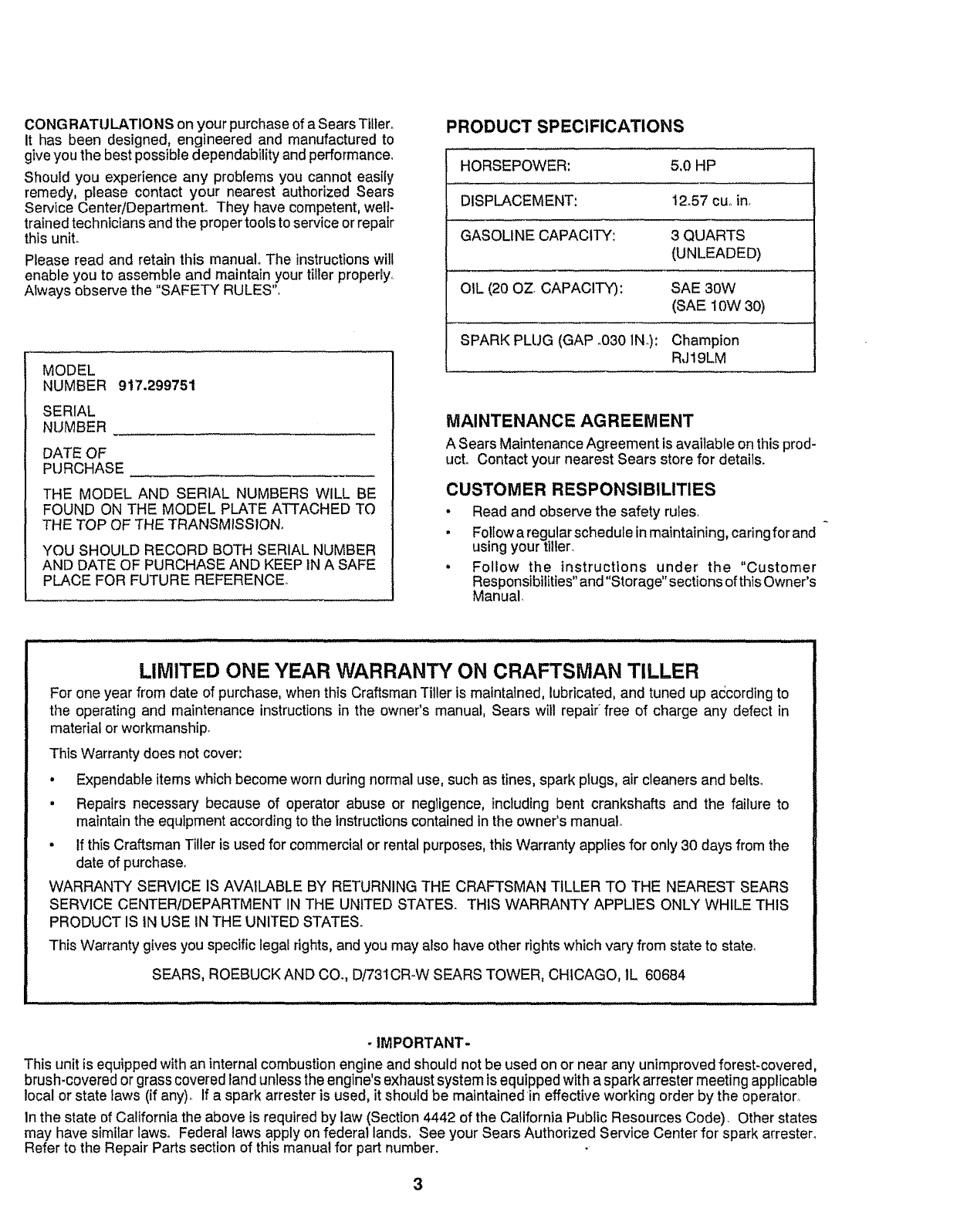

CONGRATULATIONSonyourpurchaseofaSearsTiIler,.
It hasbeendesigned,engineeredandmanufacturedto
giveyouthebestpossibledependabilityandperformance.
Shouldyouexperienceanyproblemsyoucannoteasily
remedy,pleasecontactyournearestauthorizedSears
ServiceCenter/DepartmentoTheyhavecompetent,well-
trainedtechniciansandthepropertools to service or repair
this unit.
Please read and retain this manual The instructions will
enable you to assemble and maintain your tiller properly,.
Always observe the "SAFETY RULES".
MODEL
NUMBER 917.299751
SERIAL
NUMBER
DATE OF
PURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE
FOUND ON THE MODEL PLATE ATTACHED TO
THE TOP OF THE TRANSMISSION°
YOU SHOULD RECORD BOTH SERIAL NUMBER
AND DATE OF PURCHASE AND KEEP tN A SAFE
PLACE FOR FUTURE REFERENCE.
PRODUCT SPECIFICATIONS
HORSEPOWER: 5.0 HP
DISPLACEMENT: 12o57cur in.
GASOLINE CAPACITY: 3 QUARTS
(UNLEADED)
OIL (20 OZ CAPACITY): SAE 30W
(SAE t0W 30)
SPARK PLUG (GAP °030 IN.): Champion
RJ19LM
MAINTENANCE AGREEMENT
ASears Maintenance Agreement isavailable on thisprod-
ucL Contact your nearest Sears store for details.
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule inmaintaining, caring for and
using your tiller.
. Follow the instructions under the "Customer
Responsibilities" and "Storage" sections of thisOwner's
Manual.
LIMITED ONE YEAR WARRANTY ON CRAFTSMAN TILLER
For one year from date of purchase, when this Craftsman Tiller is maintained, lubricated, and tuned up according to
the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any defect in
material or workmanship.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as tines, spark plugs, air cleaners and belts_
• Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to
maintain the equipment according to the instructionscontained in the owner's manual..
• If this Craftsman Tiller is used for commercial or rental purposes, this Warranty applies for only 30 days from the
date of purchase.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN TILLER TO THE NEAREST SEARS
SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS
PRODUCT IS IN USE IN THE UNITED STATES_
This Warranty gives youspecific legal rights, and you may also have other rights which vary from state to state°
SEARS, ROEBUCK AND CO_,D/731CR-W SEARS TOWER, CHICAGO, 1L 60684
-IMPORTANT.
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered,
brush.covered or grass covered land unless the engine's exhaust system isequippedwith aspark arrester meeting applicable
local or state laws (if any)° If a spark arrester is used, it should be maintainedin effective working order by the operaton
In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states
may have similar lawso Federal tawsapply on federal lands. See your Sears Authorized Service Center for spark arresten
Refer to the Repair Parts section of this manual for part number.
3
L
TABLE OF CON
....... _,_ _.................L±JUUlULU_ ,,,I ,ll_ Inl,, _ .... II uln,,,, ..............................
SAFETY RULES ............................................................ 2
CUSTOMER RESPONSIBILITIES ...................... 3,14-16
PRODUCT SPECIFICATIONS ....................................... 3
WARRANTY ................................................................... 3
ACCESSORIES ............................................................. 5
ASSEMBLY ................................................................ 6-8
OPERATION ............................................................. 9-13
MAINTENANCE SCHEDULE ...................................... 14
SERVICE & ADJUSTMENTS ................................. 16-19
STORAGE .................................................................... 20
TROUBLESHOOTING ................................................. 21
REPAIR PARTS-TILLER ........................................ 22-27
REPAIR PARTS-ENGINE ....................................... 28-31
INDEX
A
Adjustments:
Carburetor. .................................19
Depth Stake ............................. 10
Handle Height ............................t6
Side Shields..................................11
Throttle ..................................... ! 9
Tines ..........................................18
V-Belt (Ground Drive) .............. 17
Wheels ...................................13,16
Air Cleaner ............................................15
B
Belt:Belt Guard ....................................t7
Repair Parts .................................23
V-Bett (Ground Drive) ...............17
C
Cooling System .................................15
Controls:
Choke ............................................9
Throttle ........................................ 9
Drive (Tines) ............................... 9
Cultivating ........................................13
Customer Responsibilities:
Air Cleaner .................................15
Cooling System ........................ 15
Finish........................................ 16
Maintenance Schedule ............ 14
Muffler ...................................... 16
Oil Change ................................ 15
Spark Piug ..................................16
Tines ...........................................18
Transmission ............................ 16
V-Belt (Ground Drive) .............. 17
D
Depth Stake:
Adjustment ............................... 10
Repair Parts............................. 26
E
Engine:
Air Cleaner ............................... 15
Cooling System ...........................15
Fuel Type ....................................! 1
Engine (cont'd)
Lubrication ............................... 15
Oil Level ....................................... 11
Oil Type ...................................11,15
Spark Plug .................................16
Starting ........................................12
Stopping .....................................10
Storage ..................................... 20
Winter Operation ..................... 15
F
Fuel:
Filling Tank .................................. 11
Storage ........................................20
Type .......................................... 11
Finish:
Maintenance ..............................16
H
Handle:
Height Adjustment ......................t6
Repair Parts .................................22
L
Lubrication:
Lubrication Chart .................... 14
Engine ........................................15
M
Muffler:
Maintenance ............................ i6
Spark Arrester ............................ 3
O
Oil: Level ........................................... 11
Type ......................................11,15
Operation:
Cultivating ................................. 13
Fill Fuel Tank ............................ 11
Starting Engine .............................12
Stopping Tines & Engine ...........10
Tilling ......................................... 10
Tilling Hints .............................. 12
Tine Operation .................................10
Transporting Tiller ..................... tl
Winter Operation .......................15
R
Repair Parts ..................................22-3t
Rules for Safe Operation .............oo.,..,2
S
Sewice & Adjustments:
Carburetor ................................ 19
Handle Height .......................... 16
Side Shields .................................t 1
Throttle .........................................19
Tines ......................................... 18
V.Belt (Ground Drive) .............. 17
Wheels ................................. 13,16
Service:
Repair Parts ......................... 22-31
Service Record ......................... 14
Shear Pins:
Operation ................................... 12
Repair Parts .............................. 27
Spark Plug:
Gap ....................................................3
Maintenance ............................ 16
Storage:
Fuel System ............................. 20
Tiller ........................................... 20
Tilling .......................................... 10,12
Tines:
Arrangement/Replacement .......18
Operation .................................. 10
Repair Parts ...............................27
Shear Pins ................................. 12
Transmission:
Maintenance ............................. 16
Repair Parts ...............................25
Troubleshooting ............................. 21
Transporting .................................... 11
W
Warranty ................................................3
Wheels:
Adjustments .............................. 13
Removal .....................................16
Repair Parts ...............................24
4

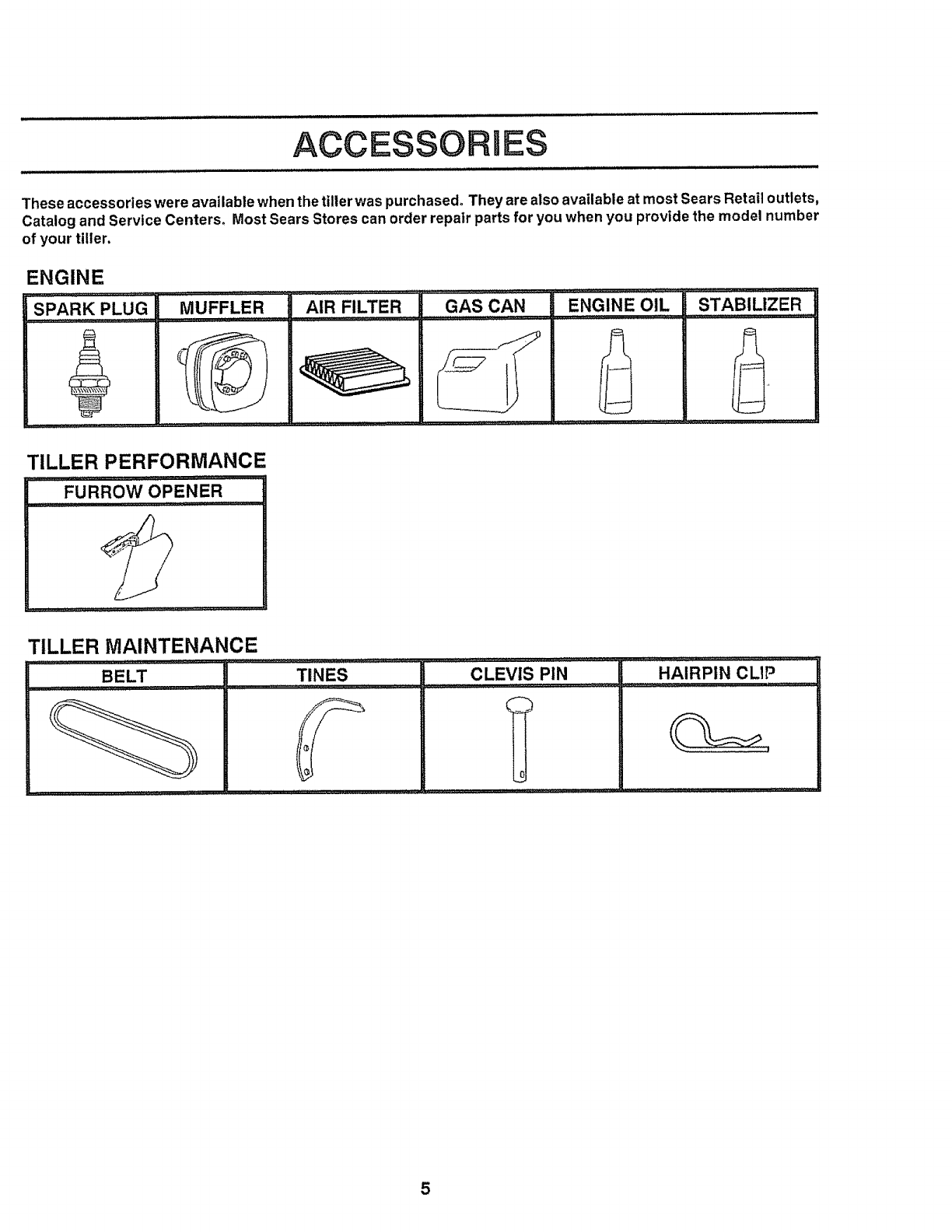

ACCESSORIES
These accessories were available when the tilter was purchased. They are also available at most Sears Retail outlets,
Catalog and Service Centers° Most Sears Stores can order repair parts for you when you provide the model number
of your tiller,
ENGINE
SPARK PLUG MUFFLER AIR FILTER
,!
i ..........
GAS CAN
,, ,i,J............ : :-.. -o
ENGINE OIL
........ i,,i,J) STABILIZER
TILLER PERFORMANCE
iiiiiii1,,,,,,,11,11 "i,,_
FURROW OPENER
/,_,_ r,,lllll .......
TILLER MAINTENANCE
BELT TINES CLEVIS PIN HAIRPIN CLIP
5
ill, ii ......... ..................

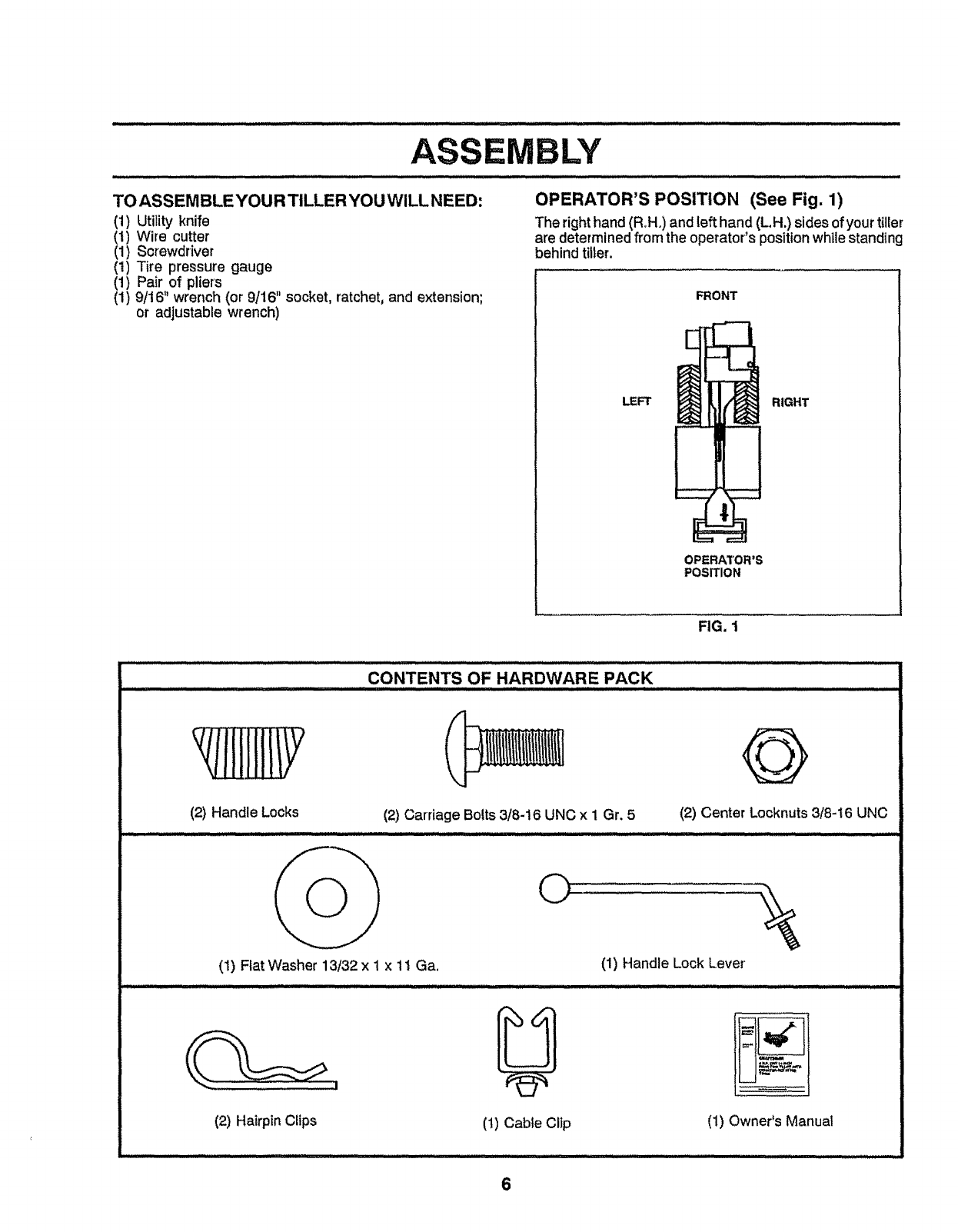

ASSEMBLY
.................... ill i,, i ,m,L ,,,,,i ill ,,,,,,,i ,,,l,,,,qw
OPERATOR'S POSITION (See Fig. 1)
The righthand (R.H.) and left hand (LH.) sidesof yourtiller
are determinedfrom the operator's positionwhile standing
behindflier.
TO ASSEMBLE YOUR TILLER YOU WILL NEED:
(1) Utility knife
(1) Wire cutter
(1) Screwdriver
(1) Tire pressure gauge
(1) Pair of pliers
(1) 9/16" wrench (or 9/16" socket,ratchet, and extension;
or adjustable wrench)
FRONT
LEFT RIGHT
OPERATOR'S
POSITION
FIG. 1
i,, illlllllll - ,r i llll ill ill - • ill
CONTENTS OF HARDWARE PACK
/lllllll/
(2) Handle Locks (2) Carriage Bolts 3/8-t6 UNC x I Gr. 5
@ °
(1) Flat Washer 13f32 x 1 x 11 Ga.
Hi i NJp,,
I
(2) Hairpin Clips
(2) Center Locknuts3/8-16 UNC
.............. ............... .1 ....
,,, ,,,,,i,,,,,,,,,
(1) Cable Clip
(1) Handle Lock Lever'
(1) Owner's Manual
6
ASSEMBLY
UNPACKING CARTON (See Fig. 2)
ICAUTION: Be careful of exposed i
staples when handling or disposing of
cartoning material.
IMPORTANT: WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLES
• While holding handle assembly, cut cable ties securing
handle assembly to top frame and depth stake. Let
handle assembly rest on tiller.
• Remove top frame of carton.
•Slowly ease handle assembly up and place on top of
carton,
o Cut down right hand front and right hand rear corners
of carton, lay side carton wall down.
• Remove packing material from handle assembly.
• Separate shift rod from handle assembly.
SHIFT ROD
FIG. 2
HANDLE
ASSEMBLY
INSTALL HANDLE (See Figs. 3, 4, and 5)
•Insert one handle lock (with teeth facing outward) in
gearcase notch. (Apply grease on smooth side of
handlelockto aid inkeeping lock inplace until handle
assembly is lowered into position.)
_HANDLE ASSEMBLY
/ / HANDLE
_X,..7_oy/ /! LOCK
Q
m
m
Grasp handle assembly. Hold in"up" position, Be sure
handle lock remains ingearcase notch. Slide handle
assembly into position
f- ;_ _.. ,. ..i HANDLE ASSEMBLY
f "u.".OSITiON
"" r"'_" TIGHTEN HANDLE |
i _ LOCK LEVER TO 1
I LOOSEN HANDLE L_ "_
i LOCK LEVER TO
IMOVE
FIG, 4
Rotate handle assembly down to install two carriage
bolts and locknuts, Insert rear carriage bolt (Fig. 5)first,
with head of bolt on Loll, side of tiller° Lower the handle
assembly. Tighten bolts so handle moves with some
resistance,
insert second handle lock (with teeth inward) in the slot
of the handle base°
Place fiat washeron threaded end of handle lock lever,
Insert handle lock lever through handle base and
gearcase,
With handle assembly in lowest position, securely
tighten handle lock lever by rotating clockwise, Leav-
Ing handle assembly in lowest position will make it
easier to remove tiller from carton,
SLOT
CARRIAGE
BOLT
HANDLE
LOCK
FLAT
WASHER
HANDLE
LOCK
LEVER
REAR
CARRIAGE
BOLT
HANDLE
BASE
LOCKNUTS
FIG. 5
FIG. 3 7
ASSEMBLY

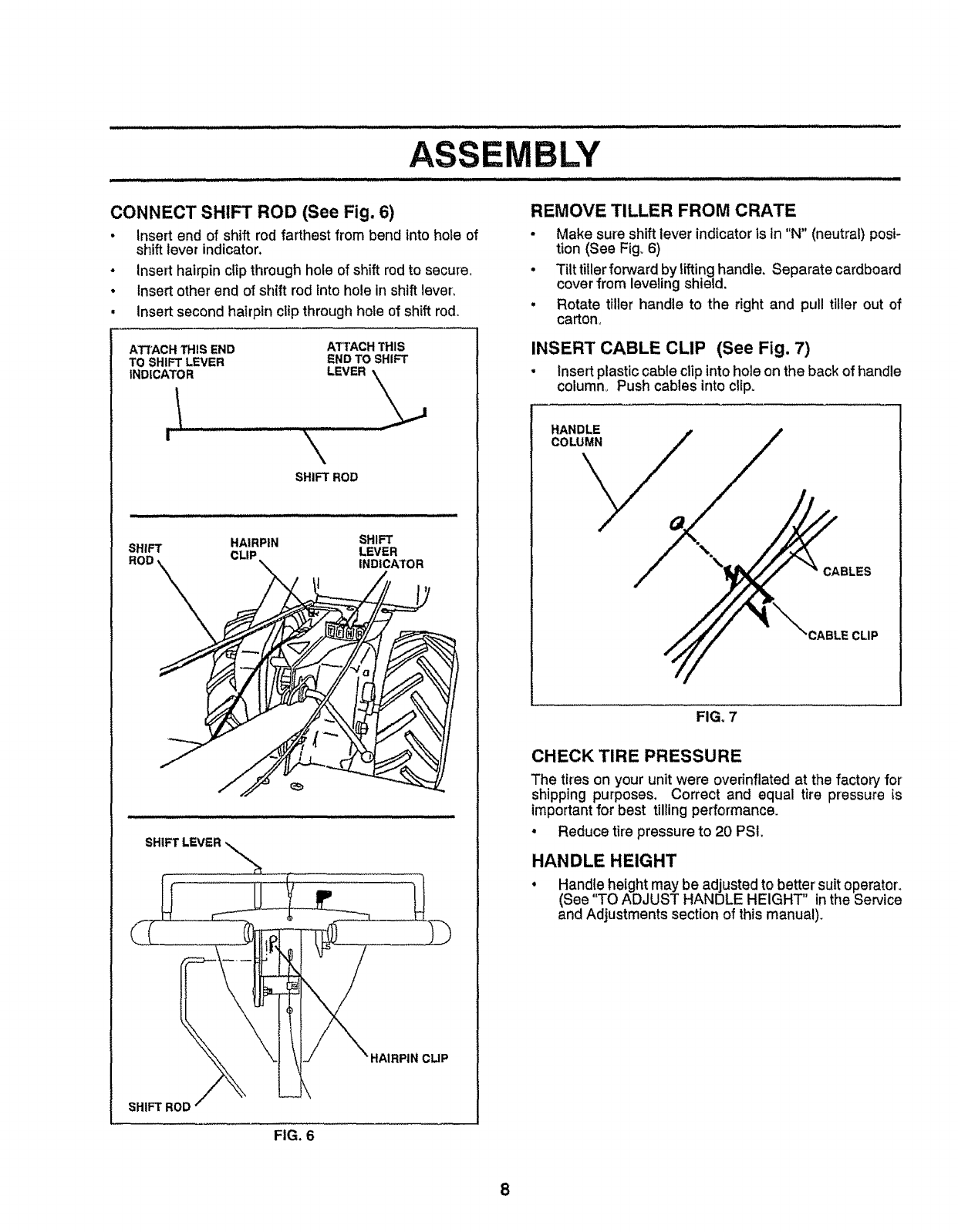

CONNECT SHIFT ROD (See Fig. 6)
•Insert end of shift rod farthest from bend into hole of
shift lever indicator,
• Insert hairpinclip through hole of shift rodto secure,
• Insertother end of shift rod _ntohole in shift lever,
,Insert second hairpin clip throughhole of shift rod.
REMOVE TILLER FROM CRATE
• Make sure shiftlever indicatorts in "N" (neutral)posi-
tion (See Fig, 6)
•Tilt tiller forward by Iiftirlg handie_ Separate cardboard
cover from leveling shield.
• Rotate tiller handle to the right and pull tiller out of
carton,
ATTACH THIS END AI"TACH THIS
TO SHIFT LEVER END TO SHIFT
INDICATOR LEVER _,,1
........ .....................
SHIFT ROD
SHIFT HAIRPIN SHIFT
CLIP LEVER
INDICh;TOR
.......
HAIRPIN CLIP
SHIFT ROD
INSERT CABLE CLIP (See Fig. 7)
• Insert plasticcable clip intohole onthe back of handle
column. Push cables into clip.
CABLES
'CABLE CLIP
FIG. 7
CHECK TIRE PRESSURE
The tires on your unit were ovednflated at the factoryfor
shipping purposes, Correct and equal tire pressure is
importantfor best tillingperformance.
•Reduce tire pressure to 20 PSt.
HANDLE HEIGHT
• Hand!eheight may be adjusted to better suitoperator.
(See TO ADJUST HANDLE HEIGHT' inthe Service
and Adjustments section of thismanual).
FIG, 6
8
i,J i,, OPERATION

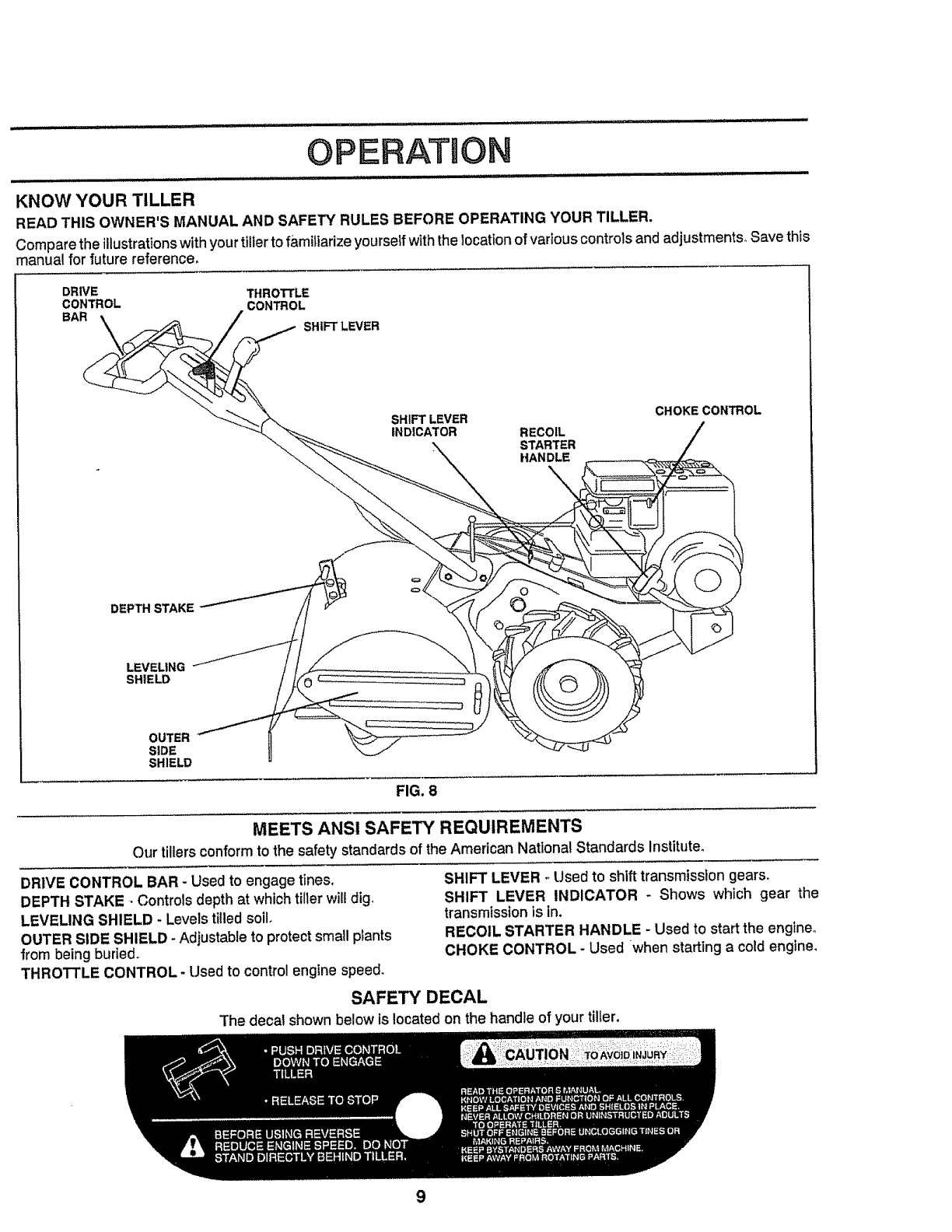

KNOW YOUR TILLER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER,
Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments_ Save this
manual for future reference,
DRIVE THROTTLE
CONTROL CONTROL
BAR SHIFT LEVER
SHIFT LEVER
INDICATOR RECOIL
STARTER
HANDLE
CHOKE CONTROL
DEPTH STAKE
LEVELING
SHIELD c
OUTER
SIDE
SHIELD
FIG. 8
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute°
DRIVE CONTROL BAR - Used to engage tines.
DEPTH STAKE - Controls depth at which tiller willdig,
LEVELING SHIELD - Levelstilledsoil,
OUTER SIDE SHIELD - Adjustable to protectsmall plants
from being buried°
THROTTLE CONTROL - Used to control engine speed.
SHIFT LEVER - Used to shift transmission gears,
SHIFT LEVER INDICATOR - Shows which gear the
transmission is in.
RECOIL STARTER HANDLE - Used to start the engined
CHOKE CONTROL - Used when starting acold engine,
SAFETY DECAL
The deca! shown below is located on the handle of your tiller,

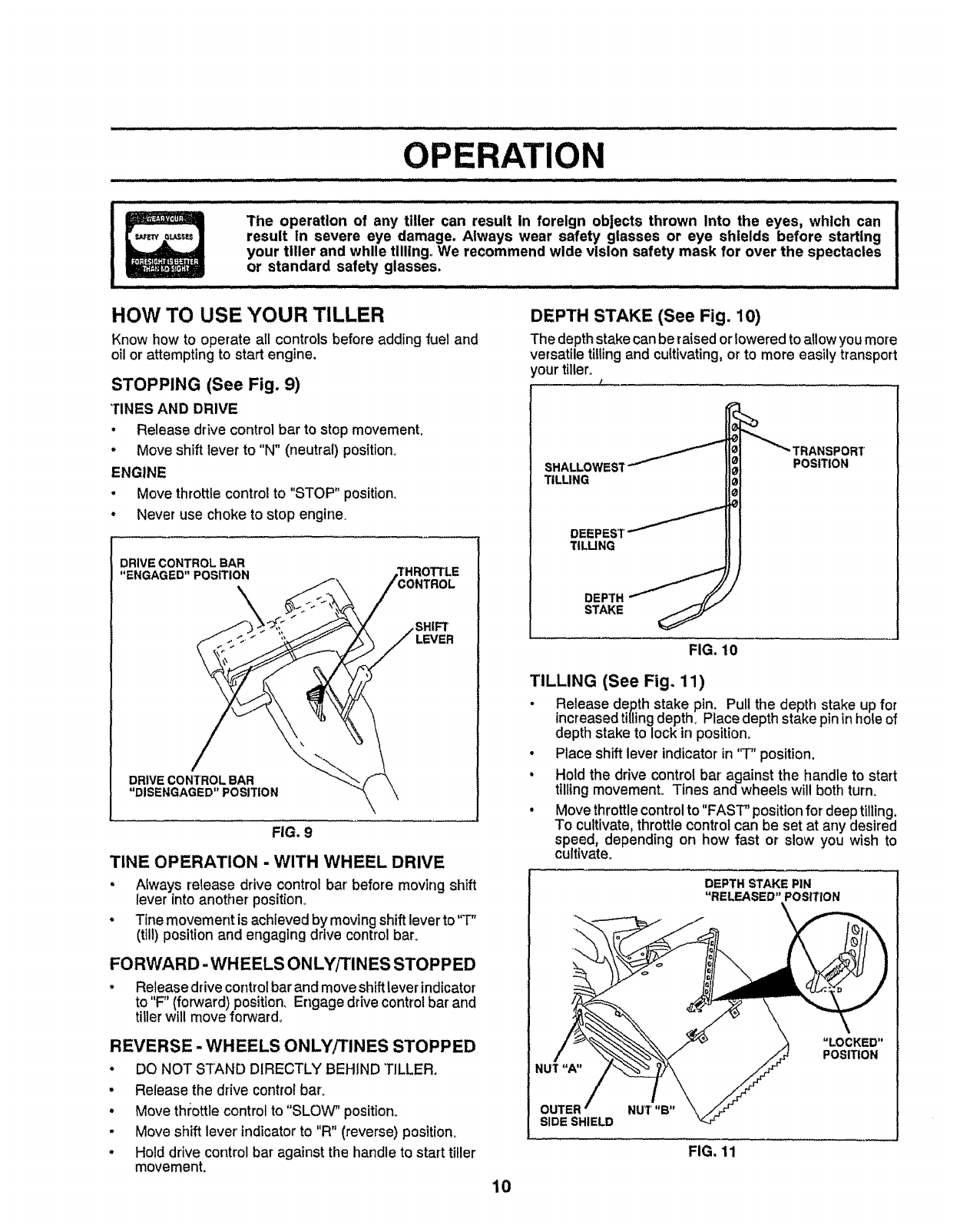

OPERATION
The operation of any tiller can result In foreign oblects thrown Into the eyes, which can
result in severe eye damage. Always wear safety glasses or eye shields before starting
your tiller and while tilling° We recommend wide vision safety mask for over the spectacles
or standard safety glasses,
HOW TO USE YOUR TILLER
Know how to operate all controls before adding fuel and
oil or attempting to start engine.
STOPPING (See Fig. 9)
TINES AND DRIVE
• Release drive control bar to stop movement.
•Move shift lever to "N" (neutral) position.
ENGINE
•Move throttle control to "STOP" position,
•Never use choke to stop engine.
DRIVE CONTROL BAR
"ENGAGED" POSITION
,SHIFT
LEVER
DRIVE CONTROL BAR
"DISENGAGED" POSITION
FIG. 9
TINE OPERATION -WITH WHEEL DRIVE
•A_ways release drive control bar' before moving shift
lever into another position.
•Tine movement is achieved by moving shift lever to "T"
(till) position and engaging drive control bar_
FORWARD - WHEELS ON LYiTINES STOPPED
•Release drive control bar and move shift leverindicator
to "F" (forward) position. Engage drive control bar and
tiller will move forward_
REVERSE - WHEELS ONLY/TINES STOPPED
•DO NOT STAND DIRECTLY BEHIND TILLER.
•Release the drive control bar.
•Move thJ:ottlecontrol to "SLOW" position.
.Move shift lever indicator to "R" (reverse) position°
°Hold drive control bar against the handle to start tiller
movement.
10
DEPTH STAKE (See Fig. 10)
The depth stake canbe raised or toweredto aUowyoumore
versatile tilling and cultivating, or to more easily transport
your tiller°
/......
SHALLOWEST
TILLING
TILLING
POSITION
DEPTH-_
STAKE
FIG. 10
TILLING (See Fig. 11)
•Release depth stake pin. Pull the depth stake up for
increased tilling depth, Place depth stake pin inhole of
depth stake to lock in position°
•Place shift lever indicator in 'T' position.
° Hold the drive control bar against the handle to start
tilling movement. Tines and wheels will both turn.
• Move throttle control to"FAST" position for deeptilling,
To cultivate, throttle control can be set at any desired
speed, depending on how fast or slow you wish to
cultivate.
DEPTH STAKE PiN
"RELEASED" POSITION
\
"LOCKED"
POSITION
OUTER NUT "B"
SIDE SHIELD
FIG. 11
TURNING
• Releasethe drive controlbar,
•Movethrottle controlto "SLOW" position.
. Place shift lever indicator in "F" (forward) position.
Tines will not turn.
• Lift handle to raise tines out of ground.
•Swingthe handle inthe oppositedirectionyou wishto
turn,being careful to keep feet and legs away from
tines.
• When you have completed your turn-around, release
the drive control bar and lower handle, Place shift lever
in 'T' (till) position and move throttle control to desired
speed. To begin tilling, hold drive control bar against
the handle°
OUTER SIDE SHIELDS (See Fig. 11)
The front edges of the outer side shields are slotted so that
the shields can be raised for deep tillingand lowered for
shallow tilling to protect small plants from being buried,
Loosennut "A" inslot and nut "B", Move shield to desired
position(both sides), Retighten nutsr
TRANSPORTING
CAUTION: Before lifting or transport-
ing, allow tiller engine and muffler to
cool. Dlsconnectsparkplugwire. Drain
gasoline from fuel tank.
•Release the depth stake pint Move the depth stake
down to the top hole for transporting the tiller, Place
depth stake pin in hole of depthstake to lock inposition,
This prevents tines from scuffing the ground_
• Place shift lever indicatorin "F" (forward) position for
transporting.
• Hold the drive control bar against the handle to start
tiller movement, Tines will not turn.
•Move throttle control to desired speed°
CAUTION: Before operating your tiller
for the first ttme, study this section and
the' SAFETY RULES" on page 2.
Always release drive control bar before
moving shift lever Into another posi.
tion.
Don't back yourself into a solid ob-
struction such as a tree, fence, etco
,,,, .......... iiH,i,lll LL lll l
BEFORE STARTING ENGINE
CHECK ENGINE OIL LEVEL (See Fig. 12)
IMPORTANT: BE VERY CAREFUL.NOT TO ALLOW DIRT
TO ENTER THE ENGINE WHEN CHECKING OR ADDING
OIL OR FUEL, USE CLEAN SAE 30 OR 10W30 WEIGHT
OIL AND STORE tN APPROVED, CLEAN, COVERED
CONTAINERS. ALL OILS MUST MEET A.PJ. SERVICE
CLASSIFICATION SGo USE CLEAN FILL FUNNELS.
° The engine tn your unit has been shipped, from the
factory, already filled with SAE 30 summer weight oil,
•With engine level, clean area around oil filler plug and
remove ptugo
• Engine otl should be to point of overflowing. For
approximate capacity see PRODUCT SPECIFICA-
TIONS" on page 3 of this manual, All oil must meet
A.PJo Service Classification SG
•For cold weather operation you should change oil for
easier starting (See oil viscosity chart in the Customer
Responsibilities section of this manual)°
• To change engine oil, see the Customer Responsibili-
ties section in this manual
OIL
LEVEL
OIL
FILLER
PLUG
DRAIN
PLUG
FIG, 12
ADD GASOLINE
° Fill fuel tank. Use fresh, clean, regular unleaded
gasoline° (Use of leaded gasoline will increase carbon
and lead oxide deposits and reduce valve life.
IMPORTANT; WHEN OPERATING IN TEMPERATURES
BELOW 32°F (0°C), USE FRESH, CLEAN, WINTER
GRADE GASOLINE TO HELP INSURE GOOD COLD
WEATHER STARTING.
WARNING: Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or methanol) can
attract moisture which leadsto separation and formation of
acids during storage. Acidic gas can damage the fuel
system of an engine while in storage, To avoid engine
problems, the fuel system should be emptied before stor-
age of 30 days or longer. Drain the gas tank, start the
engine and let it run until the fuel lines and carburetor are
empty, Use fresh fuel next season_ See Storage Instruc-
tions for additional information, Never use engine or
carburetor cleaner products in the fuel tank or permanent
damage may occur.
CAUTION: Fill to within 1/2 inch of top
of fuel tank to prevent spills and to
allow for fuel expansion. If gasoline Is
accidentally spilled, move machine
away from area of spill. Avoid creating
any source of ignition until gasoline
vapors have dlsappearedo
Do not overfill. Wipe off any spilled oll
or fuelo Do not store, spill or use gaso-
line near an open flame.
IIHI I.lllll .I,I
11
OPERATION

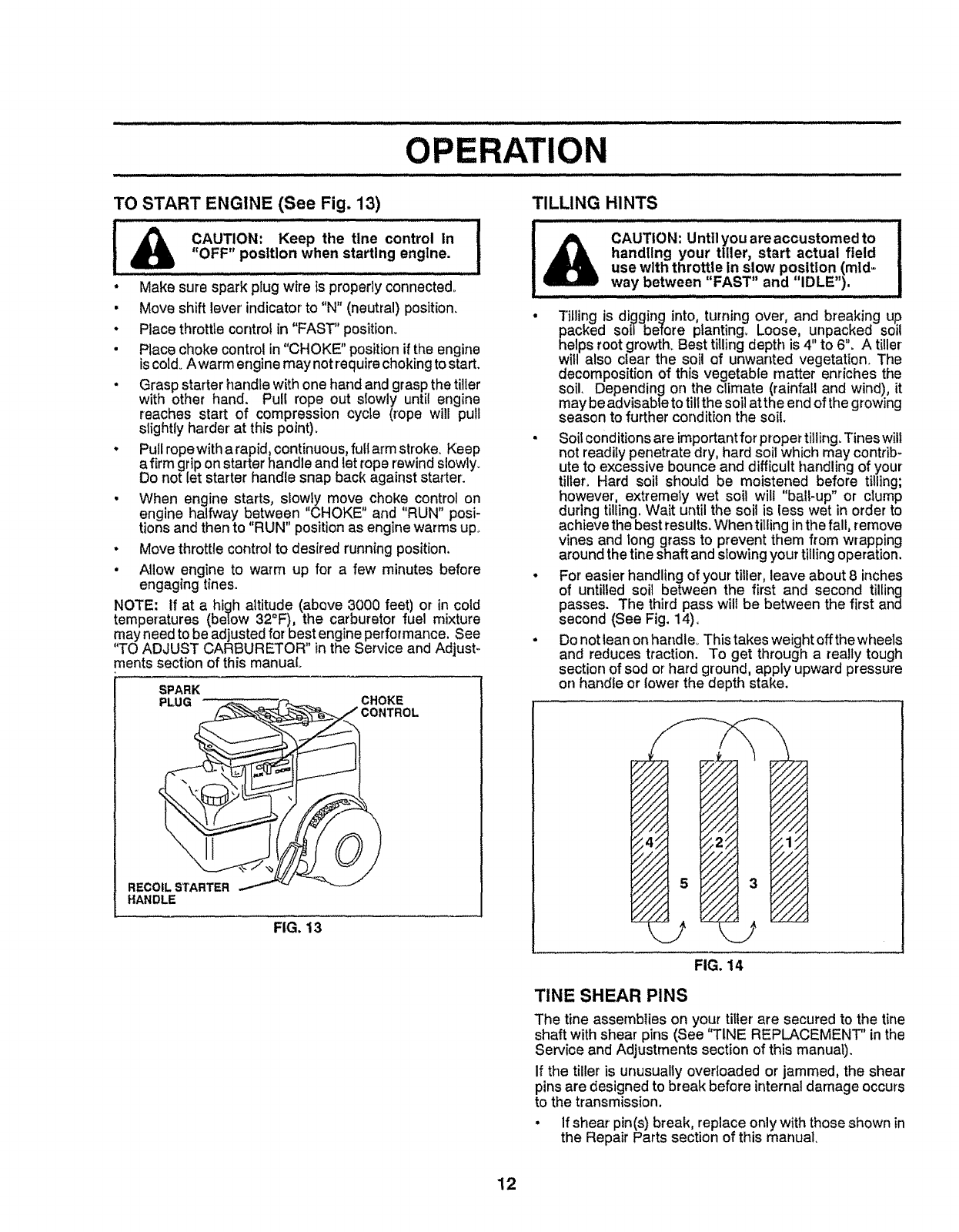

TO START ENGINE (See Fig, 13)
Izt ,.o,,.ooo°,.o,,n !
"OFF" posltlon when starting engine
.......................
* Make sure spark plug wire is propedy connected°
. Move shift lever indicator to "N" (neutral) position.
. Place throttte control in "FAST" position°
.Place choke control in "CHOKE" positionif the engine
iscoidoAwarm engine may not require choking to start.
.Grasp starter handle with one hand and grasp the tiller
with other hand. Pull rope out slowly until engine
reaches start of compression cycle (rope will pull
slightly harder at this point).
. Pull rope with arapid, continuous, full arm stroke. Keep
a firm gdPon starter handle and let rope rewind slowly.
Do not let starter handle snap back against starter.
. When engine starts, slowly move choke control on
engine halfway between 'CHOKE" and "RUN" posi-
tions and then to "RUN" position as engine warms up,
. Move throttle control to desired running position.
. Allow engine to warm up for a few minutes before
engaging tines.
NOTE: If at a high attitude (above 3000 feet) or in cold
temperatures (beIow 32°t=), the carburetor fuel mixture
may need to be adjusted for best engine performance. See
"TO ADJUST CARBURETOR in the Service and Adjust-
ments section of this manual
SPARK
PLUG _-,_=_ _ CHOKE
RECOIL STARTER /_ _---_
HANDLE
FIG. 13
TILLING HINTS
............................... i i i,i, l/ i H i,,,,
CAUTION: Untilyou areaccustomed to
handling your tiller, start actual field
use with thro_!e In slow position (told-
way between FAST" and "IDLE").
•Tilling is digging into, turning over, and breaking up
packed soil before planting_ Loose, unpacked soil
helps root growth_ Best tilling depth is 4' to 6'. A tiller
will also clear the soil of unwanted vegetation. The
decomposition of this vegetable matter enriches the
soil, Depending on the climate (rainfall and wind), it
may be advisable to till the soil atthe end of the growing
season to further condition the soil.
• Soil cond itions are importantfor proper tilling. Tines wilt
not readity penetrate dry, hard soil which may contrib-
ute to excessive bounce and difficult handling of your
tiller, Hard soil should be moistened before tilling;
however, extremely wet soi! wilt "ball-up" or clump
during tilling, Wait until the soil is less wet in order to
achieve the best results. When tilling inthe fall, remove
vines and long grass to prevent them from wrapping
around the tine shaft and slowing your tilling operation.
•For easier handling of your tiller, leave about 8 inches
of untilled soil between the first and second tilling
passes. The third pass will be between the first and
second (See Fig. 14).
° Do not leanonhandle.. This takes weight off the wheels
and reduces traction. To get through a really tough
section of sod or hard ground, apply upward pressure
on handle or lower the depth stake.
3
FIG. 14
TINE SHEAR PINS
The line assemblies on your tiller are secured to the line
shaft with shear pins (See "TINE REPLACEMENT" in the
Service and Adjustments section of this manual).
If the tiller is unusually overloaded or jammed, the shear
pins are designed to break before internal damage occurs
to the transmission.
•If shear pin(s) break, replace only with those shown in
the Repair Parts section of this manual.
12
OPEBATUON
CULTIVATING
Cultivating is destroying the weeds between rows to pre-
vent them from robbing nourishment and moisture from the
plants, At the same time, breaking up the upper layer of soil
crust will help retain moisture in the soil. Best digging depth
is 1" to 3'L Lower the outer side shields to protect small
plants from being buried,
• Cultivate up and down the rows at a speed which will
allow tines to uproot weeds and leave the ground in
rough condition, promoting no further growth of weeds
and grass (See Fig. 15),
N
k__.r-_ I
"_.-_-_ i
A
FIG. 15
ADJUST WHEELS FOR CULTIVATING (See
Figs. 16 and 17)
• Place blocks underrighthand side of tillerand remove
hairpin clip and clevispin from right hand wheel
• Move wheel outwardapproximately 1 inch untilhole in
inner wheel hub lines up with inner hole in axle_
OUTER VIEW OF TIRE
F--""v_ .CLEVIS
_,_"J_k-_ V..,. _ _// _'_ _ HAIRPIN
FIG. 16
• Replace clevis pin and hairpin clip on inside of wheel
and remove blocks.
•Repeat precedingsteps on left hand side.
NOTE: In extremely rough conditions and while cultivating,
the wheels should be moved outward on the axle for
increased stability,
INNERVIEW OF TIRE
CLIP
FIG. 17
13

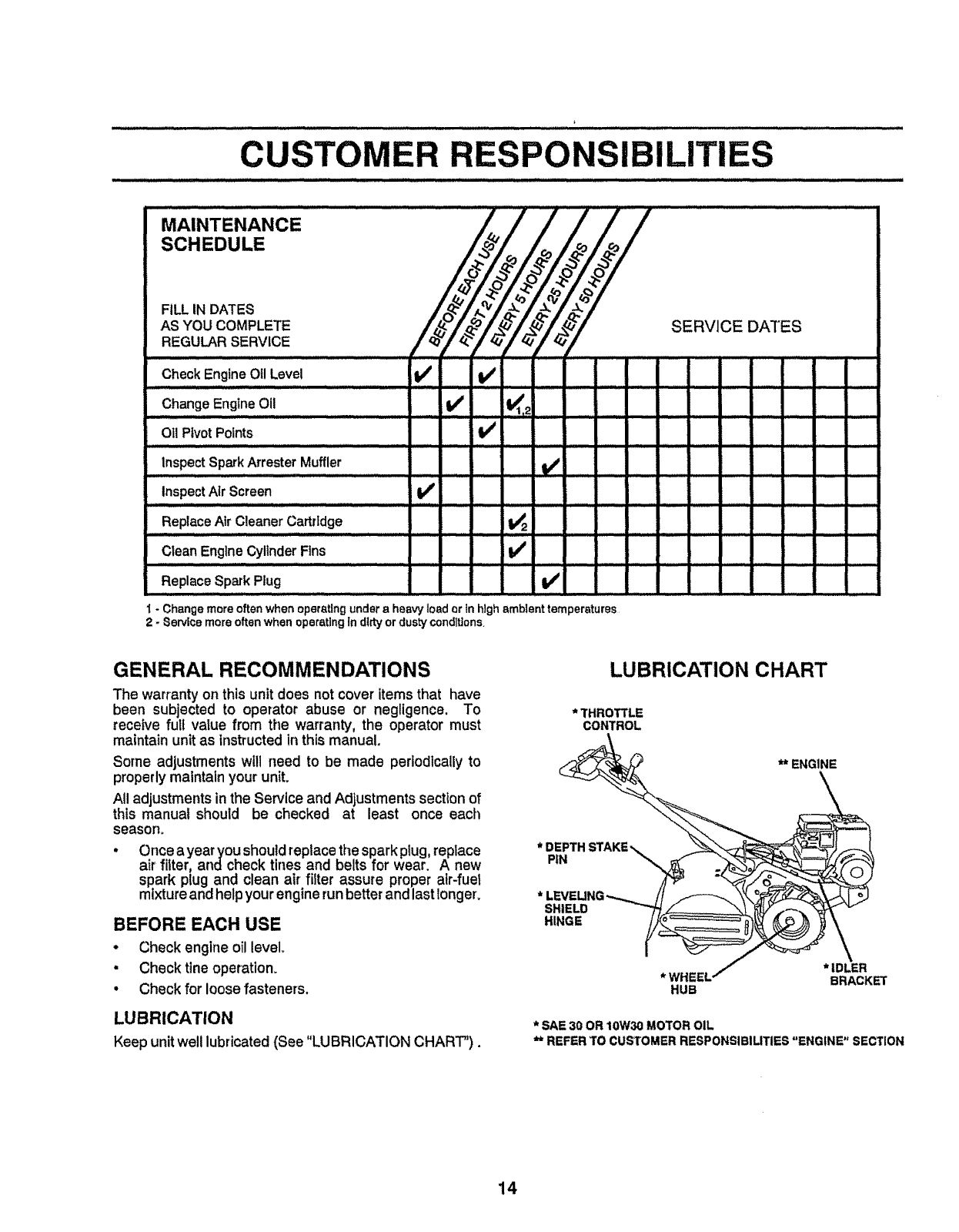

CUSTOMER RESPONSIBILITIES
,m, m ..................
MA,.TE.A.CE
SCHEDULE _/
,,o
RE, U ,RSER\',OE
, Check Engine 0tl Level kit t_ ....
Change Engtne Oil if !_1_2 ...... _
0ii PivotPoints I_
ii H,,
InspectSparkArrester Muffler if
iii w INNN "' ...................
InspectAir Screen V'
...., iHll .................
ReplaceAir CleanerCartridge _2
Clean EngineCylinderFins b/
,mLm ,,,, - ........................•J_ Hllll _tt,,,, ...............
ReplaceSpark P!ug L... if ..............
1-Change more often when operaUng under a heavyload Qr in high amblent temperatures
2-Set€lee mere often when operating In dirty ordusty conditions,
GENERAL RECOMMENDATIONS
The warranty on this unit does not cover items that have
been subjected to operator abuse or negligence. To
receive full value from the warranty, the operator must
maintain unit as instructed in thts manual.
Some adjustments will need to be made periodically to
properlymaintainyour unit.
All adjustmentsin the Service and Adjustments sectionof
this manual should be checked at least once each
season.
Once a year you should replace thespark plug,replace
air filter, and check tines and belts for wear. A new
spark plug and clean air filter assure proper air-fuel
mixture and help your engine runbetter and last longer'.
BEFORE EACH USE
•Check engine oil level.
• Check tlne operation.
,Check for loose fasteners.
LUBRICATION
Keep unitwell lubricated(See "LUBRICATION CHART").
LUBRICATION CHART
* THROTTLE
CONTROL
** ENGINE
* DEPTH
PIN
SHIELD
HINGE
*WHEEL,
HUB
*IDLER
BRACKET
* SAE 30 OR 10W30 MOTOR OIL
** REFER TO CUSTOMER RESPONSIBIUT1ES "ENGINE" SECTION
14

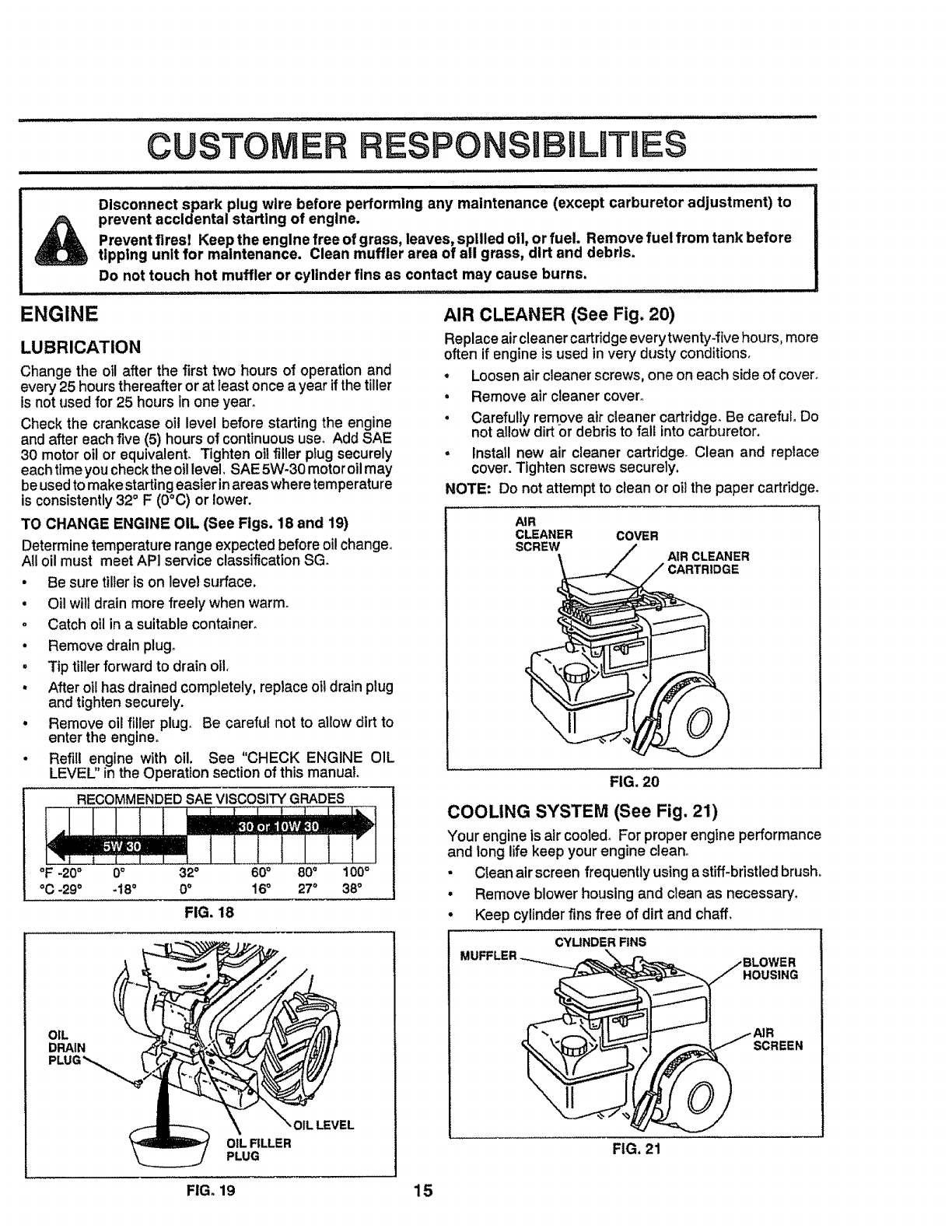

ILmTMES
Disconnect spark plug wire before performing any maintenance (except carburetor adjustment) to
prevent accidental starting of engine.
Prevent fires! Keep the engine free of grass, leaves, spilled oil, or fuel. Remove fuel from tank before
tipping unit for maintenance. Clean muffler area of all grass, dirt and debris.
Do not touch hot muffler or cylinder fins as contact may cause burns.
ENGINE
LUBRICATION
Change the oli after the first two hours of operation and
every 25 hours thereafter or at least once a year if the tiller
is not used for 25 hours in one year.
Check the crankcase oil level before starting the engine
and after each five (5) hours of continuoususe. Add SAE
30 motor oil or equivalent. Tighten oil filler plug securely
each timeyou checktheoillevel, SAE 5W-80 motoroil may
be used to make starting easier in areas where temperature
is consistently 32° F((3°0) or lower.
TO CHANGE ENGINE OIL (See Figs. 18 and 19)
Determinetemperature range expectedbefore oilchange°
All oil must meet API service classificationSG_
m
Q
Q
t
Be sure tiller is on level surface,
Oil wiltdrain more freely when warm°
Catch oil in a suitable container°
Remove drain plugo
Tip tiller forward to drain ell,
After oil has drained completely, replace oil drain plug
and tighten securely.
Remove oll filler plugo Be careful not to allow dirt to
enter the engineo
Refill engine with oil. See "CHECK ENGINE OIL
LEVEL in the Operation section of this manual,
RECOMMENDED SAE VISCOSITY GRADES
°F -20"
°C -29 °
0° 32" 600 80° 100°
-18o 0° 16° 27° 38°
FIG. 18
OIL
DRAIN
OIL FILLER
PLUG
AIR CLEANER (See Fig. 20)
Replace aircleaner cartridgeeverytwenty-five hours, more
often if engine is used in very dustyconditions,
. Loosenaircleaner screws, one on each side of cover_
•Remove air cleaner cover_
•Carefully remove air cleaner cartridge. Be careful Do
notallow dirt_ordebristo fall into carburetor.
- Install new air cleaner cartridge. Clean and replace
cover. Tighten screws securely.
NOTE: Do not attempt to clean or oi!the paper cartridge.
AIR
CLEANER
SCREW COVER
AIR CLEANER
IDGE
FIG. 20
COOLING SYSTEM (See Fig. 21)
Your engineis air cooted. For properengine performance
and long lifekeep your engine clean.
•Clean air screen frequently using astiff.bristled brush°
° Remove blower housing and clean as necessary,
• Keep cylinder fins free of dirt and chaff,
CYUNDER FINS
MUFFLER _/BLOWER
/HOUSING
AIR
/SCREEN
FIG. 21
FIG. 19 15

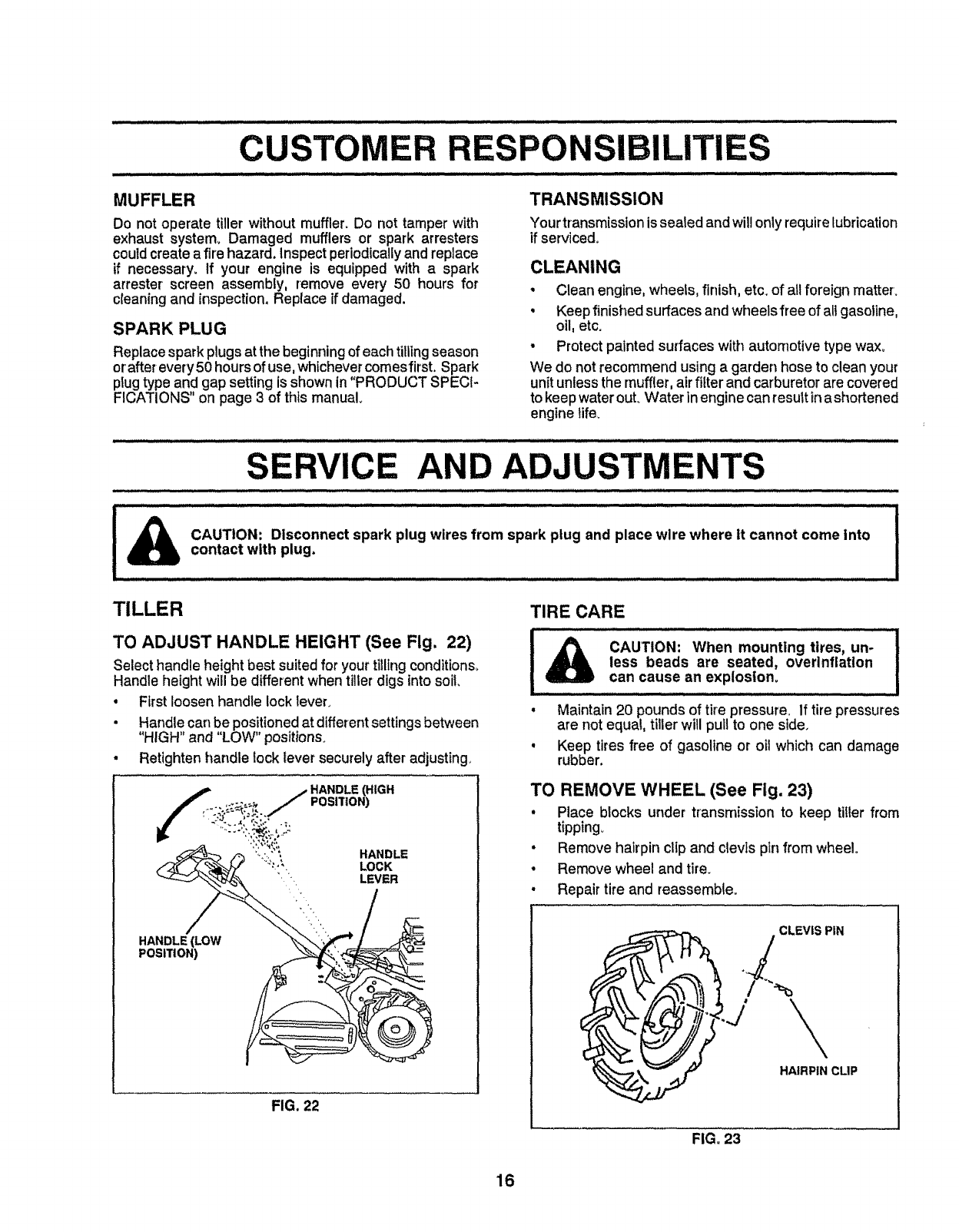

CUSTOMER RESPONSIBILITIES
MUFFLER TRANSMISSION
Your transmission issealed and wil! only require lubrication
if serviced°
Do not operate tiller without muffler. Do not tamper with
exhaust system_ Damaged mufflers or spark arresters
could create afire hazard. Inspect periodically and replace
if necessary. If your engine is equipped with a spark
arrester screen assembly, remove every 50 hours for
cleaning and inspection. Replace if damaged.
SPARK PLUG
Replace spark plugs at the beginning of each tilling season
or'after every50 hours of use, whichever comesfirst. Spark
plug type and gap setting is shown in "PRODUCT SPECI-
FICATIONS" on page 3 of this manual.
CLEANING
• Clean engine, wheels, finish, etc_of all foreign matter.
° Keepfinishedsurfaces and wheelsfree of alt gasoline,
oil, etc.
• Protect paintedsulfaces with automotivetype wax°
We do not recommend usinga garden hose to clean your
unitunlessthe muffler, airfitter and carburetorare covered
to keepwater out. Water inenginecan resultinashortened
engine life,
SERVICE AND ADJUSTMENTS
ZLLL"•.. II I..I. .'.' Illlllll lull"., I II,,. II IlUl.I .I I I,.ll II • ILI. I..,I L'J/I I' ............
CAUTION: Disconnect spark plug wires from spark plug and place wire where tt cannot come Into
contact with plug.
................. _ ,,,,,,,,,,,,,,,,,,,,,_......
TILLER
TO ADJUST HANDLE HEIGHT (See Fig. 22)
Select handle height best suited for yourtilling conditions_
Handle height will be different when tilter digs into soil.
• First loosen handle lock lever.
• Handle can be positioned at different settings between
"HIGH" and "LOW" positions.
• Retighten handle lock lever securely after adjusting°
/. .,i HANDLE (HIGH
..... ,_, /POSITION)
F_ "",'.."', HANDLE
._,'_'_ '_:'". LOCK
l
POSITION) .f_:._ _
I _ _'_
FIG. 22
TIRE CARE
IA............................................
CAUTION: When mounting tires, un. !
less beads are seated, overlnflatton !
can cause an exploslon_ !
illl ,,, IL lul ,, HHI I I Ill I ill ,,,, .............
• Maintain 20 pounds of tire pressure, If tire pressures
are not equal, tiller will pull to one side.
,Keep tires free of gasoline or oil which can damage
rubber.
TO REMOVE WHEEL (See Fig. 23)
•Place blocks under transmission to keep tiller from
tipping.
• Remove hairpin clip and clevis pin from wheel
• Remove wheel and tire.
°Repair tire and reassemble.
CLEVIS PIN
! '\,
HAiRPiN CUP
FIG. 23
16
ERVNCE AND ADJUSTMENTS

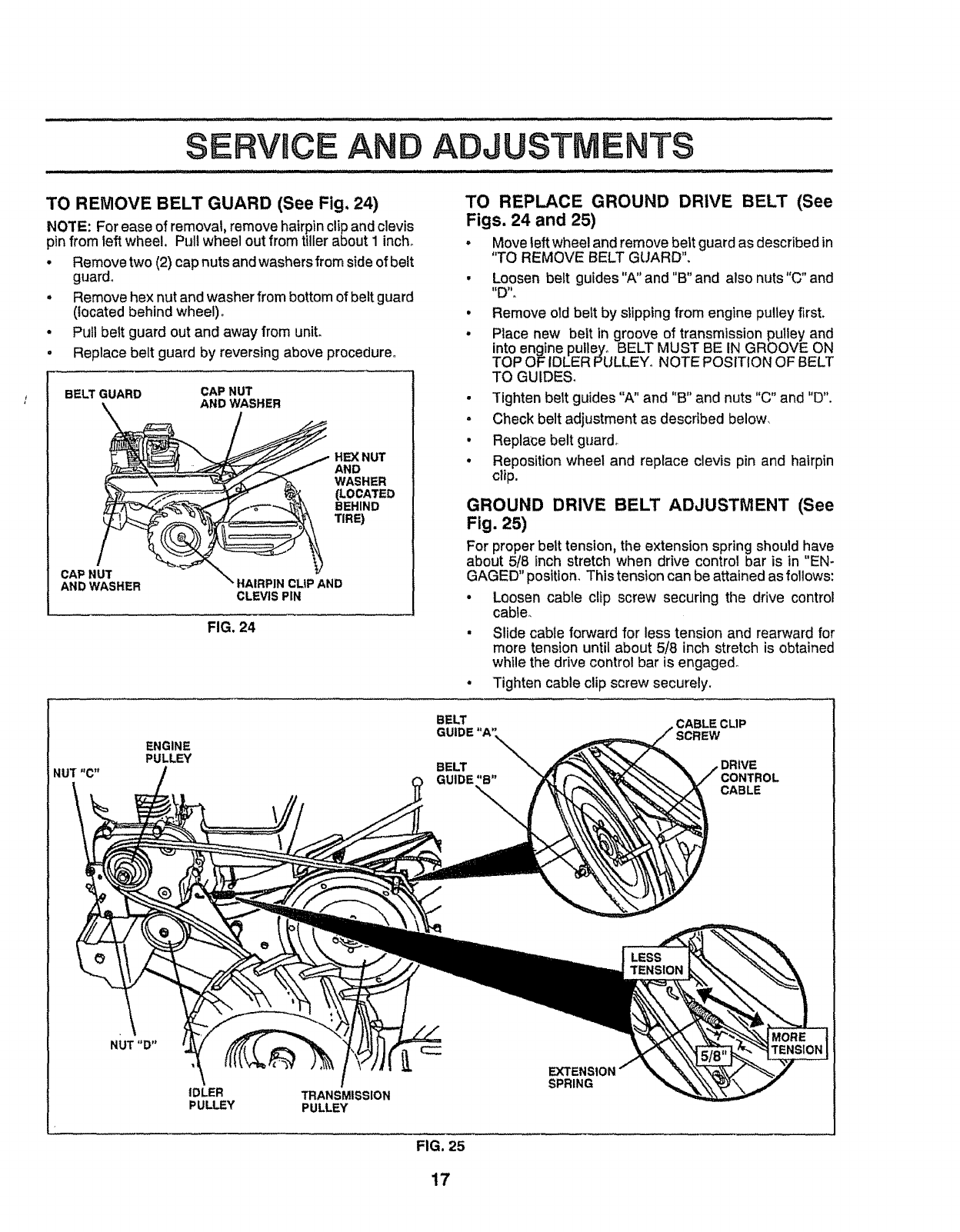

TO REMOVE BELT GUARD (See Fig, 24)
NOTE: For ease of removal,removehairpinclipandclevis
pinfrom left wheel. Pullwheel outfrom tillerabout 1 inch°
•Remove two (2) cap nutsandwashersfrom sideofbelt
guard°
• Remove hex nut and washer from bottom of belt guard
(located behind wheel).
° Pull belt guard out and away from unit,
° Replace belt guard by reversing above procedure°
BELT GUARD CAP NUT
AND WASHER
HE]< NUT
AND
WASHER
(LOCATED
BEHIND
TIRE)
CAP NUT
AND WASHER HAIRPIN CLIP AND
CLEVIS PiN
FIG. 24
TO REPLACE GROUND DRIVE BELT (See
Figs. 24 and 25)
,Moveleft wheel and remove belt guard as described in
"TO REMOVE BELT GUARD",
• Loosen belt guides "A" and "B" and also nuts "C" and
• Remove old belt by slipping from engine pulley first,
•Place new belt in groove of transmission pulley and
into engine pulley_ BELT MUST BE IN GROOVE ON
TOP OF IDLER PULLEY° NOTE POSITION OF BELT
TO GUIDES,
• Tighten belt guides "A" and "B" and nuts "C" and "D".
° Check belt adjustment as described below,
.Replace belt guard°
•Reposition wheel and replace clevis pin and hairpin
clip.
GROUND DRIVE BELT ADJUSTMENT (See
Fig. 25)
For proper belt tension, the extensionspring should have
about 5/8 inch stretch when drive control bar is in "EN-
GAGED" position, Thistension can be attained as follows:
•Loosen cable clip screw securing the drive control
cable_
•Slide cable forward for less tension and rearward for
more tension until about 5/8 inch stretch is obtained
while the drive control bar is engaged°
•Tighten cableclip screw securely,
NUT "C"
ENGINE
PULLEY
BELT
BELT
GUIDE "B"
\
CABLEC_P
DRIVE
CONTROL
CABLE
LESS
TENSION
NUT "D"
IDLER
PULLEY TRANSMISSION
PULLEY
SPRING
FIG. 25
17
SERVICE AND ADJUSTMENTS

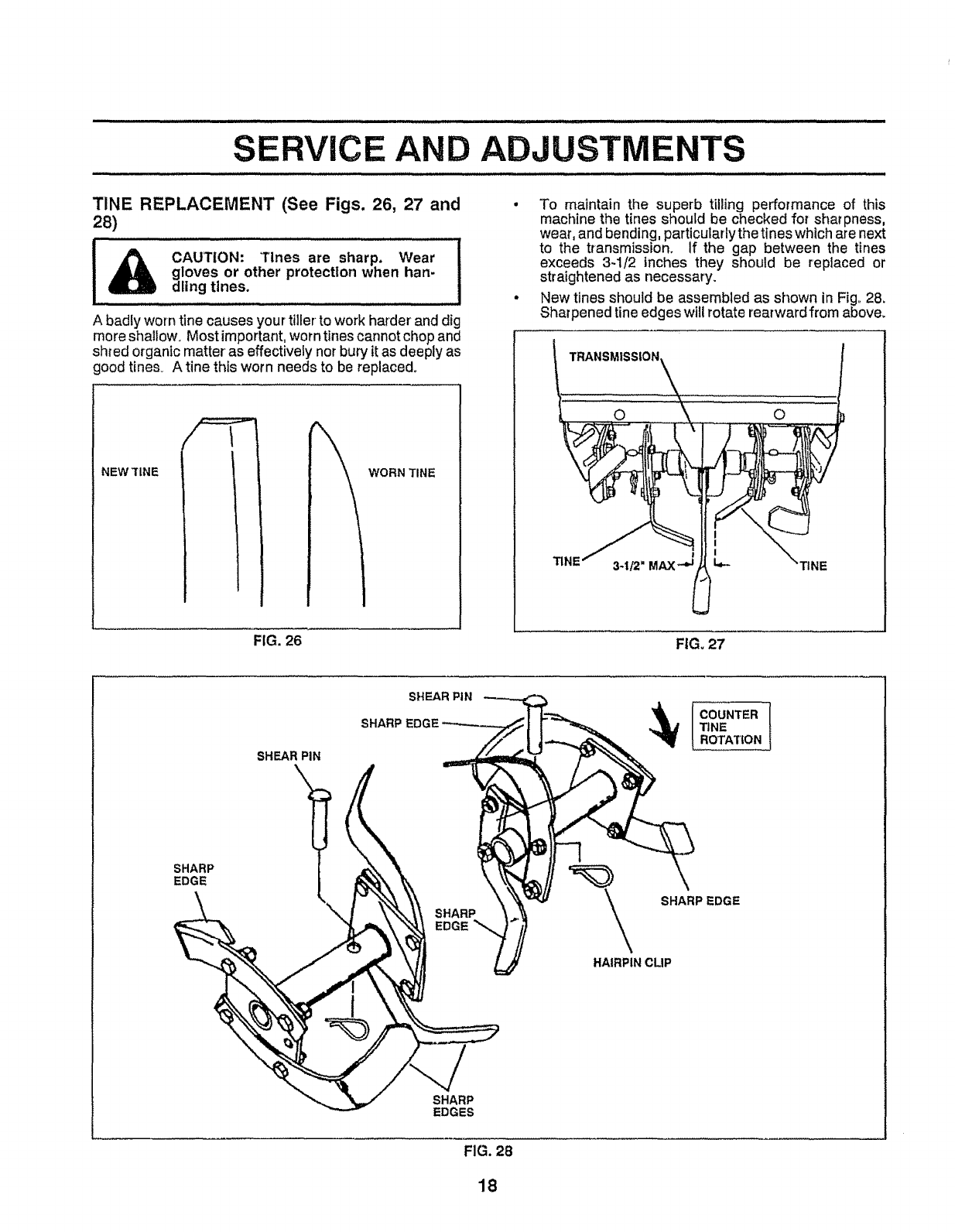

TINE REPLACEMENT (See Figs. 26, 27 and
28)
A .......
CAUTION: Tines are sharp. Wear
gloves or other protection when han-
dling tines.
A badly worn tine causes your tiller to work harder and dig
more shallow+ Most important,worn tines cannot chop and
shred organic matter as effectively nor bury it as deeply as
good tines+ A tine this worn needs to be replaced.
NEW 3"[NE WORN TINE
•To maintain the superb tilling performance of this
machine the tines should be checked for sharpness,
wear, and bending, particularlythetines which are next
to the transmission+ If the gap between the tines
exceeds 3-1/2 inches they should be replaced or
straightened as necessary.
•New tines should be assembled as shown in Fig+28+
Sharpened tine edges witl rotate rearward from above.
O
FIG. 26 FIG+27
SHARP
EDGE
SHEAR PIN
SHARP EDGE
S_SHARP EDGE
EDGE ,\
HAIRPIN CLIP
,_ (COUNTER}TINE
ROTATION
SHARP
EDGES
FIG+ 28
18

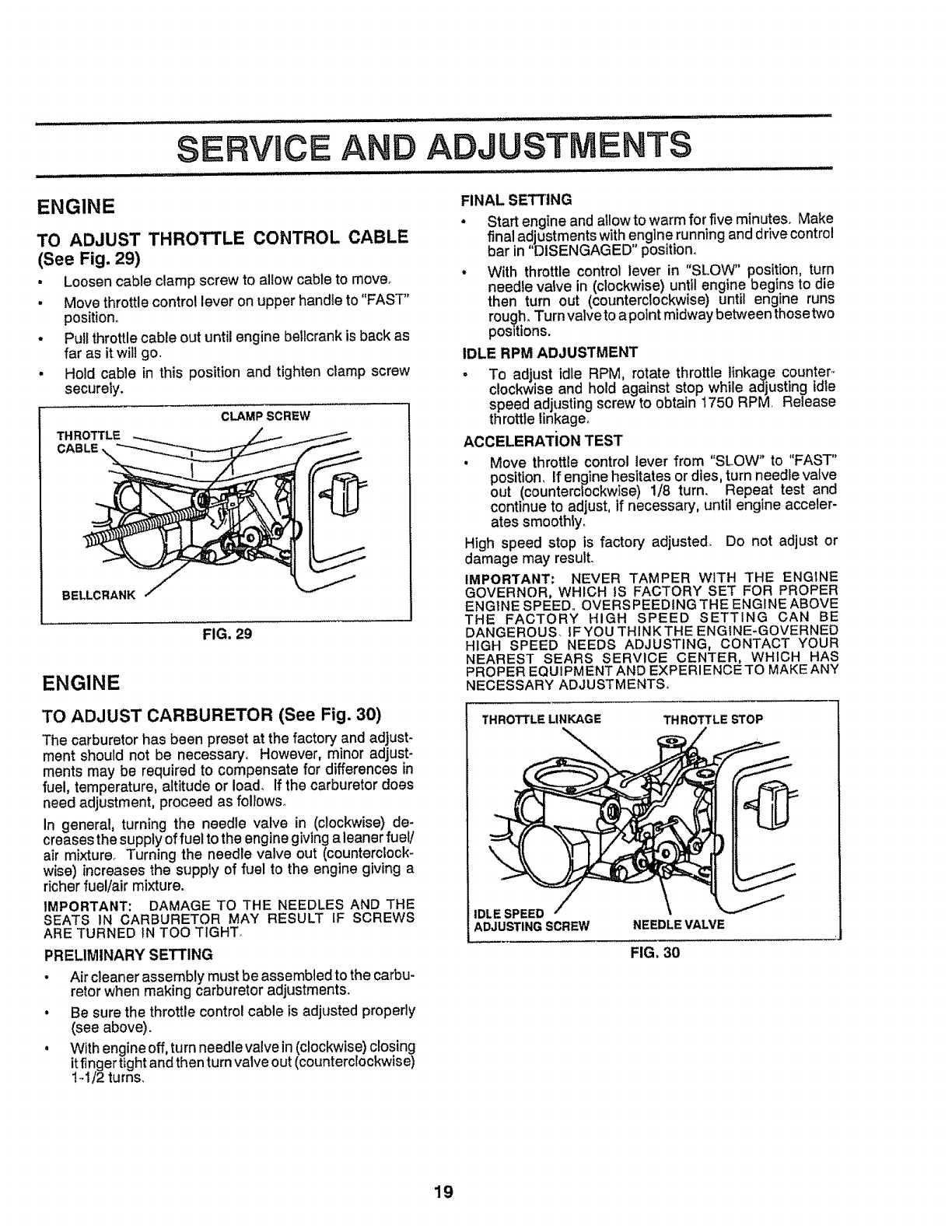

;ERVICE AND ADJUSTMENTS
ENGINE
TO ADJUST THROTTLE CONTROL CABLE
(See Fig, 29)
•Loosencable clamp screw to allow cable to move,
•Move throttle control lever on upper handle to "FAST"
position_
° Pull throttle cable out until engine bellcrank is back as
far as it will go.
•Hold cable in this position and tighten clamp screw
securely.
CLAMP SCREW
THROTTLE
CABLE
BELLCRANK
FIG. 29
ENGINE
TO ADJUST CARBURETOR (See Fig. 30)
The carburetorhas been preset at the factory and adjust_
merit should not be necessary. However, minor adjust-
ments may be required to compensate for differencesin
fuel, temperature, altitude or Ioad_ If the carburetordoes
need adjustment, proceed as folFows_
In general, turning the needle valve in (clockwise) de-
creases the supply offuel to the enginegivinga leanerfue!/
air mixture° Turning the needle valve out (counterclock-
wise) increases the supply of fuel to the engine giving a
richerfuel/air mixture.
IMPORTANT: DAMAGE TO THE NEEDLES AND THE
SEATS IN CARBURETOR MAY RESULT IF SCREWS
ARE TURNED IN TOO TIGHT_
PRELIMINARY SETTING
• Air cleaner assemblymustbe assembledtothe carbu-
retor when making carburetoradjustments.
•Be sure the throttlecontrolcable is adjusted properly
(see above).
°With engine off turn needle valve in (clockwise) closing
it finger tight and then turn valve out (counterclockwise)
t-1/2 turns,
FINAL SETTING
• Start engine andallow to warm for five minutes. Make
final adjustments withengine runningand drive control
bar in"DISENGAGED" position°
• With throttle control lever in "SLOW" position, turn
needle valve in (clockwise) untilengine beginsto die
then turn out (counterclockwise) until engine runs
rough. Turnvalveto apointmidway between thosetwo
positions.
IDLE RPM ADJUSTMENT
- To adjust idle RPM rotate throttle linkage counter_
clockwise and hold against stop while adjustingidle
speed adjustingscrew to obtain 1750 RPM Release
throttlelinkage.
ACCELERATION TEST
• Move throttle control lever from "SLOW" to "FAST"
position, If enginehesitates or dies, turn needle valve
out (counterclockwise) 1/8 turn. Repeat test and
continueto adjust,if necessary, until engine acceler-
ates smoothly.
High speed stop is factory adjusted. Do not adjust or
damage may result.
IMPORTANT: NEVER TAMPER WITH THE ENGINE
GOVERNOR, WHICH IS FACTORY SET FOR PROPER
ENGINE SPEED. OVERSPEEDINGTHE ENGINE ABOVE
THE FACTORY HIGH SPEED SETTING CAN BE
DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED
HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR
NEAREST SEARS SERVICE CENTER, WHICH HAS
PROPER EQUIPMENT AND EXPERIENCE TO MAKE ANY
NECESSARY ADJUSTMENTS,.
THROTTLE LINKAGE TH ROTTLE STOP
IDLE SPEED
ADJUSTING SCREW NEEDLE VALVE
FIG. 30
19

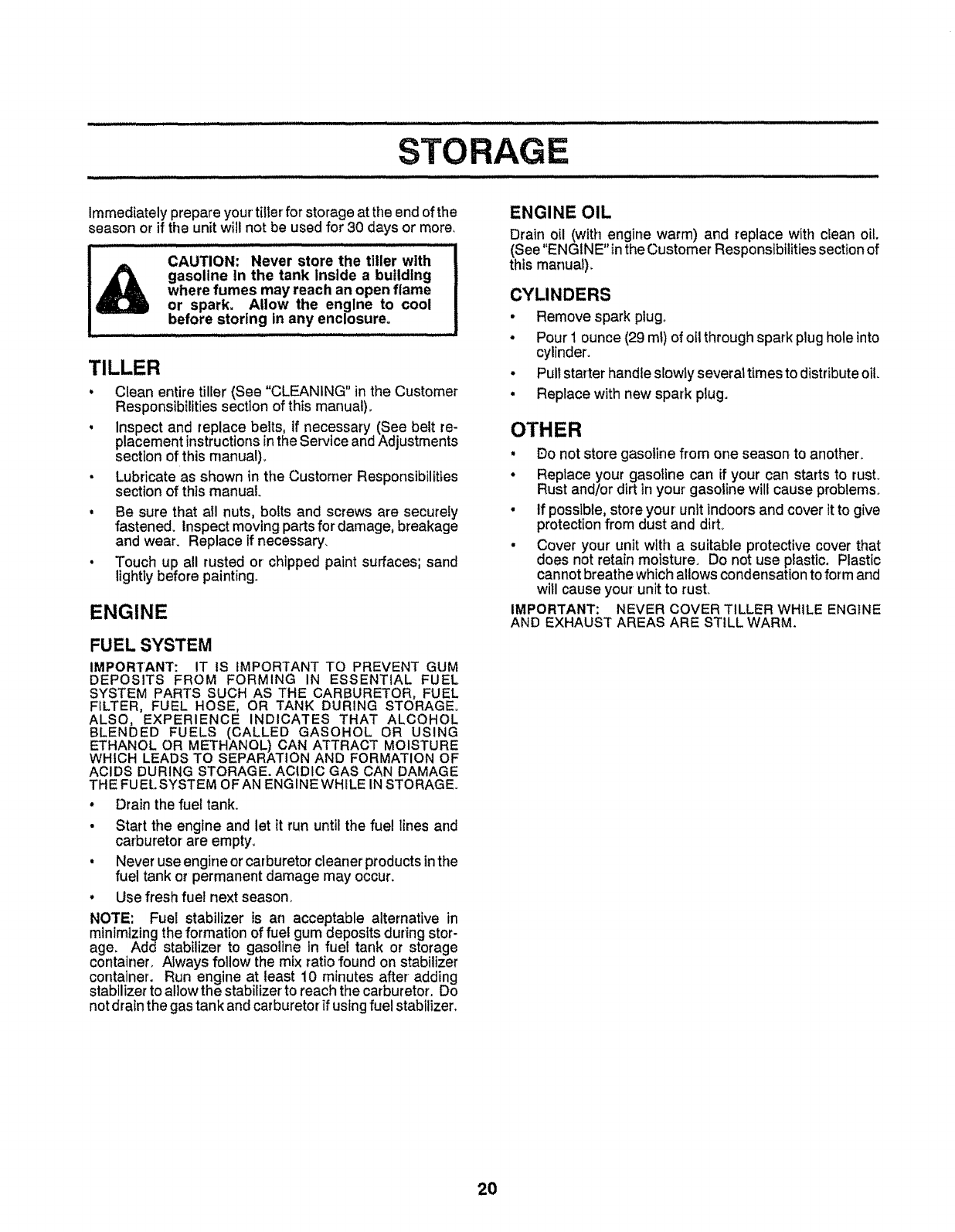

STORAGE
immediately prepare your' tilter for storage at the end of the
season or if the unit will not be used for 30 days or more,
CAUTION: Never store the tiller with
gasoline In the tank inside a building
where fumes may reach an open flame
or spark, Allow the engine to cool
before storing in any enclosure°
i.i .iHi m ,,, ...............................,,,
TILLER
.Clean entire tiller (See "CLEANING" in the Customer
Responsibilities section of this manual)°
, Inspect and replace belts, if necessary (See belt re-
placement instructions in the Service and Adjustments
section of this manual),
•Lubricate as shown in the Customer ResponsibilitLes
section of this manual,
. Be sure that all nuts, bolts and screws are securely
fastened, Inspect moving parts for damage, breakage
and wear, Replace if necessary,
•Touch up all rusted or chipped paint surfaces; sand
Ught_ybefore painting,
ENGINE
FUEL SYSTEM
IMPORTANT: IT IS IMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING IN ESSENTIAL FUEL
SYSTEM PARTS SUCH AS THE CARBURETOR, FUEL
FILTER, FUEL HOSE, OR TANK DURING STORAGE.
ALSO, EXPERIENCE INDICATES THAT ALCOHOL
BLENDED FUELS (CALLED GASOHOL OR USING
ETHANOL OR METHANOL) CAN ATTRACT MOISTURE
WHICH LEADS TO SEPARATION AND FORMATION OF
ACIDS DURING STORAGE. ACIDIC GAS CAN DAMAGE
THE FUELSYSTEM OF AN ENGINE WHILE IN STORAGE.
•Drain the fuel tank.
•Start the engine and let it run until the fuel lines and
carburetor are empty,
• Never use engine or carburetor cleaner products inthe
fuel tank or permanent damage may occur,
• Use fresh fuel next season,
NOTE: Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits during stor-
age. Add stabilizer to gasoline in fuel tank or storage
container, Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach the carburetor. Do
not drain the gas tank and carburetor' if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace with clean oil.
(See "ENGINE" inthe Customer Responsibilities section of
this manual),
CYLINDERS
• Remove spark plug,
, Pour I ounce (29 ml) of oil through spark plug hole into
cylinder.
-Pull starter handle slowly several times to distribute oil,
• Replace with new spark plug,
OTHER
•E)onot store gasolinefrom one season to another,
•Replace your gasoline can if your can starts to rust.
Rust and/or d_rtin your gasoline will cause problems_
•if possible, store your unit indoorsand cover it to give
protection from dust and dirt,
• Cover your unit with a suitable protective cover that
does not retain moisture, Do not use plastic. Plastic
cannot breathe which allows condensation to form and
will cause your unit to rusL
IMPORTANT: NEVER COVER TILLER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM.
20

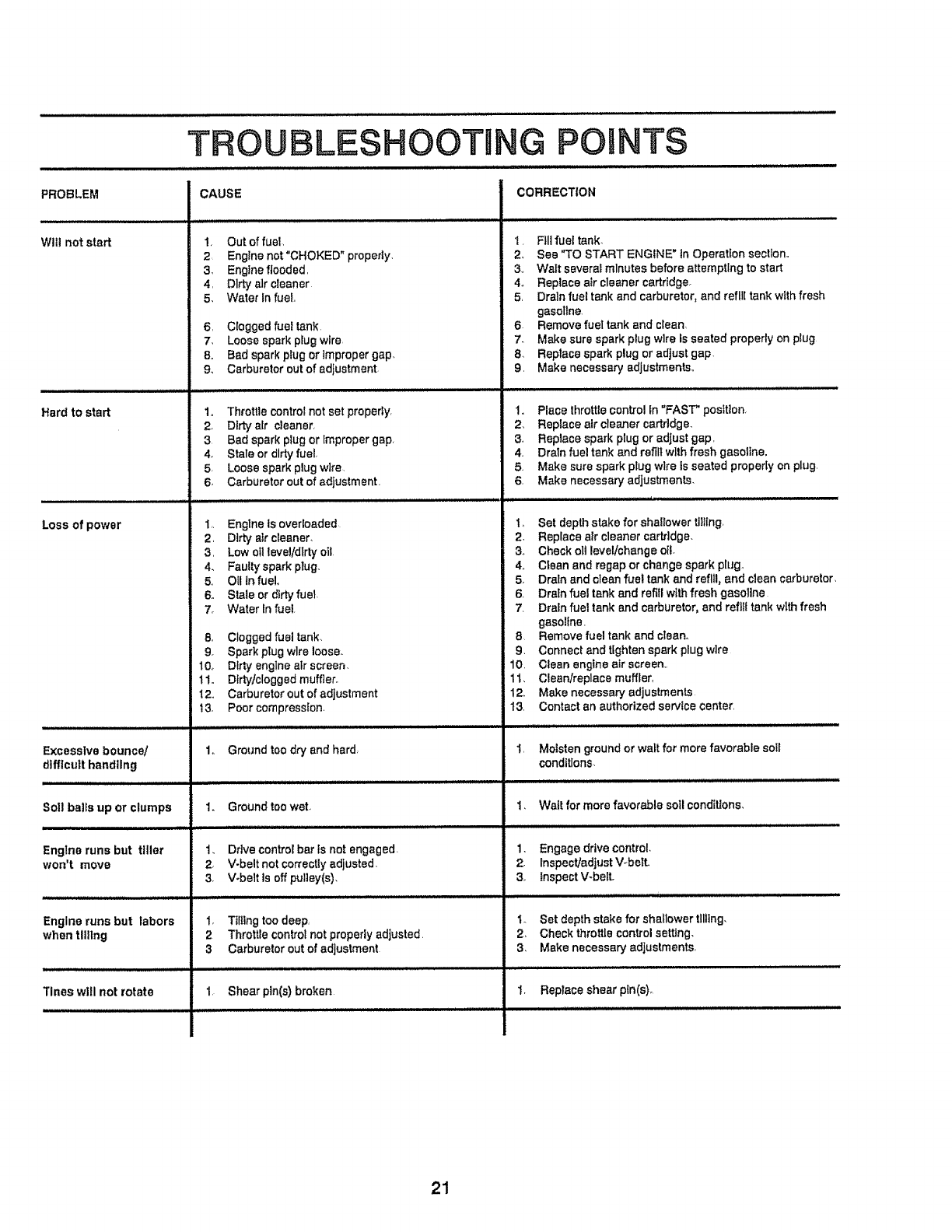

TFtOUEI;LESHOOT NG POINTS
ii JLLJII
PROBLEM
Will not start
Hard to start
CAUSE CORRECTION
1, Outoffuel.
2Engine not "CHOKED" properly,
3, Engine flooded,
4, Dirty air cleaner
5, Water In fuel,
6, Clogged fuel tank
7, Loose spark plugwire
8, Bad spark plug or Improper gap,
9., Carburetor out of adfustment
1_ Throttle control not set properly,
2, Dirty air cleaner,
3 Bad spark plug or improper gap,
4, Stale or dirty fuel
5. Loose spark plug wire.
6Carburetor outof adjustment,
1, Fill fuel tank.
2, See "TO START ENGINE" in Operation section.
3, Watt several minutes before attempting to start
4o Replace air cleaner cartridge,
5, Drain fuel tank and carburetor, and refill tank with fresh
gasoline.
6 Remove fuel tank and clean_
7_ Make sure spark plug wire Is seated properly on plug
8. Replace spark plug or adjust gap.
9, Make necessary edjustments_
1. Place throttlecontrol fn =FAST" position,
2, Replace air cleaner cartridge,
3, Replace spark plug or adjust gap,
4, Drain fuel tank and refill wlth fresh gasoline.
5. Make sure spark pfug wire Is seated property on plug,
6. Make necessary adjustments,
Loss of power 1,. Engine Is overloaded
2, Dirty air cIeaner,
3, Low oilleve!/dirty oil.
4, Faulty spark plug,
5. O11in fuel,
6o Stale or dirtyfuel.
7r Water In fuel,
8Cfogged fuel tank,
9, Spark plug wire loose.,
10o Dirty engine alr screen,
11. Dtrtytclogged muffler.
t4 Set depth stake for shallower tilling
2, Replace air cleaner cad.ridge,
3, Check oll leveltchange oi!.
4o Clean and regap or change spark plug,
5, Drain and clean fuel tank and refill, and clean carburetor,
6, Drain fuel tank and reft{Iwith fresh gasoline
7, Drain fuel tank and carburetor, and refIlt tank with fresh
gasoline,
8, Remove fuel tank and clean,
9, Connect and tighten spark plug wire
10. Clean engine air screen.,
11, Clean!replace muffler,
Excessive bounce/
difficult handling
Soil balls up or clumps
Engine rune but tiller
won't move
Engine runs but labors
when tllllng
Tines wlll not rotate
12. Carburetor out of adjustment
13. Poorcompressfon.
1, Ground toodry and hard,
1. Ground too wet,
1, Drive control bar Is not engaged.
2. V-belt not correctly adjusted,
3. V-belt Isoffpulley(s),
1, Tilling too deep,
2 Throttle control not properly adjusted.
3 Carburetor out of adjustment
Shear pin(s) broken
12,. Make necessary adjustments
13, Contact an authorized service center,
I, Moisten ground or welt for more favorable soil
conditions,
1. Waltfor morefavorable sellconditions,
1, Engage drive control
2, Inspect/adjust V-belL
3. inspect V-beltr
1- Set depth stake for shallower tilling,
2, Check throttle control setting,
3, Make necessary adjustments,
!. Replace shear pin(s),
21

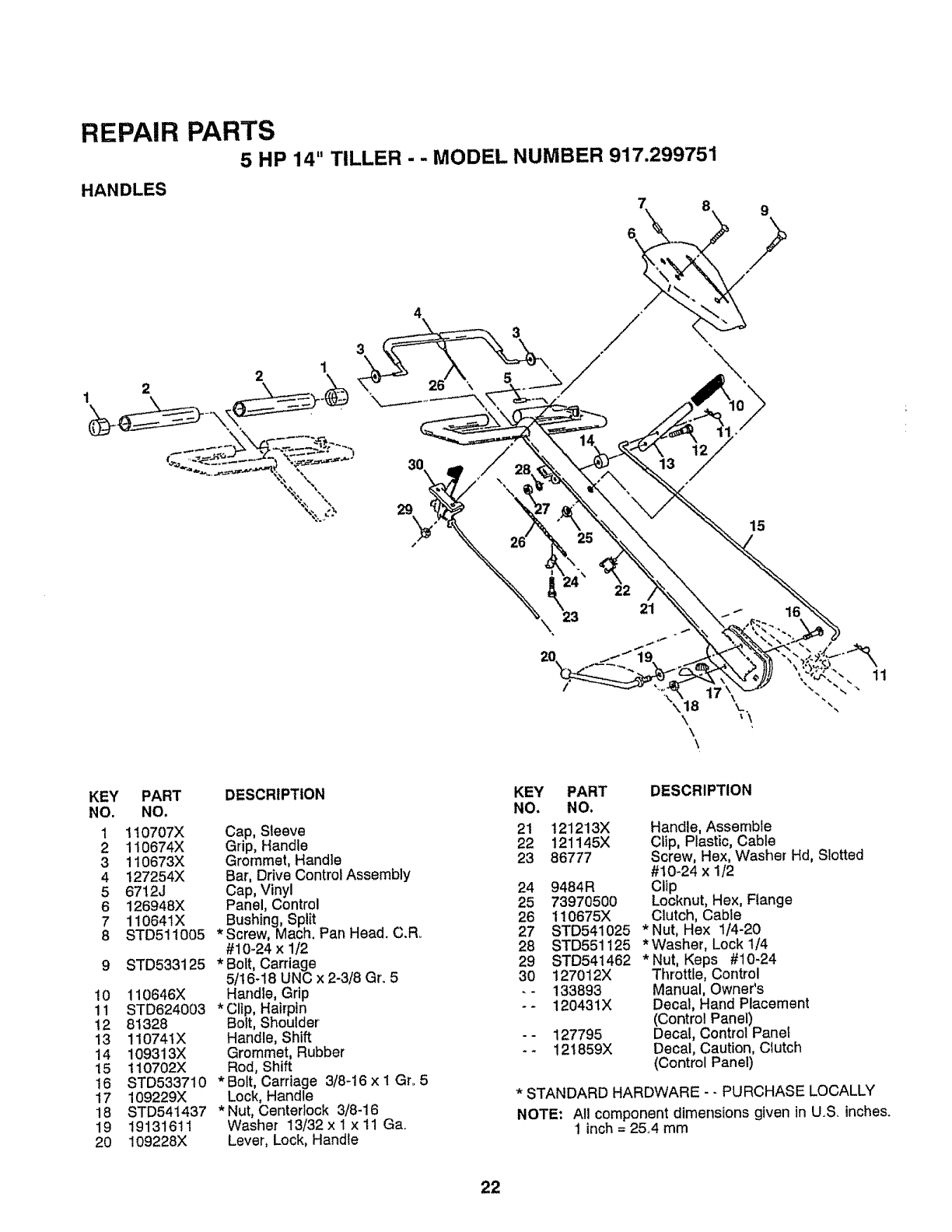

REPAIR
HANDLES
PARTS
5 HP 14" TILLER - - MODEL NUMBER 917.299751
9
2 1
30
29 15
KEY PART DESCRIPTION
NO. NO.
1 110707X Cap, Sleeve
2 110674X Grip, Handle
3 110673X Grommet, Handle
4 t27254X Bar, Drive ControlAssembly
5 6712J Cap, Vinyl
6 126948X Panel, Control
7 110641X Bushing, Split
8 STD511005 *Screw, Mach. Pan Head. C.R_
#10-24 x 1/2
9STD533125 * Bolt, Carriage
5/t6-18 UNC x 2-3/8 Gr° 5
10 110646X Handle, Grip
11 STD624003 * Clip, Hairpin
12 81328 Bo_t,Shoulder
13 11074tX Handle, Shift
14 109313X Grommet, Rubber
15 t10702X Rod, Shift
16 STD533710 *Bolt, Carriage 3/8-16xl Gro5
17 109229X Lock, Handle
18 STD541437 *Nut, Centerlock 3/8-16
19 19131611 Washer 13/32xl xll Ga.
20 109228X Lever, Lock, Handle
KEY
NO.
21
22
23
24
25
26
27
28
29
30
PART
NO.
1212i3X
121145X
86777
9484R
73970500
1t 0675X
STD541025
STD551125
STD541462
t27012X
133893
120431X
127795
121859X
DESCRIPTION
Handle, Assemble
Clip, Plastic, Cable
Screw, Hex, Washer Hd, Slotted
#10-24 x 1/2
Clip
Locknut, Hex, Flange
Clutch, Cable
* Nut, Hex 1/4-20
*Washer, Lock 1/4
*Nut, Keps #10-24
Throttle, Control
Manual, Owner's
Decal, Hand Placement
(Control Panel)
Decal, Control Panel
Decal, Caution, Clutch
(Control Panel)
*STANDARD HARDWARE -- PURCHASE LOCALLY
NOTE: All component dimensions given in U.S. inches_
1inch = 25°4 mm
22

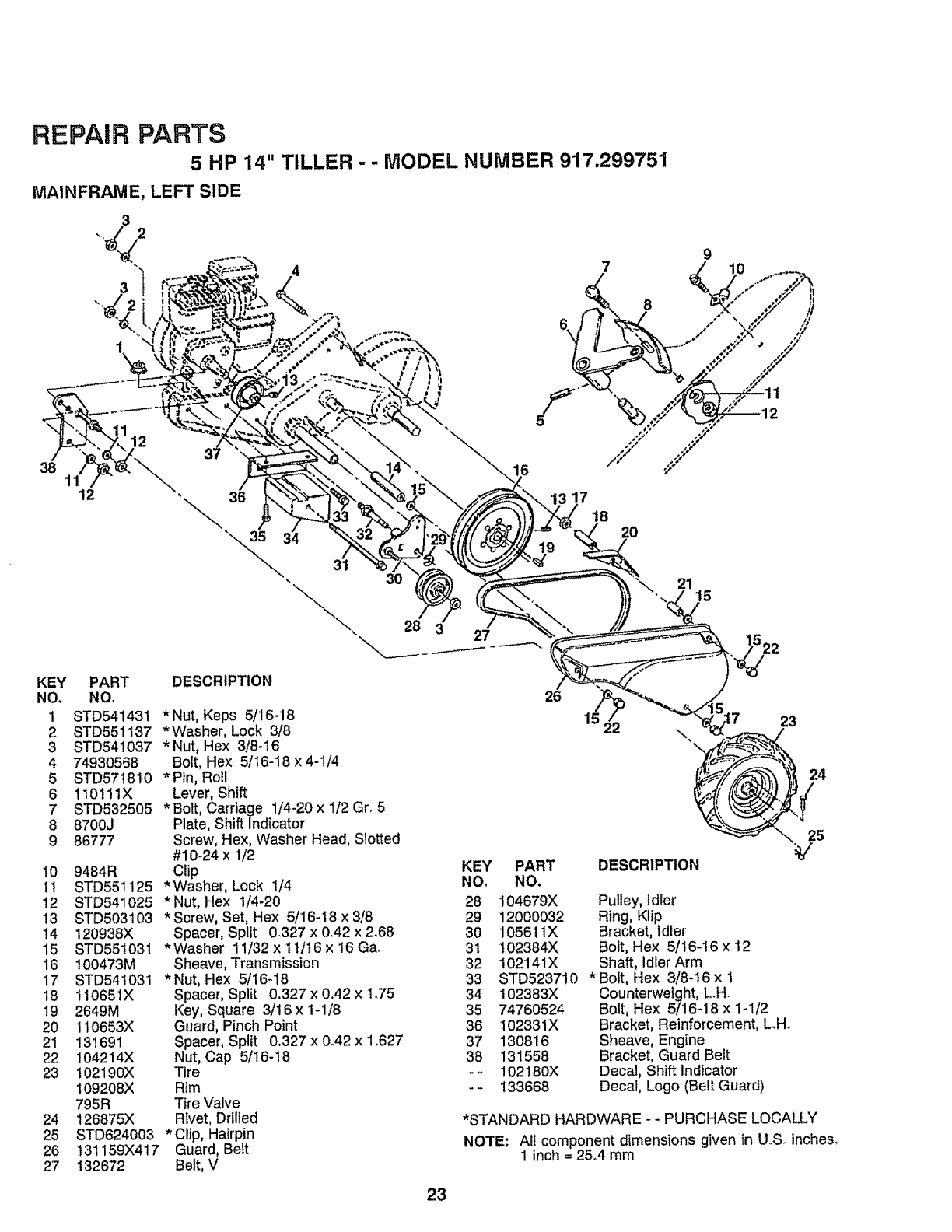

REPAIR PARTS
5 HP 14" TILLER -- MODEL NUMBER 917.299751
MAINFRAME, LEFT SIDE
38
12
36 17 18 20
2115
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
PART
NO,
STD541431
STD551137
STD541037
74930568
STD57 t8!0
1101!1X
STD532505
8700J
86777
9484R
STD551125
STD541025
STD503103
120938X
STD551031
100473M
STD541031
110651X
2649M
1t0653X
13! 691
104214X
102190X
109208X
795R
126875X
STD624003
131159X417
132672
DESCRIPTION
* Nut, Keps 5/16-18
* Washer, Lock 3/8
* Nut, Hex 3/8-16
Bolt, Hex 5/16-18 x4-1/4
*Pin, Roll
Lever, Shift
* Bolt, Carriage 1/4-20 x 1/2 Gr. 5
Plate, Shift Indicator
Screw, Hex, Washer Head, Slotted
#I0-24 x 1/2
Clip
*Washer, Lock 1/4
* Nut, Hex 1/4-20
* Screw, Set, Hex 5/16-18 x 3/8
Spacer, Split 0.327 x 0.42 x2.68
*Washer 11/32 x 11/16x 16Gao
Sheave, Transmission
*Nut, Hex 5/16-18
Spacer, Split 0,327 x 0.42 x 1.75
Key, Square 3/16 x 1-1/8
Guard, Pinch Point
Spacer, Split 0.327 x 0A2 x 1.627
Nut, Cap 5/16-18
Tire
Rim
Tire Valve
Rivet, Drilled
*Clip, Hairpin
Guard, Belt
Belt, V
26 152#223
24
KEY PART
NOo NO.
28 104679X
29 12000032
30 105611X
31 t02384X
32 102141X
33 STD523710
34 102383X
35 74760524
36 102331X
37 130816
38 131558
-- 102180X
-- 133668
DESCRIPTION
25
Pulley, Idler
Ring, Klip
Bracket, idler
Bolt, Hex 5/16-16 x 12
Shaft, Idler Arm
* Bott, Hex 3/8-16 x I
Counterweight, L.Ho
Bolt, Hex 5/16-18 x 1-1/2
Bracket, Reinforcement, L.H.
Sheave, Engine
Bracket, Guard Belt
Decal, Shift Indicator
Decal, Logo (Belt Guard)
*STANDARD HARDWARE - - PURCHASE LOCALLY
NOTE: All component dimensions given in U,S inches,
1 inch = 25.4 mm
23

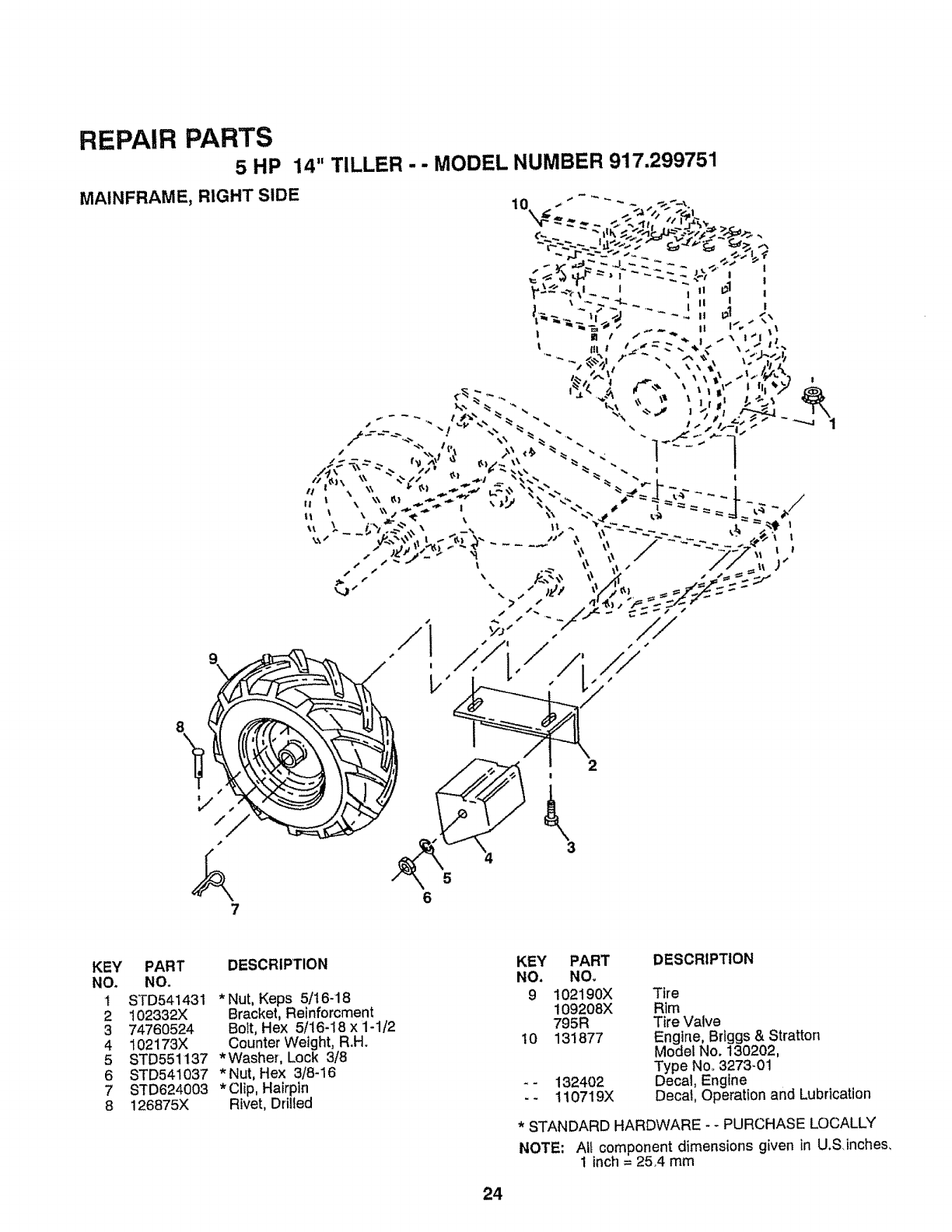

REPAIR PARTS
5 HP 14" TILLER - - MODEL NUMBER 917.299751
MAINFRAME, RIGHT SIDE
7 6
KEY
NO.
1
2
3
4
5
6
7
8
PART
NO.
8TD541431
102332X
74760524
102173X
STD55 ! 137
STD541037
S'rD624003
126875X
DESCRIPTION
* Nut, Keps 5/16-18
Bracket, Reinforcment
Bolt, Hex 5/'!6+18 x 1+1/2
Counter Weight, R.H.
*Washer +, Lock 3/8
*Nut, Hex 3/8-16
*Clip, Hairpin
Rivet, Drilled
KEY PART
NO. NO.
9 102190X
109208X
795R
10 131877
.+
132402
110719X
DESCRIPTION
Tire
Rim
Tire Valve
Engine, Briggs & Stratton
Model No. 130202,
Type No+3273.01
Decal, Engfne
Decal, Operation and Lubrication
*STANDARD HARDWARE -+PURCHASE LOCALLY
NOTE: All component dimensions given in U.Sinches,
1 inch = 25.4 mm
24
REPAURPARTS
5 HP
TRANSMISSION
14" TILLER .. -MODEL NUMBER 917.299751
11
25
25
6
5
48
KEY
NO.
1
3
4
5
6
7
8
9
10
1!
12
13
14
15
16
17
18
19
20
21
22
23
24
25
PART
NO.
132718
121147X
1062! 1X
5020J
1370H
102113X
102110X
4895H
t02136X
7392M
100371K
'i06160X
102107X
8353J
12000039
t02!09X
104t59X
4358J
12000040
1O2114X
102115X
6803J
102111X
STD551143
STD551143
51
DESCRIPTION
Transmission Assembly
(Includes Key Nos. 2-52)
Gearcase, L°H. w/Bearing
(Includes Key No. 4)
Gasket, Gearcase
Bearing, Needle
Washer, Thrust 5/8 x t.10 x 1/32
Pinion, Input
Shaft, Input
Bearing, Needle
Washer, Seal
Ball, Steel
Spring, Shift, Fork
O-Ring
Arm, Shift
Fork, Shift
Ring, Klip
Shaft, Shift
Spacer, Split
Washer
Ring, Klip
Gear, Assembly, Reverse Idler
(Includes Key Nos. 21 and 22)
Gear, Reverse Idler
Beadng, Needle
Shaft, Reverse Idler
*Washer, Lock 7/16
*Nut, Hex 7/16-20 25
KEY PART
NO. NO.
26 102128X
27 102100X
28 106390X
29 102134X
30 109204X
31 102t06X
32 106388X
33 102121X
34 102112X
35 102101X
36 106141X
37 4422J
38 t06t42X
39 105345X
40 !05346X
41 8358J
42 4220R
43 106146X
44 9672R
45 102144X
46 9676R
47 9674R
48 t21745X
49 132688
50 106147X
51 17580408
52 STD54103t
-- 6066J
DESCRIPTION
O-Ring
Bearing, Shaft, Ground Drive
Spacer 0.765 x 1.125 x 1.23
Chain #35-50 Pitch
Ground Shaft Assembly
Bearing, Shaft, GroundDrlve
Spacer 0.70 x 1o00x 1.150
Sprocket and Gear Assembly
Shaft, Reduction (2nd)
Screw, Whiz, Lock 5/16-18 X3-1/2
Sprocket Assembly w/Bearing
(Includes Key Noso37 and 38)
Bearing, Needle
Sprocket, Tine
Gear, Cluster, Red 1st & 2rid
Gear, Reverse
Shaft, Reduction (1st)
Washer, Thrust
Spacer 1.01 x 1.75 x 0°760
Cup, Formed
Ring, Spiral
Seat, Ring, Rubber
Seal, Oil
Gearcase, R.H. w/Bearing
(Includes Key No. 8)
Shaft, Tine
Chain, Roller #50-50 Pitch
Screw 1/4-20 x 1/2
Nut, Hex 5/t6-18
Grease, Plastilube #1
*STANDARD HARDWARE - - PURCHASE LOCALLY
NOTE_ Atl component dimensions given in U.S. inches.
1 inch = 25.4 mm

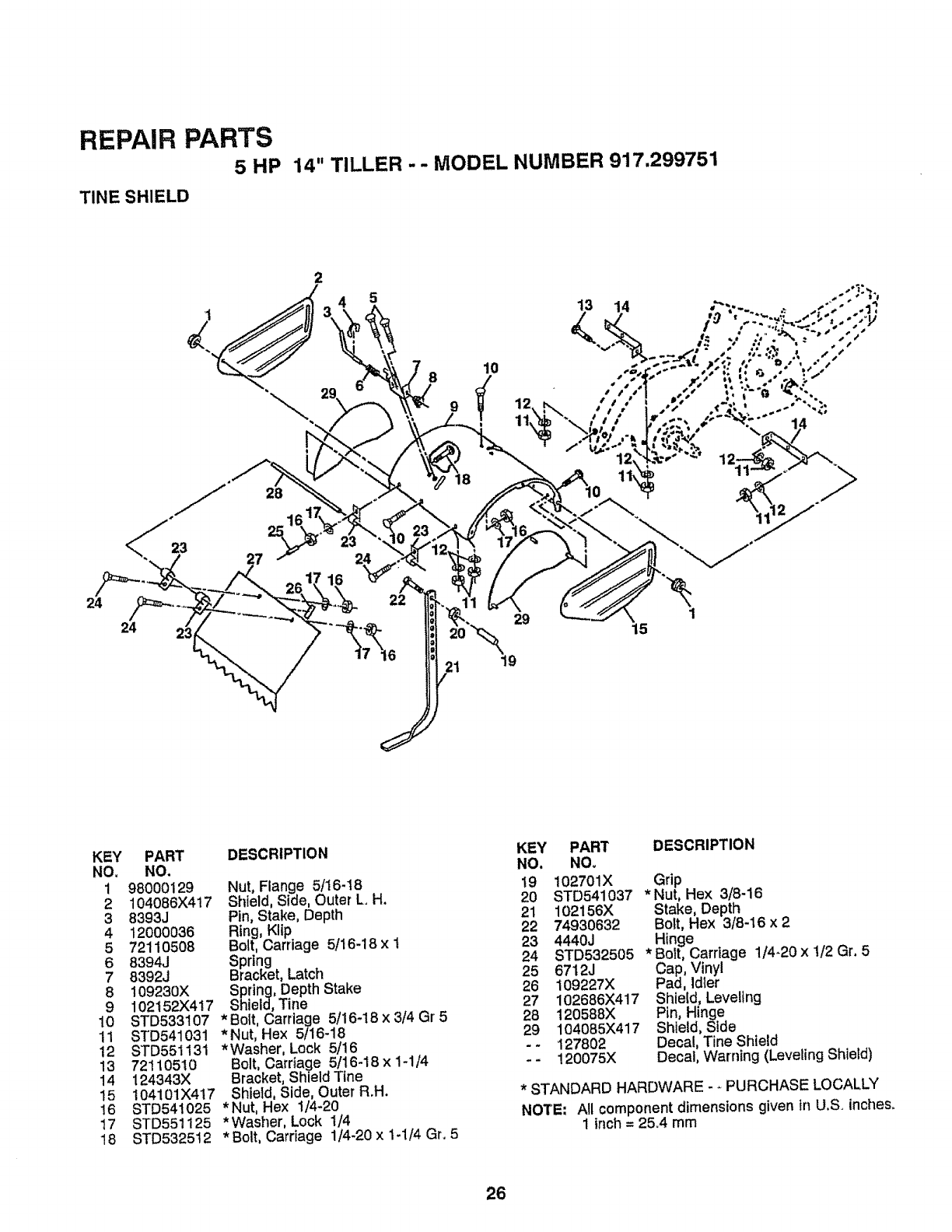

REPAIR PARTS
5 HP
TINE SHIELD
14" TILLER -- MODEL NUMBER 917.299751
2
810
of
28
24 23 "" "
21
18
29
19
15
KEY PART
NO, NO,
1 98000129
2104086X417
3 8393J
4 12000036
5 72110508
6 8394J
7 8392J
8 t09230X
9 102152)(4t7
10 STD533107
11 STD541031
12 STD551131
13 72110510
14 124343X
15 104101X4t7
16 8TD54t025
17 STD551125
18 STD5325t2
DESCRIPTION
Nut, Flange 5/16-t8
Shield, Side, Outer L. H.
Pin, Stake, Depth
Ring, Klip
Bolt,Carriage 5/16-18 x t
Spring
Bracket, Latch
Spring, Depth Stake
Shield, Tine
*Bolt, Carriage 5/16-18 x 3/4 Gr 5
*Nut, Hex 5/16-18
*Washer, Lock 5/16
Bolt, Carriage 5/16-18 x 1-1/4
Bracket, Shield Tlne
Shield, Side, Outer R.H.
*Nut, Hex 1/4-20
*Washer, Lock I/4
*Bolt, Carriage 1/4-20 x 1-1/4 Gr+5
KEY PART
NO. NO+
19 102701X
20 STD541037
21 102156X
22 74930632
23 4440J
24 STD532505
25 6712J
26 109227X
27 102686X417
28 120588X
29 104085X417
-- 127802
-- 120075X
DESCRIPTION
*NGdtP,Hex 3/8-16
Stake, Depth
Bolt, Hex 3/8-16 x 2
Hinge
*Bolt, Carriage 1/4-20 x 1/2 Gr. 5
Shield, Leveling
Pin, Hinge
Shield, Side
Decal, Tine Shield
Decal, Warning (Leveling Shield)
*STANDARD HARDWARE -+PURCHASE LOCALLY
NOTE= All component dimensions given in U.S+ inches+
i inch = 25.4 mm
26

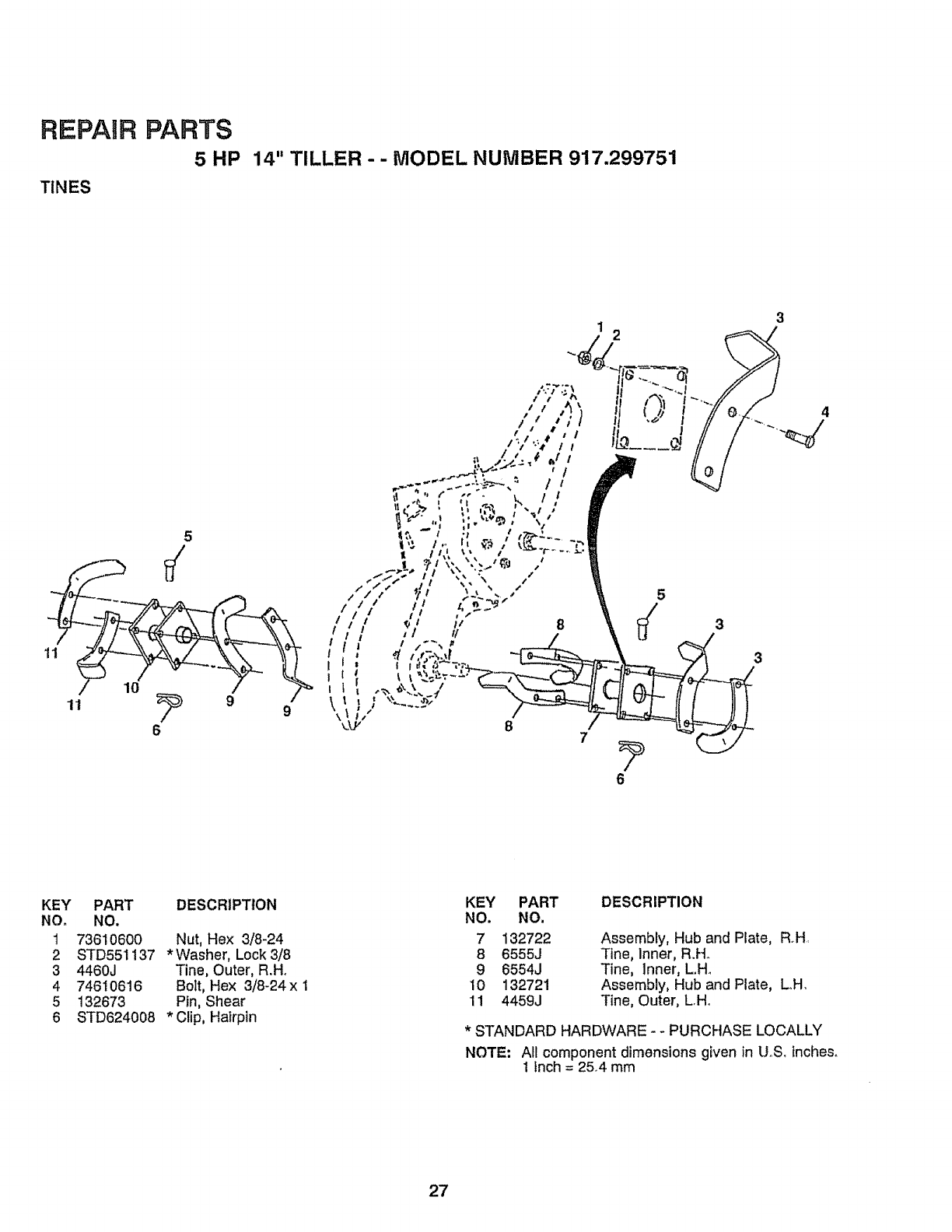

REPAIR
TINES
PARTS
5HP 14" TILLER -- MODEL NUMBER 917.299751
5
11 2_ 9 9
67
6
3
KEY PART DESCRIPTION
NO. NO.
t 73610600 Nut, Hex 3/8-24
2STD551137 * Washer, Lock3/8
34460J Tine, Outer, R.H°
474610616 Bolt, Hex 3/8-24x 1
5132673 Pin, Shear
6STD624008 *Clip, Hairpin
KEY PART DESCRIPTION
NO. NO.
7132722 Assembly, Hub and Plate, R.H,
86555J Tine, Inner, R.I-_L
9 6554J Tine, Inner, L.H.
10 132721 Assembly, Hub and Plate, LH.
11 4459J Tine, Outer, L,Ho
*STANDARD HARDWARE - - PURCHASE LOCALLY
NOTE: All component dimensions given in UoS.inches.
1 Inch = 25.4 mm
27

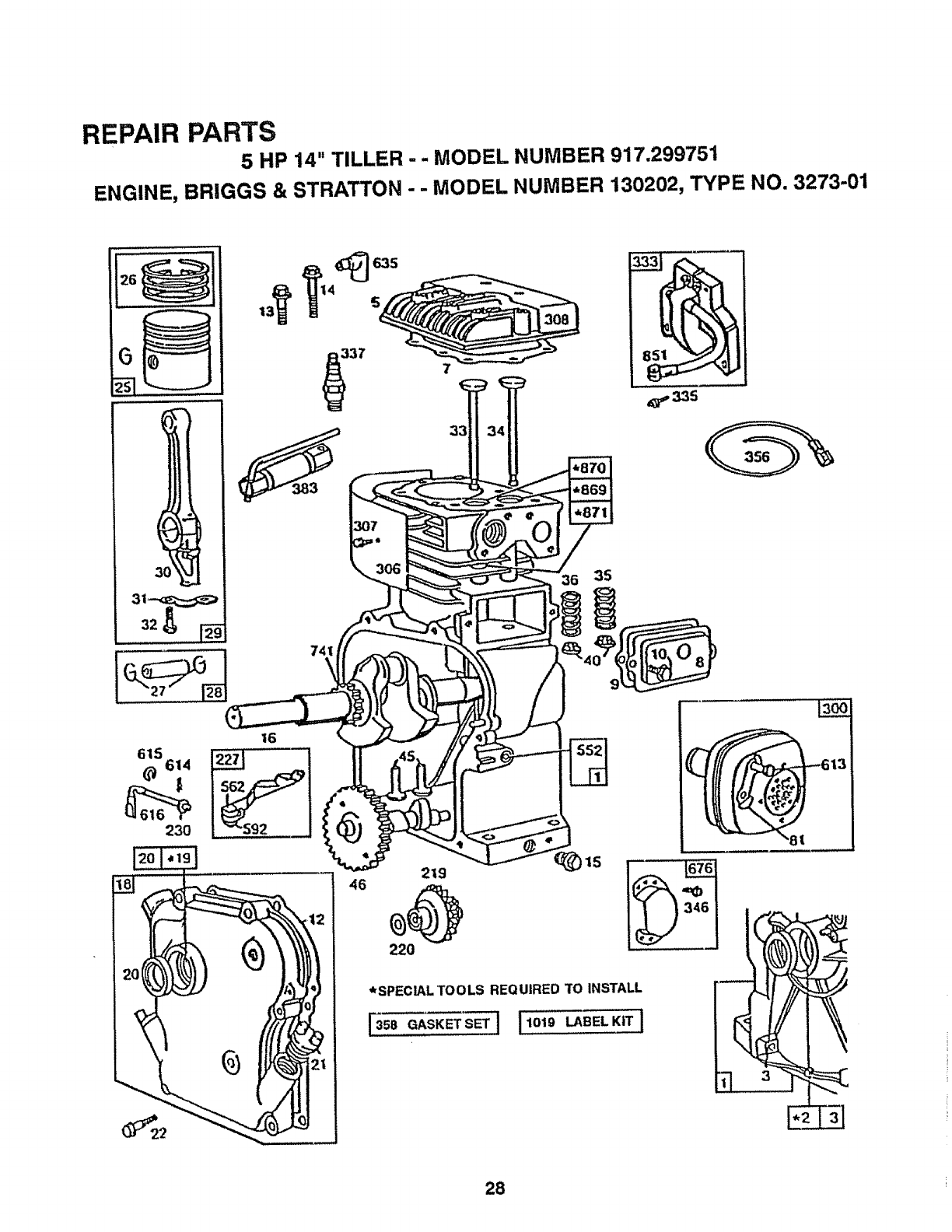

REPAIR PARTS
5 HP 14" TILLER -- MODEL NUMBER 917.299751
ENGINE, BRIGGS & STRATTON - - MODEL NUMBER 130202, TYPE NO. 3273-01
6t5
(_ 614
230
{2oI:,'91
=
(_22
7
36 35
28
REPAIR PARTS
5 HP 14" TILLER - - MODEL NUMBER 917.299751
ENGINE, BRIGGS & STRATTON - - MODEL NUMBER 130202, TYPE NO. 3273-01
163
191
526 621
12zA
124
392
29

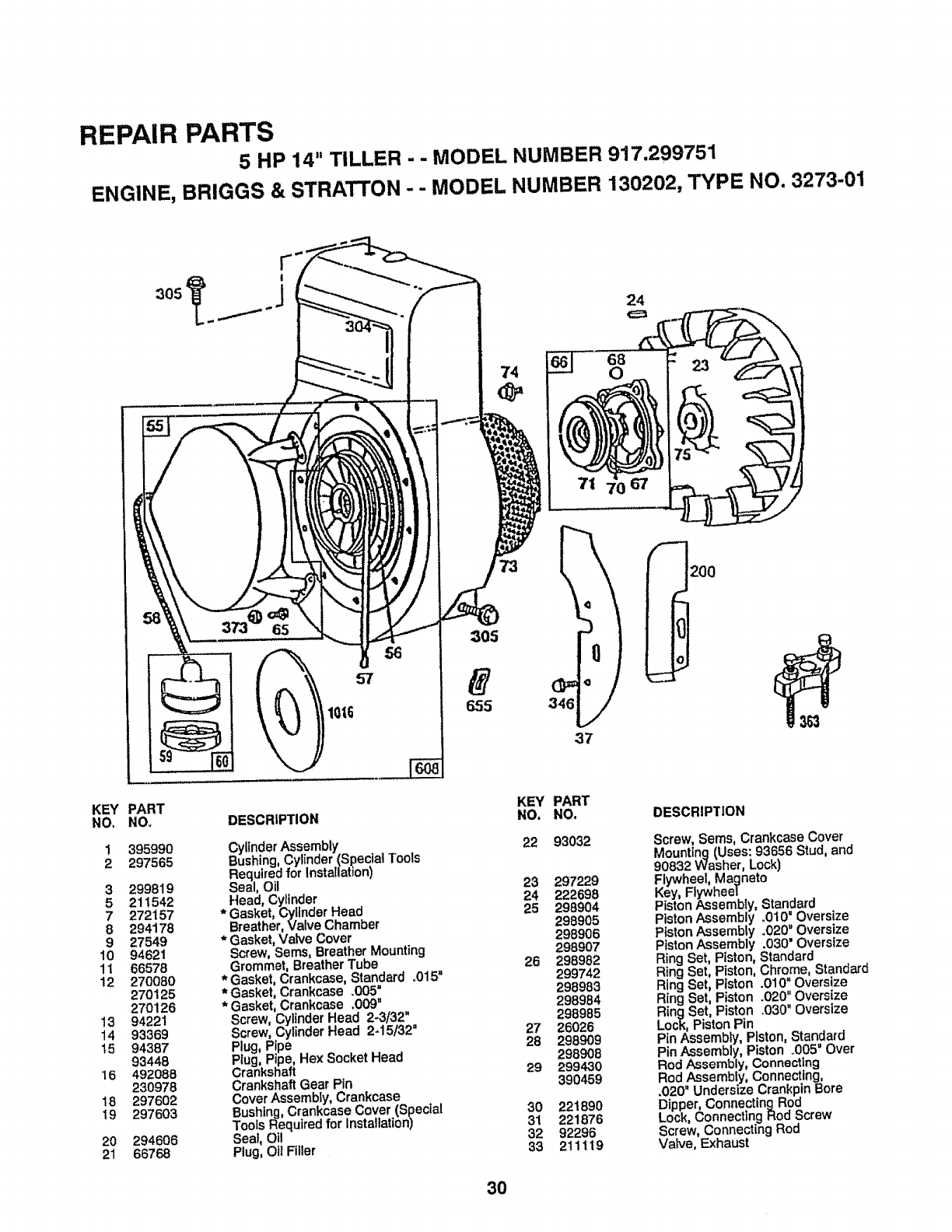

REPAIR PARTS
5 HP 14" TILLER - - MODEL NUMBER 917.299751
ENGINE, BRIGGS & STRATTON - - MODEL NUMBER 130202, TYPE NO. 3273-01
KEY PART
NOo NO_
1 395990
2 297565
3 299819
5 211542
7272157
8294178
9 27549
10 94621
11 66578
12 270080
270125
270126
13 94221
14 93369
t5 94387
93448
16 492088
230978
18 297602
I9 297603
20 294606
21 66768
56
DESCRIPTION
CylinderAssembly
Bushing,Cylinder (Special Tools
Required for Installation)
Seal, Oi!
Head, Cylinder
*Gasket, Cylinder Head
Breather, Valve Chamber
*Gasket, Valve Cover
Screw, Sems, Breather Mounting
Grommet, Breather Tube
*Gasket, Crankcase, Standard .015"
*Gasket, Crankcase .005 °
*Gasket, Crankcase .009"
Screw, Cylinder Head 2-3f32"
Screw, Cylinder Head 2-15/32"
Plug, Pipe
Plug, Pipe, Hex Socket Head
Crankshaft
Crankshaft Gear Pin
Cover Assembfy, Crankcase
Bushing, Crankcase Cover (Special
Tools Hequired for installation)
Sea! Oi!
Pug, Oil Filler
73
KEY
NO,
22
23
24
25
26
27
28
29
3O
31
32
83
7I
37
PART
NO.
93032
297229
222698
298904
298905
298906
298907
298982
299742
298983
298984
298985
26026
298909
298908
299430
390459
221890
221876
92296
211119
DESCRIPTION
Screw, Seres, Crankcase Cover
Mounting (Uses: 93656 Stud, and
90832 Washer, Lock)
Flywheel, Magneto
Key, Flywheel
Piston Assembly, Standard
Piston Assembly .010" Oversize
Piston Assembly .020" Oversize
Piston Assembly .030" Oversize
Ring Set, Piston, Standard
Ring Set, Piston, Chrome, Standard
Ring Set, Piston .010" Oversize
Ring Set, Piston .020" Oversize
Ring Set, Piston .030" Oversize
Loc[_,Piston Pin
Pin Assembly, Piston, Standard
Pin Assembly, Piston .005 Over
Rod Assembly, Connect!ng
Rod Assembly, Connecting,
.020" Undersize Crankpln Bore
Dipper, Connecting Rod
Lock, Connecting Rod Screw
Screw, Connecting Rod
Valve, Exhaust
30
REPAIR PARTS
5 HP 14" TILLER - - MODEL NUMBER 917.299751
ENGINE, BR|GGS & STRATTON --MODEL NUMBER 130202, TYPE NO. 3273-01
KEY PART KEY PART
NO_ NO. DESCRIPTION NO. NO. DESCRIPTION
34 261044 Valve, Intake 306 221511
35 260552 Spring, Intake Valve 307 93490
36 26478 Spring, Exhaust Valve 308 221512
37 222443 Guard, Fiywhee! 333 397358
40 93312 Retainer, Valve Spring 335 93414
45 260642 Tappet, Valve 337 802592
46 212733 Gear, Cam 346 93705
52 271936 *Gasket, Carburetor Mounting (2) 356 398808
55 299431 Housing, Rewind Starter 358 397145
56 295871 Pulley, Rewind Starter 363 19069
(Includes 63 Long Rope)
57 490179 Spring, Rewind Starter 373 92987
58 66884 Rope, Rewind Starter 383 89838
59 490653 insert, Starter Handle 392 262328
60 490652 Handle, Rewind Starter 394 270026
65 94!28 Screw, Seres, Stamped Steel Housing 414 220982
Mounting 432 221377
66 399671 Clutch Assembly, Rewind Starter 433 93265
67 394897 Housing, Starter Clutch 434 2t 0959
68 63770 Bell, Clutch 435 93141
70 298799 Ratchet, Rewind Starter 467 280715
71 394506 Washer, Clutch Retainer 526 94409
73 221923 Screen, Starter Pulley 527 223786
74 93758 Screw, Hex Head 528 231550
75 224061 Washer, Spring 529 67838
81 222263 Lock,Screw 536 494279
90 49261! Carburetor Assembly 542 93572
95 93499 Screw, Seres, Throttle Valve to Shaft 552 23t079
96 223793 Throttle, Carburetor 562 92613
97 490048 Shaft and Lever, Throttle 592 231082
108 491177 Valve Group, Choke 608 390463
118 231533 Valve, Needle 611 391813
124 93357 Screw, Hex Head 613 93935
127 220352 Plug, Welch 614 93306
127A 223789 Plug, Welch, Mixing Chamber 615 93307
t49 26336 Spring, Needle Valve 616 231077
152 260575 Spring, ThrottleAdjustment 621 396847
t53 490589 Screw Assembly 634 271853
154 93527 Screw, Machine, Round Head 635 66538
#5-40 x 5/'8" 655 222598
163 271935 Gasket, Air Cleaner Mounting 676 393757
180 490554 Tank Assembly, Fuel 679 270382
18t 494559 Cap, Fuel Tank 680 221839
190 94094 Screw, Seres, Fuel Tank Mounting 741 261696
191 272410 *Gasket, Fuel Tank Mounting 851 221798
200 223886 Guide, Air 869 211787
201 262280 Link, Governor 870 211172
202 262270 Link, Throttle
202A 262470 Link, Throttle 871 262001
203 280720 Crank, Bell 63709
204 222962 Bushing, Governor Lever, Flat
205 231520 Screw, Shoulder 916 280321
209 262282 Spring, Governor 966 490074
216 262359 Link, Choke 967 491588
219 391737 Gear, Governor 968 223765
220 221551 Washer, Thrust 969 490073
222 490648 Bracket, Control 971 94018
223 223455 Lever, Governor Control 987 398970
224 93491 Rivet, Governor Control Lever Mounting 995 491577
227 490374 Lever Assembly, Governor 1012 490507
230 222450 Washer, Governor Lever 10t6 490817
256 223813 Crank, Bell 1019 491100
257 93543 Screw, Sems, FillisterHead
300 393615 Muffler, Exhaust
304 490169 Housing, Blower
305 93158 Screw,Blower Housing Mounting
Shield, Cylinder
Screw, Seres, Cylinder ShieldMnt,,
Cover, Cylinder Head
Armature Assembly
Screw, Sems, Armature Mounting
Plug, Spark
Screw, Sems
Wire, Ground
Gasket Set
Flywheel Puller
(Optional Accessory)
Nut, Hex
Wrench, Spark Plug
Spring, Fuel PumpDfaphragm
Diaphragm
Washer
Cap, Spring
Pin, Diaphragm Cover
Cover, Diaphragm
Screw, Diaphragm Cover
Knob, Control
Screw, Seres, Tank Bracket Mnto
Clamp, Breather Tube
Tube, Breather
Grommet, Breather Tube
Air Cleaner Kit
Screw
Bushing,Governor Crank, 1/4" IoD.
Bolt, Governor Lever
Nut, Hex #!0-24
Starter Assembly, Rewind
Fuel Pipe and Clip Assembly
Screw, Hex Head, Shoulder
Cotter, Hair Pin
Retainer, E-Ring
Crank Governor, 1/4" Diameter
Switch, Stop
Washer, Throttle Shaft, Foam
Elbow, Spark Plug
Anchor Spring
ueflector, Exhaust, Side Outlet
Washer, Choke Shaft, Foam
Washer, Choke Shaft, Brass
Gear, Timing
Cable, Temminal, Ignition
Seat, Intake Valve, Standard
Seat, Exhaust Valve, Standard (See
Repair Manual For Options)
Guide, Exhaust Valve
Guide, Intake Valve
ee Repair InstructionManual)
ear Rack, Governor
Base, Air Cleaner
Filter,Air
Cover, Air Cleaner
Screw, Cover Mnt. (lncl. Grommet)
Screw, Air Cleaner
Seal, Throttle Shaft
Bracket, Link
Link, Retainer
Spacer
Label Kit
*Indicates Parts included In Gasket Set (397145)
NOTE: Allcomponent dimensions given In U,Soinches
1 inch =254 mm
31

Navigation menu
