Caution:

Read and foEiow

all Safety Rules

and Ilnstructaons

Before Operating

This Equipment

,,,,,, ,, "IM"'I '"r '" I II I'11"IIl,l,llll I'=11 '11 I --

5=0 HP

!7 INCH TnNE WBDTH

REAR TJNE TILLER WUTH

COUNTER ROTAT! TI

Assembly

Operation

• Customer ResponsibHUties

oService and Adjustment

• Repair Parts

ii i.rll . ....-. i..i . i.i, i i ..... _lllll.,.i. .i..i .iii rllr . II'"MI"I"II' IIIII

Sears, Roebuck and Co., Chicago, DL60684 U.S.A.

SAFETY RULES

Safe Operation Practices for Walk.Behind Powered Rotary Tillers

TRAINING

•Read the Owner's Manual carefully. Be thoroughly

Tamiliar with the controls and the proper use of the

equipment Know how to stop the unit and disengage *

the controls quickly.

• Never allow children to operate the equipment. Never

allow adults to operate the equipment without proper

instruction.

• Keep the area of operation clear of all persons, particu- "

larly small children, and pets_

PREPARATION

.Thoroughly inspect the area where the equipment is to

be usedand remove all foreign objects. .

o Disengage all clutches and shift into neutral before

starting the engine (motor)_ °

° Do not operate the equipment without wearing ad-

equate outer garments. Wear footwear that will im-

prove footing on slippery surfaces.

•Handle fuel with care; it is highly flammable.

* Use an approved fuel container°

, Never add fuel to a running engine or hot engine. °

o Fill fuel tank outdoors with extreme care. Never fill

fuel tank indoors.

• Replace gasotine cap securely and clean up spilled

fuel before restarting°

. Use extension cords and receptacles as specified by

the manufacturer for all units with electric drive motors

or electric starting motors.

, Never attempt to make any adjustments while the

engine (motor) is running (except where specifically

recommended by manufacturer).

If the unit should start to vibrate abnormally, stop the

engine (motor) and check immediately for the cause.

Vibration is generally a warning of trouble.

Stop the engine (motor) when leaving the operating

position_

Take all possible precautions when leaving the ma-

chine unattended. Disengage the tines, shift into

neutral, and stop the engine.

Before cleaning, repairing, or inspecting, shut off the

engine and make certain all moving parts have stopped_

Disconnect the spark plug wire, and keep the wire

away from the plug to prevent accidental starting.

Disconnect the cord on electric motors°

Do not run the engine indoors; exhaust fumes are

dangerous.

Never operate the tiller without proper guards, plates,

or other safety protective devices in place°

Keep children and pets away.

Do not overload the machine capacity by attempting to

till too deep at too fast a rate°

Never operate the machine at high speeds on slippery

surfaces, Look behind and use care when backing

Never allow bystanders near the unit

Use onty attachments and accessories approved by

the manufacturer of the tiller (such as wheel weights,

counterweights, cabs, and the like).

Never operate the tiller without good visibility or light.

Be careful when tilling in hard ground, The tines may

catch in the ground and propel the tiller forward. If this

occurs, let go of the handlebars and do not restrain the

machine_

MAINTENANCE AND STORAGE

OPERATION

• Do not put hands or feet near or' under rotating parts°

, Exercise extreme caution when operating on or cress-

ing gravel drives, walks, or roads. Stay alert for hidden

hazards or traffic° Do not carry passengers.

, After striking a foreign object, stop the engine (motor),

remove the wire from the spark plug, thoroughly im

spect the tiller for any damage, and repair the damage

before restarting and operating the tiller°

• Exercise caution to avoid slipping or falling_

• Keep machine, attachments, and accessories in safe

working condition°

° Check shear' pins, engine mounting bolts, and other

bolts at frequent intervals for proper tightness to be

sure the equipment is in safe working condition°

•Never store the machine with fuel in the fuel tank inside

a building where ignition sources are present, such as

hot water and space heaters, clothes dryers, and the

like. Allow the engine to cool before storing in any

enclosure_

•Always refer to the operator's guide instructions for

important details if the tiller is to be stored for an

extended period.

-IMPORTANT-

CAUTION, tMPORTANTS, AND NOTES ARE A MEANS OF ATTRACTING ATTENTION TO IMPORTANT OR CRITICAL

INFORMATION IN THIS MANUAL.

CAUTION: Look for this symbol to point

out important safety precautions. It

means _Attentionl Become Alert! Your

safety is involved.

IMPORTANT: USED TO ALERT YOU THAT THERE IS A

POSSIBILITY OF DAMAGING THIS EQUIPMENT.

NOTE; Gives essential information that will aid you to better

understand, incorporate, or execute a particular set of instrUc-

tions_

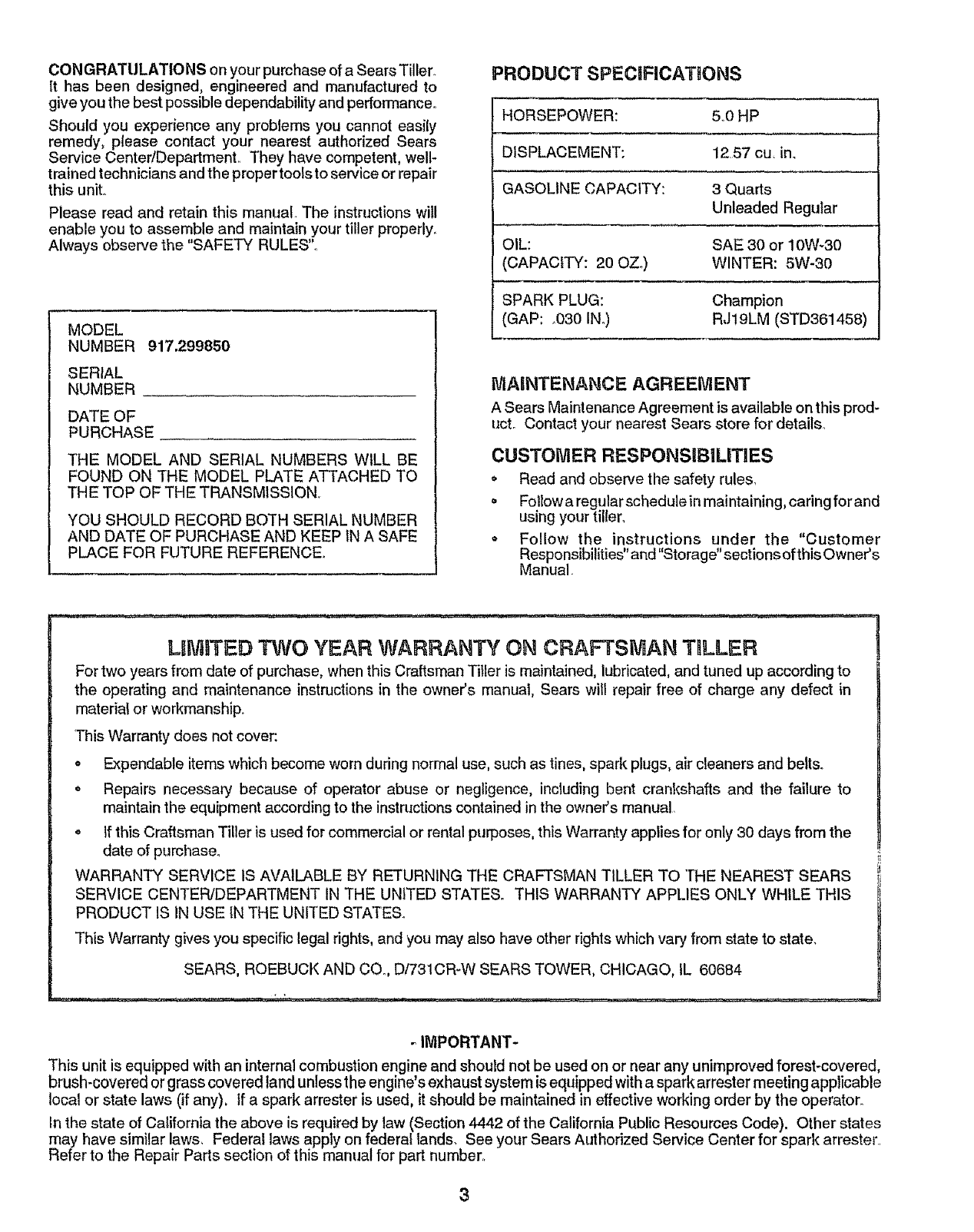

CON GRATULATIONS on your purchase of a Sears Tiller.

It has been designed, engineered and manufactured to

give you the best possible dependability and performance.

Should you experience any problems you cannot easily

remedy, please contact your nearest authorized Sears

Service Center/Department. They have competent, well-

trained technicians and the proper tools to service or repair

this unit.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tiller properly,.

Always observe the "SAFETY RULES"_

MODEL

NUMBER 917',299850

SERIAL

NUMBER

DATE OF

PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE

FOUND ON THE MODEL PLATE ATTACHED TO

THE TOP OF THE TRANSMISSION.

YOU SHOULD RECORD BOTH SERIAL NUMBER

AND DATE OF PURCHASE AND KEEP IN A SAFE

PLACE FOR FUTURE REFERENCE.

PRODUCT SPECIFICATIONS

HORSEPOWER: 5°0 HP

DISPLACEMENT: 12.57 cu, in.

GASOLINE CAPACITY: 3 Quarts

Unleaded Regular

OIL: SAE 30 or 10W-30

(CAPACITY: 20 OZo) WINTER: 5W-30

SPARK PLUG: Champion

(GAP: _030 IN.) RJ19LM (STD361458)

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

uct_ Contact your nearest Sears store for details,

CUSTOMER RESPONSlEliLITIES

•Read and observe the safety rules,

= Follow a regular schedule in maintaining, caring for and

using your tilter_

o Follow the instructions under the "Customer

Responsibilities" and "Storage" sections of this Owner's

Manual

LJMtTED TWO YEAR WARRANTY ON CRAFTSMAN T LLER

For two years from date of purchase, when this Craftsman Tiller is maintained, lubricated, and tuned up according to

the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any defect in

material or workmanship.

This Warranty does not cover:

oExpendable items which become worn during normal use, such as tines, spark plugs, air cleaners and belts°

° Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to

maintain the equipment according to the instructions contained in the owner's manual

° If this Craftsman Tiller is used for commercial or rental purposes, this Warranty applies for only 30 days from the

date of purchase°

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN TILLER TO THE NEAREST SEARS

SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS

PRODUCT IS IN USE IN THE UNITED STATES°

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., D1731CR-W SEARS TOWER, CHICAGO, IL 60684

=IMPORTANT-

This unit is equipped with an internal combustion engine and should not be used on or near any unimproved foresFcovered,

brush-covered orgrass covered land unless the engine's exhaust system is equipped witha spark arrester meeting applicable

local or state laws (if any), If aspark arrester is used, it should be maintained in effective working order by the operator_

tn the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states

may have similar laws, Federal laws apply on federal lands, See your Sears Authorized Service Center for spark arrester,,

Refer to the Repair Parts section of this manual for part number,,

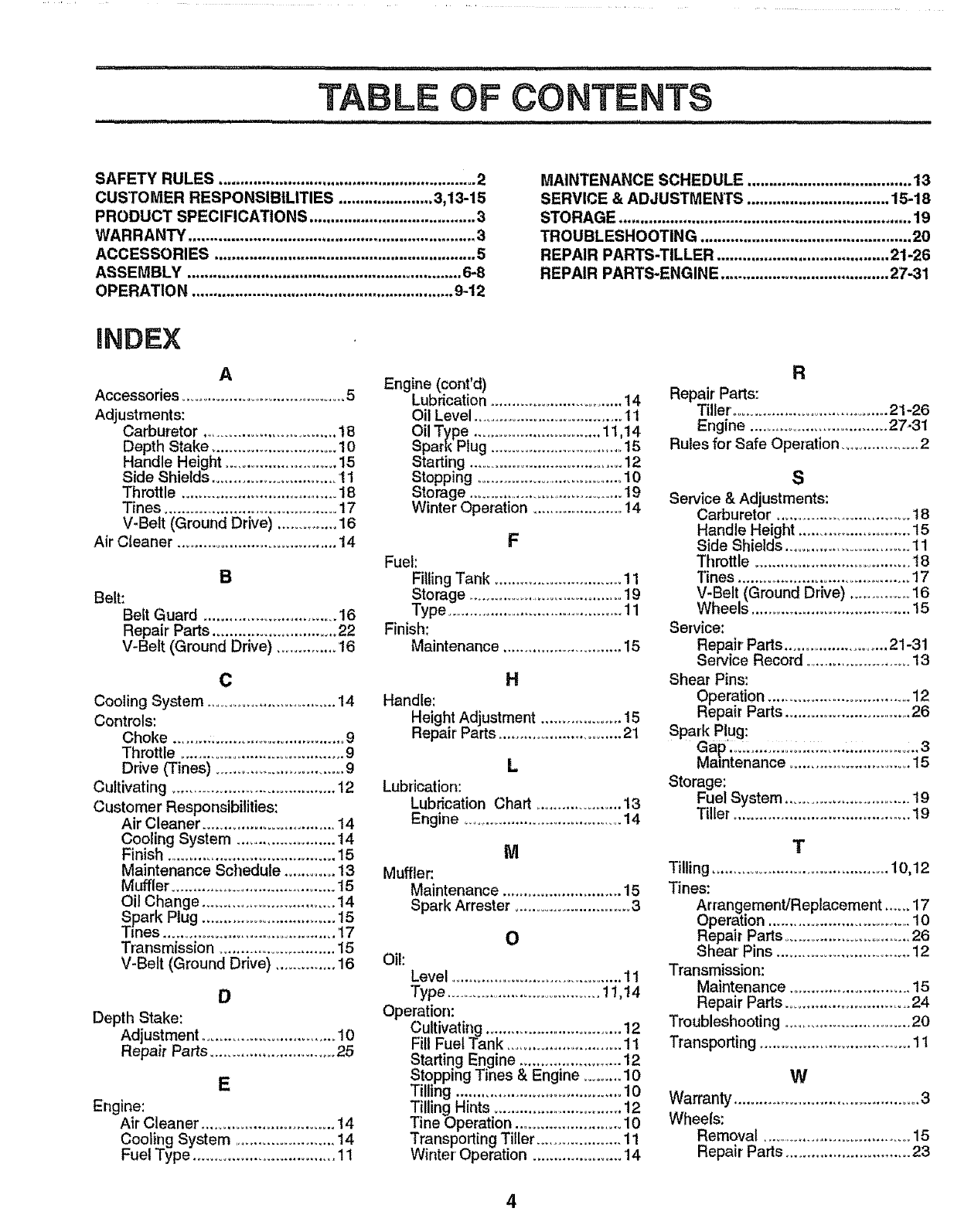

SAFETY RULES ............................................................ 2

CUSTOMER RESPONSIBILITIES ...................... 3,13-15

PRODUCT SPECIFICATIONS ....................................... 3

WARRANTY ................................................................... 3

ACCESSORIES ............................................................. 5

ASSEMBLY ................................................................ 6-8

OPERATION ............................................................. 9-12

MAINTENANCE SCHEDULE ...................................... 13

SERVICE & ADJUSTMENTS ................................. 15-18

STORAGE .................................................................... 19

TROUBLESHOOTING ................................................. 20

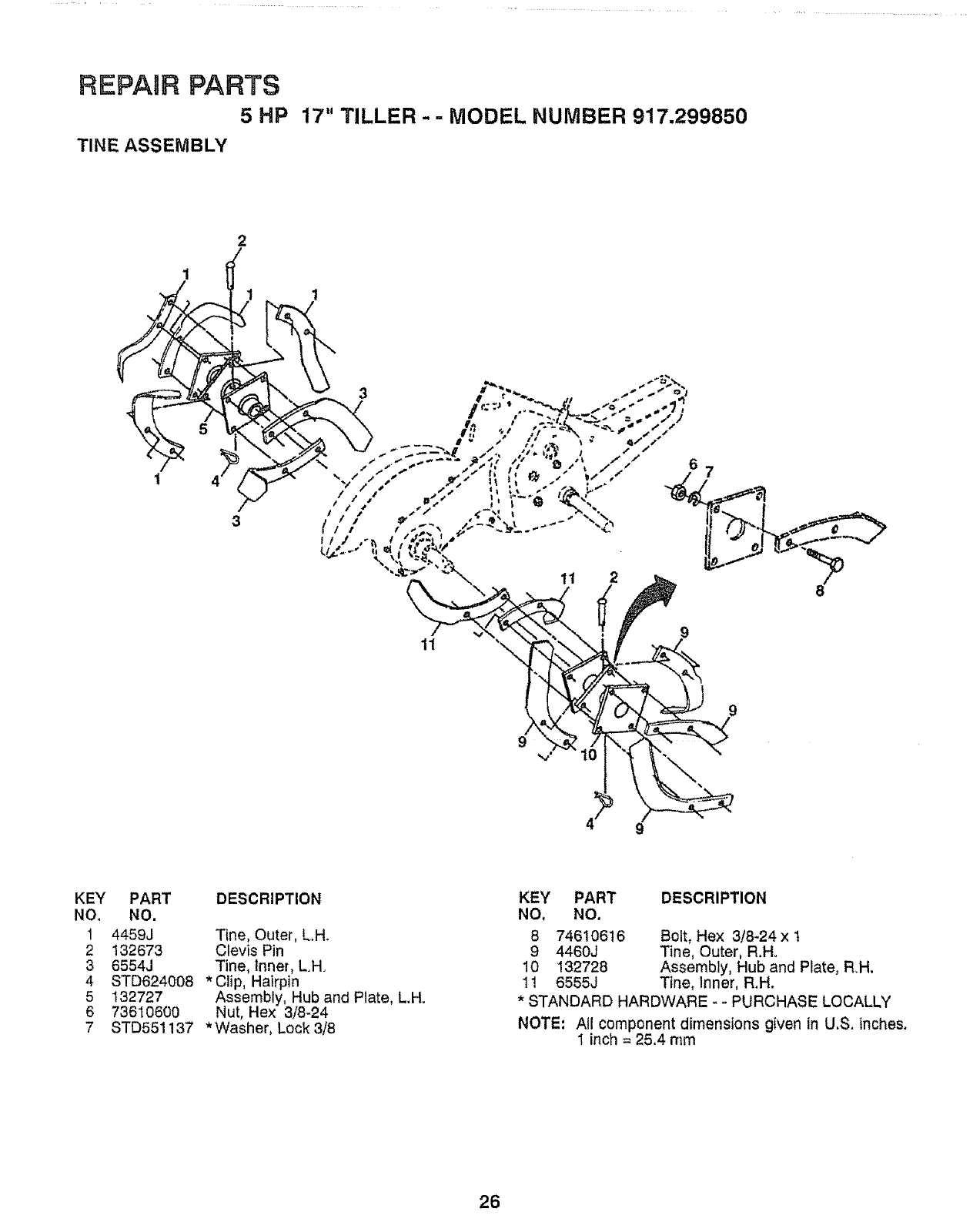

REPAIR PARTS-TILLER ........................................ 21-26

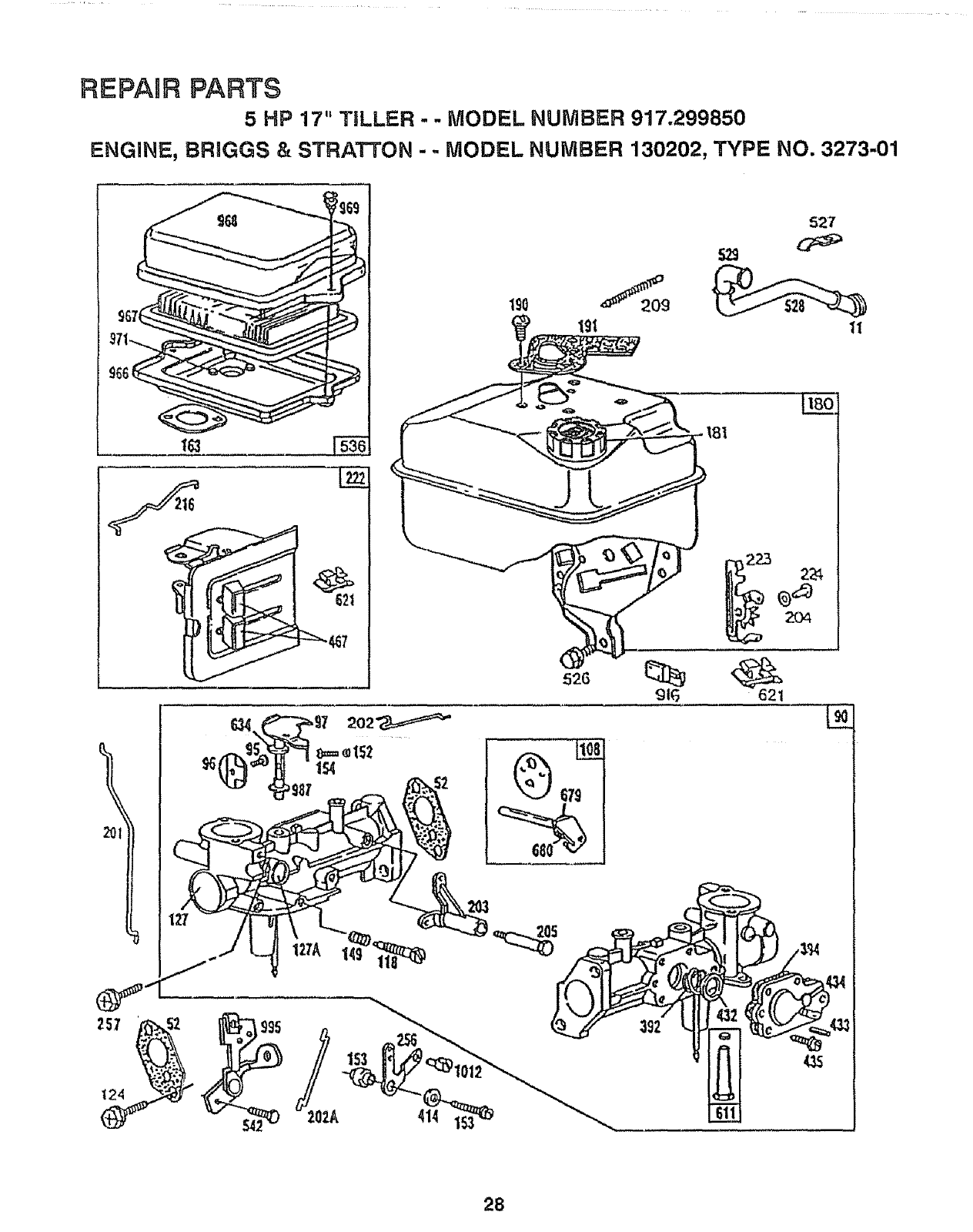

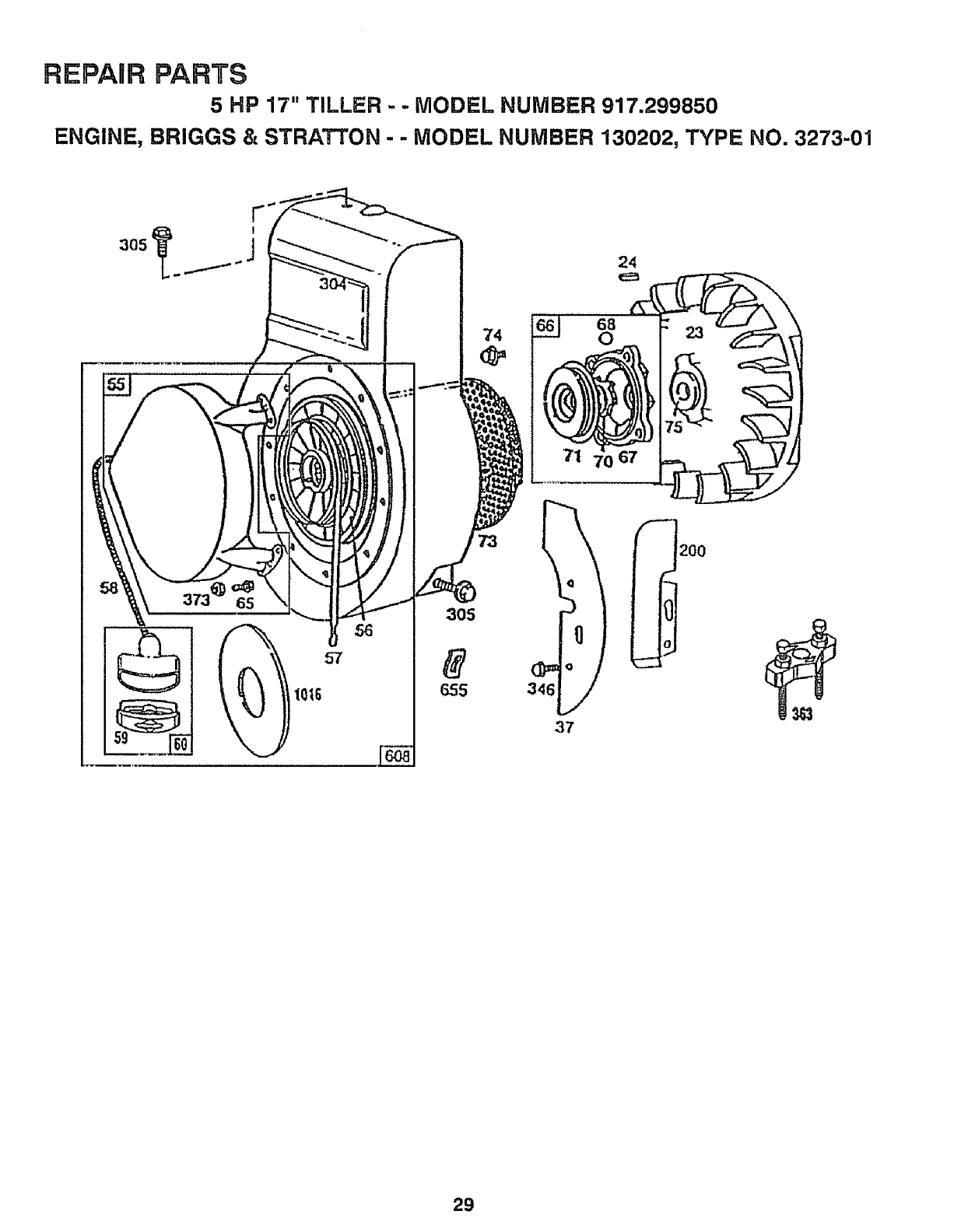

REPAIR PARTS-ENGINE ....................................... 27-31

INDEX

Accessories ..........................................5

Adjustments:

Carburetor ............................... 18

Depth Stake ............................. 10

Handle Height ........................... 15

Side Shields ............................. 11

Throttle ..................................... 18

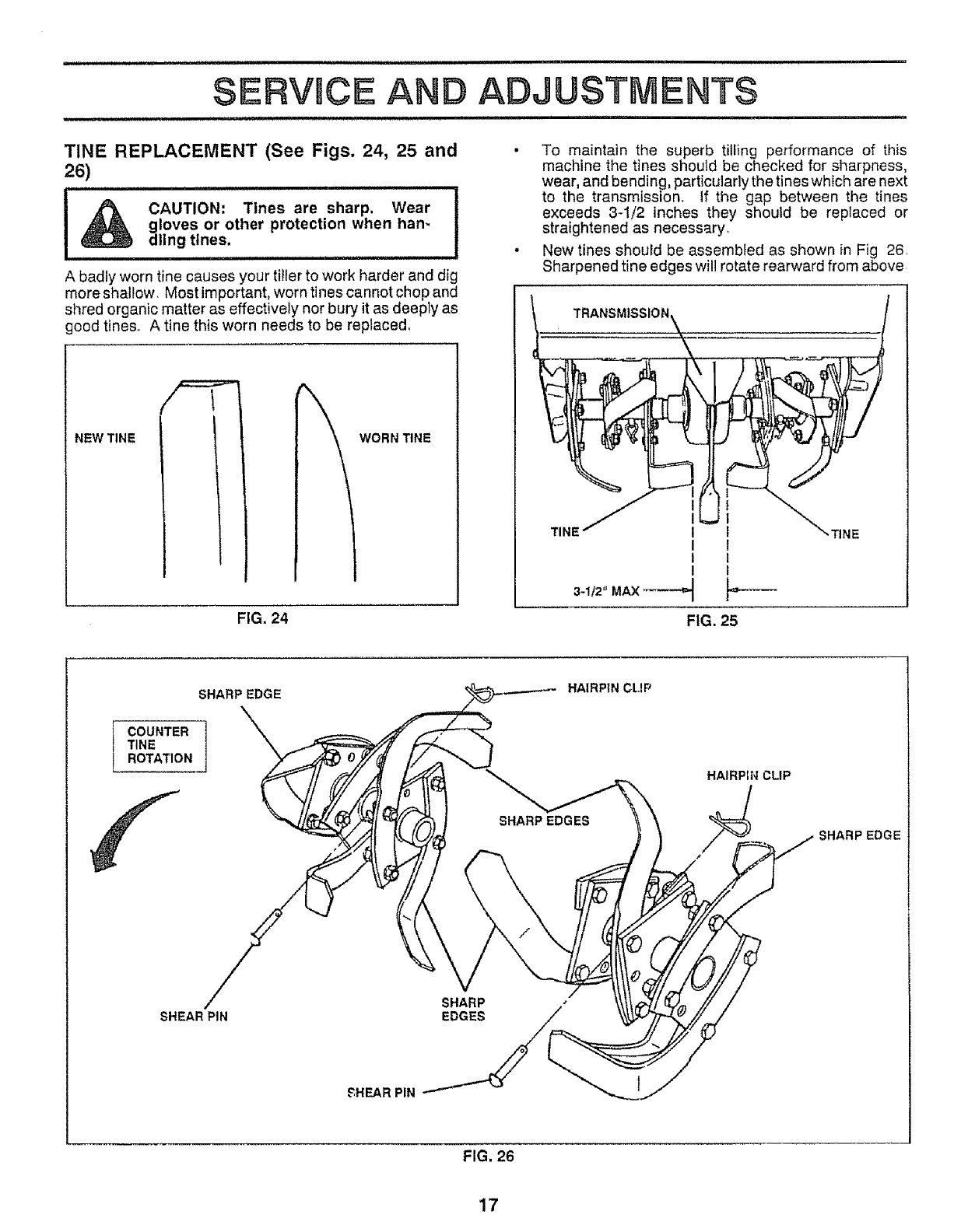

Tines ......................................... 17

V-Belt (Ground Drive) .............. 16

Air Cleaner ..................................... 14

Belt:Belt Guard ................................ 16

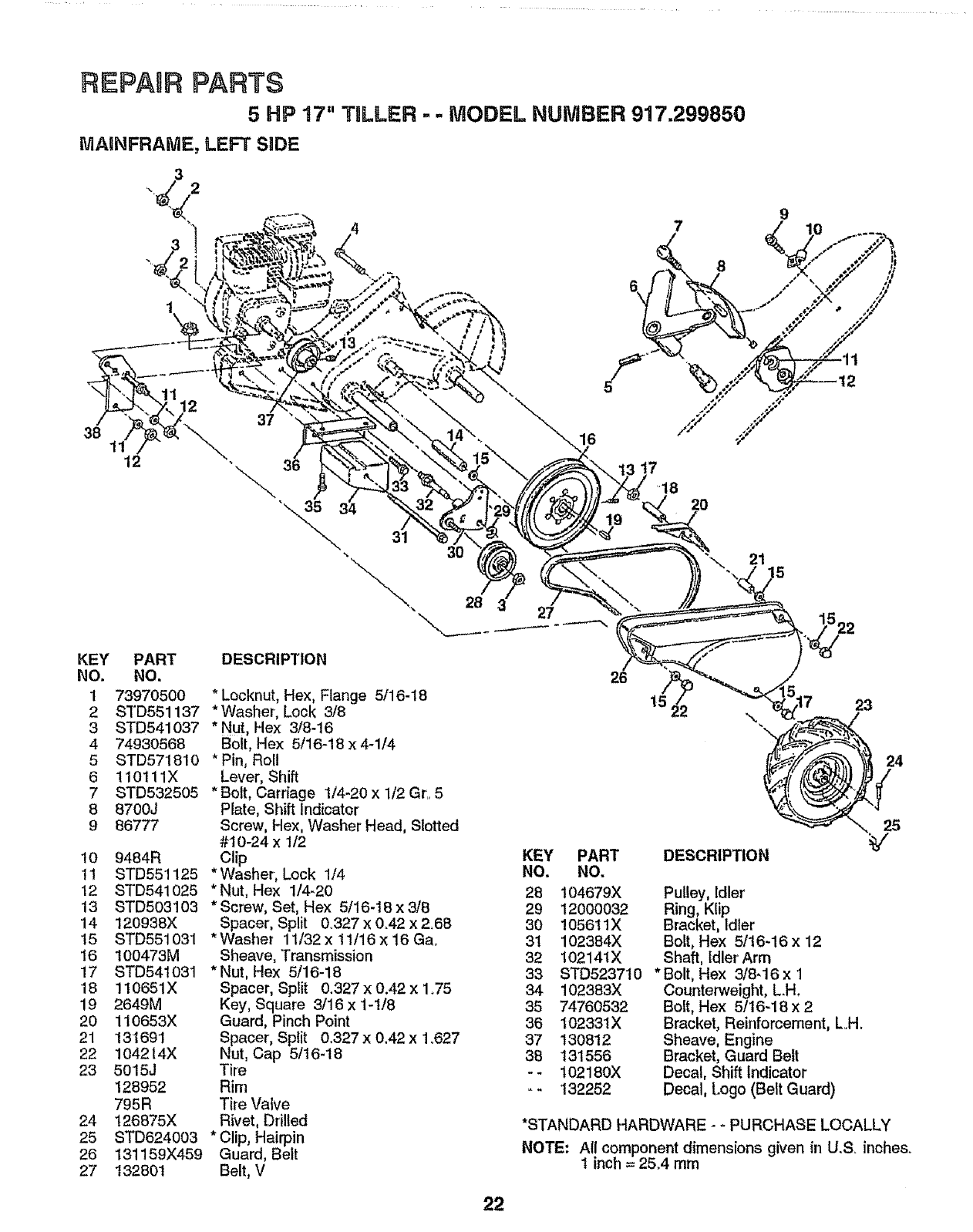

Repair Parts ............................. 22

V-Belt (Ground Drive) .............. 16

Cooling System .............................. 14

Controls:

Choke ......... ............................... 9

Throttle ......................................... 9

Drive (Tines) ................................ 9

Cultivating ...................................... 12

Customer Responsibilities:

Air Cleaner ............................... 14

Cooling System ....................... 14

Finish ........................................ 15

Maintenance Schedule ............ 13

Muffler. ...................................... 15

Oil Change ............................... 14

Spark Plug ............................... 15

Trees ........................................ 17

Transmission ............................ 15

V-Belt (Ground Drive) .............. 16

Depth Stake:

Adjustment ................................ 10

Repair Parts .............................. 25

Engine:

Air Cleaner ................................ 14

Cooling System ........................ 14

Fuel Type ................................. 11

Engine (cont'd)

Lubrication .................................. 14

Oil Level ..................................... 11

Oil Type ............................... 11,t4

Spark Plug ................................. 15

Starting .................................... 12

Stopping .........................................10

Storage ....................................... 19

Winter Operation ...................... 14

Fuel:

Filling Tank ............................... 11

Storage ...................................... 19

Type ........................................... 11

Finish:

Maintenance ............................. 15

Handle:

Height Adjustment ................... 15

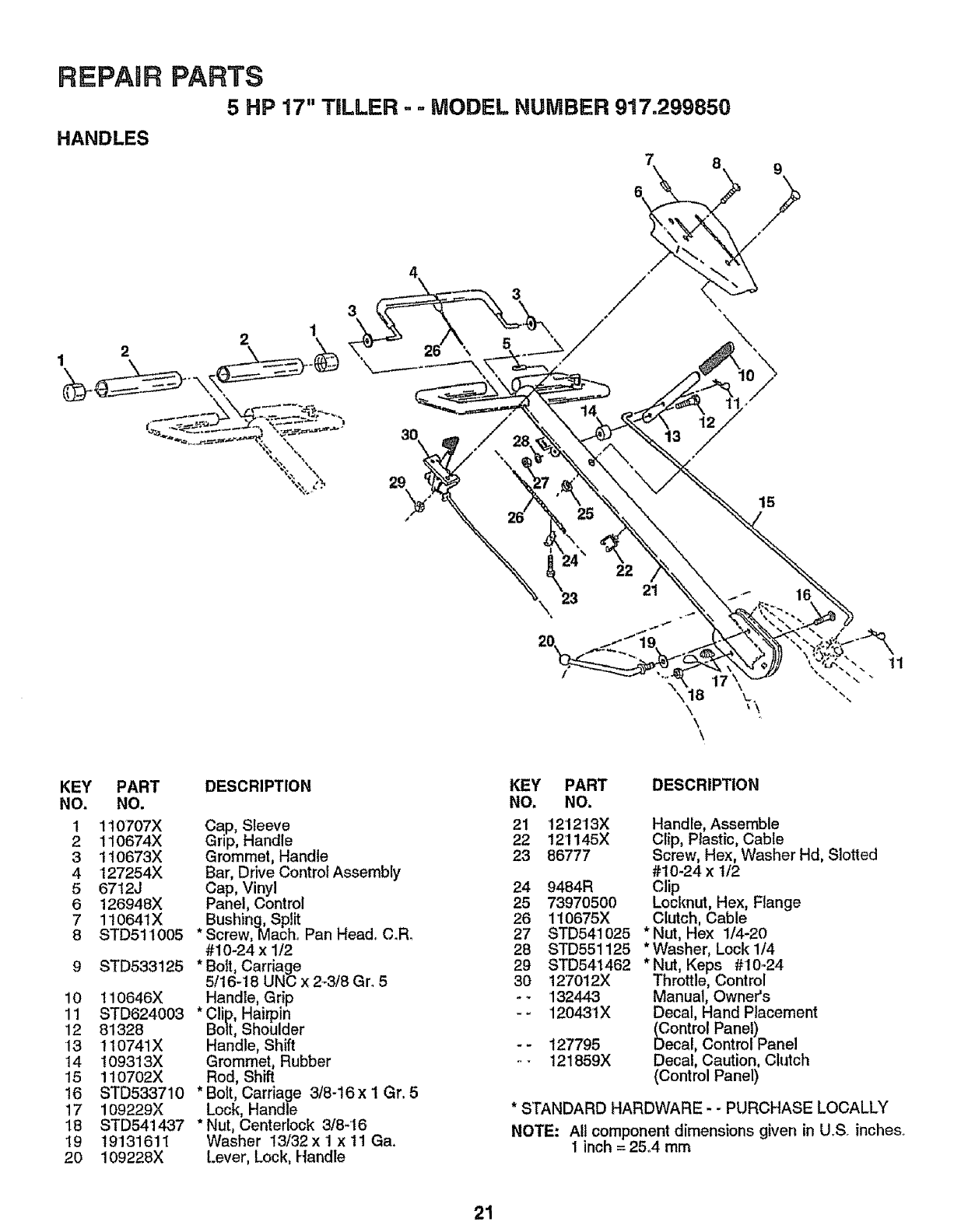

Repair Parts .............................. 21

Lubrication:

Lubrication Chart ..................... 13

Engine ....................................... 14

Muffler:

Maintenance ............................ 15

Spark Arrester ............................ 3

Oil:

Level ........................................ 11

Type ...................................... 11,14

Operation:

Cultivating ................................ 12

Fill Fuel Tank ........................... 11

Starting Engine ........................ 12

Stopping Tines & Engine ......... 10

Tilling ....................................... 10

Tilling Hints ................................ 12

Tine Operation ......................... 10

Transporting Tiller .................... 11

Winter Operation ..................... 14

Repair Parts:

Tiller ....................................... 21-26

Engine .................................. 27-31

Rules for Safe Operation .................. 2

Service & Adjustments:

Carburetor .................................. 18

Handle Height ........................... 15

Side Shields ................................ 11

Throttle .................................... 18

"l'*ines......................................... 17

V-Belt (Ground Drive) ............... 16

Wheels ..................................... 15

Service:

Repair Parts ......................... 21-31

Service Record ............................13

Shear Pins:

Operation ................................. 12

Repair Parts ................................26

Spark Plug:

Gap:,,,::......::::,..,:::.....,: ..............3

Maintenance ............................. 15

Storage:

Fuel System ............................. 19

Tiller .......................................... 19

Tilling .......................................... 10,12

Tines:

Arrangement/Replacement ...... 17

Operation ................................... 10

Repair Parts ............................. 26

Shear Pins ............................... 12

Transmission:

Maintenance ............................ 15

Repair Parts ............................. 24

Troubleshooting ............................. 20

Transporting ................................... 11

Warranty ........................................... 3

Wheels:

Removal ..................................... 15

Repair Parts ............................. 23

..........................I¸l ......................... , i, i,

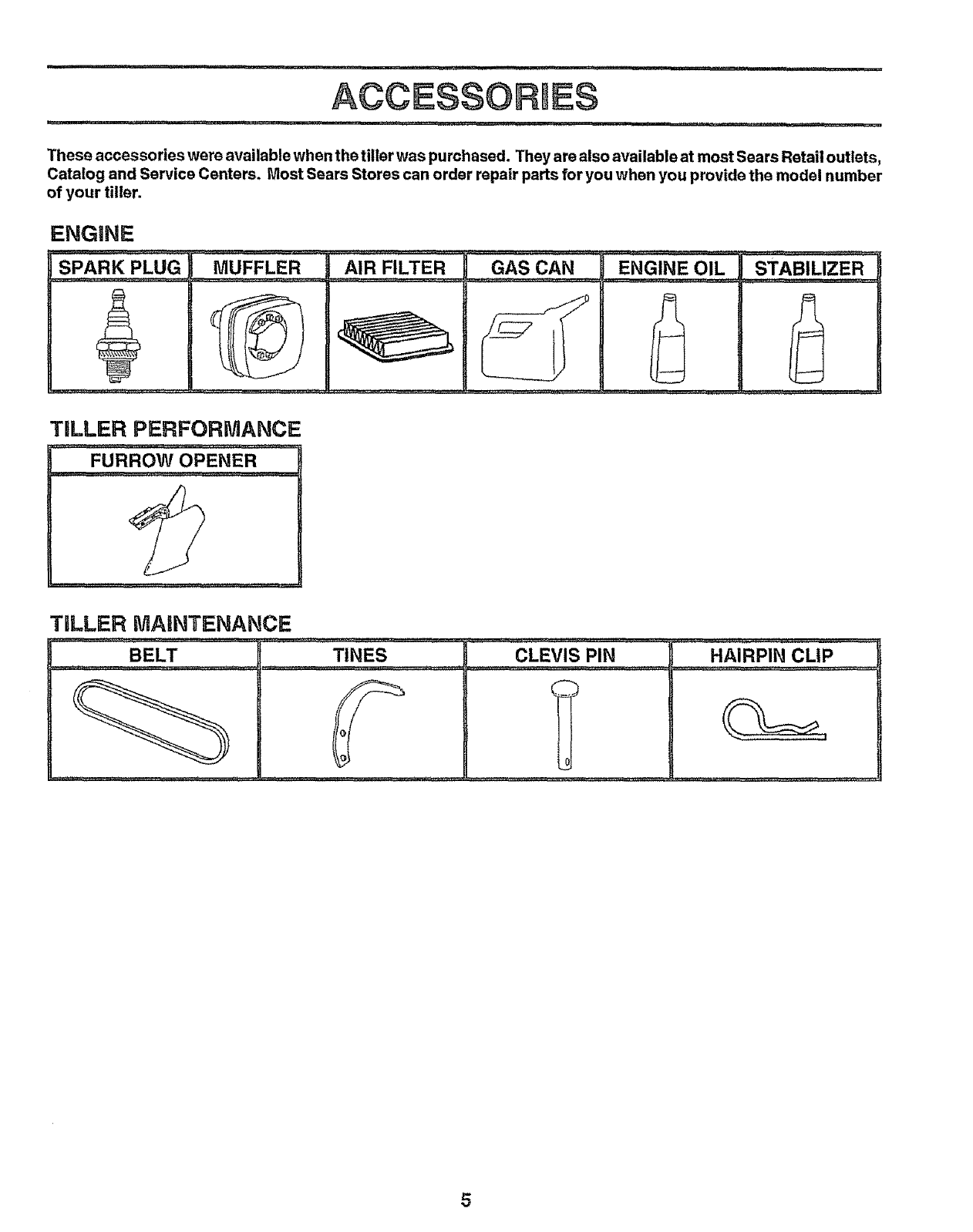

These accessories were available when the tiller was purchased. They are also available at most Sears Retail outlets,

Catalog and Service Centers. Most Sears Stores can order repair parts for you when you provide the model number

of your tiller.

ENGINE

SPARK PLUG ,.,,, [, MUFFLER ENGINE OIL STABILIZERAIR FILTER GAS CAN ',,LL_,

TILLER PERFORMANCE

FURROW OPENER

............. ,JJ J J,

TILLER MAINTENANCE

TINES ........ CLEVIS PIN ....HAIRPIN CLIP

, ,,u, ,,,

,,,,,,,,

i,i iiiii IIIIHI

OPERATOR'S POSiTiON (See Fig. 1)

The righthand (R.H.) and left hand (LH,) sides of your tiller

are determined from the operator's position while standing

behind tiller.

TO ASSEM BLE YOUR TILLER YOU WILL NEED:

(1) Utility knife

(1) Wire cutter

(1) Screwdriver

(1) Tire pressure gauge

(1) Pair of pliers

(1) 9/16 wrench (or 9/16 socket, ratchet, and extension;

or adjustable wrench)

LEFT

FRONT

OPERATOR'S

POSITION

RIGHT

FIG. 1

i i i i iiii iiiiiiiii iiiiiiiii i i i i i i i ii iiiiilllllll

CONTENTS OF HARDWARE PACK

............................................. ii1,11,1, iii ....

(2) Handle Locks

................................ i i,iii niii ,ii ,,i,i1,1,

(1) Flat Washer 13/32 x1x11 Ga.

(2) Carriage Bolts 3/8-16 UNC x I Gr. 5 (2) Center Locknuts 3/8-16 UNC

(1) Handle Lock Lever

(2) Hairpin Clips (1) Cable Clip (1) Owner's Manual

ASS LY

i, ,,i,, ,, ',

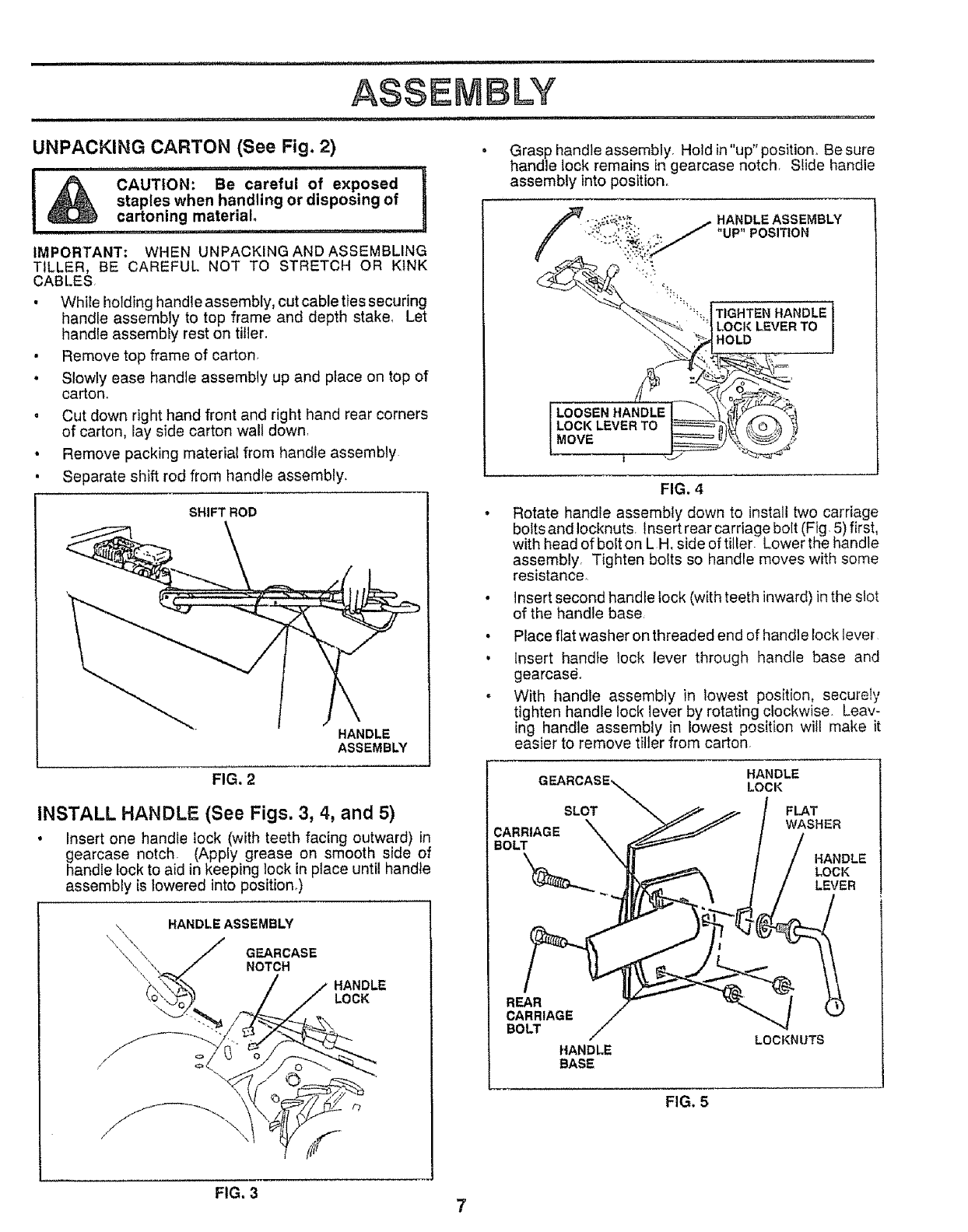

UNPACKING CARTON (See Fig. 2)

iiii ............. 1,,,11 ,i ,,11

I _ CAUTION: Be careful of exposed

staples when handling or disposing of II

cartoning material,

, ,, i i, ,11,,,111,,,i

IMPORTANT: WHEN UNPACKING AND ASSEMBLING

TILLER, BE CAREFUL NOT TO STRETCH OR KINK

CABLES

• White holding handle assembly, cutcableties securing

handle assembly to top frame and depth stake_ Let

handle assembly rest on titler.

• Remove top frame of carton.

• Slowly ease handle assembly up and place on top of

carton.

= Cut down right hand front and right hand rear corners

of carton, lay side carton wall down

• Remove packing material from handle assembly

• Separate shift rod from handle assembly.

SHIFT ROD

FIG. 2

• Grasp handle assembly. Hold in"up" position. Be sure

handle lock remains in gearcase notch Slide handle

assembly into position.

jHANDLE ASSEMBLY

%. _. /UP' POSITION

T,GHTEN.ANDLEt

LOCKLEVERTOI

HOLD J

HANDLE

ASSEMBLY

INSTALL HANDLE (See Figs. 3, 4, and 5)

• Insert one handle lock (with teeth facing outward) in

gearcase notch (Apply grease on smooth side of

handle lock to aid in keeping lock in place until handle

assembly is lowered into position.)

\HANDLEASSEMBLY

_\ \\ /

\\'\ ./ GF.ARCASE

\, \_,_,/ NOTCH

_\\_;L'_. / / HANDLE

/ / LOO

FIG. 4

• Rotate handle assembly down to install two carriage

bolts and Iocknuts Insert rear carriage bolt (Fig 5) first,

with head ofbolton LH, side of tiller Lower the handle

assembly Tighten bolts so handle moves with some

resistance_

• insert second handle lock (with teeth inward) in the slot

of the handle base

- Place fiat washer on threaded end of handle lock lever

, Insert handle lock lever through handle base and

gearcase_

.With handle assembly in lowest position, secure!y

tighten handle lock lever by rotating clockwise. Leav-

ing handle assembly in lowest position will make it

easier to remove tiller from cartonr

GEARCASE_

SLOT "_

CARRIAGE

BOLT

HANDLE

LOCK

FLAT

WASHER

HANDLE

LOCK

LEVER

R_R

CARRIAGE

BO_

HANDLE

BASE

LOCKNUTS

FIG. 5

FIG. 3 7

i,,,i,,,i i ,i,, ,,i ,i, i I,H,, iii,

H"' ' i ..... i,,i,,i,,,,, ..... i'1 ,HII

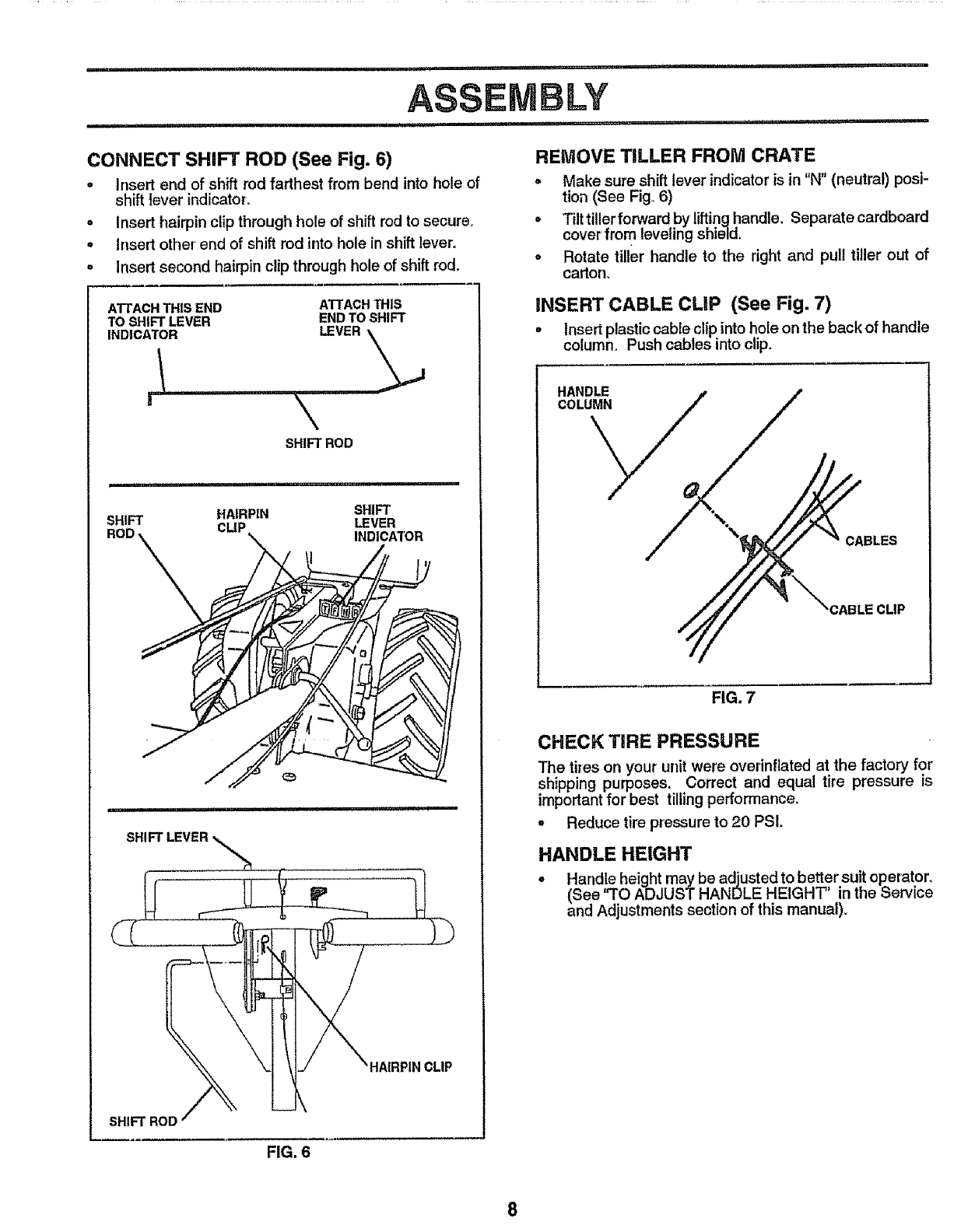

CONNECT SHIFT ROD (See Fig. 6)

,Insert end of shift rod farthest from bend into hole of

shift lever indicator°

,Insert hairpin clip through hole of shift rod to secure_

•Insert other end of shift rod into hole in shift lever.

=Insert second hairpin clip through hole of shift rod_

ATrACH THiS END ATTACHTHIS

TO SHIFT LEVER ENDTO SHIFT

INDICATOR LEVER

SHIFT ROD

SHIFT HAIRPIN

CLIP

SHIFT

LEVER

INDICA'rOR

HII,IIII

SHIFT LEVER

HAIRPIN CLIP

REMOVE TILLER FROM CRATE

°Make sure shift lever indicator is in "N" (neutral) posi-

tion (See Fig.,6)

oTilt tiUerforward by liftinghandle. Separate cardboard

cover fro m leveling shield_

oRotate tiller handle to the right and pull tiller out of

carton_

iNSERT CABLE CLiP (See Fig. 7)

°Insert plastic cable clip into hole on the back of handle

column. Push cables into clip.

CABLES

CABLE CLIP

FIG. 7

CHECK TiRE PRESSURE

The tires on your unit were overinflated at the factory for

shipping purposes, Correct and equal tire pressure is

important for best tilling performance.

• Reduce tire pressure to 20 PSI.

HANDLE HEIGHT

= Hand!e height may be adjusted to better suit operator°

(See q'O ADJUST HANDLE HEIGHT' in the Service

and Adjustments section of this manual).

FIG. 6

.......................i,

iMI 11111 I I ,I,l, ll III

OPERATION

iiii i,iii ,, i i ,, ii ii1,1 i ,, ii

KNOW YOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER,

Compare the illustrationswith your tiller to familiarize yourself with the location of various controls and adjustments. Save this

manual for future reference_

DRWE THROTTLE

CONTROL

BAR

' LEVER

SHIFT LEVER

INDICATOR RECOIL

STARTER

HANDLE

CHOKECONTROL

DEPTH STAKE

LEVELING

SHIELD (:;::: ,

OUTER

SIDE

SHIELD

FIG, 8

MEETS ANSI SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute,

DRIVE CONTROL BAR - Used to engage tines,

DEPTH STAKE - Controls depth at which tiller will dig°

LEVELING SHIELD - Levels tilled soil,

OUTER SIDE SHIELD - Adjustable to protect small plants

from being buried,

THROTTLE CONTROL -Used to controt engine speed,

SHIFT LEVER -Used to shift transmission gears,

SHIFT LEVER INDICATOR - Shows which gear the

transmission is in,

RECOIL STARTER HANDLE - Used to start the engine,

CHOKE CONTROL -Used when starting a cold engine

SAFETY DECAL

The decal shown below is located on the handle of your tiller.

The operation of any tiller can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields before starting

your tiller and while tilling. We recommend wide vision safety mask for over the spectacles

or standard safety glasses.

HOW TO USE YOUR TILLER

Know how to operate all controls before adding fuel and

oil or attempting to start engine°

STOPPING (See Fig. 9)

TINES AND DRIVE

• Release drive control bar' to stop movement°

• Move shift lever to "N" (neutral) position,

ENGINE

• Move throttle control to "STOP" position.

• Never use choke to stop engine_

DRIVE CONTROL BAR

"ENGAGED" POSITION

SHIFT

DRIVE CONTROL BAR

"DISENGAGED" POSITION

FIG. 9

TiNE OPERATION -WITH WHEEL DRIVE

•Always release drive control bar before moving shift

lever into another position

°Tine movement isachieved by moving shift leverto'T'

(till) position and engaging drive control bar.

FORWARD- WHEELS ONLY/TINES STOPPED

° Release drive control barand move shift lever indicator

to"F" (forward)position. Engagedrivecontrolbarand

tiller will move forward_

REVERSE- WHEELS ONLY/TINES STOPPED

o DO NOT STAND DIRECTLY BEHIND TILLER,

°Release the drive control bar.

,Move throttle control to "SLOW" position°

•Move shift lever indicator to "R" (reverse) position.

° Hold drive control bar against the handle to start tiller

movement.

DEPTH STAKE (See Fig. 10)

"['he depth stake can be raised orlowered to allow you more

versatile tilling and cultivating, or to more easily transport

,our til{ero

SHALLOWEST

TILLING

FIG. 10

_"__ TRANSPORT

iPOSITION

TILLING (See Fig. 11)

•Release depth stake pin. Pull the depth stake up for

increased tillingdepth. Place depth stake pin in hole of

depth stake to lock in position,

oPlace shift lever indicator in 'T' position.

oHold the drive control bar against the handle to start

tilling movernent. Tines and wheels will both turn.

° Movethrottlecontrolto"FAST'positionfordeeptilling.

To cultivate, throttle control can be set at any desired

speed, depending on how fast or slow you wish to

cultivate.

DEPTH STAKE PIN

"RELEASED" POSITION

NUT "A"

"LOCKED"

POSITION

NUT "B"

SIDE SHIELD

FIG. 11

OPEF ATBON

..... =.........................................

TURNING

o Release the drive control bar°

o Move throttle control to "SLOW" position°

° Place shift lever indicator in "F" (forward) position_

Tines will not turn°

o Lift handle to raise tines out of ground.

o Swingthe handle in the opposite direction you wish to

turn, being careful to keep feet and legs away from

tines.

o When you have completed your turn-around, release

thedrivecontrolbarandlowerhandle Placeshift lever

in "T"/ti! _ position and move throttle control to desired

speea. /o begin tilling, hold drive control bar against

the handle_

o The engine in your unit has been shipped, from the

factory, already filled with SAE 30 summer weight oil.

•With engine level, clean area around oil filler plug and

remove plug..

• Engine oil should be to point of overflowing. For

approximate capacity see PRODUCT SPECiFICA-

TIONS" on page 3 of this manual All oil must meet

A,P.I. Service Classification SG..

,, For cold weather operation you should change oil for

easier starting (See oil viscosity chart in the Customer

Responsibilities section of this manual).

o To change engine oil, see the Customer Responsibili-

ties section in this manual

OUTER SiDE SHBELDS (See Fig. 11)

The front edges of the outer side shields are slotted so that

the shields can be raised for deep tilling and lowered for

shallow tilling to protect small plants from being buried.

Loosen nut "A" in slot and nut "B". Move shield to desired

position (both sides). Retighten nuts.

TRANSPORTRNG

CAUTION: Before lifting or transport-

ing, allow tiller engine and muffler to

cool. Disconnectsparkplugwire. Drain

gasoline from fuel tank.

............ ' i,,, =,=,1..... ,.......

o Release the depth stake pin° Move the depth stake

down to the top hole for transporting the tiller. Place

depth stake pin in hole of depth stake to lock in position.

This prevents tines from scuffing the ground°

o Place shift lever indicator in "F" (forward) position for

transporting.

o Hold the drive control bar against the handle to start

tiller movement. Tines will not turn°

,, Move throttle control to desired speed.

CAUTION: Before operating yourtiller

for the first time, study this section and

the "SAFETY RULES" on page 2.

Always release drivecontrol bar before

moving shift lever into another posi-

tion.

Don't back yourself into a solid ob-

struction such as a tree, fence, etc.

BEFORE STARTING ENGINE

CHECK ENGINE OiL LEVEL (See Fig. 12)

IMPORTANT: BE VERY CAREFUL NOT TO ALLOW DIRT

TO ENTER THE ENGINE WHEN CHECKING OR ADDING

OiL OR FUEL. USE CLEAN SAE 30 OR 10W30 WEIGHT

OIL AND STORE IN APPROVED, CLEAN, COVERED

CONTAINERS. ALL OILS MUST MEET AoP.L SERVICE

CLASSIFICATION SG_ USE CLEAN FILL FUNNELS..

OIL

RLLER

PLUG

FIG. 12

ADD GASOLINE

oFill fuel tank_ Use fresh, clean, regular unleaded

gasoline. (Use of leaded gasoline will increase carbon

and lead oxide deposits and reduce valve life.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F (o°C), USE FRESH, CLEAN, WINTER

GRADE GASOLINE TO HELP INSURE GOOD COLD

WEATHER STARTING.

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage, Acidic gas can damage the fuel

system of an engine while in storage,. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season_ See Storage Instruc-

tions for additional information_ Never use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur°

CAUTION: Fill to within 112inch of top

of fuel tank to prevent spills and to

allow for fuel expansion. If gasoline is

accidentally spilled, move machine

away from area of spiti. Avoid creating

any source of ignition until gasoline

vapors have disappeared.

Do not overfill. Wipe off any spilled oil

or fuel. Do not store, spill or use gaso-

line near an open flame.

, ,i .... i I i1,,11 ................... i1,1, _

! ................ i,, ii1,11 i i1,,i.... i....... i........

OPl=FIATmO

iMII,II ,1111,i ,,i i ,11,1,1,1,1,11i,,,ii I

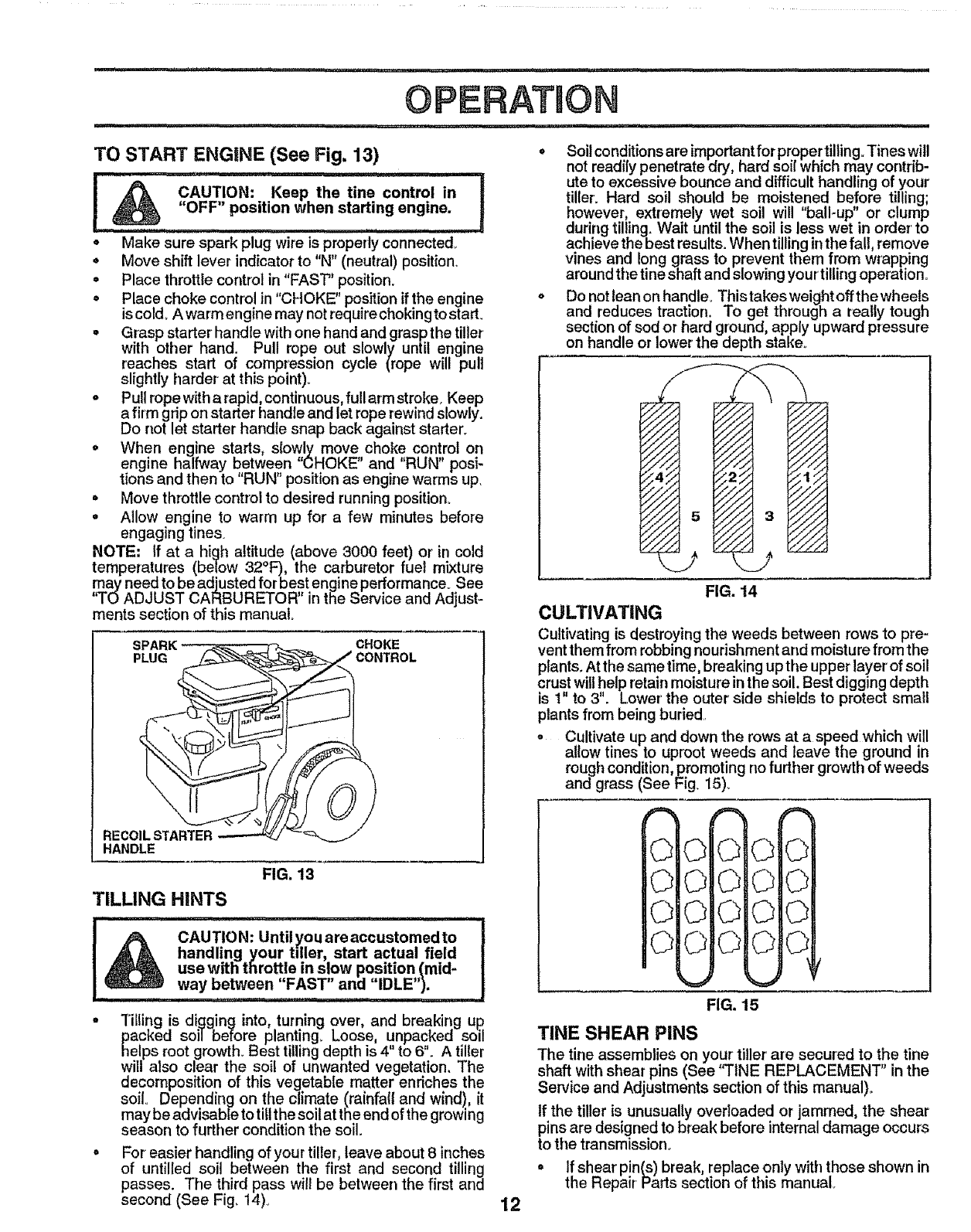

TO START ENGINE (See Fig. 13)

CAUTION: Keep the tine control in

"OFF' position when starting engine.

o Make sure spark plug wire is properiyiconnected.

•Move shift lever indicator to "N" (neutral) position_

o Place throttle control in "FAST" position,

o Place choke control in "CHOKE" position if the engine

is cold_ A warm engine may not requirechoking to start.

= Grasp starter handle with one hand and grasp the tiller

with other hand. Pull rope out slowly until engine

reaches start of compression cycle (rope will pull

slightly harder at this point).

° Pull rope with a rapid, continuous, full arm stroke, Keep

a firm grip on starter handle and let rope rewind slowly.

Do not let starter handle snap back against starter.

o When engine starts, slowly move choke control on

engine halfway between CHOKE" and "RUN" posi-

tions and then to RUN position as engine warms up.

° Move throttle control to desired running position.

oAllow engine to warm up for a few minutes before

engaging tines.

NOTE; If at a high altitude (above 3000 feet) or in cold

temperatures (below 32°F), the carburetor fuel mixture

may need to be adjusted for best engine performance. See

'q'OADJUST CARBURETOR" in the Service and Adjust-

ments section of this manual.

PLUG CHOKE

RECOILSTARTER

HANDLE

FIG. 13

TILLING HINTS

IHHI I I ,,H,II,I ....

CAUTION: Untit you are accustomed to I

handling your tiller, start actual field I

use with throttle in slow position (mid- I

betw ...... ,, t........ way een FAST and IDLE _).

•Tilling is digging into, turning over, and breaking up

packed soil before planting. Loose, unpacked soil

helps root growth. Best tillingdepth is 4" to 6". Atiller

will also clear the soil of unwanted vegetation. The

decomposition of this vegetable matter enriches the

soilo Depending on the climate (rainfall and wind) it

may be advisable to till t he so I at the end of the growing

season to further condition the soil.

° For easier handling of your tiller, leave about 8 inches

of untilled soil between the first and second tilling

passes. The third pass will be between the first and

second (See Fig, t4) 12

Soil conditions are important for proper tilling., Tines will

not readily penetrate dry, hard soil which may contrib-

ute to excessive bounce and difficult handling of your

tiller. Hard soil should be moistened before tilling

however, extremely wet soil will "ball-up" or clump

during tilling. Wait until the soil is less wet in order' to

achieve the best results. When tilling in the fall remove

vines and long grass to prevent them from wrapping

around the tine shaft and slowing you rtilling operation.

Do not lean on handle. This takes weight off the wheels

and reduces traction, To get through a really tough

section of sod or hard ground, apply upward pressure

on handle or lower the depth stake..

FIG. 14

CULTiVATiNG

Cultivating is destroying the weeds between rows to pre-

vent them from robbing nourishment and moisture from the

plants. At the same time, breaking up the upper layer of soil

crust wilt help retain moisture in the soil. Best digging depth

is 1" to 3". Lower' the outer side shields to protect small

plants from being buried

-Cultivate up and down the rows at a speed which will

allow tines to uproot weeds and leave the ground in

rough condition,promoting no further growth of weeds

and grass (See Fig, 15),

©©

O©

©©

FIG. 15

TINE SHEAR PiNS

The tine assemblies on your tiller are secured to the tine

shaft with shear pins (See 'q'INE REPLACEMENT" in the

Service and Adjustments section of this manual)°

If the tiller is unusually overloaded or jammed, the shear

pins are designed to break before internal damage occurs

to the transmission.

=If shear pin(s) break, replace only with those shown in

the Repair Parts section of this manual

.... i IlUNU,i ........... I ,N-II I'111 '

CUSTOME RESPONSIBILUTmES

iiii1,1 ,,, i, ,i,i ,i,,,i,i

SCHEDULE _ _

FILL IN DATES /__//

AS YOU COMPLETE ._ _ _ ,-, _ SERVICE DATES

REGULAR SERVICE

Check Engine Oil Level _4 6/

-::- i, ,ii illU,

Change Engine Oil 6/ t_1,2

Oil Pivot Points 6/

ii i , ,,i,, ii,lJ, iUJl_

Inspect Spark Arrester Muffler 6/

Ill

Inspect Air Screen 64#

Replace Air Cleaner Cartridge 6/2

uii,ll i i1,1111iii ,pu ......

Clean Engine Cylinder Fins 6/

Replace Spark Plug 6/

1 - Change mere often when operating under a heavy toad or In high ambient temperatures

2 - Service more often when operating in dirty or dusty conditions,

GENERAL RECOIVIVlENDATIONS

The warranty on this unit does not cover items that have

been subjected to operator abuse or negligence° To

receive full value from the warranty, the operator must

maintain unit as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your unit°

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each

season.

• Once a year you should replace the spark plug, replace

air filter, and check tines and belts for wear. A new

spark plug and clean air filter assure proper air-fuel

mixture and help your engine run better and last longer.

BEFORE EACH USE

• Check engine oil level,

• Check tine operation,

•Check for loose fasteners,

LUBRICATION

Keep unit wel lubricated (See "LUBRICATION CHART')

LUBRICATION CHART

*THROTTLE

CONTROL

SHIELD

HINGE

** ENGINE

* WHEEL

HUB

*IDLER

BRACKET

* SAE 30 OR t0W-30 MOTOR OIL

"_ REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION

.................. ====,=,=1 ...... = IHI-I. ==,.H¸ =

CUSTOME RESPONSMBILITIE$

Disconnect spark plug wire before performing any maintenance (except carburetor adjustment) to

_prevent accidental starting of engine. I

Prevent firest Keep the engine free of grass, leaves, spilled oil, or fuel. Remove fuel from tank before

tipping unit for maintenance. Clean muffler area of all grass, dirt and debris.

Do not touch hot muffler or cylinder fins as contact may cause burns.

,11 -iq ..................... iii H i, i.i .................. ii........................... _

ENGINE AiR CLEANER (See Fig. 18)

LUBRICATION

Change the oil after the first two hours of operation and

every 25 hours thereafter or at least once a year' ifthe tiller

is not used for 25 hours in one year.

Check the crankcase oil ]evel before starting the engine

and after' each five (5) hours of continuous use. Add SAE

30 motor oil or equivalent. Tighten oil filler plug securely

each time you checkthe oil level. SAE 5W-30 motoroil may

be used to make starting easier inareas where temperatu re

is consistently 32 ° F (0°C) or lower.

TO CHANGE ENGINE OIL (See Figs. 16 and 17)

Determine temperature range expected before oilchange_

All oil must meet API service classification SG

.Be sure tiller is on level surface.

• Oil will drain more freely when warm

°Catch oil in a suitable container°

• Remove drain plugo

°Tip tiller forward to drain oil.

° After oil has drained completely, replace oil drain plug

and tighten securely=

=Remove oil filler plug. Be careful not to allow dirt to

enter the engine.

°Refill engine with oil. See "CHECK ENGINE OIL

LEVEL" in the Operation section of this manual°

RECOMMENDED SAE VISCOSITY GRADES

r I

oF .20 ° 0°32 °60 ° 80° 100 °

°C -29 °-18 °0 = 16° 27° 38 o

FIG. 16

OIL

DRAIN

PLUG

OIL RLLER

PLUG

Replace air cleaner cartridge every twenty-five hours, more

often if engine is used in very dusty conditions.

oLoosen air cleaner screws, one on each side of cover_

°Remove air cleaner cover°

,Carefully remove air cleaner' cartridge_ Be careful° Do

not allow dirt or debris to fall into carburetor.

* Install new air cleaner cartridge° Clean and replace

cover', Tighten screws securely.

NOTE; Do not attempt to clean or oil the paper cartridge

AIR

CLEANER

SCREW COVER

AIR CLEANER

FIG. 18

COOLING SYSTEM (See Fig. 19)

Your engine is air cooled. For proper engine performance

and long lifekeep your engine clean_

* Clean air screen frequently using a stiff-bristled brush.

oRemove blower housing and clean as necessary.

°Keep cylinder'fins free of dirt and chaff°

CYLINDER RNS

HOUSING

SCREEN

FIG. 19

FIG. 17 14

MUFFLER

Do not operate tiller without muffler° Do not tamper with

exhaust system. Damaged mufflers or spark arresters

could create a fire hazard. Inspect periodically and replace

if necessary,, If your engine is equipped with a spark

arrester screen assembly, remove every 50 hours for

cleaning and inspection. Replace if damaged

SPARK PLUG

Replace spark plugs at the beginning of each tilling season

or after every 50 hours of use, whichever comes first. Spark

plug type and gap setting is shown in "PRODUCT SPECI-

FICATIONS" on page 3 of this manual.

BmLUTIES

TRANSMISSION

Your transmission is sealed and will only require lubrication

if serviced,

CLEANING

.Clean engine, wheels, finish, etCoof afl foreign matter.,

• Keep finished surfaces and wheels free of all gasoline,

oi!, etc.

- Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

unit unless the muffler, air filter and carburetor are covered

to keep water out, Water in engine can result ina shortened

engine life,

inl ..............................................

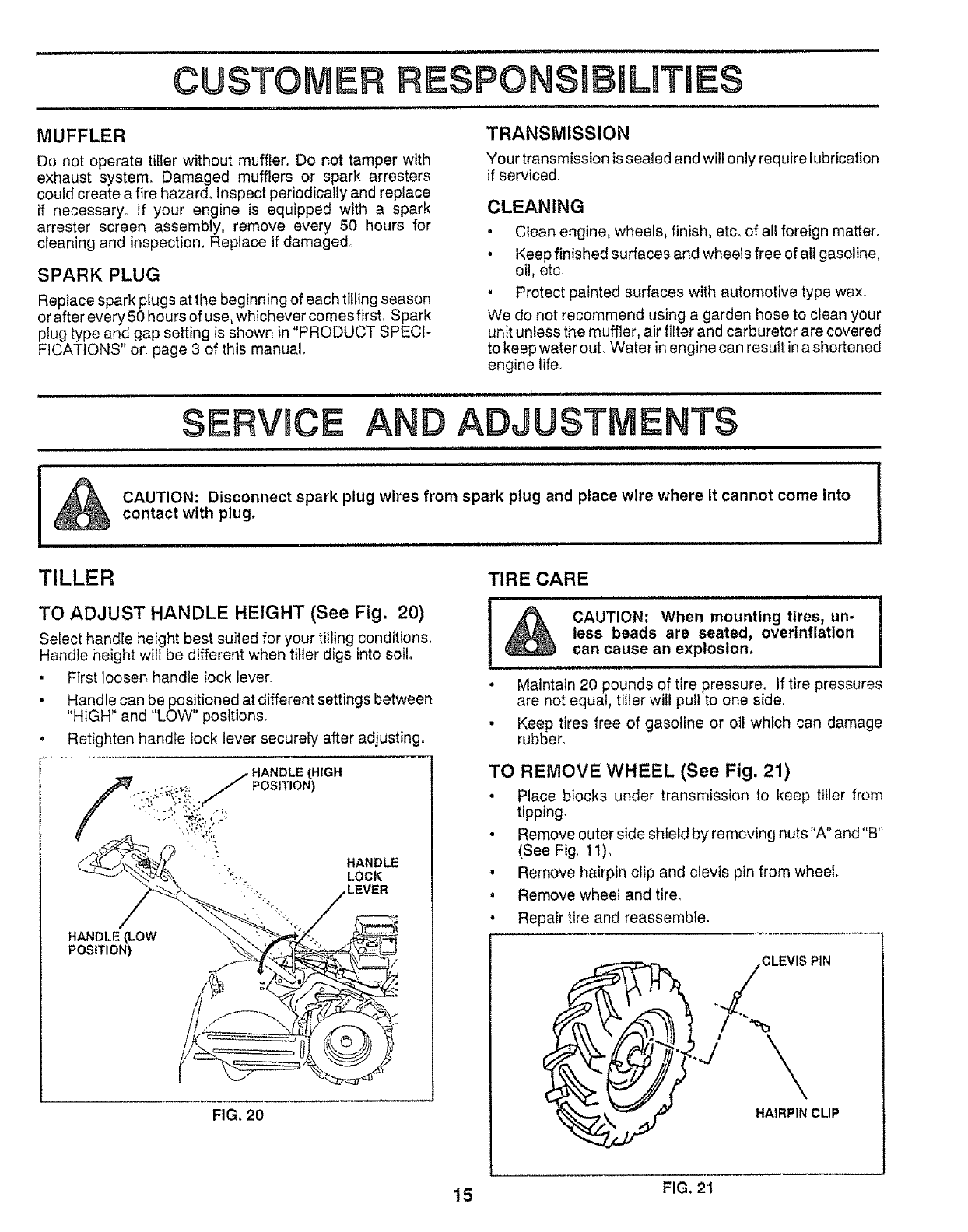

SERV CU= AND ADJUSTMENTS

ii illllll i i i nl ,11.1,111111,111111

iill HlUlIH,Im I I I I II'IIIIIIHI"UlUl

CAUTION: Disconnect spark plug wires from spark plug and place wire where it cannot come Into

contact with plug.

TILLER

TO ADJUST HANDLE HEIGHT (See Fig. 20)

Select handle height best suited for your tilling conditions,

Handle height wilt be different when tiller digs into soil.

• First loosen handle lock lever.

Handle can be positioned at different settings between

"HIGH" and "LOW" positions°

oRetighten handle lock lever securely after adjusting.

,_ tHANDLE (HIGH

,.°_,_? J POSITION)

HANDLE

%LOCK

_"%_, LEVER

HANDLE (LOW

POSITION)

FIG, 20

TIRE CARE

CAUTION: When mounting tires, un-

less beads are seated, overlnflatlon

can cause an explosion.

Maintain 20 pounds of tire pressure, if tire pressures

are not equal, tiller will pull to one side,

Keep tires free of gasoline or oil which can damage

rubber.

TO REMOVE WHEEL (See Fig. 21)

• Place blocks under transmission to keep tiller from

tipping,

• Remove outer side shield by removing nuts "A" and "B"

(See Fig ! 1),

• Remove hairpin clip and clevis pin from wheel°

, Remove wheel and tire.

• Repair tire and reassemble,

CLEVIS PIN

HAIRPIN CLIP

15 FIG. 21

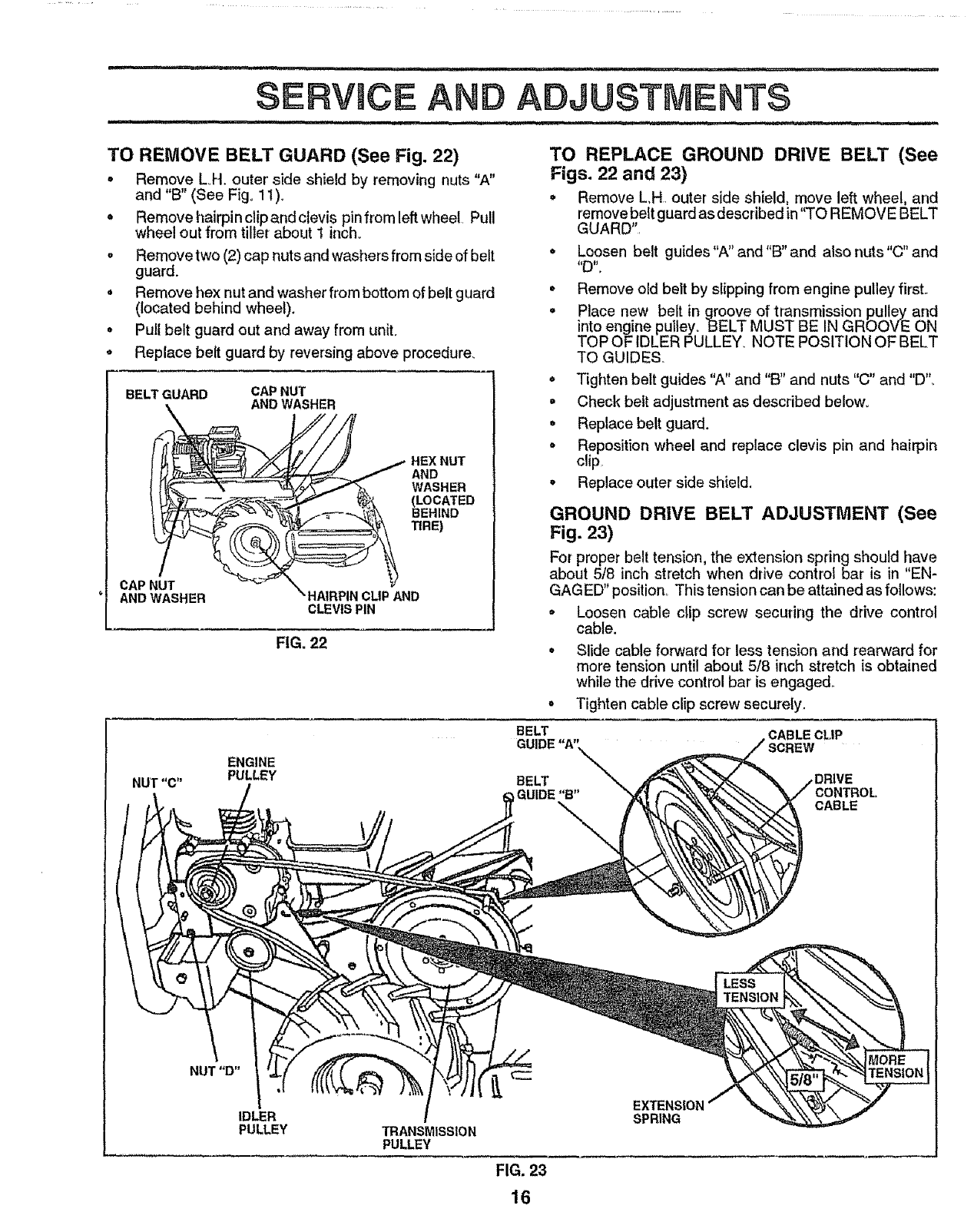

TO REMOVE BELT GUARD (See Fig. 22)

•Remove Loll. outer' side shield by removing nuts "A"

and "B" (See Fig, 11)_

•Removehairpinclipandcfevis pin from left wheel Pull

wheel out from tiller about I inch.

•Remove two (2) cap nuts and washers from side of belt

guard.

o Remove hex nut and washer from bottom of belt guard

(located behind wheel),

• Pull belt guard out and away from unit.

°Replace belt guard by reversing above procedure_

BELT GUARD

CAP

AND WASHER

CAPNUT

JUT .... _" HAIRPINCLIP_'AND

CLEVISPIN

FIG. 22

TO REPLACE GROUND DRIVE BELT (See

Figs. 22 and 23)

o Remove L,H. outer side shield, move left wheel, and

remove belt guard as described in'q'O REMOVE BELT

GUARD".

Loosen belt guides "A" and "B" and also nuts "C" and

_DtJ

o Remove old belt by slipping from engine pulley first..

• Place new belt in groove of transmission pulley and

into engine pulley, BELT MUST BE IN GROOVE ON

TOP OF IDLER PULLEY_ NOTE POSITION OF BELT

TO GUIDES..

•Tighten belt guides "A" and "B" and nuts "C" and "D"o

= Check belt adjustment as described below.

°Replace belt guard.

, Reposition wheel and replace clevis pin and hairpin

clip.

° Replace outer side shield.

GROUND DRIVE BELT ADJUSTMENT (See

Fig. 23)

For proper belt tension, the extension spring should have

about 5/8 inch stretch when drive control bar is in "EN-

GAG ED" position, This tension can be attained as follows:

o Loosen cable clip screw securing the drive control

cable.

• Slide cable forward for' less tension and rearward for

more tension until about 5/8 inch stretch is obtained

while the drive control bar is engaged..

•Tighten cable clip screw securely.

BELT CABLE CLIP

NUT "C"

ENGINE

PULLEY BELT

GUIDE "B" CONTROL

CABLE

LESS

TENSION

NUT "D"

IDLER

PULLEY TRANSMISSION

PULLEY

SPRING

FIG. 23

ill ,ill

SERVICE AN ADJUSTMENTS

TINE REPLACEMENT (See Figs. 24, 25 and

26)

i"A..................

CAUTION: Tines are sharp. Wear I

gloves or other protection when ham I

dllng tines.

ii i, iiiii illl 1

A badly worn tine causes your tiller to work harder and dig

more shalrow. Most important, worn tines cannot chop and

shred organic matter as effectively nor bury it as deeply as

good tines. A ttne this worn needs to be replaced,

NEW TINE WORN TINE

FIG. 24

To maintain the superb tilling performance of this

machine the tines should be checked for sharpness,

wear, and bending, particularly the tines which are next

to the transmission, if the gap between the tines

exceeds 3d/2 inches they should be replaced or

straightened as necessary

New tines should be assembled as shown {n Fig 26.

Sharpened tine edges will rotate rearward from above

3-1/2" MAX--_--'_

FIG. 25

COUNTER

TINE

ROTATION

SHARP EDGE HAIRPIN CLIP

HAIRPIN CLIP

SHARPEDGE

SHEARPIN SHARP

_HEARPIN _

FIG. 26

SERVICE AN

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 27)

• Loosen cable ciamp screw to allow cable to move,

. Move throttle control lever on upper handle to "FAST'

position,

Pull throttle cable out until engine bellcrank is back as

far as it will go,

• Hold cable in this position and tighten clamp screw

securely.

THROTTLE

CLAMP SCREW

BELLCRANK

FIG. 27

ENGINE

TO ADJUST CARBURETOR (See Fig. 28)

The carburetor has a high speed jet and has been preset at

thefactory and adjustment should not be necessary. How-

ever, minor adjustments may be required to compensate

for differences in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed as follows.

in general, turning the idle needle valve in (clockwise)

decreases the supply of fuel to the engine giving a leaner

fuel/air mixture, Turning the needle valve out (counter-

clockwise) increases the supply of fuel to the engine giving

a richer fuel/air mixture.

IMPORTANT: DAMAGE TO THE NEEDLES AND THE

SEATS IN CARBURETOR MAY RESULT IF SCREWS

ARE TURNED IN TOO TIGHT.

PRELIMINARY SETTING

o Air cleaner' assembly must be assembled to the carbu-

retor when making carburetor adjustments.

, Be sure the throttle controI cable is adjusted properly

(see above).

o With engine off, turn idle needle valve in (clockwise)

closing it finger tight and then turn valve out (counter-

clockwise) 1-1/2 turns.

FINAL SETTING

, Start engine and allow to warm for five minutes. Make

final adjustments with engine running at idle and drive

control bar in "DISENGAGED" position.

•With throttle control lever in "SLOW" position, turn idle

needle valve in (clockwise) until engine begins to die

then turn out (counterclockwise) until engine runs

rough_ Turn valve to a point midway between those two

positions.

IDLE RPM ADJUSTMENT

• To adjust idle RPM, rotate throttle linkage counter-

clockwise and hold against stop while adjusting idle

speed adjusting screw to obtain 1750 RPM Release

throttle linkage.

ACCELERATION TEST

•Move throttle control lever from "SLOW" to "FAST"

position. If engine hesitates or dies, turn needle valve

out (counterclockwise) I/8 turn, Repeat test and

continue to adjust, if necessary, until engine acceler-

ates smoothly.

High speed stop is factory adjusted Do not adjust or

damage may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED, OVERSPEEDINGTHE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINKTHE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST SEARS SERVICE CENTER, WHICH HAS

PROPER EQUIPMENT AND EXPERI ENCE TO MAKE ANY

NECESSARY ADJUSTMENTS.

THROTTLE LINKAGE THROTTLESTOP

IDLE SPEED _

ADJUSTING SCREW IDLE NEEDLE VALVE

FIG. 28

STORAGE

iiiii i iiiii

Immediately prepare your tiller for storage at the end of the

season or if the unit will not be used for 30 days or more.

TILLER

• Clean entire tiller (See "CLEANING" in the Customer

Responsibilities section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Customer Responsibilities

section of this manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear° Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting,

ENGINE

FUEL SYSTEM

IMPORTANT: iT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS THE CARBURETOR, FUEL

FILTER, FUEL HOSE, OR TANK DURING STORAGE°

ALSO, EXPERIENCE INDICATES THAT ALCOHOL

5LENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOISTURE

WHICH LEADS TO SEPARATION AND FORMATION OF

ACIDS DURING STORAGE. ACIDIC GAS CAN DAMAGE

THE FUELSYSTEM OFAN ENGINE WHILE IN STORAGE.

•Drain the fuel tank_

•Start the engine and let it run until the fuel lines and

carburetor are empty.

•Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age, Add stabilizer to gasoline in fuel tank or storage

containen Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

notdrain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean oil.

(See "ENGINE" in the Customer Responsibilities section of

this manual).

CYLINDERS

. Remove spark plug.

•Pour 1ounce (29 ml) of oil through spark plug hole into

cylinder_

•Pull starter handle slowly several times to distribute oil,

• Replace with new spark plug.

OTHER

o Do not store gasoline from one season to another°

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

•If possible, store your unit indoors and cover it to give

protection from dust and dirt.

• Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your unit to rust°

IMPORTANT: NEVER COVER TILLER WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

PROBLEM

iiiii .............

Wilt not start

Hard to start

,,,i,i ,,,, r ii

Excessive bounce/

difficult handling

Soil halls up or clumps

Engine runs but tiller

won't move

Engine runs but labors

when tilllng

i=_1,,, ,, ,IIH ,,,111

Tines will not rotate

CAUSE

1. Out of fuel

2. Engine net "CHOKED" properly.

3. Engine flooded.

4_ Dirty air cleaner.

5Water in fuel.

6. Clogged fueltank,

7Loosespark plug wire.

B, Sad spark plugorimproper gap,

9. Carburetor out of adjustment.

!_ Thmtfie control not satpreperiy,

2 Dirty air cleaner,

3, Bad spark plug or impropergap.

4 Staleor'dirty fuel

5, Loose spark plugwire.

6. Carburetor out of adjustment.

1. Engine is overloaded,

2o Dirty air c{sanet:

3. Low oil leve!/dirty oil,

4. Faulty spark plug.

5, Oil in fuel

6. Stale or dirty fuel.

7Water in fuel,

8. Clogged fuel tank.

9. Spark plug wire loose.

10 Dirty engine air screen.

tl. Dirty/clogged muffler.

12. Carburetor out of adjustment.

13 Poor compression.

1. Ground tee dry and hard.

1. Ground toowet.

!_ Drive control bar is not engaged.

2. V-bait not correctly adjusted.

3_ V-belt is off pulley(s).

Ir. Tilling too deep.

2. Throttle control not properly adjusted.

3. Carburetor out of adjustment.

1, Shear pin(s) broken.

CORRECTION

t. Fill fuel lank

2. See "TO START ENGINE" in Operation section.

3, Wait several minutes before attempting to start.

4. Replace air cleaner cartridge.

5. Drain fuel tank and carburetor, and relilt tank with fresh

gasoline.

6o Remove fuel link and clean.

7. Make sure spark plug wire is seated properly on plug.

8. Replace spark plug or adjust gap.

9_ Make necessary' adjustments

1. Plasa throttle control in "FAST" position.

2. Replace air cleaner cartridge°

3. Replace spark ptug or adjust gap.

4. Drain fuel link and refill with fresh gasoline.

5. Make sure spark plug wire is seated properly on plug.

6. Make necessary adjustments_

,i,,,i, ii,lnlll i,,, iiii MII ......

1. Set depth stake for shallower tilling.

2 Replace air cleaner cartridge.

3. Check oil tevellchange oil

4. Clean and regap or change spark plug.

5. Drain and clean fuel tank and refill, and clean carburetor.

6. Drain fuel link and refill with fresh gasoline.

7. Drain fuel tank and carburetor, and refill tank with fresh

gasoline.

8. Remove fuel tank and clean.

9. Connect and tighten spark plug wire.

10. Clean engine airsereen.

11. Clean/replace muffler.

' 12. Make necessary adjustments.

13. Conlict an authorizsd Seam Servico Cenlsr/Department,

1, Moisten ground or wait for more favorable soil

conditions,

!. Wait for more favorebls soil conditions.

1, Engage drivecontrol,

2. Inspect/adjust V-belt.

3v Inspect V-belt.

1. Set depth stake for shallower tilling.

2. Check throttle control setting.

3. Make necessary adjustments.

1. RepIaca shear pin(s)_

REPAUR

HANDLES

PARTS

5 HP 17" TriLLER =-MODEL NUMBER 917.299850

KEY PART

NO. NO.

1 110707X

2 110674X

3 110673X

4 127254X

5 6712J

6 12694BX

7 110641X

8 STD51t005

STD533125

13 11074tX

14 !09313X

15 110702X

16 STD533710

17 109229X

18 STD541437

19 19131611

2O 109228X

DESCRIPTION

Cap, Sleeve

Grip, Handle

Grommet, Handle

Bar, Drive Control Assembly

Cap, Vinyl

Panel, Control

Bushing, Split

*Screw, Macho Pan Head. C.R.

#10-24 x 1/2

* Bott, Carriage

5/16-18 UNC x 2_3/8 Gr° 5

110646X . Handle, Grip

STD624003 Clip, Hairpin

81328 Bolt, Shoulder

Handle, Shift

Grommet, Rubber

Rod, Shift

* Bolt, Carriage 3/8-16 x I Gr. 5

Lock, Handle

* Nut, Centerlock 3/8-16

Washer 13/32 x I x 11 Ga.

[.ever, Lock, Handle

KEY PART DESCRIPTION

NO. NO.

21 121213X Handle, Assemble

22 121145X Clip, Plastic, Cable

23 86777 Screw, Hex, Washer Hd, Slotted

#10-24 x 1/2

24 9484R Clip

25 73970500 Locknut, Hex, Flange

26 110675X Clutch, Cable

27 STD541025 * Nut, Hex 1/4-20

28 STD551125 *Washer, Lock 1/4

29 STD541462 *Nut, Keps #10-24

30 127012X Throttle, Control

- _ 132443 Manual, Owner*s

-- 120431X Decal, Hand Placement

(Control Panel)

- - 127795 Decal, Control Panel

-- 121859X Decal, Caution, Clutch

(Control Panel)

*STANDARD HARDWARE -- PURCHASE LOCALLY

NOTE: Aft component dimensions given in U.S. inches..

1 inch = 25°4 mm

REPAIR PARTS

5 HP 17" TILLER - - MODEL NUMBER 917.299850

MAINFRAME, LEFT SiDE

18 20

KEY

NO.

PART

NO.

73970500

STD551137

STD541037

74930568

STD571810

110111X

STD532505

8700J

86777

9484R

STD551125

STD541025

STD503103

120938X

STD551031

100473M

8TD541031

110651X

2649M

110653X

131691

1042 ! 4X

5015J

128952

795R

t26875X

STD624003

131159X459

132801

DESCRIPTION

*Locknut, Hex, Flange 5/16-18

* Washer, Lock 3/8

* Nut, Hex 3/8-16

Bolt, He)( 5/16-18 x 4-1/4

* Pin, Roll

Lever, Shift

* Bolt, Carriage 1/4-20 x 1/2 Gr, 5

Plate, Shift Indicator

Screw, Hex, Washer Head, Slotted

#t0-24 x 1/2

Clip

* Washer, Lock 1/4

* Nut, Hex 1/4-20

* Screw, Set, Hex 5/16-18 x 3/8

Spacer, Split &327 x 0.42 x 2,68

*Washer 11/32x tl/16x 16 Ga,

Sheave, Transmission

*Nut, Hex 5/16-18

Spacer, Split 0.327 x 0.42 x 1.75

Key, Square 3/16 x 1-1/8

Guard, Pinch Point

Spacer, Split 0.327 x 0.42 x 1.627

Nut, Cap 5/t6-18

Tire

Rim

Tire Valve

Rivet, Drilled

* Clip, Hairpin

Guard, Beit

Belt, V

KEY PART

NO. NO.

28 104679X

29 12000032

30 105611X

31 102384X

32 102141X

33 STD523710

34 102383X

35 74760532

36 10233tX

37 130812

38 131556

- - 102180X

-- 132252

,17 23

DESCRIPTION

Pulley, Idler

Ring, Klip

Bracket, Idler

Bolt, Hex 5/16-16 x 12

Shaft, idler Arm

*Bolt, Hex 3/8-16x 1

Counterweight, L.H.

Bolt, Hex 5/16-18 x 2

Bracket, Reinforcement, LH.

Sheave, Engine

Bracket, Guard Beft

Decal, Shift Indicator

Decal, Logo (Belt Guard)

*STANDARD HARDWARE -- PURCHASE LOCALLY

NOTE: All component dimensions given in U,S, inches.

t inch = 25,4 mm

REPAnR PARTS

5 HP 17" TILLER -- MODEL NUMBER 917.299850

MAINFRAME, RIGHT SIDE

'12

11 9

KEY

NO.

PART

NO.

12455tX

73970500

STD551031

74760512

102332X

74760532

102173X

STD551137

STD541037

74760524

STD624003

126875X

DESCRIPTION

Bumper

Locknut, Hex, Flange 5/16-18

* Washer 11/32 x 11/16 x t6 Ga.

Bolt, Hex 5/16-18 x 3/4

Bracket, Reinforcment

Bolt, Hex 5/16-18x 2

Counter Weight, R+H+

* Washer, Lock 3/8

* Nut, Hex 3/8-16

Bolt, Hex 5/16-18 x'14/2

* Clip, Hairpin

Rivet, Drilled

KEY PART DESCRIPTION

NO. NO.

!3 5015J Tire

128952 Rim

795R Tire Valve

14 STD54t431 *Nut, Keps 5/16-18

!5 13'1877 Engine, Briggs & Stratton

Model No. 130202,

Type No. 3273-0!

-- 132402 Decal, Engine

--124552X Decal (Bumper)

- - 110719X Decal, Operation and Lubrication

*STANDARD HARDWARE - +PURCHASE LOCALLY

NOTE: All component dimensions given in U.S,inches.

! inch = 25A mm

17" TILLER - - MODEL NUMBER 917.299850

5 30

KEY PART

NO. NO.

1132724

121147X

3 1062tlX

4 5020J

5 1370H

6 102113X

7 102110X

8 4895H

9102136X

10 7392M

11 100371K

12 106160X

13 102107)(

14 8353J

15 12000039

16 102109X

17 104159X

18 4358J

19 12000040

2O 102114X

21 102115X

22 6803J

23 102111X

24 STD551143

25 STD551143

..>

DESCRIPTION

Transmission Assembly

(Includes Key Nos. 2-52)

Gearcase, Loll. w/Bearing

(includes Key No_ 4)

Gasket, Gearcase

Bearing, Needle

Washer, Thrust 5/8 x 1.10 x 1/32

Pinion, Input

Shaft, input

Bearing, Needle

Washer, Seal

Ball, Steel

Spring, Shift, Fork

O-Ring

Arm, Shift

Fork, Shift

Ring, Klip

Shaft, Shift

Spacer, Split

Washer

Ring, Klip

Gear, Assembly, Reverse Idler

(Includes Key Nos. 21 and 22)

Gear, Reverse Idler

Bearing, Needle

Shaft, Reverse Idler

Washer, Lock 7/16

Nut, Hex 7/16-20 24

KEY PART

NO. NO.

26 102128)(

27 102100X

28 106390X

29 102134X

30 124458X

31 102106X

32 I06388X

33 102121X

34 102112X

35 102t01X

36 124358X

37 4422J

38 124359X

39 I05345X

40 105346X

41 8358J

42 4220R

43 106146X

44 9672R

45 102144X

46 9676R

47 9674R

48 121745X

49 132688

50 124361X

51 17580408

52 STD541031

-- 6066J

DESCRIPTION

O-Ring

Bearing, Shaft, Ground Drive

Spacer 0.765 x 1.125 x 1..23

Chain #35-50 Pitch

Ground Shaft Assembly

Bearing, Shaft, GroundDrive

Spacer 0°70 x 1.00 x 1.150

Sprocket and Gear Assembly

Shaft, Reduction (2nd)

Screw, Whiz, Lock 5/16-18 x 3-1/2

Sprocket Assembly w/Bearing

(Includes Key Nos. 37 and 38)

Bearing, Needle

Sprocket, Tine

Gear, Cluster, Red 1st & 2nd

Gear, Reverse

Shaft, Reduction (1st)

Washer, Thrust

Spacer' 1.01 x 1..75x 0,760

Cup, Formed

Ring, Spiral

Seal, Ring, Rubber

Seal, Oil

Gearcase, R.H. w/Bearing

ncludes Key No. 8)

haft, Tine

Chain, Roller #50-50 Pitch

Screw 1/4-20 x 1/2

*Nut, Hex 5/16-18

Grease, Plastitube #1

* STANDARD HARDWARE - - PURCHASE LOCALLY

NOTE: All component dimensions given in U.So inches.

1 inch = 25_4 mm

REPAIR PARTS

5 HP

TINE SHIELD

17" TILLER --MODEL NUMBER 917.299850

KEY PART

NO, NO.

1 98000129

2 104086X459

3 8393J

4 12000036

5 72110508

6 8394J

7 8392J

8 109230X

9 124289X459

10 STD533107

11 STD54t031

12 STD551131

13 72110510

14 124311X

15 104101X459

16 STD541025

17 STD551125

18 STD532512

DESCRIPTION

Nut, Flange 5/I6-I8

Shield, Side, Outer L, H.

Pin, Stake, Depth

Ring, Klip

Bolt, Carriage 5/16-18 x 1

Spring

Bracket, Latch

Spring, Depth Stake

Shield, Tine

*Bolt, Carriage 5/16-!8 x 3/4 Gr 5

*Nut, Hex 5/16-18

*Washer, Lock 5/16

Bolt, Carriage 5/16_18 x 1-1/4

Bracket, Shield Tine

Shield, Side, Outer R.H.

* Nut, Hex 1/4-20

*Washer, Lock 1/4

*Bolt, Carriage t/4-20 x 1-1/4 Gr. 5

KEY PART DESCRIPTION

NO, NO,

19 102701X Grip

20 STD54t037 *Nut, Hex 3/8-16

21 102156X Stake, Depth

22 74930632 Bolt, Hex 3/8-16 x 2

23 4440J Hinge

24 STD532505 *Bolt, Carriage 1/4-20 x t/2 Gr. 5

25 6712J Cap, Vinyl

26 t09227X Pad, Idler

27 102695X459 Shield, Leveling

28 t20588X Pin, Hinge

29 124309X459 Shield, Side

30 73970500 Locknut, Hex, Flange

-- t32253 Decal, Tine Shield

-- I20075X Decal, Warning (Leveling Shield)

* STANDARD HARDWARE - - PURCHASE LOCALLY

NOTE; All component dimensions given tn U,S. inches.

1inch = 25.4 mm

REPAnR PARTS

5HP

TINE ASSEMBLY

17" TILLER - -MODEL NUMBER 917.299850

KEY

NO,

PART

NO.

4459J

132673

6554J

STD624008

132727

73610600

STD551137

DESCRIPTION

Tine, Outer, L.H.

Clevis Pin

Tine, Inner, L,H,

*Clip, Hairpin

Assembly, Hub and Plate, L,H.

Nut, Hex 3/8-24

* Washer, Lock 3/8

KEY PART

NO, NO,

8 74610616

9 4460J

10 132728

1! 6555J

DESCRIPTION

Bolt, Hex 3/8-24 x t

Tine, Outer, R.Ho

Assembly, Hub and Plate, R_H,

Tine, Inner, R.H.

* STANDARD HARDWARE - - PURCHASE LOCALLY

NOTE'. All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPARR PARTS

5 HP 17" TILLER --MODEL NUMBER 917.299850

ENGINE, BRIGGS & STRATTON - - MODEL NUMBER 130202, TYPE NO. 3273-01

a2_

741

615

_:_ 614

230

46 219

220

*SPECIAL TOOLS REQUIRED TO INSTALL

[358 GASKET SET I{1019 LABEL KIT I

335

REPAnR PARTS

5 HP 17" TILLER - - MODEL NUMBER 917.299850

ENGINE, BRiGGS & STRATTON - .. MODEL NUMBER 130202, TYPE NO. 3273-01

527

529

181

223 2L_

2O4

526 621

127A

202A

392

REPAIR PARTS

5 HP 17" TILLER - = MODEL NUMBER 917.299850

ENGINE, BRIGGS &STRATTON - -MODEL NUMBER 130202, TYPE NO. 3273-01

305

655 346

i200

REPAIR PARTS

5 HP 17" TILLER -.-MODEL

ENGINE, BRIGGS & STRATTON - - MODEL

NUMBER 917.299850

NUMBER 130202, TYPE NO. 3273-01

KEY PART

NO. NO, DESCRIPTION

395990

297565

3 299819

5 211542

7 272157

8 294178

9 27549

10 94621

11 66578

12 270080

270125

27O126

t3 94221

t4 93369

15 94387

93448

16 492088

230978

18 297602

19 297603

294606

66768

93032

297229

222698

298904

2989O5

298906

298907

298982

299742

298983

298984

298985

26026

298909

298908

299430

390459

221890

KEY PART

NO. NO. DESCRIPTION

Cylinder Assembly 31 221876

Bushing, Cylinder (Special Tools 32 92296

Required for Installation) 33 211119

Seal, Oil 34 261044

Head, Cylinder 35 260552

* Gasket, Cylinder Head 36 26478

Breather, Valve Chamber 37 222443

* Gasket, Valve Cover 40 93312

Screw, Sems, Breather Mounting 45 260642

Grommet, Breather Tube 46 212733

*Gasket, Crankcase, Standard .015" 52 271936

*Gasket, Crankcase .005" 55 299431

*Gasket, Crankcase .009" 56 295871

Screw, Cylinder Head 2-3/32"

Screw, Cylinder Head 2-16/32" 57 490179

Plug, Pipe 58 66884

Plug, Pipe, Hex Socket Head 59 490653

Crankshaft 60 490652

Crankshaft Gear Pin 65 94128

Covet Assembly, Crankcase

Bushing, Crankcase Cover (Special 66 399671

Tools Required for Installation) 67 394897

Sea!, Oil 68 63770

Plug, Oil Filler 70 298799

Screw, Seres, Crankcase Cover 71 394506

Mounting (Uses: 93656 Stud, and 73 221923

90832 Washer, Lock) 74 93758

Flywheel, Magneto 75 224061

Key, Flywheel 81 222263

Piston Assembly, Standard 90 4926!1

Piston Assembly 010" Oversize 95 93499

Piston Assembly .020" Oversize

Piston Assembly .030" Oversize 96 223793

Ring Set, Piston, Standard 97 490048

Ring Set, Piston, Chrome, Standard 108 491177

Ring Set, Piston .010" Oversize 118 231533

Ring Set, Piston .020" Oversize 124 93357

Ring Set, Piston _030" Oversize 127 220352

Lock, Piston Pin 127A 223789

Pin Assembly, Piston, Standard 149 26336

Pin Assembly, Piston .005" Over

Rod Assembly, Connecting

Rod ,,Assembly' Connecting,

.020 Undersize Crankpin Bore

Dipper, Connecting Rod

Lock, Connecting Rod Screw

Screw, Connecting Rod

Valve, Exhaust

Valve, Intake

Spring, Intake Valve

Spring, Exhaust Valve

Guard, Flywheel

Retainer, Valve Spring

Tappet, Valve

Gear, Cam

*Gasket, Carburetor Mounting (2)

Housing, Rewind Starter

Pulley, Rewind Starter

(includes 63' Long Rope)

Spring, Rewind Starter

Rope, Rewind Starter

Insert, Starter Handle

Handle, Rewind Starter

Screw, Seres, Stamped Steel

Housing Mounting

Clutch Assembly, Rewind Starter

Housing, Starter Clutch

Ball, Clutch

Ratchet, Rewind Starter

Washer, Clutch Retainer

Screen, Starter Pulley

Screw, Hex Head

Washer, Spring

Lock, Screw

Carburetor Assembly

Screw, Sems, Throttle Valve to

Shaft

Throttle, Carburetor

Shaft and Lever, Throttle

Valve Group, Choke

Valve, Needle

Screw, Hex Head

Plug, Welch

Plug, Welch, Mixing Chamber

Spring, Needle Valve

*Indicates Parts included in Gasket Set (397145)

NOTE: All component dimensions given in U.S inches

1inch = 25.4 mm

REPAIR PARTS

5HP 17" TILLER = = MODEL NUMBER 917.299850

ENGINE, BRIGGS & STRA3"FON =- MODEL NUMBER 130202, TYPE NO. 3273-01

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO, DESCRIPTION

152 260575

t53 490589

154 93527

t63 271935

180 490554

t81 494559

190 94094

t91 272410

200 223886

201 262280

202 262270

202A 262470

203 280720

204 222962

205 231520

209 262282

216 262359

219 391737

220 221551

222 490648

223 223455

224 93491

227 490374

230 222450

256 223813

257 93543

300 393615

304 490169

305 93158

306 221511

307 93490

3O8 221512

333 397356

335 93414

337 802592

346 93705

356 398808

358 397145

363 19069

373 92987

383 89838

392 262328

394 270026

414 220982

432 221377

433 93266

Spring, Throttle Adjustment 434 210959

Screw Assembly 435 93141

Screw, Machine, Round Head 467 280715

#5_40 x 5/8" 526 94409

Gasket, Air Cleaner Mounting 527 223786

Tank Assembly, Fuel 528 231550

Cap, Fuel Tank 529 67838

Screw, Sems, Fuel Tank Mounting 536 494279

*Gasket, Fuel Tank Mounting 542 93572

Guide, Air 552 231079

Link, Governor 562 92613

Link, Throttle 592 231082

Link, Throttle 608 390463

Crank, Bell 6tl 391813

Bushing, Governor Lever, Flat 613 93935

Screw, Shoulder 614 93306

Spring, Governor 615 93307

Link, Choke 616 231077

Gear, Governor 621 396847

Washer, Thrust 634 271853

Bracket, Control 635 66538

Lever, Governor Control 655 222598

Rivet, Governor Control Lever 676 393757

Mounting 679 270382

Lever Assembly, Governor 680 221839

Washer, Governor Lever 741 261696

Crank, Bell 851 221798

Screw, Sems, Fillister Head 869 211787

Muffler, Exhaust 870 211172

Housing, Blower

Screw, Blower Housing Mounting 871 262001

Shield, Cylinder 63709

Screw, Sems, Cylinder Shield Mnt_

Cover, Cylinder Head 916 280321

Armature Assembly 966 490074

Screw, Seres, Armature Mounting 967 491588

Plug, Spark 968 223765

Screw, Sems 969 490073

Wire, Ground 971 94018

Gasket Set 987 398970

Flywheel Puller 995 491577

(Optional Accessory) 1012 490507

Nut, Hex 1016 490817

Wrench, Spark Plug 10!9 491100

Spring, Fuel Pump Diaphragm

Diaphragm

Washer

Cap, Spring

Pin, Diaphragm Cover

Cover, Diaphragm

Screw, Diaphragm Cover

Knob, Control

Screw, Seres, Tank Bracket Mnt.

Clamp, Breather Tube

Tube, Breather

Grommet, Breather Tube

Air Cleaner Kit

Screw

Bushing, Governor Crank, 1/4" ID.

Bolt, Governor Lever

Nut, Hex #10-24

Starter Assembly, Rewind

Fuel Pipe and Clip Assembly

Screw, Hex Head, Shoulder

Cotter, Hair Pin

Retainer, E-Ring

Crank Governor, 1/4" Diameter

Switch, Stop

Washer, Throttle Shaft, Foam

Elbow, Spark Plug

Anchor Spring

Deflector, Exhaust, Side Outlet

Washer, Choke Shaft, Foam

Washer, Choke Shaft, Brass

Gear, Timing

Cable, Temminai, Ignition

Seat, Intake Valve, Standard

Seat, Exhaust Valve, Standard

(See Repair Manual For Options)

Guide, Exhaust Valve

Guide, Intake Valve

(See Repair Instruction Manual)

Gear Rack, Governor

Base, Air Cleaner

Filter, Air

Cover, Air Cleaner

Screw, Cover Mnt. (Inclo Grommet)

Screw, Air Cleaner

Seal, Throttle Shaft

Bracket, Link

Link, Retainer

Spacer

Label Kit

*Indicates Parts Included in Gasket Set (397145)

NOTE: All component dimensions given in U.S. inches

1 inch = 25°4 mm

OWNER'S

MANUAL

MODEL NO.

917.2998,50

HOW TO ORDER

REPAIR PARTS

5=0 HP

17 iNCH TI WUDTH

REAR TJNE TILLER WiTH

COUNTE ROTATING TINES

Each tiller has its own model number. Each engine has its own model

number,

The model number for your tiller wilt be found on a plate attached to the

top of the transmission.

The model number for your engine witt be found on the blower housing of

the engine adjacent to the spark plug.

All parts listed herein may be ordered from any Sears, Roebuck, and Co,

Service Center and most Retail Steres,

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOW-

ING INFORMATION:

• PRODUCT -REAR TINE TILLER

- MODEL NUMBER - 917.299850

*ENGINE MODEL NUMBER -130202, TYPE NUMBER 3273-01

-PART NUMBER

.PART DESCRIPTION

Your Sears merchandise has added value when you consider Sears has

service units nationwide staffed with Sears trained technicians.., profes-

sional technicians specifically trained to insure that we meet our pledge

to you, we service what we sel!.

132443 t0,22,91 PRINTED IN THE U.S.,&.

Craftsman 917299850 User Manual Rear Tine, Gas Tiller Manuals And Guides L0804442

CRAFTSMAN Rear Tine, Gas Tiller Manual L0804442 CRAFTSMAN Rear Tine, Gas Tiller Owner's Manual, CRAFTSMAN Rear Tine, Gas Tiller installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
