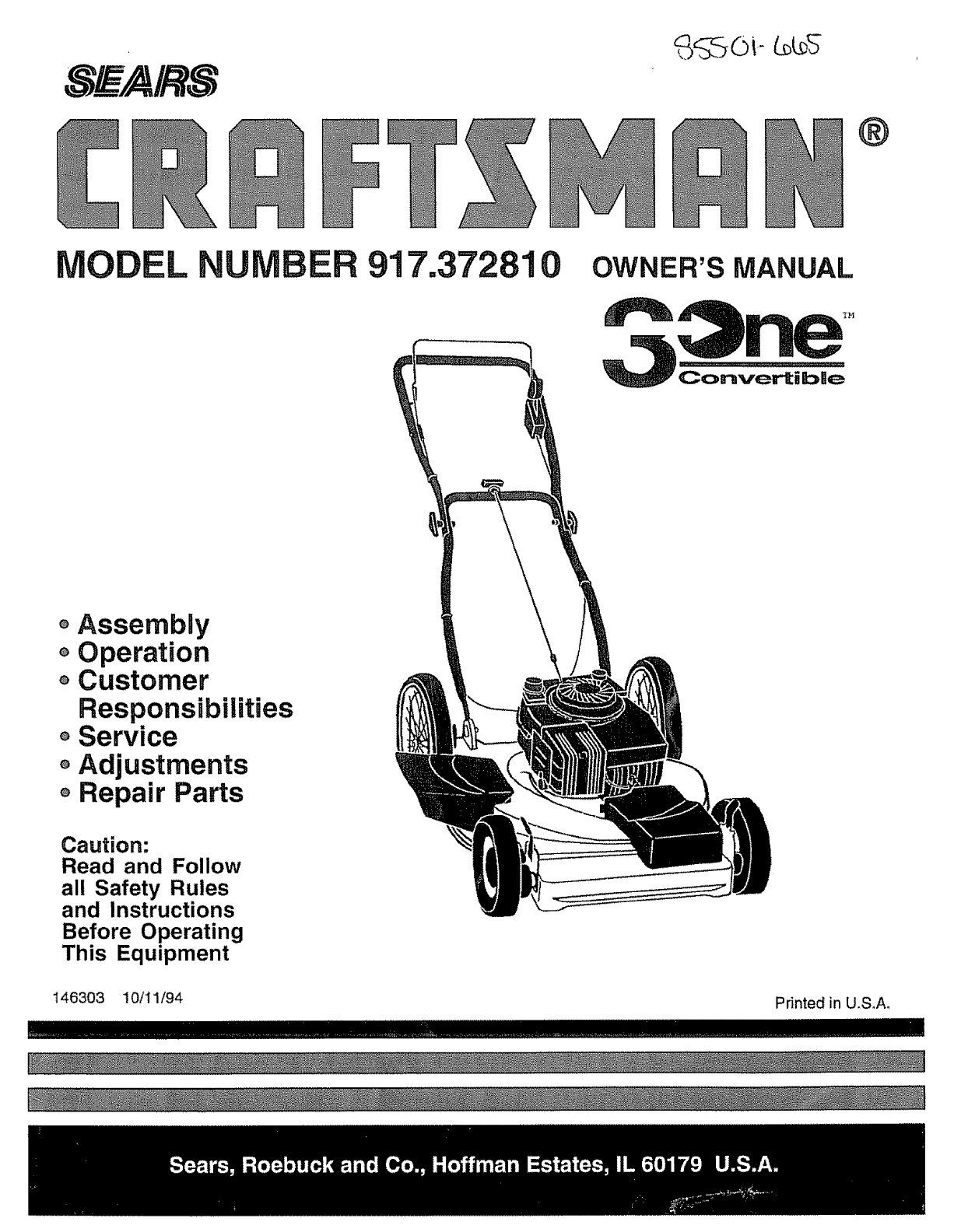

EL 917.37281 OWNER'S MANUAL
Convert! bee
oAssembny
oOperation
oCustomer
Responsibilities
oService
oAdjustments
oRepair Parts
Caution:
Read and Follow
all Safety Rules
and Instructions
Before Operating
This Equipment
146303 10/11/94 Printed in U.SoA°

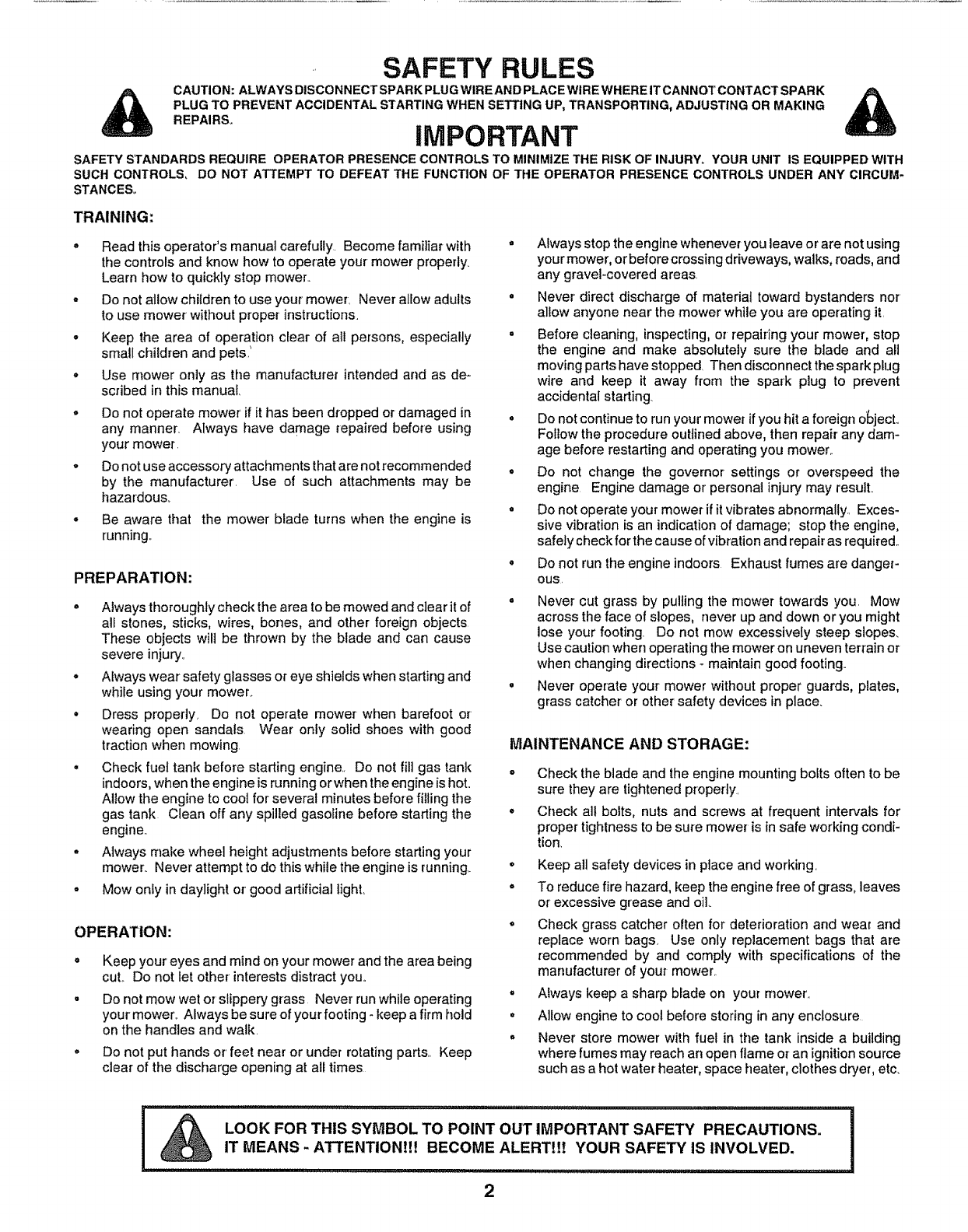

SAFETY RULES
CAUTION: ALWAYS DISCONNECT SPARKPLUGWIRE AND PLACEWIRE WHERE ITCANNOTCONTACT SPARK
PLUG TO PREVENT ACCIDENTAL STARTING WHEN SETTING UP, TRANSPORTING, ADJUSTING OR MAKING
REPAIRS_ iMPORTANT
SAFETY STANDARDS REQUIRE OPERATOR PRESENCE CONTROLS TO MINIMIZE THE RISK OF INJURY° YOUR UNIT ISEQUIPPED WITH
SUCH CONTROLS, DO NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROLS UNDER ANY CIRCUM-
STANCES°
TRAINING:
', Read this operator's manual carefully Become familiar with
the controls and know how to operate your mower properly_
Learn how to quickly stop mower..
* Do not allow children to use your mower, Never allow adults
to use mower without proper instructions.
o Keep the area of operation clear of all persons, especially
small children and pets.'
o Use mower only as the manufacturer intended and as de-
scribed in this manual
o Do not operate mower' if it has been dropped or damaged in
any manner. Always have damage repaired before using
your mower.
o Do not use accessory attachments that are not recommended
by the manufacturer'. Use of such attachments may be
hazardou&
Be aware that the mower blade turns when the engine is
running..
PREPARATION:
° Always thoroughly check the area to be mowed and clear it of
all stones, sticks, wires, bones, and other foreign objects
These objects will be thrown by the blade and can cause
severe injury.
° Always wear safety glasses or eye shields when starting and
while using your mower..
o Dress properly. Do not operate mower when barefoot or
wearing open sandals Wear only solid shoes with good
traction when mowing.
= Check fuel tank before starting engine. Do not fill gas tank
indoors, when the engine is running or when the engine is hot.
Allow the engine to cool for several minutes before filling the
gas tank Clean off any spilled gasoline before starting the
engine.
• Always make wheel height adjustments before starting your
mower.. Never attempt to do this while the engine is running..
• Mow only in daylight or good artificial lighL
OPERATION:
o Keep your eyes and mind on your mower and the area being
cuL Do not let other interests distract you.,
°Do not mow wet or slippery grass Never run while operating
your mower_ Always be sure of your footing - keep a firm hold
on the handles and walk.
Do not put hands or' feet near or under rotating part& Keep
clear of the discharge opening at all times
Always stop the engine whenever you leave or are not using
your mower, or before crossing driveways, walks, roads, and
any gravel-covered areas.
o Never direct discharge of materiat toward bystanders nor'
allow anyone near the mower while you are operating it.
° Before cleaning, inspecting, or repairing your mower, stop
the engine and make absolutely sure the blade and all
moving parts have stopped Then disconnect the spark plug
wire and keep it away from the spark plug to prevent
accidental starting.
o Do not continue to run your mower if you hit a foreign o_jecL
Fotlow the procedure outlined above, then repair any dam-
age before restarting and operating you mower..
o Do not change the governor settings or overspeed the
engine Engine damage or'personal injury may resuiL
o Do not operate your mower if it vibrates abnormally.. Exces-
sive vibration is an indication of damage; stop the engine,
safely check for the cause of vibration and repair as required..
o Do not run the engine indoors Exhaust fumes are danger-
ous.
o Never cut grass by pulling the mower towards you. Mow
across the face of slopes, never up and down or you might
lose your footing. Do not mow excessively steep slopes.
Use caution when operating the mower on uneven terrain or
when changing directions - maintain good footing=
o Never operate your mower without proper guards, plates,
grass catcher' or other' safety devices in place.
MAINTENANCE AND STORAGE:
o Check the blade and the engine mounting bolts often to be
sure they are tightened properly,
• Check all bolts, nuts and screws at frequent intervals for
proper tightness to be sure mower is in safe working condi-
tion,
o Keep all safety devices in place and working,
° To reduce fire hazard, keep the engine free of grass, leaves
or excessive grease and oil.
oCheck grass catcher often for deterioration and wear and
replace worn bags, Use only replacement bags that are
recommended by and comply with specifications of the
manufacturer of your mower,.
° Atways keep a sharp blade on your mower'.
° Mow engine to cool before storing in any enclosure
• Never store mower with fuel in the tank inside a building
where fumes may reach an open flame or an ignition source
such as a hot water heater, space heater, clothes dryer, etc.
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS.
IT MEANS - ATTENTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED.
2

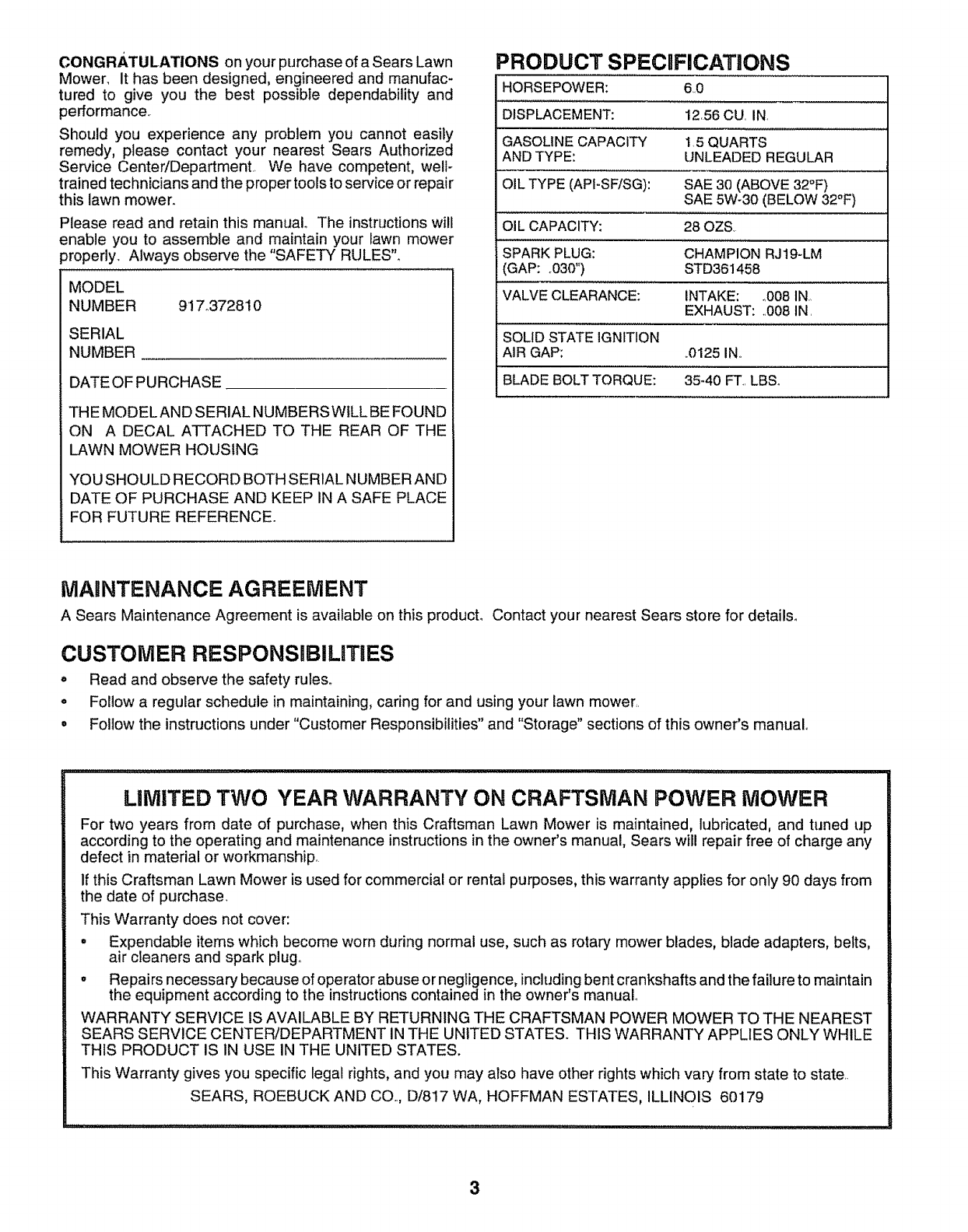

CONGRATULATIONS on your purchase of a Sears Lawn
Mower. It has been designed, engineered and manufac-
tured to give you the best possible dependability and
performance.
Should you experience any problem you cannot easily
remedy, please contact your nearest Sears Authorized
Service Center/Department. We have competent, well-
trained technicians and the proper tools to service or repair
this lawn mower.
Please read and retain this manual° The instructions will
enable you to assemble and maintain your lawn mower
properly. Always observe the "SAFETY RULES'L
MODEL
NUM BER 9'! 7.372810
SERIAL
NUMBER
DATE OF PU RCHASE
THE MODEL AND SERIAL NUMBERSWILL BE FOUND
ON A DECAL ATTACHED TO THE REAR OF THE
LAWN MOWER HOUSING
YOU SHOU LD RECORD BOTH SERIAL NUMBER AND
DATE OF PURCHASE AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE
PRODUCT SPECUFICATIONS
HORSEPOWER: 6,0
DISPLACEMENT: 12,56 CU, IN,
GASOLINE CAPACITY 1,5 QUARTS
AND TYPE: UNLEADED REGULAR
OIL TYPE (API-SF/SG): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 28 OZS
SPARK PLUG: CHAMPION RJ19-LM
(GAP: _,030") STD361458
VALVE CLEARANCE: INTAKE: .,008 IN.,
EXHAUST: _,008IN
SOLID STATE IGNITION
AIR GAP: o0125 IN,,
BLADE BOLT TORQUE: 35-40 FT, LBSo
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on this product, Contact your nearest Sears store for details°

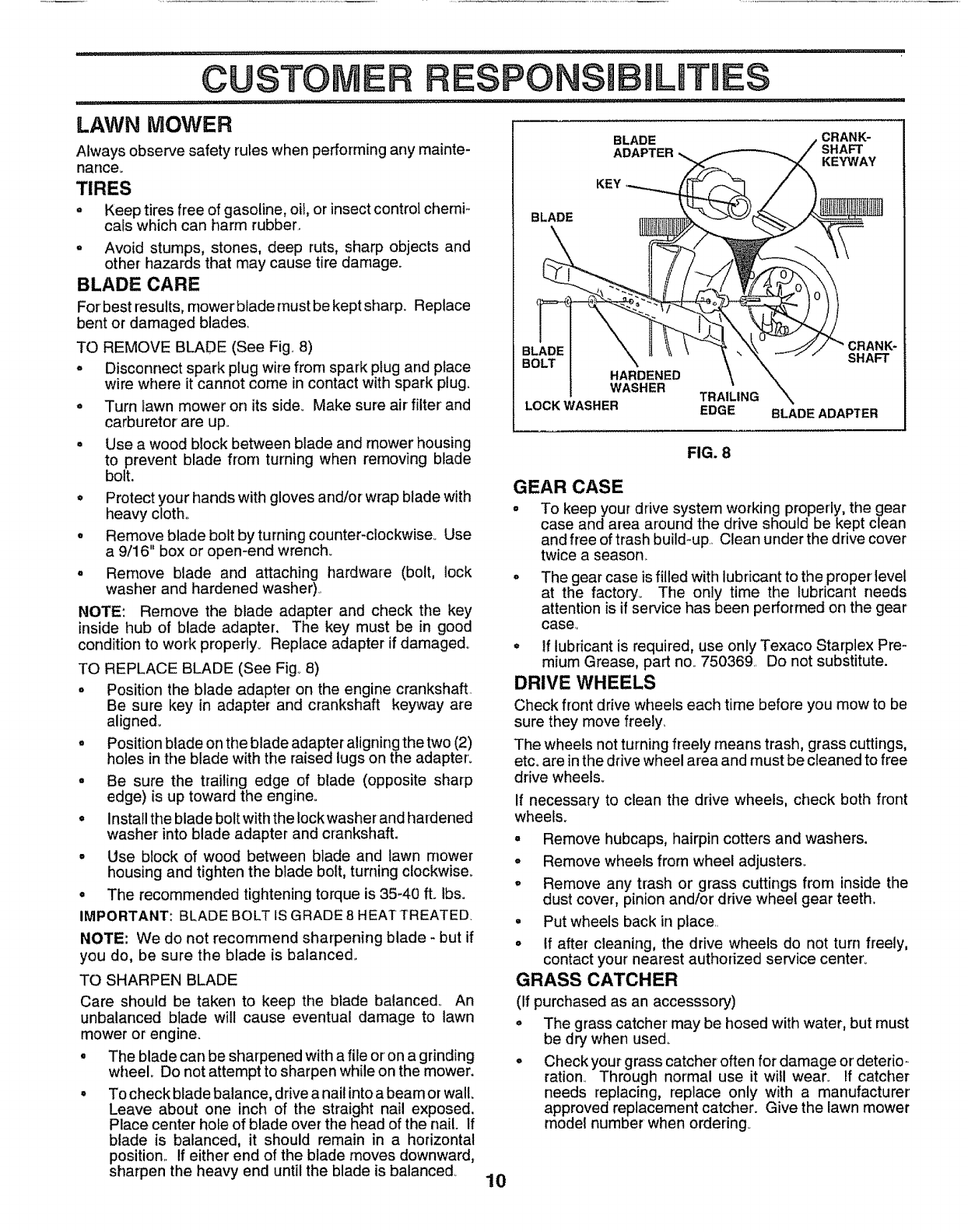

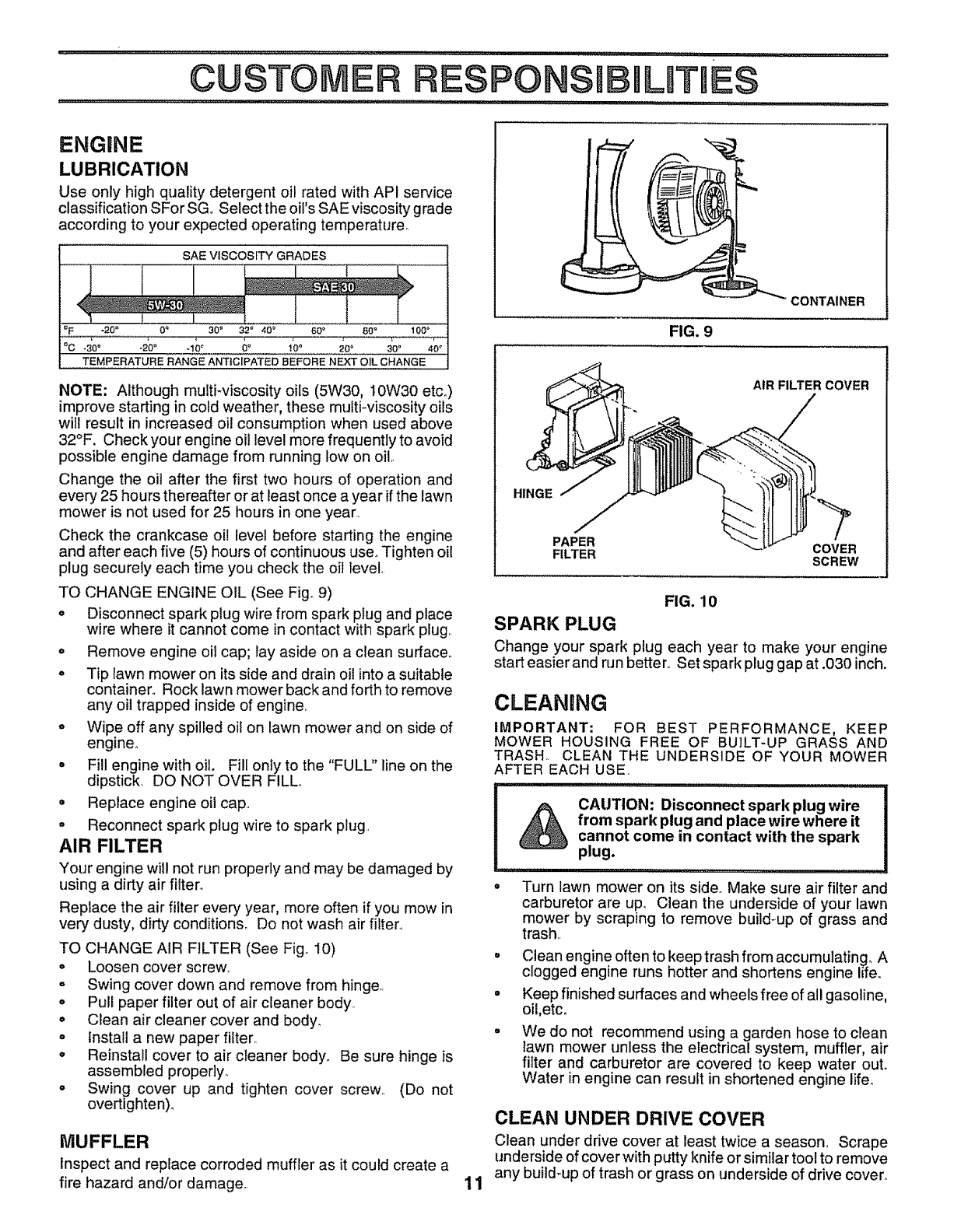

CUSTOMER RESPONSIBILITIES
o Read and observe the safety rules.
°Follow a regular schedule in maintaining, caring for and using your lawn mower.
•Follow the instructions under "Customer Responsibilities" and "Storage" sections of this owner's manual°
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up
according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any
defect in material or workmanship,
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days from
the date of purchase,
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower blades, blade adapters, belts,
air cleaners and spark plugo
°Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain
the equipment according to the instructions contained in the owner's manual
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAREST
SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE
THIS PRODUCT IS 1N USE IN THE UNITED STATES.
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state..
SEARS, ROEBUCK AND CO.., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
3

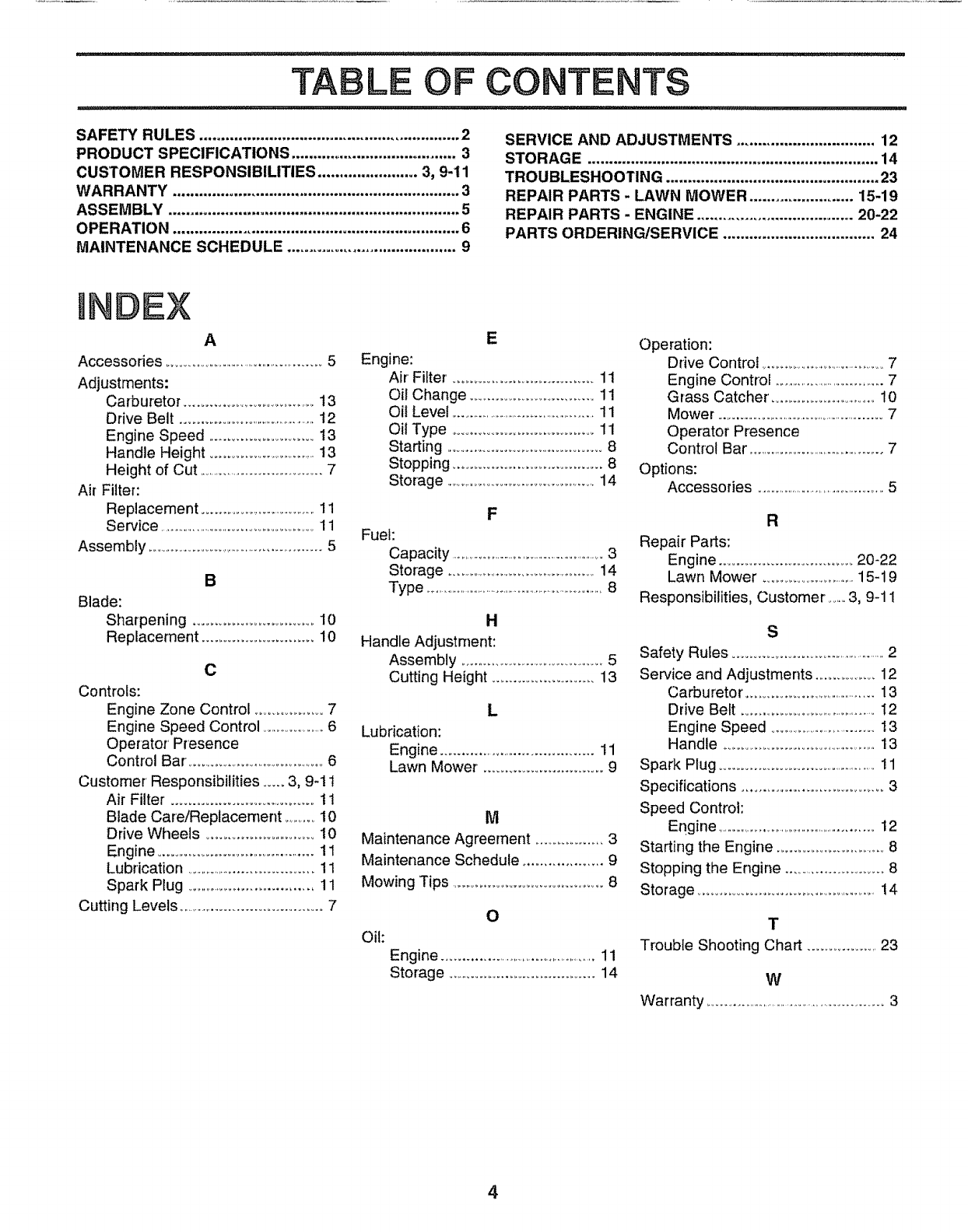

TABLE OF CONTENTS
SAFETY RULES ............................................................ 2
PRODUCT SPECIFICATIONS ...................................... 3
CUSTOMER RESPONSIBILITIES ....................... 3, 9-11
WARRANTY .................................................................. 3
ASSEMBLY ................................................................... 5
OPERATION .................................................................. 6
MAINTENANCE SCHEDULE ....................................... 9

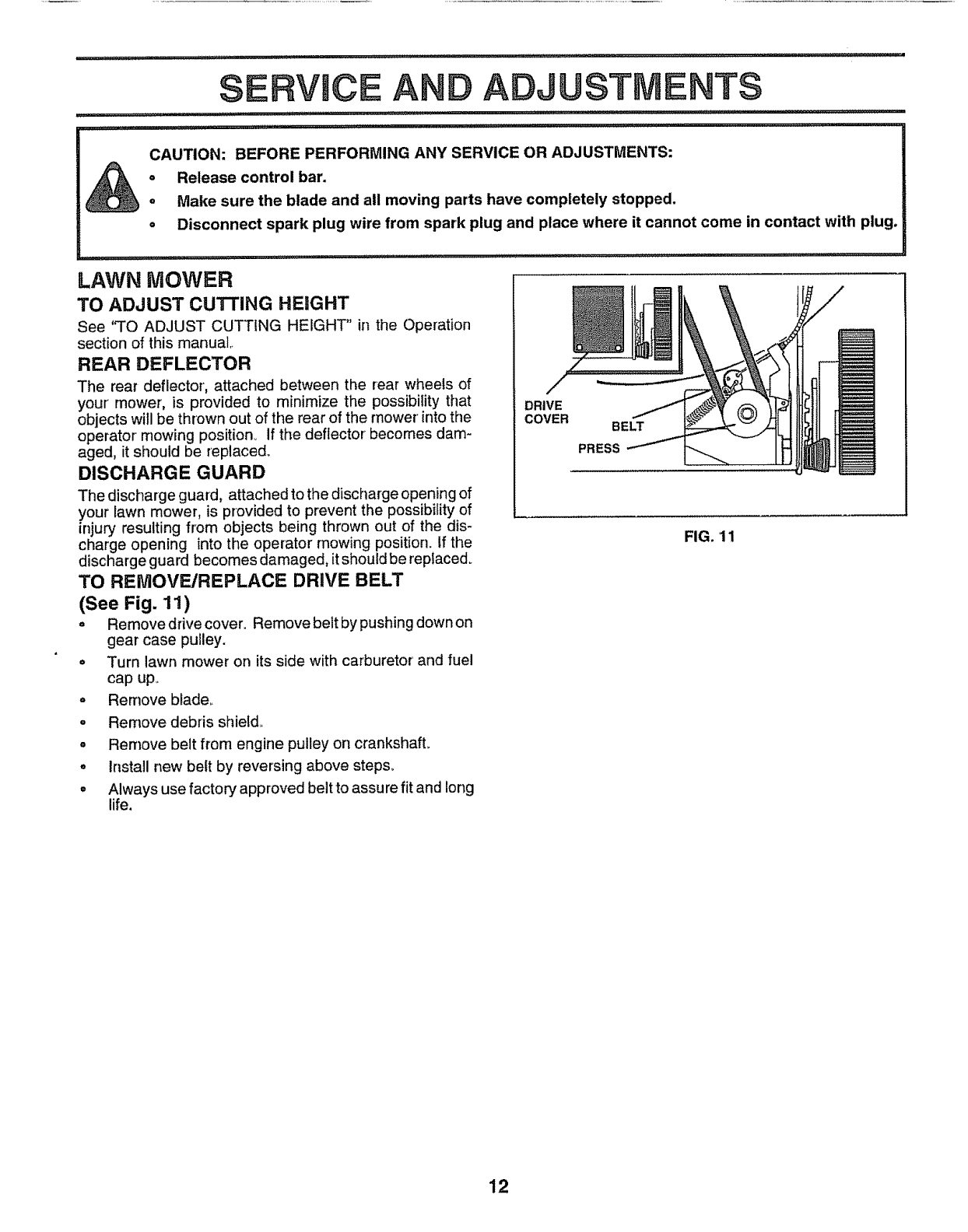

SERVICE AND ADJUSTMENTS ................................ 12
STORAGE ................................................................... 14

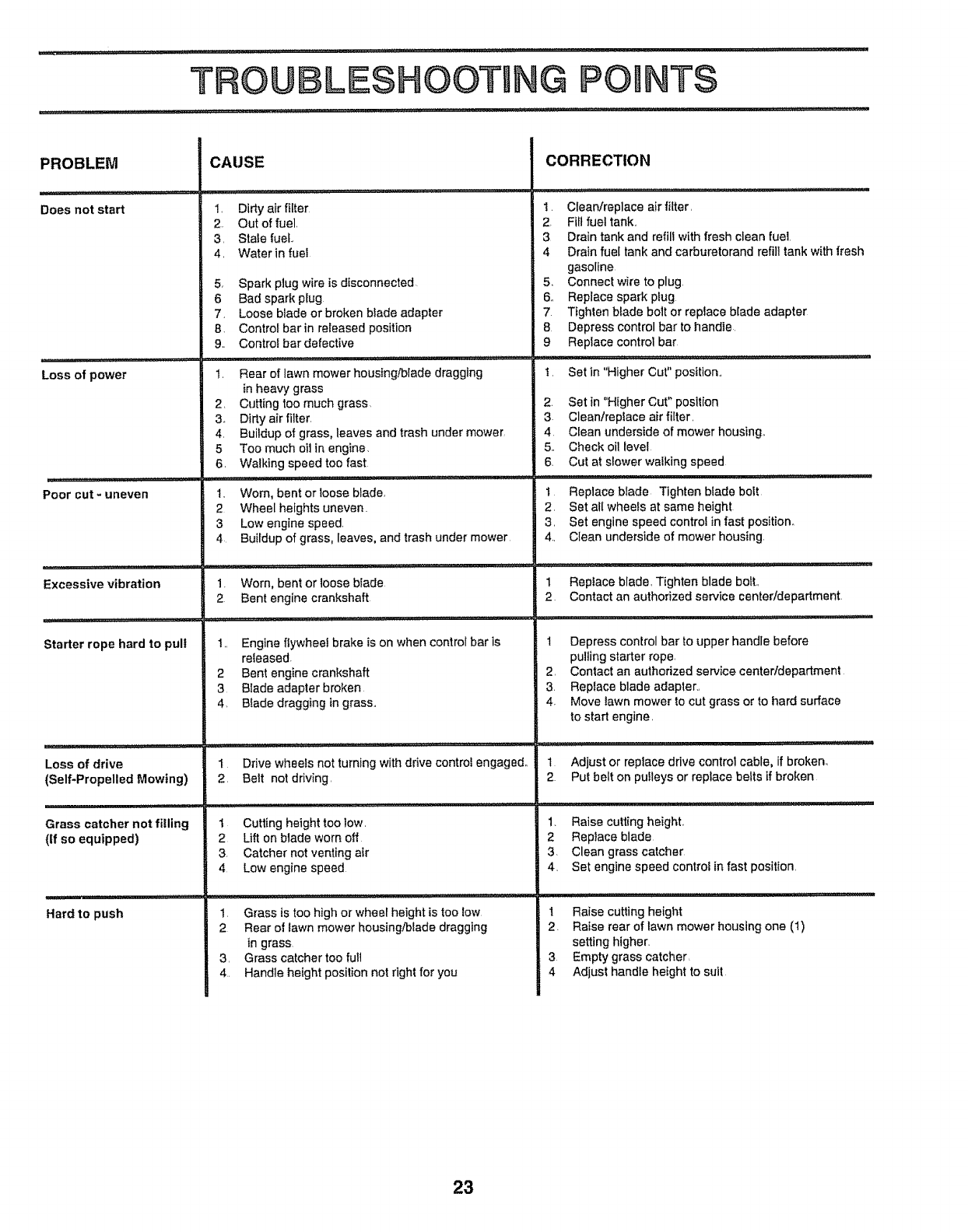

TROUBLESHOOTING ................................................. 23

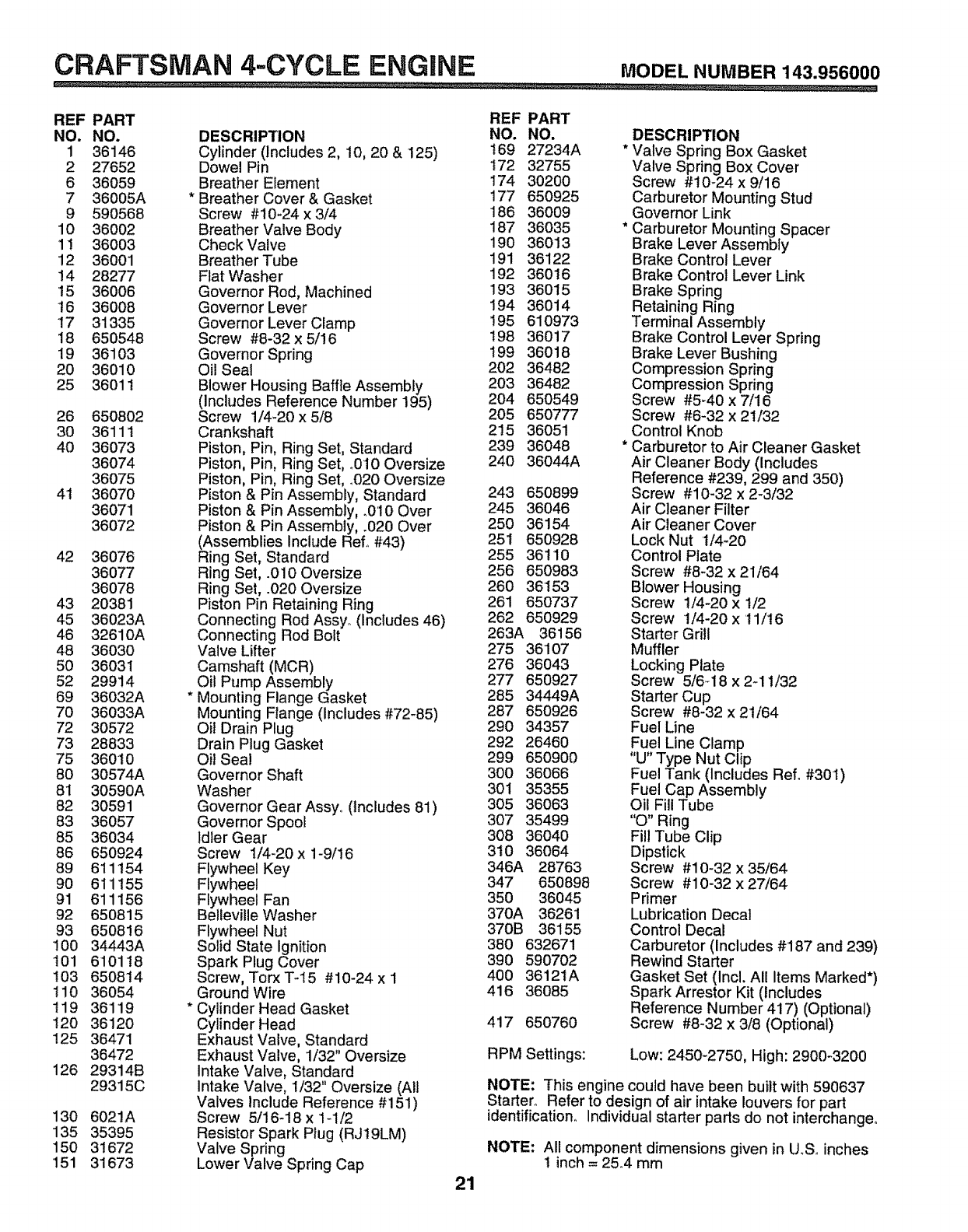

REPAIR PARTS - LAWN MOWER ........................ 15-19

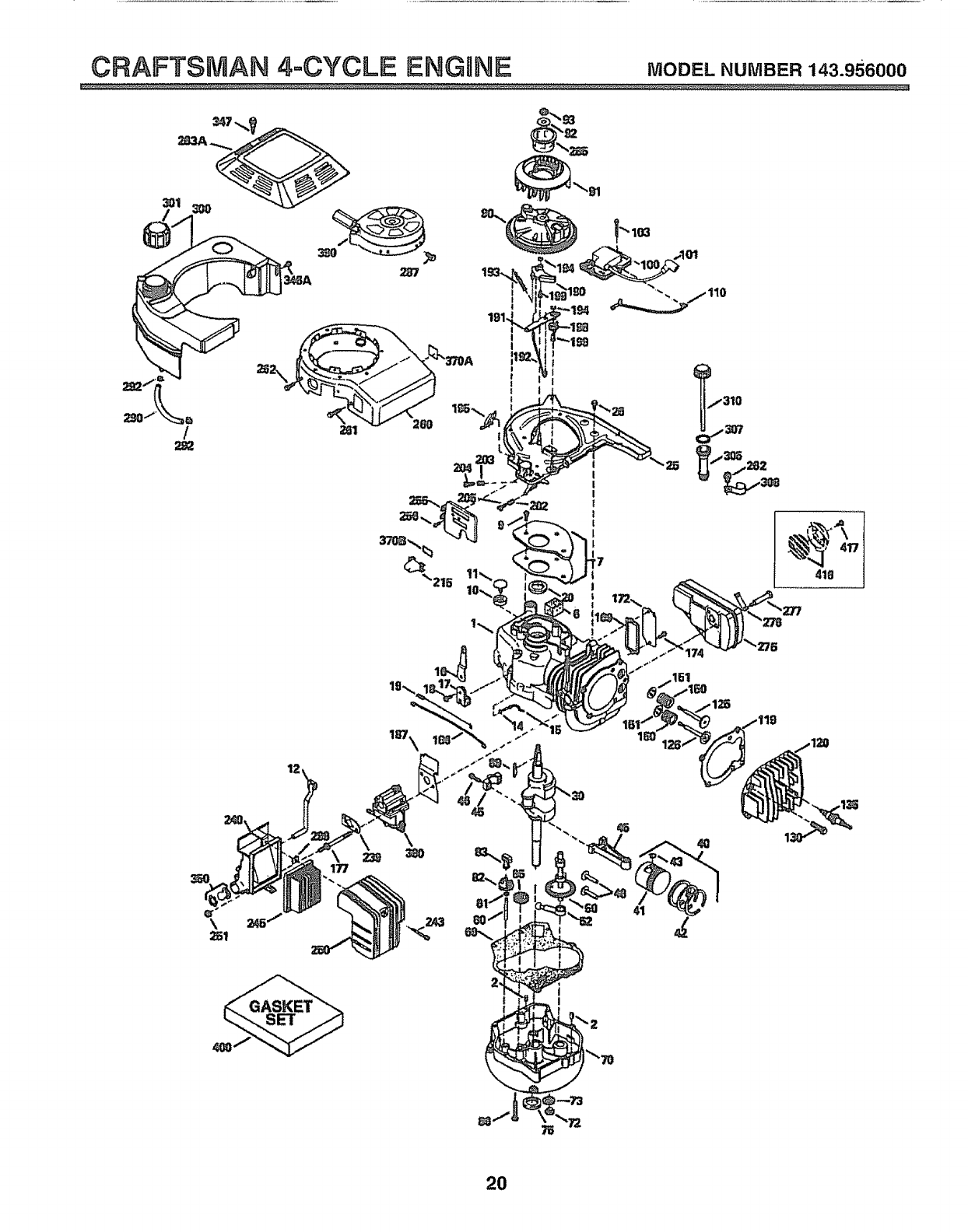

REPAIR PARTS - ENGINE .................................... 20-22
PARTS ORDERING/SERVICE ................................... 24
iNDEX
A
Accessories ...................................................5
Adjustments:
Carburetor .....................................13
Drive Belt .............................................12
Engine Speed .......................... 13
Handle Height ...............................13
Height of Cut ....................................7
Air Filter:
Replacement ...................................11
Service ..................................................11
Assembly .................................................5
B
Blade:
Sharpening ............................ 10
Replacement .......................... 10
C
Controls:
Engine Zone Control ....................7
Engine Speed Control ....................6
Operator' Presence
Control Bar ..............................................6
Customer Responsibilities ..... 3, 9-t t
Air Filter .................................... t 1
Blade Care!Replacement ............10
Drive Wheels ..............................10
Engine ................................................11
Lubrication ......................................11
Spark Plug ................................. i 1
Cutting Levels .........................................7
E
Engine:
Air Filter'. .................................. 11
Oil Change ............................. 11
Oil Level ...................................................11
Oil Type .................................... 11
Starting ..........................................8
Stopping ................................... 8
Storage ..............................................14
F
Fuel:
Capacity ................................................................3
Storage ............................................14
Type ...........................................................................8
H
Handle Adjustment:
Assembly ..........................................5
Cutting Height ......................... 13
L
Lubrication:
Engine ....................................... 11
Lawn Mower ............................ 9
M
Maintenance Agreement ................ 3
Maintenance Schedule ................... 9
Mowing Tips ........................................8
Oil:
O
Engine .................................................11
Storage ........................................14
Operation:
Drive Control ...............................................7
Engine Control ..........................................7
Grass Catcher'. ................................10
Mower ...............................................................7
Operator Presence
Control Bar ..................................................7
Options:
Accessories ..................................................5
R
Repair Parts:
Engine ............................... 20-22
Lawn Mower ............................15-19
Responsibilities, Customer ........3, 9-11
S
Safety Rules ..............................................2
Service and Adjustments ............... 12
Carburetor. .......................................13
Drive Belt ........................................I2
Engine Speed ...................................13
Handle ............................................13
Spark Plug ...............................................11
Specifications ................................... 3
Speed Control:
Engine ....................................................12
Starting the Engine .......................... 8
Stopping the Engine ..........................8
Storage .................................................14
T
Trouble Shooting Chart ................. 23
W
Warranty .........................................................3
4
LAWN E ACC ES
These accessories were available when this lawn mower was produced° They are also available at most Sears retail outlets
and service center& Most Sears stores can also order repair parts for you, when you provide the model number of your lawn
mower. Some of these accessories may not apply to your lawn mower.
ENGINE
SPARK PLUG MUFFLER AIR FILTER GASCAN
IlUlUl,UlIll Ul,Ul,
ENGINE OIL
iii ii
STABILIZER
LAWN MOWER MAINTENANCE
BELT BLADE BLADE
ADAPTER WHEELS LAWN MOWER
COVER
ASSEMBLY
Read these instructions and this manual in its entirety
before you attempt to assemble or operate your new lawn
mower° Your new lawn mower has been assembled at the
factory with the exception of those parts left unassembled
for shipping purposes° All parts such as nuts, washers,
bolts, etco, necessary to complete the assembly have been
placed in the parts bag, To ensure safe and proper
operation of your lawn mower, all parts and hardware you
assemble must be tightened securely., Use the correct
tools as necessary to ensure proper tightness°
TO REMOVE LAWN MOWER FROM
CARTON
°Remove loose parts included with mower_,
oCut down two end corners of carton and lay end panel
down flat.
o Remove all packing materials except padding be-
tween upper and lower handle and padding hotding
operator presence control bar to upper handle,
o Roll lawn mower out of carton and check carton
thoroughly for additional toose parts,
HOWTO SET UPYOUR LAWN MOWER
TO UNFOLD HANDLE (See Fig. 1)
= Raise handles until lower handte section locks into
place in mowing position,
OPERATOR PRESENCE
CONTROLBAR
UPPER HANDLE
LIFT UP
MOWING POSITION
LOWER HANDLE
FIG. 1
Raise upper handle section into place on lower handle,
remove protective padding and tighten both handle
knobs,
. Remove handle padding holding operator presence
control bar to upper handle,,
. Your lawn mower handle can be adjusted for your
mowing comfort,. See "TO ADJUST HANDLE" in the
Service and Adjustments section of this manual,,
5
OPERAON
...................... 1 ,,,l,,i
KNOWYOUR LAWN MOWF.R
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER_ Compare the
illustrationswithyour lawn mower tofamiliarizeyourseffwiththelocationof variouscontrolsand adjustments_Save this
manual for future reference°
ZONE CONTROL CABLE
OPERATOR PRESENCE
CONTROLBAR
STARTER HANDLE
DRIVE CONTROL LEVER
HANDLE KNOB
CABLECLIP
GASOLINE FILL CAP
ENGINE OIL CAP WITH DIPSTICK
ENGINE SPEED
CONTROL LEVER DRIVE COVER
DISCHARGE GUARD
MULCHER PLATE
WHEEL ADJUSTER
(ON EACH WHEEL) HOUSING
PRIMER
.................................................................. i i iiiii_ ,_ i,iil,l,,_l,l,,,i
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conformto the safety standards of the American National Standards Institute
and the UpS°Consumer Product Safety Cornmission_ The blade turns when the engine is runhing.
OPERATOR PRESENCE CONTROL - must be held down
to the handle to start the engine° Release to stop the
engine°
STARTER HANDLE -used for starting the engine,
DRIVE CONTROL LEVER - used to engage power-pro-
pelled forward motion of lawn mower.
PRIMER - pumps additional fuel from the carburetor' to the
cylinder for use when starting a cold engine.
ENGINE SPEED CONTROL LEVER *located on the side
of the engine which allows you to select either high (_) or
low (-4_) engine speed.
MULCHER PLATE - located at the discharge opening,
must be removed when converting to bagging or discharg-
ing operation.
6
OPERA 0

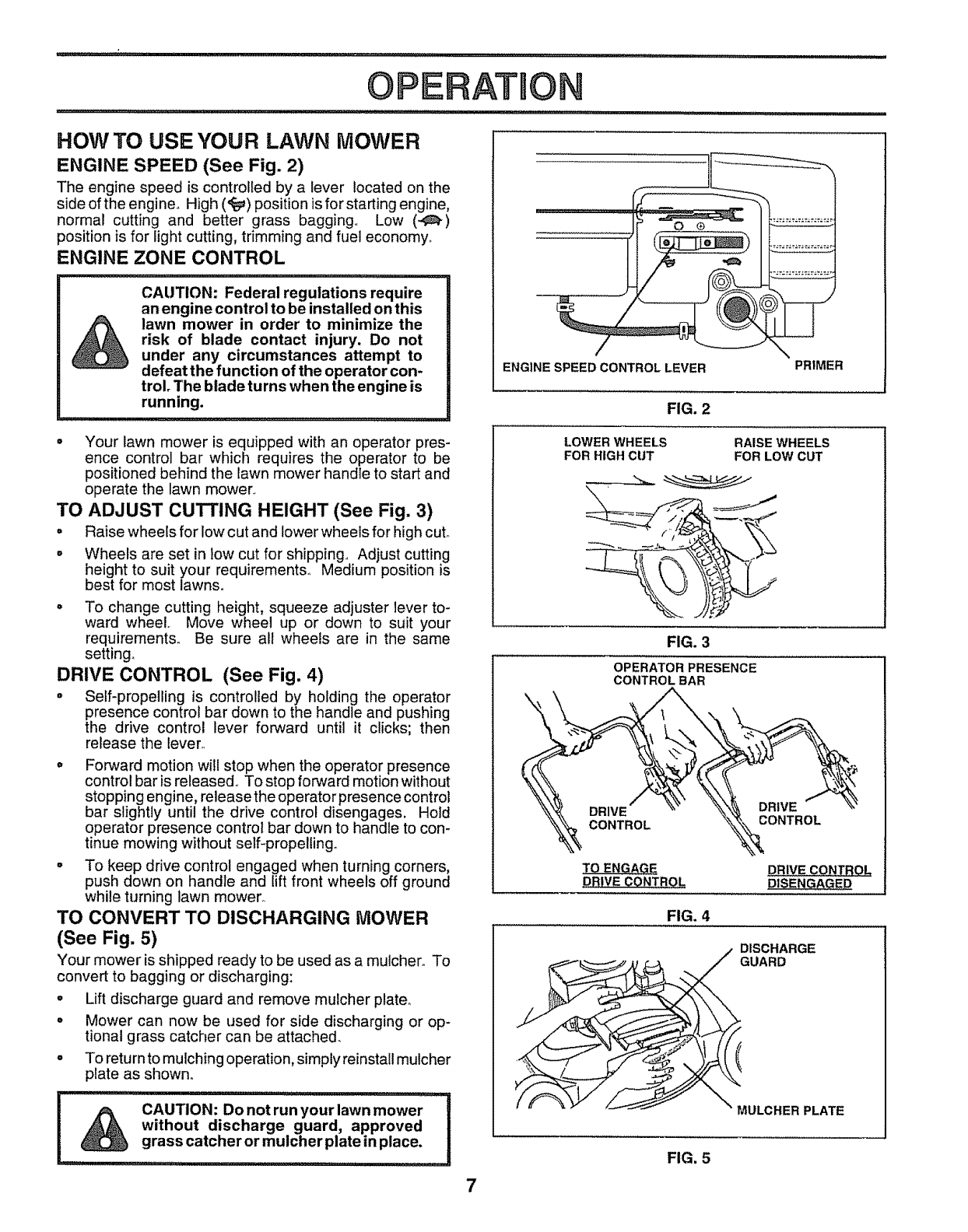

HOW TO USE YOUR LAWN iVIOWER
ENGINE SPEED (See Fig. 2)
The engine speed is controlled by a lever located on the
side of the engine_ High ('_) position is for starting engine,
normal cutting and better grass bagging. Low (-4_)
position is for light cutting, trimming and fuel economy..
ENGINE ZONE CONTROL
&CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the
risk of blade contact injury. Do not
under any circumstances attempt to
defeat the function of the operator con-
trol The blade turns when the engine is
running.
ENGINE SPEED CONTROL LEVER PRIMER
FIG. 2
• Your lawn mower is equipped with an operator pres-
ence control bar which requires the operator to be
positioned behind the lawn mower handle to start and
operate the lawn mower..
TO ADJUST CUTTING HEIGHT (See Fig. 3)
= Raise wheels for low cut and lower wheels for high cut.
°Wheels are set in tow cut for shipping,. Adjust cutting
height to suit your requirements_ Medium position )s
best for most lawns°
°To change cutting height, squeeze adjuster lever to-
ward wheel. Move wheel up or down to suit your
requirements,. Be sure all wheels are in the same
setting°
DRIVE CONTROL (See Fig. 4)
°Self-propelling is controlled by holding the operator
presence control bar down to the handle and pushing
the drive control lever forward until it clicks; then
release the lever,.
o Forward motion will stop when the operator presence
control baris released,, To stop forward motion without
stopping engine, release the operator presence control
bar slightly until the drive control disengages, Hold
operator presence control bar down to handle to con-
tinue mowing without self-propellingo
°To keep drive control engaged when turning corners,
push down on handle and lift front wheels off ground
while turning lawn mower..
TO CONVERT TO DISCHARGING MOWER
(See Fig. 5)
Your mower is shipped ready to be used as a mulcher_ To
convert to bagging or discharging:
oLift discharge guard and remove mulcher plate..
° Mower can now be used for side discharging or op-
tional grass catcher can be attached.
°To returnto mulching operation, simplyreinstall mulcher
plate as shown°
CAUTION: Do not run your lawn mower !
without discharge guard, approved
grass catcher or mulcher plate in place.
::: iiiiiiiiii i,i ,_ .............
LOWER WHEELS RAISE WHEELS
FOR HIGH CUT FOR LOW CUT
FIG. 3
OPERATOR PRESENCE
CONTROL BAR
DRIVE
CONTROL CONTROL
TO ENGAGE,
DRIVE CONTROL DISENGAGED
FIG. 4
_MULCHER PLATE
FIG. 5
7
OPERATION
i , ,, i ,, ,i, ,! !I ,, L ,, I i,,11 I,,IIL,!IIII,, L I I
BEFORE STARTgNG ENGBNE
OIL (See Fig. 6)
Your lawn mower is shipped without oil in the engine..
. Be sure mower' is level and area around oil fill is clean_
•Remove engine oil cap w/dipstick and fill to the full line
on the dipstick_
o Use 28 ozs,.of oil. For type and grade of oil to use, see
"ENGINE" in Customer Responsibilities section of this
manual
.Pour oil slowly. Do not over fill..
. Check oil level before each use. Add oil if needed., Fill
to full line on dipstick,
o To read proper level, tighten engine oil cap each time_
°Reinstall engine oil cap and tighten.
° After- the first two (2) hours of mowing, change the oil,
and every 25 hours thereafter. You may need to
change the oi! more often under dusty, dirty conditions_
GAS (See Fig. 6)
° Fill gasoline tank with fresh, clean, unleaded gasoline..
DO NOT USE PREMIUM GASOLINE BE CAREFUL
NOT TO OVER FILL TANK_
WARNING: Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or methanol) can
attract moisture which leads to separation and formation of
acids during storage.. Acidic gas can damage the fuel
system of an engine while in storage. To avoid engine
problems, the fuel system should be emptied before stor-
age of 30 days or longer.. Drain the fuel tank, start the
engine and let it run untii fuel lines and carburetor are
empty. Use fresh fuel next season° See Storage Instruc-
tions for additional information. Never use engine or
carburetor cleaner products in fuel tank or permanent
damage may occur..
TO START ENGINE
°To start a cold engine, push primer five (5) times before
trying to starL Use a firm push. This step is not usually
necessary when starting an engine which has already
run for a few minutes_
°Move engine speed control lever to high ('_) position.
°Hold operator presence control bar down to the handle
and pull starter handle quickly. Do not allow starter
rope to snap back.
° To stop engine, release operator presence control bar.
NOTE: In cooler weather it may be necessary to repeat
priming steps_ In warmer weather over priming may cause
flooding and engine will not start. Ifyou do flood engine wait
a few minutes before attempting to start and do not repeat
priming steps.,
IVIOWING TIPS
°Under'certain conditions, such as very tall grass, it may
be necessary to raise the height of cut to reduce
pushing effort and to keep from overloading the engine
and leaving clumps of grass clippings.
°For extremely heavy cutting, reduce the width of cut by
overlapping previously cut path and mow slowly_
°For'better grass bagging and most cutting conditions,
the engine speed should be set in the high ('_)
position.
•For side discharge lawn mowers, cutting ina counter_
clockwise direction, starting at the outside of the area
to be cut, spreads grass clippings more evenly and
puts less load on the engine, To keep clippings off of
walk'ways, flower beds, etc.., make the first cuts in a
clockwise direction,, 8
GASOLINE FILLER CAP
ENGINE OIL CAP
W/DIPSTICK
FIG. 6
° Pores in cloth grass catchers can become filled with dirt
and dust with use and catchers will collect less grass°
To prevent this, regularly hose catcher off with water
and let dry before using_
o Keep top of engine around starter clear and clean of
grass clippings and chafL This will help engine airflow
and extend engine tife_
MAX 113
FIG. 7
MULCHING MOWING TIPS
IMPORTANT: FOR BEST PERFORMANCE, KEEP
MOWER HOUSING FREE OF BUILT-UP GRASS AND
TRASH_ SEE "CLEANING" IN CUSTOMER
RESPONSIBILITIES SECTION OF THIS MANUAL,
= The special mulching blade will recut the grass clip-
pings many times and reduce them in size so that as
they fall onto the lawn they will disperse into the grass
and not be noticed° Also, the mulched grass will
biodegrade quickly to provide nutrients for the lawn.
Always mulch with your highest engine (blade) speed
as this will provide the best recutting action of the
blades.
° Avoid cutting your lawn when it is weL Wet grass tends
to form clumps and interferes with the mulching action_
The best time to mow your lawn is the early afternoon.
At this time the grass has dried and the newly cut area
will not be exposed to the direct sun,
• For best results, adjust the lawn mower cutting height
so that the lawn mower cuts off only the top one-third
of the grass blades (See Fig. 7)_ If the lawn is over-
grown it will be necessary to raise the height of cut to
reduce pushing effort and to keep from overloading the
engine and leaving clumps of mulched grass. For
extremely heavy mulching, reduce your' width of cut by
overlapping previously cut path and mow slowly.,
° Certain types of grass and grass conditions may re-
quire that an area be mulched a second time to corn-
pletely hide the clippings, When doing a second cut,
mow across or perpendicular to the first cut path.
° Change your cutting pattern from week to week. Mow
north to south one weekthen change to east to west the
next week_ This will help prevent matting and graining
of the lawn_

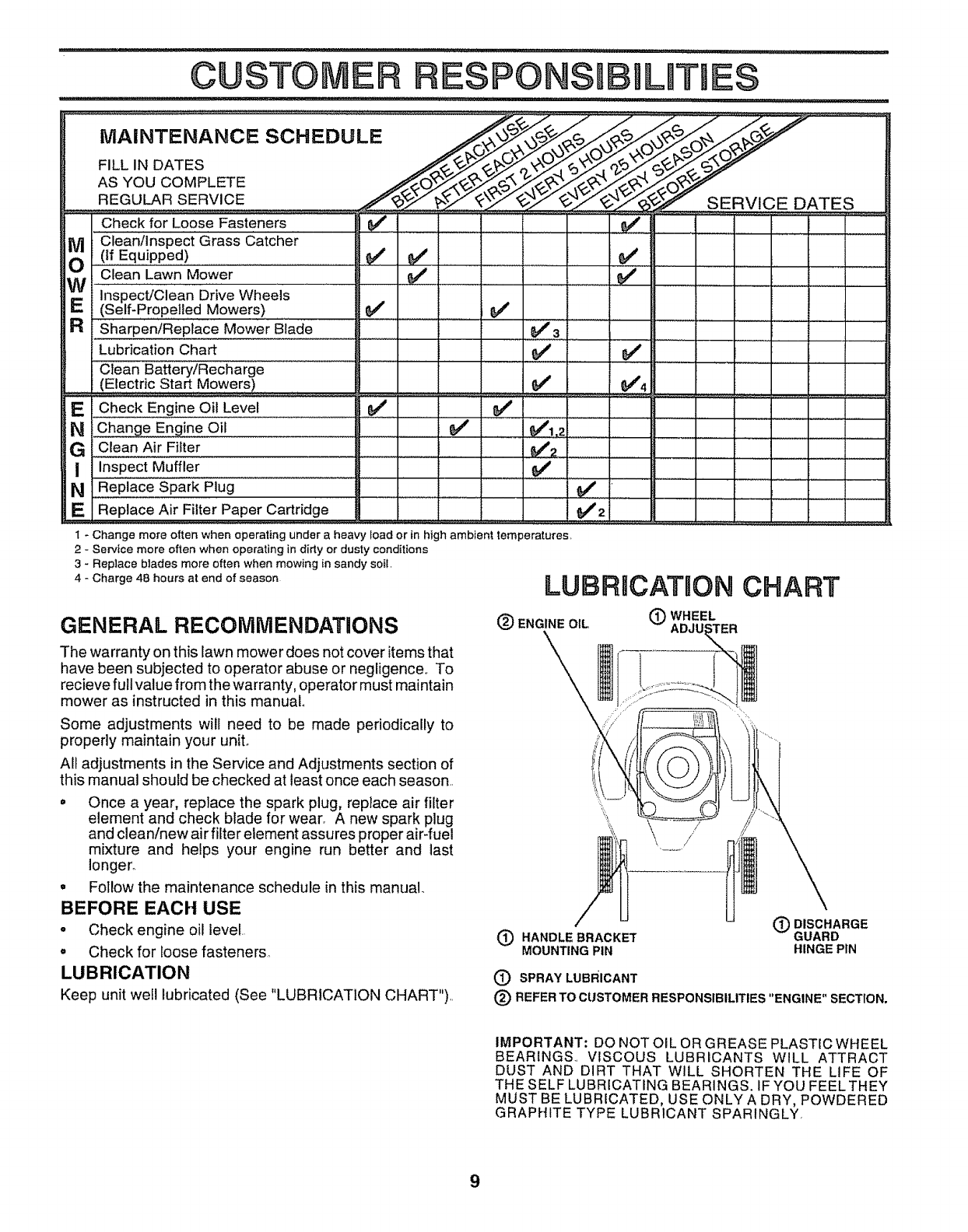

O IL E
,,H_ ,_ i,i,,, ,11.,11 ,i ...... HII,,,,H[ ....... i
AS YOU COMPLETE f_&;k_J__--_
REGULAR SERVICE _¢,_ _ _ _,_ _'4_ _ ._,_O £
Check for Loose Fasteners 6/ _ 6/
_ CJeanilnspect Grass Catcher
(If Equipped) 6/ 6/ 64#
clean Lawn Mower 6/ .... ,, ,' ..... ,, ......................
_[t_!' lnspect/clean Drive Wheels .....................
(Self-Propelled Mowers) 6/' 6/'
R sharpen/Replace Mower Blade .................ii .... ' 6/' 3 ............
Lubrication Chart _1' 6/
Clean Battery/Recharge
.............!Ele,ctr!c Sted Mowers) ......... 6/ 6/'4
ECheck Engine Oil Leve! ...................................................6/' ....... 6/ ..................
NChange Engine Oil 6/' 6/1,2 .........................
G Clean Air Filter 6/2 ....
I Inspect Muffler 6/
NReplace Spark Plug 6/
E Replace Air Filter Paper Cartridge 6/2 ...................
1 - Change more often when operating under a heavy load or in high ambient temperatures,
2 - Service more often when operating in dirty or dusty conditions
3 - Replace blades more often when mowing in sandy soil,
4 _Charge 48 hours at end of season LUBRICATHON CHART
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not cover items that
have been subjected to operator abuse or negligence,. To
recieve full value from the warranty, operator must maintain
mower as instructed in this manual
Some adjustments will need to be made periodically to
properly maintain your unit.
All adjustments in the Service and Adjustments section of
this manual should be checked at least once each season..
(_) ENGINE OIL OWHEEL
ADJU==
•Once a year, replace the spark plug, replace air filter
element and check blade for wear. A new spark plug
and clean!new air filter element assures proper air-fuel
mixture and helps your engine run better and last
longer.
• Follow the maintenance schedule in this manual.
BEFORE EACH USE
" Check engine oil level.
• Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRICATION CHART")..
(_ HANDLE BRACKET
MOUNTING PIN
/
7//
(_) DISCHARGE
GUARD
HINGE PIN
(_ SPRAY LUBRICANT
(_) REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION.
IMPORTANT: DO NOT OIL OR GREASE PLASTIC WHEEL
BEARINGS.. VISCOUS LUBRICANTS WILL ATTRACT
DUST AND DIRT THAT WILL SHORTEN THE LIFE OF
THE SELF LUBRICATING BEARINGS. IF YOU FEEL THEY
MUST BE LUBRICATED, USE ONLY A DRY, POWDERED
GRAPHITE TYPE LUBRICANT SPARINGLY.
9
CUSTOME ESPO
LAWN MOWER
Always observe safety rules when performing any mainte-
nance.
TIRES
, Keep tires free of gasoline, oit, or insect control chemi-
cals which can harm rubber.
° Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
BLADE CARE
For best results, rnower blade must be kept sharp. Replace
bent or damaged blades.
TO REMOVE BLADE (See Fig. 8)
° Disconnect spark plug wire from spark ptug and place
wire where it cannot come in contact with spark plug.
o Turn lawn mower' on its side_ Make sure air filter' and
carburetor are up.,
• Use a wood btock between blade and mower housing
to prevent blade from turning when removing blade
bolt.
• Protect your hands with gloves and/or wrap blade with
heavy cloth°
•Remove blade bolt by turning counter-clockwise. Use
a 9/16" box or open-end wrench_
• Remove blade and attaching hardware (bolt, lock
washer and hardened washer).
NOTE: Remove the blade adapter and check the key
inside hub of blade adapter, The key must be in good
condition to work properly. Replace adapter if damaged°
TO REPLACE BLADE (See Fig° 8)
° Position the blade adapter on the engine crankshaft
Be sure key in adapter and crankshaft keyway are
aligned_
°Position blade on the blade adapter aligning the two (2)
holes in the blade with the raised lugs on the adapter'.
• Be sure the trailing edge of blade (opposite sharp
edge) is up toward the engine_
= install the blade bolt with the lock washer and hardened
washer into blade adapter and crankshaft.
° Use block of wood between blade and lawn mower
housing and tighten the blade bolt, turning clockwise°
= The recommended tightening torque is 35-40 ft. Ibso
IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.
NOTE: We do not recommend sharpening blade -but if
you do, be sure the blade is balanced°
TO SHARPEN BLADE
Care should be taken to keep the blade balanced, An
unbalanced blade will cause eventual damage to lawn
mower or engine.
°The blade can be sharpened with a file or on a grinding
wheel° Do not attempt to sharpen while on the mower.
° T° check blade balance' ddve a nail int° a beam °r wall"
Leave about one inch of the straight nail exposed.
Place center hole of blade over the head of the nai!. If
blade is balanced, it should remain in a horizontal
position.. If either end of the blade moves downward,
sharpen the heavy end until the blade is balanced_ 10
B KEY_J )__
WASHER TRAILING k\
LOCK WASHER EDGE BLADE ADAPTER
FIG. 8
GEAR CASE
° To keep your drive system working properly, the gear
case and area around the drive should be kept clean
and free of trash build-up. Clean under the drive cover
twice a season_
°The gear case isfilled with lubricant to the properlevel
at the factory_ The only time the lubricant needs
attention is if service has been performed on the gear
case.,
• If lubricant is required, use only Texaco Starplex Pre-
mium Grease, part no_ 750369 Do not substitute.
DRIVE WHEELS
Check front drive wheels each time before you mow to be
sure they move freely,
The wheels not turning freely means trash, grass cuttings,
etcoare in the drive wheel area and must be cleaned to free
drive wheels.
If necessary to clean the drive wheels, check both front
wheels.
° Remove hubcaps, hairpin cotters and washers.
°Remove wheels from wheel adjusters_
o Remove any trash or grass cuttings from inside the
dust cover, pinion and/or drive wheel gear teeth.,
• Put wheels back in place
° tf after cleaning, the drive wheels do not turn freely,
contact your nearest authorized service center.
GRASS CATCHER
(If purchased as an accesssory)
° The grass catcher' may be hosed with water, but must
be dry when used°
• Check your grass catcher often for damage or'deterio-
ration° Through normal use it will wear. If catcher
needs replacing, replace only with a manufacturer'
approved replacement catcher. Give the lawn mower
model number when ordering
mLMTUES
,,,,_, , ,,,i,1,,,, ,
ENGINE
LUBRICATION
Use only high quality detergent oil rated with API service
classification SFor SG. Select the oil's SAE viscosity grade
according to your expected operating temperature,.
SAE VISCOSITY GRADES
!
i°F -2o° o° 50° 32° 4o° 60° 80° 10oo
, ...................i.....
i°c -_o° -2'oo.i_o6" ;o° _oo 3o" 40°
TEMPERATURERA.GEA_IC,PATEOBEFORENEXTO,LCHANaE
NOTE: Although multi-viscosity oils (5W30, 10W30 etco)
improve starting in cold weather, these multi-viscosity oils
will result in increased oil consumption when used above
32°F. Check your engine oil level more frequently to avoid
possible engine damage from running low on oil,.
Change the oil after the first two hours of operation and
every 25 hours thereafter or at least once a year if the lawn
mower is not used for 25 hours in one year..
Check the crankcase oi! level before starting the engine
and after each five (5) hours of continuous use° Tighten oil
plug securely each time you check the oil level,
TO CHANGE ENGINE OIL (See Fig.. 9)
•Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug
= Remove engine oil cap; lay aside on a clean surface..
°Tip lawn mower on its side and drain oil into a suitable
container° Rock lawn mower back and forth to remove
any oil trapped inside of engine,
° Wipe off any spilled oil on lawn mower and on side of
engine,,
° Fill engine with oil. Fill only to the "FULL" line on the
dipstick,, DO NOT OVER FILL
oReplace engine oil cap..
° Reconnect spark plug wire to spark plug.
AIR FILTER
Your engine will not run properly and may be damaged by
using a dirty air filter°
Replace the air filter every year, more often if you mow in
very dusty, dirty conditions° Do not wash air fitter_
TO CHANGE AIR FILTER (See Fig.. 10)
° Loosen cover screw,
- Swing cover down and remove from hinge.
o Pull paper filter out of air cleaner body..
o Clean air cleaner cover and body,
o install a new paper filter°
° Reinstall cover to air cleaner body° Be sure hinge is
assembled properly.
o Swing cover up and tighten cover screw. (Do not
overtighten)o
MUFFLER
Inspect and replace corroded muffler as it could create a
fire hazard and/or damage,.
CONTAINER
FIG. 9
AIR FILTER COVER
HINGE
PAPER COVER
FILTER SCREW
11
FIG. 10
SPARK PLUG
Change your spark plug each year to make your engine
start easier and run better, Set spark pluggap at .030 inch.
CLEANDNG
IMPORTANT: FOR BEST PERFORMANCE, KEEP
MOWER HOUSING FREE OF BUILT-UP GRASS AND
TRASH. CLEAN THE UNDERSIDE OF YOUR MOWER
AFTER EACH USE.
,i,1,1,,, ,,i, ,,, ,1_ II _t,_ll,, ,11,,,N,I ,,_, _,_,,,,_,,_
I
CAUTION: Disconnect spark plug wiret !
from spark plug and place wire where
nnot come in contact with the spark I
ug. !
!L LII" I '1 I
SERVICE AN ADJUSTMENTS
CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
oRelease control bar.
°Make sure the blade and all moving parts have completely stopped.
°Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug.
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See 'q'O ADJUST CUTTING HEIGHT" in the Operation
section of this manual,.
REAR DEFLECTOR
The rear deflector', attached between the rear wheels of
your' mower', is provided to minimize the possibility that
objects will be thrown out of the rear of the mower into the
operator mowing position.. If the deflector becomes dam-
aged, it should be replaced°
DISCHARGE GUARD
The discharge guard, attached to the discharge opening of
your lawn mower, is provided to prevent the possibility of
injury resulting from objects being thrown out of the dis*
charge opening into the operator mowing position. If the
discharge guard becomes damaged, it should be replaced.
TO REMOVE/REPLACE DRIVE BELT
(See Fig. 11)
= Remove drive cover. Remove belt by pushingdown on
gear case pulley.
•Turn lawn mower on its side with carburetor' and fuel
cap upo
° Remove blade,.
°Remove debris shield,
o Remove belt from engine pulley on crankshaft.
•tnstall new belt by reversing above steps.
•Always use factory approved belt to assure fit and long
life,
DRIVE
COVER BELT
PRESS
FIG. 11
12
SERVmCE
................................ u,,uul_,,
ADJUSTMENTS

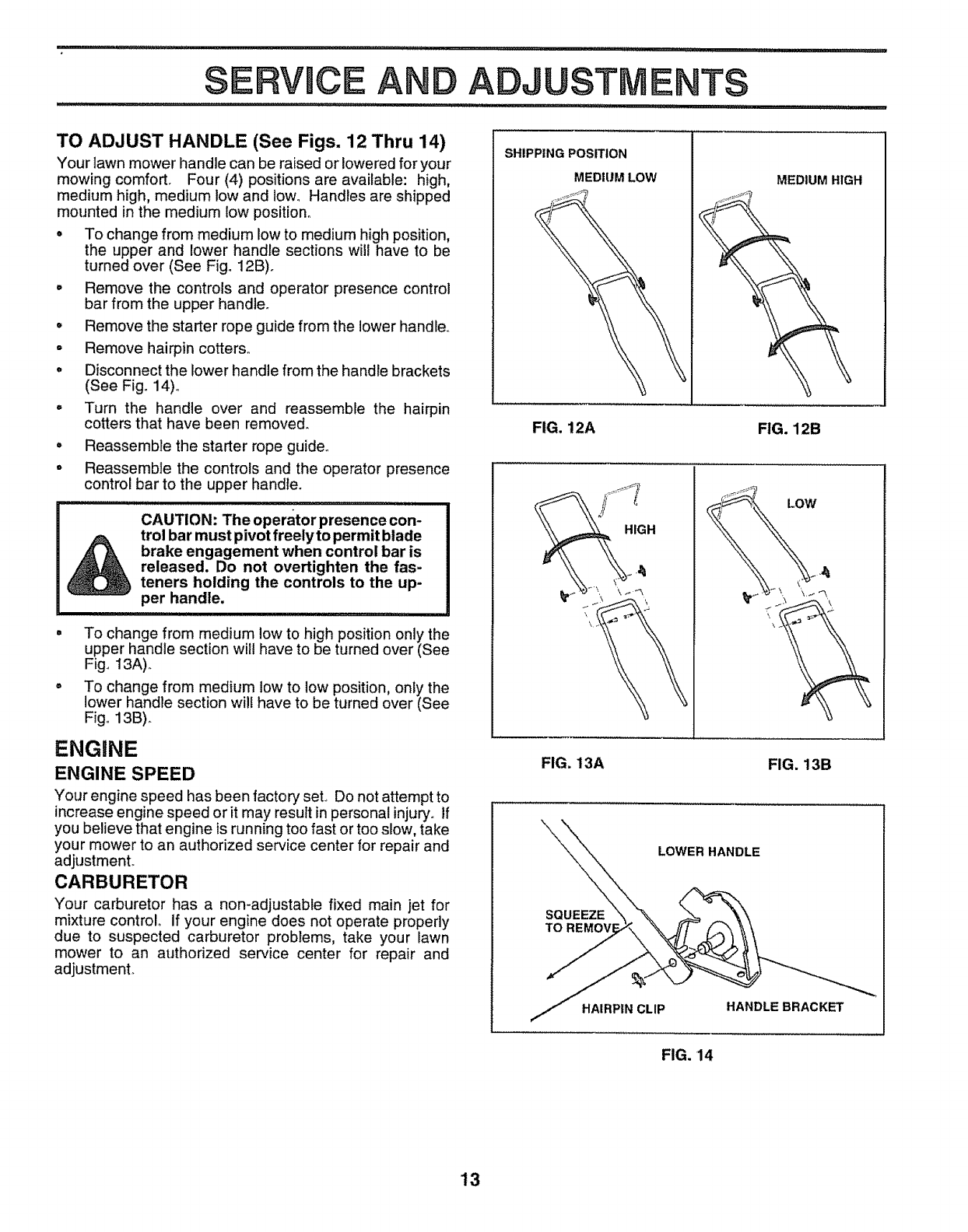

TO ADJUST HANDLE (See Figs. 12 Thru 14)
Your lawn mower handle can be raised or lowered for your
mowing comfort Four (4) positions are available: high,
medium high, medium low and lowo Handles are shipped
mounted in the medium low position°
o To change from medium low to medium high position,
the upper and lower handle sections will have to be
turned over (See Fig. 12B)_
° Remove the controls and operator presence control
bar from the upper handle°
o Remove the starter rope guide from the lower handle..
- Remove hairpin cotters..
° Disconnect the lower handle from the handle brackets
(See Fig° 14)o
° Turn the handle over and reassemble the hairpin
cotters that have been removed.
• Reassemble the starter rope guide_
° Reassemble the controls and the operator presence
control bar to the upper handle.
CAUTION: The operator presence con-
trol bar must pivot freely to permit blade
brake engagement when control bar is
released. Do not overtighten the fas-
teners holding the controls to the up-
per handle.
i i i,i,i,i .......................
• To change from medium low to high position only the
upper handle section will have to be turned over (See
Fig,, 13A).
° To change from medium low to low position, only the
lower handle section will have to be turned over (See
Fig,. 13B)_
ENGINE
ENGINE SPEED
Your engine speed has been factory set., Do not attempt to
increase engine speed orit may result in personal injury. If
you believe that engine is running too fast or too slow, take
your mower to an authorized service center for repair and
adjustment.
CARBURETOR
Your carburetor has a non-adjustable fixed main jet for
mixture control° if your engine does not operate properly
due to suspected carburetor problems, take your lawn
mower to an authorized service center for repair and
adjustment.
SHIPPING POSITION
MED|UM LOW
FIG. 12A
MEDIUM HIGH
FIG. 12B
LOW
FIG. 13A FIG. 13B
\
LOWER HANDLE
SQUEEZE
TO REMOVI
HAIRPIN CLIP HANDLE BRACKET
FIG. 14
13

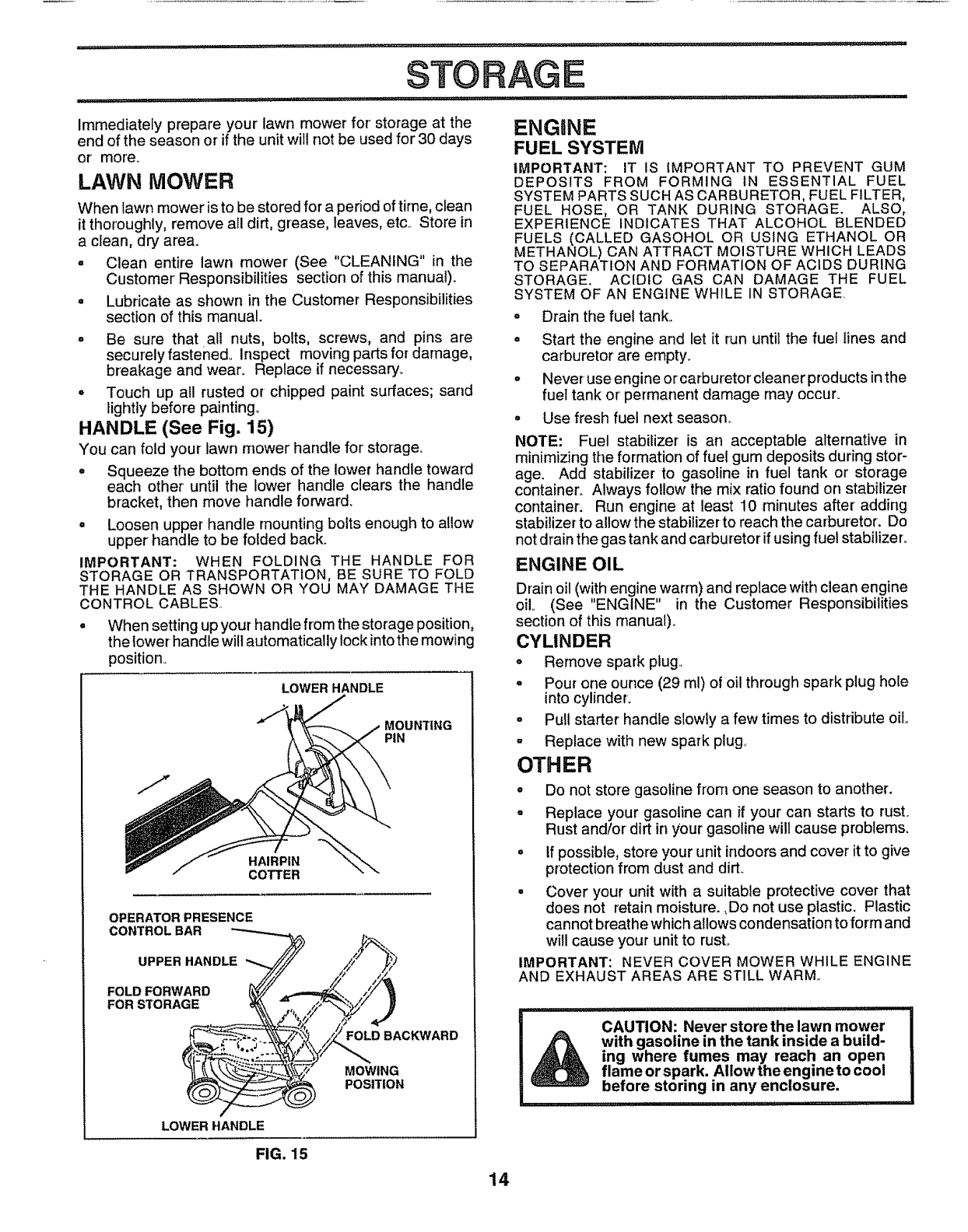

STORAGE
immediately prepare your lawn mower for storage at the
end of the season or if the unit will not be used for 30 days
or more,.
LAWN MOWER
When lawn mower is to be stored for a period of time, clean
it thoroughly, remove all dirt, grease, leaves, etc_ Store in
a clean, dry area.
o Clean entire lawn mower (See "CLEANING" in the
Customer' Responsibilities section of this manual).
° Lubricate as shown in the Customer Responsibilities
section of this manual.
o Be sure that al! nuts, bolts, screws, and pins are
securely fastened° Inspect moving parts for damage,
breakage and wear. Replace if necessary.
° Touch up all rusted or chipped paint surfaces; sand
lightly before painting.
HANDLE (See Fig. 15)
You carl fold your lawn mower handle for storage.
°Squeeze the bottom ends of the lower handle toward
each other until the lower handle clears the handle
bracket, then move handle forward.
°Loosen upper handle mounting bolts enough to allow
upper handle to be folded back.
IMPORTANT: WHEN FOLDING THE HANDLE FOR
STORAGE OR TRANSPORTATION, BE SURE TO FOLD
THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE
CONTROL CABLES
°When setting upyour handle from the storage position,
the tower handle willautomatically lock intothe mowing
position.
LOWER HANDLE
MOUNTING
PIN
HAIRPIN
COTTER
OPERATOR PRESENCE
LOWER HANDLE
CKWA.O
ENGINE
FUEL SYSTEM
IMPORTANT: IT IS IMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING IN ESSENTIAL FUEL
SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,
FUEL HOSE, OR TANK DURING STORAGE. ALSO,
EXPERIENCE INDICATES THAT ALCOHOL BLENDED
FUELS (CALLED GASOHOL OR USING ETHANOL OR
METHANOL) CAN ATTRACT MOISTURE WHICH LEADS
TO SEPARATION AND FORMATION OF ACIDS DURING
STORAGE, ACIDIC GAS CAN DAMAGE THE FUEL
SYSTEM OF AN ENGINE WHILE IN STORAGE.
o Drain the fuel tank.
° Start the engine and let it run until the fuel lines and
carburetor are empty.
oNever use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.
° Use fresh fuel next season_
NOTE: Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits during stor-
age° Add stabilizer to gasoline in fuel tank or storage
container. Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes after' adding
stabilizer to allow the stabilizer to reach the carburetor. Do
not drain the gas tank and carburetor if using fuel stabilizer°
ENGINE OIL
Drain oil (with engine warm) and replace with clean engine
oil. (See "ENGINE" in the Customer Responsibilities
section of this rnanual).
CYLINDER
°Remove spark plug..
° Pour one ounce (29 ml) of oil through spark plug hole
into cylindeL
° Pull starter handle slowly a few times to distribute oil
=Replace with new spark plug,i
OTHER
° Do not store gasoline from one season to another.
oReplace your gasoline can if your can starts to rust.
Rust and!or dirt in your gasoline witl cause problems.
• if possible, store your unit indoors and cover it to give
protection from dust and dirL
° Cover your unit with a suitable protective cover that
does not retain moisture. ,Do not use plastic. Plastic
cannot breathe which allows condensation to form and
will cause your unit to rust°
IMPORTANT: NEVER COVER MOWER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM.
CAUTION: Never store the lawn mower
with gasoline in the tank inside a build-
ing where fumes may reach an open
flameor spark. Allowtheengineto cool
before storing in any enclosure.
FIG. 15
14
REPAIR PARTS
POWER PROPELLED LAWN MOWER - - MODEL NO. 917.372810
GEAR CASE ASSEMBLY PART NUMBER 702511
,,.-/ 10
15
7
17
18
17
I0
19
jz
JJ
7
KEY
NO.
!
2
3
4
6
7
8
9
10
11
PART
NO.
17490416
137055X004
137053
57072
48373
77881
137051
137074
57079
131484
DESCRIPTION
Tapping Screw 1/4-20 x lq/4
Engagement Bracket
Shifter
Seal
Gear Case Halves Kit (Includes Key
Noso 4, 5, and 7)
Bearing
Worm Shaft
Drive Shaft
Hardened Washer
Clutch Yoke
KEY PART
NO. NO. DESCRIPTION
12 700343 Bushing
13 86447 Plug
14 137050 Helical Gear
15 750436X Clutch Jaw
16 750369 Grease
17 12000003 E-Ring
18 850848 Hi-Pro Key
19 81585X004 Spring Bracket
NOTE: All component dimensions given in UoS, inches°
1inch = 25°4 mm
'15
co
-r,-
0
CO
T-'
T'-
L_
u_j
r_
s
<=
LU
C)
Ti
cO
C_
r_
s
0_
d
Z
.J
UJ
t_
C)
I
r_
LIJ
0
Z
E!
>.
a:
0
a:
L_
\
J
o_
ct_
O_j.
/
\
c_
16
\
io
r_
\
L_
U_
o
0
oO
o_i
d
Z
--l
Cl
0
I
tr
0
z
0
m
t-
in
o
eo
ILl
t_
t-
_z
_d
_Z
X XX _
__0___0_0__
L_
03
0
E
•_ g__ o
0
_=
o_o o
-000 03 eo o
o
m _
o
o
m
m04 0') 00t43
OOmO3 03
03030303O3
0 0303030) 03
<
€/)
I
Z
0
z
0
00
t_
l-
<d
t_z
,,,d
17
l--
m
ILl
0
m
6
Z
..I
W
0
|
Ill
W
0
Z
I
_i
0
m
18
t_
F..
w
w
I',,,
d
Z
,,,JI
I,Ll
0
I
W
0
,,,J
0
z
0
w
I--
rt
m
0
LU
a
_z
_d
_z
0
n-
O
W
0
&
x
E "5 Go
(,.) .z_ r'_
vEE
(1) C ¢0¢t)
0') _ .
<-_o 0 _(_o ,I.,90
._ ..{:Z m '-I--' _- >" :._.-., _
o_0
.c: _ x _ > r- > ..:=,o ._>'_"_
N _ :T:::za m a
_ _ _ O_ 0_
_0_0___00_
_0_0_00_0_
0____0
o_o__R_
__0__ _
X X
0
b_ b
,.,-, (_ G9
0_-_
_-o_E x _-N x
8°,8zo>_
x
o_o_._ --
_._ _ 0 X
"t:J i11 _.
_ _._0 _ _0
_d _ _ _ _ _o
__0__0_0
_ _ _00_00_00
_0_0_0_0
__0_0__
19
CRAFTSMAN 4..CYCLE ENGHNE MODELNUMBER143.956000
,....... j=
12
2O
CRAFTSMAN 4-CYCLE ENGINE MODELNUMBER143.956000
REF PART
NO. NO.
1 36146
2 27652
6 36O59
7 36005A
9 590568
10 36002
11 36003
12 36001
14 28277
t5 36006
16 36006
17 31335
18 650548
19 36103
20 36010
25 36O11
26 650802
30 36111
40 36073
36074
36O75
41 36070
36071
36072
42
43
45
46
48
50
52
69
70
72
73
75
80
81
82
83
85
86
89
90
91
92
93
100
t01
103
110
t19
t20
125
126
130
135
150
151
36076
36077
36078
20381
36023A
32610A
36030
36031
29914
36032A
36033A
30572
28833
36010
30574A
30590A
30591
36057
36034
650924
611154
611155
611156
650815
650816
34443A
610118
650814
36054
36'119
36120
36471
36472
29314B
29315C
6021A
35395
31672
31673
REF PART
DESCRIPTION NO. NO.
Cylinder (Includes 2, 10, 20 & 125) t69 27234A
Dowel Pin 172 32755
Breather Element 174 30200
* Breather Cover & Gasket 177 650925
Screw #10_24 x 3/4 186 36009
Breather Valve Body 187 36035
Check Valve 190 36013
Breather Tube 191 36122
Flat Washer 192 36016
Governor Rod, Machined 193 36015
Governor Lever 194 36014
Governor Lever Clamp !95 610973
Screw #8-32 x 5/16 198 36017
Governor Spring t99 36018
202 36482
Oil Seal
Blower Housing Baffle Assembly 203 36482
(Includes Reference Number 195) 204 650549
Screw 1/4-20 x 5/8 205 650777
Crankshaft 215 36051
Piston, Pin, Ring Set, Standard 239 36048
Piston, Pin, Ring Set, _010 Oversize 240 36044A
Piston, Pin, Ring Set, .020 Oversize
Piston & Pin Assembly, Standard 243 650899
Piston & Pin Assembly, _0'10Over 245 36046
Piston & Pin Assembly, .020 Over 250 36154
(Assemblies Include Refo #43) 251 650928
Ring Set, Standard 255 36110
256 650983
Ring Set, .010 Oversize
Ring Set, .020 Oversize 260 36153
Piston Pin Retaining Ring 261 650737
Connecting Rod Assyo (Includes 46) 262 650929
Connecting Rod Bolt 263A 36156
275 36107
Valve Lifter
Camshaft (MCR) 276 36043
Oil Pump Assembly 277 650927
285 34449A
* Mounting Flange Gasket
Mounting Flange (Includes #72-85) 287 650926
Oil Drain Plug 290 34357
Drain Plug Gasket 292 26460
Oil Seal 299 650900
Governor Shaft 300 36066
Washer 301 35355
Governor Gear Assy,. 0ncludes 81) 305 36063
Governor Spool 307 35499
Idler Gear 308 36040
Screw 1/4-20 x 1-9/16 3t0 36064
Flywheel Key 346A 28763
347 650898
Flywheel
Flywheel Fan 350 36045
Belleville Washer 370A 36261
Flywheel Nut 370B 36155
Solid State Ignition 380 632671
Spark Plug Cover 390 590702
Screw, TorxT-15 #10-24 x 1 400 36121A
Ground Wire 416 36085
* Cylinder Head Gasket 417 65O760
Cylinder Head
Exhaust Valve, Standard
Exhaust Valve, 1/32" Oversize
Intake Valve, Standard
Intake Valve, 1/32" Oversize (All
Valves Include Reference #151)
Screw 5/16-18 x 1-1/2
Resistor Spark Plug (RJ19LM)
Valve Spring
Lower Valve Spring Cap 21
DESCRIPTION
Valve Spring Box Gasket
Valve Spring Box Cover
Screw #10-24 x 9/16
Carburetor Mounting Stud
Governor Link
Carburetor Mounting Spacer
Brake Lever Assembly
Brake Control Lever
Brake Control Lever Link
Brake Spring
Retaining Ring
Terminal Assembly
Brake Control Lever Spring
Brake Lever Bushing
Compression Spring
Compression Spring
Screw #5-40 x 7/16
Screw #6-32 x 21/32
Control Knob
Carburetor to Air Cleaner Gasket
Air Cleaner Body (Includes
Reference #239, 299 and 350)
Screw #10-32 x 2-3/32
Air Cleaner Filter
Air Cleaner Cover
Lock Nut 1/4-20
Control Plate
Screw #8-32 x 21/64
Blower Housing
Screw 1/4-20 x 1/2
Screw I/4-20 x '11/16
Starter G rill
Muffler
Locking Plate
Screw 5/6q8 x 2-11/32
Starter Cup
Screw #8-32 x 2t/64
Fuel Line
Fuel Line Clamp
"U" Type Nut Clip
Fuel Tank (Includes Refo #301)
Fuel Cap Assembly
Oil Fill Tube
"O" Ring
Fill Tube Clip
Dipstick
Screw #10-32 x 35/64
Screw #10-32 x 27/64
Primer
Lubrication Decal
Control Decal
Carburetor (Includes #187 and 239)
Rewind Starter
Gasket Set (Incl. All Items Marked*)
Spark Arrestor Kit (Includes
Reference Number 417) (Optional)
Screw #8-32 x 3/8 (Optional)
RPM Settings: Low: 2450-2750, High: 2900-3200
NOTE: This engine could have been built with 590637
Starter.. Refer to design of air intake louvers for part
identification,. Individual starter parts do not interchange°
NOTE: All component dimensions given in U.S,, inches
tinch = 2&4 mm
CRAFTSMAN 4--CYCLE ENGmNE MODELNUMBER143.956000
CARBURETOR NO. 632671 REF PART
NO. NO.
-- 632671
1 632539
5 632593
6 632541
7 650506
25 632675
25A 632701
27 632544
28 632543
29 632548
30 632551
31 632637
32 632672
33 632673
36 632674
37 632547
37A 632547
38 632545
38A 632545
39 632549
40 632676
47 632554
DESCRIPTION
Carburetor (Includes Reference
Number 184 of Engine Parts List)
Throttle Shaft & Lever Assembly
Dust Seal
Throttle Shutter
Throttle Shutter Screw
Float Bowl
Idle Restrictor
Float Shaft
Float
Float Bowl to Body Gasket
Inlet Needle, Seat & Seat Retainer
(includes Reference Number 3t)
Seat Retainer
Bowl Drain Screw
Bowl Drain Washer
Main Nozzle Tube
"O" Ring, Main Nozzle Tube
"O" Ring
Spring, Main Nozzle Tube
Spring
Float Bowl Retainer
Main Fuel Jet
Welch Plug, Idle Mixing Well
REWIND STARTER 590686 REF PART
NO. NO. DESCRIPTION
REWIND
_4
-590686 Recoil Starter, Complete
1 590599A Spring Pin (includes Reference #4)
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 590697 Brake Spring
6 590698 Starter Dog
7 590699 Dog Spring
8 590700 Pulley & Rewind Spring Assembly
tl 590703 Starter Housing Assembly
(40 Degree Grommet)
12 590535 Starter Rope (98" Long, 9/64" Dia,)
13 590701 Starter Handle
NOTE: All component dimensions given in U,S inches
1 inch = 2&4 mm
STARTER 590637 REF PART
NO. NO. DESCRIPTION
-- 590637 Recoil Starter
t 590599A Spring Pin (Includes Reference #4)
2 590600 Washer
3 590615 Retainer
4 590601 Washer
5 590598 Brake Spring
6 590616 Starter Dog
7 590617 Dog Spring
8 590618A Pulley Assembly (Includes
Reference Numbers 9 and 10)
9 590619 Rewind Spring
10 590620 Spring Cover
11 590638 Starter Housing Assembly
(40 Degree Grommet)
12 590535 Starter Rope (98" Long, 9/64" Dia,)
13 590452 Starter Handle
NOTE: All component dimensions given in UoSoinches
22 1inch = 2&4 mm
PROBLEM
Does not start
Loss of power
Poor cut - uneven
Excessive vibration
Starter rope hard to pull
Loss of drive
(Self-Propelled Mowing)
Grass catcher not filling
(If so equipped)
i, i r'l"lr_
Hard to push
CAUSE
1, Dirty a_rfilter
2 Out of fuel,
3, Stale fuel
4, Water in fuel
5, Spark plug wire is d{sconnected
6 Bad spark plug
7, Loose b_ade or broken blade adapter
8, Control barin released position
9. Control bar defective
1. Rear of lawn mower housing/blade dragging
in heavy grass
2, Cutting too muchgrass,
3, Dirty air filter,
4, Buildup of grass, leaves and trash under mower,
5 Too much oil in engine,
6. Walking speed too fast
1, Worn, bent orloose blade,
2 Wheel heights uneven.
3 Low engine speed.
4 Buildup of grass, leaves, and trash under mower
t. Worn, bent orloose blade
2 Bent engine crankshaft
1,, Engine flywheel brake is on when control bar is
released.
2 Bent engine crankshaft
3 Blade adapter broken
4, Blade dragging in grass,,
1 Drive wheels not turning with drive control engaged,,
2. Belt not driving,
i i ijl,,,i ± J_.......
t Cutting height too low,
2Lift on blade worn off
3, Catcher not venting atr
4 Low engine speed
1.
2
3,
4,,
Grass is too high or wheel height is too low
Rear of tawn mower housing/blade dragging
in grass
Grass catcher too full
Handle height position not right for you
CORRECTION
1. Clean/replace air filter,
2, Fill fuel tank,,
3 Drain tank and refill with fresh clean fuel
4 Drain fuel tank and carburetorand refill tank with fresh
gasoline
5, Connect wire to plug
6,, Replace spark plug
7 Ttghten blade bott or replace blade adapter
B Depress control bar to handle
9 Replace control bar
1, Set in "Higher Cut" position,,
2. Set in "Higher Cut" position
3CleanfrepEace air filter,
4 Clean underside of mower housing,,
5.. Check oil revel
6, Cut at slower walking speed
i .................i,,,,,i,,
t Replace blade Tighten blade bolt
2, Set al( wheeSs at same height
3, Set engine speed control in fast position,,
4., Clean underside of mower housing,
1Replace blade, Tighten blade botL
2 Contact an authorized service center/department
1 Depress control bar to upper handle before
pulting starter rope,
2, Contact an authorized service center/department
3. Rep{ace blade adapter,,
4_ Move Iawn mower to cut grass or to hard surface
to start engine,
1 Adjust or replace drive control cable, if broken.,
2 Put belt on pufleys or replace belts if broken
1. Raise cutting height,,
2 Repiace blade
3, Clean grass catcher
4. Set engine speed control in fast position,
! Raise cutting height
2. Raise rear of lawn mower housing one (1)
setting higher,
3 Emptygrass catcher,
4 Adjust handle height to suit
23
SEA/RS
OWNER'S
MANUAL
MODEL NO.
917.372810
IF YOU NEED
REPAIR SERVICE
OR PARTS:
FOR REPAIR SERVICE, CALL
THIS TOLL FREE NUMBER:
1-800-4-REPAIR
(1-800-473-7247)
FOR REPLACEMENT PARTS
INFORMATION AND
ORDERING, CALL THIS
TOLL FREE NUMBER:
1-800-FON-PART
(1-800-366-7278)
6.0 HORSEPOWER
22" SiDE DISCHARGE
POWER PROPELLED
3IN ONE CONVERTIBLE
ROTARY LAWN MOWER
Each lawn mower has its own model number° Each en-
gine has its own model number.
The model number for your lawn mower will be found on a
decal attached to the rear of the lawn mower housing.
The model number' for your engine will be found on the
blower housing of the engine_
All parts listed herein may be ordered from any Sears,
Roebuck and Co. Service Center/Department and most
Retail Stores,
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
* PRODUCT- LAWN MOWER
°MODEL NUMBER -917.372810
°ENGINE -CRAFTSMAN - MODEL NO. 143.956000
°PART NUMBER
° PART DESCRIPTION
Your Sears merchandise has added value when you
consider Sears has service units nationwide staffed with
Sears trained technicians_, professional technicians
specifically trained to insure that we meet our pledge to
you, we service what we sefl_
24
