SW/A/R8

MODEL NUMBER 917.376210 OWNER'S MANUAL

oAssembly

oOperation

oCustomer

Responsibilities

oService

oAdjustments

oRepair Parts

Caution:

Read and Follow

all Safety Rules

and Instructions

Before Operating

This Equipment

154137 3_19.96 TR Printed in UoS.A,

- ................................................................................................, i!l

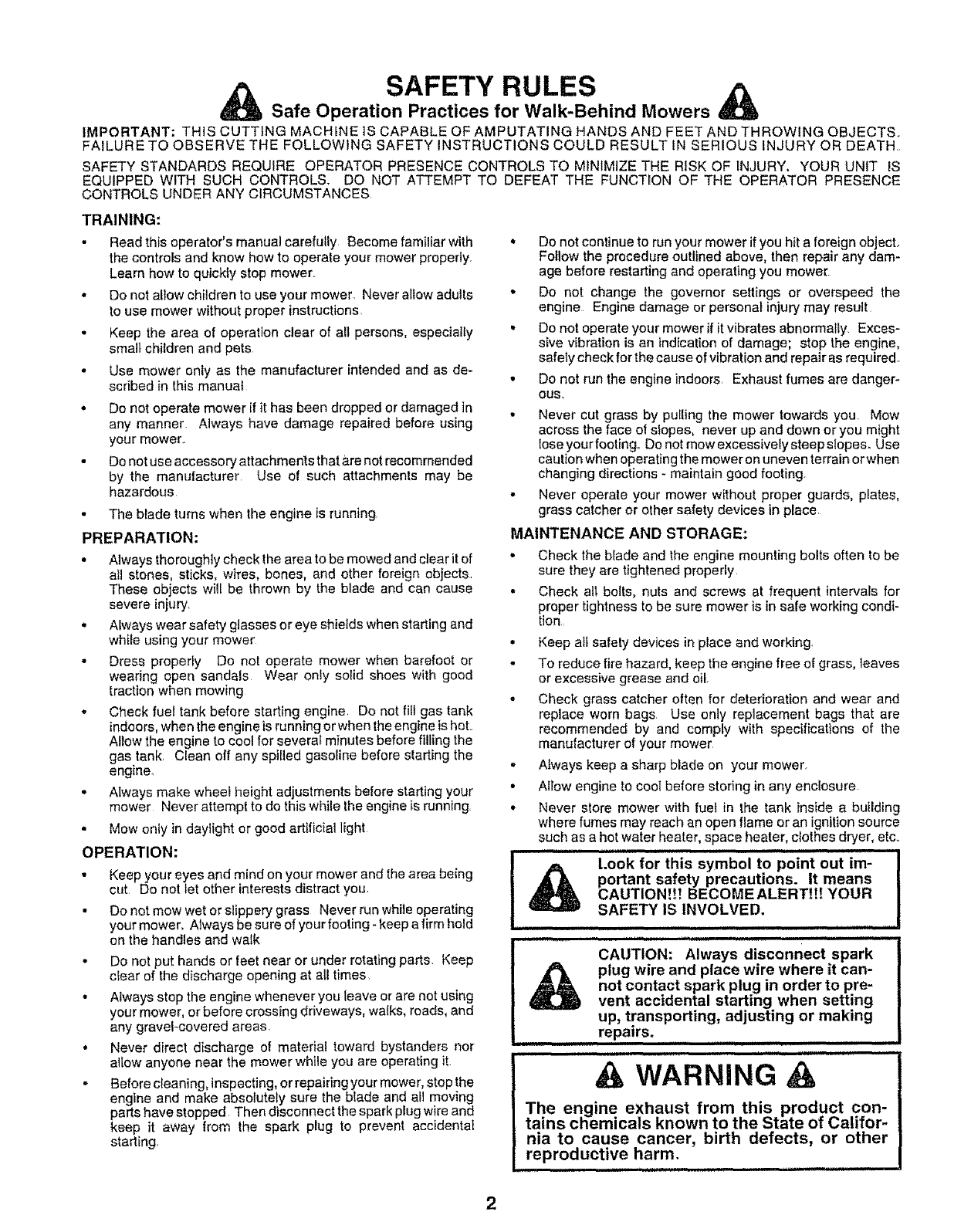

SAFETY RULES

Safe Operation Practices for Walk-Behind Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS,.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH

SAFETY STANDARDS REQUIRE OPERATOR PRESENCE CONTROLS TO MINIMIZE THE RISK OF INJURY, YOUR UNIT IS

EQUIPPED WITH SUCH CONTROLS. DO NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE

CONTROLS UNDER ANY CIRCUMSTANCES

TRAINING:

• Read this operator's manual carefully Become familiar with

the controls and know how to operate your mower properly,

Learn how to quickly stop mower,.

,, Do not allow children to use your mower, Never allow adults

to use mower without proper instructions,

• Keep the area of operation clear of all persons, especially

small children and pets

° Use mower oniy as the manufacturer intended and as de-

scribed in this manual

• Do not operate mower if it has been dropped or damaged in

any manner. Always have damage repaired before using

your mower,.

• Do not use accessory attachments that are not recommended

by the manufacturer Use of such attachments may be

hazardous

•The blade turns when the engine is running,

PREPARATION:

•Always thoroughly check the area to be mowed and ctear it of

all stones, sticks, wires, bones, and other foreign objects

These objects will be thrown by the blade and can cause

severe injury,

° Always wear safety glasses or eye shields when starting and

while using your mower

• Dress properly Do not operate mower when barefoot or

wearing open sandals Wear only solid shoes with good

traction when mowing

- Check fuel tank before starting engine. Do not fill gas tank

indoors, when the engine is running or when the engine is hot..

Allow the engine to cool for several minutes before filling the

gas tank. Clean off any spilled gasoline before starting the

engine.

• Always make wheel height adjustments before starting your

mower Never attempt to de this while the engine is running

• Mow only in daylight or good artificial light

OPERATION:

• Keep your eyes and mind on your mower and the area being

cut Do not let other interests distract you_

• Do not mow wet or slippery grass Never run while operating

your mower. Always be sure of your footing - keep a firm hold

on the handles and walk

• Do not put hands or feet near or under rotating parts. Keep

clear of the discharge opening at all times.

• Always stop the engine whenever you leave or are not using

your mower, or before crossing driveways, walks, roads, and

any gravel_covered areas.

° Never direct discharge of material toward bystanders nor

altow anyone near the mower while you are operating it

,' Before cleaning, inspecting, or repairing your mower, stop the

engine and make absolutely sure the blade and all moving

parts have stopped Then disconnect the spark plugwire and

keep it away from the spark plug to prevent accidental

starting.

•Do not continue to run your mower if you hit a foreign object,

Follow the procedure outlined above, then repair any dam-

age before restarting and operating you mower

• Do not change the governor settings or overspeed the

engine Engine damage or personal injury may result

• Do not operate your mower ifitvibrates abnormally, Exces-

sive vibration is an indication of damage; stop the engine,

safely check for the cause of vibration and repair as required

• Do not run the engine indoors Exhaust fumes are danger-

OUS,

• Never cut grass by pulling the mower towards you Mow

across the face of slopes, never up and down oryou might

loseyourfooting, Do not mowexcessivelysteepslopeso Use

caution when operating the mower on uneven terrain orwhen

changing directions - maintain good footing,

• Never operate your mower without proper guards, plates,

grass catcher or other safety devices in place,

MAINTENANCE AND STORAGE:

• Check the blade and the engine mounting bolts often to be

sure they ere tightened properly

• Check all bolts, nuts and screws at frequent intervals for

proper tightness to be sure mower is in safe working condi-

tion

inll IHHlU, nnll I i,,nl,i n

WARNING &

Keep all safety devices in place and working.

To reduce fire hazard, keep the engine free of grass, leaves

or excessive grease and oil.

Check grass catcher often for deterioration and wear and

replace worn bags Use only replacement bags that are

recommended by and comply with specifications of the

manufacturer of your mower

Always keep a sharp blade on your mower_

Allow engine to cool before storing in any enclosure

Never store mower with fue! in the tank inside a building

where fumes may reach an open flame or an ignition source

such as a hot water heater, space heater, clothes dryer, etc,.

n iin ii,ll n iiiwll,i innnnll

Look for this symbol to point out ira- I

portent safety precautions, it means i

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

i H luHnHI nHi

I hill ,H nl i ,n,ll,

CAUTION: Always disconnect spark

plug wire and place wire where it can-

not contact spark plug in order to pre-

vent accidental starting when setting

up, transporting, adjusting or making

repairs. i iHnllu,

The engine exhaust from this product con-

tains ctlemicals known to the State of Califor-

nia to cause cancer, birth defects, or other

reproductive harm,

i,in,..,m nl

CONGRATULATIONS on yourpurchaseof aSears Lawn

Mower.. It has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance,

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service Center/Departmento We have competent, wetl-

trained technicians and the proper tools to service or repair

this lawn mower.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your lawn mower

properfy. Always observe the "SAFETY RULES",

MODEL

NUMBER 917_376210

SERIAL

NUMBER

DATEOFPURCHASE

THE MODEL AN D SERIAL NUMBERS WiLL BE FOUND

ON A DECAL ATTACHED TO THE REAR OF THE

LAWN MOWER HOUSING

YOUSHOULDRECORDBOTHSERIALNUMBERAND

DATE OFPURCHASE AND KEEPIN A SAFE PLACE

FOR FUTURE REFERENCE..

PRODUCT SPECIFICATIONS

HORSEPOWER: 6 0

-D_PLACEMENT: 11.5 CU IN..

GASOUNE CAPACITY 1.6 QUARTS

AND TYPE: UNLEADED REGULAR

OIL TYPE (APt-SF/SG): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OiL CAPACITY: 20 OZS

SPARK PLUG: CHAMPION J19LM, RJ19LM

(GAP: .030") STD361458

VALVE CLEARANCE: INTAKE: 005-.007

EXHAUST: .007-.009

SOLID STATE IGNtTION

AIR GAP: .0!25 IN..

BLADE BOLTTORQUE: 35-40 FT LBS

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this product. Contact your nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

,Read and observe the safety rutes.

o Follow a regular schedule in maintaining, caring for and using your lawn mower

° FoIIow the instructions under "Customer ResponsibiIities" and "Storage" sections of this owner's manual

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two (2) years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up

according to the operating and maintenance instructions in the owner's manual, Sears win repair free of charge any

defect in material or workmanship..

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days from

the date of purchase.

This Warranty does not cover:

°Expendable items which become worn during normal use, such as rotary mower blades, btade adapters, belts,

air cleaners and spark plug..

•Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain

the equipment according to the instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAREST

SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE

THIS PRODUCT IS IN USE IN THE UNITED STATES..

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state..

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

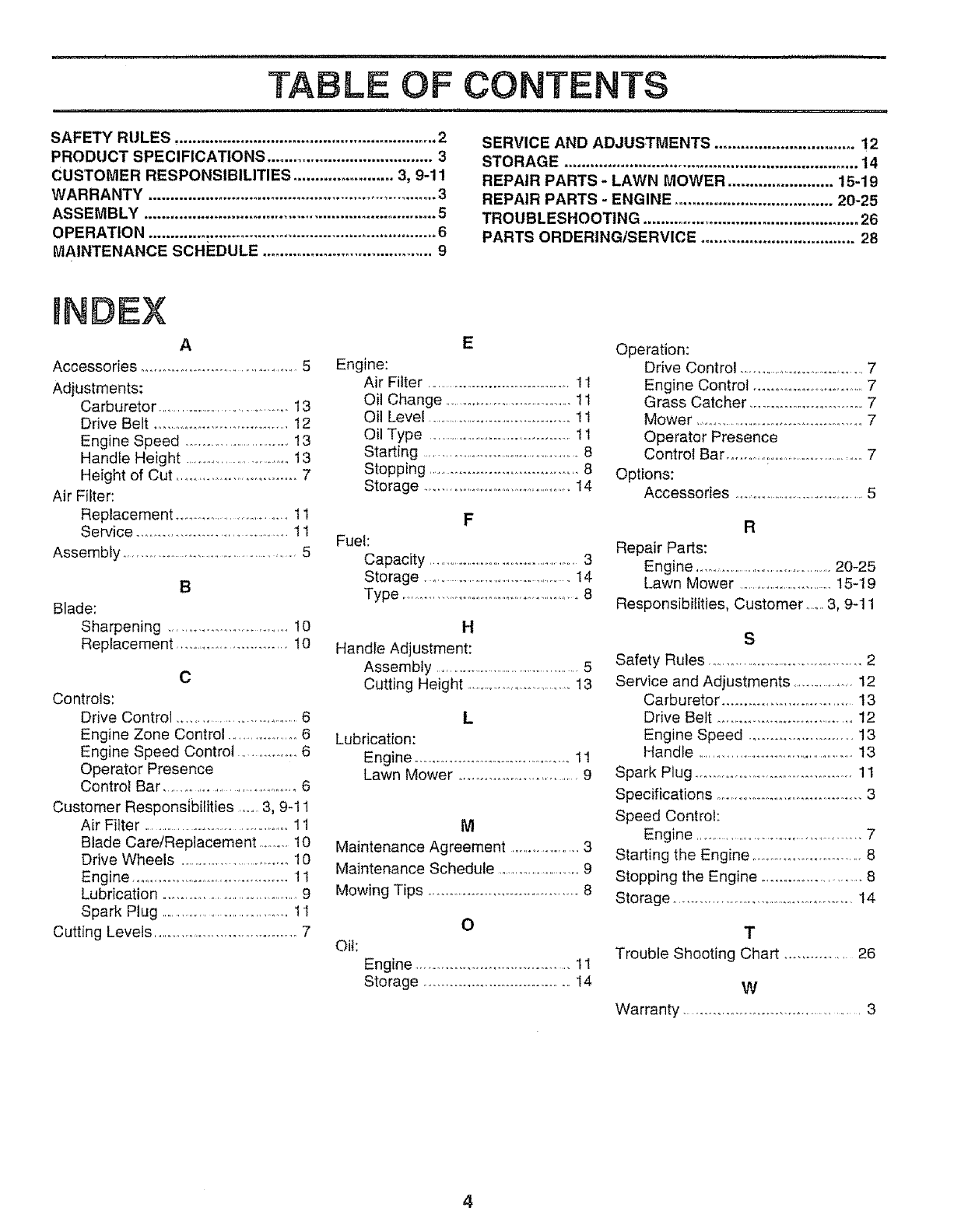

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ....................... 3, 9-11

WARRANTY .................................................................. 3

ASSEMBLY ................................................................... 5

OPERATION .................................................................. 6

MAINTENANCE SCHEDULE ....................................... 9

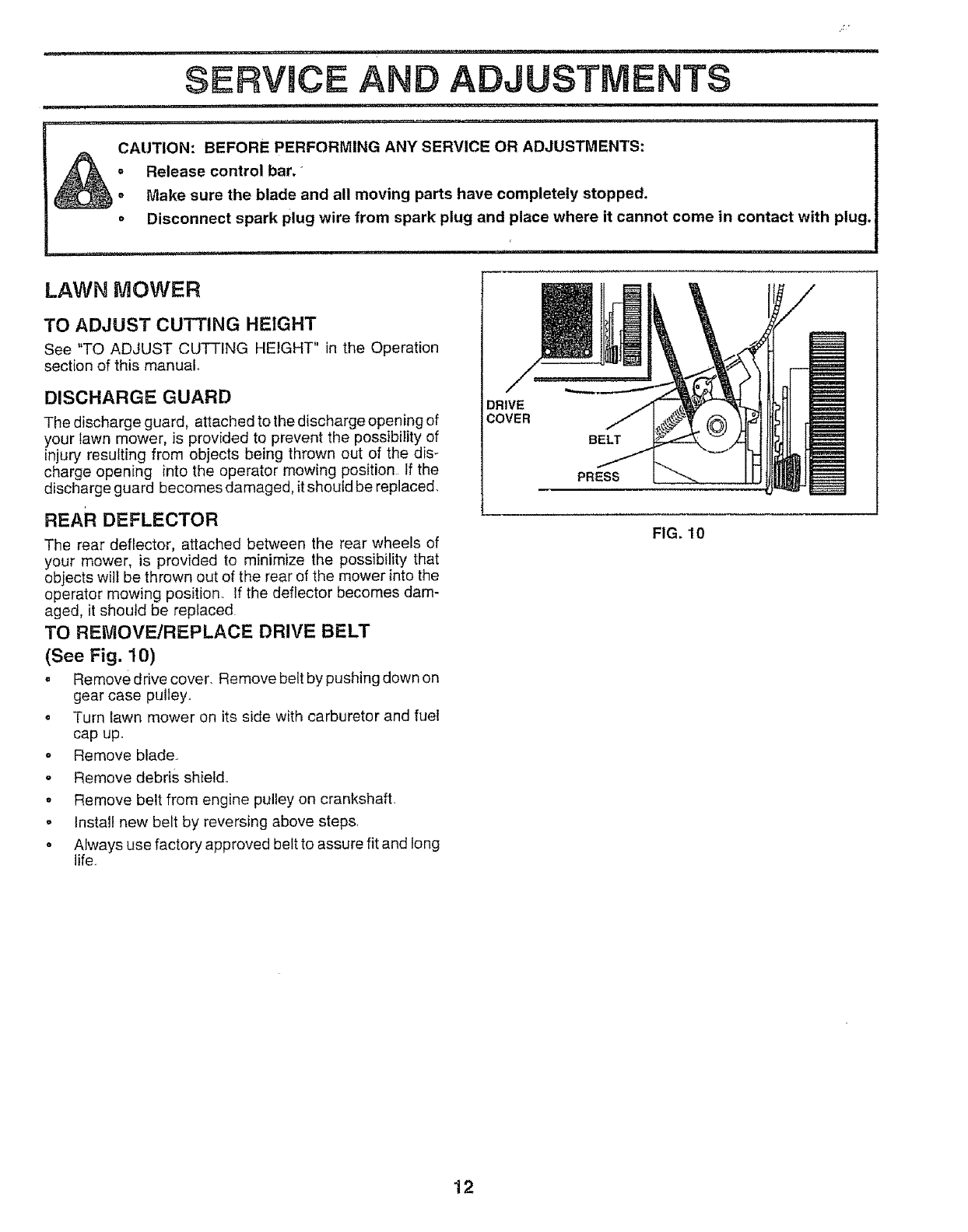

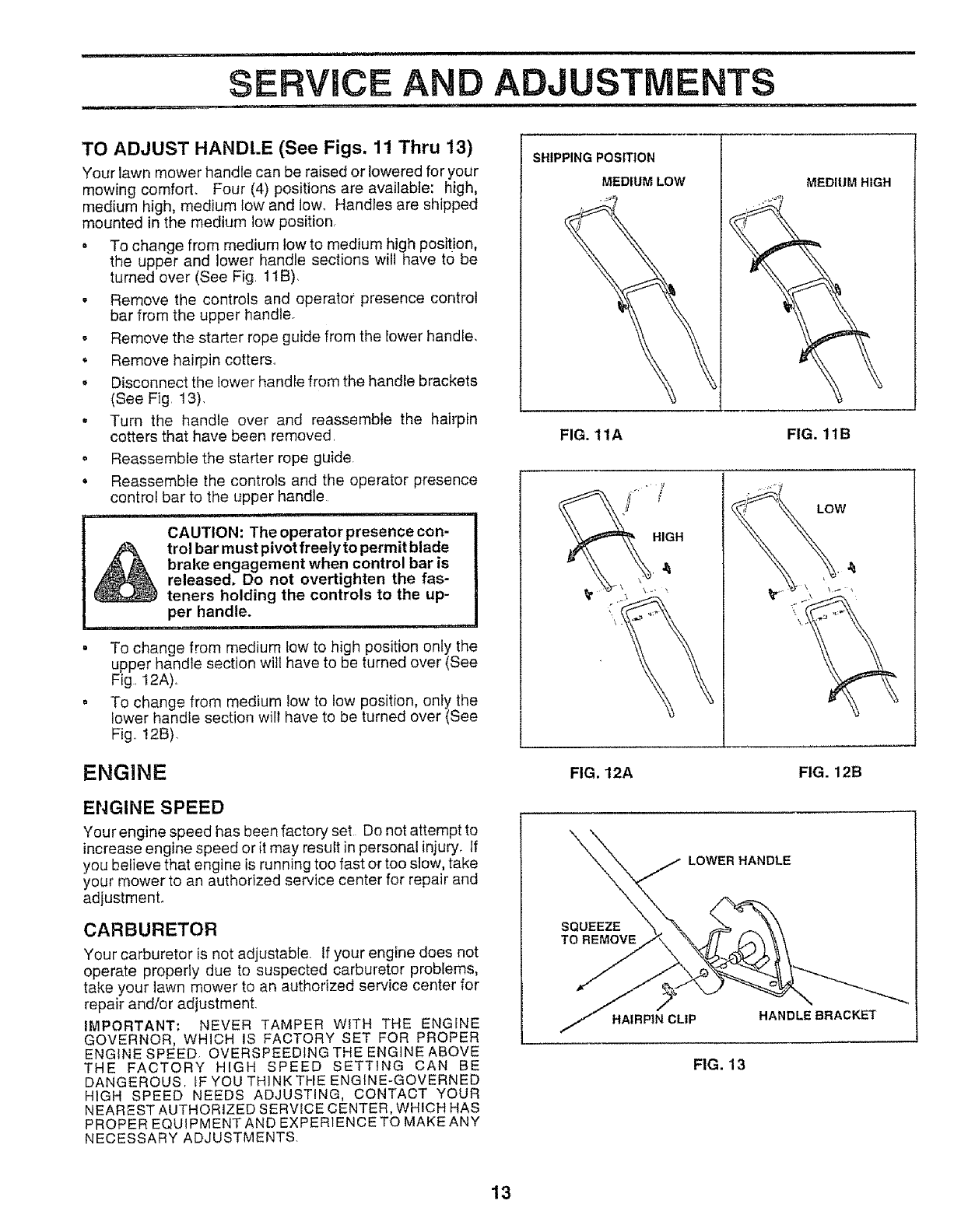

SERVICE AND ADJUSTMENTS ................................ !2

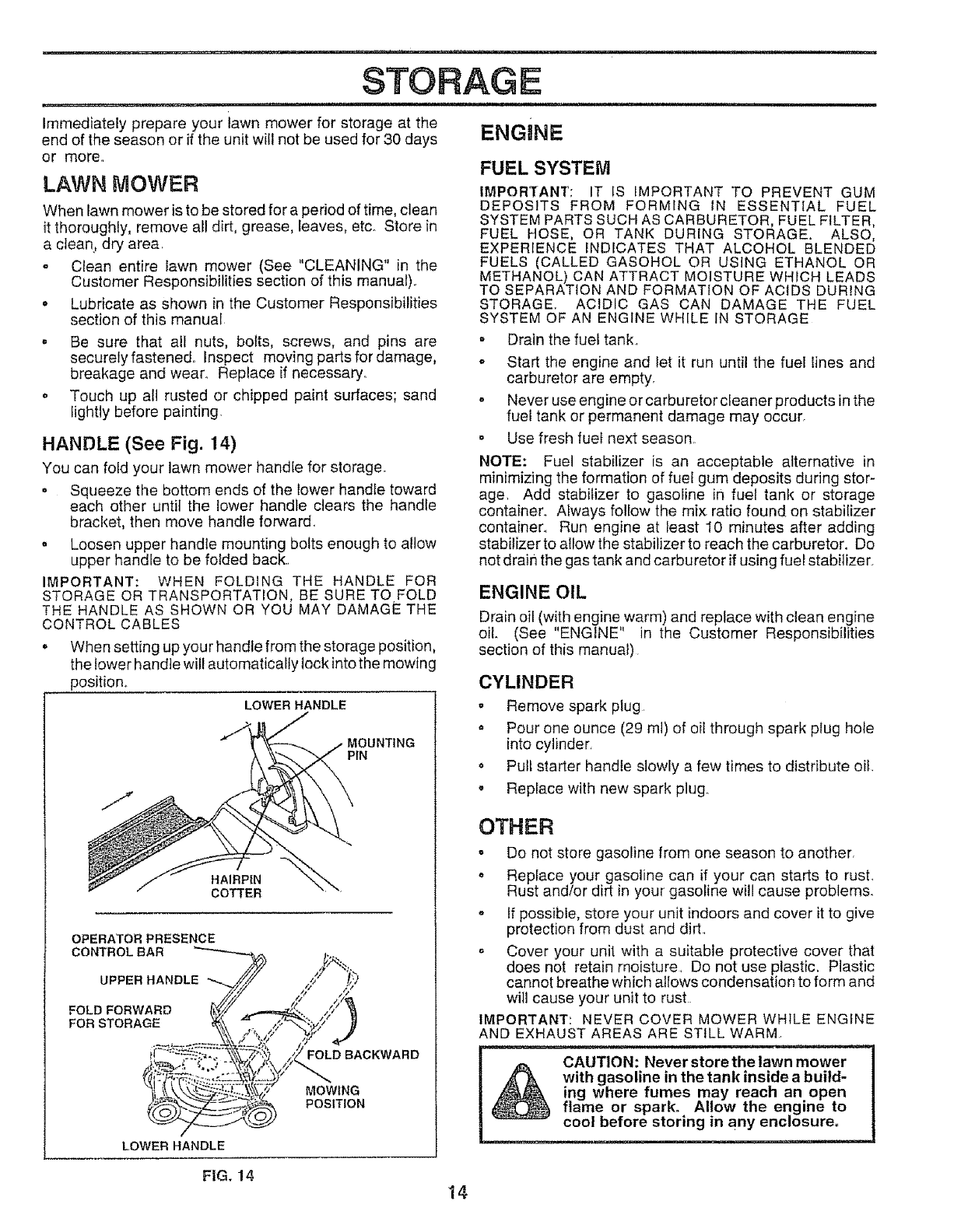

STORAGE ................................................................... 14

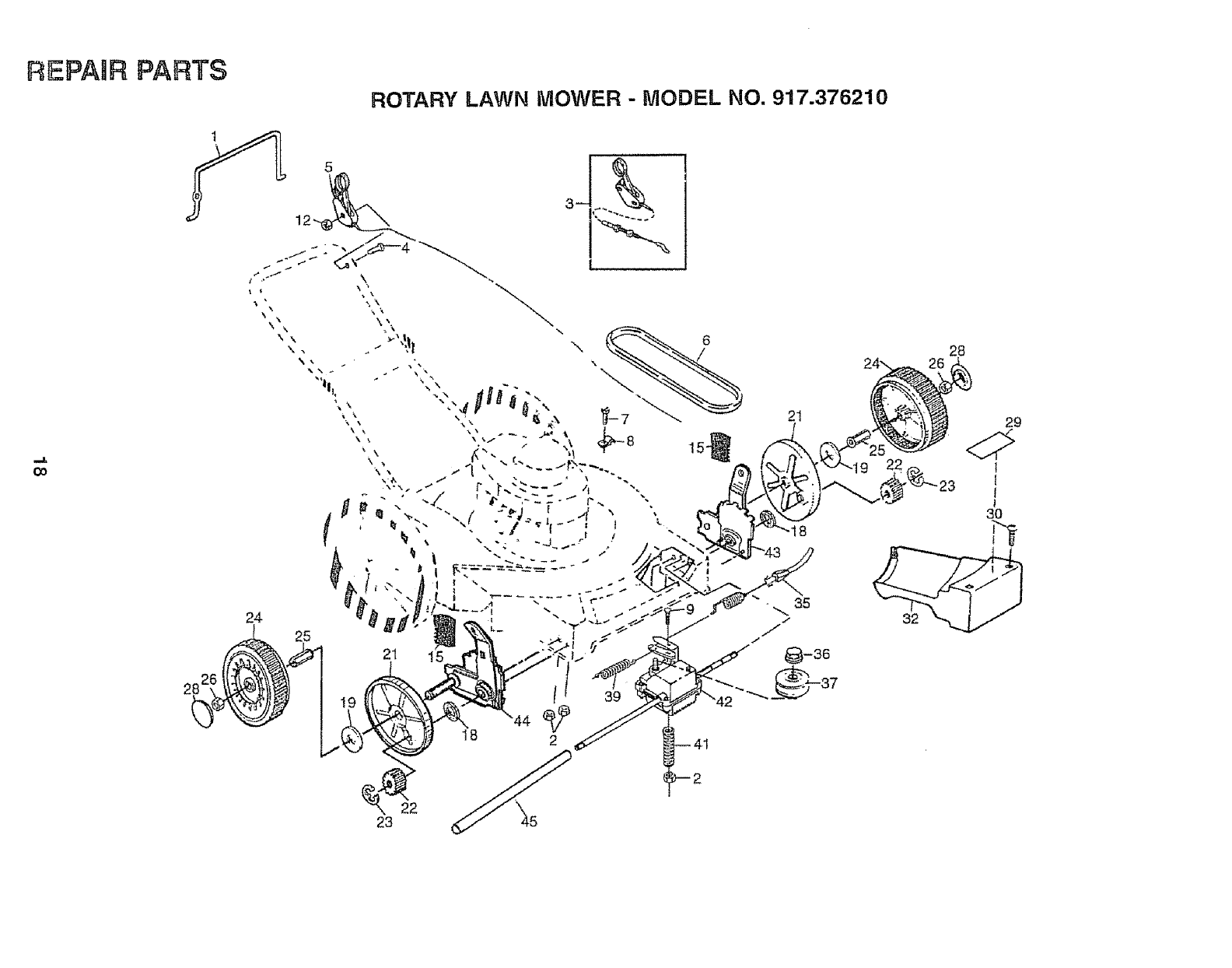

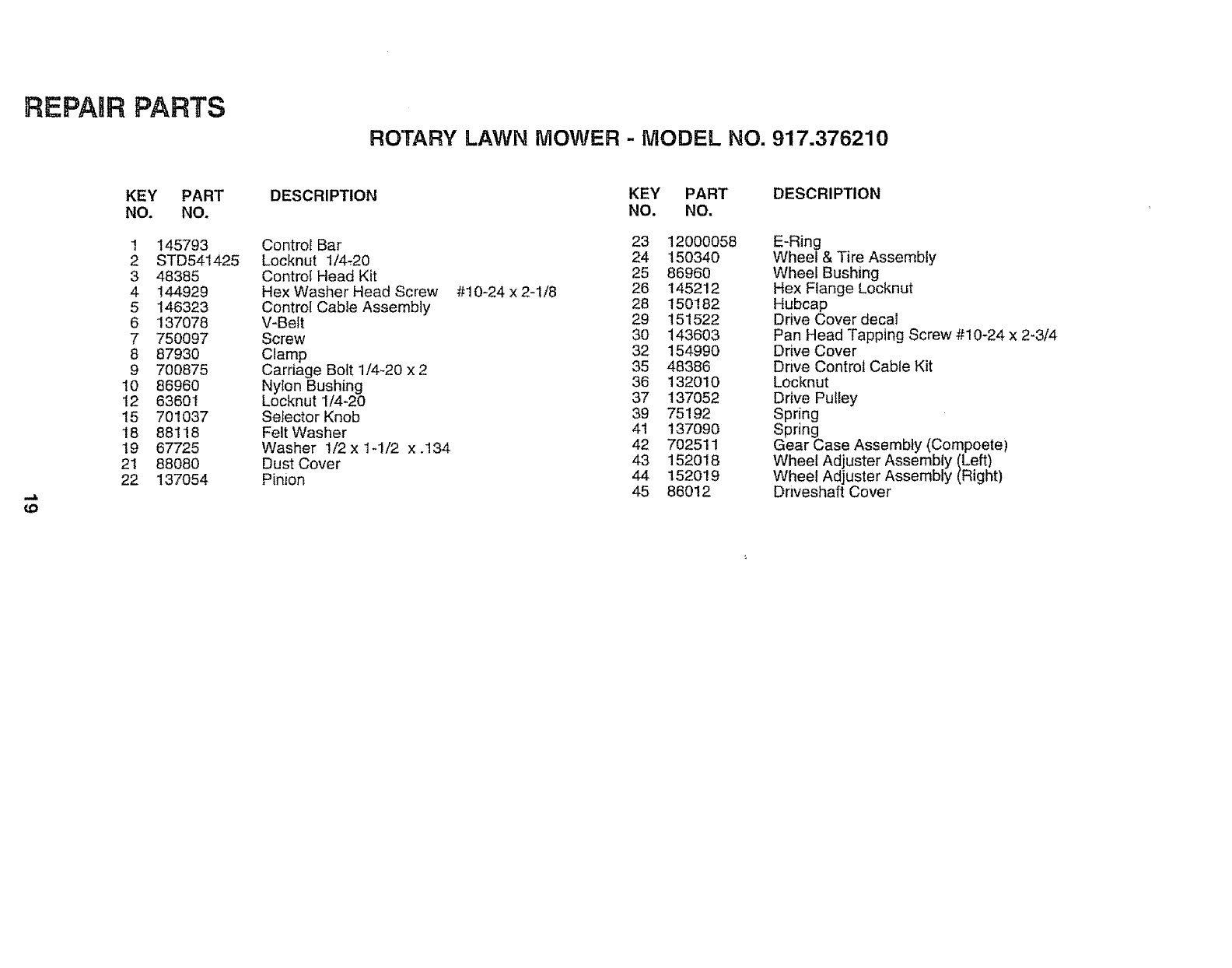

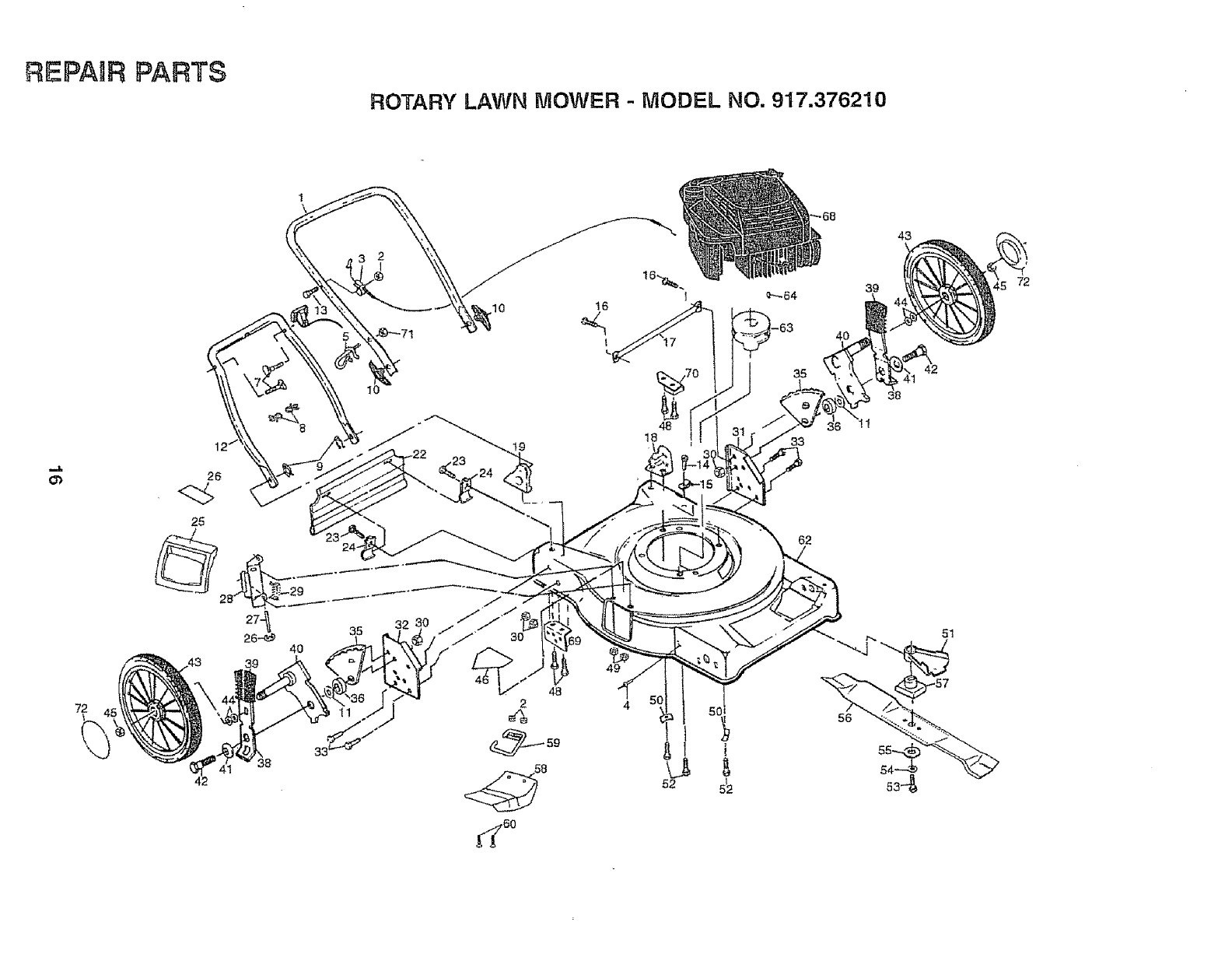

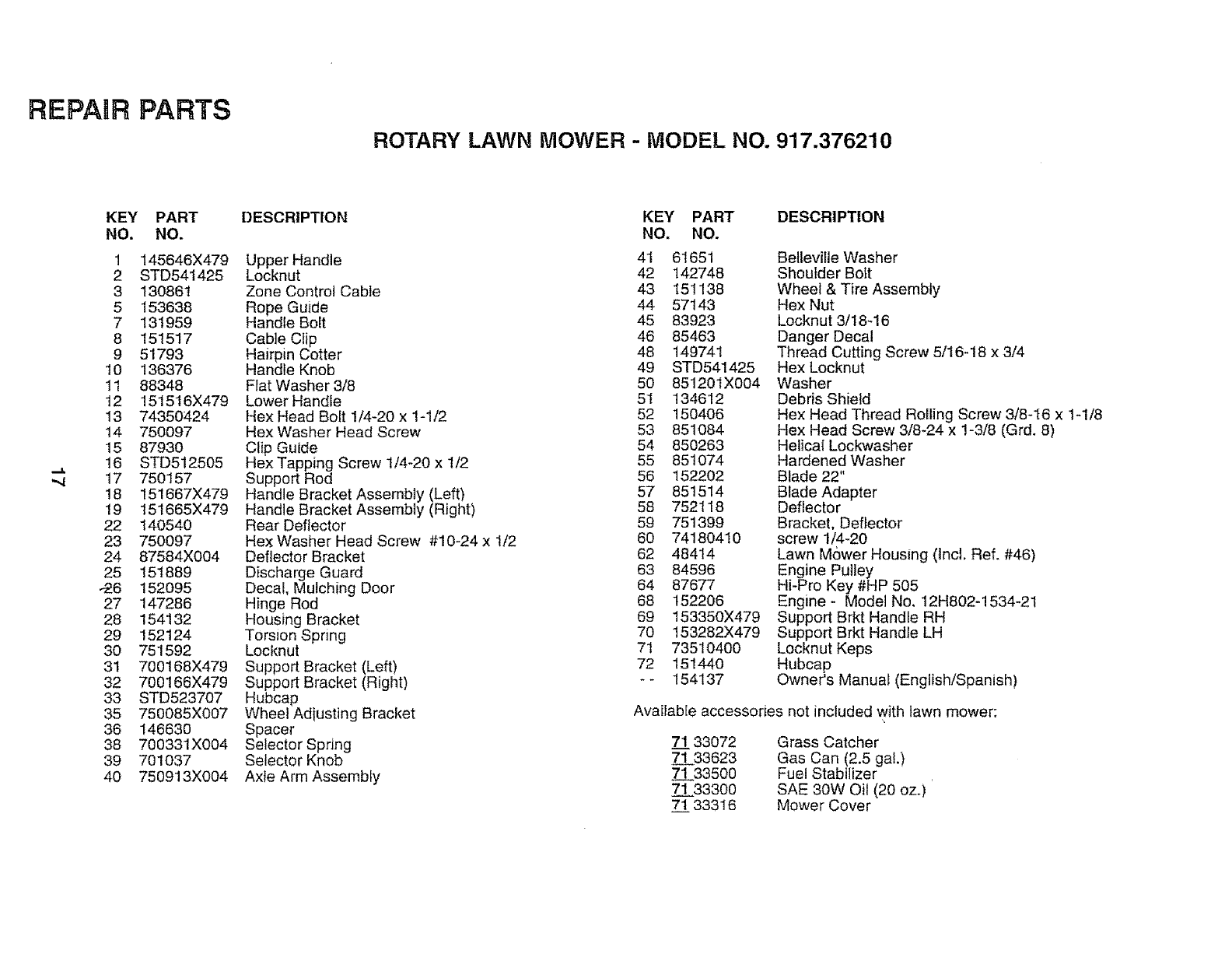

REPAIR PARTS - LAWN MOWER ........................ 15-19

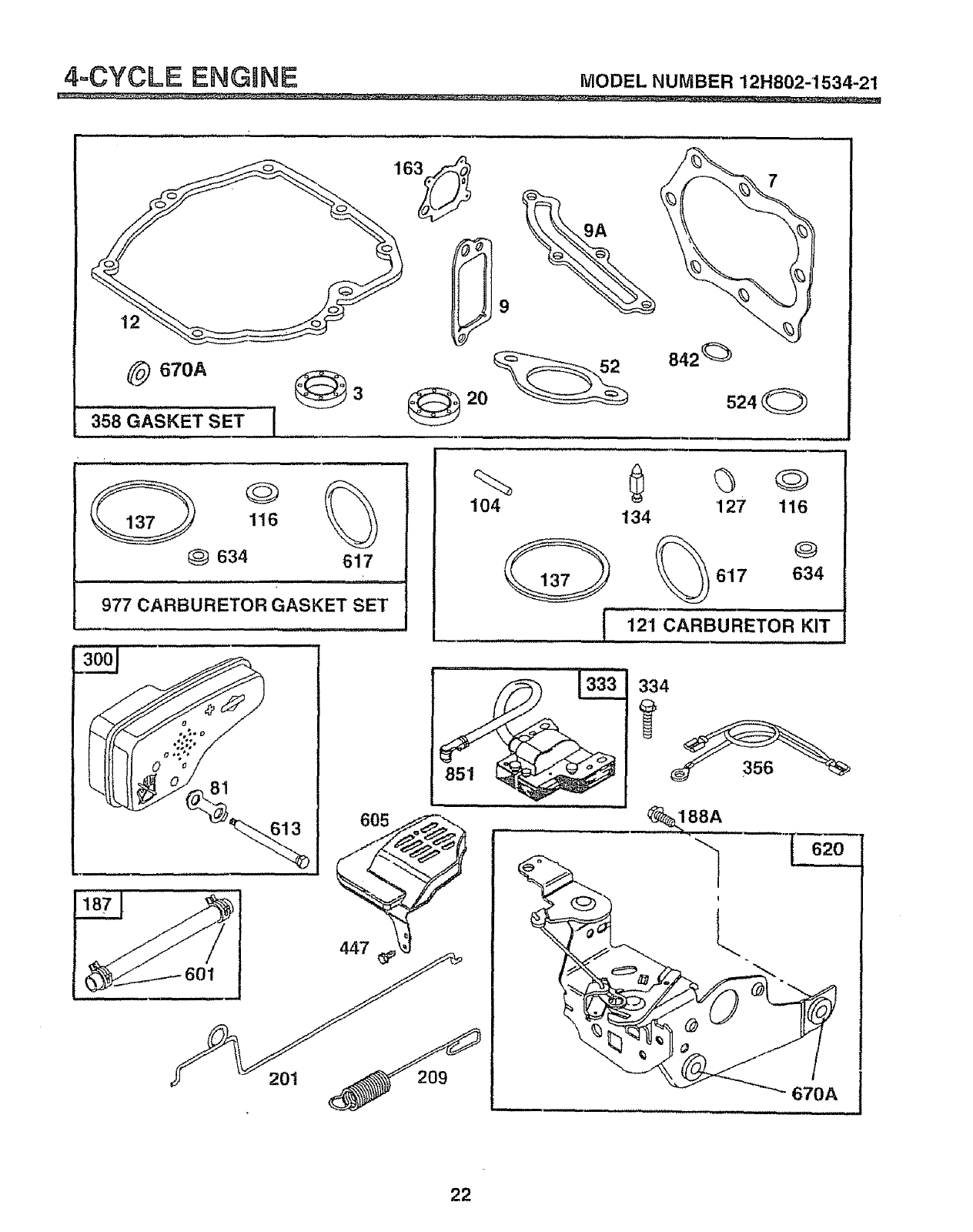

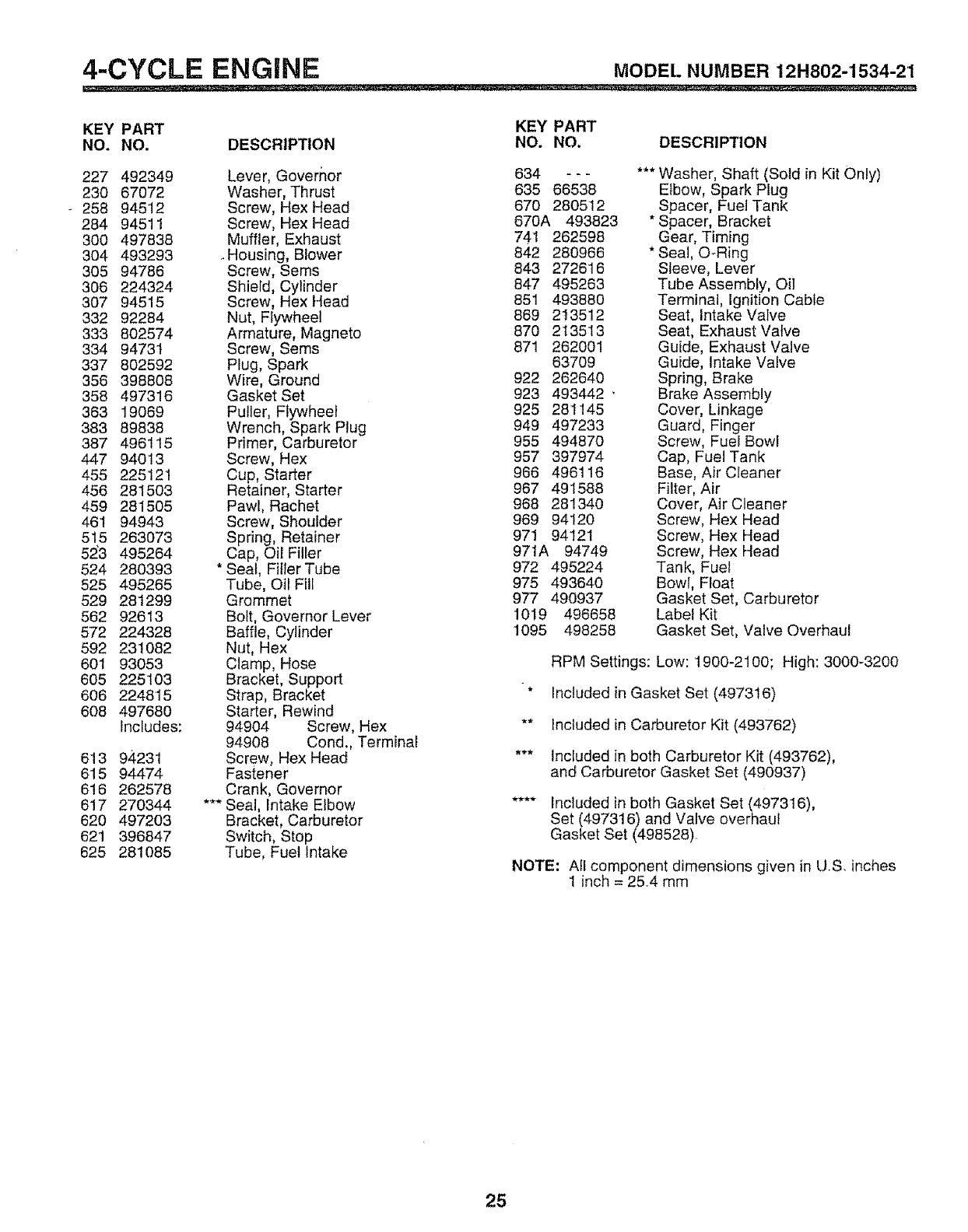

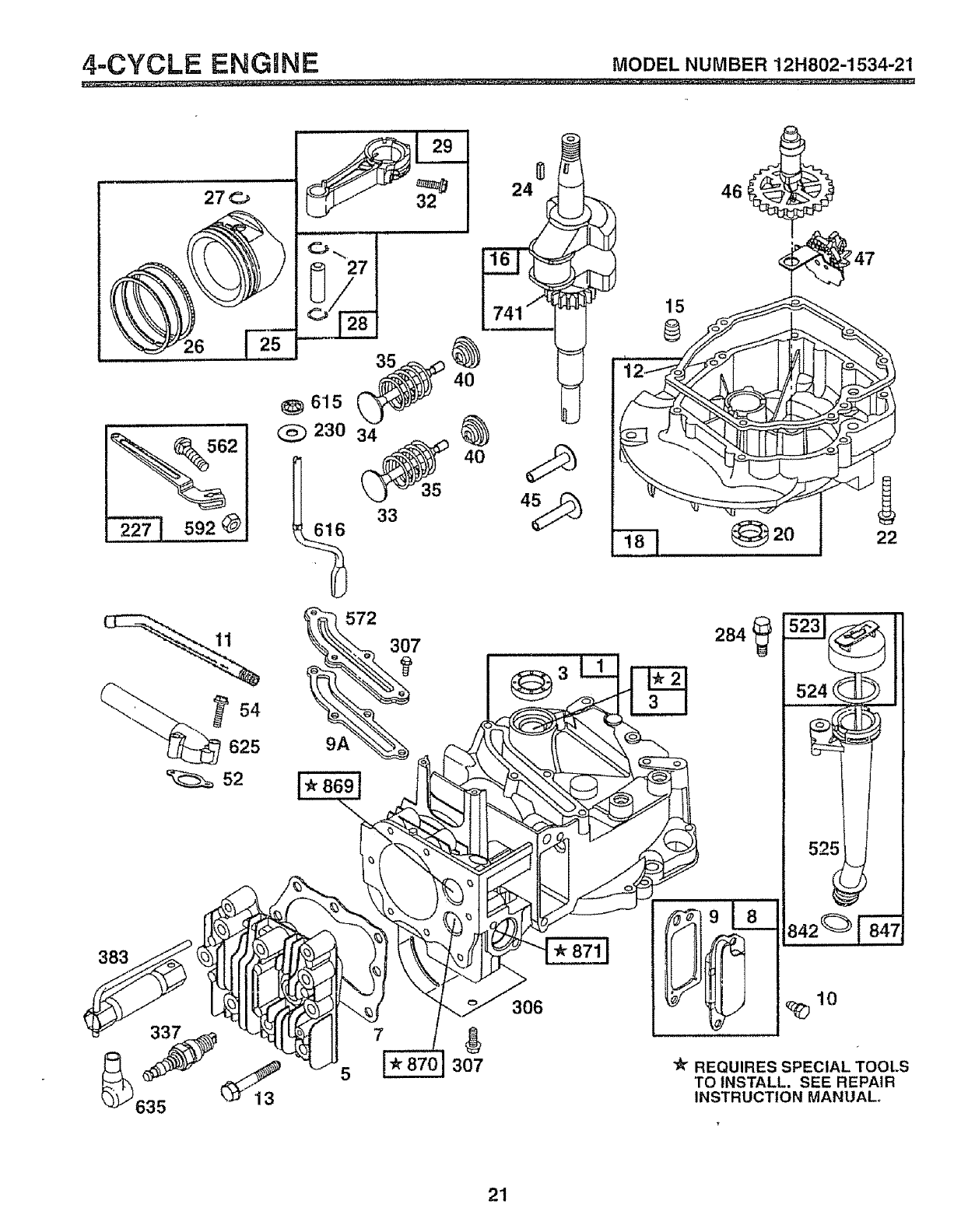

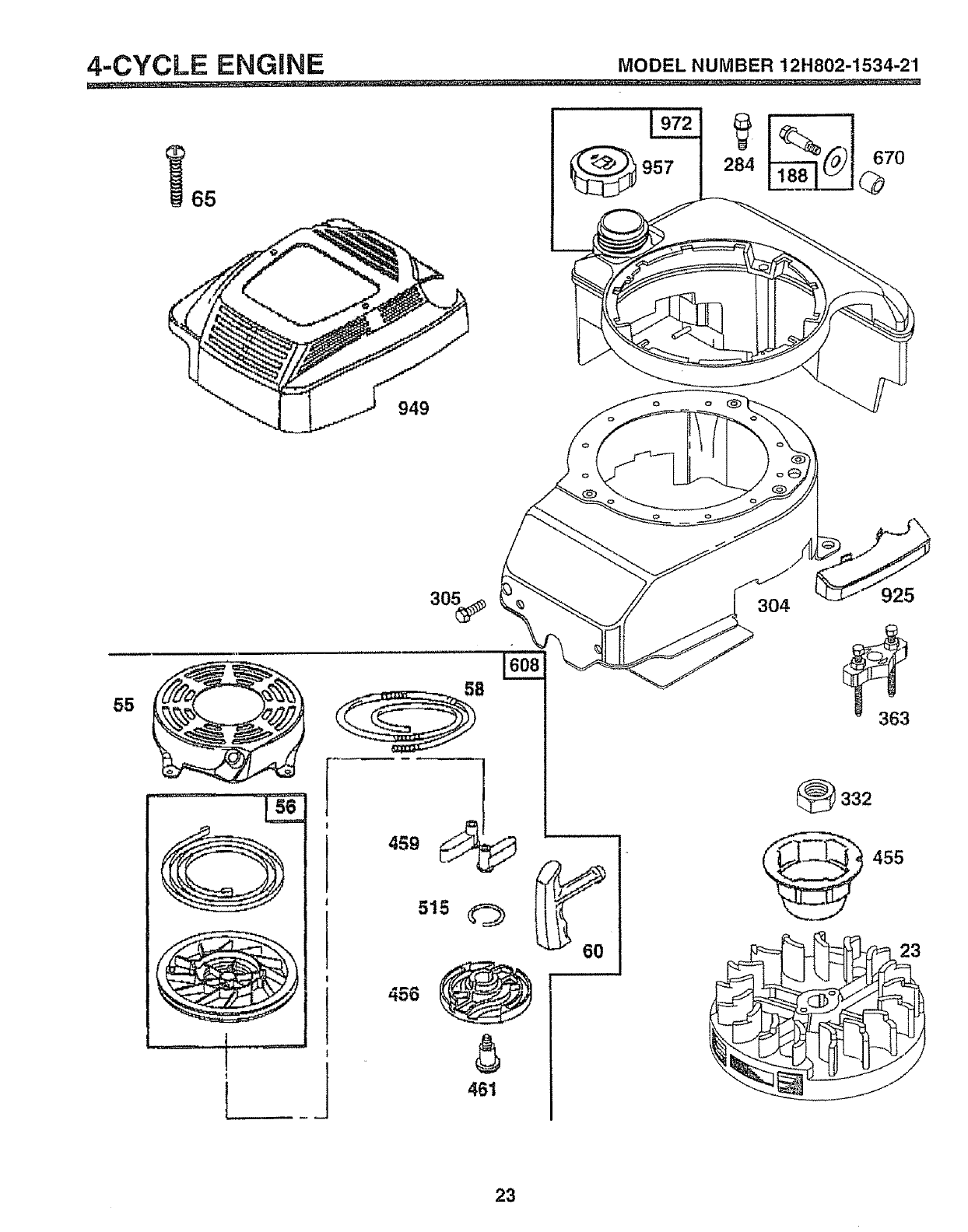

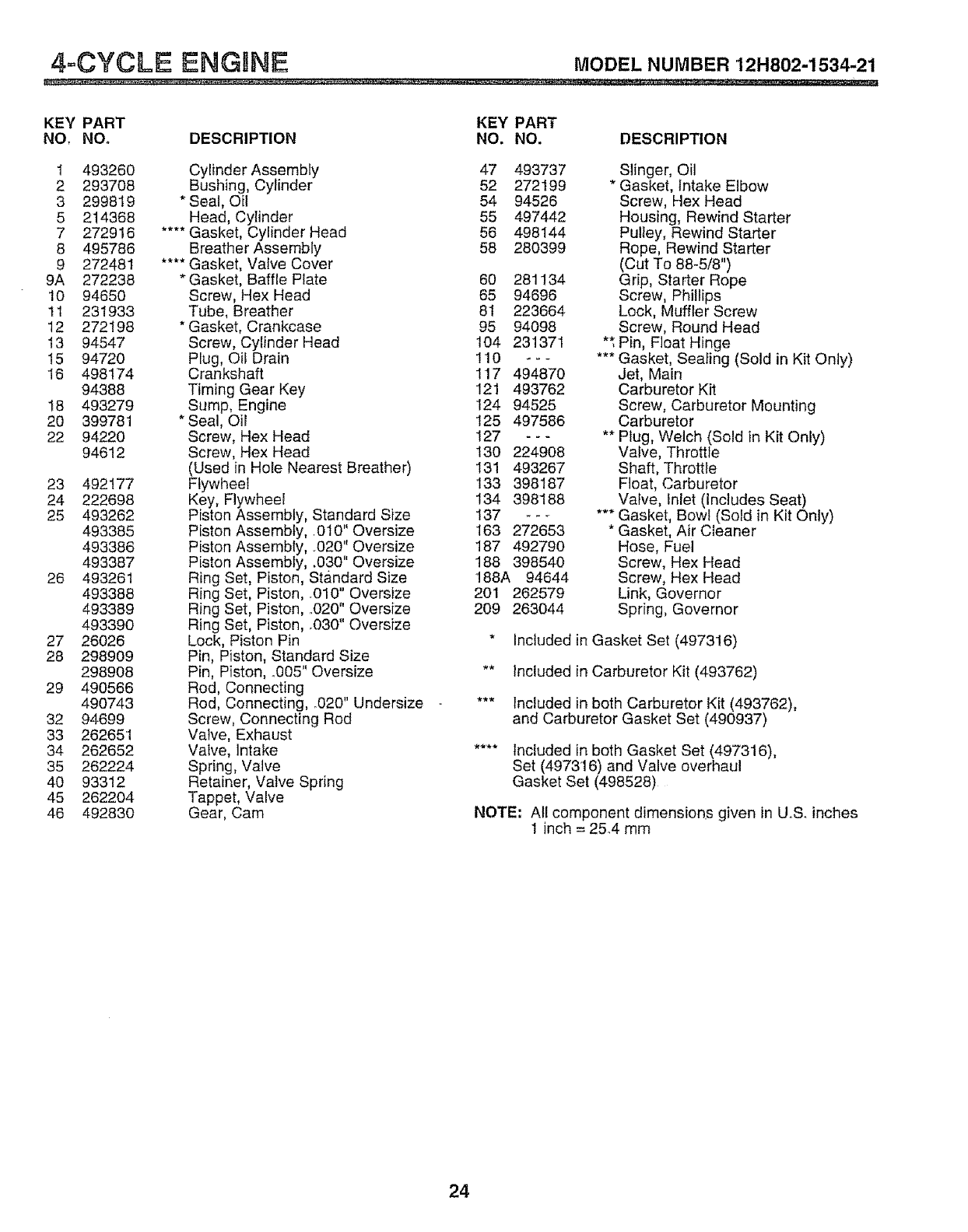

REPAIR PARTS -ENGINE .................................... 20-25

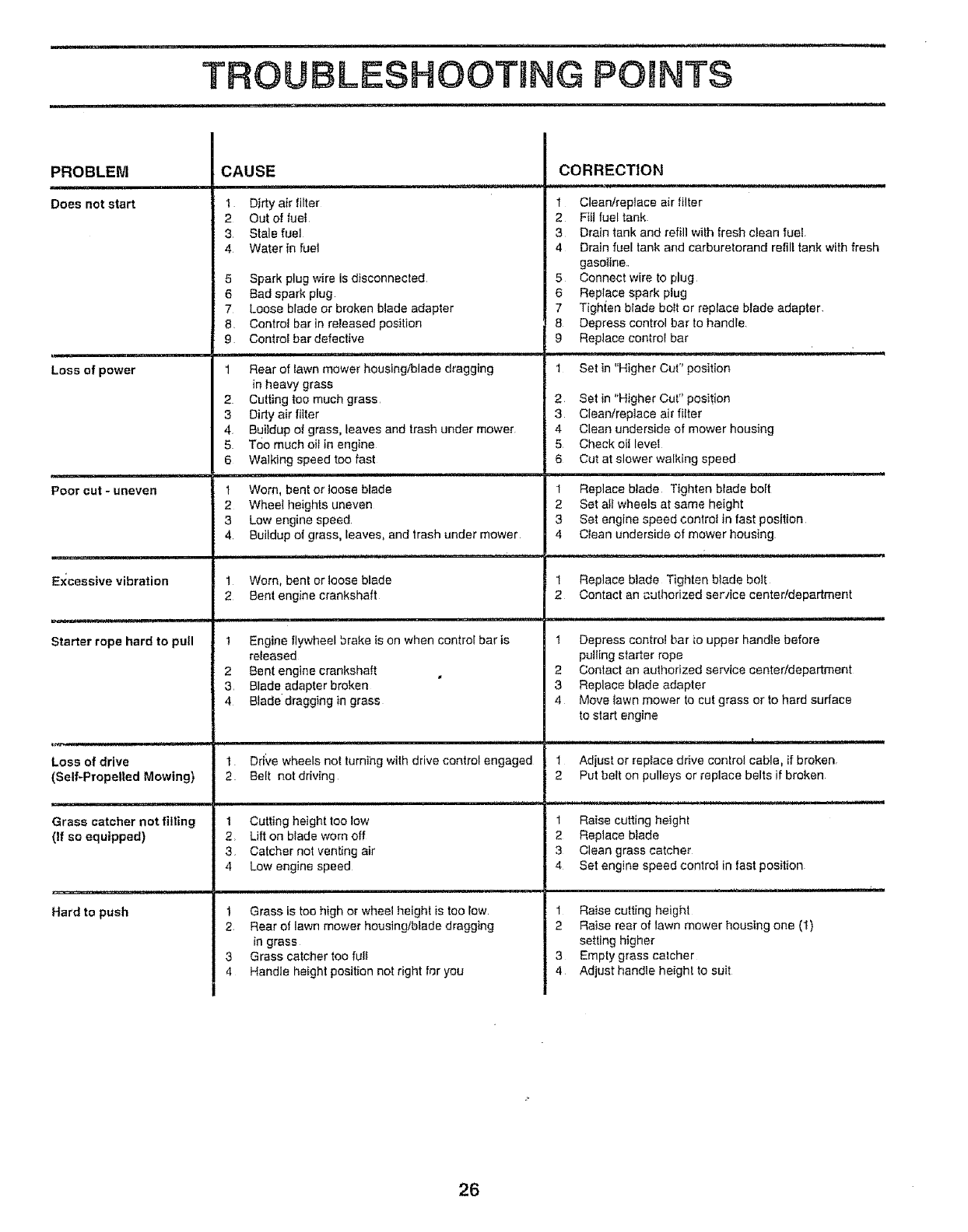

TROUBLESHOOTING ................................................. 26

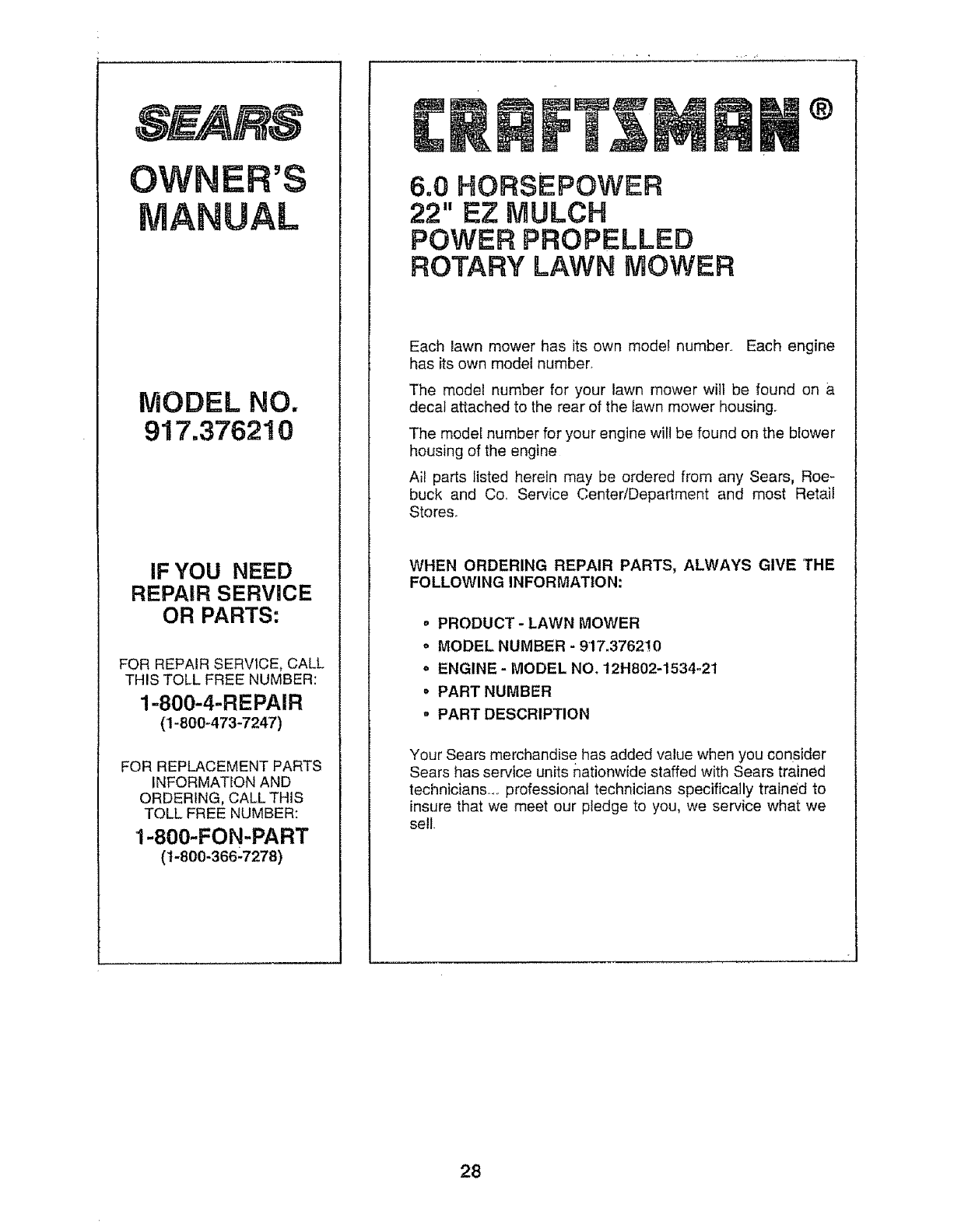

PARTS ORDERING/SERVICE ................................... 28

Blade:

Sharpening ........................... .... 10

Replacement ............................ 10

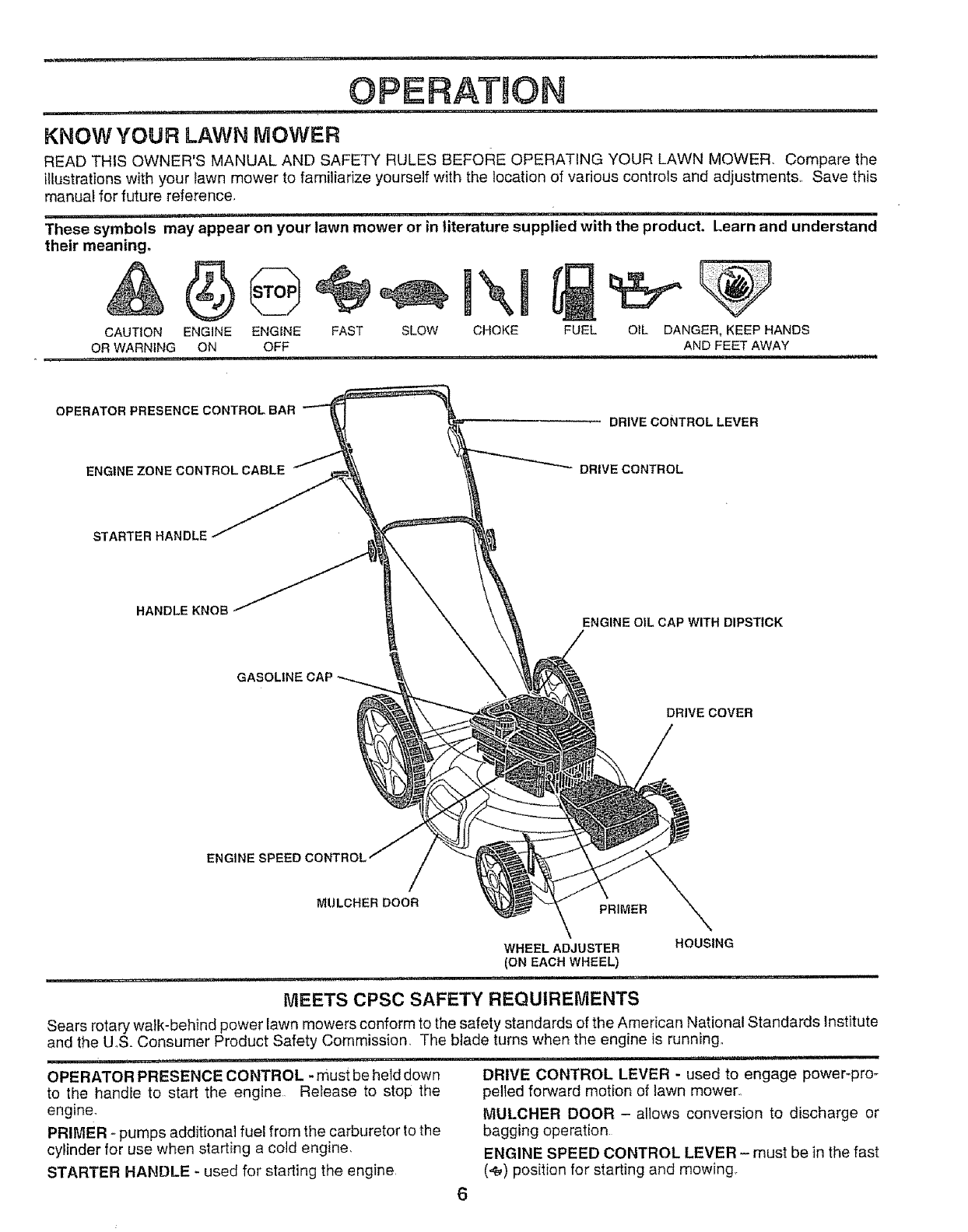

Controls:

Drive Control ....................................6

Engine Zone Control .....................6

Engine Speed Control ..................6

Operator Presence

Control Bar ..........................................6

Customer Responsibilities ..... 3, 9-11

Air Fitter ...............................................11

Blade Care/Replacement .........10

Drive Wheels ...................................10

Engine ...........................................11

Lubrication .......................................9

Spark Plug ......................................11

Cutting Levels ..................................... 7

Engine:

Air Filter ................................... 11

Oil Change ................................. 11

Oil Level ........................................11

Oil Type ...........................................11

Starting ............................................... 8

Stopping ........................................8

Storage .................................................14

Fuel:

Capacity ..................................................3

Storage ................................................14

Type ...................................................8

Handle Adjustment:

Assembly .................................................... 5

Cutting Height ................................13

Lubrication:

Engine ...........................................11

Lawn Mower ..................................9

Maintenance Agreement .....................3

Maintenance Schedule .............................9

Mowing Tips .................................... 8

Oil:

Engine .................................... 11

Storage ..................................... 14

Operation:

Drive Control .............................................7

Engine Control ..............................7

Grass Catcher .......................... 7

Mower ........................................... 7

Operator Presence

Control Bar ...............................................7

Options:

Accessories ...........................................5

Repair Parts:

Engine ...............................................20_25

Lawn Mower .............................15-19

Responsibilities, Customer .......3, 9-11

Safety Rules ................................................. 2

Service and Adjustments ..................12

Carburetor .............................. 13

Drive Belt ................................. 12

Engine Speed ......................... 13

Handle .................................................13

Spark Plug ..................................... 11

Specifications .................................. 3

Speed Control:

Engine .................................... ...... 7

Starting the Engine ...............................8

Stopping the Engine ....................... 8

Storage ............................................... 14

Trouble Shooting Chart ............... 26

Warranty ....................................... 3

,n,,,i n, ,1111,,,i,,,,n,, n,i ii,

LAWN OWE ACCESSORIES

These accessories were available when this lawn mower was produced. They are aIso available at most Sears retail outlets

and service centers, M__tSearsst_rescana_s__rderrepalrpartsf_ry_u_wheny_upr_videthem_de_number_fy_ur_awn

mower. Some of these accessories may not apply to your lawn mower°

LAWN MOWER PERFORMANCE

,n m,,, i,,,,, i, ,u i ,, lUm,, ,i ...............

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MULCHER KITS

n,,, ,nil nil

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

MUFFLERS

,,, uu,

BELTS

ii -..un,,

BLADES

i, i i ,n,,

AIR FILTERS

,,,,,

BLADE ADAPTERS WHEELS

STABILIZER

GAS CANS

SPARK PLUGS

ENGINE OIL

---- , .............................i_i,,,i,,,1_1,

ASS LY

i............ , . Hn.....l.,m ..m.,l . .i ........

Read these instructions and this manual in its entirety

before you attempt to assembfe or operate your new fawn

mower. Your new lawn mower has been assembled at the

factory with the exception of those parts left unassembted

for shipping purposes All parts such as nuts, washers,

bolts, etc°, necessary to complete the assembly have been

placed in the parts bag. To ensure safe and proper

operation of your lawn mower, all parts and hardware you

assemble must be tightened securely. Use the correct

tools as necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

•Remove loose parts included with mower.

• Cut down two end corners of carton and lay end panel

down flat.

OPERATOR PRESENCE

CONTROLBAR

UPPER HANDLE

Remove all packing materials except padding between

upper and lower handle and padding holding operator

presence control bar to upper handle.

Rot! lawn mower out of carton and check carton thor_

oughly for additional loose parts

LIFT UP

LOWER HANDLE

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE (See Fig. 1)

IMPORTANT: UNFOLD HANDLE CAREFULLY SO AS

NOT TO PINCH OR DA rAGE CONTROL CABLES 5

FIG. 1

MOWING POSITION

remove protective padding and tighten both handle

knobs,

Remove handle padding holding operator presence

control bar to upper handleo

Your lawn mower handle can be adjusted for your

mowing comfort Refer to "Adjust Handle" in the

Service and Adjustment section of this manual

o Raise handles until lower handle section locks into

place in mowing position.

- Raise upper handle section into place on lower handle,

OPERATmO

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the

illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments,, Save this

manual for future reference,

ii u..u. i i..i..n...n Hun uH... i.,..n ,i....., i i i. HI. u l

These symbols may appear on your lawn mower or in literature supplied with the product. Learn and understand

their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE

OR WARNING ON OFF

,, un i .......... ,u,r

FUEL OIL DANGER, KEEP HANDS

AND FEET AWAY

OPERATOR PRESENCE CONTROL BAR DRIVE CONTROL LEVER

ENG|NEZONECONTROLCABLE DR|VECONTROL

STARTER HANDLE

HANDLEKNOB ENGINE OIL CAP WITH DIPSTICK

DRIVE COVER

ENGINE SPEED CONTROL

MULCHER DOOR PRIMER

WHEEL ADJUSTER HOUSING

(ON EACH WHEEL)

........ i ,,, i,,,,, ,,,,,,r,i

IVlEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute

and the US. Consumer Product Safety Commission, The blade turns when the engine is running.

. ..i.u..llu

OPERATOR PRESENCE CONTROL - must be held down

to the handle to start the engine Release to stop the

engine.

PRIMER - pumps additional fuel from the carburetor to the

cylinder for use when starting a cold engine.

STARTER HANDLE - used for starting the engine

DRIVE CONTROL LEVER - used to engage power-pro-

pelted forward motion of lawn mower,

MULCHER DOOR - allows conversion to discharge or

bagging operation.

ENGINE SPEED CONTROL LEVER - must be in the fast

(_) position for starting and mowing,

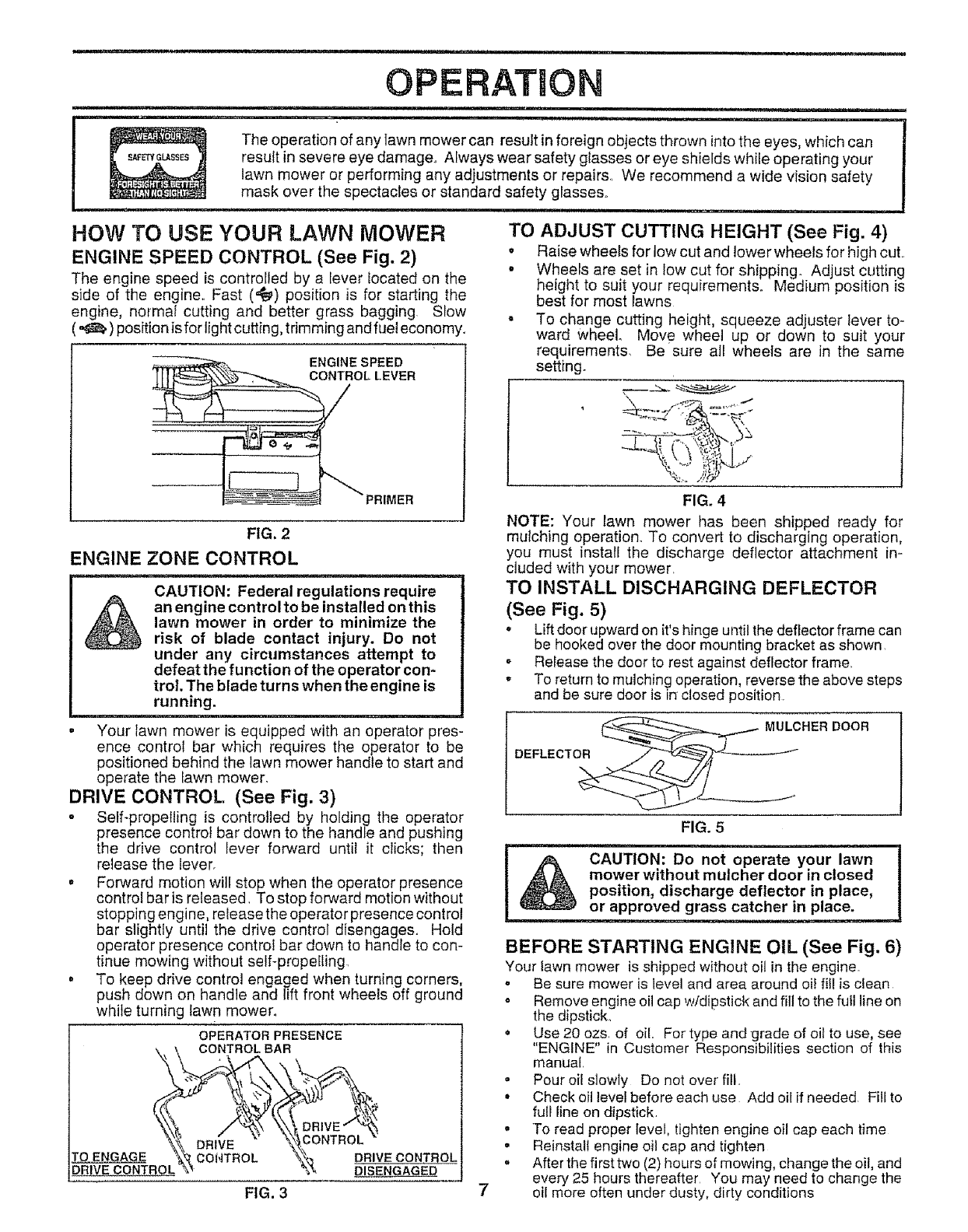

OPERATION

,,,i,i i, ,i,n, Hi,u,,,,lU i,, ,

The operation of any lawn mower can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields while operating your

lawn mower or performing any adjustments or repairs We recommend a wide vision safety

mask over the spectacles or standard safety glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED CONTROL (See Fig. 2)

The engine speed is controlled by a lever located on the

side of the engine. Fast ('@) position is for starting the

engine, normal cutting and better grass bagging Slow

(_) position is for light cutting, trimming and fuel economy.

ENGINE SPEED

CONTROL LEVER

FIG. 2

ENGINE ZONE CONTROL

CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury. Do not

under any circumstances attempt to

defeat the function of the operator con-

trol, The blade turns when the engine is

running.

• Your lawn mower is equipped with an operator pres-

ence control bar which requires the operator to be

positioned behind the lawn mower handle to start and

operate the lawn mower,

DRIVE CONTROL, (See Fig. 3)

• Seff-propeIling is controlled by holding the operator

presence control bar down to the handle and pushing

the drive control lever forward until it clicks; then

release the lever.

oForward motion will stop when the operator presence

control bar is released, To stop forward motion without

stopping engine, release the operator presence control

bar slightly until the drive control disengages. Hold

operator presence control bar down to handle to con-

tinue mowing without self-propelling

° To keep drive control engaged when turning corners,

push down on handle and lift front wheels off ground

while turning Iawn mower°

OPERATOR PRESENCE

,, \ CONTROL BAR

TO ENGAGE %_'__'.ni,tTR(3! \_,_= DRIVE CONTROL

_ROL %_ .......... _'_ DISENGAGED

Irll'"Unl ''U ' " I" I"U U" '

ADJUST CUTTING HEIGHT (See Fig. 4)

Raise wheels for tow cut and lower wheels for high cut.,

Wheels are set in low cut for shipping, Adjust cutting

height to suit your requirements,, Medium position is

best for most lawns

To change cutting height, squeeze adjuster lever to-

ward wheel Move wheel up or down to suit your

requirements, Be sure all wheels are in the same

setting.

FIG. 4

NOTE: Your lawn mower has been shipped ready for

mulching operation. To convert to discharging operation,

you must install the discharge deflector attachment in-

cluded with your mower.

TO INSTALL DISCHARGING DEFLECTOR

(See Fig, 5)

. Lift door upward on it's hinge until the deflector frame can

be hooked over the door mounting bracket as shown,

oRelease the door to rest against deflector frame,

-To return to mulching operation, reverse the above steps

and be sure door is in closed position,

MULCHER DOOR

DEFLECTOR_j__

FIG. 5

A CAUTION: Do not operate your lawn

mower without mulcher door in closed

position, discharge deflector in place,

or approved grass catcher in place.

BEFORE STARTING ENGINE OIL (See Fig. 6)

Your lawn mower is shipped without oil in the engine.

. Be sure mower is level and area around of! fill is clean

oRemove engine oil cap wldipstick and fill to the full line on

the dipstick_

•Use 20 ozs, of oil. For type and grade of oil to use, see

"ENGINE" in Customer Responsibilities section of this

manual,

•Pour oil slowly Do not over fill,

• Check oil level before each use Add oil if needed Fill to

full line on dipstick.

. To read proper level, tighten engine oil cap each time

• Reinstall engine oil cap and tighten

After the first two (2) hours of mowing, change the oft, and

every 25 hours thereafter You may need to change the

oil more often under dusty, dirty conditions

FIG, 3 7

.......i,, ii, ,,-, ii,iu,,,u, , i....

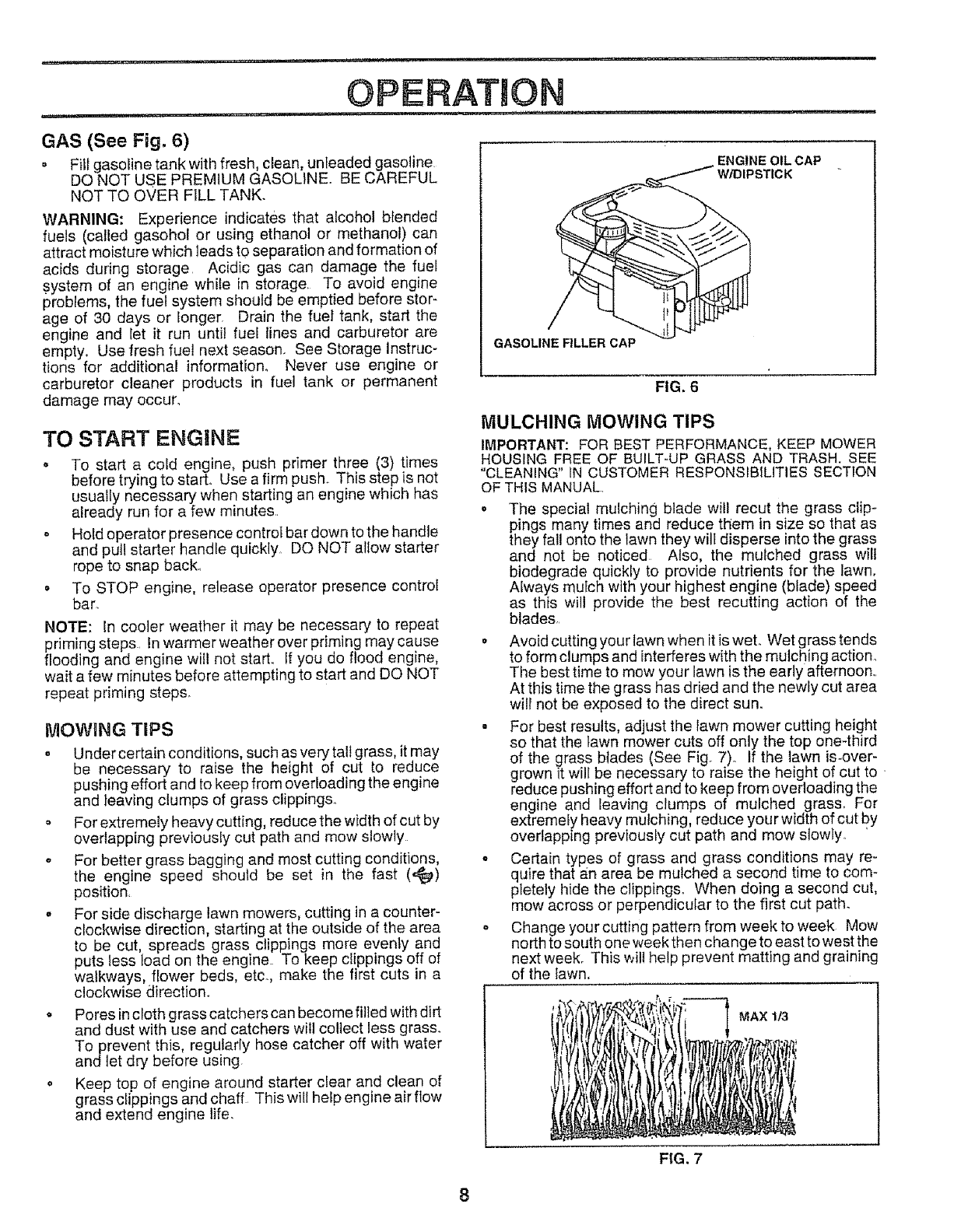

OPERATION

, i lU,Ul ,,,, ,, i ;....... .........................

GAS (See Fig. 6)

• Fill gasoline tank with fresh, clean, unleaded gasoline

DO NOT USE PREMIUM GASOLINE. BE CAREFUL

NOT TO OVER FILL TANK.

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage Acidic gas can damage the fuel

system of an engine while in storage, To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer, Drain the fuel tank, start the

engine and let it run until fuel lines and carburetor are

empty. Use fresh fue! next season. See Storage Instruc-

tions for additional information, Never use engine or

carburetor cleaner products in fuet tank or permanent

damage may occur_

TO START ENGINE

o To start a cold engine, push primer three (3) times

before trying to start. Use a firm push. This step is not

usually necessary when starting an engine which has

already run for a few minutes,

= Hold operator presence control bar down to the handle

and pull starter handle quickly, DO NOT allow starter

rope to snap back_

= To STOP engine, release operator presence control

bar.

NOTE: In cooler weather it may be necessary to repeat

priming steps, In warmer weather over priming may cause

flooding and engine will not start° If you do flood engine,

wait a few minutes before attempting to start and DO NOT

repeat priming steps.

MOWING TiPS

. Under certain conditions, such as very tal! grass, it may

be necessary to raise the height of cut to reduce

pushing effort and to keep from overloading the engine

and leaving clumps of grass clipping&

o For extremely heavy cutting, reduce the width of cut by

overlapping previously cut path and mow slowly

o For better grass bagging and most cutting conditions,

the engine speed should be set in the fast (,_)

position,

-For side discharge lawn mowers, cutting in a counter-

clockwise direction, starting at the outside of the area

to be cut spreads grass clippings more evenly and

puts less load on the engine To keep c ppings off of

walkways, flower beds, etc. make the first cuts in a

clockwise direction_

Pores incloth grass catchers can become filled with dirt

and dust with use and catchers will collect less grass.

To prevent this, regu!arly hose catcher off with water

and let dry before using,

o Keep top of engine around starter clear and clean of

grass clippings and chaff This wilt help engine airflow

and extend engine life.

GASOLINE FILLER CAP

ENGINE OIL CAP

W/DIPSTICK

FIG. 6

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER

HOUSING FREE OF BUILT-UP GRASS AND TRASH. SEE

"CLEANING" IN CUSTOMER RESPONSIBILITIES SECTION

OF THIS MANUAL..

° The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fal! onto the lawn they will disperse into the grass

and not be noticed Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn.

Always mutch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades,

• Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action,

The best time to mow your lawn is the early afternoon,,

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

. For best results, adjust the lawn mower cutting height

so that the lawn mower cuts off only the top one-third

of the grass btades (See Fig. 7). tf the tawn is-over-

grown it will be necessary to raise the height of cut to

reduce pushing effort and to keep from overloading the

engine and leaving clumps of mulched grass_ For

extremefy heavy mulching reduce your width of cut by

overlapping previously cut path and mow slowly

o Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings,, When doing a second cut,

mow across or perpendicular to the first cut path.

o Change your cutting pattern from week to week Mow

north to south one week then change to east towest the

next week. This will help prevent matting and graining

of the lawn,

MAX 1/3

FIG. 7

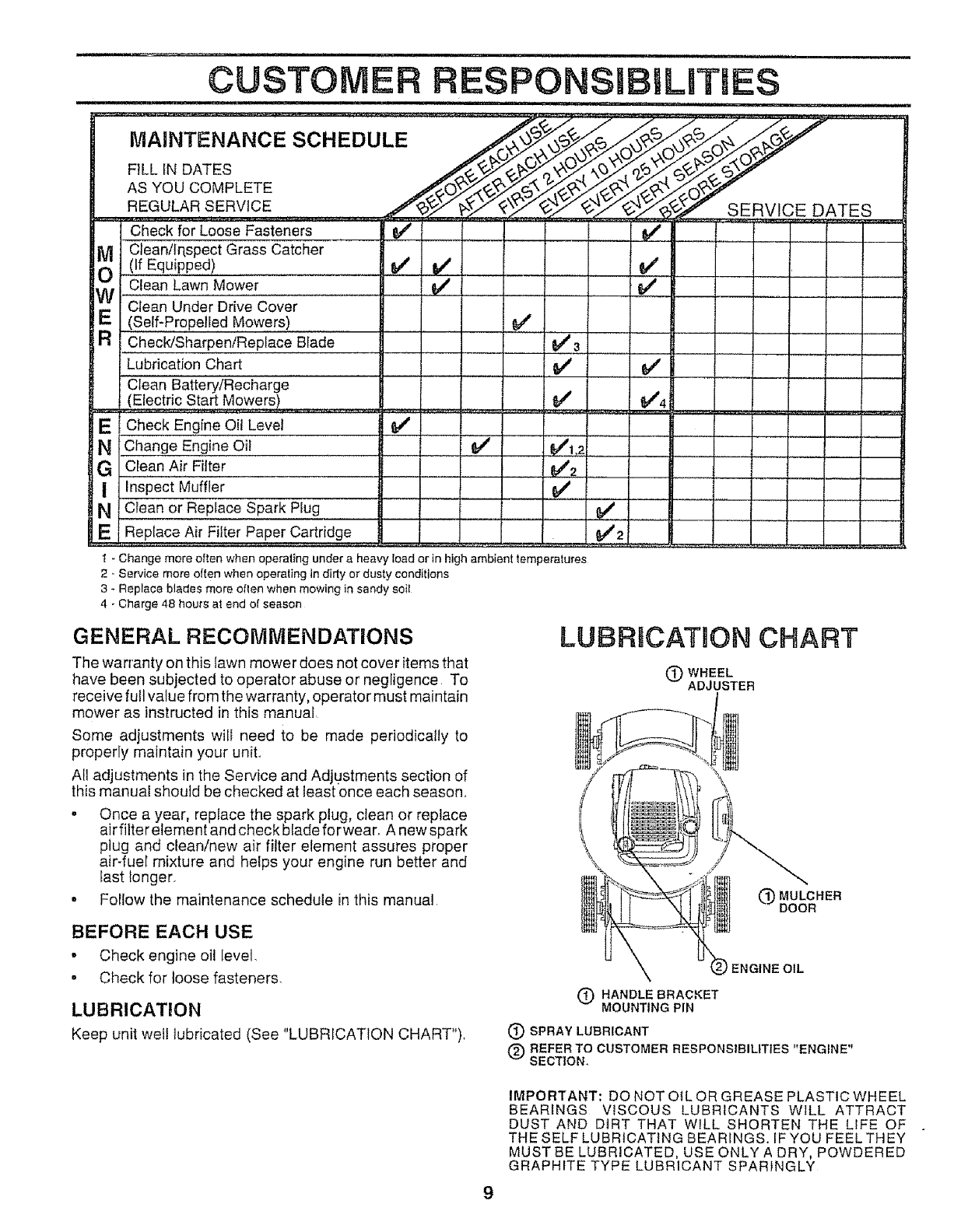

CUSTO RESPONSIBILITIES

AS YOU COMPLETE /_%?-_/_£;k_/_._£_-_ _"

REGULAR SERVICE ._ _ _\k_i ,'4_ .'4_ __" RFR\I!P,F FIAT_R

.......................... /__q._%£._ SERVICE DA.,___

Check for Loose Fasteners 6/' 6/'

, i

O_ Clean/Inspect Grass Catcher j .

(If Equipped) J 6/"

iii i nlGwnMoweiiiiiiiiii:iiiii

Clean Under Drive Cover

(Self-Propelled Mowers)

a Check/Sharpen/Replace Blade

Lubrication Chart

Clean Batted/Recharge

(Electric Sta_ Mowers !

E Check Engine Oil Level _4'

N Change Engine Oil ....

G Clean Air Filter

J Inspect' Muffler

N CIean or Replace Spark Plug

it' v'

v' e,'

e,'

......... _3

v' v'

v' v'4

Ei Replace Air Filter Paper Cartridge

1- Change more often when operating under a heavy load or in high ambient temperatures

2 _ Service more olten when operating in dirty or dusty conditions

3 - Replace blades more often when mowing in sandy soil

4 - Charge 48 hours at end of season

644 _/"1 _2

v' v'

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not cover items that

have been subjected to operator abuse or negligence To

receive full value from the warranty, operator must maintain

mower as instructed in this manual

Some adjustments will need to be made periodically to

properly maintain your unit..

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season..

• Once a year, replace the spark plug, clean or replace

air filter element and check blade for wear. A new spark

plug and clean/new air filter element assures proper

air-fuel mixture and helps your engine run better and

fast Ionger.

. Follow the maintenance schedule in this manual

BEFORE EACH USE

•Check engine oil level,

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRiCATiON CHART"),

LUBRJCATUON CHART

(._) WHEEL

ADJUSTER

(_) MULCHER

DOOR

b ENGINE OIL

(_ HANDLE BRACKET

MOUNTING PIN

(_ SPRAY LUBRICANT

(_) REFER TO CUSTOMER RESPONStBILITIES "ENGINE"

SECTION,

IMPORTANT: DO NOT OIL OR GREASE PLASTIC WHEEL

BEARINGS VISCOUS LUBRICANTS WILL ATTRACT

DUST AND DiRT THAT WILL SHORTEN THE LIFE OF

THE SELF LUBRICATING BEARINGS. IF YOU FEEL THEY

MUST BE LUBRICATED, USE ONLY A DRY, POWDERED

GRAPHITE TYPE LUBRICANT SPARINGLY

CUSTOMER RESPONSBBILnTIES

LAWN-MOWER

Always observe safety rules when performing any mainte-

nance.

TIRES

-Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

,Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

BLADSCARE

For best results, mower blade must be kept sharp,

Replace bent or damaged blades.

TO REMOVE BLADE (See Fig, 7)

oDisconnect spark plug wire from spark plug and place

wire where it cannot come in contact with spark plug,

, Turn lawn mower on its side.. Make sure air filter and

carburetor are up..

oUse a wood block between blade and mower housing

to prevent blade from turning when removing blade

bolto

oProtect your hands with gloves and/or wrap blade with

heavy cloth.

oRemove blade bolt by turning counter-clockwise. Use

a 9/16" box or open-end wrench,,

.Remove blade and attaching hardware (bolt, Iock

washer and hardened washer).

NOTE: Remove the blade adapter and check the key

inside hub of blade adapter. The key must be in good

condition to work properly Replace adapter if damaged,

TO REPLACE BLADE (See Fig,, 7)

o Position the blade adapter on the engine crankshaft.

Be sure key in adapter and crankshaft keyway are

aligned,

o Position blade on the blade adapter aligning the two (2)

holes in the biade with the raised lugs on the adapter.

.Be sure the trailing edge of blade (opposite sharp

edge) is up toward the engine,

o Install the blade bott with the lock washer and hardened

washer into blade adapter and crankshaft°

• Use block of wood between blade and lawn mower

housing and tighten the blade bolt, turning clockwise.

•The recommended tightening torque is 35-40 ft. lbs.

iMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED

NOTE: We do not recommend sharpening blade- but if you

do, be sure the blade is balanced.,

TO SHARPEN BLADE

Care should be taken to keep the blade balanced An

unbalanced blade will cause eventual damage to lawn

mower or engine,

o The blade can be sharpened with a file or on a grinding

wheel, Do not attempt to sharpen while on the mower

o To check blade balance, d rive a nail into a beam or walt.

Leave about one inch of the straight nai! exposed,

Place center hole of blade over the head of the nail If

blade is balanced, it should remain in a horizontal

position If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced,

BLADE ., CRANK*

ADAPTER .,.. _,/ SHAFT

'TRAILING \

LOCK WASHER EDGE BLADE ADAPTER

FIGo 7

GEAR CASE

oTo keep your drive system working properly, the gear

case and area around the drive should be kept ctean

and free of trash build-up. Clean under the drive cover

twice a season.

o The gear case is filled with lubricant to the proper level

at the factory. The only time the lubricant needs

attention is if service has been performed on the gear

case.

tf lubricant is required, use only Texaco Starplex Pre-

mium Grease, part no..750355° Do not substitute.

DRIVE WHEELS

Check front drive wheels each time before you mow to be

sure they move freely.

The wheels not turning freely means trash, grass cuttings,

etc. are inthe drive wheel area and must be cteaned to free

drive wheels.

If necessary to clean the drive wheels, check both front

wheels..

•Remove hubcaps, hairpin cotters and washers,

-Remove wheels from wheel adjusters..

° Remove any trash or grass cuttings from inside the

dust cover, pinion and/or drive wheel gear teeth..

oPut wheels back in place

o If after cleaning, the drive wheels do not turn freely,

contact your nearest authorized service center..

GRASS CATCHER

(If purchased as an accessory)

o The grass catcher may be hosed with water, but must

be dry when used.

, Check your grass catcher often for damage or deterio-

ration. Through normal use it will wear. If catcher

needs replacing, replace only with a manufacturer

approved replacement catcher° Give the lawn mower

model number when ordering.

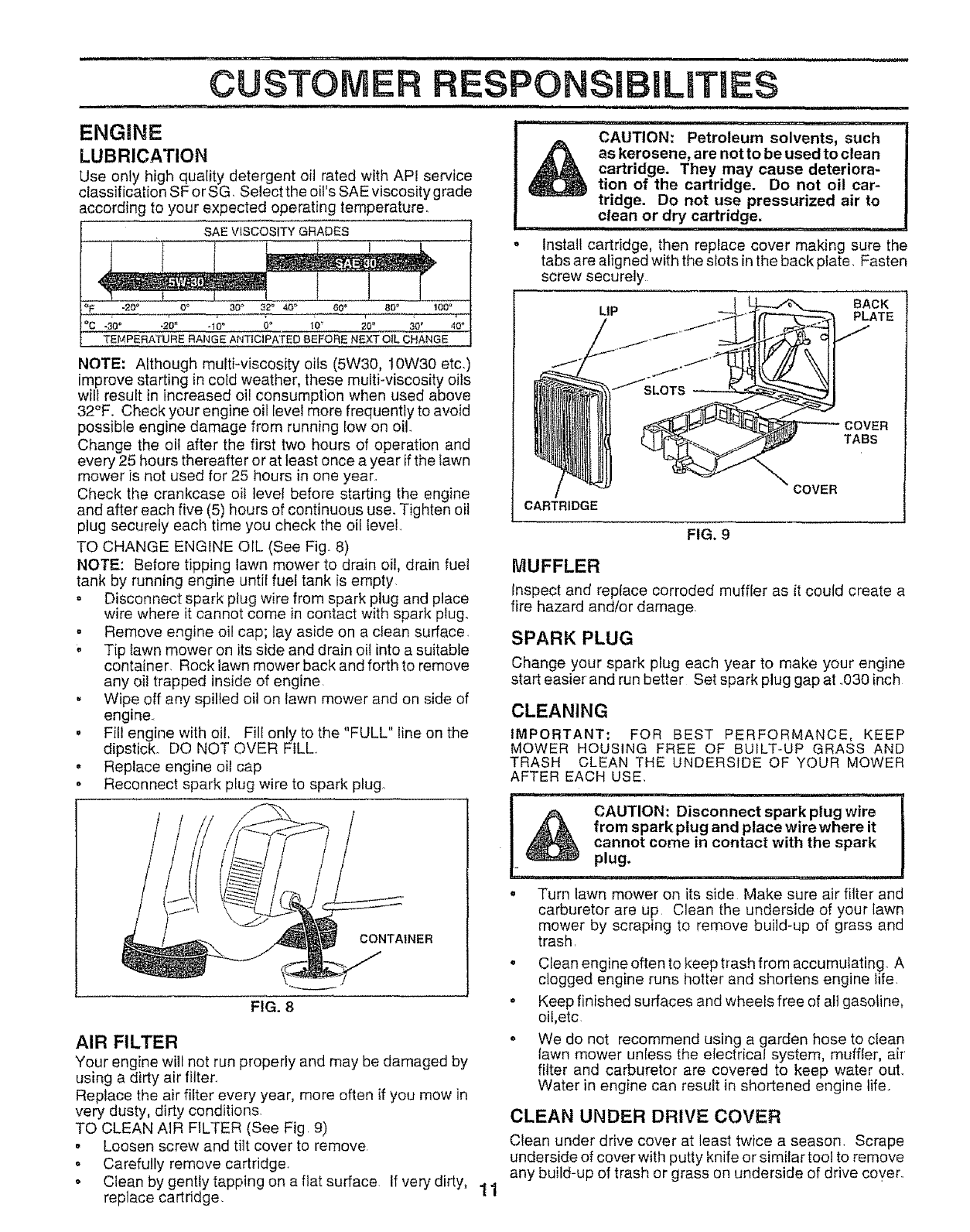

CUSTOMER ESPONSIBILiTIES

=,uu,un = = = 11 n mnn,n,H,,,,,n,,u,,, J,,,,ui

ENGINE

LUBRICATION

Use only high quality detergent oil rated with API service

classification SF or SG. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

_F "20_ 0 ° 30 _ 32 _40 _ 604 80 _ 100"

TEMPERATUREnANGEANTIC_PATEO_O_E .E×TOILCHAN_E

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cord weather, these multi-viscosity oils

wilt result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after the first two hours of operation and

every 25 hours thereafter or at least once a year ifthe fawn

mower is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each five (5) hours of continuous use. Tighten oil

plug securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Fig. 8)

NOTE: Before tipping lawn mower to drain oil, drain fuet

tank by running engine until fuel tank is empty

-Disconnect spark plug wire from spark plug and place

wire where it cannot come in contact with spark plug.

-Remove engine oil cap; lay aside on a clean surface.

Tip tawn mower on its side and drain oil into a suitable

container. Rock lawn mower back and forth to remove

any oil trapped inside of engine.

,Wipe off any spilled oit on lawn mower and on side of

engine.

,Fill engine with oil, Fili only to the "FULL" line on the

dipstick_ DO NOT OVER FILL..

,Replace engine oil cap

,Reconnect spark plug wire to spark plugo

CONTAINER

FIG. 8

AIR FILTER

Your engine will not run properly and may be damaged by

using a dirty air filter.

Replace the air filter every year, more often if you mow in

very dusty, dirty conditions.

TO CLEAN AIR FILTER (See Fig. 9)

o Loosen screw and tilt cover to remove

,Carefully remove cartridge.

oClean by gently tapping on a fiat surface If very dirty, 11

replace cartridge.

CAUTION: Petroleum solvents, such

as kerosene, are not to be used to clean

cartridge. They may cause deteriora-

tion of the cartridge. Do not oil car-

tridge. Do not use pressurized air to

clean or dry cartridge.

,' ,= ........................ H=,,,u

,Install cartridge, then replace cover making sure the

tabs are aligned with the slots inthe back plate Fasten

screw securely

LiP --_ BACK

PLATE

TABS

CARTRIDGE

COVER

FIG. 9

MUFFLER

inspect and replace corroded muffler as it could create a

fire hazard and/or damage.

SPARK PLUG

Change your spark plug each year to make your engine

start easierand run better Set spark plug gap at ..030 inch

CLEANING

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH CLEAN THE UNDERSIDE OF YOUR MOWER

AFTER EACH USE,

CAUTION: Disconnect spark plug wire

,_/_ from spark plug and place wire where it

cannot come in contact with the spark

= Turn lawn mower on its side Make sure air filter and

carburetor are up Clean the underside of your lawn

mower by scraping to remove build-up of grass and

trash.

o Clean engine often to keep trash from accumulating. A

clogged engine runs hotter and shortens engine life

,Keep finished surfaces and wheels free of all gasoline,

oil,etc

o We do not recommend using a garden hose to dean

lawn mower unless the electrical system, muffler, air'

filter and carburetor are covered to keep water ouL

Water in engine can result in shortened engine life,.

CLEAN UNDER DRIVE COVER

Clean under drive cover at least twice a season. Scrape

underside of cover with putty knife or similar tool to remove

any build-up of trash or grass on underside of drive cover,

_AUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

oRelease control bar.

•Make sure the blade and all moving parts have completely stopped.

oDisconnect spark plug wire from spark plug and place where it cannot come in contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in the Operation

section of this manual°

DISCHARGE GUARD

The discharge guard, attached to the discharge opening of

your lawn mower, is provided to prevent the possibiIity of

injury resulting from objects being thrown out of the dis-

charge opening into the operator mowing position, If the

discharge guard becomes damaged, it shoutd be replaced,

REAR DEFLECTOR

The rear deflector, attached between the rear wheels of

your mower, is provided to minimize the possibility that

objects wHI be thrown out of the rear of the mower into the

operator mowing position, If the deflector becomes dam-

aged, it should be replaced

TO REIVtOVE/REPLACE DRIVE BELT

(See Fig. 1O)

o Remove drive cover. Remove belt by pushing down on

gear case pulley°

• Turn lawn mower on its side with carburetor and fuel

cap up..

, Remove blade..

,, Remove debris shield.

Remove belt from engine pulley on crankshaft.

o Install new belt by reversing above steps.

• Always use factory approved belt to assure fit and long

life..

DRIVE

COVER

BELT

PRESS il

FIG. 10

SERVICE AND ADJUSTMENTS

TO ADJUST HANDLE (See Figs. 11 Thru 13)

Your lawn mower handle can be raised or lowered for your

mowing comforL Four (4) positions are available: high,

medium high, medium low and lowo Handles are shipped

mounted in the medium low position,

• To change from medium low to medium high position,

the upper and lower handle sections will have to be

turned over (See Fig 1IB).

• Remove the controls and operator presence control

bar from the upper handle.

° Remove the starter rope guide from the Iower handle.

.Remove hairpin cotters,.

° Disconnect the lower handle from the handle brackets

(See Fig 13).

•Turn the handle over and reassemble the hairpin

cotters that have been removed,

° Reassemble the starter rope guide.

•Reassemble the controls and the operator presence

control bar to the upper handle

..... , ,,, ,,,rl,ll,i i, ,i,

CAUTION: The operator presence con-

_ trol bar must pivot freely to permit blade

brake engagement when control bar is

released. Do not overtighten the fas-

teners holding the controls to the up-

per handle.

• To change from medium low to high position only the

upper handle section will have to be turned over (See

Fig. 12A),

o To change from medium low to low positron, only the

lower handle section will have to be turned over (See

Fig,, !2B).

ENGINE

ENGINE SPEED

Yourengine speed has been factory set Do not attempt to

increase engine speed or it may result in personal injury, If

you believe that engine is running too fast or too stow, take

your mower to an authorized service center for repair and

adjustment.

CARBURETOR

Your carburetor is not adjustable if your engine does not

operate properly due to suspected carburetor problems,

take your lawn mower to an authorized service center for

repair and/or adjustment,

IMPORTANT; NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED OVERSPEEDINGTHEENGINEABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS, iF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER, WHICH HAS

PROPER EQUIPMENTAND EXPERIENCETO MAKE ANY

NECESSARY ADJUSTMENTS.

SHIPPING POSITION

MEDIUM LOW MEDIUM HIGH

FIG. 11A FIG. 11B

LOW

FIG. 12A FIG. 12B

LOWER HANDLE

SQUEEZE

TO REMOVE

HAIRPIN CLIP HANDLE BRACKET

FIG. 13

i.,,,i i ........... i=l,,ll!ll,- ii, 1,1,,, i ,i , i,,,,i , ,, i.....................................i

STORAGE

..... i i

Immediately prepare your lawn mower for storage at the ENGINE

end of the season or if the unit will not be used for 30 days

or more,,

LAWN MOWER

When lawn mower is to be stored for a period of time, clean

it thoroughly, remove all dirt, grease, leaves, etc_ Store in

a ctean_ dry area.

. Clean entire lawn mower (See "CLEANING" in the

Customer Responsibilities section of this manual)..

o Lubricate as shown in the Customer Responsibilities

section of this manual

. Be sure that all nuts, bolts, screws, and pins are

securely fastened° inspect moving parts for damage,

breakage and wear° Replace if necessary,

° Touch up alt rusted or chipped paint surfaces; sand

iightty before painting.

HANDLE (See Fig. 14)

You can fold your lawn mower handle for storage,.

•Squeeze the bottom ends of the lower handle toward

each other until the lower handle clears the handle

bracket, then move handle forward,

. Loosen upper handle mounting bolts enough to allow

upper handle to be folded back.,

IMPORTANT: WHEN FOLDING THE HANDLE FOR

STORAGE OR TRANSPORTATION, BE SURE TO FOLD

THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE

CONTROL CABLES

oWhen setting up your handle from the storage position,

the lower handie will automatically lock into the mowing

position.

LOWER HANDLE

HAIRPIN

COTTER

OPERATOR PRESENCE

CONTROLBAR

UPPER HANDLE

FOLD FORWARD

FOR STORAGE

FOLD BACKWARD

MOWING

POSITION

LOWER HANDLE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE, ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE

° Drain the fuel tank,

o Start the engine and let it run until the fuel lines and

carburetor are empty,

oNever use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur,

.Use fresh fuel next season,

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age, Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found, on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer,

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See "ENGINE" in the Customer Responsibilities

section of this manual)

CYLINDER

o Remove spark plug

= Pour one ounce (29 rot) of oil through spark plug hole

into cylinder,

o Pull starter handle slowly a few times to distribute oil.

.Replace with new spark plug.

OTHER

= Do not store gasoline from one season to another.

o Replace your gasoline can if your can starts to rusL

Rust and/or dirt in your gasoline witl cause problems.

o If possible, store your unit indoors and cover it to give

protection from dust and dirt.

o Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic, Plastic

cannot breathe which allows condensation to form and

will cause your unit to rust

IMPORTANT: NEVER COVER MOWER WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

CAUTION: Never store the lawn mower

with gasoline in the tank inside a build-

ing where fumes may reach an open

flame or spark. Allow the engine to

cool before storing in any enclosure,

FIG. 14 14

REPAIR PARTS

ROTARY LAWN MOWER - - MODEL NO. 917.376210

GEAR CASE ASSEMBLY PART NUMBER 7025'11

jJ lO

19 j

S j

j//

KEY

NO.

PART

NO.

'17490416

137055X004

137053

57072

48373

77881

137051

137074

57079

DESCRIPTION

Tapping Screw 1/4-20 x I-1/4

Engagement Bracket

Shifter

Seal

Gear Case Halves Kit (Includes Key

Nos. 4, 5, and 7)

Bearing

Worm Shaft

Drive Shaft

Hardened Washer

KEY PART

NO. NON DESCRIPTION

11 131484 Clutch Yoke

12 700343 Bushing

13 86447 Plug

14 !37050 Helical Gear

15 750436X Clutch Jaw

16 750369 Grease

17 12000003 E-Ring

t8 850848 Hi-Pro Key

t9 81585X004 Spring Bracket

NOTE: All component dimensions given in U.S inches.

I inch = 25.4 mm

REPADR PARTS

ROTARY LAWN MOWER - MODEL NO. 917.376210

,.,..,& 26

= <:::f>

39 72

52 5_2

REPAnR PARTS

ROTARY LAWN MOWER - MODEL NO. 917.376210

KEY PART

NO. NO.

1 145646X479

2 STD541425

3 130861

5 153638

7 131959

8 151517

9 51793

10 136376

11 88348

12 1515t6X479

13 74350424

14 750097

15 87930

16 STD512505

17 750157

!8 151667X479

!9 151665X479

22 140540

23 750097

24 87584X004

25 151889

_6 152095

27 147286

28 154132

29 152124

30 751592

31 700168X479

32 700166X479

33 STD523707

35 750085X007

36 146630

38 700331X004

39 701037

40 750913X004

DESCRIPTION KEY PART

NO. NO.

Upper Handle 4t 61651

Locknut 42 142748

Zone Control Cable 43 151138

Rope Guide 44 57143

Handle Bolt 45 83923

Cable Clip 46 85463

Hairpin Cotter 48 149741

Handle Knob 49 STD541425

Flat Washer 3/8 50 851201X004

Lower Handle 5t 134612

Hex Head Boft 1/4-20 x 1-1/2 52 150406

Hex Washer Head Screw 53 851084

Clip Guide 54 850263

HexTapping Screw 1/4-20 x 1/2 55 851074

Support Rod 56 152202

Handle Bracket Assembly (Left) 57 851514

Handle Bracket Assembly (Right) 58 752118

Rear Deflector 59 751399

Hex Washer Head Screw #10-24 x 1/2 60 74180410

Deflector Bracket 62 48414

Discharge Guard 63 84596

Decal Mulching Door 64 87677

Hinge Rod 68 152206

Housing Bracket 69 153350X479

Torsion Spring 70 !53282X479

Locknut 71 73510400

Support Bracket (Left) 72 151440

Support Bracket (Right) -- 154137

Hubcap

Wheel Adiusting Bracket

Spacer

Selector Spring 7_$133072

Selector Knob 71___33623

Axle Arm Assembly 71___33500

713330O

7"133316

DESCRIPTION

Betleville Washer

Shoulder Bo_t

Wheel & Tire Assembty

Hex Nut

Locknut 3/18_16

Danger Decal

Thread Cutting Screw 5/16-18 x 3/4

Hex Locknut

Washer

Debris Shield

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

Hex Head Screw 3/8-24 x !-3/8 (Grd. 8)

Helica[ Lockwasher

Hardened Washer

Blade 22"

Blade Adapter

Deflector

Bracket, Deflector

screw 1/4-20

Lawn Mower Housing (Ind. Ref. #46)

Engine Pulley

Hi-Pro Key #HP 505

Engine - Model No. 12H802-1534-21

Support Brk_ Handle RH

Support Brkt Handle LH

Locknut Keps

Hubcap

Owner's Manual (English/Spanish)

Available accessories not included with lawn mower:

Grass Catcher

Gas Can (2.5 gal.)

Fuel Stabilizer

SAE 30W Oil (20 oz.)

Mower Cover

REPAIR PARTS

ROTARY LAWN MOWER - MODEL NO. 917.376210

! l 39

X'45

REPAIR PARTS

ROTARY LAWN MOWER - MODEL NO. 917.376210

KEY PART

NO. NO.

1 145793

2 STD541425

3 48385

4 144929

5 146323

6 137078

7 750097

8 87930

9 700875

10 86960

t2 63601

15 701037

18 88118

19 67725

21 88080

22 137054

DESCRIPTION

Control Bar

Locknut 1/4_20

Control Head Kit

Hex Washer Head Screw

Control Cable Assembly

V-Belt

Screw

Clamp

Carriage Bolt 1/4-20 x 2

NyIon Bushing

Locknut 1/4-20

Selector Knob

Felt Washer

Washer 1/2x1-1/2 x.134

Dust Cover

Pinion

#10-24 x 2-1/8

KEY PART DESCRIPTION

NO. NO.

23 12000058

24 150340

25 86960

26 145212

28 150182

29 151522

30 143603

32 154990

35 48386

36 132010

37 137052

39 75192

41 137090

42 702511

43 152018

44 152019

45 86012

E-Ring

Wheel & Tire Assembly

Wheel Bushing

Hex Flange Locknut

Hubcap

Drive Cover decal

Pan Head Tapping Screw #10-24 x 2-3/4

Drive Cover

Drive Control Cable Kit

Locknut

Ddve Pulley

Spring

Gear Case Assembly (Compoete)

Wheel Adjuster Assembly (Left)

Wheel Adjuster Assembly (Right)

Dnveshaft Cover

4=CYCLE ENGgNE MODEL t,_UMBER 12H802-1534-21

967

968

971

606

971A

529

_163

124 f

Q634

[_'134

104

, ,_

=l 11 iNll =liliH l i,Hi

125

4-CYCLE ENGINE MODEL NUMBER 12H802-1534-21

27 16 _[_

(_ 230 34

592 @ 33 4_

_ 572

_635 t g 13

524_

842_

_r REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL°

4=CYCLE ENGRNE MODEL NUMBER 12H802-1534-21

,_ ,,, , , ,, , ......................

_ 16_ _ _ 7

842 _

20 524_

3'5'8GASKET SET .......I

O 634 617

977 CARBURETOR GASKET SET

201 209

104 127 116

134

6"17 634

I[--_=CARBU RETOR K!T

334

_188A

4-CYCLE ENGINE MODEL NUMBER 12H802-1534-21

949

284 670

[

51_ 0 _

456

461

304 925

_332

455

4=CYCLE ENGnNE MODELNUMBER12H802-1534-21

KEY PART KEY PART

NO, NO, DESCRIPTION NO. NO. DESCRIPTION

1 493260

2 293708

3 299819

5 214368

7 272916

8 495786

9 272481

9A 272238

10 94650

11 231933

12 272198

13 94547

!5 94720

16 498174

94388

18 493279

20 399781

22 94220

94612

23 492177

24 222698

25 493262

493385

493386

493387

26 493261

493388

493389

493390

27 26025

28 298909

298908

29 490566

490743

32 94699

33 262651

34 262652

35 262224

40 93312

45 262204

48 492830

Cylinder Assembly 47 493737

Bushing, Cylinder 52 272199

*Seal, Oil 54 94526

Head, Cylinder 55 497442

.... Gasket, Cylinder Head 56 498144

Breather Assembly 58 280399

.... Gasket, Valve Cover

*Gasket, Baffle Plate 60 281134

Screw, Hex Head 65 94696

Tube, Breather 81 223664

*Gasket, Crankcase 95 94098

Screw, Cylinder Head 104 231371

Plug, Oil Drain 110 -_-

Crankshaft 117 494870

Timing Gear Key 121 493762

Sump, Engine !24 94525

*Seal, Oil !25 497586

Screw, Hex Head 127 - - -

Screw, Hex Head 130 224908

(Used in Hole Nearest Breather) 13! 493267

Flywheel 133 398187

Key, Flywheel 134 398188

Piston Assembly, Standard Size 137 _ - -

Piston Assembly, 0t0" Oversize 163 272653

.... , r_ rslze

Piston Assembly, u>'u ,.,ve "187 492790

Piston Assembly, .030" Oversize 188 398540

Ring Set, Piston, Standard Size 188A 94644

Ring Set, Piston, .010" Oversize 201 262579

Ring Set, Piston, .020" Oversize 209 263044

Ring Set, Piston, .030" Oversize

Lock, Piston Pin

Pin, Piston, Standard Size

Pin, Piston, .005" Oversize

Rod, Connecting

Rod, Connecting, °020" Undersize

Screw, Connecting Rod

Valve, Exhaust

Valve, intake

Spring, Valve

Retainer, Valve Spring

Tappet, Valve

Gear, Cam

Slinger, Oil

* Gasket, Intake Elbow

Screw, Hex Head

Housing, Rewind Starter

Pulley, Rewind Starter

Rope, Rewind Starter

(Cut To 88-5/8")

Grip, Starter Rope

Screw, Phillips

Lock, Muffler Screw

Screw, Round Head

** Pin, Float Hinge

*** Gasket, Sealing (Sold in Kit Only)

Jet, Main

Carburetor Kit

Screw, Carburetor Mounting

Carburetor

** Plug, Welch (Sold in Kit Only)

Valve, Throttle

Shaft, Throttle

Float, Carburetor

Valve, Inlet (Includes Seat)

*** Gasket, Bowl (Sold in Kit Only)

* Gasket, Air Cleaner

Hose, Fuel

Screw, Hex Head

Link, Governor

Spring, Governor

* Included in Gasket Set (497316)

** Included in Carburetor Kit (493762)

*** Included in both Carburetor Kit (493762),

and Carburetor Gasket Set (490937)

.... Included in both Gasket Set (497316),

Set (497316) and Valve overhaul

Gasket Set (498528)

NOTE: All component dimensions given in Uo& inches

1 inch = 25.4 mm

4-CYCLE ENGINE MODEL NUMBER 12H802-1534-21

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

227 492349 Lever, Governor 634 - - - *** Washer, Shaft (Sold in Kit Only)

230 67072 Washer, Thrust 635 66538 Elbow, Spark Plug

258 94512 Screw, Hex Head 670 280512 Spacer, Fuel Tank

284 94511 Screw, Hex Head 670A 493823 * Spacer, Bracket

300 497838 Muffler, Exhaust 741 262598 Gear, Timing

304 493293 ..Housing, Blower 842 280966 * Seal, O-Ring

305 94786 Screw, Seres 843 272616 Sleeve, Lever

306 224324 Shield, Cylinder 847 495263 Tube Assembly, Oil

307 94515 Screw, Hex Head 851 493880 Terminal, Ignition Cable

332 92284 Nut, Flywheel 869 213512 Seat, intake Valve

333 802574 Armature, Magneto 870 213513 Seat, Exhaust Valve

334 94731 Screw, Sems 871 262001 Guide, Exhaust Valve

337 802592 Plug, Spark 63709 Guide, Intake Valve

356 398808 Wire, Ground 922 262640 Spring, Brake

358 497316 Gasket Set 923 493442 ' Brake Assembly

363 19069 Puller, Flywheel 925 281145 Cover, Linkage

383 89838 Wrench, Spark Plug 949 497233 Guard, Finger

387 496115 Primer, Carburetor 955 494870 Screw, Fuel Bowl

447 94013 Screw, Hex 957 397974 Cap, Fuel Tank

455 225121 Cup, Starter 966 496116 Base, Air Cleaner

456 281503 Retainer, Starter 967 491588 Filter, Air

459 28'1505 Pawl, Rachet 968 281340 Cover, Air Cleaner

46'I 94943 Screw, Shoulder 969 94120 Screw, Hex Head

515 263073 Spring, Retainer 971 94121 Screw, Hex Head

52_3 495264 Cap, Oil Filler 971A 94749 Screw, Hex Head

524 280393 * Seal, Filler Tube 972 495224 Tank, Fuel

525 495265 Tube, Oil Fill 975 493640 Bowl, Float

529 281299 Grommet 977 490937 Gasket Set, Carburetor

562 92613 Bolt, Governor Lever 1019 496658 Label Kit

572 224328 Baffle, Cylinder 1095 498258 Gasket Set, Valve Overhaul

592 231082 Nut, Hex

601 93053 Clamp, Hose RPM Settings: Low: 1900-2100; High: 3000-3200

605 225103 Bracket, Support ..

606 224815 Strap, Bracket Included in Gasket Set (497316)

608 497680 Starter, Rewind

Includes: 94904 Screw, Hex ** Included in Carburetor Kit (493762)

94908 Cond., Terminal

613 94231 Screw, Hex Head *** Included in both Carburetor Kit (493762),

615 94474 Fastener and Carburetor Gasket Set (490937)

616 262578 Crank, Governor

617 270344 *** Seal, Intake Elbow **** Included in both Gasket Set (497316),

620 497203 Bracket, Carburetor Set (497316) and Valve overhaul

621 396847 Switch, Stop Gasket Set (498528)

625 281085 Tube, Fuel Intake NOTE: All component dimensions given in U.S. inches

1 inch =25.4 mm

TROUBLESHOOTING POMNTS

......................._rJi,lily, ::

PROBLEM

Does not start

Loss of power

,lU nl,nllUl,,

Poor cut -uneven

Excessive vibration

Starter rope hard to pull

Loss of drive

(Self-Propelled Mowing)

Grass catcher not filling

(if so equipped)

Hard to push

CAUSE

,,n ,,imlU ill i,ml iNUl,ml

I Dirty air filter

2 Out of fuel

3 Stalefuel

4 Water in fuel

CORRECTION

1 Clean/replace air tilter

2 Fitl fuel tank

3 Drain tank and refill with fresh clean fuel,

4 Drain fuel tank and carburetorand refill tank with fresh

gasoline,

5 Spark plug wire is disconnected

6 Bad spark plug

7 Loose blade or broken blade adapter

8 Control bar in released posiUon

9 Control bar defective

illUmH,, lun ,lUlUl i

1 Rear of lawn mower housing/blade dragging

in heavy grass

2 Cutting too much grass

3 Didy air fiiter

4 Buildup of grass, leaves and trash under mower

5 Too much oitin engine

6 Walking speed too fast

1 Worn, bent or loose blade

2 Wheel heights uneven

3Low engine speed,

4, Buildup ot grass, leaves, and trash under mower

, n ....................................

1 Worn, benf or loose blade

2 Bent engine crankshaft

Engine flywheel brake is on when control bar is

released

2 Bent engine crankshaft

3 Blade adapter broken

4 Blade dragging in grass

1 Drive wheels nof turning with drive control engaged

2 Belt not driving

1 Cutting height too low

2 Lift on blade worn off

3 Catcher not venting air

4 Low engine speed

1 Grass is too high or wheel height is too low.

2. Rear of lawn mower housing/blade dragging

in grass

3 Grass catcher too ful_

4 Handle height position not right for you

5 Connect wire to plug

6 Replace spark plug

7 Tigh{en btade boil or replace blade adapter,

8 Depress control bar to handle

9 Replace control bar

1 Set in "Higher Cut" position

2. Set in "Higher Cut" position

3 Clean/replace air fitter

4 Clean underside of mower housing

5 Check oil level

6 Cut at slower walking speed

1 Replace blade Tighten blade bolt

2 Set all wheels at same height

3 Set engine speed control in fast posit{on

4 Ctean underside of mower housing

1 Replace blade Tighten blade bolt

2 Contact an authorized ser,,ice center!department

1 Depress control bar io upper handle before

pulling starter rope

2 Contact an authorized service center/department

3 Replace blade adapter

4 Move lawn mower to cut grass or to hard surface

to start engine

1 Adjust or replace drive conlrol cable, if broken,

2 Put belt on pulleys or replace belts if broken

1 Raise cutting height

2 Replace blade

3 Clean grass catcher

4 Set engine speed control in fast position

1 Raise cutting height

2 Raise rear of lawn mower housing one (1)

setting higher

3 Empty grass catcher

4 Adjust handle height to suit

SERVICE OTES

i i i i i i i ii i i ,i i, iii iii i, iii ii , i, i ,,i,ii1,111111,1,,i,,111,111,,iiii i ,11 i ii i,iiiii I'

OWN R'S

MANUAL

MODEL NO.

917.376210

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(t -800-366-7278)

6.O HORSEPOWER

22" EZ MULCH

POWER PROPELLED

ROTARY LAWN MOWER

Each Iawn mower has its own model number Each engine

has its own mode{ number.

The model number for your lawn mower wiII be found on a

decal attached to the rear of the lawn mower housing°

The model number for your engine will be found on the blower

housing of the engine

Ail parts listed herein may be ordered from any Sears, Roe-

buck and Co Service Center/Department and most Retail

Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION;

oPRODUCT - LAWN MOWER

oMODEL NUMBER - 9'17.3762!0

oENGINE - MODEL NO, 12H802-1534-21

=PART NUMBER

,, PART DESCRIPTION

Your Sears merchandise has added value when you consider

Sears has service units nationwide staffed with Sears trained

technicians_, professional technicians specifically trained to

insure that we meet our pledge to you, we service what we

sell

Craftsman 917376210 User Manual ROTARY LAWN MOWER Manuals And Guides L0707146

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0707146 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
