Owner's Manual

ICRIIFTSMRN'J

6.0 HORSEPOWER

22" REAR DISCHARGE

ROTARY LAWN MOWER

Model No.

917.377171

• Safety

•Assembly

•Operation

•Maintenance

• Espa5ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Seam, Roebuck and Co., Hoffman Estates, IL 60179

VisitourCraftsmanweb_te:www.sears.comlcraltsman

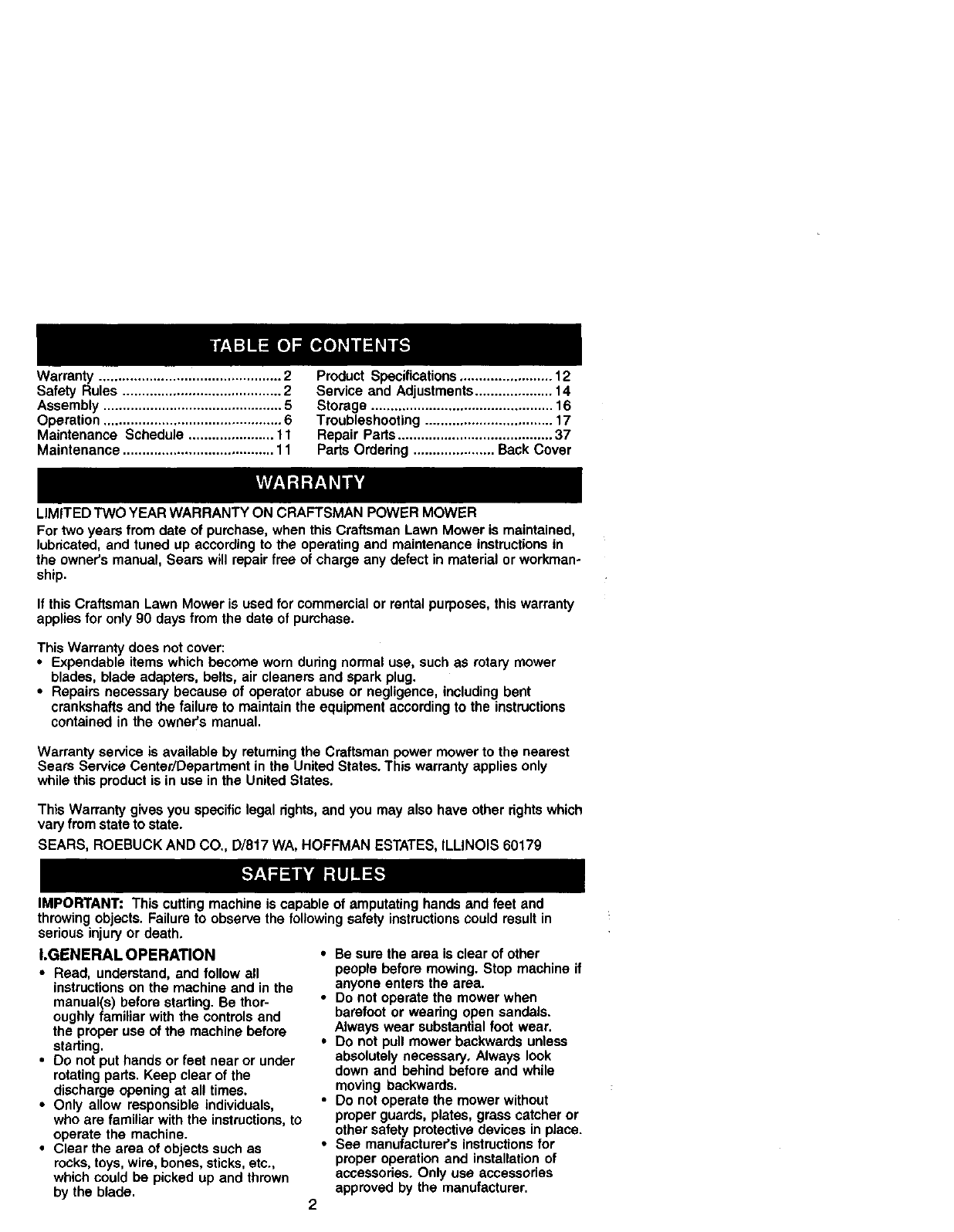

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly .............................................. 5

Operation .............................................. 6

Maintenance Schedule ...................... 11

Maintenance ....................................... 11

Product Specifications ........................ 12

Service and Adjustments .................... 14

Storage ............................................... 16

Troubleshooting ................................. 17

Repair Parts ........................................ 37

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

ThisWarrantydoesnotcover:

•Expendableitemswhich becomewornduringnormaluse, suchas rotary mower

blades,blade adapters,belts, air cleanersand sparkplug.

•Repairs necessarybecause of operatorabuse or negligence,includingbent

crankshaftsand the failure to maintainthe equipmentaccordingto the instructions

containedin the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

IMPORTANT: This cuffingmachineis capable of amputatinghands andfeet and

throwingobjects.Failureto observethe following safetyinstructionscouldresultin

serious injury or death,

I.GI=NERAL OPERATION

•Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thor-

oughly familiar with the controls and

the proper use of the machine before

starting.

•DO not put hands or feet near or under

rotating pads. Keep clear of the

discharge opening at all times.

•Only allow responsible individuals,

who are familiar with the instructions, to

operate the machine.

•Clear the area of objects such as

rocks, toys, wire, bones, sticks, etc.,

which could be picked up and thrown

by the blade. 2

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

•Do not pull mower backwards unless

absolutely necessary, Always look

down and behind before and while

moving backwards.

•Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in place.

•See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

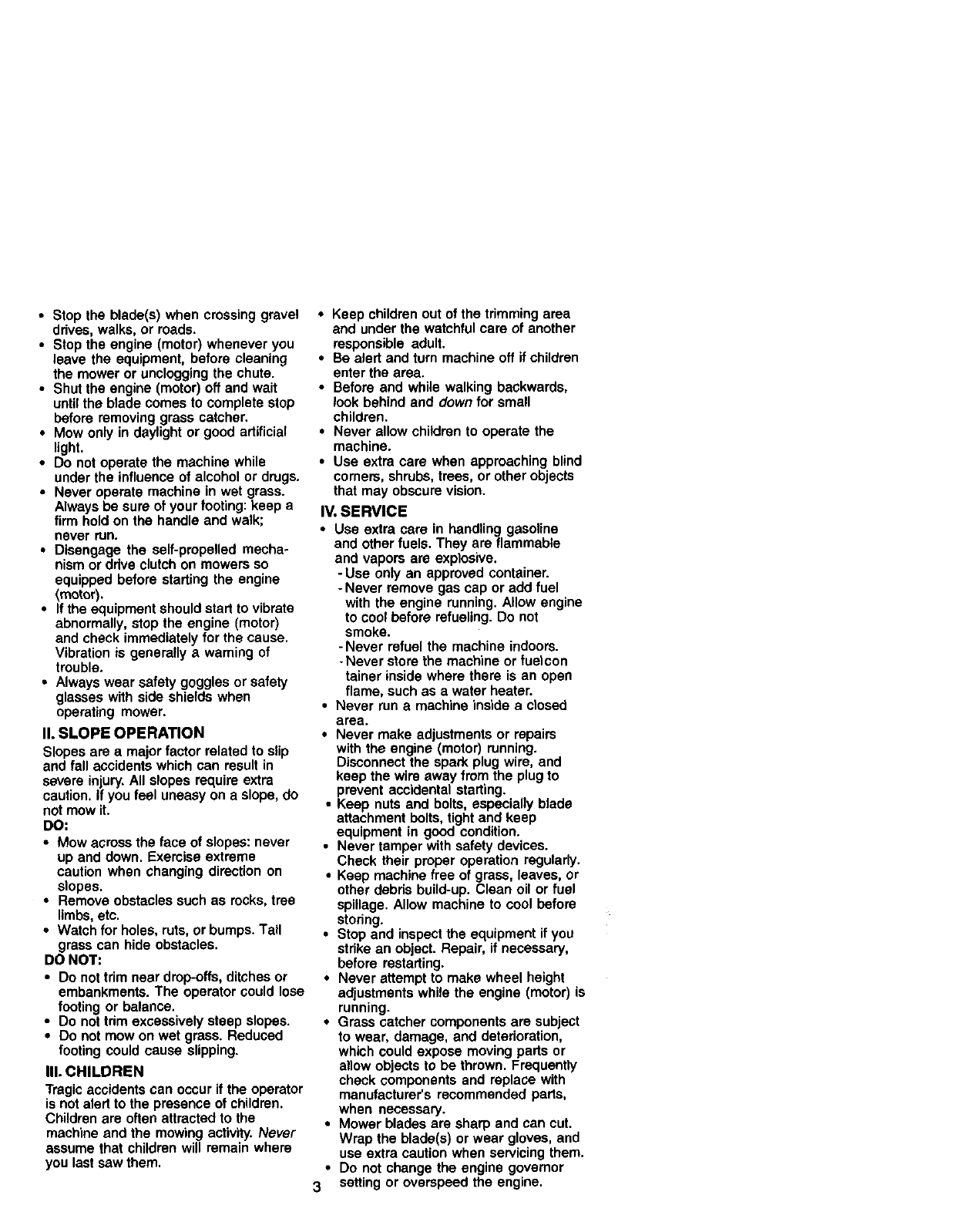

• Stoptheblade(s)whencrossinggravel

drives,walks,orroads.

•Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

•Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or drugs.

•Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk;

never run.

•Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

•It the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally awaming of

trouble.

•Always wear safety goggles or safety

glasses with side shields when

operating mower.

I1. SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra

caution, If you feel uneasy on a slope, do

not mow it.

DO:

•Mow across the face of slopes: never

up and down. Exemise extreme

caution when changing direction on

slopes.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

•Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

•Do not tdm excessively steep slopes.

•Do not mow on wet grass. Reduced

footing could cause slipping.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the trimming area

and under the watchful care of another

responsible adult.

•Be aled and turn machine off if children

enter the area.

•Before and while walking backwards,

look behind and down for small

children.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow engine

to cool before refueling. Do not

smoke.

-Never refuel the machine indoors.

-Never store the machine or fuelcon

tainer inside where there is an open

flame, such as a water heater.

•Never run a machine inside a closed

area.

•Never make adjustments or repairs

with the engine (motor) running.

Disconnect the spark plug wire, and

keep the wire away from the plug to

prevent accidental starting.

• Keep nuts and bolts, especially blade

attachment belts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never attempt to make wheel height

adjustments while the engine (motor) is

running.

•Grass catcher components are subject

to wear, damage, and detedoration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Do not change the engine governor

3 setting or overspeed the engine.

_Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!T YOUR

SAFETY IS INVOLVED.

_, WARNING: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

AWARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer

and birth defects or other reproductive

harm.

AWARNING: Battery posts, terminals and

related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

Theseaccaasodeswereavailablewhenthislawnmowerwasproduced.Theyare not

shippedwithyourmower.TheyarealsoavailableatmostSearsretailoutletsandservice

centers.MostSearsstorescanalsoorderrepairpartsfor you,when youprovidethemodel

numberofyourlawnmower.Someofthsse accessoriesmaynotapplytoyourlawnmower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHER K_S

GRASS CATCHERS

FOR

SIDE OISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES

NR RLTERS

BLADE ADAPTERS WHEELS

STABILIZER

GAS CANS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual

in its entirety before you attempt to

assemble or operate your new lawn

mower.

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in

the engine.

Your new lawn mower has been as-

sembled at the factory with the exception

of those parts left unassembled for

shipping purposes. All parts such as nuts,

washers, bolts, etc., necessary to com-

plete the assembly have been placed in

the parts bag. To ensure safe and proper

operation of your lawn mower, all parts

and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end comers of carton

and lay end panel down flat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thorougly for additional

loose pads.

HOWTO SET UPYOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise handles until lower handle

section locks into place in mowing

position.

2. Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

3. Remove handle padding holding

operator presence control bar to

upper handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle" in the Service and Adjustments

section of this manual.

Operator presence__.

COntrolbar _,_.

up/

Upper handle __J// //" /7

\pps,,on

_r_.____j_ LoNerhandle

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging:

•Open rear door and remove mulcher

plug. Store mulcher plug in a safe

place.

You can now install catcher or

optional clipping deflector.

•To return to mulching operation, install

mulchar plug into discharge opening

of mower.

w_itCAUTION: Do not run your lawn mower

hout mulcher plug in place or

approved clipping deflector or grass

catcher in place. Never attempt to operate

the lawn mower with the rear door

removed or propped open.

Mulcher plug

TO PREPARE BATTERY

NOTE: Your battery must be charged

before you can start your lawn mower.

t. Disconnect engine battery connector

(male) from battery connector (female)

2. Connect battery charger connector

(male) to battery connector (female).

3. Plug battery charger into 110 volt A.C.

outlet.

4. Leave batterychargerconnected for

24 hours beforestartingyourengine

forthefirsttime.

5. Aftercharging,connect engine

connector (male) to battery connector

(female).

Your engine has an integral alternator for

partial charging. Connect your battery

charger to charge battery as required.

IMPORTANT: The engine alternator will

not charge a discharged battery.

At the end of the mowing season the

battery should be charged for 48 hours to

protect the battery during winter storage.

_kCAUTION: Always disconnect the

engine connector (male) from the battery

connector (female) to prevent accidental

starting when transporting or storing your

lawn mower after the season.

Engine //

connector

j_ ._'JJ--_" charger

/ / /y_ connector

Battery connector (Male)

(Female)

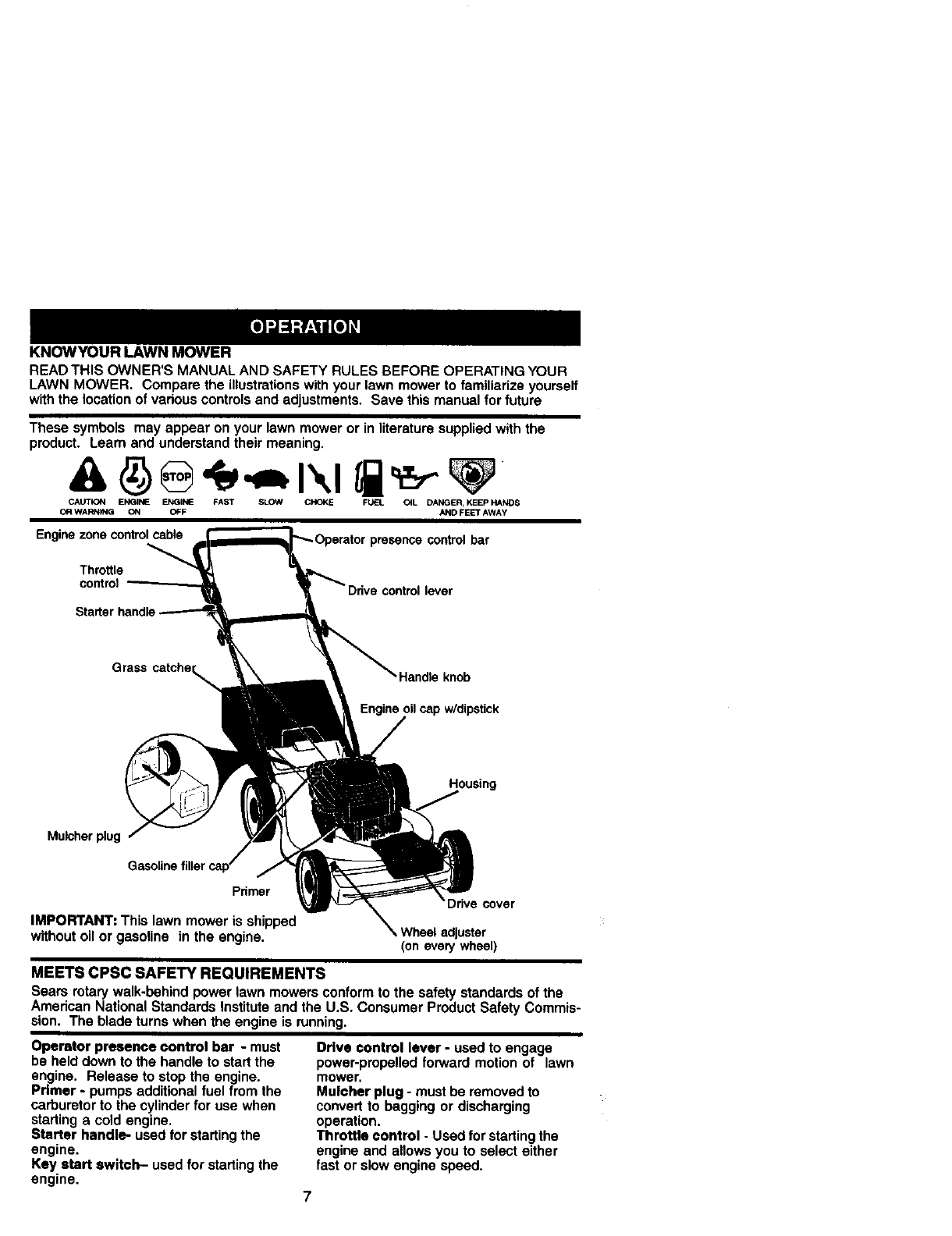

KNOWYOURLAWNMOWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself

with the location of vadous controls and adjustments. Save this manual for future

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGI_ FAST SLOW CHOKE FU_'L O_L DANGER, KEEp HANDS

OR WARNING ON OFF AND FEET AWAY

Enginezone controlcable controlbar

Throttle

control eontrollever

Grass

Housing

Mulcher plug

Primer

IMPORTANT: This lawn mower is shipped

without oil or gasoline in the engine.

cover

adjuster

(on every wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion, The blade turns when the engine is running.

Operator presence control bar - must

be held down to the handle to start the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting acold engine.

Starter handle- used for starting the

engine.

Key start switch- used for starting the

engine.

Ddve control lever -used to engage

power-propelled forward motion of lawn

mower,

Mulcher plug - must be removed to

convert to bagging or discharging

operation.

Throttle control -Used for starting the

engine and allows you to select either

fast or slow engine speed.

The operation of any lawn

mower can result in

foreign objects thrown into

the eyes, which can result

in severe eye damage.

Always wear safety glasses or eye

shields while operating your lawn mower

or performing any adjustments or repairs.

We recommend a wide vision safety

mask over spectacles or standard safety

glasses.

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED

The engine speed is controlled by a

throttle located on the side of the upper

handle. Fast position is for starting,

normal cutting, trimming and better grass

bagging. Slow position is for light cutting,

trimming and fuel economy.

s!ow

PlateTab

LowerWheels for High Cut i _

_(_._ _ Lever

Raise Wheelsfor Low Cut

TO ATFACH GRASS CATCHER

1. Lift the rear door of the lawn mower

and place the grass catcher frame

side hooks onto the door pivot pins.

2. The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

_CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

Pivotpins Rear door

Grass

catcher

handle

ENGINE ZONE CONTROL

_iLCAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

tums when the engine is running,

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST cu'rrlNG HEIGHT

Raise wheels for low cut and lower

wheels for high cut, adjust cutting height

to suit your requirements. Medium

position is best for most lawns.

• To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE: Adjuster is propedy positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Catcher

frame hook

TO EMPTY GRASS CATCHER

1. Liftupon grasscatcherusingthe

frame handle.

2. Remove grasscatcherwithclippings

from under lawn mower handle.

3. Emptyclippingsfrom bag usingboth

frame handle and bag handle.

NOTE: Do notdrag the bag when

emptying; it will cause unnecessarywear.

handle

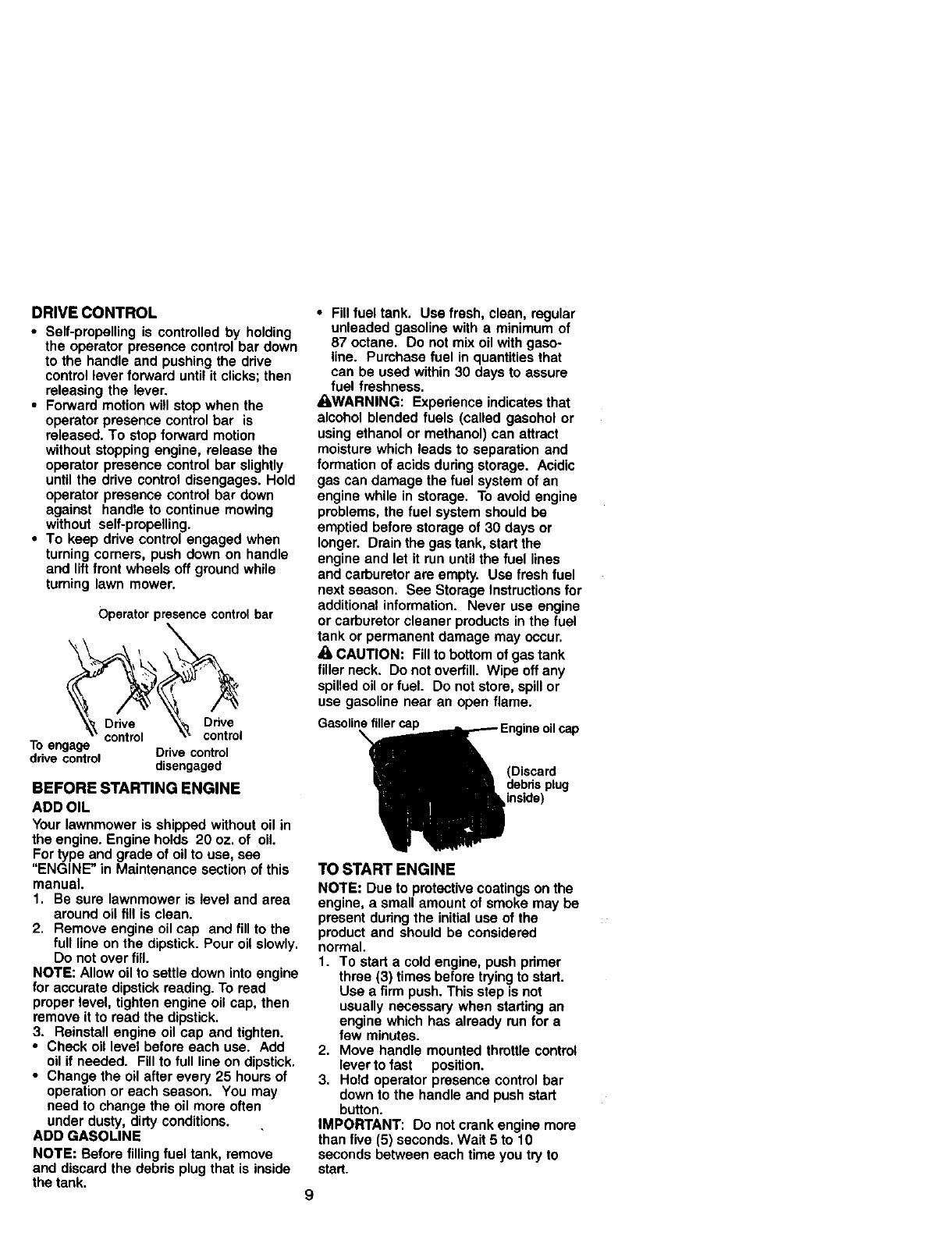

DRIVE CONTROL

• Self-propelling is controlled by holding

the operator presence control bar down

to the handle and pushing the drive

control lever forward until it clicks; then

releasing the lever.

• Forward motion will stop when the

operator presence control bar is

released. To stop forward motion

without stopping engine, release the

operator presence control bar slightly

until the drive control disengages. Hold

operator presence control bar down

against handle to continue mowing

without self-propelling.

• To keep ddve control engaged when

turning corners, push down on handle

and lift front wheels off ground while

turning lawn mower.

Operatorpresence controlbar

\' control _,_ control

Toengage

drivecontrol Drive control

disengaged

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. Engine holds 20 oz, of oil.

For type and grade of oil to use, see

"ENGINE" in Maintenance section of this

manual.

1. Be sure lawnmower is level and area

around oil fill is clean.

2. Remove engine oil cap and fill to the

full line on the dipstick. Pour oil slowly.

Do not over fill.

NOTE: Allow oil to settle down into engine

for accurate dipstick reading. To read

proper level, tighten engine oil cap, then

remove it to read the dipstick.

3. Reinstall engine oil cap and tighten.

•Check oil level before each use. Add

oil if needed. Fill to full line on dipstick.

•Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

ADD GASOLINE

NOTE: Before filling fuel tank, remove

and discard the debris plug that is inside

the tank.

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. Do not mix oil with gaso-

line. Purchase fuel in quantities that

can be used within 30 days to assure

fuel freshness.

AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

ACAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

Gasolinefiller cap

(Discard

debds plug

inside)

TO START ENGINE

NOTE: Dueto protectivecoatingsonthe

engine, a smallamountof smoke may be

presentduringthe initialuse of the

productand shouldbe considered

normal.

1. To start a coldengine, pushprimer

three(3) timesbeforetryingto start.

Use a firmpush.This stepis not

usuallynecessarywhen startingan

enginewhich has already run for a

few minutes.

2. Move handlemountedthrottlecontrol

leverto fast position.

3. Holdoperatorpresence controlbar

downto the handleand pushstart

button.

IMPORTANT: Do notcrankenginemore

thanfive (5) seconds, Wait5 to 10

secondsbetweeneach time youtry to

start.

•To start engine using the rope starter,

follow the steps above. Exchange the

use of the start button for starter rope.

Do not allow starter rope to snap back.

TO STOP ENGINE

•To stop engine, move throttle control

lever to slow position and release

operator presence control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat pdming steps.

Operator presence

controlbar_

Throttle

control _

MOWING TIPS

•Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from ovedoading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time,

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

•if a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

ovedap to collect the clippings on the

next pass. 10

•Pores in cloth grass catchers can

become filled with dirt and dust with

use and catchers will collect less grass.

To prevent this, regulady hose catcher

off with water and let dry before using.

•Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See =Cleaning" in

MAINTENANCE section of this manual.

•The special mulching blade will recurthe

grass clippingsmany times and reduce

them insize so that as they fall ontothe

lawnthey willdisperse intothe grass and

not be noticed. Also,the mulched grasswill

biodegrade quicklyto provide nutrientsfor

the lawn. Always mulchwith your highest

engine (blade) speed as thiswillprovide

the best recuttingaction of the blades.

•Avoidcuttingyour lawn when it is wet. W_

grass tends to form clumps and interferes

withthe mulchingaction.The best time to

mow your lawnis the early afternoon. At

this time the gra_ has dried and the newly

cut area will not be exposed to the direct

sun.

•Forbest results,adjustthe lawn mower

cuttingheight so thatthe lawn mower cuts

offonlythe top one-thirdof the grass

blades. If the lawn is overgrown itwill he

necessaryto raisethe heightof cut to

reduce pushingeffort and to kasp from

overloadingthe engine and leaving

clumpsof mulchedgrass. For extremely

heavy mulching,reduce your width of cut

by overlappingpreviouslycutpathand

mow slowly.

• Certain types of grass and grass condi-

Uons may requirethat an area be mulched

a second time to completelyhide the

clippings.When doing a secondcut, mow

across or peq:Jendlcularto thefirstcutpath.

•Change your cuttingpatternfrom week to

wsek. Mow northto south one week then

change to east to _the next week. This

will help prevent matting and grainingof

the lawn.

Max, 1/3

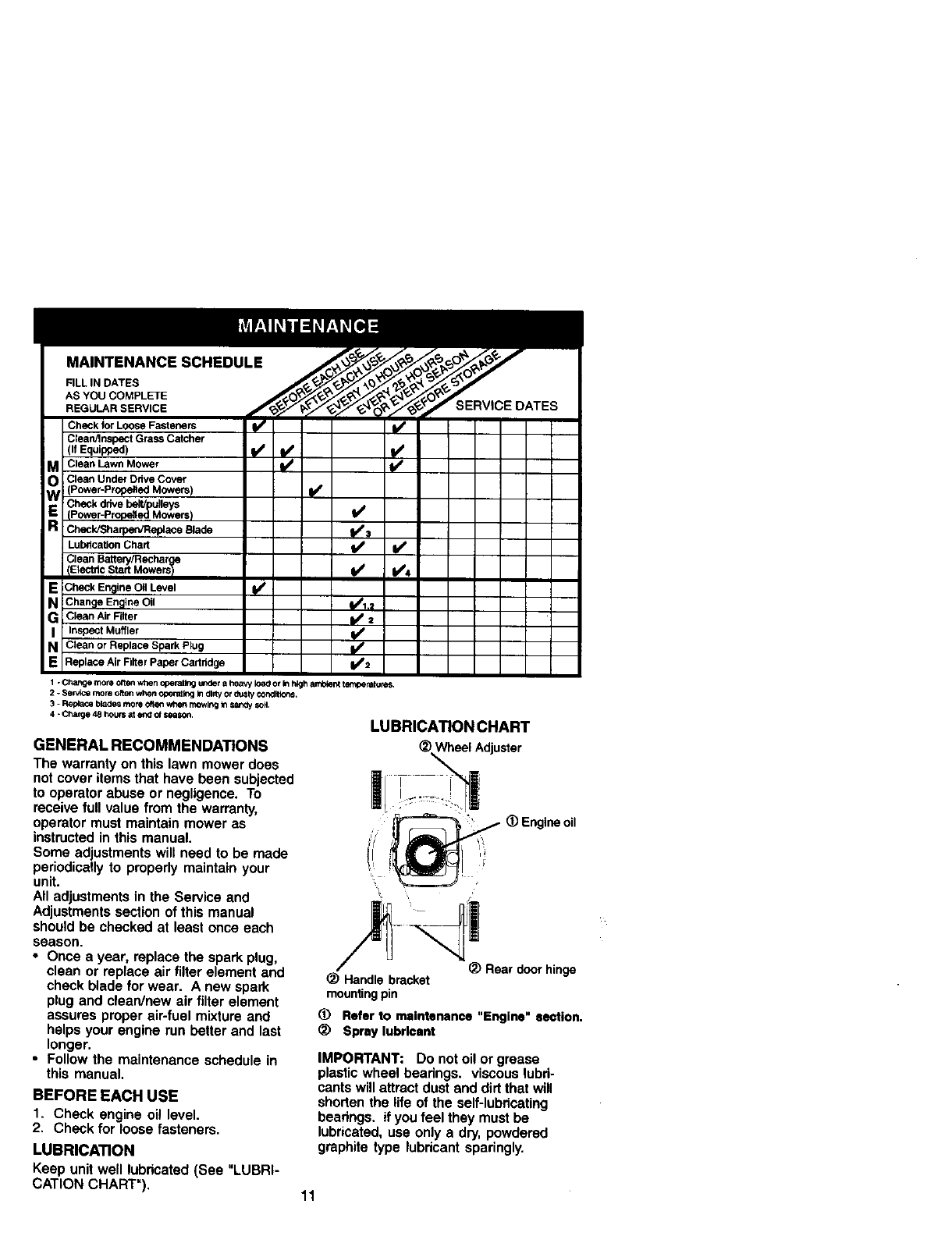

3ERVICE DATES

Check for Loose Fasteners

Clean/InspectGrassCatcher

(If Equipped) I/=_ iK

Clean Lawn Mower I- Ill

Clean Under Odve Cover

(Power-Prope_ed MOwers!i_/

;Check ddve ulleys

(Power-Pr_oellb_°Mowers) fl/

ChecWShaq0en/Replace Blade _1'3

Lubrication Chart 1/ b#'

Clean Baitery/Rechar

IElectdc Start Mowe_ e II/ li/4

Check Engine OII Level

Change Engine Oil {11_1.2

Clean Air Filter ii/=

Inspect Muffler

Clean or Replace Spark Plug

Replace Air Filter Paper Cartridge I/2

1-Change more olten when operating under a heavy _or inhigh ambient temperalures.

2-SerViCe more often when operating indirty or d_sly corKIItlor_.

3-Fl_ce bladeS more Often when mowing in sandy soil.

4 - C_ 48 houm atend of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does

not cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

unit.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once a year, replace the spark plug,

clean or replace air filter element and

check blade for wear. A new spark

plug and clean/new air filter element

assures proper air-fuel mixture and

helps your engine run better and last

longer.

• Follow the maintenance schedule in

this manual.

BEFORE EACH USE

1. Check engine oi! level.

2, Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRI-

CATION CHART"),

LUBRICATION CHART

(_ WheelAdjuster

(_ Rear deerhinge

(_ Handle bracket

mountingpin

_) Refer to maintenance "Engine" section.

(_ Spray lubrlcant

IMPORTANT: Do not oil or grease

plastic wheel bearings, viscous lubri-

cants will attract dust and dirt that will

shorten the life of the self-lubricating

bearings, if you feel they must be

lubricated, use only a dry, powdered

graphite type lubdcant sparingly.

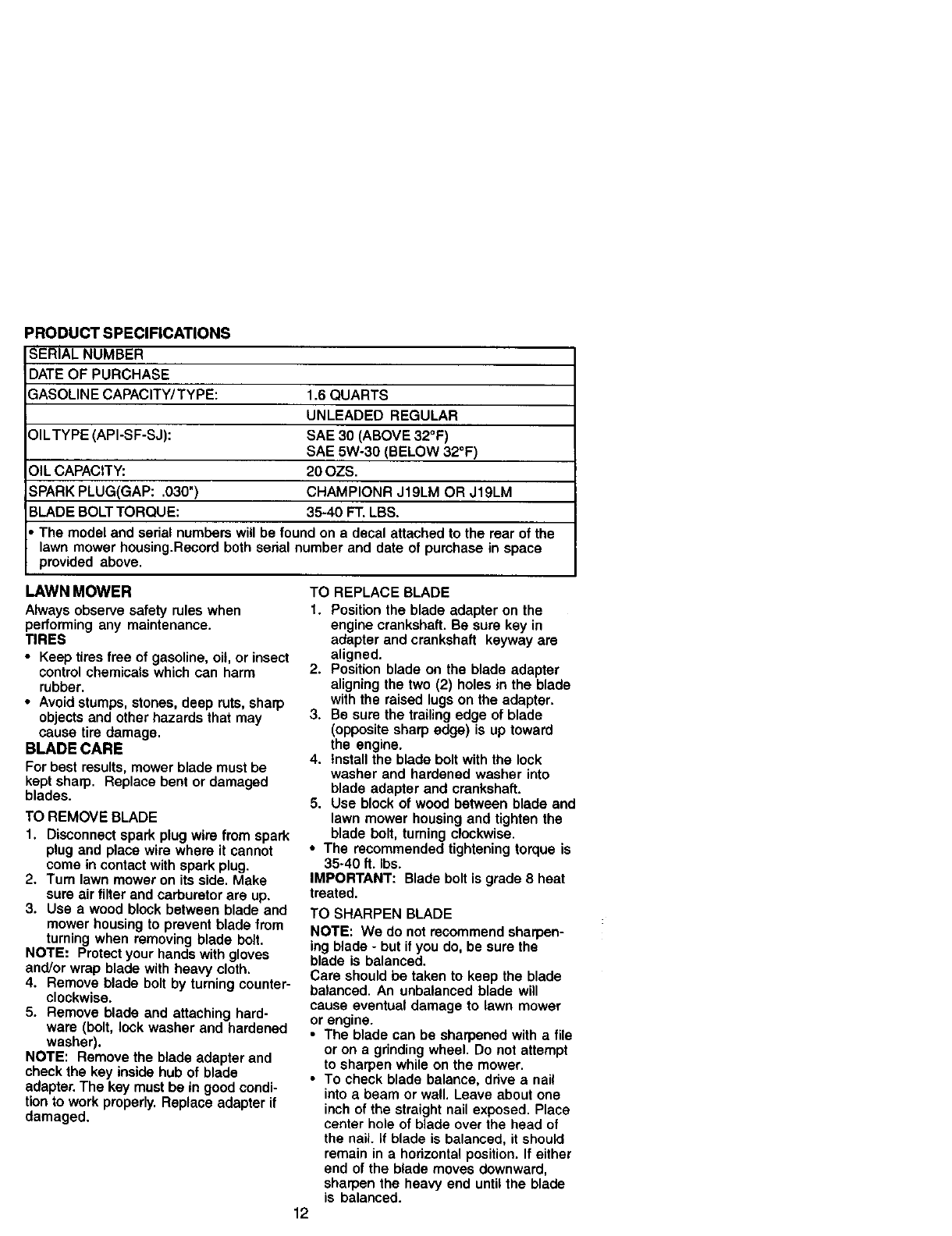

PRODUCT SPECIFICATIONS

SERIAL NUMBER

DATE OF PURCHASE

GASOLINE CAPACITY/TYPE: 1.6 QUARTS

UNLEADED REGULAR

OILTYPE (API-SF-SJ): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPIONR J19LM OR Jf9LM

BLADE BOLT TORQUE: 35-40 FT. LBS.

•The model and sedal numbers will be found on a decal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER

Always observe safety rules when

performing any maintenance.

TIRES

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

1, Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

2. Turn lawn mower on its side. Make

sure air filter and carburetor are up.

3. Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

4. Remove blade bolt by turning counter-

clockwise.

5. Remove blade and attaching hard-

ware (bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade

adapter. The key must be in good condi-

tion to work properly. Replace adapter if

damaged.

TO REPLACE BLADE

1. Position the blade adapter on the

engine crankshaft. Be sure key in

adapter and crankshaft keyway are

aligned.

2. Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

3. Be sure the trailing edge of blade

(opposite sharp edge) is up toward

the engine.

4. Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

5. Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

•The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause eventual damage to lawn mower

or engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, drive a nail

into a beam or wall. Leave about one

inch of the straight nail exposed. Place

center hole of blade over the head of

the nail. if blade is balanced, it should

remain in a horizontal position. If either

end of the blade moves downward,

sharpen the heavy end until the blade

is balanced.

Bladeadapter

Key_

Lockwasher_

/O,aO°

\adapter

washer _iling edge

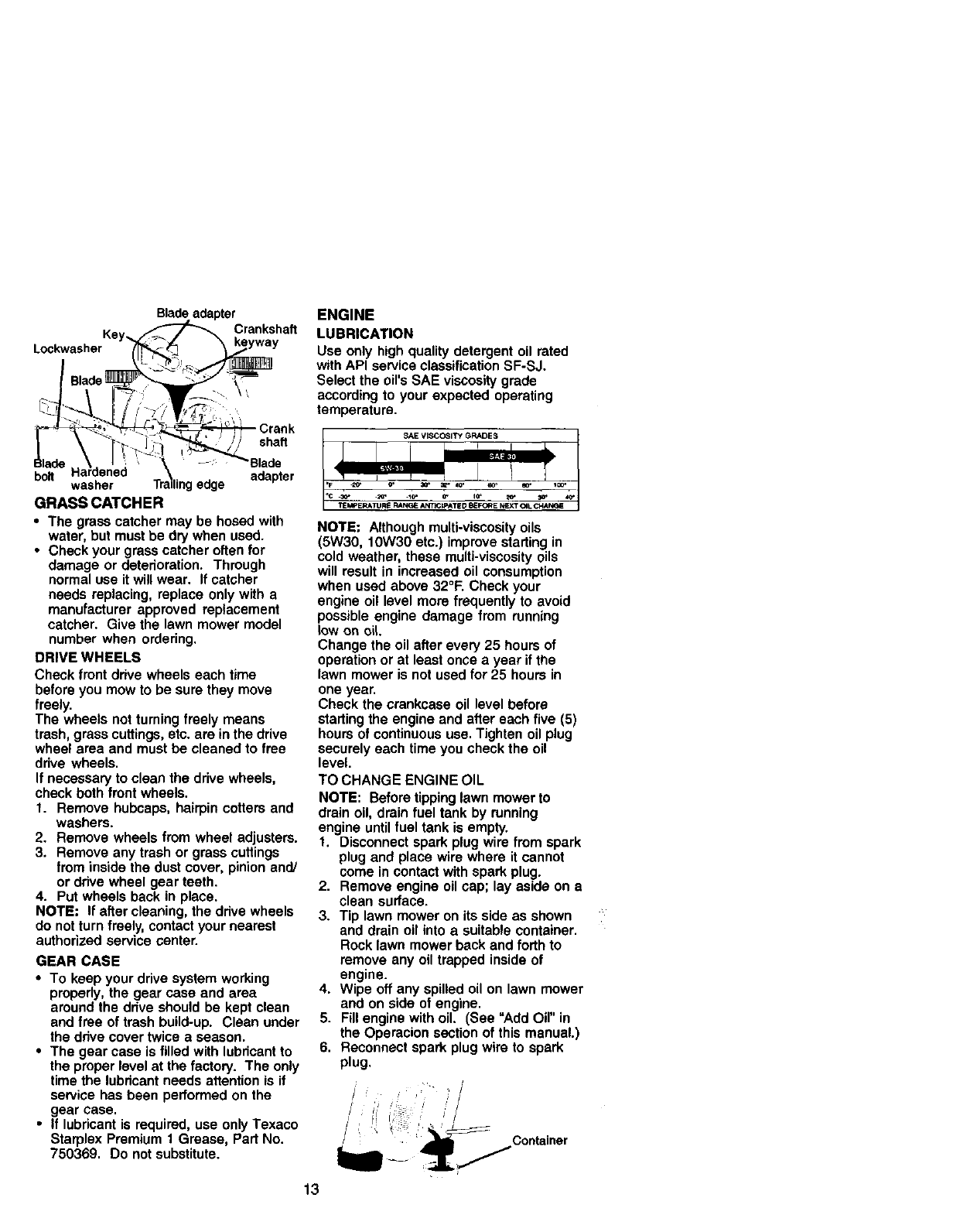

GRASS CATCHER

•The grass catcher may be hosed with

water, but must be dry when used.

•Check your grass catcher often for

damage or deterioration. Through

normal use it will wear. If catcher

needs replacing, replace only with a

manufacturer approved replacement

catcher. Give the lawn mower model

number when ordering.

DRIVE WHEELS

Check front drive wheels each time

before you mow to be sure they move

freely.

The wheels not turning freely means

trash, grass cuttings, etc. are in the drive

wheel area and must be cleaned to free

drive wheels.

If necessary to clean the drive wheels,

check both front wheels.

1. Remove hubcaps, hairpin cotters and

washers.

2. Remove wheels from wheel adjusters.

3. Remove any trash or grass cuttings

from inside the dust cover, pinion and/

or drive wheel gear teeth.

4. Put wheels back in place.

NOTE: If after cleaning, the drive wheels

do not turn freely, contact your nearest

authorized service center.

GEAR CASE

• To keep your drive system working

properly, the gear case and area

around the drive should be kept clean

and free of trash build-up. Clean under

the drive cover twice a season.

•The gear case is filled with lubricant to

the proper level at the factory. The only

time the lubricant needs attention is if

service has been performed on the

gear case.

•If lubricant is required, use only Texaco

Starplex Premium 1 Grease, Part No.

750369. Do not substitute.

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classification SF-SJ.

Select the oirs SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSI'Pf GRADES {

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°1=.Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one year.

Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil

level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to

drain oil, drain fuel tank by running

engine until fuel tank is empty.

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

2. Remove engine oil cap; lay aside on a

clean surface.

3. Tip lawn mower on its side as shown

and drain oil into a suitable container.

Rock lawn mower back and forth to

remove any oil trapped inside of

engine.

4. Wipe off any spilled oil on lawn mower

and on side of engine.

5. Fill engine with oil. (See "Add Oil" in

the Operacion section of this manual.)

6. Reconnect spark plug wire to spark

plug.

Container

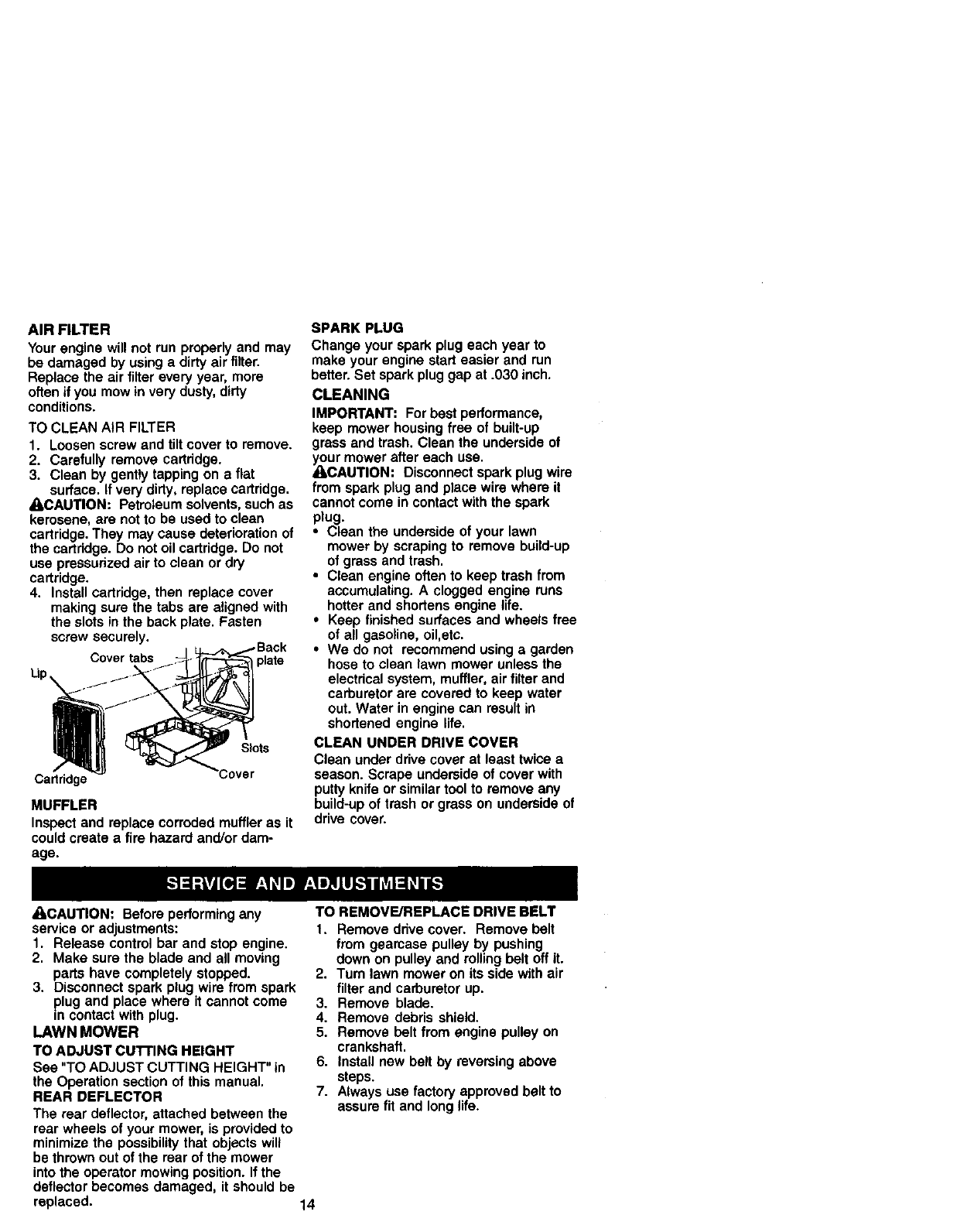

AIR FILTER

Your engine will not run properly and may

be damaged by using a dirty air filter.

Replace the air filter every year, more

often if you mow in very dusty, dirty

conditions.

TO CLEAN AIR FILTER

1. Loosen screw and tilt cover to remove.

2. Carefully remove cartridge.

3. Clean by gently tapping on a flat

surface. If very dirty, replace cartridge.

_kCAUTION: Petroleum solvents, such as

kerosene, are not to be used to clean

cartridge. They may cause deterioration of

the cartridge. Do not oil cartridge. Do not

use pressurized air to clean or dry

cartridge.

4. Install cartridge, then replace cover

making sure the tabs are aligned with

the slots in the back plate. Fasten

screw securely.

Cover tabs plate

Slots

Cartridge

MUFFLER

Inspectand replacecorrodedmuffleras it

could create a fire hazard and/or dam-

age.

SPARK PLUG

Change your spark plug each year to

make your engine start easier and run

better. Set spark plug gap at .030 inch.

CLEANING

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean the underside of

your mower after each use.

_kCAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

•Clean the underside of your lawn

mower by scraping to remove build-up

of grass and trash.

•Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

•Keep finished surfaces and wheels free

of all gasoline, oil,etc.

•We do not recommend using sgarden

hose to clean lawn mower unless the

electrical system, muffler, air filter and

carburetor are covered to keep water

out. Water in engine can result in

shortened engine life.

CLEAN UNDER DRIVE COVER

Clean under drive cover at least twice a

season. Scrape underside of cover with

putty knife or similar tool to remove any

build-up of trash or grass on underside of

drive cover.

ACAUTION: Before performing any

service or adjustments:

1. Release control bar and stop engine.

2. Make sure the blade and all moving

parts have completely stopped.

3. Disconnect spark plug wire from spark

plug and place where it cannot come

mcontact with plug.

LAWN MOWER

TO ADJUST CUI-FING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your mower, is provided to

minimize the possibility that objects will

be thrown out of the rear of the mower

into the operator mowing position. If the

deflector becomes damaged, it should be

replaced.

TO REMOVE/REPLACE DRIVE BELT

1. Remove drive cover. Remove belt

from geamase pulley by pushing

down on pulley and rolling belt off it.

2. Turn lawn mower on its side with air

filter and carburetor up.

3. Remove blade.

4. Remove debris shield.

5. Remove belt from engine pulley on

crankshaft.

6. Install new belt by reversing above

steps.

7. Always use fectory approved belt to

assure fit and long life.

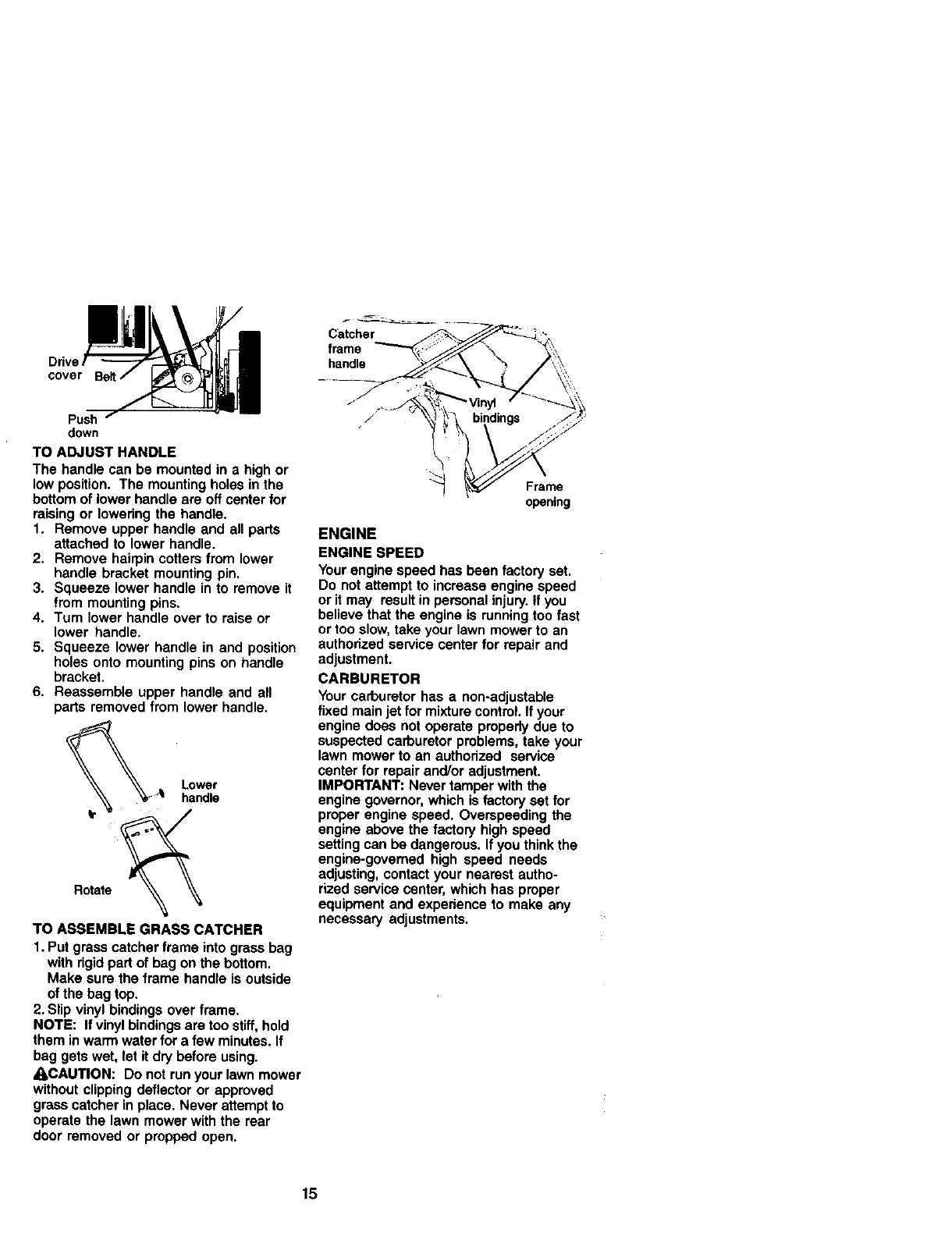

Push f

down

TO ADJUST HANDLE

The handle can be mounted in ahigh or

low position, The mounting holes in the

bottom of lower handle are off center for

raising or lowering the handle,

1. Remove upper handle and all parts

attached to lower handle.

2. Remove hairpin cotters from lower

handle bracket mounting pin.

3. Squeeze lower handle in to remove it

from mounting pins.

4. Turn lower handle over to raise or

lower handle.

5. Squeeze lower handle in and position

holes onto mounting pins on handle

bracket.

6. Reassemble upper handle and all

parts removed from lower handle.

Lower

handle

TO ASSEMBLE GRASS CATCHER

1. Put grass catcher frame into grass bag

with dgid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

2. Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

ACAUTION: Do not run your lawn mower

without clipping deflector or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

Catcher

frame

handle

Frame

opening

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that the engine is running too fast

or too slow, take your lawn mower to an

authorized service center for repair and

adjustment.

CARBURETOR

Your carburetor has a non-adjustable

fixed main jet for mixture control. If your

engine does not operate properly due to

suspected carburetor problems, take your

lawn mower to an authorized service

center for repair and/or adjustment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest autho-

rized service center, which has proper

equipment and experience to make any

necessary adjustments.

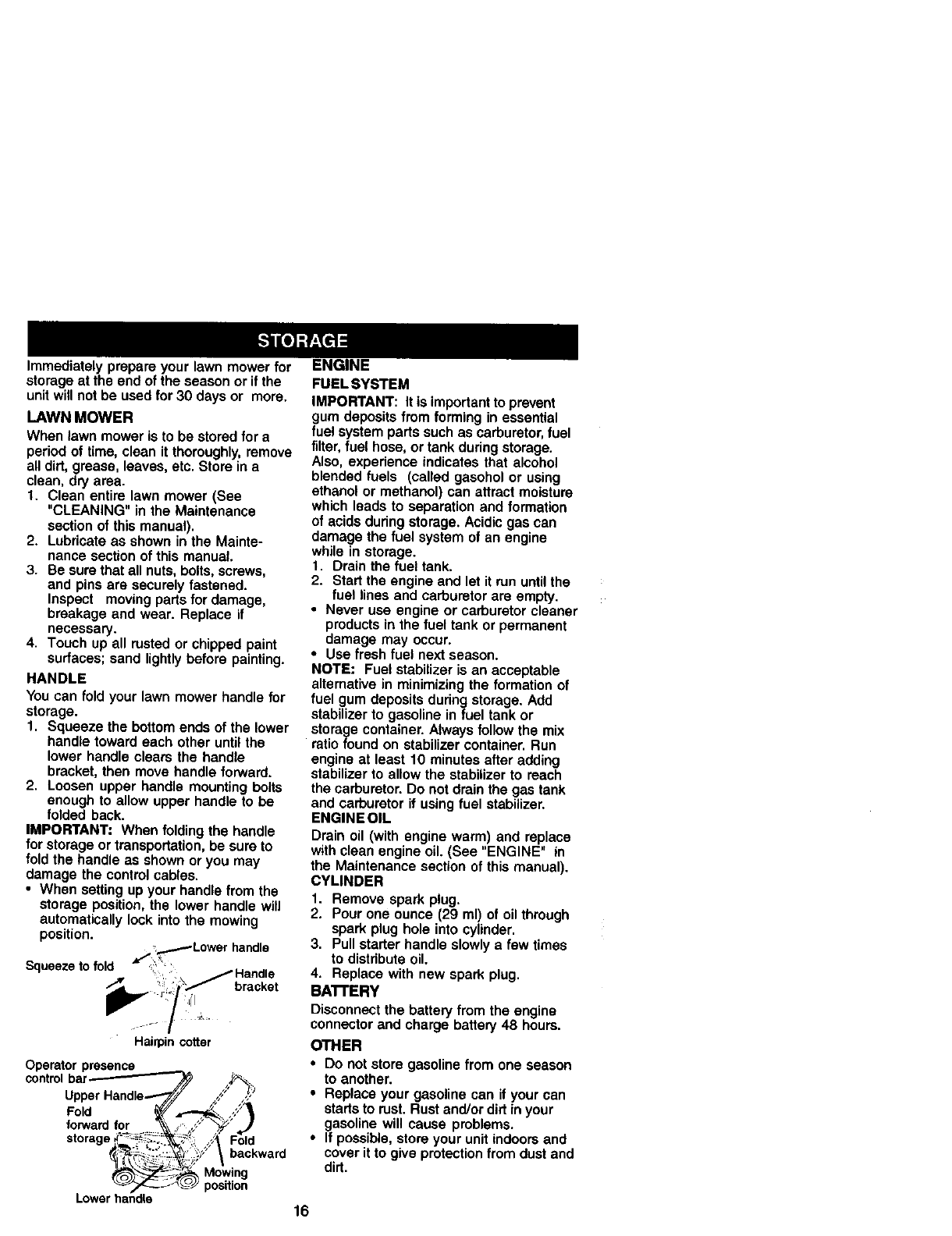

Immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire lawn mower (See

"CLEANING" in the Maintenance

section of this manual).

2. Lubricate as shown in the Mainte-

nance section of this manual.

3. Be sure that all nuts, bolts, screws,

and pins are securely fastened.

Inspect moving parts for damage,

breakage and wear. Replace if

necessary.

4. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

You can fold your lawn mower handle for

storage.

1. Squeeze the bottom ends of the lower

handle toward each other until the

lower handle clears the handle

bracket, then move handle forward.

2. Loosen upper handle mounting bolts

enough to allow upper handle to be

folded back.

IMPORTANT: When folding the handle

for storage or transportation, be sure to

fold the handle as shown or you may

damage the control cables.

•When setting up your handle from the

storage position, the lower handle will

automatically lock into the mowing

position.

Squeeze to told L,_Lower!_ handle

Hairpincotter

Operator presence

controlbar,------'-'_ ,_i%.

Upper Handle-._/_iJ /;;//,_

Fold _//_

forward J

stor_:_ _'. ,J_ Fold

- _, ._"-_":.-_./:.':_;/\ backward

_ _Y position

Lower handle

FUEL SYSTEM

IMPORTANT: It is importantto prevent

gum depositsfromforminginessential

fuel systempartssuchas carburetor,fuel

filter, fuelhose, ortank duringstorage.

Also, experienceindicatesthat alcohol

blended fuels (called gasoholor using

ethanolor methanol)can attractmoisture

which leadsto separationand formation

of acidsduringstorage.Acidicgas can

damage the fuel systemof an engine

while in storage.

1. Drainthe fuel tank.

2. Startthe engineand let it run untilthe

fuellines and carburetorare empty.

•Never use engineor carburetorcleaner

productsinthe fuel tank or permanent

damage may occur.

•Use freshfuel nextseason.

NOTE: Fuelstabilizeris an acceptable

alternativein minimizingthe formationof

fuel gumdepositsduringstorage.Add

stabilizerto gasolinein fuel tank or

storagecontainer.Alwaysfollowthe mix

ratio foundon stabilizercontainer.Run

engineat least 10 minutesafter adding

stabilizerto allow the stabilizerto reach

the carburetor.Do notdrainthe gas tank

and carburetorif usingfuelstabilizer.

ENGINEOIL

Drain oil (with enginewarm) and replace

withcleanengineoil.(See "ENGINE" in

the Maintenancesectionof thismanual).

CYLINDER

1. Removespark plug.

2. Pourone ounce (29 ml) of oil through

sparkplug hole intocylinder.

3. Pullstarterhandleslowlya few times

to distributeoil.

4. Replacewith new sparkplug.

BAI"rERY

Disconnectthe batteryfromthe engine

connectorand charge battery48 hours.

OTHER

•Do notstore gasolinefrom one season

to another.

•Replace yourgasoline can if yourcan

startsto rust.Rustand/ordirtinyour

gasolinewill cause problems.

•If possible,storeyour unitindoorsand

coverit to giveprotectionfromdustand

dirt.

• Cover your unit with a suitable protec-

tive cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your unit to rust.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Does not start 1. Dirtyair filter.

Loss of power

=oor cut -

Jneven

IMPORTANT: Never cover mower while

engone and exhaust areas are still warm.

CAUTION:Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark• Allow the engine to cool before

storing in any enclosure.

CORRECTION

1. Clean/replace air filter.

Out of fuel.

Stale fuel.

Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken

blade adapter.

8. Control bar in released

position.

2. Fill fuel tank.

3. Drain tank and refill with

fresh clean fuel.

4. Drain fuel tank and

carburetor and refill tank

with fresh gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. Tighten blade bolt or

replace blade adapter.

8. Depress control bar to

handle.

Excessive

*ibretlon

Starter rope hard

topull

9. Control bar defective.

10.Weak Battery

11.Disconnected battery

connector.

1. Rear of lawn mower

housing or cutting blade

dragging in heavy grass.

2. Cutting too much grass.

3. Dirty air fitter.

4. Buildup of grass, leaves,

and trash under mower.

. Too much oil in engine.

•Walking speed too fast.

1. Worn, bent or loose blade.

2. Wheel heights uneven.

3. Buildup of grass, leaves

and trash under mower.

1. Worn, bent or loose blade.

2. Bent engine crankshaft.

1. Engine flywheel brake is on

when control bar is released.

2. Bent engine crankshaft.

3. Blade adapter broken.

4. Blade dragging in grass.

9. Replace control bar.

10.Charge battery.

11.Connect battery to engine.

1. Set to "Higher Cut"

position.

2. Set to "Higher Cut"

position.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking

speed.

1. Replace blade. Tighten

blade bolt.

2. Set all wheels at same

height

3. Clean underside of

mower housing.

1. Replace blade. Tighten

blade bolt.

2. Contacta Sears or other

qualified servicecenter.

1. Depress control bar to

upper handle before

pulling starter rope.

2. Contact a Sears or other

qualified service center.

3. Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Loss of drive I. Drive wheels not turning I. Adjust or replace drive

with drive control engaged, control cable.

2. Belt not driving 2. Put belt on pulleys or

replace belts if broken.

Grass catcher 1. Cutting height too low. 1. Raise cutting height.

_notfilling(ifso 2. Lift on blade worn off. 2, Replace blade.

iequipped) 3. Catcher not venting air. 3. Clean grass catcher,

Hard topueh 1. Grass is too high or wheel

height is too low.

2. Rear of lawn mower

housing or blade dragging

in grass.

3. Grass catcher too full.

4. Handle height position not

right for you.

1. Raise cuttingheight.

2. Raise rear of lawn mower

housing one (1) setting

higher.

3. Empty grass catcher.

4. Adjust handle height to

suit.

ROTARY LAWN MOWER - - MODEL NO. 917.377171

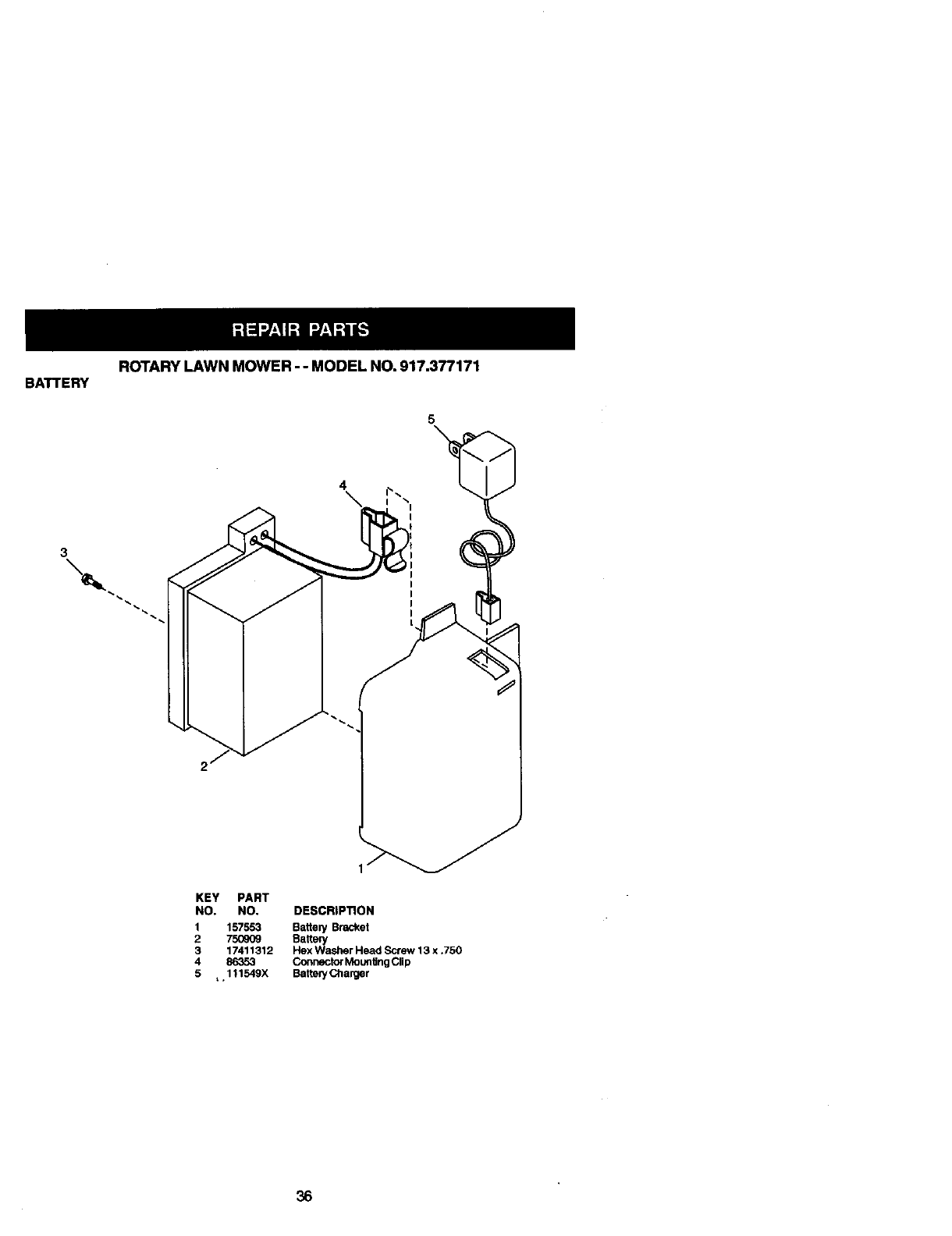

BATTERY

%%%%

KEY PART

NO. NO, DESCRIPTION

1 157553 Battei_ Bracket

2 750909 BatteP/

3 17411312 Hex Washer Head Screw 13 x .750

4 86353 Connector MounUng Clip

5_111549X Batter/Charger

ROTARYLAWNMOWER--MODELNO.917.377171

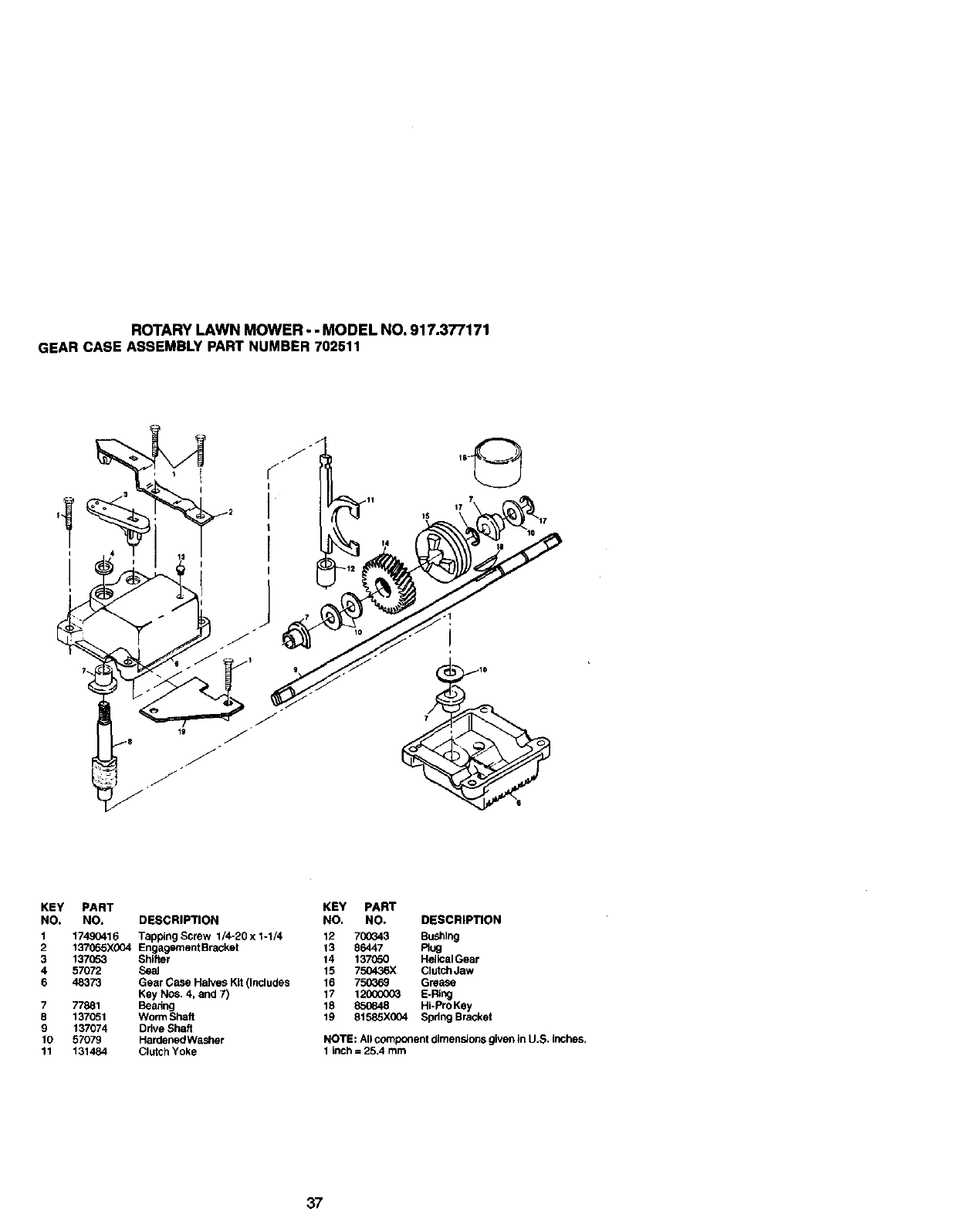

GEARCASEASSEMBLYPARTNUMBER702511

KEY

NO.

PART

NO,

174gO416

137(_5X004

137053

57072

48373

77881

137051

137074

57079

131484

DESCRIPTION

Tapping Screw 1/4-20 x 1-1/4

Engagement Bmcket

Shifter

Seal

Gear Case Halves Kit (Includes

Key Nos. 4, and 7)

Bea_ng

Worm Shalt

Ddve Shaft

Hardened Washer

Clutch Yoke

KEY PART

NO. NO. DESCRIPTION

12 700343 BuShing

13 86447 Rug

14 137060 Helical Gear

15 750436X Clutch Jaw

16 750369 Grease

17 12(XXX_3 E-Ring

18 850848 Hi-Pro Key

19 81585X004 Spdng Bracket

NOTE: All comp_ent dimensions given in U.S. Inches.

1 inch =25.4 mm

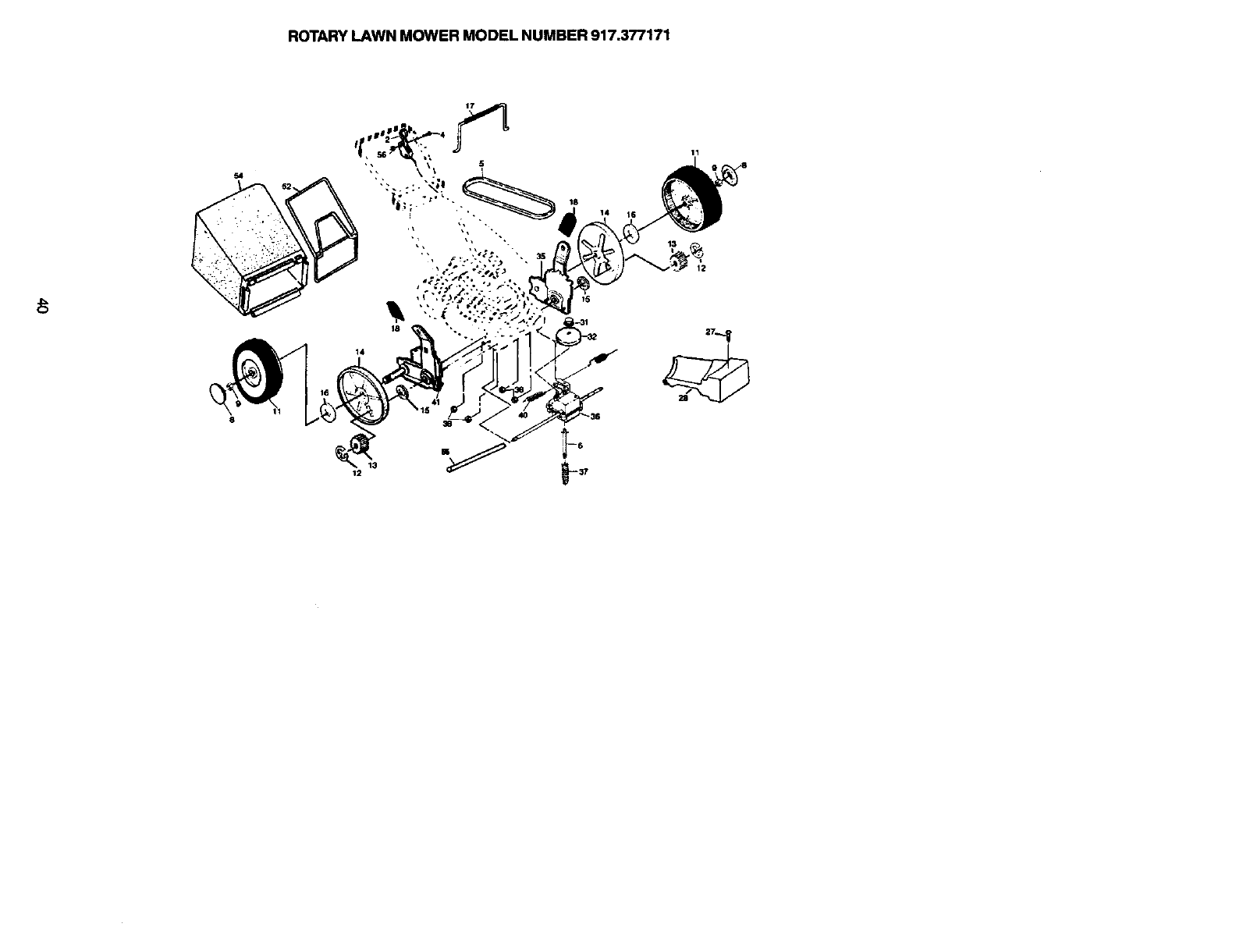

ROTARY LAWN MOWER MODEL NUMBER 917.377171

31 75

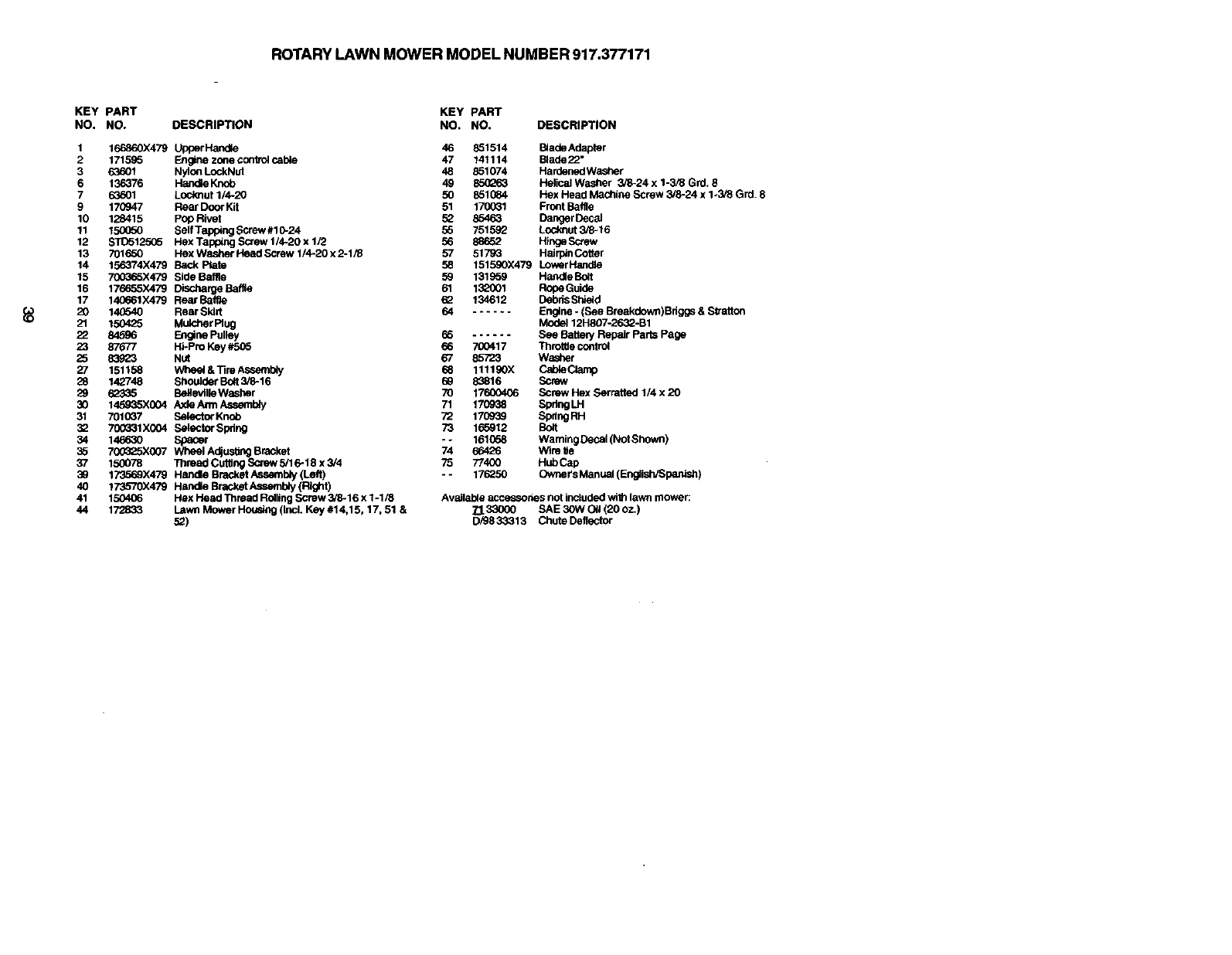

ROTARY LAWN MOWER MODEL NUMBER 917.377171

KEY PART

NO. NO. DESCRIPTION

1 166860X479

2 171595

3 63601

6 136376

7 63601

9 170947

10 128415

11 t._

12 STD5125C6

13 701650

14 156374X479

15 700365X479

16 176655X479

17 14_661X479

20 14(To40

21 150425

22 84596

23 87677

25 839"23

27 151158

28 142748

29 62335

30 145935X004

31 7010_7

32 _1X004

34 14_630

35 _X007

37 150078

39 173569X479

40 ! 73570X479

41 150406

44 172833

Upper Hanble

Engine zofle control cable

Nylon LockNut

Handle Knob

Locknut 1/4-20

Rear DoocKit

Pop Rivet

Self Tapping Screw #10-24

Hex Tapping Screw 1/4-20 x lt2

Hex Washer Head Screw 1/4-20 x 2-1/8

Back Plate

Side Baffle

D_sc_fge Bame

Rear Baffle

Rear Skirt

Mulcher Plug

EnginePbl_y

Hi*Pro Key #506

Nut

Wheel & Tire Assembly

Shoulder Bblt 3/8-16

Bellevllle Washer

Axte Ann Assembly

Selector Kn<_

Selector Spring

spacer

Wheel AdjusUng Bracket

Tllread Cufting Sorew 5/16-18 x 3/4

Handle Bracket Assembly {Left)

He, de Bracket Assembly (Right)

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

Lawn Mower Housing (Inbl. Key #14,15, 17, 51 &

52)

KEY PART

NO. NO. DESCRIPTION

851514 Blade Adapter

141114 Blade22"

851074 Hardened Waster

85(_63 Helical Washer 3/8-24 x 1-3/8 Grd. 8

851084 Flex Head Machine Screw 3/8-24 x 1.3/8 Grd. 8

170031 Front Baffle

85463 Danger Decal

751592 Loc_lut 3/8-16

88652 Hinge Screw

51793 Hairpin Cotter

151590X479 Lower Handle

131_o9 Handle Bblt

132001 RopeGuide

134612 Debris Sh_ld

64 ...... Englne -(See Breakdown)Bdggs & S_ratton

Model 12H807-2632-B1

66 ...... See Battery Repair Parts Page

66 700417 Throffie control

67 85723 Washer

_8 1111SOX CableOamp

69 83816 Screw

70 17600406 Screw Hex Serratted I/4 x20

71 170938 Spdng LH

72 17(]939 Spdng RH

73 165912 Bblt

-- 161(To8 Waming Decal (Not Shown)

74 66426 Wire tie

75 77400 HubCap

-- 176250 Owner's Manual (Eng_isWSpanish)

Available accessories not inctuded with lawn mower:

7l 33000 SAE 30W Oil (20 oz-)

DF3833313 Chute Deflector

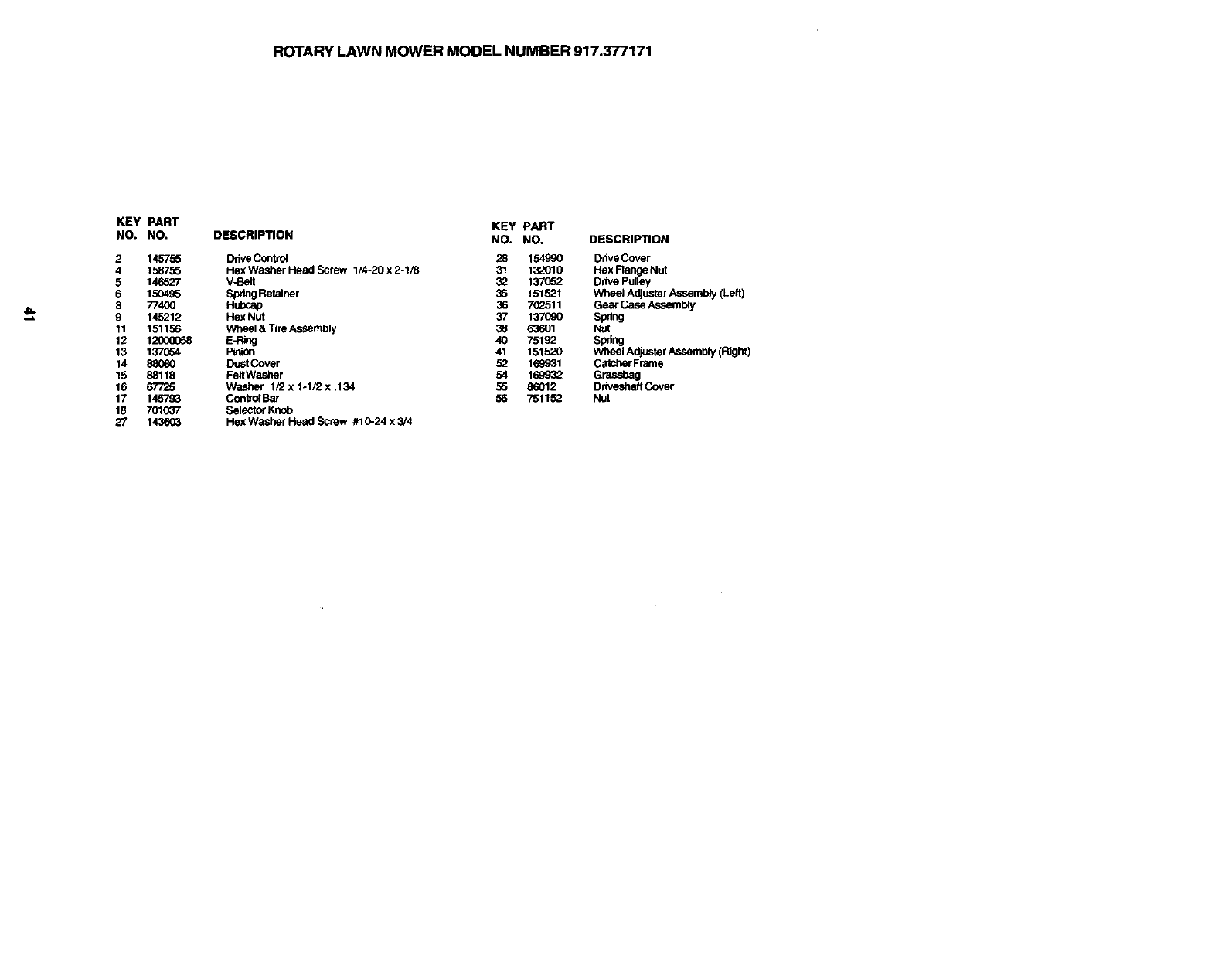

ROTARY LAWN MOWER MODEL NUMBER 917.377171

KEY

NO.

PART

NO.

145755

158755

146527

150495

774OO

145212

151156

120O0058

137054

88O8O

88118

67725

14579_

7010_7

143603

DESCRIPTION

Dnve Control

Hex Washer Head Screw 1/4-20 x 2-1/8

V-Belt

Spnng Retainer

HubCap

Hex Nut

Wheel & Tire Assembly

E-F_g

Rblon

Dust Cover

Felt Was_er

Washer 1/2 x 1_1F2x ,134

ConUbl Bar

Selector Knob

Hex Washer Head Screw #10-24 x 3/4

KEY PART

NO. NO. DESCRIPTION

28 154990 DdveCover

31 132010 Hex Flange Nut

32 137(T_2 Ddve Pulley

35 151521 Wheel Adjuster Assembly (Left)

36 7(_511 Gear Case Assembly

37 137090 spdng

38 63601 Nut

40 751_ Spring

41 151520 Wheel Adjuster Assembly (Right)

52 169931 Catcher Frame

54 169932 G_g

55 86012 Ddveshaft Cover

56 751152 Nut

BRIGGS & STRATTON

4-CYCLE ENGINE MODEL NO. 12H807

TYPE NO. 2632-B1

_r REQUIRES SPECIAL TOOLS

TO INSTALL* SEE REPAIR

INSTRUCTION MANUAL.

I 1058 OWNER'S MANUAL I

525 i

•306

811

1095 VALVE OVERHAUL

GASKET SET

1102 Q46_

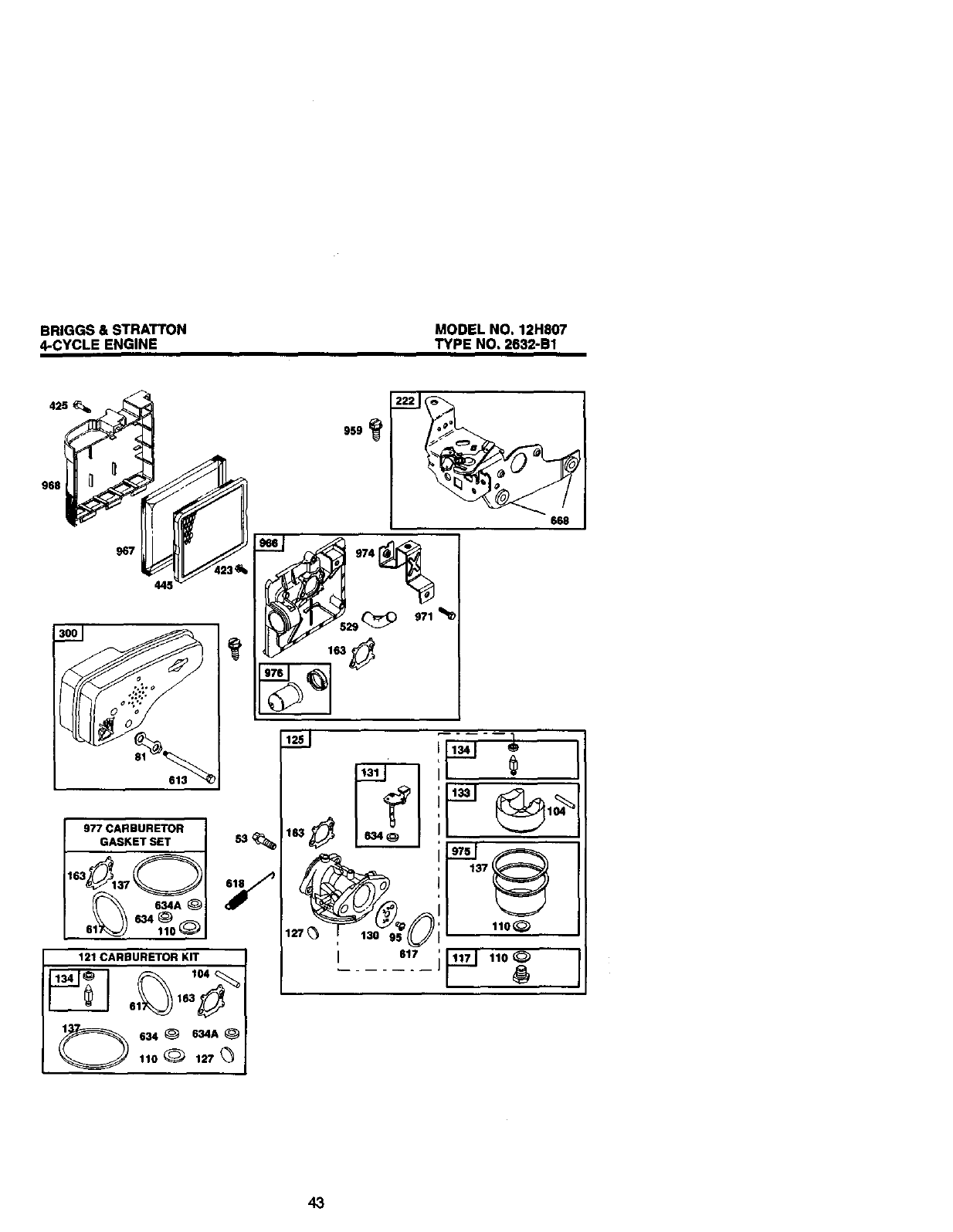

BRIGGS & STRATTON

4-CYCLE ENGINE MODEL NO. 12H807

TYPE NO. 2632-B1

968

423

977 CARBURETOR

GASKET SET 53

163_137 0

61_ 110

121 CARBURETOR KIT

634 _634A

,lo_,_ _ i

959

668

)66 . 974

t+ ®,+.j

i_ +

I6.17 J 11o

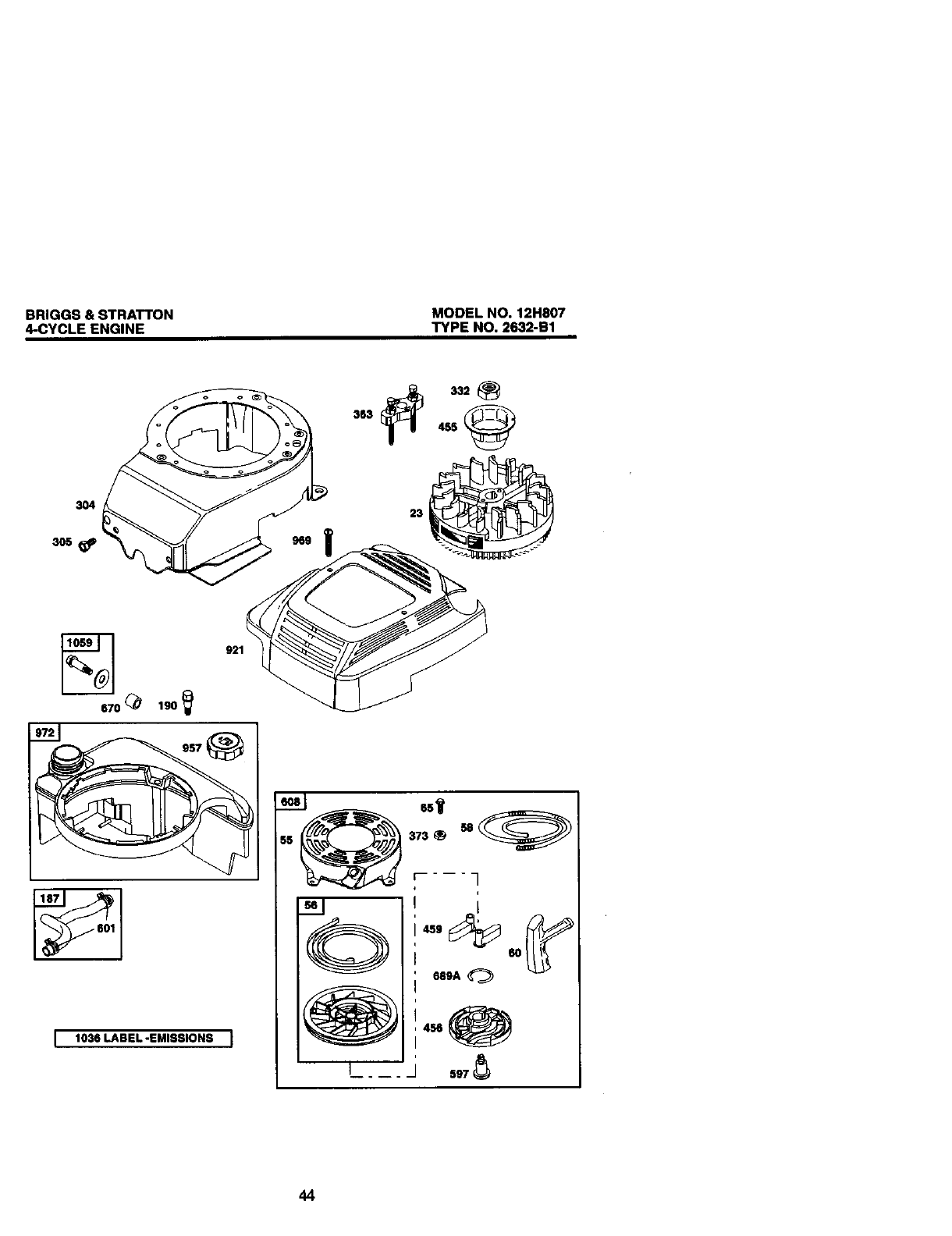

BRIGGS & STRATTON

4-CYCLE ENGINE

MODEL NO. 12H807

TYPE NO. 2632-B1

3O4

3o5

455

L1036 LABEL-EMISSIONS J

-_j

L.m_

373_ 58_

-m- 7

3o9A O

597

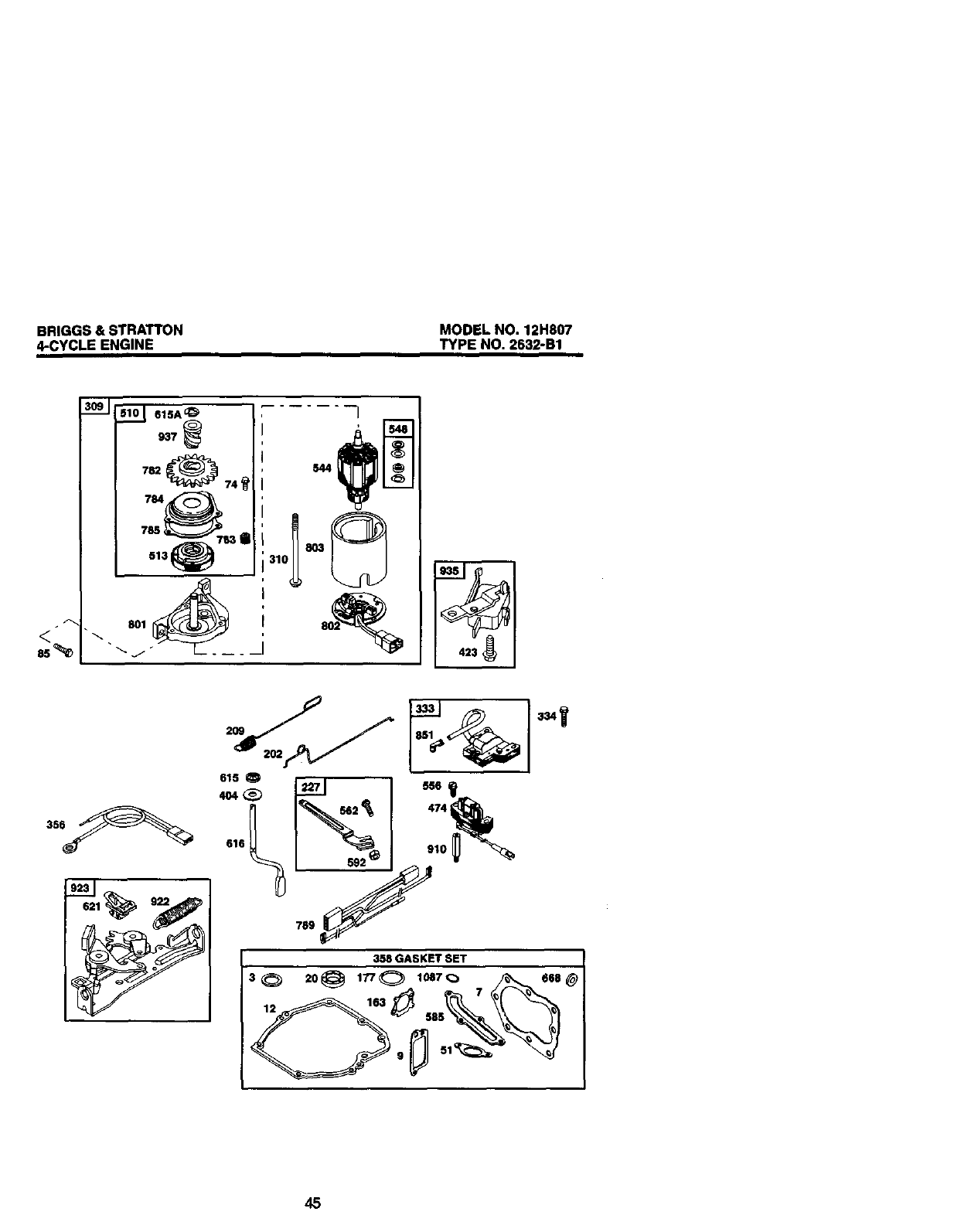

BRIGGS & STRATTON

4-CYCLE ENGINE MODEL NO. 12H807

TYPE NO. 2632-B1

5101 615A_

•_801

358 GASKET SET

BRIGGS & STRATTON

4-CYCLE ENGINE

MODEL NO. 12H807

TYPE NO. 2632-B1

KEY PART

NO, NO. DESCRIPTION

1 493260 Cylinder Assembly

2 293708 Bushing/Seal Kit

3 299819 •SeaI-O

4 493279 Sump-Engine

5 214368 Head-Cylinder

7 272916 ,+ Gasket-Cylinder Head

8 495786 Breather Assembly

9272481 *+ Gasket-Breather

10 691125 Screw (Breather Assembly)

11 691781 Tube-Breather

12 272198 *Gasket-Crankcase

13 94547 Screw (Cylinder Head)

15 94880 Plug-Oil Drain

16 498565 Crankshaft

20 399781 •Seal-Oil

22 94220 Screw (Engine Sump)

94612 Screw (One Used in Hole

Nearest Breather)

23 492175 Flywheel

24 222698 Key-Flywhasl

25 499429 Piston Assembly (Standard)

499430 Piston Assy. (.010" O.S.)

499431 Piston Assy. (.020" O.S.)

499432 Piston Assy. (.0:30" O.S.)

26 499425 Ring Set (Standard)

499426 Ring Set .010" O.S.)

499427 Ring Set (.020" O.S.)

499428 Ring Set (.030" O.S.)

27 263190 Lock-Piston Pin

28 499423 Pin-Piston

29 499424 Rod-Connectin

32 94699 Screw (Connecting Rod)

33 262651 Valve-Exhaust

34 262652 Valve-Intake

35 262224 Spring-Valve

40 93312 Retainer-Valve

43 493737 Governor/Oil Slinger

45 262204 Tappet-Valve

46 498275 Gear-Cam

48 498826 Short Block

51 272199 * Gasket-intake

53 94525 Screw (Carburetor)

54 94526 Screw (Intake Manifold)

55 497440 Housing-Rewind Starter

56 498144 Polley-Starter

58 280399 Rope-Starter (Cut to

Required Length)

60 281434 Grip-Starter Rope

KEY PART

NO. NO. DESCRIPTION

65 94686 Screw (Rewind Starter

Housing)

74 690345 Screw-Hex.

81 223664 Lock-Muffler Screw

85 94974 Screw-Hex.

95 94098 Screw (Throttle Valve)

104 231371 _Pin-Float Hinge

1t 0 -- -- -- _:l:Washer (Sold in Kit Only)

117 494870 Jet-Main

121 498260 Carburetor Kit

125 498170 Carburetor

127 ------ Q Plug-Welch (Sold in Kit Only)

130 224908 Valve-Throttle

131 493267 Shaft-Throttle

133 398187 Float-Carburetor

134 398188 _Valve-Needle (Includes Seat)

137 ------ O:_Gasket-Float Bowl (Sold in

Kit Only)

146 94388 Key-Timing

163 272653 ,O:_Gasket-Air Cleaner

177 280393 • Seal-O-Ring

187 492791 Line-Fuel Molded)

190 94511 Screw Fue Tank

202 262579 Link-Mechanical Governor

209 263044 Spring-Governor

222 497203 Bracket-Control

227 492349 Lever-Governor

258 94512 Screw (Brake)

287 94511 Screw (Oil Fil/Tube)

300 497838 Muffler-Exhaust

304 493293 Houslnq--BIower

Screw _lower Housing)

305 691108

306 224324 Shield-Cylinder

307 94515 Screw (Cylir_ler Shield)

309 494233 Motor-Starter

310 94051 Screw-SIottod Hsx.

332 690662 Nut (Flywheel)

333 802574 Armature-Magneto

334 94731 Screw (Magneto Armature)

337 802592 Plug-Spark

356 398808 Wire-Stop

-- 12J807-2960-B1Replacement Engine

RPM Settings:Low Speed: 1900-2100

High Speed: 3000.3200

Included in Engine Gasket Set, Key. No.

358

QIncluded in Carburetor Overhaul Kit, Key.

No. 121

:_ included in Carburetor Gasket Set, Key.

NO. 977

+ Included in Valve Overhaul Kit. Key. NO.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

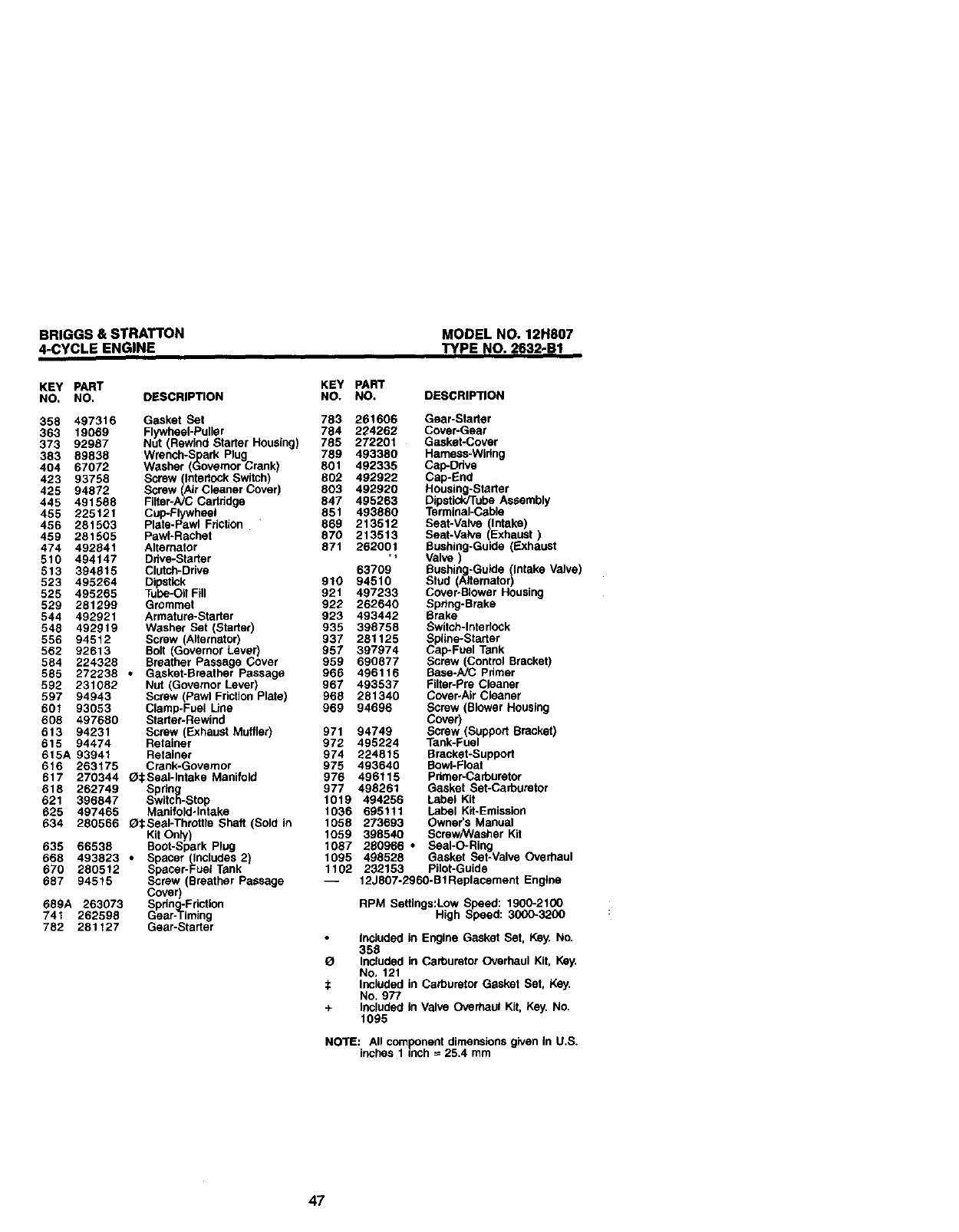

BRIGGS & STRATTON

4-CYCLE ENGINE MODEL NO. 1211807

TYPE NO. 2632-B1

KEY PART

NO. NO. DESCRIPTION

358 497316

363 19069

373 92987

383 89838

404 67072

423 93758

425 94872

445 491588

455 225121

456 281503

459 281505

474 492841

510 494147

513 394815

523 495264

525 495265

529 281299

544 492921

548 492919

556 94512

562 92613

584 224328

585 272238 •

592 231082

597 94943

601 93053

608 497680

613 94231

615 94474

615A 93941

616 263175

KEY PART

NO. NO. DESCRIPTION

817 270344

618 262749

621 396847

625 497465

634 280566

635 66538

668 493823

670 280512

687 94515

689A 263073

741 262598

782 281127

(_:i:Seal-Intake Manifold

Spring

Switch-Stop

Manifold÷Intake

O:l:SeaI-Throttle Shaft (Sold in

Kit Only)

Boot-Spark Plug

• Spacer (Includes 2)

Spacer-Fual Tank

Screw (Breather Passage

Cover)

Spdng-Fdctlon

Gear-Timing

Gear-Starter

Gasket Set 783 261606

Flywheel-Puller 784 224262

Nut (Rewind Starter Housing) 785 272201

Wrench-Spark Plug 789 493380

Washer (Governor Crank) 801 492335

Screw Interlock Switch) 802 492922

Screw (A rCeaner Cover) 803 492920

Filtar-AJCCadridge 847 495263

Cup-Flywheel 851 493880

Plata-Pawl FdcUon 869 213512

PawI-Rachet 870 213513

Alternator 871 262001

Drive-Starter

Clutch-Drive 63709

Dipstick 910 94510

Tube-Oil Fill 921 497233

Grommet 922 262640

Armature-Starter 923 493442

Washer Set (Starter) 935 398758

Screw Alternator) 937 281125

Bot Governor Lever) 957 397974

Breather Passage Cover 959 690877

Gasket-Breather Passage 966 496116

Nut (Governor Lever) 967 493537

Screw (Pawl Friction Plate) 968 281340

Clamp-Fuel Line 969 94696

Starter-Rewind

Screw (Exhaust Muffler) 971 94749

Retainer 972 495224

Retainer 974 224815

Crank-Governor 975 493640

976 496115

977 498261

1019 494256

1036 695111

1058 273693

1059 398540

1087

1095

1102

Gear-Starter

Cover-Gear

Gasket-Cover

Harness-Wiring

Cab-Ddve

Cap-End

Housing-Starter

Dipstick/Tube Assembly

Terminal-Cable

Beat-Valve (Intake)

Seat-Valve (Exhaust)

Bushing-Guide (Exhaust

Valve )

Bushing-Guide (intake Valve)

Stud (Alternator)

Cover*Blower Housing

Sprlng-Brake

Brake

Switch-lnterfnck

Spline-Starter

Cap-Fuel Tank

Screw (Control Bracket)

Base-AiC Primer

Filtar-Pre Cleaner

Cover-Air Cleaner

Screw (Blower Housing

Cover)

Screw (Support Bracket)

Tank-Fual

Bracket-Support

Bowl-Float

Pdmer-Carburetor

Gasket Set-Carburetor

Label Kit

Label Kit-Emission

Owner's Manual

Screw/Washer Kit

280966 • Seal-O-Ring

498528 Gasket Set-Valve Overhaul

232153 Pilot-Guide

12J807.2960-B 1Replacement Engine

RPM Settings:Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No.

358

OIncluded in Carburetor Overhaul Kit, Key.

No, 121

€Included in Carburetor Gasket Set, Key.

No. 977

+ Included in Valve Overhaul Kit, Key. No.

1095

NOTE: All component dimensions given In U.S.

inches 1 inch = 25.4 mm

Get it fixed, at your home or ours!

For repair of major brand appliances In your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOM Es. A,yt_. deyo,,_ght

(140o-4694663)

www.sears.com

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime, day ornight

www.sears,com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectSM!

1-800-366-PART 6 a.m.- 11 p,m. CST,

(1 "800"366"7278) 7 daysa week

www.sears,condpartsdlrect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m.- 5 p.rn.CST,Mon.- Sat.

Para pedir servictode reparacibnadomicilio,

y para ordenarpiezas con entrega a domicflio:

1-888"SU-HOGAR _u

(!-888-784-6427)

Au Canada pourservice en franc,ais:

1-877-LE-FOYER s.

(1-877-533-6937)

SEARS

H°meCentral ® }

O Sed_d_d Co. ®RegisteredTrademark /T. Trademark of Sears, Roebuckand Co.

®Mam_ Registrade /TMMama de Fder_cade Sears, Roebu_ and Co.

176250-13":27.00 TR Printed in U.S.A.

Craftsman 917377171 User Manual Gas, Walk Behind Lawnmower Manuals And Guides L0101147

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0101147 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
