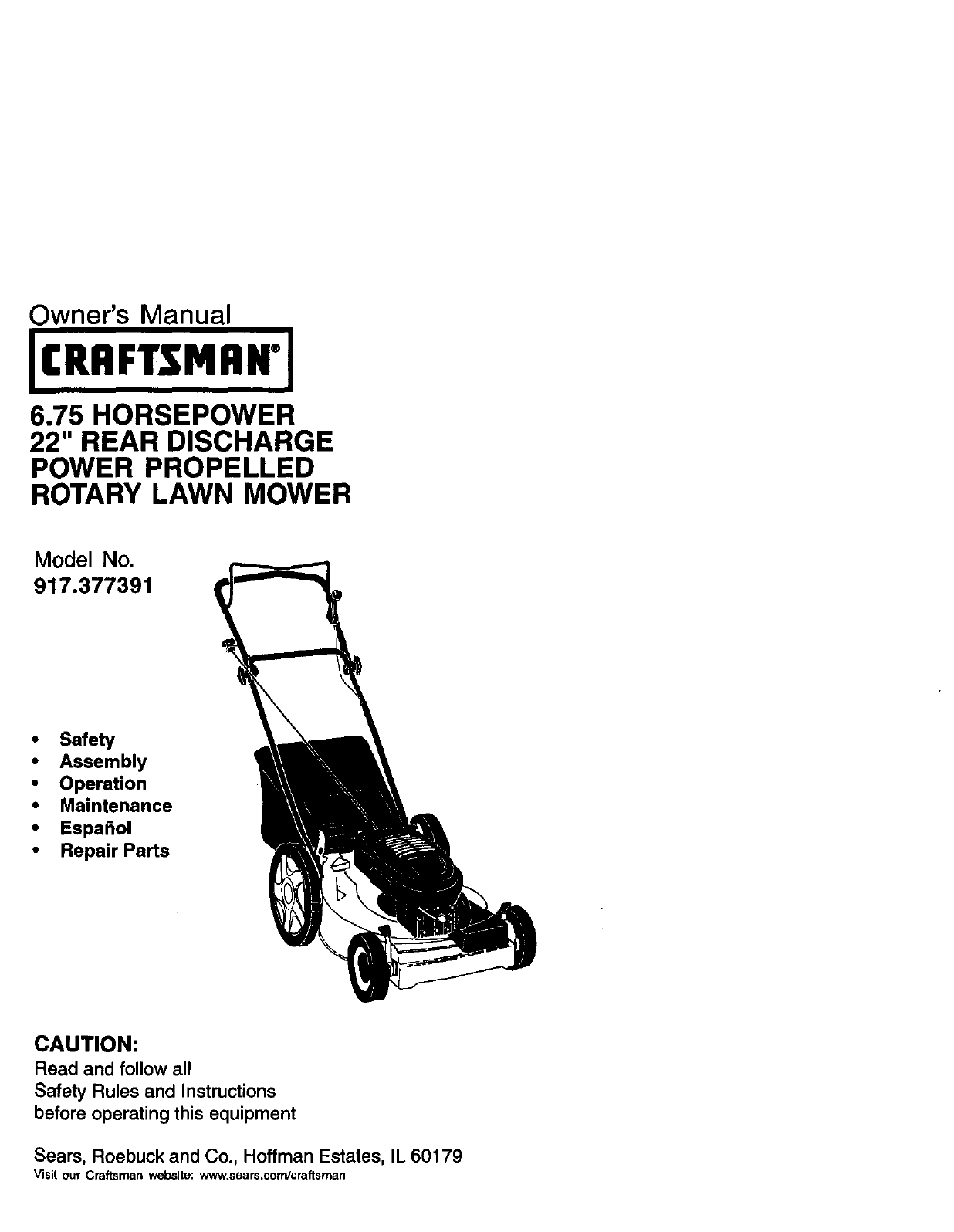

Owner's Manual

ICRRFTSMRN']

6.75 HORSEPOWER

22" REAR DISCHARGE

POWER PROPELLED

ROTARY LAWN MOWER

Model No.

917.377391

• Safety

•Assembly

• Operation

•Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.condcraftsman

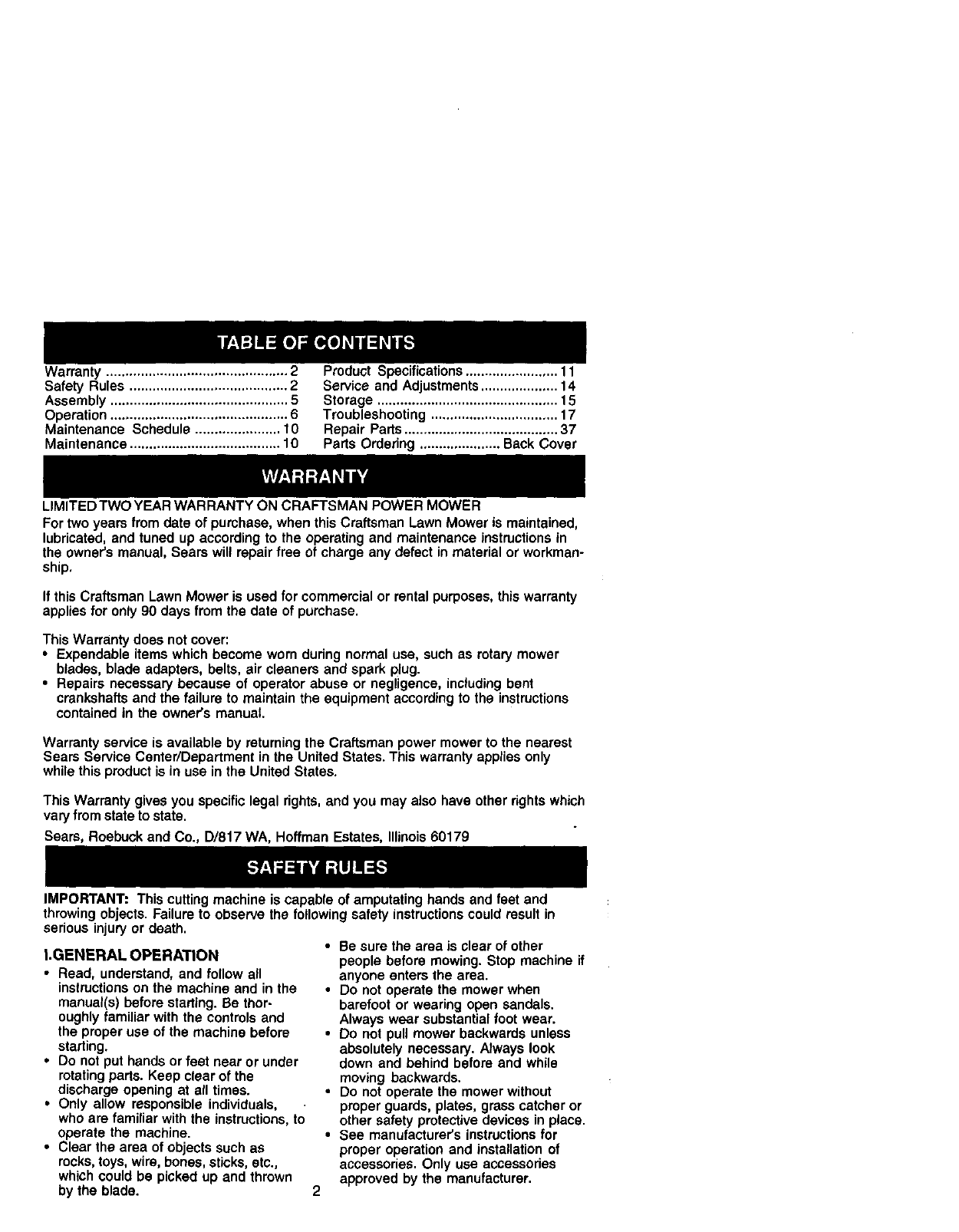

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly .............................................. 5

Operation .............................................. 6

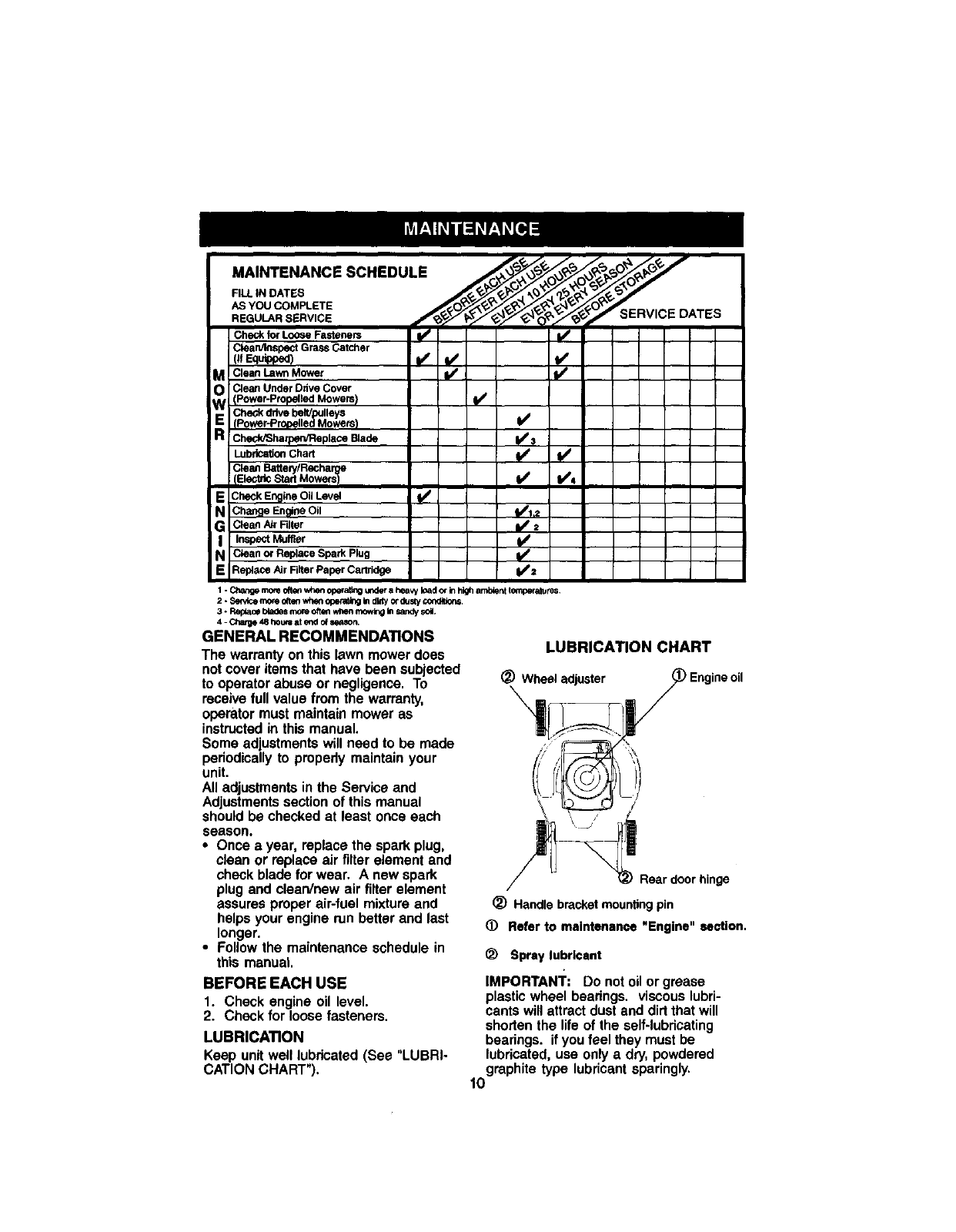

Maintenance Schedule ...................... t0

Maintenance ....................................... 10

Product Specifications ........................ 11

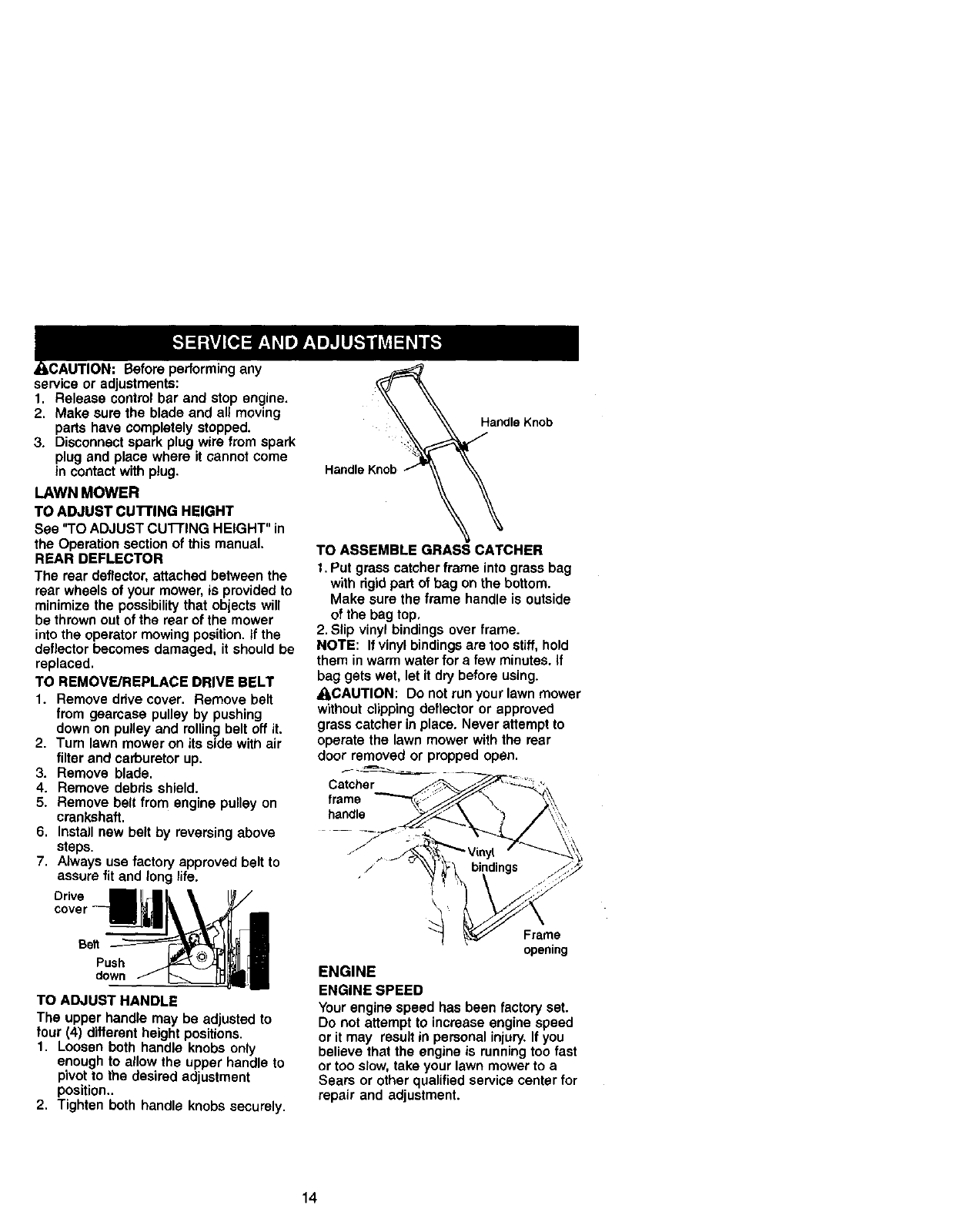

Service and Adjustments .................... 14

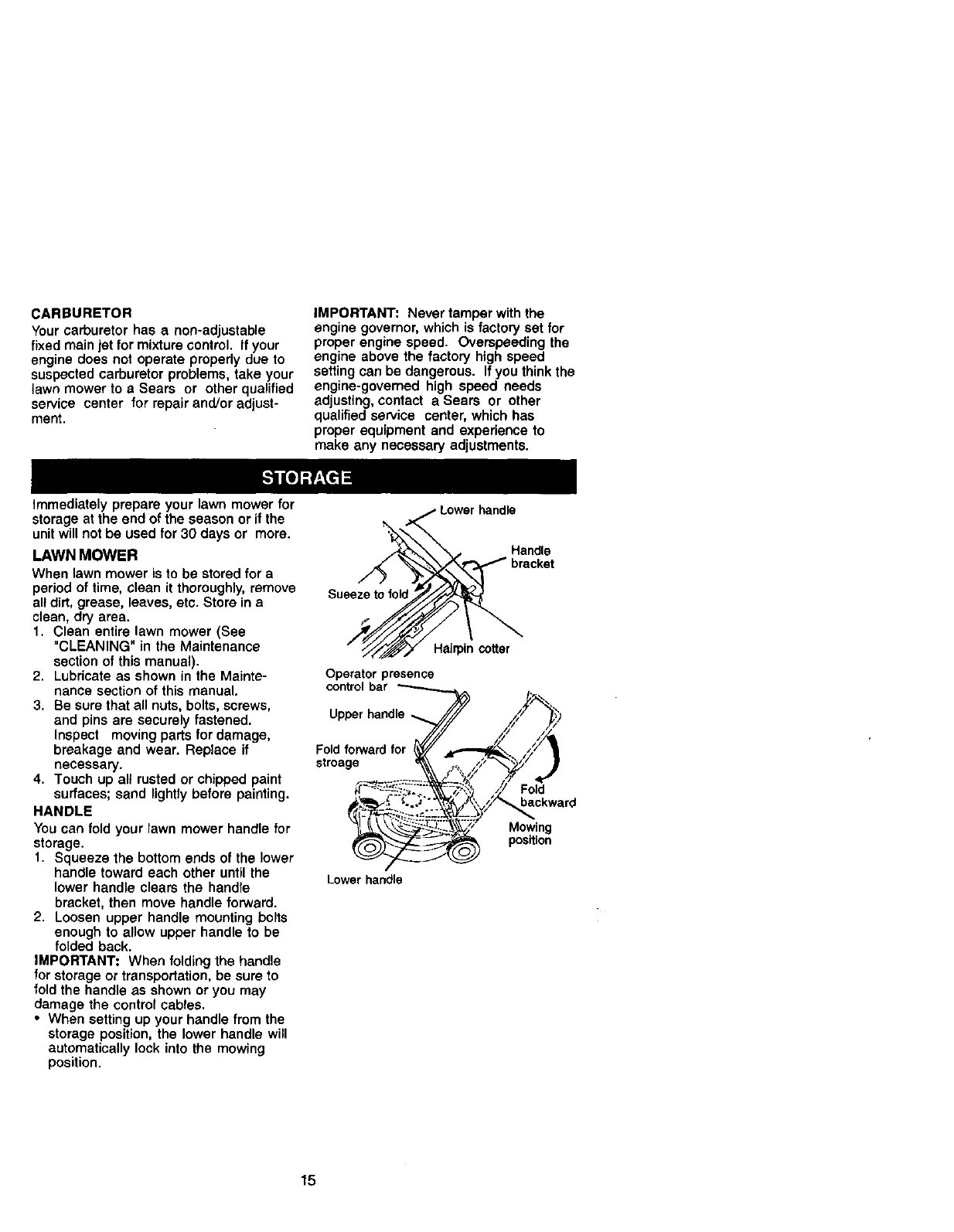

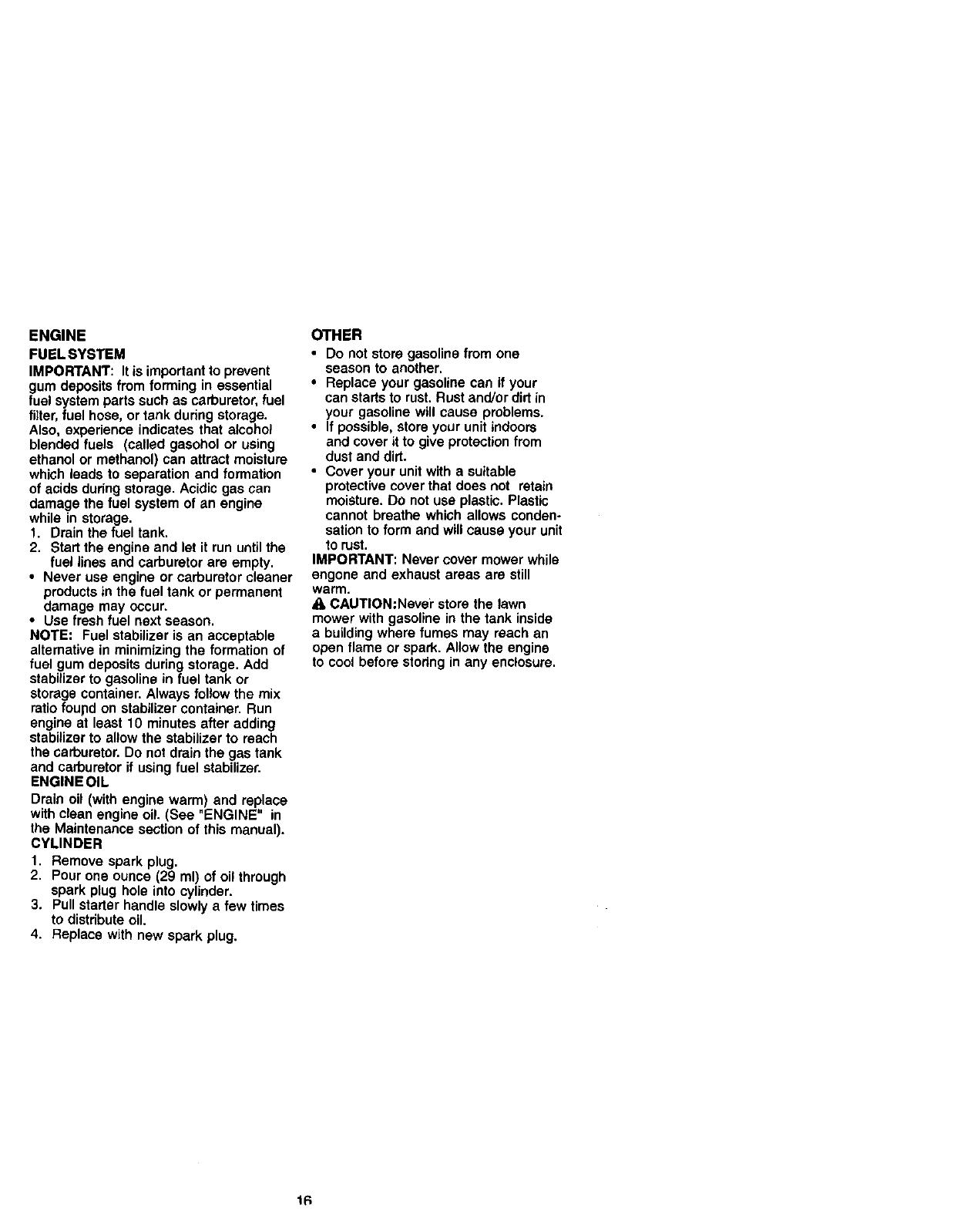

Storage ............................................... 15

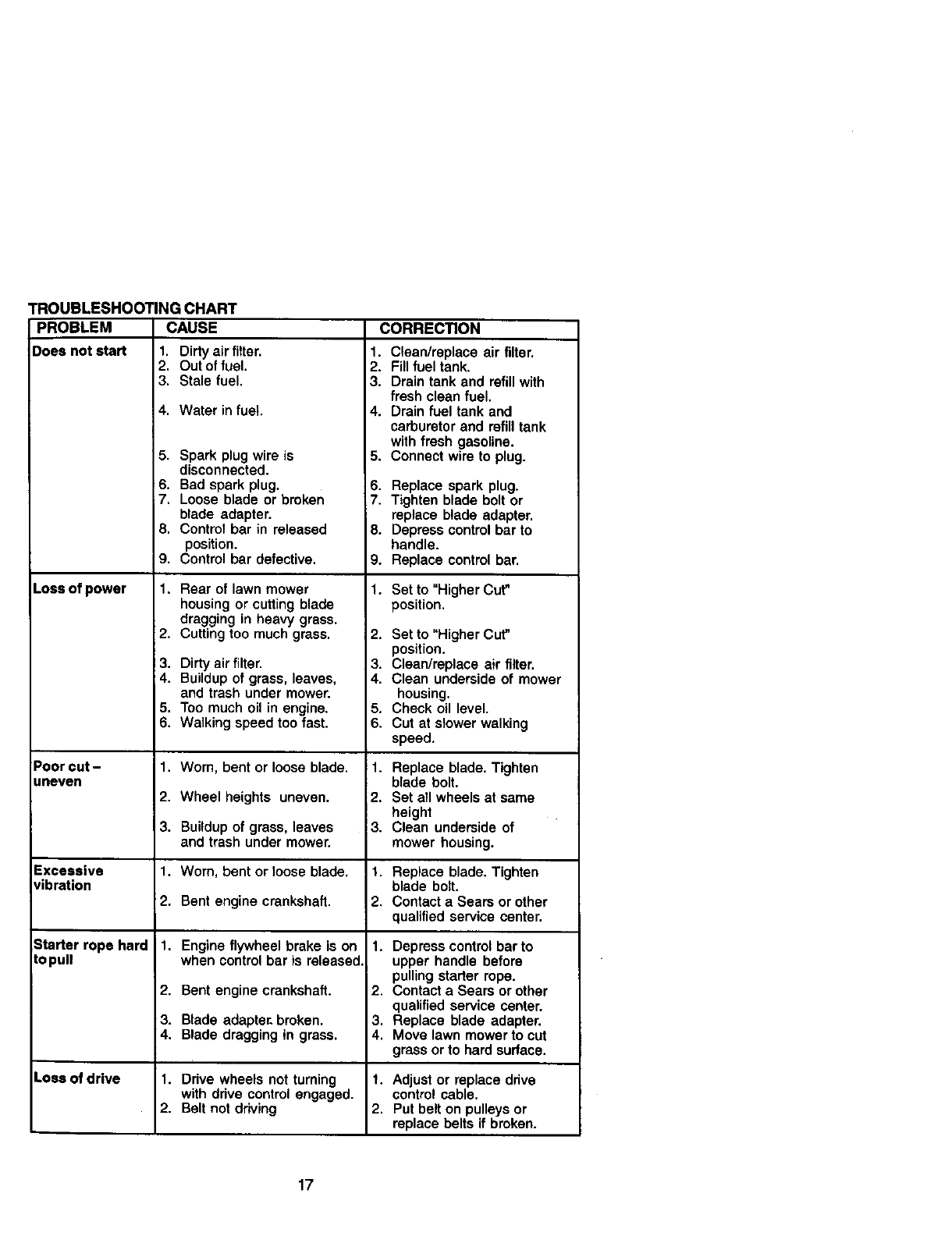

Troubleshooting ................................. 17

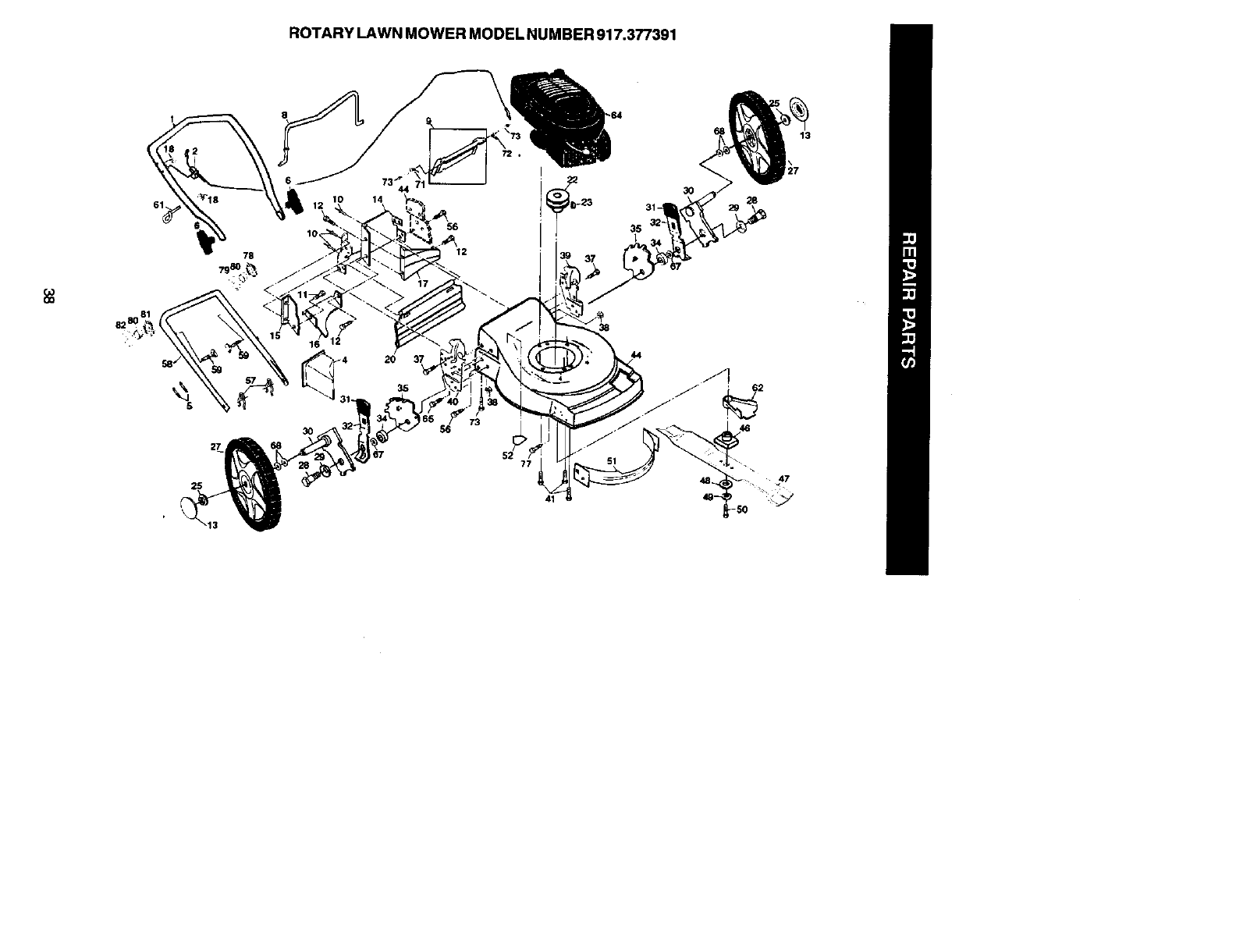

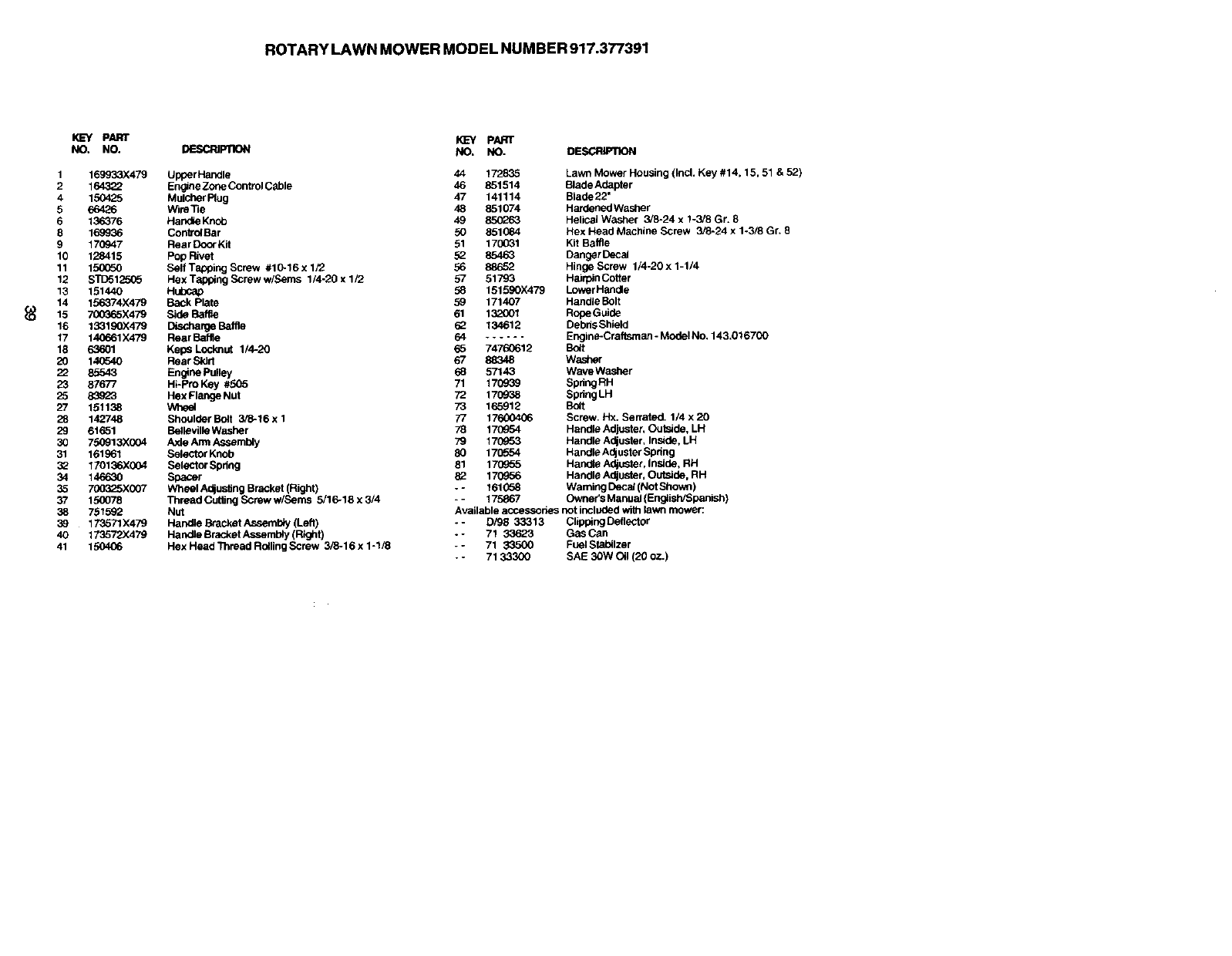

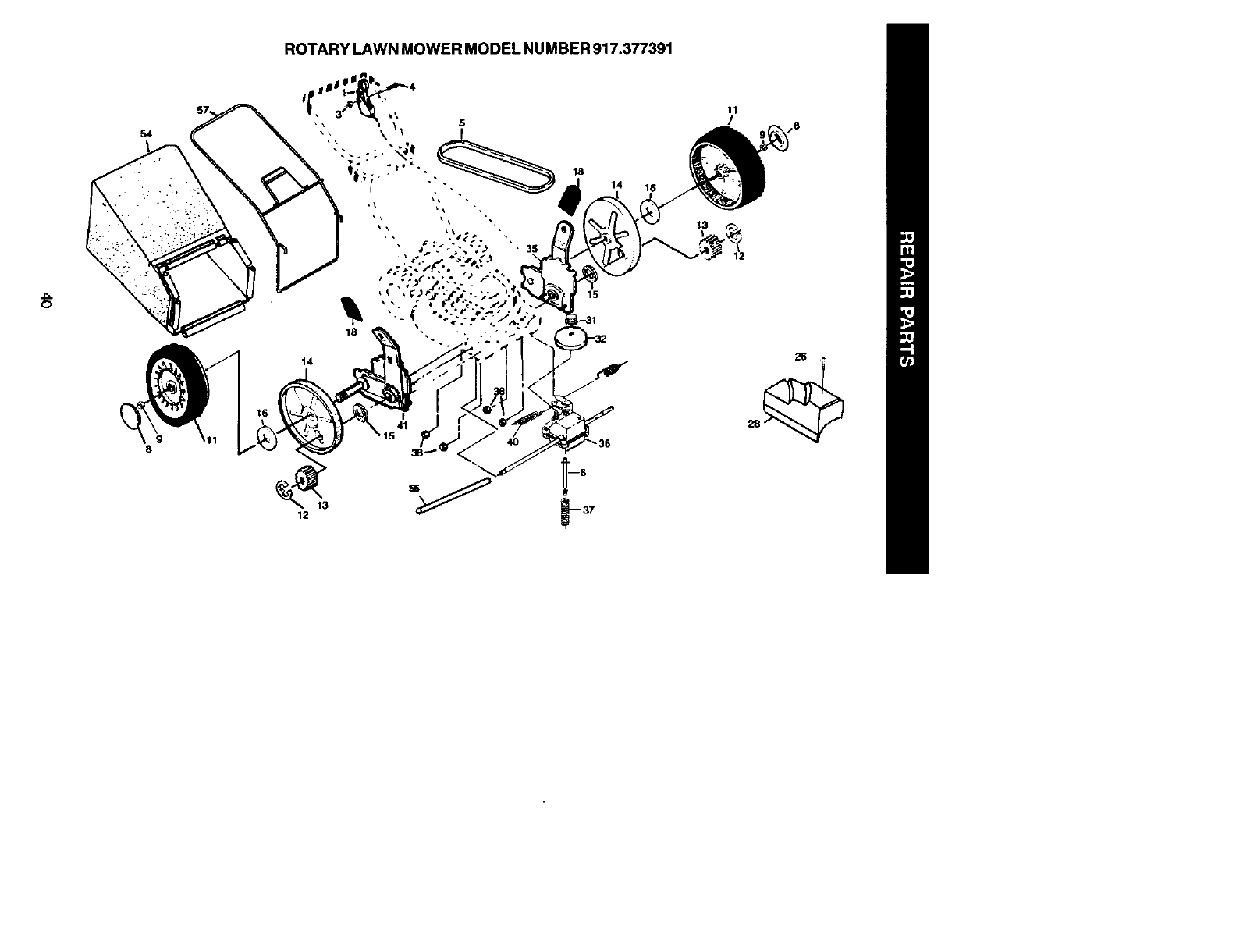

Repair Parts ........................................ 37

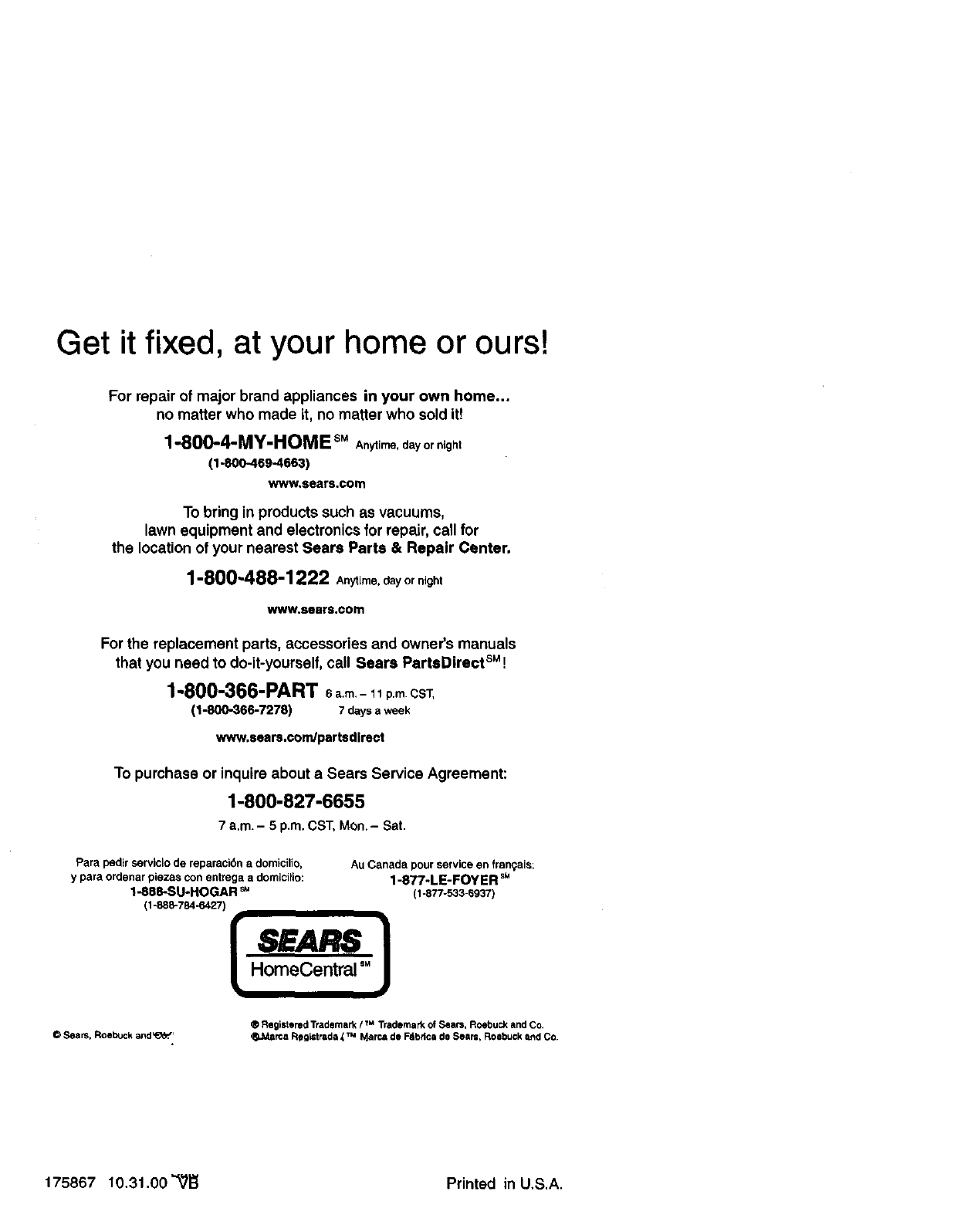

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of pumhase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship,

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does notcover:

• Expendableitems whichbecome worn duringnormaluse, suchas rotarymower

blades,blade adapters,belts, air cleanersand spark plug.

•Repairsnecessarybecause of operatorabuse or negligence,includingbent

crankshaftsand the failure to maintainthe equipmentaccording1othe instructions

containedin the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rightswhich

vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, Illinois 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I.GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thor-

oughly familiar with the controls and

the proper use of the machine before

stading.

•Do not put hands or feet near or under

rotating pads. Keep clear of the

discharge opening at all times.

•Only allow responsible individuals,

who are familiar with the instructions, to

operate the machine.

•Clear the area of objects such as

rocks, toys, wire, bones, sticks, etc.,

which could be picked up and thrown

by the blade.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

• Do not pull mower backwards unless

absolutely necessary. Always look

down and behind before and while

moving backwards.

•Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in place.

• See manufacturer's instructions for

proper operation and installation of

accessodes. Only use accessories

approved by the manufacturer.

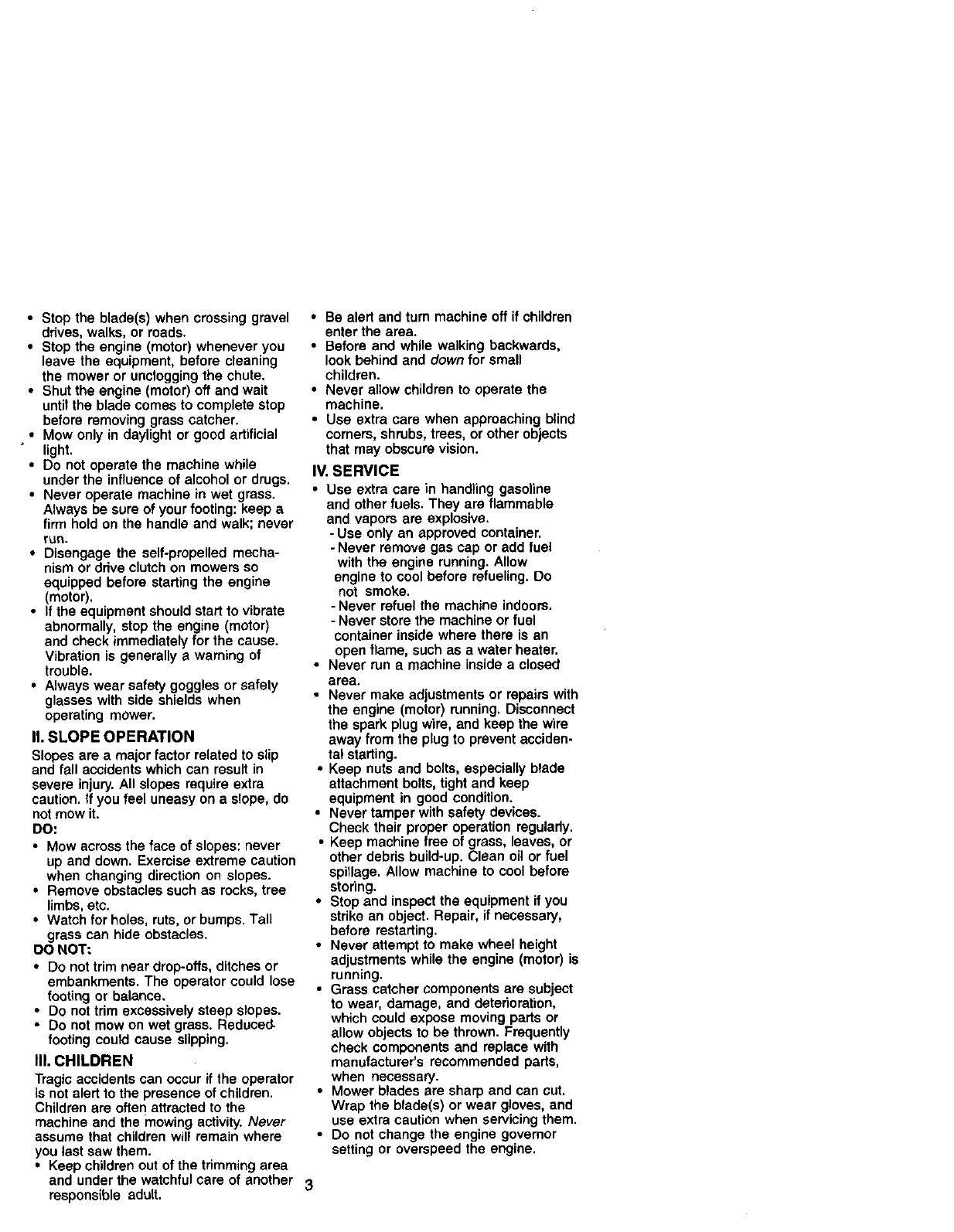

• Stoptheblade(s)whencrossinggravel

drives,walks,orroads.

•Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

•Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

•Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

•Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run.

•Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

•If the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

•Always wear safety goggles or safety

glasses with side shields when

operating mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra

caution. If you feel uneasy on a slope, do

not mow it.

DO:

•Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

•Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced-

footing could cause slipping.

II1. CHILDREN

Tragic accidents can occur if the operator

*s not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them;

• Keep children out of the trimming area

• Be alert and turn machine off if children

enter the area.

•Before and while walking backwards,

look behind and down for small

children.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent acciden-

ta! starting.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never attempt to make wheel height

adjustments while the engine (motor) is

running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Do not change the engine governor

setting or overspeed the engine.

and underthe watchfulcare of another 3

responsible adult,

_Lookforthissymbolto pointout

importantsafetyprecautions.It means

CAUTION!!! BECOME ALERT!!!YOUR

SAFETY IS INVOLVED.

_, WARNING: In orderto prevent

accidentalstartingwhensetting up,

transporting,adjustingor makingrepairs,

always disconnectspark plugwire and

placewire where it cannotcontactspark

plug.

_WARNING: Engine exhaust: som_ of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals and

related accessories contain lead and

lead compounds, chemicals known to the

State of Califomia to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling,

These accessories were availablewhenthis lawnmowerwas produced.They an=not

shipped with your mower. Theyare alsoavailableat most Sears retailoutletsand

servicecenters. MostSears storescan also orderrepairpartsfor you, whenyou

providethe model numberof your lawnmower. Some of these accessoriesmay not

apply to your lawn mower.

LAWN MOWER PERFORMANCE

CUPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MULCHER AITS

GRASSCATCHERS

FOR

SIDE DfSCHARGE

LAWN MOWERS

MUFFLERe

BELTS BLADES

AIR FILTERS

BLASE ADAPTERS WHEELS

STABILIZER

GI_ CANS

SPARK PLUGS

ENGINE OIL

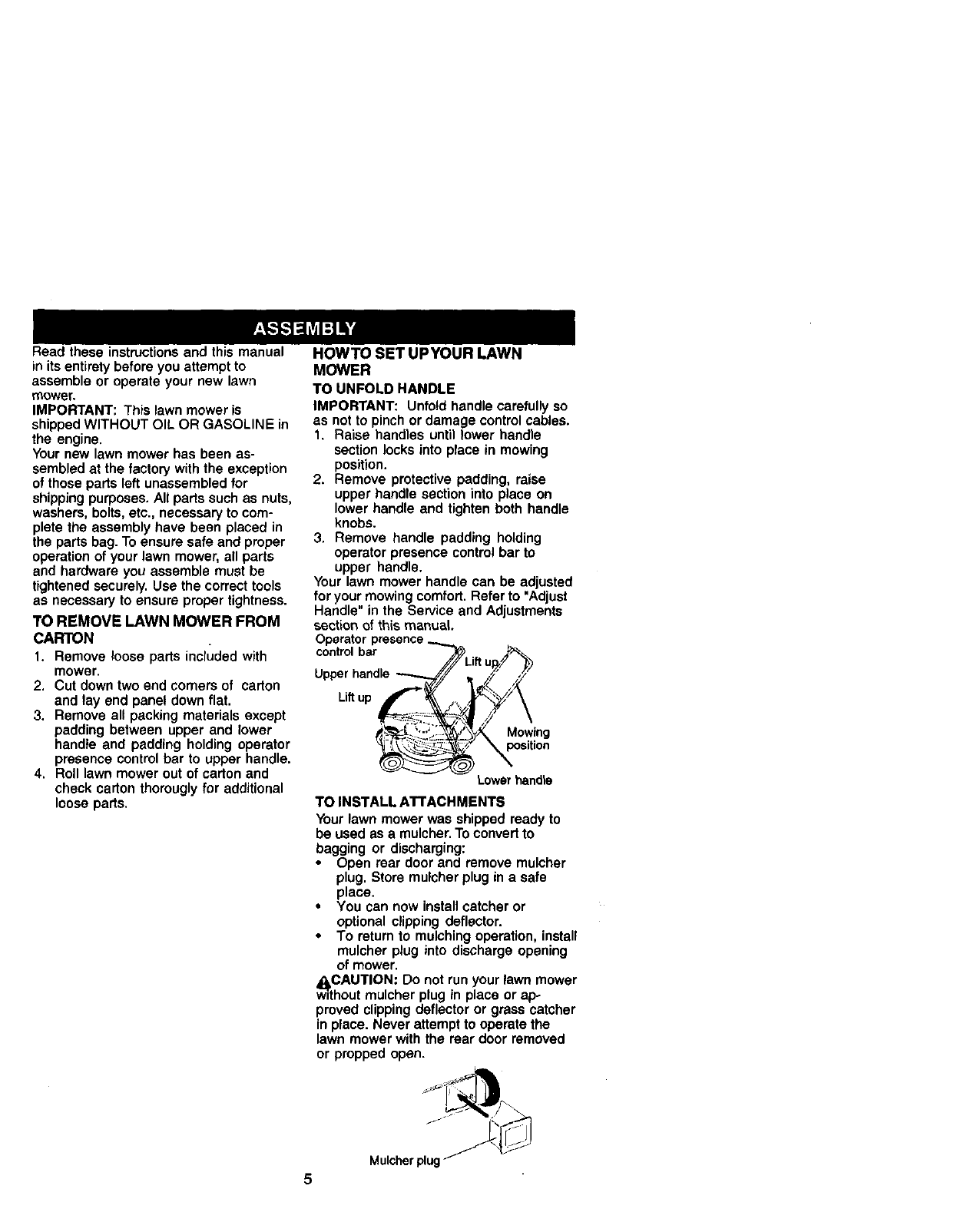

Read these instructions and this manual

in its entirety before you attempt to

assemble or operate your new lawn

mower.

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in

the engine.

Your new lawn mower has been as-

sembled at the factory with the exception

of those parts left unassembled for

shipping purposes. All pads such as nuts,

washers, bolts, etc., necessary to com-

plete the assembly have been placed in

the parts bag. To ensure safe and proper

operation of your lawn mower, all parts

and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end comers of carton

and lay end panel down flat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thorougly for additional

loose parts.

HOWTO SET UPYOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise handles until lower handle

section locks into place in mowing

position.

2. Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

3. Remove handle padding holding

operator presence control bar to

upper handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle" in the Service and Adjustments

section of this manual.

Operator presence

controlbar _'_

///,i.

Upper handle _//// /y ,_

_<:::"_:_..._t_li_ Mowing

,, _,<_--_:..

_ _poston

Lowerhandle

TO INSTALL AT'rACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging:

Open rear door and remove mulcher

plug. Store mulcher plug in a safe

place.

•You can now install catcher or

optional clipping deflector.

•To return to mulching operation, install

mulcher plug into discharge opening

of mower.

4_I,CAUTION: Do not run your lawn mower

w=thoutmulcher plug in place or ap-

proved clipping deflector or grass catcher

in place. Never attempt to operate the

lawn mower with the rear door removed

or prepped open.

Mulcher plu

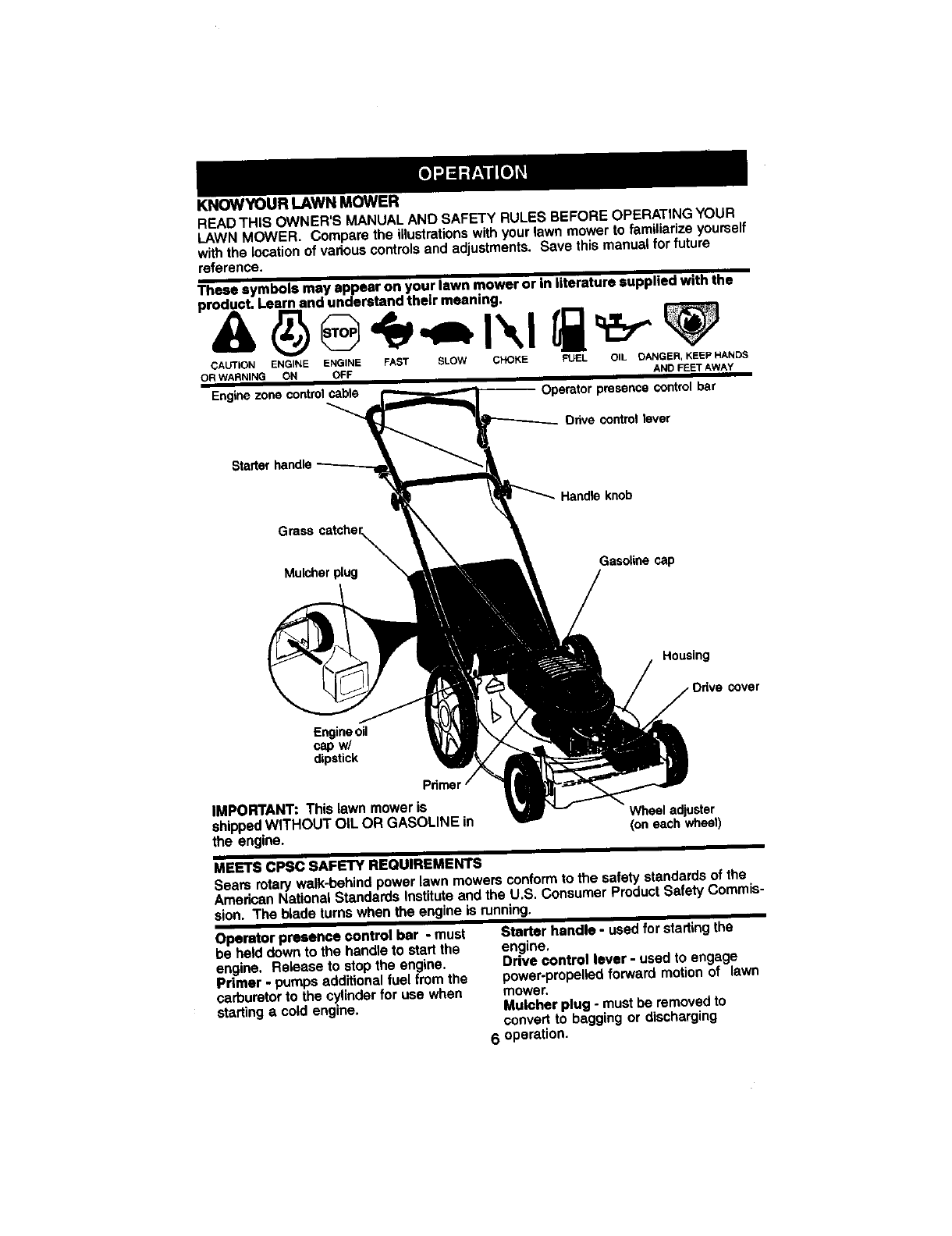

KNOWYOURLAWNMCNVER

READTHIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize youmelf

with the location of various controls and adjustments. Save this manual for future

reference,

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WANNING ON OFF ANn FEET AWAY

Engine zone control cable Operator presence control bar

Drive control lever

::::::\ Gasolinecap

Housing

Engineo,

capw/

dipstick

IMPORTANT: This lawn mower is Wheel adjuster

shipped WITHOUT OiL OR GASOLINE in (on each wheel)

the engine.

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running,

Operator presence control bar - must

be held down to the handle to start the

engine. Release to stop the engine.

Primer - pumps additional fuel from the

carburetor to the cylinder for use when

starling acold engine.

Starter handle - used for starting the

engine,

Drive control lever - used to engage

power-propelled forward motion of lawn

mower.

Muk_her plug - must be removed to

convert to bagging or discharging

6 operation.

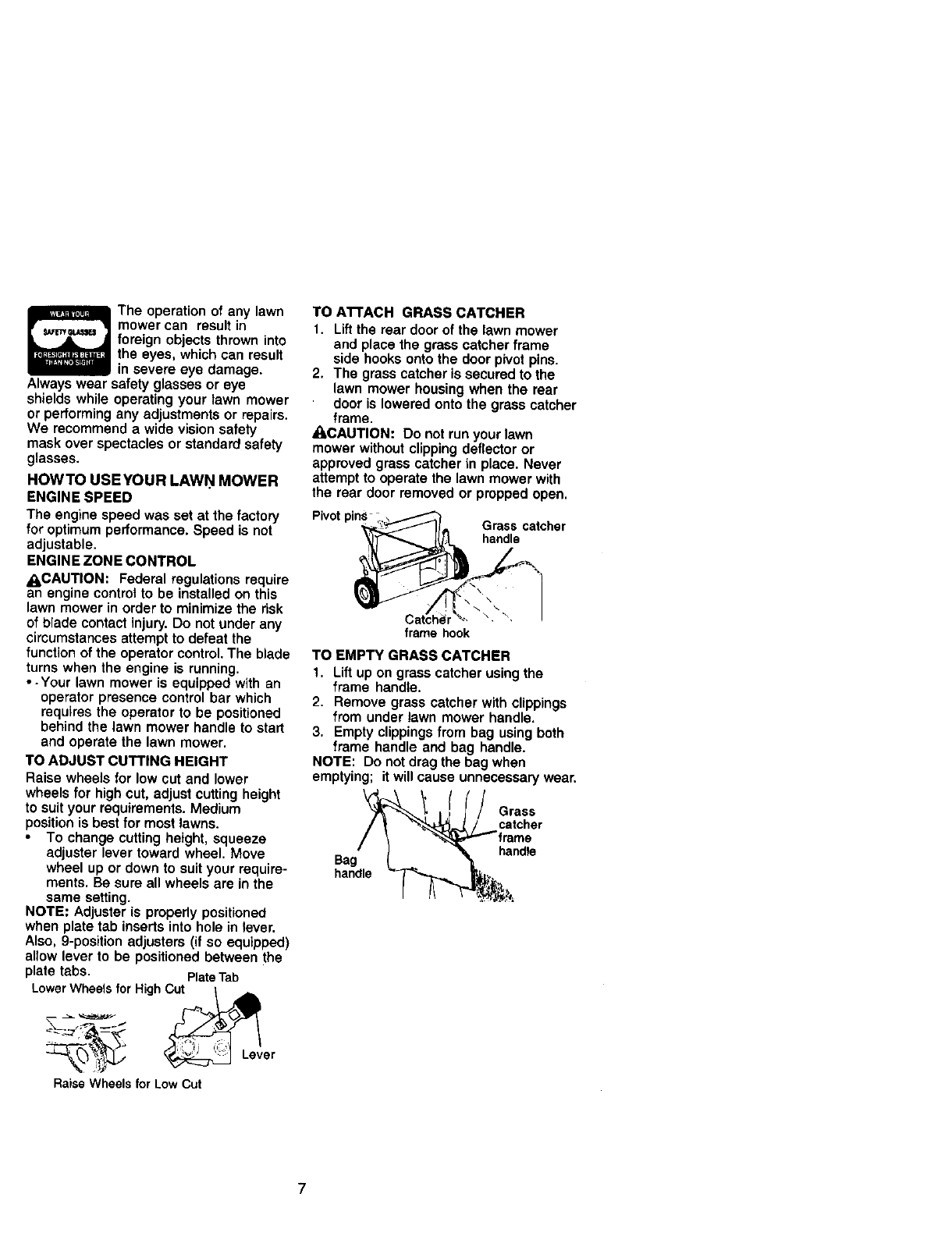

Theoperationofanylawn

mowercanresultin

foreignobjectsthrowninto

theeyes,whichcanresult

insevereeye damage.

Always wear safety glasses or eye

shields while operating your lawn mower

or performing any adjustments or repairs.

We recommend a wide vision safety

mask over spectacles or standard safety

glasses.

HOWTO USEYOUR LAW.N MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

_kCAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• -Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower

wheels for high cut, adjust cutting height

to suit your requirements. Medium

position is best for most lawns.

To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs. PlateTab

LowerWheels for High Cut / _L

"ever

Raise Wheels for LowCut

TO ATTACH GRASS CATCHER

1. Lift the rear door of the lawn mower

and place the grass catcher frame

side hooks onto the door pivot pins.

2. The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame,

_CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or prepped open,

Pivot Grass catcher

handle

frame hook

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame handle.

2. Remove grass catcher with clippings

from under lawn mower handle.

3. Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

Grass

catcher

handle

Bag

handle

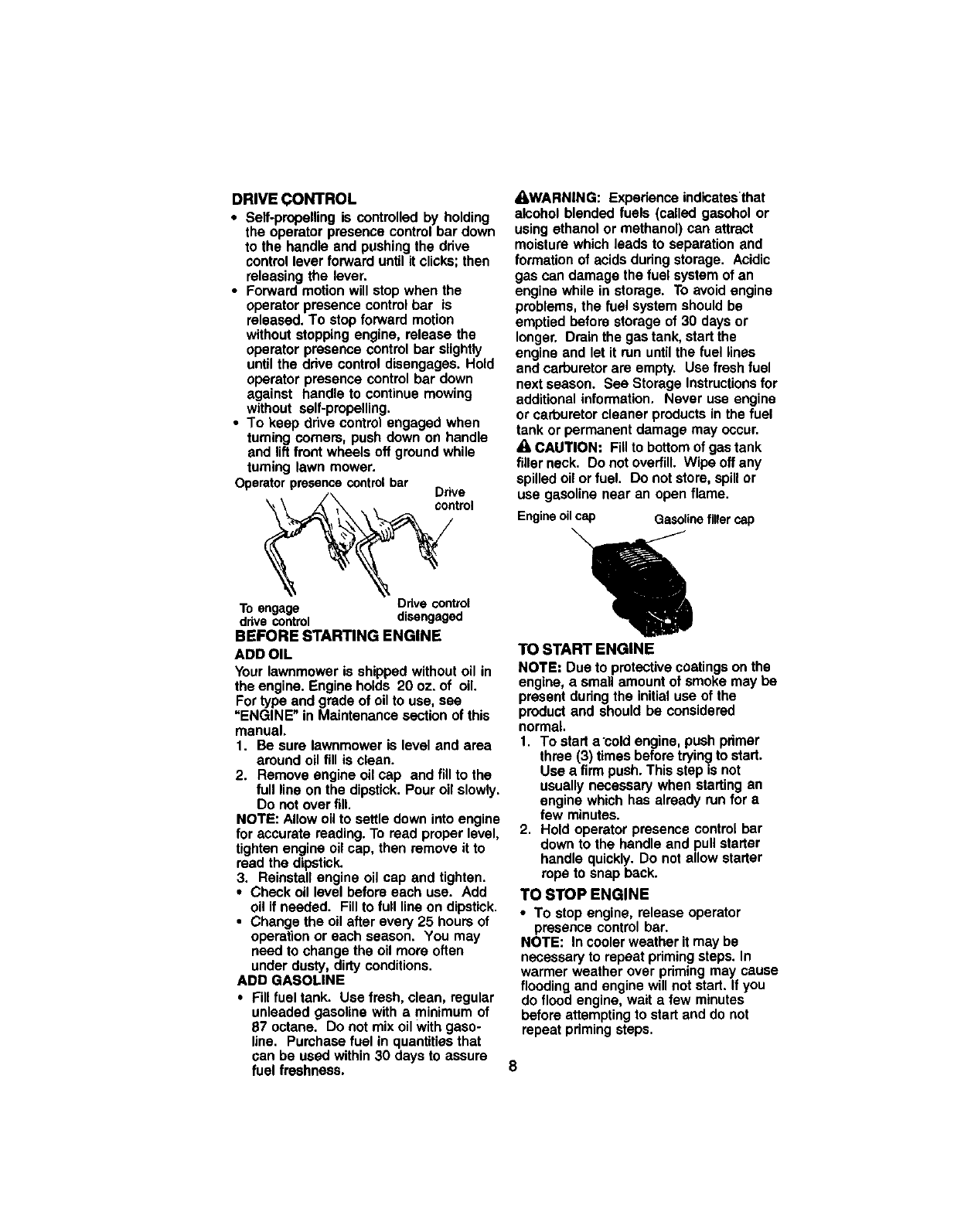

DRIVE CONTROL

•Self-propelling is controlled by holding

the operator presence control bar down

to the handle and pushing the drive

control lever forward until it clicks; then

releasing the lever.

•Forward motion will stop when the

operator presence control bar is

released. To stop forward motion

without stopping engine, release the

operator presence control bar slightly

until the drive control disengages. Hold

operator presence control bar down

against handle to continue mowing

without self-propelling.

•To keep drive control engaged when

turning comers, push down on handle

and lift front wheels off ground while

turning lawn mower.

Operator presence controlbar Drive

_\ .,_/_X"X control

To engage Drive control

drive control disengaged

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. Engine holds 20 oz. of oil.

For type and grade of oil to use, see

=ENGINE" in Maintenance section of this

manual,

1. Be sure lawnmower is level and area

around oil fill is clean.

2. Remove engine oil cap and fill to the

full line on the dipstick. Pour oil slowly.

Do not over fill.

NOTE: Allow oil to settle down into engine

for accurate reading. To read proper level,

tighten engine oil cap, then remove it to

read the dipstick.

3. Reinstall engine oil cap and tighten.

•Check oil level before each use. Add

oil if needed. Fill to full line on dipstick.

•Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

ADD GASOLINE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with aminimum of

87 octane. Do not mix oil with gaso-

line. Purchase fuel in quantities that

can be used within 30 days to assure

fuel freshness.

_WARNING: Experience indicatesthat

alcohol blended fuels (called gesohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_k CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

Engineoilcap Gasolinefillercap

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

1. To start a'cold engine, push pdmer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for a

few minutes.

2. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

TO STOP ENGINE

•To stop engine, release operator

presence control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat priming steps.

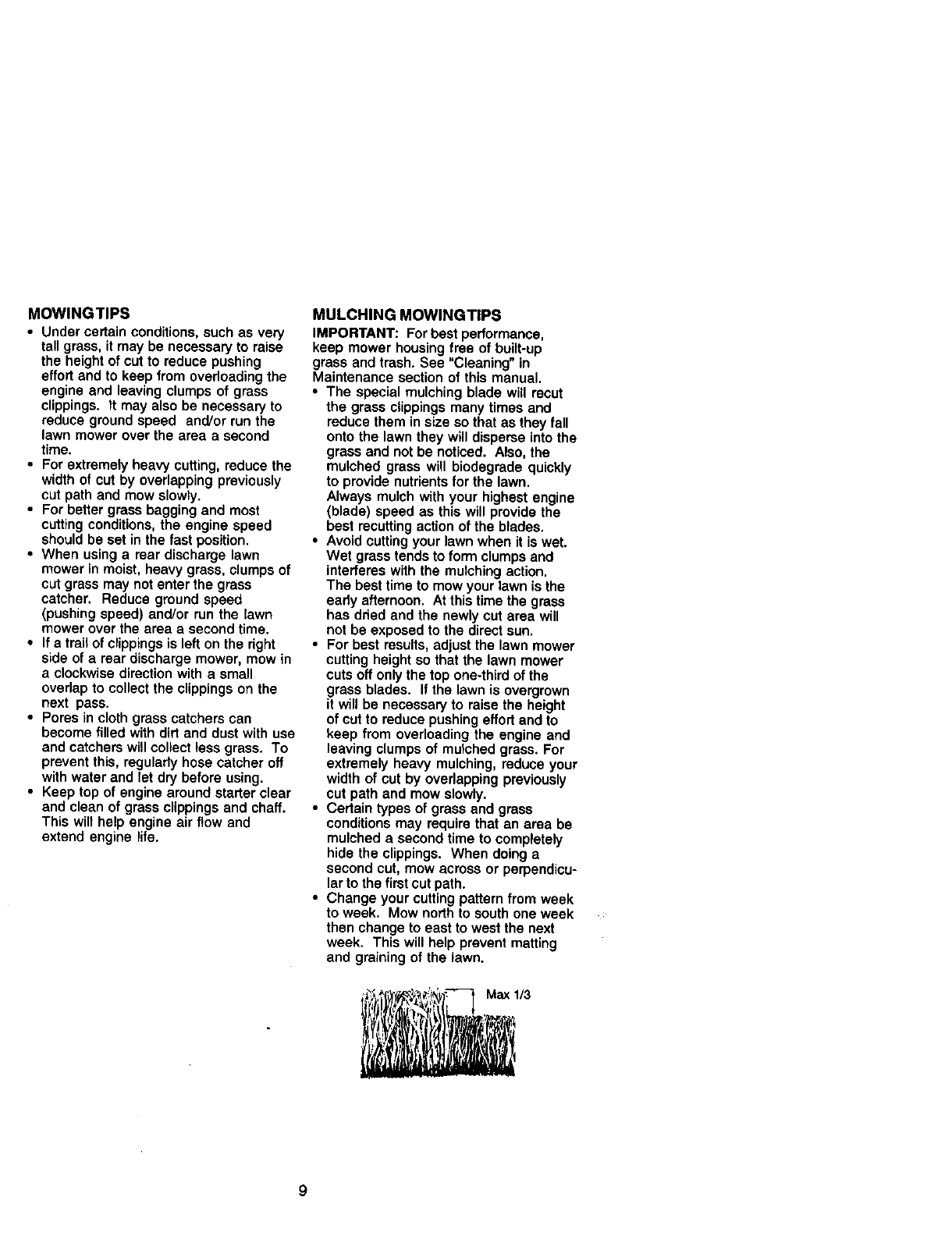

MOWING'rIPS

•Undercertainconditions,suchas very

tallgrass, it may be necessaryto raise

the heightof cut to reduce pushing

effortand to keep from ovedoadingthe

engineand leavingclumpsof grass

clippings,tt may also be necessaryto

reduce groundspeed and/or run the

lawn mowerover the area a second

time.

•For extremelyheavy cutting,reducethe

widthof cut by overlappingpreviously

cut pathand mow slowly.

•For bettergrassbaggingand most

cuttingconditions,the enginespeed

shouldbe set in the fastposition.

•When usinga rear dischargelawn

mowerin moist,heavygrass, clumpsof

cut grassmay not enterthe grass

catcher. Reduce groundspeed

(pushingspeed) and/or run the lawn

moweroverthe area a secondtime.

•If a trailof clippingsis left on the right

side of a reardischargemower,mow in

a clockwisedirectionwitha small

overlapto collectthe clippingson the

next pass.

•Poresin clothgrasscatcherscan

becomefilledwithdirt and dustwith use

andcatcherswillcoltectless grass. To

preventthis, regularlyhosecatcheroff

withwater and let drybefore using.

•Keeptopof enginearoundstarterclear

and cleanofgrassclippingsand chaff.

This will helpengine air flowand

extendengine life.

MULCHING MOWINGTIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See "Cleaning" in

Maintenance section of this manual.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrede quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

•For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is overgrown

it will be necessary to raise the height

of cut to reduce pushing effort and to

keep from overloading the engine and

leaving clumps of mulched grass. For

extremely heavy mulching, reduce your

width of cut by overlapping previously

cut path and mow slowly.

•Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

•Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

MAINTENANCESCHEDULE /_ _/_0_/_/"

s .v.c SERV, E

Check for Lo4_;e Fask_mem I_ I/'

Claan/Ins_ GrassCatcher

(ffEquippod) (if it/

M CleanLawnMower 1/ t/

O Clean Under Ddve Cover(Power-Propelled Mowers)

Check ddve belt/pulleys

RE (Power-Prop_dled Mowers) I1_

ChecktSharpen/Replace Blade _/'

LubricationChart ¥' !//

CleanBattefy/Rechar_

IF__c_StartMowers l/ I/4

E CheckEng_oi(Level

NChange Engine Oil 1/1._

G clean_Filter _2

I Inspect Muffler

NC_n o_ReplaceSparkPlug

E ReplaceAirFilterPaperCartridge 1/2

1 - Change _oft_ _4ten opera_ urvJera heaW I_d o¢ In h!gl_arnblent lempefalur es.

2 - Service mo_ olteo when ope_ In dldy or dusty condition.s.

3 ° Relx_acet:_,adesn:_reo_m wi_nraowlnOInNn6y soil

4-CIwge 48 tloucsat end of Melon,

GENERAL RECOMMENDATIONS

The warrantyonthis lawn mowerdoes

notcoveritemsthat have been subjected

to operatorabuse or negligence. To

receivefull valuefrom the warranty,

operatormustmaintainmoweras

instructedin thismanual.

Some adjustmentswill need to be made

periodicallyto properlymaintainyour

unit.

All adjustmentsinthe Serviceand

Adjustmentssection of thismanual

shouldbe checkedat least onceeach

season.

•Once ayear, replacethe sparkplug,

clean or replace air filterelementand

check bladefor wear. A new spark

plug and clean/newair filter element

assuresproperair-fuel mixtureand

helpsyour enginerun betterand last

longer.

•Followthe maintenanceschedulein

this manuat.

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

LUBRICATION

Keep unit welllubdceted(See "LUBRI-

CATIONCHART").

LUBRICATION CHART

_) Wheel adjuster ne oil

Rear door hinge

(_) Handle bracket mounting pin

(I) Refer to maintenance "Engine" ueUon.

_) Spray lubricant

IMPORTANT: Do notoil or grease

plasticwheel bearings, viscouslubri-

cantswillattract dustand dirtthat will

shortenthe lifeof the self-lubdcating

bearings, if youfeel they mustbe

lubricated,use only a dry,powdered

graphitetype lubricantsparingly.

PRODUCT SPECIFICATIONS

ERIALNUMBER

)ATE OF PURCHASE

,_ASOLINE CAPACITY/TYPE: 1.5 QUARTS

UNLEADED REGULAR

OILTYPE (API-SF-SJ): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG (GAP: .030") CHAMPION RJ19LM OR Jf9LM

VALVE CLEARANCE: INTAKE: .004 - .008

EXHAUST: .004 - .008

SOLID STATE IGNITION

AIR GAP: .0125 IN.

BLADE BOLT TORQUE: 35-40 FT. LBS.

The model and serial numbers will be found on a decal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER

Always observe safety rules when

performing any maintenance,

TIRES

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

2. Turn lawn mower on its side. Make

sure air filter and carburetor are up.

3. Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

4. Remove blade bolt by turning counter-

clockwise.

5. Remove blade and attaching hard-

ware (bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade

adapter. The key must be in good condi-

tion to work properly. Replace adapter if

damaged.

TO REPLACE BLADE

1. Position the blade adapter on the

engine crankshaft. Be sure key in

adapter and crankshaft keyway are

aligned.

2. Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

3. Be sure the trailing edge of blade

(opposite sharp edge) is up toward

the engine.

4. Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

5. Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

•The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause eventual damage to lawn mower

or engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

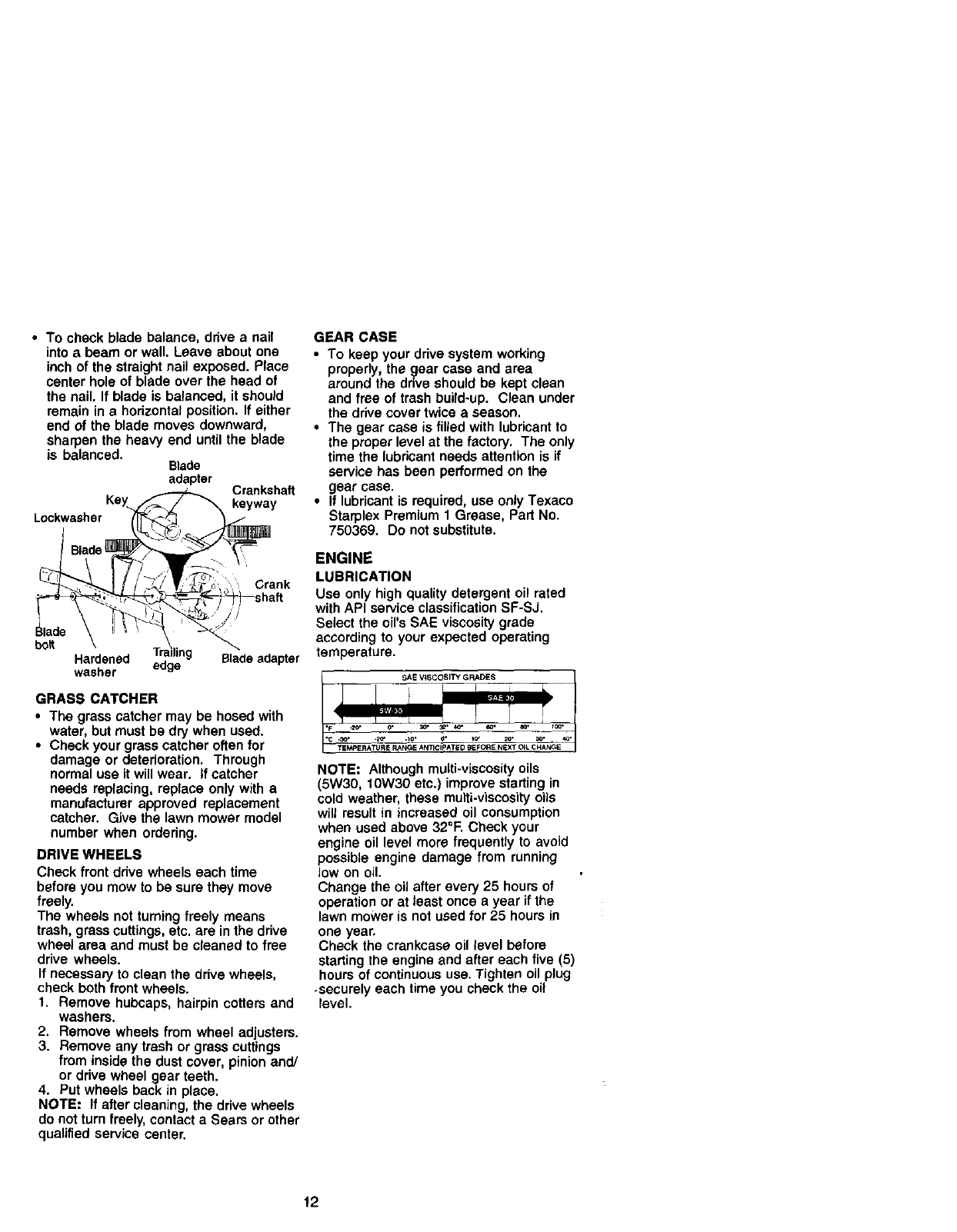

•To check blade balance, drive a nail

into abeam or wall. Leave about one

inch of the straight nail exposed. Place

center hole of blade over the head of

the nail. If blade is balanced, it should

remain in a horizontal position. If either

end of the blade moves downward,

sharpen the heavy end until the blade

is balanced, Blade

adapter Crankshaft

Key@j/ _ keyway

Lockwashar_1._

" ' "2 / ,'r /

apte,

washer edge

GRASS CATCHER

• The grass catcher may be hosed with

water, but must be dry when used.

•Check your grass catcher often for

damage or deterioration. Through

normal use it will wear. if catcher

needs replacing, replace only with a

manufacturer approved replacement

catcher. Give the lawn mower model

number when ordering.

DRIVE WHEELS

Check front ddve wheels each time

before you mow to be sure they move

freely.

The wheels not turning freely means

trash, grass cuttings, etc. are in the drive

wheel area and must be cleaned to free

drive wheels.

If necessary to clean the drive wheels,

check both front wheels.

1. Remove hubcaps, hairpin cotters and

washers.

2. Remove wheels from wheel adjusters.

3. Remove any trash or grass cuttings

from inside the dust cover, pinion and/

or drive wheel gear teeth.

4. Put wheels back in place.

NOTE: If after cleaning, the drive wheels

do not turn freely, contact a Sears or other

qualified service center.

GEAR CASE

• To keep your drive system working

properly, the gear case and area

around the drive should be kept clean

and free of trash build-up. Clean under

the drive cover twice a season.

•The gear case is filled with lubricant to

the proper level at the factory, The only

time the lubricant needs attention is if

service has been performed on the

gear case.

•If lubricant is required, use only Texaco

Starplex Premium 1 Grease, Part No.

750369. Do not substitute,

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classification SF-SJ,

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one year,

Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Tighten oil plug

-securely each time you check the oil

level.

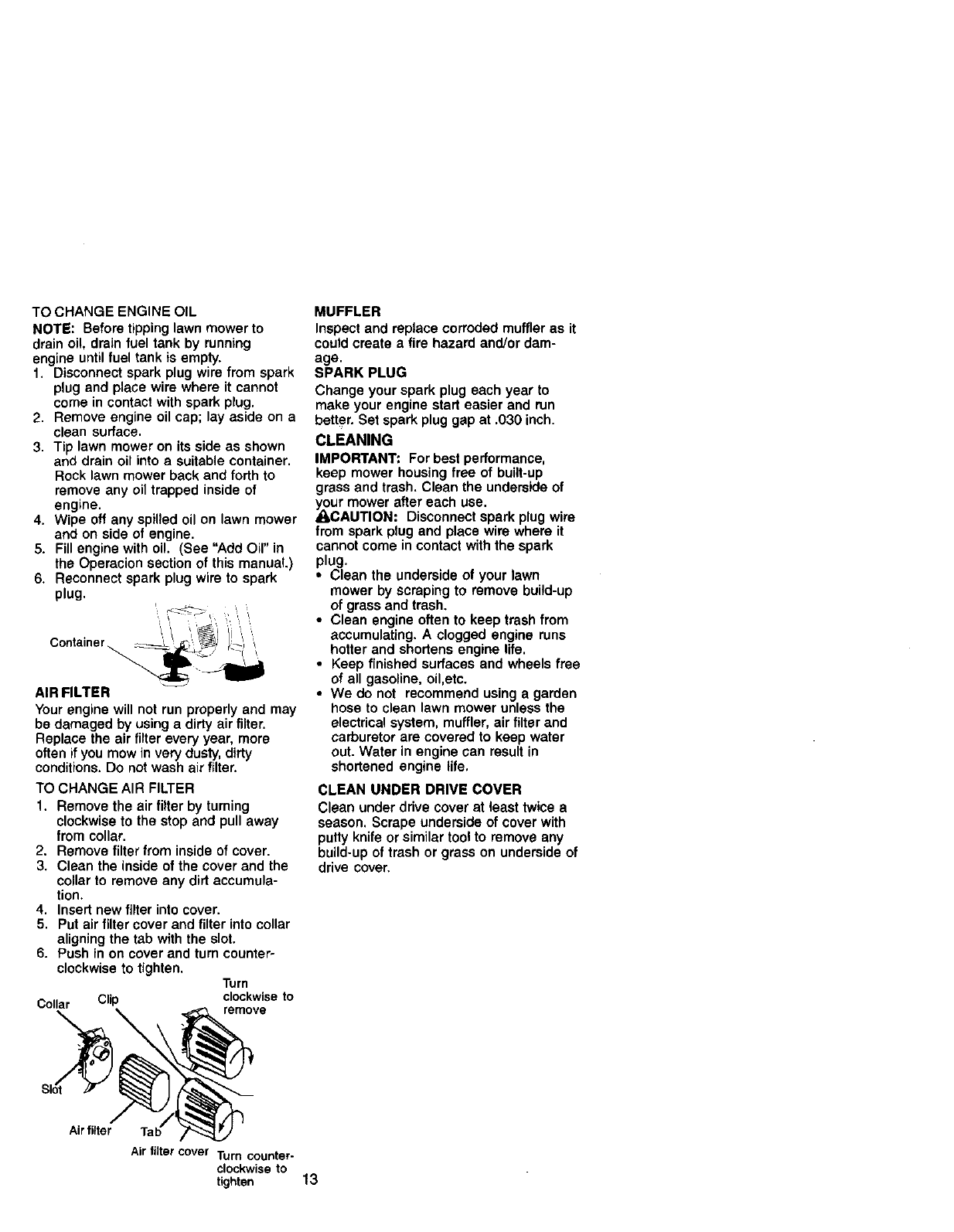

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to

drain oil, drain fuel tank by running

engine until fuel tank is empty.

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

2. Remove engine oil cap; lay aside on a

clean surface.

3. Tip lawn mower on its side as shown

and drain oil into a suitable container.

Rock lawn mower back and forth to

remove any oil trapped inside of

engine.

4. Wipe off any spilled oil on lawn mower

and on side of engine.

5. Fill engine with oil. (See "Add Oil" in

the Operecion section of this manual.)

6. Reconnect spark plug wire to spark

plug.

AIR FILTER

Your engine will not run properly and may

be damaged by using a dirty air filter.

Replace the air filter every year, more

often if you mow in very dusty, dirty

conditions. Do not wash air filter.

TO CHANGE AIR FILTER

1. Remove the air filter by turning

clockwise to the stop and pull away

from collar.

2. Remove filter from inside of cover.

3. Clean the inside of the cover and the

collar to remove any dirt accumula-

tion.

4. Insert new filter into cover.

5. Put air filter cover and filter into collar

aligning the tab with the slot.

6. Push in on cover and turn counter-

clockwise to tighten. Turn

Collar Clip clockwiseto

remove

MUFFLER

Inspect and replace corroded muffler as it

could create a fire hazard and/or dam-

age.

SPARK PLUG

Change your spark plug each year to

make your engine start easier and run

better. Set spark plug gap at .030 inch.

CLEANING

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash, Clean the underside of

your mower after each use.

_I_I,CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

• Clean the underside of your lawn

mower by scraping to remove build-up

of grass and trash,

• Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

•Keep finished surfaces and wheels free

of all gasoline, oil,etc.

•We do not recommend using a garden

hose to clean lawn mower unless the

electrical system, muffler, air filter and

carburetor are covered to keep water

out. Water in engine can result in

shortened engine life,

CLEAN UNDER DRIVE COVER

Clean under drive cover at least twice a

season. Scrape underside of cover with

putty knife or similar tool to remove any

build-up of trash or grass on underside of

drive cover,

Air fitter

Air filter cover Turn counter-

clockwise to

tighten 13

Before performing any

service or adjustments:

1. Release control bar and stop engine.

2. Make sure the blade and all moving

parts have completely stopped.

3. Disconnect spark plug wire from spark

plug and place where it cannot come

in contact with plug.

LAWN MOWER

TO ADJUST cu'n'ING HEIGHT

See "TO ADJUST CU'I-RNG HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your mower, is provided to

minimize the possibility that obiects will

be thrown out of the rear of the mower

into the operator mowing position, tf the

deflector becomes damaged, it should be

replaced.

TO REMOVE/REPLACE DRIVE BELT

1. Remove drive cover. Remove belt

from gearcase pulley by pushing

down on pulley and rolling belt off it.

2. Turn lawn mower on its side with air

filter and carburetor up.

3. Remove blade.

4. Remove debds shield.

5. Remove belt from engine pulley on

crankshaft.

6. Install new belt by reversing above

steps.

7. Always use factory approved belt to

assure fit and long life.

Drive

Bert

Push

down

TO ADJUST HANDLE

The upper handle may be adjusted to

four (4) different height positions,

1, Loosen both handle knobs only

enough to allow the upper handle to

pivot to the desired adjustment

position..

2. Tighten both handle knobs securely,

Handle Knob

TO ASSEMBLE GRASS CATCHER

1, Put grass catcher frame into grass bag

with dgid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top,

2. Slip vinyl bindings over frame.

NOTE: Ifvinyl bindings are too stiff, hold

them in warm water for a few minutes, If

bag gets wet, let it dry before using.

_CAUTION: Do not run your lawn mower

without clipping deflector or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open,

Catcher

frame

handle

_t Frame

opening

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that the engine is running too fast

or too slow, take your lawn mower to a

Sears or other qualified service center for

repair and adjustment.

CARBURETOR

Your carburetor has a non-adjustable

fixed main jet for mixture control. If your

engine does not operate propedy due to

suspected carburetor problems, take your

lawn mower to aSears or other qualified

service center for repair and/or adjust-

ment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other

qualified service center, which has

proper equipment and experience to

make any necessary adjustments.

Immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire lawn mower (See

"CLEANING" in the Maintenance

section of this manual).

2. Lubricate as shown in the Mainte-

nance section of this manual.

3. Be sure that all nuts, bolts, screws,

and pins are securely fastened.

Inspect moving parts for damage,

breakage and wear. Replace if

necessary.

4. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

You can fold your lawn mower handle for

storage.

t. Squeeze the bottom ends of the lower

handle toward each other until the

lower handle clears the handle

bracket, then move handle forward.

2. Loosen upper handle mounting bolts

enough to allow upper handle to be

folded back.

IMPORTANT: When folding the handle

for storage or transportation, be sure to

fold the handle as shown or you may

damage the control cables.

• When setting up your handle from the

storage position, the lower handle will

automatically lock into the mowing

position.

Sueeze to fold

Hairpin cotter

Operator presence

control bar

Upper handle

Fold forward for

stroage

Lower handle

Handle

Fold

backward

Mowing

position

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur,

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio foupd on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

3. Pull starter handle slowly a few times

to distribute oil.

4. Replace with new spark plug.

OTHER

•Do not store gasoline from one

season to another.

•Replace your gasoline can if your

can starts to rust. Rust and/or dirt in

your gasoline will cause problems.

•If possible, store your unit indoors

and cover it to give protection from

dust and dirt.

•Cover your unit with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your unit

to rust.

IMPORTANT: Never cover mower while

engone and exhaust areas are still

warm.

_, CAUTION:Nevei" store the lawn

mower with gasoline in the tank inside

a building where fumes may reach an

open flame or spark. Allow the engine

to cool before stodng in any enclosure.

TROUBLESHOOTINGCHART

)ROBLEM CAUSE

Doesnotstart 1. Dirty air filter.

2. Out of fuel.

3, Stale fuel.

Loss of power

Poor cut -

uneven

4. Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken

blade adapter.

8. Control bar in released

position.

9. Control bar defective.

1. Rear of lawn mower

housing or cutting blade

dragging in heavy grass.

2. Cutting too much grass.

3. Dirty air filter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walking speed too fast.

1. Worn, bent or loose blade.

2. Wheel heights uneven.

3. Buildup of grass, leaves

and trash under mower.

1. Worn, bent or loose blade.

2. Bent engine crankshaft.

Engine flywheel brake is on

when control bar is released.

Bent engine crankshaft.

Blade adapter, broken.

Blade dragging in grass.

Drive wheels not turning

with drive control engaged.

Belt not driving

CORRECTION

1. Clean/replace air filter.

2. Fill fuel tank.

3. Drain tank and refill with

fresh clean fuel,

4. Drain fuel tank and

carburetor and refill tank

with fresh gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. Tighten blade bolt or

replace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

1. Set to "Higher Cut"

position.

2. Set to "Higher Cut"

position.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking

speed.

1. Replace blade. Tighten

blade bolt.

2. Set all wheels at same

height

3. Clean underside of

mower housing.

Excessive 1. Replace blade. Tighten

vibration blade bolt.

2. Contact a Sears or other

qualified service center.

Starter rope hard 1.

topull

Loss of drive 1.

1. Depress control bar to

upper handle before

pulling starter rope.

2. Contact a Sears or other

qualified service center.

3. Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface.

1, Adjust or replace drive

control cable.

2. Put belt on pulleys or

replace belts if broken.

CORRECTION

1, Raise cutting height,

notfilling(ifeo 2, Replace blade.

Kluipped) 3. Clean grass catcher.

Herdtopush 1. Raise cutting height,

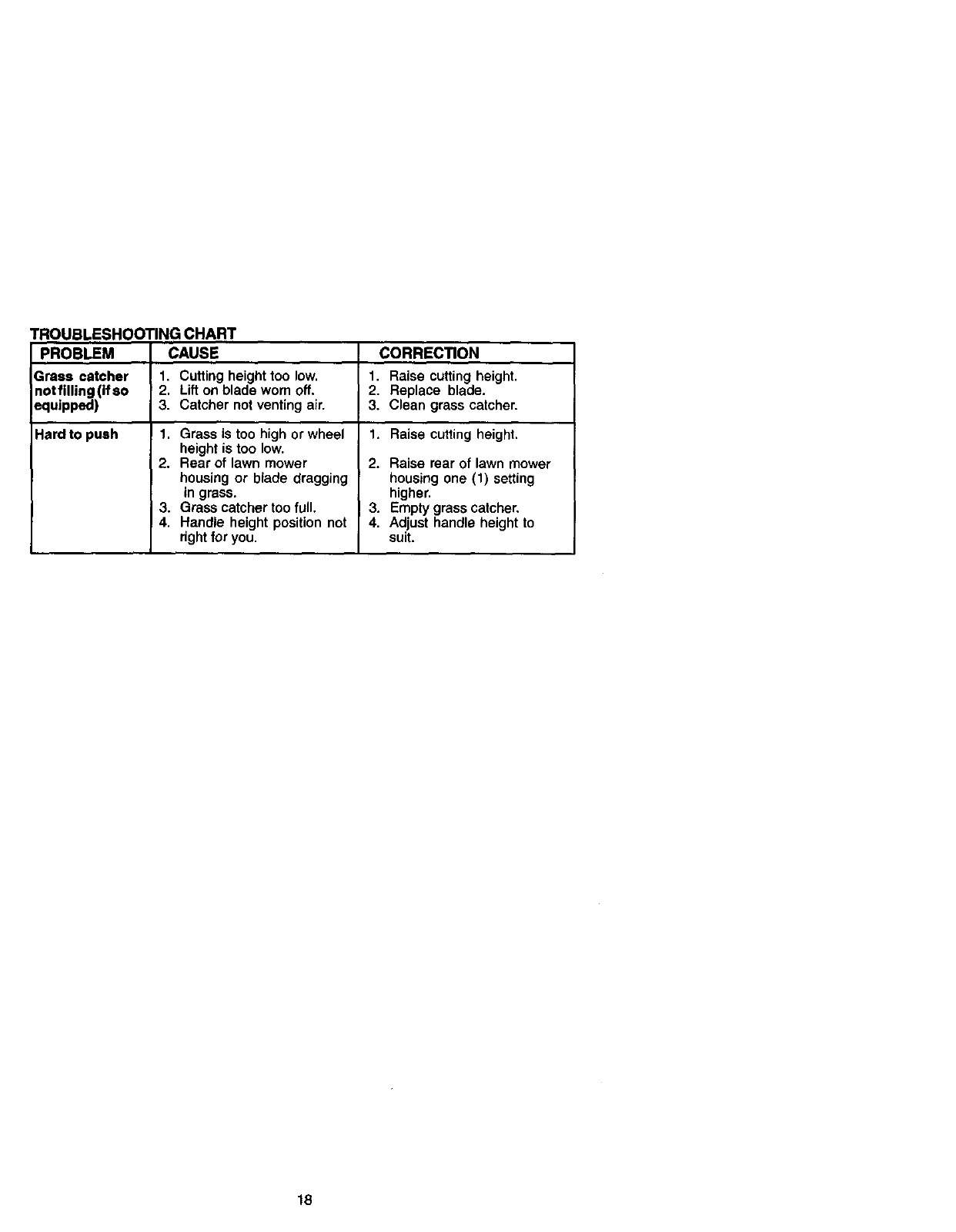

TROUBLESHOOTING CHART

PROBLEM CAUSE

P-ress catcher 1, Cutting height too low,

2, Lift on blade worn off.

3. Catcher not venting air.

1, Grass is too high or wheel

height is too low.

2. Rear of lawn mower

housing or blade dragging

in grass.

3. Grass catcher too full.

4. Handle height position not

rightfor you.

2. Raise rear of lawn mower

housing one (1) setting

higher.

3. Empty grass catcher.

4. Adjust handle height to

suit.

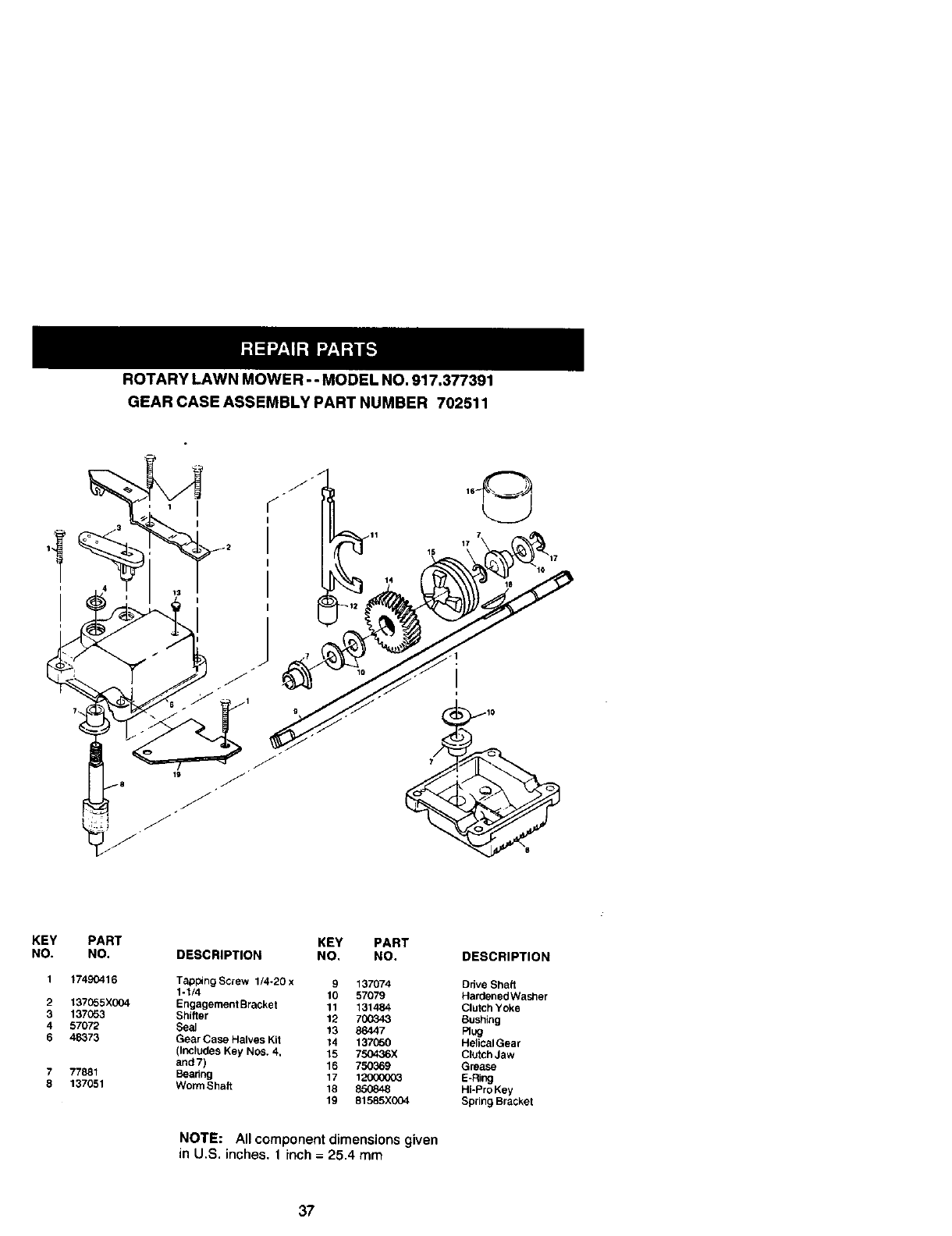

ROTARYLAWNMOWER-- MODELNO.917.377391

GEARCASEASSEMBLYPARTNUMBER702511

KEY PART

NO. NO. KEY PART

DESCRIPTION NO. NO. DESCRIPTION

117490416 Tapping Screw 1/4-20 x 9 137074 Drive Shaft

1-I/4 10 57079 HardenedWasher

2 137055XCO4 Engagement Bracket 11 131484 Clutch Yoke

3 137053 Shifter 12 700343 Bushing

4 57072 SeaJ 13 86447 Plug

6 48373 Gear Case Halves Kit 14 137050 Helical Gear

(Includes Key NOS. 4, 15 750436X Clutch Jaw

anti7) 16 750369 Grease

777881 Bearing 17 1_ E-Ring

8 137051 Worm Shaft 18 850848 HI-ProKey

19 51585X004 Spring Bracket

NOTE: All component dimensions given

in U.S. inches. 1inch = 25.4 mm

ROTARYLAWNMOWERMODELNUMBER917.377391

61 31-

ROTARY LAWN MOWER MODEL NUMBER 917.377391

KEY PART

NO. NO.

1 169933X479

2 164322

4 150425

5 66426

6 136376

8 169936

9 170947

10 128415

11 150050

12 S'RY3125_5

13 151440

14 1.56374X479

15 700365X479

16 133190X479

17 140661X479

18 63601

20 14_40

22 85543

23 87677

25 83923

27 151138

28 142748

29 61651

30 750913X004

31 161961

32 170136X004

34 14663O

35 70(]Q25X007

37 150078

38 751592

39 173571 X479

40 1T_572X4"79

41 150406

I_Y pART

DESCRIPTION NO. NO. DESCRIPTION

Upper Handle 44 172835 Lawn Mower Housing (Incl. Key #14, 15, 51 & 52)

En_ne Zone Control Cable 46 851514 Blade Adapter

Mulcher Plug 47 141114 Blade22"

Wire _e 48 851074 Hardened Washer

Handle Knob 49 850263 Helical Washer 3/8-24 x 1-3/8 Gr. 8

ConValBar 50 851084 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8

Rear Door Kit 51 17(_31 Kit Baffle

Pop Rivet 52 85463 Danger Decal

Sel|Tapping Screw #10-16x 1/2 56 88652 Hinge Screw 1/4-20x1-1/4

Hex Tapping Screw w/Sems 1/4-20 x 1/2 57 51793 Haiq_inCotter

Hubcap 58 151590X479 LowerHan_e

Back Plate 59 171407 Handla Bolt

Side Baffle 61 13L_01 Rope Guide

Discharge Baffle 62 134612 Debris Shield

Rear Baffle 64 ...... Engine-Craftsman -Model No, 143,016700

KepS Locknut 1/4-20 65 74766612 Bait

Rear Sldrl 67 88348 Washer

Fngine Pulley 68 57143 WaveWasher

Hi-pro Key #505 71 170939 SpdngRH

Hex Flange Nut 72 170938 Spring LH

Wheel 73 165912 Bait

Shoulder Bolt 3/8-16 x 1 77 17600406 Screw. Hx. Serrated. 1/4 x 20

Balleville Washer 78 170954 Handle Adjuster, Outside, LH

Axle Arm Assemffly 79 170953 Handle Adjuster, Inside, LH

Sefflctor Knob 80 17(_54 Handle Adjuster Spdng

Selector Spdng 81 170955 Handle Adjuster, Inside, RH

Spacer 82 170936 Handle Adjuster, Outside, RH

Wheel Adjusting Bracket (Right) -- 161(T_8 Warning Decal (Not Showfl )

Thread Cutting Screw w/Sems 5/16-18 x 3/4 *-175867 Owner's Manual (Eng_lah/Spanish)

Nut Available accessodes not included with lawn mower:

Handle Bracket Assemffly (Left) - - D/98 33313 Clipping Deflector

Handle Bracket Assemffly (Right) -- 71 33623 Gas Can

HexHeadThreadRo_lingScrew 3/6-16x1-1/8 -- 71 33500 FuelSfabilzer

- - 71 33300 SAE 30W Oil (20 oz.)

ROTARY LAWN MOWER MODEL NUMBER 917.377391

14 16

//8

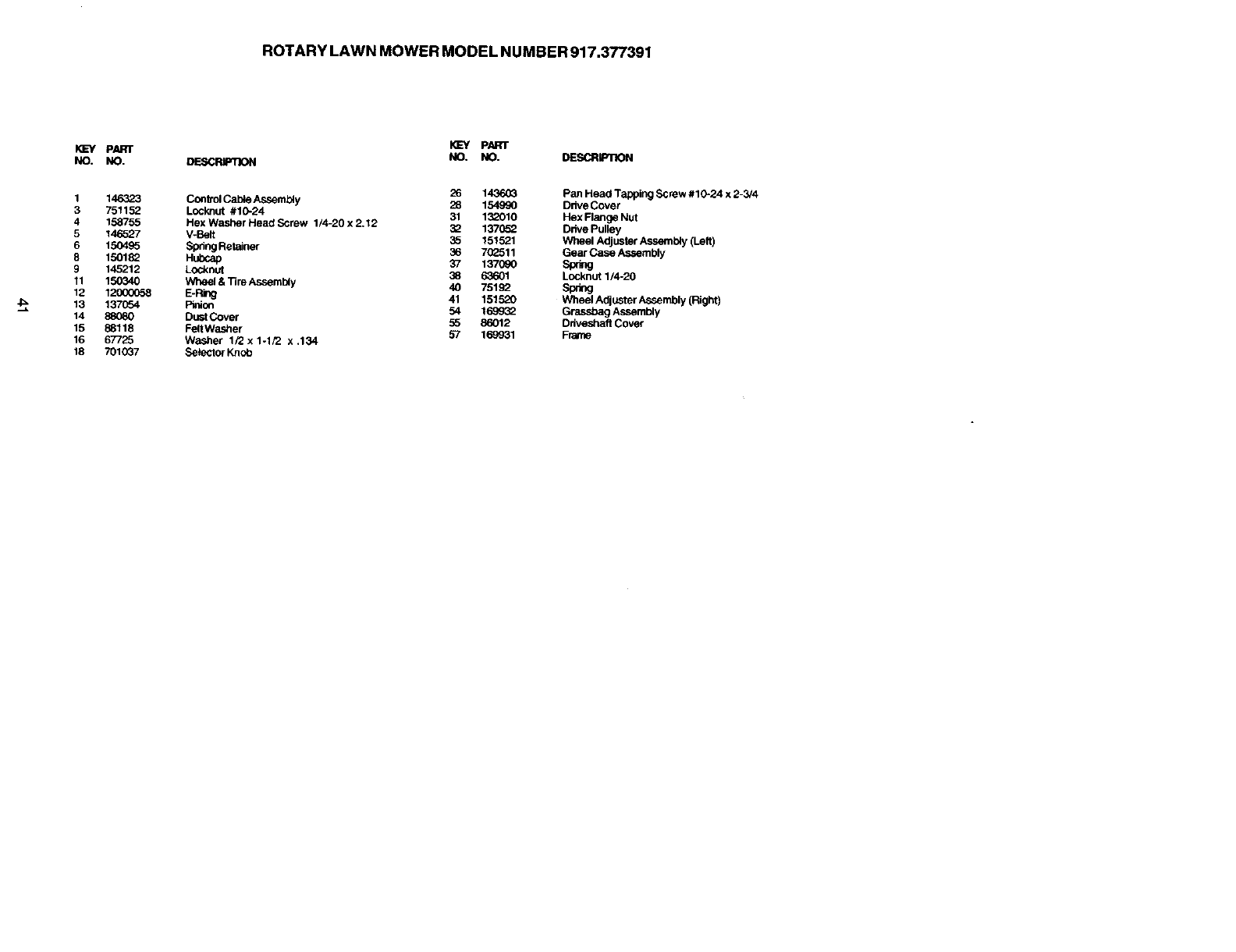

ROTARY LAWN MOWER MODEL NUMBER917.377391

I_-'y p/URT

NO. NO. DESCRPTION

I<L=YPART

NO. NO. DESCRIPT;ON

1 146323

3 751152

4 158755

5 146527

6 1504_

8 150182

9 145212

11 150340

12 12000058

13 137(T;)4

15 88118

16 67725

18 7010_7

26 14360G

Control Cable Assembly 28 154990

Locknut #10-24 31 13_010

Hex Washer Head Screw 1/4-20 x 2,12 32 137(_

V-Be_ 35 151521

Sprblg Retelner 36 7(_511

Hubcap 37 137090

Lo<_nut 38 63601

Wheel & Tire Assembly 40 75192

E-Ring 41 151520

Pinion 54 169932

Dust Cover 55 86012

FeltWasher 57 169931

Washer 1/2 x 1-1/2 x ,134

Selector Knob

Pan Head Tapping Screw #1 0-24 x 2-3/4

DdveCover

Hex Flange Nut

Ddve Pulley

Wheel Adjuster Assembly (Lelt)

Gear Case Assembly

spdng

Locknut 1/4-20

Sp_g

Wheel Adjuster Assembly (Right)

Grassbag Assembly

Ddveshafl Cover

Fralne

CRAFTSMAN 4-CYCLE ENGINE MODEL NO, 143.016700

_355

135

13o

120 119

4 417f_J:_ 1251

275-;

186

-390

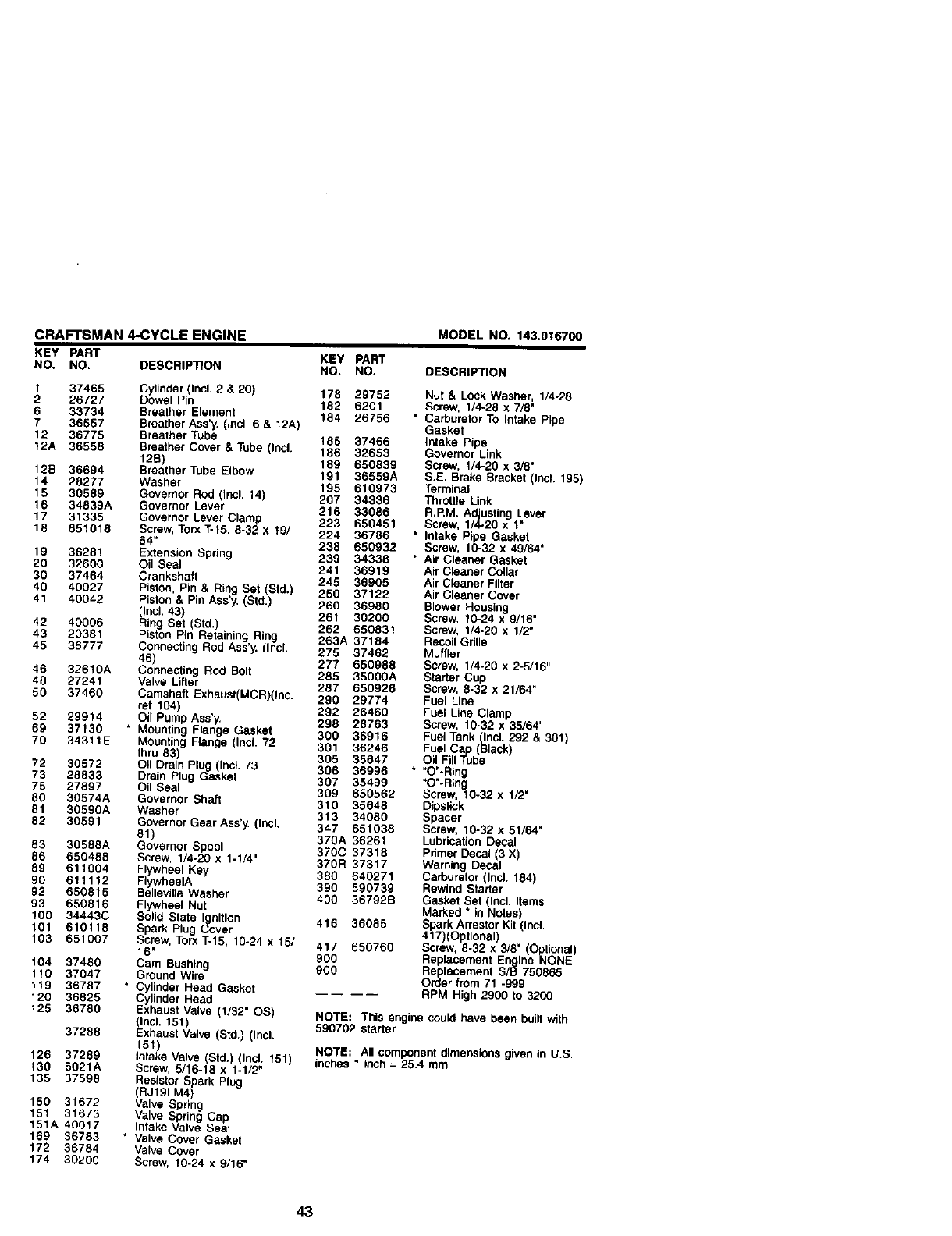

CRAFTSMAN 4-CYCLE ENGINE

KEY PART

NO. NO, DESCRIPTION

MODEL NO. 143.016700

KEY PART

NO. NO, DESCRIPTION

137465 Cylinder (Incl. 2 & 20) 178 29752

2 26727 Dowel Pin 182 6201

6 33734 Breather Element

7 36557 Breather Ass'y. (Incl. 6 & 12A) 184 26756

12 36775 Breather Tube 185 37466

12A 36558 Breather Cover & Tube (Incl. 186 32653

12B) 189 650839

12S 36694 BreatherTube Elbow 191 36559A

14 28277 Washer 195 610973

15 30589 Governor Rod (Incl. 14) 207 34336

16 34839A Governor Lever 216 33086

17 31335 Governor Lever Clamp 223 650451

18 651018 Screw, Torx T-15, 8-32 x 19/ 224 36786

64" 238 650932

19 36281 Extension Spring

20 32600 Oil Seal 239 34338

30 37464 Crankshaft 241 36919

40 40027 Piston, Pin & Ring Set Std. 245 36905

41 40042 Piston & Pin Ass'y. (Std.) 250 37122

260 36980

(incl. 43)

42 40008 Ring Set (Std,) 261 30200

262 650831

43 20381 Piston Pin Retaining Ring

45 36777 Connecting Rod Ass'y. (incl. 263A 37184

275 37462

46) 277 650988

46 32610A Connecting Rod Bolt 285 35000A

48 27241 Valve Li8er 287 650926

50 37460 Camshaft Exhaust(MCR)(Inc. 290 29774

ref 104) 292 26460

52 29914 Oil Pump Ass'y. 298 28763

69 37130 * Mounting Flange Gasket

70 34311E Mounting Flange (Incl 72 300 36916

301 36246

thru 83) 305 35647

72 30572 Oil Drain Plug IncL73 306 36996

73 28833 Drain Plug Gasket 307 35499

75 27897 Oil Seal 309 650562

80 30574A Governor Shaft 310 35648

81 30590A Washer 313 34080

82 30591 Governor Gear Ass'y. (Incl. 347 651038

81) 370A 36261

83 30588A Governor Spool 370C 37318

86 650488 Screw, 1/4-20 x 1-1/4"

89 611004 Flywheel Key 370R 37317

90 611112 FlywheelA 380 640271

390 590739

92 650815 Belleville Washer

93 650816 Flywheel Nut 400 36792B

100 34443C Solid State I_onition 416 36085

101 610118 Spark Plug ver

103 651007 Screw, Torx T-15, 10-24 x 15/

16" 417 650760

104 37480 Cam Bushing 900

110 37047 Ground Wire 900

119 36787 • Cylinder Head Gasket

120 36825 Cylinder Head

125 36780 Exhaust Valve (1/32" OS)

(Incl. 151)

37288 Exhaust Valve (Std.) (Incl.

151)

126 37289 Intake Valve (Std.) (Incl. 151)

130 6021A Screw, 5/16-18 x 1-1/2"

135 37598 Resistor Spark Plug

(RJ19LM4)

150 31672 Valve Spring

151 31673 Valve Spring Cap

151A 40017 Intake Valve Seal

169 36783 * Valve Cover Gasket

172 36784 Valve Cover

174 30200 Screw, 10-24 x 9/16"

Nut & Lock Washer, 1/4-28

Screw, 1/4-28 x 7/8 •

• Carburetor To Intake Pipe

Gasket

Intake Pipe

Governor Link

Screw, 1/4-20 x 3/8"

S.E, Brake Bracket (IncL 195)

Terminal

ThroUle Link

R,RM. Adjusting Lever

Screw, 1/4-20 x 1"

" Intake Pipe Gasket

Screw, 10-32 x 49/64"

* Air Cleaner Gasket

Air Cleaner Collar

Air Cleaner Filter

Air Cleaner Cover

Blower Housing

Screw, 10-24 x 9/16"

Screw, 1/4-20 x 1/2"

RecoilGrille

Muffler

Screw, 1/4-20 x 2-5/16"

Starter Cup

Screw, 8-32 x 21/64"

Fuel Line

Fuel Line Clamp

Screw, 10-32 x 35/64"

Fuel Tank (Incl. 292 & 301)

Fuel Cap Black)

Oil Fill Tube

*"O"-Ring

"O"-Ring

Screw, 10-32 x 1/2"

Dipstick

Spacer

Screw, 10-32 x 51/64"

Lubrication Decal

Primer Decal (3 X)

Warning Decal

Carburetor (Incl. 184)

Rewind Starter

Gasket Set (Incl. Items

Marked * in Notes)

Spark Arrestor Kit (Incl.

417)(Optional)

Screw, 8-32 x 3/8" Optional

Replacement Engine NONE

Replacement S/B 750865

Order from 71 -999

RPM High 2900 to 3200

NOTE: This engine could have been built with

590702 starter

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

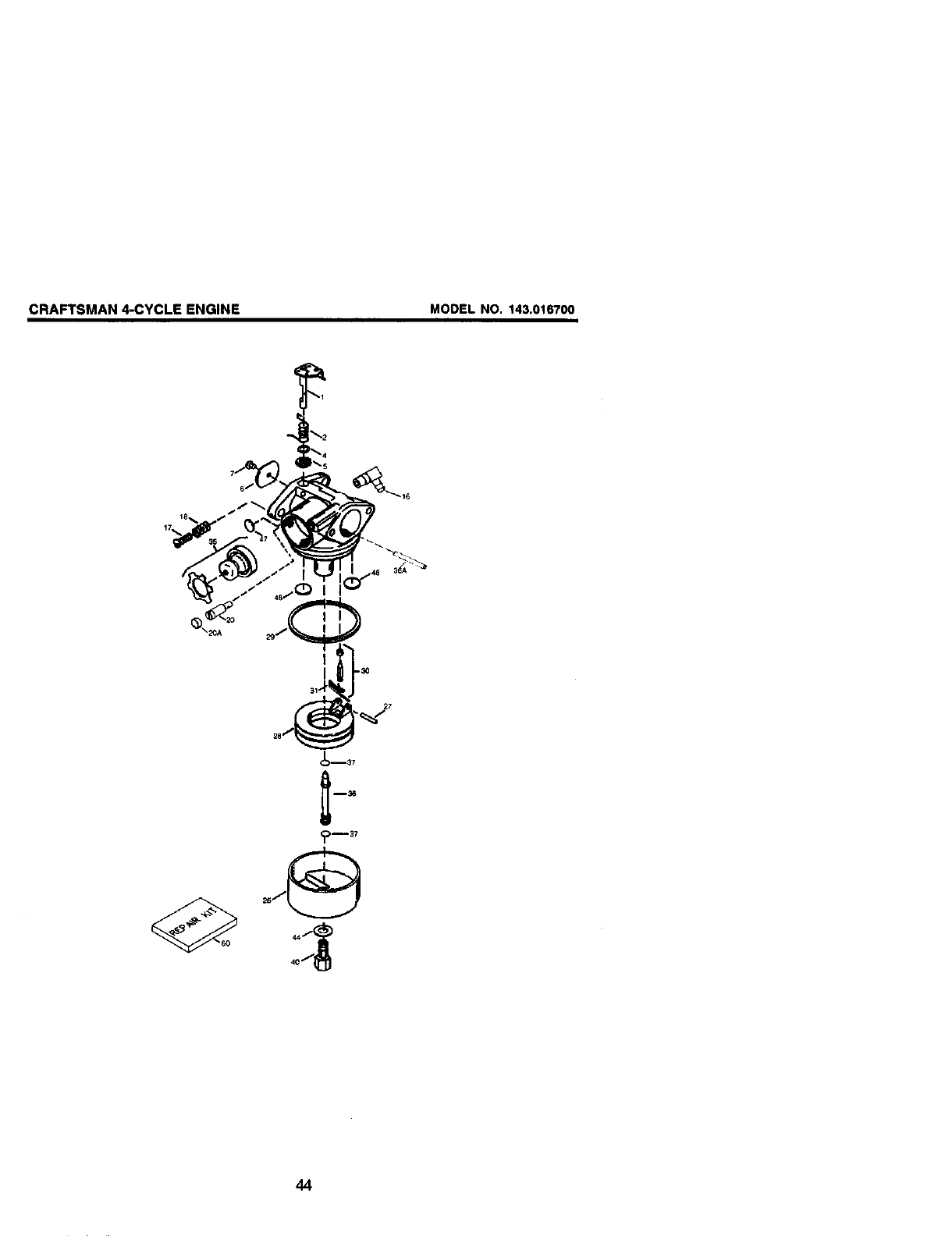

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.016700

_)m37

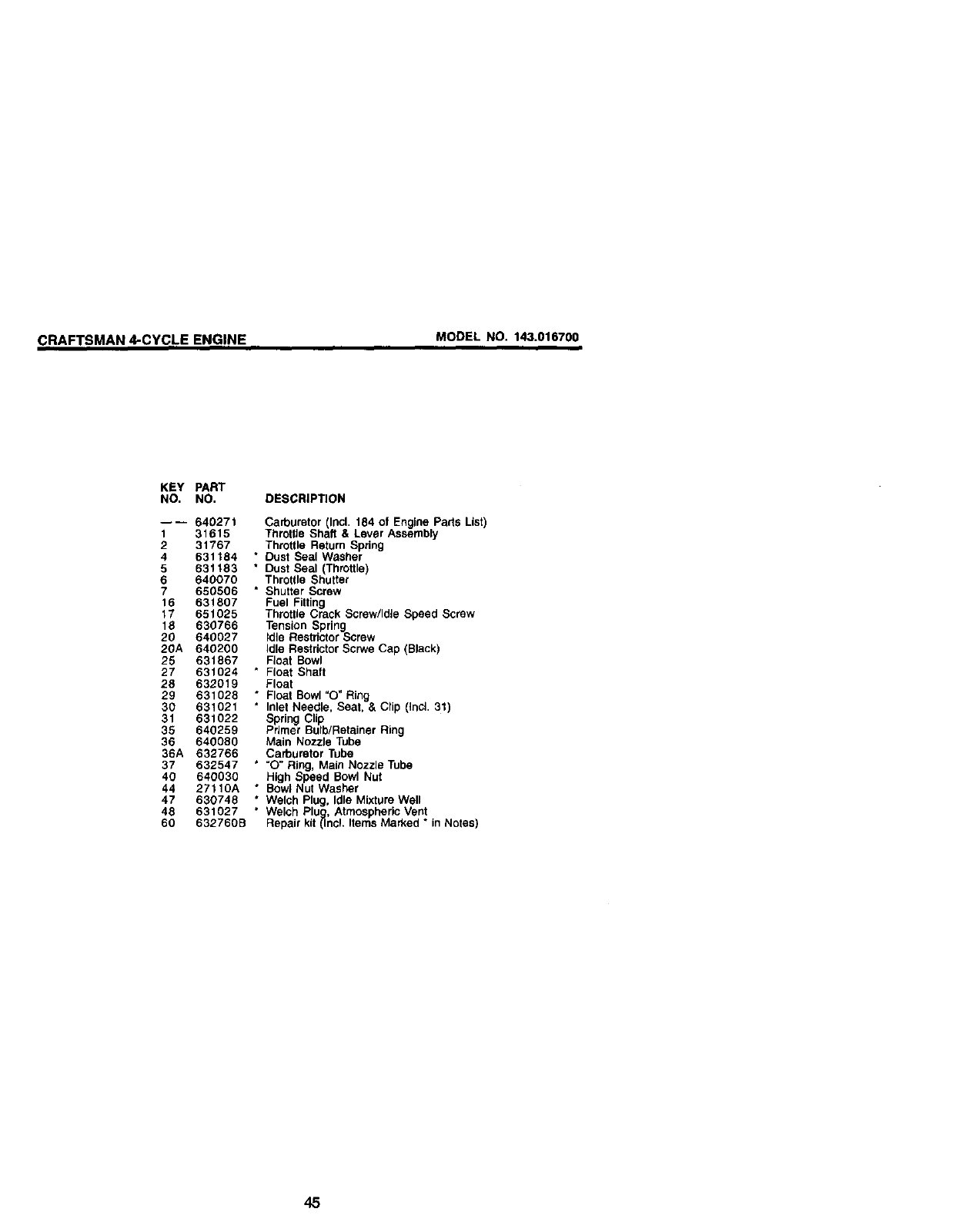

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.016700

KEY PART

NO. NO.

__b

20A

36A

DESCRIPTION

640271 Carburetor Incl. 184 of Engine Parts List)

31615 Thro6e Shaft & Lever Assemby

31767 Throttle Return Spring

631184 * Dust Seal Washer

631183 * Dust Seal (Throttle)

640070 Throttle Shutter

650506 * Shutter Screw

631807 Fuel Fitting

651025 Throttle Crack Screw/Idle Speed Screw

630766 Tension Spring

640027 Idle Restrictor Screw

640200 Idle Restrictor Scrwe Cap (Black)

631867 Float Bowl

631024 *Float Shaft

632019 Float

631028 * Float Bowl "O" Ring

631021 " Inlet Needle, Seat, & Ctip (Incl. 31)

631022 Spring Clip

640259 Primer Bulb/Retainer Ring

640080 Main NoZZle Tube

632766 Carburetor Tube

632547 * =O" Ring, Main Nozzle Tube

640030 High Speed Bowl Nut

27110A *Bowl Nut Washer

630748 ° Welch Plug, Idle Mixture Well

631027 "Welch Plug, Atmospheric Vent

632760B Repair kit (Incl. Items Marked *in Notes)

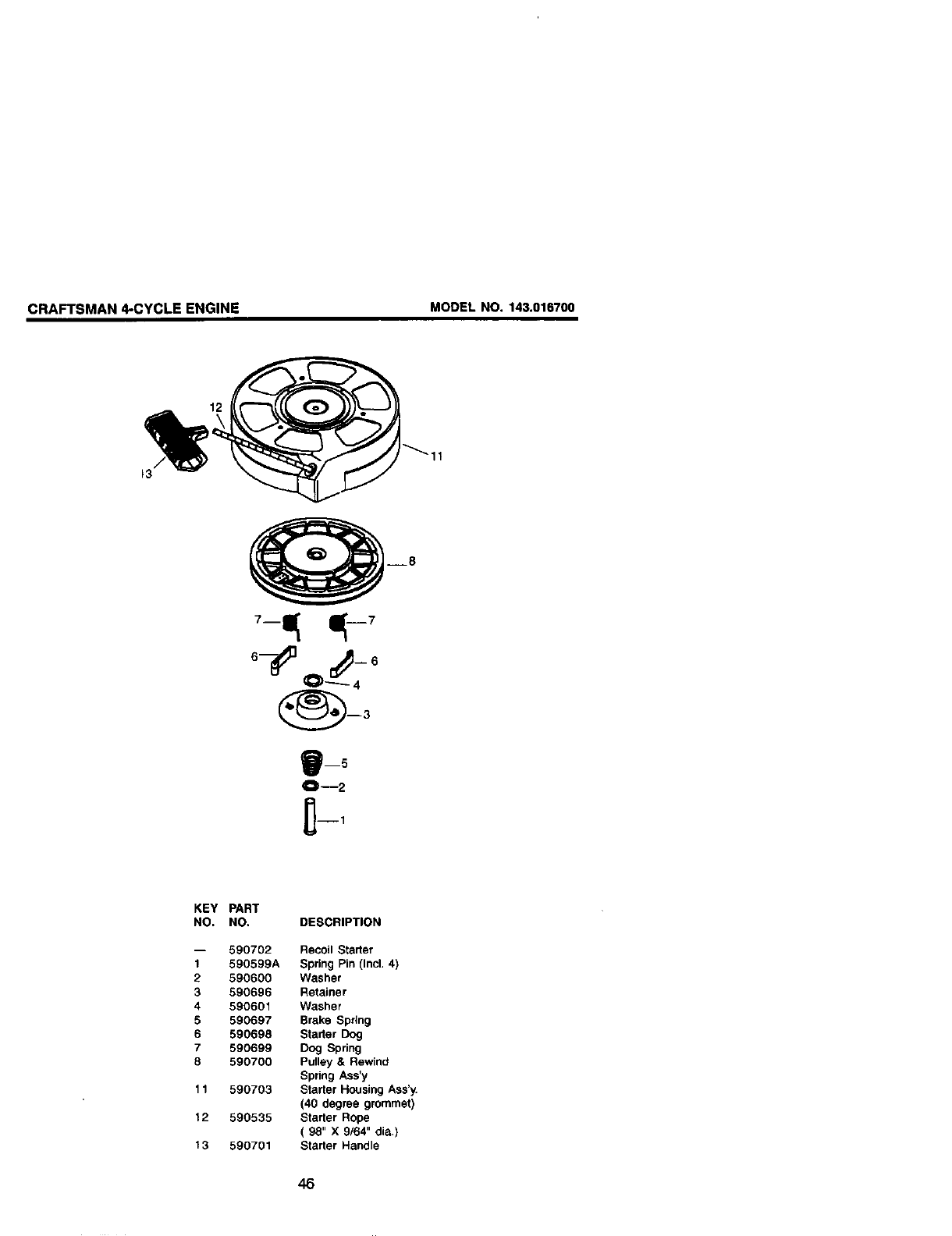

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.016700

O_4

Bm5

O--2

KEY

NO.

PART

NO.

590702

590599A

590600

590696

590601

590697

590698

590699

590700

590703

590535

590701

DESCRIPTION

Recoil Starter

Spring Pin (Incl. 4)

Washer

Retainer

Washer

Brake Spring

Starter Dog

Dog Spring

Pulley & Rewind

Spring Ass'y

Starter Housing Ass'y.

(40 degree grommet)

Starter Rope

(98" X9/64" dia,)

Starter Handle

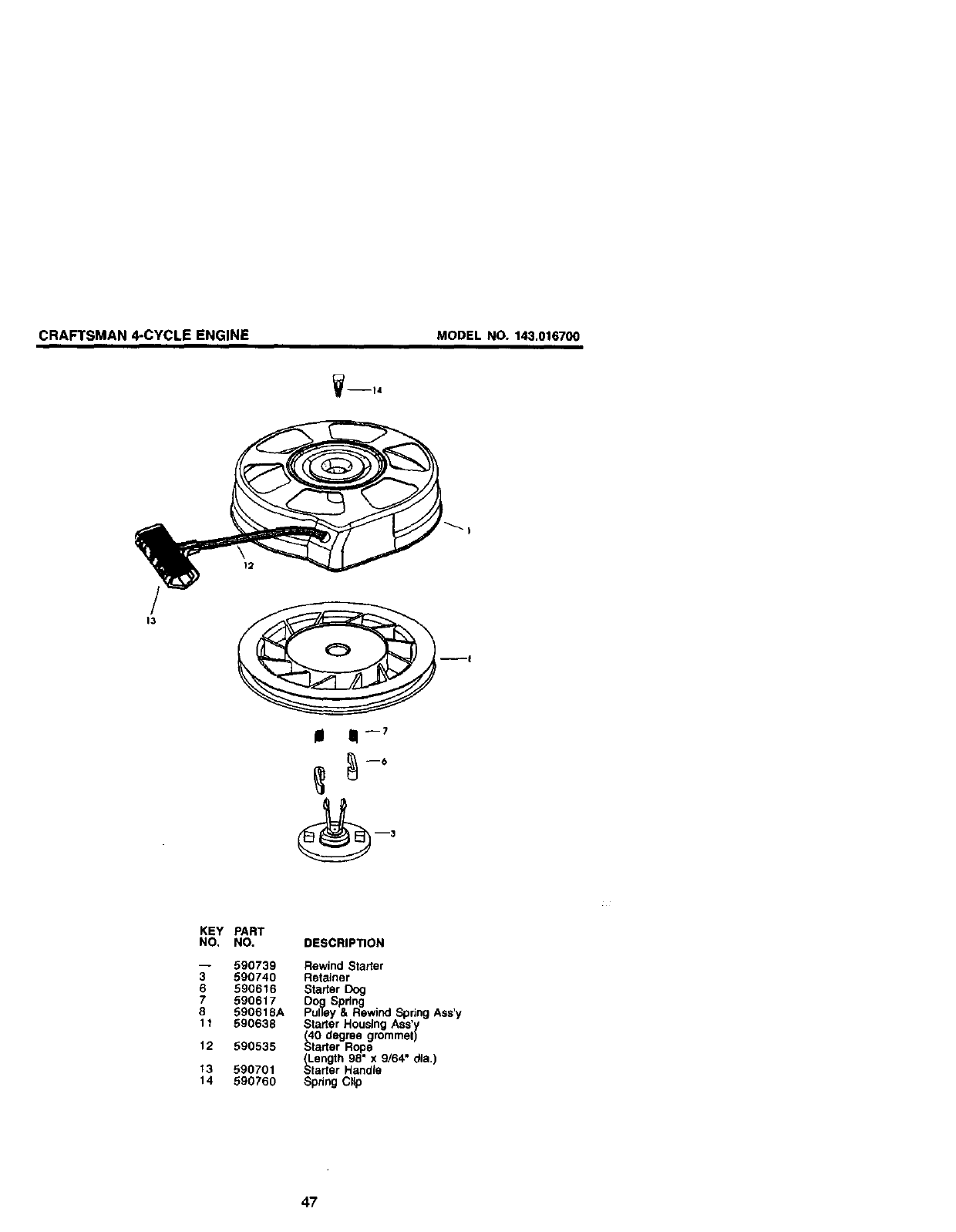

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.016700

_--t4

KEY

NO.

PART

NO. DESCRIPTION

590739 Rewind Starter

590740 Retainer

590616 Starter Dog

590617 Dog Spdng

590618A Pulley & Rewind Spring Ass'y

590638 Starter Housing Ass'y

(40 degree grommel)

590535 Starter Rope

(_Length98" x 9/64" dla,

590701 Starter Handle

590760 Spring Clip

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME sMAnytJr_,day ornight

(1-800-469-4663)

www,sears,corn

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts & Repair Center.

1-800"488"1222 Anytime, dayor night

www.sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectSM!

1-800-366-PART 6a._,-. p.m. CST,

(1400-366-7278) 7 daysaweek

www,sears.condpar tsdlrect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m.- 5 p.m.CST,Mon.- Sat.

Para pedlr serviclode reparacibn a domicilio,

y para ordenarpiezas con entrega a domlciNo:

1"888"SU-HOGAR s.

(1-888-784-6427)

Au Canada pour service en frangais:

1-877-LE-FOYERm

(1-877-533-6937)

SEARS |

HomeCentral " J

0 Sears, Roebuck ar_l%G_ '®RegisteredTrademark /TMTrademark of Sears. Roebuckand Co.

_J_AarcaRegistreda _T_ Marca de F6bdca de Seers. Roebuckand Co.

175867 10.31.00 "_ Printed in U,S.A.

Craftsman 917377391 User Manual ROTARY MOWER Manuals And Guides L0101086

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0101086 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
