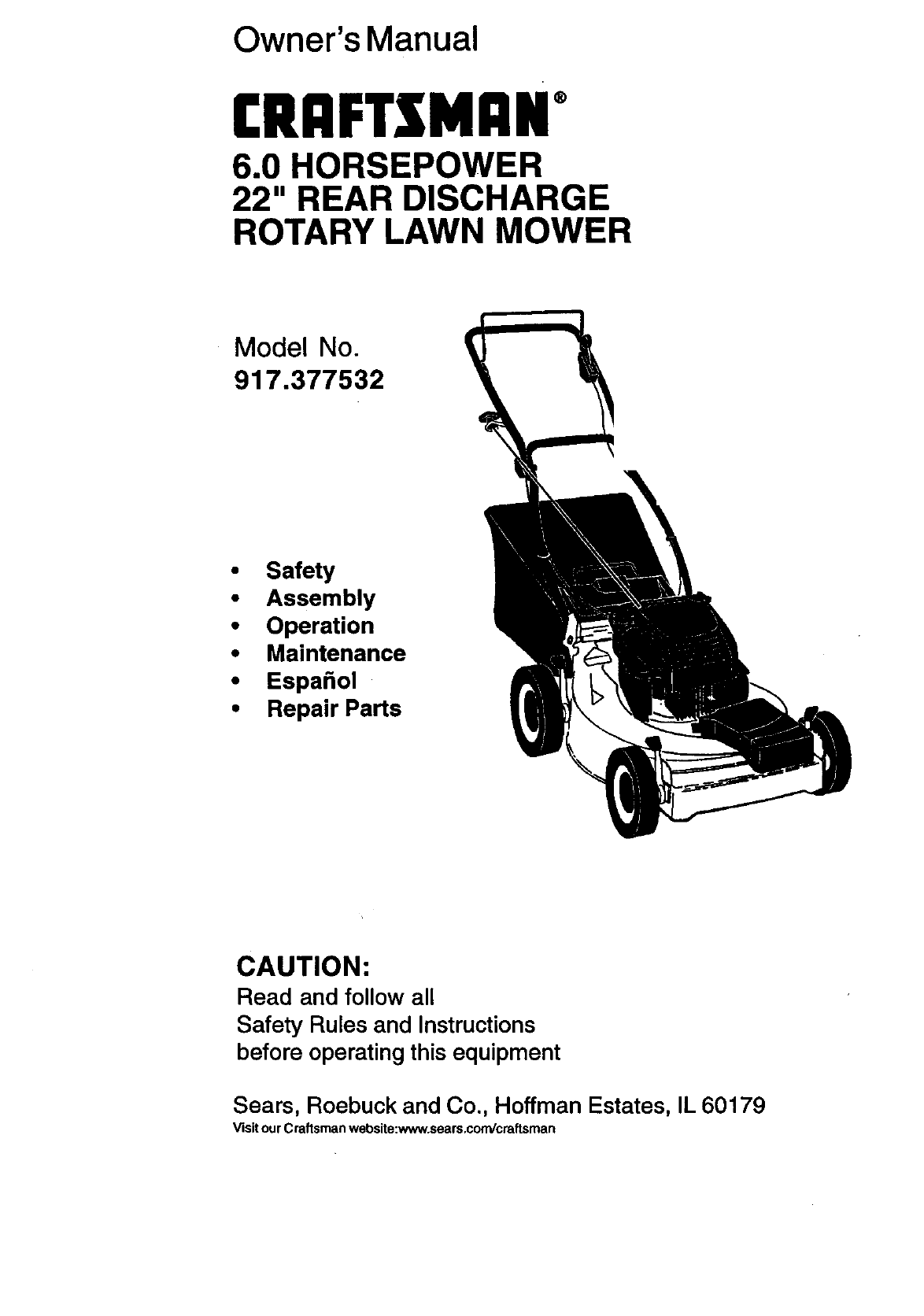

Owner's Manual

rRnFTSMnN°

6.0 HORSEPOWER

22" REAR DISCHARGE

ROTARY LAWN MOWER

Model No.

917.377532

•Safety

•Assembly

•Operation

•Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visitour Craftsman website:www.sears.condcraftsman

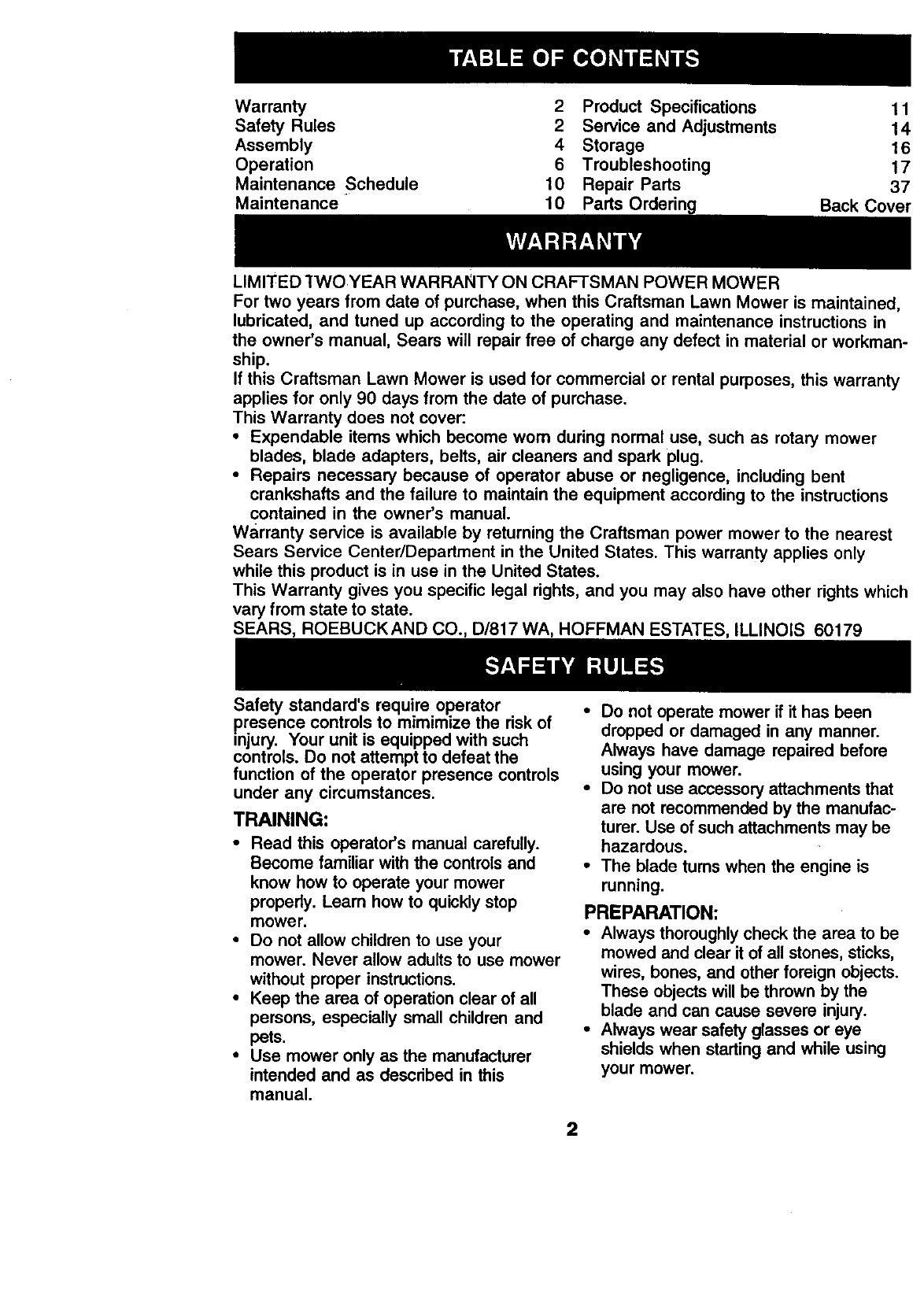

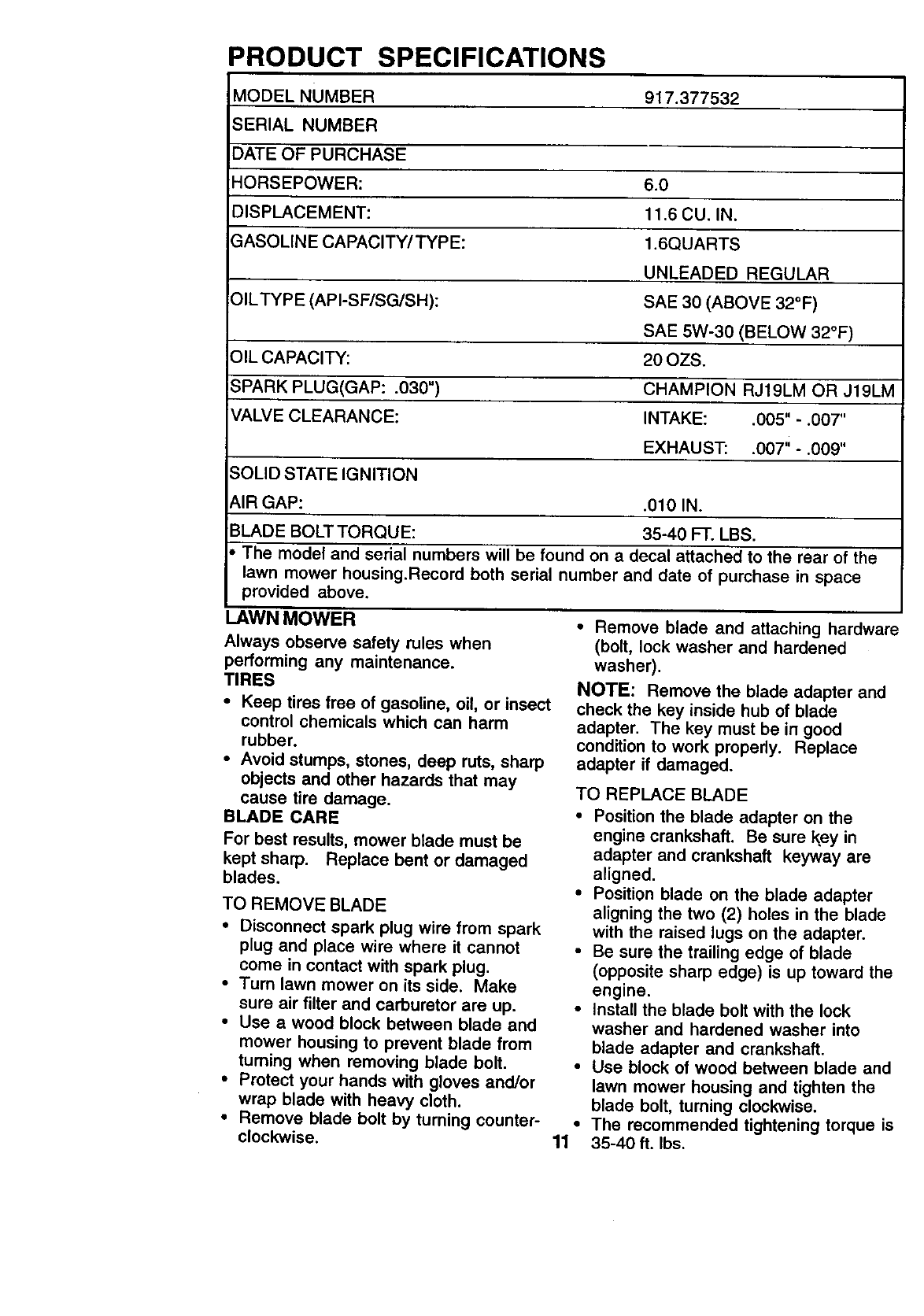

Warranty 2 Product Specifications 11

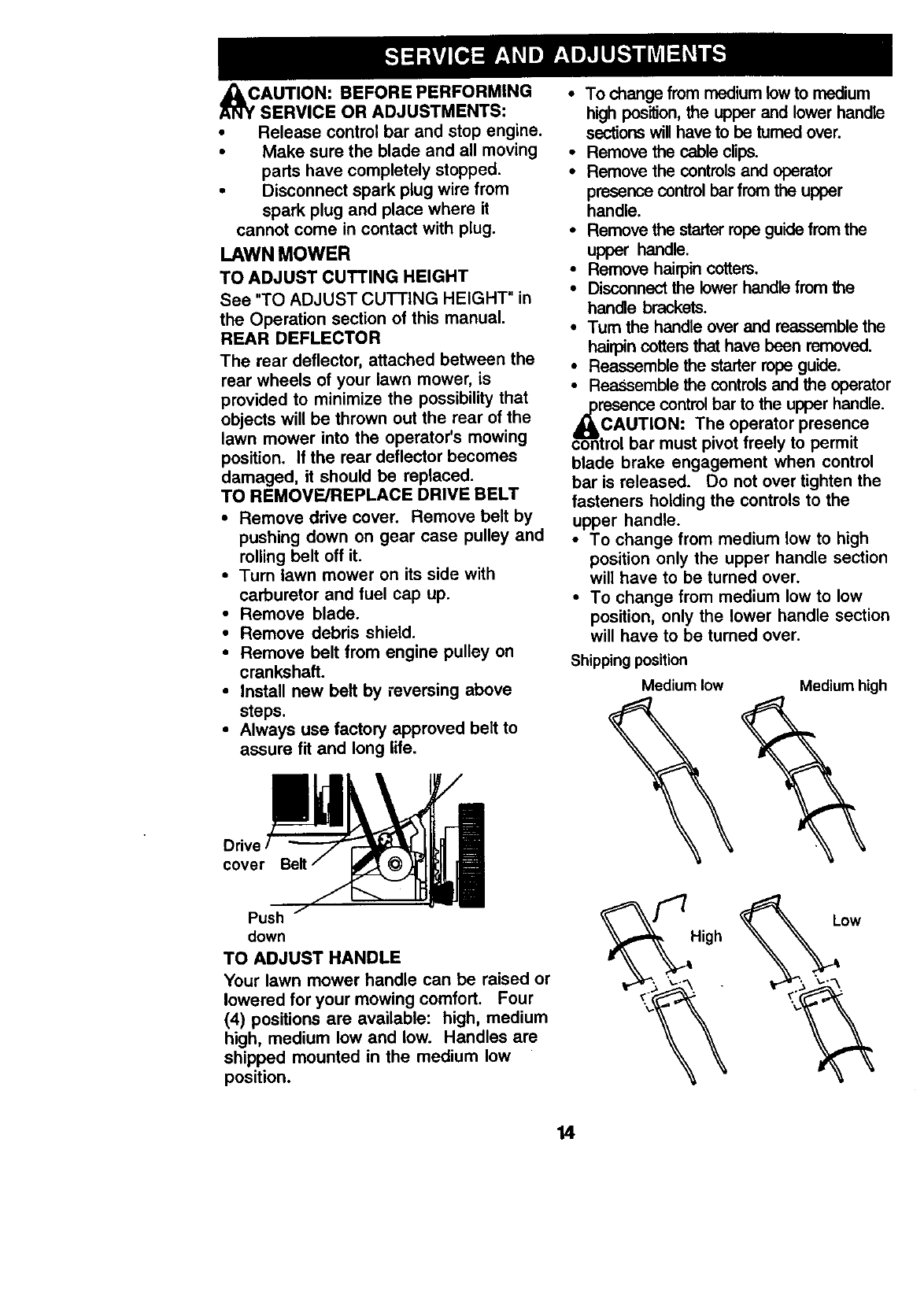

Safety Rules 2 Service and Adjustments 14

Assembly 4 Storage 16

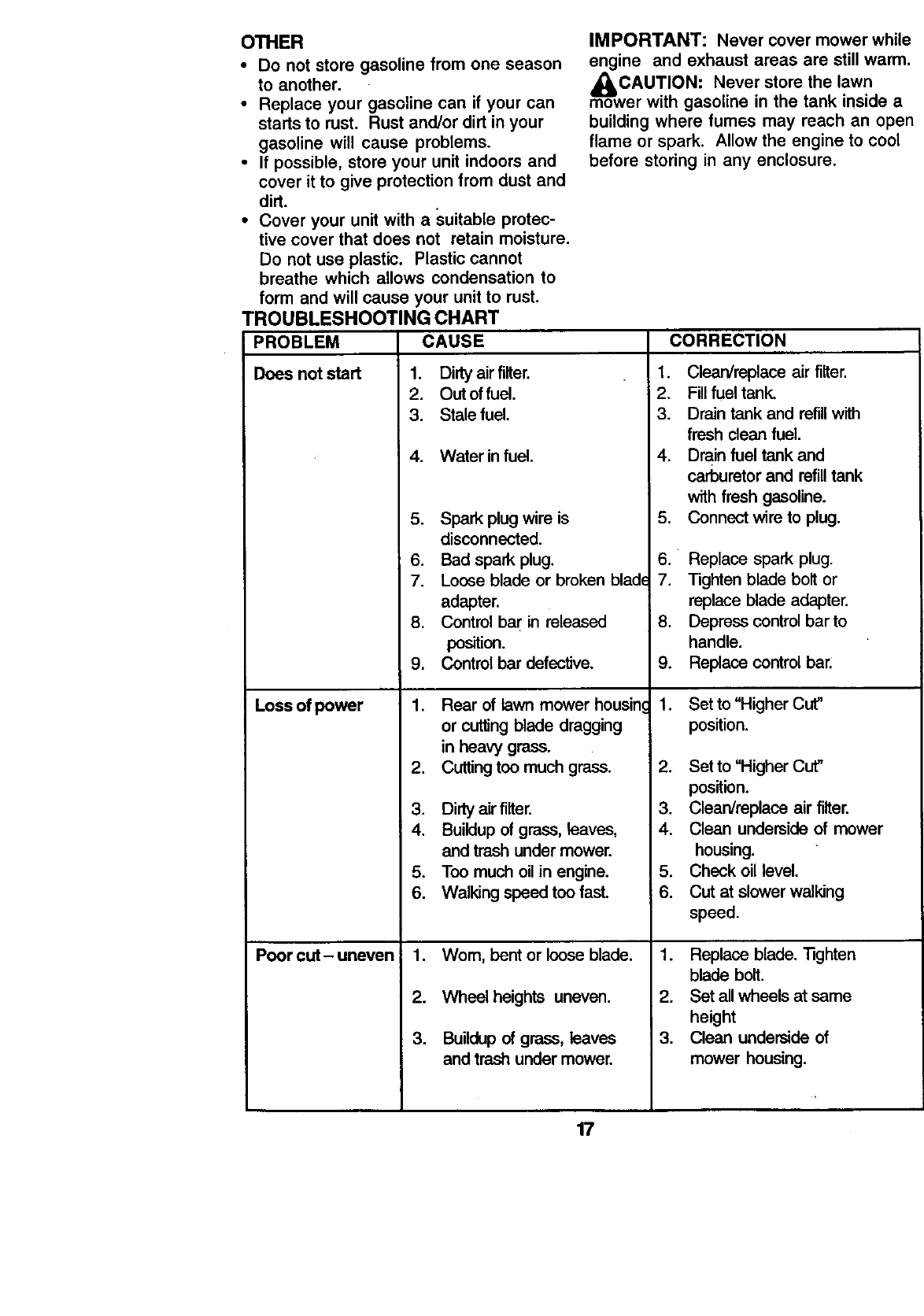

Operation 6 Troubleshooting 17

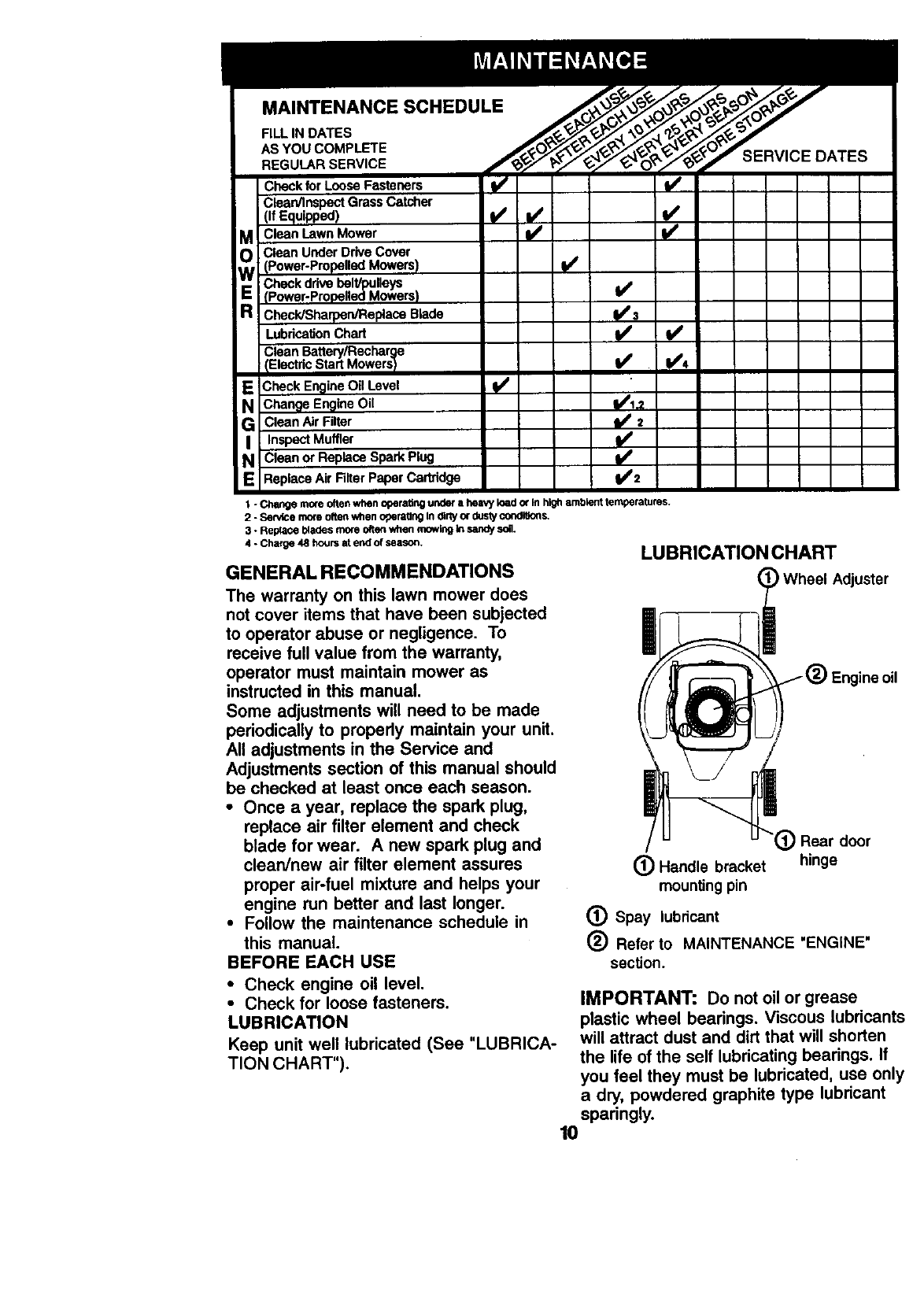

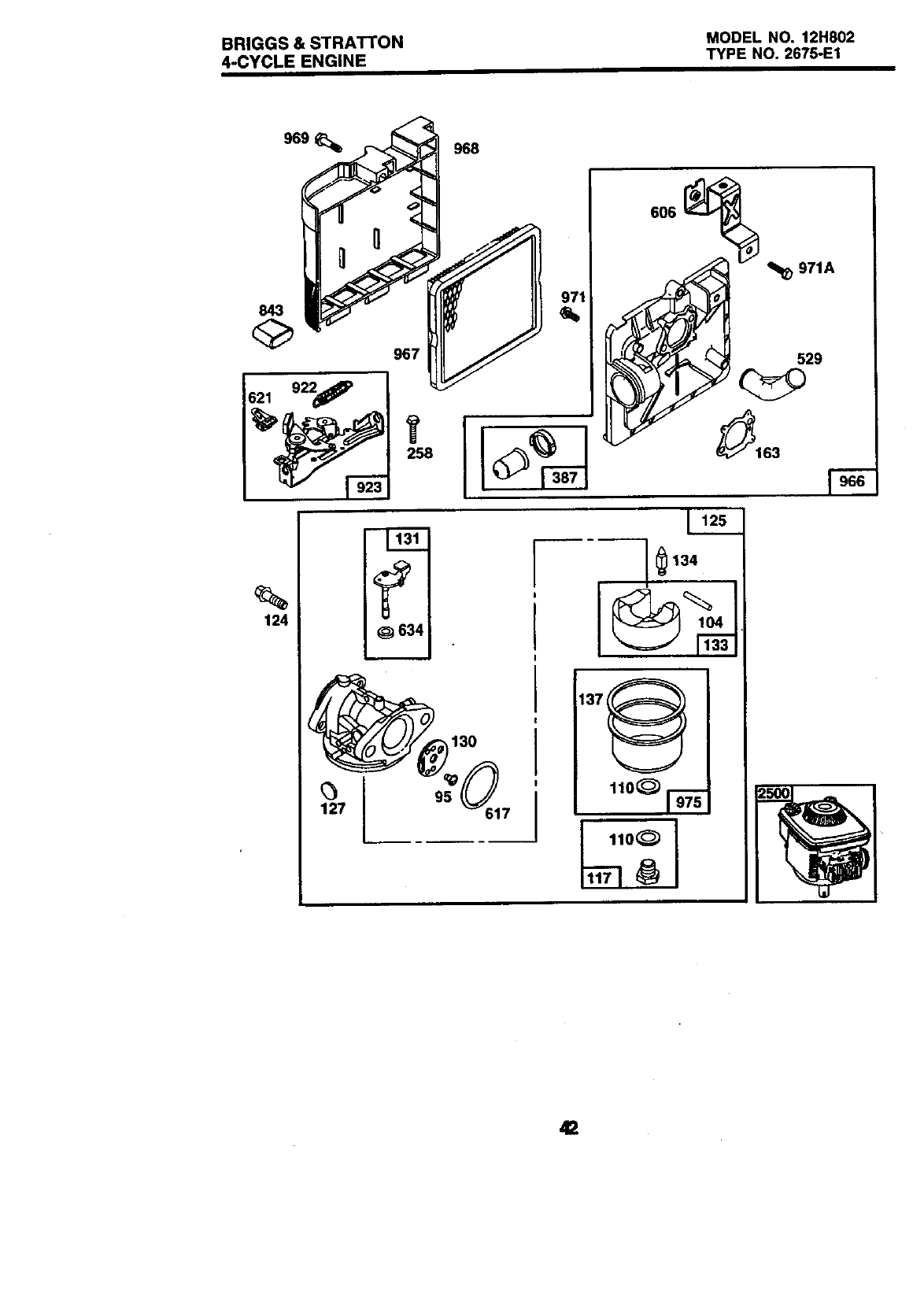

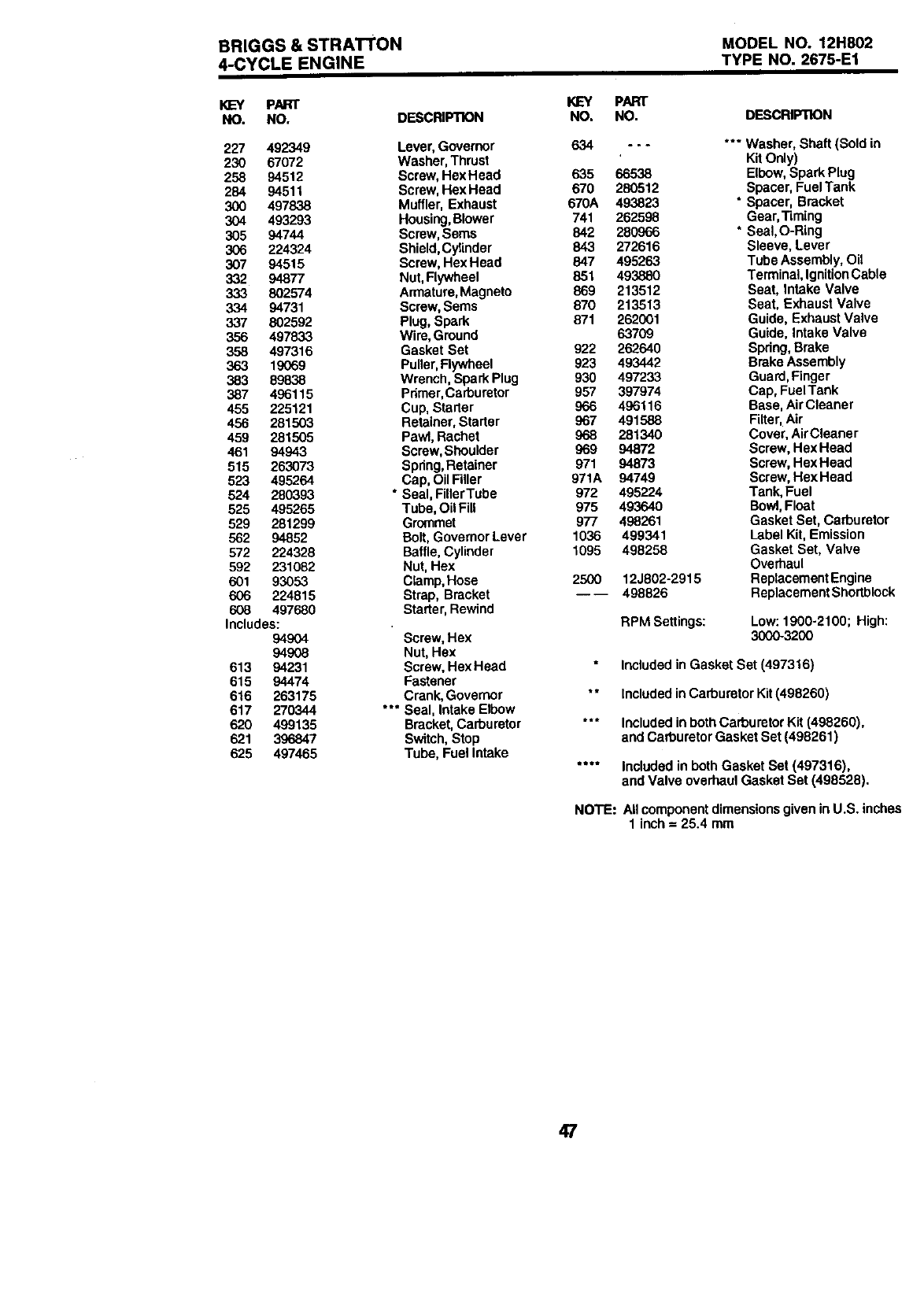

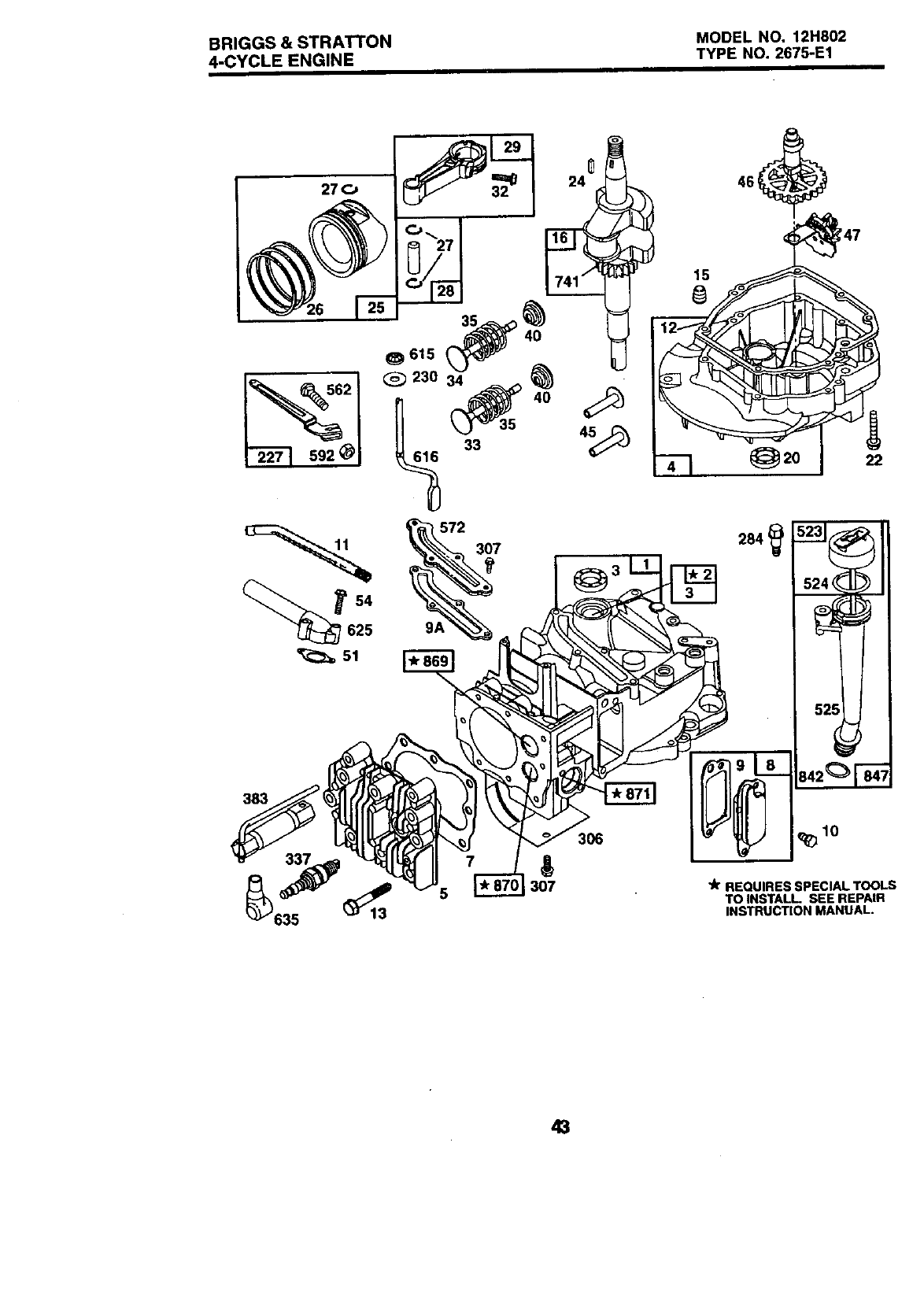

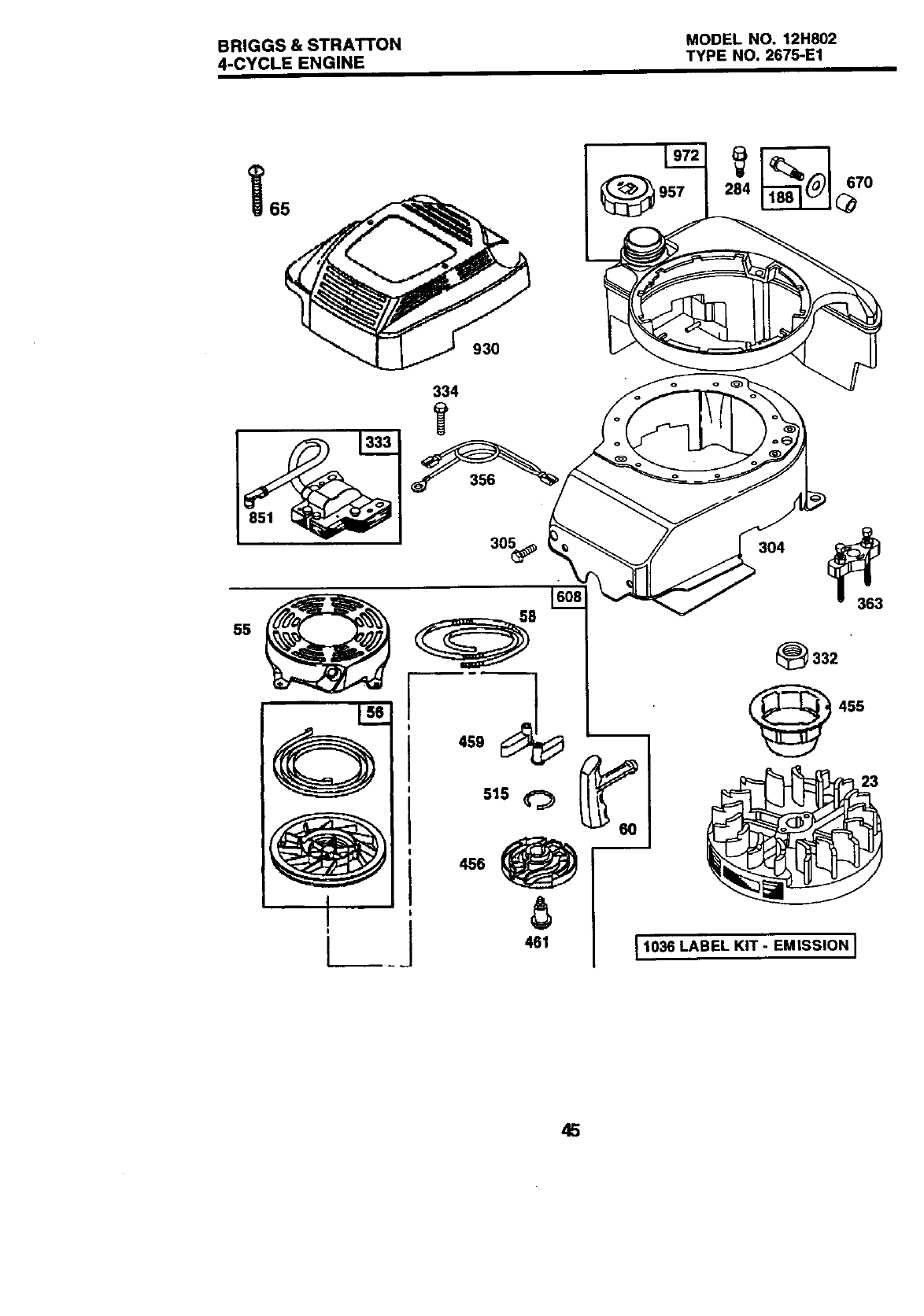

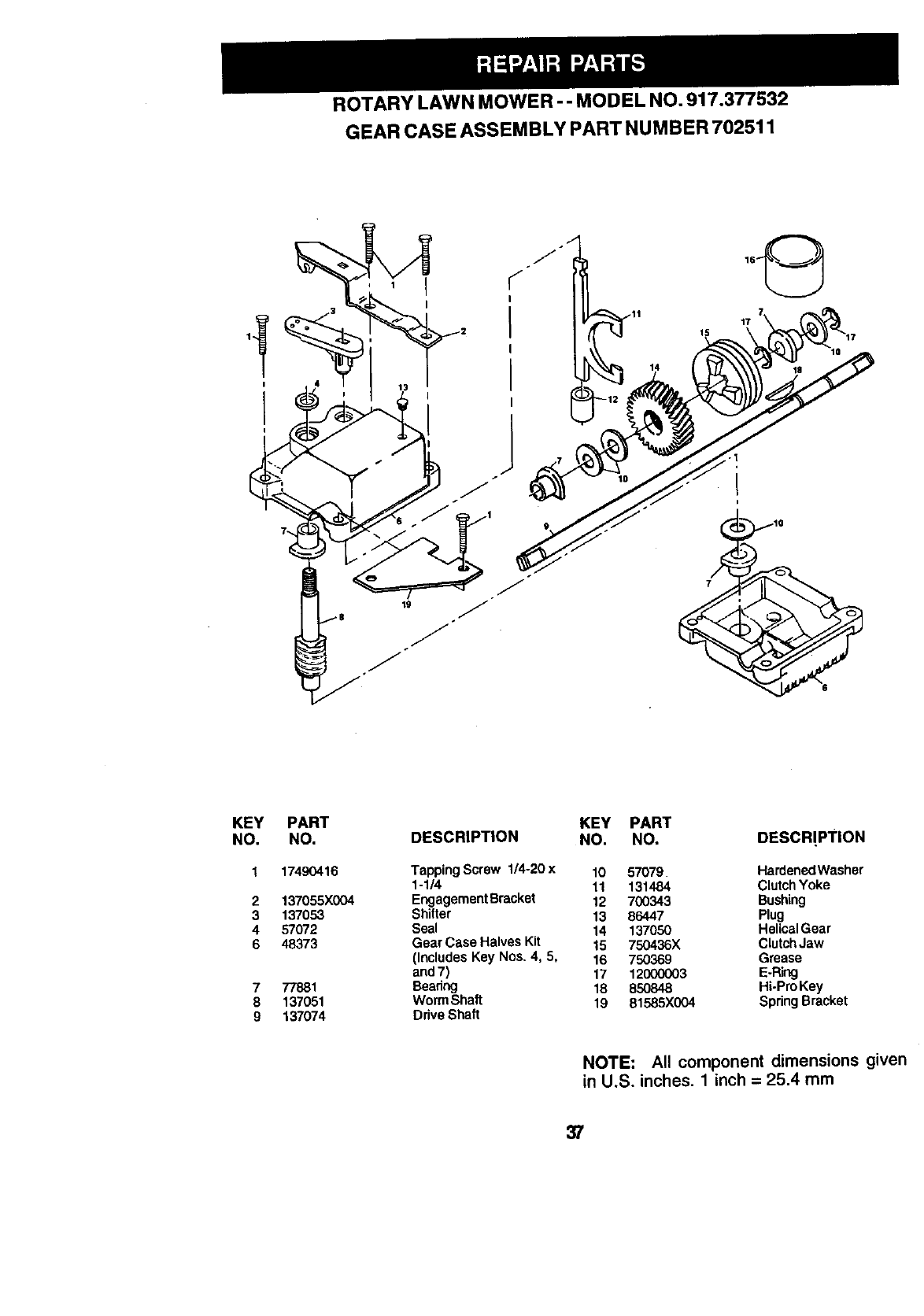

Maintenance Schedule 10 Repair Parts 37

Maintenance 10 Parts Ordering Back Cover

LIMITED 1WO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standard's require operator

presence controls to mimimize the risk of

Injury. Your unit is equipped with such

controls. Do not attempt to defeat the

function of the operator presence controls

under any circumstances.

TRAINING:

•Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

propedy. Leam how to quickly stop

mower.

•Do not allow children to use your

mower. Never allow adults to use mower

without proper instructions.

•Keep the area of operation clear of all

persons, especially small children and

pets.

•Use mower only as the manufacturer

intended and as described in this

manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

Do not use accessory attachments that

are not recommended by the manufac-

turer. Use ofsuch attachments may be

hazardous.

The blade turns when the engine is

running.

PREPARATION:

• Always thoroughlycheck the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

•Always wear safety glasses or eye

shields when starting and while using

your mower.

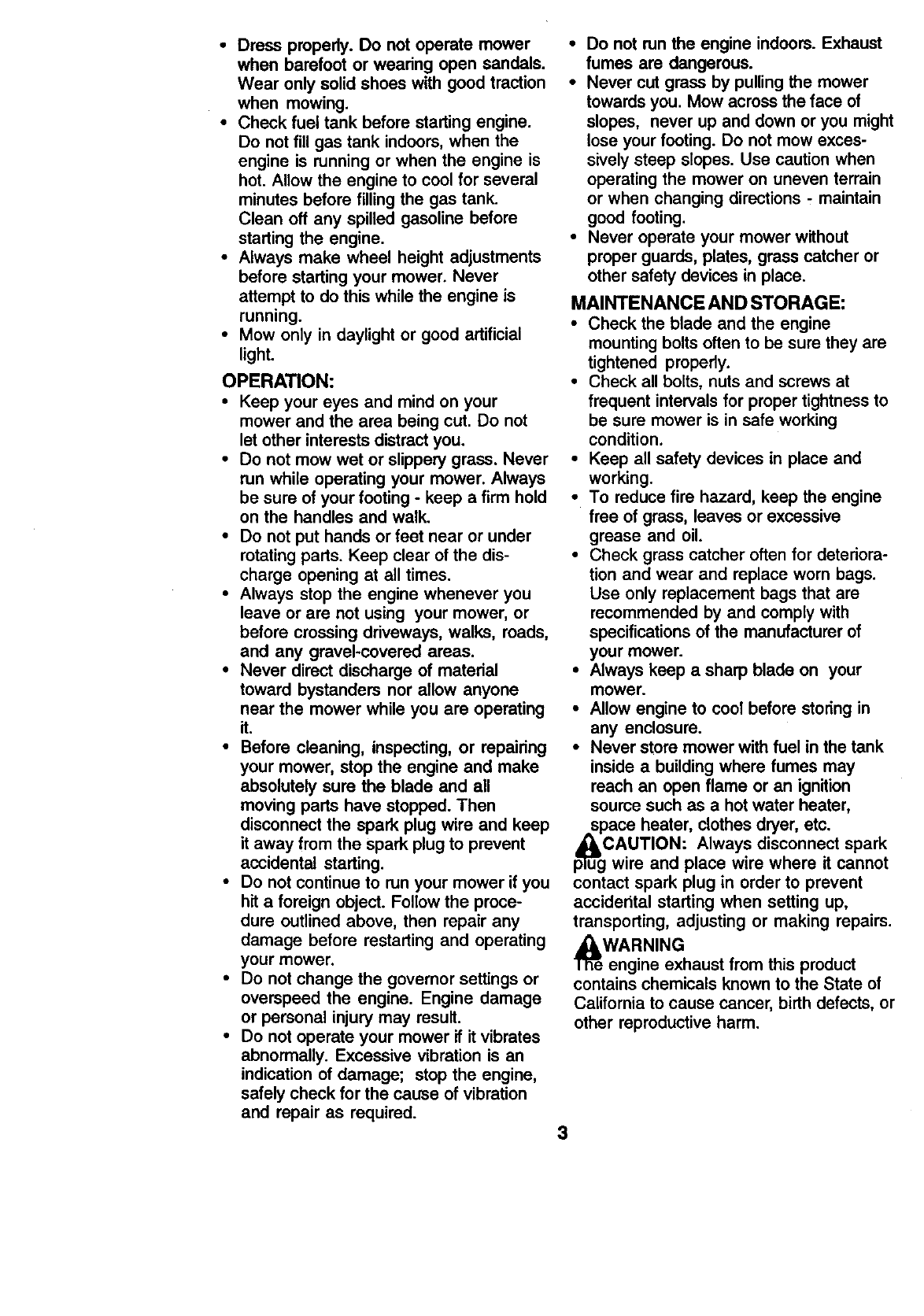

•Dress properly. Do not operate mower

when barefoot or wearing open sandals.

Wear only solid shoes with good traction

when mowing,

•Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank.

Clean off any spilled gasoline before

starting the engine.

•Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

•Mow only in daylight or good artificial

light.

OPERATION:

• Keep your eyes and mind on your

mower and the area being cut. Do not

let other interests distract you.

•Do not mow wet or slippery grass. Never

run while operating your mower. Always

be sure of your footing - keep afirm hold

on the handles and walk.

•Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks, reads,

and any gravel-covered areas.

•Never direct discharge of matedal

toward bystanders nor allow anyone

near the mower while you are operating

it.

•Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all

moving parts have stopped. Then

disconnect the spark plug wire and keep

it away from the spark plug to prevent

accidental starting.

•Do not continue to run your mower if you

hit a foreign object. Follow the proce-

dure outlined above, then repair any

damage before restarting and operating

your mower.

•Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors.Exhaust

fumes are dangerous.

•Never cut grass by pullingthe mower

towards you. Mow across the face of

slopes, never up and down or you might

lose your footing. Do not mow exces-

sively steep slopes. Use caution when

operatingthe mower on uneven terrain

or when changing directions - maintain

good footing.

• Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine

mounting bolts often to be sure they are

tightened prepedy.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

•Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in

any enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

_IICAUTION: Always disconnect spark

p-l'_'gwire and place wire where it cannot

contact spark plug in order to prevent

accider_tal starting when setting up,

transporting, adjusting or making repairs.

_eWARNING

engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects, or

other reproductive harm.

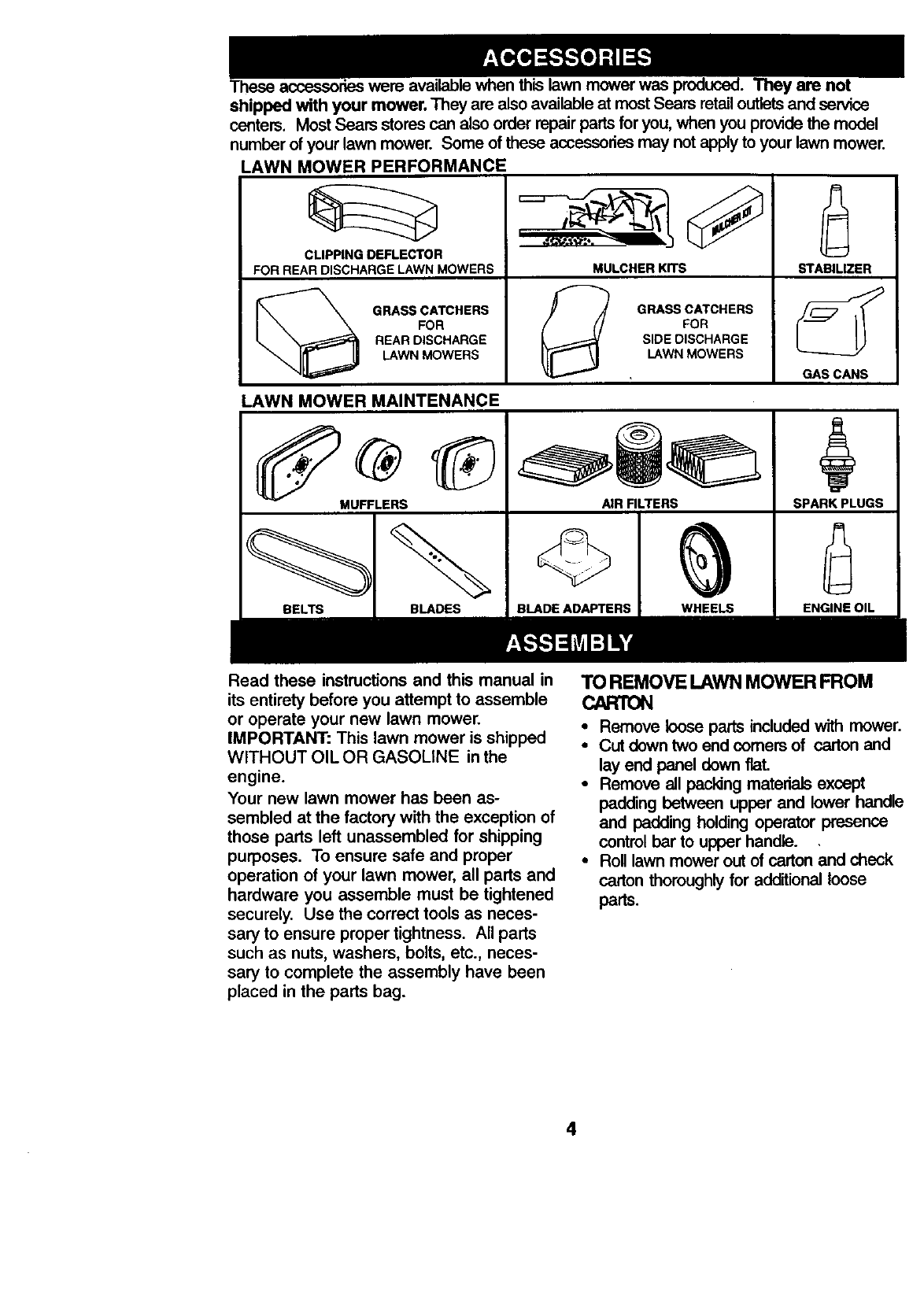

These accessorieswere availablewhenthislawn mower was produced. They are not

shipped with your mower. They are alsoavailableat mostSears retailoutletsand service

centers. Most Sears storescan alsoorder repairparts for you, when you providethe model

numberof yourlawnmower. Some of these accessoriesmay notapplytoyour lawnmower.

LAWN MOWER PERFORMANCE

'CLIPPING DEFLECTOR

FOR REAR DISCHARGELAWNMOWERS MULCHER KITS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES

AIR RLTERS SPARK PLUGS

BLADE ADAPTERS WHEELS ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those parts left unassembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all parts and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

sary to ensure proper tightness. All parts

such as nuts, washers, bolts, etc., neces-

sary to complete the assembly have been

placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

•Remove loose parts included with mower.

•Cut down two end comers of carton and

lay end panel down flat.

•Remove all pacldng materials except

padding between upper and lower handle

and padding holding operator presence

control bar to upper handle. .

•Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts.

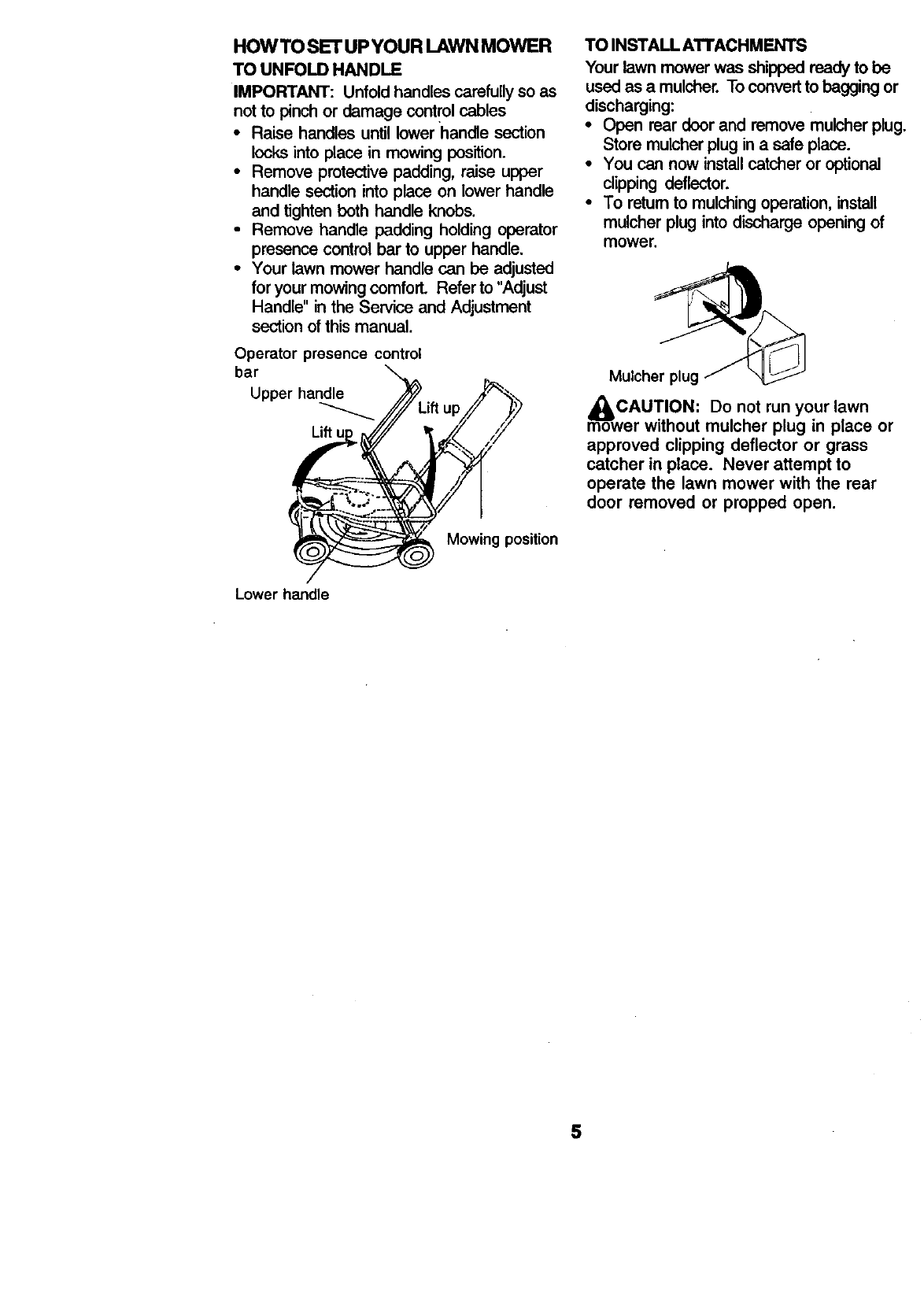

HOWTOSETUPYOURLAWNMOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handles carefully so as

not to pinch or damage control cables

•Raise handles until lower handle section

locks into place in mowing position.

•Remove protective padding, raise upper

handle section into place on lower handle

and tighten both handle knobs.

•Remove handle padding holding operator

presence control bar to upper handle.

•Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle" in the Service and Adjustment

section of this manual.

Operator presence control

bar \

Upper handle _Lift upj

_ Mowing position

Lower handle

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging or

discharging:

•Open rear door and remove mulcher plug.

Store mulcher plug in a safe place.

•You can now install catcher or optional

clipping deflector.

•To return to mulching operation, install

mulcher plug into discharge opening of

mowe_

Mulcher plug

CAUTION: Do not run your lawn

mower without mulcher plug in place or

approved clipping deflector or grass

catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

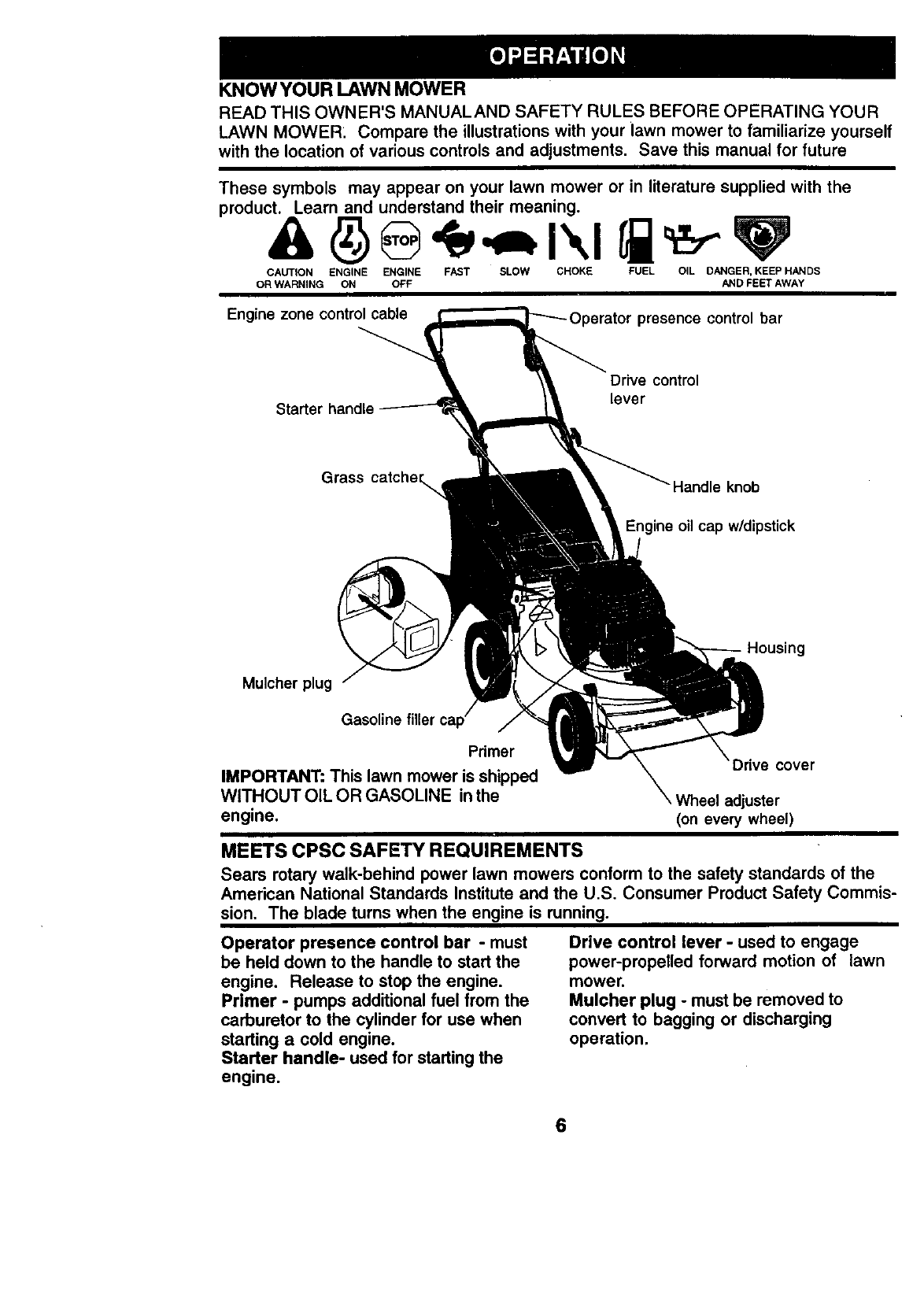

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER: Compare the illustrationswith your lawn mower to familiarize yourself

with the location of various controls and adjustments. Save this manual for future

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Engine zone control cable _resence control bar

Starter handle

Drive control

lever

Grass catcher,.., knob

cap w/dipstick

Housing

Mulcher plug

Gasoline filler

Primer

IMPORTANT" This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Drive cover

Wheel adjuster

(on every wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control bar -must

be held down to the handle to start the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter handle- used for starting the

engine.

Drive control lever -used to engage

power-propelled forward motion of lawn

mower.

Mulcher plug - must be removed to

convert to bagging or discharging

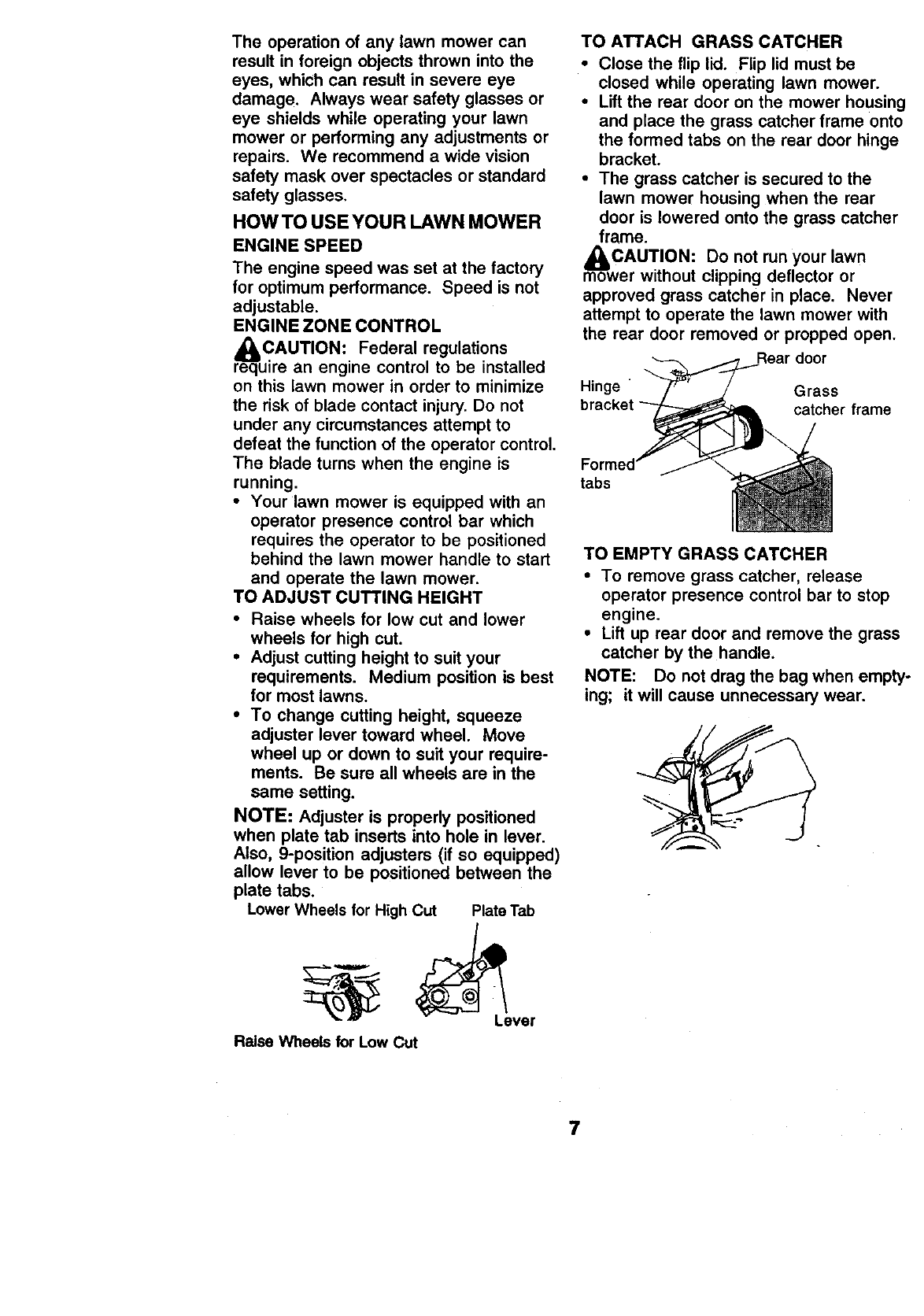

operation.

The operation of any lawn mower can

result in foreign objects thrown into the

eyes, which can result in severe eye

damage. Always wear safety glasses or

eye shields while operating your lawn

mower or performing any adjustments or

repairs. We recommend a wide vision

safety mask over spectacles or standard

safety glasses.

HOWTO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

&CAUTION: Federal regulations

require an engine control to be installed

on this lawn mower in order to minimize

the risk of blade contact injury. Do not

under any circumstances attempt to

defeat the function of the operator control.

The blade turns when the engine is

running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

• Raise wheels for low cut and lower

wheels for high cut.

• Adjust cutting height to suit your

requirements. Medium position is best

for most lawns.

• To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Lower Wheels for High Cut Plate Tab

Lever

Raise Wheels for Low Cut

TO ATTACH GRASS CATCHER

• Close the flip lid. Flip lid must be

closed while operating lawn mower.

•Lift the rear door on the mower housing

and place the grass catcher frame onto

the formed tabs on the rear door hinge

bracket.

•The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

_CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or prepped open.

Rear door

Hinge " Grass

bracket catcher frame

tabs

TO EMPTY GRASS CATCHER

•To remove grass catcher, release

operator presence control bar to stop

engine.

•Lift up rear door and remove the grass

catcher by the handle.

NOTE: Do not drag the bag when empty-

ing; it will cause unnecessary wear.

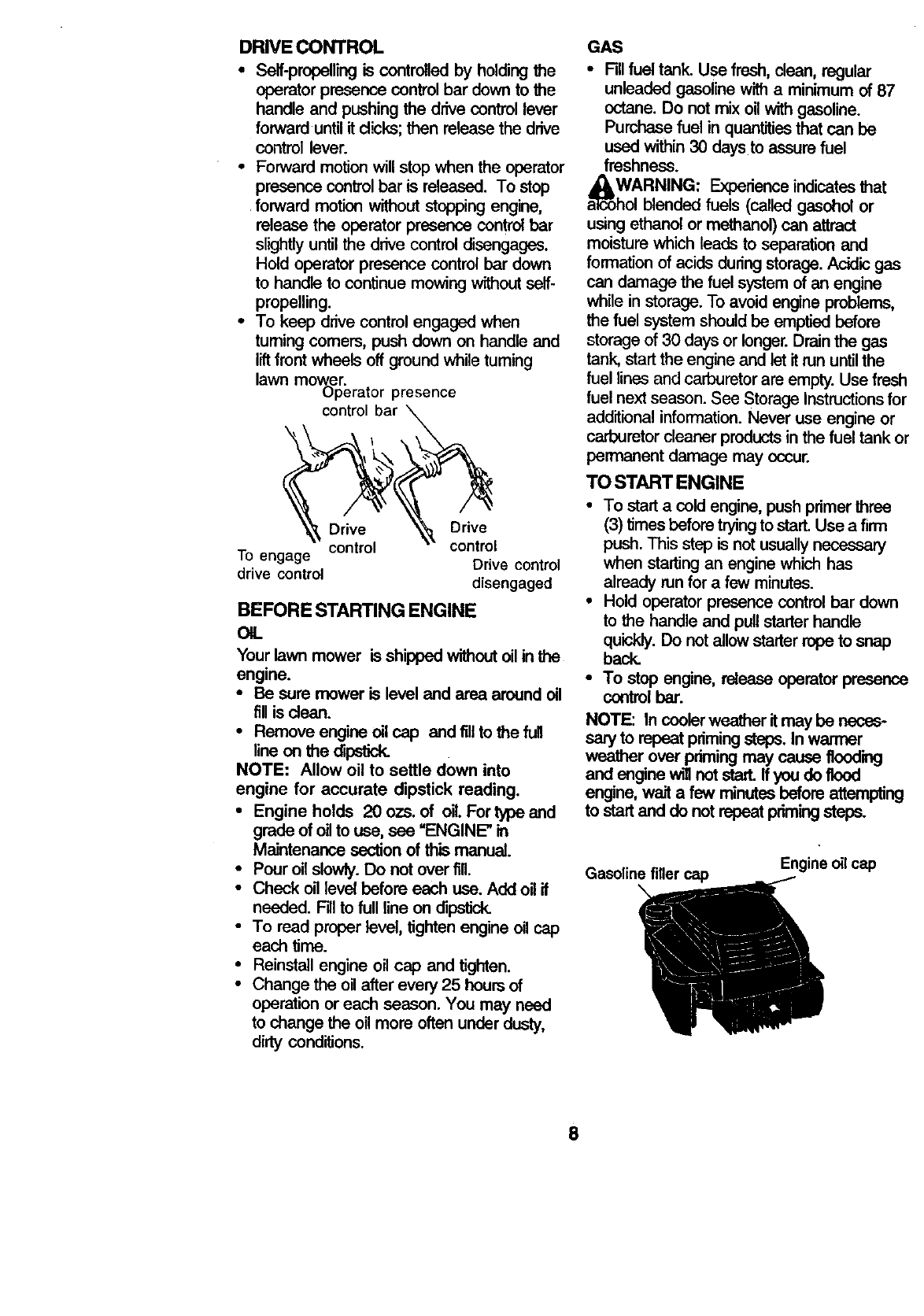

DRNECONTROL

•Self-propelling is controlled by holding the

operator presence control bar down to the

handle and pushing the drive control lever

forward until it clicks; then release the drive

control lever.

•Forward motion will stop when the operator

presence control bar is released. To stop

forward motion without stopping engine,

release the operator presence control bar

slightly until the drive control disengages.

Hold operator presence control bar down

to handle to continue mowing without self-

propelling.

•To keep drive control engaged when

turning comers, push down on handle and

liftfront wheels off ground while tuming

lawn mower.

Operator presence

control bar

Drive Drive

control control

To engage Drive control

drive control disengaged

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in the

engine.

•Be sure mower is level and area around oil

fill is dean.

•Remove engine oil cap and fill to the full

line on the dipstick.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

•Engine holds 20 ozs. of oil. For type and

grade of oil to use, see "ENGINE" in

Maintenance section of this manual.

•Pour on slowly. Do not over fin.

•Check oil level before each use. Add oil if

needed. Fill to full line on dipatick.

• To read proper level, tighten engine oil cap

each time.

•Reinstall engine oil cop and tighten.

•Change the oil after even/25 hours of

operation or each season. You may need

to change the oil more often under dusty,

dirty conditions.

GAS

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. Do not mix oil with gasoline.

Purchase fuel in quantities that can be

used within 30 days to assure fuel

freshness.

a_WARNING: Experience indicates that

hol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic gas

can damage the fuel system of an engine

while in storage. To avoid engine problems,

the fuel system should be emptied before

storage of 30 days or longer. Drain the gas

tank, start the engine and let it run untilthe

fuel lines and carburetor are empty. Use fresh

fuel next season. See Storage Instructions for

additional information. Never use engine or

carburetor cleaner products in the fuel tank or

permanent damage may occur.

TO START ENGINE

•To start acold engine, push primer three

(3) times before trying to start. Use a firm

push. This step is not usually necessary

when starting an engine which has

already run for afew minutes.

•Hold operator presence control bar down

to the handle and pull starter handle

quickly. Do not allow starter rope to snap

back.

•To stop engine, release operator presence

control bar.

NOTE: In cooler weather it may be neces-

sary to repeat priming steps. In warmer

weather over priming may cause flooding

and engine wll not start. If you do flood

engine, wait a few minutes before attempting

to start and do not repeat priming steps.

Gasoline filler cap Engine oil cap

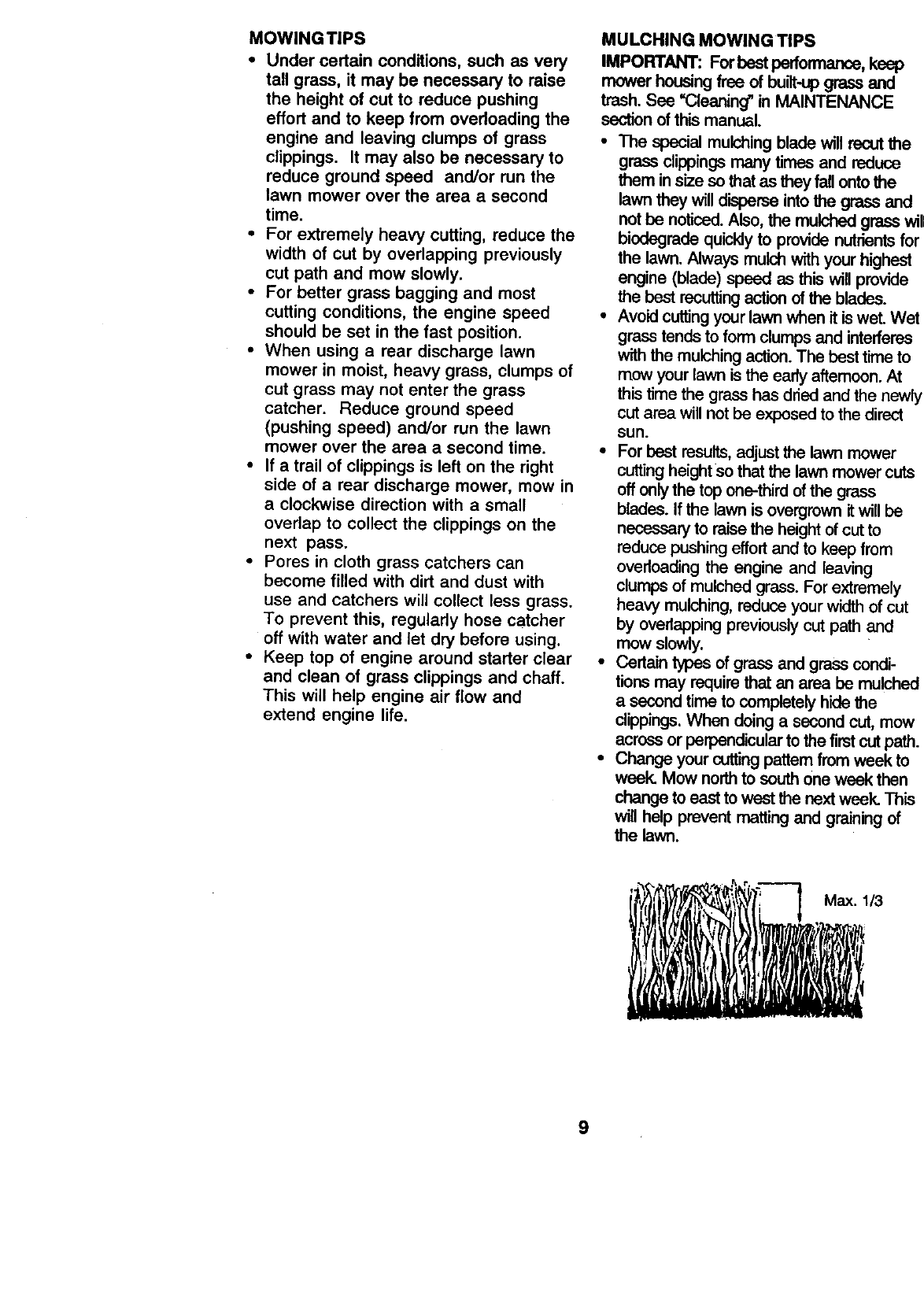

MOWING TIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

• If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

overlap to collect the clippings on the

next pass.

• Pores in cloth grass catchers can

become filled with dirt and dust with

use and catchers will collect less grass.

To prevent this, regularly hose catcher

off with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For bast performance, keep

mower housing free of built-up grass and

trash. See "Cleaning" in MAINTENANCE

section of this manual.

•The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best recutting action of the blades.

•Avoid cutting your lawn when it is wet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mow your lawn is the early afternoon. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun.

•For best results, adjust the lawn mower

cutting height So that the lawn mower cuts

off only the top one-third of the grass

blades. If the lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort and to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching, reduce your width of cut

by overlapping previously cut path and

mow slowly.

• Certain types of grass and grass condi-

tions may require that an area be mulched

a second time to completely hide the

clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

• Change your cutting pattern from week to

week. Mow north to south One week then

change to east to west the next week. This

will help prevent matting and graining of

the lawn.

MAINTENANCESCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check for Loose Fasteners

Clean,,lnspectGrass Catcher

If Equipped)

Clean Lawn Mower

Clean Under DriveCover

Power-Propelled Mowers)

Check drive belt/pulleys

Power-PropenedMowers)

Check/Sharpen/Replace Blade

LubricationChad

Clean Battery/Recharge

IElectdc Sta_ MowersI

Check En_lineOil Level

Change Engine Oil

Clean Air FiRer

InspectMuffler

Clean or Replace Spark Plug

Replace Air Filter Paper Cartridge

v' v'

!,' v'

V'4

!,'

V'=

SERVICE DATES

I * Change rnofe often when operating under a heavy load or In high ambient temperatures.

2. Service more olten ,#nen operating Indlrly or dusty condl_ons,

3 ÷Rel_ace blades more o_tenwhen mowing k_sandy soil.

4-Charge 48 hours at end of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does

not cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year, replace the spark plug,

replace air filter element and check

blade for wear. Anew spark plug and

clean/new air filter element assures

proper air-fuel mixture and helps your

engine run better and last longer.

•Follow the maintenance schedule in

this manual.

BEFORE EACH USE

•Check engine oil level.

•Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICA-

TION CHART").

LUBRICATION CHART

Wheel Adjuster

ne oil

"(_ Rear door

(_ Handle bracket hinge

mounting pin

(_ Spay lubricant

(_) Refer to MAINTENANCE "ENGINE"

section.

IMPORTANT: Do not oil or grease

plastic wheel bearings. Viscous lubricants

will attract dust and dirt that will shorten

the life of the self lubricating bearings. If

you feel they must be lubricated, use only

a dry, powdered graphite type lubricant

sparingly.

PRODUCT SPECIFICATIONS

MODEL NUMBER 917.377532

SERIAL NUMBER

DATE OF PURCHASE

HORSEPOWER: 6.0

DISPLACEMENT: 11.6 CU. IN.

GASOLINE CAPACITY/TYPE: 1.6QUARTS

UNLEADED REGULAR

OILTYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J19LM

VALVE CLEARANCE: INTAKE: .005" - .007"

EXHAUST: .007" - .009"

SOLID STATE IGNITION

AIR GAP: .010 IN.

BLADE BOLT TORQUE: 35-40 FT. LBS.

The model and serial numbers will be found on a decal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER

Always observe safety rules when

performing any maintenance.

TIRES

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

•Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

• Turn lawn mower on its side. Make

sure air filter and carburetor are up.

• Use a wood block between blade and

mower housing to prevent blade from

tuming when removing blade bolt.

• Protect your hands with gloves and/or

wrap blade with heavy cloth.

• Remove blade bolt by turning counter-

clockwise.

• Remove blade and attaching hardware

(bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade

adapter. The key must be in good

condition to work properly. Replace

adapter if damaged.

TO REPLACE BLADE

• Position the blade adapter on the

engine crankshaft. Be sure key in

adapter and crankshaft keyway are

aligned.

•Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

• Be sure the trailing edge of blade

(opposite sharp edge) is up toward the

engine.

• Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

• Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

The recommended tightening torque is

35-40 ft. Ibs.

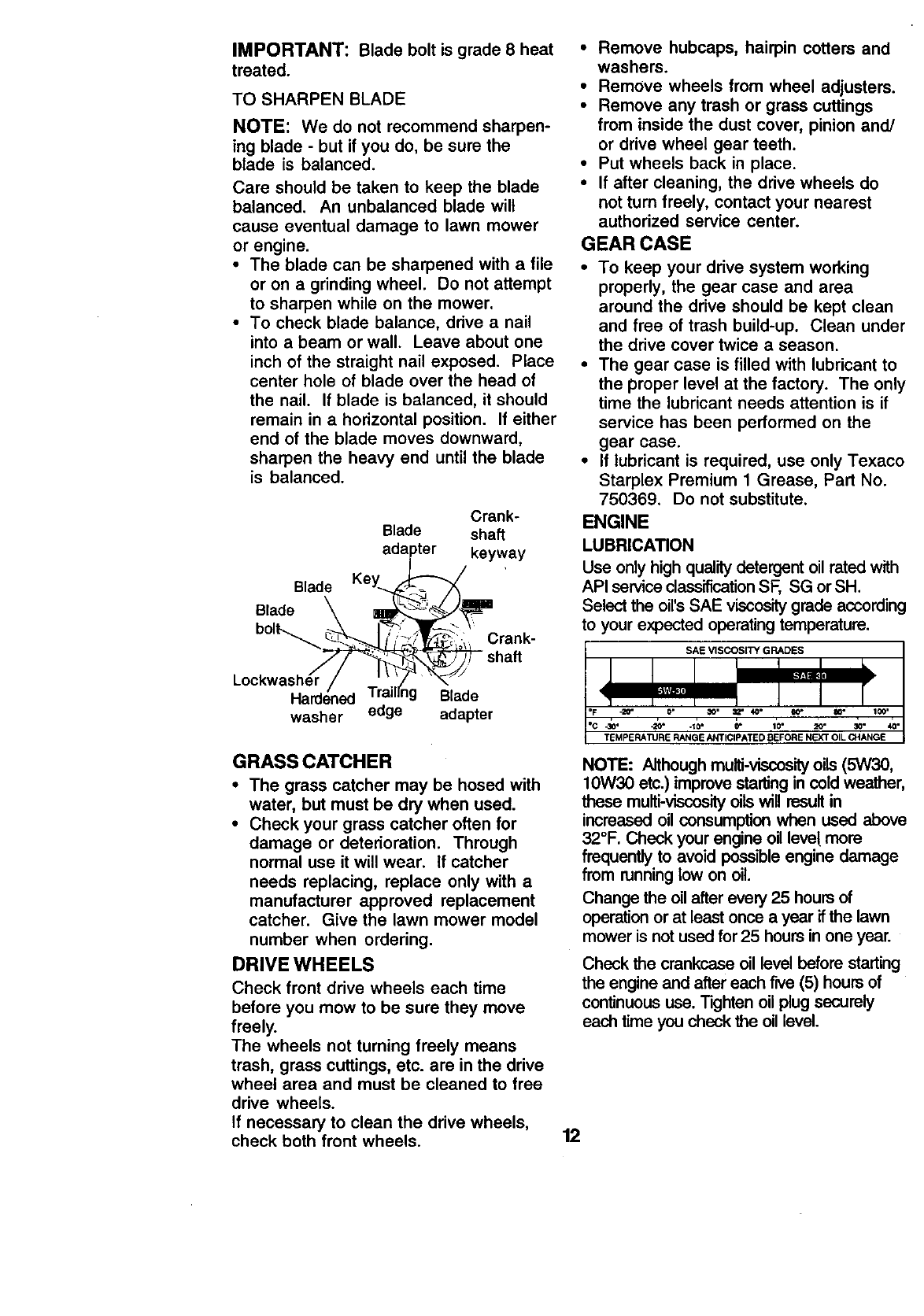

IMPORTANT: Blade bolt is grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade wilt

cause eventual damage to lawn mower

or engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, drive a nail

into a beam or wall. Leave about one

inch of the straight nail exposed. Place

center hole of blade over the head of

the nail. If blade is balanced, it should

remain in a horizontal position. If either

end of the blade moves downward,

sharpen the heavy end until the blade

is balanced.

Crank-

Blade shaft

adapter /keYWaY

Blade Key_

B,ade\

shaft

Lockwa,h r/_'

Hardl_ned i r_ullng Blade

washer edge adapter

GRASSCATCHER

•The grass catcher may be hosed with

water, but must be dry when used.

•Check your grass catcher often for

damage or deterioration. Through

normal use it will wear. If catcher

needs replacing, replace only with a

manufacturer approved replacement

catcher. Give the lawn mower model

number when ordering.

DRIVE WHEELS

Check front drive wheels each time

before you mow to be sure they move

freely.

The wheels not turning freely means

trash, grass cuttings, etc. are in the drive

wheel area and must be cleaned to free

drive wheels.

If necessary to clean the drive wheels,

check both front wheels.

• Remove hubcaps, hairpin cotters and

washers.

•Remove wheels from wheel adjusters.

•Remove any trash or grass cuttings

from inside the dust cover, pinion and/

or drive wheel gear teeth.

•Put wheels back in place.

•If after cleaning, the drive wheels do

not turn freely, contact your nearest

authorized service center.

GEAR CASE

• To keep your drive system working

properly, the gear case and area

around the drive should be kept clean

and free of trash build-up. Clean under

the drive cover twice a season.

• The gear case is filled with lubricant to

the proper level at the factory. The only

time the lubricant needs attention is if

service has been performed on the

gear case.

• If lubricant is required, use only Texaco

Starplex Premium 1 Grease, Part No.

750369. Do not substitute.

ENGINE

LUBRICATION

Use only high quality detergent oil rated with

API service classification SF, SG or SH.

Select the oil's SAE viscosity grade according

to your expected operating temperature.

SAE VISCOSITY GRADES

.10=0=10" 30-

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Althoughmulti-viscosityoils (5W30,

10W30 etc.)improvesta_ng incoldweather,

these multi-viscosityoilswill resultin

increasedoil consumption when used above

32°F. Check yourengine oilleve(more

frequently to avoid possibleengine damage

from runninglow on oil.

Changethe oilafterevery 25 hoursof

operationor at least once a year if the lawn

mower is not used for 25 hoursinone year.

Check the crankcase oil level before starting

the engine and after each frye (5) hours of

continuous use. Tighten oil plug securely

each time you check the oil level.

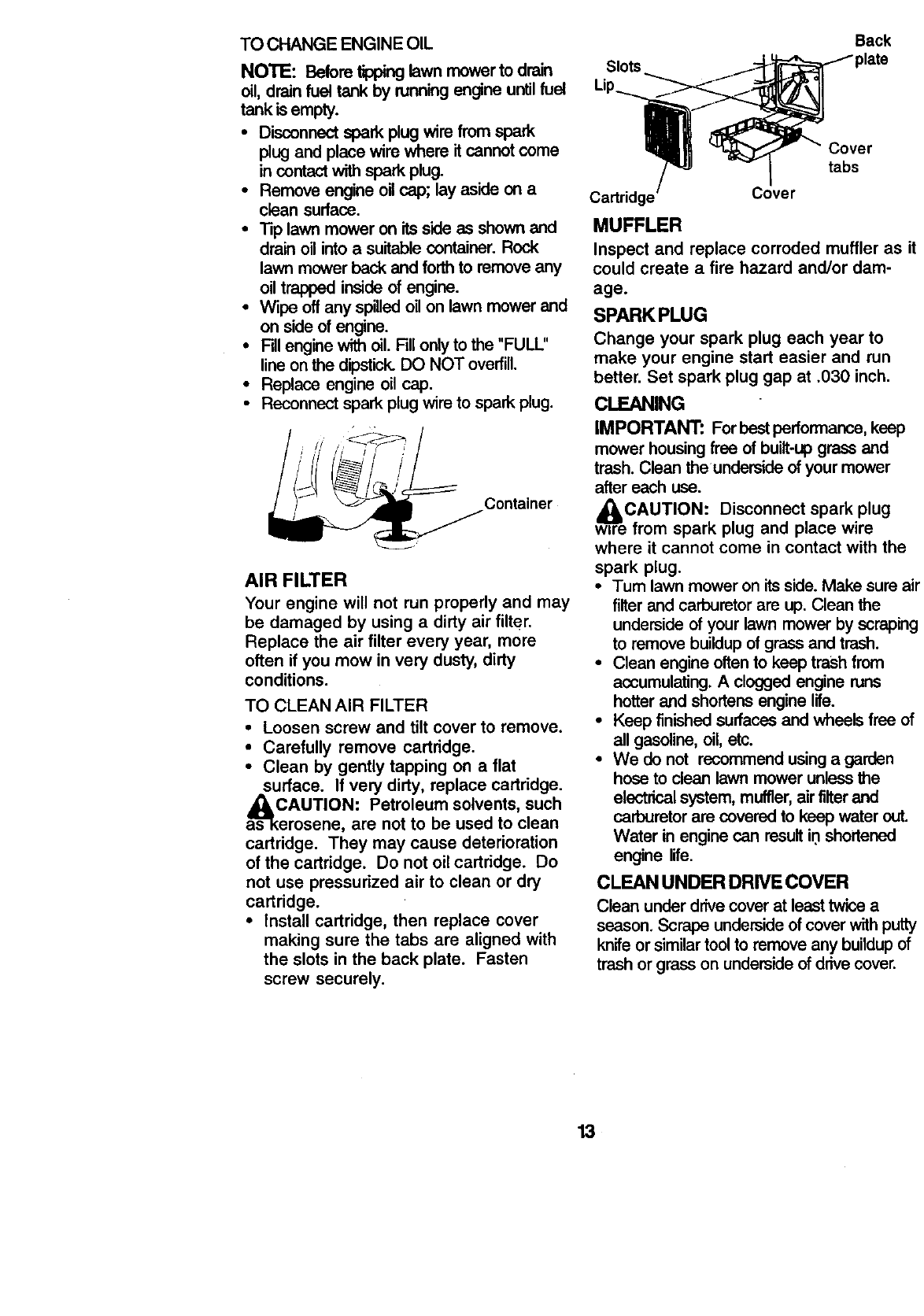

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to drain

oil, drain fuel tank by running engine until fuel

tank is empty.

•Disconnect spark plug wire from spark

plug and place wire where it cannot come

in contact with spark plug.

• Remove engine oil cap; lay aside on a

clean surface.

• Tip lawn mower on its side as shown and

drain oil into asuitable container. Rock

lawn mower back and forth to remove any

oil trapped inside of engine.

• Wipe off any spilled oil on lawn mower and

on side of engine.

• Fill engine with oil. Fill only to the "FULL"

line on the dipstick. DO NOT overfill.

• Replace engine oil cap.

• Reconnect spark plug wire to spark plug.

_Container

AIR FILTER

Your engine will not run properly and may

be damaged by using a dirty air filter.

Replace the air filter every year, more

often if you mow in very dusty, dirty

conditions.

TO CLEAN AIR FILTER

• Loosen screw and tilt cover to remove.

• Carefully remove cartridge.

• Clean by gently tapping on aflat

surface. If very dirty, replace cartridge.

as_CAUTION" Petroleum solvents, such

erosene, are not to be used to clean

cartridge. They may cause deterioration

of the cartridge. Do not oil cartridge. Do

not use pressurized air to clean or dry

cartridge.

• Install cartridge, then replace cover

making sure the tabs are aligned with

the slots in the back plate. Fasten

screw securely.

Slots

Back

tabs

Cartridge Cover

MUFFLER

Inspect and replace corroded muffler as it

could create a fire hazard and/or dam-

age.

SPARK PLUG

Change your spark plug each year to

make your engine start easier and run

better. Set spark plug gap at .030 inch.

CLEANING

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean the underside of your mower

after each use.

,_CAUTION: Disconnect spark plug

w=re from spark plug and place wire

where it cannot come in contact with the

spark plug.

•Tum lawn mower on its side. Make sure air

filter and carburetor are up. Clean the

underside of your lawn mower by scraping

to remove buildup of grass and trash.

•Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

•Keep finished surfaces and wheels free of

all gasoline, oil, etc.

•We do not recommend using a garden

hose to clean lawn mower unless the

electrical system, muffler, air ltlter and

carburetor are covered to keep water out.

Water in engine can result in shortened

engine life.

CLEAN UNDER DRIVE COVER

Clean underdrivecover at leasttwice a

season. Scrape undersideof cover with putty

knife or similar tool to remove any buildup of

trash or grass on underside of drive cover.

j_AUTION: BEFORE PERFORMING

SERVICE OR ADJUSTMENTS:

•Release control bar and stop engine.

•Make sure the blade and all moving

parts have completely stopped.

• Disconnect spark plug wire from

spark plug and place where it

cannot come in contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your lawn mower, is

provided to minimize the possibility that

objects will be thrown out the rear of the

lawn mower into the operator's mowing

position. If the rear deflector becomes

damaged, it should be replaced.

TO REMOVE/REPLACE DRIVE BELT

•Remove drive cover. Remove belt by

pushing down on gear case pulley and

rolling belt off it.

•Turn lawn mower on its side with

carburetor and fuel cap up.

•Remove blade.

•Remove debris shield.

•Remove belt from engine pulley on

crankshaft.

•Install new belt by reversing above

steps.

• Always use factory approved belt to

assure fit and long life.

Drive

cover

• To change from medium low to medium

high position, the upper and lower handle

sections will have to be turned over.

•Remove the cable clips.

•Remove the controls and operator

presence control bar from the upper

handle.

•Remove the starter rope guide from the

upper handle.

•Remove hairpin cotters.

•Disconnect the lower handle from the

handle brackets.

•Turn the handle over and reassemble the

hairpin cotters that have been removed.

•Reassemble the starter rope guide.

•Reassemble the controls and the operator

_resence control bar to the upper handle.

CAUTION: The operator presence

control bar must pivot freely to permit

blade brake engagement when control

bar is released. Do not over tighten the

fasteners holding the controls to the

upper handle.

•To change from medium low to high

position only the upper handle section

will have to be turned over.

•To change from medium low to low

position, only the lower handle section

will have to be turned over.

Shipping position

Medium low Medium high

Push

down

TO ADJUST HANDLE

Your lawn mower handle can be raised or

lowered for your mowing comfort. Four

(4) positions are available: high, medium

high, medium low and low. Handles are

shipped mounted in the medium low

position.

High

Low

Lower handle

s°ooozoto

rem_

Hairpin cotter

_Handle

t bracket

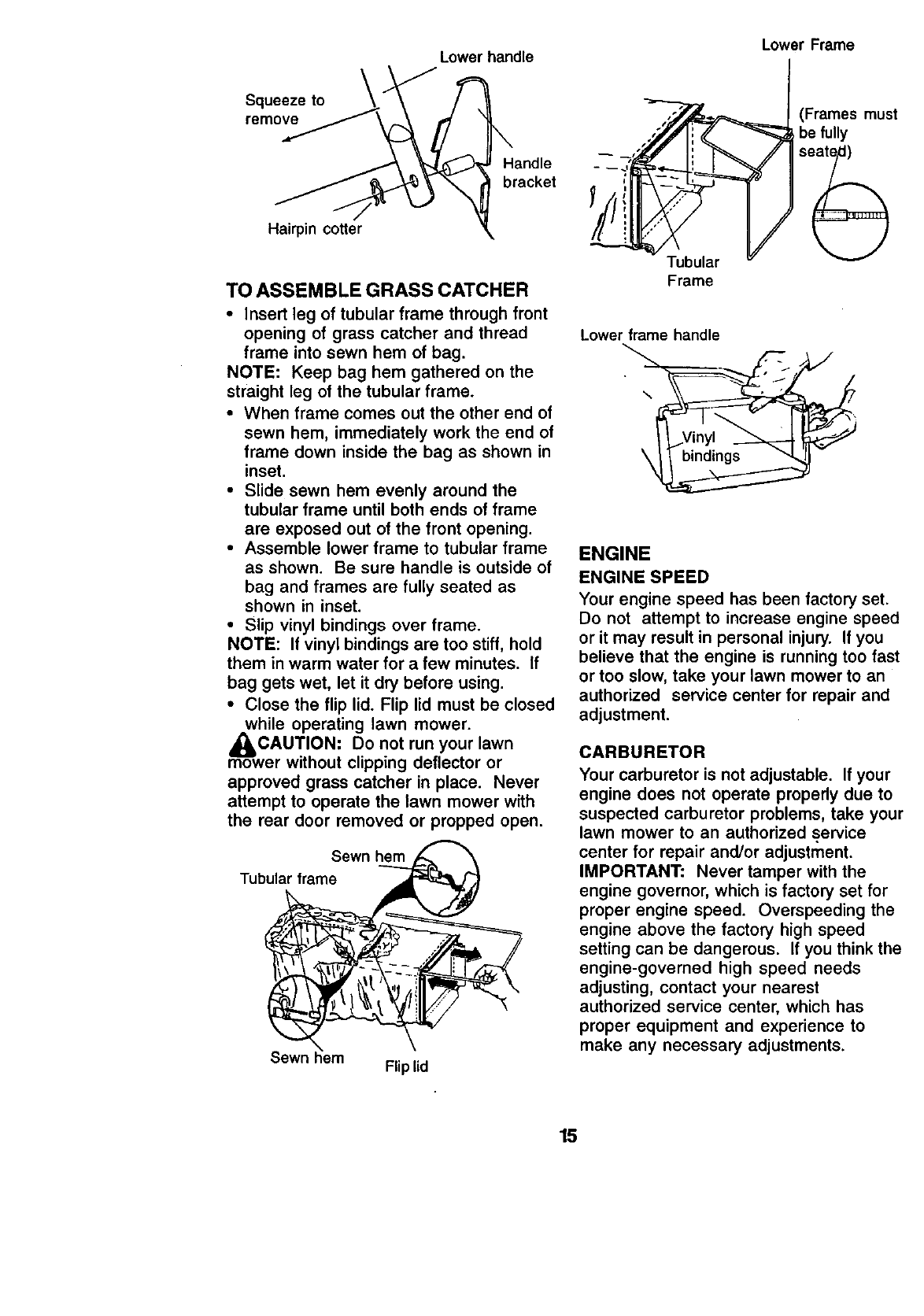

TO ASSEMBLE GRASS CATCHER

•Insert leg of tubular frame through front

opening of grass catcher and thread

frame into sewn hem of bag.

NOTE: Keep bag hem gathered on the

straight leg of the tubular frame.

•When frame comes out the other end of

sewn hem, immediately work the end of

frame down inside the bag as shown in

inset.

•Slide sewn hem evenly around the

tubular frame until both ends of frame

are exposed out of the front opening.

• Assemble lower frame to tubular frame

as shown. Be sure handle is outside of

bag and frames are fully seated as

shown in inset.

•Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for afew minutes. If

bag gets wet, let it dry before using.

•Close the flip lid. Flip lid must be closed

while operating lawn mower.

_CAUTION; Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or prepped open.

Tubular frameSe_ nhe:__

Sewn .=m Fliplid

Lower Frame

Tubular

Frame

(Frames must

,be fully

Lower frame handle

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that the engine is running too fast

or too slow, take your lawn mower to an

authorized service center for repair and

adjustment.

CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

lawn mower to an authorized service

center for repair and/or adjustment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest

authorized service center, which has

proper equipment and experience to

make any necessary adjustments.

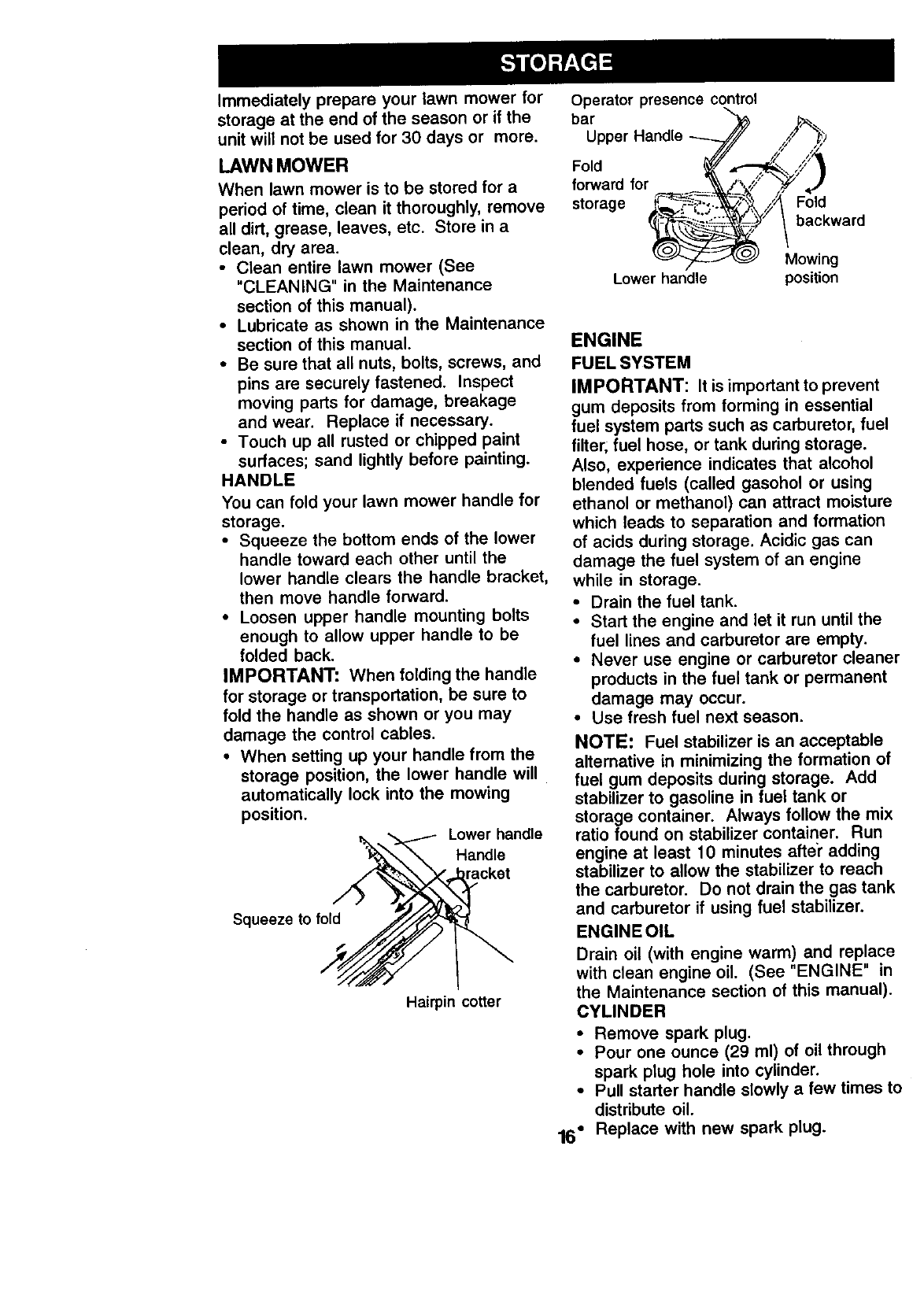

Immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

•Clean entire lawn mower (See

"CLEANING" in the Maintenance

section of this manual).

•Lubricate as shown in the Maintenance

section of this manual.

•Be sure that all nuts, bolts, screws, and

pins are securely fastened. Inspect

moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

You can fold your lawn mower handle for

storage.

• Squeeze the bottom ends of the lower

handle toward each other until the

lower handle clears the handle bracket,

then move handle forward.

• Loosen upper handle mounting bolts

enough to allow upper handle to be

folded back.

IMPORTANT: When folding the handle

for storage or transportation, be sure to

fold the handle as shown or you may

damage the control cables.

•When setting up your handle from the

storage position, the lower handle will

automatically lock into the mowing

position. Lower handle

Handle

racket

Squeeze to fold

Hairpin cotter

Operator presence control

bar "_ J,_

Upper Handle -----.._/_ ,f ,_)

forward for ___.:_"':" h,_ J

_tora,_e _'_'_._ /_' Fold

\ ao.wor0

__ Mowing

Lower handle position

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

• Drain the fuel tank.

•Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes aftra" adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER

•Remove spark plug.

•Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

• Pull starter handle slowly a few times to

distribute oil.

16 ° Replace with new spark plug.

OTHER

• Do notstoregasolinefrom one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your unit indoors and

cover it to give protection from dust and

dirt.

•Cover your unit with asuitable protec-

tive cover that does not retain moisture.

Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your unit to rust.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Does not start

Lossofpower

Poor cut - uneven

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

&CAUTION: Never store the lawn

mower with gasoline in the tank inside a

building where fumes may reach an open

flame or spark. Allow the engine to cool

before storing in any enclosure.

1. Dirty air filter.

2. Out of fuel.

3. Stale fuel.

4. Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken blade

adapter.

8. Control bar in released

position.

9. Control bar defective.

1. Rear of lawn mower housinc

or cutting blade dragging

in heavy grass.

2. Cutting too much grass.

3. Dirty air filter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walking speed too fast.

1. Worn, bent or loose blade.

2. Wheel heights uneven.

3. Buildup of grass, leaves

and trash under mower.

CORRECTION

1. Clean/replace air filter.

2. Fill fuel tank.

3. Drain tank and refill with

fresh clean fuel.

4. Drain fuel tank and

carburetor and refill tank

with fresh gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. Tighten blade bolt or

replace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

1. Setto "Higher Cut"

position.

2. Set to "Higher Cut"

position.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking

speed.

1. Replace blade. "13ghten

blade bolt.

2. Set all wheals at same

height

3. Clean underside of

mower housing.

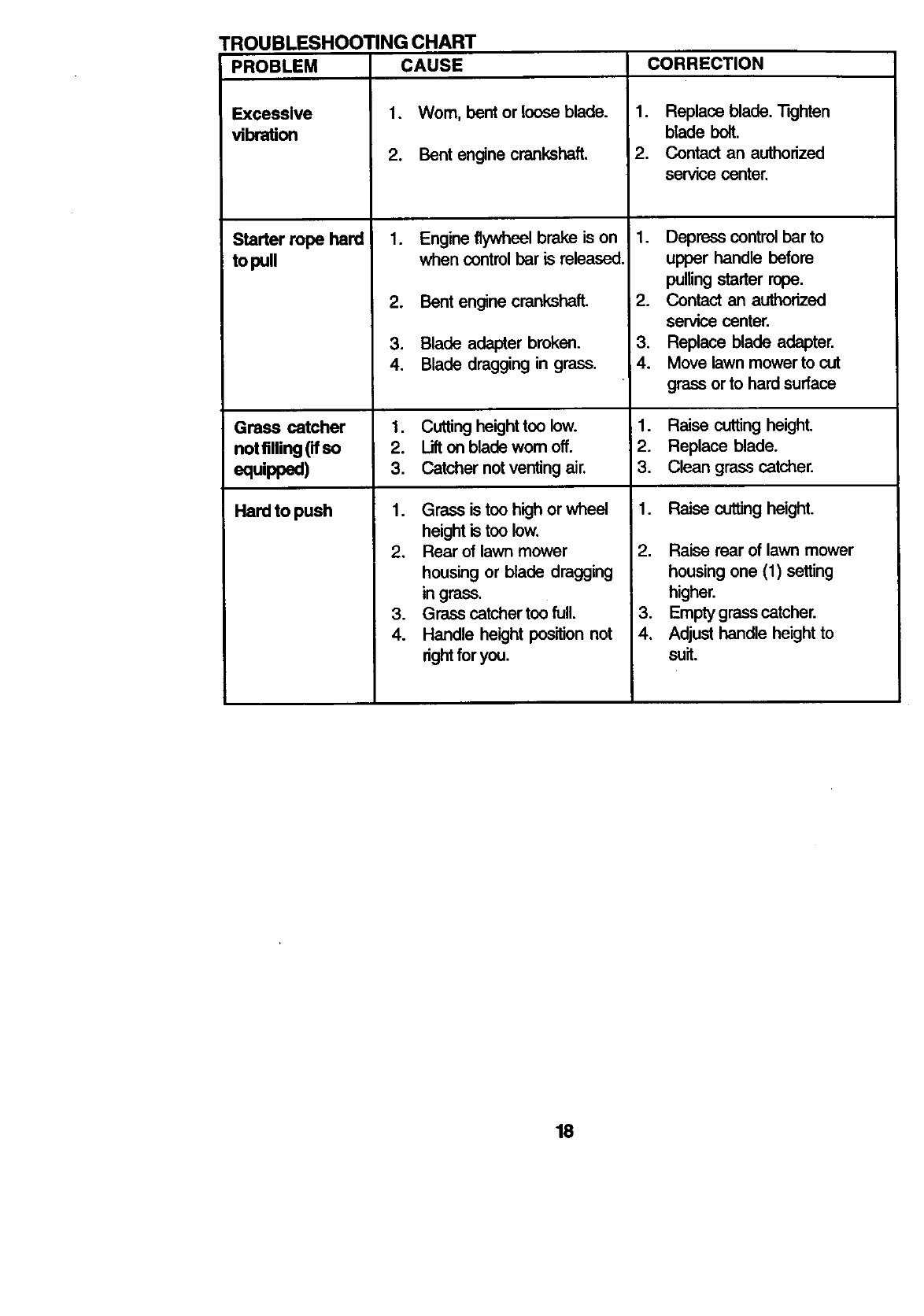

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Excessive

vibration

Starterrope hard

to pull

1. Replaceblade. "13ghten

blade bolt.

2. Contactan authorized

servicecenter.

1. Wom, bent or loose blade.

2. Bent engine crankshaft.

1. Engine flywheel brake is on

when control bar is released.

2. Bent engine crankshaft.

3. Blade adapter broken.

4. Blade dragging in grass.

Cutting height too low.

Lift on blade wom off.

Catcher not venting air.

Grass is too high or wheel

height is too low.

2. Rear of lawn mower

housing or blade dragging

in grass.

3. Grass catcher too full.

4. Handle height position not

right for you.

1. Depress control bar to

upper handle before

pulling starter rope.

J2. Contact an authorized

service canter.

3. Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface

Grass catcher 1. 1. Raise cuttingheight.

notfllling('d'so 2. 2. Replace blade.

equipped) 3. 3. Clean grasscatcher.

Hard to push 1. 1. Raise cuttingheight.

2. Raise rear of lawn mower

housing one (1) setting

higher.

3. Empty grass catcher.

4. Adjust handle height to

suit.

ROTARY LAWN MOWER-- MODEL NO. 917.377532

GEAR CASE ASSEMBLY PART NUMBER 702511

KEY

NO.

PART

NO.

17490416

137055X004

137053

57072

48373

77881

137051

137074

DESCRIPTION KEY PART

NO. NO. DESCR!PTION

Tapping Screw 1/4-20 x 10 57079 HardenedWasher

1-1/4 11 131484 ClutchYoke

EngagementBracket 12 700343 Bushing

Shifter 13 86447 Plug

Seal 14 137050 HelicalGear

Gear Case Halves Kit 15 750436X ClutchJaw

(Includes Key Nos. 4, 5, 16 750369 Grease

and 7) 17 12000003 E-Ring

Bearing 18 850848 Hi.ProKey

WormShaft 19 81585X004 Spring Bracket

Drive Shaft

NOTE: All component dimensions given

in U.S. inches. 1 inch = 25.4 mm

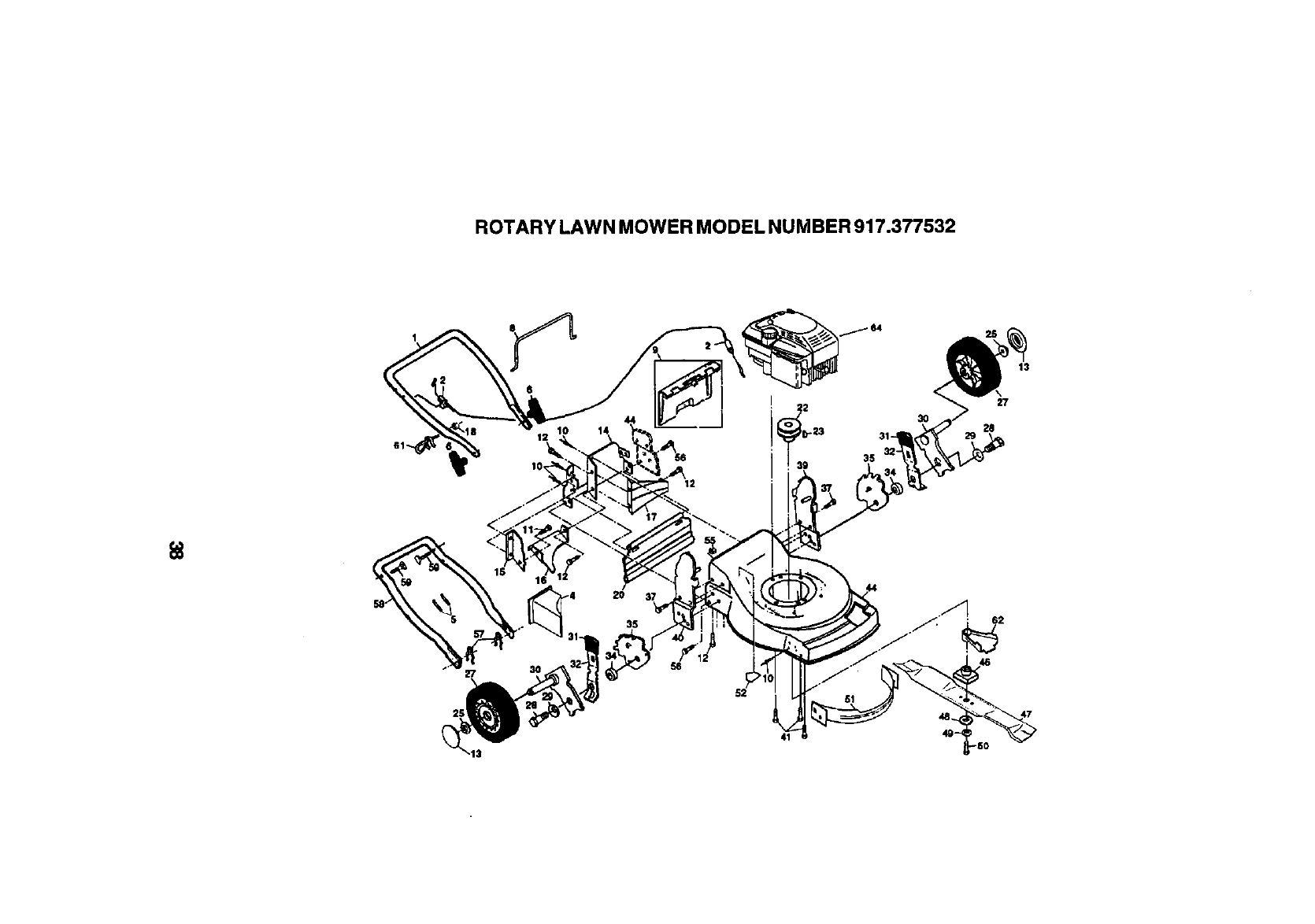

ROTARY LAWN MOWER MODEL NUMBER 917.377532

-1:1

31-J

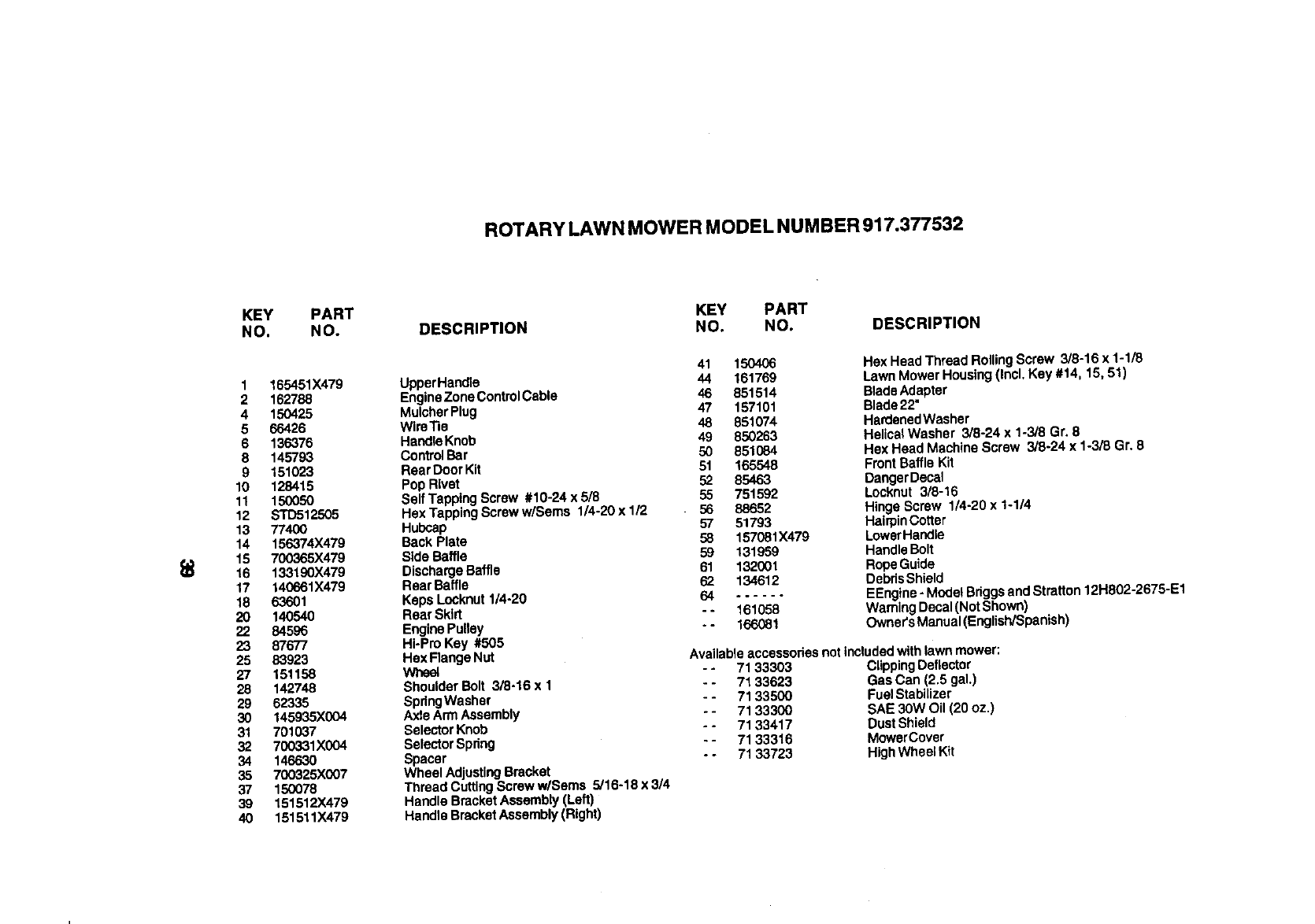

ROTARY LAWN MOWER MODEL NUMBER 917.377532

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO, DESCRIPTION

1165451X479

2 162788

4 150425

5 66426

6 136376

8 145793

9 151023

10 128415

11 150050

12 STD512505

13 77400

14 156374X479

15 700365X479

16 133190X479

17 140661X479

18 63601

2O 140540

22 84596

23 87677

25 83923

27 151158

28 142748

29 62335

30 145935X004

31 701037

32 700331X004

34 146630

35 700325X007

37 150078

39 151512X479

40 151511X479

UpperHandle

Engine ZoneControlCable

Mulcher Plug

WireTie

HandleKnob

ControlBar

Roar Door Kit

Pop Rivet

Se;f Tapping Screw #10-24 x5/8

Hex Tapping Screw w/Sems 1/4o20x 112

Hubcap

Back Plate

Side Baffle

Discharge Baffle

Rear Baffle

Keps Locknut 1/4-20

Rear Skfrt

Engine Pulley

Hi-Pro Key #505

Hex Flange Nut

Wheel

Shoulder Bolt 3/8-16 x 1

SpdngWasher

Axle ArmAssembly

Selector Knob

Selector Spring

Spacer

Wheel AdjustingBracket

Thread CuttingScrew w/Soms 5/16-18 x 3/4

Handle Bracket Assembly (Left)

Handle Bracket Assembly (Right)

41 150406

44 161769

46 851514

47 157101

48 851074

49 850263

50 851084

51 165548

52 85463

55 751592

56 88652

57 51793

58 157081X479

59 131959

61 132001

62 134612

64 ......

- - 161058

--166081

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

Lawn Mower Housing (Incl, Key #14, 15, 51)

BladeAdapter

Blade22"

HardenedWasher

Helical Washer 3/8o24 x 1-3/8 Gr. 8

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 6

Front Baffle Kit

Danger Decal

Locknut 3/8-16

Hinge Screw 1/4-20 x 1-1/4

HairpinCotter

LowerHandle

Handle Bolt

Rope Guide

Debds Shield

EEngtne - Model Bdggsand Straffon 12H802-2675-E1

WarningDecal(Not Shown)

Owner'sManual (English/Spanish)

Available accessoriesnot includedwithlawn mower:

.°

71 33303 ClippingDeflector

71 33623 Gas Can (2.5 gal.)

71 33500 Fuel Stabilizer

71 33300 SAE 30W Oil (20 oz.)

71 33417 DustShieM

71 33316 MowerCover

71 33723 HighWheel Kit

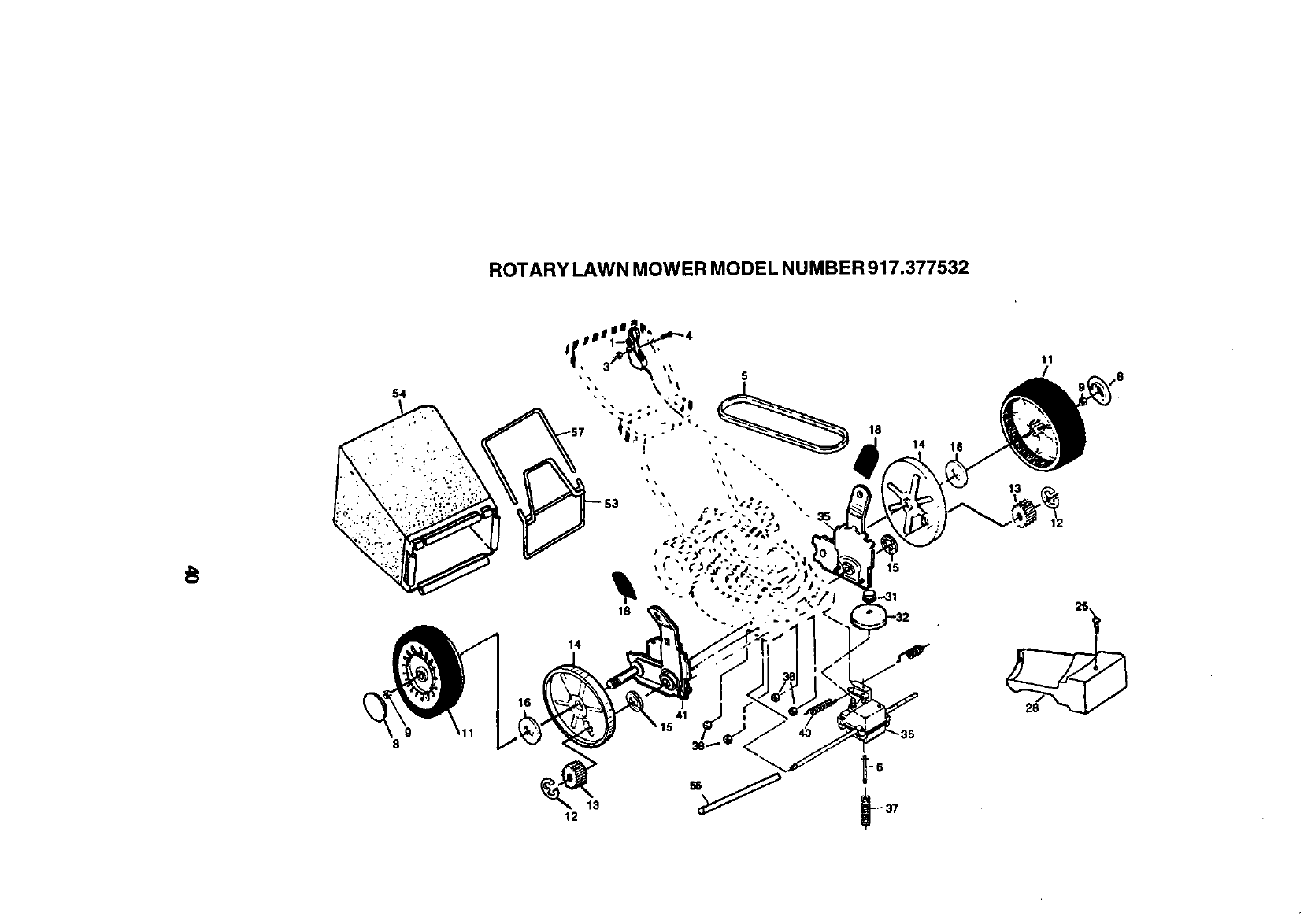

ROTARY LAWN MOWER MODEL NUMBER 917.377532

\ \

_15 41

18 14

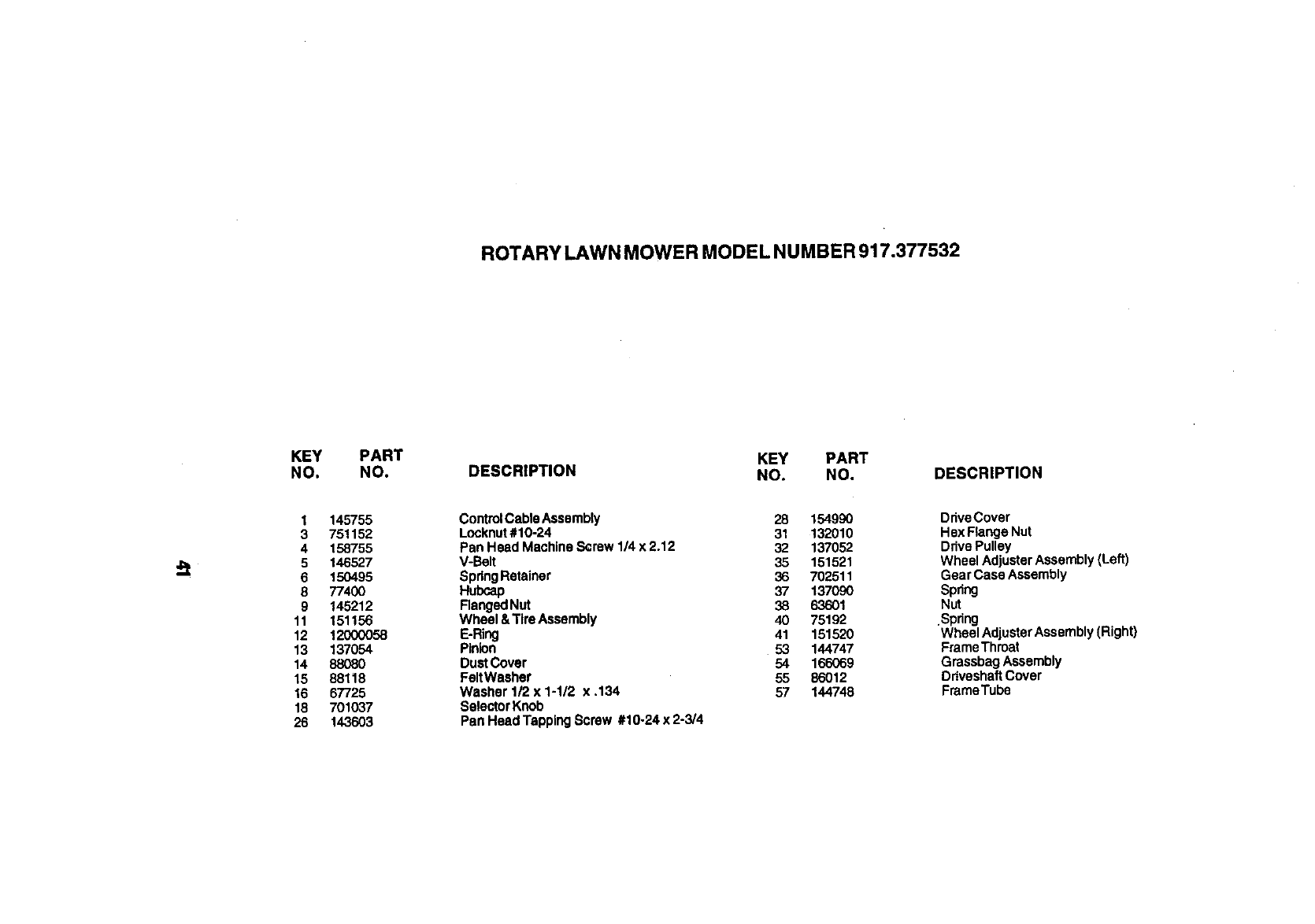

ROTARY LAWN MOWER MODEL NUMBER 917.377532

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 145755 ControlCable Assembly 28 154990

3 751152 Locknut#10-24 31 132010

4 158755 Pan Head Machine Screw 1/4 x 2.12 32 137052

5 146527 V-Belt 35 151521

6 150495 SpringRetainer 36 702511

8 77400 Hubcap 37 137090

9145212 Ranged Nut 38 63601

11 151156 Wheel & TireAssembly 40 75192

12 12000058 E-Ring 41 151520

13 137054 Pinion 53 144747

14 88080 DustCover 54 166069

15 88118 FeltWasher 55 86012

16 67725 Washer 1/2 x 1-1/2 x .134 57 144748

18 701037 Selector Knob

26 143603 Pan Head Tapping Screw #10-24 x 2-3/4

DriveCover

Hsx Flange Nut

Drive Pulley

Wheel Adjuster Assembly (Left)

Gear Case Assembly

Spring

Nut

Spring

Wheel Adjuster Assembly (Right)

FrameThroat

Grassbag Assembly

Driveshaft Cover

FrameTube

BRIGGS & STRATTON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

969

967

621 92_

258

968

_ _ 971A

@'°

163

124 _634

130

1_27 95 17

_134

110_) 91-"_

BRIGGS & STRATTON MODEL NO, 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

572 307

_54

r 625 9l

46t

_47

(_ 20 22

383

5 307

306

"k REQUIRES SPECIAL TOOLS

TO INSTALL SEE REPAIR

INSTRUCTION MANUAL.

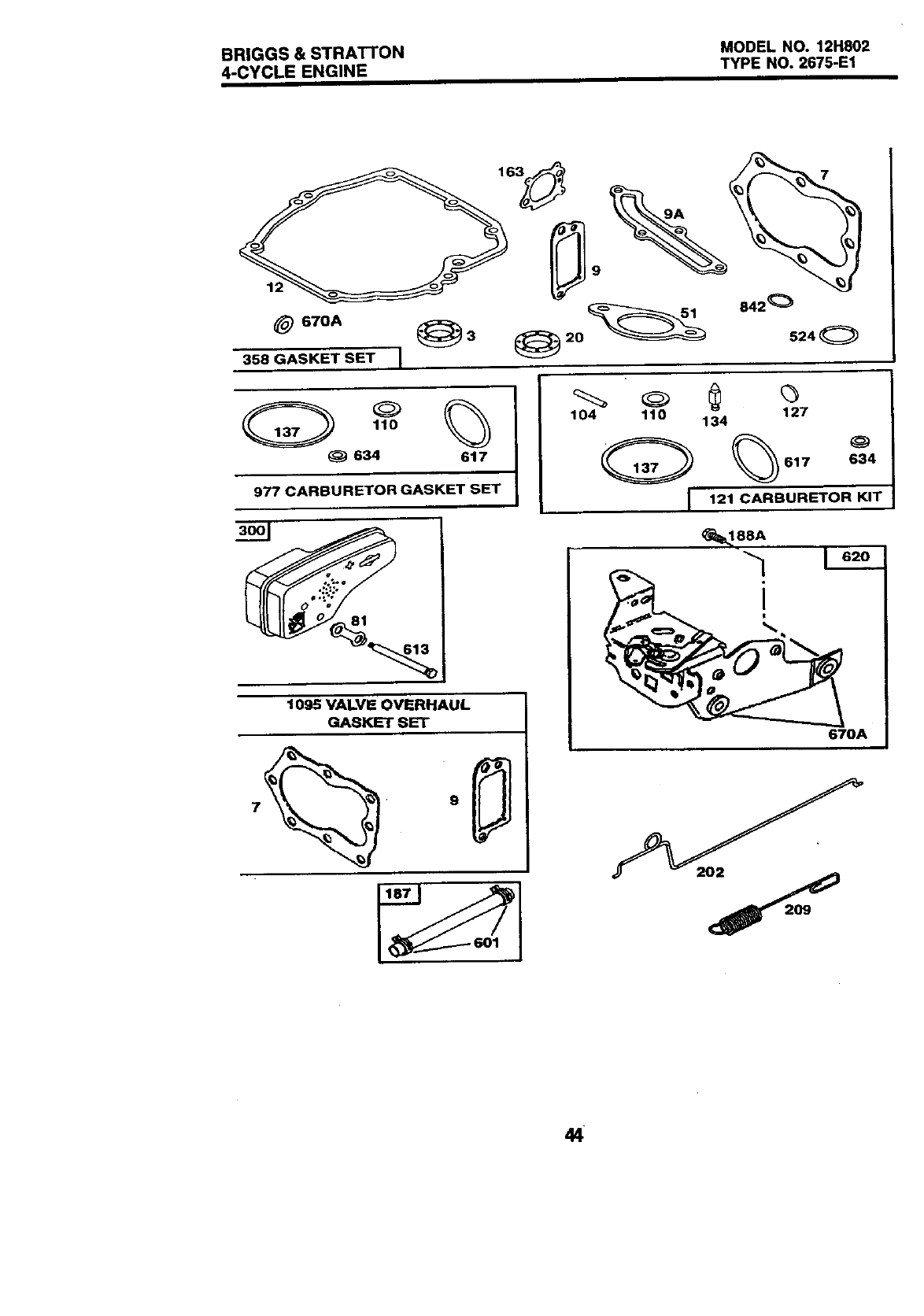

BRIGGS & STRATTON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

670A

358 GASKET SET I

20 524

110

634 617

977 CARBURETOR GASKET SET

1095 VALVE OVERHAUL

GASKET SET

104 110 134 127

617 634

121 CARBURETOR KIT

670A

BRIGGS & STRATTON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

930

334

461

304

_332

455

1036 LABEL KIT - EMISSION I

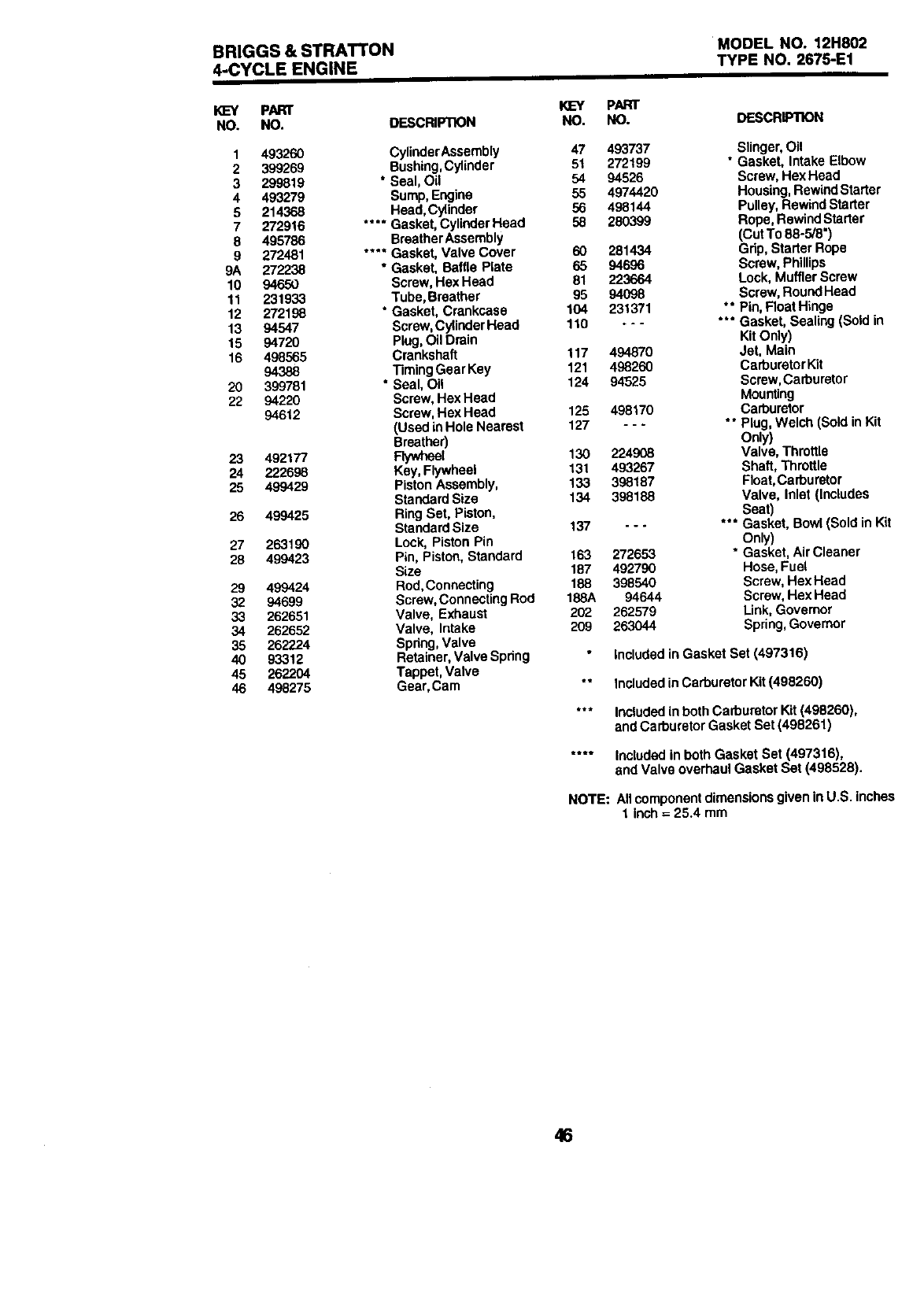

BRIGGS & STRATTON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

PARr

NO. NO.

1 493260

2 399269

3 299819

4 493279

5 214368

7 272916

8 495786

9 272481

9A 272238

10 94650

11 231933

12 272198

13 94547

15 94720

16 498565

94388

20 399781

22 94220

94612

23 492177

24 222698

25 499429

26 499425

27 263190

28 499423

29 499424

32 94699

33 262651

34 262652

35 262224

40 93312

45 262204

46 498275

DESCRIPTION I<_EY PART

NO. NO. DESCRIPTION

CylinderAssembly 47 493737

Bushing,Cylinder 51 272199

•Seal, Oil 54 94526

Sump, Engine 55 4974420

Head, Cylinder 56 498144

.... Gasket, Cylinder Head 58 280399

BreatherAssembly

.... Gasket, Valve Cover 60 281434

"Gasket,Baffle Plate 65 94696

Screw, Hex Head 81 223664

Tube, Breather 95 94098

•Gasket, Crankcase 104 231371

Screw,CylinderHead 110 - - -

Plug,Oil Drain

Crankshaft 117 494870

TimingGear Key 121 498260

• Seal, Oil 124 94525

Screw, Hex Head

Screw, Hex Head 125 498170

(Used inHole Nearest 127 - - -

Breather)

Flywheel 130 224908

Key, Flywheel 131 493267

Piston Assembly, 133 398187

Standard Size 134 398188

Ring Set, Piston,

Standard Size 137 - - -

Lock, Piston Pin

Pin, Piston, Standard 163 272653

Size 187 492790

Rod,Connecting 188 398540

Screw, Connecting Rod 188A 94644

Valve, Exhaust 202 262579

Valve, Intake 209 263044

Spring, Valve

Retainer, Valve Spdng

Tappet, Valve

Gear, Cam ""

NOTE:

Slinger, Oil

•Gasket, Intake Elbow

Screw, Hex Head

Housing,Rewind Starter

Pulley, Rewind Starter

Rope, Rewind Starter

(CutTO88-5/8")

Gdp, Starter Rope

Screw, Phillips

Lock, Muffler Screw

Screw, RoundHead

•" Pin, Float Hinge

*•" Gasket, Sealing (Sold in

Kit Only)

Jet, Main

Carburetor Kit

Screw,Carburetor

Mounllng

Carburetor

*" Plug, Welch (Sold in Kit

O_y)

Valve, Throttle

Shaft, Throttle

Float, Carburetor

Valve, Inlet (Includes

Seat)

"'* Gasket, Bowl(Sold in Kit

Only)

•Gasket, AirCleaner

Hose,Fuel

Screw, Hex Head

Link, Governor

Spring, Governor

Included in Gasket Set (497316)

Included inCarburetor Kit (498260)

Included inboth Carburetor Kit (498260),

and Carburetor Gasket Set (498261)

Included in both Gasket Set (497316),

and Valve overhaul Gasket Set (498528).

Allcomponent dimensions given inU.S. inches

1 inch = 25.4 mm

BRIGGS & STRATTON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

PART

NO. NO.

227 492349

230 67072

258 94512

284 94511

300 497838

3O4 493293

305 94744

306 224324

307 94515

332 94877

333 802574

334 94731

337 802592

356 497833

358 497316

363 19069

383 89838

387 496115

455 225121

456 281503

459 281505

461 94943

515 263073

523 495264

624 280393

525 495265

529 281299

562 94852

572 224328

592 231082

601 93053

606 224615

608 497680

Includes:

949O4

949O8

613 94231

615 94474

616 263175

617 270344

620 499135

621 396847

625 497465

DESCRIPTION

Lever, Governor

Washer, Thrust

Screw, Hex Head

Muffler, Exhaust

Housing,Blower

Screw, Seres

Shield, Cylinder

Screw,Hex Head

Nut, Flywheel

Armature,Magneto

Screw,Sems

Plug, Spark

Wire, Ground

Gasket Set

Puller, Flywheel

Wrench, Spark Plug

Primer,Carburetor

Cup, Starter

Retainer, Starter

Pawi, Rachet

Screw,Shoulder

Spring,Retainer

Cap, Oil Filler

* Seal, FillerTube

Tube, Oil Fill

Grommet

Bolt, Governor Lever

Baffle, Cylinder

Nut, Hex

Cramp,Hose

Strap, Bracket

Starter, Rewind

Screw, Hex

Nut, Hex

Screw, Hex Head

Fastener

Crank, Govemor

••" Seal, Intake Elbow

Bracket, Carburetor

Switch, Stop

Tube, Fuel Intake

KEY PART

NO. NO. DESCRIPTION

634 -. - **" Washer, Shaft (Sold in

Kit Only)

635 66538 Elbow, Spark Plug

670 280512 Spacer, Fuel Tank

670A 493823 *Spacer, Bracket

741 262598 Gear, Timing

842 280966 " Seal, O-Ring

843 272616 Sleeve, Lever

847 495263 Tube Assembly, Oil

851 493880 Terminal, IgnitionCable

869 213512 Seat, Intake Valve

870 213513 Seat, Exhaust Valve

871 262001 Guide, Exhaust Valve

63709 Guide, Intake Valve

922 262640 Spdng, Brake

923 493442 Brake Assembly

930 497233 Guard,Finger

957 397974 Cap, FuelTank

966 496116 Base, Air Cleaner

967 491588 Filter,Air

968 281340 Cover,AirCleaner

969 94872 Screw, Hex Head

971 94873 Screw, Hex Head

971A 94749 Screw, Hex Head

972 495224 Tank, Fuel

975 493640 Bowl,Float

977 498261 Gasket Set, Carburetor

1036 499341 Label Kit,Emission

1095 498258 Gasket Set, Valve

Overhaul

2500 12J802-2915 ReplacementEngine

---- 498826 ReplacementShortblock

RPM Settings: Low: 1900-2100; High:

30003200

Included in Gasket Set (497316)

•* Included inCarburetor Kit (498260)

•** Includedin both Carburetor Kit (496260),

and Carburetor Gasket Set (498261)

.... Included in both Gasket Set (497316),

and Valve overhaul Gasket Set (498628).

NOTE: Allcomponent dimensionsgiven in U.S. inches

1 inch = 25.4 mm

For in-home major brand repair service:

Call 24 hours aday, 7 days aweek

1-800-4-MY-Home sM(1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio

1-800-676-5811

In Canada for all your service and parts needs call

Au Canada pour tout le service ou les pi_ces

1-800-665-4455

For the repair or replacement parts you need:

Call 6 am-llpm CST, 7days aweek

PartsDirect SM

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio

1-800-659-7084

For the location of a Sears Parts and Repair Center

in your area:

Call 24 Hours a day, 7 days aweek

1-800-488-1222

For information on purchasing a Sears Maintenance

Agreement or to inquire about an existing Agreement:

Call 9 am-5 pm, Monday -Saturday

1-800-827-6655

S£ 8

166081 Rev.1 05.24.99 VB Printedin U.S.A.

Craftsman 917377532 User Manual ROTARY MOWER Manuals And Guides L9080104

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L9080104 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
