Owner's Manual

£RI:IFTSMI:IN

6.0 HORSEPOWER

22" REAR DISCHARGE

ROTARY LAWN MOWER

Model No.

917.377553

• Safety

• Assembly

•Operation

• Maintenance

•EspaSol

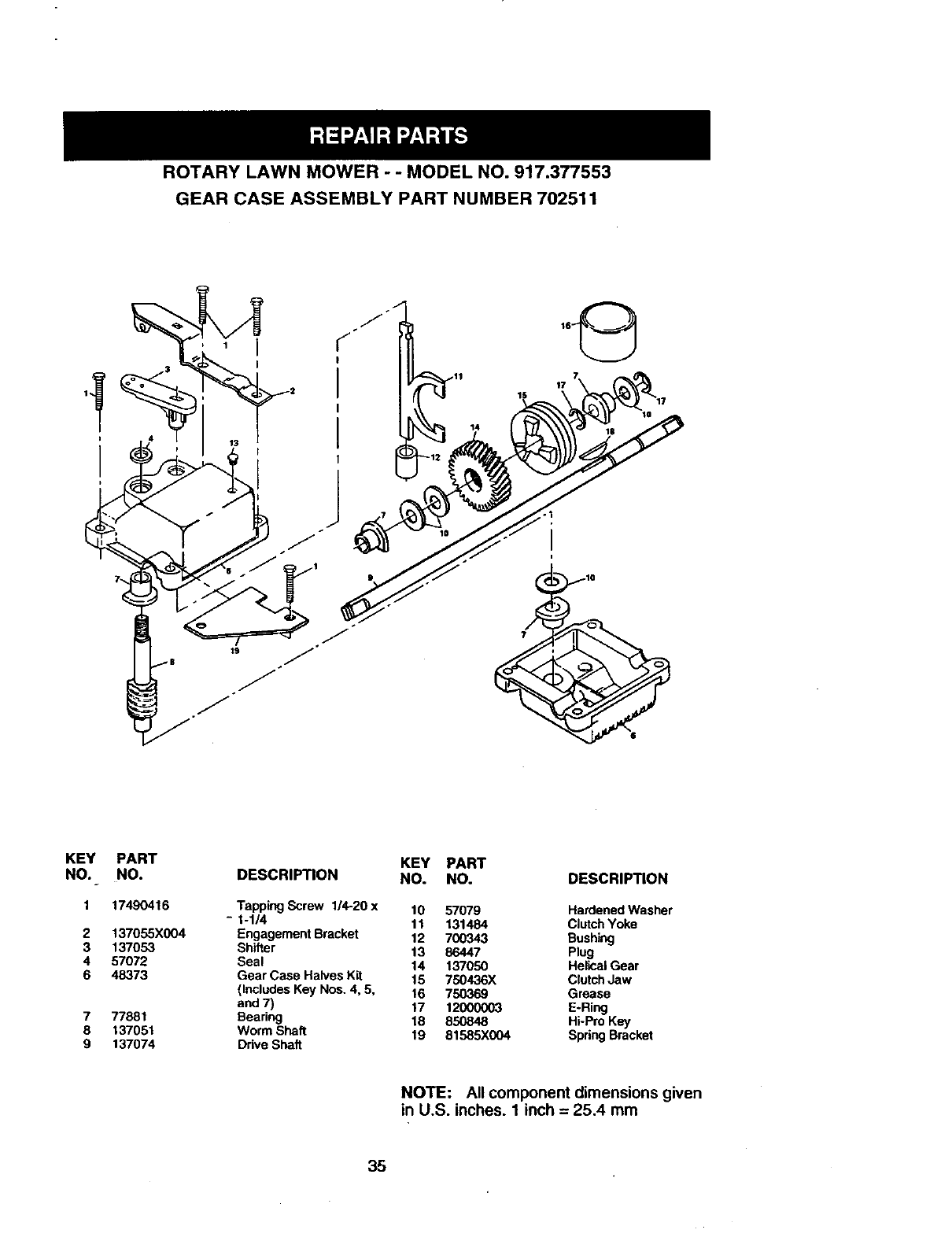

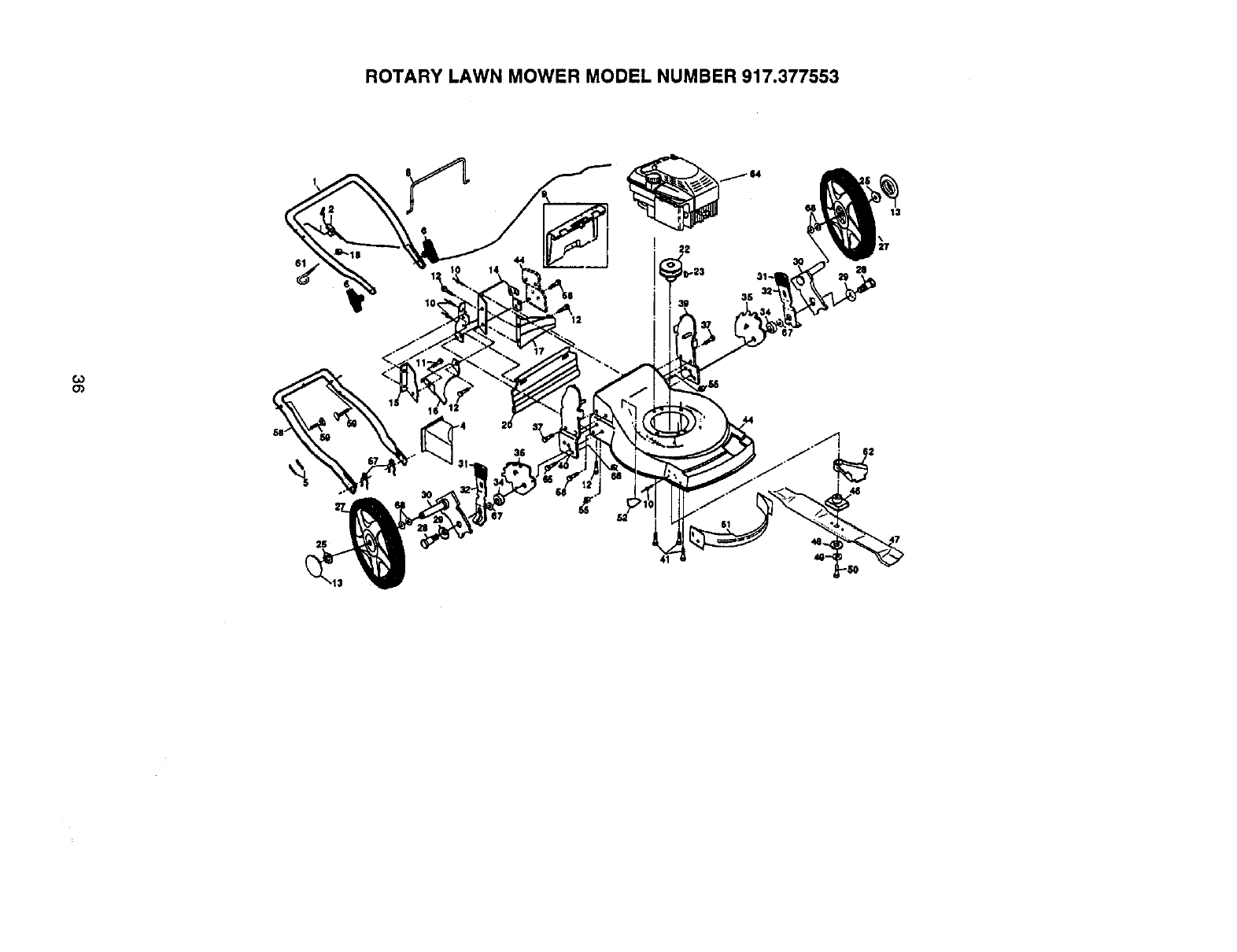

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

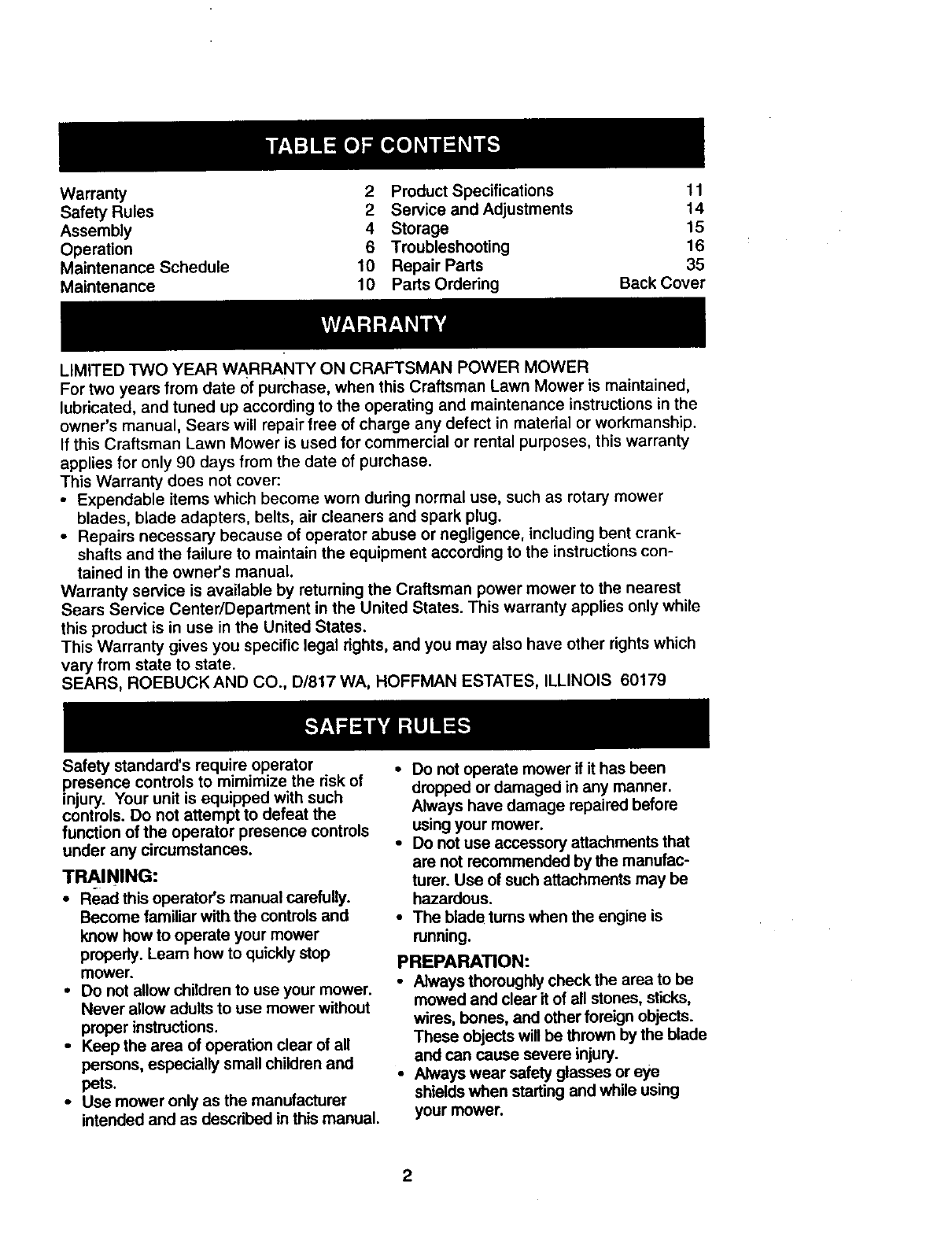

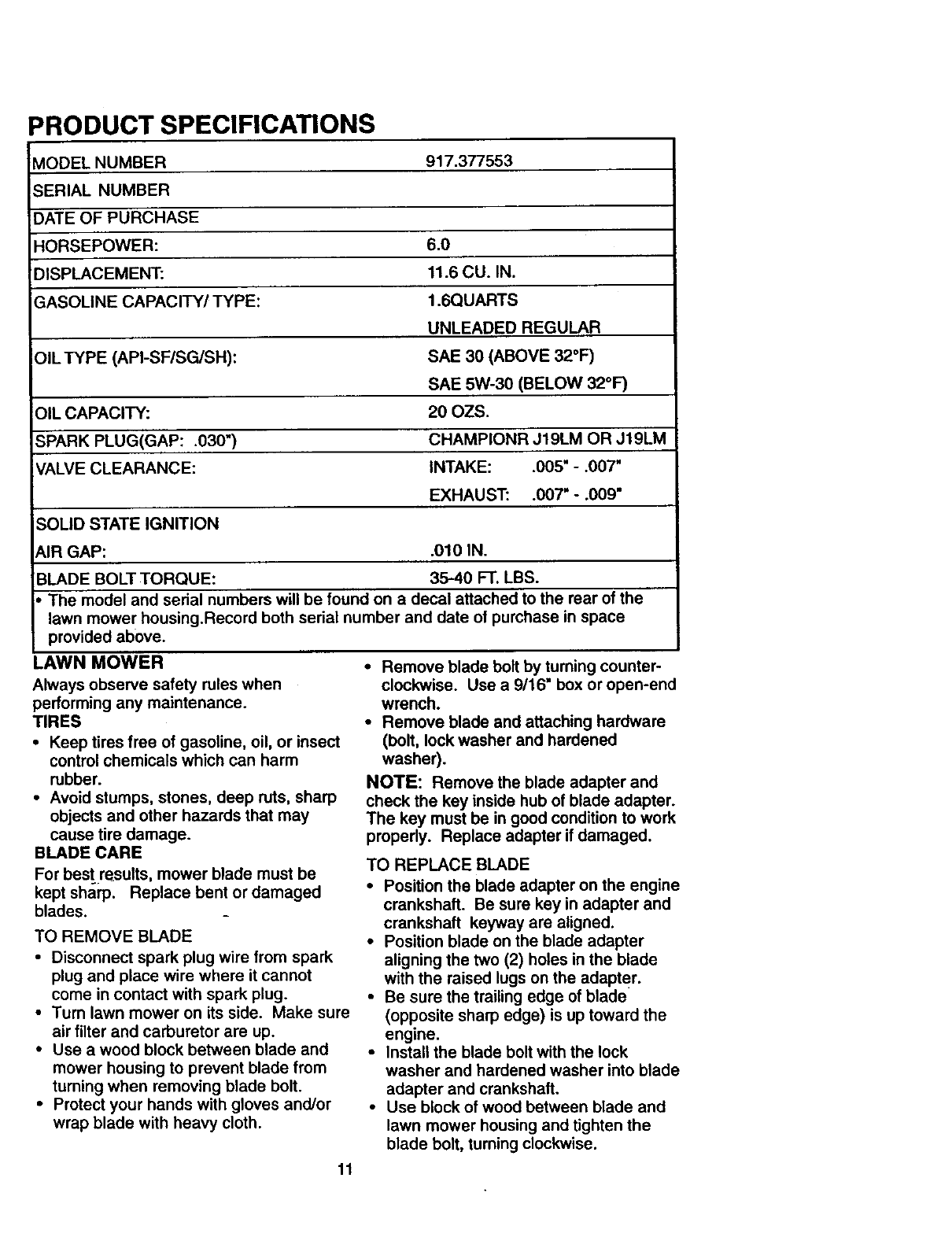

Warranty 2 Product Specifications 11

Safety Rules 2 Service and Adjustments 14

Assembly 4 Storage 15

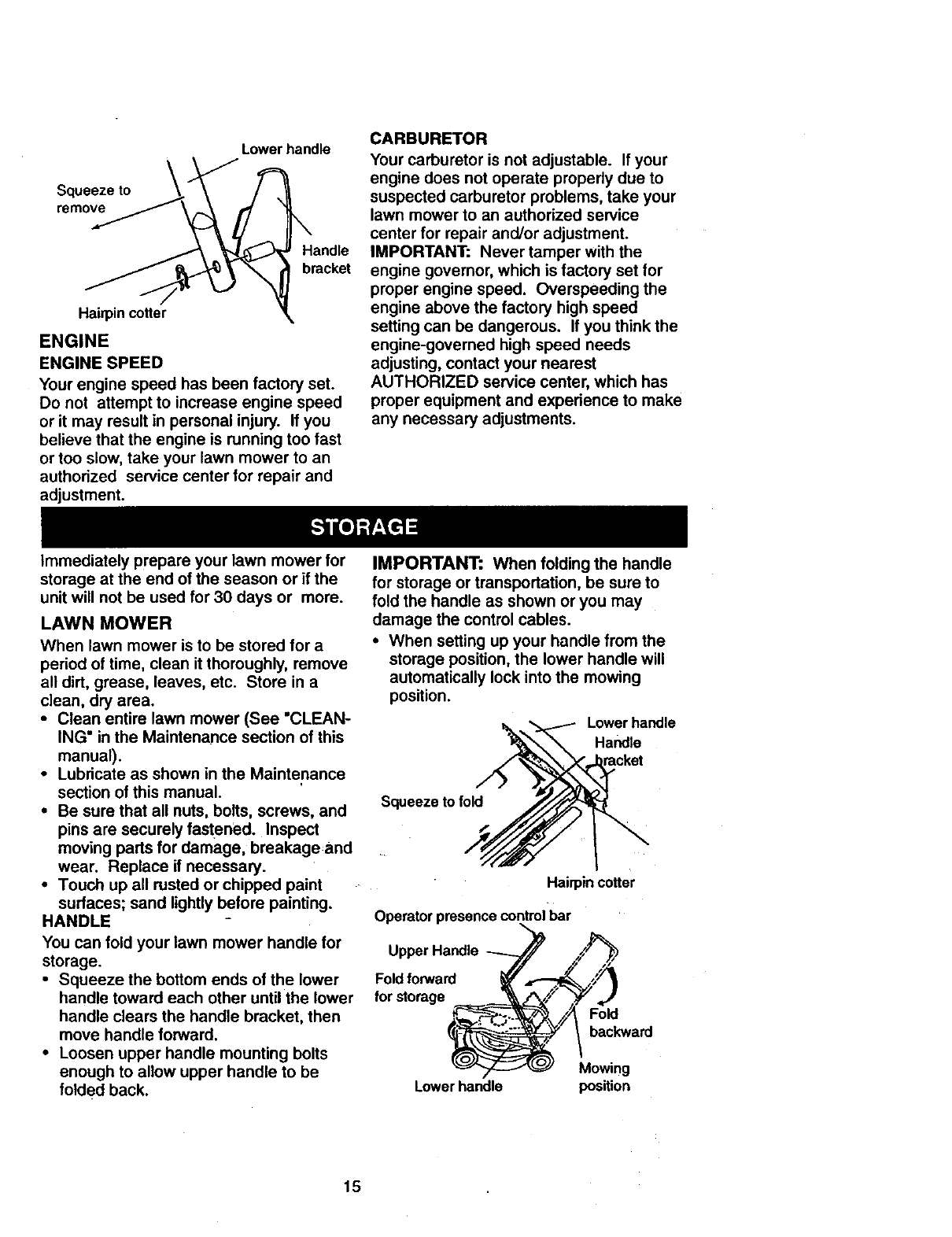

Operation 6 Troubleshooting 16

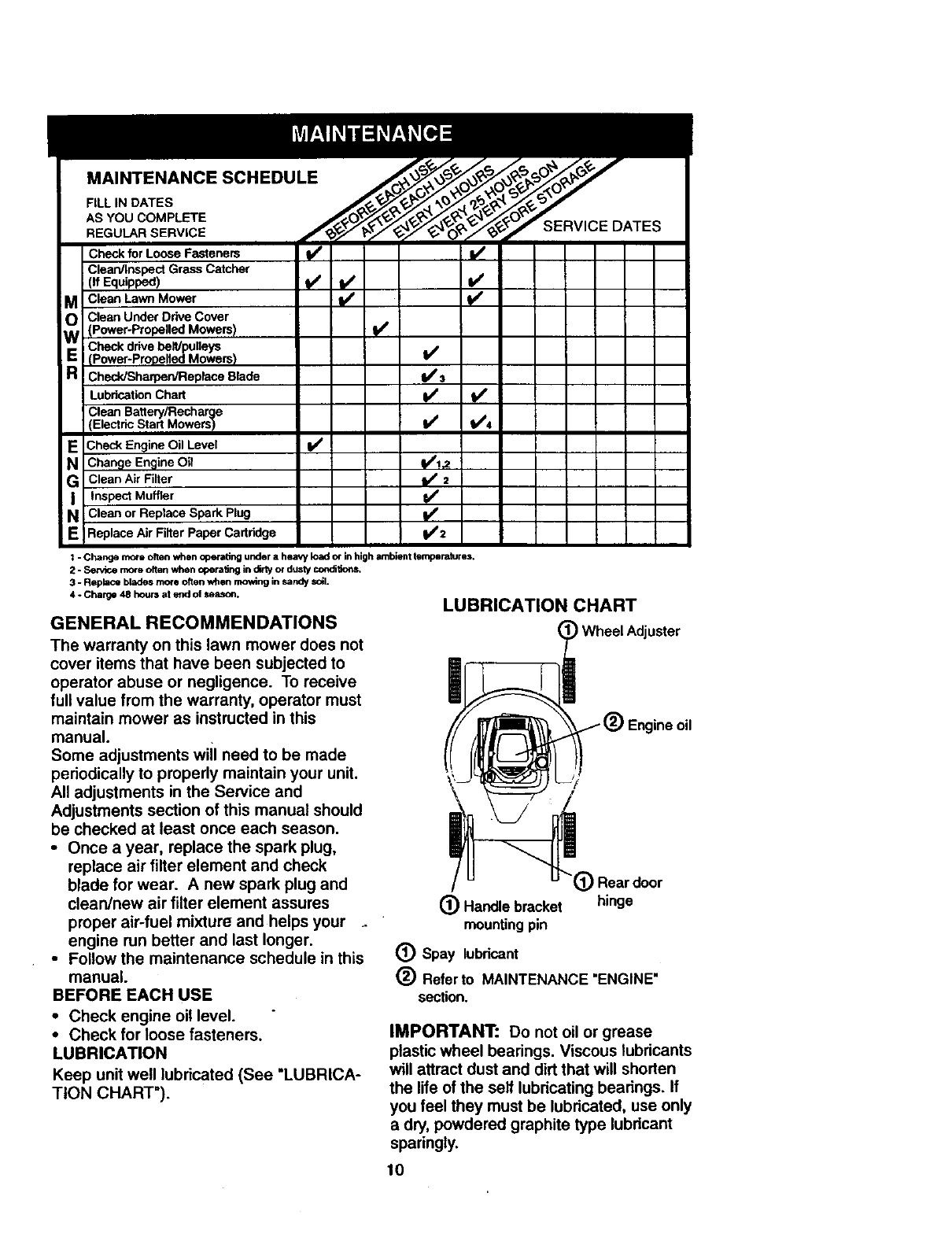

Maintenance Schedule 10 Repair Parts 35

Maintenance 10 Parts Ordering Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only while

this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standard's require operator

presence controls to mimimize the risk of

injury. Your unit is equipped with such

controls. Do not attempt to defeat the

function of the operator presence controls

under any circumstances.

TRAINING"

• Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

properly. Learn how to quickly stop

mower.

• Do not allow children to use your mower.

Never allow adults to use mower without

proper instructions.

•Keep the area of operation clear of all

persons, especially small children and

pets.

• Use mower only as the manufacturer

intended and as described in this manual.

•Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

•The blade tums when the engine is

running.

PREPARATION:

•Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the blade

and can cause severe injury.

•Always wear safety glasses or eye

shields when starting and while using

your mower.

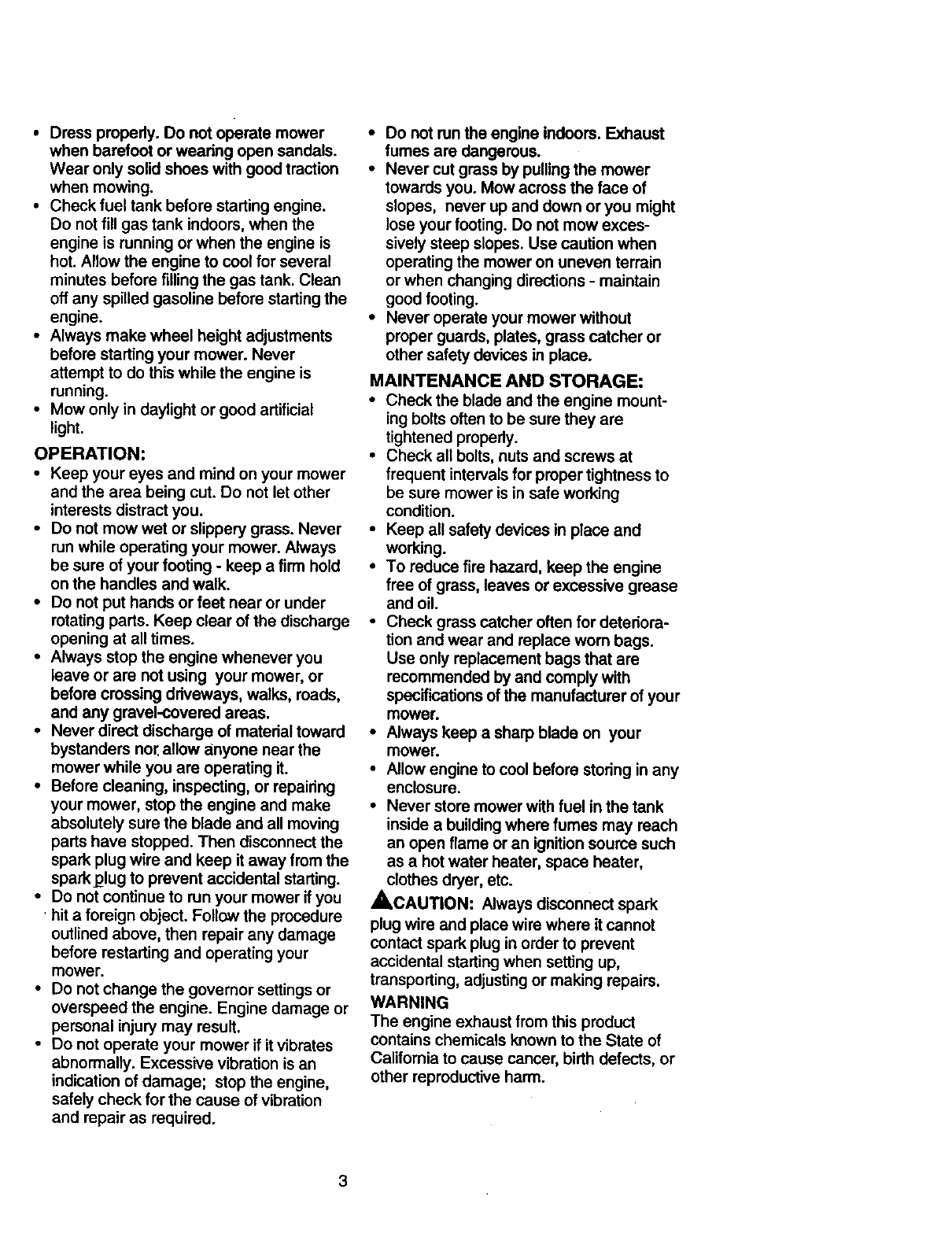

• Dressproperly.Donotoperatemower

whenbarefootorwearingopensandals.

Wearonlysolidshoeswithgoodtraction

whenmowing.

• Checkfueltankbeforestartingengine.

Donotfill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank. Clean

off any spilled gasoline before starting the

engine.

•Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

•Mow only in daylight or good artificial

light.

OPERATION:

• Keep your eyes and mind on your mower

and the area being cut. Do not let other

interests distract you.

• Do not mow wet or slippery grass. Never

run while operating your mower. Always

be sure of your footing - keep a firm hold

on the handles and walk.

•Do not put hands or feet near or under

rotating parts. Keep clear of the discharge

opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks, roads,

and any gravel-covered areas.

•Never direct discharge of material toward

bystanders nor.allow anyone near the

mower while you are operating it.

•Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

parts have stopped. Then disconnect the

spark plug wire and keep it away from the

spark plug to prevent accidental starting.

•Do not continue to run your mower if you

,hit a foreign object. Follow the procedure

outlined above, then repair any damage

before restarting and operating your

mower.

•Do not change the govemor settings or

overspeed the engine. Engine damage or

personal injury may result.

• Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous.

•Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you might

lose your footing. Do not mow exces-

sively steep slopes. Use caution when

operating the mower on uneven terrain

or when changing directions - maintain

good footing.

•Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine mount-

ing bolts often to be sure they are

tightened properly.

•Check all belts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive grease

and oil.

•Check grass catcher often for deteriora-

tion and wear and replace wom bags.

Use only replacement bags that are

recommended by and comply with

specificetions of the manufacturer of your

mower.

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in any

enclosure.

•Never store mower with fuel in the tank

inside abuilding where fumes may reach

an open flame or an ignition source such

as a hot water heater, space heater,

clothes dryer, etc.

_,CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

WARNING

The engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects, or

other reproductive harm.

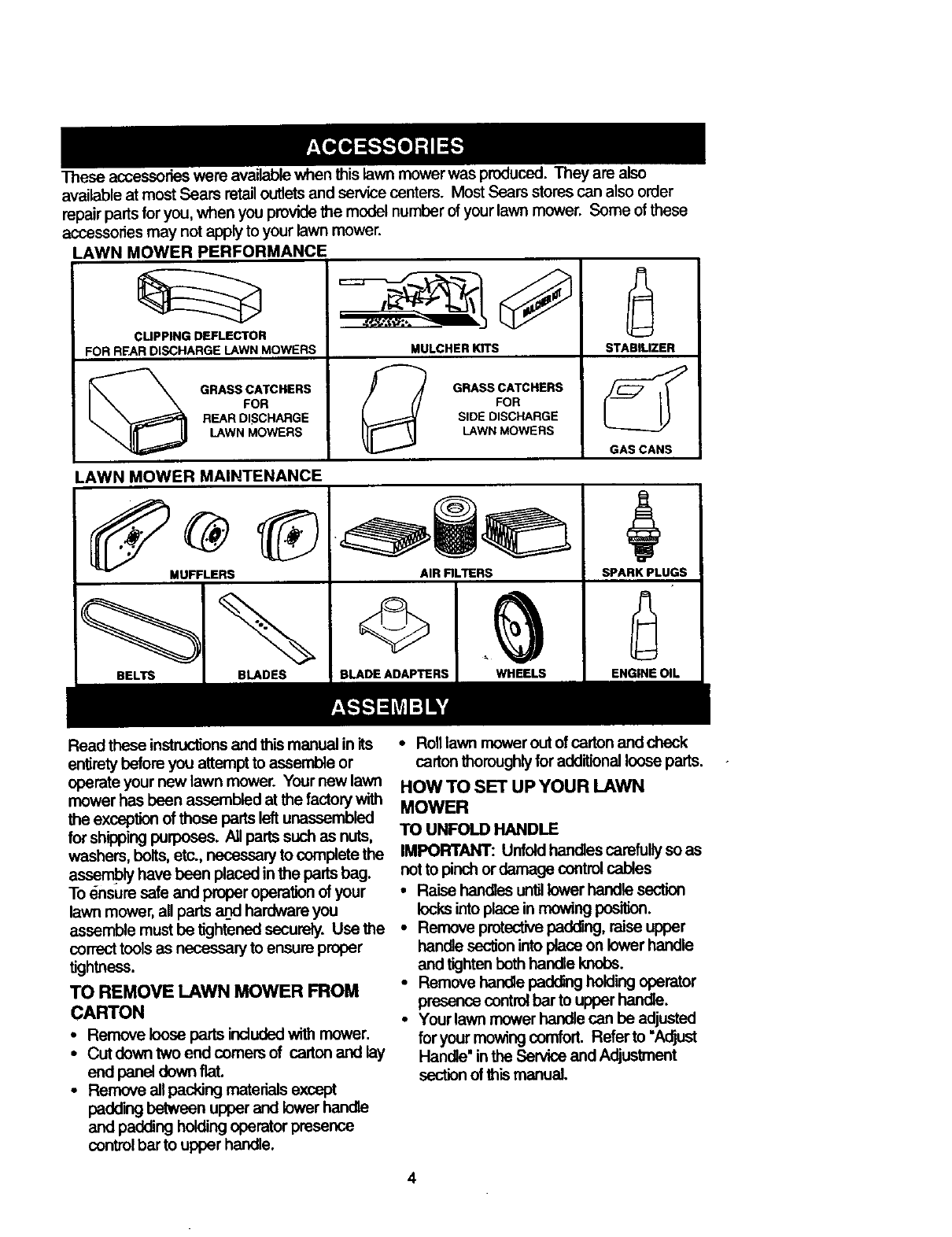

These accessories were available when thislawn mower was produced. They are also

available at most Sears retail outletsand service canters. Most Sears stores can also order

repair parts for you, when you provide the model number of your lawn mower. Some of these

accassodes may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CUPPING DEFLECTOR

FOR RFAR DISCHARGE LAWN MOWERS MULCHER KITS

GRASS CATCHERS _GRASS CATCHERS

FOR FOR

REAR DISCHARGE SlOE DISCHARGE

LAWN MOWERS LAWN MOWERS

GAS CANS

LAWN MOWER MAINTENANCE

STABILIZER

MUFFLERS

BLADES

AIR RLTERS

BLADE ADAPTERS WHEELS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in its

entirety before you attempt to assemble or

operate your now lawn mower. Your new lawn

mower has been assembled at the factory with

the exception of those parts left unassembled

for shippingpurposes. All parts such as nuts,

washers, bolts, etc., necessary to complete the

assembly have been placed inthe parts bag.

To ensura safe and proper operation of your

lawn mower, all parts _hardware you

assemble must be tightened securely. Use the

correcttools as necessary to ensure proper

tightness.

TO REMOVE LAWN MOWER FROM

CARTON

•Remove loose parts includedwith mower.

• Cut down two end comers of carton and lay

and panel down flat.

•Remove all packing materials except

padding between upper and lower handle

and padding holding operator presence

controlbar to upper handle.

• Roll lawn mower out of carton and check

carton thoroughly for additional loose parts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handles carefullyso as

not to pinch ordamage controlcables

•RaLsehandles untillower handle section

locksinto place in mowing position.

•Remove protective padding, raise upper

handle section into place on lower handle

and tightenbeth handle knobs.

• Remove handle padding holding operator

presence controlbar to upper handle.

•Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle' inthe Service and Adjus_nent

sectionof this manual.

Operator presence controlbar

Liftu

Mowing position

TO INSTALL AI"rACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. Toconvert to bagging or

discharging:

• Open rear door and remove mulcher plug.

Store mulcher plug in a safe place.

•You can now installcatcher or optional

dippingdeflector.

•To retumto mulchingoperation, install

mulcher plug into discharge opening of

mower.

Lower handle

Mucher plug

_,CAUTION: Do not run your lawn

mower without mulcher plug in place or

approved clipping deflector or grass

catcher in place. Never attempt to operate

the lawn mower with the rear door

removed or propped open.

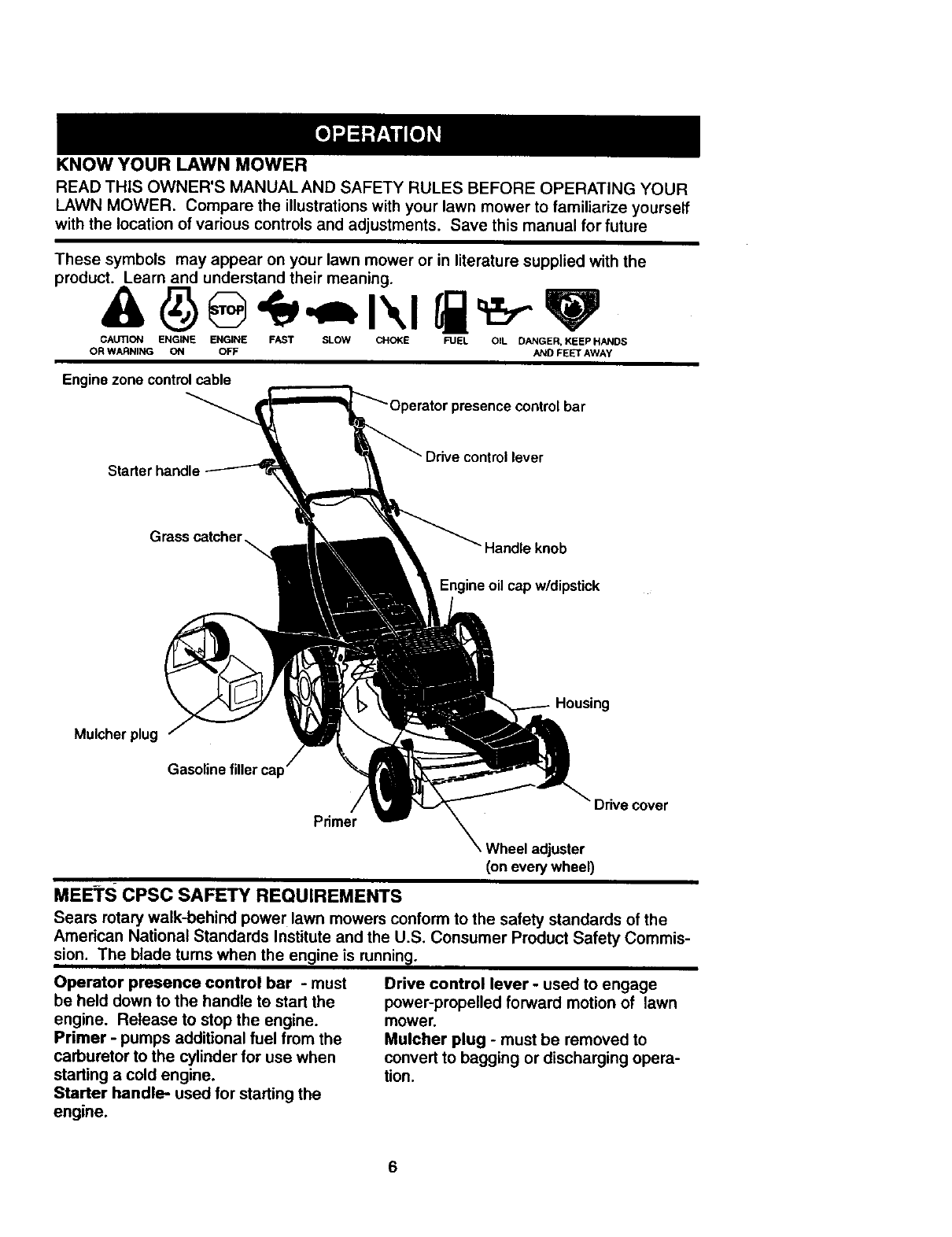

KNOW YOUR LAWN MOWER

READ THiS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself

with the location of various controls and adjustments. Save this manual for future

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Enginezone controlcable

Starter handle Drive control lever

Grass catcher knob

Engineoil cap w/dipstick

Mulcherplug

Gasolinefillercap

•cover

Primer

Wheel adjuster

(on every wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S, Consumer Product Safety Commis-

sion. The blade tums when the engine is running.

Operator presence control bar -must

be held down to the handle te start the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting acold engine.

Starter handle- used for starting the

engine.

Drive control lever -used to engage

power-propelled forward motion of lawn

mower.

Mulcher plug - must be removed to

convert to bagging or discharging opera-

tion.

Theoperationof anylawnmowercan

resultinforeignobjectsthrownintothe

eyes,whichcanresultinsevereeye

damage.Alwayswearsafetyglassesor

eye shields while operating your lawn

mower or performing any adjustments or

repairs. We recommend awide vision

safety mask over spectacles or standard

safety glasses.

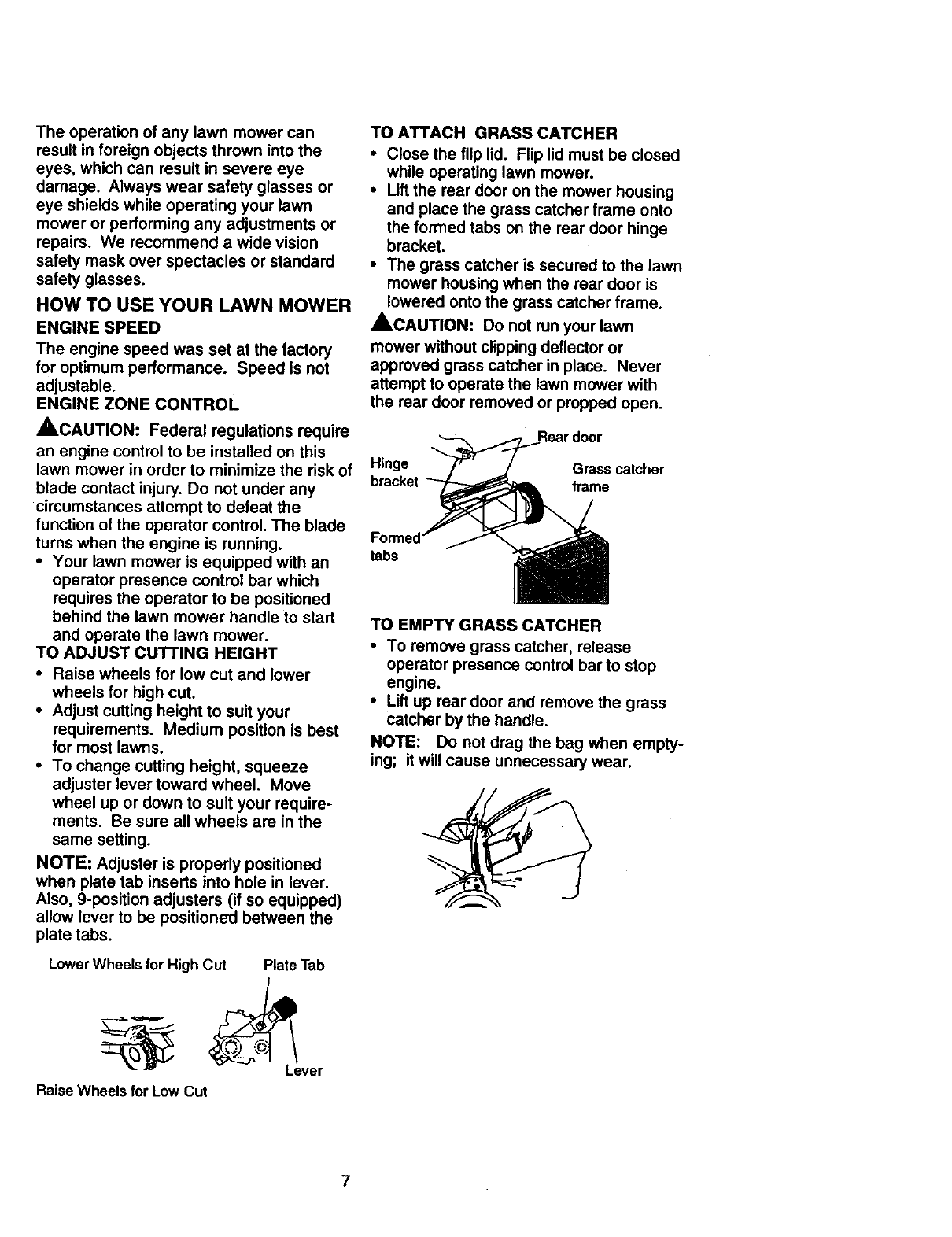

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

ACAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk of

blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUI-FING HEIGHT

•Raise wheels for low cut and lower

wheels for high cut.

•Adjust cutting height to suit your

requirements. Medium position is best

for most lawns.

•To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

LowerWheels for High Cut Plate Tab

Lever

RaiseWheels for Low Cut

TO ATTACH GRASS CATCHER

•Close the flip lid. Flip lid must be closed

while operating lawn mower.

•Lift the rear door on the mower housing

and place the grass catcher frame onto

the formed tabs on the rear door hinge

bracket,

•The grass catcher is secured to the lawn

mower housing when the rear door is

lowered onto the grass catcher frame.

ACAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

Hinge Grass catcher

bracket frame

tabs

TO EMPTY GRASS CATCHER

•To remove grass catcher, release

operator presence control bar to stop

engine.

•Lift up rear door and remove the grass

catcher by the handle.

NOTE: Do not drag the bag when empty-

ing; it will cause unnecessary wear.

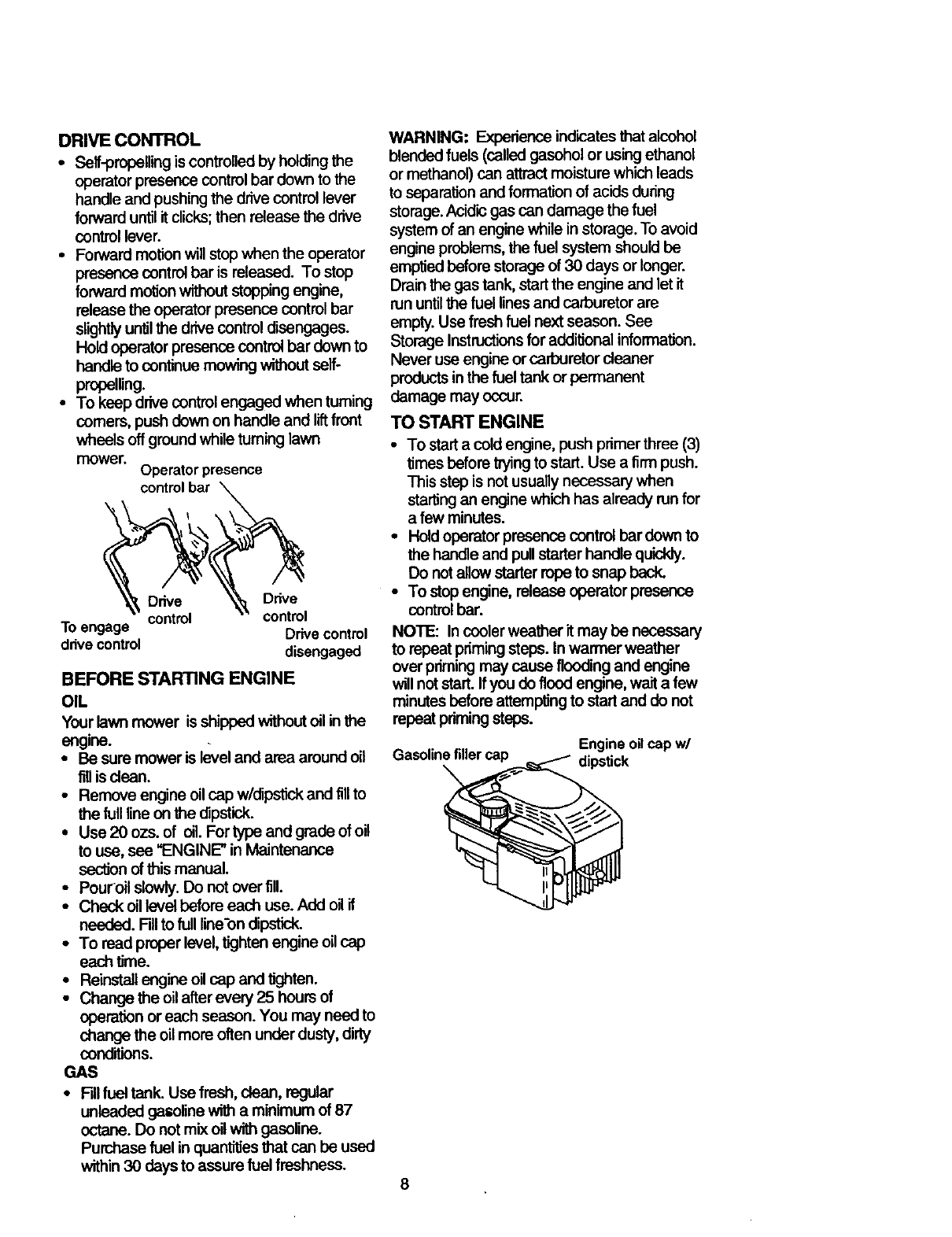

DRIVECONTROL

•Self-propellingis controlled by holding the

operator presence controlbar down to the

handle and pushingthe drive control lever

forward untilit clicks;then release the drive

control lever.

•Forward motion willstop when the operator

presence controlbar is released. To stop

forward motion without stoppingengine,

release the operator presence control bar

slightlyuntilthe drive controldisengages.

Hold operator presence controlbar down to

handle to continue mowing without self-

propelling.

• To keep drive control engaged when turning

comers, push down on handle and lift front

wheels off ground while turning lawn

mower. Operator presence

:ontrol bar \

Ddve _Ddve

control control

To engage Drive control

drive control disengaged

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped withoutoil inthe

engine.

•Be sure mower is level and area around oil

flu is clean.

•Remove engine oil cap w/dip_ck and till to

the full line on the dipstick°

•Use 20 ozs. of oil. For type and grade of oil

to use, see "ENGINE" in Maintenance

section of thismanual.

•Pour oil slowly.Do not overfill.

• Check oil level before each use. Add oil if

needed. Fillto full line-on dipstick.

•To read proper level, tightenengine oil cap

each time.

•Reinstall engine oil cap and tighten.

•Change the oil after every 25 hours of

operation or each season. You may need to

change the oil more often under dusty, dirty

conditions.

GAS

• RII fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. Do not mix oilwith gasoline.

Purchase fuel in quantitiesthat can be used

within30 days to assure fuel freshness.

WARNING: Experience indicatesthat alcohol

blended fuels (called gasohol or using ethanol

or methanol) can attractmoisture which leads

to separation and formation of acids during

storage. Acidicgas can damage the fuel

system of an engine while instorage. To avoid

engine problems,the fuel system should be

emptied before storage of 30 days or longer.

Drainthe gas tank, start the engine and let it

run untilthe fuel linesand carburetor are

empty.Use fresh fuel next season. See

Storage Instructionsfor additional information.

Never use engine or carburetor cleaner

productsinthe fuel tank or permanent

damage may occur.

TO START ENGINE

•To start a cold engine, push primer three (3)

times before tryingto start. Use a firm push.

This step is not usuallynecessary when

starting an engine which has already run for

afew minutes.

•Hold operator presence control bar down to

the handle and pullstarterhandle quickly.

Do notallow starterrope to snap back.

•To stop engine, release operator presence

control bar.

NOTE: In coolerweather it may be necessary

to repeat primingsteps. In warmer weather

over primingmay cause flooding and engine

willnot start. Ifyou do flood engine, wait a few

minutes before attemptingto start and do not

repeat primingsteps.

Gasolinefillercap Engine oil cap w/

dipstick

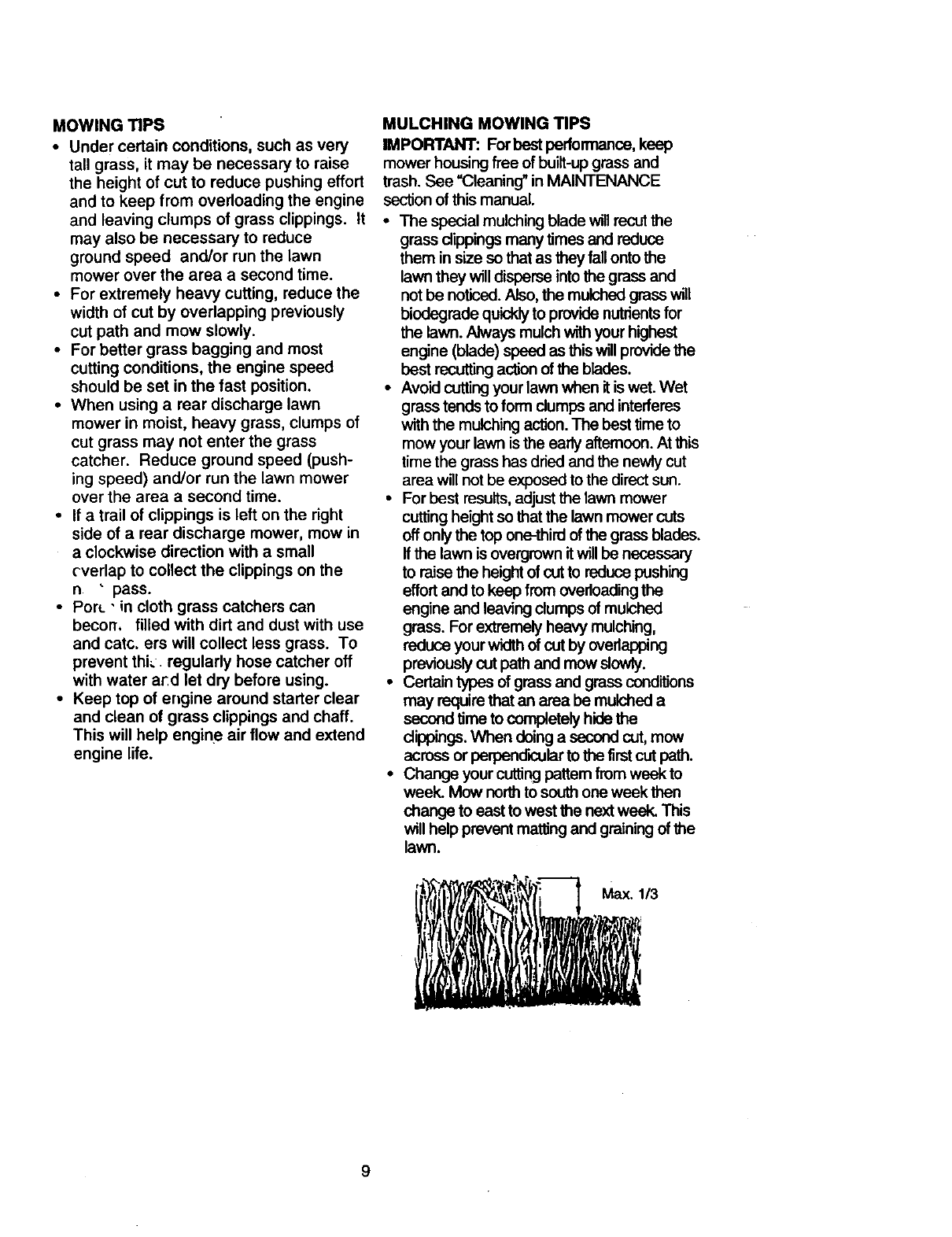

MOWINGTIPS

• Undercertainconditions,suchasvery

tallgrass,it may be necessary to raise

the height of cut to reduce pushing effort

and to keep from overloading the engine

and leaving clumps of grass clippings. It

may also be necessary to reduce

ground speed and/or run the lawn

mower over the area a second time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

•When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed (push-

ing speed) and/or run the lawn mower

over the area a second time.

•If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

cverlap to collect the clippings on the

n"pass.

•Pon. " in cloth grass catchers can

becon, filled with dirt and dust with use

and catc. ers will collect less grass. To

prevent thi_-, regularly hose catcher off

with water ar:d let dry before using.

•Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and extend

engine life.

MULCHING MOWING TIPS

IMPORTANT: Forbest parformance, keep

mower housing free of built-upgrass and

trash. See "Cleaning" in MAINTENANCE

section of this manual.

• The special mulching blade willrecut the

grass clippings many times and reduce

them in size so that as they fallonto the

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass will

biodegrade quickly to prov'Kle nutrients for

the lawn. Always mulch with your highest

engine (blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet. Wet

grass tends to form dumps and interferes

with the mulching action. The best time to

mow your lawn is the early afternoon. At this

time the grass has dried and the newly cut

area will not be exposed to the direct sun.

• For best results, adjust the lawn mower

cuttingheight so that the lawn mower cuts

off only the top one-thirdof the grass blades.

If the lawn is overgrown it willbe necessary

to raise the heightof cut to reduce pushing

effort and to keep from overloadingthe

engine and leavingclumps of mulched

grass. For extremely heavy mulching,

reduce your wk:lthof cut by overlapping

previouslycut path and mow slowly.

•Certain types of grass and grass conditions

may require that an area be mulched a

second time to completely hide the

dippings. When doing asecond cut, mow

across or parpendlcular to the firstcut path.

• Change your cutting pattern from week to

week. Mow north to south one week then

change to east to west the next week. This

will help prevent matting and graining of the

lawn.

,,_ ; Max. 113

•_•!

MAINTENANCESCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check for Loose Fasteners

Clean/Inspect Grass Catcher "W W

M!Clean Lawn Mower

O Clean Under Drive Cover

(power-Propelted Mowers) it/

Check drive belt/pulleys

E (Power-Propelled Mowers) it/

ChecldSharpen/Repleca Blade I_

Lubrication Chart b/ b#'

Clean Battery/Recharge

(Electric Start Mowers) IV/ 1_4

ECheck Engine Oil Level IV/!

N ChangeEngineOlt _/1 _.

GClean Air Filter it/2

I Inspect Muffler

NClean or Replace Spark Plug

EReplace Air Filter Paper Cartridge t/2

1 - Change more often when operating under a heavy loado_ in highambient temperabJres.

2- _ more olten when operating in dirty or dusty condi_.

3 - Replace blade= more often when mowing in sandysoil.

4oCharge 48 hours at er=dof season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain mower as instructed in this

manual.

Some adjustments wiil need to be made

periodically to properly maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year, replace the spark plug,

replace air filter element and check

blade for wear. Anew spark plug and

clean/new air filter element assures

proper air-fuel mixture and helps your

engine run better and last longer.

•Follow the maintenance schedule in this

manual.

BEFORE EACH USE

•Check engine oil level.

•Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICA-

TION CHART").

SERVICE DATES

LUBRICATION CHART

__ _ _ Wheel Adjuster

(_) Engineoil

--f

(_ Rear door

(_) Handle bracket hinge

mountingpin

(_) Spay lubricant

(_) Refer to MAINTENANCE "ENGINE"

section.

IMPORTANT: Do not oil or grease

plastic wheel bearings. Viscous lubdcants

will attract dust and dirt that will shorten

the life of the self lubdcating bearings. If

you feel they must be lubricated, use only

a dry, powdered graphite type lubdcant

sparingly.

RODUCT SPECIFICATIONS

MODEL NUMBER 917,377553

;ERIAL NUMBER

DATE OF PURCHASE

HORSEPOWER: 6,0

DISPLACEMENT: 11.6 CU. IN.

GASOLINE CAPACITY/TYPE: 1.6QUARTS

UNLEADED REGULAR

OIL TYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPIONR J19LM OR J19LM

VALVE CLEARANCE: INTAKE: .005" -.007"

EXHAUST: .007" -.009"

SOLID STATE IGNITION

AIR GAP: .010 IN.

BLADE BOLT TORQUE: 35-40 FT. LBS.

•The model and serial numbers will be found on adecal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER

Always observe safety rules when

performing any maintenance.

TIRES

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

•Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

•Turn lawn mower on its side. Make sure

air filter and carburetor are up.

•Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

•Protect your hands with gloves and/or

wrap blade with heavy cloth.

•Remove blade bolt by turning counter-

clockwise. Use a 9/16" box or open-end

wrench.

•Remove blade and attaching hardware

(bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade adapter.

The key must be in good condition to work

properly. Replace adapter if damaged.

TO REPLACE BLADE

• Position the blade adapter on the engine

crankshaft. Be sure key in adapter and

crankshaft keyway are aligned.

•Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

•Be sure the trailing edge of blade

(opposite sharp edge) is up toward the

engine,

•Install the blade bolt with the lock

washer and hardened washer into blade

adapter and crankshaft.

•Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

•The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the blade

is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

eventual damage to lawn mower or

engine.

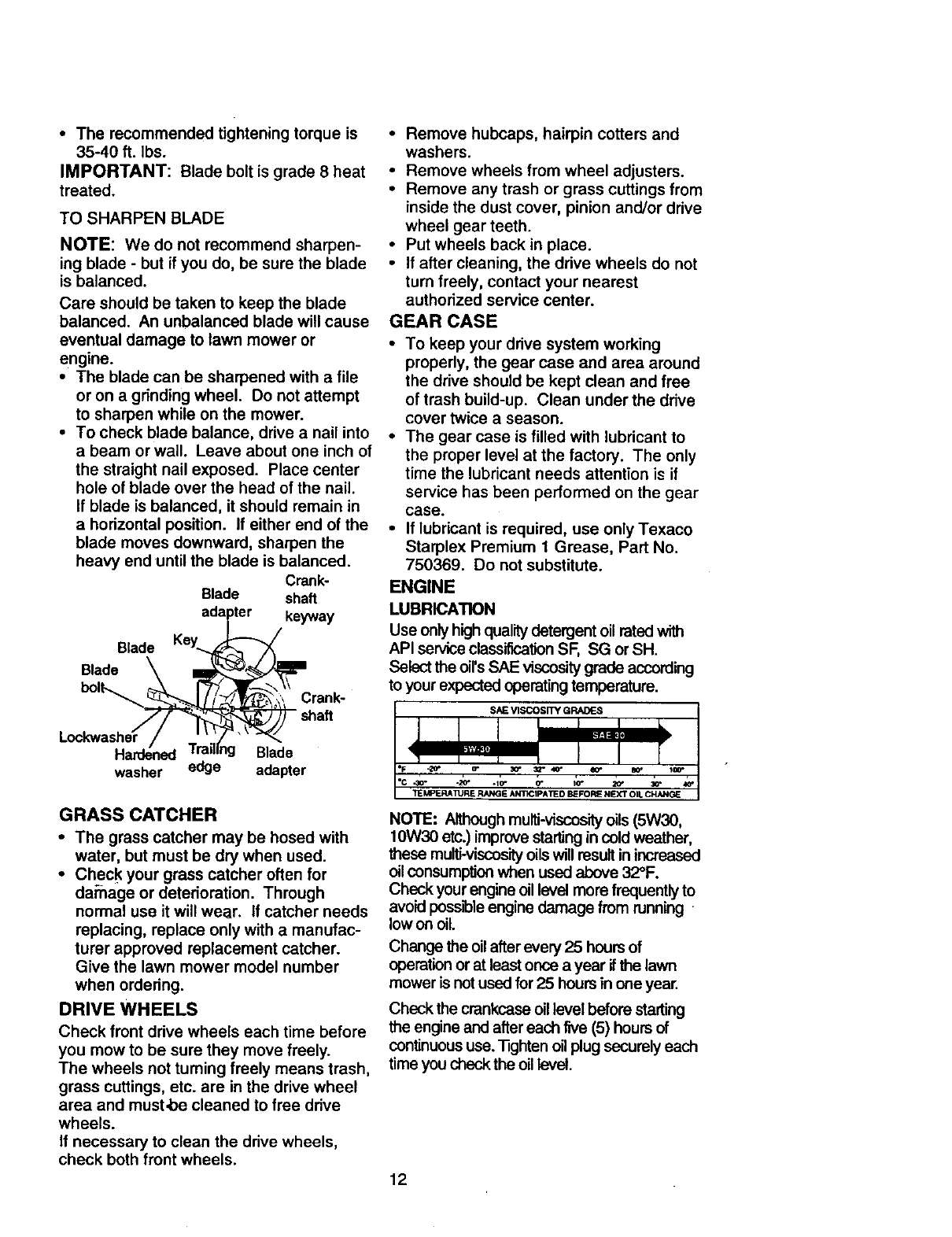

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, drive a nail into

a beam or wall. Leave about one inch of

the straight nail exposed. Place center

hole of blade over the head of the nail.

If blade is balanced, it should remain in

a horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Crank-

Blade shaft

adaFter keyway

Blade Key_--_

Blade \ _1_:_ _-._ II°rank

-,haft

Lockwa,her /-- ',,'/ _'

Hal'den_:l ilillng Blade

washer edge adapter

GRASS CATCHER

•The grass catcher may be hosed with

water, but must be dry when used.

•Check your grass catcher often for

da_nage or deterioration. Through

normal use it will wear. If catcher needs

replacing, replace only with a manufac-

turer approved replacement catcher.

Give the lawn mower model number

when ordering.

DRIVE WHEELS

Check front drive wheels each time before

you mow to be sure they move freely.

The wheels not tuming freely means trash,

grass cuttings, etc. are in the drive wheel

area and must,be cleaned to free drive

wheels.

If necessary to clean the drive wheels,

check both front wheels.

•Remove hubcaps, hairpin cotters and

washers.

•Remove wheels from wheel adjusters.

•Remove any trash or grass cuttings from

inside the dust cover, pinion and/or drive

wheel gear teeth.

• Put wheels back in place.

• If after cleaning, the drive wheels do not

turn freely, contact your nearest

authorized service center.

GEAR CASE

•To keep your drive system working

propedy, the gear case and area around

the drive should be kept clean and free

of trash build-up. Clean under the drive

cover twice a season.

•The gear case is filled with lubricant to

the proper level at the factory. The only

time the lubricant needs attention is if

service has been performed on the gear

case.

• If lubricant is required, use only Texaco

Starplex Premium 1 Grease, Part No.

750369. Do not substitute.

ENGINE

LUBRICATION

Use only high quality detergent oil rated with

API service classificationSF, SG or SH.

Select the oirs SAE viscosity grade according

to your expected operatingtemperature.

SAE VISCOSIrf GRADES

-2_

.30- .io- 6" 20'

TEMPERATURE RANGE ANTIQPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosityoils (5W30,

10W30 etc.) improve starting in cold weather,

these multi-viscosity oils will result in increased

oil consumption when used above 32°F.

Check your engine oil level more frequently to

avoid possibleengine damage from running

low on oil.

Change the oil after every 25 hours of

operationor at least once a year ifthe lawn

mower is notused for 25 hours in one year.

Check the crankcase oil level before starting

the engine and after each five (5) hours of

continuoususe. 13ghten oil plug securely each

time you check the oil level.

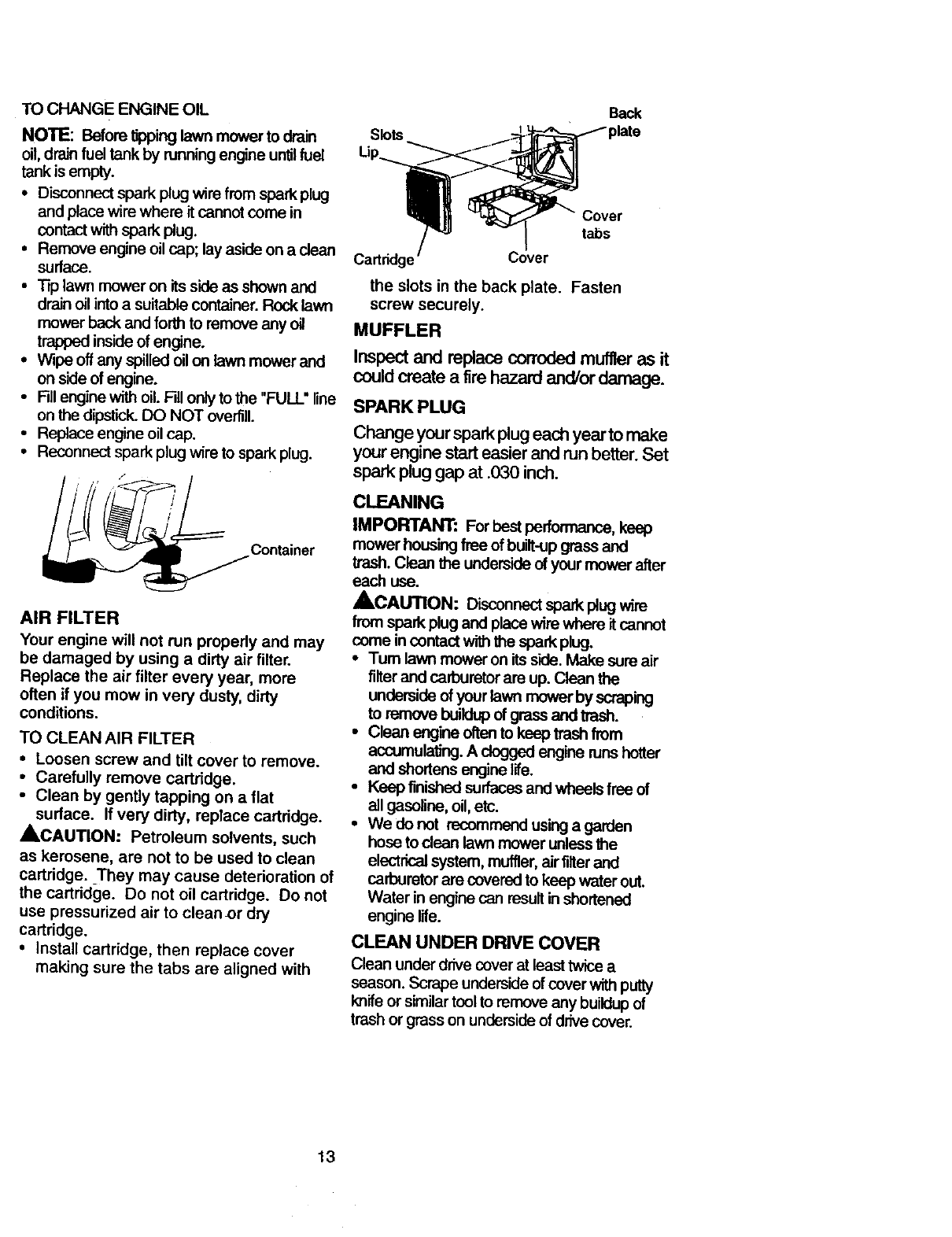

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to drain

oil, drain fuel tank by running engine until fuel

tank is empty.

•Disconnect spark plug wire from spark plug

and place wire where it cannot come in

contact with spark plug.

• Remove engine oil cap; lay aside on a clean

sudace.

•"rip lawn mower on its side as shown and

drain oil into a suitable container. Rock lawn

mower back end forth to remove any

trapped inside of engine.

•Wipe off any spilled oil on lawn mower end

on side of engine.

•Fillengine with oil. Fill only to the "FULL" line

on the dipst'_(,.DO NOT overfill.

• Replace engine oil cap.

• Reconnect spark plug wire to spark plug.

Container

AIR FILTER

Your engine will not run properly and may

be damaged by using a dirty air filter.

Replace the air filter every year, more

often if you mow in very dusty, dirty

conditions.

TO CLEAN AIR FILTER

• Loosen screw and tilt cover to remove.

•Carefully remove cartridge.

•Clean by gently tapping on a flat

surface. If very dirty, replace cartridge.

_,CAUTION: Petroleum solvents, such

as kerosene, are not to be used to clean

cartridge. _They may cause detedoration of

the cartridge. Do not oil cartddge. Do not

use pressurized air to clean,or dry

cartridge.

• Install cartridge, then replace cover

making sure the tabs are aligned with

Slots

Back

tabs

Cartridge Cover

the slots in the back plate. Fasten

screw securely.

MUFFLER

Inspect and replace corroded muffler as it

could create a fire hazard and/or damage.

SPARKPLUG

Change your spark plug each yearto make

your engine start easier and run better. Set

spark plug gap at .030 inch.

CLEANING

IMPORTANT: For best performance, keep

mower housingfree of built-upgrass and

trash. Clean the underside of your mower after

each use.

_,CAUTION: Disconnect spark plug wire

from spark plug and place wire where itcannot

come in contact with the spark plug.

•Turn lawn mower on its skJe.Make sure air

filter end carburetor are up. Clean the

underside of your lawn mower by scraping

to remove buildupof grass end trash.

•Clean engine oftento keep trash from

accumulating. A dogged engine runs hotter

and shortens engine life.

•Keep finished surfaces and wheels free of

all gasoline, oil, etc.

•We do not recommend using a garden

hose to dean lawn mower unless the

electrical system, muffler, air filterand

carburetor are covered to keep water out.

Water in engine can result in shortened

engine life.

CLEAN UNDER DRIVE COVER

Clean under drive coverat least twice a

season. Scrape underside of cover with putty

knifeor similartool to remove any buildup of

trash or grass on undersideof drive cover.

ACAUTION: BEFORE PERFORMING

ANY SERVICE OR ADJUSTMENTS:

•Release control bar and stop engine.

•Make sure the blade and all moving

parts have completely stopped.

•Disconnect spark plug wire from

spark plug and place where it cannot

come in contact with plug.

LAWN MOWER

TO ADJUST CUTrlNG HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your lawn mower, is

provided to minimize the possibility that

objects will be thrown out the rear of the

lawn mower into the operator's mowing

position. If the rear deflector becomes

damaged, it should be replaced.

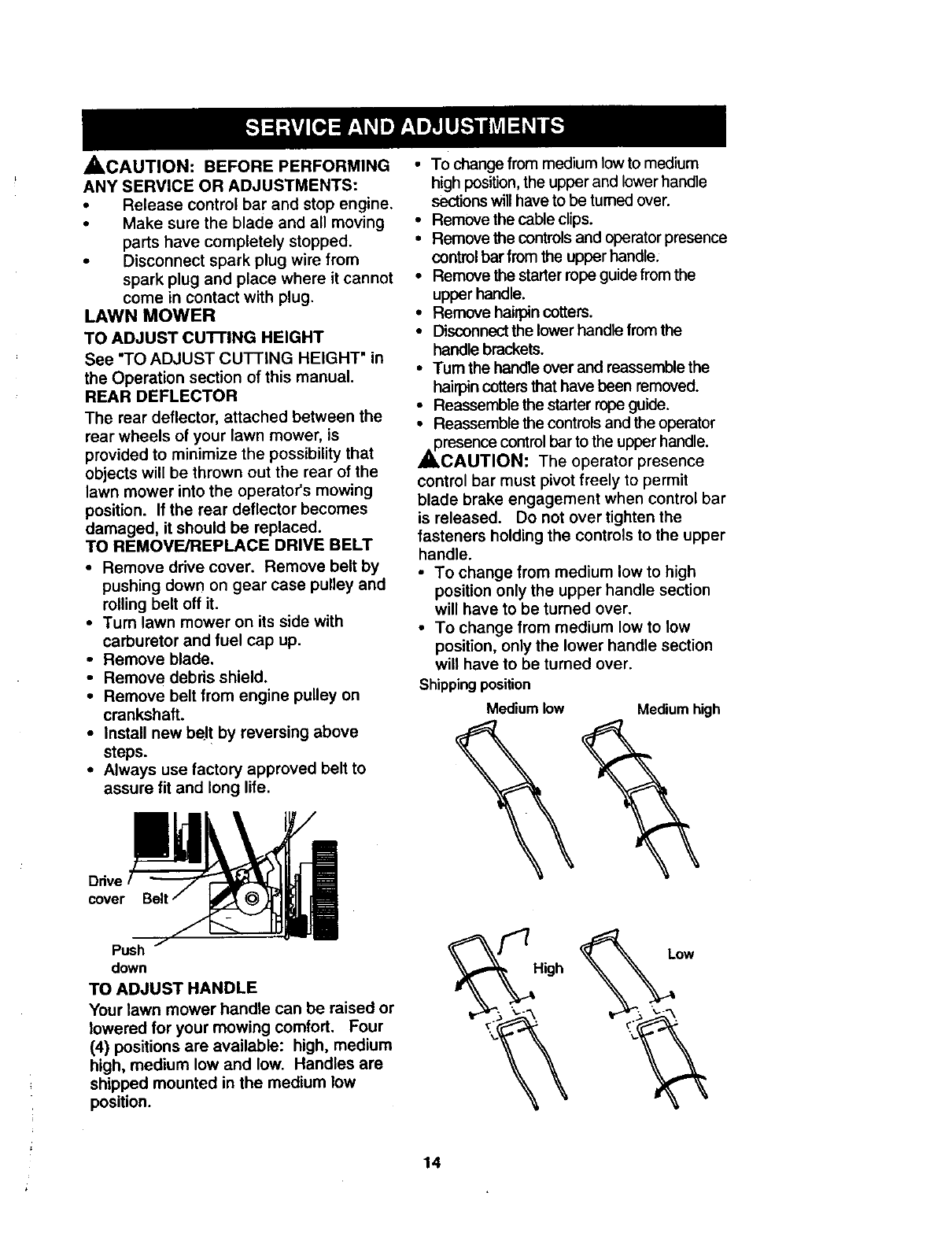

TO REMOVE/REPLACE DRIVE BELT

• Remove drive cover. Remove belt by

pushing down on gear case pulley and

roiling belt off it.

• Turn lawn mower on its side with

carburetor and fuel cap up.

• Remove blade.

• Remove debris shield.

•Remove belt from engine pulley on

crankshaft.

•Install new belt by reversing above

steps.

•Always use factory approved belt to

assure fit and long life.

cover

•TO change from medium lowto medium

high position, the upper and lower handle

sections will have to be turned over.

• Remove the cable clips.

• Remove the controls and operator presence

control bar from the upper handte:

• Remove the starter rope guide from the

upper handle.

•Remove hairpincotters.

• Disconnect the lower handle from the

handle brackets.

• Turn the handle over and reassemble the

hairpin cotters that have been removed.

• Reassemble the starter rope guide.

• Reassemble the controls and the operator

,Apresence control bar to the upper handle.

CAUTION: The operator presence

control bar must pivot freely to permit

blade brake engagement when control bar

is released. Do not over tighten the

fasteners holding the controls to the upper

handle.

• To change from medium low to high

position only the upper handle section

will have to be turned over.

•To change from medium low to low

position, only the lower handle section

will have to be turned over.

Shippingposition

Medium low Medium high

Push

down

TO ADJUST HANDLE

Your lawn mower handle can be raised or

lowered for your mowing comfort. Four

(4) positions are available: high, medium

high, medium low and low. Handles are

shipped mounted in the medium low

position.

High Low

Lower handle

ouoozo,o\k r

rem_

Hairpincotter

Landle

Ibracket

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that the engine is running too fast

or too slow, take your lawn mower to an

authorized service center for repair and

adjustment.

CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate propedy due to

suspected carburetor problems, take your

lawn mower to an authorized service

center for repair and/or adjustment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest

AUTHORIZED service center, which has

proper equipment and experience to make

any necessary adjustments.

Immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

• Clean entire lawn mower (See "CLEAN-

ING" in the Maintenance section of this

manual).

•Lubricate as shown in the Maintenance

section of this manual.

• Be sure that all nuts, bolts, screws, and

pins are securely fastened. Inspect

moving parts for damage, breakage and

wear. Replace if necessary.

•Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

You can fold your lawn mower handle for

storage.

•Squeeze the bottom ends of the lower

handle toward each other until the lower

handle clears the handle bracket, then

move handle forward.

•Loosen upper handle mounting bolts

enough to allow upper handle to be

folded back.

IMPORTANT: When folding the handle

for storage or transportation, be sure to

fold the handle as shown or you may

damage the control cables.

•When setting up your handle from the

storage position, the lower handle will

automatically lock into the mowing

position.

Lower handle

Handle

Squeeze to fold

Operator presencecontrolbar

Upper Handle

Foldforward

for storage

Lower handle

Hairpincotter

Fold

backward

Mowing

position

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential fuel

system parts such as carburetor, fuel filter,

fuel hose, or tank during storage. Also,

experience indicates that alcohol blended

fuels (called gasohol or using ethanol or

methanol) can attract moisture which leads

to separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

• Drain the fuel tank.

•Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the carbure-

tor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

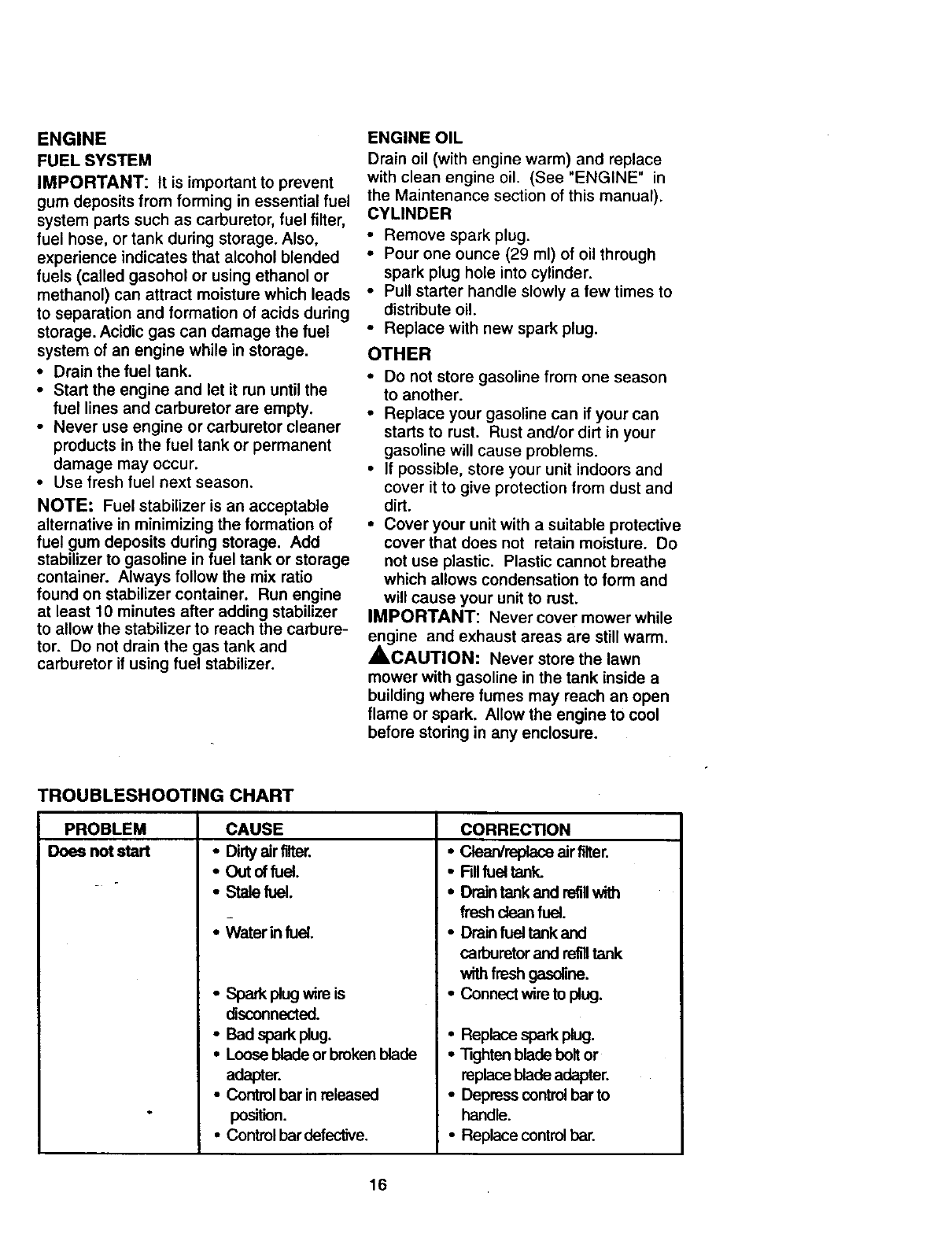

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER

• Remove spark plug.

• Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

• Pull starter handle slowly a few times to

distribute oil.

• Replace with new spark plug.

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your unit indoors and

cover it to give protection from dust and

dirt.

•Cover your unit with a suitable protective

cover that does not retain moisture. Do

not use plastic. Plastic cannot breathe

which allows condensation to form and

will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

_,CAUTION: Never store the lawn

mower with gasoline in the tank inside a

building where fumes may reach an open

flame or spark. Allow the engine to cool

before storing in any enclosure.

TROUBLESHOOTING CHART

PROBLEM

Does not start

CAUSE

• Dirty air filter.

•Out of fuel.

•Stale fuel.

•Water in fuel.

•Spark plug wire is

disconnected.

•Bad spark plug.

•Loose blade or broken blade

adapter.

•Controlbar inreleased

position.

•Controlbar defective.

CORRECTION

•ClearVreplaceair filter.

•Fillfuel tank.

•Drain tank and refillwith

fresh dean fuel.

•Drain fuel tank and

carburetorand refilltank

with freshgasoline.

•Connect wire to plug.

•Replace spark plug.

•tighten blade bolt or

replacebladeadapter.

•Depress controlbar to

handle.

•Replace controlbar.

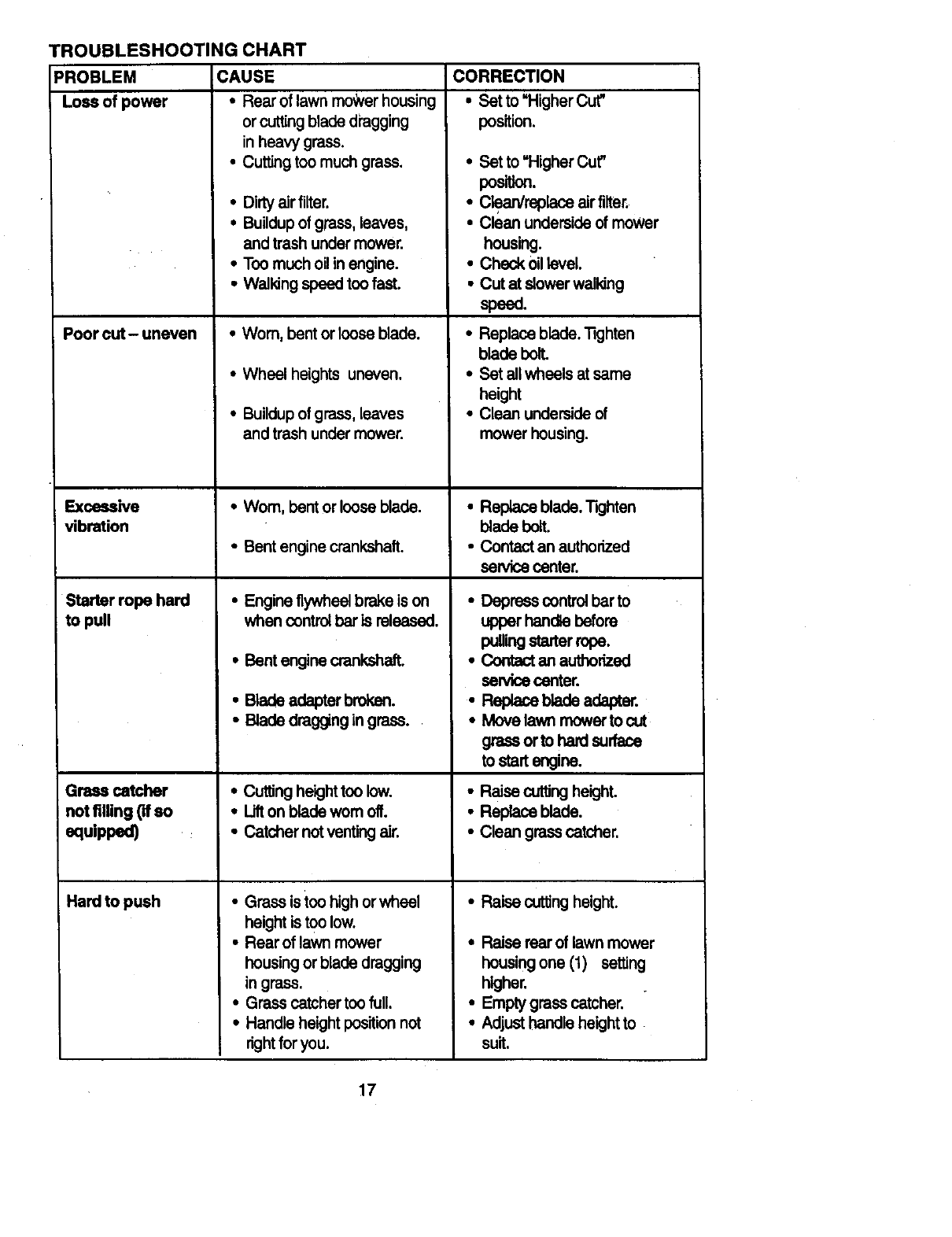

PROBLEM

Loss of power

TROUBLESHOOTING CHART

CAUSE

•Rear of lawn mower housing

orcuttingblade dragging

in heavy grass.

•Cutting too much grass.

Poor cut- uneven

Excessive

vibration

Starter rope hard

to pull

Grass catcher

not filling (if so

equipped)

Hardtopush

• Dirtyairfiiter.

• Buildupofgrass,leaves,

andtrashundermower

•Toomuchoilinengine.

•Walldngspeedtoofast.

•Worn, bent or loose blade.

•Wheel heights uneven.

• Buildup of grass, leaves

and trash under mower.

•Wom, bent or loose blade.

•Bent engine crankshaft.

•Engine flywhe_ brake is on

when controlbar is released.

•Bent engine crankshaft

• Bade adapter brokan.

• Blade dragging in grass.

• Cutting heighttoo low.

•Uft on blade worn off.

•Catcher not venting air.

•Grass istoo high orwheel

height is tOOlow.

•Rearof lawn mower

housing or blade dragging

in grass.

•Grass catcher too full.

•Handle height positionnot

rightfor you.

CORRECTION

•Setto"HigherCut"

position.

•Set to "Higher Cut"

pos'_on.

• C_an/replace airfiiter.

•Clean underside of mower

housing.

•Check oil level.

•Cut at slower walking

speed.

•Replace blade. Tighten

blade bolL

• Set all wheels at same

height

• Clean underside of

mower housing.

•Replaceblade.T_hten

bladebolt.

•Contactanauthorized

servicecenter.

•Depresscontrolbarto

upperhandlebefore

pollingstarterrope.

•Contactan authorized

servicecenter.

•Replasebladeedapter.

•Movelawnmowertocut

grassorto hardsurface

tostartengine.

•Raise cuttingheight.

•Replace blade.

•Clean grass catcher.

•Raise cuttingheight.

•Raise rear of lawn mower

housing one (1) setting

higher.

•Empty grass catcher.

•Adjusthandle heightto

suit.

ROTARY LAWN MOWER - -MODEL NO. 917.377553

GEAR CASE ASSEMBLY PART NUMBER 702511

KEY

NO.

PART

NO.

17490416

137055X004

137053

57072

48373

77881

t 37051

137074

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Tapping Screw 1/4-20 x 10 57079 Hardened Washer

-t-1/4 11 131484 Clutch Yoke

Engagement Bracket 12 700343 Bushing

Shifter 13 86447 Plug

Seal 14 137050 Helk_al Gear

Gear Case Halves Kit 15 750436X Clutch Jaw

(Includes Key Nos. 4, 5, 16 750369 Grease

and 7) 17 12000003 E-Ring

Bearing 18 850848 Hi-Pro Key

Worm Shaft 19 81585X004 Spring Bracket

Drive Shaft

NOTE: All component dimensions given

in U.S. inches. 1 inch = 25.4 mm

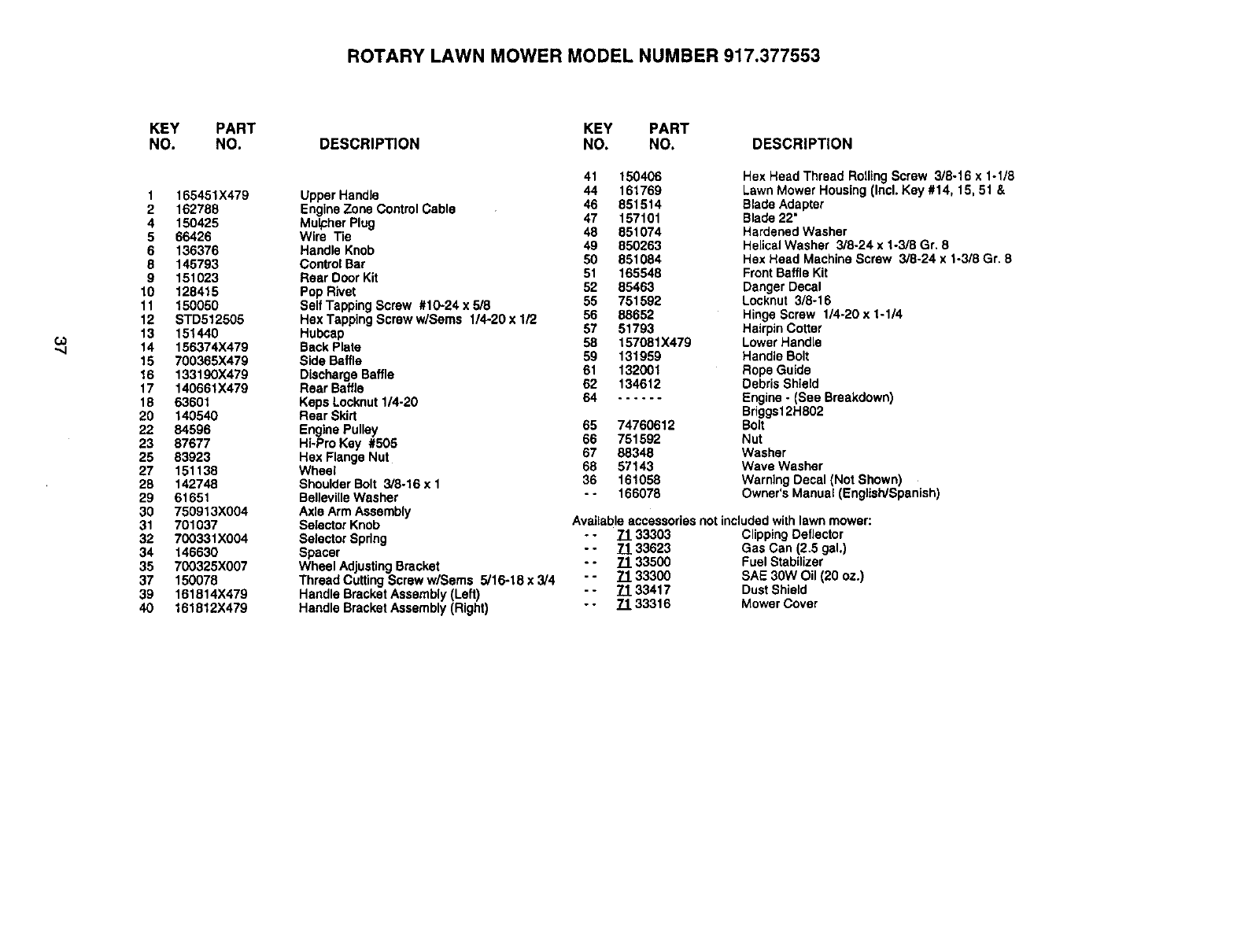

ROTARY LAWN MOWER MODEL NUMBER 917.377553

KEY PART

NO. NO.

1 165451X479

2 162788

4 150425

5 66426

6 136376

8 145793

9 151023

10 128415

11 150050

12 STD512505

13 151440

14 156374X479

15 700365X479

15 133190X479

17 140661X479

18 63601

20 140540

22 84596

23 87677

25 83923

27 151138

28 142748

29 61651

30 750913X004

31 701037

32 700331X004

34 146630

35 700325X007

37 150078

39 161814X479

40 161812X479

KEY PART

DESCRIP_ON NO. NO. DESCRIPTION

41 150406

UpperHandle 44 161769

EngineZone ControlCable 46 851514

MulpherPlug 47 157101

Wire Tie 48 851074

Handle Knob 49 850263

ControlBar 50 851084

Rear Door Kit 51 165548

Pop Rivet 52 85463

Self TappingScrew #10-24 x 5/8 55 751592

Hex TappingScrew w/Seres 1/4-20 x 1/2 56 88652

Hubcap 57 51793

Back Plate 58 157081X479

Side Baffle 59 131959

DischargeBaffle 61 132001

Rear Baffle 62 134612

Keps Locknut1/4-20 64 ......

Rear Skirt

Engine Pulley 65 74760612

Hi-ProKey #505 66 751592

Hex FlangeNut 67 88348

Wheel 68 57143

ShoulderBolt 3/8-16 x 1 36 161058

BallevilleWasher --166078

Hex Head Thread RollingScrew 3/8-16 x 1-I/8

LawnMower Housing(Incl. Key #14, 15, 51 &

Blade Adapter

Blade22"

HardenedWasher

HelicalWasher 3/8-24 x 1-3/8 Gr. 8

Hex Head MachineScrew 3/8-24 x1-3/8 Gr. 8

FrontBaffleKit

Danger Decal

Locknut 3/8-16

HingeScrew 1/4-20x 1-1/4

Hairpin Cotler

Lower Handle

Handle Bolt

Rope Guide

DebrisShield

Engine - (See Breakdown)

Briggs12H802

Bolt

Nut

Washer

Wave Washer

WarningDecal (Not Shown)

Owner'sManual (English/Spanish)

AxleArmAssembly

SelectorKnob Availableaccessoriesnot includedwithlawn mower:

SelectorSpdng -. 71 33303 ClippingDeflector

Spacer -. 71 33623 Gas Can (2.5 gal.)

Wheel AdjustingBracket -. 71 33500 Fuel Stabilizer

Thread CuttingScrew w/Sems 5/16-18 x 3/4 . - 71 33300 SAE 30W Oil (20 oz.)

Handle BracketAssembly(Left) - - 71 33417 DustShield

Handle BracketAssembly(Right) -. 71 33316 MowerCover

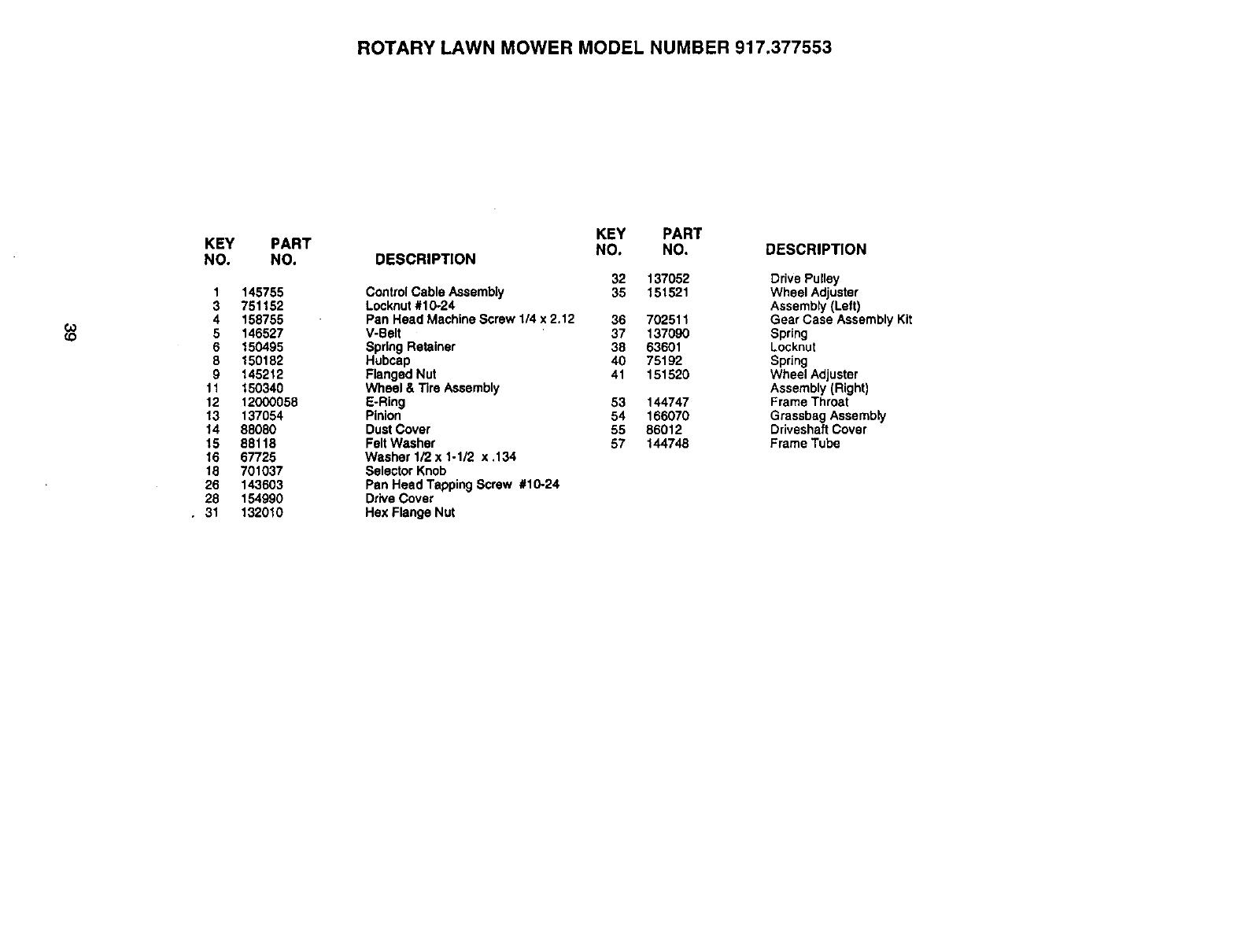

ROTARY LAWN MOWER MODEL NUMBER 917.377553

14 18

ROTARY LAWN MOWER MODEL NUMBER 917.377553

KEY

NO.

•31

PART

NO.

145755

751152

158755

146527

150495

150182

145212

150340

12000058

137054

88080

88118

67725

701037

143603

154990

132010

DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

32 137052

ControlCable Assembly 35 151521

Locknut#10-24

Pan Head MachineScrew 114x 2.12 36 702511

V-Belt 37 137090

Spdng Retainer 38 63601

Hubcap 40 75192

Flanged Nut 41 151520

Wheel & Tire Assembly

E-Ring 53 144747

Pinion 54 166070

DustCover 55 86012

Felt Washer 57 144748

Washer 1/2 x 1.1/2 x .134

SelectorKnob

Pan Head TappingScrew #10-24

DriveCover

Hex FlangeNut

Drive Pulley

Wheel Adjuster

Assembly(Left)

Gear Case AssemblyKit

Spring

Locknut

Spring

Wheel Adjuster

Assembly(Right)

Frame Throat

GrassbagAssembly

DriveshaftCover

Frame Tube

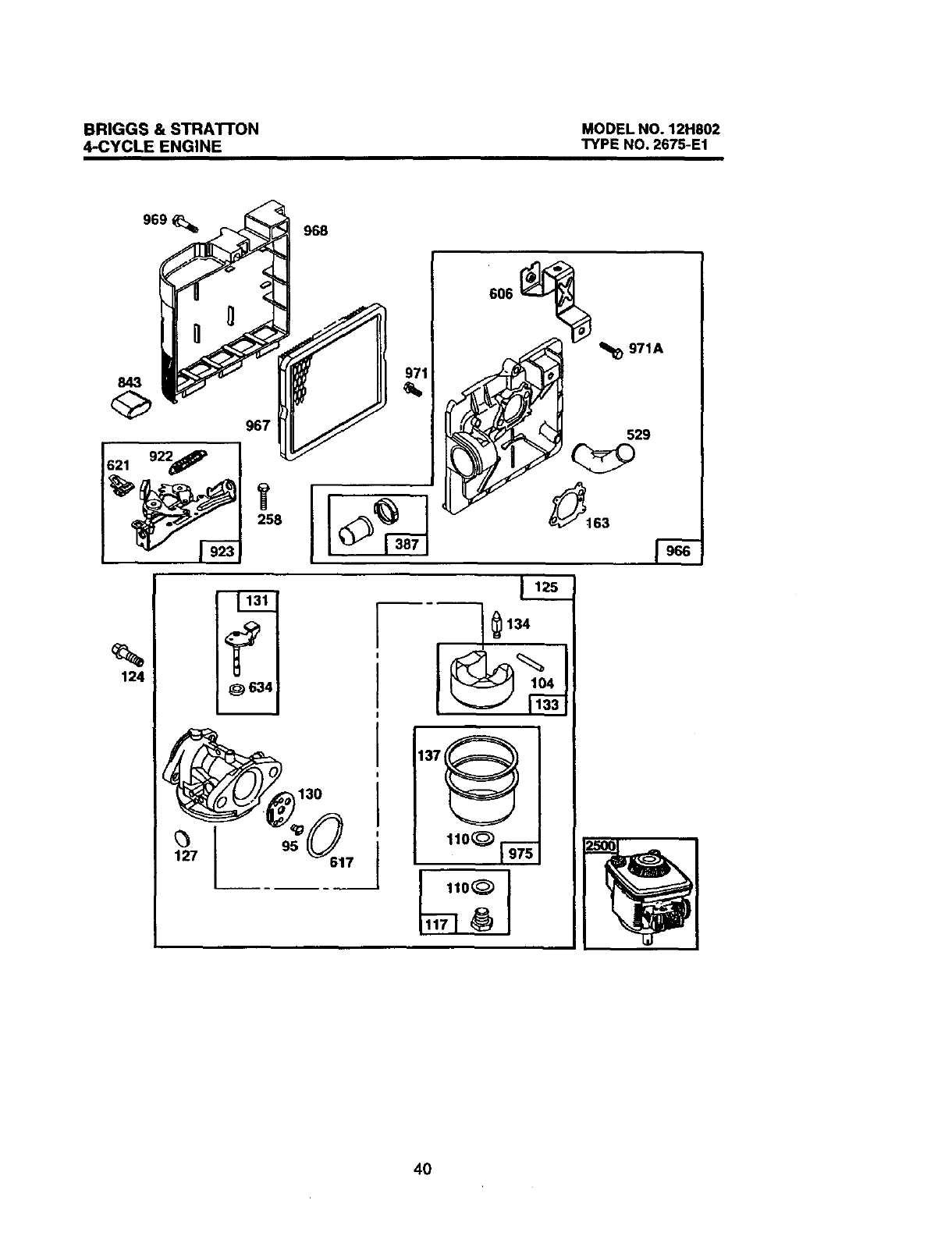

BRIGGS & STRA'I-I'ON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

843

124

969

967

,--EZ

_634

1_27

968

_i_1

606

_l_ 971A

163

_134

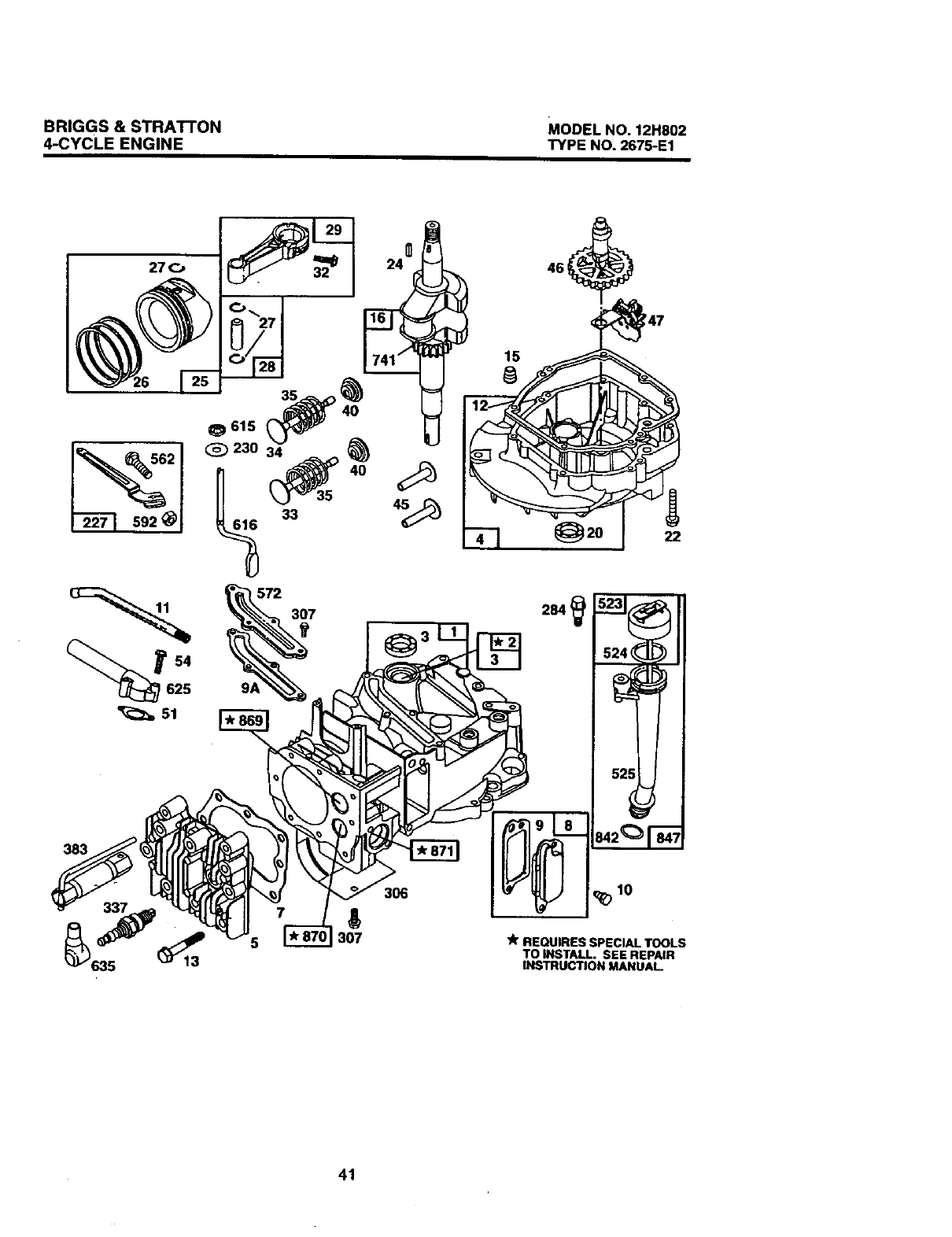

BRIGGS & STRATI'ON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

0615 _40

_) 23O 34

572

307

4s_

'-7

284'

_47

383

3O6

307 REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL

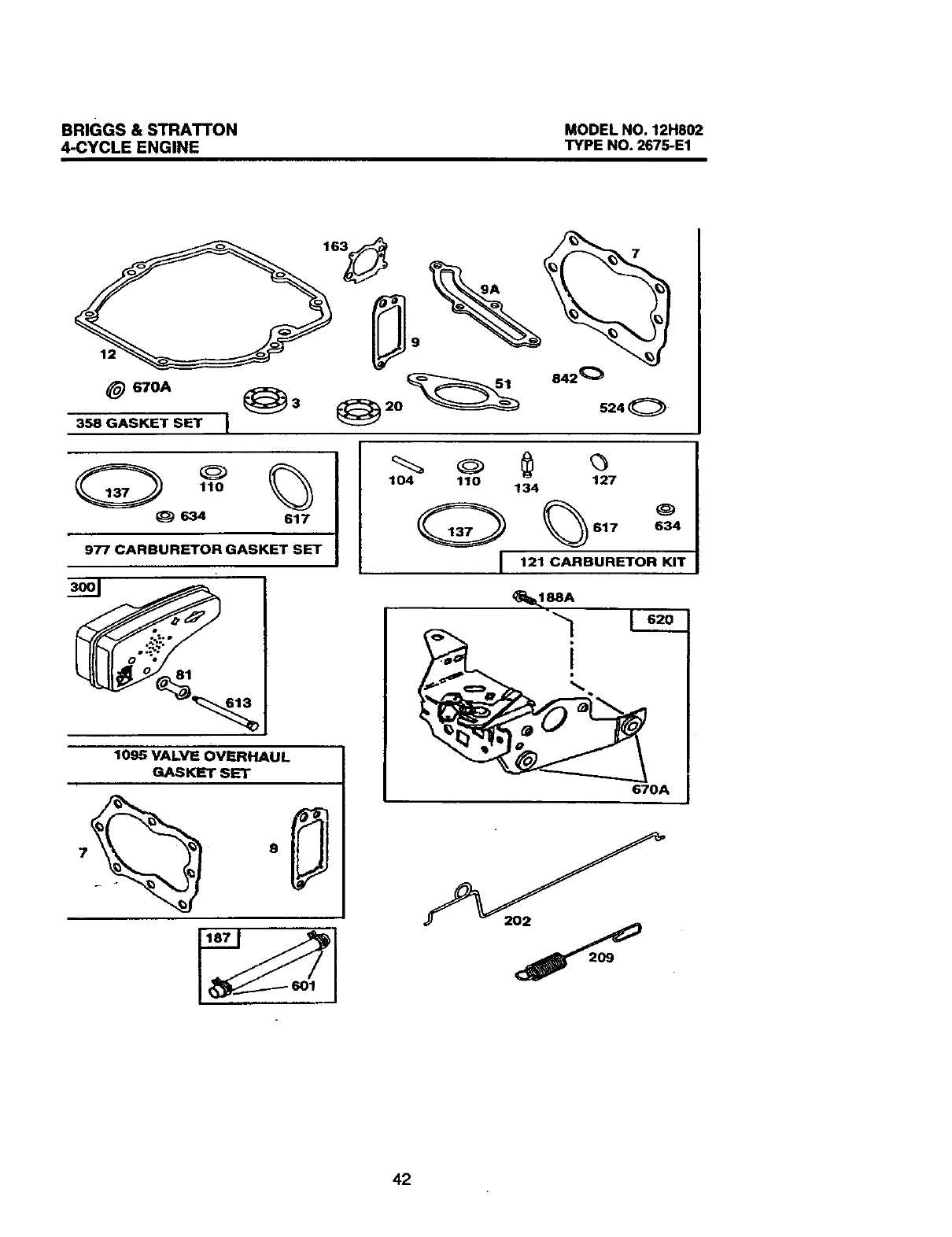

BRIGGS & STRATTON MODEL NO. 12H802

TYPE NO. 2675-E1

4-CYCLE ENGINE

_) 670A _3

358 GASKET SET

110

_634 617

977 CARBURETOR GASKET SET

20 524 (_

1095 VALVE OVEIRHAUL

GASKET SET

104 110 127

134 °

817 634

121 CARBURETOR KIT

67OA

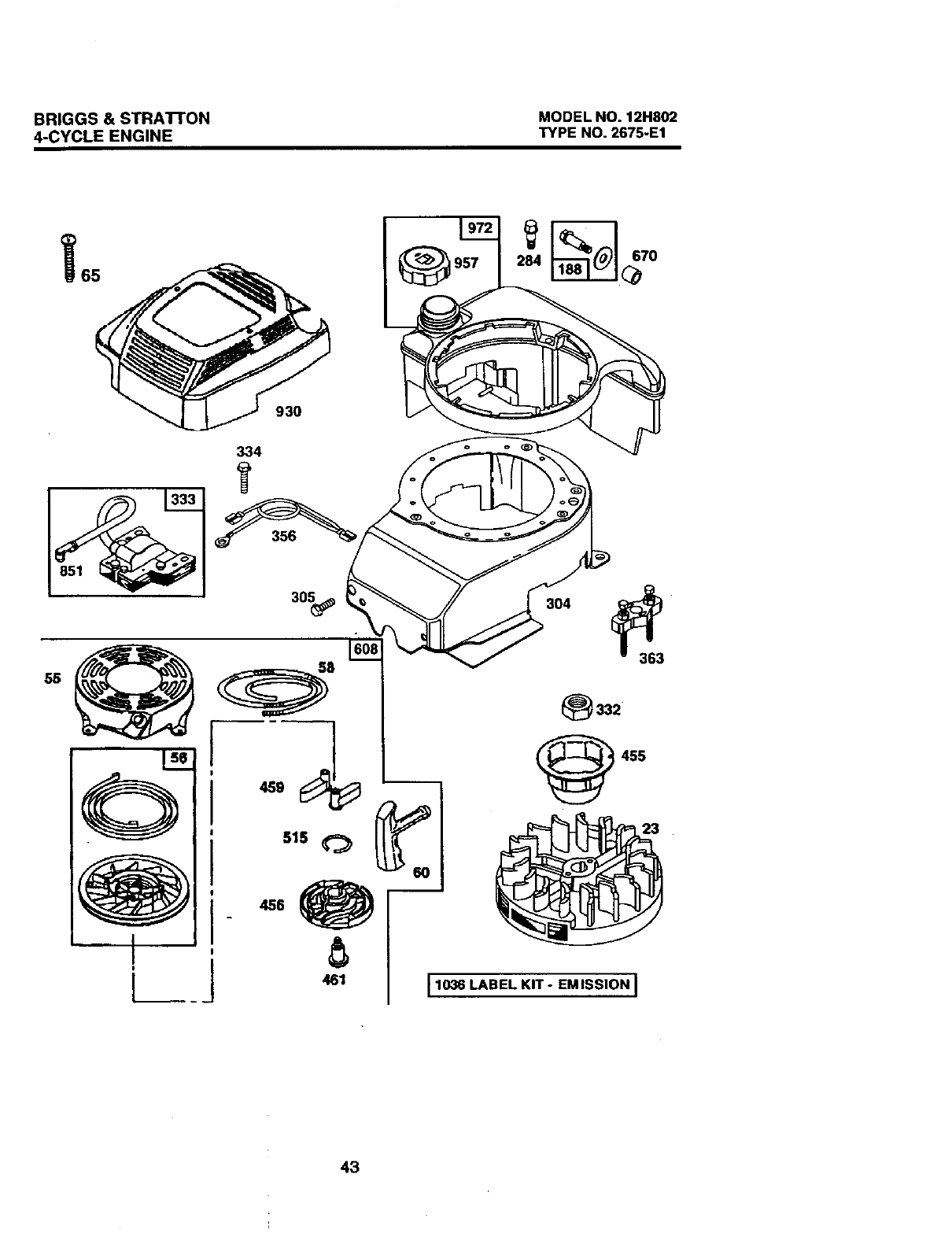

BRIGGS & STRATrON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

930

334

3o_

I_ 456

455

11036 LABEL KIT- EMISSION I

BRIGGS & STRA'I-rON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

KEY PART

NO. NO,

1 493260

2 399269

3 299819

4 493279

5 214368

7 272916

8 498786

9 272481

9A 272238

10 94650

11 231933

12 272198

13 94547

15 94720

16 498565

94388

20 399781

22 94220

94612

23 492177

24 222698

25 499429

26 499425

27 263190

28 499423

29 499424

32 94699

33 262651

34 262652

35 262224

40 93312

45 262204

46 498275

DESCRIPTION KEY PART

NO. NO. DESCRIP_ON

Cylinder Assembly 47 493737

Bushing, Cylinder 51 272199

•Seal, Oil 54 94526

Sump, Engine 55 4974420

Head, Cylinder 56 498144

.... Gasket, Cylinder Head 58 280399

Breather Assembly

.... Gasket, Valve Cover 60 281434

* Gasket, Baffle Plate 65 94696

Screw, Hex Head 81 223664

Tube, Breather 95 94098

•Gasket, Crankcase 104 231371

Screw, Cylinder Head 110 - - -

Plug, Oil Drain

Crankshaft 117 494870

Timing Gear Key 121 498260

* Seal, Oil 124 94525

Screw, Hex Head

Screw, Hex Head 125 498170

(Used in Hole Nearest 127 - - -

Breather)

Flywheel 130 224908

Key, Flywheel 131 493267

Piston Assembly, 133 398187

Standard Size 134 398188

Ring Set, Piston,

Standard Size 137 - - -

Lock, Piston Pin

Pin, Piston, Standard 163 272653

Size 187 492790

Rod, Connecting 188 398540

Screw, Connecting ROd 188A 94644

Valve, Exhaust 202 262579

Valve, Intake 209 263044

Spring, Valve

Retainer, Valve Spdng

Tappet, Valve

Gear, Cam "*

NOTE:

Slinger, Oil

•Gasket, Intake Elbow

Screw, Hex Head

Housing, Rewind Starter

Pulley, Rewind Starter

Rope, Rewind Starter

(CotTo88-5/8")

Grip, Starter Rope

Screw, Phillips

Lock, Muffler Screw

Screw, Round Head

** Pin, Float Hinge

*** Gasket, Sealing (Sold in

Kit Only)

Jet, Main

Carburetor Kit

Screw, Carburetor

Mounting

Carburetor

"• Plug, Welch (Sold in Kit

Only)

Valve, Throttle

Shaft, Throttle

Roat, Carburetor

Valve, Inlet (Includas

Seat)

"** Gasket, Bowl (Sold in Kit

Only)

• Gasket, Air Cleaner

Hose, Fuel

Screw, Hax Head

Screw, Has Head

Link, Governor

Spring, Governor

Includedin Gasket Set (497316)

thduded in Carburetor Kit (498260)

Includedin bothCarburetorKit (498260),

and CarburetorGasket Set (498261)

Includedin bothGasket Set (497316),

and Valve overhaul Gasket Set (498528).

Allcomponentdimensionsgiven inU.S. inches

1 inch= 25A mm

BRIGGS & STRATTON MODEL NO. 12H802

4-CYCLE ENGINE TYPE NO. 2675-E1

KEY PART

NO. NO.

227 492349

230 67072

258 94512

284 94511

300 497838

304 493293

305 94744

306 224324

307 94515

332 94877

333 802574

334 94731

337 802592

356 497833

358 497316

363 19069

383 89838

387 496115

455 225121

466 281503

459 281505

461 94943

515 263073

523 495264

524 280393

525 495265

529 281299

562 94852

572 224328

592 231082

601 93053

606 224815

608 497680

Includes:

94904

949O8

613 94231

615 94474

616 263175

617 270344

620 499135

621 396847

625 497465

DESCRIPTION

Lever, Governor

Washer, Thrust

Screw, Hex Head

Screw. Hex Head

Muffler, Exhaust

Housing, Blower

Screw, Sems

Shield, Cylinder

Screw, Hex Head

Nut, Flywheel

Armature, Magneto

Screw, Sems

Plug, Spark

Wire, Ground

Gasket Set

Puller. Flywheel

Wrench, Spark Plug

Primer, Carburetor

Cup, Starter

Retainer, Starter

Pawl, Rachet

Screw, Shoulder

Spring, Retainer

Cap, Oil Filler

"Seal, Filler Tube

Tube, Oil Fill

Grommet

Bolt, Governor Lever

Baffle, Cylinder

Nut, Hex

Clamp, Hose

Strap, Bracket

Starter, Rewind

Screw, Hex

NuL Hex

Screw, Hex Head

Fastener

Crank, Governor

*** Seal, Intake Elbow

Bracket, Carburetor

Switch, Stop

Tube, Fuel Intake

KEY PART

NO. NO. DESCRIPTION

634 - - - *** Washer, Shaft (Sold in

Kit Only)

635 66538 Elbow, Spark Plug

670 280512 Spacer, Fuel Tank

670A 493823 " Spacer, Bracket

741 262598 Gear, "riming

842 280966 "Seal, O-Ring

843 272616 Sleeve, Lever

847 495263 Tube Assembly, Oil

851 493880 Terminal, Ignition Cable

869 213512 Seal Intake Valve

870 213513 Seat, Exhaust Valve

871 262001 Guide, Exhaust Valve

63709 Guide, Intake Valve

922 262640 Spdng, Brake

923 493442 Brake Assembly

930 497233 Guard, Finger

957 397974 Cap, Fuel Tank

966 496116 Base. Air Cleaner

967 491588 Filter, Air

968 281340 Cover, Air Cleaner

969 94872 Screw, Hex Head

971 94873 Screw, Hex Head

971A 94749 Screw, Hex Head

972 495224 Tank, Fuel

975 493640 Bowl, Float

977 498261 Gasket Set, Carburetor

1036 499341 Label Kit. Emission

1095 498258 Gasket Set, Valve

Overhaul

2500 123802-2915 Replacement Engine

498826 Replacement Shortblnck

RPM Settings: Low: 1900-2100; High:

3000-3200

Includedin Gasket Set (497316)

*" Includedin CarburetorKit (498260)

*** Includedin bothCarburetorKit (498260),

and CarburetorGasket Set (498261)

"" Includedin bothGasket Set (497316),

and Valve dverhaulGasket Set (498528).

NOTE: Allcomponentdimensionsgivenin U.S. inches

1 inch= 25.4 mm

SERVICE NOTES

For the repair or replacement parts you need

delivered directly to your home

Call 7 am - 7 pm, 7 days a week

1-800-366-PART

(1-800-366-7278)

Para ordenar piezas con entrega a

domicilio - 1-800-659-7084

For in-house major brand repair service

Call 24 hours a day, 7 days a week

1-800-4-REPAIR

(1-800-473-7274)

Para pedir servicio de reparaci6n a

domicilio - 1-800-676-5811

For the location of a Sears Parts and

Repair Center in your area

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

Call 9 am - 5 pm, Monday-Saturday

1-800-827-6655

When requesting service or ordering

parts, always provide the following

information:

•Product Type =Part Number

• Model Number •Part Description

SEARS

America's Repair Speciatlsts

166078 10.14.98 TR Printedin U.S.A.

Craftsman 917377553 User Manual ROTARY MOWER Manuals And Guides 98120005

CRAFTSMAN Walk Behind Lawnmower, Gas Manual 98120005 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
